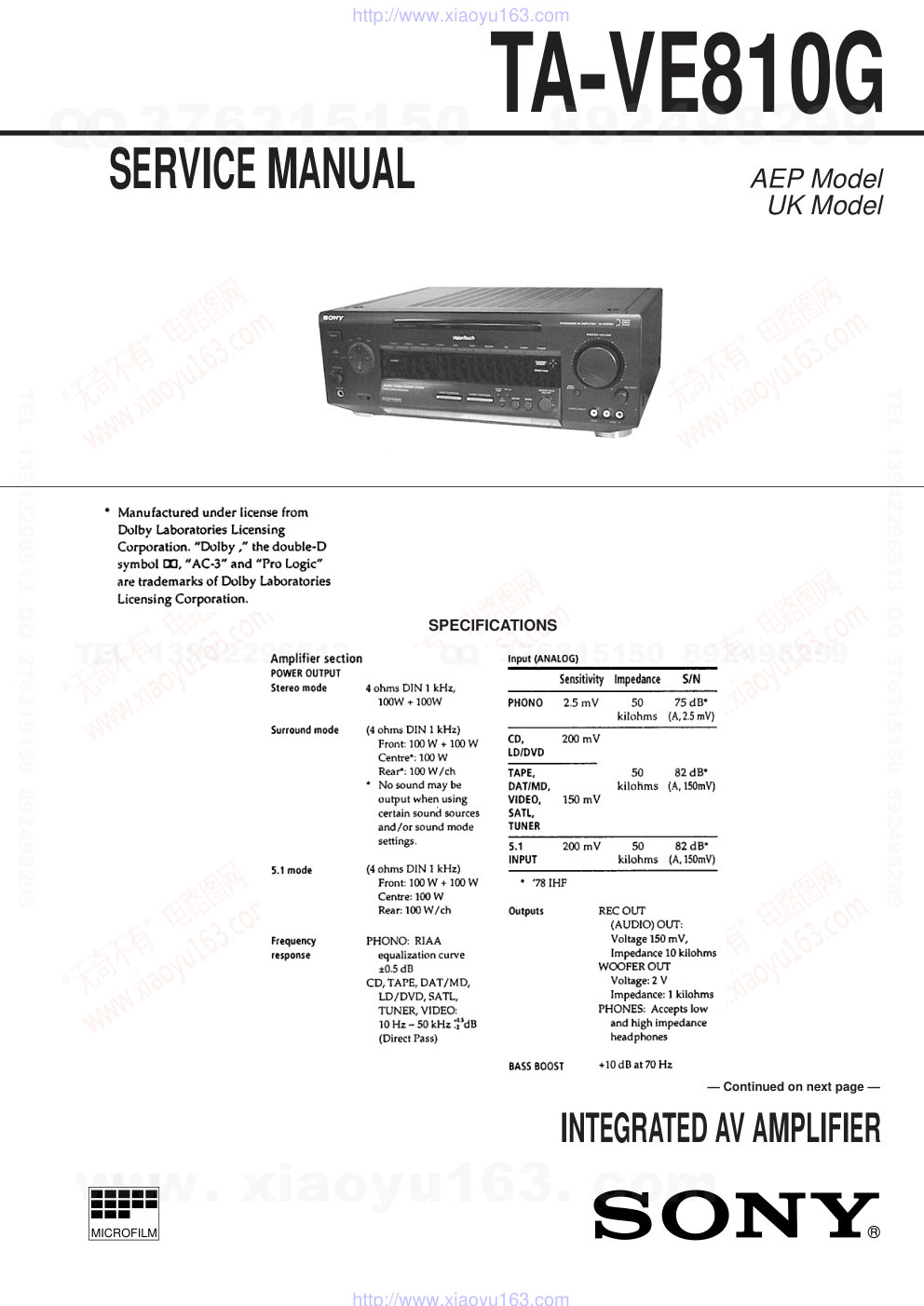

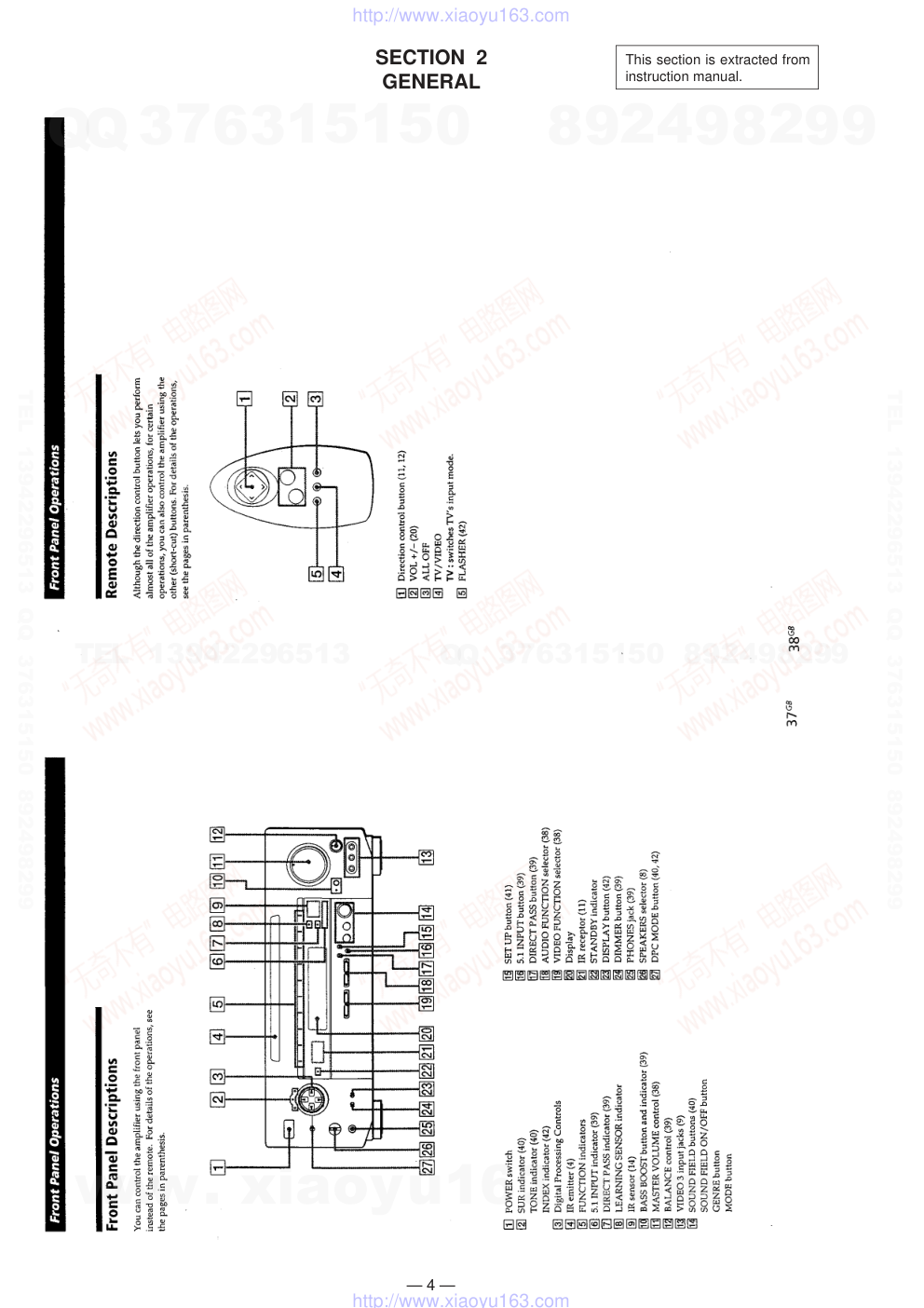

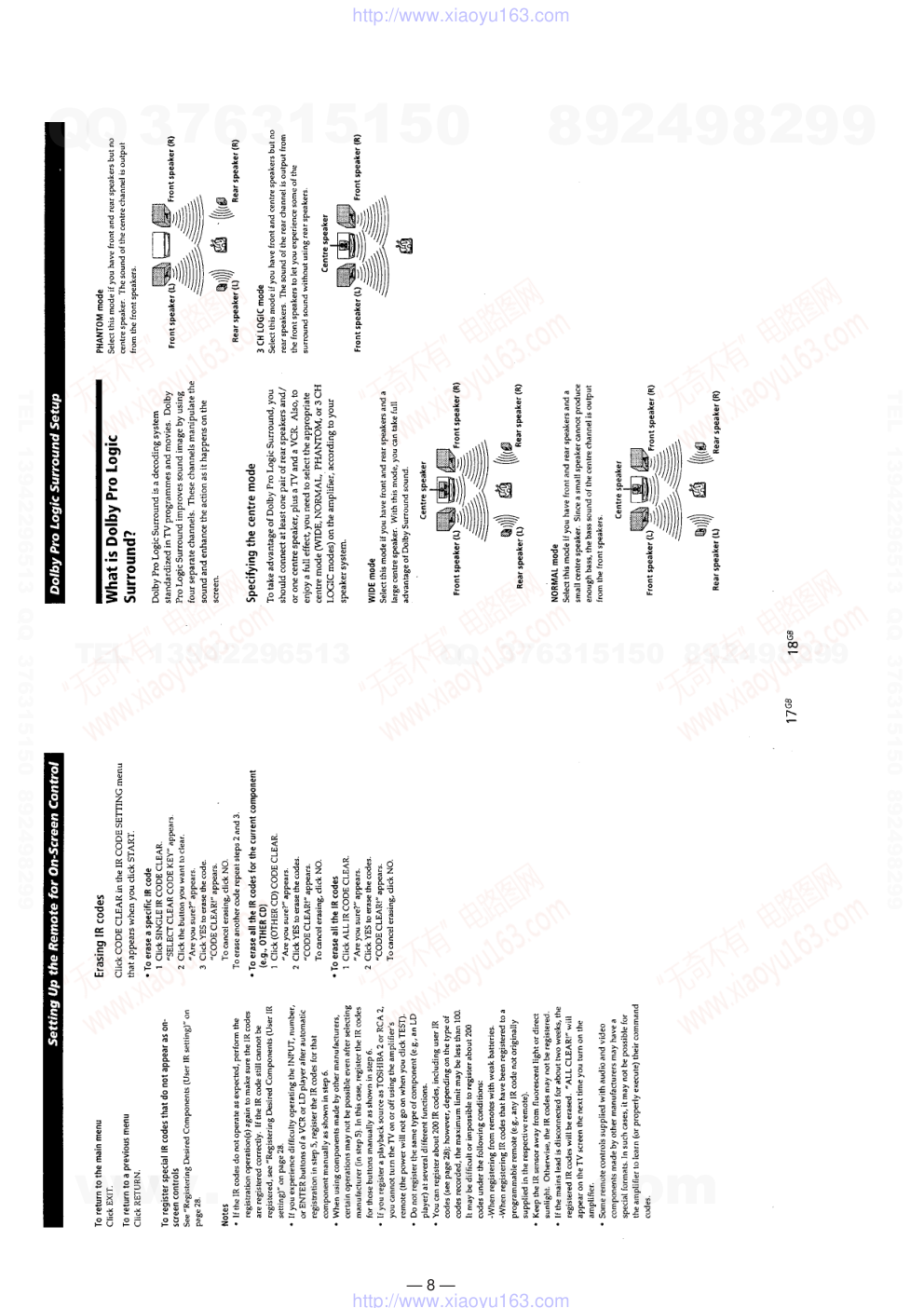

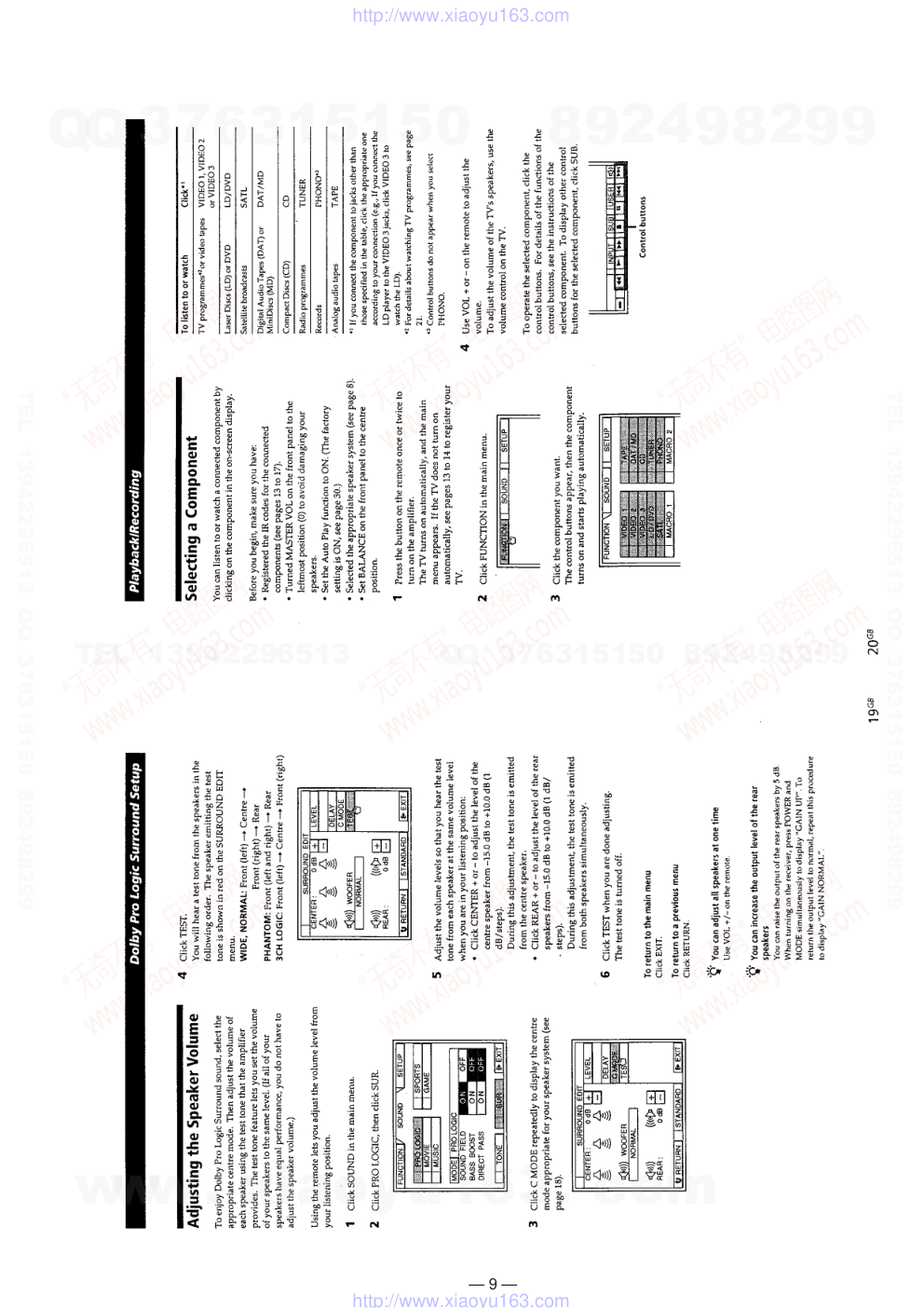

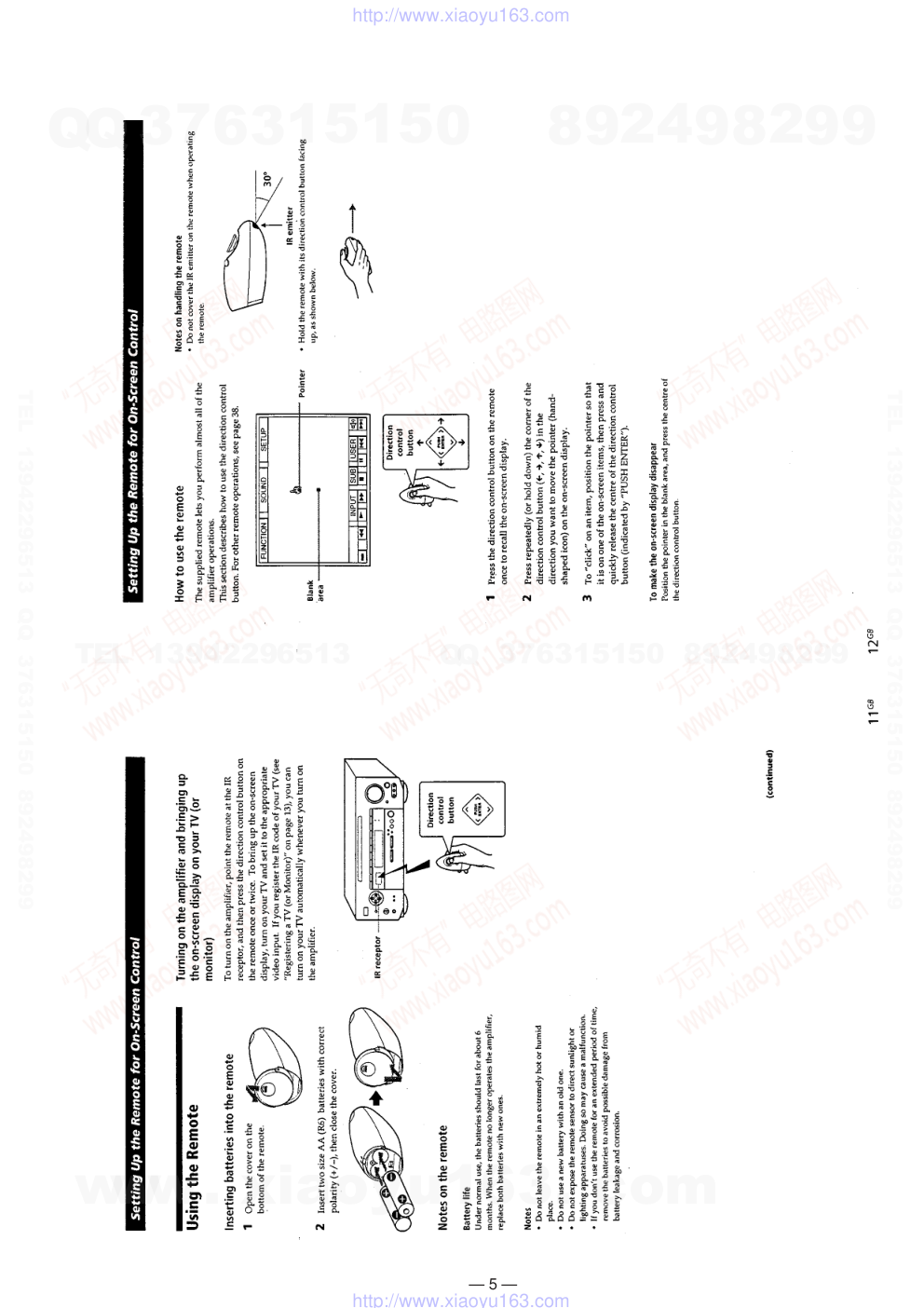

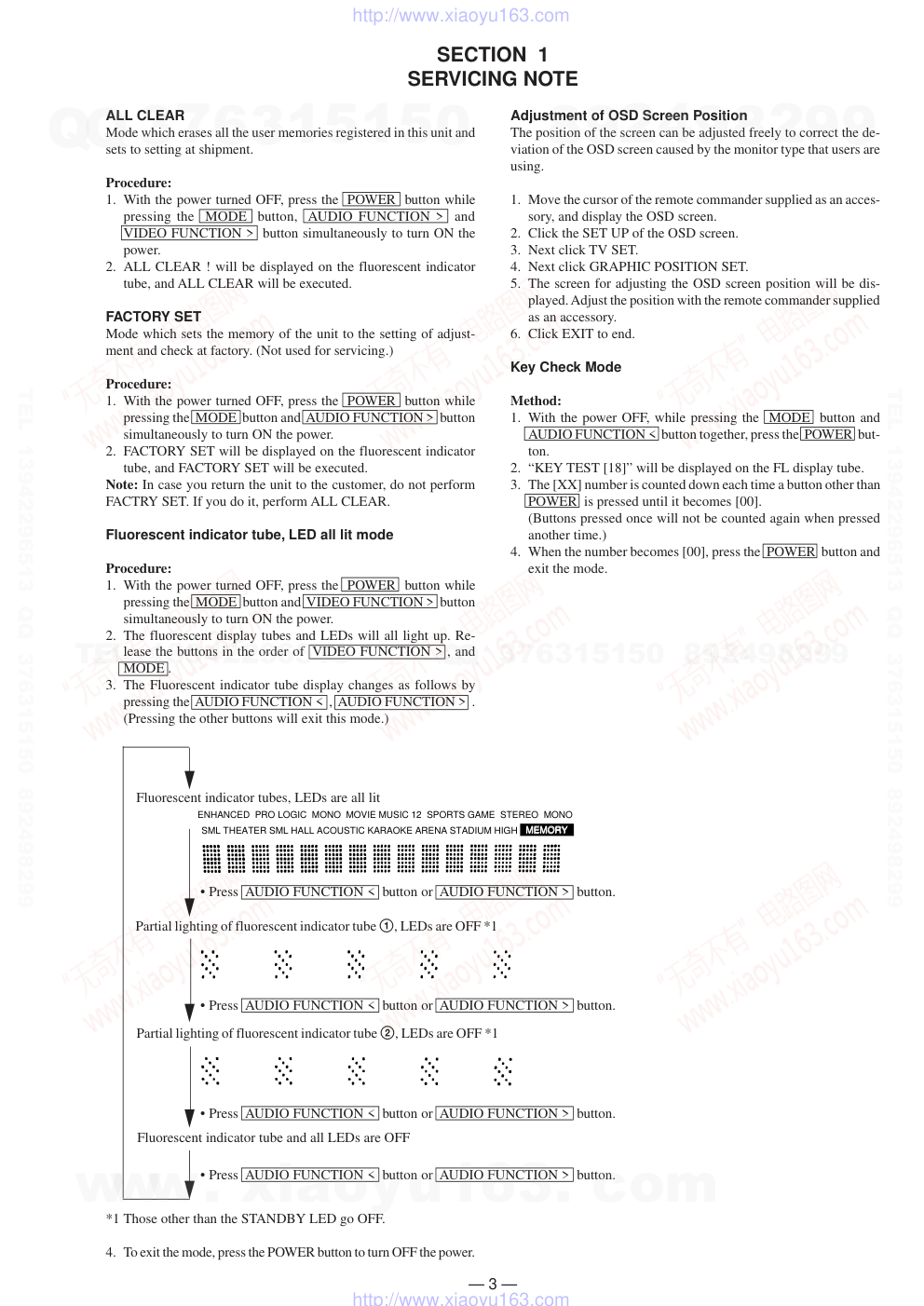

— 1 — SERVICE MANUAL MICROFILM AEP Model UK Model INTEGRATED AV AMPLIFIER SPECIFICATIONS — Continued on next page — www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 2 — MODEL IDENTIFICATION — BACK PANEL — Parts No. Parts No. Model 4-989-880-5 4-989-880-6 AEP, German, East European model UK model TABLE OF CONTENTS 1. SERVICING NOTE .......................................................... 3 2. GENERAL .......................................................................... 4 3. DISASSEMBLY 3-1. Front Panel .......................................................................... 22 3-2. Balance Board, Display Board and Volume Board ............. 22 4. ELECTRICAL ADJUSTMENTS ............................... 23 5. DIAGRAMS 5-1. Circuit Boards Location ...................................................... 24 5-2. Printed Wiring Board — Dolby Surround Section — ........ 26 5-3. Schematic Diagram — Dolby Surround Section — ........... 29 5-4. Schematic Diagram — OSD Section — ............................. 33 5-5. Printed Wiring Board — OSD Section — .......................... 37 5-6. Printed Wiring Board — Power Amp Section — ............... 41 5-7. Schematic Diagram — Power Amp Section — .................. 45 5-8. Schematic Diagram — Panel Section — ............................ 49 5-9. Printed Wiring Board — Panel Section — ......................... 53 5-10. IC Block Diagrams ........................................................... 57 5-11. IC Pin Functions ............................................................... 62 6. EXPLODED VIEWS 6-1. Case Section ........................................................................ 69 6-2. Front panel Section ............................................................. 70 6-3. OSD Board Section ............................................................. 71 6-4. Chassis Section ................................................................... 72 7. ELECTRICAL PARTS LIST ........................................ 73 Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. SAFETY-RELATED COMPONENT WARNING !! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 3 — ALL CLEAR Mode which erases all the user memories registered in this unit and sets to setting at shipment. Procedure: 1. With the power turned OFF, press the POWER button while pressing the MODE button, AUDIO FUNCTION > and VIDEO FUNCTION > button simultaneously to turn ON the power. 2. ALL CLEAR ! will be displayed on the fluorescent indicator tube, and ALL CLEAR will be executed. FACTORY SET Mode which sets the memory of the unit to the setting of adjust- ment and check at factory. (Not used for servicing.) Procedure: 1. With the power turned OFF, press the POWER button while pressing the MODE button and AUDIO FUNCTION > button simultaneously to turn ON the power. 2. FACTORY SET will be displayed on the fluorescent indicator tube, and FACTORY SET will be executed. Note: In case you return the unit to the customer, do not perform FACTRY SET. If you do it, perform ALL CLEAR. Fluorescent indicator tube, LED all lit mode Procedure: 1. With the power turned OFF, press the POWER button while pressing the MODE button and VIDEO FUNCTION > button simultaneously to turn ON the power. 2. The fluorescent display tubes and LEDs will all light up. Re- lease the buttons in the order of VIDEO FUNCTION > , and MODE . 3. The Fluorescent indicator tube display changes as follows by pressing the AUDIO FUNCTION < , AUDIO FUNCTION > . (Pressing the other buttons will exit this mode.) SECTION 1 SERVICING NOTE 9 Fluorescent indicator tube and all LEDs are OFF 9 9 Partial lighting of fluorescent indicator tube 2, LEDs are OFF *1 9 Partial lighting of fluorescent indicator tube 1, LEDs are OFF *1 9 Fluorescent indicator tubes, LEDs are all lit • Press AUDIO FUNCTION < button or AUDIO FUNCTION > button. • Press AUDIO FUNCTION < button or AUDIO FUNCTION > button. • Press AUDIO FUNCTION < button or AUDIO FUNCTION > button. • Press AUDIO FUNCTION < button or AUDIO FUNCTION > button. *1 Those other than the STANDBY LED go OFF. 4. To exit the mode, press the POWER button to turn OFF the power. MEMORY MEMORY SML THEATER SML HALL ACOUSTIC KARAOKE ARENA STADIUM HIGH ENHANCED PRO LOGIC MONO MOVIE MUSIC 12 SPORTS GAME STEREO MONO Adjustment of OSD Screen Position The position of the screen can be adjusted freely to correct the de- viation of the OSD screen caused by the monitor type that users are using. 1. Move the cursor of the remote commander supplied as an acces- sory, and display the OSD screen. 2. Click the SET UP of the OSD screen. 3. Next click TV SET. 4. Next click GRAPHIC POSITION SET. 5. The screen for adjusting the OSD screen position will be dis- played. Adjust the position with the remote commander supplied as an accessory. 6. Click EXIT to end. Key Check Mode Method: 1. With the power OFF, while pressing the MODE button and AUDIO FUNCTION < button together, press the POWER but- ton. 2. “KEY TEST [18]” will be displayed on the FL display tube. 3. The [XX] number is counted down each time a button other than POWER is pressed until it becomes [00]. (Buttons pressed once will not be counted again when pressed another time.) 4. When the number becomes [00], press the POWER button and exit the mode. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 4 — SECTION 2 GENERAL This section is extracted from instruction manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 5 — www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 6 — www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 7 — www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 8 — www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 9 — www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 10 — www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 11 — www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 12 — www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 13 — www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 14 — www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 15 — www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 16 — www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 17 — www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 18 — www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 19 — www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 20 — www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 21 — www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 22 — SECTION 3 DISASSEMBLY 3-1. FRONT PANEL 3-2. BALANCE BOARD, DISPLAY BOARD AND VOLUME BOARD 2 Screw (BVTP 3x8) 6 Flat type wire (19 core) (CNS402) 4 Flat type wire (17 core) (CNJ203) 3 Flat type wire (19 core) (CNS701) 1 Three screws (BVTP 3x8) 5 Three screws (BVTP 3x8) 8 Front panel 9 Flat type wire (19 core) (CNS105) 7 Remove the connector (CNS410) 1 Knob (Volume) 2 Nut 3 Knob (Balance) 6 Bracket 5 BALANCE board and VOLUME board 4 Two screws (BVTP 2.6x8) 9 DISPLAY board 7 Six screws (BVTP 2.6x8) 8 Remove the four claws. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 23 — SECTION 4 ELECTRICAL ADJUSTMENT OSD COLOR BURST Adjustment Connection: Procedure: 1. Without anything connected to the external input terminal, press the POWER button and turn ON the power. 2. Adjust CT202 of the OSD board so that the reading on the fre- quency counter becomes 4.433619 MHz ± 10 MHz. Adjustment Location [ S-VIDEO BOARD ] — Component Side — OSD WIDTH Adjustment Note: Perform “ALL CLEAR” before this adjustment. (Refer to Servicing note on page 4) Connection: frequency counter OSD board JW210 + – Procedure: 1. Press the POWER button and turn ON the power. 2. The OSD function frame will be displayed on the monitor. This screen will disappear in a few seconds automatically when the input of codes using the remote commander stops. If it disappears during adjustments, move the cursor of the re- mote commander supplied as an accessory. The screen will ap- pear again. 3. While watching the monitor screen, adjust CT201 of the OSD board so that the following adjustment standard is satisfied. Adjustment standard: Adjust so that the width B becomes one and a half times of width A. 1.5A = B NOTE: Extra margin is provided in this adjustment in consideration of the deviation of the screen according to the type of monitor used. Consequently, the user is able to adjust the position of the screen freely. (For details, refer to “Adjustment of OSD Screen Position” in 1. Servicing note. Refer to page 4.) monitor screen FUNCTION SOUND SETUP INPUT SUB USER �™ �+ �= �P �p �) �( �0 �1 A B OSD function frame 20 2 21 1 TM201 J202 CNS213 !¶ pin (VOUT-GND) !ª pin (VOUT) OSD WIDTH [ OSD BOARD ] — Component Side — CT201 OSD Width CT202, JW210 OSD COLOR BURST CT201 IC206 CT202 IC205 JW210 CNP202 S-VIDEO board TM201 !ª (VOUT) SET Monitor S-VIDEO board TM201 !¶ (VOUT-GND) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 24 — — 25 — SECTION 5 DIAGRAMS 5-1. CIRCUIT BOARDS LOCATION VOLUME board STAND BY board S-A-P board REAR AMP board SW board BALANCE board SURR-AUDIO board AUDIO board SP board SECONDARY board DISPLAY board MEMORY board VIDEO 3 board L.B SW board 5.1 IN board JOINT (B) board OSD board S-VIDEO board JOINT (OSD) board AMP board AUDIO SW board H. P board SP SW board AMP. JOINT (R) board SURR board AMP. JOINT (F) board w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 57 — — 58 — 5-10. IC BLOCK DIAGRAMS • DOLBY SURROUND Section 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 CONTROL LATCH SHIFT RESISTOR LEVEL SHIFT CL DI CE VEE OUT IN OUT IN OUT IN VSS S RESET VDD OUT IN IN OUT IN OUT IN IC301, 303 LC7822 L1 1 L2 2 L COM 1 3 R1 R2 R COM 1 30 29 28 L7 10 L COM 4 11 VEE 12 R7 R COM 4 VDD 21 20 19 L5 7 L6 8 L COM 3 9 R5 R6 R COM 3 24 23 22 L3 4 L4 5 L COM 2 6 R3 R4 R COM 2 27 26 25 RES 18 S 17 VSS 16 CE 13 DI 14 CL 15 CONTROLLER LEVEL SHIFTER LATCH SHIFT REGISTER IC406 LC7823 IC501 uPC2581V PROTECTOR DRIVE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 PRE DRIVE PRE DRIVE BIAS CIRCUIT REG DRIVE MUTE +VOUT1 –VOUT1 COMP1 NF1 IN1 GND IN2 NF2 COMP2 –VOUT2 +VOUT2 VCC1 VCC2 VEE IC502 TC9184P 16 15 14 13 12 11 10 9 1 2 3 4 5 6 7 8 S. DATA T. LAT +9V –9V GND S. CLK TONE CE BASS + BASS – COM TREBLE – TREBLE + BASS + BASS – COM TREBLE – TREBLE + 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 AVDD AVss DVss XOUT XIN LO3 LO2 LO1 REQ SCK DATA TEST CNT TEST CNT Normaiy GND DVDD MIC IN AGND -9.2dB SELECTOR 3 L L S' +9.2dB C C R R SELECTOR 2 SMRI SMRO CMC SOUT ST COUT CT ROUT LOUT NGC1 VREFD MIX OUT DELAY IN LPF1 IN1 LPF1 IN2 LPF1 OUT AD INT IN AD INT OUT AD CONT DA CONT DA INT IN DA INT OUT LPF2 IN1 LPF2 IN2 LPF2 OUT 26 27 28 29 30 LPF CLK SCK DATA ATT L+R L+R REQ MCU INTERFACE CONTROL BPF BPF SERVO VCA AUTO BALANCE VOL VOL CENTER MODE A/D LOGIC 16KSRAM MIC 0dB MOS SFB MIX SU EC D/A LPF VOL OUT DELAY SIG IN DELAY SIG OUT FBIN EC FBIN SU S.OUT DBIN LPIN DBC1 DBC2 DBC3 PSC3 PSC6 PSC2 PSC5 PSC1 PSC4 RLC5 RLC2 RLC1 RLC4 RLC7 RLC3 RLC8 NGC2 NGC3 IREF VREFG VREFA AVcc HOLDC RIN LIN RT LT RBPF RLI LBPF LLI RLC6 31 32 33 34 35 36 37 38 39 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 40 + – – + S. 2 2 + – + – SELECTOR 1 ∑ ∑ L+R L–R VCA COMBINNING NETWORKS SELECTOR IREF VREF NOISE SEQUENCER –/+ MODIFIED B-TYPE NR DECODER FULL WAVE RECTIFIER LOG DIFFERENCE AMPLIFIER DUAL-TIME CONSTANT AND THRESHOLD SWITCHES VOL IC401 M62460FP IC601 STK350-230 1 2 3 4 5 6 7 8 9 TR3 R1 R2 TR4 TR6 TR7 R4 R9 TR5 TR1 TR2 R6 D4 D3 R7 R8 TR8 D1 D2 R5 R3 INPUT NF -VEOUT +VEOUT VSS GND VCC SUB w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 59 — — 60 — • OSD Section IC202 uPD4053BC IC205 MB90095PF-186-BND 1 2 3 4 5 6 7 8 9 15 10 11 12 13 14 16 VDD B. COM A. COM A1 A0 A B C B1 B0 C1 C. COM C0 INH VEE VSS 27 GND 28 26 25 YOUT COUT VOUT 1 2 3 4 ANALOG SWITCH 24 23 SERIAL INPUT CONTROL VIDEO SIGNAL GENERATOR CS S.DATA S.CLK 22 21 TEST YIN CIN VIN AVCC 5 6 7 8 FSCO VBLK VCC EXS 4FSC CLOCK OSC 9 TO BLOCK 20 19 18 17 OUTPUT CONTROL NTSC/PAL SIGNAL GENERATOR 10 11 XS HSYNC VSYNC VOC1 VOC0 VOC2 VOB DISPLAY MEMORY CONTROL CGROM 12 13 EXHSYN EXVSYN 14 GND 16 XD EXD 15 TO BLOCK H/V SEPARATOR VRAM DOT CLOCK OSC IC210 LA7217 NC Vcc AFC CTL VCO OUT VCO IN HD OUT DET OUT GND EXC VD OUT 4 SYNC OUT 3 F.B CLAMP 2 VIDEO IN 1 NC AFC 32FH VCO LOCK DET COUNT DOWN SYNC SEP V.SEP 14 13 12 11 10 9 8 7 6 5 IC211 SN761200 1 2 3 4 5 6 7 8 9 15 10 11 12 13 14 16 DECODER DECODER MONITOR OUT GND IN5 GND IN4 CTL E IN3 CTL D 6dB 6dB IN1 CTL A V OUT1 VCC IN2 CTL B V OUT2 CTL C 10 1 2 9 3 8 4 7 5 6 DET. ADJ Vcc FSC. IN HPF. MONI DET. OUT SYNC+BGP. IN GND FILT APF. MONI CHROMA. IN SW LIM AMP FREQUENCY PHASE CONVERTER (APF) PD1 S&H TIMING GEN 1HDL PD2 LPF COMP IC212 LA7356 IC216, 218 SN74HC373AN GND 5D 6D 6Q 7Q 7D 8D 8Q VCC 20 19 18 17 16 15 14 13 12 11 1 2 3 4 5 6 7 8 9 10 4D 4Q 3D 3Q 2D 2Q 1D 1Q OC OUTPUT CONTROL D Q OE C Q D OE C D Q OE C Q D OE C Q D OE C Q D OE C OE (ENABLE) 5Q C Q D C OE Q D C 1 2 3 4 5 6 7 8 V+ VSB/SESIN VSA RESET GND OUTC VSC CR VREF + – – + – + – + Q R S IC901 NJM2103D • POWER AMP Section www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 61 — IC102 M66004AFP-M6 • PANEL Section SEGMENT OUTPUT CIRCUIT (35BIT x 16) DECODER INDICATION CODE RESISTOR (8BIT x 16) DECODER (35BIT x 16) CODE/COMMAND CONTROL CIRCUIT INDICATION CONTROL RESISTOR INDICATION CONTROLLER DIGIT OUTPUT CIRCUIT CODE WRITE CODE SELECT SERIAL RECEIVE CIRCUIT OUTPUT PORT (2BIT) CLOCK GENERATOR CIRCUIT RAM WRITE 21 20 19 22 13 32 60 64 - 61 59 - 33 23 - 31 1 - 12 17 • 18 14 • 15 • 16 G13 | G16 VCC2 P1 | P27 VSS XIN XOUT VCC1 RST G12 | G1 VP CS SCK SDATA P36 | P28 IC106 BA6208 1 2 3 4 5 6 7 8 9 NC OUTPUT 2 Vcc GND NC INPUT 2 INPUT 1 NC MOTOR DRIVE MOTOR DRIVE REG SWITCH SWITCH OUTPUT1 IC105 M50255P 1 2 3 4 5 6 7 8 9 15 10 11 12 13 14 16 12BIT SHIFT REGISTER LATCH CIRCUIT BUFFER INPUT CONTROL CIRCUIT GND DATA CLK Q0 Q1 Q2 Q3 Q4 VDD Q11 Q10 Q9 Q8 Q7 Q6 Q5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 62 — 5-11. IC PIN FUNCTIONS • IC103 Mode Controller (MB90673PF-G-226-BND) O O O O O O I O I I – O O I O O O O I I O I/O O O O O – – I I – I I – I I I I O O Function 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 Pin Name Mute signal output to Rear power amp Latch output to Dolby surround processor Latch output to Tone controller Serial clock output to Dolby surround processor Serial data output to Dolby surround processor Latch output to PLL Auto-stop signal input from tuner (Not used) Mute signal output to tuner (Not used) Stereo-ID input from tuner (Not used) Serial data input from tuner Ground VIDEO CONTROL A signal output VIDEO CONTROL B signal output SIRCS input VIDEO CONTROL E signal output Video inhibit signal output (Not used) Serial data output to LED driver Serial clock output to LED driver Input of power key (Not used) Serial data input from OSD controller (U-ART0) Serial data output from OSD controller (U-ART0) Serial clock input/output with OSD controller (U-ART0) Clear signal output to FL driver Serial data output to FL driver Serial clock output to FL driver Chip select output to FL driver Ground +5V power supply Reference voltage input +5V (AD) Reference voltage input 0V (Ground) Ground Key input 1 (AD) Key input 2 (AD) Ground Key input 3 (AD) Key input 4 (AD) Key input 5 (AD) AD version setting input Volume motor control signal output Volume motor control signal output AC MUTE D. LAT T. LAT S. CLK S. DATA S. LAT AUTO STOP T. MUTE STEREO IF DATA IN VSS (D) V-A V-B RM INPUT V-E V-INH LED DATA LED CLR S. POWER RX (SIN) TX (SOUT) BUSY FL CLEAR FL DATA FL CLK FL LAT — VCC (A) +AVR –AVR GND (D) AD KEY IN 1 AD KEY IN 2 VSS (D) AD KEY IN 3 AD KEY IN 4 AD KEY IN 5 AD VERSION VOL + VOL – Pin No. I/O • Abbreviation FL : Fluorescent indicator tube www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 63 — I I I I I O – – I O O O O I I I – I – – – I – O I – – O – O O O O – I O O O O O Function Pin Name Mode setting pin (Fixed at “H”) Mode setting pin (Fixed at “H”) Mode setting pin (Fixed at “L”) Standby signal input of hardware STOP signal input LEARNING LED drive signal output Ground Ground CONTROL-A serial input (Not used) STANDBY LED drive signal output VOLUME LED drive signal output M-BUS output (Not used) CONTROL-A serial output (Not used) M-BUS (VIDEO 1) input (Not used) M-BUS (VIDEO 2) input (Not used) M-BUS (TV) input (Not used) Ground Speaker ON/OFF signal input Ground Ground Ground Reset input “L” reset Ground Clock output (4MHz) Clock input (4MHz) +5V power supply Ground Main power relay switching output Ground Surround relay switching output Center speaker switching output Front speaker switching output MIX/SUB switching output Ground Protector signal input Direct pass replay drive signal output Bass boost switching signal output Front/Center/Woofer line mute signal output Rear Lch line mute signal output Rear Rch line mute signal output MODE 0 MODE 1 MODE 2 STANDBY STOP LEANING LED — — CTRA IN STANDBY LED VOL LED S-OUT CTA OUT VIDEO 1 (MBUS) VIDEO 2 (MBUS) TV (MBUS) — SP OFF IN — — — RESET VSS (D) XO XI VCC (D) — POWER RY BRIDGE RY SUR RY CENTER RY FRONT RY (H.P) MIX/SUB RY — PROTECT IN DIRECT PASS BASS BOOST F/C/W/ MUTE SL MUTE SR MUTE Pin No. I/O 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 64 — • IC205 OSD (MB90095PF-G-186-BND) Pin Name YIN CIN VIN AVCC FSCO VBLK VCC EXS XS HSYNC VSYNC EXHSYN EXVSYN GND EXD XD VOB VOC 2 VOC 1 VOC 0 TEST S. CLK S. DATA CS VOUT COUT YOUT AGND Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 I/O I I I – O O – I O O O I I – I O O O O O I I I I O O O – Function Luminous signal input for superimpose displays (Not used) Chroma signal input for superimpose displays (Not used) Composite signal input for superimpose displays Power supply (+5V) (Analog) Color burst phase signal output Vertical blanking period output (Not used) Power supply (+5V) External circuit of the clock generator for color burst signals (17MHz) External circuit of the clock generator for color burst signals (17MHz) H. SYNC/COMPOSIT SYNC signal output V. SYNC signal output (Not used) External H. SYNC signal input External V. SYNC signal input Ground External circuit of the display dot clock generator External circuit of the display dot clock generator Character and background period signal output (Not used) Chroma signal output (Not used) Chroma signal output (Not used) Chroma signal output (Not used) Test pin Shift clock input for serial transmission Serial data input Chip select input Composite video signal output Chroma signal output (Not used) Luminous signal output (Not used) Ground (Analog) • Abbreviation OSD: On Screen Display www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 65 — • IC209 OSD Controller (MB90672PF-G-125-BND) Pin Name AD14, AD15 A16 to A19 PCE PCLK PDATA OUT PDATA IN GND ALE RDX WRLX WRHX MONITOR VIDEO 2 STATUS-OUT VIDEO 1 RX (SIN) TX (SOT) P PRES TEST 1 DATA (OSD) CLK (OSD) LAT (OSD) — AVCC AVR + AVR – AVSS VOLA/D PREADY GND PSTATUS OK MEMORY FULL BACK UP NG NG P–IR Pin No. 1, 2 3 to 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 I/O I/O O O O O I – O O O O I I O I I O O O O O O – – – – – I I – I I I I I I Write strobe output to data bus Function Address bus and data bus input/output Address bus output Chip Enable output to RC controller (For communication using personal computers) Clock output to RC controller (For communication using personal computers) Data output to RC controller (For communication using personal computers) Data input from RC controller (For communication using personal computers) Ground Address latch enable output Read strobe output to data bus Control-S input (Monitor) (Not used) Control-S input (VIDEO 2) (Not used) Control-S status output (Not used) Control-S input (VIDEO 1) Serial data input from mode control (U-ART0 reception) Serial data output to mode control (U-ART0 transmission) Reset output (For communication using personal computers) (Not used) Test port (Open) Serial data output to OSD Serial clock output to OSD Latch output to OSD Not used Power supply (+5.6V) Power supply (+5V) Ground Volume control signal input (Not used) Learning code reception ready signal input “L” : nothing Ground Infrared rays transmission data status signal input from to RC controller Learing OK signal input from RC controller Memory full signal input from RC controller Back up NG signal input from RC controller Learning NG signal input from RC controller Input to the integral calculus circuit of the remote control reception signal • Abbreviation OSD: On Screen Display www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 66 — Pin Name MODE 0 MODE 1 MODE 2 HSTX STOP IR-IN (A6) — AUBUS IN V. SIGNAL SIRCS-IN VD AUBUS OUT F. SW VIDEO-MUT — IR ON/OFF BUSY RESET GND XO XI VCC AD00 to AD13 Pin No. 41 42 43 44 45 46 47, 48 49 50 51 52 53 54 55 56 to 59 60 61 62 63 64 65 66 67 to 100 I/O I I I I I I – I I I I O O O – O O I – O I – I/O Function Mode setting (Fixed at “H”) Mode setting (Fixed at “L”) Mode setting (Fixed at “L”) Hardware standby (Fixed at “H”) Request input of reset interrupt IR sensor remote control input (Not used) Not used S-LINK control A1 signal input H-sync switching signal input SIRCS signal input PAL: 60 [flame/s] signal detect VD input S-LINK control A1 signal output To control output into monitor Image mute output Not used IR remote control ON/OFF output “H” off Input/output to communicate with the display control Reset signal input Ground Clock (4 MHz) Clock (4 MHz) Power supply (+5.6V) Address bus and data bus input/output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 67 — • IC215 RC Controller (LC86F5864A-5F53) I I I I I O O O O O O O O O O O O O O O O O – – O O O O O O O O O O O O O O O O Function 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 Pin Name Chip enable input from OSD controller Chip enable input (For on-board) (Not used) Not used (Connector to ground) SIRCS signal input Power supply normality signal input Infrared rays transmission data status signal output to OSD controller “L” nothing Learning NG signal output to OSD controller Back-up NG signal output to OSD controller Memory-full signal output to OSD controller Learing OK signal output to OSD controller Data reception ready signal output to OSD controller Not used (Connected to ground) Not used (Connected to ground) Not used (Connected to ground) Not used (Connected to ground) Not used (Connected to ground) Not used (Connected to ground) Not used (Connected to ground) Not used (Connected to ground) Not used (Connected to ground) Not used (Connected to ground) Not used (Connected to ground) Ground +5V power supply Not used (Connected to ground) Not used (Connected to ground) Not used (Connected to ground) Not used (Connected to ground) Not used (Connected to ground) Not used (Connected to ground) Not used (Connected to ground) Not used (Connected to ground) Not used (Connected to ground) Not used (Connected to ground) Not used (Connected to ground) Not used (Connected to ground) Not used (Connected to ground) Not used (Connected to ground) Not used (Connected to ground) Not used (Connected to ground) P70/INT0 P71/INT1 P72/INT 2/TOIN P73/INT 3/TOIN P30 P31 P32 P33 P34 P35 P36 P37 P40 P41 P42 P43 P44 P45 P46 P47 P50/SDA P51/SCL VSS2 VDD2 P20/SDA P21/SCL P22/TXD P23/PXD P24/UCLK P25 P26 P27 P00 P01 P02 P03 P04 P05 P06 P07 Pin No. I/O • Abbreviation RC : Remote commander OSD: On Screen Display www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 68 — O I I – I I O O O I – – – I O – I I I I I I I I Function Pin Name Serial data output to OSD controller Serial data input to OSD controller Serial clock input from OSD controller Ground Serial data input (For on-board) (Not used) Serial clock input (For on-board) (Not used) Not used SIRCS signal output (Carrier = PWM output) Open Reset input “L” reset Not used (Connected to +5V) Not used (Connected to +5V) Ground Clock input (6MHz) Clock output (6MHz) +5V power supply Not used (Connected to ground) Not used (Connected to ground) Not used (Connected to ground) Not used (Connected to ground) Not used (Connected to ground) Not used (Connected to ground) Not used (Connected to ground) Not used (Connected to ground) P10/SOO P11/SI0/SB0 P12/SCKO P13/SO1 P14/SI1 P15/SCK1 P16/BUZ P17/PWM TEST1 RES XT1/P74 XT2 VSS1 CF1 CF2 VDD1 P80/AN0 P81/AN1 P82/AN2 P83/AN3 P84/AN4 P85/AN5 P86/AN6 P87/AN7 Pin No. I/O 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 69 — 6-1. CASE SECTION NOTE: • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Hardware (# mark) list and accessories and pack- ing materials are given in the last of this parts list. • Abbreviation G : German model EE : East European model SECTION 6 EXPLODED VIEWS The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark !7 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (UK) 8 4-956-370-12 BAND, PLUG FIXED (UK) 9 4-985-642-01 CUSHION !CNJ909 1-526-794-11 OUTLET, AC !CNP901 1-769-744-11 CORD, POWER !T901 1-431-318-11 TRANSFORMER, POWER * 1 1-665-497-11 SECONDARY BOARD * 2 4-989-880-51 PANEL, BACK (AEP,G,EE) * 2 4-989-880-61 PANEL, BACK (UK) * 3 3-703-244-00 BUSHING (2104), CORD * 4 1-665-629-11 5.1 IN BOARD 5 3-704-366-01 SCREW (CASE) (M3X8) * 6 X-4947-772-1 CASE ASSY 1 9 2 3 7 8 4 5 5 6 5 #1 #1 #2 #2 T901 Front panel #1 #1 #1 #1 #1 #1 #1 CNP901 CNJ909 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 70 — 6-2. FRONT PANEL SECTION * 63 1-665-622-11 L.B SW BOARD 64 1-773-131-11 WIRE (FLAT TYPE) (19 CORE)(33cm) 65 1-773-117-11 WIRE (FLAT TYPE) (19 CORE)(18cm) 66 1-773-108-11 WIRE (FLAT TYPE) (19 CORE)(10cm) * 67 4-989-878-01 BRACKET (VOL) * 68 1-665-623-11 VOLUME BOARD * 69 4-921-941-01 CUSHION (FL) * 70 4-981-656-01 HOLDER (C), FL INDICATION TUBE * 71 A-4398-101-A DISPLAY BOARD, COMPLETE 72 1-773-041-11 WIRE (FLAT TYPE) (17 CORE) FL101 1-517-519-11 INDICATOR TUBE, FLUORESCENT 51 4-991-066-01 EMBLEM, VISION TOUCH 52 4-982-083-01 COVER (V3) * 53 1-665-624-11 BALANCE BOARD 54 4-957-383-01 KNOB (F14) 55 X-4947-074-1 KNOB (R48) ASSY 56 4-980-639-01 KNOB (R14) 57 X-4948-332-1 PANEL ASSY, FRONT 58 3-008-600-11 EMBLEM (5-AR), SONY 59 4-980-109-01 BUTTON (P-M) * 60 1-665-626-11 SP SW BOARD 61 4-951-620-01 SCREW (2.6X8), +BVTP * 62 1-665-469-11 SW BOARD Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 54 58 60 61 71 65 61 72 64 61 63 69 70 FL101 62 66 61 68 53 67 57 56 55 Supplied with RV401 not supplied 51 52 59 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 71 — 6-3. OSD BOARD SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * 109 A-4398-114-A S-VIDEO BOARD, COMPLETE * 110 A-4398-113-A OSD BOARD, COMPLETE * 111 3-703-353-07 SUPPORT, PC BOARD * 112 A-4398-112-A MEMORY BOARD, COMPLETE * 113 A-4398-102-A AUDIO BOARD, COMPLETE * 114 1-665-500-11 SURR-AUDIO BOARD * 115 1-666-633-11 JOINT (B) BOARD * 116 3-703-353-09 SUPPORT, PC BOARD * 101 1-665-625-11 H.P BOARD * 102 1-665-502-11 VIDEO 3 BOARD * 103 1-665-495-11 AUDIO SW BOARD * 104 A-4398-121-A STAND BY BOARD, COMPLETE (UK) * 104 A-4398-145-A STAND BY BOARD, COMPLETE (AEP,G,EE) * 105 1-665-503-11 S-A-P BOARD * 106 A-4398-146-A SP BOARD, COMPLETE 107 1-782-718-11 WIRE (FLAT TYPE) (29 CORE) * 108 1-666-160-11 JOINT (OSD) BOARD 105 106 104 101 102 103 114 113 111 112 111 115 110 109 107 108 111 #1 #1 #1 #1 not supplied not supplied not supplied #1 #1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 72 — 6-4. CHASSIS SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * 151 A-4398-105-A AMP BOARD, COMPLETE * 152 A-4398-142-A REAR AMP BOARD, COMPLETE * 153 A-4398-106-A SURR BOARD, COMPLETE * 154 1-665-634-11 AMP.JOINT (R) BOARD * 155 1-665-633-11 AMP.JOINT (F) BOARD 156 X-4947-207-1 FOOT ASSY (F50150S) 157 3-831-441-99 CUSHION, STOPPER 158 3-905-609-01 SCREW (TRANSISTOR) Q505 8-729-209-15 TRANSISTOR 2SD2012 Q506 8-749-010-25 IC MN2488-OPY-M Q507 8-749-010-26 IC MP1620-OPY-M Q555 8-729-209-15 TRANSISTOR 2SD2012 Q556 8-749-010-25 IC MN2488-OPY-M Q557 8-749-010-26 IC MP1620-OPY-M Q605 8-729-209-15 TRANSISTOR 2SD2012 Q606 8-749-010-25 IC MN2488-OPY-M Q607 8-749-010-26 IC MP1620-OPY-M Q706 8-749-010-25 IC MN2488-OPY-M Q707 8-749-010-26 IC MP1620-OPY-M Q756 8-749-010-25 IC MN2488-OPY-M Q757 8-749-010-26 IC MP1620-OPY-M 158 158 152 151 157 153 154 155 156 156 #1 #1 #1 #1 not supplied not supplied #1 not supplied #3 #3 #3 #1 #1 #3 not supplied #1 #1 #1 #1 #1 Q706 Q707 Q756 Q757 Q506 Q507 Q606 Q505 #1 Q605 Q555 #1 #1 Q557 Q556 Q607 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 73 — • SEMICONDUCTORS In each case, u: µ , for example: uA...: µ A..., uPA...: µ PA..., uPB...: µ PB..., uPC...: µ PC..., uPD...: µ PD... • CAPACITORS uF : µ F • COILS uH : µ H • Abbreviation G : German model EE : East European model • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • RESISTORS All resistors are in ohms METAL: Metal-film resistor METAL OXIDE: Metal Oxide-film resistor F : nonflammable Note: C572 1-107-597-11 CERAMIC 22PF 10% 500V C573 1-162-286-31 CERAMIC 220PF 10% 50V C574 1-126-964-11 ELECT 10uF 20% 50V C575 1-136-157-00 FILM 0.022uF 5% 50V C576 1-136-153-00 FILM 0.01uF 5% 50V C590 1-126-935-11 ELECT 470uF 20% 6.3V C598 1-126-965-11 ELECT 22uF 20% 50V C620 1-126-967-11 ELECT 47uF 20% 16V C621 1-107-597-11 CERAMIC 22PF 10% 500V C622 1-107-597-11 CERAMIC 22PF 10% 500V C623 1-162-286-31 CERAMIC 220PF 10% 50V C803 1-117-203-11 ELECT 10000uF 20% 63V C804 1-117-203-11 ELECT 10000uF 20% 63V C807 1-126-967-11 ELECT 47uF 20% 16V C808 1-126-967-11 ELECT 47uF 20% 16V C810 1-126-967-11 ELECT 47uF 20% 16V C811 1-126-952-11 ELECT 1000uF 20% 35V C812 1-126-951-11 ELECT 470uF 20% 35V C817 1-126-967-11 ELECT 47uF 20% 50V C818 1-126-967-11 ELECT 47uF 20% 50V CC48 1-136-153-00 FILM 0.01uF 5% 50V CC49 1-136-153-00 FILM 0.01uF 5% 50V CC98 1-136-153-00 FILM 0.01uF 5% 50V CC99 1-136-153-00 FILM 0.01uF 5% 50V < CONNECTOR > CNP701 1-564-320-00 PIN, CONNECTOR (B2P-VH) 2P CNP702 1-695-091-11 PIN, CONNECTOR (PC BOARD) 15P CNS502 1-770-404-11 HOUSING,CONNECTOR (PC BOARD) 11P CNS602 1-770-404-11 HOUSING,CONNECTOR (PC BOARD) 11P CNS701 1-569-323-11 SOCKET, CONNECTOR 19P < DIODE > D501 8-719-987-63 DIODE 1N4148M D502 8-719-010-06 DIODE UZ-2.2BS D503 8-719-010-06 DIODE UZ-2.2BS D504 8-719-987-63 DIODE 1N4148M D505 8-719-987-63 DIODE 1N4148M D506 8-719-987-63 DIODE 1N4148M D512 8-719-987-63 DIODE 1N4148M D545 8-719-987-63 DIODE 1N4148M D546 8-719-987-63 DIODE 1N4148M D547 8-719-987-63 DIODE 1N4148M D548 8-719-815-85 DIODE 1S1585 D549 8-719-815-85 DIODE 1S1585 D551 8-719-987-63 DIODE 1N4148M D552 8-719-010-06 DIODE UZ-2.2BS * 1-665-629-11 5.1 IN BOARD ************ < CAPACITOR > CC15 1-162-282-31 CERAMIC 100PF 10% 50V CC16 1-162-282-31 CERAMIC 100PF 10% 50V CC17 1-162-282-31 CERAMIC 100PF 10% 50V CC65 1-162-282-31 CERAMIC 100PF 10% 50V CC66 1-162-282-31 CERAMIC 100PF 10% 50V CC67 1-162-282-31 CERAMIC 100PF 10% 50V < CONNECTOR > CNP305 1-564-524-11 PLUG, CONNECTOR 9P < JACK > J306 1-779-355-11 JACK, PIN 6P (5.1 INPUT) < RESISTOR > R317 1-249-421-11 CARBON 2.2K 5% 1/4W F R325 1-249-421-11 CARBON 2.2K 5% 1/4W F R326 1-249-421-11 CARBON 2.2K 5% 1/4W F R327 1-249-429-11 CARBON 10K 5% 1/4W R328 1-249-429-11 CARBON 10K 5% 1/4W R329 1-249-429-11 CARBON 10K 5% 1/4W R367 1-249-421-11 CARBON 2.2K 5% 1/4W F R375 1-249-421-11 CARBON 2.2K 5% 1/4W F R376 1-249-421-11 CARBON 2.2K 5% 1/4W F R377 1-249-429-11 CARBON 10K 5% 1/4W R378 1-249-429-11 CARBON 10K 5% 1/4W R379 1-249-429-11 CARBON 10K 5% 1/4W ************************************************************** * A-4398-105-A AMP BOARD, COMPLETE ******************** 7-685-872-09 SCREW +BVTT 3X8 (S) < CAPACITOR > C520 1-126-967-11 ELECT 47uF 20% 16V C521 1-107-597-11 CERAMIC 22PF 10% 500V C522 1-107-597-11 CERAMIC 22PF 10% 500V C523 1-162-286-31 CERAMIC 220PF 10% 50V C524 1-126-964-11 ELECT 10uF 20% 50V C525 1-136-157-00 FILM 0.022uF 5% 50V C526 1-136-153-00 FILM 0.01uF 5% 50V C570 1-126-967-11 ELECT 47uF 20% 16V C571 1-107-597-11 CERAMIC 22PF 10% 500V SECTION 7 ELECTRICAL PARTS LIST The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board name. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 5.1 IN AMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 74 — D553 8-719-010-06 DIODE UZ-2.2BS D554 8-719-987-63 DIODE 1N4148M D555 8-719-987-63 DIODE 1N4148M D556 8-719-987-63 DIODE 1N4148M D601 8-719-987-63 DIODE 1N4148M D602 8-719-010-06 DIODE UZ-2.2BS D603 8-719-010-06 DIODE UZ-2.2BS D604 8-719-987-63 DIODE 1N4148M D608 8-719-987-63 DIODE 1N4148M D611 8-719-987-63 DIODE 1N4148M D651 8-719-987-63 DIODE 1N4148M D711 8-719-987-63 DIODE 1N4148M D716 8-719-987-63 DIODE 1N4148M D807 8-719-934-22 DIODE HZS30-2L < GROUND TERMINAL > * EB701 1-537-738-21 TERMINAL, EARTH * EB702 1-537-738-21 TERMINAL, EARTH * EB703 1-537-738-21 TERMINAL, EARTH < IC > IC801 8-759-391-87 IC BA78M12P IC802 8-759-391-87 IC BA78M12P IC803 8-759-604-45 IC M5F79M12 < COIL > L501 1-411-906-11 COIL, AIR-CORE L551 1-411-906-11 COIL, AIR-CORE < TRANSISTOR > Q504 8-729-119-76 TRANSISTOR 2SA1175-HFE Q505 8-729-209-15 TRANSISTOR 2SD2012 Q506 8-749-010-25 IC MN2488-OPY-M Q507 8-749-010-26 IC MP1620-OPY-M Q508 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q509 8-729-281-53 TRANSISTOR 2SC1815-GR Q510 8-729-900-63 TRANSISTOR DTA124ES Q511 8-729-900-63 TRANSISTOR DTA124ES Q546 8-729-119-79 TRANSISTOR 2SC2785-FEK Q547 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA Q548 8-729-119-79 TRANSISTOR 2SC2785-FEK Q549 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q554 8-729-119-76 TRANSISTOR 2SA1175-HFE Q555 8-729-209-15 TRANSISTOR 2SD2012 Q556 8-749-010-25 IC MN2488-OPY-M Q557 8-749-010-26 IC MP1620-OPY-M Q558 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q559 8-729-281-53 TRANSISTOR 2SC1815-GR Q560 8-729-900-63 TRANSISTOR DTA124ES Q561 8-729-900-63 TRANSISTOR DTA124ES Q596 8-729-119-79 TRANSISTOR 2SC2785-FEK Q601 8-729-119-79 TRANSISTOR 2SC2785-FEK Q604 8-729-119-76 TRANSISTOR 2SA1175-HFE Q605 8-729-209-15 TRANSISTOR 2SD2012 Q606 8-749-010-25 IC MN2488-OPY-M Q607 8-749-010-26 IC MP1620-OPY-M Q608 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q613 8-729-281-53 TRANSISTOR 2SC1815-GR Q616 8-729-900-36 TRANSISTOR DTC124ES Q801 8-729-140-97 TRANSISTOR 2SB734-34 < RESISTOR > R521 1-247-840-00 CARBON 2.4K 5% 1/4W R523 1-249-414-11 CARBON 560 5% 1/4W F !R524 1-249-408-11 CARBON 180 5% 1/4W F !R525 1-249-408-11 CARBON 180 5% 1/4W F !R526 1-233-352-41 ENCAPSULATED COMPONENT R527 1-247-850-11 CARBON 6.2K 5% 1/4W R528 1-249-419-11 CARBON 1.5K 5% 1/4W F R529 1-249-437-11 CARBON 47K 5% 1/4W R530 1-249-421-11 CARBON 2.2K 5% 1/4W F R531 1-249-433-11 CARBON 22K 5% 1/4W R532 1-249-437-11 CARBON 47K 5% 1/4W !R533 1-249-393-11 CARBON 10 5% 1/4W F !R534 1-249-389-11 CARBON 4.7 5% 1/4W F R535 1-249-431-11 CARBON 15K 5% 1/4W R539 1-249-427-11 CARBON 6.8K 5% 1/4W F R540 1-249-417-11 CARBON 1K 5% 1/4W F R541 1-249-429-11 CARBON 10K 5% 1/4W R547 1-249-425-11 CARBON 4.7K 5% 1/4W F R548 1-249-429-11 CARBON 10K 5% 1/4W !R549 1-249-393-11 CARBON 10 5% 1/4W F R550 1-249-429-11 CARBON 10K 5% 1/4W R571 1-247-840-00 CARBON 2.4K 5% 1/4W R573 1-249-414-11 CARBON 560 5% 1/4W F !R574 1-249-408-11 CARBON 180 5% 1/4W F !R575 1-249-408-11 CARBON 180 5% 1/4W F !R576 1-233-352-41 ENCAPSULATED COMPONENT R577 1-247-850-11 CARBON 6.2K 5% 1/4W R578 1-249-419-11 CARBON 1.5K 5% 1/4W F R579 1-249-437-11 CARBON 47K 5% 1/4W R580 1-249-421-11 CARBON 2.2K 5% 1/4W F R581 1-249-433-11 CARBON 22K 5% 1/4W R582 1-249-437-11 CARBON 47K 5% 1/4W !R583 1-249-393-11 CARBON 10 5% 1/4W F !R584 1-249-389-11 CARBON 4.7 5% 1/4W F R585 1-249-431-11 CARBON 15K 5% 1/4W R586 1-249-429-11 CARBON 10K 5% 1/4W R587 1-249-425-11 CARBON 4.7K 5% 1/4W F !R588 1-249-393-11 CARBON 10 5% 1/4W F R589 1-249-434-11 CARBON 27K 5% 1/4W F R590 1-249-434-11 CARBON 27K 5% 1/4W F R597 1-249-434-11 CARBON 27K 5% 1/4W F R598 1-249-434-11 CARBON 27K 5% 1/4W F R621 1-247-840-00 CARBON 2.4K 5% 1/4W R623 1-249-414-11 CARBON 560 5% 1/4W F !R624 1-249-408-11 CARBON 180 5% 1/4W F !R625 1-249-408-11 CARBON 180 5% 1/4W F !R626 1-233-352-41 ENCAPSULATED COMPONENT R627 1-247-850-11 CARBON 6.2K 5% 1/4W R628 1-249-419-11 CARBON 1.5K 5% 1/4W F R632 1-249-437-11 CARBON 47K 5% 1/4W !R642 1-215-889-00 METAL OXIDE 330 5% 2W F R643 1-249-441-11 CARBON 100K 5% 1/4W Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. AMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 75 — R650 1-249-425-11 CARBON 4.7K 5% 1/4W F R651 1-249-429-11 CARBON 10K 5% 1/4W !R652 1-249-393-11 CARBON 10 5% 1/4W F R655 1-249-441-11 CARBON 100K 5% 1/4W !R739 1-215-868-00 METAL OXIDE 680 5% 1W F !R789 1-215-868-00 METAL OXIDE 680 5% 1W F !R802 1-249-401-11 CARBON 47 5% 1/4W F R803 1-247-843-11 CARBON 3.3K 5% 1/4W !RR48 1-249-393-11 CARBON 10 5% 1/4W F !RR49 1-249-393-11 CARBON 10 5% 1/4W F !RR98 1-249-393-11 CARBON 10 5% 1/4W F !RR99 1-249-393-11 CARBON 10 5% 1/4W F < RELAY > RY501 1-515-920-11 RELAY (24V) RY502 1-515-920-11 RELAY (24V) RY602 1-515-793-11 RELAY < TERMINAL > * TM501 1-537-519-11 TERMINAL BOARD (SP)(FRONT SPEAKER) ************************************************************** * 1-665-633-11 AMP.JOINT (F) BOARD ******************* < CONNECTOR > CNP501 1-770-553-11 CONNECTOR, BOARD TO BOARD 11P CNP502 1-770-553-11 CONNECTOR, BOARD TO BOARD 11P ************************************************************** * 1-665-634-11 AMP.JOINT (R) BOARD ******************* < CONNECTOR > CNP601 1-770-553-11 CONNECTOR, BOARD TO BOARD 11P CNP602 1-770-553-11 CONNECTOR, BOARD TO BOARD 11P ************************************************************** * A-4398-102-A AUDIO BOARD, COMPLETE ********************** < CAPACITOR > C398 1-162-282-31 CERAMIC 100PF 10% 50V C399 1-162-294-31 CERAMIC 0.001uF 10% 50V CC09 1-162-282-31 CERAMIC 100PF 10% 50V CC10 1-162-282-31 CERAMIC 100PF 10% 50V CC11 1-162-282-31 CERAMIC 100PF 10% 50V CC12 1-162-282-31 CERAMIC 100PF 10% 50V CC13 1-162-282-31 CERAMIC 100PF 10% 50V CC18 1-162-282-31 CERAMIC 100PF 10% 50V CC59 1-162-282-31 CERAMIC 100PF 10% 50V CC60 1-162-282-31 CERAMIC 100PF 10% 50V CC61 1-162-282-31 CERAMIC 100PF 10% 50V CC62 1-162-282-31 CERAMIC 100PF 10% 50V CC63 1-162-282-31 CERAMIC 100PF 10% 50V CC68 1-162-282-31 CERAMIC 100PF 10% 50V < CONNECTOR > CNS302 1-695-093-11 SOCKET, CONNECTOR 9P < IC > IC303 8-759-805-14 IC LC7822 < JACK > J304 1-770-015-11 JACK, PIN 6P (VIDEO 1 AUDIO IN/OUT, VIDEO 2 AUDIO IN) J305 1-774-411-11 JACK, PIN 6P (VIDEO 2 AUDIO OUT, LD/DVD AUDIO IN,SATL AUDIO IN) < RESISTOR > R318 1-249-417-11 CARBON 1K 5% 1/4W F R319 1-249-417-11 CARBON 1K 5% 1/4W F R320 1-249-417-11 CARBON 1K 5% 1/4W F R321 1-249-417-11 CARBON 1K 5% 1/4W F R322 1-249-425-11 CARBON 4.7K 5% 1/4W F R323 1-249-417-11 CARBON 1K 5% 1/4W F R338 1-249-437-11 CARBON 47K 5% 1/4W R368 1-249-417-11 CARBON 1K 5% 1/4W F R369 1-249-417-11 CARBON 1K 5% 1/4W F R370 1-249-417-11 CARBON 1K 5% 1/4W F R371 1-249-417-11 CARBON 1K 5% 1/4W F R372 1-249-425-11 CARBON 4.7K 5% 1/4W F R373 1-249-417-11 CARBON 1K 5% 1/4W F R388 1-249-437-11 CARBON 47K 5% 1/4W R398 1-249-417-11 CARBON 1K 5% 1/4W F R399 1-249-425-11 CARBON 4.7K 5% 1/4W F ************************************************************** * 1-665-495-11 AUDIO SW BOARD *************** < CAPACITOR > C407 1-126-795-11 ELECT 10uF 20% 50V C408 1-164-159-11 CERAMIC 0.1uF 50V C409 1-126-795-11 ELECT 10uF 20% 50V C411 1-126-795-11 ELECT 10uF 20% 50V C412 1-164-159-11 CERAMIC 0.1uF 50V C457 1-126-795-11 ELECT 10uF 20% 50V C458 1-164-159-11 CERAMIC 0.1uF 50V C459 1-126-795-11 ELECT 10uF 20% 50V C461 1-126-795-11 ELECT 10uF 20% 50V C495 1-162-294-31 CERAMIC 0.001uF 10% 50V C496 1-164-070-11 CERAMIC 100PF 5% 50V C498 1-126-786-11 ELECT 47uF 20% 16V C499 1-126-786-11 ELECT 47uF 20% 16V < CONNECTOR > CNP410 1-750-180-11 PIN, CONNECTOR (PC BOARD) 5P CNS403 1-695-093-11 SOCKET, CONNECTOR 9P CNS404 1-695-094-11 SOCKET, CONNECTOR 11P Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. AMP AMP.JOINT (F) AMP.JOINT (R) AUDIO AUDIO SW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 76 — C110 1-126-786-11 ELECT 47uF 20% 16V C111 1-126-786-11 ELECT 47uF 20% 16V C112 1-162-282-31 CERAMIC 100PF 10% 50V C113 1-126-786-11 ELECT 47uF 20% 16V C114 1-164-159-11 CERAMIC 0.1uF 50V C115 1-104-905-11 CAPACITOR 0.22F 5.5V C116 1-164-159-11 CERAMIC 0.1uF 50V C117 1-164-159-11 CERAMIC 0.1uF 50V C132 1-126-177-11 ELECT 100uF 20% 10V C133 1-164-159-11 CERAMIC 0.1uF 50V C134 1-162-282-31 CERAMIC 100PF 10% 50V C135 1-126-795-11 ELECT 10uF 20% 50V C140 1-126-786-11 ELECT 47uF 20% 16V C141 1-164-159-11 CERAMIC 0.1uF 50V C142 1-164-159-11 CERAMIC 0.1uF 50V C143 1-162-294-31 CERAMIC 0.001uF 10% 50V < CONNECTOR > CNP101 1-779-365-11 CONNECTOR, PC BOARD (PLUG) 8P CNP103 1-779-366-11 CONNECTOR, BOARD TO BOARD 4P CNS102 1-770-397-11 HOUSING, CONNECTOR(PC BOARD)4P CNS104 1-569-308-11 SOCKET, CONNECTOR (L TYRE) 19P CNS105 1-691-650-11 SOCKET, CONNECTOR 19P CNS107 1-568-438-11 SOCKET, CONNECTOR 17P < DIODE > D100 8-719-987-63 DIODE IN4148M D101 8-719-313-45 DIODE SEL6810A-TH10 (PHONO) D102 8-719-313-45 DIODE SEL6810A-TH10 (TUNER) D103 8-719-313-45 DIODE SEL6810A-TH10 (CD) D104 8-719-313-45 DIODE SEL6810A-TH10 (DAT/MD) D105 8-719-313-45 DIODE SEL6810A-TH10 (TAPE) D106 8-719-313-45 DIODE SEL6810A-TH10 (SATL) D107 8-719-313-45 DIODE SEL6810A-TH10 (LD/DVD) D108 8-719-313-45 DIODE SEL6810A-TH10 (VIDEO 3) D109 8-719-313-45 DIODE SEL6810A-TH10 (VIDEO 2) D110 8-719-313-45 DIODE SEL6810A-TH10 (VIDEO 1) D111 8-719-313-45 DIODE SEL6810A-TH10 (DIRECT PASS) D112 8-719-064-63 DIODE SELU5823A-TP15 (5.1 INPUT) D113 8-719-313-45 DIODE SEL6810A-TH10 (SUR) D114 8-719-313-45 DIODE SEL6810A-TH10 (TONE) D115 8-719-313-45 DIODE SEL6810A-TH10 (INDEX) D116 8-719-313-43 DIODE SEL6210S-TH10 (LEARNING SENSOR) D118 8-719-313-43 DIODE SEL6210S-TH10 (STANDBY) D119 8-719-987-63 DIODE 1N4148M D120 8-719-024-99 DIODE 11ES2-NTA2B D121 8-719-053-79 DIODE SE1003-C-TP D122 8-719-053-79 DIODE SE1003-C-TP D123 8-719-053-79 DIODE SE1003-C-TP D124 8-719-053-79 DIODE SE1003-C-TP D125 8-719-053-79 DIODE SE1003-C-TP D126 8-719-053-79 DIODE SE1003-C-TP D127 8-719-053-79 DIODE SE1003-C-TP D128 8-719-053-79 DIODE SE1003-C-TP D129 8-719-053-79 DIODE SE1003-C-TP D130 8-719-053-79 DIODE SE1003-C-TP D133 8-719-987-63 DIODE 1N4148M Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < IC > IC405 8-759-634-50 IC M5218AL IC406 8-759-805-15 IC LC7823 < TRANSISTOR > Q401 8-729-922-37 TRANSISTOR 2SD2144S Q403 8-729-922-37 TRANSISTOR 2SD2144S Q451 8-729-922-37 TRANSISTOR 2SD2144S < RESISTOR > R410 1-247-887-00 CARBON 220K 5% 1/4W R411 1-249-417-11 CARBON 1K 5% 1/4W F R412 1-249-425-11 CARBON 4.7K 5% 1/4W F R413 1-249-441-11 CARBON 100K 5% 1/4W R416 1-249-441-11 CARBON 100K 5% 1/4W R417 1-249-417-11 CARBON 1K 5% 1/4W F R418 1-249-425-11 CARBON 4.7K 5% 1/4W F R460 1-247-887-00 CARBON 220K 5% 1/4W R461 1-249-417-11 CARBON 1K 5% 1/4W F R462 1-249-425-11 CARBON 4.7K 5% 1/4W F R463 1-249-441-11 CARBON 100K 5% 1/4W R466 1-249-441-11 CARBON 100K 5% 1/4W R467 1-249-417-11 CARBON 1K 5% 1/4W F R468 1-249-417-11 CARBON 1K 5% 1/4W F R469 1-249-441-11 CARBON 100K 5% 1/4W R476 1-249-425-11 CARBON 4.7K 5% 1/4W F R477 1-249-417-11 CARBON 1K 5% 1/4W F R478 1-249-441-11 CARBON 100K 5% 1/4W R479 1-249-429-11 CARBON 10K 5% 1/4W R480 1-249-441-11 CARBON 100K 5% 1/4W R481 1-247-807-31 CARBON 100 5% 1/4W R482 1-247-807-31 CARBON 100 5% 1/4W ************************************************************** * 1-665-624-11 BALANCE BOARD ************** < VARIABLE RESISTOR > RV402 1-225-447-11 RES, VAR, CARBON 100K/100K (BALANCE) ************************************************************** * A-4398-101-A DISPLAY BOARD, COMPLETE *********************** * 4-921-941-01 CUSHION (FL) * 4-981-656-01 HOLDER (C), FL INDICATION TUBE < CAPACITOR > C101 1-164-159-11 CERAMIC 0.1uF 50V C102 1-164-159-11 CERAMIC 0.1uF 50V C103 1-164-159-11 CERAMIC 0.1uF 50V C104 1-164-159-11 CERAMIC 0.1uF 50V C105 1-164-159-11 CERAMIC 0.1uF 50V C106 1-164-159-11 CERAMIC 0.1uF 50V C107 1-164-159-11 CERAMIC 0.1uF 50V C108 1-126-796-11 ELECT 22uF 20% 35V C109 1-162-282-31 CERAMIC 100PF 10% 50V DISPLAY BALANCE AUDIO SW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 77 — D134 8-719-118-33 PHOTO DIODE PH302D D1001 8-719-010-38 DIODE UZ-5.1BSB < FLUORESCENT INDICATOR > FL101 1-517-519-11 INDICATOR TUBE, FLUORESCENT < IC > IC101 8-759-462-46 IC TPS831 IC102 8-759-442-92 IC M66004AFP-M6 IC103 8-759-484-62 IC MB90673PF-G-226-BND IC104 8-759-240-69 IC TC4069UBP IC105 8-759-634-84 IC M50255P IC106 8-759-962-08 IC BA6208 < COIL > L101 1-410-509-11 INDUCTOR 10uH L102 1-410-509-11 INDUCTOR 10uH < TRANSISTOR > Q101 8-729-900-36 TRANSISTOR DTC124ES Q102 8-729-900-36 TRANSISTOR DTC124ES Q103 8-729-140-97 TRANSISTOR 2SB734-34 Q105 8-729-900-36 TRANSISTOR DTC124ES Q106 8-729-900-36 TRANSISTOR DTC124ES Q107 8-729-900-36 TRANSISTOR DTC124ES < RESISTOR > R101 1-247-807-31 CARBON 100 5% 1/4W R102 1-247-807-31 CARBON 100 5% 1/4W R103 1-247-807-31 CARBON 100 5% 1/4W R104 1-247-807-31 CARBON 100 5% 1/4W R105 1-247-807-31 CARBON 100 5% 1/4W R106 1-247-807-31 CARBON 100 5% 1/4W R107 1-247-807-31 CARBON 100 5% 1/4W R108 1-247-807-31 CARBON 100 5% 1/4W R109 1-247-807-31 CARBON 100 5% 1/4W R110 1-247-807-31 CARBON 100 5% 1/4W R111 1-247-807-31 CARBON 100 5% 1/4W R112 1-247-807-31 CARBON 100 5% 1/4W R113 1-247-807-31 CARBON 100 5% 1/4W R114 1-247-807-31 CARBON 100 5% 1/4W R115 1-247-807-31 CARBON 100 5% 1/4W R116 1-247-807-31 CARBON 100 5% 1/4W R117 1-247-807-31 CARBON 100 5% 1/4W R118 1-249-417-11 CARBON 1K 5% 1/4W F R119 1-249-417-11 CARBON 1K 5% 1/4W F R120 1-249-417-11 CARBON 1K 5% 1/4W F R121 1-249-417-11 CARBON 1K 5% 1/4W F R122 1-249-425-11 CARBON 4.7K 5% 1/4W F R123 1-249-425-11 CARBON 4.7K 5% 1/4W F R124 1-249-425-11 CARBON 4.7K 5% 1/4W F R125 1-249-425-11 CARBON 4.7K 5% 1/4W F R126 1-249-425-11 CARBON 4.7K 5% 1/4W F R127 1-249-425-11 CARBON 4.7K 5% 1/4W F R128 1-249-417-11 CARBON 1K 5% 1/4W F R129 1-247-807-31 CARBON 100 5% 1/4W R130 1-249-429-11 CARBON 10K 5% 1/4W R131 1-249-419-11 CARBON 1.5K 5% 1/4W F R132 1-249-417-11 CARBON 1K 5% 1/4W F R133 1-249-417-11 CARBON 1K 5% 1/4W F R134 1-249-417-11 CARBON 1K 5% 1/4W F R135 1-249-417-11 CARBON 1K 5% 1/4W F R136 1-249-417-11 CARBON 1K 5% 1/4W F R137 1-247-807-31 CARBON 100 5% 1/4W R138 1-249-417-11 CARBON 1K 5% 1/4W F R139 1-247-807-31 CARBON 100 5% 1/4W R140 1-247-807-31 CARBON 100 5% 1/4W R141 1-247-807-31 CARBON 100 5% 1/4W R142 1-247-807-31 CARBON 100 5% 1/4W !R143 1-215-861-00 METAL OXIDE 47 5% 1W F R144 1-249-393-11 CARBON 10 5% 1/4W F R145 1-247-895-00 CARBON 470K 5% 1/4W R146 1-247-903-00 CARBON 1M 5% 1/4W R147 1-249-433-11 CARBON 22K 5% 1/4W R148 1-247-903-00 CARBON 1M 5% 1/4W R149 1-249-435-11 CARBON 33K 5% 1/4W R150 1-249-393-11 CARBON 10 5% 1/4W F R151 1-249-429-11 CARBON 10K 5% 1/4W R152 1-249-434-11 CARBON 27K 5% 1/4W !R153 1-249-385-11 CARBON 2.2 5% 1/6W F !R154 1-249-385-11 CARBON 2.2 5% 1/6W F R155 1-249-411-11 CARBON 330 5% 1/4W R156 1-249-411-11 CARBON 330 5% 1/4W R157 1-249-411-11 CARBON 330 5% 1/4W R158 1-249-411-11 CARBON 330 5% 1/4W R159 1-249-411-11 CARBON 330 5% 1/4W R161 1-249-411-11 CARBON 330 5% 1/4W R162 1-249-429-11 CARBON 10K 5% 1/4W R163 1-249-401-11 CARBON 47 5% 1/4W F R164 1-249-429-11 CARBON 10K 5% 1/4W R165 1-249-429-11 CARBON 10K 5% 1/4W R166 1-249-429-11 CARBON 10K 5% 1/4W R167 1-249-441-11 CARBON 100K 5% 1/4W F R188 1-249-411-11 CARBON 330 5% 1/4W R189 1-249-413-11 CARBON 470 5% 1/4W F R190 1-249-415-11 CARBON 680 5% 1/4W F R191 1-249-417-11 CARBON 1K 5% 1/4W F R192 1-249-419-11 CARBON 1.5K 5% 1/4W F R193 1-249-421-11 CARBON 2.2K 5% 1/4W F R194 1-249-425-11 CARBON 4.7K 5% 1/4W F R195 1-249-411-11 CARBON 330 5% 1/4W R196 1-249-413-11 CARBON 470 5% 1/4W F R197 1-249-415-11 CARBON 680 5% 1/4W F R198 1-249-417-11 CARBON 1K 5% 1/4W F R199 1-249-419-11 CARBON 1.5K 5% 1/4W F RR10 1-249-425-11 CARBON 4.7K 5% 1/4W F RR11 1-249-411-11 CARBON 330 5% 1/4W RR12 1-249-413-11 CARBON 470 5% 1/4W F RR13 1-249-415-11 CARBON 680 5% 1/4W F RR14 1-249-417-11 CARBON 1K 5% 1/4W F < SWITCH > S123 1-762-751-11 SWITCH, TACTILE (<) S124 1-762-751-11 SWITCH, TACTILE (>) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. DISPLAY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 78 — S127 1-762-751-11 SWITCH, TACTILE (DIMMER) S128 1-762-751-11 SWITCH, TACTILE (DISPLAY) S129 1-762-751-11 SWITCH, TACTILE (∧) S130 1-762-751-11 SWITCH, TACTILE (∨) < VIBRATOR > X101 1-567-819-11 VIBRATOR, CERAMIC (4MHz) ************************************************************** * 1-665-625-11 H.P BOARD ********* < CONNECTOR > * CNP702 1-564-518-11 PLUG, CONNECTOR 3P < JACK > J701 1-568-519-41 JACK, LARGE TYPE (PHONES) ************************************************************** * 1-666-633-11 JOINT (B) BOARD *************** < CONNECTOR > CNP213 1-750-180-11 PIN, CONNECTOR (PC BOARD) 5P CNP216 1-750-180-11 PIN, CONNECTOR (PC BOARD) 5P ************************************************************** * 1-666-160-11 JOINT (OSD) BOARD ***************** < CONNECTOR > CNP211 1-695-087-11 PIN, CONNECTOR (PC BOARD) 7P CNP212 1-695-087-11 PIN, CONNECTOR (PC BOARD) 7P ************************************************************** * 1-665-622-11 L.B SW BOARD ************ < DIODE > D117 8-719-313-45 DIODE SEL6810A-TH10 (BASS BOOST) < RESISTOR > R160 1-249-411-11 CARBON 330 5% 1/4W < SWITCH > S135 1-762-751-11 SWITCH, TACTILE (BASS BOOST) ************************************************************** * A-4398-112-A MEMORY BOARD, COMPLETE ************************ < CAPACITOR > C288 1-164-159-11 CERAMIC 0.1uF 50V C289 1-164-159-11 CERAMIC 0.1uF 50V Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C290 1-126-967-11 ELECT 47uF 20% 16V C291 1-164-159-11 CERAMIC 0.1uF 50V C294 1-164-159-11 CERAMIC 0.1uF 50V < CONNECTOR > CNS205 1-779-768-11 SOCKET, CONNECTOR 29P < IC > IC216 8-759-916-94 IC SN74HC373AN IC218 8-759-916-94 IC SN74HC373AN IC220 8-759-485-58 IC MX23C4096-12-97C IC221 8-759-289-94 IC LH5160TF IC222 8-759-289-94 IC LH5160TF < COIL > L204 1-410-521-11 INDUCTOR 100uH L205 1-410-521-11 INDUCTOR 100uH < RESISTOR > R227 1-249-417-11 CARBON 1K 5% 1/4W F R264 1-249-417-11 CARBON 1K 5% 1/4W F R2012 1-249-429-11 CARBON 10K 5% 1/4W R2013 1-249-429-11 CARBON 10K 5% 1/4W R2014 1-249-429-11 CARBON 10K 5% 1/4W ************************************************************** * A-4398-113-A OSD BOARD, COMPLETE ******************** < CAPACITOR > C203 1-102-518-11 CERAMIC 33PF 5% 50V C206 1-102-852-91 CERAMIC 47PF 5% 50V C208 1-126-964-11 ELECT 10uF 20% 50V C212 1-126-933-11 ELECT 100uF 20% 10V C213 1-164-159-11 CERAMIC 0.1uF 50V C248 1-126-960-11 ELECT 1uF 20% 50V C249 1-136-162-00 FILM 0.056uF 5% 50V C250 1-136-157-00 FILM 0.022uF 5% 50V C251 1-164-159-11 CERAMIC 0.1uF 50V C252 1-126-967-11 ELECT 47uF 20% 16V C253 1-126-960-11 ELECT 1uF 20% 50V C256 1-126-960-11 ELECT 1uF 20% 50V C257 1-126-960-11 ELECT 1uF 20% 50V C258 1-126-960-11 ELECT 1uF 20% 50V C259 1-162-306-11 CERAMIC 0.01uF 20% 16V C260 1-162-293-31 CERAMIC 820PF 10% 50V C262 1-126-960-11 ELECT 1uF 20% 50V C263 1-102-106-00 CERAMIC 100PF 10% 50V C264 1-126-964-11 ELECT 10uF 20% 50V C265 1-126-964-11 ELECT 10uF 20% 50V C266 1-126-964-11 ELECT 10uF 20% 50V C267 1-126-960-11 ELECT 1uF 20% 50V C268 1-126-967-11 ELECT 47uF 20% 16V C272 1-102-952-00 CERAMIC 16PF 5% 50V C273 1-164-159-11 CERAMIC 0.1uF 50V C279 1-126-964-11 ELECT 10uF 20% 50V C287 1-126-967-11 ELECT 47uF 20% 16V C293 1-164-159-11 CERAMIC 0.1uF 50V DISPLAY H.P MEMORY L.B SW JOINT (OSD) JOINT (B) OSD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 79 — C296 1-126-923-11 ELECT 220uF 20% 10V C2001 1-162-211-31 CERAMIC 33PF 5% 50V C2002 1-162-213-31 CERAMIC 39PF 5% 50V C2004 1-162-215-31 CERAMIC 47PF 5% 50V C2005 1-162-211-31 CERAMIC 33PF 5% 50V C2006 1-162-213-31 CERAMIC 39PF 5% 50V C2007 1-164-159-11 CERAMIC 0.1uF 50V C2008 1-126-964-11 ELECT 10uF 20% 50V C2009 1-164-159-11 CERAMIC 0.1uF 50V C2010 1-136-153-00 FILM 0.01uF 5% 50V C2011 1-162-294-31 CERAMIC 0.001uF 10% 50V C2012 1-162-282-31 CERAMIC 100PF 10% 50V < CONNECTOR > * CNP214 1-564-509-11 PLUG, CONNECTOR 6P CNS212 1-695-092-11 SOCKET, CONNECTOR 7P CNS216 1-750-179-11 SOCKET, CONNECTOR 5P < TRIMMER > CT201 1-141-227-00 CAP, TRIMMER 20PF CT202 1-141-227-00 CAP, TRIMMER 20PF < DIODE > D201 8-719-987-63 DIODE 1N4148M D206 8-719-987-63 DIODE 1N4148M D211 8-719-987-63 DIODE 1N4148M < IC > IC202 8-759-140-53 IC UPD4053BC IC205 8-759-459-81 IC MB90095PF-G-186-BND IC206 8-759-916-12 IC SN74HC00AN IC210 8-759-341-79 IC LA7217 IC211 8-759-061-95 IC SN761200 IC212 8-759-293-64 IC LA7356 < JACK > J203 1-563-330-11 JACK (IR OUT) J209 1-766-400-11 JACK, PIN 2P (VIDEO 2 IN/OUT) J210 1-766-400-11 JACK, PIN 2P (VIDEO 1 VIDEO IN/OUT) J211 1-766-400-11 JACK, PIN 2P (SATL VIDEO OUT, LC/DVD VIDEO OUT) < COIL > L201 1-410-513-11 INDUCTOR 22uH L202 1-410-515-11 INDUCTOR 33uH L288 1-410-521-11 INDUCTOR 100uH L2001 1-410-515-11 INDUCTOR 33uH < TRANSISTOR > Q203 8-729-620-05 TRANSISTOR 2SC2603-EF Q205 8-729-900-80 TRANSISTOR DTC114ES Q206 8-729-620-05 TRANSISTOR 2SC2603-EF Q207 8-729-422-57 TRANSISTOR UN4111 Q208 8-729-900-80 TRANSISTOR DTC114ES Q209 8-729-119-76 TRANSISTOR 2SA1175-HFE Q210 8-729-900-80 TRANSISTOR DTC114ES Q211 8-729-620-05 TRANSISTOR 2SC2603-EF Q212 8-729-119-76 TRANSISTOR 2SA1175-HFE Q214 8-729-620-05 TRANSISTOR 2SC2603-EF Q215 8-729-620-05 TRANSISTOR 2SC2603-EF Q216 8-729-620-05 TRANSISTOR 2SC2603-EF Q217 8-729-119-76 TRANSISTOR 2SA1175-HFE Q218 8-729-119-76 TRANSISTOR 2SA1175-HFE Q219 8-729-119-76 TRANSISTOR 2SA1175-HFE Q221 8-729-119-76 TRANSISTOR 2SA1175-HFE Q222 8-729-900-80 TRANSISTOR DTC114ES Q230 8-729-620-05 TRANSISTOR 2SC2603-EF < RESISTOR > R207 1-249-409-11 CARBON 220 5% 1/4W F R210 1-249-424-11 CARBON 3.9K 5% 1/4W F R212 1-249-418-11 CARBON 1.2K 5% 1/4W F R216 1-249-437-11 CARBON 47K 5% 1/4W R242 1-249-433-11 CARBON 22K 5% 1/4W R250 1-249-417-11 CARBON 1K 5% 1/4W F R262 1-247-883-00 CARBON 150K 5% 1/4W R265 1-249-414-11 CARBON 560 5% 1/4W F R266 1-249-403-11 CARBON 68 5% 1/4W F R267 1-249-424-11 CARBON 3.9K 5% 1/4W F R268 1-249-403-11 CARBON 68 5% 1/4W F R269 1-249-403-11 CARBON 68 5% 1/4W F R270 1-249-426-11 CARBON 5.6K 5% 1/4W R271 1-249-426-11 CARBON 5.6K 5% 1/4W R272 1-249-426-11 CARBON 5.6K 5% 1/4W R274 1-249-403-11 CARBON 68 5% 1/4W F R275 1-249-403-11 CARBON 68 5% 1/4W F R276 1-249-419-11 CARBON 1.5K 5% 1/4W F R277 1-249-419-11 CARBON 1.5K 5% 1/4W F R278 1-249-419-11 CARBON 1.5K 5% 1/4W F R279 1-249-403-11 CARBON 68 5% 1/4W F R280 1-249-403-11 CARBON 68 5% 1/4W F R281 1-249-403-11 CARBON 68 5% 1/4W F R282 1-249-403-11 CARBON 68 5% 1/4W F R283 1-249-403-11 CARBON 68 5% 1/4W F R287 1-247-807-31 CARBON 100 5% 1/4W R288 1-249-430-11 CARBON 12K 5% 1/4W R289 1-249-430-11 CARBON 12K 5% 1/4W R290 1-249-430-11 CARBON 12K 5% 1/4W R296 1-247-843-11 CARBON 3.3K 5% 1/4W R2002 1-249-417-11 CARBON 1K 5% 1/4W F R2009 1-249-409-11 CARBON 220 5% 1/4W F R2010 1-249-409-11 CARBON 220 5% 1/4W F R2021 1-249-426-11 CARBON 5.6K 5% 1/4W R2022 1-249-421-11 CARBON 2.2K 5% 1/4W F R2023 1-247-852-11 CARBON 7.5K 5% 1/4W R2024 1-249-417-11 CARBON 1K 5% 1/4W F R2025 1-249-417-11 CARBON 1K 5% 1/4W F R2026 1-247-838-00 CARBON 2K 5% 1/4W R2027 1-249-417-11 CARBON 1K 5% 1/4W F R2028 1-247-807-31 CARBON 100 5% 1/4W R2029 1-249-417-11 CARBON 1K 5% 1/4W F R2030 1-249-399-11 CARBON 33 5% 1/4W F R2031 1-249-429-11 CARBON 10K 5% 1/4W R2201 1-249-429-11 CARBON 10K 5% 1/4W R2202 1-249-429-11 CARBON 10K 5% 1/4W Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark OSD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 80 — R2203 1-249-429-11 CARBON 10K 5% 1/4W < TEST PIN > * TP203 1-560-061-00 PIN, CONNECTOR 3P < VIBRATOR > X204 1-579-583-11 VIBRATOR, CERAMIC (503kHz) X207 1-579-057-11 VIBRATOR, CRYSTAL (17MHz) ************************************************************** * A-4398-142-A REAR AMP BOARD, COMPLETE ************************* < CAPACITOR > C700 1-162-294-31 CERAMIC 0.001uF 10% 50V C701 1-126-964-11 ELECT 10uF 20% 50V C702 1-162-282-31 CERAMIC 100PF 10% 50V C703 1-102-233-00 CERAMIC 33PF 10% 500V C704 1-162-282-31 CERAMIC 100PF 10% 50V C705 1-126-933-11 ELECT 100uF 20% 10V C720 1-126-967-11 ELECT 47uF 20% 16V C721 1-107-597-11 CERAMIC 22PF 10% 500V C722 1-107-597-11 CERAMIC 22PF 10% 500V C723 1-162-286-31 CERAMIC 220PF 10% 50V C751 1-126-964-11 ELECT 10uF 20% 50V C752 1-162-282-31 CERAMIC 100PF 10% 50V C753 1-102-233-00 CERAMIC 33PF 10% 500V C754 1-162-282-31 CERAMIC 100PF 10% 50V C755 1-126-933-11 ELECT 100uF 20% 10V C770 1-126-967-11 ELECT 47uF 20% 16V C771 1-107-597-11 CERAMIC 22PF 10% 500V C772 1-107-597-11 CERAMIC 22PF 10% 500V C773 1-162-286-31 CERAMIC 220PF 10% 50V C793 1-126-923-11 ELECT 220uF 20% 10V C798 1-128-560-11 ELECT 22uF 20% 100V C799 1-128-560-11 ELECT 22uF 20% 100V < CONNECTOR > CNP704 1-564-320-00 PIN, CONNECTOR (B2P-VH) 2P * CNP705 1-564-242-00 PIN, CONNECTOR 5P CNP706 1-564-320-00 PIN, CONNECTOR (B2P-VH) 2P CNS704 1-564-510-11 PLUG, CONNECTOR 7P < DIODE > D701 8-719-987-63 DIODE 1N4148M D702 8-719-010-06 DIODE UZ-2.2BS D703 8-719-010-06 DIODE UZ-2.2BS D704 8-719-987-63 DIODE 1N4148M D751 8-719-987-63 DIODE 1N4148M D752 8-719-010-06 DIODE UZ-2.2BS D753 8-719-010-06 DIODE UZ-2.2BS D754 8-719-987-63 DIODE 1N4148M < IC > IC701 8-759-326-52 IC uPC2581V < TRANSISTOR > Q703 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA Q704 8-729-119-76 TRANSISTOR 2SA1175-HFE Q705 8-729-141-30 TRANSISTOR 2SC3623A-LK Q706 8-749-010-25 IC MN2488-OPY-M Q707 8-749-010-26 IC MP1620-OPY-M Q708 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q754 8-729-119-76 TRANSISTOR 2SA1175-HFE Q755 8-729-141-30 TRANSISTOR 2SC3623A-LK Q756 8-749-010-25 IC MN2488-OPY-M Q757 8-749-010-26 IC MP1620-OPY-M Q758 8-729-140-82 TRANSISTOR 2SA988-PAFAEA < RESISTOR > R701 1-249-417-11 CARBON 1K 5% 1/4W F R702 1-249-439-11 CARBON 68K 5% 1/4W R703 1-249-439-11 CARBON 68K 5% 1/4W R704 1-247-820-11 CARBON 360 5% 1/4W R721 1-249-437-11 CARBON 47K 5% 1/4W R722 1-249-421-11 CARBON 2.2K 5% 1/4W F R723 1-249-414-11 CARBON 560 5% 1/4W F !R724 1-249-408-11 CARBON 180 5% 1/4W F !R725 1-249-408-11 CARBON 180 5% 1/4W F !R726 1-233-352-41 ENCAPSULATED COMPONENT R727 1-247-850-11 CARBON 6.2K 5% 1/4W R728 1-249-419-11 CARBON 1.5K 5% 1/4W F R732 1-249-437-11 CARBON 47K 5% 1/4W R751 1-249-417-11 CARBON 1K 5% 1/4W F R752 1-249-439-11 CARBON 68K 5% 1/4W R753 1-249-439-11 CARBON 68K 5% 1/4W R754 1-247-820-11 CARBON 360 5% 1/4W R771 1-249-437-11 CARBON 47K 5% 1/4W R772 1-249-421-11 CARBON 2.2K 5% 1/4W F R773 1-249-414-11 CARBON 560 5% 1/4W F !R774 1-249-408-11 CARBON 180 5% 1/4W F !R775 1-249-408-11 CARBON 180 5% 1/4W F !R776 1-233-352-41 ENCAPSULATED COMPONENT R777 1-247-850-11 CARBON 6.2K 5% 1/4W R778 1-249-419-11 CARBON 1.5K 5% 1/4W F R782 1-249-437-11 CARBON 47K 5% 1/4W R790 1-249-417-11 CARBON 1K 5% 1/4W F R793 1-249-435-11 CARBON 33K 5% 1/4W R794 1-249-425-11 CARBON 4.7K 5% 1/4W F !R798 1-249-393-11 CARBON 10 5% 1/4W F !R799 1-249-393-11 CARBON 10 5% 1/4W F ************************************************************** * 1-665-503-11 S-A-P BOARD *********** < CONNECTOR > CNP703 1-695-089-11 PIN, CONNECTOR (PC BOARD) 11P CNS702 1-695-096-11 SOCKET, CONNECTOR 15P CNS905 1-695-092-11 SOCKET, CONNECTOR 7P ************************************************************** Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. S-A-P REAR AMP OSD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 81 — * A-4398-114-A S-VIDEO BOARD, COMPLETE *********************** < CAPACITOR > C204 1-164-159-11 CERAMIC 0.1uF 50V C221 1-126-964-11 ELECT 10uF 20% 50V C222 1-162-294-31 CERAMIC 0.001uF 10% 50V C238 1-126-967-11 ELECT 47uF 20% 16V C239 1-164-159-11 CERAMIC 0.1uF 50V C246 1-164-159-11 CERAMIC 0.1uF 50V C269 1-164-159-11 CERAMIC 0.1uF 50V C270 1-124-252-00 ELECT 0.33uF 20% 50V C274 1-126-967-11 ELECT 47uF 20% 16V C275 1-126-967-11 ELECT 47uF 20% 16V C276 1-104-905-11 CAPACITOR 0.22F 5.5V C277 1-162-306-11 CERAMIC 0.01uF 20% 16V C280 1-164-159-11 CERAMIC 0.1uF 50V C295 1-164-159-11 CERAMIC 0.1uF 50V C297 1-126-923-11 ELECT 220uF 20% 10V C2003 1-126-967-11 ELECT 47uF 20% 16V < CONNECTOR > CNJ203 1-568-440-11 SOCKET, CONNECTOR 17P CNJ204 1-779-768-11 SOCKET, CONNECTOR 29P * CNJ214 1-564-509-11 PLUG, CONNECTOR 6P * CNS211 1-695-092-11 SOCKET, CONNECTOR 7P * CNS213 1-750-179-11 SOCKET, CONNECTOR 5P < DIODE > D202 8-719-987-63 DIODE 1N4148M D203 8-719-987-63 DIODE 1N4148M D204 8-719-987-63 DIODE 1N4148M D205 8-719-024-99 DIODE 11ES2-NTA2B D210 8-719-987-63 DIODE 1N4148M < IC > IC207 8-759-708-05 IC NJM78L05A IC209 8-759-426-13 IC MB90672-G-125-BND IC215 8-759-488-36 IC LC86F5864A-5F53 IC217 8-759-604-35 IC M5F78M05L IC219 8-759-917-18 IC SN74HCU04AN < JACK > J202 1-563-330-11 JACK (S-LINK CTAL A1) < COIL > L289 1-410-521-11 INDUCTOR 100uH < TRANSISTOR > Q201 8-729-900-36 TRANSISTOR DTC124ES Q204 8-729-141-30 TRANSISTOR 2SC3623A-LK Q213 8-729-900-63 TRANSISTOR DTA124ES Q220 8-729-620-05 TRANSISTOR 2SC2603-EF Q227 8-729-900-36 TRANSISTOR DTC124ES < RESISTOR > R208 1-249-419-11 CARBON 1.5K 5% 1/4W F R209 1-249-429-11 CARBON 10K 5% 1/4W R231 1-249-417-11 CARBON 1K 5% 1/4W F R235 1-249-417-11 CARBON 1K 5% 1/4W F R249 1-249-413-11 CARBON 470 5% 1/4W F R284 1-247-843-11 CARBON 3.3K 5% 1/4W R286 1-247-903-00 CARBON 1M 5% 1/4W R291 1-249-429-11 CARBON 10K 5% 1/4W R292 1-249-393-11 CARBON 10 5% 1/4W F R293 1-249-429-11 CARBON 10K 5% 1/4W R294 1-249-425-11 CARBON 4.7K 5% 1/4W F R295 1-249-425-11 CARBON 4.7K 5% 1/4W F !R2001 1-215-857-11 METAL OXIDE 10 5% 1W F R2008 1-249-429-11 CARBON 10K 5% 1/4W R2015 1-247-807-31 CARBON 100 5% 1/4W R2016 1-249-429-11 CARBON 10K 5% 1/4W R2017 1-249-429-11 CARBON 10K 5% 1/4W R2018 1-249-429-11 CARBON 10K 5% 1/4W R2019 1-249-429-11 CARBON 10K 5% 1/4W R2020 1-247-807-31 CARBON 100 5% 1/4W R2032 1-249-417-11 CARBON 1K 5% 1/4W F R2033 1-247-807-31 CARBON 100 5% 1/4W R2034 1-247-807-31 CARBON 100 5% 1/4W R2035 1-247-807-31 CARBON 100 5% 1/4W R2036 1-247-807-31 CARBON 100 5% 1/4W R2037 1-247-807-31 CARBON 100 5% 1/4W R2038 1-247-807-31 CARBON 100 5% 1/4W R2039 1-247-807-31 CARBON 100 5% 1/4W R2040 1-247-807-31 CARBON 100 5% 1/4W R2041 1-247-807-31 CARBON 100 5% 1/4W R2042 1-247-807-31 CARBON 100 5% 1/4W R2043 1-247-807-31 CARBON 100 5% 1/4W R2044 1-247-807-31 CARBON 100 5% 1/4W R2045 1-247-807-31 CARBON 100 5% 1/4W R2046 1-247-807-31 CARBON 100 5% 1/4W R2047 1-247-807-31 CARBON 100 5% 1/4W R2048 1-247-807-31 CARBON 100 5% 1/4W R2049 1-247-807-31 CARBON 100 5% 1/4W R2050 1-247-807-31 CARBON 100 5% 1/4W R2051 1-247-807-31 CARBON 100 5% 1/4W R2052 1-247-807-31 CARBON 100 5% 1/4W R2053 1-247-807-31 CARBON 100 5% 1/4W R2054 1-247-807-31 CARBON 100 5% 1/4W R2055 1-247-807-31 CARBON 100 5% 1/4W R2056 1-247-807-31 CARBON 100 5% 1/4W < TERMINAL > TM201 1-561-534-00 SOCKET, PIN 21P (MONITOR) < TEST PIN > * TP204 1-560-062-00 PIN, CONNECTOR 4P TP205 1-691-766-11 PLUG (MICRO CONNECTOR) 4P < VIBRATOR > X201 1-567-819-11 VIBRATOR, CERAMIC (4MHz) X205 1-567-776-41 VIBRATOR, CERAMIC (6MHz) ************************************************************** Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark S-VIDEO The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 82 — D607 8-719-987-63 DIODE 1N4148M D649 8-719-987-63 DIODE 1N4148M D705 8-719-987-63 DIODE 1N4148M D706 8-719-987-63 DIODE 1N4148M D749 8-719-987-63 DIODE 1N4148M < IC > IC702 8-759-605-01 IC M5F78M18L < JACK > J501 1-770-377-31 JACK, PIN 1P (WOOFER AUDIO OUT) < COIL > L601 1-411-906-11 COIL, AIR-CORE L701 1-411-906-11 COIL, AIR-CORE L751 1-411-906-11 COIL, AIR-CORE < TRANSISTOR > Q544 8-729-119-79 TRANSISTOR 2SC2785-FEK Q609 8-729-281-53 TRANSISTOR 2SC1815-GR Q610 8-729-900-63 TRANSISTOR DTA124ES Q611 8-729-900-63 TRANSISTOR DTA124ES Q645 8-729-119-79 TRANSISTOR 2SC2785-FEK Q709 8-729-281-53 TRANSISTOR 2SC1815-GR Q710 8-729-900-63 TRANSISTOR DTA124ES Q745 8-729-119-79 TRANSISTOR 2SC2785-FEK Q747 8-729-119-79 TRANSISTOR 2SC2785-FEK Q748 8-729-030-19 TRANSISTOR 2SB1640 < RESISTOR > R543 1-249-429-11 CARBON 10K 5% 1/4W R544 1-249-425-11 CARBON 4.7K 5% 1/4W F !R545 1-249-393-11 CARBON 10 5% 1/4W F R546 1-249-421-11 CARBON 2.2K 5% 1/4W F R629 1-249-437-11 CARBON 47K 5% 1/4W R630 1-249-421-11 CARBON 2.2K 5% 1/4W F R631 1-249-433-11 CARBON 22K 5% 1/4W R633 1-249-393-11 CARBON 10 5% 1/4W F !R634 1-249-389-11 CARBON 4.7 5% 1/4W F R635 1-249-431-11 CARBON 15K 5% 1/4W R636 1-249-433-11 CARBON 22K 5% 1/4W R646 1-249-432-11 CARBON 18K 5% 1/4W F R647 1-249-429-11 CARBON 10K 5% 1/4W R648 1-249-425-11 CARBON 4.7K 5% 1/4W F R649 1-249-393-11 CARBON 10 5% 1/4W F R729 1-249-437-11 CARBON 47K 5% 1/4W R730 1-249-421-11 CARBON 2.2K 5% 1/4W F R731 1-249-433-11 CARBON 22K 5% 1/4W R733 1-249-393-11 CARBON 10 5% 1/4W F !R734 1-249-389-11 CARBON 4.7 5% 1/4W F R735 1-249-431-11 CARBON 15K 5% 1/4W R737 1-249-429-11 CARBON 10K 5% 1/4W R738 1-247-886-11 CARBON 200K 5% 1/4W R743 1-249-425-11 CARBON 4.7K 5% 1/4W F R744 1-249-425-11 CARBON 4.7K 5% 1/4W F R745 1-249-421-11 CARBON 2.2K 5% 1/4W F Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * 1-665-497-11 SECONDARY BOARD ***************** < CAPACITOR > C801 1-126-967-11 ELECT 47uF 20% 16V C805 1-130-781-00 FILM 0.22uF 10% 100V C806 1-130-781-00 FILM 0.22uF 10% 100V < CONNECTOR > * CNP801 1-564-905-11 PIN, CONNECTOR 9P < DIODE > D801 8-719-302-37 DIODE RBV-602 D802 8-719-024-99 DIODE 11ES2-NTA2B D803 8-719-024-99 DIODE 11ES2-NTA2B D804 8-719-024-99 DIODE 11ES2-NTA2B D805 8-719-024-99 DIODE 11ES2-NTA2B D806 8-719-014-66 DIODE UZP-5.6B < FUSE > !F950 1-532-506-51 FUSE, TIME-LAG (T6.3AL/250V) !F951 1-532-506-51 FUSE, TIME-LAG (T6.3AL/250V) < FUSE HOLDER > FH905 1-533-217-31 HOLDER, FUSE FH906 1-533-217-31 HOLDER, FUSE FH955 1-533-217-31 HOLDER, FUSE FH966 1-533-217-31 HOLDER, FUSE < TRANSFORMER > !T901 1-431-318-11 TRANSFORMER, POWER ************************************************************** * A-4398-146-A SP BOARD, COMPLETE ****************** < CAPACITOR > C624 1-126-964-11 ELECT 10uF 20% 50V C625 1-136-157-00 FILM 0.022uF 5% 50V C626 1-136-153-00 FILM 0.01uF 5% 50V C724 1-126-964-11 ELECT 10uF 20% 50V C725 1-136-157-00 FILM 0.022uF 5% 50V C726 1-136-153-00 FILM 0.01uF 5% 50V C775 1-136-157-00 FILM 0.022uF 5% 50V C794 1-126-964-11 ELECT 10uF 20% 50V C795 1-126-941-11 ELECT 470uF 20% 25V < CONNECTOR > CNP603 1-564-320-00 PIN, CONNECTOR 2P CNS703 1-695-094-11 SOCKET, CONNECTOR 11P CNJ701 1-774-136-11 CONNECTOR, ROUND TYPE 6P (WIRELESS REAR SPEAKER) < DIODE > D500 8-719-987-63 DIODE 1N4148M D543 8-719-987-63 DIODE 1N4148M D605 8-719-987-63 DIODE 1N4148M D606 8-719-987-63 DIODE 1N4148M The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. SECONDARY SP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 83 — R746 1-249-421-11 CARBON 2.2K 5% 1/4W F R747 1-249-429-11 CARBON 10K 5% 1/4W R748 1-249-425-11 CARBON 4.7K 5% 1/4W F !R749 1-249-393-11 CARBON 10 5% 1/4W F R783 1-249-393-11 CARBON 10 5% 1/4W F !R784 1-249-389-11 CARBON 4.7 5% 1/4W F R787 1-249-429-11 CARBON 10K 5% 1/4W R788 1-247-886-11 CARBON 200K 5% 1/4W < RELAY > RY503 1-515-793-11 RELAY RY601 1-515-920-11 RELAY (24V) RY701 1-515-920-11 RELAY (24V) < TERMINAL > * TM701 1-537-882-11 TERMINAL BOARD 6P (SURROUND SPEAKERS) ************************************************************** * 1-665-626-11 SP SW BOARD *********** < CONNECTOR > * CNS101 1-695-808-11 CONNECTOR, PC BOARD 8P < DIODE > D152 8-719-987-63 DIODE 1N4148M D153 8-719-987-63 DIODE 1N4148M < SWITCH > S136 1-762-751-11 SWITCH, TACTILE (DPC MODE) S152 1-554-118-00 SWITCH, PUSH (1 KEY)(POWER) S155 1-762-268-11 SWITCH, ROTARY (SPEAKERS) ************************************************************** * A-4398-121-A STAND BY BOARD, COMPLETE (UK) ***************************** * A-4398-145-A STAND BY BOARD, COMPLETE (AEP,G,EE) ********************************* 7-685-872-09 SCREW +BVTT 3X8 (S) < CAPACITOR > C901 1-161-494-00 CERAMIC 0.022uF 25V C902 1-161-494-00 CERAMIC 0.022uF 25V C903 1-126-768-11 ELECT 2200uF 20% 16V C904 1-126-960-11 ELECT 1uF 20% 50V C905 1-126-959-11 ELECT 0.47uF 20% 50V C906 1-124-464-11 ELECT 0.22uF 20% 50V C913 1-164-159-11 CERAMIC 0.1uF 50V C914 1-164-159-11 CERAMIC 0.1uF 50V C915 1-136-173-00 FILM 0.47uF 5% 50V C916 1-164-159-11 CERAMIC 0.1uF 50V C917 1-164-159-11 CERAMIC 0.1uF 50V < CONNECTOR > CNP903 1-564-321-00 PIN, CONNECTOR 2P * CNP904 1-580-230-21 PIN, CONNECTOR (PC BOARD) 2P CNP905 1-695-087-11 PIN, CONNECTOR (PC BOARD) 7P < DIODE > D901 8-719-024-99 DIODE 11ES2-NTA2B D902 8-719-024-99 DIODE 11ES2-NTA2B D903 8-719-024-99 DIODE 11ES2-NTA2B D904 8-719-024-99 DIODE 11ES2-NTA2B D905 8-719-987-63 DIODE 1N4148M D906 8-719-987-63 DIODE 1N4148M D907 8-719-987-63 DIODE 1N4148M < GROUND TERMINAL > * EB900 1-537-738-21 TERMINAL, EARTH < FUSE > !F901 1-532-504-51 FUSE TIME-LAG (T4.6AL/250V) !F902 1-532-464-51 FUSE TIME-LAG (T2.5AL/250V) < FUSE HOLDER > FH901 1-533-217-31 HOLDER, FUSE FH902 1-533-217-31 HOLDER, FUSE FH951 1-533-217-31 HOLDER, FUSE FH952 1-533-217-31 HOLDER, FUSE < IC > IC901 8-759-333-83 IC NJM2103D < TRANSISTOR > Q901 8-729-119-79 TRANSISTOR 2SC2785-FEK Q902 8-729-209-15 TRANSISTOR 2SD2012 < RESISTOR > R902 1-249-429-11 CARBON 10K 5% 1/4W R903 1-249-425-11 CARBON 4.7K 5% 1/4W F R904 1-249-417-11 CARBON 1K 5% 1/4W F R905 1-249-428-11 CARBON 8.2K 5% 1/4W F R906 1-249-421-11 CARBON 2.2K 5% 1/4W F R908 1-249-433-11 CARBON 22K 5% 1/4W R909 1-249-439-11 CARBON 68K 5% 1/4W R910 1-249-437-11 CARBON 47K 5% 1/4W R912 1-249-430-11 CARBON 12K 5% 1/4W < RELAY > !RY901 1-515-999-11 RELAY, POWER < TRANSFORMER > !T902 1-429-236-11 TRANSFORMER, POWER ************************************************************** * A-4398-106-A SURR BOARD, COMPLETE ********************* < CAPACITOR > C301 1-126-963-11 ELECT 4.7uF 20% 50V Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. STAND BY SP SW SP SURR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 84 — Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C302 1-162-282-31 CERAMIC 100PF 10% 50V C303 1-126-967-11 ELECT 47uF 20% 16V C304 1-130-480-00 MYLAR 0.0056uF 5% 50V C305 1-106-347-00 MYLAR 1500PF 5% 200V C306 1-126-960-11 ELECT 1uF 20% 50V C307 1-164-159-11 CERAMIC 0.1uF 50V C351 1-126-963-11 ELECT 4.7uF 20% 50V C352 1-162-282-31 CERAMIC 100PF 10% 50V C353 1-126-967-11 ELECT 47uF 20% 16V C354 1-130-480-00 MYLAR 0.0056uF 5% 50V C355 1-106-347-00 MYLAR 1500PF 5% 200V C356 1-126-960-11 ELECT 1uF 20% 50V C357 1-164-159-11 CERAMIC 0.1uF 50V C394 1-126-967-11 ELECT 47uF 20% 16V C395 1-126-967-11 ELECT 47uF 20% 16V C396 1-162-282-31 CERAMIC 100PF 10% 50V C397 1-162-294-31 CERAMIC 0.001uF 10% 50V C401 1-126-964-11 ELECT 10uF 20% 50V C402 1-126-964-11 ELECT 10uF 20% 50V C403 1-126-964-11 ELECT 10uF 20% 50V C404 1-162-199-31 CERAMIC 10PF 5% 50V C405 1-162-199-31 CERAMIC 10PF 5% 50V C406 1-126-964-11 ELECT 10uF 20% 50V C410 1-164-159-11 CERAMIC 0.1uF 50V C413 1-126-964-11 ELECT 10uF 20% 50V C420 1-136-165-00 FILM 0.1uF 5% 50V C421 1-126-933-11 ELECT 100uF 20% 16V C422 1-164-159-11 CERAMIC 0.1uF 50V C423 1-126-933-11 ELECT 100uF 20% 16V C424 1-164-159-11 CERAMIC 0.1uF 50V C425 1-126-965-11 ELECT 22uF 20% 50V C426 1-136-177-00 FILM 1uF 5% 50V C427 1-136-153-00 FILM 0.01uF 5% 50V C428 1-130-474-00 MYLAR 0.0018uF 5% 50V C429 1-136-163-00 FILM 0.068uF 5% 50V C430 1-136-165-00 FILM 0.1uF 5% 50V C431 1-136-165-00 FILM 0.1uF 5% 50V C432 1-136-163-00 FILM 0.068uF 5% 50V C433 1-136-153-00 FILM 0.01uF 5% 50V C434 1-130-474-00 MYLAR 0.0018uF 5% 50V C435 1-136-165-00 FILM 0.1uF 5% 50V C436 1-136-165-00 FILM 0.1uF 5% 50V C437 1-130-467-00 MYLAR 470PF 5% 50V C438 1-136-165-00 FILM 0.1uF 5% 50V C439 1-130-470-00 MYLAR 820PF 5% 50V C440 1-130-480-00 MYLAR 0.0056uF 5% 50V C441 1-136-161-00 FILM 0.047uF 5% 50V C442 1-136-175-00 FILM 0.68uF 5% 50V C443 1-136-169-00 FILM 0.22uF 5% 50V C444 1-136-169-00 FILM 0.22uF 5% 50V C445 1-126-963-11 ELECT 4.7uF 20% 50V C446 1-126-963-11 ELECT 4.7uF 20% 50V C447 1-136-169-00 FILM 0.22uF 5% 50V C448 1-136-169-00 FILM 0.22uF 5% 50V C449 1-136-165-00 FILM 0.1uF 5% 50V C450 1-136-161-00 FILM 0.047uF 5% 50V C451 1-126-964-11 ELECT 10uF 20% 50V C452 1-126-964-11 ELECT 10uF 20% 50V C453 1-126-964-11 ELECT 10uF 20% 50V C454 1-162-199-31 CERAMIC 10PF 5% 50V C455 1-162-199-31 CERAMIC 10PF 5% 50V C456 1-126-964-11 ELECT 10uF 20% 50V C460 1-164-159-11 CERAMIC 0.1uF 50V C463 1-126-964-11 ELECT 10uF 20% 50V C469 1-126-963-11 ELECT 4.7uF 20% 50V C470 1-136-161-00 FILM 0.047uF 5% 50V C471 1-136-165-00 FILM 0.1uF 5% 50V C472 1-136-165-00 FILM 0.1uF 5% 50V C473 1-136-157-00 FILM 0.022uF 5% 50V C474 1-136-157-00 FILM 0.022uF 5% 50V C475 1-136-165-00 FILM 0.1uF 5% 50V C476 1-130-469-00 MYLAR 680PF 5% 50V C477 1-126-967-11 ELECT 47uF 20% 16V C478 1-136-165-00 FILM 0.1uF 5% 50V C479 1-136-165-00 FILM 0.1uF 5% 50V C480 1-130-469-00 MYLAR 680PF 5% 50V C481 1-136-165-00 FILM 0.1uF 5% 50V C482 1-136-165-00 FILM 0.1uF 5% 50V C483 1-126-967-11 ELECT 47uF 20% 16V C484 1-126-933-11 ELECT 100uF 20% 16V C485 1-164-159-11 CERAMIC 0.1uF 50V C486 1-126-964-11 ELECT 10uF 20% 50V C489 1-164-159-11 CERAMIC 0.1uF 50V C493 1-136-165-00 FILM 0.1uF 5% 50V C494 1-136-165-00 FILM 0.1uF 5% 50V C497 1-162-282-31 CERAMIC 100PF 10% 50V C501 1-126-964-11 ELECT 10uF 20% 50V C502 1-162-282-31 CERAMIC 100PF 10% 50V C503 1-107-601-11 CERAMIC 33PF 5% 500V C505 1-126-933-11 ELECT 100uF 20% 16V C508 1-136-163-00 FILM 0.068uF 5% 50V C509 1-136-154-00 FILM 0.012uF 5% 50V C511 1-106-353-00 MYLAR 0.0027uF 5% 50V C512 1-136-157-00 FILM 0.022uF 5% 50V C513 1-136-171-00 FILM 0.33uF 5% 50V C514 1-136-159-00 FILM 0.033uF 5% 50V C527 1-126-964-11 ELECT 10uF 20% 50V C539 1-162-282-31 CERAMIC 100PF 10% 50V C551 1-126-964-11 ELECT 10uF 20% 50V C552 1-162-282-31 CERAMIC 100PF 10% 50V C553 1-107-601-11 CERAMIC 33PF 5% 500V C555 1-126-933-11 ELECT 100uF 20% 16V C558 1-136-163-00 FILM 0.068uF 5% 50V C559 1-136-154-00 FILM 0.012uF 5% 50V C561 1-106-353-00 MYLAR 0.0027uF 5% 50V C562 1-136-157-00 FILM 0.022uF 5% 50V C563 1-136-171-00 FILM 0.33uF 5% 50V C564 1-136-159-00 FILM 0.033uF 5% 50V C577 1-126-964-11 ELECT 10uF 20% 50V C580 1-162-294-31 CERAMIC 0.001uF 10% 50V C581 1-126-964-11 ELECT 10uF 20% 50V C589 1-162-282-31 CERAMIC 100PF 10% 50V C592 1-126-967-11 ELECT 47uF 20% 16V C593 1-126-923-11 ELECT 220uF 20% 10V C594 1-128-560-11 ELECT 22uF 20% 100V SURR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 85 — C595 1-128-560-11 ELECT 22uF 20% 100V C596 1-164-159-11 CERAMIC 0.1uF 50V C597 1-162-282-31 CERAMIC 100PF 10% 50V C599 1-126-967-11 ELECT 47uF 20% 16V C601 1-126-964-11 ELECT 10uF 20% 50V C602 1-162-282-31 CERAMIC 100PF 10% 50V C603 1-102-989-00 CERAMIC 68PF 5% 500V C604 1-164-040-11 CERAMIC 4PF 0.25PF 50V C605 1-126-967-11 ELECT 47uF 20% 16V C606 1-102-989-00 CERAMIC 68PF 5% 500V CC01 1-162-282-31 CERAMIC 100PF 10% 50V CC02 1-162-282-31 CERAMIC 100PF 10% 50V CC03 1-162-282-31 CERAMIC 100PF 10% 50V CC04 1-162-282-31 CERAMIC 100PF 10% 50V CC05 1-162-282-31 CERAMIC 100PF 10% 50V CC06 1-162-282-31 CERAMIC 100PF 10% 50V CC07 1-162-282-31 CERAMIC 100PF 10% 50V CC51 1-162-282-31 CERAMIC 100PF 10% 50V CC52 1-162-282-31 CERAMIC 100PF 10% 50V CC53 1-162-282-31 CERAMIC 100PF 10% 50V CC54 1-162-282-31 CERAMIC 100PF 10% 50V CC55 1-162-282-31 CERAMIC 100PF 10% 50V CC56 1-162-282-31 CERAMIC 100PF 10% 50V CC57 1-162-282-31 CERAMIC 100PF 10% 50V < CONNECTOR > CNP250 1-691-765-11 PLUG (MICRO CONNECTOR) 3P CNP303 1-695-088-11 PIN, CONNECTOR (PC BOARD) 9P CNP403 1-695-088-11 PIN, CONNECTOR (PC BOARD) 9P CNP404 1-695-089-11 PIN, CONNECTOR (PC BOARD) 11P CNS106 1-569-323-11 SOCKET, CONNECTOR 19P CNS401 1-569-323-11 SOCKET, CONNECTOR 19P CNS501 1-770-404-11 HOUSING,CONNECTOR (PC BOARD) 11P CNS601 1-770-404-11 HOUSING,CONNECTOR (PC BOARD) 11P < DIODE > D401 8-719-987-63 DIODE 1N4148M D402 8-719-987-63 DIODE 1N4148M D403 8-719-024-99 DIODE 11ES2-NTA2B < GROUND TERMINAL > * EB301 1-537-738-21 TERMINAL, EARTH * EB302 1-537-738-21 TERMINAL, EARTH < IC > IC301 8-759-805-14 IC LC7822 IC302 8-759-636-74 IC M5218AP-22 IC401 8-759-392-97 IC M62460FP IC402 8-759-634-51 IC M5218AP IC403 8-759-634-51 IC M5218AP IC404 8-759-634-51 IC M5218AP IC407 8-759-189-27 IC M5278L10-TP IC408 8-759-708-05 IC NJM78L05A IC501 8-759-326-52 IC uPC2581V IC502 8-759-462-99 IC TC9184P IC601 8-749-011-16 IC STK350-230 < JACK > J301 1-774-725-11 JACK, PIN 2P (PHONO IN) J302 1-770-015-11 JACK, PIN 6P (TUNER IN, CD IN, DAT/MD RECOUT) J303 1-770-015-11 JACK, PIN 6P (DAT/MD IN, TAPE RECOUT/IN) < COIL > L401 1-410-509-11 INDUCTOR 10uH L402 1-410-509-11 INDUCTOR 10uH L403 1-410-509-11 INDUCTOR 10uH L404 1-410-509-11 INDUCTOR 10uH < TRANSISTOR > Q402 8-729-922-37 TRANSISTOR 2SD2144S Q410 8-729-119-79 TRANSISTOR 2SC2785-FEK Q411 8-729-900-63 TRANSISTOR DTA124ES Q412 8-729-900-63 TRANSISTOR DTA124ES Q413 8-729-900-63 TRANSISTOR DTA124ES Q414 8-729-900-63 TRANSISTOR DTA124ES Q415 8-729-900-36 TRANSISTOR DTC124ES Q416 8-729-900-36 TRANSISTOR DTC124ES Q452 8-729-922-37 TRANSISTOR 2SD2144S Q501 8-729-202-67 TRANSISTOR 2SK246-GR3 Q502 8-729-141-30 TRANSISTOR 2SC3623A-LK Q503 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA Q551 8-729-202-67 TRANSISTOR 2SK246-GR3 Q552 8-729-141-30 TRANSISTOR 2SC3623A-LK < RESISTOR > R301 1-249-409-11 CARBON 220 5% 1/4W F R302 1-249-441-11 CARBON 100K 5% 1/4W R303 1-249-441-11 CARBON 100K 5% 1/4W R304 1-249-416-11 CARBON 820 5% 1/4W F R305 1-247-897-11 CARBON 560K 5% 1/4W R306 1-249-437-11 CARBON 47K 5% 1/4W R307 1-249-441-11 CARBON 100K 5% 1/4W R308 1-247-807-31 CARBON 100 5% 1/4W R309 1-249-417-11 CARBON 1K 5% 1/4W F R310 1-249-425-11 CARBON 4.7K 5% 1/4W F R311 1-249-417-11 CARBON 1K 5% 1/4W F R312 1-249-425-11 CARBON 4.7K 5% 1/4W F R313 1-249-417-11 CARBON 1K 5% 1/4W F R314 1-249-417-11 CARBON 1K 5% 1/4W F R351 1-249-409-11 CARBON 220 5% 1/4W F R352 1-249-441-11 CARBON 100K 5% 1/4W R353 1-249-441-11 CARBON 100K 5% 1/4W R354 1-249-416-11 CARBON 820 5% 1/4W F R355 1-247-897-11 CARBON 560K 5% 1/4W R356 1-249-437-11 CARBON 47K 5% 1/4W R357 1-249-441-11 CARBON 100K 5% 1/4W R358 1-247-807-31 CARBON 100 5% 1/4W R359 1-249-417-11 CARBON 1K 5% 1/4W F R360 1-249-425-11 CARBON 4.7K 5% 1/4W F R361 1-249-417-11 CARBON 1K 5% 1/4W F R362 1-249-425-11 CARBON 4.7K 5% 1/4W F R363 1-249-417-11 CARBON 1K 5% 1/4W F R364 1-249-417-11 CARBON 1K 5% 1/4W F R394 1-247-807-31 CARBON 100 5% 1/4W Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark SURR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 86 — R395 1-247-807-31 CARBON 100 5% 1/4W R396 1-249-417-11 CARBON 1K 5% 1/4W F R397 1-249-425-11 CARBON 4.7K 5% 1/4W F R401 1-249-433-11 CARBON 22K 5% 1/4W R402 1-249-434-11 CARBON 27K 5% 1/4W R403 1-249-417-11 CARBON 1K 5% 1/4W F R404 1-249-425-11 CARBON 4.7K 5% 1/4W F R405 1-249-440-11 CARBON 82K 5% 1/4W R406 1-247-895-00 CARBON 470K 5% 1/4W R407 1-249-441-11 CARBON 100K 5% 1/4W R408 1-249-429-11 CARBON 10K 5% 1/4W R409 1-249-433-11 CARBON 22K 5% 1/4W R414 1-249-417-11 CARBON 1K 5% 1/4W F R415 1-249-425-11 CARBON 4.7K 5% 1/4W F R426 1-249-429-11 CARBON 10K 5% 1/4W R427 1-249-429-11 CARBON 10K 5% 1/4W R428 1-247-903-00 CARBON 1M 5% 1/4W R429 1-247-872-11 CARBON 51K 5% 1/4W R430 1-247-887-00 CARBON 220K 5% 1/4W R431 1-247-864-11 CARBON 24K 5% 1/4W R432 1-247-864-11 CARBON 24K 5% 1/4W R433 1-247-891-00 CARBON 330K 5% 1/4W R434 1-249-437-11 CARBON 47K 5% 1/4W R435 1-249-431-11 CARBON 15K 5% 1/4W R436 1-247-852-11 CARBON 7.5K 5% 1/4W R437 1-249-437-11 CARBON 47K 5% 1/4W R438 1-249-431-11 CARBON 15K 5% 1/4W R439 1-247-852-11 CARBON 7.5K 5% 1/4W R440 1-259-880-11 CARBON 2.2M 5% 1/4W R441 1-249-441-11 CARBON 100K 5% 1/4W R442 1-247-883-00 CARBON 150K 5% 1/4W R443 1-249-431-11 CARBON 15K 5% 1/4W R444 1-249-429-11 CARBON 10K 5% 1/4W R445 1-249-429-11 CARBON 10K 5% 1/4W R446 1-249-419-11 CARBON 1.5K 5% 1/4W F R447 1-249-429-11 CARBON 10K 5% 1/4W R448 1-249-429-11 CARBON 10K 5% 1/4W R449 1-249-425-11 CARBON 4.7K 5% 1/4W F R450 1-249-441-11 CARBON 100K 5% 1/4W R451 1-249-433-11 CARBON 22K 5% 1/4W R452 1-249-434-11 CARBON 27K 5% 1/4W R453 1-249-417-11 CARBON 1K 5% 1/4W F R454 1-249-425-11 CARBON 4.7K 5% 1/4W F R455 1-249-440-11 CARBON 82K 5% 1/4W R456 1-247-895-00 CARBON 470K 5% 1/4W R457 1-249-441-11 CARBON 100K 5% 1/4W R458 1-249-429-11 CARBON 10K 5% 1/4W R459 1-249-433-11 CARBON 22K 5% 1/4W R464 1-249-417-11 CARBON 1K 5% 1/4W F R465 1-249-425-11 CARBON 4.7K 5% 1/4W F R475 1-247-872-11 CARBON 51K 5% 1/4W R483 1-249-441-11 CARBON 100K 5% 1/4W R484 1-249-441-11 CARBON 100K 5% 1/4W R485 1-249-441-11 CARBON 100K 5% 1/4W R486 1-249-437-11 CARBON 47K 5% 1/4W R487 1-249-437-11 CARBON 47K 5% 1/4W R488 1-249-437-11 CARBON 47K 5% 1/4W R489 1-249-437-11 CARBON 47K 5% 1/4W Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R493 1-249-417-11 CARBON 1K 5% 1/4W F R494 1-249-417-11 CARBON 1K 5% 1/4W F R495 1-249-421-11 CARBON 2.2K 5% 1/4W F R496 1-249-421-11 CARBON 2.2K 5% 1/4W F R497 1-247-887-00 CARBON 220K 5% 1/4W R498 1-247-887-00 CARBON 220K 5% 1/4W R499 1-249-417-11 CARBON 1K 5% 1/4W F R500 1-249-417-11 CARBON 1K 5% 1/4W F R501 1-249-417-11 CARBON 1K 5% 1/4W F R502 1-249-439-11 CARBON 68K 5% 1/4W R503 1-249-439-11 CARBON 68K 5% 1/4W R504 1-249-413-11 CARBON 470 5% 1/4W F R508 1-249-436-11 CARBON 39K 5% 1/4W R509 1-247-903-00 CARBON 1M 5% 1/4W R510 1-249-425-11 CARBON 4.7K 5% 1/4W F R511 1-249-434-11 CARBON 27K 5% 1/4W R513 1-249-426-11 CARBON 5.6K 5% 1/4W R514 1-249-418-11 CARBON 1.2K 5% 1/4W F R515 1-249-441-11 CARBON 100K 5% 1/4W R516 1-247-843-11 CARBON 3.3K 5% 1/4W R517 1-247-883-00 CARBON 150K 5% 1/4W R518 1-249-427-11 CARBON 6.8K 5% 1/4W F R519 1-249-413-11 CARBON 470 5% 1/4W F R536 1-247-897-11 CARBON 560K 5% 1/4W R537 1-249-417-11 CARBON 1K 5% 1/4W F R551 1-249-417-11 CARBON 1K 5% 1/4W F R552 1-249-439-11 CARBON 68K 5% 1/4W R553 1-249-439-11 CARBON 68K 5% 1/4W R554 1-249-413-11 CARBON 470 5% 1/4W F R555 1-249-419-11 CARBON 1.5K 5% 1/4W F !R556 1-249-393-11 CARBON 10 5% 1/4W F !R557 1-249-393-11 CARBON 10 5% 1/4W F R558 1-249-436-11 CARBON 39K 5% 1/4W R559 1-247-903-00 CARBON 1M 5% 1/4W R560 1-249-425-11 CARBON 4.7K 5% 1/4W F R561 1-249-434-11 CARBON 27K 5% 1/4W R563 1-249-426-11 CARBON 5.6K 5% 1/4W R564 1-249-418-11 CARBON 1.2K 5% 1/4W F R565 1-249-441-11 CARBON 100K 5% 1/4W R566 1-247-843-11 CARBON 3.3K 5% 1/4W R567 1-247-883-00 CARBON 150K 5% 1/4W R568 1-249-427-11 CARBON 6.8K 5% 1/4W F R569 1-249-413-11 CARBON 470 5% 1/4W F R591 1-247-897-11 CARBON 560K 5% 1/4W R592 1-249-425-11 CARBON 4.7K 5% 1/4W F R593 1-249-435-11 CARBON 33K 5% 1/4W R594 1-249-425-11 CARBON 4.7K 5% 1/4W F R595 1-247-903-00 CARBON 1M 5% 1/4W R596 1-249-419-11 CARBON 1.5K 5% 1/4W F R599 1-249-425-11 CARBON 4.7K 5% 1/4W F R601 1-249-417-11 CARBON 1K 5% 1/4W F R602 1-249-439-11 CARBON 68K 5% 1/4W R603 1-249-413-11 CARBON 470 5% 1/4W F R604 1-249-439-11 CARBON 68K 5% 1/4W R605 1-249-413-11 CARBON 470 5% 1/4W F RR01 1-249-418-11 CARBON 1.2K 5% 1/4W F RR51 1-249-418-11 CARBON 1.2K 5% 1/4W F SURR The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 87 — Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < RELAY > RY401 1-515-614-11 RELAY < VIBRATOR > X401 1-567-819-11 VIBRATOR, CERAMIC (4MHz) ************************************************************** * 1-665-500-11 SURR-AUDIO BOARD ***************** < CONNECTOR > CNP302 1-695-088-11 PIN, CONNECTOR (PC BOARD) 9P CNS303 1-695-093-11 SOCKET, CONNECTOR 9P ************************************************************** * 1-665-469-11 SW BOARD ********* < CONNECTOR > CNS103 1-770-397-11 HOUSING, CONNECTOR(PC BOARD)4P < RESISTOR > R169 1-249-411-11 CARBON 330 5% 1/4W R170 1-249-413-11 CARBON 470 5% 1/4W F R171 1-249-415-11 CARBON 680 5% 1/4W F R172 1-249-417-11 CARBON 1K 5% 1/4W F R173 1-249-419-11 CARBON 1.5K 5% 1/4W F R174 1-249-421-11 CARBON 2.2K 5% 1/4W F R175 1-249-425-11 CARBON 4.7K 5% 1/4W F R176 1-249-411-11 CARBON 330 5% 1/4W R177 1-249-413-11 CARBON 470 5% 1/4W F R178 1-249-415-11 CARBON 680 5% 1/4W F R179 1-249-417-11 CARBON 1K 5% 1/4W F R180 1-249-419-11 CARBON 1.5K 5% 1/4W F R181 1-249-421-11 CARBON 2.2K 5% 1/4W F R182 1-249-411-11 CARBON 330 5% 1/4W R183 1-249-413-11 CARBON 470 5% 1/4W F R184 1-249-415-11 CARBON 680 5% 1/4W F R185 1-249-417-11 CARBON 1K 5% 1/4W F R186 1-249-419-11 CARBON 1.5K 5% 1/4W F R187 1-249-421-11 CARBON 2.2K 5% 1/4W F < SWITCH > S105 1-762-751-11 SWITCH, TACTILE (DIRECT PASS) S106 1-762-751-11 SWITCH, TACTILE (GENRE) S107 1-762-751-11 SWITCH, TACTILE (SET UP) S108 1-762-751-11 SWITCH, TACTILE (MODE) S113 1-762-751-11 SWITCH, TACTILE (AUDIO FUNCTION <) S114 1-762-751-11 SWITCH, TACTILE (SOUND FIELD ON/OFF) S115 1-762-751-11 SWITCH, TACTILE (AUDIO FUNCTION >) S120 1-762-751-11 SWITCH, TACTILE (VIDEO FUNCTION <) S121 1-762-751-11 SWITCH, TACTILE (5.1 INPUT) S122 1-762-751-11 SWITCH, TACTILE (VIDEO FUNCTION >) ************************************************************** * 1-665-502-11 VIDEO 3 BOARD ************* < CAPACITOR > C299 1-164-159-11 CERAMIC 0.1uF 50V < JACK > J299 1-779-868-11 JACK, PIN 3P (VIDEO 3 INPUT) < RESISTOR > R299 1-249-403-11 CARBON 68 5% 1/4W F R316 1-249-417-11 CARBON 1K 5% 1/4W F R366 1-249-417-11 CARBON 1K 5% 1/4W F ************************************************************** * 1-665-623-11 VOLUME BOARD ************ < CAPACITOR > C497 1-126-964-11 ELECT 10uF 20% 50V < CONNECTOR > CNP102 1-770-388-11 PIN, CONNECTOR (PC BOARD) 4P CNS402 1-569-323-11 SOCKET, CONNECTOR 19P CNS410 1-750-179-11 SOCKET, CONNECTOR 5P < RESISTOR > R499 1-249-411-11 CARBON 330 5% 1/4W < VARIABLE RESISTOR > RV401 1-225-445-11 RES, VAR, CARBON 100KX6 (MASTER VOLUME) ************************************************************** MISCELLANEOUS ************* !7 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (UK) 64 1-773-131-11 WIRE (FLAT TYPE) (19 CORE)(33cm) 65 1-773-117-11 WIRE (FLAT TYPE) (19 CORE)(18cm) 66 1-773-108-11 WIRE (FLAT TYPE) (19 CORE)(10cm) 72 1-773-041-11 WIRE (FLAT TYPE) (17 CORE) 107 1-782-718-11 WIRE (FLAT TYPE) (29 CORE) !CNJ909 1-526-794-11 OUTLET, AC !CNP901 1-769-744-11 CORD, POWER FL101 1-517-519-11 INDICATOR TUBE, FLUORESCENT Q505 8-729-209-15 TRANSISTOR 2SD2012 Q506 8-749-010-25 IC MN2488-OPY-M Q507 8-749-010-26 IC MP1620-OPY-M Q555 8-729-209-15 TRANSISTOR 2SD2012 Q556 8-749-010-25 IC MN2488-OPY-M Q557 8-749-010-26 IC MP1620-OPY-M Q605 8-729-209-15 TRANSISTOR 2SD2012 Q606 8-749-010-25 IC MN2488-OPY-M Q607 8-749-010-26 IC MP1620-OPY-M Q706 8-749-010-25 IC MN2488-OPY-M Q707 8-749-010-26 IC MP1620-OPY-M The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. VIDEO 3 SW SURR-AUDIO SURR VOLUME www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 88 — Sony Corporation Home A&V Products Company Ref. No. Part No. Description Remark 9-920-946-11 97H097554-1 Printed in Hungary © 1997. 8 Published by General Engineering Dept. (Shibaura) Q756 8-749-010-25 IC MN2488-OPY-M Q757 8-749-010-26 IC MP1620-OPY-M !T901 1-431-318-11 TRANSFORMER, POWER ************************************************************** ACCESSORIES & PACKING MATERIALS ******************************* 1-475-138-11 REMOTE COMMANDER (RM-VR101) 1-475-324-11 RAY-CATCHER UNIT (WITH PLUG) 3-810-765-11 MANUAL,COMMONNESS INSTRUCTION (CONTROL A1) (ENGLISH) (UK) 3-810-765-21 MANUAL,COMMONNESS INSTRUCTION (ENGLISH,FRENCH,GERMAN,SPANISH,DUTCH, SWEDISH,ITALIAN,PORTUGUESE,CHINESE) (AEP,G,EE) 3-861-065-11 MANUAL, INSTRUCTION (ENGLISH,FRENCH,DUTCH,SWEDISH) 3-861-065-21 MANUAL, INSTRUCTION (GERMAN,SPANISH,ITALIAN,PORTUGUESE) (AEP,G,EE) 4-995-439-01 COVER, BATTERY (For RM-VR101) ************************************************************** ************* HARDWARE LIST ************* #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 TT(B) #2 7-685-881-09 SCREW +BVTT 4X8 (S) #3 7-685-872-09 SCREW +BVTT 3X8 (S) The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. TA-VE810G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
