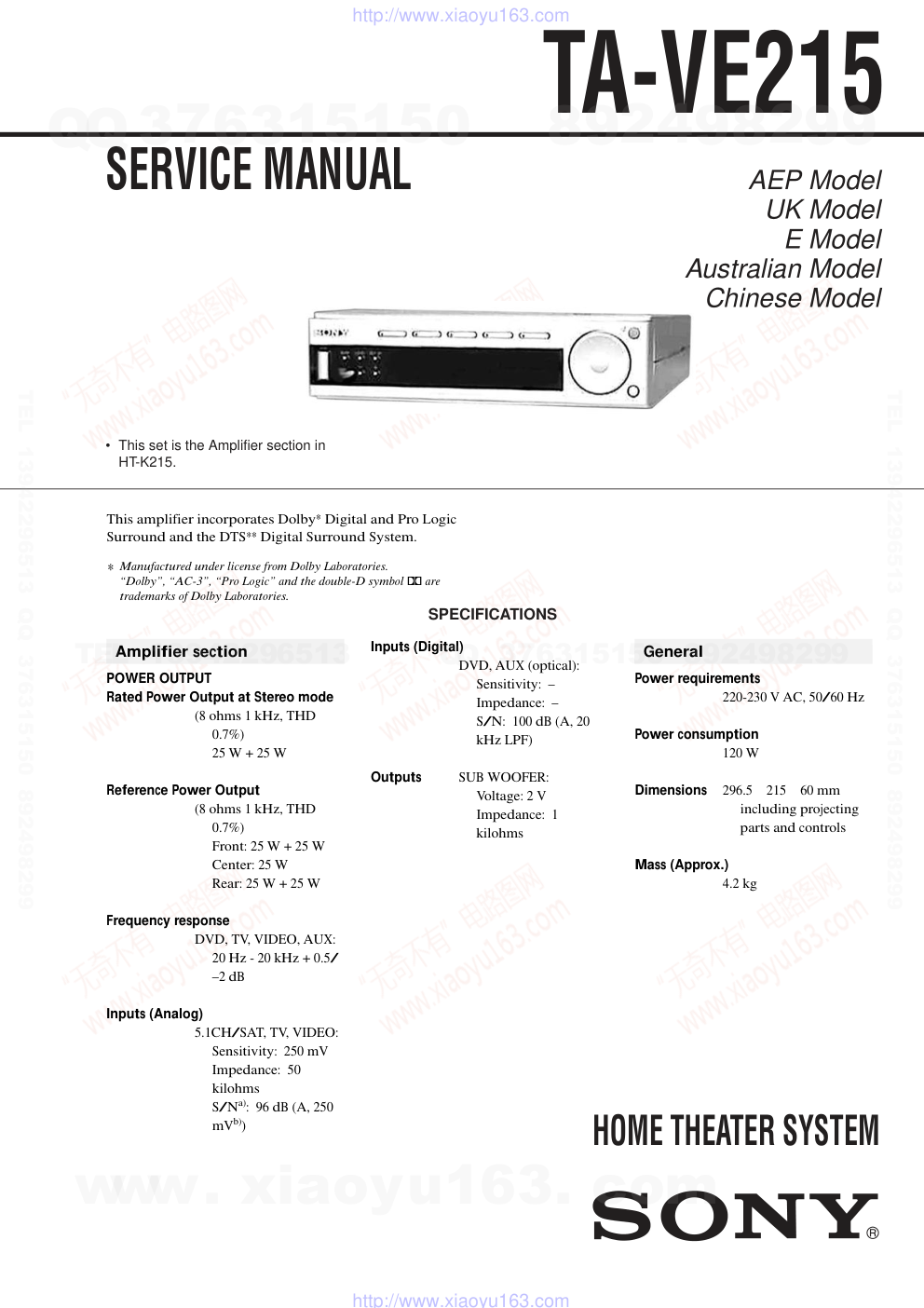

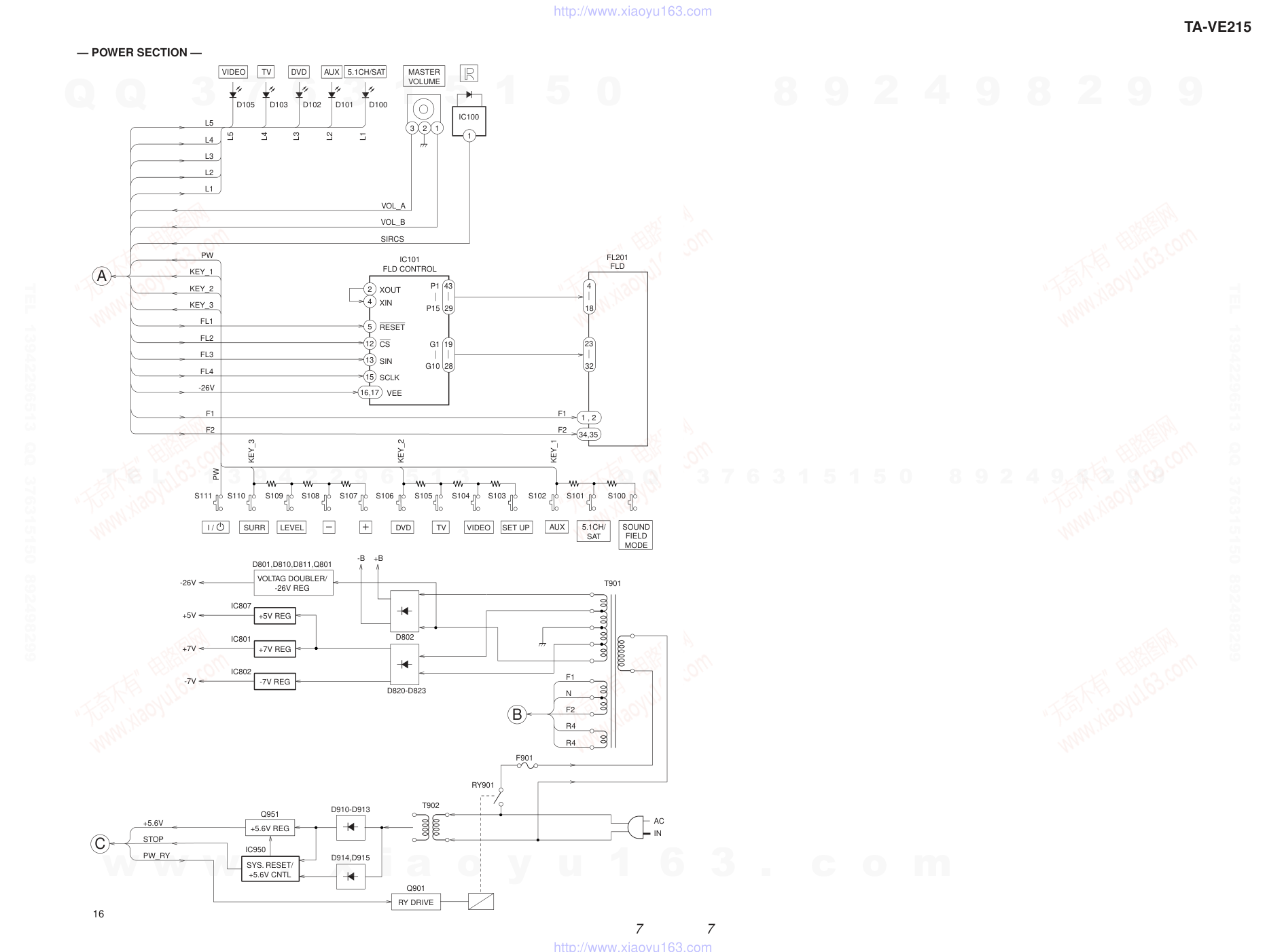

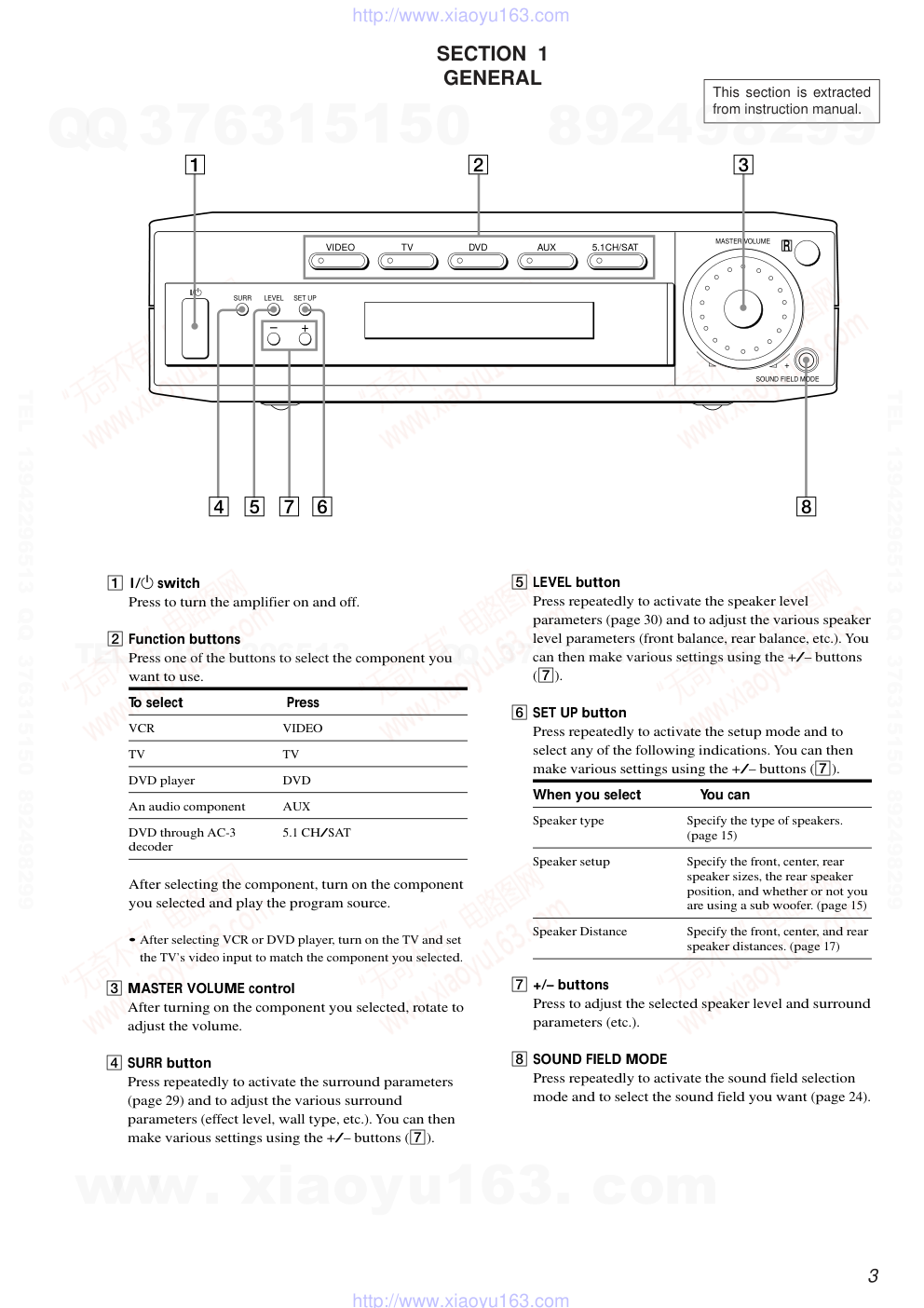

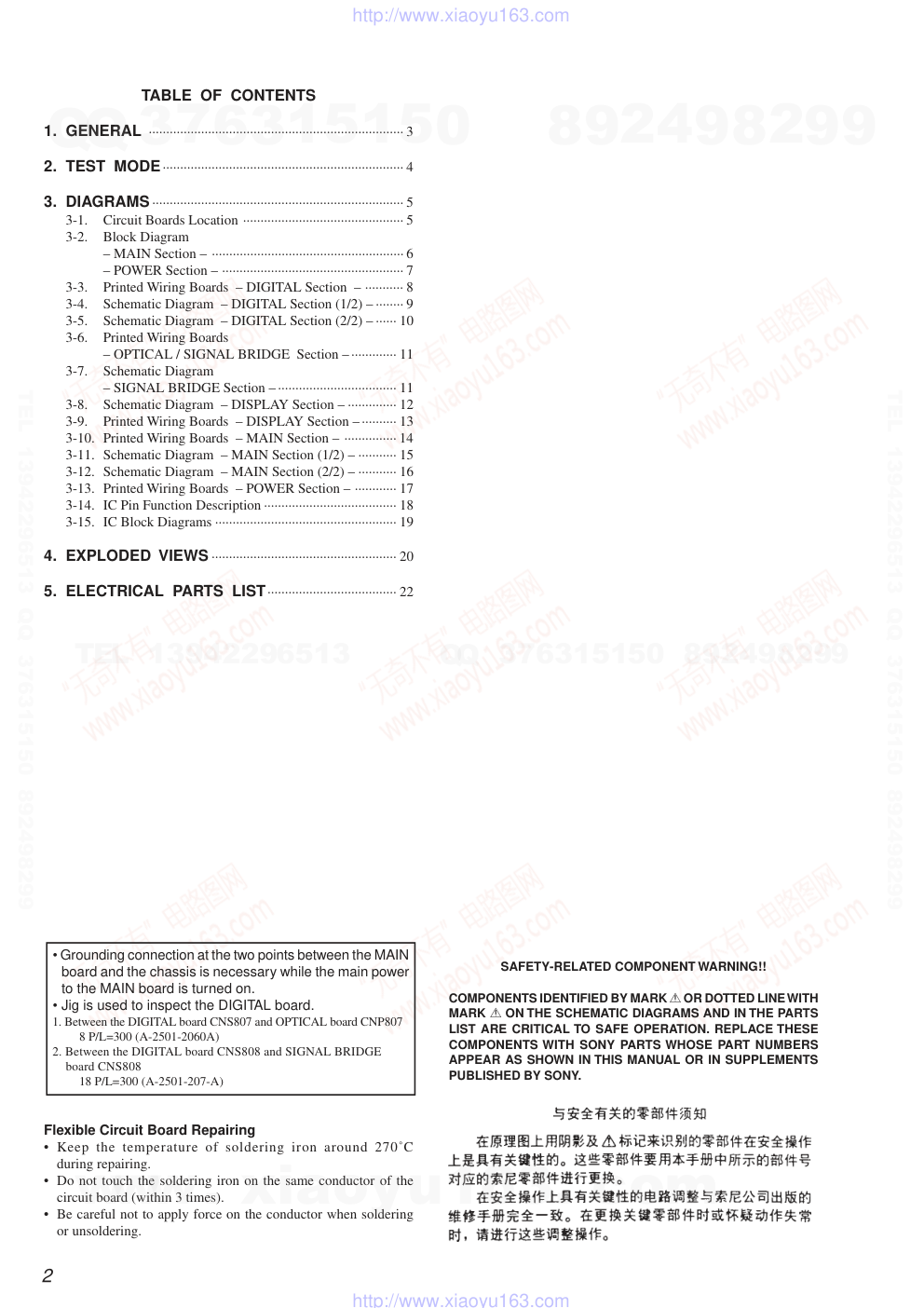

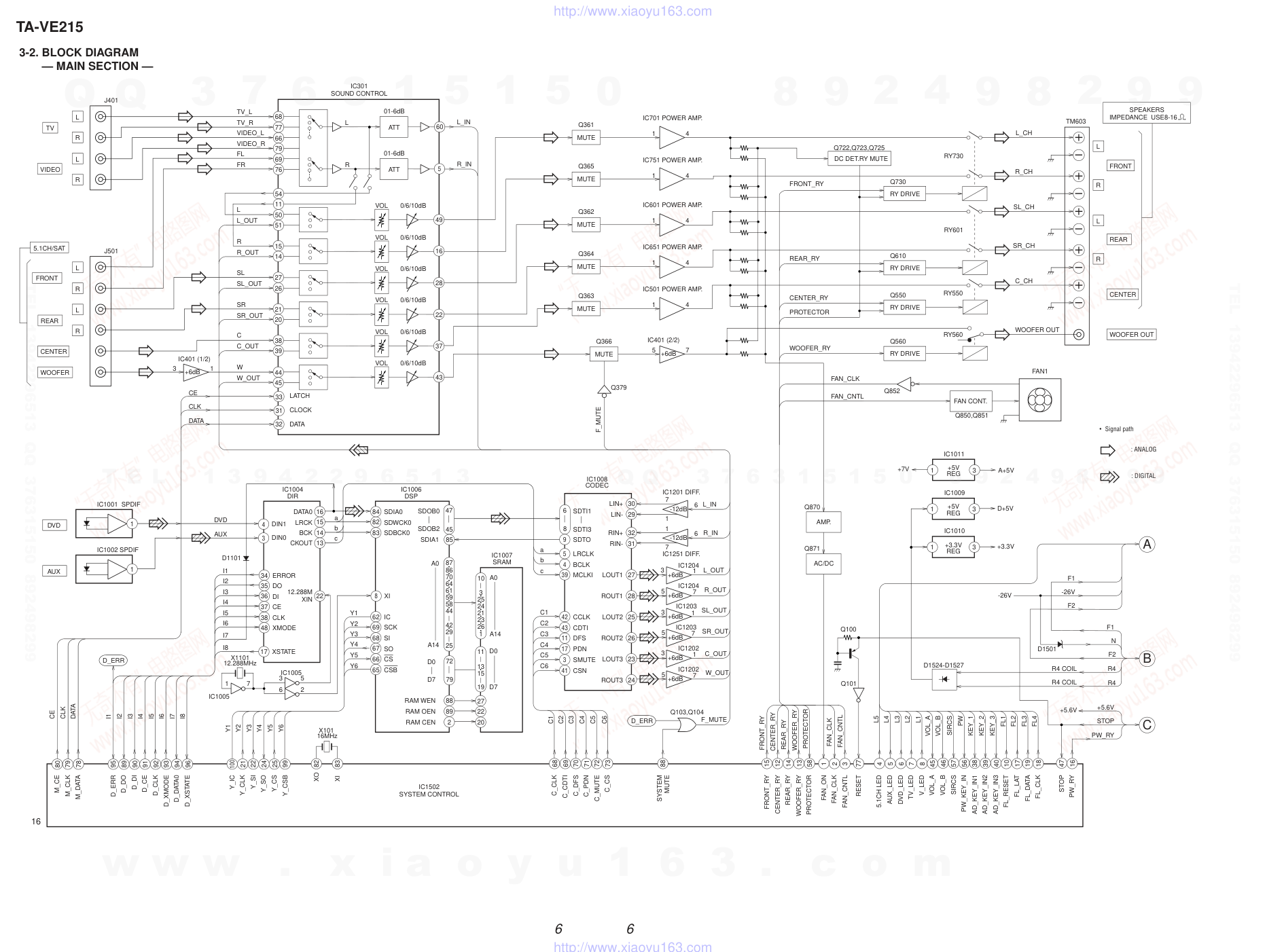

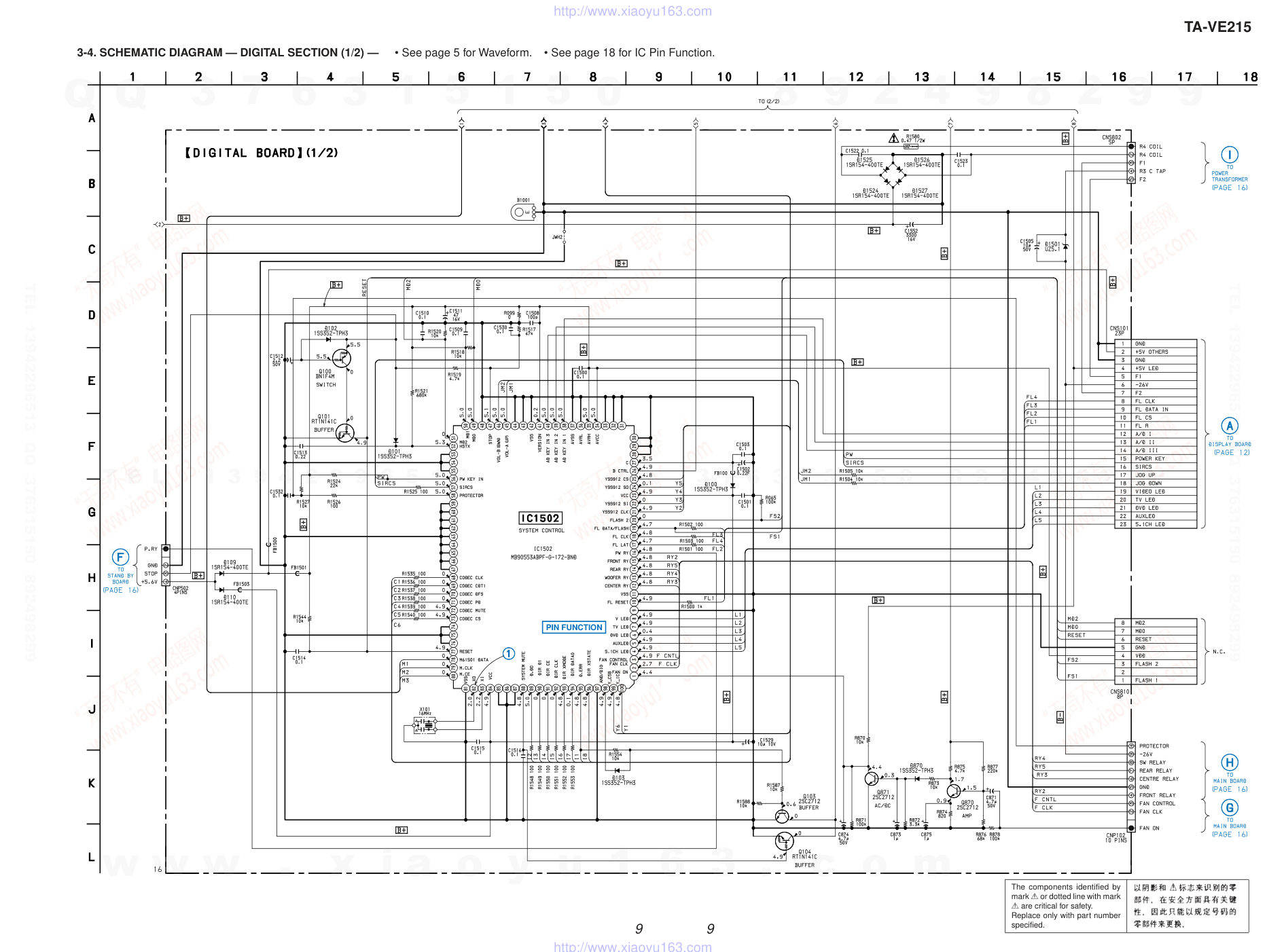

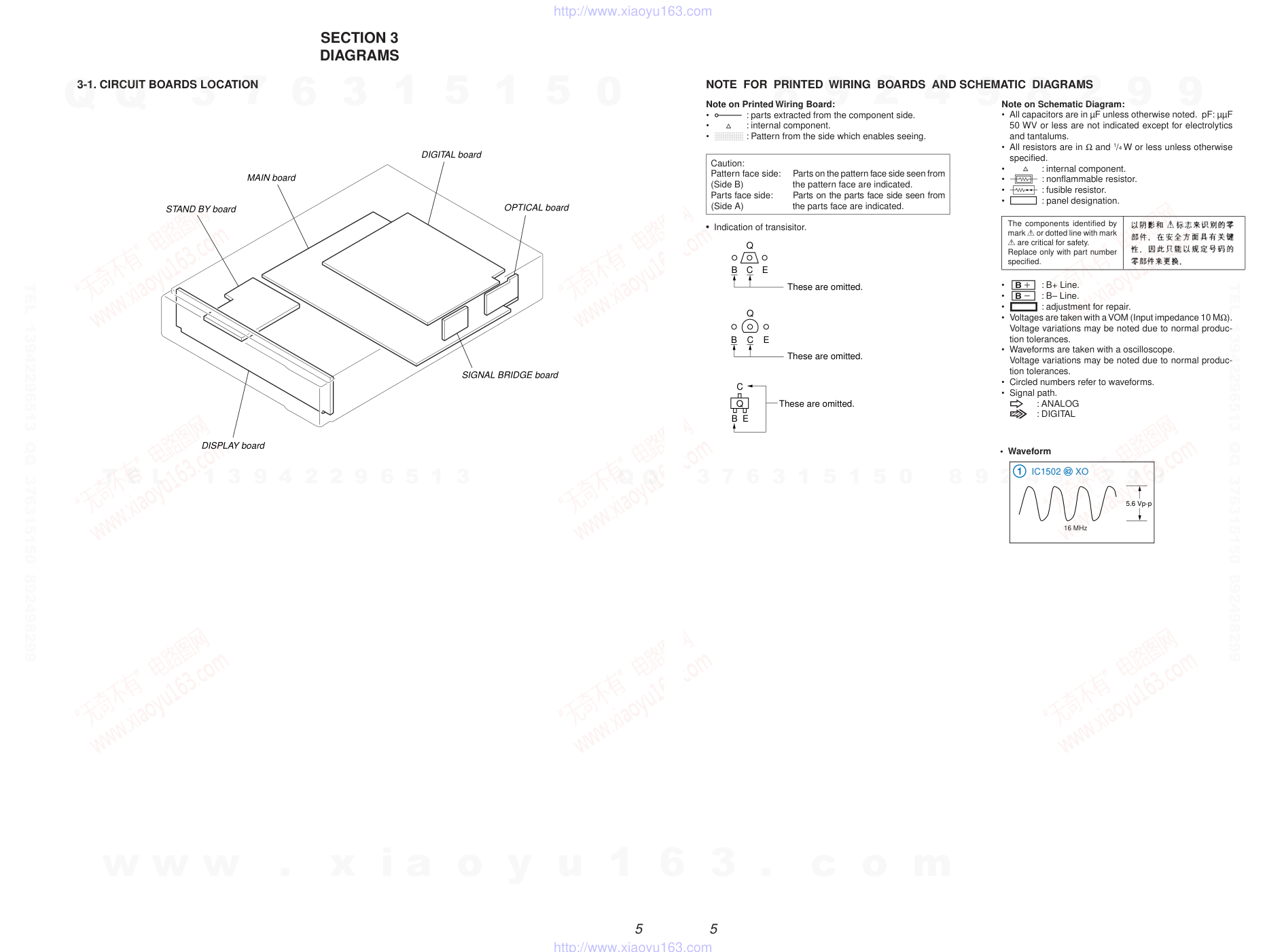

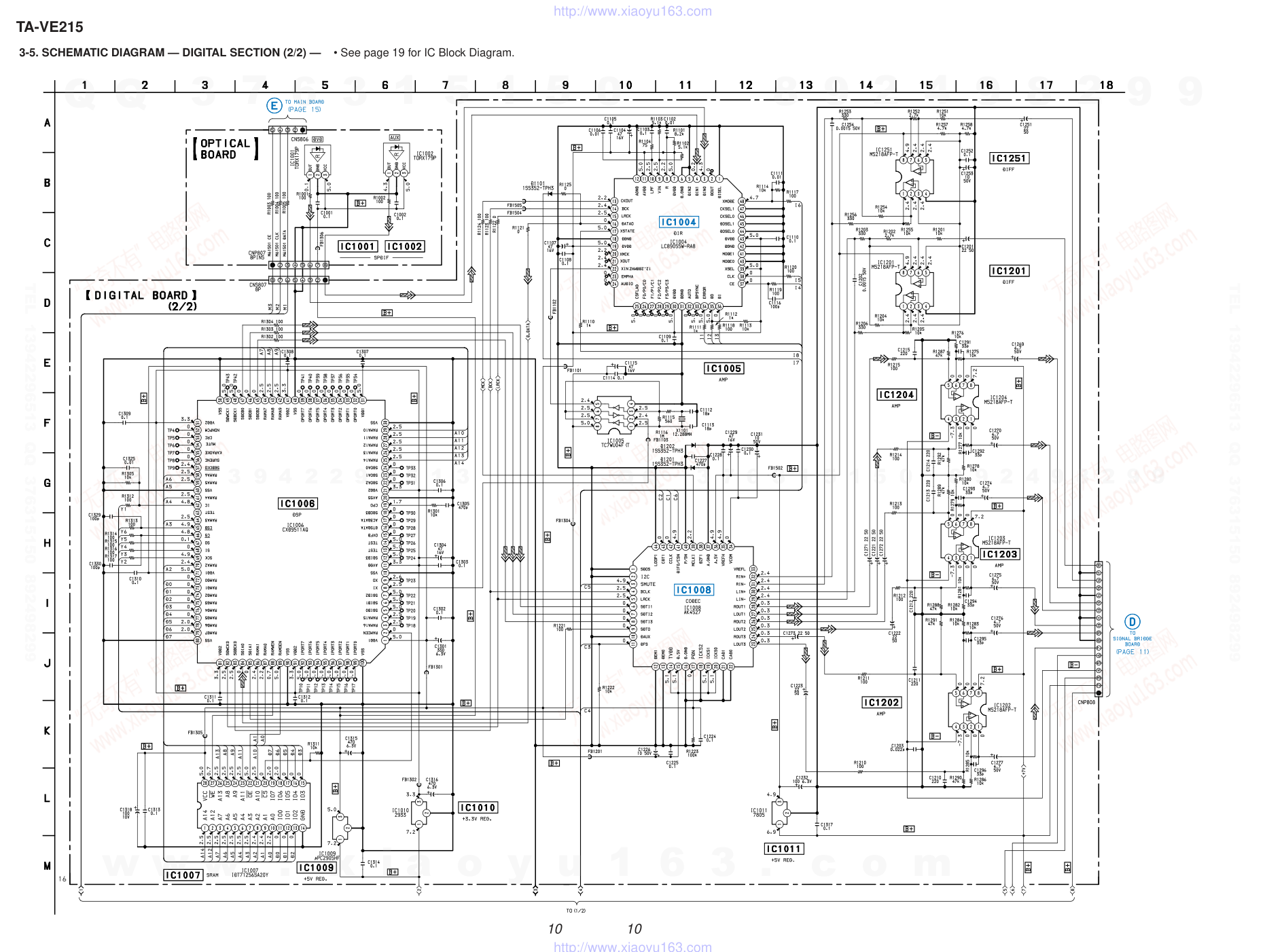

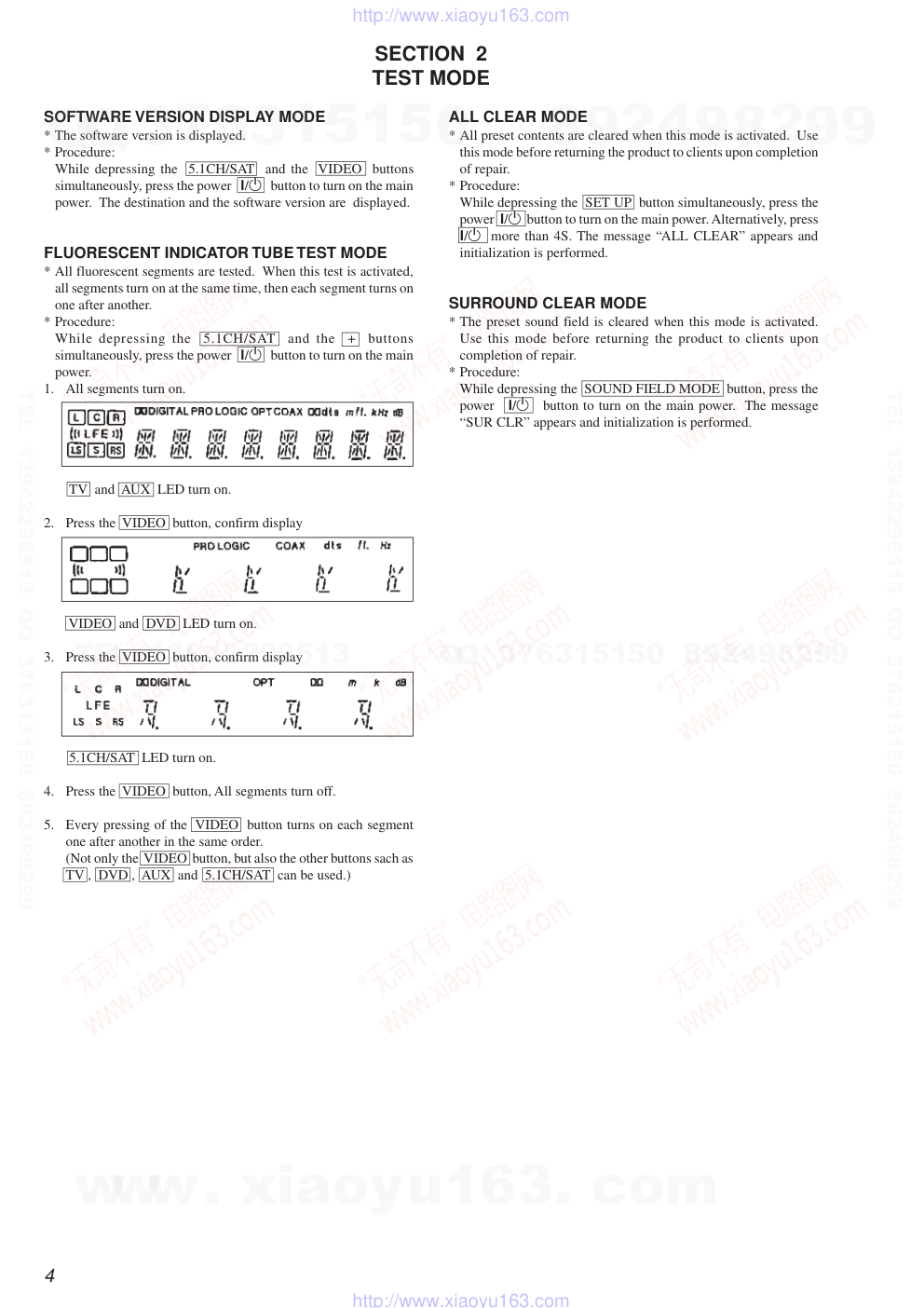

TA-VE215 AEP Model UK Model E Model Australian Model Chinese Model SERVICE MANUAL HOME THEATER SYSTEM • This set is the Amplifier section in HT-K215. SPECIFICATIONS This amplifier incorporates Dolby* Digital and Pro Logic Surround and the DTS** Digital Surround System. * Manufactured under license from Dolby Laboratories. “Dolby”, “AC-3”, “Pro Logic” and the double-D symbol a are trademarks of Dolby Laboratories. Amplifier section POWER OUTPUT Rated Power Output at Stereo mode (8 ohms 1 kHz, THD 0.7%) 25 W + 25 W Reference Power Output (8 ohms 1 kHz, THD 0.7%) Front: 25 W + 25 W Center: 25 W Rear: 25 W + 25 W Frequency response DVD, TV, VIDEO, AUX: 20 Hz - 20 kHz + 0.5/ –2 dB Inputs (Analog) 5.1CH/SAT, TV, VIDEO: Sensitivity: 250 mV Impedance: 50 kilohms S/Na): 96 dB (A, 250 mVb)) Inputs (Digital) DVD, AUX (optical): Sensitivity: – Impedance: – S/N: 100 dB (A, 20 kHz LPF) Outputs SUB WOOFER: Voltage: 2 V Impedance: 1 kilohms General Power requirements 220-230 V AC, 50/60 Hz Power consumption 120 W Dimensions 296.5 215 60 mm including projecting parts and controls Mass (Approx.) 4.2 kg www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 TABLE OF CONTENTS 1. GENERAL ········································································· 3 2. TEST MODE····································································· 4 3. DIAGRAMS ········································································ 5 3-1. Circuit Boards Location ·············································· 5 3-2. Block Diagram – MAIN Section – ······················································· 6 – POWER Section – ···················································· 7 3-3. Printed Wiring Boards – DIGITAL Section – ··········· 8 3-4. Schematic Diagram – DIGITAL Section (1/2) – ········ 9 3-5. Schematic Diagram – DIGITAL Section (2/2) – ······ 10 3-6. Printed Wiring Boards – OPTICAL / SIGNAL BRIDGE Section –············· 11 3-7. Schematic Diagram – SIGNAL BRIDGE Section –·································· 11 3-8. Schematic Diagram – DISPLAY Section – ·············· 12 3-9. Printed Wiring Boards – DISPLAY Section – ·········· 13 3-10. Printed Wiring Boards – MAIN Section – ··············· 14 3-11. Schematic Diagram – MAIN Section (1/2) – ··········· 15 3-12. Schematic Diagram – MAIN Section (2/2) – ··········· 16 3-13. Printed Wiring Boards – POWER Section – ············ 17 3-14. IC Pin Function Description ······································ 18 3-15. IC Block Diagrams ···················································· 19 4. EXPLODED VIEWS ····················································· 20 5. ELECTRICAL PARTS LIST····································· 22 • Grounding connection at the two points between the MAIN board and the chassis is necessary while the main power to the MAIN board is turned on. • Jig is used to inspect the DIGITAL board. 1. Between the DIGITAL board CNS807 and OPTICAL board CNP807 8 P/L=300 (A-2501-2060A) 2. Between the DIGITAL board CNS808 and SIGNAL BRIDGE board CNS808 18 P/L=300 (A-2501-207-A) SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. Flexible Circuit Board Repairing • Keep the temperature of soldering iron around 270˚C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 SECTION 1 GENERAL R 2 3 8 1 4 5 6 7 ?/1 VIDEO TV DVD AUX 5.1CH/SAT SURR LEVEL SET UP + – SOUND FIELD MODE MASTER VOLUME + 3 MASTER VOLUME control After turning on the component you selected, rotate to adjust the volume. 4 SURR button Press repeatedly to activate the surround parameters (page 29) and to adjust the various surround parameters (effect level, wall type, etc.). You can then make various settings using the +/– buttons (7). 5 LEVEL button Press repeatedly to activate the speaker level parameters (page 30) and to adjust the various speaker level parameters (front balance, rear balance, etc.). You can then make various settings using the +/– buttons (7). 6 SET UP button Press repeatedly to activate the setup mode and to select any of the following indications. You can then make various settings using the +/– buttons (7). When you select You can Speaker type Specify the type of speakers. (page 15) Speaker setup Specify the front, center, rear speaker sizes, the rear speaker position, and whether or not you are using a sub woofer. (page 15) Speaker Distance Specify the front, center, and rear speaker distances. (page 17) 7 +/– buttons Press to adjust the selected speaker level and surround parameters (etc.). 8 SOUND FIELD MODE Press repeatedly to activate the sound field selection mode and to select the sound field you want (page 24). 1 ?/1 switch Press to turn the amplifier on and off. 2 Function buttons Press one of the buttons to select the component you want to use. To select Press VCR VIDEO TV TV DVD player DVD An audio component AUX DVD through AC-3 5.1 CH/SAT decoder After selecting the component, turn on the component you selected and play the program source. • After selecting VCR or DVD player, turn on the TV and set the TV’s video input to match the component you selected. This section is extracted from instruction manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 SECTION 2 TEST MODE SOFTWARE VERSION DISPLAY MODE * The software version is displayed. * Procedure: While depressing the 5.1CH/SAT and the VIDEO buttons simultaneously, press the power 1/u button to turn on the main power. The destination and the software version are displayed. FLUORESCENT INDICATOR TUBE TEST MODE * All fluorescent segments are tested. When this test is activated, all segments turn on at the same time, then each segment turns on one after another. * Procedure: While depressing the 5.1CH/SAT and the + buttons simultaneously, press the power 1/u button to turn on the main power. 1. All segments turn on. TV and AUX LED turn on. 2. Press the VIDEO button, confirm display VIDEO and DVD LED turn on. 3. Press the VIDEO button, confirm display 5.1CH/SAT LED turn on. 4. Press the VIDEO button, All segments turn off. 5. Every pressing of the VIDEO button turns on each segment one after another in the same order. (Not only the VIDEO button, but also the other buttons sach as TV , DVD , AUX and 5.1CH/SAT can be used.) ALL CLEAR MODE * All preset contents are cleared when this mode is activated. Use this mode before returning the product to clients upon completion of repair. * Procedure: While depressing the SET UP button simultaneously, press the power 1/u button to turn on the main power. Alternatively, press 1/u more than 4S. The message “ALL CLEAR” appears and initialization is performed. SURROUND CLEAR MODE * The preset sound field is cleared when this mode is activated. Use this mode before returning the product to clients upon completion of repair. * Procedure: While depressing the SOUND FIELD MODE button, press the power 1/u button to turn on the main power. The message “SUR CLR” appears and initialization is performed. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 5 SECTION 3 DIAGRAMS NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS Note on Printed Wiring Board: • X : parts extracted from the component side. • f : internal component. • b : Pattern from the side which enables seeing. Caution: Pattern face side: Parts on the pattern face side seen from (Side B) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Side A) the parts face are indicated. Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • f : internal component. • 2 : nonflammable resistor. • 5 : fusible resistor. • C : panel designation. • U : B+ Line. • V : B– Line. • H : adjustment for repair. • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. F : ANALOG c : DIGITAL • Indication of transisitor. C B These are omitted. E Q B These are omitted. C E Q B These are omitted. C E Q The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. MAIN board STAND BY board DISPLAY board DIGITAL board OPTICAL board SIGNAL BRIDGE board 3-1. CIRCUIT BOARDS LOCATION 1 IC1502 is XO 5.6 Vp-p 16 MHz • Waveform w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-VE215 6 6 3-2. BLOCK DIAGRAM — MAIN SECTION — 68 60 L TV_L L 01-6dB L_IN R_IN IC301 SOUND CONTROL ATT 77 TV_R 66 VIDEO_L 79 VIDEO_R 69 FL 76 FR 54 11 50 L 51 L_OUT 15 R 14 R_OUT 27 SL 26 SL_OUT 21 SR 20 SR_OUT 38 C 39 C_OUT 44 W 45 W_OUT LATCH CLOCK DATA DIN1 33 31 32 J401 R TV VIDEO L R L R FRONT SPEAKERS IMPEDANCE USE8-16 REAR CENTER WOOFER OUT WOOFER OUT L R L J501 R FRONT REAR 5.1CH/SAT CENTER WOOFER DVD AUX 16 L R R 5 49 01-6dB 0/6/10dB MUTE Q361 IC701 POWER AMP. 1 4 VOL ATT 0/6/10dB VOL 0/6/10dB VOL 0/6/10dB VOL 0/6/10dB VOL 0/6/10dB VOL 16 28 22 37 43 34 DC DET.RY MUTE Q722,Q723,Q725 RY DRIVE Q730 FRONT_RY AMP. Q870 MUTE Q365 IC751 POWER AMP. 1 4 MUTE Q362 IC601 POWER AMP. 1 4 MUTE Q364 IC651 POWER AMP. 1 4 MUTE Q363 IC501 POWER AMP. 1 4 MUTE Q366 Q379 IC401 (2/2) 5 7 +6dB 5 IC1005 IC1005 X1101 12.288MHz 3 CE CLK DATA DVD IC1001 SPDIF IC401 (1/2) 3 1 +6dB 1 IC1002 SPDIF D_ERR 1 4 XI 8 DIN0 ERROR 35 DO 36 DI 37 CE 16 DATA0 15 LRCK 14 BCK a b c 13 CKOUT 85 SDIA1 30 LIN+ 29 LIN- 32 RIN+ 31 RIN- 27 LOUT1 28 ROUT1 25 LOUT2 26 ROUT2 23 LOUT3 24 ROUT3 88 RAM WEN 89 RAM OEN 2 27 22 20 RAM CEN A0 A14 22 12.288M XIN 38 CLK 48 XMODE 80 CE 17 XSTATE 3 79 CLK 78 DATA M_CE M_CLK M_DATA 95 I1 89 I2 90 I3 D_ERR D_DO D_DI 91 I4 92 I5 93 I6 D_CE D_CLK D_XMODE 94 I7 96 I8 D_DATA0 D_XSTATE 100 Y_IC 21 22 24 Y_CLK Y_SI Y_SO 25 99 Y_CS Y_CSB 82 83 XO XI 69 C_CDTI 70 C_DFS 71 C_PDN 72 C_MUTE 73 C_CS 68 C_CLK D_ERR AUX D1101 IC1004 DIR IC1006 DSP IC1007 SRAM IC1008 CODEC I1 I2 84 SDIA0 82 SDWCK0 83 SDBCK0 SDOB0 SDOB2 62 Y1 Y2 69 SCK IC 68 SI 67 SO 66 CS 65 CSB I3 I4 I5 I6 I7 I8 Y3 Y4 Y5 Y6 Y1 Y2 Y3 Y4 Y5 Y6 88 SYSTEM MUTE C1 C2 C3 C4 C5 C6 12 CENTER_RY CENTER_RY 14 REAR_RY REAR_RY 13 WOOFER_RY WOOFER_RY 58 PROTECTOR PROTECTOR 15 FRONT_RY FRONT_RY 77 RESET 5 AUX_LED 6 DVD_LED 7 TV_LED 4 5.1CH LED 8 V_LED 17 FL_LAT 19 FL_DATA 18 FL_CLK 10 FL_RESET 16 PW_RY 3 FAN_CNTL FAN_CNTL 1 FAN_ON 2 FAN_CLK FAN_CLK 45 VOL_A 46 VOL_B 57 SIRCS 56 PW_KEY_IN 38 AD_KEY_IN1 39 AD_KEY_IN2 40 AD_KEY_IN3 47 1 3 STOP Q100 Q101 D1524-D1527 7 1 2 6 X101 16MHz IC1502 SYSTEM CONTROL 47 45 D0 D7 72 79 6 8 87 86 70 64 61 59 58 44 42 29 25 10 3 25 24 21 23 26 1 A0 SDTI1 SDTI3 SDTO A14 11 13 15 19 D0 D7 9 MCLKI c b 39 CCLK C1 42 CDTI C2 43 DFS C3 11 PDN C4 17 SMUTE C5 3 CSN C6 41 BCLK 4 LRCLK 5 a IC1201 DIFF. 7 1 6 -12dB IC1251 DIFF. 1 7 6 -12dB IC1204 3 1 +6dB IC1204 5 7 +6dB IC1203 3 1 +6dB IC1203 5 7 +6dB IC1202 Q103,Q104 3 1 +6dB IC1202 5 7 +6dB AC/DC Q871 +5.6V R4 COIL D1501 F2 -26V -26V F1 D+5V IC1010 +3.3V REG 1 3 IC1009 +5V REG +3.3V 1 3 IC1011 +5V REG A+5V +7V R4 COIL R4 R4 F2 F1 N FL3 FL4 FL2 FL1 KEY_3 KEY_2 KEY_1 PW SIRCS VOL_B VOL_A L1 L2 L3 L4 L5 RY DRIVE Q610 REAR_RY RY730 L_CH TM603 RY DRIVE Q550 CENTER_RY PROTECTOR RY DRIVE Q560 WOOFER_RY R_CH RY601 SL_CH SR_CH RY550 RY560 C_CH Q852 FAN1 FAN CONT. Q850,Q851 A B PW_RY STOP +5.6V C F_MUTE L_IN R_IN L_OUT R_OUT SL_OUT SR_OUT C_OUT W_OUT F_MUTE FAN_CLK FAN_CNTL Signal path : ANALOG : DIGITAL w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-VE215 7 7 — POWER SECTION — FL3 FL4 FL2 FL1 -26V KEY_3 KEY_2 KEY_1 PW PW KEY_3 KEY_2 KEY_1 SIRCS VOL_B VOL_A L1 L2 L3 L4 L5 R4 R4 F2 F1 N D100 IC100 IC101 FLD CONTROL FL201 FLD 5.1CH/SAT L1 L2 L3 L4 L5 A B PW_RY STOP +5.6V C AC IN 16 F901 RY901 MASTER VOLUME D101 D102 DVD AUX D103 TV D105 VIDEO I / S111 SURR -7V REG VOLTAG DOUBLER/ -26V REG D801,D810,D811,Q801 3 2 1 1 XOUT CS 2 XIN P1 F1 F2 F1 F2 P15 4 RESET 5 12 SIN 13 SCLK 15 VEE 16,17 1 , 2 34,35 43 29 G1 G10 19 28 4 18 23 32 S110 S106 LEVEL S109 S108 DVD S105 TV S104 VIDEO SET UP S103 S102 AUX S101 5.1CH/ SAT S100 SOUND FIELD MODE S107 T901 D802 D820-D823 IC802 -7V D910-D913 T902 D914,D915 +7V REG IC801 +7V SYS. RESET/ +5.6V CNTL IC950 +5.6V REG Q951 RY DRIVE Q901 +5V REG +B -B IC807 +5V -26V w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-VE215 8 8 3-3. PRINTED WIRING BOARD — DIGITAL SECTION — • See page 5 for Circuit Board Location. (Page 13) (Page 17) (Page 14) (Page 14) F TO STAND BY BOARD (Page 17) (Page 11) (Page 11) Ref. No. Location D100 E-4 D101 F-8 D102 F-8 D103 E-4 D109 E-5 D110 E-5 D870 D-4 D1101 D-9 D1201 B-2 D1202 B-2 • Semiconductor Location Ref. No. Location D1501 D-7 D1524 D-8 D1525 D-8 D1526 D-8 D1527 D-8 IC1004 C-11 IC1005 D-10 IC1006 D-10 IC1007 F-10 Ref. No. Location IC1008 B-10 IC1009 D-3 IC1010 D-3 IC1011 B-4 IC1201 B-9 IC1202 C-8 IC1203 C-8 IC1204 C-8 IC1251 B-9 IC1502 E-8 Ref. No. Location Q100 F-8 Q101 F-8 Q103 F-4 Q104 E-4 Q870 D-4 Q871 D-3 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-VE215 9 9 3-4. SCHEMATIC DIAGRAM — DIGITAL SECTION (1/2) — • See page 5 for Waveform. • See page 18 for IC Pin Function. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. PIN FUNCTION w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-VE215 10 10 3-5. SCHEMATIC DIAGRAM — DIGITAL SECTION (2/2) — • See page 19 for IC Block Diagram. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-VE215 11 11 3-6. PRINTED WIRING BOARD — OPTICAL/SIGNAL BRIDGE SECTION — • See page 5 for Circuit Board Location. 3-7. SCHEMATIC DIAGRAM — SIGNAL BRIDGE SECTION — (Page 8) (Page 14) (Page 14) (Page 14) (Page 8) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-VE215 12 12 3-8. SCHEMATIC DIAGRAM — DISPLAY SECTION — w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-VE215 13 13 3-9. PRINTED WIRING BOARD — DISPLAY SECTION — • See page 5 for Circuit Board Location. (Page 8) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-VE215 14 14 3-10. PRINTED WIRING BOARD — MAIN SECTION — • See page 5 for Circuit Board Location. Ref. No. Location D510 C-4 D560 C-3 D610 C-5 D710 C-5 D731 D-4 D732 D-3 D734 C-4 D735 C-4 D801 F-4 D802 F-3 D810 E-4 D811 E-4 D820 G-2 D821 G-2 D822 G-2 D823 G-2 D833 E-2 D896 E-2 IC301 C-2 IC401 D-3 IC501 C-8 IC601 D-8 IC651 F-8 IC701 E-6 IC751 D-6 IC801 D-4 IC802 F-2 IC807 E-3 Q361 G-1 Q362 F-1 Q363 F-1 Q364 F-1 Q365 G-1 Q366 G-1 • Semiconductor Location (Page 17) (Page 8) (Page 8) (Page 11) (Page 11) (Page 11) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-VE215 15 15 3-11. SCHEMATIC DIAGRAM — MAIN SECTION (1/2) — 10 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-VE215 16 16 3-12. SCHEMATIC DIAGRAM — MAIN SECTION (2/2) — The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-VE215 17 17 3-13. PRINTED WIRING BOARD — POWER SECTION — • See page 5 for Circuit Board Location. (Page 8) (Page 14) (Page 8) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 18 Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 to 33 34 35 36 37 38 to 40 41 42 43,44 45 46 47 48 49 to 51 52 53 to 55 56 57 58 59 to 67 68 69 70 71 72 Description Detect input signal. Low :Source in, High: No source Checking returning clock pulse from fan. Turn on(Low) or Turn off(High) fan 5.1CH LED ON (Low) or OFF (High) AUX LED ON (Low) or OFF(High) DVD LED ON (Low) or OFF(High) TV LED ON (Low) or OFF (High) VIDEO LED ON (Low) or OFF(High) Not Used FL IC reset control Ground Center relay ON(High), OFF(Low) Woofer relay ON(High), OFF(Low) Rear Relay ON (High), OFF(Low) Front Relay ON(High), OFF(Low) Power Relay ON(High), OFF(Low) FL IC Latch output FL IC clock output FL data output or flash programming port Flash programming port. Serial clock for IC CXD9511Q Data Input to IC CXD9511Q Vcc Data Input from IC CXD9511Q Chip select for IC CXD9511Q Not Used Not Used Not Used Avcc Reference High voltage for A/D port Reference Low voltage for A/D port Avss A/D key I to III Model version information Vss Not Used Volume encoder input A Volume encoder input B Stop signal input port Not Used MCU mode setting Hardware standby Not Used Power key input port SIRCS code input port PROTECTOR input port Not Used Serial clock for IC AK4527 Serial data for IC AK4527 Port control for pin DFS Port control for POWER DOWN Port control for IC AK4527 muting I/O I I O O O O O O — O — O O O O O O O O I O O — I O I — I — — — — I I — I I I I I I/O I/O — I I I — O O O O O Terminal Fan signal on Fan clock Fan control 5.1ch LED AUX LED DVD LED TV LED VIDEO LED GND FL Reset VSS Center Relay Woofer Relay Rear Relay Front Relay Power Relay FL Lat FL CLK FL data/FLASH1 FLASH2 YSS912 CLK YSS912 SI VCC YSS912SO YSS912CS BCTRL C GND AVCC AVRH AVRL AVSS A/D key I to III Version VSS GND Vol-A(up) Vol-B(down) Stop GND MD0 to 2 HSTX GND PW KEY IN SIRCS PROTECTOR GND CODEC CLK CODEC CDT1 CODEC DFS CODEC PD CODEC MUTE Pin No. 73 74 to 76 77 78 79 80 81 82 83 84 85 to 87 88 89 90 91 92 93 94 95 96 97 98 99 100 Description Chip select for IC AK4527 Not Used Micom reset port Serial Data for IC M61501 Serial Clock for IC M61501 Chip enable for IC M61501 Vss Oscillation out Oscillation in Vcc Not Used Transistor muting control Data in from IC LC89055W Data out to IC LC89055W Chip Enable for IC LC89055W Serial Clock for LC89055W Port control for XMODE LC89055W data check Error port from LC89055W XSTATE condition check Not Used Analog digital switch IC CXD9511Q sub dsp chip select IC CXD9511Q IC port control I/O O — I/O O O O — O I — — O I O O O O I I I — O O O Terminal CODEC CS GND RESET M61501 DATA M61501 CLK M61501 CE VSS XO XI VCC GND System mute DIR DO DIR DI DIR CE DIR CLK DIR XMODE DIR DATA0 DIR ERROR DIR XSTATE GND ANG/DIG YSS_CSB YSS_IC 3-14. IC PIN FUNCTION DESCRIPTION DIGITAL BOARD IC1502 MB90553ABPF-G-172-BND (SYSTEM CONTROL) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 3-15. IC BLOCK DIAGRAMS IC950 NJM2103M-TE2 1 2 3 4 5 6 7 8 V+ VSB/SESIN VSA RESET GND OUTC VSC CR VREF + – – + – + – + Q R S — STAND BY BOARD — IC1004 LC89055W-RA8 — DIGITAL BOARD — 46 43 40 37 34 31 47 44 41 38 35 32 48 45 42 39 36 33 25 26 27 28 29 30 3 6 9 12 15 18 2 5 8 11 14 17 1 4 7 10 13 16 24 23 22 21 20 19 X'TALL DATA RECOVER TIMING PLL INPUT MICRO COMPUTER INTERFACE FS CALCULATION LOCK DETECTION Pa, Pb DETECTION Cbit DETECTION CSFLAG F0/P0/C0 F1/P1/C1 F2/P2/C2 VF/P3/C3 DVDD DGND AUTO BPSYNC ERROR DO DI CE CL XSEL MODE0 MODE1 DGND DVDD DOSEL0 DOSEL1 CKSEL0 CKSEL1 XMODE AUDIO ENPHA XIN XOUT XMCK DVDD DGND XSTATE DATAO DGND BCK CKOUT AGND AVDD LPF VIN R DVDD DGND DIN2 DIN1 DIN0 DOUT DISEL IC1008 AK4527 — DIGITAL BOARD — 1 2 3 4 5 6 7 8 9 10 11 33 32 31 30 29 28 27 26 25 24 23 12 13 14 15 16 17 18 19 20 21 22 44 43 42 41 40 39 38 37 36 35 34 FORMAT CONVERTER AUDIO INTERFACE INPUT CIRCUIT OUTPUT CIRCUIT LOOP1 LOOP0/SDA/CDTI DIF1/SCL/CCLK DIF0/CSN P/SN MCLK DZF1 AVSS AVDD VREFH VCOM DZF2 RIN+ RIN– LIN+ LIN– ROUT1 LOUT1 ROUT2 LOUT2 ROUT3 LOUT3 DEM1 DEM0 TVDD DVDD DVSS PDN ICKS2 ICKS1 ICKS0 CAD1 CAD0 SDOS I2C SMUTE BICK LRCK SDTI1 SDTI2 SDTI3 SDTO DAUX DFS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SECTION 4 EXPLODED VIEWS NOTE: • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Accessories and packing materials are given in the last of this parts list. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. 20 4-1. PANEL SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 4-230-086-01 KNOB (VOL) 2 X-4953-151-1 FRONT PANEL ASSY 3 A-4475-053-A DISPLAY BOARD, COMPLETE 4 1-773-185-11 WIRE (FLAT TYPE) (23 CORE) 5 4-230-082-01 TOP CASE 6 4-951-620-01 SCREW(2.6X8), +BVTP #1 7-685-645-79 SCREW +BVTP 3X6 TYPE2 N-S #2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 TT(B) #3 7-685-872-09 SCREW +BVTT 3X8 (S) a a 1 2 3 4 6 6 5 not supplied MAIN SECTION not supplied #1 #3 #3 #3 #3 #3 #2 #2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 4-2. MAIN SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 1-763-561-11 FAN, D.C. 52 A-4475-050-A MAIN BOARD, COMPLETE 53 A-4475-055-A DIGITAL BOARD, COMPLETE * 54 3-703-244-00 BUSHING (2104), CORD 055 1-777-071-21 CORD, POWER 56 4-230-098-01 BACK PANEL 57 1-500-386-11 FILTER, CLAMP (FERRITE CORE) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. a a #4 #4 #1 #1 #1 #1 #1 #1 #2 #2 #2 #2 #2 #2 52 53 54 55 56 51 T901 57 58 59 not supplied not supplied not supplied 58 1-679-014-11 OPTICAL BOARD 59 1-679-012-11 SIGNAL BRIDGE BOARD 60 1-679-011-11 STAND BY BOARD 0T901 1-435-687-11 POWER TRANSFORMER #1 7-685-645-79 SCREW +BVTP 3X6 TYPE2 N-S #2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 TT(B) #4 7-685-880-09 SCREW +BVTT 4X6 (S) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • CAPACITORS: uF: µF • RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable • COILS uH: µH • SEMICONDUCTORS In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD... The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board name. Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 22 SECTION 5 ELECTRICAL PARTS LIST A-4475-055-A DIGITAL BOARD, COMPLETE *********************** < CAPACITOR > C871 1-126-163-11 ELECT 4.7uF 20% 50V C873 1-126-160-11 ELECT 1uF 20 50V C1103 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1104 1-124-589-11 ELECT 47uF 20% 16V C1105 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1106 1-162-974-11 CERAMIC CHIP 0.01uF 50V C1107 1-124-589-11 ELECT 47uF 20% 16V C1108 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1109 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1110 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1111 1-162-974-11 CERAMIC CHIP 0.01uF 50V C1112 1-162-918-11 CERAMIC CHIP 18PF 5.00% 50V C1113 1-162-918-11 CERAMIC CHIP 18PF 5.00% 50V C1114 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1115 1-124-589-11 ELECT 47uF 20% 16V C1116 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C1201 1-128-131-11 ELECT 22uF 20.00% 50V C1202 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C1203 1-136-157-00 FILM 0.022uF 5.00% 50V C1210 1-164-230-11 CERAMIC CHIP 220PF 5.00% 50V C1211 1-164-230-11 CERAMIC CHIP 220PF 5.00% 50V C1212 1-164-230-11 CERAMIC CHIP 220PF 5.00% 50V C1213 1-164-230-11 CERAMIC CHIP 220PF 5.00% 50V C1214 1-164-230-11 CERAMIC CHIP 220PF 5.00% 50V C1215 1-164-230-11 CERAMIC CHIP 220PF 5.00% 50V C1221 1-128-131-11 ELECT 22uF 20.00% 50V C1222 1-128-131-11 ELECT 22uF 20.00% 50V C1223 1-128-131-11 ELECT 22uF 20.00% 50V C1224 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1225 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1226 1-124-261-00 ELECT 10uF 20% 50V C1227 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V C1228 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1229 1-124-589-11 ELECT 47uF 20% 16V C1230 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1231 1-124-261-00 ELECT 10uF 20% 50V C1232 1-124-584-00 ELECT 100uF 20% 10V C1251 1-128-131-11 ELECT 22uF 20.00% 50V C1252 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1253 1-124-261-00 ELECT 10uF 20% 50V C1254 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C1269 1-126-163-11 ELECT 4.7uF 20% 50V C1270 1-126-163-11 ELECT 4.7uF 20% 50V C1271 1-128-131-11 ELECT 22uF 20.00% 50V C1272 1-128-131-11 ELECT 22uF 20.00% 50V C1273 1-128-131-11 ELECT 22uF 20.00% 50V C1274 1-126-163-11 ELECT 4.7uF 20% 50V C1275 1-126-163-11 ELECT 4.7uF 20% 50V C1276 1-126-163-11 ELECT 4.7uF 20% 50V C1277 1-126-163-11 ELECT 4.7uF 20% 50V C1291 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C1292 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C1293 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C1294 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C1295 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C1296 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C1301 1-128-057-11 ELECT 330uF 20.00% 6.3V C1302 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1303 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1304 1-124-589-11 ELECT 47uF 20% 16V C1305 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V C1306 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1307 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1308 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1309 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1310 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1311 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1312 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1313 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1314 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1315 1-126-935-11 ELECT 470uF 20.00% 6.3V C1316 1-126-935-11 ELECT 470uF 20.00% 6.3V C1317 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1318 1-124-584-00 ELECT 100uF 20% 10V C1325 1-162-974-11 CERAMIC CHIP 0.01uF 50V C1329 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C1330 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C1500 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1501 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1502 1-104-905-11 CAPACITOR 0.22F 5.5V C1503 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1505 1-124-261-00 ELECT 10uF 20% 50V C1508 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C1509 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1510 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1511 1-124-589-11 ELECT 47uF 20% 16V C1512 1-124-257-00 ELECT 2.2uF 20% 50V DIGITAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 23 C1513 1-136-169-00 FILM 0.22uF 5.00% 50V C1514 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1515 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1516 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1522 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1523 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1529 1-124-261-00 ELECT 10uF 20% 50V C1530 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1532 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1552 1-126-936-11 ELECT 3300uF 20.00% 16V < CONNECTOR > CNP102 1-784-925-11 PIN, CONNECTOR 10P CNP808 1-770-385-11 CONNECTOR, BOARD TO BOARD 18P CNS101 1-691-652-11 SOCKET, CONNECTOR 23P * CNS802 1-564-520-11 PLUG, CONNECTOR 5P CNS807 1-770-380-11 CONNECTOR, BOARD TO BOARD 8P * CNS810 1-695-808-11 CONNECTOR, PC BOARD 8P < DIODE > D100 8-719-016-74 DIODE 1SS352-TPH3 D101 8-719-016-74 DIODE 1SS352-TPH3 D102 8-719-016-74 DIODE 1SS352-TPH3 D103 8-719-016-74 DIODE 1SS352-TPH3 D109 8-719-053-18 DIODE 1SR154-400TE-25 D110 8-719-053-18 DIODE 1SR154-400TE-25 D870 8-719-016-74 DIODE 1SS352-TPH3 D1101 8-719-016-74 DIODE 1SS352-TPH3 D1201 8-719-049-09 DIODE 1SS367-T3SONY D1202 8-719-049-09 DIODE 1SS367-T3SONY D1501 8-719-070-30 DIODE PTZ-TE25-5.6A D1524 8-719-053-18 DIODE 1SR154-400TE-25 D1525 8-719-053-18 DIODE 1SR154-400TE-25 D1526 8-719-053-18 DIODE 1SR154-400TE-25 D1527 8-719-053-18 DIODE 1SR154-400TE-25 < FERRITE BEAD > FB100 1-414-813-11 FERRITE 0uH FB1101 1-414-813-11 FERRITE 0uH FB1102 1-469-152-11 FERRITE 0uH FB1103 1-469-152-11 FERRITE 0uH FB1201 1-414-813-11 FERRITE 0uH FB1301 1-414-813-11 FERRITE 0uH FB1302 1-414-813-11 FERRITE 0uH FB1304 1-414-813-11 FERRITE 0uH FB1305 1-414-813-11 FERRITE 0uH FB1500 1-414-813-11 FERRITE 0uH FB1501 1-414-813-11 FERRITE 0uH FB1502 1-414-813-11 FERRITE 0uH FB1503 1-414-813-11 FERRITE 0uH FB1504 1-469-152-11 FERRITE 0uH FB1505 1-469-152-11 FERRITE 0uH < IC > IC1004 8-759-639-35 IC LC89055W-RA8 IC1005 8-759-242-70 IC TC7WU04F(TE12R) IC1006 8-759-643-42 IC CXD9511AQ IC1007 8-759-697-47 IC IDT71256SA20Y-TL IC1008 8-759-657-47 IC AK4527 IC1009 8-759-647-11 IC uPC2905HF IC1010 8-759-647-10 IC uPC2933HF IC1011 8-759-039-69 IC uPC7805AHF IC1201 8-759-099-06 IC M5218AFP-TE1 IC1202 8-759-099-06 IC M5218AFP-TE1 IC1203 8-759-099-06 IC M5218AFP-TE1 IC1204 8-759-099-06 IC M5218AFP-TE1 IC1251 8-759-099-06 IC M5218AFP-TE1 IC1502 8-759-683-65 IC MB90553ABPF-G-172-BND < TRANSISTOR > Q100 8-729-113-69 TRANSISTOR FN1F4M-T1M32 Q101 8-729-027-43 TRANSISTOR RT1N141C-TP-1 Q103 8-729-230-49 TRANSISTOR 2SC2712-YG-TE85L Q104 8-729-027-43 TRANSISTOR RT1N141C-TP-1 Q870 8-729-230-49 TRANSISTOR 2SC2712-YG-TE85L Q871 8-729-230-49 TRANSISTOR 2SC2712-YG-TE85L < RESISTOR > R065 1-216-097-11 RES-CHIP 100K 5% 1/10W R099 1-216-295-11 SHORT 0 R870 1-216-073-00 METAL CHIP 10K 5% 1/10W R871 1-216-097-11 RES-CHIP 100K 5% 1/10W R872 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R873 1-216-073-00 METAL CHIP 10K 5% 1/10W R874 1-216-047-91 RES-CHIP 820 5% 1/10W R875 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R876 1-216-093-91 RES-CHIP 68K 5% 1/10W R877 1-216-105-91 RES-CHIP 220K 5% 1/10W R878 1-216-097-11 RES-CHIP 100K 5% 1/10W R1101 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R1102 1-216-066-00 METAL CHIP 5.1K 5% 1/10W R1103 1-216-066-00 METAL CHIP 5.1K 5% 1/10W R1104 1-216-022-00 METAL CHIP 75 5% 1/10W R1110 1-216-049-11 RES-CHIP 1K 5% 1/10W R1111 1-216-049-11 RES-CHIP 1K 5% 1/10W R1112 1-216-049-11 RES-CHIP 1K 5% 1/10W R1113 1-216-073-00 METAL CHIP 10K 5% 1/10W R1114 1-216-073-00 METAL CHIP 10K 5% 1/10W R1115 1-216-043-91 RES-CHIP 560 5% 1/10W R1116 1-216-121-11 RES-CHIP 1M 5% 1/10W R1117 1-216-025-11 RES-CHIP 100 5% 1/10W R1118 1-216-025-11 RES-CHIP 100 5% 1/10W R1119 1-216-025-11 RES-CHIP 100 5% 1/10W R1120 1-216-025-11 RES-CHIP 100 5% 1/10W R1121 1-469-152-11 FERRITE 0UH R1122 1-469-152-11 FERRITE 0UH R1123 1-216-025-11 RES-CHIP 100 5% 1/10W R1124 1-216-025-11 RES-CHIP 100 5% 1/10W R1125 1-469-152-11 FERRITE 0UH R1201 1-216-073-00 METAL CHIP 10K 5% 1/10W R1202 1-216-059-00 METAL CHIP 2.7K 5% 1/10W R1203 1-216-037-00 METAL CHIP 330 5% 1/10W R1204 1-216-073-00 METAL CHIP 10K 5% 1/10W R1205 1-216-073-00 METAL CHIP 10K 5% 1/10W R1206 1-216-037-00 METAL CHIP 330 5% 1/10W R1210 1-216-025-11 RES-CHIP 100 5% 1/10W R1211 1-216-025-11 RES-CHIP 100 5% 1/10W R1212 1-216-025-11 RES-CHIP 100 5% 1/10W DIGITAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 24 R1213 1-216-025-11 RES-CHIP 100 5% 1/10W R1214 1-216-025-11 RES-CHIP 100 5% 1/10W R1215 1-216-025-11 RES-CHIP 100 5% 1/10W R1221 1-216-025-11 RES-CHIP 100 5% 1/10W R1222 1-216-073-00 METAL CHIP 10K 5% 1/10W R1223 1-216-097-11 RES-CHIP 100K 5% 1/10W R1251 1-216-073-00 METAL CHIP 10K 5% 1/10W R1252 1-216-059-00 METAL CHIP 2.7K 5% 1/10W R1253 1-216-037-00 METAL CHIP 330 5% 1/10W R1254 1-216-073-00 METAL CHIP 10K 5% 1/10W R1255 1-216-073-00 METAL CHIP 10K 5% 1/10W R1256 1-216-037-00 METAL CHIP 330 5% 1/10W R1257 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R1258 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R1275 1-216-073-00 METAL CHIP 10K 5% 1/10W R1276 1-216-073-00 METAL CHIP 10K 5% 1/10W R1277 1-216-073-00 METAL CHIP 10K 5% 1/10W R1278 1-216-073-00 METAL CHIP 10K 5% 1/10W R1279 1-216-073-00 METAL CHIP 10K 5% 1/10W R1280 1-216-073-00 METAL CHIP 10K 5% 1/10W R1281 1-216-073-00 METAL CHIP 10K 5% 1/10W R1282 1-216-073-00 METAL CHIP 10K 5% 1/10W R1283 1-216-073-00 METAL CHIP 10K 5% 1/10W R1284 1-216-073-00 METAL CHIP 10K 5% 1/10W R1285 1-216-073-00 METAL CHIP 10K 5% 1/10W R1286 1-216-073-00 METAL CHIP 10K 5% 1/10W R1287 1-216-089-11 RES-CHIP 47K 5% 1/10W R1288 1-216-089-11 RES-CHIP 47K 5% 1/10W R1289 1-216-089-11 RES-CHIP 47K 5% 1/10W R1290 1-216-089-11 RES-CHIP 47K 5% 1/10W R1291 1-216-089-11 RES-CHIP 47K 5% 1/10W R1292 1-216-089-11 RES-CHIP 47K 5% 1/10W R1301 1-216-073-00 METAL CHIP 10K 5% 1/10W R1302 1-216-025-11 RES-CHIP 100 5% 1/10W R1303 1-216-025-11 RES-CHIP 100 5% 1/10W R1304 1-216-025-11 RES-CHIP 100 5% 1/10W R1305 1-216-073-00 METAL CHIP 10K 5% 1/10W R1311 1-216-073-00 METAL CHIP 10K 5% 1/10W R1312 1-216-025-11 RES-CHIP 100 5% 1/10W R1313 1-216-025-11 RES-CHIP 100 5% 1/10W R1314 1-216-025-11 RES-CHIP 100 5% 1/10W R1315 1-216-025-11 RES-CHIP 100 5% 1/10W R1316 1-216-025-11 RES-CHIP 100 5% 1/10W R1317 1-216-025-11 RES-CHIP 100 5% 1/10W R1500 1-216-049-11 RES-CHIP 1K 5% 1/10W R1501 1-216-025-11 RES-CHIP 100 5% 1/10W R1502 1-216-025-11 RES-CHIP 100 5% 1/10W R1503 1-216-025-11 RES-CHIP 100 5% 1/10W R1504 1-216-073-00 METAL CHIP 10K 5% 1/10W R1505 1-216-073-00 METAL CHIP 10K 5% 1/10W R1517 1-216-089-11 RES-CHIP 47K 5% 1/10W R1518 1-216-073-00 METAL CHIP 10K 5% 1/10W R1519 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R1520 1-216-073-00 METAL CHIP 10K 5% 1/10W R1521 1-216-117-00 METAL CHIP 680K 5% 1/10W R1524 1-216-081-00 METAL CHIP 22K 5% 1/10W R1525 1-216-025-11 RES-CHIP 100 5% 1/10W R1526 1-216-025-11 RES-CHIP 100 5% 1/10W R1527 1-216-073-00 METAL CHIP 10K 5% 1/10W R1535 1-216-025-11 RES-CHIP 100 5% 1/10W R1536 1-216-025-11 RES-CHIP 100 5% 1/10W R1537 1-216-025-11 RES-CHIP 100 5% 1/10W R1538 1-216-025-11 RES-CHIP 100 5% 1/10W R1539 1-216-025-11 RES-CHIP 100 5% 1/10W R1540 1-216-025-11 RES-CHIP 100 5% 1/10W R1544 1-216-073-00 METAL CHIP 10K 5% 1/10W R1548 1-216-025-11 RES-CHIP 100 5% 1/10W R1549 1-216-025-11 RES-CHIP 100 5% 1/10W R1550 1-216-025-11 RES-CHIP 100 5% 1/10W R1551 1-216-025-11 RES-CHIP 100 5% 1/10W R1552 1-216-025-11 RES-CHIP 100 5% 1/10W R1553 1-216-025-11 RES-CHIP 100 5% 1/10W R1554 1-216-073-00 METAL CHIP 10K 5% 1/10W 0R1580 1-243-635-11 FUSIBLE 0.33 5% 1/2W R1587 1-216-073-00 METAL CHIP 10K 5% 1/10W R1588 1-216-073-00 METAL CHIP 10K 5% 1/10W < VIBRATOR > X101 1-781-356-21 VIBRATOR, CERAMIC 16MHz X1101 1-781-465-21 VIBRATOR, CRYSTAL 12.288MHz ************************************************************ A-4475-053-A DISPLAY BOARD, COMPLETE *********************** 4-230-090-01 FL HOLDER * 4-921-941-01 CUSHION (FL) 7-685-872-09 SCREW +BVTT 3X8 (S) < CAPACITOR > C100 1-162-974-11 CERAMIC CHIP 0.01uF 50V C101 1-124-589-11 ELECT 47uF 20% 16V C102 1-162-974-11 CERAMIC CHIP 0.01uF 50V C103 1-164-156-11 CERAMIC CHIP 0.1uF 25V C104 1-124-261-00 ELECT 10uF 20% 50V C105 1-164-156-11 CERAMIC CHIP 0.1uF 25V C106 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C107 1-164-156-11 CERAMIC CHIP 0.1uF 25V C108 1-164-156-11 CERAMIC CHIP 0.1uF 25V C109 1-164-156-11 CERAMIC CHIP 0.1uF 25V C110 1-124-248-00 ELECT 22uF 20% 35V C111 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C113 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C114 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C115 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C116 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C117 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C118 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C119 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C120 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C121 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C122 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C123 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C124 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C125 1-162-927-11 CERAMIC CHIP 100PF 5% 50V The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. DIGITAL DISPLAY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 25 C126 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C127 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C128 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C129 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C130 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C131 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C132 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C133 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C134 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C135 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C136 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C137 1-162-927-11 CERAMIC CHIP 100PF 5% 50V < CONNECTOR > CNS100 1-691-652-11 SOCKET, CONNECTOR 23P < DIODE > D100 8-719-046-37 DIODE SEL5820A-TH8F (5.1CH/SAT) D101 8-719-046-37 DIODE SEL5820A-TH8F (AUX) D102 8-719-046-37 DIODE SEL5820A-TH8F (DVD) D103 8-719-046-37 DIODE SEL5820A-TH8F (TV) D105 8-719-046-37 DIODE SEL5820A-TH8F (VIDEO) < FILTER > FL201 1-517-994-11 TUBE, FLUORESCENT INDICATOR < IC > IC100 8-759-459-86 IC NJL64H400A IC101 8-759-547-59 IC M35500BGP < RESISTOR > R100 1-216-049-11 RES-CHIP 1K 5% 1/10W R101 1-216-049-11 RES-CHIP 1K 5% 1/10W R102 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R103 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R104 1-216-073-00 METAL CHIP 10K 5% 1/10W R105 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R106 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R107 1-216-073-00 METAL CHIP 10K 5% 1/10W R108 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R109 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R110 1-216-073-00 METAL CHIP 10K 5% 1/10W R111 1-216-073-00 METAL CHIP 10K 5% 1/10W R112 1-216-073-00 METAL CHIP 10K 5% 1/10W R113 1-216-081-00 METAL CHIP 22K 5% 1/10W R114 1-216-029-00 METAL CHIP 150 5% 1/10W R115 1-216-001-00 METAL CHIP 10 5% 1/10W R117 1-216-073-00 METAL CHIP 10K 5% 1/10W R119 1-216-073-00 METAL CHIP 10K 5% 1/10W R120 1-216-025-11 RES-CHIP 100 5% 1/10W R196 1-249-385-11 CARBON 2.2 5% 1/6W F R198 1-249-385-11 CARBON 2.2 5% 1/6W F < VARIABLE RESISTOR > RV100 1-476-191-11 ENCODER, ROTARY (MASTER VOLUME) < SWITCH > S100 1-572-596-11 SWITCH, KEY BOARD (SOUND FIELD MODE) S101 1-572-596-11 SWITCH, KEY BOARD (5.1CH/SAT) S102 1-572-596-11 SWITCH, KEY BOARD (AUX) S103 1-572-596-11 SWITCH, KEY BOARD (SET UP) S104 1-572-596-11 SWITCH, KEY BOARD (VIDEO) S105 1-572-596-11 SWITCH, KEY BOARD (TV) S106 1-572-596-11 SWITCH, KEY BOARD (DVD) S107 1-572-596-11 SWITCH, KEY BOARD (+) S108 1-572-596-11 SWITCH, KEY BOARD (-) S109 1-572-596-11 SWITCH, KEY BOARD (LEVEL) S110 1-572-596-11 SWITCH, KEY BOARD (SURR) S111 1-572-596-11 SWITCH, KEY BOARD ( ?/1 ) ************************************************************ A-4475-050-A MAIN BOARD, COMPLETE ********************* < CAPACITOR > C212 1-126-157-11 ELECT 10uF 20% 16V C371 1-164-156-11 CERAMIC CHIP 0.1uF 25V C372 1-164-156-11 CERAMIC CHIP 0.1uF 25V C373 1-164-156-11 CERAMIC CHIP 0.1uF 25V C374 1-164-156-11 CERAMIC CHIP 0.1uF 25V C375 1-164-156-11 CERAMIC CHIP 0.1uF 25V C376 1-164-156-11 CERAMIC CHIP 0.1uF 25V C401 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C402 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C403 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C405 1-126-157-11 ELECT 10uF 20% 16V C408 1-126-157-11 ELECT 10uF 20% 16V C410 1-126-157-11 ELECT 10uF 20% 16V C411 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C419 1-126-157-11 ELECT 10uF 20% 16V C420 1-126-157-11 ELECT 10uF 20% 16V C421 1-126-157-11 ELECT 10uF 20% 16V C428 1-126-157-11 ELECT 10uF 20% 16V C429 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C430 1-164-156-11 CERAMIC CHIP 0.1uF 25V C434 1-128-131-11 ELECT 22uF 20.00% 50V C455 1-126-157-11 ELECT 10uF 20% 16V C457 1-126-157-11 ELECT 10uF 20% 16V C458 1-126-157-11 ELECT 10uF 20% 16V C460 1-126-157-11 ELECT 10uF 20% 16V C461 1-126-157-11 ELECT 10uF 20% 16V C465 1-126-157-11 ELECT 10uF 20% 16V C468 1-126-157-11 ELECT 10uF 20% 16V C469 1-126-157-11 ELECT 10uF 20% 16V C470 1-126-157-11 ELECT 10uF 20% 16V C471 1-126-157-11 ELECT 10uF 20% 16V C484 1-128-131-11 ELECT 22uF 20.00% 50V C497 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C498 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C499 1-126-157-11 ELECT 10uF 20% 16V C501 1-126-163-11 ELECT 4.7uF 20% 50V C502 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C503 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C504 1-102-942-00 CERAMIC 5.0PF ±0.5PF 50V C505 1-104-665-11 ELECT 100uF 20.00% 16V MAIN DISPLAY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 26 C507 1-124-463-00 ELECT 0.1uF 20% 50V C509 1-137-372-11 MYLAR 0.022uF 5.00% 50V C519 1-124-463-00 ELECT 0.1uF 20% 50V C601 1-126-163-11 ELECT 4.7uF 20% 50V C602 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C603 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C604 1-102-942-00 CERAMIC 5.0PF ±0.5PF 50V C605 1-104-665-11 ELECT 100uF 20.00% 16V C607 1-124-463-00 ELECT 0.1uF 20% 50V C609 1-137-372-11 MYLAR 0.022uF 5.00% 50V C610 1-124-463-00 ELECT 0.1uF 20% 50V C651 1-126-163-11 ELECT 4.7uF 20% 50V C652 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C653 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C654 1-102-942-00 CERAMIC 5.0PF ±0.5PF 50V C655 1-104-665-11 ELECT 100uF 20.00% 16V C656 1-124-463-00 ELECT 0.1uF 20% 50V C659 1-137-372-11 MYLAR 0.022uF 5.00% 50V C660 1-124-463-00 ELECT 0.1uF 20% 50V C701 1-126-163-11 ELECT 4.7uF 20% 50V C702 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C703 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C704 1-102-942-00 CERAMIC 5.0PF ±0.5PF 50V C705 1-104-665-11 ELECT 100uF 20.00% 16V C706 1-124-463-00 ELECT 0.1uF 20% 50V C708 1-124-463-00 ELECT 0.1uF 20% 50V C709 1-137-372-11 MYLAR 0.022uF 5.00% 50V C721 1-126-934-11 ELECT 220uF 20.00% 10V C722 1-164-156-11 CERAMIC CHIP 0.1uF 25V C751 1-126-163-11 ELECT 4.7uF 20% 50V C752 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C753 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C754 1-102-942-00 CERAMIC 5.0PF ±0.5PF 50V C755 1-104-665-11 ELECT 100uF 20.00% 16V C756 1-124-463-00 ELECT 0.1uF 20% 50V C758 1-124-463-00 ELECT 0.1uF 20% 50V C759 1-137-372-11 MYLAR 0.022uF 5.00% 50V C801 1-126-947-11 ELECT 47uF 20.00% 35V C802 1-126-947-11 ELECT 47uF 20.00% 35V C803 1-135-974-11 CAP, ELECT 4700uF 35V C804 1-135-974-11 CAP, ELECT 4700uF 35V C805 1-135-851-21 MYLAR 0.22uF 100V C806 1-135-851-21 MYLAR 0.22uF 100V C807 1-124-584-00 ELECT 100uF 20% 10V C808 1-124-584-00 ELECT 100uF 20% 10V C809 1-164-156-11 CERAMIC CHIP 0.1uF 25V C810 1-164-156-11 CERAMIC CHIP 0.1uF 25V C811 1-126-942-61 ELECT 1000uF 20.00% 25V C812 1-126-941-11 ELECT 470uF 20.00% 25V C813 1-130-495-00 MYLAR 0.1uF 5% 50V C814 1-130-495-00 MYLAR 0.1uF 5% 50V C815 1-128-552-51 ELECT 47uF 20.00% 63V C816 1-126-967-11 ELECT 47uF 20.00% 50V C817 1-164-156-11 CERAMIC CHIP 0.1uF 25V C827 1-126-947-11 ELECT 47uF 20.00% 35V CC05 1-162-927-11 CERAMIC CHIP 100PF 5% 50V CC08 1-162-927-11 CERAMIC CHIP 100PF 5% 50V CC09 1-162-927-11 CERAMIC CHIP 100PF 5% 50V CC10 1-162-927-11 CERAMIC CHIP 100PF 5% 50V CC11 1-162-927-11 CERAMIC CHIP 100PF 5% 50V CC12 1-162-974-11 CERAMIC CHIP 0.01uF 50V CC14 1-162-974-11 CERAMIC CHIP 0.01uF 50V CC16 1-162-974-11 CERAMIC CHIP 0.01uF 50V CC18 1-162-974-11 CERAMIC CHIP 0.01uF 50V CC20 1-162-974-11 CERAMIC CHIP 0.01uF 50V CC21 1-164-230-11 CERAMIC CHIP 220PF 5.00% 50V CC22 1-164-230-11 CERAMIC CHIP 220PF 5.00% 50V CC23 1-164-230-11 CERAMIC CHIP 220PF 5.00% 50V CC24 1-164-230-11 CERAMIC CHIP 220PF 5.00% 50V CC25 1-164-230-11 CERAMIC CHIP 220PF 5.00% 50V CC55 1-162-927-11 CERAMIC CHIP 100PF 5% 50V CC58 1-162-927-11 CERAMIC CHIP 100PF 5% 50V CC59 1-162-927-11 CERAMIC CHIP 100PF 5% 50V CC60 1-162-927-11 CERAMIC CHIP 100PF 5% 50V CC61 1-162-927-11 CERAMIC CHIP 100PF 5% 50V < CONNECTOR > CNP800 1-691-767-11 PLUG (MICRO CONNECTOR) 5P CNP801 1-779-978-11 PIN, CONNECTOR 3P CNP806 1-750-180-11 PIN, CONNECTOR (PC BOARD) 5P CNP812 1-695-090-11 PIN, CONNECTOR (PC BOARD) 13P CNP820 1-750-180-11 PIN, CONNECTOR (PC BOARD) 5P < DIODE > D510 8-719-016-74 DIODE 1SS352-TPH3 D560 8-719-016-74 DIODE 1SS352-TPH3 D610 8-719-016-74 DIODE 1SS352-TPH3 D710 8-719-016-74 DIODE 1SS352-TPH3 D731 8-719-016-74 DIODE 1SS352-TPH3 D732 8-719-016-74 DIODE 1SS352-TPH3 D734 8-719-016-74 DIODE 1SS352-TPH3 D735 8-719-016-74 DIODE 1SS352-TPH3 D801 8-719-056-97 DIODE UDZ-TE-17-27B D802 8-719-302-38 DIODE RBV-602-01 D810 8-719-053-18 DIODE 1SR154-400TE-25 D811 8-719-053-18 DIODE 1SR154-400TE-25 D820 8-719-053-18 DIODE 1SR154-400TE-25 D821 8-719-053-18 DIODE 1SR154-400TE-25 D822 8-719-053-18 DIODE 1SR154-400TE-25 D823 8-719-053-18 DIODE 1SR154-400TE-25 D833 8-719-210-21 DIODE 11EQS04-TA1B D896 8-719-210-21 DIODE 11EQS04-TA1B < IC > IC301 8-759-655-38 IC M61501FP IC401 8-759-099-06 IC M5218AFP-TE1 IC501 8-759-502-33 IC SI-18752 IC601 8-759-502-33 IC SI-18752 IC651 8-759-502-33 IC SI-18752 IC701 8-759-502-33 IC SI-18752 IC751 8-759-502-33 IC SI-18752 IC801 8-759-605-00 IC M5F78M07L IC802 8-759-604-95 IC M5F79M07L IC807 8-759-604-35 IC M5F78M05L < JACK > J401 1-794-713-11 PIN JACK 4P (TV/VIDEO) J501 1-794-710-11 PIN JACK 6P (5.1CH/SAT) MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 27 < COIL > L507 1-419-666-11 COIL, AIR-CORE L607 1-419-666-11 COIL, AIR-CORE L657 1-419-666-11 COIL, AIR-CORE L707 1-419-666-11 COIL, AIR-CORE L757 1-419-666-11 COIL, AIR-CORE < TRANSISTOR > Q361 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 Q362 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 Q363 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 Q364 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 Q365 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 Q366 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 Q379 8-729-113-69 TRANSISTOR FN1F4M-T1M32 Q550 8-729-230-49 TRANSISTOR 2SC2712-YG-TE85L Q560 8-729-230-49 TRANSISTOR 2SC2712-YG-TE85L Q610 8-729-230-49 TRANSISTOR 2SC2712-YG-TE85L Q722 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA Q723 8-729-230-49 TRANSISTOR 2SC2712-YG-TE85L Q725 8-729-140-82 TRANSISTOR 2SA988TP-PAFAEA Q730 8-729-230-49 TRANSISTOR 2SC2712-YG-TE85L Q801 8-729-140-97 TRANSISTOR 2SB734-T-34 Q850 8-729-281-53 TRANSISTOR 2SC1815GR-TPE2 Q851 8-729-113-69 TRANSISTOR FN1F4M-T1M32 Q852 8-729-119-76 TRANSISTOR 2SA1115TP-F < RESISTOR > R360 1-216-089-11 RES-CHIP 47K 5% 1/10W R361 1-216-073-00 METAL CHIP 10K 5% 1/10W R362 1-216-073-00 METAL CHIP 10K 5% 1/10W R363 1-216-089-11 RES-CHIP 47K 5% 1/10W R366 1-216-073-00 METAL CHIP 10K 5% 1/10W R367 1-216-089-11 RES-CHIP 47K 5% 1/10W R368 1-216-089-11 RES-CHIP 47K 5% 1/10W R369 1-216-073-00 METAL CHIP 10K 5% 1/10W R370 1-216-073-00 METAL CHIP 10K 5% 1/10W R371 1-216-089-11 RES-CHIP 47K 5% 1/10W R372 1-216-089-11 RES-CHIP 47K 5% 1/10W R373 1-216-025-11 RES-CHIP 100 5% 1/10W R374 1-216-025-11 RES-CHIP 100 5% 1/10W R375 1-216-025-11 RES-CHIP 100 5% 1/10W R376 1-216-025-11 RES-CHIP 100 5% 1/10W R377 1-216-025-11 RES-CHIP 100 5% 1/10W R378 1-216-025-11 RES-CHIP 100 5% 1/10W R379 1-216-073-00 METAL CHIP 10K 5% 1/10W R380 1-216-097-11 RES-CHIP 100K 5% 1/10W R400 1-216-089-11 RES-CHIP 47K 5% 1/10W R405 1-216-049-11 RES-CHIP 1K 5% 1/10W R408 1-216-049-11 RES-CHIP 1K 5% 1/10W R409 1-216-049-11 RES-CHIP 1K 5% 1/10W R410 1-216-049-11 RES-CHIP 1K 5% 1/10W R411 1-216-049-11 RES-CHIP 1K 5% 1/10W R425 1-216-089-11 RES-CHIP 47K 5% 1/10W R428 1-216-089-11 RES-CHIP 47K 5% 1/10W R445 1-216-089-11 RES-CHIP 47K 5% 1/10W R447 1-216-089-11 RES-CHIP 47K 5% 1/10W R448 1-216-089-11 RES-CHIP 47K 5% 1/10W R455 1-216-049-11 RES-CHIP 1K 5% 1/10W R458 1-216-049-11 RES-CHIP 1K 5% 1/10W R459 1-216-049-11 RES-CHIP 1K 5% 1/10W R460 1-216-049-11 RES-CHIP 1K 5% 1/10W R461 1-216-049-11 RES-CHIP 1K 5% 1/10W R463 1-216-089-11 RES-CHIP 47K 5% 1/10W R464 1-216-089-11 RES-CHIP 47K 5% 1/10W R465 1-216-089-11 RES-CHIP 47K 5% 1/10W R467 1-216-089-11 RES-CHIP 47K 5% 1/10W R468 1-216-089-11 RES-CHIP 47K 5% 1/10W R469 1-216-049-11 RES-CHIP 1K 5% 1/10W R470 1-216-089-11 RES-CHIP 47K 5% 1/10W R471 1-216-073-00 METAL CHIP 10K 5% 1/10W R472 1-216-073-00 METAL CHIP 10K 5% 1/10W R473 1-216-073-00 METAL CHIP 10K 5% 1/10W R474 1-216-073-00 METAL CHIP 10K 5% 1/10W R499 1-216-073-00 METAL CHIP 10K 5% 1/10W R501 1-216-025-11 RES-CHIP 100 5% 1/10W R502 1-216-081-00 METAL CHIP 22K 5% 1/10W R504 1-216-081-00 METAL CHIP 22K 5% 1/10W 0R507 1-249-389-11 CARBON 4.7 5% 1/4W F R508 1-216-089-11 RES-CHIP 47K 5% 1/10W 0R509 1-249-393-11 CARBON 10 5% 1/4W F R530 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R531 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R532 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R533 1-216-089-11 RES-CHIP 47K 5% 1/10W R543 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R544 1-216-037-00 METAL CHIP 330 5% 1/10W R601 1-216-025-11 RES-CHIP 100 5% 1/10W R602 1-216-081-00 METAL CHIP 22K 5% 1/10W R604 1-216-081-00 METAL CHIP 22K 5% 1/10W 0R607 1-249-389-11 CARBON 4.7 5% 1/4W F R608 1-216-089-11 RES-CHIP 47K 5% 1/10W 0R609 1-249-393-11 CARBON 10 5% 1/4W F R630 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R631 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R643 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R644 1-216-037-00 METAL CHIP 330 5% 1/10W R651 1-216-025-11 RES-CHIP 100 5% 1/10W R652 1-216-081-00 METAL CHIP 22K 5% 1/10W R654 1-216-081-00 METAL CHIP 22K 5% 1/10W 0R657 1-249-389-11 CARBON 4.7 5% 1/4W F R658 1-216-089-11 RES-CHIP 47K 5% 1/10W 0R659 1-249-393-11 CARBON 10 5% 1/4W F R693 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R694 1-216-037-00 METAL CHIP 330 5% 1/10W R701 1-216-025-11 RES-CHIP 100 5% 1/10W R702 1-216-081-00 METAL CHIP 22K 5% 1/10W R704 1-216-081-00 METAL CHIP 22K 5% 1/10W 0R707 1-249-389-11 CARBON 4.7 5% 1/4W F R708 1-216-089-11 RES-CHIP 47K 5% 1/10W 0R709 1-249-393-11 CARBON 10 5% 1/4W F R730 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R731 1-216-065-91 RES-CHIP 4.7K 5% 1/10W The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 28 R732 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R734 1-216-073-00 METAL CHIP 10K 5% 1/10W R735 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R736 1-216-049-11 RES-CHIP 1K 5% 1/10W R737 1-216-085-00 METAL CHIP 33K 5% 1/10W R738 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R743 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R744 1-216-037-00 METAL CHIP 330 5% 1/10W R751 1-216-025-11 RES-CHIP 100 5% 1/10W R752 1-216-081-00 METAL CHIP 22K 5% 1/10W R754 1-216-081-00 METAL CHIP 22K 5% 1/10W 0R757 1-249-389-11 CARBON 4.7 5% 1/4W F R758 1-216-089-11 RES-CHIP 47K 5% 1/10W 0R759 1-249-393-11 CARBON 10 5% 1/4W F R793 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R794 1-216-037-00 METAL CHIP 330 5% 1/10W 0R801 1-249-381-11 CARBON 1 5% 1/4W F 0R803 1-249-406-11 CARBON 120 5% 1/4W F R804 1-216-085-00 METAL CHIP 33K 5% 1/10W R805 1-216-081-00 METAL CHIP 22K 5% 1/10W 0R810 1-240-877-11 FUSIBLE 0.15 5% 1/2W 0R811 1-240-877-11 FUSIBLE 0.15 5% 1/2W 0R850 1-249-402-11 CARBON 56 5% 1/4W F R851 1-216-073-00 METAL CHIP 10K 5% 1/10W R852 1-216-081-00 METAL CHIP 22K 5% 1/10W R853 1-216-081-00 METAL CHIP 22K 5% 1/10W 0R854 1-249-425-11 CARBON 4.7K 5% 1/4W F R855 1-216-081-00 METAL CHIP 22K 5% 1/10W R856 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R860 1-216-081-00 METAL CHIP 22K 5% 1/10W R861 1-216-081-00 METAL CHIP 22K 5% 1/10W R862 1-216-081-00 METAL CHIP 22K 5% 1/10W R863 1-216-081-00 METAL CHIP 22K 5% 1/10W R864 1-216-081-00 METAL CHIP 22K 5% 1/10W 0R880 1-249-409-11 CARBON 220 5% 1/4W F 0RR11 1-249-393-11 CARBON 10 5% 1/4W F 0RR12 1-249-393-11 CARBON 10 5% 1/4W F 0RR13 1-249-393-11 CARBON 10 5% 1/4W F 0RR14 1-249-393-11 CARBON 10 5% 1/4W F 0RR15 1-249-393-11 CARBON 10 5% 1/4W F < RELAY > RY550 1-755-170-11 RELAY (12V) RY560 1-755-267-11 RELAY RY601 1-755-170-11 RELAY (12V) RY730 1-755-170-11 RELAY (12V) < TERMINAL > TM603 1-694-724-11 SPEAKER TERMINAL (SPEAKERS) ************************************************************ 1-679-014-11 OPTICAL BOARD ************* < CAPACITOR > C1001 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1002 1-164-156-11 CERAMIC CHIP 0.1uF 25V < CONNECTOR > CNP807 1-770-405-11 CONNECTOR, BOARD TO BOARD 8P CNS806 1-750-179-11 SOCKET, CONNECTOR 5P < FERRITE BEAD > FB1306 1-414-813-11 FERRITE 0UH < IC > IC1001 8-749-017-83 IC TORX179P (DVD) IC1002 8-749-017-83 IC TORX179P (AUX) < RESISTOR > R1001 1-216-025-11 RES-CHIP 100 5% 1/10W R1002 1-216-025-11 RES-CHIP 100 5% 1/10W R1003 1-216-025-11 RES-CHIP 100 5% 1/10W R1004 1-216-025-11 RES-CHIP 100 5% 1/10W R1005 1-216-025-11 RES-CHIP 100 5% 1/10W ************************************************************ 1-679-012-11 SIGNAL BRIDGE BOARD ******************* < CONNECTOR > CNS808 1-770-410-11 CONNECTOR, BOARD TO BOARD 18P CNS809 1-750-179-11 SOCKET, CONNECTOR 5P CNS811 1-695-095-11 SOCKET, CONNECTOR 13P ************************************************************ 1-679-011-11 STAND BY BOARD ************** 1-533-293-11 FUSE HOLDER < CAPACITOR > C902 1-162-974-11 CERAMIC CHIP 0.01uF 50V C920 1-164-156-11 CERAMIC CHIP 0.1uF 25V C921 1-164-156-11 CERAMIC CHIP 0.1uF 25V C950 1-126-936-11 ELECT 3300uF 20.00% 16V C951 1-164-156-11 CERAMIC CHIP 0.1uF 25V C952 1-126-160-11 ELECT 1uF 20% 50V C953 1-124-464-11 ELECT 0.22uF 20% 50V C954 1-124-261-00 ELECT 10uF 20% 50V C955 1-164-156-11 CERAMIC CHIP 0.1uF 25V C957 1-164-156-11 CERAMIC CHIP 0.1uF 25V C958 1-164-156-11 CERAMIC CHIP 0.1uF 25V < CONNECTOR > CNP803 1-784-921-11 PIN, CONNECTOR 4P CNP901 1-564-321-00 PIN, CONNECTOR 2P * CNP902 1-565-792-11 PIN, CONNECTOR 2P MAIN OPTICAL SIGNAL BRIDGE STAND BY The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 29 < DIODE > D901 8-719-016-74 DIODE 1SS352-TPH3 D910 8-719-053-18 DIODE 1SR154-400TE-25 D911 8-719-053-18 DIODE 1SR154-400TE-25 D912 8-719-053-18 DIODE 1SR154-400TE-25 D913 8-719-053-18 DIODE 1SR154-400TE-25 D914 8-719-016-74 DIODE 1SS352-TPH3 D915 8-719-016-74 DIODE 1SS352-TPH3 < EARTH > * EPT901 1-537-738-21 TERMINAL, EARTH * ETP201 1-537-738-21 TERMINAL, EARTH * ETP202 1-537-738-21 TERMINAL, EARTH < FUSE > 0F901 1-532-463-51 FUSE TIME LAG 2A/250V < IC > IC950 8-759-544-04 IC NJM2103M-TE2 < JUMPER RESISTOR > JR200 1-216-295-11 SHORT 0 JR201 1-216-295-11 SHORT 0 JR202 1-216-295-11 SHORT 0 JR205 1-216-295-11 SHORT 0 JR206 1-216-295-11 SHORT 0 JR210 1-216-295-11 SHORT 0 JR211 1-216-295-11 SHORT 0 JR230 1-216-295-11 SHORT 0 < TRANSISTOR > Q901 8-729-230-49 TRANSISTOR 2SC2712-YG-TE85L Q951 8-729-045-21 TRANSISTOR 2SD1513TP-LK < RESISTOR > R902 1-216-089-11 RES-CHIP 47K 5% 1/10W R903 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R950 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R951 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R952 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R953 1-216-081-00 METAL CHIP 22K 5% 1/10W R954 1-216-089-11 RES-CHIP 47K 5% 1/10W R955 1-216-073-00 METAL CHIP 10K 5% 1/10W R956 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R957 1-216-049-11 RES-CHIP 1K 5% 1/10W R958 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R960 1-216-065-91 RES-CHIP 4.7K 5% 1/10W < RELAY > 0RY901 1-755-298-11 RELAY < TRANSFORMER > 0T902 1-435-435-11 TRANSFORMER, POWER ************************************************************ MISCELLANEOUS ************** 4 1-773-185-11 WIRE (FLAT TYPE) (23 CORE) 51 1-763-561-11 FAN, D.C. 055 1-777-071-21 CORD, POWER 57 1-500-386-11 FILTER, CLAMP (FERRITE CORE) 0T901 1-435-687-11 POWER TRANSFORMER ************************************************************ ACCESSORIES & PACKING MATERIALS ******************************* A-4412-472-A STAND ASSY 0 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (UK) STAND BY The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 Sony Corporation Audio Entertainment Group 9-929-524-11 2000I1661-1 Printed in Japan ©2000.9 Published by General Engineering Dept. TA-VE215 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
