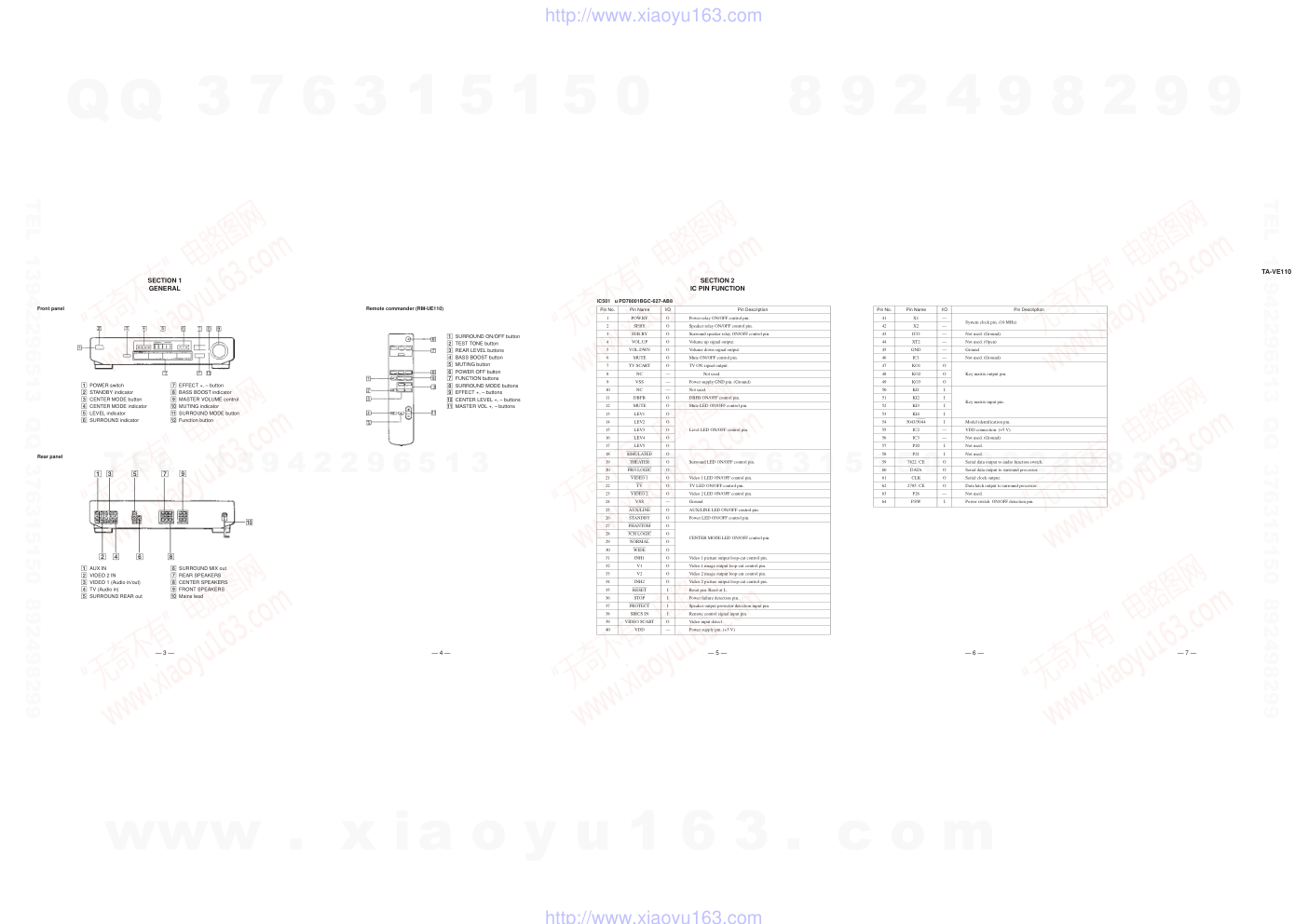

SERVICE MANUAL MICROFILM TA-VE110 AEP Model UK Model STEREO AV AMPLIFIER SPECIFICATIONS Amplifier section Power output Surround mode (DIN 1 kHz) Front: 25 W+25 W/8 ohms Center: 25 W/8 ohms (only in the PRO LOGIC and C, STUDIO modes) Rear: 10 W+10 W/8 ohms Frequency VIDEO 1+2, TV, AUX: response 20 Hz-20 kHz ± 2 dB Audio section Inputs Sensitivity Impedance VIDEO1, 150mV 50kilohms VIDEO2, TV, AUX Outputs VIDEO 1 REC: Voltage: 150 mV, Impedance: 470 ohms REAR, MIX: Voltage: 1 V Impedance: 1 kilohms BASS BOOST +7 dB at 60 Hz General Power requirements 220-230 V AC, 50/60 Hz Power consumption 110 W Dimensions 430 × 95 × 280 mm (17 × 3 3/4 × 11 1/8 inches) Mass (Approx.) 4.6 kg (10 lb 2 oz) Supplied accessories Remote controller (remote) (1) Size AA (R6) batteries (2) Scart adaptor (1) Design and specifications are subject to change without notice. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 2 — 1. GENERAL ··································································· 3 2. IC PIN FUNCTION ···················································· 5 3. DIAGRAMS ································································· 8 3-1. CIRCUIT BOARDS LOCATION ··································· 8 3-2. PRINTED WIRING BOARD ········································· 9 3-3. SCHEMATIC DIAGRAM ·············································· 13 3-4. IC BLOCK DIAGRAMS ················································ 18 4. EXPLODED VIEWS ················································· 21 4-1. FRONT PANEL SECTION············································· 21 4-2. CHASSIS SECTION······················································· 22 5. ELECTRICAL PARTS LIST ·································· 23 TABLE OF CONTENTS SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-LISHED BY SONY. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-VE110 SECTION 1 GENERAL — 3 — — 4 — — 5 — — 6 — — 7 — SECTION 2 IC PIN FUNCTION IC501 u PD78001BGC-627-AB8 Pin Description System clock pin. (10 MHz) Not used. (Ground) Not used. (Open) Ground Not used. (Ground) Key matrix output pin. Key matrix input pin. Model identification pin. VDD connection. (+5 V) Not used. (Ground) Not used. Not used. Serial data output to audio function switch. Serial data output to surround processor. Serial clock output. Data latch output to surround processor. Not used. Power switch ON/OFF detection pin. Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 Pin Name POW.RY SP.RY SUR.RY VOL.UP VOL.DWN MUTE TV SCART NC VSS NC DBFB MUTE LEV1 LEV2 LEV3 LEV4 LEV5 SIMULATED THEATER PRO LOGIC VIDEO 1 TV VIDEO 2 VSS AUX/LINE STANDBY PHANTOM 3CH LOGIC NORMAL WIDE INH1 V1 V2 INH2 RESET STOP PROTECT SIRCS IN VIDEO SCART VDD I/O O O O O O O O — — — O O O O O O O O O O O O O — O O O O O O O O O O I I I I O — Pin Description Power relay ON/OFF control pin. Speaker relay ON/OFF control pin. Surround speaker relay ON/OFF control pin. Volume up signal output. Volume down signal output. Mute ON/OFF control pin. TV ON signal output. Not used. Power supply GND pin. (Ground) Not used. DBFB ON/OFF control pin. Mute LED ON/OFF control pin. Level LED ON/OFF control pin. Surround LED ON/OFF control pin. Video 1 LED ON/OFF control pin. TV LED ON/OFF control pin. Video 2 LED ON/OFF control pin. Ground AUX/LINE LED ON/OFF control pin. Power LED ON/OFF control pin. CENTER MODE LED ON/OFF control pin. Video 1 picture output loop-cut control pin. Video 1 image output loop-cut control pin. Video 2 image output loop-cut control pin. Video 2 picture output loop-cut control pin. Reset pin. Reset at L. Power failure detection pin. Speaker output protector detection input pin. Remote control signal input pin. Video input detect Power supply pin. (+5 V) Pin No. 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 Pin Name X1 X2 ICO XT2 GND IC1 KO1 KO2 KO3 KI1 KI2 KI3 KI4 5043/5044 IC2 IC3 P20 P21 7822. CE DATA CLK 2785. CE P26 P.SW I/O — — — — — — O O O I I I I I — — I I O O O O — I 1 POWER switch 2 STANDBY indicator 3 CENTER MODE button 4 CENTER MODE indicator 5 LEVEL indicator 6 SURROUND indicator Front panel 7 EFFECT +, – button 8 BASS BOOST indicator 9 MASTER VOLUME control !º MUTING indicator !¡ SURROUND MODE button !™ Function button Rear panel 1 5 3 !º 8 6 4 2 9 7 1 AUX IN 2 VIDEO 2 IN 3 VIDEO 1 (Audio in/out) 4 TV (Audio in) 5 SURROUND REAR out 6 SURROUND MIX out 7 REAR SPEAKERS 8 CENTER SPEAKERS 9 FRONT SPEAKERS !º Mains lead Remote commander (RM-UE110) 1 SURROUND ON/OFF button 2 TEST TONE button 3 REAR LEVEL buttons 4 BASS BOOST button 5 MUTING button 6 POWER OFF button 7 FUNCTION buttons 8 SURROUND MODE buttons 9 EFFECT +, – buttons !º CENTER LEVEL +, – buttons !¡ MASTER VOL +, – buttons www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com IC201 LC7822 3-4. IC BLOCK DIAGRAMS IC202 LA2785 IC203 LV1011 IC404 NJM2103D SECTION 4 EXPLODED VIEWS NOTE: • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Abbreviation G: German model EE: East European model The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 1 4-980-041-01 KNOB (VOL) 2 4-980-035-11 WINDOW 3 X-4948-093-1 PANEL ASSY, FRONT 4 4-963-404-21 EMBLEM (5-A), SONY 5 4-980-039-01 BUTTON (LEVEL) 6 4-980-040-01 BUTTON (FUNCTION) 7 3-931-429-01 BUTTON (POWER) * 8 1-664-610-11 POWER SWITCH BOARD * 9 4-980-193-21 CASE (408226) 10 3-704-366-01 SCREW (CASE) (M3X8) 11 1-773-215-11 WIRE (FLAT TYPE) (25 CORE) * 12 A-4392-561-A DISPLAY BOARD, COMPLETE 13 4-980-038-01 BUTTON (SURROUND) 14 4-951-620-01 SCREW (2.6X8), +BVTP 15 4-977-593-11 RING (DIA. 50), ORNAMENTAL 16 4-977-358-11 CUSHION (8X12.5) 4-1. FRONT PANEL SECTION Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 51 X-3371-405-1 FOOT (SMALL) ASSY 53 1-533-293-11 FUSE HOLDER * 54 1-664-612-11 TRANS BOARD * 55 1-664-611-11 POWER BOARD * 56 1-659-839-11 POWER CONNECTION BOARD * 57 3-309-144-21 HEAT SINK * 59 3-703-244-00 BUSHING (2104), CORD !60 1-696-571-11 CORD, POWER (UK) !60 1-777-071-11 CORD, POWER (AEP, G, EE) * 61 4-988-714-01 PANEL, BACK (AEP, G, EE) * 61 4-988-714-11 PANEL, BACK (UK) * 64 1-664-608-11 VOLUME BOARD * 65 A-4392-566-A MAIN BOARD, COMPLETE 66 4-956-370-02 BAND, PLUG FIXED (UK) !F151 1-532-501-51 FUSE (T800mA/250V) !F152 1-532-465-51 FUSE, TIME LAG (T3.15A/250V) !F153 1-532-465-51 FUSE, TIME LAG (T3.15A/250V) !T101 1-431-145-11 TRANSFORMER, POWER !T151 1-431-146-11 TRANSFORMER, POWER 4-2. CHASSIS SECTION 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 CONTROL LATCH SHIFT RESISTOR LEVEL SHIFT CL DI CE VEE OUT IN OUT IN OUT IN VSS S RESET VDD OUT IN IN OUT IN OUT IN 1 2 3 4 5 6 7 8 9 15 10 11 12 13 14 16 21 18 19 25 17 24 22 23 20 34 32 33 29 30 35 28 31 27 26 36 40 39 38 37 41 42 NOISE FILTER NOISE CH BALANCE CONTROL VR CONTROL LPF V REF VR VR NOISE GENERATER VCA VCA VCA VCA VCA VCA VCA VCA LPF LPF RECT RECT RECT RECT P. S. P. S. CMODE MUTE DEVIDER OSC CONTROL CTRIM LOG DIFF LOG DIFF DUAL T CONTROL LIN RIN VSS CLK DATA VCC LOUT ROUT SOUT COUT LATCH – + 1 2 3 4 CONTROL 5 6 7 8 9 A B REF VREF REF VREF A B B SW2 B SW2 A B REF 10 11 REF VREF B A B SW2 OUT 7k L.P.F IN OUT NR IN 20k A B C B SW2 24 23 (BUILTED IN VDD) CONTROL LOGIC B SW3 OUT IN 22 21 20 19 AD DA OUT IN 18 IN OUT 20k L.P.F 12 B SW2 A B REF VREF IN OUT EFECT SW IN OUT S-TRIM 17 16 B SW2 REF VREF A B 15 B SW2 REF VREF A B 13 14 SOUT VREF ROUT LOUT AGND VDD VSS CLK DATA LAT VCC LIN RIN SIN REVOUT OUT IN 12k SRAM 1 2 3 4 5 6 7 8 V+ VSB/SESIN VSA RESET GND OUTC VSC CR VREF + – – + – + – + Q R S The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. 10 10 9 10 14 8 14 11 14 12 13 16 15 1 2 3 4 7 5 #1 6 chassis section 16 Supplied with RV611 #1 A A 54 53 53 F152, F153 T151 #3 #3 #1 not supplied not supplied not supplied #1 51 #1 64 65 #1 #4 #1 #2 #1 #1 61 #1 #1 #1 #1 #1 59 66 60 60 #2 57 not supplied #1 #1 #4 #1 56 55 F151 not supplied AEP, G, EE UK T101 TA-VE110 — 18 — — 19 — — 20 — — 21 — — 22 — www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 23 — • Abbreviation G: German model EE: East European model NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • CAPACITORS: uF: µF The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. • RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable • COILS uH: µH • SEMICONDUCTORS In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD... When indicating parts by reference number, please include the board naame. SECTION 5 ELECTRICAL PARTS LIST * A-4392-561-A DISPLAY BOARD, COMPLETE *********************** < CAPACITOR > C501 1-124-465-00 ELECT 0.47uF 20% 50V C502 1-164-159-11 CERAMIC 0.1uF 50V C503 1-164-159-11 CERAMIC 0.1uF 50V C505 1-125-486-11 DOUBLE LAYERS 0.22F 5.5V < CONNECTOR > CN501 1-569-310-11 SOCKET, CONNECTOR (L TYRE) 25P CN502 1-562-087-00 SOCKET, CONNECTOR 4P < DIODE > D501 8-719-987-63 DIODE 1N4148M D502 8-719-987-63 DIODE 1N4148M D504 8-719-987-63 DIODE 1N4148M D505 8-719-987-63 DIODE 1N4148M D506 8-719-987-63 DIODE 1N4148M D532 8-719-057-97 LED SEL5923A-TP15 (LEVEL 5) D533 8-719-057-97 LED SEL5923A-TP15 (LEVEL 4) D534 8-719-057-97 LED SEL5923A-TP15 (LEVEL 3) D535 8-719-057-97 LED SEL5923A-TP15 (LEVEL 2) D536 8-719-057-97 LED SEL5923A-TP15 (LEVEL 1) D537 8-719-057-97 LED SEL5923A-TP15 (MUTING) D538 8-719-057-97 LED SEL5923A-TP15 (BASS BOOST) D540 8-719-057-97 LED SEL5923A-TP15 (SIMULATED) D541 8-719-057-97 LED SEL5923A-TP15 (C STUDIO) D542 8-719-057-97 LED SEL5923A-TP15 (PRO LOGIC) D543 8-719-033-06 LED SEL5920A (VIDEO 1) D544 8-719-033-06 LED SEL5920A (TV) D545 8-719-033-06 LED SEL5920A (VIDEO 2) D546 8-719-033-06 LED SEL5920A (AUX) D548 8-719-057-97 LED SEL5923A-TP15 (PHANTOM) D549 8-719-057-97 LED SEL5923A-TP15 (3CH LOGIC) D550 8-719-057-97 LED SEL5923A-TP15 (NORMAL) D551 8-719-057-97 LED SEL5923A-TP15 (WIDE) D552 8-719-057-97 LED SEL5923A-TP15 (LEVEL 5) D553 8-719-057-97 LED SEL5923A-TP15 (LEVEL 4) D554 8-719-057-97 LED SEL5923A-TP15 (LEVEL 3) D555 8-719-057-97 LED SEL5923A-TP15 (LEVEL 2) D556 8-719-057-97 LED SEL5923A-TP15 (LEVEL 1) < IC > IC501 8-759-429-36 IC uPD78001BGC-627-AB8 IC502 8-759-332-18 IC GP1U27XB < TRANSISTOR > Q501 8-729-900-63 TRANSISTOR DTA124ES Q502 8-729-661-95 TRANSISTOR RT1N241SK-TP Q532 8-729-661-94 TRANSISTOR RT1N141SK-TP Q533 8-729-661-94 TRANSISTOR RT1N141SK-TP Q534 8-729-661-94 TRANSISTOR RT1N141SK-TP Q535 8-729-661-94 TRANSISTOR RT1N141SK-TP Q536 8-729-661-94 TRANSISTOR RT1N141SK-TP Q537 8-729-661-94 TRANSISTOR RT1N141SK-TP Q538 8-729-661-94 TRANSISTOR RT1N141SK-TP Q551 8-729-661-95 TRANSISTOR RT1N241SK-TP < RESISTOR > R501 1-247-807-31 CARBON 100 5% 1/4W R502 1-247-807-31 CARBON 100 5% 1/4W R503 1-247-807-31 CARBON 100 5% 1/4W R504 1-247-807-31 CARBON 100 5% 1/4W R505 1-249-441-11 CARBON 100K 5% 1/4W R506 1-247-807-31 CARBON 100 5% 1/4W R507 1-247-807-31 CARBON 100 5% 1/4W R508 1-247-807-31 CARBON 100 5% 1/4W R509 1-247-807-31 CARBON 100 5% 1/4W R510 1-247-807-31 CARBON 100 5% 1/4W R511 1-247-807-31 CARBON 100 5% 1/4W R512 1-247-807-31 CARBON 100 5% 1/4W R513 1-247-807-31 CARBON 100 5% 1/4W R514 1-247-807-31 CARBON 100 5% 1/4W R515 1-247-807-31 CARBON 100 5% 1/4W R516 1-247-807-31 CARBON 100 5% 1/4W R517 1-247-807-31 CARBON 100 5% 1/4W R518 1-249-429-11 CARBON 10K 5% 1/4W R520 1-249-441-11 CARBON 100K 5% 1/4W R521 1-249-441-11 CARBON 100K 5% 1/4W R522 1-249-441-11 CARBON 100K 5% 1/4W R523 1-249-425-11 CARBON 4.7K 5% 1/4W F R524 1-249-429-11 CARBON 10K 5% 1/4W R525 1-249-429-11 CARBON 10K 5% 1/4W R526 1-249-429-11 CARBON 10K 5% 1/4W DISPLAY Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 24 — R527 1-249-429-11 CARBON 10K 5% 1/4W R528 1-247-807-31 CARBON 100 5% 1/4W R529 1-247-807-31 CARBON 100 5% 1/4W R530 1-249-441-11 CARBON 100K 5% 1/4W R531 1-249-417-11 CARBON 1K 5% 1/4W F R532 1-249-415-11 CARBON 680 5% 1/4W F R533 1-249-415-11 CARBON 680 5% 1/4W F R534 1-249-415-11 CARBON 680 5% 1/4W F R535 1-249-415-11 CARBON 680 5% 1/4W F R536 1-249-415-11 CARBON 680 5% 1/4W F R537 1-249-417-11 CARBON 1K 5% 1/4W F R538 1-249-407-11 CARBON 150 5% 1/4W F R539 1-247-807-31 CARBON 100 5% 1/4W R540 1-249-407-11 CARBON 150 5% 1/4W F R541 1-249-433-11 CARBON 22K 5% 1/4W R542 1-249-433-11 CARBON 22K 5% 1/4W R543 1-249-433-11 CARBON 22K 5% 1/4W R544 1-249-433-11 CARBON 22K 5% 1/4W R551 1-249-429-11 CARBON 10K 5% 1/4W R553 1-249-425-11 CARBON 4.7K 5% 1/4W F R554 1-249-441-11 CARBON 100K 5% 1/4W R555 1-249-429-11 CARBON 10K 5% 1/4W < SWITCH > S501 1-554-303-21 SWITCH, TACTILE (SURROUND MODE) S502 1-554-303-21 SWITCH, TACTILE (CENTER MODE) S503 1-554-303-21 SWITCH, TACTILE (EFFECT +) S504 1-554-303-21 SWITCH, TACTILE (EFFECT -) S509 1-554-303-21 SWITCH, TACTILE (VIDEO 1) S510 1-554-303-21 SWITCH, TACTILE (VIDEO 2) S511 1-554-303-21 SWITCH, TACTILE (TV) S512 1-554-303-21 SWITCH, TACTILE (AUX) < VIBRATOR > X501 1-579-175-11 VIBRATOR, CERAMIC 10MHz ************************************************************ * A-4392-566-A MAIN BOARD, COMPLETE ********************* * 3-309-144-21 HEAT SINK 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3 7-685-872-09 SCREW +BVTT 3X8 (S) < CAPACITOR > C1 1-162-306-11 CERAMIC 0.01uF 20% 16V C2 1-126-964-11 ELECT 10uF 20% 50V C3 1-164-159-11 CERAMIC 0.1uF 50V C4 1-126-964-11 ELECT 10uF 20% 50V C11 1-162-302-11 CERAMIC 0.0022uF 30% 16V C12 1-162-600-11 CERAMIC 0.0047uF 30% 16V C13 1-126-934-11 ELECT 220uF 20% 16V C14 1-126-964-11 ELECT 10uF 20% 50V C15 1-126-964-11 ELECT 10uF 20% 50V C16 1-126-964-11 ELECT 10uF 20% 50V C17 1-126-964-11 ELECT 10uF 20% 50V C18 1-164-159-11 CERAMIC 0.1uF 50V C19 1-164-159-11 CERAMIC 0.1uF 50V C20 1-126-959-11 ELECT 0.47uF 20% 50V C21 1-126-963-11 ELECT 4.7uF 20% 50V C22 1-126-959-11 ELECT 0.47uF 20% 50V C23 1-126-963-11 ELECT 4.7uF 20% 50V C24 1-136-167-00 FILM 0.15uF 5% 50V C25 1-126-961-11 ELECT 2.2uF 20% 50V C26 1-136-167-00 FILM 0.15uF 5% 50V C27 1-136-167-00 FILM 0.15uF 5% 50V C28 1-126-961-11 ELECT 2.2uF 20% 50V C29 1-136-167-00 FILM 0.15uF 5% 50V C30 1-126-963-11 ELECT 4.7uF 20% 50V C31 1-126-959-11 ELECT 0.47uF 20% 50V C32 1-126-963-11 ELECT 4.7uF 20% 50V C33 1-126-959-11 ELECT 0.47uF 20% 50V C34 1-164-159-11 CERAMIC 0.1uF 50V C35 1-164-159-11 CERAMIC 0.1uF 50V C36 1-126-967-11 ELECT 47uF 20% 16V C37 1-136-173-00 FILM 0.47uF 5% 50V C38 1-126-963-11 ELECT 4.7uF 20% 50V C39 1-126-933-11 ELECT 100uF 20% 16V C40 1-137-363-91 FILM 680PF 5% 50V C41 1-164-159-11 CERAMIC 0.1uF 50V C42 1-164-159-11 CERAMIC 0.1uF 50V C43 1-126-934-11 ELECT 220uF 20% 16V C44 1-126-961-11 ELECT 2.2uF 20% 50V C45 1-126-964-11 ELECT 10uF 20% 50V C46 1-126-963-11 ELECT 4.7uF 20% 50V C47 1-126-934-11 ELECT 220uF 20% 16V C48 1-126-960-11 ELECT 1uF 20% 50V C49 1-136-159-00 FILM 0.033uF 5% 50V C50 1-130-473-00 MYLAR 0.0015uF 5% 50V C51 1-136-159-00 FILM 0.033uF 5% 50V C52 1-126-934-11 ELECT 220uF 20% 16V C53 1-126-934-11 ELECT 220uF 20% 16V C54 1-126-967-11 ELECT 47uF 20% 50V C55 1-126-967-11 ELECT 47uF 20% 50V C56 1-126-960-11 ELECT 1uF 20% 50V C57 1-126-960-11 ELECT 1uF 20% 50V C58 1-126-964-11 ELECT 10uF 20% 50V C59 1-126-964-11 ELECT 10uF 20% 50V C60 1-126-964-11 ELECT 10uF 20% 50V C61 1-126-964-11 ELECT 10uF 20% 50V C62 1-136-159-00 FILM 0.033uF 5% 50V C63 1-126-960-11 ELECT 1uF 20% 50V C64 1-126-960-11 ELECT 1uF 20% 50V C66 1-126-964-11 ELECT 10uF 20% 50V C221 1-126-963-11 ELECT 4.7uF 20% 50V C222 1-126-964-11 ELECT 10uF 20% 50V C271 1-126-963-11 ELECT 4.7uF 20% 50V C272 1-126-964-11 ELECT 10uF 20% 50V C301 1-162-215-31 CERAMIC 47PF 5% 50V C302 1-126-964-11 ELECT 10uF 20% 50V DISPLAY MAIN Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 25 — C303 1-126-959-11 ELECT 0.47uF 20% 50V C304 1-136-159-00 FILM 0.033uF 5% 50V C305 1-162-282-31 CERAMIC 100PF 10% 50V C306 1-126-963-11 ELECT 4.7uF 20% 50V C330 1-126-961-11 ELECT 2.2uF 20% 50V C331 1-126-933-11 ELECT 100uF 20% 10V C332 1-136-165-00 FILM 0.1uF 5% 50V C333 1-162-191-31 CERAMIC 2.2PF 10% 50V C334 1-136-165-00 FILM 0.1uF 5% 50V C351 1-162-215-31 CERAMIC 47PF 5% 50V C352 1-126-964-11 ELECT 10uF 20% 50V C353 1-126-959-11 ELECT 0.47uF 20% 50V C354 1-136-159-00 FILM 0.033uF 5% 50V C355 1-162-282-31 CERAMIC 100PF 10% 50V C356 1-126-963-11 ELECT 4.7uF 20% 50V C380 1-126-961-11 ELECT 2.2uF 20% 50V C381 1-126-933-11 ELECT 100uF 20% 10V C382 1-136-165-00 FILM 0.1uF 5% 50V C383 1-162-191-31 CERAMIC 2.2PF 10% 50V C384 1-136-165-00 FILM 0.1uF 5% 50V C401 1-137-375-11 FILM 0.068uF 5% 50V C402 1-137-375-11 FILM 0.068uF 5% 50V C403 1-126-955-11 ELECT 4700uF 20% 35V C404 1-126-955-11 ELECT 4700uF 20% 35V C405 1-137-375-11 FILM 0.068uF 5% 50V C406 1-137-375-11 FILM 0.068uF 5% 50V C407 1-126-943-11 ELECT 2200uF 20% 25V C408 1-126-943-11 ELECT 2200uF 20% 25V C409 1-126-925-11 ELECT 470uF 20% 10V C410 1-164-159-11 CERAMIC 0.1uF 50V C411 1-126-964-11 ELECT 10uF 20% 50V C412 1-126-964-11 ELECT 10uF 20% 50V C413 1-126-967-11 ELECT 47uF 20% 50V C414 1-126-967-11 ELECT 47uF 20% 50V C415 1-161-494-00 CERAMIC 0.022uF 25V C416 1-161-494-00 CERAMIC 0.022uF 25V C417 1-126-952-11 ELECT 1000uF 20% 16V C418 1-164-097-11 CERAMIC 0.022uF 50V C419 1-126-960-11 ELECT 1uF 20% 50V C420 1-164-159-11 CERAMIC 0.1uF 50V C421 1-126-964-11 ELECT 10uF 20% 50V C422 1-126-956-91 ELECT 0.1uF 20% 50V C431 1-126-964-11 ELECT 10uF 20% 50V C432 1-126-964-11 ELECT 10uF 20% 50V C433 1-126-964-11 ELECT 10uF 20% 50V C434 1-126-964-11 ELECT 10uF 20% 50V C435 1-126-964-11 ELECT 10uF 20% 50V C436 1-126-964-11 ELECT 10uF 20% 50V C437 1-126-964-11 ELECT 10uF 20% 50V C438 1-126-964-11 ELECT 10uF 20% 50V C800 1-126-961-11 ELECT 2.2uF 20% 50V C801 1-126-933-11 ELECT 100uF 20% 10V C802 1-136-165-00 FILM 0.1uF 5% 50V C803 1-162-191-31 CERAMIC 2.2PF 10% 50V C804 1-136-165-00 FILM 0.1uF 5% 50V C850 1-126-961-11 ELECT 2.2uF 20% 50V C851 1-126-933-11 ELECT 100uF 20% 10V C852 1-136-165-00 FILM 0.1uF 5% 50V C853 1-162-191-31 CERAMIC 2.2PF 10% 50V C854 1-136-165-00 FILM 0.1uF 5% 50V C1001 1-162-306-11 CERAMIC 0.01uF 20% 16V C1003 1-162-306-11 CERAMIC 0.01uF 20% 16V C1004 1-101-005-00 CERAMIC 22000PF 50V C1005 1-164-159-11 CERAMIC 0.1uF 50V C1006 1-164-159-11 CERAMIC 0.1uF 50V C1009 1-164-159-11 CERAMIC 0.1uF 50V C1010 1-164-159-11 CERAMIC 0.1uF 50V < CONNECTOR > CN203 1-695-089-11 PIN, CONNECTOR (PC BOARD) 11P * CN206 1-565-495-11 CONNECTOR, BOARD TO BOARD 4P < DIODE > D11 8-719-001-30 DIODE UZL-9H3 D12 8-719-987-63 DIODE 1N4148M D15 8-719-109-93 DIODE RD6.2ESB2 D401 8-719-987-63 DIODE 1N4148M D402 8-719-987-63 DIODE 1N4148M D403 8-719-028-23 DIODE D3SBA20-4101 D404 8-719-028-23 DIODE D3SBA20-4101 D405 8-719-024-99 DIODE 11ES2-NTA2B D406 8-719-024-99 DIODE 11ES2-NTA2B D407 8-719-024-99 DIODE 11ES2-NTA2B D408 8-719-024-99 DIODE 11ES2-NTA2B D409 8-719-987-63 DIODE 1N4148M D410 8-719-987-63 DIODE 1N4148M D411 8-719-987-63 DIODE 1N4148M D412 8-719-987-63 DIODE 1N4148M D414 8-719-987-63 DIODE 1N4148M < TERMINAL > * E401 4-962-200-01 PLATE (TR), GROUND E402 1-537-770-21 TERMINAL BOARD, GROUND < IC > IC201 8-759-805-14 IC LC7822 IC202 8-759-248-74 IC LA2785 IC203 8-759-341-23 IC LV1011 IC204 8-759-634-51 IC M5218AP IC301 8-759-634-51 IC M5218AP IC302 8-759-634-51 IC M5218AP IC331 8-759-502-33 IC SI18752 IC381 8-759-502-33 IC SI18752 IC402 8-759-231-58 IC TA7812S IC403 8-759-245-86 IC TA79012S IC404 8-759-333-83 IC NJM2103D IC801 8-759-502-33 IC SI18752 IC851 8-759-502-33 IC SI18752 MAIN Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 26 — < JACK > J201 1-770-614-11 JACK, PIN 4P (AUX/VIDEO 2) J202 1-580-825-11 JACK, PIN 6P (VIDEO 1/TV) J203 1-774-843-11 JACK, PIN 1P (SURROUND MIX) J204 1-774-822-11 JACK, PIN 2P (SURROUND REAR) < COIL > L11 1-410-509-11 INDUCTOR 10uH L12 1-410-509-11 INDUCTOR 10uH L331 1-420-872-00 COIL, AIR-CORE L381 1-420-872-00 COIL, AIR-CORE L401 1-410-509-11 INDUCTOR 10uH L801 1-420-872-00 COIL, AIR-CORE L851 1-420-872-00 COIL, AIR-CORE < TRANSISTOR > Q11 8-729-180-92 TRANSISTOR 2SD809-K Q12 8-729-801-93 TRANSISTOR 2SD1387 Q13 8-729-661-94 TRANSISTOR RT1N141SK-TP Q14 8-729-661-98 TRANSISTOR RT1P141SK-TP Q15 8-729-661-94 TRANSISTOR RT1N141SK-TP Q16 8-729-119-76 TRANSISTOR 2SA1175-HFE Q301 8-729-202-67 TRANSISTOR 2SK246-GR3 Q302 8-729-141-30 TRANSISTOR 2SC3623A-LK Q303 8-729-141-30 TRANSISTOR 2SC3623A-LK Q304 8-729-141-30 TRANSISTOR 2SC3623A-LK Q351 8-729-202-67 TRANSISTOR 2SK246-GR3 Q352 8-729-141-30 TRANSISTOR 2SC3623A-LK Q353 8-729-141-30 TRANSISTOR 2SC3623A-LK Q354 8-729-141-30 TRANSISTOR 2SC3623A-LK Q401 8-729-018-60 TRANSISTOR 2SD2012-LC Q402 8-729-620-05 TRANSISTOR 2SC2603-EF Q403 8-729-119-78 TRANSISTOR 2SC2785-HFE Q404 8-729-119-78 TRANSISTOR 2SC2785-HFE Q405 8-729-620-05 TRANSISTOR 2SC2603-EF Q406 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q407 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA < RESISTOR > R1 1-249-425-11 CARBON 4.7K 5% 1/4W F R11 1-249-407-11 CARBON 150 5% 1/4W F R12 1-249-431-11 CARBON 15K 5% 1/4W R13 1-249-435-11 CARBON 33K 5% 1/4W R14 1-247-903-00 CARBON 1M 5% 1/4W R15 1-249-441-11 CARBON 100K 5% 1/4W R16 1-249-421-11 CARBON 2.2K 5% 1/4W F R17 1-249-421-11 CARBON 2.2K 5% 1/4W F R18 1-249-421-11 CARBON 2.2K 5% 1/4W F R19 1-249-421-11 CARBON 2.2K 5% 1/4W F R20 1-249-417-11 CARBON 1K 5% 1/4W F R21 1-249-417-11 CARBON 1K 5% 1/4W F R22 1-249-441-11 CARBON 100K 5% 1/4W R23 1-247-903-00 CARBON 1M 5% 1/4W R24 1-249-435-11 CARBON 33K 5% 1/4W R25 1-249-429-11 CARBON 10K 5% 1/4W R26 1-249-429-11 CARBON 10K 5% 1/4W R27 1-249-427-11 CARBON 6.8K 5% 1/4W F R28 1-249-427-11 CARBON 6.8K 5% 1/4W F R29 1-247-843-11 CARBON 3.3K 5% 1/4W R30 1-249-411-11 CARBON 330 5% 1/4W R201 1-249-417-11 CARBON 1K 5% 1/4W F R205 1-249-417-11 CARBON 1K 5% 1/4W F R207 1-249-417-11 CARBON 1K 5% 1/4W F R209 1-249-417-11 CARBON 1K 5% 1/4W F R211 1-249-417-11 CARBON 1K 5% 1/4W F R215 1-249-441-11 CARBON 100K 5% 1/4W R221 1-249-417-11 CARBON 1K 5% 1/4W F R222 1-249-441-11 CARBON 100K 5% 1/4W R251 1-249-417-11 CARBON 1K 5% 1/4W F R255 1-249-417-11 CARBON 1K 5% 1/4W F R257 1-249-417-11 CARBON 1K 5% 1/4W F R259 1-249-417-11 CARBON 1K 5% 1/4W F R261 1-249-417-11 CARBON 1K 5% 1/4W F R265 1-249-441-11 CARBON 100K 5% 1/4W R271 1-249-417-11 CARBON 1K 5% 1/4W F R272 1-249-441-11 CARBON 100K 5% 1/4W R301 1-249-417-11 CARBON 1K 5% 1/4W F R302 1-249-421-11 CARBON 2.2K 5% 1/4W F R303 1-249-429-11 CARBON 10K 5% 1/4W R304 1-249-431-11 CARBON 15K 5% 1/4W R305 1-249-417-11 CARBON 1K 5% 1/4W F R306 1-247-903-00 CARBON 1M 5% 1/4W R307 1-249-441-11 CARBON 100K 5% 1/4W R308 1-247-903-00 CARBON 1M 5% 1/4W R309 1-247-843-11 CARBON 3.3K 5% 1/4W R310 1-247-883-00 CARBON 150K 5% 1/4W R311 1-249-427-11 CARBON 6.8K 5% 1/4W F R312 1-249-413-11 CARBON 470 5% 1/4W F R321 1-249-417-11 CARBON 1K 5% 1/4W F R322 1-249-441-11 CARBON 100K 5% 1/4W R323 1-249-421-11 CARBON 2.2K 5% 1/4W F R324 1-249-429-11 CARBON 10K 5% 1/4W R325 1-249-417-11 CARBON 1K 5% 1/4W F R330 1-249-417-11 CARBON 1K 5% 1/4W F R332 1-249-433-11 CARBON 22K 5% 1/4W R333 1-249-411-11 CARBON 330 5% 1/4W R334 1-249-433-11 CARBON 22K 5% 1/4W !R336 1-249-389-11 CARBON 4.7 5% 1/4W F !R337 1-249-393-11 CARBON 10 5% 1/4W F R340 1-249-429-11 CARBON 10K 5% 1/4W R341 1-249-437-11 CARBON 47K 5% 1/4W R351 1-249-417-11 CARBON 1K 5% 1/4W F R352 1-249-421-11 CARBON 2.2K 5% 1/4W F R353 1-249-429-11 CARBON 10K 5% 1/4W MAIN The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 26 — www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 27 — R354 1-249-431-11 CARBON 15K 5% 1/4W R355 1-249-417-11 CARBON 1K 5% 1/4W F R356 1-247-903-00 CARBON 1M 5% 1/4W R357 1-249-441-11 CARBON 100K 5% 1/4W R358 1-247-903-00 CARBON 1M 5% 1/4W R359 1-247-843-11 CARBON 3.3K 5% 1/4W R360 1-247-883-00 CARBON 150K 5% 1/4W R361 1-249-427-11 CARBON 6.8K 5% 1/4W F R362 1-249-413-11 CARBON 470 5% 1/4W F R371 1-249-417-11 CARBON 1K 5% 1/4W F R372 1-249-441-11 CARBON 100K 5% 1/4W R373 1-249-421-11 CARBON 2.2K 5% 1/4W F R374 1-249-429-11 CARBON 10K 5% 1/4W R375 1-249-417-11 CARBON 1K 5% 1/4W F R380 1-249-417-11 CARBON 1K 5% 1/4W F R382 1-249-433-11 CARBON 22K 5% 1/4W R383 1-249-411-11 CARBON 330 5% 1/4W R384 1-249-433-11 CARBON 22K 5% 1/4W !R386 1-249-389-11 CARBON 4.7 5% 1/4W F !R387 1-249-393-11 CARBON 10 5% 1/4W F R390 1-249-429-11 CARBON 10K 5% 1/4W R391 1-249-437-11 CARBON 47K 5% 1/4W R403 1-249-429-11 CARBON 10K 5% 1/4W R404 1-249-429-11 CARBON 10K 5% 1/4W R405 1-249-429-11 CARBON 10K 5% 1/4W !R406 1-249-393-11 CARBON 10 5% 1/4W F !R407 1-249-393-11 CARBON 10 5% 1/4W F R408 1-249-421-11 CARBON 2.2K 5% 1/4W F R409 1-249-429-11 CARBON 10K 5% 1/4W R410 1-249-429-11 CARBON 10K 5% 1/4W R411 1-247-843-11 CARBON 3.3K 5% 1/4W R412 1-249-439-11 CARBON 68K 5% 1/4W R413 1-249-433-11 CARBON 22K 5% 1/4W R414 1-249-429-11 CARBON 10K 5% 1/4W R415 1-247-843-11 CARBON 3.3K 5% 1/4W R416 1-249-417-11 CARBON 1K 5% 1/4W F R417 1-249-429-11 CARBON 10K 5% 1/4W R418 1-249-429-11 CARBON 10K 5% 1/4W R419 1-249-425-11 CARBON 4.7K 5% 1/4W F R420 1-249-425-11 CARBON 4.7K 5% 1/4W F !R421 1-215-887-00 METAL OXIDE 150 5% 2W F !R422 1-215-887-00 METAL OXIDE 150 5% 2W F R423 1-249-435-11 CARBON 33K 5% 1/4W R424 1-249-427-11 CARBON 6.8K 5% 1/4W F R441 1-247-807-31 CARBON 100 5% 1/4W R442 1-247-807-31 CARBON 100 5% 1/4W R443 1-247-807-31 CARBON 100 5% 1/4W R444 1-247-807-31 CARBON 100 5% 1/4W R800 1-249-417-11 CARBON 1K 5% 1/4W F R802 1-249-433-11 CARBON 22K 5% 1/4W R803 1-249-411-11 CARBON 330 5% 1/4W R804 1-249-433-11 CARBON 22K 5% 1/4W !R806 1-249-389-11 CARBON 4.7 5% 1/4W F !R807 1-249-393-11 CARBON 10 5% 1/4W F R810 1-249-429-11 CARBON 10K 5% 1/4W R813 1-249-437-11 CARBON 47K 5% 1/4W R850 1-249-417-11 CARBON 1K 5% 1/4W F R852 1-249-433-11 CARBON 22K 5% 1/4W R853 1-249-411-11 CARBON 330 5% 1/4W R854 1-249-433-11 CARBON 22K 5% 1/4W !R856 1-249-389-11 CARBON 4.7 5% 1/4W F !R857 1-249-393-11 CARBON 10 5% 1/4W F R860 1-249-417-11 CARBON 1K 5% 1/4W F R861 1-249-429-11 CARBON 10K 5% 1/4W R862 1-249-417-11 CARBON 1K 5% 1/4W F R863 1-249-437-11 CARBON 47K 5% 1/4W < RELAY > RY401 1-515-920-11 RELAY (24V) RY402 1-515-920-11 RELAY (24V) < TERMINAL > TB201 1-537-925-31 TERMINAL BOARD(FRONT SPEAKERS) TB202 1-537-923-11 TERMINAL BOARD(6P) (REAR/CENTER SPEAKERS) < VIBRATOR > X11 1-579-952-21 VIBRATOR, CERAMIC (8MHz) ************************************************************ * 1-664-611-11 POWER BOARD ************ < CONNECTOR > CN101 1-580-230-11 PIN, CONNECTOR (PC BOARD) 2P CN102 1-564-321-00 PIN, CONNECTOR 2P * CN103 1-565-495-11 CONNECTOR, BOARD TO BOARD 4P < DIODE > D101 8-719-987-63 DIODE 1N4148M < RELAY > !RY101 1-755-018-11 RELAY < TRANSFORMER > !T101 1-431-145-11 TRANSFORMER, POWER ************************************************************ * 1-659-839-11 POWER CONNECTION BOARD ************************ < CONNECTOR > * CN613 1-565-480-11 CONNECTOR, BOARD TO BOARD 4P * CN614 1-565-480-11 CONNECTOR, BOARD TO BOARD 4P MAIN POWER POWER CONNECTION The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 27 — www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 28 — < RESISTOR > !R439 1-217-477-00 FUSIBLE 4.7 5% 1W F !R440 1-217-477-00 FUSIBLE 4.7 5% 1W F ************************************************************ * 1-664-610-11 POWER SWITCH BOARD ******************** < CONNECTOR > * CN505 1-506-509-11 PIN, CONNECTOR 4P < DIODE > D547 8-719-812-44 LED TLO124 (STANDBY) < RESISTOR > R552 1-249-393-11 CARBON 10 5% 1/4W F < SWITCH > S515 1-554-118-00 SWITCH, PUSH (1 KEY) (POWER) ************************************************************ * 1-664-612-11 TRANS BOARD ************ 1-533-293-11 FUSE HOLDER < CONNECTOR > CN152 1-691-768-11 PLUG (MICRO CONNECTOR) 6P < FUSE > !F151 1-532-501-51 FUSE (T800mA/250V) !F152 1-532-465-51 FUSE, TIME LAG (T3.15A/250V) !F153 1-532-465-51 FUSE, TIME LAG (T3.15A/250V) < TRANSFORMER > !T151 1-431-146-11 TRANSFORMER, POWER ************************************************************ * 1-664-608-11 VOLUME BOARD ************* < CAPACITOR > C611 1-126-964-11 ELECT 10uF 20% 50V < CONNECTOR > CN611 1-695-094-11 SOCKET, CONNECTOR 11P CN612 1-691-768-11 PLUG (MICRO CONNECTOR) 6P < IC > IC611 8-759-962-08 IC BA6208 < RESISTOR > R611 1-249-429-11 CARBON 10K 5% 1/4W R612 1-249-429-11 CARBON 10K 5% 1/4W < VARIABLE RESISTOR > RV611 1-225-183-11 RES, VAR, CARBON 100KX4 (MASTER VOLUME) ************************************************************ MISCELLANEOUS ************** 11 1-773-215-11 WIRE (FLAT TYPE) (25 CORE) 53 1-533-293-11 FUSE HOLDER !60 1-696-571-11 CORD, POWER (UK) !60 1-777-071-11 CORD, POWER (AEP, G, EE) !F151 1-532-501-51 FUSE (T800mA/250V) !F152 1-532-465-51 FUSE, TIME LAG (T3.15A/250V) !F153 1-532-465-51 FUSE, TIME LAG (T3.15A/250V) !T101 1-431-145-11 TRANSFORMER, POWER !T151 1-431-146-11 TRANSFORMER, POWER ************************************************************ ACCESSORIES & PACKING MATERIALS ******************************* 1-475-042-11 ADAPTOR 1-475-155-11 REMOTE COMMANDER (RM-UE110) 3-858-974-11 MANUAL, INSTRUCTION (ENGLISH/FRENCH/SPANISH/PORTUGUESE/DANISH/FINNISH) 3-858-974-21 MANUAL, INSTRUCTION (GERMAN/DUTCH/SWEDISH/ITALIAN)(AEP, G) 4-981-643-01 COVER, RATTERY (RM-UE110) ************************************************************ ************** HARDWARE LIST ************** #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 TT(B) #2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT, #3 7-685-880-09 SCREW +BVTT 4X6 (S) #4 7-685-872-09 SCREW +BVTT 3X8 (S) TA-VE110 POWER SWITCH TRANS VOLUME The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. POWER CONNECTION Sony Corporation Home A&V Products Company 97B167553-1 Printed in Germany © 1997.2 Published by Service and Safety Engineering Dept. (Shibaura) 9-960-861-11 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 28 — www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
