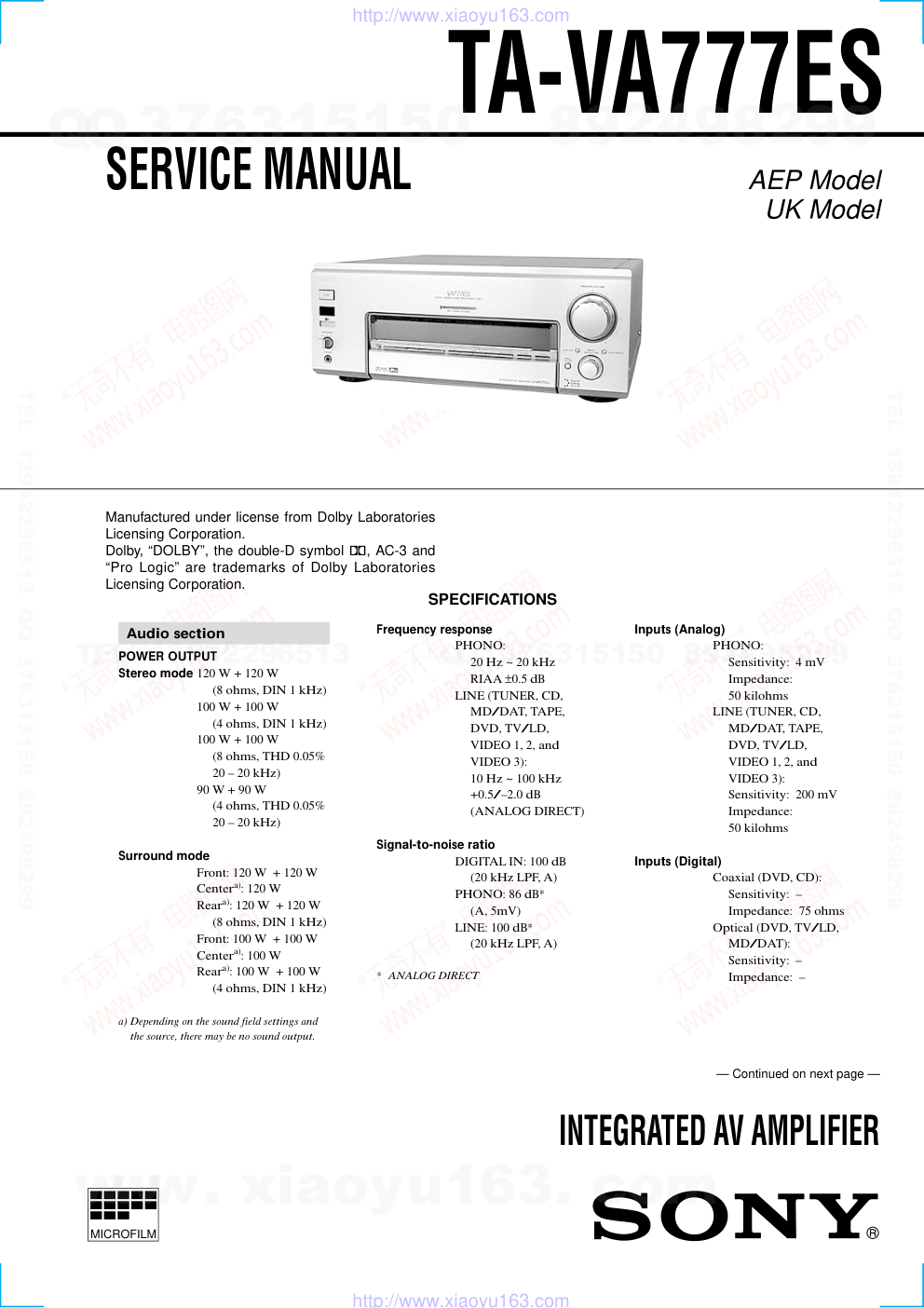

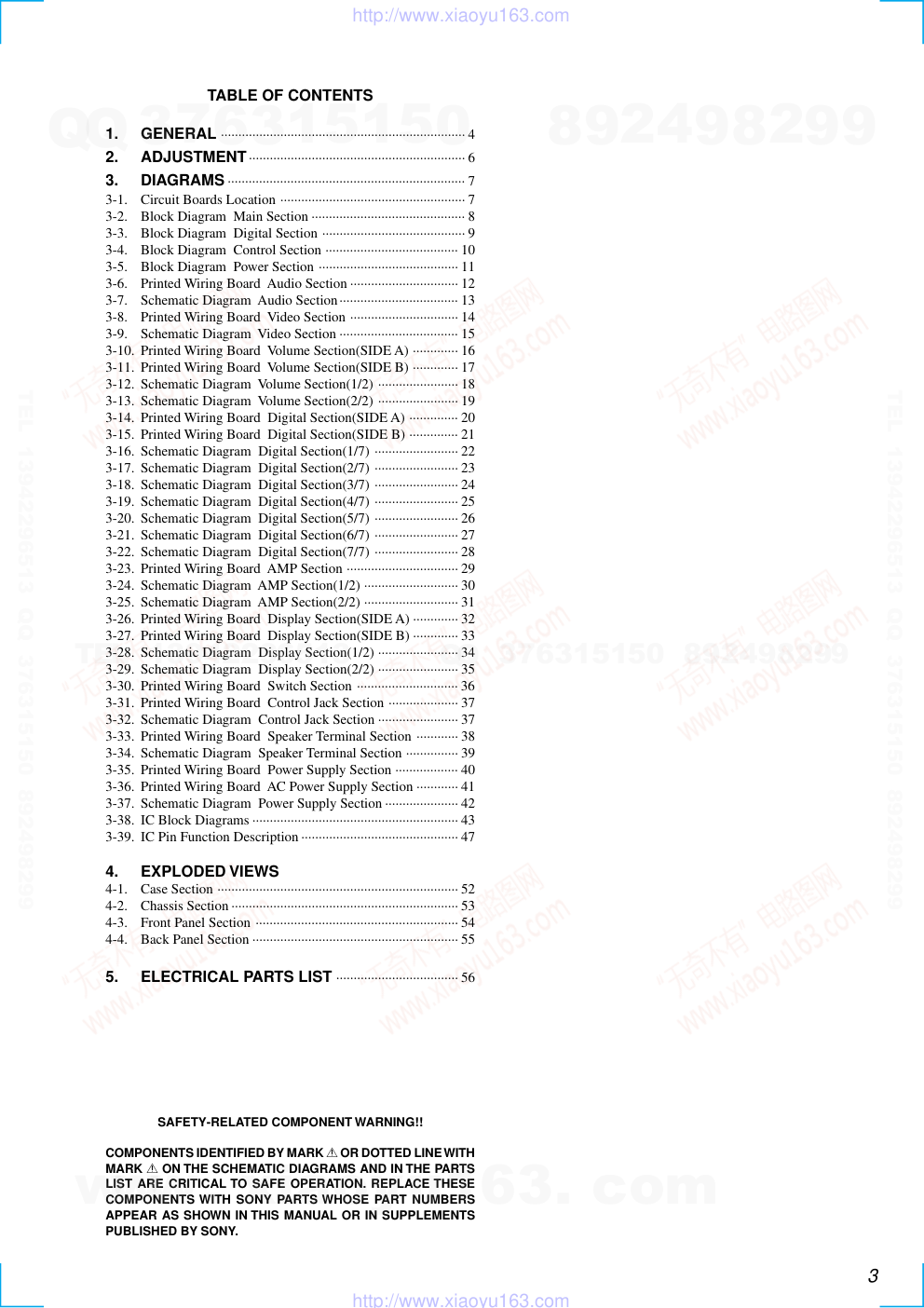

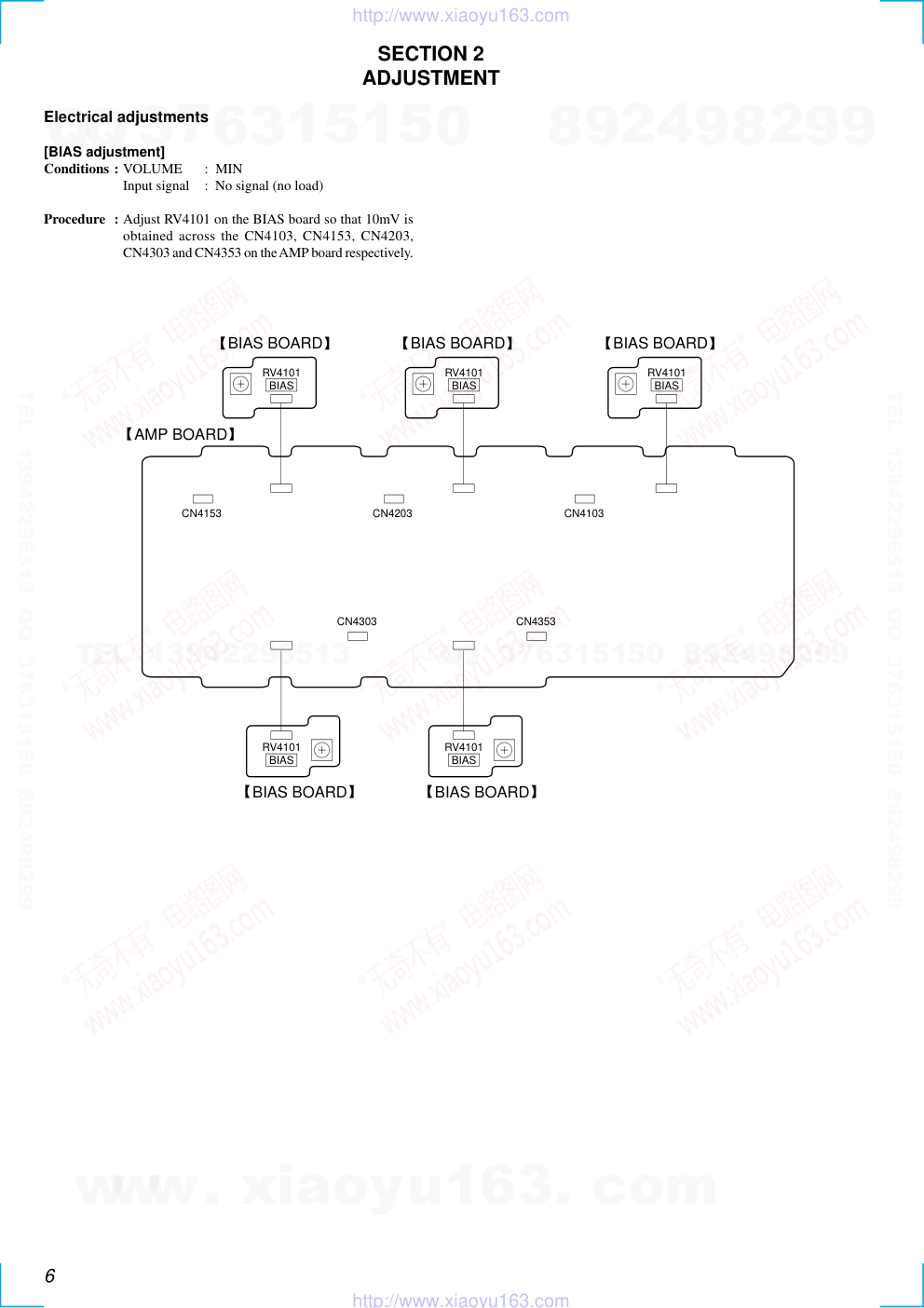

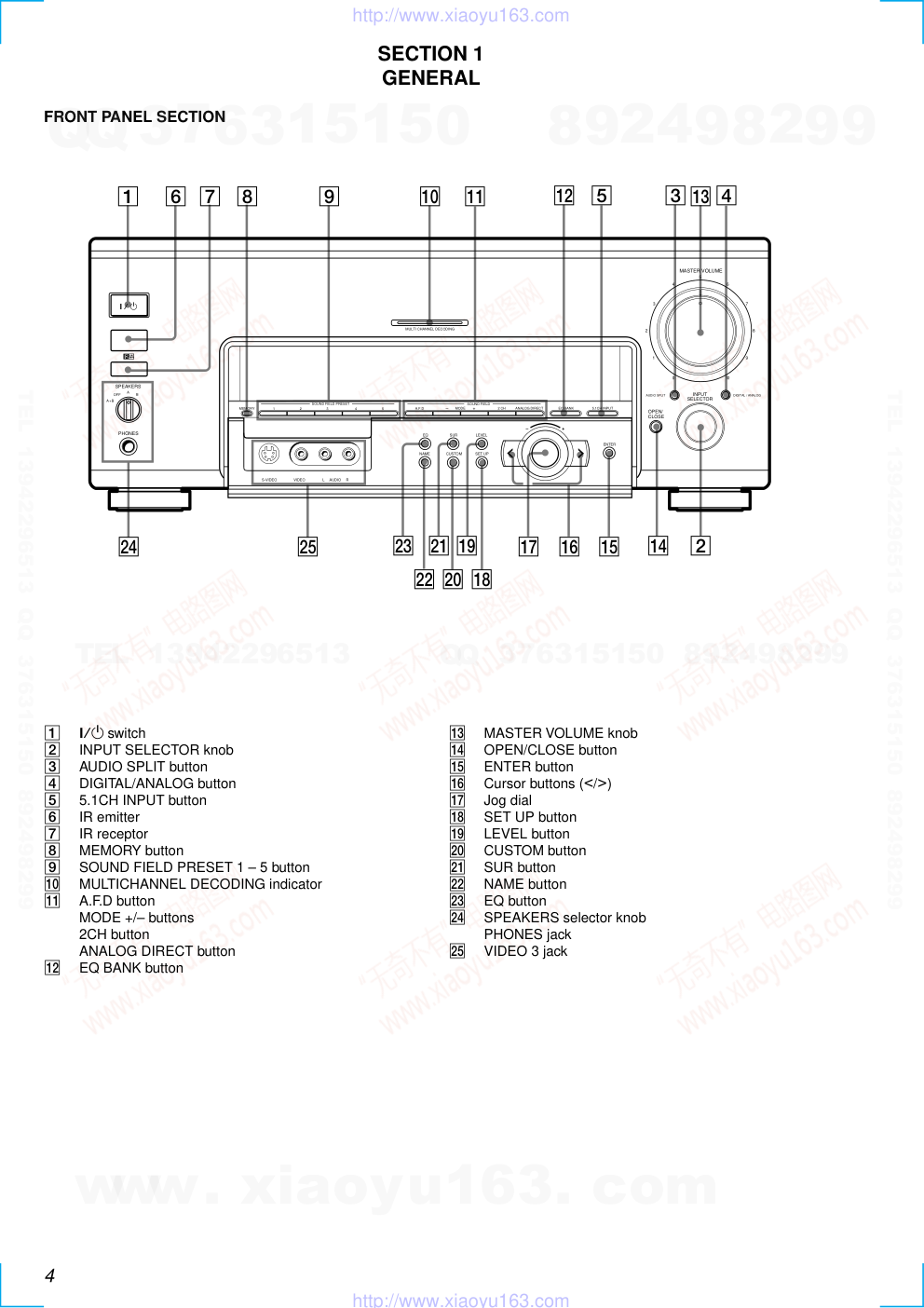

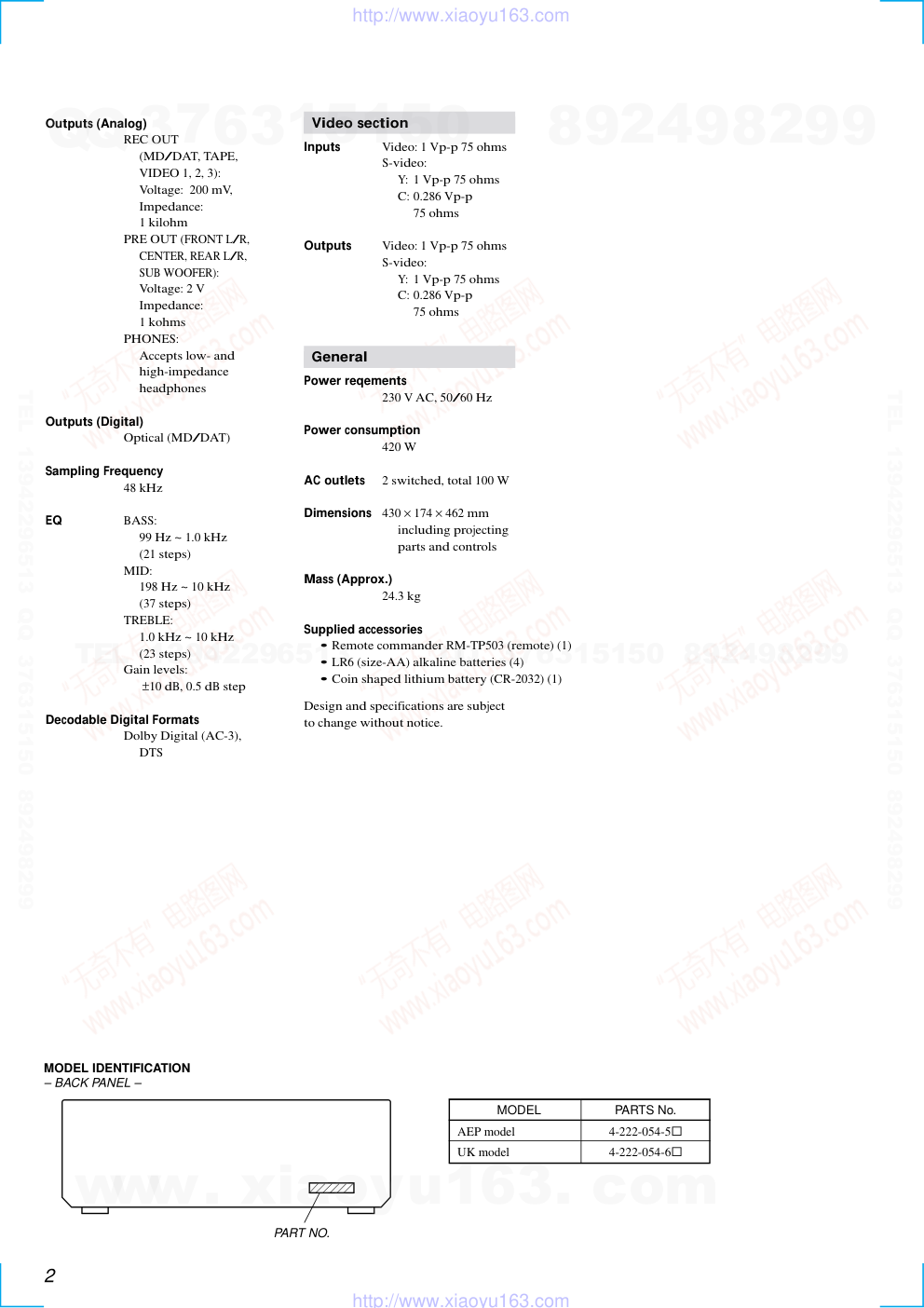

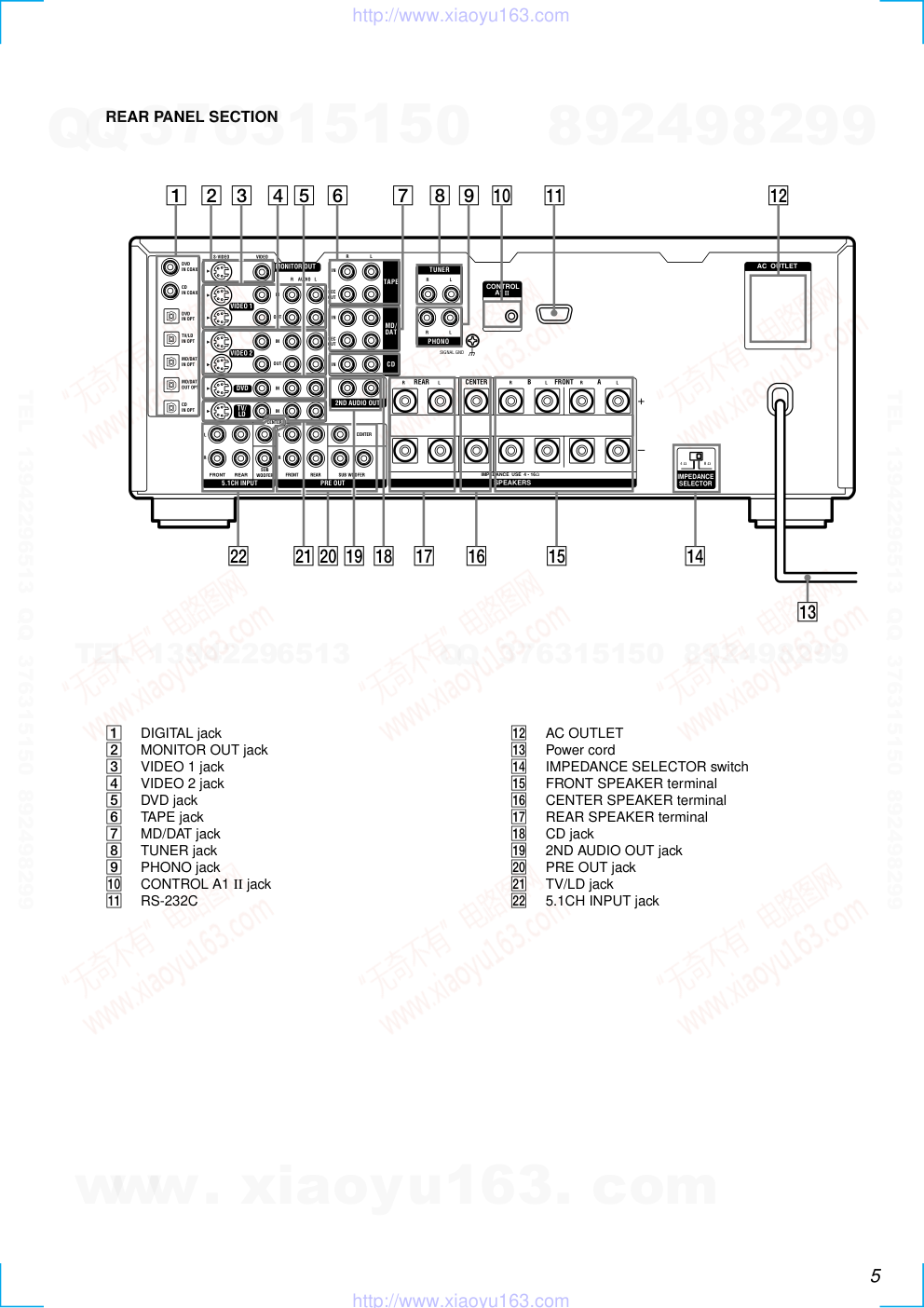

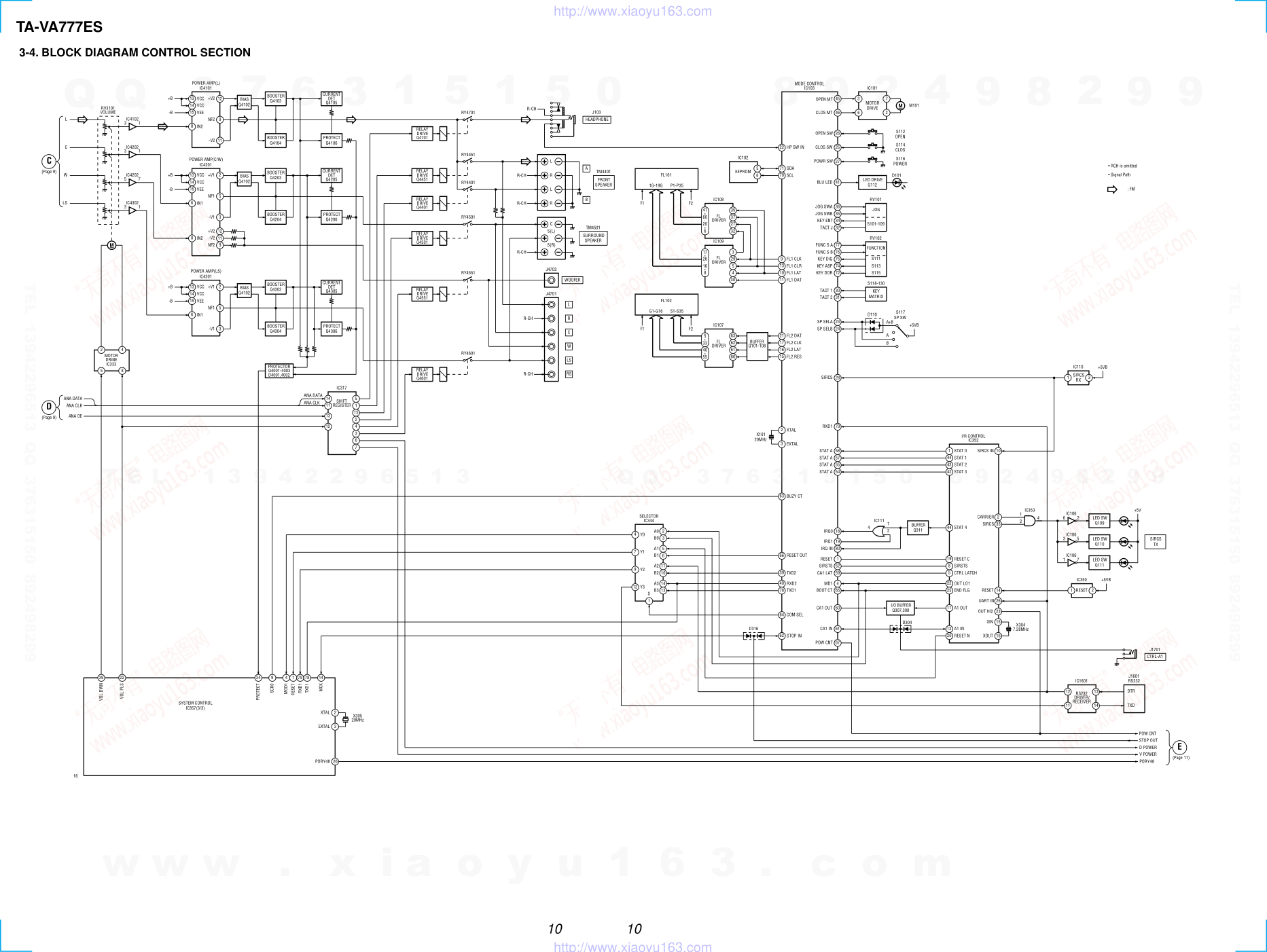

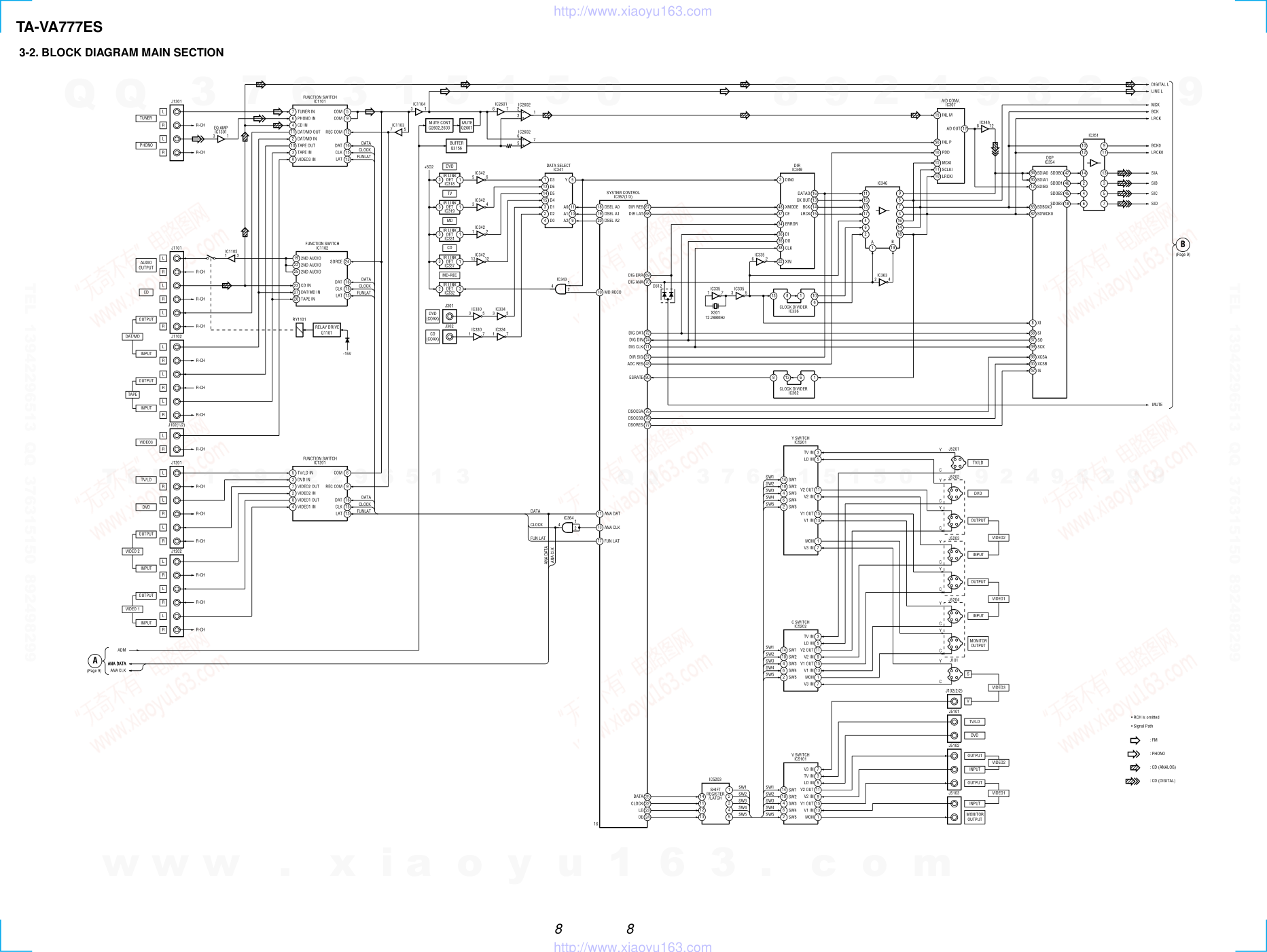

TA-VA777ES AEP Model UK Model SERVICE MANUAL INTEGRATED AV AMPLIFIER MICROFILM — Continued on next page — SPECIFICATIONS Manufactured under license from Dolby Laboratories Licensing Corporation. Dolby, “DOLBY”, the double-D symbol ;, AC-3 and “Pro Logic” are trademarks of Dolby Laboratories Licensing Corporation. Audio section POWER OUTPUT Stereo mode 120 W + 120 W (8 ohms, DIN 1 kHz) 100 W + 100 W (4 ohms, DIN 1 kHz) 100 W + 100 W (8 ohms, THD 0.05% 20 – 20 kHz) 90 W + 90 W (4 ohms, THD 0.05% 20 – 20 kHz) Surround mode Front: 120 W + 120 W Centera): 120 W Reara): 120 W + 120 W (8 ohms, DIN 1 kHz) Front: 100 W + 100 W Centera): 100 W Reara): 100 W + 100 W (4 ohms, DIN 1 kHz) a) Depending on the sound field settings and the source, there may be no sound output. Frequency response PHONO: 20 Hz ~ 20 kHz RIAA ±0.5 dB LINE (TUNER, CD, MD/DAT, TAPE, DVD, TV/LD, VIDEO 1, 2, and VIDEO 3): 10 Hz ~ 100 kHz +0.5/–2.0 dB (ANALOG DIRECT) Signal-to-noise ratio DIGITAL IN: 100 dB (20 kHz LPF, A) PHONO: 86 dB* (A, 5mV) LINE: 100 dB* (20 kHz LPF, A) * ANALOG DIRECT Inputs (Analog) PHONO: Sensitivity: 4 mV Impedance: 50 kilohms LINE (TUNER, CD, MD/DAT, TAPE, DVD, TV/LD, VIDEO 1, 2, and VIDEO 3): Sensitivity: 200 mV Impedance: 50 kilohms Inputs (Digital) Coaxial (DVD, CD): Sensitivity: – Impedance: 75 ohms Optical (DVD, TV/LD, MD/DAT): Sensitivity: – Impedance: – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 PART NO. MODEL IDENTIFICATION – BACK PANEL – MODEL AEP model UK model PARTS No. 4-222-054-5s 4-222-054-6s Video section Inputs Video: 1 Vp-p 75 ohms S-video: Y: 1 Vp-p 75 ohms C: 0.286 Vp-p 75 ohms Outputs Video: 1 Vp-p 75 ohms S-video: Y: 1 Vp-p 75 ohms C: 0.286 Vp-p 75 ohms General Power reqements 230 V AC, 50/60 Hz Power consumption 420 W AC outlets 2 switched, total 100 W Dimensions 430 × 174 × 462 mm including projecting parts and controls Mass (Approx.) 24.3 kg Supplied accessories Design and specifications are subject to change without notice. • Remote commander RM-TP503 (remote) (1) • LR6 (size-AA) alkaline batteries (4) • Coin shaped lithium battery (CR-2032) (1) Outputs (Analog) REC OUT (MD/DAT, TAPE, VIDEO 1, 2, 3): Voltage: 200 mV, Impedance: 1 kilohm PRE OUT (FRONT L/R, CENTER, REAR L/R, SUB WOOFER): Voltage: 2 V Impedance: 1 kohms PHONES: Accepts low- and high-impedance headphones Outputs (Digital) Optical (MD/DAT) Sampling Frequency 48 kHz EQ BASS: 99 Hz ~ 1.0 kHz (21 steps) MID: 198 Hz ~ 10 kHz (37 steps) TREBLE: 1.0 kHz ~ 10 kHz (23 steps) Gain levels: ±10 dB, 0.5 dB step Decodable Digital Formats Dolby Digital (AC-3), DTS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. TABLE OF CONTENTS 1. GENERAL ······································································ 4 2. ADJUSTMENT······························································ 6 3. DIAGRAMS ···································································· 7 3-1. Circuit Boards Location ····················································· 7 3-2. Block Diagram Main Section ············································ 8 3-3. Block Diagram Digital Section ········································· 9 3-4. Block Diagram Control Section ······································ 10 3-5. Block Diagram Power Section ········································ 11 3-6. Printed Wiring Board Audio Section ······························· 12 3-7. Schematic Diagram Audio Section·································· 13 3-8. Printed Wiring Board Video Section ······························· 14 3-9. Schematic Diagram Video Section ·································· 15 3-10. Printed Wiring Board Volume Section(SIDE A) ············· 16 3-11. Printed Wiring Board Volume Section(SIDE B) ············· 17 3-12. Schematic Diagram Volume Section(1/2) ······················· 18 3-13. Schematic Diagram Volume Section(2/2) ······················· 19 3-14. Printed Wiring Board Digital Section(SIDE A) ·············· 20 3-15. Printed Wiring Board Digital Section(SIDE B) ·············· 21 3-16. Schematic Diagram Digital Section(1/7) ························ 22 3-17. Schematic Diagram Digital Section(2/7) ························ 23 3-18. Schematic Diagram Digital Section(3/7) ························ 24 3-19. Schematic Diagram Digital Section(4/7) ························ 25 3-20. Schematic Diagram Digital Section(5/7) ························ 26 3-21. Schematic Diagram Digital Section(6/7) ························ 27 3-22. Schematic Diagram Digital Section(7/7) ························ 28 3-23. Printed Wiring Board AMP Section ································ 29 3-24. Schematic Diagram AMP Section(1/2) ··························· 30 3-25. Schematic Diagram AMP Section(2/2) ··························· 31 3-26. Printed Wiring Board Display Section(SIDE A) ············· 32 3-27. Printed Wiring Board Display Section(SIDE B) ············· 33 3-28. Schematic Diagram Display Section(1/2) ······················· 34 3-29. Schematic Diagram Display Section(2/2) ······················· 35 3-30. Printed Wiring Board Switch Section ····························· 36 3-31. Printed Wiring Board Control Jack Section ···················· 37 3-32. Schematic Diagram Control Jack Section ······················· 37 3-33. Printed Wiring Board Speaker Terminal Section ············ 38 3-34. Schematic Diagram Speaker Terminal Section ··············· 39 3-35. Printed Wiring Board Power Supply Section ·················· 40 3-36. Printed Wiring Board AC Power Supply Section ············ 41 3-37. Schematic Diagram Power Supply Section ····················· 42 3-38. IC Block Diagrams ··························································· 43 3-39. IC Pin Function Description ············································· 47 4. EXPLODED VIEWS 4-1. Case Section ····································································· 52 4-2. Chassis Section ································································· 53 4-3. Front Panel Section ·························································· 54 4-4. Back Panel Section ··························································· 55 5. ELECTRICAL PARTS LIST ··································· 56 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 SECTION 1 GENERAL FRONT PANEL SECTION 1 ?/1 switch 2 INPUT SELECTOR knob 3 AUDIO SPLIT button 4 DIGITAL/ANALOG button 5 5.1CH INPUT button 6 IR emitter 7 IR receptor 8 MEMORY button 9 SOUND FIELD PRESET 1 – 5 button 0 MULTICHANNEL DECODING indicator qa A.F.D button MODE +/– buttons 2CH button ANALOG DIRECT button qs EQ BANK button 1 2 4 5 3 wf wg qf qa 0 wd ws wa ql qj qh qk w; qg qd 9 6 7 8 qs SOUND FIELD PRESET PHONES SPEAKERS A OFF A+B B MEMORY A.F.D 0 10 MULTI CHANNEL DECODING OPEN/ CLOSE MASTER VOLUME 1 9 8 7 2 3 6 5 4 AUDIO SPLIT DIGITAL / ANALOG ? / 1 + ENTER EQ SUR LEVEL NAME CUSTOM SET UP VIDEO S-VIDEO L AUDIO R – 4 5 3 2 1 2 CH ANALOG DIRECT EQ BANK 5.1CH INPUT – + SOUND FIELD INPUT SELECTOR MODE qd MASTER VOLUME knob qf OPEN/CLOSE button qg ENTER button qh Cursor buttons (I/i) qj Jog dial qk SET UP button ql LEVEL button w; CUSTOM button wa SUR button ws NAME button wd EQ button wf SPEAKERS selector knob PHONES jack wg VIDEO 3 jack www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 REAR PANEL SECTION 1 DIGITAL jack 2 MONITOR OUT jack 3 VIDEO 1 jack 4 VIDEO 2 jack 5 DVD jack 6 TAPE jack 7 MD/DAT jack 8 TUNER jack 9 PHONO jack 0 CONTROL A1 II jack qa RS-232C AC OUTLET + – SPEAKERS FRONT REAR CENTER B A L R L R L R R L R L R IN REC OUT IN IN OUT IN IN IN OUT IN CENTER SUB WOOFER REAR FRONT CENTER SUB WOOFER REAR FRONT TV/ LD DVD VIDEO 1 MONITOR OUT VIDEO 2 REC OUT L R AUDIO S-VIDEO DVD IN COAX CD IN COAX DVD IN OPT TV/LD IN OPT MD/DAT IN OPT MD/DAT OUT OPT CD IN OPT VIDEO L 2ND AUDIO OUT PRE OUT 5.1CH INPUT 4 Ω 8 Ω IMPEDANCE SELECTOR TAPE MD/ DAT CD CONTROL A1 IMPEDANCE USE 4 - 16Ω SIGNAL GND U L R TUNER L R PHONO ql qh qf qg qj waw; qk ws 1 2 6 8 0 qa 9 3 4 5 qs qd 7 qs AC OUTLET qd Power cord qf IMPEDANCE SELECTOR switch qg FRONT SPEAKER terminal qh CENTER SPEAKER terminal qj REAR SPEAKER terminal qk CD jack ql 2ND AUDIO OUT jack w; PRE OUT jack wa TV/LD jack ws 5.1CH INPUT jack www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 SECTION 2 ADJUSTMENT RV4101 BIAS BIAS BOARD RV4101 BIAS BIAS BOARD RV4101 BIAS BIAS BOARD RV4101 BIAS BIAS BOARD RV4101 BIAS BIAS BOARD AMP BOARD CN4153 CN4203 CN4103 CN4353 CN4303 Electrical adjustments [BIAS adjustment] Conditions : VOLUME : MIN Input signal : No signal (no load) Procedure : Adjust RV4101 on the BIAS board so that 10mV is obtained across the CN4103, CN4153, CN4203, CN4303 and CN4353 on the AMP board respectively. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-VA777ES 7 7 • Waveform DIGITAL Board DISPLAY Board 1 IC347 C901 1-110-211-91 MYLAR 0.022uF 5% 50V C902 1-110-211-91 MYLAR 0.022uF 5% 50V C903 1-127-721-11 ELECT 1000uF 20% 16V C904 1-127-720-91 ELECT MELF 470uF 20% 16V C905 1-119-820-11 ELECT 1uF 20% 50V C906 1-137-370-11 MYLAR 0.01uF 5% 50V < CONNECTOR > CN903 1-691-767-11 PLUG (MICRO CONNECTOR) 5P < CONNECTOR > CNP901 1-564-321-00 PIN, CONNECTOR 2P * CNP902 1-564-321-21 PIN, CONNECTOR 2P CNP904 1-568-106-11 PIN, CONNECTOR 4P < DIODE > D901 8-719-053-18 DIODE 1SR154-400TE-25 D902 8-719-053-18 DIODE 1SR154-400TE-25 D903 8-719-053-18 DIODE 1SR154-400TE-25 D904 8-719-053-18 DIODE 1SR154-400TE-25 D905 8-719-016-74 DIODE 1SS352 D906 8-719-016-74 DIODE 1SS352 D907 8-719-016-74 DIODE 1SS352 D908 8-719-053-18 DIODE 1SR154-400TE-25 D909 8-719-053-18 DIODE 1SR154-400TE-25 < TERMINAL > EB901 1-537-770-21 TERMINAL BOARD, GROUND < FUSE > 0F901 1-532-465-51 FUSE, TIME LAG 3.15A,250V 0F902 1-532-464-51 FUSE 2.5A 250V < IC > IC901 8-759-231-53 IC TA7805S < JACK > 0J901 1-251-079-11 OUTLET, AC(AC OUTLET) < TRANSISTOR > Q901 8-729-230-49 TRANSISTOR 2SC2712-YG Q902 8-729-230-49 TRANSISTOR 2SC2712-YG < RESISTOR > R902 1-208-462-41 RES-CHIP 10K 2% 1/10W R903 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R904 1-208-518-41 RES-CHIP 22K 2% 1/10W R905 1-208-526-41 RES-CHIP 47K 2% 1/10W R906 1-208-462-41 RES-CHIP 10K 2% 1/10W R907 1-216-603-11 METAL CHIP 10 0.5% 1/10W < RELAY > RY901 1-755-298-11 RELAY < TRANSFORMER > 0T902 1-435-163-11 TRANSFORMER, POWER ************************************************************ A-4426-447-A AMP BOARD, COMPLETE ******************** 7-685-872-09 SCREW +BVTT 3X8 (S) < CAPACITOR > C4001 1-119-792-21 ELECT 470uF 20% 10V C4002 1-128-858-11 ELECT 22uF 20% 50V C4003 1-127-726-51 ELECT MELF 470uF 20% 25V C4004 1-127-726-51 ELECT MELF 470uF 20% 25V C4005 1-119-816-31 ELECT 0.1uF 20% 50V C4006 1-119-816-31 ELECT 0.1uF 20% 50V C4101 1-119-823-11 ELECT 4.7uF 20% 50V C4102 1-119-830-11 ELECT 330uF 20% 25V C4103 1-102-233-00 CERAMIC 33PF 10% 500V C4104 1-102-934-00 CERAMIC 1.0PF 0.25PF 50V C4105 1-102-106-00 CERAMIC 100PF 10% 50V C4106 1-164-039-11 CERAMIC 3PF 0.25PF 50V C4108 1-164-077-11 CERAMIC 220PF 10% 50V C4112 1-137-372-11 MYLAR 0.022uF 5% 50V C4113 1-137-360-11 MYLAR 220PF 5% 50V C4151 1-119-823-11 ELECT 4.7uF 20% 50V C4152 1-119-830-11 ELECT 330uF 20% 25V C4153 1-102-233-00 CERAMIC 33PF 10% 500V C4154 1-102-934-00 CERAMIC 1.0PF 0.25PF 50V C4155 1-102-106-00 CERAMIC 100PF 10% 50V AC AMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 57 C4156 1-164-039-11 CERAMIC 3PF 0.25PF 50V C4158 1-164-077-11 CERAMIC 220PF 10% 50V C4162 1-137-372-11 MYLAR 0.022uF 5% 50V C4163 1-137-360-11 MYLAR 220PF 5% 50V C4198 1-119-854-11 ELECT 100uF 20% 100V C4199 1-119-854-11 ELECT 100uF 20% 100V C4201 1-119-823-11 ELECT 4.7uF 20% 50V C4202 1-119-830-11 ELECT 330uF 20% 25V C4203 1-102-233-00 CERAMIC 33PF 10% 500V C4204 1-102-934-00 CERAMIC 1.0PF 0.25PF 50V C4205 1-102-106-00 CERAMIC 100PF 10% 50V C4206 1-164-039-11 CERAMIC 3PF 0.25PF 50V C4208 1-164-077-11 CERAMIC 220PF 10% 50V C4212 1-137-372-11 MYLAR 0.022uF 5% 50V C4213 1-137-360-11 MYLAR 220PF 5% 50V C4251 1-119-823-11 ELECT 4.7uF 20% 50V C4252 1-119-830-11 ELECT 330uF 20% 25V C4253 1-102-233-00 CERAMIC 33PF 10% 500V C4254 1-164-077-11 CERAMIC 220PF 10% 50V C4255 1-102-106-00 CERAMIC 100PF 10% 50V C4256 1-164-039-11 CERAMIC 3PF 0.25PF 50V C4298 1-119-854-11 ELECT 100uF 20% 100V C4299 1-119-854-11 ELECT 100uF 20% 100V C4301 1-119-823-11 ELECT 4.7uF 20% 50V C4302 1-119-830-11 ELECT 330uF 20% 25V C4303 1-102-233-00 CERAMIC 33PF 10% 500V C4304 1-102-934-00 CERAMIC 1.0PF 0.25PF 50V C4305 1-102-106-00 CERAMIC 100PF 10% 50V C4306 1-164-039-11 CERAMIC 3PF 0.25PF 50V C4308 1-164-077-11 CERAMIC 220PF 10% 50V C4312 1-137-372-11 MYLAR 0.022uF 5% 50V C4313 1-137-360-11 MYLAR 220PF 5% 50V C4351 1-119-823-11 ELECT 4.7uF 20% 50V C4352 1-119-830-11 ELECT 330uF 20% 25V C4353 1-102-233-00 CERAMIC 33PF 10% 500V C4354 1-102-934-00 CERAMIC 1.0PF 0.25PF 50V C4355 1-102-106-00 CERAMIC 100PF 10% 50V C4356 1-164-039-11 CERAMIC 3PF 0.25PF 50V C4358 1-164-077-11 CERAMIC 220PF 10% 50V C4362 1-137-372-11 MYLAR 0.022uF 5% 50V C4363 1-137-360-11 MYLAR 220PF 5% 50V C4398 1-119-854-11 ELECT 100uF 20% 100V C4399 1-119-854-11 ELECT 100uF 20% 100V < CONNECTOR > CN4001 1-785-102-11 PIN, CONNECTOR 4P CN4002 1-691-765-21 PLUG (MICRO CONNECTOR) 3P CN4003 1-564-506-11 PLUG (MICRO CONNECTOR) 5P CN4006 1-691-767-11 PLUG (MICRO CONNECTOR) 5P * CN4007 1-564-242-00 PIN, CONNECTOR 5P CN4008 1-785-104-11 PIN, CONNECTOR 6P CN4012 1-691-765-11 PLUG (MICRO CONNECTOR) 3P * CN4013 1-564-104-00 PIN, CONNECTOR (B3P-VH) 3P * CN4103 1-564-505-11 PLUG, CONNECTOR 2P CN4104 1-691-766-11 PLUG (MICRO CONNECTOR) 4P * CN4153 1-564-505-11 PLUG, CONNECTOR 2P * CN4203 1-564-505-11 PLUG, CONNECTOR 2P CN4204 1-691-765-11 PLUG (MICRO CONNECTOR) 3P * CN4303 1-564-505-11 PLUG, CONNECTOR 2P CN4304 1-691-765-21 PLUG (MICRO CONNECTOR) 3P * CN4353 1-564-505-11 PLUG, CONNECTOR 2P < DIODE > D4001 8-719-016-74 DIODE 1SS352 D4002 8-719-016-74 DIODE 1SS352 D4003 8-719-016-74 DIODE 1SS352 D4101 8-719-016-74 DIODE 1SS352 D4151 8-719-016-74 DIODE 1SS352 D4201 8-719-016-74 DIODE 1SS352 D4301 8-719-016-74 DIODE 1SS352 D4351 8-719-016-74 DIODE 1SS352 D4701 8-719-016-74 DIODE 1SS352 < TERMINAL > EB401 1-537-770-21 TERMINAL BOARD, GROUND < HEAT SINK > * HS4001 4-880-403-11 HEAT SINK * HS4002 4-880-403-11 HEAT SINK < IC > IC4001 8-759-604-87 IC M5F7818L IC4002 8-759-604-91 IC M5F7918L IC4101 8-759-326-52 IC uPC2581V IC4201 8-759-326-52 IC uPC2581V IC4301 8-759-326-52 IC uPC2581V < TRANSISTOR > Q4001 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q4002 8-729-230-49 TRANSISTOR 2SC2712-YG Q4003 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA Q4103 8-749-010-43 IC NEN250 Q4104 8-749-010-42 IC NEP250 Q4105 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q4106 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q4153 8-749-010-43 IC NEN250 Q4154 8-749-010-42 IC NEP250 Q4155 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q4156 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q4203 8-749-010-43 IC NEN250 Q4204 8-749-010-42 IC NEP250 Q4205 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q4206 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q4303 8-749-010-43 IC NEN250 Q4304 8-749-010-42 IC NEP250 Q4305 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q4306 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q4353 8-749-010-43 IC NEN250 Q4354 8-749-010-42 IC NEP250 Q4355 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q4356 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q4701 8-729-230-49 TRANSISTOR 2SC2712-YG AMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 58 < RESISTOR > R4001 1-208-462-41 RES-CHIP 10K 2% 1/10W R4002 1-216-689-11 METAL CHIP 39K 0.5% 1/10W R4003 1-216-671-11 METAL CHIP 6.8K 0.5% 1/10W R4004 1-208-437-41 RES-CHIP 1K 2% 1/10W R4101 1-259-995-11 CARBON MELF 1K 2% 1/8W R4102 1-260-017-11 CARBON MELF 56K 2% 1/8W R4103 1-249-679-11 CARBON 1.8K 5% 1/2W R4104 1-249-844-11 CARBON 56K 5% 1/2W 0R4108 1-212-857-00 FUSIBLE 10 5% 1/4W 0R4109 1-212-857-00 FUSIBLE 10 5% 1/4W 0R4110 1-212-857-00 FUSIBLE 10 5% 1/4W 0R4111 1-212-857-00 FUSIBLE 10 5% 1/4W 0R4114 1-212-857-00 FUSIBLE 10 5% 1/4W R4115 1-260-016-11 CARBON MELF 47K 2% 1/8W R4116 1-259-932-11 CARBON MELF 6.2K 2% 1/8W R4117 1-260-005-11 CARBON MELF 5.6K 2% 1/8W R4118 1-259-995-11 CARBON MELF 1K 2% 1/8W R4119 1-260-018-11 CARBON MELF 68K 2% 1/8W R4120 1-260-010-11 CARBON MELF 15K 2% 1/8W R4126 1-208-602-11 REGISTER 0.22 10% 2W R4127 1-208-602-11 REGISTER 0.22 10% 2W R4128 1-208-602-11 REGISTER 0.22 10% 2W R4129 1-208-602-11 REGISTER 0.22 10% 2W R4151 1-259-995-11 CARBON MELF 1K 2% 1/8W R4152 1-260-017-11 CARBON MELF 56K 2% 1/8W R4153 1-249-679-11 CARBON 1.8K 5% 1/2W R4154 1-249-844-11 CARBON 56K 5% 1/2W 0R4158 1-212-857-00 FUSIBLE 10 5% 1/4W 0R4159 1-212-857-00 FUSIBLE 10 5% 1/4W 0R4160 1-212-857-00 FUSIBLE 10 5% 1/4W 0R4161 1-212-857-00 FUSIBLE 10 5% 1/4W 0R4164 1-212-857-00 FUSIBLE 10 5% 1/4W R4165 1-260-016-11 CARBON MELF 47K 2% 1/8W R4166 1-259-932-11 CARBON MELF 6.2K 2% 1/8W R4167 1-260-005-11 CARBON MELF 5.6K 2% 1/8W R4168 1-259-995-11 CARBON MELF 1K 2% 1/8W R4169 1-260-018-11 CARBON MELF 68K 2% 1/8W R4170 1-260-010-11 CARBON MELF 15K 2% 1/8W R4176 1-208-602-11 REGISTER 0.22 10% 2W R4177 1-208-602-11 REGISTER 0.22 10% 2W R4178 1-208-602-11 REGISTER 0.22 10% 2W R4179 1-208-602-11 REGISTER 0.22 10% 2W 0R4197 1-212-857-00 FUSIBLE 10 5% 1/4W 0R4198 1-212-857-00 FUSIBLE 10 5% 1/4W R4199 1-260-011-11 CARBON MELF 18K 2% 1/8W R4201 1-259-995-11 CARBON MELF 1K 2% 1/8W R4202 1-260-017-11 CARBON MELF 56K 2% 1/8W R4203 1-249-679-11 CARBON 1.8K 5% 1/2W R4204 1-249-844-11 CARBON 56K 5% 1/2W 0R4208 1-212-857-00 FUSIBLE 10 5% 1/4W 0R4209 1-212-857-00 FUSIBLE 10 5% 1/4W 0R4210 1-212-857-00 FUSIBLE 10 5% 1/4W 0R4211 1-212-857-00 FUSIBLE 10 5% 1/4W 0R4214 1-212-857-00 FUSIBLE 10 5% 1/4W R4215 1-260-016-11 CARBON MELF 47K 2% 1/8W R4216 1-259-932-11 CARBON MELF 6.2K 2% 1/8W R4217 1-260-005-11 CARBON MELF 5.6K 2% 1/8W R4218 1-259-995-11 CARBON MELF 1K 2% 1/8W R4219 1-260-018-11 CARBON MELF 68K 2% 1/8W R4220 1-260-010-11 CARBON MELF 15K 2% 1/8W R4226 1-208-602-11 REGISTER 0.22 10% 2W R4227 1-208-602-11 REGISTER 0.22 10% 2W R4228 1-208-602-11 REGISTER 0.22 10% 2W R4229 1-208-602-11 REGISTER 0.22 10% 2W R4251 1-259-995-11 CARBON MELF 1K 2% 1/8W R4252 1-260-017-11 CARBON MELF 56K 2% 1/8W R4253 1-249-679-11 CARBON 1.8K 5% 1/2W R4254 1-249-844-11 CARBON 56K 5% 1/2W R4255 1-259-987-11 CARBON MELF 220 2% 1/8W R4256 1-259-987-11 CARBON MELF 220 2% 1/8W 0R4297 1-212-857-00 FUSIBLE 10 5% 1/4W 0R4298 1-212-857-00 FUSIBLE 10 5% 1/4W R4299 1-260-011-11 CARBON MELF 18K 2% 1/8W R4301 1-259-995-11 CARBON MELF 1K 2% 1/8W R4302 1-260-017-11 CARBON MELF 56K 2% 1/8W R4303 1-249-679-11 CARBON 1.8K 5% 1/2W R4304 1-249-844-11 CARBON 56K 5% 1/2W 0R4308 1-212-857-00 FUSIBLE 10 5% 1/4W 0R4309 1-212-857-00 FUSIBLE 10 5% 1/4W 0R4310 1-212-857-00 FUSIBLE 10 5% 1/4W 0R4311 1-212-857-00 FUSIBLE 10 5% 1/4W 0R4314 1-212-857-00 FUSIBLE 10 5% 1/4W R4315 1-260-016-11 CARBON MELF 47K 2% 1/8W R4316 1-259-932-11 CARBON MELF 6.2K 2% 1/8W R4317 1-260-005-11 CARBON MELF 5.6K 2% 1/8W R4318 1-259-995-11 CARBON MELF 1K 2% 1/8W R4319 1-260-018-11 CARBON MELF 68K 2% 1/8W R4320 1-260-010-11 CARBON MELF 15K 2% 1/8W R4326 1-208-602-11 REGISTER 0.22 10% 2W R4327 1-208-602-11 REGISTER 0.22 10% 2W R4328 1-208-602-11 REGISTER 0.22 10% 2W R4329 1-208-602-11 REGISTER 0.22 10% 2W R4351 1-259-995-11 CARBON MELF 1K 2% 1/8W R4352 1-260-017-11 CARBON MELF 56K 2% 1/8W R4353 1-249-679-11 CARBON 1.8K 5% 1/2W R4354 1-249-844-11 CARBON 56K 5% 1/2W 0R4358 1-212-857-00 FUSIBLE 10 5% 1/4W 0R4359 1-212-857-00 FUSIBLE 10 5% 1/4W 0R4360 1-212-857-00 FUSIBLE 10 5% 1/4W 0R4361 1-212-857-00 FUSIBLE 10 5% 1/4W 0R4364 1-212-857-00 FUSIBLE 10 5% 1/4W R4365 1-260-016-11 CARBON MELF 47K 2% 1/8W R4366 1-259-932-11 CARBON MELF 6.2K 2% 1/8W R4367 1-260-005-11 CARBON MELF 5.6K 2% 1/8W R4368 1-259-995-11 CARBON MELF 1K 2% 1/8W R4369 1-260-018-11 CARBON MELF 68K 2% 1/8W R4370 1-260-010-11 CARBON MELF 15K 2% 1/8W R4376 1-208-602-11 REGISTER 0.22 10% 2W R4377 1-208-602-11 REGISTER 0.22 10% 2W R4378 1-208-602-11 REGISTER 0.22 10% 2W The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. AMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 59 R4379 1-208-602-11 REGISTER 0.22 10% 2W 0R4397 1-212-857-00 FUSIBLE 10 5% 1/4W 0R4398 1-212-857-00 FUSIBLE 10 5% 1/4W R4399 1-260-011-11 CARBON MELF 18K 2% 1/8W R4701 1-249-422-11 CARBON 2.7K 5% 1/4W F R4702 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R4703 1-208-462-41 RES-CHIP 10K 2% 1/10W < RELAY > RY4701 1-755-295-11 RELAY ************************************************************ A-4426-450-A AUDIO A BOARD, COMPLETE *********************** < CAPACITOR > C1101 1-119-823-11 ELECT 4.7uF 20% 50V C1102 1-128-858-11 ELECT 22uF 20% 50V C1105 1-119-823-11 ELECT 4.7uF 20% 50V C1106 1-128-858-11 ELECT 22uF 20% 50V C1107 1-126-927-11 ELECT 2200uF 20% 10V C1151 1-119-823-11 ELECT 4.7uF 20% 50V C1152 1-128-858-11 ELECT 22uF 20% 50V C1155 1-119-823-11 ELECT 4.7uF 20% 50V C1156 1-128-858-11 ELECT 22uF 20% 50V C1181 1-102-121-00 CERAMIC 2200PF 10% 50V C1182 1-102-121-00 CERAMIC 2200PF 10% 50V C1191 1-102-121-00 CERAMIC 2200PF 10% 50V C1192 1-102-121-00 CERAMIC 2200PF 10% 50V CC1101 1-137-358-11 MYLAR 0.0001uF 5% 50V CC1102 1-137-358-11 MYLAR 0.0001uF 5% 50V CC1103 1-137-358-11 MYLAR 0.0001uF 5% 50V CC1104 1-137-358-11 MYLAR 0.0001uF 5% 50V CC1105 1-137-358-11 MYLAR 0.0001uF 5% 50V CC1106 1-137-358-11 MYLAR 0.0001uF 5% 50V CC1151 1-137-358-11 MYLAR 0.0001uF 5% 50V CC1152 1-137-358-11 MYLAR 0.0001uF 5% 50V CC1153 1-137-358-11 MYLAR 0.0001uF 5% 50V CC1154 1-137-358-11 MYLAR 0.0001uF 5% 50V CC1155 1-137-358-11 MYLAR 0.0001uF 5% 50V CC1156 1-137-358-11 MYLAR 0.0001uF 5% 50V < CONNECTOR > CN1102 1-784-774-11 CONNECTOR, FFC 13P CN1103 1-784-735-11 CONNECTOR, FFC 13P * CN1104 1-564-507-11 PLUG, CONNECTOR 4P CN1105 1-691-765-11 PLUG (MICRO CONNECTOR) 3P < DIODE > D1101 8-719-016-74 DIODE 1SS352 D1102 8-719-016-74 DIODE 1SS352 D1103 8-719-914-42 DIODE DA204K < IC > IC1101 8-759-655-96 IC TA9163AF IC1102 8-759-655-97 IC TC9162AF IC1103 8-759-711-85 IC NJM4580E-D IC1105 8-759-711-85 IC NJM4580E-D < JACK > J1101 1-794-024-11 JACK, PIN 6P(2ND AUDIO,CD) J1102 1-793-523-11 JACK, PIN 6P(MD/DAT,TAPE) < TRANSISTOR > Q1101 8-729-424-08 TRANSISTOR UN2111 < RESISTOR > R1101 1-259-995-11 CARBON MELF 1K 2% 1/8W R1102 1-259-995-11 CARBON MELF 1K 2% 1/8W R1103 1-259-995-11 CARBON MELF 1K 2% 1/8W R1104 1-259-995-11 CARBON MELF 1K 2% 1/8W R1105 1-259-995-11 CARBON MELF 1K 2% 1/8W R1106 1-259-995-11 CARBON MELF 1K 2% 1/8W R1107 1-208-813-11 RES-CHIP 20K 0.5% 1/10W R1108 1-208-422-41 RES-CHIP 240 2% 1/10W R1111 1-260-032-11 CARBON MELF 1M 2% 1/8W R1112 1-216-254-00 CARBON MELF 220K 2% 1/8W R1116 1-260-032-11 CARBON MELF 1M 2% 1/8W R1117 1-260-032-11 CARBON MELF 1M 2% 1/8W R1118 1-216-254-00 CARBON MELF 220K 2% 1/8W R1151 1-259-995-11 CARBON MELF 1K 2% 1/8W R1152 1-259-995-11 CARBON MELF 1K 2% 1/8W R1153 1-259-995-11 CARBON MELF 1K 2% 1/8W R1154 1-259-995-11 CARBON MELF 1K 2% 1/8W R1155 1-259-995-11 CARBON MELF 1K 2% 1/8W R1156 1-259-995-11 CARBON MELF 1K 2% 1/8W R1161 1-260-032-11 CARBON MELF 1M 2% 1/8W R1162 1-216-254-00 CARBON MELF 220K 2% 1/8W R1166 1-260-032-11 CARBON MELF 1M 2% 1/8W R1167 1-260-032-11 CARBON MELF 1M 2% 1/8W R1168 1-216-254-00 CARBON MELF 220K 2% 1/8W < RELAY > RY1101 1-755-294-11 RELAY ************************************************************ A-4426-453-A AUDIO V BOARD, COMPLETE *********************** < CAPACITOR > C1281 1-102-121-00 CERAMIC 2200PF 10% 50V C1282 1-102-121-00 CERAMIC 2200PF 10% 50V CC1201 1-137-358-11 MYLAR 0.0001uF 5% 50V CC1202 1-137-358-11 MYLAR 0.0001uF 5% 50V CC1203 1-137-358-11 MYLAR 0.0001uF 5% 50V CC1204 1-137-358-11 MYLAR 0.0001uF 5% 50V CC1205 1-137-358-11 MYLAR 0.0001uF 5% 50V CC1206 1-137-358-11 MYLAR 0.0001uF 5% 50V CC1251 1-137-358-11 MYLAR 0.0001uF 5% 50V CC1252 1-137-358-11 MYLAR 0.0001uF 5% 50V CC1253 1-137-358-11 MYLAR 0.0001uF 5% 50V CC1254 1-137-358-11 MYLAR 0.0001uF 5% 50V CC1255 1-137-358-11 MYLAR 0.0001uF 5% 50V CC1256 1-137-358-11 MYLAR 0.0001uF 5% 50V The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. AUDIO A AMP AUDIO V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 60 < CONNECTOR > CN1201 1-784-735-11 CONNECTOR, FFC 13P < IC > IC1201 8-759-245-17 IC TC9164N < JACK > J1201 1-793-523-11 JACK, PIN 6P(TV/LD,DVD) J1202 1-793-523-11 JACK, PIN 6P(VIDEO1,VIDEO2) < RESISTOR > R1201 1-259-995-11 CARBON MELF 1K 2% 1/8W R1202 1-259-995-11 CARBON MELF 1K 2% 1/8W R1203 1-259-995-11 CARBON MELF 1K 2% 1/8W R1204 1-259-995-11 CARBON MELF 1K 2% 1/8W R1205 1-259-995-11 CARBON MELF 1K 2% 1/8W R1206 1-259-995-11 CARBON MELF 1K 2% 1/8W R1251 1-259-995-11 CARBON MELF 1K 2% 1/8W R1252 1-259-995-11 CARBON MELF 1K 2% 1/8W R1253 1-259-995-11 CARBON MELF 1K 2% 1/8W R1254 1-259-995-11 CARBON MELF 1K 2% 1/8W R1255 1-259-995-11 CARBON MELF 1K 2% 1/8W R1256 1-259-995-11 CARBON MELF 1K 2% 1/8W ************************************************************ 1-675-085-11 BIAS BOARD ********** < CAPACITOR > C4107 1-128-846-51 ELECT 330uF 20% 25V < CONNECTOR > * CN4101 1-568-942-11 PIN, CONNECTOR 4P < DIODE > D4102 8-719-911-19 DIODE 1SS119 < TRANSISTOR > Q4102 8-729-026-08 TRANSISTOR 2SC4495 < RESISTOR > R4106 1-259-999-11 CARBON MELF 2.2K 2% 1/8W R4107 1-259-918-11 CARBON MELF 430 2% 1/8W < VARIABLE RESISTOR > RV4101 1-237-456-11 RES, ADJ, CARBON 1K ************************************************************ 1-675-065-11 BLUE LED BOARD ************** < CAPACITOR > C105 1-165-319-11 CERAMIC CHIP 0.1uF 0% 50V < CONNECTOR > * CN111 1-564-517-11 PLUG, CONNECTOR 2P < DIODE > D101 8-719-070-83 DIODE SELU5E20C-TP15(FL BACK LIGHT) < RESISTOR > R116 1-216-073-00 METAL CHIP 10K 5% 1/10W ************************************************************ A-4426-454-A C VIDEO BOARD, COMPLETE *********************** < CAPACITOR > C5101 1-119-824-11 ELECT MELF 10uF 20% 50V C5102 1-119-824-11 ELECT MELF 10uF 20% 50V C5103 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C5104 1-119-824-11 ELECT MELF 10uF 20% 50V C5105 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C5106 1-119-824-11 ELECT MELF 10uF 20% 50V C5107 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C5108 1-127-718-91 ELECT MELF 100uF 20% 16V C5109 1-163-189-00 CERAMIC CHIP 220PF 5% 50V C5110 1-127-718-91 ELECT MELF 100uF 20% 16V C5111 1-163-189-00 CERAMIC CHIP 220PF 5% 50V C5112 1-119-824-11 ELECT MELF 10uF 20% 50V C5113 1-165-319-11 CERAMIC CHIP 0.1uF 50V < CONNECTOR > CN5101 1-568-830-11 CONNECTOR, FFC 11P < IC > IC5101 8-759-536-24 IC NJM-2296M-TE2 < JACK > J5101 1-793-522-11 JACK, PIN 2P(TV/LD,DVD IN) J5102 1-785-866-21 JACK, PIN 3P(VIDEO2 IN/OUT) J5103 1-793-522-11 JACK, PIN 2P(VIDEO1 IN/OUT,MONITOR OUT) < COIL > L5101 1-500-425-11 FERRITE 0uH L5102 1-500-425-11 FERRITE 0uH < RESISTOR > R5101 1-208-755-11 RES-CHIP 75 2% 1/10W R5102 1-208-755-11 RES-CHIP 75 2% 1/10W R5103 1-208-755-11 RES-CHIP 75 2% 1/10W R5104 1-208-755-11 RES-CHIP 75 2% 1/10W R5105 1-208-755-11 RES-CHIP 75 2% 1/10W R5106 1-208-755-11 RES-CHIP 75 2% 1/10W R5107 1-208-755-11 RES-CHIP 75 2% 1/10W ************************************************************ A-4426-488-A CTRL-A1 BOARD, COMPLETE *********************** < CAPACITOR > C1601 1-127-718-91 ELECT MELF 100uF 20% 16V C1602 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1603 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1604 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1605 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V BIAS BLUE LED AUDIO V C VIDEO CTRL-A1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 61 C1606 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1701 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V < CONNECTOR > CN1402 1-784-776-11 CONNECTOR, FFC 15P CN1403 1-784-774-11 CONNECTOR, FFC 13P CN1405 1-770-406-11 CONNECTOR, BOARD TO BOARD 10P < DIODE > D1701 8-719-025-33 DIODE 02CZ6.2-TE85L < FERRITE BEAD > FB1601 1-410-397-21 FERRITE BEAD INDUCTOR FB1701 1-500-245-11 INDUCTOR CHIP 0UH FB1702 1-500-245-11 INDUCTOR CHIP 0UH < IC > IC1601 8-759-557-32 IC ADM202EARN-REEL < JACK > J1601 1-764-116-41 PULG, (D) SUB CONNECTOR 9P(RS-232C) J1701 1-563-330-11 JACK(CONTROL A1) < RESISTOR > R1601 1-216-025-91 RES-CHIP 100 5% 1/10W R1602 1-216-025-91 RES-CHIP 100 5% 1/10W ************************************************************ A-4426-437-A DIGITAL BOARD, COMPLETE *********************** * 4-931-401-31 HEAT SINK, V.OUT 7-685-872-09 SCREW +BVTT 3X8 (S) < BUS BAR > BB301 1-568-129-11 BAR, BUS 8P BB302 1-569-136-11 BAR, BUS 5P < CAPACITOR > C303 1-136-230-00 FILM 0.0022uF 5% 100V C304 1-136-230-00 FILM 0.0022uF 5% 100V C305 1-136-230-00 FILM 0.0022uF 5% 100V C306 1-136-230-00 FILM 0.0022uF 5% 100V C307 1-136-230-00 FILM 0.0022uF 5% 100V C308 1-136-230-00 FILM 0.0022uF 5% 100V C309 1-165-319-11 CERAMIC CHIP 0.1uF 50V C310 1-128-840-11 ELECT 47uF 20% 16V C311 1-128-840-11 ELECT 47uF 20% 16V C312 1-125-854-21 FILM 560PF 5% 50V C313 1-125-854-21 FILM 560PF 5% 50V C314 1-125-854-21 FILM 560PF 5% 50V C315 1-125-854-21 FILM 560PF 5% 50V C316 1-125-854-21 FILM 560PF 5% 50V C317 1-125-854-21 FILM 560PF 5% 50V C318 1-128-840-11 ELECT 47uF 20% 16V C319 1-130-475-00 MYLAR 0.0022uF 5% 50V C320 1-165-319-11 CERAMIC CHIP 0.1uF 50V C321 1-125-845-21 FILM 47PF 10% 50V C322 1-125-845-21 FILM 47PF 10% 50V C323 1-125-845-21 FILM 47PF 10% 50V C324 1-125-845-21 FILM 47PF 10% 50V C325 1-125-845-21 FILM 47PF 10% 50V C326 1-125-845-21 FILM 47PF 10% 50V C327 1-127-718-91 ELECT MELF 100uF 20% 16V C334 1-119-820-11 ELECT 1uF 20% 50V C335 1-119-820-11 ELECT 1uF 20% 50V C336 1-128-833-91 ELECT 330uF 20% 10V C337 1-130-475-00 MYLAR 0.0022uF 5% 50V C338 1-130-495-00 MYLAR 0.1uF 5% 50V C339 1-130-495-00 MYLAR 0.1uF 5% 50V C340 1-130-495-00 MYLAR 0.1uF 5% 50V C341 1-130-495-00 MYLAR 0.1uF 5% 50V C342 1-130-495-00 MYLAR 0.1uF 5% 50V C343 1-130-495-00 MYLAR 0.1uF 5% 50V C344 1-127-718-91 ELECT MELF 100uF 20% 16V C345 1-119-823-11 ELECT 4.7uF 20% 50V C346 1-119-823-11 ELECT 4.7uF 20% 50V C347 1-119-823-11 ELECT 4.7uF 20% 50V C348 1-119-823-11 ELECT 4.7uF 20% 50V C349 1-119-823-11 ELECT 4.7uF 20% 50V C350 1-119-823-11 ELECT 4.7uF 20% 50V C351 1-136-165-00 MYLAR 0.1uF 5% 50V C352 1-165-319-11 CERAMIC CHIP 0.1uF 50V C353 1-119-823-11 ELECT 4.7uF 20% 50V C354 1-119-823-11 ELECT 4.7uF 20% 50V C355 1-119-823-11 ELECT 4.7uF 20% 50V C356 1-119-823-11 ELECT 4.7uF 20% 50V C357 1-119-823-11 ELECT 4.7uF 20% 50V C358 1-119-823-11 ELECT 4.7uF 20% 50V C359 1-163-003-11 CERAMIC CHIP 330PF 10% 50V C360 1-163-003-11 CERAMIC CHIP 330PF 10% 50V C361 1-163-003-11 CERAMIC CHIP 330PF 10% 50V C362 1-130-495-00 MYLAR 0.1uF 5% 50V C363 1-130-495-00 MYLAR 0.1uF 5% 50V C364 1-130-495-00 MYLAR 0.1uF 5% 50V C365 1-130-495-00 MYLAR 0.1uF 5% 50V C366 1-130-495-00 MYLAR 0.1uF 5% 50V C367 1-130-495-00 MYLAR 0.1uF 5% 50V C368 1-128-840-11 ELECT 47uF 20% 16V C369 1-128-832-11 ELECT 220uF 20% 10V C370 1-127-718-91 ELECT MELF 100uF 20% 16V C371 1-128-840-11 ELECT 47uF 20% 16V C372 1-128-832-11 ELECT 220uF 20% 10V C373 1-127-718-91 ELECT MELF 100uF 20% 16V C374 1-128-840-11 ELECT 47uF 20% 16V C375 1-128-832-11 ELECT 220uF 20% 10V C376 1-127-718-91 ELECT MELF 100uF 20% 16V C377 1-128-840-11 ELECT 47uF 20% 16V C378 1-128-832-11 ELECT 220uF 20% 10V C379 1-127-718-91 ELECT MELF 100uF 20% 16V C380 1-128-840-11 ELECT 47uF 20% 16V C381 1-128-832-11 ELECT 220uF 20% 10V C382 1-127-718-91 ELECT MELF 100uF 20% 16V C383 1-128-840-11 ELECT 47uF 20% 16V C384 1-128-832-11 ELECT 220uF 20% 10V C385 1-127-718-91 ELECT MELF 100uF 20% 16V C386 1-127-720-91 ELECT MELF 470uF 20% 16V C387 1-127-720-91 ELECT MELF 470uF 20% 16V C388 1-127-720-91 ELECT MELF 470uF 20% 16V CTRL-A1 DIGITAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 62 C389 1-119-841-11 ELECT 1000uF 20% 63V C390 1-119-841-11 ELECT 1000uF 20% 63V C391 1-119-841-11 ELECT 1000uF 20% 63V C392 1-127-718-91 ELECT MELF 100uF 20% 16V C393 1-127-718-91 ELECT MELF 100uF 20% 16V C394 1-165-319-11 CERAMIC CHIP 0.1uF 50V C395 1-136-165-00 MYLAR 0.1uF 5% 50V C396 1-136-165-00 MYLAR 0.1uF 5% 50V C397 1-136-165-00 MYLAR 0.1uF 5% 50V C398 1-165-319-11 CERAMIC CHIP 0.1uF 50V C399 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C400 1-165-319-11 CERAMIC CHIP 0.1uF 50V C401 1-127-718-91 ELECT MELF 100uF 20% 16V C402 1-127-718-91 ELECT MELF 100uF 20% 16V C403 1-127-718-91 ELECT MELF 100uF 20% 16V C404 1-127-718-91 ELECT MELF 100uF 20% 16V C405 1-127-718-91 ELECT MELF 100uF 20% 16V C406 1-127-718-91 ELECT MELF 100uF 20% 16V C407 1-165-319-11 CERAMIC CHIP 0.1uF 50V C409 1-164-005-91 CERAMIC CHIP 0.47uF 25V C410 1-127-718-91 ELECT MELF 100uF 20% 16V C411 1-127-718-91 ELECT MELF 100uF 20% 16V C412 1-127-718-91 ELECT MELF 100uF 20% 16V C413 1-127-718-91 ELECT MELF 100uF 20% 16V C414 1-127-718-91 ELECT MELF 100uF 20% 16V C415 1-127-718-91 ELECT MELF 100uF 20% 16V C416 1-127-720-91 ELECT MELF 470uF 20% 16V C417 1-127-720-91 ELECT MELF 470uF 20% 16V C418 1-127-720-91 ELECT MELF 470uF 20% 16V C419 1-165-319-11 CERAMIC CHIP 0.1uF 50V C420 1-165-319-11 CERAMIC CHIP 0.1uF 50V C421 1-127-720-91 ELECT MELF 470uF 20% 16V C422 1-127-720-91 ELECT MELF 470uF 20% 16V C423 1-127-720-91 ELECT MELF 470uF 20% 16V C424 1-165-319-11 CERAMIC CHIP 0.1uF 0% 50V C425 1-165-319-11 CERAMIC CHIP 0.1uF 0% 50V C426 1-165-319-11 CERAMIC CHIP 0.1uF 50V C427 1-165-319-11 CERAMIC CHIP 0.1uF 50V C428 1-165-319-11 CERAMIC CHIP 0.1uF 50V C429 1-165-319-11 CERAMIC CHIP 0.1uF 50V C430 1-163-099-00 CERAMIC CHIP 18PF 5% 50V C431 1-163-099-00 CERAMIC CHIP 18PF 5% 50V C432 1-165-319-11 CERAMIC CHIP 0.1uF 50V C433 1-165-319-11 CERAMIC CHIP 0.1uF 50V C434 1-165-319-11 CERAMIC CHIP 0.1uF 50V C435 1-165-319-11 CERAMIC CHIP 0.1uF 50V C436 1-165-319-11 CERAMIC CHIP 0.1uF 50V C437 1-165-319-11 CERAMIC CHIP 0.1uF 50V C438 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C439 1-165-319-11 CERAMIC CHIP 0.1uF 50V C440 1-127-719-91 ELECT MELF 220uF 20% 16V C441 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C442 1-165-319-11 CERAMIC CHIP 0.1uF 50V C443 1-165-319-11 CERAMIC CHIP 0.1uF 50V C444 1-165-319-11 CERAMIC CHIP 0.1uF 50V C445 1-165-319-11 CERAMIC CHIP 0.1uF 50V C446 1-165-319-11 CERAMIC CHIP 0.1uF 50V C447 1-165-319-11 CERAMIC CHIP 0.1uF 50V C448 1-163-101-00 CERAMIC CHIP 22PF 5% 50V C448 1-165-319-11 CERAMIC CHIP 0.1uF 50V C449 1-165-319-11 CERAMIC CHIP 0.1uF 50V C450 1-165-319-11 CERAMIC CHIP 0.1uF 50V C451 1-165-319-11 CERAMIC CHIP 0.1uF 50V C452 1-165-319-11 CERAMIC CHIP 0.1uF 50V C453 1-165-319-11 CERAMIC CHIP 0.1uF 50V C454 1-165-319-11 CERAMIC CHIP 0.1uF 50V C455 1-128-840-11 ELECT 47uF 20% 16V C456 1-128-840-11 ELECT 47uF 20% 16V C457 1-165-319-11 CERAMIC CHIP 0.1uF 50V C458 1-165-319-11 CERAMIC CHIP 0.1uF 50V C459 1-165-319-11 CERAMIC CHIP 0.1uF 50V C460 1-165-319-11 CERAMIC CHIP 0.1uF 50V C461 1-165-319-11 CERAMIC CHIP 0.1uF 50V C462 1-165-319-11 CERAMIC CHIP 0.1uF 50V C463 1-165-319-11 CERAMIC CHIP 0.1uF 50V C464 1-165-319-11 CERAMIC CHIP 0.1uF 50V C465 1-165-319-11 CERAMIC CHIP 0.1uF 50V C466 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C467 1-165-319-11 CERAMIC CHIP 0.1uF 50V C468 1-165-319-11 CERAMIC CHIP 0.1uF 50V C469 1-165-319-11 CERAMIC CHIP 0.1uF 50V C470 1-165-319-11 CERAMIC CHIP 0.1uF 50V C471 1-165-319-11 CERAMIC CHIP 0.1uF 50V C472 1-165-319-11 CERAMIC CHIP 0.1uF 50V C473 1-165-319-11 CERAMIC CHIP 0.1uF 50V C474 1-165-319-11 CERAMIC CHIP 0.1uF 50V C475 1-165-319-11 CERAMIC CHIP 0.1uF 50V C476 1-165-319-11 CERAMIC CHIP 0.1uF 50V C477 1-165-319-11 CERAMIC CHIP 0.1uF 50V C478 1-165-319-11 CERAMIC CHIP 0.1uF 50V C479 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C480 1-165-319-11 CERAMIC CHIP 0.1uF 50V C481 1-165-319-11 CERAMIC CHIP 0.1uF 50V C482 1-165-319-11 CERAMIC CHIP 0.1uF 50V C483 1-165-319-11 CERAMIC CHIP 0.1uF 50V C484 1-165-319-11 CERAMIC CHIP 0.1uF 50V C485 1-165-319-11 CERAMIC CHIP 0.1uF 50V C486 1-165-319-11 CERAMIC CHIP 0.1uF 50V C487 1-165-319-11 CERAMIC CHIP 0.1uF 50V C488 1-163-101-00 CERAMIC CHIP 22PF 5% 50V C490 1-165-319-11 CERAMIC CHIP 0.1uF 50V C492 1-165-319-11 CERAMIC CHIP 0.1uF 50V C493 1-165-319-11 CERAMIC CHIP 0.1uF 50V C494 1-136-165-00 MYLAR 0.1uF 5% 50V C495 1-163-101-00 CERAMIC CHIP 22PF 5% 50V C496 1-165-319-11 CERAMIC CHIP 0.1uF 50V C497 1-165-319-11 CERAMIC CHIP 0.1uF 50V C498 1-128-860-11 ELECT 47uF 20% 50V C499 1-128-860-11 ELECT 47uF 20% 50V C500 1-117-721-11 CERAMIC CHIP 4700PF 5% 25V C501 1-163-005-11 CERAMIC CHIP 470PF 10% 50V C507 1-165-319-11 CERAMIC CHIP 0.1uF 50V C508 1-165-319-11 CERAMIC CHIP 0.1uF 50V C509 1-165-319-11 CERAMIC CHIP 0.1uF 50V < CONNECTOR > CN301 1-568-844-11 CONNECTOR, FFC 29P CN302 1-691-772-11 PLUG (MICRO CONNECTOR) 10P * CN303 1-695-371-31 CONNECTOR, FFC 10P CN304 1-691-769-11 PLUG (MICRO CONNECTOR) 7P CN305 1-784-776-11 CONNECTOR, FFC 15P DIGITAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 63 CN306 1-784-792-11 CONNECTOR, FFC 31P < DIODE > D301 8-719-801-78 DIODE 1SS184 D302 8-719-801-78 DIODE 1SS184 D303 8-719-801-78 DIODE 1SS184 D304 8-719-801-78 DIODE 1SS184 D305 8-719-800-76 DIODE 1SS226 D306 8-719-800-76 DIODE 1SS226 D307 8-719-800-76 DIODE 1SS226 D308 8-719-800-76 DIODE 1SS226 D309 8-719-053-18 DIODE 1SR154-400TE-25 D310 8-719-110-88 DIODE RD39ES-B2 D312 8-719-820-05 DIODE 1SS181 D313 8-719-016-74 DIODE 1SS352 D314 8-719-016-74 DIODE 1SS352 D315 8-719-016-74 DIODE 1SS352 D316 8-719-801-78 DIODE 1SS184 D317 8-719-016-74 DIODE 1SS352 < TERMINAL > EP401 1-537-770-21 TERMINAL BOARD, GROUND EP402 1-537-770-21 TERMINAL BOARD, GROUND < FERRITE BEAD > FB301 1-469-365-21 FERRITE 0UH FB302 1-469-365-21 FERRITE 0UH FB303 1-500-230-21 INDUCTOR 0UH FB304 1-500-230-21 INDUCTOR 0UH FB305 1-500-230-21 INDUCTOR 0UH FB306 1-469-365-21 FERRITE 0UH FB307 1-469-365-21 FERRITE 0UH FB308 1-469-365-21 FERRITE 0UH FB309 1-500-230-21 INDUCTOR 0UH FB310 1-500-230-21 INDUCTOR 0UH FB311 1-500-230-21 INDUCTOR 0UH FB312 1-500-230-21 INDUCTOR 0UH FB313 1-500-230-21 INDUCTOR 0UH FB314 1-500-230-21 INDUCTOR 0UH FB315 1-469-365-21 FERRITE 0UH FB316 1-469-365-21 FERRITE 0UH FB317 1-469-365-21 FERRITE 0UH FB318 1-469-365-21 FERRITE 0UH FB319 1-469-365-21 FERRITE 0UH FB320 1-469-365-21 FERRITE 0UH FB321 1-469-365-21 FERRITE 0UH FB322 1-469-365-21 FERRITE 0UH FB323 1-469-365-21 FERRITE 0UH FB324 1-469-365-21 FERRITE 0UH FB325 1-469-365-21 FERRITE 0UH FB326 1-469-365-21 FERRITE 0UH FB327 1-469-365-21 FERRITE 0UH FB328 1-469-365-21 FERRITE 0UH FB329 1-469-365-21 FERRITE 0UH FB330 1-469-365-21 FERRITE 0UH FB331 1-469-365-21 FERRITE 0UH FB332 1-469-365-21 FERRITE 0UH FB333 1-469-365-21 FERRITE 0UH FB334 1-469-365-21 FERRITE 0UH FB335 1-500-230-21 INDUCTOR 0UH FB336 1-500-230-21 INDUCTOR 0UH FB337 1-500-230-21 INDUCTOR 0UH FB338 1-500-230-21 INDUCTOR 0UH FB339 1-500-230-21 INDUCTOR 0UH FB340 1-500-230-21 INDUCTOR 0UH FB341 1-469-365-21 FERRITE 0UH FB342 1-469-365-21 FERRITE 0UH < IC > IC301 8-759-711-85 IC NJM4580E-D IC302 8-759-711-85 IC NJM4580E-D IC303 8-759-711-85 IC NJM4580E-D IC304 8-759-711-85 IC NJM4580E-D IC305 8-759-711-85 IC NJM4580E-D IC306 8-759-711-85 IC NJM4580E-D IC307 8-759-426-99 IC CXD8607N-T6 IC308 8-759-445-59 IC BA033T IC309 8-759-445-59 IC BA033T IC310 8-759-231-53 IC TA7805S IC311 8-759-231-53 IC TA7805S IC312 8-759-231-53 IC TA7805S IC313 8-759-245-79 IC TA79005S IC314 8-759-231-53 IC TA7805S IC315 8-759-231-53 IC TA7805S IC316 8-759-231-53 IC TA7805S IC317 8-759-233-44 IC TC74HC595AF IC318 8-749-015-84 IC GP1F37R1(DVD OPT IN) IC319 8-749-015-84 IC GP1F37R1(TV/LD OPT IN) IC320 8-759-652-28 IC 2J1704U-2K IC321 8-759-652-28 IC 2J1704U-2K IC322 8-759-652-28 IC 2J1704U-2K IC323 8-759-652-28 IC 2J1704U-2K IC324 8-759-652-28 IC 2J1704U-2K IC325 8-759-652-28 IC 2J1704U-2K IC326 8-759-245-79 IC TA79005S IC327 8-759-245-79 IC TA79005S IC328 8-759-245-79 IC TA79005S IC330 8-759-242-70 IC TC7WU04F IC331 8-749-015-84 IC GP1F37R1(MD/DAT OPT IN) IC332 8-749-015-62 IC GP1F38T2(MD/DAT OPT OUT) IC333 8-759-996-46 IC BA6208F-T1 IC334 8-759-242-74 IC TC7W04F IC335 8-759-242-70 IC TC7WU04F IC336 8-759-233-26 IC TC74HC393AF-TP1 IC337 8-749-015-84 IC GP1F37R1(CD OPT IN) IC338 8-759-652-26 IC DF1704E-2K IC339 8-759-652-26 IC DF1704E-2K IC340 8-759-652-26 IC DF1704E-2K IC341 8-759-424-25 IC MC74HC151FEL IC342 8-759-233-66 IC TC74HCT04AF IC343 8-759-234-20 IC TC7S08F IC344 8-759-367-62 IC MC74HC157AFEL IC345 8-759-186-30 IC TC74VHC14F IC346 8-759-424-39 IC MC74HC244AFEL IC347 8-752-391-87 IC CXD2712R IC348 8-752-391-87 IC CXD2712R IC349 8-759-639-35 IC LC89055W-RA8 IC350 8-759-598-06 IC S-80942ANMP-DD6-T2 IC351 8-759-186-69 IC TC74VHC367F DIGITAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 64 IC352 8-759-662-66 IC TMP87C447U-1D99 IC353 8-759-234-20 IC TC7S08F IC354 8-759-643-42 IC CXD9511AQ IC356 8-759-488-94 IC IDT71V256SA15Y-TL IC357 8-759-655-94 IC HD64F2134FA20-777C IC359 8-759-482-20 IC IDT71V124S15Y-TL IC360 8-759-482-20 IC IDT71V124S15Y-TL IC361 8-759-035-93 IC SC7S32F IC362 8-759-237-43 IC TC74HC393AF(EL) IC363 8-759-031-84 IC SC7S04F IC364 8-759-525-10 IC TC7SET08F(TE85L) < JACK > J301 1-568-750-21 JACK, PIN (1P SHIELD TYPE)(DVD COAX IN) J302 1-568-750-21 JACK, PIN (1P SHIELD TYPE)(CD COAX IN) < COIL > L301 1-410-385-11 INDUCTOR CHIP 22uH < TRANSISTOR > Q301 8-729-018-59 TRANSISTOR 2SB1375-LC Q302 8-729-018-59 TRANSISTOR 2SB1375-LC Q303 8-729-421-22 TRANSISTOR UN2211 Q304 8-729-424-08 TRANSISTOR UN2111 Q305 8-729-421-22 TRANSISTOR UN2211 Q306 8-729-018-60 TRANSISTOR 2SD2012-LC Q307 8-729-024-91 TRANSISTOR 2SC2712-GL-TE85L Q308 8-729-024-91 TRANSISTOR 2SC2712-GL-TE85L Q309 8-729-216-22 TRANSISTOR 2SA1162-G Q310 8-729-018-60 TRANSISTOR 2SD2012-LC Q311 8-729-421-22 TRANSISTOR UN2211 < RESISTOR > R301 1-216-635-11 METAL CHIP 220 0.5% 1/10W R302 1-216-635-11 METAL CHIP 220 0.5% 1/10W R303 1-208-462-41 RES-CHIP 10K 2% 1/10W R304 1-208-462-41 RES-CHIP 10K 2% 1/10W R305 1-208-462-41 RES-CHIP 10K 2% 1/10W R306 1-208-462-41 RES-CHIP 10K 2% 1/10W R307 1-259-995-11 CARBON MELF 1K 2% 1/8W R308 1-259-983-11 CARBON MELF 100 2% 1/8W R309 1-259-983-11 CARBON MELF 100 2% 1/8W R310 1-260-004-11 CARBON MELF 4.7K 2% 1/8W R311 1-260-004-11 CARBON MELF 4.7K 2% 1/8W R312 1-260-004-11 CARBON MELF 4.7K 2% 1/8W R313 1-260-004-11 CARBON MELF 4.7K 2% 1/8W R314 1-260-004-11 CARBON MELF 4.7K 2% 1/8W R315 1-260-004-11 CARBON MELF 4.7K 2% 1/8W R316 1-208-755-11 RES-CHIP 75 2% 1/10W R317 1-260-004-11 CARBON MELF 4.7K 2% 1/8W R318 1-260-004-11 CARBON MELF 4.7K 2% 1/8W R319 1-260-004-11 CARBON MELF 4.7K 2% 1/8W R320 1-260-004-11 CARBON MELF 4.7K 2% 1/8W R321 1-260-004-11 CARBON MELF 4.7K 2% 1/8W R322 1-260-004-11 CARBON MELF 4.7K 2% 1/8W R323 1-259-995-11 CARBON MELF 1K 2% 1/8W R324 1-259-926-11 CARBON MELF 2K 2% 1/8W R325 1-259-926-11 CARBON MELF 2K 2% 1/8W R326 1-259-926-11 CARBON MELF 2K 2% 1/8W R327 1-259-926-11 CARBON MELF 2K 2% 1/8W R328 1-259-926-11 CARBON MELF 2K 2% 1/8W R329 1-259-926-11 CARBON MELF 2K 2% 1/8W R330 1-259-927-11 CARBON MELF 2.4K 2% 1/8W R331 1-259-927-11 CARBON MELF 2.4K 2% 1/8W R332 1-259-927-11 CARBON MELF 2.4K 2% 1/8W R333 1-259-927-11 CARBON MELF 2.4K 2% 1/8W R334 1-259-927-11 CARBON MELF 2.4K 2% 1/8W R335 1-259-927-11 CARBON MELF 2.4K 2% 1/8W 0R336 1-217-785-11 FUSIBLE 15 5% 5W 0R337 1-217-786-11 FUSIBLE 22 5% 5W R338 1-216-627-11 METAL CHIP 100 0.5% 1/10W 0R339 1-217-784-11 FUSIBLE 10 5% 5W R340 1-220-753-11 CEMENTED 6.8 5% 5W 0R341 1-217-787-11 FUSIBLE 33 5% 5W R342 1-259-983-11 CARBON MELF 100 2% 1/8W R343 1-208-755-11 RES-CHIP 75 2% 1/10W R344 1-259-983-11 CARBON MELF 100 2% 1/8W R345 1-208-462-41 RES-CHIP 10K 2% 1/10W R346 1-208-462-41 RES-CHIP 10K 2% 1/10W R347 1-208-462-41 RES-CHIP 10K 2% 1/10W R348 1-208-462-41 RES-CHIP 10K 2% 1/10W R349 1-208-462-41 RES-CHIP 10K 2% 1/10W R350 1-208-462-41 RES-CHIP 10K 2% 1/10W R351 1-259-979-11 CARBON MELF 47 2% 1/8W R352 1-259-995-11 CARBON MELF 1K 2% 1/8W R353 1-208-437-41 RES-CHIP 1K 2% 1/10W R354 1-208-462-41 RES-CHIP 10K 2% 1/10W R355 1-208-437-41 RES-CHIP 1K 2% 1/10W R363 1-216-627-11 METAL CHIP 100 0.5% 1/10W R364 1-208-425-41 RES-CHIP 330 2% 1/10W R365 1-208-425-41 RES-CHIP 330 2% 1/10W R366 1-208-425-41 RES-CHIP 330 2% 1/10W R367 1-208-425-41 RES-CHIP 330 2% 1/10W R368 1-208-462-41 RES-CHIP 10K 2% 1/10W R369 1-208-462-41 RES-CHIP 10K 2% 1/10W R370 1-208-425-41 RES-CHIP 330 2% 1/10W R371 1-208-425-41 RES-CHIP 330 2% 1/10W R372 1-208-425-41 RES-CHIP 330 2% 1/10W R373 1-208-425-41 RES-CHIP 330 2% 1/10W R374 1-216-627-11 METAL CHIP 100 0.5% 1/10W R375 1-208-425-41 RES-CHIP 330 2% 1/10W R376 1-208-425-41 RES-CHIP 330 2% 1/10W R377 1-208-425-41 RES-CHIP 330 2% 1/10W R378 1-208-425-41 RES-CHIP 330 2% 1/10W R379 1-216-627-11 METAL CHIP 100 0.5% 1/10W R380 1-208-425-41 RES-CHIP 330 2% 1/10W R381 1-208-425-41 RES-CHIP 330 2% 1/10W R382 1-208-425-41 RES-CHIP 330 2% 1/10W R383 1-208-425-41 RES-CHIP 330 2% 1/10W R384 1-216-627-11 METAL CHIP 100 0.5% 1/10W R385 1-218-776-11 METAL CHIP 1M 0.5% 1/10W R386 1-208-776-11 RES-CHIP 560 2% 1/10W R387 1-216-627-11 METAL CHIP 100 0.5% 1/10W The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. DIGITAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 65 R448 1-216-627-11 METAL CHIP 100 0.5% 1/10W R449 1-216-627-11 METAL CHIP 100 0.5% 1/10W R450 1-216-635-11 METAL CHIP 220 0.5% 1/10W R451 1-259-979-11 CARBON MELF 47 2% 1/8W R452 1-259-979-11 CARBON MELF 47 2% 1/8W R453 1-259-995-11 CARBON MELF 1K 2% 1/8W R454 1-216-627-11 METAL CHIP 100 0.5% 1/10W R455 1-216-627-11 METAL CHIP 100 0.5% 1/10W R456 1-216-627-11 METAL CHIP 100 0.5% 1/10W R457 1-216-627-11 METAL CHIP 100 0.5% 1/10W R458 1-216-627-11 METAL CHIP 100 0.5% 1/10W R459 1-216-627-11 METAL CHIP 100 0.5% 1/10W R460 1-216-627-11 METAL CHIP 100 0.5% 1/10W R461 1-216-627-11 METAL CHIP 100 0.5% 1/10W R462 1-216-627-11 METAL CHIP 100 0.5% 1/10W R463 1-216-627-11 METAL CHIP 100 0.5% 1/10W R464 1-216-627-11 METAL CHIP 100 0.5% 1/10W R465 1-208-445-41 RES-CHIP 2.2K 2% 1/10W R466 1-208-445-41 RES-CHIP 2.2K 2% 1/10W R467 1-208-462-41 RES-CHIP 10K 2% 1/10W R468 1-208-518-41 RES-CHIP 22K 2% 1/10W R469 1-208-518-41 RES-CHIP 22K 2% 1/10W R470 1-208-518-41 RES-CHIP 22K 2% 1/10W R471 1-208-462-41 RES-CHIP 10K 2% 1/10W R472 1-208-462-41 RES-CHIP 10K 2% 1/10W R473 1-208-462-41 RES-CHIP 10K 2% 1/10W R474 1-208-462-41 RES-CHIP 10K 2% 1/10W R475 1-208-462-41 RES-CHIP 10K 2% 1/10W R476 1-208-462-41 RES-CHIP 10K 2% 1/10W R477 1-208-462-41 RES-CHIP 10K 2% 1/10W R478 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R479 METAL CHIP 680 0.5% 1/10W R480 1-208-462-41 RES-CHIP 10K 2% 1/10W R481 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R482 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R483 1-208-462-41 RES-CHIP 10K 2% 1/10W R484 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R485 1-208-518-41 RES-CHIP 22K 2% 1/10W R486 1-208-518-41 RES-CHIP 22K 2% 1/10W R487 1-208-518-41 RES-CHIP 22K 2% 1/10W R488 1-208-462-41 RES-CHIP 10K 2% 1/10W R489 1-216-699-11 METAL CHIP 100K 0.5% 1/10W R490 1-208-462-41 RES-CHIP 10K 2% 1/10W R491 1-208-462-41 RES-CHIP 10K 2% 1/10W 0R492 1-212-865-00 FUSIBLE 22 5% 1/4W R493 1-208-462-41 RES-CHIP 10K 2% 1/10W R494 1-208-462-41 RES-CHIP 10K 2% 1/10W R495 1-208-462-41 RES-CHIP 10K 2% 1/10W R496 1-208-462-41 RES-CHIP 10K 2% 1/10W R497 1-208-462-41 RES-CHIP 10K 2% 1/10W R498 1-208-462-41 RES-CHIP 10K 2% 1/10W R499 1-208-462-41 RES-CHIP 10K 2% 1/10W R500 1-208-462-41 RES-CHIP 10K 2% 1/10W R501 1-208-425-41 RES-CHIP 330 2% 1/10W R502 1-208-425-41 RES-CHIP 330 2% 1/10W R388 1-216-627-11 METAL CHIP 100 0.5% 1/10W R390 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R391 1-208-445-41 RES-CHIP 2.2K 2% 1/10W R392 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R393 1-208-445-41 RES-CHIP 2.2K 2% 1/10W R394 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R395 1-208-445-41 RES-CHIP 2.2K 2% 1/10W R396 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R397 1-208-445-41 RES-CHIP 2.2K 2% 1/10W R398 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R399 1-208-445-41 RES-CHIP 2.2K 2% 1/10W R400 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R401 1-208-445-41 RES-CHIP 2.2K 2% 1/10W R402 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R403 1-208-445-41 RES-CHIP 2.2K 2% 1/10W R404 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R405 1-208-445-41 RES-CHIP 2.2K 2% 1/10W R406 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R407 1-208-445-41 RES-CHIP 2.2K 2% 1/10W R408 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R409 1-208-445-41 RES-CHIP 2.2K 2% 1/10W R410 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R411 1-208-445-41 RES-CHIP 2.2K 2% 1/10W R412 1-208-462-41 RES-CHIP 10K 2% 1/10W R413 1-208-799-11 RES-CHIP 5.1K 2% 1/10W R414 1-208-462-41 RES-CHIP 10K 2% 1/10W R415 1-208-755-11 RES-CHIP 75 2% 1/10W R416 1-208-799-11 RES-CHIP 5.1K 2% 1/10W R417 1-216-673-11 METAL CHIP 8.2K 0.5% 1/10W R418 1-218-776-11 METAL CHIP 1M 0.5% 1/10W R419 1-208-462-41 RES-CHIP 10K 2% 1/10W R420 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R421 1-208-462-41 RES-CHIP 10K 2% 1/10W R422 1-208-462-41 RES-CHIP 10K 2% 1/10W R423 1-208-462-41 RES-CHIP 10K 2% 1/10W R424 1-216-603-11 METAL CHIP 10 0.5% 1/10W R425 1-208-462-41 RES-CHIP 10K 2% 1/10W R426 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R427 1-208-462-41 RES-CHIP 10K 2% 1/10W R428 1-218-776-11 METAL CHIP 1M 0.5% 1/10W R431 1-208-462-41 RES-CHIP 10K 2% 1/10W R434 1-216-627-11 METAL CHIP 100 0.5% 1/10W R435 1-216-627-11 METAL CHIP 100 0.5% 1/10W R436 1-208-437-41 RES-CHIP 1K 2% 1/10W R437 1-208-437-41 RES-CHIP 1K 2% 1/10W R438 1-208-437-41 RES-CHIP 1K 2% 1/10W R439 1-208-437-41 RES-CHIP 1K 2% 1/10W R440 1-208-437-41 RES-CHIP 1K 2% 1/10W R441 1-208-437-41 RES-CHIP 1K 2% 1/10W R442 1-216-627-11 METAL CHIP 100 0.5% 1/10W R443 1-208-462-41 RES-CHIP 10K 2% 1/10W R444 1-216-627-11 METAL CHIP 100 0.5% 1/10W R445 1-216-627-11 METAL CHIP 100 0.5% 1/10W R446 1-216-627-11 METAL CHIP 100 0.5% 1/10W R447 1-216-627-11 METAL CHIP 100 0.5% 1/10W The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. DIGITAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 66 R503 1-208-425-41 RES-CHIP 330 2% 1/10W R504 1-208-425-41 RES-CHIP 330 2% 1/10W R505 1-208-425-41 RES-CHIP 330 2% 1/10W R506 1-208-425-41 RES-CHIP 330 2% 1/10W R507 1-208-425-41 RES-CHIP 330 2% 1/10W R508 1-208-425-41 RES-CHIP 330 2% 1/10W R509 1-208-425-41 RES-CHIP 330 2% 1/10W R510 1-208-425-41 RES-CHIP 330 2% 1/10W R511 1-208-425-41 RES-CHIP 330 2% 1/10W R512 1-208-425-41 RES-CHIP 330 2% 1/10W R513 1-208-425-41 RES-CHIP 330 2% 1/10W R514 1-216-635-11 METAL CHIP 220 0.5% 1/10W R515 1-208-425-41 RES-CHIP 330 2% 1/10W R516 1-208-425-41 RES-CHIP 330 2% 1/10W R517 1-208-425-41 RES-CHIP 330 2% 1/10W R518 1-208-425-41 RES-CHIP 330 2% 1/10W R519 1-216-627-11 METAL CHIP 100 0.5% 1/10W R520 1-216-627-11 METAL CHIP 100 0.5% 1/10W R521 1-208-425-41 RES-CHIP 330 2% 1/10W R522 1-208-425-41 RES-CHIP 330 2% 1/10W R523 1-208-425-41 RES-CHIP 330 2% 1/10W R524 1-208-425-41 RES-CHIP 330 2% 1/10W R525 1-216-635-11 METAL CHIP 220 0.5% 1/10W R526 1-216-635-11 METAL CHIP 220 0.5% 1/10W R527 1-216-635-11 METAL CHIP 220 0.5% 1/10W R528 1-216-635-11 METAL CHIP 220 0.5% 1/10W R529 1-216-627-11 METAL CHIP 100 0.5% 1/10W R530 1-216-627-11 METAL CHIP 100 0.5% 1/10W R531 1-216-627-11 METAL CHIP 100 0.5% 1/10W R532 1-216-627-11 METAL CHIP 100 0.5% 1/10W R533 1-216-627-11 METAL CHIP 100 0.5% 1/10W R534 1-216-627-11 METAL CHIP 100 0.5% 1/10W R535 1-216-627-11 METAL CHIP 100 0.5% 1/10W R536 1-216-627-11 METAL CHIP 100 0.5% 1/10W R537 1-216-627-11 METAL CHIP 100 0.5% 1/10W R538 1-216-627-11 METAL CHIP 100 0.5% 1/10W R539 1-216-627-11 METAL CHIP 100 0.5% 1/10W R540 1-216-627-11 METAL CHIP 100 0.5% 1/10W R541 1-216-627-11 METAL CHIP 100 0.5% 1/10W R542 1-216-627-11 METAL CHIP 100 0.5% 1/10W R543 1-216-627-11 METAL CHIP 100 0.5% 1/10W R544 1-216-627-11 METAL CHIP 100 0.5% 1/10W R545 1-216-627-11 METAL CHIP 100 0.5% 1/10W R546 1-216-627-11 METAL CHIP 100 0.5% 1/10W R547 1-216-627-11 METAL CHIP 100 0.5% 1/10W R548 1-216-627-11 METAL CHIP 100 0.5% 1/10W R549 1-216-627-11 METAL CHIP 100 0.5% 1/10W R550 1-216-627-11 METAL CHIP 100 0.5% 1/10W R551 1-216-627-11 METAL CHIP 100 0.5% 1/10W R552 1-216-627-11 METAL CHIP 100 0.5% 1/10W R553 1-208-425-41 RES-CHIP 330 2% 1/10W R554 1-208-425-41 RES-CHIP 330 2% 1/10W R555 1-208-425-41 RES-CHIP 330 2% 1/10W R556 1-218-776-11 METAL CHIP 1M 0.5% 1/10W R557 1-208-425-41 RES-CHIP 330 2% 1/10W R558 1-208-425-41 RES-CHIP 330 2% 1/10W R559 1-208-425-41 RES-CHIP 330 2% 1/10W R560 1-208-425-41 RES-CHIP 330 2% 1/10W R561 1-218-776-11 METAL CHIP 1M 0.5% 1/10W R562 1-208-425-41 RES-CHIP 330 2% 1/10W R563 1-208-425-41 RES-CHIP 330 2% 1/10W R564 1-208-425-41 RES-CHIP 330 2% 1/10W R565 1-208-425-41 RES-CHIP 330 2% 1/10W R566 1-208-425-41 RES-CHIP 330 2% 1/10W R567 1-208-425-41 RES-CHIP 330 2% 1/10W R568 1-208-425-41 RES-CHIP 330 2% 1/10W R569 1-208-425-41 RES-CHIP 330 2% 1/10W R570 1-208-425-41 RES-CHIP 330 2% 1/10W R571 1-208-425-41 RES-CHIP 330 2% 1/10W R572 1-208-425-41 RES-CHIP 330 2% 1/10W R573 1-208-425-41 RES-CHIP 330 2% 1/10W R574 1-208-425-41 RES-CHIP 330 2% 1/10W R575 1-208-425-41 RES-CHIP 330 2% 1/10W R576 1-208-425-41 RES-CHIP 330 2% 1/10W R577 1-208-425-41 RES-CHIP 330 2% 1/10W R578 1-208-425-41 RES-CHIP 330 2% 1/10W R579 1-208-425-41 RES-CHIP 330 2% 1/10W R580 1-216-627-11 METAL CHIP 100 0.5% 1/10W R581 1-215-863-11 METAL OXIDE 100 5% 1W R582 1-216-214-00 RES-CHIP 4.7K 2% 1/8W R583 1-208-425-41 RES-CHIP 330 2% 1/10W R584 1-208-425-41 RES-CHIP 330 2% 1/10W R586 1-208-425-41 RES-CHIP 330 2% 1/10W R587 1-208-425-41 RES-CHIP 330 2% 1/10W R588 1-414-232-22 INDUCTOR CHIP 0UH R589 1-208-425-41 RES-CHIP 330 2% 1/10W R590 1-208-425-41 RES-CHIP 330 2% 1/10W < VIBRATOR > X301 1-781-465-21 VIBRATOR, CRYSTAL (12.288 MHz) X302 1-781-464-21 VIBRATOR, CERAMIC (10 MHz) X303 1-781-464-21 VIBRATOR, CERAMIC (10 MHz) X304 1-767-938-21 VIBRATOR, CERAMIC (7.28 MHz) X305 1-781-088-21 VIBRATOR, CERAMIC (20 MHz) ************************************************************ A-4426-440-A DISPLAY BOARD, COMPLETE *********************** 4-222-051-01 HOLDER (FL/L) * 4-921-941-01 CUSHION (FL) * 4-990-797-01 HOLDER (FL) < CAPACITOR > C101 1-127-736-11 ELECT MELF 10uF 20% 52V C102 1-165-319-11 CERAMIC CHIP 0.1uF 50V C107 1-127-736-11 ELECT MELF 10uF 20% 52V C115 1-127-736-11 ELECT MELF 10uF 20% 52V C116 1-163-109-00 CERAMIC CHIP 47PF 5% 50V C117 1-165-319-11 CERAMIC CHIP 0.1uF 50V C118 1-165-319-11 CERAMIC CHIP 0.1uF 50V C119 1-128-840-11 ELECT 47uF 20% 16V C120 1-128-840-11 ELECT 47uF 20% 16V C121 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C122 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C123 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V C124 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V C125 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V C126 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V DIGITAL DISPLAY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 67 C127 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C128 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C129 1-165-319-11 CERAMIC CHIP 0.1uF 50V C130 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C131 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C133 1-163-259-91 CERAMIC CHIP 220PF 5% 50V C134 1-163-259-91 CERAMIC CHIP 220PF 5% 50V C135 1-163-259-91 CERAMIC CHIP 220PF 5% 50V C136 1-163-259-91 CERAMIC CHIP 220PF 5% 50V C137 1-126-916-11 ELECT 1000uF 20% 6.3V C138 1-126-916-11 ELECT 1000uF 20% 6.3V C139 1-126-916-11 ELECT 1000uF 20% 6.3V C140 1-126-916-11 ELECT 1000uF 20% 6.3V C146 1-165-319-11 CERAMIC CHIP 0.1uF 50V C147 1-165-319-11 CERAMIC CHIP 0.1uF 50V C148 1-165-319-11 CERAMIC CHIP 0.1uF 50V C149 1-165-319-11 CERAMIC CHIP 0.1uF 50V C150 1-165-319-11 CERAMIC CHIP 0.1uF 50V C151 1-165-319-11 CERAMIC CHIP 0.1uF 50V C152 1-165-319-11 CERAMIC CHIP 0.1uF 50V C153 1-165-319-11 CERAMIC CHIP 0.1uF 50V C154 1-165-319-11 CERAMIC CHIP 0.1uF 50V C155 1-165-319-11 CERAMIC CHIP 0.1uF 50V C158 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C495 1-163-101-00 CERAMIC CHIP 22PF 5% 50V < CONNECTOR > * CN101 1-564-520-11 PLUG, CONNECTOR 5P * CN102 1-568-946-11 PIN, CONNECTOR 8P * CN103 1-568-941-11 PIN, CONNECTOR 3P CN104 1-506-481-11 PIN, CONNECTOR 2P * CN105 1-564-517-11 PLUG, CONNECTOR 2P CN106 1-691-644-11 SOCKET, CONNECTOR 7P CN107 1-770-636-11 CONNECTOR, FFC/FPC 5P CN110 1-784-792-11 CONNECTOR, FFC 31P * CN118 1-568-944-11 PIN, CONNECTOR 6P < DIODE > D102 8-719-105-82 DIODE RD5.1M-B2 D111 8-719-820-05 DIODE 1SS181 D112 8-719-820-05 DIODE 1SS181 < FERRITE BEAD > FB101 1-469-365-21 FERRITE 0UH FB102 1-469-365-21 FERRITE 0UH FB103 1-469-365-21 FERRITE 0UH FB104 1-469-365-21 FERRITE 0UH FB105 1-469-365-21 FERRITE 0UH < FILTER > FL101 1-517-781-21 INDICATOR TUBE, FLUORESCENT FL102 1-517-905-11 INDICATOR TUBE, FLUORESCENT < IC > IC101 8-759-633-65 IC M54641L IC102 8-759-640-41 IC BR24C08F-WE2 IC103 8-759-655-95 IC HD64F2134FA20-777D IC107 8-759-642-81 IC MSM9202-11GS-KDR1 IC108 8-759-075-35 IC TD62C950RF IC109 8-759-999-53 IC MSC1164GS-K IC111 8-759-035-93 IC SC7S32F < TRANSISTOR > Q101 8-729-422-38 TRANSISTOR 2SB709A-S Q102 8-729-422-38 TRANSISTOR 2SB709A-S Q103 8-729-422-38 TRANSISTOR 2SB709A-S Q104 8-729-422-38 TRANSISTOR 2SB709A-S Q105 8-729-230-49 TRANSISTOR 2SC2712-YG Q106 8-729-230-49 TRANSISTOR 2SC2712-YG Q107 8-729-230-49 TRANSISTOR 2SC2712-YG Q108 8-729-230-49 TRANSISTOR 2SC2712-YG Q112 8-729-424-18 TRANSISTOR UN2113-TX < RESISTOR > R101 1-208-462-41 RES-CHIP 10K 2% 1/10W R105 1-208-462-41 RES-CHIP 10K 2% 1/10W R111 1-216-380-11 METAL OXIDE 8.2 5% 2W R118 1-218-776-11 METAL CHIP 1M 0.5% 1/10W R120 1-208-445-41 RES-CHIP 2.2K 2% 1/10W R121 1-208-445-41 RES-CHIP 2.2K 2% 1/10W R122 1-208-445-41 RES-CHIP 2.2K 2% 1/10W R123 1-208-445-41 RES-CHIP 2.2K 2% 1/10W R125 1-216-635-11 METAL CHIP 220 0.5% 1/10W R126 1-216-619-11 METAL CHIP 47 0.5% 1/10W R127 1-216-619-11 METAL CHIP 47 0.5% 1/10W R128 1-216-298-00 METAL CHIP 2.2 5% 1/10W R129 1-216-298-00 METAL CHIP 2.2 5% 1/10W R136 1-208-449-41 RES-CHIP 3.3K 2% 1/10W R138 1-208-462-41 RES-CHIP 10K 2% 1/10W R139 1-208-462-41 RES-CHIP 10K 2% 1/10W R140 1-208-462-41 RES-CHIP 10K 2% 1/10W R141 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R142 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R143 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R144 1-208-462-41 RES-CHIP 10K 2% 1/10W R145 1-208-445-41 RES-CHIP 2.2K 2% 1/10W R146 1-216-655-11 METAL CHIP 1.5K 0.5% 1/10W R147 1-208-462-41 RES-CHIP 10K 2% 1/10W R148 1-216-655-11 METAL CHIP 1.5K 0.5% 1/10W R149 1-208-437-41 RES-CHIP 1K 2% 1/10W R150 1-208-437-41 RES-CHIP 1K 2% 1/10W R151 1-216-647-11 METAL CHIP 680 0.5% 1/10W R152 1-216-647-11 METAL CHIP 680 0.5% 1/10W R153 1-208-774-11 RES-CHIP 470 2% 1/10W R154 1-208-774-11 RES-CHIP 470 2% 1/10W R155 1-208-425-41 RES-CHIP 330 2% 1/10W R156 1-208-425-41 RES-CHIP 330 2% 1/10W R157 1-208-462-41 RES-CHIP 10K 2% 1/10W R158 1-208-462-41 RES-CHIP 10K 2% 1/10W R159 1-208-462-41 RES-CHIP 10K 2% 1/10W R160 1-208-449-41 RES-CHIP 3.3K 2% 1/10W R161 1-208-462-41 RES-CHIP 10K 2% 1/10W R162 1-208-462-41 RES-CHIP 10K 2% 1/10W R163 1-208-462-41 RES-CHIP 10K 2% 1/10W R164 1-208-462-41 RES-CHIP 10K 2% 1/10W R165 1-208-462-41 RES-CHIP 10K 2% 1/10W R166 1-208-462-41 RES-CHIP 10K 2% 1/10W R167 1-208-462-41 RES-CHIP 10K 2% 1/10W R168 1-208-462-41 RES-CHIP 10K 2% 1/10W DISPLAY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 68 R169 1-208-462-41 RES-CHIP 10K 2% 1/10W R170 1-208-462-41 RES-CHIP 10K 2% 1/10W R171 1-208-462-41 RES-CHIP 10K 2% 1/10W R172 1-208-462-41 RES-CHIP 10K 2% 1/10W R173 1-216-627-11 METAL CHIP 100 0.5% 1/10W R174 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R175 1-216-627-11 METAL CHIP 100 0.5% 1/10W R176 1-208-462-41 RES-CHIP 10K 2% 1/10W R177 1-208-462-41 RES-CHIP 10K 2% 1/10W R178 1-208-462-41 RES-CHIP 10K 2% 1/10W R179 1-208-462-41 RES-CHIP 10K 2% 1/10W R180 1-208-462-41 RES-CHIP 10K 2% 1/10W R181 1-208-462-41 RES-CHIP 10K 2% 1/10W R182 1-208-462-41 RES-CHIP 10K 2% 1/10W R183 1-208-810-11 RES-CHIP 15K 2% 1/10W R189 1-216-619-11 METAL CHIP 47 0.5% 1/10W R190 1-216-619-11 METAL CHIP 47 0.5% 1/10W R191 1-216-619-11 METAL CHIP 47 0.5% 1/10W R192 1-216-619-11 METAL CHIP 47 0.5% 1/10W R193 1-216-619-11 METAL CHIP 47 0.5% 1/10W R194 1-216-619-11 METAL CHIP 47 0.5% 1/10W R195 1-216-619-11 METAL CHIP 47 0.5% 1/10W R196 1-216-619-11 METAL CHIP 47 0.5% 1/10W R197 1-216-298-00 METAL CHIP 2.2 5% 1/10W R198 1-216-298-00 METAL CHIP 2.2 5% 1/10W R199 1-216-298-00 METAL CHIP 2.2 5% 1/10W R200 1-216-298-00 METAL CHIP 2.2 5% 1/10W R201 1-208-810-11 RES-CHIP 15K 2% 1/10W R202 1-208-810-11 RES-CHIP 15K 2% 1/10W R203 1-208-810-11 RES-CHIP 15K 2% 1/10W R204 1-208-810-11 RES-CHIP 15K 2% 1/10W R205 1-208-774-11 RES-CHIP 470 2% 1/10W R206 1-208-774-11 RES-CHIP 470 2% 1/10W R207 1-208-774-11 RES-CHIP 470 2% 1/10W R208 1-208-774-11 RES-CHIP 470 2% 1/10W R209 1-208-462-41 RES-CHIP 10K 2% 1/10W R210 1-208-462-41 RES-CHIP 10K 2% 1/10W R211 1-208-462-41 RES-CHIP 10K 2% 1/10W R212 1-208-462-41 RES-CHIP 10K 2% 1/10W R213 1-208-462-41 RES-CHIP 10K 2% 1/10W R214 1-208-462-41 RES-CHIP 10K 2% 1/10W R215 1-208-462-41 RES-CHIP 10K 2% 1/10W R216 1-208-462-41 RES-CHIP 10K 2% 1/10W R217 1-208-462-41 RES-CHIP 10K 2% 1/10W R218 1-208-462-41 RES-CHIP 10K 2% 1/10W R219 1-208-462-41 RES-CHIP 10K 2% 1/10W R220 1-208-462-41 RES-CHIP 10K 2% 1/10W R221 1-208-462-41 RES-CHIP 10K 2% 1/10W R222 1-208-462-41 RES-CHIP 10K 2% 1/10W R223 1-208-462-41 RES-CHIP 10K 2% 1/10W R224 1-208-462-41 RES-CHIP 10K 2% 1/10W R225 1-216-613-11 METAL CHIP 27 0.5% 1/10W R226 1-216-613-11 METAL CHIP 27 0.5% 1/10W R227 1-216-613-11 METAL CHIP 27 0.5% 1/10W R228 1-216-613-11 METAL CHIP 27 0.5% 1/10W R229 1-216-613-11 METAL CHIP 27 0.5% 1/10W R230 1-216-613-11 METAL CHIP 27 0.5% 1/10W R233 1-216-627-11 METAL CHIP 100 0.5% 1/10W R234 1-208-774-11 RES-CHIP 470 2% 1/10W R235 1-208-774-11 RES-CHIP 470 2% 1/10W R236 1-208-774-11 RES-CHIP 470 2% 1/10W R237 1-208-774-11 RES-CHIP 470 2% 1/10W R238 1-208-774-11 RES-CHIP 470 2% 1/10W R239 1-208-774-11 RES-CHIP 470 2% 1/10W R240 1-208-774-11 RES-CHIP 470 2% 1/10W R241 1-208-774-11 RES-CHIP 470 2% 1/10W R242 1-216-627-11 METAL CHIP 100 0.5% 1/10W R243 1-216-627-11 METAL CHIP 100 0.5% 1/10W R244 1-216-627-11 METAL CHIP 100 0.5% 1/10W R245 1-216-627-11 METAL CHIP 100 0.5% 1/10W R246 1-216-627-11 METAL CHIP 100 0.5% 1/10W R247 1-216-627-11 METAL CHIP 100 0.5% 1/10W R248 1-216-627-11 METAL CHIP 100 0.5% 1/10W R249 1-216-627-11 METAL CHIP 100 0.5% 1/10W R250 1-216-627-11 METAL CHIP 100 0.5% 1/10W R251 1-216-627-11 METAL CHIP 100 0.5% 1/10W R252 1-216-627-11 METAL CHIP 100 0.5% 1/10W R253 1-216-627-11 METAL CHIP 100 0.5% 1/10W R254 1-216-627-11 METAL CHIP 100 0.5% 1/10W R255 1-216-627-11 METAL CHIP 100 0.5% 1/10W R256 1-216-627-11 METAL CHIP 100 0.5% 1/10W R257 1-216-627-11 METAL CHIP 100 0.5% 1/10W R258 1-216-627-11 METAL CHIP 100 0.5% 1/10W R259 1-216-627-11 METAL CHIP 100 0.5% 1/10W R260 1-216-627-11 METAL CHIP 100 0.5% 1/10W R261 1-216-627-11 METAL CHIP 100 0.5% 1/10W R262 1-216-627-11 METAL CHIP 100 0.5% 1/10W R263 1-216-627-11 METAL CHIP 100 0.5% 1/10W R264 1-216-627-11 METAL CHIP 100 0.5% 1/10W R265 1-216-627-11 METAL CHIP 100 0.5% 1/10W R266 1-216-627-11 METAL CHIP 100 0.5% 1/10W R267 1-216-627-11 METAL CHIP 100 0.5% 1/10W R268 1-216-627-11 METAL CHIP 100 0.5% 1/10W R269 1-216-627-11 METAL CHIP 100 0.5% 1/10W R270 1-216-627-11 METAL CHIP 100 0.5% 1/10W R271 1-216-627-11 METAL CHIP 100 0.5% 1/10W R272 1-216-627-11 METAL CHIP 100 0.5% 1/10W R273 1-216-627-11 METAL CHIP 100 0.5% 1/10W R274 1-216-627-11 METAL CHIP 100 0.5% 1/10W R275 1-216-627-11 METAL CHIP 100 0.5% 1/10W R276 1-216-627-11 METAL CHIP 100 0.5% 1/10W R277 1-216-627-11 METAL CHIP 100 0.5% 1/10W R278 1-216-627-11 METAL CHIP 100 0.5% 1/10W R279 1-216-627-11 METAL CHIP 100 0.5% 1/10W R280 1-216-627-11 METAL CHIP 100 0.5% 1/10W R281 1-216-627-11 METAL CHIP 100 0.5% 1/10W R282 1-216-627-11 METAL CHIP 100 0.5% 1/10W R283 1-216-627-11 METAL CHIP 100 0.5% 1/10W R287 1-216-627-11 METAL CHIP 100 0.5% 1/10W < SWITCH > S118 1-762-875-21 SWITCH, KEYBOARD(TUNER PRESET-) S119 1-762-875-21 SWITCH, KEYBOARD(SOUND FIELD PRESET-) S120 1-762-875-21 SWITCH, KEYBOARD(MODE-) S121 1-762-875-21 SWITCH, KEYBOARD(MEMORY) S122 1-762-875-21 SWITCH, KEYBOARD(FM/AM) S123 1-762-875-21 SWITCH, KEYBOARD(TUNER PRESET+) S124 1-762-875-21 SWITCH, KEYBOARD(SOUND FIELD PRESET+) S125 1-762-875-21 SWITCH, KEYBOARD(A.F.D) S126 1-762-875-21 SWITCH, KEYBOARD(MODE+) S127 1-762-875-21 SWITCH, KEYBOARD(2 CH) DISPLAY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 69 S128 1-762-875-21 SWITCH, KEYBOARD(ANALOG DIRECT) S129 1-762-875-21 SWITCH, KEYBOARD(EQ BANK) S130 1-762-875-21 SWITCH, KEYBOARD(5.1CH INPUT) < VIBRATOR > X101 1-781-088-21 VIBRATOR, CERAMIC (20 MHz) ************************************************************ A-4426-459-A E VOL BOARD, COMPLETE ********************* < BUS BAR > BB2001 1-568-129-11 BAR, BUS 8P < CAPACITOR > C1103 1-128-858-11 ELECT 22uF 20% 50V C1104 1-128-858-11 ELECT 22uF 20% 50V C1153 1-128-858-11 ELECT 22uF 20% 50V C1154 1-128-858-11 ELECT 22uF 20% 50V C2301 1-165-319-11 CERAMIC CHIP 0.1uF 50V C2302 1-102-121-00 CERAMIC 2200PF 10% 50V C2303 1-102-121-00 CERAMIC 2200PF 10% 50V C2304 1-107-504-11 CERAMIC 10PF 0.5PF 500V C2305 1-119-820-11 ELECT 1uF 20% 50V C2306 1-128-858-11 ELECT 22uF 20% 50V C2311 1-128-858-11 ELECT 22uF 20% 50V C2312 1-128-858-11 ELECT 22uF 20% 50V C2313 1-165-319-11 CERAMIC CHIP 0.1uF 50V C2314 1-165-319-11 CERAMIC CHIP 0.1uF 50V C2315 1-136-165-00 MYLAR 0.1uF 5% 50V C2316 1-136-165-00 MYLAR 0.1uF 5% 50V C2317 1-136-165-00 MYLAR 0.1uF 5% 50V C2319 1-165-319-11 CERAMIC CHIP 0.1uF 50V C2340 1-163-001-11 CERAMIC CHIP 220PF 10% 50V C2345 1-163-001-11 CERAMIC CHIP 220PF 10% 50V C2346 1-163-001-11 CERAMIC CHIP 220PF 10% 50V C2352 1-102-121-00 CERAMIC 2200PF 10% 50V C2353 1-102-121-00 CERAMIC 2200PF 10% 50V C2354 1-107-504-11 CERAMIC 10PF 0.5PF 500V C2355 1-119-820-11 ELECT 1uF 20% 50V C2356 1-128-858-11 ELECT 22uF 20% 50V C2361 1-128-858-11 ELECT 22uF 20% 50V C2362 1-128-858-11 ELECT 22uF 20% 50V C2400 1-163-001-11 CERAMIC CHIP 220PF 10% 50V C2401 1-128-858-11 ELECT 22uF 20% 50V C2402 1-128-858-11 ELECT 22uF 20% 50V C2403 1-128-858-11 ELECT 22uF 20% 50V C2404 1-107-504-11 CERAMIC 10PF 0.5PF 500V C2405 1-119-820-11 ELECT 1uF 20% 50V C2406 1-128-858-11 ELECT 22uF 20% 50V C2411 1-128-858-11 ELECT 22uF 20% 50V C2412 1-128-858-11 ELECT 22uF 20% 50V C2413 1-165-319-11 CERAMIC CHIP 0.1uF 50V C2414 1-165-319-11 CERAMIC CHIP 0.1uF 50V C2415 1-165-319-11 CERAMIC CHIP 0.1uF 50V C2451 1-128-860-11 ELECT 47uF 20% 50V C2452 1-128-858-11 ELECT 22uF 20% 50V C2453 1-128-858-11 ELECT 22uF 20% 50V C2454 1-107-504-11 CERAMIC 10PF 0.5PF 500V C2455 1-119-820-11 ELECT 1uF 20% 50V C2456 1-128-858-11 ELECT 22uF 20% 50V C2457 1-165-319-11 CERAMIC CHIP 0.1uF 50V C2458 1-165-319-11 CERAMIC CHIP 0.1uF 50V C2459 1-165-319-11 CERAMIC CHIP 0.1uF 50V C2462 1-128-858-11 ELECT 22uF 20% 50V C2500 1-163-001-11 CERAMIC CHIP 220PF 10% 50V C2501 1-128-858-11 ELECT 22uF 20% 50V C2502 1-128-858-11 ELECT 22uF 20% 50V C2503 1-128-858-11 ELECT 22uF 20% 50V C2504 1-107-504-11 CERAMIC 10PF 0.5PF 500V C2505 1-119-820-11 ELECT 1uF 20% 50V C2506 1-128-858-11 ELECT 22uF 20% 50V C2511 1-128-858-11 ELECT 22uF 20% 50V C2512 1-128-858-11 ELECT 22uF 20% 50V C2513 1-165-319-11 CERAMIC CHIP 0.1uF 50V C2514 1-165-319-11 CERAMIC CHIP 0.1uF 50V C2515 1-165-319-11 CERAMIC CHIP 0.1uF 50V C2551 1-128-858-11 ELECT 22uF 20% 50V C2552 1-128-858-11 ELECT 22uF 20% 50V C2553 1-128-858-11 ELECT 22uF 20% 50V C2554 1-107-504-11 CERAMIC 10PF 0.5PF 500V C2555 1-119-820-11 ELECT 1uF 20% 50V C2556 1-128-858-11 ELECT 22uF 20% 50V C2561 1-128-858-11 ELECT 22uF 20% 50V C2562 1-128-858-11 ELECT 22uF 20% 50V C3101 1-119-824-11 ELECT MELF 10uF 20% 50V C3102 1-119-824-11 ELECT MELF 10uF 20% 50V C3103 1-137-504-11 MYLAR 150PF 5% 50V C3104 1-137-504-11 MYLAR 150PF 5% 50V C3110 1-119-827-11 ELECT MELF 100uF 20% 25V C3111 1-136-165-00 MYLAR 0.1uF 5% 50V C3151 1-119-824-11 ELECT MELF 10uF 20% 50V C3152 1-119-824-11 ELECT MELF 10uF 20% 50V C3153 1-137-504-11 MYLAR 150PF 5% 50V C3154 1-137-504-11 MYLAR 150PF 5% 50V C3155 1-119-824-11 ELECT MELF 10uF 20% 50V C3156 1-136-165-00 MYLAR 0.1uF 5% 50V C3207 1-136-165-00 MYLAR 0.1uF 5% 50V C3208 1-136-165-00 MYLAR 0.1uF 5% 50V C3210 1-127-726-51 ELECT MELF 470uF 20% 25V C3260 1-127-726-51 ELECT MELF 470uF 20% 25V C3307 1-136-165-00 MYLAR 0.1uF 5% 50V C3308 1-136-165-00 MYLAR 0.1uF 5% 50V C3310 1-119-827-11 ELECT MELF 100uF 20% 25V C3311 1-119-804-21 ELECT 1000uF 20% 25V C3312 1-119-804-21 ELECT 1000uF 20% 25V C3357 1-136-165-00 MYLAR 0.1uF 5% 50V C3358 1-136-165-00 MYLAR 0.1uF 5% 50V C3360 1-119-827-11 ELECT MELF 100uF 20% 25V C3361 1-119-804-21 ELECT 1000uF 20% 25V C3362 1-119-804-21 ELECT 1000uF 20% 25V C3409 1-127-726-51 ELECT MELF 470uF 20% 25V C3457 1-136-165-00 MYLAR 0.1uF 5% 50V C3458 1-136-165-00 MYLAR 0.1uF 5% 50V C3459 1-127-726-51 ELECT MELF 470uF 20% 25V DISPLAY E VOL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 70 < CONNECTOR > CN2001 1-691-768-11 PLUG (MICRO CONNECTOR) 6P CN2002 1-691-771-11 PLUG (MICRO CONNECTOR) 9P CN2004 1-691-765-21 PLUG (MICRO CONNECTOR) 3P CN2005 1-779-768-11 SOCKET, CONNECTOR 29P CN2006 1-691-767-11 PLUG (MICRO CONNECTOR) 5P * CN2007 1-564-512-11 PLUG, CONNECTOR 9P * CN2008 1-564-507-11 PLUG, CONNECTOR 4P CN2010 1-691-765-21 PLUG (MICRO CONNECTOR) 3P CN2011 1-691-765-21 PLUG (MICRO CONNECTOR) 3P CN2012 1-691-765-31 PLUG (MICRO CONNECTOR) 3P CN2013 1-691-765-31 PLUG (MICRO CONNECTOR) 3P CN2014 1-691-765-11 PLUG (MICRO CONNECTOR) 3P CN2015 1-691-765-11 PLUG (MICRO CONNECTOR) 3P < DIODE > D2301 8-719-016-74 DIODE 1SS352 D2302 8-719-820-05 DIODE 1SS181 D2312 8-719-016-74 DIODE 1SS352 D2313 8-719-016-74 DIODE 1SS352 D2314 8-719-016-74 DIODE 1SS352 D2362 8-719-016-74 DIODE 1SS352 D2363 8-719-016-74 DIODE 1SS352 D2364 8-719-016-74 DIODE 1SS352 D2402 8-719-820-05 DIODE 1SS181 D2412 8-719-016-74 DIODE 1SS352 D2413 8-719-016-74 DIODE 1SS352 D2414 8-719-016-74 DIODE 1SS352 D2452 8-719-016-74 DIODE 1SS352 D2453 8-719-016-74 DIODE 1SS352 D2454 8-719-016-74 DIODE 1SS352 D2502 8-719-820-05 DIODE 1SS181 D2512 8-719-016-74 DIODE 1SS352 D2513 8-719-016-74 DIODE 1SS352 D2514 8-719-016-74 DIODE 1SS352 D2562 8-719-016-74 DIODE 1SS352 D2563 8-719-016-74 DIODE 1SS352 D2564 8-719-016-74 DIODE 1SS352 D2601 8-719-820-05 DIODE 1SS181 < IC > IC1104 8-759-711-85 IC NJM4580E-D IC2301 8-759-711-85 IC NJM4580E-D IC2302 8-759-711-85 IC NJM4580E-D IC2304 8-759-711-85 IC NJM4580E-D IC2305 8-759-655-98 IC TC9162AN IC2306 8-759-204-29 IC TC9163N IC2307 8-759-032-59 IC MC74HC595AF IC2308 8-759-032-59 IC MC74HC595AF IC2309 8-759-433-92 IC TC7W14F-TE12L IC2401 8-759-534-63 IC TC9299P IC2402 8-759-711-85 IC NJM4580E-D IC2403 8-759-711-85 IC NJM4580E-D IC2404 8-759-711-85 IC NJM4580E-D IC2405 8-759-711-85 IC NJM4580E-D IC2501 8-759-534-63 IC TC9299P IC2502 8-759-711-85 IC NJM4580E-D IC2503 8-759-711-85 IC NJM4580E-D IC2504 8-759-711-85 IC NJM4580E-D IC2505 8-759-711-85 IC NJM4580E-D IC2601 8-759-711-85 IC NJM4580E-D IC2602 8-759-711-85 IC NJM4580E-D IC2603 8-759-711-85 IC NJM4580E-D IC3105 8-759-604-35 IC M5F78M05L IC3205 8-759-231-59 IC TA7815S IC3305 8-759-604-40 IC M5F78M15 IC3306 8-759-604-46 IC M5F79M15 IC3455 8-759-245-87 IC TA7915S < TRANSISTOR > Q2301 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q2302 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q2303 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q2304 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q2305 8-729-424-08 TRANSISTOR UN2111 Q2306 8-729-421-19 TRANSISTOR UN2213 Q2307 8-729-424-08 TRANSISTOR UN2111 Q2308 8-729-421-19 TRANSISTOR UN2213 Q2310 8-729-424-08 TRANSISTOR UN2111 Q2311 8-729-421-19 TRANSISTOR UN2213 Q2312 8-729-424-08 TRANSISTOR UN2111 Q2313 8-729-421-19 TRANSISTOR UN2213 Q2314 8-729-424-08 TRANSISTOR UN2111 Q2315 8-729-421-19 TRANSISTOR UN2213 Q2351 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q2352 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q2353 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q2354 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q2401 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q2402 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q2403 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q2404 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q2410 8-729-424-08 TRANSISTOR UN2111 Q2411 8-729-421-19 TRANSISTOR UN2213 Q2412 8-729-424-08 TRANSISTOR UN2111 Q2413 8-729-421-19 TRANSISTOR UN2213 Q2414 8-729-424-08 TRANSISTOR UN2111 Q2415 8-729-421-19 TRANSISTOR UN2213 Q2451 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q2452 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q2453 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q2454 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q2460 8-729-424-08 TRANSISTOR UN2111 Q2461 8-729-421-19 TRANSISTOR UN2213 Q2462 8-729-424-08 TRANSISTOR UN2111 Q2463 8-729-421-19 TRANSISTOR UN2213 Q2464 8-729-424-08 TRANSISTOR UN2111 Q2465 8-729-421-19 TRANSISTOR UN2213 Q2501 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q2502 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q2503 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q2504 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q2510 8-729-424-08 TRANSISTOR UN2111 Q2511 8-729-421-19 TRANSISTOR UN2213 Q2512 8-729-424-08 TRANSISTOR UN2111 E VOL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 71 Q2513 8-729-421-19 TRANSISTOR UN2213 Q2514 8-729-424-08 TRANSISTOR UN2111 Q2515 8-729-421-19 TRANSISTOR UN2213 Q2551 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q2552 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q2553 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q2554 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q2601 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q2602 8-729-424-08 TRANSISTOR UN2111 Q2603 8-729-421-19 TRANSISTOR UN2213 Q2651 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q3156 8-729-107-46 TRANSISTOR 2SC3624A-L15 < RESISTOR > R1113 1-260-020-11 CARBON MELF 100K 2% 1/8W R1114 1-260-020-11 CARBON MELF 100K 2% 1/8W R1115 1-216-254-00 CARBON MELF 220K 2% 1/8W R1163 1-260-020-11 CARBON MELF 100K 2% 1/8W R1164 1-260-020-11 CARBON MELF 100K 2% 1/8W R1165 1-216-254-00 CARBON MELF 220K 2% 1/8W R2296 1-259-995-11 CARBON MELF 1K 2% 1/8W R2297 1-259-995-11 CARBON MELF 1K 2% 1/8W R2298 1-259-995-11 CARBON MELF 1K 2% 1/8W R2299 1-259-995-11 CARBON MELF 1K 2% 1/8W R2301 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R2303 1-259-995-11 CARBON MELF 1K 2% 1/8W R2305 1-260-026-11 CARBON MELF 330K 2% 1/8W R2306 1-259-929-11 CARBON MELF 3.6K 2% 1/8W R2307 1-260-002-11 CARBON MELF 3.3K 2% 1/8W R2308 1-260-008-11 CARBON MELF 10K 2% 1/8W R2309 1-259-998-11 CARBON MELF 1.8K 2% 1/8W R2310 1-259-925-11 CARBON MELF 1.6K 2% 1/8W R2311 1-259-995-11 CARBON MELF 1K 2% 1/8W R2312 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R2313 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R2314 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R2315 1-216-254-00 CARBON MELF 220K 2% 1/8W R2316 1-216-254-00 CARBON MELF 220K 2% 1/8W R2317 1-260-010-11 CARBON MELF 15K 2% 1/8W R2318 1-260-020-11 CARBON MELF 100K 2% 1/8W R2319 1-260-008-11 CARBON MELF 10K 2% 1/8W R2320 1-260-008-11 CARBON MELF 10K 2% 1/8W R2321 1-208-437-41 RES-CHIP 1K 2% 1/10W R2322 1-208-437-41 RES-CHIP 1K 2% 1/10W R2323 1-208-437-41 RES-CHIP 1K 2% 1/10W R2324 1-260-010-11 CARBON MELF 15K 2% 1/8W R2325 1-260-010-11 CARBON MELF 15K 2% 1/8W R2326 1-249-427-11 CARBON 6.8K 5% 1/4W F R2327 1-216-254-00 CARBON MELF 220K 2% 1/8W R2328 1-208-437-41 RES-CHIP 1K 2% 1/10W R2329 1-208-437-41 RES-CHIP 1K 2% 1/10W R2330 1-259-995-11 CARBON MELF 1K 2% 1/8W R2331 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R2332 1-216-699-11 METAL CHIP 100K 0.5% 1/10W R2333 1-216-635-11 METAL CHIP 220 0.5% 1/10W R2334 1-208-437-41 RES-CHIP 1K 2% 1/10W R2335 1-208-437-41 RES-CHIP 1K 2% 1/10W R2336 1-260-012-11 CARBON MELF 22K 2% 1/8W R2337 1-260-013-11 CARBON MELF 27K 2% 1/8W R2338 1-260-012-11 CARBON MELF 22K 2% 1/8W R2339 1-260-012-11 CARBON MELF 22K 2% 1/8W R2340 1-208-437-41 RES-CHIP 1K 2% 1/10W R2341 1-216-699-11 METAL CHIP 100K 0.5% 1/10W R2342 1-208-437-41 RES-CHIP 1K 2% 1/10W R2343 1-216-699-11 METAL CHIP 100K 0.5% 1/10W R2345 1-216-699-11 METAL CHIP 100K 0.5% 1/10W R2346 1-259-995-11 CARBON MELF 1K 2% 1/8W R2347 1-259-995-11 CARBON MELF 1K 2% 1/8W R2348 1-259-995-11 CARBON MELF 1K 2% 1/8W R2349 1-259-995-11 CARBON MELF 1K 2% 1/8W R2351 1-208-437-41 RES-CHIP 1K 2% 1/10W R2353 1-259-995-11 CARBON MELF 1K 2% 1/8W R2355 1-260-026-11 CARBON MELF 330K 2% 1/8W R2356 1-259-929-11 CARBON MELF 3.6K 2% 1/8W R2357 1-260-002-11 CARBON MELF 3.3K 2% 1/8W R2358 1-260-008-11 CARBON MELF 10K 2% 1/8W R2359 1-259-998-11 CARBON MELF 1.8K 2% 1/8W R2360 1-259-925-11 CARBON MELF 1.6K 2% 1/8W R2361 1-259-995-11 CARBON MELF 1K 2% 1/8W R2362 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R2363 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R2364 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R2365 1-216-254-00 CARBON MELF 220K 2% 1/8W R2368 1-260-020-11 CARBON MELF 100K 2% 1/8W R2369 1-260-008-11 CARBON MELF 10K 2% 1/8W R2370 1-260-008-11 CARBON MELF 10K 2% 1/8W R2380 1-259-995-11 CARBON MELF 1K 2% 1/8W R2381 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R2396 1-259-995-11 CARBON MELF 1K 2% 1/8W R2397 1-259-995-11 CARBON MELF 1K 2% 1/8W R2398 1-259-995-11 CARBON MELF 1K 2% 1/8W R2399 1-259-995-11 CARBON MELF 1K 2% 1/8W R2400 1-208-437-41 RES-CHIP 1K 2% 1/10W R2401 1-216-254-00 CARBON MELF 220K 2% 1/8W R2402 1-216-254-00 CARBON MELF 220K 2% 1/8W R2403 1-259-995-11 CARBON MELF 1K 2% 1/8W R2404 1-259-983-11 CARBON MELF 100 2% 1/8W R2405 1-260-026-11 CARBON MELF 330K 2% 1/8W R2406 1-259-929-11 CARBON MELF 3.6K 2% 1/8W R2407 1-260-002-11 CARBON MELF 3.3K 2% 1/8W R2408 1-260-008-11 CARBON MELF 10K 2% 1/8W R2409 1-259-998-11 CARBON MELF 1.8K 2% 1/8W R2410 1-259-925-11 CARBON MELF 1.6K 2% 1/8W R2411 1-259-995-11 CARBON MELF 1K 2% 1/8W R2412 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R2413 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R2414 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R2415 1-260-020-11 CARBON MELF 100K 2% 1/8W R2419 1-260-008-11 CARBON MELF 10K 2% 1/8W R2420 1-260-008-11 CARBON MELF 10K 2% 1/8W R2421 1-216-254-00 CARBON MELF 220K 2% 1/8W R2424 1-216-254-00 CARBON MELF 220K 2% 1/8W R2425 1-208-437-41 RES-CHIP 1K 2% 1/10W R2426 1-208-437-41 RES-CHIP 1K 2% 1/10W R2427 1-208-437-41 RES-CHIP 1K 2% 1/10W R2430 1-259-995-11 CARBON MELF 1K 2% 1/8W R2431 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R2441 1-216-699-11 METAL CHIP 100K 0.5% 1/10W R2443 1-216-699-11 METAL CHIP 100K 0.5% 1/10W E VOL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 72 R2445 1-216-699-11 METAL CHIP 100K 0.5% 1/10W R2446 1-259-995-11 CARBON MELF 1K 2% 1/8W R2447 1-259-995-11 CARBON MELF 1K 2% 1/8W R2448 1-259-995-11 CARBON MELF 1K 2% 1/8W R2449 1-259-995-11 CARBON MELF 1K 2% 1/8W R2451 1-260-020-11 CARBON MELF 100K 2% 1/8W R2452 1-216-254-00 CARBON MELF 220K 2% 1/8W R2453 1-259-995-11 CARBON MELF 1K 2% 1/8W R2454 1-259-983-11 CARBON MELF 100 2% 1/8W R2455 1-260-026-11 CARBON MELF 330K 2% 1/8W R2456 1-259-929-11 CARBON MELF 3.6K 2% 1/8W R2457 1-260-002-11 CARBON MELF 3.3K 2% 1/8W R2458 1-260-008-11 CARBON MELF 10K 2% 1/8W R2459 1-259-998-11 CARBON MELF 1.8K 2% 1/8W R2460 1-259-925-11 CARBON MELF 1.6K 2% 1/8W R2461 1-259-995-11 CARBON MELF 1K 2% 1/8W R2462 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R2463 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R2464 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R2465 1-260-020-11 CARBON MELF 100K 2% 1/8W R2468 1-216-254-00 CARBON MELF 220K 2% 1/8W R2469 1-208-437-41 RES-CHIP 1K 2% 1/10W R2470 1-208-437-41 RES-CHIP 1K 2% 1/10W R2471 1-216-254-00 CARBON MELF 220K 2% 1/8W R2474 1-208-437-41 RES-CHIP 1K 2% 1/10W R2480 1-259-995-11 CARBON MELF 1K 2% 1/8W R2481 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R2491 1-216-699-11 METAL CHIP 100K 0.5% 1/10W R2493 1-216-699-11 METAL CHIP 100K 0.5% 1/10W R2495 1-216-699-11 METAL CHIP 100K 0.5% 1/10W R2496 1-259-995-11 CARBON MELF 1K 2% 1/8W R2497 1-259-995-11 CARBON MELF 1K 2% 1/8W R2498 1-259-995-11 CARBON MELF 1K 2% 1/8W R2499 1-259-995-11 CARBON MELF 1K 2% 1/8W R2500 1-208-437-41 RES-CHIP 1K 2% 1/10W R2501 1-216-254-00 CARBON MELF 220K 2% 1/8W R2502 1-216-254-00 CARBON MELF 220K 2% 1/8W R2503 1-259-995-11 CARBON MELF 1K 2% 1/8W R2504 1-259-983-11 CARBON MELF 100 2% 1/8W R2505 1-260-026-11 CARBON MELF 330K 2% 1/8W R2506 1-259-929-11 CARBON MELF 3.6K 2% 1/8W R2507 1-260-002-11 CARBON MELF 3.3K 2% 1/8W R2508 1-260-008-11 CARBON MELF 10K 2% 1/8W R2509 1-259-998-11 CARBON MELF 1.8K 2% 1/8W R2510 1-259-925-11 CARBON MELF 1.6K 2% 1/8W R2511 1-259-995-11 CARBON MELF 1K 2% 1/8W R2512 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R2513 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R2514 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R2515 1-260-020-11 CARBON MELF 100K 2% 1/8W R2519 1-260-008-11 CARBON MELF 10K 2% 1/8W R2520 1-260-008-11 CARBON MELF 10K 2% 1/8W R2521 1-216-254-00 CARBON MELF 220K 2% 1/8W R2524 1-216-254-00 CARBON MELF 220K 2% 1/8W R2525 1-208-437-41 RES-CHIP 1K 2% 1/10W R2526 1-208-437-41 RES-CHIP 1K 2% 1/10W R2527 1-208-437-41 RES-CHIP 1K 2% 1/10W R2530 1-259-995-11 CARBON MELF 1K 2% 1/8W R2531 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R2541 1-216-699-11 METAL CHIP 100K 0.5% 1/10W R2543 1-216-699-11 METAL CHIP 100K 0.5% 1/10W R2545 1-216-699-11 METAL CHIP 100K 0.5% 1/10W R2546 1-259-995-11 CARBON MELF 1K 2% 1/8W R2547 1-259-995-11 CARBON MELF 1K 2% 1/8W R2548 1-259-995-11 CARBON MELF 1K 2% 1/8W R2549 1-259-995-11 CARBON MELF 1K 2% 1/8W R2551 1-216-254-00 CARBON MELF 220K 2% 1/8W R2552 1-216-254-00 CARBON MELF 220K 2% 1/8W R2553 1-259-995-11 CARBON MELF 1K 2% 1/8W R2554 1-259-983-11 CARBON MELF 100 2% 1/8W R2555 1-260-026-11 CARBON MELF 330K 2% 1/8W R2556 1-259-929-11 CARBON MELF 3.6K 2% 1/8W R2557 1-260-002-11 CARBON MELF 3.3K 2% 1/8W R2558 1-260-008-11 CARBON MELF 10K 2% 1/8W R2559 1-259-998-11 CARBON MELF 1.8K 2% 1/8W R2560 1-259-925-11 CARBON MELF 1.6K 2% 1/8W R2561 1-259-995-11 CARBON MELF 1K 2% 1/8W R2562 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R2563 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R2564 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R2565 1-260-020-11 CARBON MELF 100K 2% 1/8W R2569 1-260-008-11 CARBON MELF 10K 2% 1/8W R2570 1-260-008-11 CARBON MELF 10K 2% 1/8W R2571 1-216-254-00 CARBON MELF 220K 2% 1/8W R2574 1-216-254-00 CARBON MELF 220K 2% 1/8W R2580 1-259-995-11 CARBON MELF 1K 2% 1/8W R2581 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R2601 1-260-004-11 CARBON MELF 4.7K 2% 1/8W R2602 1-208-462-41 RES-CHIP 10K 2% 1/10W R2603 1-216-699-11 METAL CHIP 100K 0.5% 1/10W R2651 1-260-004-11 CARBON MELF 4.7K 2% 1/8W R2652 1-208-462-41 RES-CHIP 10K 2% 1/10W R3101 1-260-004-11 CARBON MELF 4.7K 2% 1/8W R3102 1-260-004-11 CARBON MELF 4.7K 2% 1/8W R3103 1-260-001-11 CARBON MELF 2.7K 2% 1/8W R3104 1-260-003-11 CARBON MELF 3.9K 2% 1/8W R3105 1-259-979-11 CARBON MELF 47 2% 1/8W R3106 1-260-001-11 CARBON MELF 2.7K 2% 1/8W R3107 1-260-003-11 CARBON MELF 3.9K 2% 1/8W R3108 1-259-979-11 CARBON MELF 47 2% 1/8W R3151 1-260-004-11 CARBON MELF 4.7K 2% 1/8W R3152 1-260-004-11 CARBON MELF 4.7K 2% 1/8W R3153 1-260-001-11 CARBON MELF 2.7K 2% 1/8W R3154 1-260-003-11 CARBON MELF 3.9K 2% 1/8W R3155 1-259-979-11 CARBON MELF 47 2% 1/8W R3156 1-260-001-11 CARBON MELF 2.7K 2% 1/8W R3157 1-260-003-11 CARBON MELF 3.9K 2% 1/8W R3158 1-259-979-11 CARBON MELF 47 2% 1/8W R3161 1-260-008-11 CARBON MELF 10K 2% 1/8W R3162 1-259-984-11 CARBON MELF 120 2% 1/8W R3163 1-259-943-11 CARBON MELF 51K 2% 1/8W R3313 1-208-462-41 RES-CHIP 10K 2% 1/10W < RELAY > RY2301 1-755-294-11 RELAY ************************************************************ E VOL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 73 1-675-066-11 FUNCTION SW BOARD ****************** < VARIABLE RESISTOR > RV102 1-418-589-11 ENCODER, ROTARY(INPUT SELECTOR) < SWITCH > S111 1-762-875-21 SWITCH, KEYBOARD(DIGITAL/ANALOG) S113 1-762-875-21 SWITCH, KEYBOARD(AUDIO SPLIT) S115 1-762-875-21 SWITCH, KEYBOARD(OPEN/CLOSE) ************************************************************ 1-675-092-11 GEAR BOARD *********** < CONNECTOR > * CN114 1-568-941-11 PIN, CONNECTOR 3P < SWITCH > S112 1-762-983-11 SWITCH, PUSH(OPEN) S114 1-762-984-11 SWITCH, PUSH(CLOSE) ************************************************************ 1-675-093-11 HP BOARD ********* < CAPACITOR > C143 1-165-319-11 CERAMIC CHIP 0.1uF 0% 50V C144 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V C145 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V C156 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V C157 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V < CONNECTOR > CN115 1-691-767-11 PLUG (MICRO CONNECTOR) 5P < FERRITE BEAD > FB106 1-469-365-21 FERRITE 0UH FB107 1-469-365-21 FERRITE 0UH < JACK > J103 1-580-439-11 JACK, LARGE TYPE(PHONES) < RESISTOR > R231 1-215-868-00 METAL OXIDE 680 5% 1W R232 1-215-868-00 METAL OXIDE 680 5% 1W ************************************************************ 1-675-097-11 JOG BOARD ********** < CONNECTOR > CN109 1-774-739-11 CONNECTOR, FFC/FPC 5P < RESISTOR > R107 1-208-425-41 RES-CHIP 330 2% 1/10W R109 1-208-774-11 RES-CHIP 470 2% 1/10W R110 1-216-647-11 METAL CHIP 680 0.5% 1/10W R112 1-208-437-41 RES-CHIP 1K 2% 1/10W R113 1-216-655-11 METAL CHIP 1.5K 0.5% 1/10W R114 1-208-445-41 RES-CHIP 2.2K 2% 1/10W R115 1-208-453-41 RES-CHIP 4.7K 2% 1/10W < VARIABLE RESISTOR > RV101 1-418-590-11 ENCODER, ROTARY(JOG DIAL) < SWITCH > S101 1-771-544-11 SWITCH, TACTILE(ENTER) S102 1-771-544-11 SWITCH, TACTILE( > ) S103 1-771-544-11 SWITCH, TACTILE( < ) S104 1-771-544-11 SWITCH, TACTILE(LEVEL) S105 1-771-544-11 SWITCH, TACTILE(SUR) S106 1-771-544-11 SWITCH, TACTILE(EQ) S107 1-771-544-11 SWITCH, TACTILE(SET UP) S108 1-771-544-11 SWITCH, TACTILE(CUSTOM) S109 1-771-544-11 SWITCH, TACTILE(TUNER) ************************************************************ 1-675-091-11 MOTOR BOARD ************ < CAPACITOR > C106 1-165-319-11 CERAMIC 0.1UF 0% 50V < CONNECTOR > CN112 1-506-481-11 PIN, CONNECTOR 2P ************************************************************ 1-676-564-11 PHONO BOARD ************ < CAPACITOR > C1302 1-119-824-11 ELECT MELF 10uF 20% 50V C1303 1-119-823-11 ELECT 4.7uF 20% 50V C1304 1-128-832-11 ELECT 220uF 20% 10V C1305 1-137-471-11 MYLAR 0.016uF 5% 50V C1306 1-136-162-00 MYLAR 0.056uF 5% 50V C1307 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C1308 1-119-799-11 ELECT 47uF 20% 25V C1309 1-163-125-00 CERAMIC CHIP 220PF 5% 50V C1310 1-137-471-11 MYLAR 0.016uF 5% 50V C1311 1-136-162-00 MYLAR 0.056uF 5% 50V C1312 1-128-832-11 ELECT 220uF 20% 10V C1313 1-119-799-11 ELECT 47uF 20% 25V C1314 1-163-125-00 CERAMIC CHIP 220PF 5% 50V C1315 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C1316 1-119-823-11 ELECT 4.7uF 20% 50V C1317 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C1318 1-119-824-11 ELECT MELF 10uF 20% 50V C1320 1-163-117-00 CERAMIC CHIP 100PF 5% 50V < CONNECTOR > CN1301 1-770-381-11 CONNECTOR, BOARD TO BOARD 10P < IC > IC1301 8-759-711-85 IC NJM4580E-D < JACK > J1301 1-784-430-11 JACK, PIN 4P (TUNER/PHONO) FUNCTION SW GEAR HP JOG MOTOR PHONO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 74 < RESISTOR > R1301 1-259-987-11 CARBON MELF 220 2% 1/8W R1302 1-259-983-11 CARBON MELF 100 2% 1/8W R1303 1-259-984-11 CARBON MELF 120 2% 1/8W R1304 1-259-996-11 CARBON MELF 1.2K 2% 1/8W R1305 1-260-004-11 CARBON MELF 4.7K 2% 1/8W R1306 1-260-017-11 CARBON MELF 56K 2% 1/8W R1307 1-259-987-11 CARBON MELF 220 2% 1/8W R1308 1-260-020-11 CARBON MELF 100K 2% 1/8W R1309 1-260-020-11 CARBON MELF 100K 2% 1/8W R1310 1-260-020-11 CARBON MELF 100K 2% 1/8W R1311 1-259-987-11 CARBON MELF 220 2% 1/8W R1312 1-260-020-11 CARBON MELF 100K 2% 1/8W R1313 1-260-020-11 CARBON MELF 100K 2% 1/8W R1314 1-260-004-11 CARBON MELF 4.7K 2% 1/8W R1315 1-260-017-11 CARBON MELF 56K 2% 1/8W R1316 1-260-020-11 CARBON MELF 100K 2% 1/8W R1317 1-259-996-11 CARBON MELF 1.2K 2% 1/8W R1318 1-259-984-11 CARBON MELF 120 2% 1/8W R1319 1-259-983-11 CARBON MELF 100 2% 1/8W R1320 1-259-995-11 CARBON MELF 1K 2% 1/8W R1321 1-259-995-11 CARBON MELF 1K 2% 1/8W R1322 1-259-987-11 CARBON MELF 220 2% 1/8W ************************************************************ A-4426-479-A PS BOARD, COMPLETE ****************** 7-685-872-09 SCREW +BVT 3X8 (S) 1-533-293-11 FUSE HOLDER < CAPACITOR > C801 1-137-414-11 MYLAR 0.0047uF 10% 100V C802 1-137-414-11 MYLAR 0.0047uF 10% 100V C803 1-131-652-11 ELECT 18000uF 20% 71V C804 1-131-652-11 ELECT 18000uF 20% 71V C805 1-119-854-11 ELECT 100uF 20% 100V C806 1-137-370-11 MYLAR 0.01uF 5% 50V C807 1-137-370-11 MYLAR 0.01uF 5% 50V C808 1-127-732-51 ELECT MELF 2200uF 20% 35V C809 1-127-732-51 ELECT MELF 2200uF 20% 35V C810 1-137-370-11 MYLAR 0.01uF 5% 50V C811 1-137-370-11 MYLAR 0.01uF 5% 50V C812 1-135-471-11 ELECT 13000uF 20% 16V C813 1-127-723-51 ELECT MELF 4700uF 20% 16V C814 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C815 1-128-556-11 ELECT 1000uF 20% 63V C816 1-119-799-11 ELECT 47uF 20% 25V C817 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C818 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C822 1-136-177-00 MYLAR 1uF 5% 50V C823 1-135-471-11 ELECT 13000uF 20% 16V < CONNECTOR > CN801 1-785-105-11 PIN, CONNECTOR 7P CN802 1-785-107-11 PIN, CONNECTOR 9P CN804 1-564-506-11 PLUG (MICRO CONNECTOR) 5P CN805 1-691-772-11 PLUG (MICRO CONNECTOR) 10P CN806 1-785-102-11 PIN, CONNECTOR 4P < DIODE > D801 8-719-302-38 DIODE RBV-602-01 D802 8-719-302-38 DIODE RBV-602-01 D803 8-719-016-74 DIODE 1SS352 D804 8-719-053-18 DIODE 1SR154-400TE-25 D805 8-719-053-18 DIODE 1SR154-400TE-25 D807 8-719-025-03 DIODE RBA-402-SL D811 8-719-025-03 DIODE RBA-402-SL D812 8-719-053-18 DIODE 1SR154-400TE-25 D813 8-719-053-18 DIODE 1SR154-400TE-25 D814 8-719-053-18 DIODE 1SR154-400TE-25 D815 8-719-053-18 DIODE 1SR154-400TE-25 D816 8-719-070-30 DIODE PTZ-TE25-5.6A < TERMINAL > EP802 1-537-770-21 TERMINAL BOARD, GROUND < FUSE > 0F801 1-533-312-11 FUSE, GLASS CYLINDRICAL(DIA.5)10A 125V 0F802 1-533-312-11 FUSE, GLASS CYLINDRICAL(DIA.5)10A 125V 0F803 1-532-503-51 FUSE, 1.6A 250V 0F804 1-532-503-51 FUSE, 1.6A 250V 0F805 1-532-465-51 FUSE, TIME LAG 3.15A 250V 0F806 1-532-465-51 FUSE, TIME LAG 3.15A 250V < TRANSISTOR > Q801 8-729-230-49 TRANSISTOR 2SC2712-YG Q802 8-729-421-22 TRANSISTOR UN2211 < RESISTOR > R803 1-216-431-11 METAL OXIDE 560 5% 1W R805 1-208-462-41 RES-CHIP 10K 2% 1/10W 0R806 1-212-942-00 FUSIBLE 2.2 5% 1/2W 0R807 1-212-942-00 FUSIBLE 2.2 5% 1/2W R808 1-249-407-11 CARBON 150 5% 1/4W F R809 1-216-687-11 METAL CHIP 33K 0.5% 1/10W R810 1-216-687-11 METAL CHIP 33K 0.5% 1/10W < RELAY > RY801 1-755-235-11 RELAY RY802 1-755-235-11 RELAY < SWITCH > S801 1-692-196-11 SWITCH, SLIDE(IMPEDANCE SELECTOR) TH801 1-806-881-11 THERMISTOR 2.2 ************************************************************ The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. PHONO PS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 75 A-4426-496-A S VIDEO BOARD, COMPLETE *********************** < CAPACITOR > C5201 1-119-824-11 ELECT MELF 10uF 20% 50V C5202 1-119-824-11 ELECT MELF 10uF 20% 50V C5203 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C5204 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C5205 1-119-824-11 ELECT MELF 10uF 20% 50V C5206 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C5207 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C5208 1-119-824-11 ELECT MELF 10uF 20% 50V C5209 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C5210 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C5211 1-165-319-11 CERAMIC CHIP 0.1uF 0% 50V C5212 1-165-319-11 CERAMIC CHIP 0.1uF 0% 50V C5214 1-165-319-11 CERAMIC CHIP 0.1uF 0% 50V C5216 1-165-319-11 CERAMIC CHIP 0.1uF 0% 50V C5218 1-119-824-11 ELECT MELF 10uF 20% 50V C5219 1-127-718-91 ELECT MELF 100uF 20% 16V C5220 1-165-319-11 CERAMIC CHIP 0.1uF 0% 50V C5221 1-127-718-91 ELECT MELF 100uF 20% 16V C5222 1-165-319-11 CERAMIC CHIP 0.1uF 0% 50V C5223 1-165-319-11 CERAMIC CHIP 0.1uF 0% 50V C5224 1-127-718-91 ELECT MELF 100uF 20% 16V C5225 1-165-319-11 CERAMIC CHIP 0.1uF 0% 50V C5226 1-127-718-91 ELECT MELF 100uF 20% 16V C5227 1-165-319-11 CERAMIC CHIP 0.1uF 0% 50V C5228 1-165-319-11 CERAMIC CHIP 0.1uF 0% 50V C5229 1-165-319-11 CERAMIC CHIP 0.1uF 0% 50V C5230 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C5231 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C5232 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C5233 1-163-117-00 CERAMIC CHIP 100PF 5% 50V < CONNECTOR > CN5201 1-784-733-11 CONNECTOR, FFC 11P * CN5203 1-695-371-31 CONNECTOR, FFC 10P CN5204 1-691-767-11 PLUG (MICRO CONNECTOR) 5P < IC > IC5201 8-759-536-24 IC NJM-2296M-TE2 IC5202 8-759-536-24 IC NJM-2296M-TE2 IC5203 8-759-032-59 IC MC74HC595AF < JACK > J5201 1-779-800-11 TERMINAL, S (TV/SAT OUT) J5202 1-779-801-11 CONNECTOR (ROUND TYPE)(DVD/LD,VIDEO2) J5203 1-779-801-11 CONNECTOR (ROUND TYPE)(VIDEO1) J5204 1-779-801-11 CONNECTOR (ROUND TYPE)(MONITOR OUT) < COIL > L5201 1-500-425-11 FERRITE 0uH L5202 1-500-425-11 FERRITE 0uH L5203 1-500-425-11 FERRITE 0uH L5204 1-500-425-11 FERRITE 0uH < RESISTOR > R5201 1-208-755-11 RES-CHIP 75 2% 1/10W R5202 1-208-755-11 RES-CHIP 75 2% 1/10W R5203 1-208-755-11 RES-CHIP 75 2% 1/10W R5204 1-208-755-11 RES-CHIP 75 2% 1/10W R5205 1-208-755-11 RES-CHIP 75 2% 1/10W R5206 1-208-755-11 RES-CHIP 75 2% 1/10W R5207 1-208-755-11 RES-CHIP 75 2% 1/10W R5208 1-208-755-11 RES-CHIP 75 2% 1/10W R5209 1-208-755-11 RES-CHIP 75 2% 1/10W R5210 1-208-755-11 RES-CHIP 75 2% 1/10W R5211 1-208-755-11 RES-CHIP 75 2% 1/10W R5212 1-208-755-11 RES-CHIP 75 2% 1/10W R5213 1-208-755-11 RES-CHIP 75 2% 1/10W R5214 1-208-755-11 RES-CHIP 75 2% 1/10W R5215 1-216-699-11 METAL CHIP 100K 0.5% 1/10W R5216 1-216-699-11 METAL CHIP 100K 0.5% 1/10W R5217 1-216-699-11 METAL CHIP 100K 0.5% 1/10W R5218 1-216-699-11 METAL CHIP 100K 0.5% 1/10W R5219 1-216-699-11 METAL CHIP 100K 0.5% 1/10W ************************************************************ 1-675-082-11 SP SEL BOARD ************ < CAPACITOR > C111 1-126-926-11 ELECT 1000uF 20% 10V C112 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C113 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C114 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C132 1-165-319-11 CERAMIC CHIP 0.1uF 0% 50V < CONNECTOR > * CN117 1-568-946-11 PIN, CONNECTOR 8P < DIODE > D103 8-719-075-86 DIODE SID307BRTP19 D104 8-719-075-86 DIODE SID307BRTP19 D105 8-719-075-86 DIODE SID307BRTP19 D106 8-719-075-86 DIODE SID307BRTP19 D107 8-719-059-14 DIODE SID313BP-TP19 D108 8-719-820-05 DIODE 1SS181 D109 8-719-820-05 DIODE 1SS181 D110 8-719-820-05 DIODE 1SS181 < IC > IC106 8-759-242-70 IC TC7WU04F IC110 8-749-014-66 IC NJL64H400A < TRANSISTOR > Q109 8-729-901-87 TRANSISTOR 2SC2411K-CQ Q110 8-729-901-87 TRANSISTOR 2SC2411K-CQ Q111 8-729-901-87 TRANSISTOR 2SC2411K-CQ < RESISTOR > R134 1-216-134-00 METAL CHIP 2.2 5% 1/8W R135 1-216-134-00 METAL CHIP 2.2 5% 1/8W R184 1-216-627-11 METAL CHIP 100 0.5% 1/10W S VIDEO SP SEL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 76 < SWITCH > S116 1-762-875-21 SWITCH, KEYBOARD(?/1) S117 1-762-268-11 SWITCH, ROTARY(SPEAKER SELECTOR) ************************************************************ A-4426-470-A SP TM BOARD, COMPLETE ********************** < CAPACITOR > C1801 1-137-358-11 MYLAR 0.0001uF 5% 50V C1802 1-137-358-11 MYLAR 0.0001uF 5% 50V C1803 1-137-358-11 MYLAR 0.0001uF 5% 50V C1804 1-137-358-11 MYLAR 0.0001uF 5% 50V C1805 1-137-358-11 MYLAR 0.0001uF 5% 50V C1806 1-137-358-11 MYLAR 0.0001uF 5% 50V C4114 1-162-815-11 CERAMIC 47PF 5% 500V C4115 1-162-815-11 CERAMIC 47PF 5% 500V C4116 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C4164 1-162-815-11 CERAMIC 47PF 5% 500V C4165 1-162-815-11 CERAMIC 47PF 5% 500V C4166 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C4214 1-162-815-11 CERAMIC 47PF 5% 500V C4216 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C4314 1-162-815-11 CERAMIC 47PF 5% 500V C4316 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C4364 1-162-815-11 CERAMIC 47PF 5% 500V C4366 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C4701 1-137-358-11 MYLAR 0.0001uF 5% 50V C4702 1-137-358-11 MYLAR 0.0001uF 5% 50V C4703 1-137-358-11 MYLAR 0.0001uF 5% 50V C4751 1-137-358-11 MYLAR 0.0001uF 5% 50V C4752 1-137-358-11 MYLAR 0.0001uF 5% 50V C4753 1-137-358-11 MYLAR 0.0001uF 5% 50V < CONNECTOR > CN4005 1-691-771-11 PLUG (MICRO CONNECTOR) 9P < DIODE > D4401 8-719-016-74 DIODE 1SS352 D4451 8-719-016-74 DIODE 1SS352 D4501 8-719-016-74 DIODE 1SS352 D4551 8-719-016-74 DIODE 1SS352 D4601 8-719-016-74 DIODE 1SS352 < JACK > J1801 1-785-489-11 JACK, PIN 6P(5.1CH INPUT) J4701 1-785-296-11 JACK, PIN(PRE OUT) J4702 1-785-298-11 JACK, PIN 1P(SUB WOOFER) < COIL > L4101 1-411-906-11 COIL, AIR-CORE L4151 1-411-906-11 COIL, AIR-CORE L4201 1-411-906-11 COIL, AIR-CORE L4301 1-411-906-11 COIL, AIR-CORE L4351 1-411-906-11 COIL, AIR-CORE < TRANSISTOR > Q4401 8-729-230-49 TRANSISTOR 2SC2712-YG Q4451 8-729-230-49 TRANSISTOR 2SC2712-YG Q4501 8-729-230-49 TRANSISTOR 2SC2712-YG Q4551 8-729-230-49 TRANSISTOR 2SC2712-YG Q4601 8-729-230-49 TRANSISTOR 2SC2712-YG < RESISTOR > R1801 1-259-995-11 CARBON MELF 1K 2% 1/8W R1802 1-259-995-11 CARBON MELF 1K 2% 1/8W R1803 1-259-995-11 CARBON MELF 1K 2% 1/8W R1804 1-259-995-11 CARBON MELF 1K 2% 1/8W R1805 1-259-995-11 CARBON MELF 1K 2% 1/8W R1806 1-259-995-11 CARBON MELF 1K 2% 1/8W R4121 1-249-389-11 CARBON 4.7 5% 1/4W F R4122 1-249-393-11 CARBON 10 5% 1/4W F R4123 1-249-393-11 CARBON 10 5% 1/4W F R4124 1-260-009-11 CARBON MELF 12K 2% 1/8W R4125 1-260-009-11 CARBON MELF 12K 2% 1/8W R4171 1-249-389-11 CARBON 4.7 5% 1/4W F R4172 1-249-393-11 CARBON 10 5% 1/4W F R4173 1-249-393-11 CARBON 10 5% 1/4W F R4174 1-260-009-11 CARBON MELF 12K 2% 1/8W R4175 1-260-009-11 CARBON MELF 12K 2% 1/8W R4221 1-249-389-11 CARBON 4.7 5% 1/4W F R4222 1-249-393-11 CARBON 10 5% 1/4W F R4321 1-249-389-11 CARBON 4.7 5% 1/4W F R4322 1-249-393-11 CARBON 10 5% 1/4W F R4371 1-249-389-11 CARBON 4.7 5% 1/4W F R4372 1-249-393-11 CARBON 10 5% 1/4W F R4401 1-215-869-11 METAL OXIDE 1K 5% 1W R4402 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R4403 1-208-462-41 RES-CHIP 10K 2% 1/10W R4451 1-215-869-11 METAL OXIDE 1K 5% 1W R4452 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R4453 1-208-462-41 RES-CHIP 10K 2% 1/10W R4501 1-215-869-11 METAL OXIDE 1K 5% 1W R4502 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R4503 1-208-462-41 RES-CHIP 10K 2% 1/10W R4551 1-249-422-11 CARBON 2.7K 5% 1/4W F R4552 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R4553 1-208-462-41 RES-CHIP 10K 2% 1/10W R4601 1-215-869-11 METAL OXIDE 1K 5% 1W R4602 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R4603 1-208-462-41 RES-CHIP 10K 2% 1/10W R4705 1-260-012-11 CARBON MELF 22K 2% 1/8W R4707 1-260-014-11 CARBON MELF 33K 2% 1/8W R4708 1-260-014-11 CARBON MELF 33K 2% 1/8W R4709 1-259-999-11 CARBON MELF 2.2K 2% 1/8W R4710 1-259-999-11 CARBON MELF 2.2K 2% 1/8W R4711 1-259-999-11 CARBON MELF 2.2K 2% 1/8W R4751 1-260-012-11 CARBON MELF 22K 2% 1/8W R4757 1-260-014-11 CARBON MELF 33K 2% 1/8W R4758 1-260-014-11 CARBON MELF 33K 2% 1/8W R4759 1-259-999-11 CARBON MELF 2.2K 2% 1/8W R4760 1-259-999-11 CARBON MELF 2.2K 2% 1/8W R4761 1-259-999-11 CARBON MELF 2.2K 2% 1/8W SP SEL SP TM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 77 < RELAY > RY4401 1-515-920-11 RELAY (24V) RY4451 1-515-920-11 RELAY (24V) RY4501 1-515-920-11 RELAY (24V) RY4551 1-755-295-11 RELAY RY4601 1-515-920-11 RELAY (24V) < TERMINAL > TM4401 1-694-430-21 TERMINAL BOARD (SP)(SPEAKERS FRONT) TM4501 1-694-431-21 TERMINAL BOARD (SP) (SPEAKERS REAR/CENTER) ************************************************************ 1-675-095-11 VIDEO 3 BOARD ************* < CAPACITOR > C103 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C104 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C141 1-165-319-11 CERAMIC CHIP 0.1uF 0% 50V C142 1-165-319-11 CERAMIC CHIP 0.1uF 0% 50V < CONNECTOR > CN108 1-568-826-11 CONNECTOR, FFC 7P * CN120 1-564-719-11 PIN, CONNECTOR (SMALL TYPE) 3P < TERMINAL > EB101 1-537-770-21 TERMINAL BOARD, GROUND < JACK > J101 1-793-643-11 JACK, PIN (BLOCK) (L TYPE) 3P(VIDEO/AUDIO) J102 1-784-808-11 TERMINAL, S(S VIDEO) < RESISTOR > R102 1-208-755-11 RES-CHIP 75 2% 1/10W R103 1-208-755-11 RES-CHIP 75 2% 1/10W R104 1-208-755-11 RES-CHIP 75 2% 1/10W R106 1-216-627-11 METAL CHIP 100 0.5% 1/10W R108 1-216-627-11 METAL CHIP 100 0.5% 1/10W ************************************************************ 1-675-081-11 VOLUME BOARD ************** < CAPACITOR > C3101 1-165-319-11 CERAMIC CHIP 0.1uF 0% 50V C3111 1-128-860-11 ELECT 47uF 20% 50V C3112 1-128-860-11 ELECT 47uF 20% 50V C3113 1-128-860-11 ELECT 47uF 20% 50V C3114 1-128-860-11 ELECT 47uF 20% 50V C3115 1-128-860-11 ELECT 47uF 20% 50V C3116 1-128-860-11 ELECT 47uF 20% 50V < CONNECTOR > CN3201 1-691-766-11 PLUG (MICRO CONNECTOR) 4P CN3202 1-691-765-11 PLUG (MICRO CONNECTOR) 3P CN3203 1-691-765-21 PLUG (MICRO CONNECTOR) 3P < IC > IC4102 8-759-447-30 IC NJM2114M-TE2 IC4202 8-759-447-30 IC NJM2114M-TE2 IC4302 8-759-447-30 IC NJM2114M-TE2 < RESISTOR > R4130 1-260-026-11 CARBON MELF 330K 2% 1/8W R4131 1-259-991-11 CARBON MELF 470 2% 1/8W R4132 1-259-926-11 CARBON MELF 2K 2% 1/8W R4133 1-259-983-11 CARBON MELF 100 2% 1/8W R4180 1-260-026-11 CARBON MELF 330K 2% 1/8W R4181 1-259-991-11 CARBON MELF 470 2% 1/8W R4182 1-259-926-11 CARBON MELF 2K 2% 1/8W R4183 1-259-983-11 CARBON MELF 100 2% 1/8W R4230 1-260-026-11 CARBON MELF 330K 2% 1/8W R4231 1-259-989-11 CARBON MELF 330 2% 1/8W R4232 1-259-931-11 CARBON MELF 5.1K 2% 1/8W R4233 1-259-983-11 CARBON MELF 100 2% 1/8W R4280 1-260-026-11 CARBON MELF 330K 2% 1/8W R4281 1-259-986-11 CARBON MELF 180 2% 1/8W R4282 1-259-931-11 CARBON MELF 5.1K 2% 1/8W R4283 1-259-983-11 CARBON MELF 100 2% 1/8W R4330 1-260-026-11 CARBON MELF 330K 2% 1/8W R4331 1-259-989-11 CARBON MELF 330 2% 1/8W R4332 1-259-931-11 CARBON MELF 5.1K 2% 1/8W R4333 1-259-983-11 CARBON MELF 100 2% 1/8W R4380 1-260-026-11 CARBON MELF 330K 2% 1/8W R4381 1-259-989-11 CARBON MELF 330 2% 1/8W R4382 1-259-931-11 CARBON MELF 5.1K 2% 1/8W R4383 1-259-983-11 CARBON MELF 100 2% 1/8W < VARIABLE RESISTOR > RV3101 1-225-887-11 RES, VAR, CARBON 30KX6(MASTER VOLUME) ************************************************************ MISCELLANEOUS ************** 61 1-773-279-11 WIRE (FLAT TYPE) (29 CORE) 104 1-791-939-11 CABLE, FLEXIBLE FLAT (5P) 129 1-791-938-11 CABLE, FLEXIBLE FLAT (31P) 137 1-765-314-11 WIRE (FLAT TYPE) (7 CORE) 158 1-769-969-11 WIRE (FLAT TYPE) (13 CORE) 159 1-792-174-11 CABLE, FLEXIBLE FLAT (15P) 163 1-769-937-11 WIRE (FLAT TYPE) (11 CORE) 165 1-792-216-11 WIRE (FLAT TYPE) (10 CORE) 0167 1-776-095-11 CORD, POWER FL101 1-517-781-21 INDICATOR TUBE, FLUORESCENT FL102 1-517-905-11 INDICATOR TUBE, FLUORESCENT 0T901 1-435-096-11 TRANSFORMER, POWER ************************************************************ The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. SP TM VIDEO 3 VOLUME www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 78 Ref. No. Part No. Description Remarks 78 TA-VA777ES Sony Corporation Home Audio Division Company 9-929-060-11 2000B167549-1 Printed in Hungary ©2000.2 Published by Quality Assurance Dept. ACCESSORIES & PACKING MATERIALS ******************************* 1-418-606-11 REMOTE COMMANDER(RM-TP503) 3-866-967-41 MANUAL, INSTRUCTION (ENGLISH/FRENCH/DUTCH/SWEDISH) 3-866-967-51 MANUAL, INSTRUCTION (GERMAN/SPANISH/ITALIAN/PORTUGUESE) 3-867-704-11 MANUAL (RM-TP503), INSTRUCTION (ENGLISH/FRENCH/SPANISH/PORTUGUESE) 3-867-704-31 MANUAL (RM-TP503), INSTRUCTION (DUTCH/SWEDISH/GERMAN/ITALIAN) 4-997-648-31 COVER, BATTERY(FOR RM-TP503) ************************************************************ HARDWARE LIST ************** #1 7-685-872-09 SCREW +BVTT 3X8 (S) #2 7-685-649-79 SCREW +BVTP 3X14 TYPE2 N-S #3 7-682-547-09 SCREW +B 3X6 #4 7-621-775-00 SCREW +B 2.6X3 #5 7-685-871-09 SCREW +BVTT 3X6 (S) #6 7-682-575-04 SCREW +P 5X10 #7 7-685-885-09 SCREW +BVTT 4X16 (S) #8 7-685-861-01 SCREW +BVTT 2.6X5 (S) #9 7-685-134-19 SCREW +P 2.6X8 TYPE2 NON-SLIT #10 7-685-548-19 SCREW +BTP 3X12 TYPE2 N-S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
