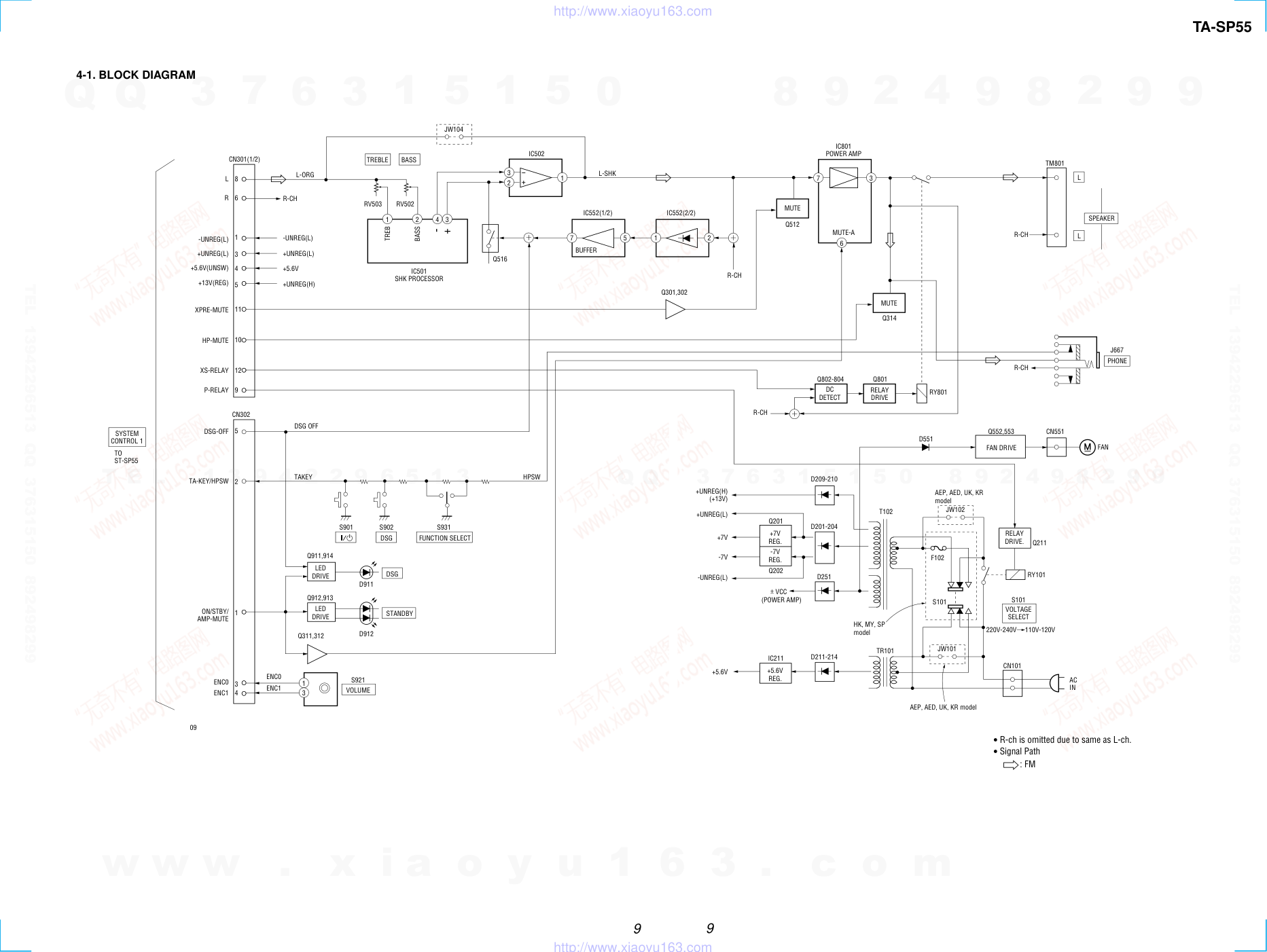

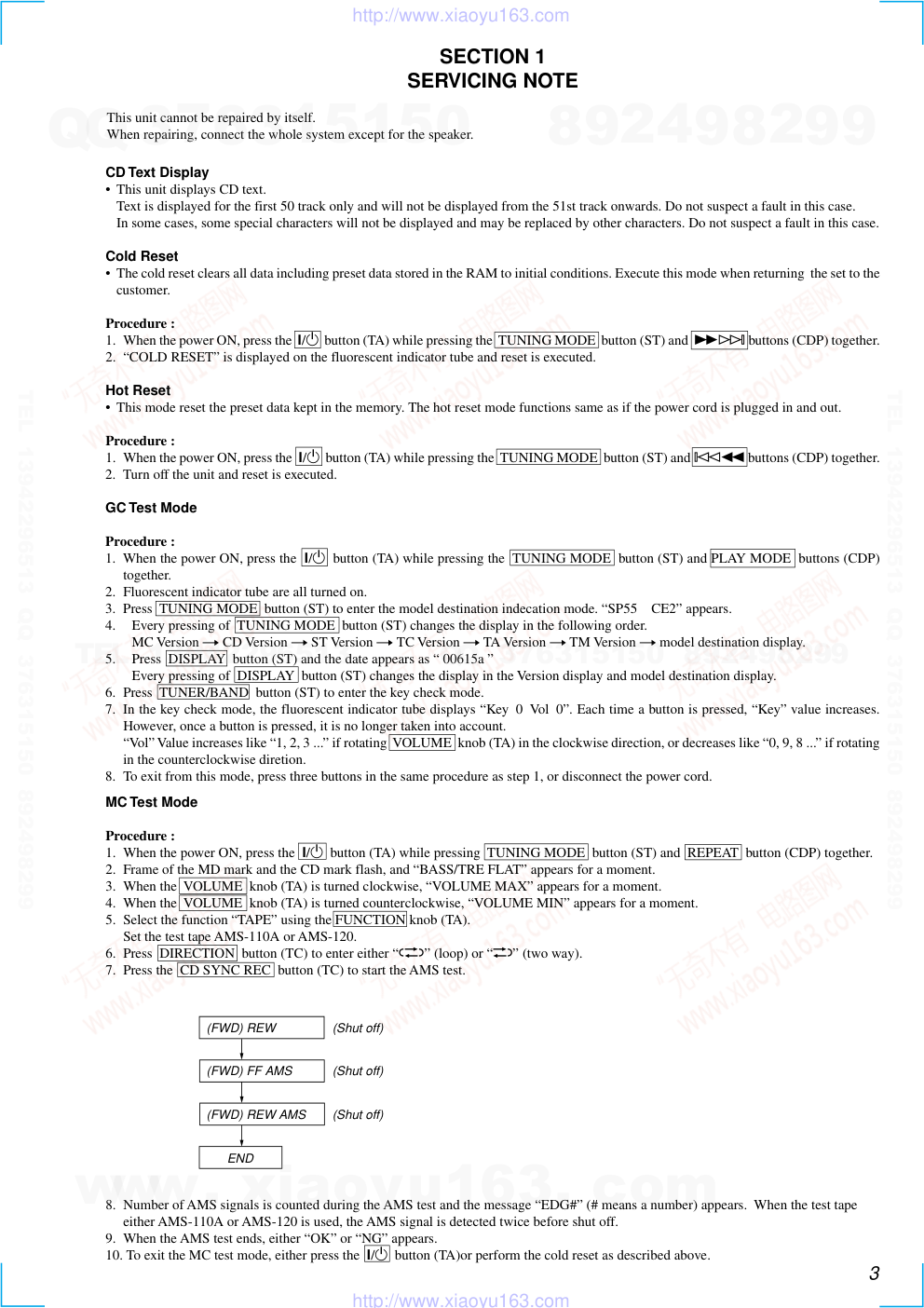

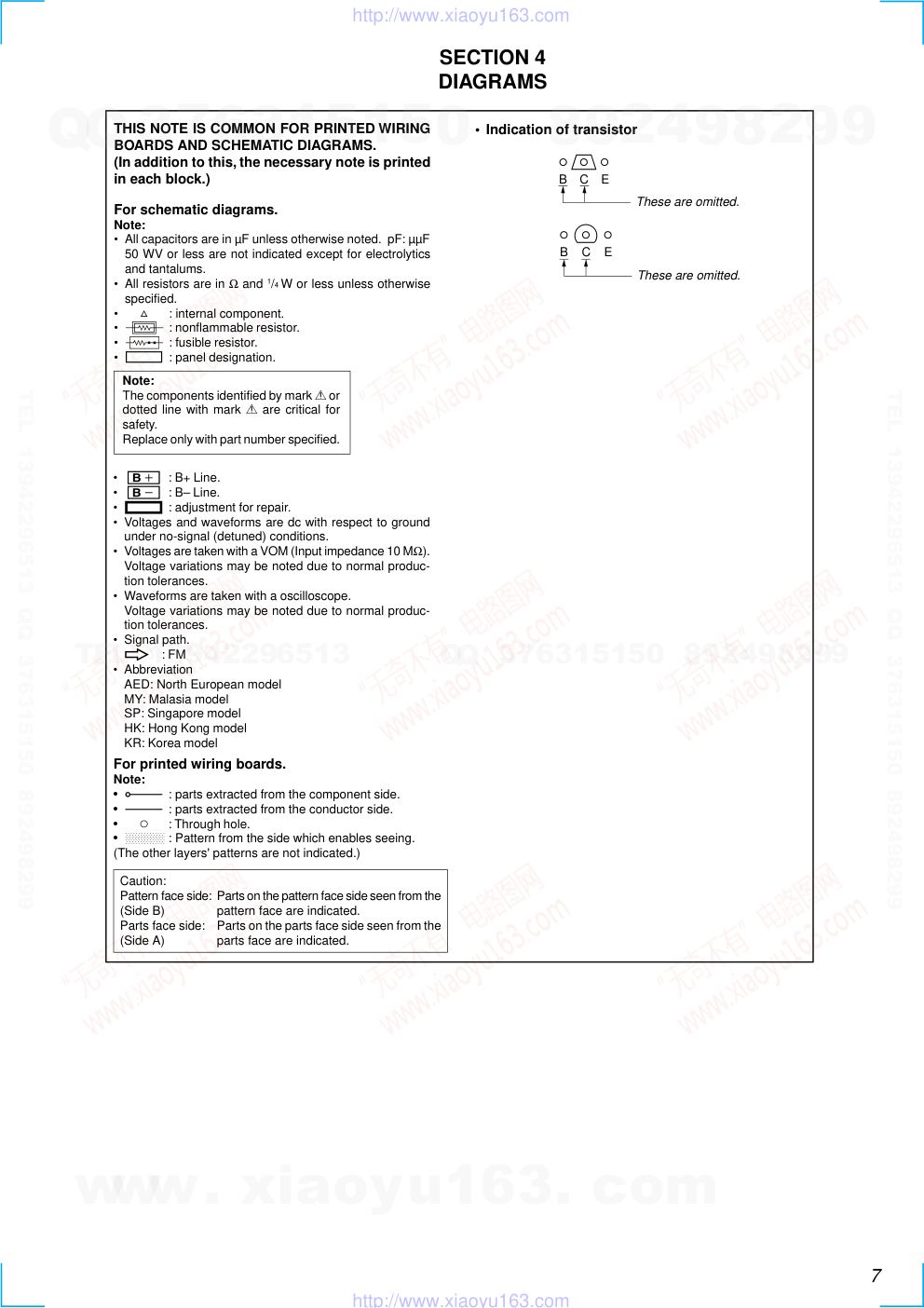

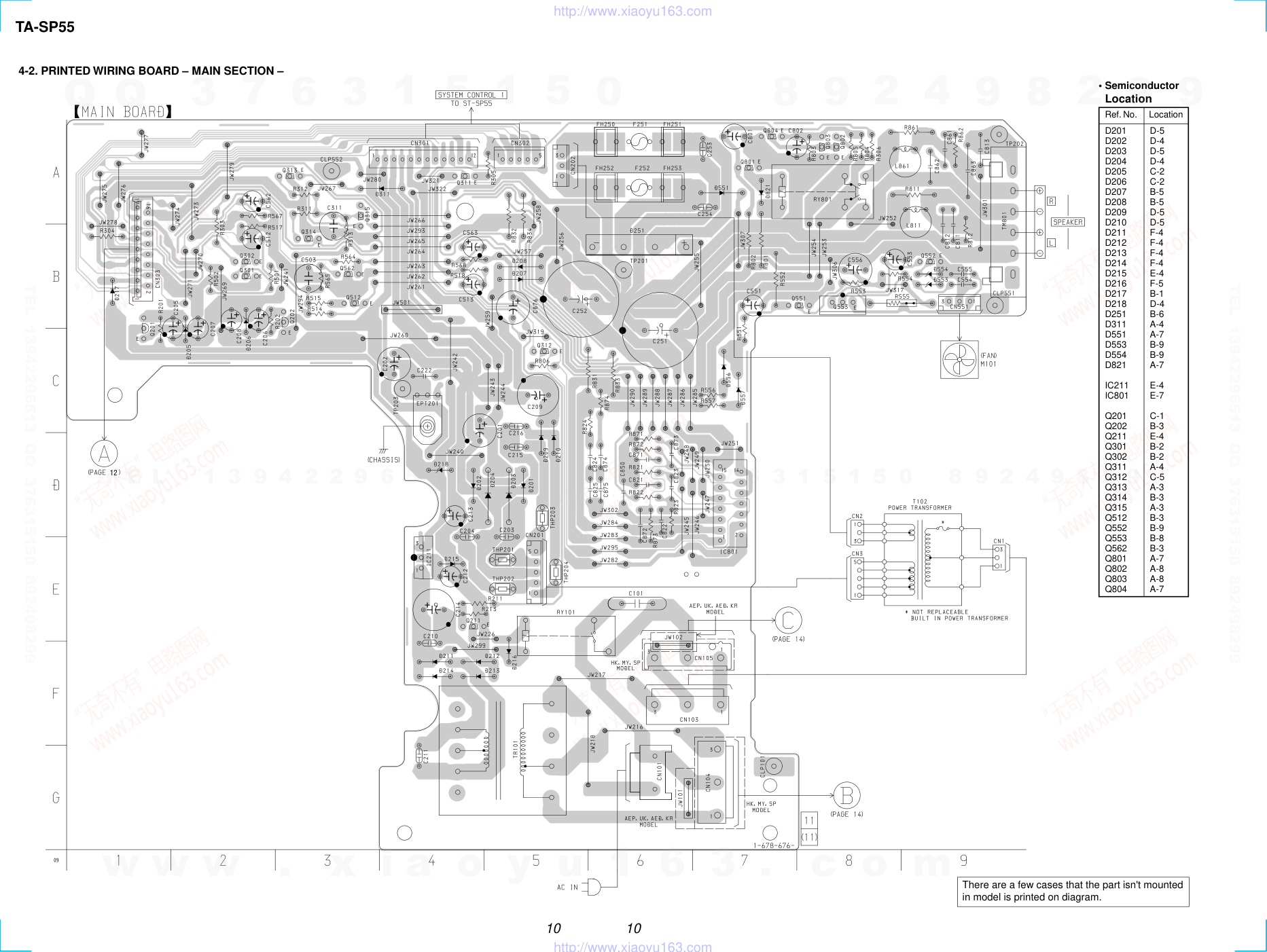

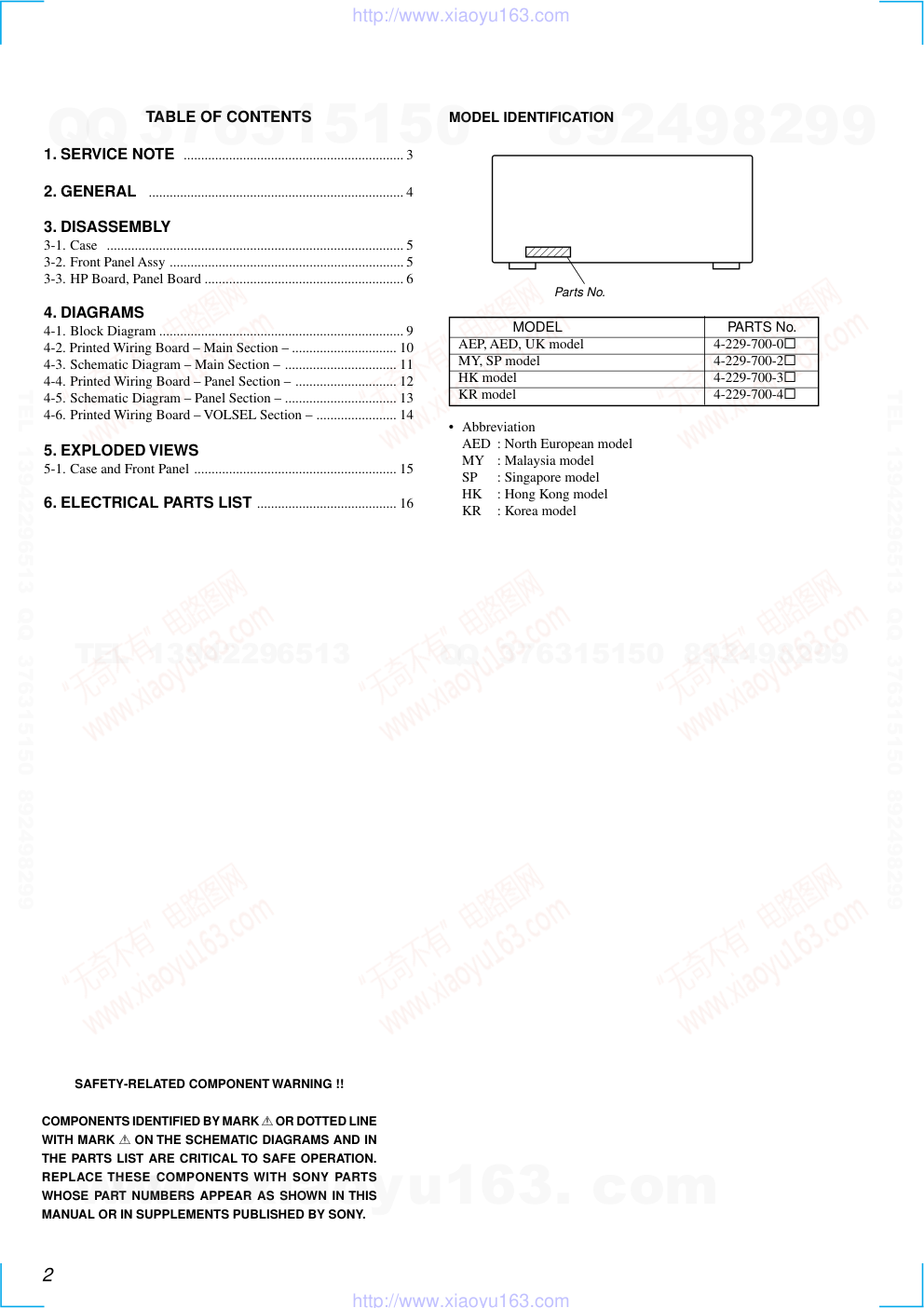

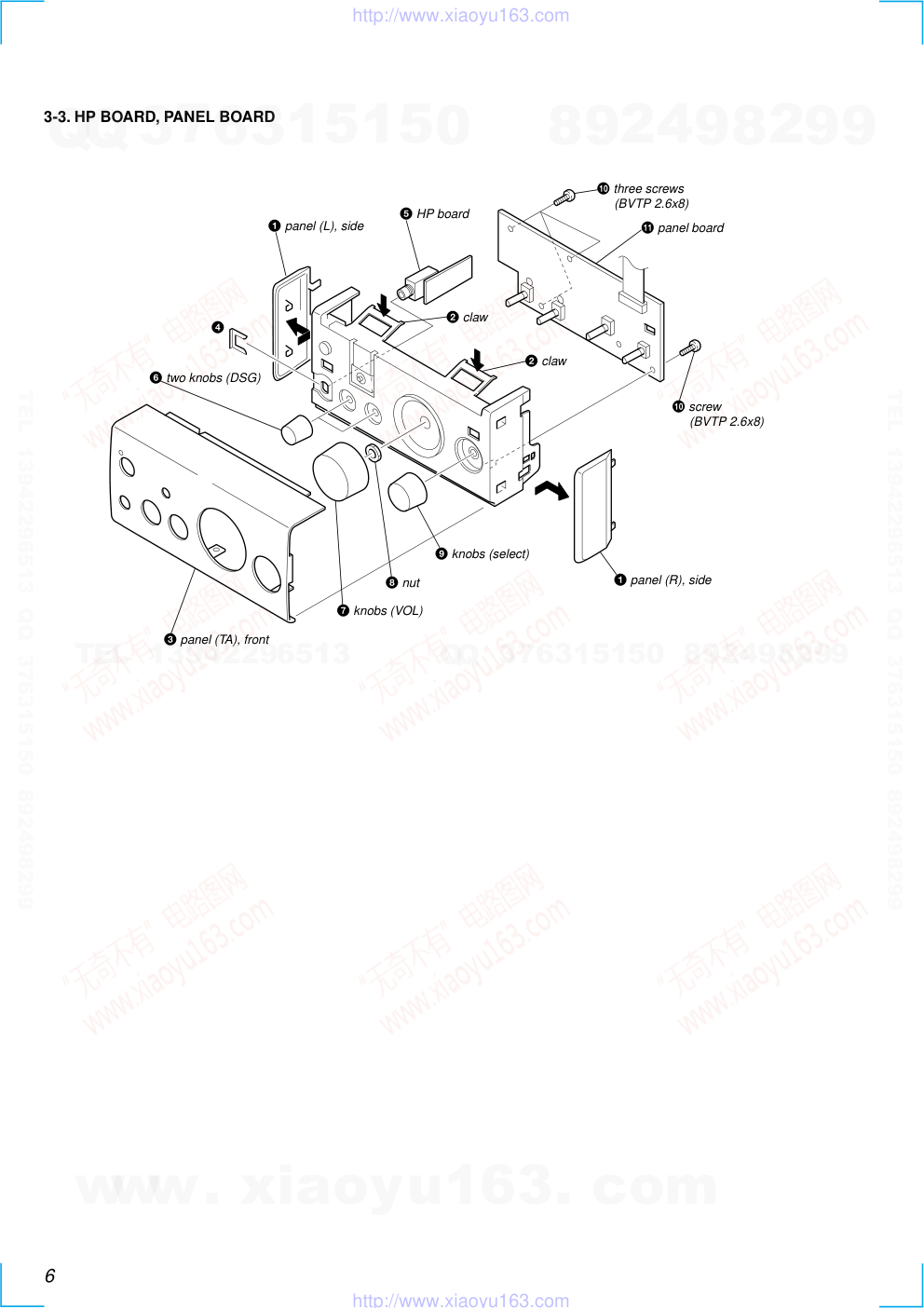

1 AEP Model UK Model E Model SPECIFICATIONS SERVICE MANUAL MICRO Hi-Fi COMPONENT SYSTEM TA-SP55 TA-SP55 is the amplifier section in CMT-SP55MD or CMT-SP55TC. European model: DIN power output (Rated): 25 + 25 watts (8 ohms at 1 kHz, DIN, 230 V) Continuous RMS power output (Reference): 30 + 30 watts (8 ohms at 1 kHz, 10% THD, 230 V) Music power output (Reference): 75 + 75 watts General Power requirements European model: 230 V AC, 50/60 Hz Other models: 110 – 120 V or 220 – 240 V AC, 50/60 Hz Power consumption 70 watts Dimensions (w/h/d) Mass Approx. Approx. 202 x 101 x 306 mm 3.9 kg Design and specifications are subject to change without notice. Other models: DIN power output (Rated): 25 + 25 watts (8 ohms at 1 kHz, DIN, 240 V) 22 + 22 watts (8 ohms at 1 kHz, DIN, 220 V) Continuous RMS power output (Reference): 30 + 30 watts (8 ohms at 1 kHz, 10% THD, 240 V) 28 + 28 watts (8 ohms at 1 kHz, 10% THD, 220 V) Output PHONES (stereo phono jack): accepts headphones of 8 ohms or more. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 SAFETY-RELATED COMPONENT WARNING !! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. TABLE OF CONTENTS 1. SERVICE NOTE ............................................................... 3 2. GENERAL ......................................................................... 4 3. DISASSEMBLY 3-1. Case ..................................................................................... 5 3-2. Front Panel Assy ................................................................... 5 3-3. HP Board, Panel Board ......................................................... 6 4. DIAGRAMS 4-1. Block Diagram ...................................................................... 9 4-2. Printed Wiring Board – Main Section – .............................. 10 4-3. Schematic Diagram – Main Section – ................................ 11 4-4. Printed Wiring Board – Panel Section – ............................. 12 4-5. Schematic Diagram – Panel Section – ................................ 13 4-6. Printed Wiring Board – VOLSEL Section – ....................... 14 5. EXPLODED VIEWS 5-1. Case and Front Panel .......................................................... 15 6. ELECTRICAL PARTS LIST ........................................ 16 MODEL IDENTIFICATION MODEL PARTS No. AEP, AED, UK model 4-229-700-0s MY, SP model 4-229-700-2s HK model 4-229-700-3s KR model 4-229-700-4s • Abbreviation AED : North European model MY : Malaysia model SP : Singapore model HK : Hong Kong model KR : Korea model Parts No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 CD Text Display • This unit displays CD text. Text is displayed for the first 50 track only and will not be displayed from the 51st track onwards. Do not suspect a fault in this case. In some cases, some special characters will not be displayed and may be replaced by other characters. Do not suspect a fault in this case. Cold Reset • The cold reset clears all data including preset data stored in the RAM to initial conditions. Execute this mode when returning the set to the customer. Procedure : 1. When the power ON, press the ?/1 button (TA) while pressing the TUNING MODE button (ST) and ML buttons (CDP) together. 2. “COLD RESET” is displayed on the fluorescent indicator tube and reset is executed. Hot Reset • This mode reset the preset data kept in the memory. The hot reset mode functions same as if the power cord is plugged in and out. Procedure : 1. When the power ON, press the ?/1 button (TA) while pressing the TUNING MODE button (ST) and lm buttons (CDP) together. 2. Turn off the unit and reset is executed. GC Test Mode Procedure : 1. When the power ON, press the ?/1 button (TA) while pressing the TUNING MODE button (ST) and PLAY MODE buttons (CDP) together. 2. Fluorescent indicator tube are all turned on. 3. Press TUNING MODE button (ST) to enter the model destination indecation mode. “SP55 CE2” appears. 4. Every pressing of TUNING MODE button (ST) changes the display in the following order. MC Version t CD Version t ST Version t TC Version t TA Version t TM Version t model destination display. 5. Press DISPLAY button (ST) and the date appears as “ 00615a ” Every pressing of DISPLAY button (ST) changes the display in the Version display and model destination display. 6. Press TUNER/BAND button (ST) to enter the key check mode. 7. In the key check mode, the fluorescent indicator tube displays “Key 0 Vol 0”. Each time a button is pressed, “Key” value increases. However, once a button is pressed, it is no longer taken into account. “Vol” Value increases like “1, 2, 3 ...” if rotating VOLUME knob (TA) in the clockwise direction, or decreases like “0, 9, 8 ...” if rotating in the counterclockwise diretion. 8. To exit from this mode, press three buttons in the same procedure as step 1, or disconnect the power cord. SECTION 1 SERVICING NOTE MC Test Mode Procedure : 1. When the power ON, press the ?/1 button (TA) while pressing TUNING MODE button (ST) and REPEAT button (CDP) together. 2. Frame of the MD mark and the CD mark flash, and “BASS/TRE FLAT” appears for a moment. 3. When the VOLUME knob (TA) is turned clockwise, “VOLUME MAX” appears for a moment. 4. When the VOLUME knob (TA) is turned counterclockwise, “VOLUME MIN” appears for a moment. 5. Select the function “TAPE” using the FUNCTION knob (TA). Set the test tape AMS-110A or AMS-120. 6. Press DIRECTION button (TC) to enter either “j” (loop) or “h” (two way). 7. Press the CD SYNC REC button (TC) to start the AMS test. 8. Number of AMS signals is counted during the AMS test and the message “EDG#” (# means a number) appears. When the test tape either AMS-110A or AMS-120 is used, the AMS signal is detected twice before shut off. 9. When the AMS test ends, either “OK” or “NG” appears. 10. To exit the MC test mode, either press the ?/1 button (TA)or perform the cold reset as described above. (FWD) REW (Shut off) (FWD) FF AMS (FWD) REW AMS END (Shut off) (Shut off) This unit cannot be repaired by itself. When repairing, connect the whole system except for the speaker. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 SECTION 2 GENERAL 12 3 4 5 8 7 6 FRONT PANEL This section is extracted from instruction manual. 8 Step 2: Setting the time You must set the time beforehand to use the timer functions. The clock is on a 24-hour system for the European model, and a 12-hour system for other models. The 24-hour system is used for illustration purposes. Set the time before turning on the system. `/1 1 2,3 2,3 2,3 1 Press CLOCK/TIMER SET while the system is off. The hour indication flashes. 2 Press . or > to set the hour, then press ENTER/YES. The minute indication flashes. 3 Press . or > to set the minute, then press ENTER/YES. The clock starts. If you made a mistake Start over from step 1. To change the preset time You can change the preset time while the system is on. 1 Press CLOCK/TIMER SET. 2 Press . or > repeatedly until “SET CLOCK” appears, then press ENTER/YES. 3 Repeat steps 2 and 3. Tips • The built-in clock shows the time in the display while the system is off. If you press DISPLAY at this time, the display back light lights up, making the clock easier to see. • The upper dot of the colon flashes for the first 30 seconds, and the lower dot flashes for the last 30 seconds of each minute. 1 STANDBY indicator 2 @/1 button 3 DSG ON/OFF button and indicator 4 VOLUME knob 5 FUNCTION knob 6 DSG FREQUENCY HIGH knob 7 DSG FREQUENCY LOW knob 8 PHONES jack www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 SECTION 3 DISASSEMBLY 3-1. CASE 3-2. FRONT PANEL ASSY Set Case Front Panel Assy HP Board, Panel Board 1 two screws (case 3 TP2) 4 case 1 two screws (case 3 TP2) 2 2 3 1 flat type wire (17 core) (CN303) 4 screw (BVTP 3x12) 5 front panel assy 2 two screws (BVTP 3x12) 3 two foot assy's claws claws www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 3-3. HP BOARD, PANEL BOARD 0 three screws (BVTP 2.6x8) qa panel board 0 screw (BVTP 2.6x8) 1 panel (L), side 5 HP board 6 two knobs (DSG) 8 nut 7 knobs (VOL) 9 knobs (select) 3 panel (TA), front 4 1 panel (R), side 2 claw 2 claw www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.) For schematic diagrams. Note: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • f : internal component. • 2 : nonflammable resistor. • 5 : fusible resistor. • C : panel designation. For printed wiring boards. Note: • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • a : Through hole. • b : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) • U : B+ Line. • V : B– Line. • H : adjustment for repair. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Signal path. K : FM • Abbreviation AED: North European model MY: Malasia model SP: Singapore model HK: Hong Kong model KR: Korea model Caution: Pattern face side: Parts on the pattern face side seen from the (Side B) pattern face are indicated. Parts face side: Parts on the parts face side seen from the (Side A) parts face are indicated. • Indication of transistor B These are omitted. C E B These are omitted. C E Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. SECTION 4 DIAGRAMS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-SP55 9 9 4-1. BLOCK DIAGRAM 1 3 2 1 2 4 3 5 7 1 3 2 1 7 6 3 DSG DSG STANDBY VOLUME FUNCTION SELECT LED DRIVE LED DRIVE Q912,913 Q911,914 Q311,312 D911 D912 S921 MUTE MUTE Q552,553 Q802-804 Q801 RY801 CN551 FAN DRIVE CN101 FAN DC DETECT RELAY DRIVE RY101 +7V REG. -7V REG. +UNREG(H) (+13V) +UNREG(L) -UNREG(L) +7V +5.6V -7V VCC Q201 IC211 Q202 D201-204 D209-210 D251 D211-214 T102 D551 TR101 HK, MY, SP model (POWER AMP) +5.6V REG. RELAY DRIVE. JW102 AEP, AED, UK, KR model JW104 IC502 JW101 AEP, AED, UK, KR model Q211 AC IN L L SPEAKER PHONE TM801 R-CH R-CH R-CH R-CH IC801 POWER AMP Q512 Q314 MUTE-A IC552(2/2) IC552(1/2) Q301,302 BUFFER Q516 IC501 SHK PROCESSOR TREB BASS + - L-SHK TREBLE RV503 RV502 BASS L R -UNREG(L) +UNREG(L) +5.6V(UNSW) +13V(REG) XPRE-MUTE HP-MUTE XS-RELAY P-RELAY DSG-OFF TA-KEY/HPSW ON/STBY/ AMP-MUTE ENC0 ENC1 ENC0 ENC1 R-CH L-ORG -UNREG(L) +UNREG(L) +5.6V +UNREG(H) DSG OFF TAKEY HPSW 8 6 1 3 4 5 5 2 1 3 4 11 10 12 9 CN301(1/2) CN302 S901 S902 S931 J667 09 F102 S101 S101 VOLTAGE SELECT 220V-240V 110V-120V SYSTEM CONTROL 1 TO ST-SP55 "/1 : FM • Signal Path • R-ch is omitted due to same as L-ch. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-SP55 10 10 4-2. PRINTED WIRING BOARD – MAIN SECTION – There are a few cases that the part isn't mounted in model is printed on diagram. Ref. No. Location D201 D-5 D202 D-4 D203 D-5 D204 D-4 D205 C-2 D206 C-2 D207 B-5 D208 B-5 D209 D-5 D210 D-5 D211 F-4 D212 F-4 D213 F-4 D214 F-4 D215 E-4 D216 F-5 D217 B-1 D218 D-4 D251 B-6 D311 A-4 D551 A-7 D553 B-9 D554 B-9 D821 A-7 IC211 E-4 IC801 E-7 Q201 C-1 Q202 B-3 Q211 E-4 Q301 B-2 Q302 B-2 Q311 A-4 Q312 C-5 Q313 A-3 Q314 B-3 Q315 A-3 Q512 B-3 Q552 B-9 Q553 B-8 Q562 B-3 Q801 A-7 Q802 A-8 Q803 A-8 Q804 A-7 • Semiconductor Location 12 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-SP55 11 11 4-3. SCHEMATIC DIAGRAM – MAIN SECTION – w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-SP55 12 12 4-4. PRINTED WIRING BOARD – PANEL SECTION – There are a few cases that the part isn't mounted in model is printed on diagram. Ref. No. Location D522 B-2 D523 B-2 D911 B-5 D912 A-7 IC501 B-5 IC502 B-4 IC522 B-2 Q511 A-4 Q561 A-4 Q911 A-6 Q912 A-6 Q913 A-6 Q914 A-6 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-SP55 13 13 4-5. SCHEMATIC DIAGRAM – PANEL SECTION – w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-SP55 14 14 4-6. PRINTED WIRING BOARD – VOLSEL SECTION – There are a few cases that the part isn't mounted in model is printed on diagram. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 SECTION 5 EXPLODED VIEW 5-1. CASE AND FRONT PANEL 1 2 2 3 4 5 6 30 30 7 8 9 10 11 12 13 14 15 15 16 17 28 30 31 18 22 27 29 19 20 21 29 29 32 23 25 33 24 26 29(HK,MY,SP) not supplied not supplied not supplied T102 Supplied with J667 Supplied with S921 M101 A A NOTE: • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Hardware (# mark) list and accessories and pack- ing materials are given in the last of this parts list. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. • Abbreviation AED : North European model MY : Malasia model SP : Singapore model HK : Hong Kong model KR : Korea model 1 1-773-043-11 WIRE (FLAT TYPE) (17 CORE) 2 4-951-620-01 SCREW (2.6X8), +BVTP 3 1-678-677-11 PANEL BOARD 4 4-229-703-01 PLATE (R), SIDE 5 X-4953-027-1 FOOT ASSY 6 4-229-692-01 KNOB (SELECT) 7 4-229-691-01 KNOB (VOL) 8 4-229-693-01 KNOB (DSG) 9 4-229-690-01 PANEL(TA), FRONT 10 4-229-697-01 INDICATOR (P) 11 4-229-704-01 PLATE (L), SIDE 12 X-4953-023-1 PANEL ASSY (TA), SUB 13 1-678-678-11 HP BOARD 14 4-900-386-01 SCREW 15 3-363-099-51 SCREW (CASE 3 TP2) 16 4-229-701-31 CASE 17 A-4473-728-A MAIN BOARD, COMPLETE (AEP,AED,UK,KR) 17 A-4473-732-A MAIN BOARD, COMPLETE (HK,MY,SP) 18 3-970-608-11 SUMITITE (B3), +BV 019 1-769-079-11 CORD, POWER (KR) Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 019 1-777-071-61 CORD, POWER (AEP,AED,UK,HK,MY,SP) * 20 3-703-244-00 BUSHING (2104), CORD 21 1-792-922-11 CORD (WITH CONNECTOR) 22 4-857-425-00 BUSHING, 03P INSULATING 23 4-229-700-01 PANEL, BACK (AEP,AED,UK) 23 4-229-700-21 PANEL, BACK (MY,SP) 23 4-229-700-31 PANEL, BACK (HK) 23 4-229-700-41 PANEL, BACK (KR) 24 4-965-822-01 FOOT 25 1-500-386-11 FILTER, CLAMP (FERRITE CORE) * 26 4-954-051-41 HOLDER, PC BOARD 27 1-678-679-11 VOL SEL BOARD (HK,MY,SP) 28 4-230-423-01 SHEET, INSULATING 29 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S 30 7-685-648-79 SCREW +BVTP 3X12 TYPE2 N-S 31 7-685-650-79 SCREW +BVTP 3X16 TYPE2 N-S 32 7-682-563-09 SCREW +B 4X12 33 7-684-024-04 N 4, TYPE 2 M101 1-698-997-21 FAN, D.C. 0T102 1-435-600-11 TRANSFORMER, POWER (AEP,AED,UK,KR) 0T102 1-435-601-11 TRANSFORMER, POWER (HK,MY,SP) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks SECTION 6 ELECTRICAL PARTS LIST 1-678-678-11 HP BOARD ******* < CAPACITOR > C681 1-162-294-31 CERAMIC 0.001uF 10% 50V C682 1-162-294-31 CERAMIC 0.001uF 10% 50V C683 1-164-159-11 CERAMIC 0.1uF 50V C684 1-162-294-31 CERAMIC 0.001uF 10% 50V < JACK > J667 1-774-933-11 JACK (LARGE TYPE) (PHONES) ************************************************************** A-4473-728-A MAIN BOARD, COMPLETE (AEP,AED,UK,KR) *********************************** A-4473-732-A MAIN BOARD, COMPLETE (HK,MY,SP) ****************************** 1-533-293-11 FUSE HOLDER * 4-374-846-21 COVER, CAPACITOR, CAP TYPE < CAPACITOR > 0C101 1-113-925-11 CERAMIC 0.01uF 20% 250V C201 1-126-935-11 ELECT 470uF 20% 16V C202 1-126-935-11 ELECT 470uF 20% 16V C203 1-136-165-00 MYLAR 0.1uF 5% 50V C204 1-136-165-00 MYLAR 0.1uF 5% 50V C205 1-126-964-11 ELECT 10uF 20% 50V C206 1-126-964-11 ELECT 10uF 20% 50V C207 1-126-964-11 ELECT 10uF 20% 50V C208 1-126-964-11 ELECT 10uF 20% 50V C209 1-126-941-11 ELECT 470uF 20% 25V C210 1-136-165-00 MYLAR 0.1uF 5% 50V C211 1-136-165-00 MYLAR 0.1uF 5% 50V C212 1-126-964-11 ELECT 10uF 20% 50V C213 1-126-964-11 ELECT 10uF 20% 50V C214 1-126-767-11 ELECT 1000uF 20% 16V C215 1-136-165-00 MYLAR 0.1uF 5% 50V C216 1-136-165-00 MYLAR 0.1uF 5% 50V C222 1-164-159-11 CERAMIC 0.1uF 50V C251 1-126-042-11 ELECT 3300uF 20% 35V C252 1-126-042-11 ELECT 3300uF 20% 35V C253 1-136-165-00 MYLAR 0.1uF 5% 50V C254 1-136-165-00 MYLAR 0.1uF 5% 50V C311 1-107-715-11 ELECT 22uF 20% 16V C503 1-107-714-11 ELECT 10uF 20% 50V C512 1-126-047-71 ELECT 4.7uF 20% 50V C513 1-126-047-71 ELECT 4.7uF 20% 50V C553 1-126-934-11 ELECT 220uF 20% 10V C554 1-164-159-11 CERAMIC 0.1uF 50V C555 1-164-159-11 CERAMIC 0.1uF 50V C556 1-126-949-11 ELECT 220uF 20% 35V C562 1-126-047-71 ELECT 4.7uF 20% 50V C563 1-126-047-71 ELECT 4.7uF 20% 50V C801 1-126-967-11 ELECT 47uF 20% 50V C802 1-126-933-11 ELECT 100uF 20% 16V C811 1-161-494-00 CERAMIC 0.022uF 25V C812 1-161-494-00 CERAMIC 0.022uF 25V C813 1-164-159-11 CERAMIC 0.1uF 50V C823 1-162-219-31 CERAMIC 68PF 5% 50V C824 1-164-159-11 CERAMIC 0.1uF 50V C825 1-164-159-11 CERAMIC 0.1uF 50V C850 1-164-159-11 CERAMIC 0.1uF 50V C861 1-161-494-00 CERAMIC 0.022uF 25V C862 1-161-494-00 CERAMIC 0.022uF 25V C863 1-164-159-11 CERAMIC 0.1uF 50V C873 1-162-219-31 CERAMIC 68PF 5% 50V C874 1-164-159-11 CERAMIC 0.1uF 50V C875 1-164-159-11 CERAMIC 0.1uF 50V C876 1-126-949-11 ELECT 220uF 20% 35V < CONNECTOR > * CN101 1-580-230-11 PIN, CONNECTOR (PC BOARD) 2P CN103 1-564-321-00 PIN, CONNECTOR 2P (AEP,AED,UK,KR) * CN103 1-564-687-11 PIN, CONNECTOR 3P (HK,MY,SP) * CN104 1-564-687-11 PIN, CONNECTOR 3P (HK,MY,SP) * CN201 1-564-508-11 PLUG, CONNECTOR 5P CN202 1-564-506-11 PLUG, CONNECTOR 3P CN301 1-794-568-11 PIN, CONNECTOR 12P CN302 1-794-569-11 PIN, CONNECTOR 5P CN303 1-784-778-11 CONNECTOR, FFC 17P CN551 1-564-506-11 PLUG, CONNECTOR 3P < DIODE > D201 8-719-024-99 DIODE 11ES2-NTA2B D202 8-719-024-99 DIODE 11ES2-NTA2B D203 8-719-975-85 DIODE 21DQ04N-TA2 D204 8-719-975-85 DIODE 21DQ04N-TA2 D205 8-719-947-36 DIODE MTZJ-T-72-8.2A Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HP • SEMICONDUCTORS In each case, u: µ , for example: uA...: µ A..., uPA...: µ PA..., uPB...: µ PB..., uPC...: µ PC..., uPD...: µ PD... • CAPACITORS uF : µ F • COILS uH : µ H • Abbreviation AED : North European model MY : Malasia model SP : Songapore model HK : Hong Kong model KR : Korea model • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • RESISTORS All resistors are in ohms METAL: Metal-film resistor METAL OXIDE: Metal Oxide-film resistor F : nonflammable Note: When indicating parts by reference number, please include the board name. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks D206 8-719-947-36 DIODE MTZJ-T-72-8.2A D207 8-719-024-99 DIODE 11ES2-NTA2B D208 8-719-024-99 DIODE 11ES2-NTA2B D209 8-719-024-99 DIODE 11ES2-NTA2B D210 8-719-024-99 DIODE 11ES2-NTA2B D211 8-719-024-99 DIODE 11ES2-NTA2B D212 8-719-024-99 DIODE 11ES2-NTA2B D213 8-719-024-99 DIODE 11ES2-NTA2B D214 8-719-024-99 DIODE 11ES2-NTA2B D215 8-719-911-19 DIODE 1SS133T-72 D216 8-719-911-19 DIODE 1SS133T-72 D217 8-719-911-19 DIODE 1SS133T-72 D218 8-719-921-48 DIODE MTZJ-T-72-5.6C D251 8-719-500-33 DIODE D3SB20 D311 8-719-911-19 DIODE 1SS133T-72 D551 8-719-024-99 DIODE 11ES2-NTA2B D553 8-719-947-33 DIODE MTZJ-T-72-7.5A D554 8-719-921-44 DIODE MTZJ-T-72-5.1C D821 8-719-911-19 DIODE 1SS133T-72 < GROUND TERMINAL > EPT201 1-537-770-21 TERMINAL BOARD, GROUND < FUSE > 0F251 1-532-465-31 FUSE T3.15AL/250V 0F252 1-532-465-31 FUSE T3.15AL/250V < IC > IC211 8-759-647-11 IC uPC2905HF IC801 8-759-681-35 IC LM4766T < COIL > L811 1-420-872-00 COIL, AIR-CORE L861 1-420-872-00 COIL, AIR-CORE < TRANSISTOR > Q201 8-729-620-05 TRANSISTOR 2SC2603TP-EF Q202 8-729-119-76 TRANSISTOR 2SA1115TP-EF Q211 8-729-620-05 TRANSISTOR 2SC2603TP-EF Q301 8-729-422-57 TRANSISTOR BN1A4M-TP Q302 8-729-900-80 TRANSISTOR BA1A4M-TP Q311 8-729-422-57 TRANSISTOR BN1A4M-TP Q312 8-729-900-80 TRANSISTOR BA1A4M-TP Q313 8-729-141-30 TRANSISTOR 2SC3623ATP-LK Q314 8-729-141-30 TRANSISTOR 2SC3623ATP-LK Q315 8-729-422-57 TRANSISTOR BN1A4M-TP Q512 8-729-141-30 TRANSISTOR 2SC3623ATP-LK Q552 8-729-620-05 TRANSISTOR 2SC2603TP-EF Q553 8-729-026-68 TRANSISTOR 2SD2525(TP) Q562 8-729-141-30 TRANSISTOR 2SC3623ATP-LK Q801 8-729-620-05 TRANSISTOR 2SC2603TP-EF Q802 8-729-900-80 TRANSISTOR BA1A4M-TP Q803 8-729-620-05 TRANSISTOR 2SC2603TP-EF Q804 8-729-620-05 TRANSISTOR 2SC2603TP-EF < RESISTOR > R201 1-247-843-11 CARBON 3.3K 5% 1/4W R202 1-247-843-11 CARBON 3.3K 5% 1/4W R211 1-249-429-11 CARBON 10K 5% 1/4W R213 1-249-429-11 CARBON 10K 5% 1/4W R303 1-247-807-31 CARBON 100 5% 1/4W R304 1-247-807-31 CARBON 100 5% 1/4W R305 1-247-807-31 CARBON 100 5% 1/4W R306 1-247-807-31 CARBON 100 5% 1/4W R311 1-249-413-11 CARBON 470 5% 1/4W F R312 1-249-413-11 CARBON 470 5% 1/4W F R313 1-249-441-11 CARBON 100K 5% 1/4W R501 1-247-843-11 CARBON 3.3K 5% 1/4W R502 1-249-441-11 CARBON 100K 5% 1/4W R514 1-249-421-11 CARBON 2.2K 5% 1/4W F R515 1-249-425-11 CARBON 4.7K 5% 1/4W F R518 1-247-895-00 CARBON 470K 5% 1/4W R553 1-247-887-00 CARBON 220K 5% 1/4W R554 1-249-425-11 CARBON 4.7K 5% 1/4W F 0R555 1-215-887-11 METAL OXIDE 150 5% 2W R564 1-249-421-11 CARBON 2.2K 5% 1/4W F R565 1-249-425-11 CARBON 4.7K 5% 1/4W F R568 1-247-895-00 CARBON 470K 5% 1/4W R801 1-260-089-11 CARBON 150 5% 1/2W R802 1-249-441-11 CARBON 100K 5% 1/4W R803 1-249-438-11 CARBON 56K 5% 1/4W R804 1-249-437-11 CARBON 47K 5% 1/4W R805 1-249-438-11 CARBON 56K 5% 1/4W R806 1-249-429-11 CARBON 10K 5% 1/4W R811 1-260-076-11 CARBON 10 5% 1/2W R812 1-249-389-11 CARBON 4.7 5% 1/4W F R821 1-249-417-11 CARBON 1K 5% 1/4W F R822 1-249-417-11 CARBON 1K 5% 1/4W F R823 1-249-441-11 CARBON 100K 5% 1/4W R824 1-249-389-11 CARBON 4.7 5% 1/4W F R831 1-260-089-11 CARBON 150 5% 1/2W R832 1-260-089-11 CARBON 150 5% 1/2W R833 1-260-089-11 CARBON 150 5% 1/2W R834 1-260-089-11 CARBON 150 5% 1/2W R861 1-260-076-11 CARBON 10 5% 1/2W R862 1-249-389-11 CARBON 4.7 5% 1/4W F R871 1-249-417-11 CARBON 1K 5% 1/4W F R872 1-249-417-11 CARBON 1K 5% 1/4W F R873 1-249-441-11 CARBON 100K 5% 1/4W R874 1-249-389-11 CARBON 4.7 5% 1/4W F < RELAY > RY101 1-755-276-11 RELAY, POWER RY801 1-515-920-11 RELAY (24V) < THERMISTOR(POSITIVE) > THP201 1-804-233-21 THERMISTOR, POSITIVE THP202 1-804-233-21 THERMISTOR, POSITIVE THP203 1-804-234-21 THERMISTOR, POSITIVE THP204 1-804-234-21 THERMISTOR, POSITIVE < TERMINAL > TM801 1-694-677-11 TERMINAL BOARD (4P) (SPEAKERS) MAIN The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks < POWER TRANSFORMER > 0TR101 1-435-624-11 TRANSFORMER, POWER (AEP,AED,UK,KR) 0TR101 1-435-625-11 TRANSFORMER, POWER (HK,MY,SP) ************************************************************** 1-678-677-11 PANEL BOARD ********** < CAPACITOR > C501 1-161-494-00 CERAMIC 0.022uF 25V C502 1-161-494-00 CERAMIC 0.022uF 25V C511 1-110-337-51 MYLAR 150PF 5% 50V C522 1-126-157-11 ELECT 10uF 20% 16V C523 1-126-157-11 ELECT 10uF 20% 16V C524 1-126-933-11 ELECT 100uF 20% 16V C525 1-164-159-11 CERAMIC 0.1uF 50V C526 1-164-159-11 CERAMIC 0.1uF 50V C561 1-110-337-51 MYLAR 150PF 5% 50V C921 1-161-494-00 CERAMIC 0.022uF 25V C922 1-161-494-00 CERAMIC 0.022uF 25V C925 1-164-159-11 CERAMIC 0.1uF 50V C926 1-164-159-11 CERAMIC 0.1uF 50V C927 1-164-159-11 CERAMIC 0.1uF 50V C931 1-161-494-00 CERAMIC 0.022uF 25V C932 1-161-494-00 CERAMIC 0.022uF 25V < LEAD > * CLP925 1-690-880-31 LEAD (WITH CONNECTOR) < CONNECTOR > CN911 1-784-739-11 CONNECTOR, FFC 17P < DIODE > D522 8-719-911-19 DIODE 1SS133T-72 D523 8-719-911-19 DIODE 1SS133T-72 D911 8-719-071-42 DIODE SEL5723C-TP15 (DSG ON/OFF) D912 8-719-056-11 DIODE SML72423C-TP15 (STANDBY) < IC > IC501 8-749-015-28 IC SSE-96G IC502 8-759-705-58 IC NJM4558D-D IC522 8-759-705-58 IC NJM4558D-D < TRANSISTOR > Q511 8-729-141-30 TRANSISTOR 2SC3623ATP-LK Q561 8-729-141-30 TRANSISTOR 2SC3623ATP-LK Q911 8-729-422-57 TRANSISTOR BN1A4M-TP Q912 8-729-422-57 TRANSISTOR BN1A4M-TP Q913 8-729-900-80 TRANSISTOR BA1A4M-TP Q914 8-729-900-80 TRANSISTOR BA1A4M-TP < RESISTOR > R511 1-249-435-11 CARBON 33K 5% 1/4W R512 1-249-425-11 CARBON 4.7K 5% 1/4W F R513 1-249-433-11 CARBON 22K 5% 1/4W R516 1-249-429-11 CARBON 10K 5% 1/4W R520 1-249-409-11 CARBON 220 5% 1/4W F R521 1-249-409-11 CARBON 220 5% 1/4W F R522 1-249-429-11 CARBON 10K 5% 1/4W R523 1-249-429-11 CARBON 10K 5% 1/4W R524 1-249-429-11 CARBON 10K 5% 1/4W R525 1-249-429-11 CARBON 10K 5% 1/4W R526 1-249-441-11 CARBON 100K 5% 1/4W R527 1-249-429-11 CARBON 10K 5% 1/4W R528 1-249-429-11 CARBON 10K 5% 1/4W R561 1-249-435-11 CARBON 33K 5% 1/4W R562 1-249-425-11 CARBON 4.7K 5% 1/4W F R563 1-249-433-11 CARBON 22K 5% 1/4W R566 1-249-429-11 CARBON 10K 5% 1/4W R570 1-249-409-11 CARBON 220 5% 1/4W F R571 1-249-409-11 CARBON 220 5% 1/4W F R901 1-249-425-11 CARBON 4.7K 5% 1/4W F R902 1-249-427-11 CARBON 6.8K 5% 1/4W F R903 1-249-429-11 CARBON 10K 5% 1/4W R904 1-249-430-11 CARBON 12K 5% 1/4W R911 1-249-409-11 CARBON 220 5% 1/4W F R912 1-249-413-11 CARBON 470 5% 1/4W F R913 1-249-412-11 CARBON 390 5% 1/4W F R914 1-247-807-31 CARBON 100 5% 1/4W R915 1-247-807-31 CARBON 100 5% 1/4W R916 1-249-429-11 CARBON 10K 5% 1/4W < VARIABLE RESISTOR > RV502 1-227-202-11 RES, VAR 1K (DSG FREQ. LOW) RV503 1-227-202-11 RES, VAR 1K (DSG FREQ. HIGH) < SWITCH > S901 1-771-410-21 SWITCH, TACTILE (&/1) S902 1-771-410-21 SWITCH, TACTILE (DSG ON/OFF) S921 1-476-087-11 ENCODER, ROTARY (VOLUME) S931 1-771-963-11 SWITCH (FUNCTION) ************************************************************** 1-678-679-11 VOL SEL BOARD (HK,MY,SP) ************* 1-533-293-11 FUSE HOLDER (HK,MY,SP) < CONNECTOR > * CN107 1-564-687-11 PIN, CONNECTOR 3P (HK,MY,SP) < FUSE > 0F102 1-532-463-31 FUSE 1A/250V (HK,MY,SP) (HK,MY,SP) < SWITCH > 0S101 1-571-309-11 SWITCH (VOLTAGE SELECTOR) (HK,MY,SP) ************************************************************** PANEL VOL SEL The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks MISCELLANEOUS ************* 1 1-773-043-11 WIRE (FLAT TYPE) (17 CORE) 019 1-769-079-11 CORD, POWER (KR) 019 1-777-071-61 CORD, POWER (AEP,AED,UK,HK,MY,SP) 21 1-792-922-11 CORD (WITH CONNECTOR) 25 1-500-386-11 FILTER, CLAMP (FERRITE CORE) M101 1-698-997-21 FAN, D.C. 0T102 1-435-600-11 TRANSFORMER, POWER (AEP,AED,UK,KR) 0T102 1-435-601-11 TRANSFORMER, POWER (HK,MY,SP) ************************************************************** ACCESSORIES & PACKING MATERIALS ******************************* 0 1-569-008-21 ADAPTOR, CONVERSION 2P (MY,SP) 0 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (UK,HK) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks TA-SP55 Sony Corporation Audio Entertainment Group 9-929-535-11 2000I097551-1 Printed in Hungary ©2000.9 Published by General Engineering Dept. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
