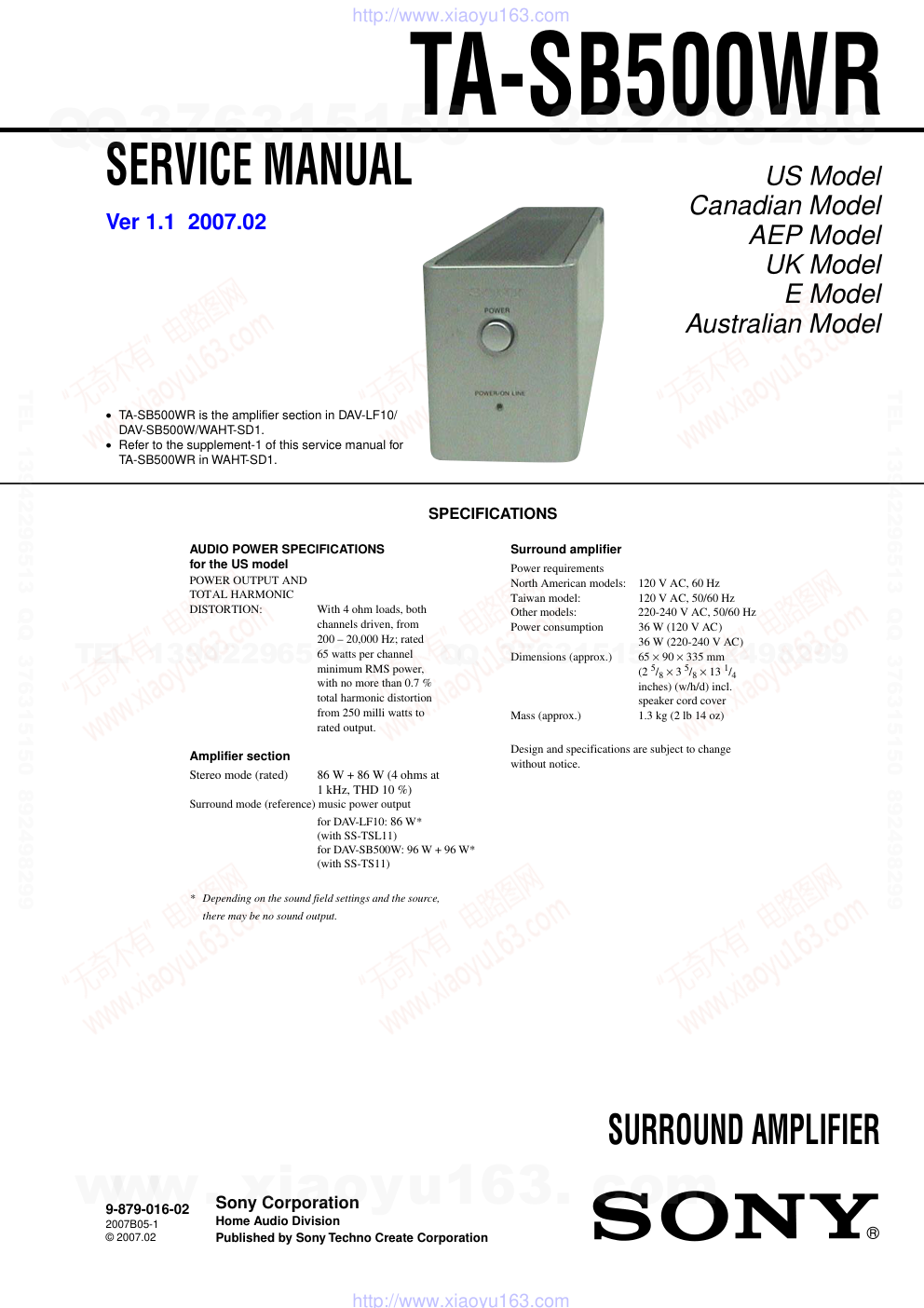

SERVICE MANUAL SURROUND AMPLIFIER US Model Canadian Model AEP Model UK Model E Model Australian Model SPECIFICATIONS TA-SB500WR Ver 1.1 2007.02 9-879-016-02 2007B05-1 © 2007.02 Sony Corporation Home Audio Division Published by Sony Techno Create Corporation • TA-SB500WR is the amplifier section in DAV-LF10/ DAV-SB500W/WAHT-SD1. • Refer to the supplement-1 of this service manual for TA-SB500WR in WAHT-SD1. AUDIO POWER SPECIFICATIONS for the US model POWER OUTPUT AND TOTAL HARMONIC DISTORTION: With 4 ohm loads, both channels driven, from 200 – 20,000 Hz; rated 65 watts per channel minimum RMS power, with no more than 0.7 % total harmonic distortion from 250 milli watts to rated output. Amplifier section Stereo mode (rated) 86 W + 86 W (4 ohms at 1 kHz, THD 10 %) Surround mode (reference) music power output for DAV-LF10: 86 W* (with SS-TSL11) for DAV-SB500W: 96 W + 96 W* (with SS-TS11) * Depending on the sound field settings and the source, there may be no sound output. Surround amplifier Power requirements North American models: 120 V AC, 60 Hz Taiwan model: 120 V AC, 50/60 Hz Other models: 220-240 V AC, 50/60 Hz Power consumption 36 W (120 V AC) 36 W (220-240 V AC) Dimensions (approx.) 65 × 90 × 335 mm (2 5/8 × 3 5/8 × 13 1/4 inches) (w/h/d) incl. speaker cord cover Mass (approx.) 1.3 kg (2 lb 14 oz) Design and specifications are subject to change without notice. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 TA-SB500WR TABLE OF CONTENTS 1. GENERAL ................................................................... 3 2. DISASSEMBLY 2-1. Disassembly Flow ........................................................... 4 2-2. Wire Cover ...................................................................... 4 2-3. Top Panel ......................................................................... 5 2-4. Side Panel, Front Panel Section....................................... 5 2-5. DIAT POWER Board ...................................................... 6 2-6. DIAT AMP Board ............................................................ 6 3. DIAGRAMS 3-1. Block Diagram ................................................................ 7 3-2. Schematic Diagram – DIAT AMP Board (1/3) – ........... 9 3-3. Schematic Diagram – DIAT AMP Board (2/3) – ........... 10 3-4. Schematic Diagram – DIAT AMP Board (3/3) – ........... 11 3-5. Printed Wiring Board – DIAT AMP Board (Component Side) – ....................... 12 3-6. Printed Wiring Board – DIAT AMP Board (Conductor Side) – ......................... 13 3-7. Printed Wiring Boards – POWER SUPPLY Section – ... 14 3-8. Schematic Diagram – POWER SUPPLY Section – ....... 15 4. EXPLODED VIEWS 4-1. Panel Section ................................................................... 20 4-2. DIAT AMP/DIAT POWER Boards Section .................... 21 5. ELECTRICAL PARTS LIST ................................ 22 Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size) : LEAD FREE MARK Unleaded solder has the following characteristics. • Unleaded solder melts at a temperature about 40 °C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 °C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! • Strong viscosity Unleaded solder is more viscou-s (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. • Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. SAFETY CHECK-OUT After correcting the original service problem, perform the following safety check before releasing the set to the customer: Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes.). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2 V AC range are suitable. (See Fig. A) Fig. A. Using an AC voltmeter to check AC leakage. 1.5 kΩ 0.15 µF AC voltmeter (0.75 V) To Exposed Metal Parts on Set Earth Ground www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 TA-SB500WR SECTION 1 GENERAL This section is extracted from instruction manual. Surround amplifier A POWER B POWER/ON LINE indicator C DIR-R1 jack D SPEAKER jacks DIR-R1 SPEAKER SURROUND L SURROUND R POWER POWER ON-LINE Front panel Rear panel LOCATION OF CONTROLS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-SB500WR 4 Note: Follow the disassembly procedure in the numerical order given. 2-2. WIRE COVER • This set can be disassembled in the order shown below. 2-1. DISASSEMBLY FLOW SECTION 2 DISASSEMBLY 2-2. WIRE COVER (Page 4) 2-3. TOP PANEL (Page 5) 2-4. SIDE PANEL, FRONT PANEL SECTION (Page 5) 2-5. DIAT POWER BOARD (Page 6) 2-6. DIAT AMP BOARD (Page 6) SET 4 wire cover 3 two claws 2 wire (A) holder 1 screw (B3 × 8) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-SB500WR 5 2-3. TOP PANEL 2-4. SIDE PANEL, FRONT PANEL SECTION 3 eight claws 4 top panel 2 1 screw (DIA. 2.6) 3 side panel 2 2 1 six screws (DIA. 2.6) 7 connector (CN901) 6 7 connector 8 front panel section 4 two screws (BVTP3 × 10) 5 two claws 7 connector (CN902) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-SB500WR 6 2-5. DIAT POWER BOARD 2-6. DIAT AMP BOARD 1 two screws 3 7 AMP shield 2 two claws 8 two radiation sheets (DMB) 9 DIAT POWER board 5 four screws (DIA. 2.6) 6 A sheet power 4 two connectors (CN904, CN905) 6 two screws (DIA. 2.6) 9 3 qg radiation sheet (AMP) qa sheet AMP qd two screws (BVTP3 × 6) 0 four screws (DIA. 2.6) qh DIAT AMP board qf heat sink assy qs AMP shield 1 two screws (DIA. 2.6) 2 two screws (BVTP3 × 10) 4 cord stopper 5 back panel 7 two claws 8 two claws www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-SB500WR 7 7 TA-SB500WR SECTION 3 DIAGRAMS 3-1. BLOCK DIAGRAM • SIGNAL PATH : AUDIO /RST /SD 4 13 IC110 POWER DRIVER IC112 POWER DRIVER 17 PWM_AP 2 PWM_BP 17 PWM_AP 2 PWM_BP T100 (+) (–) OUT_A OUT_B IC111 STREAM PROCESSOR 31 DATA 30 BCK 29 LRCK 23 SCLATCH 18 NSPMUTE 19 SOFTMUTE 20 PGMUTE 21 SCDT 36 XFSIIN 22 SCSHIFT 6 OUTR1 9 OUTL2 4 OUTR2 11 OUTL1 Q108, 109 OVER LOAD DETECT /RST /SD 4 13 SURROUND L (+) (–) Q105, 106 OVER LOAD DETECT SURROUND R IC107 SURROUND AMP CONTROLLER 48 XFSOIN 37 DRIVE_RST 38 DRIVE_OCP 17 AC CUT 19 /RESET 58 V_CONT SPEAKER Q107 PROTECT DETECT IC114 OSC X103 49.152MHz 61 DAMP_SCDT 60 DAMP_SHIFT 59 DAMP_LATCH 33 DAMP_PGMUTE 34 DAMP_SOFTMUTE 35 DAMP_NSPMUTE 23 22 X102 8MHz X1 X0 42 LED_RED 41 LED_GREEN LPF LPF LPF LPF 29, 30 25, 26 OUT_A OUT_B 29, 30 25, 26 IC102 RF DEMODULATOR, A/D CONVERTER 60 DAOUT 10 ADVIN 54 BCK 59 LRCK 31 APX SRDT 33 CSOD 61 DTVALID J100 DIR-R1 X101 12.288MHz 40 43 OSCI OSCO 34 53 DIAT_SRDT 15 CSOD 14 DTVALID LPF IF +5V 35 SWDT SCMODE 37 SCLK 36 XSCEN 52 DIAT_SWDT 13 XRST 26 XRST_INIT 38 48 SCMODE 51 DIAT_SCLK 50 XSCEN IC106 LEVEL SHIFT IC109 LEVEL SHIFT IC103 LEVEL SHIFT 27 INIT 1 POWER CONTROL IC901 D (AC IN) S901 TH901 POWER TRANSFORMER T901 D911 D908 D910 D907, 909 RECT D901 LINE FILTER LF901, 902 ISOLATOR PC903 OVER LOAD PROTECT Q902, 903 4 VCC 7 OCP/BD 5 OLP/SS ISOLATOR PC902 TH902 RECT D921 +30V +12V POWER +20V REGULATOR Q901 ISOLATOR PC901 6 FB AC CUT Q110 RESET SWITCH Q102 LED DRIVE Q104, 112 LED DRIVE Q103, 111 VOLTAGE DETECT IC105 SHUNT REGULATOR IC905 +12V REGULATOR IC903 IF +5V +2.5V +3.3V +2.5V REGULATOR IC104 +1.8V +1.8V REGULATOR IC113 +1.5V +1.5V REGULATOR IC101 DC/DC CONVERTER IC904 +3.3V REGULATOR IC108 57 MAIN_OFF D400 POWER/ON-LINE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-SB500WR 8 8 TA-SB500WR • Note for Printed Wiring Boards and Schematic Diagrams Note on Printed Wiring Boards: • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • f : internal component. • : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) Caution: Pattern face side: Parts on the pattern face side seen from (Conductor Side) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Component Side) the parts face are indicated. • DIAT AMP board is multi-layer printed board. However, the patterns of intermediate layers have not been included in diagrams. • Indication of transistor. C B These are omitted. E Q B These are omitted. C E Q Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. (p: pF) 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • f : internal component. • 2 : nonflammable resistor. • C : panel designation. • A : B+ Line. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. Note: When mesurering voltages and waveforms, con- nect with HCD-SB500W (HCD-SB500W states: DVD play). no mark : DVD PLAY ∗ : Impossible to measure • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. F : AUDIO • Abbreviation TW : Taiwan model Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. • Waveforms – DIAT AMP Board – 20.3 ns 4.5 Vp-p 125 ns 3.5 Vp-p 325 ns 2.5 Vp-p 81.3 ns 2.5 Vp-p 1 V/DIV, 50 ns/DIV 1 V/DIV, 100 ns/DIV 1 V/DIV, 50 ns/DIV 2 V/DIV, 10 ns/DIV IC102 rd (OSCO) 2 IC102 tf (BCK) 3 IC107 wd (X1) 4 IC114 4 1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-SB500WR 9 9 TA-SB500WR R110 FB102 FB110 R119 R118 R120 R313 R314 C120 C116 R109 C132 C128 R116 C131 C134 C140 C130 C119 FB104 C142 IC104 R117 C138 L104 10µH FB103 R111 FB101 C110 C111 R102 R104 C108 C135 C136 C127 FB109 X101 R108 R106 C114 C115 R105 C109 C107 C141 R115 R114 C126 C123 R103 C104 C103 R113 R112 C122 C125 R101 C102 C101 IC103 R142 R129 C253 R131 R253 R152 R171 C143 R123 R124 C147 D102 R121 R122 C148 C152 C146 C145 D110 C150 C151 R127 R258 R257 R126 R139 C156 R143 R148 R147 R146 R262 R261 R260 R151 R149 R150 R254 C154 C155 C153 C158 C159 C157 R138 R137 R144 R145 R141 FB107 R136 R165 R259 C149 IC106 R135 R256 C137 FB105 C160 C161 C163 C162 Q111 Q103 R252 FB106 EB102 C113 R128 R100 R125 Q110 C124 C129 CNP102 CNP103 IC107 X102 Q102 IC101 C133 IC102 J100 C105 R311 R312 R140 Q112 Q104 IC105 1k 1k 1k 1k 2.2k 4.7k 0.01 0.1 3.3k 1 47 16V 68 1 1 10 50V 0.1 0.1 0.01 TK11225CMCL-G 10k 0.1 220 0.1 0.01 820 3.3k 0.1 L102 10µH L103 10µH 0.1 L105 10µH 47 16V 0.1 12.288MHz 100 100 0.001 0.001 47k 0.1 47 16V 0.1 100 100 100p 100p 330 47 16V 0.1 100 100 100p 100p 10k 10 50V 0.1 TC74VHCT08 AFT(EL) 100 100 0.22 47k 47k 100 47k 0.1 22k 47k 0.001 MA111-TX 2.2k 10k 0.1 0.1 0.1 0.22 1SS355 100 10V 0.1 47k 47k 47k 1k 100 L107 10µH L108 10µH 100p 0 100 100 100 100 100 100 100 100 100 10k 10p 100p 100p 100p 100p 100p 100 100 100 100 100 100 1k 1k 0.1 TC74VHCT08 IC108 µPC2933T-E2 AFT(EL) 10k 3.3k 10 50V 0.01 100 16V 100 10V 0.01 DTA114EKA- T146 DTC114EKA- T146 10k 0.1 10k 150 150 DTA114EKA- T146 10p 33p 3P 6P MB89537APFM -G-565-BNDE1 8MHz 2SC1623-T1 -L5L6 XC62HR1502MR 0.1 L106 10µH CXD4017R 0.01 L101 47µH 0 4.7k 100 DTA114EKA- T146 DTC114EKA- T146 PST3629NR A1 A2 A3 B1 B2 B3 B4 B5 SCDT SCSHIFT SCLATCH SRDT SRDT CSOD CSOD DTVALID DTVALID BCK LRCK DAOUT SCMODE SCMODE XSCEN XSCEN D_SCLK D_SCLK D_SWDT D_SWDT APX OFF OFF CUT CUT CONT CONT P-MUT S-MUT N-MUT DGND V-CONT DGND AC-CUT 5V MAIN-OFF CSOD SRDT SWDT XSCEN SCLK SCMODE VSS OSCI VDDE VSS OSCO TEST0 TEST1 TEST2 TEST3 TEST4 TEST5 TEST6 TEST7 SYMCLK ICLK VDDE VSS VDDI DTVALID EMPFS0 EMPFS1 XTST MST XSM SMCK VDDE VSS ADVRH ADAVS ADAVD ADVRL ADVIN VDDE VSS XRST DIFM0 DIFM1 DTSEL PLREF PLVAR TESTMD APVCI APCPO APAVD APAVS VSS VDDI VDDE VCOR CHNUM DIVCODE APX EXTCK VSS NC XSCEN VCC DIAT_SWDT DIAT_SRDT DIAT_SCLK V_CONT SI2 INT24 DAMP_SCDT DAMP_SHIFT DAMP_LATCH T_SENSE MAIN_OFF P10 SCMODE DRIVE_OCP DRIVE_RST DAMP_NSPMUTE DAMP_SOFTMUTE DAMP_PGMUTE LED_GREEN LED_RED DRIVE_OTW MOD2 AVCC AVR DTVALID AVSS CSOD MODEL SIMUKE MOD0 MOD1 X0 X1 VSS P23 FS2_EX XRST_INIT AC CUT P22 /RESET NC VIN CE VOUT VSS GND CNT CNP IN OUT GND RED GND GRN (1/3) +2.5V REGULATOR LEVEL SHIFT +3.3V REGULATOR G O I Q103,104,111,112 LED DRIVE NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC SURROUND AMP CONTROLLER AC CUT RESET SWITCH LEVEL SHIFT +1.5V REGULATOR DAOUT LRCK TXOUT BCK DIR-R1 A/D CONVERTER RF DEMODULATOR VOLTAGE DETECTOR 3-2. SCHEMATIC DIAGRAM – DIAT AMP Board (1/3) – • See page 8 for Waveforms. • See page 16 for IC Block Diagrams. • See page 18 for IC Pin Function Description. (Page 15) (Page 15) (Page 10) (Page 11) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-SB500WR 10 10 TA-SB500WR C243 C188 R178 R212 R166 C186 R168 R176 R174 R175 R181 R183 R213 C240 R179 R173 R214 R215 C242 R197 C215 R196 R192 R193 C244 R190 C211 R188 C235 C199 C238 R203 R225 R224 R219 R218 R217 R216 C221 C222 R198 R189 C208 C207 C231 C203 R186 D115 R222 C177 C197 C190 C191 R180 R167 C180 C181 R164 C201 C200 R185 R220 C170 IC110 Q107 R155 C166 C168 R263 D105 D104 C184 C183 R169 C182 C185 C193 C189 R177 C194 C192 R159 R157 R158 R195 C218 C224 R191 C210 C209 C213 C212 C216 C217 D107 D106 R204 R205 R206 R207 R209 R208 R210 R211 Q105 Q106 Q108 C165 R154 R153 R156 C169 Q109 IC112 T100 C259 C258 C257 C256 0.1 0.01 100 22k 0 0.1 0 0 0 560 560 560 22k 47p 0 560 22k 22k 47p 0 0.01 100 0 0 0.1 0 0.1 0 2200 35V 2200 35V 1 0 10k 10k 10k 10k 10k 10k 0.22 0.22 3.3 3.3 0.22 0.22 0.033 0.033 0 MA8027 100 0.033 0.033 0.22 0.22 3.3 3.3 0.22 0.22 0 1 1 0 100 1 CXD9774M 2SC1623-T1 -L5L6 100k 2.2 47 16V 4.7k P6SMBJ33A-5 P6SMBJ33A-5 1 0.0022 2.7 0.0022 0.047 0.047 0.0022 2.7 0.0022 1 100k L112 10µH L115 10µH L118 10µH L121 10µH 100k 100k 2.7 0.0022 0.0022 2.7 0.0022 0.0022 0.047 1 1 0.047 P6SMBJ33A-5 P6SMBJ33A-5 10k 10k 10k 10k 10k 10k 10k 10k 2SA1602TP- 1EF 2SA1602TP- 1EF 2SA1602TP- 1EF 2.2 100k 100k 100k 2.2 2SA1602TP- 1EF CXD9774M 0.01 0.01 0.01 0.01 A2 A3 C1 C2 C3 C4 OUTL1 OUTL2 OUTR1 OUTR2 (2/3) POWER DRIVER DETECT PROTECT POWER DRIVER Q105,106,108,109 OVER LOAD DETECT SPEAKER 3-3. SCHEMATIC DIAGRAM – DIAT AMP Board (2/3) – • See page 16 for IC Block Diagrams. (Page 9) (Page 11) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-SB500WR 11 11 TA-SB500WR C176 R172 R184 C198 C195 C202 C187 C196 C178 C173 IC111 C233 C230 C206 C205 C204 R187 R194 C220 C219 C237 R200 R201 IC114 C223 C229 C226 IC113 C214 C225 EB101 C234 R199 C232 C228 C227 C236 CNP106 R161 R160 C174 C175 R163 R162 C167 C171 C172 C179 FB108 X103 IC109 0.1 100 0 0.1 0.1 47 16V 0.1 0.1 L110 10µH L111 10µH L116 10µH L109 10µH L122 1µH 47 16V 0.1 CXD9788AR 0.01 22 25V 0.1 0.1 0.1 0 22 10p 0.001 5p 1M 100 MC74VHC1GU04 0.01 100 16V 0.1 NJM2870F18 100 16V 100 16V 0.01 100k 0.01 100 10V 0.1 0.1 6P 100 100 100p 100p 100 100 0.1 100p 100p 47 16V 49.152MHz TC74VHCT08 AFT(EL) B1 B2 B3 B4 B5 C1 C2 C3 C4 SCDT SCSHIFT SCLATCH BCK LRCK DAOUT APX P-MUT S-MUT N-MUT OUTL1 OUTL2 OUTR1 OUTR2 GND GND GND 12V 30V 30V (3/3) (CHASSIS) +1.8V REGULATOR GND VOUT N.B. VIN CONT GND VDD STREAM PROCESSOR LEVEL SHIFT OSC 3-4. SCHEMATIC DIAGRAM – DIAT AMP Board (3/3) – • See page 8 for Waveform. • See page 16 for IC Block Diagram. (Page 9) (Page 10) (Page 15) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-SB500WR 12 12 TA-SB500WR 3-5. PRINTED WIRING BOARD – DIAT AMP Board (Component Side) – :Uses unleaded solder. R252 C240 R214 R213 IC102 C166 R111 C180 Q107 C124 C129 R212 R215 R155 R112 R137 C120 R172 R120 R119 R116 C131 C105 R127 IC101 R102 R104 C111 C110 C108 R218 C142 R117 R101 L103 IC103 R167 FB102 L102 R110 R109 C116 C190 R145 C207 R180 C132 R189 R114 C181 C191 FB101 R199 IC110 R253 R131 R140 C113 C222 C159 C221 C158 Q105 C165 R144 R198 R141 C126 C125 C169 C208 C123 C122 R115 IC113 R113 C174 X101 Q111 X102 IC105 IC112 R160 R311 C233 R259 C253 C234 L101 R261 R262 R257 R258 C156 R121 R122 R128 R129 R124 C145 C146 C147 C148 Q102 C143R123 D102 D110 Q112 Q108 R118 R163 R162 R161 IC109 R260 R152 R151 R150 C242 R135 R149 R148 R147 R173 R175 R181 R183 R187 R184 R146 IC114 X103 R193 R192 R190 C186 R217 C244 C211 R168 R174 R176 IC107 IC106 IC104 R216 R219 R224 R225 IC111 C243 1 1 1 3 5 4 3 5 4 1 7 7 1 1 3 5 4 8 14 14 8 1 7 4 3 6 1 14 8 16 1 64 49 17 32 33 48 13 12 1 5 4 1 3 1 18 36 19 1 18 36 19 E 36 25 24 48 37 16 48 33 32 17 49 64 E E E E E 1-862-468- 12 (12) (COMPONENT SIDE) DIAT AMP BOARD A B C 1 2 3 4 5 6 7 8 9 • Semiconductor Location Ref. No. Location D103 B-1 D104 C-6 D105 B-6 D106 B-6 D107 B-6 D115 B-5 IC108 B-4 Q103 B-3 Q104 B-3 Q106 C-8 Q109 C-8 Q110 A-1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-SB500WR 13 13 TA-SB500WR 3-6. PRINTED WIRING BOARD – DIAT AMP Board (Conductor Side) – :Uses unleaded solder. CNP102 CNP106 CNP103 C199 C229 C235 EB101 EB102 C214 J100 C161 C128 C163 L112 C137 C136 C104 C107 C102 L115 C168 L118 C228 L121 T100 C225 C150 C140 C230 C179 C202 C178 Q110 Q106 R171 R222 FB109 C259 C152 C167 R100 R125 R196 C257 R220 C226 C195 R210 R143 C151 L106 C133 L109 L107 C130 C119 R108 C114 R165 R136 R126 C115 R105 C157 R103 D115 R178 C162 C160 C185 FB106 C177 FB107 C155 R164 C154 C135 C138 C197 C103 C101 C256 C153 C182 C213 R106 R186 C183 C200 C203 C231 C193 R169 C236 R177 C170 R185 C189 R142 C209 R211 C210 C238 R139 C217 R191 R159 R154 R195 C201 R156 C194 R203 C218 C232 C171 Q109 R153 R254 R157 L104 FB104 FB105 IC108 C109 R158 C258 L105 C175 L108 C224 R209 R206 R204 C223 C227 C127 C141 C134 R205 R207 R208 L111 FB108 L110 C187 R200 C219 R201 C237 L122 C220 C172 C176 C173 R194 L116 C205 C206 C196 C198 R188 R197 C215 C188 R179 R166 D105 D106 D107 D104 R138 Q104 Q103 FB103 R312 R313 R314 R263 C204 C149 C212 C216 C192 C184 R256 E E E E E (CONDUCTOR SIDE) DIAT AMP BOARD 1-862-468- 12 (12) – + SPEAKER (CHASSIS) DIR-R1 – + SURROUND R SURROUND L (CHASSIS) 1 6 6 1 DIAT POWER BOARD CN904 C DIAT POWER BOARD CN905 B 1 3 POWER LED BOARD CNP400 A 1 3 2 A B C 1 2 3 4 5 6 7 8 9 10 D102 B-8 D110 B-9 IC101 C-8 IC102 C-7 IC103 B-7 IC104 C-6 IC105 B-9 IC106 B-7 IC107 B-8 IC109 C-6 IC110 C-4 IC111 B-5 IC112 B-4 IC113 A-5 IC114 B-5 Q102 B-9 Q105 B-2 Q107 A-3 Q108 C-2 Q111 A-8 Q112 A-8 • Semiconductor Location Ref. No. Location (Page 14) (Page 14) (Page 14) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-SB500WR 14 14 TA-SB500WR 3-7. PRINTED WIRING BOARDS – POWER SUPPLY Section – :Uses unleaded solder. HS1 HS2 FH902 C901 CN903 JW906 JW917 JW914 TH901 EB901 R902 LF902 R903 R904 LF901 C931 C904 D904 R924 D901 JW901 R925 JW913 JW902 C925 D902 C909 D908 R908 C913 D922 D905 R912 R917 Q901 C941 PC903 EB902 R922 JW909 D915 C935 C936 C938 R913 L903 JW911 JW910 T901 FH901 IC903 JW905 PC901 C905 C908 JW908 D921 D911 JW915 D906 JW904 C903 R906 JW907 C915 JW912 JW903 R905 IC901 C902 PC902 F901 LP1 CN904 L901 CN905 JW916 JW918 C932 D914 D913 C914 D909 R914 Q903 D907 C917 R926 C911 R923 D933 C940 R919 C918 R909 C912 R920 R948 R911 R916 R921 C916 R938 D910 Q902 TH902 R947 R945 R940 R932 R933 R934 R935 R936 R939 R941 R942 R943 R944 R946 R931 C934 C933 C937 C942 R937 L904 IC905 IC904 R915 C910 C907 R907 D934 R910 D400 CNP400 CN901 CN902 S901 C906 E E E 1 1 4 8 5 7 1-862-455- 11 (11) DIAT POWER BOARD DIAT LED BOARD 1-862-845- 11 (11) DIAT SWITCH BOARD 1-862-456- 11 (11) (CHASSIS) (CHASSIS) 1 2 2 1 A A K A 1 1 7 2 3 K 1 1 3 2 3 5 4 6 7 POWER TRANSFORMER DIAT AMP BOARD CNP106 C DIAT AMP BOARD CNP103 B POWER/ON LINE 1 2 1 3 DIAT AMP BOARD CNP102 A (AC IN) POWER A B C D E 1 2 3 4 5 6 7 8 (EXCEPT US, TW) (EXCEPT US, TW) (TW) (TW) (EXCEPT TW) (EXCEPT US) D400 D-3 D901 B-5 D902 A-4 D904 C-5 D905 C-6 D906 C-5 D907 C-5 D908 C-5 D909 C-5 D910 C-4 D911 C-6 D913 C-5 D914 C-5 D915 C-5 D921 B-2 D922 C-2 D933 B-1 D934 B-2 IC901 B-4 IC903 B-2 IC904 C-3 IC905 B-3 Q901 C-6 Q902 C-5 Q903 C-5 • Semiconductor Location Ref. No. Location (Page 13) (Page 13) (Page 13) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-SB500WR 15 15 TA-SB500WR D901 TP909 D904 CNP400 CN902 CN901 EB901 TH901 R923 C912 R911 R907 C910 D908 R909 R926 TP912 D911 C913 TH902 D913 R921 C917 R920 Q903 C916 D914 C914 R913 D907 D909 R912 TP913 R910 D906 D905 R914 D902 R916 R915 D910 C925 R947 EB902 R938 R945 D921 C933 TP910 TP911 R919 C915 C932 R939 C934 R931 R933 R932 C935 R936 R937 R935 R948 R940 R941 C940 C942 TP907 R944 R942 R943 C941 D922 C936 C937 TP903 TP905 D933 TP906 TP908 R946 TP901 TP902 TP904 C938 D934 CN903 CN904 CN905 R934 D915 IC903 Q902 IC904 IC905 PC902 PC901 PC903 T901 R917 R922 C907 C918 R906 C906 R925 R924 R905 LF902 R904 C905 C902 C903 R902 R908 F901 LF901 Q901 IC901 D400 C909 C931 C911 C904 C901 S901 D3SB60F3 MAIN-OFF 11EQS10 3P 2P 2P 0 0.1 1k 0 470p 11EQS10 1k 10k VIN 10EDB60 22 50V UDZS-TE-17 -6.2B 68k 0.01 4.7k DTC144EKA 0.01 UDZS-TE-17 -10B 0.0033 820 1SS355 1SS355 1k GND 100 MTZJ-T-77 -20B MTZJ-T-77 -33B 4.7k SARS03 22 22 UDZS-TE-17 -9.1B 0.001 250V 0 1k 2.2k FML-22S 0.1 VOUT GND 1.5k 47 35V 1000 35V 1k 0.01 22k 47k 3.3k 100 16V 2.2k 390 3.9k 390 1 1 220p 0.1 V-CONT 1k 1.5k 1.5k 470 10V 11EQS04 -TA1B 100 35V 0.1 GND 5V L903 220µH L904 10µH UDZS-TE-17 -10B DGND AC-CUT 100 30V GND 12V 100 16V UDZS-TE-17 -18B 2P 7P 7P 4.7k L901 10µH MTZJ-T-77-33B TA7812S DTA114EKA NJM2374AE NJM431U PC123 PC123 PC123 3300p 630V 0.1 275V 1M 1/2W ∗ ∗ ∗ ∗F901 T3.15AL 250V (EXCEPT US, TW) 5A 125V (US, TW) 2SD1616A SPR-54MVWF 2.2 50V 4700p 1kV 100p 100V 0.22 275V 0.22 275V GND GND GND 5V DGND DGND V-CONT AC-CUT MAIN-OFF 12V NUTRAL LIVE LIVE NUTRAL GND RED GREEN (CHASSIS) (CHASSIS) 30V 30V +12V REGULATOR G O I DC/DC CONVERTER GND GND CS ES CT IN+ V+ SI SHUNT REGULATOR ISOLATOR ISOLATOR ISOLATOR TRANSFORMER POWER REGULATOR Q902,903 OVER LOAD PROTECT POWER CONTROL POWER (AC IN) +20V POWER/ON LINE (EXCEPT US) ∗C902, 903 470p 250V (EXCEPT US, TW) 2200p 250V (US, TW) ∗ ∗ ∗R917, R922 47k (EXCEPT US, TW) 33k (US, TW) ∗ ∗C906 100 450V (EXCEPT TW) 330 200V (TW) ∗ ∗R906 100k 2W (US, TW) 82k 2W (EXCEPT US, TW) ∗ ∗ ∗ ∗ ∗R905, R924, R925 15k (US, TW) 22k (EXCEPT US, TW) ∗C907 0.01 630V (US, TW) 3300p 630V (EXCEPT US, TW) C908 3300p 1.2kV (US, TW) 680p 1.5kV (EXCEPT US, TW) ∗ ∗R908 0.15 2W (US, TW) 0.33 2W (EXCEPT US, TW) STR-W6735N (US, TW) STR-W6765N (EXCEPT US, TW) (EXCEPT US, TW) (EXCEPT TW) (TW) (EXCEPT US. TW) R903 3-8. SCHEMATIC DIAGRAM – POWER SUPPLY Section – • See page 16 for IC Block Diagrams. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. (Page 9) (Page 11) (Page 9) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-SB500WR 16 16 TA-SB500WR IC101 XC62HR1502MR • IC Block Diagrams – DIAT AMP Board – + – 3 OUTPUT CONTROL REFERENCE VOLTAGE 4 1 2 5 CURRENT LIMIT NC VIN CE VSS VOUT IC102 CXD4017R ADVRH 6 VSS 5 VDDE 4 TEST14 3 TEST13 2 TEST12 1 ADAVS 7 ADAVD 8 ADVRL 9 ADVIN 10 VDDEE 11 VSS 12 XRST 13 DIFM0 14 DIFM1 15 TEST15 16 A/D CONVERTER BUFFER RAM ERROR CORRECTOR OUTPUT INTERFACE DEMODULATOR PLREF 17 TEST16 19 APVCI 20 VSS 21 APCPO 22 APAVD 23 APAVS 24 APX 31 EXTCK 32 VSS 25 VDDI 26 VDDE 27 VCOR 28 CHNUM 29 DIVCODE 30 PLVAR 18 PLL CLOCK SELECTOR CONTROLLER CSOD 33 SRDT 34 SWDT 35 XSCEN 36 SCLK 37 SCMODE 38 OSCI 40 TEST0 44 TEST1 45 TEST2 46 TEST3 47 TEST4 48 OSCO 43 VSS 39 VDDE 41 VSS 42 CLOCK GENERATOR TEST11 64 EMPFS1 63 EMPFS0 62 DTVALID 61 DAOUT 60 LRCK 59 VDDI 58 VSS 57 VDDE 56 BCK 54 TEST10 55 TEST9 53 TEST8 52 TEST7 51 TEST6 50 TEST5 49 IC104 TK11225CMCL-G 1 2 3 6 4 CONT GND NP VIN 5 GND VOUT CONTROL CIRCUIT BANDGAP REFERENCE CONSTANT CURRENT SOURCE OVER HEAT & OVER CURRENT PROTECT IC105 PST3629NR VDD 2 OUT 1 GND 3 + – VREF CD 5 NC 4 IC110, 112 CXD9774M RESET 4 GND 1 GND 3 PWM BP 2 DREG RTN 5 GVDD 6 M3 7 M1 10 M2 11 DVDD 12 DREG 8 DGND 9 DGND 14 GND 16 GND 18 PWM RECEIVER TIMING CONTROL & PROTECTION SD 13 OTW 15 DIGITAL REGULATOR PROTECTION LOGIC OT & UVP DVDD DREG DREG DGND PWM AP 17 PWM RECEIVER DVDD DREG DGND DREG GVDD DREG GATE DRIVE GVDD B 35 GVDD B 36 BST B 33 PVDD B 32 PVDD B 31 OUT B 30 OUT B 29 GND 28 GND 34 GATE DRIVE OCH OCL TIMING CONTROL & PROTECTION DREG GATE DRIVE GVDD A 20 GVDD A 19 BST A 22 PVDD A 23 PVDD A 24 OUT A 25 OUT A 26 GND 27 GND 21 GATE DRIVE OCH OCL GVDD GVDD 5 VIN 4 VOUT 2 GND 3 NOISE BYPASS 1 CONTROL BANDGAP REFERENCE THERMAL PROTECTION IC113 NJM2870F18 (TE2) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 TA-SB500WR IC901 STR-W6765N – DIAT POWER Board – D 1 NC 2 S/GND 3 VCC 4 SS/OLP 5 FB 6 OCP/BD 7 DELAY Q R S + – + – + – Q S R + – BOTTOM SELECTOR COUNTER OSC R Q S SOFT START + – OVP REGULATOR & ICONST + – BURST CONTROL START/STOP BURST PROTECTION LATCH DRIVE REGULATOR OLP BSD BD OCP FB IC904 NJM2374AE (TE2) CS 1 ES 2 CT 3 IN+ 5 Q S R PWM LOGIC OSC GND 4 V+ 6 VREF + – + – + – ERROR AMP PWM COMPARATOR SI 7 CD 8 IPK SENSE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 TA-SB500WR DIAT AMP BOARD IC107 MB89537APFM-G-565-BNDE1 (SURROUND AMP CONTROLLER) Pin No. Pin Name I/O Description 1 NC O Not used 2 MOD2 I Setting terminal for the CPU operation mode Fixed at "L" in this set 3, 4 NC O Not used 5 MODEL I Setting terminal for the model 6 SIMUKE I Setting terminal for the destination 7 to 10 NC O Not used 11 AVCC - Power supply terminal (+3.3V) (for A/D converter) 12 AVR I Reference voltage (+3.3V) input terminal (for A/D converter) 13 AVSS - Ground terminal (for A/D converter) 14 DTVALID I Data valid flag input from the RF demodulator "L": invalid, "H": valid 15 CSOD I Captor start delay signal input from the RF demodulator "H" active 16 NC I Not used 17 AC CUT I AC cut detection signal input terminal "L": AC cut 18 NC I Not used 19 /RESET I Reset signal input terminal "L": reset For several hundreds msec. after the power supply rises, "L" is input, then it changes to "H" 20, 21 MOD0, MOD1 I CPU operation mode setting signal input terminal 22 X0 I Main system clock input terminal (8 MHz) 23 X1 O Main system clock output terminal (8 MHz) 24 VSS - Ground terminal 25 FS2_EX I Not used 26 XRST_INIT O Reset signal output to the RF demodulator and stream processor "L": reset 27, 28 NC O Not used 29 P23 I Setting terminal for the CPU operation mode Fixed at "L" in this set 30 P22 I Setting terminal for the CPU operation mode Fixed at "H" in this set 31, 32 NC O Not used 33 DAMP_PGMUTE O PG muting on/off control signal output to the stream processor "L": muting on 34 DAMP_SOFTMUTE O Soft muting on/off control signal output to the stream processor "L": muting on 35 DAMP_NSPMUTE O NSP muting on/off control signal output to the stream processor "L": muting on 36 NC O Not used 37 DRIVE_RST O Reset signal output to the power driver "L": reset 38 DRIVE_OCP I Shut down state input from the power driver "L": shut down 39 DRIVE_OTW I Overtemperature warning signal input terminal Not used 40 P10 I Setting terminal for the CPU operation mode Fixed at "H" in this set 41 LED_GREEN O LED drive signal output of the ON LINE indicator "H": LED on 42 LED_RED O LED drive signal output of the POWER indicator "H": LED on 43 to 47 NC O Not used 48 SCMODE O Control mode selection signal output to the RF demodulator "L": pin setting, "H": serial setting 49 NC - Not used 50 XSCEN O Serial interface enable signal output to the RF demodulator 51 DIAT_SCLK O Serial interface data clock signal output to the RF demodulator 52 DIAT_SWDT O Serial interface data write signal output to the RF demodulator 53 DIAT_SRDT I Serial interface data read signal input from the RF demodulator 54 NC O Not used • IC Pin Function Description www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 TA-SB500WR Pin No. Pin Name I/O Description 55 T_SENSE O Not used 56 VCC - Power supply terminal (+3.3V) 57 MAIN_OFF O Power off control signal output to the power control "H": power off 58 V_CONT O Voltage control PWM signal output to the shunt regulator 59 DAMP_LATCH O Latch control signal output to the stream processor 60 DAMP_SHIFT O Shift clock signal output to the stream processor 61 DAMP_SCDT O Serial data output to the stream processor 62 SI2 I Serial data input terminal 63 INT24 O Not used 64 NC O Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 TA-SB500WR 4 3 2 1 not supplied (DIAT SWITCH board) not supplied not supplied not supplied not supplied (DIAT LED board) DIAT AMP/DIAT POWER boards section #2 #2 #1 #2 #3 #2 #2 SECTION 4 EXPLODED VIEWS Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 X-2022-678-1 FRONT SUB ASSY (EXCEPT US) 1 X-2050-558-1 FRONT SUB ASSY (US) 2 2-149-268-01 BUTTON, POWER 3 2-149-270-01 PANEL, SIDE (EXCEPT US) 3 2-149-270-11 SIDE, PANEL (US) 4-1. PANEL SECTION 4 2-149-269-01 PANEL, TOP #1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3 #2 7-685-133-19 SCREW (DIA. 2.6) (IT3B) #3 7-682-548-09 +B 3X8 • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Accessories are given in the last of the electrical parts list. NOTE: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑ ↑ Parts Color Cabinet's Color The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. • Abbreviation AUS : Australian model HK : Hong Kong model KR : Korean model RU : Russian model SP : Singapore model TW : Taiwan model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 TA-SB500WR 55 51 56 52 53 54 not supplied not supplied not supplied not supplied F901 not supplied not supplied not supplied not supplied #2 #2 #4 #2 #2 #2 #1 not supplied 4-2. DIAT AMP/DIAT POWER BOARDS SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 A-1068-892-A DIAT AMP BOARD, COMPLETE 52 A-1067-416-A DIAT POWER BOARD, COMPLETE (TW) 52 A-1068-894-A DIAT POWER BOARD, COMPLETE (EXCEPT US, TW) 52 A-1079-747-A DIAT POWER BOARD, COMPLETE (US) 53 4-217-350-11 STOPPER, CORD 054 1-696-169-31 CORD, POWER (AEP, UK, RU, HK, SP) 054 1-696-847-22 CORD, POWER (AUS) 054 1-769-079-32 CORD, POWER (KR) 054 1-783-531-72 CORD, POWER (US) 054 1-827-597-41 CORD, POWER (TW) 55 2-149-284-01 FOOT 56 4-254-954-01 SHEET (DMB), RADIATION 0F901 1-532-465-33 FUSE (T3.15AL/250V) (EXCEPT US, TW) 0F901 1-533-420-12 FUSE, GLASS CYLINDRICAL (DIA. 5) (5A/125V) (US) 0F901 1-533-453-12 FUSE, GLASS TUBE (DIA. 5) (5A/125V) (TW) #1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3 #2 7-685-133-19 SCREW (DIA. 2.6) (IT3B) #4 7-685-645-79 SCREW +BVTP 3X6 TYPE2 IT-3 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 TA-SB500WR SECTION 5 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark A-1068-892-A DIAT AMP BOARD, COMPLETE ************************* < CAPACITOR > C101 1-164-156-11 CERAMIC CHIP 0.1uF 25V C102 1-126-964-11 ELECT 10uF 20% 50V C103 1-164-156-11 CERAMIC CHIP 0.1uF 25V C104 1-126-947-11 ELECT 47uF 20% 35V C105 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C107 1-126-947-11 ELECT 47uF 20% 35V C108 1-164-156-11 CERAMIC CHIP 0.1uF 25V C109 1-164-156-11 CERAMIC CHIP 0.1uF 25V C110 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C111 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C113 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C114 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C115 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C116 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C119 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C120 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C122 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C123 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C124 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C125 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C126 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C127 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C128 1-126-947-11 ELECT 47uF 20% 35V C129 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C130 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C131 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C132 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C133 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C134 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C135 1-164-156-11 CERAMIC CHIP 0.1uF 25V C136 1-126-947-11 ELECT 47uF 20% 35V C137 1-126-964-11 ELECT 10uF 20% 50V C138 1-164-156-11 CERAMIC CHIP 0.1uF 25V C140 1-126-964-11 ELECT 10uF 20% 50V C141 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C142 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C143 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C145 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C146 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C147 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C148 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C149 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C150 1-104-665-11 ELECT 100uF 20% 25V C151 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C152 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C153 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C154 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C155 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C156 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C157 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C158 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C159 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C160 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C161 1-126-933-11 ELECT 100uF 20% 16V C162 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C163 1-104-665-11 ELECT 100uF 20% 25V C165 1-164-505-11 CERAMIC CHIP 2.2uF 16V C166 1-164-505-11 CERAMIC CHIP 2.2uF 16V C167 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C168 1-126-947-11 ELECT 47uF 20% 35V C169 1-164-505-11 CERAMIC CHIP 2.2uF 16V C170 1-164-346-11 CERAMIC CHIP 1uF 16V C171 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C172 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C173 1-164-156-11 CERAMIC CHIP 0.1uF 25V C174 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C175 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C176 1-164-156-11 CERAMIC CHIP 0.1uF 25V C177 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C178 1-126-947-11 ELECT 47uF 20% 35V C179 1-126-947-11 ELECT 47uF 20% 35V C180 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C181 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C182 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C183 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C184 1-136-177-00 FILM 1uF 5% 50V C185 1-163-035-00 CERAMIC CHIP 0.047uF 50V C186 1-164-156-11 CERAMIC CHIP 0.1uF 25V C187 1-164-156-11 CERAMIC CHIP 0.1uF 25V C188 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C189 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C190 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C191 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • SEMICONDUCTORS In each case, u: µ, for example: uA... : µA... uPA... : µPA... uPB... : µPB... uPC... : µPC... uPD... : µPD... • CAPACITORS uF: µF • COILS uH: µH DIAT AMP The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. • Abbreviation TW : Taiwan model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 23 TA-SB500WR C192 1-136-177-00 FILM 1uF 5% 50V C193 1-163-035-00 CERAMIC CHIP 0.047uF 50V C194 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C195 1-164-156-11 CERAMIC CHIP 0.1uF 25V C196 1-164-156-11 CERAMIC CHIP 0.1uF 25V C197 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C198 1-164-156-11 CERAMIC CHIP 0.1uF 25V C199 1-107-898-21 ELECT 2200uF 20% 35V C200 1-164-346-11 CERAMIC CHIP 1uF 16V C201 1-164-346-11 CERAMIC CHIP 1uF 16V C202 1-126-947-11 ELECT 47uF 20% 35V C203 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C204 1-164-156-11 CERAMIC CHIP 0.1uF 25V C205 1-164-156-11 CERAMIC CHIP 0.1uF 25V C206 1-164-156-11 CERAMIC CHIP 0.1uF 25V C207 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C208 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C209 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C210 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C211 1-164-156-11 CERAMIC CHIP 0.1uF 25V C212 1-136-177-00 FILM 1uF 5% 50V C213 1-163-035-00 CERAMIC CHIP 0.047uF 50V C214 1-126-933-11 ELECT 100uF 20% 16V C215 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C216 1-136-177-00 FILM 1uF 5% 50V C217 1-163-035-00 CERAMIC CHIP 0.047uF 50V C218 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C219 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C220 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C221 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C222 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C223 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C224 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C225 1-126-933-11 ELECT 100uF 20% 16V C226 1-164-156-11 CERAMIC CHIP 0.1uF 25V C227 1-164-156-11 CERAMIC CHIP 0.1uF 25V C228 1-104-665-11 ELECT 100uF 20% 25V C229 1-126-933-11 ELECT 100uF 20% 16V C230 1-104-662-91 ELECT 22uF 20% 25V C231 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C232 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C233 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C234 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C235 1-107-898-21 ELECT 2200uF 20% 35V C236 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C237 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C238 1-164-346-11 CERAMIC CHIP 1uF 16V C240 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C242 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C243 1-164-156-11 CERAMIC CHIP 0.1uF 25V C244 1-164-156-11 CERAMIC CHIP 0.1uF 25V C253 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C256 1-162-974-11 CERAMIC CHIP 0.01uF 50V C257 1-162-974-11 CERAMIC CHIP 0.01uF 50V C258 1-162-974-11 CERAMIC CHIP 0.01uF 50V C259 1-162-974-11 CERAMIC CHIP 0.01uF 50V < DIODE > D102 8-719-404-50 DIODE MA111-TX D104 6-500-885-01 DIODE P6SMBJ33A-5 D105 6-500-885-01 DIODE P6SMBJ33A-5 D106 6-500-885-01 DIODE P6SMBJ33A-5 D107 6-500-885-01 DIODE P6SMBJ33A-5 D110 8-719-988-61 DIODE 1SS355TE-17 D115 8-719-421-15 DIODE MA8027-L < GROUND TERMINAL BOARD > EB101 1-537-770-21 TERMINAL BOARD, GROUND EB102 1-537-770-21 TERMINAL BOARD, GROUND < FERRITE BEAD > FB101 1-500-283-11 INDUCTOR, FERRITE BEAD FB102 1-500-283-11 INDUCTOR, FERRITE BEAD FB103 1-500-283-11 INDUCTOR, FERRITE BEAD FB104 1-500-283-11 INDUCTOR, FERRITE BEAD FB105 1-469-760-21 FERRITE, EMI (SMD) (2012) FB106 1-469-760-21 FERRITE, EMI (SMD) (2012) FB107 1-469-760-21 FERRITE, EMI (SMD) (2012) FB108 1-469-760-21 FERRITE, EMI (SMD) (2012) FB109 1-469-760-21 FERRITE, EMI (SMD) (2012) < IC > IC101 6-701-851-01 IC XC62HR1502MR IC102 8-752-425-06 IC CXD4017R IC103 8-759-491-47 IC TC74VHCT08AFT (EL) IC104 6-704-261-01 IC TK11225CMCL-G IC105 6-701-680-01 IC PST3629NR IC106 8-759-491-47 IC TC74VHCT08AFT (EL) IC107 6-804-310-01 IC MB89537APFM-G-565-BNDE-1 IC108 8-759-583-47 IC uPC2933T-E2 IC109 8-759-491-47 IC TC74VHCT08AFT (EL) IC110 6-704-802-01 IC CXD9774M IC111 6-705-979-01 IC CXD9788AR IC112 6-704-802-01 IC CXD9774M IC113 6-700-263-01 IC NJM2870F18 (TE2) IC114 6-701-189-01 IC MC74VHC1GU04DFT1 < JACK > J100 1-818-633-11 JACK, PIN 1P (DIR-R1) < COIL > L101 1-400-305-11 INDUCTOR 47uH L102 1-469-525-11 INDUCTOR 10uH L103 1-469-525-11 INDUCTOR 10uH L104 1-469-525-11 INDUCTOR 10uH L105 1-469-525-11 INDUCTOR 10uH L106 1-469-525-11 INDUCTOR 10uH L107 1-469-525-11 INDUCTOR 10uH L108 1-469-525-11 INDUCTOR 10uH L109 1-469-525-11 INDUCTOR 10uH L110 1-469-525-11 INDUCTOR 10uH L111 1-469-525-11 INDUCTOR 10uH L112 1-456-680-11 INDUCTOR 10uH L115 1-456-680-11 INDUCTOR 10uH DIAT AMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 24 TA-SB500WR L116 1-469-525-11 INDUCTOR 10uH L118 1-456-680-11 INDUCTOR 10uH L121 1-456-680-11 INDUCTOR 10uH L122 1-412-939-11 INDUCTOR 1uH < TRANSISTOR > Q102 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q103 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q104 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q105 8-729-602-36 TRANSISTOR 2SA1602-F Q106 8-729-602-36 TRANSISTOR 2SA1602-F Q107 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q108 8-729-602-36 TRANSISTOR 2SA1602-F Q109 8-729-602-36 TRANSISTOR 2SA1602-F Q110 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q111 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q112 8-729-027-23 TRANSISTOR DTA114EKA-T146 < RESISTOR > R100 1-216-811-11 METAL CHIP 150 5% 1/10W R101 1-216-833-11 METAL CHIP 10K 5% 1/10W R102 1-216-820-11 METAL CHIP 820 5% 1/10W R103 1-216-815-11 METAL CHIP 330 5% 1/10W R104 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R105 1-216-841-11 METAL CHIP 47K 5% 1/10W R106 1-216-809-11 METAL CHIP 100 5% 1/10W R108 1-216-809-11 METAL CHIP 100 5% 1/10W R109 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R110 1-216-821-11 METAL CHIP 1K 5% 1/10W R111 1-216-813-11 METAL CHIP 220 5% 1/10W R112 1-216-809-11 METAL CHIP 100 5% 1/10W R113 1-216-809-11 METAL CHIP 100 5% 1/10W R114 1-216-809-11 METAL CHIP 100 5% 1/10W R115 1-216-809-11 METAL CHIP 100 5% 1/10W R116 1-216-807-11 METAL CHIP 68 5% 1/10W R117 1-216-833-11 METAL CHIP 10K 5% 1/10W R118 1-216-821-11 METAL CHIP 1K 5% 1/10W R119 1-216-821-11 METAL CHIP 1K 5% 1/10W R120 1-216-821-11 METAL CHIP 1K 5% 1/10W R121 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R122 1-216-833-11 METAL CHIP 10K 5% 1/10W R123 1-216-837-11 METAL CHIP 22K 5% 1/10W R124 1-216-841-11 METAL CHIP 47K 5% 1/10W R125 1-216-811-11 METAL CHIP 150 5% 1/10W R126 1-216-821-11 METAL CHIP 1K 5% 1/10W R127 1-216-841-11 METAL CHIP 47K 5% 1/10W R128 1-216-833-11 METAL CHIP 10K 5% 1/10W R129 1-216-809-11 METAL CHIP 100 5% 1/10W R131 1-216-841-11 METAL CHIP 47K 5% 1/10W R135 1-216-833-11 METAL CHIP 10K 5% 1/10W R136 1-216-809-11 METAL CHIP 100 5% 1/10W R137 1-216-809-11 METAL CHIP 100 5% 1/10W R138 1-216-809-11 METAL CHIP 100 5% 1/10W R139 1-216-809-11 METAL CHIP 100 5% 1/10W R140 1-216-809-11 METAL CHIP 100 5% 1/10W R141 1-216-809-11 METAL CHIP 100 5% 1/10W R142 1-216-809-11 METAL CHIP 100 5% 1/10W R143 1-216-864-11 SHORT CHIP 0 R144 1-216-809-11 METAL CHIP 100 5% 1/10W R145 1-216-809-11 METAL CHIP 100 5% 1/10W R146 1-216-809-11 METAL CHIP 100 5% 1/10W R147 1-216-809-11 METAL CHIP 100 5% 1/10W R148 1-216-809-11 METAL CHIP 100 5% 1/10W R149 1-216-809-11 METAL CHIP 100 5% 1/10W R150 1-216-809-11 METAL CHIP 100 5% 1/10W R151 1-216-809-11 METAL CHIP 100 5% 1/10W R152 1-216-809-11 METAL CHIP 100 5% 1/10W R153 1-216-845-11 METAL CHIP 100K 5% 1/10W R154 1-216-845-11 METAL CHIP 100K 5% 1/10W R155 1-216-845-11 METAL CHIP 100K 5% 1/10W R156 1-216-845-11 METAL CHIP 100K 5% 1/10W R157 1-216-845-11 METAL CHIP 100K 5% 1/10W R158 1-216-845-11 METAL CHIP 100K 5% 1/10W R159 1-216-845-11 METAL CHIP 100K 5% 1/10W R160 1-216-809-11 METAL CHIP 100 5% 1/10W R161 1-216-809-11 METAL CHIP 100 5% 1/10W R162 1-216-809-11 METAL CHIP 100 5% 1/10W R163 1-216-809-11 METAL CHIP 100 5% 1/10W R164 1-216-864-11 SHORT CHIP 0 R165 1-216-821-11 METAL CHIP 1K 5% 1/10W R166 1-216-864-11 SHORT CHIP 0 R167 1-220-942-11 METAL CHIP 3.3 1% 1/4W R168 1-216-864-11 SHORT CHIP 0 R169 1-216-136-00 RES-CHIP 2.7 5% 1/8W R171 1-216-841-11 METAL CHIP 47K 5% 1/10W R172 1-216-809-11 METAL CHIP 100 5% 1/10W R173 1-216-818-11 METAL CHIP 560 5% 1/10W R174 1-216-864-11 SHORT CHIP 0 R175 1-216-818-11 METAL CHIP 560 5% 1/10W R176 1-216-864-11 SHORT CHIP 0 R177 1-216-136-00 RES-CHIP 2.7 5% 1/8W R178 1-216-809-11 METAL CHIP 100 5% 1/10W R179 1-216-864-11 SHORT CHIP 0 R180 1-220-942-11 METAL CHIP 3.3 1% 1/4W R181 1-216-818-11 METAL CHIP 560 5% 1/10W R183 1-216-818-11 METAL CHIP 560 5% 1/10W R184 1-216-864-11 SHORT CHIP 0 R185 1-216-864-11 SHORT CHIP 0 R186 1-216-864-11 SHORT CHIP 0 R187 1-216-864-11 SHORT CHIP 0 R188 1-216-864-11 SHORT CHIP 0 R189 1-220-942-11 METAL CHIP 3.3 1% 1/4W R190 1-216-864-11 SHORT CHIP 0 R191 1-216-136-00 RES-CHIP 2.7 5% 1/8W R192 1-216-864-11 SHORT CHIP 0 R193 1-216-864-11 SHORT CHIP 0 R194 1-216-801-11 METAL CHIP 22 5% 1/10W R195 1-216-136-00 RES-CHIP 2.7 5% 1/8W R196 1-216-809-11 METAL CHIP 100 5% 1/10W R197 1-216-864-11 SHORT CHIP 0 R198 1-220-942-11 METAL CHIP 3.3 1% 1/4W R199 1-216-845-11 METAL CHIP 100K 5% 1/10W R200 1-216-857-11 METAL CHIP 1M 5% 1/10W R201 1-216-809-11 METAL CHIP 100 5% 1/10W DIAT AMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 25 TA-SB500WR R203 1-216-864-11 SHORT CHIP 0 R204 1-216-833-11 METAL CHIP 10K 5% 1/10W R205 1-216-833-11 METAL CHIP 10K 5% 1/10W R206 1-216-833-11 METAL CHIP 10K 5% 1/10W R207 1-216-833-11 METAL CHIP 10K 5% 1/10W R208 1-216-833-11 METAL CHIP 10K 5% 1/10W R209 1-216-833-11 METAL CHIP 10K 5% 1/10W R210 1-216-833-11 METAL CHIP 10K 5% 1/10W R211 1-216-833-11 METAL CHIP 10K 5% 1/10W R212 1-218-724-11 METAL CHIP 22K 0.5% 1/10W R213 1-218-724-11 METAL CHIP 22K 0.5% 1/10W R214 1-218-724-11 METAL CHIP 22K 0.5% 1/10W R215 1-218-724-11 METAL CHIP 22K 0.5% 1/10W R216 1-216-833-11 METAL CHIP 10K 5% 1/10W R217 1-216-833-11 METAL CHIP 10K 5% 1/10W R218 1-216-833-11 METAL CHIP 10K 5% 1/10W R219 1-216-833-11 METAL CHIP 10K 5% 1/10W R220 1-216-809-11 METAL CHIP 100 5% 1/10W R222 1-216-809-11 METAL CHIP 100 5% 1/10W R224 1-216-833-11 METAL CHIP 10K 5% 1/10W R225 1-216-833-11 METAL CHIP 10K 5% 1/10W R252 1-216-833-11 METAL CHIP 10K 5% 1/10W R253 1-216-841-11 METAL CHIP 47K 5% 1/10W R254 1-216-833-11 METAL CHIP 10K 5% 1/10W R256 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R257 1-216-841-11 METAL CHIP 47K 5% 1/10W R258 1-216-841-11 METAL CHIP 47K 5% 1/10W R259 1-216-821-11 METAL CHIP 1K 5% 1/10W R260 1-216-809-11 METAL CHIP 100 5% 1/10W R261 1-216-809-11 METAL CHIP 100 5% 1/10W R262 1-216-809-11 METAL CHIP 100 5% 1/10W R263 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R311 1-216-864-11 SHORT CHIP 0 R312 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R313 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R314 1-216-829-11 METAL CHIP 4.7K 5% 1/10W < TRANSFORMER > T100 1-780-145-11 TERMINAL BOARD (SPEAKER) < VIBRATOR > X101 1-795-485-21 VIBRATOR, CRYSTAL (SMD) (12.288MHz) X102 1-795-313-21 VIBRATOR, CERAMIC (8MHz) X103 1-795-660-21 QUARTZ CRYSTAL UNIT (49.152MHz) ************************************************************* DIAT LED BOARD ************** < LED > D400 8-719-920-55 LED SPR-54MVW (POWER/ON LINE) ************************************************************* The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. DIAT AMP DIAT POWER A-1067-416-A DIAT POWER BOARD, COMPLETE (TW) A-1068-894-A DIAT POWER BOARD, COMPLETE (EXCEPT US, TW) A-1079-747-A DIAT POWER BOARD, COMPLETE (US) *************************** 1-533-313-11 FUSE HOLDER 7-685-871-01 SCREW +BVTT 3X6 (S) < CAPACITOR > 0C901 1-165-529-11 MYLAR 0.22uF 10 275V 0C902 1-113-900-11 CERAMIC 470PF 10% 250V (EXCEPT US, TW) 0C902 1-113-907-51 CERAMIC 0.0022uF 20% 250V (US, TW) 0C903 1-113-900-11 CERAMIC 470PF 10% 250V (EXCEPT US, TW) 0C903 1-113-907-51 CERAMIC 0.0022uF 20% 250V (US, TW) 0C904 1-165-529-11 MYLAR 0.22uF 10 275V 0C905 1-165-528-11 MYLAR 0.1uF 10 275V (EXCEPT US, TW) 0C906 1-100-922-11 ELECT 330uF 20% 200V (TW) 0C906 1-100-923-11 ELECT 100uF 20% 450V (EXCEPT TW) 0C907 1-165-883-11 CERAMIC CHIP 10000PF 10% 630V (US, TW) 0C907 1-165-886-11 CERAMIC CHIP 3300PF 10% 630V (EXCEPT US, TW) 0C908 1-117-631-31 FILM 3300PF 3% 1.2KV (US, TW) 0C908 1-125-893-11 FILM 680PF 3% 1.5KV (EXCEPT US, TW) 0C909 1-107-903-11 ELECT 2.2uF 20% 50V 0C910 1-164-315-11 CERAMIC CHIP 470PF 5% 50V 0C911 1-164-162-11 CERAMIC CHIP 100PF 5% 100V 0C912 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V 0C913 1-107-907-11 ELECT 22uF 20% 50V 0C914 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V 0C915 1-107-909-11 ELECT 47uF 20% 50V 0C916 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V 0C917 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V 0C918 1-165-886-11 CERAMIC CHIP 3300PF 10% 630V (EXCEPT US, TW) 0C925 1-117-699-11 CERAMIC 0.001uF 99% 250V C931 1-125-782-91 CERAMIC 4700PF 10% 1KV C932 1-128-959-21 ELECT 1000uF 20% 35V C933 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C934 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C935 1-126-933-11 ELECT 100uF 20% 16V C936 1-126-948-11 ELECT 100uF 20% 35V C937 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C938 1-126-933-11 ELECT 100uF 20% 16V C940 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C941 1-135-372-31 ELECT 470uF 20% 10V C942 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V < CONNECTOR > * CN903 1-695-044-11 PIN, CONNECTOR (3.96mm PITCH) 2P * CN904 1-564-522-11 PLUG, CONNECTOR 7P DIAT LED www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 26 TA-SB500WR The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. DIAT POWER CN905 1-564-723-11 PIN, CONNECTOR (SMALL TYPE) 7P < DIODE > 0D901 8-719-077-77 DIODE D3SB60F3 0D902 6-500-241-01 DIODE SARS03 0D904 8-719-200-91 DIODE 11EQS10 0D905 8-719-982-26 DIODE MTZJ-33B 0D906 8-719-110-53 DIODE RD20ESB2 0D907 8-719-988-61 DIODE 1SS355TE-17 0D908 8-719-200-91 DIODE 11EQS10 0D909 8-719-988-61 DIODE 1SS355TE-17 0D910 8-719-069-60 DIODE UDZSTE-179.1B 0D911 6-500-593-31 DIODE 10EDB60-TA1B2 0D913 8-719-069-56 DIODE UDZSTE-176.2B 0D914 8-719-977-28 DIODE DTZ10B 0D915 8-719-982-26 DIODE MTZJ-33B D921 8-719-313-14 DIODE FML-22S D922 8-719-210-21 DIODE 11EQS04 D933 8-719-977-28 DIODE DTZ10B D934 8-719-083-66 DIODE UDZSTE-1718B < GROUND TERMINAL BOARD > EB901 1-537-770-21 TERMINAL BOARD, GROUND EB902 1-537-770-21 TERMINAL BOARD, GROUND < IC > 0IC901 6-706-347-01 IC STR-W6735N (US, TW) 0IC901 6-706-348-01 IC STR-W6765N (EXCEPT US, TW) IC903 8-759-231-58 IC TA7812S IC904 6-703-978-01 IC NJM2374AE (TE2) IC905 8-759-710-88 IC NJM431U < COIL > L901 1-456-509-11 INDUCTOR 10uH L903 1-416-040-11 INDUCTOR 220uH L904 1-414-398-11 INDUCTOR 10uH < LINE FILTER > 0LF901 1-419-785-11 COIL, LINE FILTER (EXCEPT US, TW) 0LF901 1-419-889-11 COIL, LINE FILTER (US, TW) 0LF902 1-419-785-11 COIL, LINE FILTER (EXCEPT TW) < PHOTO COUPLER > 0PC901 6-600-187-01 PHOTO COUPLER PC123Y22JOOF 0PC902 6-600-187-01 PHOTO COUPLER PC123Y22JOOF 0PC903 6-600-187-01 PHOTO COUPLER PC123Y22JOOF < TRANSISTOR > 0Q901 8-729-142-51 TRANSISTOR 2SD1616A-TP-LK 0Q902 8-729-027-23 TRANSISTOR DTA114EKA-T146 0Q903 8-729-027-59 TRANSISTOR DTC144EKA-T146 < RESISTOR > 0R902 1-219-759-11 METAL 1M 5% 1/2W F (EXCEPT US) 0R905 1-249-431-11 CARBON 15K 5% 1/4W (US, TW) 0R905 1-249-433-11 CARBON 22K 5% 1/4W (EXCEPT US, TW) 0R906 1-215-904-11 METAL OXIDE 100K 5% 2W F (US, TW) 0R906 1-216-468-11 METAL OXIDE 82K 5% 2W F (EXCEPT US, TW) 0R907 1-216-864-11 SHORT CHIP 0 0R908 1-216-363-00 METAL OXIDE 0.33 5% 2W F (EXCEPT US, TW) 0R908 1-245-695-61 METAL OXIDE 0.15 5% 2W F (US, TW) 0R909 1-216-821-11 METAL CHIP 1K 5% 1/10W 0R910 1-216-809-11 METAL CHIP 100 5% 1/10W 0R911 1-216-821-11 METAL CHIP 1K 5% 1/10W 0R912 1-249-417-11 CARBON 1K 5% 1/4W 0R913 1-249-416-11 CARBON 820 5% 1/4W 0R914 1-216-829-11 METAL CHIP 4.7K 5% 1/10W 0R915 1-216-801-11 METAL CHIP 22 5% 1/10W 0R916 1-216-801-11 METAL CHIP 22 5% 1/10W 0R917 1-249-435-11 CARBON 33K 5% 1/4W (US, TW) 0R917 1-249-437-11 CARBON 47K 5% 1/4W (EXCEPT US, TW) 0R919 1-216-823-11 METAL CHIP 1.5K 5% 1/10W 0R920 1-216-829-11 METAL CHIP 4.7K 5% 1/10W 0R921 1-216-843-11 METAL CHIP 68K 5% 1/10W 0R922 1-249-435-11 CARBON 33K 5% 1/4W (US, TW) 0R922 1-249-437-11 CARBON 47K 5% 1/4W (EXCEPT US, TW) 0R923 1-216-864-11 SHORT CHIP 0 0R924 1-249-431-11 CARBON 15K 5% 1/4W (US, TW) 0R924 1-249-433-11 CARBON 22K 5% 1/4W (EXCEPT US, TW) 0R925 1-249-431-11 CARBON 15K 5% 1/4W (US, TW) 0R925 1-249-433-11 CARBON 22K 5% 1/4W (EXCEPT US, TW) 0R926 1-216-833-11 METAL CHIP 10K 5% 1/10W R931 1-218-724-11 METAL CHIP 22K 0.5% 1/10W R932 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R933 1-216-841-11 METAL CHIP 47K 5% 1/10W R934 1-218-708-11 METAL CHIP 4.7K 0.5% 1/10W R935 1-218-706-11 METAL CHIP 3.9K 0.5% 1/10W R936 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R937 1-216-816-11 METAL CHIP 390 5% 1/10W R938 1-216-821-11 METAL CHIP 1K 5% 1/10W R939 1-216-821-11 METAL CHIP 1K 5% 1/10W R940 1-218-446-11 METAL CHIP 1 5% 1/10W R941 1-218-446-11 METAL CHIP 1 5% 1/10W R942 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R943 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R944 1-216-821-11 METAL CHIP 1K 5% 1/10W R945 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R946 1-216-809-11 METAL CHIP 100 5% 1/10W R947 1-216-864-11 SHORT CHIP 0 R948 1-216-816-11 METAL CHIP 390 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 27 TA-SB500WR < TRANSFORMER > 0T901 1-443-321-11 TRANSFORMER, DC CONVERTER (US, TW) 0T901 1-443-322-11 TRANSFORMER, DC CONVERTER (EXCEPT US, TW) < THERMISTOR > 0TH901 1-803-916-11 THERMISTOR, NTC 0TH902 1-805-553-21 THERMISTOR, POSITIVE ************************************************************* DIAT SWITCH BOARD ****************** < CONNECTOR > * CN901 1-695-044-11 PIN, CONNECTOR (3.96mm PITCH) 2P * CN902 1-695-044-11 PIN, CONNECTOR (3.96mm PITCH) 2P < SWITCH > 0S901 1-571-433-31 SWITCH, PUSH (AC POWER) (POWER) ************************************************************* MISCELLANEOUS ************** 054 1-696-169-31 CORD, POWER (AEP, UK, RU, HK, SP) 054 1-696-847-22 CORD, POWER (AUS) 054 1-769-079-32 CORD, POWER (KR) 054 1-783-531-72 CORD, POWER (US) 054 1-827-597-41 CORD, POWER (TW) 0F901 1-532-465-33 FUSE (T3.15AL/250V) (EXCEPT US, TW) 0F901 1-533-420-12 FUSE, GLASS CYLINDRICAL (DIA.5) (5A/125V) (US) 0F901 1-533-453-12 FUSE, GLASS TUBE (DIA. 5) (5A/125V) (TW) ************************************************************* ACCESSORIES ************ 0 1-569-008-12 ADAPTOR, CONVERSION 2P (SP) 0 1-770-019-51 ADAPTOR, CONVERSION PLUG (UK, HK) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. DIAT SWITCH DIAT POWER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 TA-SB500WR MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SERVICE MANUAL TA-SB500WR SUPPLEMENT-1 File this supplement with the service manual. 9-879-016-81 Ver. 1.1 2007.02 Subject: Addition of New type (for WAHT-SD1) US Model Canadian Model AEP Model UK Model E Model Australian Model In this set, specification have been changed from the model used for WAHT-SD1. Only information on a new type has been described in this supplement-1. Refer to original service manual for former type. DESTINATION DIFFERENCE TABLE Destination System model Former type US, AEP, UK, RU, EA, HK, KR, SP, TW, AUS DAV-LF10, DAV-SB500W New type US, CND, RU, E3, E12, E32, KR, MX, SP, AUS WAHT-SD1 • Abbreviation AUS : Australian model CND : Canadian model E3 : 240V AC Area in E model E12 : 220V – 240V AC Area in E model NEW/FORMER TYPE DISCRIMINATION Please confirm POWER BUTTON to distinguish Former type and New type. power button Former type New type silver color painting chrome plating finish E32 : 110V – 240V AC Area in E model EA : Saudi Arabia model HK : Hong Kong model KR : Korean model MX : Mexican model RU : Russian model SP : Singapore model TW : Taiwan model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 TA-SB500WR SPECIFICATIONS TABLE OF CONTENTS 1. SERVICING NOTE .................................................. 3 2. GENERAL ................................................................... 3 3. DISASSEMBLY 3-1. Disassembly Flow ........................................................... 4 3-2. Wire Cover ...................................................................... 4 3-3. Top Panel ......................................................................... 5 3-4. Side Panel, Front Panel Block ......................................... 5 3-5. DIAT POWER Board ...................................................... 6 3-6. DIAT AMP Board ............................................................ 6 4. DIAGRAMS 4-1. Block Diagram ................................................................ 7 4-2. Printed Wiring Board – DIAT AMP Section (1/2) – ....... 9 4-3. Printed Wiring Boards – DIAT AMP Section (2/2) – ...... 10 4-4. Schematic Diagram – DIAT AMP Section (1/4) – .......... 11 4-5. Schematic Diagram – DIAT AMP Section (2/4) – .......... 12 4-6. Schematic Diagram – DIAT AMP Section (3/4) – .......... 13 4-7. Schematic Diagram – DIAT AMP Section (4/4) – .......... 14 4-8. Printed Wiring Boards – POWER SUPPLY Section – .... 15 4-9. Schematic Diagram – POWER SUPPLY Section – ........ 16 5. EXPLODED VIEWS 5-1. Panel Section ................................................................... 23 5-2. DIAT AMP/DIAT POWER Boards Section .................... 24 6. ELECTRICAL PARTS LIST ................................ 25 AUDIO POWER SPECIFICATIONS for the US model POWER OUTPUT AND TOTAL HARMONIC DISTORTION: With 3 ohms loads, both channels driven, from 120 Hz - 20,000 Hz; rated 60 watts per channel minimum RMS power, with no more than 0.7 % total harmonic distortion from 250 milli watts to rated output. Amplifier section US models: Surround mode (reference) RMS output power SL/SR* : 100 W (per channel at 3 ohms, 1 kHz, 10 % THD) Latin American models: Stereo mode (rated) 75 W + 75 W (a 3 ohms, 1 kHz, 1 % THD) Surround mode (reference) RMS output power SL/SR* : 80 W (per channel at 3 ohms, 1 kHz, 10 % THD) * Depending on the sound field setting and the source, there may be no sound output. Power requirements: Mexican models: 120 V AC, 60 Hz North American models: 120 V AC, 60 Hz Latin American models: 110 – 240 V AC, 50/60 Hz Taiwan models: 120 V AC, 50/60 Hz Other models: 220 – 240 V AC, 50/60 Hz Power consumption On: 40 W Dimensions (approx.) 65 × 89 × 253 mm (2 5/8 × 3 5/8 × 10 inches) (w/h/d) 65 × 89 × 345 mm (2 5/8 × 3 5/8 × 13 5/8 inches) (w/h/d) incl. speaker cord cover Mass (approx.) 1.3 kg (2 lb 14 oz) 1.4 kg (3 lb 2 oz) incl. speaker cord cover Design and specifications are subject to change without notice. Other models: Stereo mode (rated) 80 W + 80 W (at 3 ohms, 1 kHz, 1 % THD) Surround mode (reference) RMS output power SL/SR* : 100 W (per channel at 3 ohms, 1 kHz, 10 % THD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 TA-SB500WR 1. SERVICING NOTE 2. GENERAL This section is extracted from instruction manual. LOCATION OF CONTROLS NOTE OF GROUND PROCESSING The sheet (TA) is stuck on shield case of AMP mount block and POWER mount block for ground processing. When a sheet (TA) is removed, please exchange for a surely new sheet (TA). Relevance models: E3 (240V AC Area in E model), Korean, Australian, Russian models sheet (TA) power mount block AMP mount block Surround amplifier A POWER (ON/OFF) B POWER/ON LINE indicator C DIR-R1 jack D SURROUND L SPEAKER jack E SURROUND R SPEAKER jack DIR-R1 SPEAKER SURROUND L SURROUND R POWER POWER ON-LINE Front panel Rear panel www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 TA-SB500WR 3. DISASSEMBLY Note: Follow the disassembly procedure in the numerical order given. 3-2. WIRE COVER • This set can be disassembled in the order shown below. 3-1. DISASSEMBLY FLOW 3-2. WIRE COVER (Page 4) 3-3. TOP PANEL (Page 5) 3-4. SIDE PANEL, FRONT PANEL BLOCK (Page 5) 3-5. DIAT POWER BOARD (Page 6) 3-6. DIAT AMP BOARD (Page 6) SET 4 wire cover 3 two claws 2 wire (A) holder 1 screw (B3 × 8) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 TA-SB500WR 3 side panel 2 2 1 six screws (2.6 × 6) 7 connector (CN901) 6 7 connector 8 front panel block 4 two screws (2.6 × 6) 5 two claws 7 connector (CN902) 3 eight claws 4 top panel 2 1 screw (BVTP3 × 10) 3-3. TOP PANEL 3-4. SIDE PANEL, FRONT PANEL BLOCK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 TA-SB500WR 3 two screws (2.6 × 6) 5 9 power shield 2 sheet (TA) (E3, KR, AUS, RU) 4 two claws 0 radiation sheet (DMB) 0 radiation sheet qa DIAT POWER board 7 four screws (2.6 × 6) 8 A sheet power 6 two connectors (CN904) Note: When sheet (TA) is removed, exchange with surely new sheet (TA). Abbreviation E3 : 240V AC Area in E model KR : Korean model AUS: Australian model RU : Russian model 1 screw (2.6 × 6) 7 screw (2.6 × 6) 0 3 qh radiation sheet qs sheet AMP qf two screws (BVTP3 × 6) qa four screws (2.6 × 6) qj DIAT AMP board qg heat sink block qd AMP shield 5 gasket (TA) (E3, KR, AUS, RU) 1 two screws (BVTP3 × 8) 2 two screws (BVTP3 × 8) Abbreviation E3 : 240V AC Area in E model KR : Korean model AUS: Australian model RU : Russian model 4 cord bushing 6 back panel 8 two claws 9 two claws 3-5. DIAT POWER BOARD 3-6. DIAT AMP BOARD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-SB500WR 7 7 TA-SB500WR 4-1. BLOCK DIAGRAM • SIGNAL PATH : AUDIO /RST /SD 4 13 IC110 POWER DRIVER IC112 POWER DRIVER 17 PWM_AP 2 PWM_BP 17 PWM_AP 2 PWM_BP TB301 (+) (–) OUT_A OUT_B IC301 STREAM PROCESSOR 31 DATA 30 BCK 29 LRCK 23 SCLATCH 18 NSPMUTE 19 SOFTMUTE 20 PGMUTE 21 SCDT 36 XFSIIN 22 SCSHIFT 6 OUTR1 9 OUTL2 4 OUTR2 11 OUTL1 Q108, 109 OVER LOAD DETECT /RST /SD 4 13 SURROUND L (+) (–) Q105, 106 OVER LOAD DETECT SURROUND R IC107 SURROUND AMP CONTROLLER 48 XFSOIN 37 DRIVER_RST 38 DRIVER_OCP 17 AC CUT 19 /RESET SPEAKER Q107 PROTECT DETECT IC114 OSC X103 49.152MHz 61 DAMP_SCDT 60 DAMP_SHIFT 59 DAMP_LATCH 33 DAMP_PGMUTE 34 DAMP_SOFTMUTE 35 DAMP_NSPMUTE 23 22 X102 8MHz X1 X0 42 LED_RED 41 LED_GREEN D400 POWER/ON-LINE LPF LPF LPF LPF 29, 30 25, 26 OUT_A OUT_B 29, 30 25, 26 IC102 RF DEMODULATOR, A/D CONVERTER 60 DAOUT 10 ADVIN 54 BCK 59 LRCK 31 APX SRDT 33 CSOD 61 DTVALID J301 DIR-R1 X101 12.288MHz 40 43 OSCI OSCO 34 53 DIAT_SRDT 15 CSOD 14 DTVALID LPF VCC2 35 SWDT SCMODE 37 SCLK 36 /XSCEN 52 DIAT_SWDT 13 /XRST 26 XRST_INIT 38 48 SCMODE 51 DIAT_SCLK 50 XSCEN IC106 LEVEL SHIFT IC109 LEVEL SHIFT IC103 LEVEL SHIFT 27 INIT 1 POWER CONTROL IC901 D (AC IN) S901 F901 TH901 POWER TRANSFORMER T901 D911 D908 D910 D907, 909 RECT D901 LINE FILTER ISOLATOR PC903 OVER LOAD PROTECT Q902, 903 4 VCC 7 OCP/BD 5 OLP/SS ISOLATOR PC902 TH902 RECT D921 +27.5V +12V POWER D300 REGULATOR Q901 ISOLATOR PC901 6 FB AC CUT Q110 PROTECTOR Q300 RESET SWITCH Q102 LED DRIVE Q104, 112 LED DRIVE Q103, 111 VOLTAGE DETECT IC105 SHUNT REGULATOR IC905 +12V REGULATOR IC903 VCC2 +2.5V +3.3V +2.5V REGULATOR IC104 +1.8V +1.8V REGULATOR IC113 +1.5V +1.5V REGULATOR IC101 DC/DC CONVERTER IC904 +3.3V REGULATOR IC108 57 MAIN_OFF 4. DIAGRAMS w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-SB500WR 8 8 TA-SB500WR • Note for Printed Wiring Boards and Schematic Diagrams Note on Printed Wiring Boards: • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • f : internal component. • : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) Caution: Pattern face side: Parts on the pattern face side seen from (Conductor Side) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Component Side) the parts face are indicated. • DIAT AMP board is multi-layer printed board. However, the patterns of intermediate layers have not been included in diagrams. • Indication of transistor. C B These are omitted. E Q B These are omitted. C E Q Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. (p: pF) 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • f : internal component. • 2 : nonflammable resistor. • C : panel designation. • A : B+ Line. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. Note: When mesurering voltages and waveforms, con- nect with HCD-SB500W (HCD-SB500W states: DVD play). no mark : DVD PLAY ∗ : Impossible to measure • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. F : AUDIO • Abbreviation AUS : Australian model CND : Canadian model E3 : 240V AC Area in E model E12 : 220V – 240V AC Area in E model E32 : 110V – 240V AC Area in E model KR : Korean model MX : Mexican model RU : Russian model SP : Singapore model Note: The components identi- fied by mark 0 or dotted line with mark 0 are criti- cal for safety. Replace only with part number specified. Note: Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. • Waveforms – DIAT AMP Board – 20.3 ns 4.3 Vp-p 125 ns 3.4 Vp-p 325 ns 3.2 Vp-p 82 ns 2.9 Vp-p 1 V/DIV, 50 ns/DIV 1 V/DIV, 200 ns/DIV 1 V/DIV, 50 ns/DIV 2 V/DIV, 10 ns/DIV IC102 rd (OSCO) 2 IC102 tf (BCK) 3 IC107 wd (X1) 4 IC114 4 1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-SB500WR 9 9 TA-SB500WR 4-2. PRINTED WIRING BOARD – DIAT AMP Section (1/2) – : Uses unleaded solder. 1 24 25 36 37 48 12 13 1 16 17 32 33 48 49 64 1 14 8 7 1 4 5 8 1 14 8 7 B E 1 14 8 7 1 18 19 36 B E B E B E B E B E 1 18 19 36 49 32 17 64 1 16 48 33 B E C167 D102 C156 R952 C145 C143 R171 C126 C123 C122 R152 R148 R147 R146 R140 R138 R137 R130 R127 R115 R114 R112 R111 FB102 Q104 Q103 R283 C243 R265 R264 R261 R258 R252 R300 C937 C143 R171 R152 R131 R129 R111 Q110 Q103 D300 R173 C300 Q300 R168 C954 C938 R950 IC904 D922 IC114 IC113 IC112 C191 IC110 C190 IC301 IC109 IC107 IC106 C186 IC105 IC104 IC103 IC102 IC101 C951 C181 C180 C940 C166 D103 R199 R198 R196 C159 C158 R189 C149 C148 C147 R183 C146 R181 R180 C143 C142 R178 R175 R941 R171 R940 C133 C132 C131 C129 R163 R162 C125 R161 C124 R160 C120 R155 C116 R152 R151 R150 X103 C113 X102 X101 C111 C110 R149 R145 C108 R144 C105 R141 R134 R133 R124 R123 R122 R120 R119 R118 R117 R116 R113 R111 R110 R109 R104 R102 R101 FB109 FB101 L103 L102 L101 Q112 Q111 C266 Q107 Q103 Q102 C253 C244 C234 C233 R266 R262 C223 C222 C221 R259 R253 C211 C208 C207 R167 C C C C C DIAT AMP BOARD (COMPONENT SIDE) 1-872-329- 11 (11) C C 4 3 6 1 1 3 5 4 5 4 1 3 1 3 5 4 1 3 5 4 E B C A B C 1 2 3 4 5 6 7 8 9 • Semiconductor Location Ref. No. Location D102 B-9 D103 B-9 D300 C-5 D922 A-6 IC101 C-8 IC102 C-7 IC103 B-8 IC104 C-6 IC105 B-8 IC106 B-7 IC107 B-8 IC109 C-6 IC110 C-5 IC112 B-5 IC113 B-6 IC114 B-6 IC301 C-6 IC904 A-6 Q102 A-8 Q103 B-8 Q104 B-8 Q107 C-2 Q110 B-9 Q111 B-8 Q112 B-8 Q300 C-5 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-SB500WR 10 10 TA-SB500WR 4-3. PRINTED WIRING BOARDS – DIAT AMP Section (2/2) – : Uses unleaded solder. B E B E B E B E 1 5 C953 C165 D933 C176 C175 C174 C172 C171 C151 CL010 CL009 CL001 C115 R105 FB104 FB103 C269 C237 R254 R412 R276 R274 C287 C953 C165 D933 C176 C175 C174 C172 C171 C151 C135 CL010 CL009 C115 R105 L119 L105 C237 C219 R254 IC903 D301 R277 ET302 C289 C288 C286 C270 R954 C953 Q109 C169 R158 Q108 R157 R159 R156 R153 Q106 Q105 R154 C165 R209 R208 R207 R206 R205 R204 R201 R200 D934 D933 C198 C197 C196 C195 IC108 C188 C187 C177 C176 C175 C174 C173 C172 C171 C170 D107 D106 D105 D104 C162 C160 R197 R194 C157 C155 C154 C153 C151 C141 R179 C138 R944 R943 R942 C134 C130 CL013 C127 CL012 CL011 CL010 CL009 CL008 CL007 CL006 CL005 C119 CL004 CL003 CL002 C115 C114 C109 R143 R142 C103 C101 R139 R132 R126 R125 R108 R106 R105 R103 R100 L909 L122 L105 L104 C238 C237 C232 C231 C227 R263 C220 R256 R254 C215 C206 C205 C204 C203 C201 C200 R410 R211 R210 J301 TB301 ET301 L124 L126 L125 L123 C199 C235 C192 C184 C216 C212 L121 L118 L115 L112 L121 L118 L115 L112 L121 L118 L115 L112 C385 C202 C140 C952 C941 C163 C161 C150 C137 C136 C128 C107 C104 C102 L908 C230 C229 C214 1 4 CNP303 1 2 6 7 CN309 1 9 CN301 G R 1 3 D400 CNP400 1 3 (CHASSIS) (CHASSIS) A DIAT POWER BOARD CN904 DIR-R1 SPEAKER SURROUND R SURROUND L + – + – DIAT AMP BOARD (CONDUCTOR SIDE) 1-872-329- 11 (11) (NC) POWER/ON LINE DIAT LED BOARD 1-872-330- 11 (11) 3 A B C D E 1 2 3 4 5 6 7 8 9 10 (Page 15) D104 C-6 D105 C-6 D106 B-6 D107 B-6 D301 C-2 D400 E-2 D933 A-4 D934 A-7 IC108 B-4 IC903 A-6 Q105 B-8 Q106 B-8 Q108 C-8 Q109 C-8 • Semiconductor Location Ref. No. Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-SB500WR 11 11 TA-SB500WR 4-4. SCHEMATIC DIAGRAM – DIAT AMP Section (1/4) – • See page 8 for Waveforms. • See page 17 for IC Block Diagrams. 1 2 (2/4) DIAT AMP BOARD IC B/D IC B/D 2 1 IC B/D (3/4) DIAT AMP BOARD 4.9 2.5 4.7 1.3 0 0 0 0 0 0 0 3.3 0 0 3.3 3.3 2.5 3.1 3.1 2.3 2.5 0 0 0 3.2 3.2 2.5 0.9 0.9 1.5 1.5 2.5 1.3 2.5 0 0 1.3 1.5 2.5 1.3 2.4 2.5 1 2.5 2 2.5 2.5 2.5 0 0 0 2.3 2.4 2.5 1.2 2.5 1.2 1.5 4.9 4.9 3.3k R109 0.1 C109 1000p C115 FB104 VCC 1k R118 XSCEN 4.7k R266 0.1 C103 16V 47 C136 0.1 C119 DAOUT/ROUT 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 29 28 27 26 25 24 23 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 CXD4017R IC102 0.01 C111 16V 47 C107 16V 47 C104 330 R103 J301 1 2 3 4 5 6 TK11225CMCL-G IC104 GND 220 R111 DIAT_SWDT INIT 100p C123 12.288MHz X101 0.1 C108 50V 10 C140 47k R105 100 R112 100p C122 100p C125 10k R117 100p C126 100 R108 DIAT_SRDT 1000p C114 16V 47 C128 BCK/RCLK 3.3k R104 10uH L104 1 C131 0.1 C141 0.1 C127 100 R113 0.1 C138 1k R120 50V 10 C102 100 R114 10uH L103 0.01 C142 0.1 C116 0.01 C105 0.1 C130 VCC2 4.7k R264 0.1 C133 27p C129 APX FB103 1k R119 47uH L101 68 R116 DTVALID(I) DIAT_SCLK 10uH L105 0.1 C135 FB102 VCC2 27p C124 LRCK/RCS 0.01 C120 2.2k R265 1 C132 820 R102 CSOD 10uH L102 10k R101 14 13 12 11 10 9 8 7 6 5 4 3 2 1 SN74LV08APWR IC103 50V 10 C137 0.1 C113 0.1 C101 VCC 1k R110 100 R106 FB109 FB101 SCMODE 14 13 12 11 10 9 8 7 6 5 4 3 2 1 SN74LVC08APWR IC106 1 C134 100 R115 5 4 3 2 1 XC62HR1502MR IC101 E ET302 0.1 C110 LRCK DTSEL DIVCODE ADVRL TEST4 SCMODE BCK MST APVCI +2.5V REGULATOR VSS ADAVD TXOUT/RINFO VDDE XSM VSS ICLK ADAVS SMCK APCPO ADVRH LEVEL SHIFT VDDE TESTMD APAVD OSCI VSS DIAT AMP BOARD (1/4) TEST6 IC103 /XRST TEST0 OSCO EMPFSI APAVS IC101 IC106 RF DEMODULATOR,A/D CONVERTER /XTST SYMCLK TEST2 EMPFSO +1.5V REGULATOR VDDE TEST3 DTVALID VDDE VSS IC104 CSOD VSS DIFM0 DAOUT ADVIN VDDI PLVAR LEVEL SHIFT TEST7 /XSCEN DIFM1 IC102 VDDE TEST5 SCLK SRDT VSS APX PLREF VCOR SWDT TEST1 VDDI EXTCK CHNUM VSS GND VCC VCC GND VIN GND VOUT NP GND COUT VIN CE VOUT VSS DIR-R1 (CHASSIS) E 11 8 12 D C 2 I 7 5 10 6 9 G A B H F 1 3 4 (Page 12) (Page 13) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-SB500WR 12 12 TA-SB500WR 4-5. SCHEMATIC DIAGRAM – DIAT AMP Section (2/4) – • See page 8 for Waveforms. • See page 17 for IC Block Diagrams. • See page 21 for IC Pin Function Description. (1/4) DIAT AMP BOARD (4/4) DIAT AMP BOARD (3/4) DIAT AMP BOARD IC B/D 3 4 1 3 3.3 3 3.3 0 0 3.3 3.3 0 3.3 0 0 0 0 0 3.3 3.3 0 3.3 0 0 3.2 3.1 3.3 3.3 0 3.3 3.3 0 3.3 0 3.3 0 3.3 2.3 3.3 1.4 1.3 0 0 3.3 3.3 3.3 0.4 3.3 4.8 4.9 0 4.9 0 0 4.9 4.9 3.3 0 3.3 0 10V 100 C150 0.1 C143 0.1 C146 0.1 C148 0.1 C149 0.1 C151 0.22 C145 0.22 C253 10p C154 100p C153 100p C155 100p C156 100p C157 100p C158 100p C159 1000p C147 100 R129 100 R130 100 R132 100 R133 100 R134 100 R137 100 R138 100 R139 100 R140 100 R141 100 R142 100 R144 100 R145 100 R146 100 R147 100 R148 100 R150 100 R151 100 R152 100 R261 100 R262 150 R100 150 R125 1k R126 1k R259 3.3k R256 10k R122 10k R252 10k R254 22k R123 47k R124 47k R127 47k R131 47k R171 47k R253 47k R283 R410 47k 0 R143 1 2 3 4 5 6 7 7P CN309 1SS355WTE-17 D102 1SS355WTE-17 D103 5 4 3 2 1 PST3629NR IC105 1 3 4 CNP303 4P R258 47k 8MHz X102 0.1 C266 RT1P141C-TP-1 Q111 RT1P141C-TP-1 Q112 RT1N141C-TP-1 Q104 RT1N141C-TP-1 Q103 2SC3052EF-T1-LEF Q102 RT1P141C-TP-1 Q110 1SS355WTE-17 D301 R274 47k 47k R276 R277 47k 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 29 28 27 26 25 24 23 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 MB89537APFM-G-1077E1 IC107 INIT DTVALID(I) VCC VCC2 CSOD SCMODE XSCEN GND DIAT_SWDT DIAT_SRDT DIAT_SCLK 100 R149 SCDT SCSHIFT SCLATCH DRIVER/OCP DRIVER/RST DAMP/NSPMUTE DAMP/SOFTMUTE DAMP/PGMUTE MAIN_OFF GND INIT AC_CUT MOD2[I] AC CUT[I] SCMODE[O] SL/SR REV[I] PWR_PWM_CONT[I] AVCC AVR AVSS DTVALID[I] CSOD[I] LED_RED[O] LED_GREEN[O] DRIVER_OCP[I] DRIVER_RST[O] DAMP_NSPMUTE[O] DAMP_SOFTMUTE[O] DAMP_PGMUTE[O] SI2[I] DAMP_SCDT[O] DAMP_SHIFT[O] DAMP_LATCH[O] V_CONT[O] MAIN_OFF[O] VCC DIAT_SRDT[I] DIAT_SWDT[O] DIAT_SCLK[O] XSCEN[O] /RESET MOD0[I] MOD1[I] X0[I] X1[O] VSS XRST_INIT[O] P23[I] P22[I] SD2 SI2 VDD GND RESET SCK2 MOD 0_1 FSDLY[I] [O] [O] [O] [O] [O] [O] [I] [I] [O] [O] [O] [O] DAMP [O] [I] [O] [O] [O] [O] [O] [O] [NC] [O] [O] [O] OUT2DLY[I] GND RED GREEN DAMP DAMP PWM MODE[I] VOLTAGE DETECT IC105 SURROUND AMP CONTROLLER IC107 (2/4) DIAT AMP BOARD Q103,104,111,112 LED DRIVE NC AC CUT RESET SWITCH NC CD OUT VCC GND E 11 8 12 D C 2 I 7 5 10 6 9 G A B H F 1 K J 3 4 G R SPR-54MVW D400 1 2 3 3P CNP400 DIAT LED BOARD POWER/ON-LINE GND RED GREEN 13 14 (Page 11) (Page 14) (Page 13) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-SB500WR 13 13 TA-SB500WR 4-6. SCHEMATIC DIAGRAM – DIAT AMP Section (3/4) – • See page 8 for Waveforms. • See page 17 for IC Block Diagrams. (1/4) DIAT AMP BOARD (2/4) DIAT AMP BOARD (4/4) DIAT AMP BOARD DIAT AMP BOARD (4/4) DIAT POWER BOARD CN904 IC B/D 4 IC B/D IC B/D IC B/D 3 2 5 6 A 1.8 3.3 1.6 3.3 1.8 3.3 3.3 0 0.1 3.3 3.3 1.6 3.3 3.3 3.3 1.6 1.6 1.6 3.3 1.6 1.7 3.3 1.6 1.6 1.6 0 3.3 1.8 1.6 1.3 2.5 3.3 3.3 1.6 15.3 27.3 12 12 1.2 27.3 27.3 27.3 27.3 5 0.8 3.3 4.9 0 0 0 1.3 1.3 1.6 3.3 1.3 1.3 1.6 1.3 1.3 1.6 3.3 3.3 0 16V 47 C202 0.1 C167 0.1 C937 0.1 C953 0.1 C951 10V 220 C230 16V 100 C161 16V 100 C214 16V 100 C229 35V 100 C163 35V 100 C952 10V 470 C941 3p C220 100p C171 100p C172 100p C174 100p C175 0.01 C160 0.01 C162 0.01 C223 0.01 C232 0.01 C234 0.01 C233 0.1 C938 0.1 C227 0.1 C196 0.1 C187 0.1 C173 0.1 C176 0.1 C195 0.1 C198 0.1 C204 0.1 C205 0.1 C206 220p C940 22 R194 100 R173 100 R175 100 R181 100 R183 100 R160 100 R161 100 R162 100 R163 100 R201 1k R944 1.5k R943 1.5k R942 150k R952 100k R199 1M R200 0 R950 1 R941 1uH L122 10uH L909 10uH L119 220uH L908 49.152MHz X103 5 4 3 2 1 TK11118CSCL-G IC113 8 7 6 5 4 3 2 1 NJM2374AE(TE2) IC904 I O G NJM2885DL1-33(TE2) IC108 1 2 3 1 2 3 4 5 SI-3120KM-TL IC903 11EQS04-TA2B D922 14 13 12 11 10 9 8 7 6 5 4 3 2 1 SN74LVC08APWR IC109 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 CXD9843AR IC301 1 3 4 5 6 7 8 9 9P CN301 UDZW-TE17-10B D933 UDZW-TE17-18B D934 3p C237 1000p C219 5 4 3 2 1 TC7SHU04FU(T5RSOJF) IC114 0 R954 C954 0.1 2SA1235TP-1EF Q300 10k R300 0.1 C300 0 R168 LRCK/RCS APX BCK/RCLK DAOUT/ROUT DAMP/PGMUTE MAIN_OFF AC_CUT SCSHIFT SCLATCH INIT DAMP/SOFTMUTE SCDT GND DAMP/NSPMUTE VCC2 VCC 1 R940 OUTR2 OUTR1 OUTL2 OUTL1 GND VDD SD PVDD GVDD XOVSS XFSOOUT XOVDD DVDD DVSS NSPMUTE SOFTMUTE PGMUTE SCDT SCSHIFT SCLATCH FLAGR_OVF XVDD HPVSSL FSOCKO HPVSSR HPOUTL1 HPVDDR HPVDDL HPOUTL2 HPOUTR1 HPOUTR2 FSOI XFSOIN VSSL OUTL1 VDDL OUTL2 VSSL VSSR OUTR1 VDDR OUTR2 VSSR VSUBC XVSS FLUGL _OVF SFLUG INIT MCKSEL LRCK BCK DATA BFVDD BFVSS TEST DVDD XFSIIN AC-CUT MAIN-OFF V-CONT GND 27.5V 27.5V GND 27.5V STREAM PROCESSOR IC301 LEVEL SHIFT IC109 +3.3V REGULATOR IC108 DC/DC CONVERTER IC904 +12V REGULATOR IC903 +1.8V REGULATOR IC113 OSC IC114 (3/4) DIAT AMP BOARD VC VIN GND VOUT ADJ G V VOUT VIN VCONT GND NP GND CT ES CS CD IN+ V+ SI GND VCC PROTECTOR E 11 8 12 D C 2 I 7 5 10 6 9 G A B H F 1 3 4 (Page 14) (Page 12) (Page 11) (Page 14) (Page 16) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-SB500WR 14 14 TA-SB500WR 4-7. SCHEMATIC DIAGRAM – DIAT AMP Section (4/4) – • See page 17 for IC Block Diagrams. (2/4) DIAT AMP BOARD (3/4) DIAT AMP BOARD (3/4) DIAT AMP BOARD IC B/D IC B/D 4 5 6 12 12 1.6 11.2 0 27.3 0 27.3 12 3.4 0 3.4 3.4 0 3.4 3.4 3.3 3.4 27.3 3.3 27.3 11.2 1.6 12 12 12 12 11.2 0 12 0 3.4 1.6 3.4 12 3.4 1.6 3.4 27.3 27.3 0 11.2 27.3 0 27.3 3.4 3.3 12 3.3 3.4 3.3 0 3.4 3.4 3.4 3.4 0 0 3.4 3.4 0 0 3.4 3.4 0.1 C211 0.1 C186 0.033 C197 1 C170 1 C200 1 C201 35V 100 C385 1 C184 1 C192 1 C212 C216 1 0.01 C188 0.01 C215 2.2 C169 2.2 C165 2.2 C166 10k R205 10k R204 10k R207 10k R209 10k R208 10k R211 100k R158 100k R159 100k R157 100k R154 100k R156 100k R153 100k R155 0 R179 0 R197 0 R412 10uH L112 10uH L115 10uH L118 10uH L121 0.6uH L126 0.6uH L124 0.6uH L125 0.6uH L123 2SC3052EF-T1-LEF Q107 2SA1235TP-1EF Q108 2SA1235TP-1EF Q109 2SA1235TP-1EF Q105 2SA1235TP-1EF Q106 10k R206 31 32 33 34 35 36 1 2 3 4 5 6 30 29 28 27 26 8 7 9 10 11 21 22 23 24 25 12 13 14 15 20 19 16 17 18 CXD9774M IC112 31 32 33 34 35 36 1 2 3 4 5 6 30 29 28 27 26 8 7 9 10 11 21 22 23 24 25 12 13 14 15 20 19 16 17 18 CXD9774M IC110 0.033 C203 0.033 C177 0.22 C221 0.22 C222 0.22 C180 0.22 C181 0.22 C190 0.22 C191 0.22 C208 0.22 C207 1 C238 0.1 C244 0.1 C243 0.033 C231 1k R178 1k R196 4.7k R263 35V 2200 C199 35V 2200 C235 3.3 R167 3.3 R180 3.3 R189 3.3 R198 P6SMBJ33A-5 D104 P6SMBJ33A-5 D105 P6SMBJ33A-5 D106 P6SMBJ33A-5 D107 C286 0.01 C287 0.01 C288 0.01 C289 0.01 1SS355WTE-17 D300 E ET301 C269 1000p C270 1000p DRIVER/RST DRIVER/OCP OUTL2 SD OUTR1 OUTR2 GND OUTL1 VDD PVDD GVDD 10k R210 GND PWM_BP GND /RST DREG_RTN GREG M3 DREG DGND M1 M2 DVDD /SD RESV /OTW GND PWM_AP GND GREG GVDD PVSS BST_A PVDD_A PVDD_A OUT_A OUT_A PVSS PVSS OUT_B OUT_B PVDD_B PVDD_B BST_B PVSS GVDD GREG DVDD M2 M1 /SD /RST GREG PWM_BP DREG_RTN GND /OTW PVDD_A GND RESV GND M3 GREG GVDD PVSS BST_B PVDD_B PVDD_B DGND OUT_B OUT_B PVSS PVSS OUT_A PVDD_A OUT_A BST_A PVSS GVDD GREG GND DREG PWM_AP + POWER DRIVER IC110 POWER DRIVER IC112 DIAT AMP BOARD (4/4) Q105,106 OVER LOAD DETECT Q108,109 OVER LOAD DETECT PROTECT DETECT + - - SURROUND L SURROUND R SPEAKER TB301 (CHASSIS) 13 E 11 8 12 D C 2 I 7 5 10 6 9 G A B H F 1 3 4 (Page 12) (Page 13) (Page 13) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-SB500WR 15 15 TA-SB500WR 4-8. PRINTED WIRING BOARDS – POWER SUPPLY Section – : Uses unleaded solder. E B + – 1 8 1 3 7 3 1 6 JW001 L902 JW002 JW003 JW004 F901 Q901 L901 L903 L904 JW11 JW12 JW13 JW14 PC901 PC902 PC903 EB901 EB902 VDR901 R902 LP1 R905 R906 R908 R912 R913 R917 CN903 CN904 R922 R924 R925 C901 FH901 C902 FH902 C904 A001 C905 TH901 A002 C906 C921 C909 C913 C915 C919 C908 C922 C925 JW2 JW3 JW4 JW5 C931 JW6 C932 JW7 JW8 JW9 C936 D901 D902 D904 D905 D906 D908 D911 D915 D921 IC901 T901 B E A K B E Q902 Q903 R909 R910 R911 R914 R915 R916 R919 R920 R921 CL001 CL002 CL003 CL004 CL005 R926 CL006 CL007 CL008 CL009 CL010 R931 CL011 R932 CL012 R933 R935 R936 R938 R939 TH902 C907 R945 R946 R948 C910 C911 C912 C914 C916 C917 C918 R960 C933 C934 C942 D907 D909 D910 D913 D914 IC905 C923 C903 CN901 CN902 S901 E3, E12, SP, KR, AUS, RU POWER TRANSFORMER (CHASSIS) (CHASSIS) A DIAT AMP BOARD CN301 DIAT POWER BOARD 1-872-331- 11 (11) C 1 3 2 (US, CND, MX) (EXCEPT US, CND, MX) (EXCEPT US, CND, MX) (US, CND) (EXCEPT US, CND) E3, E12, SP, KR, AUS, RU E3, E12, SP, KR, AUS, RU US, CND, E32, MX (US, CND, E32, MX) (US, CND, E32, MX) (US, CND, E32, MX) (US, CND, MX) (EXCEPT US, CND, MX) (EXCEPT E32, MX) (US, CND) (E3, E12, SP, KR, AUS, RU) 2 1 2 1 (AC IN) POWER 1-872-332- 11 (11) DIAT SWITCH BOARD C C 2 1 3 4 4 3 1 2 4 3 2 1 A B C D E 1 2 3 4 5 6 7 8 (Page 10) D901 B-5 D902 B-4 D904 C-4 D905 C-5 D906 C-5 D907 C-5 D908 C-5 D909 C-5 D910 C-4 D911 C-5 D913 C-4 D914 C-4 D915 C-4 D921 B-2 IC901 B-4 IC905 B-3 PC901 C-3 PC902 C-3 PC903 C-3 Q901 C-5 Q902 C-4 Q903 C-5 • Semiconductor Location Ref. No. Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-SB500WR 16 16 TA-SB500WR 4-9. SCHEMATIC DIAGRAM – POWER SUPPLY Section – • See page 17 for IC Block Diagrams. DIAT AMP BOARD CN301 (3/4) IC B/D 23.1 2.4 9.3 0.2 16.1 10.6 27.4 26.3 2.3 1.3 0.1 0.1 9.3 0.1 18.5 18.5 -3 -0.1 -2.6 160 18.3 0.1 1.5 0.8 35V 47 C915 50V 22 C913 0.1 C912 0.1 C933 250V C902 2200p 250V 2200p C903 250V 0.001 C925 1kV 4700p C931 0.01 C934 35V 100 C936 35V 1000 C932 0.01 C916 0.01 C917 100V 100p C911 470p C910 275V 0.22 C901 0.1 C904 R908 100 R910 100 R946 150 R948 1k R911 1k R938 1k R939 1.8k R932 1.5k R919 0 R936 2.2k R945 4.7k R914 4.7k R920 47k R933 68k R921 2.2k R935 22k R931 1k R912 R917 R922 1 2 3 4 L901 10uH L903 F901 1 3 3P CN903 VDR901 TH902 SARS03 D902 10EDB60-TA2B5 D911 1 3 4 5 6 7 IC901 UDZW-TE17-6.2B D913 UDZW-TE17-10B D914 ~ ~ D3SB60F3 D901 11EQS10-TA2 D904 11EQS10-TA2 D908 FML-22S D921 1SS355WTE-17 D907 1SS355WTE-17 D909 2SD1616A-TP-LK Q901 C906 R902 1/2W 1M C905 275V R906 C918 3300p 630V 1 2 3 NJM1431AU(TE2) IC905 R924 RT1P141C-TP-1 Q902 RT1N441C-TP-1 Q903 50V 10 C909 R909 1k D915 MTZJ-T-72-33B R926 10k 1 2 3 4 5 6 7 8 8P CN904 0.1 C942 R925 R905 UDZW-TE17-9.1B D910 MTZJ-T-72-20B D906 MTZJ-T-72-33B D905 TLP421F(D4-GR) PC901 22 R915 R916 22 R960 0 C908 1.2kV 3300p R913 820 TH901 C919 200V 330 C921 250V C922 250V C923 1 2 3 4 L902 1 2 3 4 L904 JW002 JW001 JW003 2 5 8 3 10 11 1 6 9 T901 TLP421F(D4-SONY) PC902 TLP421F(D4-SONY) PC903 E EB902 E EB901 2200p C914 GND GND +27.5V +27.5V AC-CUT +27.5V LIVE NUTRAL MAIN-OFF V-CONT DIAT POWER BOARD IC901 POWER CONTROL IC905 SHUNT REGULATOR (CHASSIS) ISOLATOR PC902 ∗ ∗ ∗R917,922 33k(US,CND,MX) 47k(EXCEPT US,CND,MX) POWER TRANSFORMER PC901 ISOLATOR ISOLATOR PC903 22k(EXCEPT US,CND,MX) 15k(US,CND,MX) ∗R905,924,925 C907 0.01 630V(US,CND,MX) 3300p 630V(EXCEPT US,CND,MX) (EXCEPT US,CND,MX) (US,CND,MX) 82k 2W REGULATOR Q902,903 OVER LOAD DETECT ∗ ∗ ∗ 0.12 2W(US,CND,MX) 0.27 2W(EXCEPT US,CND,MX) ∗ 100 450V(E3,E12,SP,KR,AUS,RU) 130 450V(E32) 330 250V(MX) ∗C906 (US,CND) STR-W6765N(EXCEPT US,CND,MX) STR-W6735N(US,CND,MX) 680p 1.5kV (EXCEPT US,CND,MX) D S/GND VCC OLP/SS FB OCP/BD (US,CND,MX) 0.1 E3,E12,SP, KR,AUS,RU (US,CND,E32,MX) (US,CND,E32,MX) 470p 470p (EXCEPT US,CND,MX) US,CND, MX (US,CND) (US,CND,E32,MX) (E3,E12,SP,KR,AUS,RU) (CHASSIS) T5AL/250V(E32) T3.15AL/250V(E3,E12,SP,KR,AUS,RU) 5A/125V(US,CND,MX) A 12 E 11 8 12 D C 2 7 5 10 6 9 G A B H F 1 3 4 12 (EXCEPT US,CND) 100k 2W (EXCEPT US,CND,MX) 2 1 3 4 3 4 2 1 3 4 2 1 17 16 13 15 14 1 3 3P CN902 1 3 3P CN901 S901 NUTRAL LIVE NUTRAL LIVE DIAT SWITCH BOARD POWER (AC IN) ( ) ( ) (Page 13) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 TA-SB500WR IC101 XC62HR1502MR • IC Block Diagrams – DIAT AMP Board – IC102 CXD4017R + – 3 OUTPUT CONTROL REFERENCE VOLTAGE 4 1 2 5 CURRENT LIMIT NC VIN CE VSS VOUT ADVRH 6 VSS 5 VDDE 4 TEST14 3 TEST13 2 TEST12 1 ADAVS 7 ADAVD 8 ADVRL 9 ADVIN 10 VDDEE 11 VSS 12 XRST 13 DIFM0 14 DIFM1 15 TEST15 16 A/D CONVERTER BUFFER RAM ERROR CORRECTOR OUTPUT INTERFACE DEMODULATOR PLREF 17 TEST16 19 APVCI 20 VSS 21 APCPO 22 APAVD 23 APAVS 24 APX 31 EXTCK 32 VSS 25 VDDI 26 VDDE 27 VCOR 28 CHNUM 29 DIVCODE 30 PLVAR 18 PLL CLOCK SELECTOR CONTROLLER CSOD 33 SRDT 34 SWDT 35 XSCEN 36 SCLK 37 SCMODE 38 OSCI 40 TEST0 44 TEST1 45 TEST2 46 TEST3 47 TEST4 48 OSCO 43 VSS 39 VDDE 41 VSS 42 CLOCK GENERATOR TEST11 64 EMPFS1 63 EMPFS0 62 DTVALID 61 DAOUT 60 LRCK 59 VDDI 58 VSS 57 VDDE 56 BCK 54 TEST10 55 TEST9 53 TEST8 52 TEST7 51 TEST6 50 TEST5 49 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 TA-SB500WR IC104 TK11225CMCL-G IC105 PST3629NR IC110, 112 CXD9774M IC113 TK11118CSCL-G 1 2 3 6 4 CONT GND NP VIN 5 GND VOUT CONTROL CIRCUIT BANDGAP REFERENCE CONSTANT CURRENT SOURCE OVER HEAT & OVER CURRENT PROTECT VDD 2 OUT 1 GND 3 + – VREF CD 5 NC 4 RESET 4 GND 1 GND 3 PWM BP 2 DREG RTN 5 GVDD 6 M3 7 M1 10 M2 11 DVDD 12 DREG 8 DGND 9 DGND 14 GND 16 GND 18 PWM RECEIVER TIMING CONTROL & PROTECTION SD 13 OTW 15 DIGITAL REGULATOR PROTECTION LOGIC OT & UVP DVDD DREG DREG DGND PWM AP 17 PWM RECEIVER DVDD DREG DGND DREG GVDD DREG GATE DRIVE GVDD B 35 GVDD B 36 BST B 33 PVDD B 32 PVDD B 31 OUT B 30 OUT B 29 GND 28 GND 34 GATE DRIVE OCH OCL TIMING CONTROL & PROTECTION DREG GATE DRIVE GVDD A 20 GVDD A 19 BST A 22 PVDD A 23 PVDD A 24 OUT A 25 OUT A 26 GND 27 GND 21 GATE DRIVE OCH OCL GVDD GVDD CONTROL CIRCUIT BANDGAP REFERENCE + – OVER HEAT & OVER CURRENT PROTECTION 1 VCONT 3 NP 2 GND 4 VOUT 5 VIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 TA-SB500WR IC301 CXD9843AR IC903 SI-3120KM-TL 12 11 10 9 8 7 6 5 4 3 VSUBC XVSS OUTR2 VSSR OUTR1 VDDR VSSL VSSR OUTL2 OUTL1 VSSL VDDL 2 1 PWM CLOCK GENERATOR (SECONDARY) CLOCK GENERATOR (PRIMARY) 31 29 25 OVFFLAGL 26 SFLAG 27 INIT 30 S g P GAIN CONTROL INIT/ MUTE SAMPLING RATE CONVERTER FILTER & LOW CUT FILTER LINER INTERPOLATOR ∆ Σ 48 XFSOIN 47 XVDD HPVDDL 46 45 HPOUTL1 HPVSSL 44 43 HPOUTL2 HPVDDR 42 41 HPOUTR1 HPVSSR 40 HPOUTR2 39 37 FSOCKO 38 FSOI 13 XOVSS 14 XFSOOUT 15 XOVDD 16 DVDD 17 DVSS 18 NSPMUTE 19 SOFTMUTE 20 PGMUTE SERIAL CONTROLLER 21 SCDT 22 SCSHIFT 23 SCLATCH 24 OVFFLAGR 28 MCKSEL 32 BFVDD 33 BFVSS 34 TEST 35 DVDD 36 XFSIIN LRCK BCK DATA 1 VC TSD 2 VIN 3 GND 4 VOUT 5 ADJ + – REF www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 TA-SB500WR IC904 NJM2374AE (TE2) – DIAT POWER Board – IC901 STR-W6735N (US, CND, MX) IC901 STR-W6765N (EXCEPT US, CND, MX) CS 1 ES 2 CT 3 IN+ 5 Q S R PWM LOGIC OSC GND 4 V+ 6 VREF + – + – + – ERROR AMP PWM COMPARATOR SI 7 CD 8 IPK SENSE D 1 NC 2 S/GND 3 VCC 4 SS/OLP 5 FB 6 OCP/BD 7 DELAY Q R S + – + – + – Q S R + – BOTTOM SELECTOR COUNTER OSC R Q S SOFT START + – OVP REGULATOR & ICONST + – BURST CONTROL START/STOP BURST PROTECTION LATCH DRIVE REGULATOR OLP BSD BD OCP FB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 TA-SB500WR • IC Pin Function Description DIAT AMP BOARD IC107 MB89537APFM-G-1077E1 (SURROUND AMP CONTROLLER) Pin No. Pin Name I/O Description 1 DAMP FSDLY I Clock delay switch input terminal Fixed at "L" in this set 2 MOD2 I Setting terminal for the CPU operation mode Fixed at "L" in this set 3, 4 - O Not used 5 SL/SR REV I Setting terminal for the SL/SR reverse function Fixed at "H" in this set 6 PWR_PWM_CONT I Setting terminal for the power control (fix/variable) Fixed at "L" in this set 7 to 10 - O Not used 11 AVCC - Power supply terminal (+3.3V) (for A/D converter) 12 AVR I Reference voltage (+3.3V) input terminal (for A/D converter) 13 AVSS - Ground terminal (for A/D converter) 14 DTVALID I Data valid flag input from the RF demodulator "L": invalid, "H": valid 15 CSOD I Captor start delay signal input from the RF demodulator "H" active 16 - I Not used 17 AC CUT I AC cut detection signal input terminal "L": AC cut 18 - I Not used 19 /RESET I Reset signal input terminal "L": reset For several hundreds msec. after the power supply rises, "L" is input, then it changes to "H" 20, 21 MOD0, MOD1 I CPU operation mode setting signal input terminal 22 X0 I Main system clock input terminal (8 MHz) 23 X1 O Main system clock output terminal (8 MHz) 24 VSS - Ground terminal 25 - O Not used 26 XRST_INIT O Reset signal output to the RF demodulator and stream processor "L": reset 27, 28 - O Not used 29 P23 I Setting terminal for the CPU operation mode Fixed at "L" in this set 30 P22 I Setting terminal for the CPU operation mode Fixed at "H" in this set 31 - O Not used 32 DAMP PWM MODE I Setting terminal for the PWM mode output switch Fixed at "L" in this set 33 DAMP_PGMUTE O PG muting on/off control signal output to the stream processor "L": muting on 34 DAMP_SOFTMUTE O Soft muting on/off control signal output to the stream processor "L": muting on 35 DAMP_NSPMUTE O NSP muting on/off control signal output to the stream processor "L": muting on 36 - O Not used 37 DRIVER_RST O Reset signal output to the power driver "L": reset 38 DRIVER_OCP I Shut down state input from the power driver "L": shut down 39 - I Not used 40 - I Setting terminal for the CPU operation mode Fixed at "H" in this set 41 LED_GREEN O LED drive signal output of the ON LINE indicator "H": LED on 42 LED_RED O LED drive signal output of the POWER indicator "H": LED on 43 to 47 - O Not used 48 SCMODE O Control mode selection signal output to the RF demodulator "L": pin setting, "H": serial setting 49 - - Not used 50 XSCEN O Serial interface enable signal output to the RF demodulator 51 DIAT_SCLK O Serial interface data clock signal output to the RF demodulator 52 DIAT_SWDT O Serial interface data write signal output to the RF demodulator 53 DIAT_SRDT I Serial interface data read signal input from the RF demodulator www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 TA-SB500WR Pin No. Pin Name I/O Description 54, 55 - O Not used 56 VCC - Power supply terminal (+3.3V) 57 MAIN_OFF O Power off control signal output to the power control "H": power off 58 V_CONT O Voltage control PWM signal output terminal Not used 59 DAMP_LATCH O Latch control signal output to the stream processor 60 DAMP_SHIFT O Shift clock signal output to the stream processor 61 DAMP_SCDT O Serial data output to the stream processor 62 SI2 I Serial data input terminal 63 - O Not used 64 DAMP OUT2DLY I Clock delay switch input terminal Fixed at "L" in this set www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 TA-SB500WR 4 8 7 3 2 6 1 not supplied (DIAT SWITCH board) not supplied not supplied (DIAT LED board) DIAT AMP/DIAT POWER boards section #5 #2 #2 #2 #3 #2 #2 5 5 not supplied not supplied Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 2-894-636-01 CABINET, FRONT (US, CND) 1 2-894-636-12 CABINET, FRONT (E3, E12, E32, MX, SP, KR, AUS, RU) 2 2-891-290-01 BUTTON, POWER 3 2-149-270-21 SIDE, PANEL (US, CND) 3 2-149-270-31 SIDE, PANEL (E3, E12, E32, MX, SP, KR, AUS, RU) 4 2-149-269-11 PANEL, TOP 5-1. PANEL SECTION 5 3-087-053-01 +BVTP2.6 (3CR) 6 2-149-422-02 INDICATOR, POWER 7 2-149-273-21 COVER, WIRE 8 2-149-272-11 HOLD, WIRE (A) #2 7-685-133-19 SCREW +P 2.6X6 TYPE2 NON-SLIT #3 7-682-548-09 SCREW +B 3X8 #5 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3 5. EXPLODED VIEWS Note: Ref. No. 1 and Ref. No. 6 are parts glued together. When you exchange Ref. No. 1 or Ref. No. 6, exchange simultaneously. • The mechanical parts with no reference number in the exploded views are not supplied. • Accessories are given in the last of the electrical parts list. • Abbreviation AUS : Australian model CND : Canadian model E3 : 240V AC Area in E model E12 : 220V – 240V AC Area in E model E32 : 110V – 240V AC Area in E model KR : Korean model MX : Mexican model RU : Russian model SP : Singapore model NOTE: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑ ↑ Parts Color Cabinet's Color • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiquens pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 TA-SB500WR 55 51 60 52 53 54 not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied F901 not supplied not supplied not supplied not supplied (E3, KR, AUS, RU) (E3, KR, AUS, RU) #2 #2 #2 #4 #4 #4 #2 #2 #1 #1 not supplied 56 not supplied 58 57 57 59 57 not supplied 5-2. DIAT AMP/DIAT POWER BOARDS SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 A-1221-190-A DIAT AMP BOARD, COMPLETE 52 A-1221-077-A DIAT POWER BOARD, COMPLETE (MX) 52 A-1221-192-A DIAT POWER BOARD, COMPLETE (US, CND) 52 A-1221-201-A DIAT POWER BOARD, COMPLETE (E3, E12, SP, KR, AUS, RU) 52 A-1221-210-A DIAT POWER BOARD, COMPLETE (E32) 53 3-703-244-00 BUSHING (2104), CORD (US, CND, E3, E12, E32, SP, KR, AUS, RU) * 53 3-703-571-12 BUSHING (S) (4516), CORD (MX) 054 1-696-848-81 CORD, POWER (AUS) 054 1-769-079-23 CORD, POWER (KR) 054 1-777-071-23 CORD, POWER (E3, SP) 054 1-827-226-41 CORD, POWER (MX) 054 1-830-188-11 CORD, POWER (E12, E32, RU) 054 1-830-190-11 CORD, POWER (US, CND) 55 2-895-066-01 FOOT 56 4-254-954-01 SHEET (DMB), RADIATION 57 3-228-738-01 SHEET (D) 58 3-198-220-01 SHEET (TA) (E3, KR, AUS, RU) 59 3-197-097-01 GASKET (TA) (E3, KR, AUS, RU) 60 2-597-972-21 SHEET, RADIATION 0F901 1-532-465-33 FUSE (T3.15AL/250V) (E3, E12, SP, KR, AUS, RU) 0F901 1-533-453-12 FUSE, GLASS TUBE (DIA. 5) (5A/125V) (US, CND, MX) 0F901 1-576-232-51 FUSE (H.B.C) (T5AL/250V) (E32) #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 #2 7-685-133-19 SCREW +P 2.6X6 TYPE2 NON-SLIT #4 7-685-645-79 SCREW +BVTP 3X6 TYPE2 IT-3 Note: Refer to the Servicing Notes “NOTE OF GROUND PROSESSING” (page 3), if replac- ing the Ref. No. 58. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 TA-SB500WR Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • SEMICONDUCTORS In each case, u: µ, for example: uA... : µA... uPA... : µPA... uPB... : µPB... uPC... : µPC... uPD... : µPD... • CAPACITORS uF: µF • COILS uH: µH DIAT AMP When indicating parts by reference number, please include the board. • Abbreviation AUS : Australian model CND : Canadian model E3 : 240V AC Area in E model E12 : 220V – 240V AC Area in E model E32 : 110V – 240V AC Area in E model KR : Korean model MX : Mexican model RU : Russian model SP : Singapore model A-1221-190-A DIAT AMP BOARD, COMPLETE ************************* < CAPACITOR > C101 1-164-156-11 CERAMIC CHIP 0.1uF 25V C102 1-126-964-11 ELECT 10uF 20% 50V C103 1-164-156-11 CERAMIC CHIP 0.1uF 25V C104 1-126-947-11 ELECT 47uF 20% 35V C105 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C107 1-126-947-11 ELECT 47uF 20% 35V C108 1-164-156-11 CERAMIC CHIP 0.1uF 25V C109 1-164-156-11 CERAMIC CHIP 0.1uF 25V C110 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C111 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C113 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C114 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C115 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C116 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C119 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C120 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C122 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C123 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C124 1-162-920-11 CERAMIC CHIP 27PF 5% 50V C125 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C126 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C127 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C128 1-126-947-11 ELECT 47uF 20% 35V C129 1-162-920-11 CERAMIC CHIP 27PF 5% 50V C130 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C131 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C132 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C133 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C134 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C135 1-164-156-11 CERAMIC CHIP 0.1uF 25V C136 1-126-947-11 ELECT 47uF 20% 35V C137 1-126-964-11 ELECT 10uF 20% 50V C138 1-164-156-11 CERAMIC CHIP 0.1uF 25V C140 1-126-964-11 ELECT 10uF 20% 50V C141 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C142 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C143 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C145 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C146 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C147 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C148 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C149 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C150 1-104-658-91 ELECT 100uF 20% 10V C151 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C153 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C154 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C155 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C156 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C157 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C158 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C159 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C160 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C161 1-126-933-11 ELECT 100uF 20% 16V C162 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C163 1-126-948-11 ELECT 100uF 20% 35V C165 1-164-505-11 CERAMIC CHIP 2.2uF 16V C166 1-164-505-11 CERAMIC CHIP 2.2uF 16V C167 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C169 1-164-505-11 CERAMIC CHIP 2.2uF 16V C170 1-164-346-11 CERAMIC CHIP 1uF 16V C171 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C172 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C173 1-164-156-11 CERAMIC CHIP 0.1uF 25V C174 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C175 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C176 1-164-156-11 CERAMIC CHIP 0.1uF 25V C177 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C180 1-125-898-11 CERAMIC CHIP 0.22uF 10% 50V C181 1-125-898-11 CERAMIC CHIP 0.22uF 10% 50V C184 1-137-198-81 FILM 1uF 5% 50V C186 1-164-156-11 CERAMIC CHIP 0.1uF 25V C187 1-164-156-11 CERAMIC CHIP 0.1uF 25V C188 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C190 1-125-898-11 CERAMIC CHIP 0.22uF 10% 50V C191 1-125-898-11 CERAMIC CHIP 0.22uF 10% 50V C192 1-137-198-81 FILM 1uF 5% 50V C195 1-164-156-11 CERAMIC CHIP 0.1uF 25V C196 1-164-156-11 CERAMIC CHIP 0.1uF 25V C197 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C198 1-164-156-11 CERAMIC CHIP 0.1uF 25V C199 1-107-898-21 ELECT 2200uF 20% 35V C200 1-164-346-11 CERAMIC CHIP 1uF 16V C201 1-164-346-11 CERAMIC CHIP 1uF 16V The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiquens pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. 6. ELECTRICAL PARTS LIST www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 26 TA-SB500WR DIAT AMP C202 1-126-947-11 ELECT 47uF 20% 35V C203 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C204 1-164-156-11 CERAMIC CHIP 0.1uF 25V C205 1-164-156-11 CERAMIC CHIP 0.1uF 25V C206 1-164-156-11 CERAMIC CHIP 0.1uF 25V C207 1-125-898-11 CERAMIC CHIP 0.22uF 10% 50V C208 1-125-898-11 CERAMIC CHIP 0.22uF 10% 50V C211 1-164-156-11 CERAMIC CHIP 0.1uF 25V C212 1-137-198-81 FILM 1uF 5% 50V C214 1-126-933-11 ELECT 100uF 20% 16V C215 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C216 1-137-198-81 FILM 1uF 5% 50V C219 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C220 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V C221 1-125-898-11 CERAMIC CHIP 0.22uF 10% 50V C222 1-125-898-11 CERAMIC CHIP 0.22uF 10% 50V C223 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C227 1-164-156-11 CERAMIC CHIP 0.1uF 25V C229 1-126-933-11 ELECT 100uF 20% 16V C230 1-126-923-91 ELECT 220uF 20% 10V C231 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C232 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C233 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C234 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C235 1-107-898-21 ELECT 2200uF 20% 35V C237 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V C238 1-164-346-11 CERAMIC CHIP 1uF 16V C243 1-164-156-11 CERAMIC CHIP 0.1uF 25V C244 1-164-156-11 CERAMIC CHIP 0.1uF 25V C253 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C266 1-164-156-11 CERAMIC CHIP 0.1uF 25V C269 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C270 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C286 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C287 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C288 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C289 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C300 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C385 1-126-948-11 ELECT 100uF 20% 35V C937 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C938 1-164-156-11 CERAMIC CHIP 0.1uF 25V C940 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C941 1-135-372-31 ELECT 470uF 20% 10V C951 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C952 1-126-948-11 ELECT 100uF 20% 35V C953 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C954 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V < CONNECTOR > CN309 1-568-826-11 CONNECTOR SOCKET 7P < DIODE > D102 6-501-193-01 DIODE 1SS355WTE-17 D103 6-501-193-01 DIODE 1SS355WTE-17 D104 6-500-885-01 DIODE P6SMBJ33A-5 D105 6-500-885-01 DIODE P6SMBJ33A-5 D106 6-500-885-01 DIODE P6SMBJ33A-5 D107 6-500-885-01 DIODE P6SMBJ33A-5 D300 6-501-193-01 DIODE 1SS355WTE-17 D301 6-501-193-01 DIODE 1SS355WTE-17 D922 8-719-210-21 DIODE 11EQS04 D933 6-501-174-01 DIODE UDZW-TE17-10B D934 6-501-180-01 DIODE UDZW-TE17-18B < FERRITE BEAD > FB101 1-500-283-11 INDUCTOR, FERRITE BEAD FB102 1-500-283-11 INDUCTOR, FERRITE BEAD FB103 1-500-283-11 INDUCTOR, FERRITE BEAD FB104 1-500-283-11 INDUCTOR, FERRITE BEAD FB109 1-469-760-21 FERRITE, EMI (SMD) (2012) < IC > IC101 6-701-851-01 IC XC62HR1502MR IC102 8-752-425-06 IC CXD4017R IC103 8-759-548-99 IC SN74LV08APWR IC104 6-704-261-01 IC TK11225CMCL-G IC105 6-701-680-01 IC PST3629NR IC106 8-759-679-55 IC SN74LVC08APWR IC107 6-807-371-01 IC MB89537APFM-G-1077E1 IC108 6-707-487-01 IC NJM2885DL1-33 (TE2) IC109 8-759-679-55 IC SN74LVC08APWR IC110 6-704-802-01 IC CXD9774M IC112 6-704-802-01 IC CXD9774M IC113 6-702-300-01 IC TK11118CSCL-G IC114 6-706-492-01 IC TC7SHU04FU (T5RSOJF) IC301 6-707-939-01 IC CXD9843AR IC903 6-707-746-01 IC SI-3120KM-TL IC904 6-703-978-01 IC NJM2374AE (TE2) < JACK > J301 1-818-633-11 JACK, PIN 1P (DIR-R1) < COIL > L101 1-400-305-11 INDUCTOR 47uH L102 1-469-525-11 INDUCTOR 10uH L103 1-469-525-11 INDUCTOR 10uH L104 1-469-525-11 INDUCTOR 10uH L105 1-469-525-11 INDUCTOR 10uH L112 1-456-680-11 INDUCTOR 10uH L115 1-456-680-11 INDUCTOR 10uH L118 1-456-680-11 INDUCTOR 10uH L119 1-414-754-11 INDUCTOR 10uH L121 1-456-680-11 INDUCTOR 10uH L122 1-412-939-11 INDUCTOR 1uH L123 1-457-078-11 AIR-CORE COIL L124 1-457-077-11 AIR-CORE COIL L125 1-457-078-11 AIR-CORE COIL L126 1-457-077-11 AIR-CORE COIL L908 1-416-040-11 INDUCTOR 220uH L909 1-414-398-11 INDUCTOR 10uH < TRANSISTOR > Q102 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q103 8-729-027-43 TRANSISTOR DTC114EKA-T146 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 27 TA-SB500WR DIAT AMP Q104 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q105 8-729-600-22 TRANSISTOR 2SA1235-F Q106 8-729-600-22 TRANSISTOR 2SA1235-F Q107 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q108 8-729-600-22 TRANSISTOR 2SA1235-F Q109 8-729-600-22 TRANSISTOR 2SA1235-F Q110 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q111 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q112 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q300 8-729-600-22 TRANSISTOR 2SA1235-F < RESISTOR > R100 1-216-811-11 METAL CHIP 150 5% 1/10W R101 1-216-833-11 METAL CHIP 10K 5% 1/10W R102 1-216-820-11 METAL CHIP 820 5% 1/10W R103 1-216-815-11 METAL CHIP 330 5% 1/10W R104 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R105 1-216-841-11 METAL CHIP 47K 5% 1/10W R106 1-216-809-11 METAL CHIP 100 5% 1/10W R108 1-216-809-11 METAL CHIP 100 5% 1/10W R109 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R110 1-216-821-11 METAL CHIP 1K 5% 1/10W R111 1-216-813-11 METAL CHIP 220 5% 1/10W R112 1-216-809-11 METAL CHIP 100 5% 1/10W R113 1-216-809-11 METAL CHIP 100 5% 1/10W R114 1-216-809-11 METAL CHIP 100 5% 1/10W R115 1-216-809-11 METAL CHIP 100 5% 1/10W R116 1-216-807-11 METAL CHIP 68 5% 1/10W R117 1-216-833-11 METAL CHIP 10K 5% 1/10W R118 1-216-821-11 METAL CHIP 1K 5% 1/10W R119 1-216-821-11 METAL CHIP 1K 5% 1/10W R120 1-216-821-11 METAL CHIP 1K 5% 1/10W R122 1-216-833-11 METAL CHIP 10K 5% 1/10W R123 1-216-837-11 METAL CHIP 22K 5% 1/10W R124 1-216-841-11 METAL CHIP 47K 5% 1/10W R125 1-216-811-11 METAL CHIP 150 5% 1/10W R126 1-216-821-11 METAL CHIP 1K 5% 1/10W R127 1-216-841-11 METAL CHIP 47K 5% 1/10W R129 1-216-809-11 METAL CHIP 100 5% 1/10W R130 1-216-809-11 METAL CHIP 100 5% 1/10W R131 1-216-841-11 METAL CHIP 47K 5% 1/10W R132 1-216-809-11 METAL CHIP 100 5% 1/10W R133 1-216-809-11 METAL CHIP 100 5% 1/10W R134 1-216-809-11 METAL CHIP 100 5% 1/10W R137 1-216-809-11 METAL CHIP 100 5% 1/10W R138 1-216-809-11 METAL CHIP 100 5% 1/10W R139 1-216-809-11 METAL CHIP 100 5% 1/10W R140 1-216-809-11 METAL CHIP 100 5% 1/10W R141 1-216-809-11 METAL CHIP 100 5% 1/10W R142 1-216-809-11 METAL CHIP 100 5% 1/10W R143 1-216-864-11 SHORT CHIP 0 R144 1-216-809-11 METAL CHIP 100 5% 1/10W R145 1-216-809-11 METAL CHIP 100 5% 1/10W R146 1-216-809-11 METAL CHIP 100 5% 1/10W R147 1-216-809-11 METAL CHIP 100 5% 1/10W R148 1-216-809-11 METAL CHIP 100 5% 1/10W R149 1-216-809-11 METAL CHIP 100 5% 1/10W R150 1-216-809-11 METAL CHIP 100 5% 1/10W R151 1-216-809-11 METAL CHIP 100 5% 1/10W R152 1-216-809-11 METAL CHIP 100 5% 1/10W R153 1-216-845-11 METAL CHIP 100K 5% 1/10W R154 1-216-845-11 METAL CHIP 100K 5% 1/10W R155 1-216-845-11 METAL CHIP 100K 5% 1/10W R156 1-216-845-11 METAL CHIP 100K 5% 1/10W R157 1-216-845-11 METAL CHIP 100K 5% 1/10W R158 1-216-845-11 METAL CHIP 100K 5% 1/10W R159 1-216-845-11 METAL CHIP 100K 5% 1/10W R160 1-216-809-11 METAL CHIP 100 5% 1/10W R161 1-216-809-11 METAL CHIP 100 5% 1/10W R162 1-216-809-11 METAL CHIP 100 5% 1/10W R163 1-216-809-11 METAL CHIP 100 5% 1/10W R167 1-220-942-11 METAL CHIP 3.3 1% 1/4W R168 1-216-864-11 SHORT CHIP 0 R171 1-216-841-11 METAL CHIP 47K 5% 1/10W R173 1-216-809-11 METAL CHIP 100 5% 1/10W R175 1-216-809-11 METAL CHIP 100 5% 1/10W R178 1-216-821-11 METAL CHIP 1K 5% 1/10W R179 1-216-864-11 SHORT CHIP 0 R180 1-220-942-11 METAL CHIP 3.3 1% 1/4W R181 1-216-809-11 METAL CHIP 100 5% 1/10W R183 1-216-809-11 METAL CHIP 100 5% 1/10W R189 1-220-942-11 METAL CHIP 3.3 1% 1/4W R194 1-216-801-11 METAL CHIP 22 5% 1/10W R196 1-216-821-11 METAL CHIP 1K 5% 1/10W R197 1-216-864-11 SHORT CHIP 0 R198 1-220-942-11 METAL CHIP 3.3 1% 1/4W R199 1-216-845-11 METAL CHIP 100K 5% 1/10W R200 1-216-857-11 METAL CHIP 1M 5% 1/10W R201 1-216-809-11 METAL CHIP 100 5% 1/10W R204 1-216-833-11 METAL CHIP 10K 5% 1/10W R205 1-216-833-11 METAL CHIP 10K 5% 1/10W R206 1-216-833-11 METAL CHIP 10K 5% 1/10W R207 1-216-833-11 METAL CHIP 10K 5% 1/10W R208 1-216-833-11 METAL CHIP 10K 5% 1/10W R209 1-216-833-11 METAL CHIP 10K 5% 1/10W R210 1-216-833-11 METAL CHIP 10K 5% 1/10W R211 1-216-833-11 METAL CHIP 10K 5% 1/10W R252 1-216-833-11 METAL CHIP 10K 5% 1/10W R253 1-216-841-11 METAL CHIP 47K 5% 1/10W R254 1-216-833-11 METAL CHIP 10K 5% 1/10W R256 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R258 1-216-841-11 METAL CHIP 47K 5% 1/10W R259 1-216-821-11 METAL CHIP 1K 5% 1/10W R261 1-216-809-11 METAL CHIP 100 5% 1/10W R262 1-216-809-11 METAL CHIP 100 5% 1/10W R263 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R264 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R265 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R266 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R274 1-216-841-11 METAL CHIP 47K 5% 1/10W R276 1-216-841-11 METAL CHIP 47K 5% 1/10W R277 1-216-841-11 METAL CHIP 47K 5% 1/10W R283 1-216-841-11 METAL CHIP 47K 5% 1/10W R300 1-216-833-11 METAL CHIP 10K 5% 1/10W R410 1-216-841-11 METAL CHIP 47K 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 28 TA-SB500WR DIAT AMP DIAT POWER R412 1-216-864-11 SHORT CHIP 0 R940 1-218-446-11 METAL CHIP 1 5% 1/10W R941 1-218-446-11 METAL CHIP 1 5% 1/10W R942 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R943 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R944 1-216-821-11 METAL CHIP 1K 5% 1/10W R950 1-216-864-11 SHORT CHIP 0 R952 1-216-847-11 METAL CHIP 150K 5% 1/10W R954 1-216-864-11 SHORT CHIP 0 < TERMINAL > TB301 1-780-452-11 TERMINAL BOARD (SPEAKER) 2P < VIBRATOR > X101 1-781-465-21 VIBRATOR, CRYSTAL (12.288MHz) X102 1-795-313-21 VIBRATOR, CERAMIC (8MHz) X103 1-795-660-21 QUARTZ CRYSTAL UNIT (49.152MHz) ************************************************************ DIAT LED BOARD ************** < LED > D400 8-719-920-55 LED SPR-54MVW (POWER/ON-LINE) ************************************************************ A-1221-077-A DIAT POWER BOARD, COMPLETE (MX) A-1221-192-A DIAT POWER BOARD, COMPLETE (US, CND) A-1221-201-A DIAT POWER BOARD, COMPLETE (E3, E12, SP, KR, AUS, RU) A-1221-210-A DIAT POWER BOARD, COMPLETE (E32) ***************** 7-685-645-79 SCREW +BVTP 3X6 TYPE2 IT-3 < CAPACITOR > 0C901 1-165-529-11 MYLAR 0.22uF 10 275V 0C902 1-117-700-51 CERAMIC 0.0022uF 99% 250V (US, CND) 0C903 1-117-700-51 CERAMIC 0.0022uF 99% 250V (US, CND, MX) 0C904 1-165-528-11 MYLAR 0.1uF 10 275V (US, CND, E32, MX) 0C905 1-165-528-11 MYLAR 0.1uF 10 275V (E3, E12, SP, KR, AUS, RU) 0C906 1-100-923-11 ELECT 100uF 20% 450V (E3, E12, SP, KR, AUS, RU) 0C906 1-114-171-11 ELECT 330uF 20% 250V (MX) 0C906 1-114-237-11 ELECT 130uF 20% 450V (E32) 0C907 1-165-883-11 CERAMIC CHIP 10000PF 10% 630V (US, CND, MX) 0C907 1-165-886-11 CERAMIC CHIP 3300PF 10% 630V (EXCEPT US, CND, MX) 0C908 1-117-631-31 FILM 3300PF 3% 1.2KV (US, CND, MX) 0C909 1-107-906-11 ELECT 10uF 20% 50V 0C910 1-164-315-11 CERAMIC CHIP 470PF 5% 50V 0C911 1-164-162-11 CERAMIC CHIP 100PF 5% 100V 0C912 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V 0C913 1-107-907-11 ELECT 22uF 20% 50V 0C914 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V 0C915 1-104-962-91 ELECT 47uF 20% 35V 0C916 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V 0C917 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V 0C918 1-165-886-11 CERAMIC CHIP 3300PF 10% 630V (EXCEPT US, CND, MX) 0C919 1-100-922-11 ELECT 330uF 20% 200V (US, CND) 0C921 1-125-893-11 FILM 680PF 3% 1.5KV (EXCEPT US, CND, MX) 0C922 1-117-697-51 CERAMIC 470PF 10% 250V (E3, E12, SP, KR, AUS, RU) 0C923 1-117-697-51 CERAMIC 470PF 10% 250V (EXCEPT US, CND, MX) 0C925 1-117-699-11 CERAMIC 0.001uF 99% 250V C931 1-125-782-91 CERAMIC 4700PF 10% 1KV C932 1-128-959-21 ELECT 1000uF 20% 35V C933 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C934 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C936 1-126-948-11 ELECT 100uF 20% 35V C942 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V < CONNECTOR > 0* CN903 1-695-044-11 PIN, CONNECTOR (3.96mm PITCH) 2P * CN904 1-564-523-11 PLUG, CONNECTOR 8P < DIODE > 0D901 8-719-077-77 DIODE D3SB60F3 0D902 6-500-241-01 DIODE SARS03 0D904 8-719-200-93 DIODE 11EQS10-TA2 0D905 8-719-982-26 DIODE MTZJ-33B 0D906 8-719-079-19 DIODE MTZJ-T-72-20B 0D907 6-501-193-01 DIODE 1SS355WTE-17 0D908 8-719-200-93 DIODE 11EQS10-TA2 0D909 6-501-193-01 DIODE 1SS355WTE-17 0D910 6-501-173-01 DIODE UDZW-TE17-9.1B 0D911 6-500-593-41 DIODE 10EDB60-TA2B5 0D913 6-501-169-01 DIODE UDZW-TE17-6.2B 0D914 6-501-174-01 DIODE UDZW-TE17-10B 0D915 8-719-982-26 DIODE MTZJ-33B D921 8-719-313-14 DIODE FML-22S < FUSE HOLDER > FH901 1-533-313-11 FUSE HOLDER FH902 1-533-313-11 FUSE HOLDER < IC > 0IC901 6-706-347-01 IC STR-W6735N (US, CND, MX) 0IC901 6-706-348-01 IC STR-W6765N (EXCEPT US, CND, MX) IC905 6-707-799-01 IC NJM1431AU (TE2) < COIL > 0L901 1-424-930-11 COIL, LINE FILTER (US, CND, E32, MX) 0L902 1-419-785-11 COIL, LINE FILTER (E3, E12, SP, KR, AUS, RU) L903 1-456-509-11 INDUCTOR 10uH 0L904 1-419-785-11 COIL, LINE FILTER (E3, E12, SP, KR, AUS, RU) DIAT LED www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 29 TA-SB500WR DIAT POWER < IC > 0PC901 6-600-438-01 IC TLP421F (D4-GR) 0PC902 8-749-018-06 IC TLP421F (D4-SONY) 0PC903 8-749-018-06 IC TLP421F (D4-SONY) < TRANSISTOR > 0Q901 8-729-142-51 TRANSISTOR 2SD1616A-TP-LK 0Q902 8-729-027-23 TRANSISTOR DTA114EKA-T146 0Q903 8-729-038-28 TRANSISTOR RT1N441C-TP-1 < RESISTOR > 0R902 1-219-759-11 METAL 1M 5% 1/2W F 0R905 1-249-431-11 CARBON 15K 5% 1/4W (US, CND, MX) 0R905 1-247-863-11 CARBON 22K 5% 1/4W (EXCEPT US, CND, MX) 0R906 1-215-904-11 METAL OXIDE 100K 5% 2W F (US, CND, MX) 0R906 1-216-468-11 METAL OXIDE 82K 5% 2W F (EXCEPT US, CND, MX) 0R908 1-216-362-11 METAL OXIDE 0.27 5% 2W F (EXCEPT US, CND, MX) 0R908 1-245-261-61 METAL OXIDE 0.12 5% 2W F (US, CND, MX) 0R909 1-216-821-11 METAL CHIP 1K 5% 1/10W 0R910 1-216-809-11 METAL CHIP 100 5% 1/10W 0R911 1-216-821-11 METAL CHIP 1K 5% 1/10W 0R912 1-249-417-11 CARBON 1K 5% 1/4W 0R913 1-249-416-11 CARBON 820 5% 1/4W 0R914 1-216-829-11 METAL CHIP 4.7K 5% 1/10W 0R915 1-216-801-11 METAL CHIP 22 5% 1/10W 0R916 1-216-801-11 METAL CHIP 22 5% 1/10W 0R917 1-249-435-11 CARBON 33K 5% 1/4W (US, CND, MX) 0R917 1-249-437-11 CARBON 47K 5% 1/4W (EXCEPT US, CND, MX) 0R919 1-216-823-11 METAL CHIP 1.5K 5% 1/10W 0R920 1-216-829-11 METAL CHIP 4.7K 5% 1/10W 0R921 1-216-843-11 METAL CHIP 68K 5% 1/10W 0R922 1-249-435-11 CARBON 33K 5% 1/4W (US, CND, MX) 0R922 1-249-437-11 CARBON 47K 5% 1/4W (EXCEPT US, CND, MX) 0R924 1-249-431-11 CARBON 15K 5% 1/4W (US, CND, MX) 0R924 1-247-863-11 CARBON 22K 5% 1/4W (EXCEPT US, CND, MX) 0R925 1-249-431-11 CARBON 15K 5% 1/4W (US, CND, MX) 0R925 1-247-863-11 CARBON 22K 5% 1/4W (EXCEPT US, CND, MX) 0R926 1-216-833-11 METAL CHIP 10K 5% 1/10W R931 1-218-724-11 METAL CHIP 22K 0.5% 1/10W R932 1-216-824-11 METAL CHIP 1.8K 5% 1/10W R933 1-216-841-11 METAL CHIP 47K 5% 1/10W R935 1-218-700-11 METAL CHIP 2.2K 0.5% 1/10W R936 1-216-864-11 SHORT CHIP 0 R938 1-216-821-11 METAL CHIP 1K 5% 1/10W R939 1-216-821-11 METAL CHIP 1K 5% 1/10W R945 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R946 1-216-809-11 METAL CHIP 100 5% 1/10W R948 1-216-811-11 METAL CHIP 150 5% 1/10W R960 1-216-864-11 SHORT CHIP 0 < TRANSFORMER > 0T901 1-445-131-11 TRANSFORMER, DC CONVERTER (US, CND, MX) 0T901 1-445-132-11 TRANSFORMER, DC CONVERTER (EXCEPT US, CND, MX) < THERMISTOR > 0TH901 1-805-799-11 THERMISTOR, NTC 8.0 0TH902 1-805-553-21 THERMISTOR, POSITIVE < VARISTOR > 0VDR901 1-805-482-11 VARISTOR ************************************************************ DIAT SWITCH BOARD ****************** < CONNECTOR > 0* CN901 1-695-044-11 PIN, CONNECTOR (3.96mm PITCH) 2P 0* CN902 1-695-044-11 PIN, CONNECTOR (3.96mm PITCH) 2P < SWITCH > 0S901 1-571-433-31 SWITCH, PUSH (AC POWER) (POWER) ************************************************************* MISCELLANEOUS ************** 054 1-696-848-81 CORD, POWER (AUS) 054 1-769-079-23 CORD, POWER (KR) 054 1-777-071-23 CORD, POWER (E3, SP) 054 1-827-226-41 CORD, POWER (MX) 054 1-830-188-11 CORD, POWER (E12, E32, RU) 054 1-830-190-11 CORD, POWER (US, CND) 0F901 1-532-465-33 FUSE (T3.15AL/250V) (E3, E12, SP, KR, AUS, RU) 0F901 1-533-453-12 FUSE, GLASS TUBE (DIA. 5) (5A/125V) (US, CND, MX) 0F901 1-576-232-51 FUSE (T5AL/250V) (E32) ************************************************************* ACCESSORIES ************ 0 1-569-008-22 ADAPTOR, CONVERSION 2P (E32) DIAT SWITCH www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 TA-SB500WR REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2004.06 New 1.1 2007.02 Addition of New type (for WAHT-SD1) (Supplement-1) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
