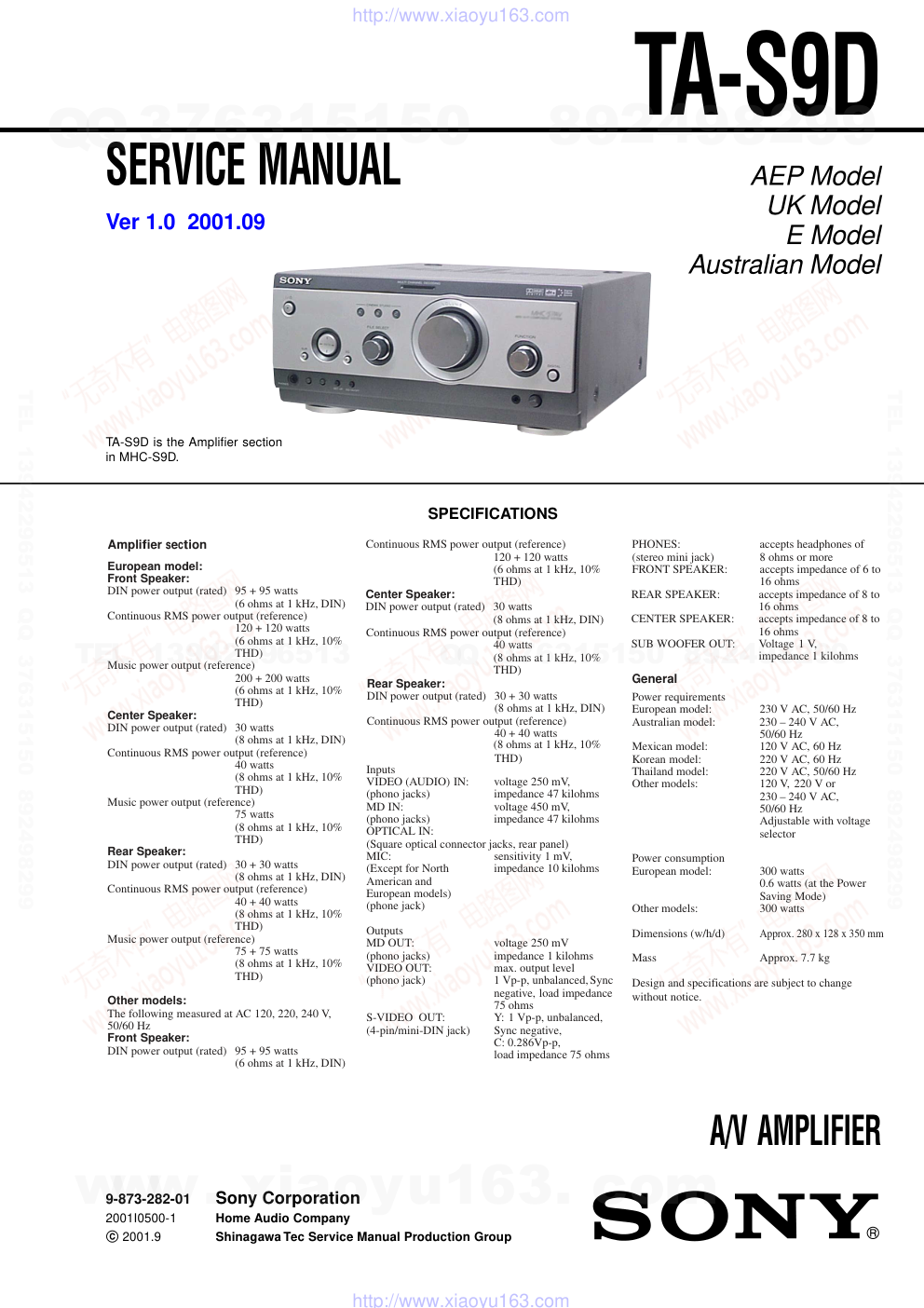

SERVICE MANUAL A/V AMPLIFIER AEP Model UK Model E Model Australian Model SPECIFICATIONS TA-S9D Ver 1.0 2001.09 9-873-282-01 Sony Corporation 2001I0500-1 Home Audio Company C 2001.9 Shinagawa Tec Service Manual Production Group TA-S9D is the Amplifier section in MHC-S9D. Amplifier section European model: Front Speaker: DIN power output (rated) 95 + 95 watts (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference) 120 + 120 watts (6 ohms at 1 kHz, 10% THD) Music power output (reference) 200 + 200 watts (6 ohms at 1 kHz, 10% THD) Center Speaker: DIN power output (rated) 30 watts (8 ohms at 1 kHz, DIN) Continuous RMS power output (reference) 40 watts (8 ohms at 1 kHz, 10% THD) Music power output (reference) 75 watts (8 ohms at 1 kHz, 10% THD) Rear Speaker: DIN power output (rated) 30 + 30 watts (8 ohms at 1 kHz, DIN) Continuous RMS power output (reference) 40 + 40 watts (8 ohms at 1 kHz, 10% THD) Music power output (reference) 75 + 75 watts (8 ohms at 1 kHz, 10% THD) Other models: The following measured at AC 120, 220, 240 V, 50/60 Hz Front Speaker: DIN power output (rated) 95 + 95 watts (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference) 40 watts (8 ohms at 1 kHz, 10% THD) Center Speaker: DIN power output (rated) 30 watts (8 ohms at 1 kHz, DIN) General Power requirements European model: 230 V AC, 50/60 Hz Australian model: 230 – 240 V AC, 50/60 Hz Mexican model: 120 V AC, 60 Hz Korean model: 220 V AC, 60 Hz Thailand model: 220 V AC, 50/60 Hz Other models: 120 V, 220 V or 230 – 240 V AC, 50/60 Hz Adjustable with voltage selector Power consumption European model: 300 watts 0.6 watts (at the Power Saving Mode) Other models: 300 watts Dimensions (w/h/d) Approx. 280 x 128 x 350 mm Mass Approx. 7.7 kg Design and specifications are subject to change without notice. Continuous RMS power output (reference) 120 + 120 watts (6 ohms at 1 kHz, 10% THD) REAR SPEAKER: accepts impedance of 8 to 16 ohms CENTER SPEAKER: accepts impedance of 8 to 16 ohms SUB WOOFER OUT: Voltage 1 V, impedance 1 kilohms Rear Speaker: DIN power output (rated) 30 + 30 watts (8 ohms at 1 kHz, DIN) Continuous RMS power output (reference) 40 + 40 watts (8 ohms at 1 kHz, 10% THD) Inputs VIDEO (AUDIO) IN: voltage 250 mV, (phono jacks) impedance 47 kilohms MD IN: voltage 450 mV, (phono jacks) impedance 47 kilohms OPTICAL IN: (Square optical connector jacks, rear panel) MIC: sensitivity 1 mV, (Except for North impedance 10 kilohms American and European models) (phone jack) Outputs MD OUT: voltage 250 mV (phono jacks) impedance 1 kilohms VIDEO OUT: max. output level (phono jack) 1 Vp-p, unbalanced,Sync negative, load impedance 75 ohms S-VIDEO OUT: Y: 1 Vp-p, unbalanced, (4-pin/mini-DIN jack) Sync negative, C: 0.286Vp-p, load impedance 75 ohms PHONES: accepts headphones of (stereo mini jack) 8 ohms or more FRONT SPEAKER: accepts impedance of 6 to 16 ohms www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 TA-S9D TABLE OF CONTENTS 1. SERVICING NOTES ............................................... 3 2. GENERAL ................................................................... 4 3. DISASSEMBLY 3-1. Disassembly Flow ........................................................... 5 3-2. Case ................................................................................. 6 3-3. Front Panel Section ......................................................... 6 3-4. Back Panel (DVD) Section ............................................. 7 3-5. FRONT AMP Board ....................................................... 7 4. TEST MODE .............................................................. 8 5. DIAGRAMS 5-1. Note for Printed Wiring Boards and Schematic Diagrams ................................................ 10 5-2. Printed Wiring Boards – FRONT AMP Section – ........ 11 5-3. Schematic Diagram – FRONT AMP Section (1/2) – .... 12 5-4. Schematic Diagram – FRONT AMP Section (2/2) – .... 13 5-5. IC Pin Function Description ........................................... 14 5-6. Printed Wiring Board – SURROUND AMP Section – ...................................... 14 5-7. Schematic Diagram – SURROUND AMP Section – ...................................... 15 5-8. Printed Wiring Boards – CONTROL Section – ............ 16 5-9. Schematic Diagram – CONTROL Section –................. 17 5-10. Printed Wiring Boards – POWER Section – ................. 18 5-11. Schematic Diagram – POWER Section – ..................... 19 6. EXPLODED VIEWS 6-1. Case Section .................................................................... 20 6-2. Front Panel Section ......................................................... 20 6-3. Chassis Section ............................................................... 21 7. ELECTRICAL PARTS LIST ............................... 22 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 TA-S9D FRONT AMP BOARD SERVICE POSITION In checking the FRONT AMP board, prepare jig (extension cable J-2501-019-A: 1.25 mm Pitch, 25 core, Length 300 mm) (except AEP, UK models) (extension cable J-2501-087-A: 1.25 mm Pitch, 23 core, Length 300 mm) (AEP, UK models) (Fig A) SECTION 1 SERVICING NOTES This set is a component of the MHC-S9D. The MHC-S9D system configuration is as shown below, and there- fore it does not operate normally unless all four components are connected. In performing the repair, connect all components with the system cables. Note: The precaution to the users is described on the label stuck on the back panel (DVD/video CD/CD player) and in the trouble- shooting section in the Operation Manual. System Configuration: POWER SUPPLY AC IN TA MASTER & GRAPHIC µcon ST TC µcon TC DISPLAY HTC & MB µcon DVP POWER BLOCK MODEL IDENTIFICATION – Back Panel – Turn over the FRONT AMP board with Heat Sink, SURROUND AMP board and RELAY board connected. Remove the back panel (AV) section. Remove the fan motor connector lead wire. FRONT AMP board (CN104) Connect jig (extension cable J-2501-019-A (except AEP, UK models), J-2501-087-A (AEP, UK models) to the FRONT AMP board (CN104) and PANEL board (CN700). PANEL board (CN700) (Fig A) PART No. Model PART No. AEP, UK models 4-232-348-0[] Singapore model 4-232-348-4[] Saudi Arabia model 4-232-348-5[] Australian model 4-232-348-6[] Thai model 4-232-348-7[] E model 4-232-348-8[] Mexican model 4-232-348-9[] Korean model 4-233-563-0[] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 TA-S9D SECTION 2 GENERAL This section is extracted from instruction manual. Parts Identification The items are arranged in alphabetical order. Refer to the pages indicated in parentheses ( ) for details. A/V amplifier CINEMA STUDIO A–C 3 (49) DIGITAL 7 (57, 63) DVD MENU qf (27) ENTER/O/o/P/p 2 EQ qa (52) EQ ON/OFF qs (13, 53) FILE SELECT q; (26, 48, 49, 53) FUNCTION 6 (12, 13, 25, 27, 28, 36, 45, 46, 55, 57, 62) MIC jack (Except for European model) 9 (54) MIC LEVEL (Except for European model) 8 (54) MULTI CHANNEL DECODING indicator 4 (50) PHONES jack qj SET UP qd (14, 16, 51, 53, 54) SUR qh (51) TITLE qg (27) VOLUME 5 @/1 (power) 1 (12, 13, 63) A P o O p B C 4 3 5 6 2 7 8 9 q; qa qs qd qf qg qh qj 1 ANGLE es (37) AUDIO ws (34) CLEAR qs (22, 29, 30, 36) CLOCK/TIMER SELECT 3 (47, 56) CLOCK/TIMER SET 2 (17, 47, 56) DBFB ra (48) D.SKIP 9 (26) DIGITAL rf (57) DISPLAY rj (17, 31, 32, 43, 54) DVD DISPLAY wd (18, 19, 30, 32–34, 36–40) DVD MENU wa (27) DVD SET UP ql (18, 19, 24, 39) ENTER wj EQ ea (52) EQ ON/OFF wl (53) FILE SELECT +/– wh (48, 49, 53) FUNCTION rd (18, 25, 27, 28, 36, 45, 46, 55, 57) GROOVE rs (48) KARAOKE PON (Except for European model) el (54) MD rh (57) Numeric buttons 8 (28, 30) PLAY MODE qa (25, 28, 29, 46) REPEAT q; (30) RETURN O qd (27, 39, 40) SELECT DVD N eh (20, 25, 27, 29, 30) SET UP wf (14, 16, 51, 53, 54) SLEEP 1 (55) SLOW t/T qk (26) SPECTRUM ANALYZER rk (54) STEP c/C ef (26) SUBTITLE ed (37) SUR e; (51) TAPE A nN ek (44) TAPE B nN qf (44, 45) TITLE w; (27) TUNER/BAND ej (42) TV @/1 4 (13) TV CH +/– 7 (13) TV/VIDEO rl (13) TV VOL +/– 6 (13) VIDEO rg (57) VOL +/– wg x M m > . nN O X T t C c V v B b 1 2 3 4 5 e; es ef ej eg 6 7 9 8 q; qa qdqs qfqg qj qh qkql wa wd ws wf w; wg wj wh wk ed wl ea eh el rs ra rd ek r; rg rj rl rf rh rk BUTTON DESCRIPTIONS @/1 (power) 5 X (pause) qj x (stop) qg m/M (rewind/fast forward), TUNING –/+ qh ./> (go back/go forward), PRESET –/+, PREV/NEXT eg O/o/P/p wk >10 r; www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 TA-S9D • This set can be disassembled in the order shown below. 3-1. DISASSEMBLY FLOW SECTION 3 DISASSEMBLY 3-2. CASE (Page 6) 3-3. FRONT PANEL SECTION (Page 6) 3-4. BACK PANEL (DVD) SECTION (Page 7) 3-5. FRONT AMP BOARD (Page 7) SET Note 1: The process described in can be performed in any order. Note 2: Without completing the process described in , the next process can not be performed. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 TA-S9D 3-3. FRONT PANEL SECTION Note: Follow the disassembly procedure in the numerical order given. 3-2. CASE 2 two screws (case 3 TP2) 2 two screws (case 3 TP2) 1 three screws (BVTT3 × 6) 4 Remove the case in the direction of arrow A. A 3 3 4 three screws (BVTP3 × 8) 2 screw (BVTP3 × 8) 6 front panel section 5 two claws 5 two claws 5 claw 3 lug 1 wire (flat type) (23 core) (AEP, UK models) wire (flat type) (25 core) (except AEP, UK models) (CN104) 3 lug 3 lug 2 screw (BVTP3 × 8) 2 screw (BVTP3 × 8) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 TA-S9D 3-4. BACK PANEL (DVD) SECTION 3-5. FRONT AMP BOARD 5 three screws (BVTP3 × 8) 5 four screws (BVTP3 × 8) 5 four screws (BVTP3 × 8) 4 RELAY board 3 two connectors (CN106, 113) 6 connector (CN105) 7 three connectors (CN901, 902, 903) 1 screw (BVTP3 × 8) 8 back panel (DVD) section 6 1 screw (BVTP3 × 8) 2 lug 2 screw (BVTP3 × 8) 5 screw (BVTP3 × 8) 4 two screws (BVTT3 × 8) 3 bracket (PWB) 6 lug 8 Remove the FRONT AMP board in the direction of the arrow. 7 PC board holder 1 three connector (CN913, 914, 915) 7 PC board holder www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 TA-S9D [GC Test Mode] Enter the GC Test Mode Procedure 1: 1. Press the I/1 button to turn the power on. 2. While pressing the both [STEREO/MONO] *1 and [CINEMA STUDIO C] buttons, press the [CLOCK/TIMER] *1 button. 3. LEDs and fluorescent indicator tube are all turned on of all units. Procedure 2: 1. Press the I/1 button to turn the power on. 2. While pressing the both [PLAY MODE] *2 and x *2 buttons, press the Z (DISC 1) *2 button. 3. LEDs and fluorescent indicator tube are all turned on of all units. Version Display Mode Procedure: 1. Enter the GC test mode. 2. Each time the [TUNER MEMORY] *1 or [DISC 1] *2 button is pressed, microcomputer or mechanism deck version is dis- played of each unit. 3. Press the [TUNING +] *1 or [DISC 3] *2 button to detail is displayed the version. Key Check Mode Procedure: 1. Enter the GC test mode. 2. Press the [TUNING --] *1 or [DISC 2] *2 button to set the key check mode. 3. In the key check mode, the fluorescent indicator tube displays “K 0 J 0 V 0”. Each time a button is pressed, “K” value in- creases. However, once a button is pressed, it is no longer taken into account. “J” value increases like 1, 2, 3 ... if turn the [FILE SELECT] knob clockwise, or it decreases like 0, 9, 8 ... if turn the JOG dial counterclockwise. “V” value increases like 1, 2, 3 ... if turn the [VOLUME] knob clockwise, or it decreases like 0, 9, 8 ... if turn the JOG dial counterclockwise. Releasing the GC Test Mode To release from this mode, press three buttons in the same manner as entering this mode or disconnect the power cord. SECTION 4 TEST MODE Note: Use following buttons in the test mode. no mark : Button of amplifier unit (TA-S9D) *1 : Button of tuner unit (ST-S9) *2 : Button of DVD/video CD/CD player unit (DVP-S9) [MC Test Mode] Enter the MC Test Mode 1. Press the I/1 button to turn the power on. 2. While pressing the both [STEREO/MONO] *1 and [CINEMA STUDIO C] buttons, press the [CINEMA STUDIO A] button. 3. “GROOVE” indication blinks on the fluorescent indicator tube in the midst of MC test mode. 4. This mode has two modes (mode 1/mode 2). 5. To change the modes, press three buttons in the same manner as entering this mode (step 2). Each time the step 2 operation is repeated, it changes modes alternately. 6. To distinguish the mode, turn the [VOLUME] knob clockwise or counterclockwise. Then display is shown as follows. Mode 1: only “MIN” or “MAX” Mode 2: “MIN”, “1 to 30” or “MAX” AMP Test Mode In the AMP test mode, it operates as follows. • [VOLUME] knob is turned, it changes display as follows. Counterclockwise : VOLUME MIN Clockwise : VOLUME MAX • [FILE SELECT] knob is turned, it changes speaker output mode as follows. Display of each mode: Details of each mode: Mode 1 : L-CH : front L-CH R-CH: front R-CH Mode 2 : L-CH : rear L-CH R-CH: rear R-CH Mode 3 : L-CH : front L-CH, rear L-CH, center R-CH: front R-CH, rear R-CH, sub woofer (no LFE, “EQ” indication does not light up on the fluorescent indicator tube of tuner unit) Mode 4 : L-CH : front L-CH, rear L-CH, center R-CH: front R-CH, rear R-CH, sub woofer (LFE on, “EQ” indication lights up on the fluorescent indica- tor tube of tuner unit) Mode 5 : L-CH : center R-CH: sub woofer Releasing the MC Test Mode To release from this mode, press the I/1 button or disconnect the power cord. Mode No. Display 1 L: L R: R 2 L: SL R: SR 3 L: LSLC R: RSRW 4 L: LSLC R: RSRW 5 L: C R: W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 TA-S9D MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 TA-S9D SECTION 5 DIAGRAMS 5-1. NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS B These are omitted. C E Q Note on Printed Wiring Boards: • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • f : internal component. • : Pattern from the side which enables seeing. • Indication of transistor. Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • f : internal component. • 2 : nonflammable resistor. • 5 : fusible resistor. • C : panel designation. • A : B+ Line. • B : B– Line. • Voltages are dc with respect to ground under no-signal conditions. no mark : Power on ( ) : Output is more than 1 W. • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Signal path. F : AUDIO N : MIC • Abbreviation AUS : Australian model EA : Saudi Arabia model KR : Korean model MX : Mexican model SP : Singapore model TH : Thai model Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. • Circuit Boards Location AC OUTPUT board SURROUND AMP board SUB TRANS board AC INPUT board RELAY board FRONT AMP board PANEL board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-S9D 11 11 TM101 TM102 NO109 CN113 JW142 CN103 IC801 CN108 D911 D951 JW49 JW12 C951 C952 C927 C953 R952 IC924 LP902 CN105 CN104 JW150 JW71 C861 C955 C912 C911 C956 JW3 R951 JW139 R953 JW143 JW138 R954 EPT901 JW141 D881 R835 R831 R815 JW179 JW108 Q871 Q881 R883 R885 R974 R887 R839 R837 R838 JW39 RY881 JW26 R896 R814 C837 D831 C854 JW163 JW30 R894 JW148 C987 C916 C917 R889 D998 D993 D991 D992 D990 C991 C1100 D923 JW28 Q894 JW187 JW196 R907 C857 JW40 C1103 JW197 R911 R903 Q893 Q897 R897 C893 R906 R898 Q895 JW2 Q892 R895 JW123 JW95 R804 R807 JW78 Q891 Q896 Q851 JW115 JW113 D994 D995 D997 D996 D924 C994 C925 CN107 JW41 JW116 JW182 JW16 JW15 R908 D980 C1101 R881 C863 JW183 JW38 JW101 CN106 R904 JW177 Q821 C891 R826 R876 JW198 R825 C993 R875 C992 JW20 JW44 R821 C821 JW186 JW17 R910 C871 JW120 R827 R877 R878 D871 R879 R880 C872 JW74 JW18 JW126 JW165 C919 C920 JW180 JW160 JW159 R917 JW155 JW157 R918 JW50 JW161 R914 JW154 R913 R916 JW84 R923 JW158 R919 R920 JW173 JW156 JW195 R921 JW6 JW164 JW190 JW134 JW127 JW105 JW169 JW85 JW104 JW103 R857 JW107 JW100 JW61 R963 R964 JW59 R805 R968 JW48 R851 C852 R852 C962 JW184 Q902 C853 R801 C802 R802 C801 D801 R803 C803 JW42 JW52 C941 C806 C851 C963 R966 C892 R965 D963 JW82 JW87 JW86 JW89 JW90 JW91 JW92 JW93 JW94 JW96 Q883 R973 R809 R972 Q962 R971 R970 R969 Q963 EPT902 JW56 JW176 R925 JW174 JW175 JW172 JW153 JW27 NO101 JW136 JW162 JW109 (AEP, UK) (EXCEPT AEP, UK) JW135 JW13 JW73 R871 C1036 JW192 R855 JW68 JW140 Q961 JW72 JW102 C807 JW60 D802 JW133 JW117 JW106 R854 Q903 JW99 R967 JW81 JW66 JW51 JW114 C918 C804 JW131 R924 R926 R830 Q822 D821 JW130 R927 JW128 R856 D851 D973 JW55 C856 D975 R892 Q801 R808 R859 R806 JW65 C811 JW63 JW57 C812 R905 D970 D972 D971 JW185 JW191 D974 JW7 JW10 JW11 JW147 JW9 C964 R853 C862 C865 JW29 JW69 JW152 JW80 JW58 JW19 JW181 JW31 C914 C926 R858 JW8 JW53 JW193 JW67 JW111 R891 JW88 JW146 JW881 JW62 JW149 JW122 JW35 R915 R912 JW170 JW97 JW64 D981 C915 JW151 JW36 JW1 JW54 C864 JW75 C1037 JW83 JW119 JW145 JW132 C924 JW79 D925 JW194 JW21 JW76 JW32 JW70 C1102 JW22 JW178 JW166 JW43 C954 JW45 JW37 R991 JW47 JW46 JW189 D926 R992 JW34 JW201 JW167 C990 JW188 JW98 Q904 JW125 C961 JW168 NO102 JW199 IC310 IC923 CN110 CN111 CN112 JW602 JW603 JW601 R836 C809 C833 R833 L832 C836 C831 C835 L833 R834 C832 C834 L831 R862 C859 C808 L811 L861 R861 C858 R832 R811 Q905 Q906 R961 R960 R962 NO220 NO221 NO225 NO222 EXCEPT AEP, UK, KR EXCEPT AEP, UK, KR EXCEPT AEP, UK EXCEPT AEP, UK EXCEPT AEP, UK EXCEPT AEP, UK EXCEPT AEP, UK FRONT AMP BOARD E E 3 1 3 1 1 5 – + – + – + L L R CENTER SPEAKER IMPEDANCE USE 8 – 16Ω REAR SPEAKER IMPEDANCE USE 8 – 16Ω – + – + R FRONT SPEAKER IMPEDANCE USE 6 – 16Ω SYSTEM CONTROL 1 FROM ST-S9 A SUB TRANS BOARD CN903 E 7 1 1 3 E E E E E M M1 (FAN) E AC OUTPUT BOARD CN915 F AC OUTPUT BOARD CN914 E E E E E E E E E E E E E (CHASSIS) 13 1 1 4 H SURROUND AMP BOARD CN1002 J SURROUND AMP BOARD CN1003 1-680-749- D PANEL BOARD CN700 G AC OUTPUT BOARD CN913 1 6 (CHASSIS) SYSTEM CONTROL 2 FROM ST-S9 RELAY BOARD 1-680-755- 2 1 2 1 A B C D E F G H I J 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 (CHASSIS) CLP1001 11 (12) 11 (22) (AEP, UK) 11 (13) 11 (23) (AEP, UK) D801 H-7 D802 G-7 D821 I-10 D831 D-3 D851 H-7 D871 I-11 D881 D-3 D911 B-10 D923 H-3 D924 G-2 D925 G-2 D926 G-2 D951 B-12 D963 I-6 D970 H-3 D971 I-3 D972 I-4 D973 H-4 D974 H-3 D975 H-3 D980 J-2 D981 F-3 D990 H-2 D991 H-2 D992 H-2 D993 H-2 D994 H-3 D995 H-3 D996 H-3 D997 H-3 IC310 H-10 IC801 H-5 IC923 F-3 IC924 F-2 Q801 H-7 Q821 I-10 Q822 I-10 Q851 G-7 Q871 I-11 Q881 D-3 Q883 D-3 Q891 H-9 Q892 H-9 Ref. No. Location Ref. No. Location • Semiconductor Location Ref. No. Location Ref. No. Location Q893 H-10 Q894 G-9 Q895 G-9 Q896 H-9 Q897 G-9 Q902 J-3 Q903 J-3 Q904 J-4 Q905 J-5 Q906 J-5 Q961 H-7 Q962 H-4 Q963 G-4 (Page 14) (Page 14) 5-2. PRINTED WIRING BOARDS – FRONT AMP Section – • See page 10 for Circuit Boards Location. (Page 18) (Page 18) (Page 16) (Page 18) (Page 18) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-S9D 12 12 5-3. SCHEMATIC DIAGRAM – FRONT AMP Section (1/2) – (Page 19) (Page 17) (Page 13) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-S9D 13 13 (Page 12) (Page 15) (Page 15) (Page 19) (Page 19) (Page 19) 5-4. SCHEMATIC DIAGRAM – FRONT AMP Section (2/2) – w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-S9D 14 14 5-6. PRINTED WIRING BOARD – SURROUND AMP Section – • See page 10 for Circuit Boards Location. 5-5. IC PIN FUNCTION DESCRIPTION JW1003 C1087 C1053 JW1002 IC1001 C1052 C1003 C1084 C1054 C1004 JW1015 JW1014 JW1013 JW1012 JW1011 JW1005 C1034 JW1007 R1055 RY1062 R1032 R1031 R1092 C1033 JW1008 R1033 Q1081 D1081 C1086 JW1006 R1088 R1087 R1086 CN1002 D1062 R1062 R1005 R1085 RY1061 JW1001 C1051 R1081 CN1003 R1047 Q1093 R1059 JW1018 R1004 R1051 THP092 R1052 R1003 JW1004 R1008 JW1017 R1089 Q1063 R1063 R1001 Q1061 JW1009 R1009 R1006 R1007 R1056 R1061 JW1019 R1093 JW1010 R1095 R1090 JW1016 R1057 R1058 R1054 R1060 D1002 C1083 R1094 R1082 Q1092 C1056 C1057 C1006 C1007 D1051 D1001 Q1051 Q1001 JW1021 R1010 D1061 R1083 C1001 JW1020 C1081 R1084 R1065 R1053 R1002 C1082 R1069 C1002 C1038 C1039 CLP1000 SURROUND AMP BOARD 1-680-750- 13 1 4 1 E E E E E E E H FRONT AMP BOARD CN103 J FRONT AMP BOARD CN108 A B C D 1 2 3 4 5 11 (12) 11 (22) (CHASSIS) (AEP, UK) EXCEPT AEP, UK • Semiconductor Location Ref. No. Location D1001 B-3 D1002 C-5 D1051 B-3 D1061 B-4 D1062 C-2 D1081 D-2 IC1001 B-1 Q1001 B-3 Q1051 B-3 Q1061 C-5 Q1063 D-5 Q1081 D-1 Q1092 A-4 Q1093 A-4 • FRONT AMP BOARD IC310 PT8300-S (SYSTEM CONTROLLER) Pin No. Pin Name I/O Description 1 VSS — Ground terminal 2 RESET_B I Reset signal input terminal Not used 3 CLK I Serial data transfer clock signal input from the tuner unit (ST-S9) 4 LATCH I Serial data latch pulse input from the tuner unit (ST-S9) 5 LED C O LED drive signal output of the CINEMA STUDIO C indicator (D706) “L”: LED on 6 LED B O LED drive signal output of the CINEMA STUDIO B indicator (D705) “L”: LED on 7 LED A O LED drive signal output of the CINEMA STUDIO A indicator (D704) “L”: LED on 8 LED EQ O LED drive signal output of the EQ indicator (D703) “L”: LED on 9 LED SUR O LED drive signal output of the SUR indicator (D702) “L”: LED on 10 LED BLU O LED drive signal output of the MULTI CHANNEL DECODING indicator (D781) “L”: LED on 11 HP SW I Headphone detection signal input terminal “H”: headphone on 12 PROTECT I Over load detection signal input for speaker output “L”: over load 13 LATCHO O Serial data latch pulse output terminal Not used (open) 14 CLKO O Serial data transfer clock signal output terminal Not used (open) 15 — — Not used (open) 16 — — Not used (fixed at “L”) 17 — — Not used (open) 18 MUTING O Muting on/off control signal output terminal “L”: muting 19 LED PW O LED drive signal output of the I/1 indicator (D701) “L”: LED on 20 SUR RY O Relay drive signal output for the surround speaker (rear and center) protection “H”: on 21 F RY O Relay drive signal output for the front speaker protection “H”: on 22 STK PW O Power amplifier on/off selection signal output terminal “L”: standby, “H”: on 23 — — Not used (open) 24 STBY RY O Standby relay drive signal output terminal “L”: standby, “H”: power on 25 DATA OUT O Serial data output to the tuner unit (ST-S9) 26 DATA IN I Serial data input from the tuner unit (ST-S9) 27 PULLUP — Not used (open) 28 VCC — Power supply terminal (+5V) (Page 11) (Page 11) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-S9D 15 15 (Page 13) (Page 13) 5-7. SCHEMATIC DIAGRAM – SURROUND AMP Section – w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-S9D 16 16 5-8. PRINTED WIRING BOARDS – CONTROL Section – • See page 10 for Circuit Boards Location. JW503 R713 S711 S712 S713 S718 S716 J703 S719 S714 S705 R712 S715 D706 D701 S710 D705 CN700 NO780 C735 IC702 NO711 JW522 R710 C710 Q701 R707 R708 JW505 FB704 C712 FB707 NO750 R736 R752 C726 C711 R728 C723 C724 R729 R731 R730 C725 C729 R732 C727 C734 R735 C730 C733 JW508 JW701 C728 C732 C751 C705 CLP702 Q710 R737 C731 R740 R738 R711 CLP701 R739 C702 C701 C703 C704 C706 Q702 JW509 NO710 R733 R715 R709 JW517 R714 R721 R716 R717 R718 R719 D704 JW521 R720 JW520 JW524 JW512 JW514 JW510 JW515 JW511 R734 FB703 FB708 FB702 JW502 FB705 FB706 D702 JW518 JW507 JW506 JW705 S723 JW513 JW704 JW501 JW525 D703 JW519 C752 JW516 CLP703 RV761 NO761 D781 R724 NO781 C781 5 4 8 1 2 4 5 3 1 6 7 R722 R723 S717 7 J702, 703 6 3 2 4 5 1 JW707 PANEL BOARD E 2 1 E FUNCTION DIGITAL MIC 2 J702 (CHASSIS) S703 ROTARY ENCODER 1 3 VOLUME S702 ROTARY ENCODER 1 3 FILE SELECT EQ ENTER SUR v V b B EQ ON/OFF SET UP TITLE PHONES S701 ROTARY ENCODER 1 3 D FRONT AMP BOARD CN104 (CHASSIS) CINEMA STUDIO B D705, S713 CINEMA STUDIO C D706, S714 CINEMA STUDIO A D704, S712 D703, S711 1 3 1 3 D702, S710 I/1 D701, S705 1-680-754- (CHASSIS) MIC LEVEL 3 1 3 1 2 1 MULTI CHANNEL DECODING A B C D E F 1 2 3 4 5 6 7 8 9 10 11 DVD MENU 2 4 3 1 6 7 5 (EXCEPT AEP, UK) 11 (13) 11 (23) (AEP, UK) EXCEPT AEP, UK EXCEPT AEP, UK 24 (AEP, UK) (Page 11) D701 B-11 D702 C-10 D703 C-8 D704 B-8 D705 B-7 D706 B-6 D781 A-6 IC702 C-3 Q701 C-6 Q702 C-6 Q710 C-3 • Semiconductor Location Ref. No. Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-S9D 17 17 (Page 12) 5-9. SCHEMATIC DIAGRAM – CONTROL Section – w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-S9D 18 18 JW906 F913 JW901 F900 LP103 CN913 CN915 F934 JW961 F933 F932 F931 F937 CN914 JW938 JW930 JW922 JW921 JW923 NO921 JW803 JW907 CN903 JW920 LP102 T901 POWER TRANSFORMER (SUB) JW913 CN901 RY901 JW802 JW908 JW904 JW909 D901 Q901 R902 R901 JW801 JW903 JW805 C901 JW902 JW806 JW807 JW808 JW809 JW810 JW811 JW812 JW804 JW905 CN902 F935 F936 VOLTAGE SELECTOR S901 230 – 240V T 220V T 120V NO401 NO400 AC OUTLET AC OUTPUT BOARD AC INPUT BOARD 3 1 1 6 4 1 F FRONT AMP BOARD NO101 G FRONT AMP BOARD NO102 E FRONT AMP BOARD NO101 1-680-754- 1 2 3 4 1-680-752- T911 POWER TRANSFORMER (MAIN) 2 2 3 4 1 1 (AC IN) SUB TRANS BOARD 1 E 5 A FRONT AMP BOARD NO109 1-680-751- (E, EA, SP) (E, EA, SP) (E, EA, SP) (E, EA, SP) (AUS) (AEP, UK, TH, KR, MX, AUS) (AEP, UK, TH, KR, MX, AUS) (AEP, UK, TH, KR, MX, AUS) (MX) AEP, UK, TH, KR, MX, AUS (AEP, UK, TH, KR, MX, AUS) (AEP, UK, TH, KR, MX, AUS) (AEP, UK, TH, KR) (E, EA, SP, MX) 11 (13) 11 (23) (AEP, UK) 11 (13) 11 (23) (AEP, UK) 11 (13) 11 (23) (AEP, UK) EXCEPT AEP, UK EXCEPT AEP, UK EXCEPT AEP, UK 5-10. PRINTED WIRING BOARDS – POWER Section – • See page 10 for Circuit Boards Location. (Page 11) (Page 11) (Page 11) (Page 11) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-S9D 19 19 5-11. SCHEMATIC DIAGRAM – POWER Section – (Page 13) (Page 13) (Page 13) (Page 12) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 20 TA-S9D 6-1. CASE SECTION SECTION 6 EXPLODED VIEWS The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference num- ber in the exploded views are not supplied. • Hardware (# mark) list and accessories are given in the last of the electrical parts list. NOTE: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑ ↑ Parts Color Cabinet's Color 6-2. FRONT PANEL SECTION #4 #1 #1 #1 #1 #1 #1 #1 #1 #1 not supplied Front panel section 2 2 1 5 7 8 4 6 3 not supplied (EXCEPT AEP, UK) (included in FRONT AMP board) M1 not supplied not supplied 51 51 53 52 54 59 56 supplied with S702 supplied with S703 supplied with S701 zC zA zB 55 56 57 56 56 58 (including zA, zB, zC) • Abbreviation AUS : Australian model EA : Saudi Arabia model KR : Korean model MX : Mexican model SP : Singapore model TH : Thailand model Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 1-773-178-11 WIRE (FLAT TYPE) (23 CORE) (AEP, UK) 1 1-773-210-11 WIRE (FLAT TYPE) (25 CORE) (EXCEPT AEP, UK) 2 3-363-099-21 SCREW (CASE 3 TP2) 3 4-232-336-11 CASE (AEP, UK) 3 4-232-336-71 CASE (EXCEPT AEP, UK) 4 4-232-348-01 PANEL (DVD), BACK (AEP, UK) 4 4-232-348-41 PANEL (DVD), BACK (SP) 4 4-232-348-51 PANEL (DVD), BACK (EA) 4 4-232-348-61 PANEL (DVD), BACK (AUS) 4 4-232-348-71 PANEL (DVD), BACK (TH) 4 4-232-348-81 PANEL (DVD), BACK (E) 4 4-232-348-91 PANEL (DVD), BACK (MX) 4 4-233-563-01 PANEL (DVD), BACK (KR) 5 1-680-751-11 SUB TRANS BOARD 06 1-526-794-11 OUTLET, AC (AEP, UK, EA, SP, AUS) 06 1-526-882-00 OUTLET, AC (E, TH, MX) 06 1-815-114-11 OUTLET, AC (KR) 7 1-680-755-11 RELAY BOARD 8 3-531-576-11 RIVET (EXCEPT AEP, UK) M1 1-763-072-11 FAN, D. C. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 4-232-342-01 KNOB (FUNC) 52 4-232-338-01 KNOB (VOL) 53 X-4953-682-1 PANEL ASSY, FRONT (AEP, UK) 53 X-4953-683-1 PANEL ASSY, FRONT (EXCEPT AEP, UK) 54 4-232-341-01 SHEET (VOL) 55 4-232-343-01 BUTTON (ENTER) 56 4-951-620-01 SCREW (2.6X8), +BVTP 57 4-232-344-01 INDICATOR (BLUE) 58 A-4727-056-A PANEL BOARD, COMPLETE (TH) 58 A-4727-061-A PANEL BOARD, COMPLETE (AEP, UK) 58 A-4727-073-A PANEL BOARD, COMPLETE (E, EA, SP, KR, MX, AUS) 59 4-232-340-01 KNOB (MIC) (EXCEPT AEP, UK) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 TA-S9D The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. 6-3. CHASSIS SECTION not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied #2 #1 #1 #2 #3 T911 107 106 106 101 102 103 103 104 105 109 108 110 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 101 A-2007-899-A FRONT AMP BOARD, COMPLETE (EA, SP, MX, AUS) 101 A-4476-214-A FRONT AMP BOARD, COMPLETE (AEP, UK) 101 A-4727-067-A FRONT AMP BOARD, COMPLETE (E) 101 A-4727-514-A FRONT AMP BOARD, COMPLETE (TH) 101 A-4727-803-A FRONT AMP BOARD, COMPLETE (KR) 102 1-680-753-11 AC OUTPUT BOARD 103 4-900-386-01 SCREW 104 1-680-752-11 AC INPUT BOARD 105 A-2007-897-A SURROUND AMP BOARD, COMPLETE (E, EA, SP, KR, MX, AUS) 105 A-4476-217-A SURROUND AMP BOARD, COMPLETE (AEP, UK) 105 A-4726-276-A SURROUND AMP BOARD, COMPLETE (TH) 106 3-970-608-01 SUMITITE (B3), +BV 107 4-965-822-01 FOOT * 108 3-703-244-00 BUSHING (2104), CORD (AEP, UK, EA, SP, KR, AUS) 108 3-703-571-11 BUSHING (S) (4516), CORD (E, TH, MX) 0109 1-769-079-21 CORD, POWER (KR) 0109 1-777-071-81 CORD, POWER (AEP, E, EA, SP) 0109 1-783-203-11 CORD, POWER (AUS) 0109 1-790-226-11 CORD, POWER (UK) 0109 1-791-901-11 CORD, POWER (TH, MX) 110 1-500-386-11 FILTER, CLAMP (FERRITE CORE) 0T911 1-435-934-11 TRANSFORMER, POWER (AEP, UK) 0T911 1-435-935-11 TRANSFORMER, POWER (EXCEPT AEP, UK) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 TA-S9D AC INPUT AC OUTPUT FRONT AMP SECTION 7 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1-680-752-11 AC INPUT BOARD ************** ************************************************************** 1-680-753-11 AC OUTPUT BOARD **************** 1-533-217-41 HOLDER, FUSE < CONNECTOR > CN913 1-691-768-11 PLUG (MICRO CONNECTOR) 6P CN914 1-691-766-11 PLUG (MICRO CONNECTOR) 4P CN915 1-691-765-11 PLUG (MICRO CONNECTOR) 3P < FUSE > 0F931 1-533-949-31 FUSE, CYLINDRICAL (TIME LUG) (T8AL/250V) 0F932 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) (T6.3AL/250V) 0F933 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) (T6.3AL/250V) 0F934 1-533-949-31 FUSE, CYLINDRICAL (TIME LUG) (T8AL/250V) 0F935 1-533-469-11 FUSE, GLASS TUBE (DIA. 5) (T2.5AL/250V) 0F936 1-533-469-11 FUSE, GLASS TUBE (DIA. 5) (T2.5AL/250V) 0F937 1-533-471-11 FUSE, GLASS TUBE (DIA. 5) (T4AL/250V) ************************************************************** A-2007-899-A FRONT AMP BOARD, COMPLETE (EA, SP, MX, AUS) A-4476-214-A FRONT AMP BOARD, COMPLETE (AEP, UK) A-4727-067-A FRONT AMP BOARD, COMPLETE (E) A-4727-514-A FRONT AMP BOARD, COMPLETE (TH) A-4727-803-A FRONT AMP BOARD, COMPLETE (KR) ************************** 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S < CAPACITOR > C801 1-126-963-11 ELECT 4.7uF 20% 50V C802 1-162-286-31 CERAMIC 220PF 10% 50V C803 1-162-282-31 CERAMIC 100PF 10% 50V C804 1-126-947-11 ELECT 47uF 20% 10V C806 1-136-495-11 FILM 0.068uF 5% 50V C807 1-136-495-11 FILM 0.068uF 5% 50V C808 1-136-165-00 FILM 0.1uF 5% 50V C809 1-136-165-00 FILM 0.1uF 5% 50V C811 1-162-306-11 CERAMIC 0.01uF 30% 16V C812 1-162-306-11 CERAMIC 0.01uF 30% 16V NOTE: • Due to standardization, replacements in the parts list may be different from the parts speci- fied in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when order- ing these items. • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. . • CAPACITORS uF: µF • COILS uH: µH The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. C821 1-107-721-11 ELECT 4.7uF 20% 100V C831 1-136-165-00 FILM 0.1uF 5% 50V C832 1-136-165-00 FILM 0.1uF 5% 50V C833 1-136-165-00 FILM 0.1uF 5% 50V C834 1-136-165-00 FILM 0.1uF 5% 50V C835 1-136-165-00 FILM 0.1uF 5% 50V C836 1-136-165-00 FILM 0.1uF 5% 50V C837 1-126-963-11 ELECT 4.7uF 20% 50V C851 1-126-963-11 ELECT 4.7uF 20% 50V C852 1-162-286-31 CERAMIC 220PF 10% 50V C853 1-162-282-31 CERAMIC 100PF 10% 50V C854 1-126-947-11 ELECT 47uF 20% 10V C856 1-136-495-11 FILM 0.068uF 5% 50V C857 1-136-495-11 FILM 0.068uF 5% 50V C858 1-136-165-00 FILM 0.1uF 5% 50V C859 1-136-165-00 FILM 0.1uF 5% 50V C861 1-162-306-11 CERAMIC 0.01uF 30% 16V C862 1-162-306-11 CERAMIC 0.01uF 30% 16V C863 1-162-306-11 CERAMIC 0.01uF 30% 16V C864 1-162-306-11 CERAMIC 0.01uF 30% 16V C865 1-162-306-11 CERAMIC 0.01uF 30% 16V C871 1-107-721-11 ELECT 4.7uF 20% 100V C872 1-126-959-11 ELECT 0.47uF 20% 50V C891 1-104-665-11 ELECT 100uF 20% 10V C892 1-126-961-11 ELECT 2.2uF 20% 50V C893 1-104-665-11 ELECT 100uF 20% 10V C911 1-130-777-00 MYLAR 0.1uF 5% 100V C912 1-130-777-00 MYLAR 0.1uF 5% 100V C914 1-115-871-11 ELECT 1uF 20% 50V C915 1-162-282-31 CERAMIC 100PF 10% 50V C916 1-162-282-31 CERAMIC 100PF 10% 50V C917 1-162-282-31 CERAMIC 100PF 10% 50V C918 1-164-159-11 CERAMIC 0.1uF 50V C919 1-126-964-11 ELECT 10uF 20% 50V C920 1-164-159-11 CERAMIC 0.1uF 50V C924 1-162-294-31 CERAMIC 0.001uF 10% 50V C925 1-126-795-11 ELECT 10uF 20% 50V C926 1-126-382-11 ELECT 100uF 20% 16V C927 1-104-665-11 ELECT 100uF 20% 10V C941 1-164-159-11 CERAMIC 0.1uF 50V C951 1-135-516-11 ELECT 3300uF 20% 63V C952 1-135-516-11 ELECT 3300uF 20% 63V C953 1-126-974-11 ELECT 3300uF 20% 50V C954 1-126-974-11 ELECT 3300uF 20% 50V • Abbreviation AUS : Australian model EA : Saudi Arabia model KR : Korean model MX : Mexican model SP : Singapore model TH : Thailand model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 23 TA-S9D FRONT AMP C955 1-136-165-00 FILM 0.1uF 5% 50V C956 1-136-165-00 FILM 0.1uF 5% 50V C961 1-128-563-11 ELECT 100uF 20% 100V C962 1-128-563-11 ELECT 100uF 20% 100V C963 1-104-665-11 ELECT 100uF 20% 10V C964 1-119-943-91 ELECT 47uF 20% 50V C987 1-164-159-11 CERAMIC 0.1uF 50V C990 1-164-159-11 CERAMIC 0.1uF 50V C991 1-126-940-11 ELECT 330uF 20% 25V C992 1-113-342-11 CERAMIC 0.1uF 50V C993 1-126-935-11 ELECT 470uF 20% 16V C994 1-126-934-11 ELECT 220uF 20% 10V < CONNECTOR > CN103 1-778-981-11 CONNECTOR, BOARD TO BOARD 13P CN104 1-784-784-11 CONNECTOR, FFC 23P (AEP, UK) CN104 1-784-786-11 CONNECTOR, FFC 25P (EXCEPT AEP, UK) CN105 1-564-506-11 PLUG, CONNECTOR 3P CN106 1-573-846-11 CONNECTOR, BOARD TO BOARD 14P CN107 1-794-498-21 SOCKET, CONNECTOR 20P (SYSTEM CONTROL 1 FROM ST-S9) CN108 1-770-721-11 CONNECTOR, BOARD TO BOARD 4P CN113 1-770-594-21 CONNECTOR, BOARD TO BOARD 5P < DIODE > D801 8-719-911-19 DIODE 1SS133T-72 D802 8-719-911-19 DIODE 1SS133T-72 D821 8-719-911-19 DIODE 1SS133T-72 D831 8-719-911-19 DIODE 1SS133T-72 D851 8-719-911-19 DIODE 1SS133T-72 D871 8-719-911-19 DIODE 1SS133T-72 D881 8-719-911-19 DIODE 1SS133T-72 D911 8-719-510-68 DIODE D5SBA204101 D923 8-719-024-99 DIODE 11ES2-NTA2B D924 8-719-024-99 DIODE 11ES2-NTA2B D925 8-719-911-19 DIODE 1SS133T-72 D926 8-719-911-19 DIODE 1SS133T-72 D951 8-719-510-68 DIODE D5SBA204101 D963 8-719-911-19 DIODE 1SS133T-72 D970 8-719-024-99 DIODE 11ES2-NTA2B D971 8-719-024-99 DIODE 11ES2-NTA2B D972 8-719-024-99 DIODE 11ES2-NTA2B D973 8-719-024-99 DIODE 11ES2-NTA2B D974 8-719-024-99 DIODE 11ES2-NTA2B D975 8-719-024-99 DIODE 11ES2-NTA2B D980 8-719-024-99 DIODE 11ES2-NTA2B D981 8-719-024-99 DIODE 11ES2-NTA2B D990 8-719-024-99 DIODE 11ES2-NTA2B D991 8-719-024-99 DIODE 11ES2-NTA2B D992 8-719-024-99 DIODE 11ES2-NTA2B D993 8-719-024-99 DIODE 11ES2-NTA2B D994 8-719-024-99 DIODE 11ES2-NTA2B D995 8-719-024-99 DIODE 11ES2-NTA2B D996 8-719-024-99 DIODE 11ES2-NTA2B D997 8-719-024-99 DIODE 11ES2-NTA2B < GROUND TERMINAL > EPT901 1-537-770-21 TERMINAL BOARD, GROUND EPT902 1-537-770-21 TERMINAL BOARD, GROUND < IC > IC310 6-800-467-01 IC PT8300-S IC801 8-749-016-96 IC STK402-120S IC923 8-759-595-88 IC NJM78L12A-T3 IC924 8-759-708-05 IC NJM78L05A-T3 < COIL > L811 1-420-872-00 COIL, AIR-CORE L831 1-420-872-00 COIL, AIR-CORE L832 1-420-872-00 COIL, AIR-CORE L833 1-420-872-00 COIL, AIR-CORE L861 1-420-872-00 COIL, AIR-CORE < TRANSISTOR > Q801 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q821 8-729-231-55 TRANSISTOR 2SC2878AB-TPE2 Q822 8-729-900-63 TRANSISTOR BN1F4M-TP Q851 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q871 8-729-231-55 TRANSISTOR 2SC2878AB-TPE2 Q881 8-729-119-76 TRANSISTOR 2SA1175TP-HFE Q883 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q891 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q892 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q893 8-729-119-76 TRANSISTOR 2SA1175TP-HFE Q894 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q895 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q896 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q897 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q902 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q903 8-729-140-04 TRANSISTOR 2SB1116-TP-LK Q904 8-729-142-46 TRANSISTOR 2SC2001TP-LK Q905 8-729-900-80 TRANSISTOR BA1A4M-TP (EXCEPT AEP, UK) Q906 8-729-111-29 TRANSISTOR 2SD1616-TP-LK (EXCEPT AEP, UK) Q961 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA Q962 8-729-140-82 TRANSISTOR 2SA988TP-PAFAEA Q963 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA < RESISTOR/DIODE > R801 1-249-417-11 CARBON 1K 5% 1/4W R802 1-249-438-11 CARBON 56K 5% 1/4W R803 1-249-410-11 CARBON 270 5% 1/4W R804 1-249-438-11 CARBON 56K 5% 1/4W 0R805 1-234-499-21 ENCAPSULATED COMPONENT 0.22 5W R806 1-249-417-11 CARBON 1K 5% 1/4W R807 1-249-431-11 CARBON 15K 5% 1/4W R808 1-249-441-11 CARBON 100K 5% 1/4W R809 1-260-076-11 CARBON 10 5% 1/2W R811 1-260-076-11 CARBON 10 5% 1/2W (EXCEPT AEP, UK, KR) R812 1-260-076-11 CARBON 10 5% 1/2W (EXCEPT AEP, UK, KR) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 24 TA-S9D FRONT AMP R812 1-260-300-11 CARBON 4.7 5% 1/2W (AEP, UK, KR) R814 1-249-437-11 CARBON 47K 5% 1/4W R815 1-249-437-11 CARBON 47K 5% 1/4W 0R821 1-215-891-11 METAL OXIDE 680 5% 2W F R825 1-249-402-11 CARBON 56 5% 1/4W R826 1-249-417-11 CARBON 1K 5% 1/4W R827 1-249-433-11 CARBON 22K 5% 1/4W R831 1-260-076-11 CARBON 10 5% 1/2W R832 1-260-076-11 CARBON 10 5% 1/2W R833 1-260-076-11 CARBON 10 5% 1/2W R834 1-260-076-11 CARBON 10 5% 1/2W R835 1-260-076-11 CARBON 10 5% 1/2W R836 1-260-076-11 CARBON 10 5% 1/2W R837 1-249-437-11 CARBON 47K 5% 1/4W R838 1-249-437-11 CARBON 47K 5% 1/4W R839 1-249-437-11 CARBON 47K 5% 1/4W R851 1-249-417-11 CARBON 1K 5% 1/4W R852 1-249-438-11 CARBON 56K 5% 1/4W R853 1-249-410-11 CARBON 270 5% 1/4W R854 1-249-438-11 CARBON 56K 5% 1/4W 0R855 1-234-499-21 ENCAPSULATED COMPONENT 0.22 5W R856 1-249-417-11 CARBON 1K 5% 1/4W R857 1-249-431-11 CARBON 15K 5% 1/4W R858 1-249-441-11 CARBON 100K 5% 1/4W R859 1-260-076-11 CARBON 10 5% 1/2W R861 1-260-076-11 CARBON 10 5% 1/2W (EXCEPT AEP, UK, KR) R862 1-260-076-11 CARBON 10 5% 1/2W (EXCEPT AEP, UK, KR) R862 1-260-300-11 CARBON 4.7 5% 1/2W (AEP, UK, KR) 0R871 1-215-891-11 METAL OXIDE 680 5% 2W F R875 1-249-402-11 CARBON 56 5% 1/4W R876 1-249-417-11 CARBON 1K 5% 1/4W R877 1-249-433-11 CARBON 22K 5% 1/4W R878 1-249-425-11 CARBON 4.7K 5% 1/4W R879 1-249-441-11 CARBON 100K 5% 1/4W R880 1-247-903-00 CARBON 1M 5% 1/4W 0R881 1-215-888-00 METAL OXIDE 220 5% 2W F R883 1-249-437-11 CARBON 47K 5% 1/4W R885 1-249-429-11 CARBON 10K 5% 1/4W R887 1-249-441-11 CARBON 100K 5% 1/4W R889 1-249-429-11 CARBON 10K 5% 1/4W R891 1-249-438-11 CARBON 56K 5% 1/4W R892 1-249-439-11 CARBON 68K 5% 1/4W R894 1-249-429-11 CARBON 10K 5% 1/4W R895 1-249-429-11 CARBON 10K 5% 1/4W R896 1-249-435-11 CARBON 33K 5% 1/4W R897 1-249-433-11 CARBON 22K 5% 1/4W R898 1-249-425-11 CARBON 4.7K 5% 1/4W R903 1-249-429-11 CARBON 10K 5% 1/4W R904 1-249-441-11 CARBON 100K 5% 1/4W R905 1-249-421-11 CARBON 2.2K 5% 1/4W R906 1-247-843-11 CARBON 3.3K 5% 1/4W (EXCEPT AEP, UK) R906 1-249-417-11 CARBON 1K 5% 1/4W (AEP, UK) R907 1-249-421-11 CARBON 2.2K 5% 1/4W (AEP, UK) R907 8-719-947-64 DIODE MTZJ-T-72-16A (EXCEPT AEP, UK) R908 1-249-421-11 CARBON 2.2K 5% 1/4W R910 1-247-807-31 CARBON 100 5% 1/4W R911 1-247-807-31 CARBON 100 5% 1/4W R912 1-247-807-31 CARBON 100 5% 1/4W R913 1-249-437-11 CARBON 47K 5% 1/4W R914 1-247-807-31 CARBON 100 5% 1/4W R915 1-249-437-11 CARBON 47K 5% 1/4W R916 1-247-807-31 CARBON 100 5% 1/4W R917 1-249-411-11 CARBON 330 5% 1/4W R918 1-249-411-11 CARBON 330 5% 1/4W R919 1-249-411-11 CARBON 330 5% 1/4W R920 1-249-411-11 CARBON 330 5% 1/4W R921 1-249-411-11 CARBON 330 5% 1/4W R923 1-249-417-11 CARBON 1K 5% 1/4W R924 1-249-437-11 CARBON 47K 5% 1/4W R925 1-249-437-11 CARBON 47K 5% 1/4W R926 1-249-429-11 CARBON 10K 5% 1/4W R927 1-249-437-11 CARBON 47K 5% 1/4W R951 1-249-441-11 CARBON 100K 5% 1/4W R952 1-249-441-11 CARBON 100K 5% 1/4W R953 1-249-441-11 CARBON 100K 5% 1/4W R954 1-249-441-11 CARBON 100K 5% 1/4W 0R960 1-215-887-00 METAL OXIDE 150 5% 2W F (EXCEPT AEP, UK) R961 1-249-421-11 CARBON 2.2K 5% 1/4W (EXCEPT AEP, UK) R962 1-249-441-11 CARBON 100K 5% 1/4W (EXCEPT AEP, UK) 0R963 1-212-881-11 FUSIBLE 100 5% 1/4W F 0R964 1-212-881-11 FUSIBLE 100 5% 1/4W F R965 1-249-431-11 CARBON 15K 5% 1/4W R966 1-249-435-11 CARBON 33K 5% 1/4W R967 1-249-429-11 CARBON 10K 5% 1/4W 0R968 1-202-972-61 FUSIBLE 1 5% 1/4W F R969 1-249-433-11 CARBON 22K 5% 1/4W R970 1-249-441-11 CARBON 100K 5% 1/4W R971 1-249-421-11 CARBON 2.2K 5% 1/4W R972 1-249-433-11 CARBON 22K 5% 1/4W R973 1-249-421-11 CARBON 2.2K 5% 1/4W R974 1-249-429-11 CARBON 10K 5% 1/4W R991 1-249-417-11 CARBON 1K 5% 1/4W R992 1-249-417-11 CARBON 1K 5% 1/4W < RELAY > RY881 1-515-920-11 RELAY < TERMINAL > TM101 1-694-677-12 TERMINAL BOARD (4P) (FRONT SPEAKER IMPEDANCE USE 6-16Ω) TM102 1-694-674-12 TERMINAL BOARD (6P) (REAR/CENTER SPEAKER IMPEDANCE USE 8-16Ω) ************************************************************** The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 25 TA-S9D A-4727-056-A PANEL BOARD, COMPLETE (TH) A-4727-061-A PANEL BOARD, COMPLETE (AEP, UK) A-4727-073-A PANEL BOARD, COMPLETE (EXCEPT AEP, UK, KR) ********************** < CAPACITOR > C701 1-162-306-11 CERAMIC 0.01uF 30% 16V C702 1-162-306-11 CERAMIC 0.01uF 30% 16V C703 1-162-306-11 CERAMIC 0.01uF 30% 16V C704 1-162-306-11 CERAMIC 0.01uF 30% 16V C705 1-162-306-11 CERAMIC 0.01uF 30% 16V C706 1-162-306-11 CERAMIC 0.01uF 30% 16V C710 1-162-294-31 CERAMIC 0.001uF 10% 50V C711 1-162-306-11 CERAMIC 0.01uF 30% 16V C712 1-162-294-31 CERAMIC 0.001uF 10% 50V C723 1-162-306-11 CERAMIC 0.01uF 30% 16V (EXCEPT AEP, UK) C724 1-115-868-11 ELECT 0.22uF 20% 50V (EXCEPT AEP, UK) C725 1-162-294-31 CERAMIC 0.001uF 10% 50V (EXCEPT AEP, UK) C726 1-162-215-31 CERAMIC 47PF 5% 50V (EXCEPT AEP, UK) C727 1-162-290-31 CERAMIC 470PF 10% 50V (EXCEPT AEP, UK) C728 1-115-867-11 ELECT 0.1uF 20% 50V (EXCEPT AEP, UK) C729 1-115-872-11 ELECT 2.2uF 20% 50V (EXCEPT AEP, UK) C730 1-162-287-31 CERAMIC 270PF 10% 50V (EXCEPT AEP, UK) C731 1-115-872-11 ELECT 2.2uF 20% 50V (EXCEPT AEP, UK) C732 1-126-382-11 ELECT 100uF 20% 10V (EXCEPT AEP, UK) C733 1-126-791-11 ELECT 10uF 20% 16V (EXCEPT AEP, UK) C734 1-162-215-31 CERAMIC 47PF 5% 50V (EXCEPT AEP, UK) C735 1-126-791-11 ELECT 10uF 20% 16V (EXCEPT AEP, UK) C751 1-164-159-11 CERAMIC 0.1uF 50V (EXCEPT AEP, UK) C752 1-126-791-11 ELECT 10uF 20% 16V (EXCEPT AEP, UK) C781 1-162-306-11 CERAMIC 0.01uF 30% 16V < CONNECTOR > CN700 1-784-745-11 CONNECTOR, FFC 23P (AEP, UK) CN700 1-784-747-11 CONNECTOR, FFC 25P (EXCEPT AEP, UK) < LED > D701 8-719-058-04 LED SEL5223S-TP15 (I/1) D702 8-719-057-97 LED SEL5923A-TP15 (SUR) D703 8-719-057-97 LED SEL5923A-TP15 (EQ) D704 8-719-057-97 LED SEL5923A-TP15 (CINEMA STUDIO A) D705 8-719-057-97 LED SEL5923A-TP15 (CINEMA STUDIO B) D706 8-719-057-97 LED SEL5923A-TP15 (CINEMA STUDIO C) D781 8-719-084-07 LED SEL5E20CTP15 (MULTI CHANNEL DECODING) < COIL > FB707 1-412-473-21 INDUCTOR 0uH (EXCEPT AEP, UK) < IC > IC702 8-759-167-88 IC NJM4565D (EXCEPT AEP, UK) < JACK > J702 1-815-603-11 JACK (MIC) (EXCEPT AEP, UK) J703 1-691-293-21 JACK (PHONES) < TRANSISTOR > Q701 8-729-900-80 TRANSISTOR BA1A4M-TP Q702 8-729-900-63 TRANSISTOR BN1F4M-TP Q710 8-729-119-78 TRANSISTOR 2SC2785TP-HFE (EXCEPT AEP, UK) < RESISTOR > R707 1-249-411-11 CARBON 330 5% 1/4W R708 1-247-807-31 CARBON 100 5% 1/4W R709 1-249-410-11 CARBON 270 5% 1/4W R710 1-249-413-11 CARBON 470 5% 1/4W R711 1-249-414-11 CARBON 560 5% 1/4W R712 1-249-416-11 CARBON 820 5% 1/4W R713 1-249-417-11 CARBON 1K 5% 1/4W R714 1-249-418-11 CARBON 1.2K 5% 1/4W R715 1-249-419-11 CARBON 1.5K 5% 1/4W R716 1-249-421-11 CARBON 2.2K 5% 1/4W R717 1-249-422-11 CARBON 2.7K 5% 1/4W R718 1-249-424-11 CARBON 3.9K 5% 1/4W R719 1-249-426-11 CARBON 5.6K 5% 1/4W R720 1-249-428-11 CARBON 8.2K 5% 1/4W R721 1-249-431-11 CARBON 15K 5% 1/4W R722 1-249-434-11 CARBON 27K 5% 1/4W R723 1-249-439-11 CARBON 68K 5% 1/4W R728 1-249-429-11 CARBON 10K 5% 1/4W (EXCEPT AEP, UK) R729 1-249-417-11 CARBON 1K 5% 1/4W (EXCEPT AEP, UK) R730 1-249-441-11 CARBON 100K 5% 1/4W (EXCEPT AEP, UK) R731 1-249-417-11 CARBON 1K 5% 1/4W (EXCEPT AEP, UK) R732 1-249-433-11 CARBON 22K 5% 1/4W (EXCEPT AEP, UK) R733 1-247-807-31 CARBON 100 5% 1/4W (EXCEPT AEP, UK) R734 1-249-429-11 CARBON 10K 5% 1/4W (EXCEPT AEP, UK) R735 1-247-883-00 CARBON 150K 5% 1/4W (EXCEPT AEP, UK) R736 1-247-807-31 CARBON 100 5% 1/4W (EXCEPT AEP, UK) R737 1-249-417-11 CARBON 1K 5% 1/4W (EXCEPT AEP, UK) R738 1-249-428-11 CARBON 8.2K 5% 1/4W (EXCEPT AEP, UK) R739 1-249-430-11 CARBON 12K 5% 1/4W (EXCEPT AEP, UK) PANEL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 26 TA-S9D R740 1-249-441-11 CARBON 100K 5% 1/4W (EXCEPT AEP, UK) R752 1-249-417-11 CARBON 1K 5% 1/4W (EXCEPT AEP, UK) < VARIABLE RESISTOR > RV761 1-225-739-11 RES, VAR CARBON 50K (MIC LEVEL) (EXCEPT AEP, UK) < SWITCH > S701 1-473-534-11 ENCODER, ROTARY (FUNCTION) S702 1-473-534-11 ENCODER, ROTARY (FILE SELECT) S703 1-473-392-11 ENCODER, ROTARY (VOLUME) S705 1-771-410-21 SWITCH, TACTILE (I/1) S710 1-771-410-21 SWITCH, TACTILE (SUR) S711 1-771-410-21 SWITCH, TACTILE (EQ) S712 1-771-410-21 SWITCH, TACTILE (CINEMA STUDIO A) S713 1-771-410-21 SWITCH, TACTILE (CINEMA STUDIO B) S714 1-771-410-21 SWITCH, TACTILE (CINEMA STUDIO C) S715 1-771-410-21 SWITCH, TACTILE (DIGITAL) S716 1-771-410-21 SWITCH, TACTILE (TITLE) S717 1-771-410-21 SWITCH, TACTILE (DVD MENU) S718 1-771-410-21 SWITCH, TACTILE (SET UP) S719 1-771-410-21 SWITCH, TACTILE (EQ ON/OFF) S723 1-771-879-11 SWITCH, TACTILE (ENTER) ************************************************************** 1-680-755-11 RELAY BOARD ************ < CONNECTOR > CN110 1-793-351-41 SOCKET, CONNECTOR 19P (SYSTEM CONTROL 2 FROM ST-S9) * CN111 1-573-828-11 CONNECTOR, BOARD TO BOARD 14P CN112 1-770-593-41 CONNECTOR, BOARD TO BOARD 5P ************************************************************** 1-680-751-11 SUB TRANS BOARD **************** 1-533-217-41 HOLDER, FUSE < CAPACITOR > 0C901 1-113-925-11 CERAMIC 0.01uF 20% 250V < CONNECTOR > CN901 1-564-321-00 PIN, CONNECTOR 2P * CN902 1-564-321-21 PIN, CONNECTOR 2P (AEP, UK, TH, KR, MX, AUS) CN902 1-568-106-11 PIN, CONNECTOR 4P (E, EA, SP) CN903 1-691-767-11 PLUG (MICRO CONNECTOR) 5P < DIODE > D901 8-719-911-19 DIODE 1SS133T-72 < FUSE > 0F900 1-533-469-11 FUSE2,GLASS TUBE (DIA. 5) (T2.5AL/250V) 0F913 1-533-472-11 FUSE2,GLASS TUBE (DIA. 5) (T5AL/250V) (E, EA, SP) < TRANSISTOR > Q901 8-729-119-78 TRANSISTOR 2SC2785TP-HFE < RESISTOR > R901 1-249-441-11 CARBON 100K 5% 1/4W R902 1-249-429-11 CARBON 10K 5% 1/4W < RELAY > 0RY901 1-755-276-11 RELAY, POWER < SWITCH > 0S901 1-786-055-21 SELECTOR, VOLTAGE (VOLTAGE SELECTOR) (E, EA, SP) < TRANSFORMER > 0T901 1-435-824-11 TRANSFORMER, POWER (AEP, UK) 0T901 1-435-825-11 TRANSFORMER, POWER (E, EA, SP, TH, KR, MX, AUS) ************************************************************** A-2007-897-A SURROUND AMP BOARD, COMPLETE (E, EA, SP, KR, MX, AUS) A-4476-217-A SURROUND AMP BOARD, COMPLETE (AEP, UK) A-4726-276-A SURROUND AMP BOARD, COMPLETE (TH) ****************************** < CAPACITOR > C1001 1-126-964-11 ELECT 10uF 20% 50V C1002 1-162-286-31 CERAMIC 220PF 10% 50V C1003 1-162-282-31 CERAMIC 100PF 10% 50V C1004 1-126-947-11 ELECT 47uF 20% 10V C1006 1-136-495-11 FILM 0.068uF 5% 50V C1007 1-136-495-11 FILM 0.068uF 5% 50V C1033 1-126-968-11 ELECT 100uF 20% 50V C1034 1-126-968-11 ELECT 100uF 20% 50V C1038 1-162-306-11 CERAMIC 0.01uF 30% 16V C1039 1-162-306-11 CERAMIC 0.01uF 30% 16V C1051 1-126-964-11 ELECT 10uF 20% 50V C1052 1-162-286-31 CERAMIC 220PF 10% 50V C1053 1-162-282-31 CERAMIC 100PF 10% 50V C1054 1-126-947-11 ELECT 47uF 20% 10V C1056 1-136-495-11 FILM 0.068uF 5% 50V C1057 1-136-495-11 FILM 0.068uF 5% 50V C1081 1-126-964-11 ELECT 10uF 20% 50V C1082 1-162-286-31 CERAMIC 220PF 10% 50V C1083 1-162-282-31 CERAMIC 100PF 10% 50V C1084 1-126-947-11 ELECT 47uF 20% 10V C1086 1-136-495-11 FILM 0.068uF 5% 50V C1087 1-136-495-11 FILM 0.068uF 5% 50V C1100 1-164-159-11 CERAMIC 0.1uF 50V C1101 1-164-159-11 CERAMIC 0.1uF 50V C1102 1-164-159-11 CERAMIC 0.1uF 50V C1103 1-164-159-11 CERAMIC 0.1uF 50V The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. PANEL RELAY SUB TRANS SURROUND AMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 27 TA-S9D < CONNECTOR > CN1002 1-778-982-11 CONNECTOR, BOARD TO BOARD 13P CN1003 1-770-725-11 CONNECTOR, BOARD TO BOARD 4P < DIODE > D1001 8-719-911-19 DIODE 1SS133T-72 D1002 8-719-911-19 DIODE 1SS133T-72 D1051 8-719-911-19 DIODE 1SS133T-72 D1061 8-719-911-19 DIODE 1SS133T-72 D1062 8-719-911-19 DIODE 1SS133T-72 D1081 8-719-911-19 DIODE 1SS133T-72 < IC > IC1001 8-749-017-19 IC STK443-050 < TRANSISTOR > Q1001 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q1051 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q1061 8-729-119-76 TRANSISTOR 2SA1175TP-HFE Q1063 8-729-900-36 TRANSISTOR BA1F4M-TP Q1081 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q1092 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q1093 8-729-119-78 TRANSISTOR 2SC2785TP-HFE < RESISTOR > R1001 1-249-417-11 CARBON 1K 5% 1/4W R1002 1-249-438-11 CARBON 56K 5% 1/4W R1003 1-249-415-11 CARBON 680 5% 1/4W (EXCEPT TH) R1003 1-249-417-11 CARBON 1K 5% 1/4W (TH) R1004 1-249-438-11 CARBON 56K 5% 1/4W 0R1005 1-233-352-41 ENCAPSULATED COMPONENT 0.22 2W R1006 1-249-417-11 CARBON 1K 5% 1/4W R1007 1-249-431-11 CARBON 15K 5% 1/4W R1008 1-249-441-11 CARBON 100K 5% 1/4W R1009 1-260-076-11 CARBON 10 5% 1/2W R1010 1-249-437-11 CARBON 47K 5% 1/4W 0R1031 1-212-881-11 FUSIBLE 100 5% 1/4W F 0R1032 1-212-881-11 FUSIBLE 100 5% 1/4W F 0R1033 1-202-972-61 FUSIBLE 1 5% 1/4W F R1047 1-249-429-11 CARBON 10K 5% 1/4W R1051 1-249-417-11 CARBON 1K 5% 1/4W R1052 1-249-438-11 CARBON 56K 5% 1/4W R1053 1-249-415-11 CARBON 680 5% 1/4W (EXCEPT TH) R1053 1-249-417-11 CARBON 1K 5% 1/4W (TH) R1054 1-249-438-11 CARBON 56K 5% 1/4W 0R1055 1-233-352-41 ENCAPSULATED COMPONENT 0.22 2W R1056 1-249-417-11 CARBON 1K 5% 1/4W R1057 1-249-431-11 CARBON 15K 5% 1/4W R1058 1-249-441-11 CARBON 100K 5% 1/4W R1059 1-260-076-11 CARBON 10 5% 1/2W R1060 1-249-438-11 CARBON 56K 5% 1/4W 0R1061 1-215-888-00 METAL OXIDE 220 5% 2W F 0R1062 1-215-888-00 METAL OXIDE 220 5% 2W F R1063 1-249-429-11 CARBON 10K 5% 1/4W R1065 1-249-433-11 CARBON 22K 5% 1/4W R1081 1-249-417-11 CARBON 1K 5% 1/4W R1082 1-249-438-11 CARBON 56K 5% 1/4W R1083 1-247-834-11 CARBON 1.3K 5% 1/4W R1084 1-249-438-11 CARBON 56K 5% 1/4W 0R1085 1-233-352-41 ENCAPSULATED COMPONENT 0.22 2W R1086 1-249-417-11 CARBON 1K 5% 1/4W R1087 1-249-431-11 CARBON 15K 5% 1/4W R1088 1-249-441-11 CARBON 100K 5% 1/4W R1089 1-260-076-11 CARBON 10 5% 1/2W R1090 1-249-439-11 CARBON 68K 5% 1/4W R1092 1-249-441-11 CARBON 100K 5% 1/4W R1093 1-249-441-11 CARBON 100K 5% 1/4W R1094 1-249-439-11 CARBON 68K 5% 1/4W R1095 1-249-433-11 CARBON 22K 5% 1/4W < RELAY > RY1061 1-515-920-11 RELAY (24V) RY1062 1-515-920-11 RELAY (24V) < THERMISTOR (POSITIVE) > THP092 1-807-796-11 THERMISTOR ************************************************************** MISCELLANEOUS ************** 1 1-773-178-11 WIRE (FLAT TYPE) (23 CORE) (AEP, UK) 1 1-773-210-11 WIRE (FLAT TYPE) (25 CORE) (EXCEPT AEP, UK) 06 1-526-794-11 OUTLET, AC (AEP, UK, EA, SP, AUS) 06 1-526-882-00 OUTLET, AC (E, TH, MX) 06 1-815-114-11 OUTLET, AC (KR) 0109 1-769-079-21 CORD, POWER (KR) 0109 1-777-071-81 CORD, POWER (AEP, E, EA, SP) 0109 1-783-203-11 CORD, POWER (AUS) 0109 1-790-226-11 CORD, POWER (UK) 0109 1-791-901-11 CORD, POWER (TH, MX) 110 1-500-386-11 FILTER, CLAMP (FERRITE CORE) M1 1-763-072-11 FAN, D. C. 0T911 1-435-934-11 TRANSFORMER, POWER (AEP, UK) 0T911 1-435-935-11 TRANSFORMER, POWER (EXCEPT AEP, UK) ************************************************************ ************** HARDWARE LIST ************** #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S #2 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3 #3 7-685-872-09 SCREW +BVTT 3X8 (S) #4 7-685-871-01 SCREW +BVTT 3X6 (S) ************************************************************ ACCESSORIES ************ 0 1-569-008-21 ADAPTOR, CONVERSION (E, EA, SP) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. SURROUND AMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-S9D REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2001.09 New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
