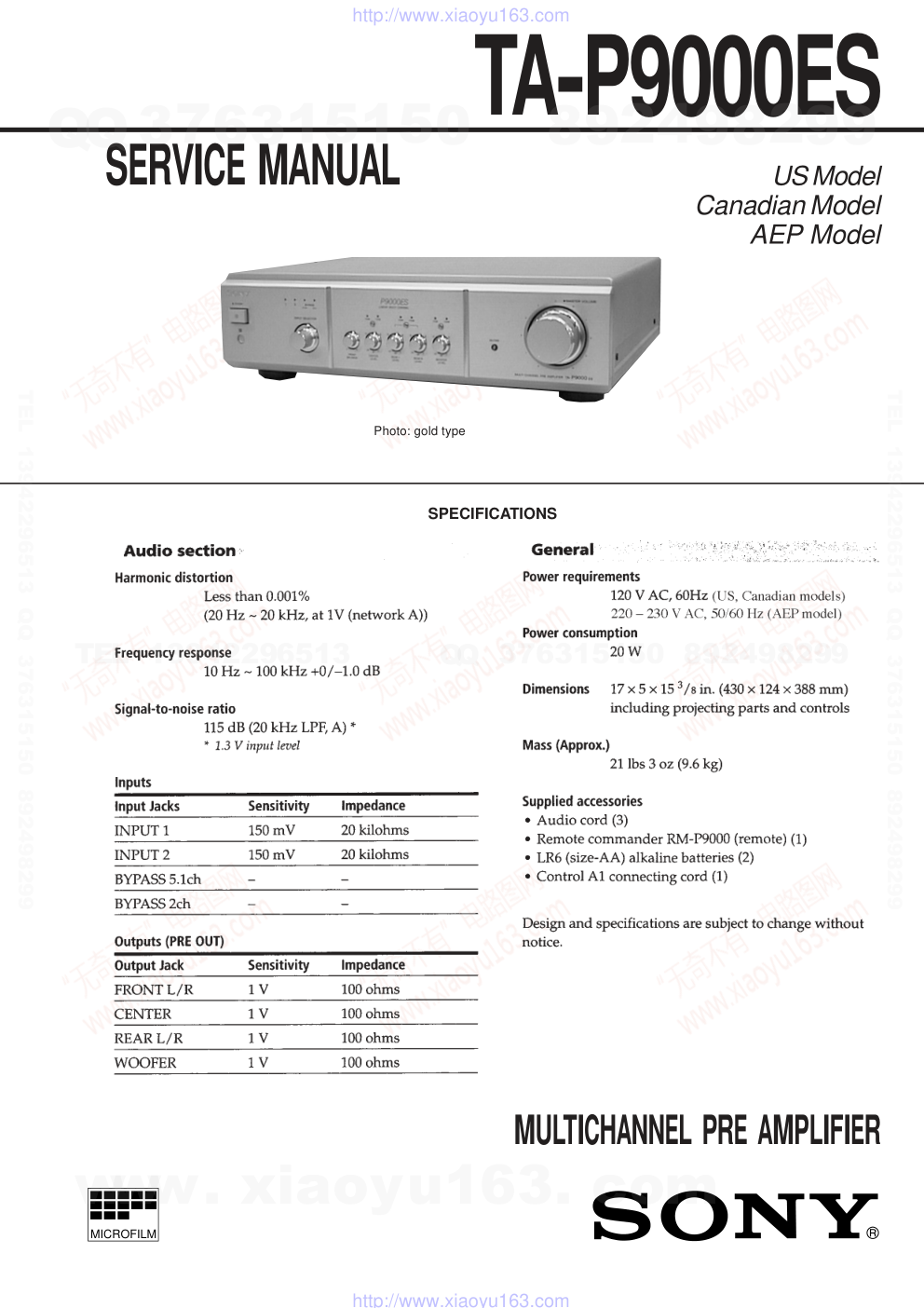

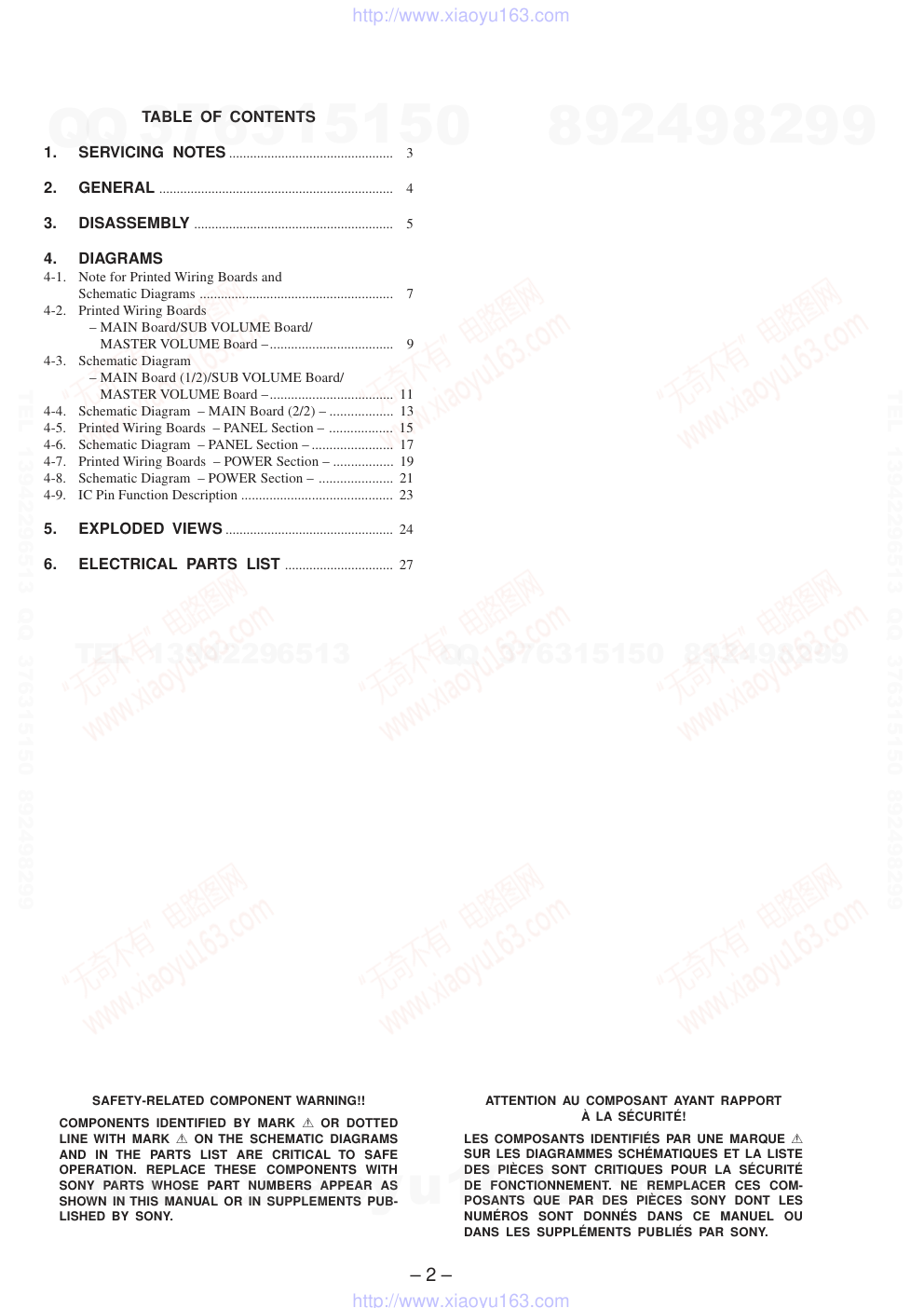

MICROFILM SERVICE MANUAL MULTICHANNEL PRE AMPLIFIER US Model Canadian Model AEP Model SPECIFICATIONS Photo: gold type www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 2 – TABLE OF CONTENTS 1. SERVICING NOTES ............................................... 3 2. GENERAL ................................................................... 4 3. DISASSEMBLY ......................................................... 5 4. DIAGRAMS 4-1. Note for Printed Wiring Boards and Schematic Diagrams ....................................................... 7 4-2. Printed Wiring Boards – MAIN Board/SUB VOLUME Board/ MASTER VOLUME Board –................................... 9 4-3. Schematic Diagram – MAIN Board (1/2)/SUB VOLUME Board/ MASTER VOLUME Board –................................... 11 4-4. Schematic Diagram – MAIN Board (2/2) – .................. 13 4-5. Printed Wiring Boards – PANEL Section – .................. 15 4-6. Schematic Diagram – PANEL Section – ....................... 17 4-7. Printed Wiring Boards – POWER Section – ................. 19 4-8. Schematic Diagram – POWER Section – ..................... 21 4-9. IC Pin Function Description ........................................... 23 5. EXPLODED VIEWS ................................................ 24 6. ELECTRICAL PARTS LIST ............................... 27 ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE ! SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 3 – SECTION 1 SERVICING NOTES MODEL IDENTIFICATION – Specification Label – SAFETY CHECK-OUT After correcting the original service problem, perform the follow- ing safety check before releasing the set to the customer: Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microampers.). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indica- tion is 0.75 V, so analog meters must have an accurate low- voltage scale. The Simpson 250 and Sanwa SH-63Trd are ex- amples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2 V AC range are suit- able. (See Fig. A) Fig. A. Using an AC voltmeter to check AC leakage. 1.5 kΩ 0.15 µF AC voltmeter (0.75 V) To Exposed Metal Parts on Set Earth Ground Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. MODEL NO.TA-P9000ES MULTI CHANNEL PRE AMPLIFIER SERIAL NO. MADE IN JAPAN US, Canadian models : AC 120V 60Hz 20W AEP model : AC 220 - 230V 50/60Hz 20W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 4 – SECTION 2 GENERAL This section is extracted from instruction manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 5 – 1 Remove ten connectors. CN4, 101, 103, 114, 116, 117, 122, 124, 138, 142 7 four screws (BV3 × 8 CU) 8 front bracket section 6 LED board 5 screw (BV3 × 8 CU) 2 three screws (BV3 × 8 CU) 4 front panel section 7 two screws (BV3 × 8 CU) 7 three screws (BV3 × 8 CU) 3 3 CASE FRONT PANEL SECTION Note: Follow the disassembly procedure in the numerical order given. SECTION 3 DISASSEMBLY 1 two flat head screws 3 case 2 two screws (BV3 × 8 CU) 1 two flat head screws www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 6 – MAIN BOARD 2 three screws (BV3 × 8 CU) 2 seven screws (BV3 × 8 CU) 3 Remove the MAIN board in direction of arrow A. A 2 two screws (BV3 × 8 CU) 1 Remove ten connectors. CN101, 103, 114, 116, 117 124, 129, 138, 139, 142 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 7 – SECTION 4 DIAGRAMS Note on Printed Wiring Board: • X : parts extracted from the component side. • b : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) • Indication of transistor. 4-1. NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS B These are omitted. C E Q C B These are omitted. E Q Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • ¢ : internal component. • 5 : fusible resistor. • C : panel designation. • U : B+ Line. • V : B– Line. • Voltages and waveforms are dc with respect to ground under no-signal conditions. • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. F : AUDIO Note: The components identi- fied by mark ! or dotted line with mark ! are criti- cal for safety. Replace only with part number specified. Note: Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 8 – • Circuit Boards Location Ref. No. Location Ref. No. Location • Semiconductor Location D201 E-9 D203 F-9 D204 E-10 D205 F-10 D206 F-10 D251 E-8 D253 E-8 D254 E-8 D255 F-8 D256 F-8 D301 E-6 D303 E-6 D304 E-6 D305 F-7 D306 F-7 D307 C-7 D308 C-7 D351 F-3 D353 F-3 D354 E-3 D355 F-3 D356 F-3 D401 E-5 D403 E-4 D404 E-5 D405 F-5 D406 F-5 D407 C-5 D408 C-5 D451 F-1 D453 F-1 D454 E-1 D455 F-2 D456 F-2 D457 C-1 D458 C-2 D501 B-7 D502 B-9 D503 B-10 D504 C-3 D505 C-8 D603 H-11 D604 H-8 D605 I-7 IC601 G-5 IC602 H-5 Q201 D-10 Q202 E-10 Q203 D-9 Q204 E-9 Q205 E-10 Q206 E-10 Q207 F-10 Q208 F-10 Q209 F-9 Q210 F-10 Q211 F-9 Q251 D-8 Q252 E-8 Q253 D-8 Q254 E-8 Q255 E-8 Q256 E-8 Q257 F-8 Q258 F-8 Q259 F-8 Q260 F-8 Q261 F-8 Q301 D-6 Q302 E-6 Q303 D-6 Q304 E-6 Q305 E-7 Q306 E-7 Q307 F-6 Q308 F-7 Q309 F-6 Q310 F-7 Q311 F-6 Q351 D-3 Q352 E-3 Q353 D-3 Q354 E-3 Q355 E-3 Q356 E-4 Q357 F-3 Q358 F-3 Q359 F-3 Q360 F-3 Q361 F-3 Q401 D-5 Q402 E-5 Q403 D-4 Q404 E-4 Q405 E-5 Q406 E-5 Q407 F-5 Q408 F-5 Q409 F-5 Q410 F-5 Q411 F-5 Q451 D-1 Q452 E-1 Q453 D-1 Q454 D-1 Q455 E-2 Q456 E-2 Q457 F-1 Q458 F-2 Q459 F-1 Q460 F-2 Q461 F-1 Q501 H-3 Q502 I-3 Q503 H-3 Q504 I-3 Q505 H-3 Q506 I-3 Q507 H-4 Q508 I-4 Q509 H-1 Q510 I-1 Q512 H-1 Q513 I-1 Q514 H-1 Q515 I-2 Q516 H-2 Q517 I-2 Q518 H-2 Q519 I-2 Q520 H-2 Q521 I-3 Q601 H-10 Q602 H-10 Q603 G-10 Q604 H-9 Q605 H-9 Q606 G-9 Q607 H-10 Q608 H-9 Q609 H-10 Q610 H-9 Ref. No. Location Ref. No. Location EYEBALL board CONTROL board SUB VOLUME board MUT board VOL LED board MASTER VOLUME board MAIN board AC board POWER board LED board AC SW board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-P9000ES – 9 – – 10 – 4-2. PRINTED WIRING BOARDS – MAIN Board/SUB VOLUME Board/MASTER VOLUME Board – • See page 8 for Circuit Boards Location. (Page 10) (Page 10) (Page 10) (Page 9) (Page 9) (Page 9) (Page 9) (Page 15) (Page 19) (Page 20) (Page 15) (Page 15) (Page 16) (Page 10) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-P9000ES – 11 – – 12 – 4-3. SCHEMATIC DIAGRAM – MAIN Board (1/2)/SUB VOLUME Board/MASTER VOLUME Board – (Page 17) (Page 21) (Page 18) (Page 21) (Page 17) (Page 13) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-P9000ES – 13 – – 14 – 4-4. SCHEMATIC DIAGRAM – MAIN Board (2/2) – (Page 17) (Page 12) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-P9000ES – 15 – – 16 – 4-5. PRINTED WIRING BOARDS – PANEL Section – • See page 8 for Circuit Boards Location. • Semiconductor Location Ref. No. Location D801 C-3 D802 C-2 D803 A-2 D804 B-2 D805 B-1 D806 B-1 D807 B-2 D808 B-2 IC801 B-3 IC802 A-4 IC803 A-1 IC805 C-3 Q801 C-2 Q802 A-2 Q803 C-3 Q804 C-4 Q805 C-4 Q806 C-4 Q807 C-4 Q808 C-4 Q809 C-4 (Page 9) (Page 10) (Page 16) (Page 20) (Page 16) (Page 16) (Page 9) (Page 9) (Page 15) (Page 15) (Page 15) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-P9000ES – 17 – – 18 – 4-6. SCHEMATIC DIAGRAM – PANEL Section – • See page 22 for Waveform. • See page 22 for IC Block Diagram. (Page 11) (Page 14) (Page 11) (Page 21) (Page 11) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-P9000ES 4-7. PRINTED WIRING BOARDS – POWER Section – • See page 8 for Circuit Boards Location. – 19 – – 20 – (Page 20) (Page 10) (Page 15) (Page 9) (Page 19) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 21 – 4-8. SCHEMATIC DIAGRAM – POWER Section – TA-P9000ES The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. (Page 11) (Page 11) (Page 17) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 22 – • Waveform – CONTROL Board – 1 IC801 @º (X-OUT) • IC Block Diagram – CONTROL Board – IC803 BA6208 1 2 3 4 5 6 7 8 9 NC OUTPUT 2 Vcc GND NC INPUT 2 INPUT 1 NC MOTOR DRIVE MOTOR DRIVE REG SWITCH SWITCH OUTPUT1 3.8 Vp-p 8 MHz www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 23 – 4-9. IC PIN FUNCTION DESCRIPTION • CONTROL BOARD IC801 TMP87C846N-4D22 (SYSTEM CONTROLLER) Pin No. Pin Name I/O Description 1 C6DBUP O Relay drive signal output for the +6 dB gain control (for CENTER input signal) “H”: +6 dB on 2 C12DBUP O Relay drive signal output for the +12 dB gain control (for CENTER input signal) “H”: +12 dB on 3 R6DBUP O Relay drive signal output for the +6 dB gain control (for REAR input signal) “H”: +6 dB on 4 R12DBUP O Relay drive signal output for the +12 dB gain control (for REAR input signal) “H”: +12 dB on 5 MAINRY O Relay drive signal output for the power on/off control “L”: standby mode, “H”: power on 6 OUTDRY O Relay drive signal output for the INPUT 1 or 2 signal “L”: INPUT 2, “H”: INPUT 1 7 OUTCRY O Relay drive signal output for the output protect “L”: protect, “H”: releasing of protect 8 OUTBRY O Relay drive signal output for the BYPASS 2ch input signal “H”: BYPASS 2ch on 9 OUTARY O Relay drive signal output for the BYPASS 5.1ch input signal “H”: BYPASS 5.1ch on 10 STANDBY LED O LED drive signal output of the STANDBY LED (D809) “L”: LED on 11 INPUT-1 LED O LED drive signal output of the input 1 LED (D810) “L”: LED on 12 INPUT-2 LED O LED drive signal output of the input 2 LED (D811) “L”: LED on 13 BP-5.1CH LED O LED drive signal output of the BYPASS 5.1ch input LED (D812) “L”: LED on 14 BP-2CH LED O LED drive signal output of the BYPASS 2ch input LED (D813) “L”: LED on 15 MUTE LED O LED drive signal output of the MUTING LED (LED on S802) “L”: LED on 16 VOL LED O LED drive signal output of the master volume LED (D815) “L”: LED on 17 TEST I Test input terminal (fixed at “L”) 18 RESET I System reset signal input from the reset signal generator (IC805) “L”: reset For several hundreds msec. after the power supply rises, “L” is input, then it changes to “H” 19 XIN I Main system clock input terminal (8 MHz) 20 XOUT O Main system clock output terminal (8 MHz) 21 VSS — Ground terminal 22 VAREF I Reference voltage (+5V) input terminal 23 SW4 I INPUT SELECTOR switch (S801) input terminal “H”: input 1 24 SW3 I INPUT SELECTOR switch (S801) input terminal “H”: input 2 25 SW2 I INPUT SELECTOR switch (S801) input terminal “H”: BYPASS 5.1ch input 26 SW1 I INPUT SELECTOR switch (S801) input terminal “H”: BYPASS 2ch input 27 MUTE I MUTING switch (S802) input terminal “L” is input when key pressing 28 W. GAIN I WOOFER LEVEL up switch (S805) input terminal “L” is input when key pressing 29 R. GAIN I REAR L/R LEVEL up switch (S804) input terminal “L” is input when key pressing 30 C. GAIN I CENTER LEVEL up switch (S803) input terminal “L” is input when key pressing 31 W12DBUP O Relay drive signal output for the +12 dB gain control (for WOOFER input signal) “H”: +12 dB on 32 W6DBUP O Relay drive signal output for the +6 dB gain control (for WOOFER input signal) “H”: +6 dB on 33 A-1 IN I Sircs remote control signal input for the S-LINK control A1 34 A-1 OUT O Sircs remote control signal output for the S-LINK control A1 35 — I Not used (fixed at “L”) 36 SIRCS I Remote control signal input from the remote control receiver (IC804) 37 VOL+ O Motor drive signal output to the volume motor drive (IC803) (volume up direction) 38 VOL– O Motor drive signal output to the volume motor drive (IC803) (volume down direction) 39 STOP IN I Trigger input terminal 40 RCL O Serial clock signal output to the EEPROM (IC802) 41 RDT I/O Two-way data bus with the EEPROM (IC802) 42 VDD — Power supply terminal (+5V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 24 – (1) CASE SECTION SECTION 5 EXPLODED VIEWS Les composants identifiés par une marque ! sont critiquens pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference num- ber in the exploded views are not supplied. • Accessories and packing materials are given in the last of the electrical parts list. NOTE: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑ ↑ Parts Color Cabinet's Color Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 9 8 8 10 9 2 1 3 7 6 5 12 11 4 1 3 8 not supplied not supplied not supplied Chassis section Front panel section not supplied 2 1 X-4950-540-1 FOOT ASSY 2 4-972-889-01 CUSHION 3 7-685-885-09 SCREW +BVTT 4X16 (S) 4 X-4950-227-1 BUTTON ASSY, POWER (GOLD) 4 X-4950-228-1 BUTTON ASSY, POWER (BLACK) 5 4-211-468-01 KNOB (29-S) (GOLD) 5 4-211-468-11 KNOB (29-S) (BLACK) 6 4-218-473-01 KNOB (R17) (GOLD) 6 4-218-473-11 KNOB (R17) (BLACK) 7 4-211-436-01 KNOB (VOL) (GOLD) 7 4-211-436-11 KNOB (VOL) (BLACK) 8 4-974-510-11 SCREW (+BV 3X8 CU) 9 4-976-827-01 SCREW, FLAT HEAD (FOR BLACK) 9 4-976-827-11 SCREW, FLAT HEAD (FOR GOLD) 10 4-218-469-01 CASE (410735E) (GOLD) 10 4-218-469-01 CASE (410735E) (BLACK) 11 4-219-622-01 WASHER (BLIND) 12 4-211-466-01 SHEET (A), LIGHT INTERCEPTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 25 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark (2) FRONT PANEL SECTION 53 52 54 55 56 57 54 51 54 53 62 58 61 59 60 54 59 US. Canadian 51 4-218-470-01 PANEL, FRONT (GOLD) 51 4-218-470-11 PANEL, FRONT (BLACK) 52 4-942-568-41 EMBLEM (NO.5), SONY (for BLACK) 53 4-218-464-01 PANEL, SIDE (GOLD) 53 4-218-464-11 PANEL, SIDE (BLACK) 54 4-211-094-01 INDICATOR (6) 55 4-921-415-04 ESCUTCHEON, POWER KNOB (BLACK) 55 4-921-415-13 ESCUTCHEON, POWER KNOB (GOLD) 56 4-975-105-01 WINDOW, RAY CATCHER (BLACK) 56 4-975-105-31 WINDOW, RAY CATCHER (GOLD) 57 4-219-621-21 PLATE (P), LIGHT INTERCEPTION 58 4-211-465-11 ESCUTCHEON (LED) (GOLD) 58 4-211-465-21 ESCUTCHEON (LED) (BLACK) 59 4-211-455-01 BUTTON (LED) 60 4-219-621-01 PLATE (P), LIGHT INTERCEPTION 61 4-211-465-01 ESCUTCHEON (LED) 62 4-219-621-11 PLATE (P), LIGHT INTERCEPTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 26 – (3) CHASSIS SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 101 1-673-656-11 VOL LED BOARD 102 4-974-510-11 SCREW (+BV 3X8 CU) 103 1-673-062-11 LED BOARD 104 1-673-061-11 EYEBALL BOARD 105 1-673-704-11 AC SW BOARD 106 A-4419-502-A CONTROL BOARD, COMPLETE 107 1-673-063-11 MUT BOARD 108 1-673-059-11 POWER BOARD 109 A-4419-510-A AC BOARD, COMPLETE (US, Canadian) 109 A-4419-511-A AC BOARD, COMPLETE (AEP) 110 A-4419-500-A MAIN BOARD, COMPLETE * 111 4-923-873-01 BRACKET, CORD STOPPER 112 2-352-626-01 BUSHING, CORD 113 4-218-471-11 PANEL, BACK (US, Canadian) 113 4-218-471-21 PANEL, BACK (AEP) 114 1-673-057-11 MASTER VOLUME BOARD 115 1-673-058-11 SUB VOLUME BOARD 116 7-685-881-09 SCREW +BVTT 4X8 (S) !CNJ1 1-559-479-11 CORD, POWER (US, Canadian) !CNJ1 1-575-953-11 CORD, POWER (AEP) !T2 1-433-651-11 TRANSFORMER, POWER (US, Canadian) !T2 1-433-652-11 TRANSFORMER, POWER (AEP) The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. 104 102 103 102 102 102 102 101 102 102 105 107 105 106 114 supplied with S801 supplied with RV101, 103 - 106 not supplied supplied with RV107 not supplied 102 102 102 not supplied not supplied not supplied not supplied not supplied not supplied 102 113 102 112 110 102 102 109 116 not supplied not supplied not supplied 116 102 108 T2 US, Canadian AEP CNJ1 CNJ1 111 102 102 102 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 27 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark SECTION 6 ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the parts list may be different from the parts speci- fied in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when order- ing these items. • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. . • CAPACITORS uF: µF • COILS uH: µH Les composants identifiés par une marque ! sont critiquens pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. A-4419-510-A AC BOARD, COMPLETE (US, Canadian) A-4419-511-A AC BOARD, COMPLETE (AEP) ******************* 1-533-293-11 FUSE HOLDER < CAPACITOR > !C1 1-113-924-11 CERAMIC 0.0047uF 20% 250V !C2 1-113-924-11 CERAMIC 0.0047uF 20% 250V C701 1-137-393-11 FILM 0.01uF 5% 100V C702 1-126-948-11 ELECT 100uF 20% 35V C704 1-126-960-11 ELECT 1uF 20% 50V < CONNECTOR > CN1 1-564-321-00 PIN, CONNECTOR 2P * CN2 1-564-321-21 PIN, CONNECTOR 2P CN3 1-580-629-11 PIN, CONNECTOR 2P CN122 1-691-765-31 PLUG (MICRO CONNECTOR) 3P CN130 1-691-766-21 PLUG (MICRO CONNECTOR) 4P < DIODE > D703 8-719-801-78 DIODE 1SS184 D704 8-719-801-78 DIODE 1SS184 D705 8-719-200-82 DIODE 11ES2 D706 8-719-200-82 DIODE 11ES2 D707 8-719-200-82 DIODE 11ES2 D708 8-719-200-82 DIODE 11ES2 D710 8-719-200-82 DIODE 11ES2 < FUSE > !F1 1-532-279-00 FUSE, TIME-LAG (5A/250V) (AEP) !F1 1-533-417-11 FUSE GLASS TUBE (1.25A/125V) (US, Canadian) < JACK > J701 1-563-330-11 JACK (S-LINK) < TRANSISTOR > Q701 8-729-281-54 TRANSISTOR 2SC1815-BL < RESISTOR > R701 1-216-065-00 RES, CHIP 4.7K 5% 1/10W R702 1-216-073-00 METAL CHIP 10K 5% 1/10W R703 1-216-073-00 METAL CHIP 10K 5% 1/10W R704 1-216-073-00 METAL CHIP 10K 5% 1/10W < RELAY > !RY1 1-755-018-11 RELAY < TRANSFORMER > !T1 1-433-735-11 TRANSFORMER, POWER (AEP) !T1 1-433-736-11 TRANSFORMER, POWER (US, Canadian) ************************************************************ 1-673-704-11 AC SW BOARD ************ < CONNECTOR > CN4 1-580-629-11 PIN, CONNECTOR 2P < SWITCH > !S1 1-572-267-21 SWITCH, PUSH (AC POWER) (1 KEY) (U) ************************************************************ A-4419-502-A CONTROL BOARD, COMPLETE ************************ < CAPACITOR > C801 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C802 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C803 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C804 1-126-926-11 ELECT 1000uF 20% 10V C805 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C806 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C807 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C808 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V < CONNECTOR > * CN105 1-568-951-11 PIN, CONNECTOR 2P CN112 1-691-765-11 PLUG (MICRO CONNECTOR) 3P CN118 1-506-469-11 PIN, CONNECTOR 4P CN120 1-691-765-21 PLUG (MICRO CONNECTOR) 3P CN121 1-691-765-31 PLUG (MICRO CONNECTOR) 3P CN123 1-691-766-11 PLUG (MICRO CONNECTOR) 4P * CN125 1-568-955-11 PIN, CONNECTOR 6P CN127 1-506-469-11 PIN, CONNECTOR 4P CN133 1-506-468-11 PIN, CONNECTOR 3P CN135 1-568-955-11 PIN, CONNECTOR 6P AC AC SW CONTROL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 28 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark CONTROL EYEBALL LED MAIN * CN137 1-568-955-11 PIN, CONNECTOR 6P < DIODE > D801 8-719-025-33 DIODE 02CZ6.2-TE85L D802 8-719-801-78 DIODE 1SS184 D803 8-719-820-05 DIODE 1SS181 D804 8-719-820-05 DIODE 1SS181 D805 8-719-820-05 DIODE 1SS181 D806 8-719-820-05 DIODE 1SS181 D807 8-719-801-78 DIODE 1SS184 D808 8-719-801-78 DIODE 1SS184 < IC > IC801 8-759-590-53 IC TMP87C846N-4D22 IC802 8-759-188-67 IC X24C01P-S IC803 8-759-962-08 IC BA6208 IC805 8-759-635-63 IC M51943BSL < TRANSISTOR > Q801 8-729-230-49 TRANSISTOR 2SC2712-YG Q802 8-729-424-12 TRANSISTOR UN2112 Q803 8-729-424-08 TRANSISTOR UN2111 Q804 8-729-421-22 TRANSISTOR UN2211 Q805 8-729-421-22 TRANSISTOR UN2211 Q806 8-729-421-22 TRANSISTOR UN2211 Q807 8-729-421-22 TRANSISTOR UN2211 Q808 8-729-421-22 TRANSISTOR UN2211 Q809 8-729-421-22 TRANSISTOR UN2211 < RESISTOR > R801 1-216-001-00 METAL CHIP 10 5% 1/10W R802 1-216-073-00 METAL CHIP 10K 5% 1/10W R803 1-216-065-00 RES, CHIP 4.7K 5% 1/10W R804 1-216-049-11 RES, CHIP 1K 5% 1/10W R805 1-216-073-00 METAL CHIP 10K 5% 1/10W R806 1-216-065-00 RES, CHIP 4.7K 5% 1/10W R807 1-216-065-00 RES, CHIP 4.7K 5% 1/10W R808 1-216-081-00 METAL CHIP 22K 5% 1/10W R809 1-216-065-00 RES, CHIP 4.7K 5% 1/10W R810 1-216-065-00 RES, CHIP 4.7K 5% 1/10W R811 1-216-065-00 RES, CHIP 4.7K 5% 1/10W R812 1-216-065-00 RES, CHIP 4.7K 5% 1/10W R813 1-216-081-00 METAL CHIP 22K 5% 1/10W R814 1-216-081-00 METAL CHIP 22K 5% 1/10W R815 1-216-081-00 METAL CHIP 22K 5% 1/10W R816 1-216-081-00 METAL CHIP 22K 5% 1/10W R817 1-216-065-00 RES, CHIP 4.7K 5% 1/10W R818 1-216-073-00 METAL CHIP 10K 5% 1/10W R819 1-216-049-11 RES, CHIP 1K 5% 1/10W R820 1-216-049-11 RES, CHIP 1K 5% 1/10W R821 1-216-049-11 RES, CHIP 1K 5% 1/10W R822 1-216-049-11 RES, CHIP 1K 5% 1/10W R823 1-216-049-11 RES, CHIP 1K 5% 1/10W R824 1-216-049-11 RES, CHIP 1K 5% 1/10W R825 1-216-049-11 RES, CHIP 1K 5% 1/10W R826 1-216-049-11 RES, CHIP 1K 5% 1/10W R827 1-216-049-11 RES, CHIP 1K 5% 1/10W R832 1-216-065-00 RES, CHIP 4.7K 5% 1/10W R833 1-216-065-00 RES, CHIP 4.7K 5% 1/10W R834 1-216-065-00 RES, CHIP 4.7K 5% 1/10W R838 1-216-049-11 RES, CHIP 1K 5% 1/10W R839 1-216-049-11 RES, CHIP 1K 5% 1/10W < SWITCH > S801 1-572-095-21 SWITCH, ROTARY (INPUT SELECTOR) < VIBRATOR > X801 1-579-952-11 VIBRATOR, CERAMIC (8MHz) ************************************************************ 1-673-061-11 EYEBALL BOARD ************** < CAPACITOR > C809 1-126-382-11 ELECT 100uF 20% 10V < CONNECTOR > CN119 1-691-765-21 PLUG (MICRO CONNECTOR) 3P < IC > IC804 8-759-459-83 IC NJL55H400A (REMOTE CONTROL RECEIVER) ************************************************************ 1-673-062-11 LED BOARD ********** < CONNECTOR > * CN126 1-568-955-11 PIN, CONNECTOR 6P < LED > D809 8-719-046-46 LED SEL5221S-TH8F (STANDBY) D810 8-719-046-38 LED SEL5821A-TH8F (1) D811 8-719-046-38 LED SEL5821A-TH8F (2) D812 8-719-046-38 LED SEL5821A-TH8F (BYPASS 5.1ch) D813 8-719-046-38 LED SEL5821A-TH8F (BYPASS 2ch) < RESISTOR > R829 1-216-037-00 METAL CHIP 330 5% 1/10W R830 1-216-037-00 METAL CHIP 330 5% 1/10W ************************************************************ A-4419-500-A MAIN BOARD, COMPLETE ********************* * 4-880-403-11 HEAT SINK < BUS BAR > * BB1 1-560-242-41 BUS BAR 11P * BB2 1-560-242-41 BUS BAR 11P * BB3 1-560-242-41 BUS BAR 11P < CAPACITOR > C201 1-136-808-11 FILM 100PF 5% 100V C202 1-136-810-11 FILM 220PF 5% 100V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 29 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C203 1-125-842-11 FILM 4PF 10% 50V C204 1-119-830-11 ELECT 330uF 20% 25V C205 1-119-830-11 ELECT 330uF 20% 25V C206 1-136-810-11 FILM 220PF 5% 100V C207 1-119-830-11 ELECT 330uF 20% 25V C208 1-119-830-11 ELECT 330uF 20% 25V C211 1-119-836-21 ELECT 47uF 20% 63V C251 1-136-808-11 FILM 100PF 5% 100V C252 1-136-810-11 FILM 220PF 5% 100V C253 1-125-842-11 FILM 4PF 10% 50V C254 1-119-830-11 ELECT 330uF 20% 25V C255 1-119-830-11 ELECT 330uF 20% 25V C256 1-136-810-11 FILM 220PF 5% 100V C257 1-119-830-11 ELECT 330uF 20% 25V C258 1-119-830-11 ELECT 330uF 20% 25V C261 1-119-836-21 ELECT 47uF 20% 63V C301 1-136-808-11 FILM 100PF 5% 100V C302 1-136-810-11 FILM 220PF 5% 100V C303 1-125-842-11 FILM 4PF 10% 50V C304 1-119-830-11 ELECT 330uF 20% 25V C305 1-119-830-11 ELECT 330uF 20% 25V C306 1-136-810-11 FILM 220PF 5% 100V C307 1-119-830-11 ELECT 330uF 20% 25V C308 1-119-830-11 ELECT 330uF 20% 25V C309 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C310 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C311 1-119-836-21 ELECT 47uF 20% 63V C351 1-136-808-11 FILM 100PF 5% 100V C352 1-136-810-11 FILM 220PF 5% 100V C353 1-125-842-11 FILM 4PF 10% 50V C354 1-119-830-11 ELECT 330uF 20% 25V C355 1-119-830-11 ELECT 330uF 20% 25V C356 1-136-810-11 FILM 220PF 5% 100V C357 1-119-830-11 ELECT 330uF 20% 25V C358 1-119-830-11 ELECT 330uF 20% 25V C361 1-119-836-21 ELECT 47uF 20% 63V C401 1-136-808-11 FILM 100PF 5% 100V C402 1-136-810-11 FILM 220PF 5% 100V C403 1-125-842-11 FILM 4PF 10% 50V C404 1-119-830-11 ELECT 330uF 20% 25V C405 1-119-830-11 ELECT 330uF 20% 25V C406 1-136-810-11 FILM 220PF 5% 100V C407 1-119-830-11 ELECT 330uF 20% 25V C408 1-119-830-11 ELECT 330uF 20% 25V C409 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C410 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C411 1-119-836-21 ELECT 47uF 20% 63V C451 1-136-808-11 FILM 100PF 5% 100V C452 1-136-810-11 FILM 220PF 5% 100V C453 1-125-842-11 FILM 4PF 10% 50V C454 1-119-830-11 ELECT 330uF 20% 25V C455 1-119-830-11 ELECT 330uF 20% 25V C456 1-136-810-11 FILM 220PF 5% 100V C457 1-119-830-11 ELECT 330uF 20% 25V C458 1-119-830-11 ELECT 330uF 20% 25V C459 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C460 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C461 1-119-836-21 ELECT 47uF 20% 63V C501 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C502 1-106-343-00 MYLAR 1000PF 5% 200V C503 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C504 1-106-343-00 MYLAR 1000PF 5% 200V C505 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C506 1-106-343-00 MYLAR 1000PF 5% 200V C507 1-106-343-00 MYLAR 1000PF 5% 200V C508 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C509 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C510 1-126-960-11 ELECT 1uF 20% 50V C511 1-126-960-11 ELECT 1uF 20% 50V C512 1-126-960-11 ELECT 1uF 20% 50V C513 1-126-960-11 ELECT 1uF 20% 50V C514 1-126-960-11 ELECT 1uF 20% 50V C515 1-126-960-11 ELECT 1uF 20% 50V C604 1-119-830-11 ELECT 330uF 20% 25V C606 1-128-800-11 ELECT 3600uF 20% 50V C607 1-119-830-11 ELECT 330uF 20% 25V C608 1-125-844-21 FILM 33PF 10% 50V C609 1-128-800-11 ELECT 3600uF 20% 50V C611 1-119-814-21 ELECT 1000uF 20% 35V C612 1-130-495-00 MYLAR 0.1uF 5% 50V C613 1-119-793-11 ELECT 1000uF 20% 16V C614 1-119-815-21 ELECT 2200uF 20% 35V C615 1-125-844-21 FILM 33PF 10% 50V C616 1-130-495-00 MYLAR 0.1uF 5% 50V C617 1-130-483-00 MYLAR 0.01uF 5% 50V C618 1-130-483-00 MYLAR 0.01uF 5% 50V C619 1-130-483-00 MYLAR 0.01uF 5% 50V C620 1-130-483-00 MYLAR 0.01uF 5% 50V < CONNECTOR > CN101 1-564-510-11 PLUG (MICRO CONNECTOR) 6P CN103 1-691-768-41 PLUG (MICRO CONNECTOR) 6P CN114 1-691-766-11 PLUG (MICRO CONNECTOR) 4P CN116 1-691-766-31 PLUG (MICRO CONNECTOR) 4P CN117 1-506-469-11 PIN, CONNECTOR 4P CN124 1-691-766-11 PLUG (MICRO CONNECTOR) 4P CN129 1-691-766-21 PLUG (MICRO CONNECTOR) 4P * CN138 1-568-955-11 PIN, CONNECTOR 6P * CN139 1-564-915-11 PIN, CONNECTOR 7P CN142 1-691-766-41 PLUG (MICRO CONNECTOR) 4P < DIODE > D201 8-719-025-25 DIODE 02CZ3.6-TE85L D203 8-719-800-76 DIODE 1SS226 D204 8-719-800-76 DIODE 1SS226 D205 8-719-800-76 DIODE 1SS226 D206 8-719-800-76 DIODE 1SS226 D251 8-719-025-25 DIODE 02CZ3.6-TE85L D253 8-719-800-76 DIODE 1SS226 D254 8-719-800-76 DIODE 1SS226 D255 8-719-800-76 DIODE 1SS226 D256 8-719-800-76 DIODE 1SS226 D301 8-719-025-25 DIODE 02CZ3.6-TE85L D303 8-719-800-76 DIODE 1SS226 D304 8-719-800-76 DIODE 1SS226 D305 8-719-800-76 DIODE 1SS226 MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 30 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark D306 8-719-800-76 DIODE 1SS226 D307 8-719-801-78 DIODE 1SS184 D308 8-719-801-78 DIODE 1SS184 D351 8-719-025-25 DIODE 02CZ3.6-TE85L D353 8-719-800-76 DIODE 1SS226 D354 8-719-800-76 DIODE 1SS226 D355 8-719-800-76 DIODE 1SS226 D356 8-719-800-76 DIODE 1SS226 D401 8-719-025-25 DIODE 02CZ3.6-TE85L D403 8-719-800-76 DIODE 1SS226 D404 8-719-800-76 DIODE 1SS226 D405 8-719-800-76 DIODE 1SS226 D406 8-719-800-76 DIODE 1SS226 D407 8-719-801-78 DIODE 1SS184 D408 8-719-801-78 DIODE 1SS184 D451 8-719-025-25 DIODE 02CZ3.6-TE85L D453 8-719-800-76 DIODE 1SS226 D454 8-719-800-76 DIODE 1SS226 D455 8-719-800-76 DIODE 1SS226 D456 8-719-800-76 DIODE 1SS226 D457 8-719-801-78 DIODE 1SS184 D458 8-719-801-78 DIODE 1SS184 D501 8-719-801-78 DIODE 1SS184 D502 8-719-801-78 DIODE 1SS184 D503 8-719-801-78 DIODE 1SS184 D504 8-719-801-78 DIODE 1SS184 D505 8-719-801-78 DIODE 1SS184 D603 8-719-025-34 DIODE 02CZ6.8-TE85L D604 8-719-025-34 DIODE 02CZ6.8-TE85L D605 8-719-200-82 DIODE 11ES2 < IC > IC601 8-759-605-03 IC M5F78M24 IC602 8-759-604-35 IC M5F78M05L < JACK > J101 1-785-489-11 JACK, PIN 6P (BYPASS 5.1ch: FRONT, REAR, CENTER, WOOFER) J102 1-785-868-21 JACK, PIN 2P (BYPASS 2ch) J103 1-785-489-11 JACK, PIN 6P (INPUT 2: FRONT, REAR, CENTER, WOOFER) J104 1-785-489-11 JACK, PIN 6P (INPUT 1: FRONT, REAR, CENTER, WOOFER) J105 1-784-934-11 JACK, PIN 4P (PRE OUT: FRONT, REAR) J106 1-785-286-11 JACK, PIN 4P (PRE OUT: CENTER, WOOFER) < TRANSISTOR > Q201 8-729-023-11 FET 2SK2145GTE85L Q202 8-729-230-49 TRANSISTOR 2SC2712-YG Q203 8-729-216-22 TRANSISTOR 2SA1162-G Q204 8-729-216-22 TRANSISTOR 2SA1162-G Q205 8-729-216-22 TRANSISTOR 2SA1162-G Q206 8-729-216-22 TRANSISTOR 2SA1162-G Q207 8-729-230-49 TRANSISTOR 2SC2712-YG Q208 8-729-230-49 TRANSISTOR 2SC2712-YG Q209 8-729-216-22 TRANSISTOR 2SA1162-G Q210 8-729-018-60 TRANSISTOR 2SD2012-LC Q211 8-729-018-59 TRANSISTOR 2SB1375-LC Q251 8-729-023-11 FET 2SK2145GTE85L Q252 8-729-230-49 TRANSISTOR 2SC2712-YG Q253 8-729-216-22 TRANSISTOR 2SA1162-G Q254 8-729-216-22 TRANSISTOR 2SA1162-G Q255 8-729-216-22 TRANSISTOR 2SA1162-G Q256 8-729-216-22 TRANSISTOR 2SA1162-G Q257 8-729-230-49 TRANSISTOR 2SC2712-YG Q258 8-729-230-49 TRANSISTOR 2SC2712-YG Q259 8-729-216-22 TRANSISTOR 2SA1162-G Q260 8-729-018-60 TRANSISTOR 2SD2012-LC Q261 8-729-018-59 FET 2SB1375-LC Q301 8-729-023-11 TRANSISTOR 2SK2145GTE85L Q302 8-729-230-49 TRANSISTOR 2SC2712-YG Q303 8-729-216-22 TRANSISTOR 2SA1162-G Q304 8-729-216-22 TRANSISTOR 2SA1162-G Q305 8-729-216-22 TRANSISTOR 2SA1162-G Q306 8-729-216-22 TRANSISTOR 2SA1162-G Q307 8-729-230-49 TRANSISTOR 2SC2712-YG Q308 8-729-230-49 TRANSISTOR 2SC2712-YG Q309 8-729-216-22 TRANSISTOR 2SA1162-G Q310 8-729-018-60 TRANSISTOR 2SD2012-LC Q311 8-729-018-59 TRANSISTOR 2SB1375-LC Q351 8-729-023-11 FET 2SK2145GTE85L Q352 8-729-230-49 TRANSISTOR 2SC2712-YG Q353 8-729-216-22 TRANSISTOR 2SA1162-G Q354 8-729-216-22 TRANSISTOR 2SA1162-G Q355 8-729-216-22 TRANSISTOR 2SA1162-G Q356 8-729-216-22 TRANSISTOR 2SA1162-G Q357 8-729-230-49 TRANSISTOR 2SC2712-YG Q358 8-729-230-49 TRANSISTOR 2SC2712-YG Q359 8-729-216-22 TRANSISTOR 2SA1162-G Q360 8-729-018-60 TRANSISTOR 2SD2012-LC Q361 8-729-018-59 TRANSISTOR 2SB1375-LC Q401 8-729-023-11 FET 2SK2145GTE85L Q402 8-729-230-49 TRANSISTOR 2SC2712-YG Q403 8-729-216-22 TRANSISTOR 2SA1162-G Q404 8-729-216-22 TRANSISTOR 2SA1162-G Q405 8-729-216-22 TRANSISTOR 2SA1162-G Q406 8-729-216-22 TRANSISTOR 2SA1162-G Q407 8-729-230-49 TRANSISTOR 2SC2712-YG Q408 8-729-230-49 TRANSISTOR 2SC2712-YG Q409 8-729-216-22 TRANSISTOR 2SA1162-G Q410 8-729-018-60 TRANSISTOR 2SD2012-LC Q411 8-729-018-59 TRANSISTOR 2SB1375-LC Q451 8-729-023-11 FET 2SK2145GTE85L Q452 8-729-230-49 TRANSISTOR 2SC2712-YG Q453 8-729-216-22 TRANSISTOR 2SA1162-G Q454 8-729-216-22 TRANSISTOR 2SA1162-G Q455 8-729-216-22 TRANSISTOR 2SA1162-G Q456 8-729-216-22 TRANSISTOR 2SA1162-G Q457 8-729-230-49 TRANSISTOR 2SC2712-YG Q458 8-729-230-49 TRANSISTOR 2SC2712-YG Q459 8-729-216-22 TRANSISTOR 2SA1162-G Q460 8-729-018-60 TRANSISTOR 2SD2012-LC Q461 8-729-018-59 TRANSISTOR 2SB1375-LC Q501 8-729-216-22 TRANSISTOR 2SA1162-G Q502 8-729-421-22 TRANSISTOR UN2211 MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 31 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark Q503 8-729-216-22 TRANSISTOR 2SA1162-G Q504 8-729-421-22 TRANSISTOR UN2211 Q505 8-729-216-22 TRANSISTOR 2SA1162-G Q506 8-729-421-22 TRANSISTOR UN2211 Q507 8-729-216-22 TRANSISTOR 2SA1162-G Q508 8-729-421-22 TRANSISTOR UN2211 Q509 8-729-216-22 TRANSISTOR 2SA1162-G Q510 8-729-421-22 TRANSISTOR UN2211 Q512 8-729-216-22 TRANSISTOR 2SA1162-G Q513 8-729-421-22 TRANSISTOR UN2211 Q514 8-729-216-22 TRANSISTOR 2SA1162-G Q515 8-729-421-22 TRANSISTOR UN2211 Q516 8-729-216-22 TRANSISTOR 2SA1162-G Q517 8-729-421-22 TRANSISTOR UN2211 Q518 8-729-216-22 TRANSISTOR 2SA1162-G Q519 8-729-421-22 TRANSISTOR UN2211 Q520 8-729-216-22 TRANSISTOR 2SA1162-G Q521 8-729-421-22 TRANSISTOR UN2211 Q601 8-729-232-69 FET 2SK208GR3 Q602 8-729-230-49 TRANSISTOR 2SC2712-YG Q603 8-729-209-15 TRANSISTOR 2SD2012 Q604 8-729-232-69 FET 2SK208GR3 Q605 8-729-216-22 TRANSISTOR 2SA1162-G Q606 8-729-141-83 TRANSISTOR 2SB1094-LK Q607 8-729-230-49 TRANSISTOR 2SC2712-YG Q608 8-729-216-22 TRANSISTOR 2SA1162-G Q609 8-729-216-22 TRANSISTOR 2SA1162-G Q610 8-729-230-49 TRANSISTOR 2SC2712-YG < RESISTOR > R117 1-259-995-11 CARBON MELF 1K 2% 1/8W R120 1-259-995-11 CARBON MELF 1K 2% 1/8W R121 1-259-995-11 CARBON MELF 1K 2% 1/8W R123 1-259-995-11 CARBON MELF 1K 2% 1/8W R124 1-259-995-11 CARBON MELF 1K 2% 1/8W R127 1-259-995-11 CARBON MELF 1K 2% 1/8W R128 1-259-995-11 CARBON MELF 1K 2% 1/8W R131 1-259-995-11 CARBON MELF 1K 2% 1/8W R132 1-259-995-11 CARBON MELF 1K 2% 1/8W R135 1-259-995-11 CARBON MELF 1K 2% 1/8W R136 1-259-995-11 CARBON MELF 1K 2% 1/8W R139 1-259-995-11 CARBON MELF 1K 2% 1/8W R201 1-259-983-11 CARBON MELF 100 2% 1/8W R202 1-260-032-11 CARBON MELF 1M 2% 1/8W R203 1-259-992-11 CARBON MELF 560 2% 1/8W R204 1-259-999-11 CARBON MELF 2.2K 2% 1/8W R205 1-247-751-11 CARBON 820 5% 1/2W R206 1-259-989-11 CARBON MELF 330 2% 1/8W R207 1-259-983-11 CARBON MELF 100 2% 1/8W R208 1-259-983-11 CARBON MELF 100 2% 1/8W R209 1-260-010-11 CARBON MELF 15K 2% 1/8W R210 1-259-991-11 CARBON MELF 470 2% 1/8W R211 1-247-761-11 CARBON 5.6K 5% 1/2W R212 1-260-002-11 CARBON MELF 3.3K 2% 1/8W R213 1-260-010-11 CARBON MELF 15K 2% 1/8W R214 1-259-987-11 CARBON MELF 220 2% 1/8W R215 1-247-739-11 CARBON 100 5% 1/2W R216 1-259-983-11 CARBON MELF 100 2% 1/8W R217 1-259-980-11 CARBON MELF 56 2% 1/8W R218 1-259-980-11 CARBON MELF 56 2% 1/8W R219 1-249-415-11 CARBON 680 5% 1/4W R220 1-259-986-11 CARBON MELF 180 2% 1/8W R251 1-259-983-11 CARBON MELF 100 2% 1/8W R252 1-260-032-11 CARBON MELF 1M 2% 1/8W R253 1-259-992-11 CARBON MELF 560 2% 1/8W R254 1-259-999-11 CARBON MELF 2.2K 2% 1/8W R255 1-247-751-11 CARBON 820 5% 1/2W R256 1-259-989-11 CARBON MELF 330 2% 1/8W R257 1-259-983-11 CARBON MELF 100 2% 1/8W R258 1-259-983-11 CARBON MELF 100 2% 1/8W R259 1-260-010-11 CARBON MELF 15K 2% 1/8W R260 1-259-991-11 CARBON MELF 470 2% 1/8W R261 1-247-761-11 CARBON 5.6K 5% 1/2W R262 1-260-002-11 CARBON MELF 3.3K 2% 1/8W R263 1-260-010-11 CARBON MELF 15K 2% 1/8W R264 1-259-987-11 CARBON MELF 220 2% 1/8W R265 1-247-739-11 CARBON 100 5% 1/2W R266 1-259-983-11 CARBON MELF 100 2% 1/8W R267 1-259-980-11 CARBON MELF 56 2% 1/8W R268 1-259-980-11 CARBON MELF 56 2% 1/8W R269 1-249-415-11 CARBON 680 5% 1/4W R270 1-259-986-11 CARBON MELF 180 2% 1/8W R301 1-259-983-11 CARBON MELF 100 2% 1/8W R302 1-260-032-11 CARBON MELF 1M 2% 1/8W R303 1-259-992-11 CARBON MELF 560 2% 1/8W R304 1-259-999-11 CARBON MELF 2.2K 2% 1/8W R305 1-247-751-11 CARBON 820 5% 1/2W R306 1-259-989-11 CARBON MELF 330 2% 1/8W R307 1-259-983-11 CARBON MELF 100 2% 1/8W R308 1-259-983-11 CARBON MELF 100 2% 1/8W R309 1-260-010-11 CARBON MELF 15K 2% 1/8W R310 1-259-991-11 CARBON MELF 470 2% 1/8W R311 1-247-761-11 CARBON 5.6K 5% 1/2W R312 1-260-002-11 CARBON MELF 3.3K 2% 1/8W R313 1-260-010-11 CARBON MELF 15K 2% 1/8W R314 1-259-987-11 CARBON MELF 220 2% 1/8W R315 1-247-739-11 CARBON 100 5% 1/2W R316 1-259-983-11 CARBON MELF 100 2% 1/8W R317 1-259-980-11 CARBON MELF 56 2% 1/8W R318 1-259-980-11 CARBON MELF 56 2% 1/8W R319 1-249-415-11 CARBON 680 5% 1/4W R320 1-259-986-11 CARBON MELF 180 2% 1/8W R321 1-247-751-11 CARBON 820 5% 1/2W R322 1-249-658-11 CARBON 240 5% 1/2W R351 1-259-983-11 CARBON MELF 100 2% 1/8W R352 1-260-032-11 CARBON MELF 1M 2% 1/8W R353 1-259-992-11 CARBON MELF 560 2% 1/8W R354 1-259-999-11 CARBON MELF 2.2K 2% 1/8W R355 1-247-751-11 CARBON 820 5% 1/2W R356 1-259-989-11 CARBON MELF 330 2% 1/8W R357 1-259-983-11 CARBON MELF 100 2% 1/8W R358 1-259-983-11 CARBON MELF 100 2% 1/8W R359 1-260-010-11 CARBON MELF 15K 2% 1/8W R360 1-259-991-11 CARBON MELF 470 2% 1/8W R361 1-247-761-11 CARBON 5.6K 5% 1/2W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 32 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R362 1-260-002-11 CARBON MELF 3.3K 2% 1/8W R363 1-260-010-11 CARBON MELF 15K 2% 1/8W R364 1-259-987-11 CARBON MELF 220 2% 1/8W R365 1-247-739-11 CARBON 100 5% 1/2W R366 1-259-983-11 CARBON MELF 100 2% 1/8W R367 1-259-980-11 CARBON MELF 56 2% 1/8W R368 1-259-980-11 CARBON MELF 56 2% 1/8W R369 1-249-415-11 CARBON 680 5% 1/4W R370 1-259-986-11 CARBON MELF 180 2% 1/8W R371 1-247-751-11 CARBON 820 5% 1/2W R372 1-249-658-11 CARBON 240 5% 1/2W R401 1-259-983-11 CARBON MELF 100 2% 1/8W R402 1-260-032-11 CARBON MELF 1M 2% 1/8W R403 1-259-992-11 CARBON MELF 560 2% 1/8W R404 1-259-999-11 CARBON MELF 2.2K 2% 1/8W R405 1-247-751-11 CARBON 820 5% 1/2W R406 1-259-989-11 CARBON MELF 330 2% 1/8W R407 1-259-983-11 CARBON MELF 100 2% 1/8W R408 1-259-983-11 CARBON MELF 100 2% 1/8W R409 1-260-010-11 CARBON MELF 15K 2% 1/8W R410 1-259-991-11 CARBON MELF 470 2% 1/8W R411 1-247-761-11 CARBON 5.6K 5% 1/2W R412 1-260-002-11 CARBON MELF 3.3K 2% 1/8W R413 1-260-010-11 CARBON MELF 15K 2% 1/8W R414 1-259-987-11 CARBON MELF 220 2% 1/8W R415 1-247-739-11 CARBON 100 5% 1/2W R416 1-259-983-11 CARBON MELF 100 2% 1/8W R417 1-259-980-11 CARBON MELF 56 2% 1/8W R418 1-259-980-11 CARBON MELF 56 2% 1/8W R419 1-249-415-11 CARBON 680 5% 1/4W R420 1-259-986-11 CARBON MELF 180 2% 1/8W R421 1-247-751-11 CARBON 820 5% 1/2W R422 1-249-658-11 CARBON 240 5% 1/2W R451 1-259-983-11 CARBON MELF 100 2% 1/8W R452 1-260-032-11 CARBON MELF 1M 2% 1/8W R453 1-259-992-11 CARBON MELF 560 2% 1/8W R454 1-259-999-11 CARBON MELF 2.2K 2% 1/8W R455 1-247-751-11 CARBON 820 5% 1/2W R456 1-259-989-11 CARBON MELF 330 2% 1/8W R457 1-259-983-11 CARBON MELF 100 2% 1/8W R458 1-259-983-11 CARBON MELF 100 2% 1/8W R459 1-260-010-11 CARBON MELF 15K 2% 1/8W R460 1-259-991-11 CARBON MELF 470 2% 1/8W R461 1-247-761-11 CARBON 5.6K 5% 1/2W R462 1-260-002-11 CARBON MELF 3.3K 2% 1/8W R463 1-260-010-11 CARBON MELF 15K 2% 1/8W R464 1-259-987-11 CARBON MELF 220 2% 1/8W R465 1-247-739-11 CARBON 100 5% 1/2W R466 1-259-983-11 CARBON MELF 100 2% 1/8W R467 1-259-980-11 CARBON MELF 56 2% 1/8W R468 1-259-980-11 CARBON MELF 56 2% 1/8W R469 1-249-415-11 CARBON 680 5% 1/4W R470 1-259-986-11 CARBON MELF 180 2% 1/8W R471 1-247-751-11 CARBON 820 5% 1/2W R472 1-249-658-11 CARBON 240 5% 1/2W R501 1-216-013-00 METAL CHIP 33 5% 1/10W R502 1-216-079-00 METAL CHIP 18K 5% 1/10W R503 1-216-065-00 RES, CHIP 4.7K 5% 1/10W R504 1-216-025-00 RES, CHIP 100 5% 1/10W R505 1-216-079-00 METAL CHIP 18K 5% 1/10W R506 1-216-065-00 RES, CHIP 4.7K 5% 1/10W R507 1-216-001-00 METAL CHIP 10 5% 1/10W R508 1-216-079-00 METAL CHIP 18K 5% 1/10W R509 1-216-065-00 RES, CHIP 4.7K 5% 1/10W R510 1-216-065-00 RES, CHIP 4.7K 5% 1/10W R511 1-216-079-00 METAL CHIP 18K 5% 1/10W R512 1-216-013-00 METAL CHIP 33 5% 1/10W R513 1-216-025-00 RES, CHIP 100 5% 1/10W R514 1-216-079-00 METAL CHIP 18K 5% 1/10W R515 1-216-065-00 RES, CHIP 4.7K 5% 1/10W R516 1-216-025-00 RES, CHIP 100 5% 1/10W R517 1-216-079-00 METAL CHIP 18K 5% 1/10W R518 1-216-065-00 RES, CHIP 4.7K 5% 1/10W R519 1-216-017-00 RES, CHIP 47 5% 1/10W R520 1-216-079-00 METAL CHIP 18K 5% 1/10W R521 1-216-065-00 RES, CHIP 4.7K 5% 1/10W R522 1-216-017-00 RES, CHIP 47 5% 1/10W R523 1-216-079-00 METAL CHIP 18K 5% 1/10W R524 1-216-065-00 RES, CHIP 4.7K 5% 1/10W R525 1-216-025-00 RES, CHIP 100 5% 1/10W R526 1-216-079-00 METAL CHIP 18K 5% 1/10W R527 1-216-065-00 RES, CHIP 4.7K 5% 1/10W R528 1-216-025-00 RES, CHIP 100 5% 1/10W R529 1-216-079-00 METAL CHIP 18K 5% 1/10W R530 1-216-065-00 RES, CHIP 4.7K 5% 1/10W R607 1-259-987-11 CARBON MELF 220 2% 1/8W R608 1-259-992-11 CARBON MELF 560 2% 1/8W R609 1-259-996-11 CARBON MELF 1.2K 2% 1/8W R610 1-216-025-00 RES, CHIP 100 5% 1/10W R611 1-259-987-11 CARBON MELF 220 2% 1/8W R612 1-259-992-11 CARBON MELF 560 2% 1/8W R613 1-259-996-11 CARBON MELF 1.2K 2% 1/8W R614 1-216-025-00 RES, CHIP 100 5% 1/10W R615 1-259-983-11 CARBON MELF 100 2% 1/8W R616 1-259-983-11 CARBON MELF 100 2% 1/8W R617 1-259-997-11 CARBON MELF 1.5K 2% 1/8W R618 1-259-994-11 CARBON MELF 820 2% 1/8W R619 1-259-994-11 CARBON MELF 820 2% 1/8W R620 1-259-997-11 CARBON MELF 1.5K 2% 1/8W R621 1-260-017-11 CARBON MELF 56K 2% 1/8W R622 1-260-017-11 CARBON MELF 56K 2% 1/8W < RELAY > RY101 1-755-295-11 RELAY RY102 1-755-295-11 RELAY RY103 1-755-295-11 RELAY RY104 1-755-295-11 RELAY RY105 1-755-295-11 RELAY RY106 1-755-295-11 RELAY RY107 1-755-295-11 RELAY RY108 1-755-295-11 RELAY RY109 1-755-295-11 RELAY RY110 1-755-295-11 RELAY RY111 1-755-295-11 RELAY MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 33 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. RY112 1-755-295-11 RELAY RY113 1-755-295-11 RELAY RY301 1-755-295-11 RELAY RY302 1-755-295-11 RELAY RY351 1-755-295-11 RELAY RY352 1-755-295-11 RELAY RY401 1-755-295-11 RELAY RY402 1-755-295-11 RELAY RY451 1-755-295-11 RELAY RY452 1-755-295-11 RELAY ************************************************************ 1-673-057-11 MASTER VOLUME BOARD ********************* < CAPACITOR > C101 1-136-165-00 FILM 0.1uF 5% 50V < CONNECTOR > CN108 1-691-768-11 PLUG (MICRO CONNECTOR) 6P CN110 1-691-767-11 PLUG (MICRO CONNECTOR) 6P CN111 1-691-765-11 PLUG (MICRO CONNECTOR) 3P CN113 1-691-766-11 PLUG (MICRO CONNECTOR) 4P CN115 1-691-766-31 PLUG (MICRO CONNECTOR) 4P CN141 1-691-766-41 PLUG (MICRO CONNECTOR) 4P < VARIABLE RESISTOR > RV107 1-225-757-11 RES, VAR, CARBON (WITH MOTOR) 30X6 (MASTER VOLUME) ************************************************************ 1-673-063-11 MUT BOARD ********** < CONNECTOR > CN128 1-506-469-11 PIN, CONNECTOR 4P CN134 1-506-468-11 PIN, CONNECTOR 3P CN136 1-568-955-11 PIN, CONNECTOR 6P < LED > D819 8-719-313-50 LED SEL6810A-TH12 (+6dB) D820 8-719-313-50 LED SEL6810A-TH12 (+12dB) D821 8-719-313-50 LED SEL6810A-TH12 (+6dB) D822 8-719-313-50 LED SEL6810A-TH12 (+12dB) D823 8-719-313-50 LED SEL6810A-TH12 (+6dB) D824 8-719-313-50 LED SEL6810A-TH12 (+12dB) < RESISTOR > R828 1-216-033-00 METAL CHIP 220 5% 1/10W R835 1-216-037-00 METAL CHIP 330 5% 1/10W R836 1-216-037-00 METAL CHIP 330 5% 1/10W R837 1-216-037-00 METAL CHIP 330 5% 1/10W < SWITCH > S802 1-570-101-11 SWITCH, KEY BOARD (MUTING) S803 1-571-800-11 SWITCH, KEY BOARD (CENTER LEVEL) S804 1-571-800-11 SWITCH, KEY BOARD (REAR LEVEL L/R) S805 1-571-800-11 SWITCH, KEY BOARD (WOOFER LEVEL) ************************************************************ 1-673-059-11 POWER BOARD ************ < CAPACITOR > C602 1-128-799-11 ELECT 6800uF 20% 42V C603 1-128-799-11 ELECT 6800uF 20% 42V C610 1-119-815-21 ELECT 2200uF 20% 35V < CONNECTOR > * CN131 1-564-243-11 PIN, CONNECTOR 6P * CN140 1-564-915-11 PIN, CONNECTOR 7P < DIODE > D601 8-719-302-38 DIODE RBV-602-01 D602 8-719-510-53 DIODE D4SB60L < RESISTOR > !R603 1-219-173-51 FUSIBLE 4.7 5% 1/2W F !R604 1-219-173-51 FUSIBLE 4.7 5% 1/2W F !R605 1-219-173-51 FUSIBLE 4.7 5% 1/2W F ************************************************************ 1-673-058-11 SUB VOLUME BOARD ***************** < CONNECTOR > CN102 1-564-510-11 PLUG (MICRO CONNECTOR) 6P CN104 1-691-768-41 PLUG (MICRO CONNECTOR) 6P CN107 1-691-768-11 PLUG (MICRO CONNECTOR) 6P CN109 1-691-767-11 PLUG (MICRO CONNECTOR) 6P < VARIABLE RESISTOR > RV101 1-225-819-11 RES, VAR, CARBON 50K/50K (FRONT BALANCE) RV103 1-225-758-11 RES, VAR, CARBON 50K/50K (CENTER LEVEL) RV104 1-225-758-11 RES, VAR, CARBON 50K/50K (REAR L LEVEL) RV105 1-225-758-11 RES, VAR, CARBON 50K/50K (REAR R LEVEL) RV106 1-225-758-11 RES, VAR, CARBON 50K/50K (WOOFER LEVEL) ************************************************************ 1-673-656-11 VOL LED BOARD ************* < CONNECTOR > CN106 1-506-481-11 PIN, CONNECTOR 2P < LED > D815 8-719-313-45 LED SEL6810A-TH10 (MASTER VOLUME) < RESISTOR > R831 1-216-037-00 METAL CHIP 330 5% 1/10W ************************************************************ MAIN MASTER VOLUME MUT POWER SUB VOLUME VOL LED www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 34 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. TA-P9000ES Sony Corporation Home A&V Products Company 9-928-839-11 99C0564-1 Printed in Japan © 1999. 3 Published by Quality Assurance Dept. (Shinagawa) MISCELLANEOUS ************** !CNJ1 1-559-479-11 CORD, POWER (US, Canadian) !CNJ1 1-575-953-11 CORD, POWER (AEP) !T2 1-433-651-11 TRANSFORMER, POWER (US, Canadian) !T2 1-433-652-11 TRANSFORMER, POWER (AEP) ************************************************************ ACCESSORIES & PACKING MATERIALS ******************************* 1-418-243-11 REMOTE COMMANDER (RM-P9000) 1-590-925-31 CORD, CONNECTION (AUDIO) 1-783-106-11 CORD, CONNECTION (S-LINK) 3-866-165-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH) 3-866-165-21 MANUAL, INSTRUCTION (GERMAN, SPANISH, DUTCH, SWEDISH, ITALIAN, PORTUGUESE) (AEP) 4-981-643-01 COVER, BATTERY (FOR RM-P9000) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
