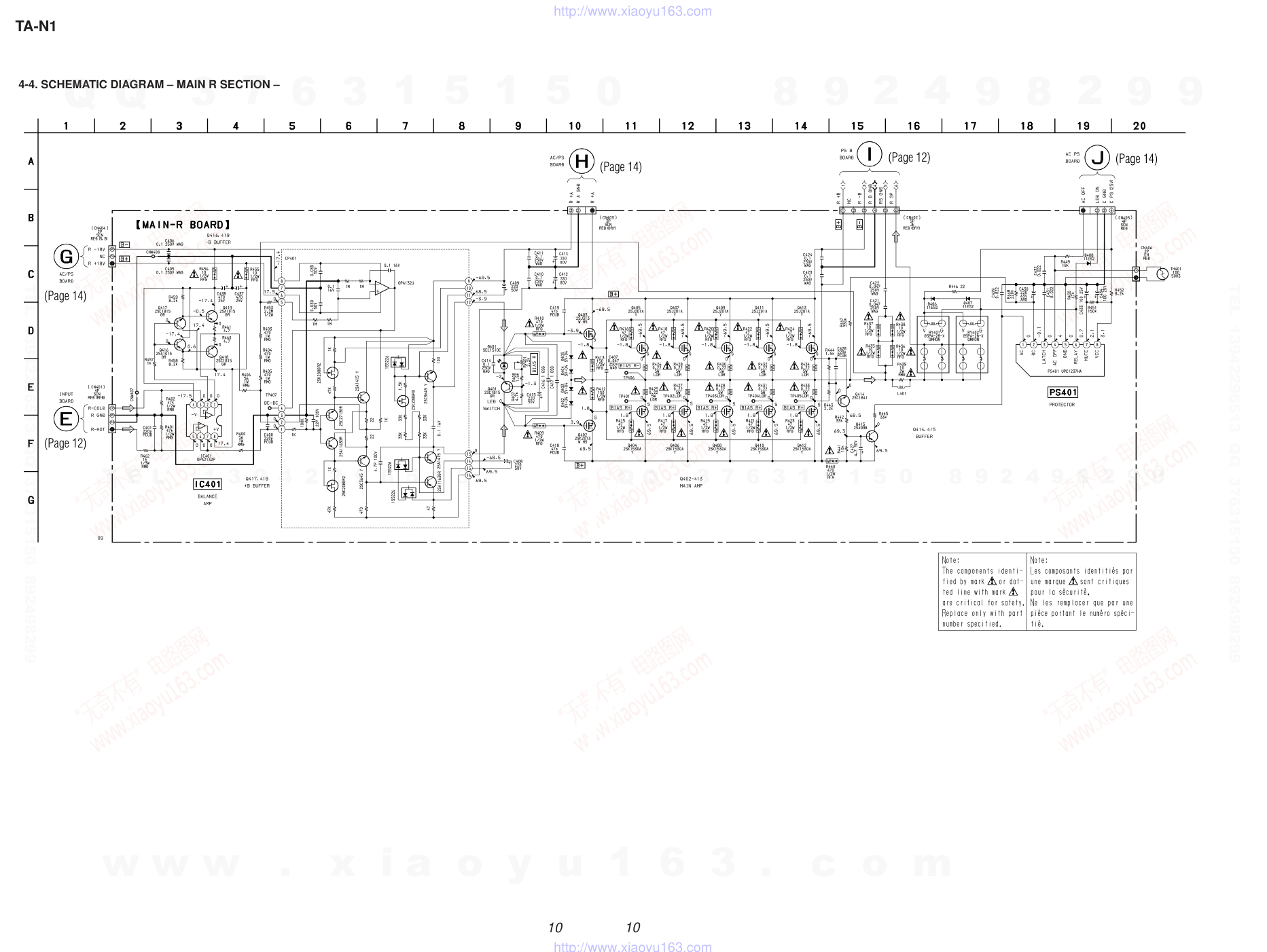

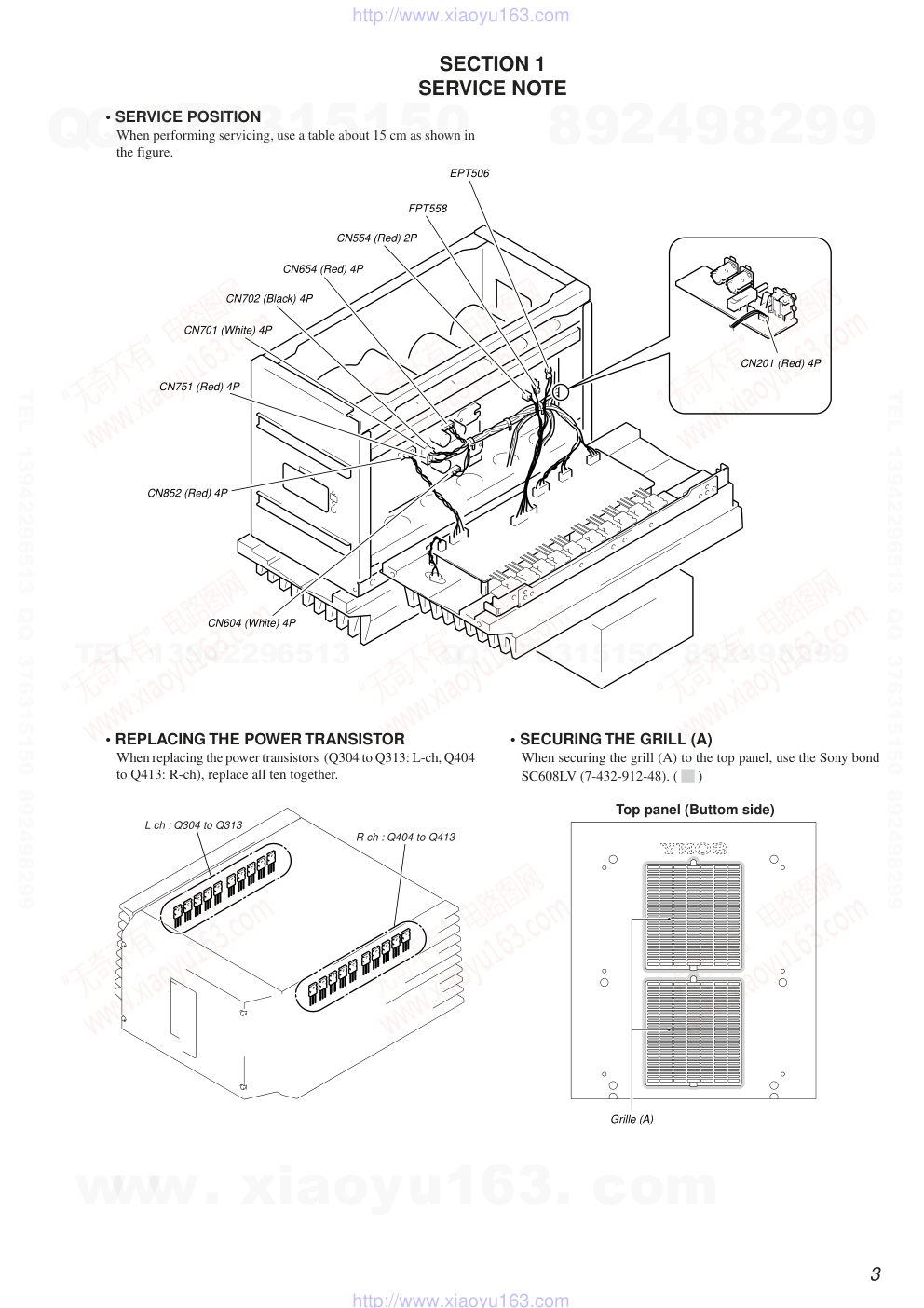

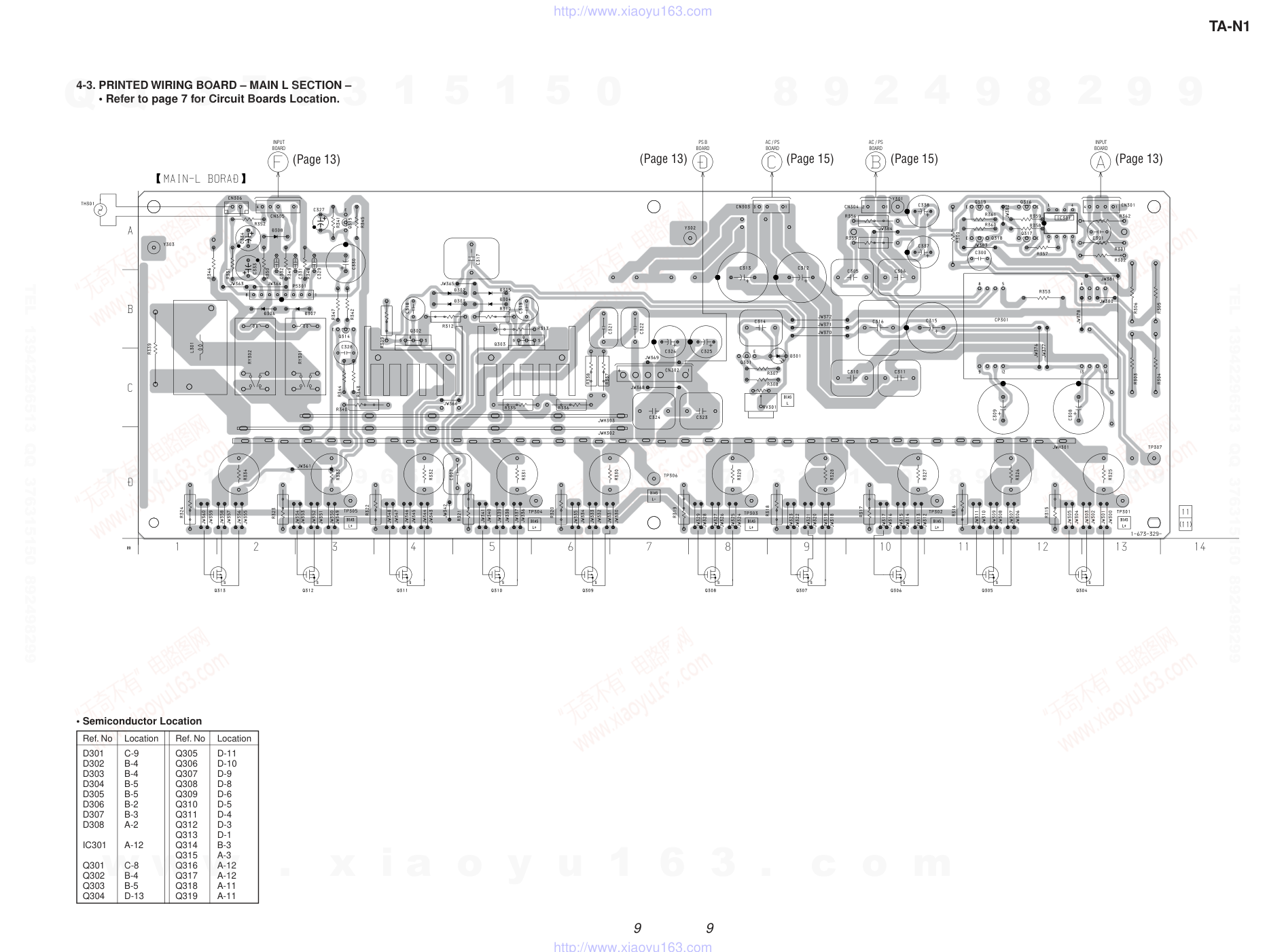

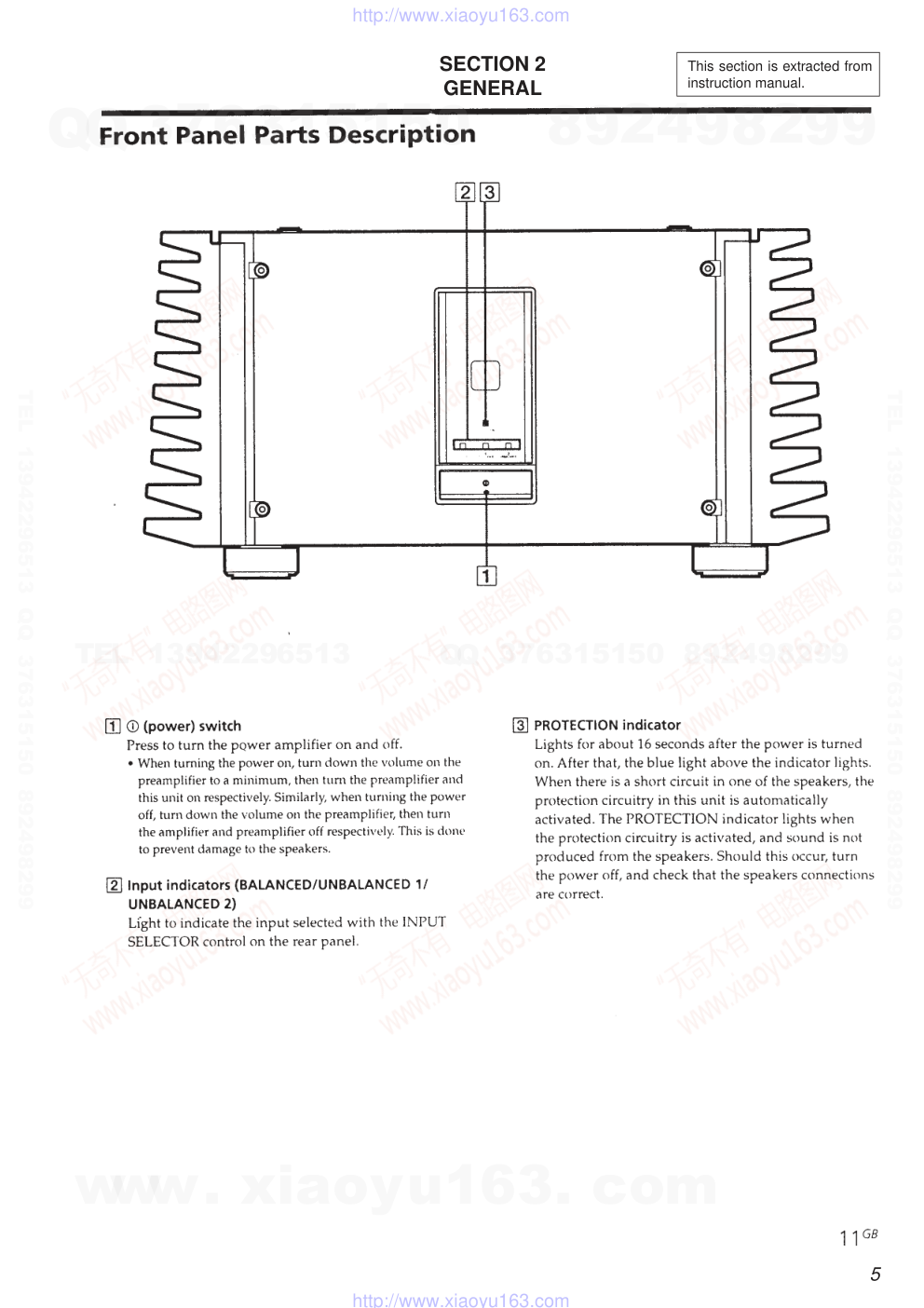

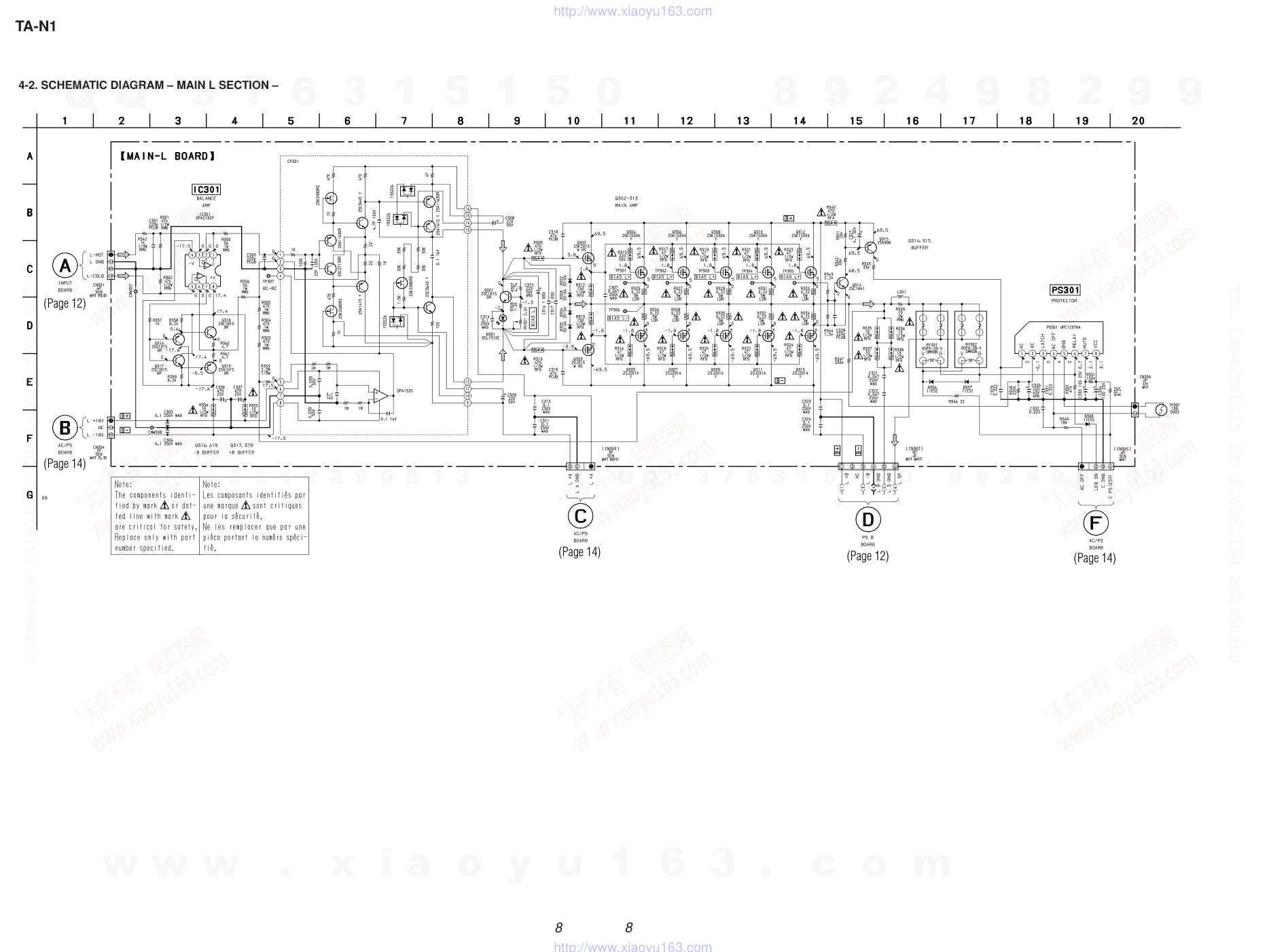

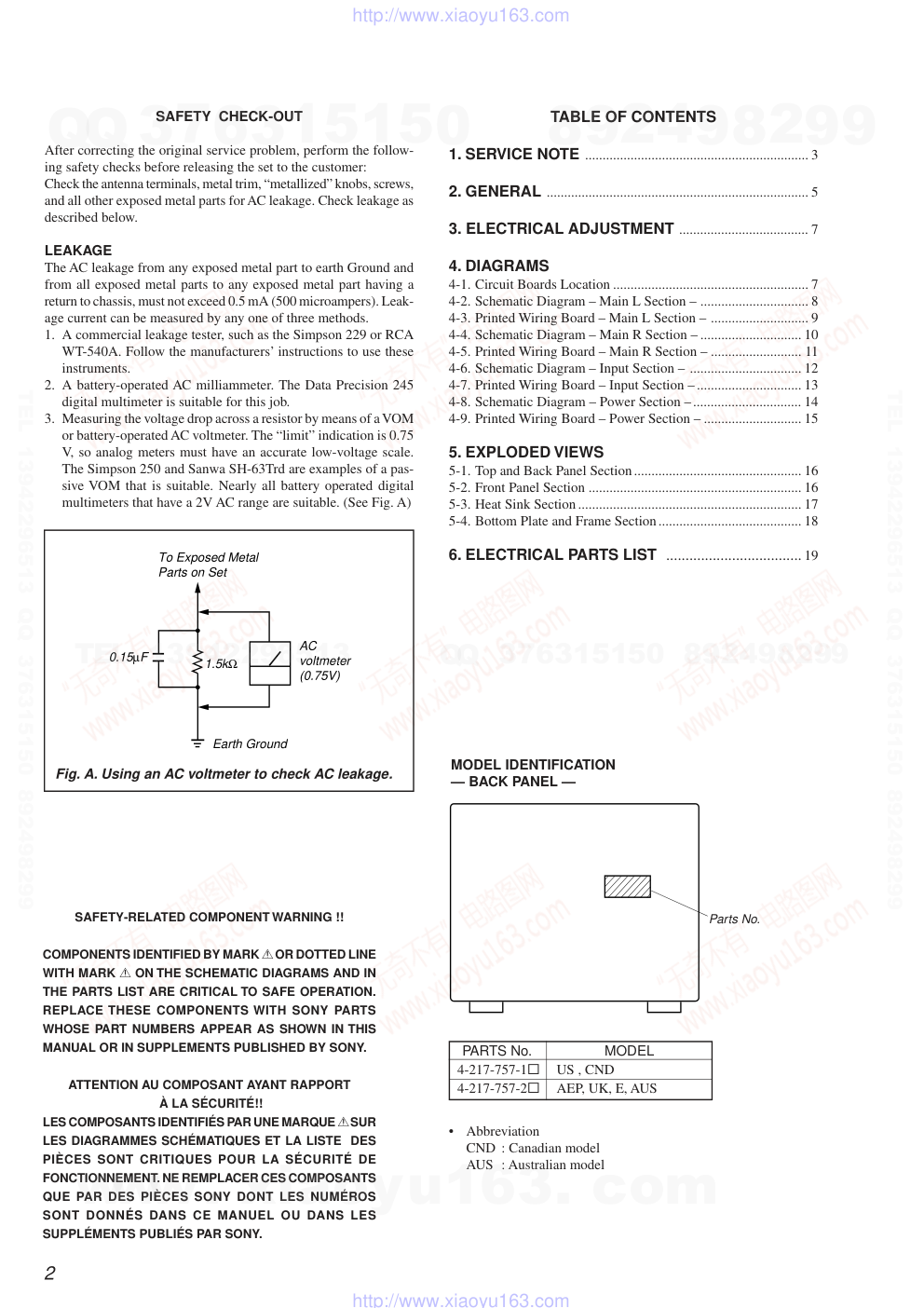

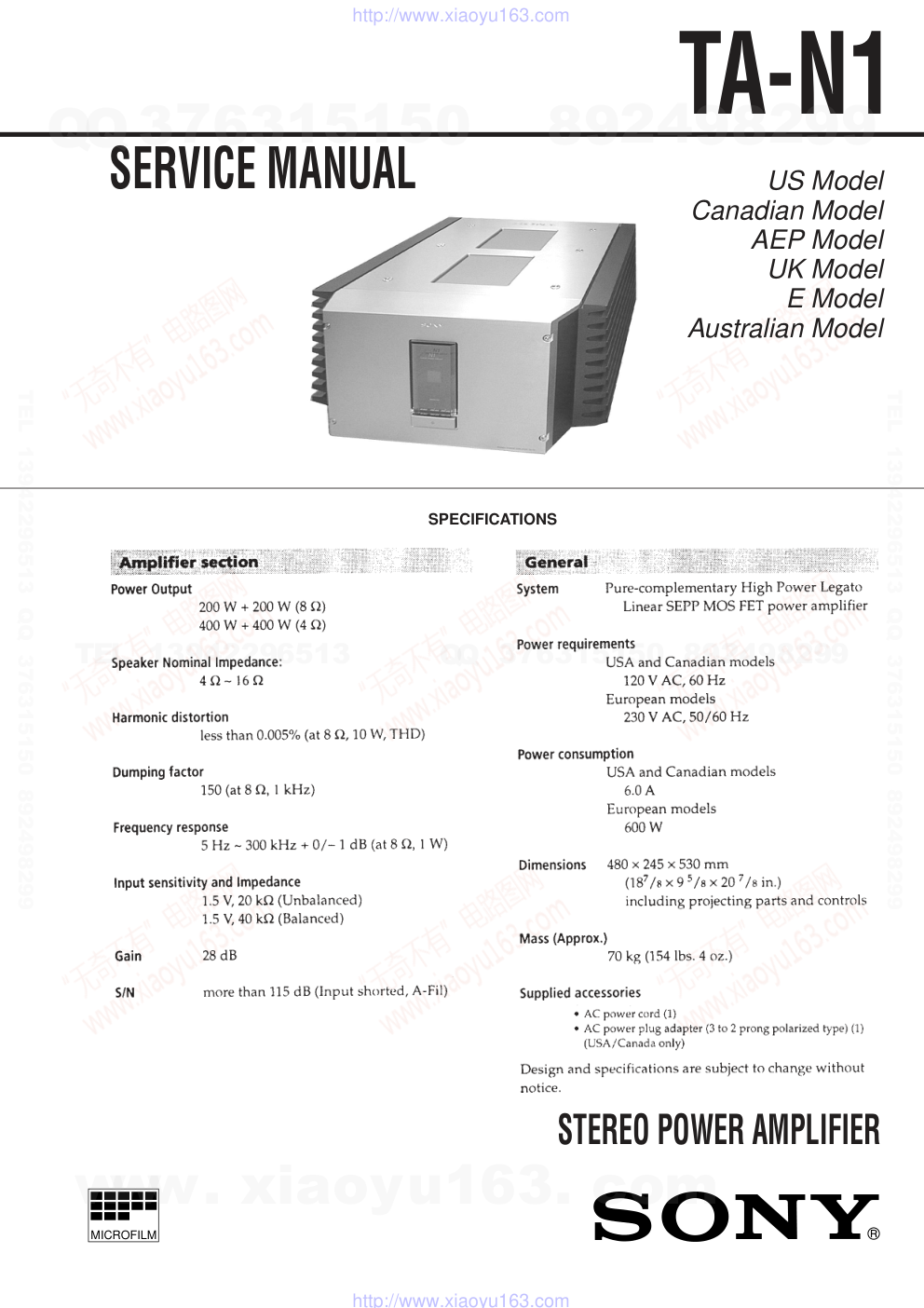

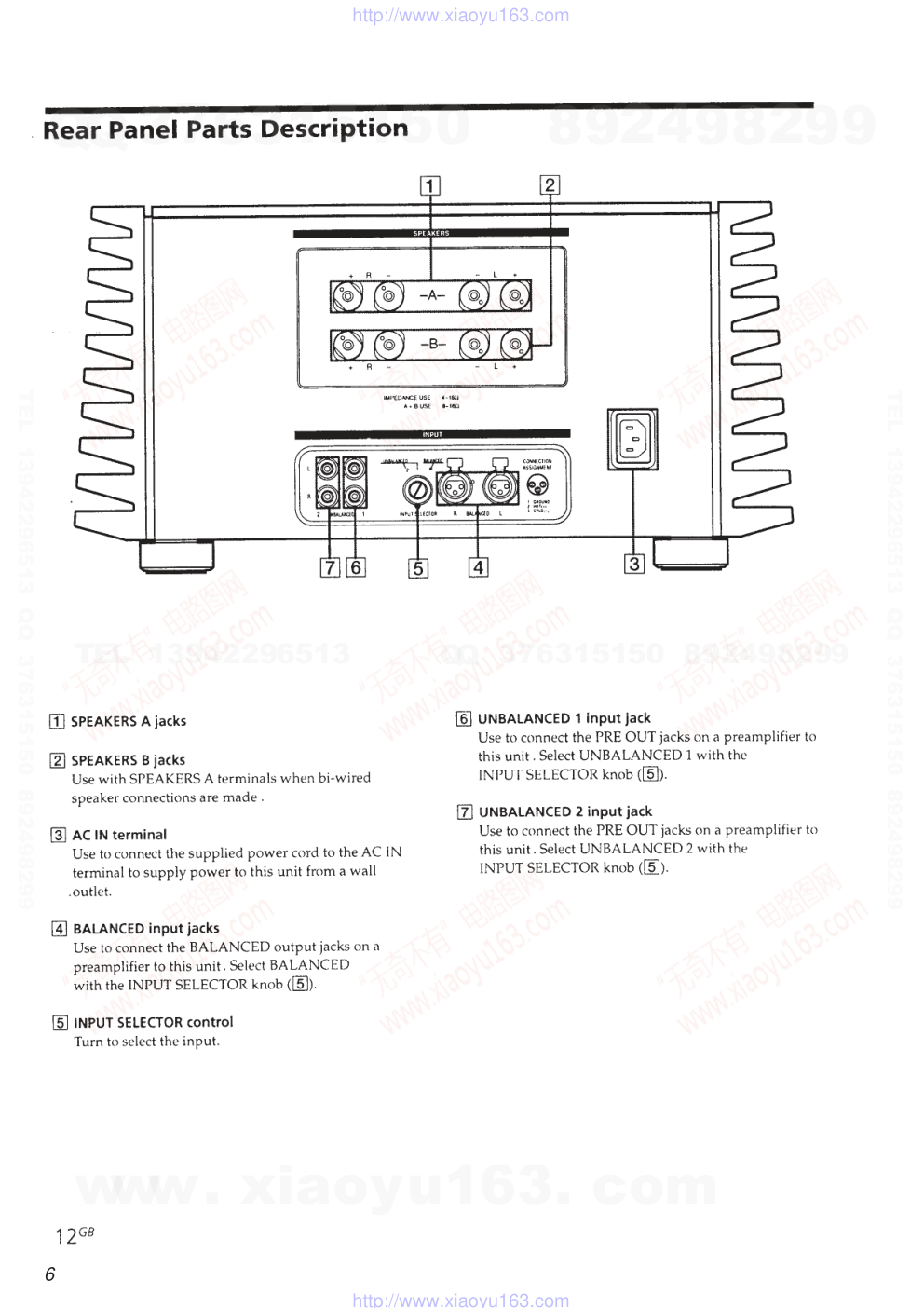

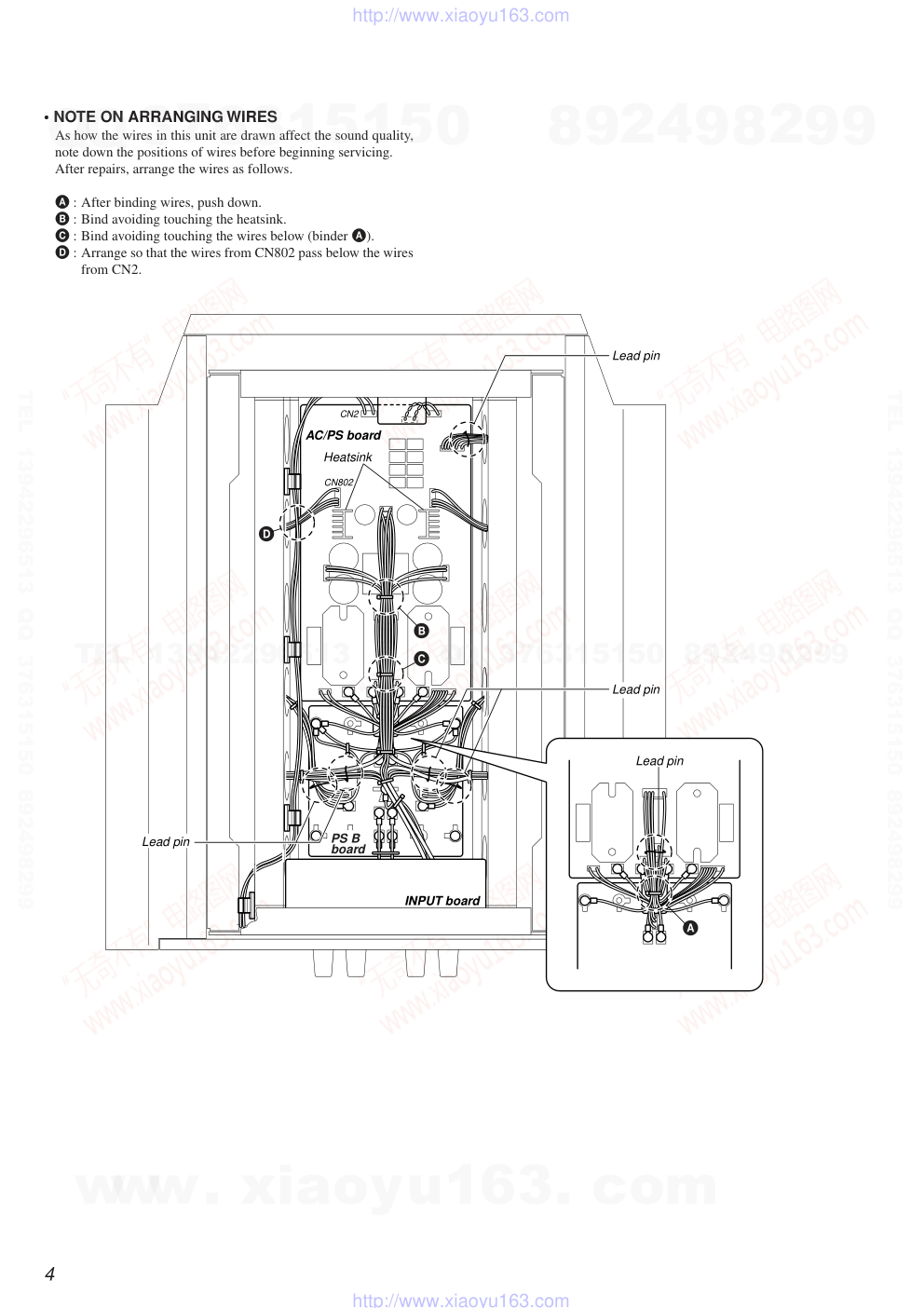

1 TA-N1 SPECIFICATIONS STEREO POWER AMPLIFIER SERVICE MANUAL US Model Canadian Model AEP Model UK Model E Model Australian Model MICROFILM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 TABLE OF CONTENTS 1. SERVICE NOTE ................................................................ 3 2. GENERAL ........................................................................... 5 3. ELECTRICAL ADJUSTMENT ..................................... 7 4. DIAGRAMS 4-1. Circuit Boards Location ........................................................ 7 4-2. Schematic Diagram – Main L Section – ............................... 8 4-3. Printed Wiring Board – Main L Section – ............................ 9 4-4. Schematic Diagram – Main R Section – ............................. 10 4-5. Printed Wiring Board – Main R Section – .......................... 11 4-6. Schematic Diagram – Input Section – ................................ 12 4-7. Printed Wiring Board – Input Section –.............................. 13 4-8. Schematic Diagram – Power Section –............................... 14 4-9. Printed Wiring Board – Power Section – ............................ 15 5. EXPLODED VIEWS 5-1. Top and Back Panel Section................................................ 16 5-2. Front Panel Section ............................................................. 16 5-3. Heat Sink Section ................................................................ 17 5-4. Bottom Plate and Frame Section......................................... 18 6. ELECTRICAL PARTS LIST ................................... 19 SAFETY CHECK-OUT After correcting the original service problem, perform the follow- ing safety checks before releasing the set to the customer: Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE The AC leakage from any exposed metal part to earth Ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microampers). Leak- age current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a pas- sive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) Fig. A. Using an AC voltmeter to check AC leakage. 0.15µF To Exposed Metal Parts on Set 1.5kΩ AC voltmeter (0.75V) Earth Ground SAFETY-RELATED COMPONENT WARNING !! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ!! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE ! SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. MODEL IDENTIFICATION — BACK PANEL — PARTS No. MODEL 4-217-757-1π US , CND 4-217-757-2π AEP, UK, E, AUS • Abbreviation CND : Canadian model AUS : Australian model Parts No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 SECTION 1 SERVICE NOTE EPT506 FPT558 CN554 (Red) 2P CN654 (Red) 4P CN201 (Red) 4P CN751 (Red) 4P CN852 (Red) 4P CN702 (Black) 4P CN701 (White) 4P CN604 (White) 4P • SECURING THE GRILL (A) When securing the grill (A) to the top panel, use the Sony bond SC608LV (7-432-912-48). ( ) Top panel (Buttom side) • SERVICE POSITION When performing servicing, use a table about 15 cm as shown in the figure. • REPLACING THE POWER TRANSISTOR When replacing the power transistors (Q304 to Q313: L-ch, Q404 to Q413: R-ch), replace all ten together. L ch : Q304 to Q313 R ch : Q404 to Q413 Grille (A) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 • NOTE ON ARRANGING WIRES As how the wires in this unit are drawn affect the sound quality, note down the positions of wires before beginning servicing. After repairs, arrange the wires as follows. A : After binding wires, push down. B : Bind avoiding touching the heatsink. C : Bind avoiding touching the wires below (binder A). D : Arrange so that the wires from CN802 pass below the wires from CN2. INPUT board AC/PS board CN802 CN2 PS B board A B C D Heatsink Lead pin Lead pin Lead pin Lead pin www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 SECTION 2 GENERAL This section is extracted from instruction manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-N1 7 7 SECTION 4 DIAGRAMS SECTION 3 ELECTRICAL ADJUSTMENT BIAS CURRENT ADJUSTMENT • As the voltage changes according to the time the power is sup- plied, adjust correctly according to the following procedure. Connection: 4-1. CIRCUIT BOARDS LOCATION MAIN L board MAIN R board INPUT board PS B board AC/PS board AC SW board LED board Procedure: 1. Measure the voltage at the five measuring points just after sup- plying the power, and adjust RV301 (L-CH) and RV401 (R-CH) so that the measuring point with the lowest voltage becomes approx 15 mV. Measuring Point Adjusting Point L-CH Between the 5 measuring points (+) TP301, TP302, TP303, RV301 TP304, TP305 and TP306 (–) R-CH Between the 5 measuring points (+) TP401, TP402, TP403, RV401 TP404, TP405 and TP406 (–) Digital voltmeter MAIN-L, R boards TP301 to 305 (L-CH), TP401 to 405 (R-CH) TP306 (L-CH), TP406 (R-CH) 2. Leave for one hour with the power supplied. (Aging) 3. Measure the voltage at the respective measuring points and ad- just RV301 (L-CH) and RV401 (R-CH) so that the voltages be- come within the ranges shown in the following table. Adjust to the voltage with the highest priority shown in the table as much as possible. Priority Order Adjusting Value 1st (Highest priority) 19.8 mV to 22.0 mV 2nd 19.8 mV to 24.2 mV 3rd 18.7 mV to 24.2 mV 4th 18.7 mV to 25.2 mV 5th 15.0 mV to 25.2 mV 4. Leave for another 30 minutes if the adjustment control has been rotated. 5. Measure the voltage again and check that it is within the adjust- ing value. If outside, repeat from step 3 again. 6. Be sure to perform aging for more than 30 minutes if the adjust- ment control has been rotated. Finally check the voltage before ending the adjustment. THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.) For schematic diagrams. Note: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • % : indicates tolerance. • 2 : nonflammable resistor. • 5 : fusible resistor. • C : panel designation. • S : B+ Line. • T : B– Line. • H : adjustment for repair. • Voltages and waveforms are dc with respect to ground in playback mode. • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Signal path. F : AUDIO Note: The components identi- fied by mark ! or dotted line with mark ! are criti- cal for safety. Replace only with part number specified. Note: Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. For printed wiring boards. Note: • X : parts extracted from the component side. • ® : Through hole. • b : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) Caution: Pattern face side: Parts on the pattern face side seen from the (Side B) pattern face are indicated. Parts face side: Parts on the parts face side seen from the (Side A) parts face are indicated. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-N1 8 8 4-2. SCHEMATIC DIAGRAM – MAIN L SECTION – (Page 12) (Page 14) (Page 14) (Page 12) (Page 14) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-N1 9 9 • Semiconductor Location Ref. No Location Q305 D-11 Q306 D-10 Q307 D-9 Q308 D-8 Q309 D-6 Q310 D-5 Q311 D-4 Q312 D-3 Q313 D-1 Q314 B-3 Q315 A-3 Q316 A-12 Q317 A-12 Q318 A-11 Q319 A-11 Ref. No Location D301 C-9 D302 B-4 D303 B-4 D304 B-5 D305 B-5 D306 B-2 D307 B-3 D308 A-2 IC301 A-12 Q301 C-8 Q302 B-4 Q303 B-5 Q304 D-13 4-3. PRINTED WIRING BOARD – MAIN L SECTION – • Refer to page 7 for Circuit Boards Location. INPUT BOARD AC / PS BOARD AC / PS BOARD PS B BOARD INPUT BOARD (Page 13) (Page 13) (Page 15) (Page 15) (Page 13) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-N1 10 10 4-4. SCHEMATIC DIAGRAM – MAIN R SECTION – C413 330 80V C412 330 80V (Page 12) (Page 14) (Page 12) (Page 14) (Page 14) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-N1 11 11 • Semiconductor Location Ref. No Location Q405 A-11 Q406 A-11 Q407 A-9 Q408 A-8 Q409 A-6 Q410 A-5 Q411 A-4 Q412 A-3 Q413 A-2 Q414 C-3 Q415 D-3 Q416 D-12 Q417 D-12 Q418 D-11 Q419 D-11 Ref. No Location D401 C-9 D402 C-5 D403 C-5 D404 C-4 D405 C-4 D406 C-2 D407 C-2 D408 D-2 IC401 D-12 Q401 C-8 Q402 C-5 Q403 C-4 Q404 A-13 4-5. PRINTED WIRING BOARD – MAIN R SECTION – • Refer to page 7 for Circuit Boards Location. (Page 13) (Page 15) (Page 15) (Page 15) (Page 15) PS B BOARD AC / PS BOARD AC / PS BOARD AC / PS BOARD AC / PS BOARD w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-N1 12 12 4-6. SCHEMATIC DIAGRAM – INPUT SECTION – (Page 14) (Page 10) (Page 10) (Page 14) (Page 14) (Page 14) (Page 8) (Page 8) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-N1 13 13 • Semiconductor Location Ref. No Location D101 A-7 D102 A-6 D103 A-3 D203 A-3 Q101 A-6 Q102 A-6 Q103 A-4 Q111 A-6 Q112 A-6 Q113 A-3 Q203 A-4 4-7. PRINTED WIRING BOARD – INPUT SECTION – • Refer to page 7 for Circuit Boards Location. (Page 15) (Page 15) (Page 9) (Page 9) AC / PS BOARD MAIN-L BOARD MAIN-L BOARD AC / PS BOARD (Page 11) (Page 15) (Page 15) (Page 9) MAIN-R BOARD MAIN-L BOARD AC / PS BOARD AC / PS BOARD w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-N1 14 14 4-8. SCHEMATIC DIAGRAM – POWER SECTION – (Page 8) (Page 8) (Page 12) (Page 10) (Page 10) (Page 12) (Page 12) (Page 12) (Page 10) (Page 8) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-N1 15 15 • Semiconductor Location Ref. No Location D805 E-3 D806 F-6 D901 B-8 D902 B-8 Q1 E-8 Q701 C-6 Q702 B-6 Q751 D-6 Q752 E-6 Q801 E-6 Q901 A-8 Q902 A-7 Q903 A-8 Q904 A-6 Q905 B-8 Ref. No Location D1 E-8 D2 E-8 D3 E-8 D501 B-2 D551 E-2 D601 C-4 D602 C-3 D651 C-4 D652 C-3 D701 C-6 D702 C-6 D751 C-6 D752 C-6 D801 F-3 D802 E-3 D803 F-3 D804 F-3 4-9. PRINTED WIRING BOARD – POWER SECTION – • Refer to page 7 for Circuit Boards Location. (Page 13) (Page 13) (Page 13) (Page 13) (Page 9) (Page 11) (Page 11) (Page 11) (Page 11) (Page 9) INPUT BOARD INPUT BOARD PS B BOARD PS B BOARD MAIN-R BOARD MAIN-R BOARD MAIN-R BOARD MAIN-R BOARD MAIN-L BOARD MAIN-L BOARD FH 1 FH 3 FH 2 FH 4 EXCEPT US, CND w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 16 5-2. FRONT PANEL SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark SECTION 5 EXPLODED VIEWS 5-1. TOP AND BACK PANEL SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 12 4-219-878-01 ESCUTCHEON (KNOB) 13 4-974-510-01 SCREW (+BV 3X8 CU) 14 4-911-049-21 SCREW (3X8) 15 3-701-505-00 SET SCREW, DOUBLE POINT 3X3 16 4-219-097-01 BOLT (M4X12), 6 SQUARE HOLE 17 3-696-090-11 RIVET, NYLON * 18 3-703-044-11 LABEL, CAUTION (US,CND) CNJ1 1-580-375-41 INLET 3P TB351 1-694-541-11 TERMINAL BOARD (SP)(EXCEPT US,CND) TB351 1-694-541-21 TERMINAL BOARD (SP)(US,CND) TB451 1-694-541-11 TERMINAL BOARD (SP)(EXCEPT US,CND) TB451 1-694-541-21 TERMINAL BOARD (SP)(US,CND) 1 4-217-753-01 PANEL, TOP 2 4-935-228-11 GRILLE (A) 3 3-703-685-41 SCREW (+BV 3X8) 4 4-219-096-01 BOLT (M5X16), 6 SQUARE HOLE 5 1-673-331-11 INPUT BOARD 6 4-987-527-01 KNOB (VOL) 7 4-217-756-11 PANEL (C), BACK 8 4-217-757-11 PANEL (A), BACK (US,CND) 8 4-217-757-22 PANEL (A), BACK (EXCEPT US,CND) 9 4-218-397-11 BRACKET (SPEAKER T)(EXCEPT US,CND) 9 4-218-397-21 BRACKET (SPEAKER T)(US,CND) 10 4-217-770-01 REINFORCEMENT (R) 11 4-217-765-01 ESCUTCHEON 62 4-221-068-01 PLATE (SPACER), INDICATION 63 4-218-441-01 PLATE (FILTER 2), INDICATION (MILKY WHITE) 64 4-217-779-01 PLATE (BASE), INDICATION 65 1-673-334-11 LED BOARD 66 4-217-769-01 REINFORCEMENT (F) 67 4-217-755-01 PANEL, SUB 68 1-673-336-11 AC-SW BOARD 69 4-218-443-01 BRACKET (FOOT) 70 X-4942-178-1 FOOT ASSY 71 4-911-049-21 SCREW (3X8) 72 4-222-564-01 PLATE (FILTER C), INDICATION (ORANGE) 51 4-217-750-01 PANEL, FRONT 52 4-217-782-01 ESCUTCHEON (POWER BUTTON) 53 X-4951-184-1 BUTTON ASSY, POWER 54 X-4951-185-1 BRACKET (POWER BUTTON) ASSY * 55 4-880-426-00 SPRING, COMPRESSION 56 4-862-338-00 RING, STOPPER 57 4-217-777-01 PLATE (FRONT), INDICATION 58 4-217-771-01 PLATE (HALF MIRROR),INDICATION 59 4-217-772-01 PLATE (MASK), INDICATION (BLACK) 60 4-217-778-01 PLATE (FILTER), INDICATION (MILKY WHITE) 61 4-218-442-01 PLATE (BASE 2), INDICATION (WHITE) NOTE: • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) Â Cabinets color • The mechanical parts with no reference number in the exploded views are not supplied. • Hardware (# mark) list and accessories and pack- ing materials are given in the last of this parts list. • Abbreviation CND : Canadian model The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. 1 2 2 #4 not supplied not supplied not supplied not supplied TB351 CNJ1 (US,CND) TB451 Supplied with TB451 Supplied with TB351 #3 #3 #5 #5 #5 #5 #5 #5 #5 #5 #5 #5 11 11 11 11 11 16 11 16 16 16 16 16 5 12 3 10 10 8 18 4 7 6 15 3 13 9 14 14 14 (US,CND) 17 17 13 13 4 #4 #1 #2 #2 #3 #3 #6 #9 #6 HEATSINK (R) BLOCK HEATSINK (L) BLOCK #6 #6 #5 #5 #5 #5 #5 #5 #5 #5 #5 #5 #5 #5 #5 #5 #5 #5 #5 #5 #5 #5 #5 #2 51 #2 #6 not supplied not supplied 52 57 69 69 62 62 58 59 60 53 54 55 56 71 65 66 66 71 69 69 68 70 67 61 63 64 72 70 #9 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 5-3. HEAT SINK SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark Q310 8-729-018-11 TRANSISTOR 2SK1530A-Y Q311 8-729-018-13 TRANSISTOR 2SJ201A-Y Q312 8-729-018-11 TRANSISTOR 2SK1530A-Y Q313 8-729-018-13 TRANSISTOR 2SJ201A-Y Q404 8-729-018-11 TRANSISTOR 2SK1530A-Y Q405 8-729-018-13 TRANSISTOR 2SJ201A-Y Q406 8-729-018-11 TRANSISTOR 2SK1530A-Y Q407 8-729-018-13 TRANSISTOR 2SJ201A-Y Q408 8-729-018-11 TRANSISTOR 2SK1530A-Y Q409 8-729-018-13 TRANSISTOR 2SJ201A-Y Q410 8-729-018-11 TRANSISTOR 2SK1530A-Y Q411 8-729-018-13 TRANSISTOR 2SJ201A-Y Q412 8-729-018-11 TRANSISTOR 2SK1530A-Y Q413 8-729-018-13 TRANSISTOR 2SJ201A-Y TH301 1-576-080-11 THERMOSTAT TH401 1-576-080-11 THERMOSTAT 101 X-4952-038-1 +B 3X16 (CU) ASSY 102 X-4944-262-1 SCREW(3X8)ASSY, BARREL W +BVTT 103 4-217-766-01 BOSS 104 4-217-760-01 FRAME (F/R) 105 4-217-751-01 HEAT SINK (L) 106 4-217-752-01 HEAT SINK (R) 107 A-4426-211-A MAIN-L BAORD, COMPLETE (US,CND) 107 A-4426-215-A MAIN-L BOARD, COMPLETE (EXCEPT US,CND) 108 A-4426-212-A MAIN-R BOARD, COMPLETE (US,CND) 108 A-4426-216-A MAIN-R BOARD, COMPLETE (EXCEPT US,CND) Q304 8-729-018-11 TRANSISTOR 2SK1530A-Y Q305 8-729-018-13 TRANSISTOR 2SJ201A-Y Q306 8-729-018-11 TRANSISTOR 2SK1530A-Y Q307 8-729-018-13 TRANSISTOR 2SJ201A-Y Q308 8-729-018-11 TRANSISTOR 2SK1530A-Y Q309 8-729-018-13 TRANSISTOR 2SJ201A-Y Q406 #5 not supplied not supplied not supplied #5 #5 #3 #3 #3 #5 Q409 #5 Q311 Q312 Q313 Q310 Q309 Q308 Q307 Q306 Q305 #5 #5 #5 #4 101 #4 TH401 105 106 101 101 104 101 102 102 102 103 103 103 107 108 103 103 103 103 104 not supplied not supplied Q304 Q412 Q404 Q405 Q411 Q410 Q413 Q407 TH301 Q408 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 5-4. BOTTOM PLATE AND FRAME SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 161 1-673-333-11 PS-B BOARD 162 4-965-658-01 SCREW (4X16) 163 4-218-396-01 HOLDER (BASE C) 164 3-831-441-11 CUSHION (F) * 165 4-931-964-11 SCREW (M4X8) C502 1-128-999-11 CAP, ELECT 27000MF C503 1-128-999-11 CAP, ELECT 27000MF C552 1-128-999-11 CAP, ELECT 27000MF C553 1-128-999-11 CAP, ELECT 27000MF !T1 1-433-767-11 TRANSFORMER, POWER (US,CND) !T1 1-433-768-11 TRANSFORMER, POWER (EXCEPT US,CND) 151 4-217-754-01 PLATE, BOTTOM 152 4-217-760-01 FRAME (F/R) 153 4-217-761-01 FRAME (L) 154 4-217-762-01 FRAME (R) 155 3-655-653-21 BAND (TAITON), BINDING * 156 4-931-964-01 SCREW (M4X6) * 157 1-641-950-11 BOTTOM LID BOARD 158 4-217-763-01 BRACKET (PC-PS) 159 A-4426-214-A AC/PS BOARD, COMPLETE (US,CND) 159 A-4426-218-A AC/PS BOARD, COMPLETE (EXCEPT US,CND) 160 X-4944-262-1 SCREW(3X8)ASSY, BARREL W +BVTT Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. 151 #3 #3 #11 #5 #5 #11 #11 #11 #10 #10 #10 #10 #7 #7 #7 #7 not supplied not supplied not supplied #8 C503 Supplied with C503 Supplied with C553 Supplied with C552 Supplied with C502 C502 C553 C552 T1 #6 #6 #5 #5 152 153 155 152 164 154 161 156 156 156 156 165 165 156 156 156 156 156 157 158 159 160 160 156 156 158 157 162 162 162 162 163 163 • Lead wires are not supplied. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 SECTION 6 ELECTRICAL PARTS LIST AC/PS Note: Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark • SEMICONDUCTORS In each case, u: µ , for example: uA...: µ A..., uPA...: µ PA..., uPB...: µ PB..., uPC...: µ PC..., uPD...: µ PD... • CAPACITORS uF : µ F • COILS uH : µ H • Abbreviation CND : Canadian model • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • RESISTORS All resistors are in ohms METAL: Metal-film resistor METAL OXIDE: Metal Oxide-film resistor F : nonflammable When indicating parts by reference number, please include the board name. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. 1-673-336-11 AC-SW BOARD ********** < CAPACITOR > C1 1-113-920-11 CERAMIC 0.0022uF 20% 250V < SWITCH > S1 1-771-187-11 SWITCH, AC POWER (U) ************************************************************** A-4426-214-A AC/PS BOARD, COMPLETE (US,CND) ********************** A-4426-218-A AC/PS BOARD, COMPLETE (EXCEPT US, CND) ********************** 1-533-798-11 HOLDER, FUSE 1-535-476-11 TERMINAL < CAPACITOR > C2 1-113-920-11 CERAMIC 0.0022uF 20% 250V C5 1-119-800-11 ELECT 100uF 20% 25V C501 1-136-880-11 FILM 2.2uF 10% 160V C551 1-136-880-11 FILM 2.2uF 10% 160V C601 1-136-960-11 FILM 0.1uF 10% 160V C603 1-131-657-11 CAPACITOR 1500uF 20% 80V C604 1-131-657-11 CAPACITOR 1500uF 20% 80V C651 1-136-960-11 FILM 0.1uF 10% 160V C653 1-131-657-11 CAPACITOR 1500uF 20% 80V C654 1-131-657-11 CAPACITOR 1500uF 20% 80V C701 1-126-024-11 ELECT 220uF 20% 25V C702 1-126-029-11 ELECT 3200uF 20% 25V C751 1-126-024-11 ELECT 220uF 20% 25V C752 1-126-029-11 ELECT 3200uF 20% 25V C801 1-104-993-11 FILM 0.01uF 5% 200V C802 1-119-823-11 ELECT 4.7uF 20% 50V C803 1-119-815-21 ELECT 2200uF 20% 35V C804 1-119-810-11 ELECT 100uF 20% 35V C805 1-119-814-21 ELECT 1000uF 20% 35V C901 1-119-830-11 ELECT 330uF 20% 35V C902 1-119-823-11 ELECT 4.7uF 20% 50V C903 1-119-823-11 ELECT 4.7uF 20% 50V < CONNECTOR > * CN601 1-766-920-11 PIN, CONNECTOR 4P CN604 1-691-765-11 PLUG (MICRO CONNECTOR) 3P CN654 1-691-765-31 PLUG (MICRO CONNECTOR) 3P * CN701 1-564-506-11 PLUG, CONNECTOR 3P * CN702 1-564-506-11 PLUG, CONNECTOR 3P * CN751 1-564-506-11 PLUG, CONNECTOR 3P * CN801 1-564-506-11 PLUG, CONNECTOR 3P CN802 1-691-766-11 PLUG (MICRO CONNECTOR) 4P CN852 1-691-766-31 PLUG (MICRO CONNECTOR) 4P CN901 1-691-768-11 PLUG (MICRO CONNECTOR) 6P CN902 1-691-768-11 PLUG (MICRO CONNECTOR) 6P < DIODE > D1 8-719-024-99 DIODE 11ES2-NTA2B D2 8-719-024-99 DIODE 11ES2-NTA2B D3 8-719-024-99 DIODE 11ES2-NTA2B D501 8-719-072-90 DIODE PB302F D551 8-719-072-90 DIODE PB302F D601 8-719-024-99 DIODE 11ES2-NTA2B D602 8-719-024-99 DIODE 11ES2-NTA2B D651 8-719-024-99 DIODE 11ES2-NTA2B D652 8-719-024-99 DIODE 11ES2-NTA2B D701 8-719-934-64 DIODE HZS9C2LT2 D702 8-719-934-64 DIODE HZS9C2LT2 D751 8-719-934-64 DIODE HZS9C2LT2 D752 8-719-934-64 DIODE HZS9C2LT2 D801 8-719-024-99 DIODE 11ES2-NTA2B D802 8-719-024-99 DIODE 11ES2-NTA2B D803 8-719-024-99 DIODE 11ES2-NTA2B D804 8-719-024-99 DIODE 11ES2-NTA2B D805 8-719-024-99 DIODE 11ES2-NTA2B D806 8-719-935-20 DIODE HZS27-1LT2 D901 8-719-024-99 DIODE 11ES2-NTA2B D902 8-719-024-99 DIODE 11ES2-NTA2B < FUSE > !F1 1-532-350-11 FUSE, TIME-LAG (T4AL/250V)(EXCEPT US,CND) !F2 1-576-379-11 FUSE (15A/250V)(US,CND) !F2 1-532-350-11 FUSE, TIME-LAG (T4AL/250V)(EXCEPT US,CND) < TRANSISTOR > Q1 8-729-281-54 TRANSISTOR 2SC1815-BL Q701 8-729-202-67 TRANSISTOR 2SK246-GR3 Q702 8-749-010-25 IC MN2488-OPY-M Q751 8-729-202-67 TRANSISTOR 2SK246-GR3 Q752 8-749-010-26 IC MP1620-OPY-M AC-SW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark INPUT Q801 8-729-018-60 TRANSISTOR 2SD2012-LC Q901 8-729-201-53 TRANSISTOR 2SA1015-GR Q902 8-729-422-96 TRANSISTOR UN4113-TA Q903 8-729-201-53 TRANSISTOR 2SA1015-GR Q904 8-729-900-80 TRANSISTOR UN4211-TA Q905 8-729-281-54 TRANSISTOR 2SC1815-BL < RESISTOR > !R1 1-217-780-11 FUSIBLE 1 5% 5W F (US,CND) !R1 1-217-781-11 FUSIBLE 2.2 5% 5W F (EXCEPT US, CND) !R2 1-217-780-11 FUSIBLE 1 5% 5W F (US,CND) !R2 1-217-781-11 FUSIBLE 2.2 5% 5W F (EXCEPT US, CND) !R3 1-217-780-11 FUSIBLE 1 5% 5W F (US,CND) !R3 1-217-781-11 FUSIBLE 2.2 5% 5W F (EXCEPT US, CND) !R4 1-217-780-11 FUSIBLE 1 5% 5W F (US,CND) !R4 1-217-781-11 FUSIBLE 2.2 5% 5W F (EXCEPT US, CND) !R5 1-217-780-11 FUSIBLE 1 5% 5W F (US,CND) !R5 1-217-781-11 FUSIBLE 2.2 5% 5W F (EXCEPT US, CND) !R6 1-217-780-11 FUSIBLE 1 5% 5W F (US,CND) !R6 1-217-781-11 FUSIBLE 2.2 5% 5W F (EXCEPT US, CND) !R7 1-217-780-11 FUSIBLE 1 5% 5W F (US,CND) !R7 1-217-781-11 FUSIBLE 2.2 5% 5W F (EXCEPT US, CND) !R8 1-217-780-11 FUSIBLE 1 5% 5W F (US,CND) !R8 1-217-781-11 FUSIBLE 2.2 5% 5W F (EXCEPT US, CND) R9 1-249-645-11 CARBON 68 5% 1/2W R10 1-249-645-11 CARBON 68 5% 1/2W R11 1-259-207-21 CARBON 47K 5% 1/4W R12 1-259-183-11 CARBON 4.7K 5% 1/4W R13 1-259-183-11 CARBON 4.7K 5% 1/4W !R501 1-202-937-41 FUSIBLE 10 5% 1/2W !R551 1-202-937-41 FUSIBLE 10 5% 1/2W !R701 1-219-022-11 FUSIBLE 100 5% 1/2W R702 1-259-191-21 CARBON 10K 5% 1/4W R703 1-259-167-21 CARBON 1K 5% 1/4W !R751 1-219-022-11 FUSIBLE 100 5% 1/2W R752 1-259-191-21 CARBON 10K 5% 1/4W R753 1-259-167-21 CARBON 1K 5% 1/4W !R803 1-202-937-31 FUSIBLE 10 5% 1/2W R804 1-259-179-21 CARBON 3.3K 5% 1/4W R901 1-259-183-11 CARBON 4.7K 5% 1/4W R902 1-259-195-11 CARBON 15K 5% 1/4W R903 1-259-183-11 CARBON 4.7K 5% 1/4W R904 1-259-199-11 CARBON 22K 5% 1/4W R906 1-259-292-11 CARBON 330 5% 1/2W R907 1-259-292-11 CARBON 330 5% 1/2W R908 1-259-207-21 CARBON 47K 5% 1/4W R909 1-249-887-11 CARBON 33 5% 1/4W < RELAY > RY1 1-515-999-11 RELAY, POWER RY2 1-515-999-11 RELAY, POWER < TRANSFORMER > !T601 1-427-648-11 TRANSFORMER (CHOKE) < THERMISTOR > TH801 1-801-829-11 THERMISTOR, POSITIVE TH802 1-801-829-11 THERMISTOR, POSITIVE ************************************************************** 1-673-331-11 INPUT BOARD ********** 4-946-336-01 BRACKET (GROUND) < CAPACITOR > C106 1-125-850-21 FILM 220PF 5% 50V C111 1-136-165-00 FILM 0.1uF 5% 50V C112 1-136-165-00 FILM 0.1uF 5% 50V C113 1-136-165-00 FILM 0.1uF 5% 50V C206 1-125-850-21 FILM 220PF 5% 50V C213 1-136-165-00 FILM 0.1uF 5% 50V < CONNECTOR > * CN101 1-564-507-11 PLUG, CONNECTOR 4P * CN201 1-564-507-11 PLUG, CONNECTOR 4P < JACK > CNJ101 1-766-803-11 CONNECTOR (CANON)(BALANCE L) CNJ201 1-766-803-11 CONNECTOR (CANON)(BALANCE R) < DIODE > D101 8-719-911-19 DIODE 1SS119-25 D102 8-719-911-19 DIODE 1SS119-25 D103 8-719-911-19 DIODE 1SS119-25 D203 8-719-911-19 DIODE 1SS119-25 < JACK > J101 1-785-547-11 JACK, PIN (UNBALANCE 1,2 L/R) < TRANSISTOR > Q101 8-729-422-57 TRANSISTOR UN4111 Q102 8-729-422-57 TRANSISTOR UN4111 Q103 8-729-422-57 TRANSISTOR UN4111 Q111 8-729-900-80 TRANSISTOR UN4211-TA Q112 8-729-900-80 TRANSISTOR UN4211-TA Q113 8-729-900-80 TRANSISTOR UN4211-TA Q203 8-729-422-57 TRANSISTOR UN4111 AC/PS Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 LED Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < RESISTOR > R101 1-249-995-11 CARBON 1M 5% 1/4W R102 1-249-995-11 CARBON 1M 5% 1/4W R103 1-249-995-11 CARBON 1M 5% 1/4W R104 1-249-995-11 CARBON 1M 5% 1/4W R106 1-249-210-11 CARBON 1K 5% 1/3W R111 1-259-404-11 CARBON 100 5% 1/6W R112 1-259-404-11 CARBON 100 5% 1/6W R113 1-259-404-11 CARBON 100 5% 1/6W R120 1-259-452-11 CARBON 10K 5% 1/6W R201 1-249-995-11 CARBON 1M 5% 1/4W R202 1-249-995-11 CARBON 1M 5% 1/4W R203 1-249-995-11 CARBON 1M 5% 1/4W R204 1-249-995-11 CARBON 1M 5% 1/4W R206 1-249-210-11 CARBON 1K 5% 1/3W R213 1-259-404-11 CARBON 100 5% 1/6W < RELAY > RY101 1-755-062-11 RELAY RY102 1-755-062-11 RELAY RY103 1-755-062-11 RELAY RY203 1-755-062-11 RELAY < SWITCH > S101 1-771-565-11 SWITCH, ROTARY (INPUT SELECTOR) ************************************************************** 1-673-334-11 LED BOARD ******** < CAPACITOR > C951 1-136-157-00 FILM 0.022uF 5% 50V C952 1-136-157-00 FILM 0.022uF 5% 50V C960 1-136-157-00 FILM 0.022uF 5% 50V C961 1-136-157-00 FILM 0.022uF 5% 50V C962 1-136-157-00 FILM 0.022uF 5% 50V C963 1-136-157-00 FILM 0.022uF 5% 50V < DIODE > D951 8-719-069-45 DIODE SELU5E23C-TP15 D952 8-719-069-45 DIODE SELU5E23C-TP15 D953 8-719-069-45 DIODE SELU5E23C-TP15 D954 8-719-069-45 DIODE SELU5E23C-TP15 D955 8-719-075-81 DIODE SEL1610C-TP8 D960 8-719-985-41 DIODE HZS2CLL D961 8-719-075-82 DIODE SELU1810CXM-TP8 (UNBALANCE 1) D962 8-719-075-82 DIODE SELU1810CXM-TP8 (UNBALANCE 2) D963 8-719-075-82 DIODE SELU1810CXM-TP8 (BALANCE) < RESISTOR > R952 1-259-292-11 CARBON 330 5% 1/2W R971 1-259-416-11 CARBON 330 5% 1/6W ************************************************************** A-4426-211-A MAIN-L BOARD, COMPLETE (US,CND) ****************************** A-4426-215-A MAIN-L BOARD, COMPLETE (EXCEPT US, CND) ************************************** 7-682-148-15 SCREW, TR < CAPACITOR > C300 1-125-850-21 FILM 220PF 5% 50V C301 1-125-850-21 FILM 220PF 5% 50V C305 1-117-775-31 FILM 0.1uF 10% 250V C306 1-117-775-31 FILM 0.1uF 10% 250V C307 1-127-741-41 ELECT 0.047uF 10% 250V C308 1-128-971-11 ELECT 220uF 20% 50V C309 1-128-971-11 ELECT 220uF 20% 50V C310 1-117-775-31 FILM 0.1uF 10% 250V C311 1-117-775-31 FILM 0.1uF 10% 250V C314 1-117-775-31 FILM 0.1uF 10% 250V C315 1-128-971-11 ELECT 220uF 20% 50V C316 1-110-512-51 FILM 1uF 10% 50V C317 1-110-512-51 FILM 1uF 10% 50V C318 1-125-845-21 FILM 47PF 10% 50V C319 1-125-845-21 FILM 47PF 10% 50V C321 1-127-741-41 ELECT 0.047uF 10% 250V C322 1-127-741-41 ELECT 0.047uF 10% 250V C323 1-117-775-31 FILM 0.1uF 10% 250V C324 1-117-775-31 FILM 0.1uF 10% 250V C327 1-119-823-11 ELECT 4.7uF 20% 50V C328 1-125-850-21 FILM 220PF 5% 50V C329 1-136-157-00 FILM 0.022uF 5% 50V C330 1-110-394-21 ELECT 220uF 20% 63V C331 1-136-157-00 FILM 0.022uF 5% 50V C332 1-136-157-00 FILM 0.022uF 5% 50V C333 1-119-800-11 ELECT 100uF 20% 25V C334 1-119-800-11 ELECT 100uF 20% 25V C337 1-126-026-11 ELECT 470uF 20% 25V C338 1-126-026-11 ELECT 470uF 20% 25V < CONNECTOR > * CN306 1-564-505-11 PLUG, CONNECTOR 2P < COMPOSITION CIRCUIT BLOCK > CP301 1-418-105-11 AMPLIFIER, UNIT < DIODE > D301 8-719-310-61 DIODE SEL1510C-D D302 8-719-300-04 DIODE SV-04 D303 8-719-300-04 DIODE SV-04 D304 8-719-300-04 DIODE SV-04 D305 8-719-300-04 DIODE SV-04 D306 8-719-024-99 DIODE 11ES2-NTA2B D307 8-719-024-99 DIODE 11ES2-NTA2B D308 8-719-024-99 DIODE 11ES2-NTA2B < IC > IC301 8-759-579-36 IC OPA2132P INPUT MAIN-L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < BUS BAR > JWH301 1-569-232-11 BAR, BUS JWH302 1-770-108-11 BAR, BUS 7P * JWH303 1-566-940-11 BUS BAR 6P < COIL > * L301 1-428-071-11 COIL, AIR-CORE < IC LINK > PS301 8-759-111-68 IC UPC1237HA < TRANSISTOR > Q301 8-729-281-53 TRANSISTOR 2SC1815-GR Q302 8-729-018-19 TRANSISTOR 2SK2013-Y Q303 8-729-018-21 TRANSISTOR 2SJ313-Y Q304 8-729-018-11 TRANSISTOR 2SK1530A-Y Q305 8-729-018-13 TRANSISTOR 2SJ201A-Y Q306 8-729-018-11 TRANSISTOR 2SK1530A-Y Q307 8-729-018-13 TRANSISTOR 2SJ201A-Y Q308 8-729-018-11 TRANSISTOR 2SK1530A-Y Q309 8-729-018-13 TRANSISTOR 2SJ201A-Y Q310 8-729-018-11 TRANSISTOR 2SK1530A-Y Q311 8-729-018-13 TRANSISTOR 2SJ201A-Y Q312 8-729-018-11 TRANSISTOR 2SK1530A-Y Q313 8-729-018-13 TRANSISTOR 2SJ201A-Y Q314 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA Q315 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q316 8-729-201-53 TRANSISTOR 2SA1015-GR Q317 8-729-281-53 TRANSISTOR 2SC1815-GR Q318 8-729-281-53 TRANSISTOR 2SC1815-GR Q319 8-729-201-53 TRANSISTOR 2SA1015-GR < RESISTOR > R300 1-259-525-11 CARBON 56 2% 1W R301 1-259-595-61 CARBON 47K 1% 1/2W R302 1-259-595-61 CARBON 47K 1% 1/2W R303 1-259-668-61 CARBON 470 2% 1W R304 1-259-668-61 CARBON 470 2% 1W R305 1-259-668-61 CARBON 470 2% 1W R306 1-259-525-11 CARBON 56 2% 1W R307 1-259-183-11 CARBON 4.7K 5% 1/4W R308 1-259-171-21 CARBON 1.5K 5% 1/4W !R309 1-202-954-41 FUSIBLE 470 5% 1/2W !R310 1-202-954-41 FUSIBLE 470 5% 1/2W !R312 1-202-951-41 FUSIBLE 150 5% 1/2W !R313 1-202-951-41 FUSIBLE 150 5% 1/2W !R315 1-219-185-11 FUSIBLE 47 5% 1/2W !R316 1-219-185-11 FUSIBLE 47 5% 1/2W !R317 1-219-185-11 FUSIBLE 47 5% 1/2W !R318 1-219-185-11 FUSIBLE 47 5% 1/2W !R319 1-219-185-11 FUSIBLE 47 5% 1/2W !R320 1-219-185-11 FUSIBLE 47 5% 1/2W !R321 1-219-185-11 FUSIBLE 47 5% 1/2W !R322 1-219-185-11 FUSIBLE 47 5% 1/2W !R323 1-219-185-11 FUSIBLE 47 5% 1/2W !R324 1-219-185-11 FUSIBLE 47 5% 1/2W !R325 1-205-647-11 CEMENTED 0.22 5% 5W !R326 1-205-647-11 CEMENTED 0.22 5% 5W !R327 1-205-647-11 CEMENTED 0.22 5% 5W !R328 1-205-647-11 CEMENTED 0.22 5% 5W !R329 1-205-647-11 CEMENTED 0.22 5% 5W !R330 1-205-647-11 CEMENTED 0.22 5% 5W !R331 1-205-647-11 CEMENTED 0.22 5% 5W !R332 1-205-647-11 CEMENTED 0.22 5% 5W !R333 1-205-647-11 CEMENTED 0.22 5% 5W !R334 1-205-647-11 CEMENTED 0.22 5% 5W !R335 1-202-937-41 FUSIBLE 10 5% 1/2W !R336 1-202-937-41 FUSIBLE 10 5% 1/2W !R337 1-202-937-41 FUSIBLE 10 5% 1/2W !R338 1-202-937-41 FUSIBLE 10 5% 1/2W R339 1-259-749-61 CARBON 10 2% 2W !R340 1-202-954-11 FUSIBLE 470 5% 1/2W R341 1-259-191-21 CARBON 10K 5% 1/4W R342 1-249-959-11 CARBON 33K 5% 1/4W R343 1-259-175-11 CARBON 2.2K 5% 1/4W R344 1-259-171-21 CARBON 1.5K 5% 1/4W R345 1-249-959-11 CARBON 33K 5% 1/4W R346 1-249-883-11 CARBON 22 5% 1/4W R347 1-259-227-11 CARBON 330K 5% 1/4W R348 1-259-223-11 CARBON 220K 5% 1/4W R349 1-249-953-11 CARBON 18K 5% 1/4W R350 1-259-207-21 CARBON 47K 5% 1/4W R351 1-259-219-11 CARBON 150K 5% 1/4W R352 1-249-945-11 CARBON 8.2K 5% 1/4W R353 1-214-945-00 METAL 2.2M 1% 1/2W !R355 1-202-937-41 FUSIBLE 10 5% 1/2W !R356 1-202-937-41 FUSIBLE 10 5% 1/2W R357 1-259-167-21 CARBON 1K 5% 1/4W R358 1-249-945-11 CARBON 8.2K 5% 1/4W R359 1-249-945-11 CARBON 8.2K 5% 1/4W R360 1-259-111-11 CARBON 4.7 5% 1/4W R361 1-259-111-11 CARBON 4.7 5% 1/4W R362 1-249-210-11 CARBON 1K 5% 1/3W < VARIABLE RESISTOR > RV301 1-224-489-11 RES, ADJ, METAL FILM 2.2K (BIAS L) < RELAY > RY301 1-755-310-11 RELAY RY302 1-755-310-11 RELAY < TEST PIN > * TP301 3-657-235-00 POINT, TEST * TP302 3-657-235-00 POINT, TEST * TP303 3-657-235-00 POINT, TEST * TP304 3-657-235-00 POINT, TEST * TP305 3-657-235-00 POINT, TEST * TP306 3-657-235-00 POINT, TEST * TP307 3-657-235-00 POINT, TEST ************************************************************** MAIN-L Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark A-4426-212-A MAIN-R BOARD, COMPLETE (US,CND) ****************************** A-4426-216-A MAIN-R BOARD, COMPLETE (EXCEPT US, CND) ************************************** * 3-657-235-00 POINT, TEST 7-682-148-15 SCREW, TR < CAPACITOR > C400 1-125-850-21 FILM 220PF 5% 50V C401 1-125-850-21 FILM 220PF 5% 50V C405 1-117-775-31 FILM 0.1uF 10% 250V C406 1-117-775-31 FILM 0.1uF 10% 250V C407 1-127-741-41 ELECT 0.047uF 10% 250V C408 1-128-971-11 ELECT 220uF 20% 50V C409 1-128-971-11 ELECT 220uF 20% 50V C410 1-117-775-31 FILM 0.1uF 10% 250V C411 1-117-775-31 FILM 0.1uF 10% 250V C414 1-117-775-31 FILM 0.1uF 10% 250V C415 1-128-971-11 ELECT 220uF 20% 50V C416 1-110-512-51 FILM 1uF 10% 50V C417 1-110-512-51 FILM 1uF 10% 50V C418 1-125-845-21 FILM 47PF 10% 50V C419 1-125-845-21 FILM 47PF 10% 50V C421 1-127-741-41 ELECT 0.047uF 10% 250V C422 1-127-741-41 ELECT 0.047uF 10% 250V C423 1-117-775-31 FILM 0.1uF 10% 250V C424 1-117-775-31 FILM 0.1uF 10% 250V C427 1-119-823-11 ELECT 4.7uF 20% 50V C428 1-125-850-21 FILM 220PF 5% 50V C429 1-136-157-00 FILM 0.022uF 5% 50V C430 1-110-394-21 ELECT 220uF 20% 63V C431 1-136-157-00 FILM 0.022uF 5% 50V C432 1-136-157-00 FILM 0.022uF 5% 50V C433 1-119-800-11 ELECT 100uF 20% 25V C434 1-119-800-11 ELECT 100uF 20% 25V C437 1-126-026-11 ELECT 470uF 20% 25V C438 1-126-026-11 ELECT 470uF 20% 25V < CONNECTOR > * CN406 1-564-505-11 PLUG, CONNECTOR 2P < COMPOSITION CIRCUIT BLOCK > CP401 1-418-105-11 AMPLIFIER, UNIT < DIODE > D401 8-719-310-61 DIODE SEL1510C-D D402 8-719-300-04 DIODE SV-04 D403 8-719-300-04 DIODE SV-04 D404 8-719-300-04 DIODE SV-04 D405 8-719-300-04 DIODE SV-04 D406 8-719-024-99 DIODE 11ES2-NTA2B D407 8-719-024-99 DIODE 11ES2-NTA2B D408 8-719-024-99 DIODE 11ES2-NTA2B < IC > IC401 8-759-579-36 IC OPA2132P < BUS BAR > JWH401 1-569-232-11 BAR, BUS JWH402 1-770-108-11 BAR, BUS 7P * JWH403 1-566-940-11 BUS BAR 6P < COIL > * L401 1-428-071-11 COIL, AIR-CORE < IC LINK > PS401 8-759-111-68 IC UPC1237HA < TRANSISTOR > Q401 8-729-281-53 TRANSISTOR 2SC1815-GR Q402 8-729-018-19 TRANSISTOR 2SK2013-Y Q403 8-729-018-21 TRANSISTOR 2SJ313-Y Q404 8-729-018-11 TRANSISTOR 2SK1530A-Y Q405 8-729-018-13 TRANSISTOR 2SJ201A-Y Q406 8-729-018-11 TRANSISTOR 2SK1530A-Y Q407 8-729-018-13 TRANSISTOR 2SJ201A-Y Q408 8-729-018-11 TRANSISTOR 2SK1530A-Y Q409 8-729-018-13 TRANSISTOR 2SJ201A-Y Q410 8-729-018-11 TRANSISTOR 2SK1530A-Y Q411 8-729-018-13 TRANSISTOR 2SJ201A-Y Q412 8-729-018-11 TRANSISTOR 2SK1530A-Y Q413 8-729-018-13 TRANSISTOR 2SJ201A-Y Q414 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA Q415 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q416 8-729-201-53 TRANSISTOR 2SA1015-GR Q417 8-729-281-53 TRANSISTOR 2SC1815-GR Q418 8-729-281-53 TRANSISTOR 2SC1815-GR Q419 8-729-201-53 TRANSISTOR 2SA1015TP-GR < RESISTOR > R400 1-259-525-11 CARBON 56 2% 1W R401 1-259-595-61 CARBON 47K 1% 1/2W R402 1-259-595-61 CARBON 47K 1% 1/2W R403 1-259-668-61 CARBON 470 2% 1W R404 1-259-668-61 CARBON 470 2% 1W R405 1-259-668-61 CARBON 470 2% 1W R406 1-259-525-11 CARBON 56 2% 1W R407 1-259-183-11 CARBON 4.7K 5% 1/4W R408 1-259-171-21 CARBON 1.5K 5% 1/4W !R409 1-202-954-41 FUSIBLE 470 5% 1/2W !R410 1-202-954-41 FUSIBLE 470 5% 1/2W !R412 1-202-951-41 FUSIBLE 150 5% 1/2W !R413 1-202-951-41 FUSIBLE 150 5% 1/2W !R415 1-219-185-11 FUSIBLE 47 5% 1/2W !R416 1-219-185-11 FUSIBLE 47 5% 1/2W !R417 1-219-185-11 FUSIBLE 47 5% 1/2W !R418 1-219-185-11 FUSIBLE 47 5% 1/2W !R419 1-219-185-11 FUSIBLE 47 5% 1/2W !R420 1-219-185-11 FUSIBLE 47 5% 1/2W !R421 1-219-185-11 FUSIBLE 47 5% 1/2W !R422 1-219-185-11 FUSIBLE 47 5% 1/2W !R423 1-219-185-11 FUSIBLE 47 5% 1/2W !R424 1-219-185-11 FUSIBLE 47 5% 1/2W MAIN-R Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark !R425 1-205-647-11 CEMENTED 0.22 5% 5W !R426 1-205-647-11 CEMENTED 0.22 5% 5W !R427 1-205-647-11 CEMENTED 0.22 5% 5W !R428 1-205-647-11 CEMENTED 0.22 5% 5W !R429 1-205-647-11 CEMENTED 0.22 5% 5W !R430 1-205-647-11 CEMENTED 0.22 5% 5W !R431 1-205-647-11 CEMENTED 0.22 5% 5W !R432 1-205-647-11 CEMENTED 0.22 5% 5W !R433 1-205-647-11 CEMENTED 0.22 5% 5W !R434 1-205-647-11 CEMENTED 0.22 5% 5W !R435 1-202-937-41 FUSIBLE 10 5% 1/2W !R436 1-202-937-41 FUSIBLE 10 5% 1/2W !R437 1-202-937-41 FUSIBLE 10 5% 1/2W !R438 1-202-937-41 FUSIBLE 10 5% 1/2W !R439 1-259-749-61 CARBON 10 2% 2W !R440 1-202-954-11 FUSIBLE 470 5% 1/2W R441 1-259-191-21 CARBON 10K 5% 1/4W R442 1-249-959-11 CARBON 33K 5% 1/4W R443 1-259-175-11 CARBON 2.2K 5% 1/4W R444 1-259-171-21 CARBON 1.5K 5% 1/4W !R445 1-249-959-11 CARBON 33K 5% 1/4W !R446 1-249-883-11 CARBON 22 5% 1/4W R447 1-259-227-11 CARBON 330K 5% 1/4W R448 1-259-223-11 CARBON 220K 5% 1/4W R449 1-249-953-11 CARBON 18K 5% 1/4W R450 1-259-207-21 CARBON 47K 5% 1/4W R451 1-259-219-11 CARBON 150K 5% 1/4W R452 1-249-945-11 CARBON 8.2K 5% 1/4W R453 1-214-945-00 METAL 2.2M 1% 1/2W R455 1-202-937-41 FUSIBLE 10 5% 1/2W R456 1-202-937-41 FUSIBLE 10 5% 1/2W R457 1-259-167-21 CARBON 1K 5% 1/4W R458 1-249-945-11 CARBON 8.2K 5% 1/4W R459 1-249-945-11 CARBON 8.2K 5% 1/4W R460 1-259-111-11 CARBON 4.7 5% 1/4W R461 1-259-111-11 CARBON 4.7 5% 1/4W R462 1-249-210-11 CARBON 1K 5% 1/3W < VARIABLE RESISTOR > RV401 1-224-489-11 RES, ADJ, METAL FILM 2.2K (BIAS R) < RELAY > RY401 1-755-310-11 RELAY RY402 1-755-310-11 RELAY ************************************************************** 1-673-333-11 PS-B BOARD ********* * 3-346-266-21 PLATE, GROUND * 4-916-791-01 PLATE, GROUND, 5P 7-682-148-15 SCREW, TR < CAPACITOR > C502 1-128-999-11 CAP, ELECT 27000MF 20% 80V C503 1-128-999-11 CAP, ELECT 27000MF 20% 80V C504 1-117-775-31 FILM 0.1uF 10% 250V C552 1-128-999-11 CAP, ELECT 27000MF 80V C553 1-128-999-11 CAP, ELECT 27000MF 20% 80V C554 1-117-775-31 FILM 0.1uF 10% 250V < CONNECTOR > CN504 1-564-320-00 PIN, CONNECTOR 2P CN554 1-564-320-00 PIN, CONNECTOR 2P CN603 1-691-765-11 PLUG (MICRO CONNECTOR) 3P < BUS BAR > * JWH502 1-569-135-11 BAR, BUS 4P JWH503 1-566-940-21 BUS BAR 3P JWH504 1-566-940-21 BUS BAR 3P * JWH552 1-569-135-11 BAR, BUS 4P JWH553 1-566-940-21 BUS BAR 3P JWH554 1-566-940-21 BUS BAR 3P ************************************************************** MISCELLANEOUS ************* C502 1-128-999-11 CAP, ELECT 27000uF 20% 80V C503 1-128-999-11 CAP, ELECT 27000uF 20% 80V C552 1-128-999-11 CAP, ELECT 27000uF 20% 80V C553 1-128-999-11 CAP, ELECT 27000uF 20% 80V CNJ1 1-580-375-41 INLET 3P Q304 8-729-018-11 TRANSISTOR 2SK1530A-Y Q305 8-729-018-13 TRANSISTOR 2SJ201A-Y Q306 8-729-018-11 TRANSISTOR 2SK1530A-Y Q307 8-729-018-13 TRANSISTOR 2SJ201A-Y Q308 8-729-018-11 TRANSISTOR 2SK1530A-Y Q309 8-729-018-13 TRANSISTOR 2SJ201A-Y Q310 8-729-018-11 TRANSISTOR 2SK1530A-Y Q311 8-729-018-13 TRANSISTOR 2SJ201A-Y Q312 8-729-018-11 TRANSISTOR 2SK1530A-Y Q313 8-729-018-13 TRANSISTOR 2SJ201A-Y Q404 8-729-018-11 TRANSISTOR 2SK1530A-Y Q405 8-729-018-13 TRANSISTOR 2SJ201A-Y Q406 8-729-018-11 TRANSISTOR 2SK1530A-Y Q407 8-729-018-13 TRANSISTOR 2SJ201A-Y Q408 8-729-018-11 TRANSISTOR 2SK1530A-Y Q409 8-729-018-13 TRANSISTOR 2SJ201A-Y Q410 8-729-018-11 TRANSISTOR 2SK1530A-Y Q411 8-729-018-13 TRANSISTOR 2SJ201A-Y Q412 8-729-018-11 TRANSISTOR 2SK1530A-Y Q413 8-729-018-13 TRANSISTOR 2SJ201A-Y !T1 1-433-767-11 TRANSFORMER, POWER (US,CND) !T1 1-433-768-11 TRANSFORMER, POWER (EXCEPT US,CND) TB351 1-694-541-11 TERMINAL BOARD (SP)(EXCEPT US,CND) TB351 1-694-541-21 TERMINAL BOARD (SP)(US,CND) TB451 1-694-541-11 TERMINAL BOARD (SP)(EXCEPT US,CND) TB451 1-694-541-21 TERMINAL BOARD (SP)(US,CND) TH301 1-576-080-11 THERMOSTAT TH401 1-576-080-11 THERMOSTAT ************************************************************** MAIN-R Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. PS-B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 Ref. No. Part No. Description Remark ACCESSORIES & PACKING MATERIALS ******************************* ! 1-551-631-22 CORD, POWER (EXCEPT US,CND) ! 1-551-812-11 CORD, POWER (US,CND) 3-866-957-11 MANUAL, INSTRUCTION (ENGLISH,FRENCH) 3-866-957-21 MANUAL, INSTRUCTION (GERMAN,SPANISH, DUTCH,SWEDISH,ITALIAN,PORTUGUESE)(EXCEPT US,CND) * 4-396-077-01 JOINT ************************************************************** ************* HARDWARE LIST ************* #1 7-682-962-01 SCREW +PSW4X10 #2 7-683-438-04 BOLT, HEXAGON SOCKET 5X16 #3 7-682-561-09 SCREW +B 4X8 #4 7-682-546-09 SCREW +B 3X5 #5 7-682-548-09 SCREW +B 3X8 #6 7-682-562-09 SCREW +B 4X10 #7 7-682-563-09 SCREW +B 4X12 #8 7-682-148-15 SCREW, TR #9 7-682-568-09 SCREW +B 4X30 #10 7-684-024-04 N 4, TYPE 2 #11 7-685-870-01 SCREW +BVTT 3X5 (S) Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 Sony Corporation Home Audio Company 9-928-913-11 99G0989-1 Printed in Japan © 1999. 7 Published by Quality Assurance Dept. TA-N1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
