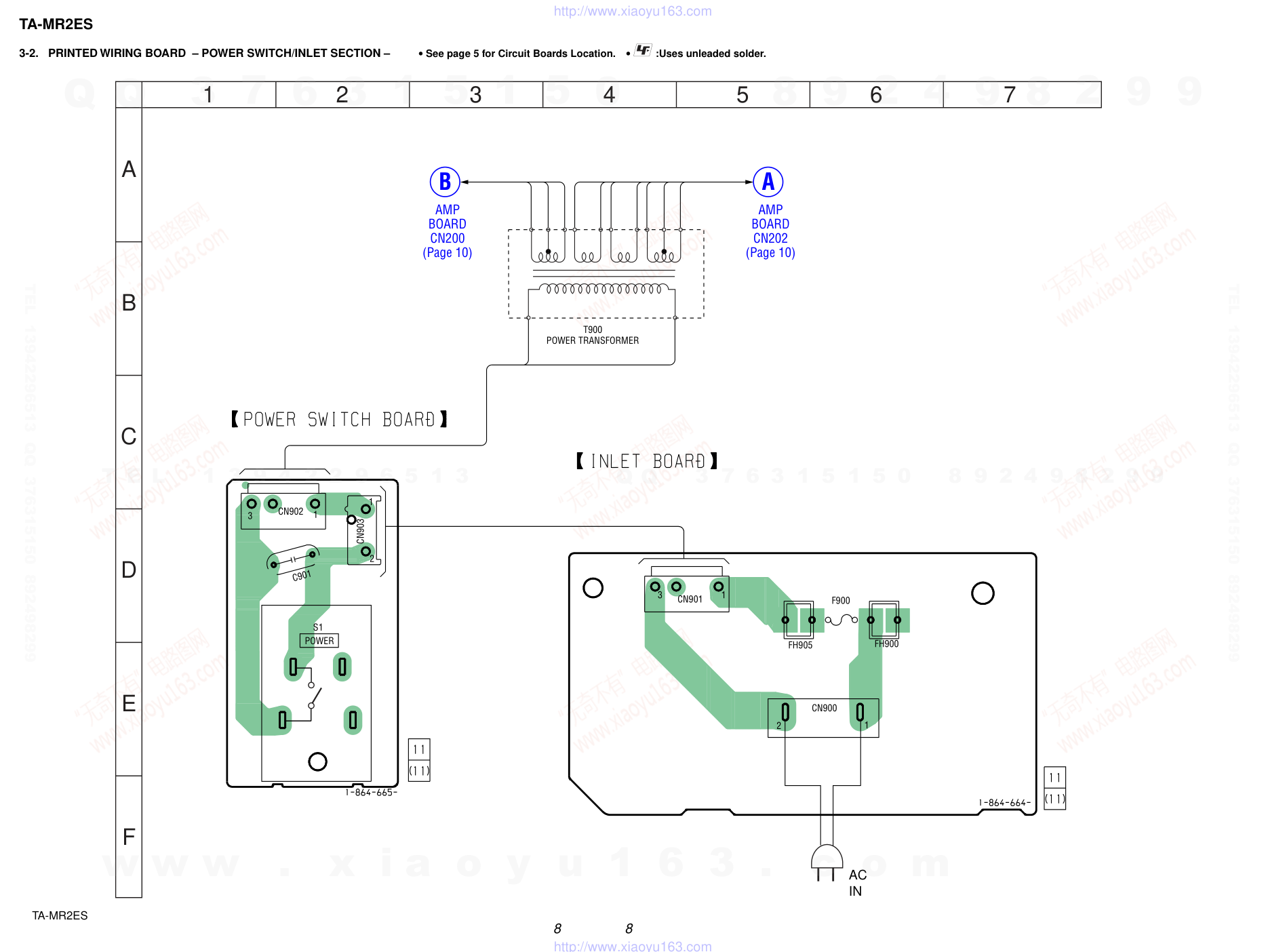

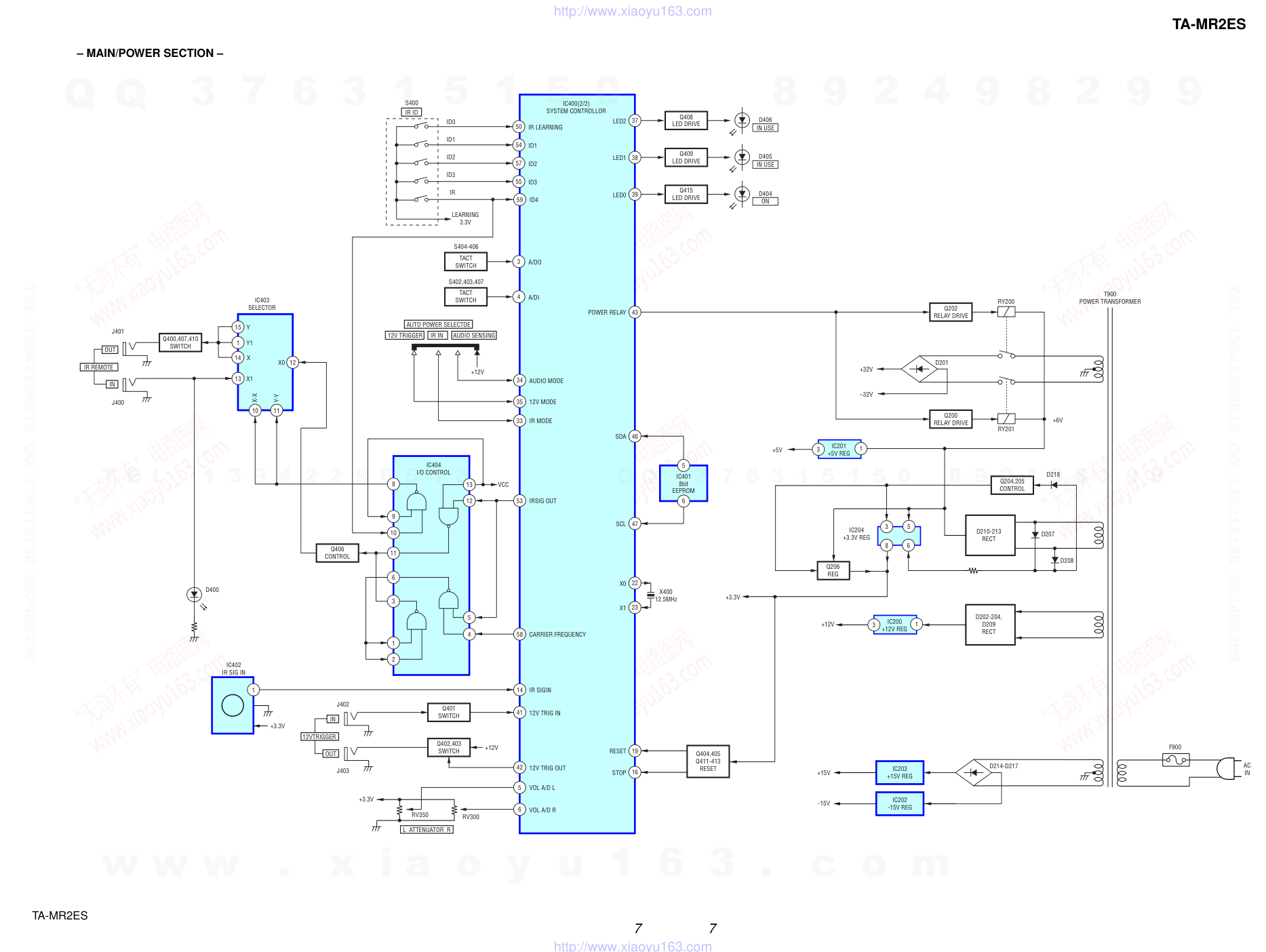

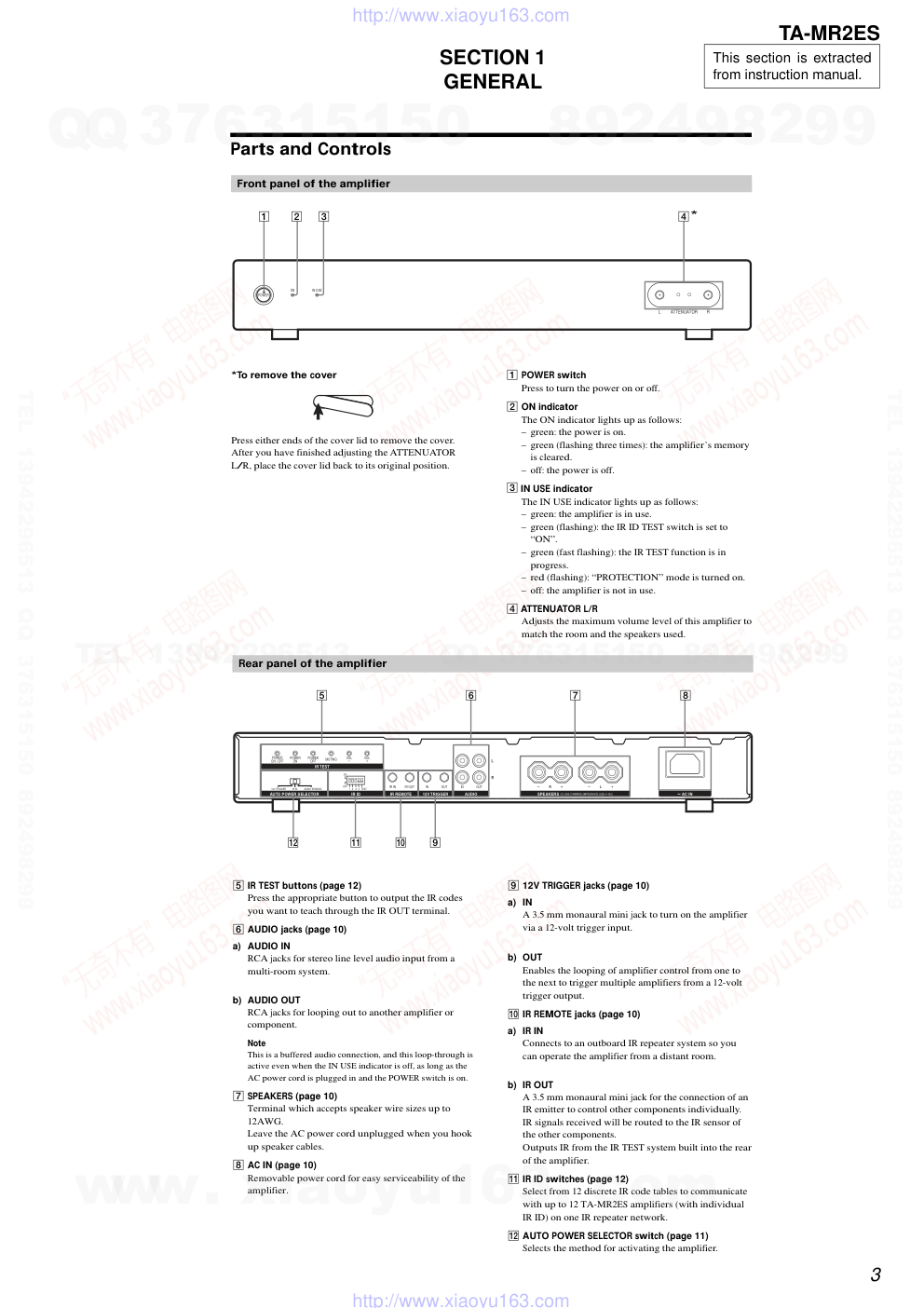

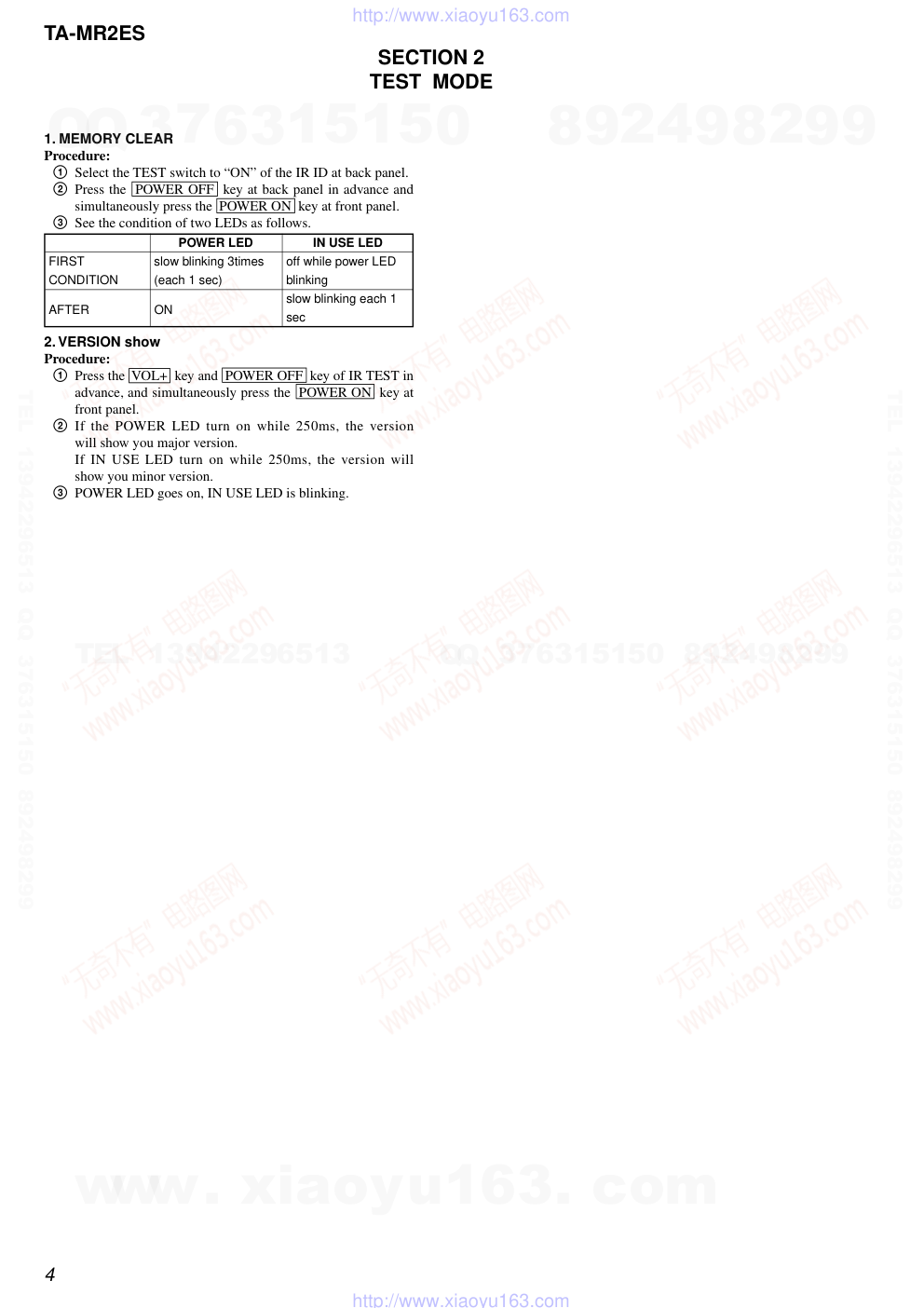

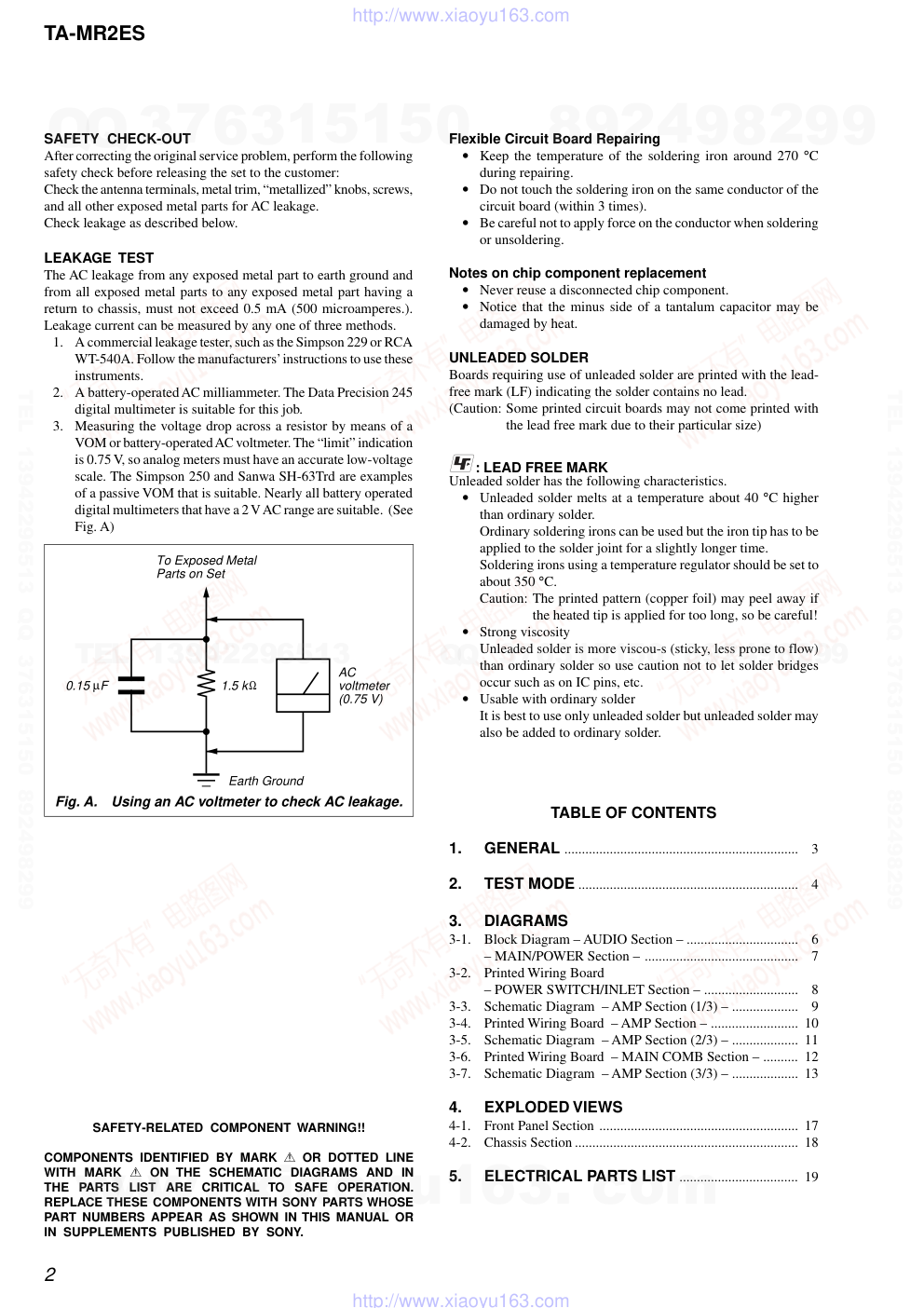

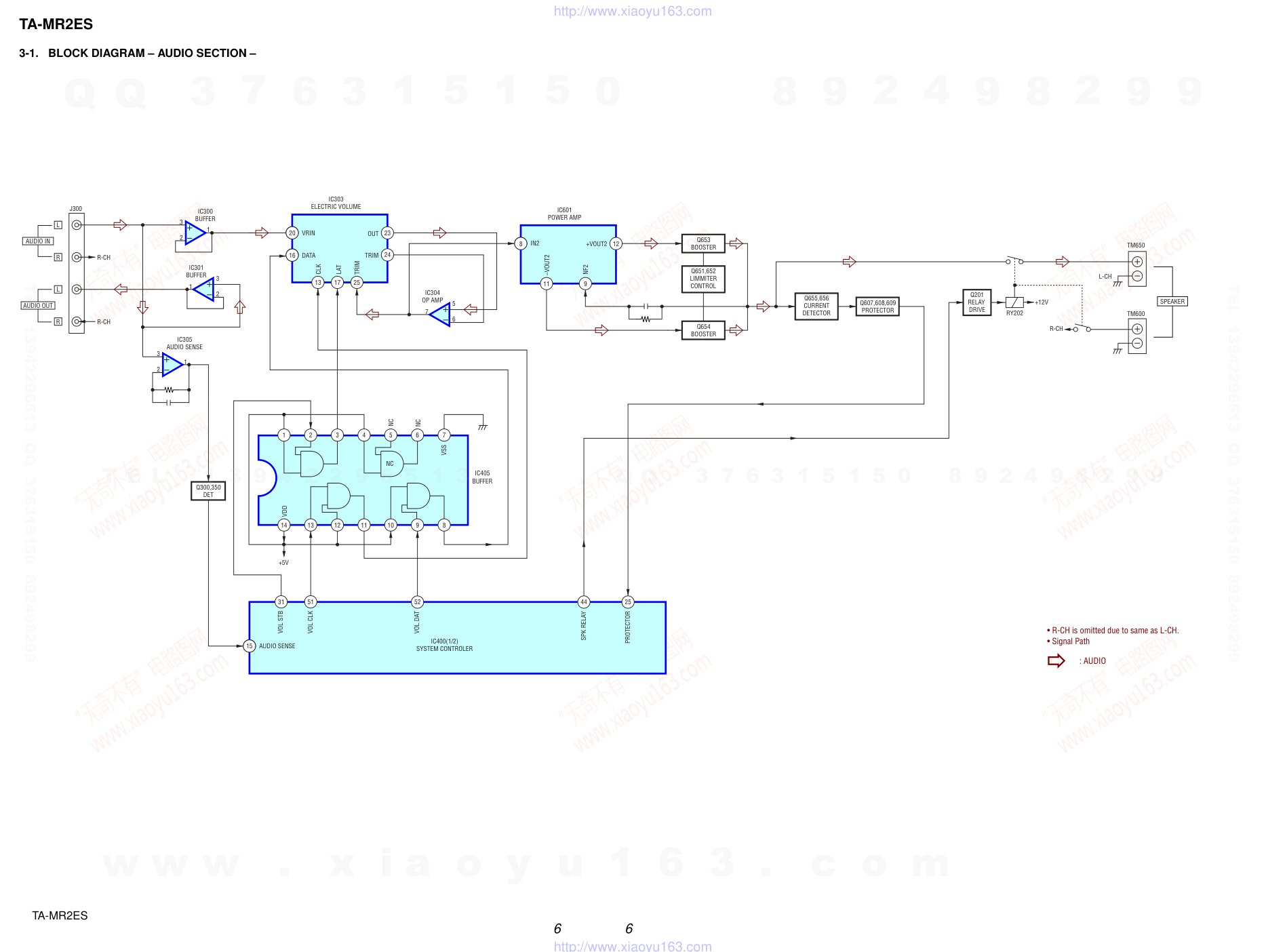

SERVICE MANUAL Sony Corporation Home Audio Division Published by Sony Techno Create Corporation US Model SYSTEM INTEGRATION 2CH AMPLIFIER 9-879-354-02 2006C16-1 © 2006.03 Ver. 1.1 2006.03 SPECIFICATIONS TA-MR2ES Continuous average power output (FTC): 35 W per channel min. RMS at 8 ohms, both channels driven from 20 Hz to 20 kHz with no more than 0.09 % THD. 40 W per channel min. RMS at 4 ohms, both channels driven from 20 Hz to 20 kHz with no more than 0.09 % THD. Frequency responce: 5 Hz – 100 kHz + 0.5/–2 dB Residual noise (A-weighted): 150 µV or less Channel separation (1 kHz/10 kHz): (input 4.7 k ohms terminated) 60 dB/45 dB Signal-to-noise ratio: 94 dB (A-weighted filter, 150 mV input) Audio input Sensitivity: 150 mV Impedance: 50 k ohms Audio output Voltage: minimum 2 V without clipped Impedance: 1 k ohms S/N: 102 dB (A-weighted filter, 2 V output) General 12V trigger IN: accept 10 ~ 12 V of trigger 12V trigger OUT: 300 mA max IR input: accept up to 40 kHz IR modulation frequency IR output: buffered, 5 V Power requirements: 120 VAC, 60 Hz Power consumption: 100 W Dimensions: 430 × 67 × 350 mm (w/h/d) Mass: 6.5 kg Design and specifications are subject to change without notice. Unpacking� � • TA-MR2ES amplifier • AC power cord • Installation Manual • Rack-mount brackets (2) • Screw (6) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 TA-MR2ES TABLE OF CONTENTS 1. GENERAL ................................................................... 3 2. TEST MODE ............................................................... 4 3. DIAGRAMS 3-1. Block Diagram – AUDIO Section – ................................ 6 – MAIN/POWER Section – ............................................ 7 3-2. Printed Wiring Board – POWER SWITCH/INLET Section – ........................... 8 3-3. Schematic Diagram – AMP Section (1/3) – ................... 9 3-4. Printed Wiring Board – AMP Section – ......................... 10 3-5. Schematic Diagram – AMP Section (2/3) – ................... 11 3-6. Printed Wiring Board – MAIN COMB Section – .......... 12 3-7. Schematic Diagram – AMP Section (3/3) – ................... 13 4. EXPLODED VIEWS 4-1. Front Panel Section ......................................................... 17 4-2. Chassis Section ................................................................ 18 5. ELECTRICAL PARTS LIST .................................. 19 Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270 °C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size) : LEAD FREE MARK Unleaded solder has the following characteristics. • Unleaded solder melts at a temperature about 40 °C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 °C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! • Strong viscosity Unleaded solder is more viscou-s (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. • Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. SAFETY CHECK-OUT After correcting the original service problem, perform the following safety check before releasing the set to the customer: Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes.). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2 V AC range are suitable. (See Fig. A) Fig. A. Using an AC voltmeter to check AC leakage. 1.5 kΩ 0.15 µF AC voltmeter (0.75 V) To Exposed Metal Parts on Set Earth Ground www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 TA-MR2ES SECTION 1 GENERAL This section is extracted from instruction manual. ON POWER IN USE ATTENUATOR L R + + * *To remove the cover Press either ends of the cover lid to remove the cover. After you have finished adjusting the ATTENUATOR L/R, place the cover lid back to its original position. Front panel of the amplifier 1 POWER switch Press to turn the power on or off. 2 3 ON indicator The ON indicator lights up as follows: – green: the power is on. – green (flashing three times): the amplifier’s memory is cleared. – off: the power is off. IN USE indicator The IN USE indicator lights up as follows: – green: the amplifier is in use. – green (flashing): the IR ID TEST switch is set to “ON”. – green (fast flashing): the IR TEST function is in progress. – red (flashing): “PROTECTION” mode is turned on. – off: the amplifier is not in use. 4 1 2 3 4 ATTENUATOR L/R Adjusts the maximum volume level of this amplifier to match the room and the speakers used. Parts and Controls Rear panel of the amplifier IR TEST IR ID AUTO POWER SELECTOR 12V TRIGGER IR REMOTE AUDIO R R L IN OUT IN IR IN 4 3 2 1 TEST 12V TRIGGER IR IN AUDIO SENSING OFF ON VOL VOL POWER OFF POWER ON POWER ON / OFF MUTING IR OUT OUT L SPEAKERS AC IN 5 IR TEST buttons (page 12) Press the appropriate button to output the IR codes you want to teach through the IR OUT terminal. 6 AUDIO jacks (page 10) a) AUDIO IN RCA jacks for stereo line level audio input from a multi-room system. b) AUDIO OUT RCA jacks for looping out to another amplifier or component. Note This is a buffered audio connection, and this loop-through is active even when the IN USE indicator is off, as long as the AC power cord is plugged in and the POWER switch is on. 7 SPEAKERS (page 10) Terminal which accepts speaker wire sizes up to 12AWG. Leave the AC power cord unplugged when you hook up speaker cables. 8 AC IN (page 10) Removable power cord for easy serviceability of the amplifier. 9 12V TRIGGER jacks (page 10) a) IN A 3.5 mm monaural mini jack to turn on the amplifier via a 12-volt trigger input. b) OUT Enables the looping of amplifier control from one to the next to trigger multiple amplifiers from a 12-volt trigger output. q; IR REMOTE jacks (page 10) a) IR IN Connects to an outboard IR repeater system so you can operate the amplifier from a distant room. b) IR OUT A 3.5 mm monaural mini jack for the connection of an IR emitter to control other components individually. IR signals received will be routed to the IR sensor of the other components. Outputs IR from the IR TEST system built into the rear of the amplifier. qa IR ID switches (page 12) Select from 12 discrete IR code tables to communicate with up to 12 TA-MR2ES amplifiers (with individual IR ID) on one IR repeater network. qs AUTO POWER SELECTOR switch (page 11) Selects the method for activating the amplifier. 5 qs qa q; 9 6 8 7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 TA-MR2ES 1. MEMORY CLEAR Procedure: 1 Select the TEST switch to “ON” of the IR ID at back panel. 2 Press the POWER OFF key at back panel in advance and simultaneously press the POWER ON key at front panel. 3 See the condition of two LEDs as follows. 2. VERSION show Procedure: 1 Press the VOL+ key and POWER OFF key of IR TEST in advance, and simultaneously press the POWER ON key at front panel. 2 If the POWER LED turn on while 250ms, the version will show you major version. If IN USE LED turn on while 250ms, the version will show you minor version. 3 POWER LED goes on, IN USE LED is blinking. POWER LED IN USE LED FIRST slow blinking 3times off while power LED CONDITION (each 1 sec) blinking AFTER ON slow blinking each 1 sec SECTION 2 TEST MODE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 5 TA-MR2ES TA-MR2ES SECTION 3 DIAGRAMS POWER SWITCH board STOPPER board LED board VR board JUMPER board TACT SWITCH board ID board AMP board INLET board • Circuit Boards Location For Schematic Diagrams. Note: • All capacitors are in µF unless otherwise noted. (p: pF) 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • % : indicates tolerance. • f : internal component. • 2 : nonflammable resistor. • 5 : fusible resistor. • C : panel designation. • A : B+ Line. • B : B– Line. • Voltages and waveforms are dc with respect to ground un- der no-signal (detuned) conditions. No mark: POWER ON * : Imposible to measure • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal production tolerances. • Waveforms are taken with a oscilloscope. • Circled numbers refer to waveforms. • Signal path. F : AUDIO For Printed Wiring Boards. Note: • X : parts extracted from the component side. • a : Through hole. • f : internal component. • : Pattern from the side which enables seeing. Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. B These are omitted. C E Q THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 6 TA-MR2ES TA-MR2ES 3-1. BLOCK DIAGRAM – AUDIO SECTION – • Signal Path : AUDIO • R-CH is omitted due to same as L-CH. 3 2 1 IC300 BUFFER IC301 BUFFER 3 2 1 R-CH J300 L R-CH R AUDIO IN L R AUDIO OUT 3 2 1 IC305 AUDIO SENSE VRIN 8 OUT 23 TRIM TRIM LAT CLK 24 20 DATA 816 13 17 25 IC303 ELECTRIC VOLUME IN2 8 +VOUT2 12 NF2 –VOUT2 8 11 9 IC601 POWER AMP Q653 BOOSTER Q651,652 LIMMITER CONTROL IC405 BUFFER IC400(1/2) SYSTEM CONTROLER VDD VSS 14 13 12 11 10 9 8 1 2 3 4 NC NC 5 NC 6 7 Q300,350 DET VOL CLK 51 VOL STB 31 VOL DAT 52 SPK RELAY 44 PROTECTOR 25 AUDIO SENSE +5V 815 IC304 OP AMP 5 6 7 Q654 BOOSTER Q655,656 CURRENT DETECTOR Q607,608,609 PROTECTOR RY202 Q201 RELAY DRIVE R-CH +12V L-CH TM650 SPEAKER TM600 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 7 TA-MR2ES TA-MR2ES – MAIN/POWER SECTION – IC204 +3.3V REG IC200 +12V REG IC201 +5V REG S400 LEARNING 3.3V IC404 I/O CONTROL VCC IC400(2/2) SYSTEM CONTROLLOR ID0 IR ID ID1 ID2 ID3 IR IR LEARNING 50 ID1 54 ID2 57 ID3 55 ID4 59 A/DO X0 Y1 X1 X-X Y-Y 3 A/DI 4 AUDIO MODE 34 12V MODE 35 IR MODE 33 IRSIG OUT 13 53 12 5 CARRIER FREQUENCY 4 58 2 1 3 6 11 10 9 8 AUTO POWER SELECTOE 12V TRIGGER IR IN AUDIO SENSING +12V S404-406 LED2 37 Q408 LED DRIVE D406 IN USE LED1 38 Q409 LED DRIVE D405 IN USE LED0 39 SDA Q415 LED DRIVE D404 ON 5 6 IC401 8bit EEPROM 46 POWER RELAY 43 SCL 47 X0 X400 12.5MHz 22 X1 23 RESET 19 STOP 16 T900 POWER TRANSFORMER D210-213 RECT +3.3V +12V D202-204, D209 RECT F900 D214-D217 IC203 +15V REG +15V IC202 -15V REG -15V AC IN 6 5 8 3 1 3 RY201 +6V D218 D207 D208 RY200 1 3 D201 +32V –32V Q200 RELAY DRIVE Q202 RELAY DRIVE Q204,205 CONTROL +5V Q206 REG Q404,405 Q411-413 RESET IR SIGIN 14 12V TRIG IN 41 12V TRIG OUT 42 VOL A/D L 5 VOL A/D R 6 TACT SWITCH S402,403,407 TACT SWITCH IC403 SELECTOR J401 J400 J402 J403 1 +3.3V L ATTENUATOR R +3.3V RV350 RV300 +12V IC402 IR SIG IN Q401 SWITCH Q402,403 SWITCH 12VTRIGGER IN OUT Q406 CONTROL 1 13 12 10 11 Y X 14 15 IR REMOTE IN OUT Q400,407,410 SWITCH D400 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 8 TA-MR2ES TA-MR2ES 3-2. PRINTED WIRING BOARD – POWER SWITCH/INLET SECTION – • See page 5 for Circuit Boards Location. • :Uses unleaded solder. S1 CN902 T900 POWER TRANSFORMER C901 CN903 CN900 FH900 FH905 CN901 1 1 3 3 F900 1 1 2 2 AMP BOARD CN202 (Page 10) A AMP BOARD CN200 (Page 10) B AC IN POWER 1 2 A B C D E F 3 4 5 6 7 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 9 TA-MR2ES TA-MR2ES 3-3. SCHEMATIC DIAGRAM – AMP SECTION (1/3) – • See page 14 for IC Block Diagram. No mark :POWER ON FH900 FH905 Q200 R209 Q601 Q602 R610 Q651 Q652 R660 R615 R665 Q608 Q609 Q202 R212 D207 D208 C605 C655 L662 S1 C901 TM600 TM650 D600 D200 D205 D206 D601 D602 D603 D650 R620 R614 R664 R618 R623 R668 Q201 R607 R657 R602 R617 R652 R653 R667 R624 R605 R655 R612 R662 R621 Q605 Q606 Q607 Q655 Q656 Q603 Q653 R619 R669 R601 R622 R651 R606 R656 R608 R609 R658 R659 R611 R661 R207 R210 R211 R214 R215 R616 R666 C202 C203 C216 C607 C613 C617 C657 C667 Q604 Q654 C614 R205 C600 C226 C215 C214 C201 C200 C610 C660 RY202 RY200 RY201 C220 C221 C612 C662 C211 C603 C653 R225 R229 D218 L612 R203 R204 R604 R654 R216 D214 D215 D216 D217 C224 C604 C654 R200 R201 C218 C219 R213 C242 R217 D221 TP11 R603 R600 R206 CN200 T900 CN903 CN902 CN202 CN900 CN901 IC601 IC203 IC202 C206 D213 D212 D210 D211 D209 D202 D203 D204 D201 C225 C606 C656 C217 C209 C210 C204 C205 R208 C602 C652 FUSE HOLDER FUSE HOLDER 2SC2785 4.7k 2SA1115 2SC3623 0.22 2SA1115 2SC3623 0.22 6.2k 6.2k 2SC2785 2SC1841 2SC2785 4.7k 1SS133T 1SS133T 3p 3p AIR COIL 0.0047 250V 1SS133T 1SS133T 1SS133T 1SS133T 1SS133T 1SS133T 1SS133T 1SS133T 10k 4.7k 4.7k 47k 47k 47k 2SC2785 82k 82k 68k 68k 68k 68k 68k 6.8k 560 560 4.7 4.7 39k 2SA988TP 2SA988TP 2SA988TP 2SA988TP 2SA988TP 2SD2560 2SD2560 15k 15k 1k 1k 1k 2.2k 2.2k 100 100 100 100 10 10 33 22 22 18 18 1.5k 1.5k 10000 63V 10000 63V 2200 25V 47 50V 10 50V 10 50V 47 50V 10 50V 2SB1647 2SB1647 220 10V 0.22 1/4W 2.2 50V 0.47 50V 0.1 0.1 0.1 0.1 0.01 0.01 100 16V 100 16V 220p 220p 4700 16V 0.0001 0.0001 JW JW 1SS133T AIR COIL 0.33 1/4W 0.33 1/4W 2.2k 2.2k 100k D1NL20U-TA D1NL20U-TA D1NL20U-TA D1NL20U-TA 10 33p 500V 33p 500V 2.2 2.2 0.1 0.1 47 2.2 50V 100k 1SS133T 68k 22k 0.22 1/4W 4P 2P 3P 7P 2P 3P TA7815S TA79015S 6800 25V 10EDB40-TA2B5 10EDB40-TA2B5 10EDB40-TA2B5 10EDB40-TA2B5 10EDB40-TA2B5 10EDB40-TA2B5 10EDB40-TA2B5 10EDB40-TA2B5 D6SBN20-7001 10 50V 100 16V 100 16V 1000 25V 0.22 0.22 0.22 0.22 2.2k 0.0001 100V 0.0001 100V w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 10 TA-MR2ES TA-MR2ES 3-4. PRINTED WIRING BOARD – AMP SECTION – • See page 5 for Circuit Boards Location. • :Uses unleaded solder. IC403 IC402 IC200 IC202 IC201 IC400 IC601 IC304 IC303 IC305 IC301 IC203 IC401 IC405 IC204 IC300 IC404 D201 C325 C375 B100 LP1 LP2 LP6 JW005 JW006 JW007 JW008 JW009 JW012 JW013 JW021 JW022 JW026 JW027 JW030 JW031 JW032 JW033 JW044 JW045 JW046 JW049 JW051 JW063 JW064 JW065 JW067 JW070 JW072 JW076 JW077 JW086 JW087 JW089 JW090 JW091 JW092 JW093 JW094 JW096 JW097 JW098 JW099 JW101 JW102 JW103 JW109 JW110 JW111 JW112 JW113 JW114 JW115 JW116 JW126 JW131 JW132 JW135 JW137 JW138 JW139 JW141 JW143 JW144 JW145 JW146 JW147 JW148 JWH003 JWH004 JWH007 JW061 JW060 JW085 R318 R368 JW062 JW039 JW035 JW034 JW040 JW041 JW128 JW127 JW129 JW100 JW106 JW105 Q206 D407 JW104 JW133 JW136 JW140 JW134 JWH005 JWH006 JWH002 JW107 JW121 JW123 JW124 JW200 JW201 JW202 JW203 JW205 JW206 JWH008 JWH010 JWH012 C242 D218 JW108 R489 Q412 Q413 R490 R491 Q411 R231 Q204 Q205 JW088 JWH009 R225 R229 JW068 C433 R481 R482 Q408 Q409 R467 R468 R469 R470 R472 R473 JW075 JW074 JW073 JW028 R488 R483 R478 R494 R495 JW019 R479 JW207 JWH001 JWH011 JW069 JW084 JW160 JW165 JW081 JW080 JW043 JW042 JW048 JWH013 Q410 R319 R369 JW003 JW023 JW025 TP12 JW024 D220 R497 R498 JW204 Q415 JW180 JW190 LP10 Q604 C203 Q603 C202 TM650 TM600 J300 Q602 C405 R355 R305 C358 C308 R354 R304 R651 R601 C603 R610 R605 R606 R607 Q601 C607 R659 Q654 Q653 Q652 R660 R655 R657 R656 Q651 C657 C224 R658 C604 C605 C653 C654 C655 R603 R653 C600 Q201 R602 R652 C602 C652 R604 R654 C606 C656 D202 D203 D206 D209 D210 RY202 R608 D211 C201 C200 D200 C226 D204 Q200 Q202 R205 R204 C218 C217 C216 C211 C206 C214 C215 C210 C209 C205 C204 C610 R212 C612 R615 RY201 RY200 D207 CN202 D212 D213 D214 D215 D216 D217 D208 R211 R209 R214 R215 R217 R664 R665 C662 Q655 Q656 R666 R667 D650 R669 R668 R617 Q605 Q606 R618 R616 R619 D600 R210 Q607 D602 D603 D601 Q608 Q609 R620 R623 R624 C613 C614 R621 R228 C660 R661 C207 C407 R611 C208 C212 C213 C220 C221 C219 R302 C351 D205 R213 R207 R208 C400 C401 R222 L662 L612 R662 R612 R419 R609 C225 J403 J402 J401 S401 S401 CN402 CN404 R216 C301 R300 R301 R351 C354 C304 R353 C355 R303 R352 R411 R412 R413 R414 R415 R416 R441 R417 R423 L400 C408 R460 R406 R459 R420 R408 C430 C402 R418 R425 R442 C419 R448 R421 C422 C423 R447 C403 C404 R403 R407 R443 R440 X400 C231 C411 C431 R424 C228 Q404 Q405 C418 R224 C305 R312 C320 C370 R363 R313 R314 R364 R365 R315 D350 D300 C373 C323 Q300 R367 Q350 R366 D403 R438 R435 R436 C417 R434 R432 R433 Q403 C416 TH401 C415 Q401 C235 Q407 R431 Q400 R427 C412 R426 C424 R450 R451 R452 R456 R462 Q406 C427 R201 C406 R362 C365 C366 R360 C315 C420 C429 R464 C316 R310 C363 C313 R359 R309 R361 R311 L200 C617 C667 C428 R622 C230 R221 R226 R220 R219 C229 R227 R218 C227 C238 C237 C236 D400 R350 CN200 R465 R422 Q402 C432 R614 C421 R404 CN400 CN403 R206 R600 R200 R430 R457 R203 JW230 JW231 JW232 JW233 JW234 JW235 JW237 JW238 R371 R321 R316 JW036 R4102 R428 R429 R499 R437 R4109 JW166 R409 R4111 R4108 R458 JW011 JW240 JW016 JW018 JW236 JW004 JW010 JW130 R4101 R453 R4105 R4100 JW215 JW082 JW083 JW119 JW120 JW117 JW125 JW150 JW170 JW118 R4116 R4115 R4112 R4113 R4114 C437 D221 R400 R496 R4118 R449 R402 R401 R4119 JW241 TP13 JW242 C438 C439 R466 R410 R474 R463 R475 JW047 C442 JW029 JW079 R476 TP15 LP3 JW250 JW251 TP11 J400 D402 E E E E E E E E E E E JUMPER BOARD CN452 (Page 12) C VR BOARD CN454 (Page 12) E LED BOARD CN453 (Page 12) F TACT SWITCH BOARD CN450 (Page 12) D T900 TRANSFORMER (Page 8) B T900 TRANSFORMER (Page 8) A AUTO POWER SELECTOR 12V TRIGGER IR IN IR IN TR REMOTE 12V TRIGGER AUDIO IN IN OUT OUT IR OUT AUTO SENSING (CHASSIS) 16 14 8 1 7 9 8 1 1 8 5 4 1 8 5 4 1 3 1 1 1 1 4 4 8 8 5 1 4 8 5 1 7 14 32 33 48 49 64 1 16 17 8 5 2 15 14 3 1 3 1 3 1 3 R L R R SPEAKERS (CLASS 2 WIRING) L L (IMPEDANCE USE 4-16 ) 1 7 E E E E E E E E E E E E E E E E E E E E E E E E 1 1 1 3 4 4 E E E 1 2 A B C D E F G H I J 3 4 5 6 7 8 9 10 11 12 13 • Semiconductor Location Ref. No. Location D200 C-13 D201 C-12 D202 H-11 D203 H-11 D204 H-11 D205 D-9 D206 D-13 D207 H-10 D208 H-11 D209 H-11 D210 G-10 D211 H-10 D212 G-10 D213 H-10 D214 G-10 D215 G-10 D216 G-10 D217 G-10 D218 H-10 D220 C-13 D221 F-3 D300 C-7 D350 C-7 D400 B-4 D402 B-6 D403 B-5 D407 E-4 D600 H-9 D601 H-5 D602 G-5 D603 H-3 D650 H-4 IC200 D-5 IC201 F-4 IC202 E-7 IC203 E-7 IC204 G-4 IC300 C-7 IC301 C-8 IC303 E-6 IC304 F-6 IC305 C-7 IC400 G-3 IC401 D-2 Ref. No. Location IC402 C-4 IC403 C-3 IC404 C-3 IC405 E-4 IC601 G-5 Q200 C-13 Q201 E-8 Q202 C-13 Q204 G-5 Q205 G-5 Q206 F-5 Q300 D-6 Q350 D-5 Q400 C-5 Q401 C-6 Q402 B-6 Q403 C-6 Q404 E-4 Q405 E-4 Q406 C-6 Q407 B-5 Q408 C-5 Q409 I-2 Q410 B-5 Q411 G-4 Q412 G-4 Q413 G-4 Q415 I-2 Q601 I-9 Q602 I-8 Q603 I-8 Q604 I-9 Q605 I-10 Q606 I-10 Q607 H-5 Q608 H-4 Q609 H-4 Q651 I-4 Q652 I-4 Q653 I-4 Q654 I-5 Q655 H-4 Q656 H-4 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 11 TA-MR2ES TA-MR2ES 3-5. SCHEMATIC DIAGRAM – AMP SECTION (2/3) – • See page 14 for IC Block Diagram. No mark :POWER ON C213 C208 C354 R351 R301 R352 R302 C351 C301 C308 C358 R303 R353 R304 R354 R305 R355 C305 C355 IC303 C316 C366 R309 R360 R359 R311 R361 C313 C363 Q405 Q404 D407 R364 R314 R312 R362 R365 R315 C370 C320 D300 D350 C323 C373 R366 R316 R367 C228 C231 C227 Q206 R218 C230 R220 R222 C229 R224 R228 C238 IC405 R463 R318 Q411 R489 Q412 R490 R491 Q205 Q204 R231 R319 R369 D220 Q350 Q300 R371 R321 Q413 C244 C405 C407 C429 C430 C431 J300 R300 R350 R368 C304 C406 R465 R464 R4112 R4114 R4113 C418 IC301 IC305 IC300 IC304 IC200 IC201 IC204 C325 C375 C437 R227 R226 R310 R363 R313 C365 C315 C237 R221 R219 C235 C212 C236 C207 C432 47 50V 47 50V 10 50V 100k 100k 100k 100k 10 50V 10 50V 10 50V 10 50V 1k 1k 100k 100k 100k 100k 10 50V 10 50V CXD9725M 100 16V 100 16V 100k 1k 100k 100k 100k 220p 220p DTA124ESATP DTC124ESATP 1SS133T 220k 220k 100k 100k 100k 100k 10 50V 10 50V 1SS133T 1SS133T 0.47 50V 0.47 50V 47k 47k 0.1 0.22 50V 47 50V 2SD1513 10k 0.1 6.2k 10k 4.7 50V 1k 0.1 TC74ACT08AP 100 1k DTC124ESATP 47k DTA124ESATP 47k 4.7k DTC124ESATP DTC124ESATP 4.7k 1k 1k 1SS133T 2SC2785 2SC2785 220k 220k 2SC2785 0.1 1000p 0.01 47p 47p 47p 4P 1k 1k 1k 10 50V 1000p 100 100 10k 3.3k 47k 4.7 50V M5218AP-22 M5218AP-22 M5218AP-22 M5218AP-22 BA12T BA05T NJM2103D 100p 100p 4.7 50V 8.2k 1k 910 910 220 25V 220 25V 4.7 50V 4.7k 5% 4.7k 5% 4.7 50V 0.1 4.7 50V 0.1 0.22 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 12 TA-MR2ES TA-MR2ES 3-6. PRINTED WIRING BOARD – MAIN COMB SECTION – • See page 5 for Circuit Boards Location. • :Uses unleaded solder. 4 3 2 9 8 7 1 2 3 4 TEST AMP BOARD CN402 (Page 10) C AMP BOARD CN404 (Page 10) E AMP BOARD CN400 (Page 10) D AMP BOARD CN403 (Page 10) F ON IN USE MUTING + R ATTENUATOR VOL - POWER OFF POWER ON POWER ON/OFF L 1 4 1 2 A B C D E F 3 4 5 6 7 8 9 10 11 B400 B401 JW400 JW401 JW402 JW403 JW404 JW405 JW406 S400 CN452 D404 D406 D405 R487 R493 R492 CN453 S407 S402 S403 S404 S405 S406 R446 R461 R444 R445 CN450 LP5 LP8 C436 JW172 W1 LP9 RV300 RV350 CN454 ON OFF (GRN) (RED) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 13 TA-MR2ES TA-MR2ES 3-7. SCHEMATIC DIAGRAM – AMP SECTION (3/3) – • See page 14 for IC Block Diagram. • See page 14 for Waveform. • See page 15 for IC Pin Function Description. No mark :POWER ON CARRIER FREQUENCY S401 Q403 TH401 C400 R408 R409 C401 R426 R418 R421 R422 R410 R411 R412 R429 R431 R436 R435 Q401 R416 R417 D402 R438 R400 R401 R402 R424 R413 R414 R443 S402 S403 S404 S405 S406 R444 R445 R446 R448 R450 R451 R452 R430 R458 R406 R460 S407 R461 R462 C428 CN452 CN402 S400 R468 R474 R476 R478 R479 R481 R482 Q408 Q409 R488 R4111 R495 Q410 Q400 Q406 R497 Q415 R499 R4101 R4105 R4109 R437 R4108 R498 R4119 TP12 D400 R427 IC402 C412 R432 R433 Q402 R434 L400 C416 C415 C419 C421 C423 C424 C427 Q407 C426 R403 R4116 R4117 L200 R404 R442 R440 C403 R494 R447 C420 C422 R466 R419 R449 R467 R420 R4118 R469 R456 R473 R475 R483 R471 R441 CN403 C404 R407 X400 C433 IC400 R453 R470 CN404 CN400 CN450 R425 R428 C417 D403 JW400 JW401 JW402 JW403 JW404 JW405 RV300 RV350 C436 CN454 IC403 J400 J401 J402 J403 IC404 IC401 JW406 R487 R492 CN453 D404 D405 C408 C411 R493 D406 C442 R472 R415 R4115 C402 R496 R457 R4102 R4100 C439 C438 DTC124ESATP 4.7 50V 10k 10k 4.7 50V 10 100 100 100 100 100 100 100k 1k 2.2k 10k DTC124ESATP 100 10k 1SS133T 10k 100 100 100 100 100 100 10k 1k 2.2k 1k 10k 10k 100 10k 10k 4.7k 100 10k 2.2k 10k 47 50V 6P 6P 10k 10k 10k 2.2k 22k 10k 10k DTC124ESATP DTC124ESATP 100 10k 100 2SC2785 2SC2785 2SC2785 47k DTC124ESATP J 470k 10k 10 1W 10 1W 100k 100k 10k SID307BRTP19 10k NJL72H400A 4.7 50V 10k 2.2k 2SB734-T-34 10k 0.22 0.22 50V 0.1 0.1 0.22 0.047 0.047 2AS1115 n.m. 100 100 100 47k 100 10k 0.1 100 10k 0.1 0.22 10k 100 100 10k 100 100 10k 100 10k 10k 47k 10k 100 4P 0.1 2.2k 12.5MHz 0.1 MB89537APFM-G- 662-BNDE1 10k 4.7k 4P 3P 4P 100 33 2W 47 50V 1SS133T 10k 10k 0.1 4P TC74HC4053AP TC74HC00AP BR24L16-W 100 100 4P SEL5221S-TP15 SML72423C-TP15 0.22 0.047 100 SEL5221S 0.22 4.7k 1k 100 0.22 100 1k 47k 4.7k 0.22 0.22 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 14 TA-MR2ES TA-MR2ES • IC Block Diagrams – AMP Board – • Waveform – AMP Board – 1 IC400 wd (X1) 80.1 ns 452 mVp-p 100 mV/DIV, 80 ns/DIV IC601 µPC2581V-S PROTECTOR DRIVE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 PRE DRIVE PRE DRIVE BIAS CIRCUIT REG MUTE +VOUT1 –VOUT1 COMP1 NF1 IN1 GND IN2 NF2 COMP2 –VOUT2 +VOUT2 VCC1 VCC2 VEE DRIVE IC403 TC74HC4053AP 15 16 14 13 12 11 10 9 2 1 3 4 5 6 7 8 Z-Z Y-Y X-X X0 X X1 Y +VDD VSS -VEE INT Z Y1 Y0 LOGIC LEVEL CONVERTOR C OUT IN C OUT IN C OUT IN C OUT IN C OUT IN C OUT IN Z1 Z0 IC303 CXD9725M +VDD VSS 28 26 25 21 27 LATCH 5 to 25 DECODER 24 bit SHIFT REGISTER LATCH 5 to 25 DECODER LEVEL SHIFT LATCH 4 to 16 DECODER LATCH 4 to 13 DECODER LATCH LATCH 4 to 13 DECODER 4 to 16 DECODER 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 24 23 22 NC TVR-REF TVR-IN TVR-OUT MVR-OUT MVR-A-GND NC MVR-IN NC NC CK CS1 GND NC DATA STB CS2 NC MVR-IN NC MVR-A-GND MVR-OUT TVR-OUT TVR-IN TVR-REF NC w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 TA-MR2ES • IC Pin Function Description AMP BOARD IC400 MB89537APFM-G-662-BNDE1 (SYSTEM CONTROLLER) Pin No. Pin Name I/O Description 1 NC – Not used 2 MOD2 – USB programming setting 3 A/D0 I A/D KEY1 from the TACT SW 4 A/D1 I A/D KEY2 from the TACT SW 5 VOL A/D L I VOL A/D L input from the VR PWB 6 VOL A/D R I VOL A/D R input from the VR PWB 7 NC – Not used 8 NC – Not used 9 NC – Not used 10 NC – Not used 11 AVCC – Power supply terminal (+3.3V) 12 AVR – Connect to AVCC 13 AVSS – Ground terminal 14 IR SIGNAL IN I IR signal input from the IC402 15 AUDIO SENSE I AUDIO sensing 16 STOP I AC off detection input terminal 17 NC – Pull down terminal 18 NC – Pull down terminal 19 RST O Reset signal output 20 MOD0 I USB programming setting terminal 21 MOD1 I USB programming setting terminal 22 X0 O Crystal pin (OUT) 23 X1 I Crystal pin (IN) 24 VSS – Ground terminal 25 PROTECTOR I Protector signal input terminal 26 NC – Not used 27 NC – Not used 28 NC – Not used 29 P23 – Pull down ground terminal 30 PPG02 – Pull up Vcc terminal 31 VOL STB O Output signal to the IC405 32 NC – Not used 33 IR MODE I To Auto power selector sw 34 AUDIO MODE I To Auto power selector sw 35 12V MODE I To Auto power selector sw 36 NC – Not used 37 LED2 O LED control signal output 38 LED1 O LED control signal output 39 LED0 O LED control signal output 40 P10 – USB programming setting terminal 41 12V TRIG IN I 12V trigger input detection 42 12V TRIG OUT O 12V trigger output control 43 POWER RELAY O Power relay control terminal 44 SPK RELAY O Speaker relay control terminal 45 NC – Not used 46 SDA I/O EEPROM DATA 47 SCL O EEPROM CLOCK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 TA-MR2ES Pin No. Pin Name I/O Description 48 NC – Not used 49 NC – Not used 50 IR LEARNING O IR code ID setting terminal 51 VOL CLK O VOLUME CLOCK output signal 52 VOL DAT O VOLUME DATA output signal 53 IR SIGNAL OUT O IR signal output 54 ID1 I IR code ID setting 55 ID3 I IR code ID setting 56 VCC – Power supply terminal (+3.3V) 57 ID2 I IR code ID setting CARRIER 58 FREQUENCY I 40 kHz carrier 59 ID4 I IR code ID setting 60 SCK2 – USB programming setting terminal 61 SOT2 – USB programming setting terminal 62 SIN2 – USB programming setting terminal 63 NC – Not used 64 NC – Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 TA-MR2ES SECTION 4 EXPLODED VIEWS NOTE: • -XX, -X mean standardized parts, so they may have some difference from the original one. • The mechanical parts with no reference number in the exploded views are not supplied. • Items marked “*” are not stocked since they are required for routine service. Some delay should be anticipated when ordering these items. Ref. No. Part No. Description Remark 1 A-1079-673-A LID ASSY (SILVER) 1 A-1179-314-A LID ASSY (BLACK) 2 2-190-786-01 FRONT PANEL (AL) (SILVER) 2 2-190-786-11 FRONT PANEL (AL) (BLACK) 3 3-087-053-01 +BVTP2.6 (3CR) 4 3-077-331-21 +BV3 (3-CR) 5 X-2109-203-1 BUTTON (POWER) ASSY (BLACK) 4-1. FRONT PANEL SECTION The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Ref. No. Part No. Description Remark 5 X-4955-618-1 BUTTON (POWER) ASSY (SILVER) 6 4-254-457-21 CASE (SL500) (SILVER) 6 4-254-457-41 CASE (SL500) (BLACK) 7 3-070-883-11 SCREW, TAPPING (SILVER) 7 3-070-883-31 SCREW, TAPPING (BLACK) 8 2-515-463-01 INSULATION (SHEET) #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 1 3 3 3 3 3 2 3 3 4 4 4 5 6 8 7 7 chassis section not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied #1 Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 TA-MR2ES Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 3-077-331-21 +BV3 (3-CR) 52 X-2022-049-1 FOOT ASSY (SILVER) 52 X-2055-767-1 FOOT ASSY (BLACK) 53 3-531-576-01 RIVET 54 3-701-748-00 CLAMP 55 4-924-098-01 HOLDER, PC BOARD 56 4-249-675-01 +BV SUMITITE S 4X6 ROUND 57 3-905-609-01 SCREW (TRANSISTOR) 58 A-1079-664-A AMP BOARD, COMPLETE 0F900 1-533-419-11 FUSE, GLASS CYLINDRICAL (DIA.5) (4A/152V) Q603 8-729-051-92 TRANSISTOR 2SD2560 Q604 8-729-051-93 TRANSISTOR 2SB1647 Q653 8-729-051-92 TRANSISTOR 2SD2560 Q654 8-729-051-93 TRANSISTOR 2SB1647 0T900 1-443-501-11 POWER TRANSFORMER #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 #2 7-685-659-79 SCREW +BVTP 4X8 TYPE2 IT-3 4-2. CHASSIS SECTION a a 51 51 51 51 51 51 51 51 51 51 51 52 52 53 53 54 54 55 56 56 57 58 59 Q603 Q654 T900 not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied F900 #1 #1 #1 #1 #2 57 Q604 57 Q653 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 TA-MR2ES SECTION 5 ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • CAPACITORS uF: µF • COILS uH: µH • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. . • Accessories are given in the last of this parts list. When indicating parts by reference number, please include the board name. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark A-1079-664-A AMP BOARD, COMPLETE ******************** 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 < CAPACITOR > C200 1-130-495-00 MYLAR 0.1uF 5% 50V C201 1-130-495-00 MYLAR 0.1uF 5% 50V C202 1-100-691-11 ELECT 10000uF 20% 63V C203 1-100-691-11 ELECT 10000uF 20% 63V C204 1-135-851-21 MYLAR 0.22uF 100V C205 1-135-851-21 MYLAR 0.22uF 100V C206 1-126-946-11 ELECT 6800uF 20% 25V C207 1-113-342-11 CERAMIC 0.1uF 50V C208 1-126-967-11 ELECT 47uF 20% 50V C209 1-135-851-21 MYLAR 0.22uF 100V C210 1-135-851-21 MYLAR 0.22uF 100V C211 1-126-937-11 ELECT 4700uF 20% 16V C212 1-113-342-11 CERAMIC 0.1uF 50V C213 1-126-967-11 ELECT 47uF 20% 50V C214 1-130-495-00 MYLAR 0.1uF 5% 50V C215 1-130-495-00 MYLAR 0.1uF 5% 50V C216 1-112-093-11 ELECT 2200uF 20% 25V C217 1-112-092-11 ELECT 1000uF 20% 25V C218 1-130-495-00 MYLAR 0.1uF 5% 50V C219 1-130-495-00 MYLAR 0.1uF 5% 50V C220 1-112-083-11 ELECT 100uF 20% 16V C221 1-112-083-11 ELECT 100uF 20% 16V C224 1-112-100-11 ELECT 10uF 20% 50V C225 1-112-100-11 ELECT 10uF 20% 50V C226 1-126-959-11 ELECT 0.47uF 20% 50V C227 1-126-967-11 ELECT 47uF 20% 50V C228 1-113-342-11 CERAMIC 0.1uF 50V C229 1-126-963-11 ELECT 4.7uF 20% 50V C230 1-113-342-11 CERAMIC 0.1uF 50V C231 1-126-957-11 ELECT 0.22uF 20% 50V C235 1-126-963-11 ELECT 4.7uF 20% 50V C236 1-126-963-11 ELECT 4.7uF 20% 50V C237 1-126-963-11 ELECT 4.7uF 20% 50V C238 1-113-342-11 CERAMIC 0.1uF 50V C242 1-126-961-11 ELECT 2.2uF 20% 50V C244 1-113-342-11 CERAMIC 0.1uF 50V C301 1-112-100-11 ELECT 10uF 20% 50V C304 1-112-100-11 ELECT 10uF 20% 50V C305 1-112-100-11 ELECT 10uF 20% 50V C308 1-112-100-11 ELECT 10uF 20% 50V C313 1-137-505-11 FILM 220PF 5% 100V C315 1-112-091-11 ELECT 220uF 20% 25V C316 1-112-083-11 ELECT 100uF 20% 16V C320 1-126-964-11 ELECT 10uF 20% 50V C323 1-126-959-11 ELECT 0.47uF 20% 50V C325 1-128-809-11 CERAMIC 100PF 5% 50V C351 1-112-100-11 ELECT 10uF 20% 50V C354 1-112-100-11 ELECT 10uF 20% 50V C355 1-112-100-11 ELECT 10uF 20% 50V C358 1-112-100-11 ELECT 10uF 20% 50V C363 1-137-505-11 FILM 220PF 5% 100V C365 1-112-091-11 ELECT 220uF 20% 25V C366 1-112-083-11 ELECT 100uF 20% 16V C370 1-126-964-11 ELECT 10uF 20% 50V C373 1-126-959-11 ELECT 0.47uF 20% 50V C375 1-128-809-11 CERAMIC 100PF 5% 50V C400 1-126-963-11 ELECT 4.7uF 20% 50V C401 1-126-963-11 ELECT 4.7uF 20% 50V C402 1-135-798-11 CERAMIC 0.22uF 50V C403 1-113-342-11 CERAMIC 0.1uF 50V C404 1-113-342-11 CERAMIC 0.1uF 50V C405 1-128-821-11 CERAMIC 1000PF 5% 50V C406 1-128-821-11 CERAMIC 1000PF 5% 50V C407 1-127-876-11 CERAMIC 0.01uF 5% 50V C408 1-135-798-11 CERAMIC 0.22uF 50V C411 1-127-884-11 CERAMIC 0.047uF 10% 50V C412 1-126-963-11 ELECT 4.7uF 20% 50V C415 1-126-957-11 ELECT 0.22uF 20% 50V C416 1-135-798-11 CERAMIC 0.22uF 10% 50V C417 1-126-967-11 ELECT 47uF 20% 50V C418 1-126-963-11 ELECT 4.7uF 20% 50V C419 1-113-342-11 CERAMIC 0.1uF 50V C420 1-113-342-11 CERAMIC 0.1uF 50V C421 1-113-342-11 CERAMIC 0.1uF 50V C422 1-135-798-11 CERAMIC 0.22uF 50V C423 1-135-798-11 CERAMIC 0.22uF 50V C424 1-127-884-11 CERAMIC 0.047uF 10% 50V C427 1-127-884-11 CERAMIC 0.047uF 10% 50V C428 1-126-967-11 ELECT 47uF 20% 50V C429 1-128-805-11 CERAMIC 47PF 5% 50V C430 1-128-805-11 CERAMIC 47PF 5% 50V C431 1-128-805-11 CERAMIC 47PF 5% 50V C432 1-135-798-11 CERAMIC 0.22uF 50V C433 1-113-342-11 CERAMIC 0.1uF 50V C437 1-126-963-91 ELECT 4.7uF 20% 50V The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. AMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 TA-MR2ES Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C438 1-135-798-11 CERAMIC 0.22uF 50V C439 1-135-798-11 CERAMIC 0.22uF 50V C442 1-135-798-11 CERAMIC 0.22uF 50V C600 1-126-961-11 ELECT 2.2uF 20% 50V C602 1-137-503-11 FILM 100PF 5% 100V C603 1-137-503-11 FILM 100PF 5% 100V C604 1-102-233-00 CERAMIC 33PF 10% 500V C605 1-107-583-11 CERAMIC 3PF 0.25PF 500V C606 1-112-083-11 ELECT 100uF 20% 16V C607 1-112-101-11 ELECT 47uF 20% 50V C610 1-137-150-11 FILM 0.01uF 5% 100V C612 1-128-813-11 CERAMIC 220PF 5% 50V C613 1-126-964-11 ELECT 10uF 20% 50V C614 1-126-923-91 ELECT 220uF 20% 10V C617 1-112-100-11 ELECT 10uF 20% 50V C652 1-137-503-11 FILM 100PF 5% 100V C653 1-137-503-11 FILM 100PF 5% 100V C654 1-102-233-00 CERAMIC 33PF 10% 500V C655 1-107-583-11 CERAMIC 3PF 0.25PF 500V C656 1-112-083-11 ELECT 100uF 20% 16V C657 1-112-101-11 ELECT 47uF 20% 50V C660 1-137-150-11 FILM 0.01uF 5% 100V C662 1-128-813-11 CERAMIC 220PF 5% 50V C667 1-112-100-11 ELECT 10uF 20% 50V < CONNECTOR > CN200 1-785-102-11 PIN, CONNECTOR (3.96mm PITCH) 4P CN202 1-691-769-11 PLUG (MICRO CONNECTOR) 7P CN400 1-691-765-11 PLUG (MICRO CONNECTOR) 3P CN402 1-778-226-21 CONNECTOR, BOARD TO BOARD 6P CN403 1-691-766-11 PLUG (MICRO CONNECTOR) 4P CN404 1-784-921-11 PIN, CONNECTOR 4P < DIODE > D200 8-719-991-33 DIODE 1SS133T-77 D201 6-501-003-11 DIODE D6SBN20-7001 D202 6-500-522-11 DIODE 10EDB40-TA2B5 D203 6-500-522-11 DIODE 10EDB40-TA2B5 D204 6-500-522-11 DIODE 10EDB40-TA2B5 D205 8-719-991-33 DIODE 1SS133T-77 D206 8-719-991-33 DIODE 1SS133T-77 D207 8-719-991-33 DIODE 1SS133T-77 D208 8-719-991-33 DIODE 1SS133T-77 D209 6-500-522-11 DIODE 10EDB40-TA2B5 D210 6-500-522-11 DIODE 10EDB40-TA2B5 D211 6-500-522-11 DIODE 10EDB40-TA2B5 D212 6-500-522-11 DIODE 10EDB40-TA2B5 D213 6-500-522-11 DIODE 10EDB40-TA2B5 D214 8-719-063-70 DIODE D1NL20U D215 8-719-063-70 DIODE D1NL20U D216 8-719-063-70 DIODE D1NL20U D217 8-719-063-70 DIODE D1NL20U D218 8-719-991-33 DIODE 1SS133T-77 D220 8-719-991-33 DIODE 1SS133T-77 D221 8-719-991-33 DIODE 1SS133T-77 D300 8-719-991-33 DIODE 1SS133T-77 D350 8-719-991-33 DIODE 1SS133T-77 D400 8-719-075-86 DIODE SID307BRTP19 D402 8-719-991-33 DIODE 1SS133T-77 D403 8-719-991-33 DIODE 1SS133T-77 D407 8-719-991-33 DIODE 1SS133T-77 D600 8-719-991-33 DIODE 1SS133T-77 D601 8-719-991-33 DIODE 1SS133T-77 D602 8-719-991-33 DIODE 1SS133T-77 D603 8-719-991-33 DIODE 1SS133T-77 D650 8-719-991-33 DIODE 1SS133T-77 < IC > IC200 8-759-394-35 IC BA12T IC201 8-759-450-47 IC BA05T IC202 8-759-245-87 IC TA79015S IC203 8-759-231-59 IC TA7815S IC204 8-759-333-83 IC NJM2103D IC300 8-759-636-74 IC M5218AP-22 IC301 8-759-636-74 IC M5218AP-22 IC303 6-702-387-01 IC CXD9725M IC304 8-759-636-74 IC M5218AP-22 IC305 8-759-636-74 IC M5218AP-22 IC400 6-804-805-01 IC MB89537APFM-G-662E1 IC401 6-703-991-01 IC BR24L16-W IC402 8-759-826-32 IC NJL72H400A IC403 8-759-231-66 IC TC74HC4053AP IC404 8-759-232-01 IC TC74HC00AP IC405 8-759-243-51 IC TC74ACT08P IC601 6-700-943-01 IC uPC2581V-S < JACK > J300 1-784-934-11 JACK, PIN 4P (AUDIO) J400 1-563-330-11 JACK (IR REMOTE IR IN) J401 1-563-330-11 JACK (IR REMOTE IR OUT) J402 1-563-330-11 JACK (12V TRIGGER IN) J403 1-563-330-11 JACK (12V TRIGGER OUT) < COIL > L200 1-410-509-11 INDUCTOR 10uH L400 1-410-509-11 INDUCTOR 10uH L612 1-420-872-52 COIL, AIR-CORE L662 1-420-872-52 COIL, AIR-CORE < TRANSISTOR > Q200 8-729-119-79 TRANSISTOR 2SC2785-FEK Q201 8-729-119-79 TRANSISTOR 2SC2785-FEK Q202 8-729-119-79 TRANSISTOR 2SC2785-FEK Q204 8-729-029-86 TRANSISTOR DTC124ESA Q205 8-729-029-86 TRANSISTOR DTC124ESA Q206 8-729-045-21 TRANSISTOR 2SD1513TP-LK Q300 8-729-119-79 TRANSISTOR 2SC2785-FEK Q350 8-729-119-79 TRANSISTOR 2SC2785-FEK Q400 8-729-119-79 TRANSISTOR 2SC2785-FEK Q401 8-729-029-86 TRANSISTOR DTC124ESA Q402 8-729-140-97 TRANSISTOR 2SB734-34 Q403 8-729-029-86 TRANSISTOR DTC124ESA Q404 8-729-029-86 TRANSISTOR DTC124ESA Q405 8-729-029-40 TRANSISTOR DTA124ESA Q406 8-729-119-79 TRANSISTOR 2SC2785-FEK AMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 TA-MR2ES Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark Q407 8-729-119-76 TRANSISTOR 2SA1175-HFE Q408 8-729-029-86 TRANSISTOR DTC124ESA Q409 8-729-029-86 TRANSISTOR DTC124ESA Q410 8-729-119-79 TRANSISTOR 2SC2785-FEK Q411 8-729-029-86 TRANSISTOR DTC124ESA Q412 8-729-029-40 TRANSISTOR DTA124ESA Q413 8-729-119-79 TRANSISTOR 2SC2785-FEK Q415 8-729-029-86 TRANSISTOR DTC124ESA Q601 8-729-119-76 TRANSISTOR 2SA1175-HFE Q602 8-729-141-30 TRANSISTOR 2SC3623A-LK Q603 8-729-051-92 TRANSISTOR 2SD2560 Q604 8-729-051-93 TRANSISTOR 2SB1647 Q605 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q606 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q607 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q608 8-729-119-79 TRANSISTOR 2SC2785-FEK Q609 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA Q651 8-729-119-76 TRANSISTOR 2SA1175-HFE Q652 8-729-141-30 TRANSISTOR 2SC3623A-LK Q653 8-729-051-92 TRANSISTOR 2SD2560 Q654 8-729-051-93 TRANSISTOR 2SB1647 Q655 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q656 8-729-140-82 TRANSISTOR 2SA988-PAFAEA < RESISTOR > 0R200 1-249-385-11 CARBON 2.2 5% 1/4W 0R201 1-249-385-11 CARBON 2.2 5% 1/4W 0R203 1-219-122-91 FUSIBLE 0.33 5% 1/4W 0R204 1-219-122-91 FUSIBLE 0.33 5% 1/4W 0R205 1-219-121-11 FUSIBLE 0.22 5% 1/4W 0R206 1-219-121-11 FUSIBLE 0.22 5% 1/4W 0R207 1-249-399-11 CARBON 33 5% 1/4W R208 1-249-421-11 CARBON 2.2K 5% 1/4W R209 1-247-847-91 CARBON 4.7K 5% 1/4W 0R210 1-249-397-11 CARBON 22 5% 1/4W 0R211 1-249-397-11 CARBON 22 5% 1/4W R212 1-247-847-91 CARBON 4.7K 5% 1/4W R213 1-249-401-11 CARBON 47 5% 1/4W 0R214 1-249-396-81 CARBON 18 5% 1/4W 0R215 1-249-396-81 CARBON 18 5% 1/4W R216 1-247-879-91 CARBON 100K 5% 1/4W R217 1-247-879-91 CARBON 100K 5% 1/4W R218 1-249-429-11 CARBON 10K 5% 1/4W R219 1-247-847-91 CARBON 4.7K 5% 1/4W R220 1-247-850-11 CARBON 6.2K 5% 1/4W R221 1-247-847-91 CARBON 4.7K 5% 1/4W R222 1-249-429-11 CARBON 10K 5% 1/4W R224 1-247-831-91 CARBON 1K 5% 1/4W R227 1-249-428-11 CARBON 8.2K 5% 1/4W R231 1-247-847-91 CARBON 4.7K 5% 1/4W R300 1-247-831-91 CARBON 1K 5% 1/4W R301 1-247-879-91 CARBON 100K 5% 1/4W R302 1-247-879-91 CARBON 100K 5% 1/4W R303 1-247-831-91 CARBON 1K 5% 1/4W R304 1-247-879-91 CARBON 100K 5% 1/4W R305 1-247-879-91 CARBON 100K 5% 1/4W R309 1-247-879-91 CARBON 100K 5% 1/4W R310 1-247-831-91 CARBON 1K 5% 1/4W R311 1-247-879-91 CARBON 100K 5% 1/4W R312 1-247-879-91 CARBON 100K 5% 1/4W R313 1-247-830-11 CARBON 910 5% 1/4W R314 1-247-887-00 CARBON 220K 5% 1/4W R315 1-247-879-91 CARBON 100K 5% 1/4W R316 1-247-871-91 CARBON 47K 5% 1/4W R318 1-247-831-91 CARBON 1K 5% 1/4W R319 1-247-831-91 CARBON 1K 5% 1/4W R321 1-247-887-00 CARBON 220K 5% 1/4W R350 1-247-831-91 CARBON 1K 5% 1/4W R351 1-247-879-91 CARBON 100K 5% 1/4W R352 1-247-879-91 CARBON 100K 5% 1/4W R353 1-247-831-91 CARBON 1K 5% 1/4W R354 1-247-879-91 CARBON 100K 5% 1/4W R355 1-247-879-91 CARBON 100K 5% 1/4W R359 1-247-879-91 CARBON 100K 5% 1/4W R360 1-247-831-91 CARBON 1K 5% 1/4W R361 1-247-879-91 CARBON 100K 5% 1/4W R362 1-247-879-91 CARBON 100K 5% 1/4W R363 1-247-830-11 CARBON 910 5% 1/4W R364 1-247-887-00 CARBON 220K 5% 1/4W R365 1-247-879-91 CARBON 100K 5% 1/4W R366 1-247-871-91 CARBON 47K 5% 1/4W R368 1-247-831-91 CARBON 1K 5% 1/4W R369 1-247-831-91 CARBON 1K 5% 1/4W R371 1-247-887-00 CARBON 220K 5% 1/4W R400 1-247-807-31 CARBON 100 5% 1/4W R401 1-247-807-31 CARBON 100 5% 1/4W R402 1-247-807-31 CARBON 100 5% 1/4W R403 1-247-807-31 CARBON 100 5% 1/4W R404 1-247-871-91 CARBON 47K 5% 1/4W R406 1-247-807-31 CARBON 100 5% 1/4W R407 1-249-421-11 CARBON 2.2K 5% 1/4W R408 1-249-429-11 CARBON 10K 5% 1/4W R409 1-249-429-11 CARBON 10K 5% 1/4W R410 1-247-807-31 CARBON 100 5% 1/4W R411 1-247-807-31 CARBON 100 5% 1/4W R412 1-247-807-31 CARBON 100 5% 1/4W R413 1-247-807-31 CARBON 100 5% 1/4W R414 1-247-807-31 CARBON 100 5% 1/4W R415 1-247-831-91 CARBON 1K 5% 1/4W R416 1-247-807-31 CARBON 100 5% 1/4W R417 1-249-429-11 CARBON 10K 5% 1/4W R418 1-247-807-31 CARBON 100 5% 1/4W R419 1-247-807-31 CARBON 100 5% 1/4W R420 1-247-807-31 CARBON 100 5% 1/4W R421 1-247-807-31 CARBON 100 5% 1/4W R422 1-247-807-31 CARBON 100 5% 1/4W R423 1-247-807-31 CARBON 100 5% 1/4W R424 1-247-807-31 CARBON 100 5% 1/4W R425 1-247-807-31 CARBON 100 5% 1/4W 0R426 1-249-393-11 CARBON 10 5% 1/4W R427 1-249-429-11 CARBON 10K 5% 1/4W R428 1-215-883-11 METAL OXIDE 33 5% 2W R429 1-247-879-91 CARBON 100K 5% 1/4W R430 1-249-429-11 CARBON 10K 5% 1/4W R431 1-247-831-91 CARBON 1K 5% 1/4W The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. AMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 TA-MR2ES Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R432 1-249-429-11 CARBON 10K 5% 1/4W R433 1-249-421-11 CARBON 2.2K 5% 1/4W R434 1-249-429-11 CARBON 10K 5% 1/4W 0R435 1-249-429-11 CARBON 10K 5% 1/4W R436 1-249-421-11 CARBON 2.2K 5% 1/4W R437 1-215-857-11 METAL OXIDE 10 5% 1W R438 1-249-429-11 CARBON 10K 5% 1/4W R440 1-249-429-11 CARBON 10K 5% 1/4W R441 1-247-807-31 CARBON 100 5% 1/4W R442 1-247-807-31 CARBON 100 5% 1/4W R443 1-249-429-11 CARBON 10K 5% 1/4W R447 1-249-429-11 CARBON 10K 5% 1/4W R448 1-249-429-11 CARBON 10K 5% 1/4W R449 1-247-807-31 CARBON 100 5% 1/4W R450 1-249-429-11 CARBON 10K 5% 1/4W R451 1-247-807-31 CARBON 100 5% 1/4W R452 1-249-429-11 CARBON 10K 5% 1/4W R453 1-249-429-11 CARBON 10K 5% 1/4W R456 1-247-807-31 CARBON 100 5% 1/4W R457 1-247-831-91 CARBON 1K 5% 1/4W R458 1-247-847-91 CARBON 4.7K 5% 1/4W R459 1-247-807-31 CARBON 100 5% 1/4W R460 1-249-429-11 CARBON 10K 5% 1/4W R462 1-249-429-11 CARBON 10K 5% 1/4W R463 1-247-807-31 CARBON 100 5% 1/4W R464 1-247-807-31 CARBON 100 5% 1/4W R465 1-247-807-31 CARBON 100 5% 1/4W R466 1-249-429-11 CARBON 10K 5% 1/4W R467 1-249-429-11 CARBON 10K 5% 1/4W R468 1-249-429-11 CARBON 10K 5% 1/4W R469 1-249-429-11 CARBON 10K 5% 1/4W R470 1-247-831-91 CARBON 1K 5% 1/4W R472 1-247-847-91 CARBON 4.7K 5% 1/4W R473 1-249-429-11 CARBON 10K 5% 1/4W R474 1-249-429-11 CARBON 10K 5% 1/4W R475 1-249-429-11 CARBON 10K 5% 1/4W R476 1-249-429-11 CARBON 10K 5% 1/4W R478 1-249-421-11 CARBON 2.2K 5% 1/4W R479 1-247-863-91 CARBON 22K 5% 1/4W R481 1-249-429-11 CARBON 10K 5% 1/4W R482 1-249-429-11 CARBON 10K 5% 1/4W R483 1-247-871-91 CARBON 47K 5% 1/4W R488 1-247-807-31 CARBON 100 5% 1/4W R489 1-247-871-91 CARBON 47K 5% 1/4W R490 1-247-871-91 CARBON 47K 5% 1/4W R491 1-247-847-91 CARBON 4.7K 5% 1/4W R494 1-247-807-31 CARBON 100 5% 1/4W R495 1-247-807-31 CARBON 100 5% 1/4W R496 1-247-807-31 CARBON 100 5% 1/4W R497 1-247-871-91 CARBON 47K 5% 1/4W R498 1-247-879-91 CARBON 100K 5% 1/4W R600 1-247-863-91 CARBON 22K 5% 1/4W R601 1-247-831-91 CARBON 1K 5% 1/4W R602 1-249-439-11 CARBON 68K 5% 1/4W R603 1-249-439-11 CARBON 68K 5% 1/4W R604 1-249-421-11 CARBON 2.2K 5% 1/4W R605 1-249-414-11 CARBON 560 5% 1/4W R606 1-249-421-11 CARBON 2.2K 5% 1/4W R607 1-249-440-11 CARBON 82K 5% 1/4W 0R608 1-249-405-11 CARBON 100 5% 1/4W 0R609 1-249-405-11 CARBON 100 5% 1/4W 0R610 1-234-182-11 ENCAPSULATED COMPONENT 0R611 1-249-393-11 CARBON 10 5% 1/4W 0R612 1-249-389-11 CARBON 4.7 5% 1/4W R614 1-247-847-91 CARBON 4.7K 5% 1/4W 0R615 1-240-855-81 CARBON 6.2K 5% 1/4W R616 1-249-419-11 CARBON 1.5K 5% 1/4W R617 1-249-439-11 CARBON 68K 5% 1/4W R618 1-247-871-91 CARBON 47K 5% 1/4W R619 1-249-431-11 CARBON 15K 5% 1/4W R620 1-249-429-11 CARBON 10K 5% 1/4W R621 1-249-436-11 CARBON 39K 5% 1/4W R622 1-247-831-91 CARBON 1K 5% 1/4W R623 1-247-871-91 CARBON 47K 5% 1/4W R624 1-249-427-11 CARBON 6.8K 5% 1/4W R651 1-247-831-91 CARBON 1K 5% 1/4W R652 1-249-439-11 CARBON 68K 5% 1/4W R653 1-249-439-11 CARBON 68K 5% 1/4W R654 1-249-421-11 CARBON 2.2K 5% 1/4W R655 1-249-414-11 CARBON 560 5% 1/4W R656 1-249-421-11 CARBON 2.2K 5% 1/4W R657 1-249-440-11 CARBON 82K 5% 1/4W 0R658 1-249-405-11 CARBON 100 5% 1/4W 0R659 1-249-405-11 CARBON 100 5% 1/4W 0R660 1-234-182-11 ENCAPSULATED COMPONENT 0R661 1-249-393-11 CARBON 10 5% 1/4W 0R662 1-249-389-11 CARBON 4.7 5% 1/4W R664 1-247-847-91 CARBON 4.7K 5% 1/4W 0R665 1-240-855-81 CARBON 6.2K 5% 1/4W R666 1-249-419-11 CARBON 1.5K 5% 1/4W R667 1-249-439-11 CARBON 68K 5% 1/4W R668 1-247-871-91 CARBON 47K 5% 1/4W R669 1-249-431-11 CARBON 15K 5% 1/4W R4100 1-247-847-91 CARBON 4.7K 5% 1/4W R4101 1-247-895-00 CARBON 470K 5% 1/4W R4102 1-247-871-91 CARBON 47K 5% 1/4W R4105 1-249-429-11 CARBON 10K 5% 1/4W R4108 1-247-879-91 CARBON 100K 5% 1/4W R4109 1-215-857-11 METAL OXIDE 10 5% 1W R4111 1-249-429-11 CARBON 10K 5% 1/4W R4112 1-249-429-11 CARBON 10K 5% 1/4W R4113 1-247-871-91 CARBON 47K 5% 1/4W R4114 1-247-843-81 CARBON 33K 5% 1/4W R4115 1-247-807-31 CARBON 100 5% 1/4W R4116 1-247-807-31 CARBON 100 5% 1/4W R4117 1-247-807-31 CARBON 100 5% 1/4W R4118 1-247-807-31 CARBON 100 5% 1/4W R4119 1-249-429-11 CARBON 10K 5% 1/4W < RELAY > RY200 1-755-541-11 RELAY RY201 1-755-541-11 RELAY RY202 1-755-170-11 RELAY (12V) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. AMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 TA-MR2ES Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < SWITCH > S401 1-692-989-11 SWITCH, SLIDE (AUTO POWER SELECTOR) < THERMISTOR > TH401 1-805-608-21 THERMISTOR, POSITIVE < TERMINAL > TM600 1-780-178-11 TERMINAL BOARD (SP) (2P) (SPEAKERS R) TM650 1-780-178-11 TERMINAL BOARD (SP) (2P) (SPEAKERS L) < VIBRATOR > X400 1-767-661-11 VIBRATOR, CERAMIC (12.5MHz) ************************************************************* ID BOARD ******** 4-924-264-01 TERMINAL, MOUNT < SWITCH > S400 1-570-620-11 SWITCH, DIP (IR ID) ************************************************************* INLET BOARD *********** < CONNECTOR > CN900 1-816-148-11 INLET, AC (- AC IN) CN901 1-785-101-11 PIN, CONNECTOR (3.96mm PITCH) 3P ************************************************************* JUMPER BOARD ************* < CONNECTOR > CN452 1-778-227-41 CONNECTOR, BOARD TO BOARD 6P ************************************************************* LED BOARD ********** < CONNECTOR > * CN453 1-564-519-11 PLUG, CONNECTOR 4P < DIODE > D404 8-719-058-03 DIODE SEL5423E-TP15 (ON) D405 8-719-058-03 DIODE SEL5423E-TP15 (IN USE) D406 8-719-046-44 DIODE SEL5221S (IN USE) < RESISTOR > R487 1-247-807-31 CARBON 100 5% 1/4W R492 1-247-807-31 CARBON 100 5% 1/4W R493 1-247-807-31 CARBON 100 5% 1/4W ************************************************************* POWER SWITCH BOARD ******************** < CAPACITOR > 0C901 1-117-703-11 CERAMIC 0.0047uF 99% 250V < CONNECTOR > CN903 1-785-101-11 PIN, CONNECTOR (3.96mm PITCH) 3P < SWITCH > 0S1 1-692-349-11 SWITCH, PUSH (AC POWER) (POWER) ************************************************************* TACT SWITCH BOARD ****************** < CONNECTOR > * CN450 1-564-518-11 PLUG, CONNECTOR 3P < RESISTOR > R444 1-247-831-91 CARBON 1K 5% 1/4W R445 1-249-421-11 CARBON 2.2K 5% 1/4W R446 1-247-831-91 CARBON 1K 5% 1/4W R461 1-249-421-11 CARBON 2.2K 5% 1/4W < SWITCH > S402 1-762-875-21 SWITCH, KEYBOARD (VOL–) S403 1-762-875-21 SWITCH, KEYBOARD (MUTING) S404 1-762-875-21 SWITCH, KEYBOARD (POWER OFF) S405 1-762-875-21 SWITCH, KEYBOARD (POWER ON) S406 1-762-875-21 SWITCH, KEYBOARD (POWER ON/OFF) S407 1-762-875-21 SWITCH, KEYBOARD (VOL+) ************************************************************* VR BOARD ********* < CAPACITOR > C436 1-113-342-11 CERAMIC 0.1uF 50V < VARIABLE RESISTOR > RV300 1-223-548-21 RES, VAR, CARBON10K (ATTENUATOR R) RV350 1-223-548-21 RES, VAR, CARBON10K (ATTENUATOR L) ************************************************************* MISCELLANEOUS ************** 0F900 1-533-419-11 FUSE, GLASS CYLINDRICAL (DIA.5) (4A/125V) Q603 8-729-051-92 TRANSISTOR 2SD2560 Q604 8-729-051-93 TRANSISTOR 2SB1647 Q653 8-729-051-92 TRANSISTOR 2SD2560 Q654 8-729-051-93 TRANSISTOR 2SB1647 0T900 1-443-501-11 POWER TRANSFORMER ************************************************************* The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. AMP ID INLET J UMPER LED TACT SWITCH POWER SWITCH VR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark 24 TA-MR2ES ACCESSORIES ************ 0 1-823-512-12 CORD, POWER 2-345-292-01 BRACKET (RACK MOUNT) 2-514-603-11 INSTRUCTION MANUAL (ENGLISH) 7-685-873-09 SCREW +BVTT 3X10 (S) (for Install the rack-mount brackets) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 TA-MR2ES MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-MR2ES REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2004.12 New 1.1 2006.03 Addition of BLACK model (SPM-06014) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
