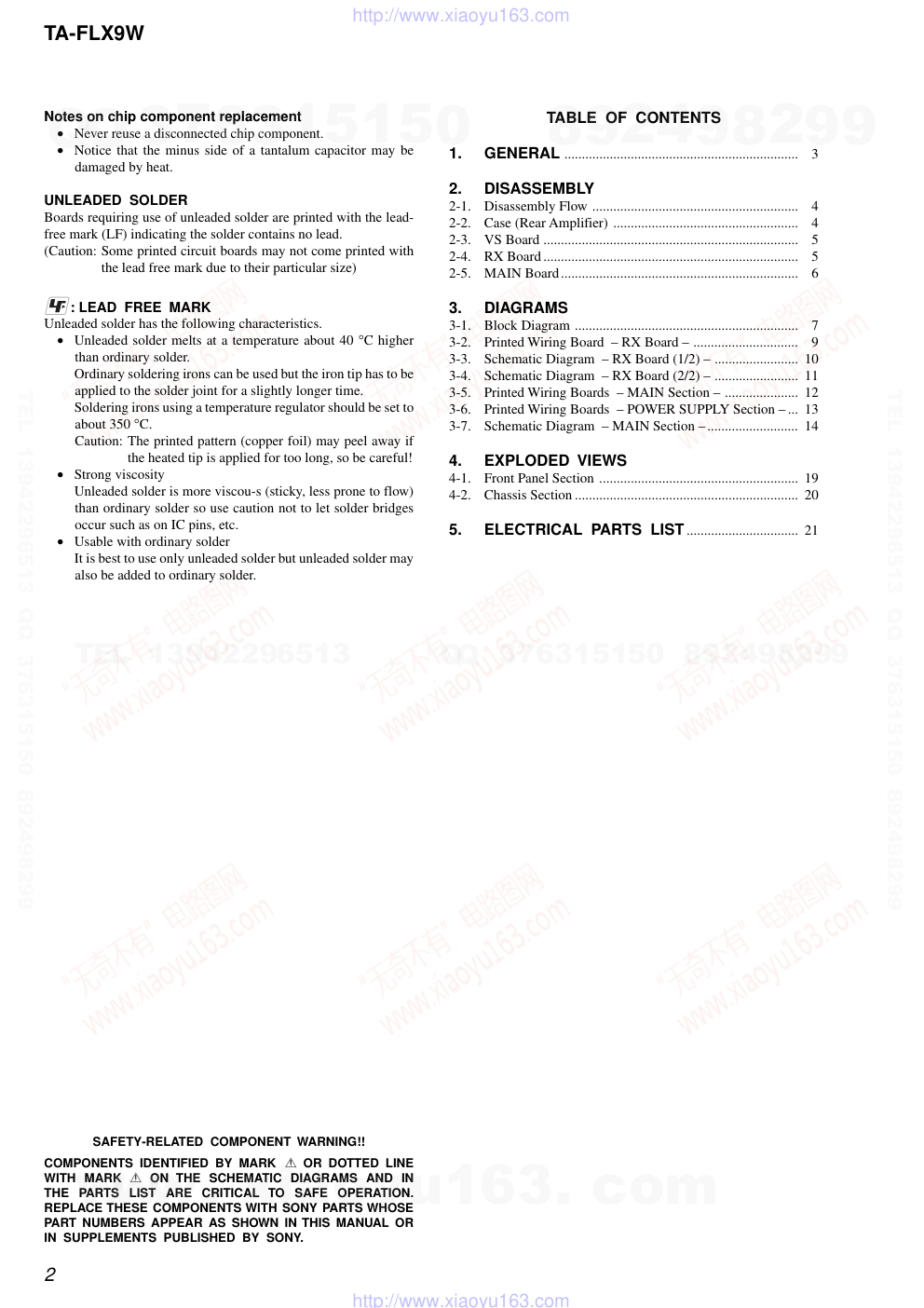

SERVICE MANUAL Power ouput 40 watts/ch (6 ohms at 1 kHz, 0.7% THD)2) 60 watts/ch1) (6 ohms at 1 kHz, 10% THD)2) 1)Depending on the sound field settings and the source, there may be no sound output. 2)Measured under AC 127, 240 V, 50/60 Hz (Saudi Arabian model only) Measured under AC 120, 240 V, 50/60 Hz (except for Saudi Arabian model) G Amplifier section: eneral Power requirements Saudi Arabian model: 120 – 127 V or 220 – 240 V AC, 50/60 Hz Adjustable with voltage selector Thailand model: 220 – 240 V AC, 50/60 Hz Other models: 110 – 120 V or 220 – 240 V AC, 50/60 Hz Adjustable with voltage selector Power consumption 92 watts Dimensions (w/h/d) Approx. 95 × 156 × 241 mm Mass Approx. 3.1 kg Design and specifications are subject to change without notice. REAR AMPLIFIER E Model SPECIFICATIONS TA-FLX9W Ver 1.0 2004.07 9-877-903-01 2004G05-1 © 2004.07 Sony Corporation Home Audio Company Published by Sony Engineering Corporation TA-FLX9W is the amplifier section in DHC-FLX9W. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 TA-FLX9W TABLE OF CONTENTS 1. GENERAL ................................................................... 3 2. DISASSEMBLY 2-1. Disassembly Flow ........................................................... 4 2-2. Case (Rear Amplifier) ..................................................... 4 2-3. VS Board ......................................................................... 5 2-4. RX Board......................................................................... 5 2-5. MAIN Board.................................................................... 6 3. DIAGRAMS 3-1. Block Diagram ................................................................ 7 3-2. Printed Wiring Board – RX Board – .............................. 9 3-3. Schematic Diagram – RX Board (1/2) – ........................ 10 3-4. Schematic Diagram – RX Board (2/2) – ........................ 11 3-5. Printed Wiring Boards – MAIN Section – ..................... 12 3-6. Printed Wiring Boards – POWER SUPPLY Section – ... 13 3-7. Schematic Diagram – MAIN Section –.......................... 14 4. EXPLODED VIEWS 4-1. Front Panel Section ......................................................... 19 4-2. Chassis Section ................................................................ 20 5. ELECTRICAL PARTS LIST ................................ 21 Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size) : LEAD FREE MARK Unleaded solder has the following characteristics. • Unleaded solder melts at a temperature about 40 °C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 °C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! • Strong viscosity Unleaded solder is more viscou-s (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. • Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 TA-FLX9W SECTION 1 GENERAL This section is extracted from instruction manual. ON LINE (indicator) 3 ON/STANDBY (indicator) 2 POWER 1 ALPHABETICAL ORDER A – Z POWER ON/STANDBY ON LINE 1 2 3 LOCATION OF CONTROLS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-FLX9W 4 Note: Follow the disassembly procedure in the numerical order given. 2-2. CASE (REAR AMPLIFIER) • This set can be disassembled in the order shown below. 2-1. DISASSEMBLY FLOW SECTION 2 DISASSEMBLY 2-2. CASE (REAR AMPLIFIER) (Page 4) 2-3. VS BOARD (Page 5) 2-4. RX BOARD (Page 5) 2-5. MAIN BOARD (Page 6) SET 1 four flat head screws 2 2 3 case (rear amplifier) 1 four flat head screws www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-FLX9W 5 2-3. VS BOARD 2-4. RX BOARD 3 VS board (except Thai model) 1 connector (CN972) 4 insulation sheet 1 connector (CN971) 2 two screws (BVTP 3 × 8) 2 screw (BVTP 3 × 8) 3 RX board 1 wire (flat type) (17 core) (CN7403) 2 screw (BVTP 3 × 8) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-FLX9W 6 2-5. MAIN BOARD 2 three screws (BVTP 3 × 8) 1 three connectors (CN102, CN104, CN105) 3 MAIN board 2 screw (BVTP 3 × 8) 1 connector (CN903) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-FLX9W 7 7 TA-FLX9W SECTION 3 DIAGRAMS 3-1. BLOCK DIAGRAM • SIGNAL PATH : AUDIO TM101 (+) (–) IC7407 D/A CONVERTER 2 DATA 3 LRCK 1 BCK 15 ML 13 MD 16 SCK 14 MC 7 VOL OVER CURRENT DETECT Q105 – 107 FAN MOTOR DRIVE Q110 RELAY DRIVE Q104 IC102 POWER AMP 8 VOR REAR L (+) (–) REAR R IC7405 REAR AMP CONTROLLER SPEAKERS IMPEDANCE USE 8Ω IC7409 ELECTRICAL VOLUME 1 VIN1 DATA 8 4 VIN2 CLOCK 2 VOUT1 7 VOUT2 26 DAC_DATA 25 DAC_CLK 27 DAC_LAT 23 22 X7402 12.5MHz X1 X0 36 LED_RED 38 LED_ON D201 ON/STANDBY S951 F901 POWER IC7402 RF DEMODULATOR, A/D CONVERTER 60 DAOUT 10 ADVIN 59 LRCK 54 BCK 31 APX SRDT 33 CSOD 61 DTVALID J7401 DIR-R1 X7401 12.288MHz 40 43 OSCI OSCO 34 53 DIAT_SRDT 16 CSOD 14 DTVALID LPF IF +5V 35 SWDT XRST 37 SCLK 36 XSCEN 52 DIAT_SWDT 13 28 XRST 51 DIAT_CK 54 XSCEN IC7411 LEVEL SHIFT IC7410 LEVEL SHIFT LED DRIVE Q101 MUTING Q7406 MUTING Q7405 D102 RY101 -1 -2 MUTING CONTROL Q7403, 7411 LED DRIVE Q102 37 LED_DIAT D202 ON LINE LED DRIVE Q103 D114 +6V + LEVEL DETECT Q108, 109 + IC101 POWER AMP IC7408 LINE AMP 34 VOLIC_DATA 33 VOLIC_CLK 41 MUTE 31 SPRY 42 FAN1 43 FAN2 15 PROTECT 45 FANON 5 (Thai model) (EXCEPT Thai model) (AC IN) POWER TRANSFORMER (SUB) T902 POWER TRANSFORMER (MAIN) T901 +2.5V D110 D906, 907 D111 POWER AMP B+ POWER AMP B– VOLTAGE SELECTOR S971 +5V REGULATOR IC104 B+ SWITCH Q7409, 7410 RECT D104 RECT D902 – 905 PROTECT Q114 M101 (FAN) +6V REGULATOR IC103 RECT D106 – 109 +3.3V REGULATOR IC7406 +2.5V REGULATOR IC7401 +1.5V D/A B+ E.VOL B+ IF +5V +5V +3.3V +6V +1.5V REGULATOR IC7404 RESET SIGNAL GENERATOR IC7403 B+ SWITCH Q7401, 7402 MAIN POWER ON/OFF RELAY DRIVE Q902 35 PWR_RY 39 DIAT_OFF STOP B+ SWITCH Q7407, 7408 B+ SWITCH Q112 FAN MOTOR DRIVE Q111, 117 REGULATOR Q113 47 PSAVE 19 32 RST 44 FAN_CLK RY901 F971 M AC DETECT Q901 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-FLX9W 8 8 TA-FLX9W • Note for Printed Wiring Boards and Schematic Diagrams Note on Printed Wiring Boards: • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • f : internal component. • : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) Caution: Pattern face side: Parts on the pattern face side seen from (Conductor Side) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Component Side) the parts face are indicated. • Indication of transistor. C B These are omitted. E Q Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. (p: pF) 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • f : internal component. • 2 : nonflammable resistor. • C : panel designation. • A : B+ Line. • B : B– Line. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. Note: When mesurering voltages and waveforms, con- nect with HCD-FLX9W (states: tuner). no mark : TUNER ∗ : Impossible to measure • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. F : AUDIO • Abbreviation TH : Thai model Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. • Waveforms – RX Board – 80.5 ns 3.3 Vp-p 81 ns 2.9Vp-p 1 V/DIV, 50 ns/DIV 1 V/DIV, 50 ns/DIV IC7402 rd (OSCO) 2 IC7405 wd (X1) 1 • Circuit Board Location PSW board LED board RX board VS board (EXCEPT Thai) MAIN board STBY board w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-FLX9W 9 9 TA-FLX9W 3-2. PRINTED WIRING BOARD – RX Board – :Uses unleaded solder. Q7408 C7415 R7438 R7439 R7440 R7441 R7443 C7445 C7446 C7448 C7447 R7437 R7435 R7501 R7466 IC7403 R7465 R7497 R7478 Q7409 R7477 R7474 R7486 L7404 R7429 R7487 IC7404 IC7401 R7499 R7476 R7498 R7500 R7485 R7470 R7469 C7468 R7456 R7493 L7407 R7451 R7450 R7449 R7448 R7447 R7444 R7433 R7431 R7430 R7484 R7428 R7427 Q7402 R7442 R7422 R7436 R7417 R7409 R7489 Q7407 Q7406 R7403 R7401 C7457 C7439 C7437 C7436 C7420 C7425 X7401 R7426 R7425 IC7407 R7472 R7473 IC7405 IC7409 Q7411 IC7410 R7475 R7405 R7404 C7418 C7405 C7406 C7407 C7409 R7483 R7494 L7406 IC7408 R7482 Q7405 R7491 R7492 R7503 R7459 IC7402 C7470 C7469 L7401 C7444 CN7403 CN7402 C7456 C7454 C7453 C7452 C7451 C7449 C7442 C7441 C7440 C7438 C7435 C7429 C7419 C7417 C7414 C7411 C7403 C7402 X7402 J7401 C7428 C7450 Q7401 C7401 R7488 C7421 C7462 R7414 IC7406 R7463 R7462 R7410 R7415 C7455 C7426 C7432 C7463 R7454 R7453 R7452 D7404 R7432 R7446 D7402 R7423 IC7411 D7401 R7418 R7420 C7443 R7412 D7403 R7434 C7465 C7412 R7421 C7466 R7407 C7424 C7422 C7431 C7467 C7433 C7458 R7502 C7459 C7460 C7461 C7434 Q7403 C7423 R7495 Q7410 R7419 C7404 R7402 R7424 C7408 C7413 L7402 R7460 C7464 R7445 R7480 R7408 R7455 R7457 R7406 C7416 C7410 C7427 R7490 R7496 C7430 R7458 R7479 FB7401 4 4 1 1 1 3 5 4 4 5 3 1 16 48 33 32 17 49 64 5 8 7 1 1 1 E 3 6 4 8 16 9 E E E E E E 8 14 8 5 (COMPONENT SIDE) RX BOARD 1-864-776- 11 (11) 1 7 14 8 E E E 1-864-776- 11 (CHASSIS) (11) (CONDUCTOR SIDE) RX BOARD DIR-R1 1 1 2 17 16 3 2 A MAIN BOARD CN101 1 7 (FOR CHECK) 1 2 3 4 5 6 7 8 A B C D E F G H I J K (Page 13) • Semiconductor Location Ref. No. Location D7401 H-4 D7402 J-4 D7403 K-7 D7404 I-3 IC7401 C-2 IC7402 B-3 IC7403 E-4 IC7404 D-3 IC7405 D-5 IC7406 K-6 IC7407 A-4 IC7408 B-7 IC7409 C-7 IC7410 B-6 IC7411 G-6 Q7401 H-5 Q7402 B-4 Q7403 J-2 Q7405 D-7 Q7406 D-7 Q7407 E-7 Q7408 D-7 Q7409 E-2 Q7410 K-7 Q7411 D-7 • See page 8 for Circuit Boards Location. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-FLX9W 10 10 TA-FLX9W 3-3. SCHEMATIC DIAGRAM – RX Board (1/2) – • See page 15 for IC Block Diagrams. • See page 8 for Waveform. R7408 Q7403 Q7411 R7405 R7404 C7418 C7415 C7420 C7417 L7404 10µH C7422 JL7402 JL7401 C7452 C7451 L7407 C7441 C7463 C7440 C7439 C7436 C7438 C7437 C7435 R7485 R7486 R7483 R7429 R7482 C7461 C7460 C7459 C7433 C7434 X7401 R7477 R7478 Q7410 IC7406 µPC2933T-E2 Q7409 C7427 C7428 IC7401 C7455 R7472 R7473 Q7408 C7413 C7414 R7401 C7406 R7489 C7419 C7416 C7424 C7401 C7402 R7480 L7402 L7401 47µH 10µH C7405 C7403 R7402 C7404 C7409 R7491 R7492 C7425 R7403 R7490 C7407 C7408 C7410 C7421 C7411 C7412 R7487 C7467 R7488 C7431 C7462 Q7407 C7453 Q7406 Q7405 C7450 R7430 R7423 Q7401 Q7402 IC7409 IC7402 IC7407 J7401 C7456 C7449 IC7404 R7428 R7426 R7425 R7427 C7469 C7470 C7444 FB7401 C7443 D7403 C7442 R7439 R7438 R7502 C7454 C7446 C7445 R7442 R7440 C7447 R7497 R7499 IC7408(2/2) IC7408(1/2) R7443 R7441 C7448 R7498 R7500 R7469 R7463 R7466 R7465 R7462 R7470 10k DTA124EKA DTA124EKA 3.3k 820 0.1 0.01 0.1 47 10V 0.1 PLVAR PLREF 10 50V 10 50V 47 10V 0.1 47 10V 0.1 0.1 47 10V 0.1 47 10V 100 100 100 100 100 100p 100p 100p 15p 15p 12.288MHz 2.2k 10k RT1N141C 2SA1162G-TE85L 0.1 47 10V TK11225CMCL 0.1 2.2k 10k RT1N141C 0.1 47 10V 10k 0.01 100 47 10V 0.1 0.1 0.1 47 10V 2.2 0.1 47 10V 220 0.01 0.01 4.7k 2.2k 0.1 68 4.7k 1 0.1 0.1 0.1 47 10V 0.1 100 100p 10k 0.1 0.1 2SA1162G-TE85L 10 50V 2SD1938(F)-S 2SD1938(F)-S 10 50V 2.2k 10k 2SA1162G-TE85L RT1N141C M62429P CXD4017R PCM1751DBQR 1P 100 10V 47 10V S-T111B15 MC-0GATFG 220 220 220 220 1 1 0.1 0.1 UDZSTE-176.8B 100 10V 1.8k 1.8k 10 470 6.3V 2200p 2200p 1.8k 4.7k 2200p 15k 10k TLV23621DR TLV23621DR 1.8k 4.7k 2200p 15k 10k 10k 1k 10k 10k 1k 10k A1 A2 A3 A4 A5 A6 A7 A8 A10 A11 A12 A13 A9 ML MC MD SCK SCK BCK BCK DATA DATA LRCK LRCK XRST2 LID2 SCLK2 XSCEN2 SWDT2 SRDT2 CSOD2 VIN1 VOUT1 GND DATA CLOCK VCC VOUT2 VIN2 NC CE VOUT IN OUT GND CNT CNP GND (1/2) TEST5 TEST6 TEST7 SYMCLK ICLK VDDE VSS VDDI DTVALID EMPFS0 EMPFS1 XTST BCK/RCLK CSOD SRDT SWDT XSCEN SCLK SCMODE VSS OSCI VDDE VSS OSCO TEST0 TEST1 TEST2 TEST3 TEST4 PLREF PLVAR TESTMD APVCI APCPO APAVD APAVS VSS VDDI VDDE VCOR CHNUM DIVCODE APX EXTCK VSS MST XSM SMCK VDDE VSS ADVRH ADAVS ADAVD ADVRL ADVIN VDDE VSS XRST DIFM0 DIFM1 DTSEL (CHASSIS) Q7407,7408 B+ SWITCH LINE AMP MUTING Q7405,7406 ELECTRICAL VOLUME MUTING CONTROL RF DEMODULATOR, A/D CONVERTER B+ SWITCH Q7401,7402 D/A CONVERTER O G I +3.3V REGULATOR +1.5V REGULATOR +2.5V REGULATOR DIR-R1 1 8 3 2 5 6 7 4 TXOUT DAOUT LRCK VSS VIN B+ SWITCH Q7409,7410 Q7403,7411 (Page 11) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-FLX9W 11 11 TA-FLX9W 3-4. SCHEMATIC DIAGRAM – RX Board (2/2) – • See page 8 for Waveform. • See page 17 for IC Pin Function Description. R7458 R7457 R7433 R7420 R7418 R7419 D7402 R7434 R7412 R7414 R7411 C7432 X7402 C7423 R7406 C7465 R7410 C7458 R7445 R7409 R7444 R7421 R7459 R7407 R7422 R7424 R7484 R7431 R7432 R7475 R7474 R7476 C7464 D7401 R7446 C7430 IC7411 IC7410 CN7402 R7451 R7456 R7437 R7479 R7450 R7449 R7448 R7447 R7435 R7436 C7466 C7426 L7406 10µH CN7403 R7415 IC7405 C7429 R7417 D7404 R7460 R7455 R7454 R7453 R7452 R7493 R7494 R7503 R7496 C7457 C7468 IC7403 R7501 R7495 100 100 100 100 100 100 1SS352 100 1k 10k 10k 0.01 12.5MHz 0.01 10k 0.1 10k 100p 100 10k 100 100 100 100 100 100 100 100 10k 100 100 100 100p 1SS352 100 0.1 SN74HCT08APWR SN74LV08APWR 7P 100 100 100 100 100 100 100 100 100 100 0.1 0.1 17P 10k MB89537APFM-G -598-BNDE1 100 10V 10k UDZSTE-172.7B 100 100 100 100 100 10k 10k 10k 10k 0.1 0.1 S-80829CNMC- G8ZT2G 10k 10k A1 A2 A3 A4 A5 A6 A7 A8 A10 A11 A12 A13 A9 PROTECT LED_ON FANON FANCLK FAN1 FAN2 LED_RED LED_DIAT PWRRY STOP SPRY MD1 SCK2 RESET SIN2 SOT2 SIN2 SOT2 RESET SCK2 MD1 FAN1 FAN2 FANCLK FANON SPRY STOP PWRRY PROTECT LED_ON LED_RED LED_DIAT ML MC MD XRST XSCEN SWDT CK SRDT CSOD LID XRST2 CSOD2 SRDT2 SWDT2 XSCEN2 LID2 SCLK2 CSOD SRDT XSCEN SWDT XRST CK LID PROTECT GND GND +5V GND FAN1 FAN2 FANCLK FANON PWRRY LED_ON LED_RED LED_DIAT STOP SPRY VDD GND RESET MD1 SCK2 SOT2 SIN2 (2/2) NC DIAT_CK XSCEN VCC CH_SEL MOD_VER INT23 DIAT_SWDT DIAT_SRDT SIN2 SOT2 SCK2 PWMUTE MOD2 VOLT TEMP AVCC AVR DTVALID AVSS PROTECT CSOD RST MOD0 MOD1 X0 X1 VSS DAC_CLK DAC_DATA DAC_LAT XRST P23 PPG02 STOP SPRY VOLIC_DATA VOLIC_CLK PWR_RY P10 MUTE FAN1 FAN2 FAN_CLK FAN_ON SCMODE PWR_CTL PSAVE DIATOFF LED_ON LED_RED LED_DIAT L-CH R-CH (FOR CHECK) LEVEL SHIFT LEVEL SHIFT REAR AMP CONTROL NC NC NC NC NC NC NC NC NC NC NC NC RESET SIGNAL GENERATOR (Page 10) (Page 14) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-FLX9W 12 12 TA-FLX9W 3-5. PRINTED WIRING BOARDS – MAIN Section – :Uses unleaded solder. • Semiconductor Location Ref. No. Location D101 D-8 D102 I-8 D103 I-8 D104 D-3 D105 K-2 D106 H-3 D107 H-3 D108 G-2 D109 G-3 D110 B-2 D111 C-2 D112 B-9 D113 C-8 D114 C-8 D201 D-12 D202 C-12 IC101 K-5 IC102 F-6 IC103 H-2 IC104 B-3 Q101 B-8 Q102 B-6 Q103 B-7 Q104 G-8 Q105 H-8 Q106 G-8 Q107 H-8 Q108 K-2 Q109 K-2 Q110 B-8 Q111 B-9 Q112 A-9 Q113 B-10 Q114 B-8 Q117 B-9 JW107 JW111 JW112 JW114 JW115 JW117 JW118 JW120 JW121 JW124 JW125 JW126 JW128 JW130 JW133 JW134 JW136 JW140 JW141 JW143 JW144 JW145 JW147 JW152 JW153 JW154 JW155 JW156 JW139 JW108 JW122 JW123 JW132 JW137 JW138 JW116 JW129 JW127 JW103 JW150 JW104 JW151 JW148 JW146 JW119 JW157 JW106 JW105 THP101 IC102 IC101 IC104 CN102 CN101 IC103 R113 R131 R115 R133 R119 R125 R137 C128 C129 C102 C106 C107 C115 C120 C121 C137 C103 C117 C141 C142 C132 L101 L102 C111 C110 C124 C113 C125 C126 C127 RY101 D104 TM101 JW101 C133 JW102 CN105 JW109 CN104 CN103 JW158 C112 Q107 R154 Q113 Q102 Q109 Q108 Q105 Q112 Q104 Q110 Q117 Q111 Q114 D101 D102 D103 D105 D112 D110 D106 D107 D108 D109 D111 D114 R101 R102 R103 R104 R105 R106 R107 R108 R109 R110 R111 R112 R114 R116 R117 R120 R121 R122 R123 R124 R126 R127 R128 R129 R130 R132 R134 R136 R140 R141 R142 R143 R144 R145 R146 R147 R148 R150 R151 R152 R153 C101 C104 C116 C118 FB101 C134 C139 C131 C109 Q106 C122 R157 R156 R155 C138 C140 C130 C108 C123 C136 C145 C144 D113 Q103 Q101 D202 D201 CN201 C143 C153 C175 C174 C150 E E E 1 1 5 1 3 3 E E E E E E E E E E E E 1-862-757- 12 (12) MAIN BOARD LED BOARD + – + – REAR R REAR L SPEAKERS IMPEDANCE USE 8Ω M101 (FAN) M -2 -1 A RX BOARD CN7403 1 2 10 11 1 3 1 1 5 4 C POWER TRANSFORMER (MAIN) T901 B STBY BOARD CN903 1 3 1 11 2 10 ON LINE ON/STANDBY 5 1 1-862-759- 12 (12) 1 2 3 4 5 6 7 8 9 10 11 12 A B C D E F G H I J K L (Page 9) (Page 13) (Page 13) • See page 8 for Circuit Boards Location. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-FLX9W 13 13 TA-FLX9W 3-6. PRINTED WIRING BOARDS – POWER SUPPLY Section – :Uses unleaded solder. W901 JW904 JW903 JW902 JW901 CN901 CN903 C904 T902 RY901 CN902 JW991 C903 TP901 FH901 FH902 F901 C902 C901 R901 R905 R906 R902 D902 D903 D904 D905 D906 D901 D907 Q901 Q902 R904 D908 F971 FH971 CN971 JW971 S971 CN972 FH972 S951 CN951 CN952 E E STBY BOARD 1-862-758- 12 (12) VS BOARD 1-862-794- 12 (12) PSW BOARD 1-862-760- 12 (12) 4 1 (CHASSIS) MAIN BOARD CN103 B POWER TRANSFORMER (SUB) 1 3 1 T901 POWER TRANSFORMER (MAIN) 5 MAIN BOARD CN102 C (TH) 1 5 1 5 -1 -2 VOLTAGE SELECTOR 220V – 240V 110V – 120V 220V – 240V 120V – 127V (E15, SP) (EXCEPT TH) (TH) (EA) 1 1 5 2 POWER (AC IN) A B C D E 1 2 3 4 5 6 1 2 1 2 (Page 12) (Page 12) D901 C-2 D902 B-1 D903 B-2 D904 A-1 D905 A-2 D906 B-2 D907 A-2 D908 B-2 Q901 C-2 Q902 C-2 • Semiconductor Location Ref. No. Location • See page 8 for Circuit Boards Location. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-FLX9W 14 14 TA-FLX9W The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. 3-7. SCHEMATIC DIAGRAM – MAIN Section – Q103 R105 D114 CN101 R117 C104 C106 C107 C109 C108 R109 C101 R110 C103 R111 C144 C102 R108 RY101 C145 R127 C116 C117 R136 R128 R129 C118 D103 R120 R153 D101 C112 R124 R122 R123 D102 Q105 Q106 Q107 Q104 C111 R121 R119 R137 C125 R125 C113 R133 L102 R132 C124 C110 R134 R116 L101 0.6µH 0.6µH R114 C127 C126 D104 C122 C123 C120 C121 C128 C129 R157 R151 Q117 D112 R148 FB101 Q111 C133 Q114 D113 R152 CN105 CN903 CN103 CN102 D906 D904 D905 C904 R905 R904 D902 D903 C903 C902 C901 CN902 CN901 JW991 CN952 CN951 R142 R144 C139 R141 C138 R143 R146 Q109 Q108 R145 R147 D105 R140 C140 CN201 D110 D111 C131 C130 THP101 D107 D106 D108 D109 C134 C136 IC103 R101 R107 R104 C115 R126 R102 R103 Q102 R106 R156 R155 R154 C141 IC104 C143 C142 C137 CN104 D201 D202 IC102 IC101 R113 R131 R115 Q113 R150 Q112 Q110 R902 R901 Q902 D908 D901 RY901 T902 W901 F971 S951 D907 CN972 M101 Q101 TM101 S971 F901 Q901 R906 CN971 T901 C132 R130 R112 2SA1162 4.7k 1SS355 17P 33k 220p 10 50V 10 50V 0.047 0.047 100k 1000p 680 100 16V 470 4700p 10 50V 100 4700p 100k 1000p 100 16V 33k 680 470 220p 1SS355 4.7k 1k 1SS355 0.1 33k 10k 10k RB551V 2SC2712 2SA1162 2SC2712 2SD1938 220 10V 47k 10 10 0.047 10 0.047 C153 0.047 C175 0.047 4.7 47k 0.047 C174 0.047 0.047 C150 0.047 27k 27k 47k 0.1 100V 0.1 100V RBV-402 -01 0.047 0.047 10 50V 10 50V 3300 50V 3300 50V 2.2k 10k DTC124EKA UDZSTE-175.6B 1.5k DTC124EKA 10 50V DTC124EKA UDZS-2.7B 1k 3P 4P 4P 5P 1SS355 EC10QS04 EC10QS04 1 50V 33k 47k EC10QS04 EC10QS04 4700 16V 0.01 0.01 3P 5P 2P 2P 10k 4.7k 1 3.3k 1 820 220k 2SC2712 2SC2712 68k 100k 1SS355 100k 4.7 5P RB551V RB551V 0.01 0.01 1SR154 1SR154 1SR154 1SR154 4.7 0.1 NJM78L06AT3 470 470 1k 10 50V 100 1k 1k 2SC2712 10k 100 100 100 100 16V NJM78M05FA 0.1 100 16V 10 50V 5P SML72420C-TP15 SML72420C-TP15 LM3886T LM3886T 10 10 4.7 2SD1664 10k 2SB1132 DTC124EKA 4.7k 47k 2SC2712 1SS355 1SS355 T1.25AL 250V 1SS355 5P 2SC2712 T630mAL 250V 2SC2712 10k 2P 1000 16V 100k 100k PWR_RLY STOP STANBY_PWR DGND V+ NC V- V+ NC GND MUTE NC V+ NC V- V+ NC GND MUTE NC GND STBY ON ERR RDY PROTECT LED_ON LED_RED LED_DIAT GND GND +5V GND STOP (CHASSIS) (CHASSIS) L-CH R-CH PWRRY SPRY FANON FANCLK FAN2 FAN1 Q101-103 LED DRIVE ON/STANDBY ON LINE O G I O G I +5V REGULATOR +6V REGULATOR Q108,109 DETECT POWER AMP POWER AMP -1 -2 RELAY DRIVE Q105-107 DETECT REGULATOR Q111,117 FAN MOTOR DRIVE B+ SWITCH POWER TRANSFORMER (MAIN) FAN MOTOR DRIVE MAIN POWER ON/OFF RELAY DRIVE (SUB) POWER TRANSFORMER (TH) POWER (AC IN) (TH) -1 -2 VOLTAGE SELECTOR 120V 220V 240V 110V 220V 240V 120V 127V (EXCEPT TH) (FAN) REAR L REAR R IMPEDANCE USE 8Ω SPEAKERS OVER CURRENT PROTECT AC DETECT (E15,SP) (EA) LEVEL (Page 11) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 TA-FLX9W IC7401 TK11225CMCL-G • IC Block Diagrams – RX Board – IC7402 CXD4017R IC7404 S-T111B15MC-OGATFG 1 2 3 6 4 CONT GND NP VIN 5 GND VOUT CONTROL CIRCUIT BANDGAP REFERENCE CONSTANT CURRENT SOURCE OVER HEAT & OVER CURRENT PROTECT ADVRH 6 VSS 5 VDDE 4 TEST14 3 TEST13 2 TEST12 1 ADAVS 7 ADAVD 8 ADVRL 9 ADVIN 10 VDDEE 11 VSS 12 XRST 13 DIFM0 14 DIFM1 15 TEST15 16 A/D CONVERTER BUFFER RAM ERROR CORRECTOR OUTPUT INTERFACE DEMODULATOR PLREF 17 TEST16 19 APVCI 20 VSS 21 APCPO 22 APAVD 23 APAVS 24 APX 31 EXTCK 32 VSS 25 VDDI 26 VDDE 27 VCOR 28 CHNUM 29 DIVCODE 30 PLVAR 18 PLL CLOCK SELECTOR CONTROLLER CSOD 33 SRDT 34 SWDT 35 XSCEN 36 SCLK 37 SCMODE 38 OSCI 40 TEST0 44 TEST1 45 TEST2 46 TEST3 47 TEST4 48 OSCO 43 VSS 39 VDDE 41 VSS 42 CLOCK GENERATOR TEST11 64 EMPFS1 63 EMPFS0 62 DTVALID 61 DAOUT 60 LRCK 59 VDDI 58 VSS 57 VDDE 56 BCK 54 TEST10 55 TEST9 53 TEST8 52 TEST7 51 TEST6 50 TEST5 49 + – 4 5 1 2 ON/OFF VOUT VIN VSS 3 NC OVER CURRENT PROTECTOR REFERENCE VOLTAGE CIRCUIT ON/OFF CIRCUIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 TA-FLX9W IC7407 PCM1751DBQR IC7409 M62429FP-TP SCK 1 2 3 7 8 4 5 6 SERIAL INPUT INTERFACE 10 9 BCK DATA LRCK VOUTL VOUTR DGND VDD VCC VCOM AGND FUNCTION CONTROL INTERFACE SYSTEM CLOCK MANAGER 8 TIME OVER SAMPLING DIGITAL FILTER WITH FUNCTION CONTROLLER ENHANCED MULTI-LEVEL DELTA-SIGMA MODULATOR D/A CONVERTER D/A CONVERTER OUTPUT AMP AND LOW-PASS FILTER OUTPUT AMP AND LOW-PASS FILTER ZERO DETECT POWER SUPPLY 12 11 ZEROL ZEROR 15 14 ML MC 16 13 MD SYSTEM CLOCK + – 1 VIN1 2 VOUT1 3 GND 4 DATA LOGIC CONTROL VREF + – + – 8 VIN2 7 VOUT2 6 VCC 5 CLOCK REF AMP VOL AMP 2 VOL AMP 1 VR1 VR2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 TA-FLX9W RX BOARD IC7405 MB89537APFM-G-598-BNDE1 (REAR AMP CONTROLLER) Pin No. Pin Name I/O Description 1 NC O Not used 2 MOD2 I Setting terminal for the CPU operation mode Fixed at “L” in this set 3 VOLT I Battery voltage detection input terminal Not used 4 TEMP I Battery thermal detection input terminal Not used 5 to 10 NC — Not used 11 AVCC — Power supply terminal (+3.3V) (for A/D converter) 12 AVR I Reference voltage (+3.3V) input terminal (for A/D converter) 13 AVSS — Ground terminal (for A/D converter) 14 DTVAILD I Data valid flag input from the RF demodulator “L”: invalid, “H”: valid 15 PROTECT I Over current detection signal input for speaker output terminal “L”: over current 16 CSOD I Captor start delay signal input from the RF demodulator “H” active 17, 18 NC — Not used 19 RST I Reset signal input terminal “L”: reset For several hundreds msec. after the power supply rises, “L” is input, then it changes to “H” 20, 21 MD0, MD1 I CPU operation mode setting signal input terminal 22 X0 I Main system clock input terminal (12.5 MHz) 23 X1 O Main system clock output terminal (12.5 MHz) 24 VSS — Ground terminal 25 DAC_CLK O Serial data transfer clock signal output to the D/A converter 26 DAC_DATA O Serial data output to the D/A converter 27 DAC_LAT O Serial data latch pulse signal output to the D/A converter 28 XRST O Reset signal output to the RF demodulator and stream processor “L”: reset 29 P23 I Setting terminal for the CPU operation mode Fixed at “L” in this set 30 PPG02 I Setting terminal for the CPU operation mode Fixed at “H” in this set 31 SPRY O Speakers on/off relay drive signal output “H”: speakers on 32 STOP I Power failure detection input terminal “L”: power on 33 VOLIC_DATA O Serial data output to the electrical volume 34 VOLIC_CLK O Serial data transfer clock signal output to the electrical volume 35 PWR_RY O Main power on/off relay drive signal output terminal “H”: power on 36 LED_RED O LED drive signal output of the standby indicator “H”: LED on 37 LED_DIAT O LED drive signal output of the DIAT signal receive state indicator “H”: LED on (receive error) 38 LED_ON O LED drive signal output of the power on indicator “H”: LED on 39 DIATOFF O Power on/off control signal output terminal for the DIAT circuit “H”: active 40 P10 I Setting terminal for the CPU operation mode Fixed at “H” in this set 41 MUTE O Muting on/off control signal output terminal “L”: muting on 42 FAN1 O Fan motor drive control signal output terminal “H”: active 43 FAN2 O Fan motor drive speed control signal output terminal “H”: high speed, “L”: low speed 44 FAN_CLK I Fan motor stop detection signal input terminal “L”: fan motor stop 45 FANON I Output level detection signal input terminal “H”: low level, “L”: high level 46 SCMODE O Control mode selection signal output terminal “L”: pin setting, “H”: serial setting Not used 47 PSAVE O Power on/off control signal output terminal for the volume control circuit “H”: active 48 PWR_CTL O Not used 49 NC — Not used 50 PWMUTE O Not used 51 DIAT_CK O Serial interface data clock signal output to the RF demodulator • IC Pin Function Description www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 TA-FLX9W Pin No. Pin Name I/O Description 52 DIAT_SWDT O Serial interface data write signal output to the RF demodulator 53 DIAT_SRDT I Serial interface data read signal input from the RF demodulator 54 XSCEN O Serial interface enable signal output to the RF demodulator 55 NC — Not used 56 VCC — Power supply terminal (+3.3V) 57 CH_SEL I Not used 58 MOD_VER I Model destination setting terminal “H”: AC model, “L”: battery model 59 NC — Not used 60 SCK2 — Not used 61 SOT2 — Not used 62 SIN2 — Not used 63 INT23 I Not used 64 NC — Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 TA-FLX9W SECTION 4 EXPLODED VIEWS 1 2 4 4 4 5 5 6 not supplied not supplied (PSW board) not supplied (LED board) chassis section #1 #3 #1 not supplied • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Accessories are given in the last of the electrical parts list. NOTE: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑ ↑ Parts Color Cabinet's Color The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. • Abbreviation E15 : Iranian model EA : Saudi Arabia model Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 X-4956-474-1 PANEL ASSY, FRONT (REAR AMP) 2 4-255-371-01 BUTTON (POWER, REAR AMP) 4 4-951-620-01 SCREW (2.6X8), +BVTP 5 4-227-843-31 SCREW (TP), FLAT HEAD 6 4-255-374-11 CASE (REAR AMPLIFIER) #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 #3 7-685-871-01 SCREW +BVTT 3X6 (S) 4-1. FRONT PANEL SECTION SP : Singapore model TH : Thai model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 TA-FLX9W 51 52 59 53 (EXCEPT TH) 55 54 56 57 58 #1 #1 #1 #1 F901 #1 #1 #1 #1 #2 not supplied not supplied not supplied not supplied (VS board) not supplied not supplied M101 F971 T901 not supplied The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. 4-2. CHASSIS SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 4-965-822-01 FOOT 52 1-773-045-11 WIRE (FLAT TYPE) (17 CORE) 53 A-1072-386-A RX BOARD, COMPLETE (TH) 53 A-4753-418-A RX BOARD, COMPLETE (EXCEPT TH) 54 4-962-113-01 CLAMP 55 A-1068-931-A STBY BOARD, COMPLETE (EXCEPT TH) 55 A-1072-381-A STBY BOARD, COMPLETE (TH) 56 3-341-549-01 SCREW (2.6X12) (DIA. 7.5), +PTP WH * 57 3-703-244-00 BUSHING (2104), CORD (EXCEPT E15) 57 3-703-571-11 BUSHING (S) (4516), CORD (E15) 058 1-775-786-21 CORD, POWER (EA) 058 1-777-071-83 CORD, POWER (SP) 058 1-824-818-11 CORD, POWER (WITH CONNECTOR) (TH) 058 1-827-226-11 CORD, POWER (E15) 59 A-1072-380-A MAIN BOARD, COMPLETE (TH) 59 A-1082-073-A MAIN BOARD, COMPLETE (EXCEPT TH) 0F901 1-532-500-32 FUSE (T630mAL/250V) 0F971 1-532-502-32 FUSE (T1.25AL/250V)(EXCEPT TH) M101 1-787-171-11 FAN, DC 0T901 1-443-455-11 TRANSFORMER, POWER (EA) 0T901 1-443-458-11 TRANSFORMER, POWER (EXCEPT EA) #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 #2 7-685-880-09 SCREW +BVTT 4X6 (S) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 TA-FLX9W SECTION 5 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • SEMICONDUCTORS In each case, u: µ, for example: uA... : µA... uPA... : µPA... uPB... : µPB... uPC... : µPC... uPD... : µPD... • CAPACITORS uF: µF • COILS uH: µH LED The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. LED BOARD ********* < CONNECTOR > CN201 1-564-721-11 PIN, CONNECTOR (SMALL TYPE) 5P < LED > D201 8-719-056-10 LED SML72420C-TP15 (ON/STANDBY) D202 8-719-056-10 LED SML72420C-TP15 (ON LINE) ************************************************************ A-1072-380-A MAIN BOARD, COMPLETE (TH) A-1082-073-A MAIN BOARD, COMPLETE (EXCEPT TH) ********************* 4-857-425-00 BUSHING, 03P INSULATING 7-685-645-79 SCREW +BVTP 3X6 TYPE2 IT-3 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3 < CAPACITOR > C101 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C102 1-126-964-11 ELECT 10uF 20% 50V C103 1-126-933-11 ELECT 100uF 20% 16V C104 1-164-816-11 CERAMIC CHIP 220PF 2% 50V C106 1-126-964-11 ELECT 10uF 20% 50V C107 1-126-964-11 ELECT 10uF 20% 50V C108 1-100-756-91 CERAMIC CHIP 0.047uF 50V C109 1-100-756-91 CERAMIC CHIP 0.047uF 50V C110 1-137-374-11 MYLAR 0.047uF 5% 50V C111 1-126-934-11 ELECT 220uF 20% 16V C112 1-164-156-11 CERAMIC CHIP 0.1uF 25V C113 1-137-374-11 MYLAR 0.047uF 5% 50V C115 1-126-964-11 ELECT 10uF 20% 50V C116 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C117 1-126-933-11 ELECT 100uF 20% 16V C118 1-164-816-11 CERAMIC CHIP 220PF 2% 50V C120 1-126-964-11 ELECT 10uF 20% 50V C121 1-126-964-11 ELECT 10uF 20% 50V C122 1-100-756-91 CERAMIC CHIP 0.047uF 50V C123 1-100-756-91 CERAMIC CHIP 0.047uF 50V C124 1-137-374-11 MYLAR 0.047uF 5% 50V C125 1-137-374-11 MYLAR 0.047uF 5% 50V C126 1-137-749-11 MYLAR 0.1uF 100V C127 1-137-749-11 MYLAR 0.1uF 100V C128 1-126-974-11 ELECT 3300uF 20% 50V C129 1-126-974-11 ELECT 3300uF 20% 50V C130 1-162-974-11 CERAMIC CHIP 0.01uF 50V C131 1-162-974-11 CERAMIC CHIP 0.01uF 50V C132 1-126-767-11 ELECT 1000uF 20% 16V C133 1-126-964-11 ELECT 10uF 20% 50V C134 1-117-720-11 CERAMIC CHIP 4.7uF 10V C136 1-164-156-11 CERAMIC CHIP 0.1uF 25V C137 1-126-964-11 ELECT 10uF 20% 50V C138 1-115-156-11 CERAMIC CHIP 1uF 10V C139 1-115-156-11 CERAMIC CHIP 1uF 10V C140 1-117-720-11 CERAMIC CHIP 4.7uF 10V C141 1-126-933-11 ELECT 100uF 20% 16V C142 1-126-933-11 ELECT 100uF 20% 16V C143 1-164-156-11 CERAMIC CHIP 0.1uF 25V C144 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C145 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C150 1-100-756-91 CERAMIC CHIP 0.047uF 50V C153 1-100-756-91 CERAMIC CHIP 0.047uF 50V C174 1-100-756-91 CERAMIC CHIP 0.047uF 50V C175 1-100-756-91 CERAMIC CHIP 0.047uF 50V < CONNECTOR > CN101 1-784-778-11 CONNECTOR, FFC 17P CN102 1-691-767-11 PLUG (MICRO CONNECTOR) 5P CN104 1-784-922-11 PIN, CONNECTOR 5P CN105 1-779-978-11 PIN, CONNECTOR 3P < DIODE > D101 8-719-988-61 DIODE 1SS355TE-17 D102 8-719-073-35 DIODE RB551V-30TE-17 D103 8-719-988-61 DIODE 1SS355TE-17 D104 8-719-510-53 DIODE D4SB60L D105 8-719-988-61 DIODE 1SS355TE-17 D106 8-719-053-18 DIODE 1SR154-400TE-25 D107 8-719-053-18 DIODE 1SR154-400TE-25 D108 8-719-053-18 DIODE 1SR154-400TE-25 D109 8-719-053-18 DIODE 1SR154-400TE-25 D110 8-719-073-35 DIODE RB551V-30TE-17 D111 8-719-073-35 DIODE RB551V-30TE-17 D112 8-719-069-55 DIODE UDZSTE-175.6B D113 6-500-695-01 DIODE UDZSTE-172.7B D114 8-719-988-61 DIODE 1SS355TE-17 • Abbreviation E15 : Iranian model EA : Saudi Arabia model SP : Singapore model TH : Thai model MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 22 TA-FLX9W MAIN < FERRITE BEAD > FB101 1-469-152-11 FERRITE, EMI (SMD) (2012) < IC > IC101 8-759-299-54 IC LM3886TF IC102 8-759-299-54 IC LM3886TF IC103 8-759-708-06 IC NJM78L06A IC104 8-759-701-56 IC NJM78M05FA < COIL > L101 1-419-666-11 COIL, AIR-CORE L102 1-419-666-11 COIL, AIR-CORE < TRANSISTOR > Q101 8-729-024-91 TRANSISTOR 2SC2712-GL-TE85L Q102 8-729-024-91 TRANSISTOR 2SC2712-GL-TE85L Q103 8-729-216-22 TRANSISTOR 2SA1162-G Q104 8-729-046-97 TRANSISTOR 2SD1938 (F) -T (TX).SO Q105 8-729-024-91 TRANSISTOR 2SC2712-GL-TE85L Q106 8-729-216-22 TRANSISTOR 2SA1162-G Q107 8-729-024-91 TRANSISTOR 2SC2712-GL-TE85L Q108 8-729-024-91 TRANSISTOR 2SC2712-GL-TE85L Q109 8-729-024-91 TRANSISTOR 2SC2712-GL-TE85L Q110 8-729-901-00 TRANSISTOR DTC124EK Q111 8-729-901-00 TRANSISTOR DTC124EK Q112 8-729-903-46 TRANSISTOR 2SB1132-P Q113 8-729-920-85 TRANSISTOR 2SD1664-QR Q114 8-729-901-00 TRANSISTOR DTC124EK Q117 8-729-901-00 TRANSISTOR DTC124EK < RESISTOR > R101 1-216-817-11 METAL CHIP 470 5% 1/10W R102 1-216-821-11 METAL CHIP 1K 5% 1/10W R103 1-216-821-11 METAL CHIP 1K 5% 1/10W R104 1-216-821-11 METAL CHIP 1K 5% 1/10W R105 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R106 1-216-833-11 METAL CHIP 10K 5% 1/10W R107 1-216-817-11 METAL CHIP 470 5% 1/10W R108 1-216-809-11 METAL CHIP 100 5% 1/10W R109 1-216-845-11 METAL CHIP 100K 5% 1/10W R110 1-216-819-11 METAL CHIP 680 5% 1/10W R111 1-216-817-11 METAL CHIP 470 5% 1/10W R112 1-216-845-11 METAL CHIP 100K 5% 1/10W 0R113 1-249-393-11 CARBON 10 5% 1/4W F R114 1-216-841-11 METAL CHIP 47K 5% 1/10W 0R115 1-249-389-11 CARBON 4.7 5% 1/4W F R116 1-216-838-11 METAL CHIP 27K 5% 1/10W R117 1-216-839-11 METAL CHIP 33K 5% 1/10W 0R119 1-249-393-11 CARBON 10 5% 1/4W F R120 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R121 1-216-841-11 METAL CHIP 47K 5% 1/10W R122 1-216-833-11 METAL CHIP 10K 5% 1/10W R123 1-216-833-11 METAL CHIP 10K 5% 1/10W R124 1-216-839-11 METAL CHIP 33K 5% 1/10W 0R125 1-249-393-11 CARBON 10 5% 1/4W F R126 1-216-809-11 METAL CHIP 100 5% 1/10W R127 1-216-845-11 METAL CHIP 100K 5% 1/10W R128 1-216-819-11 METAL CHIP 680 5% 1/10W R129 1-216-817-11 METAL CHIP 470 5% 1/10W R130 1-216-845-11 METAL CHIP 100K 5% 1/10W 0R131 1-249-393-11 CARBON 10 5% 1/4W F R132 1-216-841-11 METAL CHIP 47K 5% 1/10W 0R133 1-249-389-11 CARBON 4.7 5% 1/4W F R134 1-216-838-11 METAL CHIP 27K 5% 1/10W R136 1-216-839-11 METAL CHIP 33K 5% 1/10W 0R137 1-249-393-11 CARBON 10 5% 1/4W F R140 1-216-845-11 METAL CHIP 100K 5% 1/10W R141 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R142 1-216-833-11 METAL CHIP 10K 5% 1/10W R143 1-216-820-11 METAL CHIP 820 5% 1/10W R144 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R145 1-216-843-11 METAL CHIP 68K 5% 1/10W R146 1-216-849-11 METAL CHIP 220K 5% 1/10W R147 1-216-845-11 METAL CHIP 100K 5% 1/10W R148 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R150 1-216-833-11 METAL CHIP 10K 5% 1/10W R151 1-216-833-11 METAL CHIP 10K 5% 1/10W R152 1-216-821-11 METAL CHIP 1K 5% 1/10W R153 1-216-821-11 METAL CHIP 1K 5% 1/10W R154 1-216-809-11 METAL CHIP 100 5% 1/10W R155 1-216-809-11 METAL CHIP 100 5% 1/10W R156 1-216-809-11 METAL CHIP 100 5% 1/10W R157 1-216-825-11 METAL CHIP 2.2K 5% 1/10W < RELAY > RY101 1-755-421-11 RELAY < THERMISTOR (POSITIVE) > THP101 1-803-636-11 THERMISTOR, POSITIVE (RUE090) < TERMINAL > TM101 1-780-145-11 TERMINAL BOARD (SPEAKER IMPEDANCE USE 8 Ω) ************************************************************ PSW BOARD ********** < CONNECTOR > * CN951 1-695-044-11 PIN, CONNECTOR (3.96mm PITCH) 2P * CN952 1-695-044-11 PIN, CONNECTOR (3.96mm PITCH) 2P < SWITCH > 0S951 1-572-267-21 SWITCH, PUSH (AC POWER) (1 KEY) (POWER) ************************************************************ A-1072-386-A RX BOARD, COMPLETE (TH) A-4753-418-A RX BOARD, COMPLETE (EXCEPT TH) ******************* < CAPACITOR > C7401 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C7402 1-126-947-11 ELECT 47uF 20% 35V C7403 1-126-947-11 ELECT 47uF 20% 35V C7404 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. PSW RX www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 23 TA-FLX9W RX C7405 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C7406 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C7407 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C7408 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C7409 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C7410 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C7411 1-126-947-11 ELECT 47uF 20% 35V C7412 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C7413 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C7414 1-126-947-11 ELECT 47uF 20% 35V C7415 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C7416 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C7417 1-126-947-11 ELECT 47uF 20% 35V C7418 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C7419 1-126-947-11 ELECT 47uF 20% 35V C7420 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C7421 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C7422 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C7423 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C7424 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C7425 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C7426 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C7427 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C7428 1-126-947-11 ELECT 47uF 20% 35V C7429 1-104-665-11 ELECT 100uF 20% 25V C7430 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C7431 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C7432 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C7433 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C7434 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C7435 1-126-947-11 ELECT 47uF 20% 35V C7436 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C7437 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C7438 1-126-947-11 ELECT 47uF 20% 35V C7439 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C7440 1-126-947-11 ELECT 47uF 20% 35V C7441 1-126-947-11 ELECT 47uF 20% 35V C7442 1-104-665-11 ELECT 100uF 20% 25V C7443 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C7444 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C7445 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C7446 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C7447 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C7448 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C7449 1-126-947-11 ELECT 47uF 20% 35V C7450 1-126-964-11 ELECT 10uF 20% 50V C7451 1-126-964-11 ELECT 10uF 20% 50V C7452 1-126-964-11 ELECT 10uF 20% 50V C7453 1-126-964-11 ELECT 10uF 20% 50V C7454 1-104-655-91 ELECT 470uF 20% 6.3V C7455 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C7456 1-104-665-11 ELECT 100uF 20% 25V C7457 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C7458 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C7459 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C7460 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C7461 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C7462 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C7463 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C7464 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C7465 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C7466 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C7467 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C7468 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C7469 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C7470 1-109-982-11 CERAMIC CHIP 1uF 10% 10V < CONNECTOR > CN7402 1-691-769-11 PLUG (MICRO CONNECTOR) 7P CN7403 1-784-778-11 CONNECTOR, FFC 17P < DIODE > D7401 8-719-016-74 DIODE 1SS352 D7402 8-719-016-74 DIODE 1SS352 D7403 8-719-978-33 DIODE DTZ-TT11-6.8B D7404 6-500-695-01 DIODE UDZSTE-172.7B < FERRITE BEAD > FB7401 1-414-234-22 INDUCTOR, FERRITE BEAD < IC > IC7401 6-704-261-01 IC TK11225CMCL-G IC7402 8-752-425-06 IC CXD4017R IC7403 6-702-913-01 IC S-80929CNMC-G8ZT2G IC7404 6-705-310-01 IC S-T111B15MC-OGATFG IC7405 6-804-627-01 IC MB89537APFM-G-598-BNDE1 IC7406 8-759-583-47 IC uPC2933T-E2 IC7407 6-703-788-01 IC PCM1751DBQR IC7408 8-759-177-69 IC TLV2362IDR IC7409 6-706-078-01 IC M62429FP-TP IC7410 8-759-548-99 IC SN74LV08APWR IC7411 8-759-660-23 IC SN74HCT08APWR < JACK > J7401 1-818-633-11 JACK, PIN 1P (DIR-R1) < COIL > L7401 1-400-305-11 INDUCTOR 47uH L7402 1-400-389-21 INDUCTOR 10uH L7404 1-400-389-21 INDUCTOR 10uH L7406 1-400-389-21 INDUCTOR 10uH L7407 1-400-389-21 INDUCTOR 10uH < TRANSISTOR > Q7401 8-729-216-22 TRANSISTOR 2SA1162-G Q7402 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q7403 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q7405 8-729-046-97 TRANSISTOR 2SD1938 (F) -T (TX).SO Q7406 8-729-046-97 TRANSISTOR 2SD1938 (F) -T (TX).SO Q7407 8-729-216-22 TRANSISTOR 2SA1162-G Q7408 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q7409 8-729-216-22 TRANSISTOR 2SA1162-G Q7410 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q7411 8-729-027-31 TRANSISTOR DTA124EKA-T146 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 24 TA-FLX9W RX STBY < RESISTOR > R7401 1-216-833-11 METAL CHIP 10K 5% 1/10W R7402 1-216-813-11 METAL CHIP 220 5% 1/10W R7403 1-216-807-11 METAL CHIP 68 5% 1/10W R7404 1-216-820-11 METAL CHIP 820 5% 1/10W R7405 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R7406 1-216-833-11 METAL CHIP 10K 5% 1/10W R7407 1-216-809-11 METAL CHIP 100 5% 1/10W R7408 1-216-833-11 METAL CHIP 10K 5% 1/10W R7409 1-216-833-11 METAL CHIP 10K 5% 1/10W R7410 1-216-833-11 METAL CHIP 10K 5% 1/10W R7412 1-216-821-11 METAL CHIP 1K 5% 1/10W R7414 1-216-833-11 METAL CHIP 10K 5% 1/10W R7415 1-216-833-11 METAL CHIP 10K 5% 1/10W R7417 1-216-833-11 METAL CHIP 10K 5% 1/10W R7418 1-216-809-11 METAL CHIP 100 5% 1/10W R7419 1-216-809-11 METAL CHIP 100 5% 1/10W R7420 1-216-809-11 METAL CHIP 100 5% 1/10W R7421 1-216-809-11 METAL CHIP 100 5% 1/10W R7422 1-216-809-11 METAL CHIP 100 5% 1/10W R7423 1-216-833-11 METAL CHIP 10K 5% 1/10W R7424 1-216-809-11 METAL CHIP 100 5% 1/10W R7425 1-216-813-11 METAL CHIP 220 5% 1/10W R7426 1-216-813-11 METAL CHIP 220 5% 1/10W R7427 1-216-813-11 METAL CHIP 220 5% 1/10W R7428 1-216-813-11 METAL CHIP 220 5% 1/10W R7429 1-216-809-11 METAL CHIP 100 5% 1/10W R7430 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R7431 1-216-809-11 METAL CHIP 100 5% 1/10W R7432 1-216-833-11 METAL CHIP 10K 5% 1/10W R7433 1-216-809-11 METAL CHIP 100 5% 1/10W R7434 1-216-809-11 METAL CHIP 100 5% 1/10W R7435 1-216-809-11 METAL CHIP 100 5% 1/10W R7436 1-216-809-11 METAL CHIP 100 5% 1/10W R7437 1-216-809-11 METAL CHIP 100 5% 1/10W R7438 1-216-824-11 METAL CHIP 1.8K 5% 1/10W R7439 1-216-824-11 METAL CHIP 1.8K 5% 1/10W R7440 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R7441 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R7442 1-216-824-11 METAL CHIP 1.8K 5% 1/10W R7443 1-216-824-11 METAL CHIP 1.8K 5% 1/10W R7444 1-216-809-11 METAL CHIP 100 5% 1/10W R7445 1-216-809-11 METAL CHIP 100 5% 1/10W R7446 1-216-809-11 METAL CHIP 100 5% 1/10W R7447 1-216-809-11 METAL CHIP 100 5% 1/10W R7448 1-216-809-11 METAL CHIP 100 5% 1/10W R7449 1-216-809-11 METAL CHIP 100 5% 1/10W R7450 1-216-809-11 METAL CHIP 100 5% 1/10W R7451 1-216-809-11 METAL CHIP 100 5% 1/10W R7452 1-216-809-11 METAL CHIP 100 5% 1/10W R7453 1-216-809-11 METAL CHIP 100 5% 1/10W R7454 1-216-809-11 METAL CHIP 100 5% 1/10W R7455 1-216-809-11 METAL CHIP 100 5% 1/10W R7456 1-216-809-11 METAL CHIP 100 5% 1/10W R7457 1-216-809-11 METAL CHIP 100 5% 1/10W R7458 1-216-809-11 METAL CHIP 100 5% 1/10W R7459 1-216-809-11 METAL CHIP 100 5% 1/10W R7460 1-216-809-11 METAL CHIP 100 5% 1/10W R7462 1-216-821-11 METAL CHIP 1K 5% 1/10W R7463 1-216-821-11 METAL CHIP 1K 5% 1/10W R7465 1-216-833-11 METAL CHIP 10K 5% 1/10W R7466 1-216-833-11 METAL CHIP 10K 5% 1/10W R7469 1-216-833-11 METAL CHIP 10K 5% 1/10W R7470 1-216-833-11 METAL CHIP 10K 5% 1/10W R7472 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R7473 1-216-833-11 METAL CHIP 10K 5% 1/10W R7474 1-216-809-11 METAL CHIP 100 5% 1/10W R7475 1-216-809-11 METAL CHIP 100 5% 1/10W R7476 1-216-809-11 METAL CHIP 100 5% 1/10W R7477 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R7478 1-216-833-11 METAL CHIP 10K 5% 1/10W R7479 1-216-809-11 METAL CHIP 100 5% 1/10W R7480 1-216-789-11 METAL CHIP 2.2 5% 1/10W R7482 1-216-809-11 METAL CHIP 100 5% 1/10W R7483 1-216-809-11 METAL CHIP 100 5% 1/10W R7484 1-216-809-11 METAL CHIP 100 5% 1/10W R7485 1-216-809-11 METAL CHIP 100 5% 1/10W R7486 1-216-809-11 METAL CHIP 100 5% 1/10W R7487 1-216-809-11 METAL CHIP 100 5% 1/10W R7488 1-216-833-11 METAL CHIP 10K 5% 1/10W R7489 1-216-813-11 METAL CHIP 220 5% 1/10W R7490 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R7491 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R7492 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R7493 1-216-833-11 METAL CHIP 10K 5% 1/10W R7494 1-216-833-11 METAL CHIP 10K 5% 1/10W R7495 1-216-833-11 METAL CHIP 10K 5% 1/10W R7496 1-216-833-11 METAL CHIP 10K 5% 1/10W R7497 1-216-835-11 METAL CHIP 15K 5% 1/10W R7498 1-216-835-11 METAL CHIP 15K 5% 1/10W R7499 1-216-833-11 METAL CHIP 10K 5% 1/10W R7500 1-216-833-11 METAL CHIP 10K 5% 1/10W R7501 1-216-833-11 METAL CHIP 10K 5% 1/10W R7502 1-216-797-11 METAL CHIP 10 5% 1/10W R7503 1-216-833-11 METAL CHIP 10K 5% 1/10W < VIBRATOR > X7401 1-795-485-21 VIBRATOR, CRYSTAL (SMD) (12.288MHz) X7402 1-781-312-11 VIBRATOR, CERAMIC (12.5MHz) ************************************************************ A-1068-931-A STBY BOARD (EXCEPT TH) A-1072-381-A STBY BOARD (TH) *********** 1-533-293-11 FUSE HOLDER < CAPACITOR > C901 1-162-974-11 CERAMIC CHIP 0.01uF 50V C902 1-162-974-11 CERAMIC CHIP 0.01uF 50V C903 1-126-937-11 ELECT 4700uF 20% 16V C904 1-126-960-11 ELECT 1uF 20% 50V < CONNECTOR > * CN902 1-580-445-11 PIN, CONNECTOR (3.96mm PITCH) 3P www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 25 TA-FLX9W The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. STBY VS CN903 1-784-921-11 PIN, CONNECTOR 4P < DIODE > D901 8-719-988-61 DIODE 1SS355TE-17 D902 8-719-210-39 DIODE EC10QS-04 D903 8-719-210-39 DIODE EC10QS-04 D904 8-719-210-39 DIODE EC10QS-04 D905 8-719-210-39 DIODE EC10QS-04 D906 8-719-988-61 DIODE 1SS355TE-17 D907 8-719-988-61 DIODE 1SS355TE-17 D908 8-719-988-61 DIODE 1SS355TE-17 < TRANSISTOR > Q901 8-729-024-91 TRANSISTOR 2SC2712-GL-TE85L Q902 8-729-024-91 TRANSISTOR 2SC2712-GL-TE85L < RESISTOR > R901 1-216-841-11 METAL CHIP 47K 5% 1/10W R902 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R904 1-216-841-11 METAL CHIP 47K 5% 1/10W R905 1-216-839-11 METAL CHIP 33K 5% 1/10W R906 1-216-833-11 METAL CHIP 10K 5% 1/10W < RELAY > 0RY901 1-755-276-11 RELAY, POWER < TRANSFORMER > 0T902 1-437-435-11 TRANSFORMER, POWER (EXCEPT TH) 0T902 1-437-550-11 TRANSFORMER, POWER (TH) ************************************************************ VS BOARD (EXCEPT TH) ******************** 1-533-293-11 FUSE HOLDER < CONNECTOR > CN971 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P CN972 1-785-103-11 PIN, CONNECTOR (3.96mm PITCH) 5P < SWITCH > 0S971 1-771-474-11 SWITCH, POWER (VOLTAGE CHANGE) (VOLTAGE SELECTOR) ************************************************************ MISCELLANEOUS ************** 52 1-773-045-11 WIRE (FLAT TYPE) (17 CORE) 058 1-775-786-21 CORD, POWER (EA) 058 1-777-071-83 CORD, POWER (SP) 058 1-824-818-11 CORD, POWER (WITH CONNECTOR) (TH) 058 1-827-226-11 CORD, POWER (E15) 0F901 1-532-500-32 FUSE (T630mAL/250V) 0F971 1-532-502-32 FUSE (T1.25AL/250V) (EXCEPT TH) M101 1-787-171-11 FAN, DC 0T901 1-443-455-11 TRANSFORMER, POWER (EA) 0T901 1-443-458-11 TRANSFORMER, POWER (EXCEPT EA) ************************************************************ ACCESSORIES ************ 0 1-569-007-11 ADAPTOR, CONVERSION 2P (E15) 0 1-569-008-22 ADAPTOR, CONVERSION 2P (SP) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 TA-FLX9W REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2004.07 New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
