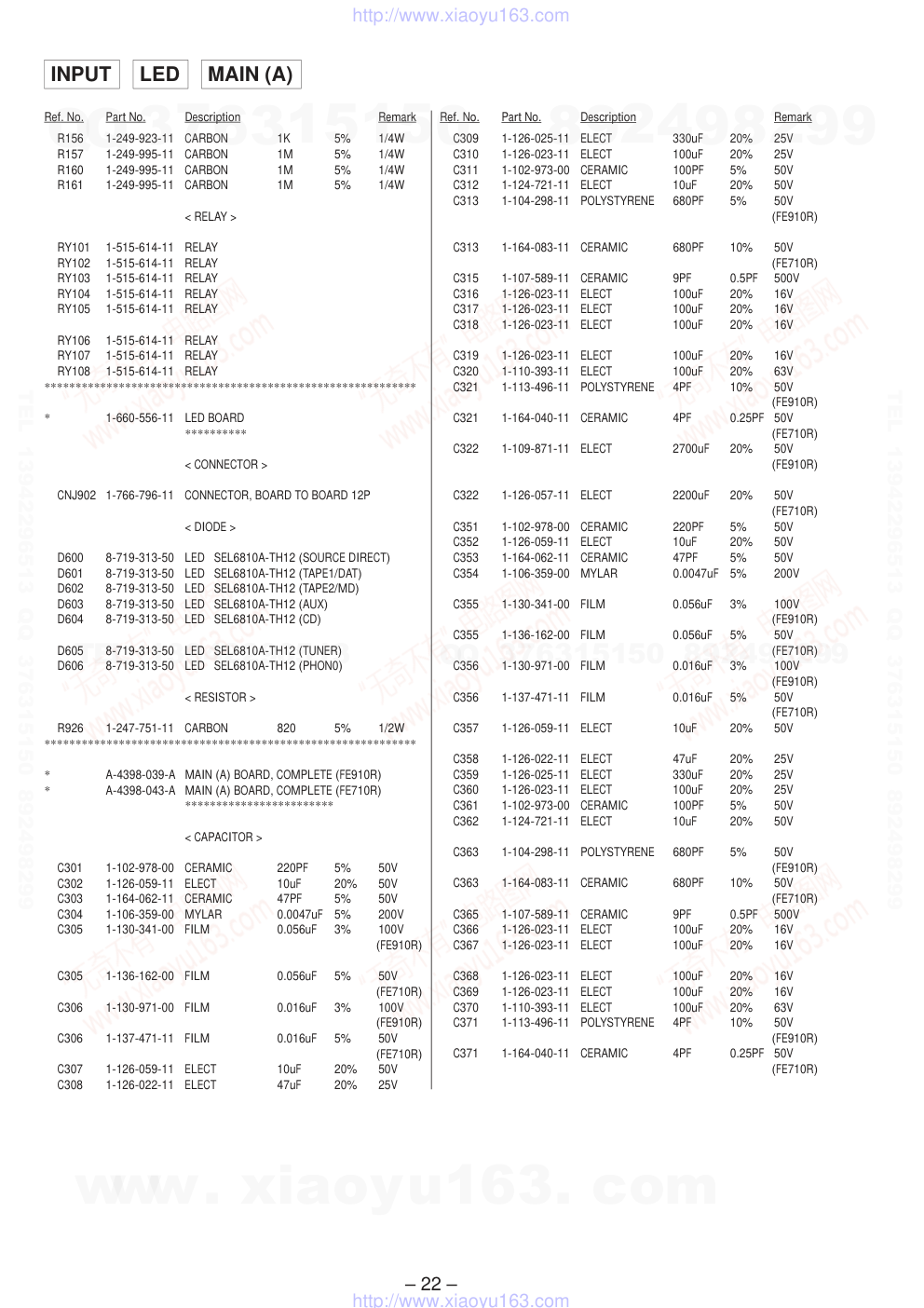

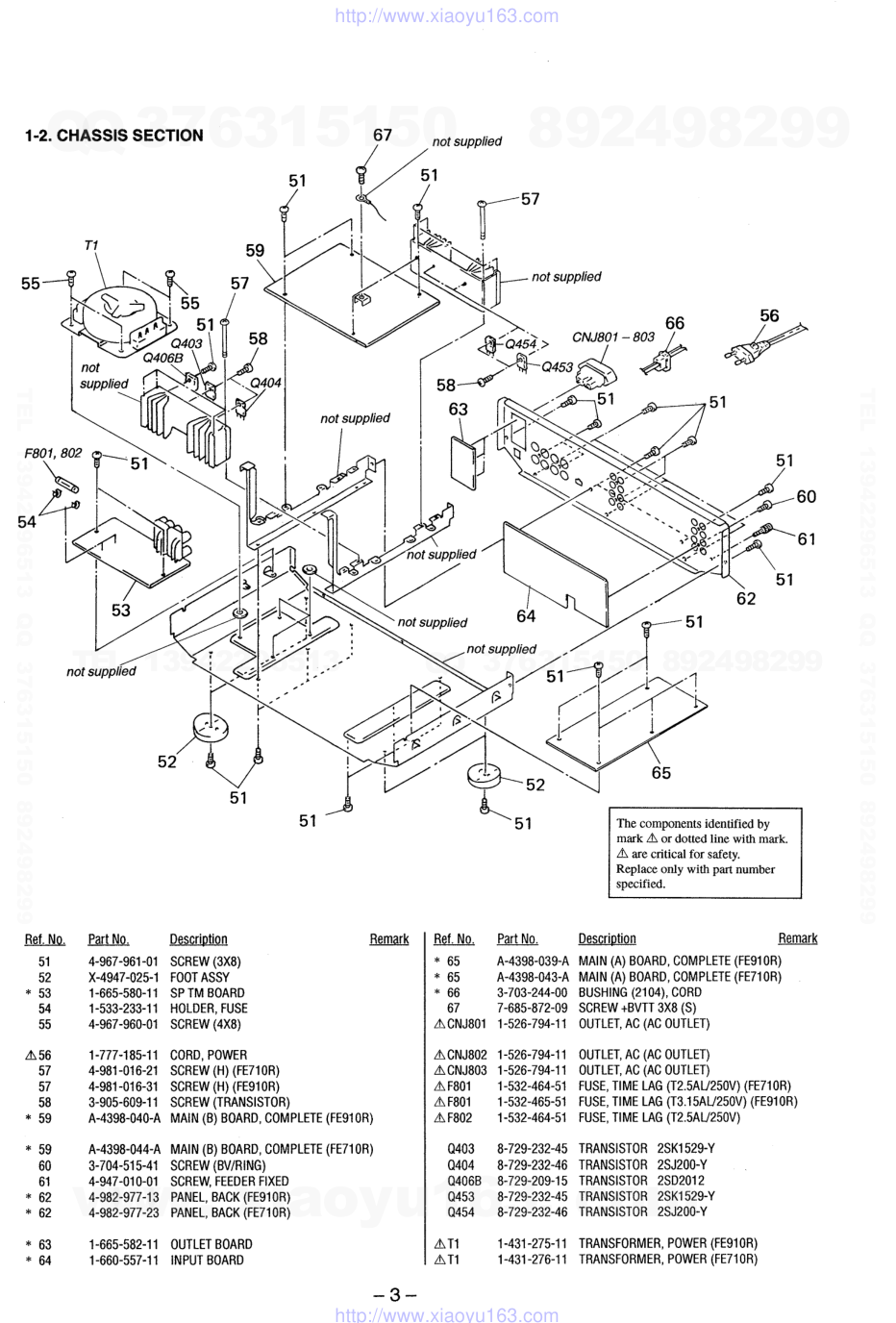

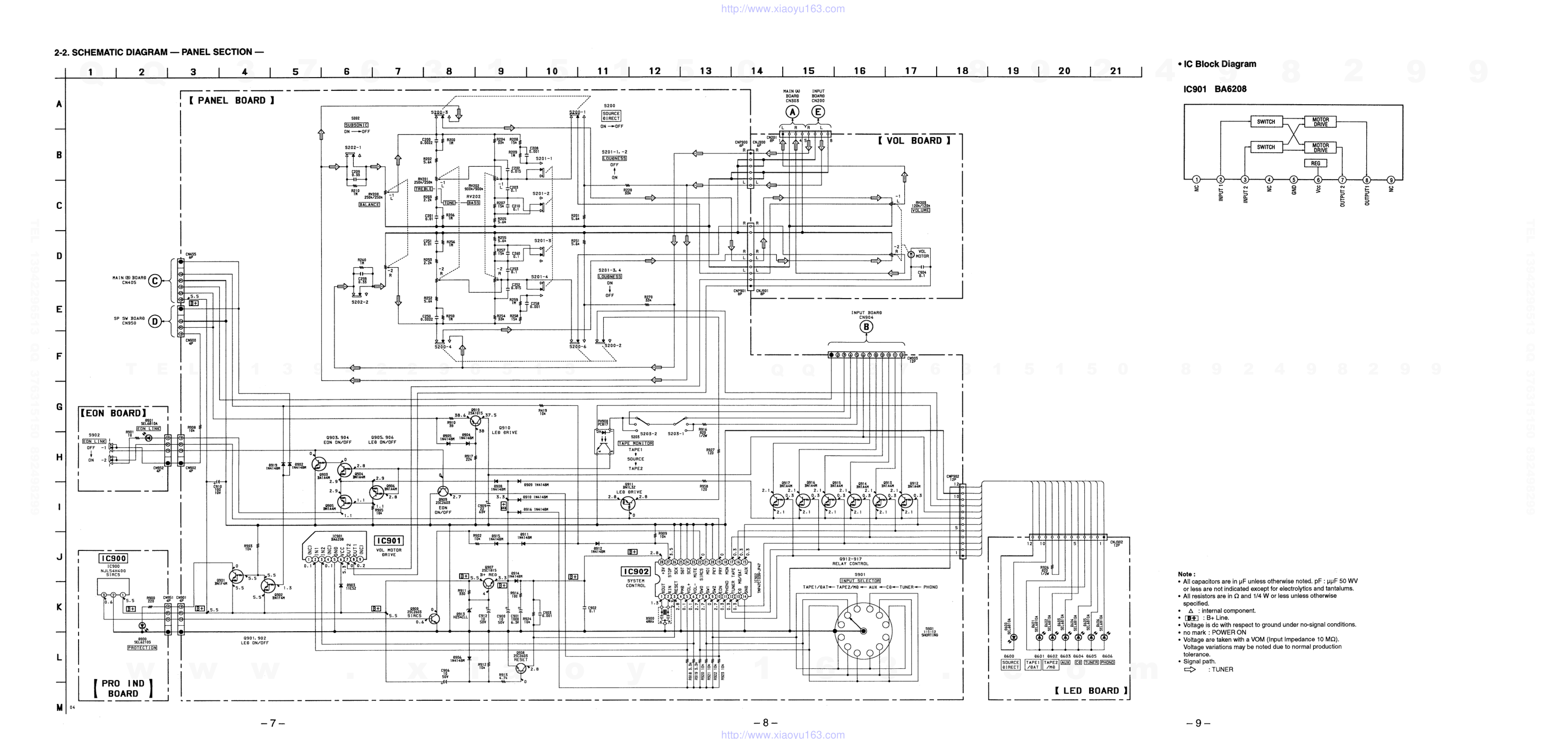

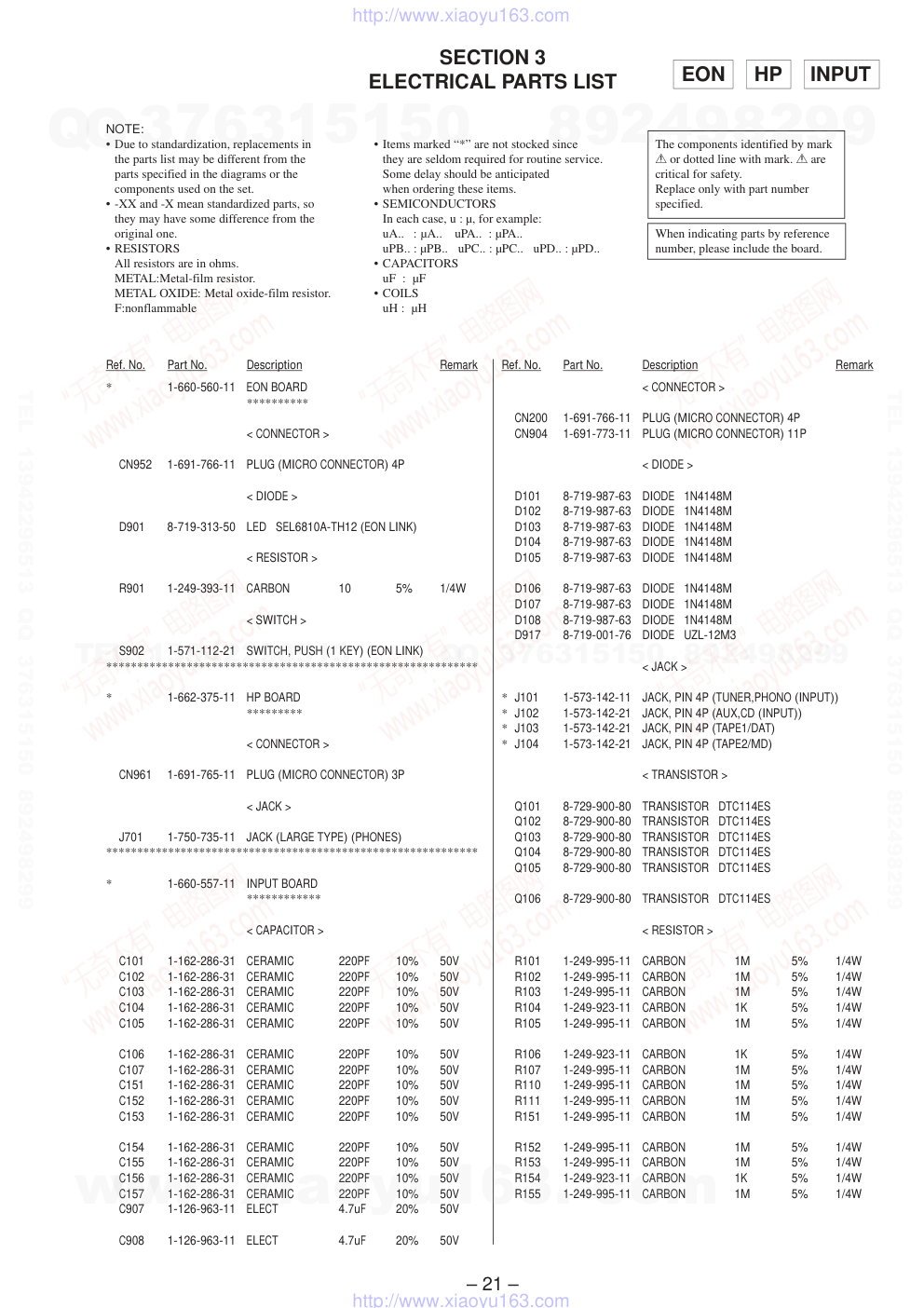

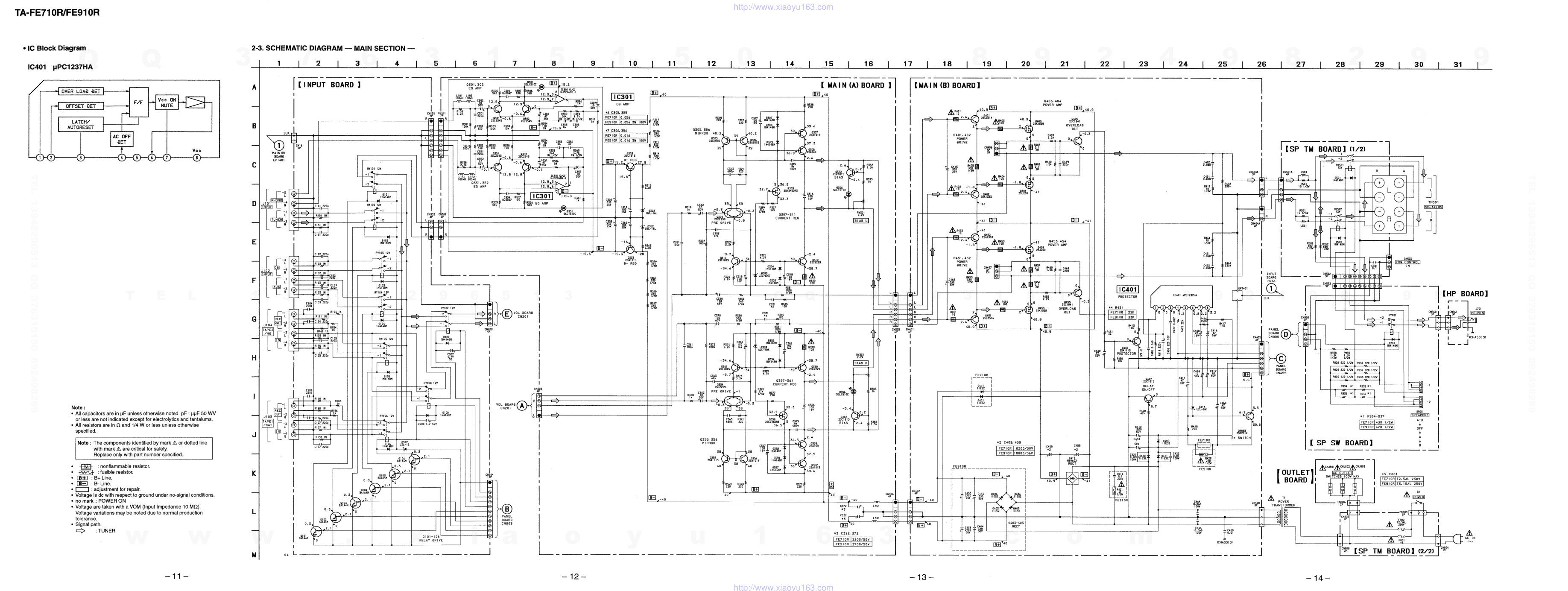

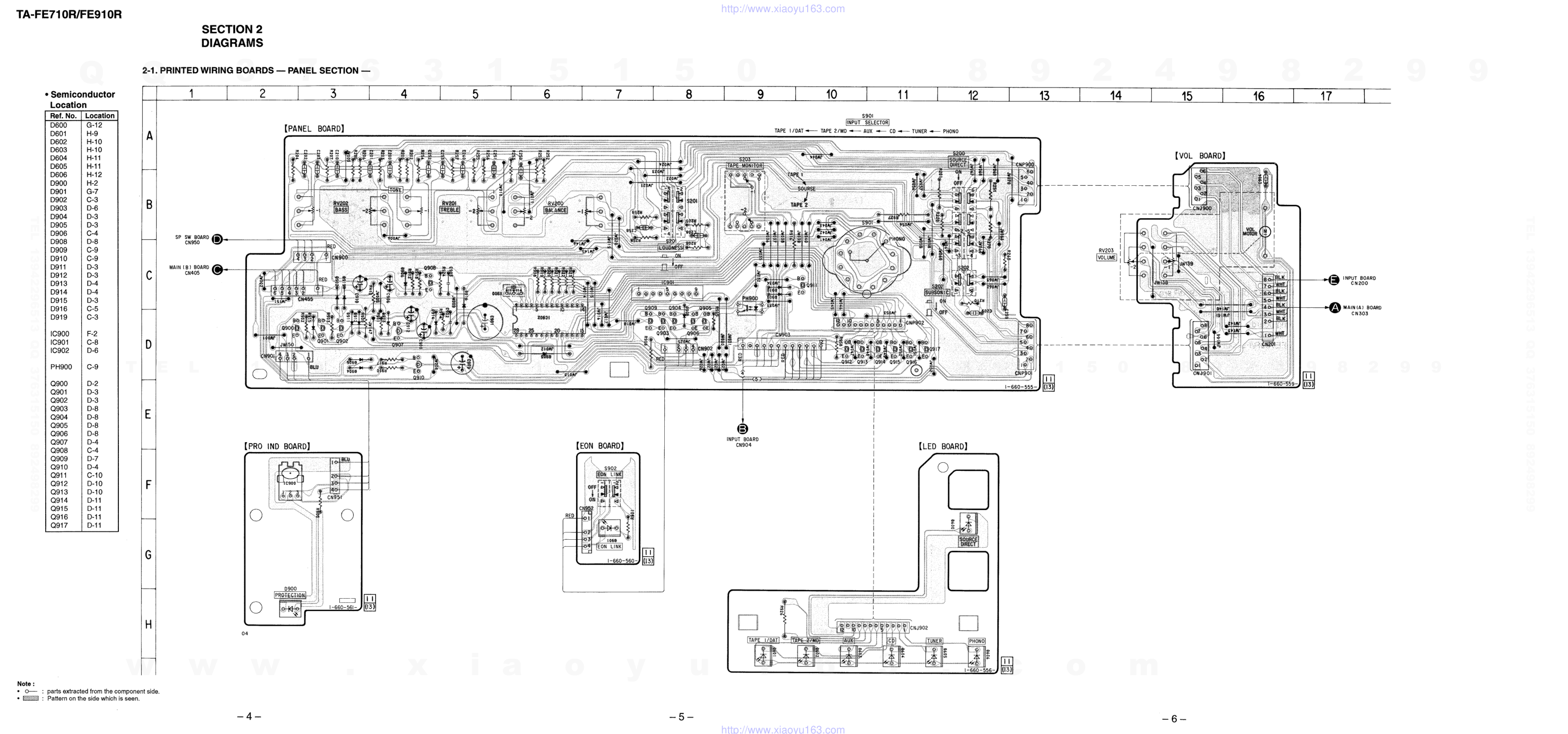

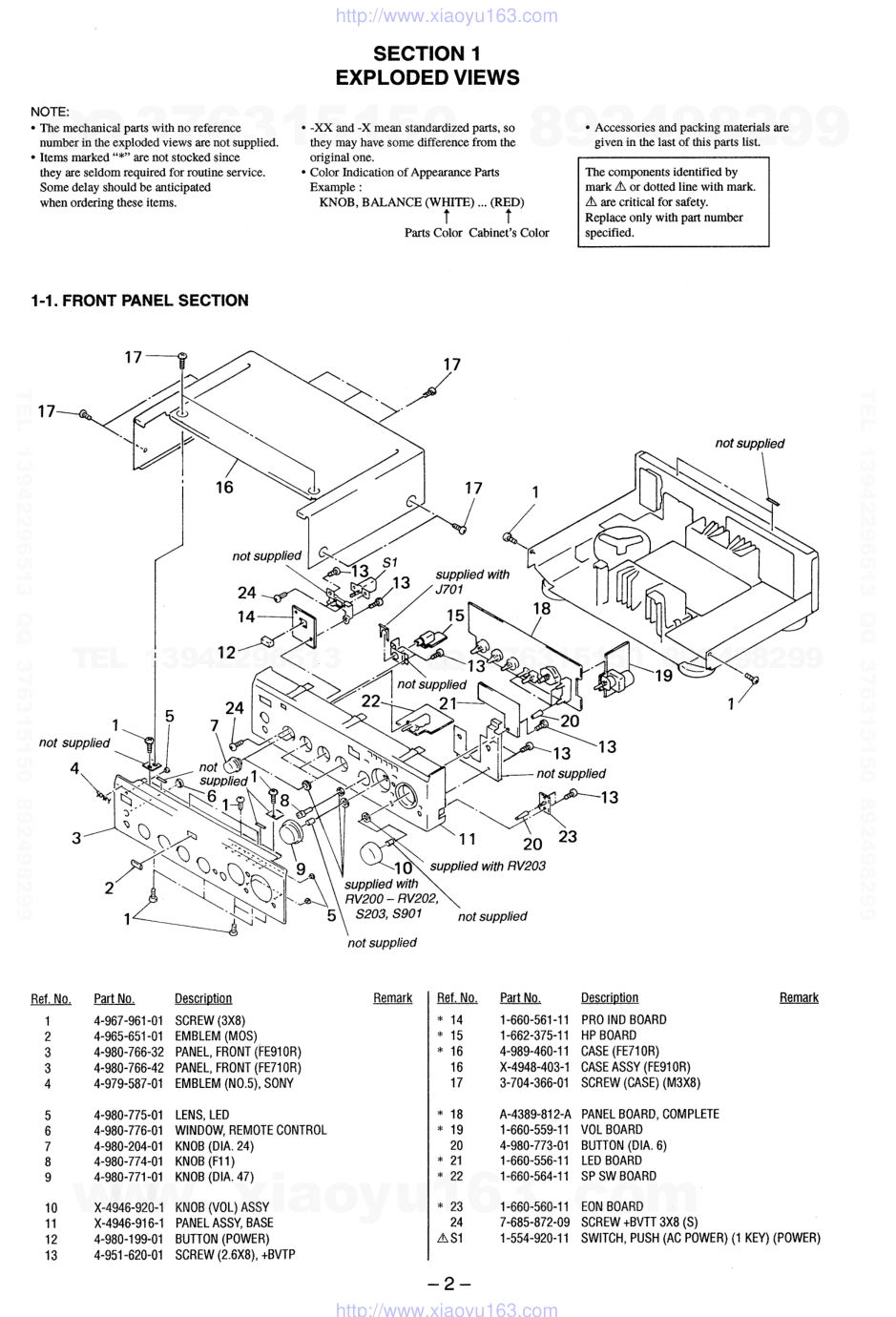

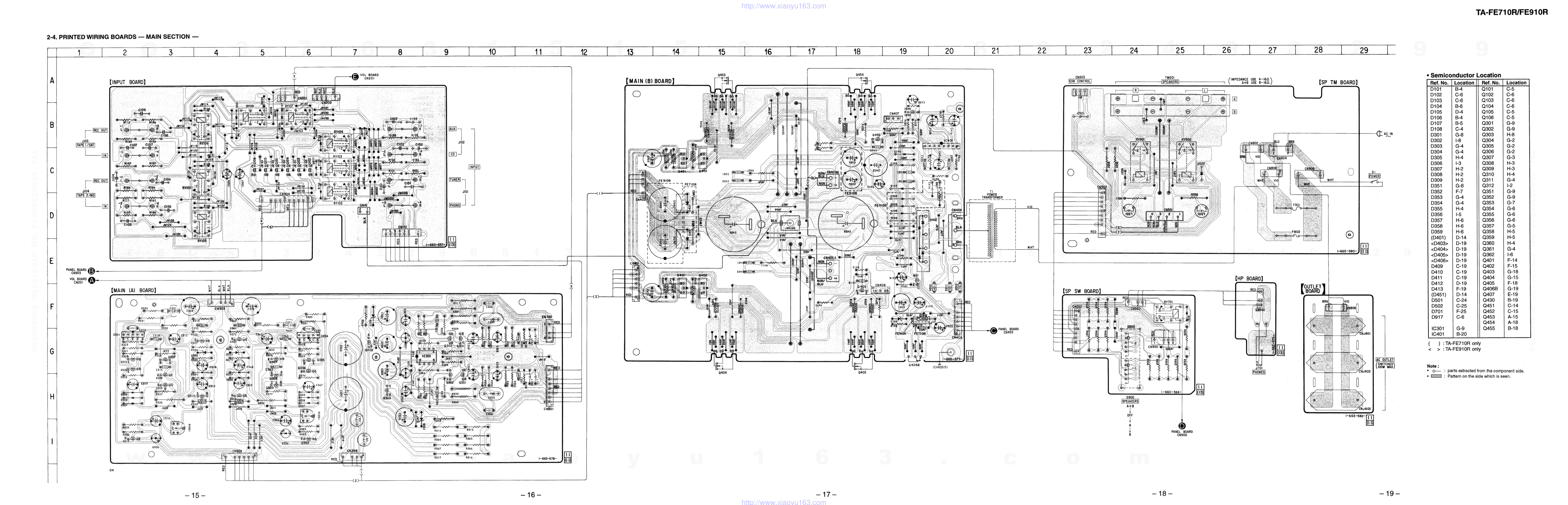

– 1 – SERVICE MANUAL AEP Model INTEGRATED STEREO AMPLIFIER The TA-FE710R and TA-FE910R are respectively the TA-FE700R and TA-FE900R models whose panels have been changed. This service manual describes only the exploded views, printed wiring boards, schematic diagram and electrical parts list. For the other information, refer to the service manual for TA-FE700R/FE900R (9-960-684-ππ) previously issued. MICROFILM TABLE OF CONTENTS 1. EXPLODED VIEWS 1-1. Front Panel Section ................................................................................ 2 1-2. Chassis Section....................................................................................... 3 2. DIAGRAMS 2-1. Printed Wiring Boards — Panel Section — ........................................... 4 2-2. Schematic Diagram — Panel Section — ............................................... 7 2-3. Schematic Diagram — Main Section —...............................................11 2-4. Printed Wiring Boards — Main Section — ......................................... 15 3. ELECTRICAL PARTS LIST ..................................................... 21 Photo : TA-FE910R www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 21 – INPUT HP EON SECTION 3 ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL:Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F:nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • SEMICONDUCTORS In each case, u : µ, for example: uA.. : µA.. uPA.. : µPA.. uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD.. • CAPACITORS uF : µF • COILS uH : µH The components identified by mark ! or dotted line with mark. ! are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * 1-660-560-11 EON BOARD ********** < CONNECTOR > CN952 1-691-766-11 PLUG (MICRO CONNECTOR) 4P < DIODE > D901 8-719-313-50 LED SEL6810A-TH12 (EON LINK) < RESISTOR > R901 1-249-393-11 CARBON 10 5% 1/4W < SWITCH > S902 1-571-112-21 SWITCH, PUSH (1 KEY) (EON LINK) ************************************************************ * 1-662-375-11 HP BOARD ********* < CONNECTOR > CN961 1-691-765-11 PLUG (MICRO CONNECTOR) 3P < JACK > J701 1-750-735-11 JACK (LARGE TYPE) (PHONES) ************************************************************ * 1-660-557-11 INPUT BOARD ************ < CAPACITOR > C101 1-162-286-31 CERAMIC 220PF 10% 50V C102 1-162-286-31 CERAMIC 220PF 10% 50V C103 1-162-286-31 CERAMIC 220PF 10% 50V C104 1-162-286-31 CERAMIC 220PF 10% 50V C105 1-162-286-31 CERAMIC 220PF 10% 50V C106 1-162-286-31 CERAMIC 220PF 10% 50V C107 1-162-286-31 CERAMIC 220PF 10% 50V C151 1-162-286-31 CERAMIC 220PF 10% 50V C152 1-162-286-31 CERAMIC 220PF 10% 50V C153 1-162-286-31 CERAMIC 220PF 10% 50V C154 1-162-286-31 CERAMIC 220PF 10% 50V C155 1-162-286-31 CERAMIC 220PF 10% 50V C156 1-162-286-31 CERAMIC 220PF 10% 50V C157 1-162-286-31 CERAMIC 220PF 10% 50V C907 1-126-963-11 ELECT 4.7uF 20% 50V C908 1-126-963-11 ELECT 4.7uF 20% 50V < CONNECTOR > CN200 1-691-766-11 PLUG (MICRO CONNECTOR) 4P CN904 1-691-773-11 PLUG (MICRO CONNECTOR) 11P < DIODE > D101 8-719-987-63 DIODE 1N4148M D102 8-719-987-63 DIODE 1N4148M D103 8-719-987-63 DIODE 1N4148M D104 8-719-987-63 DIODE 1N4148M D105 8-719-987-63 DIODE 1N4148M D106 8-719-987-63 DIODE 1N4148M D107 8-719-987-63 DIODE 1N4148M D108 8-719-987-63 DIODE 1N4148M D917 8-719-001-76 DIODE UZL-12M3 < JACK > * J101 1-573-142-11 JACK, PIN 4P (TUNER,PHONO (INPUT)) * J102 1-573-142-21 JACK, PIN 4P (AUX,CD (INPUT)) * J103 1-573-142-21 JACK, PIN 4P (TAPE1/DAT) * J104 1-573-142-21 JACK, PIN 4P (TAPE2/MD) < TRANSISTOR > Q101 8-729-900-80 TRANSISTOR DTC114ES Q102 8-729-900-80 TRANSISTOR DTC114ES Q103 8-729-900-80 TRANSISTOR DTC114ES Q104 8-729-900-80 TRANSISTOR DTC114ES Q105 8-729-900-80 TRANSISTOR DTC114ES Q106 8-729-900-80 TRANSISTOR DTC114ES < RESISTOR > R101 1-249-995-11 CARBON 1M 5% 1/4W R102 1-249-995-11 CARBON 1M 5% 1/4W R103 1-249-995-11 CARBON 1M 5% 1/4W R104 1-249-923-11 CARBON 1K 5% 1/4W R105 1-249-995-11 CARBON 1M 5% 1/4W R106 1-249-923-11 CARBON 1K 5% 1/4W R107 1-249-995-11 CARBON 1M 5% 1/4W R110 1-249-995-11 CARBON 1M 5% 1/4W R111 1-249-995-11 CARBON 1M 5% 1/4W R151 1-249-995-11 CARBON 1M 5% 1/4W R152 1-249-995-11 CARBON 1M 5% 1/4W R153 1-249-995-11 CARBON 1M 5% 1/4W R154 1-249-923-11 CARBON 1K 5% 1/4W R155 1-249-995-11 CARBON 1M 5% 1/4W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 22 – LED INPUT MAIN (A) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R156 1-249-923-11 CARBON 1K 5% 1/4W R157 1-249-995-11 CARBON 1M 5% 1/4W R160 1-249-995-11 CARBON 1M 5% 1/4W R161 1-249-995-11 CARBON 1M 5% 1/4W < RELAY > RY101 1-515-614-11 RELAY RY102 1-515-614-11 RELAY RY103 1-515-614-11 RELAY RY104 1-515-614-11 RELAY RY105 1-515-614-11 RELAY RY106 1-515-614-11 RELAY RY107 1-515-614-11 RELAY RY108 1-515-614-11 RELAY ************************************************************ * 1-660-556-11 LED BOARD ********** < CONNECTOR > CNJ902 1-766-796-11 CONNECTOR, BOARD TO BOARD 12P < DIODE > D600 8-719-313-50 LED SEL6810A-TH12 (SOURCE DIRECT) D601 8-719-313-50 LED SEL6810A-TH12 (TAPE1/DAT) D602 8-719-313-50 LED SEL6810A-TH12 (TAPE2/MD) D603 8-719-313-50 LED SEL6810A-TH12 (AUX) D604 8-719-313-50 LED SEL6810A-TH12 (CD) D605 8-719-313-50 LED SEL6810A-TH12 (TUNER) D606 8-719-313-50 LED SEL6810A-TH12 (PHON0) < RESISTOR > R926 1-247-751-11 CARBON 820 5% 1/2W ************************************************************ * A-4398-039-A MAIN (A) BOARD, COMPLETE (FE910R) * A-4398-043-A MAIN (A) BOARD, COMPLETE (FE710R) ************************ < CAPACITOR > C301 1-102-978-00 CERAMIC 220PF 5% 50V C302 1-126-059-11 ELECT 10uF 20% 50V C303 1-164-062-11 CERAMIC 47PF 5% 50V C304 1-106-359-00 MYLAR 0.0047uF 5% 200V C305 1-130-341-00 FILM 0.056uF 3% 100V (FE910R) C305 1-136-162-00 FILM 0.056uF 5% 50V (FE710R) C306 1-130-971-00 FILM 0.016uF 3% 100V (FE910R) C306 1-137-471-11 FILM 0.016uF 5% 50V (FE710R) C307 1-126-059-11 ELECT 10uF 20% 50V C308 1-126-022-11 ELECT 47uF 20% 25V C309 1-126-025-11 ELECT 330uF 20% 25V C310 1-126-023-11 ELECT 100uF 20% 25V C311 1-102-973-00 CERAMIC 100PF 5% 50V C312 1-124-721-11 ELECT 10uF 20% 50V C313 1-104-298-11 POLYSTYRENE 680PF 5% 50V (FE910R) C313 1-164-083-11 CERAMIC 680PF 10% 50V (FE710R) C315 1-107-589-11 CERAMIC 9PF 0.5PF 500V C316 1-126-023-11 ELECT 100uF 20% 16V C317 1-126-023-11 ELECT 100uF 20% 16V C318 1-126-023-11 ELECT 100uF 20% 16V C319 1-126-023-11 ELECT 100uF 20% 16V C320 1-110-393-11 ELECT 100uF 20% 63V C321 1-113-496-11 POLYSTYRENE 4PF 10% 50V (FE910R) C321 1-164-040-11 CERAMIC 4PF 0.25PF 50V (FE710R) C322 1-109-871-11 ELECT 2700uF 20% 50V (FE910R) C322 1-126-057-11 ELECT 2200uF 20% 50V (FE710R) C351 1-102-978-00 CERAMIC 220PF 5% 50V C352 1-126-059-11 ELECT 10uF 20% 50V C353 1-164-062-11 CERAMIC 47PF 5% 50V C354 1-106-359-00 MYLAR 0.0047uF 5% 200V C355 1-130-341-00 FILM 0.056uF 3% 100V (FE910R) C355 1-136-162-00 FILM 0.056uF 5% 50V (FE710R) C356 1-130-971-00 FILM 0.016uF 3% 100V (FE910R) C356 1-137-471-11 FILM 0.016uF 5% 50V (FE710R) C357 1-126-059-11 ELECT 10uF 20% 50V C358 1-126-022-11 ELECT 47uF 20% 25V C359 1-126-025-11 ELECT 330uF 20% 25V C360 1-126-023-11 ELECT 100uF 20% 25V C361 1-102-973-00 CERAMIC 100PF 5% 50V C362 1-124-721-11 ELECT 10uF 20% 50V C363 1-104-298-11 POLYSTYRENE 680PF 5% 50V (FE910R) C363 1-164-083-11 CERAMIC 680PF 10% 50V (FE710R) C365 1-107-589-11 CERAMIC 9PF 0.5PF 500V C366 1-126-023-11 ELECT 100uF 20% 16V C367 1-126-023-11 ELECT 100uF 20% 16V C368 1-126-023-11 ELECT 100uF 20% 16V C369 1-126-023-11 ELECT 100uF 20% 16V C370 1-110-393-11 ELECT 100uF 20% 63V C371 1-113-496-11 POLYSTYRENE 4PF 10% 50V (FE910R) C371 1-164-040-11 CERAMIC 4PF 0.25PF 50V (FE710R) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 23 – MAIN (A) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C372 1-109-871-11 ELECT 2700uF 20% 50V (FE910R) C372 1-126-057-11 ELECT 2200uF 20% 50V (FE710R) < CONNECTOR > CN301 1-691-769-11 PLUG (MICRO CONNECTOR) 7P CN302 1-691-765-11 PLUG (MICRO CONNECTOR) 3P < DIODE > D301 8-719-310-61 LED SEL1510C-D D302 8-719-933-88 DIODE HZS16-2L D303 8-719-933-41 DIODE HZS6C3L D304 8-719-987-63 DIODE 1N4148M D305 8-719-987-63 DIODE 1N4148M D306 8-719-310-61 LED SEL1510C-D D307 8-719-987-63 DIODE 1N4148M D308 8-719-987-63 DIODE 1N4148M D309 8-719-987-63 DIODE 1N4148M D351 8-719-310-61 LED SEL1510C-D D352 8-719-933-88 DIODE HZS16-2L D353 8-719-933-41 DIODE HZS6C3L D354 8-719-987-63 DIODE 1N4148M D355 8-719-987-63 DIODE 1N4148M D356 8-719-310-61 LED SEL1510C-D D357 8-719-987-63 DIODE 1N4148M D358 8-719-987-63 DIODE 1N4148M D359 8-719-987-63 DIODE 1N4148M < IC > IC301 8-759-701-25 IC NJM2068D-D < COIL > L101 1-410-977-11 INDUCTOR 100uH L102 1-410-977-11 INDUCTOR 100uH L151 1-410-977-11 INDUCTOR 100uH L152 1-410-977-11 INDUCTOR 100uH L301 1-428-203-11 COIL, AIR-CORE L351 1-428-203-11 COIL, AIR-CORE < TRANSISTOR > Q301 8-729-354-52 TRANSISTOR 2SC2545 Q302 8-729-354-52 TRANSISTOR 2SC2545 Q303 8-729-281-54 TRANSISTOR 2SC1815-BL Q304 8-729-620-17 TRANSISTOR 2SC2259-FG Q305 8-729-201-53 TRANSISTOR 2SA1015-GR Q306 8-729-201-53 TRANSISTOR 2SA1015-GR Q307 8-729-201-53 TRANSISTOR 2SA1015-GR Q308 8-729-021-74 TRANSISTOR 2SA949-OY-TPE6 Q309 8-729-202-67 TRANSISTOR 2SK246-GR3 Q310 8-729-021-73 TRANSISTOR 2SC2229-OY-TPE6 Q311 8-729-281-54 TRANSISTOR 2SC1815-BL Q312 8-729-281-54 TRANSISTOR 2SC1815-BL Q351 8-729-354-52 TRANSISTOR 2SC2545 Q352 8-729-354-52 TRANSISTOR 2SC2545 Q353 8-729-201-53 TRANSISTOR 2SA1015-GR Q354 8-729-620-17 TRANSISTOR 2SC2259-FG Q355 8-729-201-53 TRANSISTOR 2SA1015-GR Q356 8-729-201-53 TRANSISTOR 2SA1015-GR Q357 8-729-201-53 TRANSISTOR 2SA1015-GR Q358 8-729-021-74 TRANSISTOR 2SA949-OY-TPE6 Q359 8-729-202-67 TRANSISTOR 2SK246-GR3 Q360 8-729-021-73 TRANSISTOR 2SC2229-OY-TPE6 Q361 8-729-281-54 TRANSISTOR 2SC1815-BL Q362 8-729-281-54 TRANSISTOR 2SC1815-BL < RESISTOR > R108 1-259-436-11 CARBON 2.2K 5% 1/6W R158 1-259-436-11 CARBON 2.2K 5% 1/6W R301 1-259-215-21 CARBON 100K 5% 1/4W R302 1-249-911-11 CARBON 330 5% 1/4W R303 1-259-215-21 CARBON 100K 5% 1/4W R304 1-249-900-11 CARBON 110 1% 1/4W R305 1-259-161-21 CARBON 560 5% 1/4W R306 1-259-161-21 CARBON 560 5% 1/4W R307 1-259-143-21 CARBON 100 5% 1/4W R308 1-259-191-21 CARBON 10K 5% 1/4W R309 1-249-844-11 CARBON 56K 1% 1/2W R310 1-259-320-11 CARBON 4.7K 1% 1/2W R311 1-259-167-21 CARBON 1K 5% 1/4W R313 1-249-943-11 CARBON 6.8K 5% 1/4W R314 1-249-198-11 CARBON 330 5% 1/3W R315 1-249-198-11 CARBON 330 5% 1/3W R316 1-249-198-11 CARBON 330 5% 1/3W R317 1-249-198-11 CARBON 330 5% 1/3W R318 1-259-167-21 CARBON 1K 5% 1/4W R319 1-259-151-21 CARBON 220 5% 1/4W R320 1-259-151-21 CARBON 220 5% 1/4W R321 1-259-151-21 CARBON 220 5% 1/4W R322 1-259-215-21 CARBON 100K 5% 1/4W R323 1-259-179-21 CARBON 3.3K 5% 1/4W R324 1-259-175-11 CARBON 2.2K 5% 1/4W R325 1-259-183-11 CARBON 4.7K 5% 1/4W R326 1-249-490-11 CARBON 27K 5% 1/3W R327 1-259-151-21 CARBON 220 5% 1/4W R328 1-259-151-21 CARBON 220 5% 1/4W !R329 1-249-899-11 CARBON 100 5% 1/4W F R330 1-247-749-11 CARBON 560 5% 1/2W R331 1-249-496-11 CARBON 100K 5% 1/3W R332 1-259-171-21 CARBON 1.5K 5% 1/4W R333 1-259-167-21 CARBON 1K 5% 1/4W R334 1-259-239-11 CARBON 1M 5% 1/4W R335 1-259-143-21 CARBON 100 5% 1/4W R351 1-259-215-21 CARBON 100K 5% 1/4W R352 1-249-911-11 CARBON 330 5% 1/4W The components identified by mark ! or dotted line with mark. ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 24 – MAIN (A) MAIN (B) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R353 1-259-215-21 CARBON 100K 5% 1/4W R354 1-249-900-11 CARBON 110 1% 1/4W R355 1-259-161-21 CARBON 560 5% 1/4W R356 1-259-161-21 CARBON 560 5% 1/4W R357 1-259-143-21 CARBON 100 5% 1/4W R358 1-259-191-21 CARBON 10K 5% 1/4W R359 1-249-844-11 CARBON 56K 1% 1/2W R360 1-259-320-11 CARBON 4.7K 1% 1/2W R361 1-259-167-21 CARBON 1K 5% 1/4W R363 1-249-943-11 CARBON 6.8K 5% 1/4W R364 1-249-198-11 CARBON 330 5% 1/3W R365 1-249-198-11 CARBON 330 5% 1/3W R366 1-249-198-11 CARBON 330 5% 1/3W R367 1-249-198-11 CARBON 330 5% 1/3W R368 1-259-167-21 CARBON 1K 5% 1/4W R369 1-259-151-21 CARBON 220 5% 1/4W R370 1-259-151-21 CARBON 220 5% 1/4W R371 1-259-151-21 CARBON 220 5% 1/4W R372 1-259-215-21 CARBON 100K 5% 1/4W R373 1-259-179-21 CARBON 3.3K 5% 1/4W R374 1-259-175-11 CARBON 2.2K 5% 1/4W R375 1-259-183-11 CARBON 4.7K 5% 1/4W R376 1-249-490-11 CARBON 27K 5% 1/3W R377 1-259-151-21 CARBON 220 5% 1/4W R378 1-259-151-21 CARBON 220 5% 1/4W !R379 1-249-899-11 CARBON 100 5% 1/4W F R380 1-247-749-11 CARBON 560 5% 1/2W R381 1-249-496-11 CARBON 100K 5% 1/3W R382 1-259-171-21 CARBON 1.5K 5% 1/4W R383 1-259-167-21 CARBON 1K 5% 1/4W R384 1-259-239-11 CARBON 1M 5% 1/4W R385 1-259-143-21 CARBON 100 5% 1/4W < VARIABLE RESISTOR > RV301 1-241-762-11 RES, ADJ, CARBON 2.2K RV351 1-241-762-11 RES, ADJ, CARBON 2.2K ************************************************************ * A-4398-040-A MAIN (B) BOARD, COMPLETE (FE910R) * A-4398-044-A MAIN (B) BOARD, COMPLETE (FE710R) ************************ < CAPACITOR > C401 1-136-163-00 FILM 0.068uF 5% 50V C402 1-136-163-00 FILM 0.068uF 5% 50V C403 1-109-871-11 ELECT 2700uF 20% 50V (FE910R) C404 1-124-920-11 ELECT 330uF 20% 50V (FE910R) C405 1-136-163-00 FILM 0.068uF 5% 50V C406 1-126-923-11 ELECT 220uF 20% 10V C407 1-136-157-00 FILM 0.022uF 5% 50V C408 1-126-967-11 ELECT 47uF 20% 16V C409 1-109-870-11 ELECT 8200uF 20% 50V (FE710R) C409 1-117-761-11 ELECT 10000uF 20% 56V (FE910R) C411 1-126-967-11 ELECT 47uF 20% 50V C412 1-126-972-11 ELECT 1000uF 20% 50V C413 1-126-960-11 ELECT 1uF 20% 50V C414 1-104-999-11 MYLAR 0.1uF 10% 200V (FE910R) C415 1-126-025-11 ELECT 330uF 20% 25V C416 1-126-967-11 ELECT 47uF 20% 16V C417 1-126-964-11 ELECT 10uF 20% 50V C418 1-126-964-11 ELECT 10uF 20% 50V C419 1-164-077-11 CERAMIC 220PF 10% 50V C420 1-136-153-00 FILM 0.01uF 5% 50V C421 1-137-150-11 MYLAR 0.01uF 10% 100V C422 1-137-150-11 MYLAR 0.01uF 10% 100V C430 1-126-965-11 ELECT 22uF 20% 50V C444 1-137-398-11 FILM 0.068uF 5% 100V C451 1-136-163-00 FILM 0.068uF 5% 50V C452 1-136-163-00 FILM 0.068uF 5% 50V C453 1-109-871-11 ELECT 2700uF 20% 50V (FE910R) C454 1-124-920-11 ELECT 330uF 20% 50V (FE910R) C459 1-109-870-11 ELECT 8200uF 20% 50V (FE710R) C459 1-117-761-11 ELECT 10000uF 20% 56V (FE910R) C464 1-137-398-11 FILM 0.068uF 5% 100V C465 1-126-025-11 ELECT 330uF 20% 25V C468 1-126-967-11 ELECT 47uF 20% 50V C469 1-164-077-11 CERAMIC 220PF 10% 50V < CONNECTOR > CN401 1-691-768-11 PLUG (MICRO CONNECTOR) 6P CN402 1-691-766-11 PLUG (MICRO CONNECTOR) 4P * CN403A 1-564-104-00 PIN, CONNECTOR (B3P-VH) 3P * CN404A 1-564-320-00 PIN, CONNECTOR (B2P-VH) 2P CN405 1-691-768-11 PLUG (MICRO CONNECTOR) 6P CN406 1-564-506-11 PLUG, CONNECTOR 3P CN407 1-564-506-11 PLUG, CONNECTOR 3P * CN408 1-564-687-11 PIN, CONNECTOR 3P < DIODE > D401 8-719-024-99 DIODE 11ES2-NTA2B (FE710R) D403 8-719-024-99 DIODE 11ES2-NTA2B (FE910R) D404 8-719-024-99 DIODE 11ES2-NTA2B (FE910R) D405 8-719-024-99 DIODE 11ES2-NTA2B (FE910R) D406 8-719-024-99 DIODE 11ES2-NTA2B (FE910R) D409 8-719-024-99 DIODE 11ES2-NTA2B D410 8-719-024-99 DIODE 11ES2-NTA2B D411 8-719-024-99 DIODE 11ES2-NTA2B D412 8-719-302-38 DIODE RBV-602-01 The components identified by mark ! or dotted line with mark. ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 25 – PANEL OUTLET MAIN (B) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark D413 8-719-933-39 DIODE HZS6C1L D451 8-719-024-99 DIODE 11ES2-NTA2B (FE710R) < MOUNT TERMINAL > * EPT401 4-924-264-31 TERMINAL, MOUNT < IC > IC401 8-759-111-68 IC uPC1237HA < TRANSISTOR > Q401 8-729-104-18 TRANSISTOR 2SC3514-Q Q402 8-729-104-91 TRANSISTOR 2SA1383 Q405 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA Q407 8-729-281-54 TRANSISTOR 2SC1815-BL Q430 8-729-119-76 TRANSISTOR 2SA1175-HFE Q451 8-729-104-18 TRANSISTOR 2SC3514-Q Q452 8-729-104-91 TRANSISTOR 2SA1383 Q455 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA < RESISTOR > !R401 1-249-393-11 CARBON 10 5% 1/4W F !R402 1-249-393-11 CARBON 10 5% 1/4W F !R403 1-249-405-11 CARBON 100 5% 1/4W F !R404 1-249-405-11 CARBON 100 5% 1/4W F !R405 1-247-745-11 CARBON 330 5% 1/2W F !R406 1-208-601-11 WIREWOUND 0.1 10% 2W F !R407 1-208-601-11 WIREWOUND 0.1 10% 2W F R409 1-259-436-11 CARBON 2.2K 5% 1/6W R410 1-259-432-11 CARBON 1.5K 5% 1/6W R411 1-249-162-11 CARBON 10 5% 1/3W R412 1-259-488-11 CARBON 330K 5% 1/6W R413 1-259-452-11 CARBON 10K 5% 1/6W R414 1-259-484-11 CARBON 220K 5% 1/6W R415 1-259-460-11 CARBON 22K 5% 1/6W R416 1-259-480-11 CARBON 150K 5% 1/6W R417 1-259-456-11 CARBON 15K 5% 1/6W R418 1-259-460-11 CARBON 22K 5% 1/6W R420 1-249-437-11 CARBON 47K 5% 1/4W !R421 1-212-974-00 FUSIBLE 47 5% 1/2W F (FE910R) !R423 1-212-990-00 FUSIBLE 220 5% 1/2W F (FE910R) R430 1-259-452-11 CARBON 10K 5% 1/6W R431 1-259-460-11 CARBON 22K 5% 1/6W (FE710R) R431 1-259-464-11 CARBON 33K 5% 1/6W (FE910R) !R451 1-249-393-11 CARBON 10 5% 1/4W F !R452 1-249-393-11 CARBON 10 5% 1/4W F !R453 1-249-405-11 CARBON 100 5% 1/4W F !R454 1-249-405-11 CARBON 100 5% 1/4W F !R455 1-247-745-11 CARBON 330 5% 1/2W F !R456 1-208-601-11 WIREWOUND 0.1 10% 2W F !R457 1-208-601-11 WIREWOUND 0.1 10% 2W F R459 1-259-436-11 CARBON 2.2K 5% 1/6W R460 1-259-432-11 CARBON 1.5K 5% 1/6W R461 1-249-162-11 CARBON 10 5% 1/3W R462 1-259-488-11 CARBON 330K 5% 1/6W ************************************************************ * 1-665-582-11 OUTLET BOARD ************* ************************************************************ * A-4389-812-A PANEL BOARD, COMPLETE ********************** < CAPACITOR > C200 1-130-475-00 MYLAR 0.0022uF 5% 50V C201 1-136-153-00 FILM 0.01uF 5% 50V C202 1-136-155-00 FILM 0.015uF 5% 50V C203 1-136-165-00 FILM 0.1uF 5% 50V C208 1-130-471-00 MYLAR 0.001uF 5% 50V C209 1-136-171-00 FILM 0.33uF 5% 50V C210 1-136-165-00 FILM 0.1uF 5% 50V C250 1-130-475-00 MYLAR 0.0022uF 5% 50V C251 1-136-153-00 FILM 0.01uF 5% 50V C252 1-136-155-00 FILM 0.015uF 5% 50V C253 1-136-165-00 FILM 0.1uF 5% 50V C258 1-130-471-00 MYLAR 0.001uF 5% 50V C259 1-136-171-00 FILM 0.33uF 5% 50V C260 1-136-165-00 FILM 0.1uF 5% 50V C900 1-126-964-11 ELECT 10uF 20% 50V C901 1-126-916-11 ELECT 1000uF 20% 6.3V C902 1-164-159-11 CERAMIC 0.1uF 50V C903 1-162-294-31 CERAMIC 0.001uF 10% 50V C906 1-126-964-11 ELECT 10uF 20% 50V C909 1-128-551-11 ELECT 22uF 20% 63V C910 1-126-933-11 ELECT 100uF 20% 10V C912 1-126-964-11 ELECT 10uF 20% 50V < CONNECTOR > CN455 1-691-768-11 PLUG (MICRO CONNECTOR) 6P CN900 1-691-766-11 PLUG (MICRO CONNECTOR) 4P CN901 1-691-766-21 PLUG (MICRO CONNECTOR) 4P CN902 1-691-766-11 PLUG (MICRO CONNECTOR) 4P * CN903 1-564-527-11 PLUG, CONNECTOR 12P * CNP900 1-568-318-21 PLUG, CONNECTOR 6P * CNP901 1-568-320-11 PLUG, CONNECTOR 8P CNP902 1-774-936-11 CONNECTOR, BOARD TO BOARD 12P < DIODE > D902 8-719-987-63 DIODE 1N4148M D903 8-719-024-99 DIODE 11ES2-NTA2B D904 8-719-987-63 DIODE 1N4148M D905 8-719-987-63 DIODE 1N4148M D906 8-719-987-63 DIODE 1N4148M The components identified by mark ! or dotted line with mark. ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 26 – PANEL Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark D908 8-719-987-63 DIODE 1N4148M D909 8-719-987-63 DIODE 1N4148M D910 8-719-987-63 DIODE 1N4148M D911 8-719-987-63 DIODE 1N4148M D912 8-719-987-63 DIODE 1N4148M D913 8-719-985-59 DIODE HZS4CLL-TA D914 8-719-987-63 DIODE 1N4148M D915 8-719-987-63 DIODE 1N4148M D916 8-719-987-63 DIODE 1N4148M D919 8-719-987-63 DIODE 1N4148M < IC > IC901 8-759-962-08 IC BA6208 IC902 8-759-392-41 IC TMP47C103N-JP47 < PHOTO COUPLER > PH900 8-719-902-56 PHOTO COUPLER PC817 < TRANSISTOR > Q900 8-729-620-05 TRANSISTOR 2SC2603-EF Q901 8-729-900-63 TRANSISTOR DTA124ES Q902 8-729-900-63 TRANSISTOR DTA124ES Q903 8-729-900-80 TRANSISTOR DTC114ES Q904 8-729-422-57 TRANSISTOR UN4111 Q905 8-729-422-57 TRANSISTOR UN4111 Q906 8-729-422-57 TRANSISTOR UN4111 Q907 8-729-119-78 TRANSISTOR 2SC2785-HFE Q908 8-729-620-05 TRANSISTOR 2SC2603-EF Q909 8-729-620-05 TRANSISTOR 2SC2603-EF Q910 8-729-201-53 TRANSISTOR 2SA1015-GR Q911 8-729-142-36 TRANSISTOR BN1L3Z Q912 8-729-422-57 TRANSISTOR UN4111 Q913 8-729-422-57 TRANSISTOR UN4111 Q914 8-729-422-57 TRANSISTOR UN4111 Q915 8-729-422-57 TRANSISTOR UN4111 Q916 8-729-422-57 TRANSISTOR UN4111 Q917 8-729-422-57 TRANSISTOR UN4111 < RESISTOR > R200 1-259-500-11 CARBON 1M 5% 1/6W R201 1-259-446-11 CARBON 5.6K 5% 1/6W R202 1-259-446-11 CARBON 5.6K 5% 1/6W R203 1-259-436-11 CARBON 2.2K 5% 1/6W R204 1-259-464-11 CARBON 33K 5% 1/6W R205 1-259-446-11 CARBON 5.6K 5% 1/6W R206 1-259-500-11 CARBON 1M 5% 1/6W R207 1-259-456-11 CARBON 15K 5% 1/6W R208 1-259-456-11 CARBON 15K 5% 1/6W R209 1-259-500-11 CARBON 1M 5% 1/6W R210 1-259-500-11 CARBON 1M 5% 1/6W R220 1-259-464-11 CARBON 33K 5% 1/6W R250 1-259-500-11 CARBON 1M 5% 1/6W R251 1-259-446-11 CARBON 5.6K 5% 1/6W R252 1-259-446-11 CARBON 5.6K 5% 1/6W R253 1-259-436-11 CARBON 2.2K 5% 1/6W R254 1-259-464-11 CARBON 33K 5% 1/6W R255 1-259-446-11 CARBON 5.6K 5% 1/6W R256 1-259-500-11 CARBON 1M 5% 1/6W R257 1-259-456-11 CARBON 15K 5% 1/6W R258 1-259-456-11 CARBON 15K 5% 1/6W R259 1-259-500-11 CARBON 1M 5% 1/6W R260 1-259-500-11 CARBON 1M 5% 1/6W R270 1-259-464-11 CARBON 33K 5% 1/6W R419 1-249-429-11 CARBON 10K 5% 1/4W R902 1-249-429-11 CARBON 10K 5% 1/4W R903 1-249-429-11 CARBON 10K 5% 1/4W R905 1-249-429-11 CARBON 10K 5% 1/4W R908 1-249-429-11 CARBON 10K 5% 1/4W R909 1-249-429-11 CARBON 10K 5% 1/4W R910 1-249-400-11 CARBON 39 5% 1/4W R911 1-249-411-11 CARBON 330 5% 1/4W R912 1-249-429-11 CARBON 10K 5% 1/4W R913 1-249-425-11 CARBON 4.7K 5% 1/4W R914 1-247-807-11 CARBON 100 5% 1/4W R916 1-247-751-11 CARBON 820 5% 1/2W R917 1-249-433-11 CARBON 22K 5% 1/4W R918 1-247-843-11 CARBON 3.3K 5% 1/4W R919 1-247-843-11 CARBON 3.3K 5% 1/4W R920 1-249-429-11 CARBON 10K 5% 1/4W R921 1-249-429-11 CARBON 10K 5% 1/4W R922 1-249-429-11 CARBON 10K 5% 1/4W R923 1-249-429-11 CARBON 10K 5% 1/4W R924 1-249-429-11 CARBON 10K 5% 1/4W R927 1-249-406-11 CARBON 120 5% 1/4W R958 1-249-406-11 CARBON 120 5% 1/4W < VARIABLE RESISTOR > RV200 1-223-933-21 RES, VAR, CARBON 250K/250K (BALANCE) RV201 1-223-934-21 RES, VAR, CARBON 250K/250K (TREBLE (TONE)) RV202 1-223-935-21 RES, VAR, CARBON 900K/900K (BASS (TONE)) < SWITCH > S200 1-571-828-11 SWITCH, PUSH (1 KEY) (SOURCE DIRECT) S201 1-762-387-11 SWITCH, PUSH (LOUDNESS) S202 1-571-112-21 SWITCH, PUSH (1 KEY) (SUBSONIC) S203 1-762-656-11 SWITCH, ROTARY (TAPE MONITOR) S901 1-692-974-11 SWITCH, ROTARY (INPUT SELECTOR) < VIBRATOR > X900 1-577-358-21 VIBRATOR, CERAMIC (4MHz) ************************************************************ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 27 – PRO IND SP SW SP TM Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * 1-660-561-11 PRO IND BOARD ************** < CONNECTOR > CN951 1-691-766-21 PLUG (MICRO CONNECTOR) 4P < DIODE > D900 8-719-313-48 LED SEL6210S-TH12 (PROTECTION) < IC > IC900 8-759-373-49 IC NJL54H400 < RESISTOR > R900 1-249-409-11 CARBON 220 5% 1/4W ************************************************************ * 1-660-564-11 SP SW BOARD ************ < CONNECTOR > CN552 1-691-771-11 PLUG (MICRO CONNECTOR) 9P CN950 1-691-766-11 PLUG (MICRO CONNECTOR) 4P CN960 1-691-765-11 PLUG (MICRO CONNECTOR) 3P < DIODE > D701 8-719-987-63 DIODE 1N4148M < RESISTOR > R928 1-247-751-11 CARBON 820 5% 1/2W R929 1-247-751-11 CARBON 820 5% 1/2W R930 1-247-751-11 CARBON 820 5% 1/2W R931 1-247-751-11 CARBON 820 5% 1/2W R932 1-247-751-11 CARBON 820 5% 1/2W R933 1-247-751-11 CARBON 820 5% 1/2W R934 1-247-231-00 CARBON 430 5% 1/2W (FE710R) R934 1-247-747-11 CARBON 470 5% 1/2W (FE910R) R935 1-247-231-00 CARBON 430 5% 1/2W (FE710R) R935 1-247-747-11 CARBON 470 5% 1/2W (FE910R) R936 1-247-231-00 CARBON 430 5% 1/2W (FE710R) R936 1-247-747-11 CARBON 470 5% 1/2W (FE910R) R937 1-247-231-00 CARBON 430 5% 1/2W (FE710R) R937 1-247-747-11 CARBON 470 5% 1/2W (FE910R) R938 1-247-243-00 CARBON 1.3K 5% 1/2W R939 1-247-243-00 CARBON 1.3K 5% 1/2W < RELAY > RY701 1-515-614-11 RELAY < SWITCH > S900 1-762-654-11 SWITCH, ROTARY SLIDE (SPEAKERS) ************************************************************ * 1-665-580-11 SP TM BOARD ************ 1-533-233-11 HOLDER, FUSE < CAPACITOR > C501 1-164-159-11 CERAMIC 0.1uF 50V < CONNECTOR > CN503 1-566-212-11 PIN, CONNECTOR 3P (EON CONTROL) CN802 1-564-321-00 PIN, CONNECTOR 2P CN804 1-580-230-11 PIN, CONNECTOR (PC BOARD) 2P * CN808 1-564-321-21 PIN, CONNECTOR 2P * CN809 1-565-792-11 PIN, CONNECTOR 2P < DIODE > D501 8-719-987-63 DIODE 1N4148M D502 8-719-987-63 DIODE 1N4148M < FUSE > !F801 1-532-464-51 FUSE, TIME LAG (T2.5AL/250V) (FE710R) !F801 1-532-465-51 FUSE, TIME LAG (T3.15AL/250V) (FE910R) !F802 1-532-464-51 FUSE, TIME LAG (T2.5AL/250V) < COIL > L501 1-411-906-11 COIL, AIR-CORE L551 1-411-906-11 COIL, AIR-CORE < RESISTOR > R501 1-249-162-11 CARBON 10 5% 1/3W R502 1-247-750-11 CARBON 680 5% 1/2W R551 1-249-162-11 CARBON 10 5% 1/3W R552 1-247-750-11 CARBON 680 5% 1/2W < RELAY > RY501 1-515-921-11 RELAY (12V) RY502 1-515-921-11 RELAY (12V) < TERMINAL > * TM501 1-537-519-11 TERMINAL BOARD (SPEAKERS) ************************************************************ The components identified by mark ! or dotted line with mark. ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 28 – 9-960-965-11 Sony Corporation Home A&V Products Company 97F047546-1 Printed in Hungary C1997. 6 Published by General Engineering Dept. (Shibaura) TA-FE710R/FE910R VOL Ref. No. Part No. Description Remark * 1-660-559-11 VOL BOARD ********** < CAPACITOR > C904 1-136-165-00 FILM 0.1uF 5% 50V < CONNECTOR > CN201 1-691-766-11 PLUG (MICRO CONNECTOR) 8P CNJ900 1-568-317-11 SOCKET, CONNECTOR 6P CNJ901 1-568-319-11 SOCKET, CONNECTOR 8P < VARIABLE RESISTOR > RV203 1-225-227-11 RES, VAR, CARBON 120K/120K (VOLUME) ************************************************************ MISCELLANEOUS *************** !56 1-777-185-11 CORD, POWER !CNJ801 1-526-794-11 OUTLET, AC (AC OUTLET) !CNJ802 1-526-794-11 OUTLET, AC (AC OUTLET) !CNJ803 1-526-794-11 OUTLET, AC (AC OUTLET) !F801 1-532-464-51 FUSE, TIME LAG (T2.5AL/250V) (FE710R) !F801 1-532-465-51 FUSE, TIME LAG (T3.15AL/250V) (FE910R) !F802 1-532-464-51 FUSE, TIME LAG (T2.5AL/250V) Q403 8-729-232-45 TRANSISTOR 2SK1529-Y Q404 8-729-232-46 TRANSISTOR 2SJ200-Y Q406B 8-729-209-15 TRANSISTOR 2SD2012 Q453 8-729-232-45 TRANSISTOR 2SK1529-Y Q454 8-729-232-46 TRANSISTOR 2SJ200-Y !S1 1-554-920-11 SWITCH, PUSH (AC POWER) (1 KEY) (POWER) !T1 1-431-275-11 TRANSFORMER, POWER (FE910R) !T1 1-431-276-11 TRANSFORMER, POWER (FE710R) ************************************************************ ACCESSORIES & PACKING MATERIALS ******************************** 1-473-656-11 REMOTE COMMANDER (RM-S316) 3-860-499-11 MANUAL, INSTRUCTION (ENGLISH,FRENCH, SPANISH,PORTUGUESE) 3-860-499-21 MANUAL, INSTRUCTION (GERMAN,DUTCH, SWEDISH,ITALIAN) 4-981-643-01 COVER, BATTERY (FOR RM-S316) The components identified by mark ! or dotted line with mark. ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
