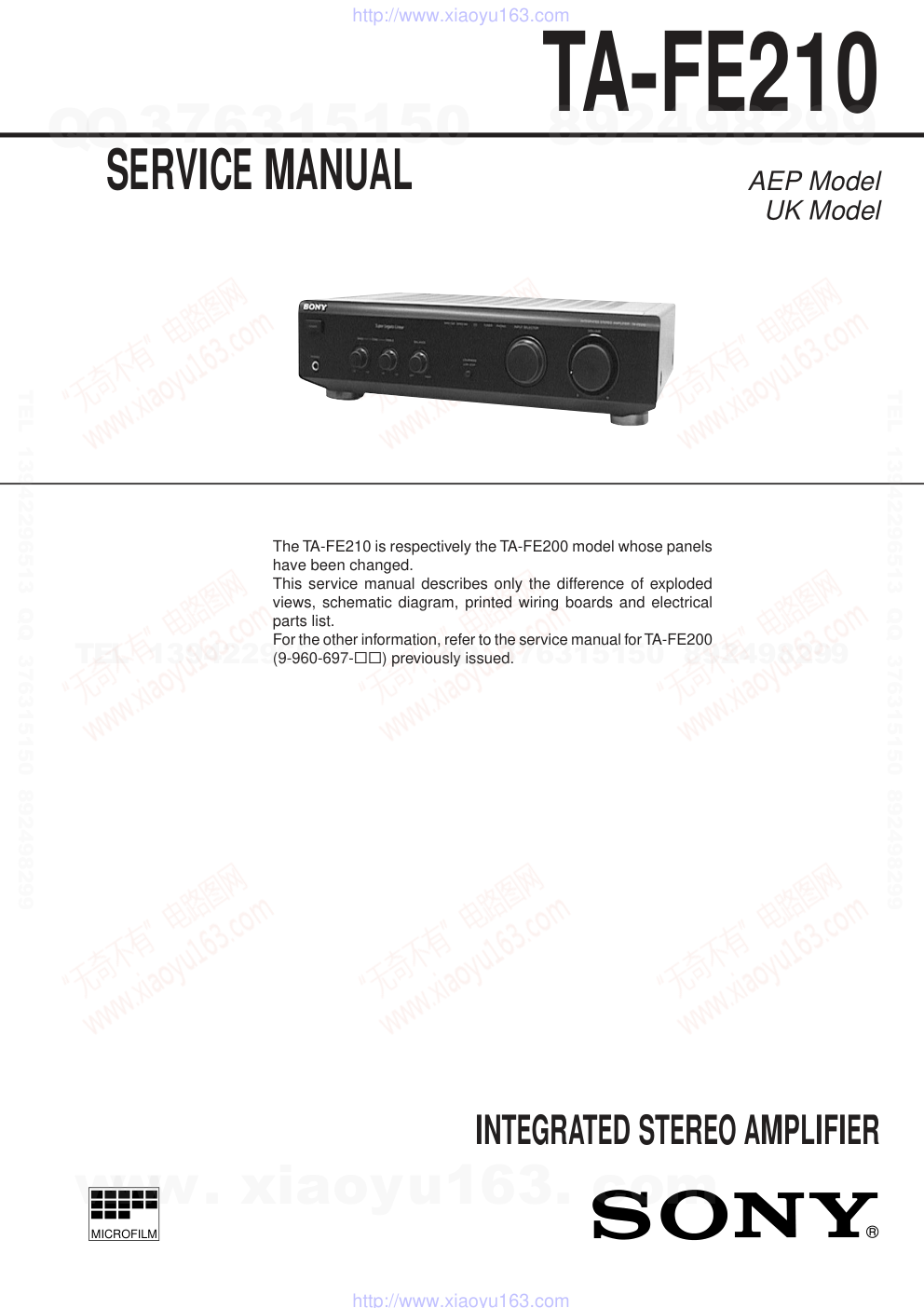

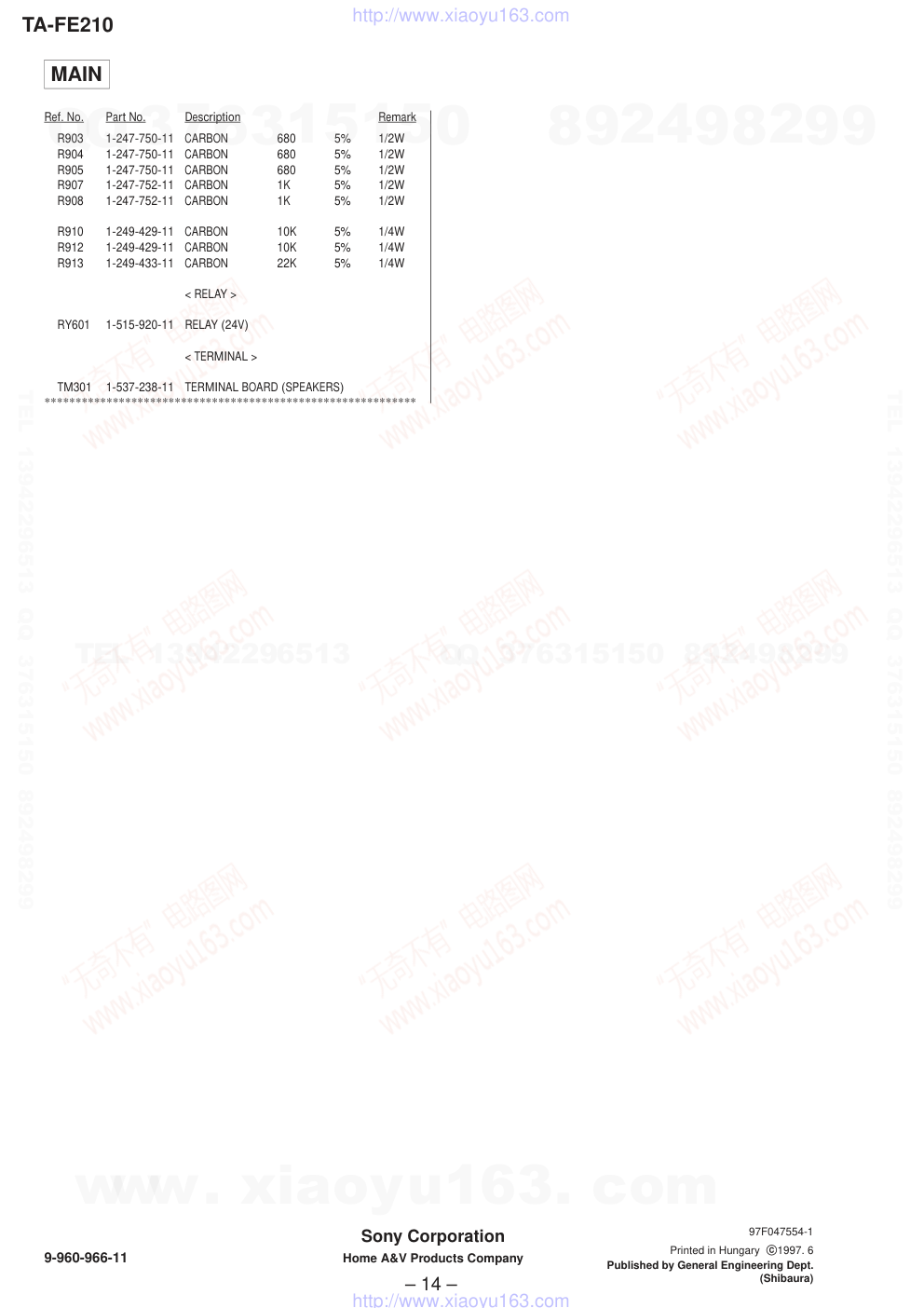

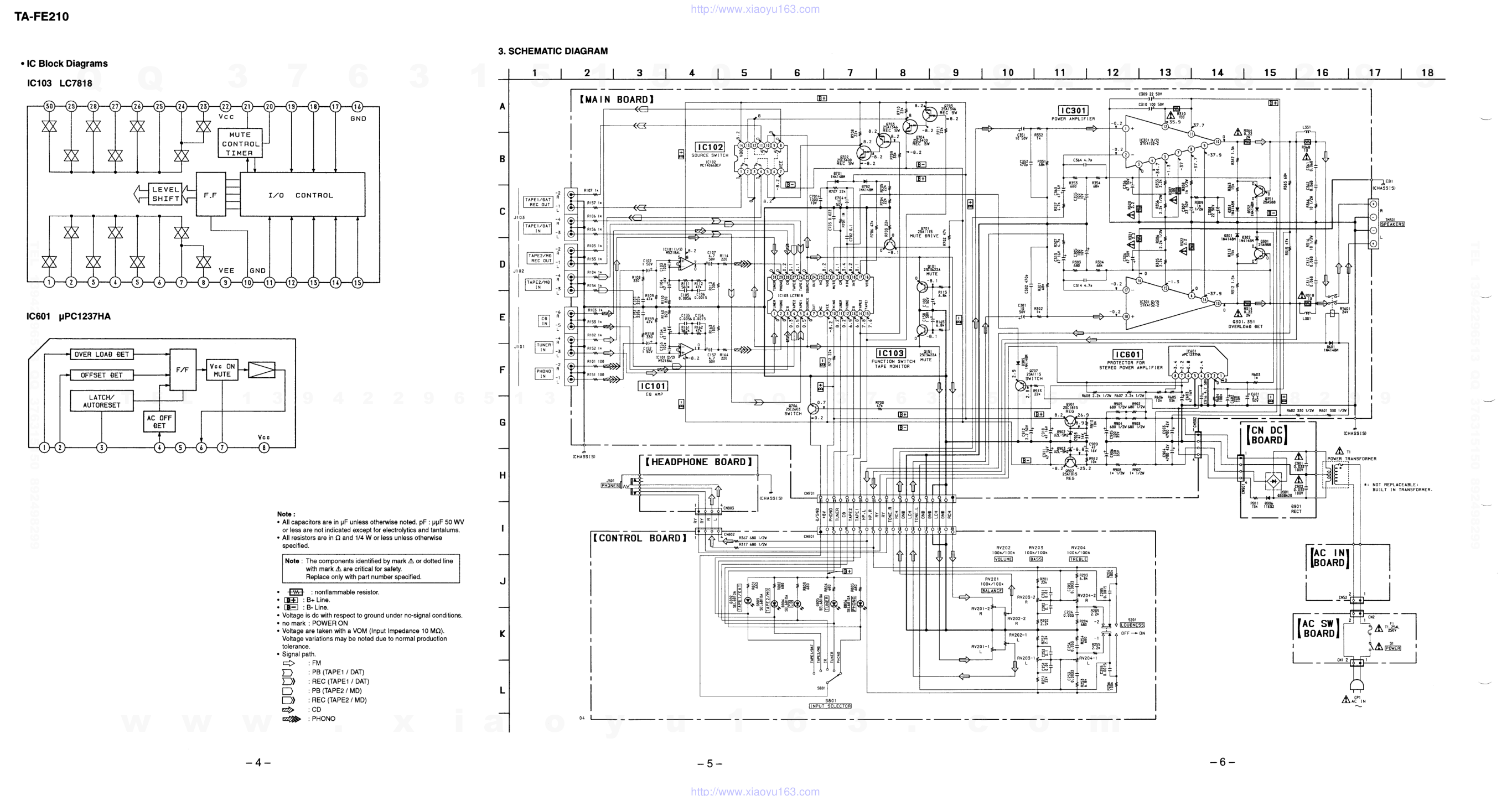

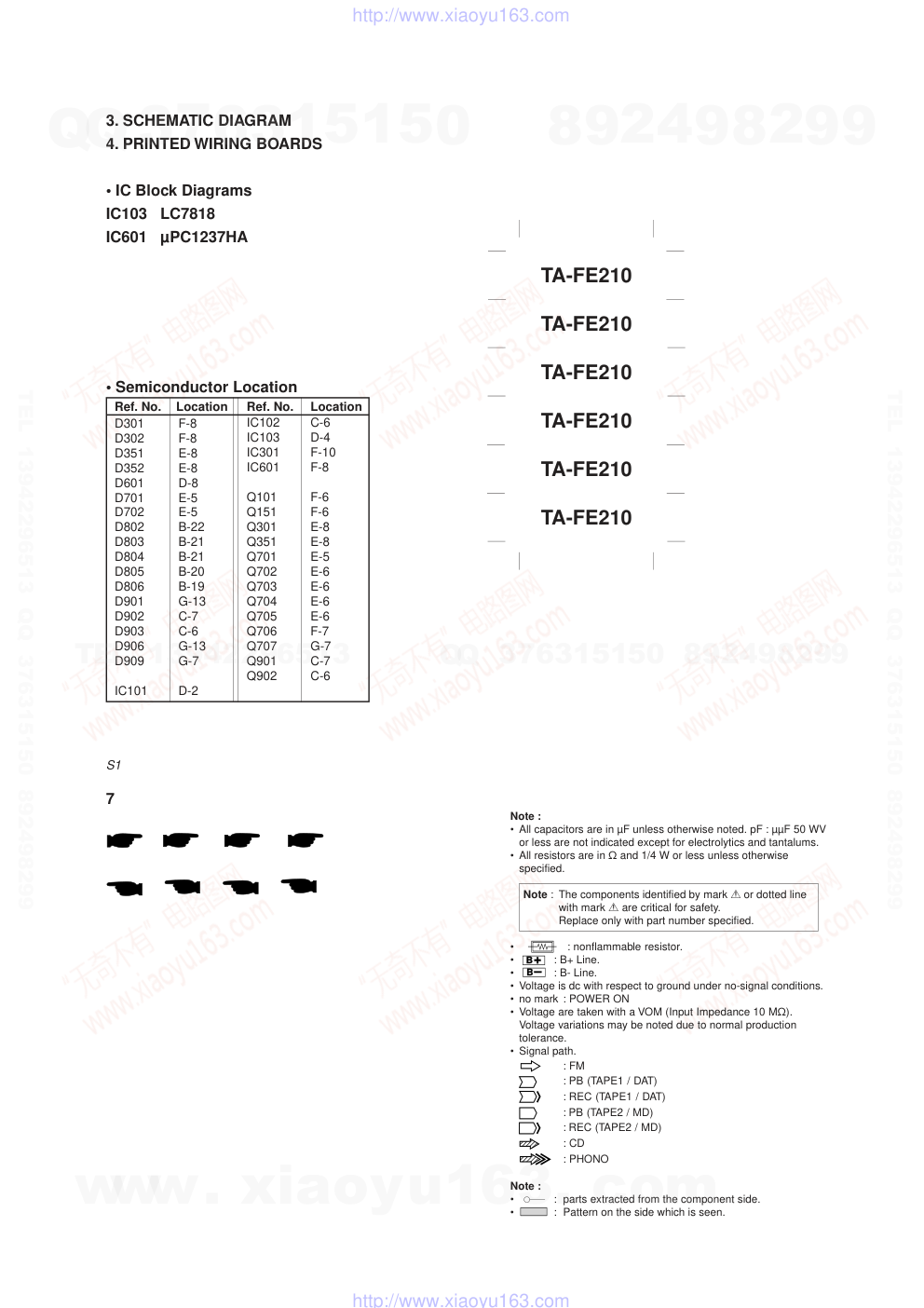

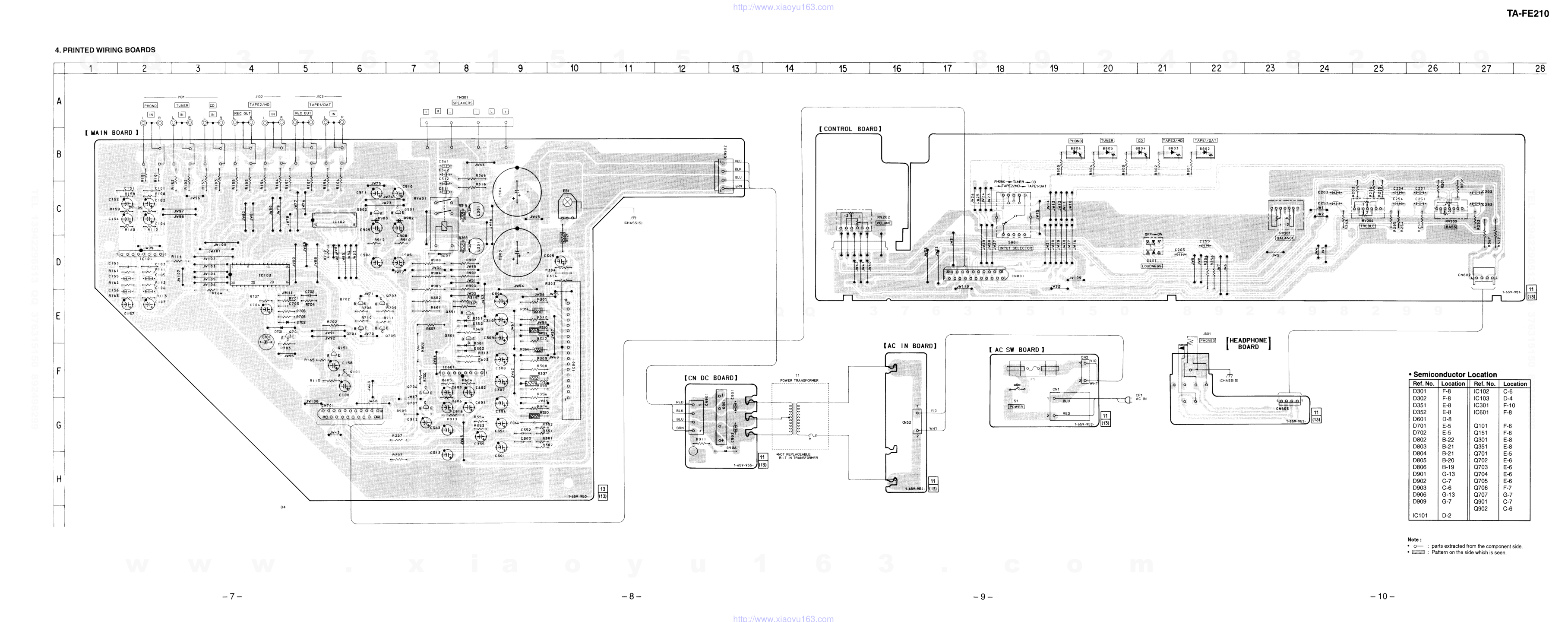

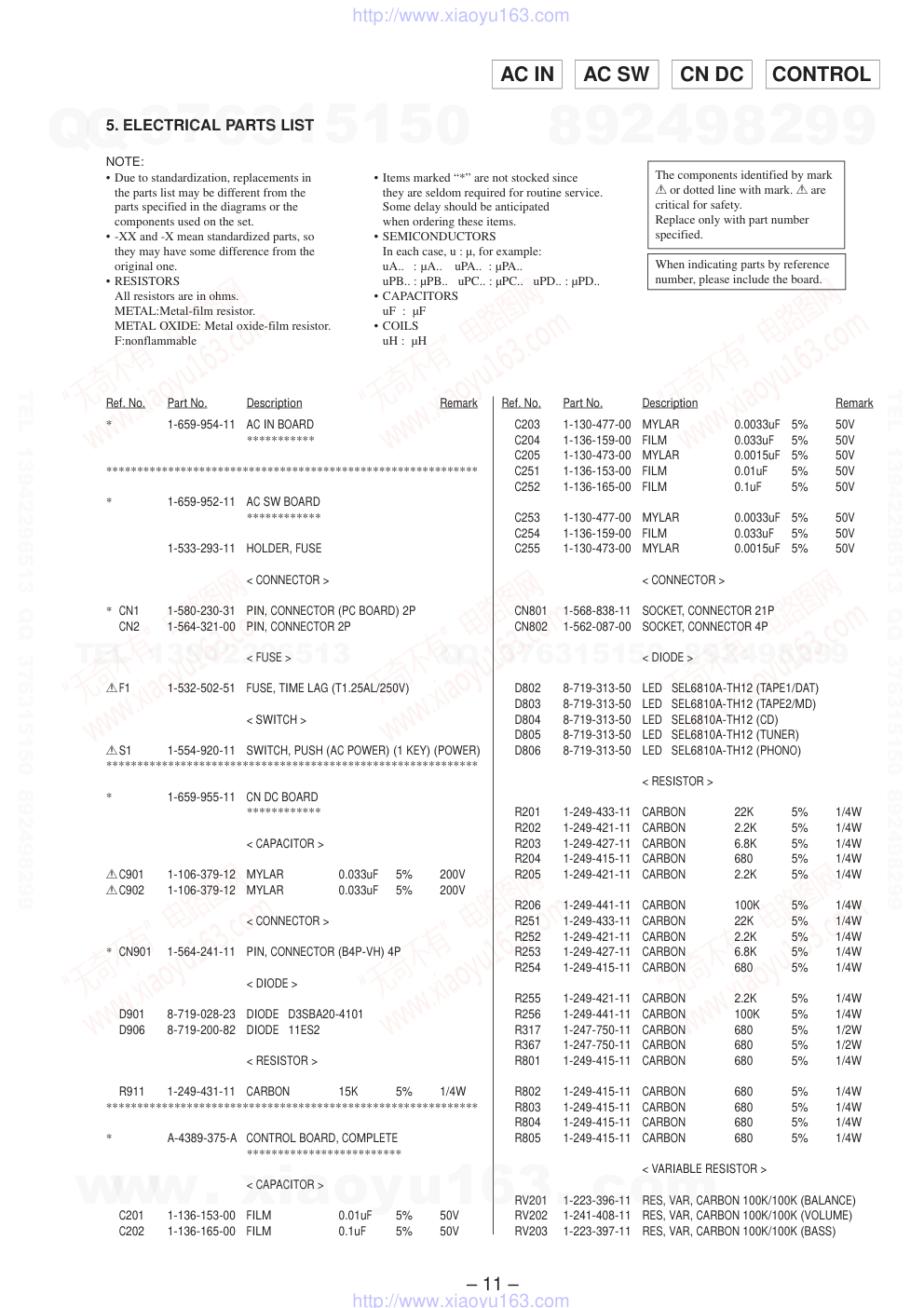

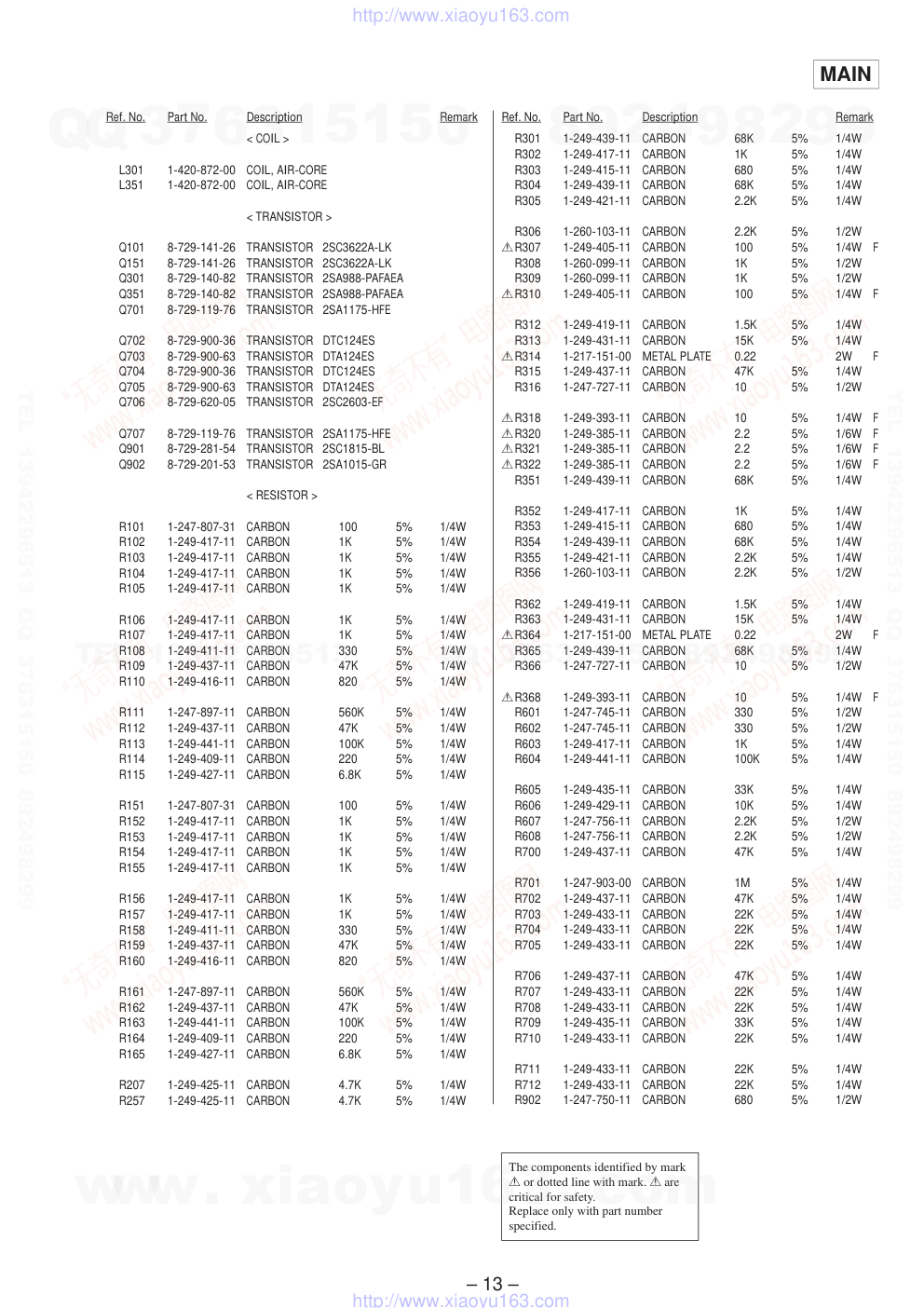

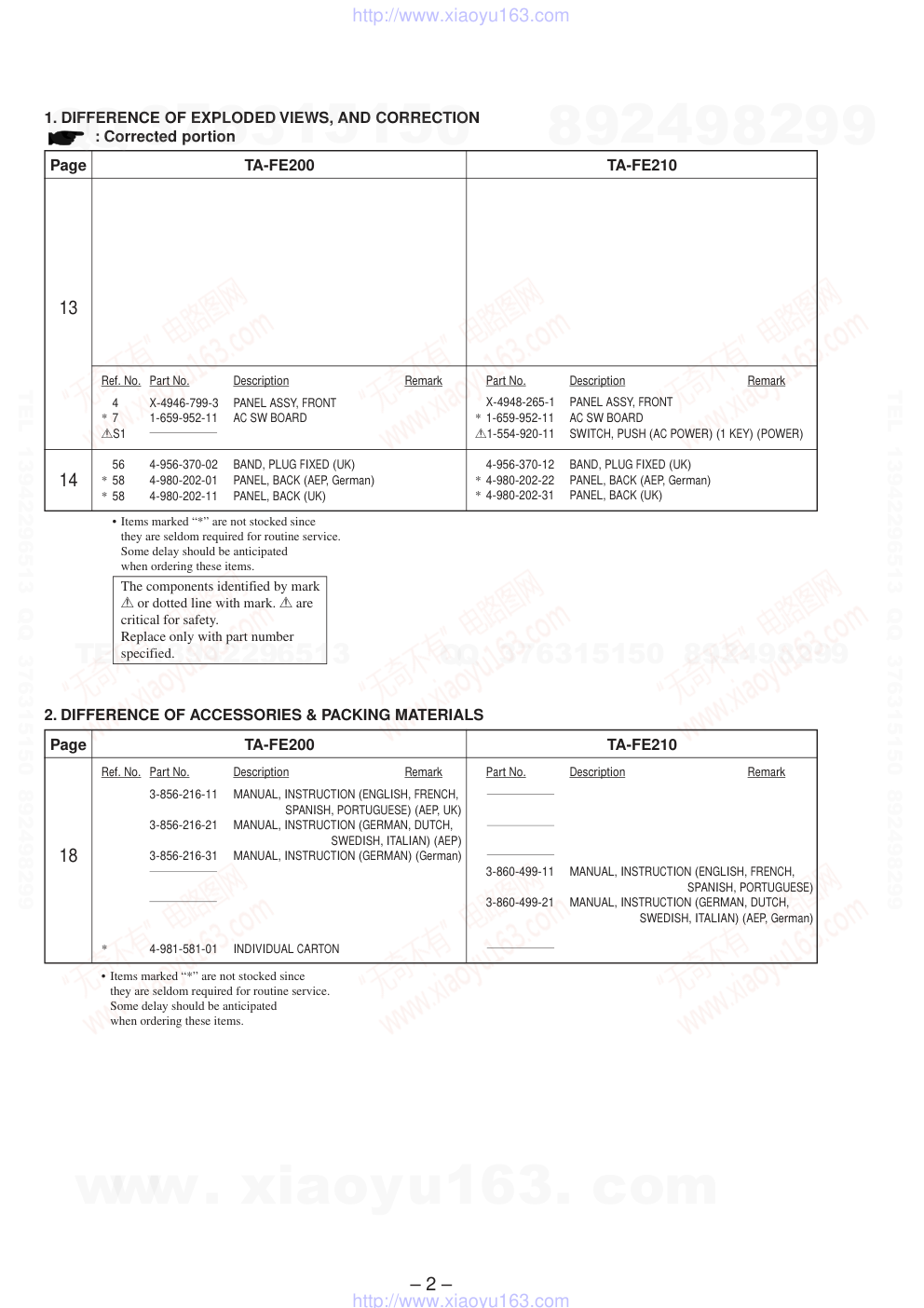

– 1 – SERVICE MANUAL AEP Model UK Model INTEGRATED STEREO AMPLIFIER MICROFILM The TA-FE210 is respectively the TA-FE200 model whose panels have been changed. This service manual describes only the difference of exploded views, schematic diagram, printed wiring boards and electrical parts list. For the other information, refer to the service manual for TA-FE200 (9-960-697-ππ) previously issued. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 2 – 2. DIFFERENCE OF ACCESSORIES & PACKING MATERIALS Page TA-FE200 TA-FE210 3-856-216-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH, SPANISH, PORTUGUESE) (AEP, UK) 3-856-216-21 MANUAL, INSTRUCTION (GERMAN, DUTCH, SWEDISH, ITALIAN) (AEP) 3-856-216-31 MANUAL, INSTRUCTION (GERMAN) (German) * 4-981-581-01 INDIVIDUAL CARTON Ref. No. Part No. Description Remark Part No. Description Remark 3-860-499-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH, SPANISH, PORTUGUESE) 3-860-499-21 MANUAL, INSTRUCTION (GERMAN, DUTCH, SWEDISH, ITALIAN) (AEP, German) 18 • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. 1. DIFFERENCE OF EXPLODED VIEWS, AND CORRECTION : Corrected portion Page TA-FE200 TA-FE210 4 X-4946-799-3 PANEL ASSY, FRONT * 7 1-659-952-11 AC SW BOARD !S1 56 4-956-370-02 BAND, PLUG FIXED (UK) * 58 4-980-202-01 PANEL, BACK (AEP, German) * 58 4-980-202-11 PANEL, BACK (UK) Ref. No. Part No. Description Remark 14 13 Part No. Description Remark X-4948-265-1 PANEL ASSY, FRONT * 1-659-952-11 AC SW BOARD !1-554-920-11 SWITCH, PUSH (AC POWER) (1 KEY) (POWER) 4-956-370-12 BAND, PLUG FIXED (UK) * 4-980-202-22 PANEL, BACK (AEP, German) * 4-980-202-31 PANEL, BACK (UK) • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. The components identified by mark ! or dotted line with mark. ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 3 – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 11 – CONTROL CN DC AC SW AC IN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 5. ELECTRICAL PARTS LIST * 1-659-954-11 AC IN BOARD *********** ************************************************************ * 1-659-952-11 AC SW BOARD ************ 1-533-293-11 HOLDER, FUSE < CONNECTOR > * CN1 1-580-230-31 PIN, CONNECTOR (PC BOARD) 2P CN2 1-564-321-00 PIN, CONNECTOR 2P < FUSE > !F1 1-532-502-51 FUSE, TIME LAG (T1.25AL/250V) < SWITCH > !S1 1-554-920-11 SWITCH, PUSH (AC POWER) (1 KEY) (POWER) ************************************************************ * 1-659-955-11 CN DC BOARD ************ < CAPACITOR > !C901 1-106-379-12 MYLAR 0.033uF 5% 200V !C902 1-106-379-12 MYLAR 0.033uF 5% 200V < CONNECTOR > * CN901 1-564-241-11 PIN, CONNECTOR (B4P-VH) 4P < DIODE > D901 8-719-028-23 DIODE D3SBA20-4101 D906 8-719-200-82 DIODE 11ES2 < RESISTOR > R911 1-249-431-11 CARBON 15K 5% 1/4W ************************************************************ * A-4389-375-A CONTROL BOARD, COMPLETE ************************* < CAPACITOR > C201 1-136-153-00 FILM 0.01uF 5% 50V C202 1-136-165-00 FILM 0.1uF 5% 50V C203 1-130-477-00 MYLAR 0.0033uF 5% 50V C204 1-136-159-00 FILM 0.033uF 5% 50V C205 1-130-473-00 MYLAR 0.0015uF 5% 50V C251 1-136-153-00 FILM 0.01uF 5% 50V C252 1-136-165-00 FILM 0.1uF 5% 50V C253 1-130-477-00 MYLAR 0.0033uF 5% 50V C254 1-136-159-00 FILM 0.033uF 5% 50V C255 1-130-473-00 MYLAR 0.0015uF 5% 50V < CONNECTOR > CN801 1-568-838-11 SOCKET, CONNECTOR 21P CN802 1-562-087-00 SOCKET, CONNECTOR 4P < DIODE > D802 8-719-313-50 LED SEL6810A-TH12 (TAPE1/DAT) D803 8-719-313-50 LED SEL6810A-TH12 (TAPE2/MD) D804 8-719-313-50 LED SEL6810A-TH12 (CD) D805 8-719-313-50 LED SEL6810A-TH12 (TUNER) D806 8-719-313-50 LED SEL6810A-TH12 (PHONO) < RESISTOR > R201 1-249-433-11 CARBON 22K 5% 1/4W R202 1-249-421-11 CARBON 2.2K 5% 1/4W R203 1-249-427-11 CARBON 6.8K 5% 1/4W R204 1-249-415-11 CARBON 680 5% 1/4W R205 1-249-421-11 CARBON 2.2K 5% 1/4W R206 1-249-441-11 CARBON 100K 5% 1/4W R251 1-249-433-11 CARBON 22K 5% 1/4W R252 1-249-421-11 CARBON 2.2K 5% 1/4W R253 1-249-427-11 CARBON 6.8K 5% 1/4W R254 1-249-415-11 CARBON 680 5% 1/4W R255 1-249-421-11 CARBON 2.2K 5% 1/4W R256 1-249-441-11 CARBON 100K 5% 1/4W R317 1-247-750-11 CARBON 680 5% 1/2W R367 1-247-750-11 CARBON 680 5% 1/2W R801 1-249-415-11 CARBON 680 5% 1/4W R802 1-249-415-11 CARBON 680 5% 1/4W R803 1-249-415-11 CARBON 680 5% 1/4W R804 1-249-415-11 CARBON 680 5% 1/4W R805 1-249-415-11 CARBON 680 5% 1/4W < VARIABLE RESISTOR > RV201 1-223-396-11 RES, VAR, CARBON 100K/100K (BALANCE) RV202 1-241-408-11 RES, VAR, CARBON 100K/100K (VOLUME) RV203 1-223-397-11 RES, VAR, CARBON 100K/100K (BASS) NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL:Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F:nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • SEMICONDUCTORS In each case, u : µ, for example: uA.. : µA.. uPA.. : µPA.. uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD.. • CAPACITORS uF : µF • COILS uH : µH The components identified by mark ! or dotted line with mark. ! are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 12 – CONTROL HEADPHONE MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark RV204 1-223-397-11 RES, VAR, CARBON 100K/100K (TREBLE) < SWITCH > S201 1-571-112-21 SWITCH, PUSH (1 KEY) (LOUDNESS) S801 1-762-626-11 SWITCH, ROTARY (INPUT SELECTOR) ************************************************************ * 1-659-953-11 HEADPHONE BOARD ***************** < CONNECTOR > CN803 1-560-941-11 PIN, CONNECTOR 4P < JACK > J501 1-774-933-11 JACK (LARGE TYPE) (PHONES) ************************************************************ * A-4389-374-A MAIN BOARD, COMPLETE ********************* < CAPACITOR > C101 1-162-286-31 CERAMIC 220PF 10% 50V C102 1-126-960-11 ELECT 1uF 20% 50V C103 1-162-282-31 CERAMIC 100PF 10% 50V C104 1-126-967-11 ELECT 47uF 20% 16V C105 1-130-480-00 MYLAR 0.0056uF 5% 50V C106 1-130-473-00 MYLAR 0.0015uF 5% 50V C107 1-126-963-11 ELECT 4.7uF 20% 50V C108 1-126-960-11 ELECT 1uF 20% 50V C151 1-162-286-31 CERAMIC 220PF 10% 50V C152 1-126-960-11 ELECT 1uF 20% 50V C153 1-162-282-31 CERAMIC 100PF 10% 50V C154 1-126-967-11 ELECT 47uF 20% 16V C155 1-130-480-00 MYLAR 0.0056uF 5% 50V C156 1-130-473-00 MYLAR 0.0015uF 5% 50V C157 1-126-963-11 ELECT 4.7uF 20% 50V C158 1-126-960-11 ELECT 1uF 20% 50V C301 1-126-964-11 ELECT 10uF 20% 50V C302 1-162-290-31 CERAMIC 470PF 10% 50V C305 1-126-933-11 ELECT 100uF 20% 10V C306 1-126-967-11 ELECT 47uF 20% 50V C307 1-126-965-11 ELECT 22uF 20% 50V C308 1-126-965-11 ELECT 22uF 20% 50V C309 1-126-965-11 ELECT 22uF 20% 50V C310 1-126-968-11 ELECT 100uF 20% 50V C311 1-136-495-11 FILM 0.068uF 5% 50V C312 1-136-495-11 FILM 0.068uF 5% 50V C313 1-126-967-11 ELECT 47uF 20% 16V C314 1-162-195-31 CERAMIC 4.7PF 10% 50V C351 1-126-964-11 ELECT 10uF 20% 50V C352 1-162-290-31 CERAMIC 470PF 10% 50V C355 1-126-933-11 ELECT 100uF 20% 10V C356 1-126-967-11 ELECT 47uF 20% 50V C361 1-136-495-11 FILM 0.068uF 5% 50V C362 1-136-495-11 FILM 0.068uF 5% 50V C363 1-126-967-11 ELECT 47uF 20% 16V C364 1-162-195-31 CERAMIC 4.7PF 10% 50V C601 1-126-961-11 ELECT 2.2uF 20% 50V C602 1-126-923-11 ELECT 220uF 20% 10V C603 1-126-967-11 ELECT 47uF 20% 16V C701 1-126-926-11 ELECT 1000uF 20% 10V C702 1-164-159-11 CERAMIC 0.1uF 50V C703 1-161-494-00 CERAMIC 0.022uF 25V C704 1-126-964-11 ELECT 10uF 20% 50V C903 1-126-224-11 ELECT 4700uF 20% 42V C904 1-126-224-11 ELECT 4700uF 20% 42V C905 1-126-948-11 ELECT 100uF 20% 35V C906 1-126-948-11 ELECT 100uF 20% 35V C908 1-126-967-11 ELECT 47uF 20% 16V C909 1-126-967-11 ELECT 47uF 20% 16V C910 1-126-967-11 ELECT 47uF 20% 16V C911 1-126-967-11 ELECT 47uF 20% 16V C912 1-126-961-11 ELECT 2.2uF 20% 50V C916 1-126-963-11 ELECT 4.7uF 20% 50V < CONNECTOR > CN701 1-568-838-11 SOCKET, CONNECTOR 21P * CN902 1-564-241-11 PIN, CONNECTOR (B4P-VH) 4P < DIODE > D301 8-719-987-63 DIODE 1N4148M D302 8-719-987-63 DIODE 1N4148M D351 8-719-987-63 DIODE 1N4148M D352 8-719-987-63 DIODE 1N4148M D601 8-719-987-63 DIODE 1N4148M D701 8-719-987-63 DIODE 1N4148M D702 8-719-987-63 DIODE 1N4148M D902 8-719-001-15 DIODE UZL-9M2 D903 8-719-001-15 DIODE UZL-9M2 D909 8-719-987-63 DIODE 1N4148M < EARTH TERMINAL > * EB1 1-537-738-21 TERMINAL, EARTH < IC > IC101 8-759-184-02 IC NJM2068L-D IC102 8-759-000-49 IC MC14066BCP IC103 8-759-802-52 IC LC7818 IC301 8-749-941-52 IC STK-4152II IC601 8-759-111-68 IC uPC1237HA < JACK > J101 1-774-411-11 JACK, PIN 6P (PHONO,TUNER,CD) J102 1-695-188-31 JACK, PIN 4P (TAPE2/MD) J103 1-695-188-31 JACK, PIN 4P (TAPE1/DAT) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 13 – MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < COIL > L301 1-420-872-00 COIL, AIR-CORE L351 1-420-872-00 COIL, AIR-CORE < TRANSISTOR > Q101 8-729-141-26 TRANSISTOR 2SC3622A-LK Q151 8-729-141-26 TRANSISTOR 2SC3622A-LK Q301 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q351 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q701 8-729-119-76 TRANSISTOR 2SA1175-HFE Q702 8-729-900-36 TRANSISTOR DTC124ES Q703 8-729-900-63 TRANSISTOR DTA124ES Q704 8-729-900-36 TRANSISTOR DTC124ES Q705 8-729-900-63 TRANSISTOR DTA124ES Q706 8-729-620-05 TRANSISTOR 2SC2603-EF Q707 8-729-119-76 TRANSISTOR 2SA1175-HFE Q901 8-729-281-54 TRANSISTOR 2SC1815-BL Q902 8-729-201-53 TRANSISTOR 2SA1015-GR < RESISTOR > R101 1-247-807-31 CARBON 100 5% 1/4W R102 1-249-417-11 CARBON 1K 5% 1/4W R103 1-249-417-11 CARBON 1K 5% 1/4W R104 1-249-417-11 CARBON 1K 5% 1/4W R105 1-249-417-11 CARBON 1K 5% 1/4W R106 1-249-417-11 CARBON 1K 5% 1/4W R107 1-249-417-11 CARBON 1K 5% 1/4W R108 1-249-411-11 CARBON 330 5% 1/4W R109 1-249-437-11 CARBON 47K 5% 1/4W R110 1-249-416-11 CARBON 820 5% 1/4W R111 1-247-897-11 CARBON 560K 5% 1/4W R112 1-249-437-11 CARBON 47K 5% 1/4W R113 1-249-441-11 CARBON 100K 5% 1/4W R114 1-249-409-11 CARBON 220 5% 1/4W R115 1-249-427-11 CARBON 6.8K 5% 1/4W R151 1-247-807-31 CARBON 100 5% 1/4W R152 1-249-417-11 CARBON 1K 5% 1/4W R153 1-249-417-11 CARBON 1K 5% 1/4W R154 1-249-417-11 CARBON 1K 5% 1/4W R155 1-249-417-11 CARBON 1K 5% 1/4W R156 1-249-417-11 CARBON 1K 5% 1/4W R157 1-249-417-11 CARBON 1K 5% 1/4W R158 1-249-411-11 CARBON 330 5% 1/4W R159 1-249-437-11 CARBON 47K 5% 1/4W R160 1-249-416-11 CARBON 820 5% 1/4W R161 1-247-897-11 CARBON 560K 5% 1/4W R162 1-249-437-11 CARBON 47K 5% 1/4W R163 1-249-441-11 CARBON 100K 5% 1/4W R164 1-249-409-11 CARBON 220 5% 1/4W R165 1-249-427-11 CARBON 6.8K 5% 1/4W R207 1-249-425-11 CARBON 4.7K 5% 1/4W R257 1-249-425-11 CARBON 4.7K 5% 1/4W R301 1-249-439-11 CARBON 68K 5% 1/4W R302 1-249-417-11 CARBON 1K 5% 1/4W R303 1-249-415-11 CARBON 680 5% 1/4W R304 1-249-439-11 CARBON 68K 5% 1/4W R305 1-249-421-11 CARBON 2.2K 5% 1/4W R306 1-260-103-11 CARBON 2.2K 5% 1/2W !R307 1-249-405-11 CARBON 100 5% 1/4W F R308 1-260-099-11 CARBON 1K 5% 1/2W R309 1-260-099-11 CARBON 1K 5% 1/2W !R310 1-249-405-11 CARBON 100 5% 1/4W F R312 1-249-419-11 CARBON 1.5K 5% 1/4W R313 1-249-431-11 CARBON 15K 5% 1/4W !R314 1-217-151-00 METAL PLATE 0.22 2W F R315 1-249-437-11 CARBON 47K 5% 1/4W R316 1-247-727-11 CARBON 10 5% 1/2W !R318 1-249-393-11 CARBON 10 5% 1/4W F !R320 1-249-385-11 CARBON 2.2 5% 1/6W F !R321 1-249-385-11 CARBON 2.2 5% 1/6W F !R322 1-249-385-11 CARBON 2.2 5% 1/6W F R351 1-249-439-11 CARBON 68K 5% 1/4W R352 1-249-417-11 CARBON 1K 5% 1/4W R353 1-249-415-11 CARBON 680 5% 1/4W R354 1-249-439-11 CARBON 68K 5% 1/4W R355 1-249-421-11 CARBON 2.2K 5% 1/4W R356 1-260-103-11 CARBON 2.2K 5% 1/2W R362 1-249-419-11 CARBON 1.5K 5% 1/4W R363 1-249-431-11 CARBON 15K 5% 1/4W !R364 1-217-151-00 METAL PLATE 0.22 2W F R365 1-249-439-11 CARBON 68K 5% 1/4W R366 1-247-727-11 CARBON 10 5% 1/2W !R368 1-249-393-11 CARBON 10 5% 1/4W F R601 1-247-745-11 CARBON 330 5% 1/2W R602 1-247-745-11 CARBON 330 5% 1/2W R603 1-249-417-11 CARBON 1K 5% 1/4W R604 1-249-441-11 CARBON 100K 5% 1/4W R605 1-249-435-11 CARBON 33K 5% 1/4W R606 1-249-429-11 CARBON 10K 5% 1/4W R607 1-247-756-11 CARBON 2.2K 5% 1/2W R608 1-247-756-11 CARBON 2.2K 5% 1/2W R700 1-249-437-11 CARBON 47K 5% 1/4W R701 1-247-903-00 CARBON 1M 5% 1/4W R702 1-249-437-11 CARBON 47K 5% 1/4W R703 1-249-433-11 CARBON 22K 5% 1/4W R704 1-249-433-11 CARBON 22K 5% 1/4W R705 1-249-433-11 CARBON 22K 5% 1/4W R706 1-249-437-11 CARBON 47K 5% 1/4W R707 1-249-433-11 CARBON 22K 5% 1/4W R708 1-249-433-11 CARBON 22K 5% 1/4W R709 1-249-435-11 CARBON 33K 5% 1/4W R710 1-249-433-11 CARBON 22K 5% 1/4W R711 1-249-433-11 CARBON 22K 5% 1/4W R712 1-249-433-11 CARBON 22K 5% 1/4W R902 1-247-750-11 CARBON 680 5% 1/2W The components identified by mark ! or dotted line with mark. ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 14 – 9-960-966-11 Sony Corporation Home A&V Products Company TA-FE210 MAIN 97F047554-1 Printed in Hungary C1997. 6 Published by General Engineering Dept. (Shibaura) Ref. No. Part No. Description Remark R903 1-247-750-11 CARBON 680 5% 1/2W R904 1-247-750-11 CARBON 680 5% 1/2W R905 1-247-750-11 CARBON 680 5% 1/2W R907 1-247-752-11 CARBON 1K 5% 1/2W R908 1-247-752-11 CARBON 1K 5% 1/2W R910 1-249-429-11 CARBON 10K 5% 1/4W R912 1-249-429-11 CARBON 10K 5% 1/4W R913 1-249-433-11 CARBON 22K 5% 1/4W < RELAY > RY601 1-515-920-11 RELAY (24V) < TERMINAL > TM301 1-537-238-11 TERMINAL BOARD (SPEAKERS) ************************************************************ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3. SCHEMATIC DIAGRAM 4. PRINTED WIRING BOARDS • IC Block Diagrams IC103 LC7818 IC601 µPC1237HA TA-FE210 TA-FE210 TA-FE210 TA-FE210 TA-FE210 TA-FE210 • Semiconductor Location Ref. No. Location D301 F-8 D302 F-8 D351 E-8 D352 E-8 D601 D-8 D701 E-5 D702 E-5 D802 B-22 D803 B-21 D804 B-21 D805 B-20 D806 B-19 D901 G-13 D902 C-7 D903 C-6 D906 G-13 D909 G-7 IC101 D-2 Ref. No. Location IC102 C-6 IC103 D-4 IC301 F-10 IC601 F-8 Q101 F-6 Q151 F-6 Q301 E-8 Q351 E-8 Q701 E-5 Q702 E-6 Q703 E-6 Q704 E-6 Q705 E-6 Q706 F-7 Q707 G-7 Q901 C-7 Q902 C-6 Note : • All capacitors are in µF unless otherwise noted. pF : µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. Note : The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. • : nonflammable resistor. • : B+ Line. • : B- Line. • Voltage is dc with respect to ground under no-signal conditions. • no mark : POWER ON • Voltage are taken with a VOM (Input Impedance 10 MΩ). Voltage variations may be noted due to normal production tolerance. • Signal path. : FM : PB (TAPE1 / DAT) : REC (TAPE1 / DAT) : PB (TAPE2 / MD) : REC (TAPE2 / MD) : CD : PHONO Note : • : parts extracted from the component side. • : Pattern on the side which is seen. B + S1 7 B+ B– www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
