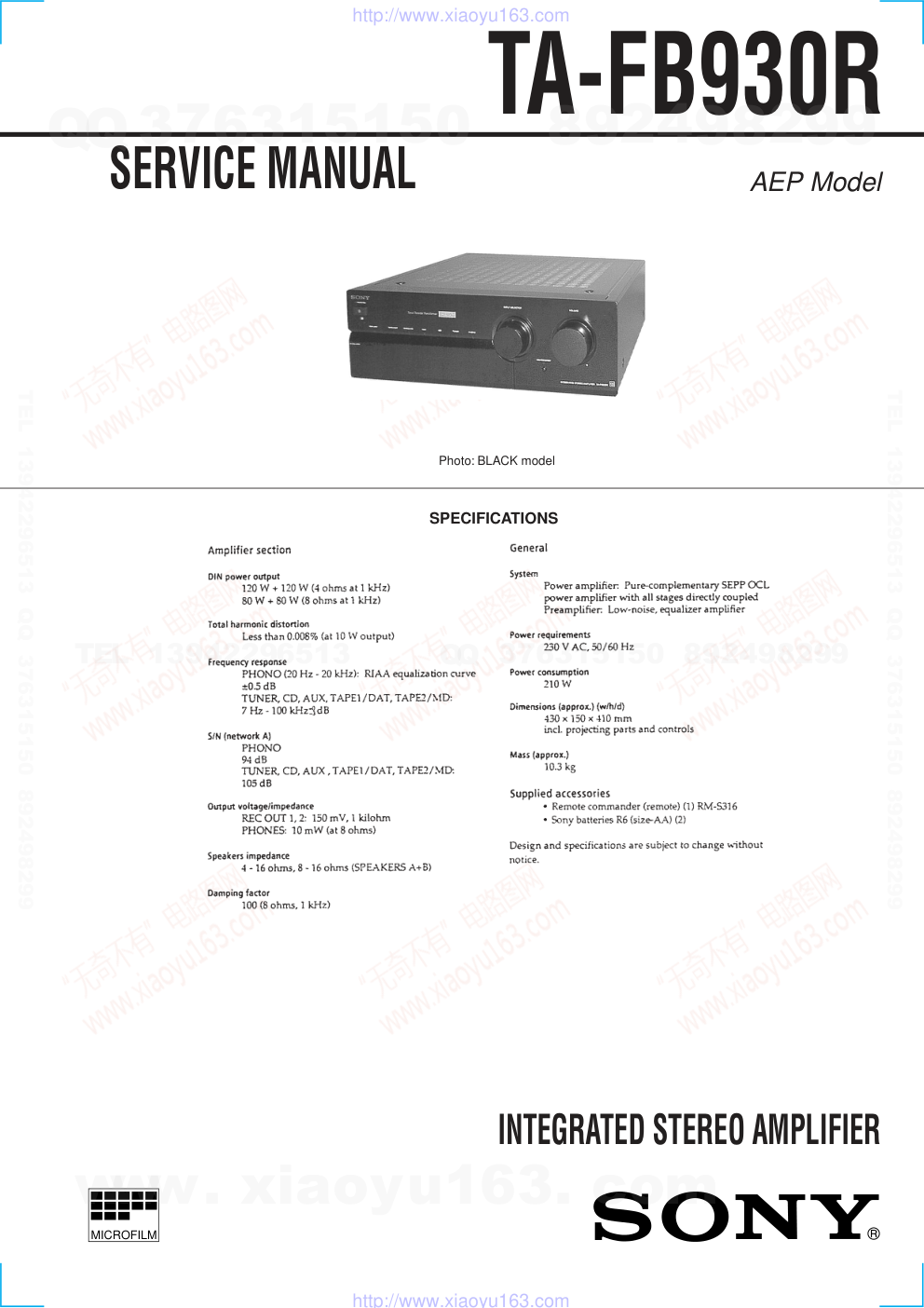

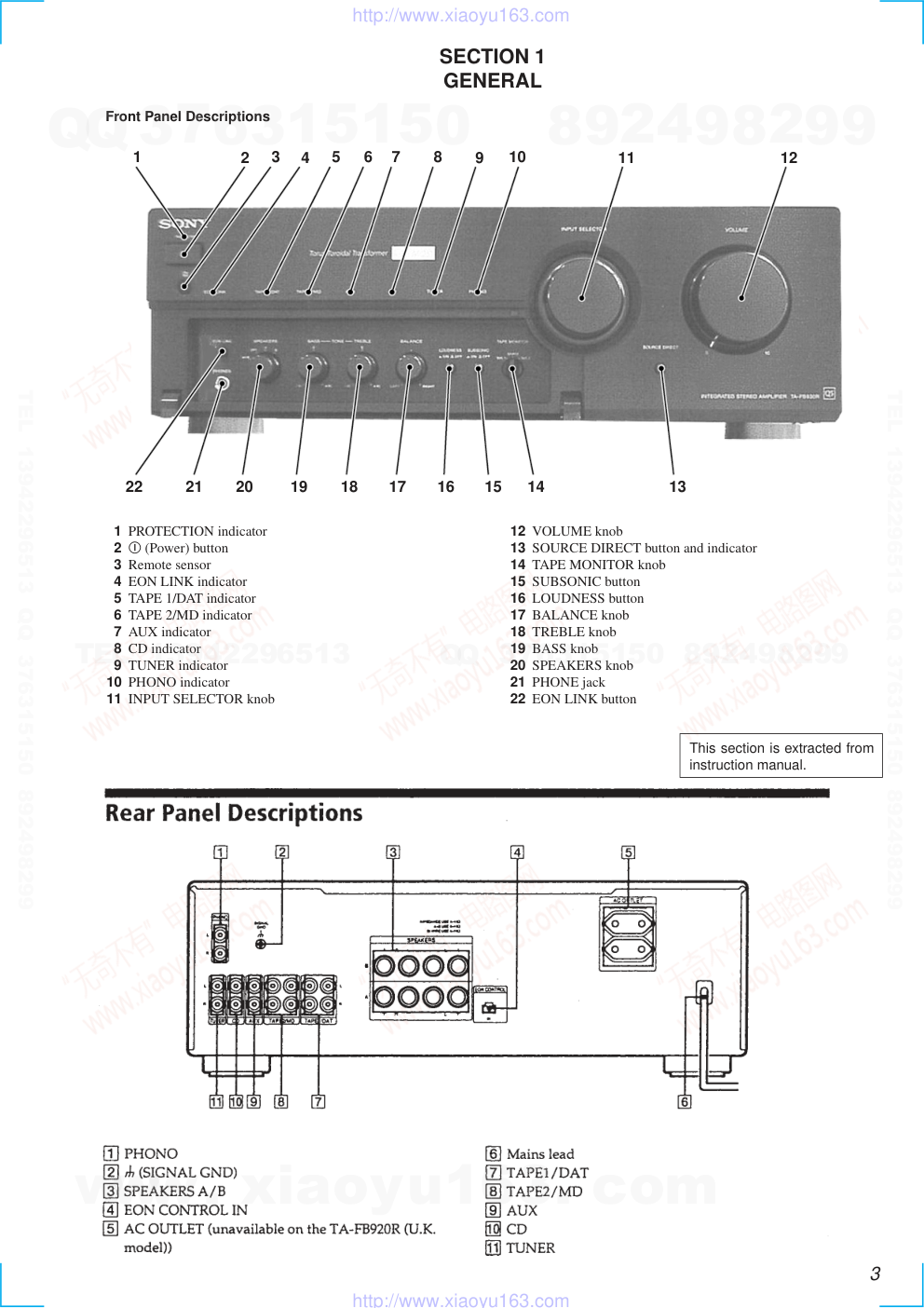

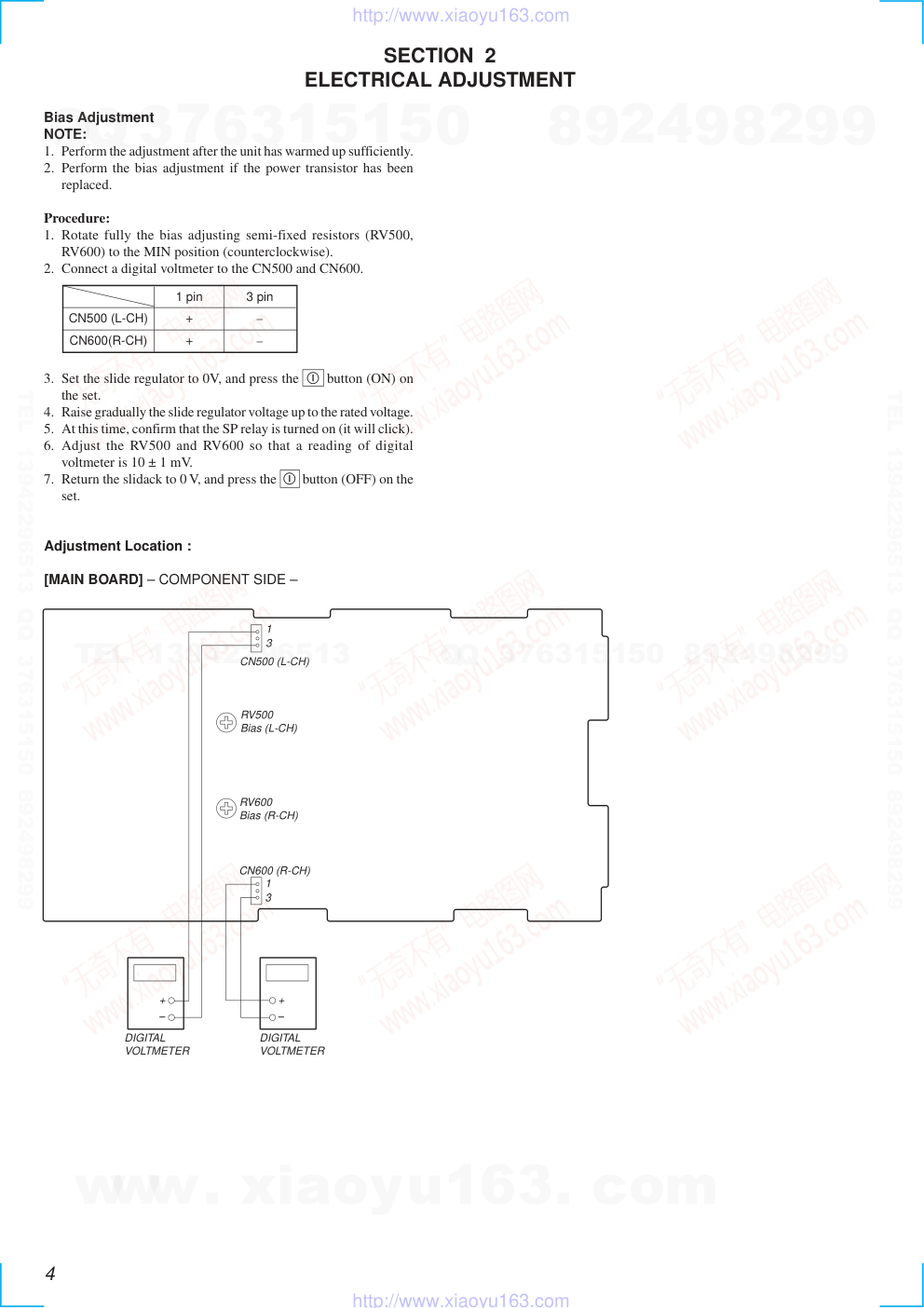

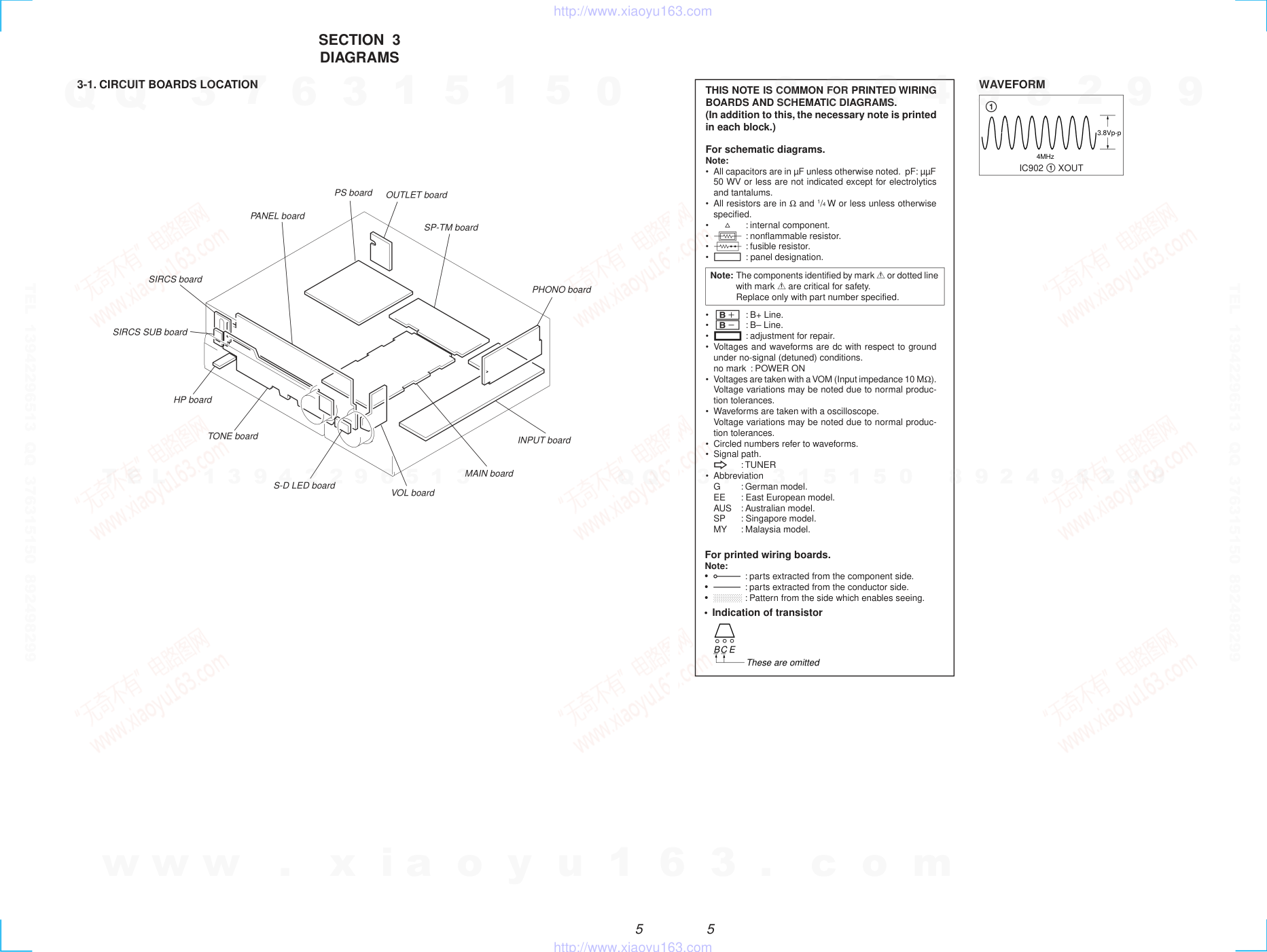

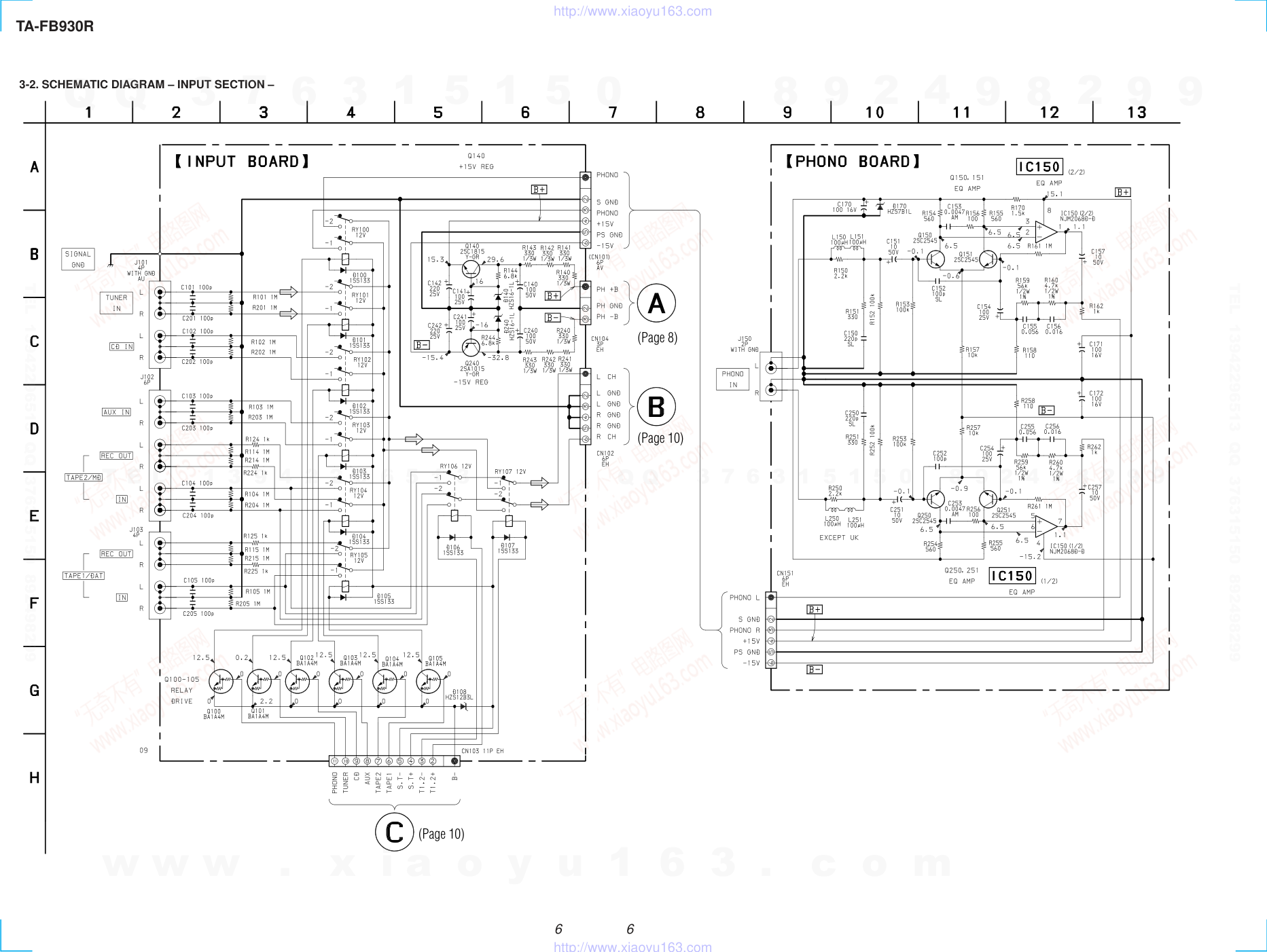

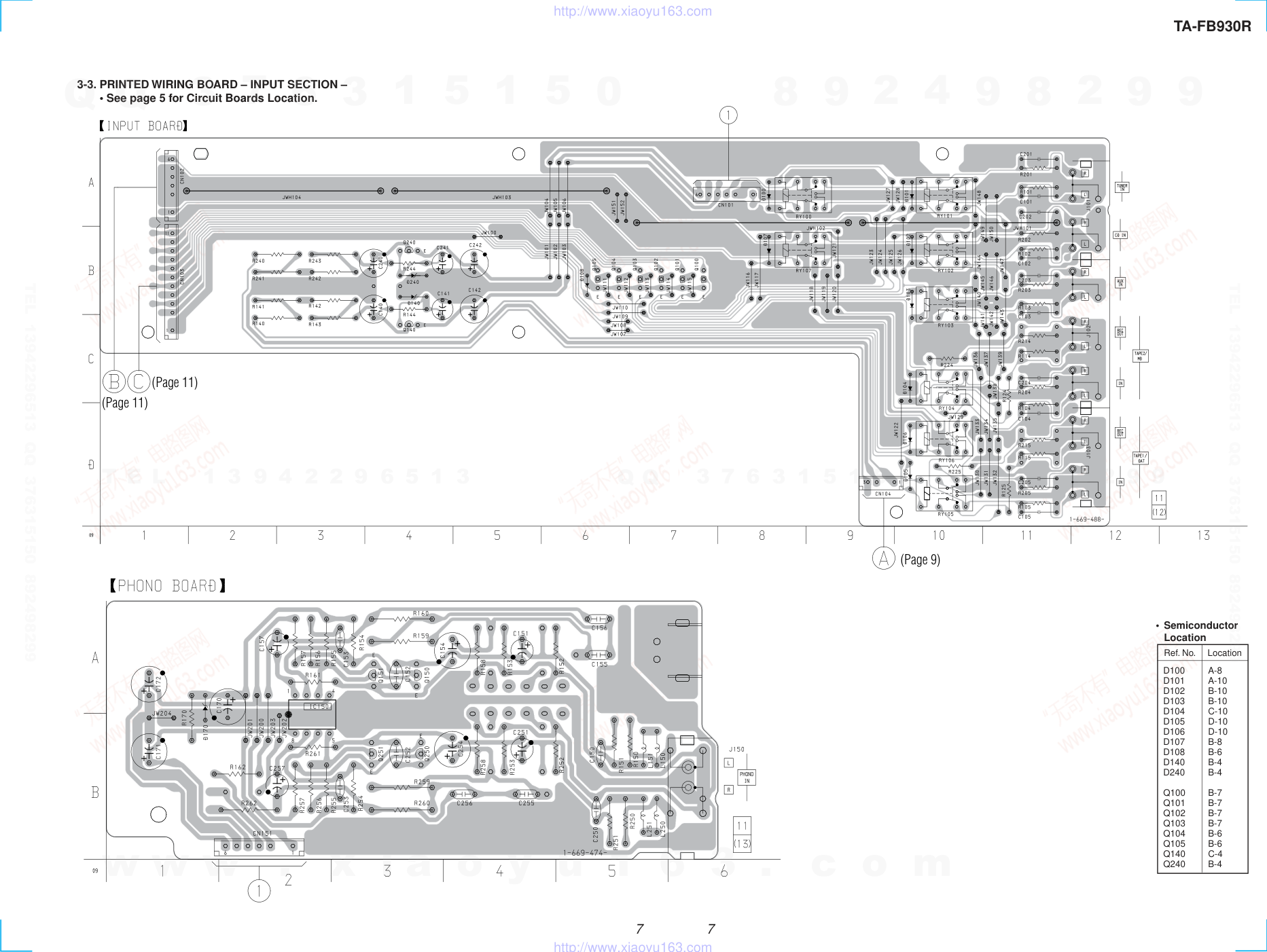

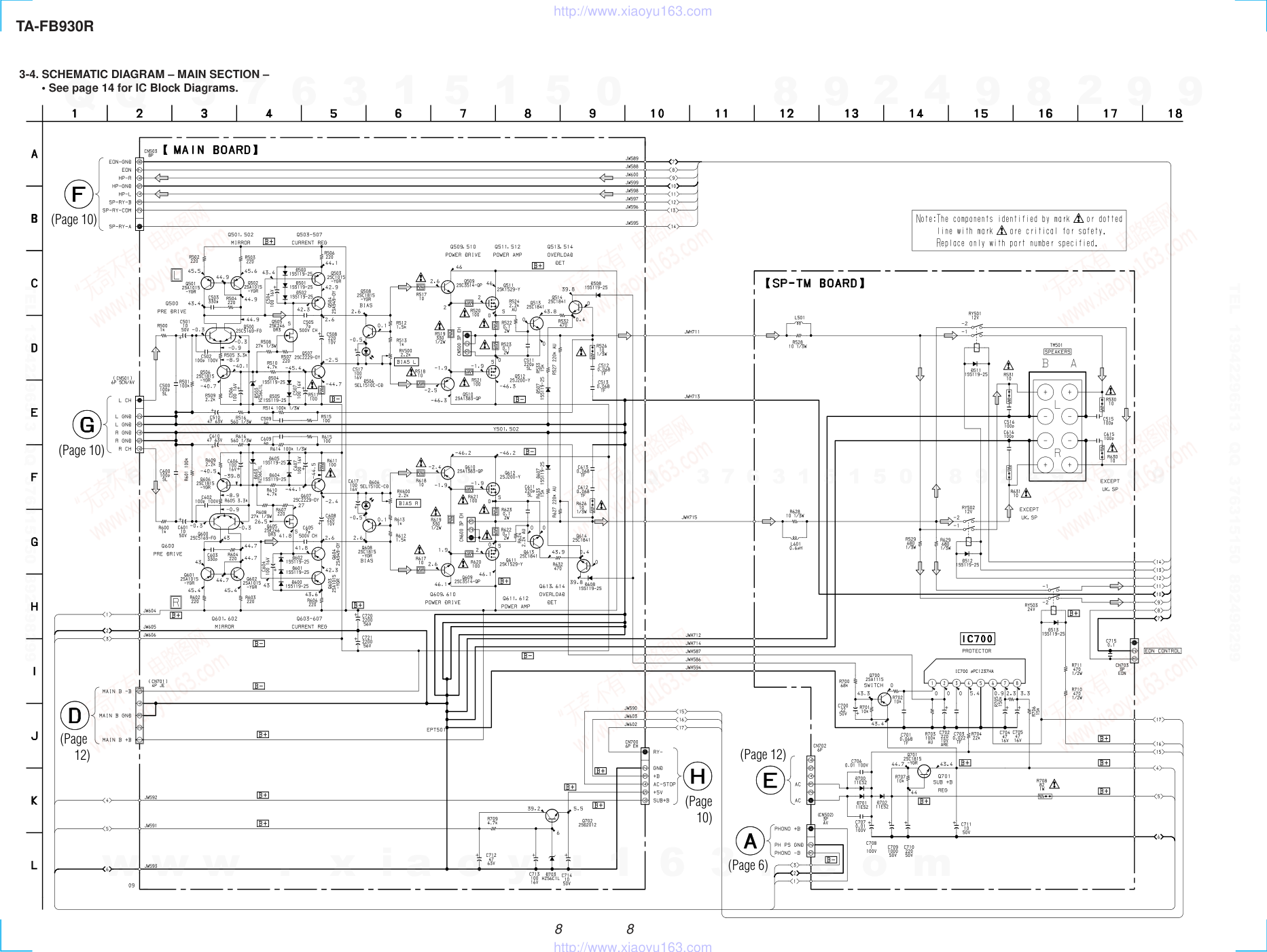

1 MICROFILM AEP Model SPECIFICATIONS SERVICE MANUAL INTEGRATED STEREO AMPLIFIER TA-FB930R Photo: BLACK model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 SAFETY-RELATED COMPONENT WARNING !! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. TABLE OF CONTENTS 1. GENERAL .......................................................................... 3 2. ELECTRICAL ADJUSTMENT ..................................... 4 3. DIAGRAMS 3-1. Circuit Boards Location ........................................................ 5 3-2. Schematic Diagram – Input Section – .................................. 6 3-3. Printed Wiring Board – Input Section – ................................ 7 3-4. Schematic Diagram – Main Section – .................................. 8 3-5. Printed Wiring Board – Main Section – ................................ 9 3-6. Schematic Diagram – Panel Section – ................................ 10 3-7. Printed Wiring Board – Panel Section – ............................. 11 3-8. Schematic Diagram – Power Section –............................... 12 3-9. Printed Wiring Board – Power Section – ............................ 13 3-10. IC Block Diagrams............................................................ 14 3-11. IC Pin Function ................................................................. 14 4. EXPLODED VIEW 4-1. Case Section ........................................................................ 15 4-2. Front Panel Section ............................................................. 16 4-3. Chassis Section ................................................................... 17 5. ELECTRICAL PARTS LIST ........................................ 18 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 Front Panel Descriptions SECTION 1 GENERAL 1 PROTECTION indicator 2 U (Power) button 3 Remote sensor 4 EON LINK indicator 5 TAPE 1/DAT indicator 6 TAPE 2/MD indicator 7 AUX indicator 8 CD indicator 9 TUNER indicator 10 PHONO indicator 11 INPUT SELECTOR knob 12 VOLUME knob 13 SOURCE DIRECT button and indicator 14 TAPE MONITOR knob 15 SUBSONIC button 16 LOUDNESS button 17 BALANCE knob 18 TREBLE knob 19 BASS knob 20 SPEAKERS knob 21 PHONE jack 22 EON LINK button 9 7 8 2 3 4 6 5 1 10 11 13 12 14 15 16 17 18 19 20 21 This section is extracted from instruction manual. 22 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 SECTION 2 ELECTRICAL ADJUSTMENT Bias Adjustment NOTE: 1. Perform the adjustment after the unit has warmed up sufficiently. 2. Perform the bias adjustment if the power transistor has been replaced. Procedure: 1. Rotate fully the bias adjusting semi-fixed resistors (RV500, RV600) to the MIN position (counterclockwise). 2. Connect a digital voltmeter to the CN500 and CN600. 1 pin 3 pin – – + + CN500 (L-CH) CN600(R-CH) 3. Set the slide regulator to 0V, and press the U button (ON) on the set. 4. Raise gradually the slide regulator voltage up to the rated voltage. 5. At this time, confirm that the SP relay is turned on (it will click). 6. Adjust the RV500 and RV600 so that a reading of digital voltmeter is 10 ± 1 mV. 7. Return the slidack to 0 V, and press the U button (OFF) on the set. Adjustment Location : [MAIN BOARD] – COMPONENT SIDE – + CN600 (R-CH) 1 3 CN500 (L-CH) 1 3 RV600 Bias (R-CH) RV500 Bias (L-CH) DIGITAL VOLTMETER DIGITAL VOLTMETER + www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 5 SECTION 3 DIAGRAMS 3-1. CIRCUIT BOARDS LOCATION THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.) For schematic diagrams. Note: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • ¢ : internal component. • 2 : nonflammable resistor. • 5 : fusible resistor. • C : panel designation. For printed wiring boards. Note: • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • b : Pattern from the side which enables seeing. • U : B+ Line. • V : B– Line. • H : adjustment for repair. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : POWER ON • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. F : TUNER • Abbreviation G : German model. EE : East European model. AUS : Australian model. SP : Singapore model. MY : Malaysia model. WAVEFORM 1 IC902 1 XOUT Note: The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. • Indication of transistor C These are omitted E B 4MHz 3.8Vp-p PANEL board TONE board INPUT board MAIN board SP-TM board PHONO board PS board OUTLET board VOL board SIRCS board SIRCS SUB board HP board S-D LED board w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 6 TA-FB930R 3-2. SCHEMATIC DIAGRAM – INPUT SECTION – (Page 8) (Page 10) (Page 10) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 7 TA-FB930R 3-3. PRINTED WIRING BOARD – INPUT SECTION – • See page 5 for Circuit Boards Location. Ref. No. Location • Semiconductor Location D100 A-8 D101 A-10 D102 B-10 D103 B-10 D104 C-10 D105 D-10 D106 D-10 D107 B-8 D108 B-6 D140 B-4 D240 B-4 Q100 B-7 Q101 B-7 Q102 B-7 Q103 B-7 Q104 B-6 Q105 B-6 Q140 C-4 Q240 B-4 (Page 11) (Page 11) (Page 9) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 8 TA-FB930R 3-4. SCHEMATIC DIAGRAM – MAIN SECTION – • See page 14 for IC Block Diagrams. (Page 10) (Page 10) (Page 12) (Page 10) (Page 6) (Page 12) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 9 TA-FB930R 3-5. PRINTED WIRING BOARD – MAIN SECTION – • See page 5 for Circuit Boards Location. Ref. No. Location • Semiconductor Location D500 C-10 D501 C-10 D502 C-10 D503 D-11 D504 E-10 D505 E-10 D506 D-9 D507 D-4 D508 C-5 D600 F-10 D601 F-10 D602 F-10 D603 E-11 D604 E-10 D605 E-10 D606 F-9 D607 E-4 D608 C-4 D703 F-4 Q500 C-11 Q501 C-10 Q502 C-10 Q503 D-11 Q504 D-10 Q505 D-10 Q506 D-11 Q507 E-10 Q508 D-9 Q509 D-8 Q510 D-8 Q511 C-5 Q512 C-8 Q513 C-6 Q514 D-5 Q600 F-11 Q601 F-10 Q602 F-10 Q603 F-11 Q604 F-10 Q605 F-10 Q606 E-11 Q607 E-10 Q608 F-9 Q609 F-8 Q610 F-8 Q611 G-8 Q612 G-5 Q613 F-6 Q614 E-4 Q702 G-4 (Page 13) (Page 13) (Page 11) (Page 11) (Page 11) (Page 9) Ref. No. Location • Semiconductor Location D511 E-2 D512 E-2 D513 F-3 D700 A-1 D701 A-1 D702 A-1 IC700 B-2 Q700 A-3 Q701 B-1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 10 TA-FB930R 3-6. SCHEMATIC DIAGRAM – PANEL SECTION – • See page 5 for Waveform. • See page 14 for IC Block Diagrams. • See page 14 for IC Pin Function. (Page 8) (Page 6) (Page 6) (Page 8) (Page 10) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 11 TA-FB930R 3-7. PRINTED WIRING BOARD – PANEL SECTION – • See page 5 for Circuit Boards Location. (Page 7) (Page 7) (Page 9) (Page 9) Ref. No. Location • Semiconductor Location D901 B-13 D902 B-6 D903 B-7 D904 B-8 D905 B-9 D906 B-10 D907 B-11 D910 B-11 D911 B-11 D912 A-6 D913 A-11 D914 A-12 D915 A-12 D916 A-6 D917 B-9 D918 A-9 D919 A-8 D920 B-11 D921 A-8 D922 A-8 D923 A-10 D924 A-10 IC901 A-5 IC902 A-7 Q900 A-12 Q901 A-12 Q902 A-12 Q903 B-12 Q904 B-12 Q905 B-12 Q906 B-12 Q907 A-9 Q908 B-8 Q909 B-11 Q910 A-6 Q911 A-9 Q920 B-6 Q921 B-7 Q922 B-9 Q923 B-9 Q924 B-10 Q925 B-11 (Page 9) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 12 TA-FB930R 3-8. SCHEMATIC DIAGRAM – POWER SECTION – (Page 8) (Page 8) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 13 TA-FB930R 3-9. PRINTED WIRING BOARD – POWER SECTION – • See page 5 for Circuit Boards Location. (Page 9) (Page 9) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 14 3-11. IC PIN FUNCTION • IC902 Input Control & LED Drive (TMP47C103N-JP47) (Panel Board) O I I I O O I I I I O O O — O O O O O I I I O O O O I — 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 X OUT X IN RESET PMD VOL + VOL – SW 0 SW 1 SW 2 EON PHONO TUNER CD GND AUX MD/DAT TAPE MON PRY PKY MOI SIRCS MUTE SCE SDT SCK STOP +3V System clock (4MHz) Reset input Mode select input (Connected to ground) Motor drive output (+) Motor drive output (–) Rotary switch input (CD) Rotary switch input (TUNER) Rotary switch input (PHONO) EON signal input PHONO LED drive output TUNER LED drive output CD LED drive output Ground AUX LED drive output TAPE “2” LED drive output TAPE “1” LED drive output MONITOR output (Connected to ground) Power relay output Power key input (Connected to ground) MONITOR input (Connected to ground) SIRCS input Muting output (Connected to ground) Chip enable output (Connected to ground) Serial data output (Connected to ground) Serial clock output (Connected to ground) STOP input +3V Power supply I/O Function Pin No. Pin Name 3-10. IC BLOCK DIAGRAMS • Main Board IC700 uPC1237HA 1 2 3 4 5 6 7 8 OVER LOAD DET F/F OFFSET DET LATCH/ AUTORESET VCC ON MUTE AC OFF DET VCC • Panel Board IC901 BA6208 1 2 3 4 5 6 7 8 9 NC OUTPUT 2 Vcc GND NC INPUT 2 INPUT 1 NC MOTOR DRIVE MOTOR DRIVE REG SWITCH SWITCH OUTPUT1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 SECTION 4 EXPLODED VIEWS 4-1. CASE SECTION NOTE: • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) Â Parts color • The mechanical parts with no reference number in the exploded views are not supplied. • Hardware (# mark) list and accessories and pack- ing materials are given in the last of this parts list. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. * 9 1-669-476-11 OUTLET BOARD * 10 3-703-244-00 BUSHING (2104), CORD !11 1-777-185-11 CORD, POWER 12 3-655-653-21 BAND (TAITON), BINDING 13 4-210-291-01 SCREW (CASE 3 TP2)(BLACK) 13 4-210-291-11 SCREW (CASE 3 TP2)(SILVER) 14 4-947-010-01 SCREW, FEEDER FIXED 15 3-704-515-51 SCREW (BV/RING) 16 4-974-510-01 SCREW (+BV 3X8 CU) !CNJ3 1-526-794-11 OUTLET, AC !CNJ4 1-526-794-11 OUTLET, AC 1 X-4949-780-1 KNOB(SELECTOR) ASSY (BLACK) 1 X-4950-264-1 KNOB(SELECTOR) ASSY (SILVER) 2 X-4949-781-1 KNOB(VOLUME) ASSY (BLACK) 2 X-4950-265-1 KNOB(VOLUME) ASSY (SILVER) 3 3-703-466-00 SPRING (6600) * 4 4-999-439-03 CASE(413235)(BLACK) * 4 4-999-439-43 CASE(413235)(SILVER) 5 X-4949-760-1 FOOT ASSY 6 4-970-124-01 CUSHION (F50180S) 7 A-4419-860-A PHONO BOARD, COMPLETE 8 4-218-231-21 PANEL, BACK 13 13 16 3 3 11 12 8 9 10 14 15 15 16 16 16 16 4 13 not supplied not supplied not supplied not supplied 7 16 5 6 #3 #3 5 6 1 2 CNJ3 CNJ4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 4-2. FRONT PANEL SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 63 X-4950-263-1 BASE ASSY, PANEL (SILVER) 64 4-221-595-01 SPRING (DOOR), LEAF 65 4-999-436-01 BUTTON (DIA. 6X28.8)(BLACK) 65 4-999-436-12 BUTTON (DIA. 6X28.8)(SILVER) * 66 4-999-404-02 PLATE (DOOR), INDICATION (BLACK) * 66 4-999-404-13 PLATE (DOOR), INDICATION (SILVER) 67 3-024-055-01 BUTTON (POWER)(BLACK) 67 3-024-055-22 BUTTON (POWER)(SILVER) 68 4-999-406-01 KNOB(D18)(BLACK) 68 4-999-406-11 KNOB(D18)(SILVER) 69 4-980-773-01 BUTTON (DIA. 6)(BLACK) 69 4-980-773-12 BUTTON (DIA. 6)(SILVER) 70 4-950-189-01 KNOB(A)(VOL)(BLACK) 70 4-950-189-61 KNOB(A)(VOL)(SILVER) * 72 1-670-219-11 SIRCS SUB BOARD * 73 1-669-490-11 SIRCS BOARD 74 4-948-469-01 SPRING, RING !S1 1-554-920-11 SWITCH, PUSH (AC POWER)(1 KEY) 51 4-999-407-21 DOOR(BLACK) 51 4-999-407-31 DOOR(SILVER) 52 4-900-031-02 KNOB(DOOR) 54 4-221-598-01 ARM(DOOR/R)(BLACK) 54 4-221-598-11 ARM(DOOR/R)(SILVER) 55 4-221-460-01 ARM(DOOR/L)(BLACK) 55 4-221-460-11 ARM(DOOR/L)(SILVER) * 56 4-999-492-01 CUSHION (DOOR)(BLACK) * 56 4-999-492-11 CUSHION (DOOR)(SILVER) 57 4-942-568-41 EMBLEM (NO.5), SONY (BLACK) 57 4-942-568-61 EMBLEM (NO.5), SONY (SILVER) 58 4-218-232-02 EMBLEM (MOS) 59 4-999-413-01 INDICATOR (PROTECTION) 60 4-980-776-01 WINDOW, REMOTE CONTROL 61 4-974-510-01 SCREW (+BV 3X8 CU) 62 4-999-402-21 PANEL, FRONT (BLACK) 62 4-999-402-31 PANEL, FRONT (SILVER) 63 X-4949-779-1 BASE ASSY, PANEL (BLACK) 57 58 61 62 59 59 55 51 61 56 54 64 66 65 70 74 69 68 69 73 61 67 61 72 63 64 #2 S1 #2 #1 #2 61 60 not supplied The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 4-3. CHASSIS SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 113 X-4950-316-6 PANEL ASSY, SUB 114 4-211-985-01 SCREW (3X8), PC BOARD FITTING 115 X-4950-314-2 BRACKET (RAIL)(L) ASSY 116 X-4950-315-2 BRACKET (RAIL)(R) ASSY 117 4-985-642-01 CUSHION 118 4-967-961-01 SCREW (3X8) Q511 8-729-232-45 TRANSISTOR 2SK1529-Y Q512 8-729-232-46 TRANSISTOR 2SJ200-Y Q611 8-729-232-45 TRANSISTOR 2SK1529-Y Q612 8-729-232-46 TRANSISTOR 2SJ200-Y Q702 8-729-209-15 TRANSISTOR 2SD2012 !T1 1-433-952-11 TRANSFORMER, POWER 101 4-974-510-01 SCREW (+BV 3X8 CU) 102 3-905-609-21 SCREW (TRANSISTOR) 103 4-967-960-01 SCREW (4X8) 104 A-4419-849-A PANEL BOARD, COMPLETE 105 A-4419-850-A TONE BOARD, COMPLETE * 106 1-669-492-11 S-D LED BOARD * 107 1-669-491-11 HP BOARD * 108 1-669-489-11 VOL BOARD 109 A-4419-859-A PS BOARD, COMPLETE 110 A-4419-858-A SP-TM BOARD, COMPLETE 111 A-4419-857-A MAIN BOARD, COMPLETE 112 A-4419-851-A INPUT BOARD, COMPLETE not supplied not supplied Supplied with RV301, RV302,RV303,S801,S903 Supplied with RV300 Supplied with J801 Supplied with S902 not supplied not supplied not supplied not supplied not supplied Q511 Q611 Q612 Q702 Q512 T1 not supplied not supplied 101 101 101 101 118 101 101 112 116 115 101 101 101 101 101 101 101 101 101 101 101 101 107 117 101 108 101 101 101 113 106 104 114 114 103 103 105 109 102 111 102 110 101 #4 #4 The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 • SEMICONDUCTORS In each case, u: µ , for example: uA...: µ A..., uPA...: µ PA..., uPB...: µ PB..., uPC...: µ PC..., uPD...: µ PD... • CAPACITORS uF : µ F • COILS uH : µ H • Abbreviation • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • RESISTORS All resistors are in ohms METAL: Metal-film resistor METAL OXIDE: Metal Oxide-film resistor F : nonflammable SECTION 5 ELECTRICAL PARTS LIST Note: When indicating parts by reference number, please include the board name. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. * 1-669-491-11 HP BOARD ******* < JACK > J801 1-770-307-11 JACK (LARGE TYPE)(PHONES) ************************************************************** A-4419-851-A INPUT BOARD, COMPLETE ******************** < CAPACITOR > C101 1-162-282-31 CERAMIC 100PF 10% 50V C102 1-162-282-31 CERAMIC 100PF 10% 50V C103 1-162-282-31 CERAMIC 100PF 10% 50V C104 1-162-282-31 CERAMIC 100PF 10% 50V C105 1-162-282-31 CERAMIC 100PF 10% 50V C140 1-126-052-11 ELECT 100uF 20% 50V C141 1-126-023-11 ELECT 100uF 20% 25V C142 1-126-024-11 ELECT 220uF 20% 25V C201 1-162-282-31 CERAMIC 100PF 10% 50V C202 1-162-282-31 CERAMIC 100PF 10% 50V C203 1-162-282-31 CERAMIC 100PF 10% 50V C204 1-162-282-31 CERAMIC 100PF 10% 50V C205 1-162-282-31 CERAMIC 100PF 10% 50V C240 1-126-052-11 ELECT 100uF 20% 50V C241 1-126-023-11 ELECT 100uF 20% 25V C242 1-126-024-11 ELECT 220uF 20% 25V < CONNECTOR > CN102 1-691-768-11 PLUG (MICRO CONNECTOR) 6P CN103 1-691-773-11 PLUG (MICRO CONNECTOR) 11P CN104 1-691-765-11 PLUG (MICRO CONNECTOR) 3P < DIODE > D100 8-719-911-19 DIODE 1SS119-25 D101 8-719-911-19 DIODE 1SS119-25 D102 8-719-911-19 DIODE 1SS119-25 D103 8-719-911-19 DIODE 1SS119-25 D104 8-719-911-19 DIODE 1SS119-25 D105 8-719-911-19 DIODE 1SS119-25 D106 8-719-911-19 DIODE 1SS119-25 D107 8-719-911-19 DIODE 1SS119-25 D108 8-719-986-29 DIODE HZS12B3LTA D140 8-719-986-38 DIODE HZS16-1LTA D240 8-719-986-38 DIODE HZS16-1LTA < JACK > J101 1-784-934-11 JACK, PIN 4P (TUNER/CD IN) J102 1-770-015-11 JACK, PIN 6P (AUX IN, TAPE2/MD, REC OUT/IN) J103 1-573-028-31 JACK, PIN 4P (TAPE1/DAT, REC OUT/IN) < TRANSISTOR > Q100 8-729-900-80 TRANSISTOR DTC114ES Q101 8-729-900-80 TRANSISTOR DTC114ES Q102 8-729-900-80 TRANSISTOR DTC114ES Q103 8-729-900-80 TRANSISTOR DTC114ES Q104 8-729-900-80 TRANSISTOR DTC114ES Q105 8-729-900-80 TRANSISTOR DTC114ES Q140 8-729-119-78 TRANSISTOR 2SC2785-HFE Q240 8-729-201-53 TRANSISTOR 2SA1015-GR < RESISTOR > R101 1-259-239-11 CARBON 1M 5% 1/4W R102 1-259-239-11 CARBON 1M 5% 1/4W R103 1-259-239-11 CARBON 1M 5% 1/4W R104 1-259-239-11 CARBON 1M 5% 1/4W R105 1-259-239-11 CARBON 1M 5% 1/4W R114 1-259-239-11 CARBON 1M 5% 1/4W R115 1-259-239-11 CARBON 1M 5% 1/4W R124 1-259-167-21 CARBON 1K 5% 1/4W R125 1-259-167-21 CARBON 1K 5% 1/4W R140 1-249-198-11 CARBON 330 5% 1/3W R141 1-249-198-11 CARBON 330 5% 1/3W R142 1-249-198-11 CARBON 330 5% 1/3W R143 1-249-198-11 CARBON 330 5% 1/3W R144 1-259-187-11 CARBON 6.8K 5% 1/4W R201 1-259-239-11 CARBON 1M 5% 1/4W R202 1-259-239-11 CARBON 1M 5% 1/4W R203 1-259-239-11 CARBON 1M 5% 1/4W R204 1-259-239-11 CARBON 1M 5% 1/4W R205 1-259-239-11 CARBON 1M 5% 1/4W R214 1-259-239-11 CARBON 1M 5% 1/4W R215 1-259-239-11 CARBON 1M 5% 1/4W R224 1-259-167-21 CARBON 1K 5% 1/4W R225 1-259-167-21 CARBON 1K 5% 1/4W R240 1-249-198-11 CARBON 330 5% 1/3W R241 1-249-198-11 CARBON 330 5% 1/3W R242 1-249-198-11 CARBON 330 5% 1/3W R243 1-249-198-11 CARBON 330 5% 1/3W R244 1-259-187-11 CARBON 6.8K 5% 1/4W INPUT HP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < RELAY > RY100 1-515-614-11 RELAY RY101 1-515-614-11 RELAY RY102 1-515-614-11 RELAY RY103 1-515-614-11 RELAY RY104 1-515-614-11 RELAY RY105 1-515-614-11 RELAY RY106 1-515-614-11 RELAY RY107 1-515-614-11 RELAY ************************************************************** A-4419-857-A MAIN BOARD, COMPLETE ******************* < CAPACITOR > C500 1-102-973-00 CERAMIC 100PF 5% 50V C501 1-119-824-31 ELECT 10uF 20% 50V C502 1-136-808-11 FILM 100PF 5% 100V C503 1-125-852-11 FILM 330PF 5% 50V C504 1-126-023-11 ELECT 100uF 20% 16V C505 1-107-587-11 CERAMIC 7PF 0.5PF 500V C506 1-126-023-11 ELECT 100uF 20% 16V C507 1-126-023-11 ELECT 100uF 20% 16V C508 1-119-779-11 ELECT 220uF 20% 10V C509 1-125-842-11 FILM 4PF 10% 50V C510 1-119-836-21 ELECT 47uF 20% 63V C511 1-102-978-00 CERAMIC 220PF 5% 50V C512 1-136-163-00 FILM 0.068uF 5% 50V C513 1-136-163-00 FILM 0.068uF 5% 50V C517 1-126-023-11 ELECT 100uF 20% 16V C600 1-102-973-00 CERAMIC 100PF 5% 50V C601 1-119-824-31 ELECT 10uF 20% 50V C602 1-136-808-11 FILM 100PF 5% 100V C603 1-125-852-11 FILM 330PF 5% 50V C604 1-126-023-11 ELECT 100uF 20% 16V C605 1-107-587-11 CERAMIC 7PF 0.5PF 500V C606 1-126-023-11 ELECT 100uF 20% 16V C607 1-126-023-11 ELECT 100uF 20% 16V C608 1-119-779-11 ELECT 220uF 20% 10V C609 1-125-842-11 FILM 4PF 10% 50V C610 1-119-836-21 ELECT 47uF 20% 63V C611 1-102-978-00 CERAMIC 220PF 5% 50V C612 1-136-163-00 FILM 0.068uF 5% 50V C613 1-136-163-00 FILM 0.068uF 5% 50V C617 1-126-023-11 ELECT 100uF 20% 16V C712 1-128-552-51 ELECT 47uF 20% 63V C713 1-126-933-11 ELECT 100uF 20% 16V C714 1-126-964-11 ELECT 10uF 20% 50V C720 1-113-618-11 ELECT 2200uF 20% 56V C721 1-113-618-11 ELECT 2200uF 20% 56V < CONNECTOR > * CN500 1-564-506-11 PLUG, CONNECTOR 3P CN503 1-691-770-11 PLUG (MICRO CONNECTOR) 8P * CN600 1-564-506-11 PLUG, CONNECTOR 3P CN700 1-691-768-11 PLUG (MICRO CONNECTOR) 6P < DIODE > D500 8-719-911-19 DIODE 1SS119-25 D501 8-719-911-19 DIODE 1SS119-25 D502 8-719-911-19 DIODE 1SS119-25 D503 8-719-933-39 DIODE HZS6C1LTA D504 8-719-911-19 DIODE 1SS119-25 D505 8-719-911-19 DIODE 1SS119-25 D506 8-719-310-61 DIODE SEL1510C-CD-TP3 D507 8-719-911-19 DIODE 1SS119-25 D508 8-719-911-19 DIODE 1SS119-25 D600 8-719-911-19 DIODE 1SS119-25 D601 8-719-911-19 DIODE 1SS119-25 D602 8-719-911-19 DIODE 1SS119-25 D603 8-719-933-39 DIODE HZS6C1LTA D604 8-719-911-19 DIODE 1SS119-25 D605 8-719-911-19 DIODE 1SS119-25 D606 8-719-310-61 DIODE SEL1510C-CD-TP3 D607 8-719-911-19 DIODE 1SS119-25 D608 8-719-911-19 DIODE 1SS119-25 D703 8-719-933-39 DIODE HZS6C1LTA < BRIDGE > JWH711 4-999-918-01 BRIDGE (PC-BOARD) JWH712 4-999-918-01 BRIDGE (PC-BOARD) JWH713 4-999-918-01 BRIDGE (PC-BOARD) JWH714 4-999-918-01 BRIDGE (PC-BOARD) JWH715 4-999-918-01 BRIDGE (PC-BOARD) < TRANSISTOR > Q500 8-729-045-15 TRANSISTOR 2SC5169-FG Q501 8-729-201-53 TRANSISTOR 2SA1015-GR Q502 8-729-201-53 TRANSISTOR 2SA1015-GR Q503 8-729-201-53 TRANSISTOR 2SA1015-GR Q504 8-729-021-74 TRANSISTOR 2SA949-OY Q505 8-729-202-67 TRANSISTOR 2SK246GR-3 Q506 8-729-119-78 TRANSISTOR 2SC2785-HFE Q507 8-729-021-73 TRANSISTOR 2SC2229-OY Q508 8-729-119-78 TRANSISTOR 2SC2785-HFE Q509 8-729-104-18 TRANSISTOR 2SC3514 Q510 8-729-104-91 TRANSISTOR 2SA1383 Q511 8-729-232-45 TRANSISTOR 2SK1529-Y Q512 8-729-232-46 TRANSISTOR 2SJ200-Y Q513 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA Q514 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA Q600 8-729-045-15 TRANSISTOR 2SC5169-FG Q601 8-729-201-53 TRANSISTOR 2SA1015-GR Q602 8-729-201-53 TRANSISTOR 2SA1015-GR Q603 8-729-201-53 TRANSISTOR 2SA1015-GR Q604 8-729-021-74 TRANSISTOR 2SA949-OY Q605 8-729-202-67 TRANSISTOR 2SK246GR-3 Q606 8-729-119-78 TRANSISTOR 2SC2785-HFE Q607 8-729-021-73 TRANSISTOR 2SC2229-OY Q608 8-729-119-78 TRANSISTOR 2SC2785-HFE Q609 8-729-104-18 TRANSISTOR 2SC3514 Q610 8-729-104-91 TRANSISTOR 2SA1383 Q611 8-729-232-45 TRANSISTOR 2SK1529-Y Q612 8-729-232-46 TRANSISTOR 2SJ200-Y MAIN INPUT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark OUTLET Q613 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA Q614 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA Q702 8-729-209-15 TRANSISTOR 2SD2012 < RESISTOR > R500 1-259-167-21 CARBON 1K 5% 1/4W R501 1-259-215-21 CARBON 100K 5% 1/4W R502 1-259-151-21 CARBON 220 5% 1/4W R503 1-259-151-21 CARBON 220 5% 1/4W R504 1-259-151-21 CARBON 220 5% 1/4W R505 1-259-179-21 CARBON 3.3K 5% 1/4W R506 1-259-151-21 CARBON 220 5% 1/4W R507 1-259-151-21 CARBON 220 5% 1/4W R508 1-249-490-11 CARBON 27K 5% 1/3W R509 1-259-175-11 CARBON 2.2K 5% 1/4W R510 1-259-183-11 CARBON 4.7K 5% 1/4W !R511 1-249-405-11 CARBON 100 5% 1/4W F R512 1-259-171-21 CARBON 1.5K 5% 1/4W R513 1-259-167-21 CARBON 1K 5% 1/4W R514 1-249-721-11 CARBON 100K 5% 1/2W R515 1-259-143-21 CARBON 100 5% 1/4W R516 1-247-749-11 CARBON 560 5% 1/2W F !R517 1-247-688-11 CARBON 10 5% 1/4W F !R518 1-247-688-11 CARBON 10 5% 1/4W F !R519 1-247-745-11 CARBON 330 5% 1/2W F !R520 1-249-405-11 CARBON 100 5% 1/4W F !R521 1-249-405-11 CARBON 100 5% 1/4W F !R522 1-208-603-11 REGISTER 0.1 10% 5W F !R523 1-208-603-11 REGISTER 0.1 10% 5W F R524 1-259-424-11 CARBON 680 5% 1/6W !R526 1-217-997-11 FUSIBLE 10 5% 1/2W F R527 1-259-484-11 CARBON 220K 5% 1/6W R532 1-259-420-11 CARBON 470 5% 1/6W R533 1-249-431-11 CARBON 15K 5% 1/4W R600 1-259-167-21 CARBON 1K 5% 1/4W R601 1-259-215-21 CARBON 100K 5% 1/4W R602 1-259-151-21 CARBON 220 5% 1/4W R603 1-259-151-21 CARBON 220 5% 1/4W R604 1-259-151-21 CARBON 220 5% 1/4W R605 1-259-179-21 CARBON 3.3K 5% 1/4W R606 1-259-151-21 CARBON 220 5% 1/4W R607 1-259-151-21 CARBON 220 5% 1/4W R608 1-249-490-11 CARBON 27K 5% 1/3W R609 1-259-175-11 CARBON 2.2K 5% 1/4W R610 1-259-183-11 CARBON 4.7K 5% 1/4W !R611 1-249-405-11 CARBON 100 5% 1/4W F R612 1-259-171-21 CARBON 1.5K 5% 1/4W R613 1-259-167-21 CARBON 1K 5% 1/4W R614 1-249-721-11 CARBON 100K 5% 1/2W R615 1-259-143-21 CARBON 100 5% 1/4W R616 1-247-749-11 CARBON 560 5% 1/2W F !R617 1-247-688-11 CARBON 10 5% 1/4W F !R618 1-247-688-11 CARBON 10 5% 1/4W F !R619 1-247-745-11 CARBON 330 5% 1/2W F !R620 1-249-405-11 CARBON 100 5% 1/4W F !R621 1-249-405-11 CARBON 100 5% 1/4W F !R622 1-208-603-11 REGISTER 0.1 10% 5W F !R623 1-208-603-11 REGISTER 0.1 10% 5W F R624 1-259-424-11 CARBON 680 5% 1/6W !R626 1-217-997-11 FUSIBLE 10 5% 1/2W F R627 1-259-484-11 CARBON 220K 5% 1/6W R632 1-259-420-11 CARBON 470 5% 1/6W R633 1-249-431-11 CARBON 15K 5% 1/4W R709 1-249-425-11 CARBON 4.7K 5% 1/4W F < VARIABLE RESISTOR > RV500 1-241-762-11 RES, ADJ, CARBON 2.2K (BIAS L) RV600 1-241-762-11 RES, ADJ, CARBON 2.2K (BIAS R) ************************************************************** * 1-669-476-11 OUTLET BOARD *********** < JACK > !CNJ3 1-526-794-11 OUTLET AC (AC OUTLET) !CNJ4 1-526-794-11 OUTLET AC (AC OUTLET) < FUSE > !F2 1-532-464-51 FUSE (T2.5AL/250V) < FUSE HOLDER > FH3 1-533-233-11 HOLDER, FUSE FH4 1-533-233-11 HOLDER, FUSE ************************************************************** A-4419-849-A PANEL BOARD, COMPLETE ******************** < CAPACITOR > C900 1-126-786-11 ELECT 47uF 20% 16V C901 1-126-916-11 ELECT 1000uF 20% 6.3V C902 1-162-294-31 CERAMIC 0.001uF 10% 50V C903 1-162-294-31 CERAMIC 0.001uF 10% 50V C904 1-164-159-11 CERAMIC 0.1uF 50V C905 1-162-294-31 CERAMIC 0.001uF 10% 50V C906 1-126-795-11 ELECT 10uF 20% 50V C907 1-162-294-31 CERAMIC 0.001uF 10% 50V C908 1-126-786-11 ELECT 47uF 20% 16V C909 1-126-795-11 ELECT 10uF 20% 50V C912 1-126-786-11 ELECT 47uF 20% 16V < CONNECTOR > * CN300 1-564-522-11 PLUG, CONNECTOR 7P * CN301 1-564-526-11 PLUG, CONNECTOR 11P CN304 1-785-438-11 CONNECTOR, BOARD TO BOARD 10P CN903 1-766-928-11 CONNECTOR, BOARD TO BOARD 8P * CN904 1-564-527-11 PLUG, CONNECTOR 12P * CN905 1-564-522-11 PLUG, CONNECTOR 7P * CN907 1-774-252-11 CONNECTOR, BOARD TO BOARD 8P PANEL MAIN The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < DIODE > D901 8-719-313-50 DIODE SEL6810A-TH12 (EON LINK) D902 8-719-313-50 DIODE SEL6810A-TH12 (PHONO) D903 8-719-313-50 DIODE SEL6810A-TH12 (TUNER) D904 8-719-313-50 DIODE SEL6810A-TH12 (CD) D905 8-719-313-50 DIODE SEL6810A-TH12 (AUX) D906 8-719-313-50 DIODE SEL6810A-TH12 (TAPE2/MD) D907 8-719-313-50 DIODE SEL6810A-TH12 (TAPE1/DAT) D910 8-719-911-19 DIODE 1SS119-25 D911 8-719-911-19 DIODE 1SS119-25 D912 8-719-911-19 DIODE 1SS119-25 D913 8-719-911-19 DIODE 1SS119-25 D914 8-719-911-19 DIODE 1SS119-25 D915 8-719-911-19 DIODE 1SS119-25 D916 8-719-024-99 DIODE 11ES2-NTA2B D917 8-719-911-19 DIODE 1SS119-25 D918 8-719-985-66 DIODE HZS5BLL-TA D919 8-719-911-19 DIODE 1SS119-25 D920 8-719-911-19 DIODE 1SS119-25 D921 8-719-911-19 DIODE 1SS119-25 D922 8-719-911-19 DIODE 1SS119-25 D923 8-719-911-19 DIODE 1SS119-25 D924 8-719-911-19 DIODE 1SS119-25 < IC > IC901 8-759-962-08 IC BA6208 IC902 8-759-392-41 IC TMP47C103N-JP47 < PHOTO INTERRUPTER > PH900 8-719-902-56 PHOTO COUPLER PC817 < TRANSISTOR > Q900 8-729-620-05 TRANSISTOR 2SC2603TP-EF Q901 8-729-900-63 TRANSISTOR DTA124ES Q902 8-729-900-63 TRANSISTOR DTA124ES Q903 8-729-900-80 TRANSISTOR DTC114ES Q904 8-729-422-57 TRANSISTOR UN4111 Q905 8-729-422-57 TRANSISTOR UN4111 Q906 8-729-422-57 TRANSISTOR UN4111 Q907 8-729-119-78 TRANSISTOR 2SC2785-HFE Q908 8-729-620-05 TRANSISTOR 2SC2603TP-EF Q909 8-729-620-05 TRANSISTOR 2SC2603TP-EF Q910 8-729-422-57 TRANSISTOR UN4111 Q911 8-729-201-53 TRANSISTOR 2SA1015TP-YGR Q920 8-729-422-57 TRANSISTOR UN4111 Q921 8-729-422-57 TRANSISTOR UN4111 Q922 8-729-422-57 TRANSISTOR UN4111 Q923 8-729-422-57 TRANSISTOR UN4111 Q924 8-729-422-57 TRANSISTOR UN4111 Q925 8-729-422-57 TRANSISTOR UN4111 < RESISTOR > R310 1-259-464-11 CARBON 33K 5% 1/6W R311 1-259-446-11 CARBON 5.6K 5% 1/6W R410 1-259-464-11 CARBON 33K 5% 1/6W R411 1-259-446-11 CARBON 5.6K 5% 1/6W R901 1-249-393-11 CARBON 10 5% 1/4W F R905 1-249-429-11 CARBON 10K 5% 1/4W R906 1-249-429-11 CARBON 10K 5% 1/4W R907 1-249-429-11 CARBON 10K 5% 1/4W R908 1-249-437-11 CARBON 47K 5% 1/4W R909 1-249-429-11 CARBON 10K 5% 1/4W R910 1-249-401-11 CARBON 47 5% 1/4W F R911 1-249-411-11 CARBON 330 5% 1/4W R912 1-249-429-11 CARBON 10K 5% 1/4W R913 1-249-425-11 CARBON 4.7K 5% 1/4W F R914 1-247-807-31 CARBON 100 5% 1/4W R917 1-249-433-11 CARBON 22K 5% 1/4W R918 1-249-421-11 CARBON 2.2K 5% 1/4W F R919 1-249-421-11 CARBON 2.2K 5% 1/4W F R920 1-249-429-11 CARBON 10K 5% 1/4W R921 1-249-429-11 CARBON 10K 5% 1/4W R922 1-249-429-11 CARBON 10K 5% 1/4W R923 1-249-429-11 CARBON 10K 5% 1/4W R924 1-249-429-11 CARBON 10K 5% 1/4W R958 1-249-403-11 CARBON 68 5% 1/4W F < SWITCH > S301 1-571-112-21 SWITCH, PUSH (1 KEY)(SUBSONIC OFF<-ON) S302 1-762-393-11 SWITCH, PUSH (SOURCE DIRECT) S303 1-762-387-11 SWITCH, PUSH (LOUDNESS OFF<-ON) S801 1-771-384-11 SWITCH, ROTARY (SPEAKERS) S901 1-762-203-11 SWITCH, PUSH (1 KEY)(EON LINK) S902 1-771-383-12 SWITCH, ROTARY (INPUT SELECTOR) S903 1-762-656-11 SWITCH, ROTARY (TAPE MONITOR) < VIBRATOR > X900 1-577-358-21 VIBRATOR, CERAMIC (4MHz) ************************************************************** A-4419-860-A PHONO BOARD, COMPLETE ********************** < CAPACITOR > C150 1-102-978-00 CERAMIC 220PF 5% 50V C151 1-126-059-11 ELECT 10uF 20% 50V C152 1-136-808-11 FILM 100PF 5% 100V C153 1-106-359-00 MYLAR 4700PF 5% 200V C154 1-126-023-11 ELECT 100uF 20% 16V C155 1-130-341-00 FILM 0.056uF 3% 100V C156 1-130-971-00 FILM 0.016uF 3% 100V C157 1-126-059-11 ELECT 10uF 20% 50V C170 1-126-023-11 ELECT 100uF 20% 16V C171 1-126-023-11 ELECT 100uF 20% 16V C172 1-126-023-11 ELECT 100uF 20% 16V C250 1-102-978-00 CERAMIC 220PF 5% 50V C251 1-126-059-11 ELECT 10uF 20% 50V C252 1-136-808-11 FILM 100PF 5% 100V C253 1-106-359-00 MYLAR 4700PF 5% 200V C254 1-126-023-11 ELECT 100uF 20% 16V C255 1-130-341-00 FILM 0.056uF 3% 100V C256 1-130-971-00 FILM 0.016uF 3% 100V PANEL PHONO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark PHONO C257 1-126-059-11 ELECT 10uF 20% 50V < CONNECTOR > CN151 1-691-768-11 PLUG (MICRO CONNECTOR) 6P < DIODE > D170 8-719-985-97 DIODE HZS7B1LTA < IC > IC150 8-759-701-25 IC NJM2068D-D < JACK > J150 1-784-933-11 JACK 2P (PHONO IN) < COIL > L150 1-410-977-11 INDUCTOR 100uH L151 1-410-977-11 INDUCTOR 100uH L250 1-410-977-11 INDUCTOR 100uH L251 1-410-977-11 INDUCTOR 100uH < TRANSISTOR > Q150 8-729-354-52 TRANSISTOR 2SC2545 Q151 8-729-354-52 TRANSISTOR 2SC2545 Q250 8-729-354-52 TRANSISTOR 2SC2545 Q251 8-729-354-52 TRANSISTOR 2SC2545 < RESISTOR > R150 1-259-175-11 CARBON 2.2K 5% 1/4W R151 1-249-911-11 CARBON 330 5% 1/4W R152 1-259-215-21 CARBON 100K 5% 1/4W R153 1-259-215-21 CARBON 100K 5% 1/4W R154 1-259-161-21 CARBON 560 5% 1/4W R155 1-259-161-21 CARBON 560 5% 1/4W R156 1-259-143-21 CARBON 100 5% 1/4W R157 1-259-191-21 CARBON 10K 5% 1/4W R158 1-249-900-11 CARBON 110 5% 1/4W R159 1-249-844-11 CARBON 56K 1% 1/2W R160 1-259-320-11 CARBON 4.7K 1% 1/2W R161 1-259-239-11 CARBON 1M 5% 1/4W R162 1-259-167-21 CARBON 1K 5% 1/4W R170 1-259-171-21 CARBON 1.5K 5% 1/4W R250 1-259-175-11 CARBON 2.2K 5% 1/4W R251 1-249-911-11 CARBON 330 5% 1/4W R252 1-259-215-21 CARBON 100K 5% 1/4W R253 1-259-215-21 CARBON 100K 5% 1/4W R254 1-259-161-21 CARBON 560 5% 1/4W R255 1-259-161-21 CARBON 560 5% 1/4W R256 1-259-143-21 CARBON 100 5% 1/4W R257 1-259-191-21 CARBON 10K 5% 1/4W R258 1-249-900-11 CARBON 110 5% 1/4W R259 1-249-844-11 CARBON 56K 1% 1/2W R260 1-259-320-11 CARBON 4.7K 1% 1/2W R261 1-259-239-11 CARBON 1M 5% 1/4W R262 1-259-167-21 CARBON 1K 5% 1/4W ************************************************************** A-4419-859-A PS BOARD, COMPLETE ***************** < CAPACITOR > C750 1-128-974-11 ELECT 10000uF 20% 56V C751 1-128-974-11 ELECT 10000uF 20% 56V C752 1-113-618-11 ELECT 2200uF 20% 56V C753 1-113-618-11 ELECT 2200uF 20% 56V C754 1-137-398-11 FILM 0.068uF 5% 100V C755 1-137-398-11 FILM 0.068uF 5% 100V C756 1-104-999-11 MYLAR 0.1uF 10% 200V C757 1-137-352-11 FILM 0.033uF 5% 100V C758 1-137-352-11 FILM 0.033uF 5% 100V < CONNECTOR > CN1 1-774-108-11 PIN, CONNECTOR (PC BOARD) CN2 1-564-321-00 PIN, CONNECTOR 2P CN3 1-564-321-00 PIN, CONNECTOR 2P * CN4 1-564-321-21 PIN, CONNECTOR 2P * CN750 1-564-242-00 PIN, CONNECTOR 5P * CN751 1-766-920-11 PIN, CONNECTOR 4P CN752 1-770-832-11 CONNECTOR, BOARD TO BOARD 6P < DIODE > D751 8-719-230-02 DIODE 30DF2-FC D752 8-719-230-02 DIODE 30DF2-FC D753 8-719-230-02 DIODE 30DF2-FC D754 8-719-230-02 DIODE 30DF2-FC D755 8-719-024-99 DIODE 11ES2-NTA2B D756 8-719-024-99 DIODE 11ES2-NTA2B D757 8-719-024-99 DIODE 11ES2-NTA2B D758 8-719-024-99 DIODE 11ES2-NTA2B < FUSE > !F1 1-532-504-51 FUSE (T4.0AL/250V) < FUSE HOLDER > FH1 1-533-233-11 HOLDER, FUSE FH2 1-533-233-11 HOLDER, FUSE < RESISTOR > !R750 1-212-974-00 FUSIBLE 47 5% 1/2W F ************************************************************** * 1-669-492-11 S-D LED BOARD ************ < CONNECTOR > CN910 1-691-758-51 PIN, CONNECTOR 3P < DIODE > D908 8-719-046-38 DIODE SEL5821A-TH8F (SOURCE DIRECT) PS The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. S-D LED www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark TONE < RESISTOR > R927 1-249-406-11 CARBON 120 5% 1/4W F ************************************************************** * 1-669-490-11 SIRCS BOARD ********** < CONNECTOR > CN900 1-691-766-11 PLUG (MICRO CONNECTOR) 4P * CN911 1-560-666-00 PIN, CONNECTOR 3P < DIODE > D900 8-719-046-46 DIODE SEL5221S-TH8F (PROTECTION) < RESISTOR > R900 1-249-409-11 CARBON 220 5% 1/4W F ************************************************************** * 1-670-219-11 SIRCS SUB BOARD ************** < CONNECTOR > * CN912 1-565-835-11 SOCKET, CONNECTOR 3P < IC > IC900 8-759-459-86 IC NJL64H400A (REMOTE CONTROL SENSOR) ************************************************************** A-4419-858-A SP-TM BOARD, COMPLETE ******************** < CAPACITOR > C515 1-162-282-31 CERAMIC 100PF 10% 50V C516 1-162-282-31 CERAMIC 100PF 10% 50V C615 1-162-282-31 CERAMIC 100PF 10% 50V C616 1-162-282-31 CERAMIC 100PF 10% 50V C700 1-126-965-11 ELECT 22uF 20% 50V C701 1-136-163-00 FILM 0.068uF 5% 50V C702 1-124-995-11 ELECT 220uF 20% 10V C703 1-136-157-00 FILM 0.022uF 5% 50V C704 1-104-664-11 ELECT 47uF 20% 16V C705 1-104-664-11 ELECT 47uF 20% 16V C706 1-137-150-11 MYLAR 0.01uF 10% 100V C707 1-137-150-11 MYLAR 0.01uF 10% 100V C708 1-128-578-11 ELECT 1uF 20% 100V C709 1-128-556-11 ELECT 1000uF 20% 63V C710 1-128-553-11 ELECT 220uF 20% 63V C711 1-128-582-11 ELECT 10uF 20% 63V C715 1-164-159-11 CERAMIC 0.1uF 50V < CONNECTOR > CN702 1-770-831-11 CONNECTOR, BOARD TO BOARD 6P CN703 1-566-212-11 PIN, CONNECTOR 3P (EON CONTROL) < DIODE > D511 8-719-911-19 DIODE 1SS119-25 D512 8-719-911-19 DIODE 1SS119-25 D513 8-719-911-19 DIODE 1SS119-25 D700 8-719-024-99 DIODE 11ES2-NTA2B D701 8-719-024-99 DIODE 11ES2-NTA2B D702 8-719-024-99 DIODE 11ES2-NTA2B < IC > IC700 8-759-111-68 IC uPC1237HA < COIL > L501 1-411-906-11 COIL, AIR-CORE L601 1-411-906-11 COIL, AIR-CORE < TRANSISTOR > Q700 8-729-119-76 TRANSISTOR 2SA1115-EF Q701 8-729-119-78 TRANSISTOR 2SC2785-HFE < RESISTOR > R528 1-249-162-11 CARBON 10 5% 1/3W R529 1-247-750-11 CARBON 680 5% 1/2W F !R530 1-212-857-00 FUSIBLE 10 5% 1/4W F !R531 1-212-857-00 FUSIBLE 10 5% 1/4W F R628 1-249-162-11 CARBON 10 5% 1/3W R629 1-247-750-11 CARBON 680 5% 1/2W F !R630 1-212-857-00 FUSIBLE 10 5% 1/4W F !R631 1-212-857-00 FUSIBLE 10 5% 1/4W F R700 1-249-439-11 CARBON 68K 5% 1/4W R701 1-249-429-11 CARBON 10K 5% 1/4W R702 1-249-429-11 CARBON 10K 5% 1/4W R703 1-259-476-11 CARBON 100K 5% 1/6W R704 1-249-433-11 CARBON 22K 5% 1/4W R705 1-247-883-00 CARBON 150K 5% 1/4W R706 1-249-431-11 CARBON 15K 5% 1/4W R707 1-249-429-11 CARBON 10K 5% 1/4W !R708 1-213-082-61 FUSIBLE 82 5% 1W R710 1-247-747-11 CARBON 470 5% 1/2W R711 1-247-747-11 CARBON 470 5% 1/2W < RELAY > RY501 1-515-921-11 RELAY (12V) RY502 1-515-921-11 RELAY (12V) RY503 1-515-920-11 RELAY (24V) < TERMINAL > TM501 1-537-740-11 TERMINAL BOARD (SPEAKERS) ************************************************************** A-4419-850-A TONE BOARD, COMPLETE ******************* < CAPACITOR > C300 1-136-171-00 FILM 0.33uF 5% 50V C301 1-130-475-00 MYLAR 0.0022uF 5% 50V S-D LED SIRCS SIRCS SUB The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. SP-TM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 Sony Corporation Home Audio Company 9-928-930-11 99F097541-1 Printed in Hungary © 1999. 6 Published by Quality Assurance Dept. TA-FB930R Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark VOL C302 1-136-153-00 FILM 0.01uF 5% 50V C303 1-136-155-00 FILM 0.015uF 5% 50V C304 1-136-165-00 FILM 0.1uF 5% 50V C305 1-136-165-00 FILM 0.1uF 5% 50V C306 1-130-471-00 MYLAR 0.001uF 5% 50V C400 1-136-171-00 FILM 0.33uF 5% 50V C401 1-130-475-00 MYLAR 0.0022uF 5% 50V C402 1-136-153-00 FILM 0.01uF 5% 50V C403 1-136-155-00 FILM 0.015uF 5% 50V C404 1-136-165-00 FILM 0.1uF 5% 50V C405 1-136-165-00 FILM 0.1uF 5% 50V C406 1-130-471-00 MYLAR 0.001uF 5% 50V < CONNECTOR > CN305 1-785-440-11 CONNECTOR, BOARD TO BOARD 10P * CN801 1-564-524-11 PLUG, CONNECTOR 9P * CN802 1-564-519-11 PLUG, CONNECTOR 4P CN901 1-785-420-11 CONNECTOR, BOARD TO BOARD 8P CN908 1-785-439-11 CONNECTOR, BOARD TO BOARD 8P < RESISTOR > R300 1-259-500-11 CARBON 1M 5% 1/6W R301 1-259-500-11 CARBON 1M 5% 1/6W R302 1-259-446-11 CARBON 5.6K 5% 1/6W R303 1-259-436-11 CARBON 2.2K 5% 1/6W R304 1-259-500-11 CARBON 1M 5% 1/6W R305 1-259-464-11 CARBON 33K 5% 1/6W R306 1-259-456-11 CARBON 15K 5% 1/6W R307 1-259-446-11 CARBON 5.6K 5% 1/6W R308 1-259-456-11 CARBON 15K 5% 1/6W R309 1-259-500-11 CARBON 1M 5% 1/6W R391 1-249-429-11 CARBON 10K 5% 1/4W R392 1-249-429-11 CARBON 10K 5% 1/4W R393 1-249-429-11 CARBON 10K 5% 1/4W R400 1-259-500-11 CARBON 1M 5% 1/6W R401 1-259-500-11 CARBON 1M 5% 1/6W R402 1-259-446-11 CARBON 5.6K 5% 1/6W R403 1-259-436-11 CARBON 2.2K 5% 1/6W R404 1-259-500-11 CARBON 1M 5% 1/6W R405 1-259-464-11 CARBON 33K 5% 1/6W R406 1-259-456-11 CARBON 15K 5% 1/6W R407 1-259-446-11 CARBON 5.6K 5% 1/6W R408 1-259-456-11 CARBON 15K 5% 1/6W R409 1-259-500-11 CARBON 1M 5% 1/6W R801 1-247-751-11 CARBON 820 5% 1/2W R802 1-247-751-11 CARBON 820 5% 1/2W R803 1-247-751-11 CARBON 820 5% 1/2W R804 1-247-751-11 CARBON 820 5% 1/2W R805 1-247-751-11 CARBON 820 5% 1/2W R806 1-247-751-11 CARBON 820 5% 1/2W R807 1-247-747-11 CARBON 470 5% 1/2W R808 1-247-747-11 CARBON 470 5% 1/2W R809 1-247-747-11 CARBON 470 5% 1/2W R810 1-247-747-11 CARBON 470 5% 1/2W R902 1-247-751-11 CARBON 820 5% 1/2W R904 1-249-429-11 CARBON 10K 5% 1/4W R916 1-247-239-00 CARBON 910 5% 1/2W < VARIABLE RESISTOR > RV301 1-225-642-11 RES, VAR, CARBON 250K/250K (BALANCE) RV302 1-225-643-11 RES, VAR, CARBON 250K/250K (TREBLE TONE) RV303 1-225-644-11 RES, VAR, CARBON 900K/900K (BASS TONE) ************************************************************** * 1-669-489-11 VOL BOARD ******** < CAPACITOR > C310 1-136-165-00 FILM 0.1uF 5% 50V < CONNECTOR > CN302 1-691-772-11 PLUG (MICRO CONNECTOR) 10P CN303 1-691-768-11 PLUG (MICRO CONNECTOR) 6P < VARIABLE RESISTOR > RV300 1-225-675-11 RES, VAR, CARBON 120K/120K (VOLUME) ************************************************************** MISCELLANEOUS ************* !11 1-777-185-11 CORD, POWER !CNJ3 1-526-794-11 OUTLET, AC !CNJ4 1-526-794-11 OUTLET, AC Q511 8-729-232-45 TRANSISTOR 2SK1529-Y Q512 8-729-232-46 TRANSISTOR 2SJ200-Y Q611 8-729-232-45 TRANSISTOR 2SK1529-Y Q612 8-729-232-46 TRANSISTOR 2SJ200-Y Q702 8-729-209-15 TRANSISTOR 2SD2012 !S1 1-554-920-11 SWITCH, PUSH (AC POWER)(1 KEY) !T1 1-433-952-11 TRANSFORMER, POWER ************************************************************** ACCESSORIES & PACKING MATERIALS ******************************* 1-473-656-11 REMOTE COMMANDER (RM-S316) 3-866-636-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH, SPANISH, PORTUGUESE) 3-866-636-21 MANUAL, INSTRUCTION (GERMAN, DUTCH, SWEDISH, ITALIAN) 4-981-643-01 COVER, BATTERY (FOR RM-S316) ************************************************************** ************** HARDWARE LIST ************** #1 7-682-548-09 SCREW +B 3X8 #2 7-685-534-14 SCREW +BTP 2.6X8 TYPE2 N-S (SILVER) #2 7-685-534-19 SCREW +BTP 2.6X8 TYPE2 N-S (BLACK) #3 7-685-885-09 SCREW +BVTT 4X16 (S) #4 7-685-872-09 SCREW +BVTT 3X8 (S) TONE The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
