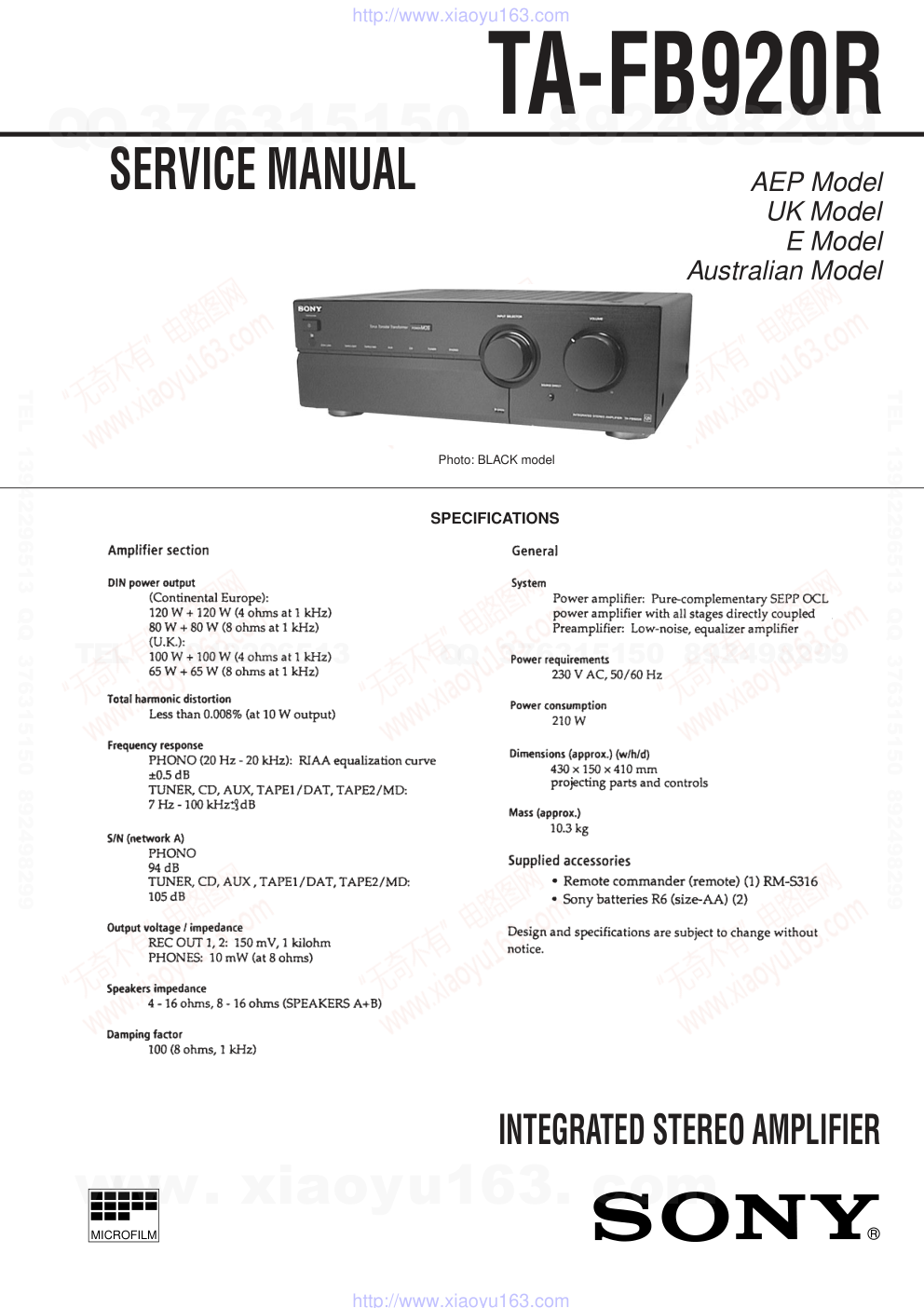

'– 1 –
MICROFILM
AEP Model
UK Model
E Model
Australian Model
SPECIFICATIONS
SERVICE MANUAL
INTEGRATED STEREO AMPLIFIER
TA-FB920R
Photo: BLACK model
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 2 –
SAFETY-RELATED COMPONENT WARNING !!
COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE
WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

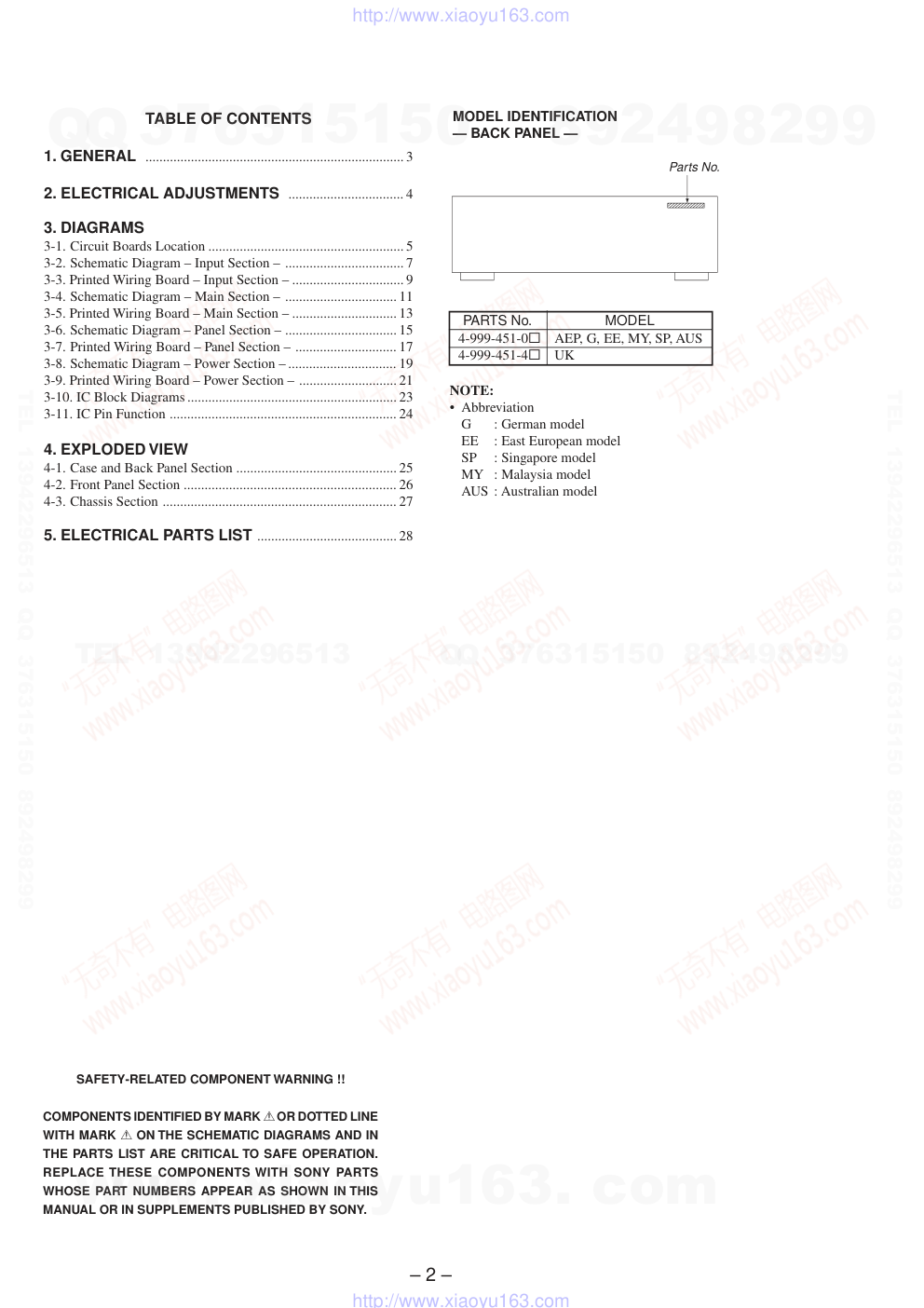

TABLE OF CONTENTS
1. GENERAL .......................................................................... 3
2. ELECTRICAL ADJUSTMENTS ................................. 4
3. DIAGRAMS
3-1. Circuit Boards Location ........................................................ 5
3-2. Schematic Diagram – Input Section – .................................. 7
3-3. Printed Wiring Board – Input Section – ................................ 9
3-4. Schematic Diagram – Main Section – ................................ 11
3-5. Printed Wiring Board – Main Section – .............................. 13
3-6. Schematic Diagram – Panel Section – ................................ 15
3-7. Printed Wiring Board – Panel Section – ............................. 17
3-8. Schematic Diagram – Power Section – ............................... 19
3-9. Printed Wiring Board – Power Section – ............................ 21
3-10. IC Block Diagrams ............................................................ 23
3-11. IC Pin Function ................................................................. 24
4. EXPLODED VIEW
4-1. Case and Back Panel Section .............................................. 25
4-2. Front Panel Section ............................................................. 26
4-3. Chassis Section ................................................................... 27
5. ELECTRICAL PARTS LIST ........................................ 28
PARTS No.
MODEL
MODEL IDENTIFICATION
— BACK PANEL —
4-999-451-0π
4-999-451-4π
AEP, G, EE, MY, SP, AUS
UK
Parts No.
NOTE:
• Abbreviation
G
: German model
EE
: East European model
SP
: Singapore model
MY : Malaysia model
AUS : Australian model
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 3 –

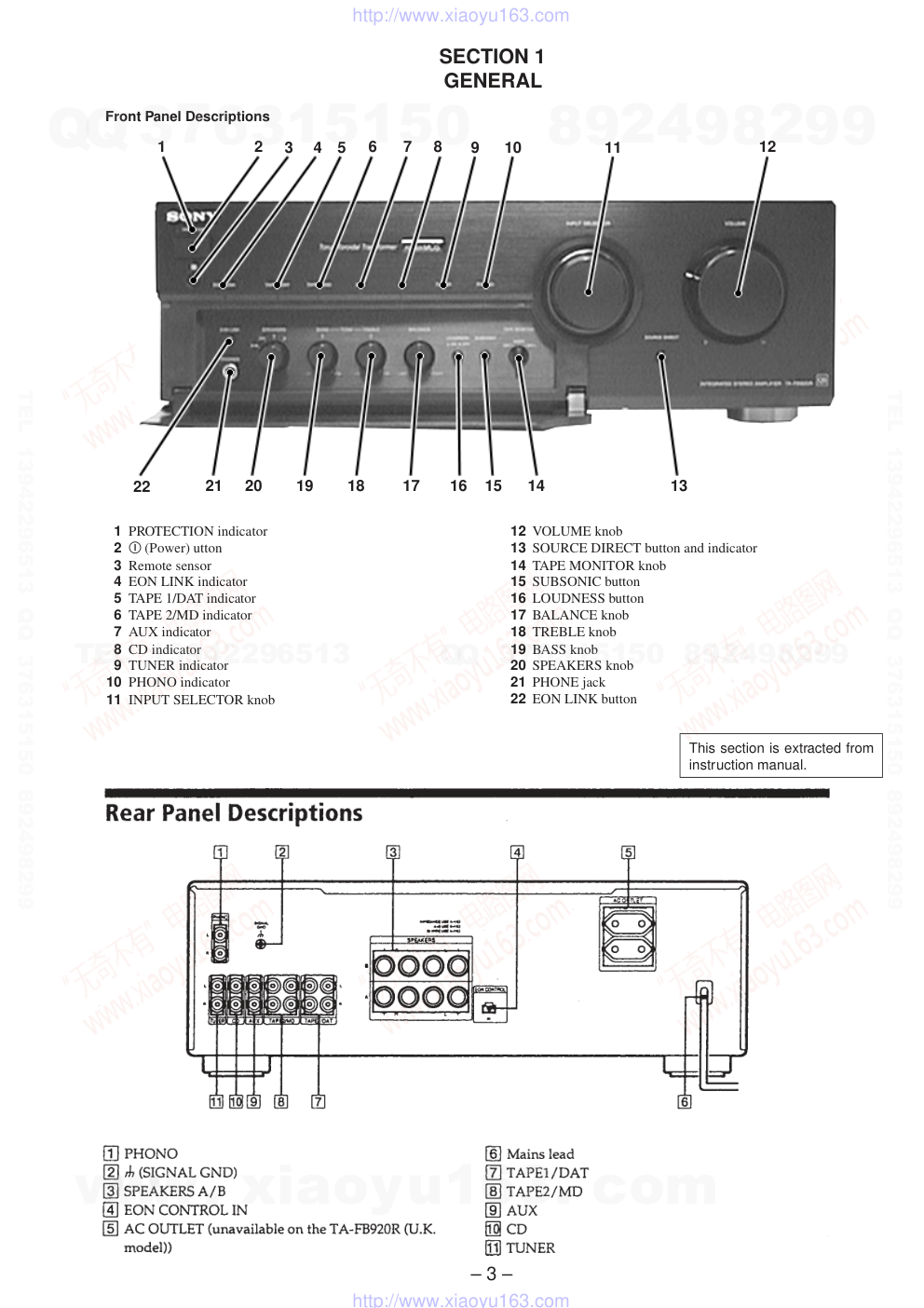

Front Panel Descriptions
SECTION 1
GENERAL
1 PROTECTION indicator
2 U (Power) utton
3 Remote sensor
4 EON LINK indicator
5 TAPE 1/DAT indicator
6 TAPE 2/MD indicator
7 AUX indicator
8 CD indicator
9 TUNER indicator
10 PHONO indicator
11 INPUT SELECTOR knob
12 VOLUME knob
13 SOURCE DIRECT button and indicator
14 TAPE MONITOR knob
15 SUBSONIC button
16 LOUDNESS button
17 BALANCE knob
18 TREBLE knob
19 BASS knob
20 SPEAKERS knob
21 PHONE jack
22 EON LINK button
9
7
8
2
3
4
6
5
1
10
11
13
12
14
15
16
17
18
19
20
21
22
This section is extracted from
instruction manual.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 4 –

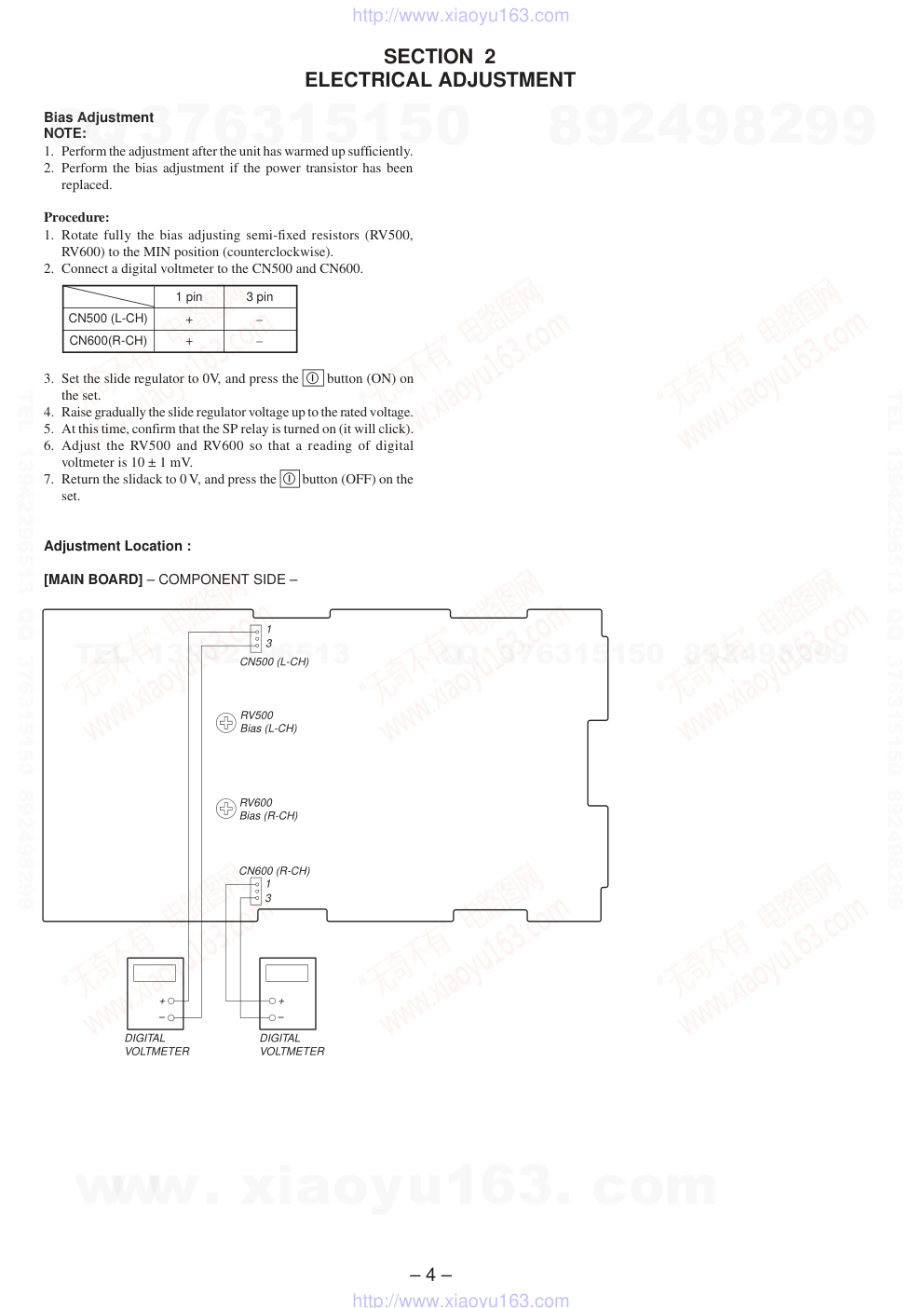

SECTION  2
ELECTRICAL ADJUSTMENT
Bias Adjustment
NOTE:
1. Perform the adjustment after the unit has warmed up sufficiently.
2. Perform the bias adjustment if the power transistor has been
replaced.
Procedure:
1. Rotate fully the bias adjusting semi-fixed resistors (RV500,
RV600) to the MIN position (counterclockwise).
2. Connect a digital voltmeter to the CN500 and CN600.
1 pin
3 pin
–
–
+
+
CN500 (L-CH)
CN600(R-CH)
3. Set the slide regulator to 0V, and press the  U  button (ON) on
the set.
4. Raise gradually the slide regulator voltage up to the rated voltage.
5. At this time, confirm that the SP relay is turned on (it will click).
6. Adjust the RV500 and RV600 so that a reading of digital
voltmeter is 10 ± 1 mV.
7. Return the slidack to 0 V, and press the  U  button (OFF) on the
set.
Adjustment Location :
[MAIN BOARD] – COMPONENT SIDE –
+
CN600 (R-CH)
1
3
CN500 (L-CH)
1
3
RV600
Bias (R-CH)
RV500
Bias (L-CH)
DIGITAL
VOLTMETER
DIGITAL
VOLTMETER
+
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 5 –
– 6 –
SECTION  3
DIAGRAMS

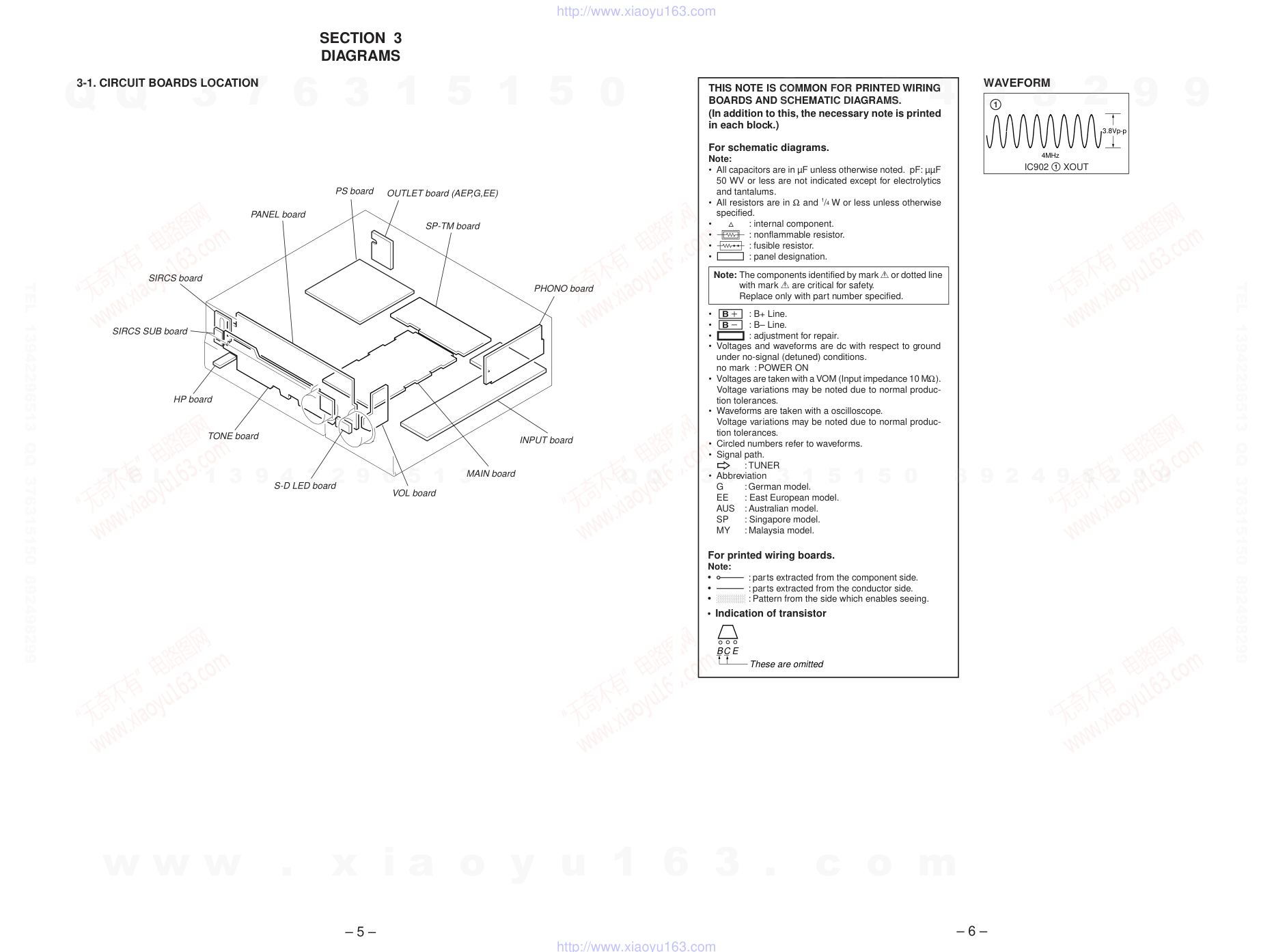

3-1. CIRCUIT BOARDS LOCATION
THIS NOTE IS COMMON FOR PRINTED WIRING
BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed
in each block.)
For schematic diagrams.
Note:
• All capacitors are in µF unless otherwise noted.  pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and 1/4 W or less unless otherwise
specified.
•
¢
: internal component.
• 2 : nonflammable resistor.
• 5 : fusible resistor.
• C : panel designation.
For printed wiring boards.
Note:
• X : parts extracted from the component side.
• Y : parts extracted from the conductor side.
• b : Pattern from the side which enables seeing.
• U : B+ Line.
• V : B– Line.
• H : adjustment for repair.
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : POWER ON
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
• Circled numbers refer to waveforms.
• Signal path.
F
: TUNER
• Abbreviation
G
: German model.
EE
: East European model.
AUS
: Australian model.
SP
: Singapore model.
MY
: Malaysia model.
WAVEFORM
1
IC902 1 XOUT
Note: The components identified by mark ! or dotted line
with mark ! are critical for safety.
Replace only with part number specified.
• Indication of transistor
C
These are omitted
E
B
4MHz
3.8Vp-p
PANEL board
TONE board
INPUT board
MAIN board
SP-TM board
PHONO board
PS board
OUTLET board (AEP,G,EE)
VOL board
SIRCS board
SIRCS SUB board
HP board
S-D LED board
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 7 –
– 8 –
TA-FB920R

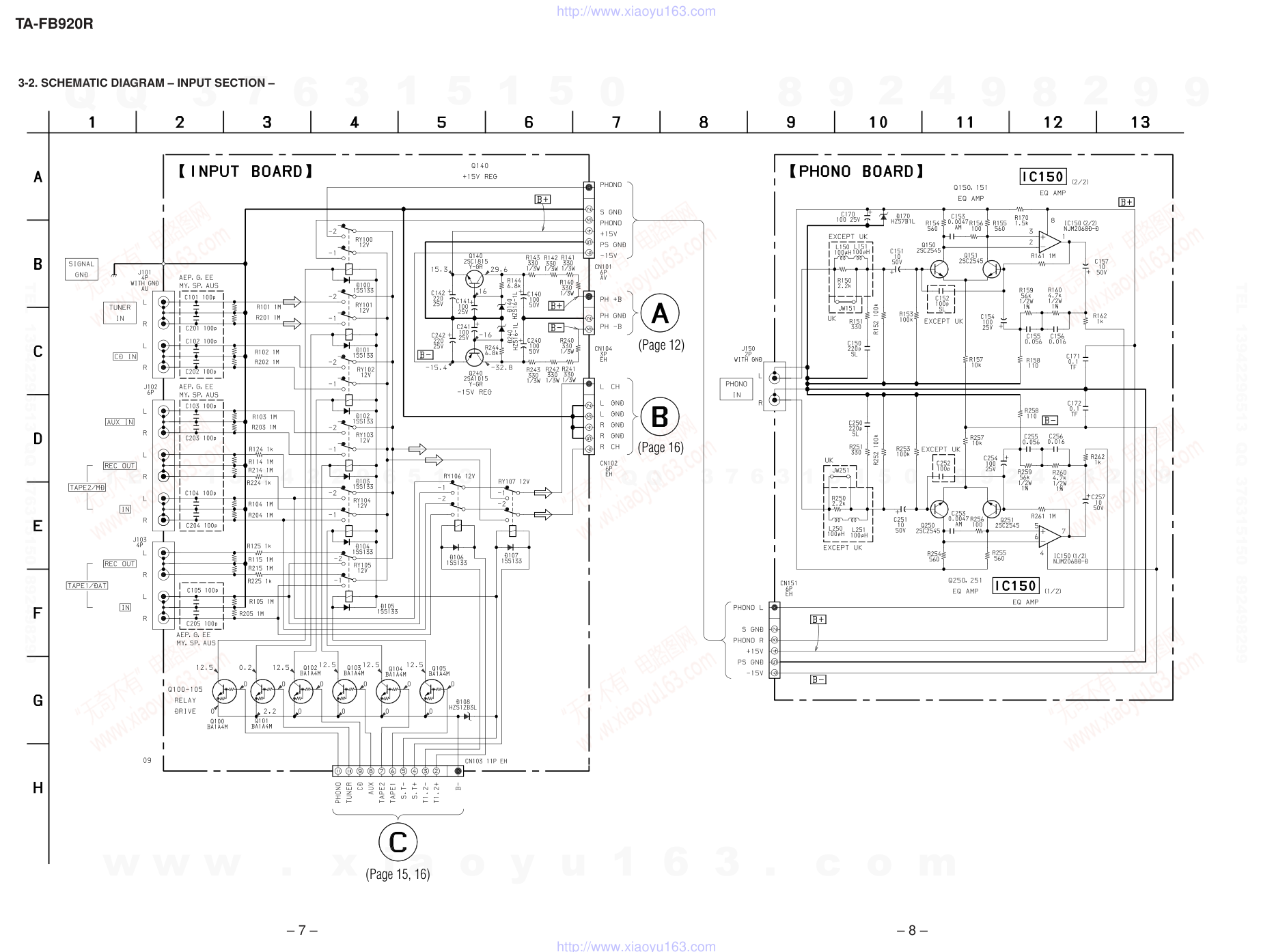

3-2. SCHEMATIC DIAGRAM – INPUT SECTION –
(Page 12)
(Page 16)
(Page 15, 16)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 9 –
– 10 –
TA-FB920R

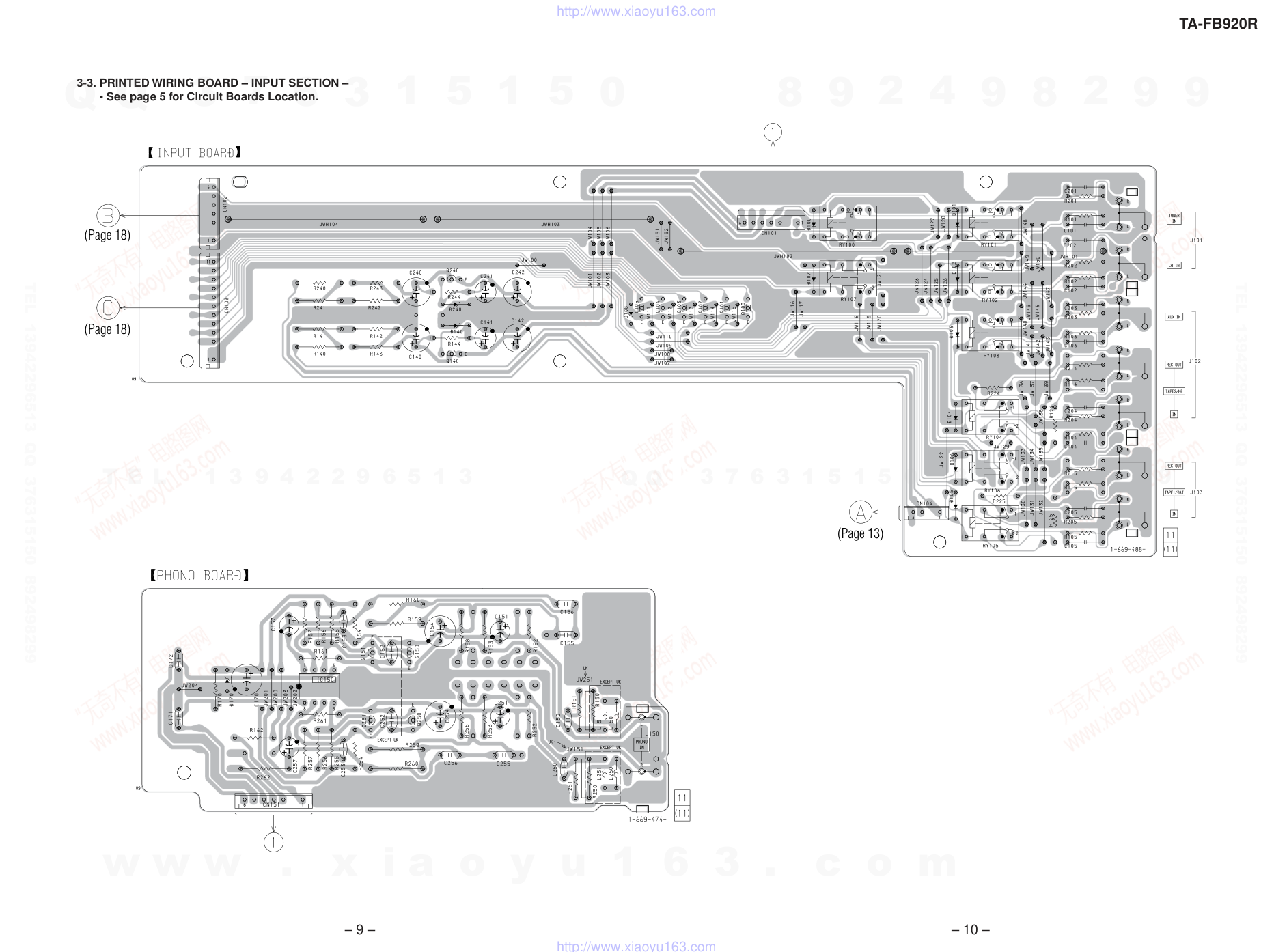

3-3. PRINTED WIRING BOARD – INPUT SECTION –
• See page 5 for Circuit Boards Location.
(Page 18)
(Page 18)
(Page 13)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 11 –
– 12 –
TA-FB920R

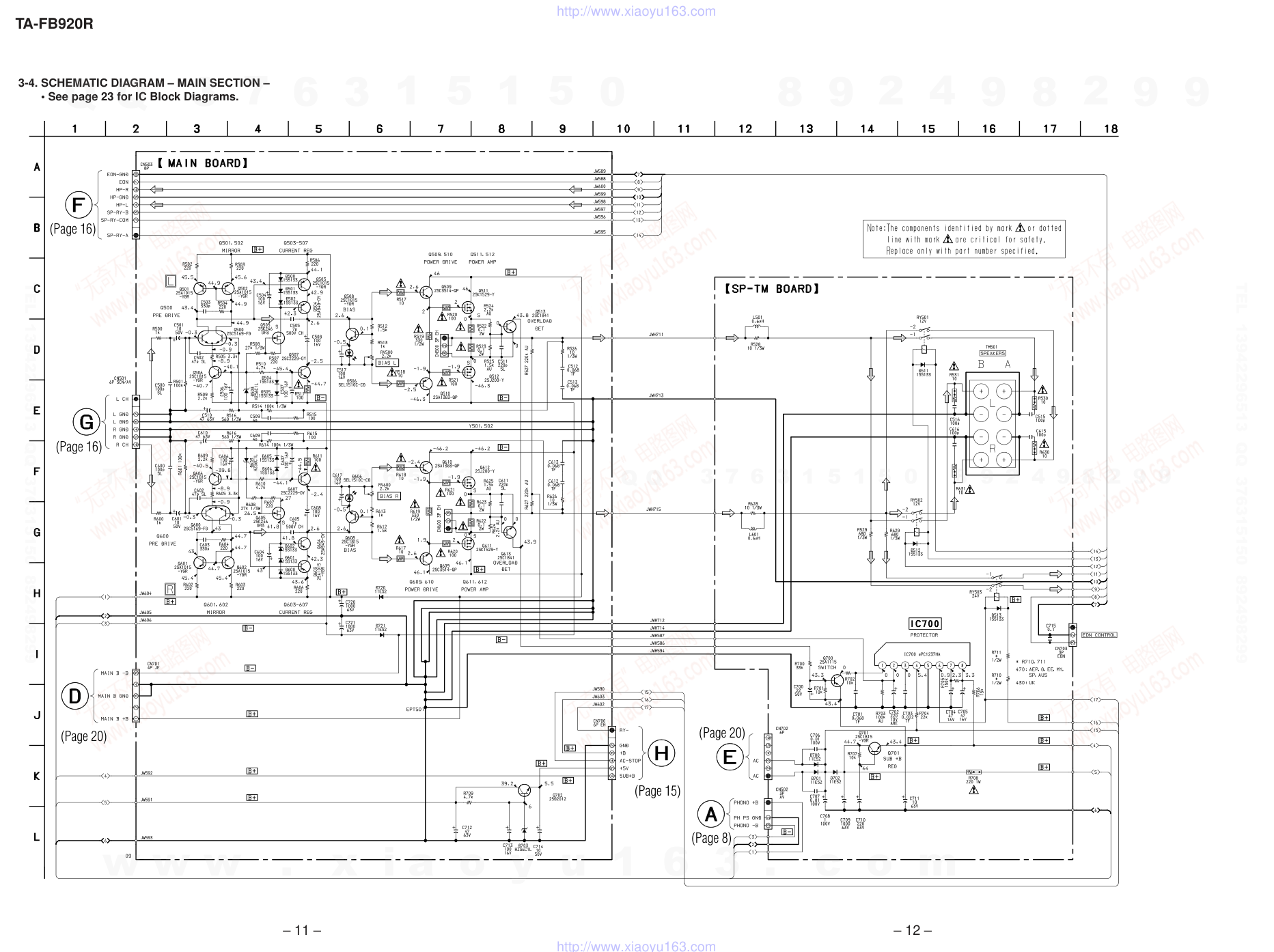

3-4. SCHEMATIC DIAGRAM – MAIN SECTION –
• See page 23 for IC Block Diagrams.
(Page 16)
(Page 16)
(Page 20)
(Page 15)
(Page 20)
(Page 8)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 13 –
– 14 –
TA-FB920R

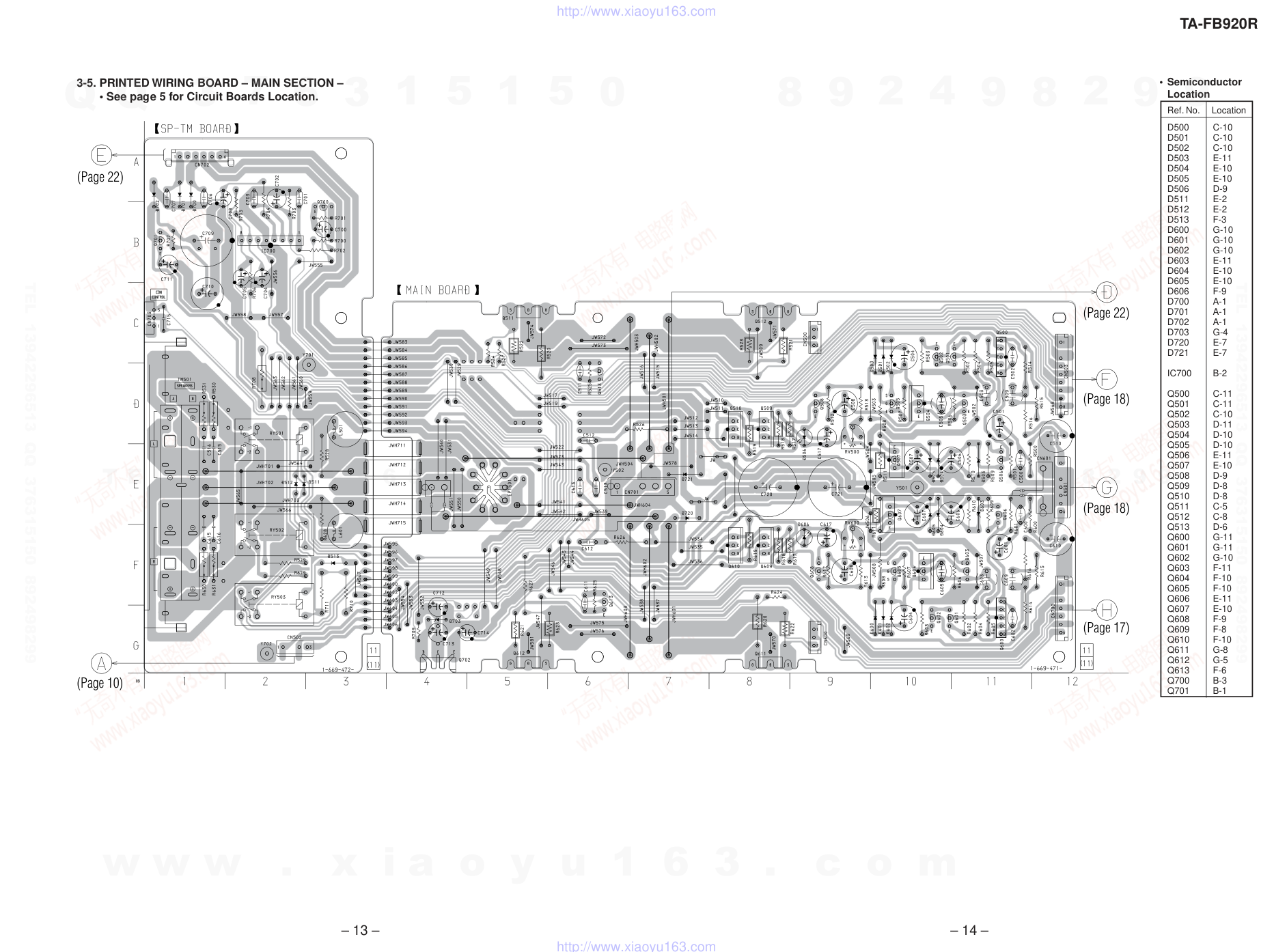

3-5. PRINTED WIRING BOARD – MAIN SECTION –
• See page 5 for Circuit Boards Location.
Ref. No.
Location
• Semiconductor
Location
D500
C-10
D501
C-10
D502
C-10
D503
E-11
D504
E-10
D505
E-10
D506
D-9
D511
E-2
D512
E-2
D513
F-3
D600
G-10
D601
G-10
D602
G-10
D603
E-11
D604
E-10
D605
E-10
D606
F-9
D700
A-1
D701
A-1
D702
A-1
D703
G-4
D720
E-7
D721
E-7
IC700
B-2
Q500
C-11
Q501
C-11
Q502
C-10
Q503
D-11
Q504
D-10
Q505
D-10
Q506
E-11
Q507
E-10
Q508
D-9
Q509
D-8
Q510
D-8
Q511
C-5
Q512
C-8
Q513
D-6
Q600
G-11
Q601
G-11
Q602
G-10
Q603
F-11
Q604
F-10
Q605
F-10
Q606
E-11
Q607
E-10
Q608
F-9
Q609
F-8
Q610
F-10
Q611
G-8
Q612
G-5
Q613
F-6
Q700
B-3
Q701
B-1
(Page 22)
(Page 10)
(Page 22)
(Page 18)
(Page 18)
(Page 17)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 15 –
– 16 –
TA-FB920R

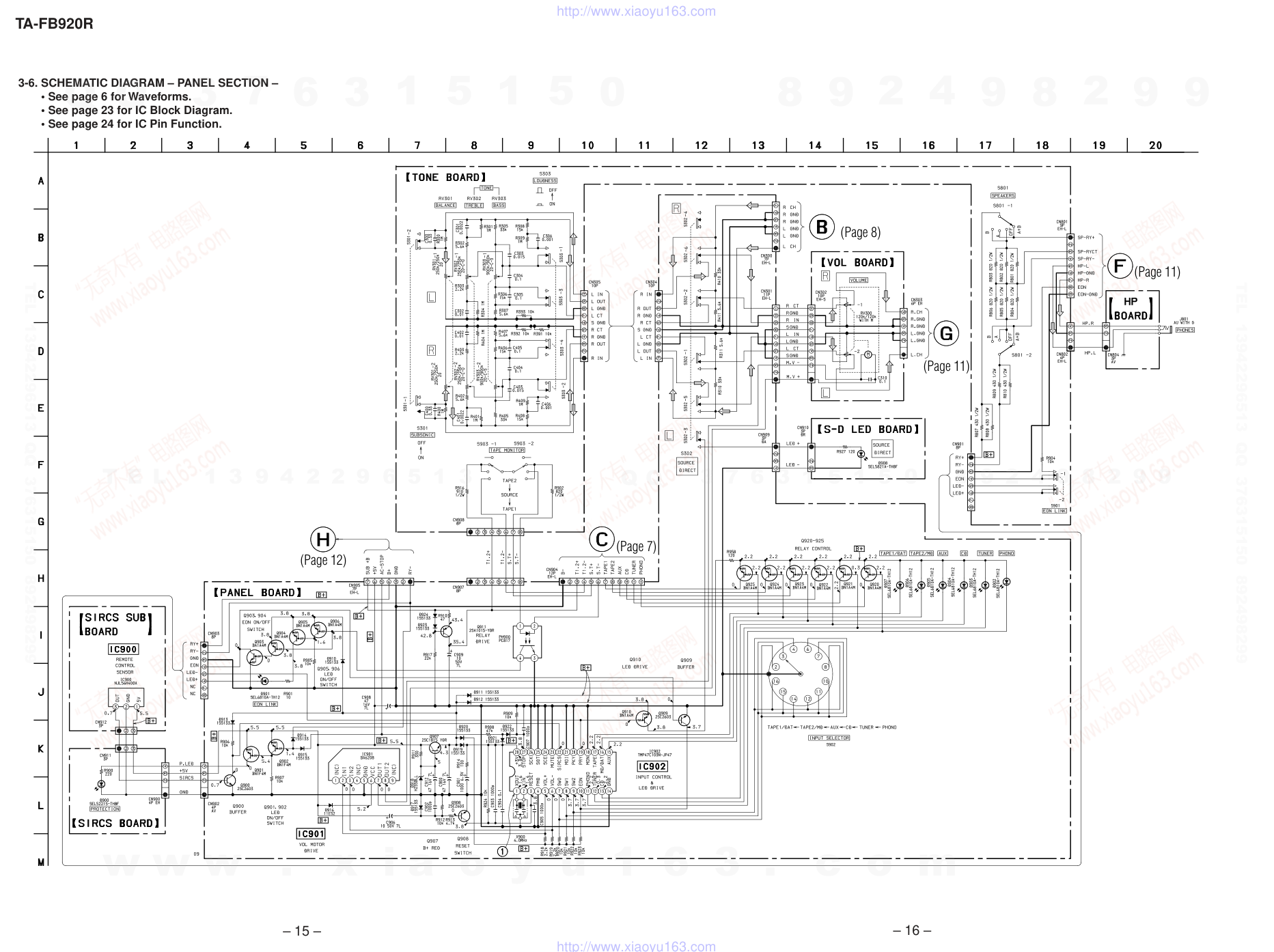

3-6. SCHEMATIC DIAGRAM – PANEL SECTION –
• See page 6 for Waveforms.
• See page 23 for IC Block Diagram.
• See page 24 for IC Pin Function.
(Page 12)
(Page 7)
(Page 8)
(Page 11)
(Page 11)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 17 –
– 18 –
TA-FB920R
Ref. No.
Location
• Semiconductor
Location
D901
B-1
D902
B-7
D903
B-6
D904
B-5
D905
B-4
D906
B-3
D907
B-2
D910
C-2
D911
C-4
D912
D-7
D913
C-2
D914
D-2
D915
D-2
D916
D-8
D917
C-5
D918
C-5
D919
C-5
D920
C-4
D921
D-6
D922
D-6
D923
D-4
D924
D-4
IC901
D-9
IC902
D-7
Q900
D-2
Q901
D-2
Q902
D-2
Q903
C-2
Q904
C-2
Q905
C-1
Q906
C-1
Q907
C-4
Q908
C-5
Q909
C-2
Q910
D-7
Q911
D-5
Q920
B-8
Q921
B-7
Q922
B-5
Q923
B-4
Q924
B-3
Q925
B-2
3-7. PRINTED WIRING BOARD – PANEL SECTION –
• See page 5 for Circuit Boards Location.
(Page 9)
(Page 9)
(Page 14)
(Page 14)
(Page 14)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 19 –
– 20 –
TA-FB920R
3-8. SCHEMATIC DIAGRAM – POWER SECTION –
(Page 12)
(Page 11)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 21 –
– 22 –
TA-FB920R
3-9. PRINTED WIRING BOARD – POWER SECTION –
• See page 5 for Circuit Boards Location.
(Page 14)
(Page 13)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 23 –
– 24 –
3-11. IC PIN FUNCTION
• IC902 Input Control & LED Drive (TMP47C103N-JP47)
O
I
I
I
O
O
I
I
I
I
O
O
O
—
O
O
O
O
O
I
I
I
O
O
O
O
I
—
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
X OUT
X IN
RESET
PMD
VOL +
VOL –
SW 0
SW 1
SW 2
EON
PHONO
TUNER
CD
GND
AUX
MD/DAT
TAPE
MON
PRY
PKY
MOI
SIRCS
MUTE
SCE
SDT
SCK
STOP
+3V
System clock (4MHz)
Reset input
Mode select input (Connected to ground)
Motor drive output (+)
Motor drive output (–)
Rotary switch input (CD)
Rotary switch input (TUNER)
Rotary switch input (PHONO)
EON signal input
PHONO LED drive output
TUNER LED drive output
CD LED drive output
Ground
AUX LED drive output
TAPE “2” LED drive output
TAPE “1” LED drive output
MONITOR output (Connected to ground)
Power relay output
Power key input (Connected to ground)
MONITOR input (Connected to ground)
SIRCS input
Muting output (Connected to ground)
Chip enble output (Connected to ground)
Serial data output (Connected to ground)
Serial clock output (Connected to ground)
STOP input
+3V Power supply
I/O
Function
Pin No.
Pin Name
3-10. IC BLOCK DIAGRAMS
• Main section
IC700  uPC1237HA
1
2
3
4
5
6
7
8
OVER LOAD DET
F/F
OFFSET DET
LATCH/
AUTORESET
VCC ON
MUTE
AC OFF
DET
VCC
• Panel section
IC901  BA6208
1
2
3
4
5
6
7
8
9
NC
OUTPUT 2
Vcc
GND
NC
INPUT 2
INPUT 1
NC
MOTOR
DRIVE
MOTOR
DRIVE
REG
SWITCH
SWITCH
OUTPUT1
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 25 –
SECTION  4
EXPLODED VIEWS
4-1. CASE AND BACK PANEL SECTION
NOTE:
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• Color Indication of Appearance Parts Example:
KNOB, BALANCE (WHITE)
Â
Cabinets color
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and packing
materials are given in the last of this parts list.
• Abbreviation
G
: German model
EE
: East European model
SP
: Singapore model
MY
: Malaysia mdoel
AUS : Australian model
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
* 10
3-703-244-00
BUSHING (2104), CORD
!11
1-777-185-11
CORD, POWER
!12
1-770-019-11
ADAPTOR, CONVERSION PLUG 3P (UK)
13
4-210-291-01
SCREW (CASE 3 TP2)(AEP,G,EE,MY,SP,AUS)(BLACK)
13
4-210-291-11
SCREW (CASE 3 TP2)(AEP,G,EE,MY,SP,AUS)(SILVER)
13
4-999-877-01
SCREW (CASE)(UK)
14
4-947-010-01
SCREW, FEEDER FIXED
15
3-704-515-41
SCREW (BV/RING)
16
4-967-961-01
SCREW (3X8)
* 17
1-669-476-11
DUTLET BOARD (AEP,G,EE,MY,SP,AUS)
!CNJ3
1-526-794-11
OUTLET, AC (AC OUTLET)(AEP,G,EE,MY,SP,AUS)
!CNJ4
1-526-794-11
OUTLET, AC (AC OUTLET)(AEP,G,EE,MY,SP,AUS)
1
X-4949-780-1
KNOB (SELECTOR) ASSY (BLACK)
1
X-4950-264-1
KNOB (SELECTOR) ASSY (SILVER)
2
X-4949-781-1
KNOB (VOLUME) ASSY (BLACK)
2
X-4950-265-1
KNOB (VOLUME) ASSY (SILVER)
* 4
4-999-439-01
CASE (413235)(BLACK)
* 4
4-999-439-41
CASE (413235)(SILVER)
5
X-4949-760-1
FOOT ASSY
6
4-970-124-01
CUSHION (F50180S)
* 7
A-4407-615-A PHONO BOARD, COMPLETE
(AEP,G,EE,MY,SP,AUS)
* 7
A-4407-775-A PHONO BOARD, COMPLETE (UK)
* 8
4-999-451-01
PANEL, BACK (AEP,G,EE,MY,SP,AUS)
* 8
4-999-451-41
PANEL, BACK (UK)
13
13
16
12
11
8
10
15
14
15
15
16
16
4
13
13
not supplied
not supplied
7
16
16
5
6
#3
#3
5
6
1
2
17
CNJ3
CNJ4
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 26 –
4-2. FRONT PANEL SECTION
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
51
4-999-407-01
DOOR (BLACK)
51
4-999-407-11
DOOR (SILVER)
52
4-900-031-01
KNOB (DOOR)(BLACK)
52
4-900-031-11
KNOB (DOOR)(SILVER)
53
4-900-032-01
CUSHION (DOOR-L)
54
4-900-058-01
ARM (DOOR/R)(BLACK)
54
4-900-058-11
ARM (DOOR/R)(SILVER)
55
4-999-408-01
ARM (DOOR)(BLACK)
55
4-999-408-11
ARM (DOOR)(SILVER)
* 56
4-999-492-01
CUSHION (DOOR)(BLACK)
* 56
4-999-492-11
CUSHION (DOOR)(SILVER)
57
4-942-568-41
EMBLEM (NO.5), SONY (BLACK)
57
4-942-568-51
EMBLEM (NO.5), SONY (SILVER)
58
4-965-651-01
EMBLEM (MOS)(BLACK)
58
4-965-651-11
EMBLEM (MOS)(SILVER)
59
4-999-413-01
INDICATOR (PROTECTION)
60
4-980-776-01
WINDOW, REMOTE CONTROL
61
4-967-961-01
SCREW (3X8)
62
4-999-402-01
PANEL, FRONT (BLACK)
62
4-999-402-11
PANEL, FRONT (SILVER)
63
X-4949-779-1
BASE ASSY, PANEL (BLACK)
63
X-4950-263-1
BASE ASSY, PANEL (SILVER)
64
4-999-414-01
SPRING (DOOR), LEAF
65
4-999-436-01
BUTTON (DIA. 6X29.8)(BLACK)
65
4-999-436-11
BUTTON (DIA. 6X29.8)(SILVER)
* 66
4-999-404-01
PLATE (DOOR), INDICATION (BLACK)
* 66
4-999-404-11
PLATE (DOOR), INDICATION (SILVER)
67
3-024-055-01
BUTTON (POWER)
68
4-999-406-01
KNOB (D18)(BLACK)
68
4-999-406-11
KNOB (D18)(SILVER)
69
4-980-773-01
BUTTON (DIA. 6)(BLACK)
69
4-980-773-11
BUTTON (DIA. 6)(SILVER)
70
4-950-189-01
KNOB (A)(VOL)(BLACK)
70
4-950-189-31
KNOB (A)(VOL)(SILVER)
* 72
1-670-219-11
SIRCS SUB BOARD
* 73
1-669-490-11
SIRCS BOARD
!S1
1-554-920-61
SWITCH, PUSH (AC POWER)(1 KEY)(U)
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
57
58
61
62
59
59
55
51
52
53
61
56
54
64
66
65
70
69
68
69
73
61
67
61
72
63
64
#2
S1
#2
#1
#2
61
60
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 27 –
4-3. CHASSIS SECTION
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
* 110
A-4407-773-A SP-TM BOARD, COMPLETE (UK)
* 111
A-4407-612-A MAIN BOARD, COMPLETE (AEP,G,EE,MY,SP,AUS)
* 111
A-4407-772-A MAIN BOARD, COMPLETE (UK)
* 112
A-4407-607-A INPUT BOARD, COMPLETE
(AEP,G,EE,MY,SP,AUS)
* 112
A-4407-771-A INPUT BOARD, COMPLETE (UK)
Q511
8-729-232-45
TRANSISTOR 2SK1529-Y
Q512
8-729-232-46
TRANSISTOR 2SJ200-Y
Q611
8-729-232-45
TRANSISTOR 2SK1529-Y
Q612
8-729-232-46
TRANSISTOR 2SJ200-Y
Q702
8-729-209-15
TRANSISTOR 2SD2012
!T1
1-431-827-11
TRANSFORMER, POWER (UK)
!T1
1-431-873-11
TRANSFORMER, POWER (AEP,G,EE,MY,SP,AUS)
101
4-967-961-01
SCREW (3X8)
102
3-905-609-11
SCREW (TRANSISTOR)
103
4-967-960-01
SCREW (4X8)
* 104
A-4407-605-A PANEL BOARD, COMPLETE
(AEP,G,EE,MY,SP,AUS)
* 104
A-4407-770-A PANEL BOARD, COMPLETE (UK)
* 105
A-4407-606-A TONE BOARD, COMPLETE (AEP,G,EE,MY,SP,AUS)
* 105
A-4417-195-A TONE BOARD, COMPLETE (UK)
* 106
1-669-492-11
S-D LED BOARD
* 107
1-669-491-11
HP BOARD
* 108
1-669-489-11
VOL BOARD
* 109
1-669-473-11
PS BOARD
* 110
A-4407-613-A SP-TM BOARD, COMPLETE
(AEP,G,EE,MY,SP,AUS)
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
not supplied
not supplied
not
supplied
Supplied with RV301,
RV302,RV303,S801,S903
Supplied
with RV300
Supplied
with J801
Supplied
with S902
not
supplied
not
supplied
not
supplied
Q511
Q611
Q612
Q702
Q512
T1
not
supplied
101
101
101
101
101
101
112
101
101
101
101
101
101
101
101
101
101
107
101
101
108
101
101
106
104
101
101
103
103
105
109
102
111
102
110
101
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 28 –
• SEMICONDUCTORS
In each case, u: µ , for example:
uA...: µ A..., uPA...: µ PA..., uPB...: µ PB...,
uPC...: µ PC..., uPD...: µ PD...
• CAPACITORS
uF : µ F
• COILS
uH : µ H
• Abbreviation
G
: German model
EE
: East European model
AUS : Australian model
SP
: Singapore model
MY
: Malaysia mdoel
• Due to standardization, replacements in the parts list
may be different from the parts specified in the
diagrams or the components used on the set.
• -XX, -X mean standardized parts, so they may have
some difference from the original one.
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• RESISTORS
All resistors are in ohms
METAL: Metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F : nonflammable
SECTION  5
ELECTRICAL PARTS LIST
Note:
When indicating parts by reference
number, please include the board
name.
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
HP
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
*
1-669-491-11
HP BOARD
*********
< JACK >
J801
1-770-307-11
JACK (LARGE TYPE)(PHONES)
**************************************************************
*
A-4407-607-A INPUT BOARD, COMPLETE
*********************
(AEP,G,EE,MY,SP,AUS)
*
A-4407-771-A INPUT BOARD, COMPLETE (UK)
*********************
< CAPACITOR >
C101
1-162-286-31
CERAMIC
220PF
10%
50V
(AEP,G,EE,MY,SP,AUS)
C102
1-162-286-31
CERAMIC
220PF
10%
50V
(AEP,G,EE,MY,SP,AUS)
C103
1-162-286-31
CERAMIC
220PF
10%
50V
(AEP,G,EE,MY,SP,AUS)
C104
1-162-286-31
CERAMIC
220PF
10%
50V
(AEP,G,EE,MY,SP,AUS)
C105
1-162-286-31
CERAMIC
220PF
10%
50V
(AEP,G,EE,MY,SP,AUS)
C140
1-126-052-11
ELECT
100uF
20%
50V
C141
1-126-023-11
ELECT
100uF
20%
25V
C142
1-126-024-11
ELECT
220uF
20%
25V
C201
1-162-286-31
CERAMIC
220PF
10%
50V
(AEP,G,EE,MY,SP,AUS)
C202
1-162-286-31
CERAMIC
220PF
10%
50V
(AEP,G,EE,MY,SP,AUS)
C203
1-162-286-31
CERAMIC
220PF
10%
50V
(AEP,G,EE,MY,SP,AUS)
C204
1-162-286-31
CERAMIC
220PF
10%
50V
(AEP,G,EE,MY,SP,AUS)
C205
1-162-286-31
CERAMIC
220PF
10%
50V
(AEP,G,EE,MY,SP,AUS)
C240
1-126-052-11
ELECT
100uF
20%
50V
C241
1-126-023-11
ELECT
100uF
20%
25V
C242
1-126-024-11
ELECT
220uF
20%
25V
< CONNECTOR >
CN102
1-691-768-11
PLUG (MICRO CONNECTOR) 6P
CN103
1-691-773-11
PLUG (MICRO CONNECTOR) 11P
CN104
1-691-765-11
PLUG (MICRO CONNECTOR) 3P
< DIODE >
D100
8-719-911-19
DIODE   1SS119-25
D101
8-719-911-19
DIODE   1SS119-25
D102
8-719-911-19
DIODE   1SS119-25
D103
8-719-911-19
DIODE   1SS119-25
D104
8-719-911-19
DIODE   1SS119-25
D105
8-719-911-19
DIODE   1SS119-25
D106
8-719-911-19
DIODE   1SS119-25
D107
8-719-911-19
DIODE   1SS119-25
D108
8-719-986-29
DIODE   HZS12B3LTA
D140
8-719-986-38
DIODE   HZS16-1LTA
D240
8-719-986-38
DIODE   HZS16-1LTA
< JACK >
J101
1-784-934-11
JACK, PIN 4P (TUNER IN, CD IN)
J102
1-770-015-11
JACK, PIN 6P (AUX IN, TAPE2/MD)
J103
1-573-028-31
JACK, PIN 4P (TAPE1/DAT)
< TRANSISTOR >
Q100
8-729-900-80
TRANSISTOR   DTC114ES
Q101
8-729-900-80
TRANSISTOR   DTC114ES
Q102
8-729-900-80
TRANSISTOR   DTC114ES
Q103
8-729-900-80
TRANSISTOR   DTC114ES
Q104
8-729-900-80
TRANSISTOR   DTC114ES
Q105
8-729-900-80
TRANSISTOR   DTC114ES
Q140
8-729-119-78
TRANSISTOR   2SC2785-HFE
Q240
8-729-201-53
TRANSISTOR   2SA1015-GR
< RESISTOR >
R101
1-259-239-11
CARBON
1M
5%
1/4W
R102
1-259-239-11
CARBON
1M
5%
1/4W
R103
1-259-239-11
CARBON
1M
5%
1/4W
R104
1-259-239-11
CARBON
1M
5%
1/4W
R105
1-259-239-11
CARBON
1M
5%
1/4W
R114
1-259-239-11
CARBON
1M
5%
1/4W
R115
1-259-239-11
CARBON
1M
5%
1/4W
R124
1-259-167-21
CARBON
1K
5%
1/4W
R125
1-259-167-21
CARBON
1K
5%
1/4W
R140
1-249-198-11
CARBON
330
5%
1/3W
R141
1-249-198-11
CARBON
330
5%
1/3W
R142
1-249-198-11
CARBON
330
5%
1/3W
R143
1-249-198-11
CARBON
330
5%
1/3W
R144
1-259-187-11
CARBON
6.8K
5%
1/4W
R201
1-259-239-11
CARBON
1M
5%
1/4W
INPUT
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 29 –
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
MAIN
R202
1-259-239-11
CARBON
1M
5%
1/4W
R203
1-259-239-11
CARBON
1M
5%
1/4W
R204
1-259-239-11
CARBON
1M
5%
1/4W
R205
1-259-239-11
CARBON
1M
5%
1/4W
R214
1-259-239-11
CARBON
1M
5%
1/4W
R215
1-259-239-11
CARBON
1M
5%
1/4W
R224
1-259-167-21
CARBON
1K
5%
1/4W
R225
1-259-167-21
CARBON
1K
5%
1/4W
R240
1-249-198-11
CARBON
330
5%
1/3W
R241
1-249-198-11
CARBON
330
5%
1/3W
R242
1-249-198-11
CARBON
330
5%
1/3W
R243
1-249-198-11
CARBON
330
5%
1/3W
R244
1-259-187-11
CARBON
6.8K
5%
1/4W
< RELAY >
RY100
1-515-614-11
RELAY
RY101
1-515-614-11
RELAY
RY102
1-515-614-11
RELAY
RY103
1-515-614-11
RELAY
RY104
1-515-614-11
RELAY
RY105
1-515-614-11
RELAY
RY106
1-515-614-11
RELAY
RY107
1-515-614-11
RELAY
**************************************************************
*
A-4407-612-A MAIN BOARD, COMPLETE (AEP,G,EE,MY,SP,AUS)
********************
*
A-4407-772-A MAIN BOARD, COMPLETE (UK)
********************
< CAPACITOR >
C500
1-102-973-00
CERAMIC
100PF
5%
50V
C501
1-128-197-11
ELECT
10uF
20%
50V
C502
1-101-880-00
CERAMIC
47PF
5%
50V
C503
1-125-852-11
FILM
330PF
5%
50V
C504
1-126-023-11
ELECT
100uF
20%
16V
C505
1-107-587-11
CERAMIC
7PF
0.5PF
500V
C506
1-126-023-11
ELECT
100uF
20%
16V
C507
1-126-023-11
ELECT
100uF
20%
16V
C508
1-126-023-11
ELECT
100uF
20%
16V
C509
1-125-842-11
FILM
4PF
10%
50V
C510
1-128-200-11
ELECT
47uF
20%
63V
C511
1-102-978-00
CERAMIC
220PF
5%
50V
C512
1-136-163-00
FILM
0.068uF
5%
50V
C513
1-136-163-00
FILM
0.068uF
5%
50V
C517
1-126-023-11
ELECT
100uF
20%
16V
C600
1-102-973-00
CERAMIC
100PF
5%
50V
C601
1-128-197-11
ELECT
10uF
20%
50V
C602
1-101-880-00
CERAMIC
47PF
5%
50V
C603
1-125-852-11
FILM
330PF
5%
50V
C604
1-126-023-11
ELECT
100uF
20%
16V
C605
1-107-587-11
CERAMIC
7PF
0.5PF
500V
C606
1-126-023-11
ELECT
100uF
20%
16V
C607
1-126-023-11
ELECT
100uF
20%
16V
C608
1-126-023-11
ELECT
100uF
20%
16V
C609
1-125-842-11
FILM
4PF
10%
50V
C610
1-128-200-11
ELECT
47uF
20%
63V
C611
1-102-978-00
CERAMIC
220PF
5%
50V
C612
1-136-163-00
FILM
0.068uF
5%
50V
C613
1-136-163-00
FILM
0.068uF
5%
50V
C617
1-126-023-11
ELECT
100uF
20%
16V
C712
1-128-552-51
ELECT
47uF
20%
63V
C713
1-126-933-11
ELECT
100uF
20%
16V
C714
1-126-964-11
ELECT
10uF
20%
50V
C720
1-110-397-11
ELECT
1000uF
20%
63V
C721
1-110-397-11
ELECT
1000uF
20%
63V
< CONNECTOR >
CN500
1-564-506-11
PLUG, CONNECTOR 3P
CN503
1-691-770-11
PLUG (MICRO CONNECTOR) 8P
CN600
1-564-506-11
PLUG, CONNECTOR 3P
CN700
1-691-768-11
PLUG (MICRO CONNECTOR) 6P
< DIODE >
D500
8-719-911-19
DIODE   1SS119-25
D501
8-719-911-19
DIODE   1SS119-25
D502
8-719-911-19
DIODE   1SS119-25
D503
8-719-933-39
DIODE   HZS6C1L
D504
8-719-911-19
DIODE   1SS119-25
D505
8-719-911-19
DIODE   1SS119-25
D506
8-719-310-61
DIODE   SEL1510C-D
D600
8-719-911-19
DIODE   1SS119-25
D601
8-719-911-19
DIODE   1SS119-25
D602
8-719-911-19
DIODE   1SS119-25
D603
8-719-933-39
DIODE   HZS6C1L
D604
8-719-911-19
DIODE   1SS119-25
D605
8-719-911-19
DIODE   1SS119-25
D606
8-719-310-61
DIODE   SEL1510C-D
D703
8-719-933-39
DIODE   HZS6C1L
D720
8-719-024-99
DIODE   11ES2-NTA2B
D721
8-719-024-99
DIODE   11ES2-NTA2B
< BRIDGE >
JWH711 4-999-918-01
BRIDGE (PC-BOARD)
JWH712 4-999-918-01
BRIDGE (PC-BOARD)
JWH713 4-999-918-01
BRIDGE (PC-BOARD)
JWH714 4-999-918-01
BRIDGE (PC-BOARD)
JWH715 4-999-918-01
BRIDGE (PC-BOARD)
< TRANSISTOR >
Q500
8-729-045-15
TRANSISTOR   2SC5169-FG
Q501
8-729-201-53
TRANSISTOR   2SA1015-GR
Q502
8-729-201-53
TRANSISTOR   2SA1015-GR
Q503
8-729-201-53
TRANSISTOR   2SA1015-GR
Q504
8-729-021-74
TRANSISTOR   2SA949-OY-TPE6
Q505
8-729-202-67
TRANSISTOR   2SK246-GR3
Q506
8-729-119-78
TRANSISTOR   2SC2785-HFE
Q507
8-729-021-73
TRANSISTOR   2SC2229-OY-TPE6
Q508
8-729-119-78
TRANSISTOR   2SC2785-HFE
Q509
8-729-104-18
TRANSISTOR   2SC3514
Q510
8-729-104-91
TRANSISTOR   2SA1383
Q511
8-729-232-45
TRANSISTOR   2SK1529-Y
Q512
8-729-232-46
TRANSISTOR   2SJ200-Y
Q513
8-729-140-84
TRANSISTOR   2SC1841-PAFAEA
INPUT
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 30 –
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
MAIN
Q600
8-729-045-15
TRANSISTOR   2SC5169-FG
Q601
8-729-201-53
TRANSISTOR   2SA1015-GR
Q602
8-729-201-53
TRANSISTOR   2SA1015-GR
Q603
8-729-201-53
TRANSISTOR   2SA1015-GR
Q604
8-729-021-74
TRANSISTOR   2SA949-OY-TPE6
Q605
8-729-202-67
TRANSISTOR   2SK246-GR3
Q606
8-729-119-78
TRANSISTOR   2SC2785-HFE
Q607
8-729-021-73
TRANSISTOR   2SC2229-OY-TPE6
Q608
8-729-119-78
TRANSISTOR   2SC2785-HFE
Q609
8-729-104-18
TRANSISTOR   2SC3514
Q610
8-729-104-91
TRANSISTOR   2SA1383
Q611
8-729-232-45
TRANSISTOR   2SK1529-Y
Q612
8-729-232-46
TRANSISTOR   2SJ200-Y
Q613
8-729-140-84
TRANSISTOR   2SC1841-PAFAEA
Q702
8-729-209-15
TRANSISTOR   2SD2012
< RESISTOR >
R500
1-259-167-21
CARBON
1K
5%
1/4W
R501
1-259-215-21
CARBON
100K
5%
1/4W
R502
1-259-151-21
CARBON
220
5%
1/4W
R503
1-259-151-21
CARBON
220
5%
1/4W
R504
1-259-151-21
CARBON
220
5%
1/4W
R505
1-259-179-21
CARBON
3.3K
5%
1/4W
R506
1-259-151-21
CARBON
220
5%
1/4W
R507
1-259-151-21
CARBON
220
5%
1/4W
R508
1-249-244-11
CARBON
27K
5%
1/3W
R509
1-259-175-11
CARBON
2.2K
5%
1/4W
R510
1-259-183-11
CARBON
4.7K
5%
1/4W
!R511
1-249-899-11
CARBON
100
5%
1/4W
F
R512
1-259-171-21
CARBON
1.5K
5%
1/4W
R513
1-259-167-21
CARBON
1K
5%
1/4W
R514
1-249-258-11
CARBON
100K
5%
1/3W
R515
1-259-143-21
CARBON
100
5%
1/4W
R516
1-249-204-11
CARBON
560
5%
1/3W
!R517
1-247-688-11
CARBON
10
5%
1/4W
F
!R518
1-247-688-11
CARBON
10
5%
1/4W
F
!R519
1-247-745-11
CARBON
330
5%
1/2W
F
!R520
1-249-405-11
CARBON
100
5%
1/4W
F
!R521
1-249-405-11
CARBON
100
5%
1/4W
F
!R522
1-208-601-11
REGISTER
0.1
10%
2W
F
!R523
1-208-601-11
REGISTER
0.1
10%
2W
F
R524
1-259-436-11
CARBON
2.2K
5%
1/6W
R525
1-259-432-11
CARBON
1.5K
5%
1/6W
R526
1-249-162-11
CARBON
10
5%
1/3W
R527
1-259-484-11
CARBON
220K
5%
1/6W
R600
1-259-167-21
CARBON
1K
5%
1/4W
R601
1-259-215-21
CARBON
100K
5%
1/4W
R602
1-259-151-21
CARBON
220
5%
1/4W
R603
1-259-151-21
CARBON
220
5%
1/4W
R604
1-259-151-21
CARBON
220
5%
1/4W
R605
1-259-179-21
CARBON
3.3K
5%
1/4W
R606
1-259-151-21
CARBON
220
5%
1/4W
R607
1-259-151-21
CARBON
220
5%
1/4W
R608
1-249-244-11
CARBON
27K
5%
1/3W
R609
1-259-175-11
CARBON
2.2K
5%
1/4W
R610
1-259-183-11
CARBON
4.7K
5%
1/4W
!R611
1-249-899-11
CARBON
100
5%
1/4W
F
R612
1-259-171-21
CARBON
1.5K
5%
1/4W
R613
1-259-167-21
CARBON
1K
5%
1/4W
R614
1-249-258-11
CARBON
100K
5%
1/3W
R615
1-259-143-21
CARBON
100
5%
1/4W
R616
1-249-204-11
CARBON
560
5%
1/3W
!R617
1-247-688-11
CARBON
10
5%
1/4W
F
!R618
1-247-688-11
CARBON
10
5%
1/4W
F
!R619
1-247-745-11
CARBON
330
5%
1/2W
F
!R620
1-249-899-11
CARBON
100
5%
1/4W
F
!R621
1-249-899-11
CARBON
100
5%
1/4W
F
!R622
1-208-601-11
REGISTER
0.1
10%
2W
F
!R623
1-208-601-11
REGISTER
0.1
10%
2W
F
R624
1-259-436-11
CARBON
2.2K
5%
1/6W
R625
1-259-432-11
CARBON
1.5K
5%
1/6W
R626
1-249-162-11
CARBON
10
5%
1/3W
R627
1-259-484-11
CARBON
220K
5%
1/6W
R709
1-249-425-11
CARBON
4.7K
5%
1/4W
F
< VARIABLE RESISTOR >
RV500
1-241-762-11
RES, ADJ, CARBON 2.2K
RV600
1-241-762-11
RES, ADJ, CARBON 2.2K
**************************************************************
*
1-669-476-11
OUTLET BOARD (AEP,G,EE,MY,SP,AUS)
************
< CONNECTOR >
!CNJ3
1-526-794-11
OUTLET, AC (AC OUTLET)(AEP,G,EE,MY,SP,AUS)
!CNJ4
1-526-794-11
OUTLET, AC (AC OUTLET)(AEP,G,EE,MY,SP,AUS)
< FUSE >
!F2
1-532-464-51
FUSE, TIME LAG (T2.5AL/250V)
(AEP,G,EE,MY,SP,AUS)
< FUSE HOLDER >
FH3
1-533-233-11
HOLDER, FUSE (AEP,G,EE,MY,SP,AUS)
FH4
1-533-233-11
HOLDER, FUSE (AEP,G,EE,MY,SP,AUS)
**************************************************************
*
A-4407-605-A PANEL BOARD, COMPLETE
*********************
(AEP,G,EE,MY,SP,AUS)
*
A-4407-770-A PANEL BOARD, COMPLETE (UK)
*********************
< CAPACITOR >
C900
1-126-786-11
ELECT
47uF
20%
16V
C901
1-126-916-11
ELECT
1000uF
20%
6.3V
C902
1-162-294-31
CERAMIC
0.001uF
10%
50V
C903
1-162-294-31
CERAMIC
0.001uF
10%
50V
C904
1-164-159-11
CERAMIC
0.1uF
50V
C905
1-162-294-31
CERAMIC
0.001uF
10%
50V
C906
1-126-795-11
ELECT
10uF
20%
50V
C907
1-162-294-31
CERAMIC
0.001uF
10%
50V
C908
1-126-786-11
ELECT
47uF
20%
16V
C909
1-126-795-11
ELECT
10uF
20%
50V
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
OUTLET
PANEL
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 31 –
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
C912
1-126-786-11
ELECT
47uF
20%
16V
< CONNECTOR >
* CN300
1-564-522-11
PLUG, CONNECTOR 7P
* CN301
1-564-526-11
PLUG, CONNECTOR 11P
CN304
1-766-797-11
CONNECTOR, BOARD TO BOARD 10P
CN903
1-766-928-11
CONNECTOR, BOARD TO BOARD 8P
* CN904
1-564-527-11
PLUG, CONNECTOR 12P
* CN905
1-564-522-11
PLUG, CONNECTOR 7P
CN907
1-766-928-11
CONNECTOR, BOARD TO BOARD 8P
< DIODE >
D901
8-719-313-50
DIODE   SEL6810A-TH12 (EON LINK)
D902
8-719-313-50
DIODE   SEL6810A-TH12 (PHONO)
D903
8-719-313-50
DIODE   SEL6810A-TH12 (TUNER)
D904
8-719-313-50
DIODE   SEL6810A-TH12 (CD)
D905
8-719-313-50
DIODE   SEL6810A-TH12 (AUX)
D906
8-719-313-50
DIODE   SEL6810A-TH12 (TAPE2/MD)
D907
8-719-313-50
DIODE   SEL6810A-TH12 (TAPE1/DAT)
D910
8-719-911-19
DIODE   1SS119-25
D911
8-719-911-19
DIODE   1SS119-25
D912
8-719-911-19
DIODE   1SS119-25
D913
8-719-911-19
DIODE   1SS119-25
D914
8-719-911-19
DIODE   1SS119-25
D915
8-719-911-19
DIODE   1SS119-25
D916
8-719-024-99
DIODE   11ES2-NTA2B
D917
8-719-911-19
DIODE   1SS119-25
D918
8-719-985-66
DIODE   HZS5BLL-TA
D919
8-719-911-19
DIODE   1SS119-25
D920
8-719-911-19
DIODE   1SS119-25
D921
8-719-911-19
DIODE   1SS119-25
D922
8-719-911-19
DIODE   1SS119-25
D923
8-719-911-19
DIODE   1SS119-25
D924
8-719-911-19
DIODE   1SS119-25
< IC >
IC901
8-759-962-08
IC   BA6208
IC902
8-759-392-41
IC   TMP47C103N-JP47
< PHOTO INTERUPTER >
PH900
8-719-902-56
PHOTO COUPLER PC817
< TRANSISTOR >
Q900
8-729-620-05
TRANSISTOR   2SC2603-EF
Q901
8-729-900-63
TRANSISTOR   DTA124ES
Q902
8-729-900-63
TRANSISTOR   DTA124ES
Q903
8-729-900-80
TRANSISTOR   DTC114ES
Q904
8-729-422-57
TRANSISTOR   UN4111
Q905
8-729-422-57
TRANSISTOR   UN4111
Q906
8-729-422-57
TRANSISTOR   UN4111
Q907
8-729-119-78
TRANSISTOR   2SC2785-HFE
Q908
8-729-620-05
TRANSISTOR   2SC2603-EF
Q909
8-729-620-05
TRANSISTOR   2SC2603-EF
Q910
8-729-422-57
TRANSISTOR   UN4111
Q911
8-729-201-53
TRANSISTOR   2SA1015-GR
Q920
8-729-422-57
TRANSISTOR   UN4111
Q921
8-729-422-57
TRANSISTOR   UN4111
Q922
8-729-422-57
TRANSISTOR   UN4111
Q923
8-729-422-57
TRANSISTOR   UN4111
Q924
8-729-422-57
TRANSISTOR   UN4111
Q925
8-729-422-57
TRANSISTOR   UN4111
< RESISTOR >
R310
1-259-464-11
CARBON
33K
5%
1/6W
R311
1-259-446-11
CARBON
5.6K
5%
1/6W
R410
1-259-464-11
CARBON
33K
5%
1/6W
R411
1-259-446-11
CARBON
5.6K
5%
1/6W
R901
1-249-393-11
CARBON
10
5%
1/4W
F
R905
1-249-429-11
CARBON
10K
5%
1/4W
R906
1-249-429-11
CARBON
10K
5%
1/4W
R907
1-249-429-11
CARBON
10K
5%
1/4W
R908
1-249-437-11
CARBON
47K
5%
1/4W
R909
1-249-429-11
CARBON
10K
5%
1/4W
R910
1-249-401-11
CARBON
47
5%
1/4W
F
R911
1-249-411-11
CARBON
330
5%
1/4W
R912
1-249-429-11
CARBON
10K
5%
1/4W
R913
1-249-425-11
CARBON
4.7K
5%
1/4W
F
R914
1-247-807-31
CARBON
100
5%
1/4W
R917
1-249-433-11
CARBON
22K
5%
1/4W
R918
1-249-421-11
CARBON
2.2K
5%
1/4W
F
R919
1-249-421-11
CARBON
2.2K
5%
1/4W
F
R920
1-249-429-11
CARBON
10K
5%
1/4W
R921
1-249-429-11
CARBON
10K
5%
1/4W
R922
1-249-429-11
CARBON
10K
5%
1/4W
R923
1-249-429-11
CARBON
10K
5%
1/4W
R924
1-249-429-11
CARBON
10K
5%
1/4W
R958
1-249-406-11
CARBON
120
5%
1/4W
F
< SWITCH >
S302
1-762-393-11
SWITCH, PUSH (SOURCE DIRECT)
S902
1-771-383-11
SWITCH, ROTARY (INPUT SELECTOR)
< VIBRATOR >
X900
1-577-358-21
VIBRATOR, CERAMIC (4MHz)
**************************************************************
*
A-4407-615-A PHONO BOARD, COMPLETE
**********************
(AEP,G,EE,MY,SP,AUS)
*
A-4407-775-A PHONO BOARD, COMPLETE (UK)
**********************
< CAPACITOR >
C150
1-102-978-00
CERAMIC
220PF
5%
50V
C151
1-126-048-11
ELECT
10uF
20%
50V
C152
1-101-973-00
CERAMIC
100PF
5%
50V
(AEP,G,EE,MY,SP,AUS)
C153
1-106-359-00
MYLAR
4700PF
5%
200V
C154
1-126-023-11
ELECT
100uF
20%
25V
C155
1-130-341-00
FILM
0.056uF
3%
100V
C156
1-130-971-00
FILM
0.016uF
3%
100V
C157
1-126-048-11
ELECT
10uF
20%
50V
PANEL
PHONO
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 32 –
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
C170
1-126-023-11
ELECT
100uF
20%
25V
C171
1-136-165-00
FILM
0.1uF
5%
50V
C172
1-136-165-00
FILM
0.1uF
5%
50V
C250
1-102-978-00
CERAMIC
220PF
5%
50V
C251
1-126-048-11
ELECT
10uF
20%
50V
C252
1-101-973-00
CERAMIC
100PF
5%
50V
(AEP,G,EE,MY,SP,AUS)
C253
1-106-359-00
MYLAR
4700PF
5%
200V
C254
1-126-023-11
ELECT
100uF
20%
25V
C255
1-130-341-00
FILM
0.056uF
3%
100V
C256
1-130-971-00
FILM
0.016uF
3%
100V
C257
1-126-048-11
ELECT
10uF
20%
50V
< CONNECTOR >
CN151
1-691-768-11
PLUG (MICRO CONNECTOR) 6P
< DIODE >
D170
8-719-985-97
DIODE   HZS7B1LTA
< IC >
IC150
8-759-701-25
IC   NJM2068D-D
< JACK >
J150
1-764-593-21
JACK 2P (PHONO IN)(AEP,G,EE,MY,SP,AUS)
J150
1-784-933-11
JACK 2P (PHONO IN)(UK)
< COIL >
L150
1-410-977-11
INDUCTOR   100uH (AEP,G,EE,MY,SP,AUS)
L151
1-410-977-11
INDUCTOR   100uH (AEP,G,EE,MY,SP,AUS)
L250
1-410-977-11
INDUCTOR   100uH (AEP,G,EE,MY,SP,AUS)
L251
1-410-977-11
INDUCTOR   100uH (AEP,G,EE,MY,SP,AUS)
< TRANSISTOR >
Q150
8-729-354-52
TRANSISTOR   2SC2545
Q151
8-729-354-52
TRANSISTOR   2SC2545
Q250
8-729-354-52
TRANSISTOR   2SC2545
Q251
8-729-354-52
TRANSISTOR   2SC2545
< RESISTOR >
R150
1-259-175-11
CARBON
2.2K
5%
1/4W
(AEP,G,EE,MY,SP,AUS)
R151
1-249-911-11
CARBON
330
5%
1/4W
R152
1-259-215-21
CARBON
100K
5%
1/4W
R153
1-259-215-21
CARBON
100K
5%
1/4W
R154
1-259-161-21
CARBON
560
5%
1/4W
R155
1-259-161-21
CARBON
560
5%
1/4W
R156
1-259-143-21
CARBON
100
5%
1/4W
R157
1-259-191-21
CARBON
10K
5%
1/4W
R158
1-259-144-11
CARBON
110
5%
1/4W
R159
1-259-346-81
CARBON
56K
1%
1/2W
R160
1-259-320-11
CARBON
4.7K
1%
1/2W
R161
1-259-239-11
CARBON
1M
5%
1/4W
R162
1-259-167-21
CARBON
1K
5%
1/4W
R170
1-259-171-21
CARBON
1.5K
5%
1/4W
R250
1-259-175-11
CARBON
2.2K
5%
1/4W
(AEP,G,EE,MY,SP,AUS)
R251
1-249-911-11
CARBON
330
5%
1/4W
R252
1-259-215-21
CARBON
100K
5%
1/4W
R253
1-259-215-21
CARBON
100K
5%
1/4W
R254
1-259-161-21
CARBON
560
5%
1/4W
R255
1-259-161-21
CARBON
560
5%
1/4W
R256
1-259-143-21
CARBON
100
5%
1/4W
R257
1-259-191-21
CARBON
10K
5%
1/4W
R258
1-259-144-11
CARBON
110
5%
1/4W
R259
1-259-346-81
CARBON
56K
1%
1/2W
R260
1-259-320-11
CARBON
4.7K
1%
1/2W
R261
1-259-239-11
CARBON
1M
5%
1/4W
R262
1-259-167-21
CARBON
1K
5%
1/4W
**************************************************************
*
1-669-473-11
PS BOARD
********
< CAPACITOR >
C750
1-125-821-11
CERAMIC
10000uF
56V
C751
1-125-821-11
CERAMIC
10000uF
56V
C754
1-137-398-11
FILM
0.068uF
5%
100V
C755
1-137-398-11
FILM
0.068uF
5%
100V
C756
1-104-999-11
MYLAR
0.1uF
10%
200V
< CONNECTOR >
CN1
1-774-108-11
PIN, CONNECTOR (PC BOARD)
CN2
1-564-321-00
PIN, CONNECTOR 2P
CN3
1-564-321-00
PIN, CONNECTOR 2P
* CN4
1-564-321-21
PIN, CONNECTOR 2P (AEP,G,EE,MY,SP,AUS)
* CN750
1-564-687-11
PIN, CONNECTOR 3P
* CN751
1-766-920-11
PIN, CONNECTOR 4P
CN752
1-770-832-11
CONNECTOR, BOARD TO BOARD 6P
< DIODE >
D751
8-719-230-02
DIODE   30DF2
D752
8-719-230-02
DIODE   30DF2
D753
8-719-230-02
DIODE   30DF2
D754
8-719-230-02
DIODE   30DF2
< FUSE >
!F1
1-532-504-51
FUSE, TIME LAG (T4.0AL/250V)
< FUSE HOLDER >
FH1
1-533-233-11
HOLDER, FUSE
FH2
1-533-233-11
HOLDER, FUSE
< RESISTOR >
!R750
1-212-974-00
FUSIBLE
47
5%
1/2W
F
**************************************************************
*
1-669-492-11
S-D LED BOARD
*************
< CONNECTOR >
CN910
1-691-758-51
PIN, CONNECTOR 3P
PHONO
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
S-D LED
PS
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 33 –
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
< DIODE >
D908
8-719-046-38
DIODE   SEL5821A-TH8F (SOURCE DIRECT)
< RESISTOR >
R927
1-249-406-11
CARBON
120
5%
1/4W
F
**************************************************************
*
1-669-490-11
SIRCS BOARD
***********
< CONNECTOR >
CN900
1-691-766-11
PLUG (MICRO CONNECTOR) 4P
* CN911
1-560-666-00
PIN, CONNECTOR 3P
< DIODE >
D900
8-719-046-46
DIODE   SEL5221S-TH8F (PROTECTION)
< RESISTOR >
R900
1-249-409-11
CARBON
220
5%
1/4W
F
**************************************************************
*
1-670-219-11
SIRCS SUB BOARD
***************
< CONNECTOR >
* CN912
1-565-835-11
SOCKET, CONNECTOR 3P
< IC >
IC900
8-749-014-66
IC   NJL64H400A
**************************************************************
*
A-4407-613-A SP-TM BOARD, COMPLETE
*********************
(AEP,G,EEMY,SP,AUS)
*
A-4407-773-A SP-TM BOARD, COMPLETE (UK)
*********************
< CAPACITOR >
C515
1-162-282-31
CERAMIC
100PF
10%
50V
C516
1-162-282-31
CERAMIC
100PF
10%
50V
C615
1-162-282-31
CERAMIC
100PF
10%
50V
C616
1-162-282-31
CERAMIC
100PF
10%
50V
C700
1-126-965-11
ELECT
22uF
20%
50V
C701
1-136-163-00
FILM
0.068uF
5%
50V
C702
1-124-995-11
ELECT
220uF
20%
10V
C703
1-136-157-00
FILM
0.022uF
5%
50V
C704
1-126-967-11
ELECT
47uF
20%
16V
C705
1-126-967-11
ELECT
47uF
20%
16V
C706
1-137-150-11
MYLAR
0.01uF
10%
100V
C707
1-137-150-11
MYLAR
0.01uF
10%
100V
C708
1-128-578-11
ELECT
1uF
20%
100V
C709
1-128-556-11
ELECT
1000uF
20%
63V
C710
1-128-553-11
ELECT
220uF
20%
63V
C711
1-128-582-11
ELECT
10uF
20%
63V
C715
1-164-159-11
CERAMIC
0.1uF
50V
< CONNECTOR >
CN702
1-770-831-11
CONNECTOR, BOARD TO BOARD 6P
CN703
1-566-212-11
PIN, CONNECTOR 3P (EON CONTROL)
< DIODE >
D511
8-719-911-19
DIODE   1SS119-25
D512
8-719-911-19
DIODE   1SS119-25
D513
8-719-911-19
DIODE   1SS119-25
D700
8-719-024-99
DIODE   11ES2-NTA2B
D701
8-719-024-99
DIODE   11ES2-NTA2B
D702
8-719-024-99
DIODE   11ES2-NTA2B
< IC >
IC700
8-759-111-68
IC   UPC1237HA
< COIL >
L501
1-411-906-11
COIL, AIR-CORE
L601
1-411-906-11
COIL, AIR-CORE
< TRANSISTOR >
Q700
8-729-119-76
TRANSISTOR   2SA1175-HFE
Q701
8-729-119-78
TRANSISTOR   2SC2785-HFE
< RESISTOR >
R528
1-249-162-11
CARBON
10
5%
1/3W
R529
1-249-206-11
CARBON
680
5%
1/3W
!R530
1-212-857-00
FUSIBLE
10
5%
1/4W
F
!R531
1-212-857-00
FUSIBLE
10
5%
1/4W
F
R628
1-249-162-11
CARBON
10
5%
1/3W
R629
1-249-206-11
CARBON
680
5%
1/3W
!R630
1-212-857-00
FUSIBLE
10
5%
1/4W
F
!R631
1-212-857-00
FUSIBLE
10
5%
1/4W
F
R700
1-249-435-11
CARBON
33K
5%
1/4W
R701
1-249-429-11
CARBON
10K
5%
1/4W
R702
1-249-429-11
CARBON
10K
5%
1/4W
R703
1-259-476-11
CARBON
100K
5%
1/6W
R704
1-249-433-11
CARBON
22K
5%
1/4W
R705
1-247-883-00
CARBON
150K
5%
1/4W
R706
1-249-431-11
CARBON
15K
5%
1/4W
R707
1-249-429-11
CARBON
10K
5%
1/4W
!R708
1-217-497-00
FUSIBLE
220
5%
1W
F
R710
1-247-749-11
CARBON
470
5%
1/2W
F
(AEP,G,EE,MY,SP,AUS)
R710
1-247-231-11
CARBON
430
5%
1/2W
F
(UK)
R711
1-247-749-11
CARBON
470
5%
1/2W
F
(AEP,G,EE,MY,SP,AUS)
R711
1-247-231-11
CARBON
430
5%
1/2W
F
(UK)
< RELAY >
RY501
1-515-921-11
RELAY (12V)
RY502
1-515-921-11
RELAY (12V)
RY503
1-515-920-11
RELAY (24V)
< TERMINAL >
* TM501
1-537-699-11
TERMINAL BOARD (SP)(SPEAKERS)
**************************************************************
S-D LED
SIRCS
SIRCS SUB
SP-TM
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 34 –
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
*
A-4407-606-A TONE BOARD, COMPLETE (AEP,G,EE,MY,SP,AUS)
********************
*
A-4417-195-A TONE BOARD, COMPLETE (UK)
********************
< CAPACITOR >
C300
1-136-171-00
FILM
0.33uF
5%
50V
C301
1-130-475-00
FILM
0.0022uF
5%
50V
C302
1-136-153-00
FILM
0.01uF
5%
50V
C303
1-136-155-00
FILM
0.015uF
5%
50V
C304
1-136-165-00
FILM
0.1uF
5%
50V
C305
1-136-165-00
FILM
0.1uF
5%
50V
C306
1-130-471-00
FILM
0.001uF
5%
50V
C400
1-136-171-00
FILM
0.33uF
5%
50V
C401
1-130-475-00
FILM
0.0022uF
5%
50V
C402
1-136-153-00
FILM
0.01uF
5%
50V
C403
1-136-155-00
FILM
0.015uF
5%
50V
C404
1-136-165-00
FILM
0.1uF
5%
50V
C405
1-136-165-00
FILM
0.1uF
5%
50V
C406
1-130-471-00
FILM
0.001uF
5%
50V
< CONNECTOR >
CN305
1-784-912-11
CONNECTOR, BOARD TO BOARD 10P
CN801
1-564-524-11
PLUG, CONNECTOR 9P
* CN802
1-564-519-11
PLUG, CONNECTOR 4P
CN901
1-784-911-11
CONNECTOR, BOARD TO BOARD 8P
CN908
1-784-911-11
CONNECTOR, BOARD TO BOARD 8P
< RESISTOR >
R300
1-259-500-11
CARBON
1M
5%
1/6W
R301
1-259-500-11
CARBON
1M
5%
1/6W
R302
1-259-446-11
CARBON
5.6K
5%
1/6W
R303
1-259-436-11
CARBON
2.2K
5%
1/6W
R304
1-259-500-11
CARBON
1M
5%
1/6W
R305
1-259-464-11
CARBON
33K
5%
1/6W
R306
1-259-456-11
CARBON
15K
5%
1/6W
R307
1-259-446-11
CARBON
5.6K
5%
1/6W
R308
1-259-456-11
CARBON
15K
5%
1/6W
R309
1-259-500-11
CARBON
1M
5%
1/6W
R391
1-249-429-11
CARBON
10K
5%
44W
F
R392
1-249-429-11
CARBON
10K
5%
44W
F
R393
1-249-429-11
CARBON
10K
5%
44W
F
R400
1-259-500-11
CARBON
1M
5%
1/6W
R401
1-259-500-11
CARBON
1M
5%
1/6W
R402
1-259-446-11
CARBON
5.6K
5%
1/6W
R403
1-259-436-11
CARBON
2.2K
5%
1/6W
R404
1-259-500-11
CARBON
1M
5%
1/6W
R405
1-259-464-11
CARBON
33K
5%
1/6W
R406
1-259-456-11
CARBON
15K
5%
1/6W
R407
1-259-446-11
CARBON
5.6K
5%
1/6W
R408
1-259-456-11
CARBON
15K
5%
1/6W
R409
1-259-500-11
CARBON
1M
5%
1/6W
R801
1-247-751-11
CARBON
820
5%
1/2W
R802
1-247-751-11
CARBON
820
5%
1/2W
R803
1-247-751-11
CARBON
820
5%
1/2W
R804
1-247-751-11
CARBON
820
5%
1/2W
R805
1-247-751-11
CARBON
820
5%
1/2W
R806
1-247-751-11
CARBON
820
5%
1/2W
R807
1-247-231-11
CARBON
430
5%
1/2W
R808
1-247-231-11
CARBON
430
5%
1/2W
R809
1-247-231-11
CARBON
430
5%
1/2W
R810
1-247-231-11
CARBON
430
5%
1/2W
R902
1-247-751-11
CARBON
820
5%
1/2W
R904
1-249-429-11
CARBON
10K
5%
1/4W
R916
1-247-239-00
CARBON
910
5%
1/2W
< VARIABLE RESISTOR >
RV301
1-225-642-11
RES, VAR, CARBON 250K/250K (BALANCE)
RV302
1-225-643-11
RES, VAR, CARBON 250K/250K (TONE TREBLE)
RV303
1-225-644-11
RES, VAR, CARBON 900K/900K (TONE BASS)
< SWITCH >
S301
1-571-112-21
SWITCH, PUSH (1 KEY)(SUBSONIC)
S303
1-762-387-11
SWITCH, PUSH (LOUDNESS)
S801
1-771-384-11
SWITCH, ROTARY (SPEAKERS)
S901
1-762-203-11
SWITCH, PUSH (1 KEY)(EON LINK)
S903
1-762-656-11
SWITCH, ROTARY (TAPE MONITOR)
**************************************************************
*
1-669-489-11
VOL BOARD
*********
< CAPACITOR >
C310
1-136-165-00
FILM
0.1uF
5%
50V
< CONNECTOR >
CN302
1-691-772-11
PLUG (MICRO CONNECTOR) 10P
CN303
1-691-768-11
PLUG (MICRO CONNECTOR) 6P
< VARIABLE RESISTOR >
RV300
1-225-227-11
RES, VAR, CARBON 120K/120K (VOLULME)
**************************************************************
MISCELLANEOUS
*************
!11
1-777-185-11
CORD, POWER
!12
1-770-019-11
ADAPTOR, CONVERSION PLUG 3P
!CNJ3
1-526-794-11
OUTLET, AC (AC OUTLET)(AEP,G,EE)
!CNJ4
1-526-794-11
OUTLET, AC (AC OUTLET)(AEP,G,EE)
Q511
8-729-232-45
TRANSISTOR   2SK1529-Y
Q512
8-729-232-46
TRANSISTOR   2SJ200-Y
Q611
8-729-232-45
TRANSISTOR   2SK1529-Y
Q612
8-729-232-46
TRANSISTOR   2SJ200-Y
Q702
8-729-209-15
TRANSISTOR   2SD2012
!S1
1-554-920-61
SWITCH, PUSH (AC POWER)(1 KEY)(U)
!T1
1-431-827-11
TRANSFORMER, POWER (UK,MY,SP,AUS)
!T1
1-431-873-11
TRANSFORMER, POWER (AEP,G,EE)
**************************************************************
TONE
VOL
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 35 –
Ref. No.
Part No.
Description
Remark
ACCESSORIES & PACKING MATERIALS
*******************************
1-473-656-11
REMOTE COMMANDER (RM-S316)
3-864-335-11
MANUAL, INSTRUCTION
(ENGLISH,FRENCH,SPANISH,PORTUGUESE)
3-864-335-21
MANUAL, INSTRUCTION (AEP,G,EE,MY,SP,AUS)
(GERMAN,DUTCH,SWEDISH,ITALIAN)
4-981-643-01
COVER,BATTERY (FOR RM-S316)
**************************************************************
*************
HARDWARE LIST
*************
#1
7-682-548-09
SCREW (3X8)
#2
7-621-773-95
SCREW +B 2.6X6
#3
7-685-885-09
SCREW +BVTT 4X16 (S)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 36 –
Sony Corporation
Home A&V Products Company
98E0972-1
Printed in Japan © 1998. 5
Published by Quality Assurance Dept.
(Shibaura)
TA-FB920R
9-922-868-11
(AEP)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
'

array (
  0 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/c25f8797e01124b.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '76735',
    'title' => '索尼SONY TA-FB920R音响电路原理图-0',
    'description' => '索尼SONY TA-FB920R音响电路原理图-0',
  ),
  1 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/239cd0dc2ecb3f5.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '76736',
    'title' => '索尼SONY TA-FB920R音响电路原理图-1',
    'description' => '索尼SONY TA-FB920R音响电路原理图-1',
  ),
  2 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/8f3d24260f2dd9f.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '76737',
    'title' => '索尼SONY TA-FB920R音响电路原理图-2',
    'description' => '索尼SONY TA-FB920R音响电路原理图-2',
  ),
  3 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/c6cc971794f4a0a.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '76738',
    'title' => '索尼SONY TA-FB920R音响电路原理图-3',
    'description' => '索尼SONY TA-FB920R音响电路原理图-3',
  ),
  4 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/b8a294183b60e.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '76739',
    'title' => '索尼SONY TA-FB920R音响电路原理图-4',
    'description' => '索尼SONY TA-FB920R音响电路原理图-4',
  ),
  5 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/48dd633b5a0fd40.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '76740',
    'title' => '索尼SONY TA-FB920R音响电路原理图-5',
    'description' => '索尼SONY TA-FB920R音响电路原理图-5',
  ),
  6 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/7cb6dd8e0a60c74.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '76741',
    'title' => '索尼SONY TA-FB920R音响电路原理图-6',
    'description' => '索尼SONY TA-FB920R音响电路原理图-6',
  ),
  7 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/6c2a0ba4066bf.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '76742',
    'title' => '索尼SONY TA-FB920R音响电路原理图-7',
    'description' => '索尼SONY TA-FB920R音响电路原理图-7',
  ),
  8 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/47c5a8f1d15ddc2.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '76743',
    'title' => '索尼SONY TA-FB920R音响电路原理图-8',
    'description' => '索尼SONY TA-FB920R音响电路原理图-8',
  ),
  9 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/5374a3c73fdcb8d.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '76744',
    'title' => '索尼SONY TA-FB920R音响电路原理图-9',
    'description' => '索尼SONY TA-FB920R音响电路原理图-9',
  ),
)

'1680973216'

'1680973216'

'{"file":["76735","76736","76737","76738","76739","76740","76741","76742","76743","76744"],"title":["\\u7d22\\u5c3cSONY TA-FB920R\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-0","\\u7d22\\u5c3cSONY TA-FB920R\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-1","\\u7d22\\u5c3cSONY TA-FB920R\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-2","\\u7d22\\u5c3cSONY TA-FB920R\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-3","\\u7d22\\u5c3cSONY TA-FB920R\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-4","\\u7d22\\u5c3cSONY TA-FB920R\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-5","\\u7d22\\u5c3cSONY TA-FB920R\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-6","\\u7d22\\u5c3cSONY TA-FB920R\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-7","\\u7d22\\u5c3cSONY TA-FB920R\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-8","\\u7d22\\u5c3cSONY TA-FB920R\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-9"],"description":["\\u7d22\\u5c3cSONY TA-FB920R\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-0","\\u7d22\\u5c3cSONY TA-FB920R\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-1","\\u7d22\\u5c3cSONY TA-FB920R\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-2","\\u7d22\\u5c3cSONY TA-FB920R\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-3","\\u7d22\\u5c3cSONY TA-FB920R\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-4","\\u7d22\\u5c3cSONY TA-FB920R\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-5","\\u7d22\\u5c3cSONY TA-FB920R\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-6","\\u7d22\\u5c3cSONY TA-FB920R\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-7","\\u7d22\\u5c3cSONY TA-FB920R\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-8","\\u7d22\\u5c3cSONY TA-FB920R\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-9"]}'

'索尼,SONY, ,TA,-,FB920R,音响,电路,原理,原理图'

array (
  '索尼' => '/index.php?s=wenku&c=search&keyword=%E7%B4%A2%E5%B0%BC',
  'SONY' => '/index.php?s=wenku&c=search&keyword=SONY',
  'TA' => '/index.php?s=wenku&c=search&keyword=TA',
  '-' => '/index.php?s=wenku&c=search&keyword=-',
  'FB920R' => '/index.php?s=wenku&c=search&keyword=FB920R',
  '音响' => '/index.php?s=wenku&c=search&keyword=%E9%9F%B3%E5%93%8D',
  '电路' => '/index.php?s=wenku&c=search&keyword=%E7%94%B5%E8%B7%AF',
  '原理' => '/index.php?s=wenku&c=search&keyword=%E5%8E%9F%E7%90%86',
  '原理图' => '/index.php?s=wenku&c=search&keyword=%E5%8E%9F%E7%90%86%E5%9B%BE',
)

array (
)

array (
  'id' => '16782',
  'catid' => '8',
  'title' => '索尼SONY TA-FB820R音响电路原理图',
  'thumb' => '76713',
  'keywords' => '索尼,SONY, ,TA,-,FB820R,音响,电路,原理,原理图',
  'description' => '',
  'hits' => '2',
  'uid' => '1',
  'author' => 'admin',
  'status' => '9',
  'url' => '/wenku/a16782.html',
  'link_id' => '0',
  'tableid' => '0',
  'inputip' => '127.0.0.1',
  'inputtime' => '1680973175',
  'updatetime' => '1680973175',
  'displayorder' => '0',
  'xerhu_score' => '50',
  'xerhu_score_sku' => NULL,
  'xerhu_score_down_num' => '0',
  'xerhu_score_down_type' => '2',
  'xerhu_score_file' => '76712',
  'xerhu_score_pan' => NULL,
  'xerhu_score_tqm' => NULL,
)

array (
  'id' => '16784',
  'catid' => '8',
  'title' => '索尼SONY TA-FB930R音响电路原理图',
  'thumb' => '76746',
  'keywords' => '索尼,SONY, ,TA,-,FB930R,音响,电路,原理,原理图',
  'description' => '',
  'hits' => '1',
  'uid' => '1',
  'author' => 'admin',
  'status' => '9',
  'url' => '/wenku/a16784.html',
  'link_id' => '0',
  'tableid' => '0',
  'inputip' => '127.0.0.1',
  'inputtime' => '1680973268',
  'updatetime' => '1680973268',
  'displayorder' => '0',
  'xerhu_score' => '50',
  'xerhu_score_sku' => NULL,
  'xerhu_score_down_num' => '0',
  'xerhu_score_down_type' => '2',
  'xerhu_score_file' => '76745',
  'xerhu_score_pan' => NULL,
  'xerhu_score_tqm' => NULL,
)

'索尼SONY TA-FB920R音响电路原理图_电子电工_行业资料_文汇知识网'

'索尼,SONY, ,TA,-,FB920R,音响,电路,原理,原理图'

''

array (
  'id' => '8',
  'pid' => '5',
  'pids' => '0,5',
  'name' => '电子电工',
  'dirname' => 'dzdg',
  'pdirname' => 'hangye/',
  'child' => 0,
  'disabled' => '0',
  'ismain' => 1,
  'childids' => 8,
  'thumb' => '',
  'show' => '1',
  'setting' =>
  array (
    'disabled' => '0',
    'linkurl' => '',
    'getchild' => '0',
    'notedit' => '0',
    'seo' =>
    array (
    ),
    'template' =>
    array (
      'pagesize' => '20',
      'mpagesize' => '20',
      'list' => 'list.html',
      'category' => 'category.html',
      'search' => 'search.html',
      'show' => 'show.html',
    ),
    'cat_field' => NULL,
    'module_field' => NULL,
    'urlrule' => 4,
    'html' => 0,
    'chtml' => 0,
  ),
  'displayorder' => '0',
  'icon' => '',
  'index' => '2',
  'mid' => 'wenku',
  'pcatpost' => 0,
  'topid' => '5',
  'catids' =>
  array (
    0 => '8',
  ),
  'is_post' => 1,
  'tid' => 1,
  'url' => 'http://www.wenhuiw.com/wenku/dzdg',
  'total' => '请使用count标签查询',
  'field' =>
  array (
  ),
)

array (
  'id' => '5',
  'pid' => '0',
  'pids' => '0',
  'name' => '行业资料',
  'dirname' => 'hangye',
  'pdirname' => '',
  'child' => 1,
  'disabled' => '0',
  'ismain' => 1,
  'childids' => '5,8,12,13,14,15,16',
  'thumb' => '20',
  'show' => '1',
  'setting' =>
  array (
    'disabled' => '0',
    'linkurl' => '',
    'getchild' => '0',
    'notedit' => '0',
    'seo' =>
    array (
    ),
    'template' =>
    array (
      'pagesize' => '20',
      'mpagesize' => '20',
      'list' => 'list.html',
      'category' => 'category.html',
      'search' => 'search.html',
      'show' => 'show.html',
    ),
    'cat_field' => NULL,
    'module_field' => NULL,
    'urlrule' => 4,
    'html' => 0,
    'chtml' => 0,
  ),
  'displayorder' => '0',
  'icon' => 'fa fa-gears',
  'index' => '1',
  'mid' => 'wenku',
  'pcatpost' => 0,
  'topid' => '5',
  'catids' =>
  array (
    0 => '5',
    1 => '8',
    2 => '12',
    3 => '13',
    4 => '14',
    5 => '15',
    6 => '16',
  ),
  'is_post' => 0,
  'tid' => 1,
  'url' => 'http://www.wenhuiw.com/wenku/hangye',
  'total' => '请使用count标签查询',
  'field' =>
  array (
  ),
)

1

array (
  'catid' => '8',
)

array (
  'id' => '5',
  'pid' => '0',
  'pids' => '0',
  'name' => '行业资料',
  'dirname' => 'hangye',
  'pdirname' => '',
  'child' => 1,
  'disabled' => '0',
  'ismain' => 1,
  'childids' => '5,8,12,13,14,15,16',
  'thumb' => '20',
  'show' => '1',
  'setting' =>
  array (
    'disabled' => '0',
    'linkurl' => '',
    'getchild' => '0',
    'notedit' => '0',
    'seo' =>
    array (
    ),
    'template' =>
    array (
      'pagesize' => '20',
      'mpagesize' => '20',
      'list' => 'list.html',
      'category' => 'category.html',
      'search' => 'search.html',
      'show' => 'show.html',
    ),
    'cat_field' => NULL,
    'module_field' => NULL,
    'urlrule' => 4,
    'html' => 0,
    'chtml' => 0,
  ),
  'displayorder' => '0',
  'icon' => 'fa fa-gears',
  'index' => '1',
  'mid' => 'wenku',
  'pcatpost' => 0,
  'topid' => '5',
  'catids' =>
  array (
    0 => '5',
    1 => '8',
    2 => '12',
    3 => '13',
    4 => '14',
    5 => '15',
    6 => '16',
  ),
  'is_post' => 0,
  'tid' => 1,
  'url' => 'http://www.wenhuiw.com/wenku/hangye',
  'total' => '请使用count标签查询',
  'field' =>
  array (
  ),
)

array (
  8 =>
  array (
    'id' => '8',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '电子电工',
    'dirname' => 'dzdg',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 8,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '8',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/dzdg',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  12 =>
  array (
    'id' => '12',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '电脑手机',
    'dirname' => 'dnsj',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 12,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '12',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/dnsj',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  13 =>
  array (
    'id' => '13',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '交通道路',
    'dirname' => 'jtdl',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 13,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '13',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/jtdl',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  14 =>
  array (
    'id' => '14',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '机械设备',
    'dirname' => 'jixie',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 14,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '14',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/jixie',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  15 =>
  array (
    'id' => '15',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '能源动力',
    'dirname' => 'nydl',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 15,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '15',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/nydl',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  16 =>
  array (
    'id' => '16',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '电气工控',
    'dirname' => 'dqgk',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 16,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '16',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/dqgk',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
)

'/index.php?s=wenku&c=show&id=16783&page=[page]'

''

'http://www.wenhuiw.com/wenku/a16783.html'

array (
  's' => 'wenku',
  'c' => 'show',
  'id' => '16783',
  'm' => 'index',
)
