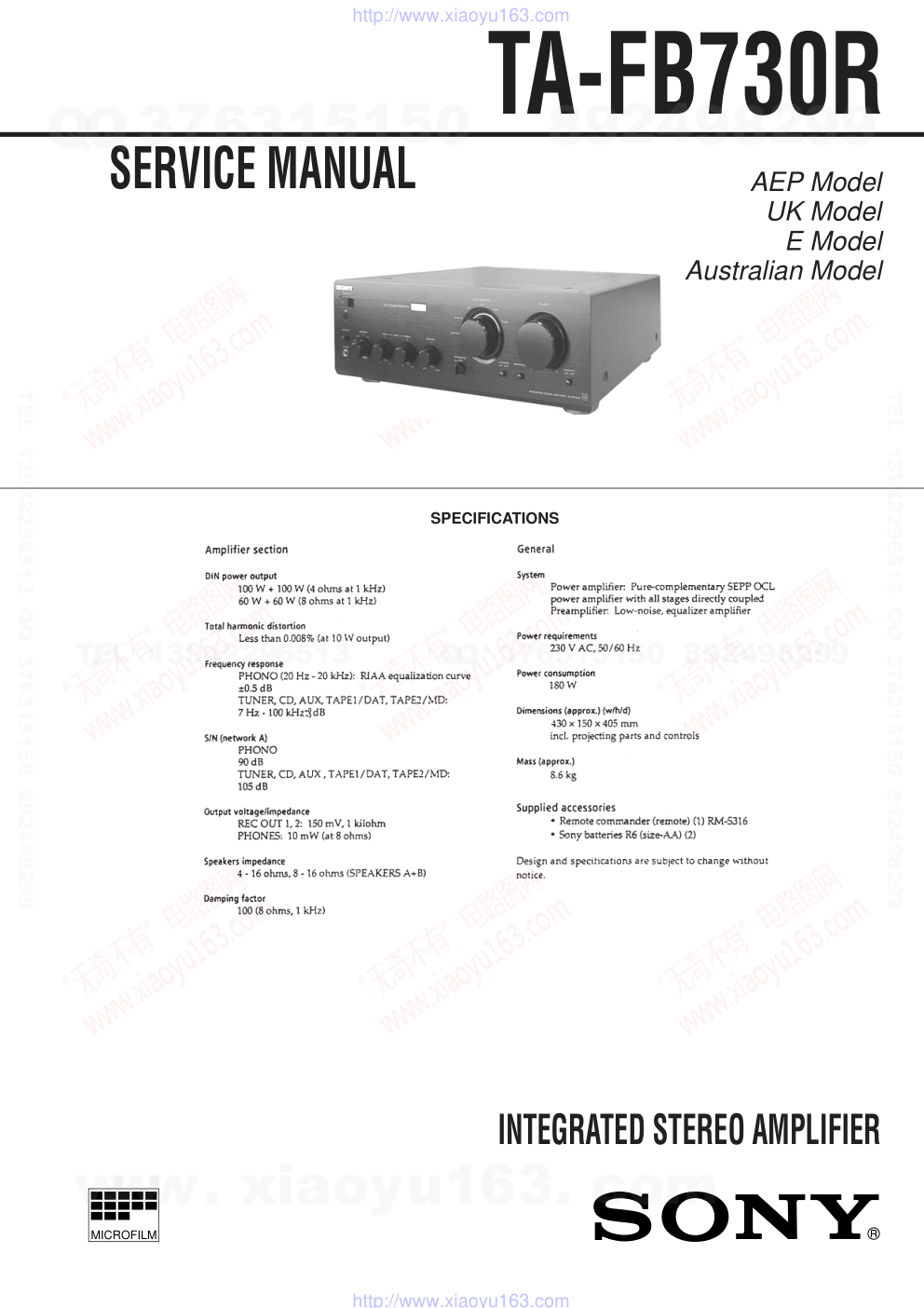

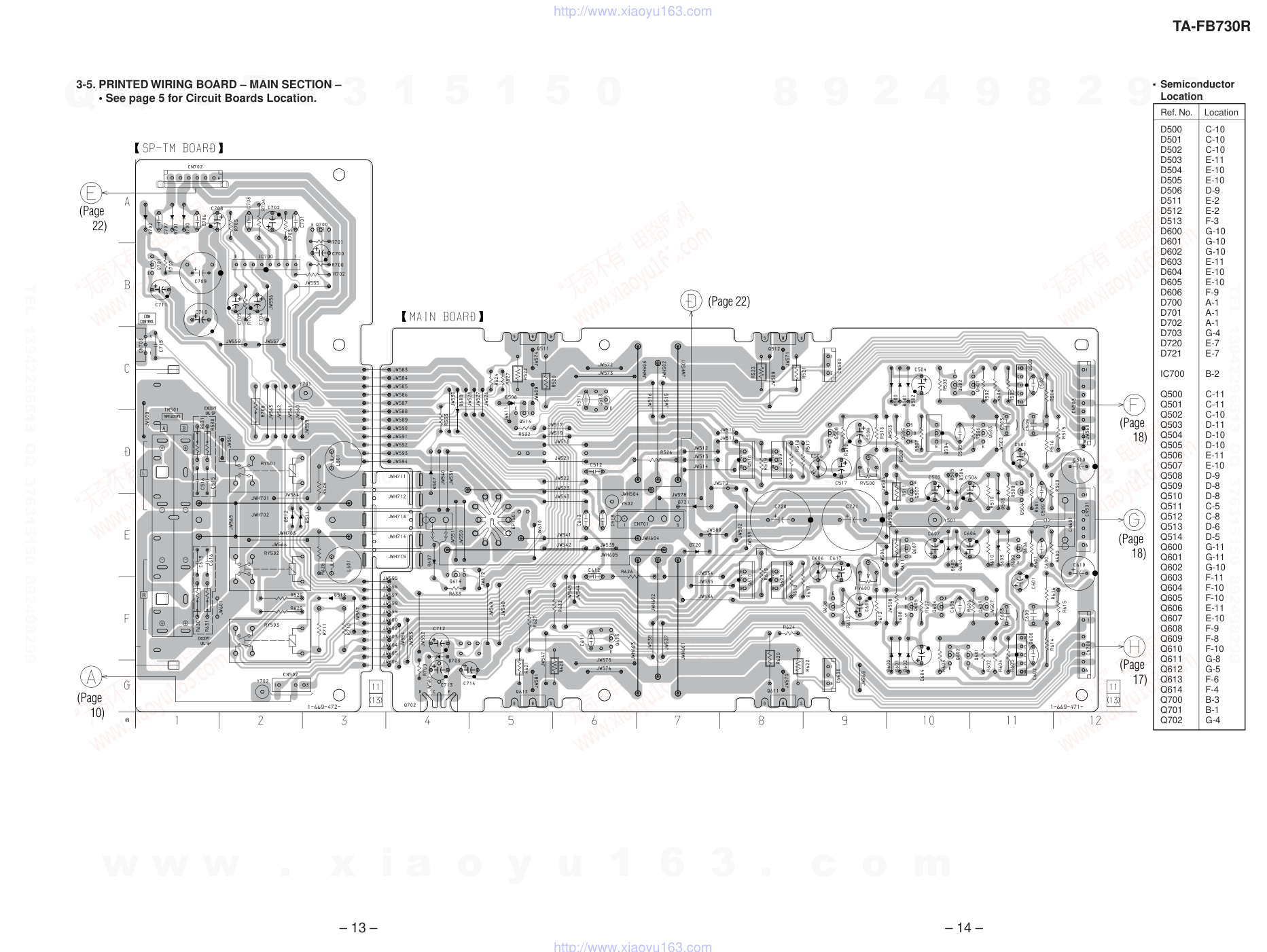

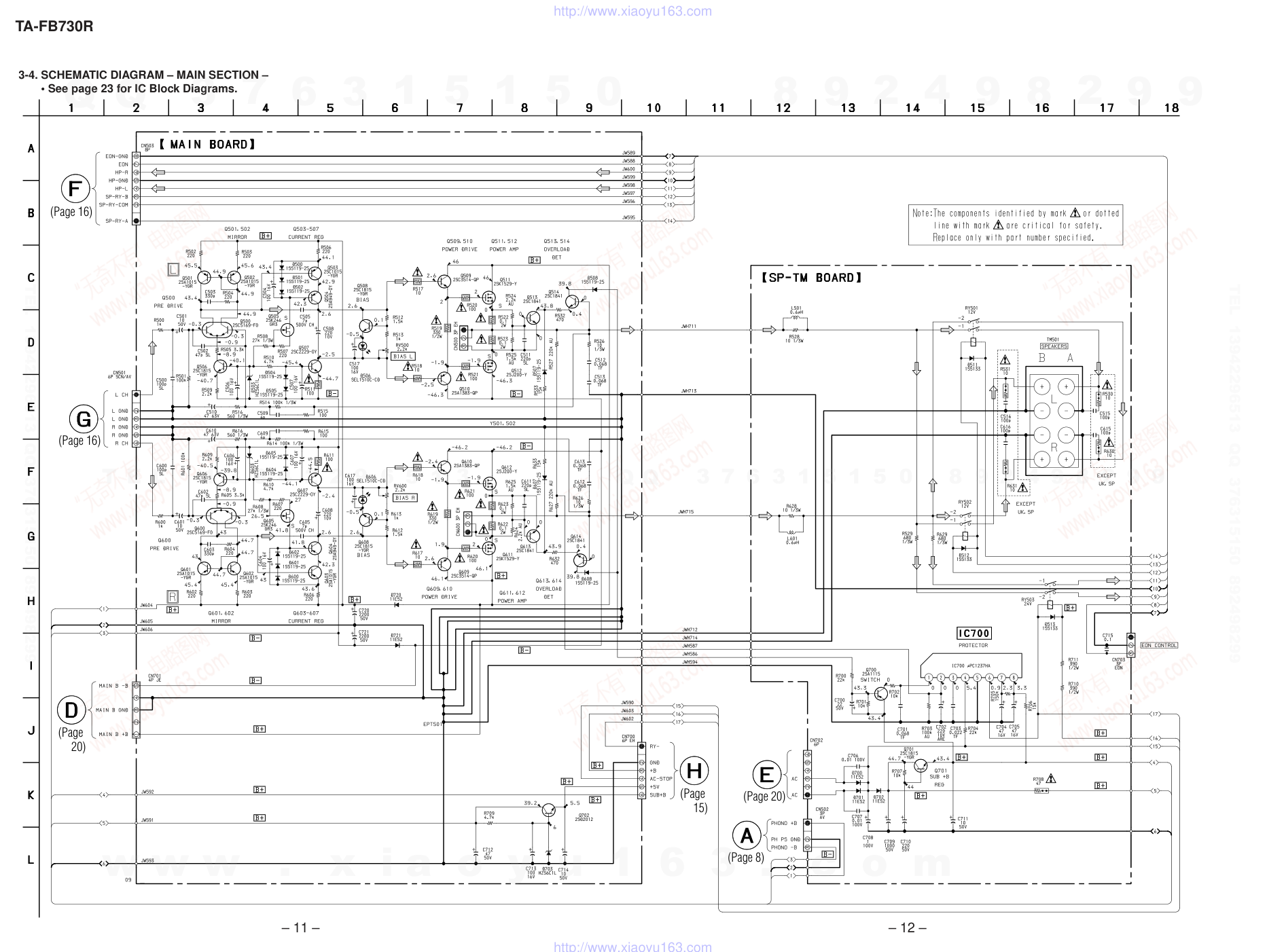

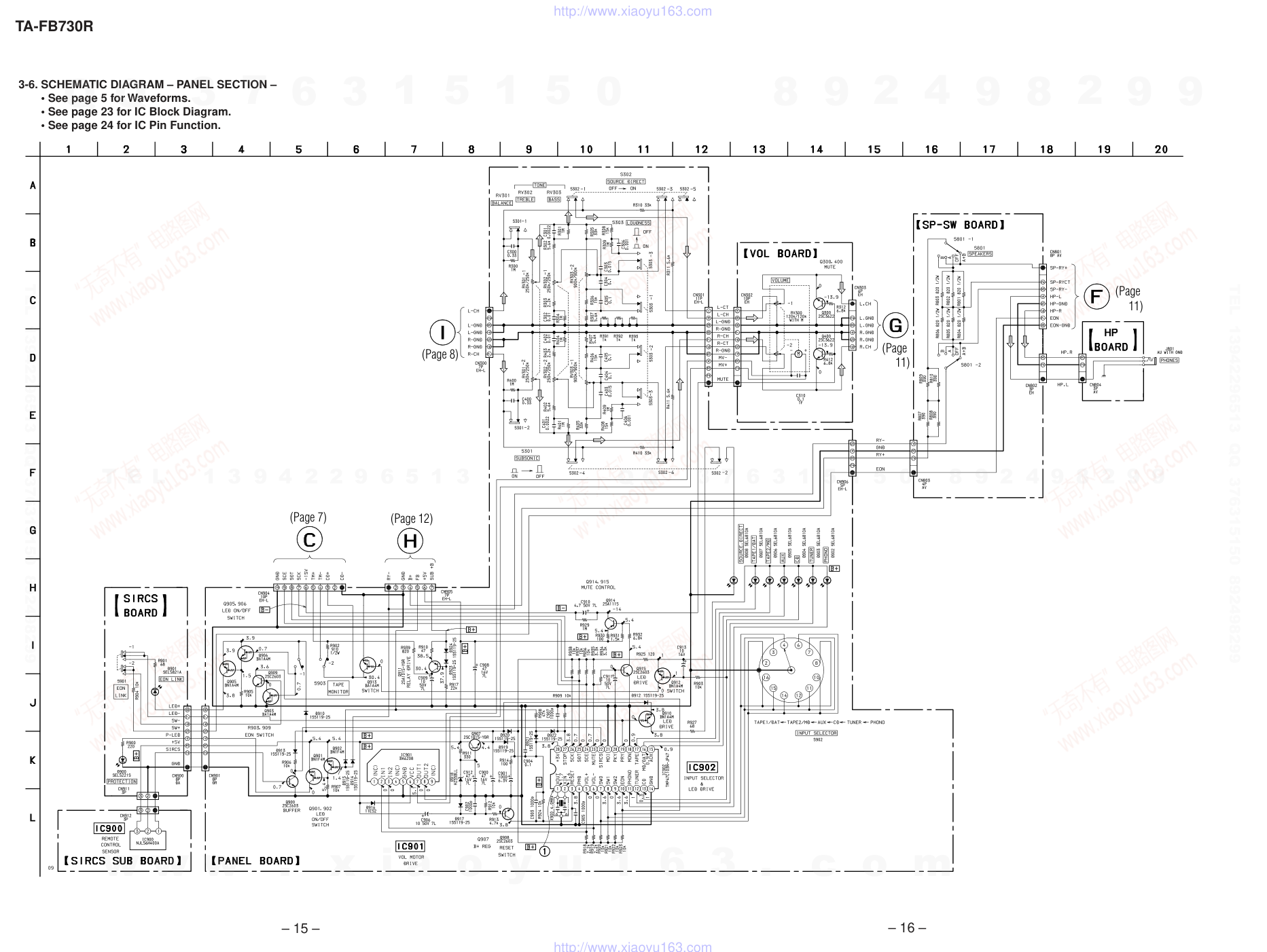

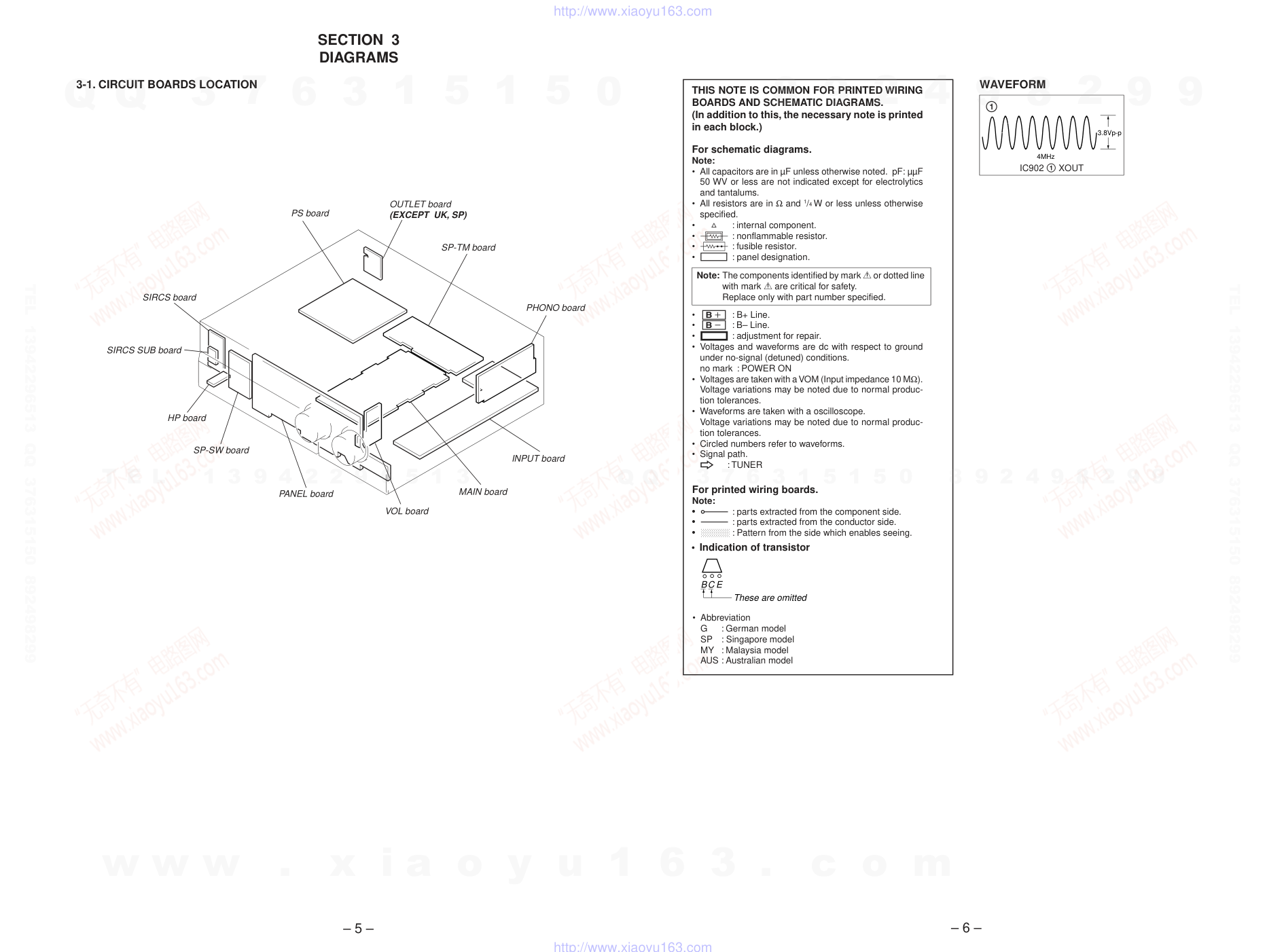

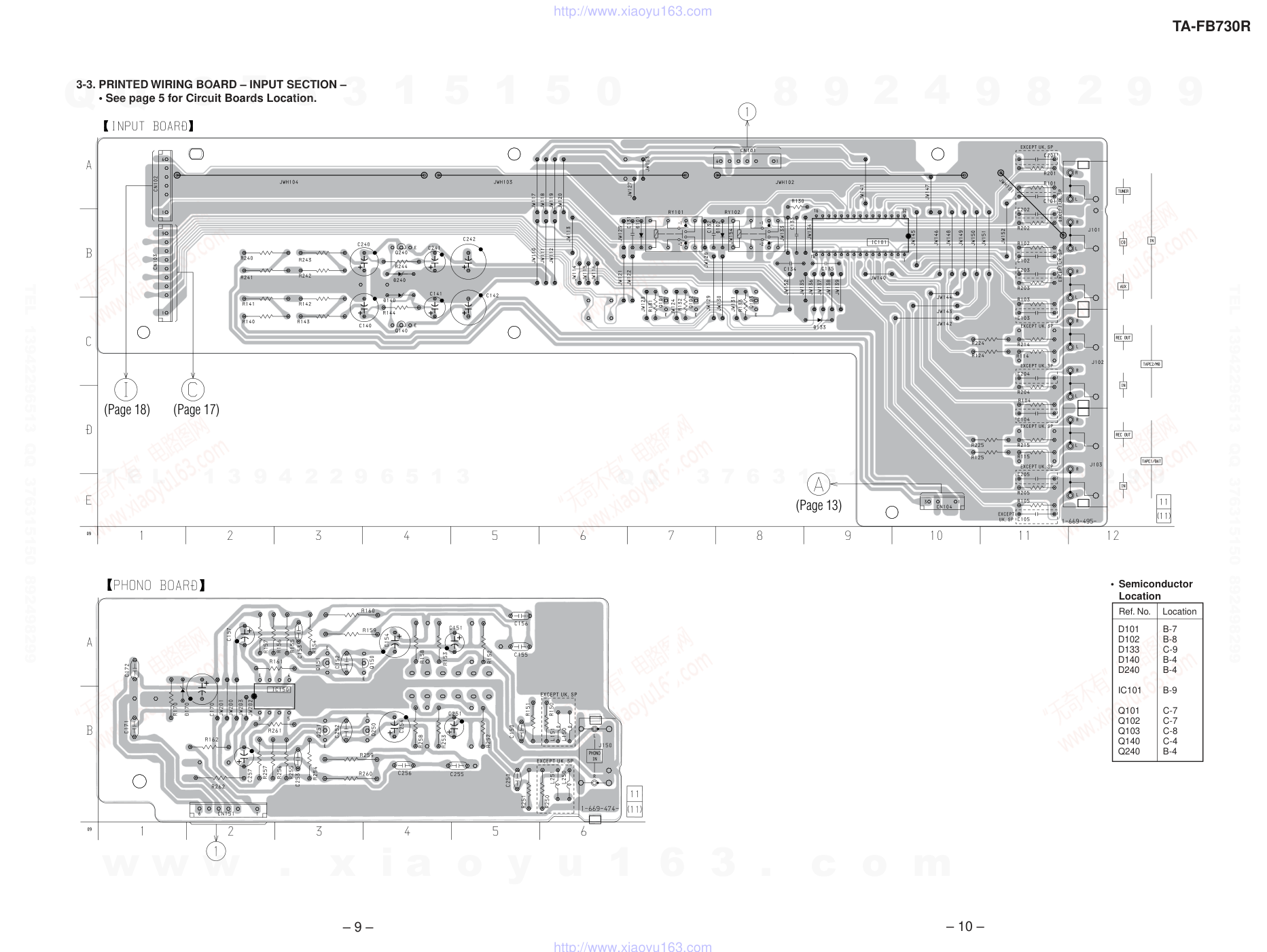

– 1 – MICROFILM AEP Model UK Model E Model Australian Model SPECIFICATIONS SERVICE MANUAL INTEGRATED STEREO AMPLIFIER TA-FB730R www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 2 – SAFETY-RELATED COMPONENT WARNING !! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. TABLE OF CONTENTS 1. GENERAL .......................................................................... 3 2. ELECTRICAL ADJUSTMENT ..................................... 4 3. DIAGRAMS 3-1. Circuit Boards Location ........................................................ 5 3-2. Schematic Diagram – Input Section – .................................. 7 3-3. Printed Wiring Board – Input Section – ................................ 9 3-4. Schematic Diagram – Main Section – ................................ 11 3-5. Printed Wiring Board – Main Section – .............................. 13 3-6. Schematic Diagram – Panel Section – ................................ 15 3-7. Printed Wiring Board – Panel Section – ............................. 17 3-8. Schematic Diagram – Power Section – ............................... 19 3-9. Printed Wiring Board – Power Section – ............................ 21 3-10. IC Block Diagrams............................................................ 23 3-11. IC Pin Function ................................................................. 24 4. EXPLODED VIEWS 4-1. Case and Back Panel Section .............................................. 25 4-2. Front Panel Section ............................................................. 26 4-3. Chassis Section ................................................................... 27 5. ELECTRICAL PARTS LIST ........................................ 28 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 3 – Front Panel Descriptions SECTION 1 GENERAL Location of Parts and Controls 1 PROTECTION indicator 2 U (Power) button 3 Remote sensor 4 TAPE 1/DAT indicator 5 TAPE 2/MD indicator 6 AUX indicator 7 CD indicator 8 TUNER indicator 9 PHONO indicator 10 INPUT SELECTOR knob 11 VOLUME knob 12 SUBSONIC button 13 SOURCE indicator 14 SOURCE DIRECT button and indicator 15 LOUDNESS button 16 TAPE MONITOR knob 17 BALANCE knob 18 TREBLE knob 19 BASS knob 20 SPEAKERS knob 21 PHONE jack 22 EON LINK button 23 EON LINK indicator This section is extracted from instruction manual. 22 23 13 12 14 15 16 17 18 19 20 21 3 2 1 9 7 8 4 6 5 10 11 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 4 – SECTION 2 ELECTRICAL ADJUSTMENT Bias Adjustment NOTE: 1. Perform the adjustment after the unit has warmed up sufficiently. 2. Perform the bias adjustment if the power transistor has been replaced. Procedure: 1. Rotate fully the bias adjusting semi-fixed resistors (RV500, RV600) to the MIN position (counterclockwise). 2. Connect a digital voltmeter to the CN500 and CN600. 3. Set the slide regulator to 0V, and press the U button (ON) on the set. 4. Raise gradually the slide regulator voltage up to the rated voltage. 5. At this time, confirm that the SP relay is turned on (it will click). 6. Adjust the RV500 and RV600 so that a reading of digital voltmeter is 10 ± 1 mV. 7. Return the slidack to 0 V, and press the U button (OFF) on the set. Adjustment Location : [MAIN BOARD] – COMPONENT SIDE – 1 pin 3 pin – – + + CN500 (L-CH) CN600(R-CH) + CN600 (R-CH) 1 3 CN500 (L-CH) 1 3 RV600 Bias (R-CH) RV500 Bias (L-CH) DIGITAL VOLTMETER DIGITAL VOLTMETER + www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 5 – – 6 – SECTION 3 DIAGRAMS 3-1. CIRCUIT BOARDS LOCATION THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.) For schematic diagrams. Note: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • ¢ : internal component. • 2 : nonflammable resistor. • 5 : fusible resistor. • C : panel designation. For printed wiring boards. Note: • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • b : Pattern from the side which enables seeing. • U : B+ Line. • V : B– Line. • H : adjustment for repair. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : POWER ON • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. F : TUNER WAVEFORM 1 IC902 1 XOUT Note: The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. • Indication of transistor C These are omitted E B 4MHz 3.8Vp-p PANEL board INPUT board MAIN board SP-TM board PHONO board PS board OUTLET board (EXCEPT UK, SP) VOL board SIRCS board SIRCS SUB board HP board SP-SW board • Abbreviation G : German model SP : Singapore model MY : Malaysia model AUS : Australian model w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 7 – – 8 – TA-FB730R 3-2. SCHEMATIC DIAGRAM – INPUT SECTION – • See page 23 for IC Block Diagrams. (Page 12) (Page 15) (Page 15) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 9 – – 10 – TA-FB730R 3-3. PRINTED WIRING BOARD – INPUT SECTION – • See page 5 for Circuit Boards Location. Ref. No. Location • Semiconductor Location D101 B-7 D102 B-8 D133 C-9 D140 B-4 D240 B-4 IC101 B-9 Q101 C-7 Q102 C-7 Q103 C-8 Q140 C-4 Q240 B-4 (Page 18) (Page 17) (Page 13) EXCEPT UK, SP EXCEPT UK, SP EXCEPT UK, SP EXCEPT UK, SP EXCEPT UK, SP EXCEPT UK, SP EXCEPT UK, SP EXCEPT UK, SP EXCEPT UK, SP EXCEPT UK, SP w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 11 – – 12 – TA-FB730R 3-4. SCHEMATIC DIAGRAM – MAIN SECTION – • See page 23 for IC Block Diagrams. (Page 16) (Page 16) (Page 20) (Page 15) (Page 20) (Page 8) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 13 – – 14 – TA-FB730R 3-5. PRINTED WIRING BOARD – MAIN SECTION – • See page 5 for Circuit Boards Location. Ref. No. Location • Semiconductor Location D500 C-10 D501 C-10 D502 C-10 D503 E-11 D504 E-10 D505 E-10 D506 D-9 D511 E-2 D512 E-2 D513 F-3 D600 G-10 D601 G-10 D602 G-10 D603 E-11 D604 E-10 D605 E-10 D606 F-9 D700 A-1 D701 A-1 D702 A-1 D703 G-4 D720 E-7 D721 E-7 IC700 B-2 Q500 C-11 Q501 C-11 Q502 C-10 Q503 D-11 Q504 D-10 Q505 D-10 Q506 E-11 Q507 E-10 Q508 D-9 Q509 D-8 Q510 D-8 Q511 C-5 Q512 C-8 Q513 D-6 Q514 D-5 Q600 G-11 Q601 G-11 Q602 G-10 Q603 F-11 Q604 F-10 Q605 F-10 Q606 E-11 Q607 E-10 Q608 F-9 Q609 F-8 Q610 F-10 Q611 G-8 Q612 G-5 Q613 F-6 Q614 F-4 Q700 B-3 Q701 B-1 Q702 G-4 (Page 22) (Page 10) (Page 22) (Page 18) (Page 18) (Page 17) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 15 – – 16 – TA-FB730R 3-6. SCHEMATIC DIAGRAM – PANEL SECTION – • See page 5 for Waveforms. • See page 23 for IC Block Diagram. • See page 24 for IC Pin Function. (Page 8) (Page 12) (Page 7) (Page 11) (Page 11) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 17 – – 18 – TA-FB730R 3-7. PRINTED WIRING BOARD – PANEL SECTION – • See page 5 for Circuit Boards Location. Ref. No. Location • Semiconductor Location D902 D-9 D903 D-9 D904 D-8 D905 D-7 D906 D-7 D907 C-7 D908 B-10 D910 C-1 D912 C-6 D913 C-1 D914 D-1 D915 D-1 D916 D-6 D917 D-4 D918 C-3 D919 C-4 D920 C-3 D921 D-5 D922 D-5 D923 D-3 D924 D-3 IC901 D-7 IC902 C-5 Q900 C-1 Q901 D-1 Q902 D-1 Q903 D-1 Q905 D-1 Q906 D-1 Q907 C-3 Q908 C-4 Q909 D-2 Q910 C-6 Q911 D-3 Q912 D-6 Q913 D-3 Q914 D-3 Q915 D-4 (Page 14) (Page 14) (Page 9) (Page 9) (Page 14) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 19 – – 20 – TA-FB730R 3-8. SCHEMATIC DIAGRAM – POWER SECTION – (Page 12) (Page 11) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 21 – – 22 – TA-FB730R 3-9. PRINTED WIRING BOARD – POWER SECTION – • See page 5 for Circuit Boards Location. (Page 13) (Page 13) EXCEPT UK, SP w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 23 – – 24 – 3-11. IC PIN FUNCTION • IC902 Input Control & LED Drive (TMP47C103N-JP47) (PANEL BOARD) O I I I O O I I I I O O O — O O O O O I I I O O O O I — 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 X OUT X IN RESET PMD VOL + VOL – SW 0 SW 1 SW 2 EON PHONO TUNER CD GND AUX MD/DAT TAPE MON PRY PKY MOI SIRCS MUTE SCE SDT SCK STOP +3V System clock (4MHz) Reset input Mode select input Motor drive output (+) Motor drive output (–) Rotary switch input (CD) Rotary switch input (TUNER) Rotary switch input (PHONO) EON signal input PHONO LED drive output TUNER LED drive output CD LED drive output Ground AUX LED drive output TAPE “2” LED drive output TAPE “1” LED drive output MONITOR output Power relay output Power key input MONITOR input SIRCS input Muting output Chip enble output Serial data output Serial clock output STOP input +3V Power supply I/O Function Pin No. Pin Name 3-10. IC BLOCK DIAGRAMS • Main section IC700 uPC1237HA 1 2 3 4 5 6 7 8 OVER LOAD DET F/F OFFSET DET LATCH/ AUTORESET VCC ON MUTE AC OFF DET VCC • Panel section IC901 BA6208 1 2 3 4 5 6 7 8 9 NC OUTPUT 2 Vcc GND NC INPUT 2 INPUT 1 NC MOTOR DRIVE MOTOR DRIVE REG SWITCH SWITCH OUTPUT1 • Input section IC101 LC7821 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 CONTROL LATCH SHIFT RESISTER LEVEL SHIFT CL DI CE VEE L COM3 L7 L COM2 L5 L4 L2 VSS S RES VDD R COM3 R8 R7 R COM2 R6 R4 R2 R5 R COM1 R3 R1 L3 L1 L COM1 L6 L8 BUFFER w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 25 – SECTION 4 EXPLODED VIEWS Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 9 4-218-231-11 PANEL, BACK (UK,SP) * 10 3-703-244-00 BUSHING (2104), CORD !11 1-777-185-11 CORD, POWER * 12 1-669-476-11 OUTLET BOARD (AEP,G,MY,AUS) 13 4-210-291-01 SCREW (CASE 3 TP2) 14 4-947-010-01 SCREW, FEEDER FIXED !15 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (UK,SP) * 16 3-655-635-21 BAND (TAITON), BINDING !CNJ3 1-526-794-11 OUTLET, AC (AEP,G,MY,AUS) !CNJ4 1-526-794-11 OUTLET, AC (AEP,G,MY,AUS) 1 X-4949-780-1 KNOB (SELECTOR) ASSY 2 X-4949-781-1 KNOB (VOLUME) ASSY 3 3-704-515-51 SCREW (BV/RING) * 4 4-999-439-03 CASE (413235) 5 X-4949-760-1 FOOT ASSY 6 4-970-124-01 CUSHION (F50180S) 7 A-4419-611-A PHONO BOARD, COMPLETE (AEP,G,MY,AUS) 7 A-4419-803-A PHONO BOARD, COMPLETE (UK,SP) 8 4-974-510-01 SCREW (+BV 3X8 CU) 9 4-218-231-01 PANEL, BACK (AEP,G,MY,AUS) NOTE: • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Hardware (# mark) list and accessories and pack- ing materials are given in the last of this parts list. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. 4-1. CASE AND BACK PANEL SECTION 13 13 12 11 15 10 9 16 CNJ3 AEP,G,MY,AUS CNJ4 8 14 3 8 8 4 8 13 8 7 8 6 5 #1 not supplied not supplied #1 5 6 1 2 • Abbreviation G : German model SP : Singapore model MY : Malaysia model AUS : Australian model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 26 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * 63 1-669-497-11 SIRCS BOARD * 64 1-669-498-11 HP BOARD * 65 1-669-494-11 SP-SW BOARD 66 A-4419-613-A PANEL BOARD, COMPLETE * 67 1-669-496-11 VOL BOARD 68 4-950-189-01 KNOB (A)(VOL) 69 4-970-146-01 BUTTON 70 4-980-189-01 KNOB (DIA. 6) 71 4-999-420-01 ESCUTCHEON (TONE) !S1 1-554-920-11 SWITCH, PUSH (AC POWER)(1 KEY)(U) 51 4-942-568-41 EMBLEM (NO.5), SONY 52 4-965-651-01 EMBLEM (MOS) 53 4-974-510-01 SCREW (+BV 3X8 CU) 54 4-985-642-01 CUSHION 55 4-999-413-01 INDICATOR (PROTECTION) 56 4-980-776-01 WINDOW, REMOTE CONTROL * 57 4-999-418-01 INDICATOR (SELECTOR) 58 4-999-416-03 BASE (L), PANEL 59 4-999-417-03 BASE (R), PANEL 60 4-999-419-01 KNOB (D23) 61 3-024-055-01 BUTTON (POWER) * 62 1-670-220-11 SIRCS SUB BOARD The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. 4-2. FRONT PANEL SECTION 51 52 53 53 53 53 54 54 not supplied 55 57 71 55 68 53 53 60 61 53 64 53 69 70 67 53 53 S1 not supplied not supplied Supplied with J801 Supplied with RV300, S902,S903 #2 #2 Supplied with RV301,RV302, RV303,S801 53 63 62 66 65 58 59 53 56 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 27 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 108 X-4950-314-2 BRACKET (RAIL)(L) ASSY 109 X-4950-315-2 BRACKET (RAIL)(R) ASSY 110 4-211-985-01 SCREW (3X8), PC BOARD FITTING Q511 8-729-232-45 TRANSISTOR 2SK1529-Y Q512 8-729-232-46 TRANSISTOR 2SJ200-Y Q611 8-729-232-45 TRANSISTOR 2SK1529-Y Q612 8-729-232-46 TRANSISTOR 2SJ200-Y Q702 8-729-209-15 TRANSISTOR 2SD2012 !T1 1-433-788-11 TRANSFORMER, POWER (AEP,G,MY,AUS) !T1 1-433-823-11 TRANSFORMER, POWER (UK,SP) 101 4-974-510-01 SCREW (+BV 3X8 CU) 102 3-905-609-11 SCREW (TRANSISTOR) 103 4-900-386-01 SCREW 104 A-4419-614-A INPUT BOARD, COMPLETE (AEP,G,MY,AUS) 104 A-4419-623-A INPUT BOARD, COMPLETE (UK,SP) 105 A-4419-608-A MAIN BOARD, COMPLETE (AEP,G,MY,AUS) 105 A-4419-619-A MAIN BOARD, COMPLETE (UK,SP) 106 A-4419-609-A SP-TM BOARD, COMPLETE (AEP,G,MY,AUS) 106 A-4419-620-A SP-TM BOARD, COMPLETE (UK,SP) * 107 1-669-473-11 PS BOARD The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. 4-3. CHASSIS SECTION not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied Q511 Q611 Q612 Q702 Q512 T1 not supplied not supplied 101 101 101 108 101 101 104 101 101 101 101 101 101 101 101 101 101 110 110 103 103 107 102 105 102 106 101 109 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 28 – • SEMICONDUCTORS In each case, u: µ , for example: uA...: µ A..., uPA...: µ PA..., uPB...: µ PB..., uPC...: µ PC..., uPD...: µ PD... • CAPACITORS uF : µ F • COILS uH : µ H • Abbreviation G : German model SP : Singapore model MY : Malaysia model AUS : Australian model • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • RESISTORS All resistors are in ohms METAL: Metal-film resistor METAL OXIDE: Metal Oxide-film resistor F : nonflammable SECTION 5 ELECTRICAL PARTS LIST Note: When indicating parts by reference number, please include the board name. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. INPUT 1-669-498-11 HP BOARD ********* < CONNECTOR > CN804 1-691-765-11 PLUG (MICRO CONNECTOR) 3P < JACK > J801 1-770-307-11 JACK (LARGE TYPE)(PHONES) ************************************************************** A-4419-614-A INPUT BOARD, COMPLETE (AEP,G,MY,AUS) ********************* A-4419-623-A INPUT BOARD, COMPLETE (UK,SP) ********************* < CAPACITOR > C101 1-162-282-31 CERAMIC 100PF 10% 50V (AEP,G,MY,AUS) C102 1-162-282-31 CERAMIC 100PF 10% 50V (AEP,G,MY,AUS) C103 1-162-282-31 CERAMIC 100PF 10% 50V (AEP,G,MY,AUS) C104 1-162-282-31 CERAMIC 100PF 10% 50V (AEP,G,MY,AUS) C105 1-162-282-31 CERAMIC 100PF 10% 50V (AEP,G,MY,AUS) C131 1-164-159-11 CERAMIC 0.1uF 50V C132 1-164-159-11 CERAMIC 0.1uF 50V C133 1-162-294-31 CERAMIC 0.001uF 10% 50V C134 1-164-159-11 CERAMIC 0.1uF 50V C135 1-164-159-11 CERAMIC 0.1uF 50V C140 1-126-052-11 ELECT 100uF 20% 50V C141 1-126-023-11 ELECT 100uF 20% 25V C142 1-126-013-11 ELECT 1000uF 20% 16V C201 1-162-282-31 CERAMIC 100PF 10% 50V (AEP,G,MY,AUS) C202 1-162-282-31 CERAMIC 100PF 10% 50V (AEP,G,MY,AUS) C203 1-162-282-31 CERAMIC 100PF 10% 50V (AEP,G,MY,AUS) C204 1-162-282-31 CERAMIC 100PF 10% 50V (AEP,G,MY,AUS) C205 1-162-282-31 CERAMIC 100PF 10% 50V (AEP,G,MY,AUS) C240 1-126-052-11 ELECT 100uF 20% 50V C241 1-126-023-11 ELECT 100uF 20% 25V C242 1-126-013-11 ELECT 1000uF 20% 16V < CONNECTOR > CN102 1-691-768-11 PLUG (MICRO CONNECTOR) 6P CN103 1-691-771-11 PLUG (MICRO CONNECTOR) 9P CN104 1-691-765-11 PLUG (MICRO CONNECTOR) 3P < DIODE > D101 8-719-911-19 DIODE 1SS119-25 D102 8-719-911-19 DIODE 1SS119-25 D133 8-719-911-19 DIODE 1SS119-25 D140 8-719-986-38 DIODE HZS16-1LTA D240 8-719-986-38 DIODE HZS16-1LTA < IC > IC101 8-759-805-13 IC LC7821 < JACK > J101 1-774-411-11 JACK, PIN 6P (TUNER, CD, AUX IN) J102 1-573-028-31 JACK, PIN 4P (TAPE2/MD) J103 1-573-028-31 JACK, PIN 4P (TAPE1/DAT) < TRANSISTOR > Q101 8-729-620-05 TRANSISTOR 2SC2603-EF Q102 8-729-620-05 TRANSISTOR 2SC2603-EF Q103 8-729-620-05 TRANSISTOR 2SC2603-EF Q140 8-729-119-78 TRANSISTOR 2SC2785-HFE Q240 8-729-201-53 TRANSISTOR 2SA1015-GR < RESISTOR > R101 1-259-500-11 CARBON 1M 5% 1/6W R102 1-259-500-11 CARBON 1M 5% 1/6W R103 1-259-500-11 CARBON 1M 5% 1/6W R104 1-259-500-11 CARBON 1M 5% 1/6W R105 1-259-500-11 CARBON 1M 5% 1/6W R114 1-259-500-11 CARBON 1M 5% 1/6W R115 1-259-500-11 CARBON 1M 5% 1/6W R124 1-259-428-11 CARBON 1K 5% 1/6W R125 1-259-428-11 CARBON 1K 5% 1/6W R130 1-249-425-11 CARBON 4.7K 5% 1/4W F R131 1-249-429-11 CARBON 10K 5% 1/4W R132 1-249-429-11 CARBON 10K 5% 1/4W R133 1-249-429-11 CARBON 10K 5% 1/4W R140 1-249-198-11 CARBON 330 5% 1/3W R141 1-249-198-11 CARBON 330 5% 1/3W R142 1-249-198-11 CARBON 330 5% 1/3W R143 1-249-198-11 CARBON 330 5% 1/3W R144 1-259-187-11 CARBON 6.8K 5% 1/4W R201 1-259-500-11 CARBON 1M 5% 1/6W HP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 29 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R202 1-259-500-11 CARBON 1M 5% 1/6W R203 1-259-500-11 CARBON 1M 5% 1/6W R204 1-259-500-11 CARBON 1M 5% 1/6W R205 1-259-500-11 CARBON 1M 5% 1/6W R214 1-259-500-11 CARBON 1M 5% 1/6W R215 1-259-500-11 CARBON 1M 5% 1/6W R224 1-259-428-11 CARBON 1K 5% 1/6W R225 1-259-428-11 CARBON 1K 5% 1/6W R240 1-249-198-11 CARBON 330 5% 1/3W R241 1-249-198-11 CARBON 330 5% 1/3W R242 1-249-198-11 CARBON 330 5% 1/3W R243 1-249-198-11 CARBON 330 5% 1/3W R244 1-259-187-11 CARBON 6.8K 5% 1/4W < RELAY > RY101 1-515-614-11 RELAY RY102 1-515-614-11 RELAY ************************************************************** A-4419-608-A MAIN BOARD, COMPLETE (AEP,G,MY,AUS) ******************** A-4419-619-A MAIN BOARD, COMPLETE (UK,SP) ******************** < CAPACITOR > C500 1-102-973-00 CERAMIC 100PF 5% 50V C501 1-119-824-31 ELECT 10uF 20% 50V C502 1-125-845-21 FILM 47PF 10% 50V C503 1-102-820-00 CERAMIC 330PF 5% 50V C504 1-126-023-11 ELECT 100uF 20% 16V C505 1-107-587-11 CERAMIC 7PF 0.5PF 500V C506 1-126-023-11 ELECT 100uF 20% 16V C507 1-126-023-11 ELECT 100uF 20% 16V C508 1-124-995-11 ELECT 220uF 20% 10V C509 1-102-937-00 CERAMIC 4.0PF ±0.25PF 50V C510 1-119-836-21 ELECT 47uF 20% 63V C511 1-102-978-00 CERAMIC 220PF 5% 50V C512 1-136-163-00 FILM 0.068uF 5% 50V C513 1-136-163-00 FILM 0.068uF 5% 50V C517 1-126-023-11 ELECT 100uF 20% 16V C600 1-102-973-00 CERAMIC 100PF 5% 50V C601 1-119-824-31 ELECT 10uF 20% 50V C602 1-125-845-21 FILM 47PF 10% 50V C603 1-102-820-00 CERAMIC 330PF 5% 50V C604 1-126-023-11 ELECT 100uF 20% 16V C605 1-107-587-11 CERAMIC 7PF 0.5PF 500V C606 1-126-023-11 ELECT 100uF 20% 16V C607 1-126-023-11 ELECT 100uF 20% 16V C608 1-124-995-11 ELECT 220uF 20% 10V C609 1-102-937-00 CERAMIC 4.0PF ±0.25PF 50V C610 1-119-836-21 ELECT 47uF 20% 63V C611 1-102-978-00 CERAMIC 220PF 5% 50V C612 1-136-163-00 FILM 0.068uF 5% 50V C613 1-136-163-00 FILM 0.068uF 5% 50V C617 1-126-023-11 ELECT 100uF 20% 16V C712 1-126-967-11 ELECT 47uF 20% 50V C713 1-126-933-11 ELECT 100uF 20% 16V C714 1-126-964-11 ELECT 10uF 20% 50V C720 1-113-618-11 ELECT 2200uF 20% 56V C721 1-113-618-11 ELECT 2200uF 20% 56V < CONNECTOR > * CN500 1-564-506-11 PLUG, CONNECTOR 3P CN503 1-691-770-11 PLUG (MICRO CONNECTOR) 8P * CN600 1-564-506-11 PLUG, CONNECTOR 3P CN700 1-691-768-11 PLUG (MICRO CONNECTOR) 6P < DIODE > D500 8-719-911-19 DIODE 1SS119-25 D501 8-719-911-19 DIODE 1SS119-25 D502 8-719-911-19 DIODE 1SS119-25 D503 8-719-933-39 DIODE HZS6C1L D504 8-719-911-19 DIODE 1SS119-25 D505 8-719-911-19 DIODE 1SS119-25 D506 8-719-310-61 DIODE SEL1510C-D D507 8-719-911-19 DIODE 1SS119-25 D508 8-719-911-19 DIODE 1SS119-25 D600 8-719-911-19 DIODE 1SS119-25 D601 8-719-911-19 DIODE 1SS119-25 D602 8-719-911-19 DIODE 1SS119-25 D603 8-719-933-39 DIODE HZS6C1L D604 8-719-911-19 DIODE 1SS119-25 D605 8-719-911-19 DIODE 1SS119-25 D606 8-719-310-61 DIODE SEL1510C-D D607 8-719-911-19 DIODE 1SS119-25 D608 8-719-911-19 DIODE 1SS119-25 D703 8-719-933-39 DIODE HZS6C1L D720 8-719-024-99 DIODE 11ES2-NTA2B D721 8-719-024-99 DIODE 11ES2-NTA2B < BRIDGE > JWH711 4-999-918-01 BRIDGE (PC-BOARD) JWH712 4-999-918-01 BRIDGE (PC-BOARD) JWH713 4-999-918-01 BRIDGE (PC-BOARD) JWH714 4-999-918-01 BRIDGE (PC-BOARD) JWH715 4-999-918-01 BRIDGE (PC-BOARD) < TRANSISTOR > Q500 8-729-045-15 TRANSISTOR 2SC5169-FG Q501 8-729-201-53 TRANSISTOR 2SA1015-GR Q502 8-729-201-53 TRANSISTOR 2SA1015-GR Q503 8-729-201-53 TRANSISTOR 2SA1015-GR Q504 8-729-021-74 TRANSISTOR 2SA949-OY Q505 8-729-202-67 TRANSISTOR 2SK246-GR3 Q506 8-729-119-78 TRANSISTOR 2SC2785-HFE Q507 8-729-021-73 TRANSISTOR 2SC2229-OY-TPE6 Q508 8-729-119-78 TRANSISTOR 2SC2785-HFE Q509 8-729-104-18 TRANSISTOR 2SC3514 Q510 8-729-104-91 TRANSISTOR 2SA1383 Q511 8-729-232-45 TRANSISTOR 2SK1529-Y Q512 8-729-232-46 TRANSISTOR 2SJ200-Y Q513 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA Q514 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA MAIN INPUT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 30 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark OUTLET PANEL Q600 8-729-045-15 TRANSISTOR 2SC5169-FG Q601 8-729-201-53 TRANSISTOR 2SA1015-GR Q602 8-729-201-53 TRANSISTOR 2SA1015-GR Q603 8-729-201-53 TRANSISTOR 2SA1015-GR Q604 8-729-021-74 TRANSISTOR 2SA949-OY Q605 8-729-202-67 TRANSISTOR 2SK246-GR3 Q606 8-729-119-78 TRANSISTOR 2SC2785-HFE Q607 8-729-021-73 TRANSISTOR 2SC2229-OY-TPE6 Q608 8-729-119-78 TRANSISTOR 2SC2785-HFE Q609 8-729-104-18 TRANSISTOR 2SC3514 Q610 8-729-104-91 TRANSISTOR 2SA1383 Q611 8-729-232-45 TRANSISTOR 2SK1529-Y Q612 8-729-232-46 TRANSISTOR 2SJ200-Y Q613 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA Q614 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA Q702 8-729-209-15 TRANSISTOR 2SD2012 < RESISTOR > R500 1-259-167-21 CARBON 1K 5% 1/4W R501 1-259-215-21 CARBON 100K 5% 1/4W R502 1-259-151-21 CARBON 220 5% 1/4W R503 1-259-151-21 CARBON 220 5% 1/4W R504 1-259-151-21 CARBON 220 5% 1/4W R505 1-259-179-21 CARBON 3.3K 5% 1/4W R506 1-259-151-21 CARBON 220 5% 1/4W R507 1-259-151-21 CARBON 220 5% 1/4W R508 1-249-490-11 CARBON 27K 5% 1/3W R509 1-259-175-11 CARBON 2.2K 5% 1/4W R510 1-259-183-11 CARBON 4.7K 5% 1/4W !R511 1-249-405-11 CARBON 100 5% 1/4W F R512 1-259-171-21 CARBON 1.5K 5% 1/4W R513 1-259-167-21 CARBON 1K 5% 1/4W R514 1-249-721-11 CARBON 100K 5% 1/2W R515 1-259-143-21 CARBON 100 5% 1/4W R516 1-247-749-11 CARBON 560 5% 1/2W F !R517 1-247-688-11 CARBON 10 5% 1/4W F !R518 1-247-688-11 CARBON 10 5% 1/4W F !R519 1-247-745-11 CARBON 330 5% 1/2W F !R520 1-249-405-11 CARBON 100 5% 1/4W F !R521 1-249-405-11 CARBON 100 5% 1/4W F !R522 1-208-601-11 REGISTER 0.1 10% 2W F R523 1-208-601-11 REGISTER 0.1 10% 2W F R524 1-259-424-11 CARBON 680 5% 1/6W R526 1-219-177-91 FUSIBLE 10 5% 1/2W F R527 1-259-484-11 CARBON 220K 5% 1/6W R532 1-259-420-11 CARBON 470 5% 1/6W R533 1-249-431-11 CARBON 15K 5% 1/4W R600 1-259-167-21 CARBON 1K 5% 1/4W R601 1-259-215-21 CARBON 100K 5% 1/4W R602 1-259-151-21 CARBON 220 5% 1/4W R603 1-259-151-21 CARBON 220 5% 1/4W R604 1-259-151-21 CARBON 220 5% 1/4W R605 1-259-179-21 CARBON 3.3K 5% 1/4W R606 1-259-151-21 CARBON 220 5% 1/4W R607 1-259-151-21 CARBON 220 5% 1/4W R608 1-249-490-11 CARBON 27K 5% 1/3W R609 1-259-175-11 CARBON 2.2K 5% 1/4W R610 1-259-183-11 CARBON 4.7K 5% 1/4W !R611 1-249-405-11 CARBON 100 5% 1/4W F R612 1-259-171-21 CARBON 1.5K 5% 1/4W R613 1-259-167-21 CARBON 1K 5% 1/4W R614 1-249-721-11 CARBON 100K 5% 1/2W R615 1-259-143-21 CARBON 100 5% 1/4W R616 1-247-749-11 CARBON 560 5% 1/2W F !R617 1-247-688-11 CARBON 10 5% 1/4W F !R618 1-247-688-11 CARBON 10 5% 1/4W F !R619 1-247-745-11 CARBON 330 5% 1/2W F !R620 1-249-405-11 CARBON 100 5% 1/4W F !R621 1-249-405-11 CARBON 100 5% 1/4W F !R622 1-208-601-11 REGISTER 0.1 10% 2W F R623 1-208-601-11 REGISTER 0.1 10% 2W F R624 1-259-424-11 CARBON 680 5% 1/6W !R626 1-219-177-91 FUSIBLE 10 5% 1/2W F R627 1-259-484-11 CARBON 220K 5% 1/6W R632 1-259-420-11 CARBON 470 5% 1/6W R633 1-249-431-11 CARBON 15K 5% 1/4W R709 1-249-425-11 CARBON 4.7K 5% 1/4W F < VARIABLE RESISTOR > RV500 1-241-762-11 RES, ADJ, CARBON 2.2K RV600 1-241-762-11 RES, ADJ, CARBON 2.2K ************************************************************** * 1-669-476-11 OUTLET BOARD (AEP,G,MY,AUS) ************* < CONNECTOR > !CNJ3 1-526-794-11 OUTLET AC (AC OUTLET) !CNJ4 1-526-794-11 OUTLET AC (AC OUTLET) < FUSE > !F2 1-532-464-51 FUSE (T2.5AL/250V) < FUSE HOLDER > FH3 1-533-233-11 HOLDER, FUSE (AEP,G,MY,AUS) FH4 1-533-233-11 HOLDER, FUSE (AEP,G,MY,AUS) ************************************************************** A-4419-613-A PANEL BOARD, COMPLETE ********************* < CAPACITOR > C300 1-136-171-00 FILM 0.33uF 5% 50V C301 1-130-475-00 MYLAR 0.0022uF 5% 50V C302 1-136-153-00 FILM 0.01uF 5% 50V C303 1-136-155-00 FILM 0.015uF 5% 50V C304 1-136-165-00 FILM 0.1uF 5% 50V C305 1-136-165-00 FILM 0.1uF 5% 50V C306 1-130-471-00 MYLAR 0.001uF 5% 50V C400 1-136-171-00 FILM 0.33uF 5% 50V C401 1-130-475-00 MYLAR 0.0022uF 5% 50V C402 1-136-153-00 FILM 0.01uF 5% 50V MAIN The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 31 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C403 1-136-155-00 FILM 0.015uF 5% 50V C404 1-136-165-00 FILM 0.1uF 5% 50V C405 1-136-165-00 FILM 0.1uF 5% 50V C406 1-130-471-00 MYLAR 0.001uF 5% 50V C900 1-126-786-11 ELECT 47uF 20% 16V C901 1-126-916-11 ELECT 1000uF 20% 6.3V C902 1-162-294-31 CERAMIC 0.001uF 10% 50V C903 1-162-294-31 CERAMIC 0.001uF 10% 50V C904 1-164-159-11 CERAMIC 0.1uF 50V C905 1-162-294-31 CERAMIC 0.001uF 10% 50V C906 1-126-795-11 ELECT 10uF 20% 50V C907 1-162-294-31 CERAMIC 0.001uF 10% 50V C908 1-126-786-11 ELECT 47uF 20% 16V C909 1-126-795-11 ELECT 10uF 20% 50V C910 1-126-794-11 ELECT 4.7uF 20% 50V C911 1-126-795-11 ELECT 10uF 20% 50V C912 1-126-786-11 ELECT 47uF 20% 16V C913 1-126-157-11 ELECT 10uF 20% 16V < CONNECTOR > * CN300 1-564-522-11 PLUG, CONNECTOR 7P * CN301 1-564-526-11 PLUG, CONNECTOR 11P CN901 1-691-763-51 PIN, CONNECTOR 8P * CN904 1-564-525-11 PLUG, CONNECTOR 10P * CN905 1-564-522-11 PLUG, CONNECTOR 7P * CN906 1-564-520-11 PLUG, CONNECTOR 5P < DIODE > D902 8-719-313-50 DIODE SEL6810A-TH12 (PHONO) D903 8-719-313-50 DIODE SEL6810A-TH12 (TUNER) D904 8-719-313-50 DIODE SEL6810A-TH12 (CD) D905 8-719-313-50 DIODE SEL6810A-TH12 (AUX) D906 8-719-313-50 DIODE SEL6810A-TH12 (TAPE2/MD) D907 8-719-313-50 DIODE SEL6810A-TH12 (TAPE1/DAT) D908 8-719-313-50 DIODE SEL6810A-TH12 (SOURCE DIRECT) D910 8-719-911-19 DIODE 1SS119-25 D912 8-719-911-19 DIODE 1SS119-25 D913 8-719-911-19 DIODE 1SS119-25 D914 8-719-911-19 DIODE 1SS119-25 D915 8-719-911-19 DIODE 1SS119-25 D916 8-719-024-99 DIODE 11ES2-NTA2B D917 8-719-911-19 DIODE 1SS119-25 D918 8-719-985-66 DIODE HZS5BLL-TA D919 8-719-911-19 DIODE 1SS119-25 D920 8-719-911-19 DIODE 1SS119-25 D921 8-719-911-19 DIODE 1SS119-25 D922 8-719-911-19 DIODE 1SS119-25 D923 8-719-911-19 DIODE 1SS119-25 D924 8-719-911-19 DIODE 1SS119-25 < IC > IC901 8-759-962-08 IC BA6208 IC902 8-759-392-41 IC TMP47C103N-JP47 < TRANSISTOR > Q900 8-729-620-05 TRANSISTOR 2SC2603-EF Q901 8-729-900-63 TRANSISTOR DTA124ES Q902 8-729-900-63 TRANSISTOR DTA124ES Q903 8-729-900-80 TRANSISTOR DTC114ES Q905 8-729-422-57 TRANSISTOR UN4111 Q906 8-729-900-80 TRANSISTOR DTC114ES Q907 8-729-119-78 TRANSISTOR 2SC2785-HFE Q908 8-729-620-05 TRANSISTOR 2SC2603-EF Q909 8-729-620-05 TRANSISTOR 2SC2603-EF Q910 8-729-422-57 TRANSISTOR UN4111 Q911 8-729-201-53 TRANSISTOR 2SA1015-GR Q912 8-729-422-57 TRANSISTOR UN4111 Q913 8-729-900-80 TRANSISTOR DTC114ES Q914 8-729-119-76 TRANSISTOR 2SA1175-HFE Q915 8-729-620-05 TRANSISTOR 2SC2603-EF < RESISTOR > R300 1-259-500-11 CARBON 1M 5% 1/6W R301 1-259-500-11 CARBON 1M 5% 1/6W R302 1-259-446-11 CARBON 5.6K 5% 1/6W R303 1-259-436-11 CARBON 2.2K 5% 1/6W R304 1-259-500-11 CARBON 1M 5% 1/6W R305 1-259-464-11 CARBON 33K 5% 1/6W R306 1-259-456-11 CARBON 15K 5% 1/6W R307 1-259-446-11 CARBON 5.6K 5% 1/6W R308 1-259-456-11 CARBON 15K 5% 1/6W R309 1-259-500-11 CARBON 1M 5% 1/6W R310 1-259-464-11 CARBON 33K 5% 1/6W R311 1-259-446-11 CARBON 5.6K 5% 1/6W R391 1-249-429-11 CARBON 10K 5% 1/4W R392 1-249-429-11 CARBON 10K 5% 1/4W R393 1-249-429-11 CARBON 10K 5% 1/4W R400 1-259-500-11 CARBON 1M 5% 1/6W R401 1-259-500-11 CARBON 1M 5% 1/6W R402 1-259-446-11 CARBON 5.6K 5% 1/6W R403 1-259-436-11 CARBON 2.2K 5% 1/6W R404 1-259-500-11 CARBON 1M 5% 1/6W R405 1-259-464-11 CARBON 33K 5% 1/6W R406 1-259-456-11 CARBON 15K 5% 1/6W R407 1-259-446-11 CARBON 5.6K 5% 1/6W R408 1-259-456-11 CARBON 15K 5% 1/6W R409 1-259-500-11 CARBON 1M 5% 1/6W R410 1-259-464-11 CARBON 33K 5% 1/6W R411 1-259-446-11 CARBON 5.6K 5% 1/6W R902 1-247-239-00 CARBON 910 5% 1/2W R905 1-249-429-11 CARBON 10K 5% 1/4W R906 1-249-429-11 CARBON 10K 5% 1/4W R907 1-249-429-11 CARBON 10K 5% 1/4W R908 1-249-437-11 CARBON 47K 5% 1/4W R909 1-249-429-11 CARBON 10K 5% 1/4W R910 1-249-401-11 CARBON 47 5% 1/4W F R911 1-249-411-11 CARBON 330 5% 1/4W R912 1-249-429-11 CARBON 10K 5% 1/4W R913 1-249-425-11 CARBON 4.7K 5% 1/4W F R914 1-247-807-31 CARBON 100 5% 1/4W R917 1-249-433-11 CARBON 22K 5% 1/4W R918 1-249-421-11 CARBON 2.2K 5% 1/4W F R919 1-249-421-11 CARBON 2.2K 5% 1/4W F PANEL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 32 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R920 1-249-429-11 CARBON 10K 5% 1/4W R921 1-249-429-11 CARBON 10K 5% 1/4W R922 1-249-429-11 CARBON 10K 5% 1/4W R923 1-249-429-11 CARBON 10K 5% 1/4W R924 1-249-429-11 CARBON 10K 5% 1/4W R925 1-249-406-11 CARBON 120 5% 1/4W F R927 1-249-403-11 CARBON 68 5% 1/4W F R929 1-247-903-00 CARBON 1M 5% 1/4W R930 1-247-807-31 CARBON 100 5% 1/4W R931 1-249-419-11 CARBON 1.5K 5% 1/4W F R932 1-249-427-11 CARBON 6.8K 5% 1/4W F R934 1-247-843-11 CARBON 3.3K 5% 1/4W R935 1-247-843-11 CARBON 3.3K 5% 1/4W R936 1-249-429-11 CARBON 10K 5% 1/4W R937 1-249-429-11 CARBON 10K 5% 1/4W R938 1-249-429-11 CARBON 10K 5% 1/4W R939 1-247-751-11 CARBON 820 5% 1/2W < VARIABLE RESISTOR > RV301 1-223-789-11 RES, VAR, CARBON 250K/250K (BALANCE) RV302 1-223-768-11 RES, VAR, CARBON 250K/250K (TONE TREBLE) RV303 1-223-767-11 RES, VAR, CARBON 900K/900K (TONE BASS) < SWITCH > S301 1-762-203-11 SWITCH, PUSH (1 KEY)(SUBSONIC) S302 1-762-393-11 SWITCH, PUSH (SOURCE DIRECT) S303 1-762-387-11 SWITCH, PUSH (LOUDNESS) S902 1-692-974-11 SWITCH, ROTARY (INPUT SELECTOR) S903 1-771-386-11 SWITCH, ROTARY (TAPE MONITOR) < VIBRATOR > X900 1-577-358-21 VIBRATOR, CERAMIC (4MHz) ************************************************************** A-4419-611-A PHONO BOARD, COMPLETE (AEP,G,MY,AUS) ********************* A-4419-803-A PHONO BOARD, COMPLETE (UK,SP) ********************* < CAPACITOR > C150 1-102-978-00 CERAMIC 220PF 5% 50V C151 1-126-059-11 ELECT 10uF 20% 50V C152 1-102-973-00 CERAMIC 100PF 5% 50V C153 1-106-359-00 MYLAR 4700PF 5% 200V C154 1-126-023-11 ELECT 100uF 20% 16V C155 1-136-162-00 FILM 0.056uF 5% 50V C156 1-137-471-11 FILM 0.016uF 5% 50V C157 1-126-059-11 ELECT 10uF 20% 50V C170 1-126-023-11 ELECT 100uF 20% 16V C171 1-136-165-00 FILM 0.1uF 5% 50V C172 1-136-165-00 FILM 0.1uF 5% 50V C250 1-102-978-00 CERAMIC 220PF 5% 50V C251 1-126-059-11 ELECT 10uF 20% 50V C252 1-102-973-00 CERAMIC 100PF 5% 50V C253 1-106-359-00 MYLAR 4700PF 5% 200V C254 1-126-023-11 ELECT 100uF 20% 16V C255 1-136-162-00 FILM 0.056uF 5% 50V C256 1-137-471-11 FILM 0.016uF 5% 50V C257 1-126-059-11 ELECT 10uF 20% 50V < CONNECTOR > CN151 1-691-768-11 PLUG (MICRO CONNECTOR) 6P < DIODE > D170 8-719-985-97 DIODE HZS7B1LTA < IC > IC150 8-759-636-74 IC M5218AP-22 < JACK > J150 1-764-593-21 JACK 2P (PHONO IN) < COIL > L150 1-410-977-11 INDUCTOR 100uH (AEP,G,MY,AUS) L151 1-410-977-11 INDUCTOR 100uH (AEP,G,MY,AUS) L250 1-410-977-11 INDUCTOR 100uH (AEP,G,MY,AUS) L251 1-410-977-11 INDUCTOR 100uH (AEP,G,MY,AUS) < TRANSISTOR > Q150 8-729-354-52 TRANSISTOR 2SC2545 Q151 8-729-354-52 TRANSISTOR 2SC2545 Q250 8-729-354-52 TRANSISTOR 2SC2545 Q251 8-729-354-52 TRANSISTOR 2SC2545 < RESISTOR > R150 1-259-175-11 CARBON 2.2K 5% 1/4W (AEP,G,MY,AUS) R151 1-249-911-11 CARBON 330 5% 1/4W R152 1-259-215-21 CARBON 100K 5% 1/4W R153 1-259-215-21 CARBON 100K 5% 1/4W R154 1-259-161-21 CARBON 560 5% 1/4W R155 1-259-161-21 CARBON 560 5% 1/4W R156 1-259-143-21 CARBON 100 5% 1/4W R157 1-259-191-21 CARBON 10K 5% 1/4W R158 1-249-900-11 CARBON 110 5% 1/4W R159 1-249-965-11 CARBON 56K 1% 1/4W R160 1-259-183-11 CARBON 4.7K 1% 1/4W R161 1-259-239-11 CARBON 1M 5% 1/4W R162 1-259-167-21 CARBON 1K 5% 1/4W R170 1-259-171-21 CARBON 1.5K 5% 1/4W R250 1-259-175-11 CARBON 2.2K 5% 1/4W (AEP,G,MY,AUS) R251 1-249-911-11 CARBON 330 5% 1/4W R252 1-259-215-21 CARBON 100K 5% 1/4W R253 1-259-215-21 CARBON 100K 5% 1/4W R254 1-259-161-21 CARBON 560 5% 1/4W R255 1-259-161-21 CARBON 560 5% 1/4W R256 1-259-143-21 CARBON 100 5% 1/4W R257 1-259-191-21 CARBON 10K 5% 1/4W R258 1-249-900-11 CARBON 110 5% 1/4W R259 1-249-965-11 CARBON 56K 1% 1/4W R260 1-259-183-11 CARBON 4.7K 1% 1/4W PANEL PHONO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 33 – PHONO Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark SIRCS R261 1-259-239-11 CARBON 1M 5% 1/4W R262 1-259-167-21 CARBON 1K 5% 1/4W ************************************************************** * 1-669-473-11 PS BOARD ********* < CAPACITOR > C750 1-128-715-11 ELECT 6800uF 50V C751 1-128-715-11 ELECT 6800uF 50V C752 1-113-618-11 ELECT 2200uF 20% 56V (AEP,G,MY,AUS) C753 1-113-618-11 ELECT 2200uF 20% 56V (AEP,G,MY,AUS) C754 1-137-398-11 FILM 0.068uF 5% 100V C755 1-137-398-11 FILM 0.068uF 5% 100V C757 1-137-396-91 FILM 0.033uF 5% 100V (AEP,G,MY,AUS) C758 1-137-396-91 FILM 0.033uF 5% 100V (AEP,G,MY,AUS) < CONNECTOR > CN1 1-774-108-11 PIN, CONNECTOR (PC BOARD) CN2 1-564-321-00 PIN, CONNECTOR 2P CN3 1-564-321-00 PIN, CONNECTOR 2P * CN4 1-564-321-21 PIN, CONNECTOR 2P (AEP,G,MY,AUS) * CN750 1-564-242-00 PIN, CONNECTOR 5P * CN751 1-766-920-11 PIN, CONNECTOR 4P CN752 1-770-832-11 CONNECTOR, BOARD TO BOARD 6P < DIODE > D750 8-719-302-38 DIODE RBV-602-01 D755 8-719-024-99 DIODE 11ES2-NTA2B (AEP,G,MY,AUS) D756 8-719-024-99 DIODE 11ES2-NTA2B (AEP,G,MY,AUS) D757 8-719-024-99 DIODE 11ES2-NTA2B (AEP,G,MY,AUS) D758 8-719-024-99 DIODE 11ES2-NTA2B (AEP,G,MY,AUS) < FUSE > !F1 1-532-464-51 FUSE (T2.5AL/250V) < FUSE HOLDER > FH1 1-533-233-11 HOLDER, FUSE FH2 1-533-233-11 HOLDER, FUSE ************************************************************** * 1-669-497-11 SIRCS BOARD *********** < CONNECTOR > * CN911 1-560-666-00 PIN, CONNECTOR 3P < DIODE > D900 8-719-046-46 DIODE SEL5221S-TH8F (PROTECTION) D901 8-719-046-38 DIODE SEL5821A-TH8F (EON LINK) < RESISTOR > R900 1-249-409-11 CARBON 220 5% 1/4W F R901 1-249-403-11 CARBON 68 5% 1/4W F R903 1-249-429-11 CARBON 10K 5% 1/4W R904 1-249-429-11 CARBON 10K 5% 1/4W < SWITCH > S901 1-571-112-21 SWITCH, PUSH (1 KEY)(EON LINK) ************************************************************** * 1-670-220-11 SIRCS SUB BOARD *************** < CONNECTOR > * CN912 1-565-835-11 SOCKET, CONNECTOR 3P < IC > IC900 8-759-459-86 IC NJL64H400A ************************************************************** * 1-669-494-11 SP-SW BOARD ************ < RESISTOR > R801 1-247-751-11 CARBON 820 5% 1/2W R802 1-247-751-11 CARBON 820 5% 1/2W R803 1-247-751-11 CARBON 820 5% 1/2W R804 1-247-751-11 CARBON 820 5% 1/2W R805 1-247-751-11 CARBON 820 5% 1/2W R806 1-247-751-11 CARBON 820 5% 1/2W R807 1-247-746-11 CARBON 390 5% 1/2W F R808 1-247-746-11 CARBON 390 5% 1/2W F R809 1-247-746-11 CARBON 390 5% 1/2W F R810 1-247-746-11 CARBON 390 5% 1/2W F < SWITCH > S801 1-771-385-11 SWITCH, ROTARY (SPEAKERS) ************************************************************** A-4419-609-A SP-TM BOARD, COMPLETE (AEP,G,MY,AUS) ********************* A-4419-620-A SP-TM BOARD, COMPLETE (UK,SP) ********************* < CAPACITOR > C515 1-162-282-31 CERAMIC 100PF 10% 50V (AEP,G,MY,AUS) C516 1-162-282-31 CERAMIC 100PF 10% 50V (AEP,G,MY,AUS) C615 1-162-282-31 CERAMIC 100PF 10% 50V (AEP,G,MY,AUS) C616 1-162-282-31 CERAMIC 100PF 10% 50V (AEP,G,MY,AUS) C700 1-126-965-11 ELECT 22uF 20% 50V C701 1-136-163-00 FILM 0.068uF 5% 50V PS The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. SIRCS SUB SP-SW SP-TM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 34 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark VOL C702 1-124-995-11 ELECT 220uF 20% 10V C703 1-136-157-00 FILM 0.022uF 5% 50V C704 1-104-664-11 ELECT 47uF 20% 16V C705 1-104-664-11 ELECT 47uF 20% 16V C706 1-137-150-11 MYLAR 0.01uF 10% 100V C707 1-137-150-11 MYLAR 0.01uF 10% 100V C708 1-128-578-11 ELECT 1uF 20% 100V C709 1-126-972-11 ELECT 1000uF 20% 50V C710 1-126-969-11 ELECT 220uF 20% 50V C711 1-126-964-11 ELECT 10uF 20% 50V C715 1-164-159-11 CERAMIC 0.1uF 50V < CONNECTOR > CN702 1-770-831-11 CONNECTOR, BOARD TO BOARD 6P CN703 1-566-212-11 PIN, CONNECTOR 3P (EON CONTROL) < DIODE > D511 8-719-911-19 DIODE 1SS119-25 D512 8-719-911-19 DIODE 1SS119-25 D513 8-719-911-19 DIODE 1SS119-25 D700 8-719-024-99 DIODE 11ES2-NTA2B D701 8-719-024-99 DIODE 11ES2-NTA2B D702 8-719-024-99 DIODE 11ES2-NTA2B < IC > IC700 8-759-111-68 IC UPC1237HA < COIL > L501 1-411-906-11 COIL, AIR-CORE L601 1-411-906-11 COIL, AIR-CORE < TRANSISTOR > Q700 8-729-119-76 TRANSISTOR 2SA1175-HFE Q701 8-729-119-78 TRANSISTOR 2SC2785-HFE < RESISTOR > R528 1-249-162-11 CARBON 10 5% 1/3W R529 1-247-750-11 CARBON 680 5% 1/2W F !R530 1-212-857-00 FUSIBLE 10 5% 1/4W F (AEP,G,MY,AUS) !R531 1-212-857-00 FUSIBLE 10 5% 1/4W F (AEP,G,MY,AUS) R628 1-249-162-11 CARBON 10 5% 1/3W R629 1-247-750-11 CARBON 680 5% 1/2W F !R630 1-212-857-00 FUSIBLE 10 5% 1/4W F (AEP,G,MY,AUS) !R631 1-212-857-00 FUSIBLE 10 5% 1/4W F (AEP,G,MY,AUS) R700 1-249-433-11 CARBON 22K 5% 1/4W R701 1-249-429-11 CARBON 10K 5% 1/4W R702 1-249-429-11 CARBON 10K 5% 1/4W R703 1-259-476-11 CARBON 100K 5% 1/6W R704 1-249-433-11 CARBON 22K 5% 1/4W R705 1-247-883-00 CARBON 150K 5% 1/4W R706 1-249-431-11 CARBON 15K 5% 1/4W R707 1-249-429-11 CARBON 10K 5% 1/4W !R708 1-213-076-61 FUSIBLE 47 5% 1W F R710 1-247-746-11 CARBON 390 5% 1/2W F R711 1-247-746-11 CARBON 390 5% 1/2W F < RELAY > RY501 1-515-921-11 RELAY (12V) RY502 1-515-921-11 RELAY (12V) RY503 1-515-920-11 RELAY (24V) < TERMINAL > TM501 1-537-740-11 TERMINAL BOARD (SPEAKERS) ************************************************************** * 1-669-496-11 VOL BOARD ********** < CAPACITOR > C310 1-136-165-00 FILM 0.1uF 5% 50V < CONNECTOR > CN302 1-691-772-11 PLUG (MICRO CONNECTOR) 10P CN303 1-691-768-11 PLUG (MICRO CONNECTOR) 6P < TRANSISTOR > Q300 8-729-141-26 TRANSISTOR 2SC3622A-LK Q400 8-729-141-26 TRANSISTOR 2SC3622A-LK < RESISTOR > R312 1-259-448-11 CARBON 6.8K 5% 1/6W R412 1-259-448-11 CARBON 6.8K 5% 1/6W < VARIABLE RESISTOR > RV300 1-225-675-11 RES, VAR, CARBON 120K/120K (VOLUME) ************************************************************** MISCELLANEOUS ************* !11 1-777-185-11 CORD, POWER !15 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (UK,SP) !CNJ3 1-526-794-11 OUTLET, AC (AEP,G,MY,AUS) !CNJ4 1-526-794-11 OUTLET, AC (AEP,G,MY,AUS) Q511 8-729-232-45 TRANSISTOR 2SK1529-Y Q512 8-729-232-46 TRANSISTOR 2SJ200-Y Q611 8-729-232-45 TRANSISTOR 2SK1529-Y Q612 8-729-232-46 TRANSISTOR 2SJ200-Y Q702 8-729-209-15 TRANSISTOR 2SD2012 !S1 1-554-920-11 SWITCH, PUSH (AC POWER)(1 KEY)(U) !T1 1-433-788-11 TRANSFORMER, POWER (AEP,G,MY,AUS) !T1 1-433-823-11 TRANSFORMER, POWER (UK,SP) ************************************************************** ACCESSORIES & PACKING MATERIALS ******************************* 1-473-656-11 REMOTE COMMANDER (RM-S316) SP-TM The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 35 – Ref. No. Part No. Description Remark 3-866-636-11 MANUAL, INSTRUCTION (ENGLISH,FRENCH,SPANISH,PORTUGUESE)(AEP,G,MY,AUS) 3-866-636-21 MANUAL, INSTRUCTION (GERMAN,DUTCH,SWEDISH,ITALIAN)(AEP,G,MY,AUS) 3-866-636-41 MANUAL, INSTRUCTION (ENGLISH)(UK,SP) 4-981-643-01 COVER, BATTERY (for RM-S316) ************************************************************** ************* HARDWARE LIST ************* #1 7-685-885-09 SCREW +BVTT 4X16 (S) #2 7-685-872-09 SCREW +BVTT 3X8 (S) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 36 – Sony Corporation Home A&V Products Company 9-928-831-11 99C0976-1 Printed in Japan © 1999. 3 Published by Quality Assurance Dept. (Shinagawa) TA-FB730R www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
