索尼SONY TA-FA777ES音响电路原理图

分类：电子电工 日期： 点击：0
索尼SONY TA-FA777ES音响电路原理图-0 索尼SONY TA-FA777ES音响电路原理图-1 索尼SONY TA-FA777ES音响电路原理图-2 索尼SONY TA-FA777ES音响电路原理图-3 索尼SONY TA-FA777ES音响电路原理图-4 索尼SONY TA-FA777ES音响电路原理图-5 索尼SONY TA-FA777ES音响电路原理图-6 索尼SONY TA-FA777ES音响电路原理图-7 索尼SONY TA-FA777ES音响电路原理图-8 索尼SONY TA-FA777ES音响电路原理图-9

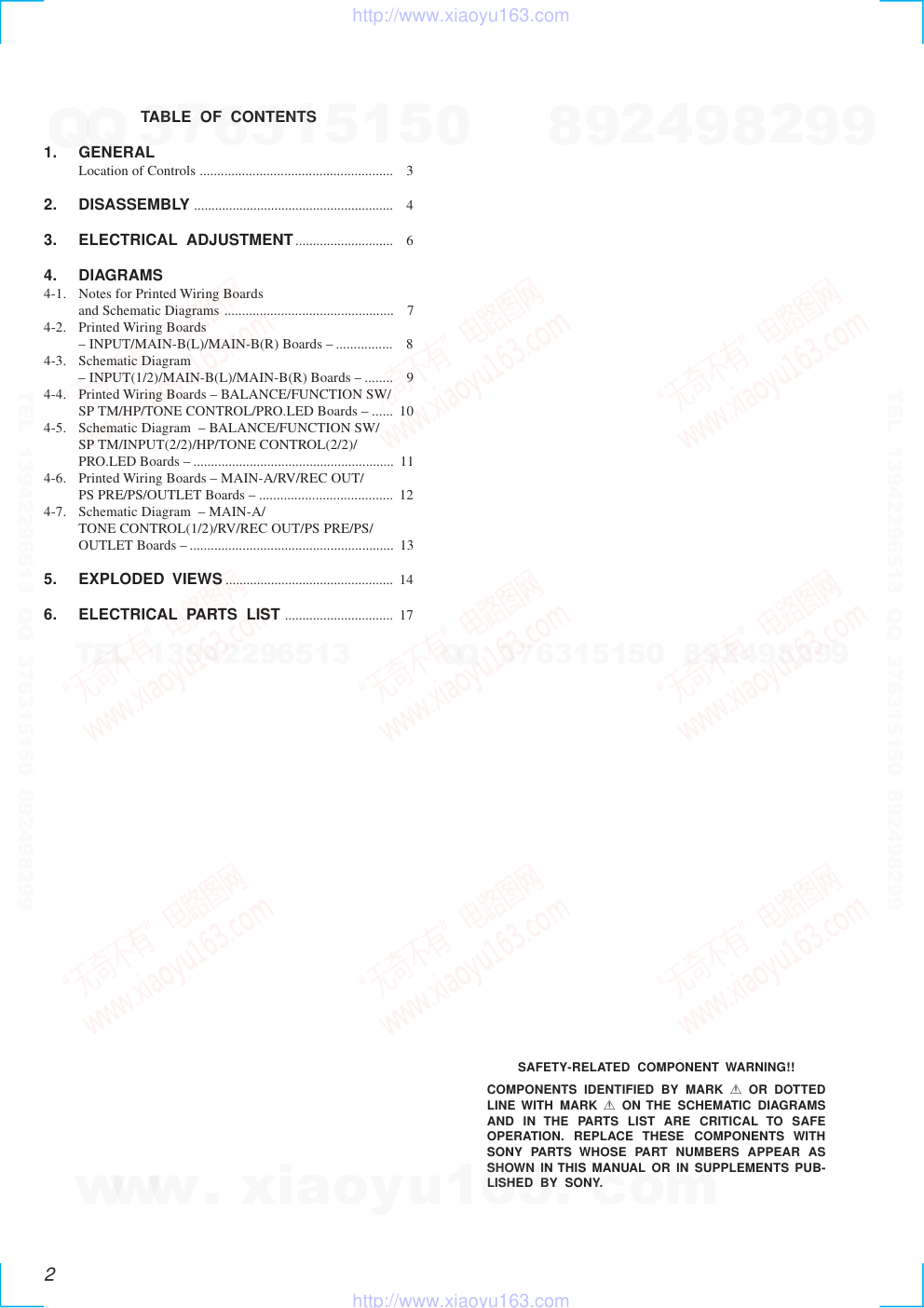

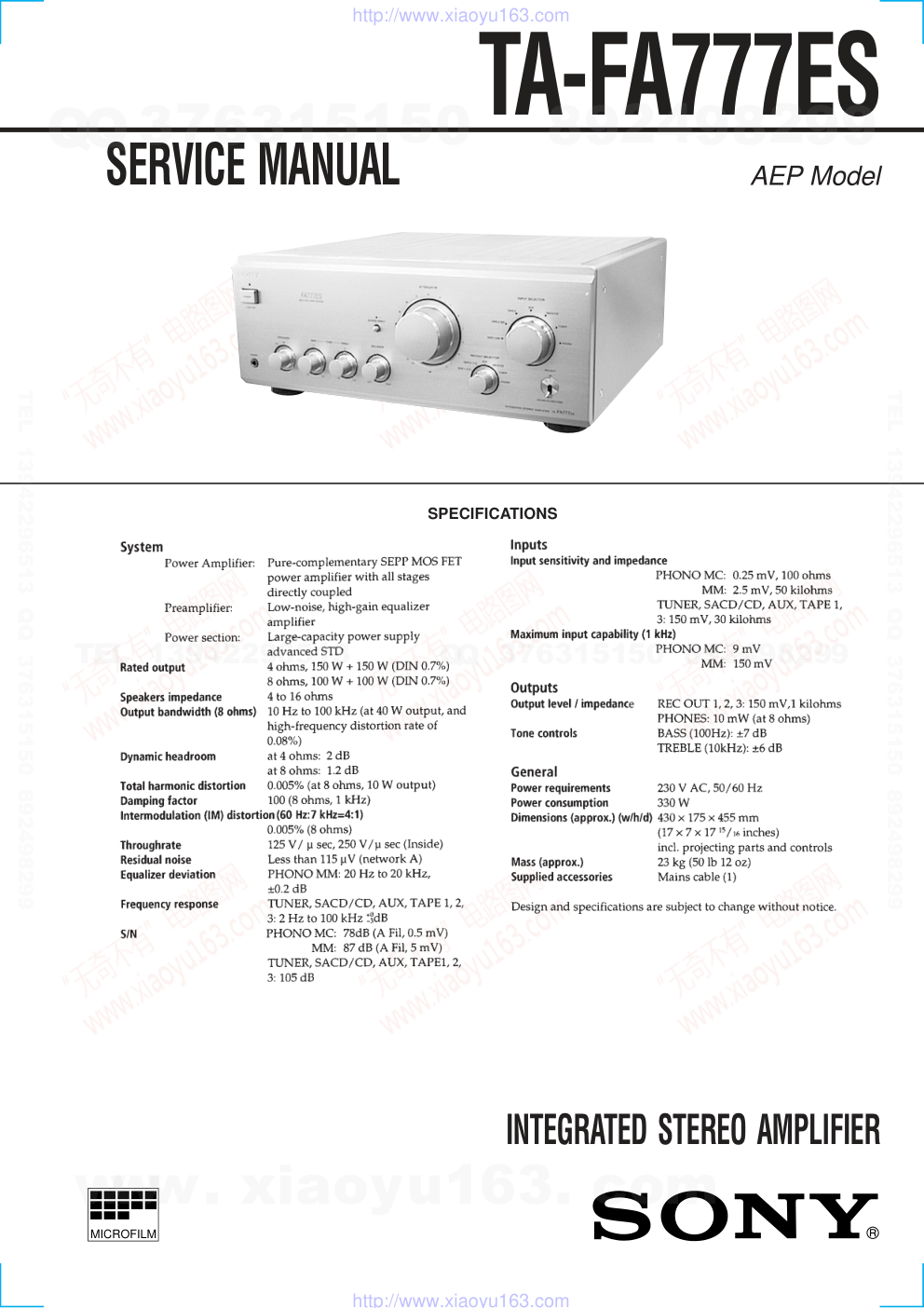

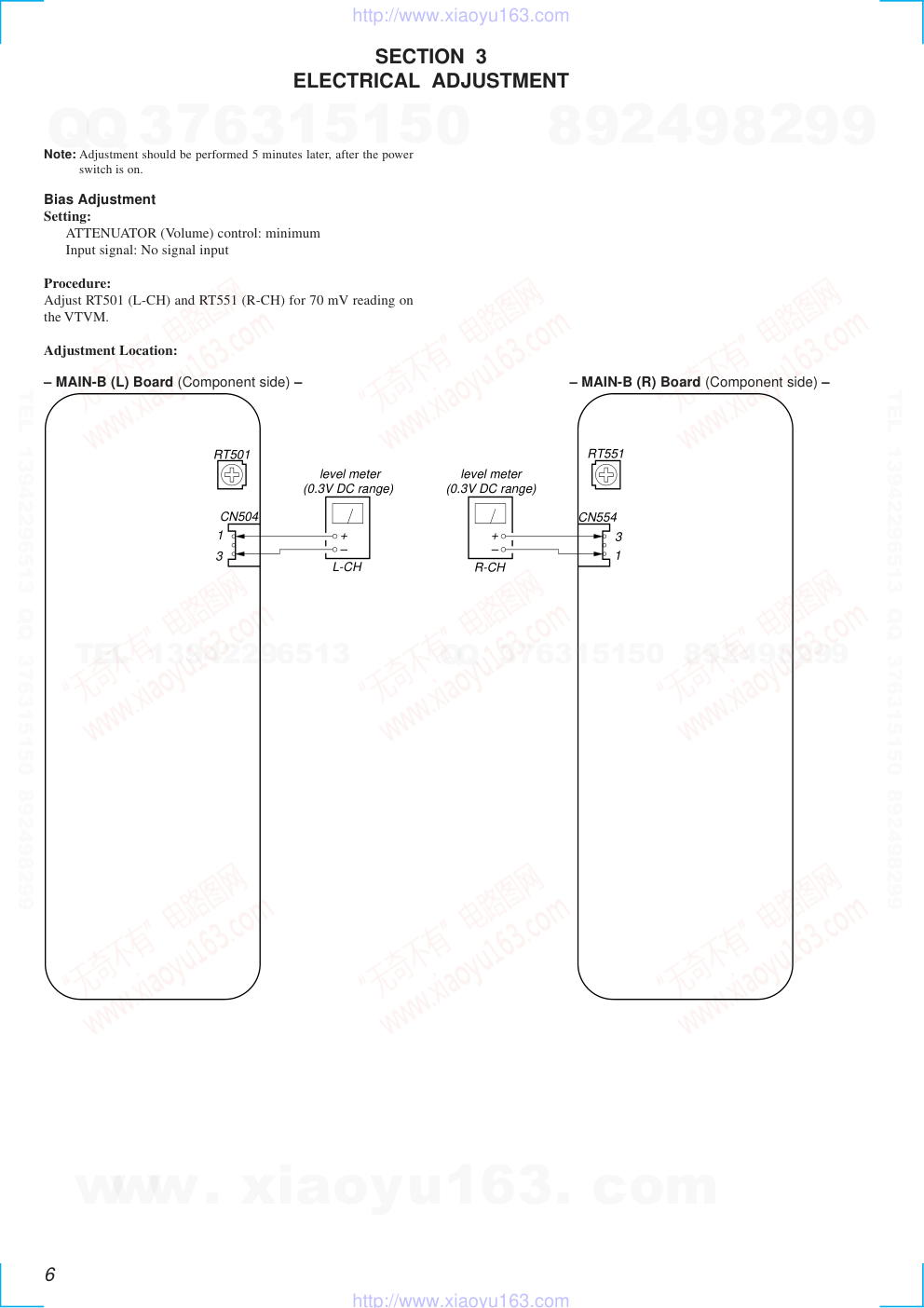

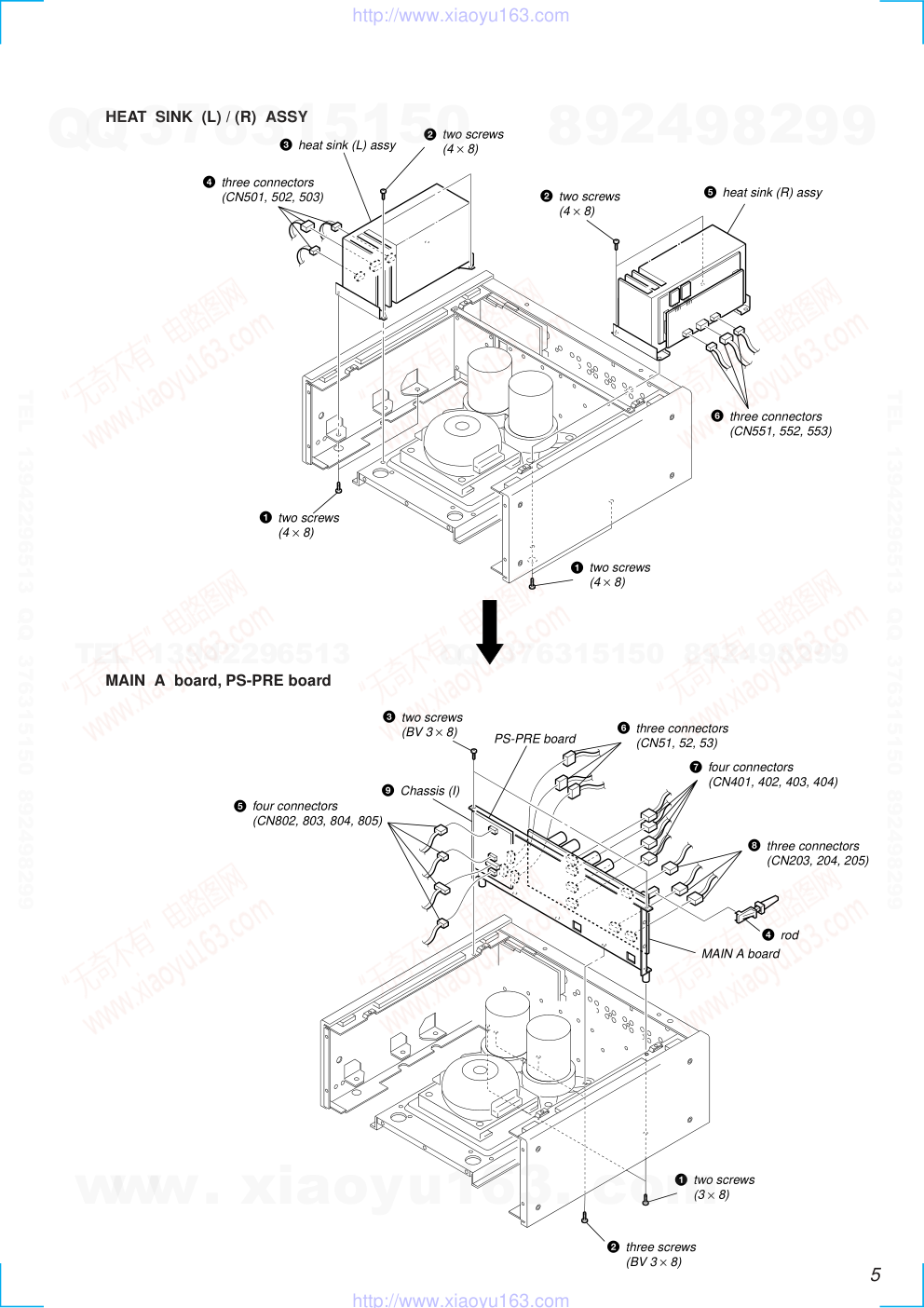

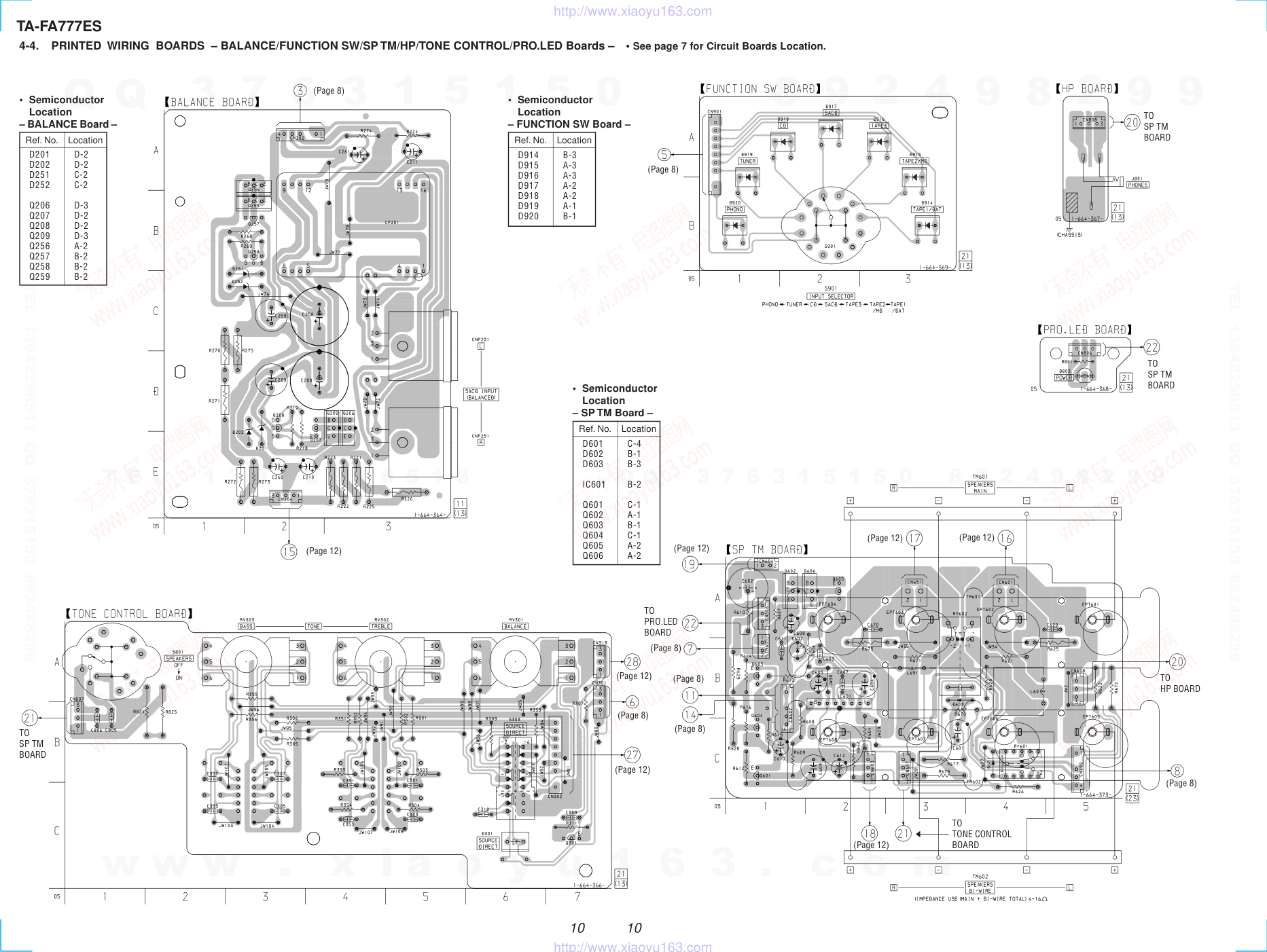

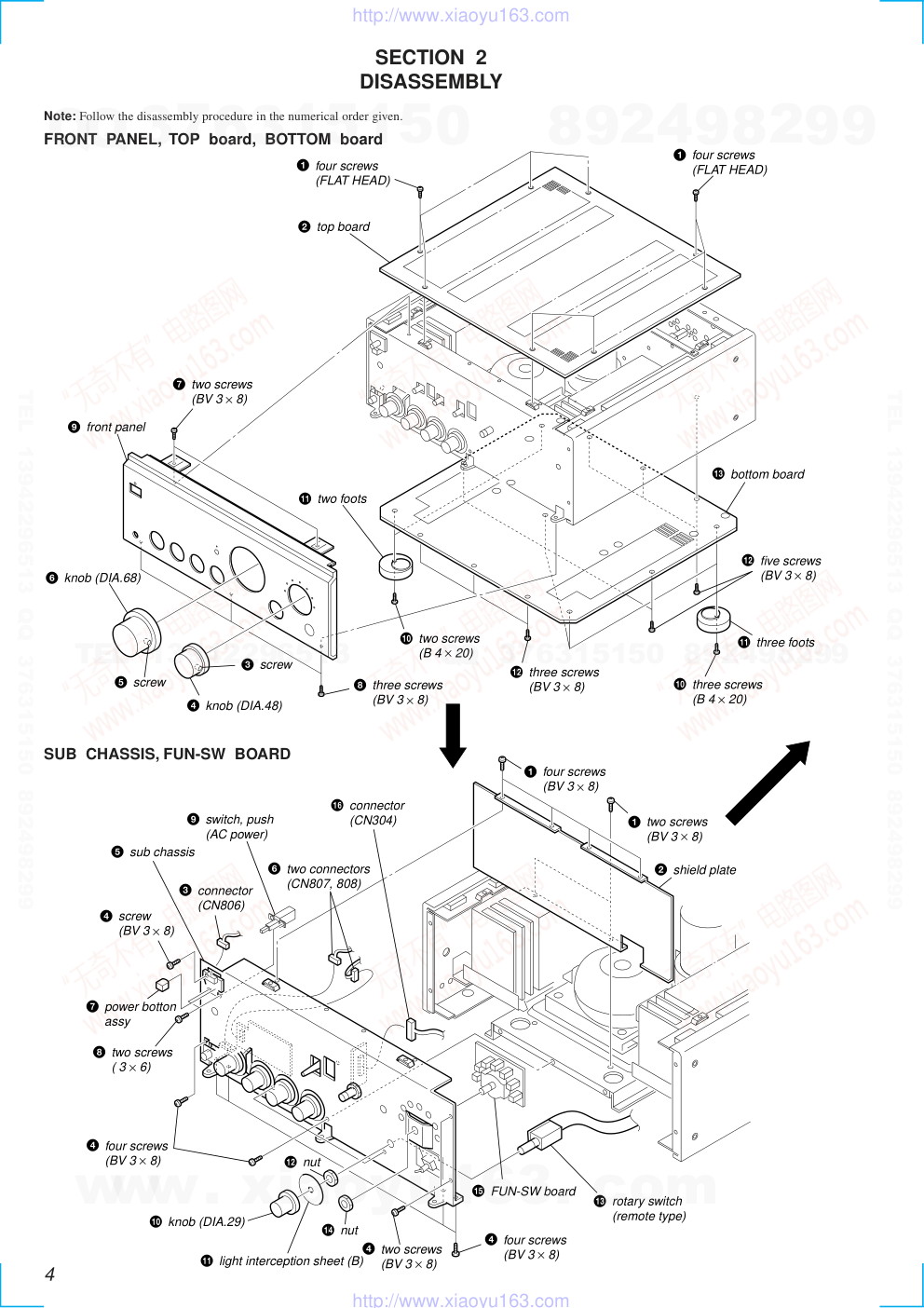

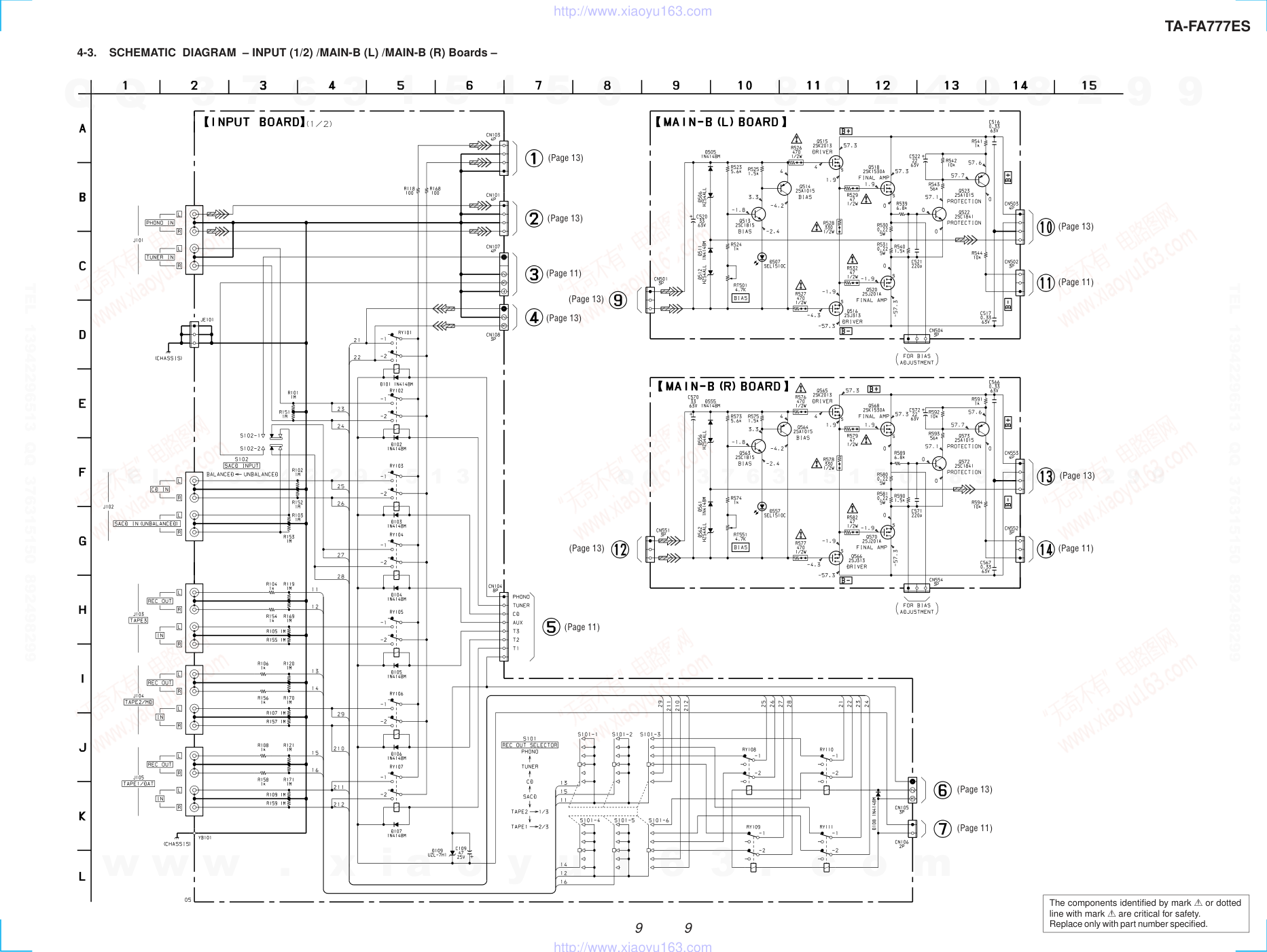

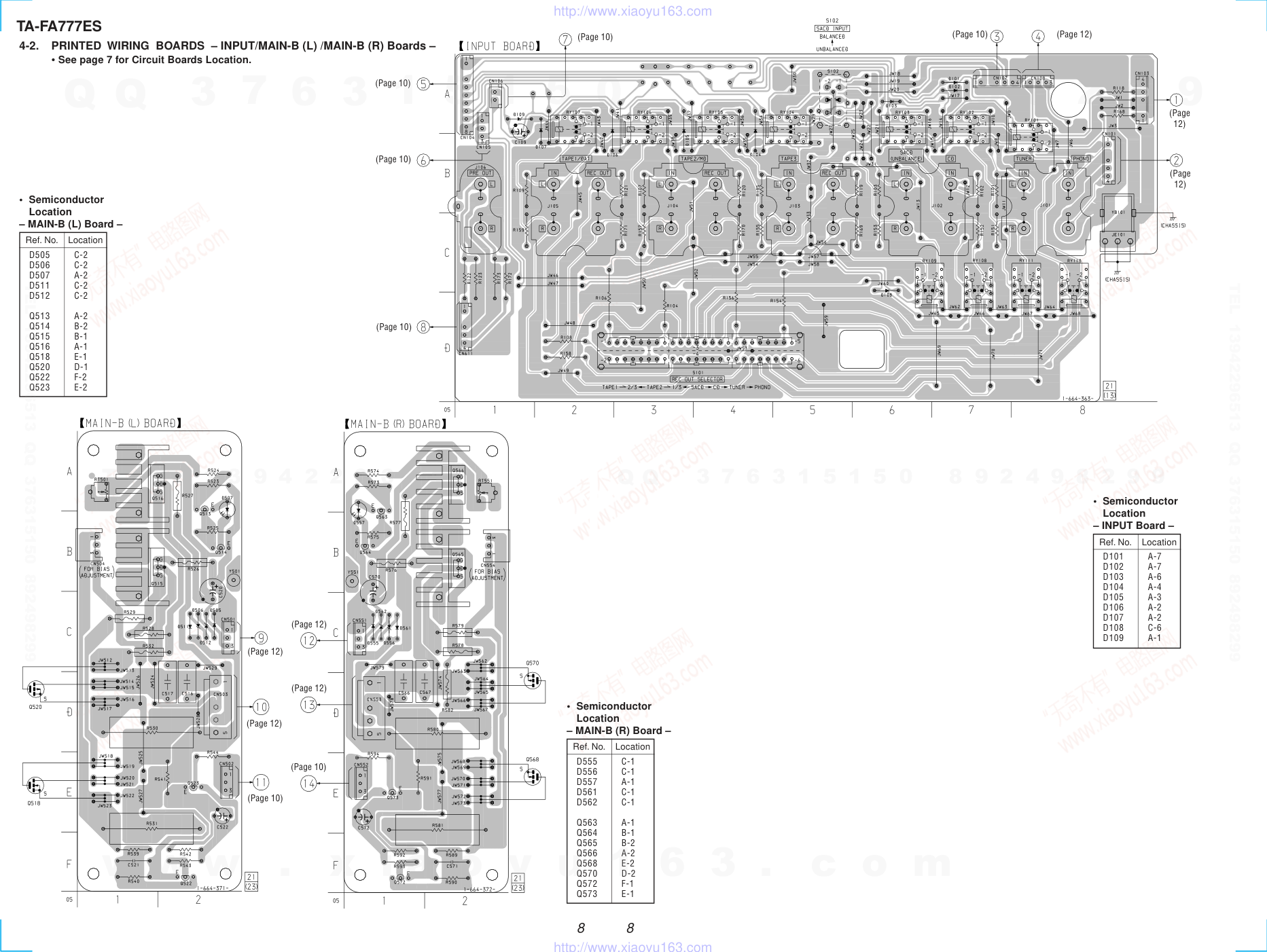

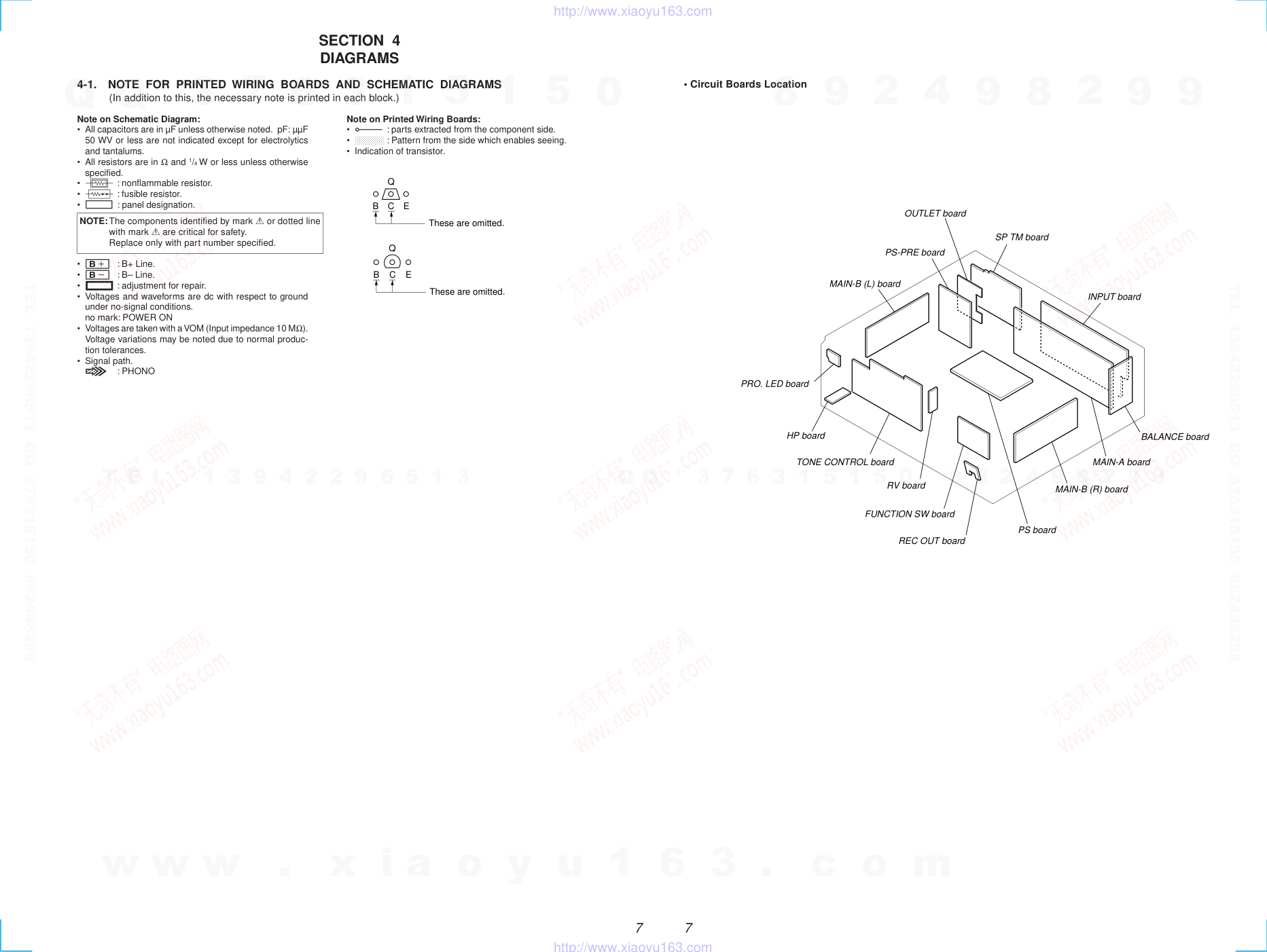

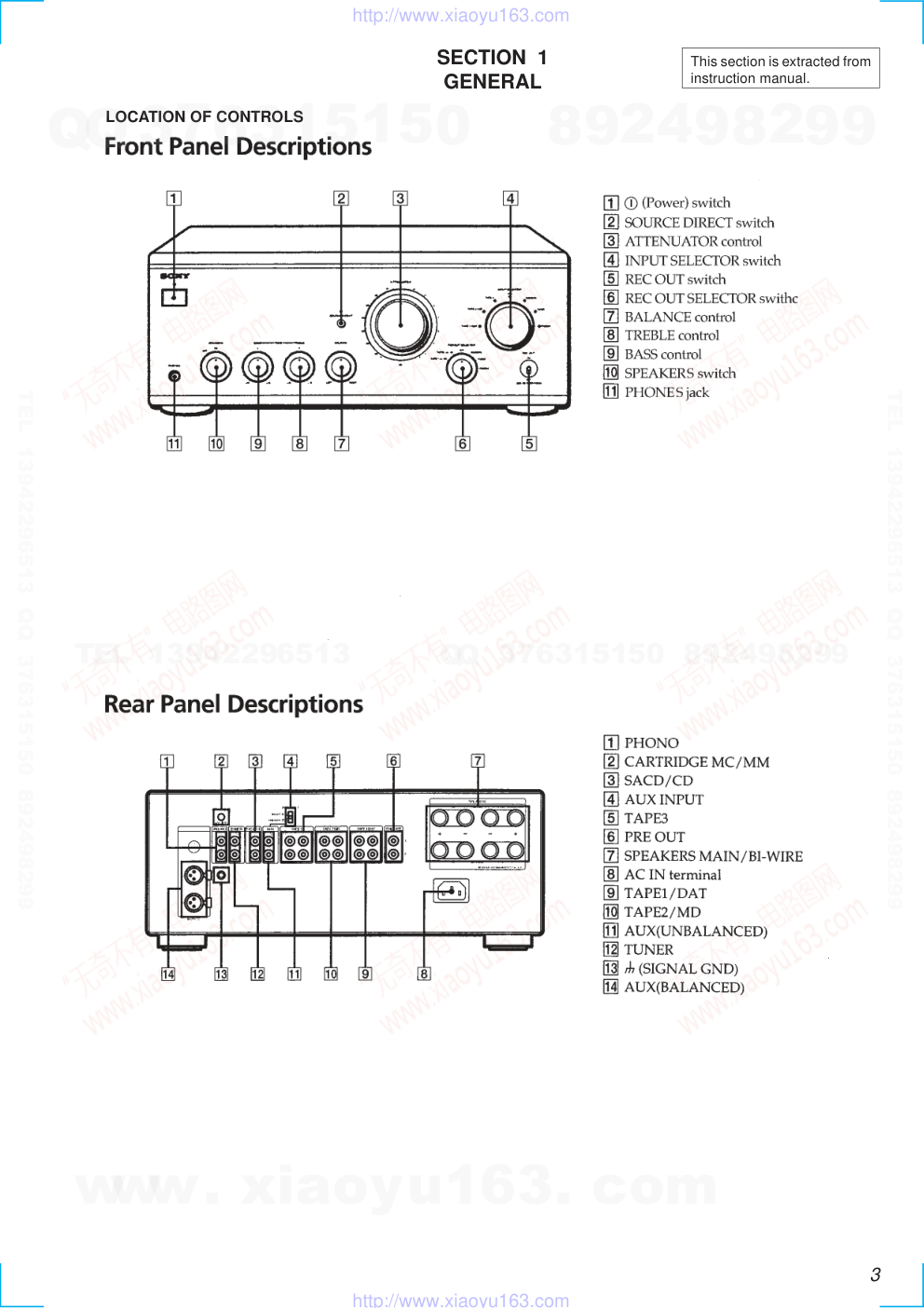

MICROFILM SERVICE MANUAL INTEGRATED STEREO AMPLIFIER AEP Model SPECIFICATIONS TA-FA777ES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 TABLE OF CONTENTS 1. GENERAL Location of Controls ....................................................... 3 2. DISASSEMBLY ......................................................... 4 3. ELECTRICAL ADJUSTMENT............................ 6 4. DIAGRAMS 4-1. Notes for Printed Wiring Boards and Schematic Diagrams ................................................ 7 4-2. Printed Wiring Boards – INPUT/MAIN-B(L)/MAIN-B(R) Boards – ................ 8 4-3. Schematic Diagram – INPUT(1/2)/MAIN-B(L)/MAIN-B(R) Boards – ........ 9 4-4. Printed Wiring Boards – BALANCE/FUNCTION SW/ SP TM/HP/TONE CONTROL/PRO.LED Boards – ...... 10 4-5. Schematic Diagram – BALANCE/FUNCTION SW/ SP TM/INPUT(2/2)/HP/TONE CONTROL(2/2)/ PRO.LED Boards – ......................................................... 11 4-6. Printed Wiring Boards – MAIN-A/RV/REC OUT/ PS PRE/PS/OUTLET Boards – ...................................... 12 4-7. Schematic Diagram – MAIN-A/ TONE CONTROL(1/2)/RV/REC OUT/PS PRE/PS/ OUTLET Boards – .......................................................... 13 5. EXPLODED VIEWS ................................................ 14 6. ELECTRICAL PARTS LIST ............................... 17 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 SECTION 1 GENERAL This section is extracted from instruction manual. LOCATION OF CONTROLS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 FRONT PANEL, TOP board, BOTTOM board SUB CHASSIS, FUN-SW BOARD Note: Follow the disassembly procedure in the numerical order given. SECTION 2 DISASSEMBLY 8 three screws (BV 3 × 8) 0 two screws (B 4 × 20) qs three screws (BV 3 × 8) 0 three screws (B 4 × 20) qa three foots qs five screws (BV 3 × 8) qd bottom board 1 four screws (FLAT HEAD) 1 four screws (FLAT HEAD) 2 top board qa two foots 7 two screws (BV 3 × 8) 9 front panel 6 knob (DIA.68) 5 screw 3 screw 4 knob (DIA.48) 5 sub chassis 1 two screws (BV 3 × 8) 2 shield plate 1 four screws (BV 3 × 8) qd rotary switch (remote type) 4 four screws (BV 3 × 8) qg FUN-SW board 4 two screws (BV 3 × 8) qf nut qa light interception sheet (B) 0 knob (DIA.29) 4 four screws (BV 3 × 8) 4 screw (BV 3 × 8) 7 power botton assy 8 two screws ( 3 × 6) 9 switch, push (AC power) 3 connector (CN806) 6 two connectors (CN807, 808) qh connector (CN304) qs nut www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 HEAT SINK (L) / (R) ASSY MAIN A board, PS-PRE board 4 three connectors (CN501, 502, 503) 3 heat sink (L) assy 2 two screws (4 × 8) 2 two screws (4 × 8) 5 heat sink (R) assy 6 three connectors (CN551, 552, 553) 1 two screws (4 × 8) 1 two screws (4 × 8) 2 three screws (BV 3 × 8) 1 two screws (3 × 8) 4 rod MAIN A board 8 three connectors (CN203, 204, 205) 3 two screws (BV 3 × 8) 7 four connectors (CN401, 402, 403, 404) 6 three connectors (CN51, 52, 53) PS-PRE board 9 Chassis (I) 5 four connectors (CN802, 803, 804, 805) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 Note: Adjustment should be performed 5 minutes later, after the power switch is on. Bias Adjustment Setting: ATTENUATOR (Volume) control: minimum Input signal: No signal input Procedure: Adjust RT501 (L-CH) and RT551 (R-CH) for 70 mV reading on the VTVM. Adjustment Location: SECTION 3 ELECTRICAL ADJUSTMENT – MAIN-B (L) Board (Component side) – – MAIN-B (R) Board (Component side) – + – + – level meter (0.3V DC range) level meter (0.3V DC range) RT501 CN504 1 3 L-CH RT551 CN554 1 3 R-CH www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 7 SECTION 4 DIAGRAMS 4-1. NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS (In addition to this, the necessary note is printed in each block.) Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • 2 : nonflammable resistor. • 5 : fusible resistor. • C : panel designation. Note on Printed Wiring Boards: • X : parts extracted from the component side. • b : Pattern from the side which enables seeing. • Indication of transistor. • U : B+ Line. • V : B– Line. • H : adjustment for repair. • Voltages and waveforms are dc with respect to ground under no-signal conditions. no mark: POWER ON • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Signal path. I : PHONO NOTE:The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. B These are omitted. C E Q B These are omitted. C E Q • Circuit Boards Location PRO. LED board HP board TONE CONTROL board MAIN-B (L) board RV board FUNCTION SW board MAIN-A board REC OUT board PS board MAIN-B (R) board BALANCE board INPUT board SP TM board OUTLET board PS-PRE board w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 8 TA-FA777ES 4-2. PRINTED WIRING BOARDS – INPUT/MAIN-B (L) /MAIN-B (R) Boards – • See page 7 for Circuit Boards Location. • Semiconductor Location – INPUT Board – Ref. No. Location D101 A-7 D102 A-7 D103 A-6 D104 A-4 D105 A-3 D106 A-2 D107 A-2 D108 C-6 D109 A-1 Ref. No. Location D555 C-1 D556 C-1 D557 A-1 D561 C-1 D562 C-1 Q563 A-1 Q564 B-1 Q565 B-2 Q566 A-2 Q568 E-2 Q570 D-2 Q572 F-1 Q573 E-1 • Semiconductor Location – MAIN-B (R) Board – • Semiconductor Location – MAIN-B (L) Board – Ref. No. Location D505 C-2 D506 C-2 D507 A-2 D511 C-2 D512 C-2 Q513 A-2 Q514 B-2 Q515 B-1 Q516 A-1 Q518 E-1 Q520 D-1 Q522 F-2 Q523 E-2 (Page 12) (Page 12) (Page 10) (Page 12) (Page 12) (Page 10) (Page 10) (Page 10) (Page 10) (Page 10) (Page 10) (Page 12) (Page 12) (Page 12) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 9 TA-FA777ES 4-3. SCHEMATIC DIAGRAM – INPUT (1/2) /MAIN-B (L) /MAIN-B (R) Boards – The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. (Page 13) (Page 13) (Page 11) (Page 13) (Page 13) (Page 13) (Page 11) (Page 13) (Page 11) (Page 11) (Page 13) (Page 13) (Page 11) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 10 TA-FA777ES (Page 12) (Page 12) 4-4. PRINTED WIRING BOARDS – BALANCE/FUNCTION SW/SP TM/HP/TONE CONTROL/PRO.LED Boards – • See page 7 for Circuit Boards Location. • Semiconductor Location – BALANCE Board – Ref. No. Location D201 D-2 D202 D-2 D251 C-2 D252 C-2 Q206 D-3 Q207 D-2 Q208 D-2 Q209 D-3 Q256 A-2 Q257 B-2 Q258 B-2 Q259 B-2 • Semiconductor Location – FUNCTION SW Board – Ref. No. Location D914 B-3 D915 A-3 D916 A-3 D917 A-2 D918 A-2 D919 A-1 D920 B-1 • Semiconductor Location – SP TM Board – Ref. No. Location D601 C-4 D602 B-1 D603 B-3 IC601 B-2 Q601 C-1 Q602 A-1 Q603 B-1 Q604 C-1 Q605 A-2 Q606 A-2 (Page 8) (Page 12) TO SP TM BOARD (Page 8) (Page 12) (Page 8) (Page 8) (Page 8) (Page 8) TO PRO.LED BOARD (Page 12) (Page 12) TO HP BOARD (Page 8) (Page 12) TO TONE CONTROL BOARD TO SP TM BOARD TO SP TM BOARD w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 11 TA-FA777ES 4-5. SCHEMATIC DIAGRAM – BALANCE/FUNCTION SW/SP TM/INPUT (2/2) /HP/TONE CONTROL (2/2) /PRO.LED Boards – The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. • IC Block Diagram IC601 µPC1237HA 1 2 3 4 5 6 7 8 OVER LOAD DET F/F OFFSET DET LATCH/ AUTORESET VCC ON MUTE AC OFF DET OVER LOAD DET OFFSET DET AUTO RESET AC OFF DET GND RELAY DRIVE VCC ON MUTE VCC (Page 9) (Page 9) (Page 13) (Page 13) (Page 13) (Page 9) (Page 9) (Page 13) (Page 9) (Page 13) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 12 TA-FA777ES 4-6. PRINTED WIRING BOARDS – MAIN-A/RV/REC OUT/PS PRE/PS/OUTLET Boards – • See page 7 for Circuit Boards Location. • Semiconductor Location – PS Board – Ref. No. Location D701 C-3 D702 C-3 D703 C-2 D704 C-2 D705 B-2 D709 C-2 D710 C-2 D711 C-1 Q402 D-2 Q403 D-1 Q404 B-2 Q405 D-2 Q406 D-2 Q407 C-2 Q408 C-2 Q409 B-2 Q410 C-1 Q411 C-2 Q412 C-3 Q451 D-6 Q452 D-6 Q453 D-6 Q454 B-6 Q455 D-5 Q456 D-5 Q457 C-5 Q458 C-5 Q459 B-5 Q460 C-6 Q461 C-6 Q462 C-5 Ref. No. Location Ref. No. Location D401 B-3 D402 B-3 D403 B-3 D418 D-3 D419 D-3 D451 B-4 D452 B-4 D453 B-4 D468 D-5 D469 D-5 IC201 C-9 Q201 B-8 Q202 B-8 Q203 C-8 Q204 D-8 Q205 C-8 Q251 B-9 Q252 B-9 Q253 C-9 Q254 D-9 Q255 C-9 Q401 D-2 • Semiconductor Location – MAIN-A Board – • Semiconductor Location – PS PRE Board – Ref. No. Location D801 A-2 D802 A-2 D851 A-2 D852 A-2 Q806 B-1 Ref. No. Location Q807 B-2 Q808 B-2 Q856 B-3 Q857 B-3 Q858 B-2 (Page 8) (Page 8) TO PS PRE BOARD TO PS BOARD TO RV BOARD (Page 10) (Page 10) (Page 8) TO MAIN-A BOARD TO PS PRE BOARD (Page 8) (Page 8) TO MAIN-A BOARD TO MAIN-A BOARD TO PS BOARD (Page 10) (Page 10) (Page 10) (Page 10) TO MAIN-A BOARD (Page 8) (Page 8) (Page 10) TO OUTLET BOARD TO PS PRE BOARD TO PS BOARD w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 13 TA-FA777ES 4-7. SCHEMATIC DIAGRAM – MAIN-A/TONE CONTROL (1/2)/RV/REC OUT/PS PRE/PS/OUTLET Boards – The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. (Page 9) (Page 9) (Page 11) (Page 11) (Page 9) (Page 9) (Page 11) (Page 11) (Page 11) (Page 9) (Page 9) (Page 9) (Page 9) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 14 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark (2) FRONT CHASSIS SECTION (1) PANEL SECTION SECTION 5 EXPLODED VIEWS The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference num- ber in the exploded views are not supplied. • Hardware (# mark) list and accessories and packing materials are given in the last of the electrical parts list. NOTE: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑ ↑ Parts Color Cabinet's Color Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 10 10 12 10 9 18 17 19 20 23 8 7 7 15 21 22 1 2 14 10 3 4 5 not supplied not supplied not supplied (including zA) 55 51 not supplied not supplied supplied with J801 S1 56 51 51 59 60 57 58 not supplied not supplied not supplied #1 #1 not supplied S001 not supplied 63 70 70 51 51 51 62 64 51 51 51 67 not supplied not supplied supplied with S901 supplied with RV304 supplied with RV301, 302, 303, S801 68 68 67 51 52 51 51 53 54 not supplied not supplied 1 4-224-463-01 PLATE (R), ORNAMENTAL 2 3-703-685-21 SCREW (+BV 3X8) 3 4-224-701-01 KNOB (DIA. 48) 4 4-224-700-01 KNOB (DIA. 68) 5 4-224-460-01 PANEL, FRONT 7 4-224-461-01 BRACKET (F.P) 8 4-974-510-01 SCREW (+BV 3X8 CU) 9 4-988-322-21 PANEL (L), SIDE 10 4-976-827-11 SCREW, FLAT HEAD * 12 4-969-333-31 BOARD, TOP 14 4-988-323-21 PANEL (R), SIDE 15 4-988-311-01 ESCUTCHEON (B) 17 4-970-145-11 ESCUTCHEON (P) * 18 4-971-834-11 TUBE (B), LIGHT INTERCEPTION 19 4-921-415-13 ESCUTCHEON, POWER KNOB 20 4-931-646-01 LENS, LED 21 4-988-312-01 LENS, LED 22 4-988-321-21 PLATE (L.S), ORNAMENTAL 23 4-224-462-01 PLATE (L), ORNAMENTAL 51 4-974-510-01 SCREW (+BV 3X8 CU) * 52 1-664-379-21 REC OUT BOARD 53 4-972-113-01 WASHER 54 4-970-146-11 BUTTON 55 4-988-316-21 KNOB (DIA. 29) * 56 1-664-367-21 HP BOARD 57 4-967-959-01 SCREW (3X6) 58 X-4948-011-1 BUTTON ASSY, POWER 59 4-812-134-00 RIVET (DIA. 3.5), NYLON * 60 1-664-368-21 PRO.LED BOARD * 62 1-664-365-21 RV BOARD 63 A-4426-973-A TONE CONTROL BOARD, COMPLETE * 64 1-664-369-21 FUNCTION SW BOARD 67 4-972-889-01 CUSHION 68 X-4950-540-1 FOOT ASSY 70 4-971-099-01 WASHER (P) S001 1-762-921-11 SWITCH, ROTARY (REMOTE TYPE) (REC OUT SELECTOR) 0S1 1-554-538-00 SWITCH, PUSH (AC POWER) (1KEY) (POWER) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 (3) MAIN CHASSIS SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 101 4-967-960-01 SCREW (4X8) 102 4-974-510-01 SCREW (+BV 3X8 CU) 103 A-4426-968-A MAIN-B (L) BOARD, COMPLETE * 104 4-970-132-01 HOLDER (C) 105 A-4426-972-A PS BOARD, COMPLETE * 106 4-931-964-01 SCREW (M4) 107 A-4426-969-A MAIN-B (R) BOARD, COMPLETE 108 X-4943-354-1 SCREW (+B) ASSY, BARREL WASHER 109 4-971-099-01 WASHER (P) C701 1-131-864-11 CAP, ELECT C702 1-131-864-11 CAP, ELECT 0T1 1-431-376-11 TRANSFORMER, POWER not supplied 101 not supplied not supplied not supplied not supplied not supplied not supplied #5 #7 #6 T1 101 101 101 102 109 108 103 102 101 101 101 101 101 101 104 105 106 106 C702 C701 107 102 102 109 102 108 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 (4) BACK PANEL SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 151 4-974-510-01 SCREW (+BV 3X8 CU) 152 A-4426-971-A PS-PRE BOARD, COMPLETE 153 A-4426-967-A MAIN-A BOARD, COMPLETE 154 4-969-896-01 SPACER 155 4-973-106-01 SCREW, COLLAR * 156 A-4392-509-A INPUT BOARD, COMPLETE 157 1-664-378-21 OUTLET BOARD 158 A-4426-970-A SP TM BOARD, COMPLETE 161 1-506-113-00 SHORT PLUG * 162 1-535-691-31 TERMINAL 163 3-703-685-21 SCREW (+BV 3X8) 164 4-975-263-42 PANEL, BACK 165 4-970-145-01 ESCUTCHEON (P) 166 4-970-146-01 BUTTON * 167 4-970-147-01 ROD * 168 A-4392-510-A BALANCE BOARD, COMPLETE 0170 1-580-375-41 INLET 3P * 172 4-969-344-01 HOLDER (P) 173 4-971-099-01 WASHER (P) TM601 1-694-308-11 TERMINAL BOARD (SP) (SPEAKERS MAIN) TM602 1-694-308-11 TERMINAL BOARD (SP) (SPEAKERS BI-WIRE) not supplied #8 151 152 151 172 172 172 151 151 not supplied not supplied not supplied TM601 TM602 not supplied 151 151 156 A A B B 165 151 151 173 173 168 153 167 166 154 155 151 151 164 151 163 162 161 151 170 158 151 151 157 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 SECTION 6 ELECTRICAL PARTS LIST BALANCE FUNCTION SW HP Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark NOTE: • Due to standardization, replacements in the parts list may be different from the parts speci- fied in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when order- ing these items. • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. . • CAPACITORS uF: µF • COILS uH: µH The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. * A-4392-510-A BALANCE BOARD, COMPLETE ************************ < CAPACITOR > C208 1-110-397-11 ELECT 1000uF 20% 63V C209 1-110-393-11 ELECT 100uF 20% 63V C210 1-110-390-11 ELECT 22uF 20% 63V C211 1-110-390-11 ELECT 22uF 20% 63V C258 1-110-397-11 ELECT 1000uF 20% 63V C259 1-110-393-11 ELECT 100uF 20% 63V C260 1-110-390-11 ELECT 22uF 20% 63V C261 1-110-390-11 ELECT 22uF 20% 63V < CONNECTOR > CN202 1-691-766-31 PLUG (MICRO CONNECTOR) 4P * CN204 1-564-506-11 PLUG, CONNECTOR 3P CNP201 1-766-896-11 CONNECTOR (CANON) (SACD INPUT L) CNP251 1-766-896-11 CONNECTOR (CANON) (SACD INPUT R) < COMPOSITION CIRCUIT BLOCK > CP201 1-233-250-11 ENCAPSULATED COMPONENT < DIODE > D201 8-719-935-52 DIODE UZL-7H1-TP D202 8-719-935-52 DIODE UZL-7H1-TP D251 8-719-935-52 DIODE UZL-7H1-TP D252 8-719-935-52 DIODE UZL-7H1-TP < TRANSISTOR > Q206 8-729-018-60 TRANSISTOR 2SD2012-LC Q207 8-729-281-54 TRANSISTOR 2SC1815BL-TPE2 Q208 8-729-202-67 FET 2SK246GR3-TPE2 Q209 8-729-018-60 TRANSISTOR 2SD2012-LC Q256 8-729-018-59 TRANSISTOR 2SB1375 (LB-SONY) Q257 8-729-201-53 TRANSISTOR 2SA1015TP-GR Q258 8-729-202-67 FET 2SK246GR3-TPE2 Q259 8-729-018-59 TRANSISTOR 2SB1375 (LB-SONY) < RESISTOR > R218 1-259-171-21 CARBON 1.5K 5% 1/4W R219 1-259-175-11 CARBON 2.2K 5% 1/4W 0R220 1-202-950-31 FUSIBLE 120 5% 1/2W F 0R221 1-202-950-31 FUSIBLE 120 5% 1/2W F 0R222 1-202-950-31 FUSIBLE 120 5% 1/2W F 0R223 1-202-950-31 FUSIBLE 120 5% 1/2W F R224 1-259-239-11 CARBON 1M 5% 1/4W 0R225 1-202-950-31 FUSIBLE 120 5% 1/2W F R268 1-259-171-21 CARBON 1.5K 5% 1/4W R269 1-259-175-11 CARBON 2.2K 5% 1/4W 0R270 1-202-950-31 FUSIBLE 120 5% 1/2W F 0R271 1-202-950-31 FUSIBLE 120 5% 1/2W F 0R272 1-202-950-31 FUSIBLE 120 5% 1/2W F 0R273 1-202-950-31 FUSIBLE 120 5% 1/2W F R274 1-259-239-11 CARBON 1M 5% 1/4W 0R275 1-202-950-31 FUSIBLE 120 5% 1/2W F ************************************************************** * 1-664-369-21 FUNCTION SW BOARD ****************** < CONNECTOR > CN901 1-691-770-11 PLUG (MICRO CONNECTOR) 8P < DIODE > D914 8-719-313-50 LED SEL6810A-TH12 (TAPE1/DAT) D915 8-719-313-50 LED SEL6810A-TH12 (TAPE2/MD) D916 8-719-313-50 LED SEL6810A-TH12 (TAPE3) D917 8-719-313-50 LED SEL6810A-TH12 (SACD) D918 8-719-313-50 LED SEL6810A-TH12 (CD) D919 8-719-313-50 LED SEL6810A-TH12 (TUNER) D920 8-719-313-50 LED SEL6810A-TH12 (PHONO) < SWITCH > S901 1-762-920-11 SWITCH, ROTARY (INPUT SELECTOR) ************************************************************** * 1-664-367-21 HP BOARD ********* < CONNECTOR > * CN808 1-564-506-11 PLUG, CONNECTOR 3P < JACK > J801 1-507-796-71 JACK (PHONES) ************************************************************** www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark INPUT MAIN-A * A-4392-509-A INPUT BOARD, COMPLETE ********************** * 1-535-730-21 LEAD, JUMPER (OFC) * 1-537-738-21 TERMINAL, EARTH C109 1-126-967-11 ELECT 47uF 20% 25V < CONNECTOR > CN101 1-691-766-11 PLUG (MICRO CONNECTOR) 4P CN103 1-691-766-21 PLUG (MICRO CONNECTOR) 4P CN104 1-691-770-11 PLUG (MICRO CONNECTOR) 8P * CN105 1-564-506-11 PLUG, CONNECTOR 3P * CN106 1-564-505-11 PLUG, CONNECTOR 2P CN107 1-691-766-31 PLUG (MICRO CONNECTOR) 4P * CN108 1-564-506-11 PLUG, CONNECTOR 3P CN611 1-691-766-11 PLUG (MICRO CONNECTOR) 4P < DIODE > D101 8-719-911-19 DIODE 1N4148M-TP D102 8-719-911-19 DIODE 1N4148M-TP D103 8-719-911-19 DIODE 1N4148M-TP D104 8-719-911-19 DIODE 1N4148M-TP D105 8-719-911-19 DIODE 1N4148M-TP D106 8-719-911-19 DIODE 1N4148M-TP D107 8-719-911-19 DIODE 1N4148M-TP D108 8-719-911-19 DIODE 1N4148M-TP D109 8-719-935-52 DIODE UZL-7H1-TP < JACK > J101 1-766-895-21 JACK, PIN 4P (TUNER, PHONO) J102 1-766-895-21 JACK, PIN 4P (SACD (UNBALANCED), CD) J103 1-766-895-21 JACK, PIN 4P (TAPE3) J104 1-766-895-21 JACK, PIN 4P (TAPE2/MD) J105 1-766-895-21 JACK, PIN 4P (TAPE1/DAT) J106 1-766-894-41 JACK 2P (PRE OUT) < RESISTOR > R101 1-259-239-11 CARBON 1M 5% 1/4W R102 1-259-239-11 CARBON 1M 5% 1/4W R103 1-259-239-11 CARBON 1M 5% 1/4W R104 1-249-923-11 CARBON 1K 5% 1/4W R105 1-259-239-11 CARBON 1M 5% 1/4W R106 1-249-923-11 CARBON 1K 5% 1/4W R107 1-259-239-11 CARBON 1M 5% 1/4W R108 1-249-923-11 CARBON 1K 5% 1/4W R109 1-259-239-11 CARBON 1M 5% 1/4W R118 1-259-143-21 CARBON 100 5% 1/4W R119 1-259-239-11 CARBON 1M 5% 1/4W R120 1-259-239-11 CARBON 1M 5% 1/4W R121 1-259-239-11 CARBON 1M 5% 1/4W R122 1-249-226-11 CARBON 4.7K 5% 1/3W R123 1-249-194-11 CARBON 220 5% 1/3W R151 1-259-239-11 CARBON 1M 5% 1/4W R152 1-259-239-11 CARBON 1M 5% 1/4W R153 1-259-239-11 CARBON 1M 5% 1/4W R154 1-249-923-11 CARBON 1K 5% 1/4W R155 1-259-239-11 CARBON 1M 5% 1/4W R156 1-249-923-11 CARBON 1K 5% 1/4W R157 1-259-239-11 CARBON 1M 5% 1/4W R158 1-249-923-11 CARBON 1K 5% 1/4W R159 1-259-239-11 CARBON 1M 5% 1/4W R168 1-259-143-21 CARBON 100 5% 1/4W R169 1-259-239-11 CARBON 1M 5% 1/4W R170 1-259-239-11 CARBON 1M 5% 1/4W R171 1-259-239-11 CARBON 1M 5% 1/4W R172 1-249-226-11 CARBON 4.7K 5% 1/3W R173 1-249-194-11 CARBON 220 5% 1/3W < RELAY > RY101 1-755-060-11 RELAY RY102 1-755-060-11 RELAY RY103 1-755-060-11 RELAY RY104 1-755-060-11 RELAY RY105 1-755-060-11 RELAY RY106 1-755-060-11 RELAY RY107 1-755-060-11 RELAY RY108 1-755-060-11 RELAY RY109 1-755-060-11 RELAY RY110 1-755-060-11 RELAY RY111 1-755-060-11 RELAY < SWITCH > S101 1-570-076-11 SWITCH, SLIDE (REMOTE TYPE) (REC OUT SELECTOR) S102 1-762-181-11 SWITCH, SLIDE (SACD INPUT) < BRACKET > * YB101 4-946-336-01 BRACKET (GROUND) ************************************************************** A-4426-967-A MAIN-A BOARD, COMPLETE *********************** < CAPACITOR > C201 1-125-852-11 FILM 330PF 5% 50V C202 1-130-973-00 FILM 0.022uF 2% 100V C203 1-130-341-00 FILM 0.056uF 2% 100V C204 1-137-332-11 FILM 0.016uF 2% 100V C205 1-119-800-11 ELECT 100uF 20% 25V C206 1-119-834-11 ELECT 22uF 20% 63V C207 1-119-834-11 ELECT 22uF 20% 63V C251 1-125-852-11 FILM 330PF 5% 50V C252 1-130-973-00 FILM 0.022uF 2% 100V C253 1-130-341-00 FILM 0.056uF 2% 100V C254 1-137-332-11 FILM 0.016uF 2% 100V C255 1-119-800-11 ELECT 100uF 20% 25V C256 1-119-834-11 ELECT 22uF 20% 63V C257 1-119-834-11 ELECT 22uF 20% 63V C401 1-125-845-21 FILM 47PF 10% 50V C402 1-136-810-11 FILM 220PF 5% 100V C404 1-125-842-11 FILM 4PF 10% 50V C405 1-119-830-11 ELECT 330uF 20% 25V C406 1-119-830-11 ELECT 330uF 20% 25V C408 1-128-198-11 ELECT 22uF 20% 63V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN-A C409 1-110-512-11 ELECT 1uF 10% 50V C410 1-125-845-21 FILM 47PF 10% 50V C411 1-119-830-11 ELECT 330uF 20% 25V C412 1-119-830-11 ELECT 330uF 20% 25V C413 1-119-834-11 ELECT 22uF 20% 63V C418 1-119-841-11 ELECT 1000uF 20% 63V C419 1-119-841-11 ELECT 1000uF 20% 63V C425 1-119-841-11 ELECT 1000uF 20% 63V C426 1-119-841-11 ELECT 1000uF 20% 63V C451 1-125-845-21 FILM 47PF 10% 50V C452 1-136-810-11 FILM 220PF 5% 100V C454 1-125-842-11 FILM 4PF 10% 50V C455 1-119-830-11 ELECT 330uF 20% 25V C456 1-119-830-11 ELECT 330uF 20% 25V C458 1-128-198-11 ELECT 22uF 20% 63V C459 1-110-512-11 ELECT 1uF 10% 50V C460 1-125-845-21 FILM 47PF 10% 50V C461 1-119-830-11 ELECT 330uF 20% 25V C462 1-119-830-11 ELECT 330uF 20% 25V C463 1-119-834-11 ELECT 22uF 20% 63V C468 1-119-841-11 ELECT 1000uF 20% 63V C469 1-119-841-11 ELECT 1000uF 20% 63V C475 1-119-841-11 ELECT 1000uF 20% 63V C476 1-119-841-11 ELECT 1000uF 20% 63V < CONNECTOR > * CN203 1-564-506-11 PLUG, CONNECTOR 3P CN205 1-691-766-11 PLUG (MICRO CONNECTOR) 4P * CN206 1-564-506-11 PLUG, CONNECTOR 3P CN401 1-691-766-11 PLUG (MICRO CONNECTOR) 4P CN402 1-691-766-31 PLUG (MICRO CONNECTOR) 4P * CN403 1-564-509-21 PLUG, CONNECTOR 6P CN404 1-564-510-11 PLUG (MICRO CONNECTOR) 6P < DIODE > D401 8-719-933-41 DIODE UZL-6H3-TP D402 8-719-200-02 DIODE 11E2-TA2B D403 8-719-200-02 DIODE 11E2-TA2B D418 8-719-310-60 LED SEL1510C-C-TP D419 8-719-310-60 LED SEL1510C-C-TP D451 8-719-933-41 DIODE UZL-6H3-TP D452 8-719-200-02 DIODE 11E2-TA2B D453 8-719-200-02 DIODE 11E2-TA2B D468 8-719-310-60 LED SEL1510C-C-TP D469 8-719-310-60 LED SEL1510C-C-TP < IC > IC201 8-759-259-12 IC OPA2604AP < TRANSISTOR > Q201 8-729-214-71 FET 2SK147-BL Q202 8-729-214-71 FET 2SK147-BL Q203 8-729-203-45 TRANSISTOR 2SC3423-Y Q204 8-729-202-67 FET 2SK246GR3-TPE2 Q205 8-729-281-54 TRANSISTOR 2SC1815BL-TPE2 Q251 8-729-214-71 FET 2SK147-BL Q252 8-729-214-71 FET 2SK147-BL Q253 8-729-203-45 TRANSISTOR 2SC3423-Y Q254 8-729-202-67 FET 2SK246GR3-TPE2 Q255 8-729-281-54 TRANSISTOR 2SC1815BL-TPE2 Q401 8-729-203-21 FET 2SK389-BL Q402 8-729-281-54 TRANSISTOR 2SC1815BL-TPE2 Q403 8-729-281-54 TRANSISTOR 2SC1815BL-TPE2 Q404 8-729-232-00 TRANSISTOR 2SA1349-GRBL Q405 8-729-018-21 FET 2SJ313-LB Q406 8-729-104-91 TRANSISTOR 2SA1383-Q Q407 8-729-202-67 FET 2SK246GR3-TPE2 Q408 8-729-104-18 TRANSISTOR 2SC3514-P Q409 8-729-104-18 TRANSISTOR 2SC3514-P Q410 8-729-202-67 FET 2SK246GR3-TPE2 Q411 8-729-202-67 FET 2SK246GR3-TPE2 Q412 8-729-202-67 FET 2SK246GR3-TPE2 Q451 8-729-203-21 FET 2SK389-BL Q452 8-729-281-54 TRANSISTOR 2SC1815BL-TPE2 Q453 8-729-281-54 TRANSISTOR 2SC1815BL-TPE2 Q454 8-729-232-00 TRANSISTOR 2SA1349-GRBL Q455 8-729-018-21 FET 2SJ313-LB Q456 8-729-104-91 TRANSISTOR 2SA1383-Q Q457 8-729-202-67 FET 2SK246GR3-TPE2 Q458 8-729-104-18 TRANSISTOR 2SC3514-P Q459 8-729-104-18 TRANSISTOR 2SC3514-P Q460 8-729-202-67 FET 2SK246GR3-TPE2 Q461 8-729-202-67 FET 2SK246GR3-TPE2 Q462 8-729-202-67 FET 2SK246GR3-TPE2 < RESISTOR > R201 1-249-911-11 CARBON 330 5% 1/4W R202 1-259-143-21 CARBON 100 5% 1/4W R203 1-259-207-21 CARBON 47K 5% 1/4W R204 1-259-163-11 CARBON 680 5% 1/4W R205 1-259-163-11 CARBON 680 5% 1/4W R206 1-259-183-11 CARBON 4.7K 5% 1/4W R207 1-259-143-21 CARBON 100 5% 1/4W R208 1-249-915-11 CARBON 470 5% 1/4W R209 1-259-143-21 CARBON 100 5% 1/4W R210 1-249-485-11 CARBON 8.2 5% 1/3W R211 1-249-887-11 CARBON 33 5% 1/4W R212 1-259-151-21 CARBON 220 5% 1/4W R213 1-259-151-21 CARBON 220 5% 1/4W R214 1-259-239-11 CARBON 1M 5% 1/4W R215 1-249-844-11 CARBON 56K 1% 1/2W R216 1-259-320-11 CARBON 4.7K 1% 1/2W R217 1-259-151-21 CARBON 220 5% 1/4W R251 1-249-911-11 CARBON 330 5% 1/4W R252 1-259-143-21 CARBON 100 5% 1/4W R253 1-259-207-21 CARBON 47K 5% 1/4W R254 1-259-163-11 CARBON 680 5% 1/4W R255 1-259-163-11 CARBON 680 5% 1/4W R256 1-259-183-11 CARBON 4.7K 5% 1/4W R257 1-259-143-21 CARBON 100 5% 1/4W R258 1-249-915-11 CARBON 470 5% 1/4W R259 1-259-143-21 CARBON 100 5% 1/4W R260 1-249-485-11 CARBON 8.2 5% 1/3W R261 1-249-887-11 CARBON 33 5% 1/4W R262 1-259-151-21 CARBON 220 5% 1/4W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN-A MAIN-B (L) MAIN-B (R) R263 1-259-151-21 CARBON 220 5% 1/4W R264 1-259-239-11 CARBON 1M 5% 1/4W R265 1-249-844-11 CARBON 56K 1% 1/2W R266 1-259-320-11 CARBON 4.7K 1% 1/2W R267 1-259-151-21 CARBON 220 5% 1/4W R401 1-214-937-00 METAL 1M 1% 1/2W R402 1-249-210-11 CARBON 1K 5% 1/3W R403 1-249-883-11 CARBON 22 5% 1/4W R404 1-249-883-11 CARBON 22 5% 1/4W R405 1-259-175-11 CARBON 2.2K 5% 1/4W R406 1-249-943-11 CARBON 6.8K 5% 1/4W R407 1-259-151-21 CARBON 220 5% 1/4W R408 1-259-151-21 CARBON 220 5% 1/4W R409 1-259-151-21 CARBON 220 5% 1/4W R410 1-259-207-21 CARBON 47K 5% 1/4W R411 1-249-923-11 CARBON 1K 5% 1/4W 0R412 1-219-193-11 FUSIBLE 220 5% 1/2W F R413 1-249-842-11 CARBON 47K 5% 1/2W R414 1-259-171-21 CARBON 1.5K 5% 1/4W R415 1-249-953-11 CARBON 18K 5% 1/4W R419 1-214-937-00 METAL 1M 1% 1/2W R420 1-259-171-21 CARBON 1.5K 5% 1/4W R421 1-259-183-11 CARBON 4.7K 5% 1/4W 0R422 1-219-022-11 FUSIBLE 100 5% 1/2W F R430 1-259-828-11 CARBON 20K 2% 2W R431 1-259-773-11 CARBON 100 2% 2W R451 1-214-937-00 METAL 1M 1% 1/2W R452 1-249-210-11 CARBON 1K 5% 1/3W R453 1-249-883-11 CARBON 22 5% 1/4W R454 1-249-883-11 CARBON 22 5% 1/4W R455 1-259-175-11 CARBON 2.2K 5% 1/4W R456 1-249-943-11 CARBON 6.8K 5% 1/4W R457 1-259-151-21 CARBON 220 5% 1/4W R458 1-259-151-21 CARBON 220 5% 1/4W R459 1-259-151-21 CARBON 220 5% 1/4W R460 1-259-207-21 CARBON 47K 5% 1/4W R461 1-249-923-11 CARBON 1K 5% 1/4W 0R462 1-219-193-11 FUSIBLE 220 5% 1/2W F R463 1-249-842-11 CARBON 47K 5% 1/2W R464 1-259-171-21 CARBON 1.5K 5% 1/4W R465 1-249-953-11 CARBON 18K 5% 1/4W R469 1-214-937-00 METAL 1M 1% 1/2W R470 1-259-171-21 CARBON 1.5K 5% 1/4W R471 1-259-183-11 CARBON 4.7K 5% 1/4W 0R472 1-219-022-11 FUSIBLE 100 5% 1/2W F R480 1-259-828-11 CARBON 20K 2% 2W R481 1-259-773-11 CARBON 100 2% 2W < SWITCH > S201 1-572-642-11 SWITCH, PUSH (1 KEY) (CARTRIDGE) ************************************************************** A-4426-968-A MAIN-B (L) BOARD, COMPLETE ************************** < CAPACITOR > C516 1-137-163-11 FILM 0.33uF 10% 63V C517 1-137-163-11 FILM 0.33uF 10% 63V C520 1-119-835-31 ELECT 33uF 20% 63V C521 1-162-286-31 CERAMIC 220PF 10% 50V C522 1-119-834-11 ELECT 22uF 20% 63V < CONNECTOR > * CN501 1-564-506-11 PLUG, CONNECTOR 3P * CN502 1-564-506-11 PLUG, CONNECTOR 3P CN503 1-766-897-11 PIN, CONNECTOR (PC BOARD) 4P * CN504 1-564-518-11 PLUG, CONNECTOR 3P < DIODE > D505 8-719-911-19 DIODE 1N4148M-TP D506 8-719-985-53 DIODE HZS4ALL-TA D507 8-719-310-60 LED SEL1510C-C-TP D511 8-719-911-19 DIODE 1N4148M-TP D512 8-719-985-53 DIODE HZS4ALL-TA < TRANSISTOR > Q513 8-729-281-54 TRANSISTOR 2SC1815BL-TPE2 Q514 8-729-201-53 TRANSISTOR 2SA1015TP-GR Q515 8-729-018-19 FET 2SK2013-Y Q516 8-729-018-21 FET 2SJ313-Y Q518 8-729-018-11 FET 2SK1530A-Y Q520 8-729-018-13 FET 2SJ201A-Y Q522 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA Q523 8-729-201-53 TRANSISTOR 2SA1015TP-GR < RESISTOR > R523 1-249-941-11 CARBON 5.6K 5% 1/4W R524 1-249-923-11 CARBON 1K 5% 1/4W R525 1-249-556-11 CARBON 1.5K 5% 1/4W 0R526 1-202-954-11 FUSIBLE 470 5% 1/2W F 0R527 1-202-954-11 FUSIBLE 470 5% 1/2W F 0R528 1-202-953-11 FUSIBLE 330 5% 1/2W F 0R529 1-219-185-11 FUSIBLE 47 5% 1/2W F R530 1-242-822-31 REGISTER 0.22 5% 5W R531 1-242-822-31 REGISTER 0.22 5% 5W 0R532 1-219-185-11 FUSIBLE 47 5% 1/2W F R539 1-249-943-11 CARBON 6.8K 5% 1/4W R540 1-249-556-11 CARBON 1.5K 5% 1/4W R541 1-249-923-11 CARBON 1K 5% 1/4W R542 1-249-576-11 CARBON 10K 5% 1/4W R543 1-249-965-11 CARBON 56K 5% 1/4W R544 1-249-576-11 CARBON 10K 5% 1/4W < VARIABLE RESISTOR > RT501 1-224-490-11 RES, ADJ, METAL FILM 4.7K ************************************************************** A-4426-969-A MAIN-B (R) BOARD, COMPLETE ************************** * 1-535-730-21 LEAD, JUMPER (OFC) < CAPACITOR > C566 1-137-163-11 FILM 0.33uF 10% 63V C567 1-137-163-11 FILM 0.33uF 10% 63V C570 1-119-835-31 ELECT 33uF 20% 63V The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN-B (R) OUTLET PRO.LED PS C571 1-162-286-31 CERAMIC 220PF 10% 50V C572 1-119-834-11 ELECT 22uF 20% 63V < CONNECTOR > * CN551 1-564-506-11 PLUG, CONNECTOR 3P * CN552 1-564-506-11 PLUG, CONNECTOR 3P CN553 1-766-897-21 PIN, CONNECTOR (PC BOARD) 4P * CN554 1-564-518-11 PLUG, CONNECTOR 3P < DIODE > D555 8-719-911-19 DIODE 1N4148M-TP D556 8-719-985-53 DIODE HZS4ALL-TA D557 8-719-310-60 LED SEL1510C-C-TP D561 8-719-911-19 DIODE 1N4148M-TP D562 8-719-985-53 DIODE HZS4ALL-TA < TRANSISTOR > Q563 8-729-281-54 TRANSISTOR 2SC1815BL-TPE2 Q564 8-729-201-53 TRANSISTOR 2SA1015TP-GR Q565 8-729-018-19 FET 2SK2013-Y Q566 8-729-018-21 FET 2SJ313-Y Q568 8-729-018-11 FET 2SK1530A-Y Q570 8-729-018-13 FET 2SJ201A-Y Q572 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA Q573 8-729-201-53 TRANSISTOR 2SA1015TP-GR < RESISTOR > R573 1-249-941-11 CARBON 5.6K 5% 1/4W R574 1-249-923-11 CARBON 1K 5% 1/4W R575 1-249-556-11 CARBON 1.5K 5% 1/4W 0R576 1-202-954-11 FUSIBLE 470 5% 1/2W F 0R577 1-202-954-11 FUSIBLE 470 5% 1/2W F 0R578 1-202-953-11 FUSIBLE 330 5% 1/2W F 0R579 1-219-185-11 FUSIBLE 47 5% 1/2W F R580 1-242-822-31 REGISTER 0.22 5% 5W R581 1-242-822-31 REGISTER 0.22 5% 5W 0R582 1-219-185-11 FUSIBLE 47 5% 1/2W F R589 1-249-943-11 CARBON 6.8K 5% 1/4W R590 1-249-556-11 CARBON 1.5K 5% 1/4W R591 1-249-923-11 CARBON 1K 5% 1/4W R592 1-249-576-11 CARBON 10K 5% 1/4W R593 1-249-965-11 CARBON 56K 5% 1/4W R594 1-249-576-11 CARBON 10K 5% 1/4W < VARIABLE RESISTOR > RT551 1-224-490-11 RES, ADJ, METAL FILM 4.7K ************************************************************** 1-664-378-21 OUTLET BOARD ************* * 1-533-185-11 HOLDER, FUSE < CAPACITOR > 0C51 1-113-920-11 CERAMIC 0.0022uF 20% 250V < CONNECTOR > CN51 1-564-321-00 PIN, CONNECTOR 2P CN52 1-580-629-11 PIN, CONNECTOR 2P * CN53 1-564-321-21 PIN, CONNECTOR 2P < FUSE > 0F51 1-532-299-00 FUSE, TIME-LAG (T5A/250V) ************************************************************** * 1-664-368-21 PRO.LED BOARD ************** < CONNECTOR > * CN806 1-564-506-11 PLUG, CONNECTOR 3P < DIODE > D803 8-719-313-40 LED SML1516W-TP4 (POWER) < RESISTOR > R801 1-249-407-11 CARBON 150 5% 1/4W ************************************************************** A-4426-972-A PS BOARD, COMPLETE ******************* * 3-555-872-21 SPACER < CAPACITOR > C703 1-130-955-00 FILM 0.01uF 5% 100V C705 1-119-846-11 ELECT 1uF 20% 100V C706 1-119-839-21 ELECT 330uF 20% 63V C707 1-136-880-11 FILM 2.2uF 10% 160V C708 1-119-839-21 ELECT 330uF 20% 63V < CONNECTOR > * CN701 1-564-241-11 PIN, CONNECTOR (B4P-VH) 4P CN703 1-691-766-31 PLUG (MICRO CONNECTOR) 4P CN705 1-691-766-11 PLUG (MICRO CONNECTOR) 4P * CN706 1-564-506-11 PLUG, CONNECTOR 3P * CN708 1-564-505-11 PLUG, CONNECTOR 2P < DIODE > D701 8-719-210-25 DIODE C25P20F D702 8-719-210-25 DIODE C25P20F D703 8-719-210-26 DIODE C25P20FR D704 8-719-210-26 DIODE C25P20FR D705 8-719-934-22 DIODE HZS30-2LT2 D709 8-719-200-02 DIODE 11E2-TA2B D710 8-719-200-02 DIODE 11E2-TA2B D711 8-719-200-02 DIODE 11E2-TA2B < MOUNT TERMINAL/GROUND PLATE > * EPT701 4-924-264-21 TERMINAL, MOUNT * EPT702 3-346-266-21 PLATE, GROUND * EPT703 3-346-266-21 PLATE, GROUND * EPT704 3-346-266-21 PLATE, GROUND * EPT705 3-346-266-21 PLATE, GROUND < RESISTOR > 0R701 1-219-165-11 FUSIBLE 1 5% 1/2W F 0R702 1-202-951-71 FUSIBLE 150 5% 1/2W F The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R703 1-249-576-11 CARBON 10K 5% 1/4W ************************************************************** A-4426-971-A PS PRE BOARD, COMPLETE *********************** 2-259-121-01 SCREW, TR * 4-880-403-11 HEAT SINK < CAPACITOR > C801 1-119-841-11 ELECT 1000uF 20% 63V C802 1-119-841-11 ELECT 1000uF 20% 63V C808 1-119-841-11 ELECT 1000uF 20% 63V C809 1-119-837-11 ELECT 100uF 20% 63V C851 1-119-841-11 ELECT 1000uF 20% 63V C852 1-119-841-11 ELECT 1000uF 20% 63V C858 1-119-841-11 ELECT 1000uF 20% 63V C859 1-119-837-11 ELECT 100uF 20% 63V < CONNECTOR > CN802 1-564-510-11 PLUG (MICRO CONNECTOR) 6P * CN803 1-564-506-11 PLUG, CONNECTOR 3P * CN804 1-564-506-11 PLUG, CONNECTOR 3P CN805 1-691-766-11 PLUG (MICRO CONNECTOR) 4P < DIODE > D801 8-719-935-52 DIODE UZL-7H1-TP D802 8-719-935-52 DIODE UZL-7H1-TP D851 8-719-935-52 DIODE UZL-7H1-TP D852 8-719-935-52 DIODE UZL-7H1-TP < TRANSISTOR > Q806 8-729-209-15 TRANSISTOR 2SD2012 Q807 8-729-281-54 TRANSISTOR 2SC1815BL-TPE2 Q808 8-729-202-67 FET 2SK246GR3-TPE2 Q856 8-729-141-83 TRANSISTOR 2SB1375 Q857 8-729-201-53 TRANSISTOR 2SA1015TP-GR Q858 8-729-202-67 FET 2SK246GR3-TPE2 < RESISTOR > 0R802 1-217-469-00 FUSIBLE 1 5% 1W F 0R803 1-217-469-00 FUSIBLE 1 5% 1W F R818 1-249-556-11 CARBON 1.5K 5% 1/4W R819 1-249-560-91 CARBON 2.2K 5% 1/4W 0R820 1-215-887-00 METAL OXIDE 150 5% 2W F 0R821 1-215-887-00 METAL OXIDE 150 5% 2W F 0R822 1-215-887-00 METAL OXIDE 150 5% 2W F R868 1-249-556-11 CARBON 1.5K 5% 1/4W R869 1-249-560-91 CARBON 2.2K 5% 1/4W 0R870 1-215-887-00 METAL OXIDE 150 5% 2W F 0R871 1-215-887-00 METAL OXIDE 150 5% 2W F 0R872 1-215-887-00 METAL OXIDE 150 5% 2W F ************************************************************** * 1-664-379-21 REC OUT BOARD ************** < CONNECTOR > * CN315 1-564-506-11 PLUG, CONNECTOR 3P < SWITCH > S302 1-762-186-11 SWITCH, TOGGLE (RECOUT) ************************************************************** * 1-664-365-21 RV BOARD ********* < CONNECTOR > CN303 1-691-770-11 PLUG (MICRO CONNECTOR) 8P CN304 1-691-770-21 PLUG (MICRO CONNECTOR) 8P < VARIABLE RESISTOR > RV304 1-225-403-11 RES, VAR, CARBON 120K/120K (ATTENUATOR) ************************************************************** A-4426-970-A SP TM BOARD, COMPLETE ********************** < CAPACITOR > C601 1-126-868-11 ELECT 47uF 20% 50V C602 1-119-839-11 ELECT 330uF 20% 63V C603 1-136-157-00 MYLAR 0.022uF 5% 50V C604 1-126-053-11 ELECT 220uF 20% 25V C605 1-126-023-11 ELECT 100uF 20% 25V C607 1-136-157-00 MYLAR 0.022uF 5% 50V C608 1-126-058-11 ELECT 4.7uF 20% 63V C609 1-128-552-11 ELECT 47uF 20% 63V C610 1-126-058-11 ELECT 4.7uF 20% 63V C611 1-136-157-00 MYLAR 0.022uF 5% 50V C612 1-126-059-11 ELECT 10uF 20% 63V C620 1-130-973-00 FILM 0.022uF 2% 100V C670 1-130-973-00 FILM 0.022uF 2% 100V < CONNECTOR > CN601 1-564-320-00 PIN, CONNECTOR 2P CN602 1-691-766-41 PLUG (MICRO CONNECTOR) 4P * CN603 1-564-506-11 PLUG, CONNECTOR 3P * CN604 1-564-505-11 PLUG, CONNECTOR 2P * CN605 1-564-505-11 PLUG, CONNECTOR 2P * CN606 1-564-506-11 PLUG, CONNECTOR 3P * CN607 1-564-506-11 PLUG, CONNECTOR 3P * CN608 1-564-506-11 PLUG, CONNECTOR 3P CN609 1-691-766-11 PLUG (MICRO CONNECTOR) 4P CN651 1-564-320-00 PIN, CONNECTOR 2P < DIODE > D601 8-719-911-19 DIODE 1N4148M-TP D602 8-719-310-60 LED SEL1510C-C-TP D603 8-719-911-19 DIODE 1N4148M-TP < FIXED PLATE > * EPT601 4-843-416-11 PLATE, FIXED, CAP * EPT602 4-843-416-11 PLATE, FIXED, CAP * EPT603 4-843-416-11 PLATE, FIXED, CAP * EPT604 4-843-416-11 PLATE, FIXED, CAP * EPT605 4-843-416-11 PLATE, FIXED, CAP PS PS PRE REC OUT RV SP TM The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark SP TM TONE CONTROL * EPT606 4-843-416-11 PLATE, FIXED, CAP * EPT607 4-843-416-11 PLATE, FIXED, CAP * EPT608 4-843-416-11 PLATE, FIXED, CAP < IC > IC601 8-759-111-68 IC uPC1237HA < COIL > L601 1-411-766-11 COIL, AIR-CORE L651 1-411-766-11 COIL, AIR-CORE < TRANSISTOR > Q601 8-729-281-54 TRANSISTOR 2SC1815BL-TPE2 Q602 8-729-018-60 TRANSISTOR 2SD2012-LC Q603 8-729-201-53 TRANSISTOR 2SA1015TP-GR Q604 8-729-201-53 TRANSISTOR 2SA1015TP-GR Q605 8-729-281-54 TRANSISTOR 2SC1815BL-TPE2 Q606 8-729-018-60 TRANSISTOR 2SD2012-LC < RESISTOR > R604 1-259-223-11 CARBON 220K 5% 1/4W R606 1-259-191-21 CARBON 10K 5% 1/4W R607 1-259-129-11 CARBON 27 5% 1/4W R608 1-259-215-21 CARBON 100K 5% 1/4W R609 1-259-195-11 CARBON 15K 5% 1/4W R610 1-259-292-11 CARBON 330 5% 1/2W R612 1-259-183-11 CARBON 4.7K 5% 1/4W R613 1-259-328-11 CARBON 10K 5% 1/2W R614 1-259-207-21 CARBON 47K 5% 1/4W R615 1-259-199-11 CARBON 22K 5% 1/4W R616 1-259-207-21 CARBON 47K 5% 1/4W R617 1-259-191-21 CARBON 10K 5% 1/4W R620 1-259-227-11 CARBON 330K 5% 1/4W R621 1-259-256-11 CARBON 10 5% 1/2W R622 1-259-300-11 CARBON 680 5% 1/2W 0R625 1-202-937-31 FUSIBLE 10 5% 1/2W F R626 1-249-923-11 CARBON 1K 5% 1/4W R628 1-259-292-11 CARBON 330 5% 1/2W R629 1-259-292-11 CARBON 330 5% 1/2W R670 1-259-227-11 CARBON 330K 5% 1/4W R671 1-259-256-11 CARBON 10 5% 1/2W R672 1-259-300-11 CARBON 680 5% 1/2W 0R675 1-202-937-31 FUSIBLE 10 5% 1/2W F R677 1-259-296-11 CARBON 470 5% 1/2W R678 1-259-296-11 CARBON 470 5% 1/2W < RELAY > RY601 1-755-061-11 RELAY RY602 1-515-920-11 RELAY (24V) < TERMINAL > TM601 1-694-308-11 TERMINAL BOARD (SP) (SPEAKERS MAIN) TM602 1-694-308-11 TERMINAL BOARD (SP) (SPEAKERS BI-WIRE) ************************************************************** A-4426-973-A TONE CONTROL BOARD, COMPLETE ***************************** < CAPACITOR > C301 1-130-475-00 MYLAR 0.0022uF 5% 50V C303 1-136-153-00 FILM 0.01uF 5% 50V C305 1-136-155-00 FILM 0.015uF 5% 50V C307 1-136-165-00 MYLAR 0.1uF 5% 50V C309 1-136-165-00 MYLAR 0.1uF 5% 50V C310 1-136-165-00 MYLAR 0.1uF 5% 50V C351 1-130-475-00 MYLAR 0.0022uF 5% 50V C353 1-136-153-00 FILM 0.01uF 5% 50V C355 1-136-155-00 FILM 0.015uF 5% 50V C357 1-136-165-00 MYLAR 0.1uF 5% 50V C805 1-106-343-00 MYLAR 1000PF 5% 200V C806 1-106-343-00 MYLAR 1000PF 5% 200V < CONNECTOR > * CN301 1-564-506-11 PLUG, CONNECTOR 3P * CN313 1-564-506-11 PLUG, CONNECTOR 3P * CN807 1-564-506-11 PLUG, CONNECTOR 3P < DIODE > D301 8-719-313-50 LED SEL6810A-TH12 (SOURCE DIRECT) < TRANSISTOR > Q301 8-729-281-54 TRANSISTOR 2SC1815BL-TPE2 < RESISTOR > R301 1-249-568-11 CARBON 4.7K 5% 1/4W R302 1-249-556-11 CARBON 1.5K 5% 1/4W R303 1-259-502-11 CARBON 4.7M 5% 1/4W R304 1-259-502-11 CARBON 4.7M 5% 1/4W R305 1-249-955-11 CARBON 22K 5% 1/4W R306 1-249-568-11 CARBON 4.7K 5% 1/4W R307 1-249-568-11 CARBON 4.7K 5% 1/4W R309 1-249-469-11 CARBON 100K 5% 1/4W R311 1-249-568-11 CARBON 4.7K 5% 1/4W R351 1-249-568-11 CARBON 4.7K 5% 1/4W R352 1-249-556-11 CARBON 1.5K 5% 1/4W R353 1-259-502-11 CARBON 4.7M 5% 1/4W R354 1-259-502-11 CARBON 4.7M 5% 1/4W R355 1-249-955-11 CARBON 22K 5% 1/4W R356 1-249-568-11 CARBON 4.7K 5% 1/4W R359 1-249-469-11 CARBON 100K 5% 1/4W R824 1-259-547-11 CARBON 470 5% 1/2W R825 1-259-547-11 CARBON 470 5% 1/2W < VARIABLE RESISTOR > RV301 1-223-789-11 RES, VAR, CARBON 250K/250K (BALANCE) RV302 1-223-768-12 RES, VAR, CARBON 250K/250K (TONE, TREBLE) RV303 1-223-767-12 RES, VAR, CARBON 900K/900K (TONE, BASS) < SWITCH > S303 1-571-828-11 SWITCH, PUSH (1 KEY) (SOURCE DIRECT) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark TONE CONTROL TA-FA777ES Sony Corporation Home Audio Company 9-929-026-11 99J057541-1 Printed in Hungary C 1999. 10 Published by Quality Assurance Dept. S801 1-762-184-11 SWITCH, ROTARY (SPEAKERS) ************************************************************** MISCELLANEOUS ************** 161 1-506-113-00 SHORT PLUG * 162 1-535-691-31 TERMINAL 0170 1-580-375-41 INLET 3P C701 1-131-864-11 CAP, ELECT C702 1-131-864-11 CAP, ELECT S001 1-762-921-11 SWITCH, ROTARY (REMOTE TYPE) (REC OUT SELECTOR) 0S1 1-554-538-00 SWITCH, PUSH (AC POWER) (1KEY) (POWER) 0T1 1-431-376-11 TRANSFORMER, POWER TM601 1-694-308-11 TERMINAL BOARD (SP) (SPEAKERS MAIN) TM602 1-694-308-11 TERMINAL BOARD (SP) (SPEAKERS BI-WIRE) ************************************************************ ************** HARDWARE LIST ************** #1 7-685-886-09 SCREW +BVTT 4X20 (S) #3 7-685-883-09 SCREW +BVTT 4X12 (S) #4 7-682-548-09 SCREW (3X8) #5 7-682-564-09 SCREW +B 4X14 #6 7-684-024-04 N 4, TYPE 2 #7 7-682-148-15 SCREW, TR * #8 7-682-248-09 SCREW +K 3X8 ************************************************************ ACCESSORIES & PACKING MATERIALS ******************************* 0 1-551-631-22 CORD, POWER 3-867-878-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH, SPANISH, PORTUGUESE) 3-867-878-21 MANUAL, INSTRUCTION (GERMAN, DUTCH, SWEDISH, ITALIAN) * 4-970-079-01 CUSHION The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
