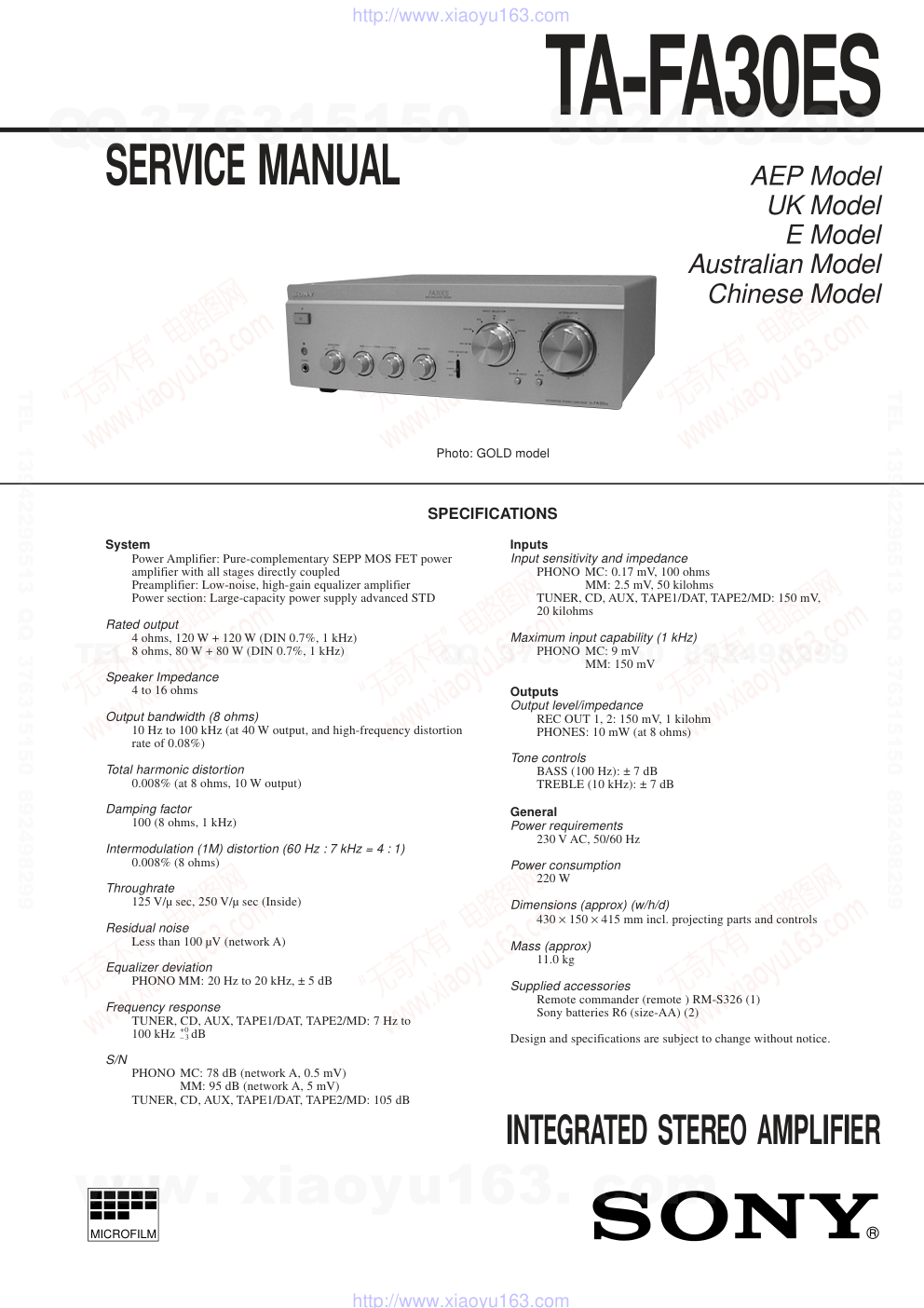

'MICROFILM
SERVICE MANUAL
INTEGRATED STEREO AMPLIFIER
AEP Model
UK Model
E Model
Australian Model
Chinese Model
SPECIFICATIONS
Photo: GOLD model
System
Power Amplifier: Pure-complementary SEPP MOS FET power
amplifier with all stages directly coupled
Preamplifier: Low-noise, high-gain equalizer amplifier
Power section: Large-capacity power supply advanced STD
Rated output
4 ohms, 120 W + 120 W (DIN 0.7%, 1 kHz)
8 ohms, 80 W + 80 W (DIN 0.7%, 1 kHz)
Speaker Impedance
4 to 16 ohms
Output bandwidth (8 ohms)
10 Hz to 100 kHz (at 40 W output, and high-frequency distortion
rate of 0.08%)
Total harmonic distortion
0.008% (at 8 ohms, 10 W output)
Damping factor
100 (8 ohms, 1 kHz)
Intermodulation (1M) distortion (60 Hz : 7 kHz = 4 : 1)
0.008% (8 ohms)
Throughrate
125 V/µ sec, 250 V/µ sec (Inside)
Residual noise
Less than 100 µV (network A)
Equalizer deviation
PHONO MM: 20 Hz to 20 kHz, ± 5 dB
Frequency response
TUNER, CD, AUX, TAPE1/DAT, TAPE2/MD: 7 Hz to
100 kHz     dB
S/N
PHONO MC: 78 dB (network A, 0.5 mV)
MM: 95 dB (network A, 5 mV)
TUNER, CD, AUX, TAPE1/DAT, TAPE2/MD: 105 dB
Inputs
Input sensitivity and impedance
PHONO MC: 0.17 mV, 100 ohms
MM: 2.5 mV, 50 kilohms
TUNER, CD, AUX, TAPE1/DAT, TAPE2/MD: 150 mV,
20 kilohms
Maximum input capability (1 kHz)
PHONO MC: 9 mV
MM: 150 mV
Outputs
Output level/impedance
REC OUT 1, 2: 150 mV, 1 kilohm
PHONES: 10 mW (at 8 ohms)
Tone controls
BASS (100 Hz): ± 7 dB
TREBLE (10 kHz): ± 7 dB
General
Power requirements
230 V AC, 50/60 Hz
Power consumption
220 W
Dimensions (approx) (w/h/d)
430 × 150 × 415 mm incl. projecting parts and controls
Mass (approx)
11.0 kg
Supplied accessories
Remote commander (remote ) RM-S326 (1)
Sony batteries R6 (size-AA) (2)
Design and specifications are subject to change without notice.
+0
–3
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 2 –

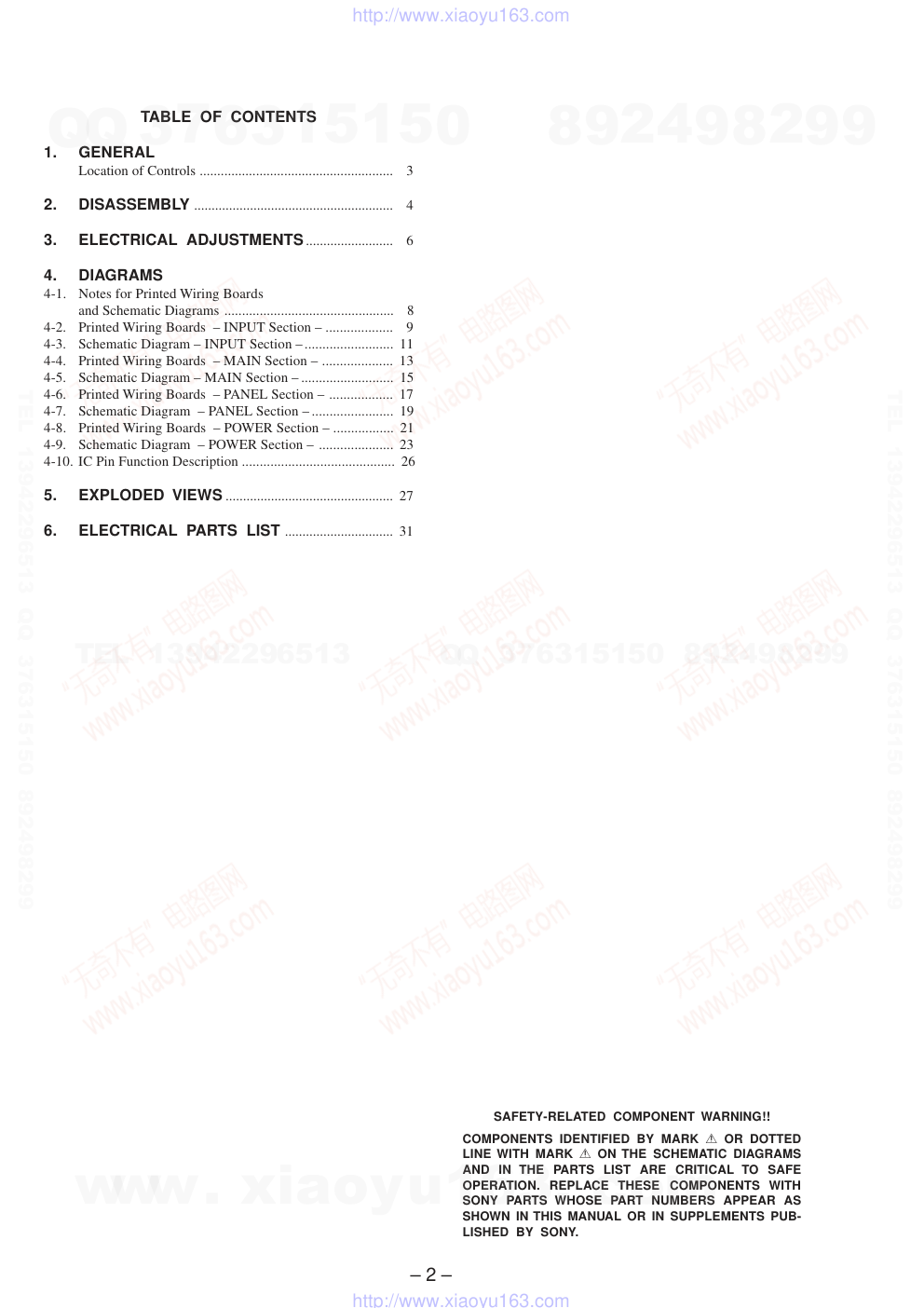

TABLE  OF  CONTENTS
1.
GENERAL
Location of Controls .......................................................
3
2.
DISASSEMBLY .........................................................
4
3.
ELECTRICAL  ADJUSTMENTS .........................
6
4.
DIAGRAMS
4-1.
Notes for Printed Wiring Boards
and Schematic Diagrams ................................................
8
4-2.
Printed Wiring Boards  – INPUT Section – ...................
9
4-3.
Schematic Diagram – INPUT Section –......................... 11
4-4.

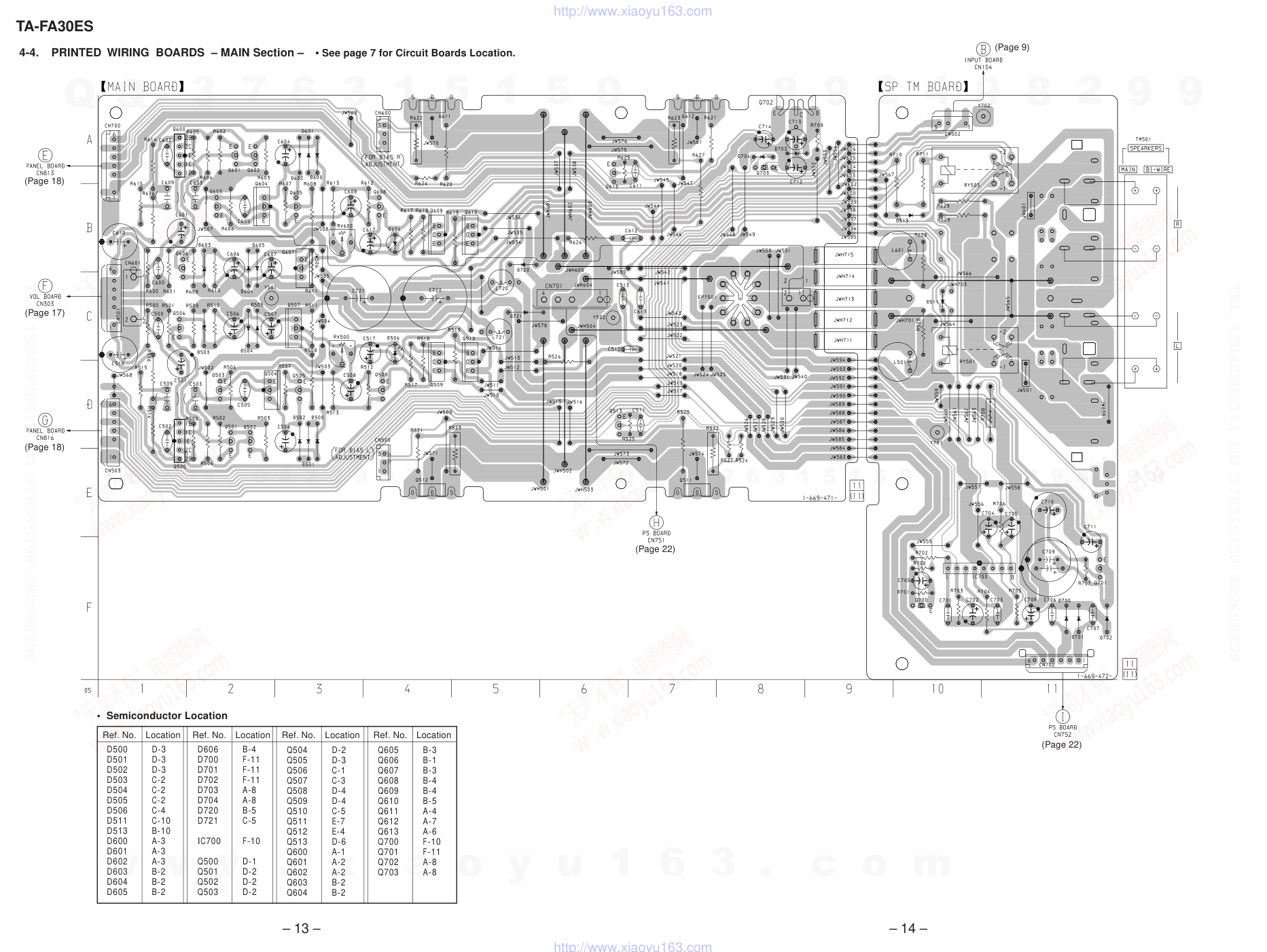

Printed Wiring Boards  – MAIN Section – .................... 13
4-5.
Schematic Diagram – MAIN Section – .......................... 15
4-6.
Printed Wiring Boards  – PANEL Section – .................. 17
4-7.
Schematic Diagram  – PANEL Section – ....................... 19
4-8.
Printed Wiring Boards  – POWER Section – ................. 21
4-9.
Schematic Diagram  – POWER Section – ..................... 23
4-10. IC Pin Function Description ........................................... 26
5.
EXPLODED  VIEWS ................................................ 27
6.
ELECTRICAL  PARTS  LIST ............................... 31
SAFETY-RELATED  COMPONENT  WARNING!!
COMPONENTS  IDENTIFIED  BY  MARK  !  OR  DOTTED
LINE  WITH  MARK  !  ON  THE  SCHEMATIC  DIAGRAMS
AND  IN  THE  PARTS  LIST  ARE  CRITICAL  TO  SAFE
OPERATION.  REPLACE  THESE  COMPONENTS  WITH
SONY  PARTS  WHOSE  PART  NUMBERS  APPEAR  AS
SHOWN  IN  THIS  MANUAL  OR  IN  SUPPLEMENTS  PUB-
LISHED  BY  SONY.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 3 –

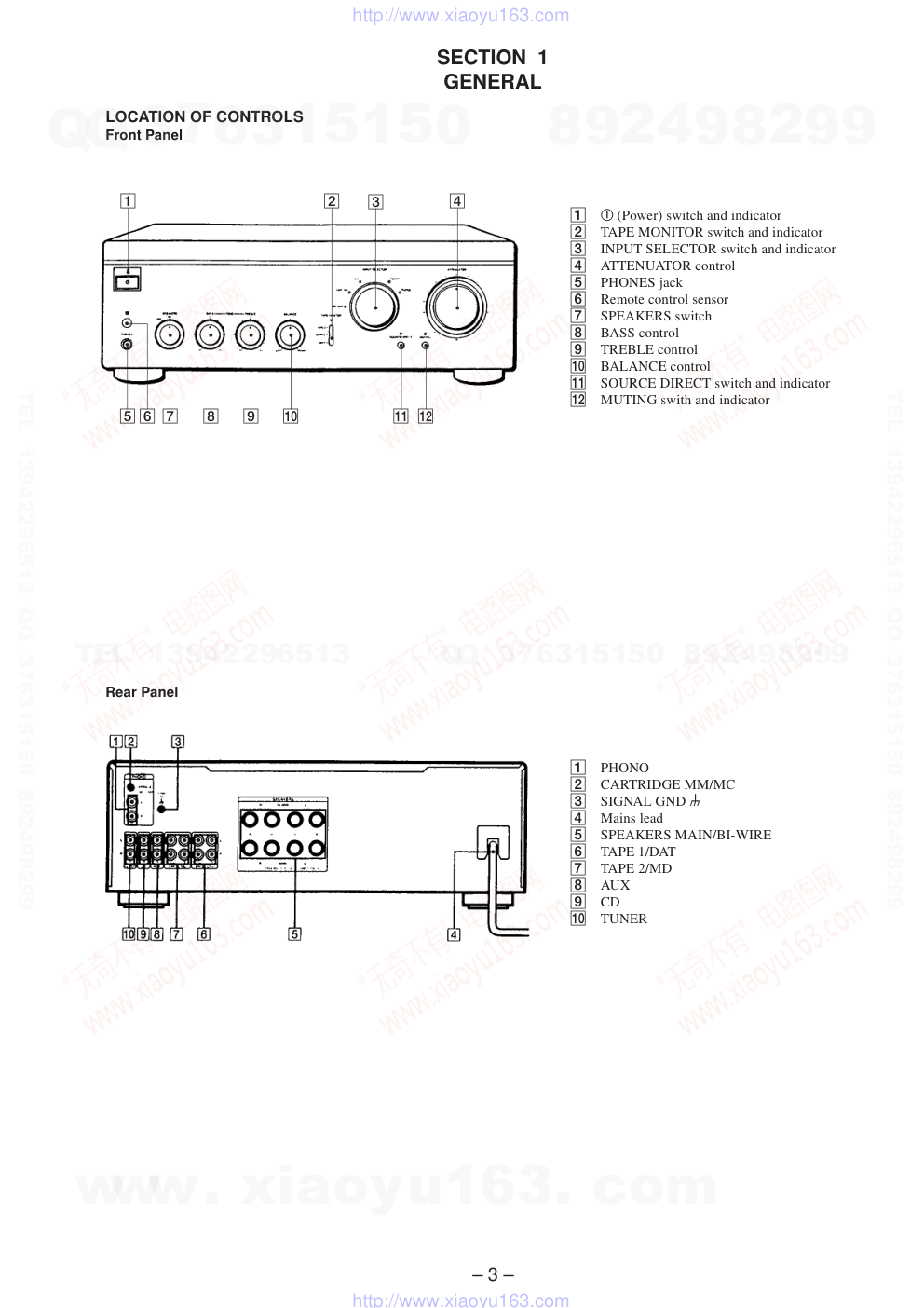

SECTION  1
GENERAL
LOCATION OF CONTROLS
Front Panel
Rear Panel
1
U (Power) switch and indicator
2
TAPE MONITOR switch and indicator
3
INPUT SELECTOR switch and indicator
4
ATTENUATOR control
5
PHONES jack
6
Remote control sensor
7
SPEAKERS switch
8
BASS control
9
TREBLE control
!º
BALANCE control
!¡
SOURCE DIRECT switch and indicator
!™
MUTING swith and indicator
1
2
3
4
5 6 7
8
9
!º
!¡ !™
1
PHONO
2
CARTRIDGE MM/MC
3
SIGNAL GND y
4
Mains lead
5
SPEAKERS MAIN/BI-WIRE
6
TAPE 1/DAT
7
TAPE 2/MD
8
AUX
9
CD
!º
TUNER
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 4 –
6 connector
(CN2)
4 connector
(CN700)
1 connector
(CN103)
3 connector
(CN303)
2 connector
(CN102)
7 two screws
(3 × 8)
7 three screws
(3 × 8)
7 two screws
(3 × 8)
7 four screws
(3 × 8)
7 two screws
(3 × 8)
5 connector
(CN503)
8 sub panel section
CASE,  FRONT  PANEL
SUB  PANEL  SECTION
Note: Follow the disassembly procedure in the numerical order given.

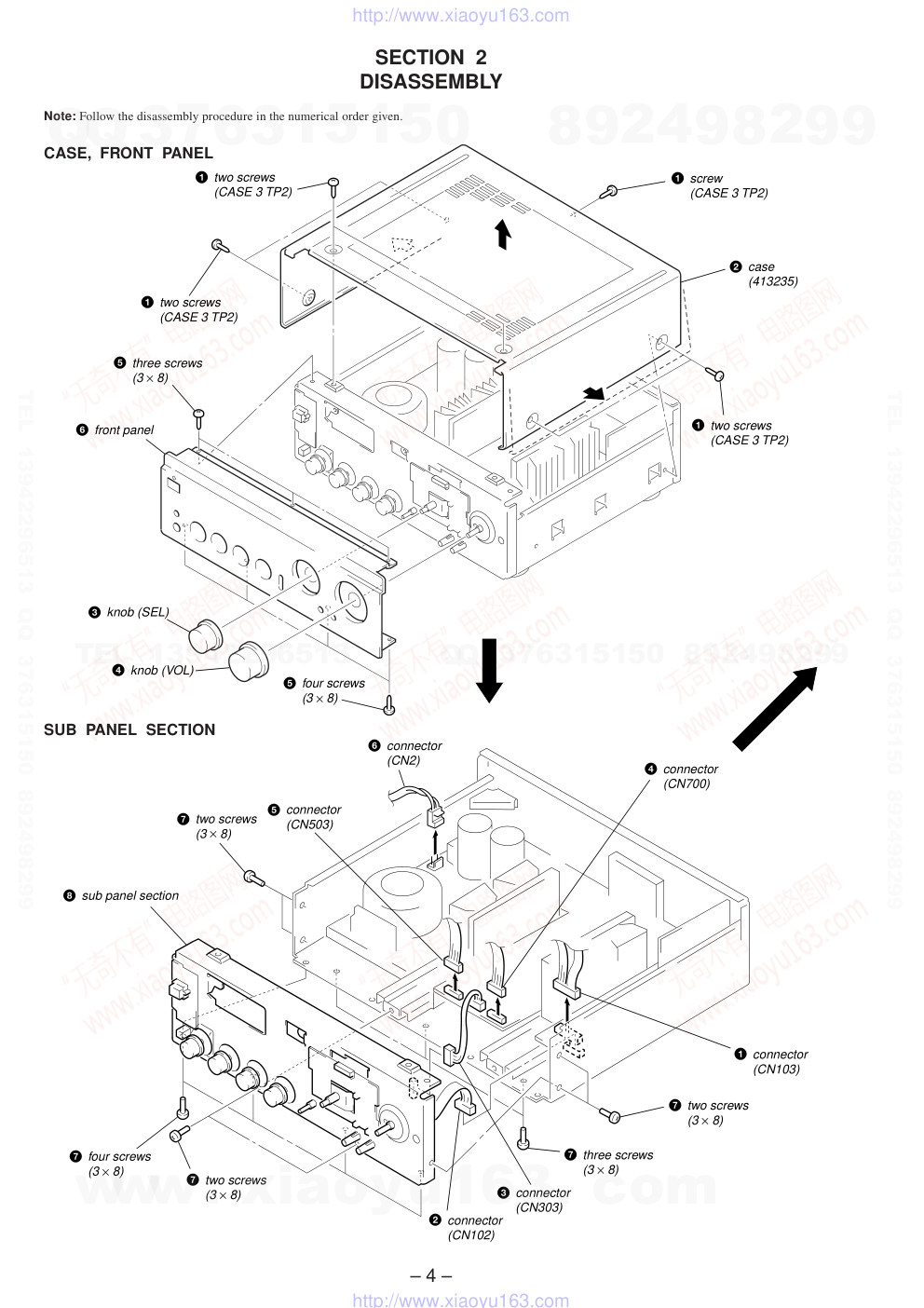

SECTION  2
DISASSEMBLY
1 two screws
(CASE 3 TP2)
1� screw
(CASE 3 TP2)
1 two screws
(CASE 3 TP2)
2 case
(413235)
1 two screws
(CASE 3 TP2)
5 three screws
(3 × 8)
5 four screws
(3 × 8)
6 front panel
3 knob (SEL)
4 knob (VOL)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 5 –

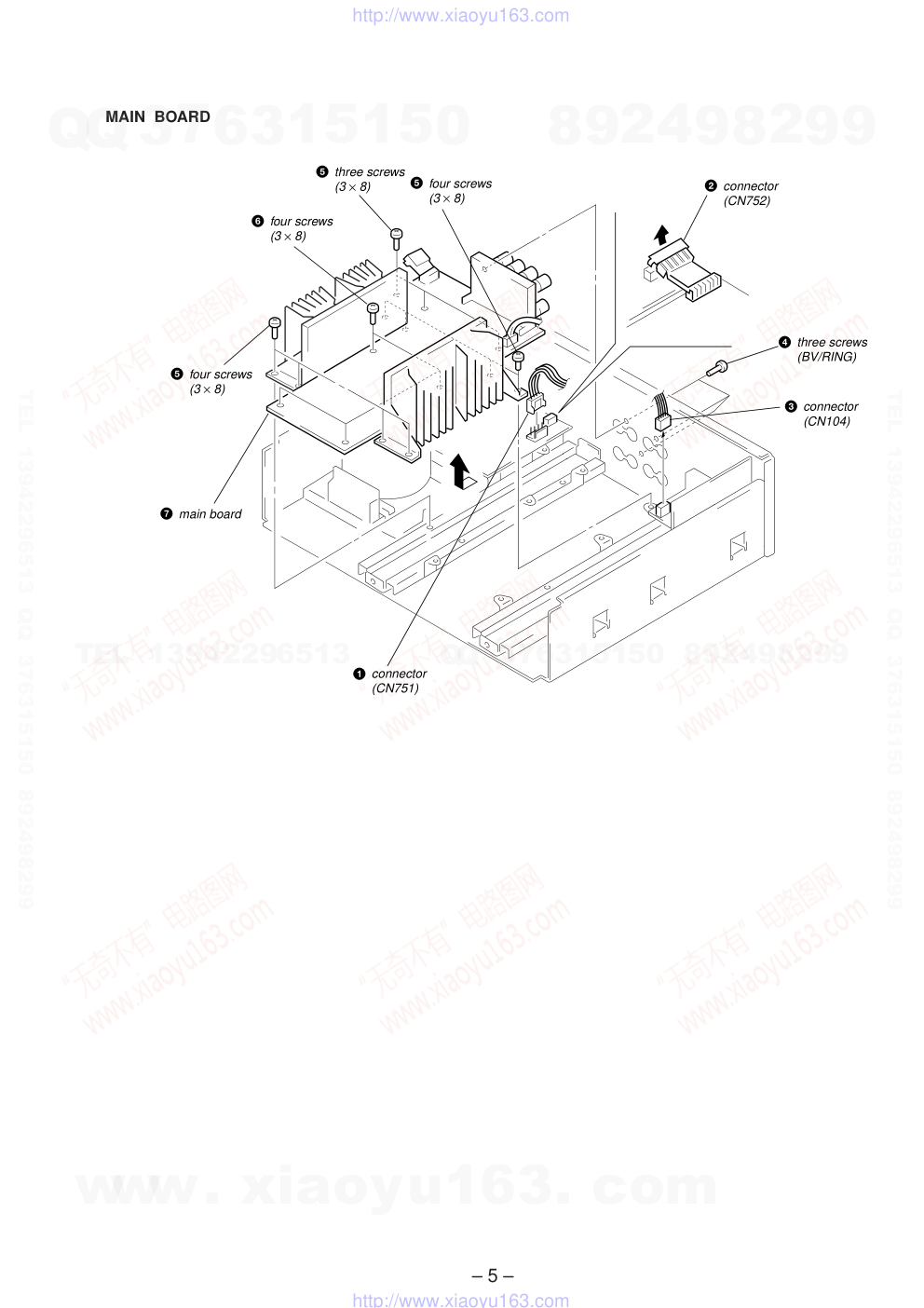

MAIN  BOARD
2 connector
(CN752)
3 connector
(CN104)
1 connector
(CN751)
4 three screws
(BV/RING)
5 four screws
(3 × 8)
7 main board
6 four screws
(3 × 8)
5 four screws
(3 × 8)
5 three screws
(3 × 8)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 6 –

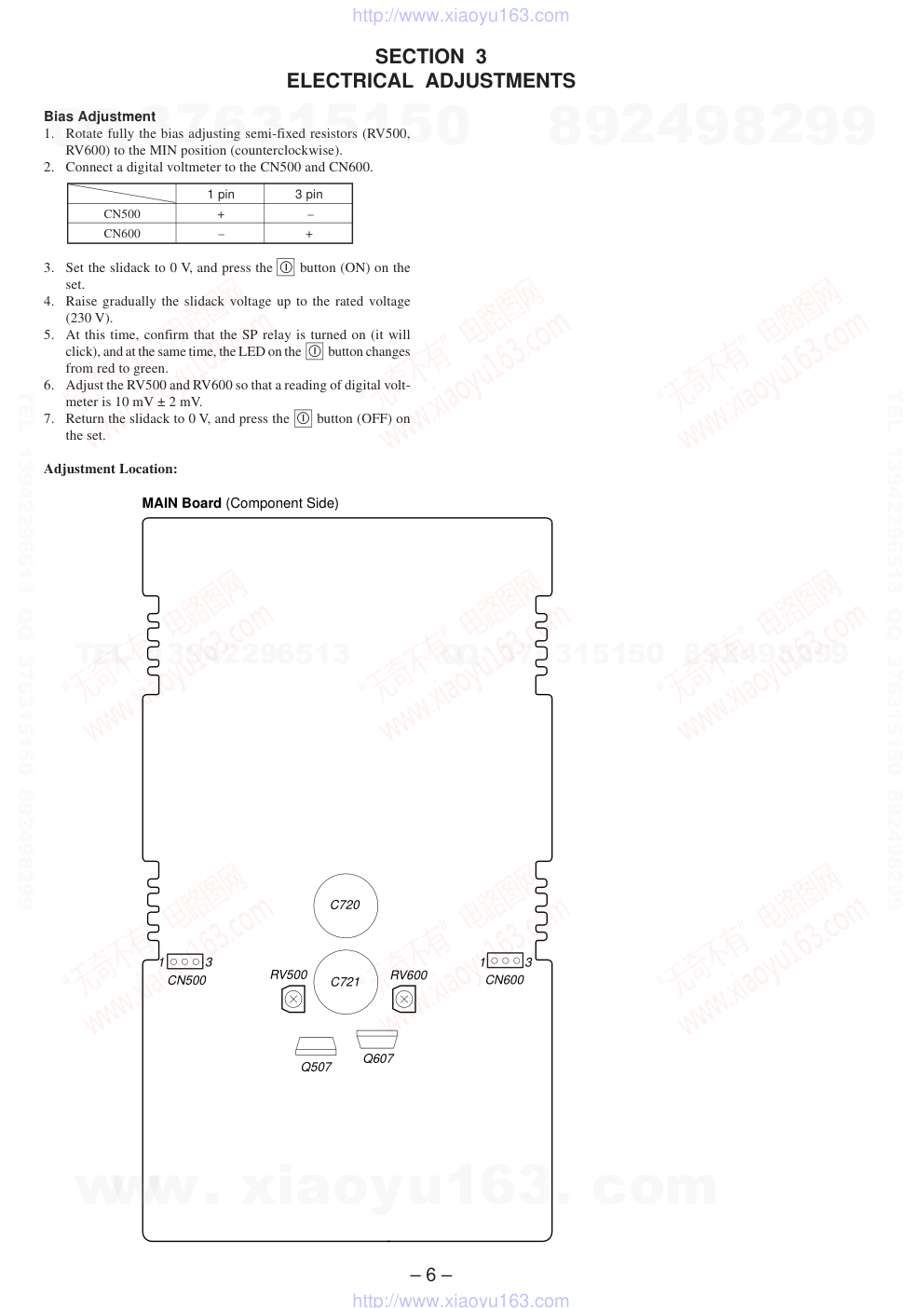

Bias Adjustment
1.
Rotate fully the bias adjusting semi-fixed resistors (RV500,
RV600) to the MIN position (counterclockwise).
2.
Connect a digital voltmeter to the CN500 and CN600.
3.
Set the slidack to 0 V, and press the U button (ON) on the
set.
4.
Raise gradually the slidack voltage up to the rated voltage
(230 V).
5.
At this time, confirm that the SP relay is turned on (it will
click), and at the same time, the LED on the U button changes
from red to green.
6.
Adjust the RV500 and RV600 so that a reading of digital volt-
meter is 10 mV ± 2 mV.
7.
Return the slidack to 0 V, and press the U button (OFF) on
the set.
Adjustment Location:
1 pin
3 pin
CN500
+
 –
CN600
–
+
SECTION  3
ELECTRICAL  ADJUSTMENTS
C720
C721
Q507
Q607
RV600
RV500
CN500
CN600
1
1
3
3
MAIN Board (Component Side)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 7 –
– 8 –

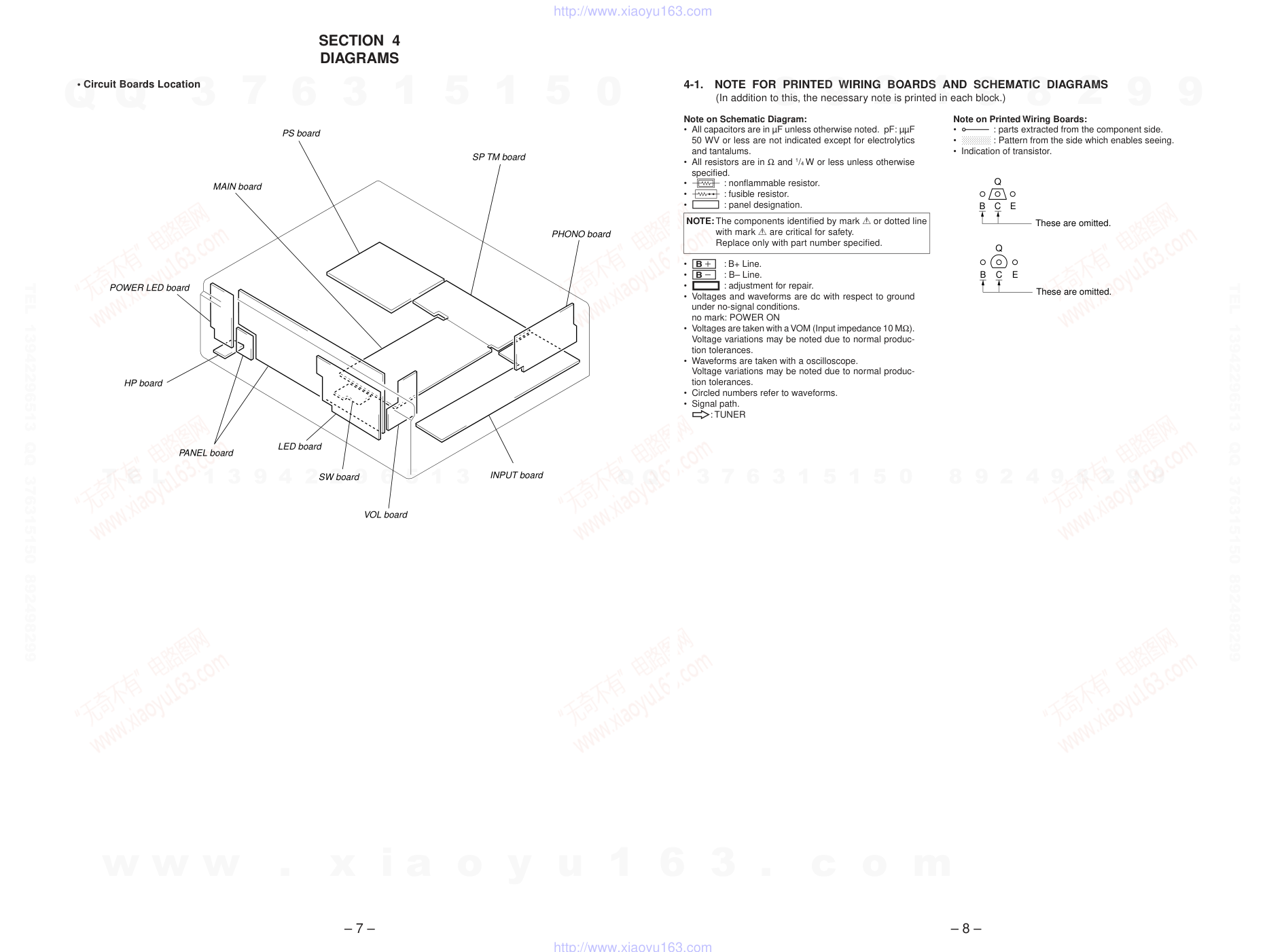

SECTION  4
DIAGRAMS
• Circuit Boards Location
4-1.
NOTE  FOR  PRINTED  WIRING  BOARDS  AND  SCHEMATIC  DIAGRAMS
(In addition to this, the necessary note is printed in each block.)
Note on Schematic Diagram:
• All capacitors are in µF unless otherwise noted.  pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and 1/4 W or less unless otherwise
specified.
• 2 : nonflammable resistor.
• 5 : fusible resistor.
• C : panel designation.
Note on Printed Wiring Boards:
• X : parts extracted from the component side.
• b : Pattern from the side which enables seeing.
• Indication of transistor.
• U
: B+ Line.
• V
: B– Line.
• H : adjustment for repair.
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark: POWER ON
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
• Circled numbers refer to waveforms.
• Signal path.
K: TUNER
 NOTE: The components identified by mark ! or dotted line
with mark ! are critical for safety.
Replace only with part number specified.
B
These are omitted.
C
E
Q
B
These are omitted.
C
E
Q
SP TM board
PS board
MAIN board
PHONO board
INPUT board
VOL board
SW board
LED board
PANEL board
HP board
POWER LED board
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com

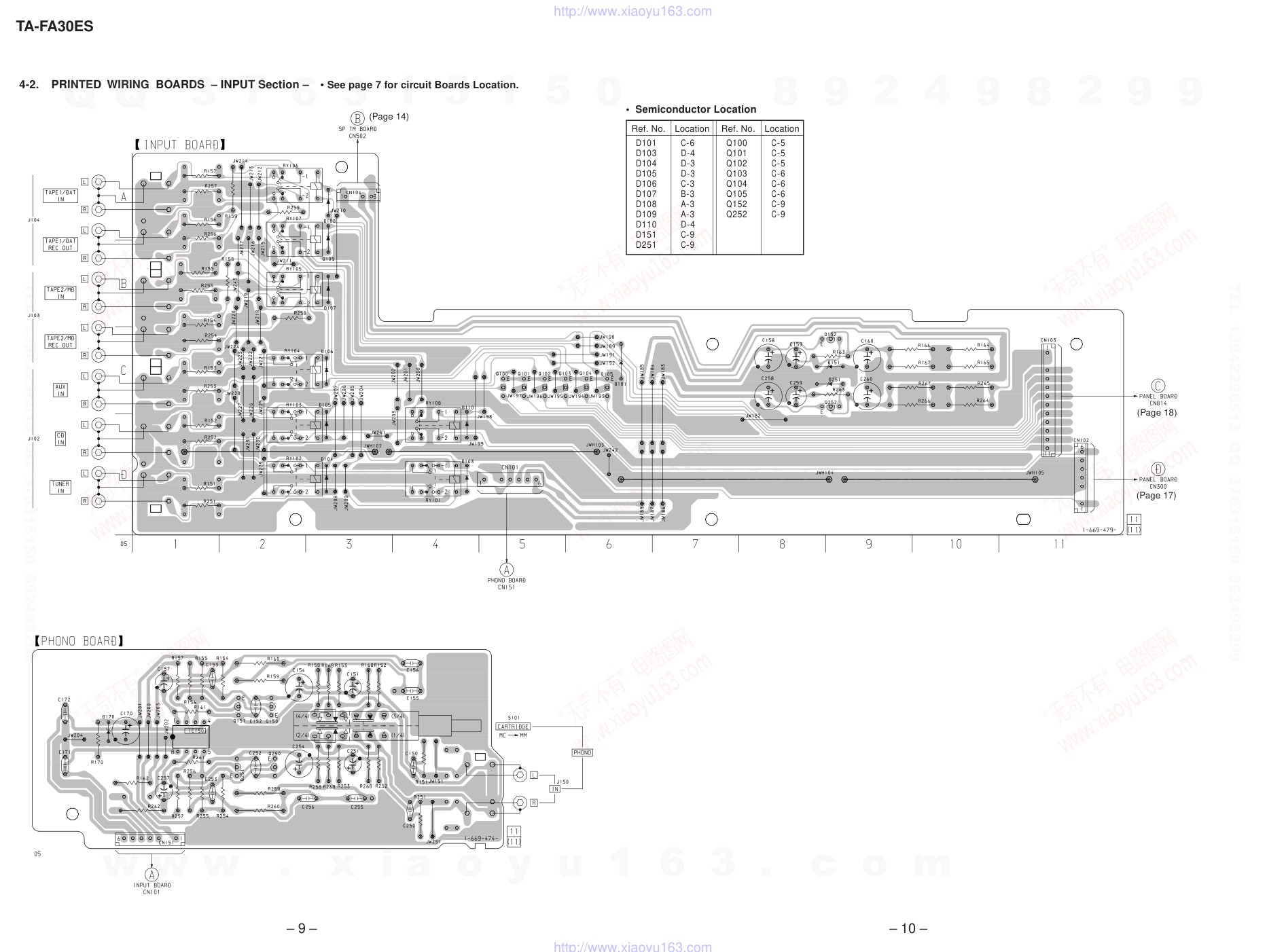

4-2.
PRINTED  WIRING  BOARDS  – INPUT Section –
• See page 7 for circuit Boards Location.
TA-FA30ES
– 9 –
– 10 –
Ref. No.
Location
Ref. No.
Location
D101
C-6
D103
D-4
D104
D-3
D105
D-3
D106
C-3
D107
B-3
D108
A-3
D109
A-3
D110
D-4
D151
C-9
D251
C-9
• Semiconductor Location
Q100
C-5
Q101
C-5
Q102
C-5
Q103
C-6
Q104
C-6
Q105
C-6
Q152
C-9
Q252
C-9
(Page 14)
(Page 18)
(Page 17)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 11 –
– 12 –
TA-FA30ES

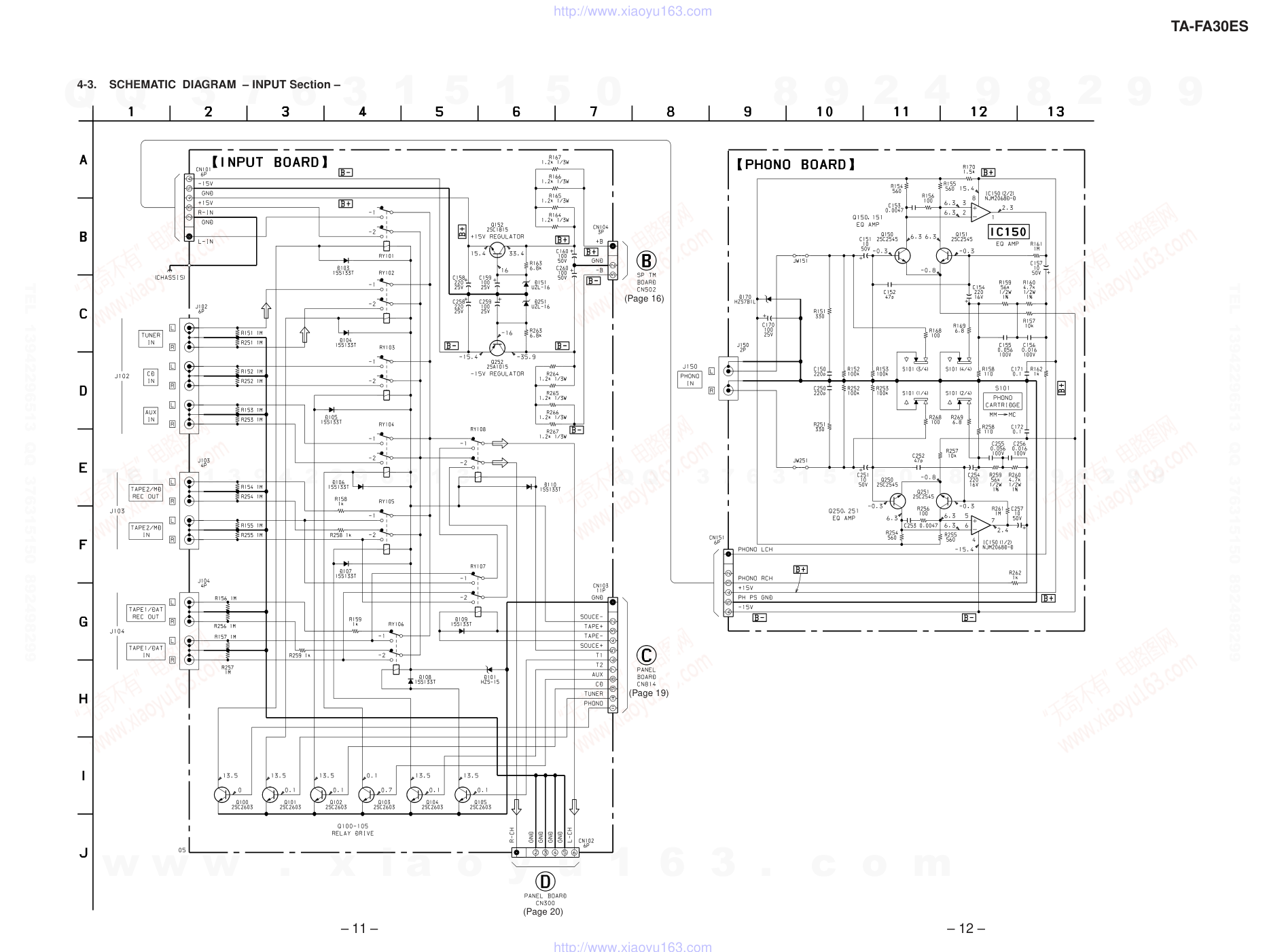

4-3.
SCHEMATIC  DIAGRAM  – INPUT Section –
(Page 20)
(Page 19)
(Page 16)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
4-4.
PRINTED  WIRING  BOARDS  – MAIN Section –
• See page 7 for Circuit Boards Location.
TA-FA30ES
– 13 –
– 14 –
Ref. No.
Location
Ref. No.
Location
D500
D-3
D501
D-3
D502
D-3
D503
C-2
D504
C-2
D505
C-2
D506
C-4
D511
C-10
D513
B-10
D600
A-3
D601
A-3
D602
A-3
D603
B-2
D604
B-2
D605
B-2
• Semiconductor Location
D606
B-4
D700
F-11
D701
F-11
D702
F-11
D703
A-8
D704
A-8
D720
B-5
D721
C-5
IC700
F-10
Q500
D-1
Q501
D-2
Q502
D-2
Q503
D-2
Q504
D-2
Q505
D-3
Q506
C-1
Q507
C-3
Q508
D-4
Q509
D-4
Q510
C-5
Q511
E-7
Q512
E-4
Q513
D-6
Q600
A-1
Q601
A-2
Q602
A-2
Q603
B-2
Q604
B-2
Ref. No.
Location
Ref. No.
Location
Q605
B-3
Q606
B-1
Q607
B-3
Q608
B-4
Q609
B-4
Q610
B-5
Q611
A-4
Q612
A-7
Q613
A-6
Q700
F-10
Q701
F-11
Q702
A-8
Q703
A-8
(Page 18)
(Page 17)
(Page 18)
(Page 22)
(Page 22)
(Page 9)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 15 –
– 16 –
TA-FA30ES
4-5.
SCHEMATIC  DIAGRAM  – MAIN Section –
• See page 25 for IC Block Diagram.
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
(Page 20)
(Page 24)
(Page 24)
(Page 11)
(Page 19)
(Page 19)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
4-6.
PRINTED  WIRING  BOARDS  – PANEL Section –
• See page 7 for Circuit Boards Location.
TA-FA30ES
– 17 –
– 18 –
Ref. No.
Location
D914
B-4
D915
B-4
D916
A-4
D917
A-3
D918
A-2
D919
B-2
D920
C-2
D921
C-1
D922
C-5
• Semiconductor Location
– LED Board –
Ref. No.
Location
D901
B-6
D902
B-6
D903
B-6
D904
B-6
D905
B-6
D906
B-6
D907
B-6
D908
B-11
D910
A-5
D911
B-9
D912
A-6
D923
A-4
D924
A-4
IC901
B-7
IC902
B-9
IC903
B-10
IC905
B-9
Q901
B-6
Q902
C-12
Q903
C-12
Q904
C-12
Q905
A-4
Q906
A-4
Q911
B-9
Q912
B-9
• Semiconductor
Location
– PANEL Board –
(Page 13)
(Page 10)
(Page 10)
(Page 13)
(Page 13)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 19 –
– 20 –
4-7.
SCHEMATIC  DIAGRAM  – PANEL Section –
• See page 25 for IC Block Diagram.
TA-FA30ES
• Waveform
1 IC901 #™ (XOUT)
4.4 Vp-p
8 MHz
(Page 16)
(Page 16)
(Page 11)
(Page 11)
(Page 15)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
4-8.
PRINTED  WIRING  BOARDS  – POWER Section –
• See page 7 for Circuit Boards Location.
TA-FA30ES
– 21 –
– 22 –
(Page 14)
(Page 14)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 23 –
– 24 –
4-9.
SCHEMATIC  DIAGRAM  – POWER Section –
TA-FA30ES
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
(Page 16)
(Page 15)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 25 –
– 26 –
4-10.
IC  PIN  FUNCTION  DESCRIPTION
• IC Block Diagrams
IC700
µPC1237HA (SP TM  BOARD)
IC903
BA6208 (PANEL  BOARD)
1
2
3
4
5
6
7
8
OVER LOAD DET
F/F
OFFSET DET
LATCH/
AUTORESET
VCC ON
MUTE
AC OFF
DET
VCC
1
2
3
4
5
6
7
8
9
NC
OUTPUT 2
Vcc
GND
NC
INPUT 2
INPUT 1
NC
MOTOR
DRIVE
MOTOR
DRIVE
REG
SWITCH
SWITCH
OUTPUT1
• PANEL BOARD   IC901   TMP47C200BN-H351 (SYSTEM CONTROLLER)
Pin No.
Pin Name
I/O
Function
1
RCL
O
Serial clock signal output to the EEPROM (IC902)
2
RDT
I/O
Two-way data bus with the EEPROM (IC902)
3
VDW
O
Volume motor drive signal output to the BA6208 (IC903) (for volume down direction)
“H” active
4
VUP
O
Volume motor drive signal output to the BA6208 (IC903) (for volume up direction)
“H” active
5
CD
O
Function relay (for CD) drive signal output terminal    “H”: relay on (CD on)
6
MUT
O
Muting control signal output terminal    “H”: muting on    Not used (pull up)
7
AUX
O
Function relay (for AUX) drive signal output terminal    “H”: relay on (AUX on)
8
—
—
Not used (fixed at “L”)
9
T2
O
Function relay (for TAPE2/MD) drive signal output terminal    “H”: relay on (TAPE2/MD on)
10
T1
O
Function relay (for TAPE1/DAT) drive signal output terminal    “H”: relay on (TAPE1/DAT on)
11
SW0
I
Input selector switch (S903) input terminal    “H”: TAPE1/DAT, “L”: other function
12
SW1
I
Input selector switch (S903) input terminal    “H”: TAPE2/MD, “L”: other function
13
SW2
I
Input selector switch (S903) input terminal    “H”: AUX, “L”: other function
14
SW3
I
Input selector switch (S903) input terminal    “H”: CD, “L”: other function
15
SW4
I
Input selector switch (S903) input terminal    “H”: TUNER, “L”: other function
16
SW5
I
Input selector switch (S903) input terminal    “H”: PHONO, “L”: other function
17
PHONO
O
Function LED (PHONO) drive signal output terminal    “L”: LED on
18
TUNER
O
Function LED (TUNER) drive signal output terminal    “L”: LED on
19
CD
O
Function LED (CD) drive signal output terminal    “L”: LED on
20
AUX
O
Function LED (AUX) drive signal output terminal    “L”: LED on
21
GND
—
Ground terminal
22
—
—
Not used (open)
23
T2
O
Function LED (TAPE2/MD) drive signal output terminal    “L”: LED on
24
T1
O
Function LED (TAPE1/DAT) drive signal output terminal    “L”: LED on
25 to 29
—
—
Not used (fixed at “L”)
30
TEST
—
Not used (open)
31
XIN
I
System clock input terminal (8 MHz)
32
XOUT
O
System clock output terminal (8 MHz)
33
RESET
I
System reset signal input from the reset signal generator (IC905)    “L”: reset
For several hundreds msec. after the power supply rises, “L” is input, then it changes to “H”
34
HOLD
I
Cancellation of hold mode signal    “H”: start
35
TUNER
O
Function relay (for TUNER) drive signal output terminal    “H”: relay on (TUNER on)
36
PHONO
O
Function relay (for PHONO) drive signal output terminal    “H”: relay on (PHONO on)
37
SIRCS
I
Remote control signal input from the remote control receiver (IC904)
38 to 41
—
—
Not used (fixed at “L”)
42
+5V
—
Power supply terminal (+5V)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 27 –
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
(1)
CASE,  FRONT  PANEL  SECTION-1
SECTION  5
EXPLODED  VIEWS
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Accessories and packing materials are given
in the last of the electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑
↑
Parts Color Cabinet\'s Color
1
4-967-961-01 SCREW (3X8)
2
4-999-428-01 PANEL, FRONT (BLACK)
2
4-999-428-11 PANEL, FRONT (GOLD)
3
4-942-568-41 EMBLEM (NO.5), SONY (BLACK)
3
4-942-568-51 EMBLEM (NO.5), SONY (GOLD)
* 4
X-4950-462-1 LENS ASSY, LED
5
4-975-105-01 WINDOW, RAY CATCHER (BLACK)
5
4-975-105-31 WINDOW, RAY CATCHER (GOLD)
6
4-999-429-01 BASE (L), PANEL (BLACK)
6
4-999-429-11 BASE (L), PANEL (GOLD)
7
4-999-433-01 KNOB (SEL) (BLACK)
7
4-999-433-11 KNOB (SEL) (GOLD)
8
4-999-432-01 KNOB (VOL) (BLACK)
8
4-999-432-11 KNOB (VOL) (GOLD)
9
4-999-430-01 BASE (R), PANEL (BLACK)
9
4-999-430-11 BASE (R), PANEL (GOLD)
10
4-210-291-01 SCREW (CASE 3 TP2) (BLACK)
10
4-210-291-11 SCREW (CASE 3 TP2) (GOLD)
* 11
4-999-439-01 CASE (413235) (BLACK)
* 11
4-999-439-21 CASE (413235) (GOLD)
12
1-506-113-00 SHORT PLUG
13
X-4949-759-1 FOOT ASSY
14
7-685-885-09 SCREW +BVTT 4X16 (S)
10
10
1
10
11
10
12
13
14
1
13
14
1
1
2
3
4
1
5
6
4
not
supplied
9
8
7
1
not supplied
not supplied
1
not supplied
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 28 –
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
(2)
FRONT  PANEL  SECTION-2
51
4-967-961-01 SCREW (3X8)
* 52
1-669-483-11 HP BOARD
53
3-024-055-01 BUTTON (POWER) (U) (BLACK)
53
3-024-055-11 BUTTON (POWER) (U) (GOLD)
* 54
1-669-481-11 POWER LED BOARD
55
X-4949-758-1 KNOB (BAL) ASSY (BLACK)
55
X-4949-761-1 KNOB (BAL) ASSY (GOLD)
56
7-685-751-09 SCREW +PTT 3X6 (S)
* 57
A-4407-634-A PANEL BOARD, COMPLETE
58
4-970-146-01 BUTTON (BLCAK)
58
4-970-146-21 BUTTON (GOLD)
* 59
1-669-480-11 VOL BOARD
* 60
1-669-484-11 SW BOARD
61
4-976-796-01 KNOB (A), LEVER
* 62
1-669-482-11 LED BOARD
!S1
1-554-920-11 SWITCH, PUSH (AC POWER) (1KEY)
not
supplied
not
supplied
not
supplied
supplied
with J800
supplied
with S903
supplied
with RV304
Supplied with
S901, RV303,
RV302, RV301
55
51
51
53
51
52
56
S1
57
51
58
59
60
56
62
56
61
54
not supplied
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 29 –
(3)
CHASSIS  SECTION-1
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
101
4-967-960-01 SCREW (4X8)
* 102
1-669-473-11 PS BOARD
103
4-967-961-01 SCREW (3X8)
104
4-211-985-01 SCREW (3X8), PC BOARD FITTING
* 105
A-4407-669-A MAIN BOARD, COMPLETE
106
3-905-609-21 SCREW (TRANSISTOR)
* 107
A-4407-670-A SP TM BOARD, COMPLETE
108
4-970-145-01 ESCUTCHEON (P)
109
4-970-146-01 BUTTON (BLCAK)
* 110
A-4407-672-A PHONO BOARD, COMPLETE
111
3-704-515-41 SCREW (BV/RING)
* 112
A-4407-635-A INPUT BOARD, COMPLETE
!T1
1-431-827-11 TRANSFORMER, POWER
112
103
111
111
110
109
108
103
103
103
103
107
105
106
103
106
103
103
103
103
104
102
101
101
T1
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
104
not
supplied
not
supplied
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 30 –
(4)
CHASSIS  SECTION-2
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
151
4-967-961-01 SCREW (3X8)
* 152
4-923-873-01 BRACKET, CORD STOPPER
* 153
3-703-244-00 BUSHING (2104), CORD
154
4-947-010-01 SCREW, FEEDER FIXED
* 155
4-999-426-01 PANEL, BACK
!CNP1
1-777-185-11 CORD, POWER
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied not
supplied
not supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not supplied
CNP1
154
151
151
151
151
151
151
151
155
151
151
151
151
151
151
151
152
151
153
151
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 31 –
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
HP     INPUT
*
1-669-483-11 HP BOARD
*********
< JACK >
J800
1-770-307-11 JACK (LARGE TYPE) (PHONES)
************************************************************
*
A-4407-635-A INPUT BOARD, COMPLETE
**********************
< CAPACITOR >
C158
1-126-024-11 ELECT
220uF
20%
25V
C159
1-126-023-11 ELECT
100uF
20%
25V
C160
1-126-052-11 ELECT
100uF
20%
50V
C258
1-126-024-11 ELECT
220uF
20%
25V
C259
1-126-023-11 ELECT
100uF
20%
25V
C260
1-126-052-11 ELECT
100uF
20%
50V
< CONNECTOR >
CN102
1-691-768-11 PLUG (MICRO CONNECTOR) 6P
CN103
1-691-773-11 PLUG (MICRO CONNECTOR) 11P
CN104
1-691-765-11 PLUG (MICRO CONNECTOR) 3P
< DIODE >
D101
8-719-986-34 DIODE   HZS15-1LTA
D103
8-719-911-19 DIODE   1SS119
D104
8-719-911-19 DIODE   1SS119
D105
8-719-911-19 DIODE   1SS119
D106
8-719-911-19 DIODE   1SS119
D107
8-719-911-19 DIODE   1SS119
D108
8-719-911-19 DIODE   1SS119
D109
8-719-911-19 DIODE   1SS119
D110
8-719-911-19 DIODE   1SS119
D151
8-719-986-38 DIODE   HZS16-1LTA
D251
8-719-986-38 DIODE   HZS16-1LTA
< JACK >
J102
1-778-517-11 JACK, PIN 6P (TUNER IN, CD IN, AUX IN)
J103
1-784-934-21 JACK, PIN 4P (TAPE2/MD REC OUT, IN)
J104
1-784-934-21 JACK, PIN 4P (TAPE1/DAT REC OUT, IN)
< TRANSISTOR >
Q100
8-729-620-05 TRANSISTOR   2SC2603-EF
Q101
8-729-620-05 TRANSISTOR   2SC2603-EF
Q102
8-729-620-05 TRANSISTOR   2SC2603-EF
Q103
8-729-620-05 TRANSISTOR   2SC2603-EF
Q104
8-729-620-05 TRANSISTOR   2SC2603-EF
Q105
8-729-620-05 TRANSISTOR   2SC2603-EF
Q152
8-729-119-78 TRANSISTOR   2SC403SP-51
Q252
8-729-201-53 TRANSISTOR   2SA1015-GR
< RESISTOR >
R151
1-259-239-11 CARBON
1M
5%
1/4W
R152
1-259-239-11 CARBON
1M
5%
1/4W
R153
1-259-239-11 CARBON
1M
5%
1/4W
R154
1-259-239-11 CARBON
1M
5%
1/4W
R155
1-259-239-11 CARBON
1M
5%
1/4W
R156
1-259-239-11 CARBON
1M
5%
1/4W
R157
1-259-239-11 CARBON
1M
5%
1/4W
R158
1-259-167-21 CARBON
1K
5%
1/4W
R159
1-259-167-21 CARBON
1K
5%
1/4W
R163
1-259-187-11 CARBON
6.8K
5%
1/4W
R164
1-249-212-11 CARBON
1.2K
5%
1/3W
R165
1-249-212-11 CARBON
1.2K
5%
1/3W
R166
1-249-212-11 CARBON
1.2K
5%
1/3W
R167
1-249-212-11 CARBON
1.2K
5%
1/3W
R251
1-259-239-11 CARBON
1M
5%
1/4W
R252
1-259-239-11 CARBON
1M
5%
1/4W
R253
1-259-239-11 CARBON
1M
5%
1/4W
R254
1-259-239-11 CARBON
1M
5%
1/4W
R255
1-259-239-11 CARBON
1M
5%
1/4W
R256
1-259-239-11 CARBON
1M
5%
1/4W
R257
1-259-239-11 CARBON
1M
5%
1/4W
R258
1-259-167-21 CARBON
1K
5%
1/4W
R259
1-259-167-21 CARBON
1K
5%
1/4W
R263
1-259-187-11 CARBON
6.8K
5%
1/4W
R264
1-249-212-11 CARBON
1.2K
5%
1/3W
R265
1-249-212-11 CARBON
1.2K
5%
1/3W
R266
1-249-212-11 CARBON
1.2K
5%
1/3W
R267
1-249-212-11 CARBON
1.2K
5%
1/3W
< RELAY >
RY101
1-515-614-11 RELAY
RY102
1-515-614-11 RELAY
RY103
1-515-614-11 RELAY
RY104
1-515-614-11 RELAY
RY105
1-515-614-11 RELAY
SECTION  6
ELECTRICAL  PARTS  LIST
NOTE:
• Due to standardization, replacements in the
parts list may be different from the parts speci-
fied in the diagrams or the components used
on the set.
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• RESISTORS
All resistors are in ohms.
METAL: Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F: nonflammable
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when order-
ing these items.
• SEMICONDUCTORS
In each case, u: µ, for example:
uA. .
: µA. .
uPA. . : µPA. .
uPB. . : µPB. .
uPC. . : µPC. .
uPD. . : µPD. .
• CAPACITORS
uF: µF
• COILS
uH: µH
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
When indicating parts by reference
number, please include the board.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 32 –
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
RY106
1-515-614-11 RELAY
RY107
1-515-614-11 RELAY
RY108
1-515-614-11 RELAY
************************************************************
*
1-669-482-11 LED BOARD
**********
< CONNECTOR >
* CN806
1-563-381-11 SOCKET, CONNECTOR 11P
< DIODE >
D914
8-719-046-38 LED     SEL5821A-TH8F (TAPE1/DAT)
D915
8-719-046-38 LED     SEL5821A-TH8F (TAPE2/MD)
D916
8-719-046-38 LED     SEL5821A-TH8F (AUX)
D917
8-719-046-38 LED     SEL5821A-TH8F (CD)
D918
8-719-046-38 LED     SEL5821A-TH8F (TUNER)
D919
8-719-046-38 LED     SEL5821A-TH8F (PHONO)
D920
8-719-046-38 LED     SEL5821A-TH8F (SOURCE DIRECT)
D921
8-719-046-38 LED     SEL5821A-TH8F (MUTING)
D922
8-719-046-38 LED     SEL5821A-TH8F (TAPE MONITOR)
< RESISTOR >
R932
1-249-409-11 CARBON
220
5%
1/4W
************************************************************
*
A-4407-669-A MAIN BOARD, COMPLETE
*********************
< CAPACITOR >
C500
1-102-973-00 CERAMIC
100PF
5%
50V
C501
1-128-197-11 ELECT
10uF
20%
50V
C502
1-101-880-00 CERAMIC
47PF
5%
50V
C503
1-125-852-11 FILM
330PF
5%
50V
C504
1-126-023-11 ELECT
100uF
20%
16V
C505
1-107-587-11 CERAMIC
7PF
0.5PF
500V
C506
1-126-023-11 ELECT
100uF
20%
16V
C507
1-126-023-11 ELECT
100uF
20%
16V
C508
1-126-023-11 ELECT
100uF
20%
16V
C509
1-125-842-11 FILM
4PF
10%
50V
C510
1-128-200-11 ELECT
47uF
20%
63V
C511
1-102-978-00 CERAMIC
220PF
5%
50V
C512
1-136-163-00 FILM
0.068uF
5%
50V
C513
1-136-163-00 FILM
0.068uF
5%
50V
C517
1-126-023-11 ELECT
100uF
20%
16V
C600
1-102-973-00 CERAMIC
100PF
5%
50V
C601
1-128-197-11 ELECT
10uF
20%
50V
C602
1-101-880-00 CERAMIC
47PF
5%
50V
C603
1-125-852-11 FILM
330PF
5%
50V
C604
1-126-023-11 ELECT
100uF
20%
16V
C605
1-107-587-11 CERAMIC
7PF
0.5PF
500V
C606
1-126-023-11 ELECT
100uF
20%
16V
C607
1-126-023-11 ELECT
100uF
20%
16V
C608
1-126-023-11 ELECT
100uF
20%
16V
C609
1-125-842-11 FILM
4PF
10%
50V
C610
1-128-200-11 ELECT
47uF
20%
63V
C611
1-102-978-00 CERAMIC
220PF
5%
50V
C612
1-136-163-00 FILM
0.068uF
5%
50V
C613
1-136-163-00 FILM
0.068uF
5%
50V
C617
1-126-023-11 ELECT
100uF
20%
16V
C712
1-128-552-51 ELECT
47uF
20%
63V
C713
1-126-933-11 ELECT
100uF
20%
16V
C714
1-126-964-11 ELECT
10uF
20%
50V
C720
1-110-397-11 ELECT
1000uF
20%
63V
C721
1-110-397-11 ELECT
1000uF
20%
63V
< CONNECTOR >
CN500
1-564-506-11 PLUG, CONNECTOR 3P
CN503
1-564-510-11 PLUG (MICRO CONNECTOR) 6P
CN600
1-564-506-11 PLUG, CONNECTOR 3P
CN700
1-691-768-11 PLUG (MICRO CONNECTOR) 6P
< DIODE >
D500
8-719-911-19 DIODE   1SS119
D501
8-719-911-19 DIODE   1SS119
D502
8-719-911-19 DIODE   1SS119
D503
8-719-933-39 DIODE   HZS6C1L
D504
8-719-911-19 DIODE   1SS119
D505
8-719-911-19 DIODE   1SS119
D506
8-719-310-61 LED     SEL1510C-D
D600
8-719-911-19 DIODE   1SS119
D601
8-719-911-19 DIODE   1SS119
D602
8-719-911-19 DIODE   1SS119
D603
8-719-933-39 DIODE   HZS6C1L
D604
8-719-911-19 DIODE   1SS119
D605
8-719-911-19 DIODE   1SS119
D606
8-719-310-61 LED     SEL1510C-D
D703
8-719-933-39 DIODE   HZS6C1L
D704
8-719-911-19 DIODE   1SS119
D720
8-719-024-99 DIODE   11ES2-NTA2B
D721
8-719-024-99 DIODE   11ES2-NTA2B
< BRIDGE >
JWH711 4-999-918-01 BRIDGE (PC-BOARD)
JWH712 4-999-918-01 BRIDGE (PC-BOARD)
JWH713 4-999-918-01 BRIDGE (PC-BOARD)
JWH714 4-999-918-01 BRIDGE (PC-BOARD)
JWH715 4-999-918-01 BRIDGE (PC-BOARD)
< COIL >
L720
1-428-203-11 COIL, AIR-CORE
L721
1-428-203-11 COIL, AIR-CORE
< TRANSISTOR >
Q500
8-729-045-15 TRANSISTOR   2SC5169-FG
Q501
8-729-201-53 TRANSISTOR   2SA1015-GR
Q502
8-729-201-53 TRANSISTOR   2SA1015-GR
Q503
8-729-201-53 TRANSISTOR   2SA1015-GR
Q504
8-729-104-91 TRANSISTOR   2SA1383
Q505
8-729-202-67 FET   2SK246-GR3
Q506
8-729-119-78 TRANSISTOR   2SC403SP-51
Q507
8-729-104-18 TRANSISTOR   2SC3514-Q
Q508
8-729-119-78 TRANSISTOR   2SC403SP-51
Q509
8-729-018-19 TRANSISTOR   2SK2013-Y
Q510
8-729-018-21 TRANSISTOR   2SJ313-Y
Q511
8-729-015-30 FET   2SK1530-Y
INPUT     LED     MAIN
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 33 –
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
Q512
8-729-015-31 FET   2SJ201-Y
Q513
8-729-140-84 TRANSISTOR   2SC1841-PAFAEA
Q600
8-729-045-15 TRANSISTOR   2SC5169-FG
Q601
8-729-201-53 TRANSISTOR   2SA1015-GR
Q602
8-729-201-53 TRANSISTOR   2SA1015-GR
Q603
8-729-201-53 TRANSISTOR   2SA1015-GR
Q604
8-729-104-91 TRANSISTOR   2SA1383
Q605
8-729-202-67 FET   2SK246-GR3
Q606
8-729-119-78 TRANSISTOR   2SC403SP-51
Q607
8-729-104-18 TRANSISTOR   2SC3514-Q
Q608
8-729-119-78 TRANSISTOR   2SC403SP-51
Q609
8-729-018-19 TRANSISTOR   2SK2013-Y
Q610
8-729-018-21 TRANSISTOR   2SJ313-Y
Q611
8-729-015-30 FET   2SK1530-Y
Q612
8-729-015-31 FET   2SJ201-Y
Q613
8-729-140-84 TRANSISTOR   2SC1841-PAFAEA
Q702
8-729-209-15 TRANSISTOR   2SD2012
Q703
8-729-900-63 TRANSISTOR   DTA124ES
< RESISTOR >
R500
1-259-167-21 CARBON
1K
5%
1/4W
R501
1-259-215-21 CARBON
100K
5%
1/4W
R502
1-259-151-21 CARBON
220
5%
1/4W
R503
1-259-151-21 CARBON
220
5%
1/4W
R504
1-259-151-21 CARBON
220
5%
1/4W
R505
1-259-179-21 CARBON
3.3K
5%
1/4W
R506
1-259-151-21 CARBON
220
5%
1/4W
R507
1-259-151-21 CARBON
220
5%
1/4W
R508
1-249-490-11 CARBON
27K
5%
1/3W
R509
1-259-175-11 CARBON
2.2K
5%
1/4W
R510
1-259-183-11 CARBON
4.7K
5%
1/4W
!R511
1-249-405-11 CARBON
100
5%
1/4W
F
R512
1-259-183-11 CARBON
4.7K
5%
1/4W
R513
1-259-171-21 CARBON
1.5K
5%
1/4W
R514
1-249-496-11 CARBON
100K
5%
1/3W
R515
1-259-143-21 CARBON
100
5%
1/4W
R516
1-247-749-11 CARBON
560
5%
1/2W
!R517
1-247-696-11 CARBON
47
5%
1/4W
F
!R518
1-247-696-11 CARBON
47
5%
1/4W
F
!R519
1-247-745-11 CARBON
330
5%
1/2W
F
!R520
1-249-405-11 CARBON
100
5%
1/4W
F
!R521
1-249-405-11 CARBON
100
5%
1/4W
F
!R522
1-208-601-11 REGISTER
0.1
10%
2W
F
!R523
1-208-601-11 REGISTER
0.1
10%
2W
F
R524
1-259-436-11 CARBON
2.2K
5%
1/6W
R525
1-259-432-11 CARBON
1.5K
5%
1/6W
R526
1-249-162-11 CARBON
10
5%
1/3W
R527
1-259-484-11 CARBON
220K
5%
1/6W
R600
1-259-167-21 CARBON
1K
5%
1/4W
R601
1-259-215-21 CARBON
100K
5%
1/4W
R602
1-259-151-21 CARBON
220
5%
1/4W
R603
1-259-151-21 CARBON
220
5%
1/4W
R604
1-259-151-21 CARBON
220
5%
1/4W
R605
1-259-179-21 CARBON
3.3K
5%
1/4W
R606
1-259-151-21 CARBON
220
5%
1/4W
R607
1-259-151-21 CARBON
220
5%
1/4W
R608
1-249-490-11 CARBON
27K
5%
1/3W
R609
1-259-175-11 CARBON
2.2K
5%
1/4W
R610
1-259-183-11 CARBON
4.7K
5%
1/4W
!R611
1-249-405-11 CARBON
100
5%
1/4W
F
R612
1-259-183-11 CARBON
4.7K
5%
1/4W
R613
1-259-171-21 CARBON
1.5K
5%
1/4W
R614
1-249-496-11 CARBON
100K
5%
1/3W
R615
1-259-143-21 CARBON
100
5%
1/4W
R616
1-247-749-11 CARBON
560
5%
1/2W
!R617
1-247-696-11 CARBON
47
5%
1/4W
F
!R618
1-247-696-11 CARBON
47
5%
1/4W
F
!R619
1-247-745-11 CARBON
330
5%
1/2W
F
!R620
1-249-405-11 CARBON
100
5%
1/4W
F
!R621
1-249-405-11 CARBON
100
5%
1/4W
F
!R622
1-208-601-11 REGISTER
0.1
10%
2W
F
!R623
1-208-601-11 REGISTER
0.1
10%
2W
F
R624
1-259-436-11 CARBON
2.2K
5%
1/6W
R625
1-259-432-11 CARBON
1.5K
5%
1/6W
R626
1-249-162-11 CARBON
10
5%
1/3W
R627
1-259-484-11 CARBON
220K
5%
1/6W
R709
1-249-425-11 CARBON
4.7K
5%
1/4W
< VARIABLE RESISTOR >
RV500
1-241-762-11 RES, ADJ, CARBON 2.2K
RV600
1-241-762-11 RES, ADJ, CARBON 2.2K
************************************************************
*
A-4407-634-A PANEL BOARD, COMPLETE
**********************
< CAPACITOR >
C301
1-130-475-00 MYLAR
0.0022uF
5%
50V
C302
1-136-153-00 FILM
0.01uF
5%
50V
C303
1-136-155-00 FILM
0.015uF
5%
50V
C304
1-136-165-00 FILM
0.1uF
5%
50V
C401
1-130-475-00 MYLAR
0.0022uF
5%
50V
C402
1-136-153-00 FILM
0.01uF
5%
50V
C403
1-136-155-00 FILM
0.015uF
5%
50V
C404
1-136-165-00 FILM
0.1uF
5%
50V
C901
1-162-282-31 CERAMIC
100PF
10%
50V
C902
1-162-207-31 CERAMIC
22PF
5%
50V
C903
1-162-207-31 CERAMIC
22PF
5%
50V
C904
1-164-159-11 CERAMIC
0.1uF
50V
C905
1-164-159-11 CERAMIC
0.1uF
50V
< CONNECTOR >
* CN300
1-564-522-11 PLUG, CONNECTOR 7P
CN301
1-564-524-11 PLUG, CONNECTOR 9P
* CN804
1-564-519-11 PLUG, CONNECTOR 4P
* CN805
1-569-648-11 PIN, CONNECTOR (PC BOARD) 11P
CN814
1-691-773-11 PLUG (MICRO CONNECTOR) 11P
CN907
1-562-087-00 SOCKET, CONNECTOR 4P
< DIODE >
D901
8-719-911-19 DIODE   1SS119
D902
8-719-911-19 DIODE   1SS119
D903
8-719-911-19 DIODE   1SS119
D904
8-719-911-19 DIODE   1SS119
D905
8-719-911-19 DIODE   1SS119
MAIN     PANEL
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 34 –
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
D906
8-719-911-19 DIODE   1SS119
D907
8-719-911-19 DIODE   1SS119
D908
8-719-911-19 DIODE   1SS119
D910
8-719-986-56 DIODE   HZS24-3LTA
D911
8-719-200-82 DIODE   11ES2
D912
8-719-911-19 DIODE   1SS119
D923
8-719-911-19 DIODE   1SS119
D924
8-719-911-19 DIODE   1SS119
< IC >
IC901
8-759-352-00 IC   TMP47C200BN-H351
IC902
8-759-188-67 IC   X24C01P-S
IC903
8-759-962-08 IC   BA6208
IC905
8-759-635-63 IC   M51943BSL
< TRANSISTOR >
Q901
8-729-900-63 TRANSISTOR   DTA124ES
Q902
8-729-900-63 TRANSISTOR   DTA124ES
Q903
8-729-900-63 TRANSISTOR   DTA124ES
Q904
8-729-900-63 TRANSISTOR   DTA124ES
Q905
8-729-201-53 TRANSISTOR   2SA1015-GR
Q906
8-729-620-05 TRANSISTOR   2SC2603-EF
Q911
8-729-900-63 TRANSISTOR   DTA124ES
Q912
8-729-119-76 TRANSISTOR   2SA1175-HFE
< RESISTOR >
R302
1-259-502-11 CARBON
4.7M
5%
1/4W
R303
1-259-183-11 CARBON
4.7K
5%
1/4W
R304
1-259-171-21 CARBON
1.5K
5%
1/4W
R305
1-259-502-11 CARBON
4.7M
5%
1/4W
R306
1-259-199-11 CARBON
22K
5%
1/4W
R307
1-259-183-11 CARBON
4.7K
5%
1/4W
R308
1-259-183-11 CARBON
4.7K
5%
1/4W
R309
1-259-199-11 CARBON
22K
5%
1/4W
R402
1-259-502-11 CARBON
4.7M
5%
1/4W
R403
1-259-183-11 CARBON
4.7K
5%
1/4W
R404
1-259-171-21 CARBON
1.5K
5%
1/4W
R405
1-259-502-11 CARBON
4.7M
5%
1/4W
R406
1-259-199-11 CARBON
22K
5%
1/4W
R407
1-259-183-11 CARBON
4.7K
5%
1/4W
R408
1-259-183-11 CARBON
4.7K
5%
1/4W
R409
1-259-199-11 CARBON
22K
5%
1/4W
R901
1-249-433-11 CARBON
22K
5%
1/4W
R902
1-249-433-11 CARBON
22K
5%
1/4W
R903
1-249-433-11 CARBON
22K
5%
1/4W
R904
1-249-433-11 CARBON
22K
5%
1/4W
R905
1-249-433-11 CARBON
22K
5%
1/4W
R906
1-249-433-11 CARBON
22K
5%
1/4W
R907
1-249-425-11 CARBON
4.7K
5%
1/4W
R908
1-249-425-11 CARBON
4.7K
5%
1/4W
R909
1-249-425-11 CARBON
4.7K
5%
1/4W
R910
1-249-429-11 CARBON
10K
5%
1/4W
R911
1-249-429-11 CARBON
10K
5%
1/4W
R912
1-249-433-11 CARBON
22K
5%
1/4W
R913
1-249-433-11 CARBON
22K
5%
1/4W
R914
1-249-429-11 CARBON
10K
5%
1/4W
R915
1-249-433-11 CARBON
22K
5%
1/4W
R916
1-249-425-11 CARBON
4.7K
5%
1/4W
R917
1-249-429-11 CARBON
10K
5%
1/4W
R918
1-249-429-11 CARBON
10K
5%
1/4W
R919
1-249-429-11 CARBON
10K
5%
1/4W
R920
1-249-429-11 CARBON
10K
5%
1/4W
R921
1-249-429-11 CARBON
10K
5%
1/4W
R922
1-249-429-11 CARBON
10K
5%
1/4W
R923
1-247-807-31 CARBON
100
5%
1/4W
R924
1-247-807-31 CARBON
100
5%
1/4W
R925
1-247-807-31 CARBON
100
5%
1/4W
R926
1-247-807-31 CARBON
100
5%
1/4W
R927
1-247-807-31 CARBON
100
5%
1/4W
R928
1-247-807-31 CARBON
100
5%
1/4W
R929
1-247-753-11 CARBON
1.2K
5%
1/2W
R930
1-247-843-11 CARBON
3.3K
5%
1/4W
R933
1-247-753-11 CARBON
1.2K
5%
1/2W
R934
1-249-409-11 CARBON
220
5%
1/4W
R935
1-249-409-11 CARBON
220
5%
1/4W
R936
1-247-752-11 CARBON
1K
5%
1/2W
R937
1-247-753-11 CARBON
1.2K
5%
1/2W
R938
1-247-753-11 CARBON
1.2K
5%
1/2W
R939
1-247-752-11 CARBON
1K
5%
1/2W
R940
1-249-435-11 CARBON
33K
5%
1/4W
R941
1-249-400-11 CARBON
39
5%
1/4W
R942
1-247-843-11 CARBON
3.3K
5%
1/4W
R999
1-249-433-11 CARBON
22K
5%
1/4W
< VARIABLE RESISTOR >
RV301
1-225-615-11 RES, VAR, CARBON 250K/250K (BALANCE)
RV302
1-225-614-11 RES, VAR, CARBON 250K/250K (TREBLE)
RV303
1-225-613-11 RES, VAR, CARBON 900K/900K (BASS)
< SWITCH >
S301
1-571-828-11 SWITCH, PUSH (1 KEY) (SOURCE DIRECT)
S302
1-762-394-11 SWITCH, PUSH (1 KEY) (MUTING)
S901
1-771-506-11 SWITCH, ROTARY (SPEAKERS)
S903
1-762-183-11 SWITCH, ROTARY (INPUT SELECTOR)
< VIBRATOR >
X900
1-579-223-11 OSCILLATOR, CERAMIC (8MHz)
************************************************************
*
A-4407-672-A PHONO BOARD, COMPLETE
***********************
< CAPACITOR >
C150
1-102-978-00 CERAMIC
220PF
5%
50V
C151
1-126-059-11 ELECT
10uF
20%
50V
C152
1-101-880-00 CERAMIC
47PF
5%
50V
C153
1-106-359-00 MYLAR
4700PF
5%
200V
C154
1-126-024-11 ELECT
220uF
20%
16V
C155
1-130-341-00 FILM
0.056uF
3%
100V
C156
1-130-971-00 FILM
0.016uF
3%
100V
C157
1-126-059-11 ELECT
10uF
20%
50V
C170
1-126-023-11 ELECT
100uF
20%
25V
C171
1-136-165-00 FILM
0.1uF
5%
50V
C172
1-136-165-00 FILM
0.1uF
5%
50V
C250
1-102-978-00 CERAMIC
220PF
5%
50V
C251
1-126-059-11 ELECT
10uF
20%
50V
PANEL     PHONO
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 35 –
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
C252
1-101-880-00 CERAMIC
47PF
5%
50V
C253
1-106-359-00 MYLAR
4700PF
5%
200V
C254
1-126-024-11 ELECT
220uF
20%
16V
C255
1-130-341-00 FILM
0.056uF
3%
100V
C256
1-130-971-00 FILM
0.016uF
3%
100V
C257
1-126-059-11 ELECT
10uF
20%
50V
< CONNECTOR >
CN151
1-691-768-11 PLUG (MICRO CONNECTOR) 6P
< DIODE >
D170
8-719-985-97 DIODE   HZS7B1LTA
< IC >
IC150
8-759-701-25 IC   NJM2068D-D
< JACK >
J150
1-784-933-11 JACK 2P (PHONO IN)
< TRANSISTOR >
Q150
8-729-354-52 TRANSISTOR   2SC2545
Q151
8-729-354-52 TRANSISTOR   2SC2545
Q250
8-729-354-52 TRANSISTOR   2SC2545
Q251
8-729-354-52 TRANSISTOR   2SC2545
< RESISTOR >
R151
1-249-911-11 CARBON
330
5%
1/4W
R152
1-259-215-21 CARBON
100K
5%
1/4W
R153
1-259-215-21 CARBON
100K
5%
1/4W
R154
1-259-161-21 CARBON
560
5%
1/4W
R155
1-259-161-21 CARBON
560
5%
1/4W
R156
1-259-143-21 CARBON
100
5%
1/4W
R157
1-259-191-21 CARBON
10K
5%
1/4W
R158
1-249-900-11 CARBON
110
5%
1/4W
R159
1-249-844-11 CARBON
56K
1%
1/2W
R160
1-259-320-11 CARBON
4.7K
1%
1/2W
R161
1-259-239-11 CARBON
1M
5%
1/4W
R162
1-259-167-21 CARBON
1K
5%
1/4W
R168
1-259-143-21 CARBON
100
5%
1/4W
R169
1-259-115-11 CARBON
6.8
5%
1/4W
R170
1-259-171-21 CARBON
1.5K
5%
1/4W
R251
1-249-911-11 CARBON
330
5%
1/4W
R252
1-259-215-21 CARBON
100K
5%
1/4W
R253
1-259-215-21 CARBON
100K
5%
1/4W
R254
1-259-161-21 CARBON
560
5%
1/4W
R255
1-259-161-21 CARBON
560
5%
1/4W
R256
1-259-143-21 CARBON
100
5%
1/4W
R257
1-259-191-21 CARBON
10K
5%
1/4W
R258
1-249-900-11 CARBON
110
5%
1/4W
R259
1-249-844-11 CARBON
56K
1%
1/2W
R260
1-259-320-11 CARBON
4.7K
1%
1/2W
R261
1-259-239-11 CARBON
1M
5%
1/4W
R262
1-259-167-21 CARBON
1K
5%
1/4W
R268
1-259-143-21 CARBON
100
5%
1/4W
R269
1-259-115-11 CARBON
6.8
5%
1/4W
< SWITCH >
S101
1-762-395-11 SWITCH, PUSH (1 KEY) (PHONO CARTRIDGE)
************************************************************
*
1-669-481-11 POWER LED BOARD
****************
< CONNECTOR >
CN900
1-691-767-11 PLUG (MICRO CONNECTOR) 5P
< DIODE >
D913
8-719-313-40 LED     SEL1516W (POWER)
< IC >
IC904
8-749-014-66 IC   NJL56H400A
< RESISTOR >
R931
1-249-408-11 CARBON
180
5%
1/4W
************************************************************
*
1-669-473-11 PS BOARD
*********
< CAPACITOR >
C750
1-125-939-11 ELECT
10000uF
20%
56V
C751
1-125-939-11 ELECT
10000uF
20%
56V
C756
1-136-880-11 FILM
2.2uF
10%
160V
< CONNECTOR >
CN1
1-774-108-11 PIN, CONNECTOR (PC BOARD)
CN2
1-564-321-00 PIN, CONNECTOR 2P
CN3
1-564-321-00 PIN, CONNECTOR 2P
* CN750
1-564-687-11 PIN, CONNECTOR 3P
* CN751
1-766-920-11 PIN, CONNECTOR 4P
CN752
1-770-832-11 CONNECTOR, BOARD TO BOARD 6P
< DIODE >
D751
8-719-230-02 DIODE   30DF2
D752
8-719-230-02 DIODE   30DF2
D753
8-719-230-02 DIODE   30DF2
D754
8-719-230-02 DIODE   30DF2
< FUSE >
!F1
1-532-504-51 FUSE T4AL/250V
< FUSE HOLDER >
FH1
1-533-233-11 HOLDER, FUSE
FH2
1-533-233-11 HOLDER, FUSE
< RESISTOR >
!R750
1-212-974-00 FUSIBLE
47
5%
1/2W
F
************************************************************
PHONO     POWER LED     PS
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 36 –
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
TA-FA30ES
Sony Corporation
Home A&V Products Company
9-922-886-11
98F0572-1
Printed in Japan  © 1998. 6
Published by Quality Assurance Dept.
(Shibaura)
*
A-4407-670-A SP TM BOARD, COMPLETE
**********************
< CAPACITOR >
C700
1-126-965-11 ELECT
22uF
20%
50V
C701
1-136-163-00 FILM
0.068uF
5%
50V
C702
1-124-995-11 ELECT
220uF
20%
10V
C703
1-136-157-00 FILM
0.022uF
5%
50V
C704
1-104-664-11 ELECT
47uF
20%
16V
C705
1-104-664-11 ELECT
47uF
20%
16V
C706
1-137-150-11 MYLAR
0.01uF
10%
100V
C707
1-137-150-11 MYLAR
0.01uF
10%
100V
C708
1-128-578-11 ELECT
1uF
20%
100V
C709
1-128-556-11 ELECT
1000uF
20%
63V
C710
1-128-553-11 ELECT
220uF
20%
63V
C711
1-128-582-11 ELECT
10uF
20%
63V
< CONNECTOR >
CN702
1-770-831-11 CONNECTOR, BOARD TO BOARD 6P
< DIODE >
D511
8-719-911-19 DIODE   1SS119
D513
8-719-911-19 DIODE   1SS119
D700
8-719-024-99 DIODE   11ES2-NTA2B
D701
8-719-024-99 DIODE   11ES2-NTA2B
D702
8-719-024-99 DIODE   11ES2-NTA2B
< IC >
IC700
8-759-111-68 IC   uPC1237HA
< COIL >
L501
1-411-906-11 COIL, AIR-CORE 0.6uH
L601
1-411-906-11 COIL, AIR-CORE 0.6uH
< TRANSISTOR >
Q700
8-729-119-76 TRANSISTOR   2SA1175-HFE
Q701
8-729-119-78 TRANSISTOR   2SC403SP-51
< RESISTOR >
R528
1-249-162-11 CARBON
10
5%
1/3W
R529
1-247-750-11 CARBON
680
5%
1/2W
R628
1-249-162-11 CARBON
10
5%
1/3W
R629
1-247-750-11 CARBON
680
5%
1/2W
R700
1-249-437-11 CARBON
47K
5%
1/4W
R701
1-249-429-11 CARBON
10K
5%
1/4W
R702
1-249-429-11 CARBON
10K
5%
1/4W
R703
1-259-476-11 CARBON
100K
5%
1/6W
R704
1-249-433-11 CARBON
22K
5%
1/4W
R705
1-247-883-00 CARBON
150K
5%
1/4W
R706
1-249-431-11 CARBON
15K
5%
1/4W
R707
1-249-429-11 CARBON
10K
5%
1/4W
!R708
1-217-493-00 FUSIBLE
100
5%
1W
F
R710
1-247-747-11 CARBON
470
5%
1/2W
R711
1-247-747-11 CARBON
470
5%
1/2W
< RELAY >
RY501
1-515-920-11 RELAY (24V)
RY503
1-515-920-11 RELAY (24V)
< TERMINAL >
TM501
1-537-235-11 TERMINAL BOARD (SP)
(SPEAKERS MAIN, BI-WIRE)
************************************************************
*
1-669-484-11 SW BOARD
*********
< CONNECTOR >
CN908
1-560-941-11 PIN, CONNECTOR 4P
< SWITCH >
S902
1-762-165-11 SWITCH, LEVER SLIDE (TAPE MONITOR)
************************************************************
*
1-669-480-11 VOL BOARD
**********
< CAPACITOR >
C305
1-126-965-11 ELECT
22uF
20%
50V
C405
1-126-965-11 ELECT
22uF
20%
50V
< CONNECTOR >
CN302
1-691-770-11 PLUG (MICRO CONNECTOR) 8P
CN303
1-691-768-11 PLUG (MICRO CONNECTOR) 6P
< VARIABLE RESISTOR >
RV304
1-223-936-11 RES, VAR, CARBON 120K/120K
(ATTENUATOR)
************************************************************
MISCELLANEOUS
**************
4
1-506-113-00 SHORT PLUG
!CNP1
1-777-185-11 CORD, POWER
!T1
1-431-827-11 TRANSFORMER, POWER
************************************************************
ACCESSORIES & PACKING MATERIALS
********************************
1-475-739-11 REMOTE COMMANDER (RM-S326)
3-864-461-11 MANUAL, INSTRUCTION
(ENGLISH, FRENCH, SPANISH, PORTUGUESE)
3-864-461-21 MANUAL, INSTRUCTION
(GERMAN, DUTCH, TURKISH, ITALIAN)
4-981-643-01 COVER, BATTERY (for RM-S326)
SP TM     SW     VOL
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
'

array (
  0 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/87e7d10e920d502.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '76669',
    'title' => '索尼SONY TA-FA30ES音响电路原理图-0',
    'description' => '索尼SONY TA-FA30ES音响电路原理图-0',
  ),
  1 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/3616ac1f8839df7.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '76670',
    'title' => '索尼SONY TA-FA30ES音响电路原理图-1',
    'description' => '索尼SONY TA-FA30ES音响电路原理图-1',
  ),
  2 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/71612c6db4e1e1a.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '76671',
    'title' => '索尼SONY TA-FA30ES音响电路原理图-2',
    'description' => '索尼SONY TA-FA30ES音响电路原理图-2',
  ),
  3 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/5a14809208b25cf.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '76672',
    'title' => '索尼SONY TA-FA30ES音响电路原理图-3',
    'description' => '索尼SONY TA-FA30ES音响电路原理图-3',
  ),
  4 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/e17abde52026819.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '76673',
    'title' => '索尼SONY TA-FA30ES音响电路原理图-4',
    'description' => '索尼SONY TA-FA30ES音响电路原理图-4',
  ),
  5 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/0338d382d0881ca.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '76674',
    'title' => '索尼SONY TA-FA30ES音响电路原理图-5',
    'description' => '索尼SONY TA-FA30ES音响电路原理图-5',
  ),
  6 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/28b64a4947aad03.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '76675',
    'title' => '索尼SONY TA-FA30ES音响电路原理图-6',
    'description' => '索尼SONY TA-FA30ES音响电路原理图-6',
  ),
  7 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/b3411259dcf0b2d.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '76676',
    'title' => '索尼SONY TA-FA30ES音响电路原理图-7',
    'description' => '索尼SONY TA-FA30ES音响电路原理图-7',
  ),
  8 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/0e537fd89af0352.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '76677',
    'title' => '索尼SONY TA-FA30ES音响电路原理图-8',
    'description' => '索尼SONY TA-FA30ES音响电路原理图-8',
  ),
  9 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/fcb93dec4319c5b.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '76678',
    'title' => '索尼SONY TA-FA30ES音响电路原理图-9',
    'description' => '索尼SONY TA-FA30ES音响电路原理图-9',
  ),
)

'1680971218'

'1680971218'

'{"file":["76669","76670","76671","76672","76673","76674","76675","76676","76677","76678"],"title":["\\u7d22\\u5c3cSONY TA-FA30ES\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-0","\\u7d22\\u5c3cSONY TA-FA30ES\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-1","\\u7d22\\u5c3cSONY TA-FA30ES\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-2","\\u7d22\\u5c3cSONY TA-FA30ES\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-3","\\u7d22\\u5c3cSONY TA-FA30ES\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-4","\\u7d22\\u5c3cSONY TA-FA30ES\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-5","\\u7d22\\u5c3cSONY TA-FA30ES\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-6","\\u7d22\\u5c3cSONY TA-FA30ES\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-7","\\u7d22\\u5c3cSONY TA-FA30ES\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-8","\\u7d22\\u5c3cSONY TA-FA30ES\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-9"],"description":["\\u7d22\\u5c3cSONY TA-FA30ES\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-0","\\u7d22\\u5c3cSONY TA-FA30ES\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-1","\\u7d22\\u5c3cSONY TA-FA30ES\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-2","\\u7d22\\u5c3cSONY TA-FA30ES\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-3","\\u7d22\\u5c3cSONY TA-FA30ES\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-4","\\u7d22\\u5c3cSONY TA-FA30ES\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-5","\\u7d22\\u5c3cSONY TA-FA30ES\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-6","\\u7d22\\u5c3cSONY TA-FA30ES\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-7","\\u7d22\\u5c3cSONY TA-FA30ES\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-8","\\u7d22\\u5c3cSONY TA-FA30ES\\u97f3\\u54cd\\u7535\\u8def\\u539f\\u7406\\u56fe-9"]}'

'索尼,SONY, ,TA,-,FA30ES,音响,电路,原理,原理图'

array (
  '索尼' => '/index.php?s=wenku&c=search&keyword=%E7%B4%A2%E5%B0%BC',
  'SONY' => '/index.php?s=wenku&c=search&keyword=SONY',
  'TA' => '/index.php?s=wenku&c=search&keyword=TA',
  '-' => '/index.php?s=wenku&c=search&keyword=-',
  'FA30ES' => '/index.php?s=wenku&c=search&keyword=FA30ES',
  '音响' => '/index.php?s=wenku&c=search&keyword=%E9%9F%B3%E5%93%8D',
  '电路' => '/index.php?s=wenku&c=search&keyword=%E7%94%B5%E8%B7%AF',
  '原理' => '/index.php?s=wenku&c=search&keyword=%E5%8E%9F%E7%90%86',
  '原理图' => '/index.php?s=wenku&c=search&keyword=%E5%8E%9F%E7%90%86%E5%9B%BE',
)

array (
)

array (
  'id' => '16773',
  'catid' => '8',
  'title' => '索尼SONY TA-F830ES音响电路原理图',
  'thumb' => '76658',
  'keywords' => '索尼,SONY, ,TA,-,F830ES,音响,电路,原理,原理图',
  'description' => '',
  'hits' => '3',
  'uid' => '1',
  'author' => 'admin',
  'status' => '9',
  'url' => '/wenku/a16773.html',
  'link_id' => '0',
  'tableid' => '0',
  'inputip' => '127.0.0.1',
  'inputtime' => '1680971184',
  'updatetime' => '1680971184',
  'displayorder' => '0',
  'xerhu_score' => '50',
  'xerhu_score_sku' => NULL,
  'xerhu_score_down_num' => '0',
  'xerhu_score_down_type' => '2',
  'xerhu_score_file' => '76657',
  'xerhu_score_pan' => NULL,
  'xerhu_score_tqm' => NULL,
)

array (
  'id' => '16775',
  'catid' => '8',
  'title' => '索尼SONY TA-FA3ES音响电路原理图',
  'thumb' => '76680',
  'keywords' => '索尼,SONY, ,TA,-,FA3ES,音响,电路,原理,原理图',
  'description' => '',
  'hits' => '11',
  'uid' => '1',
  'author' => 'admin',
  'status' => '9',
  'url' => '/wenku/a16775.html',
  'link_id' => '0',
  'tableid' => '0',
  'inputip' => '127.0.0.1',
  'inputtime' => '1680971258',
  'updatetime' => '1680971258',
  'displayorder' => '0',
  'xerhu_score' => '50',
  'xerhu_score_sku' => NULL,
  'xerhu_score_down_num' => '0',
  'xerhu_score_down_type' => '2',
  'xerhu_score_file' => '76679',
  'xerhu_score_pan' => NULL,
  'xerhu_score_tqm' => NULL,
)

'索尼SONY TA-FA30ES音响电路原理图_电子电工_行业资料_文汇知识网'

'索尼,SONY, ,TA,-,FA30ES,音响,电路,原理,原理图'

''

array (
  'id' => '8',
  'pid' => '5',
  'pids' => '0,5',
  'name' => '电子电工',
  'dirname' => 'dzdg',
  'pdirname' => 'hangye/',
  'child' => 0,
  'disabled' => '0',
  'ismain' => 1,
  'childids' => 8,
  'thumb' => '',
  'show' => '1',
  'setting' =>
  array (
    'disabled' => '0',
    'linkurl' => '',
    'getchild' => '0',
    'notedit' => '0',
    'seo' =>
    array (
    ),
    'template' =>
    array (
      'pagesize' => '20',
      'mpagesize' => '20',
      'list' => 'list.html',
      'category' => 'category.html',
      'search' => 'search.html',
      'show' => 'show.html',
    ),
    'cat_field' => NULL,
    'module_field' => NULL,
    'urlrule' => 4,
    'html' => 0,
    'chtml' => 0,
  ),
  'displayorder' => '0',
  'icon' => '',
  'index' => '2',
  'mid' => 'wenku',
  'pcatpost' => 0,
  'topid' => '5',
  'catids' =>
  array (
    0 => '8',
  ),
  'is_post' => 1,
  'tid' => 1,
  'url' => 'http://www.wenhuiw.com/wenku/dzdg',
  'total' => '请使用count标签查询',
  'field' =>
  array (
  ),
)

array (
  'id' => '5',
  'pid' => '0',
  'pids' => '0',
  'name' => '行业资料',
  'dirname' => 'hangye',
  'pdirname' => '',
  'child' => 1,
  'disabled' => '0',
  'ismain' => 1,
  'childids' => '5,8,12,13,14,15,16',
  'thumb' => '20',
  'show' => '1',
  'setting' =>
  array (
    'disabled' => '0',
    'linkurl' => '',
    'getchild' => '0',
    'notedit' => '0',
    'seo' =>
    array (
    ),
    'template' =>
    array (
      'pagesize' => '20',
      'mpagesize' => '20',
      'list' => 'list.html',
      'category' => 'category.html',
      'search' => 'search.html',
      'show' => 'show.html',
    ),
    'cat_field' => NULL,
    'module_field' => NULL,
    'urlrule' => 4,
    'html' => 0,
    'chtml' => 0,
  ),
  'displayorder' => '0',
  'icon' => 'fa fa-gears',
  'index' => '1',
  'mid' => 'wenku',
  'pcatpost' => 0,
  'topid' => '5',
  'catids' =>
  array (
    0 => '5',
    1 => '8',
    2 => '12',
    3 => '13',
    4 => '14',
    5 => '15',
    6 => '16',
  ),
  'is_post' => 0,
  'tid' => 1,
  'url' => 'http://www.wenhuiw.com/wenku/hangye',
  'total' => '请使用count标签查询',
  'field' =>
  array (
  ),
)

1

array (
  'catid' => '8',
)

array (
  'id' => '5',
  'pid' => '0',
  'pids' => '0',
  'name' => '行业资料',
  'dirname' => 'hangye',
  'pdirname' => '',
  'child' => 1,
  'disabled' => '0',
  'ismain' => 1,
  'childids' => '5,8,12,13,14,15,16',
  'thumb' => '20',
  'show' => '1',
  'setting' =>
  array (
    'disabled' => '0',
    'linkurl' => '',
    'getchild' => '0',
    'notedit' => '0',
    'seo' =>
    array (
    ),
    'template' =>
    array (
      'pagesize' => '20',
      'mpagesize' => '20',
      'list' => 'list.html',
      'category' => 'category.html',
      'search' => 'search.html',
      'show' => 'show.html',
    ),
    'cat_field' => NULL,
    'module_field' => NULL,
    'urlrule' => 4,
    'html' => 0,
    'chtml' => 0,
  ),
  'displayorder' => '0',
  'icon' => 'fa fa-gears',
  'index' => '1',
  'mid' => 'wenku',
  'pcatpost' => 0,
  'topid' => '5',
  'catids' =>
  array (
    0 => '5',
    1 => '8',
    2 => '12',
    3 => '13',
    4 => '14',
    5 => '15',
    6 => '16',
  ),
  'is_post' => 0,
  'tid' => 1,
  'url' => 'http://www.wenhuiw.com/wenku/hangye',
  'total' => '请使用count标签查询',
  'field' =>
  array (
  ),
)

array (
  8 =>
  array (
    'id' => '8',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '电子电工',
    'dirname' => 'dzdg',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 8,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '8',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/dzdg',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  12 =>
  array (
    'id' => '12',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '电脑手机',
    'dirname' => 'dnsj',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 12,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '12',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/dnsj',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  13 =>
  array (
    'id' => '13',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '交通道路',
    'dirname' => 'jtdl',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 13,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '13',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/jtdl',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  14 =>
  array (
    'id' => '14',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '机械设备',
    'dirname' => 'jixie',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 14,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '14',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/jixie',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  15 =>
  array (
    'id' => '15',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '能源动力',
    'dirname' => 'nydl',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 15,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '15',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/nydl',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  16 =>
  array (
    'id' => '16',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '电气工控',
    'dirname' => 'dqgk',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 16,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '16',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/dqgk',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
)

'/index.php?s=wenku&c=show&id=16774&page=[page]'

''

'http://www.wenhuiw.com/wenku/a16774.html'

array (
  's' => 'wenku',
  'c' => 'show',
  'id' => '16774',
  'm' => 'index',
)
