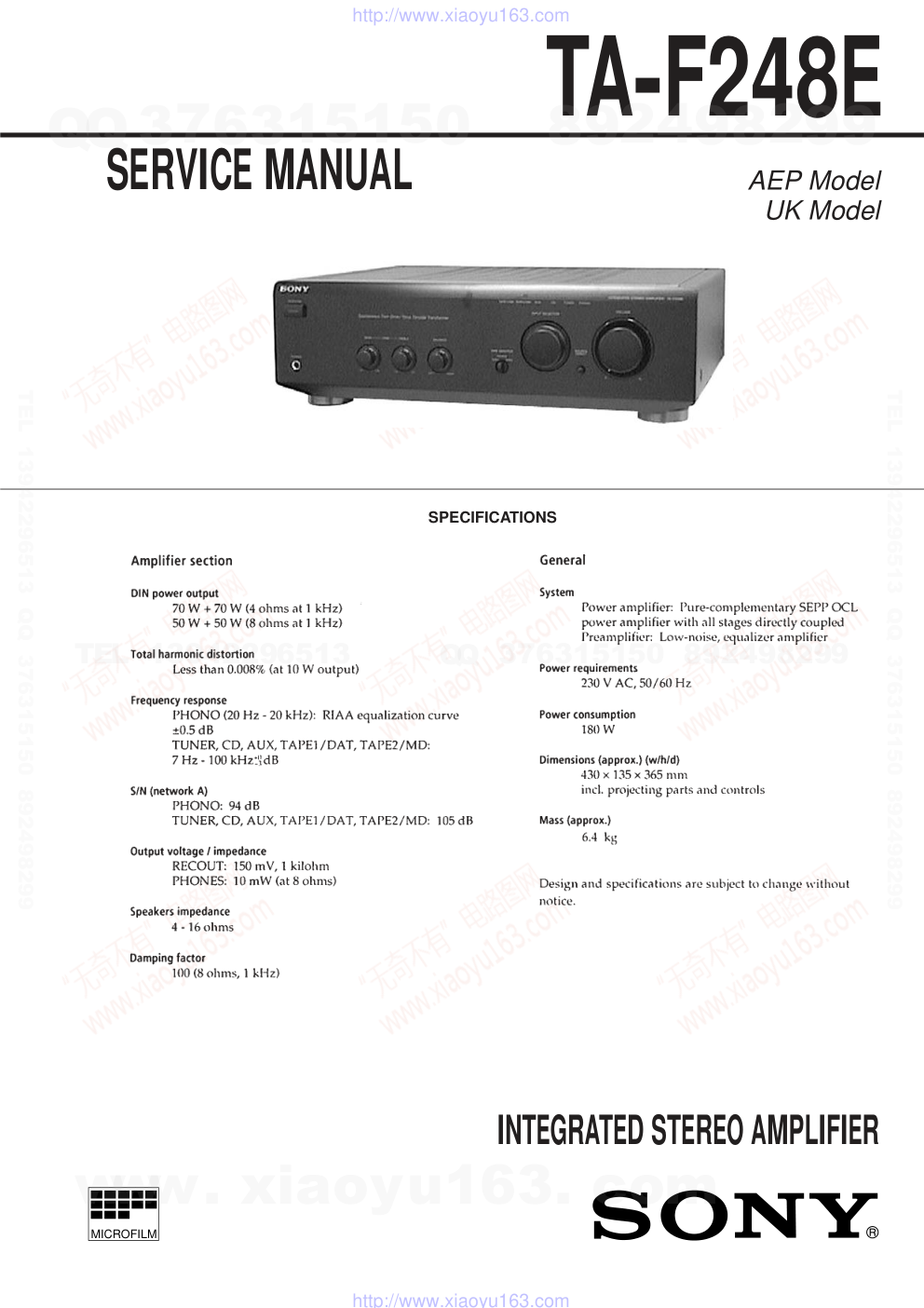

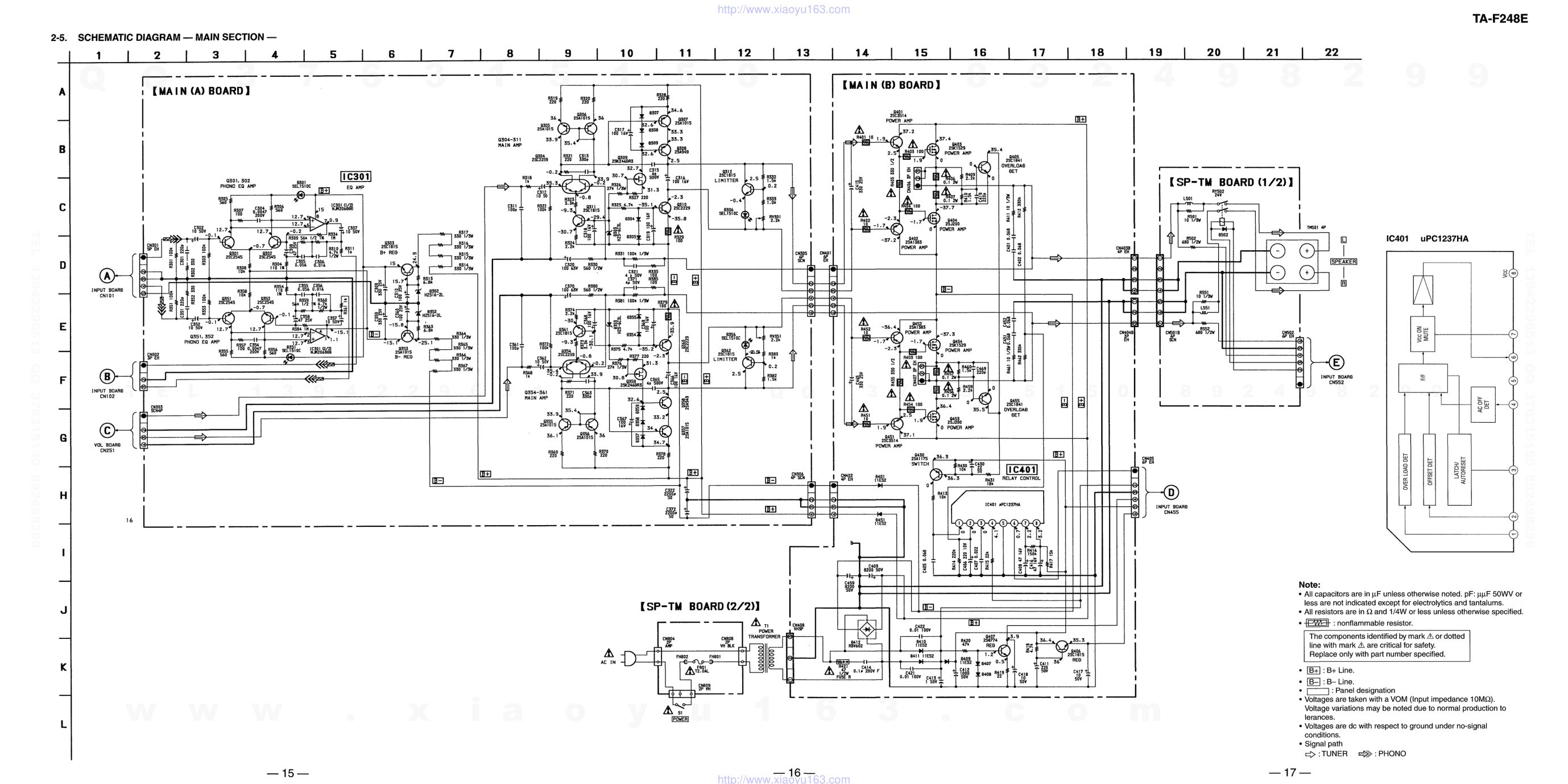

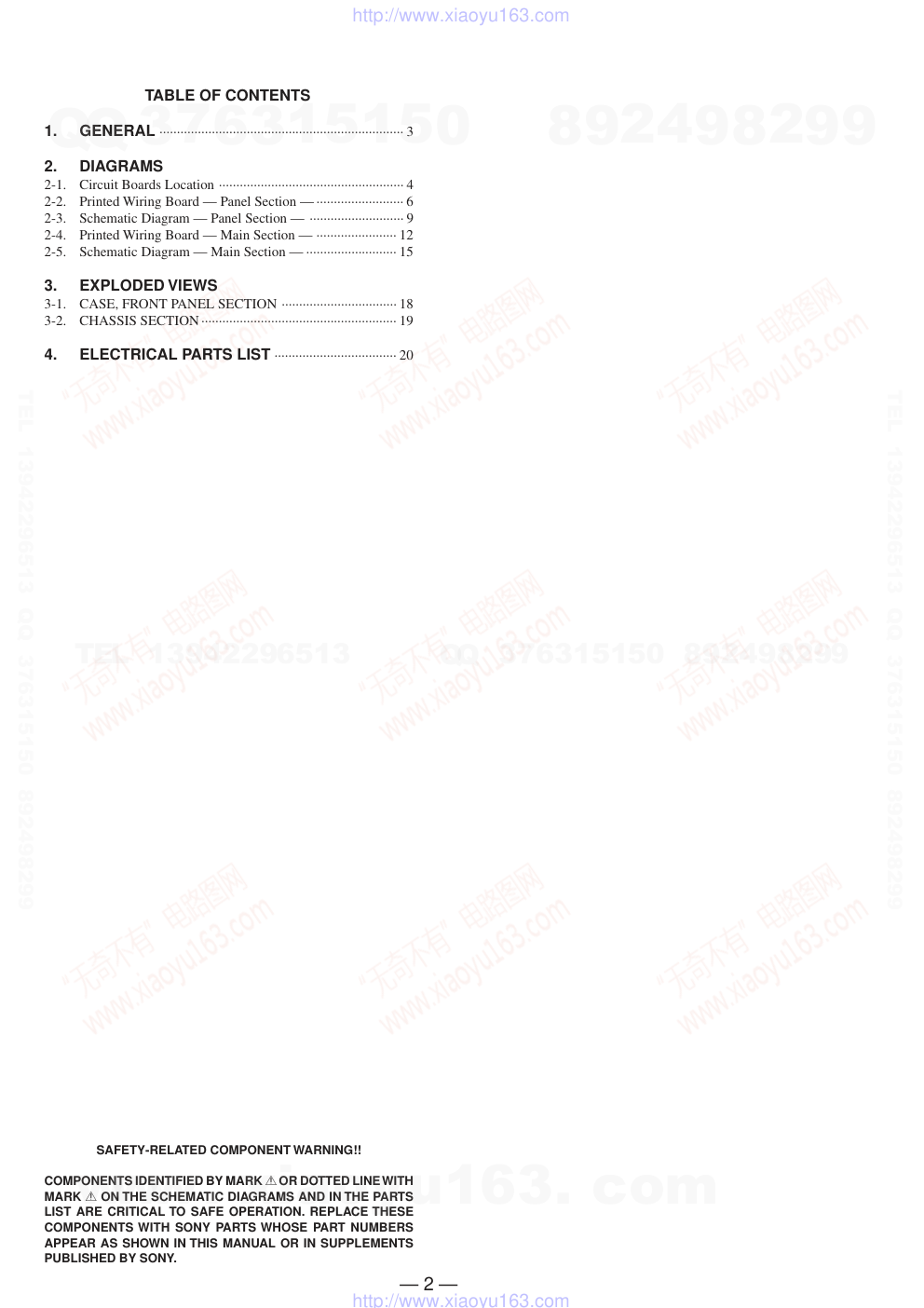

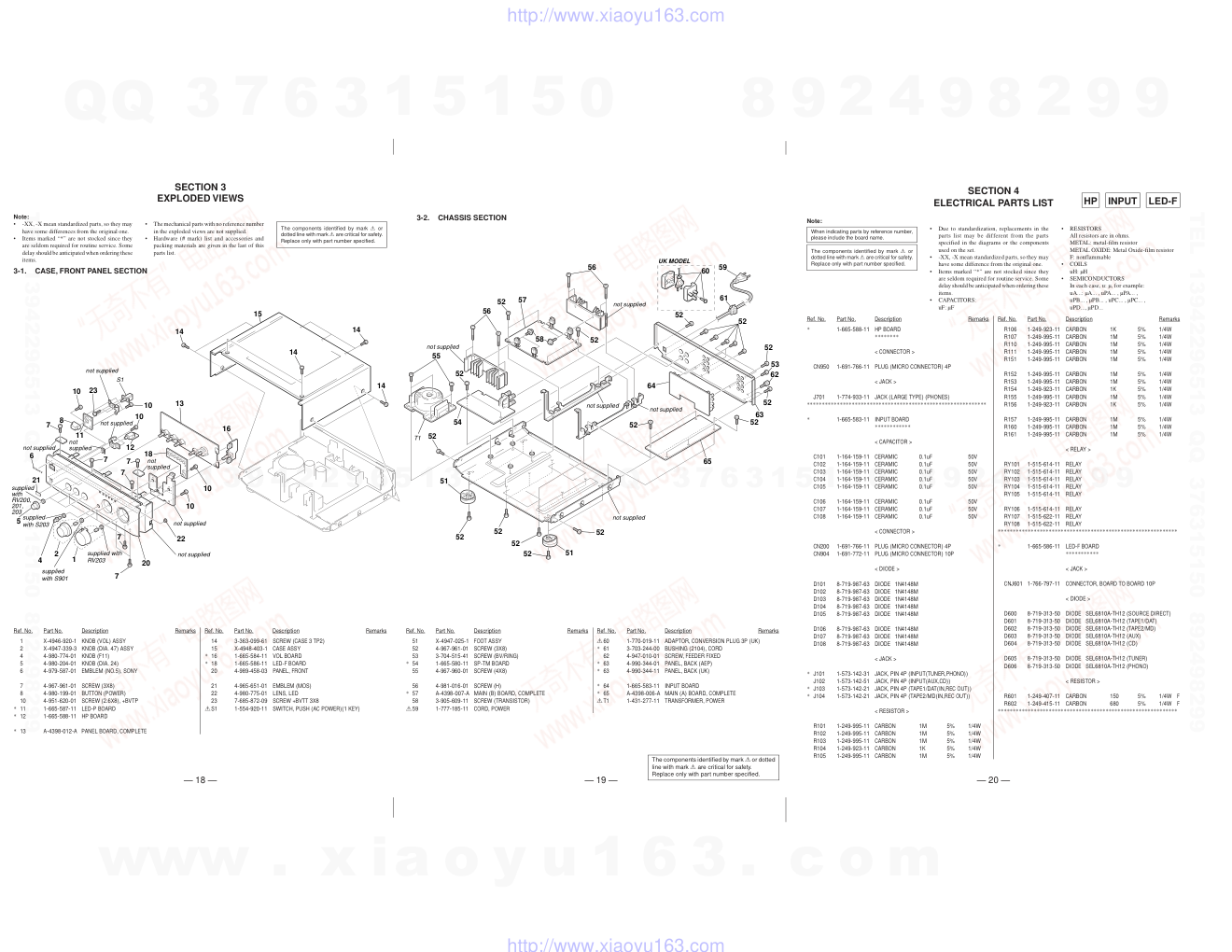

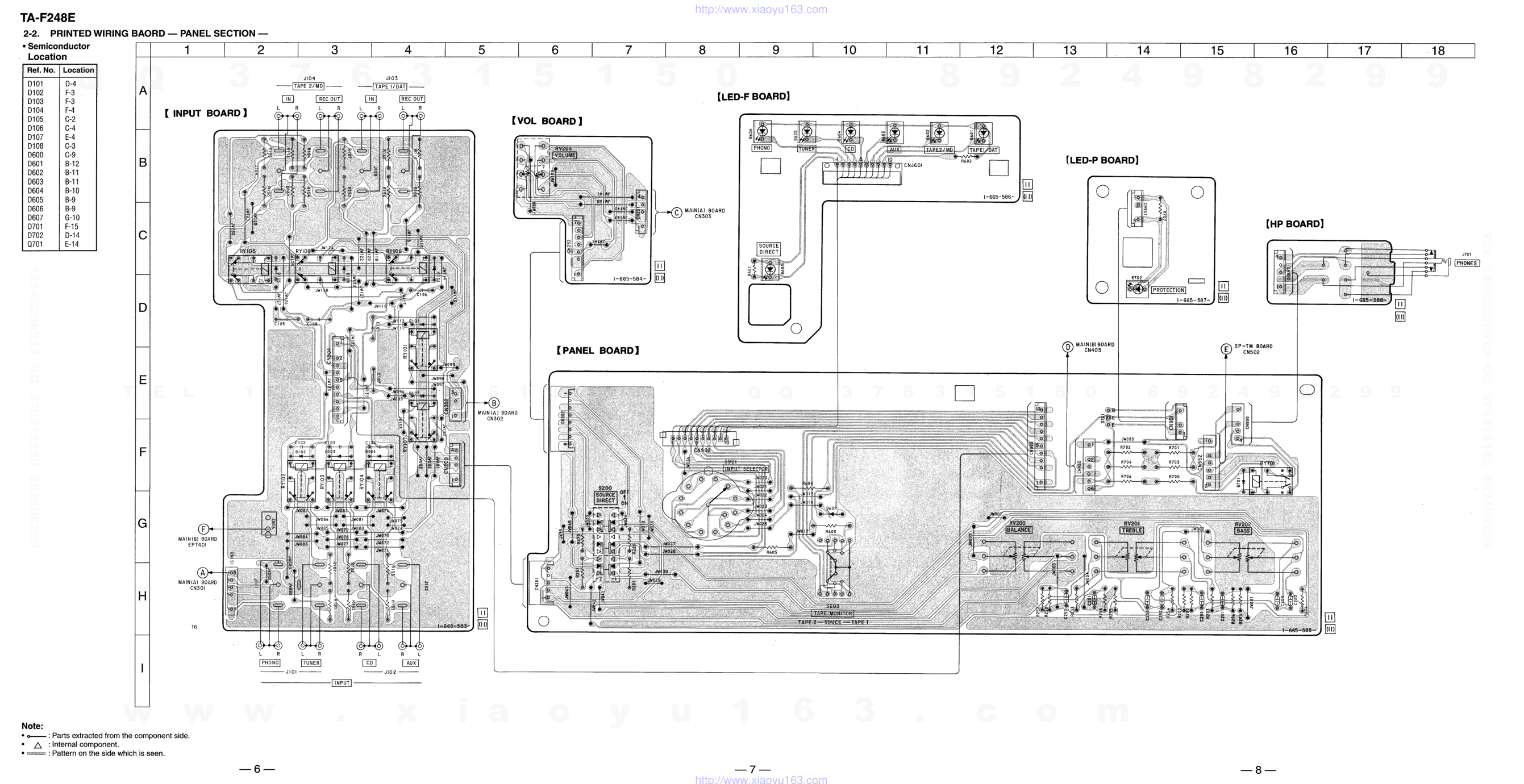

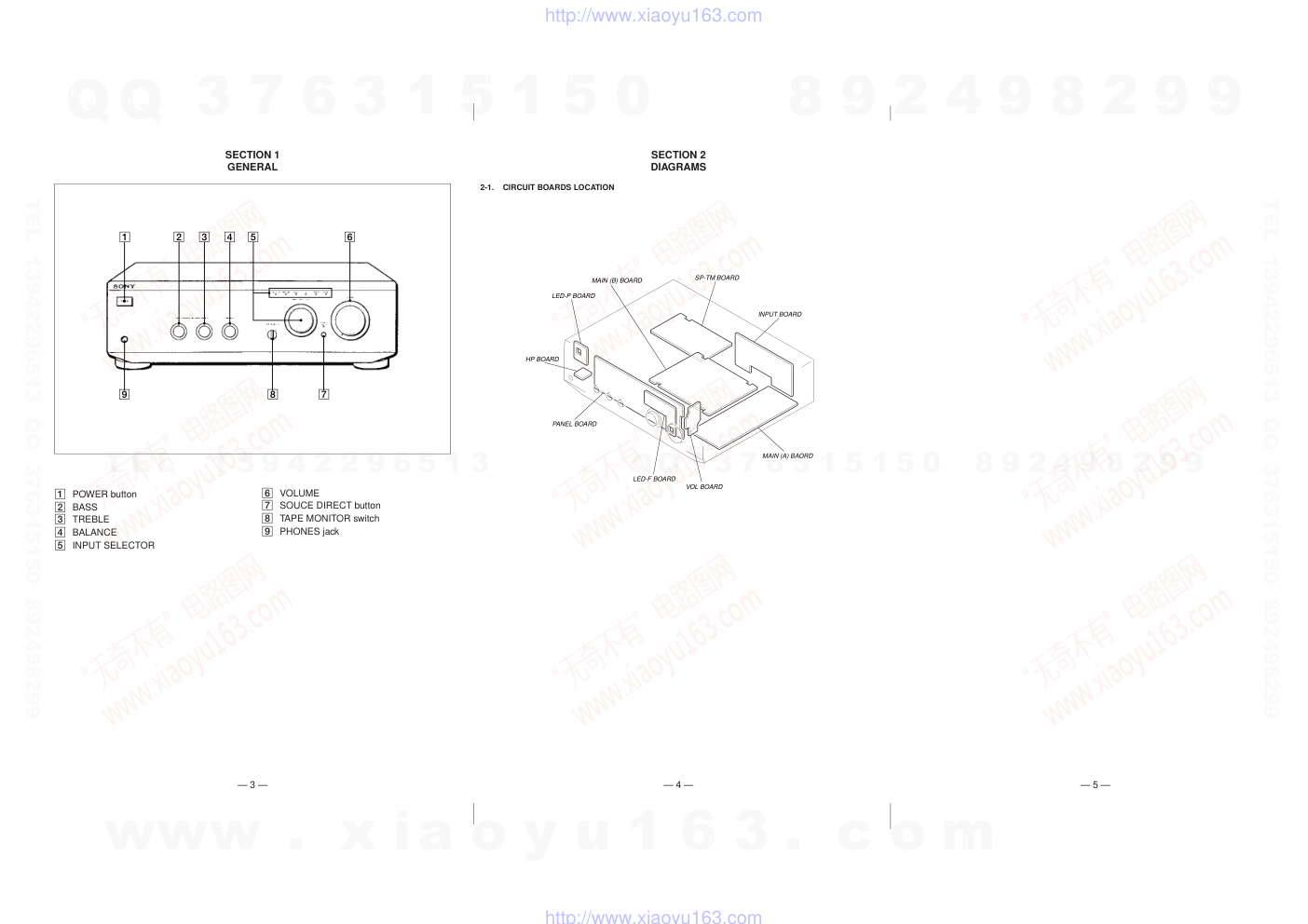

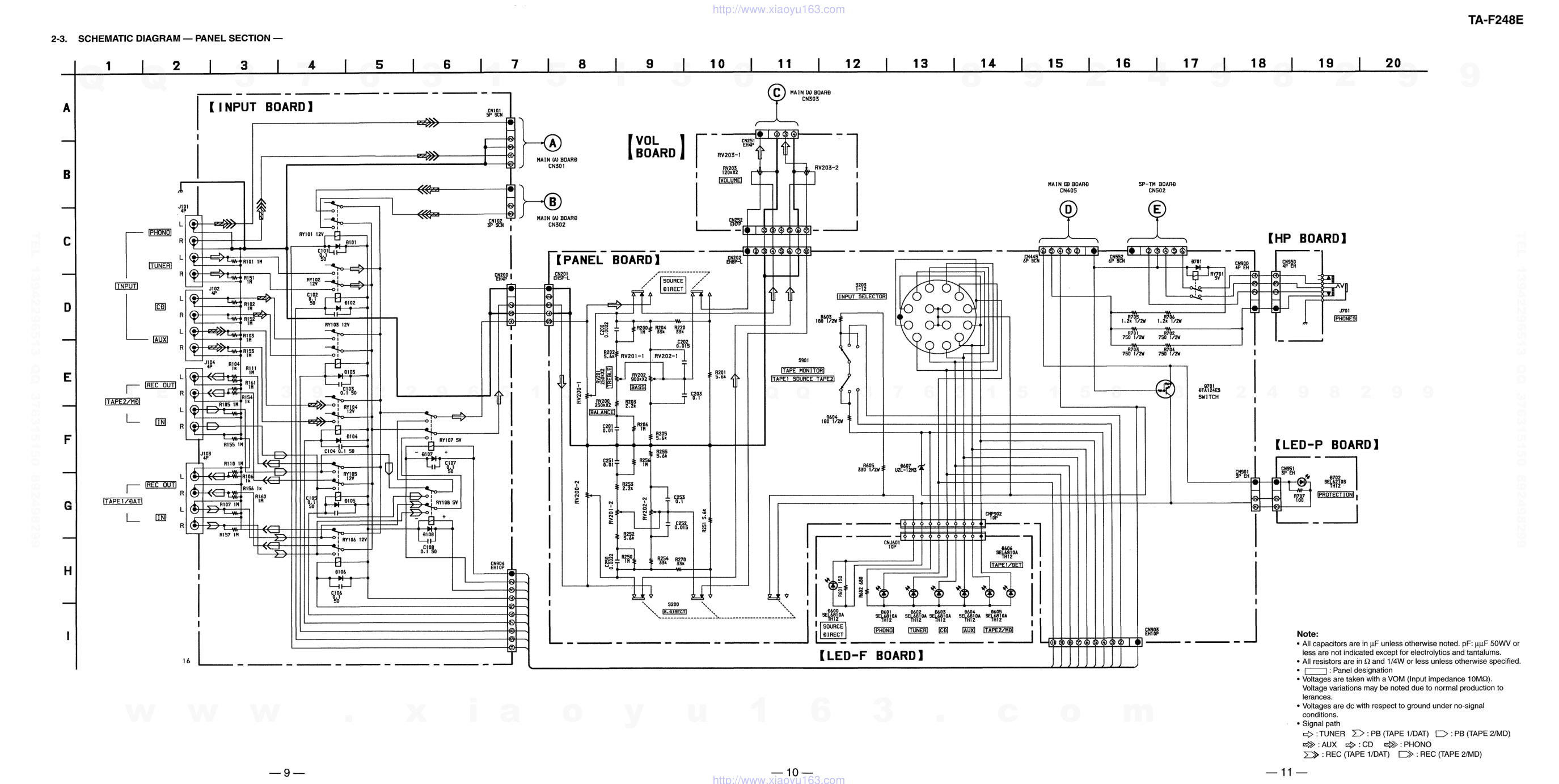

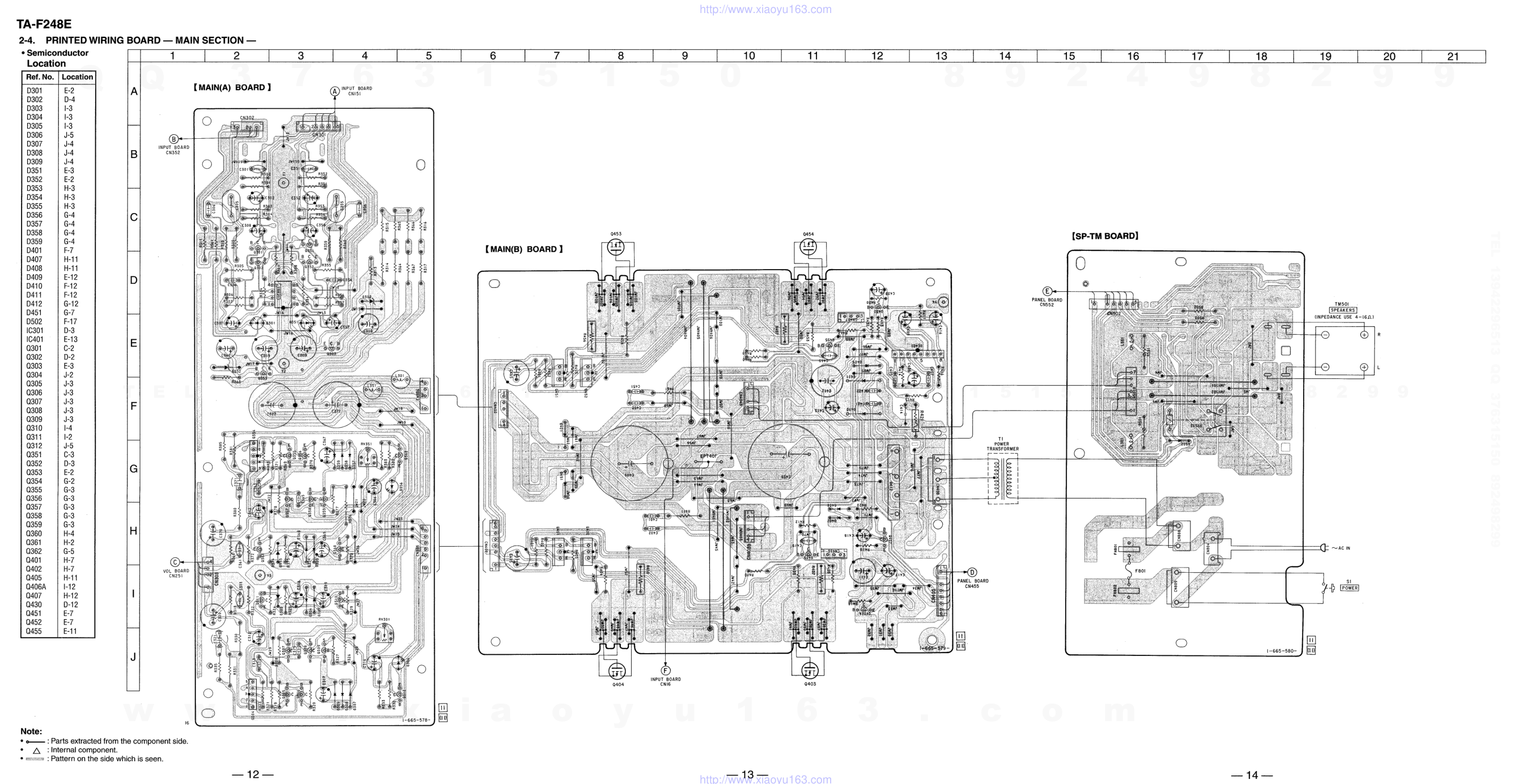

AEP Model UK Model SERVICE MANUAL INTEGRATED STEREO AMPLIFIER MICROFILM SPECIFICATIONS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 2 — TABLE OF CONTENTS SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. 1. GENERAL ······································································ 3 2. DIAGRAMS 2-1. Circuit Boards Location ····················································· 4 2-2. Printed Wiring Board — Panel Section — ························· 6 2-3. Schematic Diagram — Panel Section — ··························· 9 2-4. Printed Wiring Board — Main Section — ······················· 12 2-5. Schematic Diagram — Main Section — ·························· 15 3. EXPLODED VIEWS 3-1. CASE, FRONT PANEL SECTION ································· 18 3-2. CHASSIS SECTION························································ 19 4. ELECTRICAL PARTS LIST ··································· 20 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SECTION 1 GENERAL SECTION 2 DIAGRAMS 2-1. CIRCUIT BOARDS LOCATION LED-P BOARD HP BOARD PANEL BOARD LED-F BOARD VOL BOARD MAIN (A) BAORD INPUT BOARD MAIN (B) BOARD SP-TM BOARD — 3 — — 4 — 1 POWER button 2 BASS 3 TREBLE 4 BALANCE 5 INPUT SELECTOR 6 VOLUME 7 SOUCE DIRECT button 8 TAPE MONITOR switch 9 PHONES jack 1 2 3 4 5 6 7 8 9 — 5 — www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SECTION 3 EXPLODED VIEWS Note: • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Hardware (# mark) list and accessories and packing materials are given in the last of this parts list. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. 3-1. CASE, FRONT PANEL SECTION 23 10 10 11 8 7 6 5 4 2 1 7 20 7 7 10 18 10 12 10 13 16 14 15 14 14 supplied with RV200, 201, 203 supplied with S901 supplied with S203 supplied with RV203 not supplied not supplied not supplied 14 not supplied 7 not supplied 22 7 21 not supplied S1 not supplied Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 1 X-4946-920-1 KNOB (VOL) ASSY 2 X-4947-339-3 KNOB (DIA. 47) ASSY 4 4-980-774-01 KNOB (F11) 5 4-980-204-01 KNOB (DIA. 24) 6 4-979-587-01 EMBLEM (NO.5), SONY 7 4-967-961-01 SCREW (3X8) 8 4-980-199-01 BUTTON (POWER) 10 4-951-620-01 SCREW (2.6X8), +BVTP * 11 1-665-587-11 LED-P BOARD * 12 1-665-588-11 HP BOARD * 13 A-4398-012-A PANEL BOARD, COMPLETE 14 3-363-099-61 SCREW (CASE 3 TP2) 15 X-4948-403-1 CASE ASSY * 16 1-665-584-11 VOL BOARD * 18 1-665-586-11 LED-F BOARD 20 4-989-458-03 PANEL, FRONT 21 4-965-651-01 EMBLEM (MOS) 22 4-980-775-01 LENS, LED 23 7-685-872-09 SCREW +BVTT 3X8 !S1 1-554-920-11 SWITCH, PUSH (AC POWER)(1 KEY) Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 3-2. CHASSIS SECTION not supplied not supplied not supplied not supplied not supplied 60 UK MODEL 56 52 58 57 52 56 55 52 T1 52 54 51 52 52 52 51 52 52 65 52 64 59 61 52 52 62 52 63 52 53 52 51 X-4947-025-1 FOOT ASSY 52 4-967-961-01 SCREW (3X8) 53 3-704-515-41 SCREW (BV/RING) * 54 1-665-580-11 SP-TM BOARD 55 4-967-960-01 SCREW (4X8) 56 4-981-016-01 SCREW (H) * 57 A-4398-007-A MAIN (B) BOARD, COMPLETE 58 3-905-609-11 SCREW (TRANSISTOR) !59 1-777-185-11 CORD, POWER !60 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (UK) * 61 3-703-244-00 BUSHING (2104), CORD 62 4-947-010-01 SCREW, FEEDER FIXED * 63 4-990-344-01 PANEL, BACK (AEP) * 63 4-990-344-11 PANEL, BACK (UK) * 64 1-665-583-11 INPUT BOARD * 65 A-4398-006-A MAIN (A) BOARD, COMPLETE !T1 1-431-277-11 TRANSFORMER, POWER The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. — 18 — — 19 — — 20 — * 1-665-588-11 HP BOARD ******** < CONNECTOR > CN950 1-691-766-11 PLUG (MICRO CONNECTOR) 4P < JACK > J701 1-774-933-11 JACK (LARGE TYPE) (PHONES) ************************************************************ * 1-665-583-11 INPUT BOARD ************ < CAPACITOR > C101 1-164-159-11 CERAMIC 0.1uF 50V C102 1-164-159-11 CERAMIC 0.1uF 50V C103 1-164-159-11 CERAMIC 0.1uF 50V C104 1-164-159-11 CERAMIC 0.1uF 50V C105 1-164-159-11 CERAMIC 0.1uF 50V C106 1-164-159-11 CERAMIC 0.1uF 50V C107 1-164-159-11 CERAMIC 0.1uF 50V C108 1-164-159-11 CERAMIC 0.1uF 50V < CONNECTOR > CN200 1-691-766-11 PLUG (MICRO CONNECTOR) 4P CN904 1-691-772-11 PLUG (MICRO CONNECTOR) 10P < DIODE > D101 8-719-987-63 DIODE 1N4148M D102 8-719-987-63 DIODE 1N4148M D103 8-719-987-63 DIODE 1N4148M D104 8-719-987-63 DIODE 1N4148M D105 8-719-987-63 DIODE 1N4148M D106 8-719-987-63 DIODE 1N4148M D107 8-719-987-63 DIODE 1N4148M D108 8-719-987-63 DIODE 1N4148M < JACK > * J101 1-573-142-31 JACK, PIN 4P (INPUT(TUNER,PHONO)) J102 1-573-142-51 JACK, PIN 4P (INPUT(AUX,CD)) * J103 1-573-142-21 JACK, PIN 4P (TAPE1/DAT(IN,REC OUT)) * J104 1-573-142-21 JACK, PIN 4P (TAPE2/MD(IN,REC OUT)) < RESISTOR > R101 1-249-995-11 CARBON 1M 5% 1/4W R102 1-249-995-11 CARBON 1M 5% 1/4W R103 1-249-995-11 CARBON 1M 5% 1/4W R104 1-249-923-11 CARBON 1K 5% 1/4W R105 1-249-995-11 CARBON 1M 5% 1/4W R106 1-249-923-11 CARBON 1K 5% 1/4W R107 1-249-995-11 CARBON 1M 5% 1/4W R110 1-249-995-11 CARBON 1M 5% 1/4W R111 1-249-995-11 CARBON 1M 5% 1/4W R151 1-249-995-11 CARBON 1M 5% 1/4W R152 1-249-995-11 CARBON 1M 5% 1/4W R153 1-249-995-11 CARBON 1M 5% 1/4W R154 1-249-923-11 CARBON 1K 5% 1/4W R155 1-249-995-11 CARBON 1M 5% 1/4W R156 1-249-923-11 CARBON 1K 5% 1/4W R157 1-249-995-11 CARBON 1M 5% 1/4W R160 1-249-995-11 CARBON 1M 5% 1/4W R161 1-249-995-11 CARBON 1M 5% 1/4W < RELAY > RY101 1-515-614-11 RELAY RY102 1-515-614-11 RELAY RY103 1-515-614-11 RELAY RY104 1-515-614-11 RELAY RY105 1-515-614-11 RELAY RY106 1-515-614-11 RELAY RY107 1-515-622-11 RELAY RY108 1-515-622-11 RELAY ************************************************************ * 1-665-586-11 LED-F BOARD *********** < JACK > CNJ601 1-766-797-11 CONNECTOR, BOARD TO BOARD 10P < DIODE > D600 8-719-313-50 DIODE SEL6810A-TH12 (SOURCE DIRECT) D601 8-719-313-50 DIODE SEL6810A-TH12 (TAPE1/DAT) D602 8-719-313-50 DIODE SEL6810A-TH12 (TAPE2/MD) D603 8-719-313-50 DIODE SEL6810A-TH12 (AUX) D604 8-719-313-50 DIODE SEL6810A-TH12 (CD) D605 8-719-313-50 DIODE SEL6810A-TH12 (TUNER) D606 8-719-313-50 DIODE SEL6810A-TH12 (PHONO) < RESISTOR > R601 1-249-407-11 CARBON 150 5% 1/4W F R602 1-249-415-11 CARBON 680 5% 1/4W F ************************************************************ HP LED-F INPUT Note: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • CAPACITORS: uF: µF The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. • RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable • COILS uH: µH • SEMICONDUCTORS In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD... When indicating parts by reference number, please include the board name. Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks SECTION 4 ELECTRICAL PARTS LIST www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 21 — * 1-665-587-11 LED-P BOARD *********** < CONNECTOR > CN951 1-691-765-11 PLUG (MICRO CONNECTOR) 3P < DIODE > D702 8-719-313-48 DIODE SEL6210S-TH12 (PROTECTION) < RESISTOR > R707 1-259-143-21 CARBON 100 5% 1/4W ************************************************************ * A-4398-006-A MAIN (A) BOARD, COMPLETE ************************* < CAPACITOR > C301 1-102-978-00 CERAMIC 220PF 5% 50V C302 1-126-059-11 ELECT 10uF 20% 50V C304 1-106-359-00 MYLAR 4700PF 5% 200V C305 1-136-162-00 FILM 0.056uF 5% 50V C306 1-137-471-11 FILM 0.016uF 5% 50V C307 1-126-059-11 ELECT 10uF 20% 50V C308 1-126-022-11 ELECT 47uF 20% 25V C309 1-126-025-11 ELECT 330uF 20% 25V C310 1-126-023-11 ELECT 100uF 20% 25V C311 1-102-973-00 CERAMIC 100PF 5% 50V C312 1-124-721-11 ELECT 10uF 20% 50V C313 1-104-290-11 POLYSTYRENE 330PF 5% 50V C315 1-102-230-00 CERAMIC 4PF 0.25PF 500V C316 1-126-023-11 ELECT 100uF 20% 16V C317 1-126-023-11 ELECT 100uF 20% 16V C318 1-126-023-11 ELECT 100uF 20% 16V C319 1-126-023-11 ELECT 100uF 20% 16V C320 1-110-393-11 ELECT 100uF 20% 63V C321 1-113-496-11 POLYSTYRENE 4PF 10% 50V C322 1-126-057-11 ELECT 2200uF 20% 50V C351 1-102-978-00 CERAMIC 220PF 5% 50V C352 1-126-059-11 ELECT 10uF 20% 50V C354 1-106-359-00 MYLAR 4700PF 5% 200V C355 1-136-162-00 FILM 0.056uF 5% 50V C356 1-137-471-11 FILM 0.016uF 5% 50V C357 1-126-059-11 ELECT 10uF 20% 50V C358 1-126-022-11 ELECT 47uF 20% 25V C359 1-126-025-11 ELECT 330uF 20% 25V C360 1-126-023-11 ELECT 100uF 20% 25V C361 1-102-973-00 CERAMIC 100PF 5% 50V C362 1-124-721-11 ELECT 10uF 20% 50V C363 1-104-290-11 POLYSTYRENE 330PF 5% 50V C365 1-102-230-00 CERAMIC 4PF 0.25PF 500V C366 1-126-023-11 ELECT 100uF 20% 16V C367 1-126-023-11 ELECT 100uF 20% 16V C368 1-126-023-11 ELECT 100uF 20% 16V C369 1-126-023-11 ELECT 100uF 20% 16V C370 1-110-393-11 ELECT 100uF 20% 63V C371 1-113-496-11 POLYSTYRENE 4PF 10% 50V C372 1-126-057-11 ELECT 2200uF 20% 50V < CONNECTOR > CN301 1-691-767-11 PLUG (MICRO CONNECTOR) 5P CN302 1-691-765-11 PLUG (MICRO CONNECTOR) 3P < DIODE > D301 8-719-310-61 DIODE SEL1510C-D D302 8-719-933-88 DIODE HZS16-2L D303 8-719-933-41 DIODE HZS6C3L D304 8-719-987-63 DIODE 1N4148M D305 8-719-987-63 DIODE 1N4148M D306 8-719-310-61 DIODE SEL1510C-D D307 8-719-987-63 DIODE 1N4148M D308 8-719-987-63 DIODE 1N4148M D309 8-719-987-63 DIODE 1N4148M D351 8-719-310-61 DIODE SEL1510C-D D352 8-719-933-88 DIODE HZS16-2L D353 8-719-933-41 DIODE HZS6C3L D354 8-719-987-63 DIODE 1N4148M D355 8-719-987-63 DIODE 1N4148M D356 8-719-310-61 DIODE SEL1510C-D D357 8-719-987-63 DIODE 1N4148M D358 8-719-987-63 DIODE 1N4148M D359 8-719-987-63 DIODE 1N4148M < IC > IC301 8-759-701-25 IC NJM2068D-D < COIL > L301 1-428-203-11 COIL, AIR-CORE L351 1-428-203-11 COIL, AIR-CORE < TRANSISTOR > Q301 8-729-354-52 TRANSISTOR 2SC2545 Q302 8-729-354-52 TRANSISTOR 2SC2545 Q303 8-729-281-54 TRANSISTOR 2SC1815-BL Q304 8-729-620-17 TRANSISTOR 2SC2259-FG Q305 8-729-201-53 TRANSISTOR 2SA1015-GR Q306 8-729-201-53 TRANSISTOR 2SA1015-GR Q307 8-729-201-53 TRANSISTOR 2SA1015-GR Q308 8-729-021-74 TRANSISTOR 2SA949-OY-TPE6 Q309 8-729-202-67 TRANSISTOR 2SK246-GR3 Q310 8-729-021-73 TRANSISTOR 2SC2229-OY-TPE6 Q311 8-729-281-54 TRANSISTOR 2SC1815-BL Q312 8-729-281-54 TRANSISTOR 2SC1815-BL Q351 8-729-354-52 TRANSISTOR 2SC2545 Q352 8-729-354-52 TRANSISTOR 2SC2545 Q353 8-729-201-53 TRANSISTOR 2SA1015-GR Q354 8-729-620-17 TRANSISTOR 2SC2259-FG Q355 8-729-201-53 TRANSISTOR 2SA1015-GR Q356 8-729-201-53 TRANSISTOR 2SA1015-GR Q357 8-729-201-53 TRANSISTOR 2SA1015-GR Q358 8-729-021-74 TRANSISTOR 2SA949-OY-TPE6 Q359 8-729-202-67 TRANSISTOR 2SK246-GR3 Q360 8-729-021-73 TRANSISTOR 2SC2229-OY-TPE6 Q361 8-729-281-54 TRANSISTOR 2SC1815-BL Q362 8-729-281-54 TRANSISTOR 2SC1815-BL LED-P MAIN (A) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 22 — < RESISTOR > R301 1-259-215-21 CARBON 100K 5% 1/4W R302 1-249-911-11 CARBON 330 5% 1/4W R303 1-259-215-21 CARBON 100K 5% 1/4W R304 1-249-900-11 CARBON 110 1% 1/4W R305 1-259-161-21 CARBON 560 5% 1/4W R306 1-259-161-21 CARBON 560 5% 1/4W R307 1-259-143-21 CARBON 100 5% 1/4W R308 1-259-191-21 CARBON 10K 5% 1/4W R309 1-249-844-11 CARBON 56K 1% 1/2W R310 1-259-320-11 CARBON 4.7K 1% 1/2W R311 1-259-167-21 CARBON 1K 5% 1/4W R313 1-249-943-11 CARBON 6.8K 5% 1/4W R314 1-249-198-11 CARBON 330 5% 1/3W R315 1-249-198-11 CARBON 330 5% 1/3W R316 1-249-198-11 CARBON 330 5% 1/3W R317 1-249-198-11 CARBON 330 5% 1/3W R318 1-259-167-21 CARBON 1K 5% 1/4W R319 1-259-151-21 CARBON 220 5% 1/4W R320 1-259-151-21 CARBON 220 5% 1/4W R321 1-259-151-21 CARBON 220 5% 1/4W R322 1-259-215-21 CARBON 100K 5% 1/4W R323 1-259-179-21 CARBON 3.3K 5% 1/4W R324 1-259-175-11 CARBON 2.2K 5% 1/4W R325 1-259-183-11 CARBON 4.7K 5% 1/4W R326 1-249-490-11 CARBON 27K 5% 1/2W R327 1-259-151-21 CARBON 220 5% 1/4W R328 1-259-151-21 CARBON 220 5% 1/4W !R329 1-249-899-11 CARBON 100 5% 1/4W F R330 1-247-749-11 CARBON 560 5% 1/2W F R331 1-249-496-11 CARBON 100K 5% 1/2W R332 1-259-171-21 CARBON 1.5K 5% 1/4W R333 1-259-167-21 CARBON 1K 5% 1/4W R334 1-259-239-11 CARBON 1M 5% 1/4W R335 1-259-143-21 CARBON 100 5% 1/4W R351 1-259-215-21 CARBON 100K 5% 1/4W R352 1-249-911-11 CARBON 330 5% 1/4W R353 1-259-215-21 CARBON 100K 5% 1/4W R354 1-249-900-11 CARBON 110 1% 1/4W R355 1-259-161-21 CARBON 560 5% 1/4W R356 1-259-161-21 CARBON 560 5% 1/4W R357 1-259-143-21 CARBON 100 5% 1/4W R358 1-259-191-21 CARBON 10K 5% 1/4W R359 1-249-844-11 CARBON 56K 1% 1/2W R360 1-259-320-11 CARBON 4.7K 1% 1/2W R361 1-259-167-21 CARBON 1K 5% 1/4W R363 1-249-943-11 CARBON 6.8K 5% 1/4W R364 1-249-198-11 CARBON 330 5% 1/3W R365 1-249-198-11 CARBON 330 5% 1/3W R366 1-249-198-11 CARBON 330 5% 1/3W R367 1-249-198-11 CARBON 330 5% 1/3W R368 1-259-167-21 CARBON 1K 5% 1/4W R369 1-259-151-21 CARBON 220 5% 1/4W R370 1-259-151-21 CARBON 220 5% 1/4W R371 1-259-151-21 CARBON 220 5% 1/4W R372 1-259-215-21 CARBON 100K 5% 1/4W R373 1-259-179-21 CARBON 3.3K 5% 1/4W R374 1-259-175-11 CARBON 2.2K 5% 1/4W R375 1-259-183-11 CARBON 4.7K 5% 1/4W R376 1-249-490-11 CARBON 27K 5% 1/2W R377 1-259-151-21 CARBON 220 5% 1/4W R378 1-259-151-21 CARBON 220 5% 1/4W !R379 1-249-899-11 CARBON 100 5% 1/4W F R380 1-247-749-11 CARBON 560 5% 1/2W F R381 1-249-496-11 CARBON 100K 5% 1/2W R382 1-259-171-21 CARBON 1.5K 5% 1/4W R383 1-259-167-21 CARBON 1K 5% 1/4W R384 1-259-239-11 CARBON 1M 5% 1/4W R385 1-259-143-21 CARBON 100 5% 1/4W < VARIABLE RESISTOR > RV301 1-241-762-11 RES, ADJ, CARBON 2.2K RV351 1-241-762-11 RES, ADJ, CARBON 2.2K ************************************************************ * A-4398-007-A MAIN (B) BOARD, COMPLETE ************************* < CAPACITOR > C401 1-136-163-00 FILM 0.068uF 5% 50V C402 1-136-163-00 FILM 0.068uF 5% 50V C405 1-136-163-00 FILM 0.068uF 5% 50V C406 1-126-923-11 ELECT 220uF 20% 10V C407 1-136-157-00 FILM 0.022uF 5% 50V C408 1-126-967-11 ELECT 47uF 20% 16V C409 1-109-870-11 ELECT 8200uF 20% 50V C411 1-126-969-11 ELECT 220uF 20% 50V C412 1-126-972-11 ELECT 1000uF 20% 50V C413 1-126-960-11 ELECT 1uF 20% 50V C414 1-104-999-11 MYLAR 0.1uF 10% 200V C415 1-126-025-11 ELECT 330uF 20% 25V C416 1-126-967-11 ELECT 47uF 20% 16V C417 1-126-964-11 ELECT 10uF 20% 50V C418 1-126-964-11 ELECT 10uF 20% 50V C419 1-164-077-11 CERAMIC 220PF 10% 50V C421 1-137-150-11 MYLAR 0.01uF 10% 100V C422 1-137-150-11 MYLAR 0.01uF 10% 100V C430 1-126-965-11 ELECT 22uF 20% 50V C451 1-136-163-00 FILM 0.068uF 5% 50V C452 1-136-163-00 FILM 0.068uF 5% 50V C459 1-109-870-11 ELECT 8200uF 20% 50V C465 1-126-025-11 ELECT 330uF 20% 25V C469 1-164-077-11 CERAMIC 220PF 10% 50V < CONNECTOR > CN401 1-691-768-11 PLUG (MICRO CONNECTOR) 6P CN402 1-691-766-11 PLUG (MICRO CONNECTOR) 4P CN405 1-691-768-11 PLUG (MICRO CONNECTOR) 6P CN406 1-564-506-11 PLUG, CONNECTOR 3P CN407 1-564-506-11 PLUG, CONNECTOR 3P * CN408 1-564-687-11 PIN, CONNECTOR 3P CN403B 1-691-765-21 PLUG (MICRO CONNECTOR) 3P CN404B 1-691-765-11 PLUG (MICRO CONNECTOR) 3P MAIN (A) MAIN (B) The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 23 — < DIODE > D401 8-719-024-99 DIODE 11ES2-NTA2B D407 8-719-987-63 DIODE 1N4148M D408 8-719-987-63 DIODE 1N4148M D409 8-719-024-99 DIODE 11ES2-NTA2B D410 8-719-024-99 DIODE 11ES2-NTA2B D411 8-719-024-99 DIODE 11ES2-NTA2B D412 8-719-302-38 DIODE RBV-602-01 D451 8-719-024-99 DIODE 11ES2-NTA2B < TERMINAL > * EPT401 4-924-264-21 TERMINAL, MOUNT < IC > IC401 8-759-111-68 IC uPC1237HA < TRANSISTOR > Q401 8-729-104-18 TRANSISTOR 2SC3514-Q Q402 8-729-104-91 TRANSISTOR 2SA1383 Q405 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA Q407 8-729-140-96 TRANSISTOR 2SD774-34 Q430 8-729-119-76 TRANSISTOR 2SA1175-HFE Q451 8-729-104-18 TRANSISTOR 2SC3514-Q Q452 8-729-104-91 TRANSISTOR 2SA1383 Q455 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA Q406A 8-729-281-54 TRANSISTOR 2SC1815-BL < RESISTOR > !R401 1-249-393-11 CARBON 10 5% 1/4W F !R402 1-249-393-11 CARBON 10 5% 1/4W F !R403 1-249-405-11 CARBON 100 5% 1/4W F !R404 1-249-405-11 CARBON 100 5% 1/4W F !R405 1-247-745-11 CARBON 330 5% 1/2W F !R406 1-208-601-11 WIREWOUND 0.1 10% 2W F !R407 1-208-601-11 WIREWOUND 0.1 10% 2W F R409 1-259-436-11 CARBON 2.2K 5% 1/6W R410 1-259-432-11 CARBON 1.5K 5% 1/6W R411 1-249-162-11 CARBON 10 5% 1/3W R412 1-259-488-11 CARBON 330K 5% 1/6W R413 1-259-452-11 CARBON 10K 5% 1/6W R414 1-259-484-11 CARBON 220K 5% 1/6W R415 1-259-460-11 CARBON 22K 5% 1/6W R416 1-259-480-11 CARBON 150K 5% 1/6W R417 1-259-456-11 CARBON 15K 5% 1/6W R418 1-259-444-11 CARBON 4.7K 5% 1/6W R419 1-259-388-11 CARBON 22 5% 1/6W R420 1-259-468-11 CARBON 47K 5% 1/6W !R421 1-212-974-00 FUSIBLE 47 5% 1/2W F R430 1-259-452-11 CARBON 10K 5% 1/6W R431 1-259-458-11 CARBON 18K 5% 1/6W !R451 1-249-393-11 CARBON 10 5% 1/4W F !R452 1-249-393-11 CARBON 10 5% 1/4W F !R453 1-249-405-11 CARBON 100 5% 1/4W F !R454 1-249-405-11 CARBON 100 5% 1/4W F !R455 1-247-745-11 CARBON 330 5% 1/2W F !R456 1-208-601-11 WIREWOUND 0.1 10% 2W F !R457 1-208-601-11 WIREWOUND 0.1 10% 2W F R459 1-259-436-11 CARBON 2.2K 5% 1/6W R460 1-259-432-11 CARBON 1.5K 5% 1/6W R461 1-249-162-11 CARBON 10 5% 1/3W R462 1-259-488-11 CARBON 330K 5% 1/6W ************************************************************ * A-4398-012-A PANEL BOARD, COMPLETE ********************** < CAPACITOR > C200 1-130-475-00 MYLAR 0.0022uF 5% 50V C201 1-136-153-00 FILM 0.01uF 5% 50V C202 1-136-155-00 FILM 0.015uF 5% 50V C203 1-136-165-00 FILM 0.1uF 5% 50V C250 1-130-475-00 MYLAR 0.0022uF 5% 50V C251 1-136-153-00 FILM 0.01uF 5% 50V C252 1-136-155-00 FILM 0.015uF 5% 50V C253 1-136-165-00 FILM 0.1uF 5% 50V < CONNECTOR > * CN201 1-564-520-11 PLUG, CONNECTOR 5P CN202 1-564-523-11 PLUG, CONNECTOR 8P CN901 1-691-765-11 PLUG (MICRO CONNECTOR) 3P CN903 1-691-772-11 PLUG (MICRO CONNECTOR) 10P < CONNECTOR > CNP902 1-774-460-11 CONNECTOR, BOARD TO BOARD 10P < DIODE > D607 8-719-001-76 DIODE UZL-12M3 D701 8-719-987-63 DIODE 1N4148M < TRANSISTOR > Q701 8-729-900-63 TRANSISTOR DTA124ES < RESISTOR > R200 1-259-500-11 CARBON 1M 5% 1/6W R201 1-259-446-11 CARBON 5.6K 5% 1/6W R202 1-259-446-11 CARBON 5.6K 5% 1/6W R203 1-259-436-11 CARBON 2.2K 5% 1/6W R204 1-259-464-11 CARBON 33K 5% 1/6W R205 1-259-446-11 CARBON 5.6K 5% 1/6W R206 1-259-500-11 CARBON 1M 5% 1/6W R220 1-259-464-11 CARBON 33K 5% 1/6W R250 1-259-500-11 CARBON 1M 5% 1/6W R251 1-259-446-11 CARBON 5.6K 5% 1/6W R252 1-259-446-11 CARBON 5.6K 5% 1/6W R253 1-259-436-11 CARBON 2.2K 5% 1/6W R254 1-259-464-11 CARBON 33K 5% 1/6W R255 1-259-446-11 CARBON 5.6K 5% 1/6W R256 1-259-500-11 CARBON 1M 5% 1/6W R270 1-259-464-11 CARBON 33K 5% 1/6W R603 1-247-742-11 CARBON 180 5% 1/2W F R604 1-247-742-11 CARBON 180 5% 1/2W F R605 1-247-745-11 CARBON 330 5% 1/2W F R701 1-260-170-11 CARBON 750 5% 1/2W R702 1-260-170-11 CARBON 750 5% 1/2W R703 1-260-170-11 CARBON 750 5% 1/2W R704 1-260-170-11 CARBON 750 5% 1/2W R705 1-247-753-11 CARBON 1.2K 5% 1/2W R706 1-247-753-11 CARBON 1.2K 5% 1/2W MAIN (B) PANEL The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 24 — < VARIABLE RESISTOR > RV200 1-223-933-21 RES, VAR, CARBON 250K/250K RV201 1-223-934-21 RES, VAR, CARBON 250K/250K RV202 1-223-935-21 RES, VAR, CARBON 900K/900K < RELAY > RY701 1-515-614-11 RELAY < SWITCH > S200 1-571-828-11 SWITCH, PUSH (1 KEY) (SOURCE DIRECT) S203 1-762-656-11 SWITCH, ROTARY (TAPE MONITOR) S901 1-692-974-11 SWITCH, ROTARY (INPUT SELECTOR) ************************************************************ * 1-665-580-11 SP-TM BOARD ************ 1-533-233-11 HOLDER, FUSE < CONNECTOR > CN502 1-564-510-11 PLUG (MICRO CONNECTOR) 6P CN804 1-580-230-11 PIN, CONNECTOR (PC BOARD) 2P * CN808 1-564-321-21 PIN, CONNECTOR 2P * CN809 1-565-792-11 PIN, CONNECTOR 2P < DIODE > D502 8-719-987-63 DIODE 1N4148M < FUSE > !F801 1-532-388-51 FUSE TIME LAG 2A < COIL > L501 1-411-906-11 COIL, AIR-CORE L551 1-411-906-11 COIL, AIR-CORE < RESISTOR > R501 1-249-162-11 CARBON 10 5% 1/3W R502 1-247-750-11 CARBON 680 5% 1/2W F R551 1-249-162-11 CARBON 10 5% 1/3W R552 1-247-750-11 CARBON 680 5% 1/2W F < RELAY > RY502 1-515-920-11 RELAY (24V) < TERMINAL > TM501 1-537-893-11 TERMINAL BOARD (SP) (SPEAKERS) ************************************************************ * 1-665-584-11 VOL BOARD ********* < CONNECTOR > CN251 1-691-766-11 PLUG (MICRO CONNECTOR) 4P CN252 1-691-769-11 PLUG (MICRO CONNECTOR) 7P < VARIABLE RESISTOR > RV203 1-225-228-11 RES, VAR, CARBON 120K/120K (VOLUME) ************************************************************ MISCELLANEOUS ************* !59 1-777-185-11 CORD, POWER !60 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (UK) !S1 1-554-920-11 SWITCH, PUSH (AC POWER)(1 KEY) !T1 1-431-277-11 TRANSFORMER, POWER ************************************************************ ACCESSORIES & PACKING MATERIALS ******************************* 3-860-500-11 MANUAL, INSTRUCTION (ENGLISH/FRENCH/GERMAN/SWEDISH/ ITALIAN/PORTUGUESE) The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. PANEL SP-TM VOL TA-F248E Sony Corporation Home A&V Products Company 9-920-925-11 97H167554-1 Printed in Hungary © 1997.8 Published by General Engineering Dept. (Shibaura) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
