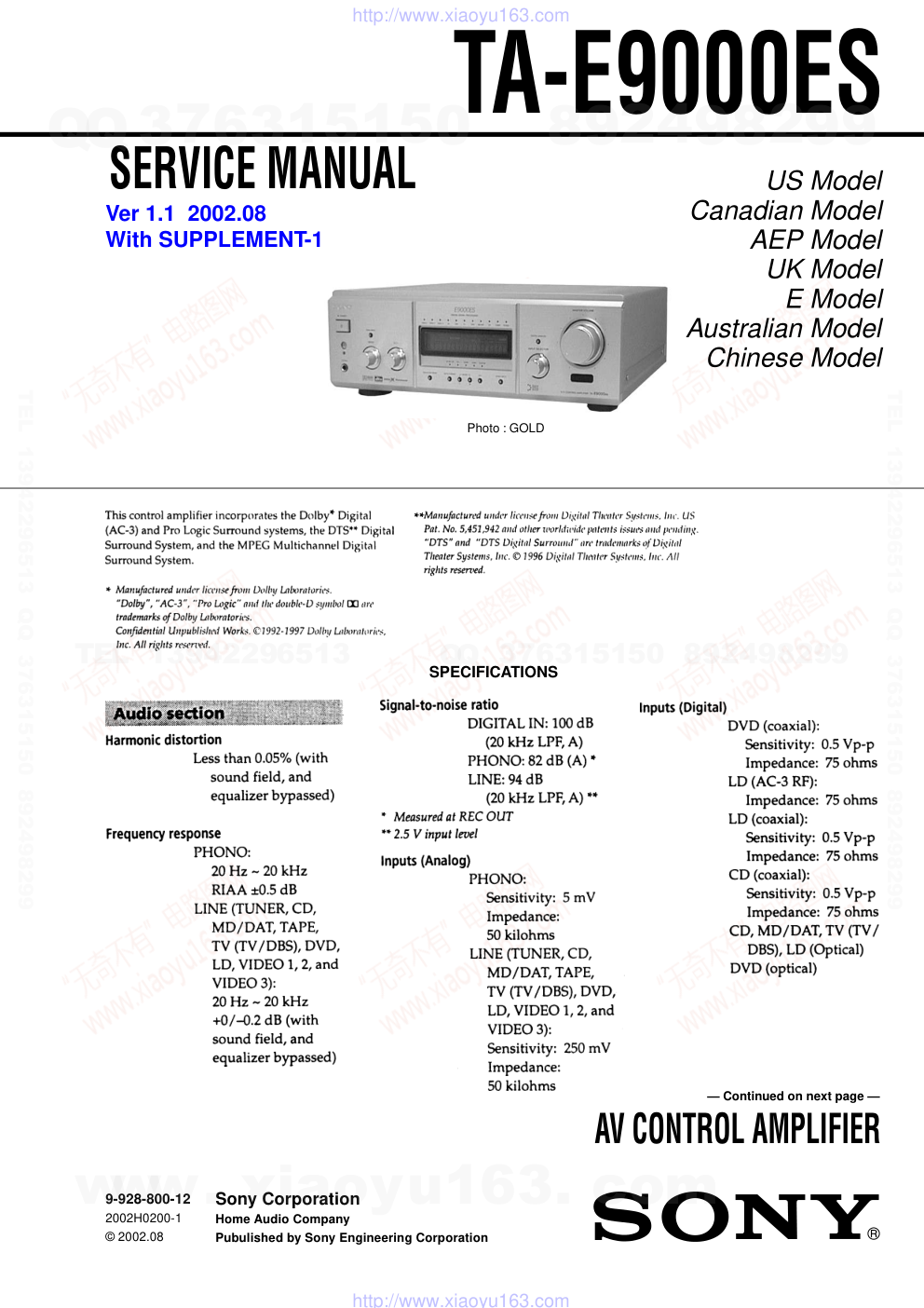

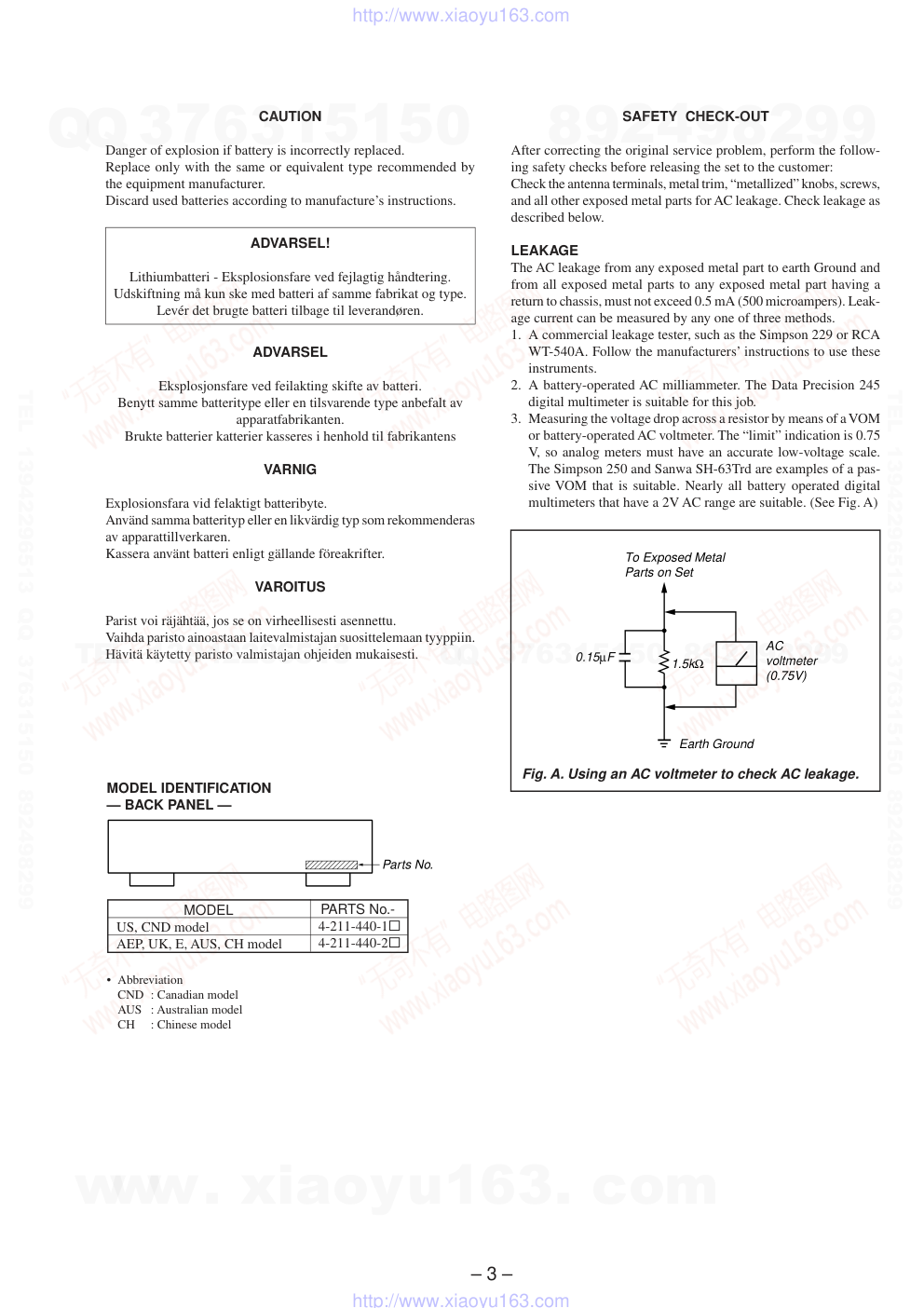

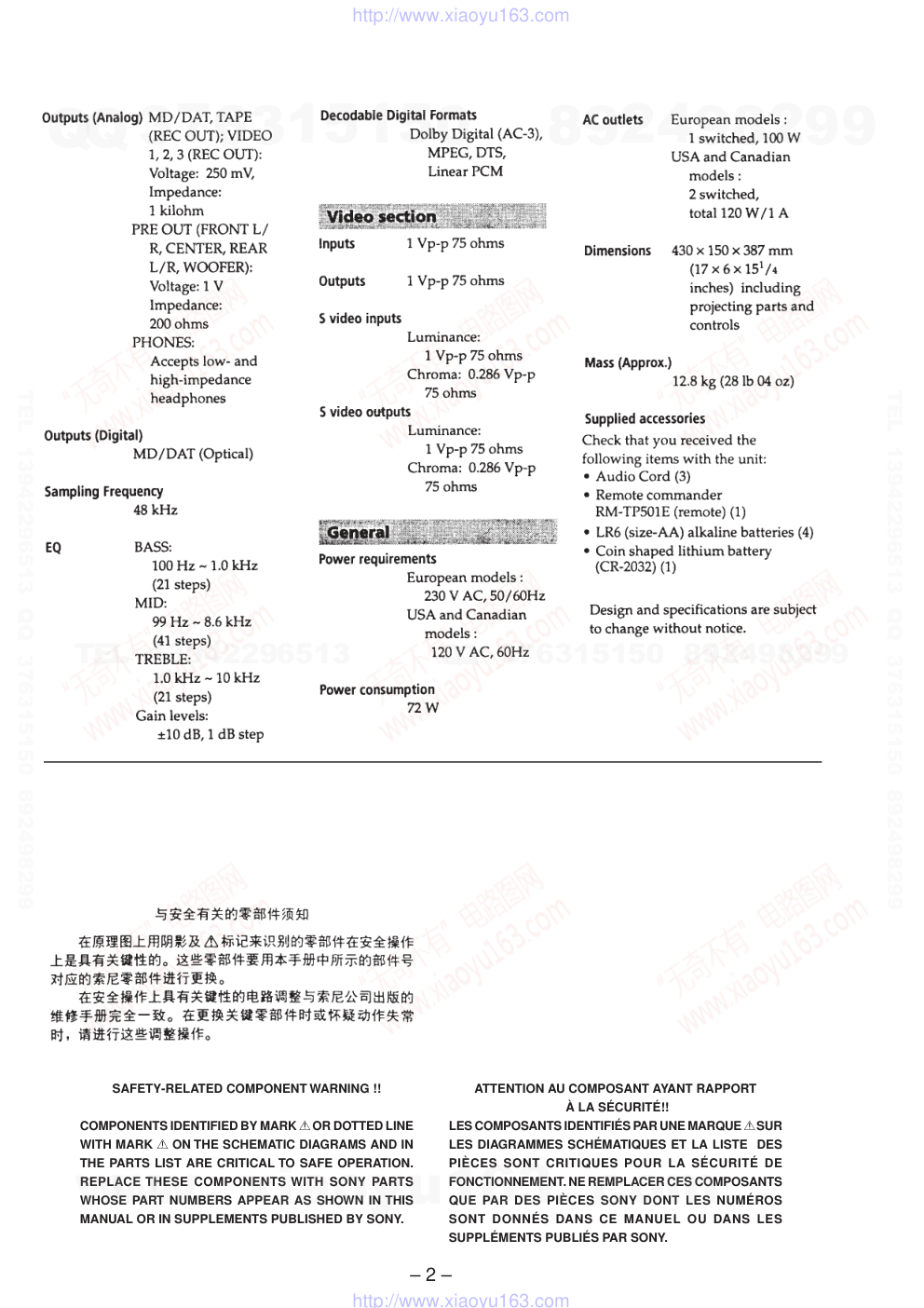

– 1 – TA-E9000ES SPECIFICATIONS SERVICE MANUAL AV CONTROL AMPLIFIER — Continued on next page — US Model Canadian Model AEP Model UK Model E Model Australian Model Chinese Model Photo : GOLD Ver 1.1 2002.08 With SUPPLEMENT-1 9-928-800-12 2002H0200-1 © 2002.08 Sony Corporation Home Audio Company Pubulished by Sony Engineering Corporation www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 2 – SAFETY-RELATED COMPONENT WARNING !! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ!! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE ! SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 3 – SAFETY CHECK-OUT After correcting the original service problem, perform the follow- ing safety checks before releasing the set to the customer: Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE The AC leakage from any exposed metal part to earth Ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microampers). Leak- age current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a pas- sive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) Fig. A. Using an AC voltmeter to check AC leakage. 0.15µF To Exposed Metal Parts on Set 1.5kΩ AC voltmeter (0.75V) Earth Ground PARTS No.- 4-211-440-1π 4-211-440-2π MODEL US, CND model AEP, UK, E, AUS, CH model MODEL IDENTIFICATION — BACK PANEL — • Abbreviation CND : Canadian model AUS : Australian model CH : Chinese model Parts No. CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the equipment manufacturer. Discard used batteries according to manufacture’s instructions. ADVARSEL! Lithiumbatteri - Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med batteri af samme fabrikat og type. Levér det brugte batteri tilbage til leverandøren. ADVARSEL Eksplosjonsfare ved feilakting skifte av batteri. Benytt samme batteritype eller en tilsvarende type anbefalt av apparatfabrikanten. Brukte batterier katterier kasseres i henhold til fabrikantens VARNIG Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en likvärdig typ som rekommenderas av apparattillverkaren. Kassera använt batteri enligt gällande föreakrifter. VAROITUS Parist voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan laitevalmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden mukaisesti. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 4 – SECTION 1 SERVICING NOTE MEASURING VOLTAGE AND WAVEFORM Measure the voltage and waveform of this unit at the following conditions. Connection Diagram: Procedure: 1. Perform initialization. (Refer to the following.) 2. Rotate the INPUT SELECTOR knob and select CD. 3. Set the MASTER VOLUME to -20 dB. 4. Using a YEDS-18 disc (3-702-101-01), etc., input the reference signal 1 KHz 0 dB (Lch + Rch) into “CD DIGITAL Input”. (It is recommended that the CD player be set to the 1-track repeat mode during playback.) Initialization Mode for initializing the state for setting the unit . 1. Press the MAIN MENU button to display “<<>>”. 2. Rotate the MENU knob to display “MEMORY CLEAR[NO]”. 3. Rotate the +/– knob to display “MEMORY CLEAR[YES]”. 4. After about 1 second, “Are you sure [NO]” will be displayed. Rotate the +/– knob to display “Are you sure [YES]”. 5. After about 1 second, the power goes off automatically and initialization is executed. After this, the power turns on again. 1. SERVICING NOTE .......................................................... 4 2. GENERAL .......................................................................... 5 3. ELECTRICAL ADJUSTMENT ................................. 11 4. DIAGRAMS 4-1. Circuit Boards Location ...................................................... 12 4-2. Block Diagrams • Video Section ................................................................... 13 • S-Video Section ............................................................... 15 • Analog (1/3) Section ........................................................ 17 • Analog (2/3) Section ........................................................ 19 • Analog (3/3) Section ........................................................ 21 • Digital (DIR/ADC) Section ............................................. 23 • Digital (DSP) Section ...................................................... 25 • Digital (CPU (1/2)) Section ............................................. 27 • Digital (CPU (2/2)) Section ............................................. 29 • Digital (SRC/DAC) Section ............................................. 31 • Digital (IDAC/OUT) Section ........................................... 33 • Display Section ................................................................ 35 • AC-3RF Section ............................................................... 37 • Power Section .................................................................. 39 4-3. Schematic Diagram – Video Section –................................ 43 4-4. Printed Wiring Board – Video Section – ............................. 45 4-5. Schematic Diagram – (S) Video Section –.......................... 47 4-6. Printed Wiring Board – (S) Video Section – ....................... 49 4-7. Schematic Diagram – Analog (1/3) Section –..................... 51 4-8. Schematic Diagram – Analog (2/3) Section –..................... 53 4-9. Schematic Diagram – Analog (3/3) Switch Section – ........ 55 4-10. Printed Wiring Board – Analog Section – ........................ 57 4-11. Printed Wiring Board – Digital Section – ........................ 59 4-12. Schematic Diagram – Digital (1/8) Section – .................. 63 4-13. Schematic Diagram – Digital (2/8) Section – .................. 65 4-14. Schematic Diagram – Digital (3/8) Section – .................. 67 4-15. Schematic Diagram – Digital (4/8) Section – .................. 69 4-16. Schematic Diagram – Digital (5/8) Section – .................. 71 4-17. Schematic Diagram – Digital (6/8) Section – .................. 73 4-18. Schematic Diagram – Digital (7/8) Section – .................. 75 4-19. Schematic Diagram – Digital (8/8) Section – .................. 77 4-20. Schematic Diagram – Display (1/2) Section – ................. 79 4-21. Schematic Diagram – Display (2/2) Section – ................. 81 4-22. Printed Wiring Board – Display Section – ....................... 83 4-23. Schematic Diagram – AC 3RF Section – ......................... 85 4-24. Printed Wiring Board – AC 3RF Section –....................... 87 4-25. Schematic Diagram – Power Section – ............................ 89 4-26. Printed Wiring Board – Power Section – ......................... 91 4-27. Schematic Diagram – AC Input Section – ........................ 93 4-28. Printed Wiring Board – AC Input Section – ..................... 95 4-29. Schematic Diagram – Clock Section – ............................. 97 4-30. Printed Wiring Board – Clock Section – .......................... 97 4-31. IC Block Diagrams ........................................................... 98 4-32. IC Pin Functions ............................................................. 102 5. EXPLODED VIEWS 5-1. Back Panel Section ........................................................... 117 5-2. Front Panel Section ........................................................... 118 5-3. Chassis Section ................................................................. 119 6. ELECTRICAL PARTS LIST ...................................... 120 TABLE OF CONTENTS TA-E9000ES CD player with optical digital output Optical digital cable (Optional accessory) CD DIGITAL input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 5 – SECTION 2 GENERAL This section is extracted from instruction manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 6 – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 7 – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 8 – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 9 – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 10 – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 11 – OFFSET ADJUSTMENT 1. Connect the CD player, etc. to a digital input terminal. (The op- tical or coaxial terminal can be used for the input terminal.) 2. Switch the function, and select the connected source. 3. Set the connected equipment into the no-signal state. 4. Rotate the adjustment control corresponding to the channel to be adjusted, and adjust the voltage of the corresponding test point to 0 ± 2 mV. SECTION 3 ELECTRICAL ADJUSTMENT Adjustment Location: [ANALOG BOARD] – Component side – Channel Adjusting Point Measuring Point FRONT L ch RV501 (OFFSET L) TP L (JW642) FRONT R ch RV502 (OFFSET R) TP L (JW644) CENTER RV503 (OFFSET C) TP C (JW631) WOOFER RV504 (OFFSET SW) TP SW (JW633) REAR L ch RV505 (OFFSET SL) TP SL (JW609) REAR R ch RV506 (OFFSET SR) TP SR (JW611) JW644 (TPR) JW642 (TPL) JW609 (TP SL) JW611 (TP SR) JW631 (TPC) JW633 (TP SW) RV506 (OFFSET SR) RV505 (OFFSET SL) RV504 (OFFSET SW) RV502 (OFFSET R) RV503 (OFFSET C) RV501 (OFFSET L) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 12 – SECTION 4 DIAGRAMS 4-1. CIRCUIT BOARDS LOCATION DISPLAY board LUMINOUS board VOLUME board FUNCTION SW board HEADPHONE board AC SW board REMOCON RAY-CATCHER board STANDBY LED board DIGITAL board AC3RF board CLOCK board AC INPUT board CAPACITOR board OUTLET board VIDEO board (S) VIDEO board POWER board ANALOG board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 13 – – 14 – 4-2. BLOCK DIAGRAMS – VIDEO SECTION – S-VIDEO SECTION A (Page 16) • SIGNAL PATH : VIDEO :DVD;VIDEO :LD;VIDEO :VIDEO1,2,3 3 11 10 9 5 X5 X0 YB CB YA CA YD CD YC CC EN X1 X X XB XA XD XC EN A B C X7 X6 X4 X2 SEL A SEL B SEL C X1 4 6 C B A VIDEO SW IC401 1 J401 J402 J406 J403 J404 J405 J407 J403 15 J404 14 V1 V2 V3 LD DV LD V J405 J406 2 3 4 5 2 13 10 12 9 1 11 8 6 VIDEO MUTE IC404 VIDEO DRIVER Q401,402 VIDEO DRIVER Q403,404 VIDEO DRIVER Q405,406 VIDEO DRIVER Q407,408 VIDEO DRIVER Q409,410 14 9 10 11 BYPASS SW IC402 6 13 12 5 7 + – VIDEO AMP IC403(2/2) VIDEO BUFFER Q411 VIDEO AMP IC403(1/2) 3 1 + – IN IN IN IN IN IN IN OE ADAPTER SEL A SEL B SEL C MONITOR-MUTE VIDEO3-MUTE VIDEO2-MUTE VIDEO1-MUTE TV DVD LD PROCESSOR VIDEO3 VIDEO2 VIDEO1 OUT OUT OUT OUT OUT OUT PROCESSOR VIDEO 2 VIDEO 3 VIDEO 1 MONITOR w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 15 – – 16 – – S-VIDEO SECTION – 5 Y C Y C Y C Y C Y C Y C Y C C Y C Y C Y C Y C Y C Y C X5 X EN X7 X6 X1 X2 X4 3 6 4 2 14 15 1 C SEL C SEL C SEL B SEL A SEL B SEL A SEL C SEL B SEL A B A C B A C B A C B A 9 10 11 ANALOG SECTION(2/3) VIDEO SECTION • SIGNAL PATH : CHROMA;VIDEO : Y;VIDEO C C Y C Y C Y C Y Y Y Y Y C C Y Y C C C Y Y Y Y Y C C C C Y Y C C C C Y Y 1 3 + – 7 5 + – 1 3 + – 7 5 + – EN 2 YA XA XB CA YB CB YC CC 1 4 13 3 5 9 6 YD CD 10 12 XC 8 XD YA XA XB CA YB CB YC CC YD CD XC XD 11 5 X5 X EN X7 X6 X1 X2 X4 3 6 4 2 14 15 1 5 X5 X EN X7 X6 X1 X2 X4 3 6 4 2 14 15 1 5 QA QF QG QH QB QC QD QE 15 6 14 11 12 13 7 9 10 11 9 10 11 12 X0 X Z X1 Z1 Z0 14 BYPASS SW IC204 Y SWITCH IC203 C SWITCH IC202 VIDEO AMP IC206 Y MUTE IC208 C MUTE IC207 WIDE SW Q223 WIDE SW Q221 L.BOX SW Q224 L.BOX SW Q222 VIDEO BUFFER Q229 VIDEO BUFFER Q230 VIDEO DRIVER Q215,216 VIDEO DRIVER Q213,214 VIDEO DRIVER Q219,220 VIDEO DRIVER Q227,228 VIDEO DRIVER Q225,226 VIDEO DRIVER Q217,218 VIDEO DRIVER Q207,208 VIDEO DRIVER Q205,206 VIDEO DRIVER Q211,212 VIDEO DRIVER Q209,210 DC SWITCH IC201 VIDEO AMP IC205 4 13 6 3 5 9 10 11 1 EXPANDER IC209 LEVEL SHIFT Q201 LEVEL SHIFT Q202 LEVEL SHIFT Q203 LEVEL SHIFT Q204 2 3 4 2 1 4 13 3 5 9 6 10 12 8 11 J206 PROCESSOR J201 J202 DVD TV LD J205 VIDEO1 J204 J203 VIDEO2 S-IN CLK LAT OE WIDE L.BOX HD MODE VIDEO3 J206 PROCESSOR J205 J204 J203 VIDEO3 VIDEO2 VIDEO1 J207 INPUT-DC OE ADAPTER SEL-A SEL-B SEL-C MONITOR-MUTE VIDEO3-MUTE VIDEO2-MUTE VIDEO1-MUTE HD MODE C Y MONITOR OUT2 MONITOR OUT1 S-IN CLK LAT OE ADAPTER CTL SEL A SEL B SEL C B DIGITAL SECTION (CPU(2/2)) C A (Page 19) (Page 29) (Page 13) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 17 – – 18 – – ANALOG (1/3) SECTION – INPUT SELECTOR IC502 2 5 6 J501 RY509 7 30 28 29 26 25 24 1 9 10 8 4 11 22 21 20 27 23 20 14 13 15 3 J503 J503 J504 J511 J510 J509 J504 J507 J511 J510 J509 J507 PHONO EQ IC531 3 1 + – 6 5 7 2 3 1 + – 6 5 7 3 2 1 + – 6 7 2 1 + – + – + – 6 5 7 2 3 1 + – PHONO IN TUNER IN CD IN TV FRONT LD IN DVD IN MD/DAT IN TAPE IN VIDEO 1 IN VIDEO 2 IN PHONO DAT OUT TAPE OUT (COM) (COM) RECCOM DAT OUT RECCOM (COM) (COM) RECCOM TAPE OUT TUNER CD DAT IN TAPE IN TV PHONO TUNER CD DAT IN TAPE IN TV S.DATA S.LAT S.CLK S.DATA S.LAT S.CLK INPUT SELECTOR IC503 1 10 9 28 29 30 21 22 3 7 6 4 5 11 8 24 25 26 27 20 23 14 13 15 2 VIDEO1 VIDEO 1 OUT VIDEO 1 OUT VIDEO 2 OUT VIDEO 2 OUT VIDEO 3 OUT VIDEO 3 OUT (COM) (COM) RECCOM (COM) (COM) RECCOM VIDEO2 VIDEO3 LD DVD VIDEO1 VIDEO2 VIDEO3 LD DVD S.DATA S.LAT S.CLK ANALOG SECTION(2/3) R-CH R-CH R-CH R-CH INPUT BUFFER IC504 LEFT AMP IC508 OFFSET AMP IC533 REC OUT BUFFER IC506 R-CH R-CH R-CH R-CH R-CH R-CH R-CH R-CH R-CH LEFT+ LEFT– DIGITAL SECTION (DIR/ADC) DIGITAL SECTION (DIR/ADC) L R MD/DAT REC OUT L R TAPE REC OUT L R L R L R VIDEO 3 REC OUT VIDEO 2 REC OUT VIDEO 1 REC OUT L R R-CH R-CH R-CH R-CH R-CH R-CH R-CH R-CH R-CH R-CH R-CH L R L R L R L R L R MIC L R L R VIDEO 3 IN L R L S.DATA S.LAT S.CLK RY9 R L R • R CH: Same as L ch • SIGNAL PATH : AUDIO : PHONO : FM : CD : REC;DAT/MD : PB;DAT/MD : REC;TAPE : PB;TAPE : TV/DBS:AUDIO : DVD;AUDIO : VIDEO1,2,3;AUDIO TV DV V TV V1 V2 V3 LD DV V1 V2 V3 D E 1 (Page 23) (Page 24) (Page 20) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 19 – – 20 – – ANALOG (2/3) SECTION – 13 12 14 11 15 DIGITAL SECTION (CPU(2/2)) S-VIDEO SECTION ANALOG SECTION(1/3) ANALOG SECTION(3/3) +5V REG IC529 1 3 +5V REG IC536 1 3 –5V REG IC530 1 3 +12V REG IC527 1 3 –12V REG IC528 1 3 +15V –15V +5V +5V –5V +12V –12V RELAY DRIVE Q551,552 BAY4 OE LAT S-IN CLK RY3 QA QB QC QD QE RELAY MUTE OE 595 LAT DATA 7822-LAT CLK L.BOX HD MODE WIDE OE LAT CLK S-IN S-OUT QG QH RY2 RY1 GC8 RY9 1 RELAY DRIVE Q547,548 BAY6 2 RELAY DRIVE Q545,546 BAY7 3 GAIN DRIVE Q537,538 BC8 4 9 6 7 RELAY DRIVE Q559,560 BAY9 OE 595 LAT DATA 7822-LAT CLK S-IN 5 QF EXPANDER IC526 13 12 11 14 15 RELAY DRIVE Q543,544 BAY8 OE LAT CLK RY8 QA QB QC QD QE S-OUT GS2 GS4 GS8 RY6 1 GAIN CONT Q535,536 BS2 2 GAIN CONT Q533,534 BS4 3 GAIN CONT Q531,532 BS8 QF RY5 5 RELAY DRIVE Q555,556 BAY2 QH RY7 7 9 RELAY DRIVE Q549,550 BAY5 4 RELAY DRIVE Q557,558 BAY1 QG RY4 6 RELAY DRIVE Q553,554 BAY3 S-IN S-IN EXPANDER IC525 13 12 11 15 GAIN CONT Q519,520 BF2 OE LAT CLK QA QB QC QD QE 1 GAIN CONT Q521,522 BF4 2 GAIN CONT Q523,524 BF8 3 GAIN CONT Q525,526 BR2 4 GAIN CONT Q527,528 BR4 EXPANDER IC524 S-OUT QF 5 GAIN CONT Q529,530 BR8 QH 7 9 GAIN CONT Q539,540 BC4 QG 6 GAIN CONT Q541,542 BC2 GF2 RY1-8 RY9 GF8,2,4 S.DATA S.CLK S.LAT GC8,2,4 GS8,2,4 GR8,2,4 GF4 GF8 GR2 GR4 GR8 GC4 GC2 14 F B 2 1 (Page 21) (Page 17) (Page 30) (Page 15) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 21 – – 22 – – ANALOG (3/3) SECTION – J512 J955 5 6 GF8 GF2 GF4 GC8 GC2 GC4 GS8 GS2 GS4 GR8 GR2 GR4 7 2 3 1 + – DIGITAL SECTION (IDAC/OUT) AMP IC513 3 2 7 + – CENTER IC514 5 6 7 + – AMP IC516(1/2) R-CH R-CH R-CH ANALOG SECTION(2/3) FRONT PHONES L R HP-SW R-CH R-CH R-CH R-CH J513 CENTER CENTER WOOFER WOOFER J513 J512 REAR • R CH: Same as L ch • SIGNAL PATH : SURROUND : AUDIO 5 6 7 + – LFE MIX AMP IC521(1/2) 5 6 7 + – HEADPHONE AMP IC523 3 2 7 + – FRONT L IC511 RV501 OFFSET L ADJ 2 3 6 3 2 7 + – SUB WOOFER IC515 3 2 1 + – AMP IC516(2/2) 3 2 1 + – LFE MIX AMP IC521(2/2) LFE MIX AMP IC522 LFE MIX AMP IC520 6 5 7 2 3 1 + – RY501 RY1 RY7 RY8 RY6 RY5 RY4 RY508 RY504 RY505 RY506 RY507 RY502 RY2 5 6 7 2 3 1 + – AMP IC519 R-CH R-CH R-CH R-CH 3 2 7 + – SURROUND L IC517 6 5 7 2 3 1 + – RY503 RY3 PRE-OUT HP-SW L+ L– C+ C– SW+ SW– SL+ SL– R+ R– R-CH SR+ SR– GF8,2,4 GC8,2,4 GS8,2,4 GR8,2,4 RY1-8 R-CH L C C- W -W L L L W C L W C C W L- L- GAIN SW Q501 GAIN SW Q503 GAIN SW Q505 GAIN SW Q507 GAIN SW Q509 GAIN SW Q511 GAIN SW Q508 GAIN SW Q510 GAIN SW Q512 GAIN SW Q513 GAIN SW Q515 GAIN SW Q517 G 2 DIGITAL SECTION (CPU(2/2)) H (Page 29) (Page 33, 34) (Page 20) RV503 OFFSET C ADJ RV504 OFFSET SW ADJ RV505 OFFSET SL ADJ L R w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 23 – – 24 – – DIGITAL (DIR/ADC) SECTION – Y AC-3 RF IN MIC IN ANALIZER OPTICAL IN COAXIAL IN COAXIAL IN COAXIAL IN DSEL A2 DSEL A1 DSELA0 CLKSEL CS BIT LEFT + LEFT – RIGHT + RIGHT – BLSTRT DIRERR LRCKO(5V) BCKO(5V) 256FSO(5V) LD(COAX) MD REC ADC RES OSCSEL OPTICAL IN OPTICAL IN OPTICAL IN OPTICAL IN 5 D0 D4 D5 14 15 D7 D6 13 12 A2 A1 10 A0 11 9 4 D1 3 D2 2 D3 RF IN DATA OUT OPT RECEIVER IC1018 1 8 11 13 12 2 1 MCK SDATA FSYNK SCK 19 ERF 25 CBL 15 C 1 12 11 RXP D1 Q2 CK1 9 26 ADOUT DPD LRCK1 SCLK1 MCK1 INPL INLM INRP INRM 56 10 16 11 15 55 1 2 12 1 3 +3.3V REG IC1006 13 12 14 11 3 2 5 10 6 2 12 8 DIGITAL SECTION (DSP) DIGITAL SECTION (CPU(2/2)) DISPLAY SECTION ANALOG SECTION DIGITAL SECTION (SRC/DAC) ANALOG SECTION(1/3) DIGITAL SECTION (DSP) DIGITAL SECTION (DSP) DIGITAL SECTION (SRC/DAC) DIGITAL SECTION (CPU(1/2)) DIGITAL SECTION (CPU(2/2)) POWER SECTION 15 5 4 16 17 3 2 18 19 1 B EA EB LINE DRIVER IC1015(2/2) IC1022 CLOCK GENERATOR A B A B A 11 9 8 12 2 4 2 1 4 13 7 5 6 1 5 6 6 11 6 J1008 J1009 AC-3RF SECTION 1 R OPT RECEIVER IC1013 1 R OPT RECEIVER IC1011 1 R OPT RECEIVER IC1007 1 R OPT RECEIVER IC1010 1 R J1007 2 4 J1006 2 4 J1005 OPT TRANCEIVER IC1016 LINE DRIVER IC1015(1/2) SELECTOR IC1012 MIC DATA(DIR) CS-CLK LRCKI BCKI 256FSI +3V +5V +5V IN1 R1 T1 TXD RXD CTRL-A1 CTRL-A1 CTRL-A1 IN3 RS232C LINE DRIVER IC1002 S-LINK DETECT IC1001 J1001 J1002 J1003 +18V MON-STATUS +5V +7V –7V POWER CONT +5V +7V –7V DATA(LR) DIR MUT RXD232 TXD232 POWER RY– POWER CONT POWER RY+ CTRLA1(HOT) MD/DAT OPTICAL OUT 3 T 1 2 +5V REG IC1005 1 3 +12V REG IC1051 S-LINK SW Q1001,Q1002 S-LINK DIGITAL AUDIO INTERFACE REVEIVER IC1019 DIGITAL IN IC1014 BUFFER IC1021 BUFFER IC1020 BUFFER IC1017 BUFFER IC1009 DATA CONTROL IC1008 TV/DBS MD/DAT LD DVD LD CD MODULATOR IC1004 SELECTOR IC1012 MIC AMP IC1024 RS232C B 3 4 5 E K 6 8 9 I POWER SECTION T D 6 7 R S STATUS POWCNT • SIGNAL PATH : RF(AC-3) : CD : REC(DAT/MD) : PB (DAT/MD) : TV/DBS : DVD : LD : DIGITAL;AUDIO :AUDIO TV RF DV LD D TV RF DV DV LD LD D D D (Page 37, 38) (Page 17) (Page 25) (Page 29) (Page 25) (Page 31) (Page 27) (Page 39) (Page 39) 2 9 3 IC1023 D, FF IC1025 D Q Q CK 2 5 3 1 (Page 36) (Page 18) (Page 32) (Page 30) (Page 26) 2 4 BUFFER IC1026 2 4 BUFFER IC1027 2 4 BUFFER IC1028 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 25 – – 26 – – DIGITAL (DSP) SECTION – XOE XWE SOA SOB SOC SOD STA SIB ED0 ED8 ED9 ED15 ED16 ED23 ED24 ED31 EA0 EA4 EA5 EA12 EA13 EA16 SIC SID SERIAL TRANSMISSION FORMATE CONVERT IC2009 70 74 2 3 4 118 117 119 120 5 14 9 10 26 99 13 BCKO 113 LRCKO 115 LROUT 109 LRCKI 116 BKOUT 110 BCKI XHDCS XHDWR XHDRD XRST HD0 HD4 HD5 HD7 CLKI HRDY 114 A2 A3 A4 A5 A6 A7 A8 4 3 5 6 7 8 9 Y2 Y3 Y4 Y5 Y6 Y7 Y8 16 17 15 14 13 12 11 D11 DI2 BCKI LRCK 11 12 13 14 MCK 16 HDO4 32 HDI1 33 D01 DATA(DIR) DATA(LR) D02 D03 D04 26 25 30 31 BCKO LRCKO 18 19 DRO 43 RCLKO 42 RFSO 41 DTI 40 TCLK 38 TRFS 37 H2X1 34 HI1S 35 DIGITAL SECTION (DIR/ADC) (Page 24) INVERTER IC3021 2 4 INVERTER IC2006(1/2) BUFFER IC2014 DATA FORMAT TIMING GEN IC2015 13 12 +3.3V REG IC2003 +3.3V REG IC2002 1 3 1 3 IC2017 SCHMITT INVERTER 2 4 11 10 3 4 5 6 9 8 DIGITAL SECTION (SRC/DAC) DIGITAL SECTION (CPU(2/2)) (Page 31) DIGITAL SECTION (SRC/DAC) DIGITAL SECTION (CPU(2/2)) DIGITAL SECTION (DIR/ADC) DIGITAL SECTION (CPU(1/2)) AC-3RF SECTION DIGITAL SECTION (SRC/DAC) 32 40 16 20 23 25 43 49 53 60 62 69 76 80 83 90 92 95 XOE XWE SOA SOB SOC STA LRDATA(3V) CSDATA(3V) SSDATA(3V) READY BCK(3V) LRCK(3V) 256FS(3V) ADDL ADDH BMS DATAL DATAH DSELA2 DSELA1 DSELA0 LD(COAX) MDREC CLKSEL ADCRES OSCSEL BCKI LRCKI 256FSI +5V(DSP) 256FSO(3V) DIGITAL SECTION (CPU(2/2)) INVERTER IC2006(1/2) SELECTOR IC2019 SELECTOR IC2018 BUS TRANSCEIVER IC2008 IC2016 DIGHTAL SIGNAL PROCESSOR HDCS1 HDWR HDCS2 HDRD LATCH4 XOE LATCH5 LATCH3 FLAG3 FLAG1 FLAG0 FLAG2 REDY RD(DSP) CS(DSP) HBG WR(DSP) BUS(8BIT) RF-RES SIB SIC SID CLKI HRDY HD0 HD4 HD5 HD7 XHDWR XHDRD XRST XHDCS SERIAL TRANSMISSION FORMATE CONVERT IC2005 70 74 2 3 4 118 117 119 120 99 13 9 14 26 10 BCKO 113 LRCKO 115 BCKI 114 LRCKI 116 16 20 23 25 62 69 S RAM IC2007,IC2010,IC2013 5 6 1 2 3 5 6 1 2 3 7 2 72 98 73 76 77 83 84 85 13 14 16 17 18 20 21 22 24 25 26 28 29 30 32 33 35 36 37 40 59 158 157 155 154 153 151 150 149 147 146 145 142 141 140 138 137 136 94 93 92 91 90 11 10 9 8 238 237 236 235 234 3 DIR A1 D0 IC2011 SWITCH IC2012 SWITCH D7 CLK OE A8 B1 Q2 Q3 Q4 Q5 Q6 B8 10 21 14 11 17 16 19 18 15 14 13 1 2 9 11 15 14 16 17 13 1 2 9 D0 D7 CLK OE Q2 Q1 Q0 Q3 Q4 Q5 Q6 HBR 1 17 16 19 18 15 14 13 11 Q0 D0 D7 OE CLK Q1 Q2 Q3 Q4 Q5 Q6 9 2 SWITCH IC2001 FLAG3 FLAG2 FLAG1 FLAG0 REDY 71 HBR HBG CS RD WR D32 D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16 RESET EBOOT IRQ2 IRQ1 IRQ0 RCK1 TCK1 DTI RFS1 DR0 RFS0 A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 BMS RCLK0 27 22 10 3 11 13 15 19 25,24,21,23,2,26,1 D0 D2 ED24 ED31 D3 D7 WE OE A0 A7 A8 A14 S RAM IC2004 6 7 10 11 22 23 26 27 D0 D1 D2 D3 D4 D5 D6 D7 12 28 1 4 EA0 EA4 EA5 EA12 EA13 EA16 76 80 83 90 92 95 13 21 29 32 A0 A3 A4 A12A13 A16 WE OE +3.3V +3.3V X2001 3 HD04 HDI1 H2X1 H1IS OSCSEL AC3RES 13 14 15 16 17 DIGITAL SECTION (CPU(2/2)) 12 3 J 10 6 11 DIGITAL SECTION (CPU(2/2)) 12 • SIGNAL PATH : DIGITAL;AUDIO : AUDIO D D D D D D D D D D D D (Page 31) (Page 30) (Page 30) 7 (Page 29) (Page 31) (Page 29) (Page 27) (Page 30) (Page 23) (Page 37) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 27 – – 28 – – DIGITAL (CPU (1/2)) SECTION – 1 3 DISPLAY SECTION DIGITAL SECTION (CPU(2/2)) DIGITAL SECTION (DIR/ADC) DISPLAY SECTION 16 15 5 14 2 33 11 12 11 DATA SELECTOR IC3005 RESET IC3004 INVERTER IC3003 D3003 D3002 D3004 SW Q3005 SW Q3001 SW Q3003 SW Q3008 SW Q3009 SW Q3010 SW Q3011 +5V +5V +5V +5V L:ON H:ON MD1(L) L:ON MD1(L) H:ON RESET H:ON H:ON D3001 9 10 1 2 3 4 5 6 D0 D7 CLK Q2 Q3 Q4 Q6 Q5 11 15 14 16 17 Q1 18 Q7 12 Q0 19 13 OE 1 2 9 D0 D7 CLK Q3 Q5 Q2 Q1 11 17 18 14 16 Q6 13 Q4 15 Q0 19 OE 1 2 9 X3001 7.28MHz BMS CTRL-A1-OUT TXD2 BOOT TXD1 COM-SEL +5V BACKUP RXD232 RESET-OUT CTRL-LAT DIGITAL SECTION (DSP) DIGITAL SECTION (DIR/ADC) DISPLAY SECTION 5 6 4 3 2 1 1 7 6 2 12 11 13 8 9 10 10 9 8 6 7 5 3 4 2 1 AMP Q3002,3004 SIRCS-OUT A1-OUT A1-IN CARRIER-OUT CTRL-LATCH IROUT CTRL-AI(HOT) TXD232 CTRL-A1-IN RXD1 RXD2 RESET MD1 RESET IC3002 SWITCH IC3011 D3005 AMP Q3006,3007 SELECTOR IC3001 IC3012(1/2) IC3012 INVERTER IC3013 SELECTOR IC3013(1/3) IC3013(2/3) IC3013(3/3) CS-A RD-EN CS-F RP CS-H a b A19BT A18EN A18BT A17EN A17BT A16EN A16BT BUS(8BIT) XOE LATCH6 LATCH7 MD1 RX1(C) RESET TX1(C) SWITCH IC3010 M 9 M 18 DIGITAL SECTION (CPU(2/2)) 19 L 9 17 (Page 26) (Page 36) (Page 24) (Page 35) (Page 24) (Page 35) (Page 29) (Page 29) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 29 – – 30 – – DIGITAL (CPU (2/2)) SECTION – DIGITAL SECTION (CPU(1/2)) IC3017 BUFFER IC3009 LEVEL SHIFT 2 3 1 12 11 13 5 6 4 9 8 10 BUFFER IC3020 SWITCH IC3018 SWITCH IC3019 IC3007 LATCH IC3006 LATCH IC3016(1/3) IC3016(2/3) IC3016(3/3) IC3015(3/4) IC3014(3/4) IC3015(1/4) IC3015(4/4) IC3014(4/4) IC3014(1/4) IC3015(2/4) IC3014(2/4) IC3008 CPU INVERTER IC3012(2/2) IC3016 INVERTER IC3015 BUFFER IC3014 BUFFER 9 8 10 12 11 13 2 3 1 5 6 4 DIGITAL SECTION (DSP) ANALOG SECTION(2/3) DIGITAL SECTION (IDAC/OUT) DIGITAL SECTION (SRC/DAC) DIGITAL SECTION (DSP) DIGITAL SECTION (DIR/ADC) DISPLAY SECTION 3 57 3 5 1 7 6 2 9 8 12 11 10 13 4 6 5 2 3 1 1 3 2 5 6 4 13 11 12 9 8 10 D0 D7 XLAT Q3 Q4 Q5 11 14 15 16 Q2 17 Q1 18 Q0 19 OE 1 2 9 D0 D7 XLAT Q3 Q4 Q5 11 14 15 16 Q2 17 Q1 18 Q0 19 OE 1 2 9 CS-A RP CS-F RD-EN CS-H WR(DSP) RD(DSP) CS(DSP) DATAH DATAL BUS(8BIT) REALY MUTE OE XOE REDY LATCH5 LATCH4 HDCS1 HDCS2 HDRD HDWR LATCH3 FLAG0 FLAG1 FLAG2 FLAG3 HBR HBG CS-BIT DIRERR BLSTRT BUSY 595-LAT DATA CLK 7822-LAT DACCLK DACDAT DACLAT DACRES DACINI(5V) SRCLAT(5V) a b A19 A17 A18 A16 A19BT A18EN A18BT A17EN A17BT A16EN A16BT BUS(8BIT) XOE CS-CLK ADDL ADDH READY LATCH6 LATCH7 MD1 RX1(C) RESET TX1(C) 1 11 19 12 Q0 Q7 D0 D7 OE CE OE RP D15/A-1 WE A18 A17 A16 A0 A7 CLK 2 9 17 16 9 2 3 28 13 18 19 20 21 22 23 24 34 35 36 37 74 75 10 33 80 25 27 26 79 65 72 P30/D0 EXTAL XTAL P93/RD P94/WR P52/SCKO P37/D7 39 46 P40/TXD2 P47 P67 P66 P65 P10/A0 P96/WAIT P92/IRQ0 P91/IRQ1 P90/IRQ2 P60 P61 P62 P63 AN4 AN5 AN6 AN7 P80 P81 P51/RXD0 AM3 P86 P64 P17/A7 76 READY 15 P95/AS 11 P50/TXD0 P85/RXDI 4 MD1 78 P84/TXDI 1 RESET 64 57 11 1 2 9 D0 D7 Q0 Q7 OE CLK 19 12 P20/A8 P27/A15 55 48 INPUT-DC HP-SW 31 AN1 30 AN0 X3002 20MHz (Page 28) (Page 24) (Page 26) (Page 26) (Page 28) (Page 16) (Page 21) DIGITAL SECTION (DIR/ADC) 7 DIGITAL SECTION (DSP) 16 DIGITAL SECTION (DSP) 14 S-VIDEO SECTION C ANALOG SECTION(3/3) H DIGITAL SECTION (CPU(1/2)) 19 18 12 F 20 21 11 4 N AC-3RF SECTION RF-ERR 32 AN2 O (Page 25, 26) (Page 19) (Page 33) (Page 31) (Page 25) (Page 23) (Page 35) (Page 37) 44 14 D8 16 D9 18 D10 20 D11 22 D12 25 D13 27 D14 29 D0 15 D1 17 D2 19 D3 21 D4 24 D5 26 D6 28 D7 30 12 31 2 43 34 3 11 4 A8 A15 42 35 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 31 – – 32 – – DIGITAL (SRC/DAC) SECTION – 51 37 38 43 42 ALRKO B+ SRCDAT DACINI(5V) SRCIN (5V) SRCCLK(5V) SRCLAT(5V) DIRMUT 256FS(3V) BCK(3V) LRCK(3V) LRDATA(3V) CSDATA(3V) SSDATA(3V) ABCKO DAOR DAOL 22 BCKO 23 LRCKO 28 XO 26 XI DATAI 4 SEDT 5 SCK 6 XLAT 7 INIT 54 FIMCK 53 BCKI 52 LRCKI ALRKO ABCKO DAOL DAOR BCKO LRCKO XO XI ALRKO ABCKO DAOL DAOR BCKO LRCKO XO XI DATAI DATAI SEDT SCK XLAT INIT FIMCK BCKI LRCKI SEDT SCK XLAT INIT FIMCK BCKI LRCKI SRC MASTER IC4001 BUS TRANSCEIVER IC4003 11 28 26 23 13 12 10 9 4 5 1 2 PULSE DAC IC4002 61 63 2 4 16 18 21 36 39 38 37 40 L1(–) L1(+) L2(+) L2(–) R2(–) R2(+) R1(+) R1(–) XIN FL1– FL1+ FL2+ FL2– FR2– FR2+ FR1+ FR1– XIN CT1– CT1+ CT2+ CT2– SW2– SW2+ SW1+ SW1– SL1– SL1+ SL2+ SL2– SR2– SR2+ SR1+ SR1– 256FSO(5V) BCKO(5V) LRCKO(5V) 23 10 LRCKI BCKI 512FSO 33 INIT 33 INIT 33 INIT DLI DRI L1(–) L1(+) L2(+) L2(–) R2(–) R2(+) R1(+) R1(–) XIN LRCKI BCKI 512FSO DLI DRI L1(–) L1(+) L2(+) L2(–) R2(–) R2(+) R1(+) R1(–) XIN LRCKI BCKI 512FSO DLI DRI 256FSO(3V) CLOCK 51 37 38 43 42 22 23 28 26 4 5 6 7 4 5 6 7 54 53 52 SRC MASTER IC4004 BUS TRANSCEIVER IC4006 PULSE DAC IC4005 61 63 2 4 16 18 21 36 39 38 37 40 23 10 51 37 38 43 42 22 23 28 26 54 53 52 SRC MASTER IC4007 PULSE DAC IC4008 61 63 2 4 16 18 21 36 39 38 37 40 23 10 3 6 INVERTER & BUFFER IC4010 1 12 11 10 9 8 5 8 BUFFER IC4011 3 10 1 12 X7001 DIGITAL SECTION (IDAC/OUT) DIGITAL SECTION (IDAC/OUT) DIGITAL SECTION (DIR/ADC) (Page 33) (Page 23) (Page 33) (Page 34) DIGITAL SECTION (IDAC/OUT) DIGITAL SECTION (IDAC/OUT) DIGITAL SECTION (CPU(2/2)) DIGITAL SECTION (DIR/ADC) DIGITAL SECTION (DSP) (Page 26) (Page 26) (Page 33) (Page 30) (Page 24) DIGITAL SECTION (IDAC/OUT) DIGITAL SECTION (DSP) 3 1 +5V 23 5 24 25 26 DIGITAL SECTION (DSP) (Page 25) (Page 34) 10 15 13 21 22 8 • SIGNAL PATH : DIGITAL;AUDIO XIN XIN D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D Q CK D CLR F/F IC4111 5 1 2 6 A B+ B– IC4103 24 1 2 B+ IC4102 24 1 2 11 28 26 23 13 12 10 9 4 5 1 2 Q CK D CLR F/F IC4112 5 1 2 6 A BUS TRANSCEIVER IC4009 11 28 26 23 13 12 10 9 4 5 1 2 Q CK D CLR F/F IC4113 5 1 2 6 A IC4012 INV 2 4 BUFFER IC4013 4 2 BUFFER IC4013 4 2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 33 – – 34 – – DIGITAL (IDAC/OUT) SECTION – D/A CONVERTER IC5001 1 2 4 5 24 25 27 28 15 IO1+ IO2– IO1– IO2+ C1REF IN1– IN1+ FL1– FL1+ FL2+ FL2– IN2+ IN2– 1 2 7 6 + + – – AMP IC5002 L+ L– D/A CONVERTER IC5003 1 2 4 5 24 25 27 28 15 IO1+ IO2– IO1– IO2+ C1REF IN1– IN1+ FR2– FR2+ FR1+ FR1– IN2+ IN2– ANALOG SECTION(3/3) DIGITAL SECTION (SRC/DAC) (Page 32) (Page 32) 1 2 7 6 + + – – AMP IC5004 R– R+ D/A CONVERTER IC5007 1 2 4 5 24 25 27 28 15 IO1+ IO2– IO1– IO2+ C1REF IN1– IN1+ CT1– CT1+ CT2+ CT2– DACCLK DACDAT DACLAT DACRES IN2+ IN2– DIGITAL SECTION (SRC/DAC) DIGITAL SECTION (CPU(2/2)) 1 2 7 6 + + – – AMP IC5008 D/A CONVERTER IC5009 2 4 13 8 9 11 V OUT2 V OUT1 V OUT3 CLK DI RES 1 2 7 5 6 3 + + – – BUFFER IC5005 10 BS D/A CONVERTER IC5019 2 4 13 8 9 11 V OUT2 V OUT3 V OUT1 CLK DI RES SRCDAT(5V) SRCCLK(5V) 1 3 7 6 5 2 + + – – BUFFER IC5012 10 BS 1 3 7 6 5 2 + + – – BUFFER IC5012 5 DO C+ C– D/A CONVERTER IC5010 1 2 4 5 24 25 27 28 15 IO1+ IO2– IO1– IO2+ C1REF IN1– IN1+ SW2– SW2+ SW1+ SW1– IN2+ IN2– DIGITAL SECTION (SRC/DAC) 1 2 7 6 + + – – AMP IC5011 SW– SW+ D/A CONVERTER IC5013 1 2 4 5 24 25 27 28 15 IO1+ IO2– IO1– IO2+ C1REF IN1– IN1+ SL2– SL2+ SL1+ SL1– IN2+ IN2– ANALOG SECTION(3/3) DIGITAL SECTION (SRC/DAC) 1 2 7 6 + + – – AMP IC5014 SL+ SL– D/A CONVERTER IC5016 1 2 4 5 24 25 27 28 15 IO1+ IO2– IO1– IO2+ C1REF IN1– IN1+ SR1– SR1+ SR2+ SR2– IN2+ IN2– 1 2 7 6 + + – – AMP IC5017 SR– SR+ S+7V +5V REG IC5015 +5V +5V 3 1 +5V REG IC5006 3 1 • SIGNAL PATH : DIGITAL;AUDIO : AUDIO D D D D D D D D D D D D D 26 25 G G 23 24 20 DIGITAL SECTION (SRC/DAC) 22 (Page 30) (Page 31) (Page 21) (Page 32) (Page 32) (Page 21) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 35 – – 36 – – DISPLAY SECTION – 62 70 71 49 50 51 52 53 54 55 41 42 43 44 45 46 48 33 34 35 36 37 1 4 25 40 75 79 69 68 67 72 26 27 1 66 63 64 65 3 4 1 2 15 16 17 18 13 12 11 9 2 3 57 58 59 60 61 9 10 11 13 21 22 23 24 39 74 76 77 78 B A S909 LE2 LE1 RX1 RX2 AI RES FS1 FS2 FS3 FS4 RESET MD1 CTRL-A1-IN RXD2 RXD1 IR-OUT RE1 RE2 MENU DO DI CS SK 5 7 6 1 S910 INPUT SELECTOR IR RECEIVER IC908 (Page 27) DIGITAL SECTION (CPU(1/2)) (Page 27) DIGITAL SECTION (CPU(1/2)) S901 EQUALIZER BANK S902 AUTOFORMAT S903 MODE– S904 MODE+ S907 EEPROM IC905 14 15 1 2 3 4 5 6 7 QA QB QC QD QE QF QG QH S–IN OE CLK LAT S–OUT EXPANDER IC906 SYSTEM CONTROL/MODE CONTROL IC901 MENU S905 2CH D912 D912–D916 D923 D918-D922 IR REPEATER RV901 SP SETUP STANDBY D901-D911 FLUORESCENT INDICATOR TUBE FL901 MASTER VOLUME D913 EQ D914 SURR COSTOM D915 D916 LEVEL D901: VIDEO 1 D902: VIDEO 2 D903: VIDEO 3 DVD D904: D905: LD D907: TAPE D908: MD/DAT D909: CD PHONO D910: D911: TUNER TV D906: S906 AUDIO SPLIT S908 DIGITAL/ANALOG B A S911 BUFFER IC909 3 2 8 7 1 7 INVERTER IC910(2/2) INVERTER IC910(1/2) + / – FUNC-SW4 FUNC-SW3 FUNC-SW2 FUNC-SW1 FUNC-SW4 AN3 RES MD1 MD1 CTRL-A1 IN RXD2 RXD1 DIG/ANA LED AUD-SPLIT LED 2CH LED BU-DO 75 BUSY EXP-DO EXP-OE EXP-LAT EXP-CLK CUSTOM LED LEVEL LED SURR LED EQ LED SETUP LED FL-CLK FL-LAT FL-DAT FL-CLR POW CONT STATUS CTRL LAT CTRL-AI-OUT TXD2 RESOUT COM SEL BOOT TXD1 BU-DI FU-CS FU-SCK MENU-LED MENU-SW MODE+ LED MODE– LED DOL/MPEG LED EQ BANK LED DIG/ANALG SW AUD-SPLIT SW 2CH SW MODE+ SW MODE– SW DOL/MPEG SW EQ BANK SW FUNC-SW3 FUNC-SW2 FUNC-SW1 SW Q928 AMP Q921 AMP Q918 AMP Q920 AMP Q919 STBY-LED VOL UP VOL DOWN 80 STOP STOP STOP 4 30 5 29 8 I 26 CLK LS CL 3 DOUT DIN 26 24 29 34 STB DIN CLR CLK FL SEGMENT DRIVER IC902 FL GRID DRIVER IC903 13 12 11 14 15 1 2 3 4 5 6 7 QA QB QC QD QE QF QG QH OE CLK LAT S–IN EXPANDER IC907 X901 20MHz 3 5 1 I 20 41 I 55 MON-STATUS POWER-CONT CTRL-LAT CTRL-A1-OUT TXD2 RESET-OUT COM-SEL BOOT TXD1 MS PC F1 F2 CL AO TX2 RESO CSEL BOOT TX1 MS PC CL AO TX2 RESO CSEL BOOT TX1 UP IN VOLUME MOTOR DRIVER IC904 UP OUT DOWN OUT DOWN IN M LED DRIVER Q927 LED DRIVER Q901-Q917 M (Page 40) POWER SECTION Q L (Page 24) DIGITAL SECTION (DIR/ADC) K (Page 40) POWER SECTION P BUSY (Page 30) DIGITAL SECTION (CPU(2/2)) N IR-TX w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 37 – – 38 – – AC-3RF SECTION – BUFFER Q6004 BUFFER Q6006 BUFFER Q6005 BUFFER Q6003 5 AMP IC6002 6 6 7 7 1 FL6001 4 6 9 + – BUFFER Q6001 AMP Q6002 10 X6001 18.432MHz 8 7 6 5 4 3 25 24 21 23 2 26 1 11 12 13 15 16 17 18 19 22 27 9 17 3 4 66 19 78 20 21 22 30 31 38 39 43 41 89 88 34 37 35 51 50 49 82 56 70 55 48 47 46 45 44 42 36 18 1 2 VIDEO AMP IC6001(1/2) VIDEO AMP IC6001(2/2) + – + – RF IN +B RF -ERR DIGITAL SECTION (DIR/ADC) DATA OUT RESET OSC ON MUT0 S-RAM IC6004 MUTI A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 DB0 DB1 DB2 DB3 DB4 DB5 DB6 DB7 OE WEB A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 DB0 DB1 DB2 DB3 DB4 DB5 DB6 DB7 OE WEB D OUT B D OUT C PIN DA OUT V OUT V IN DIGITAL SIGNAL PROCESSOR (AC3 RF DEMODULATOR) IC6003 • R CH: Same as L ch • SIGNAL PATH : RF(AC-3);AUDIO : DIGITAL RF RF RF D D DIGITAL SECTION (DIR/ADC) R S RF -RES DIGITAL SECTION (DSP) (Page 26) (Page 40) (Page 23) J DIGITAL SECTION (CPU(2/2)) O (Page 23) +5V +5V –5V –5V SWITCH Q6009, 6010 +5V OUT –5V OUT Q6008 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 39 – – 40 – – POWER SECTION – DISPLAY SECTION DIGITAL SECTION (DIR/ADC) DIGITAL SECTION (DIR/ADC) 2 3 1 + – 3 1 +7V REG IC103 2 1 POWER ON/OFF SWITCH Q115 3 2 –7V REG IC104 POWER ON/OFF SWITCH Q116 3 1 +18V REG IC107 POWER ON/OFF SWITCH Q110 +5V REG Q117,Q119 Q120,Q121,Q122 F REG Q125 F REG Q123 SWITCH Q118 SWITCH Q127 D110 D051 D052 D107 D114 D105 PRE DRIVE IC108(1/2) PRE DRIVE IC108(2/2) POWER CONTROL Q126 POWER CONTROL Q124 3 2 –5V REG IC106 3 2 –18V REG IC109 POWER ON/OFF SWITCH Q108 VOLTAGE REFERENCE D121,D122, D123,R152, R153,R154 SWITCH Q109 POWER CONTROL Q103 4 3 AC IN J001 RY001 US,CND US,CND EXCEPT US,CND EXCEPT US,CND POWER RY+ POWER RY– POWER TRANSFORMER T101 AC OUTLET J001 F001 S001 AC-SW (POWER) AC OUTLET 5 6 7 + – 2 3 1 + – 6 5 7 + – IC101(1/2) ERROR AMP IC101(2/2) ERROR AMP REFERENCE VOLTAGE Q101,D106 REFERENCE VOLTAGE Q102,D111 +15V REG Q107,Q117 –15V REG Q106,Q111 PRE DRIVE Q104,D109 PRE DRIVE Q105,D113 PROTECTOR Q114 PROTECTOR Q113 1 3 +5V REG IC105 3 1 STARTOR IC102 AC18V POWER CONT AC5V AC5V AC18V B–7V B+7V B–5V B+5V STARTOR PH101 STARTOR PH102 D104 D125 D101 D126 +15V –15V +7V –7V +18V –5V –18V +5V(BACKUP) +5V STOP F F DIGITAL SECTION (DIR/ADC) (Page 24) I T P Q (Page 24) (Page 35) (Page 36) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 41 – – 42 – THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.) For schematic diagrams. Note: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • ¢ : internal component. • 2 : nonflammable resistor. • 5 : fusible resistor. • C : panel designation. For printed wiring boards. Note: • X : parts extracted from the component side • ® : Through hole. • ¢ : internal component. • b : Pattern of the rear side. • U : B+ Line. • V : B– Line. • H : adjustment for repair. • Voltages and waveforms are dc with respect to ground in playback mode. • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Abbreviation CND : Canadian model. AUS : Australian model. CH : Chinese model. IC1015 3 qf qg qh qj WAVEFORMS – DIGITAL (1/8) SECTION – IC1004 !∞ IC1004 !¡ IC1004 0 • Indication of transistor Caution: Pattern face side: Parts on the pattern face side seen from the (Side B) pattern face are indicated. Parts face side: Parts on the parts face side seen from the (Side A) parts face are indicated. C These are omitted E B Q C These are omitted E B Note: The components identi- fied by mark ! or dotted line with mark ! are criti- cal for safety. Replace only with part number specified. Note: Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. qk IC1015 5 IC2015 !• 7 8 9 0 – DIGITAL (2/8) SECTION – IC2015 qd IC2015 !¢ IC2015 !§ qa qs qd IC2015 !ª IC2015 $™ IC2015 #• ql w; wa – DIGITAL (4/8) SECTION – IC2005 (ª IC2005 `⁄‚· IC2005 `⁄⁄‚ 5 6 – DIGITAL (6/8) SECTION – IC3008 2 IC3002 !§ IC4002 $º 1 2 3 4 – DIGITAL (7/8) SECTION – IC4001 %¢ IC4001 %£ IC4001 %™ 1 2 – DISPLAY SECTION – IC901 2 IC901 9 6.2 Vp-p 12 MHz 6 Vp-p 3.3 µsec 5 Vp-p 48 KHz 5.2 Vp-p 5 Vp-p 5.5 Vp-p 1.2 µsec 5 Vp-p 75 µsec 5.8 Vp-p 0.3 µsec 5.6 Vp-p 6 µsec 5 Vp-p 75 µsec 5 Vp-p 1.2 µsec 5.5 Vp-p 3 µsec 4.8 Vp-p 0.8 µsec 3.3 Vp-p 150 µsec 3.3 Vp-p 2.3 µsec 4.4 Vp-p 20 MHz 4.2 Vp-p 7.28 MHz 4.6 Vp-p 20 MHz 3.8 Vp-p 0.8 µsec 4.8 Vp-p 4 µsec 3.5 Vp-p 3.6 µsec 3.2 Vp-p 22.5 µsec 4 Vp-p 24.576 MHz Ver 1.1 2002.08 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES 4-3. SCHEMATIC DIAGRAM – VIDEO SECTION – • See page 98 for IC Block Diagrams. – 43 – – 44 – (Page 47) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 45 – – 46 – 4-4. PRINTED WIRING BOARD – VIDEO SECTION – • See page 12 for Circuit Boards Location. Ref. No. Location • Semiconductor Location IC401 B-7 IC402 B-5 IC403 B-6 IC404 C-2 Q401 B-3 Q402 B-3 Q403 B-4 Q404 B-4 Q405 B-3 Q406 B-3 Q407 B-2 Q408 B-2 Q409 B-1 Q410 B-1 Q411 C-3 (Page 50) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 47 – – 48 – 4-5. SCHEMATIC DIAGRAM – (S) VIDEO SECTION – (Page 54) (Page 43) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 49 – – 50 – 4-6. PRINTED WIRING BOARD – (S) VIDEO SECTION – • See page 12 for Circuit Boards Location. Ref. No. Location • Semiconductor Location IC201 B-9 IC202 B-7 IC203 B-6 IC204 B-5 IC205 B-3 IC206 C-4 IC207 D-3 IC208 D-2 IC209 C-8 Q201 C-7 Q202 C-7 Q203 C-6 Q204 C-6 Q205 C-3 Q206 C-3 Q207 D-1 Q208 D-1 Q209 C-1 Q210 C-1 Q211 C-1 Q212 B-1 Q213 C-4 Q214 C-4 Q215 C-2 Q216 C-2 Q217 C-2 Q218 C-2 Q219 B-2 Q220 B-2 Q221 A-9 Q222 A-9 Q223 A-9 Q224 A-9 Q225 C-2 Q226 B-2 Q227 B-1 Q228 B-1 Q229 C-4 Q230 C-4 (Page 58) (Page 46) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 51 – – 52 – 4-7. SCHEMATIC DIAGRAM – ANALOG (1/3) SECTION – • See page 57 for Printed Wiring Board. • See page 98 for IC Block Diagrams. (Page 56) (Page 56) (Page 56) (Page 53) (Page 74) (Page 63) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 53 – – 54 – 4-8. SCHEMATIC DIAGRAM – ANALOG (2/3) SECTION – • See page 57 for Printed Wiring Board. • See page 98 for IC Block Diagrams. (Page 51) (Page 74) (Page 47) (Page 89) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 55 – – 56 – 4-9. SCHEMATIC DIAGRAM – ANALOG (3/3) SECTION – (Page 78) (Page 77) (Page 51) (Page 51) (Page 51) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 57 – – 58 – Ref. No. Location • Semiconductor Location D501 C-9 D502 C-10 D503 C-12 D504 B-9 D505 B-10 D506 B-11 D507 B-12 D508 B-8 D509 D-1 IC502 C-3 IC503 C-6 IC504 E-3 IC506 F-6 IC507 F-2 IC508 F-3 IC511 F-7 IC512 F-8 IC513 E-8 IC514 F-9 IC515 F-10 IC516 E-10 IC517 F-11 IC518 F-12 IC519 E-12 IC520 C-8 IC521 C-11 IC522 C-11 IC523 B-9 IC524 H-8 IC525 H-8 IC526 H-9 IC527 G-10 IC528 H-10 IC529 H-10 IC530 H-10 IC531 C-2 IC532 F-2 IC533 F-3 IC536 E-3 Q501 D-9 Q502 D-7 Q503 D-8 Q504 D-7 Q505 D-8 Q506 D-8 Q507 D-10 Q508 D-9 Q509 D-10 Q510 D-9 4-10. PRINTED WIRING BOARD – ANALOG SECTION – • See page 12 for Circuit Boards Location. Ref. No. Location Q511 D-10 Q512 D-10 Q513 D-12 Q514 D-11 Q515 D-12 Q516 D-11 Q517 D-12 Q518 D-11 Q519 H-5 Q520 H-5 Q521 H-5 Q522 H-5 Q523 H-4 Q524 H-4 Q525 H-4 Q526 H-4 Q527 H-3 Q528 H-3 Q529 H-3 Q530 H-3 Q531 H-3 Q532 H-2 Q533 H-2 Q534 H-2 Q535 H-1 Q536 H-1 Q537 H-1 Q538 H-1 Q539 H-1 Q540 H-1 Q541 H-1 Q542 H-1 Q543 G-1 Q544 G-1 Q545 G-1 Q546 G-1 Q547 G-2 Q548 G-2 Q549 G-2 Q550 G-2 Q551 H-3 Q552 H-3 Q553 G-3 Q554 G-3 Q555 G-3 Q556 G-3 Q557 G-4 Q558 G-4 Q559 G-1 Q560 G-1 (Page 59) (Page 60) (Page 59) (Page 49) (Page 60) (Page 92) (Page 60) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 59 – – 60 – 4-11. PRINTED WIRING BOARD – DIGITAL SECTION – • See page 12 for Circuit Boards Location. Ref. No. Location • Semiconductor Location IC1005 B-11 IC1006 B-10 IC1007 A-8 IC1010 A-6 IC1011 A-6 IC1013 A-5 IC1016 A-5 IC1018 A-3 IC2002 B-7 IC2003 B-6 IC3019 G-3 IC4003 E-12 IC4006 D-10 IC4009 D-8 IC4010 D-7 IC4102 D-13 IC4103 D-13 IC4111 D-12 IC4112 D-11 IC4113 D-8 IC5001 G-12 IC5003 G-11 IC5005 H-12 IC5006 I-11 IC5007 G-10 IC5009 I-10 IC5010 G-9 IC5012 H-10 IC5013 G-8 IC5016 G-7 IC5018 H-8 IC5019 I-7 (Page 87, 88) (Page 57) (Page 83) (Page 57, 58) (Page 98) (Page 58) (Page 58) (Page 98) (Page 98) (Page 91) (Page 96) (Page 57) (Page 91) (Page 91) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 61 – – 62 – Ref. No. Location • Semiconductor Location D1001 A-2 D1006 B-2 D1007 B-2 D1008 B-2 D1009 A-2 D1013 B-11 D1014 B-12 D2001 E-13 D2002 E-13 D3001 H-8 D3002 H-8 D3003 G-8 D3004 G-8 D3005 H-8 IC1001 A-1 IC1002 A-3 IC1004 B-1 IC1008 B-9 IC1009 A-6 IC1012 B-10 IC1014 B-9 IC1015 B-10 IC1017 A-7 IC1019 A-12 IC1020 A-8 IC1021 A-10 IC1022 B-12 IC1023 B-11 IC1024 A-13 IC1025 A-11 IC1026 A-6 IC1027 A-7 IC1028 A-10 IC1051 C-4 IC2001 E-8 IC2004 C-8 IC2005 D-8 IC2006 E-8 IC2007 C-7 IC2008 E-9 IC2009 D-10 IC2010 C-7 IC2011 F-10 IC2012 E-10 IC2013 C-11 IC2014 C-12 IC2015 C-13 IC2016 E-12 IC2017 E-9 IC2018 E-8 IC2019 E-9 Ref. No. Location IC3001 I-8 IC3002 H-8 IC3003 G-8 IC3004 G-7 IC3005 F-8 IC3006 I-10 IC3007 I-11 IC3008 H-12 IC3009 G-12 IC3010 G-9 IC3011 F-9 IC3012 F-9 IC3013 F-9 IC3014 H-9 IC3015 G-9 IC3016 G-10 IC3017 G-10 IC3018 G-11 IC3020 F-10 IC3021 D-13 IC4001 D-2 IC4002 E-2 IC4004 D-4 IC4005 E-4 IC4007 D-6 IC4008 E-6 IC4011 D-8 IC4012 F-7 IC4013 E-7 IC5002 I-2 IC5004 I-3 IC5008 I-4 IC5011 I-5 IC5014 I-6 IC5015 I-7 IC5017 I-7 Q1001 A-1 Q1002 A-1 Q2002 F-11 Q3001 G-8 Q3002 G-8 Q3003 G-8 Q3004 G-8 Q3005 G-8 Q3006 I-8 Q3007 I-8 Q3008 H-10 Q3009 H-10 Q3010 H-11 Q3011 H-10 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 63 – – 64 – 4-12. SCHEMATIC DIAGRAM – DIGITAL (1/8) SECTION – • See page 41 for Waveforms. • See page 59 for Printed Wiring Board. • See page 99 for IC Block Diagrams. (Page 94) (Page 90) (Page 90) (Page 75, 76) (Page 52) (Page 90) (Page 70) (Page 70) (Page 66) (Page 66) (Page 76) (Page 73) (Page 85) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 65 – – 66 – 4-13. SCHEMATIC DIAGRAM – DIGITAL (2/8) SECTION – • See page 42 for Waveforms. • See page 59 for Printed Wiring Board. • See page 105 for IC Pin Functions. (Page 67) (Page 67) (Page 74) (Page 69) (Page 71) (Page 71) (Page 72) (Page 72) (Page 74) (Page 64) (Page 64) (Page 68) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 67 – – 68 – 4-14. SCHEMATIC DIAGRAM – DIGITAL (3/8) SECTION – • See page 59 for Printed Wiring Board. • See page 100 for IC Block Diagrams. • See page 102 for IC Pin Functions. (Page 69) (Page 69) (Page 70) (Page 65) (Page 65) (Page 66) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 69 – – 70 – 4-15. SCHEMATIC DIAGRAM – DIGITAL (4/8) SECTION – • See page 42 for Waveforms. • See page 59 for Printed Wiring Board. • See page 102 for IC Pin Functions. (Page 73) (Page 74) (Page 65) (Page 67) (Page 67) (Page 69) (Page 64) (Page 76) (Page 64) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 71 – – 72 – 4-16. SCHEMATIC DIAGRAM – DIGITAL (5/8) SECTION – • See page 59 for Printed Wiring Board. • See page 106 for IC Pin Functions. (Page 74) (Page 74) (Page 65) (Page 65) (Page 66) (Page 66) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 73 – – 74 – 4-17. SCHEMATIC DIAGRAM – DIGITAL (6/8) SECTION – • See page 42 for Waveforms. • See page 59 for Printed Wiring Board. • See page 109 for IC Pin Functions. (Page 64) (Page 69) (Page 82) (Page 76) (Page 78) (Page 53) (Page 69) (Page 65) (Page 52) (Page 66) (Page 71) (Page 71) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 75 – – 76 – 4-18. SCHEMATIC DIAGRAM – DIGITAL (7/8) SECTION – • See page 42 for Waveforms. • See page 59 for Printed Wiring Board. • See page 100 for IC Block Diagrams. • See page 111 for IC Pin Functions. (Page 63, 64) (Page 69) (Page 73) (Page 78) (Page 78) (Page 77, 78) (Page 97) (Page 97) (Page 97) (Page 77) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 77 – – 78 – 4-19. SCHEMATIC DIAGRAM – DIGITAL (8/8) SECTION – • See page 59 for Printed Wiring Board. • See page 101 for IC Block Diagrams. (Page 75) (Page 75) (Page 75, 76) (Page 76) (Page 73) (Page 55) (Page 55) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 79 – – 80 – 4-20. SCHEMATIC DIAGRAM – DISPLAY (1/2) SECTION – • See page 42 for Waveforms. • See page 83 for Printed Wiring Board. • See page 101 for IC Block Diagrams. • See page 113 for IC Pin Functions. (Page 81) (Page 81) (Page 81) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 81 – – 82 – 4-21. SCHEMATIC DIAGRAM – DISPLAY (2/2) SECTION – • See page 83 for Printed Wiring Board. (Page 73) (Page 80) (Page 80) (Page 80) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 83 – – 84 – Ref. No. Location • Semiconductor Location D901 A-9 D902 A-8 D903 A-8 D904 A-7 D905 A-7 D906 A-6 D907 A-6 D908 A-5 D909 A-5 D910 A-4 D911 A-4 D912 C-7 D913 C-7 D914 C-6 D915 C-6 D916 C-5 D917 C-5 D924 B-9 D925 A-2 D935 D-3 IC901 B-11 IC902 B-7 IC903 B-5 IC904 B-2 IC905 C-11 IC906 A-10 IC907 A-10 IC909 D-3 IC910 C-5 Q901 A-9 Q902 A-9 Q903 A-8 Q904 A-8 Q905 A-8 Q906 A-8 Q907 A-7 Q908 A-7 Q909 A-7 Q910 A-7 Q911 A-6 Q912 A-6 Q913 A-6 Q914 A-5 Q915 A-5 Q916 A-4 Q917 A-4 Q918 C-9 Q919 C-8 Q920 C-8 Q921 C-8 Q927 D-3 Q928 B-9 4-22. PRINTED WIRING BOARD – DISPLAY SECTION – • See page 12 for Circuit Boards Location. (Page 59) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 85 – – 86 – (Page 64) 4-23. SCHEMATIC DIAGRAM – AC 3RF SECTION – • See page 115 for IC Pin Functions. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 87 – – 88 – 4-24. PRINTED WIRING BOARD – AC 3RF SECTION – • See page 12 for Circuit Boards Location. • Semiconductor Location Ref. No. Location D6001 B-1 D6002 A-2 IC6001 C-2 IC6002 C-2 IC6003 A-2 IC6004 A-1 Q6001 D-2 Q6002 C-2 Q6003 C-2 Q6004 C-3 Q6005 C-2 Q6006 C-2 Q6007 C-1 Q6008 D-2 Q6009 C-1 Q6010 D-1 (Page 59) (Page 59) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 89 – – 90 – 4-25. SCHEMATIC DIAGRAM – POWER SECTION – (Page 93) (Page 93) (Page 63) (Page 63) (Page 63) (Page 54) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 91 – – 92 – 4-26. PRINTED WIRING BOARD – POWER SECTION – • See page 12 for Circuit Boards Location. • Semiconductor Location Ref. No. Location D101 B-10 D102 B-11 D103 A-11 D104 A-11 D105 D-12 D106 B-11 D107 C-11 D108 A-11 D109 B-10 D110 D-11 D111 B-9 D112 B-9 D113 B-9 D114 D-4 D115 A-5 D116 B-6 D117 C-5 D118 B-6 D119 B-2 D120 B-3 D121 C-2 D122 C-2 D123 C-2 D124 B-1 D125 A-11 D126 B-10 D127 C-3 D128 C-1 IC101 B-10 IC102 D-8 IC103 A-5 IC104 B-5 IC105 D-5 IC106 A-2 IC107 B-2 IC108 C-2 IC109 B-1 Q101 A-11 Q102 B-10 Q103 D-11 Q104 B-9 Q105 B-8 Q106 B-9 Q107 A-9 Q108 D-9 Q109 D-9 Q110 D-8 Q111 B-7 Q112 A-7 Q113 B-7 Q114 A-7 Q115 A-6 Q116 B-6 Q117 C-5 Q118 D-5 Q119 C-4 Q120 B-4 Q121 A-4 Q123 C-1 Q124 C-1 Q125 C-1 Q126 C-1 Q127 D-4 (Page 60) (Page 60) (Page 60) (Page 95) (Page 95) (Page 58) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 93 – – 94 – 4-27. SCHEMATIC DIAGRAM – AC INPUT SECTION – • See page 95 for Printed Wiring Board. (Page 89) (Page 89) (Page 63) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES – 95 – – 96 – 4-28. PRINTED WIRING BOARD – AC INPUT SECTION – • See page 12 for Circuit Boards Location. (Page 92) (Page 92) (Page 60) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 97 – (Page 59) (Page 60) (Page 60) 4-30. PRINTED WIRING BOARD – CLOCK SECTION – • See page 12 for Circuit Boards Location. 4-29. SCHEMATIC DIAGRAM – CLOCK SECTION – (Page 75) (Page 75) (Page 76) TA-E9000ES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 98 – 4-31. IC BLOCK DIAGRAMS • VIDEO section IC201 MC14051BCP 1 2 3 4 5 6 7 8 X4 X6 X7 X5 INH VEE VSS VDD X2 X0 X7 X3 A B C COM 9 10 11 12 13 14 15 16 IC204 uPD4053BC 1 2 3 4 5 6 7 8 B1 B0 C.COM CO INH VEE VSS VDD B.COM A.COM A1 A0 A B C C1 9 10 11 12 13 14 15 16 OPEN OPEN OPEN IC207 MC14066BCP 1 IN/OUT 7 VSS 6 CONTROL IN 5 CONTROL IN 4 IN/OUT 3 OUT/IN 2 OUT/IN 8 IN/OUT 14 VDD 13 CONTROL IN 12 CONTROL IN 11 IN/OUT 10 OUT/IN 9 OUT/IN • ANALOG section IC502 LC7822 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 CONTROL LATCH SHIFT RESISTOR LEVEL SHIFT CL DI CE VEE OUT IN OUT IN OUT IN VSS S RESET VDD OUT IN IN OUT IN OUT IN IC524 MC74HC595AF 1 2 3 4 5 6 7 8 9 10 16 15 14 13 12 11 SHIFT REGISTER LATCH PARALLEL DATA OUTPUT GND VCC LATCH CLOCK PARALLEL DATA OUTPUT SERIAL DATA INPUT OUTPUT ENABLE SHIFT CLOCK SERIAL DATA OUTPUT RESET QB QC QD QE QF QG QH SQH A QA www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 99 – • DIGITAL section IC1001 NJM2129M INHIBIT 1 9 INHIBIT REGULATOR VCC 2 VCC 1 REG-SW IN 1 14 13 12 11 10 11 IN 2 115 4 INHIBIT 8 6 7 IN 3 IN 4 OUT 1 OUT 2 INHIBIT 2 COMP REG OUT 111 GND 2 NC 3 IC1002 ADM202EARN-REEL 1 3 4 5 11 10 12 9 C1+ C1- C2+ C2- T1 IN T2 IN R1 OUT R2 OUT T1 T2 R2 R1 16 2 6 14 7 13 8 15 VCC V+ V- T1 OUT T2 OUT R1 IN R2 IN GND +5V TO +10V VOLTAGE DOUBLER +10V TO -10V VOLTAGE DOUBLER IC1004 CXD8607N 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 INRP INRM REFI AVDD AVSS APD NU NU TEST1 LRCK1 BCK1 ADDT V35A VSS1 (LF) MCKI DPD VSS2(LF) INIT MODE SHIFT LATCH 256CK V35D VSS2 512CK BCK2 DADT LRCK2 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 INLP INLM REFO LVSS LVDD AVSS(LF) NU NU VSS1(LF) TEST3 TEST2 VSS1 VDD1 VDD1 VDD2 L1 AVDDL L2 AVSSL XVSS XIN XOUT XVDD AVSSR R2 AVDDR R1 VDD2 MODULATOR MODULATOR DECIMATION FILTER DECIMATION FILTER LOW CUT FILTER LOW CUT FILTER VOLTAGE REFERENCE I/O I/O ATT PLM OVER SAMP FILTER MOIZE SHAPER CPU INTERFACE + – + – ATT PLM OVER SAMP FILTER NOIZE SHAPER 1 2 3 4 5 6 7 8 16 15 14 13 12 11 10 9 D3 D2 D1 D0 Y W S C D4 D5 D6 D7 A B D3 D2 D1 D0 Y XY OE GND VCC D4 D5 D6 D7 A B C IC1014 MC74HC151FEL IC1019 CS8414-CSR RS422 RECEIVER CLOCK & DATA RECOVERY DE-MUX MUX MUX AUDIO SERIAL PORT REGISTERS VD+ 7 VA+ 22 DGND 8 FILT 20 AGND 21 MCK 19 SDATA 26 SCK 12 FSYNC 11 C 1 U 14 VERF 28 CBL 15 ERF 25 CE/F2 27 CD/F1 2 CC/F0 3 CB/E2 4 CA/E1 5 C0/E0 6 SEL 16 CS12/FCK 13 RXN 10 RXP 9 M3 17 M2 18 M1 24 M0 23 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 100 – 1 2 3 4 5 6 7 8 9 10 23 22 21 20 19 18 17 16 15 14 A1 VCCA A2 A3 A4 A5 A6 OE VCCB B1 B2 B3 B4 B5 B6 B7 A7 11 12 GND 13 GND GND BO 24 VCCB AO T/R IC2008 MC74LVX4245-DT 1 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 ATT/ MODE SAMPLE RATE DET & RESAMPLE POINTER GENERATOR IIR/FIR FILTER CONTROL (RAM/ROM/ ACC) OUTPUT I/F (PISO) ATT & DEMP & 1Fsi to 8Fsi FILTER BLOCK SRC & DECIMATION LOW PASS FILTER BLOCK FLAME COUNTER INPUT I/F (SIPO) OUTPUT I/F (PISO) DO SEL SRDT SWDT SCK XLAT INIT NC VDD NC RBPH STA FRS FRM SLAVE TEST5 TB3 FS2 FS1 DEMP TEST3 DAOL DAOR NC VDD NC ABCKO ALRKO MAO1 MAO0 TB4 TB5 TB7 MDO0 MDO1 MUTE DATAO BCKO LRCKO TEST4 GND XI GND XO XOO VDD NC TB6 TB0 TBO DI0 MI1 MI0 FIS TEST1 TEST2 GND FIMO FIMCK BCKI LRCKI DATAI TB1 TB2 IC4001 MSM9404BGS-BK 1 2 3 4 5 6 7 8 9 10 20 19 18 17 16 15 14 13 12 11 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 56 55 54 53 52 51 50 49 48 47 57 58 59 60 61 62 63 64 S/P TIMING CIRCUIT INTERPOLATER INTERPOLATER THIRD ORDER NOISE SHAPER THIRD ORDER NOISE SHAPER PLM PLM CLOCK GENERATOR SYNC COEF SPLM 18/20 DVDDR VSUB (D) R VSUB (CHIP) R VDD2 VDD R1 (–) VSS R1 (+) VSS2 VSS2 L1 (+) VSS L1 (–) VDD VDD2 VSUB (CHIP) L VSUB (D) L DVDDL TEST3 TEST2 TEST1 DATAOUT ON/OFF VSS2 L2 (+) VSS L2 (–) VDD VDD2 VSUB (A) L XVDD XOUT XIN XVSS XVSS VSUB (A) R VDD2 VDD R2 (–) VSS R2 (+) VSS2 DRI LRCKI MUTEL MUTER INIT DVSSL DVSSR 512FSO BCKI DLI DRO LRCKO INAF DINIT 128FS DPO/BCKO DM2/SDRO DM1/SDLO DLO IC4002 CXD2562Q www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 101 – IC5001 CXA8042AS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 28 27 26 25 24 23 22 21 20 19 18 17 16 15 SWITCHING CIRCUIT CONSTANT CURRENT CIRCUIT REFERENCE VOLTAGE CIRCUIT CONTROL CIRCUIT I01+ IN2– IN2+ NC IN1+ IN1– NC C4 C3 GND2 VEE2 VEE1 C6 C5 CIREF I02– NC I01– I02+ NC VCC2 C2 C1 VCC1 VREF VCNT GND1 RIREF 11BIT R-2R SEGMENT D-A CONVERTER VDAREF 14 VIN1 12 VOUT1 13 RESET 11 BS 10 DI 9 VDD 7 GND 6 DO 5 VOUT3 4 VIN3 3 VOUT2 2 VIN2 1 CLK 8 11BIT LATCH D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 11BIT SHIFT RESISTOR 11BIT LATCH 11BIT LATCH 1280 DISCRIMINATION R-2R SEGMENT D-A CONVERTER 1280 DISCRIMINATION R-2R SEGMENT D-A CONVERTER ADDRESS DECODE (11) • DISPLAY section IC904 BA6208 IC5009 M62362P 1 2 3 4 5 6 7 8 9 NC OUTPUT 2 Vcc GND NC INPUT 2 INPUT 1 NC MOTOR DRIVE MOTOR DRIVE REG SWITCH SWITCH OUTPUT1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 102 – Pin No. Pin Name I/O Function 1 VSS3 — Ground 2 SOA O Serial data output 3 SOB O Serial data output 4 SOC O Serial data output 5 SOD O Serial data output 6 ECJ0 I Junpe condition input terminal 7 ECJ1 I Junpe condition input terminal 8 NC — Not used 9 XHDWR I HCIF Data write 10 XHDRD I HCIF Data read 11 VSS4 — Ground 12 VDD2 — Power supply (+3.3V) 13 HRDY O HCIF Ready signal Open drain 14 XHDCS I HCIF Chip select 15 HA0 I HCIF Address input 16 HD0 I/O HCIF Address output 17 HD1 I/O HCIF Address output 18 HD2 I/O HCIF Address output 19 HD3 I/O HCIF Address output 20 HD4 I/O HCIF Address output 21 VSS5 — Ground 22 VDD3 — Power supply (+3.3V) 23 HD5 I/O Data input/output 24 HD6 I/O Data input/output 25 HD7 I/O Data input/output 26 XRST I Reset input “L” active 27 FGP0 O Test data output 28 FGP1 O Test data output 29 FGP2 O Test data output 30 FGP3 O Test data output 31 VSS6 — Ground 32 ED0 I/O External RAM data input/output 33 ED1 I/O External RAM data input/output 34 ED2 I/O External RAM data input/output 35 ED3 I/O External RAM data input/output 36 ED4 I/O External RAM data input/output 37 ED5 I/O External RAM data input/output 38 ED6 I/O External RAM data input/output 39 ED7 I/O External RAM data input/output 40 ED8 I/O External RAM data input/output 41 VSS7 — Ground 42 VDD4 — Power supply (+3.3V) 43 ED9 I/O Power supply (+3.3V) 44 ED10 I/O Power supply (+3.3V) 45 ED11 I/O Power supply (+3.3V) 46 ED12 I/O Power supply (+3.3V) 47 ED13 I/O Power supply (+3.3V) 48 ED14 I/O Power supply (+3.3V) 49 ED15 I/O Power supply (+3.3V) 4-32. IC PIN FUNCTIONS • IC2005, 2009 CXD2712R (DIGITAL Board) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 103 – Pin No. Pin Name I/O Function 50 TSTD I Test data input “L” = normal “H” = test 51 VSS8 — Ground 52 VDD5 — Power supply (+3.3V) 53 ED16 I/O External RAM data input/output 54 ED17 I/O External RAM data input/output 55 ED18 I/O External RAM data input/output 56 ED19 I/O External RAM data input/output 57 ED20 I/O External RAM data input/output 58 ED21 I/O External RAM data input/output 59 ED22 I/O External RAM data input/output 60 ED23 I/O External RAM data input/output 61 VSS9 — Ground 62 ED24 I/O External RAM data input/output 63 ED25 I/O External RAM data input/output 64 ED26 I/O External RAM data input/output 65 ED27 I/O External RAM data input/output 66 ED28 I/O External RAM data input/output 67 ED29 I/O External RAM data input/output 68 ED30 I/O External RAM data input/output 69 ED31 I/O External RAM data input/output 70 XOE O External RAM output enable 71 VSS10 — Ground 72 VDD6 — Power supply (+3.3V) 73 CAS O External RAM column address strobe 74 XWE O External RAM write enable 75 RAS O External RAM raw adress storobe 76 EA0 I/O External RAM address output/test data input 77 EA1 I/O External RAM address output/test data input 78 EA2 I/O External RAM address output/test data input 79 EA3 I/O External RAM address output/test data input 80 EA4 I/O External RAM address output/test data input 81 VSS11 — Ground 82 VDD7 — Power supply (+3.3V) 83 EA5 I/O External RAM address output/test data input 84 EA6 I/O External RAM address output/test data input 85 EA7 I/O External RAM address output/test data input 86 EA8 I/O External RAM address output/test data input 87 EA9 I/O External RAM address output/test data input 88 EA10 I/O External RAM address output/test data input 89 EA11 I/O External RAM address output/test data input 90 EA12 O External RAM address output 91 VSS0 — Ground 92 EA13 O External RAM address output 93 EA14 O External RAM address output 94 EA15 O External RAM address output 95 EA16 O External RAM address output 96 TSTA I Test data input “L” = normal “H” = test 97 PLDIVF I PLL input frequency setup “L” = 256Fs “H” = 128Fs 98 PLDIVB I PLL output frequency setup “L” = 768Fs “H” = 1024Fs 99 CLKI I Master clock input 100 CLKO O Master clock output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 104 – Pin No. Pin Name I/O Function 101 VSS1 — Ground 102 VDD0 — Power supply (+3.3V) 103 AVSS — PLL sel ground 104 AVDD — PLL sel VDD 105 PLLCK I/O PLL output/test clock input 106 XPLLEN I PLL sel oscillation enable “L” oscillation enabling “H” osicllation stop 107 TST I Test data input “L” = normal “H” = test 108 LRCT I Frequency counter input 109 LROUT O LRCK0 Dividing output 110 BKOUT O BCK0 Dividing output 111 VSS2 — Ground 112 VDD1 — Power supply (+3.3V) 113 BCK0 I BCK input 114 BCK1 I BCK input 115 LRCK0 I LRCK input 116 LRCK1 I LRCK input 117 SIA I Serial data input 118 SIB I Serial data input 119 SIC I Serial data input 120 SID I Serial data input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 105 – • IC2015 CXD8751Q (DIGITAL Board) Pin No. Pin Name I/O Function 1 LAC3 I Not used (Fixed at “L” or “H”) 2 NC — Not used 3 WSR O Not used 4 GPIO0 O Not used 5 NC — Not used 6 VDD — Power supply (+5V) 7 NC — Not used 8 SCKR O Not used 9 SDI0 O Not used 10 DI3 I DATA input (HDO4 = “L” at DO4 output) 11 DI2 I DSP to data input 2 HDI1 “L” at RXD in output 12 DI1 I DSP to data input 1 HDI1 “H” at RXD in output 13 BCKI I DSP to data input bit clock input TXD in output 14 LRCK I DSP to data input LRCK clock input 15 DCK I 256Fs master clock assistance input Fixed at “L” or “H” 16 MCK I 256Fs master clock input 17 GND — Ground 18 BCK0 O Audio data output bit clock output (“H” n “L”standard) 19 LRCKO O Audio data output synchronous LRCK output (“H” : Lch) 20 RLRCK O Audio data input synchronous LRCK output (“H” : Lch) 21 LRPH I LRCK clock input phase control input (“L” : SONY standard, “H” : IIS) 22 MCPH I 256Fs master clock phase control input 23 NC — Not used 24 HALM I Corresponding DSP switch mode input 25 DO1 O First (2ch) audio data output 26 SRD O Second (2ch) audio data output 27 NC O Not used 28 VDD — Power supply (+3.3V or +5V) 29 NC — Not used 30 DO3 O Third (2ch) audio data output 31 DO4 O Fourth (2ch) audio data output 32 HDO4 I DO4 output switch mode (“H” : DO4, “L” : DI3 output) 33 HDI1 I DSP data input switch (“H” : DI1, “L” : DI2 RXD to output) 34 H2X1 I System input/output data Fs ratio switch (“H” : 2 : 1, “L” : 1 : 1) 35 HIIS I Input LRCK timing setting (“L” : SONY standard, “H” : corresponds to IIS) 36 STD I Not used (Fixed at “L” or “H”) 37 TRFS O Frame synchronous pulse output for reading DSP data 38 TCLK O Clock (256Fs) output for reading DSP data 39 GND — Ground 40 DTI I DSP reading data input 41 RFSO O Frame synchronous pulse output for writing DSP data 42 RCLKO O Clock (64Fs) output for writing DSP data 43 DRO O DSP writing data output 44 NC — Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 106 – • IC2016 ADSST-AC3-2500 (DIGITAL Board) Pin No. Pin Name I/O Function 1 TDI I Test data input (JTAG) 2 TRST I Test reset (JTAG) 3 VDD – Power supply 4 TDO O Test data output 5 TIMEXP O Timer expired (JTAG) 6 EMU O Emulatin status 7 ICSA O Reserved 8 to 11 FLAG3 to FLAG0 I/O Flag pins 12 GND – Ground 13, 14 ADDR0, ADDR1 I/O External bus address 15 VDD – Power supply 16 to 18 ADDR2 to ADDR4 I/O External bus address 19 GND – Ground 20 to 22 ADDR5 to ADDR7 I/O External bus address 23 GND – Ground 24 to 26 ADDR8 to ADDR10 I/O External bus address 27 GND – Ground 28 to 30 ADDR11 to ADDR13 I/O External bus address 31 VDD – Power supply 32, 33 ADDR14, ADDR15 I/O External bus address 34 GND – Ground 35 to 37 ADDR16 to ADDR18 I/O External bus address 38, 39 VDD – Power supply 40 to 42 ADDR19 to ADDR20 I/O External bus address 43 GND – Ground 44 to 46 ADDR22 to ADDR24 I/O External bus address 47 VDD – Power supply 48 GND – Ground 49 VDD – Power supply 50 to 52 ADDR25 to ADDR27 I/O External bus address 53 GND – Ground 54 to 57 MS3 to MS0 O Memory select lines 58 SW I/O Synchronous write select 59 BMS I/O Boot memory select 60 ADDR28 I/O External bus address 61 GND – Ground 62, 63 VDD – Power supply 64 to 66 ADDR29 to ADDR31 I/O External bus address 67 GND – Ground 68 SBTS I Suspend bus three-state 69 DMAR2 I DMA request 2 70 DMAR1 I DMA request 1 71 HBR I Host bus request 72 DT1 O Data trasnsmit 73 TCLK1 I/O Transmit clock 74 TFS1 I/O Transmit frame sync 75 DR1 I Data receive 76 RCLK1 I/O Receive clock 77 RFS1 I/O Receive frame sync 78 GND – Ground www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 107 – Pin No. Pin Name I/O Function 79 CPA I/O Core priority access 80 DT0 O Data transmit 81 TCLK0 I/O transmit clock 82 TFS0 I/O Transmit frame sync 83 DR0 I Data receive 84 RCLK0 I/O Receive clock 85 RFS0 I/O Receive frame sync 86, 87 VDD – Power supply 88 GND – Ground 89 ADRCLK O Clock output reference 90 REDY O Host bus acknowledge 91 HBG I/O Host bus ground 92 CS I Chip select 93 RD I/O Memory read strobe 94 WR I/O Memory write strobe 95 GND – Ground 96 VDD – Power supply 97 GND – Ground 98 CLKIN I Clock in 99 ACK I/O Memory acknowledge 100 DMAG2 O DMA grant 2 101 DMAG1 O DMA grant 1 102 PAGE O DRAM page boundary 103 VDD – Power supply 104 to 109 BR6 to BR1 I/O Multiprocessing bus requests 110 GND – Ground 111 VDD – Power supply 112 GND – Ground 113 to 115 DATA47 to DATA45 I/O External bus data 116 VDD – Power supply 117 to 119 DATA44 to DATA42 I/O External bus data 120 GND – Ground 121 to 123 DATA41 to DATA39 I/O External bus data 124 VDD – Power supply 125 to 127 DATA38 to DATA36 I/O External bus data 128 GND – Ground 129 NC – Not used 130 to 132 DATA35 to DATA33 I/O External bus data 133, 134 VDD – Power supply 135 GND – Ground 136 to 138 DATA32 to DATA30 I/O External bus data 139 GND – Ground 140 to 142 DATA29 to DATA27 I/O External bus data 143, 144 VDD – Power supply 145 to 147 DATA26 to DATA24 I/O External bus data 148 GND – Ground 149 to 151 DATA23 to DATA21 I/O External bus data 152 VDD – Power supply 153 to 155 DATA20 to DATA18 I/O External bus data 156 GND – Ground www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 108 – Pin No. Pin Name I/O Function 157 to 159 DATA17 to DATA15 I/O External bus data 160 VDD – Power supply 161 to 163 DATA14 to DATA12 I/O External bus data 164 GND – Ground 165 DATA11 to DATA9 I/O External bus data 168 VDD – Power supply 169 to 171 DATA8 to DATA6 I/O External bus data 172 GND – Ground 173 to 175 DATA5 to DATA3 I/O External bus data 176 VDD – Power supply 177 to 179 DATA2 to DATA0 I/O External bus data 180, 181 GND – Ground 182 to 185 L0DAT3 to L0DAT0 I/O Link port data 186 L0CLK I/O Link port clock 187 L0ACK I/O Link port acknowledge 188 VDD – Power supply 189 to 192 L1DAT3 to L1DAT0 I/O Link port data 193 L1CLK I/O Link port clock 194 L1ACK I/O Link port acknowledge 195, 196 GND – Ground 197 VDD – Power supply 198 to 201 L2DAT3 to L2DAT0 I/O Link port data 202 L2CLK I/O Link port clock 203 L2ACK I/O Link port acknowledge 204 NC – Not used 205 VDD – Power supply 206 to 209 L3DAT3 to L3DAT0 I/O Link port data 210 L3CLK I/O Link port clock 211 L3ACK I/O Link port acknowledge 212 GND – Ground 213 to 216 L4DAT3 to L4DAT0 I/O Link port data 217 L4CLK I/O Link port clock 218 L4ACK I/O Link port acknowledge 219 VDD – Power supply 220 GND – Ground 221 VDD – Power supply 222 to 225 L5DAT3 to L5DAT0 I/O Link port data 226 L5CLK I/O Link port clock 227 L5ACK I/O Link port acknowledge 228 GND – Ground 229 to 231 ID2 to ID0 I Multiprocessing ID 232 LBOOT I Link boot 233 RPBA I Rotating priority bus arbitration select 234 RESET I Processor reset 235 EBOOT I EPROM boot select 236 to 238 IRQ2 to IRQ0 I Interrupt request lines 239 TCK I Tets clock (JTAG) 240 TMS I Test mode select (JTAG) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 109 – • IC3008 HD64F2134F (Control µCOM port assign) (DIGITAL Board) Pin No. Pin Name I/O Function 1 RESET I Reset 2 XTAL I 20MHz master clock 3 EXTAL O 20MHz master clock 4 MD1 I 1: normal/0:boot 5 MD0 I Ground 6 NMI I Ground 7 STBY I +5V 8 VCC — +5V 9 P52/SCK0 I C-bit input clock 10 P51/RXD0 I C-bit input data 11 P50/TXD0 O Latch No.7 (“L” n “H” : latch) 12 GND — Ground 13 P97/WAIT I Ready 14 P96/MCK I (NC) 15 P95/AS O Latch No.6 (“L” n “H” : latch) 16 P94/WR O WR 17 P93/RD O RD 18 P92/IRQ0 O Latch No.5 (“L” n “H” : latch) 19 P91/IRQ1 O Latch No.4 (“L” n “H” : latch) 20 P90/IRQ2 O CXD2712#1 CS (“H” = select) 21 P60 O CXD2712#2 CS (“H” = select) 22 P61 O CXD2712RD (“H” = read) 23 P62 O CXD2712WR (“H” = write) 24 P63 O Latch No.3 (“L” n “H” : latch) 25 P64 I Buzy control port 26 P65 O Latch No.2 (“H” : transparent) 27 P66 O Latch No.1 (“H” : transparent) 28 P67 O Latch No.1 to No. 7 OE (“L” = on) 29 AVCC — +5V 30 AN0 I DC analog input 31 AN1 I HP sw input (“L” = HP on) 32 AN2 I AC-3 RF error (“H“ = error) 33 AN3 I DIR unlock (“H“ = error) 34 AN4 I ADSP21062 FLAG0 35 AN5 I ADSP21062 FLAG1 36 AN6 I ADSP21062 FLAG2 37 AN7 I ADSP21062 FLAG3 38 AGND — Ground 39 P40/TXD2 O 8bit bus data (positive) 40 P41/RXD2 O 8bit bus data (positive) 41 P42 O 8bit bus data (positive) 42 P43 O 8bit bus data (positive) 43 P44 O 8bit bus data (positive) 44 P45 O 8bit bus data (positive) 45 P46 O 8bit bus data (positive) 46 P47 O 8bit bus data (positive) 47 VCC — +5V 48 P27/A15 O Bus address A15 49 P26/A14 O Bus address A14 50 P25/A13 O Bus address A13 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 110 – Pin No. Pin Name I/O Function 51 P24/A12 O Bus address A12 52 P23/A11 O Bus address A11 53 P22/A10 O Bus address A10 54 P21/A9 O Bus address A9 55 P20/A8 O Bus address A8 56 GND — Ground 57 P17/A7 O Bus address A7 58 P16/A6 O Bus address A6 59 P15/A5 O Bus address A5 60 P14/A4 O Bus address A4 61 P13 O Bus address A3 62 P12/A2 O Bus address A2 63 P11/A1 O Bus address A1 64 P10/A0 O Bus address A0 65 P30/D0 O Bus data D0 66 P31/D1 O Bus data D1 67 P32/D2 O Bus data D2 68 P33/D3 O Bus data D3 69 P34/D4 O Bus data D4 70 P35/D5 O Bus data D5 71 P36/D6 O Bus data D6 72 P37/D7 O Bus data D7 73 GND — Ground 74 P80 O HBR for ADSP21062 75 P81 I HBG from ADSP21062 76 P82 O (NC) 77 P83 O (NC) 78 P84/TXD1 O Communicate with external 79 P85/RXD1 I Communicate with external 80 P86 I FS (sampling frequency) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 111 – Pin No. Pin Name I/O Function • IC4001 Sampling Rate Converter, Digital Filter (MSM9404BGS-BK)/DIGITAL board DO SEL SRDT SWDT SCK XLAT INIT NC VDD NC RBPH STA FRS FRM SLAVE TEST5 TB7 MDO0 MDO1 MUTE DATAO BCKO LRCKO TEST4 GND XI GND XO XOO VDD NC TB6 to TB4 MAO0 MAO1 ALRKO ABCKO NC VDD O I O I I I I — — — O O I I I I I/O I I I O I/O I/O I — I — O O — — I/O I I O O — — 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 to 34 35 36 37 38 39 40 Data output (Not used) Data select control input “L”:DI0 n DO, “H”:DI1 n DO (Fixed at “L”) Serial data output Serial data input Serial clock input Serial latch pulse input Initialize input “L”:Reset Not used Power supply (+3.3V) Not used Ring buffer R/W phase control monitor signal output “L”:Control OFF (Not used) Fs conversion rate measurement state monitor signal output “L”:High accuracy “H”:High speed response mode (Not used) Input/output Fs rate measurement time selection input “L”:High accuracy “H”:High speed response mode (Fixed at “L”) Input/output Fs rate measurement mode signal input “L”:Automatic, “H”:Manual (Fixed at “L”) Output sync mode selection input “L”:Slave, “H”:Master (Fixed at “L”) Test pin (Fixed at “L”) Test bus input/output (Open) Data output serial data format setting input (Fixed at “L”) Output mute setting input “L”:Muted (DATAO only) Data output (Fso output) Data output bit clock input/output Data output Fso word clock input/output Test pin (Fixed at “L”) Ground 512 Fso output line master clock input Ground Clock output Output line master clock output (Not used) Power supply (+3.3V) Not used Test bus input/output (Open) D/A output serial data format setting input (Fixed at “L”) D/A output word clock output Data changes at “L”n“H” edge (Not used) D/A output bit clock output Data changes at “L”n“H” edge (Not used) Not used Power supply (+3.3V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 112 – Pin No. Pin Name I/O Function 41 42 43 44 45 46 47 48 to 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 — O O I I I I I/O I I I I O — I I I I I I I I/O Not used Rch D/A 8Fso, 4Fso data output (Not used) Lch D/A 8Fso, 4Fso data output (Not used) Test pin (Fixed at “L”) Deemphasis setting input “L”:OFF (Fixed at “L”) Deemphasis setting input Fsi frequency selection input (Fixed at “L”) Test bus input/output (Open) Data input Input data 1Fs word clock input (Schmidt) Input data bit clock input Input data line Fs reference input and master clock input Master clock output Ground Test pin (Fixed at “L”) The second reset signal input from system controller FIMCK frequency division rate setting input “L”:1/1 (256 Fs), “H”:1/2 (512 Fs) (Fixed at “H”) Input data format setting input (Fixed at “H”) Input data format setting input (Fixed at “L”) Data input (Not used) Test bus input/output (Open) NC DAOR DAOL TEST3 DEMP FS1 FS2 TB3 to TB1 DATAI LRCKI BCKI FIMCK FIMO GND TEST2 TEST1 FIS MI0 MI1 DI0 DI1 TB0 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 113 – • IC901 HD64F2134FA20 (Display µCOM port assign) (DISPLAY Board) Pin No. Pin Name I/O Function 1 RESET I Reset 2 XTAL I 20MHz master clock 3 XTAL O 20MHz master clock 4 MD1 I 1: normal/0:boot 5 MD0 I Ground 6 NMI I Ground 7 STBY I +5V 8 VCC — +5V 9 FL-CLK O FL driver clock (positive) 10 FL-LAT O FL driver latch (negative) 11 FL-DAT O FL driver data (positive) 12 VSS — Ground 13 FL-CLR O FL driver clear (1 = clear) 14 EXCL I Pull down (10k) 15 EXP-DO O External LED data (positive) 16 EXP-OE O External LED OE (0 = enable) 17 EXP-LAT O External LED latch (posi edge) 18 EXP-CLK O External LED clock (posi edge) 19 P91 O LED “Phono” (0 = on) 20 P90 I Pull down (10k) 21 POW CONT O Power control (0 = on) 22 MON STATUS O Monitor status (positive) 23 CTRL LAT O Control latch (positive) 24 CTRL-A1 OUT O Control-A1 output (H-act) 25 CTRL-A1 IN I Control-A1 input (L-act) 26 VOL UP O Volume moter increse (1 = on) 27 VOL DOWN O Volume moter decrese (1 = on) 28 VOL LED O LED “VOLUME” (0 = on) 29 AVCC — +5V 30 VOL-POS I Volume position A/D inpit 31 AN1 I Ground 32 AN2 I Ground 33 AN3 I Sircs input (“L”-act) 34 FUNC-SW4 I SW input selector bit3 (“L”-act) 35 FUNC-SW3 I SW input selector bit2 (“L”-act) 36 FUNC-SW2 I SW input selector bit1 (“L”-act) 37 FUNC-SW1 I SW input selector bit0 (“L”-act) 38 AVSS — Ground 39 TXD2 O Communicate with CONT 40 RXD2 I Communicate with CONT 41 DIG/ANLG SW I Push SW “DIGITAL/ANALOG” (“L” = ON) 42 AUDIO SPLIT SW I Push SW “AUDIO SPLIT” (“L” = on) 43 2CH SW I Push SW “2CH” (“L” = on) 44 MODE+ SW I Push SW “MODE+” (“L” = on) 45 MODE– SW I Push SW “MODE–” (“L” = on) 46 DOL/MPEG SW I Push SW “DOLBY/MPEG/DTS” (“L” = on) 47 VCC — +5V 48 EQ-BANK SW I Push SW “EQ-BANK” (“L” = on) 49 DIG/ANA LED O LED “DIGITAL/ANALOG” (0 = on) 50 AUD-SPLIT LED O LED “AUDIO SPLIT” (0 = on) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 114 – Pin No. Pin Name I/O Function 51 2CH LED O LED “2CH” (0 = on) 52 MODE+ LED O LED “MODE+” (0 = on) 53 MODE– LED O LED “MODE–” (0 = on) 54 DOL/MPEG LED O LED “DOLBY/MPEG/DTS” (0 = on) 55 EQ BANK LED O LED “EQ-BANK” (0 = on) 56 VSS — Ground 57 CUSTOM LED O LED “CUSTOM” (0 = on) 58 LEVEL LED O LED “LEVEL” (0 = on) 59 SURR LED O LED “SURR” (0 = on) 60 EQ LED O LED “EQ” (0 = on) 61 SETUP O LED “SETUP” (0 = on) 62 BU-D0 O EEPROM data out (positive) 63 BU-D1 I EEPROM data in (positive) 64 BU-CS O EEPROM latch (positive) 65 BU-SCK O EEPROM clock (positive) 66 RE2 I Right encoder input2 (“L” = on) 67 RE2 I Right encoder input1 (“L” = on) 68 LE2 I Left encoder input2 (“L” = on) 69 LE1 I Left encoder input1 (“L” = on) 70 MENU-LED O LED “MENU” (0 = on) 71 MENU-SW I Push SW “MENU” (“L” = on) 72 STBY-LED O LED “STANBY” (0 = on) 73 VSS — Ground 74 RESOUT O Reset output (1 = reset) 75 BUSY I Busy control port 76 COMSEL I COM port select (0 = disp) 77 BOOT I Boot control 78 TXD1 O Communicate with external 79 RXD1 I Communicatewith external 80 STOP I Stop signal input (“L” = stop) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 115 – • IC6003 SN-PM4007A (AC3RF Board) Pin No. Pin Name I/O Function 1 GND — Ground (0 V) 2 VDD — Power supply (+5 V) 3 RESET I System reset “L” : reset 4 OSCON I Oscillation control “H” : ON to oscillate Normally “H” , Standby mode: “L” 5 DATA I IC test pin Normally connected to ground (or no connection) 6 MCK I IC test pin Normally connected to ground (or no connection) 7 MLTB I IC test pin Normally connected to ground (or no connection) 8 to 10 NC — Not used 11 TM0 I IC test pin Normally connected to ground (or no connection) 12 to 15 NC — Not used 16 TM1 I IC test pin Normally connected to ground (or no connection) 17 A0 O External RAM address output Address 0 (LSB) 18 A1 O External RAM address output Address 1 19 A2 O External RAM address output Address 2 20 A3 O External RAM address output Address 3 21 A4 O External RAM address output Address 4 22 A5 O External RAM address output Address 5 23 TM2 I IC test pin Normally connected to ground (or no connection) 24 TM3 I IC test pin Normally connected to ground (or no connection) 25 NC — Not used 26 XIN I IC test pin Normally connected to ground (or no connection) 27 NEXT I IC test pin Normally connected to ground (or no connection) 28 GND — Ground (0 V ) 29 VDD — Power supply (+5 V) 30 A6 O External RAM address output Address 6 31 A7 O External RAM address output Address 7 32 GND — Ground (0V) 33 VDD — Power supply (+5 V) 34 A12 O External RAM address output Address 12 35 A14 O External RAM address output Address 14 (MSB) 36 WE O External RAM write enable signal “L” : active 37 A13 O External RAM address output Address 13 38 A8 O External RAM address output Address 8 39 A9 O External RAM address output Address 9 40 GND — Ground (0V) 41 A11 O External RAM address output Address 11 42 OE O External RAM write enable signal “L” : active 43 A10 O External RAM address output Address 10 44 DB7 I/O External RAM data terminal Data bus 7 45 DB6 I/O External RAM data terminal Data bus 6 46 DB5 I/O External RAM data terminal Data bus 5 47 DB4 I/O External RAM data terminal Data bus 4 48 DB3 I/O External RAM data terminal Data bus 3 49 DB2 I/O External RAM data terminal Data bus 2 50 DB1 I/O External RAM data terminal Data bus 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 116 – Pin No. Pin Name I/O Function 51 DB0 I/O External RAM data terminal Data bus 0 52 VDD — Power supply (+5 V) 53 GND — Ground (0 V) 54 TI1 I For IC test Normally connected to VDD 55 VIN I VCXO input 56 VOUT O VCXO output 57 T12 I IC test pin Normally connected to ground (or no connection) 58 T13 I IC test pin Normally connected to ground (or no connection) 59 TLDB I IC test pin Normally connected to ground (or no connection) 60 TCK I IC test pin Normally connected to ground (or no connection) 61, 62 NC — Not used 63 PDO O Phase comparator output (3-state) 64 T14 I IC test pin Normally connected to ground (or no connection) 65 PDDIS I IC test pin Normally connected to ground (or no connection) 66 MUTO O Muting output “H”: mute 67 T15 I IC test pin Normally connected to ground (or no connection) 68, 69 NC — Not used 70 DAOUT O DIGITAL OUT output (serial data stream output) 71 NC — Not used 72 DASEL I DIGITAL OUT selection 73 T18 I IC test pin Normally connected to ground (or no connection) 74 to 77 NC — Not used 78 MUTI I Muting input “H”: mute 79 VDD — Power supply (+5 V) 80 GND — Ground (0 V) 81 AVDD — Power supply for analog comparator (+5 V) 82 CPIN I Analog comparator input Positive side (non-inverted side : OPSK input) 83 CMIN I Analog comparator input Negative side (inverted side) 84 AGND — Ground for Analog comparator (0 V) 85 TM4 I IC test pin Normally connected to ground (or no connection) 86 VDD — Power supply (+5 V) 87 DIN I IC test pin Normally connected to ground (or no connection) 88 DOUT O Analog comparator output 89 DOUTB O Analog comparator outputNot usedInverted output 90 NC — Not used 91 GND — Ground ( 0 V) 92 to 96 NC — Not used 97 TM5 I IC test pin Normally connected to ground (or no connection) 98 BUNRI I IC test pin Normally connected to ground (or no connection) 99 AGND — Ground for 46.08 MHz oscillator (0 V) 100 AVDD — Power supply for 46.08 MHz oscillator (+5 V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 117 – SECTION 5 EXPLODED VIEWS 5-1. BACK PANEL SECTION NOTE: • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE)  Cabinets color • The mechanical parts with no reference number in the exploded views are not supplied. • Hardware (# mark) list and accessories and pack- ing materials are given in the last of this parts list. • Abbreviation CND : Canadian model Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark !7 1-575-953-11 CORD, POWER (EXCEPT US,CND) 8 4-947-010-01 SCREW, FEEDER FIXED 9 4-972-889-01 CUSHION 10 4-974-510-01 SCREW (+BV 3X8 B) 11 X-4950-540-1 FOOT ASSY #1 7-682-547-09 SCREW +B 3X6 #4 7-685-885-09 SCREW +BVTT 4X16 (S) #5 7-628-546-09 +B 3X5 * 1 4-211-437-01 CASE (GOLD) * 1 4-211-437-11 CASE (BLACK) 2 4-976-827-01 SCREW, FLAT HEAD (BLACK) 2 4-976-827-11 SCREW, FLAT HEAD (GOLD) * 3 1-671-186-11 OUTLET BOARD * 4 4-211-440-12 PANEL, BACK (US,CND) * 4 4-211-440-22 PANEL, BACK (EXCEPT US,CND) * 5 4-923-873-01 BRACKET, CORD STOPPER 6 4-916-783-01 BUSHING, CORD !7 1-559-479-11 CORD, POWER (US,CND) The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. 1 2 2 3 4 5 6 8 10 Supplied with J1004 #5 #5 10 10 10 10 7 (US,CND) 7 (EXCEPT US,CND) 9 9 11 10 11 10 10 10 10 10 not supplied not supplied Front panel #4 #4 #1 Ver 1.1 2002.08 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 118 – 5-2. FRONT PANEL SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * 68 1-671-194-11 FUNCTION SW BOARD * 69 1-671-188-11 HEADPHONE BOARD * 70 1-671-187-11 AC SW BOARD 71 X-4948-011-1 BUTTON ASSY, POWER (GOLD) 71 X-4948-658-1 BUTTON ASSY, POWER (BLACK) 72 1-765-344-11 WIRE (FLAT TYPE)(23 CORE)(160mm) (FORMER TYPE) 72 1-773-216-11 WIRE (FLAT TYPE) (25 CORE) (NEW TYPE) 73 4-211-450-11 WINDOW (GUI) 74 4-215-194-01 WINDOW (40) 75 4-974-510-01 SCREW (+BV 3X8 B) * 76 1-671-189-11 REMOCON RAY-CATCHER BOARD * 77 1-671-191-11 STANDBY LED BOARD 78 3-831-441-11 CUSHION (F) 79 4-211-469-01 TUBE, LIGHT INTERCEPTION 80 4-215-595-01 FILTER (40) 81 3-701-506-01 SET SCREW, DOUBLE POINT 3X4 82 4-921-415-04 ESCUTCHEON, POWER KNOB (BLACK) 82 4-921-415-13 ESCUTCHEON, POWER KNOB (GOLD) 83 3-831-441-99 CUSHION (SP) FL901 1-517-962-11 INDICATOR TUBE, FLUORESCENT #1 7-682-547-09 SCREW +B 3X6 #2 7-682-547-04 SCREW +B 3X6 #6 7-683-255-58 SET SCREW 5X6 HEXAGON SOCKET 51 4-211-435-12 PANEL, FRONT (BLACK) 51 4-211-435-22 PANEL, FRONT (GOLD)(EXCEPT US,CND) 51 4-211-435-32 PANEL, FRONT (GOLD)(US,CND) 52 4-211-094-31 INDICATOR (6) 53 4-975-105-01 WINDOW, RAY CATCHER (BLACK) 53 4-975-105-31 WINDOW, RAY CATCHER (GOLD) 54 4-211-465-01 ESCUTCHEON (LED) 55 4-211-455-01 BUTTON (LED) 56 4-211-446-01 PLATE, ORNAMENTAL SIDE (GOLD) 56 4-211-446-12 PLATE, ORNAMENTAL SIDE (BLACK) 57 4-211-436-01 KNOB (VOL)(GOLD) 57 4-211-436-11 KNOB (VOL)(BLACK) 58 4-211-468-01 KNOB (29)(S)(GOLD) 58 4-211-468-11 KNOB (29)(S)(BLACK) 59 4-211-444-01 KNOB (29)(D)(GOLD) 59 4-211-444-11 KNOB (29)(D)(BLACK) 60 4-211-466-01 SHEET (A), LIGHT INTERCEPTION 61 4-211-467-01 SHEET (B), LIGHT INTERCEPTION 62 X-4950-282-1 PANEL ASSY, BASE (GOLD) 62 X-4950-283-1 PANEL ASSY, BASE (BLACK) * 63 4-990-797-01 HOLDER (FL) 64 2-389-320-01 CUSHION * 65 A-4417-086-A DISPLAY BOARD, COMPLETE * 66 1-671-190-11 LUMINOUS BOARD * 67 1-671-185-11 VOLUME BOARD 64 69 70 65 64 63 FL901 #2 #1 not supplied not supplied Supplied with S909 and S911 Supplied with J955 51 73 52 54 55 58 56 78 59 71 60 53 52 60 81 52 62 80 66 67 72 54 56 57 61 54 55 55 74 #2 #6 Supplied with S910 Supplied with RV901 not supplied not supplied 68 83 75 77 79 83 76 75 75 75 75 75 75 75 82 Ver 1.1 2002.08 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 119 – 5-3. CHASSIS SECTION Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * 111 1-671-196-11 CAPACITOR BOARD * 112 A-4417-104-A POWER BOARD, COMPLETE (US,CND) * 112 A-4417-110-A POWER BOARD, COMPLETE (EXCEPT US,CND) * 113 A-4417-105-A ANALOG BOARD, COMPLETE (US,CND) * 113 A-4417-112-A ANALOG BOARD, COMPLETE (EXCEPT US,CND) 114 4-974-510-01 SCREW (+BV 3X8 B) 115 3-831-441-11 CUSHION (F) !T001 1-433-482-11 TRANSFORMER, POWER (US,CND) !T001 1-433-483-11 TRANSFORMER, POWER (EXCEPT US,CND) #3 7-685-880-09 SCREW +BVTT 4X6 (S) * 101 1-670-916-11 CLOCK BOARD * 102 A-4417-106-A DIGITAL BOARD, COMPLETE (US,CND) * 102 A-4419-255-A DIGITAL BOARD, COMPLETE (EXCEPT US,CND) * 103 A-4417-098-A AC3RF BOARD, COMPLETE 104 1-783-943-11 WIRE, FLAT TYPE (7 CORE) * 105 3-703-353-01 SUPPORT, PC BOARD * 106 A-4417-100-A VIDEO BOARD, COMPLETE * 107 A-4417-101-A (S) VIDEO BOARD, COMPLETE 108 1-773-006-11 WIRE (FLAT TYPE)(15 CORE) 109 1-769-973-11 WIRE (FLAT TYPE)(13 CORE) * 110 1-671-195-11 AC INPUT BOARD 101 102 103 104 105 106 107 108 109 110 111 112 113 114 114 114 114 114 114 114 114 114 not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied T001 #3 #3 114 114 114 114 114 115 114 114 114 114 114 Ver 1.1 2002.08 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 120 – • SEMICONDUCTORS In each case, u: µ , for example: uA...: µ A..., uPA...: µ PA..., uPB...: µ PB..., uPC...: µ PC..., uPD...: µ PD... • CAPACITORS uF : µ F • COILS uH : µ H • Abbreviation CND : Canadian model • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • RESISTORS All resistors are in ohms METAL: Metal-film resistor METAL OXIDE: Metal Oxide-film resistor F : nonflammable SECTION 6 ELECTRICAL PARTS LIST Note: Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark AC3RF The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. * A-4417-098-A AC3RF BOARD, COMPLETE ********************* < CAPACITOR > C6001 1-126-933-11 ELECT 100uF 20% 16V C6002 1-126-933-11 ELECT 100uF 20% 16V C6003 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C6004 1-163-033-91 CERAMIC CHIP 0.022uF 50V C6005 1-163-038-91 CERAMIC CHIP 0.1uF 25V C6006 1-163-031-11 CERAMIC CHIP 0.01uF 50V C6007 1-163-248-11 CERAMIC CHIP 75PF 5% 50V C6008 1-163-038-91 CERAMIC CHIP 0.1uF 25V C6009 1-163-038-91 CERAMIC CHIP 0.1uF 25V C6010 1-163-038-91 CERAMIC CHIP 0.1uF 25V C6011 1-163-038-91 CERAMIC CHIP 0.1uF 25V C6012 1-163-038-91 CERAMIC CHIP 0.1uF 25V C6013 1-136-177-00 FILM 1uF 5% 50V C6014 1-124-724-11 ELECT 47uF 20% 16V C6015 1-136-165-00 FILM 0.1uF 5% 50V C6016 1-136-177-00 FILM 1uF 5% 50V C6017 1-163-038-91 CERAMIC CHIP 0.1uF 25V C6018 1-163-038-91 CERAMIC CHIP 0.1uF 25V C6019 1-163-038-91 CERAMIC CHIP 0.1uF 25V C6020 1-163-038-91 CERAMIC CHIP 0.1uF 25V C6021 1-163-038-91 CERAMIC CHIP 0.1uF 25V C6022 1-163-038-91 CERAMIC CHIP 0.1uF 25V C6023 1-163-038-91 CERAMIC CHIP 0.1uF 25V C6024 1-163-038-91 CERAMIC CHIP 0.1uF 25V C6025 1-126-009-81 ELECT 100uF 20% 16V C6026 1-163-038-91 CERAMIC CHIP 0.1uF 25V C6027 1-163-031-11 CERAMIC CHIP 0.01uF 50V C6028 1-163-031-11 CERAMIC CHIP 0.01uF 50V C6029 1-163-085-00 CERAMIC CHIP 2PF 50V C6030 1-163-038-91 CERAMIC CHIP 0.1uF 25V C6031 1-163-099-00 CERAMIC CHIP 18PF 5% 50V C6032 1-163-038-91 CERAMIC CHIP 0.1uF 25V C6033 1-126-048-81 ELECT 10uF 20% 50V C6034 1-163-038-91 CERAMIC CHIP 0.1uF 25V C6035 1-163-038-91 CERAMIC CHIP 0.1uF 25V < CONNECTOR > CN6001 1-568-439-11 SOCKET, CONNECTOR 7P < DIODE > D6001 8-719-061-62 DIODE KV1851 D6002 8-719-801-78 DIODE 1SS184 < FERRITE BEAD > FB6001 1-410-397-21 FERRITE BEAD INDUCTOR FB6002 1-410-397-21 FERRITE BEAD INDUCTOR < FLUORESCENT INDICATOR > FL6001 1-233-866-11 FILTER, BAND PASS < IC > IC6001 8-759-262-03 IC MC14577CF IC6002 8-759-636-55 IC M5218AFP IC6003 8-759-463-68 IC SN-PM4007A IC6004 8-759-476-29 IC N341256SJ-20-TE1 < COIL > L6001 1-410-391-11 INDUCTOR CHIP 68uH < TRANSISTOR > Q6001 8-729-230-49 TRANSISTOR 2SC2712-YG Q6002 8-729-230-49 TRANSISTOR 2SC2712-YG Q6003 8-729-230-49 TRANSISTOR 2SC2712-YG Q6004 8-729-216-22 TRANSISTOR 2SA1162-G Q6005 8-729-230-49 TRANSISTOR 2SC2712-YG Q6006 8-729-216-22 TRANSISTOR 2SA1162-G Q6007 8-729-230-49 TRANSISTOR 2SC2712-YG Q6008 8-729-230-49 TRANSISTOR 2SC2712-YG Q6009 8-729-230-49 TRANSISTOR 2SC2712-YG Q6010 8-729-216-22 TRANSISTOR 2SA1162-G < RESISTOR > R6001 1-216-049-91 RES,CHIP 1K 5% 1/10W R6002 1-216-049-91 RES,CHIP 1K 5% 1/10W R6003 1-216-055-00 METAL CHIP 1.8K 5% 1/10W R6004 1-216-073-00 METAL CHIP 10K 5% 1/10W R6005 1-216-073-00 METAL CHIP 10K 5% 1/10W R6006 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R6007 1-216-024-00 RES,CHIP 91 5% 1/10W R6008 1-216-043-91 RES,CHIP 560 5% 1/10W R6009 1-216-049-91 RES,CHIP 1K 5% 1/10W R6010 1-216-049-91 RES,CHIP 1K 5% 1/10W When indicating parts by reference number, please include the board name. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 121 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark AC3RF AC INPUT AC SW ANALOG R6011 1-216-049-91 RES,CHIP 1K 5% 1/10W R6012 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R6013 1-216-029-00 METAL CHIP 150 5% 1/10W R6014 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R6015 1-216-049-91 RES,CHIP 1K 5% 1/10W R6016 1-216-049-91 RES,CHIP 1K 5% 1/10W R6017 1-216-049-91 RES,CHIP 1K 5% 1/10W R6018 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R6019 1-216-049-91 RES,CHIP 1K 5% 1/10W R6020 1-216-049-91 RES,CHIP 1K 5% 1/10W R6021 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R6022 1-216-049-91 RES,CHIP 1K 5% 1/10W R6023 1-216-073-00 METAL CHIP 10K 5% 1/10W R6024 1-216-049-91 RES,CHIP 1K 5% 1/10W R6025 1-216-049-91 RES,CHIP 1K 5% 1/10W R6026 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R6027 1-216-073-00 METAL CHIP 10K 5% 1/10W R6028 1-216-073-00 METAL CHIP 10K 5% 1/10W R6029 1-216-093-00 METAL CHIP 68K 5% 1/10W R6030 1-216-083-00 METAL CHIP 27K 5% 1/10W R6031 1-216-027-00 METAL CHIP 120 5% 1/10W R6032 1-216-089-91 RES,CHIP 47K 5% 1/10W R6033 1-216-089-91 RES,CHIP 47K 5% 1/10W R6034 1-216-097-91 RES,CHIP 100K 5% 1/10W R6035 1-216-085-00 METAL CHIP 33K 5% 1/10W R6036 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R6037 1-216-063-91 RES,CHIP 3.9K 5% 1/10W R6038 1-216-073-00 METAL CHIP 10K 5% 1/10W R6039 1-216-073-00 METAL CHIP 10K 5% 1/10W R6040 1-216-097-91 RES,CHIP 100K 5% 1/10W R6041 1-216-025-91 RES,CHIP 100 5% 1/10W R6042 1-216-025-91 RES,CHIP 100 5% 1/10W R6043 1-216-017-91 RES,CHIP 47 5% 1/10W R6044 1-216-089-91 RES,CHIP 47K 5% 1/10W R6045 1-216-089-91 RES,CHIP 47K 5% 1/10W R6046 1-216-041-00 RES,CHIP 470 5% 1/10W R6047 1-216-089-91 RES,CHIP 47K 5% 1/10W R6048 1-216-089-91 RES,CHIP 47K 5% 1/10W R6049 1-216-073-00 METAL CHIP 10K 5% 1/10W R6050 1-216-089-91 RES,CHIP 47K 5% 1/10W R6051 1-216-073-00 METAL CHIP 10K 5% 1/10W R6053 1-216-089-91 RES,CHIP 47K 5% 1/10W R6054 1-216-041-00 RES,CHIP 470 5% 1/10W < VIBRATOR > X6001 1-767-434-21 VIBRATOR, CRYSTAL (18.432 MHz) ************************************************************** * 1-671-195-11 AC INPUT BOARD ************** < CAPACITOR > !C002 1-113-920-11 CERAMIC 0.0022uF 20% 250V < CONNECTOR > CN001 1-564-321-00 PIN, CONNECTOR 2P * CN003 1-565-792-11 PIN, CONNECTOR 2P CN006 1-564-321-00 PIN, CONNECTOR 2P < FUSE > !F001 1-532-502-51 FUSE (T1.25AL/250V)(EXCEPT US,CND) !F001 1-576-107-11 FUSE (3.15A/250V)(US,CND) !F002 1-532-464-51 FUSE (T2.5AL/250V)(EXCEPT US,CND) !F002 1-576-109-11 FUSE (5A/125V)(US,CND) < FUSE HOLDER > FH001 1-533-293-11 FUSE HOLDER FH002 1-533-293-11 FUSE HOLDER FH003 1-533-293-11 FUSE HOLDER FH004 1-533-293-11 FUSE HOLDER ************************************************************** * 1-671-187-11 AC SW BOARD *********** < CAPACITOR > !C001 1-113-920-11 CERAMIC 0.0022uF 20% 250V < CONNECTOR > CN002 1-564-321-00 PIN, CONNECTOR 2P < SWITCH > S001 1-572-267-21 SWITCH, PUSH (AC POWER)(1 KEY) (U POWER) ************************************************************** * A-4417-105-A ANALOG BOARD, COMPLETE (US,CND) ********************** * A-4417-112-A ANALOG BOARD, COMPLETE (EXCEPT US,CND) ********************** * 1-535-303-00 WIRE, JUMPER 4-211-649-01 SCREW (+BV 3X6 B) < CAPACITOR > C501 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C502 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C503 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C504 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C505 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C506 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C507 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C508 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C509 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C510 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C511 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C512 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C513 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C514 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C515 1-119-823-11 ELECT 4.7uF 20% 50V C516 1-119-823-11 ELECT 4.7uF 20% 50V C517 1-163-125-00 CERAMIC CHIP 220PF 5% 50V Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 122 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark ANALOG C518 1-163-125-00 CERAMIC CHIP 220PF 5% 50V C521 1-119-801-21 ELECT 220uF 20% 25V C522 1-119-801-21 ELECT 220uF 20% 25V C523 1-136-162-00 FILM 0.056uF 5% 50V C524 1-136-162-00 FILM 0.056uF 5% 50V C525 1-137-471-11 FILM 0.016uF 5% 50V C526 1-137-471-11 FILM 0.016uF 5% 50V C527 1-119-824-31 ELECT 10uF 20% 50V C528 1-119-824-31 ELECT 10uF 20% 50V C529 1-119-799-11 ELECT 47uF 20% 25V C530 1-119-799-11 ELECT 47uF 20% 25V C531 1-163-141-00 CERAMIC CHIP 0.001uF 5% 50V C532 1-119-800-11 ELECT 100uF 20% 25V C533 1-119-800-11 ELECT 100uF 20% 25V C536 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C537 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C538 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C539 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C540 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C541 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C542 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C543 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C544 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C545 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C546 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C547 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C548 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C549 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C550 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C551 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C552 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C553 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C554 1-163-141-00 CERAMIC CHIP 0.001uF 5% 50V C555 1-119-800-11 ELECT 100uF 20% 25V C556 1-119-800-11 ELECT 100uF 20% 25V C557 1-119-827-11 ELECT 47uF 20% 50V C558 1-119-827-11 ELECT 47uF 20% 50V C561 1-125-850-21 FILM 220PF 5% 50V C562 1-125-850-21 FILM 220PF 5% 50V C563 1-125-850-21 FILM 220PF 5% 50V C564 1-125-850-21 FILM 220PF 5% 50V C565 1-136-593-11 FILM 0.0033uF 20% 50V C566 1-136-593-11 FILM 0.0033uF 20% 50V C567 1-125-856-21 FILM 680PF 5% 50V C568 1-125-856-21 FILM 680PF 5% 50V C575 1-125-850-21 FILM 220PF 5% 50V C576 1-125-850-21 FILM 220PF 5% 50V C577 1-125-850-21 FILM 220PF 5% 50V C578 1-125-850-21 FILM 220PF 5% 50V C579 1-136-593-11 FILM 0.0033uF 20% 50V C580 1-136-593-11 FILM 0.0033uF 20% 50V C581 1-125-856-21 FILM 680PF 5% 50V C582 1-125-856-21 FILM 680PF 5% 50V C589 1-125-850-21 FILM 220PF 5% 50V C590 1-125-850-21 FILM 220PF 5% 50V C591 1-125-850-21 FILM 220PF 5% 50V C592 1-125-850-21 FILM 220PF 5% 50V C593 1-136-593-11 FILM 0.0033uF 20% 50V C594 1-136-593-11 FILM 0.0033uF 20% 50V C595 1-125-856-21 FILM 680PF 5% 50V C596 1-125-856-21 FILM 680PF 5% 50V C605 1-125-843-21 FILM 7PF 10% 50V C606 1-125-843-21 FILM 7PF 10% 50V C619 1-125-843-21 FILM 7PF 10% 50V C620 1-125-843-21 FILM 7PF 10% 50V C633 1-125-843-21 FILM 7PF 10% 50V C634 1-125-843-21 FILM 7PF 10% 50V C647 1-119-834-31 ELECT 22uF 20% 63V C648 1-119-834-31 ELECT 22uF 20% 63V C649 1-119-834-31 ELECT 22uF 20% 63V C650 1-119-834-31 ELECT 22uF 20% 63V C653 1-119-834-31 ELECT 22uF 20% 63V C654 1-119-834-31 ELECT 22uF 20% 63V C657 1-119-834-31 ELECT 22uF 20% 63V C658 1-119-834-31 ELECT 22uF 20% 63V C659 1-119-824-31 ELECT 10uF 20% 50V C660 1-119-824-31 ELECT 10uF 20% 50V C663 1-119-824-31 ELECT 10uF 20% 50V C664 1-119-824-31 ELECT 10uF 20% 50V C671 1-119-825-41 ELECT 22uF 20% 50V C672 1-119-825-41 ELECT 22uF 20% 50V C673 1-119-824-31 ELECT 10uF 20% 50V C674 1-119-824-31 ELECT 10uF 20% 50V C675 1-163-133-00 CERAMIC CHIP 470PF 5% 50V C676 1-163-133-00 CERAMIC CHIP 470PF 5% 50V C677 1-119-824-31 ELECT 10uF 20% 50V C678 1-119-824-31 ELECT 10uF 20% 50V C679 1-163-133-00 CERAMIC CHIP 470PF 5% 50V C680 1-163-133-00 CERAMIC CHIP 470PF 5% 50V C682 1-119-824-31 ELECT 10uF 20% 50V C693 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C694 1-119-824-31 ELECT 10uF 20% 50V C801 1-126-047-11 ELECT 4.7uF 20% 50V C802 1-126-047-11 ELECT 4.7uF 20% 50V C803 1-126-047-11 ELECT 4.7uF 20% 50V C804 1-126-047-11 ELECT 4.7uF 20% 50V C805 1-126-047-11 ELECT 4.7uF 20% 50V C806 1-126-047-11 ELECT 4.7uF 20% 50V C807 1-126-047-11 ELECT 4.7uF 20% 50V C808 1-126-047-11 ELECT 4.7uF 20% 50V C809 1-126-047-11 ELECT 4.7uF 20% 50V C810 1-126-047-11 ELECT 4.7uF 20% 50V C811 1-126-047-11 ELECT 4.7uF 20% 50V C812 1-126-047-11 ELECT 4.7uF 20% 50V C813 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C814 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C815 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C816 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C817 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C818 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C819 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C820 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C821 1-119-841-11 ELECT 1000uF 20% 63V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 123 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C822 1-119-841-11 ELECT 1000uF 20% 63V C823 1-119-800-11 ELECT 100uF 20% 25V C824 1-119-800-11 ELECT 100uF 20% 25V C825 1-119-800-11 ELECT 100uF 20% 25V C826 1-119-800-11 ELECT 100uF 20% 25V C830 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C831 1-163-117-00 CERAMIC CHIP 100PF 5% 50V < CONNECTOR > CN501 1-691-769-11 PLUG (MICRO CONNECTOR) 7P * CN503 1-691-767-11 PLUG (MICRO CONNECTOR) 5P CN504 1-691-772-21 PLUG (MICRO CONNECTOR)10P CN505 1-691-772-11 PLUG (MICRO CONNECTOR) 10P * CN507 1-568-832-11 SOCKET, CONNECTOR 13P * CN508 1-568-936-11 PIN, CONNECTOR 9P CN509 1-564-506-11 PLUG, CONNECTOR 3P CN510 1-691-765-11 PLUG (MICRO CONNECTOR) 3P CN511 1-691-765-11 PLUG (MICRO CONNECTOR) 3P < DIODE > D501 8-719-016-74 DIODE 1SS352 D502 8-719-016-74 DIODE 1SS352 D503 8-719-016-74 DIODE 1SS352 D504 8-719-016-74 DIODE 1SS352 D505 8-719-016-74 DIODE 1SS352 D506 8-719-016-74 DIODE 1SS352 D507 8-719-016-74 DIODE 1SS352 D508 8-719-016-74 DIODE 1SS352 D509 8-719-016-74 DIODE 1SS352 < HEAT SINK > * HS527 3-309-144-21 HEAT SINK * HS528 3-309-144-21 HEAT SINK * HS529 3-309-144-21 HEAT SINK * HS530 3-309-144-21 HEAT SINK < IC > IC502 8-759-805-14 IC LC7822 IC503 8-759-805-14 IC LC7822 IC504 8-759-711-85 IC NJM4580E-D IC506 8-759-711-85 IC NJM4580E-D IC507 8-759-711-85 IC NJM4580E-D IC508 8-759-711-85 IC NJM4580E-D IC511 8-759-711-85 IC NJM4580E-D IC512 8-759-711-85 IC NJM4580E-D IC513 8-759-296-74 IC AD712JR IC514 8-759-711-85 IC NJM4580E-D IC515 8-759-711-85 IC NJM4580E-D IC516 8-759-296-74 IC AD712JR IC517 8-759-711-85 IC NJM4580E-D IC518 8-759-711-85 IC NJM4580E-D IC519 8-759-296-74 IC AD712JR IC520 8-759-711-85 IC NJM4580E-D IC521 8-759-711-85 IC NJM4580E-D IC522 8-759-711-85 IC NJM4580E-D IC523 8-759-711-85 IC NJM4580E-D IC524 8-759-032-59 IC MC74HC595AF IC525 8-759-032-59 IC MC74HC595AF IC526 8-759-032-59 IC MC74HC595AF IC527 8-759-604-39 IC M5F78M12 IC528 8-759-604-45 IC M5F79M12 IC529 8-759-604-35 IC M5F78M05L IC530 8-759-701-65 IC NJM79M05FA IC531 8-759-711-85 IC NJM4580E-D IC532 8-759-711-85 IC NJM4580E-D IC533 8-759-711-85 IC NJM4580E-D IC536 8-759-630-34 IC M5278L05M < JACK > J501 1-778-517-11 JACK, PIN 6P (CD/TUNER/PHONO IN) J503 1-784-934-11 JACK, PIN 4P (MD/DAT IN/OUT) J504 1-784-934-11 JACK, PIN 4P (TAPE IN/OUT) J507 1-778-517-11 JACK, PIN 6P (LD/DVD IN.TV OUT) J509 1-784-934-11 JACK, PIN 4P (VIDEO 3 IN/OUT) J510 1-784-934-11 JACK, PIN 4P (VIDEO 2 IN/OUT) J511 1-784-934-11 JACK, PIN 4P (VIDEO 1 IN/OUT) J512 1-784-934-11 JACK, PIN 4P (AUDIO PREOUT REAR/FRONT) J513 1-785-286-11 JACK, PIN 4P (AUDIO PREOUT WOOFER/CENTER) < JUMPER RESISTOR > JR501 1-216-295-91 SHORT 0 JR502 1-216-295-91 SHORT 0 JR503 1-216-295-91 SHORT 0 JR504 1-216-295-91 SHORT 0 JR601 1-216-295-91 SHORT 0 JR602 1-216-295-91 SHORT 0 JR603 1-216-295-91 SHORT 0 JR604 1-216-295-91 SHORT 0 JR802 1-216-296-91 SHORT 0 JR803 1-216-296-91 SHORT 0 JR804 1-216-296-91 SHORT 0 < TRANSISTOR > Q501 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q502 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q503 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q504 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q505 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q506 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q507 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q508 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q509 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q510 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q511 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q512 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q513 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q514 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q515 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q516 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q517 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q518 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q519 8-729-424-08 TRANSISTOR UN2111 Q520 8-729-421-19 TRANSISTOR UN2213 ANALOG www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 124 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark Q521 8-729-424-08 TRANSISTOR UN2111 Q522 8-729-421-19 TRANSISTOR UN2213 Q523 8-729-424-08 TRANSISTOR UN2111 Q524 8-729-421-19 TRANSISTOR UN2213 Q525 8-729-424-08 TRANSISTOR UN2111 Q526 8-729-421-19 TRANSISTOR UN2213 Q527 8-729-424-08 TRANSISTOR UN2111 Q528 8-729-421-19 TRANSISTOR UN2213 Q529 8-729-424-08 TRANSISTOR UN2111 Q530 8-729-421-19 TRANSISTOR UN2213 Q531 8-729-424-08 TRANSISTOR UN2111 Q532 8-729-421-19 TRANSISTOR UN2213 Q533 8-729-424-08 TRANSISTOR UN2111 Q534 8-729-421-19 TRANSISTOR UN2213 Q535 8-729-424-08 TRANSISTOR UN2111 Q536 8-729-421-19 TRANSISTOR UN2213 Q537 8-729-424-08 TRANSISTOR UN2111 Q538 8-729-421-19 TRANSISTOR UN2213 Q539 8-729-424-08 TRANSISTOR UN2111 Q540 8-729-421-19 TRANSISTOR UN2213 Q541 8-729-424-08 TRANSISTOR UN2111 Q542 8-729-421-19 TRANSISTOR UN2213 Q543 8-729-424-08 TRANSISTOR UN2111 Q544 8-729-421-19 TRANSISTOR UN2213 Q545 8-729-424-08 TRANSISTOR UN2111 Q546 8-729-421-19 TRANSISTOR UN2213 Q547 8-729-424-08 TRANSISTOR UN2111 Q548 8-729-421-19 TRANSISTOR UN2213 Q549 8-729-424-08 TRANSISTOR UN2111 Q550 8-729-421-19 TRANSISTOR UN2213 Q551 8-729-424-08 TRANSISTOR UN2111 Q552 8-729-421-19 TRANSISTOR UN2213 Q553 8-729-424-08 TRANSISTOR UN2111 Q554 8-729-421-19 TRANSISTOR UN2213 Q555 8-729-424-08 TRANSISTOR UN2111 Q556 8-729-421-19 TRANSISTOR UN2213 Q557 8-729-424-08 TRANSISTOR UN2111 Q558 8-729-421-19 TRANSISTOR UN2213 Q559 8-729-424-08 TRANSISTOR UN2111 Q560 8-729-421-19 TRANSISTOR UN2213 < RESISTOR > R501 1-259-987-11 CARBON MELF 220 2% 1/8W R502 1-259-987-11 CARBON MELF 220 2% 1/8W R503 1-259-995-11 CARBON MELF 1K 2% 1/8W R504 1-259-995-11 CARBON MELF 1K 2% 1/8W R505 1-259-995-11 CARBON MELF 1K 2% 1/8W R506 1-259-995-11 CARBON MELF 1K 2% 1/8W R507 1-259-995-11 CARBON MELF 1K 2% 1/8W R508 1-259-995-11 CARBON MELF 1K 2% 1/8W R509 1-259-995-11 CARBON MELF 1K 2% 1/8W R510 1-259-995-11 CARBON MELF 1K 2% 1/8W R511 1-259-995-11 CARBON MELF 1K 2% 1/8W R512 1-259-995-11 CARBON MELF 1K 2% 1/8W R513 1-259-995-11 CARBON MELF 1K 2% 1/8W R514 1-259-995-11 CARBON MELF 1K 2% 1/8W R515 1-260-020-11 CARBON MELF 100K 2% 1/8W R516 1-260-020-11 CARBON MELF 100K 2% 1/8W R517 1-260-020-11 CARBON MELF 100K 2% 1/8W R518 1-260-020-11 CARBON MELF 100K 2% 1/8W R519 1-259-996-11 CARBON MELF 1.2K 2% 1/8W R520 1-259-996-11 CARBON MELF 1.2K 2% 1/8W R521 1-259-984-91 CARBON MELF 120 2% 1/8W R522 1-259-984-91 CARBON MELF 120 2% 1/8W R523 1-260-017-11 CARBON MELF 56K 2% 1/8W R524 1-260-017-11 CARBON MELF 56K 2% 1/8W R525 1-260-004-11 CARBON MELF 4.7K 2% 1/8W R526 1-260-004-11 CARBON MELF 4.7K 2% 1/8W R527 1-260-020-11 CARBON MELF 100K 2% 1/8W R528 1-260-020-11 CARBON MELF 100K 2% 1/8W R529 1-259-987-11 CARBON MELF 220 2% 1/8W R530 1-259-987-11 CARBON MELF 220 2% 1/8W R531 1-259-983-11 CARBON MELF 100 2% 1/8W R532 1-259-983-11 CARBON MELF 100 2% 1/8W R533 1-260-004-11 CARBON MELF 4.7K 2% 1/8W R534 1-259-145-31 CARBON MELF 120 5% 1/4W R535 1-259-145-31 CARBON MELF 120 5% 1/4W R540 1-259-995-11 CARBON MELF 1K 2% 1/8W R541 1-259-995-11 CARBON MELF 1K 2% 1/8W R542 1-259-995-11 CARBON MELF 1K 2% 1/8W R543 1-259-995-11 CARBON MELF 1K 2% 1/8W R544 1-259-995-11 CARBON MELF 1K 2% 1/8W R545 1-259-995-11 CARBON MELF 1K 2% 1/8W R546 1-259-995-11 CARBON MELF 1K 2% 1/8W R547 1-259-995-11 CARBON MELF 1K 2% 1/8W R548 1-259-995-11 CARBON MELF 1K 2% 1/8W R549 1-259-995-11 CARBON MELF 1K 2% 1/8W R550 1-259-995-11 CARBON MELF 1K 2% 1/8W R551 1-259-995-11 CARBON MELF 1K 2% 1/8W R552 1-259-995-11 CARBON MELF 1K 2% 1/8W R553 1-259-995-11 CARBON MELF 1K 2% 1/8W R554 1-259-995-11 CARBON MELF 1K 2% 1/8W R555 1-259-995-11 CARBON MELF 1K 2% 1/8W R556 1-259-995-11 CARBON MELF 1K 2% 1/8W R557 1-259-995-11 CARBON MELF 1K 2% 1/8W R558 1-260-004-11 CARBON MELF 4.7K 2% 1/8W R559 1-259-145-31 CARBON MELF 120 5% 1/4W R560 1-259-145-31 CARBON MELF 120 5% 1/4W R561 1-260-020-11 CARBON MELF 100K 2% 1/8W R562 1-260-020-11 CARBON MELF 100K 2% 1/8W R563 1-260-008-11 CARBON MELF 10K 2% 1/8W R564 1-260-008-11 CARBON MELF 10K 2% 1/8W R565 1-260-008-11 CARBON MELF 10K 2% 1/8W R566 1-259-930-91 CARBON MELF 4.3K 2% 1/8W R567 1-259-930-91 CARBON MELF 4.3K 2% 1/8W R568 1-260-008-11 CARBON MELF 10K 2% 1/8W R569 1-260-008-11 CARBON MELF 10K 2% 1/8W R570 1-260-008-11 CARBON MELF 10K 2% 1/8W R571 1-259-930-91 CARBON MELF 4.3K 2% 1/8W R572 1-259-930-91 CARBON MELF 4.3K 2% 1/8W R583 1-260-008-11 CARBON MELF 10K 2% 1/8W R584 1-260-008-11 CARBON MELF 10K 2% 1/8W R585 1-259-936-11 CARBON MELF 13K 2% 1/8W R586 1-259-936-11 CARBON MELF 13K 2% 1/8W ANALOG www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 125 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R587 1-259-995-11 CARBON MELF 1K 2% 1/8W R588 1-259-999-11 CARBON MELF 2.2K 2% 1/8W R589 1-259-926-11 CARBON MELF 2K 2% 1/8W R590 1-260-011-11 CARBON MELF 18K 2% 1/8W R591 1-260-008-11 CARBON MELF 10K 2% 1/8W R592 1-260-008-11 CARBON MELF 10K 2% 1/8W R593 1-259-936-11 CARBON MELF 13K 2% 1/8W R594 1-259-936-11 CARBON MELF 13K 2% 1/8W R595 1-259-995-11 CARBON MELF 1K 2% 1/8W R596 1-259-999-11 CARBON MELF 2.2K 2% 1/8W R597 1-259-926-11 CARBON MELF 2K 2% 1/8W R598 1-260-011-11 CARBON MELF 18K 2% 1/8W R599 1-260-008-11 CARBON MELF 10K 2% 1/8W R600 1-260-008-11 CARBON MELF 10K 2% 1/8W R601 1-259-936-11 CARBON MELF 13K 2% 1/8W R602 1-259-936-11 CARBON MELF 13K 2% 1/8W R603 1-259-995-11 CARBON MELF 1K 2% 1/8W R604 1-259-999-11 CARBON MELF 2.2K 2% 1/8W R605 1-259-926-11 CARBON MELF 2K 2% 1/8W R606 1-260-011-11 CARBON MELF 18K 2% 1/8W R607 1-260-008-11 CARBON MELF 10K 2% 1/8W R608 1-260-008-11 CARBON MELF 10K 2% 1/8W R609 1-259-936-11 CARBON MELF 13K 2% 1/8W R610 1-259-936-11 CARBON MELF 13K 2% 1/8W R611 1-259-995-11 CARBON MELF 1K 2% 1/8W R612 1-259-999-11 CARBON MELF 2.2K 2% 1/8W R613 1-259-926-11 CARBON MELF 2K 2% 1/8W R614 1-260-011-11 CARBON MELF 18K 2% 1/8W R615 1-260-008-11 CARBON MELF 10K 2% 1/8W R616 1-260-008-11 CARBON MELF 10K 2% 1/8W R617 1-259-936-11 CARBON MELF 13K 2% 1/8W R618 1-259-936-11 CARBON MELF 13K 2% 1/8W R619 1-259-995-11 CARBON MELF 1K 2% 1/8W R620 1-259-999-11 CARBON MELF 2.2K 2% 1/8W R621 1-259-926-11 CARBON MELF 2K 2% 1/8W R622 1-260-011-11 CARBON MELF 18K 2% 1/8W R623 1-260-008-11 CARBON MELF 10K 2% 1/8W R624 1-260-008-11 CARBON MELF 10K 2% 1/8W R625 1-259-936-11 CARBON MELF 13K 2% 1/8W R626 1-259-936-11 CARBON MELF 13K 2% 1/8W R627 1-259-995-11 CARBON MELF 1K 2% 1/8W R628 1-259-999-11 CARBON MELF 2.2K 2% 1/8W R629 1-259-926-11 CARBON MELF 2K 2% 1/8W R630 1-260-011-11 CARBON MELF 18K 2% 1/8W R633 1-259-995-11 CARBON MELF 1K 2% 1/8W R634 1-259-995-11 CARBON MELF 1K 2% 1/8W R635 1-260-020-11 CARBON MELF 100K 2% 1/8W R636 1-260-020-11 CARBON MELF 100K 2% 1/8W R637 1-260-026-11 CARBON MELF 330K 2% 1/8W R638 1-260-026-11 CARBON MELF 330K 2% 1/8W R639 1-259-929-11 CARBON MELF 3.6K 2% 1/8W R640 1-259-929-11 CARBON MELF 3.6K 2% 1/8W R641 1-260-002-11 CARBON MELF 3.3K 2% 1/8W R642 1-260-002-11 CARBON MELF 3.3K 2% 1/8W R643 1-260-008-11 CARBON MELF 10K 2% 1/8W R644 1-260-008-11 CARBON MELF 10K 2% 1/8W R645 1-259-998-11 CARBON MELF 1.8K 2% 1/8W R646 1-259-998-11 CARBON MELF 1.8K 2% 1/8W R647 1-259-925-11 CARBON MELF 1.6K 2% 1/8W R648 1-259-925-11 CARBON MELF 1.6K 2% 1/8W R649 1-259-995-11 CARBON MELF 1K 2% 1/8W R650 1-259-995-11 CARBON MELF 1K 2% 1/8W R651 1-208-453-41 RES,CHIP 4.7K 2% 1/10W R652 1-208-453-41 RES,CHIP 4.7K 2% 1/10W R653 1-208-453-41 RES,CHIP 4.7K 2% 1/10W R654 1-208-453-41 RES,CHIP 4.7K 2% 1/10W R655 1-208-453-41 RES,CHIP 4.7K 2% 1/10W R656 1-208-453-41 RES,CHIP 4.7K 2% 1/10W R659 1-259-995-11 CARBON MELF 1K 2% 1/8W R660 1-259-995-11 CARBON MELF 1K 2% 1/8W R661 1-260-020-11 CARBON MELF 100K 2% 1/8W R662 1-260-020-11 CARBON MELF 100K 2% 1/8W R663 1-260-026-11 CARBON MELF 330K 2% 1/8W R664 1-260-026-11 CARBON MELF 330K 2% 1/8W R665 1-259-929-11 CARBON MELF 3.6K 2% 1/8W R666 1-259-929-11 CARBON MELF 3.6K 2% 1/8W R667 1-260-002-11 CARBON MELF 3.3K 2% 1/8W R668 1-260-002-11 CARBON MELF 3.3K 2% 1/8W R669 1-260-008-11 CARBON MELF 10K 2% 1/8W R670 1-260-008-11 CARBON MELF 10K 2% 1/8W R671 1-259-998-11 CARBON MELF 1.8K 2% 1/8W R672 1-259-998-11 CARBON MELF 1.8K 2% 1/8W R673 1-259-925-11 CARBON MELF 1.6K 2% 1/8W R674 1-259-925-11 CARBON MELF 1.6K 2% 1/8W R675 1-259-995-11 CARBON MELF 1K 2% 1/8W R676 1-259-995-11 CARBON MELF 1K 2% 1/8W R677 1-208-453-41 RES,CHIP 4.7K 2% 1/10W R678 1-208-453-41 RES,CHIP 4.7K 2% 1/10W R679 1-208-453-41 RES,CHIP 4.7K 2% 1/10W R680 1-208-453-41 RES,CHIP 4.7K 2% 1/10W R681 1-208-453-41 RES,CHIP 4.7K 2% 1/10W R682 1-208-453-41 RES,CHIP 4.7K 2% 1/10W R685 1-259-995-11 CARBON MELF 1K 2% 1/8W R686 1-259-995-11 CARBON MELF 1K 2% 1/8W R687 1-260-020-11 CARBON MELF 100K 2% 1/8W R688 1-260-020-11 CARBON MELF 100K 2% 1/8W R689 1-260-026-11 CARBON MELF 330K 2% 1/8W R690 1-260-026-11 CARBON MELF 330K 2% 1/8W R691 1-259-929-11 CARBON MELF 3.6K 2% 1/8W R692 1-259-929-11 CARBON MELF 3.6K 2% 1/8W R693 1-260-002-11 CARBON MELF 3.3K 2% 1/8W R694 1-260-002-11 CARBON MELF 3.3K 2% 1/8W R695 1-260-008-11 CARBON MELF 10K 2% 1/8W R696 1-260-008-11 CARBON MELF 10K 2% 1/8W R697 1-259-998-11 CARBON MELF 1.8K 2% 1/8W R698 1-259-998-11 CARBON MELF 1.8K 2% 1/8W R699 1-259-925-11 CARBON MELF 1.6K 2% 1/8W R700 1-259-925-11 CARBON MELF 1.6K 2% 1/8W R701 1-259-995-11 CARBON MELF 1K 2% 1/8W R702 1-259-995-11 CARBON MELF 1K 2% 1/8W R703 1-208-453-41 RES,CHIP 4.7K 2% 1/10W R705 1-208-453-41 RES,CHIP 4.7K 2% 1/10W R706 1-208-453-41 RES,CHIP 4.7K 2% 1/10W ANALOG www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 126 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R707 1-208-453-41 RES,CHIP 4.7K 2% 1/10W R708 1-208-453-41 RES,CHIP 4.7K 2% 1/10W R709 1-208-453-41 RES,CHIP 4.7K 2% 1/10W R710 1-260-020-11 CARBON MELF 100K 2% 1/8W R711 1-260-020-11 CARBON MELF 100K 2% 1/8W R712 1-260-008-11 CARBON MELF 10K 2% 1/8W R713 1-260-008-11 CARBON MELF 10K 2% 1/8W R714 1-260-008-11 CARBON MELF 10K 2% 1/8W R715 1-260-008-11 CARBON MELF 10K 2% 1/8W R716 1-260-020-11 CARBON MELF 100K 2% 1/8W R717 1-260-020-11 CARBON MELF 100K 2% 1/8W R718 1-260-008-11 CARBON MELF 10K 2% 1/8W R719 1-260-008-11 CARBON MELF 10K 2% 1/8W R720 1-259-995-11 CARBON MELF 1K 2% 1/8W R721 1-259-995-11 CARBON MELF 1K 2% 1/8W R722 1-260-020-11 CARBON MELF 100K 2% 1/8W R723 1-260-020-11 CARBON MELF 100K 2% 1/8W R724 1-260-008-11 CARBON MELF 10K 2% 1/8W R725 1-260-008-11 CARBON MELF 10K 2% 1/8W R726 1-260-020-11 CARBON MELF 100K 2% 1/8W R727 1-260-020-11 CARBON MELF 100K 2% 1/8W R728 1-260-008-11 CARBON MELF 10K 2% 1/8W R729 1-259-995-11 CARBON MELF 1K 2% 1/8W R730 1-260-020-11 CARBON MELF 100K 2% 1/8W R731 1-260-020-11 CARBON MELF 100K 2% 1/8W R732 1-260-008-11 CARBON MELF 10K 2% 1/8W R733 1-260-008-11 CARBON MELF 10K 2% 1/8W R734 1-260-008-11 CARBON MELF 10K 2% 1/8W R735 1-260-008-11 CARBON MELF 10K 2% 1/8W R736 1-260-020-11 CARBON MELF 100K 2% 1/8W R737 1-260-020-11 CARBON MELF 100K 2% 1/8W R738 1-260-008-11 CARBON MELF 10K 2% 1/8W R739 1-260-008-11 CARBON MELF 10K 2% 1/8W R740 1-259-995-11 CARBON MELF 1K 2% 1/8W R741 1-259-995-11 CARBON MELF 1K 2% 1/8W R742 1-260-020-11 CARBON MELF 100K 2% 1/8W R743 1-260-020-11 CARBON MELF 100K 2% 1/8W R744 1-259-983-11 CARBON MELF 100 2% 1/8W R745 1-259-983-11 CARBON MELF 100 2% 1/8W R746 1-260-004-11 CARBON MELF 4.7K 2% 1/8W R747 1-260-004-11 CARBON MELF 4.7K 2% 1/8W R748 1-260-020-11 CARBON MELF 100K 2% 1/8W R749 1-260-020-11 CARBON MELF 100K 2% 1/8W R750 1-260-020-11 CARBON MELF 100K 2% 1/8W R751 1-260-020-11 CARBON MELF 100K 2% 1/8W R752 1-259-983-11 CARBON MELF 100 2% 1/8W R753 1-259-983-11 CARBON MELF 100 2% 1/8W R754 1-260-004-11 CARBON MELF 4.7K 2% 1/8W R755 1-260-004-11 CARBON MELF 4.7K 2% 1/8W R756 1-260-020-11 CARBON MELF 100K 2% 1/8W R757 1-260-020-11 CARBON MELF 100K 2% 1/8W R758 1-259-983-11 CARBON MELF 100 2% 1/8W R759 1-259-983-11 CARBON MELF 100 2% 1/8W R760 1-260-004-11 CARBON MELF 4.7K 2% 1/8W R761 1-260-004-11 CARBON MELF 4.7K 2% 1/8W R762 1-259-983-11 CARBON MELF 100 2% 1/8W R763 1-259-983-11 CARBON MELF 100 2% 1/8W R764 1-259-983-11 CARBON MELF 100 2% 1/8W R765 1-259-983-11 CARBON MELF 100 2% 1/8W R766 1-259-983-11 CARBON MELF 100 2% 1/8W R767 1-259-983-11 CARBON MELF 100 2% 1/8W R768 1-259-987-11 CARBON MELF 220 2% 1/8W R769 1-259-987-11 CARBON MELF 220 2% 1/8W R770 1-259-997-11 CARBON MELF 1.5K 2% 1/8W R771 1-259-997-11 CARBON MELF 1.5K 2% 1/8W R772 1-259-979-11 CARBON MELF 47 2% 1/8W R773 1-259-979-11 CARBON MELF 47 2% 1/8W R774 1-259-997-11 CARBON MELF 1.5K 2% 1/8W R775 1-259-997-11 CARBON MELF 1.5K 2% 1/8W R776 1-259-979-11 CARBON MELF 47 2% 1/8W R777 1-259-979-11 CARBON MELF 47 2% 1/8W R778 1-260-008-11 CARBON MELF 10K 2% 1/8W R779 1-259-984-11 CARBON MELF 120 2% 1/8W R780 1-260-008-11 CARBON MELF 10K 2% 1/8W R792 1-260-017-91 CARBON MELF 56K 2% 1/8W R793 1-260-017-91 CARBON MELF 56K 2% 1/8W R794 1-260-017-91 CARBON MELF 56K 2% 1/8W R795 1-260-017-91 CARBON MELF 56K 2% 1/8W R796 1-260-017-91 CARBON MELF 56K 2% 1/8W R797 1-260-017-91 CARBON MELF 56K 2% 1/8W R798 1-260-017-91 CARBON MELF 56K 2% 1/8W R799 1-260-017-91 CARBON MELF 56K 2% 1/8W R801 1-216-206-00 RES,CHIP 2.2K 2% 1/8W R802 1-208-518-41 RES,CHIP 22K 2% 1/10W R803 1-216-206-00 RES,CHIP 2.2K 2% 1/8W R804 1-208-518-41 RES,CHIP 22K 2% 1/10W R805 1-216-206-00 RES,CHIP 2.2K 2% 1/8W R806 1-208-518-41 RES,CHIP 22K 2% 1/10W R807 1-216-206-00 RES,CHIP 2.2K 2% 1/8W R808 1-208-518-41 RES,CHIP 22K 2% 1/10W R809 1-216-206-00 RES,CHIP 2.2K 2% 1/8W R810 1-208-518-41 RES,CHIP 22K 2% 1/10W R811 1-216-206-00 RES,CHIP 2.2K 2% 1/8W R812 1-208-518-41 RES,CHIP 22K 2% 1/10W R813 1-216-206-00 RES,CHIP 2.2K 2% 1/8W R814 1-208-518-41 RES,CHIP 22K 2% 1/10W R815 1-216-206-00 RES,CHIP 2.2K 2% 1/8W R816 1-208-518-41 RES,CHIP 22K 2% 1/10W R817 1-216-206-00 RES,CHIP 2.2K 2% 1/8W R818 1-208-518-41 RES,CHIP 22K 2% 1/10W R819 1-216-206-00 RES,CHIP 2.2K 2% 1/8W R820 1-208-518-41 RES,CHIP 22K 2% 1/10W R821 1-208-445-41 RES,CHIP 2.2K 2% 1/10W R822 1-208-518-41 RES,CHIP 22K 2% 1/10W R823 1-208-445-41 RES,CHIP 2.2K 2% 1/10W R824 1-208-518-41 RES,CHIP 22K 2% 1/10W R849 1-216-627-11 METAL CHIP 100 0.5% 1/10W R850 1-216-627-11 METAL CHIP 100 0.5% 1/10W R851 1-216-627-11 METAL CHIP 100 0.5% 1/10W R852 1-216-627-11 METAL CHIP 100 0.5% 1/10W R853 1-216-627-11 METAL CHIP 100 0.5% 1/10W R854 1-216-627-11 METAL CHIP 100 0.5% 1/10W R855 1-216-627-11 METAL CHIP 100 0.5% 1/10W R856 1-216-627-11 METAL CHIP 100 0.5% 1/10W ANALOG www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 127 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R862 1-216-627-11 METAL CHIP 100 0.5% 1/10W R863 1-216-627-11 METAL CHIP 100 0.5% 1/10W R864 1-208-462-41 RES,CHIP 10K 2% 1/10W R865 1-208-462-41 RES,CHIP 10K 2% 1/10W R871 1-260-017-91 CARBON MELF 56K 2% 1/8W R872 1-260-017-91 CARBON MELF 56K 2% 1/8W R873 1-260-017-91 CARBON MELF 56K 2% 1/8W R874 1-260-017-91 CARBON MELF 56K 2% 1/8W < VARIABLE RESISTOR > RV501 1-238-605-31 RES, VR, CABON 470K (OFFSET L) RV502 1-238-605-31 RES, VR, CABON 470K (OFFSET R) RV503 1-238-605-31 RES, VR, CABON 470K (OFFSET C) RV504 1-238-605-31 RES, VR, CABON 470K (OFFSET SW) RV505 1-238-605-31 RES, VR, CABON 470K (OFFSET SL) RV506 1-238-605-31 RES, VR, CABON 470K (OFFSET SR) < RELAY > RY501 1-755-061-11 RELAY RY502 1-755-061-11 RELAY RY503 1-755-061-11 RELAY RY504 1-755-061-11 RELAY RY505 1-755-061-11 RELAY RY506 1-755-061-11 RELAY RY507 1-755-061-11 RELAY RY508 1-755-061-11 RELAY RY509 1-755-061-11 RELAY ************************************************************** * 1-671-196-11 CAPACITOR BOARD **************** < CAPACITOR > C051 1-119-805-21 ELECT 2200uF 20% 25V C052 1-119-805-21 ELECT 2200uF 20% 25V C053 1-127-566-11 ELECT 6800uF 20% 35V C054 1-127-566-11 ELECT 6800uF 20% 35V C055 1-163-141-00 CERAMIC CHIP 0.001uF 5% 50V C056 1-163-141-00 CERAMIC CHIP 0.001uF 5% 50V C057 1-163-141-00 CERAMIC CHIP 0.001uF 5% 50V C058 1-163-141-00 CERAMIC CHIP 0.001uF 5% 50V C059 1-163-141-00 CERAMIC CHIP 0.001uF 5% 50V C060 1-163-141-00 CERAMIC CHIP 0.001uF 5% 50V C061 1-163-141-00 CERAMIC CHIP 0.001uF 5% 50V C062 1-163-141-00 CERAMIC CHIP 0.001uF 5% 50V C063 1-163-141-00 CERAMIC CHIP 0.001uF 5% 50V C064 1-163-141-00 CERAMIC CHIP 0.001uF 5% 50V C065 1-163-141-00 CERAMIC CHIP 0.001uF 5% 50V C066 1-136-177-00 FILM 1uF 5% 50V C067 1-136-165-00 FILM 0.1uF 5% 50V < CONNECTOR > * CN051 1-564-242-00 CONNECTOR 6P * CN053 1-564-242-00 PIN, CONNECTOR 5P < DIODE > D051 8-719-302-38 DIODE RBV-602-01 D052 8-719-302-38 DIODE RBV-602-01 < GROUND PLATE > EP051 1-537-770-21 TERMINAL BOARD, GROUND < FUSE > !F051 1-532-505-51 FUSE,TIMELAG +5AL/250V (EXCEPT US,CND) !F051 1-576-109-11 FUSE 5A/125V(US,CND) !F052 1-532-505-51 FUSE,TIMELAG +5AL/250V (EXCEPT US,CND) !F052 1-576-109-11 FUSE 5A/125V(US,CND) < FUSE HOLDER > FH005 1-533-293-11 FUSE HOLDER FH006 1-533-293-11 FUSE HOLDER FH007 1-533-293-11 FUSE HOLDER FH008 1-533-293-11 FUSE HOLDER < RESISTOR > R051 1-212-865-00 FUS RES 22 5% 1/4W ************************************************************** * 1-670-916-11 CLOCK BOARD *********** < CAPACITOR > C7001 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V < CONNECTOR > CN7001 1-691-173-11 CONNECTOR (BOARD TO BOARD) 3P CN7002 1-691-173-11 CONNECTOR (BOARD TO BOARD) 3P CN7003 1-691-173-11 CONNECTOR (BOARD TO BOARD) 3P < INDUCTOR > R7003 1-414-231-11 INDUCTOR, FERRITE BEAD < VIBRATOR > X7001 1-767-433-11 OSCILLATOR, CRYSTAL (49.152MHz) ************************************************************** * A-4417-106-A DIGITAL BOARD, COMPLETE (US,CND) *********************** * A-4419-255-A DIGITAL BOARD, COMPLETE (EXCEPT US,CND) *********************** 1-216-121-91 RES,CHIP 1M 5% 1/10W 4-974-510-01 SCREW (+BV 3X8 B) < CAPACITOR > C1001 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1002 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1003 1-119-792-21 ELECT 470uF 20% 16V C1004 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1005 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V CAPACITOR CLOCK ANALOG DIGITAL Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 128 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C1007 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C1010 1-119-799-11 ELECT 47uF 20% 16V C1011 1-136-165-00 FILM 0.1uF 5% 50V C1012 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1013 1-164-489-91 CERAMIC CHIP 0.22uF 10% 16V C1014 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1017 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1018 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1021 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1022 1-136-165-00 FILM 0.1uF 5% 50V C1023 1-164-182-11 CERAMIC CHIP 3300uF C1024 1-119-792-21 ELECT 470uF 20% 16V C1025 1-119-792-21 ELECT 470uF 20% 16V C1026 1-119-800-11 ELECT 100uF 20% 16V C1029 1-130-475-00 MYLAR 0.0022uF 5% 50V C1030 1-130-475-00 FILM 0.0022uF 5% 50V C1031 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1032 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1036 1-119-800-11 ELECT 100uF 20% 16V C1037 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1038 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1039 1-136-165-00 FILM 0.1uF 5% 50V C1040 1-119-792-21 ELECT 470uF 20% 16V C1041 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1042 1-136-165-00 FILM 0.1uF 5% 50V C1043 1-119-800-11 ELECT 100uF 20% 16V C1044 1-119-811-21 ELECT 220uF 20% 35V C1045 1-119-811-21 ELECT 220uF 20% 35V C1046 1-119-811-21 ELECT 220uF 20% 35V C1047 1-119-811-21 ELECT 220uF 20% 35V C1048 1-126-935-11 ELECT 470uF 20% 16V C1049 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1050 1-126-927-11 ELECT 2200uF 20% 10V C1051 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1052 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1053 1-104-666-11 ELECT 220uF 20% 25V C1054 1-126-925-11 ELECT 470uF 20% 10V C1055 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C1056 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C1057 1-104-666-11 ELECT 220uF 20% 25V C1058 1-126-925-11 ELECT 470uF 20% 10V C1059 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1060 1-126-927-11 ELECT 2200uF 20% 10V C1061 1-126-927-11 ELECT 2200uF 20% 10V C1062 1-126-927-11 ELECT 2200uF 20% 10V C1063 1-126-767-11 ELECT 1000uF 20% 16V C1064 1-119-789-31 ELECT 100uF 20% 16V C1065 1-126-942-61 ELECT 1000uF 20% 25V C1066 1-126-767-11 ELECT 1000uF 20% 16V C1067 1-126-942-61 ELECT 1000uF 20% 25V C1068 1-126-942-61 ELECT 1000uF 20% 25V C1069 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1070 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1071 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1072 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1073 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1074 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1075 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1076 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1077 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1078 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1079 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1080 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1081 1-163-031-11 CERAMIC CHIP 0.01uF 50V C1082 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1083 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1084 1-163-031-11 CERAMIC CHIP 0.01uF 50V C1085 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1086 1-164-344-11 CERAMIC CHIP 0.068uF 10% 25V C1087 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1088 1-119-800-11 ELECT 100uF 20% 16V C1094 1-126-933-11 ELECT 100uF 20% 16V C1095 1-126-963-11 ELECT 4.7uF 20% 50V C1104 1-126-963-11 ELECT 4.7uF 20% 50V C1105 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C1125 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C1126 1-126-963-11 ELECT 4.7uF 20% 50V C2001 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2002 1-119-800-11 ELECT 100uF 20% 16V C2003 1-119-800-11 ELECT 100uF 20% 16V C2004 1-119-800-11 ELECT 100uF 20% 16V C2005 1-119-800-11 ELECT 100uF 20% 16V C2006 1-136-165-00 FILM 0.1uF 5% 50V C2007 1-136-165-00 FILM 0.1uF 5% 50V C2008 1-136-165-00 FILM 0.1uF 5% 50V C2009 1-136-165-00 FILM 0.1uF 5% 50V C2010 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2011 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2013 1-119-800-11 ELECT 100uF 20% 16V C2014 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2015 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2016 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2017 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2018 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2019 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2020 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2021 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2022 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2023 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2024 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2025 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2026 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2027 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2028 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2030 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2031 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2032 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2033 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2034 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2035 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2036 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2037 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2039 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2040 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V DIGITAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 129 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C2041 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2042 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2043 1-119-792-21 ELECT 470uF 20% 16V C2044 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2045 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2046 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2047 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2048 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2049 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2050 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2051 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2052 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2053 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2054 1-119-800-11 ELECT 100uF 20% 16V C2055 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2056 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2057 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2058 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2059 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2060 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2061 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C2062 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2063 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2064 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2065 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2066 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2067 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2068 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C2069 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C2070 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C3001 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3002 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3003 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3004 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3006 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C3007 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3008 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3009 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C3010 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C3011 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3012 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C3013 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3014 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C3015 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3016 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C3017 1-163-031-11 CERAMIC CHIP 0.01uF 50V C3018 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3019 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3021 1-119-799-11 ELECT 47uF 20% 16V C3022 1-119-799-11 ELECT 47uF 20% 16V C3023 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3024 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3025 1-119-792-21 ELECT 470uF 20% 16V C3026 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3027 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3028 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3029 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3030 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C3031 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C3032 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3036 1-119-800-11 ELECT 100uF 20% 16V C3037 1-119-800-11 ELECT 100uF 20% 16V C3038 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C3039 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C4001 1-119-792-21 ELECT 470uF 20% 16V C4002 1-136-165-00 FILM 0.1uF 5% 50V C4003 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C4004 1-119-792-21 ELECT 470uF 20% 16V C4005 1-136-165-00 FILM 0.1uF 5% 50V C4006 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C4008 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C4013 1-136-165-00 FILM 0.1uF 5% 50V C4014 1-136-165-00 FILM 0.1uF 5% 50V C4016 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C4017 1-119-792-21 ELECT 470uF 20% 16V C4018 1-136-165-00 FILM 0.1uF 5% 50V C4019 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C4020 1-136-165-00 FILM 0.1uF 5% 50V C4021 1-136-165-00 FILM 0.1uF 5% 50V C4022 1-119-800-11 ELECT 100uF 20% 16V C4025 1-136-165-00 FILM 0.1uF 5% 50V C4026 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C4027 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C4028 1-136-165-00 FILM 0.1uF 5% 50V C4029 1-119-792-21 ELECT 470uF 20% 16V C4030 1-119-792-21 ELECT 470uF 20% 16V C4031 1-119-792-21 ELECT 470uF 20% 16V C4032 1-136-165-00 FILM 0.1uF 5% 50V C4033 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C4034 1-119-792-21 ELECT 470uF 20% 16V C4035 1-136-165-00 FILM 0.1uF 5% 50V C4036 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C4038 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C4043 1-136-165-00 FILM 0.1uF 5% 50V C4044 1-136-165-00 FILM 0.1uF 5% 50V C4046 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C4047 1-119-792-21 ELECT 470uF 20% 16V C4048 1-136-165-00 FILM 0.1uF 5% 50V C4049 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C4050 1-136-165-00 FILM 0.1uF 5% 50V C4051 1-136-165-00 FILM 0.1uF 5% 50V C4052 1-119-800-11 ELECT 100uF 20% 16V C4055 1-136-165-00 FILM 0.1uF 5% 50V C4056 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C4057 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C4058 1-136-165-00 FILM 0.1uF 5% 50V C4059 1-119-792-21 ELECT 470uF 20% 16V C4060 1-119-792-21 ELECT 470uF 20% 16V C4061 1-119-792-21 ELECT 470uF 20% 16V C4062 1-136-165-00 FILM 0.1uF 5% 50V C4063 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C4064 1-119-792-21 ELECT 470uF 20% 16V C4065 1-136-165-00 FILM 0.1uF 5% 50V DIGITAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 130 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C4066 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C4068 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C4073 1-136-165-00 FILM 0.1uF 5% 50V C4074 1-136-165-00 FILM 0.1uF 5% 50V C4075 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C4076 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C4077 1-119-792-21 ELECT 470uF 20% 16V C4078 1-136-165-00 FILM 0.1uF 5% 50V C4079 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C4080 1-136-165-00 FILM 0.1uF 5% 50V C4081 1-136-165-00 FILM 0.1uF 5% 50V C4082 1-119-800-11 ELECT 100uF 20% 16V C4085 1-136-165-00 FILM 0.1uF 5% 50V C4086 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C4087 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C4088 1-136-165-00 FILM 0.1uF 5% 50V C4089 1-119-792-21 ELECT 470uF 20% 16V C4090 1-119-792-21 ELECT 470uF 20% 16V C4091 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C4106 1-164-004-91 CERAMIC CHIP 0.1uF 10% 25V C5001 1-130-973-00 FILM 0.022uF 3% 10V C5002 1-136-299-51 FILM 0.012uF 5% 50V C5003 1-130-973-00 FILM 0.022uF 3% 10V C5004 1-136-165-00 FILM 0.1uF 5% 50V C5006 1-136-165-00 FILM 0.1uF 5% 50V C5007 1-136-165-00 FILM 0.1uF 5% 50V C5009 1-130-856-00 MYLAR 0.0068uF 3% 100V C5010 1-119-799-11 ELECT 47uF 20% 16V C5011 1-119-799-11 ELECT 47uF 20% 16V C5012 1-136-299-51 FILM 0.012uF 5% 50V C5013 1-136-165-00 FILM 0.1uF 5% 50V C5014 1-119-799-11 ELECT 47uF 20% 16V C5017 1-119-799-11 ELECT 47uF 20% 16V C5018 1-119-825-41 ELECT 22uF 20% 50V C5019 1-130-856-00 MYLAR 0.0068uF 3% 100V C5020 1-130-973-00 FILM 0.022uF 3% 10V C5021 1-136-299-51 FILM 0.012uF 5% 50V C5022 1-130-973-00 FILM 0.022uF 3% 10V C5024 1-136-165-00 FILM 0.1uF 5% 50V C5026 1-136-165-00 FILM 0.1uF 5% 50V C5027 1-136-165-00 FILM 0.1uF 5% 50V C5029 1-130-856-00 MYLAR 0.0068uF 3% 100V C5030 1-119-799-11 ELECT 47uF 20% 16V C5031 1-119-799-11 ELECT 47uF 20% 16V C5032 1-136-299-51 FILM 0.012uF 5% 50V C5033 1-136-165-00 FILM 0.1uF 5% 50V C5034 1-119-799-11 ELECT 47uF 20% 16V C5037 1-119-799-11 ELECT 47uF 20% 16V C5038 1-119-825-41 ELECT 22uF 20% 50V C5040 1-130-856-00 MYLAR 0.0068uF 3% 100V C5041 1-119-800-11 ELECT 100uF 20% 16V C5042 1-119-800-11 ELECT 100uF 20% 16V C5043 1-130-973-00 FILM 0.022uF 3% 10V C5045 1-136-299-51 FILM 0.012uF 5% 50V C5046 1-130-973-00 FILM 0.022uF 3% 10V C5047 1-136-165-00 FILM 0.1uF 5% 50V C5049 1-136-165-00 FILM 0.1uF 5% 50V C5050 1-136-165-00 FILM 0.1uF 5% 50V C5052 1-130-856-00 MYLAR 0.0068uF 3% 100V C5053 1-119-799-11 ELECT 47uF 20% 16V C5054 1-119-799-11 ELECT 47uF 20% 16V C5056 1-119-792-21 ELECT 470uF 20% 16V C5057 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C5058 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C5059 1-136-299-51 FILM 0.012uF 5% 50V C5060 1-136-165-00 FILM 0.1uF 5% 50V C5061 1-119-799-11 ELECT 47uF 20% 16V C5064 1-119-799-11 ELECT 47uF 20% 16V C5065 1-119-825-41 ELECT 22uF 20% 50V C5066 1-130-856-00 MYLAR 0.0068uF 3% 100V C5067 1-130-973-00 FILM 0.022uF 3% 10V C5068 1-136-299-51 FILM 0.012uF 5% 50V C5069 1-130-973-00 FILM 0.022uF 3% 10V C5071 1-136-165-00 FILM 0.1uF 5% 50V C5073 1-136-165-00 FILM 0.1uF 5% 50V C5074 1-136-165-00 FILM 0.1uF 5% 50V C5076 1-130-856-00 MYLAR 0.0068uF 3% 100V C5077 1-119-799-11 ELECT 47uF 20% 16V C5078 1-119-799-11 ELECT 47uF 20% 16V C5079 1-136-299-51 FILM 0.012uF 5% 50V C5080 1-136-165-00 FILM 0.1uF 5% 50V C5081 1-119-799-11 ELECT 47uF 20% 16V C5084 1-119-799-11 ELECT 47uF 20% 16V C5085 1-119-825-41 ELECT 22uF 20% 50V C5087 1-130-856-00 MYLAR 0.0068uF 5% 50V C5088 1-119-800-11 ELECT 100uF 20% 16V C5089 1-119-800-11 ELECT 100uF 20% 16V C5090 1-130-973-00 FILM 0.022uF 3% 10V C5091 1-136-299-51 FILM 0.012uF 5% 50V C5092 1-130-973-00 FILM 0.022uF 3% 10V C5093 1-136-165-00 FILM 0.1uF 5% 50V C5095 1-136-165-00 FILM 0.1uF 5% 50V C5096 1-136-165-00 FILM 0.1uF 5% 50V C5098 1-130-856-00 MYLAR 0.0068uF 3% 100V C5099 1-119-799-11 ELECT 47uF 20% 16V C5100 1-119-799-11 ELECT 47uF 20% 16V C5101 1-136-299-51 FILM 0.012uF 5% 50V C5102 1-136-165-00 FILM 0.1uF 5% 50V C5103 1-119-799-11 ELECT 47uF 20% 16V C5106 1-119-799-11 ELECT 47uF 20% 16V C5107 1-119-825-41 ELECT 22uF 20% 50V C5108 1-130-856-00 MYLAR 0.0068uF 3% 100V C5110 1-130-973-00 FILM 0.022uF 3% 10V C5111 1-136-299-51 FILM 0.012uF 5% 50V C5112 1-130-973-00 FILM 0.022uF 3% 10V C5114 1-136-165-00 FILM 0.1uF 5% 50V C5116 1-136-165-00 FILM 0.1uF 5% 50V C5117 1-136-165-00 FILM 0.1uF 5% 50V C5120 1-130-856-00 MYLAR 0.0068uF 3% 100V C5121 1-119-799-11 ELECT 47uF 20% 16V C5122 1-119-799-11 ELECT 47uF 20% 16V C5124 1-136-299-51 FILM 0.012uF 5% 50V C5125 1-136-165-00 FILM 0.1uF 5% 50V DIGITAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 131 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C5126 1-119-799-11 ELECT 47uF 20% 16V C5129 1-119-799-11 ELECT 47uF 20% 16V C5130 1-119-825-41 ELECT 22uF 20% 50V C5132 1-130-856-00 MYLAR 0.0068uF 3% 100V < CONNECTOR > CN1002 1-691-769-11 PLUG (MICRO CONNECTOR) 7P * CN1003 1-564-104-00 PIN, CONNECTOR (B3P-VH) 3P CN1004 1-691-771-11 PLUG (MICRO CONNECTOR) 9P * CN1005 1-564-241-11 PIN, CONNECTOR (B4P-VH) 4P * CN1006 1-568-826-11 SOCKET, CONNECTOR 7P * CN3001 1-568-936-11 PIN, CONNECTOR 9P * CN3002 1-568-839-11 SOCKET, CONNECTOR 23P CN3003 1-564-506-11 PLUG, CONNECTOR 3P CN4001 1-691-160-11 PIN, CONNECTOR 3P CN4002 1-691-160-11 PIN, CONNECTOR 3P CN4003 1-691-160-11 PIN, CONNECTOR 3P CN5001 1-691-772-11 PLUG (MICRO CONNECTOR) 10P CN5002 1-691-772-21 PLUG, CONNECTOR 10P < DIODE > D1001 8-719-025-33 DIODE 02CZ6.2-TE85L D1006 8-719-800-76 DIODE 1SS226 D1007 8-719-800-76 DIODE 1SS226 D1008 8-719-800-76 DIODE 1SS226 D1009 8-719-800-76 DIODE 1SS226 D1013 8-719-801-78 DIODE 1SS184 D1014 8-719-801-78 DIODE 1SS184 D2001 8-719-820-05 DIODE 1SS181 D2002 8-719-820-05 DIODE 1SS181 D3001 8-719-801-78 DIODE 1SS184 D3002 8-719-801-78 DIODE 1SS184 D3003 8-719-801-78 DIODE 1SS184 D3004 8-719-820-05 DIODE 1SS181 D3005 8-719-801-78 DIODE 1SS184 < FERRITE BEAD > FB1001 1-410-397-21 FERRITE BEAD INDUCTOR FB1002 1-410-397-21 FERRITE BEAD INDUCTOR FB1003 1-410-397-21 FERRITE BEAD INDUCTOR FB1004 1-410-397-21 FERRITE BEAD INDUCTOR FB1005 1-410-397-21 FERRITE BEAD INDUCTOR FB1006 1-410-397-21 FERRITE BEAD INDUCTOR FB1007 1-410-397-21 FERRITE BEAD INDUCTOR FB1008 1-410-397-21 FERRITE BEAD INDUCTOR FB1009 1-410-397-21 FERRITE BEAD INDUCTOR FB1010 1-410-397-21 FERRITE BEAD INDUCTOR FB1011 1-410-397-21 FERRITE BEAD INDUCTOR FB1012 1-410-397-21 FERRITE BEAD INDUCTOR FB1013 1-410-397-21 FERRITE BEAD INDUCTOR FB1101 1-500-245-11 INDUCTOR 0UH FB1102 1-500-245-11 INDUCTOR 0UH FB2001 1-410-397-21 FERRITE BEAD INDUCTOR FB2002 1-410-397-21 FERRITE BEAD INDUCTOR FB2003 1-500-230-21 INDUCTOR 0UH FB3001 1-500-230-21 INDUCTOR 0UH FB4002 1-410-397-21 FERRITE BEAD INDUCTOR FB4004 1-410-397-21 FERRITE BEAD INDUCTOR FB4007 1-410-397-21 FERRITE BEAD INDUCTOR FB4009 1-410-397-21 FERRITE BEAD INDUCTOR FB4012 1-410-397-21 FERRITE BEAD INDUCTOR FB4014 1-410-397-21 FERRITE BEAD INDUCTOR FB5005 1-410-397-21 FERRITE BEAD INDUCTOR FB5006 1-410-397-21 FERRITE BEAD INDUCTOR FB5011 1-410-397-21 FERRITE BEAD INDUCTOR FB5012 1-410-397-21 FERRITE BEAD INDUCTOR < HEAT SINK > * H1001 4-931-401-71 HEAT SINK, V.OUT * H1002 4-931-401-71 HEAT SINK, V.OUT < IC > IC1001 8-759-356-27 IC NJM2129M-TE2 IC1002 8-759-557-32 IC ADM202EARN-REEL IC1004 8-759-426-99 IC CXD8607N IC1005 8-759-450-47 IC BA05T IC1006 8-759-445-59 IC BA033T IC1007 8-749-923-05 IC TORX178A (LD OPTICAL IN) IC1008 8-759-424-13 IC MC74HC00AFEL IC1009 8-759-243-21 IC TC7SU04F-TE85L IC1010 8-749-015-11 IC TORX173(HS)(DVD OPTICAL IN) IC1011 8-749-923-05 IC TORX178A (TV OPTICAL IN) IC1012 8-759-424-13 IC MC74HC00AFEL IC1013 8-749-923-05 IC TORX178A (MD/DAT OPTICAL IN) IC1014 8-759-424-25 IC MC74HC151FEL IC1015 8-759-424-37 IC MC74HC241AFEL IC1016 8-749-923-04 IC TOTX178 (MD/DAT OPTICAL OUT) IC1017 8-759-243-21 IC TC7SU04F-TE85L IC1018 8-749-923-05 IC TORX178A IC1019 8-759-557-25 IC CS8414-CSR IC1020 8-759-525-10 IC TC7SET08F(TE85L) IC1021 8-759-243-21 IC TC7SU04F-TE85L IC1022 8-759-242-70 IC TC7WU04F IC1023 8-759-367-69 IC MC74HC74AFL IC1024 8-759-636-55 IC M5218AFP IC1025 8-759-243-19 IC TC7SU04F IC1026 8-759-456-86 IC TC7SH14F IC1027 8-759-456-86 IC TC7SH14F IC1028 8-759-456-86 IC TC7SH14F IC1051 8-759-175-30 IC NJM78L12UA-TE1 IC2001 8-759-424-65 IC MC74HC574AFEL IC2002 8-759-445-59 IC BA033T IC2003 8-759-445-59 IC BA033T IC2004 8-759-488-94 IC IDT71V256SA15Y-TL IC2005 8-752-391-87 IC CXD2712R IC2006 8-759-557-19 IC MC74VHCU04MEL IC2007 8-759-482-20 IC IDT71V124S15Y-TL IC2008 8-759-531-30 IC MC74LVX4245-DT IC2009 8-752-391-87 IC CXD2712R IC2010 8-759-482-20 IC IDT71V124S15Y-TL IC2011 8-759-424-65 IC MC74HC574AFEL IC2012 8-759-424-65 IC MC74HC574AFEL IC2013 8-759-482-20 IC IDT71V124S15Y-TL IC2014 8-759-548-82 IC SN74LV541ANSR IC2015 8-759-525-00 IC CXD8751Q DIGITAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 132 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark IC2016 8-759-557-26 IC ADSST-AC3-2500 IC2017 8-759-456-86 IC TC7SH14F(TE85L) IC2018 8-759-082-59 IC TC7W32FU IC2019 8-759-082-59 IC TC7W32FU IC3001 8-759-424-13 IC MC74HC00AFEL IC3002 8-759-545-07 IC TMP87C447U IC3003 8-759-367-67 IC MC74HC14AFEL IC3004 8-759-557-35 IC M51943BML-600C IC3005 8-759-367-62 IC MC74HC157AFEL IC3006 8-759-561-42 IC MC74VHC573MEL IC3007 8-759-561-42 IC MC74VHC573MEL IC3008 8-759-557-27 IC HD64F2134FA20-CONT IC3009 8-759-567-61 IC MBM29F800BA-90PF-FJ-1 IC3010 8-759-424-65 IC MC74HC574AFEL IC3011 8-759-424-65 IC MC74HC574AFEL IC3012 8-759-242-70 IC TC7WU04F IC3013 8-759-424-14 IC MC74HC02AFEL IC3014 8-759-367-70 IC MC74HC125AFEL IC3015 8-759-424-19 IC MC74HC126AFEL IC3016 8-759-242-70 IC TC7WU04F IC3017 8-759-367-70 IC MC74HC125AFEL IC3018 8-759-424-65 IC MC74HC574AFEL IC3019 8-759-424-65 IC MC74HC574AFEL IC3020 8-759-367-70 IC MC74HC125AFEL IC3021 8-759-478-92 IC TC7SET04FU(TE85R) IC4001 8-759-481-28 IC MSM9404BGS-BK IC4002 8-759-044-10 IC CXD2562Q IC4003 8-759-239-94 IC TC74HCT08AF IC4004 8-759-481-28 IC MSM9404BGS-BK IC4005 8-759-044-10 IC CXD2562Q IC4006 8-759-239-94 IC TC74HCT08AF IC4007 8-759-481-28 IC MSM9404BGS-BK IC4008 8-759-044-10 IC CXD2562Q IC4009 8-759-239-94 IC TC74HCT08AF IC4010 8-759-557-19 IC MC74VHCU04MEL IC4011 8-759-557-19 IC MC74VHCU04MEL IC4012 8-759-242-19 IC TC7SU04F IC4013 8-759-242-19 IC TC7SU04F IC4102 8-759-525-10 IC TC7SET08F IC4103 8-759-525-10 IC TC7SET08F IC4111 8-759-180-84 IC TC7W74F IC4112 8-759-180-84 IC TC7W74F IC4113 8-759-180-84 IC TC7W74F IC5001 8-759-371-51 IC CXA8042AS IC5002 8-759-711-82 IC NJM4580E IC5003 8-759-371-51 IC CXA8042AS IC5004 8-759-711-82 IC NJM4580E IC5005 8-759-369-74 IC NJM4556AM-TE2 IC5006 8-759-231-53 IC TA7805S IC5007 8-759-371-51 IC CXA8042AS IC5008 8-759-711-82 IC NJM4580E IC5009 8-759-557-23 IC M62362P IC5010 8-759-371-51 IC CXA8042AS IC5011 8-759-711-82 IC NJM4580E IC5012 8-759-369-74 IC NJM4556AM-TE2 IC5013 8-759-371-51 IC CXA8042AS IC5014 8-759-711-82 IC NJM4580E IC5016 8-759-371-51 IC CXA8042AS IC5017 8-759-711-82 IC NJM4580E IC5018 8-759-369-74 IC NJM4556AM-TE2 IC5019 8-759-557-23 IC M62362P < JACK > J1001 1-764-188-21 JACK (MONITOR CTRL-A1) J1002 1-563-330-11 JACK (S-LINK CTRL-A1) J1003 1-563-330-11 JACK (S-LINK CTRL-A1) J1004 1-764-116-51 PULG, (D) SUB CONNECTOR 9P (RS-232C) J1005 1-568-750-21 JACK, PIN (1P SHIELD TYPE)(LD COAXIAL IN) J1006 1-568-750-21 JACK, PIN (1P SHIELD TYPE)(DVD COAXIAL IN) J1007 1-568-750-21 JACK, PIN (1P SHIELD TYPE)(CD COAXIAL IN) J1008 1-568-750-31 JACK, PIN (1P SHIELD TYPE)(LD AC-3RF IN) J1009 1-764-188-21 JACK (ANALIZER MIC IN) < TRANSISTOR > Q1001 8-729-424-08 TRANSISTOR UN2111 Q1002 8-729-230-49 TRANSISTOR 2SC2712-YG Q2002 8-729-230-49 TRANSISTOR 2SC2712-YG Q3001 8-729-421-22 TRANSISTOR UN2211 Q3002 8-729-230-49 TRANSISTOR 2SC2712-YG Q3003 8-729-421-22 TRANSISTOR UN2211 Q3004 8-729-216-22 TRANSISTOR 2SA1162-G Q3005 8-729-424-08 TRANSISTOR UN2111 Q3006 8-729-230-49 TRANSISTOR 2SC2712-YG Q3007 8-729-230-49 TRANSISTOR 2SC2712-YG Q3008 8-729-424-08 TRANSISTOR UN2111 Q3009 8-729-421-22 TRANSISTOR UN2211 Q3010 8-729-421-22 TRANSISTOR UN2211 Q3011 8-729-421-22 TRANSISTOR UN2211 < RESISTOR > R1001 1-216-025-91 RES,CHIP 100 5% 1/10W R1002 1-216-049-91 RES,CHIP 1K 5% 1/10W R1004 1-216-073-00 METAL CHIP 10K 5% 1/10W R1005 1-216-025-91 RES,CHIP 100 5% 1/10W R1008 1-259-983-11 CARBON MELF 100 2% 1/8W R1009 1-259-983-11 CARBON MELF 100 2% 1/8W R1012 1-259-983-11 CARBON MELF 100 2% 1/8W R1013 1-259-983-11 CARBON MELF 100 2% 1/8W R1014 1-216-025-91 RES,CHIP 100 5% 1/10W R1020 1-216-022-00 METAL CHIP 75 5% 1/10W R1021 1-216-821-91 RES,CHIP 1K 5% 1/16W R1022 1-216-022-00 METAL CHIP 75 5% 1/10W R1023 1-216-833-91 METAL CHIP 10K 5% 1/10W R1024 1-216-821-91 RES,CHIP 1K 5% 1/16W R1025 1-216-022-00 METAL CHIP 75 5% 1/10W R1026 1-216-821-91 RES,CHIP 1K 5% 1/16W R1027 1-216-821-91 RES,CHIP 1K 5% 1/16W R1028 1-216-833-91 METAL CHIP 10K 5% 1/10W R1029 1-216-022-00 METAL CHIP 75 5% 1/10W R1030 1-216-022-00 METAL CHIP 75 5% 1/10W R1031 1-216-022-00 METAL CHIP 75 5% 1/10W R1032 1-216-821-91 RES,CHIP 1K 5% 1/16W R1033 1-216-049-91 RES,CHIP 1K 5% 1/10W R1034 1-216-809-11 METAL CHIP 100 5% 1/16W R1035 1-216-809-11 METAL CHIP 100 5% 1/16W DIGITAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 133 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R1036 1-216-809-11 METAL CHIP 100 5% 1/16W R1037 1-216-809-11 METAL CHIP 100 5% 1/16W R1038 1-216-821-91 RES,CHIP 1K 5% 1/16W R1039 1-216-809-11 METAL CHIP 100 5% 1/16W R1040 1-216-821-91 RES,CHIP 1K 5% 1/16W R1041 1-216-022-00 METAL CHIP 75 5% 1/10W R1042 1-414-227-11 INDUCTOR,FERRITE BEAD R1043 11-414-227-11 INDUCTOR,FERRITE BEAD R1044 1-216-833-91 METAL CHIP 10K 5% 1/10W R1045 1-216-022-00 METAL CHIP 75 5% 1/10W R1046 1-216-041-00 RES,CHIP 470 5% 1/10W R1047 1-216-809-11 METAL CHIP 100 5% 1/16W R1048 1-216-809-11 METAL CHIP 100 5% 1/16W R1049 1-216-073-00 RES,CHIP 10K 5% 1/10W R1051 1-216-821-11 RES,CHIP 1K 5% 1/10W R1052 1-216-809-11 METAL CHIP 100 5% 1/16W R1053 1-259-979-11 CARBON MELF 47 2% 1/8W R1054 1-259-979-11 CARBON MELF 47 2% 1/8W R1055 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R1056 1-259-979-11 CARBON MELF 47 2% 1/8W R1057 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R1058 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R1059 1-216-295-91 SHORT 0 R1060 1-216-295-91 SHORT 0 R1061 1-216-295-91 SHORT 0 R1062 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1063 1-216-097-91 RES,CHIP 100K 5% 1/10W R1064 1-216-113-00 RES,CHIP 470K 5% 1/10W R1067 1-216-049-91 RES,CHIP 1K 5% 1/10W R1073 1-216-097-91 RES,CHIP 100K 5% 1/10W R1080 1-216-073-00 METAL CHIP 10K 5% 1/10W R1099 1-216-097-11 RES,CHIP 100K 5% 1/10W R1102 1-216-097-91 RES,CHIP 100K 5% 1/10W R2001 1-216-833-11 METAL CHIP 10K 5% 1/16W R2002 1-216-833-11 METAL CHIP 10K 5% 1/16W R2003 1-216-833-11 METAL CHIP 10K 5% 1/16W R2004 1-216-833-11 METAL CHIP 10K 5% 1/16W R2005 1-216-833-11 METAL CHIP 10K 5% 1/16W R2006 1-216-833-11 METAL CHIP 10K 5% 1/16W R2007 1-216-833-11 METAL CHIP 10K 5% 1/16W R2008 1-216-833-11 METAL CHIP 10K 5% 1/16W R2009 1-216-864-11 METAL CHIP 0 5% 1/16W R2010 1-216-833-11 METAL CHIP 10K 5% 1/16W R2011 1-216-809-11 METAL CHIP 100 5% 1/16W R2012 1-216-809-11 METAL CHIP 100 5% 1/16W R2014 1-216-809-11 METAL CHIP 100 5% 1/16W R2015 1-216-809-11 METAL CHIP 100 5% 1/16W R2017 1-216-067-91 RES,CHIP 5.6K 5% 1/10W R2019 1-216-833-11 METAL CHIP 10K 5% 1/16W R2021 1-216-833-11 METAL CHIP 10K 5% 1/16W R2024 1-216-833-11 METAL CHIP 10K 5% 1/16W R2044 1-216-833-11 METAL CHIP 10K 5% 1/16W R2045 1-216-833-11 METAL CHIP 10K 5% 1/16W R2046 1-216-833-11 METAL CHIP 10K 5% 1/16W R2047 1-216-809-11 METAL CHIP 100 5% 1/16W R2049 1-216-809-11 METAL CHIP 100 5% 1/16W R2054 1-216-809-11 METAL CHIP 100 5% 1/16W R2056 1-216-809-11 METAL CHIP 100 5% 1/16W R2058 1-216-809-11 METAL CHIP 100 5% 1/16W R2060 1-216-809-11 METAL CHIP 100 5% 1/16W R2061 1-216-833-11 METAL CHIP 10K 5% 1/16W R2062 1-216-833-11 METAL CHIP 10K 5% 1/16W R2063 1-216-073-00 METAL CHIP 10K 5% 1/10W R2072 1-216-833-11 METAL CHIP 10K 5% 1/16W R2073 1-216-833-11 METAL CHIP 10K 5% 1/16W R2074 1-216-833-11 METAL CHIP 10K 5% 1/16W R2075 1-216-833-11 METAL CHIP 10K 5% 1/16W R2076 1-216-833-11 METAL CHIP 10K 5% 1/16W R2077 1-216-833-11 METAL CHIP 10K 5% 1/16W R2078 1-216-833-11 METAL CHIP 10K 5% 1/16W R2079 1-216-833-11 METAL CHIP 10K 5% 1/16W R2080 1-216-833-11 METAL CHIP 10K 5% 1/16W R2081 1-216-073-00 METAL CHIP 10K 5% 1/10W R2082 1-216-073-00 METAL CHIP 10K 5% 1/10W R2084 1-216-833-11 METAL CHIP 10K 5% 1/16W R2085 1-414-227-11 INDUCTOR,FERRITE BEAD R2086 1-216-809-11 METAL CHIP 100 5% 1/16W R2087 1-216-809-11 METAL CHIP 100 5% 1/16W R2088 1-216-809-11 METAL CHIP 100 5% 1/16W R2089 1-216-809-11 METAL CHIP 100 5% 1/16W R2090 1-216-809-11 METAL CHIP 100 5% 1/16W R2091 1-216-809-11 METAL CHIP 100 5% 1/16W R2092 1-216-833-11 METAL CHIP 10K 5% 1/16W R2093 1-216-833-11 METAL CHIP 10K 5% 1/16W R2094 1-216-833-11 METAL CHIP 10K 5% 1/16W R2095 1-216-833-11 METAL CHIP 10K 5% 1/16W R2096 1-216-833-11 METAL CHIP 10K 5% 1/16W R2097 1-216-833-11 METAL CHIP 10K 5% 1/16W R2098 1-216-833-11 METAL CHIP 10K 5% 1/16W R2099 1-216-833-11 METAL CHIP 10K 5% 1/16W R2100 1-216-833-11 METAL CHIP 10K 5% 1/16W R2101 1-216-833-11 METAL CHIP 10K 5% 1/16W R2102 1-216-809-11 METAL CHIP 100 5% 1/16W R2103 1-216-833-11 METAL CHIP 10K 5% 1/16W R2104 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R2105 1-216-065-00 METAL CHIP 4.7K 5% 1/10W R2106 1-216-833-11 METAL CHIP 10K 5% 1/16W R2109 1-216-833-11 METAL CHIP 10K 5% 1/16W R2110 1-216-833-11 METAL CHIP 10K 5% 1/16W R2111 1-216-833-11 METAL CHIP 10K 5% 1/16W R2112 1-216-833-11 METAL CHIP 10K 5% 1/16W R2113 1-216-833-11 METAL CHIP 10K 5% 1/16W R2114 1-216-833-11 METAL CHIP 10K 5% 1/16W R2115 1-216-833-11 METAL CHIP 10K 5% 1/16W R2116 1-216-833-11 METAL CHIP 10K 5% 1/16W R2117 1-216-833-11 METAL CHIP 10K 5% 1/16W R2118 1-216-833-11 METAL CHIP 10K 5% 1/16W R2119 1-216-833-11 METAL CHIP 10K 5% 1/16W R2120 1-216-809-11 METAL CHIP 100 5% 1/16W R2121 1-216-809-11 METAL CHIP 100 5% 1/16W R2122 1-216-809-11 METAL CHIP 100 5% 1/16W R2123 1-216-833-11 METAL CHIP 10K 5% 1/16W R2124 1-216-833-11 METAL CHIP 10K 5% 1/16W DIGITAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 134 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R2125 1-216-821-11 METAL CHIP 1K 5% 1/16W R2126 1-216-833-11 METAL CHIP 10K 5% 1/16W R2127 1-216-809-11 METAL CHIP 100 5% 1/16W R2128 1-216-809-11 METAL CHIP 100 5% 1/16W R2129 1-216-809-11 METAL CHIP 100 5% 1/16W R2130 1-216-833-11 METAL CHIP 10K 5% 1/16W R2131 1-216-833-11 METAL CHIP 10K 5% 1/16W R2132 1-216-833-11 METAL CHIP 10K 5% 1/16W R2133 1-216-833-11 METAL CHIP 10K 5% 1/16W R2134 1-216-833-11 METAL CHIP 10K 5% 1/16W R2135 1-216-833-11 METAL CHIP 10K 5% 1/16W R2136 1-216-833-11 METAL CHIP 10K 5% 1/16W R2137 1-216-833-11 METAL CHIP 10K 5% 1/16W R2138 1-216-833-11 METAL CHIP 10K 5% 1/16W R2139 1-216-833-11 METAL CHIP 10K 5% 1/16W R2140 1-216-833-11 METAL CHIP 10K 5% 1/16W R2141 1-216-073-00 METAL CHIP 10K 5% 1/10W R2142 1-216-073-00 METAL CHIP 10K 5% 1/10W R2143 1-216-833-11 METAL CHIP 10K 5% 1/16W R2144 1-216-833-11 METAL CHIP 10K 5% 1/16W R2145 1-216-833-11 METAL CHIP 10K 5% 1/16W R3001 1-216-845-11 METAL CHIP 100K 5% 1/16W R3002 1-216-833-11 METAL CHIP 10K 5% 1/16W R3003 1-216-833-11 METAL CHIP 10K 5% 1/16W R3004 1-216-833-11 METAL CHIP 10K 5% 1/16W R3005 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R3006 1-216-017-91 RES,CHIP 47 5% 1/10W R3007 1-216-037-00 METAL CHIP 330 5% 1/10W R3008 1-216-833-11 METAL CHIP 10K 5% 1/16W R3009 1-216-017-91 RES,CHIP 47 5% 1/10W R3010 1-216-833-11 METAL CHIP 10K 5% 1/16W R3011 1-216-833-11 METAL CHIP 10K 5% 1/16W R3012 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R3013 1-216-797-91 METAL CHIP 10 5% 1/16W R3014 1-216-833-11 METAL CHIP 10K 5% 1/16W R3015 1-216-833-11 METAL CHIP 10K 5% 1/16W R3016 1-216-121-91 RES,CHIP 1M 5% 1/10W R3017 1-216-833-11 METAL CHIP 10K 5% 1/16W R3018 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R3019 1-216-073-00 METAL CHIP 10K 5% 1/10W (US,CND) R3020 1-216-073-00 METAL CHIP 10K 5% 1/16W (EXCEPT US,CND) R3021 1-216-833-11 METAL CHIP 10K 5% 1/16W R3022 1-216-805-91 RES,CHIP 47 5% 1/16W R3023 1-216-805-91 RES,CHIP 47 5% 1/16W R3025 1-216-833-11 METAL CHIP 10K 5% 1/16W R3026 1-216-833-11 METAL CHIP 10K 5% 1/16W R3027 1-216-833-11 METAL CHIP 10K 5% 1/16W R3028 1-216-833-11 METAL CHIP 10K 5% 1/16W R3029 1-216-833-11 METAL CHIP 10K 5% 1/16W R3030 1-216-833-11 METAL CHIP 10K 5% 1/16W R3031 1-216-073-00 RES,CHIP 10K 5% 1/10W R3032 1-216-833-11 METAL CHIP 10K 5% 1/16W R3033 1-216-833-11 METAL CHIP 10K 5% 1/16W R3034 1-216-833-11 METAL CHIP 10K 5% 1/16W R3035 1-216-073-00 METAL CHIP 10K 5% 1/10W R3036 1-216-833-11 METAL CHIP 10K 5% 1/16W R3037 1-216-833-11 METAL CHIP 10K 5% 1/16W R3038 1-216-833-11 METAL CHIP 10K 5% 1/16W R3039 1-216-073-00 METAL CHIP 10K 5% 1/10W R3040 1-216-833-11 METAL CHIP 10K 5% 1/16W R3041 1-216-833-11 METAL CHIP 10K 5% 1/16W R3042 1-216-833-11 METAL CHIP 10K 5% 1/16W R3043 1-216-833-11 METAL CHIP 10K 5% 1/16W R3044 1-216-833-11 METAL CHIP 10K 5% 1/16W R3045 1-216-073-00 METAL CHIP 10K 5% 1/10W R3046 1-216-073-00 METAL CHIP 10K 5% 1/10W R3047 1-216-833-11 METAL CHIP 10K 5% 1/16W R3048 1-216-073-00 METAL CHIP 10K 5% 1/10W R3049 1-216-833-11 METAL CHIP 10K 5% 1/16W R3050 1-216-833-11 METAL CHIP 10K 5% 1/16W R3051 1-216-833-11 METAL CHIP 10K 5% 1/16W R3052 1-216-833-11 METAL CHIP 10K 5% 1/16W R3053 1-216-833-11 METAL CHIP 10K 5% 1/16W R3054 1-216-833-11 METAL CHIP 10K 5% 1/16W R3055 1-216-833-11 METAL CHIP 10K 5% 1/16W R3056 1-216-809-11 METAL CHIP 100 5% 1/16W R3057 1-216-809-11 METAL CHIP 100 5% 1/16W R3058 1-216-809-11 METAL CHIP 100 5% 1/16W R3059 1-216-809-11 METAL CHIP 100 5% 1/16W R3060 1-216-809-11 METAL CHIP 100 5% 1/16W R3061 1-216-809-11 METAL CHIP 100 5% 1/16W R3062 1-216-809-11 METAL CHIP 100 5% 1/16W R3063 1-216-809-11 METAL CHIP 100 5% 1/16W R3064 1-216-809-11 METAL CHIP 100 5% 1/16W R3065 1-216-809-11 METAL CHIP 100 5% 1/16W R3066 1-216-809-11 METAL CHIP 100 5% 1/16W R3067 1-216-809-11 METAL CHIP 100 5% 1/16W R3068 1-216-809-11 METAL CHIP 100 5% 1/16W R3069 1-216-809-11 METAL CHIP 100 5% 1/16W R3070 1-216-809-11 METAL CHIP 100 5% 1/16W R3071 1-216-809-11 METAL CHIP 100 5% 1/16W R3072 1-216-809-11 METAL CHIP 100 5% 1/16W R3073 1-216-809-11 METAL CHIP 100 5% 1/16W R3074 1-216-809-11 METAL CHIP 100 5% 1/16W R3075 1-216-809-11 METAL CHIP 100 5% 1/16W R3076 1-216-809-11 METAL CHIP 100 5% 1/16W R3077 1-216-809-11 METAL CHIP 100 5% 1/16W R3078 1-216-809-11 METAL CHIP 100 5% 1/16W R3079 1-216-809-11 METAL CHIP 100 5% 1/16W R3088 1-216-833-11 METAL CHIP 10K 5% 1/16W R3089 1-216-833-11 METAL CHIP 10K 5% 1/16W R3090 1-216-833-11 METAL CHIP 10K 5% 1/16W R3091 1-216-833-11 METAL CHIP 10K 5% 1/16W R3092 1-216-097-91 RES,CHIP 100K 5% 1/10W R3093 1-216-097-91 RES,CHIP 100K 5% 1/10W R3094 1-216-073-00 METAL CHIP 10K 5% 1/10W R3095 1-216-073-00 METAL CHIP 10K 5% 1/10W R3096 1-216-073-00 METAL CHIP 10K 5% 1/10W R3097 1-216-073-00 METAL CHIP 10K 5% 1/10W R3098 1-216-073-00 METAL CHIP 10K 5% 1/10W R3099 1-216-073-00 METAL CHIP 10K 5% 1/10W R3100 1-216-073-00 METAL CHIP 10K 5% 1/10W DIGITAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 135 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R3101 1-216-073-00 METAL CHIP 10K 5% 1/10W R3102 1-216-073-00 METAL CHIP 10K 5% 1/10W R3103 1-216-073-00 METAL CHIP 10K 5% 1/10W R3104 1-216-073-00 METAL CHIP 10K 5% 1/10W R3105 1-216-073-00 METAL CHIP 10K 5% 1/10W R3106 1-216-073-00 METAL CHIP 10K 5% 1/10W R3107 1-216-073-00 METAL CHIP 10K 5% 1/10W R3108 1-216-073-00 METAL CHIP 10K 5% 1/10W R3109 1-216-833-11 METAL CHIP 10K 5% 1/16W (EXCEPT US,CND) R3110 1-216-833-11 METAL CHIP 10K 5% 1/16W (US,CND) R3111 1-216-833-11 METAL CHIP 10K 5% 1/16W R3112 1-216-833-11 METAL CHIP 10K 5% 1/16W R3113 1-216-833-11 METAL CHIP 10K 5% 1/16W R3114 1-216-833-11 METAL CHIP 10K 5% 1/16W R3115 1-216-833-11 METAL CHIP 10K 5% 1/16W R3116 1-216-821-11 METAL CHIP 1K 5% 1/16W R3117 1-216-833-11 METAL CHIP 10K 5% 1/16W R3118 1-216-809-11 METAL CHIP 100 5% 1/16W R3119 1-216-809-11 METAL CHIP 100 5% 1/16W R3120 1-216-833-11 METAL CHIP 10K 5% 1/16W R3121 1-216-833-11 METAL CHIP 10K 5% 1/16W R3122 1-216-833-11 METAL CHIP 10K 5% 1/16W R3123 1-216-833-11 METAL CHIP 10K 5% 1/16W R3124 1-216-833-11 METAL CHIP 10K 5% 1/16W R3125 1-216-833-11 METAL CHIP 10K 5% 1/16W R3127 1-216-833-11 METAL CHIP 10K 5% 1/16W R4001 1-414-232-11 INDUCTOR, FERRITE BEAD R4002 1-216-025-91 METAL CHIP 100 5% 1/10W R4003 1-216-025-91 METAL CHIP 100 5% 1/10W R4004 1-216-037-00 METAL CHIP 330 5% 1/10W R4005 1-216-037-00 METAL CHIP 330 5% 1/10W R4006 1-216-833-91 METAL CHIP 10K 5% 1/10W R4007 1-216-833-91 METAL CHIP 10K 5% 1/10W R4008 1-216-037-00 METAL CHIP 330 5% 1/10W R4009 1-216-037-00 METAL CHIP 330 5% 1/10W R4010 1-216-033-00 METAL CHIP 220 5% 1/10W R4011 1-216-025-91 RES,CHIP 100 5% 1/10W R4012 1-216-073-00 METAL CHIP 10K 5% 1/10W R4013 1-216-809-11 METAL CHIP 100 5% 1/16W R4014 1-216-809-11 METAL CHIP 100 5% 1/16W R4015 1-216-809-11 METAL CHIP 100 5% 1/16W R4016 1-216-809-11 METAL CHIP 100 5% 1/16W R4017 1-216-037-00 METAL CHIP 330 5% 1/10W R4018 1-216-037-00 METAL CHIP 330 5% 1/10W R4019 1-216-037-00 METAL CHIP 330 5% 1/10W R4020 1-216-037-00 METAL CHIP 330 5% 1/10W R4021 1-216-809-11 METAL CHIP 100 5% 1/16W R4022 1-216-809-11 METAL CHIP 100 5% 1/16W R4023 1-216-037-00 METAL CHIP 330 5% 1/10W R4024 1-216-037-00 METAL CHIP 330 5% 1/10W R4025 1-216-073-00 METAL CHIP 10K 5% 1/10W R4026 1-216-073-00 METAL CHIP 10K 5% 1/10W R4027 1-216-037-00 METAL CHIP 330 5% 1/10W R4028 1-216-037-00 METAL CHIP 330 5% 1/10W R4029 1-216-033-00 METAL CHIP 220 5% 1/10W R4030 1-216-025-91 RES,CHIP 100 5% 1/10W R4031 1-216-073-00 METAL CHIP 10K 5% 1/10W R4032 1-216-809-11 METAL CHIP 100 5% 1/16W R4033 1-216-809-11 METAL CHIP 100 5% 1/16W R4034 1-216-809-11 METAL CHIP 100 5% 1/16W R4035 1-216-809-11 METAL CHIP 100 5% 1/16W R4036 1-216-037-00 METAL CHIP 330 5% 1/10W R4037 1-216-037-00 METAL CHIP 330 5% 1/10W R4038 1-216-037-00 METAL CHIP 330 5% 1/10W R4039 1-216-037-00 METAL CHIP 330 5% 1/10W R4040 1-216-809-11 METAL CHIP 100 5% 1/16W R4041 1-216-809-11 METAL CHIP 100 5% 1/16W R4042 1-216-037-00 METAL CHIP 330 5% 1/10W R4043 1-216-037-00 METAL CHIP 330 5% 1/10W R4044 1-216-073-00 METAL CHIP 10K 5% 1/10W R4045 1-216-073-00 METAL CHIP 10K 5% 1/10W R4046 1-216-037-00 METAL CHIP 330 5% 1/10W R4047 1-216-037-00 METAL CHIP 330 5% 1/10W R4048 1-216-033-00 METAL CHIP 220 5% 1/10W R4049 1-216-025-91 RES,CHIP 100 5% 1/10W R4050 1-216-073-00 METAL CHIP 10K 5% 1/10W R4051 1-216-809-11 METAL CHIP 100 5% 1/16W R4052 1-216-809-11 METAL CHIP 100 5% 1/16W R4053 1-216-809-11 METAL CHIP 100 5% 1/16W R4054 1-216-809-11 METAL CHIP 100 5% 1/16W R4055 1-414-227-11 INDUCTOR, FERRITE BEAD R4056 1-216-037-00 METAL CHIP 330 5% 1/10W R4057 1-216-809-11 METAL CHIP 100 5% 1/16W R4058 1-216-037-00 METAL CHIP 330 5% 1/10W R4059 1-216-809-11 METAL CHIP 100 5% 1/16W R4060 1-216-037-00 METAL CHIP 330 5% 1/10W R4061 1-216-037-00 METAL CHIP 330 5% 1/10W R4062 1-216-809-11 METAL CHIP 100 5% 1/16W R4063 1-216-809-11 METAL CHIP 100 5% 1/16W R4064 1-216-809-11 METAL CHIP 100 5% 1/16W R4065 1-216-809-11 METAL CHIP 100 5% 1/16W R4067 1-216-809-11 METAL CHIP 100 5% 1/16W R5001 1-259-971-11 CARBON MELF 10 2% 1/8W R5002 1-259-971-11 CARBON MELF 10 2% 1/8W R5003 1-259-976-11 CARBON MELF 27 2% 1/8W R5004 1-259-971-11 CARBON MELF 10 2% 1/8W R5005 1-259-971-11 CARBON MELF 10 2% 1/8W R5006 1-259-971-11 CARBON MELF 10 2% 1/8W R5007 1-259-971-11 CARBON MELF 10 2% 1/8W R5008 1-259-988-11 CARBON MELF 270 2% 1/8W R5009 1-259-983-11 CARBON MELF 100 2% 1/8W R5010 1-259-992-11 CARBON MELF 560 2% 1/8W R5011 1-259-999-11 CARBON MELF 2.2K 2% 1/8W R5012 1-259-988-11 CARBON MELF 270 2% 1/8W R5013 1-259-983-11 CARBON MELF 100 2% 1/8W R5014 1-259-976-11 CARBON MELF 27 2% 1/8W R5015 1-259-971-11 CARBON MELF 10 2% 1/8W R5016 1-259-971-11 CARBON MELF 10 2% 1/8W R5017 1-259-976-11 CARBON MELF 27 2% 1/8W R5018 1-259-971-11 CARBON MELF 10 2% 1/8W R5019 1-259-971-11 CARBON MELF 10 2% 1/8W R5020 1-259-995-11 CARBON MELF 1K 2% 1/8W DIGITAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 136 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R5021 1-259-971-11 CARBON MELF 10 2% 1/8W R5022 1-259-971-11 CARBON MELF 10 2% 1/8W R5023 1-259-988-11 CARBON MELF 270 2% 1/8W R5024 1-259-983-11 CARBON MELF 100 2% 1/8W R5025 1-259-992-11 CARBON MELF 560 2% 1/8W R5026 1-259-999-11 CARBON MELF 2.2K 2% 1/8W R5027 1-259-995-11 CARBON MELF 1K 2% 1/8W R5028 1-259-988-11 CARBON MELF 270 2% 1/8W R5029 1-259-983-11 CARBON MELF 100 2% 1/8W R5030 1-259-976-11 CARBON MELF 27 2% 1/8W R5031 1-259-971-11 CARBON MELF 10 2% 1/8W R5032 1-259-971-11 CARBON MELF 10 2% 1/8W R5033 1-259-976-11 CARBON MELF 27 2% 1/8W R5034 1-259-971-11 CARBON MELF 10 2% 1/8W R5035 1-259-971-11 CARBON MELF 10 2% 1/8W R5036 1-259-971-11 CARBON MELF 10 2% 1/8W R5037 1-259-971-11 CARBON MELF 10 2% 1/8W R5038 1-259-988-11 CARBON MELF 270 2% 1/8W R5039 1-259-983-11 CARBON MELF 100 2% 1/8W R5040 1-259-992-11 CARBON MELF 560 2% 1/8W R5041 1-259-999-11 CARBON MELF 2.2K 2% 1/8W R5042 1-259-988-11 CARBON MELF 270 2% 1/8W R5043 1-259-983-11 CARBON MELF 100 2% 1/8W R5044 1-259-976-11 CARBON MELF 27 2% 1/8W R5045 1-259-971-11 CARBON MELF 10 2% 1/8W R5046 1-259-971-11 CARBON MELF 10 2% 1/8W R5047 1-259-976-11 CARBON MELF 27 2% 1/8W R5048 1-259-971-11 CARBON MELF 10 2% 1/8W R5049 1-259-971-11 CARBON MELF 10 2% 1/8W R5050 1-259-995-11 CARBON MELF 1K 2% 1/8W R5051 1-259-971-11 CARBON MELF 10 2% 1/8W R5052 1-259-971-11 CARBON MELF 10 2% 1/8W R5053 1-259-988-11 CARBON MELF 270 2% 1/8W R5054 1-259-983-11 CARBON MELF 100 2% 1/8W R5055 1-259-992-11 CARBON MELF 560 2% 1/8W R5056 1-259-999-11 CARBON MELF 2.2K 2% 1/8W R5057 1-259-995-11 CARBON MELF 1K 2% 1/8W R5058 1-259-988-11 CARBON MELF 270 2% 1/8W R5059 1-259-983-11 CARBON MELF 100 2% 1/8W R5060 1-259-976-11 CARBON MELF 27 2% 1/8W R5061 1-259-971-11 CARBON MELF 10 2% 1/8W R5062 1-259-971-11 CARBON MELF 10 2% 1/8W R5063 1-259-976-11 CARBON MELF 27 2% 1/8W R5064 1-259-971-11 CARBON MELF 10 2% 1/8W R5065 1-259-971-11 CARBON MELF 10 2% 1/8W R5066 1-259-971-11 CARBON MELF 10 2% 1/8W R5067 1-259-971-11 CARBON MELF 10 2% 1/8W R5068 1-259-988-11 CARBON MELF 270 2% 1/8W R5069 1-259-983-11 CARBON MELF 100 2% 1/8W R5070 1-259-992-11 CARBON MELF 560 2% 1/8W R5071 1-259-999-11 CARBON MELF 2.2K 2% 1/8W R5072 1-259-988-11 CARBON MELF 270 2% 1/8W R5073 1-259-983-11 CARBON MELF 100 2% 1/8W R5074 1-259-976-11 CARBON MELF 27 2% 1/8W R5075 1-259-971-11 CARBON MELF 10 2% 1/8W R5076 1-259-971-11 CARBON MELF 10 2% 1/8W R5077 1-259-976-11 CARBON MELF 27 2% 1/8W R5078 1-259-971-11 CARBON MELF 10 2% 1/8W R5079 1-259-971-11 CARBON MELF 10 2% 1/8W R5080 1-259-995-11 CARBON MELF 1K 2% 1/8W R5081 1-259-971-11 CARBON MELF 10 2% 1/8W R5082 1-259-971-11 CARBON MELF 10 2% 1/8W R5083 1-259-988-11 CARBON MELF 270 2% 1/8W R5084 1-259-983-11 CARBON MELF 100 2% 1/8W R5085 1-259-992-11 CARBON MELF 560 2% 1/8W R5086 1-259-999-11 CARBON MELF 2.2K 2% 1/8W R5087 1-259-995-11 CARBON MELF 1K 2% 1/8W R5088 1-259-988-11 CARBON MELF 270 2% 1/8W R5089 1-259-983-11 CARBON MELF 100 2% 1/8W R5090 1-259-976-11 CARBON MELF 27 2% 1/8W < VIBRATOR > X2001 1-767-326-21 OSCILLATOR, CRYSTAL (40MHz) X3001 1-767-938-21 VIBRATOR, CERAMIC (7.28MHz) X3002 1-781-088-21 VIBRATOR, CERAMIC (20MHz) ************************************************************** * A-4417-086-A DISPLAY BOARD, COMPLETE *********************** < CAPACITOR > C902 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C903 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C904 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C905 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C906 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C907 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C908 1-104-664-11 ELECT 47uF 20% 25V C909 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C910 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C911 1-164-505-11 CERAMIC CHIP 2.2uF 10% 16V C912 1-126-964-11 ELECT 10uF 20% 50V C913 1-126-964-11 ELECT 10uF 20% 50V C915 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C916 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C917 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C918 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C919 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C920 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C921 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C922 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C923 1-126-964-11 CERAMIC CHIP 10uF 20% 50V C931 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V < CONNECTOR > CN901 1-506-468-11 PIN, CONNECTOR 3P CN902 1-506-468-11 PIN, CONNECTOR 3P * CN903 1-568-839-11 SOCKET, CONNECTOR 23P < DIODE > D901 8-719-057-29 DIODE SML78423C-TP15 (VIDEO 1) D902 8-719-057-29 DIODE SML78423C-TP15 (VIDEO 2) D903 8-719-057-29 DIODE SML78423C-TP15 (VIDEO 3) DISPLAY DIGITAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 137 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark D904 8-719-057-29 DIODE SML78423C-TP15 (LD) D905 8-719-057-29 DIODE SML78423C-TP15 (DVD) D906 8-719-057-29 DIODE SML78423C-TP15 (TV) D907 8-719-313-45 DIODE SEL6810A-TH10 (TAPE) D908 8-719-313-45 DIODE SEL6810A-TH10 (MD/DAT) D909 8-719-313-45 DIODE SEL6810A-TH10 (CD) D910 8-719-313-45 DIODE SEL6810A-TH10 (TUNER) D911 8-719-313-45 DIODE SEL6810A-TH10 (PHONO) D912 8-719-313-45 DIODE SEL6810A-TH10 (SP SETUP) D913 8-719-313-45 DIODE SEL6810A-TH10 (EQ) D914 8-719-313-45 DIODE SEL6810A-TH10 (SURR) D915 8-719-313-45 DIODE SEL6810A-TH10 (LEVEL) D916 8-719-313-45 DIODE SEL6810A-TH10 (CUSTOM) D917 8-719-105-82 DIODE RD5.1M-B2 D924 8-719-016-74 DIODE 1SS352 D925 8-719-200-02 DIODE 10E-2 D935 8-719-016-74 DIODE 1SS352 < FLUORESCENT INDICATOR > FL901 1-517-781-11 INDICATOR TUBE, FLUORESCENT < IC > IC901 8-759-557-28 IC HD64F2134FA20-DIST IC902 8-759-075-35 IC TD62C950RF IC903 8-759-999-53 IC MSC1164GS-K IC904 8-759-962-08 IC BA6208 IC905 8-759-385-35 IC BR93LC66RF IC906 8-759-032-59 IC MC74HC595AF IC907 8-759-032-59 IC MC74HC595AF IC909 8-759-242-70 IC TC7WU04F IC910 8-759-242-70 IC TC7WU04F < JUMPER RESISTOR > JR901 1-216-296-91 SHORT 0 JR902 1-216-296-91 SHORT 0 JR903 1-216-296-91 SHORT 0 JR904 1-216-296-91 SHORT 0 JR905 1-216-296-91 SHORT 0 JR906 1-216-296-91 SHORT 0 JR907 1-216-295-91 SHORT 0 JR908 1-216-295-91 SHORT 0 JR909 1-216-296-91 SHORT 0 JR910 1-216-296-91 SHORT 0 JR911 1-216-296-91 SHORT 0 < TRANSISTOR > Q901 8-729-424-08 TRANSISTOR UN2111 Q902 8-729-424-08 TRANSISTOR UN2111 Q903 8-729-424-08 TRANSISTOR UN2111 Q904 8-729-424-08 TRANSISTOR UN2111 Q905 8-729-424-08 TRANSISTOR UN2111 Q906 8-729-424-08 TRANSISTOR UN2111 Q907 8-729-424-08 TRANSISTOR UN2111 Q908 8-729-424-08 TRANSISTOR UN2111 Q909 8-729-424-08 TRANSISTOR UN2111 Q910 8-729-424-08 TRANSISTOR UN2111 Q911 8-729-424-08 TRANSISTOR UN2111 Q912 8-729-424-08 TRANSISTOR UN2111 Q913 8-729-424-08 TRANSISTOR UN2111 Q914 8-729-424-08 TRANSISTOR UN2111 Q915 8-729-424-08 TRANSISTOR UN2111 Q916 8-729-424-08 TRANSISTOR UN2111 Q917 8-729-424-08 TRANSISTOR UN2111 Q918 8-729-216-22 TRANSISTOR 2SA1162-G Q919 8-729-216-22 TRANSISTOR 2SA1162-G Q920 8-729-216-22 TRANSISTOR 2SA1162-G Q921 8-729-216-22 TRANSISTOR 2SA1162-G Q927 8-729-010-35 TRANSISTOR MSD602-RT1 Q928 8-729-421-22 TRANSISTOR UN2211 < RESISTOR > R879 1-216-025-91 RES,CHIP 100 5% 1/10W R890 1-216-073-91 RES,CHIP 10K 5% 1/10W R891 1-216-067-00 METAL CHIP 5.6K 5% 1/10W R892 1-216-081-00 METAL CHIP 22K 5% 1/10W R893 1-216-081-00 METAL CHIP 22K 5% 1/10W R894 1-216-081-00 METAL CHIP 22K 5% 1/10W R895 1-216-081-00 METAL CHIP 22K 5% 1/10W R896 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R897 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R898 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R899 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R900 1-216-025-91 RES,CHIP 100 5% 1/10W R901 1-216-041-00 METAL CHIP 470 5% 1/10W R902 1-216-073-00 METAL CHIP 10K 5% 1/10W R903 1-216-033-00 METAL CHIP 220 5% 1/10W R904 1-216-073-00 METAL CHIP 10K 5% 1/10W R905 1-216-073-00 METAL CHIP 10K 5% 1/10W R906 1-216-073-00 METAL CHIP 10K 5% 1/10W R907 1-216-073-00 METAL CHIP 10K 5% 1/10W R908 1-216-073-00 METAL CHIP 10K 5% 1/10W R909 1-216-073-00 METAL CHIP 10K 5% 1/10W R910 1-216-073-00 METAL CHIP 10K 5% 1/10W R911 1-216-025-91 RES,CHIP 100 5% 1/10W R912 1-216-025-91 RES,CHIP 100 5% 1/10W R913 1-216-073-00 METAL CHIP 10K 5% 1/10W R914 1-216-073-00 METAL CHIP 10K 5% 1/10W R915 1-216-121-91 RES,CHIP 1M 5% 1/10W R916 1-216-073-00 METAL CHIP 10K 5% 1/10W R917 1-216-073-00 METAL CHIP 10K 5% 1/10W R918 1-216-073-00 METAL CHIP 10K 5% 1/10W R919 1-216-097-91 RES,CHIP 100K 5% 1/10W R920 1-216-073-00 METAL CHIP 10K 5% 1/10W R921 1-216-073-00 METAL CHIP 10K 5% 1/10W R922 1-216-073-00 METAL CHIP 10K 5% 1/10W R923 1-216-073-00 METAL CHIP 10K 5% 1/10W R924 1-216-073-00 METAL CHIP 10K 5% 1/10W R925 1-216-073-00 METAL CHIP 10K 5% 1/10W R926 1-216-073-00 METAL CHIP 10K 5% 1/10W R927 1-216-073-00 METAL CHIP 10K 5% 1/10W R928 1-216-073-00 METAL CHIP 10K 5% 1/10W R929 1-216-121-91 RES,CHIP 1M 5% 1/10W R930 1-216-037-00 METAL CHIP 330 5% 1/10W DISPLAY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 138 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R931 1-216-037-00 METAL CHIP 330 5% 1/10W R932 1-216-029-00 METAL CHIP 150 5% 1/10W R933 1-216-037-00 METAL CHIP 330 5% 1/10W R934 1-216-029-00 METAL CHIP 150 5% 1/10W R935 1-216-037-00 METAL CHIP 330 5% 1/10W R936 1-216-295-91 SHORT 0 R937 1-216-029-00 METAL CHIP 150 5% 1/10W R938 1-216-037-00 METAL CHIP 330 5% 1/10W R939 1-216-033-00 METAL CHIP 220 5% 1/10W R940 1-216-029-00 METAL CHIP 150 5% 1/10W R941 1-216-073-00 METAL CHIP 10K 5% 1/10W R942 1-216-029-00 METAL CHIP 150 5% 1/10W R943 1-216-033-00 METAL CHIP 220 5% 1/10W R944 1-216-029-00 METAL CHIP 150 5% 1/10W R945 1-216-073-00 METAL CHIP 10K 5% 1/10W R946 1-216-033-00 METAL CHIP 220 5% 1/10W R947 1-216-029-00 METAL CHIP 150 5% 1/10W R948 1-216-073-00 METAL CHIP 10K 5% 1/10W R949 1-216-029-00 METAL CHIP 150 5% 1/10W R950 1-216-033-00 METAL CHIP 220 5% 1/10W R951 1-216-029-00 METAL CHIP 150 5% 1/10W R952 1-216-073-00 METAL CHIP 10K 5% 1/10W R953 1-216-033-00 METAL CHIP 220 5% 1/10W R954 1-216-029-00 METAL CHIP 150 5% 1/10W R955 1-216-073-00 METAL CHIP 10K 5% 1/10W R956 1-216-029-00 METAL CHIP 150 5% 1/10W R957 1-216-033-00 METAL CHIP 220 5% 1/10W R958 1-216-029-00 METAL CHIP 150 5% 1/10W R959 1-216-067-00 METAL CHIP 5.6K 5% 1/10W R960 1-216-073-00 METAL CHIP 10K 5% 1/10W R961 1-216-073-00 METAL CHIP 10K 5% 1/10W R962 1-216-067-00 METAL CHIP 5.6K 5% 1/10W R963 1-216-033-00 METAL CHIP 220 5% 1/10W R964 1-216-067-00 METAL CHIP 5.6K 5% 1/10W R965 1-216-033-00 METAL CHIP 220 5% 1/10W R966 1-216-196-00 RES,CHIP 820 5% 1/8W R967 1-216-196-00 RES,CHIP 820 5% 1/8W R968 1-216-033-00 METAL CHIP 220 5% 1/10W R969 1-216-196-00 RES,CHIP 820 5% 1/8W R970 1-216-196-00 RES,CHIP 820 5% 1/8W R971 1-216-033-00 METAL CHIP 220 5% 1/10W R972 1-216-033-00 METAL CHIP 220 5% 1/10W R973 1-216-295-91 SHORT 0 R974 1-216-025-91 RES,CHIP 100 5% 1/10W R975 1-216-025-91 RES,CHIP 100 5% 1/10W R976 1-216-025-91 RES,CHIP 100 5% 1/10W R977 1-216-025-91 RES,CHIP 100 5% 1/10W R978 1-216-025-91 RES,CHIP 100 5% 1/10W R979 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R980 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R981 1-216-025-91 RES,CHIP 100 5% 1/10W R982 1-216-025-91 RES,CHIP 100 5% 1/10W R983 1-216-025-91 RES,CHIP 100 5% 1/10W R984 1-216-025-91 RES,CHIP 100 5% 1/10W R987 1-216-025-91 RES,CHIP 100 5% 1/10W R988 1-216-025-91 RES,CHIP 100 5% 1/10W R989 1-216-025-91 RES,CHIP 100 5% 1/10W R990 1-216-025-91 RES,CHIP 100 5% 1/10W R991 1-216-025-91 RES,CHIP 100 5% 1/10W R993 1-216-033-00 METAL CHIP 220 5% 1/10W R994 1-216-025-91 RES,CHIP 100 5% 1/10W R995 1-216-025-91 RES,CHIP 100 5% 1/10W R997 1-216-025-91 RES,CHIP 100 5% 1/10W R998 1-216-025-91 RES,CHIP 100 5% 1/10W R999 1-216-025-91 RES,CHIP 100 5% 1/10W < SWITCH > S901 1-570-101-11 SWITCH, KEY BOARD (EQUALIZER BANK) S902 1-570-101-11 SWITCH, KEY BOARD (AUTO FORMAT) S903 1-570-101-11 SWITCH, KEY BOARD (MODE -) S904 1-570-101-11 SWITCH, KEY BOARD (MODE +) S905 1-570-101-11 SWITCH, KEY BOARD (2CH) S906 1-570-101-11 SWITCH, KEY BOARD (AUDIO SPLIT) S907 1-570-101-11 SWITCH, KEY BOARD (MAIN MENU) S908 1-570-101-11 SWITCH, KEY BOARD (DIGITAL/ANALOG) S909 1-475-976-11 ENCODER, ROTARY (MENU) S911 1-475-976-11 ENCODER, ROTARY (+/-) < VIBRATOR > X901 1-781-088-11 VIBRATOR, CERAMIC (20MHz) ************************************************************** * 1-671-194-11 FUNCTION SW BOARD ***************** < CONNECTOR > * CN953 1-568-943-11 PIN, CONNECTOR 5P < SWITCH > S910 1-572-095-21 SWITCH, ROTARY (INPUT SELECTOR) ************************************************************** * 1-671-188-11 HEADPHONE BOARD *************** < CAPACITOR > C951 1-163-141-91 CERAMIC CHIP 1000PF 5% 50V C952 1-163-141-91 CERAMIC CHIP 1000PF 5% 50V C955 1-163-141-91 CERAMIC CHIP 1000PF 5% 50V C956 1-163-141-91 CERAMIC CHIP 1000PF 5% 50V < CONNECTOR > * CN955 1-691-767-11 PLUG (MICRO CONNECTOR) 5P < FERRITE BEAD > FB951 1-500-245-11 FERRITE BEAD INDUCTOR FB952 1-500-245-11 FERRITE BEAD INDUCTOR < JACK > J955 1-778-870-11 JACK (PHONES) ************************************************************** FUNCTION SW HEADPHONE DISPLAY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 139 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * 1-671-190-11 LUMINOUS BOARD ************** < CONNECTOR > CN954 1-506-468-11 PIN, CONNECTOR 3P < DIODE > D918 8-719-058-98 DIODE SID1003BQ-LF57 (CUSTOM) D919 8-719-058-98 DIODE SID1003BQ-LF57 (LEVEL) D920 8-719-058-98 DIODE SID1003BQ-LF57 (MODE +) D921 8-719-058-98 DIODE SID1003BQ-LF57 (MODE –) D922 8-719-058-98 DIODE SID1003BQ-LF57 (SP SET UP) < RESISTOR > !R992 1-215-857-11 METAL OXIDE 10 5% 1W F ************************************************************** * 1-671-186-11 OUTLET BOARD ************ < CONNECTOR > CN004 1-564-321-00 PIN, CONNECTOR 2P CN005 1-506-468-11 PIN, CONNECTOR 3P < DIODE > D001 8-719-016-74 DIODE 1SS352 < JACK > J001 1-251-718-11 OUTLET (2 GANG), AC (US,CND) J001 1-785-285-11 OUTLET, AC (1P)(EXCEPT US,CND) < RELAY > !RY001 1-755-018-11 RELAY ************************************************************** * A-4417-104-A POWER BOARD, COMPLETE (US,CND) ********************* * A-4417-110-A POWER BOARD, COMPLETE (EXCEPT US,CND) ********************* * 1-535-303-00 WIRE, JUMPER 2-389-320-01 CUSHION 4-211-649-01 SCREW (+BV 3X6 B) 4-213-455-01 HEAT SINK 4-974-510-01 SCREW (+BV 3X8 B) * 4-990-797-01 HOLDER (FL) < CAPACITOR > C101 1-163-141-00 CERAMIC CHIP 1000PF 5% 50V C106 1-163-141-00 CERAMIC CHIP 1000PF 5% 50V C107 1-163-141-00 CERAMIC CHIP 1000PF 5% 50V C110 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C111 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C112 1-126-960-11 ELECT 1uF 20% 50V C115 1-119-800-21 ELECT 100uF 20% 25V C116 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C117 1-163-093-00 CERAMIC CHIP 10PF 5% 50V C118 1-119-840-21 ELECT 470uF 20% 63V C119 1-163-093-00 CERAMIC CHIP 10PF 5% 50V C120 1-126-955-11 ELECT 4700uF 20% 35V C121 1-117-783-11 ELECT 13000uF 20% 16V C122 1-119-800-21 ELECT 100uF 20% 25V C123 1-119-840-21 ELECT 470uF 20% 63V C124 1-126-955-11 ELECT 4700uF 20% 35V C125 1-117-783-11 ELECT 13000uF 20% 16V C126 1-117-783-11 ELECT 13000uF 20% 16V C127 1-117-783-11 ELECT 13000uF 20% 16V C128 1-119-830-11 ELECT 330uF 20% 25V C129 1-126-964-11 ELECT 10uF 20% 50V C130 1-119-830-11 ELECT 330uF 20% 25V C131 1-126-927-11 ELECT 2200uF 20% 10V C133 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C134 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C135 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C136 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C137 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C138 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C139 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C140 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C141 1-126-924-11 ELECT 330uF 20% 10V C142 1-126-924-11 ELECT 330uF 20% 10V C143 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C144 1-126-964-11 ELECT 10uF 20% 50V C145 1-126-941-11 ELECT 470uF 20% 25V C146 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C147 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C148 1-126-941-11 ELECT 470uF 20% 25V C149 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C150 1-164-222-11 CERAMIC CHIP 0.22uF 25V C151 1-136-169-00 FILM 0.22uF 5% 50V C152 1-136-169-00 FILM 0.22uF 5% 50V C153 1-164-222-11 CERAMIC CHIP 0.22uF 25V C154 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C155 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V < CONNECTOR > * CN102 1-564-243-11 PIN, CONNECTOR 6P * CN103 1-564-104-00 PIN, CONNECTOR (B3P-VH) 3P * CN104 1-564-104-00 PIN, CONNECTOR (B3P-VH) 3P * CN105 1-564-241-11 PIN, CONNECTOR (B4P-VH) 4P CN106 1-691-771-11 PLUG (MICRO CONNECTOR) 9P < DIODE > D101 8-719-800-76 DIODE 1SS226 D102 8-719-025-37 DIODE 02CZ9.1-TE85L D103 8-719-025-37 DIODE 02CZ9.1-TE85L D104 8-719-800-76 DIODE 1SS226 D105 8-719-820-05 DIODE 1SS181 D106 8-719-025-29 DIODE 02CZ5.1-TE85L D107 8-719-060-53 DIODE RBV-2506 D108 8-719-820-05 DIODE 1SS181 D109 8-719-820-05 DIODE 1SS181 LUMINOUS OUTLET Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. POWER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 140 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark D110 8-719-025-03 DIODE RBA-402-SL D111 8-719-025-29 DIODE 02CZ5.1-TE85L D112 8-719-820-05 DIODE 1SS181 D113 8-719-820-05 DIODE 1SS181 D114 8-719-820-05 DIODE 1SS181 D115 8-719-820-05 DIODE 1SS181 D116 8-719-820-05 DIODE 1SS181 D117 8-719-820-05 DIODE 1SS181 D118 8-719-820-05 DIODE 1SS181 D119 8-719-820-05 DIODE 1SS181 D120 8-719-820-05 DIODE 1SS181 D121 8-719-025-33 DIODE 02CZ6.2-TE85L D122 8-719-820-05 DIODE 1SS181 D123 8-719-820-05 DIODE 1SS181 D124 8-719-820-05 DIODE 1SS181 D125 8-719-800-76 DIODE 1SS226 D126 8-719-800-76 DIODE 1SS226 D127 8-719-820-05 DIODE 1SS181 D128 8-719-820-05 DIODE 1SS181 < GROUND TERMINAL > E101 1-537-770-21 TERMINAL BOARD, GROUND E103 1-537-770-21 TERMINAL BOARD, GROUND < IC > IC101 8-759-636-55 IC M5218AFP IC102 8-759-632-07 IC M5237L IC103 8-759-604-86 IC M5F7807L IC104 8-759-604-90 IC M5F7907L IC105 8-759-450-47 IC BA05T IC106 8-759-245-79 IC TA79005S IC107 8-759-604-87 IC M5F7818L IC108 8-759-636-55 IC M5218AFP IC109 8-759-604-91 IC M5F7918L < PHOTO INTERUPTER > PH101 8-719-936-96 PHOTO COUPLER PC817-B PH102 8-719-936-96 PHOTO COUPLER PC817-B < TRANSISTOR > Q101 8-729-216-22 TRANSISTOR 2SA1162-G Q102 8-729-230-49 TRANSISTOR 2SC2712-YG Q103 8-729-230-49 TRANSISTOR 2SC2712-YG Q104 8-729-230-49 TRANSISTOR 2SC2712-YG Q105 8-729-216-22 TRANSISTOR 2SA1162-G Q106 8-729-209-15 TRANSISTOR 2SD2012 Q107 8-729-141-83 TRANSISTOR 2SB1094-LK Q108 8-729-142-50 TRANSISTOR 2SD1616-X Q109 8-729-230-49 TRANSISTOR 2SC2712-YG Q110 8-729-140-05 TRANSISTOR 2SB1116A-K Q111 8-729-209-15 TRANSISTOR 2SD2012 Q112 8-729-141-83 TRANSISTOR 2SB1094-LK Q113 8-729-230-49 TRANSISTOR 2SC2712-YG Q114 8-729-216-22 TRANSISTOR 2SA1162-G Q115 8-729-140-05 TRANSISTOR 2SB1116-K Q116 8-729-142-50 TRANSISTOR 2SD1616-X Q117 8-729-141-83 TRANSISTOR 2SB1094-LK Q118 8-729-424-08 TRANSISTOR UN2111 Q119 8-729-141-83 TRANSISTOR 2SB1094-LK Q120 8-729-141-83 TRANSISTOR 2SB1094-LK Q121 8-729-141-83 TRANSISTOR 2SB1094-LK Q122 8-729-141-83 TRANSISTOR 2SB1094-LK Q123 8-729-018-59 TRANSISTOR 2SB1375(LB SONY) Q124 8-729-018-60 TRANSISTOR 2SD2012-LC Q125 8-729-018-59 TRANSISTOR 2SB1375(LB SONY) Q126 8-729-018-60 TRANSISTOR 2SD2012-LC Q127 8-729-230-49 TRANSISTOR 2SC2712-YG < RESISTOR > R101 1-208-445-41 RES,CHIP 2.2K 2% 1/10W R102 1-208-462-41 RES,CHIP 10K 2% 1/10W R103 1-208-462-41 RES,CHIP 10K 2% 1/10W R104 1-208-445-41 RES,CHIP 2.2K 2% 1/10W R105 1-208-445-41 RES,CHIP 2.2K 2% 1/10W R106 1-208-445-41 RES,CHIP 2.2K 2% 1/10W R107 1-208-518-41 RES,CHIP 22K 2% 1/10W R108 1-208-772-11 RES,CHIP 390 2% 1/10W R109 1-208-772-11 RES,CHIP 390 2% 1/10W R110 1-208-462-41 RES,CHIP 10K 2% 1/10W R111 1-208-462-41 RES,CHIP 10K 2% 1/10W R112 1-208-526-41 RES,CHIP 47K 2% 1/10W R113 1-208-462-41 RES,CHIP 10K 2% 1/10W R114 1-259-995-11 RES,CHIP 1K 2% 1/8W R115 1-259-995-11 RES,CHIP 1K 2% 1/8W R116 1-208-445-41 RES,CHIP 2.2K 2% 1/10W R117 1-208-462-41 RES,CHIP 10K 2% 1/10W R118 1-259-930-11 RES,CHIP 4.3K 2% 1/8W R119 1-259-995-11 RES,CHIP 1K 2% 1/8W R120 1-259-999-11 RES,CHIP 2.2K 2% 1/8W R121 1-259-995-11 RES,CHIP 1K 2% 1/8W R122 1-259-999-11 RES,CHIP 2.2K 2% 1/8W R123 1-259-930-11 RES,CHIP 4.3K 2% 1/8W R124 1-208-453-41 RES,CHIP 4.7K 2% 1/10W R125 1-208-462-41 RES,CHIP 10K 2% 1/10W R126 1-208-462-41 RES,CHIP 10K 2% 1/10W !R127 1-249-451-11 CARBON 2.2 5% 1/4W !R128 1-249-451-11 CARBON 2.2 5% 1/4W !R129 1-249-451-11 CARBON 2.2 5% 1/4W !R130 1-249-451-11 CARBON 2.2 5% 1/4W R131 1-208-462-41 RES,CHIP 10K 2% 1/10W R132 1-208-437-41 RES,CHIP 1K 2% 1/10W R133 1-208-437-41 RES,CHIP 1K 2% 1/10W R134 1-208-437-41 RES,CHIP 1K 2% 1/10W R135 1-216-671-11 METAL CHIP 6.8K 0.5% 1/10W R136 1-208-462-41 RES,CHIP 10K 2% 1/10W R137 1-208-445-41 RES,CHIP 2.2K 2% 1/10W R138 1-208-774-11 RES,CHIP 470 2% 1/10W R139 1-208-462-41 RES,CHIP 10K 2% 1/10W R140 1-208-774-11 RES,CHIP 470 2% 1/10W R141 1-216-655-11 METAL CHIP 1.5K 0.5% 1/10W R142 1-216-655-11 METAL CHIP 1.5K 0.5% 1/10W !R143 1-217-153-00 METAL 0.47 10% 2W !R144 1-217-153-00 METAL 0.47 10% 2W POWER Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 141 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark !R145 1-217-153-00 METAL 0.47 10% 2W !R146 1-217-153-00 METAL 0.47 10% 2W R150 1-208-462-41 RES,CHIP 10K 2% 1/10W R151 1-208-462-41 RES,CHIP 10K 2% 1/10W R152 1-208-445-41 RES,CHIP 2.2K 2% 1/10W R153 1-208-550-41 RES,CHIP 470K 2% 1/10W R154 1-208-462-41 RES,CHIP 10K 2% 1/10W R155 1-208-462-41 RES,CHIP 10K 2% 1/10W R156 1-208-462-41 RES,CHIP 10K 2% 1/10W R157 1-260-070-51 CARBON 3.3 5% 1/2W R158 1-208-462-41 RES,CHIP 10K 2% 1/10W R160 1-208-437-41 RES,CHIP 1K 2% 1/10W R161 1-208-437-41 RES,CHIP 1K 2% 1/10W R162 1-208-437-41 RES,CHIP 1K 2% 1/10W R163 1-208-437-41 RES,CHIP 1K 2% 1/10W R164 1-208-437-41 RES,CHIP 1K 2% 1/10W R165 1-208-437-41 RES,CHIP 1K 2% 1/10W R166 1-208-453-41 RES,CHIP 4.7K 2% 1/10W R167 1-208-526-41 RES,CHIP 47K 2% 1/10W R168 1-208-437-41 METAL,CHIP 1K 2% 1/10W R169 1-208-437-41 METAL,CHIP 1K 2% 1/10W < THERMISTOR > THP159 1-806-882-11 THERMISTOR ************************************************************** * 1-671-189-11 REMOCON RAY-CATCHER BOARD ************************* < CAPACITOR > C901 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V < IC > IC908 8-759-459-83 IC NJL55H400A ************************************************************** * A-4417-101-A (S) VIDEO BOARD, COMPLETE ************************* * 1-535-303-00 WIRE, JUMPER 4-213-456-01 SPACER (30) < CAPACITOR > C201 1-119-799-11 ELECT 47uF 20% 25V C202 1-119-799-11 ELECT 47uF 20% 25V C203 1-119-799-11 ELECT 47uF 20% 25V C204 1-119-799-11 ELECT 47uF 20% 25V C205 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C206 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C207 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C208 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C209 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C210 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C211 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C212 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C213 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C214 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C215 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C216 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C217 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C218 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C219 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C220 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C221 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C222 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C223 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C224 1-119-825-41 ELECT 22uF 20% 50V C225 1-119-824-31 ELECT 10uF 20% 50V C226 1-119-824-31 ELECT 10uF 20% 50V C227 1-119-824-31 ELECT 10uF 20% 50V C228 1-119-824-31 ELECT 10uF 20% 50V C229 1-119-824-31 ELECT 10uF 20% 50V C230 1-119-824-31 ELECT 10uF 20% 50V C231 1-119-824-31 ELECT 10uF 20% 50V C232 1-119-824-31 ELECT 10uF 20% 50V C233 1-119-824-31 ELECT 10uF 20% 50V C234 1-119-824-31 ELECT 10uF 20% 50V C235 1-119-799-11 ELECT 47uF 20% 25V C236 1-119-799-11 ELECT 47uF 20% 25V C237 1-119-799-11 ELECT 47uF 20% 25V C238 1-119-799-11 ELECT 47uF 20% 25V C239 1-119-799-11 ELECT 47uF 20% 25V C240 1-119-799-11 ELECT 47uF 20% 25V C241 1-119-799-11 ELECT 47uF 20% 25V C242 1-119-799-11 ELECT 47uF 20% 25V C243 1-136-165-00 FILM 0.1uF 5% 50V C244 1-136-165-00 FILM 0.1uF 5% 50V C245 1-136-165-00 FILM 0.1uF 5% 50V C246 1-136-165-00 FILM 0.1uF 5% 50V C247 1-136-165-00 FILM 0.1uF 5% 50V C248 1-136-165-00 FILM 0.1uF 5% 50V C249 1-119-820-31 ELECT 1uF 20% 50V C250 1-119-824-31 ELECT 10uF 20% 50V C251 1-119-824-31 ELECT 10uF 20% 50V < CONNECTOR > * CN201 1-568-856-11 SOCKET, CONNECTOR 13P * CN202 1-568-858-11 SOCKET, CONNECTOR 15P < IC > IC201 8-759-000-47 IC MC14051BCP IC202 8-759-000-47 IC MC14051BCP IC203 8-759-000-47 IC MC14051BCP IC204 8-759-140-53 IC UPD4053BC IC205 8-759-261-99 IC MC14576CP IC206 8-759-261-99 IC MC14576CP IC207 8-759-000-49 IC MC14066BCP IC208 8-759-000-49 IC MC14066BCP IC209 8-759-032-59 IC MC74HC595AF < JACK > J201 1-779-800-11 TERMINAL, S (TV IN) Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. REMOCON RAY-CATCHER (S) VIDEO POWER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 142 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark J202 1-779-801-11 CONNECTOR (ROUND TYPE)(DVD/LD IN) J203 1-779-801-11 CONNECTOR (ROUND TYPE)(VIDEO 3 IN/OUT) J204 1-779-801-11 CONNECTOR (ROUND TYPE)(VIDEO 2 IN/OUT) J205 1-779-801-11 CONNECTOR (ROUND TYPE)(VIDEO 1 IN/OUT) J206 1-779-801-11 CONNECTOR (ROUND TYPE) (PROCESSOR IN/OUT) J207 1-779-801-11 CONNECTOR (ROUND TYPE)(MONITOR OUT 1,2) < COIL > L201 1-410-775-21 INDUCTOR 10mH < TRANSISTOR > Q201 8-729-424-18 TRANSISTOR UN2113 Q202 8-729-424-18 TRANSISTOR UN2113 Q203 8-729-424-18 TRANSISTOR UN2113 Q204 8-729-424-18 TRANSISTOR UN2113 Q205 8-729-230-49 TRANSISTOR 2SC2712-YG Q206 8-729-216-22 TRANSISTOR 2SA1162-G Q207 8-729-230-49 TRANSISTOR 2SC2712-YG Q208 8-729-216-22 TRANSISTOR 2SA1162-G Q209 8-729-230-49 TRANSISTOR 2SC2712-YG Q210 8-729-216-22 TRANSISTOR 2SA1162-G Q211 8-729-230-49 TRANSISTOR 2SC2712-YG Q212 8-729-216-22 TRANSISTOR 2SA1162-G Q213 8-729-230-49 TRANSISTOR 2SC2712-YG Q214 8-729-216-22 TRANSISTOR 2SA1162-G Q215 8-729-230-49 TRANSISTOR 2SC2712-YG Q216 8-729-216-22 TRANSISTOR 2SA1162-G Q217 8-729-230-49 TRANSISTOR 2SC2712-YG Q218 8-729-216-22 TRANSISTOR 2SA1162-G Q219 8-729-230-49 TRANSISTOR 2SC2712-YG Q220 8-729-216-22 TRANSISTOR 2SA1162-G Q221 8-729-424-18 TRANSISTOR UN2113 Q222 8-729-421-19 TRANSISTOR UN2213 Q223 8-729-424-18 TRANSISTOR UN2113 Q224 8-729-421-19 TRANSISTOR UN2213 Q225 8-729-230-49 TRANSISTOR 2SC2712-YG Q226 8-729-216-22 TRANSISTOR 2SA1162-G Q227 8-729-230-49 TRANSISTOR 2SC2712-YG Q228 8-729-216-22 TRANSISTOR 2SA1162-G Q229 8-729-216-22 TRANSISTOR 2SA1162-G Q230 8-729-216-22 TRANSISTOR 2SA1162-G < RESISTOR > R201 1-216-627-11 METAL CHIP 100 0.5% 1/10W R202 1-216-627-11 METAL CHIP 100 0.5% 1/10W R203 1-216-627-11 METAL CHIP 100 0.5% 1/10W R204 1-216-627-11 METAL CHIP 100 0.5% 1/10W R205 1-216-627-11 METAL CHIP 100 0.5% 1/10W R206 1-216-627-11 METAL CHIP 100 0.5% 1/10W R207 1-216-627-11 METAL CHIP 100 0.5% 1/10W R208 1-216-627-11 METAL CHIP 100 0.5% 1/10W R209 1-216-627-11 METAL CHIP 100 0.5% 1/10W R210 1-216-627-11 METAL CHIP 100 0.5% 1/10W R211 1-216-627-11 METAL CHIP 100 0.5% 1/10W R212 1-208-526-41 RES,CHIP 47K 2% 1/10W R213 1-208-526-41 RES,CHIP 47K 2% 1/10W R214 1-208-526-41 RES,CHIP 47K 2% 1/10W R215 1-208-526-41 RES,CHIP 47K 2% 1/10W R216 1-208-526-41 RES,CHIP 47K 2% 1/10W R217 1-208-526-41 RES,CHIP 47K 2% 1/10W R218 1-208-526-41 RES,CHIP 47K 2% 1/10W R219 1-208-558-41 RES,CHIP 1M 2% 1/10W R220 1-208-755-11 RES,CHIP 75 2% 1/10W R221 1-208-755-11 RES,CHIP 75 2% 1/10W R222 1-208-755-11 RES,CHIP 75 2% 1/10W R223 1-208-755-11 RES,CHIP 75 2% 1/10W R224 1-208-755-11 RES,CHIP 75 2% 1/10W R225 1-208-755-11 RES,CHIP 75 2% 1/10W R226 1-208-462-41 RES,CHIP 10K 2% 1/10W R227 1-208-462-41 RES,CHIP 10K 2% 1/10W R228 1-208-462-41 RES,CHIP 10K 2% 1/10W R229 1-208-462-41 RES,CHIP 10K 2% 1/10W R230 1-208-345-11 RES,CHIP 15 2% 1/10W R231 1-208-345-11 RES,CHIP 15 2% 1/10W R232 1-216-677-11 METAL CHIP 12K 0.5% 1/10W R233 1-216-655-11 METAL CHIP 1.5K 0.5% 1/10W R234 1-216-677-11 METAL CHIP 12K 0.5% 1/10W R235 1-216-635-11 METAL CHIP 220 0.5% 1/10W R236 1-208-345-11 RES,CHIP 15 2% 1/10W R237 1-208-345-11 RES,CHIP 15 2% 1/10W R238 1-216-677-11 METAL CHIP 12K 0.5% 1/10W R239 1-216-655-11 METAL CHIP 1.5K 0.5% 1/10W R240 1-216-677-11 METAL CHIP 12K 0.5% 1/10W R241 1-216-635-11 METAL CHIP 220 0.5% 1/10W R242 1-208-345-11 RES,CHIP 15 2% 1/10W R243 1-208-345-11 RES,CHIP 15 2% 1/10W R244 1-216-677-11 METAL CHIP 12K 0.5% 1/10W R245 1-216-655-11 METAL CHIP 1.5K 0.5% 1/10W R246 1-216-677-11 METAL CHIP 12K 0.5% 1/10W R247 1-216-635-11 METAL CHIP 220 0.5% 1/10W R248 1-208-345-11 RES,CHIP 15 2% 1/10W R249 1-208-345-11 RES,CHIP 15 2% 1/10W R250 1-208-345-11 RES,CHIP 15 2% 1/10W R251 1-208-345-11 RES,CHIP 15 2% 1/10W R252 1-216-677-11 METAL CHIP 12K 0.5% 1/10W R253 1-216-655-11 METAL CHIP 1.5K 0.5% 1/10W R254 1-216-677-11 METAL CHIP 12K 0.5% 1/10W R255 1-216-635-11 METAL CHIP 220 0.5% 1/10W R256 1-208-345-11 RES,CHIP 15 2% 1/10W R257 1-208-345-11 RES,CHIP 15 2% 1/10W R258 1-216-677-11 METAL CHIP 12K 0.5% 1/10W R259 1-216-655-11 METAL CHIP 1.5K 0.5% 1/10W R260 1-216-677-11 METAL CHIP 12K 0.5% 1/10W R261 1-216-635-11 METAL CHIP 220 0.5% 1/10W R262 1-208-345-11 RES,CHIP 15 2% 1/10W R263 1-208-345-11 RES,CHIP 15 2% 1/10W R264 1-216-677-11 METAL CHIP 12K 0.5% 1/10W R265 1-216-655-11 METAL CHIP 1.5K 0.5% 1/10W R266 1-216-677-11 METAL CHIP 12K 0.5% 1/10W R267 1-216-635-11 METAL CHIP 220 0.5% 1/10W R268 1-208-345-11 RES,CHIP 15 2% 1/10W R269 1-208-345-11 RES,CHIP 15 2% 1/10W R270 1-216-677-11 METAL CHIP 12K 0.5% 1/10W (S) VIDEO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 143 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R271 1-216-655-11 METAL CHIP 1.5K 0.5% 1/10W R272 1-216-677-11 METAL CHIP 12K 0.5% 1/10W R273 1-216-635-11 METAL CHIP 220 0.5% 1/10W R274 1-208-345-11 RES,CHIP 15 2% 1/10W R276 1-208-345-11 RES,CHIP 15 2% 1/10W R278 1-208-345-11 RES,CHIP 15 2% 1/10W R279 1-208-345-11 RES,CHIP 15 2% 1/10W R280 1-216-677-11 METAL CHIP 12K 0.5% 1/10W R281 1-216-655-11 METAL CHIP 1.5K 0.5% 1/10W R282 1-216-677-11 METAL CHIP 12K 0.5% 1/10W R283 1-216-635-11 METAL CHIP 220 0.5% 1/10W R284 1-208-462-41 RES,CHIP 10K 2% 1/10W R285 1-216-671-11 METAL CHIP 6.8K 0.5% 1/10W R286 1-208-462-41 RES,CHIP 10K 2% 1/10W R287 1-216-671-11 METAL CHIP 6.8K 0.5% 1/10W R288 1-216-699-11 METAL CHIP 100K 0.5% 1/10W R289 1-208-755-11 RES,CHIP 75 2% 1/10W R290 1-208-462-41 RES,CHIP 10K 2% 1/10W R291 1-216-699-11 METAL CHIP 100K 0.5% 1/10W R292 1-208-755-11 RES,CHIP 75 2% 1/10W R293 1-208-462-41 RES,CHIP 10K 2% 1/10W R294 1-216-699-11 METAL CHIP 100K 0.5% 1/10W R295 1-208-755-11 RES,CHIP 75 2% 1/10W R296 1-208-462-41 RES,CHIP 10K 2% 1/10W R298 1-216-699-11 METAL CHIP 100K 0.5% 1/10W R299 1-208-755-11 RES,CHIP 75 2% 1/10W R300 1-208-462-41 RES,CHIP 10K 2% 1/10W R302 1-216-699-11 METAL CHIP 100K 0.5% 1/10W R303 1-208-755-11 RES,CHIP 75 2% 1/10W R304 1-208-462-41 RES,CHIP 10K 2% 1/10W R306 1-216-699-11 METAL CHIP 100K 0.5% 1/10W R307 1-208-755-11 RES,CHIP 75 2% 1/10W R308 1-208-462-41 RES,CHIP 10K 2% 1/10W R309 1-208-755-11 RES,CHIP 75 2% 1/10W R310 1-208-755-11 RES,CHIP 75 2% 1/10W R311 1-216-699-11 METAL CHIP 100K 0.5% 1/10W R312 1-208-755-11 RES,CHIP 75 2% 1/10W R313 1-208-755-11 RES,CHIP 75 2% 1/10W R314 1-208-462-41 RES,CHIP 10K 2% 1/10W R319 1-208-526-41 RES,CHIP 47K 2% 1/10W R320 1-216-627-11 METAL CHIP 100 0.5% 1/10W R321 1-216-627-11 METAL CHIP 100 0.5% 1/10W R322 1-216-627-11 METAL CHIP 100 0.5% 1/10W R323 1-216-627-11 METAL CHIP 100 0.5% 1/10W R324 1-216-619-11 METAL CHIP 47 0.5% 1/10W R325 1-216-619-11 METAL CHIP 47 0.5% 1/10W R326 1-216-619-11 METAL CHIP 47 0.5% 1/10W R327 1-216-619-11 METAL CHIP 47 0.5% 1/10W R328 1-216-619-11 METAL CHIP 47 0.5% 1/10W R329 1-216-619-11 METAL CHIP 47 0.5% 1/10W R330 1-216-619-11 METAL CHIP 47 0.5% 1/10W R331 1-216-619-11 METAL CHIP 47 0.5% 1/10W R332 1-216-619-11 METAL CHIP 47 0.5% 1/10W R333 1-216-619-11 METAL CHIP 47 0.5% 1/10W R334 1-216-677-11 METAL CHIP 12K 0.5% 1/10W R335 1-216-655-11 METAL CHIP 1.5K 0.5% 1/10W R336 1-216-677-11 METAL CHIP 12K 0.5% 1/10W R337 1-216-635-11 METAL CHIP 220 0.5% 1/10W R338 1-216-677-11 METAL CHIP 12K 0.5% 1/10W R339 1-216-655-11 METAL CHIP 1.5K 0.5% 1/10W R340 1-216-677-11 METAL CHIP 12K 0.5% 1/10W R341 1-216-635-11 METAL CHIP 220 0.5% 1/10W R342 1-216-635-11 METAL CHIP 220 0.5% 1/10W R343 1-216-635-11 METAL CHIP 220 0.5% 1/10W R344 1-216-655-11 METAL CHIP 1.5K 0.5% 1/10W R345 1-216-655-11 METAL CHIP 1.5K 0.5% 1/10W ************************************************************** * 1-671-191-11 STANDBY LED BOARD ****************** < DIODE > D923 8-719-313-43 DIODE SEL6210S-TH10 (STANDBY) ************************************************************** * A-4417-100-A VIDEO BOARD, COMPLETE ********************* < CAPACITOR > C401 1-119-799-11 ELECT 47uF 20% 25V C402 1-119-799-11 ELECT 47uF 20% 25V C403 1-119-799-11 ELECT 47uF 20% 25V C404 1-119-799-11 ELECT 47uF 20% 25V C405 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C406 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C407 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C408 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C409 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C410 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C411 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C412 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C413 1-119-825-41 ELECT 22uF 20% 50V C414 1-119-824-31 ELECT 10uF 20% 50V C418 1-119-824-31 ELECT 10uF 20% 50V C419 1-119-824-31 ELECT 10uF 20% 50V C420 1-119-824-31 ELECT 10uF 20% 50V C421 1-119-824-31 ELECT 10uF 20% 50V C422 1-119-799-11 ELECT 47uF 20% 25V C423 1-119-799-11 ELECT 47uF 20% 25V C424 1-119-799-11 ELECT 47uF 20% 25V C425 1-119-799-11 ELECT 47uF 20% 25V C426 1-119-799-11 ELECT 47uF 20% 25V C427 1-119-799-11 ELECT 47uF 20% 25V C428 1-119-799-11 ELECT 47uF 20% 25V < CONNECTOR > CN401 1-691-074-11 HOUSING, CONNECTOR 15P < IC > IC401 8-759-000-47 IC MC14051BCP IC402 8-759-140-53 IC UPD4053BC IC403 8-759-261-99 IC MC14576CP IC404 8-759-000-49 IC MC14066BCP STANDBY LED VIDEO (S) VIDEO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 144 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < JACK > J401 1-779-795-11 JACK, PIN 1P (TV IN) J402 1-779-796-11 JACK, PIN 2P (DVD/LD IN) J403 1-779-796-11 JACK, PIN 2P (VIDEO 3 IN/OUT) J404 1-779-796-11 JACK, PIN 2P (VIDEO 2 IN/OUT) J405 1-779-796-11 JACK, PIN 2P (VIDEO 1 IN/OUT) J406 1-779-796-11 JACK, PIN 2P (PROCESSOR IN/OUT) J407 1-779-796-11 JACK, PIN 2P (MONITOR OUT 1,2) < TRANSISTOR > Q401 8-729-230-49 TRANSISTOR 2SC2712-YG Q402 8-729-216-22 TRANSISTOR 2SA1162-G Q403 8-729-230-49 TRANSISTOR 2SC2712-YG Q404 8-729-216-22 TRANSISTOR 2SA1162-G Q405 8-729-230-49 TRANSISTOR 2SC2712-YG Q406 8-729-216-22 TRANSISTOR 2SA1162-G Q407 8-729-230-49 TRANSISTOR 2SC2712-YG Q408 8-729-216-22 TRANSISTOR 2SA1162-G Q409 8-729-230-49 TRANSISTOR 2SC2712-YG Q410 8-729-216-22 TRANSISTOR 2SA1162-G Q411 8-729-216-22 TRANSISTOR 2SA1162-G < RESISTOR > R401 1-216-627-11 METAL CHIP 100 0.5% 1/10W R402 1-216-627-11 METAL CHIP 100 0.5% 1/10W R403 1-216-627-11 METAL CHIP 100 0.5% 1/10W R404 1-216-627-11 METAL CHIP 100 0.5% 1/10W R405 1-216-627-11 METAL CHIP 100 0.5% 1/10W R406 1-216-627-11 METAL CHIP 100 0.5% 1/10W R407 1-216-627-11 METAL CHIP 100 0.5% 1/10W R408 1-216-627-11 METAL CHIP 100 0.5% 1/10W R409 1-216-627-11 METAL CHIP 100 0.5% 1/10W R410 1-208-462-41 RES,CHIP 10K 2% 1/10W R411 1-208-462-41 RES,CHIP 10K 2% 1/10W R412 1-208-345-11 RES,CHIP 15 2% 1/10W R413 1-208-345-11 RES,CHIP 15 2% 1/10W R414 1-216-677-11 METAL CHIP 12K 0.5% 1/10W R415 1-216-655-11 METAL CHIP 1.5K 0.5% 1/10W R416 1-216-677-11 METAL CHIP 12K 0.5% 1/10W R417 1-216-635-11 METAL CHIP 220 0.5% 1/10W R418 1-208-345-11 RES,CHIP 15 2% 1/10W R419 1-208-345-11 RES,CHIP 15 2% 1/10W R420 1-216-677-11 METAL CHIP 12K 0.5% 1/10W R421 1-216-655-11 METAL CHIP 1.5K 0.5% 1/10W R422 1-216-677-11 METAL CHIP 12K 0.5% 1/10W R423 1-216-635-11 METAL CHIP 220 0.5% 1/10W R424 1-208-345-11 RES,CHIP 15 2% 1/10W R425 1-208-345-11 RES,CHIP 15 2% 1/10W R426 1-216-677-11 METAL CHIP 12K 0.5% 1/10W R427 1-216-655-11 METAL CHIP 1.5K 0.5% 1/10W R428 1-216-677-11 METAL CHIP 12K 0.5% 1/10W R429 1-216-635-11 METAL CHIP 220 0.5% 1/10W R430 1-208-345-11 RES,CHIP 15 2% 1/10W R431 1-208-345-11 RES,CHIP 15 2% 1/10W R432 1-208-345-11 RES,CHIP 15 2% 1/10W R433 1-208-345-11 RES,CHIP 15 2% 1/10W R434 1-216-677-11 METAL CHIP 12K 0.5% 1/10W R435 1-216-655-11 METAL CHIP 1.5K 0.5% 1/10W R436 1-216-677-11 METAL CHIP 12K 0.5% 1/10W R437 1-216-635-11 METAL CHIP 220 0.5% 1/10W R438 1-208-755-11 RES,CHIP 75 2% 1/10W R439 1-208-755-11 RES,CHIP 75 2% 1/10W R440 1-208-755-11 RES,CHIP 75 2% 1/10W R442 1-208-755-11 RES,CHIP 75 2% 1/10W R444 1-208-755-11 RES,CHIP 75 2% 1/10W R446 1-208-755-11 RES,CHIP 75 2% 1/10W R448 1-208-755-11 RES,CHIP 75 2% 1/10W R449 1-208-755-11 RES,CHIP 75 2% 1/10W R452 1-208-526-41 RES,CHIP 47K 2% 1/10W R453 1-208-526-41 RES,CHIP 47K 2% 1/10W R454 1-208-526-41 RES,CHIP 47K 2% 1/10W R455 1-216-619-11 METAL CHIP 47 0.5% 1/10W R456 1-216-619-11 METAL CHIP 47 0.5% 1/10W R457 1-216-619-11 METAL CHIP 47 0.5% 1/10W R458 1-216-619-11 METAL CHIP 47 0.5% 1/10W R459 1-216-619-11 METAL CHIP 47 0.5% 1/10W R460 1-216-677-11 METAL CHIP 12K 0.5% 1/10W R461 1-216-655-11 METAL CHIP 1.5K 0.5% 1/10W R462 1-216-677-11 METAL CHIP 12K 0.5% 1/10W R463 1-216-635-11 METAL CHIP 220 0.5% 1/10W R464 1-216-655-11 METAL CHIP 1.5K 0.5% 1/10W R465 1-216-635-11 METAL CHIP 220 0.5% 1/10W ************************************************************** * 1-671-185-11 VOLUME BOARD ************ < CAPACITOR > C914 1-104-664-11 ELECT 47uF 20% 25V < CONNECTOR > * CN952 1-568-954-11 PIN, CONNECTOR 5P < VARIABLE RESISTOR > RV901 1-225-680-11 RES, VAR, CARBON (WITH M) 10K (MASTER VOLUME) ************************************************************** MISCELLANEOUS ************* !7 1-559-479-11 CORD, POWER (US,CND) !7 1-575-953-11 CORD, POWER (EXCEPT US,CND) 72 1-765-344-11 WIRE (FLAT TYPE)(23 CORE)(160mm) (FORMER TYPE) 72 1-773-216-11 WIRE (FLAT TYPE) (25 CORE) (NEW TYPE) 104 1-783-943-11 WIRE, FLAT TYPE (7 CORE) 108 1-773-006-11 WIRE (FLAT TYPE)(15 CORE) 109 1-769-973-11 WIRE (FLAT TYPE)(13 CORE) FL901 1-517-962-11 INDICATOR TUBE, FLUORESCENT !T001 1-433-482-11 TRANSFORMER, POWER (US,CND) !T001 1-433-483-11 TRANSFORMER, POWER (EXCEPT US,CND) ************************************************************** VOLUME VIDEO Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Ver 1.1 2002.08 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 145 – Ref. No. Part No. Description Remark ACCESSORIES & PACKING MATERIALS ******************************* 1-418-256-11 REMOTE COMMANDER (RM-TP501E) 1-528-174-31 BATTERY, LITHIUM (CR2032 TYPE) (FOR RM-TP501E) 1-590-925-31 CORD, CONNECTION (AUDIO, 1m) 3-865-040-11 MANUAL, INSTRUCTION (ENGLISH,FRENCH) 3-865-040-21 MANUAL, INSTRUCTION (GERMAN,SPANISH,DUTCH)(EXCEPT US,CND) 3-865-040-31 MANUAL, INSTRUCTION (SWEDISH,ITALIAN,PORTUGUESE) (EXCEPT US,CND) 3-865-783-11 MANUAL, INSTRUCTION (RM-TP501E) (ENGLISH,FRENCH) 3-865-783-21 MANUAL, INSTRUCTION (RM-TP501E) (GERMAN,SPANISH,DUTCH)(EXCEPT US,CND) 3-865-783-31 MANUAL, INSTRUCTION (RM-TP501E) (SWEDISH,ITALIAN,PORTUGUESE)(EXCEPT US,CND) 4-997-648-01 COVER, BATTTERY (FOR RM-TP501E) 4-997-658-01 PEN (FOR RM-TP501E) ************************************************************** ************* HARDWARE LIST ************* #1 7-682-547-09 SCREW +B 3X6 #2 7-682-547-04 SCREW +B 3X6 #3 7-685-880-09 SCREW +BVTT 4X6 (S) #4 7-685-885-09 SCREW +BVTT 4X16 (S) #5 7-628-546-09 +B 3X5 #6 7-683-255-58 SET SCREW 5X6 HEXAGON SOCKET www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 146 – TA-E9000ES MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES SERVICE MANUAL SUPPLEMENT - 1 File this Supplement with the Service Manual. Subject : z CHANGE OF DIGITAL BOARD AND POWER BOARD US Model Canadian Model AEP Model UK Model E Model Australian Model Chinese Model 2002.08 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 TA-E9000ES z CHANGE OF BOARDS The digital board and power board has been changed. Printed wiring board and schematic diagram of new type, and changed parts list are described in this Supplement-1. Refer to original service manual (9-928-800-12) previously issued for the other information. NEW TYPE IDENTIFICATION R167 R120 R122 R123 R119 Q109 Q103 D105 R107 R125 R126 R111 R112 R113 C116 R131 R134 R115 IC101 D102 D103 D125 D106 D111 Q101 Q102 Q104 Q105 D108 D112 D113 D109 C110 C111 R102 R108 R101 R106 R110 R116 C150 C117 R121 D104 R117 C119 R114 D101 R105 R104 R103 R109 D126 R118 R180 R181 R182 R183 R184 R185 R186 R187 R188 R189 R190 JW141 IC102 JW126 JW120 JW121 CN101 Q107 Q106 CN103 CN102 E101 C123 C118 C121 C127 C126 C125 C124 C120 D107 D110 Q108 C112 JW116 JW115 R130 PH101 JW114 C129 JW127 JW111 JW129 JW102 JW104 R127 R128 R129 JW113 JW124 JW108 JW123 JW110 LP101 JW125 JW105 JW101 C151 JW109 JW103 C122 C115 Q110 JW117 JW122 JW106 JW118 JW112 JW107 JW119 C158 C157 1-671-184- 3 2 1 E C B E C B E C B B C E 1 4 5 8 DIGITAL BOARD (SIDE B) 1-670-914-11, -12 (Former Type) 1-670-914-13 (New Type) [POWER BOARD] There are parts in the new type. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES 3 3 PRINTED WIRING BOARD – DIGITAL SECTION (1/2) – Ref. No. Location • Semiconductor Location IC1005 B-11 IC1006 B-10 IC1007 A-8 IC1010 A-6 IC1011 A-6 IC1013 A-5 IC1016 A-5 IC1018 A-3 IC2002 B-7 IC2003 B-6 IC3019 G-3 IC4003 E-12 IC4006 D-10 IC4009 D-8 IC4010 D-7 IC4102 D-13 IC4103 D-13 IC4111 D-12 IC4112 D-11 IC4113 D-8 IC5001 G-12 IC5003 G-11 IC5006 I-11 IC5007 G-10 IC5009 I-10 IC5010 G-9 IC5013 G-8 IC5016 G-7 IC5019 I-7 Last digit-13 2 3 4 5 6 7 8 9 10 11 12 13 14 A 1 B C D E F G H J I C3003 C2017 C1021 IC3019 C2039 C2044 C2025 C2001 C3039 C3038 C3034 C3033 C3032 C3030 C3031 R1041 C3028 C3027 C3023 C3024 C1006 R2081 R1049 C3019 C3018 R3105 R3106 C3026 R3039 R3046 R3093 R3095 R3096 R3094 R3097 R3020 C3015 C3013 C3011 1 2 24 1 9 25 C3002 JR2005 R2141 R1030 R1031 R1033 R1038 R1022 R1028 R3019 R3092 R2142 C3001 R1044 R1023 R1040 R1045 C3020 C4015 JR2003 JR2002 C1079 C2058 C1083 FB2003 JR2004 C1071 C1075 C1077 R3098 C3029 R3108 R3107 R3104 R3103 R3102 R3101 R3099 C2063 C2064 C2036 C2026 C2030 C2015 R2082 R3045 C2031 C2065 C2040 C2032 C2037 C2018 C2016 C2023 C2024 C2019 C2035 C2042 R1008 R3100 R2063 R3048 R3024 R1012 JR2009 JR2010 JR2012 JR2013 JR2015 JR2016 R1013 R3035 C2014 R1025 C1069 R1029 C5057 C5058 R5067 R5081 IC4003 R1056 JR2006 R5066 R1009 IC4009 R5085 R4005 IC4006 R5082 R5070 R4060 R4061 R4042 R4056 R4047 R4046 R4058 IC4010 IC4113 C4075 R1003 C4083 C4084 R5058 R5053 R5060 R5046 R5038 R5033 R5044 R5042 R5031 R5032 R5035 R5037 R5051 R5047 R5048 R5050 R5036 R5049 R5045 R5055 IC4102 R5052 R5040 R5034 R4038 R4039 R4043 R4023 R4036 R4028 R4027 R4037 IC4112 C4053 C4054 C4045 R5028 R5023 R5030 R5016 R5008 R5003 R5014 R5012 R5001 R5002 R5005 R5007 R5021 R5017 R5018 R5020 R5027 R5006 R5019 R5015 R5025 R5022 R5010 R5004 R4017 R4018 R4019 R4004 R4020 R4009 R4008 R4024 IC4111 C4023 C4024 C1059 C1049 1 2 3 1 2 3 IC4103 C1017 C1031 C1037 C1005 C1007 C1072 C1041 R1020 R1026 R1024 R1027 R1021 R3031 R1054 R1053 C3101 C3102 3 1 3 1 3 1 3 1 4 3 5 6 1 1 R5088 R5083 R5090 R5076 R5068 R5063 R5074 R5072 R5061 R5062 R5065 R5077 R5078 R5080 R5087 R5079 R5075 R5064 R5057 FB4007 FB4009 C4052 C4059 C4058 C4055 C4060 CN4002 1 5 C4043 C4048 C4044 C4051 C4050 C5078 C5064 C5069 C5065 C5073 C5074 C5060 CN5001 1-670-914- 13 C5009 C5040 C5001 C5029 C5020 C5019 C5004 C5023 C5010 C5014 C5043 C5024 C5039 C5034 C5030 C5066 C5052 IC5006 C5022 C5027 C5018 C5013 C5026 C5003 C5007 C5011 C5006 C5017 IC5001 IC5003 C5050 C5049 C5033 C5038 C5046 C5031 C4021 C4014 C4018 C4013 C4020 C4017 C4001 CLP11 C4005 C4002 C4004 C4022 FB1001 C1003 CLP2 C1010 C1011 C1022 C1026 C1036 CN1002 C1030 C1029 CN1007 1 3 J1003 FB1004 C1043 CN1003 CLP1 FB1002 IC1005 C1039 C1042 C1064 C1040 IC1006 FB1012 C1048 FB5005 FB5006 FB4004 FB4002 C4030 C4034 C4035 C4031 C4032 C4028 C4025 C4047 C4029 C5054 C5037 IC5007 IC5010 C5053 C5061 C5067 C5070 C5047 C5090 C5071 C5086 C5081 C5077 C5087 C5076 IC5009 C5056 CLP12 CN5002 C5108 C5098 C5132 1 7 1 10 14 1 1 1 11 2 3 14 8 7 8 C5120 C5110 IC5019 C5099 C5103 C5113 C5093 C5114 15 14 28 1 15 14 28 1 15 14 28 1 15 14 28 1 15 14 28 1 15 14 28 1 C5131 C5126 C5121 IC5016 IC5013 C5112 C5107 C5102 C5116 C5117 C5095 C5080 C5092 C5085 C5096 C5100 C5122 C5106 C5084 C4073 C4078 C4074 C4081 C4080 C4061 C4077 C4065 C4062 C4064 CLP3 FB1010 FB1009 FB1008 FB1007 CN1004 C1067 C1065 C1057 C1053 C1058 C1054 CN1005 C1046 C1050 C1045 C1047 C1044 FB1005 FB1003 FB1006 C1060 C1062 FB2001 FB1013 FB1011 C1068 FB2002 C1061 COAXIAL IN J1006 COAXIAL IN J1005 OPTICAL IN IC1010 IC2003 IC2002 OPTICAL IN IC1007 C1063 C2007 C2006 C2009 C2008 1 2 3 1 2 3 C1066 C2005 C2003 C2002 C2004 C4082 14 1 8 14 8 8 5 14 8 8 5 8 5 1 3 4 5 1 3 4 5 1 4 1 4 14 8 1 7 1 7 1 4 7 1 7 FB4014 FB4012 C4090 C4089 C3022 C4085 C4088 CLP13 C5130 C5129 C5125 C3005 C3021 CN3001 X3001 C3025 C2013 OPTICAL IN IC1013 OPTICAL IN IC1011 OPTICAL IN IC1016 OPTICAL IN IC1018 C2043 C3036 X3002 11 20 10 1 C3037 CN3002 CN3003 C2054 C1024 CN1006 C1025 C1126 C1088 C1095 J1009 C1104 C1094 J1008 LD AC-3RF C ANALOG BOARD (Page 57) J L POWER BOARD (SUPPLEMENT-1: Page 13) P CLOCK BOARD (Page 97) I OUTLET BOARD (Page 96) K POWER BOARD (SUPPLEMENT-1: Page13) H ANALOG BOARD (Page 58) G ANALOG BOARD (Page 58) E ANALOG BOARD (Page 57,58) N DISPLAY BOARD (Page 83) D ANALOG BOARD (Page 57) M AC3RF BOARD (Page 87,88) DIGITAL BOARD (SIDE A) ANALIZER MIC IN CTRL-A1 J1002 CTRL-A1 J1001 CTRL-A1 CD DVD S-LINK MONITOR RN-232C J1004 LD MD/DAT TV J1007 COAXIAL IN w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES 4 4 Ref. No. Location • Semiconductor Location D1001 A-2 D1006 B-2 D1007 B-2 D1008 B-2 D1009 B-2 D1013 B-11 D1014 B-12 D2001 E-13 D2002 E-13 D3001 H-8 D3002 H-8 D3003 G-8 D3004 G-8 D3005 H-8 IC1001 A-1 IC1002 A-3 IC1004 B-1 IC1008 B-9 IC1009 A-6 IC1012 B-10 IC1014 B-9 IC1015 B-10 IC1017 A-7 IC1019 A-12 IC1020 A-8 IC1021 A-10 IC1022 B-12 IC1023 B-11 IC1024 A-13 IC1025 A-11 IC1026 A-6 IC1027 A-8 IC1028 A-10 IC1051 C-4 IC2001 E-8 IC2004 C-8 IC2005 D-8 IC2006 E-8 IC2007 C-10 IC2008 E-9 IC2009 D-10 IC2010 C-10 IC2011 F-10 IC2012 E-10 IC2013 C-11 IC2014 C-12 IC2015 C-13 IC2016 E-12 IC2017 E-9 IC2018 E-8 IC2019 E-9 IC3001 I-8 Ref. No. Location IC3002 H-8 IC3003 G-8 IC3004 G-7 IC3005 F-8 IC3006 I-10 IC3007 I-11 IC3008 H-12 IC3009 G-12 IC3010 G-9 IC3011 F-9 IC3012 F-9 IC3013 F-9 IC3014 H-9 IC3015 G-9 IC3016 G-10 IC3017 G-10 IC3018 G-11 IC3020 F-10 IC3021 D-13 IC4001 D-2 IC4002 E-2 IC4004 D-4 IC4005 E-4 IC4007 D-6 IC4008 E-6 IC4011 D-7 IC4012 F-7 IC4013 D-7 IC5002 I-2 IC5004 I-3 IC5005 H-2 IC5008 I-4 IC5011 I-5 IC5012 H-4 IC5014 I-6 IC5017 I-7 IC5018 H-5 Q1001 A-1 Q1002 A-1 Q2002 F-11 Q3001 G-8 Q3002 G-8 Q3003 G-8 Q3004 G-8 Q3005 G-8 Q3006 I-8 Q3007 I-8 Q3008 H-10 Q3009 H-10 Q3010 H-11 Q3011 H-10 – DIGITAL SECTION (2/2) – Last digit-13 2 3 4 5 6 7 8 9 10 11 12 13 A 1 B C D E F G H I 5 8 4 1 5 8 4 1 5 8 4 1 5 8 4 1 5 8 4 1 5 8 4 1 5 8 4 1 5 8 4 1 5 8 4 1 CLP11 CLP2 CLP1 CLP12 CLP3 CLP13 IC1025 R1035 C1105 IC2017 IC1014 IC3015 IC1008 IC2001 IC3012 R1080 R1073 R2024 IC2012 R2121 R2012 R2007 IC1019 R2017 IC3003 IC3018 IC3011 R3040 C4106 R1039 R2137 R2134 R2135 R2133 R2126 R2046 D2001 D2002 Q3004 Q3001 IC2004 IC2013 IC2005 IC2009 Q3002 IC2015 IC2011 IC3010 IC2014 IC3007 IC1023 FB1101 IC3009 IC3017 IC3001 IC1012 Q3003 IC3006 R1099 IC1009 IC3013 IC3008 C2020 C2034 C2033 C2022 IC2008 R3089 R3080 R3001 Q3005 D3001 R2122 D3002 R2019 R2073 R2104 R2093 R2010 D3003 R2056 R2004 R2002 R2078 R2077 R2145 R2076 IC3004 Q3006 Q3007 R2143 R2003 D3005 R2005 R2075 R2006 R2079 R2074 R2011 C2070 R2072 C2069 R3004 C2068 R3008 R3009 R3002 R3012 R3003 R3006 R3017 R3018 R3011 R3015 R3013 R3014 R3125 R3010 R3114 R3025 R3022 R3091 R2140 R3051 R3120 R3027 R3127 R3041 R3032 R3023 R3033 R3047 R3036 Q3011 R2119 IC3016 R3037 R3043 R3038 R3042 R3053 C3014 R3055 R3034 R3044 R3054 R3118 R3056 R3059 R3057 R3058 R3060 R3061 R3062 R3063 R3064 R3065 R3066 R3075 R3068 R3069 R3070 R3079 R3071 R3072 R3067 R3074 R3073 R3076 R3077 R3124 C2050 R3028 R3088 R3090 R3078 R3049 C1125 R1067 R1063 R1058 R1057 R1055 R1102 R3052 C3016 C3017 C3012 C1078 C3010 R3029 C1080 R1037 R3016 R1032 R3030 Q3010 Q3009 Q3008 1 7 14 8 1 11 33 44 34 7 1 3 1 2 9 8 10 1 7 1 12 1 13 24 8 14 1 1 3 1 8 8 4 4 4 1 30 1 30 31 31 60 61 14 90 61 90 1 1 16 32 1 32 17 16 1 16 17 32 10 1 11 20 17 15 28 16 9 7 1 8 14 7 1 7 1 10 1 8 3 4 1 5 3 3 4 4 1 1 5 5 14 8 14 1 1 4 1 4 8 5 14 28 5 8 15 11 20 1 8 1 5 3 4 91 5 5 5 11 20 120 91 120 16 1 20 11 20 11 1 10 1 1 1 1 10 1 10 20 11 180 181 240 1 20 11 120 61 1 3 5 4 60 121 14 7 4 8 8 8 1 1 5 4 7 1 10 25 44 22 1 20 11 14 8 5 10 1 7 10 1 10 20 21 61 60 40 41 1 80 1 11 20 11 20 1 7 14 8 14 8 8 14 12 22 23 C3009 C3008 C3007 R1042 R1046 C1086 C1084 C1081 C1087 R1043 R1047 R2136 R2085 R1034 R1036 R1048 R1051 C3004 C3006 R3123 R3121 IC1004 R3122 R3117 R3050 R3119 R3026 R3021 R3112 R3115 R3116 R3113 R3111 IC3021 R2120 R2015 R1052 R2127 R2128 R2129 C2048 C2055 C2049 R2124 C2053 C2056 C2061 Z25 C2066 C2051 C2047 C2021 C2052 C2067 IC1020 C2045 R2103 C2059 R2087 R2090 R2086 R2089 R2091 R2088 C2046 R2094 R2096 R2097 R2095 R2098 R2100 R2101 R2102 R2092 R2099 R2084 R2106 R2114 R2110 C2060 R2117 R2118 R2138 R2125 R2116 R2144 R2109 R2111 R2112 R2113 C2057 R2123 R2131 R2132 R2115 R2139 C2041 C2027 C2028 FB1016 FB3001 C2010 C2011 FB1015 IC2019 R2058 R2060 R2062 R2061 C2062 R2130 Q2002 R2045 R2044 R2049 R2047 R2021 R2001 R2054 R2008 Q1001 IC4012 R4007 C4091 IC5004 C1023 R4062 R4063 R1062 R4064 R4021 C1004 R3007 IC1021 IC3014 IC3005 IC4011 IC1026 IC1028 D1013 R1064 C1013 C1082 R2105 C1012 IC3020 IC1015 IC5002 IC3002 IC1024 IC2018 R3005 R4065 IC2006 IC1002 IC1001 D1014 D3004 IC4013 R4016 IC1022 C4063 IC2016 C4086 IC2010 IC2007 R4048 R4050 C4076 C4079 R4052 R4053 R4054 R4067 R4044 R4045 C4066 C4068 C1056 1 3 4 1 3 5 5 4 C1051 C1055 R1004 R4057 IC5017 C4033 C4056 IC5014 C4057 IC4008 IC4007 R4029 R4031 C4046 C4049 R4033 R4034 R4035 R4051 R4025 R4026 C4036 C4038 FB1018 FB1014 R4041 R4059 R4055 D1007 IC4001 IC5011 D1009 R1059 R1060 R1061 C4003 C4026 X2001 C1001 IC5008 C4027 IC4002 IC4004 R4010 R4012 C4016 C4019 R4032 R4013 R4014 R4015 R4006 C4006 C4008 FB1017 R4022 R4040 R4001 R4002 R4003 D1001 Q1002 IC4005 R1001 D1006 C1076 FB1102 C1038 C1018 C1032 C1002 D1008 R1014 R1005 R1002 1 7 14 8 28 1 8 1 9 16 1 16 1 16 1 16 17 52 52 51 64 64 52 64 1 19 1 19 1 19 3 1 4 5 20 32 20 32 20 32 33 51 33 51 33 32 17 32 17 32 33 29 56 49 49 48 33 48 33 48 1 9 1 3 4 7 14 8 64 64 49 64 C1052 FB2004 C1085 R2014 R3109 EXCEPT US,CND US,CND R3110 R3081 IC1051 1 5 3 4 IC1027 1 5 3 4 IC1017 IC5005 IC5012 IC5018 Z1001 FB4102 FB4103 FB4101 C1014 FB4116 FB4114 FB4115 C4087 1-670-914- 13 DIGITAL BOARD (SIDE B) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES 5 5 SCHEMATIC DIAGRAM – DIGITAL (1/8) SECTION – • SEE PAGE 41 FOR WAVEFORMS. • SEE PAGE 99 FOR IC BLOCK DIAGRAMS. Last digit-13 R1014 R1005 CN1007 Q1002 R1062 IC1051 Q1001 C1002 IC1001 C1004 C1001 CN1003 CN1005 C1010 IC1004 R1054 C1029 R1056 FB1001 C1003 CN1008 CN1009 CN1002 CN1004 C1057 C1051 C1052 C1055 FB1007 C1067 C1065 FB1010 C1053 C1060 FB1009 C1054 R1012 R1008 R1013 D1006 D1007 R1009 D1009 D1008 R1059 R1061 R1060 R1001 C1026 R1053 C1030 C1011 C1022 C1036 C1039 C1042 C1045 C1040 C1044 FB1002 FB1003 FB1005 C1047 C1046 IC1005 C1038 IC1002 C1031 C1037 C1018 D1001 C1032 R1002 C1005 C1007 J1001 J1002 J1003 C1017 J1004 C1041 C1043 FB1004 R1023 R1021 C1069 IC1026 IC1009 IC1007 IC1010 IC1011 IC1013 IC1016 IC1018 J1009 J1008 J1007 J1006 J1005 C1014 C1066 C1063 FB1011 FB1013 R1024 R1022 R1020 C1070 C1072 R1025 R1026 R1029 C1074 R1030 C1076 R1031 C1080 C1078 R1038 C1083 R1041 C1085 R1045 C1094 R1055 R1063 R1057 C1095 C1104 R1067 R1058 C1105 R1073 R1080 C1025 C1024 R1099 C1125 C1126 R1102 IC1024 CN1006 R1048 R1049 R1051 R1052 IC1023 C1021 C1023 IC1025 C1012 D1014 IC1022 R1064 D1013 C1013 IC1015 C1077 R1042 R1047 R1043 C1086 R1046 IC1019 C1087 C1084 R1032 R1033 IC1014 C1081 C1079 R1044 IC1021 IC1028 C1082 R1040 IC1020 IC1027 C1073 R1028 R1027 IC1017 FB1101 FB1102 C1062 C1061 C1050 FB1006 IC1012 IC1008 R1034 R1039 R1036 IC1006 C1048 C1049 C1059 C1064 FB1012 R1035 R1037 C1088 C1075 C1071 C1068 FB1008 C1058 C1056 R1004 100 100 3P CT-L 2SC2712-YG 4.7k NJM78L12UA -TE1 UN2111 0.1 NJM2129M-T E2 0.1 0.1 3P VH-S 4P VH-S 47 16V CXD8607N 47 0.0022 PE 47 470 16V 7P 9P EH-S 220 25V 0.1 0.1 0.001 1000 25V 1000 25V 220 25V 2200 10V 470 10V 100 100 100 1SS226 1SS226 100 1SS226 1SS226 100 100 100 100 100 16V 47 0.0022 0.1 0.1 100 16V 0.1 0.1 220 35V 470 16V 220 35V 220 35V 220 35V BA05T 0.1 ADM202EARN 0.1 0.1 0.1 02CZ6.2-TE 85L 0.1 1k 0.001 0.001 0.1 0.1 100 16V 10k 1k 0.1 TC7S04F TC7SU04F-TE85L TORX178A TORX173(HS) TORX178A TORX178A TOTX178 TORX178A 1P 1P 1P 1P 0.1 470 16V 470 16V 1k 75 75 0.1 0.1 75 1k 75 0.1 75 0.1 75 0.1 0.1 1k 0.1 75 0.1 75 100 16V 6.8k 100k 2.2k 4.7 50V 4.7 50V 1k 2.2k 100p 100k 10k 470 16V 470 16V 100k 100p 4.7 50V 100k M5218AFP-T1 7P FFC 100 10k 1k 100 MC74HC74 0.1 3300p TC7SU04 0.1 1SS184 TC7W74F E12L 470k 1SS184 0.22 MC74HC241AF (EL) 0.1 F.B 100 F.B 0.068 470 CS8414-CSR 0.1 0.01 1k 1k MC74HC151F EL 0.01 0.1 10k TC7SU04F-TE85L TC7S04F 0.1 1k TC7SET08F TC7S04F 0.1 10k 1k TC7SU04F-TE85L 470 16V 470 16V 470 16V MC74HC00AF EL MC74HCT00AF EL 100 100 100 BA033T 330 25V 0.1 0.1 100 16V 100 100 100 16V 0.1 0.1 470 16V 470 10V 0.001 10k BCKO(5V) LRCKO(5V) 256FSO(5V) SRCGND(F) SRC+3V(F) SRC+5V(F) -7V(F) +7V(F) SRCGND(C) SRC+3V(C) SRC+5V(C) SRCGND(S) SRC+5V(S) DGND(DSP) ADCRES +5V(DSP) POWCNT STOP F2 F1 -18V +18V +5V(BACKUP) STATUS CTRL-A1(GND) CTRL-A1(HOT) TXD232 RXD232 DSELA2 DSELA1 DSELA0 LDCOAX MD-REC CLKSEL DATA(LR) DATA(CS) BCKI LRCKI 256FSI DATA(DIR) SRC+3V(S) OSCSEL AC3RES DIR MUTE S-7V S+7V CTRL-S BLSTRT(CPU) CS-BIT(CPU) CS-CLK(CPU) AC3ERR(CPU) MIC(CPU) DIRERR(CPU) POWCNT STOP BACKUP GND -5V +18V -18V F2 F1 LEFT- A-GND LEFT+ RIGHT- A-GND RIGHT+ A-GND RFIN DATAOUT GND +5V -5V RF-RES RF-ERR CTRL-A1 CTRL-A1 CTRL-A1 S-LINK RS-232C RS232C LINE +5V REG DRIVER MODULATOR +3.3V REG LINE DRIVER MIC AMP BUFFER DATA SELECTOR SELECTOR SELECTOR BUFFER MIC IN AC-3 RF IN LD CD CD DIGITAL IN OPTICAL MD/DAT TV DVD DVD DIGITAL IN OPTICAL TV DIGITAL IN OPTICAL MD/DAT DIGITAL IN OPTICAL MD/DAT DIGITAL OPTICAL OUT LD DIGITAL IN OPTICAL LD ANALIZER DIGITAL AUDIO INTERFACE RECEIVER BUFFER BUFFER BUFFER BUFFER D.FF CLOCK GENERATOR COAXIAL IN OPTICAL IN OPTICAL OUT OPTICAL IN OPTICAL IN OPTICAL IN COAXIAL IN OPTICAL IN COAXIAL IN BUFFER BUFFER +5V +5V GND GND GND -7V +7V +12V REG S-LINK DETECT SW LINK SW SW LINK SW (TO CN4031) (TO CN5005) MONITOR LD LD DV DV DV TV RF D D D D Signal path. :CD :RF(AC-3) RF TV DV LD D :REC( DAT/MD ) :PB( DAT/MD ) :TV/DBS :DVD :LD :DIGITAL;AUDIO :AUDIO D D RF LD w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES 6 6 SCHEMATIC DIAGRAM – DIGITAL (2/8) SECTION – • See page 42 for Waveforms. • See page 105 for IC Pin Functions. Last digit-13 C2044 C2034 C2033 C2043 R2072 R2079 R2076 R2075 R2074 R2073 FB2003 C3029 C2045 C2058 C2059 C2069 R2144 R2081 R2082 C2054 R2086 R2087 R2088 R2089 R2090 R2091 R2104 R2105 R2127 R2128 R2129 R2120 R2121 R2122 FB2004 R2085 IC2015 IC3021 IC2014 IC2012 IC2011 R2010 C2070 R2145 JR2004 JR2006 JR2009 JR2012 JR2010 JR2013 JR2005 R2078 R2077 0.1 0.1 0.1 470 16V 10k 10k 10k 10k 10k 10k 0.1 0.1 0.1 0.1 100p 10k 10k 10k 100 16V 100 100 100 100 100 100 2.2k 4.7k 100 100 100 100 100 100 100 220 CXD8751Q TC7SET04FU SN74LV541A MC74HC574A FEL MC74HC574A FEL 10k 100p 10k 10k 10k 256FSI LRCKI BCKI DATA(DIR) DATA(CS) DATA(LR) LATCH4 LATCH5 OSCSEL AC3RES 20-5 20-4 20-3 20-2 20-1 20-6 21-1 19-1 19-2 18-1 18-2 18-3 18-4 18-5 50-1 14-1 14-2 14-3 14-4 14-5 14-6 14-7 14-8 14-9 14-10 13-1 13-3 13-4 13-5 13-2 15-1 15-2 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7 BUFFER DATA FORMAT CONVERTER TIMING GEN INVERTER SWITCH SWITCH w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES 7 7 SCHEMATIC DIAGRAM – DIGITAL (3/8) SECTION – • See page 100 for IC Block Diagrams. • See page 102 for IC Pin Functions. Last digit-13 C2039 C2025 TP2102 TP2101 R2084 TP2103 C2036 C2030 C2031 C2041 C2027 C2028 C2040 C2032 C2037 C2035 C2042 TP2104 TP2108 TP2105 TP2109 TP2106 TP2110 TP2107 TP2111 R2063 R2049 R2047 R2008 C2022 R2054 R2056 R2058 R2060 R2061 R2062 R2024 IC2008 IC2017 IC2019 IC2018 R2017 IC2009 IC2013 IC2010 0.1 0.1 10k 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 10k 100 100 10k 0.1 100 100 100 100 10k 10k 10k MC74LVX424 TC7SH14F TC7W32FU TC7W32FU 5.6k CXD2712R IDT71V124S 15Y-TL IDT71V124S 15Y-TL 14-2 14-3 14-4 14-5 14-6 14-7 14-8 14-9 14-10 14-1 13-1 13-3 13-4 13-5 13-2 15-2 15-1 10-1 10-3 10-4 10-5 10-6 10-7 10-8 10-9 10-10 10-2 11-1 11-2 11-3 11-4 11-5 11-6 11-7 11-8 11-9 11-10 11-11 11-12 11-13 11-14 11-15 11-16 11-17 11-19 11-18 12-1 12-2 12-5 12-6 12-7 12-8 12-3 12-4 12-9 A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7 A15 A16 D24 D25 D26 D27 D28 D29 D30 D31 D16 D17 D18 D19 D20 D21 D22 D23 D8 D9 D10 D11 D12 D13 D14 D15 A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 D0 D1 D2 D3 D4 D5 D6 D7 D16 D17 D18 D19 D20 D21 D22 D23 D8 D9 D10 D11 D12 D13 D14 D15 SELECTOR SELECTOR BUS TRANCEIVER DIGITAL SIGNAL PROCESSOR S RAM S RAM INVERTER SCHMITT w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES 8 8 SCHEMATIC DIAGRAM – DIGITAL (4/8) SECTION – • See page 42 for Waveforms. • See page 102 for IC Pin Functions. Last digit-13 IC2001 C2001 C2068 R2143 C2014 C2013 IC2006 TP2010 TP2009 TP2008 TP2007 TP2006 TP2005 TP2004 TP2003 TP2002 TP2001 C2019 C2017 TP2011 R2019 R2021 R2015 R2011 R2012 R2001 R2002 R2003 R2004 R2006 R2007 R2005 R2014 C2010 TP2012 C2011 TP2015 TP2016 C2016 C2018 R2046 C2024 R2045 C2023 R2044 IC2005 TP2014 TP2013 JR2015 JR2003 JR2002 C2002 C2006 IC2002 C2007 C2003 FB2001 C2004 C2008 C2009 C2005 IC2003 FB2002 IC2004 C2015 C2020 IC2007 C2026 MC74HC574AFEL 0.1 100p 10k 0.1 100 16V MC74VHCU04 0.1 0.1 10k 10k 100 100 100 10k 10k 10k 10k 10k 10k 10k 100 0.1 0.1 0.1 0.1 10k 0.1 10k 0.1 10k CXD2712R 100 16V 0.1 TF BA033T 0.1 TF 100 16V 100 16V 0.1 TF 0.1 TF 100 16V BA033T IDT71V256S A15Y-TL 0.1 0.1 IDT71V124S 15Y-TL 0.1 256FS(3V) BCK(3V) LRDATA(3V) LRCK(3V) CSDATA(3V) SSDATA(3V) 256FSO(3V) DGND(DSP) +5V(DSP) DGND(CPU) +5V(CPU) DSELA2 DSELA1 DSELA0 LDCOAX MD-REC CLKSEL ADCRES HDWR HDRD HDCS2 HDCS1 BUS(8BIT) XOE LATCH3 FIS(3V) 50-1 10-1 10-3 10-4 10-5 10-6 10-7 10-8 10-9 10-10 10-2 11-1 11-2 11-3 11-4 11-5 11-6 11-7 11-8 11-9 11-10 11-11 11-12 11-13 11-14 11-15 11-16 11-17 11-19 11-18 12-1 12-2 12-5 12-6 12-7 12-8 12-9 12-4 12-3 D28 D29 D30 D31 D27 D26 D25 D24 D31 D30 D29 D28 D27 D26 D25 D24 A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7 D31 D30 D29 D28 D27 D26 D25 D24 A10 A11 A12 A13 A14 A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 D1 D0 A14 A13 DIGITAL SIGNAL PROCESSOR S RAM S RAM +3.3V REG +3.3V REG SWITCH INVERTER w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES 9 9 SCHEMATIC DIAGRAM – DIGITAL (5/8) SECTION – • See page 59 for Printed Wiring Board. • See page 106 for IC Pin Functions. Last digit-13 R2134 R2135 R2136 R2139 C2050 C2055 C2049 R2133 C2053 C2056 C2066 C2051 C2047 C2060 C2052 C2046 R2093 R2095 R2096 R2094 R2097 R2099 R2100 R2101 R2098 R2103 R2114 R2116 R2118 R2117 R2109 R2111 R2112 R2113 R2115 C2057 R2124 R2132 R2123 R2130 C2062 R2131 R2092 R2126 C2065 C2048 R2106 R2110 R2102 C2061 C2064 C2063 C2067 R2125 R2138 R2137 C2021 D2001 D2002 X2001 R2119 Q2002 IC2016 10k 10k 10k 10k 0.1 0.1 0.1 10k 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 0.1 10k 10k 10k 10k 0.1 10k 10k 10k 0.1 0.1 10k 10k 100 0.001 0.1 0.1 0.1 1k 10k 10k 0.1 1SS181 1SS181 40MHz 10k 2SC2712-YG SW ADSST-AC3-2500 FLAG3 FLAG2 FLAG1 FLAG0 BMS HBR REDY HBG ADDH ADDL DATAL DATAH WR(DSP) RD(DSP) CS(DSP) READY 20-6 20-5 20-4 20-3 20-2 20-1 21-1 19-2 19-1 18-2 18-3 18-4 18-5 18-1 A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 D8 D9 D10 D11 D12 D13 D14 D15 D0 D1 D2 D3 D4 D5 D6 D7 DIGITAL SIGNAL PROCESS w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES 10 10 SCHEMATIC DIAGRAM – DIGITAL (6/8) SECTION – • SEE PAGE 42 FOR WAVEFORMS. • SEE PAGE 109 FOR IC PIN FUNCTIONS. Last digit-13 R3037 TP3001 C3039 C3038 C3037 C3030 C3031 C3025 C3019 C3018 R3012 R3011 R3018 R3013 R3014 R3015 R3016 R3017 R3021 R3022 R3023 R2140 R3025 R3049 R3122 R3026 R3029 R3040 R3032 R3030 R3031 R3033 R3034 R3044 C3026 R3038 R3041 R3042 R3036 R3051 C3014 R3052 R3050 R3068 R3069 R3070 R3071 R3072 R3073 R3074 R3075 R3076 R3077 R3078 R3079 R3121 TP3007 TP3005 TP3006 TP3004 TP3003 TP3008 R3027 R3028 R3088 R3089 R3043 R3053 C3015 C3016 C3017 C3013 C3012 C3002 C3010 R3091 X3002 R3090 X3001 C3021 C3009 C3008 C3001 TP3002 R3125 R3123 R3124 R3120 R3119 R3116 R3113 R3114 R3117 R3115 R3112 CN3003 R3035 R3039 R3092 R3094 R3095 R3096 R3097 R3099 R3100 R3101 R3102 R3103 R3104 R3105 R3106 R3107 R3108 C3032 CN3001 R3111 Q3011 Q3007 D3005 Q3006 R3127 C3034 CN3002 R3081 C3102 R3024 IC3008 IC3017 IC3016 IC3014 IC3011 C3027 IC3010 IC3002 IC3001 FB3001 IC3006 IC3007 C3101 R3093 R3098 R3118 R3110 R3020 R3109 R3019 C3011 C3003 C3004 R3001 C3005 C3022 D3002 Q3001 IC3003 D3003 R3010 R3002 R3004 R3008 C3006 Q3002 R3003 Q3004 IC3004 R3007 IC3005 C3007 D3001 D3004 Q3003 Q3005 R3005 R3006 R3009 IC3013 IC3012 C3028 IC3015 R3046 R3045 R3048 R3047 C3033 IC3020 R3054 R3055 IC3009 R3080 C3020 C3036 IC3018 IC3019 C3024 C3023 R3056 R3057 R3058 R3059 R3060 R3061 R3062 R3063 R3064 R3065 R3066 R3067 R2142 R2141 Q3010 Q3008 Q3009 10k 100p 100p 100 16V 100p 100p 470 16V 0.1 0.1 4.7k 10k 4.7k 10 10k 10k 1M 10k 10k 47 47 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 0.1 10k 10k 10k 10k 10k 100p 10k 10k 100 100 100 100 100 100 100 100 100 100 100 100 10k 10k 10k 10k 10k 10k 10k 0.1 0.001 0.01 0.1 0.001 0.1 0.001 10k 20MHz 10k 7.28MHz 47 16V 100p 0.1 0.1 10k 10k 10k 10k 100 1k 10k 10k 10k 10k 10k 3P EH-S 10k 10k 100k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 0.1 9P CT-S 10k UN2211 2SC2712-YG 1SS184 2SC2712-YG 10k 0.1 25P FFC 100 0.1 1M HD64F2134F MC74HC125A FEL TC7WU04F-T E12L MC74HC125A FEL MC74HC574A FEL 0.1 MC74HC574A FEL TMP87C447U MC74HC00AF EL MC74VHC573 MC74VHC573 100p 100k 10k 100 0.1 0.1 0.1 100k 47 16V 47 16V 1SS184 UN2211 MC74HC14AF EL 1SS184 10k 10k 10k 10k 0.001 2SC2712-YG 10k 2SA1162-YG M51943BML- 330 MC74HC157A FEL 0.1 1SS184 1SS181 UN2211 UN2111 2.2k 47 47 MC74HC02AF TC7WU04F-T E12L 0.1 MC74HC126A FEL 10k 10k 10k 10k 0.1 MC74HC125A FEL 10k 10k PA28F800BV 10k 0.1 100 16V MC74HC574A FEL MC74HC574A FEL 0.1 0.1 100 100 100 100 100 100 100 100 100 100 100 100 10k 10k UN2211 UN2111 UN2211 SRCLAT(5V) DACINI(5V) DACRES DACLAT DACDAT DACCLK DGND(DAC) DGND(CPU) +5V(CPU) POWCNT STOP F2 F1 -18V +18V +5V(BACKUP) STATUS CTRL-A1(GND) CTRL-A1(HOT) TXD232 RXD232 MIC(CPU) AC3ERR(CPU) CS-CLK(CPU) CS-BIT(CPU) DIRERR(CPU) BLSTRT(CPU) HBR BMS FLAG0 FLAG1 FLAG2 FLAG3 HBG REDY ADDH ADDL DATAL DATAH WR(DSP) RD(DSP) CS(DSP) READY SRCIN(5V) LATCH4 LATCH5 XOE LATCH3 HDWR HDRD HDCS2 HDCS1 BUS(8BIT) CTRL-S D0 D1 D2 D3 D4 D5 D6 D7 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 D0 D1 D2 D3 D4 D5 D6 A0 A1 A2 A3 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 D8 D9 D10 D11 D12 D13 D14 D15 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7 A16 A17 A18 A19 D7 A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 D6 D5 D4 D14 D13 D12 D0 D1 D2 D3 D8 D9 D10 D11 D7 D15 1 2 3 4 5 1 2 3 4 5 MD1 RX1 TX1 BOOT CSEL BOOT TX1 CSEL RX1 MD1 10k * 10k * 10k * 10k * RESO BUZY CSEL BOOT TX1 RX1 STOP RES MD1 F1 F2 GND +5V BACKUP +18V -18V IROUT MS CL AO A1 TX2 RX2 PC XOE 595-LAT DATA CLK D-GND 7822-LAT HP-SW INPUT-DC SWITCH SWITCH BUFFER BUFFER BUFFER BUFFER INVERTER SWITCH SWITCH INVERTER SELECTOR Q3002,3004 AMP AMP Q3006,3007 SELECTOR LATCH LATCH Q3008-3011 SW Q3001,3003,3005 SW INVERTER RESET DATA SELECTOR LEVEL SHIFT CTRL-S GND NO MOUNT MOUNT NO MOUNT MOUNT * R3019,3110 * R3020,3109 CPU SYSTEM CONTROL SUB w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES 11 11 Last digit-13 SCHEMATIC DIAGRAM – DIGITAL (7/8) SECTION – • SEE PAGE 42 FOR WAVEFORMS. • SEE PAGE 100 FOR IC BLOCK DIAGRAMS. • SEE PAGE 111 FOR IC PIN FUNCTIONS. C4087 C4091 CN4002 FB4004 FB4002 C4022 C4008 C4006 R4007 R4006 C4019 C4016 R4012 R4010 C4027 C4026 C4003 C4030 C4004 FB4009 FB4007 C4052 C4038 C4036 R4026 R4025 C4049 C4046 R4031 R4029 C4057 C4033 C4034 FB4014 FB4012 C4082 C4068 C4066 R4045 R4044 C4079 C4076 R4048 C4086 C4090 C4106 R4050 CN4011 CN4021 CN4022 CN4031 CN4012 R4059 R4057 R4055 R4067 R4062 R4063 R4064 R4065 R4054 R4053 R4051 R4052 R4035 R4034 R4032 R4033 R4041 R4040 R4022 R4021 R4016 R4015 R4014 R4013 R4003 R4002 R4001 C4084 C4083 C4054 C4053 C4024 C4023 C4075 C4045 C4015 R4008 R4009 R4017 R4018 R4019 R4020 R4024 R4023 R4027 R4028 R4036 R4037 R4038 R4039 R4042 R4043 R4046 R4047 R4056 R4058 R4060 R4061 FB4116 FB4115 FB4114 FB4101 FB4102 FB4103 IC4011 IC4001 IC4004 IC4007 IC4013 IC4006 IC4009 IC4111 IC4102 IC4103 IC4112 IC4010 IC4003 IC4012 IC4005 IC4008 IC4002 IC4113 C4013 C4014 C4017 C4018 C4005 C4001 C4002 C4047 C4048 C4044 C4043 C4032 C4035 C4031 C4060 C4056 C4055 C4059 C4058 C4025 C4029 C4028 C4051 C4050 C4062 C4061 C4065 C4063 C4064 C4078 C4077 C4074 C4073 C4080 C4081 C4085 C4089 C4088 C4020 C4021 R4005 R4004 0.001 0.1 3P BORD-IN 100 16V 0.001 0.1 10k 10k 0.1 100p 10k 220 0.001 0.1 0.1 470 16V 470 16V 100 16V 0.001 0.1 10k 10k 0.1 100p 10k 220 0.001 0.1 470 16V 100 16V 0.001 0.1 10k 10k 0.1 100p 220 0.1 470 16V 0.1 10k 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 220 MC74VHCU04 MSM9404BGS MSM9404BGS MSM9404BGS TC7SU04F TC74HCT08 TC74HCT08 TC7W74F TC7SET08F TC7SET08F TC7W74F MC74VHCU04 TC74HCT08 TC7SU04F CXD2562Q CXD2562Q CXD2562Q TC7W74F 0.1 TF 0.1 TF 470 16V 0.1 TF 0.1 TF 470 16V 0.1 TF 470 16V 0.1 TF 0.1 TF 0.1 TF 0.1 TF 0.1 TF 470 16V 470 16V 0.1 0.1 TF 470 16V 0.1 TF 0.1 TF 470 16V 0.1 TF 0.1 TF 0.1 TF 0.1 TF 470 16V 0.1 TF 0.1 470 16V 0.1 TF 470 16V 0.1 TF 0.1 TF 0.1 TF 0.1 TF 0.1 TF 470 16V 0.1 TF 0.1 TF 0.1 TF 100 100 BCKO(5V) 256FSO(3V) 256FSO(5V) LRCKO(5V) 256FS(3V) BCK(3V) LRCK(3V) LRDATA(3V) CSDATA(3V) SSDATA(3V) DGND(FL) DGND(FR) FL1- FL1+ FL2+ FL2- FR2- FR2+ FR1+ FR1- SRCGND(F) SRCDAT(5V) SRCCLK(5V) SRCLAT(5V) SRC+3V(F) SRC+5V(F) DACINI(5V) SRC+5V(C) SRCGND(C) SRC+3V(C) SRC+5V(S) SRCGND(S) SRC+3V(S) CT1+ CT1- DGND(CT) CT2+ CT2- SW2- SW2+ DGND(SW) SW1+ SW1- SL1- SL1+ DGND(SL) SL2+ SL2- SR2- SR2+ DGND(SR) SR1+ SR1- FIS(3V) SRCIN(5V) DIR MUTE VDD XIN GND SRC SLAVE PULSE DAC PULSE DAC INVERTER INVERTER SRC SLAVE BUS TRANSCEIVER BUS TRANSCEIVER BUS TRANSCEIVER BUFFER F/F F/F (TO CN1009) F/F SRC MASTER PULSE DAC F/F BUS TRANSCEIVER BUS TRANSCEIVER D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES 12 12 Last digit-13 SCHEMATIC DIAGRAM – DIGITAL (8/8) SECTION – • See page 101 for IC Block Diagrams. FB5012 FB5011 R5050 IC5001 R5005 R5007 R5006 C5011 C5006 C5007 C5003 C5001 R5004 C5010 C5004 R5002 R5001 R5003 C5009 R5008 IC5002 C5019 R5012 R5014 CN5001 R5023 C5029 R5017 IC5004 IC5005 C5023 R5016 R5015 R5010 R5020 R5025 C5039 R5027 R5031 R5032 C5017 C5018 C5014 C5013 C5020 R5018 R5022 R5021 C5022 R5019 C5031 C5024 C5030 C5026 C5027 IC5003 CN5004 CN5005 C5038 C5037 C5034 C5033 R5028 C5040 R5030 FB5005 FB5006 R5036 R5034 R5035 C5043 C5046 C5054 C5050 C5049 C5047 C5053 R5033 C5052 R5038 IC5006 CN5003 C5057 C5058 C5056 IC5009 R5042 C5066 R5044 IC5008 R5047 C5076 R5053 IC5011 R5058 C5087 R5060 CN5002 R5068 C5098 R5063 IC5014 R5072 C5108 R5074 IC5007 C5064 C5065 C5061 C5060 C5067 R5049 R5048 R5052 R5051 C5069 C5078 C5074 C5073 C5071 C5077 R5040 R5045 R5046 C5070 IC5010 C5085 C5084 C5081 C5080 R5066 C5092 R5067 C5100 R5064 R5065 C5090 C5096 C5095 C5093 C5099 IC5013 C5107 C5106 C5103 C5102 R5082 R5081 C5122 R5079 R5078 C5110 C5112 C5117 C5116 C5114 C5121 IC5016 C5130 C5129 C5126 C5125 IC5018 R5085 C5131 R5087 R5090 C5132 R5088 IC5017 R5083 R5077 C5120 R5076 R5075 C5113 R5080 R5070 R5062 R5061 C5086 IC5012 R5055 R5057 R5037 IC5019 1k CXA8042AS 10 10 10 47 16V 0.1 0.1 0.022 0.022 10 47 16V 100 25V 10 10 27 0.0068 270 AD712 0.0068 270 27 10P EH-S 270 0.0068 27 AD712 NJM4556AM- TE2 100 25V 10 10 560 1k 560 100 25V 1k 10 10 47 16V 22 50V 47 16V 0.1 0.022 10 10 10 0.022 10 47 16V 100 25V 47 16V 0.1 0.1 CXA8042AS 22 50V 47 16V 47 16V 0.1 270 0.0068 27 10 10 10 0.022 0.022 47 16V 0.1 0.1 100 25V 47 16V 27 0.0068 270 M5F7805L 0.001 0.001 470 16V M62362P 270 0.0068 27 AD712 27 0.0068 270 AD712 270 0.0068 27 10P EH-S 270 0.0068 27 AD712 270 0.0068 27 CXA8042AS 47 16V 22 50V 47 16V 0.1 0.022 10 10 10 10 0.022 47 16V 0.1 0.1 100 25V 47 16V 560 10 10 1 25V CXA8042AS 22 50V 47 16V 47 16V 0.1 10 0.022 TF 10 47 16V 10 10 0.022 0.1 0.1 100 25V 47 16V CXA8042AS 22 50V 47 16V 47 16V 0.1 10 10 47 16V 10 10 0.022 0.022 0.1 0.1 100 25V 47 16V CXA8042AS 22 50V 47 16V 47 16V 0.1 NJM4556AM- TE2 560 1 50V 1k 27 0.0068 270 AD712 270 27 0.0068 10 10 1 50V 1k 560 10 10 1 25V NJM4556AM- TE2 560 1k 10 M62362P DGND(FL) FL1- FL1+ FL2+ FL2- DGND(FR) FR1- FR1+ FR2+ FR2- DGND(CT) CT1- CT1+ CT2+ CT2- DGND(SW) SW1- SW1+ SW2+ SW2- DGND(SL) SL1- SL1+ SL2+ SL2- DGND(SR) SR1- SR1+ SR2+ SR2- S-7V S+7V DACRES DACLAT DGND(DAC) DACDAT DACCLK SRCDAT(5V) SRCCLK(5V) -7V(F) +7V(F) SR- A-GND A-GND A-GND SR+ SL+ SL- SW- SW+ A-GND C+ A-GND A-GND A-GND C- R- R+ L+ L- A-GND D/A CONVERTER D/A CONVERTER D/A CONVERTER D/A CONVERTER D/A CONVERTER AMP BUFFER AMP +5V REG D/A CONVERTER AMP BUFFER AMP AMP BUFFER D/A CONVERTER (TO CN5004) (TO CN5003) (TO CN1008) D/A CONVERTER AMP D D D D D D D D D D D D D D D D D D D D D D D D w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES 13 13 PRINTED WIRING BOARD – POWER SECTION – • Semiconductor Location Ref. No. Location D101 B-10 D102 B-11 D103 A-11 D104 A-11 D105 D-12 D106 B-11 D107 C-11 D108 A-11 D109 B-10 D110 D-11 D111 B-9 D112 B-9 D113 B-9 D114 D-4 D115 A-5 D116 B-6 D117 C-5 D118 B-6 D119 B-2 D120 B-3 D121 C-2 D122 C-2 D123 C-2 D124 B-1 D125 A-11 D126 B-10 D127 C-3 D128 C-1 2 3 4 5 6 7 8 9 10 11 12 13 A 1 B C D E102 (CHASSIS) R166 R167 R168 R169 C154 D128 R120 R122 R123 R119 Q109 Q103 D105 R107 R125 R126 D114 R111 R112 R113 C116 R141 D117 R139 C133 C136 D116 R136 C134 R142 D115 D118 C137 R160 R131 R138 R137 R135 R134 R140 C138 Q113 R115 C155 R150 IC101 Q118 C140 D119 D102 D122 D123 D120 D124 C146 C149 R151 R152 R153 R154 R155 R156 R158 D121 IC108 Q127 D103 D125 D106 D111 Q101 Q102 Q104 Q105 D108 D112 D113 D109 C110 C111 R102 R108 R101 Q114 R106 R110 R116 C150 C153 R133 C117 R121 D104 R117 C119 R114 D101 R105 R104 R103 R109 D126 R132 R161 R162 R163 R164 R165 D127 R118 C156 R180 R181 R182 R183 R184 R185 R186 R187 R188 R189 R190 R124 JW141 IC102 JW126 JW120 JW121 Q126 Q123 JW158 JW159 JW160 JW147 JW155 CN101 JW146 IC106 JW138 Q107 Q112 Q106 Q111 IC103 IC104 Q121 Q120 Q117 Q119 IC107 IC109 CN103 CN102 CN104 CN105 E101 E103 C123 C118 C121 C127 C126 C125 C124 C120 C128 C130 C145 C148 D107 D110 C131 Q108 Q116 IC105 JW162 CN106 C112 JW116 JW115 R130 Q124 PH101 JW136 JW114 C129 JW157 JW132 JW127 JW137 JW135 JW111 JW129 JW102 JW104 R146 JW128 R145 R143 R127 R128 R129 R144 PH102 JW113 JW124 C141 C142 C144 JW153 JW148 JW108 JW123 JW156 JW152 JW154 R157 THP159 JW142 JW110 LP101 JW149 JW151 JW150 JW144 JW125 JW105 JW133 JW101 C151 JW109 JW103 C122 C115 Q110 JW117 JW122 JW106 JW118 JW112 JW107 JW119 Q115 JW131 C152 JW134 JW145 JW161 C158 C157 Q125 B C E B C E B C E B C E E C B 1 10 L K J (CHASSIS) (CHASSIS) 11 (13) 1-671-184- S R F 3 2 1 3 2 1 3 2 1 3 2 1 3 2 1 3 2 1 3 2 1 1 4 5 8 E C B E C B E C B E C B E C B E C B B C E E C B E C B E C B B C E DIGITAL BOARD (SUPPLEMENT-1: Page 3) DIGITAL BOARD (SUPPLEMENT-1: Page 3) CAPACITOR BOARD (Page 95) ANALOG BOARD (Page 58) CAPACITOR BOARD (Page 95) 1 4 5 8 POWER BOARD Ref. No. Location IC101 B-10 IC102 D-8 IC103 A-5 IC104 B-5 IC105 D-5 IC106 A-2 IC107 B-2 IC108 C-2 IC109 B-1 Q101 A-11 Q102 B-10 Q103 D-11 Q104 B-9 Q105 B-8 Q106 B-9 Q107 A-9 Q108 D-9 Q109 D-9 Q110 D-8 Q111 B-7 Q112 A-7 Q113 B-7 Q114 A-7 Q115 A-6 Q116 B-6 Q117 C-5 Q118 D-5 Ref. No. Location Q119 C-4 Q120 B-4 Q121 A-4 Q123 C-1 Q124 C-1 Q125 C-1 Q126 C-1 Q127 D-4 New Type w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES 14 14 SCHEMATIC DIAGRAM – POWER SECTION – New Type CN102 C141 D128 D124 IC109 IC107 D120 C146 C145 R151 R155 C149 C148 D127 R152 D123 C156 R153 C155 R154 D122 IC108 D121 C144 R158 R124 C154 R156 Q124 Q126 Q123 Q125 THP159 R157 CN106 R150 D119 C142 C140 IC106 E103 R166 D114 Q127 Q118 C138 IC105 CN105 CN104 R134 C131 R137 C129 R135 IC102 C130 C128 R138 R140 R126 Q109 R131 Q110 Q108 C158 C157 R125 R187 R186 R185 R184 R183 R182 R181 R180 C127 C126 C125 C121 R190 R189 C124 D117 R139 Q116 R141 C133 C136 IC104 D116 PH102 C153 C152 R164 R162 R160 R161 R165 R163 R146 Q121 Q120 R145 R144 R143 Q117 Q119 D118 R142 C134 C137 IC103 D115 Q115 R136 Q114 R169 R133 Q112 R130 R128 Q107 Q113 R132 R127 Q106 R129 R168 Q111 C119 D113 R117 D112 Q105 Q103 C116 R111 R167 C112 R107 D105 R112 R113 C120 R188 E101 CN101 D107 D110 D126 D101 R103 R109 Q102 R115 R104 C110 D102 R105 IC101 R116 D111 C122 R121 R114 R119 D109 Q104 R110 D103 C111 R101 R106 C151 C150 PH101 D106 C115 D125 D104 R108 R102 Q101 D108 C118 C123 C117 R118 R120 R122 R123 CN103 E102 6P VH 330 10V 1SS181 1SS181 M5F7918L M5F7818L 1SS181 0.1 100 25V 10k 10k 0.1 100 25V 1SS181 2.2k 1SS181 1000p 470k 0.1 10k 1SS181 M5218A 02CZ6.2 10 50V 10k 100 0.1 10k 2SD2012 2SD2012 2SB1375 2SB1375 2.2 3.3 1/2W 9P EH-SN 10k 1SS181 330 10V 0.1 M5F7905L 4.7k 1SS181 2SC2712 UN2111 0.1 BA05T 4P VH 3P VH 1k 2200 10V 2.2k 10 50V 6.8k M5237L 330 25V 330 25V 470 470 10k 2SC2712 10k 2SB1116A 2SD1616A-K 10 50 10 50 10k 620 620 620 620 620 620 620 620 13000 16V 13000 16V 13000 16V 13000 16V 1M 1M 4700 35V 1SS181 10k 2SD16164 1.5k 0.1 0.1 M5F7907L 1SS181 PC817 0.22 0.22 1k 1k 1k 1k 1k 1k 0.47 2W 2SB1375 2SB1375 0.47 2W 0.47 2W 0.47 2W 2SB1375 2SB1375 1SS181 1.5k 0.1 0.1 M5F7807L 1SS181 2SB1116A-K 10k 2SA1162 1k 1k 2SB1375 2.2 2.2 2SB1375 2SC2712 1k 2.2 2SD2012 2.2 1k 2SD2012 10p 1SS181 10k 1SS181 2SA1162 2SC2712 0.1 10k 47k 1 50V 22k 1SS181 47k 10k 4700 35V 1M 5P SDN RBV-2506 RBA-402 1SS226 1SS226 10k 390 2SC2712 1k 2.2k 0.1 02CZ9.1 2.2k M5218A 2.2k 02CZ5.1 100 25V 1k 1k 1k 1SS181 2SC2712 10k 02CZ9.1 0.1 2.2k 2.2k 0.22 0.22 PC817 02CZ5.1 100 25V 1SS226 1SS226 390 10k 2SA1162 1SS181 470 63V 470 63V 10p 4.3k 2.2k 2.2k 4.3k 3P VH B+15V GND B-15V B+7V GND B-7V AC18V AC5V CT AC5V AC18V +7V GND -7V +15V GND -15V POWCNT +5V(BACKUP) GND -5V +18V -18V F F STOP +5V +5V GND GND POWER CONTROL Q108,110 POWER ON/OFF SWITCH SWITCH +5V REG -5V REG Q118,127 SWITCH -7V REG +5V REG +5V REG +18V REG -18V REG Q116 POWER ON/OFF SWITCH POWER ON/OFF SWITCH +15V REG SWITCH Q104 +7V REG (CHASSIS) (CHASSIS) F REG PROTECTOR PROTECTOR Q107,112 Q106,111 -15V REG PRE DRIVE PRE DRIVE Q101 REFERENCE VOLTAGE ERROR AMP REFERENCE VOLTAGE STARTOR +5V REG +5V REG FL DRIVE FL DRIVE F REG FL DRIVE (CHASSIS) 8.9 5.2 9.1 5 5 4.9 0.3 5 1.2 0.9 -5.1 -28.2 -8.7 -17.5 -8.7 -17.5 -8.7 -8.7 -8.7 -8.3 -8.7 -8.7 -17.5 -8.7 -8.7 -8.7 -28.3 -17.5 27.7 18.2 -7.2 -14.7 -14.6 -14.7 -14 -24 -24.1 -23.3 -23.4 -14.6 -24 11.9 12 12.6 24 23.4 24 24 14.6 23.4 24 14.6 23.4 8.2 1.2 27.7 -28.3 -27.6 -26.9 -27.6 0 0.6 21.4 22 4.9 2.3 23.3 1.7 4.9 4.9 2.3 15.3 -15.3 -4.9 -4.9 -2.2 -4.9 -22.1 -21.5 -2.2 -1.6 -23.4 27.7 27 -28.4 -27.6 -23.4 -14.6 -24 8.2 8.9 5.2 8.2 8.9 5.2 8.2 8.9 5.2 8.2 -8.7 -8.7 -8.7 7.8 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 TA-E9000ES • SEMICONDUCTORS In each case, u: µ , for example: uA...: µ A..., uPA...: µ PA..., uPB...: µ PB..., uPC...: µ PC..., uPD...: µ PD... • CAPACITORS uF : µ F • COILS uH : µ H • Abbreviation CND : Canadian model • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • RESISTORS All resistors are in ohms METAL: Metal-film resistor METAL OXIDE: Metal Oxide-film resistor F : nonflammable ELECTRICAL PARTS LIST Note: Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DIGITAL The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. When indicating parts by reference number, please include the board name. * A-4417-106-A DIGITAL BOARD, COMPLETE (US,CND) * A-4419-255-A DIGITAL BOARD, COMPLETE (EXCEPT US,CND) ********************* 4-974-510-01 SCREW (+BV 3X8 CU) C1001 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1002 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1003 1-119-792-21 ELECT 470uF 20% 16V C1004 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1005 1-163-009-91 CERAMIC CHIP 0.001uF 10% 50V C1006 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1007 1-163-009-91 CERAMIC CHIP 0.001uF 10% 50V C1010 1-119-799-11 ELECT 47uF 20% 16V C1011 1-136-850-11 MYLAR 0.1uF 5% 63V C1012 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1013 1-164-489-11 CERAMIC CHIP 0.22uF 10% 16V C1014 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1017 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1018 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1021 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1022 1-136-850-11 MYLAR 0.1uF 5% 63V C1023 1-164-182-11 CERAMIC CHIP 0.0033uF 10% 50V C1024 1-119-792-21 ELECT 470uF 20% 16V C1025 1-119-792-21 ELECT 470uF 20% 16V C1026 1-119-800-11 ELECT 100uF 20% 16V C1029 1-130-475-00 MYLAR 0.0022uF 5% 50V C1030 1-130-475-00 MYLAR 0.0022uF 5% 50V C1031 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1032 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1036 1-119-800-11 ELECT 100uF 20% 16V C1037 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1038 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1039 1-136-165-00 MYLAR 0.1uF 5% 50V C1040 1-119-792-21 ELECT 470uF 20% 16V C1041 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1042 1-136-165-00 MYLAR 0.1uF 5% 50V C1043 1-119-800-11 ELECT 100uF 20% 16V C1044 1-119-811-21 ELECT 220uF 20% 35V C1045 1-119-811-21 ELECT 220uF 20% 35V C1046 1-119-811-21 ELECT 220uF 20% 35V C1047 1-119-811-21 ELECT 220uF 20% 35V C1048 1-119-830-11 ELECT 330uF 20% 25V C1049 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1050 1-119-792-21 ELECT 470uF 20% 16V C1051 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1052 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1053 1-104-666-11 ELECT 220uF 20% 25V C1054 1-126-935-11 ELECT 470uF 20% 10V C1055 1-163-009-91 CERAMIC CHIP 0.001uF 10% 50V C1056 1-163-009-91 CERAMIC CHIP 0.001uF 10% 50V C1057 1-104-666-11 ELECT 220uF 20% 25V C1058 1-126-935-11 ELECT 470uF 20% 10V C1059 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1060 1-126-927-11 ELECT 2200uF 20% 10V C1061 1-119-792-21 ELECT 470uF 20% 16V C1062 1-119-792-21 ELECT 470uF 20% 16V C1063 1-119-792-21 ELECT 470uF 20% 16V C1064 1-119-800-11 ELECT 100uF 20% 16V C1065 1-126-942-61 ELECT 1000uF 20% 25V C1066 1-119-792-21 ELECT 470uF 20% 16V C1067 1-126-942-61 ELECT 1000uF 20% 25V C1068 1-119-792-21 ELECT 470uF 20% 16V C1069 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1071 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1072 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1075 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1076 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1077 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1078 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1079 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1080 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1081 1-163-031-91 CERAMIC CHIP 0.01uF 50V C1082 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1083 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1084 1-163-031-91 CERAMIC CHIP 0.01uF 50V C1085 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1086 1-164-344-11 CERAMIC CHIP 0.068uF 10% 25V C1087 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C1088 1-119-800-11 ELECT 100uF 20% 16V C1094 1-126-933-11 ELECT 100uF 20% 16V C1095 1-126-963-11 ELECT 4.7uF 20% 50V C1104 1-126-963-11 ELECT 4.7uF 20% 50V C1105 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C1125 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C1126 1-126-963-11 ELECT 4.7uF 20% 50V C2001 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2002 1-119-800-11 ELECT 100uF 20% 16V C2003 1-119-800-11 ELECT 100uF 20% 16V C2004 1-119-800-11 ELECT 100uF 20% 16V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 TA-E9000ES Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DIGITAL C2005 1-119-800-11 ELECT 100uF 20% 16V C2006 1-136-165-00 MYLAR 0.1uF 5% 50V C2007 1-136-165-00 MYLAR 0.1uF 5% 50V C2008 1-136-165-00 MYLAR 0.1uF 5% 50V C2009 1-136-165-00 MYLAR 0.1uF 5% 50V C2010 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2011 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2013 1-119-800-11 ELECT 100uF 20% 16V C2014 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2015 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2016 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2017 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2018 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2019 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2020 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2021 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2022 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2023 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2024 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2025 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2026 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2027 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2028 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2030 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2031 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2032 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2033 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2034 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2035 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2036 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2037 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2039 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2040 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2041 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2042 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2043 1-119-792-21 ELECT 470uF 20% 16V C2044 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2045 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2046 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2047 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2048 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2049 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2050 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2051 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2052 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2053 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2054 1-119-800-11 ELECT 100uF 20% 16V C2055 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2056 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2057 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2058 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2059 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2060 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2061 1-163-009-91 CERAMIC CHIP 0.001uF 10% 50V C2062 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2063 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2064 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2065 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2066 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2067 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2068 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C2069 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C2070 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C3001 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3002 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3003 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3004 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3005 1-119-799-11 ELECT 47uF 20% 16V C3006 1-163-009-91 CERAMIC CHIP 0.001uF 10% 50V C3007 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3008 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3009 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C3010 1-163-009-91 CERAMIC CHIP 0.001uF 10% 50V C3011 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3012 1-163-009-91 CERAMIC CHIP 0.001uF 10% 50V C3013 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3014 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C3015 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3016 1-163-009-91 CERAMIC CHIP 0.001uF 10% 50V C3017 1-163-031-91 CERAMIC CHIP 0.01uF 50V C3018 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3019 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3020 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3021 1-119-799-11 ELECT 47uF 20% 16V C3022 1-119-799-11 ELECT 47uF 20% 16V C3023 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3024 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3025 1-119-792-21 ELECT 470uF 20% 16V C3026 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3027 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3028 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3029 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3030 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C3031 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C3032 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3033 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3034 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3036 1-119-800-11 ELECT 100uF 20% 16V C3037 1-119-800-11 ELECT 100uF 20% 16V C3038 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C3039 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C3101 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C3102 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C4001 1-119-792-21 ELECT 470uF 20% 16V C4002 1-136-850-11 MYLAR 0.1uF 5% 63V C4003 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C4004 1-119-792-21 ELECT 470uF 20% 16V C4005 1-136-850-11 MYLAR 0.1uF 5% 63V C4006 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C4008 1-163-009-91 CERAMIC CHIP 0.001uF 10% 50V C4013 1-136-850-11 MYLAR 0.1uF 5% 63V C4014 1-136-850-11 MYLAR 0.1uF 5% 63V C4015 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C4016 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C4017 1-119-792-21 ELECT 470uF 20% 16V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 TA-E9000ES Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DIGITAL C4018 1-136-850-11 MYLAR 0.1uF 5% 63V C4019 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C4020 1-136-850-11 MYLAR 0.1uF 5% 63V C4021 1-136-850-11 MYLAR 0.1uF 5% 63V C4022 1-119-800-11 ELECT 100uF 20% 16V C4023 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C4024 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C4025 1-136-850-11 MYLAR 0.1uF 5% 63V C4026 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C4027 1-163-009-91 CERAMIC CHIP 0.001uF 10% 50V C4028 1-136-850-11 MYLAR 0.1uF 5% 63V C4029 1-119-792-21 ELECT 470uF 20% 16V C4030 1-119-792-21 ELECT 470uF 20% 16V C4031 1-119-792-21 ELECT 470uF 20% 16V C4032 1-136-850-11 MYLAR 0.1uF 5% 63V C4033 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C4034 1-119-792-21 ELECT 470uF 20% 16V C4035 1-136-850-11 MYLAR 0.1uF 5% 63V C4036 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C4038 1-163-009-91 CERAMIC CHIP 0.001uF 10% 50V C4043 1-136-850-11 MYLAR 0.1uF 5% 63V C4044 1-136-850-11 MYLAR 0.1uF 5% 63V C4045 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C4046 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C4047 1-119-792-21 ELECT 470uF 20% 16V C4048 1-136-850-11 MYLAR 0.1uF 5% 63V C4049 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C4050 1-136-850-11 MYLAR 0.1uF 5% 63V C4051 1-136-850-11 MYLAR 0.1uF 5% 63V C4052 1-119-800-11 ELECT 100uF 20% 16V C4053 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C4054 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C4055 1-136-850-11 MYLAR 0.1uF 5% 63V C4056 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C4057 1-163-009-91 CERAMIC CHIP 0.001uF 10% 50V C4058 1-136-850-11 MYLAR 0.1uF 5% 63V C4059 1-119-792-21 ELECT 470uF 20% 16V C4060 1-119-792-21 ELECT 470uF 20% 16V C4061 1-119-792-21 ELECT 470uF 20% 16V C4062 1-136-850-11 MYLAR 0.1uF 5% 63V C4063 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C4064 1-119-792-21 ELECT 470uF 20% 16V C4065 1-136-850-11 MYLAR 0.1uF 5% 63V C4066 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C4068 1-163-009-91 CERAMIC CHIP 0.001uF 10% 50V C4073 1-136-850-11 MYLAR 0.1uF 5% 63V C4074 1-136-850-11 MYLAR 0.1uF 5% 63V C4075 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C4076 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C4077 1-119-792-21 ELECT 470uF 20% 16V C4078 1-136-850-11 MYLAR 0.1uF 5% 63V C4079 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C4080 1-136-850-11 MYLAR 0.1uF 5% 63V C4081 1-136-850-11 MYLAR 0.1uF 5% 63V C4082 1-119-800-11 ELECT 100uF 20% 16V C4083 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C4084 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C4085 1-136-850-11 MYLAR 0.1uF 5% 63V C4086 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C4087 1-163-009-91 CERAMIC CHIP 0.001uF 10% 50V C4088 1-136-850-11 MYLAR 0.1uF 5% 63V C4089 1-119-792-21 ELECT 470uF 20% 16V C4090 1-119-792-21 ELECT 470uF 20% 16V C4091 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C4106 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C5001 1-130-305-51 FILM 0.022uF 5% 100V C5003 1-130-305-51 FILM 0.022uF 5% 100V C5004 1-119-800-11 ELECT 100uF 20% 25V C5006 1-136-850-11 MYLAR 0.1uF 5% 63V C5007 1-136-850-11 MYLAR 0.1uF 5% 63V C5009 1-130-856-00 FILM 0.0068uF 5% 100V C5010 1-119-799-11 ELECT 47uF 20% 16V C5011 1-119-799-11 ELECT 47uF 20% 16V C5013 1-136-850-11 MYLAR 0.1uF 5% 63V C5014 1-119-799-11 ELECT 47uF 20% 16V C5017 1-119-799-11 ELECT 47uF 20% 16V C5018 1-119-825-41 ELECT 22uF 20% 50V C5019 1-130-856-00 FILM 0.0068uF 5% 100V C5020 1-130-305-51 FILM 0.022uF 5% 100V C5022 1-130-305-51 FILM 0.022uF 5% 100V C5023 1-119-820-31 ELECT 1uF 20% 50V C5024 1-119-800-11 ELECT 100uF 20% 25V C5026 1-136-850-11 MYLAR 0.1uF 5% 63V C5027 1-136-850-11 MYLAR 0.1uF 5% 63V C5029 1-130-856-00 FILM 0.0068uF 5% 100V C5030 1-119-799-11 ELECT 47uF 20% 16V C5031 1-119-799-11 ELECT 47uF 20% 16V C5033 1-136-850-11 MYLAR 0.1uF 5% 63V C5034 1-119-799-11 ELECT 47uF 20% 16V C5037 1-119-799-11 ELECT 47uF 20% 16V C5038 1-119-825-41 ELECT 22uF 20% 50V C5039 1-119-820-31 ELECT 1uF 20% 50V C5040 1-130-856-00 FILM 0.0068uF 5% 100V C5043 1-130-305-51 FILM 0.022uF 5% 100V C5046 1-130-305-51 FILM 0.022uF 5% 100V C5047 1-119-800-11 ELECT 100uF 20% 25V C5049 1-136-850-11 MYLAR 0.1uF 5% 63V C5050 1-136-850-11 MYLAR 0.1uF 5% 63V C5052 1-130-856-00 FILM 0.0068uF 5% 100V C5053 1-119-799-11 ELECT 47uF 20% 16V C5054 1-119-799-11 ELECT 47uF 20% 16V C5056 1-119-792-21 ELECT 470uF 20% 16V C5057 1-163-009-91 CERAMIC CHIP 0.001uF 10% 50V C5058 1-163-009-91 CERAMIC CHIP 0.001uF 10% 50V C5060 1-136-850-11 MYLAR 0.1uF 5% 63V C5061 1-119-799-11 ELECT 47uF 20% 16V C5064 1-119-799-11 ELECT 47uF 20% 16V C5065 1-119-825-41 ELECT 22uF 20% 50V C5066 1-130-856-00 FILM 0.0068uF 5% 100V C5067 1-130-305-51 FILM 0.022uF 5% 100V C5069 1-130-305-51 FILM 0.022uF 5% 100V C5070 1-119-820-31 ELECT 1uF 20% 50V C5071 1-119-800-11 ELECT 100uF 20% 25V C5073 1-136-850-11 MYLAR 0.1uF 5% 63V C5074 1-136-850-11 MYLAR 0.1uF 5% 63V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 TA-E9000ES Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DIGITAL C5076 1-130-856-00 FILM 0.0068uF 5% 100V C5077 1-119-799-11 ELECT 47uF 20% 16V C5078 1-119-799-11 ELECT 47uF 20% 16V C5080 1-136-850-11 MYLAR 0.1uF 5% 63V C5081 1-119-799-11 ELECT 47uF 20% 16V C5084 1-119-799-11 ELECT 47uF 20% 16V C5085 1-119-825-41 ELECT 22uF 20% 50V C5086 1-119-820-31 ELECT 1uF 20% 50V C5087 1-130-856-00 FILM 0.0068uF 5% 100V C5090 1-130-305-51 FILM 0.022uF 5% 100V C5092 1-130-305-51 FILM 0.022uF 5% 100V C5093 1-119-800-11 ELECT 100uF 20% 25V C5095 1-136-850-11 MYLAR 0.1uF 5% 63V C5096 1-136-850-11 MYLAR 0.1uF 5% 63V C5098 1-130-856-00 FILM 0.0068uF 5% 100V C5099 1-119-799-11 ELECT 47uF 20% 16V C5100 1-119-799-11 ELECT 47uF 20% 16V C5102 1-136-850-11 MYLAR 0.1uF 5% 63V C5103 1-119-799-11 ELECT 47uF 20% 16V C5106 1-119-799-11 ELECT 47uF 20% 16V C5107 1-119-825-41 ELECT 22uF 20% 50V C5108 1-130-856-00 FILM 0.0068uF 5% 100V C5110 1-130-305-51 FILM 0.022uF 5% 100V C5112 1-130-305-51 FILM 0.022uF 5% 100V C5113 1-119-820-31 ELECT 1uF 20% 50V C5114 1-119-800-11 ELECT 100uF 20% 25V C5116 1-136-850-11 MYLAR 0.1uF 5% 63V C5117 1-136-850-11 MYLAR 0.1uF 5% 63V C5120 1-130-856-00 FILM 0.0068uF 5% 100V C5121 1-119-799-11 ELECT 47uF 20% 16V C5122 1-119-799-11 ELECT 47uF 20% 16V C5125 1-136-850-11 MYLAR 0.1uF 5% 63V C5126 1-119-799-11 ELECT 47uF 20% 16V C5129 1-119-799-11 ELECT 47uF 20% 16V C5130 1-119-825-41 ELECT 22uF 20% 50V C5131 1-119-820-31 ELECT 1uF 20% 50V C5132 1-130-856-00 FILM 0.0068uF 5% 100V CN1002 1-691-769-11 PLUG (MICRO CONNECTOR) 7P * CN1003 1-564-104-00 PIN, CONNECTOR(3.96MM PITCH)3P CN1004 1-691-771-11 PLUG (MICRO CONNECTOR) 9P * CN1005 1-564-241-11 PIN, CONNECTOR(3.96MM PITCH)4P * CN1006 1-568-826-11 SOCKET, CONNECTOR 7P * CN3001 1-568-936-11 PIN, CONNECTOR 9P * CN3002 1-568-841-11 SOCKET, CONNECTOR 25P CN3003 1-564-506-11 PLUG, CONNECTOR 3P CN4002 1-691-160-11 PIN, CONNECTOR 3P CN5001 1-691-772-11 PLUG (MICRO CONNECTOR) 10P CN5002 1-691-772-21 PLUG (MICRO CONNECTOR) 10P D1001 8-719-025-33 DIODE 02CZ6.2-TE85L D1006 8-719-800-76 DIODE 1SS226 D1007 8-719-800-76 DIODE 1SS226 D1008 8-719-800-76 DIODE 1SS226 D1009 8-719-800-76 DIODE 1SS226 D1013 8-719-801-78 DIODE 1SS184 D1014 8-719-801-78 DIODE 1SS184 D2001 8-719-820-05 DIODE 1SS181 D2002 8-719-820-05 DIODE 1SS181 D3001 8-719-801-78 DIODE 1SS184 D3002 8-719-801-78 DIODE 1SS184 D3003 8-719-801-78 DIODE 1SS184 D3004 8-719-820-05 DIODE 1SS181 D3005 8-719-801-78 DIODE 1SS184 FB1001 1-410-397-21 FERRITE BEAD INDUCTOR FB1002 1-410-397-21 FERRITE BEAD INDUCTOR FB1003 1-410-397-21 FERRITE BEAD INDUCTOR FB1004 1-410-397-21 FERRITE BEAD INDUCTOR FB1005 1-410-397-21 FERRITE BEAD INDUCTOR FB1006 1-410-397-21 FERRITE BEAD INDUCTOR FB1007 1-410-397-21 FERRITE BEAD INDUCTOR FB1008 1-410-397-21 FERRITE BEAD INDUCTOR FB1009 1-410-397-21 FERRITE BEAD INDUCTOR FB1010 1-410-397-21 FERRITE BEAD INDUCTOR FB1011 1-410-397-21 FERRITE BEAD INDUCTOR FB1012 1-410-397-21 FERRITE BEAD INDUCTOR FB1013 1-410-397-21 FERRITE BEAD INDUCTOR FB1014 1-216-813-11 METAL CHIP 220 5% 1/16W FB1015 1-216-813-11 METAL CHIP 220 5% 1/16W FB1016 1-216-813-11 METAL CHIP 220 5% 1/16W FB1017 1-216-813-11 METAL CHIP 220 5% 1/16W FB1018 1-216-813-11 METAL CHIP 220 5% 1/16W FB1101 1-500-245-11 FERRITE 0uH FB1102 1-500-245-11 FERRITE 0uH FB2001 1-410-397-21 FERRITE BEAD INDUCTOR FB2002 1-410-397-21 FERRITE BEAD INDUCTOR FB2003 1-500-230-21 INDUCTOR 0uH FB2004 1-216-809-11 METAL CHIP 100 5% 1/16W FB3001 1-500-230-21 INDUCTOR 0uH FB4002 1-410-397-21 FERRITE BEAD INDUCTOR FB4004 1-410-397-21 FERRITE BEAD INDUCTOR FB4007 1-410-397-21 FERRITE BEAD INDUCTOR FB4009 1-410-397-21 FERRITE BEAD INDUCTOR FB4012 1-410-397-21 FERRITE BEAD INDUCTOR FB4014 1-410-397-21 FERRITE BEAD INDUCTOR FB4101 1-414-233-22 FERRITE 0uH FB4102 1-414-231-22 FERRITE 0uH FB4103 1-414-231-22 FERRITE 0uH FB4114 1-216-813-11 METAL CHIP 220 5% 1/16W FB4115 1-216-809-11 METAL CHIP 100 5% 1/16W FB4116 1-216-809-11 METAL CHIP 100 5% 1/16W FB5005 1-410-397-21 FERRITE BEAD INDUCTOR FB5006 1-410-397-21 FERRITE BEAD INDUCTOR * H1001 4-931-401-72 HEAT SINK, V.OUT IC1001 8-759-356-27 IC NJM2129M-TE2 IC1002 8-759-557-32 IC ADM202EARN-REEL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 TA-E9000ES Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DIGITAL IC1004 8-759-426-99 IC CXD8607N-T6 IC1005 8-759-450-47 IC BA05T IC1006 8-759-445-59 IC BA033T IC1007 8-749-923-05 IC TORX178B IC1008 8-759-424-13 IC MC74HC00AFEL IC1009 8-759-243-19 IC TC7SU04F-TE85L IC1010 8-749-015-11 IC TORX173(HS) IC1011 8-749-923-05 IC TORX178B IC1012 8-759-424-13 IC MC74HC00AFEL IC1013 8-749-923-05 IC TORX178B IC1014 8-759-424-25 IC MC74HC151FEL IC1015 8-759-032-50 IC TC74HC241AF(EL) IC1016 8-749-923-04 IC TOTX178A IC1017 8-759-243-19 IC TC7SU04F-TE85L IC1018 8-749-923-05 IC TORX178B IC1019 8-759-557-25 IC CS8414-CSR IC1020 8-759-525-10 IC TC7SET08F(TE85L) IC1021 8-759-243-19 IC TC7SU04F-TE85L IC1022 8-759-180-84 IC TC7W74F(TE12R) IC1023 8-759-367-69 IC MC74HC74AFEL IC1024 8-759-636-55 IC M5218AFP-T1 IC1025 8-759-243-19 IC TC7SU04F-TE85L IC1026 8-759-031-84 IC TC7S04F(TE85R) IC1027 8-759-031-84 IC TC7S04F(TE85R) IC1028 8-759-031-84 IC TC7S04F(TE85R) IC1051 8-759-175-30 IC NJM78L12UA-TE1 IC2001 8-759-424-65 IC MC74HC574AFEL IC2002 8-759-445-59 IC BA033T IC2003 8-759-445-59 IC BA033T IC2004 8-759-488-94 IC IDT71V256SA15Y-TL IC2005 8-752-391-87 IC CXD2712R IC2006 8-759-557-19 IC MC74VHCU04MEL IC2007 8-759-546-46 IC IDT71V124S15YAU-TL IC2008 8-759-531-30 IC MC74LVX4245-DT IC2009 8-752-391-87 IC CXD2712R IC2010 8-759-546-46 IC IDT71V124S15YAU-TL IC2011 8-759-424-65 IC MC74HC574AFEL IC2012 8-759-424-65 IC MC74HC574AFEL IC2013 8-759-546-46 IC IDT71V124S15YAU-TL IC2014 8-759-548-82 IC SN74LV541ANSR IC2015 8-759-525-00 IC CXD8751Q IC2016 8-759-557-26 IC ADSST-AC3-2500 IC2017 8-759-456-86 IC TC7SH14F(TE85L) IC2018 8-759-082-59 IC TC7W32FU(TE12R) IC2019 8-759-082-59 IC TC7W32FU(TE12R) IC3001 8-759-424-13 IC MC74HC00AFEL IC3002 8-759-545-07 IC TMP87C447U-4A06 IC3003 8-759-367-67 IC MC74HC14AFEL IC3004 8-759-557-35 IC M51943BML-600C IC3005 8-759-367-62 IC MC74HC157AFEL IC3006 8-759-561-42 IC MC74VHC573MEL IC3007 8-759-561-42 IC MC74VHC573MEL IC3008 8-759-557-27 IC HD64F2134FA20-CONT IC3009 8-759-567-61 IC MBM29F800BA-90PF-FJ-1 IC3010 8-759-424-65 IC MC74HC574AFEL IC3011 8-759-424-65 IC MC74HC574AFEL IC3012 8-759-387-77 IC TC7WU04F-TE12L IC3013 8-759-424-14 IC MC74HC02AFEL IC3014 8-759-367-70 IC MC74HC125AFEL IC3015 8-759-424-19 IC MC74HC126AFEL IC3016 8-759-387-77 IC TC7WU04F-TE12L IC3017 8-759-367-70 IC MC74HC125AFEL IC3018 8-759-424-65 IC MC74HC574AFEL IC3019 8-759-424-65 IC MC74HC574AFEL IC3020 8-759-367-70 IC MC74HC125AFEL IC3021 8-759-478-92 IC TC7SET04FU(TE85R) IC4001 8-759-481-28 IC MSM9404BGS-BK IC4002 8-759-044-10 IC CXD2562Q IC4003 8-759-525-43 IC TC74HCT08AF(EL) IC4004 8-759-481-28 IC MSM9404BGS-BK IC4005 8-759-044-10 IC CXD2562Q IC4006 8-759-525-43 IC TC74HCT08AF(EL) IC4007 8-759-481-28 IC MSM9404BGS-BK IC4008 8-759-044-10 IC CXD2562Q IC4009 8-759-525-43 IC TC74HCT08AF(EL) IC4010 8-759-557-19 IC MC74VHCU04MEL IC4011 8-759-557-19 IC MC74VHCU04MEL IC4012 8-759-243-19 IC TC7SU04F-TE85L IC4013 8-759-243-19 IC TC7SU04F-TE85L IC4102 8-759-525-10 IC TC7SET08F(TE85L) IC4103 8-759-525-10 IC TC7SET08F(TE85L) IC4111 8-759-180-84 IC TC7W74F(TE12R) IC4112 8-759-180-84 IC TC7W74F(TE12R) IC4113 8-759-180-84 IC TC7W74F(TE12R) IC5001 8-759-371-51 IC CXA8042AS IC5002 8-759-296-74 IC AD712JR-REEL IC5003 8-759-371-51 IC CXA8042AS IC5004 8-759-296-74 IC AD712JR-REEL IC5005 8-759-369-74 IC NJM4556AM-TE2 IC5006 8-759-231-53 IC M5F7805L IC5007 8-759-371-51 IC CXA8042AS IC5008 8-759-296-74 IC AD712JR-REEL IC5009 8-759-557-23 IC M62362P IC5010 8-759-371-51 IC CXA8042AS IC5011 8-759-296-74 IC AD712JR-REEL IC5012 8-759-369-74 IC NJM4556AM-TE2 IC5013 8-759-371-51 IC CXA8042AS IC5014 8-759-296-74 IC AD712JR-REEL IC5016 8-759-371-51 IC CXA8042AS IC5017 8-759-296-74 IC AD712JR-REEL IC5018 8-759-369-74 IC NJM4556AM-TE2 IC5019 8-759-557-23 IC M62362P J1001 1-764-188-21 JACK (SMALL TYPE) (DIA. 3.5) (MONITOR CTRL-A1) J1002 1-563-330-11 JACK (S-LINK CTRL-A1) J1003 1-563-330-11 JACK (S-LINK CTRL-A1) J1004 1-815-737-11 CONNECTOR, (D) SUB 9P (RS-232C) J1005 1-568-750-21 JACK, PIN (1P SHIELD TYPE) (LD COAXAL IN) J1006 1-568-750-21 JACK, PIN (1P SHIELD TYPE) (DVD COAXAL IN) J1007 1-568-750-21 JACK, PIN (1P SHIELD TYPE) (CD COAXAL IN) J1008 1-568-750-31 JACK, PIN (1P SHIELD TYPE) (LD COAXAL IN) J1009 1-764-188-21 JACK (SMALL TYPE) (DIA. 3.5) (ANALIZER MIC IN) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 TA-E9000ES Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DIGITAL JR2002 1-211-950-11 SHORT CHIP 0 JR2003 1-211-950-11 SHORT CHIP 0 JR2004 1-211-950-11 SHORT CHIP 0 JR2005 1-211-950-11 SHORT CHIP 0 JR2006 1-211-950-11 SHORT CHIP 0 JR2009 1-211-950-11 SHORT CHIP 0 JR2010 1-211-950-11 SHORT CHIP 0 JR2012 1-211-950-11 SHORT CHIP 0 JR2013 1-211-950-11 SHORT CHIP 0 JR2015 1-211-950-11 SHORT CHIP 0 JR2016 1-211-950-11 SHORT CHIP 0 Q1001 8-729-424-08 TRANSISTOR UN2111 Q1002 8-729-230-49 TRANSISTOR 2SC2712-YG Q2002 8-729-230-49 TRANSISTOR 2SC2712-YG Q3001 8-729-421-22 TRANSISTOR UN2211 Q3002 8-729-230-49 TRANSISTOR 2SC2712-YG Q3003 8-729-421-22 TRANSISTOR UN2211 Q3004 8-729-216-22 TRANSISTOR 2SA1162-G Q3005 8-729-424-08 TRANSISTOR UN2111 Q3006 8-729-230-49 TRANSISTOR 2SC2712-YG Q3007 8-729-230-49 TRANSISTOR 2SC2712-YG Q3008 8-729-424-08 TRANSISTOR UN2111 Q3009 8-729-421-22 TRANSISTOR UN2211 Q3010 8-729-421-22 TRANSISTOR UN2211 Q3011 8-729-421-22 TRANSISTOR UN2211 R1001 1-216-025-11 RES-CHIP 100 5% 1/10W R1002 1-216-049-11 RES-CHIP 1K 5% 1/10W R1003 1-216-025-11 RES-CHIP 100 5% 1/10W R1004 1-216-073-91 RES-CHIP 10K 5% 1/10W R1005 1-216-025-11 RES-CHIP 100 5% 1/10W R1008 1-259-983-11 CARBON MELF 100 2% 1/8W R1009 1-259-983-11 CARBON MELF 100 2% 1/8W R1012 1-259-983-11 CARBON MELF 100 2% 1/8W R1013 1-259-983-11 CARBON MELF 100 2% 1/8W R1014 1-216-025-11 RES-CHIP 100 5% 1/10W R1020 1-259-909-11 CARBON MELF 75 2% 1/8W R1021 1-259-995-11 CARBON MELF 1K 2% 1/8W R1022 1-259-909-11 CARBON MELF 75 2% 1/8W R1023 1-260-008-11 CARBON MELF 10K 2% 1/8W R1024 1-259-995-11 CARBON MELF 1K 2% 1/8W R1025 1-259-909-11 CARBON MELF 75 2% 1/8W R1026 1-259-995-11 CARBON MELF 1K 2% 1/8W R1027 1-259-995-11 CARBON MELF 1K 2% 1/8W R1028 1-260-008-11 CARBON MELF 10K 2% 1/8W R1029 1-259-909-11 CARBON MELF 75 2% 1/8W R1030 1-259-909-11 CARBON MELF 75 2% 1/8W R1031 1-259-909-11 CARBON MELF 75 2% 1/8W R1032 1-216-821-11 METAL CHIP 1K 5% 1/16W R1033 1-259-995-11 CARBON MELF 1K 2% 1/8W R1034 1-216-809-11 METAL CHIP 100 5% 1/16W R1035 1-216-809-11 METAL CHIP 100 5% 1/16W R1036 1-216-809-11 METAL CHIP 100 5% 1/16W R1037 1-216-809-11 METAL CHIP 100 5% 1/16W R1038 1-259-995-11 CARBON MELF 1K 2% 1/8W R1039 1-216-809-11 METAL CHIP 100 5% 1/16W R1040 1-259-995-11 CARBON MELF 1K 2% 1/8W R1041 1-259-909-11 CARBON MELF 75 2% 1/8W R1042 1-216-809-11 METAL CHIP 100 5% 1/16W R1043 1-216-809-11 METAL CHIP 100 5% 1/16W R1044 1-260-008-11 CARBON MELF 10K 2% 1/8W R1045 1-259-909-11 CARBON MELF 75 2% 1/8W R1046 1-216-041-00 METAL CHIP 470 5% 1/10W R1047 1-216-809-11 METAL CHIP 100 5% 1/16W R1048 1-216-809-11 METAL CHIP 100 5% 1/16W R1049 1-216-073-91 RES-CHIP 10K 5% 1/10W R1051 1-216-821-11 METAL CHIP 1K 5% 1/16W R1052 1-216-809-11 METAL CHIP 100 5% 1/16W R1053 1-259-979-11 CARBON MELF 47 2% 1/8W R1054 1-259-979-11 CARBON MELF 47 2% 1/8W R1055 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R1056 1-259-979-11 CARBON MELF 47 2% 1/8W R1057 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R1058 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R1059 1-216-025-11 RES-CHIP 100 5% 1/10W R1060 1-216-025-11 RES-CHIP 100 5% 1/10W R1061 1-216-025-11 RES-CHIP 100 5% 1/10W R1062 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R1063 1-216-097-11 RES-CHIP 100K 5% 1/10W R1064 1-216-113-00 METAL CHIP 470K 5% 1/10W R1067 1-216-049-11 RES-CHIP 1K 5% 1/10W R1073 1-216-097-11 RES-CHIP 100K 5% 1/10W R1080 1-216-073-91 RES-CHIP 10K 5% 1/10W R1099 1-216-097-11 RES-CHIP 100K 5% 1/10W R1102 1-216-097-11 RES-CHIP 100K 5% 1/10W R2001 1-216-833-11 METAL CHIP 10K 5% 1/16W R2002 1-216-833-11 METAL CHIP 10K 5% 1/16W R2003 1-216-833-11 METAL CHIP 10K 5% 1/16W R2004 1-216-833-11 METAL CHIP 10K 5% 1/16W R2005 1-216-833-11 METAL CHIP 10K 5% 1/16W R2006 1-216-833-11 METAL CHIP 10K 5% 1/16W R2007 1-216-833-11 METAL CHIP 10K 5% 1/16W R2008 1-216-833-11 METAL CHIP 10K 5% 1/16W R2010 1-216-833-11 METAL CHIP 10K 5% 1/16W R2011 1-216-809-11 METAL CHIP 100 5% 1/16W R2012 1-216-809-11 METAL CHIP 100 5% 1/16W R2014 1-216-809-11 METAL CHIP 100 5% 1/16W R2015 1-216-809-11 METAL CHIP 100 5% 1/16W R2017 1-216-067-00 METAL CHIP 5.6K 5% 1/10W R2019 1-216-833-11 METAL CHIP 10K 5% 1/16W R2021 1-216-833-11 METAL CHIP 10K 5% 1/16W R2024 1-216-833-11 METAL CHIP 10K 5% 1/16W R2044 1-216-833-11 METAL CHIP 10K 5% 1/16W R2045 1-216-833-11 METAL CHIP 10K 5% 1/16W R2046 1-216-833-11 METAL CHIP 10K 5% 1/16W R2047 1-216-809-11 METAL CHIP 100 5% 1/16W R2049 1-216-809-11 METAL CHIP 100 5% 1/16W R2054 1-216-809-11 METAL CHIP 100 5% 1/16W R2056 1-216-809-11 METAL CHIP 100 5% 1/16W R2058 1-216-809-11 METAL CHIP 100 5% 1/16W R2060 1-216-809-11 METAL CHIP 100 5% 1/16W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 TA-E9000ES Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DIGITAL R2061 1-216-833-11 METAL CHIP 10K 5% 1/16W R2062 1-216-833-11 METAL CHIP 10K 5% 1/16W R2063 1-216-073-91 RES-CHIP 10K 5% 1/10W R2072 1-216-833-11 METAL CHIP 10K 5% 1/16W R2073 1-216-833-11 METAL CHIP 10K 5% 1/16W R2074 1-216-833-11 METAL CHIP 10K 5% 1/16W R2075 1-216-833-11 METAL CHIP 10K 5% 1/16W R2076 1-216-833-11 METAL CHIP 10K 5% 1/16W R2077 1-216-833-11 METAL CHIP 10K 5% 1/16W R2078 1-216-833-11 METAL CHIP 10K 5% 1/16W R2079 1-216-833-11 METAL CHIP 10K 5% 1/16W R2081 1-216-073-91 RES-CHIP 10K 5% 1/10W R2082 1-216-073-91 RES-CHIP 10K 5% 1/10W R2084 1-216-833-11 METAL CHIP 10K 5% 1/16W R2085 1-216-813-11 METAL CHIP 220 5% 1/16W R2086 1-216-809-11 METAL CHIP 100 5% 1/16W R2087 1-216-809-11 METAL CHIP 100 5% 1/16W R2088 1-216-809-11 METAL CHIP 100 5% 1/16W R2089 1-216-809-11 METAL CHIP 100 5% 1/16W R2090 1-216-809-11 METAL CHIP 100 5% 1/16W R2091 1-216-809-11 METAL CHIP 100 5% 1/16W R2092 1-216-833-11 METAL CHIP 10K 5% 1/16W R2093 1-216-833-11 METAL CHIP 10K 5% 1/16W R2094 1-216-833-11 METAL CHIP 10K 5% 1/16W R2095 1-216-833-11 METAL CHIP 10K 5% 1/16W R2096 1-216-833-11 METAL CHIP 10K 5% 1/16W R2097 1-216-833-11 METAL CHIP 10K 5% 1/16W R2098 1-216-833-11 METAL CHIP 10K 5% 1/16W R2099 1-216-833-11 METAL CHIP 10K 5% 1/16W R2100 1-216-833-11 METAL CHIP 10K 5% 1/16W R2101 1-216-833-11 METAL CHIP 10K 5% 1/16W R2102 1-216-809-11 METAL CHIP 100 5% 1/16W R2103 1-216-833-11 METAL CHIP 10K 5% 1/16W R2104 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R2105 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R2106 1-216-833-11 METAL CHIP 10K 5% 1/16W R2109 1-216-833-11 METAL CHIP 10K 5% 1/16W R2110 1-216-833-11 METAL CHIP 10K 5% 1/16W R2111 1-216-833-11 METAL CHIP 10K 5% 1/16W R2112 1-216-833-11 METAL CHIP 10K 5% 1/16W R2113 1-216-833-11 METAL CHIP 10K 5% 1/16W R2114 1-216-833-11 METAL CHIP 10K 5% 1/16W R2115 1-216-833-11 METAL CHIP 10K 5% 1/16W R2116 1-216-833-11 METAL CHIP 10K 5% 1/16W R2117 1-216-833-11 METAL CHIP 10K 5% 1/16W R2118 1-216-833-11 METAL CHIP 10K 5% 1/16W R2119 1-216-833-11 METAL CHIP 10K 5% 1/16W R2120 1-216-809-11 METAL CHIP 100 5% 1/16W R2121 1-216-809-11 METAL CHIP 100 5% 1/16W R2122 1-216-809-11 METAL CHIP 100 5% 1/16W R2123 1-216-833-11 METAL CHIP 10K 5% 1/16W R2124 1-216-833-11 METAL CHIP 10K 5% 1/16W R2125 1-216-821-11 METAL CHIP 1K 5% 1/16W R2126 1-216-833-11 METAL CHIP 10K 5% 1/16W R2127 1-216-809-11 METAL CHIP 100 5% 1/16W R2128 1-216-809-11 METAL CHIP 100 5% 1/16W R2129 1-216-809-11 METAL CHIP 100 5% 1/16W R2130 1-216-833-11 METAL CHIP 10K 5% 1/16W R2131 1-216-833-11 METAL CHIP 10K 5% 1/16W R2132 1-216-833-11 METAL CHIP 10K 5% 1/16W R2133 1-216-833-11 METAL CHIP 10K 5% 1/16W R2134 1-216-833-11 METAL CHIP 10K 5% 1/16W R2135 1-216-833-11 METAL CHIP 10K 5% 1/16W R2136 1-216-833-11 METAL CHIP 10K 5% 1/16W R2137 1-216-833-11 METAL CHIP 10K 5% 1/16W R2138 1-216-833-11 METAL CHIP 10K 5% 1/16W R2139 1-216-833-11 METAL CHIP 10K 5% 1/16W R2140 1-216-833-11 METAL CHIP 10K 5% 1/16W R2141 1-216-073-91 RES-CHIP 10K 5% 1/10W R2142 1-216-073-91 RES-CHIP 10K 5% 1/10W R2143 1-216-833-11 METAL CHIP 10K 5% 1/16W R2144 1-216-833-11 METAL CHIP 10K 5% 1/16W R2145 1-216-833-11 METAL CHIP 10K 5% 1/16W R3001 1-216-845-11 METAL CHIP 100K 5% 1/16W R3002 1-216-833-11 METAL CHIP 10K 5% 1/16W R3003 1-216-833-11 METAL CHIP 10K 5% 1/16W R3004 1-216-833-11 METAL CHIP 10K 5% 1/16W R3005 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R3006 1-216-017-91 RES-CHIP 47 5% 1/10W R3007 1-216-037-00 METAL CHIP 330 5% 1/10W R3008 1-216-833-11 METAL CHIP 10K 5% 1/16W R3009 1-216-017-91 RES-CHIP 47 5% 1/10W R3010 1-216-833-11 METAL CHIP 10K 5% 1/16W R3011 1-216-833-11 METAL CHIP 10K 5% 1/16W R3012 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R3013 1-216-797-11 METAL CHIP 10 5% 1/16W R3014 1-216-833-11 METAL CHIP 10K 5% 1/16W R3015 1-216-833-11 METAL CHIP 10K 5% 1/16W R3016 1-216-121-11 RES-CHIP 1M 5% 1/10W R3017 1-216-833-11 METAL CHIP 10K 5% 1/16W R3018 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R3019 1-216-073-91 RES-CHIP 10K 5% 1/10W (US,CND) R3020 1-216-073-91 RES-CHIP 10K 5% 1/10W (EXCEPT US,CND) R3021 1-216-833-11 METAL CHIP 10K 5% 1/16W R3022 1-216-805-11 METAL CHIP 47 5% 1/16W R3023 1-216-805-11 METAL CHIP 47 5% 1/16W R3024 1-216-121-11 RES-CHIP 1M 5% 1/10W R3025 1-216-833-11 METAL CHIP 10K 5% 1/16W R3026 1-216-833-11 METAL CHIP 10K 5% 1/16W R3027 1-216-833-11 METAL CHIP 10K 5% 1/16W R3028 1-216-833-11 METAL CHIP 10K 5% 1/16W R3029 1-216-833-11 METAL CHIP 10K 5% 1/16W R3030 1-216-833-11 METAL CHIP 10K 5% 1/16W R3031 1-216-073-91 RES-CHIP 10K 5% 1/10W R3032 1-216-833-11 METAL CHIP 10K 5% 1/16W R3033 1-216-833-11 METAL CHIP 10K 5% 1/16W R3034 1-216-833-11 METAL CHIP 10K 5% 1/16W R3035 1-216-073-91 RES-CHIP 10K 5% 1/10W R3036 1-216-833-11 METAL CHIP 10K 5% 1/16W R3037 1-216-833-11 METAL CHIP 10K 5% 1/16W R3038 1-216-833-11 METAL CHIP 10K 5% 1/16W R3039 1-216-073-91 RES-CHIP 10K 5% 1/10W R3040 1-216-833-11 METAL CHIP 10K 5% 1/16W R3041 1-216-833-11 METAL CHIP 10K 5% 1/16W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 TA-E9000ES Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DIGITAL R3042 1-216-833-11 METAL CHIP 10K 5% 1/16W R3043 1-216-833-11 METAL CHIP 10K 5% 1/16W R3044 1-216-833-11 METAL CHIP 10K 5% 1/16W R3045 1-216-073-91 RES-CHIP 10K 5% 1/10W R3046 1-216-073-91 RES-CHIP 10K 5% 1/10W R3047 1-216-833-11 METAL CHIP 10K 5% 1/16W R3048 1-216-073-91 RES-CHIP 10K 5% 1/10W R3049 1-216-833-11 METAL CHIP 10K 5% 1/16W R3050 1-216-833-11 METAL CHIP 10K 5% 1/16W R3051 1-216-833-11 METAL CHIP 10K 5% 1/16W R3052 1-216-833-11 METAL CHIP 10K 5% 1/16W R3053 1-216-833-11 METAL CHIP 10K 5% 1/16W R3054 1-216-833-11 METAL CHIP 10K 5% 1/16W R3055 1-216-833-11 METAL CHIP 10K 5% 1/16W R3056 1-216-809-11 METAL CHIP 100 5% 1/16W R3057 1-216-809-11 METAL CHIP 100 5% 1/16W R3058 1-216-809-11 METAL CHIP 100 5% 1/16W R3059 1-216-809-11 METAL CHIP 100 5% 1/16W R3060 1-216-809-11 METAL CHIP 100 5% 1/16W R3061 1-216-809-11 METAL CHIP 100 5% 1/16W R3062 1-216-809-11 METAL CHIP 100 5% 1/16W R3063 1-216-809-11 METAL CHIP 100 5% 1/16W R3064 1-216-809-11 METAL CHIP 100 5% 1/16W R3065 1-216-809-11 METAL CHIP 100 5% 1/16W R3066 1-216-809-11 METAL CHIP 100 5% 1/16W R3067 1-216-809-11 METAL CHIP 100 5% 1/16W R3068 1-216-809-11 METAL CHIP 100 5% 1/16W R3069 1-216-809-11 METAL CHIP 100 5% 1/16W R3070 1-216-809-11 METAL CHIP 100 5% 1/16W R3071 1-216-809-11 METAL CHIP 100 5% 1/16W R3072 1-216-809-11 METAL CHIP 100 5% 1/16W R3073 1-216-809-11 METAL CHIP 100 5% 1/16W R3074 1-216-809-11 METAL CHIP 100 5% 1/16W R3075 1-216-809-11 METAL CHIP 100 5% 1/16W R3076 1-216-809-11 METAL CHIP 100 5% 1/16W R3077 1-216-809-11 METAL CHIP 100 5% 1/16W R3078 1-216-809-11 METAL CHIP 100 5% 1/16W R3079 1-216-809-11 METAL CHIP 100 5% 1/16W R3080 1-216-833-11 METAL CHIP 10K 5% 1/16W R3081 1-216-025-11 RES-CHIP 100 5% 1/10W R3088 1-216-833-11 METAL CHIP 10K 5% 1/16W R3089 1-216-833-11 METAL CHIP 10K 5% 1/16W R3090 1-216-833-11 METAL CHIP 10K 5% 1/16W R3091 1-216-833-11 METAL CHIP 10K 5% 1/16W R3092 1-216-097-11 RES-CHIP 100K 5% 1/10W R3093 1-216-097-11 RES-CHIP 100K 5% 1/10W R3094 1-216-073-91 RES-CHIP 10K 5% 1/10W R3095 1-216-073-91 RES-CHIP 10K 5% 1/10W R3096 1-216-073-91 RES-CHIP 10K 5% 1/10W R3097 1-216-073-91 RES-CHIP 10K 5% 1/10W R3098 1-216-073-91 RES-CHIP 10K 5% 1/10W R3099 1-216-073-91 RES-CHIP 10K 5% 1/10W R3100 1-216-073-91 RES-CHIP 10K 5% 1/10W R3101 1-216-073-91 RES-CHIP 10K 5% 1/10W R3102 1-216-073-91 RES-CHIP 10K 5% 1/10W R3103 1-216-073-91 RES-CHIP 10K 5% 1/10W R3104 1-216-073-91 RES-CHIP 10K 5% 1/10W R3105 1-216-073-91 RES-CHIP 10K 5% 1/10W R3106 1-216-073-91 RES-CHIP 10K 5% 1/10W R3107 1-216-073-91 RES-CHIP 10K 5% 1/10W R3108 1-216-073-91 RES-CHIP 10K 5% 1/10W R3109 1-216-833-11 METAL CHIP 10K 5% 1/16W (EXCEPT US,CND) R3110 1-216-833-11 METAL CHIP 10K 5% 1/16W (US,CND) R3111 1-216-833-11 METAL CHIP 10K 5% 1/16W R3112 1-216-833-11 METAL CHIP 10K 5% 1/16W R3113 1-216-833-11 METAL CHIP 10K 5% 1/16W R3114 1-216-833-11 METAL CHIP 10K 5% 1/16W R3115 1-216-833-11 METAL CHIP 10K 5% 1/16W R3116 1-216-821-11 METAL CHIP 1K 5% 1/16W R3117 1-216-833-11 METAL CHIP 10K 5% 1/16W R3118 1-216-809-11 METAL CHIP 100 5% 1/16W R3119 1-216-809-11 METAL CHIP 100 5% 1/16W R3120 1-216-833-11 METAL CHIP 10K 5% 1/16W R3121 1-216-833-11 METAL CHIP 10K 5% 1/16W R3122 1-216-833-11 METAL CHIP 10K 5% 1/16W R3123 1-216-833-11 METAL CHIP 10K 5% 1/16W R3124 1-216-833-11 METAL CHIP 10K 5% 1/16W R3125 1-216-833-11 METAL CHIP 10K 5% 1/16W R3127 1-216-833-11 METAL CHIP 10K 5% 1/16W R4001 1-216-025-11 RES-CHIP 100 5% 1/10W R4002 1-216-025-11 RES-CHIP 100 5% 1/10W R4003 1-216-025-11 RES-CHIP 100 5% 1/10W R4004 1-259-983-11 CARBON MELF 100 2% 1/8W R4005 1-259-983-11 CARBON MELF 100 2% 1/8W R4006 1-216-833-11 METAL CHIP 10K 5% 1/16W R4007 1-216-833-11 METAL CHIP 10K 5% 1/16W R4008 1-259-983-11 CARBON MELF 100 2% 1/8W R4009 1-259-983-11 CARBON MELF 100 2% 1/8W R4010 1-216-033-00 METAL CHIP 220 5% 1/10W R4012 1-216-073-91 RES-CHIP 10K 5% 1/10W R4013 1-216-809-11 METAL CHIP 100 5% 1/16W R4014 1-216-809-11 METAL CHIP 100 5% 1/16W R4015 1-216-809-11 METAL CHIP 100 5% 1/16W R4016 1-216-809-11 METAL CHIP 100 5% 1/16W R4017 1-259-983-11 CARBON MELF 100 2% 1/8W R4018 1-259-983-11 CARBON MELF 100 2% 1/8W R4019 1-259-983-11 CARBON MELF 100 2% 1/8W R4020 1-259-983-11 CARBON MELF 100 2% 1/8W R4021 1-216-809-11 METAL CHIP 100 5% 1/16W R4022 1-216-809-11 METAL CHIP 100 5% 1/16W R4023 1-259-983-11 CARBON MELF 100 2% 1/8W R4024 1-259-983-11 CARBON MELF 100 2% 1/8W R4025 1-216-073-91 RES-CHIP 10K 5% 1/10W R4026 1-216-073-91 RES-CHIP 10K 5% 1/10W R4027 1-259-983-11 CARBON MELF 100 2% 1/8W R4028 1-259-983-11 CARBON MELF 100 2% 1/8W R4029 1-216-033-00 METAL CHIP 220 5% 1/10W R4031 1-216-073-91 RES-CHIP 10K 5% 1/10W R4032 1-216-809-11 METAL CHIP 100 5% 1/16W R4033 1-216-809-11 METAL CHIP 100 5% 1/16W R4034 1-216-809-11 METAL CHIP 100 5% 1/16W R4035 1-216-809-11 METAL CHIP 100 5% 1/16W R4036 1-259-983-11 CARBON MELF 100 2% 1/8W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 TA-E9000ES Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DIGITAL R4037 1-259-983-11 CARBON MELF 100 2% 1/8W R4038 1-259-983-11 CARBON MELF 100 2% 1/8W R4039 1-259-983-11 CARBON MELF 100 2% 1/8W R4040 1-216-809-11 METAL CHIP 100 5% 1/16W R4041 1-216-809-11 METAL CHIP 100 5% 1/16W R4042 1-259-983-11 CARBON MELF 100 2% 1/8W R4043 1-259-983-11 CARBON MELF 100 2% 1/8W R4044 1-216-073-91 RES-CHIP 10K 5% 1/10W R4045 1-216-073-91 RES-CHIP 10K 5% 1/10W R4046 1-259-983-11 CARBON MELF 100 2% 1/8W R4047 1-259-983-11 CARBON MELF 100 2% 1/8W R4048 1-216-033-00 METAL CHIP 220 5% 1/10W R4050 1-216-073-91 RES-CHIP 10K 5% 1/10W R4051 1-216-809-11 METAL CHIP 100 5% 1/16W R4052 1-216-809-11 METAL CHIP 100 5% 1/16W R4053 1-216-809-11 METAL CHIP 100 5% 1/16W R4054 1-216-809-11 METAL CHIP 100 5% 1/16W R4055 1-216-809-11 METAL CHIP 100 5% 1/16W R4056 1-259-983-11 CARBON MELF 100 2% 1/8W R4057 1-216-809-11 METAL CHIP 100 5% 1/16W R4058 1-259-983-11 CARBON MELF 100 2% 1/8W R4059 1-216-809-11 METAL CHIP 100 5% 1/16W R4060 1-259-983-11 CARBON MELF 100 2% 1/8W R4061 1-259-983-11 CARBON MELF 100 2% 1/8W R4062 1-216-809-11 METAL CHIP 100 5% 1/16W R4063 1-216-809-11 METAL CHIP 100 5% 1/16W R4064 1-216-809-11 METAL CHIP 100 5% 1/16W R4065 1-216-809-11 METAL CHIP 100 5% 1/16W R4067 1-216-809-11 METAL CHIP 100 5% 1/16W R5001 1-259-971-11 CARBON MELF 10 2% 1/8W R5002 1-259-971-11 CARBON MELF 10 2% 1/8W R5003 1-259-976-11 CARBON MELF 27 2% 1/8W R5004 1-259-971-11 CARBON MELF 10 2% 1/8W R5005 1-259-971-11 CARBON MELF 10 2% 1/8W R5006 1-259-971-11 CARBON MELF 10 2% 1/8W R5007 1-259-971-11 CARBON MELF 10 2% 1/8W R5008 1-259-988-11 CARBON MELF 270 2% 1/8W R5010 1-259-992-11 CARBON MELF 560 2% 1/8W R5012 1-259-988-11 CARBON MELF 270 2% 1/8W R5014 1-259-976-11 CARBON MELF 27 2% 1/8W R5015 1-259-971-11 CARBON MELF 10 2% 1/8W R5016 1-259-971-11 CARBON MELF 10 2% 1/8W R5017 1-259-976-11 CARBON MELF 27 2% 1/8W R5018 1-259-971-11 CARBON MELF 10 2% 1/8W R5019 1-259-971-11 CARBON MELF 10 2% 1/8W R5020 1-259-995-11 CARBON MELF 1K 2% 1/8W R5021 1-259-971-11 CARBON MELF 10 2% 1/8W R5022 1-259-971-11 CARBON MELF 10 2% 1/8W R5023 1-259-988-11 CARBON MELF 270 2% 1/8W R5025 1-259-992-11 CARBON MELF 560 2% 1/8W R5027 1-259-995-11 CARBON MELF 1K 2% 1/8W R5028 1-259-988-11 CARBON MELF 270 2% 1/8W R5030 1-259-976-11 CARBON MELF 27 2% 1/8W R5031 1-259-971-11 CARBON MELF 10 2% 1/8W R5032 1-259-971-11 CARBON MELF 10 2% 1/8W R5033 1-259-976-11 CARBON MELF 27 2% 1/8W R5034 1-259-971-11 CARBON MELF 10 2% 1/8W R5035 1-259-971-11 CARBON MELF 10 2% 1/8W R5036 1-259-971-11 CARBON MELF 10 2% 1/8W R5037 1-259-971-11 CARBON MELF 10 2% 1/8W R5038 1-259-988-11 CARBON MELF 270 2% 1/8W R5040 1-259-992-11 CARBON MELF 560 2% 1/8W R5042 1-259-988-11 CARBON MELF 270 2% 1/8W R5044 1-259-976-11 CARBON MELF 27 2% 1/8W R5045 1-259-971-11 CARBON MELF 10 2% 1/8W R5046 1-259-971-11 CARBON MELF 10 2% 1/8W R5047 1-259-976-11 CARBON MELF 27 2% 1/8W R5048 1-259-971-11 CARBON MELF 10 2% 1/8W R5049 1-259-971-11 CARBON MELF 10 2% 1/8W R5050 1-259-995-11 CARBON MELF 1K 2% 1/8W R5051 1-259-971-11 CARBON MELF 10 2% 1/8W R5052 1-259-971-11 CARBON MELF 10 2% 1/8W R5053 1-259-988-11 CARBON MELF 270 2% 1/8W R5055 1-259-992-11 CARBON MELF 560 2% 1/8W R5057 1-259-995-11 CARBON MELF 1K 2% 1/8W R5058 1-259-988-11 CARBON MELF 270 2% 1/8W R5060 1-259-976-11 CARBON MELF 27 2% 1/8W R5061 1-259-971-11 CARBON MELF 10 2% 1/8W R5062 1-259-971-11 CARBON MELF 10 2% 1/8W R5063 1-259-976-11 CARBON MELF 27 2% 1/8W R5064 1-259-971-11 CARBON MELF 10 2% 1/8W R5065 1-259-971-11 CARBON MELF 10 2% 1/8W R5066 1-259-971-11 CARBON MELF 10 2% 1/8W R5067 1-259-971-11 CARBON MELF 10 2% 1/8W R5068 1-259-988-11 CARBON MELF 270 2% 1/8W R5070 1-259-992-11 CARBON MELF 560 2% 1/8W R5072 1-259-988-11 CARBON MELF 270 2% 1/8W R5074 1-259-976-11 CARBON MELF 27 2% 1/8W R5075 1-259-971-11 CARBON MELF 10 2% 1/8W R5076 1-259-971-11 CARBON MELF 10 2% 1/8W R5077 1-259-976-11 CARBON MELF 27 2% 1/8W R5078 1-259-971-11 CARBON MELF 10 2% 1/8W R5079 1-259-971-11 CARBON MELF 10 2% 1/8W R5080 1-259-995-11 CARBON MELF 1K 2% 1/8W R5081 1-259-971-11 CARBON MELF 10 2% 1/8W R5082 1-259-971-11 CARBON MELF 10 2% 1/8W R5083 1-259-988-11 CARBON MELF 270 2% 1/8W R5085 1-259-992-11 CARBON MELF 560 2% 1/8W R5087 1-259-995-11 CARBON MELF 1K 2% 1/8W R5088 1-259-988-11 CARBON MELF 270 2% 1/8W R5090 1-259-976-11 CARBON MELF 27 2% 1/8W X2001 1-767-326-21 OSCILLATOR, CRYSTAL (40MHz) X3001 1-767-938-21 VIBRATOR, CERAMIC (7.28MHz) X3002 1-781-088-21 VIBRATOR, CERAMIC (20MHz) ****************************************************** * A-4417-104-A POWER BOARD, COMPLETE (US,CND) * A-4417-110-A POWER BOARD, COMPLETE (EXCEPT US,CND) ******************** * 1-535-303-00 WIRE, JUMPER 2-389-320-01 CUSHION 4-211-649-01 SCREW (+BV 3X6 B) 4-974-510-01 SCREW (+BV 3X8 CU) POWER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 TA-E9000ES Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark POWER C110 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C111 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C112 1-126-960-11 ELECT 1uF 20% 50V C115 1-119-800-21 ELECT 100uF 20% 25V C116 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C117 1-163-093-00 CERAMIC CHIP 10PF 5% 50V C118 1-119-840-21 ELECT 470uF 20% 63V C119 1-163-093-00 CERAMIC CHIP 10PF 5% 50V C120 1-126-955-11 ELECT 4700uF 20% 35V C121 1-117-783-11 ELECT 13000uF 20% 16V C122 1-119-800-21 ELECT 100uF 20% 25V C123 1-119-840-21 ELECT 470uF 20% 63V C124 1-126-955-11 ELECT 4700uF 20% 35V C125 1-117-783-11 ELECT 13000uF 20% 16V C126 1-117-783-11 ELECT 13000uF 20% 16V C127 1-117-783-11 ELECT 13000uF 20% 16V C128 1-119-830-11 ELECT 330uF 20% 25V C129 1-126-964-11 ELECT 10uF 20% 50V C130 1-119-830-11 ELECT 330uF 20% 25V C131 1-126-927-11 ELECT 2200uF 20% 10V C133 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C134 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C136 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C137 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C138 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C140 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C141 1-126-924-11 ELECT 330uF 20% 10V C142 1-126-924-11 ELECT 330uF 20% 10V C144 1-126-964-11 ELECT 10uF 20% 50V C145 1-119-800-21 ELECT 100uF 20% 25V C146 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C148 1-119-800-21 ELECT 100uF 20% 25V C149 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C150 1-164-222-91 CERAMIC CHIP 0.22uF 25V C151 1-136-169-00 MYLAR 0.22uF 5% 50V C152 1-136-169-00 MYLAR 0.22uF 5% 50V C153 1-164-222-91 CERAMIC CHIP 0.22uF 25V C154 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C155 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C156 1-163-009-91 CERAMIC CHIP 0.001uF 10% 50V C157 1-119-824-31 ELECT 10uF 20% 50V C158 1-119-824-31 ELECT 10uF 20% 50V * CN102 1-564-243-11 PIN, CONNECTOR(3.96MM PITCH)6P * CN103 1-564-104-00 PIN, CONNECTOR(3.96MM PITCH)3P * CN104 1-564-104-00 PIN, CONNECTOR(3.96MM PITCH)3P * CN105 1-564-241-11 PIN, CONNECTOR(3.96MM PITCH)4P CN106 1-691-771-11 PLUG (MICRO CONNECTOR) 9P D101 8-719-800-76 DIODE 1SS226 D102 8-719-025-37 DIODE 02CZ9.1-TE85L D103 8-719-025-37 DIODE 02CZ9.1-TE85L D104 8-719-800-76 DIODE 1SS226 D105 8-719-820-05 DIODE 1SS181 D106 8-719-025-29 DIODE 02CZ5.1-TE85L D107 8-719-060-53 DIODE RBV-2506 D108 8-719-820-05 DIODE 1SS181 D109 8-719-820-05 DIODE 1SS181 D110 8-719-025-03 DIODE RBA-402-SL D111 8-719-025-29 DIODE 02CZ5.1-TE85L D112 8-719-820-05 DIODE 1SS181 D113 8-719-820-05 DIODE 1SS181 D114 8-719-820-05 DIODE 1SS181 D115 8-719-820-05 DIODE 1SS181 D116 8-719-820-05 DIODE 1SS181 D117 8-719-820-05 DIODE 1SS181 D118 8-719-820-05 DIODE 1SS181 D119 8-719-820-05 DIODE 1SS181 D120 8-719-820-05 DIODE 1SS181 D121 8-719-025-33 DIODE 02CZ6.2-TE85L D122 8-719-820-05 DIODE 1SS181 D123 8-719-820-05 DIODE 1SS181 D124 8-719-820-05 DIODE 1SS181 D125 8-719-800-76 DIODE 1SS226 D126 8-719-800-76 DIODE 1SS226 D127 8-719-820-05 DIODE 1SS181 D128 8-719-820-05 DIODE 1SS181 E101 1-537-770-21 TERMINAL BOARD, GROUND E102 1-537-770-21 TERMINAL BOARD, GROUND E103 1-537-770-21 TERMINAL BOARD, GROUND IC101 8-759-636-55 IC M5218AFP-T1 IC102 8-759-632-07 IC M5237L-700A IC103 8-759-604-86 IC M5F7807L IC104 8-759-604-90 IC M5F7907L IC105 8-759-450-47 IC BA05T IC106 8-759-245-79 IC M5F7905L IC107 8-759-604-87 IC M5F7818L IC108 8-759-636-55 IC M5218AFP-T1 IC109 8-759-604-91 IC M5F7918L PH101 8-719-936-96 PHOTO COUPLER PC817-B PH102 8-719-936-96 PHOTO COUPLER PC817-B Q101 8-729-216-22 TRANSISTOR 2SA1162-G Q102 8-729-230-49 TRANSISTOR 2SC2712-YG Q103 8-729-230-49 TRANSISTOR 2SC2712-YG Q104 8-729-230-49 TRANSISTOR 2SC2712-YG Q105 8-729-216-22 TRANSISTOR 2SA1162-G Q106 8-729-209-15 TRANSISTOR 2SD2012 Q107 8-729-209-60 TRANSISTOR 2SB1375 Q108 8-729-111-29 TRANSISTOR 2SD1616A-K Q109 8-729-230-49 TRANSISTOR 2SC2712-YG Q110 8-729-140-05 TRANSISTOR 2SB1116A-K Q111 8-729-209-15 TRANSISTOR 2SD2012 Q112 8-729-209-60 TRANSISTOR 2SB1375 Q113 8-729-230-49 TRANSISTOR 2SC2712-YG www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 TA-E9000ES Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark POWER Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Q114 8-729-216-22 TRANSISTOR 2SA1162-G Q115 8-729-140-05 TRANSISTOR 2SB1116A-K Q116 8-729-111-29 TRANSISTOR 2SD1616A-K Q117 8-729-209-60 TRANSISTOR 2SB1375 Q118 8-729-424-08 TRANSISTOR UN2111 Q119 8-729-209-60 TRANSISTOR 2SB1375 Q120 8-729-209-60 TRANSISTOR 2SB1375 Q121 8-729-209-60 TRANSISTOR 2SB1375 Q123 8-729-018-59 TRANSISTOR 2SB1375(LB-SONY) Q124 8-729-018-60 TRANSISTOR 2SD2012-LC Q125 8-729-018-59 TRANSISTOR 2SB1375(LB-SONY) Q126 8-729-018-60 TRANSISTOR 2SD2012-LC Q127 8-729-230-49 TRANSISTOR 2SC2712-YG R101 1-208-445-41 RES-CHIP 2.2K 2% 1/10W R102 1-208-462-41 RES-CHIP 10K 2% 1/10W R103 1-208-462-41 RES-CHIP 10K 2% 1/10W R104 1-208-445-41 RES-CHIP 2.2K 2% 1/10W R105 1-208-445-41 RES-CHIP 2.2K 2% 1/10W R106 1-208-445-41 RES-CHIP 2.2K 2% 1/10W R107 1-208-518-41 RES-CHIP 22K 2% 1/10W R108 1-216-641-11 METAL CHIP 390 1% 1/10W R109 1-216-641-11 METAL CHIP 390 1% 1/10W R110 1-208-462-41 RES-CHIP 10K 2% 1/10W R111 1-208-462-41 RES-CHIP 10K 2% 1/10W R112 1-208-526-41 RES-CHIP 47K 2% 1/10W R113 1-208-462-41 RES-CHIP 10K 2% 1/10W R114 1-259-995-11 CARBON MELF 1K 2% 1/8W R115 1-259-995-11 CARBON MELF 1K 2% 1/8W R116 1-208-445-41 RES-CHIP 2.2K 2% 1/10W R117 1-208-462-41 RES-CHIP 10K 2% 1/10W R118 1-259-930-11 CARBON MELF 4.3K 2% 1/8W R119 1-259-995-11 CARBON MELF 1K 2% 1/8W R120 1-259-999-11 CARBON MELF 2.2K 2% 1/8W R121 1-259-995-11 CARBON MELF 1K 2% 1/8W R122 1-259-999-11 CARBON MELF 2.2K 2% 1/8W R123 1-259-930-11 CARBON MELF 4.3K 2% 1/8W R124 1-216-627-11 METAL CHIP 100 1% 1/10W R125 1-208-462-41 RES-CHIP 10K 2% 1/10W R126 1-208-462-41 RES-CHIP 10K 2% 1/10W 0R127 1-249-451-11 CARBON 2.2 5% 1/4W 0R128 1-249-451-11 CARBON 2.2 5% 1/4W 0R129 1-249-451-11 CARBON 2.2 5% 1/4W 0R130 1-249-451-11 CARBON 2.2 5% 1/4W R131 1-208-462-41 RES-CHIP 10K 2% 1/10W R132 1-208-437-41 RES-CHIP 1K 2% 1/10W R133 1-208-437-41 RES-CHIP 1K 2% 1/10W R134 1-208-437-41 RES-CHIP 1K 2% 1/10W R135 1-216-671-11 METAL CHIP 6.8K 1% 1/10W R136 1-208-462-41 RES-CHIP 10K 2% 1/10W R137 1-208-445-41 RES-CHIP 2.2K 2% 1/10W R138 1-208-774-11 RES-CHIP 470 2% 1/10W R139 1-208-462-41 RES-CHIP 10K 2% 1/10W R140 1-208-774-11 RES-CHIP 470 2% 1/10W R141 1-216-655-11 METAL CHIP 1.5K 1% 1/10W R142 1-216-655-11 METAL CHIP 1.5K 1% 1/10W 0R143 1-217-153-00 METAL 0.47 10% 2W 0R144 1-217-153-00 METAL 0.47 10% 2W 0R145 1-217-153-00 METAL 0.47 10% 2W 0R146 1-217-153-00 METAL 0.47 10% 2W R150 1-208-462-41 RES-CHIP 10K 2% 1/10W R151 1-208-462-41 RES-CHIP 10K 2% 1/10W R152 1-208-445-41 RES-CHIP 2.2K 2% 1/10W R153 1-208-550-41 RES-CHIP 470K 2% 1/10W R154 1-208-462-41 RES-CHIP 10K 2% 1/10W R155 1-208-462-41 RES-CHIP 10K 2% 1/10W R156 1-208-462-41 RES-CHIP 10K 2% 1/10W R157 1-260-298-51 CARBON 3.3 5% 1/2W R158 1-208-462-41 RES-CHIP 10K 2% 1/10W R160 1-208-437-41 RES-CHIP 1K 2% 1/10W R161 1-208-437-41 RES-CHIP 1K 2% 1/10W R162 1-208-437-41 RES-CHIP 1K 2% 1/10W R163 1-208-437-41 RES-CHIP 1K 2% 1/10W R164 1-208-437-41 RES-CHIP 1K 2% 1/10W R165 1-208-437-41 RES-CHIP 1K 2% 1/10W R166 1-208-453-41 RES-CHIP 4.7K 2% 1/10W R167 1-208-526-41 RES-CHIP 47K 2% 1/10W R168 1-208-437-41 RES-CHIP 1K 2% 1/10W R169 1-208-437-41 RES-CHIP 1K 2% 1/10W R180 1-216-044-00 METAL CHIP 620 5% 1/10W R181 1-216-044-00 METAL CHIP 620 5% 1/10W R182 1-216-044-00 METAL CHIP 620 5% 1/10W R183 1-216-044-00 METAL CHIP 620 5% 1/10W R184 1-216-044-00 METAL CHIP 620 5% 1/10W R185 1-216-044-00 METAL CHIP 620 5% 1/10W R186 1-216-044-00 METAL CHIP 620 5% 1/10W R187 1-216-044-00 METAL CHIP 620 5% 1/10W R188 1-216-121-11 RES-CHIP 1M 5% 1/10W R189 1-216-121-11 RES-CHIP 1M 5% 1/10W R190 1-216-121-11 RES-CHIP 1M 5% 1/10W THP159 1-806-882-11 THERMISTOR, POSITIVE ****************************************************** www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TA-E9000ES REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 1998.10 New 1.1 2002.08 Correction of waveformes and exploded views. SUPPLEMENT-1: Change of digital and power boards. (SPM-02061) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
