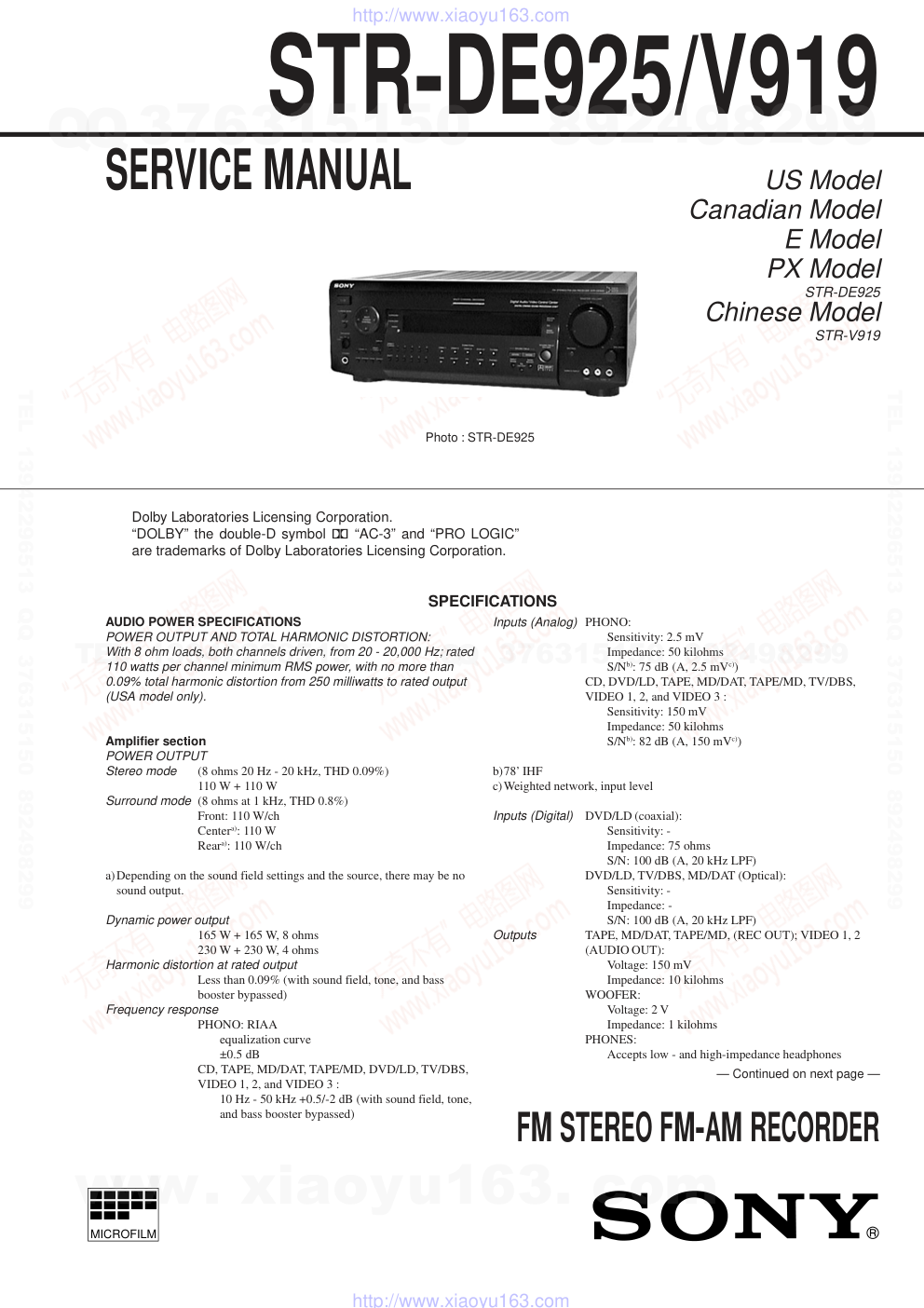

US Model Canadian Model E Model PX Model STR-DE925 Chinese Model STR-V919 SERVICE MANUAL MICROFILM — Continued on next page — SPECIFICATIONS Dolby Laboratories Licensing Corporation. “DOLBY” the double-D symbol a “AC-3” and “PRO LOGIC” are trademarks of Dolby Laboratories Licensing Corporation. FM STEREO FM-AM RECORDER Photo : STR-DE925 AUDIO POWER SPECIFICATIONS POWER OUTPUT AND TOTAL HARMONIC DISTORTION: With 8 ohm loads, both channels driven, from 20 - 20,000 Hz; rated 110 watts per channel minimum RMS power, with no more than 0.09% total harmonic distortion from 250 milliwatts to rated output (USA model only). Amplifier section POWER OUTPUT Stereo mode (8 ohms 20 Hz - 20 kHz, THD 0.09%) 110 W + 110 W Surround mode (8 ohms at 1 kHz, THD 0.8%) Front: 110 W/ch Centera): 110 W Reara): 110 W/ch a)Depending on the sound field settings and the source, there may be no sound output. Dynamic power output 165 W + 165 W, 8 ohms 230 W + 230 W, 4 ohms Harmonic distortion at rated output Less than 0.09% (with sound field, tone, and bass booster bypassed) Frequency response PHONO: RIAA equalization curve ±0.5 dB CD, TAPE, MD/DAT, TAPE/MD, DVD/LD, TV/DBS, VIDEO 1, 2, and VIDEO 3 : 10 Hz - 50 kHz +0.5/-2 dB (with sound field, tone, and bass booster bypassed) Inputs (Analog) PHONO: Sensitivity: 2.5 mV Impedance: 50 kilohms S/Nb): 75 dB (A, 2.5 mVc)) CD, DVD/LD, TAPE, MD/DAT, TAPE/MD, TV/DBS, VIDEO 1, 2, and VIDEO 3 : Sensitivity: 150 mV Impedance: 50 kilohms S/Nb): 82 dB (A, 150 mVc)) b)78’ IHF c)Weighted network, input level Inputs (Digital) DVD/LD (coaxial): Sensitivity: - Impedance: 75 ohms S/N: 100 dB (A, 20 kHz LPF) DVD/LD, TV/DBS, MD/DAT (Optical): Sensitivity: - Impedance: - S/N: 100 dB (A, 20 kHz LPF) Outputs TAPE, MD/DAT, TAPE/MD, (REC OUT); VIDEO 1, 2 (AUDIO OUT): Voltage: 150 mV Impedance: 10 kilohms WOOFER: Voltage: 2 V Impedance: 1 kilohms PHONES: Accepts low - and high-impedance headphones www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 2 — BASS BOOST +6 dB at 70 Hz Sampling Frequency 48 kHz EQ BASS: 100 Hz ~ 1.0 kHz (21 steps) MID: 500 Hz ~ 5.0 kHz (21 steps) TREBLE: 1.0 kHz ~ 10 kHz (21 steps) Gain levels: ±10 dB, 1 dB step FM tuner section Tuning range 87.5 - 108.0 MHz Antenna terminals 75 ohms, unbalanced Sensitivity Mono: 18.3 dBf, 4.5 µV Stereo: 38.3 dBf, 45 µV Usable sensitivity 11.2 dBf, 2 µV (IHF) S/N Mono: 76 dB Stereo: 70 dB Harmonic distortion at 1 kHz Mono: 0.3 % Stereo: 0.5 % Separation 45 dB at 1 kHz Frequency response 30 Hz - 15 kHz +0.5/-2 dB Selectivity 60 dB at 400 kHz AM tuner section Tuning range With 10-kHz tuning scale: 530 - 1710 kHzd) (US, Canadian) 530 - 1610 kHzd) (Except US, Canadian) With 9-kHz tuning scale: 531 - 1710 kHzd) (US, Canadian) 531 - 1602 kHzd) (Except US, Canadian) Antenna Loop antenna Usable sensitivity 50 dB/m (at 1,000 kHz or 999 kHz) S/N 54 dB (at 50 mV/m) Harmonic distortion 0.5% (50 mV/m, 400 kHz) Selectivity At 9 kHz: 35 dB At 10 kHz: 40 dB d)You can change the AM tuning scale to 9 kHz. After tuning in any AM station, turn off the receiver. Hold down the TUNING + button and press the 1/u button. All preset stations will be erased when you change the tuning scale. To reset the scale to 10 kHz, repeat the procedure. Video section Input 1 Vp-p 75 ohms Outputs 1 Vp-p 75 ohms General System Tuner section: PLL quartz-locked digital synthesizer system Preamplifier section: Low- noise NF type equalizer Power amplifier section: Pure-complementary SEPP Power requirements US and Canadian models: 120 V AC, 60 Hz E, PX, Saudi Arabia models : 120/220/240 V AC selectable, 50/60 Hz Singapore, Chinese, Malaysia models : 220 - 230 V AC, 50/60 Hz Power consumption US, Singapore, Chinese, Malaysia: 290 W Canadian: 480 VA E, PX, Saudi Arabia: 310W AC outlets 2 switched, total 100 W Dimensions 430 × 370 × 157.5 mm (17 × 145/8 × 61/4 in.) including projecting parts and controls Mass (Approx.) 10.5 kg (23 lb 3 oz) Supplied accessories • FM wire antenna (1) • AM loop antenna (1) • Remote commander RM-LJ301 (remote) (1) • LR6 (size-AA) alkaline batteries (3) • Audio/video/control S connecting cord (1) • Control S connecting cord (1) Design and specifications are subject to change without notice. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 3 — SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE ! SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPÉMENTS PUBLIÉS PAR SONY. TABLE OF CONTENTS After correcting the original service problem, perform the following safety checks before releasing the set to the customer: Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microampers). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) SAFETY CHECK-OUT To Exposed Metal Parts on Set 0.15µF 1.5kΩ AC voltmeter (0.75V) Earth Ground Fig. A. Using an AC voltmeter to check AC leakage. 1. GENERAL ······································································ 4 2. TEST MODE····························································6 3. DIAGRAMS 3-1. Circuit Boards Location ····················································· 7 3-2. Block Diagram — Main Section — ··································· 9 3-3. Block Diagram — Power Section — ······························· 11 3-4. Printed Wiring Board — AMP Section — ······················· 13 3-5. Schematic Diagram — AMP Section — ·························· 15 3-6. Printed Wiring Board — Video Section — ······················ 17 3-7. Schematic Diagram — Video Section — ························· 19 3-8. Printed Wiring Board —AUDIO Section — ···················· 21 3-9. Schematic Diagram — AUDIO Section — ······················ 23 3-10. Printed Wiring Board — Input Section — ······················· 25 3-11. Schematic Diagram — Input Section — ·························· 27 3-12. Printed Wiring Board — Display Section — ··················· 29 3-13. Schematic Diagram — Display Section — ······················ 31 3-14. Printed Wiring Board — SPEAKER Section — ·············· 33 3-15. Schematic Diagram — SPEAKER Section —················· 35 3-16. Printed Wiring Board — Power Section — ····················· 37 3-17. Schematic Diagram — Power Section — ························ 39 3-18. Printed Wiring Board — DIGATAL (SIDE A) Section —41 3-19. Printed Wiring Board — DIGATAL (SIDE B) Section —43 3-20. Schematic Diagram — DIGITAL Section (1/3) — ·········· 45 3-21. Schematic Diagram — DIGITAL Section (2/3) — ·········· 47 3-22. Schematic Diagram — DIGITAL Section (2/3) — ········· 49 3-23. IC Pin Function Description ············································ 51 3-24. IC Block Diagrams ··························································· 61 4. EXPLODED VIEWS 4-1. Front Panel Section ·························································· 64 4-2. Chassis Section ································································· 65 5. ELECTRICAL PARTS LIST ··································· 66 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 4 — SECTION 1 GENERAL LOCATION AND FUNCTION OF CONTROLS [FRONT PANEL] Photo : STR-V919 1 1/u (POWER) button 2 MULTI CURSOR CONTROL 3 SURROUND, EQUALIZER, INDEX indicators 4 DIRECT TUNING button 5 VIDEO 1 button 6 MULTI CHANNEL DECODING indicator 7 TV/DBS button (DE925) 7 TV/LD button (V919) 8 SOUND FIELD GENRE button 9 SOUND FIELD MODE button 0 SOUND FIELD, EQ, BASS BOOST indicators !¡ MASTER VOLUME control !™ BALANCE control !£ VIDEO 3 INPUT !¢ MUTING button !∞ SOUND FIELD ON/OFF button !§ BASS BOOST button !¶ EQ ON/OFF button !• INPUT MODE button !ª PHONO button @º DVD/LD @¡ TUNER button @™ VIDEO 3 button @£ CD button @¢ VIDEO 2 button @∞ MD/DAT button @§ TAPE button @¶ Numeric buttons @• SHIFT button @ª DISPLAY button #º MEMORY button #¡ FM/AM button #™ FM MODE button #£ SLEEP button #¢ PHONES jack #∞ TUNING +, – buttons #§ SPEAKERS A, B switche #¶ PRESET TUNING +, – buttons #• SET UP button #ª CURSOR MODE button 1 2 3 4 5 6 7 8 9 0 !¡� !™� !£� !¢� !∞� !§� !¶� !•� !ª� @º� @¡� @™� @£� @¢� @∞� @§� @¶� @•� @ª�� #º� #¡� #™� #£� #¢� #∞� #§� #¶� #•� #ª� www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 5 — [REAR PANEL] Photo : STR-V919 1 DIGITAL 2 ANTENNA (FM/AM) 3 TV/DBS (DE925) 3 TV/LD (V919) 4 DVD/LD (DE925) 4 DVD (V919) 5 VIDEO 2 6 VIDEO 1 7 MONITOR 8 S-LINK (US,Canadian model) 8 S-LINK (MY,SP,CH model) 9 WOOFER 0 SPEAKERS (REAR) !¡ SPEAKER (CENTER) !™ WIRELESS REAR SPEAKER !£ IMPEDANCE SELECTOR !¢ AC power cord !∞ AC OUTLET !§ FRONT SPEAKERS (A/B) !¶ TAPE/MD !• SPEAKERS (FRONT) !ª CD @º PHONO @¡ y SIGNAL GND Abbriviation MY: Malaysia SP: Singapore CH: Chinese 1 2 3 4 5 6 7 8 9 0 !¡� !™� !£� !¢� !∞� @¡�@º�!ª� !•� !¶� !§� www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 6 — SECTION 2 TEST MODE FLUORESCENT INDICATOR TUBE TEST MODE * All fluorescent segments are tested. When this test is activated, all segments turn on at the same time, then each segment turns on one after another. * Procedure: While depressing the SET UP and the SOUND FIELD MODE buttons simultaneously, press the power [1/u] button to turn on the main power. All segments turn on at the same time, then each segment turns on one after another. FACTORY SET MODE * All preset contents are reset to the default setting. * Procedure: While depressing the SET UP and the SOUND FIELD ON/OFF buttons simultaneously, press the power [1/u] button to turn on the main power. The message FACTORY SET appears and the present contents are reset to the default values. ALL CLEAR MODE * All preset contents are cleared when this mode is activated. Use this mode before returning the product to clients upon completion of repair. * Procedure: While depressing the DISPLAY and the SOUND FIELD ON/ OFF buttons simultaneously, press the power [1/u] button to turn on the main power. The machine enters the DEMO mode.DEMO mode: Wait a while, then the demonstration starts. If the power [1/u] button is pressed often the demonstration has started, the power is turned off, and the demonstration resumes if the power [1/u] button is pressed again. ALL CLEAR mode; If the power [1/u] button is pressed often the machine enters the DEMO mode, but before the demonstration starts, the display is turned off. Press [1/u] again. No response is returned. The press [1/u] again. The preset data is cleared and the machine enters the normal power-on state. SOUND FIELD CLEAR MODE * The preset sound field is cleared when this mode is activated. Use this mode before returning the product to clients upon completion of repair. * Procedure: While depressing the SOUND FIELD ON/OFF button, press the power [1/u] button to turn on the main power. The message SURR CLEAR! appears and initialization is performed. AM CHANNEL STEP 9 kHz/10 kHz SELECTION MODE * Either the 9 kHz step or 10 kHz step can be selected for the AM channel step. * Procedure: Set the FUNCTION to AM. Turn off the main power. While depressing the TUNING+ button or the PRESET TUNING + button, press the power [1/u] button to turn on the main power. Either the message AM 9kHz STEP or AM 10kHz STEP appears. Select the desired step. DSP TEST MODE * Procedure: While depressing the SET UP and the SOUND FIELD GENRE buttons simultaneously, press the power [1/u] button to turn on the main power. The message DSP NO ERROR or DSP ERROR. DTS MODE * Procedure: While depressing the MULTI CURSOR CONTROL UP [>] and DOWN [.] buttons simultaneously, press the power [1/u] button to turn on the main power. The message ATTENUATE OFF or ATTENUATE ON. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DE925/V919 — 7 — — 8 — SECTION 3 DIAGRAMS 3-1. CIRCUIT BOARDS LOCATION For schematic diagrams. Note: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • % : indicates tolerance. • 2 : nonflammable resistor. • 1 : fusible resistor. • C : panel designation. • U : B+ Line. • V : B– Line. • H : adjustment for repair. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. No mark : FM • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal production tolerances. • Waveforms are taken with a oscilloscope. • Circled numbers refer to waveforms. • Signal path. F : FM J : CD c : DIGITAL I : PHONO • Abbreviation CND :Canadian EA :Saudi Arabia MY :Malaysia SP :Singapore CH :Chinese THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this necessary note is printed in each block.) Note: The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Note: Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. • Waveform SW board H.P board SP SW board DISPLAY board BALANCE board SP board REAR AMP board AC board AMPLIFIER board S-LINK board (US,CND) S-VIDEO board (MY,SP,CH) VIDEO board TUNER board D.IN/OUT board DIGITAL board AUDIO board INPUT board JOINT board VOLUME board L.B board F-VIDEO board REG board LED board 1 IC1201 (™ (XO) 2 IC1101 @¶ (X OUT) 3 IC1101 @ª (CLK OUT) 4 IC102 *™ (XO) 5 IC181 !§ (X OUT) 4.0Vp-p 5.5Vp-p 5.4Vp-p 3.0Vp-p 3.5Vp-p 4MHz 24.576MHz 12.288MHz 4.0MHz 7.28MHz For printed wiring boards. Note: • X : parts extracted from the component side. • ® : Through hole. • b : Pattern from the side which enables seeing. • Abbreviation CND :Canadian MY :Malaysia SP :Singapore CH :Chinese w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DE925/V919 — 9 — — 10 — 3-2. BLOCK DIAGRAM – MAIN SECTION – • Abbreviation CND :Canadian EA :Saudi Arabia MY :Malaysia SP :Singapore CH :Chinese L 60 DATA FM AM FM 75Ω AM DO TUNED TMUTE STEREO DATA CLK CE L OUT R OUT TUNER UNIT DO TUNED TMUTE STEREO S DATA S CLK S LAT R CH R CH : FM : CD • Signal Path • RCH is omitted PHONO L CD J301 L INPUT L OUTPUT J302 J001 MD/DAT M OUT 1 J201 MONITOR J202 J203 TV/LD DVD VIDEO 2 VIDEO 1 V1 IN 13 V1 OUT 15 V2 IN 9 V2 OUT 11 TV 3 LD 5 8 VEE 16 VCC 14 SW1 10 SW2 4 SW3 6 SW4 3 2 VIDEO SELECT IC201 -5V REG IC202 -15V +5V 3 2 1 7 5 10 4 8 11 CONTROL CE 13 CLK 15 DI 14 AUDIO SELECT IC301 MUTE Q302 S LAT S CLK S DATA 3 1 EQ AMP IC302 MUTE Q304 IC407 MUTE Q354 RY301 RELAY DRIVE Q301 IC408 RV401 VOLUME RV402 BALANCE L C W SL M UP DOWN V-A 81 SYSTEM CONTROL IC1201 V-B 82 V-E 83 V INH 80 16 61 AUTO STOP 62 STEREO 97 TUNER MUTE S DATA S CLK S LAT DO TUNED STEREO TMUTE 57 DATA 58 CLOCK 56 LATCH D : PHONO J299 VIDEO L AUDIO VIDEO 3 V3 IN 7 1 2 7 9 4 11 CONTROL CE 13 CLK 15 DI 14 SELECTOR IC303 S LAT S CLK S DATA 6 8 L TAPE INPUT L OUTPUT Y V1 O 3 VIDEO 1 INPUT 5 TV 15 1 LD M O Y SWITCH IC252 C Y J252 VIDEO 1 OUTPUT Y C C C SWITCH IC251 C Y J251 MONITOR OUTPUT TV/LD J253 J252 J303 V1 O 3 13 TV 15 1 V1 I M O 13 V1 I C Y DVD 5 LD L TV/DBS L J305 VIDEO2 INPUT INPUT L OUTPUT L VIDEO1 OUTPUT L INPUT J304 TM301 ANTENNA 4 14 15 13 2 3 1 10 12 6 9 L INPUT DVD/LD 10 IR LINK DET IC001 DVD/LD IR LINK DET IC002 TV/DBS IR LINK DET IC003 MD/DAT IR LINK DET IC004 MD/DAT (INPUT) (OUTPUT) DVD/LD COAXIAL IC007 14 SW1 10 SW2 4 SW3 6 SW4 14 SW1 10 SW2 4 SW3 6 SW4 INPUT OUTPUT INPUT INPUT OUTPUT OUTPUT DVD/LD TV/DBS INPUT CH, SP, MY MODEL DE925 MODEL V919 MODEL 15 14 13 12 4 3 2 1 SELECT SWITCH IC1005 5 B C A 11 10 9 B C A IC1006 76 SWDT 111 A 110 B 109 C A B C 78 SCLK 77 XLAT 2 RESET 75 SRDT DIGITAL AUDIO I/F RECEIVER IC1101 D IN 47 RESET 11 SWDT 40 SCLK 42 XLAT 41 XO 27 XI 26 X1101 24.576MHz 35 D OUT 29 CLK 34 BCK 36 LRCK 30 ERROR 38 SRDT X1301 49.152MHz IC1102 IC1102 IC1305 IC1305 IC1305 13 10 CLOCK DIVIDE IC1403 IC1305 IC1102 IC1108 MEMORY IC1302 A0-7 D0-7 LATCH IC1303 IC1304 A8-15 D0-7 EMRD 5 EXTMEM 21 CLK 30 SDATA1 22 SDATA2 27 MCLK 44 SCK 43 SCLK1 25 SCLK2 28 RCLK 42 LRCLK1 26 LRCLK2 29 DOLBY DIGITAL AUDIO DECODER IC1301 41 AUDATA0 40 AUDATA1 39 AUDATA2 D0-7 SCCLK 7 16 SCCLK SCD IN 6 CS 18 RESET 36 15 SCDOUT 17 CS 20 RESET 20 INTREQ 19 SCDOUT 19 INTREQ 18 SCDIN Q1204 Q1205 IC1202 67 D1201 14 ANALOG/DIG ERROR A0-7 D0-7 SRAM IC1402 SIA 117 SIB 118 SIC 119 XWE 74 XOE 70 25 32 16 20 23 25 . HD0 HD7 D0-7 AD0 AD7 21 XHDWR 35 HA0 AUDIO DSP IC1401 HA0 15 XHDWR 9 XHDRD 10 XHDCS 14 XRST 26 22 XHDRD 24 XHDCS 23 HRDY 36 XRST 13 HRDY 5 SOD 37 SOD 6 CDTO IC1202 IC1202 Q1206 Q1207 5 CDTI 4 CCLK 3 CS 7 PD 108 RY DIRECT PASS 2 SOA CLK1 99 LRCK 115 BCK0 113 3 SOB 4 SOC 27 L OUT1 LIN- 29 AUDIO CODEC IC1103 CDTO 44 CDTI 43 CCLK 42 CS 41 PD 17 SDTO 9 MCLK1 39 BCLK 4 LRCK 5 SDTI 1 6 SDTI 2 7 SDTI 3 8 LIN+ 30 IC304 IC1104 IC1104 23 L OUT3 IN 14 DATA 9 CLK 8 LAT 10 15 OUT DATA CLK LAT IC414 IN 3 DATA 9 CLK 8 LAT 10 2 OUT DATA CLK LAT IN 14 15 OUT IC407 IC410 IC410 IN 14 DATA 9 CLK 8 LAT 10 15 OUT DATA CLK LAT IC406 MUTE Q303 IC409 IC405 24 R OUT3 25 L OUT2 IC1104 IC1105 IC1105 IC1106 VOL CONT IC416 VOL CONT IC415 VOL CONT LED DRIVE Q120 LED VOL MUTE CONT Q1201 85 FUN MUTE Q1202 Q1203 U DATA 52 DISP DATA 55 DISP CLK 51 DISP MR 53 SREQ 10 SOTO 9 SINO 87 MD2 89 MD0 90 RESET U CLOCK U MREQ U SREQ SOTO SINO MD2 MD0 U REST B A 107 RY POWER RY POWER 48 EV STB 50 EV CLK 49 EV DATA LAT CLK DATA 84 AC MUTE 79 PROTETOR 106 RY HP 101 RY FRONT A 102 RY FRONT B 103 RY CENTER 105 RY WOOFER 104 RY REAR AC MUTE PROTECTOR RY HP RY FRONT A RY FRONT B RY CENTER RY WOOFER RY REAR C 92 XO 93 XI X1201 4MHz 64 STOP STOP : DIGITAL S-VIDEO w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DE925/V919 — 11 — — 12 — 3-3. BLOCK DIAGRAM – POWER SECTION – • Abbreviation CND :Canadian EA :Saudi Arabia MY :Malaysia SP :Singapore CH :Chinese RELAY DRIVE Q601 LIMITER Q504 14 5 15 6 1 2 3 VEE VCC IN MUT +VE NF -VE 13 VCC POWER AMP(L) IC501 L +B -B LIMITER Q505 BOOSTER Q506 BOOSTER Q507 CUR DET Q508 PROTECTOR Q509,510 Q511 LIMITER Q604 9 15 12 11 VEE IN +VE NF -VE 13 VCC POWER AMP(C/W) IC601 C +B -B LIMITER Q605 BOOSTER Q606 BOOSTER Q607 CUR DET Q608 PROTECTOR Q609,610 Q611 LIMITER Q704 MUTE Q501,503 14 5 15 6 1 2 3 VEE VCC IN MUT +VE NF -VE 13 VCC POWER AMP(SL) IC701 SL +B -B LIMITER Q705 BOOSTER Q706 BOOSTER Q707 CUR DET Q708 8 RY602 RELAY DRIVE Q546 RY501 RELAY DRIVE Q596 RY502 RELAY DRIVE Q645 RY601 RELAY DRIVE Q749 RY701 RELAY DRIVE Q544 RY503 RELAY DRIVE Q901 RY901 J501 C S(L) S(R) R CH R CH WIRELESS REAR SPEAKER CNJ701 SURROUND SPEAKER WOOFER J701 PHONES TM701 FRONT SPEAKER TM501 R CH R CH POWER CONT IC901 5 8 3 6 DELAY +B SW Q902 SWITCH Q747,748 D801 SWITCH Q614,618 INV SW Q617 SWITCH Q613,616 SWITCH Q612,615 PROTECTOR Q547-549 F2 F1 +5.6V F801 F802 D802-805 +B -B IMPEDANCE SELECTOR 8 4 S501 F901 D901-904 CNJ901 CNP901 AC IN L R :FM :CD D • Signal Path • RCH is omitted IN W 6 14 VCC 2 +VE 3 -VE 1 +18V REG IC702 3 F803 F804 1 +3.3V REG 3 3 +5V REG 1 IC809 +24V -24V 1 5V REG 3 IC809 IC801 IC802 CNJ901 T902 MODE CONTROL IC102 STOP A AC MUTE PROTECTOR REMOTO CONTROL RECEIVER IC101 26 SIRCS Q101 RESET Q105 77 RESET POWER S131 POWER KEY 74 F2 F1 16 JW925 MY, SP, CH MODEL MY, SP MODEL 47 STOP I/R CONT IC181 I/O BUFFER Q182 RESET Q181 11 14 12 5 33 2 LAT 98 15 16 X102 7.28MHz I/R DET IC180 LED DRIVE Q183,184 D184-186 URESET TV/DBS MONITOR VIDEO 1 VIDEO 2 S-LINK J204 J256 J255 J257 J258 LEVEL CONTROL Q257,258 BUFFER Q253 11 4 LEVEL CONTROL Q255,256 LEVEL CONTROL Q254 3 2 5 6 7 1 IC254 SWITCH Q251,252 ST-I/O IC251 US,CND MODEL 1 MUT D1202 D1203 2 -15V REG IC402 3 3 +15V REG IC401 1 1 +12V REG IC403 3 3 +5V REG IC404 1 -15V +15V TU +12V TU +5V +32V REG +32V Q801 D808 F805 1 +3.3V REG 3 IC803 D5V D3.3V D3.3V T901 F904 JW903 F903 US,CND MODEL US, CND, E, EA, CH, PX MODEL E, EA, PX MODEL VOLTAGE SELECTOR 91 LED ON/OFF DOUT 3 RY HP RY FRONT A FRONT B RY CENTER RY WOOFER RY REAR 58 URESET B ABUS A1 IN 63 I/O BUFFER Q180 ABUS OUT 67 FLOURESCENT INDICATOR TUBE FL101 29 DIN 26 LAT 34 CLK 24 CLR 4 LS 29 CLK 5 CL 30 DIN FL DAT 24 FL CLK 21 FL LAT 24 FL CLEAR 25 SPEAKER SWITCH FUNCTION KEY SP B 73 SP A 72 AD KEY6 44 MUTING S102 6 FUNCTION KEY AD KEY1 38 S106,110,114,118 S122,126,128,130 FUNCTION KEY AD KEY2 39 S105,109,113,117 S121,125,127,129 FUNCTION KEY AD KEY3 40 S104,108,112 S116,120,124 FUNCTION KEY AD KEY4 41 S103,107,111 S115,119,122 FUNCTION KEY AD KEY5 43 S140-145,147 S132,133 S135-139,146 S134 49 MD0 87 LED BASS B 89 LED SOUND FIELD 92 LED DOLBY DIGITAL LED DRIVE D100,108 D119,122 Q107,108 Q119,122 14 LED SUR 15 LED EQ 16 LED INDEX LED DRIVE D104-106 Q103,104 Q106 90 LED MUTE LED DRIVE D101 Q102 5 LED TV/DBS 4 LED DVD/LD 3 LED V3 LED DRIVE D111-113 D116-118 Q111-113 Q118-116 8 LED CD 9 LED TUNER 10 LED PHONO 7 LED MD/DAT 6 LED TAPE LED DRIVE D114,115 Q114,115 2 LED V2 1 LED V1 LED DRIVE D109,110 Q109,110 VIDEO 2 94 VIDEO 1 93 M BUS 96 TV 95 IC254 IC254 UP 55 DOWN 56 LED VOL 88 8 7 3 2 MOTOR DRIVE IC251 IC106 UP DOWN LED VOL B 51 MD2 20 SINO 19 SOTO 61 UDATA 62 UCLOCK 60 UMREQ 59 USEQ USREQ UMREQ UCLOCK UDATA SOTO SINO MD2 MD0 82 XO 83 XI X101 VS901 IC105 IC104 FL DRIVE FL DRIVE RY POWER S-LINK EXCEPT E, EA, PX MODEL w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DE925/V919 — 13 — — 14 — 3-4. PRINTED WIRING BOARD — AMP SECTION — • Semiconductor Location • See page 7 for Circuit Boards Location. 1 2 A B C D E F G H I J 3 4 5 6 7 8 9 10 11 12 13 Ref. No. Location D501 E-6 D502 E-6 D503 E-6 D504 E-6 D505 B-4 D506 B-4 D545 B-3 D546 E-3 D547 D-12 D548 D-12 D549 D-12 D551 E-11 D552 E-11 D553 E-11 D554 E-11 D555 C-4 D556 B-4 D601 E-8 D602 E-8 D603 E-8 D604 E-9 D608 C-11 D647 D-3 D648 E-4 D801 C-8 D802 D-10 D803 C-9 D804 D-10 D805 D-10 D806 B-10 D807 D-8 IC809 C-12 Q504 E-6 Q505 E-6 Q506 E-5 Q507 F-7 Q508 E-7 Q509 B-4 Q510 B-4 Q511 B-4 Q546 B-11 Q547 D-12 Q548 D-12 Q549 D-12 Q554 E-11 Q555 E-11 Q556 E-10 Q557 E-12 Q558 E-12 Q559 C-4 Q560 B-4 Q561 B-4 Q596 B-11 Q601 B-11 Q604 E-9 Q605 E-8 Q606 E-8 Q607 E-9 Q608 E-9 Q612 E-4 Q613 D-4 Q614 D-4 Q615 E-3 Q616 D-3 Q617 D-3 Q618 D-3 Q801 D-8 1 1 1 11 11 11 R N L P I O X 1-670-027- 11 (11) 1-670-006- 11 (11) 1-670-025- 11 (11) B C E B C E B C E B C E B C E B C E B C E B C E B C E Q506 Q505 Q507 Q606 Q605 Q607 Q556 Q555 Q557 1 2 E E E E E E E E E 1 1 3 1 3 3 1 3 M Q 1 7 E E E 1 6 E E 5 1 E E E E E E E E E E E E B B A B A A B A AMPLIFIER BOARD JOINT BOARD H.P BOARD TM501 FRONT SPEAKERS J701 PHONES R L 1 3 16 (Page 34) (Page 34) (Page 37) (Page 26) (Page 37) (Page 43) (Page 33) (Page 25) (Page 33) + ∼ ∼ − w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DE925/V919 — 15 — — 16 — 3-5. SCHEMATIC DIAGRAM — AMP SECTION — , PX , PX , PX w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DE925/V919 — 17 — — 18 — 3-6. PRINTED WIRING BOARD — VIDEO SECTION — Ref. No. Location D201 C-2 D202 C-2 D251 I-11 D252 I-11 IC201 C-2 IC202 C-4 IC251 H-13 IC251 H-5 IC252 H-12 IC254 H-3 Q251 H-7 Q252 H-6 Q253 H-2 Q254 G-6 Q255 G-6 Q256 G-6 Q257 H-4 Q258 H-4 • Semiconductor Location • See page 7 for Circuit Boards Location. 1 2 A B C D E F G H I J 3 4 5 6 7 8 9 10 11 12 13 14 1-670-003- 11 (11) 1-670-012- 11 (11) 1-670-004- 11 (11) 1-670-013- 11 (11) S-VIDEO BOARD F-VIDEO BOARD VIDEO BOARD S-LINK BOARD 1 8 9 16 1 8 9 16 MONITOR CTRL S IN VIDEO 3 INPUT CTRL A1 CTRL S OUT VIDEO 2 VIDEO 1 CTRL S OUT TV/ DBS CTRL S E E E E E E E E 1 1 7 8 14 4 5 8 C J 1 5 VIDEO AUDIO L R S-LINK VIDEO OUT MONITOR VIDEO OUT VIDEO IN VIDEO 1 VIDEO OUT VIDEO IN VIDEO 2 VIDEO IN VIDEO IN DVD/LD TV/DBS MONITOR VIDEO 1 DVD TV/LD 1 1 1 4 8 9 16 3 MY,SY,CH MODEL US,CND MODEL (US,CND MODEL) (MY,SY,CH MODEL) 16 (Page 29) (Page 25) (DE925) TV/LD (V919) (DE925) (V919) DVD w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DE925/V919 — 19 — — 20 — 3-7. SCHEMATIC DIAGRAM — VIDEO SECTION — • See pages 61 for IC Block Diagrams. (Page27) (Page31) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DE925/V919 — 21 — — 22— 3-8. PRINTED WIRING BOARD — AUDIO SECTION — • See page 7 for Circuit Boards Location. Ref. No. Location IC303 G-8 IC408 C-5 IC409 C-5 IC410 B-5 • Semiconductor Location 1 2 A B C D E F G H I J 3 4 5 6 7 8 9 10 11 12 13 E K S D F A 1-670-011- 11 (11) 1-670-015- 11 (11) 1-670-000- 11 (11) 1-670-001- 11 (11) AUDIO BOARD VOLUME BOARD BALANCE BOARD TUNER BOARD TV/DBS TV/LD R L DVD/LD DVD R L OUTPUT OUTPUT VIDEO 2 R L INPUT R L VIDEO 1 R L INPUT R L J305 J304 BALANCE MASTER VOLUME 4 1 30 16 1 15 1 1 1 1 1 10 11 11 5 1 8 1 8 1 8 16 RR108 (Page26) (Page25) (Page43) (Page26) (Page25) (Page29) (DE925) (DE925) (V919) (V919) TM301 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DE925/V919 — 23 — — 24 — 3-9. SCHEMATIC DIAGRAM — AUDIO SECTION — (Page28) (Page28) (Page32) (Page27) (Page27) (Page47) (V919) (DE925) (DE925) (V919) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DE925/V919 — 25 — — 26 — 3-10. PRINTED WIRING BOARD — INPUT SECTION — • See page 7 for Circuit Boards Location. Ref. No. Location D301 F-10 IC301 C-4 IC302 D-4 IC304 E-6 IC401 C-12 IC402 B--12 IC403 D-12 IC404 E-4 IC405 E-12 IC406 D-12 IC407 D-12 IC414 B-11 IC415 C-11 IC416 D-11 IC501 C-9 IC601 D-7 IC701 C-7 Q301 F-11 Q302 E-11 Q303 E-11 Q304 D-11 Q352 E-11 Q353 D-10 Q354 D-11 Q501 C-10 Q503 C-10 • Semiconductor Location 1-670-026- 11 (11) INPUT BOARD IN IN PHONO R L R L R L R L R L R L IN CD REC OUT MD/DAT TAPE IN REC OUT G J I D E R H V K F 1 10 1 3 1 2 E E E E E E E 1 8 9 16 1 8 9 16 1 8 9 16 1 3 1 3 1 1 8 1 8 1 8 3 1 8 3 3 3 1 1 1 15 16 30 1 5 5 4 8 1 1 1 15 1 13 1 6 1 15 1 1 14 15 E E 16 (Page14) (Page34) (Page22) (Page14) (Page21) (Page43) (Page34) (Page22) (Page18) (Page22) 1 2 A B C D E F G 3 4 5 6 7 8 9 10 11 12 13 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DE925/V919 — 27 — — 28 — 3-11. SCHEMATIC DIAGRAM — INPUT SECTION — • See page 61 for IC Block Diagrams. (Page23) (Page23) (Page23) (Page49) (Page15) (Page35) (Page36) (Page16) (Page24) (Page20) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DE925/V919 — 29 — — 30 — 3-12. PRINTED WIRING BOARD — DISPLAY SECTION — • See page 7 for Circuit Boards Location. 1-670-009- 11 (11) 1-670-007- 11 (11) 1-670-014- 11 (11) 1-670-008- 11 (11) 1-670-010- 11 (11) DISPLAY BOARD SW BOARD SP SW BOARD LED BOARD L.B BOARD 1 2 (MULTI CHANNEL DECODING) 1 4 1 4 SHIFT MUTING TAPE MD/DAT CD TUNER PHONO INPUT MODE CURSOR MODE SET UP MEMORY DISPLAY (INDEX) (EQUALIZER) (SURROUND) (SOUND FIELD) (EQ) (BASS BOOST) FM/AM FM MODE SLEEP TUNING PRESET TUNING SPEAKERS GENRE MODE TV/DBS DVD/LD VIDEO 3 VIDEO 2 VIDEO 1 DIRECT TUNING 0 9 8 7 6 2 3 4 5 1 SOUND FIELD SOUND FIELD ON/OFF EQ ON/OFF BASS BOOST 1 4 1 4 1 5 B A A+B OFF Z B C A 4 4 1 1 1 4 9 4 1 4 1 4 1 E E E E E E E E E E E E E E E E E 1 7 64 1 44 34 33 23 22 12 11 MULTI CURSOR CONTROL 1 5 1 1 100 81 80 51 50 31 30 E E E E E E E E E 1 3 CNS107 1 2 2 1 3 1 2 3 4 CH MODEL CH MODEL EXCEPT MY,SP,CH MODEL EXCEPT CH MODEL MY,SP,CH MODEL E,EA,MY,SP,CH MODEL 16 (Page17) (Page43) (Page21) (Page43) 1 2 A B C D E F G H I J K 3 4 5 6 7 8 9 10 11 12 13 14 15 Ref. No. Location D100 H-2 D101 E-2 D102 B-13 D103 B-9 D104 C-12 D105 C-12 D106 C-12 D108 C-3 D109 J-6 D110 J-7 D111 J-7 D112 J-8 D113 J-9 D114 I-6 D115 I-7 D116 I-7 D117 I-8 D118 I-9 D119 D-3 D120 I-13 D121 I-14 D122 C-3 D180 B-3 D181 D-13 D182 E-11 D183 E-11 D184 C-11 D185 C-12 D186 C-11 IC101 C-4 IC102 D-6 IC103 C-1 IC104 D-8 IC105 C-7 IC180 E-12 IC181 E-13 Q101 C-4 Q102 B-4 Q103 B-11 Q104 B-11 Q105 C-4 Q106 B-11 Q107 B-6 Q108 B-4 Q109 B-11 Q110 B-11 Q111 B-12 Q112 B-12 Q113 B-12 Q114 B-12 Q115 B-12 Q116 B-12 Q117 B-13 Q118 B-13 Q119 B-4 Q120 B-4 Q122 B-3 Q180 B-3 Q181 C-14 Q182 C-14 Q183 C-13 Q184 C-13 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DE925/V919 — 31 — — 32 — 3-13. SCHEMATIC DIAGRAM — DISPLAY SECTION — • See page 8 for Waveform. • See page 51 for IC Pin Function Description. • See page 61 for IC Block Diagrams. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DE925/V919 — 33 — — 34 — 3-14. PRINTED WIRING BOARD — SPEAKER SECTION — • See page 7 for Circuit Boards Location. 1 2 A B C D E F G H I J 3 4 5 6 7 8 9 10 11 12 13 H Q U V X N M 1-670-002- 11 (11) 1-670-035- 11 (11) SP BOARD REAR AMP BOARD WOOFER REAR CENTER IMPEDANCE SELECTOR 1 4 1 1 5 6 E E E E E E E E E E 1 3 4-8 TM701 WIRELESS REAR SPEAKER 1 3 E E B C E B C E B C E B B C C E E E E B C E 1 6 16 Q609 (Page26) (Page13) (Page14) (Page14) (Page25) (Page43) (Page13) Ref. No. Location • Semiconductor Location D543 I-5 D605 H-8 D606 H-9 D607 I-9 D649 G-5 D701 C-12 D702 C-12 D703 C-11 D704 B-11 D705 I-4 D706 I-4 D749 G-2 D751 C-5 D752 C-5 D753 C-3 D754 B-4 IC702 G-11 Q544 I-6 Q609 G-9 Q610 H-9 Q611 H-9 Q645 G-8 Q704 C-12 Q705 B-11 Q706 B-13 Q707 B-10 Q708 C-14 Q709 I-3 Q710 I-3 Q745 I-7 Q747 G-9 Q748 G-10 Q754 C-4 Q755 B-4 Q756 B-5 Q757 B-3 Q758 B-2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DE925/V919 — 35 — — 36 — 3-15. SCHEMATIC DIAGRAM — SPEAKER SECTION — (Page28) (Page15) (Page15) (Page16) (Page28) (Page47) (Page16) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DE925/V919 — 37 — — 38 — 3-16. PRINTED WIRING BOARD — POWER SECTION — • See page 7 for Circuit Boards Location. 1 2 A B C D E F G H I J 3 4 5 6 7 8 9 10 11 12 13 Ref. No. Location • Semiconductor Location D808 C-3 D901 D-4 D902 D-4 D903 D-4 D904 C-4 D905 C-4 D906 C-4 D907 G-8 IC801 E-2 IC802 F-3 IC803 G-3 IC901 F-4 Q901 D-4 Q902 G-4 T O P 1-669-998- 11 (11) 1-670-005- 11 (11) T902 1 4 1 4 E E 5 8 4 1 1 3 1 3 1 1 3 6 AC BOARD REG BOARD AC IN US,CND MODEL EXCEPT E,EA,PX MODEL US,CND,E,EA,CH,PX MODEL US,CND E,EA,PX MODEL MY,SP MODEL E,EA,PX MODEL E, EA, PX MODEL EXCEPT E, EA, PX MODEL MY,SP,CH MODEL MY,SP MODEL E,EA,PX MODEL CNJ901 AC OUTLET CNJ901 AC OUTLET VOLTAGE SELECTOR 16 EB900 EB901 T901 POWER TRANSFORMER 1 2 3 1 2 3 4 5 6 (Page14) (Page14) (Page43) E,EA,PX MODEL w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DE925/V919 — 39 — — 40 — 3-17. SCHEMATIC DIAGRAM — POWER SECTION — • See page 61 for IC Block Diagrams. (Page16) (Page16) (Page49) E, EA, PX MODEL E, EA, PX MODEL E, EA, PX MODEL , PX MODEL E, EA, PX MODEL EXCEPT E, EA, PX MODEL E, EA, PX MODEL w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DE925/V919 — 41 — — 42 — 3-18. PRINTED WIRING BOARD — DIGITAL (SIDE A) SECTION — • See page 7 for Circuit Boards Location. DIGITAL BOARD (SIDE A) D. IN/OUT BOARD (SIDE A) 1-670-029- 11 (11) 1-670-028- 11 (11) 1 8 9 16 1 10 11 20 1 10 11 20 1 1 7 7 8 8 14 14 E E E E 7 8 14 1 7 8 14 1 40 44 39 1 6 7 17 18 28 29 1 7 8 14 30 31 60 61 90 91 120 1 1 22 23 44 1 44 11 12 22 23 33 34 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 IC1154 E E E 91 90 61 60 31 30 1 1 120 25 24 13 12 36 37 1 48 16 1 2 A B C D E F G H I J 3 4 5 6 7 8 9 10 11 12 13 14 D1201 H-4 D1205 G-8 IC1005 D-13 IC1006 C-13 IC1007 B-13 IC1101 F-10 IC1102 E-11 IC1103 D-2 IC1104 F-4 IC1105 F-2 IC1106 F-3 IC1107 F-4 IC1108 E-10 IC1154 F-5 IC1201 F-7 IC1202 B-6 IC1301 C-8 IC1302 C-10 IC1303 D-9 IC1304 D-10 IC1305 D-7 IC1401 C-5 IC1402 C-3 IC1403 D-8 Q1201 H-3 Q1202 H-3 Q1203 H-3 Q1204 E-9 Q1205 E-9 Q1206 E-9 Q1207 E-8 Ref. No. Location • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DE925/V919 — 43 — — 44 — 3-19. PRINTED WIRING BOARD — DIGITAL (SIDE B) SECTION — • See page 7 for Circuit Boards Location. MD/DAT OUT DIGITAL BOARD (SIDE B) D. IN/OUT BOARD (SIDE B) 1-670-029- 11 (11) 1-670-028- 11 (11) B J1001 DVD LD IN DVD LD IN TV/DBS IN COAXIAL IC1004 MD/DAT IN IC1003 IC1002 IC1001 1 3 1 3 1 1 6 3 1 3 OPTICAL 3 1 6 6 1 1 1 1 2 20 21 1 1 11 2 28 29 7 1 3 1 7 CNP10 CNP12 CNP11 CNP14 CNP15 CN12 CNS11 CNS10 R1319 C1130 C1132 C1134 C1136 C1138 C1120 C1122 C1170 C1172 C1128 C1176 C1125 C1175 C1124 C1174 C1501 C1409 C1201 C1105 C1102 C1502 C1115 C1123 C1173 C1126 C1113 C1139 C1140 IC1501 X1301 C1309 FB1101 FB1102 L G S U Z T 16 CNS13 (Page30) (Page14) (Page37) (Page34) (Page29) (Page26) (Page22) 1 2 A B C D E F G H I J 3 4 5 6 7 8 9 10 11 12 13 Ref. No. Location • Semiconductor Location D1202 F-4 D1203 F-3 D1204 G-2 IC1001 E-11 IC1002 D-11 IC1003 C-11 IC1004 C-11 IC1501 D-7 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DE925/V919 — 45 — — 46 — 3-20. SCHEMATIC DIAGRAM — DIGITAL SECTION (1/3)— • See page 51 for IC Pin Functions. • See page 61 for IC Block Diagrams. (Page47) (Page48) (Page49) (Page49) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DE925/V919 — 47 — — 48 — 3-21. SCHEMATIC DIAGRAM — DIGITAL SECTION (2/3)— • See page 51 for IC Pin Functions. • See page 8 for Waveforms. (Page45) (Page46) (Page49) (Page32) (Page49) (Page15) (Page31) (Page36) (Page24) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DE925/V919 3-22. SCHEMATIC DIAGRAM — DIGITAL SECTION (3/3)— • See page 51 for IC Pin Functions. • See page 8 for Waveforms. • See page 61 for IC Block Diagrams. — 49 — — 50 — (Page46) (Page46) (Page48) (Page39) (Page27) ! w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 51 — I/O I I I I/O I/O I I I O I I I O — — I I I I I I O O O O O O I I Description SDTO source select pin “L”: internal ADC output, “H”: DAUX input ORed with serial control register if P/S = “L” (Connected to GND) MCKO clock frequency select pin “L”: MCLK, “H”: MCLK/2. ORed with serial control register if P/S = “L” (Connected to GND) Audio data master/slave mode select pin “L”: slave mode, “H”: master mode (Connected to GND) Audio serial data clock pin Input/output channel clock pin DAC1 audio serial data input pin DAC2 audio serial data input pin DAC3 audio serial data input pin Audio serial data output pin AUX audio serial data input pin (Connected to GND) Double speed sampling mode pin “L”: normal speed, “H”: double speed ORed with serial control register if P/S = “L” (Connected to GND) De-emphasis pin ORed with serial control register if P/S = “L” (Connected to GND) Master clock output pin (Not used) Digital power supply pin Digital ground pin Power-down & reset pin When “L”, the AK4526 is powered-down and the control registers are reset to default state. If the state of P/S, M/S, CAD0-1 changes, then the AK4526 must be reset by PD. X’tal oscillator select/test mode pin “H”: X’tal oscillator selected “L”: External clock source selected “NC”: If pin is floating then test mode is enabled. (Connected to GND) Input clock select 1 pin (Connected to GND) Input clock select 0 pin (Connected to GND) Chip address pin Used during the serial control mode. (Connected to GND) Chip address pin Used during the serial control mode. (Connected to GND) Lch #3 analog output pin Rch #3 analog output pin Lch #2 analog output pin Rch #2 analog output pin Lch #1 analog output pin Rch #1 analog output pin Lch analog negative input pin Lch analog positive input pin Pin Name SDOS MCLK S/M BCLK LRCK SDT11 SDT12 SDT13 SDTO DAUX DFS DEM1 – DEM0 MCKO D. 5V D. GND PD TEST ICKS1 ICKS0 CAD1 CAD0 LOUT3 ROUT3 LOUT2 ROUT2 LOUT1 ROUT1 LIN– LIN+ Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 – 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 3-23. IC PIN FUNCTION DESCRIPTION IC1103 AK4526 (DIGITAL BOARD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 52 — Pin No. 31 32 33 34 35 36 37 38 39 40 41 42 43 44 I/O I I I O I — — I I I I I I O Description Rch analog negative input pin Rch analog positive input pin Negative voltage reference input pin, AVSS (Connected to GND) Common voltage output pin, AVDD/2 Large external capacitor is used to reduce power-supply noise Positive voltage reference input pin, AVDD Analog power supply pin Analog ground pin X’tal input pin (Not used) External master clock input pin if XTS = “L” Parallel/serial select pin “L”: serial control mode, “H”: parallel control mode (Connected to GND) Chip select pin in serial mode Control data clock pin in serial mode Control data input in serial mode Control data output pin in serial mode Pin Name RIN– RIN+ VREFL VCOM VREFH A. 5V A. GND XTI MCLKI S/P CS CCLK CDTI CDTO If pins TEST, ICKS0, ICKS1, PD, S/P, DFS, DEM0, DEM1, CAD0, CAD1, S/M, MCLK, SDOS are not driven, then TEST, ICKS0, ICKS1, CAD0, CAD1, must be tied to either AVSS or AVDD. PD, S/P, DFS, DEM0, DEM1, S/M, MCLK, SDOS must be tied to either DVSS or DVDD. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 53 — IC1401 CXD2712R (DIGITAL BOARD) Pin No. 1 2 – 5 6, 7 8 9 10 11 12 13 14 15 16 – 20 21 22 23 – 25 26 27 – 30 31 32 – 40 41 42 43 – 49 50 51 52 53 – 60 61 62 – 69 70 71 72 73 74 75 76 – 80 81 82 83 –89 90 I/O — O I NC I I — — O I I I/O — — I/O I O — I/O — — I/O I — — I/O — I/O O — — O O O I/O — — I/O O Description GND Serial data output Conditional jump input terminal (7pin Connected to GND) No connection HCIF data write HCIF data read GND +3.3V HCIF ready signal Open drain HCIF chip select HCIF address input HCIF data input/output GND +3.3V HCIF data input/output Reset input “L”: active Test data output GND External RAM data input/output GND +3.3V External RAM data input/output Test data input “L” = normal “H” = test (Connected to GND) GND +3.3V External RAM data input/output GND External RAM data input/output External RAM output enable GND +3.3V External RAM column address strobe (Not used) External RAM write enable (Not used) External RAM raw address strobe External RAM address output/test data input GND +3.3V External RAM address output/test data input External RAM address output Pin Name VSS3 SOA – SOD ECJ0, ECJ1 — XHDWR XHDRD VSS4 VDD2 HRDY XHDCS HA0 HD0 – HD4 VSS5 VDD3 HD5 – HD7 XRST FGP0 – FGP3 VSS6 ED0 – ED8 VSS7 VDD4 ED9 – ED15 TSTD VSS8 VDD5 ED16 – ED23 VSS9 ED24 – ED31 XOE VSS10 VDD6 CAS XWE RAS EA0 – EA4 VSS11 VDD7 EA5 – EA11 EA12 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 54 — Pin No. 91 92 – 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 – 120 I/O — O O I I O I O — — — — I/O I I I O O — — I I I I I Description GND External RAM address output Not used Test data input “L” = normal “H” = test (Connecting to GND) PLL input frequency select “L” = 256Fs “H” = 128Fs (Connecting to GND) PLL output frequency select “L” = 768Fs “H” = 1024Fs (Connecting to GND) Master clock input Master clock output (Not used) GND +3.3V GND for PLL cell VDD for PLL cell PLL output/test clock input PLL cell oscillation enable “L” oscillation enable “H” oscillation stop (Connecting to GND) Test data input “L” = normal “H” = test (Connecting to GND) Frequency counter input (Connecting to GND) LRCK0 divider output BCK0 divider output GND +3.3V BCK input BCK input LRCK input LRCK input Serial data input Pin Name VSS0 EA13 – EA15 EA16 TSTA PLDIVF PLDIVB CLKI CLKO VSS1 VDD0 AVSS AVDD PLLCK XPLLEN TST LRCT LROUT BKOUT VSS2 VDD1 BCK0 BCK1 LRCK0 LRCK1 SIA – SID www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 55 — IC1101 CAD8495AQ (DIGITAL BOARD) Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 I/O Pin Name O O I O I — O I I I I — — — I — I O — O O O I — — I O O O O — O O O O O O O O I I I — I I I I — EIAJ data and parity flag output terminal (Not used) Emphasis monitor output terminal (“H” = ON) Input terminal for RC generator/oscillator Output terminal for RC generator/oscillator Microprocessor I/F select input terminal (CCB: H, @SUB@: L) (Connecting to GND) Digital GND Clock output select terminal ( “L” = 256fs, “H” = 128fs) (Connecting to GND) Clock input select terminal ( “H” = 512fs, “L” = 384fs) Test terminal (normally ground) Test terminal (normally ground) Reset input terminal Digital power supply No connect Analog power supply Input terminal for VCO generator band adjustment Analog GND Input terminal for VCO self running frequency set External LPF for PLL is connected to this terminal Digital power supply CD subcode I/F and block sync output terminal (Not used) CD subcode I/F and data output terminal (Not used) CD subcode I/F and frame sync output terminal (Not used) CD subcode I/F and shift clock input terminal for data reading (Not used) Digital GND Digital power supply Crystal oscillator input terminal Crystal oscillator output terminal VCO and crystal oscillator clock output terminal (Not used) 256fs or 128fs clock output terminal (Select CLKMD terminal) Error mute output terminal Digital GND Sampling frequency monitor output terminal Sampling frequency monitor output terminal Bit clock output terminal Audio data output terminal L, R clock output terminal (L-ch: “H”, R-ch: “L”) Microprocessor I/F and subcode Q data sync output terminal (Not used) Microprocessor I/F. When CCB/SUB is “L”, data output terminal (3-state output) Microprocessor I/F. When CCB/SUB is “H”, data output terminal (high level open drain output) (Not used) Microprocessor I/F. Data input terminal Microprocessor I/F. Chip enable/latch input terminal Microprocessor I/F. Clock input terminal Digital power supply Amplifier integrate data input terminal (Connecting to GND) Amplifier integrate data input terminal (Connecting to GND) Amplifier integrate data input terminal (Connecting to GND) Amplifier integrate data input terminal Digital GND DOUT/V EMPHA RC1 RC2 CCB/SUB D. GND CLKMD CLK TEST1 TEST2 RESET D. VDD NC A. VDD R A. GND VCO IN VCO D. VDD SBSY PW SFSY SBCK D. GND D. VDD XIN XOUT CLK OUT1 CLK OUT2 ERROR D. GND SUB1 SUB2 BCLK DATA OUT LRCK LD/DQSY SRDT DO DI/SWDT CE/XLAT CL/SCLK D. VDD DIN1 DIN2 DIN3 DIN4 D. GND Description www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 56 — IC1201 MB90574PFV-G-146-BND (DIGITAL BOARD) Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 I/O Description Pin Name — RESET CS CCLK CDT1 CDTO PD VCC SIN0 SOT0 — — — ANA/DIG SCDIN SDLK CS SCDIO/OUT INTREQ RESET XHDWR XHDRD HRDY XHDCS HD 0 HD 1 HD 2 HD 3 HD 4 HD 5 HD 6 HD 7 VSS C HA0 XRST SOD DVCC DVSS — — AVCC AVR+ AVR- AVSS — — EVSTB EVDATA EVCLK — O O O I O O — I O — — — O I O O O I O O O I O O O O O O O O O — — O O I — — — — — — — — — — O O O Not used (Connected to GND) RF demodulator/DIR reset To AK4526 chip select To AK4526 clock To AK4526 data input To AK4526 data output To AK4526 reset Power supply +5 V UART input. Used for rewriting flash memory UART output. Used for rewriting flash memory Not used (Connected to GND) Not used (Not connected, open) Not used (Not connected, open) Analog/digital selection (74HC157) To CS4926 data input To CS4926 clock To CS4926 chip select To CS4926 SPI data out To CS4926 interrupt request To CS4926 reset To CXD2712 data write To CXD2712 data read To CXD2712 ready To CXD2712 chip select To CXD2712 data I/O To CXD2712 data I/O To CXD2712 data I/O To CXD2712 data I/O To CXD2712 data I/O To CXD2712 data I/O To CXD2712 data I/O To CXD2712 HD7 GND (Connected to GND) External power regulator capacitor 0.1µ is connected to this terminal. To CXD2712 address To CXD2712 reset To CXD2712 LFE detection Digital power supply +5 V Digital GND (Connected to GND) Not used (Connected to GND) Not used (Connected to GND) Analog power supply +5 V Power supply +5 V GND (Connected to GND) GND (Connected to GND) Not used (Connected to GND) Not used (Connected to GND) To TC9299 strobe To TC9299 data To TC9299 clock www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 57 — Pin No. 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 I/O Description Pin Name DISPMR DISPDATA SLV DTA/REQ VCC DISP CLK LAT DATA CLK — DATA IN AUSTOP STEREO VSS STOP CCB/SUB EMPHA ERROR SUB 1 SUB 2 — — @U@/CED — — SRDT SWDT XLAT SCLK PROTEC VIDEO-INH VIDEO-A VIDEO-B VIDEO-E ACMUTE FUNMUTE HSTX MD 2 MD 1 MD 0 RESET VSS X 0 X 1 VCC P 00 P 01 TUNER MUT SURR MUT 7E/8E — I I O — I O O O — I I I — I I I O I I — — I — — I O O O I O O O O O O — — — — I — — — — I I O O I — Display master request (Connected to MB90553 U.MREQ) Display data (Connected to MB90553 U.DATA) Slave data/request (Connected to MB90553 U.SREQ) Power supply +5 V Display clock (Connected to MB90553 U.CLOCK) To tuner TM301 latch To tuner TM301 data To tuner TM301 clock Not used (Connected to GND) PLL data input Auto stop input Stereo input GND (Connected to GND) AC power check Not used (Connected to GND) Not used (Connected to GND) Error output to CXD8495AQ Not used (Connected to GND) Not used (Connected to GND) Not used (Connected to GND) Not used (Connected to GND) U or CED (STR only) Not used (Not connected, open) Not used (Not connected, open) To CXD8495AQ C-bit To CXD8495AQ data To CXD8495AQ latch To CXD8495AQ clock Protector input Video output inhibit To NJM2296 video select A To NJM2296 video select B To NJM2296 video select E IC muting Function muting Hardware standby (Connected to power supply +5 V) MD2 (To MB90553 MD2) MD1 (Connect to power supply) MD0 (To MB90553 MD0) Reset (Connected to MB90553 U.RESET) GND (Connected to GND) External ceramic filter 4 MHz is connected to this terminal External ceramic filter 4 MHz is connected to this terminal Power supply +5 V Flash memory rewrite (Connected to GND) Flash memory rewrite (Connected to GND) Tuner muting Surround muting (Connected to GND) Not used (Connected to GND) Not used (Connected to GND) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 58 — Pin No. 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 I/O Description Pin Name RY-FRONT/A RY-FRONT/B RY-CENTER RY-REAR WOOFER-RY RY-HP RY-POWER RY-DIR-PASS DIG-IN 2 DIG-IN 1 DIG-IN 0 TEST 0 TEST 1 TEST 2 — — — — VSS — O O O O O O O O I I I — — — — — — — — — Front speaker A relay Front speaker B relay Center speaker relay Rear speaker relay Sub Woofer relay Head phone relay Power relay Direct pass relay Digital input select 2 (74HC151) Digital input select 1 (74HC151) Digital input select 0 (74HC151) Test port 0 (Not connected, open) Test port 1 (Not connected, open) Test port 2 (Not connected, open) Not used (Connected to GND) Not used (Connected to GND) Not used (Connected to GND) Not used (Connected to GND) GND (Connected to GND) Not used (Connected to GND) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 59 — IC102 MB90553PF-G-121-BND (DISPLAY BOARD) Description VIDEO 1 VISUAL display data output to LED VIDEO 2 AUDIO display data output to LED VIDEO 3 VISUAL display data output to LED DVD/LD AUDIO display data output to LED DVD/LD VISUAL display data output to LED TV/DBS AUDIO display data output to LED TV/DBS VISUAL display data output to LED TAPE display data output to LED MD/DAT display data output to LED CD display data output to LED GND (Connected to GND) Not used. (Connected to GND) Not used. (Connected to GND) CURSOR MODE SURROUND display data output to LED CURSOR MODE EQUIPMENT display data output to LED CURSOR MODE INDEX display data output to LED Not used. (Connected to GND) Not used. (Connected to GND) UART data output to rewrite flash memory UART data intput to rewrite flash memory Clock output to flourescent display tube Data output to flourescent display tube Power supply +5 V Fluorescent latch Fluorescent clear SIRCS input External power regulator capacitor 0.1µ is connected to this terminal. Not used (Connected to GND) Not used (Connected to GND) Not used (Connected to GND) Not used (Connected to GND) Not used (Connected to GND) Not used (Connected to GND) Analog power supply +5 V AVRH (Connected to power supply +5 V) SVRL (Connected to GND) GND (Connected to GND) Key input 1 Key input 2 Key input 3 Key input 4 GND (Connected to GND) Key input 5 Key input 6 Version input Model input Stop input Not used (Connected to GND) MD 0 (To MD0 of MB90574) MD 1 (Connected to power supply +5 V) Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 I/O Pin Name LED V1 LED V2 LED V3 LED-DVD/LD LED-TV/DBS LED-TAPE LED-MD/DAT LED-CD LED-TUNER LED-PHONO VSS — — LED SUR LED EQ LED INDEX — — SOT0 SIN0 FL CLK FL DATA VCC FL LAT FL CLEAR SIRCS IN C — — — — — — AVCC AVRH AVRL AVSS AD KEY IN 1 AD KEY IN 2 AD KEY IN 3 AD KEY IN 4 VSS AD KEY IN 5 AD KEY IN 6 AD VERSION AD MODEL STOP — MD 0 MD 1 O O O O O O O O O O — — — O O O — — O I O O — O O I — — — — — — — — — — — I I I I — I I I I I — I I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 60 — Pin No. 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 I/O Description Pin Name MD 2 HSTX RDS CLOCK RDS DATA VOL UP VOL DOWN — U-RESET U-SREQ U-MREQ U-DATA U-CLOCK AUBUS-IN — — — AUBUS-OUT — FUNCTION-UP FUNCTION-DW — SP-A SP-B POW-KEY IN — — RESET — — — VSS X0 X1 VCC — — LED BASS. B LED VOL LED SOUND FIELD LED MUTE LED EQ ON/OFF LED DOLBY DIGITAL MBUS-V1 MBUS-V 2 MBUS-TV MBUS-STATUS — LAT — — I I I I O O — O I O O O I — — — O — I I — I I I — — I — — — — — — — — — O O O O O O I I I I — O — — MD 2 (To MD2 of MB90574) Hardware STANDBY input RDS clock input RDS data input Volume up data output Volume down data output Not used (Connected to GND) Reset output (Connected to MB90574 RESET) Slave request and data input (Connected to MB90574 SLV DATA/REQ) Master request output (Connected to MB90574 DISPMR) Master data output (Connected to MB90574 DISP DATA) Master clock output (Connected to MB90574 DISPCLK) Audio bus input Not used (Connected to GND) Not used (Connected to GND) Not used (Connected to GND) Audio bus output Not used (Connected to GND) Function encoder up input Function encoder down input Not used (Connected to GND) Speaker A selector switch input Speaker B selector switch input Power key input Not used (Connected to GND) Not used (Connected to GND) Reset (Display MCU) Not used (Connected to GND) Not used (Connected to GND) Not used (Connected to GND) GND (Connected to GND) External ceramic filter 4 MHz is connected to this terminal External ceramic filter 4 MHz is connected to this terminal Power supply +5 V Not used. (Connected to GND) Not used. (Connected to GND) BASS. B display data output to LED VOLUME display data output to LED SOUND FIELD display data output to LED MUTE display data output to LED EQ ON/OFF display data output to LED DOLBY/DIGITAL display data output to LED V1 input from MBUS V2 input from MBUS TV input from MBUS STATUS input from MBUS Not used. (Connected to GND) Learning microprocessor latch output Not used. (Connected to GND) Not used. (Connected to GND) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 61 — 3-24. IC BLOCK DIAGRAMS IC201 NJM2296D (VIDEO BOARD) IC1403 TC74VHC393FT(EL) (DIGITAL BOARD) 14 13 12 11 10 9 8 1 2 3 4 5 6 7 QA QB QC QD A CLEAR VCC QA QB QC QD A CLEAR GND IC1005 TC74HC151AF (EL) (D. IN/OUT BOARD) IC1108 MC74HC00AF (DIGITAL BOARD) 1 2 3 4 5 6 7 8 16 15 14 13 12 11 10 9 D3 D2 D1 D0 Y W S C D4 D5 D6 D7 A B D3 D2 D1 D0 Y XY OE GND VCC D4 D5 D6 D7 A B C 1 2 3 4 5 6 7 8 14 13 12 11 10 9 IN1 IN1 IN2 IN2 OUT1 OUT2 GND VDD IN3 IN3 OUT3 IN4 IN4 OUT4 IC1301 CS4926 (DIGITAL BOARD) 9 S5 S6 S7 S4 S1 S2 S3 Vout1 Vout2 Vout3 V- GND SW3 SW2 SW1 SW5 SW4 Vin1 Vin2 Vin3 Vin4 Vin5 V+ 10 11 12 13 14 15 16 1 5 2 3 4 6 7 8 DATA0,EMAD0,GPIO0 DATA1,EMAD1,GPIO1 DATA2,EMAD2,GPIO2 DATA3,EMAD3,GPIO3 DATA4,EMAD4,GPIO4 DATA5,EMAD5,GPIO5 DATA6,EMAD6,GPIO6 DATA7,EMAD7,GPIO7 VSS2 VDD2 A0,SCCLK WR, DS, EMWR, GPIO10 MCLK CLK IN XMT958 EXTMEM, GPIO8 PARALLEL or SERIAL HOST INTERFACE COMPRESSED DATA INPUT INTERFACE SP DIF RECEIVER DIGITAL AUDIO INPUT INTERFACE PLL CLOCK MANAGER RAM INPUT BUFFER RAM OUTPUT BUFFER OUTPUT FORMATTER 30 CMPREQ,LRCKN2 29 CLKSEL 31 FILTD 32 FILTS 33 VDDA 34 VSSA 35 RESET 36 DD 37 DC 38 21 ABOOT, INTREQ 20 SCDIO, SCDOUT, PSEL, GPIO9 19 CMPCLK, SCLKN2 28 CMPDAT, RCV958, SDATAN2 27 LRCKN1 26 SCLKN1, STCCLK2 25 VSS3 24 VDD3 23 SDATAN1 22 CS 18 7 44 SCLK 43 LRCLK 42 AUDATA0 41 AUDATA1 40 AUDATA2 39 4 RD, R/W, EMOE, GPIO11 5 A1, SCDIN 6 3 FRAMER SHIFTER INPUT BUFFER CONTROLLER 17 16 15 14 13 12 11 10 9 8 VSS1 2 VDD1 1 RAM PROGRAM MEMORY RAM DATA MEMORY ROM PROGRAM MEMORY ROM DATA MEMORY 24-Bit DSP PROCESSING STC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 62 — IC1101 CXD8495AQ (DIGITAL BOARD) TIMING GENERATOR 37 38 39 40 41 42 43 44 45 46 47 48 24 23 22 21 20 19 18 17 16 15 14 13 1 2 3 4 5 6 7 8 9 10 11 12 35 36 34 33 32 31 30 29 28 27 26 25 X' TAL OSC MUTING OUTPUT ERROR LOCK DETECTION DATA DEMODULATOR MICRO COMPUTER INTERFACE MULTI PLEXER TEST PLL CIRCUIT CD SUB-CODE DETECTION LD/DQSY SRDT D0 DI/SWDT CE/XLAT CL/SCLK D VDD DIN1 DIN2 DIN3 DIN4 DGND D GND SBCK SFSY PW SBSY D VDD VCO V IN A GND R A VDD N.C. LRCK DATA OUT BCLK SUB 2 SUB 1 D GND ERROR CLK OUT2 CLK OUT1 X OUT X IN D VDD DOUT/V EMPHA RC1 RC2 CCB/SUB D GND CLKMD CLK TEST1 TEST2 X MODE D VDD IC901 NJM2103D (REG BOARD) 1 2 3 4 5 6 7 8 V+ VSB/SESIN VSA RESET GND OUTC VSC CR VREF + – – + – + – + Q R S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 63 — IC301 LC7822 (INPUT BOARD) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 CONTROL LATCH SHIFT RESISTOR LEVEL SHIFT CL DI CE VEE OUT IN OUT IN OUT IN VSS S RESET VDD OUT IN IN OUT IN OUT IN IC414, IC415, IC416 TC9299P (INPUT BOARD) 1 2 3 4 5 6 7 8 9 10 16 15 14 13 12 11 VSS OUT IN NC A-GND CS1 GND CK L-ch L-CH DATA LATCH CIRCUIT R-CH DATA LATCH CIRCUIT LEVEL SHIFT CIRCUIT SHIFT REGISTER (13bit) STROBE GENERATOR CIRCUIT LEVEL SHIFT CIRCUIT VDD OUT IN NC A-GND CS2 STB DATA R-ch IC501, IC601, IC701 uPC2581V (INPUT BOARD) 2 3 5 4 6 7 9 8 1 MUTE + VOUT1 – VOUT1 COMP1 MF1 IN1 GND IN2 NF2 COMP2 – VOUT2 + VOUT2 VCC1 VCC2 VEE PROTECTOR BIAS CIRCUIT REG DRIVE PRE DRIVE 11 10 12 13 15 14 DRIVE PRE DRIVE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NOTE: • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Hardware (# mark) list and accessories and packing materials are given in the last of this parts list. • Abbreviation CND : Canadian CH : Chinese EA : Saudi Arabia MY : Malaysia SP : Singapore • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) ↑ Cabinet’s Color Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks SECTION 4 EXPLODED VIEWS — 64 — When indicating parts by reference number, please include the board name. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. 4-1. FRONT PANEL SECTION rA : L.B board rB : BALANCE board 1 4-957-383-01 KNOB (F14) (BLACK) 1 4-957-383-21 KNOB (F14) (GOLD) 2 X-4949-751-1 KNOB ASSY (U8) (BLACK) 2 X-4949-752-1 KNOB ASSY (C8) (GOLD) 3 4-998-717-01 KNOB (BAL) (BLACK) 3 4-998-717-11 KNOB (BAL) (GOLD) 4 4-996-698-01 EMBLEM, SONY (SILVER) 4 4-996-698-11 EMBLEM, SONY (GOLD) 5 X-4949-854-1 PANEL ASSY(U9),FRONT(BLACK)(US,CND) 5 X-4949-855-1 PANEL ASSY(C9),FRONT(GOLD) (CH) 5 X-4949-911-1 PANEL ASSY, FRONT (BLACK) (E,EA,MY,SP,PX) 6 4-989-850-01 BUTTON (BB) (BLACK) 6 4-989-850-11 BUTTON (BB) (GOLD) * 7 1-670-010-11 SP SW BOARD * 8 A-4414-064-A DISPLAY BOARD, COMPLETE (US,CND) * 8 A-4414-082-A DISPLAY BOARD, COMPLETE (E,EA,PX) * 8 A-4414-087-A DISPLAY BOARD, COMPLETE (MY,SP) * 8 A-4414-130-A DISPLAY BOARD, COMPLETE (CH) * 9 1-670-007-11 LED BOARD * 10 4-982-682-01 CASE (414532) (BLACK) (US,CND,E,EA,PX) 10 X-4947-722-1 CASE ASSY (BLACK) (MY,SP) 10 X-4947-723-1 CASE ASSY (GOLD) (CH) 11 3-710-901-01 SCREW, TAPPING (GOLD) 11 3-710-901-11 SCREW, TAPPING (BLACK) 12 1-773-161-11 WIRE (FLAT TYPE) (21 CORE) 13 1-769-959-11 WIRE (FLAT TYPE) (11 CORE) (E,EA,MY,SP,CH,PX) 13 1-773-025-11 WIRE (FLAT TYPE) (15 CORE)(US,CND) * 14 A-4414-066-A VOLUME BOARD, COMPLETE 15 X-3375-588-1 ESCUTCHEON (WIN) ASSY * 16 A-4414-065-A SW BOARD, COMPLETE a a SONY 10 11 11 11 13 16 14 12 9 8 5 4 3 2 1 6 15 7 not supplied #1 #1 #1 #1 #1 #1 #1 #1 (including r A) r A (including r B) r B Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 65 — 4-2. CHASSIS SECTION The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. * 51 1-670-012-11 F-VIDEO BOARD * 52 1-670-006-11 H.P BOARD * 53 4-924-098-31 HOLDER, PC BOARD 54 4-985-642-01 CUSHION * 55 1-669-998-11 AC BOARD * 56 A-4414-109-A REG BOARD, COMPLETE * 57 A-4414-076-A SP BOARD, COMPLETE (US,CND,E,EA,PX) * 57 A-4414-090-A SP BOARD, COMPLETE (MY,SP,CH) * 58 A-4414-061-A AMPLIFIER BOARD, COMPLETE (US,CND,E,EA,PX) * 58 A-4414-085-A AMPLIFIER BOARD, COMPLETE (MY,SP) * 58 A-4414-128-A AMPLIFIER BOARD, COMPLETE (CH) * 59 4-999-238-01 PANEL, BACK (US) * 59 4-999-238-11 PANEL, BACK (CND) * 59 4-999-238-21 PANEL, BACK (MY,SP) * 59 4-999-238-31 PANEL, BACK (E,EA,PX) * 59 4-999-238-41 PANEL, BACK (CH) * 60 1-670-003-11 VIDEO BOARD * 61 1-670-001-11 AUDIO BOARD * 62 1-670-013-11 S-LINK BOARD (US,CND) * 62 1-670-004-11 S-VIDEO BOARD (MY,SP,CH) * 63 1-670-029-11 D.IN/OUT BOARD 64 1-693-407-11 TUNER (US,CND) 64 1-693-409-11 TUNER (E,EA,MY,SP,CH,PX) * 65 A-4414-062-A INPUT BOARD, COMPLETE (US,CND,E,EA,PX) * 65 A-4414-086-A INPUT BOARD, COMPLETE (MY,SP) Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks * 65 A-4414-129-A INPUT BOARD, COMPLETE (CH) 66 1-773-285-11 WIRE (FLAT TYPE) (29 CORE) * 67 1-670-000-11 TUNER BOARD * 68 1-670-027-11 JOINT BOARD * 69 A-4414-079-A DIGITAL BOARD, COMPLETE 70 4-977-358-11 CUSHION 71 X-4947-208-1 FOOT ASSY (F50150S) (BLACK) 71 X-4947-547-1 FOOT ASSY (F50150S) (GOLD) * 72 3-703-244-00 BUSHING (2104), CORD !73 1-769-743-11 CORD, POWER (US,CND) !73 1-769-744-11 CORD, POWER (E,EA,MY,SP,PX) !73 1-782-464-21 CORD, POWER (CH) !74 1-569-008-31 ADAPTOR, CONVERSION (E,EA,PX) 75 1-769-904-11 WIRE (FLAT TYPE) (9 CORE) (MY,SP,CH) 76 1-769-876-11 WIRE (FLAT TYPE) (7 CORE) * 77 A-4414-112-A REAR AMP BOARD, COMPLETE !CNJ901 1-526-794-11 OUTLET, AC (MY,SP) !T901 1-431-891-11 TRANSFORMER, POWER (US) !T901 1-431-892-11 TRANSFORMER, POWER (CND) !T901 1-431-893-11 TRANSFORMER, POWER (MY,SP,CH) !T901 1-431-895-11 TRANSFORMER, POWER (E,EA,PX) a a b b e c c d d e 73 73 74 73 E, EA, PX MODEL US, CND MODEL CH MODEL EXCEPT US, CND, CH MODEL MY, SP MODEL 60 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #2 #2 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 58 75 61 62 67 64 63 76 66 65 68 69 71 70 51 52 not supplied 54 55 56 T901 not supplied not supplied not supplied not supplied 77 72 59 not supplied 57 53 54 CNJ901 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 66 — SECTION 5 ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • CAPACITORS: uF: µF • RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable When indicating parts by reference number, please include the board name. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks • COILS uH: µH • SEMICONDUCTORS In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD... • Abbreviation CND : Canadian MY : Malaysia AUS : Australian SP : Singapore CH : Chinese EA : Saudi Arabia AC AMPLIFIER * 1-669-998-11 AC BOARD ******** 1-533-217-31 HOLDER, FUSE < JACK > !CNJ901 1-540-060-11 OUTLET, AC (POLAR) (US,CND,E,EA,PX) !CNJ901 1-540-041-11 OUTLET, AC (NONPOLAR) (2P) (CH) < CONNECTOR > * CNP905 1-580-230-21 PIN, CONNECTOR (PC BOARD) 2P (MY,SP) CNP915 1-691-766-11 PLUG (MICRO CONNECTOR) 4P CNV901 1-564-321-00 PIN, CONNECTOR 2P * CNV902 1-565-792-11 PIN, CONNECTOR 2P CNV903 1-568-106-11 PIN, CONNECTOR 4P (E,EA,PX) < DIODE > D907 8-719-911-19 DIODE 1SS119 < EARTH > * EB900 1-537-738-21 TERMINAL, EARTH < FUSE > !F901 1-532-504-51 FUSE TIME LAG 4A (E,EA,MY,SP,CH,PX) !F901 1-533-311-11 FUSE, GLASS CYLINDRICAL(DIA.5) 8A (US,CND) !F903 1-532-464-51 FUSE TIME LAG 2.5A (MY,SP,CH) !F904 1-532-504-51 FUSE TIME LAG 4A (E,EA,PX) < RELAY > !RY901 1-515-999-11 RELAY, POWER < RESISTOR > !R901 1-202-725-00 SOLID 3.3M 10% 1/2W (US,CND) < TRANSFORMER > !T902 1-450-361-11 TRANSFORMER, POWER (US,CND) !T902 1-431-387-11 TRANSFORMER, POWER (E,EA,MY,SP,CH,PX) < SWITCH > !VS901 1-571-437-11 SWITCH, POWER VOLTAGE CHANGE (E,EA,PX) ************************************************************ * A-4414-061-A AMPLIFIER BOARD, COMPLETE (US,CND,E,EA,PX) ************************************** * A-4414-128-A AMPLIFIER BOARD, COMPLETE (CH) ****************************** * A-4414-085-A AMPLIFIER BOARD, COMPLETE (MY,SP) ********************************* 1-533-293-11 FUSE HOLDER < CAPACITOR > C520 1-126-022-11 ELECT 47uF 20% 16V C521 1-107-597-11 CERAMIC 22PF 10% 500V C522 1-107-597-11 CERAMIC 22PF 10% 500V C523 1-162-286-31 CERAMIC 220PF 10% 50V C524 1-126-059-11 ELECT 10uF 20% 50V C525 1-136-161-00 FILM 0.047uF 5% 50V (CH,SP,MY) C526 1-136-153-00 FILM 0.01uF 5% 50V C527 1-136-161-00 FILM 0.047uF 5% 50V (CH,SP,MY) C570 1-126-022-11 ELECT 47uF 20% 16V C571 1-107-597-11 CERAMIC 22PF 10% 500V C572 1-107-597-11 CERAMIC 22PF 10% 500V C573 1-162-286-31 CERAMIC 220PF 10% 50V C574 1-126-059-11 ELECT 10uF 20% 50V C575 1-136-161-00 FILM 0.047uF 5% 50V (CH,SP,MY) C576 1-136-153-00 FILM 0.01uF 5% 50V C577 1-136-161-00 FILM 0.047uF 5% 50V (CH,SP,MY) C590 1-124-472-11 ELECT 470uF 20% 10V C598 1-126-233-11 ELECT 22uF 20% 50V C620 1-126-022-11 ELECT 47uF 20% 16V C621 1-107-597-11 CERAMIC 22PF 10% 500V C622 1-107-597-11 CERAMIC 22PF 10% 500V C623 1-162-286-31 CERAMIC 220PF 10% 50V C625 1-136-161-00 FILM 0.047uF 5% 50V (CH,SP,MY) C627 1-136-161-00 FILM 0.047uF 5% 50V (CH,SP,MY) C801 1-104-664-11 ELECT 47uF 20% 25V C803 1-109-932-11 ELECT(BLOCK) 10000uF 20% 71V (US,CND,E,EA,PX) C803 1-125-895-11 CAPACITOR 12000uF 20% 71V (MY,SP,CH) C804 1-109-932-11 ELECT(BLOCK) 10000uF 20% 71V (US,CND,E,EA,PX) C804 1-125-895-11 CAPACITOR 12000uF 20% 71V (MY,SP,CH) C805 1-130-781-00 FILM 0.22uF 10% 100V C806 1-130-781-00 FILM 0.22uF 10% 100V C807 1-126-967-11 ELECT 47uF 20% 50V C808 1-126-967-11 ELECT 47uF 20% 50V C811 1-126-041-11 ELECT 2200uF 20% 35V C812 1-126-105-11 ELECT 1000uF 20% 35V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 67 — The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. C813 1-126-022-11 ELECT 47uF 20% 16V CC48 1-136-153-00 FILM 0.01uF 5% 50V CC49 1-136-153-00 FILM 0.01uF 5% 50V CC98 1-136-153-00 FILM 0.01uF 5% 50V CC99 1-136-153-00 FILM 0.01uF 5% 50V < CONNECTOR > CNP751 1-779-978-11 PIN, CONNECTOR 3P * CNP801 1-564-243-11 PIN, CONNECTOR 6P * CNP802 1-564-104-00 PIN, CONNECTOR (B3P-VH) 3P CNP805 1-784-923-11 PIN, CONNECTOR 7P CNP806 1-691-765-11 PLUG (MICRO CONNECTOR) 3P CNS651 1-784-806-11 HOUSING,CONNECTOR(PC BOARD)13P < DIODE > D501 8-719-911-19 DIODE 1SS119 D502 8-719-109-51 DIODE RD2.0ES-B2 D503 8-719-109-51 DIODE RD2.0ES-B2 D504 8-719-911-19 DIODE 1SS119 D505 8-719-911-19 DIODE 1SS119 D506 8-719-911-19 DIODE 1SS119 D545 8-719-911-19 DIODE 1SS119 D546 8-719-911-19 DIODE 1SS119 D547 8-719-911-19 DIODE 1SS119 D548 8-719-911-19 DIODE 1SS119 D549 8-719-911-19 DIODE 1SS119 D551 8-719-911-19 DIODE 1SS119 D552 8-719-109-51 DIODE RD2.0ES-B2 D553 8-719-109-51 DIODE RD2.0ES-B2 D554 8-719-911-19 DIODE 1SS119 D555 8-719-911-19 DIODE 1SS119 D556 8-719-911-19 DIODE 1SS119 D601 8-719-911-19 DIODE 1SS119 D602 8-719-109-51 DIODE RD2.0ES-B2 D603 8-719-109-51 DIODE RD2.0ES-B2 D604 8-719-911-19 DIODE 1SS119 D608 8-719-911-19 DIODE 1SS119 D647 8-719-911-19 DIODE 1SS119 D648 8-719-911-19 DIODE 1SS119 D801 8-719-302-38 DIODE RBV-602-01 (US,CND,E,EA,PX) D801 8-719-302-37 DIODE RBV-602 (MY,SP,CH) D802 8-719-024-99 DIODE 11ES2-NTA2B D803 8-719-024-99 DIODE 11ES2-NTA2B D804 8-719-024-99 DIODE 11ES2-NTA2B D805 8-719-024-99 DIODE 11ES2-NTA2B D806 8-719-068-24 DIODE HZ5.6BP-TK D807 8-719-934-22 DIODE HZS30-2L < EARTH > * EB701 1-537-738-21 TERMINAL, EARTH * EB702 1-537-738-21 TERMINAL, EARTH < FUSE > !F801 1-532-506-51 FUSE TIME LAG 6.3A (E,EA,PX) !F801 1-533-311-11 FUSE, GLASS CYLINDRICAL(DIA.5) 8A (US,CND,MY,SP,CH) !F802 1-532-506-51 FUSE TIME LAG 6.3A (E,EA,PX) !F802 1-533-311-11 FUSE, GLASS CYLINDRICAL(DIA.5) 8A (US,CND,MY,SP,CH) !F803 1-532-504-51 FUSE TIME LAG 4A (E,EA,MY,SP,CH,PX) !F803 1-533-419-11 FUSE,GLASS CYLINDRICAL(DIA.5)4A(US,CND) !F804 1-532-504-51 FUSE TIME LAG 4A (E,EA,MY,SP,CH,PX) !F804 1-533-419-11 FUSE,GLASS CYLINDRICAL(DIA.5)4A(US,CND) < IC > IC809 8-759-708-05 IC NJM78L05A < COIL > L501 1-420-872-00 COIL, AIR-CORE (US,CND,E,EA,PX) L501 1-411-906-11 COIL, AIR-CORE (MY,SP,CH) L551 1-420-872-00 COIL, AIR-CORE (US,CND,E,EA,PX) L551 1-411-906-11 COIL, AIR-CORE (MY,SP,CH) < TRANSISTOR > Q504 8-729-119-76 TRANSISTOR 2SA1175-HFE Q505 8-729-209-15 TRANSISTOR 2SD2012 Q506 8-749-010-25 TRANSISTOR MN2488-OPY-M Q507 8-749-010-26 TRANSISTOR MP1620-OPY-M Q508 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q509 8-729-281-53 TRANSISTOR 2SC1815-GR Q510 8-729-900-63 TRANSISTOR DTA124ES Q511 8-729-900-63 TRANSISTOR DTA124ES Q546 8-729-119-79 TRANSISTOR 2SC2785-FEK Q547 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA Q548 8-729-119-79 TRANSISTOR 2SC2785-FEK Q549 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q554 8-729-119-76 TRANSISTOR 2SA1175-HFE Q555 8-729-209-15 TRANSISTOR 2SD2012 Q556 8-749-010-25 TRANSISTOR MN2488-OPY-M Q557 8-749-010-26 TRANSISTOR MP1620-OPY-M Q558 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q559 8-729-281-53 TRANSISTOR 2SC1815-GR Q560 8-729-900-63 TRANSISTOR DTA124ES Q561 8-729-900-63 TRANSISTOR DTA124ES Q596 8-729-119-79 TRANSISTOR 2SC2785-FEK Q601 8-729-119-79 TRANSISTOR 2SC2785-FEK Q604 8-729-119-76 TRANSISTOR 2SA1175-HFE Q605 8-729-209-15 TRANSISTOR 2SD2012 Q606 8-749-010-25 TRANSISTOR MN2488-OPY-M Q607 8-749-010-26 TRANSISTOR MP1620-OPY-M Q608 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q612 8-729-281-53 TRANSISTOR 2SC1815-GR Q613 8-729-281-53 TRANSISTOR 2SC1815-GR Q614 8-729-201-53 TRANSISTOR 2SA1015-GR Q615 8-729-900-36 TRANSISTOR DTC124ES Q616 8-729-900-36 TRANSISTOR DTC124ES Q617 8-729-900-36 TRANSISTOR DTC124ES Q618 8-729-900-63 TRANSISTOR DTA124ES Q801 8-729-026-68 TRANSISTOR 2SD2525(TP) < RESISTOR > R521 1-249-422-11 CARBON 2.7K 5% 1/4W F R522 1-249-433-11 CARBON 22K 5% 1/4W R523 1-249-414-11 CARBON 560 5% 1/4W F !R524 1-249-408-11 CARBON 180 5% 1/4W F !R525 1-249-408-11 CARBON 180 5% 1/4W F AMPLIFIER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 68 — AUDIO !R526 1-233-352-41 ENCAPSULATED COMPONENT R527 1-247-850-11 CARBON 6.2K 5% 1/4W R528 1-249-419-11 CARBON 1.5K 5% 1/4W F R529 1-247-866-11 CARBON 30K 5% 1/4W R530 1-249-421-11 CARBON 2.2K 5% 1/4W F R531 1-249-433-11 CARBON 22K 5% 1/4W R532 1-249-437-11 CARBON 47K 5% 1/4W !R533 1-249-393-11 CARBON 10 5% 1/4W F !R534 1-249-389-11 CARBON 4.7 5% 1/4W F R535 1-249-431-11 CARBON 15K 5% 1/4W R539 1-249-427-11 CARBON 6.8K 5% 1/4W F R540 1-249-417-11 CARBON 1K 5% 1/4W F R541 1-249-429-11 CARBON 10K 5% 1/4W R542 1-249-429-11 CARBON 10K 5% 1/4W R547 1-249-425-11 CARBON 4.7K 5% 1/4W F R548 1-249-429-11 CARBON 10K 5% 1/4W !R549 1-249-393-11 CARBON 10 5% 1/4W F R555 1-247-881-00 CARBON 120K 5% 1/4W R556 1-247-881-00 CARBON 120K 5% 1/4W R571 1-249-422-11 CARBON 2.7K 5% 1/4W F R572 1-249-433-11 CARBON 22K 5% 1/4W R573 1-249-414-11 CARBON 560 5% 1/4W F !R574 1-249-408-11 CARBON 180 5% 1/4W F !R575 1-249-408-11 CARBON 180 5% 1/4W F !R576 1-233-352-41 ENCAPSULATED COMPONENT R577 1-247-850-11 CARBON 6.2K 5% 1/4W R578 1-249-419-11 CARBON 1.5K 5% 1/4W F R579 1-247-866-11 CARBON 30K 5% 1/4W R580 1-249-421-11 CARBON 2.2K 5% 1/4W F R581 1-249-433-11 CARBON 22K 5% 1/4W R582 1-249-437-11 CARBON 47K 5% 1/4W !R583 1-249-393-11 CARBON 10 5% 1/4W F !R584 1-249-389-11 CARBON 4.7 5% 1/4W F R585 1-249-431-11 CARBON 15K 5% 1/4W R586 1-249-429-11 CARBON 10K 5% 1/4W R587 1-249-425-11 CARBON 4.7K 5% 1/4W F !R588 1-249-393-11 CARBON 10 5% 1/4W F !R607 1-216-456-00 METAL OXIDE 820 5% 2W R621 1-249-422-11 CARBON 2.7K 5% 1/4W F R622 1-247-881-00 CARBON 120K 5% 1/4W R623 1-249-414-11 CARBON 560 5% 1/4W F !R624 1-249-408-11 CARBON 180 5% 1/4W F !R625 1-249-408-11 CARBON 180 5% 1/4W F !R626 1-233-352-41 ENCAPSULATED COMPONENT R627 1-247-850-11 CARBON 6.2K 5% 1/4W R628 1-249-419-11 CARBON 1.5K 5% 1/4W F R632 1-249-437-11 CARBON 47K 5% 1/4W !R633 1-249-393-11 CARBON 10 5% 1/4W F !R640 1-125-887-00 METAL OXIDE 150 5% 2W (US,E,EA,PX) !R640 1-215-880-00 METAL OXIDE 10 5% 2W (CND) !R640 1-125-886-11 METAL OXIDE 100 5% 2W (SP,CH,MY) R641 1-249-441-11 CARBON 100K 5% 1/4W !R642 1-215-888-00 METAL OXIDE 220 5% 2W (EXCEPT CND) R642 1-215-890-11 METAL OXIDE 470 5% 2W (CND) R643 1-249-441-11 CARBON 100K 5% 1/4W !R644 1-216-456-00 METAL OXIDE 820 5% 2W F R645 1-249-441-11 CARBON 100K 5% 1/4W R650 1-249-425-11 CARBON 4.7K 5% 1/4W F R657 1-249-429-11 CARBON 10K 5% 1/4W !R658 1-249-393-11 CARBON 10 5% 1/4W F R672 1-249-433-11 CARBON 22K 5% 1/4W R739 1-215-868-00 METAL OXIDE 680 5% 1W F R789 1-215-868-00 METAL OXIDE 680 5% 1W F R801 1-247-843-11 CARBON 3.3K 5% 1/4W !R802 1-249-401-11 CARBON 47 5% 1/4W F !RR48 1-249-393-11 CARBON 10 5% 1/4W F !RR49 1-249-393-11 CARBON 10 5% 1/4W F !RR98 1-249-393-11 CARBON 10 5% 1/4W F !RR99 1-249-393-11 CARBON 10 5% 1/4W F < RELAY > RY501 1-515-920-11 RELAY (24V) RY502 1-515-920-11 RELAY (24V) RY602 1-515-793-11 RELAY < TERMINAL > TM501 1-694-429-21 TERMINAL BOARD (SPEAKERS) ************************************************************ * 1-670-001-11 AUDIO BOARD *********** < CAPACITOR > C396 1-126-022-11 ELECT 47uF 20% 16V C397 1-126-022-11 ELECT 47uF 20% 16V C398 1-162-282-31 CERAMIC 100PF 10% 50V C399 1-162-294-31 CERAMIC 0.001uF 10% 50V CC08 1-162-282-31 CERAMIC 100PF 10% 50V CC09 1-162-282-31 CERAMIC 100PF 10% 50V CC10 1-162-282-31 CERAMIC 100PF 10% 50V CC11 1-162-282-31 CERAMIC 100PF 10% 50V CC12 1-162-282-31 CERAMIC 100PF 10% 50V CC13 1-162-282-31 CERAMIC 100PF 10% 50V CC58 1-162-282-31 CERAMIC 100PF 10% 50V CC59 1-162-282-31 CERAMIC 100PF 10% 50V CC60 1-162-282-31 CERAMIC 100PF 10% 50V CC61 1-162-282-31 CERAMIC 100PF 10% 50V CC62 1-162-282-31 CERAMIC 100PF 10% 50V CC63 1-162-282-31 CERAMIC 100PF 10% 50V < CONNECTOR > CNS351 1-784-729-11 CONNECTOR, FFC 7P < IC > IC303 8-759-805-14 IC LC7822 < JACK > J304 1-784-920-11 JACK, PIN 6P (VIDEO1 IN/OUT,VIDEO2 IN) J305 1-784-920-11 JACK, PIN 6P (VIDEO2 OUT,DVD/LD,TV/DBS)(DE925) (VIDEO2 OUT,DVD,TV/LD)(V919) AMPLIFIER The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 69 — D.IN/OUT DIGITAL < RESISTOR > R315 1-249-417-11 CARBON 1K 5% 1/4W F R316 1-249-417-11 CARBON 1K 5% 1/4W F R317 1-249-417-11 CARBON 1K 5% 1/4W F R318 1-249-417-11 CARBON 1K 5% 1/4W F R319 1-249-417-11 CARBON 1K 5% 1/4W F R320 1-249-417-11 CARBON 1K 5% 1/4W F R365 1-249-417-11 CARBON 1K 5% 1/4W F R366 1-249-417-11 CARBON 1K 5% 1/4W F R367 1-249-417-11 CARBON 1K 5% 1/4W F R368 1-249-417-11 CARBON 1K 5% 1/4W F R369 1-249-417-11 CARBON 1K 5% 1/4W F R370 1-249-417-11 CARBON 1K 5% 1/4W F R394 1-249-397-11 CARBON 22 5% 1/4W F R395 1-249-397-11 CARBON 22 5% 1/4W F R398 1-249-417-11 CARBON 1K 5% 1/4W F R399 1-249-425-11 CARBON 4.7K 5% 1/4W F ************************************************************ * 1-670-029-11 D.IN/OUT BOARD ************** < CAPACITOR > C1001 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1002 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1003 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1004 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1005 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1006 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1007 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1008 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1009 1-104-664-11 ELECT 47uF 20% 16V < CONNECTOR > CNS13 1-564-723-11 PIN, CONNECTOR (SMALL TYPE) 7P < IC > IC1001 8-749-923-05 IC TORX178 (DVD/LD IN) IC1002 8-749-923-05 IC TORX178 (TV/DBS IN) IC1003 8-749-923-05 IC TORX178 (MD/DAT IN) IC1004 8-749-923-04 IC TOTX178 (MD/DAT OUT) IC1005 8-759-236-19 IC TC74HC151AF(EL) IC1006 8-759-235-19 IC TC74HC08AF(EL) IC1007 8-759-242-70 IC TC7WU04F < JACK > J1001 1-779-382-11 JACK, PIN 1P (DVD/LD IN) < RESISTOR > R1001 1-216-022-00 METAL CHIP 75 5% 1/10W R1002 1-216-022-00 METAL CHIP 75 5% 1/10W R1003 1-216-022-00 METAL CHIP 75 5% 1/10W R1004 1-216-022-00 METAL CHIP 75 5% 1/10W R1005 1-216-025-91 RES,CHIP 100 5% 1/10W R1006 1-216-025-91 RES,CHIP 100 5% 1/10W R1007 1-216-025-91 RES,CHIP 100 5% 1/10W R1008 1-216-022-00 METAL CHIP 75 5% 1/10W R1009 1-216-049-91 RES,CHIP 1K 5% 1/10W R1010 1-216-073-00 METAL CHIP 10K 5% 1/10W R1011 1-216-025-91 RES,CHIP 100 5% 1/10W R1013 1-216-115-00 METAL CHIP 560K 5% 1/10W ************************************************************ * A-4414-079-A DIGITAL BOARD, COMPLETE *********************** < CAPACITOR > C1101 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V C1102 1-126-022-11 ELECT 47uF 20% 16V C1103 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1104 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1105 1-126-022-11 ELECT 47uF 20% 16V C1106 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1107 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C1108 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1109 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C1110 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C1111 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1112 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1113 1-126-059-11 ELECT 10uF 20% 50V C1114 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1115 1-126-059-11 ELECT 10uF 20% 50V C1116 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1118 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1119 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1120 1-126-059-11 ELECT 10uF 20% 50V C1121 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1122 1-126-233-11 ELECT 22uF 20% 50V C1123 1-106-347-00 MYLAR 1500PF 5% 200V C1124 1-126-233-11 ELECT 22uF 20% 50V C1125 1-126-233-11 ELECT 22uF 20% 50V C1126 1-126-233-11 ELECT 22uF 20% 50V C1127 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1128 1-126-233-11 ELECT 22uF 20% 50V C1129 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1130 1-126-233-11 ELECT 22uF 20% 50V C1131 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1132 1-126-233-11 ELECT 22uF 20% 50V C1133 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1134 1-126-233-11 ELECT 22uF 20% 50V C1135 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1136 1-126-233-11 ELECT 22uF 20% 50V C1137 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1138 1-126-233-11 ELECT 22uF 20% 50V C1139 1-126-022-11 ELECT 47uF 20% 16V C1140 1-126-022-11 ELECT 47uF 20% 16V C1142 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1170 1-126-059-11 ELECT 10uF 20% 50V C1171 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1172 1-126-233-11 ELECT 22uF 20% 50V C1173 1-106-347-00 MYLAR 1500PF 5% 200V C1174 1-126-233-11 ELECT 22uF 20% 50V C1175 1-126-233-11 ELECT 22uF 20% 50V C1176 1-126-233-11 ELECT 22uF 20% 50V C1201 1-126-059-11 ELECT 10uF 20% 50V C1202 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1203 1-165-319-11 CERAMIC CHIP 0.1uF 50V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 70 — DIGITAL C1204 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1205 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1206 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1207 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1208 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1209 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1210 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1211 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1212 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1213 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1214 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1215 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1216 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1301 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1303 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1304 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1305 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1306 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1307 1-163-227-11 CERAMIC CHIP 10PF 0.5P 50V C1309 1-124-443-00 ELECT 100uF 20% 10V C1310 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1311 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1312 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1401 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1402 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1403 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V C1404 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1405 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1406 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1407 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1408 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1409 1-124-443-00 ELECT 100uF 20% 10V C1410 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1411 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1412 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1413 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1501 1-126-012-11 ELECT 470uF 20% 16V C1502 1-126-022-11 ELECT 47uF 20% 16V < CONNECTOR > CNP10 1-784-926-11 PIN, CONNECTOR 11P CNP11 1-779-977-11 PIN, CONNECTOR 6P CNP12 1-784-923-11 PIN, CONNECTOR 7P CNP14 1-779-978-11 PIN, CONNECTOR 3P CNP15 1-564-510-11 PLUG, CONNECTOR 7P CNS10 1-784-782-11 CONNECTOR, FFC 21P CNS11 1-784-790-11 CONNECTOR, FFC 29P < DIODE > D1201 8-719-016-74 DIODE 1SS352 D1202 8-719-801-78 DIODE 1SS184 D1203 8-719-801-78 DIODE 1SS184 D1204 8-719-016-74 DIODE 1SS352 D1205 8-719-016-74 DIODE 1SS352 < EARTH > * EB1001 1-537-738-21 TERMINAL, EARTH < FERRITE BEAD > FB1101 1-410-397-21 FERRITE BEAD INDUCTOR FB1102 1-410-397-21 FERRITE BEAD INDUCTOR < IC > IC1101 8-759-294-79 IC CXD8495AQ IC1102 8-759-523-80 IC TC74VHC04FT(EL) IC1103 8-759-534-62 IC AK4526 IC1104 8-759-636-55 IC M5218AFP IC1105 8-759-636-55 IC M5218AFP IC1106 8-759-636-55 IC M5218AFP IC1107 8-759-636-55 IC M5218AFP IC1108 8-759-032-01 IC MC74HC00AF IC1154 8-759-636-55 IC M5218AFP IC1201 8-759-545-83 IC MB90574PFV-G-146-BND IC1202 8-759-523-80 IC TC74VHC04FT(EL) IC1301 8-759-538-17 IC CS4926 IC1302 8-759-553-27 IC MSM531031B-84GS-KR1 IC1303 8-759-524-52 IC TC74VHC574FT(EL) IC1304 8-759-524-52 IC TC74VHC574FT(EL) IC1305 8-759-530-30 IC TC74VHCU04FT(EL) IC1401 8-752-391-87 IC CXD2712R IC1402 8-759-538-16 IC IDT71V016S15PHAU-TL IC1403 8-759-524-48 IC TC74VHC393FT(EL) IC1501 8-759-231-53 IC TA7805S < TRANSISTOR > Q1201 8-729-216-22 TRANSISTOR 2SA1162-G Q1202 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q1203 8-729-230-49 TRANSISTOR 2SC2712-YG Q1204 8-729-230-49 TRANSISTOR 2SC2712-YG Q1205 8-729-230-49 TRANSISTOR 2SC2712-YG Q1206 8-729-230-49 TRANSISTOR 2SC2712-YG Q1207 8-729-230-49 TRANSISTOR 2SC2712-YG < RESISTOR > R1101 1-216-025-91 RES,CHIP 100 5% 1/10W R1102 1-216-025-91 RES,CHIP 100 5% 1/10W R1103 1-216-025-91 RES,CHIP 100 5% 1/10W R1104 1-216-085-00 METAL CHIP 33K 5% 1/10W R1105 1-216-082-00 RES,CHIP 24K 5% 1/10W R1106 1-216-066-00 METAL CHIP 5.1K 5% 1/10W R1107 1-216-066-00 METAL CHIP 5.1K 5% 1/10W R1108 1-216-029-00 METAL CHIP 150 5% 1/10W R1109 1-216-104-00 METAL CHIP 200K 5% 1/10W R1110 1-216-025-91 RES,CHIP 100 5% 1/10W R1111 1-216-089-91 RES,CHIP 47K 5% 1/10W R1112 1-216-295-91 SHORT 0 R1113 1-216-025-91 RES,CHIP 100 5% 1/10W R1114 1-216-295-91 SHORT 0 R1115 1-216-097-91 RES,CHIP 100K 5% 1/10W R1116 1-216-295-91 SHORT 0 R1117 1-216-295-91 SHORT 0 R1118 1-216-097-91 RES,CHIP 100K 5% 1/10W R1119 1-216-025-91 RES,CHIP 100 5% 1/10W R1120 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1121 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1122 1-216-073-00 METAL CHIP 10K 5% 1/10W R1123 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1124 1-216-037-00 METAL CHIP 330 5% 1/10W R1125 1-216-073-00 METAL CHIP 10K 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 71 — DIGITAL R1126 1-216-037-00 METAL CHIP 330 5% 1/10W R1127 1-216-073-00 METAL CHIP 10K 5% 1/10W R1128 1-216-049-91 RES,CHIP 1K 5% 1/10W R1129 1-216-049-91 RES,CHIP 1K 5% 1/10W R1130 1-216-049-91 RES,CHIP 1K 5% 1/10W R1131 1-216-097-91 RES,CHIP 100K 5% 1/10W R1132 1-216-089-91 RES,CHIP 47K 5% 1/10W R1133 1-216-089-91 RES,CHIP 47K 5% 1/10W R1134 1-216-049-91 RES,CHIP 1K 5% 1/10W R1135 1-216-295-91 SHORT 0 R1136 1-216-089-91 RES,CHIP 47K 5% 1/10W R1137 1-216-089-91 RES,CHIP 47K 5% 1/10W R1138 1-216-089-91 RES,CHIP 47K 5% 1/10W R1139 1-216-049-91 RES,CHIP 1K 5% 1/10W R1140 1-216-089-91 RES,CHIP 47K 5% 1/10W R1141 1-216-089-91 RES,CHIP 47K 5% 1/10W R1142 1-216-089-91 RES,CHIP 47K 5% 1/10W R1143 1-216-049-91 RES,CHIP 1K 5% 1/10W R1144 1-216-089-91 RES,CHIP 47K 5% 1/10W R1145 1-216-089-91 RES,CHIP 47K 5% 1/10W R1146 1-216-089-91 RES,CHIP 47K 5% 1/10W R1147 1-216-049-91 RES,CHIP 1K 5% 1/10W R1148 1-216-089-91 RES,CHIP 47K 5% 1/10W R1149 1-216-089-91 RES,CHIP 47K 5% 1/10W R1150 1-216-089-91 RES,CHIP 47K 5% 1/10W R1151 1-216-049-91 RES,CHIP 1K 5% 1/10W R1152 1-216-089-91 RES,CHIP 47K 5% 1/10W R1153 1-216-089-91 RES,CHIP 47K 5% 1/10W R1154 1-216-089-91 RES,CHIP 47K 5% 1/10W R1155 1-216-295-91 SHORT 0 R1156 1-216-049-91 RES,CHIP 1K 5% 1/10W R1157 1-216-295-91 SHORT 0 R1158 1-216-025-91 RES,CHIP 100 5% 1/10W R1165 1-216-089-91 RES,CHIP 47K 5% 1/10W R1166 1-216-089-91 RES,CHIP 47K 5% 1/10W R1170 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1171 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1172 1-216-073-00 METAL CHIP 10K 5% 1/10W R1173 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1174 1-216-037-00 METAL CHIP 330 5% 1/10W R1175 1-216-073-00 METAL CHIP 10K 5% 1/10W R1176 1-216-037-00 METAL CHIP 330 5% 1/10W R1177 1-216-073-00 METAL CHIP 10K 5% 1/10W R1178 1-216-049-91 RES,CHIP 1K 5% 1/10W R1179 1-216-049-91 RES,CHIP 1K 5% 1/10W R1180 1-216-049-91 RES,CHIP 1K 5% 1/10W R1201 1-216-097-91 RES,CHIP 100K 5% 1/10W R1202 1-216-049-91 RES,CHIP 1K 5% 1/10W R1203 1-216-049-91 RES,CHIP 1K 5% 1/10W R1204 1-216-049-91 RES,CHIP 1K 5% 1/10W R1205 1-216-049-91 RES,CHIP 1K 5% 1/10W R1206 1-216-049-91 RES,CHIP 1K 5% 1/10W R1207 1-216-049-91 RES,CHIP 1K 5% 1/10W R1208 1-216-049-91 RES,CHIP 1K 5% 1/10W R1209 1-216-049-91 RES,CHIP 1K 5% 1/10W R1210 1-216-049-91 RES,CHIP 1K 5% 1/10W R1211 1-216-049-91 RES,CHIP 1K 5% 1/10W R1212 1-216-049-91 RES,CHIP 1K 5% 1/10W R1213 1-216-049-91 RES,CHIP 1K 5% 1/10W R1214 1-216-049-91 RES,CHIP 1K 5% 1/10W R1215 1-216-025-91 RES,CHIP 100 5% 1/10W R1216 1-216-025-91 RES,CHIP 100 5% 1/10W R1217 1-216-025-91 RES,CHIP 100 5% 1/10W R1218 1-216-049-91 RES,CHIP 1K 5% 1/10W R1219 1-216-049-91 RES,CHIP 1K 5% 1/10W R1220 1-216-049-91 RES,CHIP 1K 5% 1/10W R1221 1-216-049-91 RES,CHIP 1K 5% 1/10W R1222 1-216-049-91 RES,CHIP 1K 5% 1/10W R1223 1-216-073-00 METAL CHIP 10K 5% 1/10W R1224 1-216-295-91 SHORT 0 R1225 1-216-689-11 METAL CHIP 39K 0.5% 1/10W R1226 1-216-689-11 METAL CHIP 39K 0.5% 1/10W R1227 1-216-073-00 METAL CHIP 10K 5% 1/10W R1228 1-216-073-00 METAL CHIP 10K 5% 1/10W R1229 1-216-121-91 RES,CHIP 1M 5% 1/10W R1230 1-216-081-00 METAL CHIP 22K 5% 1/10W R1231 1-216-049-91 RES,CHIP 1K 5% 1/10W R1232 1-216-049-91 RES,CHIP 1K 5% 1/10W R1233 1-216-049-91 RES,CHIP 1K 5% 1/10W R1234 1-216-049-91 RES,CHIP 1K 5% 1/10W R1235 1-216-049-91 RES,CHIP 1K 5% 1/10W R1236 1-216-049-91 RES,CHIP 1K 5% 1/10W R1237 1-216-049-91 RES,CHIP 1K 5% 1/10W R1238 1-216-049-91 RES,CHIP 1K 5% 1/10W R1239 1-216-073-00 METAL CHIP 10K 5% 1/10W R1240 1-216-073-00 METAL CHIP 10K 5% 1/10W R1241 1-216-073-00 METAL CHIP 10K 5% 1/10W R1242 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R1243 1-216-025-91 RES,CHIP 100 5% 1/10W R1244 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R1245 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R1246 1-216-025-91 RES,CHIP 100 5% 1/10W R1247 1-216-025-91 RES,CHIP 100 5% 1/10W R1248 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1249 1-216-073-00 METAL CHIP 10K 5% 1/10W R1250 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1251 1-216-073-00 METAL CHIP 10K 5% 1/10W R1252 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R1253 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R1254 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R1255 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R1256 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R1257 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R1258 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R1259 1-216-073-00 METAL CHIP 10K 5% 1/10W R1260 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1261 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R1262 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R1263 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R1264 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R1265 1-216-049-91 RES,CHIP 1K 5% 1/10W R1266 1-216-049-91 RES,CHIP 1K 5% 1/10W R1267 1-216-073-00 METAL CHIP 10K 5% 1/10W R1268 1-216-073-00 METAL CHIP 10K 5% 1/10W R1269 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1270 1-216-025-91 RES,CHIP 100 5% 1/10W R1271 1-216-073-00 METAL CHIP 10K 5% 1/10W R1272 1-216-049-91 RES,CHIP 1K 5% 1/10W R1273 1-216-073-00 METAL CHIP 10K 5% 1/10W R1274 1-216-073-00 METAL CHIP 10K 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 72 — DIGITAL DISPLAY R1275 1-216-025-91 RES,CHIP 100 5% 1/10W R1276 1-216-025-91 RES,CHIP 100 5% 1/10W R1277 1-216-025-91 RES,CHIP 100 5% 1/10W R1278 1-216-025-91 RES,CHIP 100 5% 1/10W R1279 1-216-025-91 RES,CHIP 100 5% 1/10W R1280 1-216-025-91 RES,CHIP 100 5% 1/10W R1281 1-216-295-91 SHORT 0 R1283 1-216-295-91 SHORT 0 R1301 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1302 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1303 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1304 1-216-025-91 RES,CHIP 100 5% 1/10W R1305 1-216-025-91 RES,CHIP 100 5% 1/10W R1306 1-216-041-00 METAL CHIP 470 5% 1/10W R1307 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1308 1-216-065-91 METAL CHIP 4.7K 5% 1/10W R1309 1-216-025-91 RES,CHIP 100 5% 1/10W R1310 1-216-121-91 RES,CHIP 1M 5% 1/10W R1311 1-216-065-91 METAL CHIP 4.7K 5% 1/10W R1313 1-216-065-91 METAL CHIP 4.7K 5% 1/10W R1314 1-216-295-91 SHORT 0 R1315 1-216-295-91 SHORT 0 R1316 1-216-295-91 SHORT 0 R1317 1-216-295-91 SHORT 0 R1318 1-216-295-91 SHORT 0 !R1319 1-215-884-11 METAL OXIDE 47 5% 2W F R1320 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R1321 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R1322 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R1323 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R1324 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R1325 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R1326 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R1327 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R1328 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R1329 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R1330 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R1401 1-216-025-91 RES,CHIP 100 5% 1/10W R1402 1-216-025-91 RES,CHIP 100 5% 1/10W R1403 1-216-025-91 RES,CHIP 100 5% 1/10W R1404 1-216-097-91 RES,CHIP 100K 5% 1/10W R1405 1-216-025-91 RES,CHIP 100 5% 1/10W R1406 1-216-073-00 METAL CHIP 10K 5% 1/10W R1407 1-216-295-91 SHORT 0 R1408 1-216-025-91 RES,CHIP 100 5% 1/10W R1409 1-216-025-91 RES,CHIP 100 5% 1/10W R1410 1-216-295-91 SHORT 0 < VIBRATOR > X1101 1-567-970-11 VIBRATOR, CRYSTAL 24.576MHz X1201 1-577-082-11 VIBRATOR, CERAMIC 4MHz X1301 1-767-949-21 VIBRATOR, CERAMIC 49.152MHz ************************************************************ * A-4414-064-A DISPLAY BOARD, COMPLETE (US,CND) ******************************** * A-4414-082-A DISPLAY BOARD, COMPLETE (E,EA,PX) ****************************** * A-4414-087-A DISPLAY BOARD, COMPLETE (MY,SP) ******************************* * A-4414-130-A DISPLAY BOARD, COMPLETE (CH) **************************** (including L.B BOARD) * 4-921-941-01 CUSHION (FL) * 4-990-797-01 HOLDER (FL) < CAPACITOR > C101 1-104-664-11 ELECT 47uF 20% 16V C104 1-126-964-11 ELECT 10uF 20% 50V C105 1-104-905-11 CAPACITOR 0.22F 5.5V C106 1-164-159-11 CERAMIC 0.1uF 50V C107 1-164-159-11 CERAMIC 0.1uF 50V C108 1-164-159-11 CERAMIC 0.1uF 50V C109 1-164-159-11 CERAMIC 0.1uF 50V C110 1-164-159-11 CERAMIC 0.1uF 50V C111 1-164-159-11 CERAMIC 0.1uF 50V C112 1-164-159-11 CERAMIC 0.1uF 50V C113 1-164-159-11 CERAMIC 0.1uF 50V C117 1-164-159-11 CERAMIC 0.1uF 50V C118 1-164-159-11 CERAMIC 0.1uF 50V C119 1-104-664-11 ELECT 47uF 20% 16V C120 1-164-159-11 CERAMIC 0.1uF 50V C121 1-104-664-11 ELECT 47uF 20% 16V C122 1-164-159-11 CERAMIC 0.1uF 50V C123 1-164-159-11 CERAMIC 0.1uF 50V C124 1-162-294-31 CERAMIC 1000PF 10% 50V C180 1-164-159-11 CERAMIC 0.1uF 50V C181 1-136-177-00 CERAMIC 1uF 5% 50V C182 1-164-159-11 CERAMIC 0.1uF 50V C183 1-126-916-11 ELECT 1000uF 20% 6.3V C184 1-126-964-11 ELECT 10uF 20% 50V C185 1-162-306-11 CERAMIC 0.01uF 20% 16V C186 1-162-306-11 CERAMIC 0.01uF 20% 16V CC20 1-164-159-11 CERAMIC 0.1uF 50V < CONNECTOR > CNP105 1-564-510-11 PLUG, CONNECTOR 7P CNP106 1-784-919-11 CONNECTOR, PC BOARD (PLUG) 5P CNP113 1-779-366-11 CONNECTOR, BOARD TO BOARD 4P CNP114 1-779-366-11 CONNECTOR, BOARD TO BOARD 4P CNP115 1-779-366-11 CONNECTOR, BOARD TO BOARD 4P CNP116 1-779-366-11 CONNECTOR, BOARD TO BOARD 4P CNS103 1-784-776-11 CONNECTOR, FFC 15P (US,CND) CNS103 1-784-772-11 CONNECTOR, FFC 11P (E,EA,MY,SP,CH) CNS104 1-784-743-11 CONNECTOR, FFC 21P CNS105 1-564-510-11 PLUG, CONNECTOR 7P (E,EA) CNS107 1-770-397-11 HOUSING, CONNECTOR(PC BOARD)4P < DIODE > D101 8-719-313-45 DIODE SEL6810A-TH10 D102 8-719-024-99 DIODE 11ES2-NTA2B D103 8-719-911-19 DIODE 1SS119 D104 8-719-046-39 DIODE SEL5821A-TH15 D105 8-719-046-39 DIODE SEL5821A-TH15 D106 8-719-046-39 DIODE SEL5821A-TH15 D108 8-719-046-39 DIODE SEL5821A-TH15 D119 8-719-046-39 DIODE SEL5821A-TH15 D122 8-719-046-39 DIODE SEL5821A-TH15 D180 8-719-911-19 DIODE 1SS119 The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 73 — The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. D181 8-719-911-19 DIODE 1SS119 D182 8-719-911-19 DIODE 1SS119 D183 8-719-911-19 DIODE 1SS119 D184 8-719-059-14 DIODE SID313BP-TP19 D185 8-719-059-14 DIODE SID313BP-TP19 D186 8-719-059-14 DIODE SID313BP-TP19 < FILTER > FL101 1-517-781-11 INDICATOR TUBE, FLUORESCENT < IC > IC101 8-759-459-83 IC NJL55H400A (REMOTE SENSOR IC102 8-759-535-50 IC MB90553PF-G-121-BND IC103 8-759-962-08 IC BA6208 IC104 8-759-463-11 IC MSC1162AGS-BK IC105 8-759-389-51 IC MSC1164GS-KR1 IC180 8-759-927-72 IC TL1591CP IC181 8-759-545-07 IC TMP87C447U-4A06 < COIL > L101 1-410-509-11 INDUCTOR 10uH L150 1-408-080-00 INDUCTOR 100uH < TRANSISTOR > Q101 8-729-119-76 TRANSISTOR 2SA1175-HFE Q102 8-729-900-36 TRANSISTOR DTC124ES Q103 8-729-900-36 TRANSISTOR DTC124ES Q104 8-729-900-36 TRANSISTOR DTC124ES Q105 8-729-900-36 TRANSISTOR DTC124ES Q106 8-729-900-36 TRANSISTOR DTC124ES Q107 8-729-900-36 TRANSISTOR DTC124ES Q108 8-729-900-36 TRANSISTOR DTC124ES Q109 8-729-900-36 TRANSISTOR DTC124ES Q110 8-729-900-36 TRANSISTOR DTC124ES Q111 8-729-900-36 TRANSISTOR DTC124ES Q112 8-729-900-36 TRANSISTOR DTC124ES Q113 8-729-900-36 TRANSISTOR DTC124ES Q114 8-729-900-36 TRANSISTOR DTC124ES Q115 8-729-900-36 TRANSISTOR DTC124ES Q116 8-729-900-36 TRANSISTOR DTC124ES Q117 8-729-900-36 TRANSISTOR DTC124ES Q118 8-729-900-36 TRANSISTOR DTC124ES Q119 8-729-900-36 TRANSISTOR DTC124ES Q120 8-729-900-36 TRANSISTOR DTC124ES Q122 8-729-900-36 TRANSISTOR DTC124ES Q180 8-729-620-05 TRANSISTOR 2SC2603-EF Q181 8-729-900-36 TRANSISTOR DTC124ES Q182 8-729-620-05 TRANSISTOR 2SC2603-EF Q183 8-729-801-93 TRANSISTOR 2SD1387 Q184 8-729-801-93 TRANSISTOR 2SD1387 < RESISTOR > R101 1-249-411-11 CARBON 330 5% 1/4W R102 1-249-411-11 CARBON 330 5% 1/4W R103 1-249-437-11 CARBON 47K 5% 1/4W R104 1-247-772-00 CARBON 3.6 5% 1/4W R105 1-249-393-11 CARBON 10 5% 1/4W F R106 1-249-437-11 CARBON 47K 5% 1/4W R107 1-249-433-11 CARBON 22K 5% 1/4W R110 1-249-419-11 CARBON 1.5K 5% 1/4W F R111 1-247-807-31 CARBON 100 5% 1/4W R112 1-247-807-31 CARBON 100 5% 1/4W R113 1-247-807-31 CARBON 100 5% 1/4W R114 1-247-807-31 CARBON 100 5% 1/4W !R115 1-249-385-11 CARBON 2.2 5% 1/6W F R116 1-249-429-11 CARBON 10K 5% 1/4W R117 1-249-433-11 CARBON 22K 5% 1/4W R118 1-249-433-11 CARBON 22K 5% 1/4W R119 1-249-417-11 CARBON 1K 5% 1/4W F R120 1-249-417-11 CARBON 1K 5% 1/4W F R121 1-249-417-11 CARBON 1K 5% 1/4W F R122 1-249-429-11 CARBON 10K 5% 1/4W R123 1-249-417-11 CARBON 1K 5% 1/4W F R124 1-249-411-11 CARBON 330 5% 1/4W R125 1-249-425-11 CARBON 4.7K 5% 1/4W F R126 1-249-425-11 CARBON 4.7K 5% 1/4W F R127 1-249-425-11 CARBON 4.7K 5% 1/4W F R128 1-249-425-11 CARBON 4.7K 5% 1/4W F R129 1-249-417-11 CARBON 1K 5% 1/4W F R130 1-249-425-11 CARBON 4.7K 5% 1/4W F R131 1-249-425-11 CARBON 4.7K 5% 1/4W F R132 1-249-425-11 CARBON 4.7K 5% 1/4W F R133 1-249-414-11 CARBON 560 5% 1/4W F R134 1-249-411-11 CARBON 330 5% 1/4W R135 1-249-411-11 CARBON 330 5% 1/4W !R161 1-249-385-11 CARBON 2.2 5% 1/6W F R162 1-249-421-11 CARBON 2.2K 5% 1/4W F R163 1-249-421-11 CARBON 2.2K 5% 1/4W F R164 1-249-411-11 CARBON 330 5% 1/4W R165 1-249-429-11 CARBON 10K 5% 1/4W R166 1-249-411-11 CARBON 330 5% 1/4W R167 1-249-413-11 CARBON 470 5% 1/4W F R168 1-249-415-11 CARBON 680 5% 1/4W F R169 1-249-417-11 CARBON 1K 5% 1/4W F R170 1-249-419-11 CARBON 1.5K 5% 1/4W F R171 1-249-425-11 CARBON 4.7K 5% 1/4W F R172 1-249-421-11 CARBON 2.2K 5% 1/4W F R175 1-249-415-11 CARBON 680 5% 1/4W F R176 1-249-413-11 CARBON 470 5% 1/4W F R177 1-249-411-11 CARBON 330 5% 1/4W R178 1-249-417-11 CARBON 1K 5% 1/4W F R179 1-249-411-11 CARBON 330 5% 1/4W R180 1-249-393-11 CARBON 10 5% 1/4W F R181 1-249-429-11 CARBON 10K 5% 1/4W R182 1-249-425-11 CARBON 4.7K 5% 1/4W F R183 1-249-429-11 CARBON 10K 5% 1/4W R184 1-249-429-11 CARBON 10K 5% 1/4W R185 1-249-425-11 CARBON 4.7K 5% 1/4W F R186 1-249-429-11 CARBON 10K 5% 1/4W R187 1-249-383-11 CARBON 1.5 5% 1/6W F R188 1-249-429-11 CARBON 10K 5% 1/4W R189 1-247-772-00 CARBON 3.6 5% 1/4W DISPLAY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 74 — R190 1-249-441-11 CARBON 100K 5% 1/4W R191 1-247-807-31 CARBON 100 5% 1/4W R192 1-249-383-11 CARBON 1.5 5% 1/6W F R193 1-247-807-31 CARBON 100 5% 1/4W R194 1-247-807-31 CARBON 100 5% 1/4W R195 1-247-807-31 CARBON 100 5% 1/4W R196 1-247-807-31 CARBON 100 5% 1/4W R197 1-249-441-11 CARBON 100K 5% 1/4W R198 1-249-429-11 CARBON 10K 5% 1/4W R199 1-249-429-11 CARBON 10K 5% 1/4W RR10 1-249-425-11 CARBON 4.7K 5% 1/4W F RR11 1-249-411-11 CARBON 330 5% 1/4W (E,EA,MY,SP,CH,PX) RR12 1-249-413-11 CARBON 470 5% 1/4W F (MY,SP,CH) RR13 1-249-415-11 CARBON 680 5% 1/4W F (CH) RR20 1-249-425-11 CARBON 4.7K 5% 1/4W F < SWITCH > S102 1-762-750-11 SWITCH, TACTILE (MUTING) S131 1-762-750-11 SWITCH, TACTILE (POWER) S132 1-762-750-11 SWITCH, TACTILE (DISP) S133 1-762-750-11 SWITCH, TACTILE (PRE+) S135 1-762-750-11 SWITCH, TACTILE (LEFT) S136 1-762-750-11 SWITCH, TACTILE (UP) S137 1-762-750-11 SWITCH, TACTILE (RIGHT) S138 1-762-750-11 SWITCH, TACTILE (FM/AM) S139 1-762-750-11 SWITCH, TACTILE (FM MODE) S142 1-762-750-11 SWITCH, TACTILE (MEMORY) S143 1-762-750-11 SWITCH, TACTILE (SLEEP) S144 1-762-750-11 SWITCH, TACTILE (TUN+) S145 1-762-750-11 SWITCH, TACTILE (TUN-) S146 1-762-750-11 SWITCH, TACTILE (PRE-) S147 1-762-750-11 SWITCH, TACTILE (DOWN) < VIBRATOR > X101 1-577-082-11 VIBRATOR, CERAMIC 4MHz X180 1-767-938-21 VIBRATOR, CERAMIC 7.28MHz ************************************************************ * 1-670-012-11 F-VIDEO BOARD ************* < CAPACITOR > C299 1-164-159-11 CERAMIC 0.1uF 50V CC14 1-162-282-31 CERAMIC 100PF 10% 50V CC64 1-162-282-31 CERAMIC 100PF 10% 50V < CONNECTOR > CNP307 1-564-721-11 PIN, CONNECTOR (SMALL TYPE) 5P < EARTH > * EB201 1-537-738-21 TERMINAL, EARTH < JACK > J299 1-779-798-11 JACK, PIN (BLOCK) (L TYPE) 3P (VIDEO3 INPUT) < RESISTOR > R299 1-247-804-11 CARBON 75 5% 1/4W R321 1-249-417-11 CARBON 1K 5% 1/4W F R371 1-249-417-11 CARBON 1K 5% 1/4W F ************************************************************ * 1-670-006-11 H.P BOARD ********* < JACK > J701 1-568-519-41 JACK, LARGE TYPE (PHONES) ************************************************************ * A-4414-062-A INPUT BOARD, COMPLETE (US,CND,E,EA,PX) *********************************** * A-4414-086-A INPUT BOARD, COMPLETE (MY,SP) ***************************** * A-4414-129-A INPUT BOARD, COMPLETE (CH) ************************** 7-685-872-09 SCREW +BVTT 3X8 (S) < CAPACITOR > C301 1-126-045-11 ELECT 2.2uF 20% 50V C303 1-126-101-11 ELECT 100uF 20% 16V C304 1-125-896-91 MYLAR 0.0091uF 5% 50V C305 1-136-159-00 FILM 0.033uF 5% 50V C306 1-126-045-11 ELECT 2.2uF 20% 50V C307 1-162-282-31 CERAMIC 100PF 10% 50V C308 1-162-286-31 CERAMIC 220PF 10% 50V C310 1-162-294-31 CERAMIC 0.001uF 10% 50V C311 1-126-233-11 ELECT 22uF 20% 50V C351 1-126-045-11 ELECT 2.2uF 20% 50V C353 1-126-101-11 ELECT 100uF 20% 16V C354 1-125-896-91 MYLAR 0.0091uF 5% 50V C355 1-136-159-00 FILM 0.033uF 5% 50V C356 1-126-045-11 ELECT 2.2uF 20% 50V C357 1-162-282-31 CERAMIC 100PF 10% 50V C358 1-162-286-31 CERAMIC 220PF 10% 50V C360 1-162-294-31 CERAMIC 0.001uF 10% 50V C361 1-126-233-11 ELECT 22uF 20% 50V C388 1-126-052-11 ELECT 100uF 20% 16V C389 1-126-052-11 ELECT 100uF 20% 16V C392 1-126-022-11 ELECT 47uF 20% 16V C393 1-162-294-31 CERAMIC 0.001uF 10% 50V C394 1-126-022-11 ELECT 47uF 20% 16V C395 1-162-282-31 CERAMIC 100PF 10% 50V C401 1-126-233-11 ELECT 22uF 20% 50V C402 1-126-233-11 ELECT 22uF 20% 50V C403 1-126-233-11 ELECT 22uF 20% 50V C404 1-162-199-31 CERAMIC 10PF 5% 50V C405 1-162-199-31 CERAMIC 10PF 5% 50V C406 1-162-199-31 CERAMIC 10PF 5% 50V C407 1-126-233-11 ELECT 22uF 20% 50V C408 1-126-233-11 ELECT 22uF 20% 50V C409 1-126-233-11 ELECT 22uF 20% 50V C416 1-126-233-11 ELECT 22uF 20% 50V C417 1-126-233-11 ELECT 22uF 20% 50V C418 1-126-233-11 ELECT 22uF 20% 50V C419 1-162-282-31 CERAMIC 100PF 10% 50V C451 1-126-233-11 ELECT 22uF 20% 50V C452 1-126-233-11 ELECT 22uF 20% 50V C453 1-126-233-11 ELECT 22uF 20% 50V DISPLAY F-VIDEO INPUT H.P www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 75 — C454 1-162-199-31 CERAMIC 10PF 5% 50V C455 1-162-199-31 CERAMIC 10PF 5% 50V C456 1-162-199-31 CERAMIC 10PF 5% 50V C457 1-126-233-11 ELECT 22uF 20% 50V C458 1-126-233-11 ELECT 22uF 20% 50V C459 1-126-233-11 ELECT 22uF 20% 50V C466 1-126-233-11 ELECT 22uF 20% 50V C467 1-126-233-11 ELECT 22uF 20% 50V C468 1-126-233-11 ELECT 22uF 20% 50V C491 1-164-159-11 CERAMIC 0.1uF 50V C496 1-126-052-11 ELECT 100uF 20% 16V C497 1-126-052-11 ELECT 100uF 20% 16V C498 1-126-022-11 ELECT 47uF 20% 16V C499 1-126-022-11 ELECT 47uF 20% 16V C501 1-126-233-11 ELECT 22uF 20% 50V C502 1-162-282-31 CERAMIC 100PF 10% 50V C503 1-102-233-00 CERAMIC 33PF 10% 500V C504 1-102-230-00 CERAMIC 4PF 0.25PF 500V C505 1-126-101-11 ELECT 100uF 20% 16V C539 1-162-282-31 CERAMIC 100PF 10% 50V C551 1-126-233-11 ELECT 22uF 20% 50V C552 1-162-282-31 CERAMIC 100PF 10% 50V C553 1-102-233-00 CERAMIC 33PF 10% 500V C554 1-102-230-00 CERAMIC 4PF 0.25PF 500V C555 1-126-101-11 ELECT 100uF 20% 16V C580 1-162-282-31 CERAMIC 100PF 10% 50V C589 1-162-282-31 CERAMIC 100PF 10% 50V C593 1-126-101-11 ELECT 100uF 20% 16V C594 1-126-074-91 ELECT 22uF 20% 100V C595 1-126-074-91 ELECT 22uF 20% 100V C601 1-126-233-11 ELECT 22uF 20% 50V C602 1-162-282-31 CERAMIC 100PF 10% 50V C603 1-102-233-00 CERAMIC 33PF 10% 500V C604 1-102-230-00 CERAMIC 4PF 0.25PF 500V C605 1-126-101-11 ELECT 100uF 20% 16V C639 1-162-282-31 CERAMIC 100PF 10% 50V C651 1-126-233-11 ELECT 22uF 20% 50V C652 1-162-282-31 CERAMIC 100PF 10% 50V C653 1-102-233-00 CERAMIC 33PF 10% 500V C654 1-102-230-00 CERAMIC 4PF 0.25PF 500V C655 1-126-101-11 ELECT 100uF 20% 16V C689 1-162-282-31 CERAMIC 100PF 10% 50V C701 1-126-233-11 ELECT 22uF 20% 50V C702 1-162-282-31 CERAMIC 100PF 10% 50V C703 1-102-233-00 CERAMIC 33PF 10% 500V C704 1-102-230-00 CERAMIC 4PF 0.25PF 500V C705 1-126-101-11 ELECT 100uF 20% 16V C739 1-162-282-31 CERAMIC 100PF 10% 50V C751 1-126-233-11 ELECT 22uF 20% 50V C752 1-162-282-31 CERAMIC 100PF 10% 50V C753 1-102-233-00 CERAMIC 33PF 10% 500V C754 1-102-230-00 CERAMIC 4PF 0.25PF 500V C755 1-126-101-11 ELECT 100uF 20% 16V C780 1-162-282-31 CERAMIC 100PF 10% 50V C789 1-162-282-31 CERAMIC 100PF 10% 50V CC04 1-162-282-31 CERAMIC 100PF 10% 50V CC05 1-162-282-31 CERAMIC 100PF 10% 50V CC06 1-162-282-31 CERAMIC 100PF 10% 50V CC07 1-162-282-31 CERAMIC 100PF 10% 50V CC08 1-162-282-31 CERAMIC 100PF 10% 50V CC54 1-162-282-31 CERAMIC 100PF 10% 50V CC55 1-162-282-31 CERAMIC 100PF 10% 50V CC56 1-162-282-31 CERAMIC 100PF 10% 50V CC57 1-162-282-31 CERAMIC 100PF 10% 50V CC58 1-162-282-31 CERAMIC 100PF 10% 50V < CONNECTOR > CNS301 1-784-768-11 CONNECTOR, FFC 7P CNS305 1-779-978-11 PIN, CONNECTOR 3P CNS306 1-784-790-11 CONNECTOR, FFC 29P CNS403 1-691-765-11 PLUG (MICRO CONNECTOR) 3P CNS404 1-691-765-11 PLUG (MICRO CONNECTOR) 3P CNS501 1-784-806-11 HOUSING,CONNECTOR(PC BOARD)13P CNS702 1-779-977-11 PIN, CONNECTOR 6P < DIODE > D301 8-719-911-19 DIODE 1SS119 < IC > IC301 8-759-805-14 IC LC7822 IC302 8-759-636-74 IC M5218AP-22 IC304 8-759-634-50 IC M5218AL IC401 8-759-604-40 IC M5F78M15 IC402 8-759-604-46 IC M5F79M15 IC403 8-759-604-39 IC M5F78M12 IC404 8-759-708-05 IC NJM78L05A IC405 8-759-634-50 IC M5218AL IC406 8-759-634-50 IC M5218AL IC407 8-759-634-50 IC M5218AL IC414 8-759-534-63 IC TC9299P IC415 8-759-534-63 IC TC9299P IC416 8-759-534-63 IC TC9299P IC501 8-759-326-52 IC uPC2581V IC601 8-759-326-52 IC uPC2581V IC701 8-759-326-52 IC uPC2581V < JACK > J301 1-784-429-11 JACK, PIN 4P (PHONO/CD) J302 1-784-429-11 JACK, PIN 4P (MD/DAT) J303 1-784-429-11 JACK, PIN 4P (TAPE) < TRANSISTOR > Q301 8-729-119-79 TRANSISTOR 2SC2785-FEK Q302 8-729-141-30 TRANSISTOR 2SC3623A-LK Q303 8-729-141-30 TRANSISTOR 2SC3623A-LK Q304 8-729-141-30 TRANSISTOR 2SC3623A-LK Q352 8-729-141-30 TRANSISTOR 2SC3623A-LK Q353 8-729-141-30 TRANSISTOR 2SC3623A-LK Q354 8-729-141-30 TRANSISTOR 2SC3623A-LK Q501 8-729-900-36 TRANSISTOR DTC124ES Q503 8-729-900-63 TRANSISTOR DTA124ES Q614 8-729-201-53 TRANSISTOR 2SA1015-GR < RESISTOR > R301 1-249-401-11 CARBON 47 5% 1/4W F R302 1-249-441-11 CARBON 100K 5% 1/4W R303 1-249-440-11 CARBON 82K 5% 1/4W R304 1-249-408-11 CARBON 180 5% 1/4W F R305 1-249-428-11 CARBON 8.2K 5% 1/4W F INPUT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 76 — R306 1-249-441-11 CARBON 100K 5% 1/4W R307 1-247-807-31 CARBON 100 5% 1/4W R308 1-249-441-11 CARBON 100K 5% 1/4W R309 1-249-413-11 CARBON 470 5% 1/4W F R310 1-249-417-11 CARBON 1K 5% 1/4W F R311 1-249-417-11 CARBON 1K 5% 1/4W F R312 1-249-417-11 CARBON 1K 5% 1/4W F R313 1-249-417-11 CARBON 1K 5% 1/4W F R314 1-249-417-11 CARBON 1K 5% 1/4W F R315 1-249-437-11 CARBON 47K 5% 1/4W R331 1-249-441-11 CARBON 100K 5% 1/4W F R335 1-249-437-11 CARBON 47K 5% 1/4W R336 1-249-425-11 CARBON 4.7K 5% 1/4W F R337 1-249-441-11 CARBON 100K 5% 1/4W R338 1-249-417-11 CARBON 1K 5% 1/4W F R339 1-249-417-11 CARBON 1K 5% 1/4W F R340 1-249-417-11 CARBON 1K 5% 1/4W F R341 1-249-417-11 CARBON 1K 5% 1/4W F R342 1-249-417-11 CARBON 1K 5% 1/4W F R343 1-249-417-11 CARBON 1K 5% 1/4W F R344 1-247-807-31 CARBON 100 5% 1/4W R345 1-247-807-31 CARBON 100 5% 1/4W R346 1-249-397-11 CARBON 22 5% 1/4W F R347 1-249-397-11 CARBON 22 5% 1/4W F R351 1-249-401-11 CARBON 47 5% 1/4W F R352 1-249-441-11 CARBON 100K 5% 1/4W R353 1-249-440-11 CARBON 82K 5% 1/4W R354 1-249-408-11 CARBON 180 5% 1/4W F R355 1-249-428-11 CARBON 8.2K 5% 1/4W F R356 1-249-441-11 CARBON 100K 5% 1/4W R357 1-247-807-31 CARBON 100 5% 1/4W R358 1-249-441-11 CARBON 100K 5% 1/4W R359 1-249-413-11 CARBON 470 5% 1/4W F R360 1-249-417-11 CARBON 1K 5% 1/4W F R361 1-249-417-11 CARBON 1K 5% 1/4W F R362 1-249-417-11 CARBON 1K 5% 1/4W F R363 1-249-417-11 CARBON 1K 5% 1/4W F R364 1-249-417-11 CARBON 1K 5% 1/4W F R365 1-249-437-11 CARBON 47K 5% 1/4W R381 1-249-441-11 CARBON 100K 5% 1/4W R385 1-249-437-11 CARBON 47K 5% 1/4W !R387 1-249-393-11 CARBON 10 5% 1/4W F R388 1-249-417-11 CARBON 1K 5% 1/4W F R389 1-249-417-11 CARBON 1K 5% 1/4W F R390 1-249-417-11 CARBON 1K 5% 1/4W F R391 1-249-417-11 CARBON 1K 5% 1/4W F R392 1-249-417-11 CARBON 1K 5% 1/4W F R393 1-249-417-11 CARBON 1K 5% 1/4W F R396 1-249-417-11 CARBON 1K 5% 1/4W F R397 1-249-425-11 CARBON 4.7K 5% 1/4W F R401 1-249-441-11 CARBON 100K 5% 1/4W R402 1-249-441-11 CARBON 100K 5% 1/4W R403 1-249-441-11 CARBON 100K 5% 1/4W R404 1-249-431-11 CARBON 15K 5% 1/4W R405 1-249-431-11 CARBON 15K 5% 1/4W R406 1-249-431-11 CARBON 15K 5% 1/4W R407 1-249-437-11 CARBON 47K 5% 1/4W R408 1-249-437-11 CARBON 47K 5% 1/4W R409 1-249-437-11 CARBON 47K 5% 1/4W R451 1-249-441-11 CARBON 100K 5% 1/4W R452 1-249-441-11 CARBON 100K 5% 1/4W R453 1-249-441-11 CARBON 100K 5% 1/4W R454 1-249-431-11 CARBON 15K 5% 1/4W R455 1-249-431-11 CARBON 15K 5% 1/4W R456 1-249-434-11 CARBON 27K 5% 1/4W R457 1-249-437-11 CARBON 47K 5% 1/4W R458 1-249-437-11 CARBON 47K 5% 1/4W R459 1-249-437-11 CARBON 47K 5% 1/4W R501 1-249-417-11 CARBON 1K 5% 1/4W F R502 1-249-439-11 CARBON 68K 5% 1/4W R503 1-249-439-11 CARBON 68K 5% 1/4W R504 1-249-421-11 CARBON 2.2K 5% 1/4W F R551 1-249-417-11 CARBON 1K 5% 1/4W F R552 1-249-439-11 CARBON 68K 5% 1/4W R553 1-249-439-11 CARBON 68K 5% 1/4W R554 1-249-421-11 CARBON 2.2K 5% 1/4W F R590 1-249-433-11 CARBON 22K 5% 1/4W !R592 1-249-381-11 CARBON 1 5% 1/4W F !R593 1-249-381-11 CARBON 1 5% 1/4W F R594 1-249-425-11 CARBON 4.7K 5% 1/4W F R601 1-249-417-11 CARBON 1K 5% 1/4W F R602 1-249-439-11 CARBON 68K 5% 1/4W R603 1-249-439-11 CARBON 68K 5% 1/4W R604 1-249-421-11 CARBON 2.2K 5% 1/4W F R651 1-249-417-11 CARBON 1K 5% 1/4W F R652 1-249-439-11 CARBON 68K 5% 1/4W R653 1-249-439-11 CARBON 68K 5% 1/4W R654 1-247-843-11 CARBON 3.3K 5% 1/4W R655 1-249-409-11 CARBON 220 5% 1/4W F R656 1-249-409-11 CARBON 220 5% 1/4W F R690 1-249-433-11 CARBON 22K 5% 1/4W R701 1-249-417-11 CARBON 1K 5% 1/4W F R702 1-249-439-11 CARBON 68K 5% 1/4W R703 1-249-439-11 CARBON 68K 5% 1/4W R704 1-249-421-11 CARBON 2.2K 5% 1/4W F R751 1-249-417-11 CARBON 1K 5% 1/4W F R752 1-249-439-11 CARBON 68K 5% 1/4W R753 1-249-439-11 CARBON 68K 5% 1/4W R754 1-249-421-11 CARBON 2.2K 5% 1/4W F R790 1-249-433-11 CARBON 22K 5% 1/4W < RELAY > RY301 1-515-614-11 RELAY ************************************************************ * 1-670-027-11 JOINT BOARD *********** < CONNECTOR > CNP501 1-784-807-11 CONNECTOR, BOARD TO BOARD 13P CNP651 1-784-807-11 CONNECTOR, BOARD TO BOARD 13P ************************************************************ The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. JOINT INPUT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 77 — * 1-670-007-11 LED BOARD ********* < DIODE > D100 8-719-070-83 DIODE SELU5E20C-TP15 ************************************************************ * A-4414-112-A REAR AMP BOARD, COMPLETE ************************ < CAPACITOR > C720 1-126-022-11 ELECT 47uF 20% 16V C721 1-107-597-11 CERAMIC 22PF 10% 500V C722 1-107-597-11 CERAMIC 22PF 10% 500V C723 1-162-286-31 CERAMIC 220PF 10% 50V C725 1-136-157-00 FILM 0.022uF 5% 50V C770 1-126-022-11 ELECT 47uF 20% 16V C771 1-107-597-11 CERAMIC 22PF 10% 500V C772 1-107-597-11 CERAMIC 22PF 10% 500V C773 1-162-286-31 CERAMIC 220PF 10% 50V C775 1-136-157-00 FILM 0.022uF 5% 50V < CONNECTOR > * CNP701 1-564-241-11 PIN, CONNECTOR (B4P-VH) 4P CNP711 1-779-977-11 PIN, CONNECTOR 6P * CNP712 1-564-242-00 PIN, CONNECTOR 5P CNP713 1-691-765-11 PLUG (MICRO CONNECTOR) 3P < DIODE > D701 8-719-911-19 DIODE 1SS119 D702 8-719-109-51 DIODE RD2.0ES-B2 D703 8-719-109-51 DIODE RD2.0ES-B2 D704 8-719-911-19 DIODE 1SS119 D751 8-719-911-19 DIODE 1SS119 D752 8-719-109-51 DIODE RD2.0ES-B2 D753 8-719-109-51 DIODE RD2.0ES-B2 D754 8-719-911-19 DIODE 1SS119 < TRANSISTOR > Q704 8-729-119-76 TRANSISTOR 2SA1175-HFE Q708 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q754 8-729-119-76 TRANSISTOR 2SA1175-HFE Q758 8-729-140-82 TRANSISTOR 2SA988-PAFAEA < RESISTOR > R702 1-247-881-00 CARBON 120K 5% 1/4W R721 1-249-433-11 CARBON 22K 5% 1/4W R722 1-249-422-11 CARBON 2.7K 5% 1/4W F R723 1-249-414-11 CARBON 560 5% 1/4W F !R724 1-249-408-11 CARBON 180 5% 1/4W F !R725 1-249-408-11 CARBON 180 5% 1/4W F !R726 1-233-352-41 ENCAPSULATED COMPONENT R727 1-247-850-11 CARBON 6.2K 5% 1/4W R728 1-249-419-11 CARBON 1.5K 5% 1/4W F R732 1-249-437-11 CARBON 47K 5% 1/4W !R733 1-249-393-11 CARBON 10 5% 1/4W F R752 1-247-881-00 CARBON 120K 5% 1/4W R771 1-249-433-11 CARBON 22K 5% 1/4W R772 1-249-422-11 CARBON 2.7K 5% 1/4W F R773 1-249-414-11 CARBON 560 5% 1/4W F !R774 1-249-408-11 CARBON 180 5% 1/4W F !R775 1-249-408-11 CARBON 180 5% 1/4W F !R776 1-233-352-41 ENCAPSULATED COMPONENT R777 1-247-850-11 CARBON 6.2K 5% 1/4W R778 1-249-419-11 CARBON 1.5K 5% 1/4W F R782 1-249-437-11 CARBON 47K 5% 1/4W !R783 1-249-393-11 CARBON 10 5% 1/4W F ************************************************************ * A-4414-109-A REG BOARD, COMPLETE ******************* 1-533-217-31 HOLDER, FUSE 7-685-872-09 SCREW +BVTT 3X8 (S) < CAPACITOR > C819 1-136-165-00 FILM 0.1uF 5% 50V C820 1-136-165-00 FILM 0.1uF 5% 50V C821 1-136-165-00 FILM 0.1uF 5% 50V C822 1-136-165-00 FILM 0.1uF 5% 50V C823 1-136-165-00 FILM 0.1uF 5% 50V C824 1-126-937-11 ELECT 4700uF 20% 16V C825 1-126-935-11 ELECT 470uF 20% 16V C826 1-126-935-11 ELECT 470uF 20% 16V C827 1-126-935-11 ELECT 470uF 20% 16V C901 1-164-097-11 CERAMIC 0.022uF 50V C902 1-164-097-11 CERAMIC 0.022uF 50V C903 1-126-768-11 ELECT 2200uF 20% 16V C904 1-126-960-11 ELECT 1uF 20% 50V C905 1-126-959-11 ELECT 0.47uF 20% 50V C906 1-124-464-11 ELECT 0.22uF 20% 50V C911 1-164-159-11 CERAMIC 0.1uF 50V C914 1-164-159-11 CERAMIC 0.1uF 50V C916 1-164-159-11 CERAMIC 0.1uF 50V C917 1-164-159-11 CERAMIC 0.1uF 50V < CONNECTOR > CNP803 1-564-320-00 PIN, CONNECTOR (B2P-VH) 2P CNP809 1-779-977-11 PIN, CONNECTOR 6P < DIODE > D808 8-719-025-03 DIODE RBA-402-SL D901 8-719-024-99 DIODE 11ES2-NTA2B D902 8-719-024-99 DIODE 11ES2-NTA2B D903 8-719-024-99 DIODE 11ES2-NTA2B D904 8-719-024-99 DIODE 11ES2-NTA2B D905 8-719-911-19 DIODE 1SS119 D906 8-719-911-19 DIODE 1SS119 < EARTH > * EB901 1-537-738-21 TERMINAL, < FUSE > !F805 1-532-504-51 FUSE TIME LAG 4A (E,EA,MY,SP,CH,PX) !F805 1-533-419-11 FUSE,GLASS CYLINDRICAL(DIA.5)4A(US,CND) The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. REG REAR AMP LED www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 78 — < IC > IC801 8-759-231-53 IC TA7805S IC802 8-759-445-59 IC BA033T IC803 8-759-445-59 IC BA033T IC901 8-759-333-83 IC NJM2103D < TRANSISTOR > Q901 8-729-119-79 TRANSISTOR 2SC2785-FEK Q902 8-729-026-68 TRANSISTOR 2SD2525(TP) < RESISTOR > R902 1-249-429-11 CARBON 10K 5% 1/4W R903 1-249-425-11 CARBON 4.7K 5% 1/4W F R904 1-249-417-11 CARBON 1K 5% 1/4W F R905 1-249-428-11 CARBON 8.2K 5% 1/4W F R906 1-249-421-11 CARBON 2.2K 5% 1/4W F R908 1-249-433-11 CARBON 22K 5% 1/4W R909 1-249-439-11 CARBON 68K 5% 1/4W R910 1-249-437-11 CARBON 47K 5% 1/4W R912 1-249-430-11 CARBON 12K 5% 1/4W ************************************************************ * 1-670-013-11 S-LINK BOARD (US,CND) ********************* < CAPACITOR > C268 1-126-964-11 ELECT 10uF 20% 50V C269 1-162-294-31 CERAMIC 0.001uF 10% 50V C270 1-162-294-31 CERAMIC 0.001uF 10% 50V C271 1-162-294-31 CERAMIC 0.001uF 10% 50V C272 1-162-294-31 CERAMIC 0.001uF 10% 50V < CONNECTOR > CNS251 1-784-768-11 CONNECTOR, FFC 7P < IC > IC251 8-759-388-26 IC NJM2129D IC254 8-759-135-80 IC UPC358C < JACK > J255 1-563-330-11 JACK (VIDEO 1) J256 1-563-330-11 JACK (VIDEO 2) J257 1-563-330-11 JACK (MONITOR) J258 1-563-330-11 JACK (TV/DBS) < TRANSISTOR > Q251 8-729-119-76 TRANSISTOR 2SA1175-HFE Q252 8-729-119-76 TRANSISTOR 2SA1175-HFE Q253 8-729-119-76 TRANSISTOR 2SA1175-HFE Q254 8-729-119-79 TRANSISTOR 2SC2785-FEK Q255 8-729-119-79 TRANSISTOR 2SC2785-FEK Q256 8-729-119-76 TRANSISTOR 2SA1175-HFE Q257 8-729-119-76 TRANSISTOR 2SA1175-HFE Q258 8-729-119-79 TRANSISTOR 2SC2785-FEK < RESISTOR > R261 1-247-843-11 CARBON 3.3K 5% 1/4W R262 1-249-429-11 CARBON 10K 5% 1/4W R263 1-249-429-11 CARBON 10K 5% 1/4W R264 1-247-843-11 CARBON 3.3K 5% 1/4W R265 1-249-417-11 CARBON 1K 5% 1/4W F R266 1-249-417-11 CARBON 1K 5% 1/4W F R267 1-249-417-11 CARBON 1K 5% 1/4W F R268 1-249-437-11 CARBON 47K 5% 1/4W R269 1-249-433-11 CARBON 22K 5% 1/4W R270 1-249-427-11 CARBON 6.8K 5% 1/4W F R271 1-249-417-11 CARBON 1K 5% 1/4W F R272 1-249-417-11 CARBON 1K 5% 1/4W F R273 1-249-414-11 CARBON 560 5% 1/4W F R274 1-249-413-11 CARBON 470 5% 1/4W F R275 1-249-417-11 CARBON 1K 5% 1/4W F R276 1-249-417-11 CARBON 1K 5% 1/4W F R277 1-249-413-11 CARBON 470 5% 1/4W F R278 1-249-414-11 CARBON 560 5% 1/4W F ************************************************************ * 1-670-004-11 S-VIDEO BOARD (MY,SP,CH) ************************ < CAPACITOR > C251 1-136-165-00 FILM 0.1uF 5% 50V C252 1-136-165-00 FILM 0.1uF 5% 50V C253 1-126-964-11 ELECT 10uF 20% 50V C254 1-136-165-00 FILM 0.1uF 5% 50V C255 1-136-165-00 FILM 0.1uF 5% 50V C256 1-126-964-11 ELECT 10uF 20% 50V C257 1-136-165-00 FILM 0.1uF 5% 50V C258 1-126-964-11 ELECT 10uF 20% 50V C259 1-126-964-11 ELECT 10uF 20% 50V C260 1-136-165-00 FILM 0.1uF 5% 50V C261 1-104-664-11 ELECT 47uF 20% 16V C262 1-164-159-11 CERAMIC 0.1uF 50V C263 1-164-159-11 CERAMIC 0.1uF 50V C264 1-104-664-11 ELECT 47uF 20% 16V C265 1-164-159-11 CERAMIC 0.1uF 50V C266 1-164-159-11 CERAMIC 0.1uF 50V C267 1-162-290-31 CERAMIC 470PF 10% 50V C268 1-162-290-31 CERAMIC 470PF 10% 50V C269 1-162-290-31 CERAMIC 470PF 10% 50V C270 1-162-290-31 CERAMIC 470PF 10% 50V < CONNECTOR > CNS251 1-784-770-11 CONNECTOR, FFC 9P < DIODE > D251 8-719-911-19 DIODE 1SS119 D252 8-719-911-19 DIODE 1SS119 < IC > IC251 8-759-529-20 IC NJM2296D IC252 8-759-529-20 IC NJM2296D < JACK > J251 1-537-943-11 TERMINAL, S (MONITOR) J252 1-764-676-11 CONNECTOR (ROUND TYPE)(VIDEO1) J253 1-764-676-11 CONNECTOR (ROUND TYPE)(TV/LD) < RESISTOR > R251 1-247-804-11 CARBON 75 5% 1/4W R252 1-249-429-11 CARBON 10K 5% 1/4W R253 1-247-804-11 CARBON 75 5% 1/4W R254 1-247-804-11 CARBON 75 5% 1/4W R255 1-247-804-11 CARBON 75 5% 1/4W S-VIDEO S-LINK REG www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 79 — R256 1-249-429-11 CARBON 10K 5% 1/4W R257 1-247-804-11 CARBON 75 5% 1/4W R258 1-247-804-11 CARBON 75 5% 1/4W R259 1-247-804-11 CARBON 75 5% 1/4W R260 1-247-804-11 CARBON 75 5% 1/4W R261 1-247-804-11 CARBON 75 5% 1/4W R262 1-247-804-11 CARBON 75 5% 1/4W ************************************************************ * A-4414-076-A SP BOARD, COMPLETE (US,CND,E,EA,PX) ******************************** * A-4414-090-A SP BOARD, COMPLETE (MY,SP,CH) ***************************** 7-685-872-09 SCREW +BVTT 3X8 (S) < CAPACITOR > C624 1-126-059-11 ELECT 10uF 20% 50V C626 1-136-153-00 FILM 0.01uF 5% 50V C724 1-126-059-11 ELECT 10uF 20% 50V C726 1-136-153-00 FILM 0.01uF 5% 50V C794 1-126-059-11 ELECT 10uF 20% 50V C795 1-126-941-11 ELECT 470uF 20% 25V CC41 1-162-290-31 CERAMIC 470PF 10% 50V CC42 1-162-290-31 CERAMIC 470PF 10% 50V CC43 1-162-290-31 CERAMIC 470PF 10% 50V < JACK > CNJ701 1-774-136-11 CONNECTOR, ROUND TYPE 6P (WIRELESS REAR SPEAKER) < CONNECTOR > CNP601 1-564-320-00 PIN, CONNECTOR (B2P-VH) 2P CNP602 1-784-922-11 PIN, CONNECTOR 5P CNP603 1-779-977-11 PIN, CONNECTOR 6P < DIODE > D543 8-719-911-19 DIODE 1SS119 D605 8-719-911-19 DIODE 1SS119 D606 8-719-911-19 DIODE 1SS119 D607 8-719-911-19 DIODE 1SS119 D649 8-719-911-19 DIODE 1SS119 D705 8-719-911-19 DIODE 1SS119 D706 8-719-911-19 DIODE 1SS119 D749 8-719-911-19 DIODE 1SS119 < IC > IC702 8-759-605-01 IC M5F78M18L < JACK > J501 1-770-157-21 JACK, PIN 2P (WOOFER) < COIL > L601 1-420-872-00 COIL, AIR-CORE (US,CND,E,EA,PX) L601 1-411-906-11 COIL, AIR-CORE (MY,SP,CH) L701 1-420-872-00 COIL, AIR-CORE (US,CND,E,EA,PX) L701 1-411-906-11 COIL, AIR-CORE (MY,SP,CH) L751 1-420-872-00 COIL, AIR-CORE (US,CND,E,EA,PX) L751 1-411-906-11 COIL, AIR-CORE (MY,SP,CH) < TRANSISTOR > Q544 8-729-119-79 TRANSISTOR 2SC2785-FEK Q609 8-729-281-53 TRANSISTOR 2SC1815-GR Q610 8-729-900-63 TRANSISTOR DTA124ES Q611 8-729-900-63 TRANSISTOR DTA124ES Q645 8-729-119-79 TRANSISTOR 2SC2785-FEK Q709 8-729-281-53 TRANSISTOR 2SC1815-GR Q710 8-729-900-63 TRANSISTOR DTA124ES Q745 8-729-119-79 TRANSISTOR 2SC2785-FEK Q747 8-729-620-05 TRANSISTOR 2SC2603-EF Q748 8-729-030-19 TRANSISTOR 2SB1640 < RESISTOR > R543 1-249-429-11 CARBON 10K 5% 1/4W R544 1-249-425-11 CARBON 4.7K 5% 1/4W F !R545 1-249-393-11 CARBON 10 5% 1/4W F R629 1-247-866-11 CARBON 30K 5% 1/4W R630 1-249-421-11 CARBON 2.2K 5% 1/4W F R631 1-249-433-11 CARBON 22K 5% 1/4W !R634 1-249-389-11 CARBON 4.7 5% 1/4W F R635 1-249-431-11 CARBON 15K 5% 1/4W R636 1-249-433-11 CARBON 22K 5% 1/4W R647 1-249-429-11 CARBON 10K 5% 1/4W R648 1-249-425-11 CARBON 4.7K 5% 1/4W F !R649 1-249-393-11 CARBON 10 5% 1/4W F R729 1-247-866-11 CARBON 30K 5% 1/4W R730 1-249-421-11 CARBON 2.2K 5% 1/4W F R731 1-249-433-11 CARBON 22K 5% 1/4W !R734 1-249-389-11 CARBON 4.7 5% 1/4W F R735 1-249-431-11 CARBON 15K 5% 1/4W R737 1-249-429-11 CARBON 10K 5% 1/4W R738 1-247-887-00 CARBON 220K 5% 1/4W R743 1-249-425-11 CARBON 4.7K 5% 1/4W F R744 1-249-425-11 CARBON 4.7K 5% 1/4W F R745 1-249-421-11 CARBON 2.2K 5% 1/4W F R746 1-249-421-11 CARBON 2.2K 5% 1/4W F R747 1-249-429-11 CARBON 10K 5% 1/4W R748 1-249-425-11 CARBON 4.7K 5% 1/4W F !R749 1-249-393-11 CARBON 10 5% 1/4W F !R784 1-249-389-11 CARBON 4.7 5% 1/4W F R787 1-249-429-11 CARBON 10K 5% 1/4W R788 1-247-887-00 CARBON 220K 5% 1/4W < RELAY > RY503 1-515-793-11 RELAY RY601 1-515-920-11 RELAY (24V) RY701 1-515-920-11 RELAY (24V) < SWITCH > S501 1-692-196-11 SWITCH, SLIDE (IMPEDANCE SELECTOR) < TERMINAL > TM701 1-694-431-21 TERMINAL BOARD (SPEAKERS) ************************************************************ SP S-VIDEO The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 80 — VIDEO * 1-670-010-11 SP SW BOARD *********** < DIODE > D120 8-719-911-19 DIODE 1SS119 D121 8-719-911-19 DIODE 1SS119 < RESISTOR > R173 1-249-421-11 CARBON 2.2K 5% 1/4W F R174 1-249-419-11 CARBON 1.5K 5% 1/4W F < SWITCH > S134 1-762-268-11 SWITCH, ROTARY (SPEAKERS) S140 1-762-750-11 SWITCH, TACTILE (SET UP) S141 1-762-750-11 SWITCH, TACTILE (CURSOR) ************************************************************ * A-4414-065-A SW BOARD, COMPLETE ****************** < CAPACITOR > C114 1-164-159-11 CERAMIC 0.1uF 50V C115 1-164-159-11 CERAMIC 0.1uF 50V C116 1-164-159-11 CERAMIC 0.1uF 50V < CONNECTOR > CNS113 1-770-397-11 HOUSING, CONNECTOR(PC BOARD)4P CNS114 1-770-397-11 HOUSING, CONNECTOR(PC BOARD)4P CNS115 1-770-397-11 HOUSING, CONNECTOR(PC BOARD)4P CNS116 1-770-397-11 HOUSING, CONNECTOR(PC BOARD)4P < DIODE > D109 8-719-046-39 DIODE SEL5821A-TH15 D110 8-719-046-39 DIODE SEL5821A-TH15 D111 8-719-046-39 DIODE SEL5821A-TH15 D112 8-719-046-39 DIODE SEL5821A-TH15 D113 8-719-046-39 DIODE SEL5821A-TH15 D114 8-719-046-39 DIODE SEL5821A-TH15 D115 8-719-046-39 DIODE SEL5821A-TH15 D116 8-719-046-39 DIODE SEL5821A-TH15 D117 8-719-046-39 DIODE SEL5821A-TH15 D118 8-719-046-39 DIODE SEL5821A-TH15 < RESISTOR > R136 1-249-413-11 CARBON 470 5% 1/4W F R137 1-249-411-11 CARBON 330 5% 1/4W R138 1-249-411-11 CARBON 330 5% 1/4W R139 1-249-411-11 CARBON 330 5% 1/4W R140 1-249-415-11 CARBON 680 5% 1/4W F R141 1-249-413-11 CARBON 470 5% 1/4W F R142 1-249-413-11 CARBON 470 5% 1/4W F R143 1-249-413-11 CARBON 470 5% 1/4W F R144 1-249-417-11 CARBON 1K 5% 1/4W F R145 1-249-415-11 CARBON 680 5% 1/4W F R146 1-249-415-11 CARBON 680 5% 1/4W F R147 1-249-415-11 CARBON 680 5% 1/4W F R148 1-249-419-11 CARBON 1.5K 5% 1/4W F R149 1-249-417-11 CARBON 1K 5% 1/4W F R150 1-249-417-11 CARBON 1K 5% 1/4W F R151 1-249-417-11 CARBON 1K 5% 1/4W F R152 1-249-421-11 CARBON 2.2K 5% 1/4W F R153 1-249-419-11 CARBON 1.5K 5% 1/4W F R154 1-249-419-11 CARBON 1.5K 5% 1/4W F R155 1-249-419-11 CARBON 1.5K 5% 1/4W F R156 1-249-425-11 CARBON 4.7K 5% 1/4W F R157 1-249-421-11 CARBON 2.2K 5% 1/4W F R158 1-249-421-11 CARBON 2.2K 5% 1/4W F R159 1-249-425-11 CARBON 4.7K 5% 1/4W F R160 1-249-425-11 CARBON 4.7K 5% 1/4W F < SWITCH > S103 1-762-750-11 SWITCH, TACTILE (BOOST) S104 1-762-750-11 SWITCH, TACTILE (VIDEO 3) S105 1-762-750-11 SWITCH, TACTILE (SHIFT) S106 1-762-750-11 SWITCH, TACTILE (DIRECT) S107 1-762-750-11 SWITCH, TACTILE (EQ ON/OFF) S108 1-762-750-11 SWITCH, TACTILE (DVD/LD) S109 1-762-750-11 SWITCH, TACTILE (6) S110 1-762-750-11 SWITCH, TACTILE (1) S111 1-762-750-11 SWITCH, TACTILE (INPUT) S112 1-762-750-11 SWITCH, TACTILE (TV/DBS) S113 1-762-750-11 SWITCH, TACTILE (7) S114 1-762-750-11 SWITCH, TACTILE (2) S115 1-762-750-11 SWITCH, TACTILE (GENRE) S116 1-762-750-11 SWITCH, TACTILE (PHONO) S117 1-762-750-11 SWITCH, TACTILE (8) S118 1-762-750-11 SWITCH, TACTILE (3) S119 1-762-750-11 SWITCH, TACTILE (SF MODE) S120 1-762-750-11 SWITCH, TACTILE (TUNER) S121 1-762-750-11 SWITCH, TACTILE (9) S122 1-762-750-11 SWITCH, TACTILE (4) S123 1-762-750-11 SWITCH, TACTILE (SF ON/OFF) S124 1-762-750-11 SWITCH, TACTILE (CD) S125 1-762-750-11 SWITCH, TACTILE (0) S126 1-762-750-11 SWITCH, TACTILE (5) S127 1-762-750-11 SWITCH, TACTILE (TAPE) S128 1-762-750-11 SWITCH, TACTILE (VIDEO 1) S129 1-762-750-11 SWITCH, TACTILE (MD/DAT) S130 1-762-750-11 SWITCH, TACTILE (VIDEO 2) ************************************************************ * 1-670-000-11 TUNER BOARD *********** < CONNECTOR > CNS304 1-564-721-11 PIN, CONNECTOR (SMALL TYPE) 5P CNS305 1-774-289-11 PIN, CONNECTOR (PC BOARD) 15P ************************************************************ * 1-670-003-11 VIDEO BOARD *********** < CAPACITOR > C201 1-126-964-11 ELECT 10uF 20% 50V C202 1-126-964-11 ELECT 10uF 20% 50V C203 1-126-964-11 ELECT 10uF 20% 50V C204 1-126-964-11 ELECT 10uF 20% 50V C205 1-162-215-31 CERAMIC 47PF 5% 50V SW TUNER SP SW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 81 — C206 1-162-215-31 CERAMIC 47PF 5% 50V C207 1-162-215-31 CERAMIC 47PF 5% 50V C208 1-126-964-11 ELECT 10uF 20% 50V C209 1-164-159-11 CERAMIC 0.1uF 50V C210 1-164-159-11 CERAMIC 0.1uF 50V C211 1-164-159-11 CERAMIC 0.1uF 50V C212 1-164-159-11 CERAMIC 0.1uF 50V C213 1-126-933-11 ELECT 100uF 20% 16V C214 1-126-933-11 ELECT 100uF 20% 16V < CONNECTOR > CNS210 1-564-718-11 PIN, CONNECTOR (SMALL TYPE) 2P CNS211 1-784-737-11 CONNECTOR, FFC 15P (US,CND) CNS211 1-784-733-11 CONNECTOR, FFC 11P (E,EA,MY,SP,CH,PX) CNS212 1-784-731-11 CONNECTOR, FFC 9P (MY,SP,CH) CNS215 1-784-729-11 CONNECTOR, FFC 7P (US,CND) < DIODE > D201 8-719-911-19 DIODE 1SS119 D202 8-719-911-19 DIODE 1SS119 < IC > IC201 8-759-529-20 IC NJM2296D IC202 8-759-701-65 IC NJM79M05FA < JACK > J201 1-766-399-11 JACK, PIN 3P (MONITOR/VIDEO 1) J202 1-766-400-11 JACK, PIN 2P (VIDEO 2) J203 1-766-400-11 JACK, PIN 2P (TV/DBS,DVD/LD)(DE925) (TV/LD,DVD)(V919) J204 1-563-330-11 JACK (S-LINK) < RESISTOR > R201 1-247-804-11 CARBON 75 5% 1/4W R202 1-247-804-11 CARBON 75 5% 1/4W R203 1-247-804-11 CARBON 75 5% 1/4W R204 1-247-804-11 CARBON 75 5% 1/4W R205 1-247-804-11 CARBON 75 5% 1/4W R206 1-247-804-11 CARBON 75 5% 1/4W R207 1-247-804-11 CARBON 75 5% 1/4W ************************************************************ * A-4414-066-A VOLUME BOARD, COMPLETE ********************** (including BALANCE BOARD) < CAPACITOR > C410 1-126-233-11 ELECT 22uF 20% 50V C411 1-126-233-11 ELECT 22uF 20% 50V C412 1-126-233-11 ELECT 22uF 20% 50V C413 1-162-199-31 CERAMIC 10PF 5% 50V C414 1-162-199-31 CERAMIC 10PF 5% 50V C415 1-162-199-31 CERAMIC 10PF 5% 50V C421 1-162-286-31 CERAMIC 220PF 10% 50V C422 1-162-286-31 CERAMIC 220PF 10% 50V C423 1-162-286-31 CERAMIC 220PF 10% 50V C460 1-126-233-11 ELECT 22uF 20% 50V C461 1-126-233-11 ELECT 22uF 20% 50V C462 1-126-233-11 ELECT 22uF 20% 50V C463 1-162-199-31 CERAMIC 10PF 5% 50V C464 1-162-199-31 CERAMIC 10PF 5% 50V C465 1-162-199-31 CERAMIC 10PF 5% 50V C471 1-162-286-31 CERAMIC 220PF 10% 50V C472 1-162-286-31 CERAMIC 220PF 10% 50V C473 1-162-286-31 CERAMIC 220PF 10% 50V < CONNECTOR > CNP101 1-770-388-11 PIN, CONNECTOR (PC BOARD) 4P * CNS402 1-564-726-11 PIN, CONNECTOR (SMALL TYPE)10P < IC > IC408 8-759-634-50 IC M5218AL IC409 8-759-634-50 IC M5218AL IC410 8-759-634-50 IC M5218AL < RESISTOR > R413 1-249-437-11 CARBON 47K 5% 1/4W R414 1-249-437-11 CARBON 47K 5% 1/4W R415 1-249-437-11 CARBON 47K 5% 1/4W R416 1-249-429-11 CARBON 10K 5% 1/4W R417 1-247-843-11 CARBON 3.3K 5% 1/4W R418 1-249-437-11 CARBON 47K 5% 1/4W R419 1-249-437-11 CARBON 47K 5% 1/4W R420 1-249-437-11 CARBON 47K 5% 1/4W R421 1-249-437-11 CARBON 47K 5% 1/4W R463 1-249-437-11 CARBON 47K 5% 1/4W R464 1-249-437-11 CARBON 47K 5% 1/4W R465 1-249-437-11 CARBON 47K 5% 1/4W R466 1-249-429-11 CARBON 10K 5% 1/4W R467 1-247-843-11 CARBON 3.3K 5% 1/4W R468 1-247-843-11 CARBON 3.3K 5% 1/4W R469 1-249-437-11 CARBON 47K 5% 1/4W R470 1-249-437-11 CARBON 47K 5% 1/4W R471 1-249-437-11 CARBON 47K 5% 1/4W RR108 1-249-411-11 CARBON 330 5% 1/4W < VARIABLE RESISTOR > RV401 1-225-445-11 RES, VAR, CARBON 100KX6 (MASTER VOLUME) RV402 1-238-965-21 RES, VAR, CARBON 100K/100K (BALANCE) ************************************************************ MISCELLANEOUS ************** 12 1-773-161-11 WIRE (FLAT TYPE) (21 CORE) 13 1-769-959-11 WIRE (FLAT TYPE) (11 CORE) 13 1-773-025-11 WIRE (FLAT TYPE) (15 CORE)(US,CND) 64 1-693-407-11 TUNER (US,CND) 64 1-693-409-11 TUNER (E,EA,MY,SP,CH,PX) 66 1-773-285-11 WIRE (FLAT TYPE) (29 CORE) !73 1-769-743-11 CORD, POWER (US,CND) !73 1-769-744-11 CORD, POWER (E,EA,MY,SP,PX) !73 1-782-464-21 CORD, POWER (CH) !74 1-569-008-31 ADAPTOR, CONVERSION (E,EA,PX) 75 1-769-904-11 WIRE (FLAT TYPE) (9 CORE) (MY,SP,CH) 76 1-769-876-11 WIRE (FLAT TYPE) (7 CORE) !CNJ901 1-526-794-11 OUTLET, AC (MY,SP) !T901 1-431-891-11 TRANSFORMER, POWER (US) !T901 1-431-892-11 TRANSFORMER, POWER (CND) The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. VOLUME VIDEO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 82 — Sony Corporation Home A&V Products Company 98F1643-1 Printed in Japan ©1998.6 Published by Quality Assurance Dept. (Shibaura) 9-922-896-11 !T901 1-431-893-11 TRANSFORMER, POWER (MY,SP,CH) !T901 1-431-895-11 TRANSFORMER, POWER (E,EA,PX) ************************************************************ ACCESSORIES & PACKING MATERIALS ******************************* 1-475-726-12 REMOTE COMMANDER (RM-LJ301) 1-501-374-11 ANTENNA, LOOP 1-776-258-11 CORD, AVC CONNECTION (US,CND) 1-777-172-11 CORD, CONNECTION (US,CND) 3-864-441-11 MANUAL, INSTRUCTION (RM-LJ301) (ENGLISH/FRENCH/SPANISH) 3-864-441-21 MANUAL, INSTRUCTION (RM-LJ301) (CHINESE)(MY,SP,CH) 3-864-441-31 MANUAL, INSTRUCTION (RM-LJ301) (DUTCH/SWEDISH/GERMAN/ ITALIAN/PORTUGUESE) (E,EA,PX) 3-864-483-11 MANUAL, INSTRUCTION (ENGLISH)(US,CND) 3-864-483-31 MANUAL, INSTRUCTION (FRENCH)(CND) 3-864-483-41 MANUAL, INSTRUCTION (ENGLISH/FRENCH/SPANISH)(E,EA,PX) 3-864-483-51 MANUAL, INSTRUCTION (ENGLISH/CHINESE)(MY,SP) 3-864-483-61 MANUAL, INSTRUCTION (ENGLISH/CHINESE)(CH) 4-210-990-01 LID (RM-LJ301), BATTERY CASE ************************************************************ ************** HARDWARE LIST ************** #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 #2 7-685-881-09 SCREW +BVTT 4X8 (S) #3 7-685-872-09 SCREW +BVTT 3X8 (S) STR-DE925/V919 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
