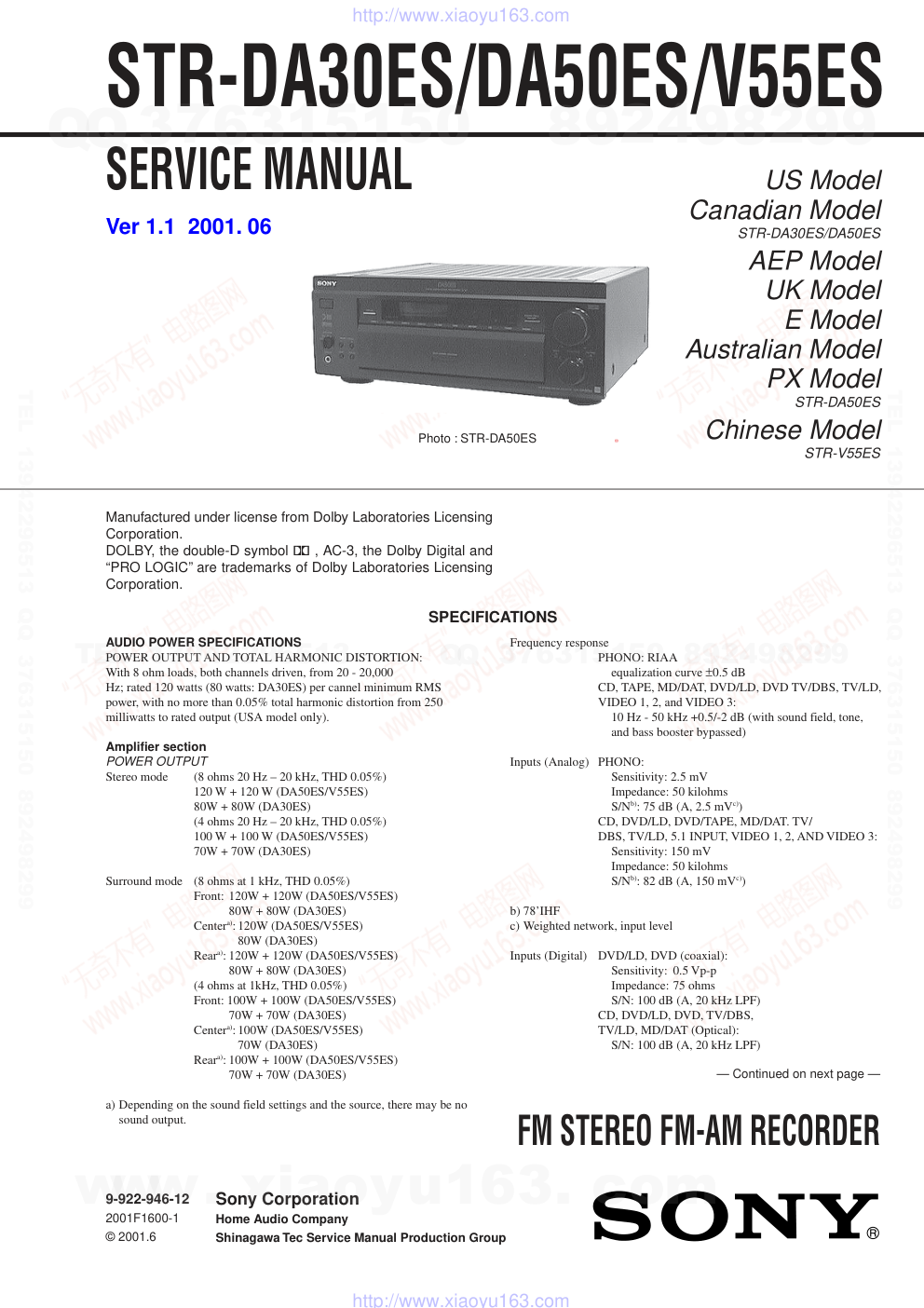

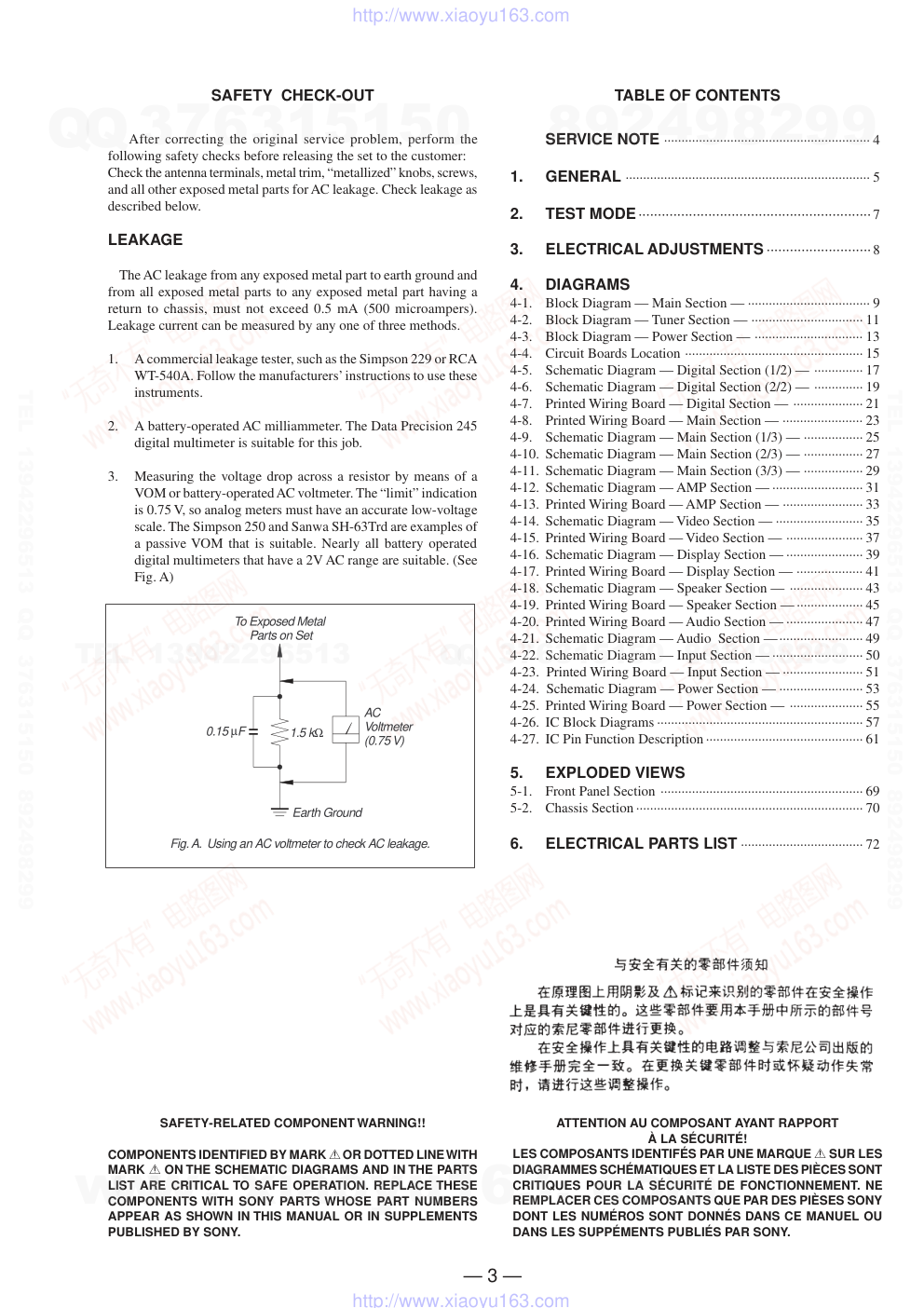

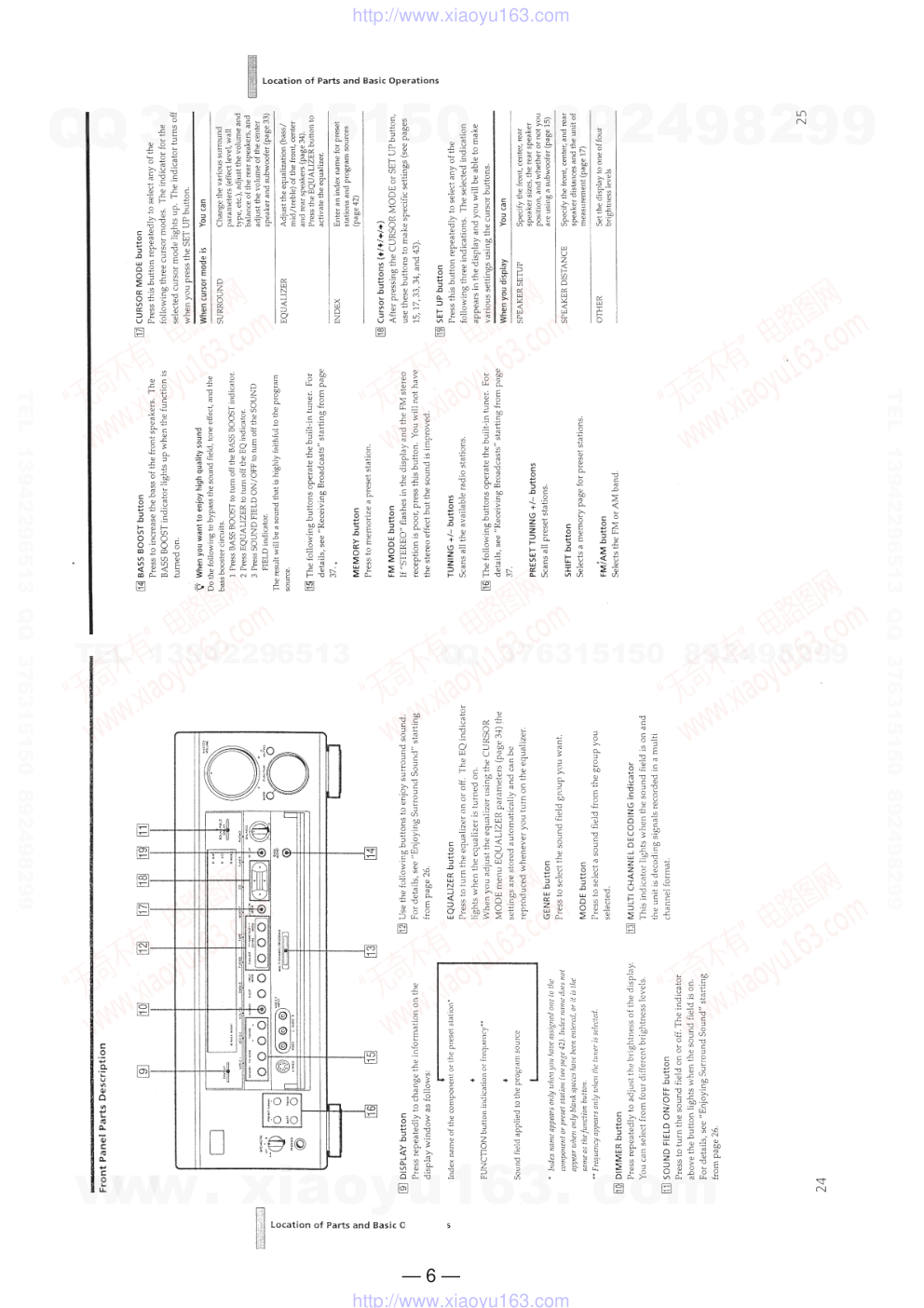

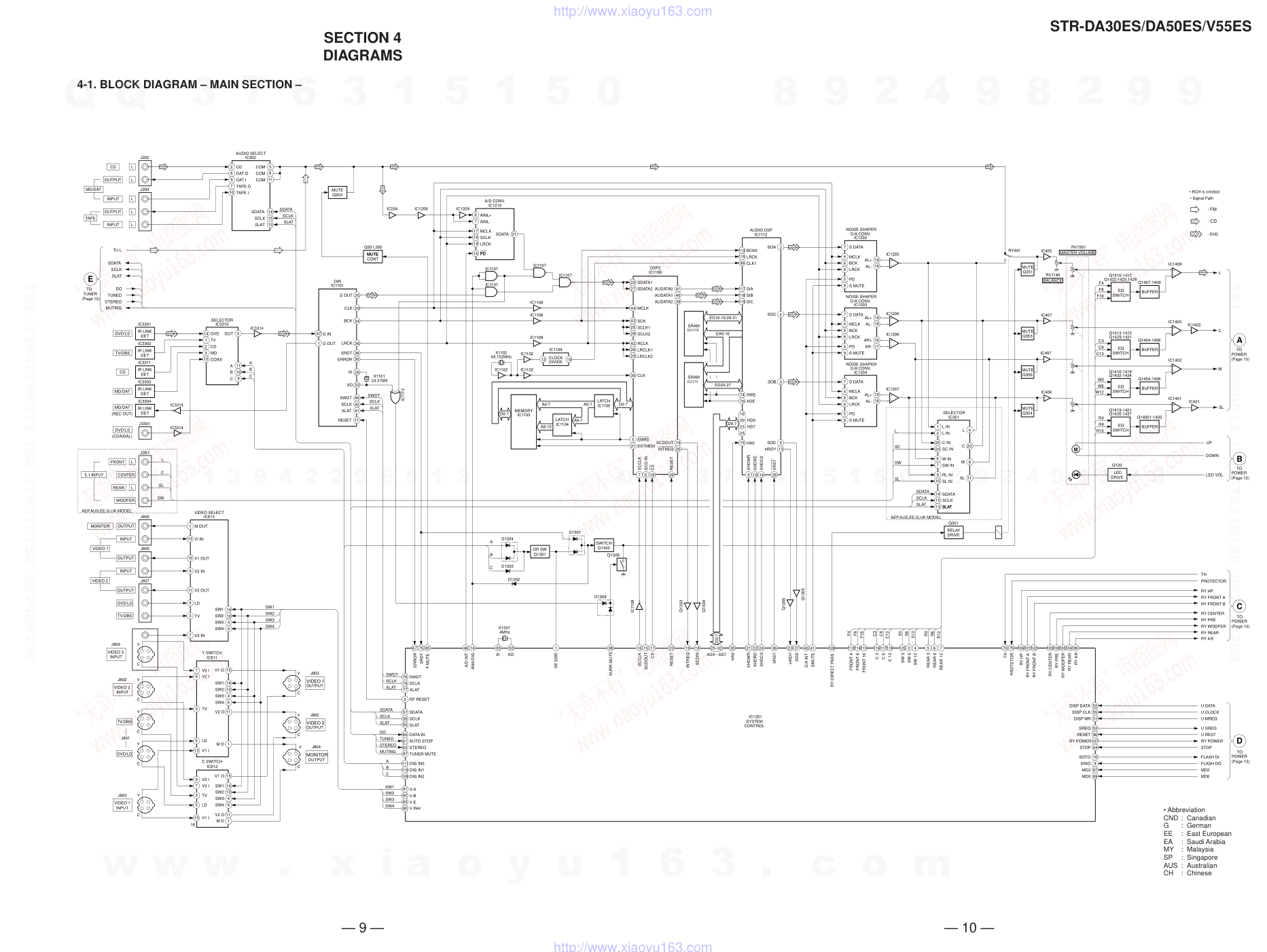

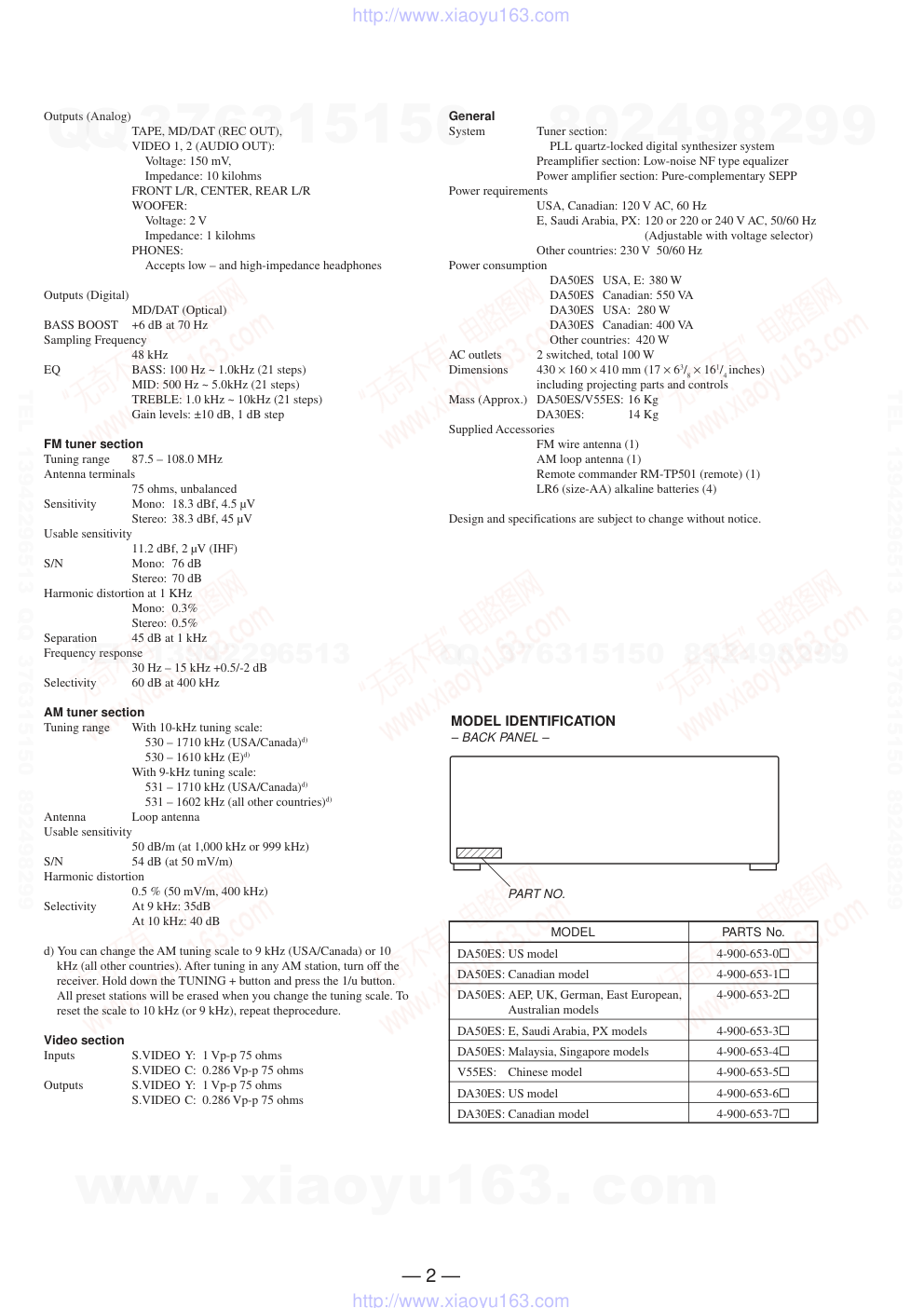

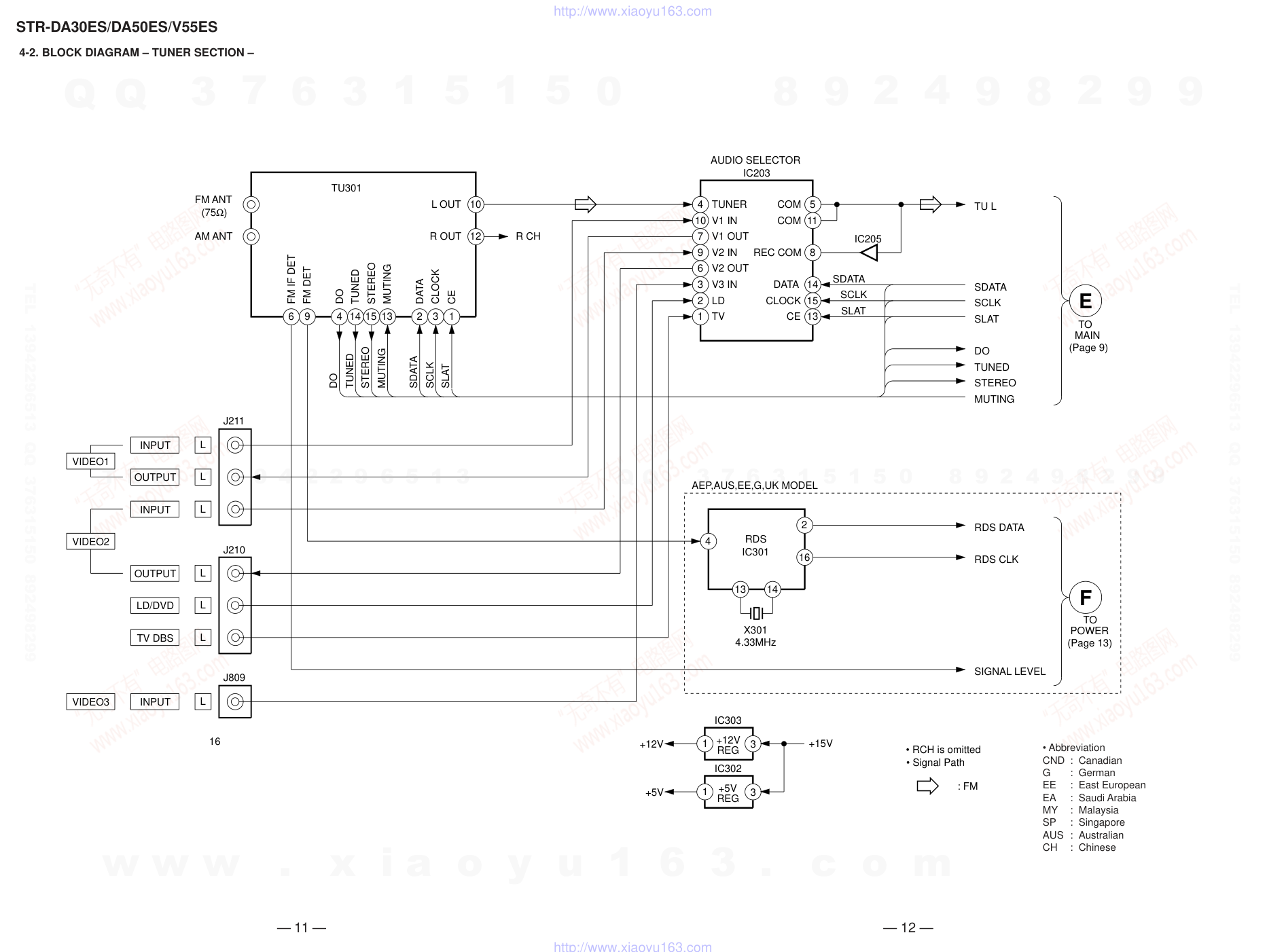

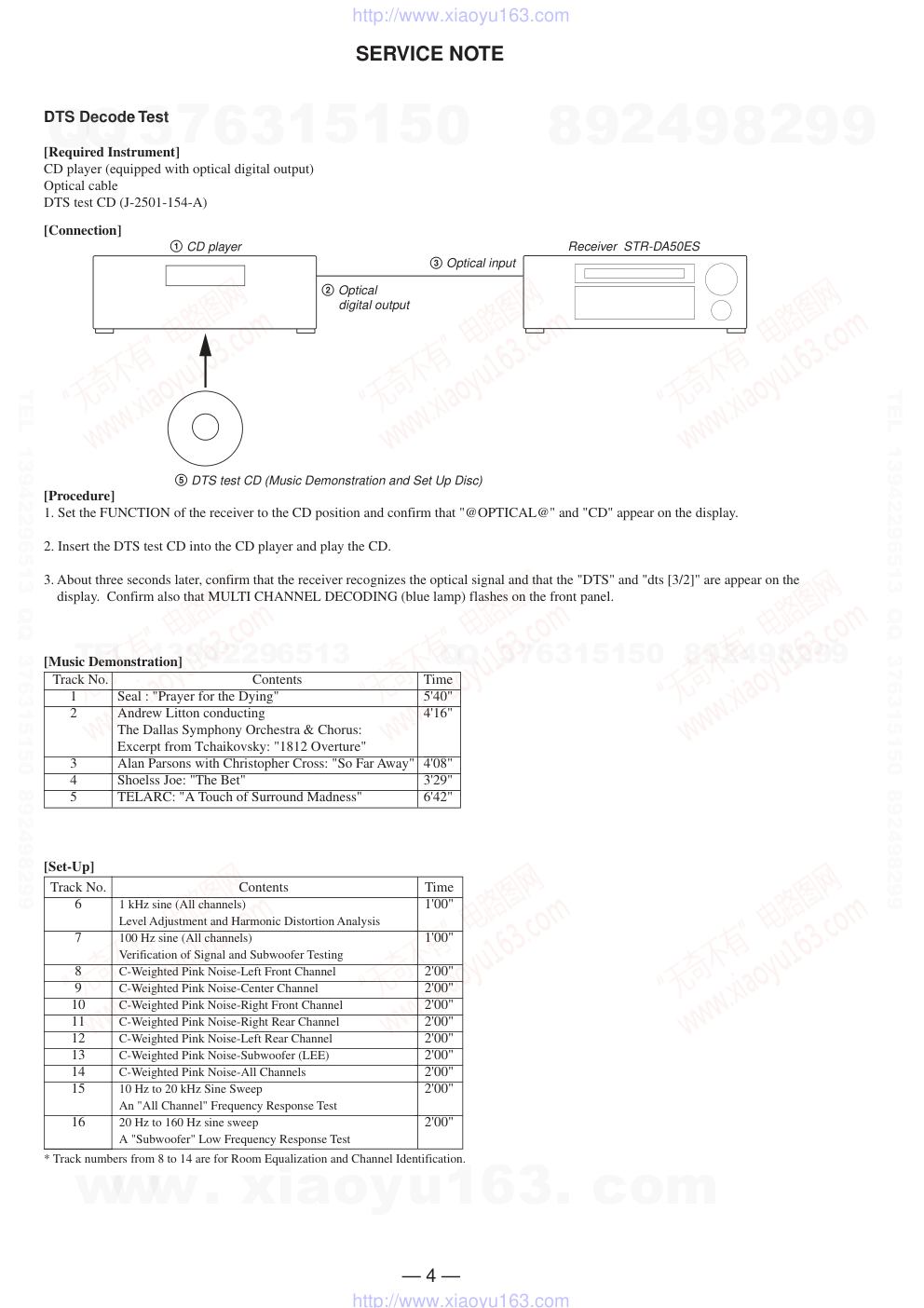

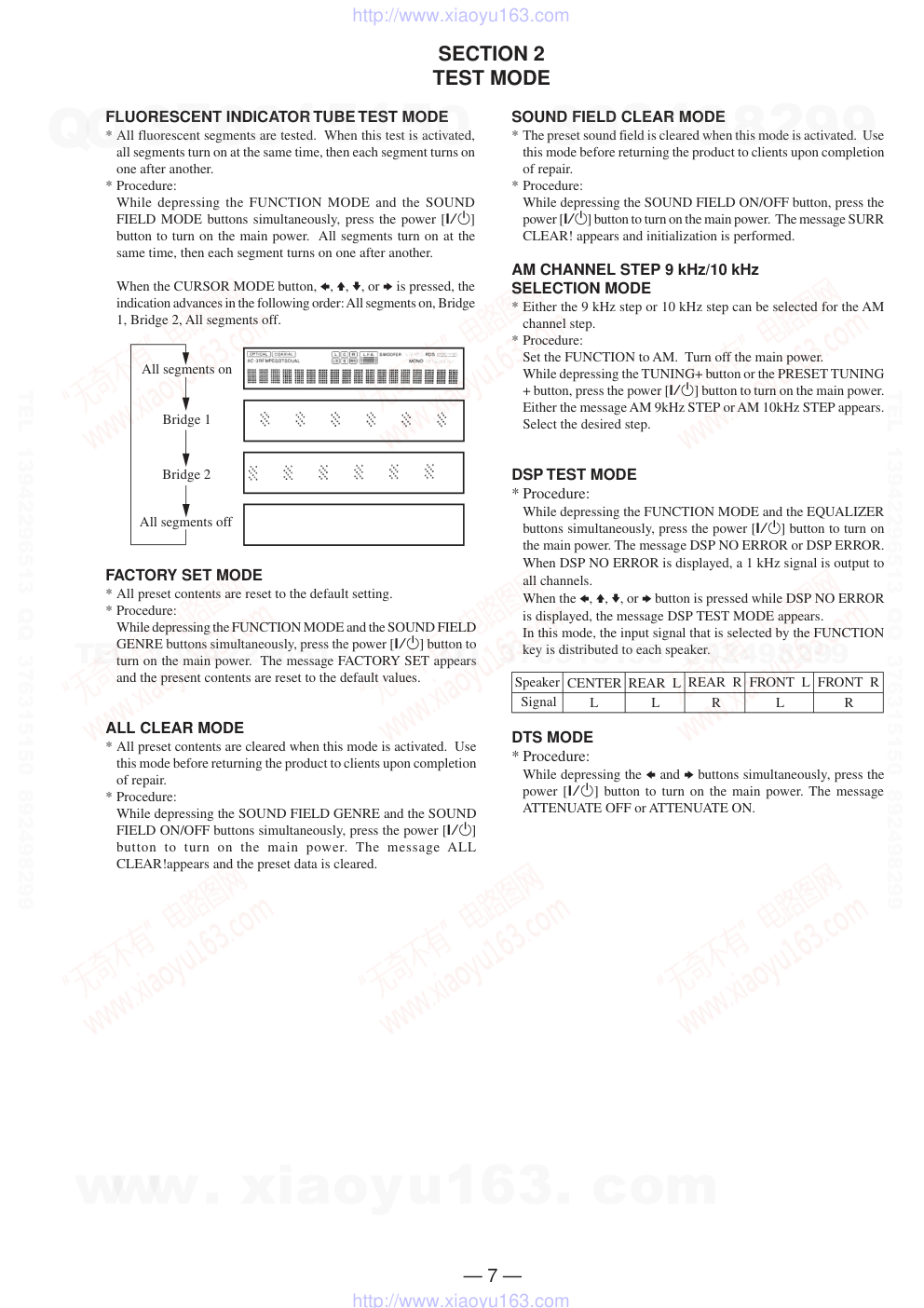

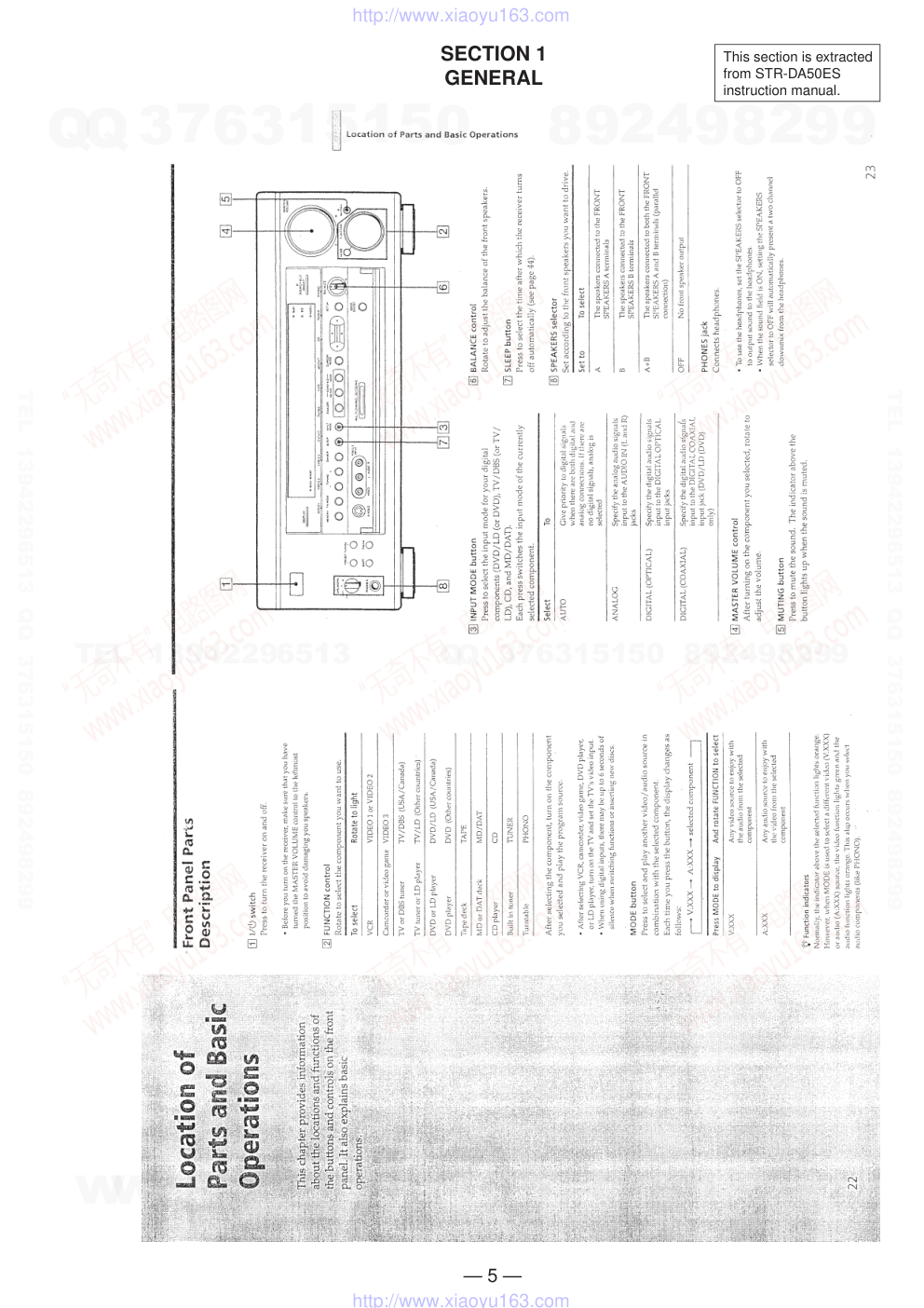

STR-DA30ES/DA50ES/V55ES US Model Canadian Model STR-DA30ES/DA50ES AEP Model UK Model E Model Australian Model PX Model STR-DA50ES Chinese Model STR-V55ES SERVICE MANUAL FM STEREO FM-AM RECORDER — Continued on next page — SPECIFICATIONS Ver 1.1 2001. 06 Sony Corporation Home Audio Company Shinagawa Tec Service Manual Production Group 9-922-946-12 2001F1600-1 © 2001.6 Photo : STR-DA50ES Manufactured under license from Dolby Laboratories Licensing Corporation. DOLBY, the double-D symbol a , AC-3, the Dolby Digital and “PRO LOGIC” are trademarks of Dolby Laboratories Licensing Corporation. AUDIO POWER SPECIFICATIONS POWER OUTPUT AND TOTAL HARMONIC DISTORTION: With 8 ohm loads, both channels driven, from 20 - 20,000 Hz; rated 120 watts (80 watts: DA30ES) per cannel minimum RMS power, with no more than 0.05% total harmonic distortion from 250 milliwatts to rated output (USA model only). Amplifier section POWER OUTPUT Stereo mode (8 ohms 20 Hz – 20 kHz, THD 0.05%) 120 W + 120 W (DA50ES/V55ES) 80W + 80W (DA30ES) (4 ohms 20 Hz – 20 kHz, THD 0.05%) 100 W + 100 W (DA50ES/V55ES) 70W + 70W (DA30ES) Surround mode (8 ohms at 1 kHz, THD 0.05%) Front: 120W + 120W (DA50ES/V55ES) 80W + 80W (DA30ES) Centera): 120W (DA50ES/V55ES) 80W (DA30ES) Reara): 120W + 120W (DA50ES/V55ES) 80W + 80W (DA30ES) (4 ohms at 1kHz, THD 0.05%) Front: 100W + 100W (DA50ES/V55ES) 70W + 70W (DA30ES) Centera): 100W (DA50ES/V55ES) 70W (DA30ES) Reara): 100W + 100W (DA50ES/V55ES) 70W + 70W (DA30ES) a) Depending on the sound field settings and the source, there may be no sound output. Frequency response PHONO: RIAA equalization curve ±0.5 dB CD, TAPE, MD/DAT, DVD/LD, DVD TV/DBS, TV/LD, VIDEO 1, 2, and VIDEO 3: 10 Hz - 50 kHz +0.5/-2 dB (with sound field, tone, and bass booster bypassed) Inputs (Analog) PHONO: Sensitivity: 2.5 mV Impedance: 50 kilohms S/Nb): 75 dB (A, 2.5 mVc)) CD, DVD/LD, DVD/TAPE, MD/DAT. TV/ DBS, TV/LD, 5.1 INPUT, VIDEO 1, 2, AND VIDEO 3: Sensitivity: 150 mV Impedance: 50 kilohms S/Nb): 82 dB (A, 150 mVc)) b) 78’IHF c) Weighted network, input level Inputs (Digital) DVD/LD, DVD (coaxial): Sensitivity: 0.5 Vp-p Impedance: 75 ohms S/N: 100 dB (A, 20 kHz LPF) CD, DVD/LD, DVD, TV/DBS, TV/LD, MD/DAT (Optical): S/N: 100 dB (A, 20 kHz LPF) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2007.05.11 QQ :376315150 手机:13942296513 — 2 — Outputs (Analog) TAPE, MD/DAT (REC OUT), VIDEO 1, 2 (AUDIO OUT): Voltage: 150 mV, Impedance: 10 kilohms FRONT L/R, CENTER, REAR L/R WOOFER: Voltage: 2 V Impedance: 1 kilohms PHONES: Accepts low – and high-impedance headphones Outputs (Digital) MD/DAT (Optical) BASS BOOST +6 dB at 70 Hz Sampling Frequency 48 kHz EQ BASS: 100 Hz ~ 1.0kHz (21 steps) MID: 500 Hz ~ 5.0kHz (21 steps) TREBLE: 1.0 kHz ~ 10kHz (21 steps) Gain levels: ±10 dB, 1 dB step FM tuner section Tuning range 87.5 – 108.0 MHz Antenna terminals 75 ohms, unbalanced Sensitivity Mono: 18.3 dBf, 4.5 µV Stereo: 38.3 dBf, 45 µV Usable sensitivity 11.2 dBf, 2 µV (IHF) S/N Mono: 76 dB Stereo: 70 dB Harmonic distortion at 1 KHz Mono: 0.3% Stereo: 0.5% Separation 45 dB at 1 kHz Frequency response 30 Hz – 15 kHz +0.5/-2 dB Selectivity 60 dB at 400 kHz AM tuner section Tuning range With 10-kHz tuning scale: 530 – 1710 kHz (USA/Canada)d) 530 – 1610 kHz (E)d) With 9-kHz tuning scale: 531 – 1710 kHz (USA/Canada)d) 531 – 1602 kHz (all other countries)d) Antenna Loop antenna Usable sensitivity 50 dB/m (at 1,000 kHz or 999 kHz) S/N 54 dB (at 50 mV/m) Harmonic distortion 0.5 % (50 mV/m, 400 kHz) Selectivity At 9 kHz: 35dB At 10 kHz: 40 dB d) You can change the AM tuning scale to 9 kHz (USA/Canada) or 10 kHz (all other countries). After tuning in any AM station, turn off the receiver. Hold down the TUNING + button and press the 1/u button. All preset stations will be erased when you change the tuning scale. To reset the scale to 10 kHz (or 9 kHz), repeat theprocedure. Video section Inputs S.VIDEO Y: 1 Vp-p 75 ohms S.VIDEO C: 0.286 Vp-p 75 ohms Outputs S.VIDEO Y: 1 Vp-p 75 ohms S.VIDEO C: 0.286 Vp-p 75 ohms General System Tuner section: PLL quartz-locked digital synthesizer system Preamplifier section: Low-noise NF type equalizer Power amplifier section: Pure-complementary SEPP Power requirements USA, Canadian: 120 V AC, 60 Hz E, Saudi Arabia, PX: 120 or 220 or 240 V AC, 50/60 Hz (Adjustable with voltage selector) Other countries: 230 V 50/60 Hz Power consumption DA50ES USA, E: 380 W DA50ES Canadian: 550 VA DA30ES USA: 280 W DA30ES Canadian: 400 VA Other countries: 420 W AC outlets 2 switched, total 100 W Dimensions 430 × 160 × 410 mm (17 × 63/8 × 161/4 inches) including projecting parts and controls Mass (Approx.) DA50ES/V55ES: 16 Kg DA30ES: 14 Kg Supplied Accessories FM wire antenna (1) AM loop antenna (1) Remote commander RM-TP501 (remote) (1) LR6 (size-AA) alkaline batteries (4) Design and specifications are subject to change without notice. MODEL IDENTIFICATION – BACK PANEL – MODEL DA50ES: US model DA50ES: Canadian model DA50ES: AEP, UK, German, East European, Australian models DA50ES: E, Saudi Arabia, PX models DA50ES: Malaysia, Singapore models V55ES: Chinese model DA30ES: US model DA30ES: Canadian model PARTS No. 4-900-653-0π 4-900-653-1π 4-900-653-2π 4-900-653-3π 4-900-653-4π 4-900-653-5π 4-900-653-6π 4-900-653-7π PART NO. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 3 — SERVICE NOTE ··························································· 4 1. GENERAL ······································································ 5 2. TEST MODE····························································7 3. ELECTRICAL ADJUSTMENTS ···························8 4. DIAGRAMS 4-1. Block Diagram — Main Section — ··································· 9 4-2. Block Diagram — Tuner Section — ································ 11 4-3. Block Diagram — Power Section — ······························· 13 4-4. Circuit Boards Location ··················································· 15 4-5. Schematic Diagram — Digital Section (1/2) — ·············· 17 4-6. Schematic Diagram — Digital Section (2/2) — ·············· 19 4-7. Printed Wiring Board — Digital Section — ···················· 21 4-8. Printed Wiring Board — Main Section — ······················· 23 4-9. Schematic Diagram — Main Section (1/3) — ················· 25 4-10. Schematic Diagram — Main Section (2/3) — ················· 27 4-11. Schematic Diagram — Main Section (3/3) — ················· 29 4-12. Schematic Diagram — AMP Section — ·························· 31 4-13. Printed Wiring Board — AMP Section — ······················· 33 4-14. Schematic Diagram — Video Section — ························· 35 4-15. Printed Wiring Board — Video Section — ······················ 37 4-16. Schematic Diagram — Display Section — ······················ 39 4-17. Printed Wiring Board — Display Section — ··················· 41 4-18. Schematic Diagram — Speaker Section — ····················· 43 4-19. Printed Wiring Board — Speaker Section — ··················· 45 4-20. Printed Wiring Board — Audio Section — ······················ 47 4-21. Schematic Diagram — Audio Section —························ 49 4-22. Schematic Diagram — Input Section — ·························· 50 4-23. Printed Wiring Board — Input Section — ······················· 51 4-24. Schematic Diagram — Power Section — ························ 53 4-25. Printed Wiring Board — Power Section — ····················· 55 4-26. IC Block Diagrams ··························································· 57 4-27. IC Pin Function Description ············································· 61 5. EXPLODED VIEWS 5-1. Front Panel Section ·························································· 69 5-2. Chassis Section ································································· 70 6. ELECTRICAL PARTS LIST ··································· 72 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE ! SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPÉMENTS PUBLIÉS PAR SONY. TABLE OF CONTENTS After correcting the original service problem, perform the following safety checks before releasing the set to the customer: Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microampers). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) SAFETY CHECK-OUT To Exposed Metal Parts on Set 0.15 µF 1.5 kΩ AC Voltmeter (0.75 V) Earth Ground Fig. A. Using an AC voltmeter to check AC leakage. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 4 — Track No. 1 2 3 4 5 SERVICE NOTE DTS Decode Test [Required Instrument] CD player (equipped with optical digital output) Optical cable DTS test CD (J-2501-154-A) Time 5'40" 4'16" 4'08" 3'29" 6'42" [Music Demonstration] Contents Seal : "Prayer for the Dying" Andrew Litton conducting The Dallas Symphony Orchestra & Chorus: Excerpt from Tchaikovsky: "1812 Overture" Alan Parsons with Christopher Cross: "So Far Away" Shoelss Joe: "The Bet" TELARC: "A Touch of Surround Madness" [Procedure] 1. Set the FUNCTION of the receiver to the CD position and confirm that "@OPTICAL@" and "CD" appear on the display. 2. Insert the DTS test CD into the CD player and play the CD. 3. About three seconds later, confirm that the receiver recognizes the optical signal and that the "DTS" and "dts [3/2]" are appear on the display. Confirm also that MULTI CHANNEL DECODING (blue lamp) flashes on the front panel. Time 1'00" 1'00" 2'00" 2'00" 2'00" 2'00" 2'00" 2'00" 2'00" 2'00" 2'00" Track No. 6 7 8 9 10 11 12 13 14 15 16 [Set-Up] Contents 1 kHz sine (All channels) Level Adjustment and Harmonic Distortion Analysis 100 Hz sine (All channels) Verification of Signal and Subwoofer Testing C-Weighted Pink Noise-Left Front Channel C-Weighted Pink Noise-Center Channel C-Weighted Pink Noise-Right Front Channel C-Weighted Pink Noise-Right Rear Channel C-Weighted Pink Noise-Left Rear Channel C-Weighted Pink Noise-Subwoofer (LEE) C-Weighted Pink Noise-All Channels 10 Hz to 20 kHz Sine Sweep An "All Channel" Frequency Response Test 20 Hz to 160 Hz sine sweep A "Subwoofer" Low Frequency Response Test * Track numbers from 8 to 14 are for Room Equalization and Channel Identification. 1 CD player 2 Optical digital output 3 Optical input Receiver STR-DA50ES 5 DTS test CD (Music Demonstration and Set Up Disc) [Connection] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 5 — SECTION 1 GENERAL This section is extracted from STR-DA50ES instruction manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 6 — www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 7 — SECTION 2 TEST MODE FLUORESCENT INDICATOR TUBE TEST MODE * All fluorescent segments are tested. When this test is activated, all segments turn on at the same time, then each segment turns on one after another. * Procedure: While depressing the FUNCTION MODE and the SOUND FIELD MODE buttons simultaneously, press the power [1/u] button to turn on the main power. All segments turn on at the same time, then each segment turns on one after another. When the CURSOR MODE button, B, V, v, or b is pressed, the indication advances in the following order: All segments on, Bridge 1, Bridge 2, All segments off. FACTORY SET MODE * All preset contents are reset to the default setting. * Procedure: While depressing the FUNCTION MODE and the SOUND FIELD GENRE buttons simultaneously, press the power [1/u] button to turn on the main power. The message FACTORY SET appears and the present contents are reset to the default values. ALL CLEAR MODE * All preset contents are cleared when this mode is activated. Use this mode before returning the product to clients upon completion of repair. * Procedure: While depressing the SOUND FIELD GENRE and the SOUND FIELD ON/OFF buttons simultaneously, press the power [1/u] button to turn on the main power. The message ALL CLEAR!appears and the preset data is cleared. SOUND FIELD CLEAR MODE * The preset sound field is cleared when this mode is activated. Use this mode before returning the product to clients upon completion of repair. * Procedure: While depressing the SOUND FIELD ON/OFF button, press the power [1/u] button to turn on the main power. The message SURR CLEAR! appears and initialization is performed. AM CHANNEL STEP 9 kHz/10 kHz SELECTION MODE * Either the 9 kHz step or 10 kHz step can be selected for the AM channel step. * Procedure: Set the FUNCTION to AM. Turn off the main power. While depressing the TUNING+ button or the PRESET TUNING + button, press the power [1/u] button to turn on the main power. Either the message AM 9kHz STEP or AM 10kHz STEP appears. Select the desired step. DSP TEST MODE * Procedure: While depressing the FUNCTION MODE and the EQUALIZER buttons simultaneously, press the power [1/u] button to turn on the main power. The message DSP NO ERROR or DSP ERROR. When DSP NO ERROR is displayed, a 1 kHz signal is output to all channels. When the B, V, v, or b button is pressed while DSP NO ERROR is displayed, the message DSP TEST MODE appears. In this mode, the input signal that is selected by the FUNCTION key is distributed to each speaker. DTS MODE * Procedure: While depressing the B and b buttons simultaneously, press the power [1/u] button to turn on the main power. The message ATTENUATE OFF or ATTENUATE ON. Speaker CENTER REAR L REAR R FRONT L FRONT R Signal L L R L R All segments on Bridge 1 Bridge 2 All segments off www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 8 — SECTION 3 ELECTRICAL ADJUSTMENT IDLING CURRENT ADJUSTMENT [Measuring Instrument] Digital voltmeter [Adjustment Method] Adjust the respective adjustment elements so that the voltage (absolute value) across the corresponding testpoints satisfies the specification. Specification 6mV Channel FRONT L FRONT R CENTER REAR L REAR R Test point TP501 TP551 TP601 TP701 TP751 Adjustment element RV501 RV551 RV601 RV701 RV751 TP501 RV501 RV601 RV551 RV751 RV701 TP601 TP551 TP751 TP701 S. AMP BOARD MAIN BOARD [Location of Adjustment Elements] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA30ES/DA50ES/V55ES — 9 — — 10 — SECTION 4 DIAGRAMS 4-1. BLOCK DIAGRAM – MAIN SECTION – : CD • Signal Path • RCH is omitted L CD L INPUT L OUTPUT J202 J3301 MD/DAT V2 OUT 11 J807 MONITOR J805 J806 VIDEO 1 LD 5 TV 3 V1 OUT 15 V2 IN 9 M OUT 1 VI IN 13 14 SW1 10 SW2 4 SW3 6 SW4 VIDEO SELECT IC813 AUDIO SELECT IC202 MUTE Q351 MUTE Q353 IC407 MUTE Q356 RY401 RELAY DRIVE Q301 RV1501 MASTER VOLUME RV1140 BALANCE L W SL M UP DOWN SYSTEM CONTROL IC1201 16 D L TAPE INPUT L OUTPUT Y V1 O 3 VIDEO 1 INPUT 5 TV 15 1 LD M O Y SWITCH IC811 C Y J803 VIDEO 1 OUTPUT Y C C C SWITCH IC812 C Y J804 MONITOR OUTPUT TV/DBS J801 J803 J203 V1 O 3 13 TV 15 11 V1 I V2 O 13 V1 I C Y DVD/LD 5 LD IR LINK DET IC3301 DVD/LD IR LINK DET IC3302 TV/DBS IR LINK DET IC3311 CD IR LINK DET IC3303 MD/DAT DVD/LD (COAXIAL) IC3314 14 SW1 10 SW2 4 SW3 6 SW4 14 SW1 10 SW2 4 SW3 6 SW4 INPUT OUTPUT DVD/LD INPUT OUTPUT TV/DBS OUTPUT IC3310 B C A 11 10 9 B C A DIR IC1101 D IN 47 35 D OUT 29 CLK 34 BCK 36 LRCK X1102 49.152MHz IC1108 IC1108 IC1102 IC1102 IC1102 13 10 CLOCK DIVIDE IC1109 IC1108 IC1107 MEMORY IC1103 A0-7 D0-7 LATCH IC1104 A8-15 D0-7 EMRD 5 EXTMEM 21 CLK 30 SDATA1 22 SDATA2 27 MCLK 44 SCK 43 SCLK1 25 SCLK2 28 RCLK 42 LRCLK1 26 LRCLK2 29 DSP2 IC1106 41 AUDATA0 40 AUDATA1 39 AUDATA2 D0-7 SCCLK 7 16 SCCLK SCD IN 6 CS 18 RESET 36 15 SCDOUT 17 CS 20 RESET 20 INTREQ 19 SCDOUT 19 INTREQ 18 SCDIN Q1303 Q1304 IC1108 EA0-16 ED16-19,28-31 SRAM IC1110 SIA 117 SIB 118 SIC 119 XWE 74 XOE 70 25 32 16 20 23 25 . HD0 HD7 D0-7 AD0 AD7 21 XHDWR 35 HA0 AUDIO DSP IC1112 HA0 15 XHDWR 9 XHDRD 10 XHDCS 14 XRST 26 22 XHDRD 24 XHDCS 23 HRDY 36 XRST 13 HRDY 5 SOD 37 SOD Q1306 Q1305 2 SOA CLK1 99 LRCK 115 BCK0 113 SELECTOR IC351 IC407 IC406 MUTE Q354 IC405 LED DRIVE Q120 LED VOL U DATA 52 DISP DATA 55 DISP CLK 51 DISP MR 53 SREQ 10 SOTO 9 SINO 87 MD2 89 MD0 90 RESET U CLOCK U MREQ U SREQ FLASH DI FLASH DO MD2 MD0 U REST B A 107 RY POWER RY POWER 79 PROTETOR 106 RY HP 101 RY FRONT A 102 RY FRONT B 100 RY PRE 105 RY WOOFER 104 RY REAR PROTECTOR RY HP RY FRONT A RY FRONT B RY CENTER RY PRE RY REAR C 92 XO 93 XI X1301 4MHz 64 STOP STOP : DVD CD 2 DAT O 6 DAT I 9 TAPE O 7 TAPE I 10 13 SLAT 15 SCLK 14 SDATA SLAT SCLK SDATA L J351 REAR CENTER 5.1 INPUT L L C SL IR LINK DET IC3304 MD/DAT (REC OUT) IC3314 DVD 14 TV 1 CD 2 MD 3 COAX 15 5 OUT SELECTOR IC3314 A B C D1304 OR SW Q1301 D1301 VIDEO 2 V3 IN 7 C Y J809 VIDEO 3 INPUT 7 V3 I 7 V3 I C Y 9 V2 I J802 VIDEO 2 INPUT 9 V2 I Y J802 VIDEO 2 OUTPUT C 11 V2 O 1 M O 11 COM 8 COM 5 COM 30 ERROR 38 SRDT 24.576M X1101 LATCH IC1105 A0-7 A0-7 IC1107 IC1107 IC1107 AINL+ 6 AINL- 7 PD 16 MCLK 17 SCLK 18 LRCK 19 21 SDATA 47 D OUT 1 A/D CONV. IC1210 MUTE CONT MUTE Q203 IC1209 IC1209 IC204 Q201,202 SRAM IC1111 ED20-27 SWITCH Q1302 D1303 D1302 Q1308 PD MUTE SWDT 76 SCLK 78 XLAT 77 SDATA 57 SCLK 58 SLAT 56 DIG IN0 111 DIG IN1 110 DIG IN2 109 RF RESET 2 V-A 81 V-B 82 V-E 83 V INH 80 SWDT SCLK XLAT SDATA SCLK SLAT A B C SW1 SW2 SW3 SW4 SW1 SW2 SW3 SW4 67 ERROR 75 SRDT 46 A/D INT 14 ANA/DIG 1 RF ERR 98 SURR MUTE S DATA 7 MCLK 4 BCK 6 LRCK 8 PD 5 S MUTE 9 19 AL+ 18 AL- IC1202 NOISE SHAPER D/A CONV. IC1205 4 SOC S DATA 7 MCLK 4 BCK 6 LRCK 8 PD 5 S MUTE 9 19 AL+ 18 AL- IC1203 NOISE SHAPER D/A CONV. IC1206 3 SOB S DATA 7 MCLK 4 BCK 6 LRCK 8 PD 5 S MUTE 9 19 AL+ 18 AL- IC1204 NOISE SHAPER D/A CONV. IC1207 16 AR+ 17 AR- IC1206 SDATA 14 SCLK 15 SLAT 13 SDATA SCLK SLAT EQ SWITCH Q1422,1423,1428 Q1410-1412 BUFFER Q1407-1409 IC1409 F4 F8 F16 EQ SWITCH Q1432-1434 Q1416-1418 BUFFER Q1454-1456 IC1403 W3 W6 W12 EQ SWITCH Q1429-1431 Q1413-1415 BUFFER Q1404-1406 IC1403 C3 C6 C12 EQ SWITCH Q1435-1437 Q1419-1421 BUFFER Q14001-1403 IC1401 R4 R8 R16 IC1402 IC401 C 40 D/A INT 41 SMUTE 108 RY DIRECT PASS 113 FRONT 4 114 FRONT 8 115 FRONT 16 116 C 3 117 C 6 118 C 12 120 SW 3 3 SW 6 4 SW 12 5 REAR 3 6 REAR 6 7 REAR 12 F4 F8 F16 C3 C6 C12 S3 S6 S12 R3 R6 R12 103 RY CENTER RY WOOFER WOOFER SW SLAT SCLK SDATA TU L E TO TUNER (Page 12) 41 XLAT 42 SCLK 40 SWDT XLAT SCLK SWDT 11 RESET XI 26 XO 22 IC1113 D1309 85 F MUTE DATA IN 60 AUTO STOP 61 STEREO 62 DO TUNED STEREO TUNER MUTE 97 MUTING STEREO TUNED DO MUTING AEP,AUS,EE,G,UK MODEL 4 L SL IN 10 RL IN 9 SW IN 7 W IN 6 SC IN 24 C IN 25 L IN 2 L IN 1 23 C 8 W 11 SL SL SW SC L SLAT AEP,AUS,EE,G,UK MODEL 70 TH 99 RY 4/8 TH RY 4/8 TO POWER (Page 13) TO POWER (Page 13) TO POWER (Page 13) TO POWER (Page 13) : FM FRONT • Abbreviation CND : Canadian G : German EE : East European EA : Saudi Arabia MY : Malaysia SP : Singapore AUS : Australian CH : Chinese w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA30ES/DA50ES/V55ES — 11 — — 12 — 4-2. BLOCK DIAGRAM – TUNER SECTION – 2 3 1 4 14 15 13 12 10 DATA L OUT R OUT CLOCK CE DO TUNED STEREO MUTING R CH FM ANT (75Ω) AM ANT TU301 J211 L L OUTPUT 4 10 7 9 6 5 11 8 TUNER V1 IN V1 OUT V2 IN V2 OUT COM COM REC COM AUDIO SELECTOR IC203 6 9 FM IF DET FM DET SDATA SCLK SLAT DO TUNED STEREO MUTING 3 V3 IN 2 LD 1 TV 14 DATA 15 CLOCK 13 CE SDATA SCLK SLAT L VIDEO1 INPUT VIDEO2 INPUT J809 L VIDEO3 INPUT J210 LD/DVD TV DBS L L OUTPUT L RDS IC301 4 14 13 2 16 X301 4.33MHz AEP,AUS,EE,G,UK MODEL IC205 TU L SDATA SCLK SLAT DO TUNED STEREO RDS DATA RDS CLK SIGNAL LEVEL MUTING F TO POWER (Page 13) E TO MAIN (Page 9) : FM • Signal Path • RCH is omitted 1 3 IC303 +12V REG 1 3 IC302 +5V REG +12V +15V +5V 16 • Abbreviation CND : Canadian G : German EE : East European EA : Saudi Arabia MY : Malaysia SP : Singapore AUS : Australian CH : Chinese w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA30ES/DA50ES/V55ES — 13 — — 14 — 4-3. BLOCK DIAGRAM – POWER SECTION – RELAY DRIVE Q640 LIMITER IC502 14 5 15 6 2 3 VEE VCC IN +VE NF -VE 13 VCC POWER AMP IC501 L +B -B CUR DET Q508 15 VEE IN 13 VCC POWER AMP IC601 C +B -B SL 6 RY503 RELAY DRIVE Q509 RY501 RELAY DRIVE Q559 RY502 RELAY DRIVE Q609 RY601 RELAY DRIVE Q709 RY701 RELAY DRIVE Q545 RY504 RELAY DRIVE Q901 RY901 J353 C S(L) S(R) R CH SURROUND SPEAKER CENTER J701 PHONES TM701 FRONT SPEAKER TM501 R CH R CH POWER CONT IC901 5 8 3 6 DELAY +B SW Q902 D912,914 PROTECTOR Q547-549 F2 F1 +5.6V F911 F912 D951-954 F901 D901-904 CNP901 AC IN :CD D • Signal Path • RCH is omitted IN W 8 14 VCC 12 +VE 11 -VE F951 F952 1 +3.3V REG 3 1 +5V REG 3 IC955 IC902 J901 T902 MODE CONTROL IC102 STOP A PROTECTOR REMOTO CONTROL RECEIVER IC101 26 SIRCS RESET Q101 77 RESET POWER S101 POWER KEY 74 F2 F1 47 STOP I/R CONT IC106 I/O BUFFER Q105 RESET Q102 11 14 12 5 33 2 LAT 98 15 16 X102 7.28MHz I/R DET IC107 LED DRIVE Q129,130 D124-126 URESET S-LINK J101 D1306 D1305 2 -15V REG IC952 3 3 +15V REG IC951 1 -15V +15V +32V REG FLV Q971 D955 F953 D5V D3.3V DOUT 3 RY HP RY FRONT A RY FRONT B RY CENTER RY PRE RY WOOFER 58 URESET C ABUS A1 IN 63 I/O BUFFER Q104 ABUS OUT 67 FLOURESCENT INDICATOR TUBE FL101 29 DIN 26 LAT 34 CLK 24 CLR 4 LS 29 CLK 5 CL 30 DIN FL DAT 22 FL CLK 21 FL LAT 24 FL CLEAR 25 SPEAKER SWITCH FUNCTION KEY SP B 73 SP A 72 AD KEY6 44 ENCODER FUNCTION UP 69 RV101 FUNCTION KEY AD KEY3 40 S120,121 FUNCTION KEY AD KEY4 41 S103-108 FUNCTION KEY AD KEY5 43 S109-115 S116-119 S102 49 MD0 14 LED SUR 15 LED EQ 16 LED INDEX LED DRIVE D108-109 Q107-109 89 LED BASS BOOST LED DRIVE D121 Q126 12 LED TUNER 13 LED PHONO LED DRIVE D111-115 Q110-114 8 LED TAPE 9 LED MD/DAT 10 LED CD 6 LED A TV/DBS 7 LED V TV/DBS LED DRIVE D116 Q115,116 UP 55 DOWN 56 LED VOL 88 9 7 2 4 MOTOR DRIVE IC103 UP DOWN LED VOL B 51 MD2 20 FLASH DO 19 FLASH DI 61 UDATA 62 UCLOCK 60 UMREQ 59 USEQ USREQ UMREQ UCLOCK UDATA FLASH DI FLASH DO MD2 MD0 82 XO 83 XI X101 IC105 IC104 FL DRIVE FL DRIVE RY POWER 1 4 5 LIMITER IC503 5 2 1 LIMITER IC602 5 2 3 +VE NF -VE CUR DET Q608 1 4 5 LIMITER IC603 5 2 1 LIMITER IC702 14 5 15 6 2 3 VEE VCC IN +VE NF -VE 13 VCC POWER AMP IC701 +B -B CUR DET Q708 1 4 5 LIMITER IC703 5 2 1 RELAY DRIVE Q659 RY602 PRE OUT J352 FRONT L REAR L WOOFER R CH RY REAR 87 LED DOLBY DIGITAL LED DRIVE D122 Q127 17 LED SOUND FIELD ON/OFF LED DRIVE D107 Q106 18 LED MUTING LED DRIVE D123 Q128 4 LED A DVD/LD 5 LED V DVD/LD LED DRIVE D117 Q118,119 2 LED V3 3 LED A3 LED DRIVE D118 Q120,121 92 LED V2 1 LED A2 LED DRIVE D119 Q122,123 90 LED V1 91 LED A1 LED DRIVE D120 Q124,125 FUNCTION DOWN 70 S126,127 21 +32V 40 +32V 27 +32V FLV D102 RY +B 2 -5V REG IC801 3 VIDEO -5V -B +B TH RY 4/8 TO MAIN (Page 10) TO MAIN (Page 10) TO MAIN (Page 10) TO MAIN (Page 10) F TO TUNER (Page 12) 45 AV VERTION 1 53 RDS CLOCK 54 RDS DATA RDS DATA RDS CLOCK SIGNAL LEVEL AEP,AUS,EE,G,UK MODEL TH901 FAN DRIVE Q991,992 T901 120V 0V 100V 120V 0V 120V 240V 220V 120V 240V 220V 120V 240V 220V MOTOR FAN F902 F903 US,CND,E,EA,PX MODEL EXCEPT E,EA,PX MODEL VOLTAGE SELECTOR S901 E,EA,PX MODEL RELAY DRIVE Q903 RY902 RY904 RY903 CND MODEL ONLY S902 4/8 E,EA,PX MODEL AEP,UK,G, EE,AUS,SP, MY,CH MODEL • Abbreviation CND : Canadian G : German EE : East European EA : Saudi Arabia MY : Malaysia SP : Singapore AUS : Australian CH : Chinese w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 15 — — 16 — 4-4. CIRCUIT BOARDS LOCATION For schematic diagrams. Note: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • % : indicates tolerance. • 2 : nonflammable resistor. • 1 : fusible resistor. • C : panel designation. • U : B+ Line. • V : B– Line. • H : adjustment for repair. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. No mark : FM • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal production tolerances. • Waveforms are taken with a oscilloscope. • Circled numbers refer to waveforms. • Signal path. F : FM J : CD c : DIGITAL I : PHONO • Abbreviation CND :Canadian EA :Saudi Arabia MY :Malaysia SP :Singapore G :German EE :East European AUS :Australian CH :Chinese THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this necessary note is printed in each block.) POWER SWITCH board PS board VOLTAGE SELECTOR board TH board AC board S. AMP board 5.1 INPUT board SP TM board S. VIDEO board VIDEO board AUDIO board INPUT board DIGITAL board MAIN board AMP board VOLUME board FUNCTION board BALANCE VOLUME board DISPLAY board LED board F. VIDEO board SP SW board HP board For printed wiring boards. Note: • X : parts extracted from the component side. • ® : Through hole. • b : Pattern from the side which enables seeing. Q C These are omitted E B C These are omitted E B • Waveform • DISPLAY SECTION 1 IC106 !§ (X OUT) 2 IC102 *™ (XO) 3.7Vp-p 7.28MHz 3.9Vp-p 4MHz 1 IC1201 (™ (XO) 2 IC1102 8 3 IC1101 @¶ (X OUT) 5.1Vp-p 4.0Vp-p 5.4Vp-p 4MHz 49.152MHz 24.576MHz • DIGITAL SECTION Note: The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Note: Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA30ES/DA50ES/V55ES — 17 — — 18 — 4-5. SCHEMATIC DIAGRAM — DIGITAL SECTION (1/2) — • See page 21 for printed wiring board. • See page 66, 67 for IC Pin Functions. • See page 16 for Waveforms. • See page 57 for IC Block Diagrams. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA30ES/DA50ES/V55ES — 19 — — 20 — 4-6. SCHEMATIC DIAGRAM — DIGITAL SECTION (2/2) — • See page 63 for IC Pin Functions. • See page 16 for Waveforms. • See page 57 for IC Block Diagrams. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA30ES/DA50ES/V55ES — 21 — — 22 — 4-7. PRINTED WIRING BOARD — DIGITAL SECTION — • See page 15 for Circuit Boards Location. 1 2 A B C D E F G H I J 3 4 5 6 7 8 9 10 11 12 13 X A TO MAIN TO MAIN TO AMP TO MAIN TO VOLUME TO DISPLAY B 3 C 12 10 9 1 5 1 8 1 2 1 1 18 19 1 3 1 4 7 1 CNP1301 CND1302 CND1303 CNE1301 12 1 10 CND1304 CNP1304 CN1101 X1101 CNS1301 CNP1303 CND1301 11 1 TO PS Y TO INPUT W TO AUDIO TO MAIN V 4 TO S.VIDEO T D 1-670-130- 11 (11) 1-670-130- 11 (11) DIGITAL BOARD (SIDE B) DIGITAL BOARD (SIDE A) C1212 C1207 C1245 C1242 C1246 C1250 C1249 C1253 C1259 C1255 C1254 C1264 C1214 C1271 C1278 C1221 C1241 C1228 C1301 C1287 C1227 C1277 C1220 C1270 C1213 C1263 C1135 C1119 C1120 1 44 40 39 29 28 18 17 7 6 14 8 7 1 14 8 7 1 1 1 1 1 10 11 20 1 10 11 20 8 9 16 6 7 14 12 13 24 25 36 37 48 120 91 90 61 60 31 30 1 1 120 91 90 61 60 30 31 1 12 13 24 1 12 13 12 13 24 1 24 12 13 1 24 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 16 DA30ES/DA50ES:US,CND, E,EA,PX,SP,MY/V55ES MODEL DA30ES/DA50ES: US,CND, E,EA,PX,SP,MY/ V55ES MODEL DA30ES/DA50ES: US,CND, E,EA,PX,SP,MY/ V55ES MODEL DA50ES:AEP,UK,G, EE,AUS MODEL (Page 52) (Page 55) (Page 33) (Page 24) (Page 34) (Page 37) (Page 47) (Page 23) (Page 42) (Page 24) (Page 24) • Semiconductor Location Ref. No. Location D1301 C-10 D1302 C-10 D1303 B-10 D1304 B-10 D1305 C-12 D1306 C-12 D1307 C-12 D1308 E-3 D1309 C-10 IC1101 B-11 IC1102 D-9 IC1103 B-8 IC1104 B-9 IC1105 B-9 IC1106 C-8 IC1107 B-10 IC1108 B-10 IC1109 D-10 IC1110 F-8 IC1111 F-9 IC1112 E-8 IC1113 A-10 IC1201 C-11 IC1202 H-10 IC1203 G-10 IC1204 F-10 IC1205 H-12 IC1206 G-12 IC1207 F-12 IC1208 F-12 IC1209 E-12 IC1210 F-10 Q1301 C-10 Q1302 C-10 Q1303 E-10 Q1304 E-10 Q1305 E-10 Q1306 E-10 Q1307 C-5 Q1308 C-10 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA30ES/DA50ES/V55ES • Semiconductor Location — 23 — — 24 — 4-8. PRINTED WIRING BOARD — MAIN SECTION — • See page 15 for Circuit Boards Location. Ref. No. Location D301 D-8 D351 D-8 D401 E-9 D501 G-9 D502 G-9 D503 H-10 D504 G-11 D505 F-11 D506 F-2 D507 F-10 D547 F-2 D548 F-2 D549 F-2 D551 H-3 D552 H-3 D553 G-5 D554 H-5 D555 F-11 D601 H-5 D602 H-6 D603 H-6 D604 H-8 D605 F-5 D655 E-9 D951 C-3 D952 C-3 D953 C-3 D954 C-3 D955 A-3 D991 C-3 D992 B-3 IC201 B-10 IC202 D-10 IC204 C-9 IC351 B-8 IC401 E-3 IC402 E-4 IC405 D-7 IC406 C-7 IC407 B-7 IC501 F-8 IC502 H-9 IC503 H-10 IC552 H-3 IC553 H-4 IC601 G-3 IC602 H-6 IC603 H-7 IC902 B-5 IC951 C-4 IC952 C-4 IC955 B-4 Q201 E-10 Q202 E-10 Q203 E-10 Q253 E-11 Q301 D-8 Q303 A-10 Q351 D-8 Q352 E-8 Q353 B-7 Q354 C-7 Q355 C-7 Q356 B-7 Q508 F-9 Q509 E-10 Q545 F-10 Q546 F-2 Q547 F-2 Q548 F-2 Q549 F-2 Q558 G-3 Q559 E-121 Q608 G-5 Q609 F-5 Q659 E-9 Q991 D-5 Q992 D-4 1 2 A B C D E F G H I J 3 4 5 6 7 8 9 10 11 12 13 MAIN BOARD HP BOARD 1-670-148- 1-670-139- 11 (11) 11 (11) 1 2 3 1 1 5 3 1 6 1 5 1 2 15 14 1 2 14 15 1 2 (FAN) 1 1 4 7 5 1 4 8 5 1 4 8 5 F951 F952 F953 1 9 1 3 1 3 1 3 1 3 3 1 1 4 8 5 1 4 8 5 1 1 4 8 5 5 1 8 1 1 15 16 30 1 3 9 1 1 9 1 4 5 8 1 4 5 8 1 15 16 32 A TO DIGITAL D TO DIGITAL R TO 5.1 INPUT C TO DIGITAL B TO DIGITAL E TO VOLUME F TO VOLUME G TO AMP P TO POWER TRANSFORMER J TO S.AMP K TO S.AMP I TO SP TM L TO S.AMP O TO PS M TO 5.1 INPUT H TO SP TM N TO PS Q TO AUDIO PHONO REC OUT REC OUT (IN) CD IN IN TAPE MD DAT (IN) R L R L R L R L R L R L J303 J202 8 16 J701 PHONES DA50ES/V55ES MODEL DA50ES/V55ES MODEL 1:DA50ES:AEP,UK,G,EE,AUS MODEL IC902 1 1 1 1 1 1 1 1 1 1 1 1 1 1 C252 C202 DA30ES/DA50ES: US,CND,E,EA,PX,MY/ V55ES MODEL (Page 47) (Page 45) (Page 38) (Page 55) (Page 46) (Page 46) (Page 45) (Page 55) (Page 33) (Page 44) (Page 44) (Page 21) (Page 21) (Page 21) (Page 21) (Page 38) (Page 46) (Page 55) 1 5 IC552 1 5 IC553 1 5 IC602 1 5 IC603 1 5 IC502 1 5 IC503 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA30ES/DA50ES/V55ES — 25 — — 26 — 4-9. SCHEMATIC DIAGRAM — MAIN SECTION (1/3) — • See page 59 for IC Block Diagrams. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA30ES/DA50ES/V55ES — 27 — — 28 — 4-10. SCHEMATIC DIAGRAM — MAIN SECTION (2/3) — • See page 23 for Printed Wiring Board. • See page 59 for IC Block Diagrams. Note: The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Note: Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA30ES/DA50ES/V55ES — 29 — — 30 — 4-11. SCHEMATIC DIAGRAM — MAIN SECTION (3/3) — • See page 23 for Printed Wiring Board. Note: The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Note: Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA30ES/DA50ES/V55ES — 31 — — 32 — 4-12. SCHEMATIC DIAGRAM — AMP SECTION — w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA30ES/DA50ES/V55ES — 33 — — 34 — 4-13. PRINTED WIRING BOARD — AMP SECTION — • See page 15 for Circuit Boards Location. Ref. No. Location D1401 F-5 D1402 G-5 D1403 G-5 D1404 F-2 D1405 G-2 D1406 G-2 IC1401 B-5 IC1402 C-3 IC1403 C-2 Q1401 G-5 Q1402 F-5 Q1403 F-5 Q1404 G-3 Q1405 F-3 Q1406 F-3 Q1407 F-2 Q1408 F-2 Q1409 F-2 Q1410 G-1 Q1411 G-2 Q1412 E-1 Q1413 E-3 Q1414 F-3 Q1415 F-3 Q1416 E-4 Q1417 G-3 Q1418 E-4 Q1419 F-5 Q1420 G-5 Q1421 F-5 Q1422 G-1 Q1423 G-2 Q1428 F-1 Q1429 E-3 Q1430 F-3 Q1431 F-3 Q1432 E-4 Q1433 G-3 Q1434 E-4 Q1435 F-5 Q1436 G-5 Q1437 F-5 Q1451 G-5 Q1452 F-5 Q1453 F-6 Q1454 G-4 Q1455 F-4 Q1456 F-4 Q1457 F-2 Q1458 F-2 Q1459 F-2 • Semiconductor Location 1 2 A B C D E F G H I J 3 4 5 6 7 8 9 10 11 12 13 1-670 -135- 11 (11) 1-670-135- 11 (11) 1-670-141- 11 (11) VOLUME BOARD AMP BOARD (SIDE A) AMP BOARD (SIDE B) RV1501 MASTER VOLUME G F 1 1-670-140- 11 (11) BALANCE VOLUME BOARD 1 5 RV1140 BALANCE TO DISPLAY TO DIGITAL TO DIGITAL TO MAIN TO MAIN 3 TO MAIN E TO DISPLAY 2 1 1 1 3 1 1 4 8 1 15 14 5 7 2 1 9 CNP1402 CNS1406 1 1 4 5 8 1 4 5 8 1 4 5 8 15 14 2 16 4 1 12 C1420 C1410 C1460 C1471 C1411 C1470 C1419 C1415 C1465 C1469 C1461 C1404 C1403 C1463 C1412 C1464 C1462 C1421 (Page 21) (Page 23) (Page 23) (Page 23) (Page 42) (Page 21) (Page 42) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA30ES/DA50ES/V55ES — 35 — — 36 — 4-14. SCHEMATIC DIAGRAM — VIDEO SECTION — • See page 60 for IC Block Diagrams. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA30ES/DA50ES/V55ES — 37 — — 38 — 4-15. PRINTED WIRING BOARD — VIDEO SECTION — • See page 15 for Circuit Boards Location. Ref. No. Location D801 C-3 D802 C-3 IC801 B-2 IC811 C-5 IC812 C-6 IC813 B-12 • Semiconductor Location 1 2 A B C D E F G H I J 3 4 5 6 7 8 9 10 11 12 13 VIDEO BOARD S.VIDEO BOARD (SIDE A) S.VIDEO BOARD (SIDE B) F.VIDEO BOARD 5.1 INPUT BOARD (SIDE A) 5.1 INPUT BOARD (SIDE B) 1-670-133- 11 (11) 1-670-138- 1-670-134- 1-670-134- 11 (11) 11 (11) 11 (11) 1-670-133- 1-670-145- 11 (11) 11 (11) T 1 1 8 9 16 9 1 1 3 8 5 9 1 1 CNP805 CNP803 CN802 TO DIGITAL 5 TO AUDIO R TO MAIN S TO S.AMP 1 3 4 8 9 1 1 3 M TO MAIN 1 5 CNP351 CNP303 CNP352 16 FRONT AUDIO 3 MONITOR MONITOR S-LINK VIDEO 1 OUT IN OUT OUT IN OUT IN IN IN VIDEO 3 S VIDEO 3 WOOFER CENTER WOOFER 5.1 INPUT CENTER REAR REAR R L R L FRONT R L R L R L OUT IN OUT IN IN J353 J352 J351 L R VIDEO 2 DVD/LD TV/DBS VIDEO 1 VIDEO 2 DVD/LD TV/DBS J101 J803 J804 J802 J801 IC801 1 8 9 16 1 8 9 16 DA50ES:AEP,UK,G,EE,AUS MODEL DA50ES:AEP,UK,G,EE,AUS MODEL DA50ES:AEP,UK, G,EE,AUS MODEL PRE OUT (Page 21) (Page 47) (Page 24) (Page 24) (Page 46) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA30ES/DA50ES/V55ES — 39 — — 40 — 4-16. SCHEMATIC DIAGRAM — DISPLAY SECTION — • See page 61 for IC Pin Functions. • See page 16 for Waveforms. • See page 59 for IC Block Diagrams. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA30ES/DA50ES/V55ES — 41 — — 42 — 4-17. PRINTED WIRING BOARD — DISPLAY SECTION — • See page 15 for Circuit Boards Location. Ref. No. Location D101 D-11 D102 D-12 D103 C-11 D104 H-4 D105 C-2 D106 C-1 D107 D-12 D108 D-11 D109 D-11 D110 D-11 D111 H-12 D112 H-11 D113 H-10 D114 H-9 D115 H-8 D116 H-8 D117 H-7 D118 H-6 D119 H-5 D120 H-4 D121 D-5 D122 A-5 D123 F-2 D124 D-5 D125 D-5 D126 E-4 D127 D-4 D128 D-5 D129 D-12 D913 G-10 IC101 D-10 IC102 D-9 IC103 G-13 IC104 D-7 IC105 D-8 IC106 G-6 IC107 D-4 Q101 C-11 Q102 G-4 Q103 H-12 Q104 C-10 Q105 H-4 Q106 D-12 Q107 D-11 Q108 D-11 Q109 D-11 Q110 H-11 Q111 H-10 Q112 H-9 Q113 H-8 Q114 H-8 Q115 H-7 Q116 H-7 Q118 H-6 Q119 H-6 Q120 H-5 Q121 H-5 Q122 H-4 Q123 H-4 Q124 H-4 Q125 H-4 Q126 C-4 Q127 C-7 Q128 C-12 Q129 D-4 Q130 D-4 Q971 D-10 • Semiconductor Location 1 2 A B C D E F G H I J 3 4 5 6 7 8 9 10 11 12 13 DISPLAY BOARD (SIDE A) DISPLAY BOARD (SIDE B) FUNCTION BOARD POWER SWITCH BOARD LED BOARD SP.SWITCH BOARD 1-670-147- 11 (11) 1-670-749- 11 (11) 1-670-142- 11 (11) 1-670 -146- 11 (11) 1-670-129- 1-670-129- 11 (11) 11 (11) 1 11 12 22 23 33 34 44 1 5 6 8 CNP102 6 1 S126 MODE S127 MUTING RV101 FUNCTION S124 SHIFT S125 FM/AM PRESET TUNING S102 SPEAKERS S122 S121 DISPLAY S120 MEMORY S108 FM MODE S105 DIMMER S104 SLEEP S103 INPUT MODE S113 EQUALIZER S115 GENRE S114 MODE S117 S112 CURSOR MODE S119 SOUND FIELD ON/0FF S116 BASS BOOST S118 SET UP S107 S101 2 1 1 6 4 TO VOLUME U TO AUDIO Z TO PS X TO DIGITAL 1 1 7 8 14 6 CN102 1 6 S106 S123 1 1 2 2 CNP103 D122 (MULTI CHANNEL DECODING) D108 (SUR) CN103 11 1 1 3 5 1 1 3 CNP106 CN409 1 TO VOLUME 7 1 1 1 2 5 64 63 60 CNP105 CNP107 CNS101 FL101 (FLUORESCENT INDICATOR TUBE) C134 IC101 30 31 50 51 80 81 100 (BASS BOOST) D110 (INDEX) D109 (EQ) D107 TUNING SOUND FIELD S111 S109 S110 A+B OFF A B 16 CNP101 D121 X102 DA50ES:US,CND MODEL DA30ES/DA50ES:US,CND, E,EA,PX,SP,MY /V55ES MODEL DA30ES/DA50ES: US,CND,E,EA,PX, SP,MY/V55ES MODEL DA50ES:AEP,UK,G, EE,AUS,SP,MY/V55ES MODEL DA50ES:AEP, UK,G,EE,AUS MODEL DA50ES:SP,MY /V55ES MODEL DA50ES:AEP,UK, G,EE,AUS MODEL DA50ES:E,EA, PX MODEL DA50ES:E,EA,PX, SP,MY/V55ES MODEL DA30ES MODEL DA50ES/V55ES MODEL (Page 34) (Page 47) (Page 21) (Page 55) (Page 34) D913 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA30ES/DA50ES/V55ES — 43 — — 44 — 4-18. SCHEMATIC DIAGRAM — SPEAKER SECTION — • See page 59 for IC Block Diagrams. Note: The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Note: Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA30ES/DA50ES/V55ES — 45 — — 46 — 4-19. PRINTED WIRING BOARD — SPEAKER SECTION — • See page 15 for Circuit Boards Location. Ref. No. Location D701 D-1 D702 D-1 D703 D-6 D704 D-6 D705 B-10 D751 C-4 D752 C-5 D753 C-5 D754 C-4 IC701 C-3 IC702 D-2 IC703 D-5 IC752 D-9 IC753 D-11 Q708 D-4 Q709 C-10 Q758 D-10 • Semiconductor Location 1 2 A B C D E F G H I J 3 4 5 6 7 8 9 10 11 12 13 REAR B A CENTER SPEAKERS K TO MAIN TO 5.1 INPUT J L S H TO MAIN I TO MAIN S.AMP BOARD SP TM BOARD TH BOARD 1-670-149- 11 (11) 1-670-150- 11 (11) 1-670 -151- 11 (11) 1 1 1 4 7 1 2 5 1 1 3 1 2 1 6 1 4 1 2 R L R L R L 2 14 15 1 4 16 IC702 1 5 IC703 1 1 5 IC752 5 1 IC753 5 DA50ES:AEP.UK,G, EE,AUS MODEL DA50ES:AEP,UK,G, EE,AUS MODEL (Page 23) (Page 23) (Page 38) (Page 23) TO MAIN (Page 23) TO MAIN (Page 23) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA30ES/DA50ES/V55ES 1 2 A B C D E F G H I J 3 4 5 6 7 8 9 10 11 12 13 1-670-137- 11 (11) AUDIO BOARD 5 TO F.VIDEO 2 1 1 3 1 3 15 14 1 8 16 9 1 4 1 4 1 3 1 1 1 4 5 8 8 15 30 16 Q TO MAIN U TO DISPLAY V TO DIGITAL TU301 TV/DBS LD/DVD R L J210 IN R L IN R L IN R L IN OUT OUT VIDEO 2 R L R L J211 16 VIDEO 1 C223 C273 DA50ES:AEP,UK, G,EE,AUS MODEL (Page 24) (Page 37) (Page 42) (Page 21) — 47 — — 48 — 4-20. PRINTED WIRING BOARD — AUDIO SECTION — • See page 15 for Circuit Boards Location. Ref. No. Location IC203 F-5 IC205 H-4 IC301 C-4 IC302 C-3 IC303 B-3 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 49 — 4-21. SCHEMATIC DIAGRAM — AUDIO SECTION — • See page 60 for IC Block Diagrams. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 50 — 4-22. SCHEMATIC DIAGRAM — INPUT SECTION — www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA30ES/DA50ES/V55ES — 51 — — 52 — 4-23. PRINTED WIRING BOARD — INPUT SECTION — • See page 15 for Circuit Boards Location. Ref. No. Location D3001 D-4 IC3301 E-5 IC3302 E-4 IC3303 E-2 IC3304 E-2 IC3310 H-2 IC3311 E-3 IC3314 G-5 • Semiconductor Location 1 2 A B C D E F G H I J 3 4 5 6 7 8 9 10 11 12 13 W TO DIGITAL 1-670-131- 11 (11) 1-670-131- 11 (11) INPUT BOARD (SIDE A) INPUT BOARD (SIDE B) 1 10 CNP101 RV3301 1 16 8 9 1 8 9 16 MD/DAT OUT OPT IC3304 MD/DAT IN OPT IC3303 TV/DBS IN OPT IC3302 DVD/LD IN OPT IC3301 DVD/LD IN COAXIAL J3301 CD IN OPT IC3311 DIGITAL 16 (Page 21) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA30ES/DA50ES/V55ES — 53 — — 54 — 4-24. SCHEMATIC DIAGRAM — POWER SECTION — • See page 59 for IC Block Diagrams. Note: The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Note: Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA30ES/DA50ES/V55ES — 55 — — 56 — 4-25. PRINTED WIRING BOARD — POWER SECTION — • See page 15 for Circuit Boards Location. Ref. No. Location D901 G-4 D902 F-4 D903 F-4 D904 F-4 D905 G-4 D906 G-4 D907 B-11 D908 B-2 D909 C-1 D910 C-1 D911 E-2 D912 E-5 D914 E-5 IC901 G-6 Q901 F-3 Q902 G-5 Q903 E-3 • Semiconductor Location 1 2 A B C D E F G H I J 3 4 5 6 7 8 9 10 11 12 13 1-670-136- 1-670-750- 11 (11) 11 (11) 1-670-132- 11 (11) PS BOARD AC BOARD VOLTAGE SELECTOR BOARD Z N Y TO DISPLAY O TO MAIN 1 4 4 1 TO DIGITAL P TO MAIN TO MAIN 1 3 4 6 F912 F911 1 2 1 4 5 8 E 1 3 S902 INPEDANCE SELECTOR 8 4 1 1 1 3 1 3 3 3 S901 VOLTAGE SELECTOR 120V 120V 0V 0V 100V 120V 240V 220V F903 F902 F901 1 2 1 2 1 2 1 2 AC IN AC OUTLET J901 1 1 1 1 8 5 2 4 T901 POWER TRANSFORMER 16 EXCEPT E,EA,PX MODEL E,EA,PX MODEL E,EA,PX MODEL US,CND MODEL F903:E,EA,PX MODEL RY902:EXCEPT CND MODEL RY903,RY904: CND MODEL F902:AEP,UK,G,EE, AUS,SP,MY,CH MODEL JW903: US,CND,E, EA,PX MODEL DA30ES MODEL DA30ES/DA50ES: US,CND,E,EA,PX MODEL, (Page 23) (Page 21) (Page 24) (Page 24) (Page 42) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA30ES/DA50ES/V55ES — 57 — — 58 — 4-26. IC BLOCK DIAGRAMS IC1101 CXD8495AQ (DIGITAL BOARD) TIMING GENERATOR 37 38 39 40 41 42 43 44 45 46 47 48 24 23 22 21 20 19 18 17 16 15 14 13 1 2 3 4 5 6 7 8 9 10 11 12 35 36 34 33 32 31 30 29 28 27 26 25 X' TAL OSC MUTING OUTPUT ERROR LOCK DETECTION DATA DEMODULATOR MICRO COMPUTER INTERFACE MULTI PLEXER TEST PLL CIRCUIT CD SUB-CODE DETECTION LD/DQSY SRDT D0 DI/SWDT CE/XLAT CL/SCLK D VDD DIN1 DIN2 DIN3 DIN4 DGND D GND SBCK SFSY PW SBSY D VDD VCO V IN A GND R A VDD N.C. LRCK DATA OUT BCLK SUB 2 SUB 1 D GND ERROR CLK OUT2 CLK OUT1 X OUT X IN D VDD DOUT/V EMPHA RC1 RC2 CCB/SUB D GND CLKMD CLK TEST1 TEST2 X MODE D VDD IC1106 CS4926 (DIGITAL BOARD) DATA0,EMAD0,GPIO0 DATA1,EMAD1,GPIO1 DATA2,EMAD2,GPIO2 DATA3,EMAD3,GPIO3 DATA4,EMAD4,GPIO4 DATA5,EMAD5,GPIO5 DATA6,EMAD6,GPIO6 DATA7,EMAD7,GPIO7 VSS2 VDD2 A0,SCCLK WR, DS, EMWR, GPIO10 MCLK CLK IN XMT958 EXTMEM, GPIO8 PARALLEL or SERIAL HOST INTERFACE COMPRESSED DATA INPUT INTERFACE SP DIF RECEIVER DIGITAL AUDIO INPUT INTERFACE PLL CLOCK MANAGER RAM INPUT BUFFER RAM OUTPUT BUFFER OUTPUT FORMATTER 30 CMPREQ,LRCKN2 29 CLKSEL 31 FILTD 32 FILTS 33 VDDA 34 VSSA 35 RESET 36 DD 37 DC 38 21 ABOOT, INTREQ 20 SCDIO, SCDOUT, PSEL, GPIO9 19 CMPCLK, SCLKN2 28 CMPDAT, RCV958, SDATAN2 27 LRCKN1 26 SCLKN1, STCCLK2 25 VSS3 24 VDD3 23 SDATAN1 22 CS 18 7 44 SCLK 43 LRCLK 42 AUDATA0 41 AUDATA1 40 AUDATA2 39 4 RD, R/W, EMOE, GPIO11 5 A1, SCDIN 6 3 FRAMER SHIFTER INPUT BUFFER CONTROLLER 17 16 15 14 13 12 11 10 9 8 VSS1 2 VDD1 1 RAM PROGRAM MEMORY RAM DATA MEMORY ROM PROGRAM MEMORY ROM DATA MEMORY 24-Bit DSP PROCESSING STC IC1109 TC74VHC393FT(EL) (DIGITAL BOARD) 14 13 12 11 10 9 8 1 2 3 4 5 6 7 QA QB QC QD A CLEAR VCC QA QB QC QD A CLEAR GND IC1202 AK4324-VF-E2 (DIGITAL BOARD) IC3310 TC74HC151AF (DIGITAL BOARD) 1 2 3 4 5 6 7 8 16 15 14 13 12 11 10 9 D3 D2 D1 D0 Y W S C D4 D5 D6 D7 A B D3 D2 D1 D0 Y XY OE GND VCC D4 D5 D6 D7 A B C IC1210 AK5352-VF-E2 (DIGITAL BOARD) 18 23 15 17 22 24 13 12 4 5 19 20 21 8 10 11 14 SCLK SMODE1 SMODE2 MCLK CMODE VB DGND VD VA AGND VREF AINL+ AINL– AINR+ AINR– LRCK FSYNC SDATA TST1 9 HPFE 16 PD TST2 TST3 TST4 Clock Divider Voltage Reference Modulator Serial Output Interface Digital Decimation Filter 3 6 7 1 2 Modulator DVSS DVDD PD SMUTE DFS DEM0 DEM1 1 2 CKS MCLK 3 4 5 BICK SDATA LRCK 6 7 8 9 10 11 12 DIF2 DIF1 DIF0 13 14 15 AVSS VREF AVDD DZFR DZFL 20 21 22 23 24 AOUTL– AOUTL+ 18 19 SCF ∆∑ MODULATOR 8x INTERPOLATOR AOUTR– AOUTR+ 16 17 SCF ∆∑ MODULATOR 8x INTERPOLATOR SERIAL INPUT INTERFACE CLOCK DIVIDER DEEMPHASIS CONTROL w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 59 — IC103 LB1638M (DISPLAY BOARD) 1 2 3 4 5 6 7 8 9 10 GND IN1 VCC IN2 GND N.C. OUT2 VS OUT1 N.C. CONTROL LOGIC IC202,203 LC7821 (MAIN/AUDIO BOARD) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 CONTROL LATCH SHIFT RESISTER LEVEL SHIFT CL DI CE VEE L COM3 L7 L COM2 L5 L4 L2 VSS S RES VDD R COM3 R8 R7 R COM2 R6 R4 R2 R5 R COM1 R3 R1 L3 L1 L COM1 L6 L8 BUFFER IC901 NJM2103D (PS BOARD) 1 2 3 4 5 6 7 8 V+ VSB/SESIN VSA RESET GND OUTC VSC CR VREF + – – + – + – + Q R S IC501,601,701 uPC2581V (S.AMP/MAIN BOARD) 2 3 5 4 6 7 9 8 1 MUTE + VOUT1 – VOUT1 COMP1 MF1 IN1 GND IN2 NF2 COMP2 – VOUT2 + VOUT2 VCC1 VCC2 VEE PROTECTOR BIAS CIRCUIT REG DRIVE PRE DRIVE 11 10 12 13 15 14 DRIVE PRE DRIVE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 60 — IC301 BU1922 (AUDIO BOARD) QUALITY BIT GENERATOR DEFFERENTIAL DECODER BIPHASE SYMBOL DECODER OSCILLATOR AND DIVIDER 57kHz BANDPASS (8th ORDER) CONTAS LOOP VARIABLE AND FIXED DIVIDER REFERENCE VOLTAGE ANTI- ALIASING FILTER CLOCKED COMPARATOR TEST LOGIC AND OUTPUT SELECTOR SWITCH RECONSTRUCTION FILTER 14 15 16 13 12 11 10 9 3 2 1 4 5 6 7 8 CLOCK REGENERATION AND SYNC VP1 RDCL TS7 OSCO OSCI VDDD VSSD TEST TSTLD QUAL RDDA Vref MUX VDDA VSSA CIN SCOUT IC351 LC7822 (MAIN BOARD) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 CONTROL LATCH SHIFT RESISTOR LEVEL SHIFT CL DI CE VEE OUT IN OUT IN OUT IN VSS S RESET VDD OUT IN IN OUT IN OUT IN IC811,812,813 NJM2296D (S.VIDEO/VIDEO BOARD) 9 S5 S6 S7 S4 S1 S2 S3 Vout1 Vout2 Vout3 V- GND SW3 SW2 SW1 SW5 SW4 Vin1 Vin2 Vin3 Vin4 Vin5 V+ 10 11 12 13 14 15 16 1 5 2 3 4 6 7 8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 61 — I/O O O O O O O O O O O — O O O O O O O O I O O — O O I — — — — — — — — — — — I I I I — I I I I I — I I Description VIDEO 2 visual display data output to LED VIDEO 3 audio display data output to LED VIDEO 3 visual display data output to LED DVD/LD audio display data output to LED DVD/LD visual display data output to LED TV/DBS audio display data output to LED TV/DBS visual display data output to LED TAPE display data output to LED MD/DAT display data output to LED CD display data output to LED Ground (Connected to ground) TUNER display data output to LED PHONO display data output to LED CURSOR MODE SURROUND display data output to LED CURSOR MODE EQ display data output to LED CURSOR MODE INDEX display data output to LED SOUND FIELD ON/OFF display data output to LED MUTING display data output to LED FLASH DATA output FLASH DATA input Clock output to fluorescent display tube Data output to fluorescent display tube Power supply +5 V Fluorescent latch Fluorescent clear SIRCS input External power regulator capacitor 0.1 is connected to this terminal Not used (Connected to ground) Not used (Connected to ground) Not used (Connected to ground) Not used (Connected to ground) Not used (Connected to ground) Not used (Connected to ground) Analog power supply +5 V AVRH (Connected to Analog power supply +5 V) AVRL (Connected to ground) Ground (Connected to ground) Key input 1 Key input 2 Key input 3 Key input 4 Ground (Connected to ground) Key input 5 Key input 6 Version input 1 Version input 2 Stop input Not used (Connected to ground) MD 0 MD 1 Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 4-27. IC PIN FUNCTION DESCRIPTION IC102 MB90553PF-G-121-BND (DISPLAY BOARD) Pin Name LED V VIDEO2 LED A VIDEO3 LED V VIDEO3 LED A DVD/LD LED V DVD/LD LED A TV/DBS LED V TV/DBS LED TAPE LED MD/DAT LED CD VSS LED TUNER LED PHONO LED SURR LED EQ LED INDEX LED S.F ON/OFF LED MUTING FLASH DO FLASH D1 FL CLK FL DATA VCC FL LAT FL CLEAR SIRCS IN C — — — — — — AVCC AVRH AVRL AVSS AD KEY IN 1 AD KEY IN 2 AD KEY IN 3 AD KEY IN 4 VSS AD KEY IN 5 AD KEY IN 6 AD VERSION 1 AD VERSION 2 STOP — MD0 MD1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 62 — I/O I I I I O O I O I O O O I — — — O — I I — I I I — — I — — — — — — — — — O O O O O O I I I I — O — — Description MD 2 Hardware STANDBY input RDS clock input RDS data input Volume up output Volume down output SP switch S102 Reset output Slave request and data input Master request output Master data output Master clock output Audio bus input Not used (Connected to ground) Not used (Connected to ground) Not used (Connected to ground) Audio bus output Not used (Connected to ground) Function encoder up input Function encoder down input Not used (Connected to ground) Speaker A select switch input Speaker B select switch input Power key input Not used (Connected to ground) Not used (Connected to ground) Reset input Not used (Connected to ground) Not used (Connected to ground) Not used (Connected to ground) Not used (Connected to ground) External crystal is connected to this terminal External crystal is connected to this terminal Power supply +5 V Not used (Connected to ground) Not used (Connected to ground) MULTI FORMAT DECODE display data output to LED VOLUME display data output to LED BASS BOOST display data output to LED VIDEO 1 audio display data output to LED VIDEO 1 visual display data output to LED VIDEO 2 audio display data output to LED V1 input form MBUS (Connected to ground) V2 input form MBUS (Connected to ground) TV input form MBUS (Connected to ground) STATUS input form MBUS (Connected to ground) Not used (Connected to ground) CTRL latch Not used (Connected to ground) Not used (Connected to ground) Pin No. 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 Pin Name MD2 HSTX RDS CLOCK RDS DATA VOL UP VOL DOWN IRQ6 U-RESET U-SREQ U-MREQ U-DATA U-CLOCK AUBUS-IN — — — AUBUS-OUT — FUNCTION-UP FUNCTION-DOWN — SP-A SP-B POW-KEY IN — — RESET — — — VSS X0 X1 VCC — — LED DOLBY DIGITAL LED VOL LED BASS BOOST LED A VIDEO1 LED V VIDEO1 LED A VIDEO2 MBUS-V1 MBUS-V2 MBUS-TV MBUS-STATUS — — — — www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 63 — I/O I O O O O O O — I O — O I O I O O O I O O O I O I/O I/O I/O I/O I/O I/O I/O O — — O O I — — O O — — — — O — O O O Description RF demodulator error or signal input RF demodulator/DIR reset Woofer gain control 6 Woofer gain control 12 Rear gain control 3 Rear gain control 6 Rear gain control 12 Power supply +5 V UART input. Used for rewriting flash memory UART output. Used for rewriting flash memory Not used (Connected to ground) Test pin Surround mute in Analog/digital selection (SN74HC157) To CS4923 data input To CS4923 clock To CS4923 chip select To CS4923 SPI data output To CS4923 interrupt request To CS4923 reset To CXD2712 HCIF data write To CXD2712 HCIF data read To CXD2712 HCIF ready To CXD2712 HCIF chip select To CXD2712 HCIF data input/output To CXD2712 HCIF data input/output To CXD2712 HCIF data input/output To CXD2712 HCIF data input/output To CXD2712 HCIF data input/output To CXD2712 HCIF data input/output To CXD2712 HCIF data input/output To CXD2712 HD 7 Ground External power regulator capacitor 0.1 u is connected to this terminal To CXD2712 HCIF address To CXD2712 reset To CXD2712 LFE detection Digital power supply +5 V Digital ground DA AK4324 reset DA AK4324 muting Analog power supply +5 V Power supply +5 V Ground Ground AD AK5352 reset Not used (Not connected, open) To TC9299 strobe To TC9299 data To TC9299 clock Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 IC 1201 MB90574PFV-G-127-BND (DIGITAL BOARD) Pin Name RFERR RERESET SW6 SW12 REAR3 REAR6 REAR12 VCC S1NI SOT0 — SIN1 SOT1 ANA/DIG SCDIN SCCLK CS SCDIO/OUT INTREQ RESET XHDWR XHDRD HRDY XHDCS HD0 HD1 HD2 HD3 HD4 HD5 HD6 HD7 VSS C HA0 XRST SOD DVCC DVSS D/AINT SMUTE AVCC AVR+ AVR- AVSS A/DINT — EVSTB EVDATA EVCLK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 64 — I/O I I O — I O O O — I I I — I — — O — — — I I — — I O O O I O O O O — O — O — O I — — — — — — O O O — Description Display master request (Connected to MB90570 U.MREQ) Display data (Connected to MB90570 U.DATA) Slave data/request (Connected to MB90570 U.SREQ) Power supply +5 V Display clock (Connected to MB90570 U.CLOCK) To tuner LC7821 latch To tuner LC7821 data To tuner LC7821 clock Not used (Connected to ground) PLL data input Auto stop input Stereo input Ground AC power check Not used (Connected to ground) Not used (Connected to ground) Error output LC8904 Not used (Connected to ground) Not used (Connected to ground) Not used U or CED or J U or CED or J Not used (Not connected, open) Not used (Not connected, open) To LC8904AQ C-bit To LC8904AQ data To LC8904AQ latch To LC8904AQ clock Protector input To NJM2296 video select switch 4 To NJM2296 video select switch 3 To NJM2296 video select switch 2 To NJM2296 video select switch 1 IC muting (Not connected, open) Function muting Hardware standby (Connected to power supply +5 V) MD 2 MD 1 (Connected to power supply +5 V) MD 0 Reset Ground (Connected to ground) External ceramic filter 4 MHz is connected to this terminal External ceramic filter 4 MHz is connected to this terminal Power supply +5 V Flash memory rewrite (Connected to ground) Flash memory rewrite (Connected to ground) Tuner muting Surround muting 4/8 relay Not used Pin No. 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 Pin Name DISPMR DISPDATA SLVDATA/REQ VCC DISPCLK S.LAT S.DATA S.CLK — DATAIN AUTOSTOP STEREO VSS STOP — — ERROR — — — VERSION1 VERSION2 X1A X0A SRDT SWDT XLAT SCLK PROTEC VIDEO(SW4) VIDEO(SW3) VIDEO(SW2) VIDEO(SW1) ACMUTE F.MUTE HSTX MD2 MD1 MD0 RESET VSS X0 X1 VCC PO0 PO1 TUNERMUTE SURRMUTE RY-4/8 — www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 65 — Description Front speaker A relay Front speaker B relay Center speaker relay Rear speaker relay Sub woofer relay Headphones relay Power relay Direct/pass relay Digital input select 2 (SN74HC151) Digital input select 1 (SN74HC151) Digital input select 0 (SN74HC151) Test port 0 (Not connected, open) Front gain control 4 Front gain control 8 Front gain control 16 Center gain control 3 Center gain control 6 Center gain control 12 Ground Woofer gain control 3 Pin No. 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 Pin Name RY-FRONT/A RY-FRONT/B RY-CENTER RY-REAR WOOFER-RY RY-HP RY-POWER RY-DIRECT-PASS DIG-IN2 DIG-IN1 DIG-IN0 TEST0 FRONT4 FROUT8 FRONT16 C3 C6 C12 VSS SW3 I/O O O O O O O O O I I I — O O O O O O — O www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 66 — I/O O O I O I — O I I I I — — — I — I O — O O O I — — I O O O O — O O O O O O O O I I I — I I I I — Description EIAJ data and parity flag output terminal Emphasis monitor output terminal ("H" = ON) RC oscillator input terminal RC oscillator output terminal Microprocessor I/F select input terminal (CCB: H, SUB: L) (Connected to ground) Digital ground Clock output select terminal ("L" = 256 fs, "H" = 128 fs) (Connected to ground) Clock input select terminal ("H" = 512 fs, "L" = 384 fs) Test terminal (Connected to ground) Test terminal (Connected to ground) Reset input terminal Digital power supply 0.5 V Not used (Not connected, open) Analog power supply +5 V VCO oscillation band adjustment input terminal Analog ground VCO free-running frequency setting input terminal External LPF is connected to this terminal for PLL Digital power supply +5 V CD subcode I/F and block sync output terminal CD subcode I/F and data output terminal CD subcode I/F and frame sync output terminal CD subcode I/F and shift clock input terminal for data reading Digital ground Digital power supply +5 V Crystal oscillator input terminal Crystal oscillator output terminal VCO and crystal oscillator clock output terminal 256fs or 128fs clock output terminal (Selected by CLKMD terminal) Error mute output terminal Digital ground Sampling frequency monitor output terminal Sampling frequency monitor output terminal Bit clock output terminal Audio data output terminal L, R clock output terminal (L-ch: H, R-ch: L) Microprocessor I/F and subcode Q data sync output terminal Microprocessor I/F. When CCB/SUB is L, data output terminal (3-state output) Microprocessor I/F. When CCB/SUB is H, data output terminal (high level open drain output) (Not connected) Microprocessor I/F. Data input terminal Microprocessor I/F. Chip enable/latch input terminal Microprocessor I/F. Clock input terminal Digital power supply +5 V Built-in amplifier data input terminal (Connected to ground) Built-in amplifier data input terminal (Connected to ground) Built-in amplifier data input terminal (Connected to ground) Built-in amplifier data input terminal Digital ground Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 IC1101 CXD8495AQ (DIGITAL BOARD) Pin Name DOUT/V EMPHA RC1 RC2 CCB/SUB D. GND 128/256 384/512 TEST TEST RESET D. +5V — A. +5V R A. GND VCO IN VCO D. +5V SBSY PW SFSY SB CLK D. GND D. +5V XIN XOUT CLK OUT CLK OUT ERROR D. GND SUB1 SUB2 BCK DATA OUT LRCK LD/DQSY SRDT DO DI/SWDT CE/XLAT CL/SCLK D. +5V DIN1 DIN2 DIN3 DIN4 D. GND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 67 — I/O — O I — I I — — O I I I/O — — I/O I — — I/O — — I/O — — — I/O — I/O O — — O O O I/O — — I/O O — O O I I O I O Description Ground Serial data output Conditional jump input terminal (7 pin: Connected to ground) Not used (Connected to ground) HCIF data write HCIF data read Ground Power supply +3.3 V HCIF ready signal. Open drain HCIF chip select HCIF address input HCIF data input/output Ground Power supply +3.3 V HCIF data input/output Reset input "L": active Test data output. Not used. (Not connected) Ground External RAM data input/output Ground Power supply +3.3 V External RAM data input/output Test data input. Not used. (Connected to ground) Ground Power supply +3.3 V External RAM data input/output Ground External RAM data input/output External RAM output cable Ground Power supply +3.3 V External RAM column address strobe Not used. (Not connected) External RAM write enable External RAM raw address strobe. Not used. (Not connected) External RAM address output/test data input Ground Power supply +3.3 V External RAM data input/output External RAM address output Ground External RAM address output Not used Test data input "L" = normal "H" = test (Connected to ground) PLL input frequency select "L" = 256fs "H" = 128 fs (Connected to ground) PLL output frequency select "L" = 768 fs "H" = 1024 fs (Connected to ground) Master clock input Master clock output (Not connected) Pin No. 1 2 - 5 6,7 8 9 10 11 12 13 14 15 16 -20 21 22 23 - 25 26 27 -30 31 32 - 40 41 42 43 -49 50 51 52 53 -60 61 62 -69 70 71 72 73 74 75 76 -80 81 82 83 -89 90 91 92 -94 95 96 97 98 99 100 IC1112 CXD2712R (DIGITAL BOARD) Pin Name VSS3 SOA - SOD ECJ0, ECJ1 — XHDWR XHDRD VSS4 VDD2 HRDY XHDCS HA0 HD0 - HD4 VSS5 VDD3 HD5 - HD7 XRST — VSS6 SD0 - SD8 VSS7 VDD4 ED9 - ED15 — VSS8 VDD5 ED16 - ED23 VSS9 ED24 - ED31 XOE VSS10 VDD6 CAS XWE RAS EA0 - EA4 VSS11 VDD7 EA5 - EA11 EA12 VSS0 EA13 - EA15 EA16 TSTA PLDIVF PLDIVB CLK1 CLKO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 68 — I/O — — — — I/O I I I O O — — I I I I I Description Ground Power supply +3.3 V Ground for PLL cell VDD for PLL cell PLL output/test clock input (Not connected) PLL cell oscillation enable "L" oscillation enable "H" oscillation stop (Connected to ground) Test data input "L" = normal "H" = test (Connected to ground) Frequency counter input (Connected to ground) LRCK0 divider output BCK0 divider output Ground Power supply +3.3 V BCK input BCK input LRCK input LRCK input Serial data input Pin No. 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 -120 Pin Name VSS1 VDD0 AVSS AVDD PLLCK XPLLEN TST LRCT LROUT BKOUT VSS2 VDD1 BCK0 BCK1 LRCK0 LRCK1 SIA - SID www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 69 — NOTE: • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Hardware (# mark) list and accessories and packing materials are given in the last of this parts list. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑ ↑ Parts of Color Cabinet’s Color • Abbreviation CND : Canadian G : German EE : East European EA : Saudi Arabia MY : Malaysia SP : Singapore AUS : Australian CH : Chinese SECTION 5 EXPLODED VIEWS When indicating parts by reference number, please include the board name. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 5-1. FRONT PANEL SECTION 1 3-704-515-21 SCREW (BV/RING) 2 4-900-632-01 LID (FRONT) (BLACK) 2 4-900-632-11 LID (FRONT) (GOLD) * 3 4-900-642-01 ESCUTCHEON (LID) (SILVER) * 3 4-900-642-11 ESCUTCHEON (LID) (GOLD) * 4 4-900-643-01 INDICATOR (LID) * 5 4-900-634-01 LID (BASE) (BLACK) * 5 4-900-634-11 LID (BASE) (GOLD) 6 4-942-568-41 EMBLEM (NO.5), SONY (BLACK) 6 4-942-568-51 EMBLEM (NO.5), SONY (GOLD) 7 4-900-631-21 PANEL, FRONT (GOLD) (V55ES) 7 4-900-631-01 PANEL, FRONT (BLACK) (DA50ES:US,CND) 7 4-900-631-11 PANEL, FRONT (GOLD) (DA50ES:AEP) 7 4-900-631-31 PANEL, FRONT (BLACK) (DA30ES) 7 4-900-631-52 PANEL, FRONT (BLACK) (DA50ES:AEP,UK,G,EE,AUS) 7 4-900-631-61 PANEL, FRONT(BLACK)(DA50ES:E,EA,PX,SP,MY) 8 4-957-383-01 KNOB (F14) (BLACK) 8 4-957-383-21 KNOB (F14) (GOLD) 9 4-900-648-01 WINDOW * 10 1-670-142-11 SP.SWITCH BOARD * 11 1-670-749-11 POWER SWITCH BOARD 12 4-900-563-11 BUTTON (5) (BLACK) 12 4-900-563-21 BUTTON (5) (GOLD) 13 4-991-388-01 INDICATOR (FUNC) * 14 X-4950-431-1 CASE ASSY (BLACK) * 14 X-4950-437-1 CASE ASSY (GOLD) 15 4-210-291-01 SCREW (CASE 3 TP2) (BLACK) 15 4-210-291-11 SCREW (CASE 3 TP2) (GOLD) * 16 A-4414-286-A DISPLAY BOARD,COMPLETE(DA50ES:US,CND) * 16 A-4414-287-A DISPLAY BOARD,COMPLETE (DA50ES:AEP,UK,G,EE,AUS) * 16 A-4414-288-A DISPLAY BOARD,COMPLETE (DA50ES:SP,MY/V55ES) * 16 A-4414-289-A DISPLAY BOARD,COMPLETE (DA50ES:E,EA,PX) * 16 A-4414-299-A DISPLAY BOARD,COMPLETE (DA30ES) 17 4-991-386-01 BUTTON (WINDOW) 18 4-900-644-11 FULCRUM (GOLD) 18 4-900-644-01 FULCRUM (BLACK) * 19 4-900-638-01 HOUSE, LAMP * 20 1-670-147-11 LED BOARD 21 4-900-645-01 INDICATOR (S/F) 22 4-900-639-01 SPRING 23 4-900-491-01 BUTTON (MUTE) (BLACK) 23 4-900-491-11 BUTTON (MUTE) (GOLD) * 24 1-670-146-11 FUNCTION BOARD 25 3-703-466-00 SPRING (6600) 26 X-4948-601-1 KNOB (FUNC) ASSY (BLACK) 26 X-4948-634-1 KNOB (FUNC) ASSY (GOLD) 27 3-350-426-01 SPRING, RING 28 4-998-207-11 INDICATOR (VOL) 29 X-3375-592-1 KNOB (VOL) ASSY (BLACK) 29 X-4949-977-1 KNOB (VOL) ASSY (GOLD) 30 4-900-500-01 KNOB (BAL) (BLACK) 30 4-900-500-11 KNOB (BAL) (GOLD) * 31 X-4950-462-1 LENS ASSY, LED 32 X-4949-966-1 BASE ASSY, PANEL (BLACK) (DA30ES/DA50ES:US,CND) 32 X-4949-967-1 BASE ASSY, PANEL (BLACK) (DA50ES:AEP,UK,G,EE,AUS) 32 X-4949-968-1 BASE ASSY, PANEL (BLACK) (DA50ES:E,EA,PX,SP,MY) 32 X-4949-969-1 BASE ASSY, PANEL (GOLD) (DA50ES:AEP,UK,G,EE,AUS) 32 X-4949-970-1 BASE ASSY, PANEL (GOLD) (V55ES) 33 4-951-620-01 SCREW (2.6×8),+BVTP 34 4-900-649-01 FILTER 15 14 15 15 16 33 a 24 25 26 28 27 29 30 a 1 1 3 4 2 5 31 SONY 6 7 1 8 9 10 11 17 19 1 20 13 23 17 22 32 18 34 12 13 21 33 33 33 33 33 33 CHASSIS SECTION not supplied Ver 1.1 2001. 06 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 70 — 5-2. CHASSIS SECTION 73 74 #1 #1 not supplied 79 #1 #1 71 72 #3 #1 not supplied #1 #1 not supplied #3 #1 #1 72 #1 #1 d c 70 69 not supplied 62 63 68 64 66 66 c 66 66 67 66 66 65 78 61 60 59 d b 71 51 #1 not supplied #1 52 #1 #1 #1 53 not supplied b #1 #1 #1 #1 #1 #1 #1 75 #1 #1 #1 57 #1 #1 #1 #1 #1 #1 57 not supplied not supplied 58 not supplied #2 #2 T901 76 not supplied 56 #1 #1 55 54 not supplied not supplied not supplied #1 81 81 80 81 E, EA, PX MODEL US, CND MODEL CH MODEL EXCEPT US, CND, CH MODEL #1 Supplied with RV501 66 77 #1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 71 — Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks * 51 1-670-140-11 BALANCE VOLUME BOARD * 52 1-670-145-11 F.VIDEO BOARD * 53 1-670-139-11 HP BOARD * 54 1-670-141-11 VOLUME BOARD * 55 A-4414-252-A AMP BOARD, COMPLETE 56 1-698-792-11 FAN, DC (DA50ES/V55ES) 57 3-905-609-11 SCREW (TRANSISTOR) * 58 A-4414-280-A S.AMP BOARD, COMPLETE (DA50ES:US,CND,E,EA,PX) * 58 A-4414-281-A S.AMP BOARD, COMPLETE (DA50ES:AEP,UK,G,EE,AUS,SP,MY) * 58 A-4414-282-A S.AMP BOARD, COMPLETE (V55ES) * 58 A-4414-301-A S.AMP BOARD, COMPLETE (DA30ES) * 59 1-670-132-11 AC BOARD * 60 1-670-134-11 5.1 INPUT BOARD * 61 A-4414-276-A MAIN BOARD, COMPLETE (DA50ES:US,CND,E,EA,PX) * 61 A-4414-277-A MAIN BOARD, COMPLETE (DA50ES:AEP,UK,G,EE,AUS) * 61 A-4414-278-A MAIN BOARD, COMPLETE (DA50ES:SP,MY) * 61 A-4414-279-A MAIN BOARD, COMPLETE (V55ES) * 61 A-4414-300-A MAIN BOARD, COMPLETE (DA30ES) * 62 1-670-150-11 SP TM BOARD * 63 1-670-138-11 VIDEO BOARD * 64 A-4414-297-A S.VIDEO BOARD, COMPLETE * 65 4-900-635-01 PANEL, BACK (DA50ES:US) * 65 4-900-635-11 PANEL, BACK (DA50ES:CND) * 65 4-900-635-21 PANEL, BACK (DA50ES:AEP,UK,G,EE,AUS) * 65 4-900-635-31 PANEL, BACK (DA50ES:E,EA,PX) * 65 4-900-635-41 PANEL, BACK (DA50ES:SP,MY) * 65 4-900-635-51 PANEL, BACK (V55ES) * 65 4-900-635-61 PANEL, BACK (DA30ES:US) * 65 4-900-635-71 PANEL, BACK (DA30ES:CND) 66 3-704-515-21 SCREW (BV/RING) 67 4-947-010-01 SCREW, FEEDER FIXED 68 1-693-407-11 TUNER (DA30ES/DA50ES:US,CND,E,EA,PX) 68 1-693-409-11 TUNER (DA50ES:AEP,UK,G,EE,AUS,SP,MY/V55ES) * 69 A-4414-263-A AUDIO BOARD, COMPLETE (DA30ES/DA50ES:US,CND,E,EA,PX,SP,MY/V55ES) * 69 A-4414-264-A AUDIO BOARD, COMPLETE (DA50ES:AEP,UK,G,EE,AUS) * 70 A-4414-295-A INPUT BOARD, COMPLETE 71 4-970-123-01 FOOT (F50180S) 72 4-970-124-01 CUSHION (F50180S) * 73 A-4414-291-A DIGITAL BOARD, COMPLETE (DA30ES/DA50ES:US,CND,E,EA,PX,SP,MY,V55ES) * 73 A-4414-292-A DIGITAL BOARD, COMPLETE (DA50ES:AEP,UK,G,EE,AUS) 74 1-773-115-11 WIRE (FLAT TYPE) (19 CORE) * 75 A-4414-259-A PS BOARD, COMPLETE (DA50ES:US) * 75 A-4414-260-A PS BOARD, COMPLETE (DA50ES:CND) * 75 A-4414-261-A PS BOARD, COMPLETE (DA50ES:AEP,UK,G,EE,AUS,SP,MY/V55ES) * 75 A-4414-262-A PS BOARD, COMPLETE (DA50ES:E,EA,PX) * 75 A-4414-627-A PS BOARD, COMPLETE (DA30ES:US) * 75 A-4414-628-A PS BOARD, COMPLETE (DA30ES:CND) * 76 1-670-151-11 TH BOARD * 77 1-670-750-11 VOLTAGE SELECTOR BOARD (DA50ES:E,EA,PX) * 78 3-703-244-00 BUSHING (2104), CORD (EXCEPT US,CND) 78 4-916-783-01 BUSHING, CORD (US,CND) * 79 3-694-225-01 CLAMP !80 1-569-008-21 ADAPTOR, CONVERSION 2P (E,EA,PX) !81 1-559-479-11 CORD, POWER (US,CND) !81 1-776-095-11 CORD, POWER (EXCEPT US,CND,CH) !81 1-782-464-21 CORD, POWER (CH) !T901 1-431-921-11 TRANSFORMER, POWER (DA50ES:US) !T901 1-431-922-11 TRANSFORMER, POWER (DA50ES:CND) !T901 1-431-923-11 TRANSFORMER, POWER (DA50ES:AEP,UK,G,EE,AUS,SP,MY/V55ES) !T901 1-431-924-11 TRANSFORMER, POWER (DA50ES:E,EA,PX) !T901 1-431-925-11 TRANSFORMER, POWER (DA30ES:US) !T901 1-431-926-11 TRANSFORMER, POWER (DA30ES:CND) The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 72 — SECTION 6 ELECTRICAL PARTS LIST • COILS uH: µH • SEMICONDUCTORS In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD... • Abbreviation CND : Canadian EA : Saudi Arabia EE : East European AUS : Australian G : German SP : Singapore MY : Malaysia CH : Chinese • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • CAPACITORS: uF: µF • RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable NOTE: When indicating parts by reference number, please include the board name. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. * 1-670-132-11 AC BOARD ********* 1-533-217-31 HOLDER, FUSE < CONNECTOR > * CN902 1-564-687-11 PIN, CONNECTOR 3P (E,EA,PX) CNP902 1-564-321-00 PIN, CONNECTOR 2P CNP903 1-564-321-00 PIN, CONNECTOR 2P (EXCEPT E,EA,PX) * CNP905 1-565-792-11 PIN, CONNECTOR 2P * CNP907 1-568-951-11 PIN, CONNECTOR 2P < DIODE > D907 8-719-911-19 DIODE 1SS119 < FUSE > !F901 1-532-465-51 FUSE, TIME LAG 3.15A,250V (EXCEPT US,CND) !F901 1-533-312-11 FUSE, GLASS CYLINDRICAL(DIA.5)10A,125V (US,CND) !F902 1-532-464-51 FUSE TIME LAG 2.5A,250V (AEP,UK,G,EE,AUS,SP,MY,CH) !F903 1-532-465-51 FUSE, TIME LAG 3.15A,250V (E,EA,PX) < JACK > !J901 1-251-718-11 OUTLET (2 GANG), AC (US,CND,E,PX,EA,CH) !J901 1-251-079-11 OUTLET, AC (AEP,UK,G,EE,AUS,SP,MY) < RESISTOR > !R901 1-202-725-00 SOLID 3.3M 10% 1/2W (US,CND) < RELAY > !RY901 1-515-999-11 RELAY, POWER ************************************************************ * A-4414-252-A AMP BOARD, COMPLETE ******************** < CAPACITOR > C1401 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1403 1-126-049-11 ELECT 22uF 20% 50V C1404 1-126-049-11 ELECT 22uF 20% 50V C1410 1-126-049-11 ELECT 22uF 20% 50V C1411 1-126-049-11 ELECT 22uF 20% 50V C1412 1-126-049-11 ELECT 22uF 20% 50V C1415 1-126-049-11 ELECT 22uF 20% 50V C1416 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1417 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1418 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1419 1-126-049-11 ELECT 22uF 20% 50V C1420 1-126-049-11 ELECT 22uF 20% 50V C1421 1-126-049-11 ELECT 22uF 20% 50V C1460 1-126-049-11 ELECT 22uF 20% 50V C1461 1-126-049-11 ELECT 22uF 20% 50V C1462 1-126-049-11 ELECT 22uF 20% 50V C1463 1-126-049-11 ELECT 22uF 20% 50V C1464 1-126-049-11 ELECT 22uF 20% 50V C1465 1-126-049-11 ELECT 22uF 20% 50V C1466 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1467 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1468 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1469 1-126-049-11 ELECT 22uF 20% 50V C1470 1-126-049-11 ELECT 22uF 20% 50V C1471 1-126-049-11 ELECT 22uF 20% 50V < CONNECTOR > CNS1402 1-779-799-11 PIN, CONNECTOR 9P * CNP1403 1-568-939-11 PIN, CONNECTOR 12P CNS1406 1-774-292-11 HOUSING,CONNECTOR (PC BOARD)15P < DIODE > D1401 8-719-820-05 DIODE 1SS181 D1402 8-719-820-05 DIODE 1SS181 D1403 8-719-820-05 DIODE 1SS181 D1404 8-719-820-05 DIODE 1SS181 D1405 8-719-820-05 DIODE 1SS181 D1406 8-719-820-05 DIODE 1SS181 < IC > IC1401 8-759-636-55 IC M5218AFP IC1402 8-759-636-55 IC M5218AFP IC1403 8-759-636-55 IC M5218AFP < TRANSISTOR > Q1401 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q1402 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q1403 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q1404 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q1405 8-729-107-46 TRANSISTOR 2SC3624A-L15 AC AMP Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 73 — Q1406 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q1407 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q1408 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q1409 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q1410 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q1411 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q1412 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q1413 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q1414 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q1415 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q1416 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q1417 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q1418 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q1419 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q1420 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q1421 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q1422 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q1423 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q1428 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q1429 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q1430 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q1431 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q1432 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q1433 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q1434 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q1435 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q1436 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q1437 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q1451 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q1452 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q1453 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q1454 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q1455 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q1456 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q1457 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q1458 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q1459 8-729-107-46 TRANSISTOR 2SC3624A-L15 < RESISTOR > R1403 1-216-097-91 RES,CHIP 100K 5% 1/10W R1404 1-216-097-91 RES,CHIP 100K 5% 1/10W R1405 1-216-097-91 RES,CHIP 100K 5% 1/10W R1411 1-216-073-00 METAL CHIP 10K 5% 1/10W R1412 1-216-073-00 METAL CHIP 10K 5% 1/10W R1413 1-216-097-91 RES,CHIP 100K 5% 1/10W R1414 1-216-097-91 RES,CHIP 100K 5% 1/10W R1415 1-216-097-91 RES,CHIP 100K 5% 1/10W R1416 1-216-073-00 METAL CHIP 10K 5% 1/10W R1417 1-216-097-91 RES,CHIP 100K 5% 1/10W R1418 1-216-050-00 RES,CHIP 1.1K 5% 1/10W R1419 1-216-115-00 METAL CHIP 560K 5% 1/10W R1420 1-216-115-00 METAL CHIP 560K 5% 1/10W R1421 1-216-115-00 METAL CHIP 560K 5% 1/10W R1422 1-216-049-91 RES,CHIP 1K 5% 1/10W R1423 1-216-058-00 RES,CHIP 2.4K 5% 1/10W R1424 1-216-070-00 METAL CHIP 7.5K 5% 1/10W R1425 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R1426 1-216-062-00 METAL CHIP 3.6K 5% 1/10W R1427 1-216-073-00 METAL CHIP 10K 5% 1/10W R1428 1-216-073-00 METAL CHIP 10K 5% 1/10W R1429 1-216-073-00 METAL CHIP 10K 5% 1/10W R1430 1-216-097-91 RES,CHIP 100K 5% 1/10W R1431 1-216-050-00 RES,CHIP 1.1K 5% 1/10W R1432 1-216-049-91 RES,CHIP 1K 5% 1/10W R1433 1-216-058-00 RES,CHIP 2.4K 5% 1/10W R1434 1-216-070-00 METAL CHIP 7.5K 5% 1/10W R1435 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R1436 1-216-062-00 METAL CHIP 3.6K 5% 1/10W R1437 1-216-073-00 METAL CHIP 10K 5% 1/10W R1438 1-216-073-00 METAL CHIP 10K 5% 1/10W R1439 1-216-073-00 METAL CHIP 10K 5% 1/10W R1440 1-216-097-91 RES,CHIP 100K 5% 1/10W R1441 1-216-050-00 RES,CHIP 1.1K 5% 1/10W R1442 1-216-049-91 RES,CHIP 1K 5% 1/10W R1443 1-216-058-00 RES,CHIP 2.4K 5% 1/10W R1444 1-216-070-00 METAL CHIP 7.5K 5% 1/10W R1445 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R1446 1-216-062-00 METAL CHIP 3.6K 5% 1/10W R1447 1-216-089-91 RES,CHIP 47K 5% 1/10W R1448 1-216-097-91 RES,CHIP 100K 5% 1/10W R1453 1-216-097-91 RES,CHIP 100K 5% 1/10W R1454 1-216-097-91 RES,CHIP 100K 5% 1/10W R1455 1-216-097-91 RES,CHIP 100K 5% 1/10W R1461 1-216-073-00 METAL CHIP 10K 5% 1/10W R1462 1-216-073-00 METAL CHIP 10K 5% 1/10W R1463 1-216-097-91 RES,CHIP 100K 5% 1/10W R1464 1-216-097-91 RES,CHIP 100K 5% 1/10W R1465 1-216-097-91 RES,CHIP 100K 5% 1/10W R1466 1-216-073-00 METAL CHIP 10K 5% 1/10W R1467 1-216-097-91 RES,CHIP 100K 5% 1/10W R1468 1-216-050-00 RES,CHIP 1.1K 5% 1/10W R1469 1-216-115-00 METAL CHIP 560K 5% 1/10W R1470 1-216-115-00 METAL CHIP 560K 5% 1/10W R1471 1-216-115-00 METAL CHIP 560K 5% 1/10W R1472 1-216-049-91 RES,CHIP 1K 5% 1/10W R1473 1-216-058-00 RES,CHIP 2.4K 5% 1/10W R1474 1-216-070-00 METAL CHIP 7.5K 5% 1/10W R1475 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R1476 1-216-062-00 METAL CHIP 3.6K 5% 1/10W R1477 1-216-073-00 METAL CHIP 10K 5% 1/10W R1478 1-216-073-00 METAL CHIP 10K 5% 1/10W R1479 1-216-073-00 METAL CHIP 10K 5% 1/10W R1480 1-216-097-91 RES,CHIP 100K 5% 1/10W R1481 1-216-050-00 RES,CHIP 1.1K 5% 1/10W R1482 1-216-049-91 RES,CHIP 1K 5% 1/10W R1483 1-216-058-00 RES,CHIP 2.4K 5% 1/10W R1484 1-216-070-00 METAL CHIP 7.5K 5% 1/10W R1485 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R1486 1-216-062-00 METAL CHIP 3.6K 5% 1/10W R1487 1-216-073-00 METAL CHIP 10K 5% 1/10W R1488 1-216-073-00 METAL CHIP 10K 5% 1/10W R1489 1-216-073-00 METAL CHIP 10K 5% 1/10W R1490 1-216-097-91 RES,CHIP 100K 5% 1/10W R1491 1-216-050-00 RES,CHIP 1.1K 5% 1/10W R1492 1-216-049-91 RES,CHIP 1K 5% 1/10W R1493 1-216-058-00 RES,CHIP 2.4K 5% 1/10W R1494 1-216-070-00 METAL CHIP 7.5K 5% 1/10W R1495 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R1498 1-216-062-00 METAL CHIP 3.6K 5% 1/10W AMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 74 — R1499 1-216-121-91 RES,CHIP 1M 5% 1/10W R1500 1-216-121-91 RES,CHIP 1M 5% 1/10W R1501 1-216-121-91 RES,CHIP 1M 5% 1/10W R1502 1-216-121-91 RES,CHIP 1M 5% 1/10W R1503 1-216-121-91 RES,CHIP 1M 5% 1/10W R1504 1-216-121-91 RES,CHIP 1M 5% 1/10W R1505 1-216-121-91 RES,CHIP 1M 5% 1/10W R1506 1-216-121-91 RES,CHIP 1M 5% 1/10W R1507 1-216-121-91 RES,CHIP 1M 5% 1/10W R1508 1-216-121-91 RES,CHIP 1M 5% 1/10W R1509 1-216-121-91 RES,CHIP 1M 5% 1/10W R1510 1-216-121-91 RES,CHIP 1M 5% 1/10W ************************************************************ * A-4414-263-A AUDIO BOARD, COMPLETE ********************* (DA30ES/DA50ES:US,CND,E,EA,PX,SP,MY/V55ES) * A-4414-264-A AUDIO BOARD, COMPLETE ********************* (DA50ES:AEP,UK,G,EE,AUS) < CAPACITOR > C209 1-162-282-31 CERAMIC 100PF 10% 50V (DA50ES:AEP,UK,G,EE,AUS) C210 1-162-282-31 CERAMIC 100PF 10% 50V (DA50ES:AEP,UK,G,EE,AUS) C212 1-162-282-31 CERAMIC 100PF 10% 50V (DA50ES:AEP,UK,G,EE,AUS) C213 1-162-282-31 CERAMIC 100PF 10% 50V (DA50ES:AEP,UK,G,EE,AUS) C214 1-162-282-31 CERAMIC 100PF 10% 50V (DA50ES:AEP,UK,G,EE,AUS) C215 1-162-282-31 CERAMIC 100PF 10% 50V (DA50ES:AEP,UK,G,EE,AUS) C223 1-162-282-31 CERAMIC 100PF 10% 50V (DA50ES:AEP,UK,G,EE,AUS) C259 1-162-282-31 CERAMIC 100PF 10% 50V (DA50ES:AEP,UK,G,EE,AUS) C260 1-162-282-31 CERAMIC 100PF 10% 50V (DA50ES:AEP,UK,G,EE,AUS) C262 1-162-282-31 CERAMIC 100PF 10% 50V (DA50ES:AEP,UK,G,EE,AUS) C263 1-162-282-31 CERAMIC 100PF 10% 50V (DA50ES:AEP,UK,G,EE,AUS) C264 1-162-282-31 CERAMIC 100PF 10% 50V (DA50ES:AEP,UK,G,EE,AUS) C265 1-162-282-31 CERAMIC 100PF 10% 50V (DA50ES:AEP,UK,G,EE,AUS) C273 1-162-282-31 CERAMIC 100PF 10% 50V (DA50ES:AEP,UK,G,EE,AUS) C291 1-126-048-81 ELECT 10uF 20% 50V C292 1-126-048-81 ELECT 10uF 20% 50V C293 1-126-048-81 ELECT 10uF 20% 50V C294 1-126-048-81 ELECT 10uF 20% 50V C295 1-162-282-31 CERAMIC 100PF 10% 50V C296 1-162-294-31 CERAMIC 0.001uF 10% 50V C301 1-164-159-11 CERAMIC 0.1uF 50V C302 1-162-207-31 CERAMIC 22PF 5% 50V (DA50ES:AEP,UK,G,EE,AUS) C303 1-126-045-11 ELECT 2.2uF 20% 50V (DA50ES:AEP,UK,G,EE,AUS) C304 1-126-044-11 ELECT 1uF 20% 50V (DA50ES:AEP,UK,G,EE,AUS) C305 1-162-306-11 CERAMIC 0.01uF 20% 16V (DA50ES:AEP,UK,G,EE,AUS) C306 1-162-291-31 CERAMIC 560PF 10% 50V (DA50ES:AEP,UK,G,EE,AUS) C307 1-162-280-31 CERAMIC 82PF 10% 50V (DA50ES:AEP,UK,G,EE,AUS) C308 1-162-215-31 CERAMIC 47PF 5% 50V (DA50ES:AEP,UK,G,EE,AUS) C309 1-126-009-81 ELECT 100uF 20% 16V C310 1-126-009-81 ELECT 100uF 20% 16V C311 1-126-009-81 ELECT 100uF 20% 16V C312 1-162-282-31 CERAMIC 100PF 10% 50V C313 1-161-494-00 CERAMIC 0.022uF 25V < CONNECTOR > CNP201 1-784-924-11 PIN, CONNECTOR 8P CNP202 1-779-978-11 PIN, CONNECTOR 3P CNP302 1-784-921-11 PIN, CONNECTOR 4P (DA50ES:AEP,UK,G,EE,AUS) CNP304 1-774-289-11 PIN, CONNECTOR (PC BOARD) 15P < IC > IC203 8-759-805-13 IC LC7821 IC205 8-759-634-51 IC M5218AP IC301 8-759-450-86 IC BU1922 (DA50ES:AEP,UK,G,EE,AUS) IC302 8-759-708-05 IC NJM78L05A IC303 8-759-708-12 IC NJM78L12A < JACK > J210 1-784-920-11 JACK, PIN 6P (PHONO/CD/MD DAT REC OUT) J211 1-784-920-11 JACK, PIN 6P (MD DAT IN/TAPE) < COIL > L301 1-410-521-11 INDUCTOR 100uH (DA50ES:AEP,UK,G,EE,AUS) < RESISTOR > R222 1-249-417-11 CARBON 1K 5% 1/4W F R223 1-249-417-11 CARBON 1K 5% 1/4W F R224 1-249-417-11 CARBON 1K 5% 1/4W F R225 1-249-417-11 CARBON 1K 5% 1/4W F R226 1-249-417-11 CARBON 1K 5% 1/4W F R227 1-249-417-11 CARBON 1K 5% 1/4W F R269 1-247-807-31 CARBON 100 5% 1/4W R271 1-247-807-31 CARBON 100 5% 1/4W R272 1-249-417-11 CARBON 1K 5% 1/4W F R273 1-249-417-11 CARBON 1K 5% 1/4W F R274 1-249-417-11 CARBON 1K 5% 1/4W F R275 1-249-417-11 CARBON 1K 5% 1/4W F R276 1-249-417-11 CARBON 1K 5% 1/4W F R277 1-249-417-11 CARBON 1K 5% 1/4W F R291 1-249-441-11 CARBON 100K 5% 1/4W R292 1-249-441-11 CARBON 100K 5% 1/4W R295 1-249-417-11 CARBON 1K 5% 1/4W F R296 1-249-425-11 CARBON 4.7K 5% 1/4W F R301 1-247-807-31 CARBON 100 5% 1/4W (DA50ES:AEP,UK,G,EE,AUS) R302 1-247-807-31 CARBON 100 5% 1/4W (DA50ES:AEP,UK,G,EE,AUS) AUDIO AMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 75 — R303 1-249-385-11 CARBON 2.2 5% 1/6W F (DA50ES:AEP,UK,G,EE,AUS) R304 1-249-417-11 CARBON 1K 5% 1/4W F R305 1-249-417-11 CARBON 1K 5% 1/4W F R306 1-247-807-31 CARBON 100 5% 1/4W R307 1-249-417-11 CARBON 1K 5% 1/4W F R308 1-249-417-11 CARBON 1K 5% 1/4W F R309 1-249-417-11 CARBON 1K 5% 1/4W F R379 1-249-417-11 CARBON 1K 5% 1/4W F < VIBRATOR > X301 1-579-900-21 VIBRATOR, CRYSTAL 4.33MHz (DA50ES:AEP,UK,G,EE,AUS) ************************************************************ * 1-670-140-11 BALANCE VOLUME BOARD ********************** < CONNECTOR > CNS404 1-770-398-11 HOUSING, CONNECTOR(PC BOARD)5P < VARIABLE RESISTOR > RV1140 1-225-663-11 RES, VAR, CARBON 100K/100K (BALANCE) ************************************************************ * A-4414-291-A DIGITAL BOARD, COMPLETE *********************** (DA30ES/DA50ES:US,CND,E,EA,PX,SP,MY/V55ES) * A-4414-292-A DIGITAL BOARD, COMPLETE *********************** (DA50ES:AEP,UK,G,EE,AUS) < CAPACITOR > C1101 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V C1102 1-126-008-51 ELECT 47uF 20% 16V C1103 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1104 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1105 1-126-008-51 ELECT 47uF 20% 16V C1106 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1107 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C1108 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1109 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C1110 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C1111 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1112 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V C1113 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1114 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1115 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1116 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1117 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1118 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1119 1-126-009-81 ELECT 100uF 20% 16V C1120 1-126-009-81 ELECT 100uF 20% 16V C1121 1-165-319-11 CERAMIC CHIP 0.1uF 50V (DA30ES/DA50ES:US,CND,E,EA,PX,SP,MY/V55ES) C1122 1-165-319-11 CERAMIC CHIP 0.1uF 50V (DA30ES/DA50ES:US,CND,E,EA,PX,SP,MY/V55ES) C1123 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1124 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1125 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1126 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1127 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1128 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1129 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1130 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1131 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1132 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1133 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1134 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1135 1-126-009-81 ELECT 100uF 20% 16V C1136 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1137 1-165-319-11 CERAMIC CHIP 0.1uF 50V (DA30ES/DA50ES:US,CND,E,EA,PX,SP,MY/V55ES) C1138 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1140 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1141 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1207 1-126-048-81 ELECT 10uF 20% 50V C1210 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1211 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1212 1-126-048-81 ELECT 10uF 20% 50V C1213 1-126-021-11 ELECT 33uF 20% 25V C1214 1-126-021-11 ELECT 33uF 20% 25V C1215 1-163-263-11 CERAMIC CHIP 330PF 5% 50V C1215 1-163-131-00 CERAMIC CHIP 390PF 5% 50V C1216 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1217 1-163-259-91 CERAMIC CHIP 220PF 5% 50V C1218 1-163-259-91 CERAMIC CHIP 220PF 5% 50V C1220 1-126-021-11 ELECT 33uF 20% 25V C1221 1-126-021-11 ELECT 33uF 20% 25V C1222 1-163-131-00 CERAMIC CHIP 390PF 5% 50V C1223 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1224 1-163-259-91 CERAMIC CHIP 220PF 5% 50V C1225 1-163-259-91 CERAMIC CHIP 220PF 5% 50V C1227 1-126-021-11 ELECT 33uF 20% 25V C1228 1-126-021-11 ELECT 33uF 20% 25V C1229 1-163-131-00 CERAMIC CHIP 390PF 5% 50V C1230 1-163-259-91 CERAMIC CHIP 220PF 5% 50V C1231 1-163-259-91 CERAMIC CHIP 220PF 5% 50V C1232 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1234 1-130-473-00 MYLAR 0.0015uF 5% 50V C1235 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1236 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1237 1-126-048-81 ELECT 10uF 20% 50V C1239 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1240 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1241 1-126-048-81 ELECT 10uF 20% 50V C1242 1-126-048-81 ELECT 10uF 20% 50V C1243 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1244 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1245 1-126-048-81 ELECT 10uF 20% 50V C1246 1-126-048-81 ELECT 10uF 20% 50V C1247 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1248 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1249 1-126-048-81 ELECT 10uF 20% 50V C1250 1-126-048-81 ELECT 10uF 20% 50V C1251 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1252 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1253 1-126-048-81 ELECT 10uF 20% 50V C1254 1-126-048-81 ELECT 10uF 20% 50V C1255 1-126-048-81 ELECT 10uF 20% 50V C1256 1-165-319-11 CERAMIC CHIP 0.1uF 50V BALANCE VOLUME DIGITAL AUDIO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 76 — C1257 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1258 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1259 1-126-048-81 ELECT 10uF 20% 50V C1263 1-126-021-11 ELECT 33uF 20% 25V C1264 1-126-021-11 ELECT 33uF 20% 25V C1265 1-163-131-00 CERAMIC CHIP 390PF 5% 50V C1266 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1267 1-163-259-91 CERAMIC CHIP 220PF 5% 50V C1268 1-163-259-91 CERAMIC CHIP 220PF 5% 50V C1270 1-126-021-11 ELECT 33uF 20% 25V C1271 1-126-021-11 ELECT 33uF 20% 25V C1272 1-163-131-00 CERAMIC CHIP 390PF 5% 50V C1273 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1274 1-163-259-91 CERAMIC CHIP 220PF 5% 50V C1275 1-163-259-91 CERAMIC CHIP 220PF 5% 50V C1277 1-126-021-11 ELECT 33uF 20% 25V C1278 1-126-021-11 ELECT 33uF 20% 25V C1279 1-163-131-00 CERAMIC CHIP 390PF 5% 50V C1280 1-163-259-91 CERAMIC CHIP 220PF 5% 50V C1281 1-163-259-91 CERAMIC CHIP 220PF 5% 50V C1282 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1284 1-130-473-00 MYLAR 0.0015uF 5% 50V C1285 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1286 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1287 1-126-048-81 ELECT 10uF 20% 50V C1289 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1301 1-126-048-81 ELECT 10uF 20% 50V C1302 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1303 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1304 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1305 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1306 1-163-033-91 CERAMIC CHIP 0.022uF 50V C1307 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1308 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1309 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1310 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1311 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1312 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1313 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1314 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V < CONNECTOR > CND13011-784-924-11 PIN, CONNECTOR 8P CND13021-506-469-11 PIN, CONNECTOR 4P * CND13031-568-938-11 PIN, CONNECTOR 11P CNE1301 1-764-330-11 PIN, CONNECTOR (PCB) (V TYPE)7P CNP1301 1-784-927-11 PIN, CONNECTOR 12P CNP1303 1-784-922-11 PIN, CONNECTOR 5P CNP1304 1-779-978-11 PIN, CONNECTOR 3P CNS1301 1-784-780-11 CONNECTOR, FFC 19P * CNS1304 1-568-939-11 PIN, CONNECTOR 12P < DIODE > D1301 8-719-801-78 DIODE 1SS184 D1302 8-719-016-74 DIODE 1SS352 D1303 8-719-016-74 DIODE 1SS352 D1304 8-719-801-78 DIODE 1SS184 D1305 8-719-801-78 DIODE 1SS184 D1306 8-719-801-78 DIODE 1SS184 D1307 8-719-016-74 DIODE 1SS352 D1308 8-719-210-33 DIODE EC10DS2 (DA30ES/DA50ES:US,CND,E,EA,PX,SP,MY/V55ES) D1309 8-719-801-78 DIODE 1SS184 < GROUND > EP1401 1-537-770-21 TERMINAL BOARD, GROUND EP1402 1-537-770-21 TERMINAL BOARD, GROUND < IC > IC1101 8-759-294-79 IC CXD8495AQ IC1102 8-759-530-30 IC TC74VHCU04FT(EL) ? IC1103 8-759-553-27 IC MSM531031B-84GS-KR1 IC1104 8-759-524-52 IC TC74VHC574FT(EL) IC1105 8-759-524-52 IC TC74VHC574FT(EL) IC1106 8-759-538-17 IC CS4926 IC1107 8-759-523-78 IC TC74VHC00FT(EL) IC1108 8-759-524-32 IC TC74VHC367FT(EL) IC1109 8-759-524-48 IC TC74VHC393FT(EL) IC1110 8-759-546-46 IC IDT71V124S15YAU-TL IC1111 8-759-546-46 IC IDT71V124S15YAU-TL IC1112 8-752-391-87 IC CXD2712R IC1113 8-759-195-02 IC TC7S86F-TE85L IC1201 8-759-535-57 IC MB90574PFV-G-127-BND IC1202 8-759-536-23 IC AK4324-VF-E2 IC1203 8-759-536-23 IC AK4324-VF-E2 IC1204 8-759-536-23 IC AK4324-VF-E2 IC1205 8-759-636-55 IC M5218AFP IC1206 8-759-636-55 IC M5218AFP IC1207 8-759-636-55 IC M5218AFP IC1208 8-759-636-55 IC M5218AFP IC1209 8-759-636-55 IC M5218AFP IC1210 8-759-462-08 IC AK5352-VF-E2 < TRANSISTOR > Q1301 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q1302 8-729-230-49 TRANSISTOR 2SC2712-YG Q1303 8-729-230-49 TRANSISTOR 2SC2712-YG Q1304 8-729-230-49 TRANSISTOR 2SC2712-YG Q1305 8-729-230-49 TRANSISTOR 2SC2712-YG Q1306 8-729-230-49 TRANSISTOR 2SC2712-YG Q1307 8-729-230-49 TRANSISTOR 2SC2712-YG (DA50ES:AEP,UK,G,EE,AUS) Q1308 8-729-027-43 TRANSISTOR DTC114EKA-T146 < RESISTOR > R1101 1-216-121-91 RES,CHIP 1M 5% 1/10W R1102 1-216-025-91 RES,CHIP 100 5% 1/10W R1103 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1104 1-216-085-00 METAL CHIP 33K 5% 1/10W R1105 1-216-082-00 RES,CHIP 24K 5% 1/10W R1106 1-216-066-00 METAL CHIP 5.1K 5% 1/10W R1107 1-216-066-00 METAL CHIP 5.1K 5% 1/10W R1108 1-216-029-00 METAL CHIP 150 5% 1/10W R1109 1-216-104-00 METAL CHIP 200K 5% 1/10W R1110 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1111 1-216-025-91 RES,CHIP 100 5% 1/10W R1112 1-216-025-91 RES,CHIP 100 5% 1/10W R1113 1-216-025-91 RES,CHIP 100 5% 1/10W R1114 1-216-025-91 RES,CHIP 100 5% 1/10W R1115 1-216-097-91 RES,CHIP 100K 5% 1/10W DIGITAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 77 — R1116 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1117 1-216-025-91 RES,CHIP 100 5% 1/10W R1118 1-216-073-00 METAL CHIP 10K 5% 1/10W R1119 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1120 1-216-025-91 RES,CHIP 100 5% 1/10W R1121 1-216-041-00 METAL CHIP 470 5% 1/10W R1122 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1123 1-216-025-91 RES,CHIP 100 5% 1/10W R1124 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1125 1-216-025-91 RES,CHIP 100 5% 1/10W R1126 1-216-025-91 RES,CHIP 100 5% 1/10W R1127 1-216-025-91 RES,CHIP 100 5% 1/10W R1128 1-216-025-91 RES,CHIP 100 5% 1/10W R1129 1-216-025-91 RES,CHIP 100 5% 1/10W R1130 1-216-025-91 RES,CHIP 100 5% 1/10W R1131 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1132 1-216-295-91 SHORT 0 R1133 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1134 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1135 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1136 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1137 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1138 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1139 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1140 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1141 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1142 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1143 1-216-097-91 RES,CHIP 100K 5% 1/10W R1144 1-216-025-91 RES,CHIP 100 5% 1/10W R1145 1-216-081-00 METAL CHIP 22K 5% 1/10W R1146 1-216-025-91 RES,CHIP 100 5% 1/10W R1147 1-216-025-91 RES,CHIP 100 5% 1/10W R1148 1-216-025-91 RES,CHIP 100 5% 1/10W R1149 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1150 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1151 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1152 1-216-065-91 RES,CHIP 4.7K 5% 1/10W (DA50ES:AEP,UK,G,EE,AUS) R1152 1-216-089-91 RES,CHIP 47K 5% 1/10W R1153 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1201 1-216-073-00 METAL CHIP 10K 5% 1/10W R1202 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R1203 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R1204 1-216-067-00 METAL CHIP 5.6K 5% 1/10W R1205 1-216-067-00 METAL CHIP 5.6K 5% 1/10W R1206 1-216-074-00 METAL CHIP 11K 5% 1/10W R1207 1-216-074-00 METAL CHIP 11K 5% 1/10W R1208 1-216-073-00 METAL CHIP 10K 5% 1/10W R1209 1-216-033-00 METAL CHIP 220 5% 1/10W R1210 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R1211 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R1213 1-216-067-00 METAL CHIP 5.6K 5% 1/10W R1214 1-216-067-00 METAL CHIP 5.6K 5% 1/10W R1218 1-216-074-00 METAL CHIP 11K 5% 1/10W R1219 1-216-074-00 METAL CHIP 11K 5% 1/10W R1221 1-216-033-00 METAL CHIP 220 5% 1/10W R1222 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R1227 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R1228 1-216-074-00 METAL CHIP 11K 5% 1/10W R1229 1-216-067-00 METAL CHIP 5.6K 5% 1/10W R1230 1-216-067-00 METAL CHIP 5.6K 5% 1/10W R1231 1-216-074-00 METAL CHIP 11K 5% 1/10W R1233 1-216-033-00 METAL CHIP 220 5% 1/10W R1234 1-216-037-00 METAL CHIP 330 5% 1/10W R1235 1-216-037-00 METAL CHIP 330 5% 1/10W R1236 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1237 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1238 1-216-073-00 METAL CHIP 10K 5% 1/10W R1242 1-216-073-00 METAL CHIP 10K 5% 1/10W R1243 1-216-073-00 METAL CHIP 10K 5% 1/10W R1244 1-216-001-00 METAL CHIP 10 5% 1/10W R1245 1-216-001-00 METAL CHIP 10 5% 1/10W R1246 1-216-001-00 METAL CHIP 10 5% 1/10W R1247 1-216-001-00 METAL CHIP 10 5% 1/10W R1248 1-216-001-00 METAL CHIP 10 5% 1/10W R1249 1-216-001-00 METAL CHIP 10 5% 1/10W R1252 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R1253 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R1254 1-216-067-00 METAL CHIP 5.6K 5% 1/10W R1255 1-216-067-00 METAL CHIP 5.6K 5% 1/10W R1256 1-216-074-00 METAL CHIP 11K 5% 1/10W R1257 1-216-074-00 METAL CHIP 11K 5% 1/10W R1259 1-216-033-00 METAL CHIP 220 5% 1/10W R1260 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R1261 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R1263 1-216-067-00 METAL CHIP 5.6K 5% 1/10W R1264 1-216-067-00 METAL CHIP 5.6K 5% 1/10W R1268 1-216-074-00 METAL CHIP 11K 5% 1/10W R1269 1-216-074-00 METAL CHIP 11K 5% 1/10W R1271 1-216-033-00 METAL CHIP 220 5% 1/10W R1272 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R1277 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R1278 1-216-074-00 METAL CHIP 11K 5% 1/10W R1279 1-216-067-00 METAL CHIP 5.6K 5% 1/10W R1280 1-216-067-00 METAL CHIP 5.6K 5% 1/10W R1281 1-216-074-00 METAL CHIP 11K 5% 1/10W R1283 1-216-033-00 METAL CHIP 220 5% 1/10W R1284 1-216-037-00 METAL CHIP 330 5% 1/10W R1285 1-216-037-00 METAL CHIP 330 5% 1/10W R1286 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1287 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1288 1-216-073-00 METAL CHIP 10K 5% 1/10W R1292 1-216-073-00 METAL CHIP 10K 5% 1/10W R1293 1-216-073-00 METAL CHIP 10K 5% 1/10W R1301 1-216-097-91 RES,CHIP 100K 5% 1/10W R1302 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R1303 1-216-025-91 RES,CHIP 100 5% 1/10W R1304 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R1305 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R1306 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R1307 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R1308 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R1309 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R1310 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R1311 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R1312 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R1313 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R1314 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R1315 1-216-073-00 METAL CHIP 10K 5% 1/10W R1316 1-216-073-00 METAL CHIP 10K 5% 1/10W R1317 1-216-065-91 RES,CHIP 4.7K 5% 1/10W DIGITAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 78 — R1318 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1319 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1320 1-216-073-00 METAL CHIP 10K 5% 1/10W R1321 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R1322 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R1323 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R1324 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R1325 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1326 1-216-073-00 METAL CHIP 10K 5% 1/10W R1327 1-216-689-11 METAL CHIP 39K 0.5% 1/10W R1328 1-216-073-00 METAL CHIP 10K 5% 1/10W R1330 1-216-689-11 METAL CHIP 39K 0.5% 1/10W R1331 1-216-025-91 RES,CHIP 100 5% 1/10W R1332 1-216-025-91 RES,CHIP 100 5% 1/10W R1333 1-216-025-91 RES,CHIP 100 5% 1/10W R1334 1-216-073-00 METAL CHIP 10K 5% 1/10W R1337 1-216-105-91 RES,CHIP 220K 5% 1/10W R1338 1-216-041-00 METAL CHIP 470 5% 1/10W R1339 1-216-041-00 METAL CHIP 470 5% 1/10W R1340 1-216-041-00 METAL CHIP 470 5% 1/10W R1341 1-216-073-00 METAL CHIP 10K 5% 1/10W R1342 1-216-073-00 METAL CHIP 10K 5% 1/10W R1343 1-216-073-00 METAL CHIP 10K 5% 1/10W R1344 1-216-073-00 METAL CHIP 10K 5% 1/10W R1345 1-216-049-91 RES,CHIP 1K 5% 1/10W R1346 1-216-049-91 RES,CHIP 1K 5% 1/10W R1347 1-216-049-91 RES,CHIP 1K 5% 1/10W R1348 1-216-049-91 RES,CHIP 1K 5% 1/10W R1349 1-216-049-91 RES,CHIP 1K 5% 1/10W R1350 1-216-049-91 RES,CHIP 1K 5% 1/10W R1351 1-216-025-91 RES,CHIP 100 5% 1/10W R1352 1-216-049-91 RES,CHIP 1K 5% 1/10W R1353 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1354 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1355 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1356 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1357 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1358 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1359 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1360 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1361 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1362 1-216-049-91 RES,CHIP 1K 5% 1/10W R1363 1-216-049-91 RES,CHIP 1K 5% 1/10W R1364 1-216-049-91 RES,CHIP 1K 5% 1/10W R1365 1-216-049-91 RES,CHIP 1K 5% 1/10W R1366 1-216-049-91 RES,CHIP 1K 5% 1/10W R1367 1-216-049-91 RES,CHIP 1K 5% 1/10W R1368 1-216-049-91 RES,CHIP 1K 5% 1/10W R1369 1-216-049-91 RES,CHIP 1K 5% 1/10W R1370 1-216-049-91 RES,CHIP 1K 5% 1/10W R1371 1-216-049-91 RES,CHIP 1K 5% 1/10W R1372 1-216-049-91 RES,CHIP 1K 5% 1/10W R1373 1-216-049-91 RES,CHIP 1K 5% 1/10W R1374 1-216-049-91 RES,CHIP 1K 5% 1/10W R1375 1-216-049-91 RES,CHIP 1K 5% 1/10W R1376 1-216-049-91 RES,CHIP 1K 5% 1/10W R1377 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1378 1-216-073-00 METAL CHIP 10K 5% 1/10W R1379 1-216-073-00 METAL CHIP 10K 5% 1/10W R1380 1-216-073-00 METAL CHIP 10K 5% 1/10W (DA30ES/DA50ES:US,CND,E,EA,PX,SP,MY/V55ES) R1381 1-216-073-00 METAL CHIP 10K 5% 1/10W (DA50ES:AEP,UK,G,EE,AUS) R1383 1-216-073-00 METAL CHIP 10K 5% 1/10W R1384 1-216-049-91 RES,CHIP 1K 5% 1/10W R1385 1-216-049-91 RES,CHIP 1K 5% 1/10W R1386 1-216-049-91 RES,CHIP 1K 5% 1/10W R1387 1-216-049-91 RES,CHIP 1K 5% 1/10W R1388 1-216-049-91 RES,CHIP 1K 5% 1/10W R1389 1-216-049-91 RES,CHIP 1K 5% 1/10W R1390 1-216-049-91 RES,CHIP 1K 5% 1/10W R1391 1-216-049-91 RES,CHIP 1K 5% 1/10W R1392 1-216-049-91 RES,CHIP 1K 5% 1/10W R1393 1-216-049-91 RES,CHIP 1K 5% 1/10W R1394 1-216-049-91 RES,CHIP 1K 5% 1/10W R1395 1-216-049-91 RES,CHIP 1K 5% 1/10W R1396 1-216-049-91 RES,CHIP 1K 5% 1/10W R1397 1-216-049-91 RES,CHIP 1K 5% 1/10W R1401 1-216-080-00 METAL CHIP 20K 5% 1/10W R1402 1-216-080-00 METAL CHIP 20K 5% 1/10W < VIBRATOR > X1101 1-567-970-11 VIBRATOR, CRYSTAL 24.576Hz X1102 1-767-949-21 VIBRATOR, CERAMIC 49.152MHz X1301 1-767-359-11 VIBRATOR, CERAMIC 4MHz ************************************************************ * A-4414-286-A DISPLAY BOARD, COMPLETE(DA50ES:US,CND) *********************** * A-4414-287-A DISPLAY BOARD, COMPLETE *********************** (DA50ES:AEP,UK,G,EE,AUS) * A-4414-288-A DISPLAY BOARD, COMPLETE *********************** (DA50ES:SP,MY/V55ES) * A-4414-289-A DISPLAY BOARD, COMPLETE(DA50ES:E,EA,PX) *********************** * A-4414-299-A DISPLAY BOARD, COMPLETE(DA30ES) *********************** * 4-921-941-01 CUSHION (FL) * 4-990-797-01 HOLDER (FL) < CAPACITOR > C101 1-126-786-11 ELECT 47uF 20% 16V C102 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C103 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C104 1-126-795-11 ELECT 10uF 20% 50V C105 1-104-905-11 CAPACITOR 0.22F 5.5V C106 1-165-319-11 CERAMIC CHIP 0.1uF 50V C107 1-165-319-11 CERAMIC CHIP 0.1uF 50V C108 1-165-319-11 CERAMIC CHIP 0.1uF 50V C109 1-165-319-11 CERAMIC CHIP 0.1uF 50V C110 1-165-319-11 CERAMIC CHIP 0.1uF 50V C111 1-165-319-11 CERAMIC CHIP 0.1uF 50V C112 1-165-319-11 CERAMIC CHIP 0.1uF 50V C113 1-165-319-11 CERAMIC CHIP 0.1uF 50V C114 1-165-319-11 CERAMIC CHIP 0.1uF 50V C115 1-165-319-11 CERAMIC CHIP 0.1uF 50V C116 1-126-786-11 ELECT 47uF 20% 16V C117 1-165-319-11 CERAMIC CHIP 0.1uF 50V C118 1-165-319-11 CERAMIC CHIP 0.1uF 50V C119 1-126-786-11 ELECT 47uF 20% 16V C120 1-165-319-11 CERAMIC CHIP 0.1uF 50V DIGITAL DISPLAY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 79 — C121 1-165-319-11 CERAMIC CHIP 0.1uF 50V C122 1-165-319-11 CERAMIC CHIP 0.1uF 50V C123 1-165-319-11 CERAMIC CHIP 0.1uF 50V C124 1-126-382-11 ELECT 100uF 20% 10V C125 1-126-382-11 ELECT 100uF 20% 10V C126 1-115-871-11 ELECT 1uF 20% 50V C127 1-115-871-11 ELECT 1uF 20% 50V C131 1-165-319-11 CERAMIC CHIP 0.1uF 50V C132 1-165-319-11 CERAMIC CHIP 0.1uF 50V C134 1-107-818-11 CAPACITOR 1F 5.5V C914 1-126-795-11 ELECT 10uF 20% 50V C915 1-126-795-11 ELECT 10uF 20% 50V < CONNECTOR > * CNP105 1-568-949-11 PIN, CONNECTOR 11P CNP106 1-564-721-11 PIN, CONNECTOR (SMALL TYPE) 5P * CNP107 1-564-719-11 PIN, CONNECTOR (SMALL TYPE) 3P (DA50ES:AEP,UK,G,EE,AUS) * CNS101 1-565-482-11 CONNECTOR, BOARD TO BOARD 6P < DIODE > D101 8-719-016-74 DIODE 1SS352 D102 8-719-210-33 DIODE EC10DS2 D103 8-719-016-74 DIODE 1SS352 D104 8-719-016-74 DIODE 1SS352 D107 8-719-046-39 DIODE SEL5821A-TH15 (SOUND FIELD ON/OFF) D108 8-719-313-45 DIODE SEL6810A-TH10 (SUR) D109 8-719-313-45 DIODE SEL6810A-TH10 (EQ) D110 8-719-313-45 DIODE SEL6810A-TH10 (INDEX) D111 8-719-064-55 DIODE SEC1803C D112 8-719-064-55 DIODE SEC1803C D113 8-719-064-55 DIODE SEC1803C D114 8-719-064-55 DIODE SEC1803C D115 8-719-064-55 DIODE SEC1803C D116 8-719-064-56 DIODE SEC2484C D117 8-719-064-56 DIODE SEC2484C D118 8-719-064-56 DIODE SEC2484C D119 8-719-064-56 DIODE SEC2484C D120 8-719-064-56 DIODE SEC2484C D121 8-719-313-45 DIODE SEL6810A-TH10 (BASS BOOST) D124 8-719-059-14 DIODE SID313BP-TP19 D125 8-719-059-14 DIODE SID313BP-TP19 D126 8-719-016-74 DIODE 1SS352 D127 8-719-016-74 DIODE 1SS352 D128 8-719-064-57 DIODE SID5K23CTP15 D129 8-719-801-78 DIODE 1SS184 D913 8-719-977-81 DIODE DTZ33B < FILTER > FL101 1-517-781-11 INDICATOR TUBE, FLUORESCENT < IC > IC101 8-749-014-66 IC NJL56H400A IC102 8-759-535-50 IC MB90553PF-G-121-BND IC103 8-759-823-87 IC LB1638M IC104 8-759-463-11 IC MSC1162AGS-BK IC105 8-759-389-51 IC MSC1164GS-KR1 IC106 8-759-545-07 IC TMP87C447U-4A06 IC107 8-759-925-76 IC SN74HC08ANS < JUMPER RESISTOR > JW11 1-216-295-91 SHORT 0 (DA50ES:E,EA,PX) JW12 1-216-295-91 SHORT 0 (DA50ES:SP,MY/V55ES) JW14 1-216-295-91 SHORT 0 (DA50ES:AEP,UK,G,EE,AUS) JW21 1-216-295-91 SHORT 0 (DA30ES) JW22 1-216-295-91 SHORT 0 (DA50ES/V55ES) < COIL > L101 1-500-425-11 FERRITE < TRANSISTOR > Q101 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q102 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q103 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q104 8-729-230-49 TRANSISTOR 2SC2712-YG Q105 8-729-230-49 TRANSISTOR 2SC2712-YG Q106 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q107 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q108 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q109 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q110 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q111 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q112 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q113 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q114 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q115 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q116 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q118 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q119 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q120 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q121 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q122 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q123 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q124 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q125 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q126 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q127 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q128 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q129 8-729-010-35 TRANSISTOR MSD602-RT1 Q130 8-729-010-35 TRANSISTOR MSD602-RT1 Q971 8-729-822-05 TRANSISTOR 2SD1622-ST-TD < RESISTOR > R101 1-219-163-11 RES,CHIP 1.1 5% 1/10W R103 1-216-089-91 RES,CHIP 47K 5% 1/10W R104 1-216-001-00 METAL CHIP 10 5% 1/10W R105 1-216-001-00 METAL CHIP 10 5% 1/10W R106 1-216-001-00 METAL CHIP 10 5% 1/10W R107 1-216-001-00 METAL CHIP 10 5% 1/10W R108 1-216-097-91 RES,CHIP 100K 5% 1/10W R109 1-216-097-91 RES,CHIP 100K 5% 1/10W R110 1-216-073-00 METAL CHIP 10K 5% 1/10W R111 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R112 1-216-073-00 METAL CHIP 10K 5% 1/10W R113 1-216-073-00 METAL CHIP 10K 5% 1/10W R114 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R115 1-216-073-00 METAL CHIP 10K 5% 1/10W R116 1-216-073-00 METAL CHIP 10K 5% 1/10W DISPLAY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 80 — R117 1-216-081-00 METAL CHIP 22K 5% 1/10W R118 1-216-081-00 METAL CHIP 22K 5% 1/10W R119 1-216-049-91 RES,CHIP 1K 5% 1/10W R120 1-216-049-91 RES,CHIP 1K 5% 1/10W R121 1-216-049-91 RES,CHIP 1K 5% 1/10W R122 1-216-073-00 METAL CHIP 10K 5% 1/10W R123 1-216-049-91 RES,CHIP 1K 5% 1/10W R124 1-216-029-00 METAL CHIP 150 5% 1/10W R125 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R126 1-216-073-00 METAL CHIP 10K 5% 1/10W R127 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R128 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R129 1-216-049-91 RES,CHIP 1K 5% 1/10W R130 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R131 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R132 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R133 1-216-037-00 METAL CHIP 330 5% 1/10W R134 1-216-037-00 METAL CHIP 330 5% 1/10W R136 1-216-037-00 METAL CHIP 330 5% 1/10W R137 1-216-037-00 METAL CHIP 330 5% 1/10W R138 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R139 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R140 1-216-037-00 METAL CHIP 330 5% 1/10W R141 1-216-041-00 METAL CHIP 470 5% 1/10W R142 1-216-045-00 METAL CHIP 680 5% 1/10W R143 1-216-049-91 RES,CHIP 1K 5% 1/10W R144 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R145 1-216-037-00 METAL CHIP 330 5% 1/10W R146 1-216-041-00 METAL CHIP 470 5% 1/10W R147 1-216-045-00 METAL CHIP 680 5% 1/10W R148 1-216-049-91 RES,CHIP 1K 5% 1/10W R149 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R150 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R151 1-216-037-00 METAL CHIP 330 5% 1/10W R152 1-216-041-00 METAL CHIP 470 5% 1/10W R153 1-216-045-00 METAL CHIP 680 5% 1/10W R154 1-216-037-00 METAL CHIP 330 5% 1/10W R161 1-216-049-91 RES,CHIP 1K 5% 1/10W R162 1-216-049-91 RES,CHIP 1K 5% 1/10W R163 1-216-073-00 METAL CHIP 10K 5% 1/10W R164 1-216-097-91 RES,CHIP 100K 5% 1/10W R165 1-216-073-00 METAL CHIP 10K 5% 1/10W R166 1-216-097-91 RES,CHIP 100K 5% 1/10W R167 1-216-302-00 METAL CHIP 2.7 5% 1/10W R168 1-216-049-91 RES,CHIP 1K 5% 1/10W R169 1-216-049-91 RES,CHIP 1K 5% 1/10W R170 1-216-049-91 RES,CHIP 1K 5% 1/10W R171 1-216-049-91 RES,CHIP 1K 5% 1/10W R172 1-216-049-91 RES,CHIP 1K 5% 1/10W R173 1-216-097-91 RES,CHIP 100K 5% 1/10W R175 1-216-049-91 RES,CHIP 1K 5% 1/10W (DA50ES:AEP,UK,G,EE,AUS,SP,MY/V55ES) R176 1-216-073-00 METAL CHIP 10K 5% 1/10W (DA50ES:AEP,UK,G,EE,AUS) R177 1-216-073-00 METAL CHIP 10K 5% 1/10W (DA30ES/DA50ES:US,CND,E,EA,PX,SP,MY/V55ES) R915 1-216-067-00 METAL CHIP 5.6K 5% 1/10W RR10 1-216-065-91 RES,CHIP 4.7K 5% 1/10W (DA30ES/DA50ES:US,CND,E,EA,PX,SP,MY/V55ES) RR11 1-216-037-00 METAL CHIP 330 5% 1/10W (DA50ES:E,EA,PX,SP,MY/V55ES) RR12 1-216-041-00 METAL CHIP 470 5% 1/10W (DA50ES:SP,MY/V55ES) RR20 1-216-065-91 RES,CHIP 4.7K 5% 1/10W RR21 1-216-037-00 METAL CHIP 330 5% 1/10W RR22 1-216-041-00 METAL CHIP 470 5% 1/10W (DA50ES/V55ES) < SWITCH > S103 1-572-184-11 SWITCH, KEYBOARD (INPUT MODE) S104 1-572-184-11 SWITCH, KEYBOARD (SLEEP) S105 1-572-184-11 SWITCH, KEYBOARD (DIMMER) S106 1-572-184-11 SWITCH, KEYBOARD (TUNING +) S107 1-572-184-11 SWITCH, KEYBOARD (TUNING -) S108 1-572-184-11 SWITCH, KEYBOARD (FM MODE) S109 1-572-184-11 SWITCH, KEYBOARD (DOWN) S110 1-572-184-11 SWITCH, KEYBOARD (UP) S111 1-572-184-11 SWITCH, KEYBOARD (LEFT) S112 1-572-184-11 SWITCH, KEYBOARD (CURSOR MODE) S113 1-572-184-11 SWITCH, KEYBOARD (EQUALIZER) S114 1-572-184-11 SWITCH, KEYBOARD (MODE) S115 1-572-184-11 SWITCH, KEYBOARD (GENRE) S116 1-572-184-11 SWITCH, KEYBOARD (BASS BOOST) S117 1-572-184-11 SWITCH, KEYBOARD (RIGHT) S118 1-572-184-11 SWITCH, KEYBOARD (SET UP) S119 1-572-184-11 SWITCH, KEYBOARD (SOUND FIELD ON/OFF) S120 1-572-184-11 SWITCH, KEYBOARD (MEMORY) S121 1-572-184-11 SWITCH, KEYBOARD (DISPLAY) < VIBRATOR > X101 1-767-359-11 VIBRATOR, CERAMIC 4MHz X102 1-767-938-21 VIBRATOR, CERAMIC 7.28MHz ************************************************************ * 1-670-145-11 F.VIDEO BOARD ************* < CAPACITOR > C299 1-164-159-11 CERAMIC 0.1uF 50V C890 1-162-282-31 CERAMIC 100PF 10% 50V (DA50ES:AEP,UK,G,EE,AUS) C891 1-162-282-31 CERAMIC 100PF 10% 50V (DA50ES:AEP,UK,G,EE,AUS) < CONNECTOR > * CN804 1-564-725-11 PIN, CONNECTOR (SMALL TYPE) 9P < JACK > J809 1-784-808-11 TERMINAL, S (S VIDEO 3) J810 1-779-798-11 JACK, PIN (BLOCK) (L TYPE) 3P (AUDIO 3/ VIDEO 3) < RESISTOR > R890 1-249-417-11 CARBON 1K 5% 1/4W F R891 1-249-417-11 CARBON 1K 5% 1/4W F R892 1-247-804-11 CARBON 75 5% 1/4W R893 1-247-804-11 CARBON 75 5% 1/4W R894 1-247-804-11 CARBON 75 5% 1/4W ************************************************************ DISPLAY F.VIDEO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 81 — * 1-670-146-11 FUNCTION BOARD *************** < CONNECTOR > * CNP102 1-569-798-11 PLUG, CONNECTOR 6P < DIODE > D123 8-719-313-45 DIODE SEL6810A-TH10 (MUTING) < RESISTOR > R102 1-249-411-11 CARBON 330 5% 1/4W R159 1-249-417-11 CARBON 1K 5% 1/4W F R160 1-249-419-11 CARBON 1.5K 5% 1/4W F < VARIABLE RESISTOR > RV101 1-467-808-21 ENCODER, ROTARY (FUNCTION) < SWITCH > S126 1-572-184-11 SWITCH, KEYBOARD (MODE) S127 1-572-184-11 SWITCH, KEYBOARD (MUTING) ************************************************************ * 1-670-139-11 HP BOARD ******** < CONNECTOR > * CNP502 1-564-720-11 PIN, CONNECTOR (SMALL TYPE) 4P < JACK > J701 1-568-519-41 JACK, LARGE TYPE (PHONES) ************************************************************ * A-4414-295-A INPUT BOARD, COMPLETE ********************* < CAPACITOR > C3301 1-165-319-11 CERAMIC CHIP 0.1uF 50V C3302 1-165-319-11 CERAMIC CHIP 0.1uF 50V C3303 1-126-925-11 ELECT 470uF 20% 10V C3306 1-164-346-11 CERAMIC CHIP 1uF 16V C3307 1-165-319-11 CERAMIC CHIP 0.1uF 50V C3308 1-165-319-11 CERAMIC CHIP 0.1uF 50V C3309 1-165-319-11 CERAMIC CHIP 0.1uF 50V C3310 1-165-319-11 CERAMIC CHIP 0.1uF 50V < CONNECTOR > CNS33011-784-925-11 PIN, CONNECTOR 10P < DIODE > D3001 8-719-016-74 DIODE 1SS352 < IC > IC3301 8-749-923-05 IC TORX178 (DVD/LD IN OPT) IC3302 8-749-923-05 IC TORX178 (TV/DBS IN OPT) IC3303 8-749-923-05 IC TORX178 (MD/DAT IN OPT) IC3304 8-749-923-04 IC TOTX178 (MD/DAT OUT OPT) IC3310 8-759-236-17 IC TC74HC151AF-TP1 IC3311 8-749-923-05 IC TORX178 (CD IN OPT) IC3314 8-759-233-64 IC TC74HCU04AF < JACK > J3301 1-770-905-11 JACK, PIN 1P (DVD/LD IN COAXIAL) < RESISTOR > R3301 1-216-025-91 RES,CHIP 100 5% 1/10W R3303 1-216-025-91 RES,CHIP 100 5% 1/10W R3304 1-216-025-91 RES,CHIP 100 5% 1/10W R3305 1-216-115-00 METAL CHIP 560K 5% 1/10W R3309 1-216-073-00 METAL CHIP 10K 5% 1/10W R3310 1-216-025-91 RES,CHIP 100 5% 1/10W R3312 1-216-025-91 RES,CHIP 100 5% 1/10W R3313 1-216-025-91 RES,CHIP 100 5% 1/10W R3314 1-216-025-91 RES,CHIP 100 5% 1/10W R3315 1-216-049-91 RES,CHIP 1K 5% 1/10W ************************************************************ * 1-670-147-11 LED BOARD ********* < DIODE > D122 8-719-070-83 DIODE SELU5E20C-TP15 ************************************************************ * A-4414-276-A MAIN BOARD, COMPLETE ******************** (DA50ES:US,CND,E,EA,PX) * A-4414-277-A MAIN BOARD, COMPLETE ******************** (DA50ES:AEP,UK,G,EE,AUS) * A-4414-278-A MAIN BOARD, COMPLETE (DA50ES:SP,MY) ******************** * A-4414-279-A MAIN BOARD, COMPLETE (V55ES) ******************** * A-4414-300-A MAIN BOARD, COMPLETE (DA30ES) ******************** 1-533-217-31 HOLDER, FUSE 7-685-872-09 SCREW +BVTT 3X8 (S) < CAPACITOR > C201 1-126-047-81 ELECT 4.7uF 20% 50V C202 1-162-282-31 CERAMIC 100PF 10% 50V (DA50ES:AEP,UK,G,EE,AUS) C203 1-162-283-31 CERAMIC 120PF 10% 50V (DA50ES:AEP,UK,G,EE,AUS) C204 1-126-008-51 ELECT 47uF 20% 16V C205 1-125-896-91 MYLAR 0.0091uF 5% 50V C206 1-136-159-00 FILM 0.033uF 5% 50V C207 1-126-045-11 ELECT 2.2uF 20% 50V C208 1-126-009-81 ELECT 100uF 20% 16V C211 1-126-021-11 ELECT 33uF 20% 25V C216 1-126-021-11 ELECT 33uF 20% 25V C217 1-126-008-51 ELECT 47uF 20% 16V C218 1-162-282-31 CERAMIC 100PF 10% 50V (DA50ES:AEP,UK,G,EE,AUS) C219 1-162-282-31 CERAMIC 100PF 10% 50V (DA50ES:AEP,UK,G,EE,AUS) C220 1-162-282-31 CERAMIC 100PF 10% 50V (DA50ES:AEP,UK,G,EE,AUS) C221 1-162-282-31 CERAMIC 100PF 10% 50V (DA50ES:AEP,UK,G,EE,AUS) LED FUNCTION HP INPUT MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 82 — C222 1-162-282-31 CERAMIC 100PF 10% 50V (DA50ES:AEP,UK,G,EE,AUS) C224 1-162-282-31 CERAMIC 100PF 10% 50V (DA50ES:AEP,UK,G,EE,AUS) C225 1-162-294-31 CERAMIC 0.001uF 10% 50V C248 1-126-009-81 ELECT 100uF 20% 16V C249 1-126-009-81 ELECT 100uF 20% 16V C251 1-126-047-81 ELECT 4.7uF 20% 50V C252 1-162-282-31 CERAMIC 100PF 10% 50V (DA50ES:AEP,UK,G,EE,AUS) C253 1-162-283-31 CERAMIC 120PF 10% 50V (DA50ES:AEP,UK,G,EE,AUS) C254 1-126-008-51 ELECT 47uF 20% 16V C255 1-125-896-91 MYLAR 0.0091uF 5% 50V C256 1-136-159-00 FILM 0.033uF 5% 50V C257 1-126-045-11 ELECT 2.2uF 20% 50V C258 1-126-009-81 ELECT 100uF 20% 16V C261 1-126-021-11 ELECT 33uF 20% 25V C266 1-126-021-11 ELECT 33uF 20% 25V C267 1-126-008-51 ELECT 47uF 20% 16V C268 1-162-282-31 CERAMIC 100PF 10% 50V (DA50ES:AEP,UK,G,EE,AUS) C269 1-162-282-31 CERAMIC 100PF 10% 50V (DA50ES:AEP,UK,G,EE,AUS) C270 1-162-282-31 CERAMIC 100PF 10% 50V (DA50ES:AEP,UK,G,EE,AUS) C271 1-162-282-31 CERAMIC 100PF 10% 50V (DA50ES:AEP,UK,G,EE,AUS) C272 1-162-282-31 CERAMIC 100PF 10% 50V (DA50ES:AEP,UK,G,EE,AUS) C274 1-162-282-31 CERAMIC 100PF 10% 50V (DA50ES:AEP,UK,G,EE,AUS) C275 1-162-294-31 CERAMIC 0.001uF 10% 50V C297 1-162-294-31 CERAMIC 0.001uF 10% 50V C351 1-126-009-81 ELECT 100uF 20% 16V (DA50ES:AEP,UK,G,EE,AUS) C352 1-126-009-81 ELECT 100uF 20% 16V (DA50ES:AEP,UK,G,EE,AUS) C353 1-162-294-31 CERAMIC 0.001uF 10% 50V (DA50ES:AEP,UK,G,EE,AUS) C401 1-124-994-11 ELECT 100uF 20% 10V C402 1-124-994-11 ELECT 100uF 20% 10V C403 1-124-994-11 ELECT 100uF 20% 10V C404 1-162-199-31 CERAMIC 10PF 5% 50V C405 1-162-199-31 CERAMIC 10PF 5% 50V C406 1-162-199-31 CERAMIC 10PF 5% 50V C407 1-126-021-11 ELECT 33uF 20% 25V C408 1-126-021-11 ELECT 33uF 20% 25V C409 1-126-021-11 ELECT 33uF 20% 25V C410 1-126-021-11 ELECT 33uF 20% 25V C411 1-126-021-11 ELECT 33uF 20% 25V C412 1-126-021-11 ELECT 33uF 20% 25V C413 1-126-021-11 ELECT 33uF 20% 25V C414 1-102-508-91 CERAMIC 10PF 0.5PF 50V C415 1-126-021-11 ELECT 33uF 20% 25V C416 1-102-508-91 CERAMIC 10PF 0.5PF 50V C451 1-124-994-11 ELECT 100uF 20% 10V C452 1-124-994-11 ELECT 100uF 20% 10V C453 1-124-994-11 ELECT 100uF 20% 10V C454 1-162-199-31 CERAMIC 10PF 5% 50V C455 1-162-199-31 CERAMIC 10PF 5% 50V C456 1-162-199-31 CERAMIC 10PF 5% 50V C457 1-126-021-11 ELECT 33uF 20% 25V C458 1-126-021-11 ELECT 33uF 20% 25V C459 1-126-021-11 ELECT 33uF 20% 25V C460 1-126-021-11 ELECT 33uF 20% 25V C461 1-126-021-11 ELECT 33uF 20% 25V C462 1-126-021-11 ELECT 33uF 20% 25V C463 1-126-021-11 ELECT 33uF 20% 25V C464 1-102-508-91 CERAMIC 10PF 0.5PF 50V C490 1-126-008-51 ELECT 47uF 20% 16V C491 1-126-008-51 ELECT 47uF 20% 16V C494 1-126-008-51 ELECT 47uF 20% 16V C495 1-126-008-51 ELECT 47uF 20% 16V C501 1-126-047-81 ELECT 4.7uF 20% 50V C502 1-162-283-31 CERAMIC 120PF 10% 50V C503 1-124-995-11 ELECT 220uF 20% 10V C504 1-102-233-00 CERAMIC 33PF 10% 500V C505 1-102-934-00 CERAMIC 1.0PF ±0.25PF 50V C514 1-102-936-00 CERAMIC 3.0PF ±0.25PF 50V C520 1-126-008-51 ELECT 47uF 20% 16V C521 1-107-597-11 CERAMIC 22PF 10% 500V C522 1-107-597-11 CERAMIC 22PF 10% 500V C523 1-162-286-31 CERAMIC 220PF 10% 50V C524 1-136-157-00 FILM 0.022uF 5% 50V C525 1-124-997-11 ELECT 470uF 20% 6.3V C526 1-126-049-11 ELECT 22uF 20% 50V C527 1-136-153-00 FILM 0.01uF 5% 50V C528 1-136-153-00 FILM 0.01uF 5% 50V C529 1-130-475-00 MYLAR 0.0022uF 5% 50V C530 1-130-475-00 MYLAR 0.0022uF 5% 50V C551 1-126-047-81 ELECT 4.7uF 20% 50V C552 1-162-283-31 CERAMIC 120PF 10% 50V C553 1-124-995-11 ELECT 220uF 20% 10V C554 1-102-233-00 CERAMIC 33PF 10% 500V C555 1-102-934-00 CERAMIC 1.0PF ±0.25PF 50V C564 1-102-936-00 CERAMIC 3.0PF ±0.25PF 50V C570 1-126-008-51 ELECT 47uF 20% 16V C571 1-107-597-11 CERAMIC 22PF 10% 500V C572 1-107-597-11 CERAMIC 22PF 10% 500V C573 1-162-286-31 CERAMIC 220PF 10% 50V C574 1-136-157-00 FILM 0.022uF 5% 50V C577 1-136-153-00 FILM 0.01uF 5% 50V C578 1-136-153-00 FILM 0.01uF 5% 50V C579 1-130-475-00 MYLAR 0.0022uF 5% 50V C580 1-130-475-00 MYLAR 0.0022uF 5% 50V C598 1-126-077-11 ELECT 100uF 20% 100V C599 1-126-077-11 ELECT 100uF 20% 100V C601 1-126-047-81 ELECT 4.7uF 20% 50V C602 1-162-283-31 CERAMIC 120PF 10% 50V C603 1-124-995-11 ELECT 220uF 20% 10V C604 1-102-233-00 CERAMIC 33PF 10% 500V C605 1-102-934-00 CERAMIC 1.0PF ±0.25PF 50V C614 1-102-936-00 CERAMIC 3.0PF ±0.25PF 50V C620 1-126-008-51 ELECT 47uF 20% 16V C621 1-107-597-11 CERAMIC 22PF 10% 500V C622 1-107-597-11 CERAMIC 22PF 10% 500V C623 1-162-286-31 CERAMIC 220PF 10% 50V C624 1-136-157-00 FILM 0.022uF 5% 50V C629 1-130-475-00 MYLAR 0.0022uF 5% 50V C630 1-130-475-00 MYLAR 0.0022uF 5% 50V C651 1-126-047-81 ELECT 4.7uF 20% 50V C652 1-162-283-31 CERAMIC 120PF 10% 50V MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 83 — C653 1-124-995-11 ELECT 220uF 20% 10V C654 1-102-233-00 CERAMIC 33PF 10% 500V C664 1-102-936-00 CERAMIC 3.0PF ±0.25PF 50V C679 1-130-475-00 MYLAR 0.0022uF 5% 50V C680 1-130-475-00 MYLAR 0.0022uF 5% 50V C916 1-130-781-00 FILM 0.22uF 10% 100V (DA50ES:AEP,UK,G,EE,AUS,SP,MY/V55ES) C917 1-130-781-00 FILM 0.22uF 10% 100V (DA50ES:AEP,UK,G,EE,AUS,SP,MY/V55ES) C951 1-136-153-00 FILM 0.01uF 5% 50V C952 1-136-153-00 FILM 0.01uF 5% 50V C953 1-126-041-11 ELECT 2200uF 20% 35V C954 1-126-041-11 ELECT 2200uF 20% 35V C955 1-126-026-11 ELECT 470uF 20% 25V C956 1-126-026-11 ELECT 470uF 20% 25V C960 1-119-796-21 ELECT 4700uF 20% 16V C961 1-119-841-11 ELECT 1000uF 20% 63V C962 1-126-012-11 ELECT 470uF 20% 16V C963 1-164-159-11 CERAMIC 0.1uF 50V C965 1-136-153-00 FILM 0.01uF 5% 50V C966 1-136-153-00 FILM 0.01uF 5% 50V C991 1-126-040-11 ELECT 1000uF 20% 35V C992 1-107-913-11 ELECT 470uF 20% 35V (DA50ES/V55ES) C993 1-126-044-11 ELECT 1uF 20% 50V (DA50ES/V55ES) < CONNECTOR > CN501 1-779-978-11 PIN, CONNECTOR 3P (DA50ES:AEP,UK,G,EE,AUS) CN502 1-779-978-11 PIN, CONNECTOR 3P (DA50ES:AEP,UK,G,EE,AUS) CNP502 1-779-978-11 PIN, CONNECTOR 3P CNP601 1-564-320-00 PIN, CONNECTOR (B2P-VH) 2P CNP911 1-779-978-11 PIN, CONNECTOR 3P CNP951 1-785-102-11 PIN, CONNECTOR 4P CNP952 1-785-103-11 PIN, CONNECTOR 5P CNP992 1-764-326-11 PIN, CONNECTOR (PCB) (V TYPE) 3P (DA50ES/V55ES) CNS409 1-569-323-11 SOCKET, CONNECTOR 19P CNV501 1-785-104-11 PIN, CONNECTOR 6P < DIODE > D401 8-719-911-19 DIODE 1SS119 D501 8-719-911-19 DIODE 1SS119 D502 8-719-911-19 DIODE 1SS119 D503 8-719-109-51 DIODE RD2.0ES-B2 D504 8-719-911-19 DIODE 1SS119 D505 8-719-911-19 DIODE 1SS119 D506 8-719-911-19 DIODE 1SS119 D507 8-719-911-19 DIODE 1SS119 D547 8-719-911-19 DIODE 1SS119 D548 8-719-911-19 DIODE 1SS119 D549 8-719-911-19 DIODE 1SS119 D551 8-719-911-19 DIODE 1SS119 D552 8-719-911-19 DIODE 1SS119 D553 8-719-109-51 DIODE RD2.0ES-B2 D554 8-719-911-19 DIODE 1SS119 D555 8-719-911-19 DIODE 1SS119 D601 8-719-911-19 DIODE 1SS119 D602 8-719-911-19 DIODE 1SS119 D603 8-719-109-51 DIODE RD2.0ES-B2 D604 8-719-911-19 DIODE 1SS119 D605 8-719-911-19 DIODE 1SS119 D655 8-719-911-19 DIODE 1SS119 D951 8-719-024-99 DIODE 11ES2-NTA2B D952 8-719-024-99 DIODE 11ES2-NTA2B D953 8-719-024-99 DIODE 11ES2-NTA2B D954 8-719-024-99 DIODE 11ES2-NTA2B D955 8-719-025-03 DIODE RBA-402-SL D991 8-719-024-99 DIODE 11ES2-NTA2B D992 8-719-024-99 DIODE 11ES2-NTA2B < EARTH > * EP902 1-537-738-21 TERMINAL, EARTH < FUSE > !F951 1-532-503-51 FUSE 1.6A (EXCEPT US,CND) !F951 1-533-614-11 FUSE, GLASS CYLINDERICAL 1.6A (US,CND) !F952 1-532-503-51 FUSE 1.6A (EXCEPT US,CND) !F952 1-533-614-11 FUSE, GLASS CYLINDERICAL 1.6A (US,CND) !F953 1-532-465-51 FUSE, TIME LAG 3.15A (EXCEPT US,CND) !F953 1-533-690-11 FUSE, GLASS CYLINDRICAL(DIA.5)3.15A (US,CND) < IC > IC201 8-759-636-74 IC M5218AP-22 IC202 8-759-805-13 IC LC7821 IC204 8-759-636-74 IC M5218AP-22 IC351 8-759-805-14 IC LC7822 (DA50ES:AEP,UK,G,EE,AUS) IC401 8-759-636-74 IC M5218AP-22 IC402 8-759-636-74 IC M5218AP-22 IC405 8-759-636-74 IC M5218AP-22 IC406 8-759-636-74 IC M5218AP-22 IC407 8-759-636-74 IC M5218AP-22 IC501 8-759-326-52 IC uPC2581V IC502 8-749-014-72 IC SAP15N IC503 8-749-014-73 IC SAP15P IC552 8-749-014-72 IC SAP15N IC553 8-749-014-73 IC SAP15P IC602 8-749-014-72 IC SAP15N IC601 8-759-326-52 IC uPC2581V IC603 8-749-014-73 IC SAP15P IC902 8-759-445-59 IC BA033T IC951 8-759-231-59 IC TA7815S IC952 8-759-245-87 IC TA7915S IC955 8-759-231-53 IC TA7805S < JACK > J202 1-784-920-11 JACK, PIN 6P (PHONO/CD/MD DAT REC OUT) J203 1-784-920-11 JACK, PIN 6P (MD DAT IN/TAPE) MAIN The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 84 — < COIL > L201 1-410-521-11 INDUCTOR 100uH (DA50ES:AEP,UK,G,EE,AUS) L251 1-410-521-11 INDUCTOR 100uH (DA50ES:AEP,UK,G,EE,AUS) L501 1-411-906-11 COIL, AIR-CORE L551 1-411-906-11 COIL, AIR-CORE L601 1-411-906-11 COIL, AIR-CORE < TRANSISTOR > Q201 8-729-900-36 TRANSISTOR DTC124ES Q202 8-729-900-63 TRANSISTOR DTA124ES Q203 8-729-141-30 TRANSISTOR 2SC3623A-LK Q253 8-729-141-30 TRANSISTOR 2SC3623A-LK Q301 8-729-119-79 TRANSISTOR 2SC2785-FEK Q303 8-729-900-63 TRANSISTOR DTA124ES Q351 8-729-141-30 TRANSISTOR 2SC3623A-LK Q352 8-729-141-30 TRANSISTOR 2SC3623A-LK Q353 8-729-141-30 TRANSISTOR 2SC3623A-LK Q354 8-729-141-30 TRANSISTOR 2SC3623A-LK Q355 8-729-141-30 TRANSISTOR 2SC3623A-LK Q356 8-729-141-30 TRANSISTOR 2SC3623A-LK Q508 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q509 8-729-119-79 TRANSISTOR 2SC2785-FEK Q545 8-729-119-79 TRANSISTOR 2SC2785-FEK Q546 8-729-119-79 TRANSISTOR 2SC2785-FEK Q547 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA Q548 8-729-119-79 TRANSISTOR 2SC2785-FEK Q549 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q558 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q559 8-729-119-79 TRANSISTOR 2SC2785-FEK Q608 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q609 8-729-119-79 TRANSISTOR 2SC2785-FEK Q659 8-729-119-79 TRANSISTOR 2SC2785-FEK Q991 8-729-111-29 TRANSISTOR 2SD1616A-K (DA50ES/V55ES) Q992 8-729-119-79 TRANSISTOR 2SC2785-FEK (DA50ES/V55ES) < RESISTOR > R202 1-249-441-11 CARBON 100K 5% 1/4W R203 1-249-440-11 CARBON 82K 5% 1/4W R204 1-249-408-11 CARBON 180 5% 1/4W F R205 1-249-428-11 CARBON 8.2K 5% 1/4W F R206 1-249-441-11 CARBON 100K 5% 1/4W R207 1-249-441-11 CARBON 100K 5% 1/4W R208 1-249-413-11 CARBON 470 5% 1/4W F R209 1-247-807-31 CARBON 100 5% 1/4W R210 1-249-421-11 CARBON 2.2K 5% 1/4W F R211 1-249-417-11 CARBON 1K 5% 1/4W F R212 1-249-417-11 CARBON 1K 5% 1/4W F R213 1-249-417-11 CARBON 1K 5% 1/4W F R214 1-249-417-11 CARBON 1K 5% 1/4W F R215 1-249-401-11 CARBON 47 5% 1/4W F (DA30ES/DA50ES:US,CND,E,EA,PX,SP,MY/V55ES) R217 1-249-441-11 CARBON 100K 5% 1/4W R232 1-247-807-31 CARBON 100 5% 1/4W R241 1-249-429-11 CARBON 10K 5% 1/4W R242 1-249-429-11 CARBON 10K 5% 1/4W R243 1-247-807-31 CARBON 100 5% 1/4W R244 1-247-807-31 CARBON 100 5% 1/4W R245 1-249-425-11 CARBON 4.7K 5% 1/4W F R246 1-249-437-11 CARBON 47K 5% 1/4W R247 1-249-417-11 CARBON 1K 5% 1/4W F R248 1-249-397-11 CARBON 22 5% 1/4W F R249 1-249-397-11 CARBON 22 5% 1/4W F R250 1-249-441-11 CARBON 100K 5% 1/4W R252 1-249-441-11 CARBON 100K 5% 1/4W R253 1-249-440-11 CARBON 82K 5% 1/4W R254 1-249-408-11 CARBON 180 5% 1/4W F R255 1-249-428-11 CARBON 8.2K 5% 1/4W F R256 1-249-441-11 CARBON 100K 5% 1/4W R257 1-249-441-11 CARBON 100K 5% 1/4W R258 1-249-413-11 CARBON 470 5% 1/4W F R259 1-247-807-31 CARBON 100 5% 1/4W R260 1-249-421-11 CARBON 2.2K 5% 1/4W F R261 1-249-417-11 CARBON 1K 5% 1/4W F R262 1-249-417-11 CARBON 1K 5% 1/4W F R263 1-249-417-11 CARBON 1K 5% 1/4W F R264 1-249-417-11 CARBON 1K 5% 1/4W F R265 1-249-401-11 CARBON 47 5% 1/4W F (DA30ES/DA50ES:US,CND,E,EA,PX,SP,MY/V55ES) R267 1-249-441-11 CARBON 100K 5% 1/4W R278 1-249-437-11 CARBON 47K 5% 1/4W R279 1-249-441-11 CARBON 100K 5% 1/4W R282 1-247-807-31 CARBON 100 5% 1/4W R351 1-247-807-31 CARBON 100 5% 1/4W (DA50ES:AEP,UK,G,EE,AUS) R352 1-247-807-31 CARBON 100 5% 1/4W (DA50ES:AEP,UK,G,EE,AUS) R353 1-249-425-11 CARBON 4.7K 5% 1/4W F R354 1-249-417-11 CARBON 1K 5% 1/4W F R355 1-249-429-11 CARBON 10K 5% 1/4W R356 1-249-429-11 CARBON 10K 5% 1/4W R357 1-249-429-11 CARBON 10K 5% 1/4W R358 1-249-429-11 CARBON 10K 5% 1/4W R359 1-249-429-11 CARBON 10K 5% 1/4W R360 1-249-429-11 CARBON 10K 5% 1/4W R401 1-249-441-11 CARBON 100K 5% 1/4W R402 1-249-441-11 CARBON 100K 5% 1/4W R403 1-249-441-11 CARBON 100K 5% 1/4W R404 1-249-430-11 CARBON 12K 5% 1/4W R405 1-249-430-11 CARBON 12K 5% 1/4W R406 1-249-430-11 CARBON 12K 5% 1/4W R407 1-249-437-11 CARBON 47K 5% 1/4W R408 1-249-437-11 CARBON 47K 5% 1/4W R409 1-249-437-11 CARBON 47K 5% 1/4W R410 1-249-437-11 CARBON 47K 5% 1/4W R411 1-249-437-11 CARBON 47K 5% 1/4W R412 1-249-437-11 CARBON 47K 5% 1/4W R413 1-249-417-11 CARBON 1K 5% 1/4W F R414 1-249-417-11 CARBON 1K 5% 1/4W F R415 1-249-417-11 CARBON 1K 5% 1/4W F R416 1-249-441-11 CARBON 100K 5% 1/4W R417 1-249-429-11 CARBON 10K 5% 1/4W R418 1-249-429-11 CARBON 10K 5% 1/4W R419 1-249-441-11 CARBON 100K 5% 1/4W R420 1-249-429-11 CARBON 10K 5% 1/4W R421 1-249-429-11 CARBON 10K 5% 1/4W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 85 — R451 1-249-441-11 CARBON 100K 5% 1/4W R452 1-249-441-11 CARBON 100K 5% 1/4W R453 1-249-441-11 CARBON 100K 5% 1/4W R454 1-249-430-11 CARBON 12K 5% 1/4W R455 1-249-430-11 CARBON 12K 5% 1/4W R456 1-249-430-11 CARBON 12K 5% 1/4W R457 1-249-437-11 CARBON 47K 5% 1/4W R458 1-249-437-11 CARBON 47K 5% 1/4W R459 1-249-437-11 CARBON 47K 5% 1/4W R460 1-249-437-11 CARBON 47K 5% 1/4W R461 1-249-437-11 CARBON 47K 5% 1/4W R462 1-249-437-11 CARBON 47K 5% 1/4W R463 1-249-417-11 CARBON 1K 5% 1/4W F R464 1-249-417-11 CARBON 1K 5% 1/4W F R465 1-249-417-11 CARBON 1K 5% 1/4W F R466 1-249-441-11 CARBON 100K 5% 1/4W R467 1-249-429-11 CARBON 10K 5% 1/4W R468 1-249-429-11 CARBON 10K 5% 1/4W R491 1-249-425-11 CARBON 4.7K 5% 1/4W F R492 1-249-429-11 CARBON 10K 5% 1/4W R493 1-249-393-11 CARBON 10 5% 1/4W F R498 1-249-397-11 CARBON 22 5% 1/4W F R499 1-249-397-11 CARBON 22 5% 1/4W F R501 1-249-417-11 CARBON 1K 5% 1/4W F R502 1-249-438-11 CARBON 56K 5% 1/4W R503 1-247-840-00 CARBON 2.4K 5% 1/4W (DA50ES/V55ES) R503 1-247-842-11 CARBON 3K 5% 1/4W (DA30ES) R504 1-249-432-11 CARBON 18K 5% 1/4W R506 1-249-409-11 CARBON 220 5% 1/4W F R507 1-249-415-11 CARBON 680 5% 1/4W F R514 1-249-438-11 CARBON 56K 5% 1/4W !R524 1-249-408-11 CARBON 180 5% 1/4W F !R525 1-249-408-11 CARBON 180 5% 1/4W F R527 1-247-850-11 CARBON 6.2K 5% 1/4W R528 1-249-419-11 CARBON 1.5K 5% 1/4W F R529 1-249-441-11 CARBON 100K 5% 1/4W !R530 1-249-393-11 CARBON 10 5% 1/4W F !R531 1-249-389-11 CARBON 4.7 5% 1/4W F R532 1-249-437-11 CARBON 47K 5% 1/4W R533 1-249-425-11 CARBON 4.7K 5% 1/4W F R534 1-249-429-11 CARBON 10K 5% 1/4W !R535 1-249-393-11 CARBON 10 5% 1/4W F R538 1-215-868-00 METAL OXIDE 680 5% 1W R541 1-249-429-11 CARBON 10K 5% 1/4W R542 1-249-429-11 CARBON 10K 5% 1/4W R543 1-249-425-11 CARBON 4.7K 5% 1/4W F R544 1-249-429-11 CARBON 10K 5% 1/4W !R545 1-249-393-11 CARBON 10 5% 1/4W F R546 1-249-427-11 CARBON 6.8K 5% 1/4W F R547 1-249-417-11 CARBON 1K 5% 1/4W F R551 1-249-417-11 CARBON 1K 5% 1/4W F R552 1-249-438-11 CARBON 56K 5% 1/4W R553 1-247-840-00 CARBON 2.4K 5% 1/4W (DA50ES/V55ES) R553 1-247-842-11 CARBON 3K 5% 1/4W (DA30ES) R556 1-249-409-11 CARBON 220 5% 1/4W F R557 1-249-415-11 CARBON 680 5% 1/4W F R564 1-249-438-11 CARBON 56K 5% 1/4W !R574 1-249-408-11 CARBON 180 5% 1/4W F !R575 1-249-408-11 CARBON 180 5% 1/4W F R577 1-247-850-11 CARBON 6.2K 5% 1/4W R578 1-249-419-11 CARBON 1.5K 5% 1/4W F R579 1-249-441-11 CARBON 100K 5% 1/4W !R580 1-249-393-11 CARBON 10 5% 1/4W F !R581 1-249-389-11 CARBON 4.7 5% 1/4W F R582 1-249-437-11 CARBON 47K 5% 1/4W R583 1-249-425-11 CARBON 4.7K 5% 1/4W F R584 1-249-429-11 CARBON 10K 5% 1/4W !R585 1-249-393-11 CARBON 10 5% 1/4W F R588 1-215-868-00 METAL OXIDE 680 5% 1W R595 1-249-425-11 CARBON 4.7K 5% 1/4W F R596 1-249-429-11 CARBON 10K 5% 1/4W !R597 1-249-393-11 CARBON 10 5% 1/4W F !R598 1-249-393-11 CARBON 10 5% 1/4W F !R599 1-249-393-11 CARBON 10 5% 1/4W F R601 1-249-417-11 CARBON 1K 5% 1/4W F R602 1-249-438-11 CARBON 56K 5% 1/4W R603 1-247-840-00 CARBON 2.4K 5% 1/4W (DA50ES/V55ES) R603 1-247-842-11 CARBON 3K 5% 1/4W (DA30ES) R604 1-249-432-11 CARBON 18K 5% 1/4W R606 1-249-409-11 CARBON 220 5% 1/4W F R607 1-249-415-11 CARBON 680 5% 1/4W F R614 1-249-438-11 CARBON 56K 5% 1/4W !R624 1-249-408-11 CARBON 180 5% 1/4W F !R625 1-249-408-11 CARBON 180 5% 1/4W F R627 1-247-850-11 CARBON 6.2K 5% 1/4W R628 1-249-419-11 CARBON 1.5K 5% 1/4W F R629 1-249-441-11 CARBON 100K 5% 1/4W !R630 1-249-393-11 CARBON 10 5% 1/4W F !R631 1-249-389-11 CARBON 4.7 5% 1/4W F R632 1-249-437-11 CARBON 47K 5% 1/4W R633 1-249-425-11 CARBON 4.7K 5% 1/4W F R634 1-249-429-11 CARBON 10K 5% 1/4W !R635 1-249-393-11 CARBON 10 5% 1/4W F R651 1-249-417-11 CARBON 1K 5% 1/4W F R652 1-249-438-11 CARBON 56K 5% 1/4W R653 1-247-840-00 CARBON 2.4K 5% 1/4W (DA50E/V55ES) R653 1-247-842-11 CARBON 3K 5% 1/4W (DA30ES) R654 1-249-409-11 CARBON 220 5% 1/4W F R655 1-249-409-11 CARBON 220 5% 1/4W F R664 1-249-438-11 CARBON 56K 5% 1/4W R683 1-249-425-11 CARBON 4.7K 5% 1/4W F R684 1-249-429-11 CARBON 10K 5% 1/4W !R685 1-249-393-11 CARBON 10 5% 1/4W F R922 1-249-439-11 CARBON 68K 5% 1/4W (DA50ES:US,CND,E,EA,PX) R953 1-249-429-11 CARBON 10K 5% 1/4W MAIN The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 86 — R991 1-249-417-11 CARBON 1K 5% 1/4W F (DA50ES/V55ES) R992 1-249-439-11 CARBON 68K 5% 1/4W (DA50ES:AEP,UK,G,EE,AUS,SP,MY/V55ES) R993 1-249-433-11 CARBON 22K 5% 1/4W (DA50ES/V55ES) R995 1-249-441-11 CARBON 100K 5% 1/4W (DA50ES/V55ES) R996 1-249-429-11 CARBON 10K 5% 1/4W !R997 1-215-910-00 METAL OXIDE 68 5% 3W F (DA50ES/V55ES) < VARIABLE RESISTOR > RV501 1-241-759-11 RES, ADJ, CARBON 220 RV551 1-241-759-11 RES, ADJ, CARBON 220 RV601 1-241-759-11 RES, ADJ, CARBON 220 < RELAY > RY401 1-515-793-11 RELAY RY501 1-515-920-11 RELAY (24V) RY502 1-515-920-11 RELAY (24V) RY503 1-515-793-11 RELAY RY504 1-515-793-11 RELAY RY601 1-515-920-11 RELAY (24V) RY602 1-515-793-11 RELAY < TEST PIN > * TP501 1-560-060-00 PIN, CONNECTOR 2P * TP551 1-560-060-00 PIN, CONNECTOR 2P * TP601 1-560-060-00 PIN, CONNECTOR 2P ************************************************************ * 1-670-749-11 POWER SWITCH BOARD ******************* < SWITCH > S101 1-572-184-11 SWITCH, KEYBOARD (POWER) ************************************************************ * A-4414-259-A PS BOARD, COMPLETE (DA50ES:US) ****************** * A-4414-260-A PS BOARD, COMPLETE (DA50ES:CND) ****************** * A-4414-261-A PS BOARD, COMPLETE ****************** (DA50ES:AEP,UK,G,EE,AUS,SP,MY/V55ES) * A-4414-262-A PS BOARD, COMPLETE (DA50ES:E,EA,PX) ****************** * A-4414-627-A PS BOARD, COMPLETE (DA30ES:US) ****************** * A-4414-628-A PS BOARD, COMPLETE (DA30ES:CND) ****************** 1-533-217-31 HOLDER, FUSE 7-685-872-09 SCREW +BVTT 3X8 (S) < CAPACITOR > C901 1-110-211-91 MYLAR 0.022uF 5% 50V C902 1-110-211-91 MYLAR 0.022uF 5% 50V C903 1-126-767-11 ELECT 1000uF 20% 16V C904 1-126-960-11 ELECT 1uF 20% 50V C905 1-126-959-11 ELECT 0.47uF 20% 50V C906 1-126-957-11 ELECT 0.22uF 20% 50V C907 1-126-964-11 ELECT 10uF 20% 50V C908 1-164-159-11 CERAMIC 0.1uF 50V C909 1-104-664-11 ELECT 47uF 20% 25V C910 1-164-159-11 CERAMIC 0.1uF 50V C911 1-164-159-11 CERAMIC 0.1uF 50V C912 1-164-159-11 CERAMIC 0.1uF 50V C913 1-128-564-11 ELECT 220uF 20% 100V C916 1-137-420-11 FILM 0.047uF 10% 100V (DA30ES/DA50ES:US,CND,E,EA,PX) C917 1-137-420-11 FILM 0.047uF 10% 100V (DA30ES/DA50ES:US,CND,E,EA,PX) C918 1-125-901-11 ELECT 18000uF 20% 63V (DA30ES) C919 1-125-901-11 ELECT 18000uF 20% 63V (DA30ES) < CONNECTOR > CNP908 1-785-106-11 PIN, CONNECTOR 8P CNP909 1-785-102-11 PIN, CONNECTOR 4P CNP910 1-779-977-11 PIN, CONNECTOR 6P CNP913 1-784-921-11 PIN, CONNECTOR 4P < DIODE > D901 8-719-024-99 DIODE 11ES2-NTA2B D902 8-719-024-99 DIODE 11ES2-NTA2B D903 8-719-024-99 DIODE 11ES2-NTA2B D904 8-719-024-99 DIODE 11ES2-NTA2B D905 8-719-911-19 DIODE 1SS119 D906 8-719-911-19 DIODE 1SS119 D908 8-719-118-64 DIODE RD5.6F-T7B3 D909 8-719-024-99 DIODE 11ES2-NTA2B D910 8-719-024-99 DIODE 11ES2-NTA2B D911 8-719-911-19 DIODE 1SS119 D912 8-719-072-05 DIODE RBV-602LF-A D914 8-719-072-05 DIODE RBV-602LF-A < EARTH > * EP951 1-537-738-21 TERMINAL, EARTH < FUSE > !F911 1-533-312-11 FUSE, GLASS CYLINDRICAL(DIA.5)10A 125V !F912 1-533-312-11 FUSE, GLASS CYLINDRICAL(DIA.5)10A 125V < IC > IC901 8-759-333-83 IC NJM2103D < TRANSISTOR > Q901 8-729-119-79 TRANSISTOR 2SC2785-FEK Q902 8-729-209-15 TRANSISTOR 2SD2012 Q903 8-729-119-79 TRANSISTOR 2SC2785-FEK POWER SWITCH PS MAIN The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 87 — The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. < RESISTOR > R902 1-249-429-11 CARBON 10K 5% 1/4W R903 1-249-425-11 CARBON 4.7K 5% 1/4W F R904 1-249-417-11 CARBON 1K 5% 1/4W F R905 1-249-428-11 CARBON 8.2K 5% 1/4W F R906 1-249-421-11 CARBON 2.2K 5% 1/4W F R908 1-249-433-11 CARBON 22K 5% 1/4W R909 1-249-439-11 CARBON 68K 5% 1/4W R910 1-249-437-11 CARBON 47K 5% 1/4W R912 1-249-430-11 CARBON 12K 5% 1/4W !R913 1-247-727-11 CARBON 10 5% 1/2W F !R914 1-249-405-11 CARBON 100 5% 1/4W F !R916 1-249-393-11 CARBON 10 5% 1/4W F R917 1-249-425-11 CARBON 4.7K 5% 1/4W F R918 1-249-429-11 CARBON 10K 5% 1/4W < RELAY > RY902 1-515-894-11 RELAY (EXCEPT DA30ES:CND/DA50ES:CND) RY903 1-515-918-11 RELAY (DA30ES:CND/DA50ES:CND) RY904 1-515-918-11 RELAY (DA30ES:CND/DA50ES:CND) < SWITCH > S902 1-692-196-11 SWITCH, SLIDE (IMPEDANCE SELECTOR) < TRANSFORMER > !T902 1-431-387-11 TRANSFORMER, POWER ************************************************************ * A-4414-280-A S.AMP BOARD, COMPLETE ********************* (DA50ES:US,CND,E,EA,PX) * A-4414-281-A S.AMP BOARD, COMPLETE ********************* (DA50ES:AEP,UK,G,EE,AUS,SP,MY) * A-4414-282-A S.AMP BOARD, COMPLETE (V55ES) ********************* * A-4414-301-A S.AMP BOARD, COMPLETE (DA30ES) ********************* < CAPACITOR > C701 1-126-047-81 ELECT 4.7uF 20% 50V C702 1-162-283-31 CERAMIC 120PF 10% 50V C703 1-124-995-11 ELECT 220uF 20% 10V C704 1-102-233-00 CERAMIC 33PF 10% 500V C705 1-102-934-00 CERAMIC 1.0PF ±0.25PF 50V C714 1-102-936-00 CERAMIC 3.0PF ±0.25PF 50V C720 1-126-008-51 ELECT 47uF 20% 16V C721 1-107-597-11 CERAMIC 22PF 10% 500V C722 1-107-597-11 CERAMIC 22PF 10% 500V C723 1-162-286-31 CERAMIC 220PF 10% 50V C724 1-136-157-00 FILM 0.022uF 5% 50V C729 1-130-475-00 MYLAR 0.0022uF 5% 50V C730 1-130-475-00 MYLAR 0.0022uF 5% 50V C751 1-126-047-81 ELECT 4.7uF 20% 50V C752 1-162-283-31 CERAMIC 120PF 10% 50V C753 1-124-995-11 ELECT 220uF 20% 10V C754 1-102-233-00 CERAMIC 33PF 10% 500V C755 1-102-934-00 CERAMIC 1.0PF ±0.25PF 50V C764 1-102-936-00 CERAMIC 3.0PF ±0.25PF 50V C770 1-126-008-51 ELECT 47uF 20% 16V C771 1-107-597-11 CERAMIC 22PF 10% 500V C772 1-107-597-11 CERAMIC 22PF 10% 500V C773 1-162-286-31 CERAMIC 220PF 10% 50V C774 1-136-157-00 FILM 0.022uF 5% 50V C779 1-130-475-00 MYLAR 0.0022uF 5% 50V C780 1-130-475-00 MYLAR 0.0022uF 5% 50V C798 1-126-077-11 ELECT 100uF 20% 100V C799 1-126-077-11 ELECT 100uF 20% 100V < CONNECTOR > CNP701 1-784-923-11 PIN, CONNECTOR 7P CNP702 1-784-921-11 PIN, CONNECTOR 4P CNP703 1-785-103-11 PIN, CONNECTOR 5P CNP704 1-785-102-11 PIN, CONNECTOR 4P CNP705 1-779-978-11 PIN, CONNECTOR 3P < DIODE > D701 8-719-911-19 DIODE 1SS119 D702 8-719-911-19 DIODE 1SS119 D703 8-719-109-51 DIODE RD2.0ES-B2 D704 8-719-911-19 DIODE 1SS119 D705 8-719-911-19 DIODE 1SS119 D751 8-719-911-19 DIODE 1SS119 D752 8-719-911-19 DIODE 1SS119 D753 8-719-109-51 DIODE RD2.0ES-B2 D754 8-719-911-19 DIODE 1SS119 < IC > IC701 8-759-326-52 IC uPC2581V IC702 8-749-014-72 IC SAP15N IC703 8-749-014-73 IC SAP15P IC752 8-749-014-72 IC SAP15N IC753 8-749-014-73 IC SAP15P < COIL > L701 1-411-906-11 COIL, AIR-CORE L751 1-411-906-11 COIL, AIR-CORE < TRANSISTOR > Q708 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q709 8-729-119-79 TRANSISTOR 2SC2785-FEK Q758 8-729-140-82 TRANSISTOR 2SA988-PAFAEA < RESISTOR > R701 1-249-417-11 CARBON 1K 5% 1/4W F R702 1-249-438-11 CARBON 56K 5% 1/4W R703 1-247-840-00 CARBON 2.4K 5% 1/4W (DA50ES/V55ES) R703 1-247-842-11 CARBON 3K 5% 1/4W (DA30ES) R704 1-249-432-11 CARBON 18K 5% 1/4W S.AMP PS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 88 — R707 1-249-415-11 CARBON 680 5% 1/4W F R714 1-249-438-11 CARBON 56K 5% 1/4W !R724 1-249-408-11 CARBON 180 5% 1/4W F !R725 1-249-408-11 CARBON 180 5% 1/4W F R727 1-247-850-11 CARBON 6.2K 5% 1/4W R728 1-249-419-11 CARBON 1.5K 5% 1/4W F R729 1-249-441-11 CARBON 100K 5% 1/4W !R730 1-249-393-11 CARBON 10 5% 1/4W F !R731 1-249-389-11 CARBON 4.7 5% 1/4W F R732 1-249-437-11 CARBON 47K 5% 1/4W R733 1-249-425-11 CARBON 4.7K 5% 1/4W F R734 1-249-429-11 CARBON 10K 5% 1/4W !R735 1-249-393-11 CARBON 10 5% 1/4W F R751 1-249-417-11 CARBON 1K 5% 1/4W F R752 1-249-438-11 CARBON 56K 5% 1/4W R753 1-247-840-00 CARBON 2.4K 5% 1/4W (DA50ES/V55ES) R753 1-247-842-11 CARBON 3K 5% 1/4W (DA30ES) R757 1-249-415-11 CARBON 680 5% 1/4W F R764 1-249-438-11 CARBON 56K 5% 1/4W !R774 1-249-408-11 CARBON 180 5% 1/4W F !R775 1-249-408-11 CARBON 180 5% 1/4W F R777 1-247-850-11 CARBON 6.2K 5% 1/4W R778 1-249-419-11 CARBON 1.5K 5% 1/4W F R779 1-249-441-11 CARBON 100K 5% 1/4W !R780 1-249-393-11 CARBON 10 5% 1/4W F !R781 1-249-389-11 CARBON 4.7 5% 1/4W F R782 1-249-437-11 CARBON 47K 5% 1/4W !R798 1-249-393-11 CARBON 10 5% 1/4W F !R799 1-249-393-11 CARBON 10 5% 1/4W F < VARIABLE RESISTOR > RV701 1-241-759-11 RES, ADJ, CARBON 220 RV751 1-241-759-11 RES, ADJ, CARBON 220 < RELAY > RY701 1-515-920-11 RELAY (24V) < TEST PIN > * TP701 1-560-060-00 PIN, CONNECTOR 2P * TP751 1-560-060-00 PIN, CONNECTOR 2P ************************************************************ * A-4414-297-A S.VIDEO BOARD, COMPLETE *********************** < CAPACITOR > C801 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C802 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C803 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C804 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C807 1-126-933-11 ELECT 100uF 20% 16V C808 1-126-933-11 ELECT 100uF 20% 16V C809 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C810 1-126-964-11 ELECT 10uF 20% 50V C811 1-126-933-11 ELECT 100uF 20% 16V C812 1-126-933-11 ELECT 100uF 20% 16V C813 1-126-933-11 ELECT 100uF 20% 16V C814 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C815 1-126-933-11 ELECT 100uF 20% 16V C818 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C821 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C822 1-126-964-11 ELECT 10uF 20% 50V C823 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C824 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C825 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C826 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C827 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C828 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C829 1-126-964-11 ELECT 10uF 20% 50V C830 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C831 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C833 1-126-964-11 ELECT 10uF 20% 50V C834 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C845 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C868 1-126-964-11 ELECT 10uF 20% 50V C869 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V < CONNECTOR > CNP803 1-784-922-11 PIN, CONNECTOR 5P CNP805 1-779-799-11 PIN, CONNECTOR 9P < DIODE > D801 8-719-016-74 DIODE 1SS352 D802 8-719-016-74 DIODE 1SS352 < IC > IC801 8-759-701-84 IC NJM7905FA IC811 8-759-536-24 IC NJM-2296M-TE2 IC812 8-759-536-24 IC NJM-2296M-TE2 < JACK > J101 1-563-330-11 JACK (S-LINK) J801 1-764-676-11 CONNECTOR (ROUND TYPE) (TV/DBS/DVD/LD) J802 1-764-676-11 CONNECTOR (ROUND TYPE) (VIDEO 2) J803 1-764-676-11 CONNECTOR (ROUND TYPE) (VIDEO 1) J804 1-537-943-11 TERMINAL, S (MONITOR) < COIL > L801 1-500-425-11 FERRITE L802 1-500-425-11 FERRITE L803 1-500-425-11 FERRITE L804 1-500-425-11 FERRITE < RESISTOR > R801 1-216-089-91 RES,CHIP 47K 5% 1/10W R815 1-216-022-00 METAL CHIP 75 5% 1/10W R818 1-216-022-00 METAL CHIP 75 5% 1/10W R819 1-216-022-00 METAL CHIP 75 5% 1/10W R821 1-216-022-00 METAL CHIP 75 5% 1/10W R822 1-216-022-00 METAL CHIP 75 5% 1/10W R823 1-216-022-00 METAL CHIP 75 5% 1/10W R825 1-216-022-00 METAL CHIP 75 5% 1/10W R827 1-216-022-00 METAL CHIP 75 5% 1/10W R831 1-216-022-00 METAL CHIP 75 5% 1/10W S.AMP S.VIDEO The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 89 — R838 1-216-022-00 METAL CHIP 75 5% 1/10W R851 1-216-022-00 METAL CHIP 75 5% 1/10W R857 1-216-022-00 METAL CHIP 75 5% 1/10W R8055 1-216-022-00 METAL CHIP 75 5% 1/10W R8056 1-216-022-00 METAL CHIP 75 5% 1/10W ************************************************************ * 1-670-150-11 SP TM BOARD *********** < CAPACITOR > C527 1-136-153-00 FILM 0.01uF 5% 50V (DA50ES:AEP,UK,G,EE,AUS) C528 1-136-153-00 FILM 0.01uF 5% 50V (DA50ES:AEP,UK,G,EE,AUS) C577 1-136-153-00 FILM 0.01uF 5% 50V (DA50ES:AEP,UK,G,EE,AUS) C578 1-136-153-00 FILM 0.01uF 5% 50V (DA50ES:AEP,UK,G,EE,AUS) C588 1-136-153-00 FILM 0.01uF 5% 50V (DA50ES:AEP,UK,G,EE,AUS) C590 1-162-282-31 CERAMIC 100PF 10% 50V C591 1-162-282-31 CERAMIC 100PF 10% 50V C625 1-162-282-31 CERAMIC 100PF 10% 50V C627 1-136-153-00 FILM 0.01uF 5% 50V (DA50ES:AEP,UK,G,EE,AUS) C725 1-162-282-31 CERAMIC 100PF 10% 50V C727 1-136-153-00 FILM 0.01uF 5% 50V (DA50ES:AEP,UK,G,EE,AUS) C775 1-162-282-31 CERAMIC 100PF 10% 50V C777 1-136-153-00 FILM 0.01uF 5% 50V (DA50ES:AEP,UK,G,EE,AUS) < RESISTOR > !R536 1-249-393-11 CARBON 10 5% 1/4W F (DA50ES:AEP,UK,G,EE,AUS) !R537 1-249-393-11 CARBON 10 5% 1/4W F (DA50ES:AEP,UK,G,EE,AUS) !R586 1-249-393-11 CARBON 10 5% 1/4W F (DA50ES:AEP,UK,G,EE,AUS) !R587 1-249-393-11 CARBON 10 5% 1/4W F (DA50ES:AEP,UK,G,EE,AUS) !R636 1-249-393-11 CARBON 10 5% 1/4W F (DA50ES:AEP,UK,G,EE,AUS) !R736 1-249-393-11 CARBON 10 5% 1/4W F (DA50ES:AEP,UK,G,EE,AUS) !R786 1-249-393-11 CARBON 10 5% 1/4W F < TERMINAL > * TM501 1-694-454-21 TERMINAL BOARD (SPEAKER) TM701 1-694-432-21 TERMINAL BOARD (REAR/CENTER) ************************************************************ * 1-670-142-11 SP.SWITCH BOARD *************** < CONNECTOR > CNP101 1-779-977-11 PIN, CONNECTOR 6P < DIODE > D105 8-719-911-19 DIODE 1SS119 D106 8-719-911-19 DIODE 1SS119 < RESISTOR > R155 1-249-413-11 CARBON 470 5% 1/4W F R156 1-249-415-11 CARBON 680 5% 1/4W F R157 1-249-417-11 CARBON 1K 5% 1/4W F R158 1-249-419-11 CARBON 1.5K 5% 1/4W F < SWITCH > S102 1-762-268-11 SWITCH, ROTARY (SPEAKERS) S122 1-572-184-11 SWITCH, KEYBOARD (PRESET TUNING +) S123 1-572-184-11 SWITCH, KEYBOARD (PRESET TUNING -) S124 1-572-184-11 SWITCH, KEYBOARD (SHIFT) S125 1-572-184-11 SWITCH, KEYBOARD (FM/AM) ************************************************************ * 1-670-151-11 TH BOARD ******** < THERMISTOR > TH901 1-809-789-71 THERMISTOR, POSITIVE ************************************************************ * 1-670-138-11 VIDEO BOARD *********** < CAPACITOR > C805 1-164-159-11 CERAMIC 0.1uF 50V C806 1-164-159-11 CERAMIC 0.1uF 50V C816 1-126-933-11 ELECT 100uF 20% 16V C817 1-126-933-11 ELECT 100uF 20% 16V C832 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C835 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C836 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C853 1-126-960-11 ELECT 1uF 20% 50V C856 1-126-960-11 ELECT 1uF 20% 50V C858 1-126-960-11 ELECT 1uF 20% 50V C862 1-126-960-11 ELECT 1uF 20% 50V C867 1-126-960-11 ELECT 1uF 20% 50V < IC > IC813 8-759-529-20 IC NJM2296D < JACK > J805 1-766-400-11 JACK, PIN 2P (VIDEO 1 OUT/VIDEO 2 IN) J806 1-766-400-11 JACK, PIN 2P (MONITOR/VIDEO 1 IN) J807 1-766-399-11 JACK, PIN 3P (VIDEO 2 OUT/DVD/LD/TV/DBS) < COIL > L805 1-410-521-11 INDUCTOR 100uH L806 1-410-521-11 INDUCTOR 100uH TH SP TM VIDEO SP.SWITCH The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. S.VIDEO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 90 — < RESISTOR > R861 1-247-804-11 CARBON 75 5% 1/4W R862 1-247-804-11 CARBON 75 5% 1/4W R863 1-247-804-11 CARBON 75 5% 1/4W R866 1-247-804-11 CARBON 75 5% 1/4W R868 1-247-804-11 CARBON 75 5% 1/4W R869 1-247-804-11 CARBON 75 5% 1/4W R879 1-247-804-11 CARBON 75 5% 1/4W ************************************************************ * 1-670-750-11 VOLTAGE SELECTOR BOARD (DA50ES:E,EA,PX) *********************** < CONNECTOR > * CNP904 1-564-687-11 PIN, CONNECTOR 3P CNP906 1-568-106-11 PIN, CONNECTOR 4P < SWITCH > !S901 1-692-196-11 SWITCH, SLIDE (VOLTAGE SLECTOR) ************************************************************ * 1-670-141-11 VOLUME BOARD ************* < CAPACITOR > C1492 1-104-664-11 ELECT 47uF 20% 16V C1493 1-104-664-11 ELECT 47uF 20% 16V C1501 1-126-960-11 ELECT 1uF 20% 50V C1502 1-126-960-11 ELECT 1uF 20% 50V < CONNECTOR > CNP401 1-784-924-11 PIN, CONNECTOR 8P CNP403 1-779-978-11 PIN, CONNECTOR 3P CNP404 1-770-389-11 PIN, CONNECTOR (PC BOARD) 5P CNP405 1-784-921-11 PIN, CONNECTOR 4P * CNP407 1-564-522-11 PLUG, CONNECTOR 7P CNP409 1-784-923-11 PIN, CONNECTOR 7P CNP1406 1-774-289-11 PIN, CONNECTOR (PC BOARD) 15P < RESISTOR > R1496 1-249-397-11 CARBON 22 5% 1/4W F R1497 1-249-397-11 CARBON 22 5% 1/4W F < VARIABLE RESISTOR > RV1501 1-225-445-11 RES, VAR, CARBON 100KX6 (MASTER VOLUME) ************************************************************ * 1-670-134-11 5.1 INPUT BOARD *************** < CAPACITOR > C360 1-163-251-11 CERAMIC CHIP 100PF 5% 50V (DA50ES:AEP,UK,G,EE,AUS) C361 1-163-251-11 CERAMIC CHIP 100PF 5% 50V (DA50ES:AEP,UK,G,EE,AUS) C354 1-163-251-11 CERAMIC CHIP 100PF 5% 50V (DA50ES:AEP,UK,G,EE,AUS) C355 1-163-251-11 CERAMIC CHIP 100PF 5% 50V (DA50ES:AEP,UK,G,EE,AUS) C356 1-163-251-11 CERAMIC CHIP 100PF 5% 50V (DA50ES:AEP,UK,G,EE,AUS) C357 1-163-251-11 CERAMIC CHIP 100PF 5% 50V (DA50ES:AEP,UK,G,EE,AUS) C358 1-163-251-11 CERAMIC CHIP 100PF 5% 50V (DA50ES:AEP,UK,G,EE,AUS) C359 1-163-251-11 CERAMIC CHIP 100PF 5% 50V (DA50ES:AEP,UK,G,EE,AUS) C362 1-163-251-11 CERAMIC CHIP 100PF 5% 50V (DA50ES:AEP,UK,G,EE,AUS) C363 1-163-251-11 CERAMIC CHIP 100PF 5% 50V (DA50ES:AEP,UK,G,EE,AUS) C364 1-163-251-11 CERAMIC CHIP 100PF 5% 50V (DA50ES:AEP,UK,G,EE,AUS) C365 1-163-251-11 CERAMIC CHIP 100PF 5% 50V (DA50ES:AEP,UK,G,EE,AUS) < CONNECTOR > CNP303 1-779-978-11 PIN, CONNECTOR 3P CNP351 1-779-799-11 PIN, CONNECTOR 9P (DA50ES:AEP,UK,G,EE,AUS) CNP352 1-784-922-11 PIN, CONNECTOR 5P < JACK > J351 1-779-685-11 JACK, PIN 6P (5.1 INPUT) (DA50ES:AEP,UK,G,EE,AUS) J352 1-785-009-11 JACK, PIN 6P (FRONT/REAR WOOFER) J353 1-774-785-11 JACK, PIN 1P (CENTER) < RESISTOR > R361 1-216-049-91 RES,CHIP 1K 5% 1/10W (DA50ES:AEP,UK,G,EE,AUS) R362 1-216-049-91 RES,CHIP 1K 5% 1/10W (DA50ES:AEP,UK,G,EE,AUS) R363 1-216-049-91 RES,CHIP 1K 5% 1/10W (DA50ES:AEP,UK,G,EE,AUS) R364 1-216-049-91 RES,CHIP 1K 5% 1/10W (DA50ES:AEP,UK,G,EE,AUS) R365 1-216-049-91 RES,CHIP 1K 5% 1/10W (DA50ES:AEP,UK,G,EE,AUS) R366 1-216-049-91 RES,CHIP 1K 5% 1/10W (DA50ES:AEP,UK,G,EE,AUS) R367 1-216-049-91 RES,CHIP 1K 5% 1/10W R368 1-216-049-91 RES,CHIP 1K 5% 1/10W R369 1-216-049-91 RES,CHIP 1K 5% 1/10W R370 1-216-049-91 RES,CHIP 1K 5% 1/10W R371 1-216-049-91 RES,CHIP 1K 5% 1/10W R372 1-216-049-91 RES,CHIP 1K 5% 1/10W R373 1-216-077-00 METAL CHIP 15K 5% 1/10W (DA50ES/V55ES) R373 1-216-075-00 METAL CHIP 12K 5% 1/10W (DA30ES) R374 1-216-077-00 METAL CHIP 15K 5% 1/10W (DA50ES/V55ES) R374 1-216-075-00 METAL CHIP 12K 5% 1/10W (DA30ES) R375 1-216-077-00 METAL CHIP 15K 5% 1/10W (DA50ES/V55ES) R375 1-216-075-00 METAL CHIP 12K 5% 1/10W (DA30ES) R376 1-216-077-00 METAL CHIP 15K 5% 1/10W (DA50ES/V55ES) 5.1 INPUT VOLUME VOLTAGE SELECTOR The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. VIDEO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 91 — The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. Ref. No. Part No. Description Remarks R376 1-216-075-00 METAL CHIP 12K 5% 1/10W (DA30ES) R377 1-216-077-00 METAL CHIP 15K 5% 1/10W (DA50ES/V55ES) R377 1-216-075-00 METAL CHIP 12K 5% 1/10W (DA30ES) R378 1-216-077-00 METAL CHIP 15K 5% 1/10W (DA50ES/V55ES) R378 1-216-075-00 METAL CHIP 12K 5% 1/10W (DA30ES) R380 1-216-049-91 RES,CHIP 1K 5% 1/10W R381 1-216-049-91 RES,CHIP 1K 5% 1/10W R382 1-216-049-91 RES,CHIP 1K 5% 1/10W R383 1-216-049-91 RES,CHIP 1K 5% 1/10W R384 1-216-049-91 RES,CHIP 1K 5% 1/10W R385 1-216-049-91 RES,CHIP 1K 5% 1/10W ************************************************************ MISCELLANEOUS ************** 56 1-698-792-11 FAN, DC (DA50ES/V55ES) 68 1-693-407-11 TUNER (DA30ES/DA50ES:US,CND,E,EA,PX) 68 1-693-409-11 TUNER (DA50ES:AEP,UK,G,EE,AUS,SP,MY/V55ES) 74 1-773-115-11 WIRE (FLAT TYPE) (19 CORE) !80 1-569-008-21 ADAPTOR, CONVERSION 2P (E,EA,PX) !81 1-559-479-11 CORD, POWER (US,CND) !81 1-776-095-11 CORD, POWER (EXCEPT US,CND,CH) !81 1-782-464-21 CORD, POWER (CH) !T901 1-431-921-11 TRANSFORMER, POWER (DA50ES:US) !T901 1-431-922-11 TRANSFORMER, POWER (DA50ES:CND) !T901 1-431-923-11 TRANSFORMER, POWER (DA50ES:AEP,UK,G,EE,AUS,SP,MY/V55ES) !T901 1-431-924-11 TRANSFORMER, POWER (DA50ES:E,EA,PX) !T901 1-431-925-11 TRANSFORMER, POWER (DA30ES:US) !T901 1-431-926-11 TRANSFORMER, POWER (DA30ES:CND) ************************************************************ ACCESSORIES & PACKING MATERIALS ******************************* 1-475-726-11 REMOTE COMMANDER (RM-LJ301)(DA30ES) 1-475-727-11 REMOTE COMMANDER (RM-TP501) (DA50ES/V55ES) 1-501-374-11 ANTENNA, LOOP (AM) 1-501-594-11 ANTENNA (FM) (DA50ES:AEP,UK,G,EE,AUS,SP,MY/V55ES) 1-528-174-31 BATTERY, LITHIUM (CR2032 TYPE) (DA50ES/V55ES) 3-810-765-11 MANUAL,COMMONNESS INSTRUCTION (ENGLISH)(DA30ES/DA50ES:US,CND) 3-810-765-21 MANUAL,COMMONNESS INSTRUCTION (ENGLISH/FRENCH/GERMAN/SPANISH/DUTCH/ SEWDISH/ITALIAN/PORTUGUESE/CHINESE) (EXCEPT DA30ES/DA50ES:US,CND) 3-860-596-31 MANUAL,COMMONNESS INSTRUCTION (CHINESE)(V55ES) 3-864-441-11 MANUAL,COMMONNESS INSTRUCTION (ENGLISH)(DA30ES) 3-864-441-21 MANUAL,COMMONNESS INSTRUCTION (ENGLISH/SPANISH)(DA30ES:CND) 3-864-511-11 MANUAL,INSTRUCTION (ENGLISH)(DA30ES) 3-864-511-21 MANUAL,INSTRUCTION (FRENCH)(DA30ES:CND) 3-864-512-11 MANUAL,INSTRUCTION (ENGLISH) (DA50ES:US,CND,E,EA,PX,SP,MY) 3-864-512-21 MANUAL,INSTRUCTION (FRENCH) (DA50ES:CND,E,EA,PX) 3-864-512-31 MANUAL,INSTRUCTION (SPANISH) (DA50ES:E,EA,PX) 3-864-512-41 MANUAL,INSTRUCTION (CHINESE)(DA50ES:SP,MY) 3-864-512-51 MANUAL,INSTRUCTION (ENGLISH/CHINESE)(V55ES) 3-864-512-61 MANUAL,INSTRUCTION (ENGLISH/FRENCH/DUTCH/SWEDISH) (DA50ES:AEP,UK,G,EE,AUS) 3-864-512-71 MANUAL,INSTRUCTION (GERMAN/SPANISH/ITALIAN/PORTUGUESE) (DA50ES:AEP,UK,G,EE,AUS) 3-864-784-11 MANUAL,INSTRUCTION (RM-TP501) (ENGLISH) (DA50ES/V55ES) 3-864-784-21 MANUAL,INSTRUCTION (RM-TP501) (FRENCH/SPANISH) (DA50ES:CND,AEP,UK,G,EE,AUS,E,PX,EA) 3-864-784-31 MANUAL,INSTRUCTION (RM-TP501) (DUTCH/SWEDISH/GERMAN/ITALIAN/PORTUGUESE) (DA50ES:AEP,UK,G,EE,AUS) 3-864-784-41 MANUAL,INSTRUCTION (RM-TP501) (CHINESE) (DA50ES:SP,MY/V55ES) 4-210-990-01 BATTERY CASE (for RM-LJ301) (DA30ES) 4-997-648-11 COVER, BATTERY (For RM-TP501) 4-997-658-01 PEN (For RM-TP501) *********************************************************** ************** HARDWERE LIST ************** #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 #2 7-685-881-09 SCREW +BVTT 4X8 (S) #3 7-685-885-09 SCREW +BVTT 4X16 (S) #4 7-685-872-09 SCREW +BVTT 3X8 (S) Ref. No. Part No. Description Remarks 5.1 INPUT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA30ES/DA50ES/V55ES REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.1 2001.06 Correction of exploded views. (SFD-01014) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
