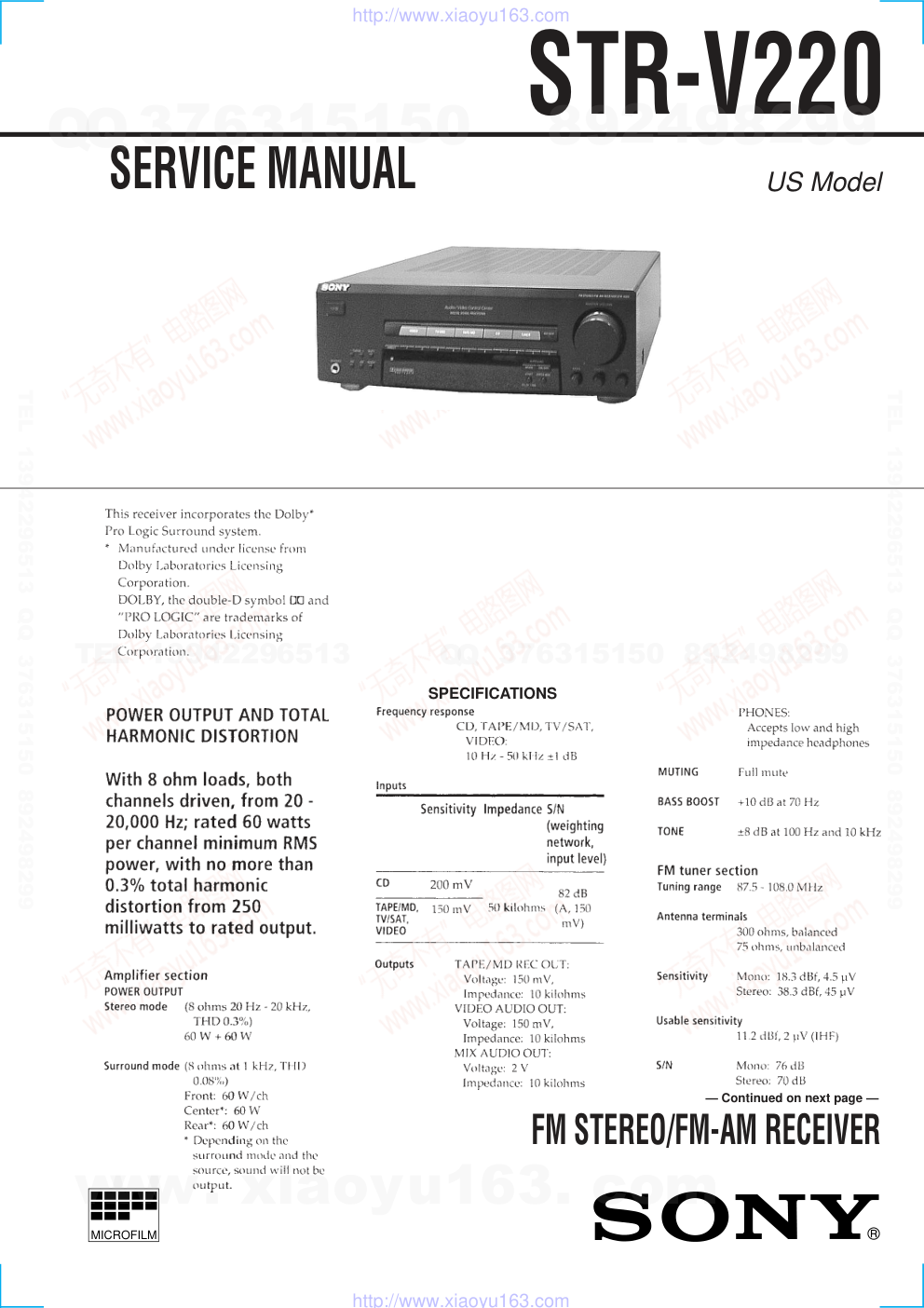

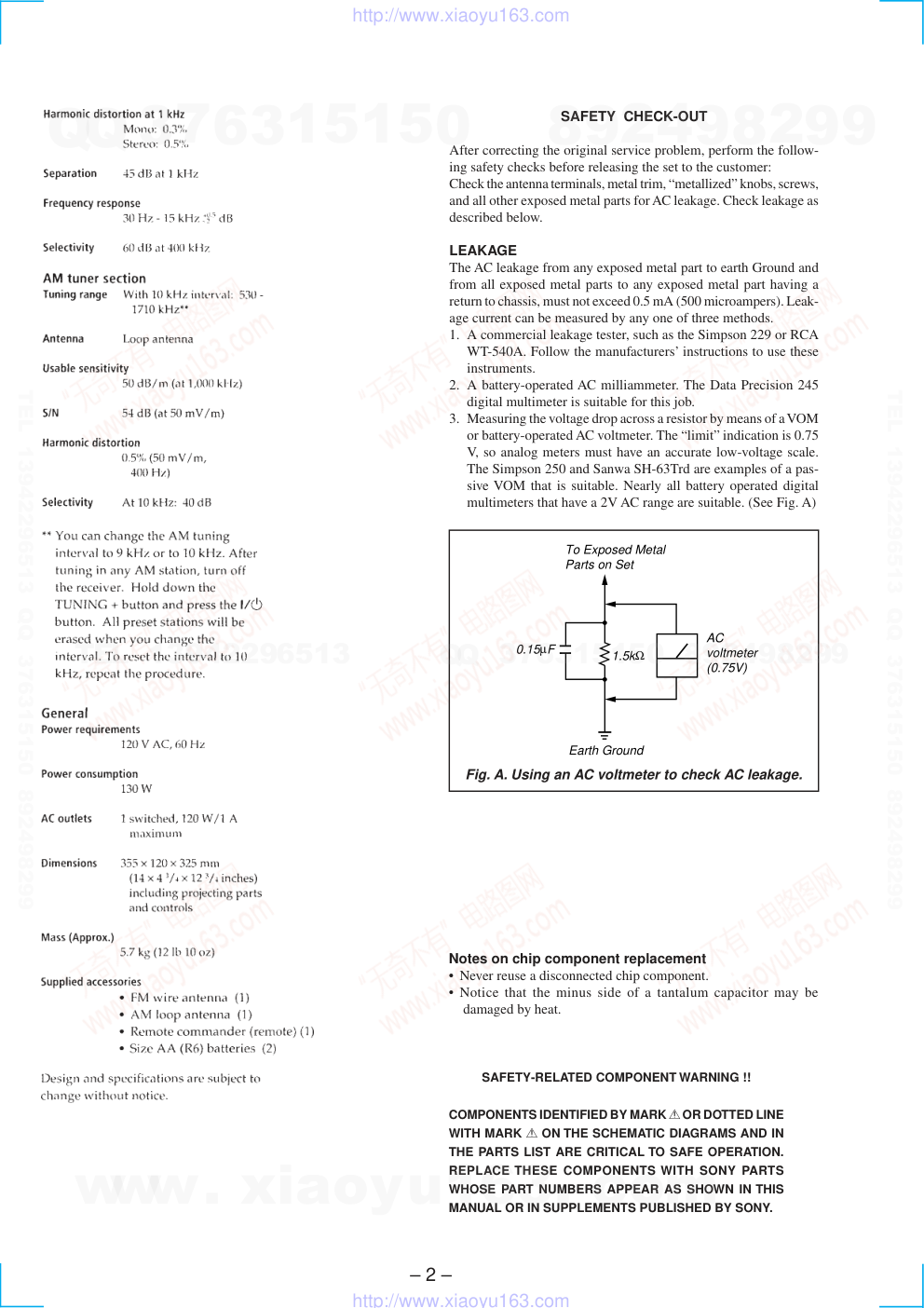

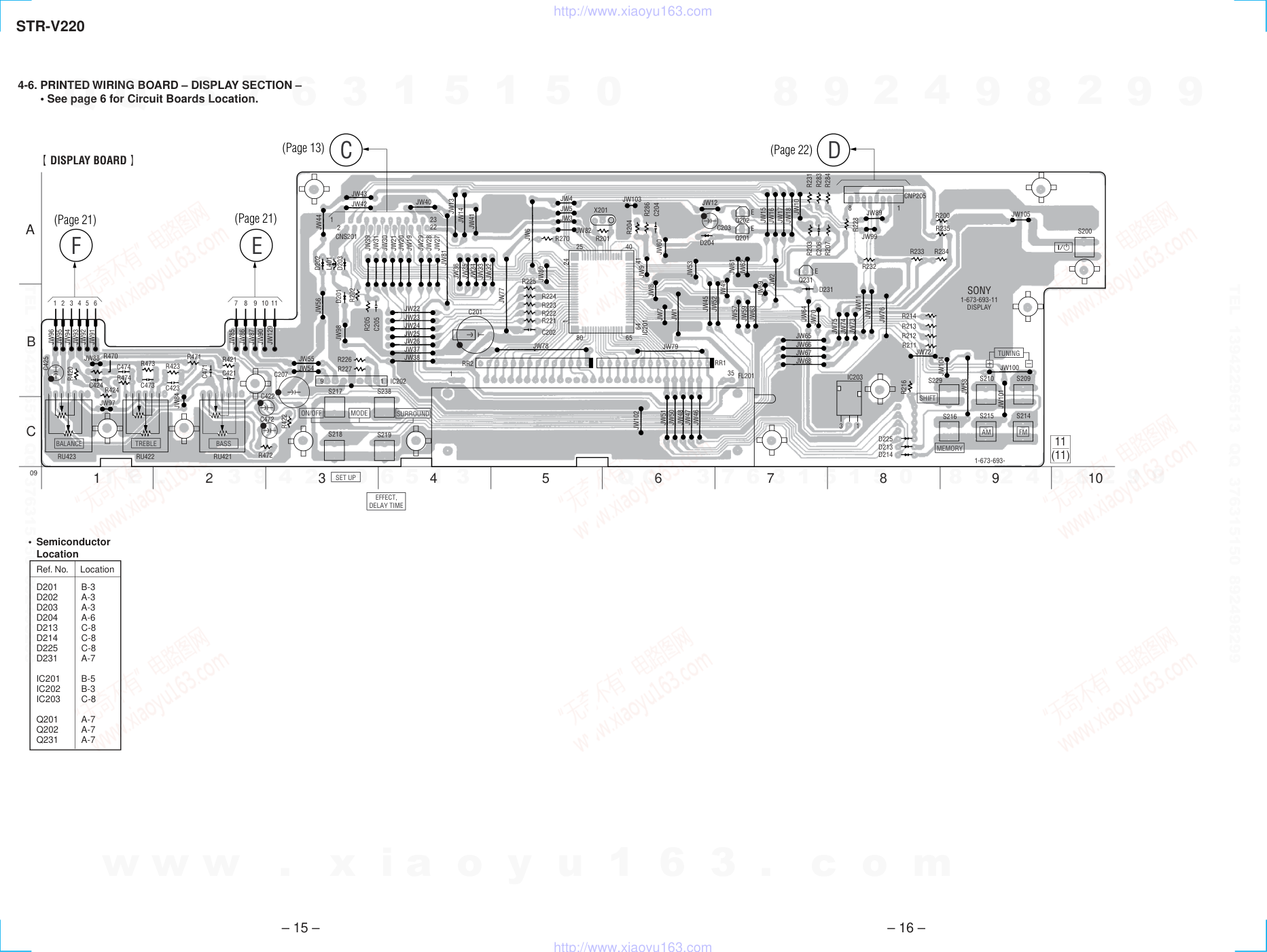

– 1 – MICROFILM US Model SPECIFICATIONS SERVICE MANUAL FM STEREO/FM-AM RECEIVER STR-V220 — Continued on next page — www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 2 – SAFETY-RELATED COMPONENT WARNING !! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. SAFETY CHECK-OUT After correcting the original service problem, perform the follow- ing safety checks before releasing the set to the customer: Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE The AC leakage from any exposed metal part to earth Ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microampers). Leak- age current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a pas- sive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) Fig. A. Using an AC voltmeter to check AC leakage. 0.15µF To Exposed Metal Parts on Set 1.5kΩ AC voltmeter (0.75V) Earth Ground www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 3 – TABLE OF CONTENTS SECTION 1 SERVICING NOTE 1. SERVICING NOTE .......................................................... 3 2. GENERAL .......................................................................... 4 3. ELECTRICAL BLOCK CHECKING...................... 5 4. DIAGRAMS 4-1. Circuit Boards Location ........................................................ 6 4-2. Schematic Diagram – Main (1/3) Section –.......................... 7 4-3. Schematic Diagram – Main (2/3) Section –.......................... 9 4-4. Schematic Diagram – Main (3/3) Section –........................ 11 4-5. Printed Wiring Board – Main Section – .............................. 13 FACTORY SET Mode which sets the preset settings of the unit to that at shipment. Procedure: While pressing the VIDEO button and TV/SAT button together, press the 1/u button to turn on the power. “FACTORY” will be displayed and factory settings executed. INITIALIZATION Mode which erases all the preset settings of the unit. Use this mode when returning the unit to the customer. Procedure: While pressing the VIDEO button, TV/SAT button, and TAPE/MD button together, press the 1/u button to turn on the power. “INITIAL” will be displayed and initialization executed. FLUORESCENT INDICATOR TUBE LIGHTING CHECK Mode which lights up the whole fluorescent indicator tube or partially. Procedure: While pressing the TV/SAT button and TAPE/MD button together, press the 1/u button to turn on the power. The fluorescent indicator tube will light up in about 0.5 seconds, and then start to light up partially. After partial lighting completes, the BASS BOOST indicator will light up, “FINISH” will be displayed, indicating that fluorescent indicator tube lighting check has completed. SWITCHING OF 9 kHz/10 kHz AM CHANNEL STEP The AM channels of this unit can be switched between 9 kHz and 10 kHz. Procedure: Set FUNCTION to AM and turn off the power. While pressing the TUNING + button, press the 1/u button to turn on the power. “9 k STEP” or “10 k STEP” will be displayed, and the channel step will be switched. 4-6. Printed Wiring Board – Display Section – .......................... 15 4-7. Schematic Diagram – Display Section – ............................ 17 4-8. Schematic Diagram – Panel Section – ................................ 19 4-9. Printed Wiring Board – Panel Section –.............................. 21 4-10. IC Block Diagrams ........................................................... 23 4-11. IC Pin Functions ............................................................... 26 5. EXPLODED VIEWS 5-1. Case Section ........................................................................ 28 5-2. Chassis Section ................................................................... 29 6. ELECTRICAL PARTS LIST ........................................ 30 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 4 – Front Panel Descriptions SECTION 2 GENERAL Location of Parts and Controls 1 1/u button 2 VIDEO button 3 TV/SAT button 4 TAPE/MD button 5 CD button 6 TUNER button 7 BASS BOOST indicator 8 MASTER VOLUME knob 9 BALANCE knob 7 8 2 3 4 6 5 1 16 17 10 11 13 14 15 12 9 18 19 21 22 23 24 25 20 10 TREBLE knob 11 BASS knob 12 SURROUND ON/OFF button 13 CENTER MODE button 14 EFFECT/DELAY TIME button 15 SURROUND MODE button 16 Numeral (1 to 0) button 17 Display window 18 DIRECT button 19 SHIFT button 20 MEMORY button 21 AM button 22 TUNING + button 23 FM button 24 TUNING – button 25 PHONES jack This section is extracted from instruction manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-V220 SECTION 4 DIAGRAMS 4-1. CIRCUIT BOARDS LOCATION THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.) For schematic diagrams. Note: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • ¢ : internal component. • 2 : nonflammable resistor. • C : panel designation. For printed wiring boards. Note: • X : parts extracted from the component side. • b : Pattern of the conductor side. • U : B+ Line. • V : B– Line. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : FM WAVEFORMS 1 2 IC201 #¢ X1 IC301 #™ Note: The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. • Indication of transistor C These are omitted E B 8MHz 4.8Vp-p 4.19MHz 5.4Vp-p Caution: Pattern face side: Parts on the pattern face side seen from (Conductor Side) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Component Side) the parts face are indicated. • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. F : FM SECONDARY board PRIMARY board STANDBY board MAIN board VOL-TONE board DISPLAY board PHONE JACK board KEY board MAIN (1/3) SECTION DISPLAY SECTION – 5 – – 6 – SECTION 3 ELECTRICAL BLOCK CHECKING ADJUSTING THE FM/SD SIGNAL SENSITIVITY Setting: oscilloscope Main board TP (IC501 6 pin) Procedure: 1. Set the SSG output level to 26 dB and input the signal. 2. Adjust SFR501 so that the oscilloscope level becomes 0V. 3. Raise the SSG output level slightly (max. 35 dB) when the ad- justment in step 2 fails, and repeat steps 1 and 2. NOTE: If the adjustment cannot be performed even when set to 35 dB, the sensitivity may be faulty, etc. Check the antenna terminal connection, FM front end and IF circuit, etc. and perform adjustments again. FM ANTENNA (75Ω) FM RF SSG Set Carrier frequency: 98 MHz Modulation: AUDIO 1 kHz, 75 kHz deviation (100%) Output level: 26 dB (at 75 Ω open) (MAX 35 dB) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-V220 – 7 – – 8 – 4-2. SCHEMATIC DIAGRAM – MAIN (1/3) SECTION – • See page 6 for Waveforms. • See page 13 for Printed Wiring Board. • See page 23 for IC Block Diagrams. (Page 19) (Page 11) (Page 11) (Page 17) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-V220 – 9 – – 10 – 4-3. SCHEMATIC DIAGRAM – MAIN (2/3) SECTION – • See page 13 for Printed Wiring Board. (Page 11) (Page 20) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-V220 – 11 – – 12 – 4-4. SCHEMATIC DIAGRAM – MAIN (3/3) SECTION – • See page 24 for IC Block Diagrams. (Page 9, 10) (Page 8) (Page 8) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-V220 JW269 J402 JW133 JW123 3 2 E E 11 1 C B 1 1 2 3 1 22 1 22 1 1 5 4 1 E E E E 4 8 5 2 1 22 23 E E 16 17 32 33 48 49 64 1 E 1 4 8 2 8 9 1 1 15 1 1 11 22 12 15 30 16 30 16 2 1 6 7 5 E E E E E E E E E E E E E E MIX AUDIO OUT AUDIO IN AUDIO OUT TA/SAT AUDIO IN REC ONT IN CD IN AM FM 75Ω FM 300Ω L R L R L R CENTER REAR SPEAKER FRONT L R L R L R L R L R VIDEO ANTENNA TAPE/MD 09 6 E 5 4 3 2 1 D C B A (CHASSIS) (CHASSIS) (CHASSIS) MAIN BOARD 11 (11) 1-673-709- C B A 4 1 3 C806 R823 R824 JW100 R830 Q809 R831 D818 JW099 JW098 D822 D823 C812 C811 R810 R811 D804 JW110 JW109 C809 R804 C801 JW108 D801 C802 JW107 JW106 C807 Q801 C814 C813 JW104 JW105 JW111 CN801 JW150 JW151 JW152 C651 Q670 R656 RY801 G202 C810 C808 JW103 JW102 JW101 IC802 IC801 D820 D821 C805 C751 R752 R652 JW149 JW148 C653 R653 C654 R654 C655 JW162 R660 R671 JW145 R721 R710 JW169 JW142 C712 C707 C706 R706 R701 Q793 C796 JW182 JW181 JW193 JW180 JW179 CNS204 C701 C702 C703 R702 R703 R299 R298 JW137 C413 R705 R711 R707 JW140 IC701 R704 JW184 JW185 JW186 JW187 JW183 JW188 JW189 R441 R442 R435 C434 C435 JW190 JW191 JW192 JW194 C309 L301 R301 C353 C354 R305 R302 R353 R303 R354 JW139 C704 C416 JW136 C415 R673 C670 R674 D670 R670 JW271 JW272 JW273 JW274 JW275 JW206 JW204 JW203 JW201 JW199 JW200 C329 C331 C328 C327 C325 IC301 C324 R465 C343 C342 R470 R415 C326 C318 C365 C363 JW237 R363 R300 CX301 C302 D817 C305 C304 C303 JW235 C308 C307 JW236 C822 R825 C823 G203 Q808 B C E C335 C334 C323 R420 JW188 JW197 JW196 CNS701 C330 C350 C362 C338 Q308 Q307 R308 C355 R355 R309 C356 R352 JW243 C359 R361 R360 C310 R304 C360 R356 R362 R359 C340 C341 C339 JW244 C322 C317 IC302 R357 C315 R307 C314 C312 JW238 R306 Q304 Q303 C313 C306 C316 C311 JW239 C344 JW240 JW247 C345 C349 C348 C346 C342 C332 C333 C351 C352 R651 C652 C752 R751 Q794 C720 R723 Q720 D720 R720 R672 JW257 UCC GND ANT ANT IF OUT GND OSC UT C501 C507 R452 JW234 JW270 JW242 R407 R457 R406 R456 R405 R455 R404 R454 R403 R453 R402 R408 R458 JW264 TM001 JW261 R504 JW266 JW259 JW268 R511 CF501 C502 R512 C511 SFR501 C509 G201 OSC ANT T502 R514 C508 JW256 JW250 R513 C517 C512 C515 R537 R529 C539 C531 R535 R531 JW248 JW249 T505 C533 CNS301 C534 C540 T504 R532 R536 C532 R521 C528 C530 IC501 C514 JW251 C516 C505 R505 FE501 R506 R507 C506 CF502 R508 Q501 Q503 JW253 C549 C518 CD501 T503 C520 C519 C544 R544 R501 C543 R546 R545 JW265 JW263 JW262 R547 C548 C503 C542 R548 R549 C541 R550 JW258 JW229 D503 R554 R561 JW255 JW254 TP6 JW218 R632 R730 D723 JW138 D725 R734 J253 J403 TM601 X501 JW233 JW175 JW176 JW232 JW231 JW177 JW178 R410 C411 C412 JW171 IC401 JW228 JW224 JW225 JW226 JW227 JW222 JW223 JW220 JW219 JW221 R414 C408 C406 R460 IC502 R459 R558 R557 R556 C545 R559 R541 JW174 JW173 JW172 R617 R667 C661 R725 C611 JW143 JW170 R668 R618 L651 L601 JW135 JW134 RY601 R631 L751 R718 JW130 R781 C791 R768 L701 R792 JW132 Q791 D793 R630 Q610 JW131 D610 D792 R731 JW129 JW128 JW127 IC950 R955 R957 Q710 R956 R951 D710 JW124 JW125 JW126 R717 R767 C711 C761 Q951 R791 R782 R783 R733 R732 R719 R772 R622 R619 R954 R960 R953 R950 JW114 C951 C955 R952 JW121 JW120 JW296 C950 C954 R822 R821 C952 C953 Q902 D810 D811 C821 C820 R958 D812 D815 D814 D813 JW252 C521 C523 R515 R516 R517 C538 C525 C526 C524 Q505 R538 Q504 R519 JW212 JW209 JW205 JW211 JW208 JW207 C536 C522 C535 SFR502 C527 JW217 JW216 JW214 JW215 C537 R542 R543 D722 R724 Q721 Q722 C722 C604 R604 D724 R727 Q723 JW230 D721 C721 C606 C601 C602 C612 C757 C603 R603 R602 R606 R605 R610 R621 JW160 JW165 R771 R756 R760 R757 R755 C756 C770 C620 R773 R623 Q620 Q770 D620 R620 R774 JW280 R770 R772 D770 C797 C754 R754 JW158 R753 C753 R601 JW168 JW141 JW166 JW163 IC702 JW278 JW276 JW277 JW154 JW119 JW117 JW118 JW115 JW116 JW113 R803 JW112 C804 C803 E C B S S RY701 JW122 JW213 (Page 21) (Page 21) (Page 15) – 13 – – 14 – 4-5. PRINTED WIRING BOARD – MAIN SECTION – • See page 6 for Circuit Boards Location. Ref. No. Location • Semiconductor Location 1-673-705- 11 (11) SONY 1-673-705-11 STANDBY T902 POWER TRANSFORMER 1 4 N N L R901 (CHASSIS) AC IN D816 RY901 CNP802 CNJ902 CNP903 CNP901 G900 2 1 AC OUTLET STANDBY BOARD 09 1 B 2 3 A JW297 SONY PHONE JACK 1-673-706-11 J741 1 5 R793 1-673-706- D791 C792 CNP702 V M R L B 4 11 (11) PHONE JACK PHONE JACK BOARD 09 1 2 A TP901 POWER TRANSFORMER JW295 JW294 JW293 JW292 JW291 JW290 CNP801 SONY SECONDARY 1-673-707-11 1-073-707- 1 11 SONY 1-673-708-11 PRIMARY F901 CNP902 N L 1-673-708- 3 2 11 (11) 11 (11) SECONDARY BOARD 09 A 1 2 3 PRIMARY BOARD 09 A 1 2 D503 B-2 D610 B-5 D620 C-3 D670 D-3 D710 B-5 D720 D-3 D721 B-4 D722 B-4 D723 A-4 D724 B-4 D725 A-4 D770 C-3 D792 B-5 D793 A-5 D801 E-6 D802 D-6 D804 E-5 D810 B-6 D811 B-6 D812 B-6 D813 B-6 D814 A-6 D815 A-6 D817 E-1 D818 E-6 D820 E-6 D821 E-6 D822 E-6 D823 E-6 IC301 E-2 IC302 D-2 IC401 B-3 IC501 C-2 IC502 B-2 IC701 E-4 IC702 C-4 IC801 E-6 IC802 E-6 IC950 B-6 Q303 E-1 Q304 E-1 Q307 D-1 Q308 D-2 Q501 B-2 Q503 B-2 Q504 C-2 Q505 C-2 Q610 B-5 Q620 C-3 Q670 D-3 Q710 B-5 Q720 D-3 Q721 B-4 Q722 B-4 Q723 B-4 Q770 C-4 Q791 A-5 Q793 E-3 Q794 D-4 Q801 E-5 Q802 B-6 Q808 E-2 Q809 E-6 Q951 B-6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-V220 – 15 – – 16 – 4-6. PRINTED WIRING BOARD – DISPLAY SECTION – • See page 6 for Circuit Boards Location. Ref. No. Location • Semiconductor Location D201 B-3 D202 A-3 D203 A-3 D204 A-6 D213 C-8 D214 C-8 D225 C-8 D231 A-7 IC201 B-5 IC202 B-3 IC203 C-8 Q201 A-7 Q202 A-7 Q231 A-7 JW96 JW85 JW86 JW87 JW90 JW129 JW95 JW94 JW93 JW92 JW91 JW39 JW31 JW30 JW21 JW20 JW19 JW29 JW28 JW27 JW36 JW35 JW34 JW33 JW32 JW22 JW23 JW24 JW25 JW26 JW37 JW38 JW4 JW5 JW3 JW82 JW65 JW66 JW67 JW68 JW51 JW102 JW50 JW48 JW47 JW46 JW61 JW62 JW57 JW59 JW63 JW69 JW2 JW45 JW52 JW49 JW9 JW8 JW7 JW1 JW53 JW60 JW75 JW74 JW73 JW11 JW71 JW76 JW64 JW70 JW72 JW104 JW58 JW43 JW42 JW44 JW56 JW98 JW14 JW13 JW41 JW40 JW81 JW77 JW80 JW6 JW103 JW12 JW89 JW99 JW105 JW100 JW101 JW10 JW16 JW15 JW18 JW17 C425 R420 JW88 R470 JW97 JW84 R474 C474 C473 R473 C423 R423 R471 C471 R424 C424 RU421 RU422 RU423 C421 R421 JW55 JW54 C207 C422 C472 R422 R226 R227 S218 S219 S217 S238 R472 IC202 C205 R205 D203 R202 D201 D202 L401 C201 R225 R224 R223 R222 R221 C202 RR2 JW78 JW79 CNS201 1 X201 R201 R270 65 80 25 40 64 1 41 24 R204 R286 C204 C203 D204 Q201 Q202 Q231 D231 R203 R207 C206 R231 R284 R283 R228 R232 R233 R234 R200 R235 CNP205 S200 S229 S215 S214 S210 S209 S216 D214 D213 D225 R216 R214 R213 R212 R211 SONY 1-673-693-11 DISPLAY IC201 RR1 35 FL201 1 IC203 11 (11) 09 A C B 10 8 9 6 7 4 5 1 2 3 BASS D C F E 1 2 3 4 5 6 7 8 9 10 11 1-673-693- TREBLE BALANCE 1 8 1 3 1 9 23 2 22 E E E EFFECT, DELAY TIME SET UP MODE ON/OFF SURROUND MEMORY FM AM SHIFT TUNING 1/u DISPLAY BOARD (Page 21) (Page 21) (Page 13) (Page 22) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-V220 – 17 – – 18 – 4-7. SCHEMATIC DIAGRAM – DISPLAY SECTION – • See page 6 for Waveforms. • See page 25 for IC Block Diagrams. • See page 26 for IC Pin Function. (Page 7) (Page 19) (Page 20) (Page 20) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-V220 – 19 – – 20 – 4-8. SCHEMATIC DIAGRAM – PANEL SECTION – (Page 17) (Page 8) (Page 9) (Page 18) (Page 18) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-V220 – 21 – – 22 – 4-9. PRINTED WIRING BOARD – PANEL SECTION – • See page 6 for Circuit Boards Location. 1 2 3 C B A 09 1 9 2 8 M MASTER VOLUME JW108 6 5 4 3 2 1 11 10 9 8 7 1 7 2 6 1 4 8 5 E E E E 1-673-692- 11 (11) G G G JW109 JW096 JW098 JW099 JW097 CNS402 C475 JW83 JW124 JW116 C492 D421 R483 R438 C433 C432 JW123 JW115 CN5403 IC404 JW114 JW127 JW111 JW110 JW113 JW112 JW117 JW120 JW121 JW125 JW126 R482 R484 Q402 C479 C478 R481 R464 R491 Q451 C447 C426 C476 R477 R427 R492 JW128 R432 R434 Q452 C429 C428 R431 R433 RR469 C427 R441 Q401 JW118 JW119 R430 R425 C470 R476 R475 R480 C430 C431 RU404 C420 R426 RO LI RI DBFB UP DWN LO G E B F A SONY 1-673-692-11 VR-TONE VOL-TONE BOARD (Page 13) (Page 15) (Page 15) (Page 13) 6 1 D238 K A BASS BOOST TUNER S222 TAPE/MD S239 VIDEO S223 DIRECT S237 TV/SAT S231 CD S221 0 S228 9 S227 8 S226 7 S225 6 S224 5 S236 4 S235 3 S234 2 S233 1 S232 1-673-694- 11 (11) R242 R241 R240 R239 R237 R249 R248 R247 CNS205 R243 R281 R282 JW130 R280 R238 R244 R246 D 1 09 2 3 4 5 6 A SONY 1-673-694-11 KEY KEY BOARD (Page 16) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-V220 – 23 – – 24 – 4-10. IC BLOCK DIAGRAMS • Main section IC301 LV1035M STRIM OSC VOL VOL VCA VCA A B A B VCA VCA VCA VCA VCA VCA DEV NOISE GEN NOISE FILTER BPF CONTROL CH CONTROL BPF V REF STRIM S MODE RECT RECT DC CUT B NR OUT FILTER DATA DECODER VOL/ MUTE BPF RECT LOGIC FF LOGIC FF RECT C MODE LOGIC LOGIC S S S A A S B B B A B C B L R A A A B A B A B A B A B S VDD PCM PCM CONTROL SRAM IN FILTER R L C S R A B A B A B A B L L R L R R BPF2 R BPF1 S DC OUT C DC OUT R DC OUT L DC OUT V REF VCC C OUT S OUT R OUT L OUT GND L IN R IN S IN DELAY OUT L BPF2 L BPF1 RT IN LT IN DC CUT C MODE GND NS BPF1 OSC NS BPF2 ENABLE DATA CLK DATA CLK VSS OSC OSC VDD A/D NS D/A DC CUT DC CUT VCC DET IREF GND S-OUT R-OUT L-OUT L RECT DC CUT4 R RECT DC CUT3 L BPF3 VLR TH VLR 1 VLR 2 VCS 2 VCS 1 VCS TH L+R RECT DC CUT2 L-R RECT DC CUT1 R BPF3 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 41 40 39 38 37 36 35 34 33 18 17 16 15 14 13 12 11 10 9 7 3 4 5 6 1 2 8 19 20 21 22 23 24 25 26 27 28 29 30 31 32 42 IC401 LC7822 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 CONTROL LATCH SHIFT RESISTOR LEVEL SHIFT CL DI CE VEE OUT IN OUT IN OUT IN VSS S RESET VDD OUT IN IN OUT IN OUT IN IC950 NJM2103D 1 2 3 4 5 6 7 8 V+ VSB/SESIN VSA RESET GND OUTC VSC CR VREF + – – + – + – + Q R S IC501 LA1838 ALC BUFF AM OSC AM MIX AM RF. AMP AGC IF DET S-CURVE AM/FM IF BUFF REG TUNING DRIVE GND VCC PILOT DET VCO FF STEREO DRIVE STEREO SW MUTE FF FF FM IF FM DET DECODER ANTI BIRDIE 1 2 3 4 5 6 7 9 8 20 19 18 17 16 15 14 11 10 21 22 23 24 25 27 26 29 30 OSC.BUFF FM-SD.ADJ AM-OSC REG FM-AFC AM-RF-IN AGC MPX-IN FM-DET OUT AM-DET OUT OUT L OUT R AMP-IN L AMP-IN R AMP OUT R AMP OUT L VCO-STOP STEREO AM/FM AM. SD FM. SD AM. SD ADJ IF-BUFF MUTE VCC FM DET FM-IN AM-MIX FM-IF AM-IF GND TUNED S METER FM S METER AM COMP SD AM 12 13 PHASE DET 28 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 25 – • Display section IC202 BA6208 1 2 3 4 5 6 7 8 9 NC OUTPUT 2 Vcc GND NC INPUT 2 INPUT 1 NC MOTOR DRIVE MOTOR DRIVE REG SWITCH SWITCH OUTPUT1 IC502 LC72131 PHASE DETECTOR CHARGE PUMP SWALLOW COUNTER 1/16, 1/17 4BITS 12BITS PROGRAMMABLE DIVIDER UNIVERSAL COUNTER REFERENCE DIVIDER POWER ON RESET 1/2 C2B I/F 1 3 4 5 6 8 10 11 18 17 16 15 12 13 19 20 21 22 XOUT VSS AOUT AIN PD VDD FMIN AMIN XIN D OUT S CLK S DATA CE IFIN I/O IN I/O IN MONO FM/AM UNLOCK DETECTOR DATA SHIFT REGISTER LATCH www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 26 – Pin No. Pin Name I/O Function • IC201 uPD78044FGF-145-3B9 (Display board) 4-11. IC PIN FUNCTION 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 O O O O O O O — I I I O O I I I I I I — O O O — I I I I — — — — — I O O O O O O Fluorescent indicator tube drive Power supply (+5V) System clock System data PLL data input from TU001 Chip enable output Chip enable output Input for model select (Connected to ground) Protector detect input Protector detect input System reset terminal Auto stop detect input Stereo detect input Ground Speaker relay drive Surround Relay Power relay drive Ground (Not used) A/D signal input terminal A/D3 key input terminal A/D2 key input terminal A/D1 key input terminal Power supply (+5V) Reference voltage (+5V) Ground Not used (Open) Ground System clock (4.19MHz) System clock (4.19MHz) Mute drive output for µPD2581V (IC701) Plologic LED (Not used) CINEMA STUDIO LED (Not used) HALL LED (Not used) Tuner mute drive output DIG7 DIG6 DIG5 DIG4 DIG3 DIG2 DIG1 +5V S. CLK S. DATA PLL. DATA S. CE (LC7288) S. CE (LV1010) REAR-R BRIDGE PROTECT RESET AUTO-STOP STEREO-IN AVSS SP-RY SURR-RY POWER-RY AVSS SIGNAL A/D3 A/D2 A/D1 AVDD AV. REF GND NC VSS X1 X2 IC. MUTE PROLOGIC SIMULATED HALL T. MUTE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 27 – Pin No. Pin Name I/O Function 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 O O O I I I I — I I — — I O O I I I I I O O O O O O O O O O — O O O O O O O O O Volume up Volume down Standby LED drive (Not used) System power ON/OFF RDS data input (Not used) RDS clock input (Not used) Stop signal input from NJM2103D (IC950) Ground Sircs signal input Power switch input terminal 5.1ch LED drive (Not used) Power supply (+5V) Bass boost LED drive Line mute drive SL mute drive Input for model select Key in 4 Key in 3 Key in 2 Key in 1 SR mute drive Not used Fluorescent indicator tube drive Connect to –24V Fluorescent indicator tube drive Fluorescent indicator tube drive VOLUME UP VOLUME DOWN STANDBY SYS. POWER RDS. DATA. IN RDS. CLK. IN STOP VSS SIRCS POWER SW 5.1ch LED +5V BASS BOOST FUNC. MUTE SL MUTE VERSION K14 K13 K12 K11 SR MUTE S15 S14 S13 S12 S11 S10 S9 S8 S7 VLOAD S6 S5 S4 S3 S2 S1 DIG10 DIG9 DIG8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 28 – SECTION 5 EXPLODED VIEWS 5-1. CASE SECTION NOTE: • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Hardware (# mark) list and accessories and pack- ing materials are given in the last of this parts list. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. 11 1-673-706-11 PHONE JACK BOARD 12 A-4419-635-A VOL-TONE BOARD, COMPLETE 13 1-782-074-11 WIRE (FLAT TYPE) (7 CORE) 14 1-782-075-11 WIRE (FLAT TYPE) (9 CORE) * 15 4-921-941-01 CUSHION (FL) * 16 4-210-383-01 HOLDER (FL TUBE) 17 3-704-366-31 SCREW (CASE) (M3X6) * 18 4-210-365-01 CASE FL201 1-517-141-11 INDICATOR TUBE, FLUORESCENT 1 A-4411-215-A KNOB ASSY 2 4-210-373-01 KNOB (EQ) 3 4-951-620-01 SCREW (2.6X8), +BVTP * 4 4-978-398-21 CUSHION 5 4-977-593-01 RING (DIA. 50), ORNAMENTAL 6 A-4411-579-A PANEL ASSY, FRONT 7 4-996-698-41 EMBLEM, SONY 8 A-4419-637-A KEY BOARD, COMPLETE 9 1-782-100-11 WIRE (FLAT TYPE) (23 CORE) 10 A-4419-636-A DISPLAY BOARD, COMPLETE 1 2 4 4 5 5 6 7 8 10 11 12 3 3 3 3 3 3 3 14 13 17 17 17 18 15 15 16 9 Including with RV404 FL201 not supplied Including with J741 #1 #1 #1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 29 – 5-2. SHASSIS SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 57 4-900-386-01 SCREW 58 4-210-380-01 RIVET, NYLON * 59 3-703-244-00 BUSHING (2104), CORD * 60 4-978-398-21 CUSHION 61 A-4419-639-A MAIN BOARD, COMPLETE !T901 1-431-258-31 TRANSFORMER, POWER 51 X-4947-412-1 FOOT (SMALL) ASSY 52 4-210-367-11 PANEL, BACK 53 1-673-708-11 PRIMARY BOARD 54 1-673-707-11 SECONDARY BOARD 55 1-673-705-11 STANDBY BOARD !56 1-783-531-21 CORD, POWER The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. 53 57 54 57 55 58 61 52 56 59 60 51 not supplied #1 #1 #1 #3 IC701 #1 #1 #1 #4 #1 #2 #2 #2 #1 #1 not supplied not supplied not supplied not supplied not supplied T901 #1 IC702 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 30 – • SEMICONDUCTORS In each case, u: µ , for example: uA...: µ A..., uPA...: µ PA..., uPB...: µ PB..., uPC...: µ PC..., uPD...: µ PD... • CAPACITORS uF : µ F • COILS uH : µ H • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • RESISTORS All resistors are in ohms METAL: Metal-film resistor METAL OXIDE: Metal Oxide-film resistor F : nonflammable SECTION 6 ELECTRICAL PARTS LIST Note: When indicating parts by reference number, please include the board name. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. DISPLAY A-4419-636-A DISPLAY BOARD, COMPLETE ************************ * 4-210-383-01 HOLDER (FL TUBE) * 4-921-941-01 CUSHION (FL) < CAPACITOR > C201 1-104-905-11 CAPACITOR 0.22F 5.5V C202 1-164-159-21 CERAMIC 0.1uF 50V C203 1-124-465-00 ELECT 0.47uF 20% 50V C204 1-164-159-21 CERAMIC 0.1uF 50V C205 1-162-294-31 CERAMIC 0.001uF 10% 50V C206 1-164-159-21 CERAMIC 0.1uF 50V C207 1-126-096-11 ELECT 10uF 20% 35V C421 1-137-440-11 FILM 0.018uF 5% 50V C422 1-124-463-00 ELECT 0.1uF 20% 50V C423 1-137-368-11 FILM 0.0047uF 5% 50V C424 1-137-372-11 FILM 0.022uF 5% 50V C425 1-126-795-11 ELECT 10uF 20% 25V C471 1-137-440-11 FILM 0.018uF 5% 50V C472 1-124-463-00 ELECT 0.1uF 20% 50V C473 1-137-368-11 FILM 0.0047uF 5% 50V C474 1-137-372-11 FILM 0.022uF 5% 50V < CONNECTOR > * CNP205 1-580-160-11 PIN, CONNECTOR (PC BOARD) 8P CNS201 1-695-346-21 PIN, CONNECTOR (PC BOARD) 23P < DIODE > D201 8-719-815-85 DIODE 1S1585 D202 8-719-815-85 DIODE 1S1585 D203 8-719-815-85 DIODE 1S1585 D204 8-719-815-85 DIODE 1S1585 D213 8-719-815-85 DIODE 1S1585 D214 8-719-815-85 DIODE 1S1585 D225 8-719-815-85 DIODE 1S1585 D231 8-719-815-85 DIODE 1S1585 < FLUORESCENT INDICATOR > FL201 1-517-141-11 INDICATOR TUBE, FLUORESCENT < IC > IC201 8-759-587-56 IC uPD78044FGF-145-3B9 IC202 8-759-962-08 IC BA6208 IC203 8-749-011-05 IC GP1U28X < COIL > L401 1-410-509-11 INDUCTOR 10uH < TRANSISTOR > Q201 8-729-900-63 TRANSISTOR DTA124ES Q202 8-729-900-36 TRANSISTOR DTC124ES Q231 8-729-900-36 TRANSISTOR DTC124ES < RESISTOR > R200 1-247-863-91 CARBON 22K 5% 1/4W R201 1-247-903-00 CARBON 1M 5% 1/4W R202 1-249-429-11 CARBON 10K 5% 1/4W R203 1-249-429-11 CARBON 10K 5% 1/4W R204 1-249-425-11 CARBON 4.7K 5% 1/4W F R205 1-249-441-11 CARBON 100K 5% 1/4W R207 1-249-429-11 CARBON 10K 5% 1/4W R211 1-247-863-91 CARBON 22K 5% 1/4W R212 1-247-863-91 CARBON 22K 5% 1/4W R213 1-247-863-91 CARBON 22K 5% 1/4W R214 1-247-863-91 CARBON 22K 5% 1/4W R216 1-247-863-91 CARBON 22K 5% 1/4W R221 1-247-807-31 CARBON 100 5% 1/4W R222 1-247-807-31 CARBON 100 5% 1/4W R223 1-247-807-31 CARBON 100 5% 1/4W R224 1-247-807-31 CARBON 100 5% 1/4W R225 1-247-807-31 CARBON 100 5% 1/4W R226 1-249-441-11 CARBON 100K 5% 1/4W R227 1-249-441-11 CARBON 100K 5% 1/4W R228 1-249-412-11 CARBON 390 5% 1/4W F R231 1-249-427-11 CARBON 6.8K 5% 1/4W F R232 1-249-411-11 CARBON 330 5% 1/4W R233 1-249-413-11 CARBON 470 5% 1/4W F R234 1-249-415-11 CARBON 680 5% 1/4W F R235 1-247-840-00 CARBON 2.4K 5% 1/4W R270 1-247-807-31 CARBON 100 5% 1/4W R283 1-249-427-11 CARBON 6.8K 5% 1/4W F R284 1-249-427-11 CARBON 6.8K 5% 1/4W F R286 1-249-437-11 CARBON 47K 5% 1/4W R420 1-249-415-11 CARBON 680 5% 1/4W F R421 1-249-430-11 CARBON 12K 5% 1/4W R422 1-249-422-11 CARBON 2.7K 5% 1/4W F R423 1-247-903-00 CARBON 1M 5% 1/4W R424 1-247-903-00 CARBON 1M 5% 1/4W R470 1-249-415-11 CARBON 680 5% 1/4W F R471 1-249-430-11 CARBON 12K 5% 1/4W R472 1-249-422-11 CARBON 2.7K 5% 1/4W F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 31 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R473 1-247-903-00 CARBON 1M 5% 1/4W R474 1-247-903-00 CARBON 1M 5% 1/4W < VARIABLE RESISTOR > RV421 1-225-658-11 RES, VAR 100K/100K (BASS) RV422 1-225-659-11 RES, VAR 125K/125K (TREBLE) RV423 1-225-660-11 RES, VAR 100K/125K (BALANCE) < SWITCH > S200 1-554-937-11 SWITCH, KEY BOARD (1/u) S209 1-554-937-11 SWITCH, KEY BOARD (TUNING -) S210 1-554-937-11 SWITCH, KEY BOARD (TUNING +) S214 1-554-937-11 SWITCH, KEY BOARD (FM) S215 1-554-937-11 SWITCH, KEY BOARD (AM) S216 1-554-937-11 SWITCH, KEY BOARD (MEMORY) S217 1-554-937-11 SWITCH, KEY BOARD (SURROUND ON/OFF) S218 1-554-937-11 SWITCH, KEY BOARD (SET UP) S219 1-554-937-11 SWITCH, KEY BOARD (EFFECT DELAY TIME) S229 1-554-937-11 SWITCH, KEY BOARD (SHIFT) S238 1-554-937-11 SWITCH, KEY BOARD (SURROUND MODE) < VIBRATOR > X201 1-577-101-11 VIBRATOR, CERAMIC (4.19MHz) ************************************************************** 1-673-706-11 PHONE JACK BOARD ***************** < CAPACITOR > C792 1-127-876-21 CERAMIC 0.01uF 10% 50V < DIODE > D791 8-719-815-85 DIODE 1S1585 < JACK > J741 1-785-959-11 JACK (LARGE TYPE)(PHONE JACK) < RESISTOR > R793 1-249-411-11 CARBON 330 5% 1/4W ************************************************************** A-4419-637-A KEY BOARD, COMPLETE ******************** < CONNECTOR > * CNS205 1-580-169-11 PIN, CONNECTOR (PC BOARD) 8P < DIODE > D238 8-719-070-78 DIODE SEL6810A-TP6 < RESISTOR > R237 1-249-421-11 CARBON 2.2K 5% 1/4W F R238 1-247-843-11 CARBON 3.3K 5% 1/4W R239 1-249-411-11 CARBON 330 5% 1/4W R240 1-249-413-11 CARBON 470 5% 1/4W F R241 1-249-415-11 CARBON 680 5% 1/4W F R242 1-249-417-11 CARBON 1K 5% 1/4W F R243 1-249-419-11 CARBON 1.5K 5% 1/4W F R244 1-249-426-11 CARBON 5.6K 5% 1/4W R246 1-249-411-11 CARBON 330 5% 1/4W R247 1-249-413-11 CARBON 470 5% 1/4W F R248 1-249-415-11 CARBON 680 5% 1/4W F R249 1-249-417-11 CARBON 1K 5% 1/4W F R280 1-249-419-11 CARBON 1.5K 5% 1/4W F R281 1-249-421-11 CARBON 2.2K 5% 1/4W F R282 1-247-843-11 CARBON 3.3K 5% 1/4W < SWITCH > S221 1-554-937-11 SWITCH, KEY BOARD (CD) S222 1-554-937-11 SWITCH, KEY BOARD (TUNER) S223 1-554-937-11 SWITCH, KEY BOARD (VIDEO) S224 1-554-937-11 SWITCH, KEY BOARD (6) S225 1-554-937-11 SWITCH, KEY BOARD (7) S226 1-554-937-11 SWITCH, KEY BOARD (8) S227 1-554-937-11 SWITCH, KEY BOARD (9) S228 1-554-937-11 SWITCH, KEY BOARD (0) S231 1-554-937-11 SWITCH, KEY BOARD (TV/SAT) S232 1-554-937-11 SWITCH, KEY BOARD (1) S233 1-554-937-11 SWITCH, KEY BOARD (2) S234 1-554-937-11 SWITCH, KEY BOARD (3) S235 1-554-937-11 SWITCH, KEY BOARD (4) S236 1-554-937-11 SWITCH, KEY BOARD (5) S237 1-554-937-11 SWITCH, KEY BOARD (DIRECT) S239 1-554-937-11 SWITCH, KEY BOARD (TAPE/MD) ************************************************************** A-4419-639-A MAIN BOARD, COMPLETE ********************* 1-533-217-31 HOLDER, FUSE 4-210-380-01 RIVET, NYLON 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3 7-685-650-91 SCREW +BVTP 3X16 TYPE2 TT(B) 7-685-872-09 SCREW +BVTT 3X8 (S) < CAPACITOR > C302 1-126-934-11 ELECT 220uF 20% 16V C303 1-130-494-11 MYLAR 0.082uF 5% 50V C304 1-137-367-11 FILM 0.0033uF 5% 50V C305 1-130-494-11 MYLAR 0.082uF 5% 50V C306 1-126-959-11 ELECT 0.47uF 20% 50V C307 1-126-964-11 ELECT 10uF 20% 50V C308 1-126-964-11 ELECT 10uF 20% 50V C309 1-162-291-31 CERAMIC 560PF 10% 50V C310 1-126-962-11 ELECT 3.3uF 20% 50V C311 1-126-961-11 ELECT 2.2uF 20% 50V C312 1-164-159-21 CERAMIC 0.1uF 50V C313 1-126-934-11 ELECT 220uF 20% 16V C314 1-164-159-21 CERAMIC 0.1uF 50V C315 1-126-934-11 ELECT 220uF 20% 16V C316 1-124-252-00 ELECT 0.33uF 20% 50V DISPLAY MAIN KEY PHONE JACK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 32 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C317 1-126-934-11 ELECT 220uF 20% 16V C318 1-136-357-11 FILM 680PF 5% 50V C322 1-126-962-11 ELECT 3.3uF 20% 50V C323 1-136-173-00 FILM 0.47uF 5% 50V C324 1-136-165-00 FILM 0.1uF 5% 50V C325 1-136-165-00 FILM 0.1uF 5% 50V C326 1-104-664-11 ELECT 47uF 20% 16V C327 1-126-959-11 ELECT 0.47uF 20% 50V C328 1-126-963-11 ELECT 4.7uF 20% 50V C329 1-126-959-11 ELECT 0.47uF 20% 50V C330 1-126-963-11 ELECT 4.7uF 20% 50V C331 1-124-250-11 ELECT 0.15uF 20% 50V C332 1-126-962-11 ELECT 3.3uF 20% 50V C333 1-124-250-11 ELECT 0.15uF 20% 50V C334 1-137-372-11 FILM 0.022uF 5% 50V C335 1-136-161-00 FILM 0.047uF 5% 50V C337 1-126-964-11 ELECT 10uF 20% 50V C338 1-126-964-11 ELECT 10uF 20% 50V C339 1-126-964-11 ELECT 10uF 20% 50V C340 1-126-964-11 ELECT 10uF 20% 50V C341 1-126-934-11 ELECT 220uF 20% 16V C342 1-126-962-11 ELECT 3.3uF 20% 50V C343 1-126-962-11 ELECT 3.3uF 20% 50V C344 1-136-165-00 FILM 0.1uF 5% 50V C345 1-136-165-00 FILM 0.1uF 5% 50V C346 1-126-959-11 ELECT 0.47uF 20% 50V C347 1-126-963-11 ELECT 4.7uF 20% 50V C348 1-126-959-11 ELECT 0.47uF 20% 50V C349 1-126-963-11 ELECT 4.7uF 20% 50V C350 1-124-250-11 ELECT 0.15uF 20% 50V C351 1-126-962-11 ELECT 3.3uF 20% 50V C352 1-124-250-11 ELECT 0.15uF 20% 50V C353 1-164-159-21 CERAMIC 0.1uF 50V C354 1-164-159-21 CERAMIC 0.1uF 50V C355 1-164-159-21 CERAMIC 0.1uF 50V C356 1-164-159-21 CERAMIC 0.1uF 50V C359 1-126-963-11 ELECT 4.7uF 20% 50V C360 1-126-963-11 ELECT 4.7uF 20% 50V C362 1-126-934-11 ELECT 220uF 20% 16V C364 1-126-934-11 ELECT 220uF 20% 16V C365 1-126-962-11 ELECT 3.3uF 20% 50V C406 1-164-159-21 CERAMIC 0.1uF 50V C408 1-162-294-31 CERAMIC 0.001uF 10% 50V C411 1-164-159-21 CERAMIC 0.1uF 50V C412 1-162-291-31 CERAMIC 560PF 10% 50V C413 1-164-159-21 CERAMIC 0.1uF 50V C415 1-164-159-21 CERAMIC 0.1uF 50V C416 1-164-159-21 CERAMIC 0.1uF 50V C434 1-162-286-21 CERAMIC 220PF 10% 50V C435 1-162-286-21 CERAMIC 220PF 10% 50V C501 1-161-494-00 CERAMIC 0.022uF 25V C502 1-161-494-00 CERAMIC 0.022uF 25V C503 1-162-207-31 CERAMIC 22PF 5% 50V C505 1-164-097-11 CERAMIC 0.022uF 50V C506 1-164-097-11 CERAMIC 0.022uF 50V C507 1-104-660-11 ELECT 47uF 20% 16V C508 1-164-097-11 CERAMIC 0.022uF 50V C509 1-110-671-31 CERAMIC 47000PF 50V C511 1-164-096-11 CERAMIC 0.01uF 10% 50V C512 1-128-551-11 ELECT 22uF 20% 25V C514 1-110-671-31 CERAMIC 47000PF 50V C515 1-126-962-11 ELECT 3.3uF 20% 50V C516 1-110-671-31 CERAMIC 47000PF 50V C517 1-126-963-11 ELECT 4.7uF 20% 50V C518 1-104-664-11 ELECT 47uF 20% 16V C519 1-110-671-31 CERAMIC 47000PF 50V C520 1-110-671-31 CERAMIC 47000PF 50V C521 1-110-671-31 CERAMIC 47000PF 50V C522 1-126-960-11 ELECT 1uF 20% 50V C523 1-110-671-31 CERAMIC 47000PF 50V C524 1-126-960-11 ELECT 1uF 20% 50V C525 1-126-959-11 ELECT 0.47uF 20% 50V C526 1-126-960-11 ELECT 1uF 20% 50V C527 1-110-671-31 CERAMIC 47000PF 50V C528 1-127-882-21 CERAMIC 0.033uF 10% 50V C529 1-126-964-11 ELECT 10uF 20% 50V C530 1-162-293-11 CERAMIC 820PF 10% 50V C531 1-136-158-00 FILM 0.027uF 5% 50V C532 1-136-160-00 FILM 0.027uF 5% 50V C533 1-126-964-11 ELECT 10uF 20% 50V C534 1-126-964-11 ELECT 10uF 20% 50V C535 1-126-963-11 ELECT 4.7uF 20% 50V C536 1-126-963-11 ELECT 4.7uF 20% 50V C537 1-126-933-11 ELECT 100uF 20% 16V C538 1-126-964-11 ELECT 10uF 20% 50V C539 1-161-048-00 CERAMIC 0.0056uF 10% 25V C540 1-161-048-00 CERAMIC 0.0056uF 10% 25V C541 1-126-933-11 ELECT 100uF 20% 16V C542 1-164-097-11 CERAMIC 0.022uF 50V C543 1-126-963-11 ELECT 4.7uF 20% 50V C544 1-126-959-11 ELECT 0.47uF 20% 50V C545 1-162-203-31 CERAMIC 15PF 5% 50V C546 1-162-203-31 CERAMIC 15PF 5% 50V C548 1-101-001-00 CERAMIC 0.001uF 50V C549 1-127-876-21 CERAMIC 0.01uF 10% 50V C601 1-126-961-11 ELECT 2.2uF 20% 50V C602 1-162-282-31 CERAMIC 100PF 10% 50V C603 1-126-933-11 ELECT 100uF 20% 16V C604 1-162-201-31 CERAMIC 12PF 5% 50V C606 1-104-664-11 ELECT 47uF 20% 35V C611 1-137-372-11 FILM 0.022uF 5% 50V C612 1-128-576-11 ELECT 100uF 20% 63V C620 1-127-881-21 CERAMIC 0.027uF 10% 50V C651 1-126-961-11 ELECT 2.2uF 20% 50V C652 1-162-282-31 CERAMIC 100PF 10% 50V C653 1-126-933-11 ELECT 100uF 20% 16V C654 1-162-201-31 CERAMIC 12PF 5% 50V C656 1-104-664-11 ELECT 47uF 20% 35V C661 1-137-372-11 FILM 0.022uF 5% 50V C670 1-127-881-21 CERAMIC 0.027uF 10% 50V C702 1-162-282-31 CERAMIC 100PF 10% 50V C703 1-126-933-11 ELECT 100uF 20% 16V C704 1-162-201-31 CERAMIC 12PF 5% 50V C706 1-104-664-11 ELECT 47uF 20% 35V MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 33 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C707 1-128-576-11 ELECT 100uF 20% 63V C708 1-164-159-21 CERAMIC 0.1uF 50V C711 1-137-372-11 FILM 0.022uF 5% 50V C712 1-128-576-11 ELECT 100uF 20% 63V C720 1-127-881-21 CERAMIC 0.027uF 10% 50V C721 1-126-934-11 ELECT 220uF 20% 10V C722 1-126-964-11 ELECT 10uF 20% 50V C751 1-126-961-11 ELECT 2.2uF 20% 50V C752 1-162-282-31 CERAMIC 100PF 10% 50V C753 1-126-933-11 ELECT 100uF 20% 16V C754 1-162-201-31 CERAMIC 12PF 5% 50V C756 1-104-664-11 ELECT 47uF 20% 35V C757 1-128-576-11 ELECT 100uF 20% 63V C761 1-137-372-11 FILM 0.022uF 5% 50V C770 1-127-881-21 CERAMIC 0.027uF 10% 50V C791 1-126-960-11 ELECT 1uF 20% 50V C796 1-109-889-11 ELECT 1uF 20% 50V C797 1-109-889-11 ELECT 1uF 20% 50V C801 1-104-664-11 ELECT 47uF 20% 25V C802 1-104-664-11 ELECT 47uF 20% 25V C805 1-137-397-11 FILM 0.047uF 5% 100V C806 1-137-397-11 FILM 0.047uF 5% 100V C807 1-104-664-11 ELECT 47uF 20% 25V C808 1-104-664-11 ELECT 47uF 20% 25V C809 1-126-960-11 ELECT 1uF 20% 50V C810 1-126-960-11 ELECT 1uF 20% 50V C811 1-126-942-61 ELECT 1000uF 20% 25V C812 1-126-942-61 ELECT 1000uF 20% 25V C813 1-101-001-00 CERAMIC 0.001uF 50V C814 1-101-001-00 CERAMIC 0.001uF 50V C820 1-164-097-11 CERAMIC 0.022uF 50V C821 1-164-097-11 CERAMIC 0.022uF 50V C822 1-104-664-11 ELECT 47uF 20% 16V C823 1-104-664-11 ELECT 47uF 20% 16V C950 1-126-767-11 ELECT 1000uF 20% 16V C951 1-164-097-11 CERAMIC 0.022uF 50V C952 1-126-960-11 ELECT 1uF 20% 50V C953 1-124-464-11 ELECT 0.22uF 20% 50V C954 1-126-964-11 ELECT 10uF 20% 50V C955 1-164-159-21 CERAMIC 0.1uF 50V < FILTER > CF501 1-760-127-11 FILTER, CERAMIC CF502 1-760-127-11 FILTER, CERAMIC CF503 1-760-127-11 FILTER, CERAMIC < CONNECTOR > * CN701 1-564-778-11 PLUG, CONNECTOR (2.5MM) 4P CNS204 1-695-346-21 PIN, CONNECTOR (PC BOARD) 23P CNS701 1-695-330-31 PIN, CONNECTOR (PC BOARD) 7P * CNS802 1-564-778-11 PLUG, CONNECTOR (2.5MM) 4P < CERAMIC VIBRATOR > CX301 1-579-952-21 VIBRATOR, CERAMIC (8MHz) < DIODE > D503 8-719-815-85 DIODE 1S1585 D610 8-719-815-85 DIODE 1S1585 D620 8-719-815-85 DIODE 1S1585 D670 8-719-815-85 DIODE 1S1585 D710 8-719-815-85 DIODE 1S1585 D720 8-719-815-85 DIODE 1S1585 D721 8-719-815-85 DIODE 1S1585 D722 8-719-815-85 DIODE 1S1585 D723 8-719-815-85 DIODE 1S1585 D724 8-719-200-82 DIODE 11ES2 D725 8-719-815-85 DIODE 1S1585 D770 8-719-815-85 DIODE 1S1585 D792 8-719-815-85 DIODE 1S1585 D793 8-719-815-85 DIODE 1S1585 D801 8-719-922-17 DIODE MTZJ-24B D802 8-719-302-38 DIODE RBV-602-01 D804 8-719-109-85 DIODE RD5.1ES-B2 D810 8-719-200-82 DIODE 11ES2 D811 8-719-200-82 DIODE 11ES2 D812 8-719-200-82 DIODE 11ES2 D813 8-719-200-82 DIODE 11ES2 D814 8-719-815-85 DIODE 1S1585 D815 8-719-815-85 DIODE 1S1585 D817 8-719-921-74 DIODE MTZN-10A D818 8-719-815-85 DIODE 1S1585 D820 8-719-200-82 DIODE 11ES2 D821 8-719-200-82 DIODE 11ES2 D822 8-719-200-82 DIODE 11ES2 D823 8-719-200-82 DIODE 11ES2 < EARTH TERMINAL > * G201 1-537-738-21 TERMINAL, EARTH * G202 1-537-738-21 TERMINAL, EARTH * G203 1-537-738-21 TERMINAL, EARTH < FRONT END > FE501 1-693-457-11 TUNER < IC > IC301 8-759-527-00 IC LV1035M IC302 8-759-634-51 IC M5218AP IC401 8-759-805-14 IC LC7822 IC501 8-759-495-82 IC LA1838 IC502 8-759-584-70 IC LC72131 IC701 8-749-921-04 IC STK-4211MK-2 IC702 8-749-921-04 IC STK-4211MK-2 IC801 8-759-231-58 IC TA7812S IC802 8-759-929-65 IC LM7912CT IC950 8-759-333-83 IC NJM2103D < JACK > J253 1-770-377-21 JACK, PIN 1P J402 1-770-615-21 JACK, PIN 6P J403 1-774-005-21 JACK, PIN 6P MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 34 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < COIL > L301 1-410-509-11 INDUCTOR 10uH L601 1-420-872-00 COIL, AIR-CORE L651 1-420-872-00 COIL, AIR-CORE L701 1-420-872-00 COIL, AIR-CORE L751 1-420-872-00 COIL, AIR-CORE < TRANSISTOR > Q303 8-729-141-30 TRANSISTOR 2SC3623A-LK Q304 8-729-141-30 TRANSISTOR 2SC3623A-LK Q307 8-729-141-30 TRANSISTOR 2SC3623A-LK Q308 8-729-141-30 TRANSISTOR 2SC3623A-LK Q501 8-729-922-66 TRANSISTOR 2SC2410SN Q503 8-729-027-38 TRANSISTOR DTA144EKA-T146 Q504 8-729-027-38 TRANSISTOR DTA144EKA-T146 Q505 8-729-030-02 TRANSISTOR DTC144ESA Q610 8-729-119-78 TRANSISTOR 2SC403SP-51 Q620 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q670 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q710 8-729-119-78 TRANSISTOR 2SC403SP-51 Q720 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q721 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q722 8-729-184-53 TRANSISTOR 2SC1845-EA Q723 8-729-119-78 TRANSISTOR 2SC403SP-51 Q770 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q791 8-729-119-78 TRANSISTOR 2SC27S5TP-HFE Q793 8-729-141-30 TRANSISTOR 2SC3623A-LK Q794 8-729-141-30 TRANSISTOR 2SC3623A-LK Q801 8-729-140-97 TRANSISTOR 2SB734-34 Q802 8-729-119-78 TRANSISTOR 2SC403SP-51 Q808 8-729-180-92 TRANSISTOR 2SD809-K Q809 8-729-119-78 TRANSISTOR 2SC403SP-51 Q951 8-729-209-15 TRANSISTOR 2SD2012 < RESISTOR > R298 1-249-387-11 CARBON 3.3 5% 1/4W F R299 1-249-387-11 CARBON 3.3 5% 1/4W F R300 1-247-903-00 CARBON 1M 5% 1/4W R301 1-249-421-11 CARBON 2.2K 5% 1/4W F R302 1-249-421-11 CARBON 2.2K 5% 1/4W F R303 1-249-439-11 CARBON 68K 5% 1/4W R304 1-249-441-11 CARBON 100K 5% 1/4W R305 1-249-429-11 CARBON 10K 5% 1/4W R306 1-249-436-11 CARBON 39K 5% 1/4W R307 1-247-862-11 CARBON 20K 5% 1/4W R308 1-249-421-11 CARBON 2.2K 5% 1/4W F R309 1-249-421-11 CARBON 2.2K 5% 1/4W F R352 1-249-441-11 CARBON 100K 5% 1/4W R353 1-249-425-11 CARBON 4.7K 5% 1/4W F R354 1-249-425-11 CARBON 4.7K 5% 1/4W F R355 1-249-425-11 CARBON 4.7K 5% 1/4W F R356 1-249-425-11 CARBON 4.7K 5% 1/4W F R357 1-249-441-11 CARBON 100K 5% 1/4W R358 1-249-441-11 CARBON 100K 5% 1/4W R359 1-249-425-11 CARBON 4.7K 5% 1/4W F R360 1-247-843-11 CARBON 3.3K 5% 1/4W R361 1-249-429-11 CARBON 10K 5% 1/4W R362 1-249-429-11 CARBON 10K 5% 1/4W R363 1-249-411-11 CARBON 330 5% 1/4W R402 1-249-421-11 CARBON 2.2K 5% 1/4W F R403 1-249-417-11 CARBON 1K 5% 1/4W F R404 1-249-417-11 CARBON 1K 5% 1/4W F R405 1-249-417-11 CARBON 1K 5% 1/4W F R406 1-249-417-11 CARBON 1K 5% 1/4W F R407 1-249-417-11 CARBON 1K 5% 1/4W F R408 1-249-429-11 CARBON 10K 5% 1/4W R409 1-249-417-11 CARBON 1K 5% 1/4W F R410 1-249-437-11 CARBON 47K 5% 1/4W R414 1-249-425-11 CARBON 4.7K 5% 1/4W F R415 1-249-417-11 CARBON 1K 5% 1/4W F R420 1-249-441-11 CARBON 100K 5% 1/4W R435 1-249-418-11 CARBON 1.2K 5% 1/4W F R441 1-249-418-11 CARBON 1.2K 5% 1/4W F R442 1-249-418-11 CARBON 1.2K 5% 1/4W F R452 1-249-421-11 CARBON 2.2K 5% 1/4W F R453 1-249-417-11 CARBON 1K 5% 1/4W F R454 1-249-417-11 CARBON 1K 5% 1/4W F R455 1-249-417-11 CARBON 1K 5% 1/4W F R456 1-249-417-11 CARBON 1K 5% 1/4W F R457 1-249-417-11 CARBON 1K 5% 1/4W F R458 1-249-429-11 CARBON 10K 5% 1/4W R459 1-249-417-11 CARBON 1K 5% 1/4W F R460 1-249-437-11 CARBON 47K 5% 1/4W R465 1-249-417-11 CARBON 1K 5% 1/4W F R470 1-249-441-11 CARBON 100K 5% 1/4W R501 1-249-422-11 CARBON 2.7K 5% 1/4W F R502 1-249-415-11 CARBON 680 5% 1/4W F R503 1-247-791-91 CARBON 22 5% 1/4W R504 1-249-393-11 CARBON 10 5% 1/4W F R505 1-249-411-11 CARBON 330 5% 1/4W R506 1-247-891-00 CARBON 330K 5% 1/4W R507 1-249-417-11 CARBON 1K 5% 1/4W F R508 1-249-411-11 CARBON 330 5% 1/4W R511 1-249-441-11 CARBON 100K 5% 1/4W R512 1-249-441-11 CARBON 100K 5% 1/4W R513 1-249-425-11 CARBON 4.7K 5% 1/4W R514 1-249-418-11 CARBON 1.2K 5% 1/4W F R515 1-249-410-11 CARBON 270 5% 1/4W F R516 1-249-402-11 CARBON 56 5% 1/4W F R517 1-247-842-11 CARBON 3K 5% 1/4W !R519 1-249-403-11 CARBON 68 5% 1/4W F R521 1-249-426-11 CARBON 5.6K 5% 1/4W R531 1-249-425-11 CARBON 4.7K 5% 1/4W R532 1-249-425-11 CARBON 4.7K 5% 1/4W R535 1-249-418-11 CARBON 1.2K 5% 1/4W F R536 1-249-417-11 CARBON 1K 5% 1/4W F R537 1-249-420-11 CARBON 1.8K 5% 1/4W F R538 1-249-427-11 CARBON 6.8K 5% 1/4W F R539 1-249-427-11 CARBON 6.8K 5% 1/4W F !R541 1-249-403-11 CARBON 68 5% 1/4W F R542 1-249-420-11 CARBON 10K 5% 1/4W F R543 1-249-429-11 CARBON 10K 5% 1/4W R544 1-249-421-11 CARBON 2.2K 5% 1/4W F R545 1-249-425-11 CARBON 4.7K 5% 1/4W F The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 35 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN R546 1-247-807-31 CARBON 100 5% 1/4W R547 1-249-425-11 CARBON 4.7K 5% 1/4W F R548 1-249-421-11 CARBON 2.2K 5% 1/4W F R549 1-249-429-11 CARBON 10K 5% 1/4W R550 1-249-417-11 CARBON 1K 5% 1/4W F R553 1-249-417-11 CARBON 1K 5% 1/4W F R554 1-249-429-11 CARBON 10K 5% 1/4W R555 1-247-843-11 CARBON 3.3K 5% 1/4W R556 1-249-417-11 CARBON 1K 5% 1/4W F R557 1-249-417-11 CARBON 1K 5% 1/4W F R558 1-249-417-11 CARBON 1K 5% 1/4W F R559 1-247-863-91 CARBON 22K 5% 1/4W R561 1-247-843-11 CARBON 3.3K 5% 1/4W R601 1-249-421-11 CARBON 2.2K 5% 1/4W F R602 1-249-438-11 CARBON 56K 5% 1/4W R603 1-249-412-11 CARBON 390 5% 1/4W F R604 1-249-438-11 CARBON 56K 5% 1/4W R605 1-247-760-11 CARBON 4.7K 5% 1/2W F R606 1-249-425-11 CARBON 4.7K 5% 1/4W F !R610 1-220-755-11 METAL 0.22 10% 2W !R617 1-249-393-11 CARBON 10 5% 1/4W F R618 1-249-389-11 CARBON 4.7 5% 1/4W F !R619 1-249-405-11 CARBON 100 5% 1/4W F R620 1-249-420-11 CARBON 1.8K 5% 1/4W F R621 1-247-815-91 CARBON 220 5% 1/4W !R622 1-249-403-11 CARBON 68 5% 1/4W F R623 1-249-437-11 CARBON 47K 5% 1/4W R630 1-249-426-11 CARBON 5.6K 5% 1/4W R631 1-247-887-00 CARBON 220K 5% 1/4W R632 1-249-426-11 CARBON 5.6K 5% 1/4W R651 1-249-421-11 CARBON 2.2K 5% 1/4W F R652 1-249-438-11 CARBON 56K 5% 1/4W R653 1-249-412-11 CARBON 390 5% 1/4W F R654 1-249-438-11 CARBON 56K 5% 1/4W R656 1-249-425-11 CARBON 4.7K 5% 1/4W F !R660 1-220-755-11 METAL 0.22 10% 2W R665 1-247-760-11 CARBON 4.7K 5% 1/2W F !R667 1-249-393-11 CARBON 10 5% 1/4W F R668 1-249-389-11 CARBON 4.7 5% 1/4W F R670 1-249-420-11 CARBON 1.8K 5% 1/4W F !R671 1-247-815-91 CARBON 220 5% 1/4W R672 1-249-431-11 CARBON 15K 5% 1/4W R673 1-249-437-11 CARBON 47K 5% 1/4W R674 1-249-431-11 CARBON 15K 5% 1/4W R701 1-249-421-11 CARBON 2.2K 5% 1/4W F R702 1-249-438-11 CARBON 56K 5% 1/4W R703 1-249-412-11 CARBON 390 5% 1/4W F R704 1-249-438-11 CARBON 56K 5% 1/4W R705 1-247-760-11 CARBON 4.7K 5% 1/2W F R706 1-249-425-11 CARBON 4.7K 5% 1/4W F !R707 1-249-405-11 CARBON 100 5% 1/4W F !R710 1-220-755-11 METAL 0.22 10% 2W R711 1-249-405-11 CARBON 100 5% 1/4W F !R717 1-249-393-11 CARBON 10 5% 1/4W F R718 1-249-389-11 CARBON 4.7 5% 1/4W F !R719 1-249-405-11 CARBON 100 5% 1/4W F R720 1-249-420-11 CARBON 1.8K 5% 1/4W F R721 1-247-815-91 CARBON 220 5% 1/4W !R722 1-249-403-11 CARBON 68 5% 1/4W F R723 1-249-437-11 CARBON 47K 5% 1/4W R724 1-249-425-11 CARBON 4.7K 5% 1/4W F R725 1-249-427-11 CARBON 6.8K 5% 1/4W F R727 1-247-752-11 CARBON 1K 5% 1/2W F R730 1-249-426-11 CARBON 5.6K 5% 1/4W R731 1-249-426-11 CARBON 5.6K 5% 1/4W R732 1-247-753-11 CARBON 1.2K 5% 1/2W F R733 1-247-753-11 CARBON 1.2K 5% 1/2W F R734 1-249-429-11 CARBON 10K 5% 1/4W R751 1-249-421-11 CARBON 2.2K 5% 1/4W F R752 1-249-438-11 CARBON 56K 5% 1/4W R753 1-249-412-11 CARBON 390 5% 1/4W F R754 1-249-438-11 CARBON 56K 5% 1/4W R755 1-247-760-11 CARBON 4.7K 5% 1/2W F R756 1-249-425-11 CARBON 4.7K 5% 1/4W F !R757 1-249-405-11 CARBON 100 5% 1/4W F !R760 1-220-755-11 METAL 0.22 10% 2W !R767 1-249-393-11 CARBON 10 5% 1/4W F R768 1-249-389-11 CARBON 4.7 5% 1/4W F R770 1-249-420-11 CARBON 1.8K 5% 1/4W F R771 1-247-815-91 CARBON 220 5% 1/4W R772 1-249-431-11 CARBON 15K 5% 1/4W R773 1-249-437-11 CARBON 47K 5% 1/4W R774 1-249-431-11 CARBON 15K 5% 1/4W R781 1-247-887-00 CARBON 220K 5% 1/4W R782 1-247-753-11 CARBON 1.2K 5% 1/2W F R783 1-247-753-11 CARBON 1.2K 5% 1/2W F R791 1-249-441-11 CARBON 100K 5% 1/4W R792 1-249-441-00 CARBON 100K 5% 1/4W !R803 1-247-739-11 CARBON 100 5% 1/2W F R804 1-249-425-11 CARBON 4.7K 5% 1/4W F !R810 1-249-381-11 CARBON 1 5% 1/4W F !R811 1-249-381-11 CARBON 1 5% 1/4W F R821 1-249-437-11 CARBON 47K 5% 1/4W R822 1-249-425-11 CARBON 4.7K 5% 1/4W F R823 1-249-437-11 CARBON 47K 5% 1/4W R824 1-249-425-11 CARBON 4.7K 5% 1/4W F R825 1-249-407-11 CARBON 150 5% 1/4W F !R830 1-249-405-11 CARBON 100 5% 1/4W F !R831 1-249-403-11 CARBON 68 5% 1/4W F R950 1-249-421-11 CARBON 2.2K 5% 1/4W F R951 1-249-429-11 CARBON 10K 5% 1/4W R952 1-247-843-11 CARBON 3.3K 5% 1/4W R953 1-247-863-91 CARBON 22K 5% 1/4W R954 1-249-439-11 CARBON 68K 5% 1/4W R955 1-249-429-11 CARBON 10K 5% 1/4W R956 1-247-843-11 CARBON 3.3K 5% 1/4W R957 1-249-417-11 CARBON 1K 5% 1/4W F R958 1-249-401-11 CARBON 47 5% 1/4W F R960 1-249-429-11 CARBON 10K 5% 1/4W < RELAY > RY601 1-515-921-11 RELAY (12V) RY701 1-515-921-11 RELAY (12V) The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 36 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN RY801 1-755-013-11 RELAY < SFR > SFR501 1-238-599-11 RES, ADJ, CARBON 4.7K < TRANSFORMER > T502 1-234-304-11 ENCAPSULATED COMPONENT T503 1-233-885-11 ENCAPSULATED COMPONENT T504 1-234-305-11 ENCAPSULATED COMPONENT (LPF) T505 1-234-305-11 ENCAPSULATED COMPONENT (LPF) < TERMINAL > TM1 1-537-240-51 TERMINAL BOARD (CHECKER PIN) TM601 1-537-923-11 TERMINAL BOARD (SPEAKER) (6P) TM701 1-537-240-11 TERMINAL BOARD (CHECKER PIN) < VIBRATOR > X501 1-781-385-11 VIBRATOR, CRYSTAL (7.2MHz) ************************************************************** 1-673-708-11 PRIMARY BOARD ************** < CONNECTOR > CNP903 1-564-321-00 PIN, CONNECTOR 2P < FUSE > !F901 1-576-109-11 FUSE (5A/125V) < TRANSFORMER > !T901 1-433-879-11 TRANSFORMER, POWER ************************************************************** 1-673-707-11 SECONDARY BOARD ***************** < CONNECTOR > CNS801 1-764-480-11 PIN, CONNECTOR (PC BOARD) 11P ************************************************************** 1-673-705-11 STANDBY BOARD ************** < CONNECTOR > CNJ902 1-540-057-11 OUTLET, AC (POLAR) CNS301 1-568-828-11 PIN, CONNECTOR (PC BOARD) 9P BOARD < DIODE > D816 8-719-815-85 DIODE 1S1585 < EARTH TERMINAL > * G900 1-537-738-21 TERMINAL, EARTH < RESISTOR > R901 1-202-725-00 SOLID 3.3M 10% 1/2W < RELAY > RY901 1-755-018-11 RELAY < TRANSFORMER > !T901 1-431-258-31 TRANSFORMER, POWER ************************************************************** A-4419-635-A VOL-TONE BOARD, COMPLETE ************************* < CAPACITOR > C420 1-162-207-31 CERAMIC 22PF 5% 50V C426 1-126-795-11 ELECT 10uF 20% 25V C427 1-124-252-00 ELECT 0.33uF 20% 50V C428 1-130-489-00 MYLAR 0.033uF 5% 50V C429 1-102-973-00 CERAMIC 100PF 5% 50V C430 1-104-942-11 ELECT 1uF 20% 50V C431 1-104-942-11 ELECT 1uF 20% 50V C432 1-126-795-11 ELECT 10uF 20% 25V C433 1-126-795-11 ELECT 10uF 20% 25V C470 1-162-207-31 CERAMIC 22PF 5% 50V C475 1-126-795-11 ELECT 10uF 20% 25V C476 1-126-795-11 ELECT 10uF 20% 25V C477 1-124-252-00 ELECT 0.33uF 20% 50V C478 1-130-489-00 MYLAR 0.033uF 5% 50V C479 1-102-973-00 CERAMIC 100PF 5% 50V C492 1-124-464-11 ELECT 0.22uF 20% 50V < CONNECTOR > CNS402 1-695-330-31 PIN, CONNECTOR (PC BOARD) 7P CNS403 1-568-828-11 PIN, CONNECTOR (PC BOARD) 9P < DIODE > D421 8-719-815-85 DIODE 1S1585 < IC > IC404 8-759-634-51 IC M5218AP < TRANSISTOR > Q401 8-729-202-67 TRANSISTOR 2SK246-GR3 Q402 8-729-141-30 TRANSISTOR 2SC3623A-LK Q451 8-729-202-67 TRANSISTOR 2SK246-GR3 Q452 8-729-141-30 TRANSISTOR 2SC3623A-LK < RESISTOR > R425 1-249-429-11 CARBON 10K 5% 1/4W R426 1-249-439-11 CARBON 68K 5% 1/4W R427 1-249-417-11 CARBON 1K 5% 1/4W F R430 1-249-437-11 CARBON 47K 5% 1/4W R431 1-247-843-11 CARBON 3.3K 5% 1/4W R432 1-247-883-00 CARBON 150K 5% 1/4W The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. PRIMARY STANDBY SECONDARY VOL-TONE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 37 – The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Ref. No. Part No. Description Remark R433 1-249-427-11 CARBON 6.8K 5% 1/4W F R434 1-249-413-11 CARBON 470 5% 1/4W F R438 1-249-441-11 CARBON 100K 5% 1/4W R441 1-249-441-11 CARBON 100K 5% 1/4W R464 1-247-903-00 CARBON 1M 5% 1/4W R469 1-247-903-00 CARBON 1M 5% 1/4W R475 1-249-429-11 CARBON 10K 5% 1/4W R476 1-249-439-11 CARBON 68K 5% 1/4W R477 1-249-417-11 CARBON 1K 5% 1/4W F R480 1-249-437-11 CARBON 47K 5% 1/4W R481 1-247-843-11 CARBON 3.3K 5% 1/4W R482 1-247-883-00 CARBON 150K 5% 1/4W R483 1-249-427-11 CARBON 6.8K 5% 1/4W F R484 1-249-413-11 CARBON 470 5% 1/4W F R491 1-249-441-11 CARBON 100K 5% 1/4W R492 1-247-903-00 CARBON 1M 5% 1/4W < VARIABLE RESISTOR > RV404 1-225-229-11 RES, VAR, CARBON 100KX4 (MASTER VOLUME) ************************************************************** MISCELLANEOUS ************* 9 1-782-100-11 WIRE (FLAT TYPE) (23 CORE) 13 1-782-074-11 WIRE (FLAT TYPE) (7 CORE) 14 1-782-075-11 WIRE (FLAT TYPE) (9 CORE) !56 1-783-531-21 CORD, POWER FL201 1-517-141-11 INDICATOR TUBE, FLUORESCENT !T901 1-431-258-31 TRANSFORMER, POWER ************************************************************** ACCESSORIES & PACKING MATERIALS ******************************* 1-475-710-11 COMMANDER, STANDARD (RM-U302) 1-501-374-11 ANTENNA, LOOP 1-501-659-41 ANTENNA (FM) 3-866-100-01 MANUAL, INSTRUCTION (ENGLISH) 4-981-643-01 COVER, BATTERY (for RM-U302) ************************************************************** ************* HARDWARE LIST ************* #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S #2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S #3 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3 #3 7-685-650-91 SCREW +BVTP 3X16 TYPE2 TT(B) #4 7-685-872-09 SCREW +BVTT 3X8 (S) VOL-TONE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 38 – Sony Corporation Home A&V Products Company 9-928-834-11 99D097020-1 Printed in Singapore © 1999. 4 Published by Quality Assurance Dept. (Shinagawa) STR-V220 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
