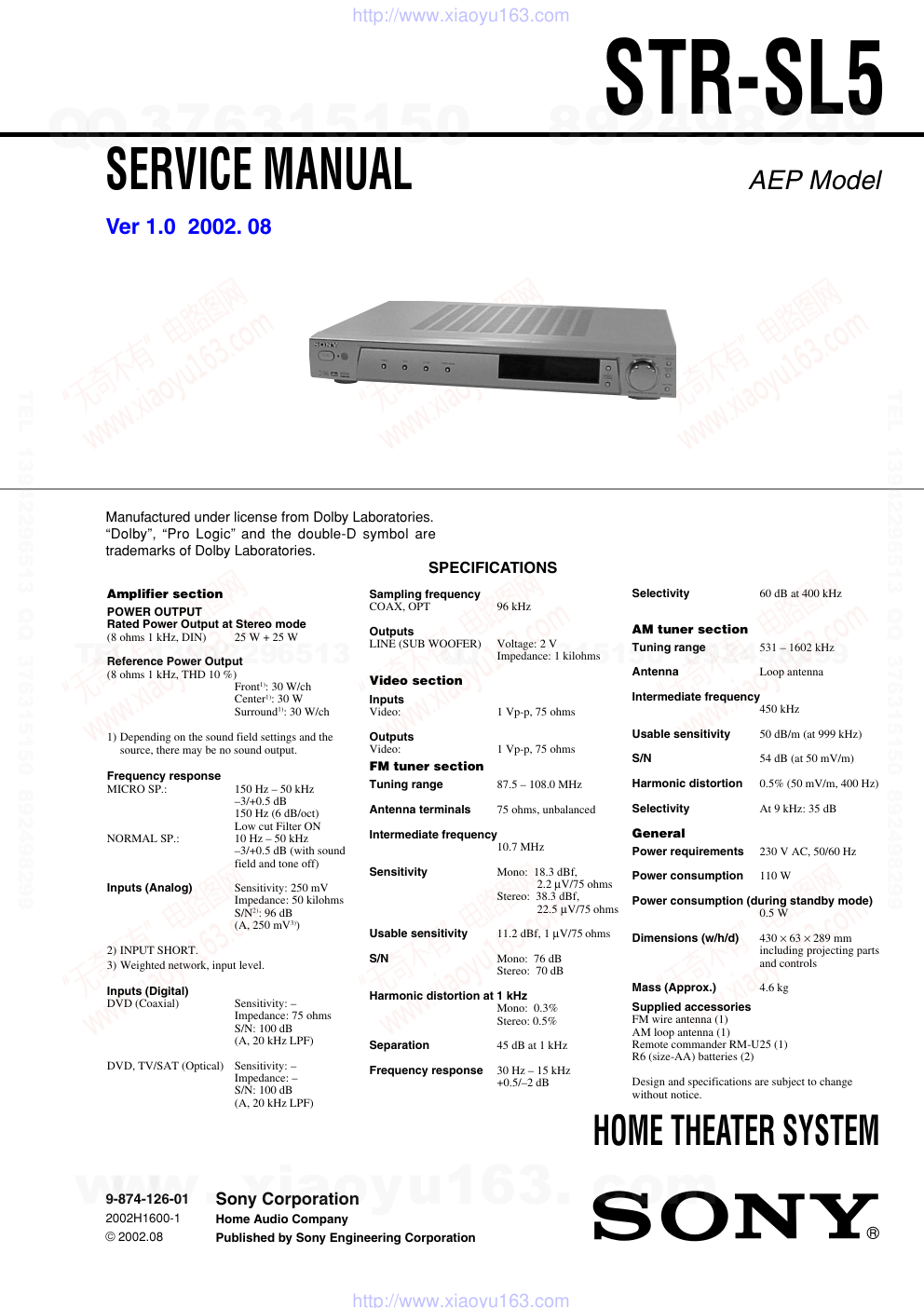

STR-SL5 AEP Model SERVICE MANUAL HOME THEATER SYSTEM Sony Corporation Home Audio Company Published by Sony Engineering Corporation 9-874-126-01 2002H1600-1 © 2002.08 SPECIFICATIONS Ver 1.0 2002. 08 Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories. Amplifier section POWER OUTPUT Rated Power Output at Stereo mode (8 ohms 1 kHz, DIN) 25 W + 25 W Reference Power Output (8 ohms 1 kHz, THD 10 %) Front1): 30 W/ch Center1): 30 W Surround1): 30 W/ch 1) Depending on the sound field settings and the source, there may be no sound output. Frequency response MICRO SP.: 150 Hz – 50 kHz –3/+0.5 dB 150 Hz (6 dB/oct) Low cut Filter ON NORMAL SP.: 10 Hz – 50 kHz –3/+0.5 dB (with sound field and tone off) Inputs (Analog) Sensitivity: 250 mV Impedance: 50 kilohms S/N2): 96 dB (A, 250 mV3)) 2) INPUT SHORT. 3) Weighted network, input level. Inputs (Digital) DVD (Coaxial) Sensitivity: – Impedance: 75 ohms S/N: 100 dB (A, 20 kHz LPF) DVD, TV/SAT (Optical) Sensitivity: – Impedance: – S/N: 100 dB (A, 20 kHz LPF) Sampling frequency COAX, OPT 96 kHz Outputs LINE (SUB WOOFER) Voltage: 2 V Impedance: 1 kilohms Video section Inputs Video: 1 Vp-p, 75 ohms Outputs Video: 1 Vp-p, 75 ohms FM tuner section Tuning range 87.5 – 108.0 MHz Antenna terminals 75 ohms, unbalanced Intermediate frequency 10.7 MHz Sensitivity Mono: 18.3 dBf, 2.2 µV/75 ohms Stereo: 38.3 dBf, 22.5 µV/75 ohms Usable sensitivity 11.2 dBf, 1 µV/75 ohms S/N Mono: 76 dB Stereo: 70 dB Harmonic distortion at 1 kHz Mono: 0.3% Stereo: 0.5% Separation 45 dB at 1 kHz Frequency response 30 Hz – 15 kHz +0.5/–2 dB Selectivity 60 dB at 400 kHz AM tuner section Tuning range 531 – 1602 kHz Antenna Loop antenna Intermediate frequency 450 kHz Usable sensitivity 50 dB/m (at 999 kHz) S/N 54 dB (at 50 mV/m) Harmonic distortion 0.5% (50 mV/m, 400 Hz) Selectivity At 9 kHz: 35 dB General Power requirements 230 V AC, 50/60 Hz Power consumption 110 W Power consumption (during standby mode) 0.5 W Dimensions (w/h/d) 430 × 63 × 289 mm including projecting parts and controls Mass (Approx.) 4.6 kg Design and specifications are subject to change without notice. Supplied accessories FM wire antenna (1) AM loop antenna (1) Remote commander RM-U25 (1) R6 (size-AA) batteries (2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 STR-SL5 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. 1. GENERAL ·········································································· 3 2. TEST MODE ······································································ 4 3. DIAGRAMS ········································································ 6 3-1. Block Diagrams – Main Section – ··························································· 7 – Display/Power Section – ············································ 8 3-2. Printed Wiring Board – Digital Section – ····················· 9 3-3. Schematic Diagram – Digital Section (1/2) – ············· 10 3-4. Schematic Diagram – Digital Section (2/2) – ············· 11 3-5. Printed Wiring Board – AMP Section – ······················ 12 3-6. Schematic Diagram – AMP Section – ························· 13 3-7. Printed Wiring Board – Input Section – ······················ 14 3-8. Schematic Diagram – Input Section – ························· 15 3-9. Printed Wiring Board – Video Section – ····················· 16 3-10. Schematic Diagram – Video Section – ······················· 17 3-11. Printed Wiring Board – Display Section –·················· 18 3-12. Schematic Diagram – Display Section – ···················· 19 3-13. Printed Wiring Board – Power Section – ···················· 20 3-14. Schematic Diagram – Power Section – ······················· 21 3-15. IC Block Diagram ······················································· 22 3-16. IC Pin Function Descriptions······································ 23 4. EXPLODED VIEWS 4-1. Front Panel Section ····················································· 27 4-2. Chassis Section ···························································· 28 5. ELECTRICAL PARTS LIST ······································· 29 Unleaded solder Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.) : LEAD FREE MARK Unleaded solder has the following characteristics. • Unleaded solder melts at a temperature about 40°C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350°C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! • Strong viscosity Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. • Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. TABLE OF CONTENTS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 STR-SL5 SECTION 1 GENERAL This section is extracted from instruction manual. Display 7 (20) DVD 4 (17) IR receptor 2 MASTER VOLUME 9 (17) MUTING qs (17) PLII q; (19) PRESET TUNING +/– 8 (24) SOUND FIELD qa (18, 21) TUNER 6 (17, 23, 24) TV/SAT 5 (17) VIDEO 3 (17) ?/1 (power) 1 (12, 16, 17, 22) Parts Identification Main unit The items are arranged in alphabetical order. Refer to the pages indicated in parentheses ( ) for details. 1 2 3 4 5 6 7 9 q; qs qa 8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 STR-SL5 SECTION 2 TEST MODE FACTORY SET MODE * All preset contents are reset to the default setting. * Procedure: While depressing the VIDEO and the PLII buttons simultaneously, press the power ?/1 button to turn on the main power. The message “FACTORY” appears and switch off the set. Press the power ?/1 button again, and the present contents are reset to the default values. MICRO/NORMAL SPEAKER SELECTION MODE * Either the micro speaker mode or normal speaker mode can be selected. * Procedure While depressing the MUTING button, press the power ?/1 button to turn on the main power. Either the message “MICRO SP.” or “NORM. SP.” appears. Select the desired mode. SOUND FIELD CLEAR MODE * The preset sound field is cleared when this mode is activated. Use this mode before returning the product to clients upon completion of repair. * Procedure: While depressing the SOUND FIELD button, press the power ?/1 button to turn on the main power. The message “S. F. CLR” appears and initialization is performed. ALL CLEAR MODE * The all preset value is cleared when this mode is activated. * Procedure : While depressing the VIDEO and the SOUND FIELD buttons simultaneously, press the power ?/1 button to turn on the main power. The message “INITIAL” appears and clear all preset value. FAN CONTROL MODE * Either the fan auto mode or fan on mode can be selected. * Procedure: While depressing the PLII button, press the power ?/1 button. Either the message “FAN AUTO” or “FAN ON” appears. Select the desired mode. SOFTWARE VERSION DISPLAY MODE * The software version is displayed. * Procedure: While depressing the VIDEO and the MUTING buttons simultaneously, press the power ?/1 button to turn on the main power. The model name, destination and the software version are displayed. KEY CHECK MODE * Button check * Procedure: While depressing the DVD and the MUTING buttons simultaneously, press the power ?/1 button to turn on the main power. “REST 09” appears. Every pressing of any button other than ?/1 counts down the buttons. The buttons which are already counted once are not counted again. When all buttons are pressed “REST 00” appears. FLUORESCENT INDICATOR TUBE TEST MODE * All fluorescent segments are tested. When this test is activated, all segments turn on at the same time, then each segment turns on one after another. * Procedure: While depressing the DVD and the PLII buttons simultaneously, press the power ?/1 button to turn on the main power. 1. All segments turn on. VIDEO , DVD , TV/SAT and TUNER FM/AM LED turn on. 2. Press the VIDEO button, confirm display VIDEO , and TUNER FM/AM LED turn on. 3. Press the VIDEO button, confirm display DVD and TV/SAT LED turn on. 4. Press the VIDEO button, all segments turn off. 5. Every pressing of the VIDEO button turns on each segment and LED one after another in the same order. (Not only the VIDEO button, but also the other buttons such as DVD , TV/SAT , TUNER FM/AM can be used.) TUNER CHECK MODE * Tuner check * Procedure : While depressing the TUNER FM/AM and the MUTING buttons simultaneously, press the power ?/1 button to turn on the main power. TUN CHK appears and the tuner checking is performed. DSP TEST MODE * DSP tests are performed. * Procedure : There are two different methods to enter the test mode. (1) While depressing the DVD and SOUND FIELD buttons simultaneously, press the power ?/1 button to turn on the main power. (2) When the set is turned on, by using the remote controller, press Cursor button three times, then press the MAIN MENU button one time and thenpress the MUTING button one time. • Select the item by pressing Cursor button ( V or v ). • Select the function by pressing Cursor button ( B or b ). L SW SL SR SSB C R L F E OPT COAX MULTI CH IN 12 MEMORY SLEEP RDS MONO STEREO EQ D.RANGE dB kHz mft. MHz SP SP A SP B DIGITAL EX PRO LOGIC II DTS-ES NEO : 6 MPEG-2 AAC D D D D L SL SR R COAX 1 MEMORY MONO EQ D.RANGE dB Hz ft. SP A SP B EX II -ES NEO : 6 -2 SW SSB C L F E OPT MULTI CH IN 2 SLEEP RDS STEREO k m MHz SP DIGITAL PRO LOGIC DTS MPEG AAC D D D D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 STR-SL5 Items SWAP DSP Version DSP communication Bass Management Main Speaker cut off Freq. LFE cut off Freq. Co-ef. Read Address Co-ef. Read Data Co-ef. Write Address Co-ef. Write Data SRAM Total operation time Longest Power ON time Output time less than –50dB volume Output time less than –40dB volume Output time less than –30dB volume Output time less than –20dB volume Output time less than –10dB volume Output time less than 0dB volume Protector count value Fuse open count value EEPROM CONDITION EEPROM READ EEPROM Super Reset DSP HALT MODE Remark Selection of setting output channels Checking communication between DSP and microcom Checking communication between DSP and SRAM Four large charactors are hour. Two small charactors are minutes. 0 to 255 Description Normal channel output Left input t Front Left, Surround Left, Center channel output Right input t Front Right, Surround Right, Sub Woofer channel output Left input t Center channel output Right input t Sub Woofer channel output Left input t Surround Left channel output Right input t Surround Right channel output “DSPV XXX” is displayed. Three large charactors are the dsp version that is being used. When this item is selected the message will be displayed “ OK ” if the checking is correct. “ ERROR ” will be displayed in a case of an error. Not used for service Not used for service Not used for service Not used for service Not used for service Not used for service Not used for service “ RAMC. OFF ” will be displayed in a case of no checking. By pressing Cursor button the checking starts. “ RAMC. PASS ” will be displayed if the checking is good. “ RAMC. NG ” will be displayed if an error occurs. TTL-XXXX xx is displayed. LNG-XXXX xx is displayed. V50-XXXX xx is displayed. V40-XXXX xx is displayed. V30-XXXX xx is displayed. V20-XXXX xx is displayed. V10-XXXX xx is displayed. V00-XXXX xx is displayed. PROTXXXX xx is displayed. FUSEXXXX xx is displayed. E- XXXX is displayed. S RST t Super Reset : first time use EEPROM or test pattern corrupted FAIL t EEPROM read / write with microcom has problem V CHG t Software version change D CHG t Destination / model change CLEAR t Back up data initialize NORM t Normal AC on E- XXX-XX is displayed. First four hex code is EEPROM address (controlled by +/– button). Last two hex code is EEPROM data. S.RST- XXX is displayed. When YES is selected, press Cursor button to clear all EEPROM data HALT NO or HALT YES is displayed. Function NORM ALL C SW SLSR – – – – – – – – – OFF ON – – – – – – – – – – – – – – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 STR-SL5 SECTION 3 DIAGRAMS • Circuit Boards Location DIGITAL board INPUT board AMPLIFIER board VIDEO board DISPLAY board IR board POWER SW board STANDBY board FM/AM tuner For schematic diagrams. Note: • All capacitors are in µF unless otherwise noted. p : pF. 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • % : indicates tolerance. • f : internal component. • 2 : nonflammable resistor. • C : panel designation. • A : B+ Line. • B : B– Line. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. No mark : FM • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. • Circled numbers refer to waveforms. • Signal path. F : ANALOG J : DIGITAL c : DVD THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this necessary note is printed in each block.) C B These are omitted. E Q B These are omitted. C E For printed wiring boards. Note: • X : parts extracted from the component side. • a : Through hole. • : Pattern from the side which enables seeing. Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Caution: Pattern face side: Parts on the pattern face side seen from (Side A) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Side B) the parts face are indicated. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 7 STR-SL5 3-1. Block Diagrams – Main Section – 9 MCLK1 12 MCLK2 69 28 29 22 30 20 19 23 24 25 18 GP8 5 DIN2 LRCKI2 BCKI2 KFSIO SDI2 BCKO 29 VIDEO-MUTE 26 VIDEO-SW2 22 VIDEO-SW1 LRCK SDO1 SDO2 SDO3 SDI1 4 5 6 7 8 9 BCKO 43 CDT1 LRCK SDTI1 SDTI2 SDTI3 27 28 23 25 26 LOUT1 ROUT1 LOUT3 LOUT2 ROUT2 24 ROUT3 SDT0 14 SCKOUT 6 CS 59 2 32 33 34 35 36 56 39 MCLK1 AUDIO INTERFACE OUTPUT CIRCUIT MUTE Q361-366 VOLUME SELECTOR AMP ATT AMP INPUT CIRCUIT PROTECT DET Q730-732 FUNCTION MUTE SW Q1601, 1602 MUTE DRIVE Q379 42 CCLK 41 CS 13 CS 12 SCL 10 CDT1 14 DATA 15 CLK 16 LATCH EXLOCK XRST HACN HDIN HCLK HDOUT HCS BST 68 GP9 113 PM 6 5 19 20 18 4 3 XRST HACN 3 17 S.MUTE PD 9 8 SMUTE PD 24 21 ANA/DIG F.MUTE HDIN HCLK HDOUT HCS BST 2 GP9 7 PM 67 PROTECTOR 72 FRONT RELAY 71 CENTER RELAY 70 REAR RELAY 64 FAN_ON 17 WOOFER RELAY 44 CSO 24 AUDIO 15 LRCK 14 BCK 17 WE 45 WEO X1201 13.5MHz A0-A15 21 XOUT 4 OUT 1 IN 22 XIN X1101 12.288MHz A0-A15 27 28 31 29 30 32 DLIN DRIN DCIN DSLIN DSRIN DSWIN 20 21 22 DATA CLK LATCH 51 55 39 47 43 35 69 76 71 74 LOUT ROUT COUT SLOUT SROUT SWOUT LIN5 RIN5 LIN7 RIN7 L-CH R-CH C-CH SL-CH SR-CH SW-CH L-CH R-CH C-CH SL-CH SR-CH 30 LIN+ 32 RIN+ 10 9 11 13 12 4 10 5 2 3 1 ALOUT ARPUT 23 DVDD +3.3V REG Q401 OPTICAL RECEIVER +7V D1601 D1101 L J402 R DVD AUDIO IN L R 62 59 61 60 LIN1 RIN1 LREC1 REC1 L J401 R L R J251 TV/SAT AUDIO IN VIDEO AUDIO IN VIDEO AUDIO OUT 6 5 7 IC1502 2 3 1 IC1502 6 5 7 IC1552 BIAS 2 3 1 IC1552 MONITOR OUT J252 VIDEO IN J301 DVD COAX J403 SUB WOOFER DVD OPTICAL J254 DVD IN TV/SAT IN J253 VIDEO OUT J255 IC1601 (1/2) SYSTEM CONTROL IC201 VIDEO SWITCH IC401 INPUT SELECT, VOLUME CONT IC1101 DIGITAL AUDIO I/F RECEIVER IC701 FL AMP 4 OUT 1 IN IC751 FR AMP 4 OUT 1 IN IC501 C AMP 4 OUT 1 IN IC601 SL AMP 4 OUT 1 IN IC651 SR AMP IC1501 CODEC IC1201 AUDIO DSP IC1202 SDRAM IC303 IC302 11 10 3 DIN0 OPTICAL RECEIVER TV/SAT OPTICAL IC301 4 DIN1 IC303 9 8 13 CKOUT AUDIO LRCK BCK CKOUT AUDIO LRCK BCK CKOUT 16 DATAO 17 XSATE 34 ERROR 35 DO 36 DI 37 CE 38 CLK 47 CKSE1 48 XMODE SW-CH 7 OUT 5 IN IC402 SW AMP FAN ON/OFF DET Q550, 551 RELAY SW Q402 RELAY SW Q520, 620, 720 RY701 RY501 RY601 RY401 74 STEREO 73 TUNED 76 DO 75 MUTE 78 SLATCH STEREO TUNED DI SCLK DO MUTE LATCH L CH 1 8 LIN8 RIN8 L CH R CH TM901 TUNER UNIT R CH MUTE STEREO TUNED CE ST-DI ST-DO CLK L CH R CH MUTE STEREO TUNED LATCH DI DO SCLK DATAO 94 CKSEL1 93 XMODE 96 CE 95 CLK 98 DO 97 DI 100 XSTATE 1 DATAO 99 ERROR L TM701 R L TM601 R FRONT CENTER REAR SPEAKERS • Signal Path : ANALOG : DIGITAL : DVD w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 8 STR-SL5 – Display/Power Section – 60 59 VOL(A) VOL(B) 5 6 SDA SCL 41 A/D3 1 3 VOL ENCODER IC1601(2/2) SYSTEM CONTROL RV101 54 28 27 1 3 REMOTE CONTROL RECEIVER +3.3V (STBY) +5V +3.3V (STBY) IC102 2 1 RESET IC1602 IC1604 EEPROM FUKCTION KEY S111-115 FL101 FLUORESCENT INDICATOR TUBE 40 A/D2 FUKCTION KEY S101-104 S118 POWER ON/OFF FLASH PROGRAMMING CNS3 56 POWER KEY 82 XO SIRCS 83 XI FLASH1 FLASH2 X1601 16MHz 49 51 MD0 MD2 69 F_CTRL1 68 F_CTRL2 65 FAN_CLK 66 POWER RELAY 48 STOP 33 SCL 34 SDA 2 4 1B 2A IC101 BUFFER IC152 FL/LED DRIVE 61 DIN 63 FL_STB 62 CLK 6 2Y 8 3Y 3 1Y 3 DVD LED 2 TV LED 1 AUX LED 4 VIDEO LED SEG1-16 1 1A 9 10 3A 3B 5 2B 8 7 CLK DIN 9 STB 77 RSTX 1 3 -5V REG IC406 GRID1-12 F2 F2 F1 F1 F2 F1 14-29 42-31 D151-154 FAN901 FAN CONTOROL Q861-865 FAN CLK Q866 D801-804 +,-RECT D805-808 +RECT -5V (VIDEO) 1 3 -7V REG IC404 -7V 1 3 +7V REG IC403 +7V 1 3 +10V REG IC1902 +10V (TUNER) 1 3 +3.3V REG IC1904 RELAY DRIVE Q951 STOP DET Q901 +3.3V (STBY) 1 3 +5V REG IC1503 4 2 5 +3.3V/+2.5V REG IC1901 +5V +3.3V +2.5V AUDIO+ -27V 1 3 +5V REG IC1903 +5V 1 3 +5V REG IC405 +5V (VIDEO) D809 +,-RECT AMP+V AMP-V D952-955 STBY +REC D810, 811 -RECT D956, 957 +RECT AC IN F901 T901 T902 RY901 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 9 STR-SL5 3-2. Printed Wiring Board – Digital Section – • : Uses unleaded solder. IC1903 IC1904 IC1902 IC1503 IC1901 IC1101 IC1501 IC1201 IC1601 IC1202 IC1502 IC1552 IC1602 IC1604 TUNER UNIT C1227 C1914 C1913 C1305 C1304 C1314 TU901 14 14 18 12 C1640 • See page 6 for Circuit Boards Location. Ref. No. Location D1101 B-3 D1501 B-10 D1502 B-10 D1601 E-1 D1905 F-8 D1906 F-8 D1907 E-8 IC1101 B-4 IC1201 C-3 IC1202 C-4 IC1501 B-2 IC1502 B-1 IC1503 C-10 IC1552 C-1 IC1601 E-2 IC1602 F-2 IC1604 F-2 IC1901 F-8 IC1902 F-7 IC1903 F-9 IC1904 E-7 Q1601 E-1 Q1602 E-1 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 10 STR-SL5 3-3. Schematic Diagram – Digital Section (1/2) – • See page 11 for Wavefoms. • See page 22 for IC Block Diagrams. • See page 23 for IC Pin Function Description. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 11 STR-SL5 3-4. Schematic Diagram – Digital Section (2/2) – • Waveforms – DIGITAL Board – 1 IC1201 9 (MCLK1) 2 IC1101 wa (XOUT) 3 IC1601 is (XO) 40ns/div 1V/div 40ns/div 1V/div 40ns/div 1V/div 3.6 Vp-p 74 nsec 2.9 Vp-p 62.5 nsec 81.3 nsec 4.2 Vp-p • See page 25 for IC Pin Function Description. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 12 STR-SL5 3-5. Printed Wiring Board – AMP Section – • : Uses unleaded solder. IC501 IC601 IC701 IC751 IC651 R791 R741 R643 R642 R641 C641 C643 C642 C791 C741 9 20 20 20 14 14 • See page 6 for Circuit Boards Location. Ref. No. Location D520 E-8 D521 A-5 D550 A-2 D620 E-8 D621 A-5 D720 A-8 D721 A-2 D731 A-5 D801 E-3 D802 E-3 D803 E-2 D804 E-2 D805 E-1 D806 E-1 D807 E-1 D808 E-1 D809 F-3 D810 E-2 D811 E-2 D812 F-2 D813 E-2 IC501 D-2 IC601 D-5 IC651 D-7 IC701 B-6 IC751 B-3 Q520 B-7 Q550 B-2 Q551 A-2 Q620 B-7 Q720 A-7 Q730 B-5 Q731 B-5 Q732 B-4 Q861 F-9 Q862 F-8 Q863 F-8 Q864 F-8 Q865 F-6 Q866 F-9 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 13 STR-SL5 3-6. Schematic Diagram – AMP Section – w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 14 STR-SL5 3-7. Printed Wiring Board – Input Section – • : Uses unleaded solder. IC406 IC405 IC403 IC402 IC301 IC404 IC302 IC303 IC401 9 9 9 12 12 16 • See page 6 for Circuit Boards Location. Ref. No. Location D301 B-1 D401 B-7 D403 B-7 D405 B-5 IC301 A-1 IC302 A-2 IC303 B-1 IC401 B-3 IC402 C-5 IC403 C-6 IC404 C-6 IC405 B-7 IC406 B-6 Q361 D-7 Q362 D-7 Q363 D-4 Q364 B-4 Q365 D-4 Q366 D-5 Q379 B-4 Q401 B-2 Q402 B-5 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 15 STR-SL5 3-8. Schematic Diagram – Input Section – (CHASSIS) C499 0.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 16 STR-SL5 3-9. Printed Wiring Board – Video Section – • : Uses unleaded solder. IC201 14 • See page 6 for Circuit Boards Location. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 17 STR-SL5 3-10. Schematic Diagram – Video Section – • See page 22 for IC Block Diagrams. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 18 STR-SL5 3-11. Printed Wiring Board – Display Section – • : Uses unleaded solder. IC152 IC101 IC102 S112 PRESET TUNING TUNER FM/AM TV/SAT 9 12 13 • See page 6 for Circuit Boards Location. • Semiconductor Location Ref. No. Location D151 B-13 D152 B-12 D153 B-11 D154 B-10 IC101 A-9 IC152 A-7 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 19 STR-SL5 3-12. Schematic Diagram – Display Section – • See page 22 for IC Block Diagrams. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 20 STR-SL5 3-13. Printed Wiring Board – Power Section – • : Uses unleaded solder. R953 12 12 12 • See page 6 for Circuit Boards Location. Ref. No. Location D951 A-1 D952 D-2 D953 D-2 D954 D-1 D955 D-1 D956 D-2 D957 D-2 Q901 D-3 Q951 D-2 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 21 STR-SL5 3-14. Schematic Diagram – Power Section – (CHASSIS) C925 0.1 TIME-LAG w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 22 STR-SL5 3-15. IC Block Diagram 38 37 36 23 24 1 2 3 4 5 44 8 9 10 46 17 22 21 20 30 35 25 26 27 28 29 32 33 34 16 45 13 14 15 47 40 41 48 CL 39 XSEL CE DI EMPHA AUDIO DISEL DOUT DINO DINI DIN2 6 DGND 7 DVDD 11 AVDD 12 AGND DOSEL0 R VIN LPF CKSEL0 XSTATE 18 DGND 19 DVDD XIN XOUT XMCK DVDD 31 DGND DO CSFLAG F0/P0/C0 F1/P1/C1 F2/P2/C2 VF/P3/C3 AUTO BPSYNC ERROR DATAO DOSEL1 CKOUT BCK LRCK CKSEL1 MODE0 MODE1 42 DGND 43 DVDD XMODE TIMING MICROCOMPUTER INTERFACE SAMPLING FREQUENCY C BIT DETECT PA/PB DETECT LOCK DETECT SYSTEM RESET MODE SELECT INPUT CIRCUIT DATA DEMODULATOR PLL CLOCK – DIGITAL Board – IC1101 LC89056W-E VIN3 V- 14 SW2 13 VIN1 12 MUTE1 11 VOUT1 10 NC 9 V+ 8 1 SW1 2 AMP VIN2 3 MUTE2 4 VOUT2 5 GND2 6 GND1 7 AMP – VIDEO Board – IC201 NJM2279D 11 KEY2 10 KEY1 9 STB 8 CLK 7 DIN 6 DOUT 5 DSC 4 VIDEO LED 3 DVD LED 2 TV LED 1 33 AUX LED GRID10 32 GRID11 31 GRID12 30 VEE 29 SEG16 28 SEG15 27 SEG14 26 SEG13 25 SEG12 24 SEG11 23 SEG10 44 12 VSS VSS 13 VDD 14 SEG1 15 SEG2 16 SEG3 17 SEG4 18 SEG5 19 SEG6 20 SEG7 21 SEG8 22 SEG9 43 VDD 42 GRID1 41 GRID2 40 GRID3 39 GRID4 38 GRID5 37 GRID6 36 GRID7 35 GRID8 34 GRID9 SERIAL INTERFACE 24-bit OUTPUT LATCH DATA SELECTOR 12-bit SHIFT REGISTER 4-bit LATCH DISPLAY MEMORY 24 bits x 12 words KEY DATA MEMORY (2 x 16 bits) TIMING GENERATOR KEY SCAN COMMAND DECODER GRID DIRVER MULTIPLEXED DRIVER DIMMING CIRCUIT OSC OSC R SEGMENT DRIVER – DISPLAY Board – IC152 µPD16315GB-3BS 1 2 3 4 5 6 7 8 9 10 11 33 32 31 30 29 28 27 26 25 24 23 12 13 14 15 16 17 18 19 20 21 22 44 43 42 41 40 39 38 37 36 35 34 FORMAT CONVERTER AUDIO INTERFACE INPUT CIRCUIT OUTPUT CIRCUIT LOOP1 LOOP0/SDA/CDTI DIF1/SCL/CCLK DIF0/CSN P/SN MCLK DZF1 AVSS AVDD VREFH VCOM DZF2 RIN+ RIN– LIN+ LIN– ROUT1 LOUT1 ROUT2 LOUT2 ROUT3 LOUT3 DEM1 DEM0 TVDD DVDD DVSS PDN ICKS2 ICKS1 ICKS0 CAD1 CAD0 SDOS I2C SMUTE BICK LRCK SDTI1 SDTI2 SDTI3 SDTO DAUX DFS IC1501 AK4527 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 STR-SL5 3-16. IC Pin Function Descriptions • IC1201 CXD9617R (AUDIO DSP) (DIGITAL BOARD) Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23-25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 I/O — I I I — I O — I — — I/O I O I/O — I/O I O O — I/O O O O I I I — O I I O I O O O — — O O O O — I — I O — O Pin Name VSS XRST EXTIN FS2 VDD1 FS1 PLOCK VSS MCLK1 VDD1 VSS MCLK2 MS SCKOUT LRCKI1 VDDE BCKI1 SDI1 LRCKO BCKO VSS KFSIO SDO1-SDO3 SDO4 SPDIF LRCKI2 BCKI2 SDI2 VSS HACN HDIN HCLK HDOUT HCS SDCLK CLKEN RAS VDDI VSS CAS DQM/OE0 CSO WEO VDDE WMD1 VSS WMD0 PAGE2 VSS PAGE1 Description Ground terminal Rest input from the system control Not used (Ground) Not used (Ground) +2.5V Not used (Ground) Internal PLL lock signal output (TP1201) Ground terminal Clock pulse input +2.5V Ground terminal Clock pulse input-output Not used (Ground) Internal system and clock power output to the CODEC (IC1501) Not used +3.3V Bit clock input-output terminal for audio interface serial data (TP1202) Data input from the CODEC (IC1501) Sampling clock output to the CODEC (IC1501) Bit clock output to the CODEC (IC1501) Ground terminal Audio clock (384fs/256fs) input from the DIR (IC1101) Serial data output to the CODEC (IC1501) Serial data output terminal (TP1203) SPDIF power output terminal (TP1204) Sampling clock input to the DIR (IC1101) Bit clock input from the DIR (IC1101) Data input from the DIR (IC1101) Ground terminal Acknowledge output to the system control (IC1601) Serial data input from the system control (IC1601) Clock input from the system control (IC1601) Serial data output to the system control (IC1601) Chip selection input from the system control (IC1601) SDRAM clock (TP1205) SDRAM clock enable (TP1206) Row address strobing (TP1207) +2.5V Ground terminal Column address strobing (TP1208) Data I/O mask (TP1209) Chip selection output to the SRAM (IC1202) Write enable output to the SRAM (IC1202) +3.3V Setting for external memory WAIT mode (pull up) Ground terminal Setting for external memory WAIT mode (pull up) ERAM page switch (TP1210) Ground terminal ERAM page switch (TP1211) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 STR-SL5 Pin No. 53 54 55 56 57 58 59 60 61 62 63 64-66 67-69 70 71 72-75 76 77-80 81 82-85 86 87 88 89 90 91 92-97 98,99 100 101 102-105 106 107,108 109,110 111 112 113 114 115 116 117-119 120 Pin Name PAGE0 BOOT BTACT BST MOD1 MOD0 EXLOCK VDDI VSS A17 A16 A15-A13 GP10-GP8 VDDI VSS D15-D12 VDDE D11-D8 VSS A9-A10 TDO TMS XTRST TCK TDI VSS A8-A3 D7,D6 VDDI VSS D5-D2 VDDE D1,D0 A2,A1 VSS A0 PM SD13 SD14 SYNC VSS VDDI I/O O I O I I I I — — O O O I/O — — I/O — I/O — O O I I I I — O I/O — — I/O — I/O O — O I I I I — — Description ERAM page switch (TP1212) Not used (Ground) Boot mode status display signal (TP1213) Boot strap signal input from the system control (IC1601) Setting for 256fs (pllx9) (pull up) Setting for single chip mode (pull down) Lock signal input terminal +2.5V Ground terminal External memory address (TP1214) External memory address (TP1215) Address signal output to the SRAM (IC1202) External memory data I/O general purpose port terminal GP +2.5V Ground terminal SRAM (IC1202) data signal I/O terminal +3.3V SRAM (IC1202) data signal I/O terminal Ground terminal Address signal output to the SRAM (IC1202) Simple emulation data output (TP1216) Simple emulation data entry beginning and the end terminal (TP1217) Asynchronous simple BREAK input terminal of emulation (TP1218) Simple emulation clock input (TP1219) Simple emulation data entry (TP1220) Ground terminal Address signal output to the SRAM (IC1202) SRAM (IC1202) data signal I/O terminal +2.5V Ground terminal SRAM (IC1202) data signal I/O terminal +3.3V SRAM (IC1202) data signal I/O terminal Address signal output to the SRAM (IC1202) Ground terminal Address signal output to the SRAM (IC1202) PLL initialization input from the system control (IC1601) Data entry terminal (TP1221) Data entry terminal (TP1222) Synchronization / asynchronous selection terminal (L:Sync. H:Async.) Ground terminal +2.5V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 STR-SL5 Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 I/O I I O O I O O O O O — O O O O O O I O O O O — O I O I I O I I I O I/O — — — I I I I — I I I I I I I I Pin Name DATA O GP9 BEST HCS HACN XRST PM PD SMUTE CDT1 VSS SCL CS DATA CLK LATCH WOOFER RELAY HDOUT HDIN HCLK F MUTE VIDEO SW1 VCC5 ANA/DIG HD DETECT VIDEO SW2 FLASH2 FLASH1 VIDEO MUTE MODE 2CH AFD SCL SDA AVCC AVRH AVSS A/D0 A/D1 A/D2 A/D3 VSS NOT IN USE MODEL VERSION NC CRYSTAL SEL STOP MD0 MD1 Description Data input from the DIR (IC1101) External memory data input from the DSP (IC1201) Boot strap signal output to the DSP (IC1201) Chip selection signal output to the DSP (IC1201) Acknowledge signal input from the DSP (IC1201) Reset signal output to the DSP (IC1201) PLL initialization signal output to the DSP (IC1201) PD signal output to the CODEC (IC1501) Smute signal output to the CODEC (IC1501) CDT1 signal output to the CODEC (IC1501) Ground terminal Serial clock signal output to the CODEC (IC1501) Chip selection signal output to the CODEC (IC1501) Serial control data output to the tuner and IC401 Serial control clock output to the tuner and IC401 Latch signal to the IC401 Sub woofer relay control signal output Serial data input from the DSP (IC1201) Serial data output to the DSP (IC1201) Clock signal output to the DSP (IC1201) Function mute signal output Video switch signal output to the IC201 +3.3V (STBY) Function mute and error port signal output Not used Video switch signal output to the IC201 Flash programming input Flash programming input Video mute signal output to the IC201 Not used Not used Not used SCL signal output to the EEPROM (IC1604) SDA signal from the EEPROM (IC1604) +3.3V(STBY) +3.3V(STBY) Ground terminal Not used Not used Key data signal input from S101-104 Key data signal input from S111-115 Ground terminal Ground terminal Model detection input (Ground terminal) Version resisrtor input (Ground terminal) Not used Not used Stop programming signal input Flash programming MD0 input Not used (connected to +3.3V(STBY)) • IC1601MB90478PF-G-129-BND (SYSTEM CONTROL) (DIGITAL BOARD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 STR-SL5 Pin No. 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87-92 93 94 95 96 97 98 99 100 Pin Name MD2 NOT IN USE NOT IN USE SIRCS FUSE DETECT POWER KEY JOG(B) JOG(A) VOL(B) VOL(A) DIN CLK FL_STB FAN_ON FAN_CLK POWER RELAY PROTECTOR F_CTRL2 F_CTRL1 REAR RELAY CENTER RELAY FRONT RELAY TUNED STEREO MUTE DO RSTX SLATCH X1A X0A VSS XO XI VCC3 NOT IN USE NC NOT IN USE XMODE CKSEL1 CLK CE DI DO ERROR XSTATE I/O I I I I I I I I I I O O O I I O I O O O O O I I O I I O — — — O I — I I I O O O O O I I I Description Flash programming MD2 input Ground terminal Ground terminal Data input from the remote control receiver Connected to +3.3V through the resistor (47k ohm) Power swich detection signal input Not used Not used Volume signal input from the rotary encoder Volume signal input from the rotary encoder Serial control data output to the FL/LED driver (IC152) Clock signal output to the FL/LED driver (IC152) STB signal output to the FL/LED driver (IC152) Fan on detection signal input Feedback signal input from the fan (FAN901) Power relay drive signal output Protect detection signal input Fan speed control signal output Fan ON/OFF control signal output Surround relay drive signal output Center relay drive signal output Front relay drive signal output Tuning a frequency detection signal input from the tuner STEREO tuning signal from the tuner Muting control signal output from the tuner Data input from the tuner System reset input Serial control latch signal output to the tuner Not used Not used (connected to ground terminal) Ground terminal Terminal for a oscillator Terminal for a oscillator +3.3V (STBY) Not used Not used Not used Reset signal output to DIR (IC1101) Not used Clock signal output to DIR (IC1101) Chip enable signal output to DIR (IC1101) Write data output to DIR (IC1101) Read data input from DIR (IC1101) “PLL lock error, data error flag input from DIR (IC1101)” Source clock selection monitor input from DIR (IC1101) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SECTION 4 EXPLODED VIEWS NOTE: • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Accessories are given in the last of this parts list. 27 STR-SL5 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 1 8 7 5 chassis section 8 6 8 9 9 10 8 #1 #1 not supplied not supplied 1 #1 2 4 1 4-977-358-01 CUSHION 2 4-241-511-01 KNOB (VOL) 3 X-4955-124-1 PANEL ASSY, FRONT 4 3-354-981-11 SPRING (SUS), RING 5 1-685-654-11 IR BOARD 6 1-773-045-11 WIRE (FLAT TYPE) (17 CORE) 4-1. Front Panel Section 7 A-4729-864-A DISPLAY BOARD, COMPLETE 8 4-951-620-01 SCREW (2.6X8), +BVTP 9 3-070-883-11 SCREW, TAPPING 10 4-241-509-01 CASE #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 STR-SL5 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks #1 #1 #1 #1 #1 #1 #1 #1 #1 #3 #1 #1 55 56 58 57 62 59 65 61 51 53 54 63 T901 FAN901 TU901 F901 64 64 66 60 61 not supplied 4-2. Chassis Section 51 A-4729-851-A AMPLIFIER BOARD, COMPLETE 53 4-943-687-01 HOLDER, PC BOARD 54 1-685-650-11 STANDBY BOARD * 55 3-703-244-00 BUSHING (2104), CORD 056 1-777-071-22 CORD, POWER 57 A-4730-957-A DIGITAL BOARD, COMPLETE 58 1-773-106-11 WIRE (FLAT TYPE) (19 CORE) 59 1-773-207-11 WIRE (FLAT TYPE) (25 CORE) 60 1-769-904-11 WIRE (FLAT TYPE) (9 CORE) 61 1-769-876-11 WIRE (FLAT TYPE) (7 CORE) 62 A-4729-852-A INPUT BOARD, COMPLETE 63 1-685-653-11 VIDEO BOARD 64 4-965-822-01 FOOT 65 4-214-557-11 CUSHION 66 1-765-325-11 WIRE (FLAT TYPE) (11 CORE) 0F901 1-532-463-51 FUSE 1A/250V (TIME-LAG) FAN901 1-763-561-21 FAN, D.C. 0T901 1-437-862-11 TRANSFORMER, POWER TU901 1-693-580-21 TUNER #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 #3 7-685-880-09 SCREW +BVTT 4X6 (S) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 SECTION 5 ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • CAPACITORS: uF: µF • COILS uH: µH • RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable STR-SL5 When indicating parts by reference number, please include the board name. • SEMICONDUCTORS In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD... The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. A-4729-851-A AMPLIFIER BOARD, COMPLETE ************************** 3-531-576-11 RIVET 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3 7-685-872-09 SCREW +BVTT 3X8 (S) < CAPACITOR > C501 1-126-963-11 ELECT 4.7uF 20.00% 50V C502 1-162-282-31 CERAMIC 100PF 10% 50V C503 1-162-282-31 CERAMIC 100PF 10% 50V C504 1-162-195-31 CERAMIC 4.7PF 10.00% 50V C506 1-126-960-11 ELECT 1uF 20.00% 50V C507 1-113-342-11 CERAMIC 0.1uF 50V C508 1-126-960-11 ELECT 1uF 20.00% 50V C509 1-126-933-11 ELECT 100uF 20.00% 16V C510 1-113-342-11 CERAMIC 0.1uF 50V C511 1-136-157-00 FILM 0.022uF 5.00% 50V C561 1-126-963-11 ELECT 4.7uF 20.00% 50V C562 1-126-960-11 ELECT 1uF 20.00% 50V C563 1-126-960-11 ELECT 1uF 20.00% 50V C564 1-126-963-11 ELECT 4.7uF 20.00% 50V C565 1-126-933-11 ELECT 100uF 20.00% 16V C601 1-126-963-11 ELECT 4.7uF 20.00% 50V C602 1-162-282-31 CERAMIC 100PF 10% 50V C603 1-162-282-31 CERAMIC 100PF 10% 50V C604 1-162-195-31 CERAMIC 4.7PF 10.00% 50V C606 1-126-960-11 ELECT 1uF 20.00% 50V C607 1-113-342-11 CERAMIC 0.1uF 50V C608 1-126-960-11 ELECT 1uF 20.00% 50V C609 1-126-933-11 ELECT 100uF 20.00% 16V C610 1-113-342-11 CERAMIC 0.1uF 50V C611 1-136-157-00 FILM 0.022uF 5.00% 50V C641 1-130-483-00 MYLAR 0.01uF 5% 50V C642 1-130-483-00 MYLAR 0.01uF 5% 50V C643 1-130-483-00 MYLAR 0.01uF 5% 50V C651 1-126-963-11 ELECT 4.7uF 20.00% 50V C652 1-162-282-31 CERAMIC 100PF 10% 50V C653 1-162-282-31 CERAMIC 100PF 10% 50V C654 1-162-195-31 CERAMIC 4.7PF 10.00% 50V C656 1-126-960-11 ELECT 1uF 20.00% 50V C657 1-113-342-11 CERAMIC 0.1uF 50V C658 1-126-960-11 ELECT 1uF 20.00% 50V C659 1-126-933-11 ELECT 100uF 20.00% 16V C660 1-113-342-11 CERAMIC 0.1uF 50V C661 1-136-157-00 FILM 0.022uF 5.00% 50V C701 1-126-963-11 ELECT 4.7uF 20.00% 50V C702 1-162-282-31 CERAMIC 100PF 10% 50V C703 1-162-282-31 CERAMIC 100PF 10% 50V C704 1-162-195-31 CERAMIC 4.7PF 10.00% 50V C706 1-126-960-11 ELECT 1uF 20.00% 50V C707 1-113-342-11 CERAMIC 0.1uF 50V C708 1-126-960-11 ELECT 1uF 20.00% 50V C709 1-126-933-11 ELECT 100uF 20.00% 16V C710 1-113-342-11 CERAMIC 0.1uF 50V C711 1-136-157-00 FILM 0.022uF 5.00% 50V C730 1-126-934-11 ELECT 220uF 20.00% 10V C732 1-136-165-00 FILM 0.1uF 5.00% 50V C741 1-130-483-00 MYLAR 0.01uF 5% 50V C751 1-126-963-11 ELECT 4.7uF 20.00% 50V C752 1-162-282-31 CERAMIC 100PF 10% 50V C753 1-162-282-31 CERAMIC 100PF 10% 50V C754 1-162-195-31 CERAMIC 4.7PF 10.00% 50V C756 1-126-960-11 ELECT 1uF 20.00% 50V C757 1-113-342-11 CERAMIC 0.1uF 50V C758 1-126-960-11 ELECT 1uF 20.00% 50V C759 1-126-933-11 ELECT 100uF 20.00% 16V C760 1-113-342-11 CERAMIC 0.1uF 50V C761 1-136-157-00 FILM 0.022uF 5.00% 50V C791 1-130-483-00 MYLAR 0.01uF 5% 50V C801 1-136-169-00 MYLAR 0.22uF 5.00% 50V C802 1-136-169-00 MYLAR 0.22uF 5.00% 50V C811 1-126-943-11 ELECT 2200uF 20.00% 25V C812 1-126-942-61 ELECT 1000uF 20.00% 25V C813 1-101-001-00 CERAMIC 0.001uF 50V C814 1-101-001-00 CERAMIC 0.001uF 50V C815 1-130-495-00 MYLAR 0.1uF 5% 50V C816 1-130-495-00 MYLAR 0.1uF 5% 50V C817 1-126-936-11 ELECT 3300uF 20.00% 16V C818 1-126-955-11 ELECT 4700uF 20.00% 35V C819 1-126-955-11 ELECT 4700uF 20.00% 35V C820 1-126-948-11 ELECT 100uF 20.00% 35V C821 1-126-967-11 ELECT 47uF 20.00% 50V C871 1-126-933-11 ELECT 100uF 20.00% 16V < CONNECTOR > CN801 1-691-767-11 PLUG (MICRO CONNECTOR) 5P * CN802 1-564-508-11 PLUG, CONNECTOR 5P CN820 1-770-479-11 PLUG,CONNECTOR PIN(PC BOARD)4P CN821 1-784-922-11 PIN, CONNECTOR 5P CN822 1-784-780-11 CONNECTOR, FFC 19P CN823 1-568-828-11 CONNECTOR, FFC 9P CN861 1-779-978-11 PIN, CONNECTOR 3P AMPLIFIER Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 30 STR-SL5 < DIODE > D520 8-719-911-19 DIODE 1SS133T-72 D521 8-719-911-19 DIODE 1SS133T-72 D550 8-719-911-19 DIODE 1SS133T-72 D620 8-719-911-19 DIODE 1SS133T-72 D621 8-719-911-19 DIODE 1SS133T-72 D720 8-719-911-19 DIODE 1SS133T-72 D721 8-719-911-19 DIODE 1SS133T-72 D731 8-719-911-19 DIODE 1SS133T-72 D801 8-719-024-99 DIODE 11ES2-NTA2B D802 8-719-024-99 DIODE 11ES2-NTA2B D803 8-719-024-99 DIODE 11ES2-NTA2B D804 8-719-024-99 DIODE 11ES2-NTA2B D805 8-719-024-99 DIODE 11ES2-NTA2B D806 8-719-024-99 DIODE 11ES2-NTA2B D807 8-719-024-99 DIODE 11ES2-NTA2B D808 8-719-024-99 DIODE 11ES2-NTA2B D809 8-719-028-23 DIODE D3SBA20-4101 D810 8-719-024-99 DIODE 11ES2-NTA2B D811 8-719-024-99 DIODE 11ES2-NTA2B D812 8-719-934-21 DIODE HZS30-1LTA D813 8-719-109-85 DIODE MTZJ-T-72-5.1B < IC > IC501 8-759-502-33 IC SI-18752 IC601 8-759-502-33 IC SI-18752 IC651 8-759-502-33 IC SI-18752 IC701 8-759-502-33 IC SI-18752 IC751 8-759-502-33 IC SI-18752 < COIL > L507 1-422-009-13 COIL, AIR-CORE L607 1-422-009-13 COIL, AIR-CORE L657 1-422-009-13 COIL, AIR-CORE L707 1-422-009-13 COIL, AIR-CORE L757 1-422-009-13 COIL, AIR-CORE < TRANSISTOR > Q520 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q550 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q551 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q620 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q720 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q730 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q731 8-729-140-82 TRANSISTOR 2SA988TP-PAFAEA Q732 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA Q861 8-729-140-97 TRANSISTOR 2SB734-T-34 Q862 8-729-900-63 TRANSISTOR BN1F4M-TP Q863 8-729-900-63 TRANSISTOR BN1F4M-TP Q864 8-729-111-29 TRANSISTOR 2SD1616-TP-LK Q865 8-729-900-63 TRANSISTOR BN1F4M-TP Q866 8-729-900-63 TRANSISTOR BN1F4M-TP < RESISTOR > R501 1-247-807-31 CARBON 100 5% 1/4W R502 1-249-433-11 CARBON 22K 5% 1/4W R503 1-249-407-11 CARBON 150 5% 1/4W F R504 1-249-407-11 CARBON 150 5% 1/4W F R505 1-249-433-11 CARBON 22K 5% 1/4W R507 1-249-389-11 CARBON 4.7 5% 1/4W F R508 1-249-437-11 CARBON 47K 5% 1/4W R509 1-249-393-11 CARBON 10 5% 1/4W F R510 1-249-434-11 CARBON 27K 5% 1/4W R522 1-249-425-11 CARBON 4.7K 5% 1/4W F R540 1-249-401-11 CARBON 47 5% 1/4W F R551 1-249-441-11 CARBON 100K 5% 1/4W R552 1-247-843-11 CARBON 3.3K 5% 1/4W R553 1-249-429-11 CARBON 10K 5% 1/4W R554 1-249-416-11 CARBON 820 5% 1/4W F R555 1-249-425-11 CARBON 4.7K 5% 1/4W F R556 1-249-439-11 CARBON 68K 5% 1/4W R557 1-247-887-00 CARBON 220K 5% 1/4W R558 1-249-441-11 CARBON 100K 5% 1/4W R601 1-247-807-31 CARBON 100 5% 1/4W R602 1-249-433-11 CARBON 22K 5% 1/4W R603 1-249-407-11 CARBON 150 5% 1/4W F R604 1-249-407-11 CARBON 150 5% 1/4W F R605 1-249-433-11 CARBON 22K 5% 1/4W R607 1-249-389-11 CARBON 4.7 5% 1/4W F R608 1-249-437-11 CARBON 47K 5% 1/4W R609 1-249-393-11 CARBON 10 5% 1/4W F R610 1-249-434-11 CARBON 27K 5% 1/4W R622 1-249-425-11 CARBON 4.7K 5% 1/4W F R640 1-249-401-11 CARBON 47 5% 1/4W F 0R641 1-249-393-11 CARBON 10 5% 1/4W F 0R642 1-249-393-11 CARBON 10 5% 1/4W F 0R643 1-249-393-11 CARBON 10 5% 1/4W F R651 1-247-807-31 CARBON 100 5% 1/4W R652 1-249-433-11 CARBON 22K 5% 1/4W R653 1-249-407-11 CARBON 150 5% 1/4W F R654 1-249-407-11 CARBON 150 5% 1/4W F R655 1-249-433-11 CARBON 22K 5% 1/4W R657 1-249-389-11 CARBON 4.7 5% 1/4W F R658 1-249-437-11 CARBON 47K 5% 1/4W R659 1-249-393-11 CARBON 10 5% 1/4W F R660 1-249-434-11 CARBON 27K 5% 1/4W R701 1-247-807-31 CARBON 100 5% 1/4W R702 1-249-433-11 CARBON 22K 5% 1/4W R703 1-249-407-11 CARBON 150 5% 1/4W F R704 1-249-407-11 CARBON 150 5% 1/4W F R705 1-249-433-11 CARBON 22K 5% 1/4W R707 1-249-389-11 CARBON 4.7 5% 1/4W F R708 1-249-437-11 CARBON 47K 5% 1/4W R709 1-249-393-11 CARBON 10 5% 1/4W F R710 1-249-434-11 CARBON 27K 5% 1/4W R722 1-249-425-11 CARBON 4.7K 5% 1/4W F R730 1-249-427-11 CARBON 6.8K 5% 1/4W F R731 1-249-429-11 CARBON 10K 5% 1/4W R732 1-249-435-11 CARBON 33K 5% 1/4W R733 1-249-437-11 CARBON 47K 5% 1/4W R740 1-249-401-11 CARBON 47 5% 1/4W F 0R741 1-249-393-11 CARBON 10 5% 1/4W F AMPLIFIER The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 31 STR-SL5 R750 1-249-417-11 CARBON 1K 5% 1/4W F R751 1-247-807-31 CARBON 100 5% 1/4W R752 1-249-433-11 CARBON 22K 5% 1/4W R753 1-249-407-11 CARBON 150 5% 1/4W F R754 1-249-407-11 CARBON 150 5% 1/4W F R755 1-249-433-11 CARBON 22K 5% 1/4W R757 1-249-389-11 CARBON 4.7 5% 1/4W F R758 1-249-437-11 CARBON 47K 5% 1/4W R759 1-249-393-11 CARBON 10 5% 1/4W F R760 1-249-434-11 CARBON 27K 5% 1/4W 0R791 1-249-393-11 CARBON 10 5% 1/4W F 0R831 1-249-409-11 CARBON 220 5% 1/4W F R832 1-249-433-11 CARBON 22K 5% 1/4W R881 1-249-419-11 CARBON 1.5K 5% 1/4W F R882 1-249-417-11 CARBON 1K 5% 1/4W F R883 1-249-421-11 CARBON 2.2K 5% 1/4W F R884 1-249-429-11 CARBON 10K 5% 1/4W R885 1-247-807-31 CARBON 100 5% 1/4W R886 1-249-429-11 CARBON 10K 5% 1/4W R887 1-249-425-11 CARBON 4.7K 5% 1/4W F R888 1-247-807-31 CARBON 100 5% 1/4W 0R910 1-249-443-11 CARBON 0.47 5% 1/4W < RELAY > RY501 1-755-170-11 RELAY (12V) RY601 1-755-170-11 RELAY (12V) RY701 1-755-170-11 RELAY (12V) < TERMINAL > TM601 1-694-674-12 TERMINAL BOARD (6P) (SPEAKERS REAR/CENTER) TM701 1-694-677-12 TERMINAL BOARD (4P) (SPEAKERS FRONT) ************************************************************ A-4730-957-A DIGITAL BOARD, COMPLETE *********************** 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 < CAPACITOR > C1101 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1102 1-126-947-11 ELECT 47uF 20.00% 16V C1103 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1104 1-162-974-11 CERAMIC CHIP 0.01uF 50V C1105 1-126-947-11 ELECT 47uF 20.00% 16V C1106 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1107 1-162-974-11 CERAMIC CHIP 0.01uF 50V C1108 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1109 1-162-918-11 CERAMIC CHIP 18PF 5.00% 50V C1110 1-162-918-11 CERAMIC CHIP 18PF 5.00% 50V C1111 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1112 1-162-974-11 CERAMIC CHIP 0.01uF 50V C1113 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1129 1-115-416-11 CERAMIC CHIP 0.001uF 5.00% 25V C1131 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C1201 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1202 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1203 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1204 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1205 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1206 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1207 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1208 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1209 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1210 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1211 1-126-935-11 ELECT 470uF 20.00% 10V C1212 1-126-935-11 ELECT 470uF 20.00% 10V C1213 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1214 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1216 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C1218 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C1219 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1220 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C1227 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1229 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1230 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1231 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1309 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1310 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1311 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1312 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1501 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C1502 1-126-965-91 ELECT 22uF 20.00% 50V C1503 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1504 1-126-964-11 ELECT 10uF 20.00% 50V C1505 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1506 1-126-935-11 ELECT 470uF 20.00% 10V C1507 1-126-964-11 ELECT 10uF 20.00% 50V C1508 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1509 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1510 1-126-947-11 ELECT 47uF 20.00% 16V C1511 1-162-974-11 CERAMIC CHIP 0.01uF 50V C1512 1-115-416-11 CERAMIC CHIP 0.001uF 5.00% 25V C1513 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1514 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1515 1-126-964-11 ELECT 10uF 20.00% 50V C1522 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1551 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C1552 1-126-965-91 ELECT 22uF 20.00% 50V C1601 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1602 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1603 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1604 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1605 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1606 1-126-947-11 ELECT 47uF 20.00% 16V C1610 1-162-974-11 CERAMIC CHIP 0.01uF 50V C1611 1-162-974-11 CERAMIC CHIP 0.01uF 50V C1612 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1615 1-162-995-11 CERAMIC CHIP 0.022uF 50V C1616 1-162-995-11 CERAMIC CHIP 0.022uF 50V C1617 1-162-974-11 CERAMIC CHIP 0.01uF 50V C1618 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1619 1-164-156-11 CERAMIC CHIP 0.1uF 25V AMPLIFIER DIGITAL The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 32 STR-SL5 C1626 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1627 1-126-964-11 ELECT 10uF 20.00% 50V C1632 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1635 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1640 1-128-934-91 CERAMIC CHIP 0.33uF 20% 10V C1905 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1906 1-126-935-11 ELECT 470uF 20.00% 10V C1908 1-126-935-11 ELECT 470uF 20.00% 10V C1909 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1910 1-126-935-11 ELECT 470uF 20.00% 10V C1911 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1912 1-126-935-11 ELECT 470uF 20.00% 10V C1913 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1914 1-126-947-11 ELECT 47uF 20.00% 16V < CONNECTOR > CN6 1-784-780-11 CONNECTOR, FFC 19P CN7 1-568-830-11 CONNECTOR, FFC 11P CN9 1-568-826-11 CONNECTOR, FFC 7P CNS1 1-784-786-11 CONNECTOR, FFC 25P * CNS3 1-784-923-11 PIN, CONNECTOR 7P CNS4 1-784-778-11 CONNECTOR, FFC 17P < DIODE > D1101 8-719-016-74 DIODE 1SS352-TPH3 D1501 8-719-049-09 DIODE 1SS367-T3SONY D1502 8-719-049-09 DIODE 1SS367-T3SONY D1601 8-719-016-74 DIODE 1SS352-TPH3 D1905 8-719-053-18 DIODE 1SR154-400TE-25 D1906 8-719-053-18 DIODE 1SR154-400TE-25 D1907 8-719-053-18 DIODE 1SR154-400TE-25 < FERRITE BEAD > FB1102 1-414-813-11 FERRITE 0UH FB1104 1-469-152-11 FERRITE 0UH FB1105 1-469-152-11 FERRITE 0UH FB1201 1-414-813-11 FERRITE 0UH FB1203 1-469-152-11 FERRITE 0UH FB1204 1-469-152-11 FERRITE 0UH FB1205 1-469-450-21 INDUCTOR 0UH FB1501 1-414-813-11 FERRITE 0UH FB1502 1-414-813-11 FERRITE 0UH FB1601 1-414-813-11 FERRITE 0UH FB1602 1-216-864-11 METAL CHIP 0 5% 1/16W FB1603 1-216-864-11 METAL CHIP 0 5% 1/16W < EARTH TERMINAL > * G1101 1-537-738-21 TERMINAL, EARTH < IC > IC1101 8-759-825-15 IC LC89056W-E IC1201 8-759-698-76 IC CXD9617R IC1202 6-700-983-01 IC IS61LV6416-15T(ICSI) IC1501 8-759-657-47 IC AK4527 IC1502 8-759-710-97 IC NJM4565M(TE2) IC1503 8-759-231-53 IC TA7805S IC1552 8-759-710-97 IC NJM4565M(TE2) IC1601 6-802-028-01 IC MB90478PF-G-129-BND IC1602 8-759-714-20 IC S-80929ANMP-DDS-T2 IC1604 8-759-641-86 IC BR24C16F-E2 IC1901 6-701-887-01 IC SI-3001KWF IC1902 8-759-473-41 IC BA10T IC1903 8-759-647-11 IC uPC2905HF IC1904 8-759-647-10 IC uPC2933HF < JUMPER RESISTOR > JR1103 1-216-864-11 METAL CHIP 0 5% 1/16W JR1104 1-216-864-11 METAL CHIP 0 5% 1/16W JR1118 1-211-950-11 SHORT CHIP 0 JR1121 1-216-864-11 METAL CHIP 0 5% 1/16W JR1200 1-211-950-11 SHORT CHIP 0 JR1210 1-216-864-11 METAL CHIP 0 5% 1/16W < COIL > L1901 1-216-864-11 METAL CHIP 0 5% 1/16W < TRANSISTOR > Q1601 8-729-421-22 TRANSISTOR UN2211-TX Q1602 8-729-230-49 TRANSISTOR 2SC2712-YG-TE85L < RESISTOR > R1100 1-216-857-11 METAL CHIP 1M 5% 1/16W R1101 1-216-833-11 METAL CHIP 10K 5% 1/16W R1102 1-216-833-11 METAL CHIP 10K 5% 1/16W R1103 1-216-809-11 METAL CHIP 100 5% 1/16W R1104 1-216-809-11 METAL CHIP 100 5% 1/16W R1105 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R1106 1-216-839-11 METAL CHIP 33K 5% 1/16W R1107 1-216-830-11 METAL CHIP 5.6K 5% 1/16W R1108 1-216-809-11 METAL CHIP 100 5% 1/16W R1110 1-216-821-11 METAL CHIP 1K 5% 1/16W R1111 1-216-821-11 METAL CHIP 1K 5% 1/16W R1112 1-216-809-11 METAL CHIP 100 5% 1/16W R1113 1-216-821-11 METAL CHIP 1K 5% 1/16W R1114 1-216-809-11 METAL CHIP 100 5% 1/16W R1115 1-216-833-11 METAL CHIP 10K 5% 1/16W R1124 1-216-809-11 METAL CHIP 100 5% 1/16W R1202 1-216-864-11 METAL CHIP 0 5% 1/16W R1203 1-216-833-11 METAL CHIP 10K 5% 1/16W R1204 1-216-821-11 METAL CHIP 1K 5% 1/16W R1205 1-216-809-11 METAL CHIP 100 5% 1/16W R1206 1-216-809-11 METAL CHIP 100 5% 1/16W R1207 1-216-809-11 METAL CHIP 100 5% 1/16W R1208 1-216-809-11 METAL CHIP 100 5% 1/16W R1209 1-216-864-11 METAL CHIP 0 5% 1/16W R1210 1-216-833-11 METAL CHIP 10K 5% 1/16W R1212 1-216-813-11 METAL CHIP 220 5% 1/16W R1213 1-216-813-11 METAL CHIP 220 5% 1/16W R1214 1-216-813-11 METAL CHIP 220 5% 1/16W R1215 1-216-813-11 METAL CHIP 220 5% 1/16W R1216 1-216-813-11 METAL CHIP 220 5% 1/16W R1217 1-216-813-11 METAL CHIP 220 5% 1/16W R1218 1-216-813-11 METAL CHIP 220 5% 1/16W DIGITAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 33 STR-SL5 R1219 1-216-813-11 METAL CHIP 220 5% 1/16W R1220 1-216-813-11 METAL CHIP 220 5% 1/16W R1221 1-216-813-11 METAL CHIP 220 5% 1/16W R1222 1-216-813-11 METAL CHIP 220 5% 1/16W R1304 1-216-841-11 METAL CHIP 47K 5% 1/16W R1305 1-216-841-11 METAL CHIP 47K 5% 1/16W R1308 1-216-821-11 METAL CHIP 1K 5% 1/16W R1314 1-216-864-11 METAL CHIP 0 5% 1/16W R1364 1-216-864-11 METAL CHIP 0 5% 1/16W R1501 1-216-815-11 METAL CHIP 330 5% 1/16W R1502 1-216-833-11 METAL CHIP 10K 5% 1/16W R1503 1-216-833-11 METAL CHIP 10K 5% 1/16W R1504 1-216-815-11 METAL CHIP 330 5% 1/16W R1505 1-216-830-11 METAL CHIP 5.6K 5% 1/16W R1506 1-216-837-11 METAL CHIP 22K 5% 1/16W R1507 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R1508 1-216-845-11 METAL CHIP 100K 5% 1/16W R1509 1-216-809-11 METAL CHIP 100 5% 1/16W R1516 1-216-864-11 METAL CHIP 0 5% 1/16W R1517 1-216-864-11 METAL CHIP 0 5% 1/16W R1518 1-216-864-11 METAL CHIP 0 5% 1/16W R1519 1-216-864-11 METAL CHIP 0 5% 1/16W R1520 1-216-864-11 METAL CHIP 0 5% 1/16W R1521 1-216-864-11 METAL CHIP 0 5% 1/16W R1551 1-216-815-11 METAL CHIP 330 5% 1/16W R1552 1-216-833-11 METAL CHIP 10K 5% 1/16W R1553 1-216-833-11 METAL CHIP 10K 5% 1/16W R1554 1-216-815-11 METAL CHIP 330 5% 1/16W R1555 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R1556 1-216-833-11 METAL CHIP 10K 5% 1/16W R1557 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R1600 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R1601 1-216-821-11 METAL CHIP 1K 5% 1/16W R1602 1-216-821-11 METAL CHIP 1K 5% 1/16W R1603 1-216-821-11 METAL CHIP 1K 5% 1/16W R1604 1-216-809-11 METAL CHIP 100 5% 1/16W R1605 1-216-809-11 METAL CHIP 100 5% 1/16W R1606 1-216-821-11 METAL CHIP 1K 5% 1/16W R1607 1-216-821-11 METAL CHIP 1K 5% 1/16W R1608 1-216-821-11 METAL CHIP 1K 5% 1/16W R1609 1-216-821-11 METAL CHIP 1K 5% 1/16W R1610 1-216-821-11 METAL CHIP 1K 5% 1/16W R1611 1-216-821-11 METAL CHIP 1K 5% 1/16W R1612 1-216-821-11 METAL CHIP 1K 5% 1/16W R1613 1-216-821-11 METAL CHIP 1K 5% 1/16W R1614 1-216-821-11 METAL CHIP 1K 5% 1/16W R1615 1-216-821-11 METAL CHIP 1K 5% 1/16W R1616 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R1617 1-216-809-11 METAL CHIP 100 5% 1/16W R1618 1-216-809-11 METAL CHIP 100 5% 1/16W R1619 1-216-809-11 METAL CHIP 100 5% 1/16W R1620 1-216-833-11 METAL CHIP 10K 5% 1/16W R1621 1-216-821-11 METAL CHIP 1K 5% 1/16W R1624 1-216-833-11 METAL CHIP 10K 5% 1/16W R1625 1-216-833-11 METAL CHIP 10K 5% 1/16W R1626 1-216-833-11 METAL CHIP 10K 5% 1/16W R1627 1-216-833-11 METAL CHIP 10K 5% 1/16W R1628 1-216-833-11 METAL CHIP 10K 5% 1/16W R1629 1-216-833-11 METAL CHIP 10K 5% 1/16W R1630 1-216-833-11 METAL CHIP 10K 5% 1/16W R1631 1-216-809-11 METAL CHIP 100K 5% 1/16W R1632 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R1633 1-216-841-11 METAL CHIP 47K 5% 1/16W R1635 1-216-833-11 METAL CHIP 10K 5% 1/16W R1636 1-216-833-11 METAL CHIP 10K 5% 1/16W R1637 1-216-833-11 METAL CHIP 10K 5% 1/16W R1638 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R1639 1-216-821-11 METAL CHIP 1K 5% 1/16W R1640 1-216-821-11 METAL CHIP 1K 5% 1/16W R1641 1-216-821-11 METAL CHIP 1K 5% 1/16W R1642 1-216-833-11 METAL CHIP 10K 5% 1/16W R1643 1-216-821-11 METAL CHIP 1K 5% 1/16W R1644 1-216-821-11 METAL CHIP 1K 5% 1/16W R1645 1-216-821-11 METAL CHIP 1K 5% 1/16W R1646 1-216-821-11 METAL CHIP 1K 5% 1/16W R1647 1-216-821-11 METAL CHIP 1K 5% 1/16W R1648 1-216-821-11 METAL CHIP 1K 5% 1/16W R1649 1-216-821-11 METAL CHIP 1K 5% 1/16W R1650 1-216-833-11 METAL CHIP 10K 5% 1/16W R1651 1-216-833-11 METAL CHIP 10K 5% 1/16W R1654 1-216-833-11 METAL CHIP 10K 5% 1/16W R1655 1-216-833-11 METAL CHIP 10K 5% 1/16W R1656 1-216-821-11 METAL CHIP 1K 5% 1/16W R1657 1-216-833-11 METAL CHIP 10K 5% 1/16W R1658 1-216-809-11 METAL CHIP 100 5% 1/16W R1659 1-216-833-11 METAL CHIP 10K 5% 1/16W R1660 1-216-833-11 METAL CHIP 10K 5% 1/16W R1662 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R1663 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R1664 1-216-809-11 METAL CHIP 100 5% 1/16W R1665 1-216-809-11 METAL CHIP 100 5% 1/16W R1666 1-216-833-11 METAL CHIP 10K 5% 1/16W R1667 1-216-821-11 METAL CHIP 1K 5% 1/16W R1671 1-216-833-11 METAL CHIP 10K 5% 1/16W R1672 1-216-833-11 METAL CHIP 10K 5% 1/16W R1673 1-216-821-11 METAL CHIP 1K 5% 1/16W R1674 1-216-821-11 METAL CHIP 1K 5% 1/16W R1676 1-216-833-11 METAL CHIP 10K 5% 1/16W R1677 1-216-833-11 METAL CHIP 10K 5% 1/16W R1678 1-216-833-11 METAL CHIP 10K 5% 1/16W R1679 1-216-833-11 METAL CHIP 10K 5% 1/16W R1680 1-216-833-11 METAL CHIP 10K 5% 1/16W R1681 1-216-833-11 METAL CHIP 10K 5% 1/16W R1682 1-216-845-11 METAL CHIP 100K 5% 1/16W R1683 1-216-821-11 METAL CHIP 1K 5% 1/16W R1684 1-216-833-11 METAL CHIP 10K 5% 1/16W R1685 1-216-833-11 METAL CHIP 10K 5% 1/16W R1686 1-216-833-11 METAL CHIP 10K 5% 1/16W R1687 1-216-833-11 METAL CHIP 10K 5% 1/16W R1688 1-216-809-11 METAL CHIP 100 5% 1/16W R1689 1-216-833-11 METAL CHIP 10K 5% 1/16W R1690 1-216-833-11 METAL CHIP 10K 5% 1/16W R1694 1-216-821-11 METAL CHIP 1K 5% 1/16W R1697 1-216-864-11 METAL CHIP 0 5% 1/16W R1698 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R1699 1-216-829-11 METAL CHIP 4.7K 5% 1/16W DIGITAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 34 STR-SL5 R1703 1-216-833-11 METAL CHIP 10K 5% 1/16W R1704 1-216-833-11 METAL CHIP 10K 5% 1/16W R1707 1-216-833-11 METAL CHIP 10K 5% 1/16W R1708 1-216-833-11 METAL CHIP 10K 5% 1/16W < VIBRATOR > X1101 1-795-126-21 VIBRATOR, CRYSTAL 12.288MHz X1201 1-795-297-21 VIBRATOR, CERAMIC 13.5MHz X1601 1-781-356-21 VIBRATOR, CERAMIC 16MHz ************************************************************ A-4729-864-A DISPLAY BOARD, COMPLETE ************************ * 3-386-245-13 HOLDER (FL) * 4-921-941-01 CUSHION (FL) < CAPACITOR > C141 1-126-964-11 ELECT 10uF 20.00% 50V C142 1-127-888-11 CERAMIC 0.1uF 10% 50V C143 1-162-294-31 CERAMIC 0.001uF 10% 50V C150 1-127-888-11 CERAMIC 0.1uF 10% 50V C151 1-126-964-11 ELECT 10uF 20.00% 50V C152 1-162-282-31 CERAMIC 100PF 10% 50V C153 1-162-215-31 CERAMIC 47PF 5% 50V C154 1-162-215-31 CERAMIC 47PF 5% 50V C155 1-162-294-31 CERAMIC 0.001uF 10% 50V C156 1-162-294-31 CERAMIC 0.001uF 10% 50V C157 1-126-964-11 ELECT 10uF 20.00% 50V C158 1-127-888-11 CERAMIC 0.1uF 10% 50V C159 1-127-888-11 CERAMIC 0.1uF 10% 50V < CONNECTOR > CN151 1-784-778-11 CONNECTOR, FFC 17P CN152 1-784-921-11 PIN, CONNECTOR 4P < DIODE > D151 8-719-058-64 DIODE SEL5823A-TP15 (VIDEO) D152 8-719-058-64 DIODE SEL5823A-TP15 (DVD) D153 8-719-058-64 DIODE SEL5823A-TP15 (TV/SAT) D154 8-719-058-64 DIODE SEL5823A-TP15 (TUNER FM/AM) < FLUORESCENT INDICATOR TUBE > FL101 1-518-831-11 INDICATOR TUBE, FLUORESCENT < IC > IC101 8-759-036-90 IC MC74ACT08N IC152 8-759-643-83 IC uPD16315GB-3BS < COIL > L102 1-410-525-11 INDUCTOR 220uH < RESISTOR > R161 1-249-417-11 CARBON 1K 5% 1/4W F R162 1-249-417-11 CARBON 1K 5% 1/4W F R163 1-249-413-11 CARBON 470 5% 1/4W F R176 1-249-409-11 CARBON 220 5% 1/4W F R178 1-249-440-11 CARBON 82K 5% 1/4W R191 1-249-413-11 CARBON 470 5% 1/4W F R192 1-249-417-11 CARBON 1K 5% 1/4W F R193 1-249-417-11 CARBON 1K 5% 1/4W F R194 1-249-421-11 CARBON 2.2K 5% 1/4W F < VARIABLE RESISTOR > RV101 1-418-725-41 ENCODER, ROTARY (12 TYPE) (MASTER VOLUME) < SWITCH > S101 1-771-349-21 SWITCH, KEYBOARD (VIDEO) S102 1-771-349-21 SWITCH, KEYBOARD (DVD) S103 1-771-349-21 SWITCH, KEYBOARD (TV/SAT) S104 1-771-349-21 SWITCH, KEYBOARD (TUNER FM/AM) S111 1-771-349-21 SWITCH, KEYBOARD (PL II) S112 1-771-349-21 SWITCH, KEYBOARD (SOUND FIELD) S113 1-771-349-21 SWITCH, KEYBOARD (MUTING) S114 1-771-349-21 SWITCH, KEYBOARD (PRESET TUNING +) S115 1-771-349-21 SWITCH, KEYBOARD (PRESET TUNING -) ************************************************************ A-4729-852-A INPUT BOARD, COMPLETE ********************** < CAPACITOR > C301 1-127-888-11 CERAMIC 0.1uF 10% 50V C302 1-127-888-11 CERAMIC 0.1uF 10% 50V C303 1-162-294-31 CERAMIC 0.001uF 10% 50V C304 1-127-888-11 CERAMIC 0.1uF 10% 50V C305 1-126-965-91 ELECT 22uF 20.00% 50V C306 1-127-888-11 CERAMIC 0.1uF 10% 50V C307 1-162-187-31 CERAMIC 1PF 20.00% 50V C309 1-126-916-11 ELECT 1000uF 20.00% 6.3V C310 1-127-888-11 CERAMIC 0.1uF 10% 50V C311 1-126-964-11 ELECT 10uF 20.00% 50V C371 1-161-494-00 CERAMIC 0.022uF 25V C372 1-161-494-00 CERAMIC 0.022uF 25V C373 1-161-494-00 CERAMIC 0.022uF 25V C374 1-127-888-11 CERAMIC 0.1uF 10% 50V C375 1-161-494-00 CERAMIC 0.022uF 25V C376 1-161-494-00 CERAMIC 0.022uF 25V C404 1-126-964-11 ELECT 10uF 20.00% 50V C405 1-126-964-11 ELECT 10uF 20.00% 50V C406 1-126-964-11 ELECT 10uF 20.00% 50V C408 1-126-964-11 ELECT 10uF 20.00% 50V C413 1-126-964-11 ELECT 10uF 20.00% 50V C414 1-126-964-11 ELECT 10uF 20.00% 50V C415 1-126-964-11 ELECT 10uF 20.00% 50V C416 1-126-964-11 ELECT 10uF 20.00% 50V C417 1-126-964-11 ELECT 10uF 20.00% 50V C418 1-126-964-11 ELECT 10uF 20.00% 50V C419 1-126-964-11 ELECT 10uF 20.00% 50V C433 1-126-964-11 ELECT 10uF 20.00% 50V C440 1-127-888-11 CERAMIC 0.1uF 10% 50V C441 1-127-888-11 CERAMIC 0.1uF 10% 50V C442 1-104-665-11 ELECT 100uF 20.00% 10V C443 1-104-665-11 ELECT 100uF 20.00% 10V C444 1-127-888-11 CERAMIC 0.1uF 10% 50V C445 1-127-888-11 CERAMIC 0.1uF 10% 50V INPUT DISPLAY DIGITAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 35 STR-SL5 C446 1-126-947-11 ELECT 47uF 20.00% 25V C447 1-126-947-11 ELECT 47uF 20.00% 25V C454 1-126-964-11 ELECT 10uF 20.00% 50V C455 1-126-964-11 ELECT 10uF 20.00% 50V C456 1-126-964-11 ELECT 10uF 20.00% 50V C458 1-126-964-11 ELECT 10uF 20.00% 50V C464 1-127-888-11 CERAMIC 0.1uF 10% 50V C465 1-126-934-11 ELECT 220uF 20.00% 10V C466 1-126-964-11 ELECT 10uF 20.00% 50V C467 1-127-888-11 CERAMIC 0.1uF 10% 50V C471 1-126-963-11 ELECT 4.7uF 20.00% 50V C472 1-126-963-11 ELECT 4.7uF 20.00% 50V C481 1-126-964-11 ELECT 10uF 20.00% 50V C482 1-126-964-11 ELECT 10uF 20.00% 50V C483 1-126-964-11 ELECT 10uF 20.00% 50V C484 1-126-964-11 ELECT 10uF 20.00% 50V C485 1-126-964-11 ELECT 10uF 20.00% 50V C486 1-126-964-11 ELECT 10uF 20.00% 50V C487 1-126-964-11 ELECT 10uF 20.00% 50V C488 1-127-888-11 CERAMIC 0.1uF 10% 50V C489 1-128-809-11 CERAMIC 100PF 5% 50V C490 1-128-809-11 CERAMIC 100PF 5% 50V C491 1-126-964-11 ELECT 10uF 20.00% 50V C492 1-126-964-11 ELECT 10uF 20.00% 50V C493 1-126-964-11 ELECT 10uF 20.00% 50V C494 1-126-964-11 ELECT 10uF 20.00% 50V C495 1-126-964-11 ELECT 10uF 20.00% 50V C496 1-126-963-11 ELECT 4.7uF 20.00% 50V C497 1-128-809-11 CERAMIC 100PF 5% 50V C498 1-162-211-31 CERAMIC 33PF 5% 50V C499 1-127-888-11 CERAMIC 0.1uF 10% 50V CC04 1-128-809-11 CERAMIC 100PF 5% 50V CC05 1-128-809-11 CERAMIC 100PF 5% 50V CC06 1-128-809-11 CERAMIC 100PF 5% 50V CC08 1-128-809-11 CERAMIC 100PF 5% 50V CC54 1-128-809-11 CERAMIC 100PF 5% 50V CC55 1-128-809-11 CERAMIC 100PF 5% 50V CC56 1-128-809-11 CERAMIC 100PF 5% 50V CC58 1-128-809-11 CERAMIC 100PF 5% 50V < CONNECTOR > CN301 1-568-826-11 CONNECTOR, FFC 7P CN401 1-568-828-11 CONNECTOR, FFC 9P CN402 1-568-826-11 CONNECTOR, FFC 7P CN403 1-784-786-11 CONNECTOR, FFC 25P < DIODE > D301 8-719-911-19 DIODE 1SS133T-72 D401 8-719-043-76 DIODE AK04V1 D403 8-719-043-76 DIODE AK04V1 D405 8-719-911-19 DIODE 1SS133T-72 < FERRITE BEAD > FB301 1-410-396-41 FERRITE 0.45UH FB302 1-410-396-41 FERRITE 0.45UH < IC > IC301 6-600-014-01 IC TORX141L (DIGITAL SAT OPTICAL) IC302 6-600-014-01 IC TORX141L (DIGITAL DVD OPTICAL) IC303 8-759-233-64 IC TC74HCU04AF(EL) IC401 6-701-567-01 IC M61511FP-R61G IC402 8-759-636-74 IC NJM4565DD IC403 8-759-649-68 IC uPC78M07AHF IC404 8-759-604-95 IC M5F79M07L IC405 8-759-701-75 IC NJM7805FA IC406 8-759-701-65 IC NJM79M05FA < JACK > J301 1-778-228-11 JACK, PIN 1P (DIGITAL DVD COAX) J401 1-770-614-11 JACK, PIN 4P (VIDEO IN) J402 1-770-614-11 JACK, PIN 4P (TV/SAT/DVD IN) J403 1-770-377-31 JACK, PIN 1P (SUB WOOFER) < TRANSISTOR > Q361 8-729-823-22 TRANSISTOR 2SC3576-AC Q362 8-729-823-22 TRANSISTOR 2SC3576-AC Q363 8-729-823-22 TRANSISTOR 2SC3576-AC Q364 8-729-823-22 TRANSISTOR 2SC3576-AC Q365 8-729-823-22 TRANSISTOR 2SC3576-AC Q366 8-729-823-22 TRANSISTOR 2SC3576-AC Q379 8-729-900-63 TRANSISTOR BN1F4M-TP Q401 8-729-823-22 TRANSISTOR 2SC3576-AC Q402 8-729-119-79 TRANSISTOR 2SC2785TP-FEK < RESISTOR > R301 1-247-807-31 CARBON 100 5% 1/4W R302 1-247-807-31 CARBON 100 5% 1/4W R303 1-247-804-11 CARBON 75 5% 1/4W R304 1-249-417-11 CARBON 1K 5% 1/4W F R305 1-249-433-11 CARBON 22K 5% 1/4W R306 1-247-897-11 CARBON 560K 5% 1/4W R307 1-247-807-31 CARBON 100 5% 1/4W R360 1-249-441-11 CARBON 100K 5% 1/4W R361 1-249-425-11 CARBON 4.7K 5% 1/4W F R362 1-249-425-11 CARBON 4.7K 5% 1/4W F R363 1-249-441-11 CARBON 100K 5% 1/4W R366 1-249-429-11 CARBON 10K 5% 1/4W R367 1-249-441-11 CARBON 100K 5% 1/4W R368 1-249-437-11 CARBON 47K 5% 1/4W R369 1-249-425-11 CARBON 4.7K 5% 1/4W F R370 1-249-425-11 CARBON 4.7K 5% 1/4W F R371 1-249-441-11 CARBON 100K 5% 1/4W R372 1-249-441-11 CARBON 100K 5% 1/4W R373 1-249-417-11 CARBON 1K 5% 1/4W F R374 1-249-417-11 CARBON 1K 5% 1/4W F R375 1-249-417-11 CARBON 1K 5% 1/4W F R376 1-249-417-11 CARBON 1K 5% 1/4W F R377 1-249-417-11 CARBON 1K 5% 1/4W F R378 1-249-417-11 CARBON 1K 5% 1/4W F R379 1-249-425-11 CARBON 4.7K 5% 1/4W F R380 1-249-441-11 CARBON 100K 5% 1/4W R381 1-249-429-11 CARBON 10K 5% 1/4W R382 1-247-807-31 CARBON 100 5% 1/4W R404 1-249-417-11 CARBON 1K 5% 1/4W F INPUT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 36 STR-SL5 R405 1-249-417-11 CARBON 1K 5% 1/4W F R406 1-249-417-11 CARBON 1K 5% 1/4W F R408 1-249-417-11 CARBON 1K 5% 1/4W F R413 1-249-437-11 CARBON 47K 5% 1/4W R414 1-249-437-11 CARBON 47K 5% 1/4W R417 1-249-437-11 CARBON 47K 5% 1/4W R418 1-249-437-11 CARBON 47K 5% 1/4W R419 1-249-437-11 CARBON 47K 5% 1/4W R420 1-249-437-11 CARBON 47K 5% 1/4W R421 1-249-437-11 CARBON 47K 5% 1/4W R424 1-249-437-11 CARBON 47K 5% 1/4W R425 1-249-437-11 CARBON 47K 5% 1/4W R426 1-249-437-11 CARBON 47K 5% 1/4W R441 1-249-437-11 CARBON 47K 5% 1/4W R444 1-249-437-11 CARBON 47K 5% 1/4W R445 1-249-437-11 CARBON 47K 5% 1/4W R446 1-249-437-11 CARBON 47K 5% 1/4W R454 1-249-417-11 CARBON 1K 5% 1/4W F R455 1-249-417-11 CARBON 1K 5% 1/4W F R456 1-249-417-11 CARBON 1K 5% 1/4W F R458 1-249-417-11 CARBON 1K 5% 1/4W F R470 1-249-437-11 CARBON 47K 5% 1/4W R471 1-249-417-11 CARBON 1K 5% 1/4W F R472 1-249-417-11 CARBON 1K 5% 1/4W F R473 1-249-421-11 CARBON 2.2K 5% 1/4W F R474 1-249-428-11 CARBON 8.2K 5% 1/4W F R475 1-249-421-11 CARBON 2.2K 5% 1/4W F R476 1-249-417-11 CARBON 1K 5% 1/4W F R477 1-249-425-11 CARBON 4.7K 5% 1/4W F R478 1-249-437-11 CARBON 47K 5% 1/4W 0R479 1-249-381-11 CARBON 1 5% 1/4W F R480 1-249-437-11 CARBON 47K 5% 1/4W R499 1-249-437-11 CARBON 47K 5% 1/4W R560 1-249-429-11 CARBON 10K 5% 1/4W < RELAY > RY401 1-755-267-11 RELAY ************************************************************ 1-685-654-11 IR BOARD ******** < CAPACITOR > C111 1-127-888-11 CERAMIC 0.1uF 10% 50V C112 1-124-261-00 ELECT 10uF 20% 50V < IC > IC102 8-749-019-10 IC GP1UD28SXK (g) < RESISTOR > R151 1-249-441-11 CARBON 100K 5% 1/4W R152 1-249-393-11 CARBON 10 5% 1/4W F R153 1-247-807-31 CARBON 100 5% 1/4W ************************************************************ POWER SW BOARD **************** < SWITCH > S118 1-771-349-21 SWITCH, KEYBOARD (+/1) ************************************************************ 1-685-650-11 STANDBY BOARD ************** < CAPACITOR > C921 1-161-494-00 CERAMIC 0.022uF 25V C922 1-161-494-00 CERAMIC 0.022uF 25V C923 1-126-767-11 ELECT 1000uF 20.00% 16V C924 1-126-960-11 ELECT 1uF 20.00% 50V C925 1-127-888-11 CERAMIC 0.1uF 10% 50V < CONNECTOR > CN903 1-770-480-11 SOCKET, CONNECTOR PIN 4P < CONNECTOR > CNP901 1-564-321-00 PIN, CONNECTOR(3.96mm PITCH)2P * CNP902 1-565-792-11 PIN, CONNECTOR(3.96mm PITCH)2P < DIODE > D951 8-719-911-19 DIODE 1SS133T-72 D952 8-719-024-99 DIODE 11ES2-NTA2B D953 8-719-024-99 DIODE 11ES2-NTA2B D954 8-719-024-99 DIODE 11ES2-NTA2B D955 8-719-024-99 DIODE 11ES2-NTA2B D956 8-719-911-19 DIODE 1SS133T-72 D957 8-719-911-19 DIODE 1SS133T-72 < FUSE HOLDER > FH901 1-533-293-11 FUSE HOLDER FH902 1-533-293-11 FUSE HOLDER < TRANSISTOR > Q901 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q951 8-729-119-78 TRANSISTOR 2SC2785TP-HFE < RESISTOR > R951 1-249-437-11 CARBON 47K 5% 1/4W R952 1-249-425-11 CARBON 4.7K 5% 1/4W F 0R953 1-249-381-11 CARBON 1 5% 1/4W F R954 1-249-437-11 CARBON 47K 5% 1/4W R955 1-249-435-11 CARBON 33K 5% 1/4W R956 1-249-429-11 CARBON 10K 5% 1/4W < RELAY > 0RY901 1-755-298-11 RELAY < TRANSFORMER > 0T902 1-435-435-11 TRANSFORMER, POWER ************************************************************ The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. INPUT IR POWER SW STANDBY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 STR-SL5 1-685-653-11 VIDEO BOARD ************ < CAPACITOR > C201 1-124-261-00 ELECT 10uF 20% 50V C202 1-124-261-00 ELECT 10uF 20% 50V C203 1-124-261-00 ELECT 10uF 20% 50V C204 1-128-805-11 CERAMIC 47PF 5% 50V C205 1-128-805-11 CERAMIC 47PF 5% 50V C206 1-127-888-11 CERAMIC 0.1uF 10% 50V C207 1-119-941-91 ELECT 470uF 20.00% 6.3V C208 1-127-888-11 CERAMIC 0.1uF 10% 50V C209 1-119-941-91 ELECT 470uF 20.00% 6.3V < CONNECTOR > CN201 1-568-850-11 CONNECTOR, FFC 7P < IC > IC201 8-759-333-84 IC NJM2279D < JACK > J251 1-785-167-11 JACK, PIN 1P (MONITOR OUT) J252 1-785-167-11 JACK, PIN 1P (VIDEO OUT) J253 1-785-167-11 JACK, PIN 1P (VIDEO OUT) J254 1-785-167-11 JACK, PIN 1P (DVD IN) J255 1-785-167-11 JACK, PIN 1P (TV/SAT IN) < COIL > L201 1-410-509-11 INDUCTOR 10uH L202 1-410-509-11 INDUCTOR 10uH < RESISTOR > R201 1-247-804-11 CARBON 75 5% 1/4W R202 1-247-804-11 CARBON 75 5% 1/4W R203 1-247-804-11 CARBON 75 5% 1/4W R204 1-247-804-11 CARBON 75 5% 1/4W R205 1-247-804-11 CARBON 75 5% 1/4W ************************************************************ Ref. No. Part No. Description Remarks VIDEO The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. MISCELLANEOUS ************** 6 1-773-045-11 WIRE (FLAT TYPE) (17 CORE) 056 1-777-071-22 CORD, POWER 58 1-773-106-11 WIRE (FLAT TYPE) (19 CORE) 59 1-773-207-11 WIRE (FLAT TYPE) (25 CORE) 60 1-769-904-11 WIRE (FLAT TYPE) (9 CORE) 61 1-769-876-11 WIRE (FLAT TYPE) (7 CORE) 66 1-765-325-11 WIRE (FLAT TYPE) (11 CORE) 0F901 1-532-463-51 FUSE 1A/250V (TIME-LAG) FAN901 1-763-561-22 FAN, D.C. 0T901 1-437-862-11 TRANSFORMER, POWER TU901 1-693-580-22 TUNER ************************************************************ ACCESSORIES *********** 1-477-423-11 COMMANDER, STANDARD (RM-U25) 1-501-374-72 ANTENNA, LOOP 1-501-594-14 ANTENNA (FM) 3-071-119-51 COVER, BATTERY (FOR RM-U25) 4-243-517-11 MANUAL, INSTRUCTION (ENGLISH GERMAN) Ref. No. Part No. Description Remarks www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-SL5 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2002.08 New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
