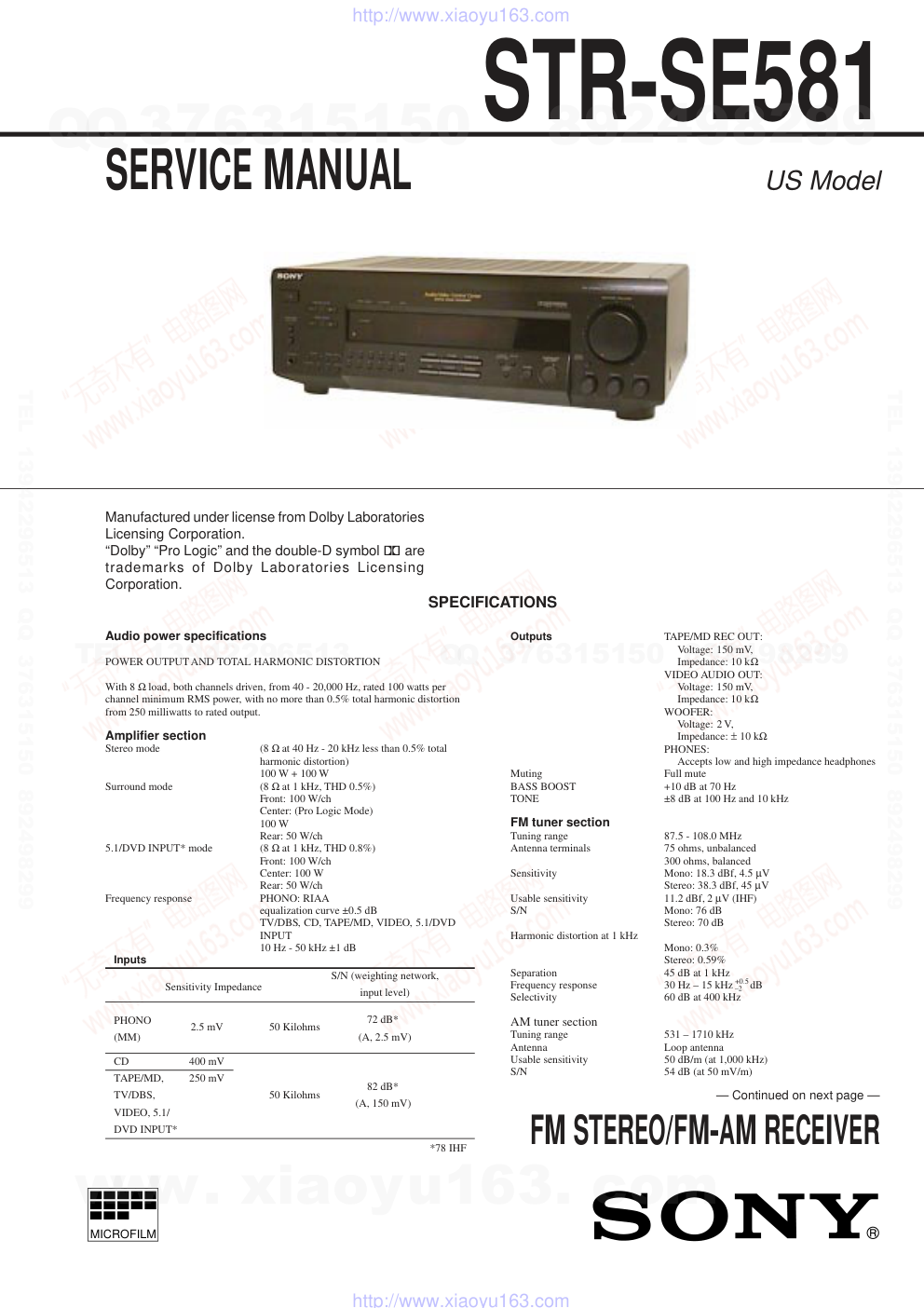

STR-SE581 US Model SERVICE MANUAL FM STEREO/FM-AM RECEIVER MICROFILM Manufactured under license from Dolby Laboratories Licensing Corporation. “Dolby” “Pro Logic” and the double-D symbol a are trademarks of Dolby Laboratories Licensing Corporation. SPECIFICATIONS — Continued on next page — Audio power specifications POWER OUTPUT AND TOTAL HARMONIC DISTORTION With 8 Ω load, both channels driven, from 40 - 20,000 Hz, rated 100 watts per channel minimum RMS power, with no more than 0.5% total harmonic distortion from 250 milliwatts to rated output. Amplifier section Stereo mode (8 Ω at 40 Hz - 20 kHz less than 0.5% total harmonic distortion) 100 W + 100 W Surround mode (8 Ω at 1 kHz, THD 0.5%) Front: 100 W/ch Center: (Pro Logic Mode) 100 W Rear: 50 W/ch 5.1/DVD INPUT* mode (8 Ω at 1 kHz, THD 0.8%) Front: 100 W/ch Center: 100 W Rear: 50 W/ch Frequency response PHONO: RIAA equalization curve ±0.5 dB TV/DBS, CD, TAPE/MD, VIDEO, 5.1/DVD INPUT 10 Hz - 50 kHz ±1 dB Inputs Sensitivity Impedance S/N (weighting network, input level) PHONO (MM) 2.5 mV 50 Kilohms 72 dB* (A, 2.5 mV) CD 400 mV TAPE/MD, 250 mV 82 dB* TV/DBS, 50 Kilohms (A, 150 mV) VIDEO, 5.1/ DVD INPUT* *78 IHF Outputs TAPE/MD REC OUT: Voltage: 150 mV, Impedance: 10 kΩ VIDEO AUDIO OUT: Voltage: 150 mV, Impedance: 10 kΩ WOOFER: Voltage: 2 V, Impedance: ± 10 kΩ PHONES: Accepts low and high impedance headphones Muting Full mute BASS BOOST +10 dB at 70 Hz TONE ±8 dB at 100 Hz and 10 kHz FM tuner section Tuning range 87.5 - 108.0 MHz Antenna terminals 75 ohms, unbalanced 300 ohms, balanced Sensitivity Mono: 18.3 dBf, 4.5 µV Stereo: 38.3 dBf, 45 µV Usable sensitivity 11.2 dBf, 2 µV (IHF) S/N Mono: 76 dB Stereo: 70 dB Harmonic distortion at 1 kHz Mono: 0.3% Stereo: 0.59% Separation 45 dB at 1 kHz +0.5 Frequency response 30 Hz – 15 kHz –2 dB Selectivity 60 dB at 400 kHz AM tuner section Tuning range 531 – 1710 kHz Antenna Loop antenna Usable sensitivity 50 dB/m (at 1,000 kHz) S/N 54 dB (at 50 mV/m) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 2 — 1. GENERAL································································3 2. TEST MODE ····························································5 3. DIAGRAMS 3-1. Circuit Boards Location ····················································· 6 3-2. Printed Wiring Board – Display Section – ························ 7 3-3. Schematic Diagram – Display Section – ··························· 9 3-4. Printed Wiring Board – Volume/Video Section –············ 11 3-5. Schematic Diagram – Volume/Video Section – ·············· 13 3-6. Printed Wiring Board – Main Section – ·························· 15 3-7. Schematic Diagram – Main Section (1/3) – ···················· 17 3-8. Printed Wiring Board – SP-SW, Power Section – ··········· 19 3-9. Schematic Diagram – Main Section (2/3), SP-SW – ······ 21 3-10. Schematic Diagram – Main Section (3/3), Power – ········ 23 3-11. IC Pin Function ································································ 25 3-12. IC Block Diagrams ··························································· 27 4. EXPLODED VIEWS 4-1. Front Panel Section ·························································· 29 4-2. Chassis Section ································································· 30 5. ELECTRICAL PARTS LIST ································ 31 TABLE OF CONTENTS Harmonic distortion 0.5% (50 mV/m, 400 kHz) Selectivity At 10 kHz: 40 dB General System Tuner section: PLL quartz-locked digital synthesizer system Preamplifier section: Low-noise NF type equalizer Power amplifier section: Pure-complementary SEPP Power requirements 120 V AC, 60 Hz Power consumption 230 W AC outlets 2 switched, total 120 W/1A Max Dimensions 17 × 5 7/8 × 11 5/8 inches (430 × 145 × 295 mm) Mass (Approx.) 16 IB 15 oz (7.7 kg) Supplied accessories FM wire antenna (1) AM loop antenna (1) Remote controller (remote) (1) Size AA (R6) batteries (2) Design and specifications are subject to change without notice. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. After correcting the original service problem, perform the following safety checks before releasing the set to the customer: Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microampers). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) SAFETY CHECK-OUT To Exposed Metal Parts on Set 0.15 µF 1.5 kΩ AC Voltmeter (0.75 V) Earth Ground Fig. A. Using an AC voltmeter to check AC leakage. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 3 — SECTION 1 GENERAL LOCATION AND FUNCTION OF CONTROLS [FRONT PANEL] 1 POWER switch (I/u) 2 CENTER LEVEL +, – buttons 3 PRO LOGIC indicator 4 C. STUDIO indicator 5 HALL indicator 6 MASTER VOLUME control 7 BALANCE control 8 TREBLE control 9 BASS control 0 BASS BOOST button/indicator !¡ SURROUND ON/OFF button !™ MODE button !£ SET UP button !¢ EFECT/DELAY TIME button !∞ 5.1/DVD INPUT button !§ TAPE/MD FUNCTION button !¶ TV/DBS FUNCTION button !• VIDEO FUNCTION button !ª PHONO FUNCTION button @º TUNER FUNCTION button @¡ CD FUNCTION button @™ DIRECT button @£ SHIFT button @¢ Numeric buttons @∞ PRESET TUNING +, – buttons @§ MEMORY button @¶ AM button @• FM button @ª FM MODE button #º TUNING +, – buttons #¡ PHONES jack #™ SPEAKERS A/B buttons #£ REAR LEVEL +, – buttons 1 2 #£ 3 4 5 !• !¶ !§ !¢ !£ 6 @§ @• #º #™ #¡ 7 8 !¡ !∞ !™ @º !ª @¡ @™ @£ @¢ @∞ @¶ @ª 9 !º www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 4 — [REAR PANEL] 1 SIGNAL GND 2 5.1/DVD INPUT (FRONT/REAR) 3 WOOFER 4 ANTENNA (AM/FM) 5 PHONO 6 CD 7 TAPE/MD 8 TV/DBS 9 VIDEO 0 SURROUND SPEAKERS (REAR) !¡ FRONT SPEAKERS !™ AC OUTLET !£ AC power code !¢ 5.1/DVD INPUT (CENTER) !∞ 5.1/DVD INPUT (WOOFER) !§ SURROUND SPEAKERS (CENTER) 1 2 !¢� !∞� 3 !™� 4 5 6 7 8 9 0 !§� !¡� !£� www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 5 — — 6 — SECTION 2 TEST MODE INITIALIZATION MODE * All preset contents are cleared when this mode is activated. Use this mode before returning the product to clients upon completion of repair. * Procedure: While depressing the VIDEO, TAPE/MD and the CD buttons simultaneously, press the power [I/u] button to turn on the main power. The message INITIAL appears and initialization is performed. FLUORESCENT INDICATOR TUBE TEST MODE * All fluorescent segments are tested. When this test is activated, all segments turn on at the same time, then each segment turns on one after another. * Procedure: While depressing the CD and the TAPE/MD buttons simultaneously, press the power [I/u] button to turn on the main power. All segments turn on at the same time, then each segment turns on one after another. The message FINISH appears when this test is complete. AM CHANNEL STEP 9 kHz/10 kHz SELECTION MODE * Either the 9 kHz step or 10 kHz step can be selected for the AM channel step. * Procedure: Set the FUNCTION to AM. Turn off the main power. While depressing the TUNING+ button, press the power [I/u] button to turn on the main power. Either the message 9k STEP or 10k STEP appears. Select the desired step. REAR SPEAKER GAIN UP MODE * The rear speaker gain can be set to either NORMAL or GAIN UP. * Procedure: While depressing the -SURROUND button, press the power [I/ u] button to turn on the main power. Either the message NORMAL or GAIN UP appears. When the product enters this mode again, the other gain appears. Select the desired gain. SECTION 3 DIAGRAMS 3-1. CIRCUIT BOARDS LOCATION • Waveforms For schematic diagrams. Note: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • % : indicates tolerance. • ¢ : internal component. • 2 : nonflammable resistor. • 1 : fusible resistor. • C : panel designation. • U : B+ Line. • V : B– Line. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. No mark : FM • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal production tolerances. • Waveforms are taken with a oscilloscope. • Circled numbers refer to waveforms. • Signal path. F : FM THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this necessary note is printed in each block.) For printed wiring boards. Note: • X : parts extracted from the component side. • b : Pattern from the side which enables seeing. SP-SW BOARD PRIMARY BOARD SECONDARY BOARD STANDBY BOARD MAIN BOARD VIDEO BOARD SWITCH BOARD VOLUME BOARD VR-TONE BOARD KEY BOARD DISPLAY BOARD Note: The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. 1 IC300 @¢ (OSC) 2 IC201 #¢ (X1) 8MHz 4.19MHz 4.75Vp-p 5.3Vp-p w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-SE581 — 7 — — 8 — 3-2. PRINTED WIRING BOARD — DISPLAY SECTION — Ref. No. Location D201 C-3 D202 C-3 D203 C-3 D204 B-13 D211 C-9 D213 C-9 D214 C-9 D231 C-1 D234 C-2 D235 C-9 D236 C-10 D237 C-11 • Semiconductor Location Ref. No. Location D239 C-3 D240 C-2 IC201 D-6 IC202 B-2 IC203 D-11 Q201 B-13 Q202 B-12 Q231 C-1 Q232 E-3 1 2 A B C D E F G H 3 4 5 6 7 8 9 10 11 12 13 14 15 DISPLAY BOARD KEY BOARD F TO VOLUME BOARD CNP202 J TO MAIN BOARD CNS204 1-665-280- 11 (12) 1 10 E 1 9 (5.1 INPUT) 1 80 24 25 65 64 40 41 IC201 1-665-281- 11 (12) (HALL) (C.STUDIO) (PRO LOGIC) (REMOTO SEUSOR) 4 1 PRESET TUNING MEMORY DIRECT VIDEO TV/DBS CD TUNER PHONO TAPE/MD EFFECT DELAY TIME SET UP 5.1/DVD INPUT MODE SHIFT FM MODE TUNING REAR LEVEL CENTER LEVEL POWER AM FM E E 2 1 3 4 6 7 8 9 0 5 SURROUND ON/OFF 4 1 E 16 23 22 1 2 (Page 16) (Page 11) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-SE581 — 9 — — 10 — 3-3. SCHEMATIC DIAGRAM — DISPLAY SECTION — • See page 6 for Waveforms. • See page 25 for IC Pin Functions. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-SE581 H TO MAIN BOARD CNP503 TO MAIN BOARD CNP504 E TO MAIN BOARD CNS701 I TO MAIN BOARD CNS251 G 1-665-284- 11 (12) 1-665- 283- 1-665-261- 1-665- 255- 11 (12) 11 (12) 11 (12) M MASTER VOLUME SWITCH BOARD VIDEO BOARD VR-TONE BOARD VOLUME BOARD 1 10 E E E E E 10 1 E FRONT REAR WOOFER CENTER J501 WOOFER J253 R L R L R L F TO DISPLAY BOARD CNS202 10 1 BASS BASS BOOST TREBLE BALANCE E E E E 5 8 4 1 16 15 30 1 1 5 4 8 1 7 1 7 16 CN505 CN501 (Page 15) (Page 15) (Page 15) (Page 7) (Page 15) JW261 E — 11 — — 12 — 3-4. PRINTED WIRING BOARD — VOLUME/VIDEO SECTION — 1 2 A B C D E F G H I 3 4 5 6 7 8 9 10 11 12 13 Ref. No. Location D238 F-5 D310 H-12 IC404 C-9 IC500 C-11 IC502 C-12 Q361 D-6 Q362 C-6 Q363 C-6 Q364 C-6 Q365 C-6 Q367 H-11 Q401 D-8 Q402 D-9 Q451 D-8 Q452 D-9 Q501 B-11 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-SE581 — 13 — — 14 — 3-5. SCHEMATIC DIAGRAM — VOLUME/VIDEO SECTION — • See page 7 for KEY Board Printed Wiring Board. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-SE581 1-665-279- 13 MAIN BOARD 1 5 E E E E E E E E E E E E E E E E E E E E 1 9 E 1 1 4 1 4 21 22 42 5 5 8 8 1 7 1 7 1 1 3 1 3 15 E E 1 15 16 30 1 1 4 4 5 10 11 23 5 8 1 5 1 5 1 4 5 8 1 1 4 8 10 1 RY801 E G TO SWITCH BOARD CNS503 H TO SWITCH BOARD CNS504 I TO VIDEO BOARD CNS250 B TO SP-SW BOARD CNS705 C TO STANDBY BOARD CNP802 D TO SECONDARY BOARD CNP801 TO SP-SW BOARD CNP703 CNP704 A 1 12 13 24 E J TO DISPLAY BOARD CNS201 E TO VOLUME BOARD CNS402 AUDIO OUT AUDIO IN IN REC OUT CD PHONO FRONT SPEAKERS SURROUND SPEAKERS REAR ANTENNA CENTER R L R L R L R L R L R L R L R L VIDEO TAPE /MD A B TM701 TM601 TV/DBS TM1 E IC300 16 1 2 22 23 (Page 19) (Page 19) (Page 19) (Page 19) (Page 7) (Page 11) (Page 12) (Page 12) (Page 12) — 15 — — 16 — 3-6. PRINTED WIRING BOARD — MAIN SECTION — 1 2 A B C D E F G H I J K 3 4 5 6 7 8 9 10 11 12 13 14 15 Ref. No. Location D311 J-5 D312 J-5 D560 C-7 D610 C-7 D710 J-13 D721 H-6 D722 H-6 D723 I-6 D724 H-6 D725 I-6 D726 I-6 D727 J-6 D728 J-5 D801 I-7 D802 F-13 D803 D-13 D804 K-8 D810 C-14 D811 C-14 D812 C-14 D813 C-14 D814 C-13 D815 C-13 D817 F-6 D818 D-15 D901 D-3 IC300 H-5 IC301 G-4 IC302 H-3 IC401 C-5 IC402 C-3 IC501 H-3 IC551 H-8 IC601 C-10 IC651 D-10 IC701 E-8 IC801 E-6 IC802 E-6 IC950 B-11 Q551 I-9 Q552 I-10 Q553 J-10 Q554 I-10 Q560 C-7 Q570 I-9 Q610 D-7 Q701 H-8 Q702 G-10 Q703 H-10 Q704 G-10 Q710 K-12 Q720 G-9 Q721 H-6 Q722 I-7 Q723 I-6 Q751 F-9 Q752 E-10 Q753 F-10 Q754 E-10 Q770 E-9 Q801 I-8 Q802 C-15 Q808 F-6 Q809 E-14 Q951 B-12 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-SE581 — 17 — — 18 — 3-7. SCHEMATIC DIAGRAM — MAIN SECTION (1/3) — • See page 6 for Waveforms. • See page 27 for IC Block Diagrams. OSC w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-SE581 — 19 — — 20 — 3-8. PRINTED WIRING BOARD — SP-SW, POWER SECTION — 1 2 A B C D E F G H I 3 4 5 6 7 8 9 10 11 12 13 1 2 1 4 T902 CN902 CNP903 PRIMARY BOARD SECONDARY BOARD SP-SW BOARD STANDBY BOARD C TO MAIN BOARD CNS802 B A TO MAIN BOARD CNP702 TO MAIN BOARD CN706 D TO MAIN BOARD CN801 OFF ON TO MAIN BOARD CN706 A 1-665-289- 11 (12) 1-665-285- 11 (12) 1-665- 286- 11 (12) 1-665-287- 11 (12) J741 PHONES S701 SPEAKERS T901 POWER TRANSFORMER 1 3 1 5 1 5 1 10 AC IN AC OUTLET 16 (Page 16) (Page 16) (Page 16) (Page 16) (Page 16) CNJ902 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-SE581 — 21 — — 22 — 3-9. SCHEMATIC DIAGRAM — MAIN SECTION (2/3), SP-SW — • See page 15 for MAIN Board Printed Wiring Board. • See page 27 for IC Block Diagrams. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-SE581 — 23 — — 24 — 3-10. SCHEMATIC DIAGRAM — MAIN SECTION (3/3), POWER — • See page 15 for MAIN Board Printed Wiring Board. • See page 19 for SECONDARY/PRIMARY/STANDBY Board Printed Wiring Boards. • See page 27 for IC Block Diagrams. CN902 CNP903 JW1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 25 — Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 I/O O O O O O O O — I I I O O I O I I I I — O O O — I I I I — — — — — — — O — — — O Description Fluorescent indicator tube drive. Power supply (+5V). System clock. System data. PLL data input from TU001. Chip enable output. Chip enablr output. Input for model slect. Standby relay ON/OFF control. Protector detect input. System reset terminal. Auto stop detect input. Stereo detect input. Ground. Speaker relay drive. Surround Relay. Power relay drive. Not used. A/D signal input terminal. A/D3 key input terminal. A/D2 key input terminal. A/D1 key input terminal. Power supply (+5V). Reference voltage (+5V). Ground. Not used (Open). Ground. System clock (4.19MHz). System clock (4.19MHz). Mute drive output for µPD2581V (IC701). Plologic LED drive. CINEMA STUDIO LED drive. Hall LED drive. Tuner mute drive output. Pin Name DIG7 DIG6 DIG5 DIG4 DIG3 DIG2 DIG1 +5V S. CLK S. DATA PLL. DATA S. CE (LC7288) S. CE (LV100) REARRY BRIDGE CABLE PROTECT RESET AUTO-STOP STEREO-IN AVss SP-RY SURR-RY POWER-RY Not used SIGNAL A/D3 A/D2 A/D1 AVDD AV. REF GND NC Vss X1 X2 IC. MUTE PROLOGIC CSTUDIO HALL T. MUTE 3-11. IC PIN FUNCTION DISPLAY BOARD IC201 : µPD78044FGF-064-3B9 (DISPLAY CONTROL) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 26 — Pin No. 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 I/O O O — I I I I — I I O — — O O I I I I I O O O O O O O O O O — O O O O O O O O O Description Volume up. Volume down. Standby LED drive. System power ON/OFF. RDS data input terminal (EXCEPT Australian, E, Saudi Arabia, PX model). RDS clock input terminal (EXCEPT Australian, E, Saudi Arabia, PX model). Stop signal input from NJM2103D (IC950). Ground. Sircs signal input. Power switch input terminal. 5.1ch input LED. Power supply (+5V). Bass boost LED drive. Line mute drive. Surround Lch mute. Input for model select. Key in 4. Key in 3. Key in 2. Key in 1. Surround Rch mute. Key out 1. Key out 2. Key out 3. Key out 4. Connect to –24V. Fluorescent indicator tube drive. Pin Name VOLUME UP VOLUME DOWN STANDBY SYS. POWER RDS. DATA. IN RDS. CLK. IN STOP Vss SIRCS POWER SW 5.1ch LED +5V BASS BOOST FUNC. MUTE SL MUTE VERSION K14 K13 K12 K11 SR MUTE S15 S14 S13 S12 S11 S10 S9 S8 S7 VLOAD S6 S5 S4 S3 S2 S1 DIG10 DIG9 DIG8                  Fluorescent indicator tube drive. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 27 — 3-12. IC BLOCK DIAGRAMS IC300 LV1016 IC301 LA2786 1 5 6 + – + 20 19 18 17 16 15 14 13 21 22 23 24 2 3 4 7 8 9 10 12 11 + DEC IN-FILTER (40kHz) VDD ADM-CONT SRAM ADM OUT-FILTER (7k/5k) B-NR DC-OUT VOL/MUTE S-TRIM INV-PHASE R+DELAY L+DELAY A B A B A B A B A B A B A B L–R L+R (–6dB) A B A.GND L-OUT R-OUT VREF S-OUT DELAY-OUT S-IN R-IN L-IN VCC NR-DET ENABLE DATA CLK D.GND DC-CUT VDD OSC OSC NR-IREF DC-CUT 1 2 3 4 5 6 7 8 9 15 10 11 12 – + 13 14 16 21 18 19 25 17 24 22 23 20 34 32 33 29 30 35 28 31 27 26 36 40 39 38 37 41 42 NOISE FILTER NOISE CH BALANCE CONTROL VR CONTROL LPF V REF VR VR NOISE GENERATOR VCA VCA VCA VCA VCA VCA VCA VCA LPF LPF RECT RECT RECT RECT P. S. P. S. CMODE MUTE DIVIDER OSC CONTROL CTRIM LOG DIFF LOG DIFF DUAL T CONTROL L-IN R-IN VSS CLK DATA VCC L-OUT R-OUT S-OUT C-OUT ENABLE OSC1 CMODE-CAP. C-TRIM DC CUT R-BPF1 R-BPF2 R-BPF3 DC CUT DC CUT L-R RECT L+R RECT VCS-TH VCS-1 VCS-2 BPF1 BPF2 VREF S-CH DC OUT C-CH DC OUT L-CH DC OUT R-CH DC OUT VREF L-BPF1 L-BPF2 L-BPF3 DC CUT DC CUT R RECT L RECT VLR-TH VLR-1 VLR-2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 28 — IC551 STK350-230 IC701 µPC2581V IC950 NJM2103D 2 3 5 4 6 7 9 8 1 MUTE + VOUT1 – VOUT1 COMP1 MF1 IN1 GND IN2 NF2 COMP2 – VOUT2 + VOUT2 VCC1 VCC2 VEE PROTECTOR BIAS CIRCUIT REG DRIVE PRE DRIVE 11 10 12 13 15 14 DRIVE PRE DRIVE 1 2 3 4 5 6 7 8 V+ VSB/SESIN VSA RESET GND OUTC VSC CR VREF + – – + – + – + Q R S IC401 LC7822 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 CONTROL LATCH SHIFT RESISTOR LEVEL SHIFT CL DI CE VEE OUT IN OUT IN OUT IN VSS S RESET VDD OUT IN IN OUT IN OUT IN 1 2 3 4 5 6 7 8 9 TR3 R1 R2 TR4 TR6 TR7 R4 R9 TR5 TR1 TR2 R6 D4 D3 R7 R8 TR8 D1 D2 R5 R3 INPUT NF -VEOUT +VEOUT VSS GND VCC SUB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SECTION 4 EXPLODED VIEWS Note: • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Hardware (# mark) list and accessories and packing materials are given in the last of this parts list. The components identified by mark !or dotted line with mark ! are critical for safety. Replace only with part number specified. — 29 — 4-1. FRONT PANEL SECTION Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 1 4-980-639-01 KNOB (R14) 2 X-4946-873-1 KNOB (R48) ASSY 3 X-4949-644-1 FRONT PANEL ASSY 4 4-989-843-01 BUTTON (P-T) * 5 4-921-941-01 CUSHION (FL) * 6 4-943-107-11 HOLDER (FL TUBE) * 7 4-980-658-01 CASE (413226) 8 3-710-901-11 SCREW, TAPPING * 9 A-4407-439-A DISPLAY BOARD, COMPLETE 10 1-782-100-11 WIRE (FLAT TYPE) (23 CORE) 11 1-769-911-11 WIRE (FLAT TYPE) (9 CORE) 12 1-782-081-11 WIRE (FLAT TYPE) (15 CORE) 13 4-951-620-01 SCREW (2.6X8), +BVTP * 14 A-4407-441-A VR-TONE BOARD, COMPLETE 16 3-008-600-11 EMBLEM (5-AR), SONY * 17 A-4407-442-A KEY BOARD, COMPLETE 18 4-977-358-11 CUSHION FL201 1-517-141-11 INDICATOR TUBE, FLUORESCENT SONY a a 7 8 8 6 5 8 9 10 13 13 11 12 13 18 14 18 3 1 2 4 5 16 17 FL201 #1 #1 not supplied #1 #1 VOLUME board (Including in 14) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 30 — 4-2. CHASSIS SECTION 54 55 56 63 65 53 70 64 58 71 59 69 60 61 57 62 51 52 not supplied not supplied not supplied not supplied T901 Transistor not supplied #1 #1 #1 #1 #1 #1 #1 #1 #2 #2 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #3 CNJ902 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks * 51 1-665-289-11 SP-SW BOARD 52 4-951-801-01 BUTTON (S) 53 4-812-134-00 RIVET (DIA. 3.5), NYLON * 54 1-665-286-11 PRIMARY BOARD * 55 1-665-287-11 SECONDARY BOARD * 56 1-665-285-11 STANDBY BOARD * 57 A-4407-444-A MAIN BOARD, COMPLETE * 58 3-703-244-00 BUSHING (2104), CORD * 59 4-997-684-21 BACK PANEL * 60 A-4407-443-A VIDEO BOARD, COMPLETE 61 1-782-668-11 WIRE (FLAT TYPE) (11 CORE) 62 X-4947-208-1 FOOT ASSY (F50150S) 63 4-924-098-01 HOLDER, PC BOARD * 64 A-4392-780-A SWITCH BOARD, COMPLETE * 65 4-954-051-51 HOLDER, PC BOARD 69 1-782-243-11 WIRE (FLAT TYPE) 15P 70 3-905-609-01 SCREW (TRANSISTOR) !71 1-777-070-21 CORD, POWER !CNJ902 1-251-698-11 OUTLET (AC) (2P) !T901 1-431-267-21 TRANSFORMER, POWER The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 31 — SECTION 5 ELECTRICAL PARTS LIST Note: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • CAPACITORS: uF: µF • RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable • COILS uH: µH • SEMICONDUCTORS In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD... When indicating parts by reference number, please include the board name. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. * A-4407-439-A DISPLAY BOARD, COMPLETE *********************** * 4-921-941-01 CUSHION (FL) * 4-943-107-11 HOLDER (FL TUBE) < CAPACITOR > C201 1-104-905-11 CAPACITOR 0.22F 5.5V C202 1-164-159-11 CERAMIC 0.1uF 50V C203 1-124-465-00 ELECT 0.47uF 20% 50V C204 1-164-159-11 CERAMIC 0.1uF 50V C205 1-162-294-31 CERAMIC 0.001uF 10% 50V C206 1-164-159-11 CERAMIC 0.1uF 50V C207 1-126-096-11 ELECT 10uF 20% 35V < CONNECTOR > CNP205 1-779-366-11 CONNECTOR, BOARD TO BOARD 4P CNS201 1-568-742-11 SOCKET, CONNECTOR 23P CNS202 1-770-403-11 HOUSING,CONNECTOR(PC BOARD)10P < DIODE > D201 8-719-911-19 DIODE 1SS119 D202 8-719-911-19 DIODE 1SS119 D203 8-719-911-19 DIODE 1SS119 D204 8-719-911-19 DIODE 1SS119 D211 8-719-911-19 DIODE 1SS119 D213 8-719-911-19 DIODE 1SS119 D214 8-719-911-19 DIODE 1SS119 D231 8-719-911-19 DIODE 1SS119 D234 8-719-057-97 DIODE SEL5923A-TP15 (5.1/DVD) D235 8-719-313-50 DIODE SEL6810A-TH12 (HALL) D236 8-719-313-50 DIODE SEL6810A-TH12 (C.STUDIO) D237 8-719-313-50 DIODE SEL6810A-TH12 (PRO LOGIC) D239 8-719-057-97 DIODE SEL5923A-TP15 (5.1/DVD) D240 8-719-057-97 DIODE SEL5923A-TP15 (5.1/DVD) < FILTER > FL201 1-517-141-11 INDICATOR TUBE, FLUORESCENT < IC > IC201 8-759-479-19 IC uPD78044FGF-064-3B9 IC202 8-759-962-08 IC BA6208 IC203 8-759-332-18 IC GP1U27XB (REMOTE SENSOR) < COIL > L401 1-410-509-11 INDUCTOR 10uH < TRANSISTOR > Q201 8-729-900-63 TRANSISTOR DTA124ES Q202 8-729-900-36 TRANSISTOR DTC124ES Q231 8-729-900-36 TRANSISTOR DTC124ES Q232 8-729-119-76 TRANSISTOR 2SA1175-HFE < RESISTOR > R200 1-249-433-11 CARBON 22K 5% 1/4W R201 1-247-903-00 CARBON 1M 5% 1/4W R202 1-249-429-11 CARBON 10K 5% 1/4W R203 1-249-429-11 CARBON 10K 5% 1/4W R204 1-249-425-11 CARBON 4.7K 5% 1/4W F R205 1-249-441-11 CARBON 100K 5% 1/4W R207 1-249-429-11 CARBON 10K 5% 1/4W R211 1-249-433-11 CARBON 22K 5% 1/4W R212 1-249-433-11 CARBON 22K 5% 1/4W R213 1-249-433-11 CARBON 22K 5% 1/4W R214 1-249-433-11 CARBON 22K 5% 1/4W R216 1-249-433-11 CARBON 22K 5% 1/4W R221 1-247-807-31 CARBON 100 5% 1/4W R222 1-247-807-31 CARBON 100 5% 1/4W R223 1-247-807-31 CARBON 100 5% 1/4W R224 1-247-807-31 CARBON 100 5% 1/4W R225 1-247-807-31 CARBON 100 5% 1/4W R226 1-249-441-11 CARBON 100K 5% 1/4W R227 1-249-441-11 CARBON 100K 5% 1/4W R228 1-249-412-11 CARBON 390 5% 1/4W F R230 1-249-410-11 CARBON 270 5% 1/4W F R231 1-249-427-11 CARBON 6.8K 5% 1/4W F R270 1-247-807-31 CARBON 100 5% 1/4W R283 1-249-427-11 CARBON 6.8K 5% 1/4W F R284 1-249-427-11 CARBON 6.8K 5% 1/4W F R285 1-249-399-11 CARBON 33 5% 1/4W F R286 1-249-437-11 CARBON 47K 5% 1/4W R289 1-249-425-11 CARBON 4.7K 5% 1/4W F < SWITCH > S200 1-762-378-11 SWITCH, TACTILE (POWER) S201 1-762-378-11 SWITCH, TACTILE (CENTER LEVEL -) S202 1-762-378-11 SWITCH, TACTILE (CENTER LEVEL +) S203 1-762-378-11 SWITCH, TACTILE (REAR LEVEL -) S204 1-762-378-11 SWITCH, TACTILE (REAR LEVEL +) S209 1-762-378-11 SWITCH, TACTILE (TUNING LEVEL -) S210 1-762-378-11 SWITCH, TACTILE (TUNING LEVEL +) S211 1-762-378-11 SWITCH, TACTILE (PRESET TUNING -) S212 1-762-378-11 SWITCH, TACTILE (PRESET TUNING +) S213 1-762-378-11 SWITCH, TACTILE (FM MODE) DISPLAY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 32 — S214 1-762-378-11 SWITCH, TACTILE (FM) S215 1-762-378-11 SWITCH, TACTILE (AM) S216 1-762-378-11 SWITCH, TACTILE (MEMORY) < VIBRATOR > X201 1-577-101-11 VIBRATOR, CERAMIC 4.19MHz ************************************************************ * A-4407-442-A KEY BOARD, COMPLETE ******************* < CONNECTOR > CNS205 1-770-397-11 HOUSING, CONNECTOR(PC BOARD)4P < RESISTOR > R232 1-249-411-11 CARBON 330 5% 1/4W R233 1-249-413-11 CARBON 470 5% 1/4W F R234 1-249-415-11 CARBON 680 5% 1/4W F R235 1-249-417-11 CARBON 1K 5% 1/4W F R236 1-249-419-11 CARBON 1.5K 5% 1/4W F R237 1-249-421-11 CARBON 2.2K 5% 1/4W F R238 1-247-843-11 CARBON 3.3K 5% 1/4W R239 1-249-411-11 CARBON 330 5% 1/4W R240 1-249-413-11 CARBON 470 5% 1/4W F R241 1-249-415-11 CARBON 680 5% 1/4W F R242 1-249-417-11 CARBON 1K 5% 1/4W F R243 1-249-419-11 CARBON 1.5K 5% 1/4W F R244 1-249-421-11 CARBON 2.2K 5% 1/4W F R245 1-247-843-11 CARBON 3.3K 5% 1/4W R246 1-249-411-11 CARBON 330 5% 1/4W R247 1-249-413-11 CARBON 470 5% 1/4W F R248 1-249-415-11 CARBON 680 5% 1/4W F R249 1-249-417-11 CARBON 1K 5% 1/4W F R280 1-249-419-11 CARBON 1.5K 5% 1/4W F R281 1-249-421-11 CARBON 2.2K 5% 1/4W F R282 1-247-843-11 CARBON 3.3K 5% 1/4W < SWITCH > S217 1-762-378-11 SWITCH, TACTILE (SURROUND ON/OFF) S218 1-762-378-11 SWITCH, TACTILE (SET UP) S219 1-762-378-11 SWITCH, TACTILE (EFFECT/DELAY TIME) S220 1-762-378-11 SWITCH, TACTILE (TV/DBS) S221 1-762-378-11 SWITCH, TACTILE (TUNER) S222 1-762-378-11 SWITCH, TACTILE (PHONE) S223 1-762-378-11 SWITCH, TACTILE (VIDEO) S224 1-762-378-11 SWITCH, TACTILE (6) S225 1-762-378-11 SWITCH, TACTILE (7) S226 1-762-378-11 SWITCH, TACTILE (8) S227 1-762-378-11 SWITCH, TACTILE (9) S228 1-762-378-11 SWITCH, TACTILE (0) S229 1-762-378-11 SWITCH, TACTILE (SHIFT) S230 1-762-378-11 SWITCH, TACTILE (5.1/DVD INPUT) S231 1-762-378-11 SWITCH, TACTILE (TAPE/MD) S232 1-762-378-11 SWITCH, TACTILE (1) S233 1-762-378-11 SWITCH, TACTILE (2) S234 1-762-378-11 SWITCH, TACTILE (3) S235 1-762-378-11 SWITCH, TACTILE (4) S236 1-762-378-11 SWITCH, TACTILE (5) S237 1-762-378-11 SWITCH, TACTILE (DIRECT) S238 1-762-378-11 SWITCH, TACTILE (MODE) S239 1-762-378-11 SWITCH, TACTILE (CD) ************************************************************ * A-4407-444-A MAIN BOARD, COMPLETE ******************** 3-905-609-01 SCREW (TRANSISTOR) 4-812-134-00 RIVET (DIA. 3.5), NYLON 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 7-685-872-09 SCREW +BVTT 3X8 (S) < CAPACITOR > C302 1-126-934-11 ELECT 220uF 20% 16V C303 1-130-494-11 MYLAR 0.082uF 5% 50V C304 1-137-367-11 FILM 0.0033uF 5% 50V C305 1-130-494-11 MYLAR 0.082uF 5% 50V C306 1-126-959-11 ELECT 0.47uF 20% 50V C307 1-126-964-11 ELECT 10uF 20% 50V C308 1-126-964-11 ELECT 10uF 20% 50V C309 1-162-291-31 CERAMIC 560PF 10% 50V C310 1-126-962-11 ELECT 3.3uF 20% 50V C311 1-126-961-11 ELECT 2.2uF 20% 50V C312 1-126-934-11 ELECT 220uF 20% 16V C313 1-126-934-11 ELECT 220uF 20% 16V C314 1-136-165-00 FILM 0.1uF 5% 50V C316 1-124-252-00 ELECT 0.33uF 20% 50V C317 1-126-933-11 ELECT 100uF 20% 16V C318 1-136-357-11 FILM 680PF 5% 50V C322 1-126-962-11 ELECT 3.3uF 20% 50V C323 1-136-173-00 FILM 0.47uF 5% 50V C324 1-126-967-11 ELECT 47uF 20% 16V C325 1-136-165-00 FILM 0.1uF 5% 50V C326 1-136-165-00 FILM 0.1uF 5% 50V C327 1-126-959-11 ELECT 0.47uF 20% 50V C328 1-126-963-11 ELECT 4.7uF 20% 50V C329 1-126-959-11 ELECT 0.47uF 20% 50V C330 1-126-963-11 ELECT 4.7uF 20% 50V C331 1-124-250-11 ELECT 0.15uF 20% 50V C332 1-126-962-11 ELECT 3.3uF 20% 50V C333 1-124-250-11 ELECT 0.15uF 20% 50V C334 1-137-372-11 FILM 0.022uF 5% 50V C335 1-136-161-00 FILM 0.047uF 5% 50V C336 1-126-934-11 ELECT 220uF 20% 16V C337 1-126-964-11 ELECT 10uF 20% 50V C338 1-126-964-11 ELECT 10uF 20% 50V C339 1-126-964-11 ELECT 10uF 20% 50V C340 1-126-964-11 ELECT 10uF 20% 50V C341 1-126-934-11 ELECT 220uF 20% 16V C342 1-126-962-11 ELECT 3.3uF 20% 50V C343 1-126-962-11 ELECT 3.3uF 20% 50V C344 1-136-165-00 FILM 0.1uF 5% 50V C345 1-136-165-00 FILM 0.1uF 5% 50V C346 1-126-959-11 ELECT 0.47uF 20% 50V C347 1-126-963-11 ELECT 4.7uF 20% 50V C348 1-126-959-11 ELECT 0.47uF 20% 50V C349 1-126-963-11 ELECT 4.7uF 20% 50V C350 1-124-250-11 ELECT 0.15uF 20% 50V DISPLAY MAIN KEY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 33 — C351 1-126-962-11 ELECT 3.3uF 20% 50V C352 1-124-250-11 ELECT 0.15uF 20% 50V C357 1-164-159-11 CERAMIC 0.1uF 50V C359 1-126-963-11 ELECT 4.7uF 20% 50V C360 1-126-963-11 ELECT 4.7uF 20% 50V C366 1-164-159-11 CERAMIC 0.1uF 50V C370 1-164-159-11 CERAMIC 0.1uF 50V C371 1-126-966-11 ELECT 33uF 20% 16V C402 1-126-963-11 ELECT 4.7uF 20% 50V C403 1-126-964-11 ELECT 10uF 20% 50V C404 1-162-282-31 CERAMIC 100PF 10% 50V C405 1-137-459-11 FILM 0.0056uF 5% 100V C406 1-164-159-11 CERAMIC 0.1uF 50V C407 1-137-365-11 FILM 0.0015uF 5% 50V C408 1-162-294-31 CERAMIC 0.001uF 10% 50V C409 1-126-960-11 ELECT 1uF 20% 50V C410 1-164-159-11 CERAMIC 0.1uF 50V C412 1-162-291-31 CERAMIC 560PF 10% 50V C413 1-164-159-11 CERAMIC 0.1uF 50V C415 1-164-159-11 CERAMIC 0.1uF 50V C416 1-164-159-11 CERAMIC 0.1uF 50V C434 1-162-286-31 CERAMIC 220PF 10% 50V C435 1-162-286-31 CERAMIC 220PF 10% 50V C452 1-126-963-11 ELECT 4.7uF 20% 50V C453 1-126-964-11 ELECT 10uF 20% 50V C454 1-162-282-31 CERAMIC 100PF 10% 50V C455 1-137-459-11 FILM 0.0056uF 5% 100V C457 1-137-365-11 FILM 0.0015uF 5% 50V C459 1-126-960-11 ELECT 1uF 20% 50V C460 1-164-159-11 CERAMIC 0.1uF 50V C513 1-126-963-11 ELECT 4.7uF 20% 50V C514 1-126-960-11 ELECT 1uF 20% 50V C515 1-164-159-11 CERAMIC 0.1uF 50V C516 1-126-963-11 ELECT 4.7uF 20% 50V C517 1-162-193-31 CERAMIC 3.3PF 10% 50V C552 1-162-282-31 CERAMIC 100PF 10% 50V C553 1-104-665-11 ELECT 100uF 20% 10V C554 1-102-937-00 CERAMIC 4.0PF +-0.25PF 50V C555 1-102-989-00 CERAMIC 68PF 5% 500V C556 1-102-989-00 CERAMIC 68PF 5% 500V C560 1-126-967-11 ELECT 47uF 20% 16V C561 1-137-372-11 FILM 0.022uF 5% 50V C567 1-162-193-31 CERAMIC 3.3PF 10% 50V C570 1-162-286-31 CERAMIC 220PF 10% 50V C601 1-162-282-31 CERAMIC 100PF 10% 50V C602 1-162-282-31 CERAMIC 100PF 10% 50V C604 1-104-665-11 ELECT 100uF 20% 16V C605 1-162-294-31 CERAMIC 0.001uF 10% 50V C610 1-137-372-11 FILM 0.022uF 5% 50V C641 1-162-282-31 CERAMIC 100PF 10% 50V C642 1-162-282-31 CERAMIC 100PF 10% 50V C643 1-162-282-31 CERAMIC 100PF 10% 50V C651 1-162-282-31 CERAMIC 100PF 10% 50V C652 1-162-282-31 CERAMIC 100PF 10% 50V C654 1-104-665-11 ELECT 100uF 20% 16V C660 1-137-372-11 FILM 0.022uF 5% 50V C702 1-162-282-31 CERAMIC 100PF 10% 50V C703 1-104-665-11 ELECT 100uF 20% 10V C705 1-102-233-00 CERAMIC 33PF 10% 500V C710 1-126-967-11 ELECT 47uF 20% 16V C711 1-137-372-11 FILM 0.022uF 5% 50V C720 1-162-286-31 CERAMIC 220PF 10% 50V C721 1-126-934-11 ELECT 220uF 20% 10V C722 1-126-964-11 ELECT 10uF 20% 50V C740 1-128-562-11 ELECT 47uF 20% 100V C741 1-128-562-11 ELECT 47uF 20% 100V C742 1-126-925-11 ELECT 470uF 20% 10V C752 1-162-282-31 CERAMIC 100PF 10% 50V C753 1-104-665-11 ELECT 100uF 20% 10V C755 1-102-233-00 CERAMIC 33PF 10% 500V C760 1-126-967-11 ELECT 47uF 20% 16V C761 1-137-372-11 FILM 0.022uF 5% 50V C770 1-162-286-31 CERAMIC 220PF 10% 50V C799 1-164-159-11 CERAMIC 0.1uF 50V C801 1-104-664-11 ELECT 47uF 20% 25V C802 1-104-664-11 ELECT 47uF 20% 25V C803 1-104-595-11 ELECT(BLOCK) 6800uF 20% 71V C804 1-104-595-11 ELECT(BLOCK) 6800uF 20% 71V C805 1-137-420-11 FILM 0.047uF 10% 100V C806 1-137-420-11 FILM 0.047uF 10% 100V C807 1-104-664-11 ELECT 47uF 20% 25V C808 1-104-664-11 ELECT 47uF 20% 25V C809 1-126-960-11 ELECT 1uF 20% 50V C810 1-126-960-11 ELECT 1uF 20% 50V C811 1-126-974-11 ELECT 3300uF 20% 50V C812 1-126-974-11 ELECT 3300uF 20% 50V C813 1-101-001-00 CERAMIC 0.001uF 50V C814 1-101-001-00 CERAMIC 0.001uF 50V C820 1-161-494-00 CERAMIC 0.022uF 25V C821 1-161-494-00 CERAMIC 0.022uF 25V C822 1-104-664-11 ELECT 47uF 20% 25V C823 1-104-664-11 ELECT 47uF 20% 25V C950 1-126-767-11 ELECT 1000uF 20% 16V C951 1-164-097-11 CERAMIC 0.022uF 50V C952 1-126-960-11 ELECT 1uF 20% 50V C953 1-124-464-11 ELECT 0.22uF 20% 50V C954 1-126-795-11 ELECT 10uF 20% 50V C955 1-164-159-11 CERAMIC 0.1uF 50V < CONNECTOR > CNP503 1-695-087-11 PIN, CONNECTOR (PC BOARD) 7P CNP504 1-695-087-11 PIN, CONNECTOR (PC BOARD) 7P CNP702 1-764-474-11 PIN, CONNECTOR (PC BOARD) 5P CNS204 1-568-742-11 SOCKET, CONNECTOR 23P CNS251 1-569-060-11 SOCKET, CONNECTOR 11P CNS701 1-568-442-11 SOCKET, CONNECTOR 9P CNS802 1-770-480-11 SOCKET, CONNECTOR PIN 4P < DIODE > D311 8-719-911-19 DIODE 1SS119 D312 8-719-911-19 DIODE 1SS119 D560 8-719-911-19 DIODE 1SS119 D610 8-719-911-19 DIODE 1SS119 D710 8-719-911-19 DIODE 1SS119 D721 8-719-911-19 DIODE 1SS119 D722 8-719-911-19 DIODE 1SS119 D723 8-719-911-19 DIODE 1SS119 D724 8-719-911-19 DIODE 1SS119 D725 8-719-911-19 DIODE 1SS119 MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 34 — D726 8-719-911-19 DIODE 1SS119 D727 8-719-911-19 DIODE 1SS119 D728 8-719-911-19 DIODE 1SS119 D801 8-719-986-54 DIODE HZS24-1LTA D802 8-719-302-38 DIODE RBV-602-01 D803 8-719-028-23 DIODE D3SBA20-4101 D804 8-719-109-85 DIODE RD5.1ES-B2 D810 8-719-024-99 DIODE 11ES2-NTA2B D811 8-719-024-99 DIODE 11ES2-NTA2B D812 8-719-024-99 DIODE 11ES2-NTA2B D813 8-719-024-99 DIODE 11ES2-NTA2B D814 8-719-911-19 DIODE 1SS119 D815 8-719-911-19 DIODE 1SS119 D817 8-719-936-61 DIODE GL-9HY35 D818 8-719-911-19 DIODE 1SS119 D901 8-719-911-19 DIODE 1SS119 < EARTH > * G200 1-537-738-21 TERMINAL, EARTH * G201 1-537-738-21 TERMINAL, EARTH * G202 1-537-738-21 TERMINAL, EARTH < IC > IC300 8-759-442-97 IC LV1016 IC301 8-759-442-96 IC LA2786 IC302 8-759-636-74 IC M5218AP-22 IC401 8-759-805-14 IC LC7822 IC402 8-759-636-74 IC M5218AP-22 IC501 8-759-636-74 IC M5218AP-22 IC551 8-749-011-16 IC STK350-230 IC601 8-759-085-89 IC LM3875-S IC651 8-759-085-89 IC LM3875-S IC701 8-759-326-52 IC uPC2581V IC801 8-759-604-40 IC M5F78M15 IC802 8-759-604-46 IC M5F79M15 IC950 8-759-333-83 IC NJM2103D < JACK > J401 1-770-614-11 JACK, PIN 4P (PHONO/CD) J402 1-580-825-11 JACK, PIN 6P (TAPE/MD,TV DBS AUDIO IN) J403 1-770-613-11 JACK, PIN 4P (VIDEO) < COIL > L301 1-410-509-11 INDUCTOR 10uH L302 1-410-509-11 INDUCTOR 10uH L551 1-420-872-00 COIL, AIR-CORE L601 1-420-872-00 COIL, AIR-CORE L651 1-420-872-00 COIL, AIR-CORE L701 1-420-872-00 COIL, AIR-CORE L751 1-420-872-00 COIL, AIR-CORE < TRANSISTOR > Q551 8-729-119-76 TRANSISTOR 2SA1175-HFE Q552 8-729-141-30 TRANSISTOR 2SC3623A-LK Q553 8-749-010-25 IC MN2488-OPY-M Q554 8-749-010-26 IC MP1620-OPY-M Q560 8-729-119-78 TRANSISTOR 2SC403SP-51 Q570 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q610 8-729-119-78 TRANSISTOR 2SC403SP-51 Q701 8-729-119-76 TRANSISTOR 2SA1175-HFE Q702 8-729-141-30 TRANSISTOR 2SC3623A-LK Q703 8-749-010-25 IC MN2488-OPY-M Q704 8-749-010-26 IC MP1620-OPY-M Q710 8-729-119-78 TRANSISTOR 2SC403SP-51 Q720 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q721 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q722 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA Q723 8-729-119-78 TRANSISTOR 2SC403SP-51 Q751 8-729-119-76 TRANSISTOR 2SA1175-HFE Q752 8-729-141-30 TRANSISTOR 2SC3623A-LK Q753 8-749-010-25 IC MN2488-OPY-M Q754 8-749-010-26 IC MP1620-OPY-M Q770 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q801 8-729-140-97 TRANSISTOR 2SB734-34 Q802 8-729-119-78 TRANSISTOR 2SC403SP-51 Q808 8-729-026-68 TRANSISTOR 2SD2525(TP) Q808 8-729-209-15 TRANSISTOR 2SD2012 Q809 8-729-119-78 TRANSISTOR 2SC403SP-51 Q951 8-729-026-68 TRANSISTOR 2SD2525(TP) Q951 8-729-209-15 TRANSISTOR 2SD2012 < RESISTOR > R300 1-247-903-00 CARBON 1M 5% 1/4W R301 1-249-421-11 CARBON 2.2K 5% 1/4W F R302 1-249-421-11 CARBON 2.2K 5% 1/4W F R303 1-249-439-11 CARBON 68K 5% 1/4W R304 1-249-411-11 CARBON 330 5% 1/4W R306 1-249-436-11 CARBON 39K 5% 1/4W R307 1-247-862-11 CARBON 20K 5% 1/4W R308 1-249-421-11 CARBON 2.2K 5% 1/4W F R309 1-249-421-11 CARBON 2.2K 5% 1/4W F R357 1-249-441-11 CARBON 100K 5% 1/4W R358 1-249-441-11 CARBON 100K 5% 1/4W R359 1-249-425-11 CARBON 4.7K 5% 1/4W F R360 1-249-425-11 CARBON 4.7K 5% 1/4W F R374 1-249-429-11 CARBON 10K 5% 1/4W R375 1-249-429-11 CARBON 10K 5% 1/4W R401 1-249-417-11 CARBON 1K 5% 1/4W F R402 1-247-843-11 CARBON 3.3K 5% 1/4W R403 1-249-417-11 CARBON 1K 5% 1/4W F R404 1-249-417-11 CARBON 1K 5% 1/4W F R405 1-249-417-11 CARBON 1K 5% 1/4W F R406 1-249-417-11 CARBON 1K 5% 1/4W F R407 1-249-417-11 CARBON 1K 5% 1/4W F R408 1-249-426-11 CARBON 5.6K 5% 1/4W R410 1-249-437-11 CARBON 47K 5% 1/4W R411 1-249-415-11 CARBON 680 5% 1/4W F R412 1-247-897-11 CARBON 560K 5% 1/4W R413 1-249-437-11 CARBON 47K 5% 1/4W R414 1-249-425-11 CARBON 4.7K 5% 1/4W F R415 1-249-417-11 CARBON 1K 5% 1/4W F R416 1-249-409-11 CARBON 220 5% 1/4W F R417 1-249-441-11 CARBON 100K 5% 1/4W R420 1-249-441-11 CARBON 100K 5% 1/4W R435 1-249-418-11 CARBON 1.2K 5% 1/4W F R442 1-249-418-11 CARBON 1.2K 5% 1/4W F R443 1-249-418-11 CARBON 1.2K 5% 1/4W F MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 35 — R447 1-249-416-11 CARBON 820 5% 1/4W F R448 1-249-429-11 CARBON 10K 5% 1/4W R449 1-249-433-11 CARBON 22K 5% 1/4W R450 1-249-400-11 CARBON 39 5% 1/4W F R451 1-249-417-11 CARBON 1K 5% 1/4W F R452 1-247-843-11 CARBON 3.3K 5% 1/4W R453 1-249-417-11 CARBON 1K 5% 1/4W F R454 1-249-417-11 CARBON 1K 5% 1/4W F R455 1-249-417-11 CARBON 1K 5% 1/4W F R456 1-249-417-11 CARBON 1K 5% 1/4W F R457 1-249-417-11 CARBON 1K 5% 1/4W F R458 1-249-426-11 CARBON 5.6K 5% 1/4W R460 1-249-437-11 CARBON 47K 5% 1/4W R461 1-249-415-11 CARBON 680 5% 1/4W F R462 1-247-897-11 CARBON 560K 5% 1/4W R463 1-249-437-11 CARBON 47K 5% 1/4W R465 1-249-417-11 CARBON 1K 5% 1/4W F R466 1-249-409-11 CARBON 220 5% 1/4W F R467 1-249-441-11 CARBON 100K 5% 1/4W R470 1-249-441-11 CARBON 100K 5% 1/4W R513 1-249-429-11 CARBON 10K 5% 1/4W R514 1-249-429-11 CARBON 10K 5% 1/4W R515 1-249-419-11 CARBON 1.5K 5% 1/4W F R516 1-249-419-11 CARBON 1.5K 5% 1/4W F R517 1-249-429-11 CARBON 10K 5% 1/4W R518 1-249-429-11 CARBON 10K 5% 1/4W R551 1-249-417-11 CARBON 1K 5% 1/4W F R552 1-249-438-11 CARBON 56K 5% 1/4W R553 1-249-413-11 CARBON 470 5% 1/4W F R554 1-249-438-11 CARBON 56K 5% 1/4W R555 1-249-413-11 CARBON 470 5% 1/4W F R560 1-249-421-11 CARBON 2.2K 5% 1/4W F R561 1-249-440-11 CARBON 82K 5% 1/4W R562 1-249-431-11 CARBON 15K 5% 1/4W R563 1-249-414-11 CARBON 560 5% 1/4W F !R564 1-249-408-11 CARBON 180 5% 1/4W F !R565 1-249-408-11 CARBON 180 5% 1/4W F !R566 1-233-352-21 ENCAPSULATED COMPONENT !R567 1-249-393-11 CARBON 10 5% 1/4W F R568 1-249-389-11 CARBON 4.7 5% 1/4W F !R569 1-249-413-11 CARBON 470 5% 1/4W F R570 1-249-419-11 CARBON 1.5K 5% 1/4W F R571 1-249-427-11 CARBON 6.8K 5% 1/4W F R573 1-249-437-11 CARBON 47K 5% 1/4W R580 1-249-426-11 CARBON 5.6K 5% 1/4W R581 1-247-887-00 CARBON 220K 5% 1/4W R582 1-249-426-11 CARBON 5.6K 5% 1/4W R601 1-249-417-11 CARBON 1K 5% 1/4W F R602 1-249-438-11 CARBON 56K 5% 1/4W R603 1-249-438-11 CARBON 56K 5% 1/4W R604 1-249-413-11 CARBON 470 5% 1/4W F !R610 1-249-393-11 CARBON 10 5% 1/4W F R611 1-249-389-11 CARBON 4.7 5% 1/4W F R612 1-249-437-11 CARBON 47K 5% 1/4W !R619 1-249-413-11 CARBON 470 5% 1/4W F R630 1-249-426-11 CARBON 5.6K 5% 1/4W R632 1-249-426-11 CARBON 5.6K 5% 1/4W R651 1-249-417-11 CARBON 1K 5% 1/4W F R652 1-249-438-11 CARBON 56K 5% 1/4W R653 1-249-438-11 CARBON 56K 5% 1/4W R654 1-249-413-11 CARBON 470 5% 1/4W F !R660 1-249-393-11 CARBON 10 5% 1/4W F R661 1-249-389-11 CARBON 4.7 5% 1/4W F R662 1-249-437-11 CARBON 47K 5% 1/4W R701 1-249-417-11 CARBON 1K 5% 1/4W F R702 1-249-439-11 CARBON 68K 5% 1/4W R703 1-249-414-11 CARBON 560 5% 1/4W F R704 1-249-439-11 CARBON 68K 5% 1/4W R710 1-249-421-11 CARBON 2.2K 5% 1/4W F R711 1-249-440-11 CARBON 82K 5% 1/4W R713 1-249-414-11 CARBON 560 5% 1/4W F !R714 1-249-408-11 CARBON 180 5% 1/4W F !R715 1-249-408-11 CARBON 180 5% 1/4W F !R716 1-233-352-21 ENCAPSULATED COMPONENT !R717 1-249-393-11 CARBON 10 5% 1/4W F R718 1-249-389-11 CARBON 4.7 5% 1/4W F !R719 1-249-413-11 CARBON 470 5% 1/4W F R720 1-249-419-11 CARBON 1.5K 5% 1/4W F R721 1-249-427-11 CARBON 6.8K 5% 1/4W F R722 1-249-431-11 CARBON 15K 5% 1/4W R723 1-249-437-11 CARBON 47K 5% 1/4W R724 1-249-425-11 CARBON 4.7K 5% 1/4W F R725 1-249-427-11 CARBON 6.8K 5% 1/4W F R726 1-249-417-11 CARBON 1K 5% 1/4W F R727 1-249-427-11 CARBON 6.8K 5% 1/4W F R730 1-249-429-11 CARBON 10K 5% 1/4W R731 1-247-887-00 CARBON 220K 5% 1/4W R734 1-249-429-11 CARBON 10K 5% 1/4W !R740 1-249-393-11 CARBON 10 5% 1/4W F !R741 1-249-393-11 CARBON 10 5% 1/4W F R742 1-249-427-11 CARBON 6.8K 5% 1/4W F R751 1-249-417-11 CARBON 1K 5% 1/4W F R752 1-249-439-11 CARBON 68K 5% 1/4W R753 1-249-414-11 CARBON 560 5% 1/4W F R754 1-249-439-11 CARBON 68K 5% 1/4W R760 1-249-421-11 CARBON 2.2K 5% 1/4W F R761 1-249-440-11 CARBON 82K 5% 1/4W R763 1-249-414-11 CARBON 560 5% 1/4W F !R764 1-249-408-11 CARBON 180 5% 1/4W F !R765 1-249-408-11 CARBON 180 5% 1/4W F !R766 1-233-352-21 ENCAPSULATED COMPONENT !R767 1-249-393-11 CARBON 10 5% 1/4W F R768 1-249-389-11 CARBON 4.7 5% 1/4W F R770 1-249-419-11 CARBON 1.5K 5% 1/4W F R771 1-249-427-11 CARBON 6.8K 5% 1/4W F R772 1-249-431-11 CARBON 15K 5% 1/4W R773 1-249-437-11 CARBON 47K 5% 1/4W R781 1-247-887-00 CARBON 220K 5% 1/4W !R801 1-215-883-11 METAL OXIDE 33 5% 2W F !R802 1-215-883-11 METAL OXIDE 33 5% 2W F !R803 1-215-883-11 METAL OXIDE 33 5% 2W F !R804 1-215-883-11 METAL OXIDE 33 5% 2W F !R805 1-215-883-11 METAL OXIDE 33 5% 2W F !R806 1-215-883-11 METAL OXIDE 33 5% 2W F !R807 1-249-405-11 CARBON 100 5% 1/4W F MAIN The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 36 — !R808 1-249-405-11 CARBON 100 5% 1/4W F !R809 1-249-405-11 CARBON 100 5% 1/4W F !R815 1-247-739-11 CARBON 100 5% 1/2W F R816 1-249-425-11 CARBON 4.7K 5% 1/4W F R821 1-249-437-11 CARBON 47K 5% 1/4W R822 1-249-425-11 CARBON 4.7K 5% 1/4W F R823 1-249-437-11 CARBON 47K 5% 1/4W R824 1-249-425-11 CARBON 4.7K 5% 1/4W F R825 1-249-417-11 CARBON 1K 5% 1/4W F !R830 1-249-413-11 CARBON 470 5% 1/4W F R950 1-249-421-11 CARBON 2.2K 5% 1/4W F R951 1-249-429-11 CARBON 10K 5% 1/4W R952 1-247-843-11 CARBON 3.3K 5% 1/4W R953 1-249-433-11 CARBON 22K 5% 1/4W R954 1-249-439-11 CARBON 68K 5% 1/4W R955 1-249-429-11 CARBON 10K 5% 1/4W R956 1-247-843-11 CARBON 3.3K 5% 1/4W R957 1-249-417-11 CARBON 1K 5% 1/4W F R958 1-249-401-11 CARBON 47 5% 1/4W F R960 1-249-429-11 CARBON 10K 5% 1/4W < RELAY > RY551 1-515-920-11 RELAY (24V) RY601 1-515-920-11 RELAY (24V) RY701 1-515-920-11 RELAY (24V) RY801 1-515-894-11 RELAY < TERMINAL > TM1 1-537-240-51 TERMINAL BOARD (CHECKER PIN) TM601 1-537-510-11 TERMINAL BOARD (SPEAKER) (6P) TM701 1-537-376-11 TERMINAL BOARD (SP) < TUNER > TU001 1-233-593-11 ENCAPSULATED COMPONENT < VIBRATOR > X301 1-579-952-11 VIBRATOR, CERAMIC 8MHz ************************************************************ * 1-665-286-11 PRIMARY BOARD ************* < FUSE > !F901 1-533-310-11 FUSE, GLASS TUBE 6.3A 125V < HOLDER > FH901 1-533-233-21 HOLDER, FUSE FH951 1-533-233-21 HOLDER, FUSE ************************************************************ * 1-665-287-11 SECONDARY BOARD *************** < CONNECTOR > CNP801 1-764-479-11 PIN, CONNECTOR (PC BOARD) 10P < FUSE > !F801 1-576-108-11 FUSE 4A 125V !F802 1-576-108-11 FUSE 4A 125V < HOLDER > FH801 1-533-233-21 HOLDER, FUSE FH802 1-533-233-21 HOLDER, FUSE FH851 1-533-233-21 HOLDER, FUSE FH852 1-533-233-21 HOLDER, FUSE ************************************************************ * 1-665-289-11 SP-SW BOARD *********** < CONNECTOR > CNP703 1-764-474-11 PIN, CONNECTOR (PC BOARD) 5P CNP704 1-764-473-11 PIN, CONNECTOR (PC BOARD) 3P < JACK > J741 1-750-731-11 JACK (LARGE TYPE) (PHONES) < RESISTOR > R741 1-247-753-11 CARBON 1.2K 5% 1/2W R742 1-247-753-11 CARBON 1.2K 5% 1/2W R791 1-247-753-11 CARBON 1.2K 5% 1/2W R792 1-247-753-11 CARBON 1.2K 5% 1/2W < SWITCH > S701 1-762-319-11 SWITCH, PUSH (2 KEY)(SPEAKERS) ************************************************************ * 1-665-285-11 STANDBY BOARD ************* < CONNECTOR > CNP802 1-779-495-11 PLUG, CONNECTOR PIN 4P CNP901 1-564-321-00 PIN, CONNECTOR 2P CNP903 1-580-230-11 PIN, CONNECTOR (PC BOARD) 2P < DIODE > D816 8-719-911-19 DIODE 1SS119 < EARTH > * G900 1-537-738-21 TERMINAL, EARTH < RESISTOR > !R901 1-202-725-00 SOLID 3.3M 10% 1/2W < RELAY > !RY901 1-755-018-11 RELAY < TRANSFORMER > !T902 1-450-361-11 TRANSFORMER, POWER ************************************************************ MAIN PRIMARY STANDBY SP-SW SECONDARY The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 37 — * A-4392-780-A SWITCH BOARD, COMPLETE *********************** < CAPACITOR > C425 1-126-795-11 ELECT 10uF 20% 25V C426 1-126-795-11 ELECT 10uF 20% 25V C427 1-162-207-31 CERAMIC 22PF 5% 50V C428 1-124-252-00 ELECT 0.33uF 20% 50V C429 1-130-489-00 MYLAR 0.033uF 5% 50V C430 1-102-973-00 CERAMIC 100PF 5% 50V C432 1-126-795-11 ELECT 10uF 20% 25V C433 1-126-795-11 ELECT 10uF 20% 25V C475 1-126-795-11 ELECT 10uF 20% 25V C476 1-126-795-11 ELECT 10uF 20% 25V C477 1-162-207-31 CERAMIC 22PF 5% 50V C478 1-124-252-00 ELECT 0.33uF 20% 50V C479 1-130-489-00 MYLAR 0.033uF 5% 50V C480 1-102-973-00 CERAMIC 100PF 5% 50V C492 1-124-464-11 ELECT 0.22uF 20% 50V C500 1-164-159-11 CERAMIC 0.1uF 50V C501 1-162-294-31 CERAMIC 0.001uF 10% 50V C503 1-162-282-31 CERAMIC 100PF 10% 50V C511 1-126-163-11 ELECT 4.7uF 20% 50V C512 1-126-163-11 ELECT 4.7uF 20% 50V C518 1-164-159-11 CERAMIC 0.1uF 50V < CONNECTOR > * CN501 1-569-306-11 SOCKET, CONNECTOR (L TYRE) 15P * CN505 1-569-306-11 SOCKET, CONNECTOR (L TYRE) 15P * CNP507 1-770-394-11 PIN, CONNECTOR (PC BOARD) 10P CNS503 1-695-092-11 SOCKET, CONNECTOR 7P CNS504 1-695-092-11 SOCKET, CONNECTOR 7P < DIODE > D421 8-719-911-19 DIODE 1SS119 < IC > IC404 8-759-636-74 IC M5218AP-22 IC500 8-759-805-14 IC LC7822 IC502 8-759-636-74 IC M5218AP-22 < TRANSISTOR > Q401 8-729-202-67 TRANSISTOR 2SK246-GR3 Q402 8-729-141-30 TRANSISTOR 2SC3623A-LK Q451 8-729-202-67 TRANSISTOR 2SK246-GR3 Q452 8-729-141-30 TRANSISTOR 2SC3623A-LK Q501 8-729-141-30 TRANSISTOR 2SC3623A-LK < RESISTOR > R426 1-249-429-11 CARBON 10K 5% 1/4W R427 1-249-439-11 CARBON 68K 5% 1/4W R428 1-249-417-11 CARBON 1K 5% 1/4W F R430 1-249-437-11 CARBON 47K 5% 1/4W R431 1-247-843-11 CARBON 3.3K 5% 1/4W R432 1-247-883-00 CARBON 150K 5% 1/4W R433 1-249-427-11 CARBON 6.8K 5% 1/4W F R434 1-249-413-11 CARBON 470 5% 1/4W F R438 1-249-441-11 CARBON 100K 5% 1/4W R441 1-249-441-11 CARBON 100K 5% 1/4W R444 1-247-903-00 CARBON 1M 5% 1/4W R464 1-247-903-00 CARBON 1M 5% 1/4W R469 1-247-903-00 CARBON 1M 5% 1/4W R476 1-249-429-11 CARBON 10K 5% 1/4W R477 1-249-439-11 CARBON 68K 5% 1/4W R478 1-249-417-11 CARBON 1K 5% 1/4W F R480 1-249-437-11 CARBON 47K 5% 1/4W R481 1-247-843-11 CARBON 3.3K 5% 1/4W R482 1-247-883-00 CARBON 150K 5% 1/4W R483 1-249-427-11 CARBON 6.8K 5% 1/4W F R484 1-249-413-11 CARBON 470 5% 1/4W F R491 1-249-441-11 CARBON 100K 5% 1/4W R492 1-247-903-00 CARBON 1M 5% 1/4W R494 1-247-903-00 CARBON 1M 5% 1/4W R501 1-247-843-11 CARBON 3.3K 5% 1/4W R502 1-249-425-11 CARBON 4.7K 5% 1/4W F R503 1-249-429-11 CARBON 10K 5% 1/4W R504 1-249-425-11 CARBON 4.7K 5% 1/4W F R505 1-249-421-11 CARBON 2.2K 5% 1/4W F R506 1-249-425-11 CARBON 4.7K 5% 1/4W F R507 1-249-417-11 CARBON 1K 5% 1/4W F R508 1-249-426-11 CARBON 5.6K 5% 1/4W R511 1-249-441-11 CARBON 100K 5% 1/4W R512 1-249-441-11 CARBON 100K 5% 1/4W R519 1-249-429-11 CARBON 10K 5% 1/4W R520 1-249-417-11 CARBON 1K 5% 1/4W F ************************************************************* * A-4407-443-A VIDEO BOARD, COMPLETE ********************* < CONNECTOR > CNS250 1-569-060-11 SOCKET, CONNECTOR 11P CNS506 1-569-321-11 SOCKET, CONNECTOR 15P < DIODE > D310 8-719-911-19 DIODE 1SS119 < JACK > J253 1-774-843-11 JACK, PIN 1P (WOOFER) J501 1-779-380-11 JACK, PIN 6P (FRONT/REAR/WOOFER/CENTER) < TRANSISTOR > Q367 8-729-119-78 TRANSISTOR 2SC403SP-51 < RESISTOR > R272 1-249-421-11 CARBON 2.2K 5% 1/4W F R274 1-249-421-11 CARBON 2.2K 5% 1/4W F R275 1-249-429-11 CARBON 10K 5% 1/4W R276 1-249-421-11 CARBON 2.2K 5% 1/4W F R277 1-249-429-11 CARBON 10K 5% 1/4W R278 1-249-421-11 CARBON 2.2K 5% 1/4W F R280 1-249-421-11 CARBON 2.2K 5% 1/4W F R282 1-249-421-11 CARBON 2.2K 5% 1/4W F R397 1-249-419-11 CARBON 1.5K 5% 1/4W F R399 1-249-426-11 CARBON 5.6K 5% 1/4W < RELAY > RY301 1-515-793-11 RELAY ************************************************************ SWITCH VIDEO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 38 — * A-4407-441-A VR-TONE BOARD, COMPLETE *********************** < CAPACITOR > C220 1-126-301-11 ELECT 1uF 20% 50V C221 1-126-301-11 ELECT 1uF 20% 50V C361 1-164-159-11 CERAMIC 0.1uF 50V C362 1-164-159-11 CERAMIC 0.1uF 50V C363 1-164-159-11 CERAMIC 0.1uF 50V C364 1-164-159-11 CERAMIC 0.1uF 50V C365 1-164-159-11 CERAMIC 0.1uF 50V C381 1-126-963-11 ELECT 4.7uF 20% 50V C382 1-126-963-11 ELECT 4.7uF 20% 50V C383 1-126-963-11 ELECT 4.7uF 20% 50V C384 1-126-963-11 ELECT 4.7uF 20% 50V C385 1-126-963-11 ELECT 4.7uF 20% 50V C421 1-137-440-11 FILM 0.018uF 5% 50V C422 1-124-463-00 ELECT 0.1uF 20% 50V C423 1-137-368-11 FILM 0.0047uF 5% 50V C424 1-137-372-11 FILM 0.022uF 5% 50V C471 1-137-440-11 FILM 0.018uF 5% 50V C472 1-124-463-00 ELECT 0.1uF 20% 50V C473 1-137-368-11 FILM 0.0047uF 5% 50V C474 1-137-372-11 FILM 0.022uF 5% 50V < CONNECTOR > * CNP202 1-770-394-11 PIN, CONNECTOR (PC BOARD) 10P CNS402 1-568-442-11 SOCKET, CONNECTOR 9P CNS502 1-569-321-11 SOCKET, CONNECTOR 15P CNS507 1-770-403-11 HOUSING,CONNECTOR(PC BOARD)10P < DIODE > D238 8-719-313-50 DIODE SEL6810A-TH12 (BASS BOOST) < TRANSISTOR > Q361 8-729-141-30 TRANSISTOR 2SC3623A-LK Q362 8-729-141-30 TRANSISTOR 2SC3623A-LK Q363 8-729-141-30 TRANSISTOR 2SC3623A-LK Q364 8-729-141-30 TRANSISTOR 2SC3623A-LK Q365 8-729-141-30 TRANSISTOR 2SC3623A-LK < RESISTOR > R351 1-249-417-11 CARBON 1K 5% 1/4W F R352 1-249-417-11 CARBON 1K 5% 1/4W F R353 1-249-417-11 CARBON 1K 5% 1/4W F R354 1-249-417-11 CARBON 1K 5% 1/4W F R355 1-249-417-11 CARBON 1K 5% 1/4W F R361 1-249-425-11 CARBON 4.7K 5% 1/4W F R362 1-249-425-11 CARBON 4.7K 5% 1/4W F R363 1-249-425-11 CARBON 4.7K 5% 1/4W F R364 1-249-425-11 CARBON 4.7K 5% 1/4W F R365 1-249-425-11 CARBON 4.7K 5% 1/4W F R366 1-249-441-11 CARBON 100K 5% 1/4W R367 1-249-441-11 CARBON 100K 5% 1/4W R368 1-249-441-11 CARBON 100K 5% 1/4W R369 1-249-441-11 CARBON 100K 5% 1/4W R370 1-249-441-11 CARBON 100K 5% 1/4W R371 1-249-441-11 CARBON 100K 5% 1/4W R421 1-249-430-11 CARBON 12K 5% 1/4W R422 1-249-422-11 CARBON 2.7K 5% 1/4W F R423 1-247-903-00 CARBON 1M 5% 1/4W R424 1-247-903-00 CARBON 1M 5% 1/4W R425 1-249-415-11 CARBON 680 5% 1/4W F R471 1-249-430-11 CARBON 12K 5% 1/4W R472 1-249-422-11 CARBON 2.7K 5% 1/4W F R473 1-247-903-00 CARBON 1M 5% 1/4W R474 1-247-903-00 CARBON 1M 5% 1/4W R475 1-249-415-11 CARBON 680 5% 1/4W F < VARIABLE RESISTOR > RV404 1-225-446-11 RES, VAR, CARBON 100KX6 (MASTER VOLUME) RV421 1-223-362-11 RES, VAR, CARBON 100K/100K (BASS) RV422 1-223-363-11 RES, VAR, CARBON 125K/125K (TREBLE) RV423 1-225-447-11 RES, VAR, CARBON 100K/100K (BALANCE) < SWITCH > S240 1-762-378-11 SWITCH, TACTILE (BASS BOOST) ************************************************************ MISCELLANEOUS ************** 10 1-782-100-11 WIRE (FLAT TYPE) (23 CORE) 11 1-769-911-11 WIRE (FLAT TYPE) (9 CORE) 12 1-782-081-11 WIRE (FLAT TYPE) (15 CORE) 61 1-782-668-11 WIRE (FLAT TYPE) (11 CORE) 69 1-782-243-11 WIRE (FLAT TYPE) 15P !71 1-777-070-21 CORD, POWER !CNJ902 1-251-698-11 OUTLET (AC) (2P) !T901 1-431-267-21 TRANSFORMER, POWER ************************************************************ ACCESSORIES & PACKING MATERIALS ******************************* 1-475-710-11 COMMANDER, STANDARD (RM-U302) 1-501-374-11 ANTENNA, LOOP 1-501-659-41 ANTENNA (FM) 1-501-721-11 ANTENNA (LOOP) 3-862-095-11 MANUAL,INSTRUCTION(ENGLISH) 4-981-643-01 COVER, BATTERY(FOR RM-U302) ************************************************************ ************** HARDWARE LIST ************** #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 #2 7-685-881-09 SCREW +BVTT 4X8 (S) #3 7-685-872-09 SCREW +BVTT 3X8 (S) STR-SE581 Sony Corporation Home A&V Products Company 9-922-826-11 98D167021-1 Printed in Singapore © 1998.4 Published by Quality Assurance Dept. (Shibaura) VR-TONE The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
