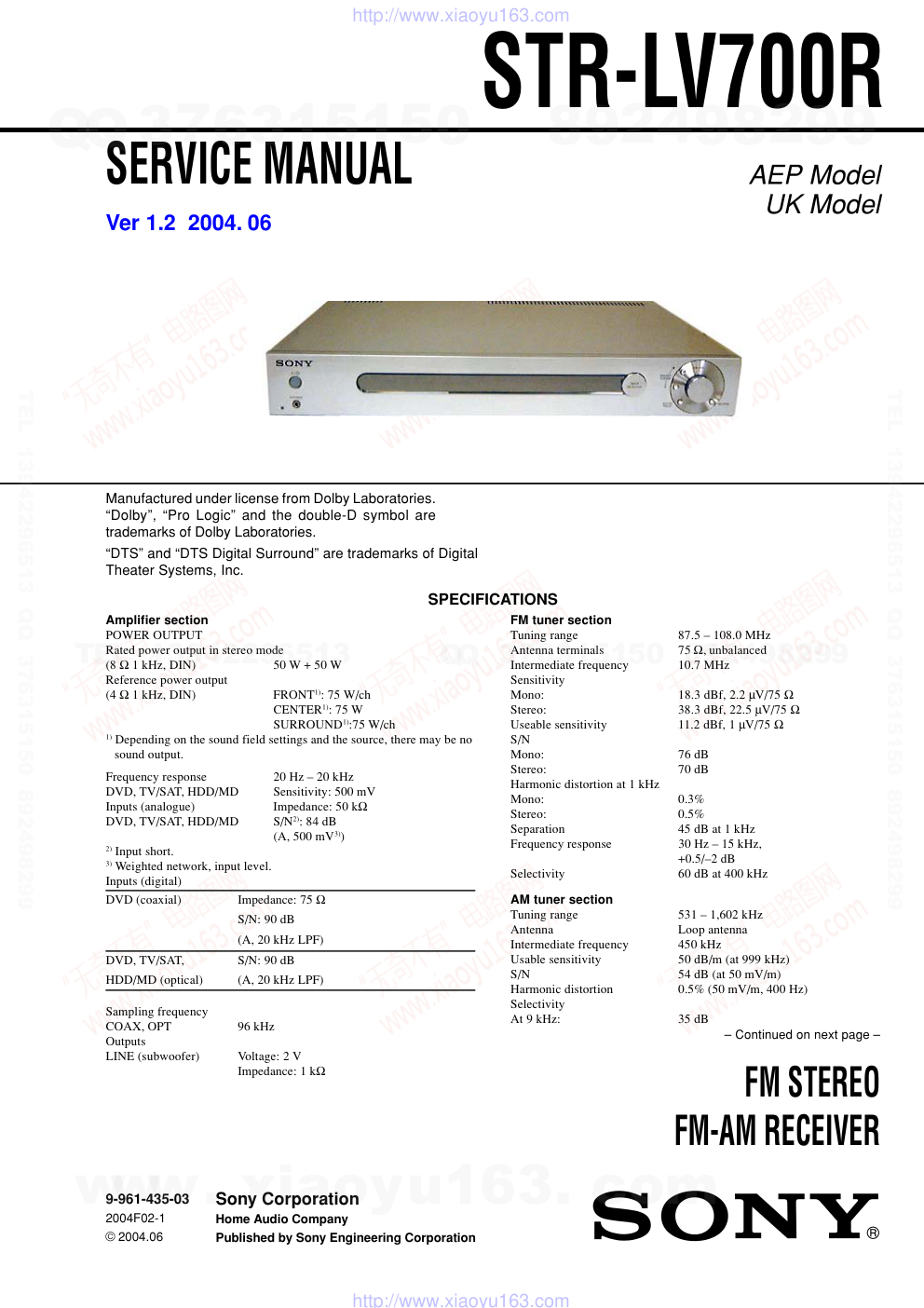

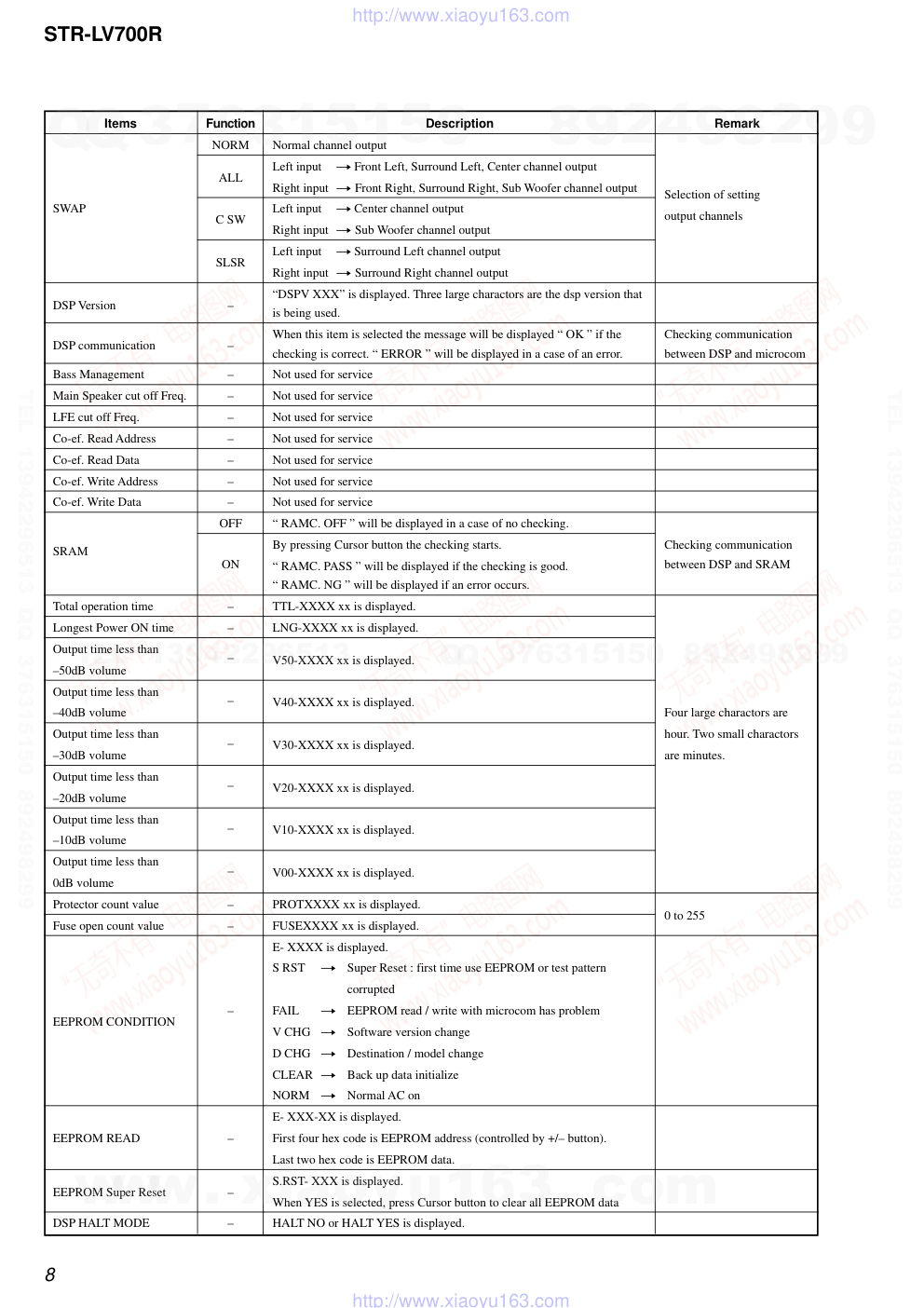

STR-LV700R AEP Model UK Model SERVICE MANUAL FM STEREO FM-AM RECEIVER Sony Corporation Home Audio Company Published by Sony Engineering Corporation 9-961-435-03 2004F02-1 © 2004.06 SPECIFICATIONS Ver 1.2 2004. 06 Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories. – Continued on next page – “DTS” and “DTS Digital Surround” are trademarks of Digital Theater Systems, Inc. Amplifier section POWER OUTPUT Rated power output in stereo mode (8 Ω 1 kHz, DIN) 50 W + 50 W Reference power output (4 Ω 1 kHz, DIN) FRONT1): 75 W/ch CENTER1): 75 W SURROUND1):75 W/ch 1) Depending on the sound field settings and the source, there may be no sound output. Frequency response 20 Hz – 20 kHz DVD, TV/SAT, HDD/MD Sensitivity: 500 mV Inputs (analogue) Impedance: 50 kΩ DVD, TV/SAT, HDD/MD S/N2): 84 dB (A, 500 mV3)) 2) Input short. 3) Weighted network, input level. Inputs (digital) DVD (coaxial) Impedance: 75 Ω S/N: 90 dB (A, 20 kHz LPF) DVD, TV/SAT, S/N: 90 dB HDD/MD (optical) (A, 20 kHz LPF) Sampling frequency COAX, OPT 96 kHz Outputs LINE (subwoofer) Voltage: 2 V Impedance: 1 kΩ FM tuner section Tuning range 87.5 – 108.0 MHz Antenna terminals 75 Ω, unbalanced Intermediate frequency 10.7 MHz Sensitivity Mono: 18.3 dBf, 2.2 µV/75 Ω Stereo: 38.3 dBf, 22.5 µV/75 Ω Useable sensitivity 11.2 dBf, 1 µV/75 Ω S/N Mono: 76 dB Stereo: 70 dB Harmonic distortion at 1 kHz Mono: 0.3% Stereo: 0.5% Separation 45 dB at 1 kHz Frequency response 30 Hz – 15 kHz, +0.5/–2 dB Selectivity 60 dB at 400 kHz AM tuner section Tuning range 531 – 1,602 kHz Antenna Loop antenna Intermediate frequency 450 kHz Usable sensitivity 50 dB/m (at 999 kHz) S/N 54 dB (at 50 mV/m) Harmonic distortion 0.5% (50 mV/m, 400 Hz) Selectivity At 9 kHz: 35 dB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-LV700R 2 Unleaded solder Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.) : LEAD FREE MARK Unleaded solder has the following characteristics. • Unleaded solder melts at a temperature about 40°C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350°C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! TABLE OF CONTENTS SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUM- BERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLE- MENTS PUBLISHED BY SONY. Specifications ............................................................................ 1 1. GENERAL ...................................................................... 3 2. SERVICING NOTES................................................... 4 3. TEST MODE ................................................................. 7 4. DIAGRAMS 4-1. IC Pin Function Descriptions ................................ 13 4-2. Block Diagrams – Tuner/DSP Section – ............... 18 Block Diagrams – Display/Power Section – ......... 19 4-3. Printed Wiring Boards – Digital Section (Side A)– ................................... 20 Printed Wiring Boards – Digital Section (Side B)– ................................... 21 4-4. Schematic Diagram – Digital Section (1/3)– ........ 22 4-5. Schematic Diagram – Digital Section (2/3)– ........ 23 4-6. Schematic Diagram – Digital Section (3/3)– ........ 24 4-7. Schematic Diagram – Amp Section (1/2)– ........... 25 4-8. Schematic Diagram – Amp Section (2/2)– ........... 26 4-9. Printed Wiring Boards – Amp Section–................ 27 4-10. Schematic Diagram – Display Section– ............... 28 4-11. Printed Wiring Boards – Display Section– ........... 29 4-12. Schematic Diagram – Power Section–.................. 30 4-13. Printed Wiring Boards– Power Section– .............. 31 4-14. IC Block Diagrams ................................................ 32 5. EXPLODED VIEWS 5-1. Front Panel Section ................................................. 33 5-2. Cabinet Section ........................................................ 34 6. ELECTRICAL PARTS LIST ....................................35 Video section Input VIDEO: 1 Vp-p 75 Ω Output MONITOR: 1 Vp-p 75 Ω Network Media section Hardware decoder MPEG2 Maximum 8 Mbps, 720 x 480 pixels, 30 fps MPEG1 1.41 Mbps, 352 x 240 pixels, 30 fps Playable file formats Giga Pocket video MPEG2, MPEG1 SonicStage music ATRAC3, ATRAC3plus,WAV, MP3. WMA is not supported. Photo Server images BMP, TIFF, GIF, JPEG,PNG Interface Network 100Base-TX Compatible computers VAIO computers bought after October 2003, running Windows XP Professional or Windows XP Home Edition General Power requirements 230 V AC, 50/60 Hz Power consumption 95 W Dimensions 430 x 65 x 288 mm including projections and controls Mass (approx.) 3.2 kg Package contents AM loop antenna (1) Allen screwdriver (1) Connection adapter (1) Cross-wired cable (1) FM wire antenna (1) Network cable (approx. 170 cm, 1) Network cable ferrite core (1) R6 (AA) batteries (2) Remote control (RM-U70R)(1) Speaker cable ferrite core (2) Speaker plug (5) Design and specifications are subject to change without notice. • Strong viscosity Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. • Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. Ver 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-LV700R 3 SECTION 1 GENERAL This section is extracted from instruction manual. Main unit Display 2 INPUT SELECTOR 3 MUTING 6 PHONES jack 8 PRESET TUNING +/– 4 SOUND FIELD 7 VOLUME 5 ?/1 (power) 1 Alphabetical order Symbols 1 2 3 5 4 6 7 8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-LV700R 4 SECTION 2 SERVICING NOTES 1 remove five screws (+BVTP 3x8) 2 isolation sheet POWER board SERVICE POSITION • POWER BOARD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-LV700R 5 7 VIDEO board VIDEO board isolation sheet 2 tuner unit 9 DIG-IN board DIG-IN board q; three screws (+BVTP 3x8) 1 three screws (+BVTP 3x8) 5 VIF-20(EU) assy VIF-20(EU) assy 6 three screws (+BVTP 3x8) 8 five screws (+BVTP 3x8) qa four screws (+BVTP 3x8) 3 two screws (+BVTT 3x6) 4 two screws (+BVTT 3x6) qs DIGITAL board DIGITAL board qd • VIDEO, DIG-IN, DIGITAL BOARD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-LV700R 6 AMP board • On Removal • On Attaching 2 Bend claws 90 degree counterclokwise. 1 Slide down the heat sink. heat sink. 1 Bend claws 90 degree clokwise. 2 Slide up the heat sink. • AMP BOARD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-LV700R 7 [FLUORESCENT INDICATOR TUBE TEST MODE] All fluorescent indicator segments are tested in this mode. Procedure: 1. While depressing the PRESET TUNING – button, press the =/1 button to turn the main power on. 2. Press the ENTER (SELECT) button on the remote controller 3 times consecutively, then press the MAIN MENU button followed by the M button. 3. All the fluorescent indicator segments turn on. 4. Each time the VIDEO button is pressed, the segments are turned on and off in the following order. Half of the segments turn on t the remaining half turn on t all segments turn off t all the segments turn on. [DSP TEST MODE] Procedure: 1. Press the =/1 button to turn the main power on. 2. Press the ENTER (SELECT) button on the remote controller 3 times consecutively, then press the MAIN MENU button followed by the MUTING button. 3. “SWP.NORM” appears on the indicator and the DSP mode is set. • Select the item by pressing the cursor button M or m . • Select the function by pressing the cursor button < or , . All test modes can be cancelled by turning the main power off. [SOUND FIELD CLEAR MODE] The preset sound field is cleared when this mode is selected. (Use this mode before returning the product to the client after re- pairs have been completed.) Procedure: 1. While depressing the SOUND FIELD button, press the =/1 button to turn the main power on. 2. The message “SF.CLR.” appears on the indicator and the sound field mode is cleared. [FACTORY SET MODE] All preset modes are reset to the default settings. Procedure: 1. While depressing the PRESET TUNING – button, press the =/1 button to turn the main power on. 2. Press the ENTER (SELECT) button on the remote controller 3 times consecutively, then press the MAIN MENU button followed by the A.F.D button. 3. The message “FACTORT” appears on the indicator tube and all the modes are reset to the default settings. [ALL CLEAR MODE] All the preset values are cleared when this mode is selected. Procedure: 1. While depressing the PRESET TUNING – button, press the =/1 button to turn the main power on. 2. Press the ENTER (SELECT) button on the remote controller 3 times consecutively, then press the MAIN MENU button followed by the , button. 3. The message “CLEARED” appears on the indicator tube and all the preset values are cleared. After the backup operation is completed, the main power turns off automatically. [SOFTWARE VERSION DISPLAY MODE] The software version is displayed. Procedure: 1. While depressing the PRESET TUNING – button, press the =/1 button to turn the main power on. 2. Press the ENTER (SELECT) button on the remote controller 3 times consecutively, then press the MAIN MENU button followed by the < button. 3. The software version is displayed (for example, “LSR CE 0.04”) on the indicator tube. [KEY CHECK MODE] The buttons are checked in this mode. Procedure: 1. While depressing the PRESET TUNING – button, press the =/1 button to turn the main power on. 2. Press the ENTER (SELECT) button on the remote control- ler 3 times consecutively, then press the MAIN MENU but- ton followed by the m button. 3. The message “REST 05” appears on the indicator tube. 4. To start the countdown, press any button (other than the =/1 button). The buttons which have been already counted are not re- counted. 5. After all the buttons to be counted been pressed the message “REST 00” is displayed. This completes the key check opera- tion. SECTION 3 TEST MODE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-LV700R 8 Items SWAP DSP Version DSP communication Bass Management Main Speaker cut off Freq. LFE cut off Freq. Co-ef. Read Address Co-ef. Read Data Co-ef. Write Address Co-ef. Write Data SRAM Total operation time Longest Power ON time Output time less than –50dB volume Output time less than –40dB volume Output time less than –30dB volume Output time less than –20dB volume Output time less than –10dB volume Output time less than 0dB volume Protector count value Fuse open count value EEPROM CONDITION EEPROM READ EEPROM Super Reset DSP HALT MODE Remark Selection of setting output channels Checking communication between DSP and microcom Checking communication between DSP and SRAM Four large charactors are hour. Two small charactors are minutes. 0 to 255 Description Normal channel output Left input t Front Left, Surround Left, Center channel output Right input t Front Right, Surround Right, Sub Woofer channel output Left input t Center channel output Right input t Sub Woofer channel output Left input t Surround Left channel output Right input t Surround Right channel output “DSPV XXX” is displayed. Three large charactors are the dsp version that is being used. When this item is selected the message will be displayed “ OK ” if the checking is correct. “ ERROR ” will be displayed in a case of an error. Not used for service Not used for service Not used for service Not used for service Not used for service Not used for service Not used for service “ RAMC. OFF ” will be displayed in a case of no checking. By pressing Cursor button the checking starts. “ RAMC. PASS ” will be displayed if the checking is good. “ RAMC. NG ” will be displayed if an error occurs. TTL-XXXX xx is displayed. LNG-XXXX xx is displayed. V50-XXXX xx is displayed. V40-XXXX xx is displayed. V30-XXXX xx is displayed. V20-XXXX xx is displayed. V10-XXXX xx is displayed. V00-XXXX xx is displayed. PROTXXXX xx is displayed. FUSEXXXX xx is displayed. E- XXXX is displayed. S RST t Super Reset : first time use EEPROM or test pattern corrupted FAIL t EEPROM read / write with microcom has problem V CHG t Software version change D CHG t Destination / model change CLEAR t Back up data initialize NORM t Normal AC on E- XXX-XX is displayed. First four hex code is EEPROM address (controlled by +/– button). Last two hex code is EEPROM data. S.RST- XXX is displayed. When YES is selected, press Cursor button to clear all EEPROM data HALT NO or HALT YES is displayed. Function NORM ALL C SW SLSR – – – – – – – – – OFF ON – – – – – – – – – – – – – – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-LV700R 9 How To Upgrade the Firmware Version The following is the method of upgrading the control software (firmware) preinstalled in the STR-LV700R to the latest version. Note that this method should only be employed when the software version is upgraded. Note: The firmware version installed in the STR-LV700R as of October 2003 is 1.0.3. Before executing this procedure, check to make sure that the preinstalled software version will not be downgraded to older version. The latest information on the software version can be found in the “STR-LV700R Support Information” at http://www.vaio-link.com /info/lv700R/ EN. 1. Preparation and setup of Vaio 1. Items required for writing the firmware • Vaio for testing Models Models with Giga Pocket Models without Giga Pocket Supported PCV-W series PCS-RS3 series without functions PCV-RZ4 series Giga Pocket PCV-RS3 series All Sony Notebooks with VAIO Media Music playback Yes Photograph viewing Yes Video playback Yes No Television viewing and Yes No recording Notes • VAIO computer models marketed before October 2003 do not support the functions above. • Depending on the configuration of your VAIO computer, there may be some operation restrictions. For details about these restrictions and up-to-date information, visit the Sony home audio customer support Web site at http://www.vaio-link.com/info/ lv700R/EN/ VAIO computer models marketed from October 2003 running Windows XP Professional or Windows XP Home Edition. Functions depend on the model of VAIO computer connected. VAIO computer models marketed from October 2003 • Test program disk (J-2501-266-A) • STR-LV700R for writing firmware • Remote commander (accessory) • The network cable, cross-conversion cable and the connection adaptor supplied as accessories (a 100BASE-TX cross cable can also be substituted for these items). • Television set with line input terminals (video and audio terminals) 2. Connect the STR-LV700R to the Vaio for testing using the network cable, adapter and cross-conversion cable (or use the 100BASE- TX cross cable). 3. Setup the Vaio according to the procedure given on pages 30 to 33 of the Instruction Manual. MONITOR USB LINE PHONE HEADPHONES MIC LINE IN VHF/UHF AUDIO – VIDEO OUTPUT – AUDIO – VIDEO1 INPUT – S VIDEO/VIDEO S VIDEO/VIDEO MONITOR OUT L R IN HDD/MD FM U AM ANTENNA 75 Connection adapter To Ethernet port Network cable with ferrite core (supplied) To Ethernet port STR-LV700R Attach the supplied ferrite core to the supplied network cable before connecting the cable to the receiver VAIO computer Crossover cable Notes • This connection method may vary depending on factors specific to your network. • In this conection method the VAIO computer must have a fixed IP address for the LAN connection. Ver 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-LV700R 10 2. Start up STR-LV700R with the Firmware Write Mode. 1. Start up the STR-LV700R and press the N.MEDIA button on the remote controller to open the main menu on the television screen. 2. Use the cursor buttons and ENTER (SELECT) buttons on the remote controller, select “Settings” t “System Settings” t “Firmware Update” t “OK.” 3. Writing firmware from the Vaio for testing Upgrade the two types of firmware (ipls.bin and route66s.bin) to the latest versions. Note that this method should only be employed when the software version is upgraded. In cases when the firmware is downloaded from the home page, also follow the procedure given below. 1. Check the version. Start the STR-LV700R, then open the main menu and select “Settings” t “System Settings” t “Device Information.” Next, check that the firmware version. 2. Start up “EU-firm-1.XX” t “Updater.exe” from “Test JIG Tool CD” (J-2501-266-A). (XXX indicates version) 3. Click the Update button to begin updateing firmware. The message “Wait a few minutes until this screen turns off and the Standby lamp lights” is displayed on the screen. With this unit, when this step is completed, the network media func- tion automatically restarts. OPERATION CHECK METHOD How to check the operation after repairing the main unit or writing firmware The following items are needed to perform the check: • A device that is able of checking the environment during firm- ware writing along with video and audio output terminals. • The server application (Giga Pocket Server 5.0) needs to be in- stalled in the Vaio for testing. To perform the check, connect the Vaio with the preinstalled server application to the STR-LV700R and check that the test video and audio data are played and output correctly via the network. 1. Preparation 1. Items required for testing • STR-LV700R to be tested. • Test JIG Tool CD (J-2501-266-A) • Remote commander (accessory) • The network cable, cross-conversion cable and connection cable supplied as accessories (a 100BASE-TX cross cable can also be substitute for these items). • AV cable • Optical digital cable • Television set with line input terminals (video and audio ter- minals) • Device with optical digital input 2. Preparation of the Vaio for Testing Use the same Vaio used for writing firmware. 2-1. Insert the J-2501-266-A test program disk into the test Vaio. 2-2. Install the test color bar /1kHz signal from the test program disk. Start the Giga Pocket Explorer . From the video cap- sule menu, select “Read” and then click “Browse…”. Select “CD-ROM” t “75p1k1min” folder t “75p1k1min.mpg.” Enter “COLOR-1KHZ” in the Video Capsule Name field and then click the Run button. Saved in “My Cabinet” of the Giga Pocket Explorer. 3. Setup the Vaio according to the procedure given on pages 30 to 33 of the Instruction manual . 4. Connect the outputs (video, audio, optical digital audio) from the STR-LV700R to a television set and connect the device with the optical digital input. 2. Testing method 1. Start up the STR-LV700R and press the N.MEDIA button on the remote controller to open the main menu on the television screen. 2. When the main menu is displayed on the television screen, select “Video t Watch video clips” and press the ENTER (SELECT) button. 3. When the servers list is displayed in the “Select Server Screen.” From this list, select the name of the Vaio for testing and press the ENTER (SELECT) button and select “Connect” in the submenu. If the servers list does not appear even after a cer- tain time interval has elapsed, press the OPTIONS button on the remote controller to display the tool menu. In the tool menu, select “Update to the latest information” and press the ENTER (SELECT) button. 4. When the server is connected, the selection menu for all li- braries is displayed. From this menu, select “My Cabinet” and press the ENTER (SELECT) button. 5. When the video capsule selection menu is displayed, select “COLOR-1KHZ.” 6. If color bars are displayed for video and 1kHz is output to audio, the unit is functioning properly. Also check the video output, audio output and optical digital output items. 7. After the system has been completed, reset the STR-LV700R to the factory preset values. Select “Setting” t “System Setting” t “Factory Default” t “OK.” Ver 1.2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-LV700R 11 Setting up STR-LV700R Assuming user has configured VAIO Start Use router? Confirm CAT 5 straight cable used to connect both VAIO and STR-LV700R Is an IP address retrieved correctly? Use network switch/hub Confirm devices are connected to router using LAN parts (not WAN) Confirm crossover cable is used to connect VAIO and STR-LV700R Confirm fixed IP is set for VAIO (e.g.IP:169.254.xxx.xxx, mask: 255.255.0.0) Select “Obtain an IP address automatically (not using router)” in IP address menu Restart STR-LV700R Confirm CAT 5 straight cable used to connect both VAIO and STR-LV700R Confirm network switch/hub is powered on Confirm “Obtain an IP address automatically (using router)” is select in IP address Menu Select any function from Main Menu on STR-LV700R Push Option button and select Refresh If no server appears on the list after several attempts, contact ITD engineering for support Try to connect to a sever and confirm whether other function works Obtain router make and model info from user Confirm router is turned on before restart STR-LV700 Confirm router is powered on and not configured as a network switch Confirm VAIO is set to use auto IP Is an IP address retrieved correctly? Does any server appear on the list? No Yes No No No No Yes Yes Yes Ver 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-LV700R 12 Configuring VAIO Stop Start Ask for VAIO Model information and confirm firmware version Is personal firewall enabled? Are all Servers started? Is Giga Pocket Server started and is password set? Is access allowed in VAIO Media Console? Is target model? Can connect to any function? Is Giga Pocket model? Turn off personal firewall Restart your computer No Yes Enable accese check box No Start all servers No Except TV and Video No No No Yes Yes Yes Yes Ver 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 STR-LV700R 4-1. IC Pin Function Descriptions • IC115 CXD9617R (AUDIO DSP) (DIGITAL BOARD) Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 to 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 I/O — I I I — I O — I — — O I O I — I I O O — I O O O I I I — O I I O I O O O — — O O O O — I — I O — O Pin Name VSS XRST EXTIN FS2 VDD1 FS1 PLOCK VSS MCLK1 VDD1 VSS MCLK2 MS SCKOUT LRCKI1 VDDE BCKI1 SDI1 LRCKO BCKO VSS KFSIO SDO1 to SDO3 SDO4 SPDIF LRCKI2 BCKI2 SDI2 VSS HACN HDIN HCLK HDOUT HCS SDCLK CLKEN RAS VDDI VSS CAS DQM/OE0 CSO WEO VDDE WMD1 VSS WMD0 PAGE2 VSS PAGE1 Description Ground terminal Rest input from the system control Not used (connected to ground) Not used (connected to ground) Power supply (+2.5V) Not used (connected to ground) Not used (open) Ground terminal Clock input (13.5MHz) Power supply (+2.5V) Ground terminal Clock output (13.5MHz) Not used (connected to ground) Internal system clock output to CXD9743N Sampling clock input from PCM1800E/2K Power supply (+3.3V) Bit clock input from PCM1800E/2K Serial data input from PCM1800E/2K Sampling clock output to CXD9743N Bit clock output to CXD9743N Ground Audio clock (384fs/256fs) input from LC89056W Serial data output to CXD9743N Not used (open) Not used (open) Sampling clock input from LC89056W Bit clock input from LC89056W Serial data input from LC89056W Ground Acknowledge output to MB90F474HPF Serial data input from MB90F474HPF Clock input from MB90F474HPF Serial data output to MB90F474HPF Chip selection input from MB90F474HPF Not used (open) Not used (open) Not used (open) Power supply (+2.5V) Ground Not used (open) Not used (open) Chip selection output to the SRAM Write enable output to the SRAM Power supply (+3.3V) Not used (connected to VDD) Ground Not used (connected to VDD) Not used (open) Ground Not used (open) SECTION 4 DIAGRAMS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 STR-LV700R Pin No. 53 54 55 56 57 58 59 60 61 62 63 64 to 66 67 68 69 70 71 72 to 75 76 77 to 80 81 82 83 to 85 86 87 88 89 90 91 92 to 97 98,99 100 101 102 to 105 106 107,108 109,110 111 112 113 114 115 116 117 to 119 120 Pin Name PAGE0 BOOT BTACT BST MOD1 MOD0 EXLOCK VDDI VSS A17 A16 A15 to A13 GP10 GP9 GP8 VDDI VSS D15/GP7 to D12/GP4 VDDE D11/GP3 to D8/GP0 VSS A9 A12 to A10 TDO TMS XTRST TCK TDI VSS A8 to A3 D7,D6 VDDI VSS D5 to D2 VDDE D1,D0 A2,A1 VSS A0 PM SD13 SD14 SYNC VSS VDDI I/O O I I I I I I — — O O O I/O I/O I/O — — I/O — I/O — O O O I I I I — O I/O — — I/O — I/O O — O I I I I — — Description Not used (open) Not used (connected to ground) Not used (open) Boot strap signal input from MB90F474HPF Mode input (connected to VDD) Mode input (connected to ground) Lock signal input to LC89056W Power supply (+2.5V) Ground Not used (open) Not used (open) Address bus output to the SRAM Sampling clock I/O terminal PCM/NON_PCM information signal I/O terminal Bitstream information read enable signal I/O terminal Power supply (+2.5V) Ground SRAM data bus Power supply (+3.3V) SRAM data bus Ground Address bus output to the SRAM Address bus output to the SRAM Not used (open) Not used (open) Not used (open) Not used (open) Not used (open) Ground Address bus output to the SRAM SRAM data bus Power supply (+2.5V) Ground SRAM data bus Power supply (+3.3V) SRAM data bus Address bus output to the SRAM Ground Address bus output to the SRAM PLL initialization input from MB90F474HPF Not used (open) Not used (open) Synchronization / asynchronous selection input (pull up) Ground Power supply (+2.5V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 STR-LV700R Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 I/O I I O O I O O O O O — O — O O O O I O O O O — O I O I — — I I I O I/O — I — I I O I — — I I I I I I I Pin Name DATA O GP9 BST HCS HACN XRST PM VCONT PD PWCONT2 VSS PWCONT1 NOT IN USE DATA CLK WOOFER RELAY HEADPHONE RELAY HDOUT HDIN HCLK POWER KEY OUT VIDEO-SW-A VCC5 VIDEO SW C HP DETECT VIDEO-SW-B FLASH2 FLASH1 TC74153H-C RL1 RL2 RL3 SCL SDA AVCC AVRH AVSS A/D0 A/D1 FM SIG OUT KEY_INPUT (A/D3) VSS NC MODEL VERSION NC CRYSTAL SEL STOP MD0 MD1 Description Serial data input from LC89056W PCM/NON_PCM information signal input from CXD9617R Boot strap signal output to CXD9617R Chip selection signal output to CXD9617R Acknowledge signal input from CXD9617R Reset signal output to CXD9617R PLL initialization signal output to CXD9617R Power voltage control signal output PD signal output to PCM1800 Power voltage control signal output Ground Power control signal output Not used (Pull down) Serial control data output to the tuner Serial control clock output to the tuner Sub woofer relay control signal output Headphone relay control signal output Serial data input from CXD9617R Serial data output to CXD9617R Clock signal output to CXD9617R Power key signal output to VIF-20 (EU) block Video switch signal output to the NJM2279M Power supply (+3.3V (STBY)) Video switch signal output to the NJM2279M Detects headphone switch On/Off Video switch signal output to NJM2279M Flash programming input Flash programming input Network media/HDD select signal output RL1 signal input from VIF-20 (EU) block RL2 signal input from VIF-20 (EU) block RL3 signal input from VIF-20 (EU) block SCL signal output to the EEPROM SDA signal from the EEPROM Power supply (+3.3V(STBY)) A/D Vref input (connected to +3.3 (STBY)) Ground Not used (pull up) Not used (pull up) FM antenna input level Key signal input Ground Not used (pull down) Model detection input Version resisrtor input Not used (pull down) Clock select signal input (pull down) AC off signal input Flash programming MD0 input Not used (connected to +3.3V(STBY)) • IC118 MB90F474HPF-G-SOZ1398 (SYSTEM CONTROL) (DIGITAL BOARD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 STR-LV700R Pin No. 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 Pin Name MD2 RDS INT RDS DATA SIRCS DIAG POWER KEY NOT IN USE NOT IN USE SCDT SHIFT DIN CLK FL_STB NOT IN USE (FAN_ON) NOT IN USE (FAN_CLK) VOL(B) VOL(A) TC74153H B TC74153H A NJU4066 TC4052A TC4052B TUNED STEREO MUTE DO RSTX SLATCH X1A X0A VSS XO XI VCC3 RST (INIT) NSMUTE NC NC LAT3 (SL/SR) LAT2 (C/SW) LAT1 (L/R) EN XMODE CKSEL1 CLK CE DI DO ERROR XSTATE I/O I I I I I I I I O O O O O I I I I O O O O O I I O I I O — — — O I — O O I I O O O O O O O O O I I I Description Flash programming MD2 input RDS clock input from tuner RDS data input from tuner Data input from the remote control receiver Protect signal input from CXD9750 Power swich detection signal input Not used (pull down) Not used (pull down) Serial control data output to CXD9743N Shift clock output to CXD9743N Serial data output to µPD16315 Clock signal output to µPD16315 STB signal output to µPD16315 Not used (pull down) Not used (pull down) Volume signal input from the rotary encoder Volume signal input from the rotary encoder IC105 control (Digital input select switch) IC105 control (Digital input select switch) IC106 control (Analog input select switch) IC108 control (Analog input select switch) IC108 control (Analog input select switch) Tuning a frequency detection signal input from the tuner STEREO tuning signal input from the tuner Muting control signal output to the tuner Data input from the tuner System reset signal input Serial control latch signal output to the tuner Not used (open) Not used (connected to ground) Ground Clock output (16MHz) Clock input (16MHz) Power supply (+3.3V (STBY)) Initialize signal output to CXD9743N Mute signal output to CXD9743N Not used (pull down) Not used (pull down) Data latch signal output CXD9743N (SL/SR) Data latch signal output CXD9743N (C/SW) Data latch signal output CXD9743N (L/R) Enable signal output CXD9750 Reset signal output to LC89056W Clock select signal output to LC89056W Clock signal output to LC89056W Chip enable signal output to LC89056W Write data output to LC89056W Read data input from LC89056W PLL lock error, data error flag input from LC89056W Source clock selection monitor input from LC89056W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-LV700R 17 17 • Circuit Boards Location For schematic diagrams. Note: • All capacitors are in µF unless otherwise noted. p : pF. 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • % : indicates tolerance. • f : internal component. • 2 : nonflammable resistor. • C : panel designation. • A : B+ Line. • B : B– Line. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. No mark : FM • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. • Circled numbers refer to waveforms. • Signal path. F : FM c : VIDEO THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this necessary note is printed in each block.) For printed wiring boards. Note: • X : parts extracted from the component side. • a : Through hole. • : Pattern from the side which enables seeing. Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Caution: Parts face side: Parts on the parts face side seen from (Side A) the parts face are indicated. Pattern face side: Parts on the pattern face side seen from (Side B) the pattern face are indicated. DIGITAL board tuner unit VIDEO board DISPLAY board FILTER board SUB POWER board H. P board AMP board REG board POWER board VIF-20(EU) assy DIG-IN board 12.288 MHz 2V AC/DIV, 50nsec/DIV 4.0 Vp-p 1 IC111 wa XOUT 4.0Vp-p 12.288 MHz 2V AC/DIV, 50nsec/DIV 2 IC111 w; XMCK 4.0Vp-p 13.5MHz 2V AC/DIV, 50 nsec/DIV 3 IC115 qs MCLK2 3.0Vp-p 16 MHz 1V AC/DIV, 50nsec/DIV 4 IC118 id X1 • Waveforms – DIGITAL Board – – AMP Board – 3.3Vp-p 49.152 MHz 1V AC/DIV, 20nsec/DIV 1 IC403 4 3.3Vp-p 49.152 MHz 1V AC/DIV, 20nsec/DIV 2 IC405 6 FSOUT – DISPLAY Board – 1.3Vp-p 2.4 µsec 0.5V AC/DIV, 1 µsec/DIV 1 IC802 5 OSC 20Vp-p 8.5 µsec 10V AC/DIV, 5 µsec/DIV 2 Q801 C Ver 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-LV700R 18 18 4-2. BLOCK DIAGRAM – TUNER/DSP SECTION – X101 12.288MHz X102 13.5MHz •Signal Path •R-ch is omitted due to same as L-ch : FM : VIDEO 7 5 4 3 2 6 1 A IC799 IC798 2 13 CN1004 (100BASE-TX) GATE IC797 2 6 D806,807 VIDEO SELECT/ DRIVER IC771 7 3 5 4 1 FAN DRIVER Q403,109 FAN 101 (FAN) DVD TV/SAT J102 R-CH R-CH R-CH TUNER UNIT TU901 R-CH L AM ANNTENA R TV/SAT IN FM 75Ω L R L R DVD IN VIDEO IN HDD/MD IN HDD/MD OUT DVD COAX IN DVD OPT IN TV/SAT OPT IN HDD/MD OPT IN HDD/MD OPT OUT VIDEO IN VIDEO IN VIDEO IN MONITOR OUT J103 R-CH R-CH L R L R 8 10 11 7 6 15 14 13 4 3 2 1 36 2 4 XFSOIN FS-IN HPOUTL1 HPOUTL2 HPOUTR1 HPOUTR2 OUTL1 OUTL2 OUTR1 OUTR2 DATA BCK LRCK NSPMUT SCLATC SCSHIF SCDT FSCKO FSOI FSOUT INIT NSMUTE LAT1 SHIFT SCDT INIT X401 49.152MHz 21 18 29 33 31 17 16 14 13 12 11 22 23 6 27 41 2 4 39 15 108,107,105 - 102, 99,98,80 - 77,75 - 72 5 - 1,44 - 42, 27-24,21 - 18 45 44 7 - 10,13 - 16,29 - 32, 35 - 38 112,110,109,97 - 92, 85 - 82,66 - 64 17 6 D0 - 15 SDI1 +2.6V +5V +2.6V REG. BCK1 LRCK1 SDI-2 BCK-2 LRCK-2 KFSIO GP8 EXLOCK SDO1 SD03 SCKOUT SDO2 BCKO LRCKO MCLK1 MCLK2 GP10 D0 - 7 D8/GP0 - D15/GP7 A0 - 15 A0 - 15 WE CS WE0 CS0 12 15 11 10 9 14 X0 X INH A B X2 X3 X1 13 6 3 J101 5 6 2 5 4 3 10 11 12 13 9 J701 J702 2 14 1C0 1Y Q104 Q103 Q106 Q105 Q102 Q101 A 153B 153A 153B 153A 4066 NJU4066 TC74153H_A TC74153H_B VIDEO-SW-A VIDEO-SW-B VIDEO-SW-C 4066 B C 2Y A B 1C2 1C3 XSTATE XMODE CKSEL1 CLK CE DI DO ERROR XSTATE XMODE CKSEL1 CLK CE DI DO ERROR PD TC4052B TC4052A MUTE STEREO TUNED SLATCH DATA DO CLK RDS-DATA RDS-INT FM SIG OUT R-DATA R-INT FSO PD 52B 52A MUTE STEREO TUNED CE DI DO CLK 1C1 7 3 4 16 14 15 13 24 30 29 28 22 69 59 47 38 17 48 37 36 35 34 94 95 100 93 96 97 98 99 72 75 9 71 74 73 78 14 53 52 76 15 HDOUT HCLK HDIN HACN HCS BST GP9 PM XRST HDOUT HCLK HDIN HACN HCS BST GP9 PM XRST 20 19 DATAO 1 18 5 4 3 2 7 MSMUTE LAT1(L/R) LAT2(C/SW) LAT3(SL/SR) SHIFT SCDT 91 90 RST(INIT) MSMUTE LAT1 LAT2 LAT3 SHIFT SCDT INIT 85 86 89 60 59 6 34 33 35 32 36 56 68 113 2 40 5 20 21 22 6 2 9 8 13 1 6 3 1 1 A/D 15 DOUT LIN R-CH 52B 52A PD RIN SYSCLK SERIAL DATA INTERFACE LCH RCH TUNED TUNED CE CE DI DO ST-DI/ MC-DO ST-DO/ MC-DI CLK SCLK MUTE MUTE STEREO STEREO FM SIG OUT FSO RDS-DATA R-DATA RDS-INT R-INT BCK LRCK FSYNC RSTB 14 13 17 15 5 12 16 6 18 23 25 14 24 20 19 9 12 67 2C0 2C2 2C3 XIN XOUT BCK D102 LRCK CKOUT AUDIO DIR TUNER DSP XMCK 2C1 WAVE SHAPER IC107 IC101 OPTICAL RECEIVER OPTICAL RECEIVER IC102 OPTICAL RECEIVER IC103 IC104 OPTICAL TRANSMITTER VIDEO SELECT/DRIVER IC701 12 10 1 3 5 70 69 68 22 26 24 NC 11 A B A 4 13 2 INPUT SELECT IC108 BUFFER IC112 IC114 A/D CONVERTOR IC113 DIGITAL AUDIO I/F RECEIVER IC111 SYSTEM CONTROL IC118 (1/2) VIDEO SELECT IC105 SDRAM IC116 AUDIO DSP IC115 PCM/PWM CONVERTOR IC405 CLOCK OSC IC403 36 XFSOIN FS-IN DATA BCK LRCK NSPMUT SCLATC SCSHIF SCDT FSCKO FSOI NC NC NC SIRCS SL (–) SL (+) SR (–) SR (+) FSOUT INIT NSMUTE LAT2 SHIFT SCDT INIT NSMUTE LAT3 SHIFT SCDT INIT 21 18 17 16 14 13 12 11 22 23 6 15 PCM/PWM CONVERTOR IC408 16 XFSOIN FS-IN OUTL1 OUTL2 OUTR1 OUTR2 DATA BCK LRCK NSPMUT SCLATC SCSHIF SCDT FSCKO FSOI FSOUT INIT 21 18 41 2 4 17 16 14 13 12 11 22 23 6 39 C (–) C (+) HP - L (–) HP - L (+) HP - R (–) HP - R (+) FL (–) FL (+) FR (–) FR (+) WO (–) WO (+) OUTL1 OUTL2 OUTR1 OUTR2 41 2 4 39 15 PCM/PWM CONVERTOR IC411 INPUT/OUTPUT SELECT IC106 INPUT CIRCIT DATA DEMODULATOR TIMING A DISPLAY/POWER SECTION (Page 19) 1 3 RL2 31 RL3 32 POWER KEY OUT 21 TC74153H_C 29 RL1 30 NETWORK MEDIA SWITCH WAVE SHAPER 1B 1Q B OR VIF-20 (EU) ASSY NC NC DATAO 5 12 C +5V +1.8V +1.8V REG IC401 1 3 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-LV700R 19 19 •Signal Path : AUDIO HP-L (+) HEADPHONE AMP IC402 HP-L (–) HP-R (+) HP-R (–) 6 5 2 3 FL (+) DIGITAL POWER AMP IC404 FR (+) FR (–) FL (–) 6 7 8 16 9 19 17 18 INA OUTA OUTB ENA DIAGA INB ENB DIAGB DIGITAL POWER AMP IC406 6 7 8 16 9 19 17 18 INA ENA DIAGA INB ENB DIAGB OUTA OUTB C (+) C (–) WO (+) WO (–) DIGITAL POWER AMP IC407 WOOFER AMP IC409 6 7 8 16 9 19 17 18 INA ENA DIAGA INB ENB DIAGB OUTA OUTB SL (+) SL (–) DIGITAL POWER AMP IC410 6 7 8 16 9 19 17 18 INA ENA DIAGA INB ENB DIAGB OUTA OUTB SR (+) SR (–) SIRCS DIGITAL POWER AMP IC412 6 7 8 16 9 19 17 18 INA ENA DIAGA INB ENB DIAGB OUTA OUTB 7 1 PHONES J401 J402 PROTECT Q402,403 PROTECT Q404,405 RY401 RELAY DRIVE Q401 D420 D421 PROTECT Q406,407 D423 PROTECT Q409,410 D424 PROTECT Q411,412 D425 + - - - + + - - + + 7 3 6 5 J403 1 RY402 RELAY DRIVE Q408 56 41 Q413 POWER KEY KEY_INPUT (A/D3) INPUT SELECTOR S802 SOUND FIELD S803 MUTING S804 =/1 S801 S805 PRESET TUNING – + S806 55 25 DIAG HP DETECT 17 HEADPHONE RELAY 16 WOOFER RELAY 67 VOL (A) 66 VOL (B) SW-RY HP SW HP -RY SW-RY HPSW HP-RY FRONT L FRONT R SURR L SURR R SUB WOOFER VOLUME CENTER SPEAKERS IMPEDANCE USE 6–16 Ω ( ( RV801 IC801 54 1 VOUT 34 SIRCS g 33 5 6 EEPROM IC117 REGULATOR IC903 IC906 SCL SDA SCL SDA EEPROM FL DRV/ LED DRV 3 1 +3.3V REG. IC908 3 1 +3.3V REG. 2 4 5 1 REGULATOR IC907 SWITCHING REGULATOR IC901 LEVEL DETECT IC902 2 4 5 1 3 2 1 BUFFER IC904 FL DRIVER IC802 BUFFER IC803 +3.3V (STBY) +10V +3.3V +6.5V +5V L909 L906 Q901 Q901 (–30V) RECT D801,802 D804,805 D803 +3.3V +6.5V PC901 D912 D902 D907 D933 D906 D916,D917 D901 T901 POWER TRANSFORMER 61 62 63 8 10 12 48 DIN CLK STB VCONT PWCONT2 PWCONT1 STOP DIN CLK FL_STB VCONT PWCONT2 PWCONT1 STOP 77 28 27 49 51 FLASH2 MD0 MD2 MD0 MD2 FLASH1 RSTX 1 2 IC119 RESET RESET 2 1 5 7 6 FLASH1 FLASH2 +3.3V (STBY) 5 4 6 1 2 3 10 9 8 Q908 Q903 PWCONT2 PWCONT1 VCONT STOP DIN CLK STB +5V 3 1 BUFFER Q913,915 FLUORESCENT INDICATIOR TUBE FL801 DC/DC CONVERTOR Q801,802 +21V REG. Q905 +7.2V REG. Q902 RECT D109 LF902 D919 D920 LF901 F1 L N AC IN PC902 T801 3 2 1 4 5 D VCC FB/ OLP OCP/ SYNC 7 8 9 30 DIN CLK STB VEE 14 I 29 42 I 31 GRID1 I GRID2 SEG1 I SEG16 50 I 65 4 I 15 1 68 SYSTEM CONTROL IC118 (2/2) A TUNER/DSP SECTION (Page 18) REGULATOR IC1001 2 4 1 +7.4V L1001 +B VBB +B VBB +B VBB +B VBB +B VBB +B 92 EN UP DOWN – DISPLAY/POWER SECTION– w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-LV700R 20 20 4-3. PRINTED WIRING BOARD – DIGITAL SECTION (SIDE A) – • See page 17 for Circuit Boards Location. : Uses unleaded solder. C135 R145 C128 R142 IC119 R143 C130 R146 R147 R188 IC797 IC118 IC116 C797 IC112 IC113 R190 IC117 Q103 Q104 R135 R136 R137 R134 R133 R148 R149 R150 R151 R131 R132 C132 R138 R139 Q105 Q106 C134 R140 R144 R160 R159 R154 R155 R156 R161 C142 C162 C163 C158 C166 C169 C164 R178 R186 R196 R189 C182 C302 R187 Q102 Q101 R192 R191 IC114 IC107 R212 R213 R214 R226 R227 R225 R224 R223 R210 R209 R221 R220 R219 R218 R796 R233 R236 R238 R240 R242 R247 R249 C206 C207 R257 R262 R265 R267 C209 R266 C201 C215 C216 R297 R261 R258 R253 R251 R250 R248 R246 R245 R244 R243 R241 R239 R237 R235 R271 R280 R268 R269 R270 R281 R282 R283 R284 R285 R275 R276 R272 R273 R274 R256 R254 R299 R279 C217 R286 IC105 IC115 R203 C131 C798 FB106 R306 IC798 R310 R326 R325 R324 R323 R322 R321 R320 R319 R318 R317 D102 R316 IC799 R232 R305 R304 R303 R302 C799 R799 R798 R176 R185 R164 C796 C168 C170 R168 R163 R157 R153 X101 R170 R158 R172 C167 R169 C141 R166 R184 R130 FB103 C139 IC111 R797 R179 IC108 IC106 Q403 (SIDE A) DIG-IN BOARD 11 (14) 1-688-531- 11 (14) 1-688-434- (SIDE A) DIGITAL BOARD 1 1 1 1 7 30 22 23 44 31 60 61 90 91 120 14 3 8 1 1 16 4 5 8 8 9 1 16 8 9 1 16 8 9 1 1 12 25 36 37 48 24 13 30 51 80 31 50 100 81 E E E E 1 1 1 1 7 16 14 12 13 24 4 5 8 8 8 9 1 3 4 5 1 4 5 8 E E E 2 3 4 5 6 7 8 A 1 B C D E F G H Ref. No. Location D102 C-4 IC105 F-5 IC106 C-2 IC107 F-5 IC108 C-2 IC111 B-4 IC112 D-3 IC113 D-3 IC114 F-6 IC115 E-7 IC116 E-6 IC117 C-7 IC118 C-6 IC119 B-6 IC797 F-7 IC798 D-5 IC799 E-5 Q101 E-5 Q102 E-5 Q103 C-3 Q104 C-3 Q105 C-3 Q106 C-3 Q403 G-5 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-LV700R 21 21 PRINTED WIRING BOARDS – DIGITAL SECTION (SIDE B) – • Refer to page 17 for Circuit Boards Location. : Uses unleaded solder. CN108 CN109 X102 CN106 C228 C200 C133 CN105 CN112 C210 C218 X103 CN107 C219 C225 CN102 C117 J101 IC104 IC103 IC102 IC101 CN101 C118 C119 C151 C156 J103 CN1004 CN1003 C120 C121 C122 C123 C124 C125 C126 C127 C129 C143 C159 C165 C154 TP799 C153 J102 C157 C147 CN104 CN103 CN798 C227 C184 C305 FB101 C198 R197 R129 C111 C110 R113 R128 R127 R126 R124 R125 R119 R118 R117 R116 C186 C301 R112 C109 C108 R111 R110 C106 C107 R108 R109 C104 C105 R106 R107 C149 C150 R102 R103 R114 R115 C102 C103 R104 R105 R162 R177 R307 FB110 C190 FB102 R198 C183 R200 R205 C194 C187 C300 C197 R204 FB108 R208 R173 R174 R175 R207 R195 C191 C189 C185 R202 R193 R201 R211 R215 R216 R228 R222 R231 R230 C299 C199 R234 C202 C203 C204 C205 R252 R255 R259 R260 R263 C304 C220 FB112 R296 FB111 C211 R300 R301 R292 R293 R287 R294 C223 C224 R277 R278 R298 R289 R295 C221 C222 C193 C188 FB113 FB109 R194 R206 C192 C196 C795 R141 R288 R311 R309 R308 R327 R328 R313 R312 R315 R314 C180 R152 C146 C140 C148 R183 FB105 C161 C160 C173 C176 C152 R165 C101 C116 R101 C115 C114 R171 C113 C112 R123 R122 R121 R120 Q109 R330 R331 OUT L IN R HDD/MD TV/SAT DVD VIDEO 1 1 1 7 13 12 6 2 1 1 1 1 1 1 7 6 2 2 2 2 3 3 4 5 20 21 11 (SIDE B) DIGITAL BOARD (SIDE B) DIG-IN BOARD 11 (14) 1-688-434- 11 (14) 1-688-531- 1 7 6 2 1 3 1 3 1 3 1 3 OPT OUT HDD/MD OPT IN OPT IN OPT-IN TV/SAT DVD COAX IN B AMP BOARD E POWER BOARD G VIDEO BOARD H VIDEO BOARD VIF-20(EU) ASSY I SUB POWER BOARD F DISPLAY BOARD FLASH PROGRAMING FAN101 E (Page 31) (Page 27) (Page 29) (Page 31) (Page 29) (Page 29) C4 C5 C6 L6 C2 C3 EP1 L3 L4 L5 L1 L2 JW1 JW2 JW9 JW10 JW11 JW4 JW8 JW3 CN110 CN111 FILTER BOARD 11 (12) 1-860-429- TUNER UNIT 2 3 4 5 6 7 8 9 A 1 B C D E F G H 10 11 • Semiconductor Location IC101 G-8 IC102 F-8 IC103 F-8 IC104 E-8 Q109 G-5 Ref. No. Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-LV700R 22 22 R162 R101 C115 C114 C113 C112 C101 C116 R120 R121 R122 R123 C117 C128 R135 R136 R134 R133 R140 R144 R160 R156 R161 R178 R177 R173 R174 R175 D102 C180 R152 C146 R185 R164 R171 FB103 R166 R169 R165 C152 R158 R170 R163 R168 C161 FB105 R183 C225 C173 R179 J101 C109 C108 C111 C110 C107 C106 C105 C104 C103 C102 R113 R112 R111 R110 R109 R108 R107 R106 R105 R104 R115 R114 R116 R117 R118 R119 R124 R125 R126 R127 C151 C156 C118 C119 C126 C127 C120 C121 C122 C123 C124 C125 R128 R129 R184 R159 R154 R155 C143 C142 C158 C163 C166 C169 C159 C162 C164 C165 C170 FB106 C157 C160 C130 C131 R147 FB102 FB101 CN103 CN102 C148 C147 R153 C139 C141 C140 R157 C134 R148 R151 R150 R149 R138 C129 R131 R132 R139 C168 X101 C167 R172 IC103 IC102 IC101 IC111 IC106 R137 C132 IC112 IC113 IC108 R141 C150 R103 R102 C149 R176 C176 IC104 IC105 R146 J102 J103 R799 R798 R797 CN798 C798 C799 C797 R130 R145 IC107 C135 C133 R143 IC798 IC799 Q101 Q102 Q103 Q104 Q106 Q105 CN101 R142 C153 C154 10k 75 0.1 0.1 0.1 0.1 0.01 0.1 100 100 100 100 22 50V 1p 100k 100k 100k 100k 33 33 100 6.8k 100 1k 2.2k 100 100 100 1SS352 0.1 33k 0.1 1k 100 100 0UH 100 100 10k 0.01 4.7k 1k 10k 100 0.1 0UH 10k 47 25V 0.001 0 1P 100p 100p 100p 100p 100p 100p 100p 100p 100p 100p 100k 100k 100k 100k 100k 100k 100k 100k 100k 100k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 33 25V 33 25V 33 25V 33 25V 33 25V 33 25V 33 25V 33 25V 33 25V 33 25V 33 25V 33 25V 1k 1k 1k 10k 6.8k 10k 10 50V 0.1 0.1 470p 470p 0.1 10 50V 0.1 0.1 10 50V 0.01 0UH 47 25V 0.1 0.1 10 50V 10k 0UH 0UH 7P 7P 0.1 47 25V 100 0.1 0.01 0.01 5.6k 0.01 100k 100k 100k 100k 22k 10 50V 100k 100k 22k 18p 12.288MHz 18p 1M TORX141L OPTICAL RECEIVER TORX141L OPTICAL RECEIVER TORX141L OPTICAL RECEIVER LC89056W-E DIGITAL AUDIO I/F RECEIVER BU4066 INPUT/OUTPUT SELECT 100k 0.01 M5218AFP-T BUFFER PCM1800 BU4052 INPUT SELECT 4.7k 100p 100k 100k 100p 100 100p TOTX141L OPTICAL TRANSMITTER TC74HC153AF(EL) VIDEO SELECT 10k 0 0 10k PH2P 0.1 0.1 0.1 1k 100 TC7WU04F WAVE SHAPER 0.1 47 25V 560k TC74HC123 TC74HC157 DTC114EKA-T146 BUFFER DTC114EKA-T146 BUFFER DTC114EKA-T146 BUFFER DTA114EKA-T146 BUFFER DTC114EKA-T146 BUFFER DTC114EKA-T146 BUFFER 15P 22k 4.7 50V 4.7 50V B0 ERROR B1 B2 DATA 10V AUDIO B7 GND 5V 3.3V RSTB 798 799 1-3 3.3V 1 2 3 4 5 6 8 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 70 71 72 73 74 75 76 CONVERTER A/D SWITCH NETWORK MEDIA WAVE SHAPER TU901 CN110 CN111 EP1 C2 C6 C3 C5 C4 L1 100uH L2 100uH L3 100uH L4 100uH L5 100uH L6 100uH 15P 15P 0.1 0.1 0.01 0.01 0.01 (Page 24) (Page 24) (EU) (Page 23) (Page 23) (Page 24) 4-4. SCHEMATIC DIAGRAM – DIGITAL SECTION (1/3) – w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-LV700R 23 23 4-5. SCHEMATIC DIAGRAM – DIGITAL SECTION (2/3) – • See page 12 for IC Pin Function Description. R188 C198 R190 R186 R196 FB110 R189 R205 C194 R204 R195 R187 C185 R202 R193 R192 R191 R203 FB109 R194 R206 CN105 C196 C227 R308 R309 R310 R311 R312 R313 R314 R315 R316 R317 R318 R319 R320 R321 R322 R323 R324 R325 R326 R327 R328 C188 C183 C186 C182 C302 C184 FB113 C187 C191 C301 R198 C190 C197 C300 R207 R208 CN104 FB108 R197 C193 C192 X102 C189 IC115 R307 IC114 IC116 FAN101 Q403 CN112 R330 R331 Q109 R201 R200 220 0.1 220 220 220 0UH 220 100 100p 100 220 220 0.1 0 220 220 220 1k 0UH 220 100 21P 0.1 47 25V 220 220 220 220 220 220 220 220 220 220 220 220 220 220 220 220 220 220 220 220 220 0.1 0.1 100p 0.1 1 330 10V 0UH 0.1 0.1 0.1 10k 0.1 100p 0.1 1k 4.7k 5P 0UH 10k 0.1 0.1 13.5MHz 0.1 CXD9617R 4.7k NJM2391-26 +2.6V REG IC61LV6416-15TG SDRAM 2SB798 3P-N PH 1k 10k DTC114EKA-T146 100 100 ERROR B3 B5 5V 3.3V GND AUDIO B7 10V RL3 50 51 52 53 54 55 57 58 59 70 71 72 73 74 75 76 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 101 100 101 102 103 104 105 106 100 108 107 109 110 111 112 113 116 117 114 115 118 102 103 104 105 106 31 30 32 33 34 35 36 37 38 39 42 40 41 43 44 Q403,109 FAN DRIVER (Page 28) (Page 25) (Page 22) (Page 22) (Page 24) (Page 24) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-LV700R 24 24 4-6. SCHEMATIC DIAGRAM – DIGITAL SECTION (3/3) – • See page 14 for IC Pin Function Description. R212 R213 R214 R226 R227 R225 R224 R223 R210 R211 R209 R221 R220 R219 R218 R215 R216 C299 R232 R233 R234 R236 R238 R240 R242 C202 C203 R247 R249 C204 C206 R252 R255 R257 R259 R260 R262 R300 R301 C216 R297 R261 R258 R253 R251 R250 R248 R246 R245 R244 R243 R241 R239 R237 R235 R280 R268 R269 R270 R281 R282 R283 R284 R285 R292 R293 R272 R273 R274 R256 R254 R277 R278 R279 C217 R286 R298 R289 R295 R288 C222 R299 C221 R231 CN107 R263 R276 R275 R294 C223 C224 R287 C219 R271 R222 R228 R267 R265 R266 FB111 CN108 C215 C218 R296 C304 C205 C209 C207 C201 CN106 C200 FB112 C210 C211 X103 CN109 R302 R303 R304 R305 CN1003 EU CN1004 C228 R306 IC119 IC118 IC117 C796 C795 C220 R230 R796 C305 C199 IC797 JR112 JR113 JR114 1k 1k 1k 1k 1k 100 100 1k 1k 1k 1k 1k 100 100 100 1k 1k 0.1 10k 10k 10k 10k 10k 3.3k 3.3k 0.1 0.1 10k 10k 0.022 0.1 10k 47k 2.2k 47k 2.2k 10k 10k 10k 0.1 10k 1k 1k 100 100 100 100 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 100 100 1k 1k 1k 1k 1k 10k 10k 1k 1k 1k 100 100 10k 10k 100 0.1 10k 10k 47k 10k 47k 0.1 1k 0.01 1k 7P 10k 10k 10k 10k 0.01 0.01 10k 47 25V 1k 10k 10k 10k 33k 100 0UH 13P 0.01 470 10V 100k 0.1 0.022 0.1 0.1 0.1 SAN11P 47 25V 0 10 50V 0.1 16MHz PH6P 0 0 0 0 8P 8P 47 25V 0 S-80929CNMC -G8ZT2G RESET MB90F474HPF -G-SOX1398 BR24C16F-E2 EEPROM 0.1 0.01 0.1 100k 100 22 25V 0.1 SN74HC00 0 0 0 B0 ERROR B1 B2 B3 B5 DATA 10V 5V 3.3V GND RSTB 799 798 1-3 3.3V RL3 1 2 3 4 5 6 8 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 38 40 41 42 43 44 50 51 52 53 54 55 57 58 59 30 34 33 39 37 36 35 32 31 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 SYSTEM CONTROL GATE (Page 22) (Page 23) (Page 28) (Page 30) (Page 22) (Page 28) (Page 23) (Page 22) (Page 30) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-LV700R 25 25 4-7. SCHEMATIC DIAGRAM – AMP SECTION (1/2) – R456 C469 C474 C487 C504 C510 C524 C533 D414 D415 D422 D426 D427 D432 RY402 CN403 R460 R468 R467 R469 FB407 R473 R430 R471 C484 C492 C493 C494 R470 C495 R472 R474 R475 R476 R445 R446 R477 C491 R479 R463 R464 R480 R431 R461 R462 R449 R452 R453 R457 R458 R459 R465 R481 R478 C472 C508 C531 D416 D417 D418 D419 D428 D429 D430 D431 D434 D435 D436 D437 L406 10uH L407 10uH L408 10uH L40910uH L410 10uH L411 10uH C526 C525 C519 C500 C503 R466 C517 C536 C537 C538 C534 C535 D433 R448 C478 C479 C480 C476 C477 R432 R433 C488 R436 R437 C490 R434 C471 C530 C529 C532 C513 C512 C516 C515 C514 C507 C506 C509 R455 R450 R451 C502 C498 R442 R447 C499 C497 R440 C501 C539 R482 R484 R483 C523 C522 C511 C521 C483 C486 C485 C482 D425 D424 D423 C518 C520 IC412 Q411 Q409 Q406 Q407 Q410 Q412 Q408 IC408 C475 C481 FB405 Q413 FB406 IC407 IC410 J403 R488 R454 C528 C527 IC411 IC409 C470 C473 C505 SFPL-62V SFPL-62V SFPL-62V SFPL-62V SFPL-62V 0.022 0.022 0.022 0.022 0.022 0.022 220p 1SSS352 4.7k 21P 220k 100 100 100 0UH 1k 33 100 0.01 0.01 0.01 0.01 100 0.01 100 1k 100 100 33 33 100 100p 100 33 33 33 33 82k 220k 220k 82k 220k 220k 82k 220k 1k 100 33 0.1 0.1 0.1 P6SMB43AT3 LI116 LI116 P6SMB43AT3 P6SMB43AT3 LI116 LI116 P6SMB43AT3 P6SMB43AT3 LI116 LI116 P6SMB43AT3 0.01 0.01 0.01 4.7 4.7 1M 0.1 100 35V 470 16V 0.1 470 16V 0.1 SFPL-62V 22k 100 35V 470 16V 0.1 470 16V 0.1 10k 10k 1 10k 10k 1 22k 0.1 0.1 1 1 0.1 470 16V 0.1 470 16V 100 35V 0.1 1 1 10k 22k 1k 33 25V 100 16V 4.7k 4.7k 100 16V 100p 22k 0.001 0.01 10k 1k 1k 0.01 0.01 47 25V 0.01 470p 0.01 0.01 0.01 1SS355 1SS355 1SS355 100 16V 470p CXD9750 2SA1162 2SA1162 2SA1162 2SA1162 2SA1162 2SA1162 2SC2712 RELAY DRIVE CXD9743N 47 25V 100 16V 0UH 2SC2712 BUFFER 0 CXD9750 CXD9750 10k 1.5k 0.01 0.01 CXD9743N M5218AFP 1 1 4.7 GND RL+ RL- C+ C- RR+ RR- HP-RY DIAG VDDA VDRVA VBBB DIAGA ENA D VDD XFSO FSOI B HP-SW VDD L B+10V 1 2 3 4 5 6 7 8 9 1 2 4 5 6 7 9 1 2 4 5 6 7 9 POWER AMP POWER AMP POWER AMP WOOFER AMP CONVERTER CONVERTER PROTECT PROTECT PROTECT PROTECT PROTECT PROTECT PCM/PWM PCM/PWM DIGITAL DIGITAL (Page 23) (Page 26) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-LV700R 26 26 4-8. SCHEMATIC DIAGRAM – AMP SECTION (2/2) – C428 C432 C433 C441 C442 C448 C449 C456 C460 C461 C467 D402 D403 D408 D409 C468 C403 C417 R402 R421 C402 C419 R428 C426 C420 L401 1uH FB403 FB404 R429 R443 R444 R435 R439 D420 C458 R408 R412 R403 R422 CN404 J402 D404 D405 D406 D407 D410 D411 D412 D413 L402 10uH L403 10uH L404 10uH C496 C489 R438 C410 C411 IC401 CN402 C404 CN401 C455 C459 D421 R414 R419 C418 C401 R401 R404 C405 R406 C408 R409 C414 R411 C406 C413 R407 R410 R418 R420 C416 R415 C409 R416 C438 C437 C439 C429 C435 C436 C430 R405 R413 R417 C464 C465 C466 C462 C463 C453 C452 C454 C451 R426 R425 C434 C447 C446 C443 C445 C444 C440 C424 C450 R427 C421 C423 C425 R423 R424 D401 RY401 X401 R441 IC402 IC403 IC405 IC404 Q401 Q403 Q404 Q405 Q402 C457 IC406 L405 10uH C427 C431 R487 R486 SFPL-62V SFPL-62V SFPL-62V SFPL-62V 0.1 0.1 0.1 0.1 0.022 0.022 0.1 0.1 0.1 0.1 0.1 0.1 10p 10p 100k 100k 47 25V 47 25V 33 10p 0.001 0UH 0UH 33 82k 220k 220k 220k 1SS355 0.1 2.2k 2.2k 220 220 4P SP-J P6SMB43AT3 LI116 LI116 P6SMB43AT3 P6SMB43AT3 LI116 LI116 P6SMB43AT3 4.7 4.7 82k 470 10V 100 16V BA18BCOFP SAN5P 2200 35V SDN2P 1 1 1SS355 22k 22k 100p 100p 22k 22k 10p 100k 0.1 2.2k 0.1 2.2k 100 16V 100 16V 22k 22k 22k 22k 10p 100k 100 16V 15k 470 16V 100 35V 0.1 0.1 470 16V 0.1 0.1 15k 10k 4.7k 100 35V 470 16V 0.1 470 16V 0.1 0.01 0.01 0.01 0.01 33 33 47 25V 0.01 0.01 0.01 0.01 470p 100 16V 0.022 0.022 22 100 16V 0.01 5p 680 1M 1SSS352 49.152MHz 220k M5218AFP-T MC74VHC1GU04DF CLOCK OSC CXD9743N CXD9750 2SC2712 RELAY DRIVE 2SA1162 2SA1162 2SA1162 2SA1162 0.1 CXD9750 1 1 47 47 GND C- C+ RR- RR+ RL- RL+ HP-RY DIAG VBBB VDRVA VDDA DIAGA ENA D VDD XFSO FSOI B HP-SW VDD L B+10V 1 2 3 4 5 6 7 8 9 AMP HEADPHONE CONVERTER POWER AMP POWER AMP PROTECT PROTECT PROTECT PROTECT PCM/PWM DIGITAL DIGITAL (IMPEDANCE USE 6-16Ω) SPEAKER (Page 28) (Page 30) (Page 30) (Page 25) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-LV700R 27 27 4-9. PRINTED WIRING BOARD – AMP SECTION – • See page 17 for Circuit Boards Location. : Uses unleaded solder. R468 R422 R467 R403 R416 R469 R405 FB407 R471 R474 R475 R413 C482 Q401 R476 C426 L401 FB403 FB405 FB404 R483 R484 R445 R446 D401 R412 FB406 D422 R455 R456 Q408 R448 D425 D421 D423 D424 D420 Q413 R465 C517 R466 R408 R420 R418 R404 R401 C418 C401 R419 R414 R410 R407 C480 C458 C463 C436 C466 D411 D412 C513 D414 C430 D406 D405 D432 C439 D417 D426 D418 D435 D430 C531 C472 C477 D402 D408 D436 C535 C508 C538 C516 D429 R486 R487 JC401 JC402 JC403 JC404 JC405 JC406 JC407 JC408 JC409 JC410 JC411 JC412 JC413 JC414 JC415 JC416 JC417 JC418 JC419 JC420 JC421 JC422 R488 C421 C411 C410 C465 CN402 C440 C434 C475 C511 CN403 C499 C490 C504 IC410 C518 C524 C514 C510 C512 C515 C507 C530 C537 C469 IC412 C534 C536 C533 C481 IC407 C478 C424 C479 C471 C474 C476 IC404 C450 C433 C435 C429 C438 C437 IC406 C461 C462 C464 C457 C409 C413 C406 C431 C455 C459 L405 L404 L403 L402 L407 L406 C532 C470 C473 C427 L408 L409 L411 L410 C488 C502 C498 C506 C509 C529 RY402 J403 C441 C442 C467 C468 C456 C460 C449 C448 C428 C432 J402 RY401 CN401 C419 C402 C404 CN404 CN405 1 5 1 2 21 20 1 1 4 2 1 2 1 2 1 2 1 2 1 2 19 20 19 20 19 20 19 20 19 20 CENTER SURR R FRONT L SURR L FRONT R – + SUB WOOFER SPEAKER IMPEDANCE USE 6–16Ω (SIDE B) AMP BOARD 11 (12) 1-688-435- D POWER BOARD C H.P BOARD A POWER BOARD B DIGITAL BOARD R402 R421 C403 C417 C405 R460 C505 R427 C520 C519 C521 IC401 C522 C523 R473 R430 R425 R428 C525 C526 C527 C528 C483 C484 C485 C486 C492 C493 C494 R417 R470 C495 C443 C444 C445 R472 C446 C447 C451 C452 C453 C454 IC403 X401 R423 R424 C425 C423 C420 C539 R482 R432 R436 C487 C408 R433 R437 R477 C491 R479 R409 IC411 R434 IC409 R440 C497 R442 R447 R454 C501 R450 R451 R463 R464 R429 R480 R431 R426 R461 R462 Q411 Q412 R441 R443 R444 C496 Q404 Q405 R449 R452 R453 C500 Q406Q407 R457 R458 R459 C503 Q409 Q410 R435 R438 R439 R415 Q402Q403 IC405 R481 R478 IC408 C489 R411 C414 C416 R406 IC402 D416 D428 D404 D410 D434 D437 D419 D407 D413 D415 D403 D433 D427 D431 D409 1 4 5 8 1 4 5 8 1 1 1 3 3 4 5 21 22 42 1 21 22 42 1 21 22 42 E E E E E E E E E E 11 (12) 1-688-435- (SIDE A) AMP BOARD (Page 31) (Page 21) (Page 29) (Page 31) 2 3 4 5 6 7 8 9 10 A 1 B C D E F G Ref. No. Location D401 C-7 D402 F-8 D403 E-4 D404 F-4 D405 D-8 D406 D-7 D407 D-4 D408 F-7 D409 E-5 D410 F-4 D411 D-7 D412 D-7 D413 D-4 D414 F-8 D415 E-3 D416 F-3 D417 D-8 D418 D-8 D419 D-3 D420 C-8 D421 C-9 D422 C-10 D423 C-9 D424 C-8 D425 C-9 D426 F-10 D427 E-2 D428 F-2 D429 D-10 D430 D-9 D431 D-2 D432 F-9 D433 E-3 D434 F-2 D435 D-9 D436 D-9 D437 D-2 IC401 F-5 IC402 D-5 IC403 G-5 IC404 E-8 IC405 G-4 IC406 E-7 IC407 E-8 IC408 G-3 IC409 D-1 IC410 E-10 IC411 G-2 IC412 E-9 Q401 C-7 Q402 C-3 Q403 C-3 Q404 C-2 Q405 C-2 Q406 C-2 Q407 C-2 Q408 C-10 Q409 C-3 Q410 C-3 Q411 C-2 Q412 C-2 Q413 C-7 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-LV700R 28 28 4-10. SCHEMATIC DIAGRAM – DISPLAY SECTION – C808 CN802 C809 C814 S803 S804 S805 S806 R814 C807 C817 C820 C819 C818 C816 CN405 R805 R808 R806 R807 L802 47µH L801 100uH S802 R803 R804 D803 D801 D802 D804 D805 T801 CN406 FB401 C812 C813 C805 C803 C811 C810 R801 Q801 Q802 C804 C815 CN801 PRESET TUNING + – C802 R802 RV801 J401 C415 CN803 IC803 IC801 R809 R815 S801 FB402 FL801 IC802 uPD16315 C801 C417 C416 C806 R816 J701 R774 R773 J702 CN771 C773 C774 R775 C709 C708 D807 D806 C707 R708 C703 R771 C771 JR703 JW705 JR704 CN701 C704 C705 IC771 R702 R703 C706 JW702 JW701 C772 C710 R705 R706 R813 IC701 R701 C711 SAN 2P 0.1 0.1 100p 100k 10 50V 0.1 47p 47p 100p 10 50V SAN4P 1k 4.7k 2.2k 2.2k 470 470 UDZS-TE-17-6.2B 1SS355TE-17 1SS355TE-17 1SS355TE-17 1SS355ZTE-17 BOARD IN 0UH 100p 100p 10 50V 0.01 10 50V 0.1 1.8k 2SD1622 2SD1622 10 50V 0.1 13P 0.1 10k 0.1 2P TC74ACT08F(EL) BUFFER GP1UD28SXK 100 10 0UH 47 50V 2200p 100V 2200p 100V 0.027 33 1P 75 470 3P EH2P(L) 0.01 100 16V 0 100 16V 0.01 1SS355TE-17 1SS355TE-17 33p 100k 1000 6.3V 470 1 50V 5P FFC 1 50V 1 50V NJM2243 75 75 1 50V 1 50V 100 16V 4.7k 4.7k 82k NJM2279M 75 33p 23 24 25 26 27 28 29 23 24 25 26 27 28 29 VOLUME PHONES FL DRIVER DC-DC CONVERTER Q801,802 I/ BUFFER VIDEO SELECT VIDEO SELECT (Page 24) (EU) (Page 23) (Page 26) (Page 24) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-LV700R 29 29 4-11. PRINTED WIRING BOARD – DISPLAY SECTION – • See page 17 for Circuit Boards Location. : Uses unleaded solder. 11 (12) 1-688-436- C415 FB401 FB402 FL801 L801 L802 IC803 C803 C802 R804 R803 R802 D803 D805 D804 D802 D801 R801 Q802 Q801 C818 C819 C820 C817 C808 C810 R813 C813 C812 C814 R809 R815 R814 C815 C809 R808 R807 R805 R806 IC802 C416 C417 S801 J401 CN802 CN406 CN405 JW824 JW825 JW826 JW827 JW828 JW829 JW830 JW801 JW804 JW802 JW805 JW810 JW806 JW803 JW809 JW817 JW811 JW818 JW807 C805 C804 T801 C816 C807 C811 JW808 JW819 S806 S805 S804 S803 S802 JW813 IC801 RV801 JW821 CN801 CN803 JW822 JW820 JW823 JW816 JW815 CN804 CN850 C806 JW812 C801 R816 JR703 JR704 R775 C773 R774 IC771 R771 R701 R702 R703 C707 C708 IC701 R705 R706 R708 JW705 C711 D807 D806 JW701 JW702 R773 J701 J702 CN771 C774 C772 C771 C703 C704 C705 C706 C709 CN701 C710 1 4 1 3 34 33 11 12 23 22 44 1 1 1 1 7 2 4 8 13 12 15 50 65 68 14 + – VOLUME MUTING SOUND FIELD PRESET TUNING INPUT SELECTOR DISPLAY BOARD VIDEO BOARD H.P BOARD E E 11 (12) 1-689-074- 11 (12) 1-688-438- 1 1 2 2 F DIGITAL BOARD C AMP BOARD G DIGITAL BOARD H VIF-20(EU) ASSY 1 1 1 7 14 2 4 4 5 5 8 8 VIDEO IN DVD IN TV/SAT IN MONITOR OUT PHONES (Page 21) (Page 21) (Page 21) (Page 27) 2 3 4 5 6 7 8 9 10 11 12 13 A 1 B C D E F G Ref. No. Location D801 B-6 D802 C-6 D803 B-6 D804 C-6 D805 C-6 D806 D-4 D807 D-4 IC701 D-3 IC771 F-3 IC801 B-12 IC802 B-9 IC803 B-7 Q801 B-5 Q802 B-5 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-LV700R 30 30 4-12. SCHEMATIC DIAGRAM – POWER SECTION – D906 D933 D902 L909 100uH L908 10uH C926 C940 R921 R933 R936 L904 10uH L902 10uH L907 10uH L903 10uH L912 10uH L911 10uH L910 10uH L905 10uH R931 R922 D917 D916 CN902 CN903 C914 R924 R928 R927 C928 R932 R918 R915 L901 10uH C924 C918 C921 D911 C920 D908 TH901 LF901 LF902 D919 D920 C906 C907 C910 C909 EP901 R913 PC901 R919 R914 R920 R917 R925 PC902 R907 C938 C911 D907 R938 C905 C901 C908 C931 C930 C932 L906 100uH C934 C935 R926 C917 CN904 CN901 Q905 Q915 Q913 Q902 IC908 IC903 IC907 IC902 IC904 IC906 CN907 CN906 R910 REG REG C929 C903 D910 R911 R934 C912 C915 D903 R904 R903 R908 C913 R909 D918 C933 Q906 Q908 D932 D914 R906 D905 C922 C916 D931 R905 R912 R901 F1 C902 R930 IC1001 CN1002 L1002 100uH L1003 100uH CN799 CN1001 C1003 R1003 R1002 D1001 C1002 L1001 100uH C1001 IC901 T901 11EQS10 11EQS10 11EQS10 100p 50V 0.1 820 820 1k 220 100 11ES2 11ES2 2P 5P 0.1 1k 15k 100k 0.001 2.7k 1k 2.7k 2200 35V 0.1 6800 35V FML-22S 4700p 630V SARS03 10EDB40 10EDB40 0.001 250V 0.001 250V 0.001 250V 0.001 250V 3.3 IC TLP421 10k 2.7k 5.6k 2.7k 1/10W 1k IC TLP421 4.7k 1/10W 0.001 25V 47 50V 11EQS10 150k 0.0047 50V 4.7 50V 220p 100 10V 0.1 100 10V 1000 16V 1000 16V 10k 0.001 250V 11P 2P 2SD1616 +21V REG 2SC2412 BUFFER 2SC2412 BUFFER 2SC2412K +7.2V REG BA033T +3.3V REG SI-8090JF REGULATOR SI-805JF REGULATOR SE-B2 LEVEL DETECT BA10358F BUFFER BA033T SAN PH3P 82 2W 0.1 100 10V 0.1 250V 11EQS10 33k 2W 33k 2W 390 400V 0.001 RBV-406 0.22 1W 0.15 1W 47k 2W 3300 630V 33k 2W 11EQS04-TB 0.1 DTC114EKA-T146 SWITCH DTC114EKA-T146 BUFFER UDZSTE-1722B 11EQS04-TB5 10k DTZ-TT11-6.8B 1 470p 2kV UDZSTE-1720B 3.9k 1.5k 220 T2.5A 250V 0.1 250V 3.3M 1/2W SI-805JF PH3P 2P EH2P 1000 16V 220 470 11EQS04-TB5 220 50V 0.047 STR-F6267D POWER TRANSFORMER AC IN REGULATOR SWITCHING +3.3V REG. +7.5V REG (Page 24) (Page 26) (Page 26) (Page 24) (EU) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-LV700R 31 31 4-13. PRINTED WIRING BOARD – POWER SECTION – • See page 17 for Circuit Boards Location. : Uses unleaded solder. EP901 C907 C906 C910 D903 C903 C909 D920 D919 TH901 C902 LF902 LF901 R930 FH901 FH902 F1 CN901 C912 R908 R911 D906 Q905 D908 R913 R909 R934 C913 C920 C921 D911 CN799 CN903 CN902 CN904 L901 C931 C932 D916 D917 D910 C934 L906 IC908 C935 IC907 C924 IC902 D918 D914 L909 IC903 R910 C922 CN906 D902 D907 C901 PC902 PC901 C917 R904 R903 CN905 IC901 C916 D933 C911 Y2 L903 L905 R901 D932 R907 D931 C908 C905 R912 R938 R905 C915 C938 C918 L907 L902 L904 R936 R931 R933 R921 R922 C940 C933 R919 R920 R917 R914 R925 R935 C926 C930 IC904 C928 R918 R924 R928 R927 1 1 1 1 1 1 11 2 1 2 1 2 3 3 3 4 4 1 2 3 4 5 5 5 1 1 2 3 3 4 5 5 8 T901 POWER TRANSFORMER K E A 11 (14) 1-688-433- 11 (14) 1-688-433- 1 2 AC IN R1002 C1001 C1002 R1003 D1001 C1003 L1001 IC1001 L1002 L1003 CN1001 CN1002 REG BOARD SUB POWER BOARD 11 (12) 1-860-504- 11 (12) 1-860-430- 1 1 1 1 1 2 2 3 3 3 3 4 5 I E VIF-20(EU) ASSY (Page 21) D AMP BOARD DIGITAL BOARD A AMP BOARD (SIDE A) (SIDE B) POWER BOARD POWER BOARD L912 L908 L910 L911 R926 Q906 R915 Q915 R906 Q902 D905 R932 Q913 Q908 C914 E E E E E (Page 21) (Page 27) (Page 27) IC906 C929 C927 CN907 2 3 4 5 6 7 8 9 10 11 12 13 A 1 B C D E F G H I Ref. No. Location D902 A-9 D903 F-8 D905 A-3 D906 C-8 D907 A-9 D908 D-8 D910 C-11 D911 D-10 D914 B-11 D916 D-11 D917 D-11 D918 C-12 D919 F-9 D920 F-8 D931 C-8 D932 C-7 D933 B-8 D1001 H-10 • Semiconductor Location Ref. No. Location IC901 B-8 IC902 C-10 IC903 B-11 IC904 A-10 IC906 G-12 IC907 C-12 IC908 C-12 IC1001 H-11 PC901 A-10 PC902 B-10 Q902 B-3 Q905 C-8 Q906 B-1 Q908 B-1 Q913 A-2 Q915 B-2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-LV700R 32 32 4-14. IC Block Diagram – DIGITAL Board – IC111 LC89056W-E – DISPLAY Board – IC802 µPD16315GB-3BS 38 37 36 23 24 1 2 3 4 5 44 8 9 10 46 17 22 21 20 30 35 25 26 27 28 29 32 33 34 16 45 13 14 15 47 40 41 48 CLK 39 XSEL CE DI EMPHA AUDIO DISEL DOUT DINO DINI DIN2 6 D.GND 7 DVDD 11 AVDD 12 AGND DOSEL0 R VIN LPF CKSEL0 XSTATE 18 DGND 19 DVDD XIN XOUT XMCK DVDD 31 DGND DO CSFLAG F0/P0/C0 F1/P1/C1 F2/P2/C2 VF/P3/C3 AUTO BPSYNC ERROR DATAO DOSEL1 CKOUT BCK LRCK CKSEL1 MODE0 MODE1 42 DGND 43 DVDD XMODE TIMING MICROCOMPUTER INTERFACE SAMPLING FREQUENCY C BIT DETECT PA/PB DETECT LOCK DETECT SYSTEM RESET MODE SELECT INPUT CIRCUIT DATA DEMODULATOR PLL CLOCK 11 KEY2 10 KEY1 9 STB 8 CLK 7 DIN 6 DOUT 5 DSC 4 VIDEO LED 3 DVD LED 2 TV/SAT LED 1 33 TUNER LED GRID10 32 GRID11 31 GRID12 30 VEE 29 SEG16 28 SEG15 27 SEG14 26 SEG13 25 SEG12 24 SEG11 23 SEG10 44 12 VSS VSS 13 VDD 14 SEG1 15 SEG2 16 SEG3 17 SEG4 18 SEG5 19 SEG6 20 SEG7 21 SEG8 22 SEG9 43 VDD 42 GRID1 41 GRID2 40 GRID3 39 GRID4 38 GRID5 37 GRID6 36 GRID7 35 GRID8 34 GRID9 SERIAL INTERFACE 24-bit OUTPUT LATCH DATA SELECTOR 12-bit SHIFT REGISTER 4-bit LATCH DISPLAY MEMORY 24 bits x 12 words KEY DATA MEMORY (2 x 16 bits) TIMING GENERATOR KEY SCAN COMMAND DECODER GRID DIRVER MULTIPLEXED DRIVER DIMMING CIRCUIT OSC OSC R SEGMENT DRIVER – VIDEO Board – IC701 NJM2279M-TE2 VIN3 V- 14 SW2 13 VIN1 12 MUTE1 11 VOUT1 10 NC 9 V+ 8 1 SW1 2 AMP VIN2 3 MUTE2 4 VOUT2 5 GND2 6 GND1 7 AMP IC771 NJM2243M (TE2) GND VIN1 VIN2 CTL1 CTL2 75Ω� DRIVER BIAS VOUT V VIN3 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-LV700R 33 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 5-1. FRONT PANEL SECTION SECTION 5 EXPLODED VIEWS NOTE: • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Accessories are given in the last of this parts list. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. 2 8 12 4 7 chassis section 8 13 6 5 9 9 10 8 #2 #1 1 3 11 FL801 supplied with RV801 1 X-4955-665-2 KNOB (VOL) ASSY 2 X-4956-075-2 PANEL ASSY, FRONT 3 3-354-981-11 SPRING (SUS), RING * 4 4-921-941-11 CUSHION (FL) 5 4-246-462-01 HOLDER (FL-B9) 6 1-751-688-11 WIRE (FLAT TYPE) (13 CORE) 7 A-4733-964-A DISPLAY BOARD, COMPLETE 8 4-951-620-01 SCREW (2.6X8), +BVTP 9 3-070-883-21 SCREW, TAPPING 10 4-247-114-11 CASE 11 4-247-146-02 WINDOW (FL) 12 A-4733-956-A H.P BOARD, COMPLETE * 13 3-378-433-01 CUSHION, SARANET FL801 1-518-903-11 INDICATOR TUBE, FLUORESCENT #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 #2 7-685-871-01 SCREW +BVTT 3X6 (S) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 STR-LV700R 5-2. CABINET SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark #1 #1 #1 TU901 #1 FAN101 #1 F1 #1 #1 #1 #1 #1 #1 #1 #1 #1 58 61 61 60 66 67 68 63 not supplied not supplied not supplied not supplied 59 51 52 64 65 69 T901 54 53 55 56 57 62 #1 #2 #2 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. 51 A-4750-191-A DIGITAL BOARD, COMPLETE 52 A-4750-193-A POWER BOARD, COMPLETE 53 1-769-878-11 WIRE (FLAT TYPE) (7 CORE) 54 1-769-841-11 WIRE (FLAT TYPE) (5 CORE) 55 1-773-141-11 WIRE (FLAT TYPE) (21 CORE) 56 A-4733-963-A AMP BOARD, COMPLETE 57 A-4747-003-A VIDEO BOARD, COMPLETE 58 4-966-267-04 BUSHING (FBS001), CORD 059 1-777-071-23 CORD, POWER 60 A-8068-399-A VIF-20 (EU) ASSY 61 4-977-358-01 CUSHION 62 A-4733-949-A DIG-IN BOARD, COMPLETE 63 A-4747-009-A SUB POWER BOARD, COMPLETE 64 1-860-430-11 REG BOARD 65 3-970-608-01 SUMITITE (B3), +BV 66 1-469-089-11 FILTER, CLAMP (FERRITE CORE) 67 A-4749-753-A FILTER BOARD, COMPLETE 68 1-773-004-11 WIRE (FLAT TYPE) (15 CORE) 69 1-773-004-11 WIRE (FLAT TYPE) (15 CORE) 0F1 1-533-469-12 FUSE, GLASS TUBE (DIA. 5) (T2.5AL/250V) FAN101 1-763-561-12 FAN, D.C. 0T901 1-437-866-11 TRANSFORMER, POWER TU901 1-693-578-21 TUNER #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 #2 7-685-871-01 SCREW +BVTT 3X6 (S) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 STR-LV700R Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark SECTION 6 ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • CAPACITORS: uF: µF • COILS uH: µH • RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable When indicating parts by reference number, please include the board name. • SEMICONDUCTORS In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD... The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. AMP A-4733-963-A AMP BOARD, COMPLETE ****************** < CAPACITOR > C401 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C402 1-119-799-11 ELECT 47uF 20% 25V C403 1-163-093-00 CERAMIC CHIP 10PF 5% 50V C404 1-127-732-51 ELECT 2200uF 20% 35V C405 1-163-093-00 CERAMIC CHIP 10PF 5% 50V C406 1-127-718-91 ELECT 100uF 20% 16V C408 1-165-319-11 CERAMIC CHIP 0.1uF 50V C409 1-127-718-91 ELECT 100uF 20% 16V C410 1-128-834-11 ELECT 470uF 20% 10V C411 1-127-718-91 ELECT 100uF 20% 16V C413 1-127-718-91 ELECT 100uF 20% 16V C414 1-165-319-11 CERAMIC CHIP 0.1uF 50V C416 1-163-093-00 CERAMIC CHIP 10PF 5% 50V C417 1-163-093-00 CERAMIC CHIP 10PF 5% 50V C418 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C419 1-119-799-11 ELECT 47uF 20% 25V C420 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C421 1-127-718-91 ELECT 100uF 20% 16V C423 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C424 1-136-157-00 FILM 0.022uF 5% 50V C425 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C426 1-163-093-00 CERAMIC CHIP 10PF 5% 50V C427 1-131-704-11 FILM 1uF 5% 50V C428 1-136-165-00 FILM 0.1uF 5% 50V C429 1-136-165-00 FILM 0.1uF 5% 50V C430 1-165-319-11 CERAMIC CHIP 0.1uF 50V C431 1-131-704-11 FILM 1uF 5% 50V C432 1-136-165-00 FILM 0.1uF 5% 50V C433 1-136-157-00 FILM 0.022uF 5% 50V C434 1-119-799-11 ELECT 47uF 20% 25V C435 1-127-720-91 ELECT 470uF 20% 16V C436 1-165-319-11 CERAMIC CHIP 0.1uF 50V C437 1-128-851-91 ELECT 100uF 20% 35V C438 1-127-720-91 ELECT 470uF 20% 16V C439 1-165-319-11 CERAMIC CHIP 0.1uF 50V C440 1-127-718-91 ELECT 100uF 20% 16V C441 1-136-165-00 FILM 0.1uF 5% 50V C442 1-136-165-00 FILM 0.1uF 5% 50V C443 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C444 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C445 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C446 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C447 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C448 1-136-165-00 FILM 0.1uF 5% 50V C449 1-136-165-00 FILM 0.1uF 5% 50V C450 1-136-157-00 FILM 0.022uF 5% 50V C451 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C452 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C453 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C454 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C455 1-131-704-11 FILM 1uF 5% 50V C456 1-136-165-00 FILM 0.1uF 5% 50V C457 1-136-165-00 FILM 0.1uF 5% 50V C458 1-165-319-11 CERAMIC CHIP 0.1uF 50V C459 1-131-704-11 FILM 1uF 5% 50V C460 1-136-165-00 FILM 0.1uF 5% 50V C461 1-136-157-00 FILM 0.022uF 5% 50V C462 1-127-720-91 ELECT 470uF 20% 16V C463 1-165-319-11 CERAMIC CHIP 0.1uF 50V C464 1-128-851-91 ELECT 100uF 20% 35V C465 1-127-720-91 ELECT 470uF 20% 16V C466 1-165-319-11 CERAMIC CHIP 0.1uF 50V C467 1-136-165-00 FILM 0.1uF 5% 50V C468 1-136-165-00 FILM 0.1uF 5% 50V C469 1-136-157-00 FILM 0.022uF 5% 50V C470 1-131-704-11 FILM 1uF 5% 50V C471 1-136-165-00 FILM 0.1uF 5% 50V C472 1-165-319-11 CERAMIC CHIP 0.1uF 50V C473 1-131-704-11 FILM 1uF 5% 50V C474 1-136-157-00 FILM 0.022uF 5% 50V C475 1-119-799-11 ELECT 47uF 20% 25V C476 1-127-720-91 ELECT 470uF 20% 16V C477 1-165-319-11 CERAMIC CHIP 0.1uF 50V C478 1-128-851-91 ELECT 100uF 20% 35V C479 1-127-720-91 ELECT 470uF 20% 16V C480 1-165-319-11 CERAMIC CHIP 0.1uF 50V C481 1-127-718-91 ELECT 100uF 20% 16V C482 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C483 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C484 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C485 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C486 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C487 1-163-259-91 CERAMIC CHIP 220PF 5% 50V C488 1-131-704-11 FILM 1uF 5% 50V C489 1-117-720-11 CERAMIC CHIP 4.7uF 10V C490 1-131-704-11 FILM 1uF 5% 50V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 STR-LV700R Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark AMP C491 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C492 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C493 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C494 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C495 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C496 1-117-720-11 CERAMIC CHIP 4.7uF 10V C497 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C498 1-127-718-91 ELECT 100uF 20% 16V C499 1-127-718-91 ELECT 100uF 20% 16V C500 1-117-720-11 CERAMIC CHIP 4.7uF 10V C501 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V C502 1-128-844-11 ELECT 33uF 20% 25V C503 1-117-720-11 CERAMIC CHIP 4.7uF 10V C504 1-136-157-00 FILM 0.022uF 5% 50V C505 1-117-720-11 CERAMIC CHIP 4.7uF 10V C506 1-131-704-11 FILM 1uF 5% 50V C507 1-136-165-00 FILM 0.1uF 5% 50V C508 1-165-319-11 CERAMIC CHIP 0.1uF 50V C509 1-131-704-11 FILM 1uF 5% 50V C510 1-136-157-00 FILM 0.022uF 5% 50V C511 1-119-799-11 ELECT 47uF 20% 25V C512 1-127-720-91 ELECT 470uF 20% 16V C513 1-165-319-11 CERAMIC CHIP 0.1uF 50V C514 1-128-851-91 ELECT 100uF 20% 35V C515 1-127-720-91 ELECT 470uF 20% 16V C516 1-165-319-11 CERAMIC CHIP 0.1uF 50V C517 1-165-319-11 CERAMIC CHIP 0.1uF 50V C518 1-127-718-91 ELECT 100uF 20% 16V C519 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C520 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C521 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C522 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C523 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C524 1-136-157-00 FILM 0.022uF 5% 50V C525 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C526 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C527 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C528 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C529 1-131-704-11 FILM 1uF 5% 50V C530 1-136-165-00 FILM 0.1uF 5% 50V C531 1-165-319-11 CERAMIC CHIP 0.1uF 50V C532 1-131-704-11 FILM 1uF 5% 50V C533 1-136-157-00 FILM 0.022uF 5% 50V C534 1-127-720-91 ELECT 470uF 20% 16V C535 1-165-319-11 CERAMIC CHIP 0.1uF 50V C536 1-128-851-91 ELECT 100uF 20% 35V C537 1-127-720-91 ELECT 470uF 20% 16V C538 1-165-319-11 CERAMIC CHIP 0.1uF 50V C539 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V < CONNECTOR > CN403 1-568-838-11 CONNECTOR, FFC 21P * CN404 1-564-720-11 PIN, CONNECTOR (SMALL TYPE) 4P < DIODE > D401 8-719-016-74 DIODE 1SS352 D402 6-500-248-01 DIODE SFPL-62V D403 6-500-248-01 DIODE SFPL-62V D404 6-500-709-01 DIODE P6SMB43AT3 D405 6-500-131-01 DIODE LI116 D406 6-500-131-01 DIODE LI116 D407 6-500-709-01 DIODE P6SMB43AT3 D408 6-500-248-01 DIODE SFPL-62V D409 6-500-248-01 DIODE SFPL-62V D410 6-500-709-01 DIODE P6SMB43AT3 D411 6-500-131-01 DIODE LI116 D412 6-500-131-01 DIODE LI116 D413 6-500-709-01 DIODE P6SMB43AT3 D414 6-500-248-01 DIODE SFPL-62V D415 6-500-248-01 DIODE SFPL-62V D416 6-500-709-01 DIODE P6SMB43AT3 D417 6-500-131-01 DIODE LI116 D418 6-500-131-01 DIODE LI116 D419 6-500-709-01 DIODE P6SMB43AT3 D420 8-719-988-61 DIODE 1SS355TE-17 D421 8-719-988-61 DIODE 1SS355TE-17 D422 8-719-016-74 DIODE 1SS352 D423 8-719-988-61 DIODE 1SS355TE-17 D424 8-719-988-61 DIODE 1SS355TE-17 D425 8-719-988-61 DIODE 1SS355TE-17 D426 6-500-248-01 DIODE SFPL-62V D427 6-500-248-01 DIODE SFPL-62V D428 6-500-709-01 DIODE P6SMB43AT3 D429 6-500-131-01 DIODE LI116 D430 6-500-131-01 DIODE LI116 D431 6-500-709-01 DIODE P6SMB43AT3 D432 6-500-248-01 DIODE SFPL-62V D433 6-500-248-01 DIODE SFPL-62V D434 6-500-709-01 DIODE P6SMB43AT3 D435 6-500-131-01 DIODE LI116 D436 6-500-131-01 DIODE LI116 D437 6-500-709-01 DIODE P6SMB43AT3 < FERRITE BEAD > FB403 1-469-152-11 FERRITE 0uH FB404 1-469-152-11 FERRITE 0uH FB405 1-469-152-11 FERRITE 0uH FB406 1-469-152-11 FERRITE 0uH FB407 1-469-152-11 FERRITE 0uH < IC > IC401 8-759-832-05 IC BA18BC0FP-E2 IC402 8-759-636-55 IC M5218AFP-TE1 IC403 6-701-189-01 IC MC74VHC1GU04DFT1 IC404 6-703-288-01 IC CXD9750L IC405 6-703-287-01 IC CXD9743N IC406 6-703-288-01 IC CXD9750L IC407 6-703-288-01 IC CXD9750L IC408 6-703-287-01 IC CXD9743N IC409 8-759-636-55 IC M5218AFP-TE1 IC410 6-703-288-01 IC CXD9750L IC411 6-703-287-01 IC CXD9743N IC412 6-703-288-01 IC CXD9750L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 STR-LV700R Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark AMP < JACK > J402 1-780-026-11 TERMINAL BOARD (SPEAKER) (SPEAKERS) J403 1-793-446-11 JACK, PIN 1P (SUB WOOFER) < CHIP JUMPER > JC401 1-216-295-91 SHORT CHIP 0 JC402 1-216-295-91 SHORT CHIP 0 JC403 1-216-295-91 SHORT CHIP 0 JC404 1-216-295-91 SHORT CHIP 0 JC405 1-216-295-91 SHORT CHIP 0 JC406 1-216-295-91 SHORT CHIP 0 JC407 1-216-295-91 SHORT CHIP 0 JC408 1-216-295-91 SHORT CHIP 0 JC409 1-216-295-91 SHORT CHIP 0 JC410 1-216-295-91 SHORT CHIP 0 JC411 1-216-295-91 SHORT CHIP 0 JC412 1-216-295-91 SHORT CHIP 0 JC413 1-216-295-91 SHORT CHIP 0 JC414 1-216-295-91 SHORT CHIP 0 JC415 1-216-295-91 SHORT CHIP 0 JC416 1-216-295-91 SHORT CHIP 0 JC417 1-216-295-91 SHORT CHIP 0 JC418 1-216-295-91 SHORT CHIP 0 JC419 1-216-295-91 SHORT CHIP 0 JC420 1-216-295-91 SHORT CHIP 0 JC421 1-216-295-91 SHORT CHIP 0 JC422 1-216-295-91 SHORT CHIP 0 < COIL > L401 1-410-369-11 INDUCTOR CHIP 1uH L402 1-456-380-11 INDUCTOR 10uH L403 1-456-380-11 INDUCTOR 10uH L404 1-456-380-11 INDUCTOR 10uH L405 1-456-380-11 INDUCTOR 10uH L406 1-456-380-11 INDUCTOR 10uH L407 1-456-380-11 INDUCTOR 10uH L408 1-456-380-11 INDUCTOR 10uH L409 1-456-380-11 INDUCTOR 10uH L410 1-456-380-11 INDUCTOR 10uH L411 1-456-380-11 INDUCTOR 10uH < TRANSISTOR > Q401 8-729-024-91 TRANSISTOR 2SC2712-GL-TE85L Q402 8-729-216-22 TRANSISTOR 2SA1162-G Q403 8-729-216-22 TRANSISTOR 2SA1162-G Q404 8-729-216-22 TRANSISTOR 2SA1162-G Q405 8-729-216-22 TRANSISTOR 2SA1162-G Q406 8-729-216-22 TRANSISTOR 2SA1162-G Q407 8-729-216-22 TRANSISTOR 2SA1162-G Q408 8-729-024-91 TRANSISTOR 2SC2712-GL-TE85L Q409 8-729-216-22 TRANSISTOR 2SA1162-G Q410 8-729-216-22 TRANSISTOR 2SA1162-G Q411 8-729-216-22 TRANSISTOR 2SA1162-G Q412 8-729-216-22 TRANSISTOR 2SA1162-G Q413 8-729-024-91 TRANSISTOR 2SC2712-GL-TE85L < RESISTOR > R401 1-216-081-00 METAL CHIP 22K 5% 1/10W R402 1-216-097-11 RES-CHIP 100K 5% 1/10W R403 1-216-033-00 METAL CHIP 220 5% 1/10W R404 1-216-081-00 METAL CHIP 22K 5% 1/10W R405 1-216-077-91 RES-CHIP 15K 5% 1/10W R406 1-216-097-11 RES-CHIP 100K 5% 1/10W R407 1-216-081-00 METAL CHIP 22K 5% 1/10W R408 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R409 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R410 1-216-081-00 METAL CHIP 22K 5% 1/10W R411 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R412 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R413 1-216-073-91 RES-CHIP 10K 5% 1/10W R414 1-216-081-00 METAL CHIP 22K 5% 1/10W R415 1-216-097-11 RES-CHIP 100K 5% 1/10W R416 1-216-077-91 RES-CHIP 15K 5% 1/10W R417 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R418 1-216-081-00 METAL CHIP 22K 5% 1/10W R419 1-216-081-00 METAL CHIP 22K 5% 1/10W R420 1-216-081-00 METAL CHIP 22K 5% 1/10W R421 1-216-097-11 RES-CHIP 100K 5% 1/10W R422 1-216-033-00 METAL CHIP 220 5% 1/10W R423 1-216-819-11 METAL CHIP 680 5% 1/10W R424 1-216-857-11 METAL CHIP 1M 5% 1/10W R425 1-216-803-11 METAL CHIP 33 5% 1/10W R426 1-216-803-11 METAL CHIP 33 5% 1/10W R427 1-216-801-11 METAL CHIP 22 5% 1/10W R428 1-216-803-11 METAL CHIP 33 5% 1/10W R429 1-216-803-11 METAL CHIP 33 5% 1/10W R430 1-216-803-11 METAL CHIP 33 5% 1/10W R431 1-216-803-11 METAL CHIP 33 5% 1/10W R432 1-216-073-91 RES-CHIP 10K 5% 1/10W R433 1-216-073-91 RES-CHIP 10K 5% 1/10W R434 1-216-081-00 METAL CHIP 22K 5% 1/10W R435 1-216-849-11 METAL CHIP 220K 5% 1/10W R436 1-216-073-91 RES-CHIP 10K 5% 1/10W R437 1-216-073-91 RES-CHIP 10K 5% 1/10W R438 1-216-095-00 METAL CHIP 82K 5% 1/10W R439 1-216-849-11 METAL CHIP 220K 5% 1/10W R440 1-216-081-00 METAL CHIP 22K 5% 1/10W R441 1-216-849-11 METAL CHIP 220K 5% 1/10W R442 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R443 1-216-095-00 METAL CHIP 82K 5% 1/10W R444 1-216-849-11 METAL CHIP 220K 5% 1/10W R445 1-216-803-11 METAL CHIP 33 5% 1/10W R446 1-216-803-11 METAL CHIP 33 5% 1/10W R447 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R448 1-216-081-00 METAL CHIP 22K 5% 1/10W R449 1-216-849-11 METAL CHIP 220K 5% 1/10W R450 1-216-081-00 METAL CHIP 22K 5% 1/10W R451 1-216-049-11 RES-CHIP 1K 5% 1/10W R452 1-216-095-00 METAL CHIP 82K 5% 1/10W R453 1-216-849-11 METAL CHIP 220K 5% 1/10W R454 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R455 1-216-073-91 RES-CHIP 10K 5% 1/10W R456 1-216-065-91 RES-CHIP 4.7K 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 STR-LV700R Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark AMP DIGITAL DIG-IN R457 1-216-849-11 METAL CHIP 220K 5% 1/10W R458 1-216-095-00 METAL CHIP 82K 5% 1/10W R459 1-216-849-11 METAL CHIP 220K 5% 1/10W R460 1-216-849-11 METAL CHIP 220K 5% 1/10W R461 1-216-095-00 METAL CHIP 82K 5% 1/10W R462 1-216-849-11 METAL CHIP 220K 5% 1/10W R463 1-216-803-11 METAL CHIP 33 5% 1/10W R464 1-216-803-11 METAL CHIP 33 5% 1/10W R465 1-216-821-11 METAL CHIP 1K 5% 1/10W R466 1-216-857-11 METAL CHIP 1M 5% 1/10W R467 1-216-809-11 METAL CHIP 100 5% 1/10W R468 1-216-809-11 METAL CHIP 100 5% 1/10W R469 1-216-809-11 METAL CHIP 100 5% 1/10W R470 1-216-809-11 METAL CHIP 100 5% 1/10W R471 1-216-809-11 METAL CHIP 100 5% 1/10W R472 1-216-809-11 METAL CHIP 100 5% 1/10W R473 1-216-821-11 METAL CHIP 1K 5% 1/10W R474 1-216-821-11 METAL CHIP 1K 5% 1/10W R475 1-216-809-11 METAL CHIP 100 5% 1/10W R476 1-216-809-11 METAL CHIP 100 5% 1/10W R477 1-216-809-11 METAL CHIP 100 5% 1/10W R478 1-216-803-11 METAL CHIP 33 5% 1/10W R479 1-216-809-11 METAL CHIP 100 5% 1/10W R480 1-216-803-11 METAL CHIP 33 5% 1/10W R481 1-216-809-11 METAL CHIP 100 5% 1/10W R482 1-216-833-11 METAL CHIP 10K 5% 1/10W R483 1-216-821-11 METAL CHIP 1K 5% 1/10W R484 1-216-821-11 METAL CHIP 1K 5% 1/10W R486 1-216-017-91 RES-CHIP 47 5% 1/10W R487 1-216-017-91 RES-CHIP 47 5% 1/10W R488 1-216-073-91 RES-CHIP 10K 5% 1/10W < RELAY > RY401 1-515-614-11 RELAY RY402 1-515-614-11 RELAY < VIBRATOR > X401 1-795-286-21 VIBRATOR, CRYSTAL (49.152MHz) ****************************************************** A-4733-949-A DIG-IN BOARD, COMPLETE ******************* < CAPACITOR > C101 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C112 1-165-319-11 CERAMIC CHIP 0.1uF 50V C113 1-165-319-11 CERAMIC CHIP 0.1uF 50V C114 1-165-319-11 CERAMIC CHIP 0.1uF 50V C115 1-165-319-11 CERAMIC CHIP 0.1uF 50V C116 1-165-319-11 CERAMIC CHIP 0.1uF 50V C117 1-128-858-11 ELECT 22uF 20% 50V C225 1-119-799-11 ELECT 47uF 20% 25V < CONNECTOR > CN102 1-568-826-11 CONNECTOR, FFC 7P < IC > IC101 6-600-014-01 IC TORX141L (DVD OPT IN) IC102 6-600-014-01 IC TORX141L (TV/SAT OPT IN) IC103 6-600-014-01 IC TORX141L (HDD/MD OPT IN) IC104 6-600-012-11 IC TOTX141L(RED) (HDD/MD OPT OUT) < JACK > J101 1-778-228-11 JACK, PIN 1P (COAX IN) < RESISTOR > R101 1-216-022-00 METAL CHIP 75 5% 1/10W R120 1-216-025-11 RES-CHIP 100 5% 1/10W R121 1-216-025-11 RES-CHIP 100 5% 1/10W R122 1-216-025-11 RES-CHIP 100 5% 1/10W R123 1-216-025-11 RES-CHIP 100 5% 1/10W ****************************************************** A-4750-191-A DIGITAL BOARD, COMPLETE ********************** < CAPACITOR > C102 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C103 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C104 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C105 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C106 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C107 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C108 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C109 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C110 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C111 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C118 1-128-844-11 ELECT 33uF 20% 25V C119 1-128-844-11 ELECT 33uF 20% 25V C120 1-128-844-11 ELECT 33uF 20% 25V C121 1-128-844-11 ELECT 33uF 20% 25V C122 1-128-844-11 ELECT 33uF 20% 25V C123 1-128-844-11 ELECT 33uF 20% 25V C124 1-128-844-11 ELECT 33uF 20% 25V C125 1-128-844-11 ELECT 33uF 20% 25V C126 1-128-844-11 ELECT 33uF 20% 25V C127 1-128-844-11 ELECT 33uF 20% 25V C128 1-163-217-11 CERAMIC CHIP 1PF 0.25PF 50V C129 1-119-824-11 ELECT 10uF 20% 50V C130 1-165-319-11 CERAMIC CHIP 0.1uF 50V C131 1-119-824-11 ELECT 10uF 20% 50V C132 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C133 1-119-799-11 ELECT 47uF 20% 25V C134 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C135 1-165-319-11 CERAMIC CHIP 0.1uF 50V C139 1-165-319-11 CERAMIC CHIP 0.1uF 50V C140 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C141 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C142 1-165-319-11 CERAMIC CHIP 0.1uF 50V C143 1-119-824-11 ELECT 10uF 20% 50V C146 1-165-319-11 CERAMIC CHIP 0.1uF 50V C147 1-119-799-11 ELECT 47uF 20% 25V C148 1-165-319-11 CERAMIC CHIP 0.1uF 50V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 STR-LV700R Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DIGITAL C149 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C150 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C151 1-128-844-11 ELECT 33uF 20% 25V C152 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C153 1-119-823-11 ELECT 4.7uF 20% 50V C154 1-119-823-11 ELECT 4.7uF 20% 50V C156 1-128-844-11 ELECT 33uF 20% 25V C157 1-119-799-11 ELECT 47uF 20% 25V C158 1-165-319-11 CERAMIC CHIP 0.1uF 50V C159 1-119-824-11 ELECT 10uF 20% 50V C160 1-165-319-11 CERAMIC CHIP 0.1uF 50V C161 1-165-319-11 CERAMIC CHIP 0.1uF 50V C162 1-165-319-11 CERAMIC CHIP 0.1uF 50V C163 1-163-133-00 CERAMIC CHIP 470PF 5% 50V C164 1-165-319-11 CERAMIC CHIP 0.1uF 50V C165 1-119-824-11 ELECT 10uF 20% 50V C166 1-163-133-00 CERAMIC CHIP 470PF 5% 50V C167 1-163-233-91 CERAMIC CHIP 18PF 5% 50V C168 1-163-233-91 CERAMIC CHIP 18PF 5% 50V C169 1-165-319-11 CERAMIC CHIP 0.1uF 50V C170 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C173 1-163-141-00 CERAMIC CHIP 0.001uF 5% 50V C176 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C180 1-165-319-11 CERAMIC CHIP 0.1uF 50V C182 1-165-319-11 CERAMIC CHIP 0.1uF 50V C183 1-165-319-11 CERAMIC CHIP 0.1uF 50V C184 1-128-833-91 ELECT 330uF 20% 10V C185 1-165-319-11 CERAMIC CHIP 0.1uF 50V C186 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C187 1-165-319-11 CERAMIC CHIP 0.1uF 50V C188 1-165-319-11 CERAMIC CHIP 0.1uF 50V C189 1-165-319-11 CERAMIC CHIP 0.1uF 50V C190 1-165-319-11 CERAMIC CHIP 0.1uF 50V C191 1-165-319-11 CERAMIC CHIP 0.1uF 50V C192 1-165-319-11 CERAMIC CHIP 0.1uF 50V C193 1-165-319-11 CERAMIC CHIP 0.1uF 50V C194 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C196 1-165-319-11 CERAMIC CHIP 0.1uF 50V C197 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C198 1-165-319-11 CERAMIC CHIP 0.1uF 50V C199 1-165-319-11 CERAMIC CHIP 0.1uF 50V C200 1-119-799-11 ELECT 47uF 20% 25V C201 1-165-319-11 CERAMIC CHIP 0.1uF 50V C202 1-165-319-11 CERAMIC CHIP 0.1uF 50V C203 1-165-319-11 CERAMIC CHIP 0.1uF 50V C204 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C205 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C206 1-165-319-11 CERAMIC CHIP 0.1uF 50V C207 1-165-319-11 CERAMIC CHIP 0.1uF 50V C209 1-165-319-11 CERAMIC CHIP 0.1uF 50V C210 1-119-824-11 ELECT 10uF 20% 50V C211 1-165-319-11 CERAMIC CHIP 0.1uF 50V C215 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C216 1-165-319-11 CERAMIC CHIP 0.1uF 50V C217 1-165-319-11 CERAMIC CHIP 0.1uF 50V C218 1-128-834-11 ELECT 470uF 20% 10V C219 1-119-799-11 ELECT 47uF 20% 25V C220 1-165-319-11 CERAMIC CHIP 0.1uF 50V C221 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C222 1-165-319-11 CERAMIC CHIP 0.1uF 50V C223 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C224 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C227 1-119-799-11 ELECT 47uF 20% 25V C228 1-119-799-11 ELECT 47uF 20% 25V C299 1-165-319-11 CERAMIC CHIP 0.1uF 50V C300 1-165-319-11 CERAMIC CHIP 0.1uF 50V C301 1-165-319-11 CERAMIC CHIP 0.1uF 50V C302 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C304 1-165-319-11 CERAMIC CHIP 0.1uF 50V C305 1-128-858-11 ELECT 22uF 20% 25V C795 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C796 1-165-319-11 CERAMIC CHIP 0.1uF 50V C797 1-165-319-11 CERAMIC CHIP 0.1uF 50V C798 1-165-319-11 CERAMIC CHIP 0.1uF 50V C799 1-165-319-11 CERAMIC CHIP 0.1uF 50V < CONNECTOR > CN101 1-784-776-11 CONNECTOR, FFC 15P CN103 1-568-826-11 CONNECTOR, FFC 7P CN104 1-784-766-11 CONNECTOR, FFC 5P CN105 1-568-838-11 CONNECTOR, FFC 21P CN107 1-784-923-11 PIN, CONNECTOR 7P CN108 1-784-774-11 CONNECTOR, FFC 13P * CN109 1-564-708-11 PIN, CONNECTOR (SMALL TYPE) 6P CN112 1-779-978-11 PIN, CONNECTOR 3P * CN798 1-564-704-11 PIN, CONNECTOR (SMALL TYPE) 2P CN1003 1-817-196-11 JACK, MODULAR CN1004 1-817-196-11 JACK, MODULAR ( ) < DIODE > D102 8-719-016-74 DIODE 1SS352 < FERRITE BEAD > FB101 1-469-152-11 FERRITE 0uH FB102 1-469-152-11 FERRITE 0uH FB103 1-469-152-11 FERRITE 0uH FB105 1-414-813-11 FERRITE 0uH FB106 1-469-152-11 FERRITE 0uH FB108 1-414-813-11 FERRITE 0uH FB109 1-469-140-21 FERRITE 0uH FB110 1-469-152-11 FERRITE 0uH FB111 1-414-813-11 FERRITE 0uH FB112 1-216-864-11 METAL CHIP 0 5% 1/10W FB113 1-469-450-21 FERRITE 0uH < IC > IC105 8-759-926-17 IC TC74HC153AF(EL) IC106 8-759-008-67 IC BU4066BCF-E2 IC107 8-759-242-70 IC TC7WU04F(TE12R) IC108 8-759-525-25 IC BU4052BCF-E2 IC111 8-759-825-15 IC LC89056W-E IC112 8-759-636-55 IC M5218AFP-TE1 IC113 8-759-560-56 IC PCM1800E/2K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 STR-LV700R Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DIGITAL IC114 8-759-835-63 IC NJM2391DL1-26(TE1) IC115 8-759-698-76 IC CXD9617R IC116 6-704-037-01 IC IC61LV6416-15TG IC117 8-759-641-86 IC BR24C16F-E2 IC118 6-803-919-01 IC MB90F474HPF-G-SOZ1398 IC119 6-702-913-01 IC S-80929CNMC-G8ZT2G IC797 8-759-424-13 IC SN74HC00ANS-E05 IC798 8-759-239-55 IC TC74HC123AF(EL) IC799 8-759-232-65 IC TC74HC157AF(EL) < JACK > J102 1-784-920-11 JACK, PIN 6P (TV/SAT, DVD, VIDEO) J103 1-784-429-11 JACK, PIN 4P (HDD/MD) < TRANSISTOR > Q101 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q102 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q103 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q104 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q105 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q106 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q109 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q403 8-729-101-07 TRANSISTOR 2SB798-DL < RESISTOR > R102 1-216-097-11 RES-CHIP 100K 5% 1/10W R103 1-216-097-11 RES-CHIP 100K 5% 1/10W R104 1-216-097-11 RES-CHIP 100K 5% 1/10W R105 1-216-097-11 RES-CHIP 100K 5% 1/10W R106 1-216-097-11 RES-CHIP 100K 5% 1/10W R107 1-216-097-11 RES-CHIP 100K 5% 1/10W R108 1-216-097-11 RES-CHIP 100K 5% 1/10W R109 1-216-097-11 RES-CHIP 100K 5% 1/10W R110 1-216-097-11 RES-CHIP 100K 5% 1/10W R111 1-216-097-11 RES-CHIP 100K 5% 1/10W R112 1-216-097-11 RES-CHIP 100K 5% 1/10W R113 1-216-097-11 RES-CHIP 100K 5% 1/10W R114 1-216-049-11 RES-CHIP 1K 5% 1/10W R115 1-216-049-11 RES-CHIP 1K 5% 1/10W R116 1-216-049-11 RES-CHIP 1K 5% 1/10W R117 1-216-049-11 RES-CHIP 1K 5% 1/10W R118 1-216-049-11 RES-CHIP 1K 5% 1/10W R119 1-216-049-11 RES-CHIP 1K 5% 1/10W R124 1-216-049-11 RES-CHIP 1K 5% 1/10W R125 1-216-049-11 RES-CHIP 1K 5% 1/10W R126 1-216-049-11 RES-CHIP 1K 5% 1/10W R127 1-216-049-11 RES-CHIP 1K 5% 1/10W R128 1-216-049-11 RES-CHIP 1K 5% 1/10W R129 1-216-049-11 RES-CHIP 1K 5% 1/10W R130 1-216-049-11 RES-CHIP 1K 5% 1/10W R131 1-216-097-11 RES-CHIP 100K 5% 1/10W R132 1-216-097-11 RES-CHIP 100K 5% 1/10W R133 1-216-097-11 RES-CHIP 100K 5% 1/10W R134 1-216-097-11 RES-CHIP 100K 5% 1/10W R135 1-216-097-11 RES-CHIP 100K 5% 1/10W R136 1-216-097-11 RES-CHIP 100K 5% 1/10W R137 1-216-097-11 RES-CHIP 100K 5% 1/10W R138 1-216-081-00 METAL CHIP 22K 5% 1/10W R139 1-216-081-00 METAL CHIP 22K 5% 1/10W R140 1-216-013-00 METAL CHIP 33 5% 1/10W R141 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R142 1-216-081-00 METAL CHIP 22K 5% 1/10W R143 1-216-115-00 METAL CHIP 560K 5% 1/10W R144 1-216-013-00 METAL CHIP 33 5% 1/10W R145 1-216-025-11 RES-CHIP 100 5% 1/10W R146 1-216-073-91 RES-CHIP 10K 5% 1/10W R147 1-216-073-91 RES-CHIP 10K 5% 1/10W R148 1-216-097-11 RES-CHIP 100K 5% 1/10W R149 1-216-097-11 RES-CHIP 100K 5% 1/10W R150 1-216-097-11 RES-CHIP 100K 5% 1/10W R151 1-216-097-11 RES-CHIP 100K 5% 1/10W R152 1-216-085-91 RES-CHIP 33K 5% 1/10W R153 1-216-025-11 RES-CHIP 100 5% 1/10W R154 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R155 1-216-073-91 RES-CHIP 10K 5% 1/10W R156 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R157 1-216-067-00 METAL CHIP 5.6K 5% 1/10W R158 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R159 1-216-073-91 RES-CHIP 10K 5% 1/10W R160 1-216-025-11 RES-CHIP 100 5% 1/10W R161 1-216-025-11 RES-CHIP 100 5% 1/10W R162 1-216-073-91 RES-CHIP 10K 5% 1/10W R163 1-216-073-91 RES-CHIP 10K 5% 1/10W R164 1-216-025-11 RES-CHIP 100 5% 1/10W R165 1-216-073-91 RES-CHIP 10K 5% 1/10W R166 1-216-025-11 RES-CHIP 100 5% 1/10W R168 1-216-025-11 RES-CHIP 100 5% 1/10W R169 1-216-025-11 RES-CHIP 100 5% 1/10W R170 1-216-049-11 RES-CHIP 1K 5% 1/10W R171 1-216-025-11 RES-CHIP 100 5% 1/10W R172 1-216-121-11 RES-CHIP 1M 5% 1/10W R173 1-216-025-11 RES-CHIP 100 5% 1/10W R174 1-216-025-11 RES-CHIP 100 5% 1/10W R175 1-216-025-11 RES-CHIP 100 5% 1/10W R176 1-216-025-11 RES-CHIP 100 5% 1/10W R177 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R178 1-216-049-11 RES-CHIP 1K 5% 1/10W R179 1-216-295-91 SHORT CHIP 0 R183 1-216-073-91 RES-CHIP 10K 5% 1/10W R184 1-216-049-11 RES-CHIP 1K 5% 1/10W R185 1-216-049-11 RES-CHIP 1K 5% 1/10W R186 1-216-033-00 METAL CHIP 220 5% 1/10W R187 1-216-033-00 METAL CHIP 220 5% 1/10W R188 1-216-033-00 METAL CHIP 220 5% 1/10W R189 1-216-033-00 METAL CHIP 220 5% 1/10W R190 1-216-033-00 METAL CHIP 220 5% 1/10W R191 1-216-033-00 METAL CHIP 220 5% 1/10W R192 1-216-033-00 METAL CHIP 220 5% 1/10W R193 1-216-033-00 METAL CHIP 220 5% 1/10W R194 1-216-033-00 METAL CHIP 220 5% 1/10W R195 1-216-033-00 METAL CHIP 220 5% 1/10W R196 1-216-033-00 METAL CHIP 220 5% 1/10W R197 1-216-073-91 RES-CHIP 10K 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 STR-LV700R Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DIGITAL R198 1-216-073-91 RES-CHIP 10K 5% 1/10W R200 1-216-025-11 RES-CHIP 100 5% 1/10W R201 1-216-025-11 RES-CHIP 100 5% 1/10W R202 1-216-864-11 METAL CHIP 0 5% 1/10W R203 1-216-049-11 RES-CHIP 1K 5% 1/10W R204 1-216-025-11 RES-CHIP 100 5% 1/10W R205 1-216-025-11 RES-CHIP 100 5% 1/10W R206 1-216-025-11 RES-CHIP 100 5% 1/10W R207 1-216-049-11 RES-CHIP 1K 5% 1/10W R208 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R209 1-216-049-11 RES-CHIP 1K 5% 1/10W R210 1-216-049-11 RES-CHIP 1K 5% 1/10W R211 1-216-049-11 RES-CHIP 1K 5% 1/10W R212 1-216-049-11 RES-CHIP 1K 5% 1/10W R213 1-216-049-11 RES-CHIP 1K 5% 1/10W R214 1-216-049-11 RES-CHIP 1K 5% 1/10W R215 1-216-049-11 RES-CHIP 1K 5% 1/10W R216 1-216-049-11 RES-CHIP 1K 5% 1/10W R218 1-216-025-11 RES-CHIP 100 5% 1/10W R219 1-216-025-11 RES-CHIP 100 5% 1/10W R220 1-216-025-11 RES-CHIP 100 5% 1/10W R221 1-216-049-11 RES-CHIP 1K 5% 1/10W R222 1-216-073-91 RES-CHIP 10K 5% 1/10W R223 1-216-049-11 RES-CHIP 1K 5% 1/10W R224 1-216-025-11 RES-CHIP 100 5% 1/10W R225 1-216-025-11 RES-CHIP 100 5% 1/10W R226 1-216-049-11 RES-CHIP 1K 5% 1/10W R227 1-216-049-11 RES-CHIP 1K 5% 1/10W R228 1-216-073-91 RES-CHIP 10K 5% 1/10W R230 1-216-097-11 RES-CHIP 100K 5% 1/10W R231 1-216-049-11 RES-CHIP 1K 5% 1/10W R232 1-216-073-91 RES-CHIP 10K 5% 1/10W R233 1-216-073-91 RES-CHIP 10K 5% 1/10W R234 1-216-073-91 RES-CHIP 10K 5% 1/10W R235 1-216-049-11 RES-CHIP 1K 5% 1/10W R236 1-216-073-91 RES-CHIP 10K 5% 1/10W R237 1-216-049-11 RES-CHIP 1K 5% 1/10W R238 1-216-073-91 RES-CHIP 10K 5% 1/10W R239 1-216-049-11 RES-CHIP 1K 5% 1/10W R240 1-216-061-91 RES-CHIP 3.3K 5% 1/10W R241 1-216-049-11 RES-CHIP 1K 5% 1/10W R242 1-216-061-91 RES-CHIP 3.3K 5% 1/10W R243 1-216-049-11 RES-CHIP 1K 5% 1/10W R244 1-216-049-11 RES-CHIP 1K 5% 1/10W R245 1-216-049-11 RES-CHIP 1K 5% 1/10W R246 1-216-049-11 RES-CHIP 1K 5% 1/10W R247 1-216-073-91 RES-CHIP 10K 5% 1/10W R248 1-216-025-11 RES-CHIP 100 5% 1/10W R249 1-216-073-91 RES-CHIP 10K 5% 1/10W R250 1-216-025-11 RES-CHIP 100 5% 1/10W R251 1-216-025-11 RES-CHIP 100 5% 1/10W R252 1-216-073-91 RES-CHIP 10K 5% 1/10W R253 1-216-025-11 RES-CHIP 100 5% 1/10W R254 1-216-025-11 RES-CHIP 100 5% 1/10W R255 1-216-089-91 RES-CHIP 47K 5% 1/10W R256 1-216-025-11 RES-CHIP 100 5% 1/10W R257 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R258 1-216-049-11 RES-CHIP 1K 5% 1/10W R259 1-216-089-91 RES-CHIP 47K 5% 1/10W R260 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R261 1-216-049-11 RES-CHIP 1K 5% 1/10W R262 1-216-073-91 RES-CHIP 10K 5% 1/10W R263 1-216-073-91 RES-CHIP 10K 5% 1/10W R265 1-216-085-91 RES-CHIP 33K 5% 1/10W R266 1-216-025-11 RES-CHIP 100 5% 1/10W R267 1-216-073-91 RES-CHIP 10K 5% 1/10W R268 1-216-049-11 RES-CHIP 1K 5% 1/10W R269 1-216-025-11 RES-CHIP 100 5% 1/10W R270 1-216-025-11 RES-CHIP 100 5% 1/10W R271 1-216-049-11 RES-CHIP 1K 5% 1/10W R272 1-216-049-11 RES-CHIP 1K 5% 1/10W R273 1-216-049-11 RES-CHIP 1K 5% 1/10W R274 1-216-049-11 RES-CHIP 1K 5% 1/10W R275 1-216-073-91 RES-CHIP 10K 5% 1/10W R276 1-216-073-91 RES-CHIP 10K 5% 1/10W R277 1-216-073-91 RES-CHIP 10K 5% 1/10W R278 1-216-073-91 RES-CHIP 10K 5% 1/10W R279 1-216-025-11 RES-CHIP 100 5% 1/10W R280 1-216-049-11 RES-CHIP 1K 5% 1/10W R281 1-216-049-11 RES-CHIP 1K 5% 1/10W R282 1-216-049-11 RES-CHIP 1K 5% 1/10W R283 1-216-049-11 RES-CHIP 1K 5% 1/10W R284 1-216-049-11 RES-CHIP 1K 5% 1/10W R285 1-216-049-11 RES-CHIP 1K 5% 1/10W R286 1-216-073-91 RES-CHIP 10K 5% 1/10W R287 1-216-073-91 RES-CHIP 10K 5% 1/10W R288 1-216-089-91 RES-CHIP 47K 5% 1/10W R289 1-216-089-91 RES-CHIP 47K 5% 1/10W R292 1-216-073-91 RES-CHIP 10K 5% 1/10W R293 1-216-073-91 RES-CHIP 10K 5% 1/10W R294 1-216-073-91 RES-CHIP 10K 5% 1/10W R295 1-216-073-91 RES-CHIP 10K 5% 1/10W R296 1-216-097-11 RES-CHIP 100K 5% 1/10W R297 1-216-073-91 RES-CHIP 10K 5% 1/10W R298 1-216-073-91 RES-CHIP 10K 5% 1/10W R299 1-216-049-11 RES-CHIP 1K 5% 1/10W R300 1-216-073-91 RES-CHIP 10K 5% 1/10W R301 1-216-073-91 RES-CHIP 10K 5% 1/10W R302 1-216-864-11 METAL CHIP 0 5% 1/10W R303 1-216-864-11 METAL CHIP 0 5% 1/10W R304 1-216-864-11 METAL CHIP 0 5% 1/10W R305 1-216-864-11 METAL CHIP 0 5% 1/10W R306 1-216-864-11 METAL CHIP 0 5% 1/10W R307 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R308 1-216-033-00 METAL CHIP 220 5% 1/10W R309 1-216-033-00 METAL CHIP 220 5% 1/10W R310 1-216-033-00 METAL CHIP 220 5% 1/10W R311 1-216-033-00 METAL CHIP 220 5% 1/10W R312 1-216-033-00 METAL CHIP 220 5% 1/10W R313 1-216-033-00 METAL CHIP 220 5% 1/10W R314 1-216-033-00 METAL CHIP 220 5% 1/10W R315 1-216-033-00 METAL CHIP 220 5% 1/10W R316 1-216-033-00 METAL CHIP 220 5% 1/10W R317 1-216-033-00 METAL CHIP 220 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 STR-LV700R Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DISPLAY FILTER The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. R318 1-216-033-00 METAL CHIP 220 5% 1/10W R319 1-216-033-00 METAL CHIP 220 5% 1/10W R320 1-216-033-00 METAL CHIP 220 5% 1/10W R321 1-216-033-00 METAL CHIP 220 5% 1/10W R322 1-216-033-00 METAL CHIP 220 5% 1/10W R323 1-216-033-00 METAL CHIP 220 5% 1/10W R324 1-216-033-00 METAL CHIP 220 5% 1/10W R325 1-216-033-00 METAL CHIP 220 5% 1/10W R326 1-216-033-00 METAL CHIP 220 5% 1/10W R327 1-216-033-00 METAL CHIP 220 5% 1/10W R328 1-216-033-00 METAL CHIP 220 5% 1/10W R330 1-216-049-11 RES-CHIP 1K 5% 1/10W R331 1-216-073-91 RES-CHIP 10K 5% 1/10W R796 1-216-025-11 RES-CHIP 100 5% 1/10W R797 1-216-073-91 RES-CHIP 10K 5% 1/10W R798 1-216-864-11 METAL CHIP 0 5% 1/10W R799 1-216-864-11 METAL CHIP 0 5% 1/10W < VIBRATOR > X101 1-795-126-21 VIBRATOR, CRYSTAL (12.288MHz) X102 1-795-297-21 VIBRATOR, CERAMIC (13.5MHz) X103 1-781-356-21 VIBRATOR, CERAMIC (16MHz) ****************************************************** A-4733-964-A DISPLAY BOARD, COMPLETE ********************* 4-246-462-01 HOLDER (FL-B9) * 4-921-941-11 CUSHION (FL) < CAPACITOR > C801 1-119-943-91 ELECT 47uF 20% 50V C802 1-165-319-11 CERAMIC CHIP 0.1uF 50V C803 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C804 1-126-795-11 ELECT 10uF 20% 50V C805 1-126-795-11 ELECT 10uF 20% 50V C806 1-131-685-31 FILM 0.027uF 5% 50V C807 1-126-795-11 ELECT 10uF 20% 50V C808 1-165-319-11 CERAMIC CHIP 0.1uF 50V C809 1-165-319-11 CERAMIC CHIP 0.1uF 50V C810 1-165-319-11 CERAMIC CHIP 0.1uF 50V C811 1-126-795-11 ELECT 10uF 20% 50V C812 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C813 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C814 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C815 1-165-319-11 CERAMIC CHIP 0.1uF 50V C816 1-126-795-11 ELECT 10uF 20% 50V C817 1-165-319-11 CERAMIC CHIP 0.1uF 50V C818 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C819 1-163-109-00 CERAMIC CHIP 47PF 5% 50V C820 1-163-109-00 CERAMIC CHIP 47PF 5% 50V < CONNECTOR > CN801 1-784-774-11 CONNECTOR, FFC 13P CN803 1-564-718-11 PIN, CONNECTOR (SMALL TYPE) 2P < DIODE > D801 8-719-988-61 DIODE 1SS355TE-17 D802 8-719-988-61 DIODE 1SS355TE-17 D803 8-719-069-56 DIODE UDZSTE-176.2B D804 8-719-988-61 DIODE 1SS355TE-17 D805 8-719-988-61 DIODE 1SS355TE-17 < FLUORESCENT INDICATOR TUBE > FL801 1-518-903-11 INDICATOR TUBE, FLUORESCENT < IC > IC801 8-749-019-10 IC GP1UD28SXK IC802 8-759-643-83 IC uPD16315GB-3BS IC803 8-759-157-94 IC TC74ACT08F(EL) < COIL > L801 1-412-963-11 INDUCTOR 100uH L802 1-410-478-11 INDUCTOR 47uH < TRANSISTOR > Q801 8-729-822-05 TRANSISTOR 2SD1622ST-TD-E Q802 8-729-822-05 TRANSISTOR 2SD1622ST-TD-E < RESISTOR > R801 1-216-055-00 METAL CHIP 1.8K 5% 1/10W R802 1-216-073-91 RES-CHIP 10K 5% 1/10W R803 1-216-041-00 METAL CHIP 470 5% 1/10W R804 1-216-041-00 METAL CHIP 470 5% 1/10W R805 1-216-049-11 RES-CHIP 1K 5% 1/10W R806 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R807 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R808 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R809 1-216-025-11 RES-CHIP 100 5% 1/10W R813 1-216-095-00 METAL CHIP 82K 5% 1/10W R814 1-216-097-11 RES-CHIP 100K 5% 1/10W R815 1-216-001-00 METAL CHIP 10 5% 1/10W 0R816 1-249-399-11 CARBON 33 5% 1/4W F < ROTARY ENCODER > RV801 1-418-773-21 ENCODER, ROTARY (VOLUME) < SWITCH > S802 1-762-196-21 SWITCH, TACT (INPUT SELECT) S803 1-771-349-21 SWITCH, KEYBOARD (SOUND FIELD) S804 1-771-349-21 SWITCH, KEYBOARD (MUTING) S805 1-771-349-21 SWITCH, KEYBOARD (RESET TUNING +) S806 1-771-349-21 SWITCH, KEYBOARD (RESET TUNING -) < TRANSFORMER > T801 1-439-998-11 TRANSFORMER, DC-DC CONVERTER ****************************************************** A-4749-753-A FILTER BOARD, COMPLETE ********************** < CAPACITOR > C2 1-164-159-11 CERAMIC 0.1uF 50V C3 1-127-876-11 CERAMIC 0.01uF 10% 50V C4 1-127-876-11 CERAMIC 0.01uF 10% 50V DIGITAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 STR-LV700R Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. C5 1-127-876-11 CERAMIC 0.01uF 10% 50V C6 1-164-159-11 CERAMIC 0.1uF 50V < CONNECTOR > CN1 1-784-776-11 CONNECTOR, FFC 15P CN2 1-784-776-11 CONNECTOR, FFC 15P < EARTH TERMINAL > * EP1 1-537-738-21 TERMINAL, EARTH < COIL > L1 1-410-521-11 INDUCTOR 100uH L2 1-410-521-11 INDUCTOR 100uH L3 1-410-521-11 INDUCTOR 100uH L4 1-410-521-11 INDUCTOR 100uH L5 1-410-521-11 INDUCTOR 100uH L6 1-410-521-11 INDUCTOR 100uH ****************************************************** A-4733-956-A H.P BOARD, COMPLETE ***************** < CAPACITOR > C415 1-165-319-11 CERAMIC CHIP 0.1uF 50V C416 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V C417 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V < FERRITE BEAD > FB401 1-469-152-11 FERRITE 0uH FB402 1-469-152-11 FERRITE 0uH < JACK > J401 1-764-106-21 JACK (PHONES) < SWITCH > S801 1-762-196-21 SWITCH, TACT (|/1) ****************************************************** A-4750-193-A POWER BOARD, COMPLETE ********************* 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3 < CAPACITOR > C901 1-126-963-11 ELECT 4.7uF 20% 50V 0C902 1-104-705-11 MYLAR 0.1uF 20% 250V 0C903 1-104-705-11 MYLAR 0.1uF 20% 250V C905 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V 0C906 1-117-699-11 CERAMIC 0.001uF 250V 0C907 1-117-699-11 CERAMIC 0.001uF 250V C908 1-164-816-11 CERAMIC CHIP 220PF 2% 50V 0C909 1-117-699-11 CERAMIC 0.001uF 250V 0C910 1-117-699-11 CERAMIC 0.001uF 250V C911 1-126-967-11 ELECT 47uF 20% 50V 0C912 1-165-626-11 ELECT 390uF 20% 400V 0C913 1-117-452-11 FILM 3300PF 5% 630V C914 1-164-156-11 CERAMIC CHIP 0.1uF 25V C915 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V 0C916 1-104-332-11 CERAMIC 470PF 10% 2KV 0C917 1-117-699-11 CERAMIC 0.001uF 250V C918 1-165-319-11 CERAMIC CHIP 0.1uF 50V 0C920 1-117-454-11 FILM 4700PF 5% 630V C921 1-100-357-11 ELECT 6800uF 20% 35V C922 1-126-960-11 ELECT 1uF 20% 50V C924 1-126-953-11 ELECT 2200uF 20% 35V C926 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C928 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V C930 1-164-156-11 CERAMIC CHIP 0.1uF 25V C931 1-104-665-11 ELECT 100uF 20% 10V C932 1-104-665-11 ELECT 100uF 20% 10V C933 1-165-319-11 CERAMIC CHIP 0.1uF 50V C934 1-124-579-51 ELECT 1000uF 20% 16V C935 1-124-579-51 ELECT 1000uF 20% 16V C938 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V C940 1-165-319-11 CERAMIC CHIP 0.1uF 50V < CONNECTOR > CN799 1-564-505-11 PLUG, CONNECTOR 2P CN901 1-564-321-00 PIN, CONNECTOR(3.96MM PITCH)2P CN902 1-564-320-00 PIN, CONNECTOR(3.96MM PITCH)2P CN903 1-784-922-11 PIN, CONNECTOR 5P CN904 1-784-926-11 PIN, CONNECTOR 11P * CN905 1-564-104-00 PIN, CONNECTOR(3.96MM PITCH)3P CN906 1-779-978-11 PIN, CONNECTOR 3P < DIODE > D902 8-719-085-37 DIODE 11EQS10-TB5 0D903 8-719-084-58 DIODE RBV-406 D905 8-719-978-33 DIODE DTZ-TT11-6.8B D906 8-719-085-37 DIODE 11EQS10-TB5 D907 8-719-085-37 DIODE 11EQS10-TB5 0D908 6-500-241-01 DIODE SARS03 D910 8-719-085-37 DIODE 11EQS10-TB5 D911 8-719-313-14 DIODE FML-22S D914 8-719-085-36 DIODE 11EQS04-TB5 D916 8-719-083-89 DIODE 11ES2N-TB5 D917 8-719-083-89 DIODE 11ES2N-TB5 D918 8-719-085-36 DIODE 11EQS04-TB5 0D919 6-500-522-21 DIODE 10EDB40-TB3 0D920 6-500-522-21 DIODE 10EDB40-TB3 D931 8-719-083-67 DIODE UDZSTE-1720B D932 8-719-083-85 DIODE UDZS-TE17-22B D933 8-719-085-37 DIODE 11EQS10-TB5 < EARTH TERMINAL > * EP901 1-537-738-21 TERMINAL, EARTH < FUSE HOLDER > FH901 1-533-399-31 FUSE HOLDER FH902 1-533-399-31 FUSE HOLDER FILTER H.P POWER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 STR-LV700R The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. POWER REG Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < IC > 0IC901 6-703-098-01 IC STR-F6267D IC902 6-700-388-01 IC SE-B2 IC903 6-703-241-01 IC SI-8090JF IC904 8-759-510-71 IC BA10358F-E2 IC907 6-700-812-01 IC SI-8050JF IC908 8-759-445-59 IC BA033T < COIL > L901 1-424-860-11 INDUCTOR 10uH L902 1-414-398-11 INDUCTOR 10uH L903 1-414-398-11 INDUCTOR 10uH L904 1-414-398-11 INDUCTOR 10uH L905 1-414-398-11 INDUCTOR 10uH L906 1-419-253-11 INDUCTOR 100uH L907 1-414-398-11 INDUCTOR 10uH L908 1-414-398-11 INDUCTOR 10uH L909 1-419-253-11 INDUCTOR 100uH L910 1-414-398-11 INDUCTOR 10uH L911 1-414-398-11 INDUCTOR 10uH L912 1-414-398-11 INDUCTOR 10uH < LINE FILTER > 0LF901 1-424-930-11 COIL, LINE FILTER 0LF902 1-424-930-11 COIL, LINE FILTER < PHOTO COUPLER > PC901 8-749-019-04 IC TLP421 0PC902 8-749-019-04 IC TLP421 < TRANSISTOR > Q902 8-729-901-81 TRANSISTOR 2SC2412K-T-146-R Q905 8-729-142-51 TRANSISTOR 2SD1616A-TP-LK Q906 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q908 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q913 8-729-901-81 TRANSISTOR 2SC2412K-T-146-R Q915 8-729-901-81 TRANSISTOR 2SC2412K-T-146-R < RESISTOR > R901 1-216-033-00 METAL CHIP 220 5% 1/10W R903 1-245-392-51 METAL OXIDE 0.15 5% 1W R904 1-216-341-11 METAL OXIDE 0.22 5% 1W R905 1-216-063-91 RES-CHIP 3.9K 5% 1/10W R906 1-216-833-11 METAL CHIP 10K 5% 1/10W R907 1-216-065-91 RES-CHIP 4.7K 5% 1/10W 0R908 1-215-902-61 METAL OXIDE 47K 5% 2W 0R909 1-215-901-61 METAL OXIDE 33K 5% 2W R910 1-216-450-00 METAL OXIDE 82 5% 2W 0R911 1-215-901-61 METAL OXIDE 33K 5% 2W R912 1-216-053-00 METAL CHIP 1.5K 5% 1/10W 0R913 1-249-387-11 CARBON 3.3 5% 1/4W F R914 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R915 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R917 1-216-059-00 METAL CHIP 2.7K 5% 1/10W R918 1-216-821-11 METAL CHIP 1K 5% 1/10W R919 1-216-675-91 METAL CHIP 10K 0.5% 1/10W R920 1-216-669-11 METAL CHIP 5.6K 0.5% 1/10W R921 1-216-820-11 METAL CHIP 820 5% 1/10W R922 1-216-809-11 METAL CHIP 100 5% 1/10W R924 1-216-821-11 METAL CHIP 1K 5% 1/10W R925 1-216-821-11 METAL CHIP 1K 5% 1/10W R926 1-216-833-11 METAL CHIP 10K 5% 1/10W R927 1-216-845-11 METAL CHIP 100K 5% 1/10W R928 1-216-835-11 METAL CHIP 15K 5% 1/10W 0R930 1-219-237-11 SOLID 3.3M 20% 1/2W R931 1-216-813-11 METAL CHIP 220 5% 1/10W R932 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R933 1-216-820-11 METAL CHIP 820 5% 1/10W R934 1-215-901-61 METAL OXIDE 33K 5% 2W R936 1-216-821-11 METAL CHIP 1K 5% 1/10W R938 1-216-847-11 METAL CHIP 150K 5% 1/10W < TRANSFORMER > 0T901 1-437-866-11 TRANSFORMER, POWER < THERMISTOR > 0TH901 1-803-916-11 THERMISTOR, NTC ****************************************************** 1-860-430-11 REG BOARD ********* < CAPACITOR > C927 1-136-165-00 FILM 0.1uF 5% 50V C929 1-104-665-11 ELECT 100uF 20% 10V < IC > IC906 8-759-445-59 IC BA033T ****************************************************** A-4747-009-A SUB POWER BOARD, COMPLETE ************************ < CAPACITOR > C1001 1-101-006-00 CERAMIC 0.047uF 50V C1002 1-126-969-11 ELECT 220uF 20% 50V C1003 1-126-767-11 ELECT 1000uF 20% 16V < CONNECTOR > CN1001 1-564-505-11 PLUG, CONNECTOR 2P * CN1002 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P DIODE > D1001 8-719-085-36 DIODE 11EQS04-TB5 < IC > IC1001 6-700-812-01 IC SI-8050JF < COIL > L1001 1-419-253-11 INDUCTOR 100uH L1002 1-419-253-11 INDUCTOR 100uH L1003 1-419-253-11 INDUCTOR 100uH SUB POWER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 STR-LV700R < RESISTOR > R1002 1-249-544-31 CARBON 470 5% 1/4W R1003 1-249-536-31 CARBON 220 5% 1/4W ****************************************************** A-4747-003-A VIDEO BOARD, COMPLETE ******************* < CAPACITOR > C703 1-126-916-11 ELECT 1000uF 20% 6.3V C704 1-126-960-11 ELECT 1uF 20% 50V C705 1-126-960-11 ELECT 1uF 20% 50V C706 1-126-960-11 ELECT 1uF 20% 50V C707 1-163-105-00 CERAMIC CHIP 33PF 5% 50V C708 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C709 1-126-933-11 ELECT 100uF 20% 16V C710 1-126-933-11 ELECT 100uF 20% 16V C711 1-163-105-00 CERAMIC CHIP 33PF 5% 50V C771 1-126-960-11 ELECT 1uF 20% 50V C772 1-126-960-11 ELECT 1uF 20% 50V C773 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C774 1-126-933-11 ELECT 100uF 20% 16V < CONNECTOR > CN701 1-784-766-11 CONNECTOR, FFC 5P * CN771 1-564-517-11 PLUG, CONNECTOR 2P < DIODE > D806 8-719-988-61 DIODE 1SS355TE-17 D807 8-719-988-61 DIODE 1SS355TE-17 < IC > IC701 8-759-474-37 IC NJM2279M-TE2 IC771 8-759-266-06 IC NJM2243M(TE2) < JACK > J701 1-785-867-11 JACK, PIN 1P (VIDEO IN) J702 1-785-866-11 JACK, PIN 3P (DVD IN, TV/SAT IN, MONITOR OUT) < JUMPER RESISTOR > JR703 1-216-296-11 SHORT CHIP 0 JR704 1-216-296-11 SHORT CHIP 0 < WIRE JUMPER > JW701 1-216-296-11 SHORT CHIP 0 JW702 1-216-296-11 SHORT CHIP 0 JW705 1-216-296-11 SHORT CHIP 0 < RESISTOR > R701 1-216-022-00 METAL CHIP 75 5% 1/10W R702 1-216-022-00 METAL CHIP 75 5% 1/10W R703 1-216-022-00 METAL CHIP 75 5% 1/10W R705 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R706 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R708 1-216-097-11 RES-CHIP 100K 5% 1/10W R771 1-216-041-00 METAL CHIP 470 5% 1/10W R773 1-216-041-00 METAL CHIP 470 5% 1/10W R774 1-216-022-00 METAL CHIP 75 5% 1/10W R775 1-216-295-91 SHORT CHIP 0 ****************************************************** MISCELLANEOUS ************* 0 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (UK) 6 1-751-688-11 WIRE (FLAT TYPE) (13 CORE) 53 1-769-878-11 WIRE (FLAT TYPE) (7 CORE) 54 1-769-841-11 WIRE (FLAT TYPE) (5 CORE) 55 1-773-141-11 WIRE (FLAT TYPE) (21 CORE) 059 1-777-071-23 CORD, POWER 60 A-8068-399-A VIF-20 (EU) ASSY 66 1-469-089-11 FILTER, CLAMP (FERRITE CORE) 68 1-773-004-11 WIRE (FLAT TYPE) (15 CORE) 69 1-773-004-11 WIRE (FLAT TYPE) (15 CORE) 0F1 1-533-469-12 FUSE, GLASS TUBE (DIA. 5) (T2.5AL/250V) FAN101 1-763-561-12 FAN, D.C. FL801 1-518-903-11 INDICATOR TUBE, FLUORESCENT 0T901 1-437-866-11 TRANSFORMER, POWER TU901 1-693-578-21 TUNER ****************************************************** ACCESSORIES *********** 1-477-531-11 ADAPTOR, LAN (COUPLER) 1-478-504-11 COMMANDER, STANDARD (RM-U70R) 1-500-082-11 CLAMP, SLEEVE FERRITE 1-501-807-12 ANTENNA (FM) 1-754-149-11 LOOP ANT (AM) 1-817-598-11 CONNECTOR (SPEAKER) 1-827-477-11 CORD, CONNECTION (LAN CABLE/CROSS) (140mm) 1-827-478-11 CORD, CONNECTION (LAN CABLE) 3-084-601-01 LID, BATTERY CASE (for RM-U70R) 4-249-847-11 MANUAL, INSTRUCTION (ENGLISH)(AEP, UK) 4-249-847-21 MANUAL, INSTRUCTION (FRENCH) (AEP) 4-249-847-31 MANUAL, INSTRUCTION (GERMAN) (AEP) 4-249-847-41 MANUAL, INSTRUCTION (DUTCH) (AEP) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. SUB POWER VIDEO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-VL700R REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2003.11 New 1.1 2004.01 Correction of Test Mode. Addition of Trouble shooting. (SPM-03140) 1.2 2004.06 Correction of Operation Check Method (Page 10). (SPM-04054) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
