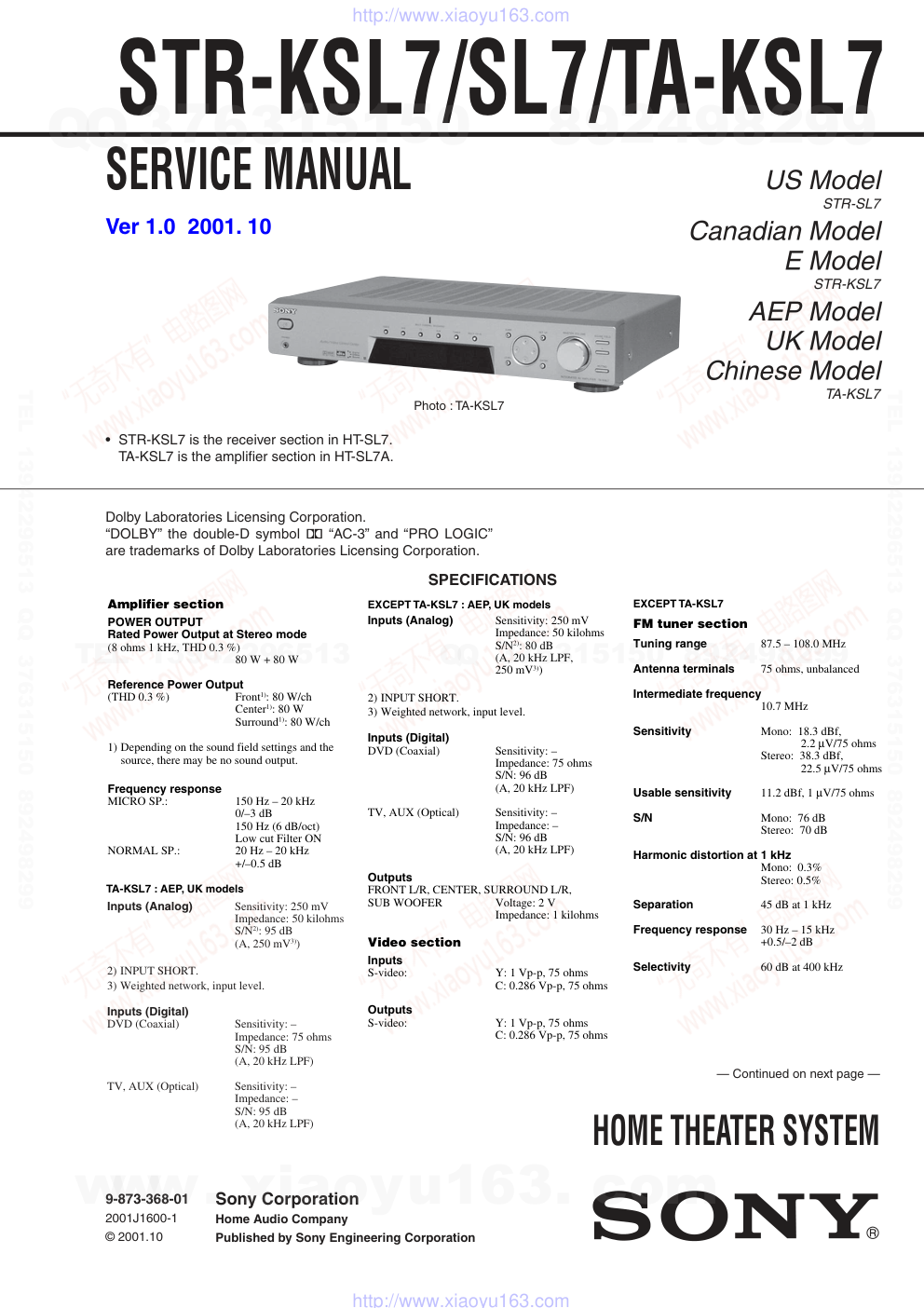

STR-KSL7/SL7/TA-KSL7 US Model STR-SL7 Canadian Model E Model STR-KSL7 AEP Model UK Model Chinese Model TA-KSL7 SERVICE MANUAL HOME THEATER SYSTEM Sony Corporation Home Audio Company Published by Sony Engineering Corporation 9-873-368-01 2001J1600-1 © 2001.10 SPECIFICATIONS Ver 1.0 2001. 10 Photo : TA-KSL7 Dolby Laboratories Licensing Corporation. “DOLBY” the double-D symbol ; “AC-3” and “PRO LOGIC” are trademarks of Dolby Laboratories Licensing Corporation. Amplifier section POWER OUTPUT Rated Power Output at Stereo mode (8 ohms 1 kHz, THD 0.3 %) 80 W + 80 W Reference Power Output (THD 0.3 %) Front1): 80 W/ch Center1): 80 W Surround1): 80 W/ch 1) Depending on the sound field settings and the source, there may be no sound output. Frequency response MICRO SP.: 150 Hz – 20 kHz 0/–3 dB 150 Hz (6 dB/oct) Low cut Filter ON NORMAL SP.: 20 Hz – 20 kHz +/–0.5 dB Outputs FRONT L/R, CENTER, SURROUND L/R, SUB WOOFER Voltage: 2 V Impedance: 1 kilohms Video section Inputs S-video: Y: 1 Vp-p, 75 ohms C: 0.286 Vp-p, 75 ohms Outputs S-video: Y: 1 Vp-p, 75 ohms C: 0.286 Vp-p, 75 ohms FM tuner section Tuning range 87.5 – 108.0 MHz Antenna terminals 75 ohms, unbalanced Intermediate frequency 10.7 MHz Sensitivity Mono: 18.3 dBf, 2.2 µV/75 ohms Stereo: 38.3 dBf, 22.5 µV/75 ohms Usable sensitivity 11.2 dBf, 1 µV/75 ohms S/N Mono: 76 dB Stereo: 70 dB Harmonic distortion at 1 kHz Mono: 0.3% Stereo: 0.5% Separation 45 dB at 1 kHz Frequency response 30 Hz – 15 kHz +0.5/–2 dB Selectivity 60 dB at 400 kHz Inputs (Analog) Sensitivity: 250 mV Impedance: 50 kilohms S/N2): 80 dB (A, 20 kHz LPF, 250 mV3)) 2) INPUT SHORT. 3) Weighted network, input level. Inputs (Digital) DVD (Coaxial) Sensitivity: – Impedance: 75 ohms S/N: 96 dB (A, 20 kHz LPF) TV, AUX (Optical) Sensitivity: – Impedance: – S/N: 96 dB (A, 20 kHz LPF) Inputs (Analog) Sensitivity: 250 mV Impedance: 50 kilohms S/N2): 95 dB (A, 250 mV3)) 2) INPUT SHORT. 3) Weighted network, input level. Inputs (Digital) DVD (Coaxial) Sensitivity: – Impedance: 75 ohms S/N: 95 dB (A, 20 kHz LPF) TV, AUX (Optical) Sensitivity: – Impedance: – S/N: 95 dB (A, 20 kHz LPF) TA-KSL7 : AEP, UK models EXCEPT TA-KSL7 : AEP, UK models EXCEPT TA-KSL7 — Continued on next page — • STR-KSL7 is the receiver section in HT-SL7. TA-KSL7 is the amplifier section in HT-SL7A. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 STR-KSL7/SL7/TA-KSL7 After correcting the original service problem, perform the following safety checks before releasing the set to the customer: Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) SAFETY CHECK-OUT To Exposed Metal Parts on Set 0.15 µF 1.5 kΩ AC Voltmeter (0.75 V) Earth Ground Fig. A. Using an AC voltmeter to check AC leakage. AM tuner section Tuning range With 10-kHz tuning scale: 530 – 1710 kHz With 9-kHz tuning scale: 531 – 1710 kHz With 10-kHz tuning scale: 530 – 1610 kHz With 9-kHz tuning scale: 531 – 1602 kHz 530 – 1610 kHz 531 – 1602 kHz Antenna Loop antenna Intermediate frequency 450 kHz Usable sensitivity 50 dB/m (at 1,000 kHz or 999 kHz) S/N 54 dB (at 50 mV/m) Harmonic distortion 0.5% (50 mV/m, 400 Hz) Selectivity At 9 kHz: 35 dB At 10 kHz: 40 dB 4) You can change the AM tuning scale to 9 kHz 10 kHz. After tuning in any AM station, turn off the receiver. Hold down the + button and press the button. All preset stations will be erased when you change the tuning scale. To reset the scale to 10 kHz (or 9 kHz), repeat the procedure. General Power requirements 120 V AC, 60 Hz 110 – 120 V AC, 50/60 Hz 220 – 230 V AC, 50/60 Hz 230 V AC, 50/60 Hz Power consumption 98 W Power consumption (during standby mode) 1.7 W 1.9 W Dimensions (w/h/d) 430 × 83 × 289 mm including projecting parts and controls Mass (Approx.) 3.1 kg US, Canadian models E model Mexican model Malaysia, Singapore models STR-SL7 : US, STR-KSL7, Canadian, Mexican models STR-SL7 : US, STR-KSL7, Canadian, Mexican models TA-KSL7 : AEP, UK, Chinese models STR-KSL7 : E model STR-KSL7 : Malaysia, Singapore models STR-KSL7 : Malaysia, Singapore models STR-SL7 : US model Supplied accessories FM wire antenna (1) AM loop antenna (1) Remote commander RM-U305S (1) R6 (size-AA) batteries (2) Design and specifications are subject to change without notice. EXCEPT TA-KSL7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 STR-KSL7/SL7/TA-KSL7 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPÉMENTS PUBLIÉS PAR SONY. MODEL IDENTIFICATION — BACK PANEL — PARTS No. 4-235-042-1s 4-235-042-2s 4-235-042-3s 4-235-042-4s 4-235-042-5s 4-235-042-7s 4-235-042-9s MODEL STR-SL7 :US model STR-KSL7 :Canadian model STR-KSL7 :Malaysia, Singapore model STR-KSL7 :E model STR-KSL7 :Mexican model TA-KSL7 :AEP, UK model TA-KSL7 :Chinese model 1. GENERAL ·········································································· 4 2. TEST MODE ······································································ 5 3. DIAGRAMS ········································································ 7 3-1. Block Diagrams ····························································· 8 – Main Section – ··························································· 8 – Display/Power Section – ············································ 9 3-2. Printed Wiring Board – Digital Section – ·················· 10 3-3. Schematic Diagram – Digital Section (1/2) – ············ 11 3-4. Schematic Diagram – Digital Section (2/2) – ············ 12 3-5. Printed Wiring Board – Main Section (1/2) – ············ 13 3-6. Printed Wiring Board – Main Section (2/2) – ············ 14 3-7. Schematic Diagram – Main Section (1/3) – ··············· 15 3-8. Schematic Diagram – Main Section (2/3) – ··············· 16 3-9. Schematic Diagram – Main Section (3/3) – ··············· 17 3-10.Printed Wiring Board – Panel Section – ····················· 18 3-11.Schematic Diagram – Panel Section – ······················· 19 3-12.Schematic Diagram – Video Section – ······················· 20 3-13.Printed Wiring Board – Video Section – ···················· 21 3-14.IC Block Diagrams ······················································ 22 3-15.IC Pin Function Descriptions ······································ 25 4. EXPLODED VIEWS ······················································ 29 4-1. Front Panel Section ····················································· 29 4-2. Chassis Section ···························································· 30 5. ELECTRICAL PARTS LIST ······································· 31 Parts No. TABLE OF CONTENTS Unleaded solder Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.) : LEAD FREE MARK Unleaded solder has the following characteristics. • Unleaded solder melts at a temperature about 40°C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350°C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! • Strong viscosity Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. • Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 STR-KSL7/SL7/TA-KSL7 SECTION 1 GENERAL This section is extracted from instruction manual. AUX 6 (18) Cursor buttons (U/u) qh (14, 22–24) Display qk (21) DVD 3 (18) LEVEL qj (22) MASTER VOLUME qa (17, 18) MULTI CH IN 8 (18) MULTI CHANNEL DECODING indicator 5 MUTING qd (18) PHONES jack ql (18) SET UP q; (14, 24) SOUND FIELD +/– qs (19, 23) SURR 9 (23) TEST TONE qf (17) TUNER 7 (18) TV 4 (18) VIDEO 2 (18) ?/1 (power) 1 (13, 17, 18, 23) +/– qg (14, 22–24) Main unit 1 2 3 456 7 8 9 q; qa qs ql qk qj qf qg qh qd Parts Identification The items are arranged in alphabetical order. Refer to the pages indicated in parentheses ( ) for details. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 STR-KSL7/SL7/TA-KSL7 SECTION 2 TEST MODE FACTORY SET MODE * All preset contents are reset to the default setting. * Procedure: While depressing the SET UP and the SOUND FIELD – buttons simultaneously, press the power ?/1 button to turn on the main power. The message FACTORY appears and switch off the set. While depressing the SET UP and the SOUND FIELD – buttons simultaneously, press the power ?/1 button again. The message FACTORY appears and the present contents are reset to the default values. AM CHANNEL STEP 9 kHz/10 kHz SELECTION MODE * Either the 9 kHz step or 10 kHz step can be selected for the AM channel step. * Procedure: Set the FUNCTION to AM. Turn off the main power. While depressing the i cursor button, press the power ?/1 button to turn on the main power. Either the message 9 k STEP or 10 k STEP appears. Select the desired step. * For US/Canadian/E model only MICRO/NORMAL SPEAKER SELECTION MODE * Either the micro speaker mode or normal speaker mode can be selected. * Procedure Press the ?/1 button while pressing the + cursor button to turn on the power. Either the message MICRO SP. or NORM. SP. appears. Select the derired mode. SOUND FIELD CLEAR MODE * The preset sound field is cleared when this mode is activated. Use this mode before returning the product to clients upon completion of repair. * Procedure: While depressing the SOUND FIELD + button, press the power ?/1 button to turn on the main power. The message S. F. CLR appears and initialization is performed. DEMONSTRATION MODE * Demonstration is performed. * Procedure : While depressing the SET UP button, press the power ?/1 button. The message appears and demonstration is performed. * To finish DEMONSTRATION MODE, press the power ?/1 button while the introduction message appears in the display. FLUORESCENT INDICATOR TUBE TEST MODE * All fluorescent segments are tested. When this test is activated, all segments turn on at the same time, then each segment turns on one after another. * Procedure: While depressing the SET UP and the SOUND FIELD + buttons simultaneously, press the power ?/1 button to turn on the main power. 1. All segments turn on. DVD , TV , MULTI CH IN and SURR LED turn on. 2. Press the VIDEO button, confirm display AUX , TUNER and LEVEL LED turn on. 3. Press the VIDEO button, confirm display MULTI CHANNEL DECODING(blue), VIDEO and SET UP LED turn on. 4. Press the VIDEO button, All segments turn off. 5. Every pressing of the VIDEO button turns on each segment and LED one after another in the same order. (Not only the VIDEO button, but also the other buttons such as DVD , TV , AUX , TUNER can be used.) KEY CHECK MODE * Button check * Procedure: While depressing the MUTING and the ENTER buttons simultaneously, press the power ?/1 button to turn on the main power. REST 17 appears. Every pressing of any button other than ?/1 counts down the buttons. The buttons which are already counted once are not counted again. When all buttons are pressed REST 00 appears. SW L SL C R S SR SLEEP SP.OFF ( ( ( L F E ) ) ) DIGITAL OPT COAX MULTI CH IN PRO LOGIC DTS MPEGSTEREO MONORDS MEMORY MUTING INFO NEWS TA EQ D.RANGE D D dB kHz mft. MHz SW L R S SLEEP L F E COAX PRO LOGIC MPEGSTEREO RDS MUTING INFO TA D.RANGE D D k m MHz SL C SR SP.OFF ( ( ( ) ) ) DIGITAL OPT MULTI CH IN DTS MONO MEMORY NEWS EQ dB Hz ft. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 STR-KSL7/SL7/TA-KSL7 AUTOBETICAL MODE (TA-KSL7: AEP, UK) * This mode is installed in the Europe models only. When this mode is used, the receiver scans the broadcasts that can be received by tuner, and sets up the broadcasts. Be sure to start scanning after connecting the antenna. Procedure: Check that the antenna is connected. Press the ?/1 button while pressing the ENTER button to turn on the power. The message appears and scanning starts by tuner. SOFTWARE VERSION DISPLAY MODE * The software version is displayed. * Procedure: While depressing the SOUND FIELD – and the i cursor buttons simultaneously, press the power ?/1 button to turn on the main power. The model name, destination and the software version are displayed. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 7 STR-KSL7/SL7/TA-KSL7 SECTION 3 DIAGRAMS For schematic diagrams. Note: • All capacitors are in µF unless otherwise noted. p : pF. 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • % : indicates tolerance. • f : internal component. • C : panel designation. • A : B+ Line. • B : B– Line. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. No mark : FM • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. • Circled numbers refer to waveforms. • Signal path. F : ANALOG J : DIGITAL c : DVD • Abbreviation CND : Canadian model MY : Malaysia model SP : Singapore model CH : Chinese model MX : Mexican model THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this necessary note is printed in each block.) Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Note: Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. C B These are omitted. E Q B These are omitted. C E For printed wiring boards. Note: • X : parts extracted from the component side. • a : Through hole. • f : internal component. • : Pattern from the side which enables seeing. Caution: Pattern face side: Parts on the pattern face side seen from (Side A) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Side B) the parts face are indicated. • CIRCUIT BOARDS LOCATION • WAVEFORMS – DIGITAL BOARD – – MAIN BOARD – – DISPLAY BOARD – 1 IC506 5 2 IC701 9 3 IC101 id 6Vp-p 81ns 20ns/div 2V/div 6.3Vp-p 81ns 20ns/div 2V/div 5.8Vp-p 62ns 20ns/div 2V/div 5Vp-p 1.3 µs 400ns/div 2V/div 4 IC306 4 5 IC309 wf 7.8Vp-p 20.3ns 10ns/div 2V/div 25.4Vp-p 9.8 µs 4 µs/div 10V/div 6 Q153 collector HEADPHONE board POWER SW board MAIN board DIGITAL board S VIDEO board DISPLAY board • MAIN board consists of multiple layers. However, only the sides (layers) A and B are shown. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 8 STR-KSL7/SL7/TA-KSL7 3-1. BLOCK DIAGRAMS – MAIN SECTION – • Signal Path : ANALOG : DIGITAL : DVD T DATA T DO T CLK T CE STEREO TUNED MUTING DATA DO CLK CE STEREO TUNED MUTING R OUT L OUT MULTI CH INPUT J207 66 TUNED SW2 76 SW1 75 VIDEO INH 74 65 T MUTE 67 STEREO 62 TUNER DO 60 TUNER DATA 61 TUNER CLK 59 TUNER CE 78 SW A 79 SW B SYSTEM CONTROL IC101(1/2) IC502 DIGITAL AUDIO I/F RECEIVER IC504 DIN0 3 DIN1 4 DO 35 DI 36 CLK 38 CE 37 ERROR 34 XSTATE 17 XMODE 48 XIN 22 DIR DO DIR DI DIR CLK DIR CE ERROR XSTATE XMODE 13 CK OUT 14 BCK 15 LRCK 16 DATAO 1 7 IC506 X501 12.288MHz AUDIO DSP IC701 SDIA1 85 SO 67 SI 68 SCK 69 CS 66 CSB 65 IC 62 XI 8 DSP SO 47 SDOB0 46 SDOB1 45 SDOB2 SDIB0 5 DSP SI DSP CLK DSP CS DSP CSB DSP IC 3 5 IC506 IC703 SRAM IC309 SCDT 38 SCSHIFT 37 NSPMUTE 39 PGMUTE 40 INIT 41 24 OUTL1+ XFSOIN 28 21 OUTL1- 15 OUTL2+ 18 OUTL2- DATA 43 90 89 87 88 91 92 85 93 DIR DO DIR DI DIR CLK DIR CE ERROR XSTATE XMODE DIR DATA 24 DSP SO DIR DO DIR DI DIR CLK DIR CE ERROR XSTATE XMODE 22 DSP SI 21 DSP CLK 25 DSP CS 99 DSP CSB 100 DSP IC 10 S DATA DSP SO DSP SI DSP CLK DSP CS DSP CSB DSP IC 9 S SHIFT 13 NSP MUTE 14 PG MUTE 15 RST 19 FLASH DATA OUT 20 FLASH DATA IN 49 MD0 51 MD2 VDD FLASH1 FLASH2 MD0 MD2 RESET +5V (STBY) CNP104 A FM AM TUNER UNIT EXCEPT TA-KSL7 IC501 J301 3 5 6 2 IC503 IC503 TUNER IN VIDEO AUDIO IN VIDEO AUDIO IN R L J205 R L TA-KSL7 MODEL 12 13 14 15 11 10 IC203 1 3 5 2 4 9 A B 3 1 Q203 Q205 Q202 Q204 DIN2 5 6 2 IC506 3 5 IC505 1 7 IC505 A/D CONV. IC606 L IN 1 15 D OUT R IN 5 SYSCLK 16 BCK 14 LRCK 13 RSTB 6 5 7 IC603 A/D CONV. IC604 L IN 1 15 D OUT R IN 5 SYSCLK 16 BCK 14 LRCK 13 RSTB 6 A/D CONV. IC605 L IN 1 15 D OUT R IN 5 SYSCLK 16 BCK 14 LRCK 13 RSTB 6 3 1 IC602 5 7 IC602 3 1 IC601 5 7 IC601 2 4 IC306 X306 49.152MHz SDIAO 84 SDBCK0 83 SDWCK0 82 5 RST AD 1 7 3 5 6 2 IC322 SDIB2 7 SDIB1 6 BCK 44 LRCK 45 XFSI 64 SCLATCH 36 SCDT SCSHIFT NSPMUTE PGMUTE INIT 5 6 7 IC801 5 6 IC802 PULSE SHAPER PULSE SHAPER PULSE SHAPER PULSE SHAPER PULSE SHAPER IC307 GATE GATE GATE GATE GATE IC308 4 3 9 8 5 RY801 RY201 L R FRONT SPEAKERS PHONES SURROUND CENTER TM802 TM801 SUB WOOFER J204 J101 15 11 16 12 PROTECT Q401 POWER DRIVER POWER DRIVER POWER DRIVER POWER DRIVER POWER DRIVER IC301 10 OUTR1+ 3 2 1 IC801 3 1 IC802 1 OUTR2+ 7 OUTR1- 4 OUTR2- IC310 IC311 4 3 9 8 5 15 11 16 12 PROTECT Q402 IC302 2 4 IC324 77 XFSO OUT IC315 SCDT 38 SCSHIFT 37 NSPMUTE 39 PGMUTE 40 INIT 41 28 XFSO IN 21 OUTL1- 15 OUTL2+ 18 OUTL2- DATA 43 BCK 44 LRCK 45 XFSI 64 SCLATCH 36 SCDT SCSHIFT NSPMUTE PGMUTE INIT IC312 IC313 4 3 9 8 5 15 11 16 12 PROTECT Q403 IC303 10 OUTR1+ 5 6 7 IC314 3 1 IC314 1 OUTR2+ 24 OUTL1+ 77 XFSO OUT IC318 SCDT 38 SCSHIFT 37 NSPMUTE 39 PGMUTE 40 INIT 41 28 XFSO IN 21 OUTL1- 15 OUTL2+ 18 OUTL2- DATA 43 BCK 44 LRCK 45 XFSI 64 SCLATCH 36 SCDT SCSHIFT NSPMUTE PG MUTE INIT IC316 IC317 4 3 9 8 5 15 11 16 12 PROTECT Q404 IC304 24 OUTL1+ 7 OUTR1- 1 OUTR2+ 4 OUTR2- IC319 IC320 4 3 9 8 5 15 11 16 12 PROTECT Q405 IC305 10 OUTR1+ RELAY SW Q201 BUFF Q406 3 D0 Q0 2 LE 11 LATCH IC321 TUNED MUTING STEREO T DO T DATA T CLK T CE 8 AMP CE1 7 AMP CE2 6 AMP CE3 SC DT SC SHIFT NSP MUTE PG MUTE INIT 12 EN 70 HP RY 48 DIAG 69 SP RY 53 I LIMT 55 HP SW RELAY SW Q801 FLASH PROGRAMING VIDEO IN DVD IN TV IN AUX IN J202 J203(1/2) C Y VIDEO AMP IC202 5 1 8 4 J203(2/2) MONITOR OUT 12 13 14 15 11 10 IC201 1 3 5 2 4 9 A B C Y C Y C Y J201 6 EN C Y J205 R L R L R L FRONT SURROUND SUB WOOFER CENTER EXCEPT TA-KSL7 OPTICAL RECEIVER OPTICAL RECEIVER STREAM PROCESSOR STREAM PROCESSOR STREAM PROCESSOR DVD COAXIAL AUX OPTICAL TV OPTICAL L R w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 9 STR-KSL7/SL7/TA-KSL7 – DISPLAY/POWER SECTION – RESET SW Q101 RECT D159-162 77 RESET 47 STOP REMOTE CONTROL RECEIVER 1 3 IC151 X101 16MHz FLUORESCENT INDICATOR TUBE FL101 14 29 SEG1-16 42 31 GRID1-12 4 VIDEO LED 3 DVD LED 2 TV LED 1 AUX LED FL/LED DRIVE IC152 D151-154 FUNCTION KEY S107-112 S114,117 52 HSTX D104 D101 A RESET SYSTEM CONTROL IC101(2/2) T901 AC IN POWER TRANS LF901,902 LINE FILTER D902 F901 REG Q903 REG Q904 D 3 S 2 VCC 4 FB/OCP 1 IC901 SWITCHING REG PC901 RECT D911 RECT D909 Q901 Q902 +5.6V REG 1 3 IC905 +12V REG 1 2 IC903 5 Q906 Q908 RESET 8 5 6 IC910 +5V REG 1 3 IC102 +9V 16 FL DATA KEY INPUT1 38 RV101 VOL ENCODER 1 3 VOL UP 43 VOL DOWN 44 FUNCTION KEY S113,115,116 KEY INPUT2 39 FUNCTION KEY S101-106 KEY INPUT3 40 POWER SW 56 POWER ON/OFF S118 31 LED MCD 17 FL CLK 18 FL LATCH DC/DC CONV. Q152,153 T101 CLK 8 DIN 7 STB 9 30 VEE LED DRIVE Q151,154,155 33 LED 5.1 32 TUNER D121,155,156 3 MENU 2 TUNER 4 SET UP 27 C D157,163,164 +5V +5V (STBY) D906 D905 D903 IC907 Q915 2 4 D910 +9V REG 1 3 IC909 +5V +5V REG 1 3 IC908 +3,3V +3.3V REG 1 3 IC906 +5.6V +5V +7V +7V REG 1 3 IC104 +12V +40V +5V REG 1 3 IC706 +5V D1403 D103 C103 0.22F µCOM VDD +5V(STBY) Q905 2 1 IC902 TO IC902 1 A01 DATA 6 CLK 7 CE 8 96 DATA 97 CLK 98 CE V CONT IC103 28 POWER ON/OFF XO 82 XI 83 SIRCS 57 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 10 STR-KSL7/SL7/TA-KSL7 3-2. PRINTED WIRING BOARD – DIGITAL SECTION – • : Uses unleaded solder. • See page 7 for Circuit Boards Location. IC203 IC102 IC104 IC701 IC506 IC504 IC505 IC606 IC605 IC604 IC603 IC602 IC601 IC503 IC703 IC101 IC103 IC706 IC502 IC501 18 13 14 21 13 C501 EXCEPT TA-KSL7 EXCEPT TA-KSL7 EXCEPT TA-KSL7 Ref. No. Location • Semiconductor Location Ref. No. Location Ref. No. Location D101 H-3 D102 I-2 D103 H-3 D104 I-2 D1403 I-3 IC101 H-12 IC102 I-4 IC103 G-9 IC104 I-5 IC203 B-3 IC501 A-3 IC502 A-2 IC503 A-11 IC504 D-13 IC505 D-12 IC506 E-13 IC601 D-10 Ref. No. Location Ref. No. Location IC602 D-11 IC603 D-12 IC604 E-10 IC605 E-11 IC606 E-12 IC701 F-12 IC703 F-13 IC706 F-4 Q101 I-2 Q202 C-12 Q203 C-12 Q204 C-12 Q205 C-12 Ref. No. Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 11 STR-KSL7/SL7/TA-KSL7 3-3. SCHEMATIC DIAGRAM – DIGITAL SECTION (1/2) – • See page 7 for Wavefoms. • See page 22, 23 for IC Block Diagrams. IC B/D IC B/D w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 12 STR-KSL7/SL7/TA-KSL7 3-4. SCHEMATIC DIAGRAM – DIGITAL SECTION (2/2) – • See page 7 for Wavefoms. • See page 22 for IC Block Diagrams. • See page 25, 27 for IC Pin Function Description. IC B/D 19 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 13 STR-KSL7/SL7/TA-KSL7 3-5. PRINTED WIRING BOARD – MAIN SECTION (1/2) – • See page 7 for Circuit Boards Location. IC305 IC304 IC303 IC302 IC301 IC901 IC905 IC906 IC909 IC908 IC903 18 10 18 10 Ref. No. Location D203 B-2 D801 I-1 D901 J-8 D902 J-8 D903 J-6 D904 J-6 D905 J-6 D906 J-6 D907 J-8 D908 I-7 D909 I-5 D910 I-5 D911 H-4 D913 J-3 D914 I-3 D915 J-3 D916 I-4 D917 I-5 D918 I-3 IC301 D-9 IC302 D-7 IC303 D-5 IC304 D-3 IC305 D-2 IC901 J-7 IC903 H-3 IC905 J-3 IC906 J-2 IC908 H-2 IC909 I-2 Q201 B-1 Q401 C-8 Q402 C-6 Q403 C-5 Q404 C-3 Q405 C-1 Q801 I-1 Q901 I-3 Q902 I-3 Q903 J-6 Q904 I-4 Q905 J-3 Q906 I-2 Q908 I-2 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 14 STR-KSL7/SL7/TA-KSL7 3-6. PRINTED WIRING BOARD – MAIN SECTION (2/2) – • See page 7 for Circuit Boards Location. IC802 IC308 IC306 IC309 IC310 IC311 IC313 IC312 IC324 IC315 IC317 IC316 IC320 IC318 IC322 IC321 IC319 IC314 IC907 IC910 IC902 IC307 IC801 10 Ref. No. Location D301 F-10 D302 F-10 D912 I-7 D919 I-7 IC306 G-2 IC307 F-2 IC308 F-2 IC309 G-3 IC310 F-4 IC311 F-4 IC312 F-6 IC313 F-6 IC314 G-8 IC315 G-7 IC316 F-8 IC317 F-8 IC318 G-9 IC319 F-9 IC320 F-9 IC321 G-9 IC322 G-9 IC324 G-6 IC801 F-1 IC802 F-1 IC902 J-7 IC907 J-8 IC910 J-9 Q406 G-9 Q915 J-8 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 15 STR-KSL7/SL7/TA-KSL7 3-7. SCHEMATIC DIAGRAM – MAIN SECTION (1/3) – • See page 7 for Wavefoms. • See page 23 for IC Block Diagrams. IC B/D IC B/D IC B/D w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 16 STR-KSL7/SL7/TA-KSL7 3-8. SCHEMATIC DIAGRAM – MAIN SECTION (2/3) – • See page 23 for IC Block Diagrams. IC B/D IC B/D w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 17 STR-KSL7/SL7/TA-KSL7 3-9. SCHEMATIC DIAGRAM – MAIN SECTION (3/3) – • See page 24 for IC Block Diagrams. IC B/D IC B/D IC B/D 19 19 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 18 STR-KSL7/SL7/TA-KSL7 3-10. PRINTED WIRING BOARD – PANEL SECTION – • : Uses unleaded solder. • See page 7 for Circuit Boards Location. IC151 IC152 10 13 13 T101 G Ref. No. Location D121 A-9 D151 A-11 D152 A-10 D153 A-9 D154 A-8 D155 A-8 D156 A-7 D157 A-3 D158 B-6 D159 B-6 D160 B-6 D161 B-6 D162 B-6 D163 A-5 D164 B-5 IC151 B-11 IC152 B-8 Q151 A-8 Q152 B-6 Q153 B-6 Q154 A-7 Q155 A-7 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 19 STR-KSL7/SL7/TA-KSL7 3-11. SCHEMATIC DIAGRAM – PANEL SECTION – • See page 7 for Wavefoms. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 20 STR-KSL7/SL7/TA-KSL7 3-12. SCHEMATIC DIAGRAM – VIDEO SECTION – w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 STR-KSL7/SL7/TA-KSL7 3-13. PRINTED WIRING BOARD – VIDEO SECTION – • : Uses unleaded solder. • See page 7 for Circuit Boards Location. IC201 IC202 10 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 STR-KSL7/SL7/TA-KSL7 3-14. IC BLOCK DIAGRAMS IC103 M62342FP (DIGITAL BOARD) IC504 LC89055W-RA8 (DIGITAL BOARD) 5 6 7 8 4 3 2 1 ADDRESS DECODER POWER ON RESET 10-BIT SHIFT REGISTER 8-BIT LATCH 8-BIT UPPER SEGMENT R-2R NC AO2 GND VCC AO1 DATA CLK CE 8-BIT LATCH 8-BIT UPPER SEGMENT R-2R 8 46 43 40 37 34 31 47 44 41 38 35 32 48 45 42 39 36 33 25 26 27 28 29 30 3 6 9 12 15 18 2 5 8 11 14 17 1 4 7 10 13 16 24 23 22 21 20 19 X'TALL DATA RECOVER TIMING PLL INPUT MICRO COMPUTER INTERFACE FS CALCULATION LOCK DETECTION Pa, Pb DETECTION Cbit DETECTION CSFLAG F0/P0/C0 F1/P1/C1 F2/P2/C2 VF/P3/C3 DVDD DGND AUTO BPSYNC ERROR DO DI CE CL XSEL MODE0 MODE1 DGND DVDD DOSEL0 DOSEL1 CKSEL0 CKSEL1 XMODE AUDIO ENPHA XIN XOUT XMCK DVDD DGND XSTATE DATAO DGND BCK CKOUT AGND AVDD LPF VIN R DVDD DGND DIN2 DIN1 DIN0 DOUT DISEL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 STR-KSL7/SL7/TA-KSL7 IC604 PCM1800E (DIGITAL BOARD) IC301-305 MODULE (MAIN BOARD) 5 6 7 8 9 10 11 12 4 3 2 1 20 19 18 17 24 23 22 21 13 14 15 16 LIN V_REF_1 REFCOM RSTB BYPASS FMT0 V_REF_2 RIN AGND VCC C_PL C_NR C_NL C_PR FMT1 MODE0 MODE1 FSYNC FSYNC FSYNC LRCK BCK DOUT LRCK LRCK BCK BCK DOUT DOUT SYSCLK DGND VDD SERIAL DATA INTERFACE MODE/FORMAT CONTROL INTERFACE CLOCK/TIMING CONTROL RESET/POWER CONTROL X1/64 DECIMATION AND HIGH PASS FILTER SINGLE-END/ DIFFERENTIAL CONVERTER 5TH-ORDER DELTA-SIGMA MODULATOR SINGLE-END/ DIFFERENTIAL CONVERTER 5TH-ORDER DELTA-SIGMA MODULATOR REFERENCE (+) (-) (+) (-) 1 2 3 4 5 6 7 8 9 17 16 15 14 13 12 11 10 THERMAL PROTECTION VDD9V VDD VDD GND 1-IN 1+IN THP VDD9V GND 2-IN 2+IN GND GND GND GND VBB 4~40V VBB 4~40V OUT1 OUT2 DRIVE HI DRIVE LO FET FET CONTROL DRIVE HI DRIVE LO FET FET CONTROL VDD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 STR-KSL7/SL7/TA-KSL7 IC901 STR-F-6676 (MAIN BOARD) IC901 STR-F6426S (MAIN BOARD) IC903 SI-8120S (MAIN BOARD) IC910 NJM2103M-TE2 (MAIN BOARD) 5 4 3 2 1 OSC DRIVE ICONST START REG. T.S.D. LATCH O.V.P. D S GND VCC FB/OCP COMP.1 COMP.2 5 4 3 2 1 OSC DRIVE START REG. T.S.D. LATCH O.V.P. D S GND VCC FB/OCP COMP.1 COMP.2 5 4 3 2 1 OSC DRIVE REG. TSD VREF RESET OCP GND SWOUT S.S. VOS VIN AMP COMP 1 2 3 4 5 6 7 8 V+ VSB/SESIN VSA RESET GND OUTC VSC CT VREF + – – + – + – + Q R S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 STR-KSL7/SL7/TA-KSL7 3-15. IC PIN FUNCTION DESCRIPTIONS • IC101 MB90553ABPF-G-209-BND (SYSTEM CONTROL) (DIGITAL BOARD) Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 to 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 to 46 47 48 49 50 51 52 I/O I O O O O O O O O O — O O O O O O O I I O O — I O I — O I O O O — — — — I I I I — I I I I I I I I I Pin Name SFLAG TUNER MENU SET UP RSTAD AMP CE3 AMP CE2 AMP CE1 S.SHIFT S.DATA VSS EN NSPMUTE PGMUTE RST FL DATA FL CLK FL LATCH FLASH DATA OUT FLASH DATA IN DSP CLK DSP SI VCC DSP SO DSP CS P47 C POWER ON/OFF P51 - 52 MCD TUNER LED 5.1 AVCC AVRH AVRL AVSS KEY INPUT1 KEY INPUT2 KEY INPUT3 VERSION VSS VOL UP VOL DOWN P66 - 67 STOP DIAG MD0 MD1 MD2 HSTX Description Not used (connected to ground) SURR LED control signal output LEVEL LED control signal output SET UP LED control signal output Reset signal output to ADC Serial control latch signal output to IC309 Serial control latch signal output to IC315 Serial control latch signal output to IC318 Serial control shift clock signal output to IC309, IC315 and IC318 Serial control data signal output to IC309, IC315 and IC318 Ground Output enable signal output Noise shaper register clear signal output to IC309, IC315 and IC318 Gain muting control signal output to IC309, IC315 and IC318 Reset signal output to IC309, IC315 and IC318 Serial control data output to the FL driver Clock signal output to the FL driver Latch signal output to the FL driver Terminal for flash programming Terminal for flash programming Clock output to Sub DSP Serial data output to Sub DSP Power supply Serial data input from DSP Chip select signal output to DSP Not used (connected to ground) Terminal of a capacitor for regulating the power supply Power on/off control signal output (ON : H, OFF : L) Not used (connected to ground) MULTI CHANNEL DECODING LED control signal output TUNER LED control signal output MULTI CH IN LED control signal output A/D converter power supply A/D converter external voltage source A/D converter external voltage source A/D converter ground Key data signal input from S107 - 114, 117 Key data signal input from S113, 115, 116 Key data signal input from S101 - 106 Version setting input Ground Volume signal input from the rotary encoder Volume signal input from the rotary encoder Not used (connected to ground) Power stop detection signal input Thermal protection detection signal input from the power driver Terminal for flash programming Operation mode setting input Terminal for flash programming Hardware standby input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 STR-KSL7/SL7/TA-KSL7 Pin No. 53 54 55 56 57 58 59 60 61 62 63 to 64 65 66 67 68 69 70 71 to 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 I/O I I I I I I O O O I I O I I I O O I O O O I O O I — I O — O I O O O I I I I I I O O O O O Pin Name I.LIMIT P73 HP SW POWER SW SIRCS P77 TUNER CE TUNER DATA TUNER CLK TUNER DO P84 - 85 TUNER MUTE TUNED STEREO SP RY SW RY HP RY P94 - 96 VIDEO INH SW1 SW2 RESET TC4052A TC4052B PA4 VSS X0 X1 VCC XMODE CKSEL DIR CLK DIR CE DIR DI D.DO ERROR XSTATE DIR DATAO P11 HTIB DATA CLK CE CSB IC Description Over current detection signal input from the power driver Not used (connected to ground) Headphone detection signal input Power switch detection signal input Data input from the remote control receiver Not used (connected to ground) Serial control latch signal output to the tuner Serial control data output to the tuner Serial control clock output to the tuner Data input from the tuner Not used (connected to ground) Muting control signal output to the tuner Tuning a frequency detection signal input from the tuner STEREO tuning signal input from the tuner Not used (connected to ground) Sub woofer relay control signal output Headphone relay control signal output Not used (connected to ground) Video output muting control signal output Video input selection signal output Video input selection signal output System reset input Analog input selection signal output Analog input selection signal output Not used (connected to ground) Ground Terminal for a oscillator Terminal for a oscillator Power supply Reset signal output to DIR Not used (connected to ground) Clock signal output to DIR Chip enable signal output to DIR Write data output to DIR Read data input from DIR PLL lock error, data error flag input from DIR Source clock selection monitor input from DIR Data input from DIR Not used (connected to ground) Terminal for package selection (STR : L, HT : H) Data output to DAC Clock output to DAC Chip enable signal output to DAC Sub DSP chip select signal output to DSP Initial clear signal output to DSP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 STR-KSL7/SL7/TA-KSL7 Pin No. 1 2 3 , 4 5 to 7 8 9 10 11 12 13 , 14 15 16 17 18 19 20 21 22 23 24 25 to 29 30 31 32 to 39 40 41 42 to 44 45 to 47 48 49 50 51 52 53 54 55 56 57 58 , 59 60 61 62 63 64 65 66 67 68 69 70 I/O — O O I I O — — I — O O O O O — — O O O O — — O — — O O I I — — O O O O O O O — O I — O I I O I I O Pin Name VDD1 RAMCEN RAMA16 - 15 SDIB0 - 2 XI XO VSS AVDD SDIB3 TEST OVFB DTSDATA AC3DATA SDOB3 CPO AVSS VDD2 SDOA2 SDOA1 SDOA0 RAMA14 - 10 VSS VDD1 OPORT0 - 7 VSS VDD2 RAMA9 - 7 SDOB2 - 0 SDBCK1 SDWCK1 VSS VDD2 NONPCM CRC MUTE KARAOKE SURENC SDBCK0 RAMA6 - 5 VSS RAMA4 IC TEST RAMA3 CSB CS SO SI SCK RAMA2 Description Power supply (+5V for I/Os) External SRAM interface CE External SRAM interface address 16 -15 Not used (open) PCM input 0 - 2 to Sub DSP Crystal oscillator connection (12.288MHz) Crystal oscillator connection Not used (open) Ground Power supply (+3.3V for PLL circuit) PCM input 3 to Sub DSP Not used (open) Test terminal (to be open in normal use) Detection of overflow at Sub DSP Not used (open) Detection of DTS data Not used (open) Detection of AC-3 Not used (open) PCM output from Sub DSP Not used (open) Output terminal for PLL Ground (for PLL circuit) Power supply (+3.3V for core logic) PCM output from Main DSP (C, LFE) Not used (open) PCM output from Main DSP (LS, RS) Not used (open) PCM output from Main DSP (L, R) Not used (open) External SRAM interface address 14 - 10 Ground Power supply (+5V for I/Os) Output port for general purpose Not used (open) Ground Power supply (+3.3V for core logic) External SRAM interface address 9-7 PCM output from Sub DSP Bit clock input for SDOA, SDIB, SDOB Not used (open) Word clock input for SDOA, SDIB, SDOB Not used (open) Ground Power supply (+3.3V for core logic) Detection of non-PCM data Not used (open) Detection of AC-3 CRC error Not used (open) Detection of auto mute Not used (open) Detection of AC-3 karaoke data Not used (open) Detection of AC-3 2/0 mode Dolby surround encoded input Not used (open) Inverted SDBCK0 clock output Not used (open) External SRAM interface address 6 -5 Ground External SRAM interface address 4 Initial clear Test terminal (to be open in normal use) External SRAM interface address 3 Sub DSP chip select Microprocessor interface chip select input Microprocessor interface serial data output Microprocessor interface / Sub DSP serial data input Microprocessor interface / Sub DSP clock input External SRAM interface address 2 • IC701 CXD9511AQ-1 (AUDIO DSP) (DIGITAL BOARD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 STR-KSL7/SL7/TA-KSL7 Pin No. 71 72 to 79 80 81 82 83 84 , 85 86 , 87 88 89 90 91 92 to 99 100 I/O — I/O — — I I I O O O — — I — Pin Name VDD1 RAMD0 - 7 VSS VDD2 SDWCK0 SDBCK0 SDIA0 - 1 RAMA1 - 0 RAMWEN RAMOEN VSS VDD2 IPORT7 - 0 VSS Description Power supply (+5V for I/Os) External SRAM interface data (STREAM0 - 7 output when External SRAM is not in use) Ground Power supply (+3.3V for core logic) Word clock input for SDIA, SDOA, SDIB, SDOB Bit clock input for SDIA, SDOA, SDIB, SDOB AC-3 bitstream (or PCM) data input for Main DSP External SRAM interface address 1 - 0 External SRAM interface WE External SRAM interface OE Ground Power supply (+3.3V for core logic) Input port for general purpose Not used (open) Ground www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SECTION 4 EXPLODED VIEWS NOTE: • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Hardware (# mark) list and accessories and packing materials are given in the last of this parts list. • Abbreviation CND : Canadian model MY : Malaysia model SP : Singapore model CH : Chinese model MX : Mexican model 29 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. STR-KSL7/SL7/TA-KSL7 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 1 1 4 3 5 8 8 9 6 7 CHASSIS SECTION #1 8 10 12 14 12 12 11 8 1 4-977-358-01 CUSHION 3 X-4953-881-1 KNOB ASSY 4 3-350-426-01 SPRING, RING 5 X-4953-877-1 FRONT PANEL ASSY (STR-KSL7:E,MY,SP,MX) 5 X-4953-878-1 FRONT PANEL ASSY (STR-SL7) 5 X-4953-879-1 FRONT PANEL ASSY (STR-KSL7:CND) 5 X-4953-880-1 FRONT PANEL ASSY (TA-KSL7:AEP,UK,CH) 6 A-4726-209-A DISPLAY BOARD, COMPLETE (EXCEPT TA-KSL7:CH) 6 A-4727-440-A DISPLAY BOARD, COMPLETE (TA-KSL7:CH) 7 1-681-853-11 HEADPHONE BOARD 8 4-951-620-01 SCREW (2.6X8), +BVTP 9 1-681-852-11 POWER SW BOARD 10 1-773-154-11 WIRE (FLAT TYPE) (21 CORE) 11 4-232-580-11 CASE (407026) (TA-KSL7:CH) 11 4-233-360-51 CASE (407026) (EXCEPT TA-KSL7:CH) 12 4-210-291-11 SCREW (CASE 3 TP2) 14 4-235-646-01 COVER (HT) #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S 4-1. FRONT PANEL SECTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 STR-KSL7/SL7/TA-KSL7 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks not supplied #1 #2 #2 51 52 53 54 #1 51 52 53 55 #1 #1 64 65 67 68 63 61 66 68 62 59 58 60 56 57 #1 #1 #1 51 4-977-358-01 CUSHION 52 4-232-237-01 FOOT (DIA. 30) 53 X-4953-448-1 FOOT ASSY 54 3-332-563-01 BRACKET (P) 55 A-4726-220-A MAIN BOARD, COMPLETE (STR-KSL7:MX) 55 A-4726-225-A MAIN BOARD, COMPLETE (STR-KSL7:E,MY,SP/TA-KSL7:AEP,UK) 55 A-4726-233-A MAIN BOARD, COMPLETE (STR-KSL7:CND/STR-SL7) 55 A-4727-446-A MAIN BOARD, COMPLETE (TA-KSL7:CH) * 56 3-703-244-00 BUSHING (2104), CORD 057 1-777-071-21 CORD, POWER (STR-KSL7:E,MY,SP/TA-KSL7:AEP,UK) 057 1-782-464-21 CORD, POWER (TA-KSL7:CH) 057 1-783-820-11 CORD, POWER (STR-KSL7:CND,MX/STR-SL7) 58 1-693-407-21 TUNER UNIT (EXCEPT STR-KSL7:MY,SP,TA-KSL7) 58 1-693-409-21 TUNER UNIT (STR-KSL7:MY,SP) 59 1-773-002-11 WIRE (FLAT TYPE) (15 CORE) (EXCEPT TA-KSL7) 60 4-235-042-11 PANEL, BACK (STR-SL7) 60 4-235-042-21 PANEL, BACK (STR-KSL7:CND) 60 4-235-042-31 PANEL, BACK (STR-KSL7:MY,SP) 60 4-235-042-41 PANEL, BACK (STR-KSL7:E) 60 4-235-042-51 PANEL, BACK (STR-KSL7:MX) 60 4-235-042-71 PANEL, BACK (TA-KSL7:AEP) 60 4-235-042-81 PANEL, BACK (TA-KSL7:UK) 60 4-235-042-91 PANEL, BACK (TA-KSL7:CH) 61 1-681-855-11 S VIDEO BOARD 62 1-769-841-11 WIRE (FLAT TYPE) (5 CORE) 63 A-4726-223-A DIGITAL BOARD, COMPLETE (STR-KSL7:CND) 63 A-4726-227-A DIGITAL BOARD, COMPLETE (STR-KSL7:E) 63 A-4726-229-A DIGITAL BOARD, COMPLETE (STR-KSL7:MY,SP) 63 A-4726-231-A DIGITAL BOARD, COMPLETE (STR-KSL7:MX) 63 A-4726-235-A DIGITAL BOARD, COMPLETE (TA-KSL7:AEP, UK) 63 A-4727-317-A DIGITAL BOARD, COMPLETE (STR-SL7) 63 A-4727-450-A DIGITAL BOARD, COMPLETE (TA-KSL7:CH) 64 1-769-970-11 WIRE (FLAT TYPE) (13 CORE) 65 1-775-185-11 WIRE (FLAT TYPE) (21 CORE) 66 4-235-644-01 PLATE (SV), SHIELD 67 4-235-645-01 COVER (AC) (STR-KSL7:E,MY,SP/TA-KSL7:AEP,UK) 68 3-531-576-11 RIVET #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S #2 7-685-871-01 SCREW +BVTT 3X6 (S) 4-2. CHASSIS SECTION The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 31 SECTION 5 ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • CAPACITORS: uF: µF • COILS uH: µH • RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable • SEMICONDUCTORS In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD... • Abbreviation CND : Canadian model MY : Malaysia model SP : Singapore model CH : Chinese model MX : Mexican model STR-KSL7/SL7/TA-KSL7 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. When indicating parts by reference number, please include the board name. A-4726-223-A DIGITAL BOARD, COMPLETE (STR-KSL7:CND) A-4726-227-A DIGITAL BOARD, COMPLETE (STR-KSL7:E) A-4726-229-A DIGITAL BOARD, COMPLETE (STR-KSL7:MY, SP) A-4726-231-A DIGITAL BOARD, COMPLETE (STR-KSL7:MX) A-4726-235-A DIGITAL BOARD, COMPLETE (TA-KSL7:AEP, UK) A-4727-317-A DIGITAL BOARD, COMPLETE (STR-SL7) A-4727-450-A DIGITAL BOARD, COMPLETE (TA-KSL7:CH) *********************** 7-685-645-79 SCREW +BVTP 3X6 TYPE2 N-S < CAPACITOR > C101 1-165-319-11 CERAMIC CHIP 0.1uF 50V C102 1-165-319-11 CERAMIC CHIP 0.1uF 50V C103 1-104-905-11 CAPACITOR 0.22F 5.5V C104 1-164-299-11 CERAMIC CHIP 0.22uF 10.00% 25V C105 1-165-319-11 CERAMIC CHIP 0.1uF 50V C106 1-165-319-11 CERAMIC CHIP 0.1uF 50V C107 1-163-021-11 CERAMIC CHIP 0.01uF 10.00% 50V C108 1-163-021-11 CERAMIC CHIP 0.01uF 10.00% 50V C109 1-163-021-11 CERAMIC CHIP 0.01uF 10.00% 50V C110 1-163-021-11 CERAMIC CHIP 0.01uF 10.00% 50V C111 1-163-021-11 CERAMIC CHIP 0.01uF 10.00% 50V C112 1-126-935-11 ELECT 470uF 20.00% 16V C113 1-165-319-11 CERAMIC CHIP 0.1uF 50V C114 1-165-319-11 CERAMIC CHIP 0.1uF 50V C115 1-163-021-11 CERAMIC CHIP 0.01uF 10.00% 50V C116 1-163-021-11 CERAMIC CHIP 0.01uF 10.00% 50V C117 1-163-021-11 CERAMIC CHIP 0.01uF 10.00% 50V C118 1-119-824-11 ELECT MELF 10uF 20% 50V C119 1-165-319-11 CERAMIC CHIP 0.1uF 50V C120 1-165-319-11 CERAMIC CHIP 0.1uF 50V C216 1-163-275-11 CERAMIC CHIP 0.001uF 5.00% 50V (EXCEPT TA-KSL7) C217 1-163-275-11 CERAMIC CHIP 0.001uF 5.00% 50V (EXCEPT TA-KSL7) C218 1-163-275-11 CERAMIC CHIP 0.001uF 5.00% 50V (EXCEPT TA-KSL7) C219 1-128-844-11 ELECT 33uF 20% 25V C220 1-128-844-11 ELECT 33uF 20% 25V C221 1-128-844-11 ELECT 33uF 20% 25V (TA-KSL7) C222 1-128-844-11 ELECT 33uF 20% 25V (TA-KSL7) C223 1-128-844-11 ELECT 33uF 20% 25V C224 1-128-844-11 ELECT 33uF 20% 25V C225 1-128-844-11 ELECT 33uF 20% 25V (EXCEPT TA-KSL7) C226 1-128-844-11 ELECT 33uF 20% 25V (EXCEPT TA-KSL7) C228 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C229 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C230 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V (TA-KSL7) C231 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V (TA-KSL7) C232 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C233 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C234 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C235 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C236 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C237 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C238 1-163-021-11 CERAMIC CHIP 0.01uF 10.00% 50V C501 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C502 1-165-319-11 CERAMIC CHIP 0.1uF 50V C503 1-165-319-11 CERAMIC CHIP 0.1uF 50V C504 1-128-858-11 ELECT 22uF 20% 50V C505 1-165-319-11 CERAMIC CHIP 0.1uF 50V C506 1-165-319-11 CERAMIC CHIP 0.1uF 50V C507 1-163-021-11 CERAMIC CHIP 0.01uF 10.00% 50V C508 1-164-299-11 CERAMIC CHIP 0.22uF 10.00% 25V C509 1-128-840-11 ELECT 47uF 20% 16V C510 1-165-319-11 CERAMIC CHIP 0.1uF 50V C511 1-165-319-11 CERAMIC CHIP 0.1uF 50V C512 1-163-021-11 CERAMIC CHIP 0.01uF 10.00% 50V C513 1-128-840-11 ELECT 47uF 20% 16V C514 1-165-319-11 CERAMIC CHIP 0.1uF 50V C515 1-165-319-11 CERAMIC CHIP 0.1uF 50V C516 1-163-233-11 CERAMIC CHIP 18PF 5.00% 50V C517 1-163-233-11 CERAMIC CHIP 18PF 5.00% 50V C518 1-163-275-11 CERAMIC CHIP 0.001uF 5.00% 50V C519 1-165-319-11 CERAMIC CHIP 0.1uF 50V C520 1-127-718-91 ELECT MELF 100uF 20% 16V C521 1-165-319-11 CERAMIC CHIP 0.1uF 50V C522 1-165-319-11 CERAMIC CHIP 0.1uF 50V C601 1-128-844-11 ELECT 33uF 20% 25V C602 1-128-844-11 ELECT 33uF 20% 25V C603 1-128-844-11 ELECT 33uF 20% 25V C604 1-128-844-11 ELECT 33uF 20% 25V C607 1-165-319-11 CERAMIC CHIP 0.1uF 50V C608 1-126-964-11 ELECT 10uF 20.00% 50V C609 1-128-844-11 ELECT 33uF 20% 25V C610 1-128-844-11 ELECT 33uF 20% 25V C611 1-128-844-11 ELECT 33uF 20% 25V C612 1-128-844-11 ELECT 33uF 20% 25V C613 1-128-844-11 ELECT 33uF 20% 25V DIGITAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 32 STR-KSL7/SL7/TA-KSL7 C614 1-128-844-11 ELECT 33uF 20% 25V C618 1-165-319-11 CERAMIC CHIP 0.1uF 50V C619 1-165-319-11 CERAMIC CHIP 0.1uF 50V C620 1-165-319-11 CERAMIC CHIP 0.1uF 50V C621 1-126-964-11 ELECT 10uF 20.00% 50V C622 1-126-964-11 ELECT 10uF 20.00% 50V C623 1-126-964-11 ELECT 10uF 20.00% 50V C624 1-165-319-11 CERAMIC CHIP 0.1uF 50V C625 1-165-319-11 CERAMIC CHIP 0.1uF 50V C626 1-165-319-11 CERAMIC CHIP 0.1uF 50V C627 1-163-133-00 CERAMIC CHIP 470PF 5% 50V C628 1-163-133-00 CERAMIC CHIP 470PF 5% 50V C629 1-163-133-00 CERAMIC CHIP 470PF 5% 50V C630 1-165-319-11 CERAMIC CHIP 0.1uF 50V C631 1-165-319-11 CERAMIC CHIP 0.1uF 50V C632 1-165-319-11 CERAMIC CHIP 0.1uF 50V C633 1-126-964-11 ELECT 10uF 20.00% 50V C634 1-126-964-11 ELECT 10uF 20.00% 50V C635 1-126-964-11 ELECT 10uF 20.00% 50V C636 1-163-133-00 CERAMIC CHIP 470PF 5% 50V C637 1-163-133-00 CERAMIC CHIP 470PF 5% 50V C638 1-163-133-00 CERAMIC CHIP 470PF 5% 50V C640 1-163-021-11 CERAMIC CHIP 0.01uF 10.00% 50V C641 1-163-021-11 CERAMIC CHIP 0.01uF 10.00% 50V C643 1-163-021-11 CERAMIC CHIP 0.01uF 10.00% 50V C645 1-165-319-11 CERAMIC CHIP 0.1uF 50V C646 1-165-319-11 CERAMIC CHIP 0.1uF 50V C647 1-165-319-11 CERAMIC CHIP 0.1uF 50V C701 1-165-319-11 CERAMIC CHIP 0.1uF 50V C702 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C703 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C704 1-165-319-11 CERAMIC CHIP 0.1uF 50V C705 1-126-935-11 ELECT 470uF 20.00% 16V C706 1-165-319-11 CERAMIC CHIP 0.1uF 50V C708 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C710 1-165-319-11 CERAMIC CHIP 0.1uF 50V C711 1-165-319-11 CERAMIC CHIP 0.1uF 50V C713 1-128-840-11 ELECT 47uF 20% 16V C714 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C715 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C718 1-163-133-00 CERAMIC CHIP 470PF 5% 50V C720 1-163-021-11 CERAMIC CHIP 0.01uF 10.00% 50V C721 1-165-319-11 CERAMIC CHIP 0.1uF 50V C725 1-165-319-11 CERAMIC CHIP 0.1uF 50V C727 1-128-840-11 ELECT 47uF 20% 16V C728 1-165-319-11 CERAMIC CHIP 0.1uF 50V C731 1-165-319-11 CERAMIC CHIP 0.1uF 50V C732 1-165-319-11 CERAMIC CHIP 0.1uF 50V C734 1-126-935-11 ELECT 470uF 20.00% 16V C735 1-165-319-11 CERAMIC CHIP 0.1uF 50V < CONNECTOR > CNP104 1-784-923-11 PIN, CONNECTOR 7P CNP601 1-779-978-11 PIN, CONNECTOR 3P CNS101 1-568-838-11 CONNECTOR, FFC 21P CNS102 1-778-692-11 CONNECTOR, FFC/FPC 21P CNS104 1-784-774-11 CONNECTOR, FFC 13P CNS202 1-784-766-11 CONNECTOR, FFC 5P CNS203 1-784-776-11 CONNECTOR, FFC 15P (EXCEPT TA-KSL7) < DIODE > D101 8-719-988-61 DIODE 1SS355TE-17 D102 8-719-988-61 DIODE 1SS355TE-17 D103 8-719-988-61 DIODE 1SS355TE-17 D104 8-719-988-61 DIODE 1SS355TE-17 D1403 8-719-988-61 DIODE 1SS355TE-17 < EARTH > * EP201 1-537-738-21 TERMINAL, EARTH < FERRITE BEAD > FB501 1-469-152-11 FERRITE 0uH FB502 1-469-152-11 FERRITE 0uH FB503 1-469-152-11 FERRITE 0uH FB504 1-469-152-11 FERRITE 0uH FB505 1-469-152-11 FERRITE 0uH FB506 1-469-152-11 FERRITE 0uH FB507 1-469-152-11 FERRITE 0uH FB508 1-469-152-11 FERRITE 0uH FB510 1-469-152-11 FERRITE 0uH FB511 1-469-152-11 FERRITE 0uH < IC > IC101 6-800-673-01 IC MB90553ABPF-G-209-BND IC102 8-759-039-69 IC uPC7805AHF IC103 6-700-942-01 IC M62342FP IC104 8-759-604-86 IC M5F7807L IC203 8-759-524-00 IC TC4052BF(EL,N) IC501 8-749-923-05 IC TORX178B(AUX OPTICAL) IC502 8-749-923-05 IC TORX178B(TV OPTICAL) IC503 8-759-242-70 IC TC7WU04F(TE12R) IC504 8-759-639-35 IC LC89055W-RA8 IC505 8-759-242-70 IC TC7WU04F(TE12R) IC506 8-759-242-70 IC TC7WU04F(TE12R) IC601 8-759-636-55 IC M5218AFP-T1 IC602 8-759-636-55 IC M5218AFP-T1 IC603 8-759-636-55 IC M5218AFP-T1 IC604 8-759-560-56 IC PCM1800E/2K IC605 8-759-560-56 IC PCM1800E/2K IC606 8-759-560-56 IC PCM1800E/2K IC701 8-759-698-80 IC CXD9511AQ-1 IC703 8-759-697-47 IC IDT71256SA20Y-TL IC706 8-759-039-69 IC uPC7805AHF < JACK > J205 1-784-429-11 JACK, PIN 4P (VIDEO AUDIO IN,TUNER IN)(TA-KSL7) J205 1-793-478-11 JACK, PIN 2P (VIDEO AUDIO IN)(EXCEPT TA-KSL7) J207 1-785-536-11 JACK, PIN (6P) (MULTI CH INPUT) J301 1-793-446-21 JACK, PIN 1P (DVD COAXIAL) < JUMPER RESISTOR > JR101 1-216-295-00 SHORT 0 JR102 1-216-295-00 SHORT 0 JR103 1-216-295-00 SHORT 0 JR104 1-216-295-00 SHORT 0 JR105 1-216-295-00 SHORT 0 JR106 1-216-295-00 SHORT 0 JR107 1-216-295-00 SHORT 0 DIGITAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 33 STR-KSL7/SL7/TA-KSL7 < TRANSISTOR > Q101 8-729-900-36 TRANSISTOR BA1F4M-TP Q202 8-729-027-23 TRANSISTOR RT1P141C-TP-1 Q203 8-729-027-23 TRANSISTOR RT1P141C-TP-1 Q204 8-729-027-43 TRANSISTOR RT1N141C-TP-1 Q205 8-729-027-43 TRANSISTOR RT1N141C-TP-1 < RESISTOR > R101 1-216-025-11 RES-CHIP 100 5% 1/10W R102 1-216-025-11 RES-CHIP 100 5% 1/10W R103 1-216-025-11 RES-CHIP 100 5% 1/10W R104 1-216-025-11 RES-CHIP 100 5% 1/10W R105 1-216-025-11 RES-CHIP 100 5% 1/10W R106 1-216-025-11 RES-CHIP 100 5% 1/10W R107 1-216-025-11 RES-CHIP 100 5% 1/10W R108 1-216-025-11 RES-CHIP 100 5% 1/10W R109 1-216-025-11 RES-CHIP 100 5% 1/10W R111 1-216-025-11 RES-CHIP 100 5% 1/10W R112 1-216-049-11 RES-CHIP 1K 5% 1/10W R113 1-216-033-00 METAL CHIP 220 5% 1/10W R114 1-216-049-11 RES-CHIP 1K 5% 1/10W R115 1-216-033-00 METAL CHIP 220 5% 1/10W R116 1-216-049-11 RES-CHIP 1K 5% 1/10W R117 1-216-073-00 RES-CHIP 10K 5% 1/10W R118 1-216-049-11 RES-CHIP 1K 5% 1/10W R119 1-216-025-11 RES-CHIP 100 5% 1/10W R120 1-216-049-11 RES-CHIP 1K 5% 1/10W R121 1-216-025-11 RES-CHIP 100 5% 1/10W R122 1-216-049-11 RES-CHIP 1K 5% 1/10W R123 1-216-025-11 RES-CHIP 100 5% 1/10W R124 1-216-025-11 RES-CHIP 100 5% 1/10W R125 1-216-025-11 RES-CHIP 100 5% 1/10W R126 1-216-049-11 RES-CHIP 1K 5% 1/10W R127 1-216-025-11 RES-CHIP 100 5% 1/10W R128 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R129 1-216-025-11 RES-CHIP 100 5% 1/10W R131 1-216-025-11 RES-CHIP 100 5% 1/10W R132 1-216-025-11 RES-CHIP 100 5% 1/10W R133 1-216-025-11 RES-CHIP 100 5% 1/10W R134 1-216-049-11 RES-CHIP 1K 5% 1/10W R135 1-216-025-11 RES-CHIP 100 5% 1/10W R136 1-216-025-11 RES-CHIP 100 5% 1/10W R137 1-216-049-11 RES-CHIP 1K 5% 1/10W R138 1-216-025-11 RES-CHIP 100 5% 1/10W R139 1-216-049-11 RES-CHIP 1K 5% 1/10W R140 1-216-025-11 RES-CHIP 100 5% 1/10W R141 1-216-049-11 RES-CHIP 1K 5% 1/10W R143 1-216-025-11 RES-CHIP 100 5% 1/10W R144 1-216-025-11 RES-CHIP 100 5% 1/10W R145 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R146 1-216-037-00 METAL CHIP 330 5% 1/10W R147 1-216-041-00 METAL CHIP 470 5% 1/10W R148 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R149 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R150 1-216-097-11 RES-CHIP 100K 5% 1/10W R151 1-216-073-00 RES-CHIP 10K 5% 1/10W R152 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R153 1-216-097-11 RES-CHIP 100K 5% 1/10W R154 1-216-073-00 RES-CHIP 10K 5% 1/10W R155 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R156 1-216-073-00 RES-CHIP 10K 5% 1/10W R157 1-216-073-00 RES-CHIP 10K 5% 1/10W R158 1-216-689-11 METAL CHIP 39K 0.5% 1/10W R159 1-216-689-11 METAL CHIP 39K 0.5% 1/10W R160 1-216-073-00 RES-CHIP 10K 5% 1/10W R161 1-216-073-00 RES-CHIP 10K 5% 1/10W R162 1-216-025-11 RES-CHIP 100 5% 1/10W R163 1-216-025-11 RES-CHIP 100 5% 1/10W R164 1-216-025-11 RES-CHIP 100 5% 1/10W R165 1-216-073-00 RES-CHIP 10K 5% 1/10W R166 1-216-073-00 RES-CHIP 10K 5% 1/10W R167 1-216-045-00 METAL CHIP 680 5% 1/10W (STR-KSL7:E,MY,SP,MX) R168 1-216-049-11 RES-CHIP 1K 5% 1/10W (STR-KSL7:E,MX) R169 1-216-053-00 METAL CHIP 1.5K 5% 1/10W (STR-KSL7:MX) R170 1-216-057-00 METAL CHIP 2.2K 5% 1/10W (STR-KSL7:MX) R172 1-216-073-00 RES-CHIP 10K 5% 1/10W (STR-SL7) R180 1-216-073-00 RES-CHIP 10K 5% 1/10W (EXCEPT STR-SL7) R199 1-216-033-00 METAL CHIP 220 5% 1/10W R217 1-216-049-11 RES-CHIP 1K 5% 1/10W R218 1-216-097-11 RES-CHIP 100K 5% 1/10W R219 1-216-097-11 RES-CHIP 100K 5% 1/10W R220 1-216-049-11 RES-CHIP 1K 5% 1/10W R221 1-216-097-11 RES-CHIP 100K 5% 1/10W R222 1-216-049-11 RES-CHIP 1K 5% 1/10W (TA-KSL7) R223 1-216-097-11 RES-CHIP 100K 5% 1/10W (TA-KSL7) R224 1-216-097-11 RES-CHIP 100K 5% 1/10W (TA-KSL7) R225 1-216-049-11 RES-CHIP 1K 5% 1/10W (TA-KSL7) R226 1-216-049-11 RES-CHIP 1K 5% 1/10W R227 1-216-049-11 RES-CHIP 1K 5% 1/10W R228 1-216-049-11 RES-CHIP 1K 5% 1/10W R229 1-216-049-11 RES-CHIP 1K 5% 1/10W R230 1-216-097-11 RES-CHIP 100K 5% 1/10W R231 1-216-049-11 RES-CHIP 1K 5% 1/10W R232 1-216-097-11 RES-CHIP 100K 5% 1/10W R233 1-216-049-11 RES-CHIP 1K 5% 1/10W R234 1-216-013-00 METAL CHIP 33 5% 1/10W R238 1-216-117-00 METAL CHIP 680K 5% 1/10W R239 1-216-073-00 RES-CHIP 10K 5% 1/10W R240 1-216-073-00 RES-CHIP 10K 5% 1/10W R243 1-216-097-11 RES-CHIP 100K 5% 1/10W R244 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R501 1-216-115-00 METAL CHIP 560K 5% 1/10W R502 1-216-022-00 METAL CHIP 75 5% 1/10W R503 1-216-081-00 METAL CHIP 22K 5% 1/10W R504 1-216-049-11 RES-CHIP 1K 5% 1/10W R505 1-216-025-11 RES-CHIP 100 5% 1/10W R506 1-216-025-11 RES-CHIP 100 5% 1/10W R507 1-216-025-11 RES-CHIP 100 5% 1/10W DIGITAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 34 STR-KSL7/SL7/TA-KSL7 R508 1-216-025-11 RES-CHIP 100 5% 1/10W R509 1-216-066-00 METAL CHIP 5.1K 5% 1/10W R510 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R511 1-216-073-00 RES-CHIP 10K 5% 1/10W R512 1-216-073-00 RES-CHIP 10K 5% 1/10W R513 1-216-043-00 RES-CHIP 560 5% 1/10W R514 1-216-025-11 RES-CHIP 100 5% 1/10W R516 1-216-025-11 RES-CHIP 100 5% 1/10W R517 1-216-049-11 RES-CHIP 1K 5% 1/10W R518 1-216-121-11 RES-CHIP 1M 5% 1/10W R519 1-216-049-11 RES-CHIP 1K 5% 1/10W R520 1-216-073-00 RES-CHIP 10K 5% 1/10W R521 1-216-049-11 RES-CHIP 1K 5% 1/10W R601 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R602 1-216-073-00 RES-CHIP 10K 5% 1/10W R603 1-216-073-00 RES-CHIP 10K 5% 1/10W R604 1-216-073-00 RES-CHIP 10K 5% 1/10W R605 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R606 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R607 1-216-073-00 RES-CHIP 10K 5% 1/10W R608 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R609 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R610 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R611 1-216-073-91 RES-CHIP 10K 5% 1/10W R612 1-216-073-00 RES-CHIP 10K 5% 1/10W R617 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R621 1-216-025-11 RES-CHIP 100 5% 1/10W R622 1-216-025-11 RES-CHIP 100 5% 1/10W R623 1-216-025-11 RES-CHIP 100 5% 1/10W R624 1-216-025-11 RES-CHIP 100 5% 1/10W R625 1-216-025-11 RES-CHIP 100 5% 1/10W R626 1-216-025-11 RES-CHIP 100 5% 1/10W R627 1-216-025-11 RES-CHIP 100 5% 1/10W R628 1-216-025-11 RES-CHIP 100 5% 1/10W R629 1-216-025-11 RES-CHIP 100 5% 1/10W R630 1-216-097-11 RES-CHIP 100K 5% 1/10W R631 1-216-097-11 RES-CHIP 100K 5% 1/10W R632 1-216-097-11 RES-CHIP 100K 5% 1/10W R633 1-216-097-11 RES-CHIP 100K 5% 1/10W R703 1-216-073-00 RES-CHIP 10K 5% 1/10W R708 1-216-025-11 RES-CHIP 100 5% 1/10W R713 1-216-073-00 RES-CHIP 10K 5% 1/10W R715 1-216-073-00 RES-CHIP 10K 5% 1/10W R716 1-216-025-11 RES-CHIP 100 5% 1/10W R717 1-216-025-11 RES-CHIP 100 5% 1/10W R718 1-216-025-11 RES-CHIP 100 5% 1/10W R719 1-216-073-00 RES-CHIP 10K 5% 1/10W R722 1-216-066-00 METAL CHIP 5.1K 5% 1/10W < VIBRATOR > X101 1-781-356-21 VIBRATOR, CERAMIC 16MHz X501 1-781-465-21 VIBRATOR, CRYSTAL 12.288MHz ************************************************************ A-4726-209-A DISPLAY BOARD, COMPLETE (EXCEPT TA-KSL7:CH) A-4727-440-A DISPLAY BOARD, COMPLETE (TA-KSL7:CH) ************************ 3-362-478-01 HOLDER (T), LED * 3-386-245-11 HOLDER (FL) * 4-921-941-01 CUSHION (FL) < CAPACITOR > C151 1-126-964-11 ELECT 10uF 20.00% 50V C152 1-165-319-11 CERAMIC CHIP 0.1uF 50V C153 1-126-964-11 ELECT 10uF 20.00% 50V C154 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C157 1-126-964-11 ELECT 10uF 20.00% 50V C158 1-165-319-11 CERAMIC CHIP 0.1uF 50V C159 1-165-319-11 CERAMIC CHIP 0.1uF 50V C160 1-165-319-11 CERAMIC CHIP 0.1uF 50V C161 1-163-021-91 CERAMIC CHIP 0.01uF 10.00% 50V C162 1-163-021-91 CERAMIC CHIP 0.01uF 10.00% 50V C163 1-126-964-11 ELECT 10uF 20.00% 50V C164 1-163-021-11 CERAMIC CHIP 0.01uF 10.00% 50V C166 1-163-021-11 CERAMIC CHIP 0.01uF 10.00% 50V C167 1-126-964-11 ELECT 10uF 20.00% 50V C168 1-165-319-11 CERAMIC CHIP 0.1uF 50V < CONNECTOR > CNS151 1-568-838-11 CONNECTOR, FFC 21P < DIODE > D121 8-719-084-07 DIODE SEL5E20CTP15 (MULTI CHANNNEL DECODING) D151 8-719-032-98 DIODE SEL5820A-TP15 (VIDEO) D152 8-719-032-98 DIODE SEL5820A-TP15 (DVD) D153 8-719-032-98 DIODE SEL5820A-TP15 (TV) D154 8-719-032-98 DIODE SEL5820A-TP15 (AUX) D155 8-719-032-98 DIODE SEL5820A-TP15 (TUNER) D156 8-719-032-98 DIODE SEL5820A-TP15 (MULTI CH IN) D157 8-719-301-52 DIODE SEL2810A-C-TP3 (SET UP) D158 8-719-056-82 DIODE UDZ-TE-17-6.2B D159 8-719-988-61 DIODE 1SS355TE-17 D160 8-719-988-61 DIODE 1SS355TE-17 D161 8-719-988-61 DIODE 1SS355TE-17 D162 8-719-988-61 DIODE 1SS355TE-17 D163 8-719-301-52 DIODE SEL2810A-C-TP3 (SURR) D164 8-719-301-52 DIODE SEL2810A-C-TP3 (LEVEL) < FILTER > FL101 1-518-718-11 INDICATOR TUBE, FLUORESCENT < EARTH > * G101 1-537-738-21 TERMINAL, EARTH < IC > IC151 8-759-459-86 IC NJL64H400A ( ) IC152 8-759-643-83 IC uPD16315GB-3BS DIGITAL DISPLAY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 35 STR-KSL7/SL7/TA-KSL7 < COIL > L102 1-412-959-11 INDUCTOR 47uH < TRANSISTOR > Q151 8-729-027-23 TRANSISTOR RT1P141C-TP-1 Q152 8-729-822-05 TRANSISTOR 2SD1622-ST-TD Q153 8-729-822-05 TRANSISTOR 2SD1622-ST-TD Q154 8-729-027-23 TRANSISTOR RT1P141C-TP-1 Q155 8-729-027-23 TRANSISTOR RT1P141C-TP-1 < RESISTOR > R112 1-216-033-00 METAL CHIP 220 5% 1/10W R173 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R174 1-216-049-11 RES-CHIP 1K 5% 1/10W R175 1-216-045-00 METAL CHIP 680 5% 1/10W R176 1-216-033-00 METAL CHIP 220 5% 1/10W R177 1-216-041-00 METAL CHIP 470 5% 1/10W R178 1-216-095-00 METAL CHIP 82K 5% 1/10W R179 1-216-037-00 METAL CHIP 330 5% 1/10W R181 1-216-019-00 METAL CHIP 56 5% 1/10W R183 1-216-025-11 RES-CHIP 100 5% 1/10W R184 1-216-073-00 RES-CHIP 10K 5% 1/10W R185 1-216-037-00 METAL CHIP 330 5% 1/10W R186 1-216-073-00 RES-CHIP 10K 5% 1/10W R187 1-216-097-11 RES-CHIP 100K 5% 1/10W R188 1-216-073-00 RES-CHIP 10K 5% 1/10W R189 1-216-041-00 METAL CHIP 470 5% 1/10W R190 1-216-097-11 RES-CHIP 100K 5% 1/10W R191 1-216-045-00 METAL CHIP 680 5% 1/10W R192 1-216-049-11 RES-CHIP 1K 5% 1/10W R193 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R194 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R195 1-216-037-00 METAL CHIP 330 5% 1/10W R196 1-216-041-00 METAL CHIP 470 5% 1/10W R197 1-216-061-00 RES-CHIP 3.3K 5% 1/10W R198 1-216-063-00 RES-CHIP 3.9K 5% 1/10W R200 1-216-033-00 METAL CHIP 220 5% 1/10W R241 1-216-033-00 METAL CHIP 220 5% 1/10W R242 1-216-033-00 METAL CHIP 220 5% 1/10W < VARIABLE RESISTOR > RV101 1-418-773-21 ENCODER, ROTARY (MASTER VOLUME) < SWITCH > S101 1-771-349-21 SWITCH, KEYBOARD (VIDEO) S102 1-771-349-21 SWITCH, KEYBOARD (DVD) S103 1-771-349-21 SWITCH, KEYBOARD (TV) S104 1-771-349-21 SWITCH, KEYBOARD (AUX) S105 1-771-349-21 SWITCH, KEYBOARD (TUNER) S106 1-771-349-21 SWITCH, KEYBOARD (MULTI CH IN) S107 1-771-349-21 SWITCH, KEYBOARD (SET UP) S108 1-771-349-21 SWITCH, KEYBOARD (+) S109 1-771-349-21 SWITCH, KEYBOARD (SURR) S110 1-771-349-21 SWITCH, KEYBOARD (<) S111 1-771-349-21 SWITCH, KEYBOARD (>) S112 1-771-349-21 SWITCH, KEYBOARD (ENTER) S113 1-771-349-21 SWITCH, KEYBOARD (SOUND FIELD +) S114 1-771-349-21 SWITCH, KEYBOARD (-) S115 1-771-349-21 SWITCH, KEYBOARD (SOUND FIELD -) S116 1-771-349-21 SWITCH, KEYBOARD (MUTING) S117 1-771-349-21 SWITCH, KEYBOARD (LEVEL) < TRANSFORMER > T101 1-437-416-11 TRANSFORMER, DC-DC CONVERTER ************************************************************ 1-681-853-11 HEADPHONE BOARD ***************** < CAPACITOR > C165 1-165-319-11 CERAMIC CHIP 0.1uF 50V < CONNECTOR > * CNP153 1-564-706-11 PIN, CONNECTOR (SMALL TYPE) 4P < JACK > J101 1-764-106-21 JACK (PHONES) ************************************************************ A-4726-233-A MAIN BOARD, COMPLETE (STR-KSL7:CND/STR-SL7) A-4726-220-A MAIN BOARD, COMPLETE (STR-KSL7:MX) A-4726-225-A MAIN BOARD, COMPLETE (STR-KSL7:E,MY,SP/TA-KSL7:AEP,UK) A-4727-446-A MAIN BOARD, COMPLETE (TA-KSL7:CH) ********************* 1-533-223-11 HOLDER, FUSE 7-685-645-79 SCREW +BVTP 3X6 TYPE2 N-S 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3 < CAPACITOR > C301 1-163-275-11 CERAMIC CHIP 0.001uF 5.00% 50V C302 1-128-844-11 ELECT 33uF 20% 25V C303 1-163-031-11 CERAMIC CHIP 0.01uF 50V C304 1-163-227-11 CERAMIC CHIP 10PF 0.50PF 50V C305 1-163-227-11 CERAMIC CHIP 10PF 0.50PF 50V C306 1-163-031-11 CERAMIC CHIP 0.01uF 50V C307 1-163-031-11 CERAMIC CHIP 0.01uF 50V C308 1-119-827-11 ELECT MELF 100uF 20% 25V C309 1-163-249-11 CERAMIC CHIP 82PF 5.00% 50V C310 1-163-249-11 CERAMIC CHIP 82PF 5.00% 50V C311 1-128-840-11 ELECT 47uF 20% 16V C312 1-163-031-11 CERAMIC CHIP 0.01uF 50V C313 1-119-827-11 ELECT MELF 100uF 20% 25V C314 1-163-031-11 CERAMIC CHIP 0.01uF 50V C315 1-119-824-11 ELECT MELF 10uF 20% 50V C316 1-165-319-11 CERAMIC CHIP 0.1uF 50V C317 1-163-031-11 CERAMIC CHIP 0.01uF 50V C318 1-119-827-11 ELECT MELF 100uF 20% 25V C319 1-163-249-11 CERAMIC CHIP 82PF 5.00% 50V C320 1-163-249-11 CERAMIC CHIP 82PF 5.00% 50V C321 1-163-249-11 CERAMIC CHIP 82PF 5.00% 50V C322 1-163-249-11 CERAMIC CHIP 82PF 5.00% 50V C323 1-163-031-11 CERAMIC CHIP 0.01uF 50V C324 1-163-031-11 CERAMIC CHIP 0.01uF 50V C325 1-119-827-11 ELECT MELF 100uF 20% 25V DISPLAY HEADPHONE MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 36 STR-KSL7/SL7/TA-KSL7 C326 1-119-824-11 ELECT MELF 10uF 20% 50V C327 1-165-319-11 CERAMIC CHIP 0.1uF 50V C328 1-163-031-11 CERAMIC CHIP 0.01uF 50V C329 1-119-827-11 ELECT MELF 100uF 20% 25V C330 1-163-249-11 CERAMIC CHIP 82PF 5.00% 50V C331 1-163-249-11 CERAMIC CHIP 82PF 5.00% 50V C332 1-163-031-11 CERAMIC CHIP 0.01uF 50V C333 1-163-031-11 CERAMIC CHIP 0.01uF 50V C334 1-163-031-11 CERAMIC CHIP 0.01uF 50V C335 1-163-031-11 CERAMIC CHIP 0.01uF 50V C336 1-119-827-11 ELECT MELF 100uF 20% 25V C337 1-119-827-11 ELECT MELF 100uF 20% 25V C338 1-163-249-11 CERAMIC CHIP 82PF 5.00% 50V C339 1-163-249-11 CERAMIC CHIP 82PF 5.00% 50V C340 1-163-031-11 CERAMIC CHIP 0.01uF 50V C341 1-119-827-11 ELECT MELF 100uF 20% 25V C342 1-163-031-11 CERAMIC CHIP 0.01uF 50V C343 1-119-824-11 ELECT MELF 10uF 20% 50V C344 1-165-319-11 CERAMIC CHIP 0.1uF 50V C345 1-163-031-11 CERAMIC CHIP 0.01uF 50V C346 1-119-827-11 ELECT MELF 100uF 20% 25V C347 1-163-249-11 CERAMIC CHIP 82PF 5.00% 50V C348 1-163-249-11 CERAMIC CHIP 82PF 5.00% 50V C349 1-128-844-11 ELECT 33uF 20% 25V C350 1-163-275-11 CERAMIC CHIP 0.001uF 5.00% 50V C352 1-163-031-11 CERAMIC CHIP 0.01uF 50V C353 1-163-031-11 CERAMIC CHIP 0.01uF 50V C354 1-119-827-11 ELECT MELF 100uF 20% 25V C355 1-163-031-91 CERAMIC CHIP 0.01uF 50V C356 1-163-259-91 CERAMIC CHIP 220PF 5.00% 50V C357 1-163-031-11 CERAMIC CHIP 0.01uF 50V C358 1-163-031-11 CERAMIC CHIP 0.01uF 50V C359 1-163-031-11 CERAMIC CHIP 0.01uF 50V C360 1-163-031-11 CERAMIC CHIP 0.01uF 50V C361 1-119-827-11 ELECT MELF 100uF 20% 25V C362 1-163-249-11 CERAMIC CHIP 82PF 5.00% 50V C363 1-163-249-11 CERAMIC CHIP 82PF 5.00% 50V C364 1-119-827-11 ELECT MELF 100uF 20% 25V C365 1-163-031-11 CERAMIC CHIP 0.01uF 50V C366 1-119-827-11 ELECT MELF 100uF 20% 25V C367 1-163-031-11 CERAMIC CHIP 0.01uF 50V C368 1-119-824-11 ELECT MELF 10uF 20% 50V C369 1-165-319-11 CERAMIC CHIP 0.1uF 50V C370 1-163-031-11 CERAMIC CHIP 0.01uF 50V C371 1-119-827-11 ELECT MELF 100uF 20% 25V C372 1-163-247-11 CERAMIC CHIP 68PF 5.00% 50V C373 1-163-247-11 CERAMIC CHIP 68PF 5.00% 50V C374 1-163-247-11 CERAMIC CHIP 68PF 5.00% 50V C375 1-163-247-11 CERAMIC CHIP 68PF 5.00% 50V C376 1-163-031-11 CERAMIC CHIP 0.01uF 50V C377 1-119-827-11 ELECT MELF 100uF 20% 25V C378 1-163-031-11 CERAMIC CHIP 0.01uF 50V C379 1-119-824-11 ELECT MELF 10uF 20% 50V C380 1-165-319-11 CERAMIC CHIP 0.1uF 50V C381 1-163-031-11 CERAMIC CHIP 0.01uF 50V C382 1-119-827-11 ELECT MELF 100uF 20% 25V C383 1-163-249-11 CERAMIC CHIP 82PF 5.00% 50V C384 1-163-249-11 CERAMIC CHIP 82PF 5.00% 50V C385 1-165-319-11 CERAMIC CHIP 0.1uF 50V C386 1-163-031-11 CERAMIC CHIP 0.01uF 50V C387 1-163-031-11 CERAMIC CHIP 0.01uF 50V C388 1-163-031-11 CERAMIC CHIP 0.01uF 50V C389 1-109-982-11 CERAMIC CHIP 1uF 10.00% 10V C390 1-109-982-11 CERAMIC CHIP 1uF 10.00% 10V C391 1-163-021-11 CERAMIC CHIP 0.01uF 10.00% 50V C392 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C393 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C394 1-165-319-11 CERAMIC CHIP 0.1uF 50V C395 1-163-133-00 CERAMIC CHIP 470PF 5% 50V C396 1-163-243-11 CERAMIC CHIP 47PF 5.00% 50V C396 1-163-133-00 CERAMIC CHIP 470PF 5% 50V C397 1-163-243-11 CERAMIC CHIP 47PF 5.00% 50V C397 1-163-133-00 CERAMIC CHIP 470PF 5% 50V C398 1-163-243-11 CERAMIC CHIP 47PF 5.00% 50V C399 1-163-243-11 CERAMIC CHIP 47PF 5.00% 50V C400 1-163-243-11 CERAMIC CHIP 47PF 5.00% 50V C401 1-128-861-11 ELECT 100uF 20% 50V C402 1-128-861-11 ELECT 100uF 20% 50V C403 1-128-861-11 ELECT 100uF 20% 50V C404 1-128-861-11 ELECT 100uF 20% 50V C405 1-128-861-11 ELECT 100uF 20% 50V C406 1-128-861-11 ELECT 100uF 20% 50V C407 1-128-861-11 ELECT 100uF 20% 50V C408 1-128-861-11 ELECT 100uF 20% 50V C409 1-128-861-11 ELECT 100uF 20% 50V C410 1-128-861-11 ELECT 100uF 20% 50V C411 1-137-503-11 MYLAR 0.0001uF 5.00% 50V C412 1-137-503-11 MYLAR 0.0001uF 5.00% 50V C413 1-137-503-11 MYLAR 0.0001uF 5.00% 50V C414 1-137-503-11 MYLAR 0.0001uF 5.00% 50V C415 1-137-503-11 MYLAR 0.0001uF 5.00% 50V C416 1-137-503-11 MYLAR 0.0001uF 5.00% 50V C417 1-137-503-11 MYLAR 0.0001uF 5.00% 50V C418 1-137-503-11 MYLAR 0.0001uF 5.00% 50V C419 1-137-503-11 MYLAR 0.0001uF 5.00% 50V C420 1-137-503-11 MYLAR 0.0001uF 5.00% 50V C451 1-131-704-11 FILM 1uF 5% 50V C452 1-131-704-11 FILM 1uF 5% 50V C453 1-131-704-11 FILM 1uF 5% 50V C454 1-131-704-11 FILM 1uF 5% 50V C455 1-131-704-11 FILM 1uF 5% 50V C456 1-131-704-11 FILM 1uF 5% 50V C459 1-131-704-11 FILM 1uF 5% 50V C460 1-131-704-11 FILM 1uF 5% 50V C461 1-131-704-11 FILM 1uF 5% 50V C462 1-131-704-11 FILM 1uF 5% 50V C801 1-109-982-11 CERAMIC CHIP 1uF 10.00% 10V C802 1-109-982-11 CERAMIC CHIP 1uF 10.00% 10V C803 1-109-982-11 CERAMIC CHIP 1uF 10.00% 10V C804 1-109-982-11 CERAMIC CHIP 1uF 10.00% 10V C805 1-163-259-91 CERAMIC CHIP 220PF 5.00% 50V C806 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C807 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C808 1-128-831-91 ELECT 100uF 20% 10V C809 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C810 1-163-259-91 CERAMIC CHIP 220PF 5.00% 50V C811 1-163-275-11 CERAMIC CHIP 0.001uF 5.00% 50V C812 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C813 1-119-824-11 ELECT MELF 10uF 20% 50V C814 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 37 STR-KSL7/SL7/TA-KSL7 C815 1-163-275-11 CERAMIC CHIP 0.001uF 5.00% 50V C816 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C817 1-119-824-11 ELECT MELF 10uF 20% 50V C900 1-165-319-11 CERAMIC CHIP 0.1uF 50V 0C901 1-117-703-11 CERAMIC 0.0047uF 99% 250V 0C902 1-115-165-11 FILM 0.1uF 20.00% 275V 0C903 1-163-133-00 CERAMIC CHIP 470PF 5% 50V 0C904 1-113-915-11 CERAMIC 0.001uF 20.00% 250V 0C905 1-113-915-11 CERAMIC 0.001uF 20.00% 250V 0C906 1-113-915-11 CERAMIC 0.001uF 20.00% 250V 0C907 1-128-850-91 ELECT 47uF 20% 35V C909 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V C910 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V C911 1-165-319-11 CERAMIC CHIP 0.1uF 50V C912 1-165-626-11 ELECT 390uF 20% 400V (STR-KSL7:E,MY,SP/TA-KSL7) C912 1-137-994-11 ELECT 820uF 20% 200V (STR-KSL7:CND,MX/STR-SL7) 0C913 1-113-481-11 FILM 1000PF 5.00% 630V (STR-KSL7:E,MY,SP/TA-KSL7) 0C913 1-136-203-11 FILM 10000PF 5.00% 630V (STR-KSL7:CND,MX/STR-SL7) C914 1-126-960-11 ELECT 1uF 20.00% 50V 0C915 1-163-259-91 CERAMIC CHIP 220PF 5.00% 50V (STR-KSL7:E,MY,SP/TA-KSL7) 0C915 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V (STR-KSL7:CND,MX/STR-SL7) 0C916 1-137-751-21 FILM 2200PF 3% 800V (STR-KSL7:CND,MX/STR-SL7) 0C917 1-113-907-51 CERAMIC 0.0022uF 99% 250V C918 1-130-777-00 MYLAR 0.1uF 5.00% 100V C919 1-115-789-11 ELECT 1000uF 20.00% 25V C920 1-117-454-11 FILM 4700PF 5.00% 630V (STR-KSL7:E,MY,SP/TA-KSL7) C920 1-136-203-11 FILM 10000PF 5.00% 630V (STR-KSL7:CND,MX/STR-SL7) C921 1-110-617-11 ELECT 2200uF 20.00% 50V C922 1-110-610-11 ELECT 27uF 20.00% 50V C923 1-110-617-11 ELECT 2200uF 20.00% 50V C925 1-163-021-11 CERAMIC CHIP 0.01uF 10.00% 50V C926 1-165-319-11 CERAMIC CHIP 0.1uF 50V C927 1-165-319-11 CERAMIC CHIP 0.1uF 50V C928 1-124-579-51 ELECT 1000uF 20.00% 16V C929 1-119-827-11 ELECT MELF 100uF 20% 25V C930 1-165-319-11 CERAMIC CHIP 0.1uF 50V C931 1-119-827-11 ELECT MELF 100uF 20% 25V C932 1-165-319-11 CERAMIC CHIP 0.1uF 50V C933 1-165-319-11 CERAMIC CHIP 0.1uF 50V C934 1-119-827-11 ELECT MELF 100uF 20% 25V 0C935 1-115-165-11 FILM 0.1uF 20.00% 275V C936 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V C937 1-119-827-11 ELECT MELF 100uF 20% 25V C938 1-165-319-11 CERAMIC CHIP 0.1uF 50V C939 1-126-957-11 ELECT 0.22uF 20.00% 50V 0C940 1-115-165-11 FILM 0.1uF 20.00% 275V C1643 1-131-696-11 FILM 0.22uF 5% 50V C1644 1-131-696-11 FILM 0.22uF 5% 50V C1645 1-131-696-11 FILM 0.22uF 5% 50V C1646 1-131-696-11 FILM 0.22uF 5% 50V C1647 1-131-696-11 FILM 0.22uF 5% 50V C1648 1-131-696-11 FILM 0.22uF 5% 50V C1649 1-131-696-11 FILM 0.22uF 5% 50V C1650 1-131-696-11 FILM 0.22uF 5% 50V C1651 1-131-696-11 FILM 0.22uF 5% 50V C1652 1-131-696-11 FILM 0.22uF 5% 50V < CONNECTOR > CNP801 1-784-921-11 PIN, CONNECTOR 4P CNP901 1-564-321-00 PIN, CONNECTOR 2P CNP902 1-564-320-00 PIN, CONNECTOR (B2P-VH) 2P CNS301 1-778-692-11 CONNECTOR, FFC/FPC 21P CNS905 1-784-774-11 CONNECTOR, FFC 13P < DIODE > D203 8-719-988-61 DIODE 1SS355TE-17 D301 8-719-988-61 DIODE 1SS355TE-17 D302 8-719-988-61 DIODE 1SS355TE-17 D801 8-719-988-61 DIODE 1SS355TE-17 0D901 8-719-085-36 DIODE 11EQS04-TB5 0D902 8-719-084-58 DIODE RBV-406 (STR-KSL7:E,MY,SP/TA-KSL7) 0D902 8-719-022-92 DIODE RBV-604 (STR-KSL7:CND,MX/STR-SL7) 0D903 8-719-083-67 DIODE UDZ-TE-17-20B 0D904 8-719-083-69 DIODE UDZ-TE-17-24B 0D905 8-719-085-37 DIODE 11EQS10-TB5 0D906 8-719-085-37 DIODE 11EQS10-TB5 0D907 8-719-085-37 DIODE 11EQS10-TB5 0D908 8-719-080-26 DIODE SARS01V0 D909 8-719-085-37 DIODE 11EQS10-TB5 D910 8-719-085-37 DIODE 11EQS10-TB5 D911 8-719-313-14 DIODE FML-22S D912 8-719-083-66 DIODE UDZ-TE-17-18B D913 8-719-085-36 DIODE 11EQS04-TB5 D914 8-719-085-36 DIODE 11EQS04-TB5 D915 8-719-988-61 DIODE 1SS355TE-17 D916 8-719-083-82 DIODE UDZ-TE17-12B D917 8-719-085-36 DIODE 11EQS04-TB5 D918 8-719-988-61 DIODE 1SS355TE-17 D919 8-719-083-71 DIODE UDZ-TE-17-30B < EARTH > * EP301 1-537-738-21 TERMINAL, EARTH * EP302 1-537-738-21 TERMINAL, EARTH * EP303 1-537-738-21 TERMINAL, EARTH * EP901 1-537-738-21 TERMINAL, EARTH * EP902 1-537-738-21 TERMINAL, EARTH * EP903 1-537-738-21 TERMINAL, EARTH < FERRITE BEAD > FB301 1-469-760-21 INDUCTOR 0uH FB302 1-469-760-21 INDUCTOR 0uH FB303 1-469-760-21 INDUCTOR 0uH FB304 1-469-760-21 INDUCTOR 0uH FB305 1-469-760-21 INDUCTOR 0uH MAIN The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 38 STR-KSL7/SL7/TA-KSL7 FB306 1-469-760-21 INDUCTOR 0uH FB307 1-469-760-21 INDUCTOR 0uH FB308 1-216-295-91 SHORT 0 FB351 1-410-396-41 FERRITE 0.45uH FB352 1-410-396-41 FERRITE 0.45uH FB353 1-410-396-41 FERRITE 0.45uH FB354 1-410-396-41 FERRITE 0.45uH FB355 1-410-396-41 FERRITE 0.45uH FB356 1-410-396-41 FERRITE 0.45uH FB359 1-410-396-41 FERRITE 0.45uH FB360 1-410-396-41 FERRITE 0.45uH FB361 1-410-396-41 FERRITE 0.45uH FB362 1-410-396-41 FERRITE 0.45uH 0FB901 1-410-396-41 FERRITE 0.45uH < FUSE > 0F901 1-532-465-51 FUSE, TIME LAG 3.15A/250V (STR-KSL7:E,MY,SP/TA-KSL7) 0F901 1-533-310-11 FUSE, GLASS CYLINDRICAL (DIA.5) 6.3V/125V (STR-KSL7:CND,MX/STR-SL7) < IC > IC301 1-804-522-11 MODULE IC302 1-804-522-11 MODULE IC303 1-804-522-11 MODULE IC304 1-804-522-11 MODULE IC305 1-804-522-11 MODULE IC306 8-759-271-88 IC TC7SHU04FU-TE85R IC307 8-759-523-08 IC TC74AC08FT(EL) IC308 8-759-523-08 IC TC74AC08FT(EL) IC309 6-700-279-01 IC CXD9634Q IC310 8-759-523-08 IC TC74AC08FT(EL) IC311 8-759-523-08 IC TC74AC08FT(EL) IC312 8-759-523-08 IC TC74AC08FT(EL) IC313 8-759-523-08 IC TC74AC08FT(EL) IC314 8-759-636-55 IC M5218AFP-T1 IC315 6-700-279-01 IC CXD9634Q IC316 8-759-523-08 IC TC74AC08FT(EL) IC317 8-759-523-08 IC TC74AC08FT(EL) IC318 6-700-279-01 IC CXD9634Q IC319 8-759-523-08 IC TC74AC08FT(EL) IC320 8-759-523-08 IC TC74AC08FT(EL) IC321 8-759-524-40 IC TC74VHC373FT(EL) IC322 8-759-648-48 IC TC7W34FU(TE12R) IC324 8-759-271-86 IC TC7SH04FU-TE85R IC801 8-759-636-55 IC M5218AFP-T1 IC802 8-759-636-55 IC M5218AFP-T1 0IC901 8-749-017-79 IC STR-F6676 (STR-KSL7:E,MY,SP/TA-KSL7) 0IC901 6-700-162-01 IC STR-F6426S (STR-KSL7:CND,MX/STR-SL7) IC902 8-759-528-48 IC NJU7032M-TE2 IC903 6-700-944-01 IC SI-8120S IC905 8-759-647-11 IC uPC2905HF IC906 8-759-647-10 IC uPC2933HF IC907 8-759-390-72 IC TC4S584F(TE85R) IC908 8-759-039-69 IC uPC7805AHF IC909 8-759-701-59 IC M5F7809L IC910 8-759-544-04 IC NJM2103M-TE2 < JACK > J204 1-793-446-11 JACK, PIN 1P (SUB WOOFER) < COIL > L301 1-469-525-91 INDUCTOR 10uH L302 1-410-370-31 INDUCTOR 1.2uH L401 1-428-923-11 INDUCTOR 0uH L402 1-428-923-11 INDUCTOR 0uH L403 1-428-923-11 INDUCTOR 0uH L404 1-428-923-11 INDUCTOR 0uH L405 1-428-923-11 INDUCTOR 0uH L406 1-428-923-11 INDUCTOR 0uH L407 1-428-923-11 INDUCTOR 0uH L408 1-428-923-11 INDUCTOR 0uH L409 1-428-923-11 INDUCTOR 0uH L410 1-428-923-11 INDUCTOR 0uH L901 1-424-860-11 INDUCTOR 10uH L902 1-419-253-11 INDUCTOR 100uH L904 1-414-398-11 INDUCTOR 10uH L906 1-414-398-11 INDUCTOR 10uH L907 1-414-398-11 INDUCTOR 10uH < LINE FILTER > 0LF901 1-419-889-11 COIL, LINE FILTER (STR-KSL7:E,MY,SP/TA-KSL7) 0LF901 1-428-905-11 COIL, LINE FILTER (STR-KSL7:CND,MX/STR-SL7) 0LF902 1-419-889-11 COIL, LINE FILTER (STR-KSL7:E,MY,SP/TA-KSL7) 0LF902 1-428-905-11 COIL, LINE FILTER (STR-KSL7:CND,MX/STR-SL7) < PHOTO COUPLER > 0PC901 8-749-019-04 PHOTO COUPLER TLP421 < TRANSISTOR > Q201 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q401 8-729-216-22 TRANSISTOR 2SA1162-YG-TE85L Q402 8-729-216-22 TRANSISTOR 2SA1162-YG-TE85L Q403 8-729-216-22 TRANSISTOR 2SA1162-YG-TE85L Q404 8-729-216-22 TRANSISTOR 2SA1162-YG-TE85L Q405 8-729-216-22 TRANSISTOR 2SA1162-YG-TE85L Q406 8-729-230-49 TRANSISTOR 2SC2712-YG-TE85L Q801 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q901 8-729-230-49 TRANSISTOR 2SC2712-YG-TE85L Q902 8-729-230-49 TRANSISTOR 2SC2712-YG-TE85L 0Q903 8-729-025-04 TRANSISTOR 2SC3852A Q904 8-729-230-49 TRANSISTOR 2SC2712-YG-TE85L Q905 8-729-230-49 TRANSISTOR 2SC2712-YG-TE85L Q906 8-729-027-43 TRANSISTOR RT1N141C-TP-1 Q908 8-729-027-43 TRANSISTOR RT1N141C-TP-1 Q915 8-729-027-43 TRANSISTOR RT1N141C-TP-1 MAIN The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 39 STR-KSL7/SL7/TA-KSL7 < RESISTOR > R216 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R235 1-216-025-11 RES-CHIP 100 5% 1/10W R236 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R237 1-216-073-00 RES-CHIP 10K 5% 1/10W R244 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R301 1-216-121-11 RES-CHIP 1M 5% 1/10W R302 1-216-037-00 METAL CHIP 330 5% 1/10W R303 1-216-037-00 METAL CHIP 330 5% 1/10W R304 1-216-027-00 METAL CHIP 120 5% 1/10W R305 1-216-001-00 METAL CHIP 10 5% 1/10W R306 1-216-001-00 METAL CHIP 10 5% 1/10W R307 1-216-027-00 METAL CHIP 120 5% 1/10W R308 1-216-037-00 METAL CHIP 330 5% 1/10W R309 1-216-037-00 METAL CHIP 330 5% 1/10W R310 1-216-037-00 METAL CHIP 330 5% 1/10W R311 1-216-037-00 METAL CHIP 330 5% 1/10W R312 1-216-027-00 METAL CHIP 120 5% 1/10W R313 1-216-001-00 METAL CHIP 10 5% 1/10W R314 1-216-001-00 METAL CHIP 10 5% 1/10W R315 1-216-027-00 METAL CHIP 120 5% 1/10W R316 1-216-037-00 METAL CHIP 330 5% 1/10W R317 1-216-037-00 METAL CHIP 330 5% 1/10W R318 1-216-009-00 RES-CHIP 22 5% 1/10W R319 1-216-037-00 METAL CHIP 330 5% 1/10W R320 1-216-037-00 METAL CHIP 330 5% 1/10W R321 1-216-027-00 METAL CHIP 120 5% 1/10W R322 1-216-001-00 METAL CHIP 10 5% 1/10W R323 1-216-001-00 METAL CHIP 10 5% 1/10W R324 1-216-027-00 METAL CHIP 120 5% 1/10W R325 1-216-037-00 METAL CHIP 330 5% 1/10W R326 1-216-037-00 METAL CHIP 330 5% 1/10W R327 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R328 1-216-081-00 METAL CHIP 22K 5% 1/10W R329 1-216-049-11 RES-CHIP 1K 5% 1/10W R330 1-216-073-91 RES-CHIP 10K 5% 1/10W R331 1-216-097-11 RES-CHIP 100K 5% 1/10W R332 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R334 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R335 1-216-081-00 METAL CHIP 22K 5% 1/10W R336 1-216-073-91 RES-CHIP 10K 5% 1/10W R337 1-216-073-00 RES-CHIP 10K 5% 1/10W R338 1-216-073-00 RES-CHIP 10K 5% 1/10W R339 1-216-081-00 METAL CHIP 22K 5% 1/10W R340 1-216-037-00 METAL CHIP 330 5% 1/10W R341 1-216-037-00 METAL CHIP 330 5% 1/10W R342 1-216-027-00 METAL CHIP 120 5% 1/10W R343 1-216-001-00 METAL CHIP 10 5% 1/10W R344 1-216-001-00 METAL CHIP 10 5% 1/10W R345 1-216-027-00 METAL CHIP 120 5% 1/10W R346 1-216-037-00 METAL CHIP 330 5% 1/10W R347 1-216-037-00 METAL CHIP 330 5% 1/10W R348 1-216-037-00 METAL CHIP 330 5% 1/10W R349 1-216-037-00 METAL CHIP 330 5% 1/10W R350 1-216-027-00 METAL CHIP 120 5% 1/10W R351 1-216-001-00 METAL CHIP 10 5% 1/10W R352 1-216-001-00 METAL CHIP 10 5% 1/10W R353 1-216-027-00 METAL CHIP 120 5% 1/10W R354 1-216-037-00 METAL CHIP 330 5% 1/10W R355 1-216-037-00 METAL CHIP 330 5% 1/10W R356 1-216-025-11 RES-CHIP 100 5% 1/10W R357 1-216-025-11 RES-CHIP 100 5% 1/10W R358 1-216-025-11 RES-CHIP 100 5% 1/10W R359 1-216-025-11 RES-CHIP 100 5% 1/10W R360 1-216-025-11 RES-CHIP 100 5% 1/10W R361 1-216-025-11 RES-CHIP 100 5% 1/10W R362 1-216-073-00 RES-CHIP 10K 5% 1/10W R363 1-216-049-11 RES-CHIP 1K 5% 1/10W R364 1-216-049-11 RES-CHIP 1K 5% 1/10W R365 1-216-049-11 RES-CHIP 1K 5% 1/10W R366 1-216-025-11 RES-CHIP 100 5% 1/10W R367 1-216-025-11 RES-CHIP 100 5% 1/10W R368 1-216-025-11 RES-CHIP 100 5% 1/10W R369 1-216-025-11 RES-CHIP 100 5% 1/10W R370 1-216-049-11 RES-CHIP 1K 5% 1/10W R371 1-216-025-11 RES-CHIP 100 5% 1/10W R372 1-216-049-11 RES-CHIP 1K 5% 1/10W R373 1-216-073-00 RES-CHIP 10K 5% 1/10W R374 1-216-073-00 RES-CHIP 10K 5% 1/10W R375 1-216-073-00 RES-CHIP 10K 5% 1/10W R376 1-216-013-00 METAL CHIP 33 5% 1/10W R377 1-216-013-00 METAL CHIP 33 5% 1/10W R378 1-216-013-00 METAL CHIP 33 5% 1/10W R401 1-245-274-11 RES-CHIP 0.05 1% 1W R402 1-245-274-11 RES-CHIP 0.05 1% 1W R403 1-249-381-11 CARBON 1 5% 1/4W F R404 1-249-381-11 CARBON 1 5% 1/4W F R405 1-249-381-11 CARBON 1 5% 1/4W F R406 1-249-381-11 CARBON 1 5% 1/4W F R407 1-249-381-11 CARBON 1 5% 1/4W F R408 1-249-381-11 CARBON 1 5% 1/4W F R409 1-249-381-11 CARBON 1 5% 1/4W F R410 1-249-381-11 CARBON 1 5% 1/4W F R411 1-249-381-11 CARBON 1 5% 1/4W F R412 1-249-381-11 CARBON 1 5% 1/4W F R413 1-245-274-11 RES-CHIP 0.05 1% 1W R414 1-245-274-11 RES-CHIP 0.05 1% 1W R415 1-245-274-11 RES-CHIP 0.05 1% 1W R416 1-216-073-00 RES-CHIP 10K 5% 1/10W R417 1-216-073-00 RES-CHIP 10K 5% 1/10W R418 1-216-045-00 METAL CHIP 680 5% 1/10W R419 1-216-025-11 RES-CHIP 100 5% 1/10W R420 1-216-045-00 METAL CHIP 680 5% 1/10W R421 1-216-025-11 RES-CHIP 100 5% 1/10W R422 1-216-073-00 RES-CHIP 10K 5% 1/10W R423 1-216-045-00 METAL CHIP 680 5% 1/10W R424 1-216-025-11 RES-CHIP 100 5% 1/10W R425 1-216-073-00 RES-CHIP 10K 5% 1/10W R426 1-216-045-00 METAL CHIP 680 5% 1/10W R427 1-216-025-11 RES-CHIP 100 5% 1/10W R428 1-216-073-00 RES-CHIP 10K 5% 1/10W R429 1-216-045-00 METAL CHIP 680 5% 1/10W R430 1-216-025-11 RES-CHIP 100 5% 1/10W R801 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R802 1-216-013-00 METAL CHIP 33 5% 1/10W R803 1-216-073-00 RES-CHIP 10K 5% 1/10W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 40 STR-KSL7/SL7/TA-KSL7 R804 1-216-073-00 RES-CHIP 10K 5% 1/10W R805 1-216-073-00 RES-CHIP 10K 5% 1/10W R806 1-216-073-00 RES-CHIP 10K 5% 1/10W R807 1-216-081-00 METAL CHIP 22K 5% 1/10W R808 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R809 1-216-013-00 METAL CHIP 33 5% 1/10W R810 1-216-081-00 METAL CHIP 22K 5% 1/10W R811 1-216-097-11 RES-CHIP 100K 5% 1/10W R812 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R813 1-216-073-00 RES-CHIP 10K 5% 1/10W R815 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R816 1-216-081-00 METAL CHIP 22K 5% 1/10W R817 1-216-081-00 METAL CHIP 22K 5% 1/10W R820 1-216-073-00 RES-CHIP 10K 5% 1/10W R821 1-216-073-00 RES-CHIP 10K 5% 1/10W R822 1-216-073-00 RES-CHIP 10K 5% 1/10W R823 1-216-073-00 RES-CHIP 10K 5% 1/10W R824 1-216-081-00 METAL CHIP 22K 5% 1/10W R825 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R827 1-216-081-00 METAL CHIP 22K 5% 1/10W R828 1-216-097-11 RES-CHIP 100K 5% 1/10W 0R900 1-219-237-11 SOLID 3.3M 20% 1/2W (STR-KSL7:CND/STR-SL7) 0R901 1-216-045-00 METAL CHIP 680 5% 1/10W 0R902 1-240-858-71 METAL 0.27 5% 2W (STR-KSL7:E,MY,SP/TA-KSL7) 0R902 1-244-396-11 METAL 0.24 5% 2W (STR-KSL7:CND,MX/STR-SL7) 0R903 1-244-396-11 METAL 0.24 5% 2W (STR-KSL7:E,MY,SP/TA-KSL7) 0R903 1-243-944-71 METAL 0.33 5% 2W (STR-KSL7:CND,MX/STR-SL7) R904 1-216-065-00 RES-CHIP 4.7K 5% 1/10W 0R905 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R906 1-216-065-91 RES-CHIP 4.7K 5% 1/10W 0R907 1-216-065-91 RES-CHIP 4.7K 5% 1/10W 0R908 1-215-904-11 METAL OXIDE 100K 5% 2W (STR-KSL7:E,MY,SP/TA-KSL7) 0R908 1-215-901-00 METAL OXIDE 33K 5% 2W (STR-KSL7:CND,MX/STR-SL7) 0R909 1-247-887-00 CARBON 220K 5% 1/4W 0R910 1-215-886-11 METAL OXIDE 100 5% 2W 0R911 1-215-886-11 METAL OXIDE 100 5% 2W 0R912 1-216-061-91 RES-CHIP 3.3K 5% 1/10W 0R913 1-249-387-11 CARBON 3.3 5% 1/4W F R914 1-216-055-00 METAL CHIP 1.8K 5% 1/10W R915 1-216-077-00 RES-CHIP 15K 5% 1/10W R916 1-216-049-11 RES-CHIP 1K 5% 1/10W R917 1-216-073-00 RES-CHIP 10K 5% 1/10W R918 1-216-077-00 RES-CHIP 15K 5% 1/10W R919 1-216-089-00 RES-CHIP 47K 5% 1/10W R920 1-216-063-00 RES-CHIP 3.9K 5% 1/10W R920 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R921 1-216-084-00 METAL CHIP 30K 5% 1/10W R922 1-216-075-00 METAL CHIP 12K 5% 1/10W R923 1-216-073-00 RES-CHIP 10K 5% 1/10W R924 1-216-049-11 RES-CHIP 1K 5% 1/10W R925 1-216-049-11 RES-CHIP 1K 5% 1/10W 0R926 1-219-984-51 METAL 0.1 5% 2W (STR-KSL7:CND,MX/STR-SL7) R927 1-216-089-00 RES-CHIP 47K 5% 1/10W R928 1-216-081-00 METAL CHIP 22K 5% 1/10W R929 1-216-073-00 RES-CHIP 10K 5% 1/10W R930 1-249-394-11 CARBON 12 5% 1/4W F R931 1-216-094-00 RES-CHIP 75K 5% 1/10W R932 1-216-847-11 METAL CHIP 150K 5% 1/16W R933 1-249-381-11 CARBON 1 5% 1/4W F R934 1-216-081-00 METAL CHIP 22K 5% 1/10W R936 1-216-001-00 METAL CHIP 10 5% 1/10W < RELAY > RY201 1-515-614-11 RELAY RY801 1-515-614-11 RELAY < TRANSFORMER > 0T901 1-437-519-11 TRANSFORMER, POWER (STR-KSL7:E,MY,SP/TA-KSL7) 0T901 1-437-518-11 TRANSFORMER, POWER (STR-KSL7:CND,MX/STR-SL7) < THERMISTOR > TH901 1-803-916-11 THERMISTOR, NTC < TERMINAL > TM801 1-537-842-11 TERMINAL BOARD (SPEAKER FRONT) TM802 1-537-510-31 TERMINAL BOARD (SPEAKER) (6P) (SURROUND,CENTER) < VIBRATOR > X300 1-795-286-21 VIBRATOR, CRYSTAL 49.152MHz ************************************************************ 1-681-852-11 POWER SW BOARD **************** < SWITCH > S118 1-762-196-21 SWITCH, TACT (?/1) ************************************************************ 1-681-855-11 S VIDEO BOARD ************* < CAPACITOR > C202 1-126-964-11 ELECT 10uF 20.00% 50V C203 1-165-319-11 CERAMIC CHIP 0.1uF 50V C204 1-126-964-11 ELECT 10uF 20.00% 50V C205 1-165-319-11 CERAMIC CHIP 0.1uF 50V C206 1-126-964-11 ELECT 10uF 20.00% 50V C207 1-165-319-11 CERAMIC CHIP 0.1uF 50V C208 1-126-964-11 ELECT 10uF 20.00% 50V C209 1-165-319-11 CERAMIC CHIP 0.1uF 50V C210 1-126-964-11 ELECT 10uF 20.00% 50V C211 1-163-243-11 CERAMIC CHIP 47PF 5.00% 50V MAIN POWER SW S VIDEO The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 41 STR-KSL7/SL7/TA-KSL7 C212 1-104-665-11 ELECT 100uF 20.00% 10V C213 1-163-243-11 CERAMIC CHIP 47PF 5.00% 50V C214 1-165-319-11 CERAMIC CHIP 0.1uF 50V C227 1-163-021-11 CERAMIC CHIP 0.01uF 10.00% 50V C239 1-128-840-11 ELECT 47uF 20% 16V < CONNECTOR > CNS201 1-784-727-11 CONNECTOR, FFC 5P < IC > IC201 8-759-524-00 IC TC4052BF(EL,N) IC202 8-759-293-22 IC NJM2268M-TE1 < JACK > J201 1-537-943-11 TERMINAL, S (DVD IN) J202 1-764-676-11 CONNECTOR (ROUND TYPE) (TV IN,AUX IN) J203 1-764-676-11 CONNECTOR (ROUND TYPE) (MONITOR OUT,VIDEO IN) < COIL > L201 1-414-398-11 INDUCTOR 10uH < RESISTOR > R201 1-216-022-00 METAL CHIP 75 5% 1/10W R202 1-216-049-11 RES-CHIP 1K 5% 1/10W R203 1-216-049-11 RES-CHIP 1K 5% 1/10W R204 1-216-022-00 METAL CHIP 75 5% 1/10W R205 1-216-049-11 RES-CHIP 1K 5% 1/10W R206 1-216-022-00 METAL CHIP 75 5% 1/10W R207 1-216-022-00 METAL CHIP 75 5% 1/10W R208 1-216-022-00 METAL CHIP 75 5% 1/10W R209 1-216-022-00 METAL CHIP 75 5% 1/10W R210 1-216-022-00 METAL CHIP 75 5% 1/10W R211 1-216-022-00 METAL CHIP 75 5% 1/10W R212 1-216-022-00 METAL CHIP 75 5% 1/10W R213 1-216-049-11 RES-CHIP 1K 5% 1/10W R214 1-216-073-00 RES-CHIP 10K 5% 1/10W R215 1-216-022-00 METAL CHIP 75 5% 1/10W ************************************************************ MISCELLANEOUS ************** 10 1-773-154-11 WIRE (FLAT TYPE) (21 CORE) 057 1-777-071-21 CORD, POWER (STR-KSL7:E,MY,SP/TA-KSL7:AEP,UK) 057 1-782-464-21 CORD, POWER (TA-KSL7:CH) 057 1-783-820-11 CORD, POWER (STR-KSL7:CND,MX/STR-SL7) 58 1-693-407-21 TUNER UNIT (EXCEPT STR-KSL7:MY,SP,TA-KSL7) 58 1-693-409-21 TUNER UNIT (STR-KSL7:MY,SP) 59 1-773-002-11 WIRE (FLAT TYPE) (15 CORE) (EXCEPT TA-KSL7) 62 1-769-841-11 WIRE (FLAT TYPE) (5 CORE) 64 1-769-970-11 WIRE (FLAT TYPE) (13 CORE) 65 1-775-185-11 WIRE (FLAT TYPE) (21 CORE) 1-775-117-11 WIRE (FLAT TYPE) (13 CORE) (EXCEPT STR-KSL7:MX/STR-SL7) 1-775-151-11 WIRE (FLAT TYPE) (17 CORE) (STR-SL7) ************************************************************ ACCESSORIES ************ 1-476-786-11 COMMANDER, STANDARD (RM-U305S) (STR-SL7) 1-569-008-21 ADAPTOR, CONVERSION 2P (STR-KSL7:E) 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (TA-KSL7:UK) 1-754-149-11 LOOP ANT (AM) (STR-SL7) 1-793-184-21 CONNECTOR (F TYPE ADAPTOR) (STR-SL7) 4-228-696-11 COVER, BATTERY (STR-SL7) 4-235-542-11 MANUAL, INSTRUCTION (STR-SL7) S VIDEO The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-KSL7/SL7/TA-KSL7 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2001.10 New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
