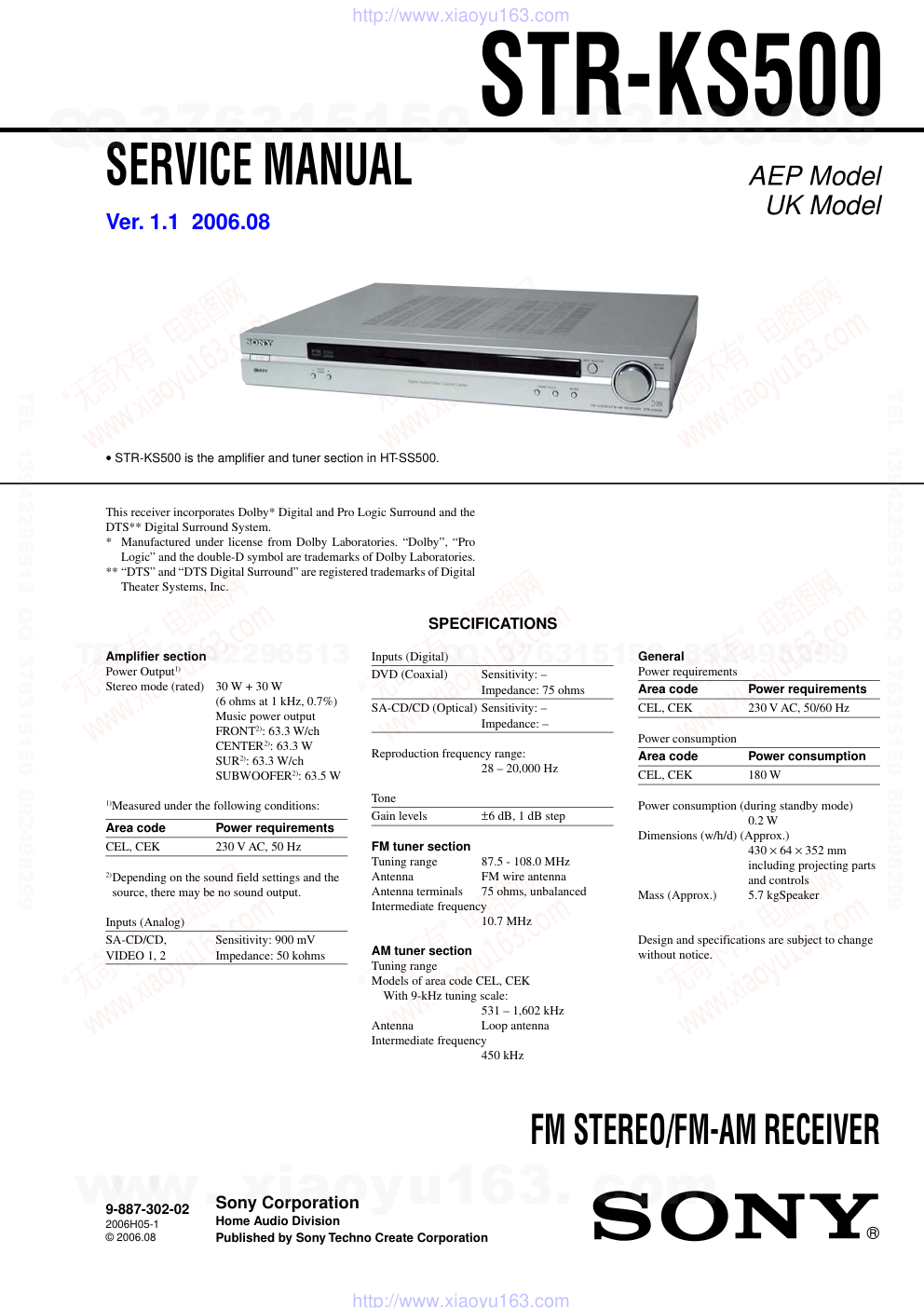

SERVICE MANUAL FM STEREO/FM-AM RECEIVER AEP Model UK Model SPECIFICATIONS STR-KS500 Ver. 1.1 2006.08 9-887-302-02 2006H05-1 © 2006.08 Sony Corporation Home Audio Division Published by Sony Techno Create Corporation • STR-KS500 is the amplifier and tuner section in HT-SS500. This receiver incorporates Dolby* Digital and Pro Logic Surround and the DTS** Digital Surround System. * Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories. ** “DTS” and “DTS Digital Surround” are registered trademarks of Digital Theater Systems, Inc. Amplifier section Power Output1) Stereo mode (rated) 30 W + 30 W (6 ohms at 1 kHz, 0.7%) Music power output FRONT2): 63.3 W/ch CENTER2): 63.3 W SUR2): 63.3 W/ch SUBWOOFER2): 63.5 W 1)Measured under the following conditions: Area code Power requirements CEL, CEK 230 V AC, 50 Hz 2)Depending on the sound field settings and the source, there may be no sound output. Inputs (Analog) SA-CD/CD, Sensitivity: 900 mV VIDEO 1, 2 Impedance: 50 kohms Inputs (Digital) DVD (Coaxial) Sensitivity: – Impedance: 75 ohms SA-CD/CD (Optical) Sensitivity: – Impedance: – Reproduction frequency range: 28 – 20,000 Hz Tone Gain levels ±6 dB, 1 dB step FM tuner section Tuning range 87.5 - 108.0 MHz Antenna FM wire antenna Antenna terminals 75 ohms, unbalanced Intermediate frequency 10.7 MHz AM tuner section Tuning range Models of area code CEL, CEK With 9-kHz tuning scale: 531 – 1,602 kHz Antenna Loop antenna Intermediate frequency 450 kHz General Power requirements Area code Power requirements CEL, CEK 230 V AC, 50/60 Hz Power consumption Area code Power consumption CEL, CEK 180 W Power consumption (during standby mode) 0.2 W Dimensions (w/h/d) (Approx.) 430 × 64 × 352 mm including projecting parts and controls Mass (Approx.) 5.7 kgSpeaker Design and specifications are subject to change without notice. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 STR-KS500 TABLE OF CONTENTS 1. GENERAL ................................................................... 3 2. DISASSEMBLY 2-1. Disassembly Flow ........................................................... 5 2-2. Case (SL500) ................................................................... 5 2-3. Front Panel Assy .............................................................. 6 2-4. MAIN Board.................................................................... 6 3. TEST MODE .............................................................. 7 4. DIAGRAMS 4-1. Block Diagram – AUDIO DSP Section – ........................ 8 4-2. Block Diagram – TUNER/AUDIO AMP Section – ........ 9 4-3. Block Diagram – DISPLAY/POWER SUPPLY Section – ....................... 10 4-4. Printed Wiring Board – DIGITAL Board (Component Side) – .......................... 12 4-5. Printed Wiring Board – DIGITAL Board (Conductor Side) – ............................ 13 4-6. Schematic Diagram – DIGITAL Board (1/3) – ............... 14 4-7. Schematic Diagram – DIGITAL Board (2/3) – ............... 15 4-8. Schematic Diagram – DIGITAL Board (3/3) – ............... 16 4-9. Schematic Diagram – MAIN Section (1/3) – .................. 17 4-10. Schematic Diagram – MAIN Section (2/3) – .................. 18 4-11. Schematic Diagram – MAIN Section (3/3) – .................. 19 4-12. Printed Wiring Board – MAIN Board – .......................... 20 4-13. Printed Wiring Boards – SPEAKER/STANDBY Boards – ................................. 21 4-14. Printed Wiring Boards – PANEL Section –..................... 22 4-15. Schematic Diagram – PANEL Section – ......................... 23 5. EXPLODED VIEWS 5-1. Front Panel Section ......................................................... 32 5-2. Chassis Section ................................................................ 33 6. ELECTRICAL PARTS LIST ................................ 34 Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size) : LEAD FREE MARK Unleaded solder has the following characteristics. • Unleaded solder melts at a temperature about 40 °C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 °C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! • Strong viscosity Unleaded solder is more viscou-s (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. • Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 STR-KS500 SECTION 1 GENERAL This section is extracted from instruction manual. Description and location of parts Front panel Getting Started Receiver MASTER VOLUME PRESET TUNING SOUND FIELD MUTING ?/1 1 2 3 4 5 7 8 6 INPUT SELECTOR Name Function A ?/1 Press to turn the receiver on or off. B Display The current status of the selected component or a list of selectable items appears here. C Remote sensor Receives signals from remote commander. D INPUT SELECTOR Press to select the input source to playback. E MASTER VOLUME Turn to adjust the volume level of all speakers at the field. F MUTING Press to mute the sound. G SOUND FIELD +/– Press to select a sound field. H PRESET TUNING +/– Press to select a preset station. About the indicators on the display L C R SL SR SW D.RANGE RDS ST MONO MEMORY S SLEEP DIGITAL DTS PL LFE OPT COAX 2 1 3 4 5 6 7 8 9 q; qa qs qd Name Function A Lights up when the disc being played back contains an LFE (Low Frequency Effect) channel and the LFE channel signal is actually being reproduced. B SLEEP Lights up when the sleep timer is activated. C Playback channel indicators L R C SL SR S The letters (L, C, R, etc.) indicate the channels being played back. The boxes around the letters vary to show how the receiver downmixes the source sound. Front Left Front Right Center (monaural) Surround Left Surround Right Surround (monaural or the surround components obtained by Pro Logic processing) Example: Recording format (Front/ Surround): 3/2.1 Sound Field: A.F.D. AUTO D ;DIGITAL Lights up when Dolby Digital signals are input. Note When playing a Dolby Digital format disc, be sure that you have made digital connections and the audio input mode for SA-CD/CD input is not set to “CD ANLG”. LFE L C R SL SR SW Name Function E Preset station indicators Lights up when using the receiver to tune in radio stations you have preset. For details on presetting radio stations. F D.RANGE Lights up when dynamic range compression is activated. G Tuner indicators Lights up when using the receiver to tune in radio stations, etc. Note “RDS” lights up for models of area code CEL, CEK only. H MEMORY Lights up when a memory function, such as Preset Memory, etc., is activated. I COAX Lights up when the DVD input is selected. J OPT Lights up when – the audio input mode for SA- CD/CD input is set to “CD AUTO” and the source signal is a digital signal being input through the SA-CD/CD OPT IN jack. – the audio input mode for SA-CD/CD input is set to “CD OPT”. Name Function K ;PL(II) Lights up when the receiver applies Pro Logic processing to 2 channel signals in order to output the center and surround channel signals. “; PLII” lights up when the Pro Logic II Movie/ Music decoder is activated. Note Dolby Pro Logic and Dolby Pro Logic II decoding do not function for DTS format signals. L DTS Lights up when DTS signals are input. Note When playing a DTS format disc, be sure that you have made digital connections and the audio input mode for SA-CD/CD input is not set to “CD ANLG”. M SW Lights up when the audio signal is output from the SUBWOOFER jack. Rear panel DVD COAX IN OPT IN SA-CD/CD DIGITAL SA-CD/CD AUDIO IN VIDEO 2 AUDIO IN VIDEO 1 AUDIO IN L R L R SPEAKERS L R L R L R L R FRONT CENTER SUB WOOFER SURROUND 2 3 4 U ANTENNA AM 1 A ANTENNA section FM ANTENNA Connects to the FM wire antenna supplied with this receiver. AM ANTENNA Connects to the AM loop antenna supplied with this receiver. B DIGITAL INPUT section OPTICAL IN jack Connects to a DVD player, etc. The COAX IN jack provides a better quality of loud sound. COAXIAL IN jack C AUDIO INPUT section AUDIO IN jack Connects to a satellite tuner, CD player, etc. D SPEAKER section Connects to speakers and sub woofer. White (L) Red (R) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 STR-KS500 You can operate the receiver with the supplied remote. You can also use the remote to control the Sony audio/video components that the remote is assigned to operate. Remote commander 1 2 3 4 6 7 8 0/10 ENTER 9 SYSTEM STANDBY TV/VIDEO SLEEP TEST TONE AV ?/1 VIDEO 1 VIDEO 2 DVD SA-CD/CD 2CH A.F.D. RETURN/EXIT TV CH – PRESET – TV CH + PRESET + TUNING – TV TUNING + REPLAY ADVANCE c STEP C DISPLAY MOVIE MUSIC MEMORY SHIFT D.SKIP CLEAR ANGLE AV MENU TOP MENU/ GUIDE MUTING TV VOL MASTER VOL FM MODE MPX AUDIO D.TUNING ANT JUMP SUBTITLE DUAL MONO TUNER MAIN MENU TV ?/1 ?/1 >10 - F G g f ENTER . H m M X x < < > 5 1 3 2 wf wg 5 6 7 8 q; 9 qs qf qg qj qh ql qa 4 w; wa ws wd qk AV ?/1 (on/standby) switch TV ?/1, ?/1 (on/standby) switch qd Name Function A AV ?/1 Press to turn on or off the Sony audio/video components that the remote is assigned to operate. If you press ?/1 (B) at the same time, it will turn off the receiver and other components (SYSTEM STANDBY). Note The function of the AV ?/1 switch changes automatically each time you press the input buttons (C). B TV ?/1 Press TV ?/1 and TV (P) at the same time to turn the TV on or off. ?/1 Press to turn the receiver on or off. To turn off all components, press ?/1 and AV ?/1 (A) at the same time (SYSTEM STANDBY). C Input buttons Press one of the buttons to select the component you want to use. When you press any of the input buttons, the receiver turns on. The buttons are factory assigned to control Sony components as follows. You can change the button assignments following the steps in “Changing button assignments”. D MAIN MENU Press to display the menu of the receiver. Then, use the control buttons to perform menu operations. E MOVIE, MUSIC Press to select sound fields for movie or music. F DUAL MONO Press to select the language you want during digital broadcast. Button Assigned Sony component VIDEO 1 VCR (VTR mode 3) VIDEO 2 VCR (VTR mode 2) DVD DVD player SA-CD/CD Super Audio CD/CD player TUNER Built-in tuner G FM MODE Press to select FM monaural or stereo reception. MPX Press to select the main or sub language of the VCR. AUDIO Press to change the sound to Multiplex, Biligual or Multi channel TV sound of the DVD player or satellite tuner. H D.TUNING Press to enter direct tuning mode. ANT Press to select the output signal from the antenna terminal (TV signal or VCR program) of the VCR or satellite tuner. SUBTITLE Press to change the subtitles of the DVD player. I ENTER Press to enter the value after selecting a channel, disc or track using the numeric buttons. MEMORY Press to store a station. D.SKIP Press to skip disc of the CD player or DVD player (multi- disc changer only). J JUMP Press to toggle between the previous and the current channels of the satellite tuner. ANGLE Press to select the viewing angle or to change the angles of the DVD player. K AV MENU Press to display the menus of the VCR, DVD player, or satellite tuner on the TV screen. Then, use the control buttons to perform menu operations. L MUTING Press to mute the sound. M TV VOL +a)/– Press TV VOL +/– and TV (P) at the same time to adjust the TV volume level. MASTER VOL +a)/– Press to adjust the volume level of all speakers at the same time. Name Function N DISPLAY Press to – select information displayed on the receiver’s display (for TUNER input only).b) – select information displayed on the TV screen of the VCR, satellite tuner, CD player, DVD player, or MD deck. O ./> Press to skip tracks of the CD player, DVD player, MD deck, or tape deck. c STEP C, REPLAY / ADVANCE Press to replay the previous scene or fast forward the current scene of the VCR or DVD player. m/M Press to – search tracks in the forward/ backward direction of the DVD player. – fast forward/rewind of the VCR, CD player, MD deck, or tape deck. Ha) Press to start playback of the VCR, CD player, DVD player, MD deck, or tape deck. X Press to pause playback or recording of the VCR, CD player, DVD player, MD deck, or tape deck. (Also starts recording with components in recording standby.) x Press to stop playback of the VCR, CD player, DVD player, MD deck, or tape deck. TV CH +/– Press TV CH +/– and TV (P) at the same time to select preset TV channels. PRESET +/– Press to select – preset stations. – preset channels of the VCR or satellite tuner. TUNING +/– Press to scan a station. Name Function < < a)The number 5, MASTER VOL +, TV VOL +, and H buttons have tactile dots. Use the tactile dots as references when operating the receiver. b)Models of area code CEL, CEK only. Notes • Some functions explained in this section may not work depending on the model. • The above explanation is intended to serve as an example only. Therefore, depending on the component, the above operation may not be possible or may operate differently than described. • The SHIFT button on the remote is not available for receiver operation. Name Function P TV To activate the buttons with orange printing, press TV and the button with orange printing simultaneously. Q RETURN/ EXIT O Press to – return to the previous menu. – exit the menu while the menu or on-screen guide of the DVD player, or satellite tuner is displayed on the TV screen. R Control buttons After pressing MAIN MENU (D), AV MENU (K), or TOP MENU/GUIDE (S), press the control button V, v, B or b to select the settings. When you press AV MENU or TOP MENU/GUIDE, press ENTER to enter the selection. S TOP MENU/ GUIDE Press to display the – DVD title of the DVD player. – guide menu of the satellite tuner. T -/-- Press -/-- and TV (P) at the same time to select the channel entry mode, either one or two digits of the TV. >10 Press to select track numbers over 10 of the VCR, CD player, or MD deck. CLEAR Press to – clear a mistake when you press the incorrect numeric button. – return to continuous playback, etc. of the satellite tuner or DVD player. U Numeric buttons (number 5a)) Press to – preset/tune to preset stations. – select track numbers of the CD player, DVD player or MD deck. Press 0/10 to select track number 10. – select channel numbers of the VCR or satellite tuner. Press the numeric buttons and TV (P) at the same time to select the TV channels. Name Function V 2CH Press to select 2CH STEREO mode. W A.F.D. Press to select A.F.D. mode. X TEST TONE Press to activate the Test Tone function. Y TV/VIDEO Press TV/VIDEO and TV (P) at the same time to select the input signal (TV input or video input). SLEEP Press to activate the Sleep Timer function and the duration which the receiver turns off automatically. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-KS500 5 2 two screws (case 3 TP2) 2 two screws (case 3 TP2) 5 case (SL500) 3 4 1 two screws (BVTP3 × 8) 3 2-2. CASE (SL500) (Page 5) SET 2-3. FRONT PANEL ASSY (Page 6) 2-4. MAIN BOARD (Page 6) Note: Follow the disassembly procedure in the numerical order given. 2-2. CASE (SL500) • This set can be disassembled in the order shown below. 2-1. DISASSEMBLY FLOW SECTION 2 DISASSEMBLY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-KS500 6 5 claw 7 nut 6 volume knob (SL500) 4 four screws (BVTP3 × 6) 8 front panel assy 5 claw 1 wire (flat type) (17 core) (CNS193) 3 harness 2 screw (BVTP3 × 6) 2-3. FRONT PANEL ASSY 2-4. MAIN BOARD qf MAIN board 1 wire (flat type) (21 core) (CNS822) qa screw (BVTP3 × 10) qd screw (BVTP3 × 10) qs two screws (BVTP3 × 6) 3 connector (CNP903) 4 connector (CN700) 5 wire (flat type) (21 core) (CNS403) 9 D.C. fan (M1) 8 connector (CNP861) 7 two screws (BVTP3 × 8) 0 two screws (BVTP3 × 8) 2 three connectors (CNP801, CNP802, CNP804) 6 wire (flat type) (7 core) (CNS301) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-KS500 7 7 STR-KS500 SECTION 3 TEST MODE SOUND FIELD CLEAR MODE The preset sound field is cleared when this mode is activated. Use this mode before returning the product to clients upon completion of repair. Procedure: 1. While pressing the [SOUND FIELD +] button, press the I/1 button to turn on the main power. 2. The message “S.F. CLR.” appears and initialization is performed. RDS AUTOBETICAL MODE Procedure: 1. While pressing the [INPUT SELECTOR] button, press the I/1 button to turn on the main power. 2. The message “AUTO-BETICAL SELECT” appears and scans and stores all the FM and FM RDS stations in the broadcast area. 3. When done, the message “FINISH” appears. FACTORY PRESET MODE All preset contents are reset to the default setting. Procedure: 1. While pressing the [SOUND FIELD --] and [PRESET TUNING +] buttons, press the I/1 button to turn on the main power. 2. The message “FACTORY” appears and the present contents are reset to the default values. FL CHECK MODE All fluorescent segments are tested. When this test is activated, all segments turn on at the same time, then each segment turns on one after another. Procedure: 1. While pressing the [MUTING] and [PRESET TUNING --] buttons, press the I/1 button to turn on the main power. 2. All segments turn on. 3. Press the [INPUT SELECTOR] button. 4. Half of segments turn on. 5. Press the [INPUT SELECTOR] button once again. 6. Others half of segments turn on. 7. Press the [INPUT SELECTOR] button once again. 8. All segments turn off. VERSION MODE When this mode is used, the model, the destination and the software version number are displayed. Procedure: 1. While pressing the [SOUND FIELD +] and [PRESET TUNING --] buttons, press the I/1 button to turn on the main power. 2. The model, the destination and the software version number appear. KEY CHECK MODE This mode is used to check the key. Procedure: 1. While pressing the [MUTING] and [INPUT SELECTOR] buttons, press the I/1 button to turn on the main power. 2. The message “REST 06” appears. 3. Every pressing of any button other than the I/1 button counts down the buttons. The buttons which are already counted once are not counted again. 4. When all buttons are pressed, the message “REST 00” appears. COMMAND MODE CHANGE MODE The command mode of the remote commander can be changed. Procedure: 1. While pressing the [SOUND FIELD +] and [INPUT SELECTOR] buttons, press the I/1 button to turn on the main power. 2. Either the message “C.MODE.AV 1” or “C.MODE.AV 2” appears for a moment and select the desired mode. SWAP ALL MODE When this mode is used, output the audio signal of front L/R channel to all channel. Procedure: 1. While pressing the [PRESET TUNING +] and [MUTING] buttons, press the I/1 button to turn on the main power. 2. The message “SWP. ALL” appears. PROTECTOR AUTO OFF MODE When this mode is used, a protector on state is maintainable. Procedure: 1. While pressing the [MUTING] and [SOUND FIELD --] buttons, press the I/1 button to turn on the main power. 2. The message “PLOT. EVER” appears. ALL CLEAR MODE All preset contents are cleared when this mode is activated. Use this mode before returning the product to clients upon completion of repair. Procedure: 1. While pressing the [INPUT SELECTOR] and [PRESET TUNING +] buttons, press the I/1 button to turn on the main power. 2. The message “CLEARED” appears and the memories are reset to the default values. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-KS500 8 8 STR-KS500 A L-CH 1 12 LIN DOUT 11 BCK 10 LRCK 2 RIN PDWN R-CH 7 SCKI 15 A/D CONVERTER IC1602 DIGITAL AUDIO INTERFACE RECEIVER IC1301 4 DIN1 5 DIN2 DIGITAL OPTICAL RECEIVER IC301 SA-CD/CD OPT IN DVD COAX IN J301 DIGITAL IC303 16 DATA0 14 BCK 15 LRCK 13 CKOUT 24 AUDIO 35 DO 36 DI 38 CLK 37 CE 48 XMODE 34 ERROR 17 XSTATE XMCK 20 XIN 22 XOUT 21 X1301 12.288MHz AUDIO DIGITAL SIGNAL PROCESSOR IC1501 18 SDI1 30 SDI2 17 BCKI1 29 BCKI2 15 LRCKI1 28 LRCKI2 22 KFSIO 69 GP8 59 EXLOCK 98 DO 1 DATAO 97 DI 95 CLK 96 CE 99 ERROR 93 XMODE 9 PCM1803_RST D1301 100 XSTATE HDIN HDIN 33 19 HCLK HCLK 34 20 HCS HCS 36 4 HDOUT HDOUT 35 18 HACN HACN 32 5 BST BST 56 3 GP9 GP9 68 MCLK2 12 MCLK1 9 2 GP12 GP12 37 8 PM PM 113 7 XRST XRST 2 6 108, 107, 105 – 102, 99, 98, 80 – 77, 75 – 72 D0 – D15 112, 110, 109, 97 – 92, 82 – 85, 66 – 64 7 – 10, 13 – 16, 29 – 32, 35 – 38 5 – 1, 44 – 42, 27 – 24, 21 – 18 A0 – A15 D0 – D15 A0 – A15 WE WE0 17 45 CS CE0 6 44 S-RAM IC1502 23 SDO1 24 SDO2 25 SDO3 SDO3 SDO2 SDO1 SDO1, SDO2, SDO3 20 BCKO 19 LRCKO 14 SCKOUT SCKO LRCKO BCKO 29 SDA 33 SCL X0 82 X1 83 X1101 24MHz X1502 13.9MHz SYSTEM CONTROLLER IC1601 (1/3) EEPROM IC1131 5 SDA 6 SCL B BCKO, LRCKO, SCKO C : AUDIO (ANALOG) : AUDIO (DIGITAL) SIGNAL PATH R-ch is omitted due to same as L-ch. OE OE0 41 43 4-1. BLOCK DIAGRAM – AUDIO DSP Section – (Page 9) (Page 9) (Page 9) SECTION 4 DIAGRAMS w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-KS500 9 9 STR-KS500 D/A CONVERTER IC1452 SDO3 SDO2 SDO1 SDO1, SDO2, SDO3 B L-CH A 47 DATA3 45 DATA1 46 DATA2 SCKO LRCKO BCKO BCKO, LRCKO, SCKO C 40 BCK 41 LRCK 38 SCKI 16 LIN 51 LVIN 10 VOUT5 52 LIGO 9 VOUT6 R-CH 14 VOUT1 13 VOUT2 12 VOUT3 11 VOUT4 R-CH R-CH 38 SLVIN 37 SLIGO 35 CVIN 36 CIGO 30 SWVIN 29 SWIGO 70 FRONT RELAY 46 FAN-HI-DETECT 76 LEVEL_DETECT 73 F_CTRL1 74 F_CTRL2 49 LOUT 40 SLOUT 33 COUT 32 SWOUT 6 INL3 19 SLIN 20 CIN 21 SWIN 8 INL2 R-CH L R 4 INL4 R-CH L R 2 INL5 13 ADIFL R-CH L R SA-CD/CD AUDIO IN VIDEO 1 AUDIO IN VIDEO 2 AUDIO IN FM AM TN1 TUNER FM 75Ω COAXIAL AM ANTENNA 8 L CH 69 DO RDS SIGNAL RDS CLK RDS DATA 2 43 13 52 14 53 15 DO FM SIG OUT RDS INT RDS DATA 68 SLATCH 17 TUNER_DATA 16 TUNER_CLK 4 CE 66 TUNED 6 TUNED 65 STEREO 7 STEREO 64 MUTE 11 MUTING 3 DATA 1 CLOCK 10 R CH J1710 DATA 24 75 FAN_CLK CLOCK 26 MDI 34 MDO 33 MC 35 ML 36 RST 37 VOL_DATA 21 VOL_CLK 22 10 PCM1602_RST 12 PCM1602_ML 13 PCM1602_MC 14 15 PCM1602_MDI PCM1602_MDO FAN MOTOR LEVEL DETECT Q550, 551 FAN MOTOR CONTROL SWITCH Q867, 868 FAN MOTOR CONTROL SWITCH Q862, 863 RY701 AC POWER PROTECTOR Q730 – 732 RELAY DRIVE Q720 RY601 RELAY DRIVE Q620 67 PROTECTOR RELAY DRIVE Q520 RY501 TM500 TM501 R L + – – + + – + – + R-CH R-CH – – + FRONT R L SURROUND CENTER SUB WOOFER D721, D1110 D621, D1108 D521, D1107 72 REAR RELAY FAN MOTOR ON/OFF SWITCH Q861 LEVEL SHIFT Q866 71 CENTER RELAY M1 (FAN) M SYSTEM CONTROLLER IC1601 (2/3) AUDIO SELECTOR, ELECTRICAL VOLUME IC401 : AUDIO (DIGITAL) : AUDIO (ANALOG) : TUNER SIGNAL PATH R-ch is omitted due to same as L-ch. POWER AMP IC701 POWER AMP IC651 POWER AMP IC501 POWER AMP IC601 LINE AMP IC402 SPEAKERS D529 D729 -1 -2 + D820 4-2. BLOCK DIAGRAM – TUNER/AUDIO AMP Section – (Page 8) (Page 8) (Page 8) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-KS500 10 10 STR-KS500 FL1001 FLUORESCENT INDICATOR TUBE F1 F2 GRID1 – GRID12 54 SIRCS 60 VOL (A) 59 VOL (B) 38 A/D0 7 DIN FLUORESCENT INDICATOR TUBE DRIVER IC152 REMOTE CONTROL RECEIVER IC102 MASTER VOLUME ROTARY ENCODER RV101 S120, 121 39 A/D1 S117, 118 40 A/D2 56 POWER KEY S119, 122 S123 I / 1 42 – 31 SEG1 – SEG16 14 – 29 61 DIN 8 CLK 62 CLK 9 STB 63 FL_STB 78 POWER RELAY 48 STOP 77 RSTX 55 FUSE DETECT LEVEL SHIFT IC1651 (AC IN) RY901 POWER ON/OFF RELAY DRIVE Q951 T902 SUB POWER TRANSFORMER T901 MAIN POWER TRANSFORMER D957 D956 AC POWER DETECT Q901 RECT D952 – 955 RECT D805 – 808 +3.3V REGULATOR IC1904 RECT D801 – 804 +5V REGULATOR IC1031 –7V REGULATOR IC404 RESET SIGNAL GENERATOR IC1111 STBY +3.3V +1.85V/+3.3V REGULATOR IC1901 +5V REGULATOR IC1001 +5V –7V +7V REGULATOR IC403 +9V REGULATOR IC1902 +7V F901 F1 –30V F2 FLUORESCENT INDICATOR TUBE (FL101) D813 RECT D809 D+1.85V D+3.3V A+5V, D+5V +3.3V REGULATOR Q401 +3.3V +3.3V REGULATOR IC1071 TUNER+3.3V TUNER+9V B+ B– SYSTEM CONTROLLER IC1601 (3/3) 4-3. BLOCK DIAGRAM – DISPLAY/POWER SUPPLY Section – w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-KS500 11 11 STR-KS500 • Circuit Boards Location STANDBY board MAIN board SPEAKER board TUNER DIGITAL board TUNING board POWER board DISPLAY board • Note for Printed Wiring Boards and Schematic Diagrams Note on Printed Wiring Board: • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • f : internal component. • : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) Caution: Pattern face side: Parts on the pattern face side seen from (Conductor Side) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Component Side) the parts face are indicated. Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. (p: pF) 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • f : internal component. • 2 : nonflammable resistor. • 5 : fusible resistor. • C : panel designation. • A : B+ Line. • B : B– Line. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : TUNER • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. F : AUDIO (ANALOG) J : AUDIO (DIGITAL) f : TUNER Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. • Indication of transistor C B These are omitted. E Q w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-KS500 12 12 STR-KS500 4-4. PRINTED WIRING BOARD – DIGITAL Board (Component Side) – : Uses unleaded solder. • See page 11 for Circuit Boards Location. R1110 IC1301 IC1502 IC1651 R1362 C1301 C1302 R1301 R1302 R1303 R1304 C1303 C1304 C1305 R1446 R1486 X1301 X1502 R1436 R1476 R1426 R1466 C1483 R1445 R1425 FB1452 R1523 R1515 C1521 C1522 R1502 R1503 R1504 R1505 R1506 R1156 FB1503 R1151 R1152 R1153 R1305 R1311 R1360 JR1020 R1306 R1307 R1124 R1129 R1105 R1186 R1122 R1123 R1112 R1115 R1113 R1119 R1126 R1125 R1107 R1109 R1053 IC1131 R1529 R1308 R1309 R1310 D1301 R1312 R1313 R1315 R1316 R1136 R1137 R1134 R1135 R1041 R1142 R1143 R1144 R1160 R1161 R1162 R1121 R1150 R1501 R1149 R1508 R1509 R1511 R1541 R1555 R1168 R1548 R1549 R1550 R1551 R1552 R1553 R1554 R1525 R1526 R1518 R1519 R1520 R1521 R1522 R1517 R1547 R1532 R1533 R1534 R1535 R1536 R1537 R1538 R1539 R1540 R1542 R1543 R1544 R1527 R1528 FB1305 IC1111 R1106 R1127 R1189 C1107 C1137 R1128 R1435 C1252 R1251 R1252 C1063 C1131 C1913 FB1302 C1253 FB1501 FB1502 FB1101 C1123 R1070 C1124 C1122 C1108 FB1301 R1361 FB1352 IC1501 IC1452 R1147 R1154 R1157 C1432 C1472 C1422 C1462 R1464 C1441 R1484 R1460 R1440 R1470 X1101 IC1602 R1609 R1618 R1671 C1675 C1659 R1607 R1608 R1606 R1672 L1605 L1604 R1557 R1163 IC1601 C1454 1 12 13 24 48 37 36 25 1 12 13 24 48 37 36 25 1 30 31 60 120 91 90 61 1 30 31 50 100 81 80 51 DIGITAL BOARD (COMPONENT SIDE) 1-870-403- 11 (11) 1 10 20 11 4 5 3 1 A B C D E F G H I 1 2 3 4 5 6 7 8 • Semiconductor Location Ref. No. Location D1301 D-7 IC1111 G-3 IC1131 D-2 IC1301 D-7 IC1452 D-5 IC1501 F-6 IC1502 F-7 IC1601 E-3 IC1602 D-6 IC1651 E-2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-KS500 13 13 STR-KS500 4-5. PRINTED WIRING BOARD – DIGITAL Board (Conductor Side) – : Uses unleaded solder. • See page 11 for Circuit Boards Location. JR2001 JR2000 JR2002 C1101 FB1308 R1261 R1260 R1059 R1052 R1570 R1175 R1169 R1044 R1201 R1546 R1545 R1556 R1167 C1487 C1547 C1566 C1567 C1568 C1569 C1002 C1251 R1314 C1310 C1309 C1308 C1312 C1313 C1314 C1315 R1317 R1318 C1003 C1004 D1003 D1004 C1905 C1031 R1513 R1571 R1572 R1573 R1574 C1508 C1507 C1506 C1504 C1505 C1503 C1501 C1502 C1509 C1510 R1514 C1511 R1512 C1513 C1514 C1519 C1520 C1516 C1518 C1021 D1107 D1108 D1110 C1299 R1088 R1180 R1179 C1065 C1066 C1067 C1068 R1071 R1072 R1073 R1158 R1159 R1096 R1097 R1049 R1043 R1050 R1051 R1190 R1039 C1100 C1138 C1120 C1142 R1635 R1636 C1620 C1604 C1605 C1129 C1130 C1121 C1125 C1102 FB1351 C1280 C1281 C1282 R1422 C1456 R1492 R1423 R1421 R1420 R1461 R1441 C1657 C1658 C1654 C1671 C1672 C1674 D1661 D1600 R1442 R1471 R510 C1139 C1450 R1058 FB1453 CN197 CNS195 CNS193 IC1001 G1101 IC1901 IC1904 IC1902 IC1031 IC1071 G1102 CNS191 CNS194 C1032 C1517 C1515 C1022 C1908 C1906 C1069 C1525 C1653 C1673 C1670 C1656 C1457 C1460 C1402 C1468 C1428 C1458 C1418 C1448 C1438 C1306 C1001 C1914 C1064 C1805 C1804 G1000 (CHASSIS) (CHASSIS) A MAIN BOARD CNS301 B MAIN BOARD CNS403 D DISPLAY BOARD CNS151 C MAIN BOARD CNS822 DIGITAL BOARD (CONDUCTOR SIDE) 1 3 1 3 1 3 1 3 1 1 5 2 4 3 TN1 TUNER SUPPLIED WITH THE ASSEMBLED BLOCK FM 75Ω COAXIAL ANTENNA AM C1127 A B C D E F G H I 1 2 3 4 5 6 7 8 1-870-403- 11 (11) (CHASSIS) (Page 22) (Page 20) (Page 20) (Page 20) • Semiconductor Location Ref. No. Location D1003 E-2 D1004 E-2 D1107 G-7 D1108 G-7 D1110 G-7 D1600 D-3 D1661 D-3 IC1001 C-3 IC1031 H-3 IC1071 E-1 IC1901 I-4 IC1902 E-2 IC1904 G-7 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-KS500 14 14 STR-KS500 4-6. SCHEMATIC DIAGRAM – DIGITAL Board (1/3) – • See page 24 for Waveforms. • See page 24 for IC Block Diagrams. R1307 R1309 R1312 R1313 R1315 R1306 R1317 R1318 C1315 R1314 C1312 C1301 C1305 R1362 R1361 R1301 C1302 R1303 R1302 C1304 R1304 C1303 C1306 C1308 R1310 X1301 C1309 FB1305 R1360 FB1301 C1454 FB1453 JR1020 CN197 R1470 R1471 R1461 R1460 R1421 R1420 FB1308 FB1302 R1442 R1441 R1440 R1423 R1422 CNS195 C1251 C1252 C1253 R1252 R1251 R1260 R1261 C1914 C1913 C1021 C1022 C1131 C1450 C1004 D1003 D1004 R1609 R1618 R1672 R510 C1657 C1658 C1654 C1671 C1672 L1604 10µH R1607 R1606 R1671 R1608 FB1351 FB1352 G1102 IC1301 G1101 C1460 FB1452 C1402 R1492 C1456 R1311 C1282 C1280 C1281 TN1 L1605 C1653 C1659 IC1071 C1063 C1064 C1674 IC1602 C1656 C1670 C1673 C1675 C1313 R1316 C1314 C1310 R1305 C1003 C1457 R1308 D1301 IC1452 IC1904 IC1902 D1600 D1661 100 100 100 100 100 22 10k 10k 0.1 10k 0.1 0.1 0.1 100 100 5.6k 0.01 33k 4.7k 0.01 100 0.1 47 16V 0.1 1M 12.288MHz 18p 100 0.1 0 7P 0 0 0 0 0 0 0 0 0 0 0 15P 0.1 0.1 0.1 39k 39k 0 0 47 16V 0.1 0.1 470 10V 0.1 0.1 0.022 ISS367 -T3 ISS367 -T3 470 470 100 100 0.01 0.01 0.1 0.1 0.1 1k 100 0 2.2k LC89056W 10 50V 10 50V 10k 0.1 100 0.1 0.1 0.1 0 10 50V 0.1 TA78033LS 0.1 47 16V 0.001 PCM1803DBR 10 50V 10 50V 47 10V 0.01 100p 100 0.1 18p 470 0.1 10 50V 100 1SS352 PCM1602APT BA33BC0T TA7809S 1SS355WTE-17 1SS355WTE-17 A1 A2 A3 A4 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 XMODE CLK GP8 XSTATE DATAO CE SCKI SDI2 LRCKI1 BCKI1 KFSIO PCM_ML PCM_MC PCM_MDI PCM_MDO DI DO EXLOCK PCM_RST SCKOUT BCKO LRCKO SDO2 SDO3 SDO1 FR FL SW C SR SL RDS DATA RDS CLK RDSSIGNAL LRCKI1 1803_RST BCKI1 SCKI SDI1 L IN R IN R CH L CH COAX-IN +5V GND +3.3V GND GND SACD-IN MUTING GND STEREO TUNED CE DATA DO CLOCK VDD 10V L CH R CH VDD 3.3V FM SIG OUT RDS INT RDS DATA (CHASSIS) (CHASSIS) DISEL DOUT DIN0 DIN1 DIN2 D.GND DVDD R VIN LPF AVDD AGND CKOUT BCK LRCK DATAO XSTATE DGND DVDD XMCK XOUT XIN EMPHA AUDIO XMODE CKSEL1 CKSEL0 DOSEL1 DOSEL0 DVDD DGND MODE1 MODE0 XSEL CLK CE DI DO ERROR BPSYNC AUTO DGND DVDD F3/P3/C3 CSFLAG F2/P2/C2 F1/P1/C1 F0/P0/C0 (1/3) RDS DATA RDS INT FM SIG OUT VDD 3.3V MUTING R CH GND L CH STEREO TUNED VDD 10V CE DATA DO CLOCK ANTENNA COAXIAL FM 75Ω AM TUNER SUPPLIED WITH BLOCK THE ASSEMBLED +3.3V REGULATOR +3.3V REGULATOR G I O G O I G O I +9V REGULATOR A/D CONVERTER DIGITAL AUDIO INTERFACE RECEIVER D/A CONVERTER RST SCKI SCKO BCK LRCK TEST VDD DGND DATA1 DATA2 DATA3 ZER0A NC NC VOUT6 VOUT5 VOUT4 VOUT3 ZER01 ZER02 ZER03 ZER04 ZER05 ZER06 ML MC MDI MDO NC NC NC NC VCC1 AGND1 VCC2 AGND2 VCC3 AGND3 VCC4 AGND4 NC AGND6 VCC5 AGND5 NC VCOM VOUT1 VOUT2 (Page 16) (Page 17) (Page 15) (Page 16) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-KS500 15 15 STR-KS500 4-7. SCHEMATIC DIAGRAM – DIGITAL Board (2/3) – • See page 24 for Waveforms. • See page 27 for IC Pin Function Description. C1507 R1541 R1544 R1502 R1504 R1508 R1509 R1511 R1503 R1505 R1506 FB1501 FB1502 C1511 R1513 C1501 R1523 C1522 C1521 X1502 C1503 R1515 FB1503 R1556 C1504 C1506 C1505 R1570 R1571 R1572 R1573 R1574 R1532 R1533 R1534 R1547 R1535 R1536 R1542 R1540 R1539 R1538 R1537 C1514 C1510 C1513 R1528 R1527 R1545 R1546 R1555 R1543 IC1502 R1548 R1549 R1550 R1551 R1526 R1525 R1552 R1553 R1554 R1517 R1518 R1519 R1557 R1522 R1521 R1520 C1520 C1566 R1436 R1426 R1466 R1486 R1446 C1438 C1448 C1458 C1418 C1428 R1512 R1501 C1502 C1525 C1516 C1515 C1518 C1517 C1001 C1002 C1519 C1508 R1514 C1509 IC1501 R1435 C1432 R1464 C1462 R1425 C1422 R1484 C1483 R1445 C1441 IC1001 R1529 C1472 C1468 R1476 C1569 C1568 C1567 C1487 C1547 CNS191 0.1 220 220 100 100 100 100 100 220 100 100 0.1 10k 0.1 220 27p 27p 13.9MHz 0.1 1M 100 0.1 0.1 0.1 10k 10k 10k 10k 10k 220 220 220 220 220 220 220 220 220 220 220 0.1 0.1 0.1 220 220 220 220 220 220 IS61WV6416BLL 220 220 220 220 220 220 220 220 220 220 220 220 220 220 220 220 0.1 0.0022 1k 1k 1k 1k 1k 10 50V 10 50V 10 50V 10 50V 10 50V 10k 100 0.1 100 10V 0.1 470 10V 0.1 470 10V 470 10V 0.1 0.1 0.1 10k 0.1 CXD9862R 0 0 0 0 0 0 0 0 0 0 TA7805S 220 0 10 50V 1k 0.0022 0.0022 0.0022 0.0022 0.0022 21P A1 A2 A3 A4 C1 C2 C3 C5 C6 A5 A6 A7 D15 D14 D13 D12 D11 D10 D9 D8 D8 A9 A10 A11 OE A12 A12 A13 A14 A15 A13 A14 A15 D4 D5 D6 D7 D4 D5 D6 D7 D0 D1 D2 D3 D0 D1 D2 D3 A3 A4 A3 A4 A0 A1 A0 A1 CS CS A2 A2 WE WE A5 A6 A7 A8 A9 A10 A11 D8 D9 D10 D11 D12 D13 D14 D15 GP9 GP8 OE PM SCKOUT SDI1 LRCKO BCKO KFSIO SDO1 SDO2 SDO3 LRCKI1 BCKI1 SDI2 XRST HACN HDIN HCLK HDOUT HCS GP12 EXLOCK BST SW FL FR SR SL C R CH R IN L IN L CH GND GND +7V GND LATCH DATA -7V GND GND (2/3) AUDIO DIGITAL SIGNAL PROCESSOR C SL TUNER-L TUNER-R SR R L L R SW CLOCK G I O +5V REGULATOR S-RAM VSS XRST EXTIN VDDI PLOCK VSS MCLK1 VSS VDDI MCLK2 MS SCKOUT LRCKI1 VDDE BCKI1 SDI1 LRCKO BCKO KFSIO VSS SDO1 SDO2 SDO4 SDO3 SPDIF LRCKI2 BCKI2 SDI2 LRCKI3 BCKI3 TDI TCK XTRST TMS TDO A10 A11 A12 A9 VSS D8 D9 D10 D11 VDDE D12 D13 D14 D15 VSS VDDI GP8 GP9 GP10 A13 A14 A15 A16 A17 VSS VDDI SYNC SDI4 SDI3 PM A0 VSS A1 A2 D0 D1 VDDE D2 D3 D4 D5 VSS VDDI D6 D7 A3 A4 A5 A6 A7 A8 VSS TST2 GP11 TST3 VSS HACN HDIN HCLK HDOUT HCS VDDI VSS CS0 WE0 VDDE WMD1 VSS WMD0 PAGE2 VSS PAGE1 PAGE0 BOOT BST MOD1 MOD0 EXLOCK VDDI TST1 OE0 GP15 GP14 GP13 GP12 GND (Page 16) (Page 16) (Page 17) (Page 14) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-KS500 16 16 STR-KS500 4-8. SCHEMATIC DIAGRAM – DIGITAL Board (3/3) – • See page 24 for Waveforms. • See page 27 for IC Pin Function Description. R1128 R1106 R1112 R1123 R1175 R1058 R1044 R1142 R1143 R1144 R1149 R1150 R1121 R1151 R1156 R1152 R1153 R1154 R1168 R1167 R1162 R1161 R1160 R1163 R1169 R1137 R1136 R1135 R1134 R1140 R1041 X1101 R1043 R1073 R1072 R1071 C1142 C1620 C1604 R1636 C1122 R1070 C1120 C1124 C1123 C1139 R1147 R1157 R1051 R1050 FB1101 R1053 R1052 R1110 R1109 R1107 R1126 R1119 R1113 R1115 R1122 R1059 R1159 R1088 R1180 R1179 R1124 R1129 R1186 R1105 CNS193 C1102 C1129 C1130 C1065 C1067 C1068 C1069 C1138 R1039 C1101 R1190 C1108 R1127 R1189 C1107 C1137 IC1111 D1110 D1108 D1107 C1066 R1201 C1100 CNS194 C1905 C1906 C1908 C1032 C1031 C1299 C1605 R1158 IC1651 R1635 C1125 C1121 IC1131 IC1601 R1049 IC1901 C1127 R1125 IC1031 100 100 100 100 220 220 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 R1097 100K R1096 10K 100 100 100 100 100 100 24MHz 10k 10k 10k 10k 0.1 0.1 0.1 10k 0.1 10k 0.01 0.1 0.1 0.1 0 0 10k 10k 100 100 2.2k 2.2k 2.2k 1k 1k 100 100 100 220 3.3k 10k 10k 10k 100 100 10k 10k 17P 0.1 0.01 0.01 220p 220p 0.1 10 50V 0.1 10k 0.1 10k 0.1 100 10k 0.1 0.01 S-80929CNMC ISS352 1SS352 1SS352 220p C1085 0.1 C1084 0.1 22k 0.1 21P 0.1 47 16V 47 16V 470 10V 0.1 0.1 0.1 3.3k TC74VHCT08AFT 10k 0.1 0.1 BR24L16 MB90488BPF-G -196E1 10k SI-3008KWF 0.1 1k BA50BC0T B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 C1 C2 C3 C5 C6 XSTATE EXLOCK DATAO GP9 BST HCLK HDIN HDOUT PCM_MDO PCM_MDI PCM_MC PCM_ML PCM_RST 1803_RST GP12 XRST PM HACN HCS DO DI CE CLK XMODE VOL A VOL B VOL A VOL B POWER KEY POWER KEY FUSE DET FUSE DET AD0 AD1 AD2 AD0 AD1 AD2 FL CLK FL CLK FL_STB FL_STB FL DIN FL DIN HI-DEC HI-DEC PWR_RY PWR_RY STOP STOP F1 F1 F2 F2 F_CLK PROTECTOR F_CTRL1 F_CTRL2 LEVEL_DETECT R_RY C_RY F_RY F_RY C_RY R_RY LEVEL_DETECT F_CTRL2 F_CTRL1 PROTECTOR F_CLK RDS CLK RDS DATA RDSSIGNAL T_MUTE T_MUTE T_CLK T_DATA T_DATA T_DCLK DO DO SLATCH SLATCH T_TUNER T_TUNER T_STEREO T_STEREO F1 F2 GND +3.3V(STBY) AD2 AD1 AD0 +5V GND F_CTRL2 PROTECTOR +V F_CLK GND GND F2 F1 STOP GND F_CTRL1 LEVEL_DETECT -30V -30V DATAO GP9 BST HCS HACN XRST PM VSS HDOUT HDIN HCLK VCC5 ANA/DIG AVCC AVRH AVSS A/D0 A/D1 A/D2 A/D3 VSS VERSION MD0 MD1 MD2 SIRCS POWER KEY DIN CLK POWER RELAY PROTECTOR REAR RELAY STEREO TUNED MUTE DO RSTX X1A X0A VSS X0 X1 VCC3 SLATCH XMODE CLK CE DI DO ERROR XSTATE FLASH2 CKSEL1 MODEL FL_STB FUSE DETECT SCL VOL(A) VOL(B) NC F_CTRL1 F_CTRL2 FAN_CLK FLASH1 NOT IN USE NOT IN USE RDS SIGNAL GP12 LRCK_SW NOT IN USE NOT IN USE NOT IN USE NOT IN USE PCM1602_RST PCM1602_ML PCM1602_MC PCM1602_MDI PCM1602_MDO NO USE NO USE PCM1803_RST LEVEL_DETECT FAN-HI-DETECT FRONT RELAY SDA NO USE VOL_DATA TUNER_DATA TUNER_CLK VOL_CLK NC POW_MUTE (3/3) FRONT SP RELAY CENTER SP RELAY REAR SP RELAY NC STANBY+V DIGITAL+V POWER RELAY HIGH SPEED DETECT LEVEL SHIFT V G FL LAT FL CLK VOL DOWN(2B) VOL UP(2A) POWER ON/OFF SIRCS O I G +5V REGULATOR RESET SIGNAL GENERATOR CD NC O V G EEPROM CENTER RELAY STOP NO USE RDS DATA RDS CLK NOT IN USE NOT IN USE NOT IN USE SYSTEM CONTROLLER +1.85V/+3.3V REGULATOR O V G O NC FL DATA G1000 (CHASSIS) (Page 14) (Page 15) (Page 14) (Page 15) (Page 23) (Page 19) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-KS500 17 17 STR-KS500 4-9. SCHEMATIC DIAGRAM – MAIN Section (1/3) – • See page 24 for IC Block Diagrams. C496 C491 CC03 CC53 CC02 CC52 CC01 CC51 R403 R402 R401 C464 C489 C490 C488 C467 R475 C466 R471 R472 C479 C477 C474 C473 C472 C475 C478 R376 C476 C493 C481 C480 R481 R482 C403 C402 CNS403 C590 R593 R594 R591 C592 R595 C594 R596 C593 R597 C440 C441 C443 R305 IC403 C442 Q401 C487 R453 R452 R451 C465 IC401 J1710 CNS301 IC404 R307 D301 C310 C309 C301 C308 R303 C306 C305 R304 C304 C303 J301 R306 IC402 IC303 IC301 4.7 50V 4.7 50V 100P 100P 100P 100P 100P 100P 1k 1k 1k 0.1 100p 100p 0.1 0.1 2.2k 220 10V 680 1k 2.2 50V 2.2 50V 2.2 50V 2.2 50V 4.7 50V 4.7 50V 4.7 50V 1k 4.7 50V 4.7 50V 2.2 50V 2.2 50V 100 100 10 50V 10 50V 21P 0.33 56k 10k 2.2k 0.68 5.6k 0.22 8.2k 0.022 470k 0.1 0.1 100 10V 47k TA7807S 100 10V 2SC3661 10 50V 1k 1k 1k 220 10V M61542FP 6P 7P TA79007S 100 1SS355WTE -17 0.1 1000 6.3V 0.1 47p 75 0.1 22 25V 470 0.1 0.001 1P 470k NJM4565M(TE2) TC7WU04F (TE12R) TORX147L(SONY) CHASSIS GND L CH R CH C CH SW CH SL CH GND SR CH AUDIO + AUDIO - +7V GND GND GND GND +7V GND GND -7V COAX-IN GND +3.3V GND +5V GND TUNER-R TUNER-L (1/3) GND INL5 INR5 INL4 INR4 INL3 INR3 INL2 INR2 INL1 INR1 AVEE ADIFL ADIFR GND LIN RIN SRIN SLIN CIN SWIN GND DGND DATA CLOCK DVDD AVCC GND SRC SROUT SLOUT SLC SLVIN SLIGO CIGO CVIN CVC COUT SWOUT SWC SWVIN SWIGO RECR2 RECL2 RECR1 RECL1 LIGO LVIN LVC LOUT ROUT RVC RVIN RIGO SRIGO SRVIN I G O I G O (CHASSIS) VCC GND VCC VEE LINE AMP -7V REGULATOR +7V REGULATOR +3.3V REGULATOR C SL SR R L L R SW DATA CLOCK LATCH L R L R L R SA-CD/CD AUDIO IN AUDIO IN AUDIO IN VIDEO 1 VIDEO 2 (CHASSIS) AUDIO SELECTOR, ELECTRICAL VOLUME SACD-IN INVERTER SA-CD/CD OPT IN IC301 DIGITAL OPTICAL RECEIVER DVD COAX IN DIGITAL (Page 15) (Page 18) (Page 14) (Page 19) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-KS500 18 18 STR-KS500 4-10. SCHEMATIC DIAGRAM – MAIN Section (2/3) – R610 L507 L607 L757 R522 R534 R653 R533 C707 C706 C710 R703 R704 C709 R705 C703 C708 R539 C753 C704 C757 C756 C758 C760 R755 C754 R753 R754 R702 C702 C759 C752 R752 R550 R529 C529 D529 C506 C507 C510 C508 R505 C504 R729 R503 C729 R504 C509 R742 R501 C501 C606 C607 C608 C610 R605 C604 R603 R604 C609 R601 C601 R530 D841 C842 R844 R701 C701 IC551 C656 C657 C660 C658 C654 R654 C659 R651 C651 R652 C652 C537 C536 C540 C538 R535 C534 C539 R531 R709 C761 R759 R707 R509 R750 R710 R722 R731 C732 R732 Q731 Q730 D721 D731 Q732 R510 R760 R608 R508 Q520 D521 R658 C581 R581 R660 R582 D620 R622 D621 L707 L657 R657 R659 C661 L587 R587 R589 C531 R532 C532 C533 C548 R545 C668 R665 C653 R655 R602 C602 R502 C502 D729 C751 R751 C705 C718 R715 R765 C768 C503 R515 C518 C603 R615 C618 C730 IC651 R730 R740 D720 RY701 RY501 D520 RY601 Q720 R758 R757 R708 C711 R507 R540 R640 R609 C611 C511 R607 R549 C549 D549 C755 IC701 IC751 IC501 IC601 Q620 D448 R536 D449 R840 R843 27k 2.2k 330 1k 1k 0.1 1 50V 0.1 1k 330 100 10V 22k 0.001 1 50V 100k 0.001 27p 0.1 1 50V 1 50V 0.1 22k 27p 1k 330 22k 100p 100 10V 100p 22k 100k 10k 0.01 1SS355WTE -17 1 50V 0.1 0.1 1 50V 22k 5p 10k 1k 0.01 330 100 10V 100k 100 4.7 50V 1 50V 0.1 1 50V 0.1 22k 5p 1k 330 100 10V 100 47 50V 1k UDZSTE-175.6B 47 25V 22k 100 4.7 50V LM3886T 1 50V 0.1 0.1 1 50V 5p 330 100 10V 100 4.7 50V 22k 100p 0.1 1 50V 0.1 1 50V 22k 5p 100 10V 100 10 0.022 10 4.7 10 1k 27k 2.2k 10k 0.1 33k 2SA1163 2SC3052 1SS355WTE-17 1SS355WTE-17 2SC2713 27k 27k 47k 47k 2SC3052 1SS355WTE-17 47k 0.022 47k 27k 27k 1SS355WTE-17 2.2k 1SS355WTE-17 4.7 10 0.022 4.7 10 4.7 50V 22k 100p 560p 1 50V 33k 1 50V 33k 560p 22k 22k 100p 22k 100p 1SS355WTE -17 4.7 50V 100 0.0022 1 50V 33k 33k 1 50V 560p 33k 1 50V 560p 33k 1 50V 220 10V LM3886T 6.8k 47 1SS355WTE-17 1SS355WTE-17 2SC3052 47k 4.7 47k 0.022 4.7 47 47 10 0.022 0.022 4.7 10k 0.01 1SS355WTE -17 0.0022 LM3886T LM3886T LM3886T LM3886T 2SC3052 1SS355WTE-17 33 1SS355WTE-17 10k 4.7k A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 R CH C CH SW CH SL CH SR CH GND L CH F.RY C.RY S.RY SW CH C CH R CH L CH SW CH C CH R CH L CH (2/3) POWER AMP POWER AMP POWER AMP POWER AMP POWER AMP POWER AMP Q730-732 AC POWER PROTECTOR RELAY DRIVE RELAY DRIVE RELAY DRIVE V+ NC V- V+ NC GND MUTE NC NC MUTE GND NC V+ V- NC V+ NC MUTE GND NC V+ V- NC V+ NC MUTE GND NC V+ V- NC V+ NC MUTE GND NC V+ V- NC V+ NC MUTE GND NC V+ V- NC V+ -1 -2 -1 -2 -1 -2 (Page 17) (Page 19) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-KS500 19 19 STR-KS500 4-11. SCHEMATIC DIAGRAM – MAIN Section (3/3) – D805 CN820 CNS822 R558 C561 Q550 R553 R555 R557 R554 C562 R552 C563 Q551 R551 C564 C565 D550 CNP861 R881 C871 R556 R885 Q862 D820 R864 R884 R882 R883 R886 R664 C664 C643 R643 D808 D807 D806 C815 C816 C818 C819 C802 CN700 D801 D804 D803 D802 C813 C801 C791 R791 R741 C741 D810 C694 C844 C794 C744 C817 D813 R810 R811 CNP804 CNP802 CNP801 CN701 C641 C642 C544 C644 C925 CNP903 R956 Q901 C924 R955 C923 R951 R952 R954 D957 D956 D955 R953 D953 D952 D954 C921 C922 D951 CNP901 F901 CNP902 G102 C820 R832 R831 C811 C812 C821 EP100 R641 R642 TM501 TM500 C814 R910 D812 D809 M1 D811 Q861 Q866 Q951 T902 RY901 T901 Q867 Q863 Q868 ISR154-400 4P 21P 100k 4.7 50V 2SC3052 10k 4.7k 220k 820 1 50V 3.3k 1 50V 2SC3052 100k 4.7 50V 100 16V 1SS355WTE-17 3P 1.5k 100 16V 68k 100 DTA124EKA UDZSTE-175.6B 47k 47k 3.3k 2.2k 100 4.7 0.01 0.01 4.7 ISR154-400 ISR154-400 ISR154-400 0.1 0.1 4700 50V 4700 50V 0.22 4P ISR154-400 ISR154-400 ISR154-400 ISR154-400 0.001 0.22 0.01 4.7 4.7 0.01 ISR154-400 330p 330p 330p 390p 3300 16V UDZSTE-176.8B 0.47 1/2W 0.47 1/2W 3P 5P 3P 4P 0.01 0.01 330p 330p 0.1 4P 10k 2SC3052 1 50V 100k 3300 16V 47k 4.7k 47k 1SS355WTE-17 1SS355WTE-17 ISR154-400 1 ISR154-400 ISR154-400 ISR154-400 0.022 0.022 1SS355WTE-17 2P T1.25AL 250V 2P 100 50V 22k 220 1000 25V 1000 25V 220 35V 4.7 4.7 0.001 0.22 UDZSTE -1730B D5SBA20 ISR154-400 2SB734 DTA124EKA 2SC3052 DTA124EKA DTA124EKA DTA124EKA A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 CHASSIS GND AUDIO + AUDIO - +7V F1 F2 F.RY C.RY S.RY F2 F1 F2 F1 GND STOP GND FRONT SP RELAY CENTER SP RELAY REAR SP RELAY STANBY+V POWER RELAY F_CTRL2 GND F_CTRL1 LEVEL_DETECT HIGH SPEED DETECT NC -B +B +R2 +R3 -R2 -R3 L R C GND SW GND C GND SW GND F1 F2 (3/3) (CHASSIS) (CHASSIS) (CHASSIS) CENTER SUB WOOFER SPEAKERS FRONT SURROUND SPEAKERS 1 2 3 4 (FAN) FAN MOTOR ON/OFF SWITCH LEVEL SHIFT Q862,863 FAN MOTOR CONTROL SWITCH Q867,868 FAN MOTOR CONTROL SWITCH Q550,551 FAN MOTOR LEVEL DETECT PROTECTOR +V F_CLK -30V DIGITAL+V POWER ON/OFF RELAY DRIVE AC POWER DETECT SUB POWER TRANSFORMER (AC IN) MAIN POWER TRANSFORMER L R (Page 17) (Page 18) (Page 16) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-KS500 20 20 STR-KS500 4-12. PRINTED WIRING BOARD – MAIN Board – : Uses unleaded solder. • See page 11 for Circuit Boards Location. R615 R882 C694 R722 C660 C815 C814 R758 R557 R558 R554 R522 R556 C510 C507 R884 C813 R883 R885 R555 R552 R654 R653 R655 C657 R665 C654 C652 R651 R731 R551 R510 R608 R660 R610 R508 C702 R732 R760 R730 C753 R658 R481 C704 C301 R755 C816 R705 R482 R452 R553 R604 R603 R502 C607 C602 C604 R605 R601 C653 R536 C441 C603 R504 R503 C504 R515 R505 C502 R501 R591 R475 R472 R602 R704 C705 R701 R715 R703 R702 C703 C710 R754 R652 R751 C755 C757 R753 C754 C752 C760 R765 C610 R531 C503 R533 R534 R535 R545 C532 C534 C533 C537 C540 R708 R881 R303 R710 R582 R581 C744 R622 C844 C794 R752 C707 CC02 CC01 R403 R864 CC03 R594 R595 R596 R597 C440 R532 CC53 CC52 CC51 R451 R401 R402 R453 C310 R471 C308 R307 R305 C464 R306 R304 C306 C304 C303 R593 IC402 IC401 C490 C489 C467 C488 R376 R529 R539 D529 R549 C549 R550 D549 R729 C729 R742 D729 R844 R843 D841 R840 R750 R832 C791 C643 C664 C741 D550 D805 D808 D807 D806 D804 D801 D802 D803 D811 D810 Q731 C732 Q732 D731 Q730 D521 D621 D721 Q720 D720 D620 Q620 D520 Q520 Q401 D448 D449 C529 R886 D301 Q550 Q551 Q862 Q863 Q868 Q866 Q867 IC303 IC301 D812 D820 D813 R530 JWH03 JW227 JW205 JW373 JW378 JW393 JW394 JW204 JW405 RY701 C818 C819 IC551 C817 CNP804 Q861 RY501 CNP802 RY601 CN820 IC651 L657 C661 C812 C811 CNP801 L587 CNP861 C581 IC601 L607 C590 C611 IC501 L507 C511 IC403 IC404 IC701 L707 C711 IC751 L757 C761 CNS403 C594 C592 C593 J301 CNS301 C402 C403 C480 C476 C477 C478 C479 C475 C473 C474 C472 C842 CNS822 R831 R707 R709 R740 R759 R757 R507 R540 R509 R607 R640 R609 R657 R659 R587 R589 JW479 C487 C496 C493 C491 C481 C465 C442 C443 C466 C305 C751 C871 C756 C768 C758 C539 C759 C618 C608 C606 C609 C601 C668 C658 C656 C659 C651 C508 C518 C506 C501 C730 C563 C561 C564 C565 C562 C718 C708 C706 C701 C709 C548 C536 C531 C538 C509 R741 R791 R664 R643 TM500 J1710 JW392 JWH04 JW200 JW201 JW202 JW203 JW206 JW207 JW208 JW209 JW210 JW211 JW212 JW214 JW215 JW216 JW218 JW219 JW220 JW221 JW222 JW223 JW224 JW225 JW226 JW228 JW229 JW231 JW232 JW233 JW234 JW236 JW237 JW238 JW239 JW240 JW241 JW242 JW243 JW244 JW247 JW248 JW249 JW250 JW251 JW252 JW253 JW254 JW255 JW256 JW257 JW258 JW259 JW260 JW261 JW262 JW263 JW264 JW265 JW266 JW267 JW268 JW269 JW270 JW271 JW272 JW273 JW274 JW275 JW276 JW277 JW278 JW279 JW280 JW281 JW282 JW283 JW284 JW285 JW286 JW287 JW288 JW290 JW291 JW292 JW294 JW295 JW296 JW297 JW298 JW299 JW300 JW301 JW302 JW303 JW305 JW306 JW307 JW308 JW309 JW310 JW311 JW312 JW313 JW314 JW315 JW316 JW317 JW318 JW319 JW320 JW321 JW322 JW323 JW324 JW325 JW326 JW327 JW328 JW329 JW330 JW331 JW332 JW333 JW337 JW338 JW341 JW342 JW343 JW344 JW352 JW353 JW356 JW357 JW359 JW360 JW361 JW362 JW363 JW364 JW365 JW366 JW367 JW368 JW369 JW370 JW371 JW372 JW374 JW375 JW376 JW377 JW379 JW380 JW381 JW382 JW383 JW384 JW385 JW386 JW387 JW388 JW389 JW390 JW391 JW395 JW396 JW397 JW398 JW399 JW400 JW401 JW402 JW403 JW404 JW406 JW407 JW408 JW409 JW410 JW411 JW412 JW413 JW414 JW415 JW416 JW417 JW418 R811 R810 JW350 JW351 R910 D809 C309 JW217 JW230 JW289 JW334 C821 C820 JW245 JW349 JW246 JW345 JW335 JW213 JW358 CN700 JW348 JW304 JW293 C802 C801 -2 -1 -1 -2 -2 -1 E E E E E E E STANDBY BOARD CNP903 H J G 1 4 F SPEAKER BOARD CN701 1 11 2 10 11 1 10 2 1 11 2 10 1 11 2 10 1 11 2 10 E E 1 1 3 5 1 4 1 3 11 1 10 2 C DIGITAL BOARD CNS194 B DIGITAL BOARD CNS191 A DIGITAL BOARD CN197 1 56 14 15 28 29 42 43 E E E E E 1 B C E 3 M1 (FAN) M E MAIN BOARD 1-870-369- 11 (11) T901 MAIN POWER TRANSFORMER T901 MAIN POWER TRANSFORMER T901 MAIN POWER TRANSFORMER R L + – + – + – + – SPEAKERS SURROUND R L FRONT L R VIDEO 1 AUDIO IN L R VIDEO 2 AUDIO IN L R SA-CD/CD AUDIO IN SA-CD/CD OPT IN DVD COAX IN IC301 DIGITAL 1 1 4 8 5 3 1 1 3 3 (CHASSIS) (CHASSIS) A B C D E F G H I J 1 2 3 4 5 6 7 8 9 10 11 12 13 14 K (Page 13) (Page 13) (Page 21) (Page 21) (Page 21) (Page 21) (Page 21) (Page 13) • Semiconductor Location Ref. No. Location D301 J-3 D448 D-8 D449 D-8 D520 B-4 D521 B-6 D529 G-10 D549 G-4 D550 C-14 D620 B-5 D621 B-6 D720 B-5 D721 B-6 D729 D-5 D731 B-7 D801 B-13 D802 B-13 D803 B-12 D804 B-12 D805 B-14 D806 B-13 D807 B-13 D808 B-14 D809 B-10 D810 B-11 D811 B-11 D812 B-11 D813 A-12 D820 F-2 D841 G-10 IC301 J-2 IC303 J-3 IC401 I-5 IC402 H-5 IC403 H-7 IC404 I-7 IC501 D-4 IC551 D-11 IC601 D-8 IC651 F-8 IC701 F-11 IC751 F-4 Q401 J-7 Q520 B-4 Q550 C-13 Q551 D-14 Q620 B-5 Q720 B-6 Q730 B-7 Q731 B-7 Q732 B-6 Q861 G-2 Q862 G-3 Q863 G-3 Q866 G-2 Q867 G-3 Q868 G-3 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-KS500 21 21 STR-KS500 4-13. PRINTED WIRING BOARDS – SPEAKER/STANDBY Boards – : Uses unleaded solder. • See page 11 for Circuit Boards Location. R952 R951 R956 R955 R954 C925 C921 C922 D957 D956 D953 D952 D955 D954 D951 Q901 Q951 F901 CNP903 FH902 CNP901 FH901 RY901 G102 C923 T902 CNP902 R953 C924 JW900 JW901 JW902 JW903 JW904 C544 C644 C642 C641 EP100 TM501 R641 R642 JW500 JW501 JW502 CN701 MAIN POWER TRANSFORMER (CHASSIS) E E E MAIN BOARD CN820 STANDBY BOARD 1-871-544- 1-870-370- 11 (11) (AC IN) 1 2 T901 2 1 SUB POWER TRANSFORMER G MAIN BOARD CNP801 H MAIN BOARD CNP804 J MAIN BOARD CNP802 1 4 F MAIN BOARD CN700 (CHASSIS) SPEAKER BOARD 1-871-545- 1-870-371- 11 (11) 1 4 SPEAKERS – – + + CENTER SUB WOOFER A B C D E F G 1 2 3 4 5 6 7 8 9 (Page 20) (Page 20) (Page 20) (Page 20) (Page 20) • Semiconductor Location Ref. No. Location D951 B-6 D952 F-6 D953 F-6 D954 F-5 D955 F-5 D956 F-6 D957 E-7 Q901 F-8 Q951 F-6 Ver. 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-KS500 22 22 STR-KS500 4-14. PRINTED WIRING BOARDS – PANEL Section – : Uses unleaded solder. • See page 11 for Circuit Boards Location. IC152 C111 JW103 JW104 JW105 JW107 JW108 JW109 JW110 JW111 JW112 JW113 JW116 JW117 JW118 JW119 JW120 JW121 JW122 JW123 JW124 JW125 JW126 JW127 JW129 JW130 JW132 JW133 JW134 JW135 JW136 JW190 JW191 JW102 JW101 JW115 JW114 JW106 JW137 R191 R192 R153 CNS151 C143 C155 C156 R178 S122 S118 S117 S119 C144 RV101 IC102 R199 JW128 CNP152 CNP155 C157 C141 C159 R198 C158 R152 S123 CN153 R194 S121 S120 CN154 1 44 11 12 22 23 33 34 D DIGITAL BOARD CNS193 1-870-509- 11 (11) DISPLAY BOARD + – SOUND FIELD MUTING 1 68 65 62 49 34 15 4 1 3 1 3 INPUT SELECTER ROTARY ENCODER MASTER VOLUME FL101 FLUORESCENT INDICATOR TUBE 1 3 1 3 S117 – 123 1-870-510- 11 (11) POWER BOARD 1 3 1 1-870-511- 11 (11) TUNING BOARD 1 3 + – PRESET TUNING A B C D E F 1 2 3 4 5 6 7 8 9 10 11 12 13 14 (Page 13) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-KS500 23 23 STR-KS500 4-15. SCHEMATIC DIAGRAM – PANEL Section – • See page 24 for Waveforms. • See page 24 for IC Block Diagrams. R194 C159 R198 R199 C157 C158 C143 C155 C156 R178 C144 S120 R153 CNP152 R191 R192 CNS151 S119 S118 S122 S117 RV101 C141 C111 S121 S123 CN153 IC102 IC152 FL101 CNP155 CN154 R152 1k 0.1 1 1 10 50V 0.1 1000p 220p 220p 82k 0.1 100 3P 1k 1k 17P 10 50V 0.1 3P RPM7240-H9 PT6315 3P 3P 34 35 36 37 38 39 40 41 42 14 15 16 17 18 19 20 21 22 28 29 28 29 31 32 33 31 32 33 34 35 36 37 38 39 40 41 42 23 24 25 26 23 24 25 26 15 16 17 18 19 20 21 22 14 +5V SIRCS FL CLK FL DATA FL LAT GND F2 +3.3V(STBY) F1 AD(3) AD(2) GND AD(1) GND -30V VOL UP(2A) VOL DOWN(2B) POWER ON/OFF MUTING SOUND FIELD + FIELD SOUND INPUT SELECTOR MASTER VOLUME ROTARY ENCODER VOUT VCC PRESET TUNING + - REMOTE CONTROL RECEIVER FLUORESCENT INDICATOR TUBE DRIVER FLUORESCENT INDICATOR TUBE - (Page 16) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-KS500 24 24 STR-KS500 • IC Block Diagrams – DIGITAL Board – IC1301 LC89056W-E IC1452 PCM1602APT 38 37 36 23 24 1 2 3 4 5 44 8 9 10 46 17 22 21 20 30 35 25 26 27 28 29 32 33 34 16 45 13 14 15 47 40 41 48 CL 39 XSEL CE DI EMPHA AUDIO DISEL DOUT DINO DINI DIN2 6 DGND 7 DVDD 11 AVDD 12 AGND DOSEL0 R VIN LPF CKSEL0 XSTATE 18 DGND 19 DVDD XIN XOUT XMCK XSEL 31 DGND DO CSFLAG F0 F1 F2 VF ERR9P BPSYNC ERROR DATAO DOSEL1 CKOUT BCK LRCK CKSEL1 MODE0 MODE1 42 DGND 43 DVDD XMODE TIMING MICROCOMPUTER INTERFACE SAMPLING FREQUENCY C BIT DETECT PA/PB DETECT LOCK DETECT INPUT CIRCUIT DATA DEMODULATOR PLL X’ TAL SYSTEM CLOCK MANAGER FUNCTION CONTROL INTERFACE SERIAL INPUT INTERFACE 4X/8X OVER SAMPLING DIGITAL FILTER WITH FUNCTION CONTROLLER ENHANCED MULTI- LEVEL DELTA- SIGMA MOJULE ZERO DETECT DAC LPF DAC LPF DAC LPF DAC LPF DAC LPF DAC LPF RST SCKI SCKO BCK TEST VDD DGND DATA1 DATA2 DATA3 ZEROA LRCK 37 38 39 40 42 43 44 45 46 47 48 41 ZERO1 ZERO2 ZERO3 ZERO4 ZERO5 ZERO6 NC NC VOUT6 VOUT5 VOUT4 VOUT3 1 2 3 4 5 6 7 8 9 10 11 12 VOUT2 VOUT1 VCOM NC AGND5 VCC5 AGND6 NC AGND4 VCC4 AGND3 VCC3 13 14 15 16 17 18 19 20 21 22 23 24 ML MC MDI MDO NC NC NC NC VCC1 AGND1 VCC2 AGND2 36 35 34 33 32 31 30 29 28 27 26 25 • Waveforms – DIGITAL Board – – DISPLAY Board – 81 ns 4.3 Vp-p 1 IC1301 qd (CKOUT) 2 V/DIV, 50 ns/DIV 2 IC1301 qf (BCK) 2 V/DIV, 100 ns/DIV 326 ns 3.4 Vp-p 21 µs 3.4 Vp-p 3 IC1301 qg (LRCK) 2 V/DIV, 10 µs/DIV 4 IC1301 w; (XMCK) 2 V/DIV, 50 ns/DIV 81 ns 3.4 Vp-p q; IC1501 ws (KFSIO) 2 V/DIV, 50 ns/DIV 81 ns 3 Vp-p 81 ns 3 .1 Vp-p 5 IC1301 wa (XOUT) 2 V/DIV, 50 ns/DIV 6 IC1501 qs (MCLK2) 2 V/DIV, 20 ns/DIV 72 ns 2.9 Vp-p 7 IC1501 qf (SCKOUT) 2 V/DIV, 50 ns/DIV 81 ns 3.4 Vp-p 21 µs 3.4 Vp-p 8 IC1501 ql (LRCKO) 2 V/DIV, 10 µs/DIV 9 IC1501 w; (BCKO) 2 V/DIV, 100 ns/DIV 326 ns 3.4 Vp-p qa IC1601 id (X1) 1 V/DIV, 20 ns/DIV 42 ns 2.2 Vp-p wa IC152 5 (OSC) 1 V/DIV, 1 µs/DIV 2.3 µs 2 Vp-p w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 STR-KS500 IC1602 PCM1803DBR DELTA-SIGMA MODULATOR DELTA-SIGMA MODULATOR VINL 1 VINR 2 VREF1 3 VREF2 4 VCC AGND 5 6 BYPAS 8 TEST 9 LRCK 10 REFERENCE × 1/64, × 1/128 DECIMATION FILTER WITH HIGH-PASS FILTER SERIAL INTERFACE & MODE/FORMAT CONTROL MODE1 20 MODE0 19 FMT1 18 FMT0 17 OSR 16 SCKI 15 VDD 14 DGND 13 DOUT 12 BCK 11 CLOCK & TIMING CONTROL POWER SUPPLY PDWN 7 – MAIN Board – IC401 M61542FP 2 1 55 53 56 54 16 17 3 4 5 6 5 INPUT SELCTOR 7 8 9 10 11 12 15 13 19 18 20 21 22 23 24 25 26 27 28 5 INPUT SELCTOR 45 29 30 32 31 VOLUME 14 INPUT ATT (FOR ADC) INPUT ATT (FOR ADC) 36 35 33 34 VOLUME 37 38 40 39 VOLUME GND SRC SLOUT SLC SLVIN SLIGO CIGO CVIN CVC COUT SWOUT SWC SWVIN SWIGO SLOUT RECR2 RECR1 RECL1 LIGO LVIN LVC LOUT ROUT RVC RVIN RIGO SRIGO SRVIN RECL2 INL5 INR5 INL4 INR4 INL3 INR3 INL2 INR2 INL1 INR1 ADIFL ADIFR GND LIN RIN SLIN SRIN CIN SWIN GND GND DATA CLOCK DVDD AVCC GND AVEE 44 43 41 42 VOLUME 52 51 49 50 VOLUME 46 48 47 VOLUME MCU I/F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 STR-KS500 – DISPLAY Board – IC152 µPD16315GB-3BS 5 OSC OSC DATA SELECTOR 6 DOUT 7 DIN 8 CLK 9 STB 10 KEY1 11 KEY2 SERIAL INTERFACE DISPLAY MEMORY 24 BITS x 12 WORDS 24-BIT OUTPUT LATCH 12-BIT SHIFT REGISTER SEGMENT DRIVER TIMING GENERATOR KEY SCAN COMMAND DECODER DIMMING CIRCUIT KEY DATA MEMORY (2 x 16 BITS) 4-BIT LATCH 1 LED1 2 LED2 3 LED3 4 LED4 24 16 16 12 4 8 8 4 8 27 SEG14/KS14 29 SEG16/KS16 30 VEE 28 SEG15/KS15 8 31 SEG17/GRID12 33 SEG19/GRID10 32 SEG18/GRID11 23 SEG10/KS10 24 SEG11/KS11 25 SEG12/KS12 26 SEG13/KS13 22 SEG9/KS9 21 SEG8/KS8 20 SEG7/KS7 19 SEG6/KS6 18 SEG5/KS5 17 SEG4/KS4 16 SEG3/KS3 15 SEG2/KS2 14 SEG1/KS1 MULTIPLEXED DRIVER 34 SEG20/GRID9 35 SEG21/GRID8 36 SEG22/GRID7 37 SEG23/GRID6 39 GRID4 40 GRID3 41 GRID2 42 GRID1 43 VDD 44 VSS 13 VDD 12 VSS 38 SEG24/GRID5 GRID DRIVER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 STR-KS500 • IC Pin Function Description DIGITAL BOARD IC1501 CXD9862R (AUDIO DIGITAL SIGNAL PROCESSOR) Pin No. Pin Name I/O Description 1 VSS - Ground terminal 2 XRST I System reset signal input from the system controller "L": reset 3 EXTIN I Master clock signal input terminal Not used 4 LRCKI3 I L/R sampling clock signal input terminal Not used 5 VDDI - Power supply terminal (+1.85V) 6 BCKI3 I Bit clock signal input terminal Not used 7 PLOCK O Internal PLL lock signal output terminal Not used 8 VSS - Ground terminal 9 MCLK1 I System clock input terminal (13.9 MHz) 10 VDDI - Power supply terminal (+1.85V) 11 VSS - Ground terminal 12 MCLK2 O System clock output terminal (13.9 MHz) 13 MS I Master/slave setting terminal "L": internal clock, "H": external clock Fixed at "L" in this set 14 SCKOUT O Internal system clock output to the D/A converter 15 LRCKI1 I L/R sampling clock signal input from the digital audio interface receiver 16 VDDE - Power supply terminal (+3.3V) 17 BCKI1 I Bit clock signal input from the digital audio interface receiver 18 SDI1 I Audio serial data input from the A/D converter 19 LRCKO O L/R sampling clock signal output to the D/A converter 20 BCKO O Bit clock signal output to the D/A converter 21 VSS - Ground terminal 22 KFSIO I Audio clock signal input from the digital audio interface receiver 23 to 25 SDO1 to SDO3 O Audio serial data output to the D/A converter 26 SDO4 O Audio serial data output terminal Not used 27 SPDIF O SPDIF signal output terminal Not used 28 LRCKI2 I L/R sampling clock signal input from the digital audio interface receiver 29 BCKI2 I Bit clock signal input from the digital audio interface receiver 30 SDI2 I Audio serial data input from the digital audio interface receiver 31 VSS - Ground terminal 32 HACN O Acknowledge signal output to the system controller 33 HDIN I Serial data input from the system controller 34 HCLK I Serial data transfer clock signal input from the system controller 35 HDOUT O Serial data output to the system controller 36 HCS I Chip select input from the system controller 37 GP12 I Write signal input from the system controller 38 GP13 O SD-RAM chip enable output terminal Not used 39 GP14 O Row address strobe signal output terminal Not used 40 VDDI - Power supply terminal (+1.85V) 41 VSS - Ground terminal 42 GP15 O Column address strobe signal output terminal Not used 43 OE0 O Output enable signal output to the S-RAM 44 CS0 O Chip select signal output to the S-RAM 45 WE0 O Write enable signal output to the S-RAM 46 VDDE - Power supply terminal (+3.3V) 47 WMD1 I External memory wait mode setting terminal Fixed at "H" in this set www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 STR-KS500 Pin No. Pin Name I/O Description 48 VSS - Ground terminal 49 WMD0 I External memory wait mode setting terminal Fixed at "H" in this set 50 PAGE2 O External memory page selection signal output terminal Not used 51 VSS - Ground terminal 52, 53 PAGE1, PAGE0 O External memory page selection signal output terminal Not used 54 BOOT I Boot mode control signal input terminal Not used 55 TST1 O Not used 56 BST I Boot strap signal input from the system controller 57 MOD1 I Operation mode setting terminal "L": enhanced mode, "H": normal mode Fixed at "H" in this set 58 MOD0 I Operation mode setting terminal "L": single chip mode, "H": can not use Fixed at "L" in this set 59 EXLOCK I PLL lock error signal and data error flag input from the digital audio interface receiver 60 VDDI - Power supply terminal (+1.85V) 61 VSS - Ground terminal 62, 63 A17, A16 O Address signal output terminal Not used 64 to 66 A15 to A13 O Address signal output to the S-RAM 67 GP10 I L/R sampling clock signal input terminal Not used 68 GP9 O Read ready signal output to the system controller 69 GP8 I Channel status bit 1 input from the digital audio interface receiver 70 VDDI - Power supply terminal (+1.85V) 71 VSS - Ground terminal 72 to 75 D15 to D12 I/O Two-way data bus with the S-RAM 76 VDDE - Power supply terminal (+3.3V) 77 to 80 D11 to D8 I/O Two-way data bus with the S-RAM 81 VSS - Ground terminal 82 to 85 A9, A12 to A10 O Address signal output to the S-RAM 86 TDO O Simplicity emulation data output terminal Not used 87 TMS I Simplicity emulation data input start and end terminal Not used 88 XTRST I Simplicity emulation non-sync break signal input terminal Not used 89 TCK I Simplicity emulation clock signal input terminal Not used 90 TDI I Simplicity emulation data input terminal Not used 91 VSS - Ground terminal 92 to 97 A8 to A3 O Address signal output to the S-RAM 98, 99 D7, D6 I/O Two-way data bus with the S-RAM 100 VDDI - Power supply terminal (+1.85V) 101 VSS - Ground terminal 102 to 105 D5 to D2 I/O Two-way data bus with the S-RAM 106 VDDE - Power supply terminal (+3.3V) 107, 108 D1, D0 I/O Two-way data bus with the S-RAM 109, 110 A2, A1 O Address signal output to the S-RAM 111 VSS - Ground terminal 112 A0 O Address signal output to the S-RAM 113 PM I PLL initialize signal input from the system controller "L": initialize 114, 115 SDI3, SDI4 I Audio serial data input terminal Not used 116 SYNC I Sync/non-sync setting terminal "L": sync, "H": non-sync Fixed at "H" in this set 117 TST2 I Not used 118 GP11 I Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 STR-KS500 Pin No. Pin Name I/O Description 119 TST3 I Not used 120 VDDI - Power supply terminal (+1.85V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 STR-KS500 DIGITAL BOARD IC1601 MB90488BPF-G-196E1 (SYSTEM CONTROLLER) Pin No. Pin Name I/O Description 1 DATAO I Audio serial data input from the digital audio interface receiver 2 GP9 I Read ready signal input from the audio digital signal processor 3 BST O Boot strap signal output to the audio digital signal processor 4 HCS O Chip select signal output to the audio digital signal processor 5 HACN I Acknowledge signal input from the audio digital signal processor 6 XRST O System reset signal output to the audio digital signal processor "L": reset 7 PM O PLL initialize signal output to the audio digital signal processor "L": initialize 8 GP12 O Write signal output to the audio digital signal processor 9 PCM1803_ RST O System reset signal output to the A/D converter "L": reset 10 PCM1602_ RST O System reset signal output to the D/A converter "L": reset 11 VSS - Ground terminal 12 PCM1602_ ML O Serial data latch pulse signal output to the D/A converter 13 PCM1602_ MC O Serial data transfer clock signal output to the D/A converter 14 PCM1602_ MDI O Serial data output to the D/A converter 15 PCM1602_ MDO I Serial data input from the D/A converter 16 TUNER_CLK O Serial data transfer clock signal output to the tuner 17 TUNER_DATA O Serial data output to the tuner 18 HDOUT I Serial data input from the audio digital signal processor 19 HDIN O Serial data output to the audio digital signal processor 20 HCLK O Serial data transfer clock signal output to the audio digital signal processor 21 VOL_CLK O Serial data transfer clock signal output to the electrical volume 22 VOL_DATA O Serial data output to the electrical volume 23 VCC5 - Power supply terminal (+3.3V) 24 ANA/DIG O Analog/digital selection signal output terminal Not used 25, 26 NOT IN USE O Not used 27, 28 FLASH2, FLASH1 O Flash programming signal output terminal 29 SDA I/O Two-way data bus with the EEPROM 30, 31 NO USE O Not used 32 NOT IN USE O Not used 33 SCL O Serial data transfer clock signal output to the EEPROM 34 NO USE O Not used 35 AVCC - Power supply terminal (+3.3V) 36 AVRH I Reference voltage (+3.3V) input terminal 37 AVSS - Ground terminal 38 to 40 A/D0 to A/D2 I Front panel key input terminal (A/D input) 41 A/D3 I Key input terminal Not used 42 VSS - Ground terminal 43 RDS SIGNAL I RDS signal input from the tuner 44 MODEL I Setting terminal for the model (A/D input) 45 VERSION I Setting terminal for the destination (A/D input) 46 FAN-HI-DETECT I Fan motor hi-speed detection signal input terminal 47 NO USE O Not used 48 STOP I AC off detection signal input terminal "L": AC off 49 MD0 I CPU operation mode setting signal input terminal 50 MD1 I Setting terminal for the CPU operation mode Fixed at "H" in this set 51 MD2 I CPU operation mode setting signal input terminal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 STR-KS500 Pin No. Pin Name I/O Description 52 RDS CLK I RDS interrupt clock signal input from the tuner 53 RDS DATA I RDS serial data input from the tuner 54 SIRCS I Sircs signal input from the remote control receiver 55 FUSE DETECT I Fuse detection signal input terminal "H": fuse detect 56 POWER KEY I Power key input terminal "L": power on 57 NC O Not used 58 POW_MUTE O Power muting control signal output terminal Not used 59 VOL (B) I Jog dial pulse input from the rotary encoder (B phase input) (for MASTER VOLUME) 60 VOL (A) I Jog dial pulse input from the rotary encoder (A phase input) (for MASTER VOLUME) 61 DIN O Serial data output to the fluorescent indicator tube driver 62 CLK O Serial data transfer clock signal output to the fluorescent indicator tube driver 63 FL_STB O Strobe signal output to the fluorescent indicator tube driver 64 MUTE O Muting on/off control signal output to the tuner "L": muting on 65 STEREO I FM stereo detection signal input from the tuner "L": stereo 66 TUNED I Tuned detection signal input from the tuner "L": tuned 67 PROTECTOR I Protect on/off detection signal input from the protect circuit "H": protect on 68 SLATCH O Serial data latch pulse signal output to the tuner 69 DO I Serial data input from the tuner 70 FRONT RELAY O Relay drive signal output (for front speaker) "H": relay on 71 CENTER RELAY O Relay drive signal output terminal (for center) "H": relay on 72 REAR RELAY O Relay drive signal output (for surround (rear)) "H": relay on 73, 74 F_CTRL1, F_CTRL2 O Fan motor control signal output terminal 75 FAN_CLK I Fan motor feedback clock signal input terminal 76 FAN_DETECT I Fan motor speed level detection signal input terminal 77 RSTX I System reset signal input from the reset signal generator "L": reset For several hundreds msec. after the power supply rises, "L" is input, then it changes to "H" 78 POWER RELAY O Relay drive signal output terminal (for main power) "H": relay on 79 X1A O Sub system clock output terminal Not used 80 X0A I Sub system clock input terminal Not used 81 VSS - Ground terminal 82 X0 I Main system clock input terminal (24 MHz) 83 X1 O Main system clock output terminal (24 MHz) 84 VCC3 - Power supply terminal (+3.3V) 85 NOT IN USE - Not used 86 NC - Not used 87 NOT IN USE - Not used 88 LRCK_SW O Signal selection signal output terminal Not used 89 to 92 NOT IN USE - Not used 93 XMODE O System reset signal output to the digital audio interface receiver "L": reset 94 CKSEL1 O Output clock selection signal output terminal Not used 95 CLK O Clock signal output to the digital audio interface receiver 96 CE O Chip enable signal output to the digital audio interface receiver 97 DI O Write data output to the digital audio interface receiver 98 DO I Read data input from the digital audio interface receiver 99 ERROR I PLL lock error signal and data error flag input from the digital audio interface receiver 100 XSTATE I Source clock selection monitor input from the digital audio interface receiver www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 STR-KS500 supplied with RV101 not supplied (TUNING board) RV101 chassis section 6 6 7 1 1 3 5 5 4 5 #1 #1 #2 2 not supplied (POWER board) not supplied (DISPLAY board) not supplied not supplied not supplied SECTION 5 EXPLODED VIEWS Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 4-977-358-01 CUSHION 2 4-254-448-01 KNOB (SL500), VOLUME 3 X-2109-609-1 FRONT PANEL ASSY 4 1-828-994-11 WIRE (FLAT TYPE) (17 CORE) 5 3-087-053-01 +BVTP2.6 (3CR) 6 3-363-099-11 SCREW (CASE 3 TP2) 7 4-254-457-61 CASE (SL500) RV101 1-418-632-11 ENCODER, ROTARY (12 TYPE) (MASTER VOLUME) #1 7-685-645-79 SCREW +BVTP 3X6 TYPE2 IT-3 #2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 5-1. FRONT PANEL SECTION • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Accessories are given in the last of the electrical parts list. NOTE: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑ ↑ Parts Color Cabinet's Color The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 STR-KS500 #1 #1 #2 #2 #2 #2 #1 #3 #3 #1 #1 54 55 57 60 61 56 58 53 52 T901 M1 TN1 F901 not supplied not supplied not supplied Note: Refer to Supplement-1 when you exchange MAIN board (Ref. No. 56). not supplied (STANDBY board) not supplied (SPEAKER board) 59 52 51 51 5-2. CHASSIS SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 4-977-358-01 CUSHION 52 4-249-675-01 +BV SUMITITE S 4X6 ROUND 53 4-214-557-11 CUSHION * 54 3-703-244-00 BUSHING (2104), CORD 055 1-777-071-83 CORD, POWER 56 A-1185-639-A MAIN BOARD, COMPLETE 56 A-1211-173-A MAIN BOARD, COMPLETE 57 1-829-010-11 WIRE (FLAT TYPE) (21 CORE) 58 1-829-011-11 WIRE (FLAT TYPE) (21 CORE) 59 1-828-946-11 WIRE (FLAT TYPE) (7 CORE) 60 A-1185-637-A DIGITAL BOARD, COMPLETE 61 1-828-895-11 WIRE (FLAT TYPE) (15 CORE) 0F901 1-532-502-33 FUSE (T1.25AL/250V) M1 1-763-561-22 FAN, D.C. 0T901 1-445-045-11 POWER TRANSFORMER TN1 1-693-676-11 TUNER #1 7-685-645-79 SCREW +BVTP 3X6 TYPE2 IT-3 #2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 #3 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3 Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 STR-KS500 SECTION 6 ELECTRICAL PARTS LIST DIGITAL Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark A-1185-637-A DIGITAL BOARD, COMPLETE *********************** 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 < CAPACITOR/JUMPER RESISTOR > C1001 1-126-935-11 ELECT 470uF 20% 16V C1002 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1003 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1004 1-162-995-11 CERAMIC CHIP 0.022uF 50V C1021 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1022 1-126-935-11 ELECT 470uF 20% 16V C1031 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1032 1-126-935-11 ELECT 470uF 20% 16V C1063 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1064 1-126-947-11 ELECT 47uF 20% 35V C1065 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C1066 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C1067 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C1068 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1069 1-126-964-11 ELECT 10uF 20% 50V C1084 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C1085 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1100 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1101 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1102 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1107 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1108 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1120 1-162-974-11 CERAMIC CHIP 0.01uF 50V C1121 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1122 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1123 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1124 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1125 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1127 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1129 1-162-974-11 CERAMIC CHIP 0.01uF 50V C1130 1-162-974-11 CERAMIC CHIP 0.01uF 50V C1131 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1137 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1138 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1139 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1142 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1251 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1252 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1253 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1280 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1281 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1282 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1299 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1301 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1302 1-162-974-11 CERAMIC CHIP 0.01uF 50V C1303 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1304 1-162-974-11 CERAMIC CHIP 0.01uF 50V C1305 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1306 1-126-947-11 ELECT 47uF 20% 35V C1308 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1309 1-162-918-11 CERAMIC CHIP 18PF 5% 50V C1310 1-162-918-11 CERAMIC CHIP 18PF 5% 50V C1312 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1313 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C1314 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1315 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1402 1-126-964-11 ELECT 10uF 20% 50V C1418 1-126-964-11 ELECT 10uF 20% 50V C1422 1-216-864-11 SHORT CHIP 0 C1428 1-126-964-11 ELECT 10uF 20% 50V C1432 1-216-864-11 SHORT CHIP 0 C1438 1-126-964-11 ELECT 10uF 20% 50V C1441 1-216-864-11 SHORT CHIP 0 C1448 1-126-964-11 ELECT 10uF 20% 50V C1450 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1454 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1456 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1457 1-126-964-11 ELECT 10uF 20% 50V C1458 1-126-964-11 ELECT 10uF 20% 50V C1460 1-126-964-11 ELECT 10uF 20% 50V C1462 1-216-864-11 SHORT CHIP 0 C1468 1-126-964-11 ELECT 10uF 20% 50V C1472 1-216-864-11 SHORT CHIP 0 C1483 1-216-864-11 SHORT CHIP 0 C1487 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C1501 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1502 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1503 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1504 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1505 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1506 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1507 1-164-156-11 CERAMIC CHIP 0.1uF 25V NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • SEMICONDUCTORS In each case, u: µ, for example: uA... : µA... uPA... : µPA... uPB... : µPB... uPC... : µPC... uPD... : µPD... • CAPACITORS uF: µF • COILS uH: µH The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 35 STR-KS500 DIGITAL C1508 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1509 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1510 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1511 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1513 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1514 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1515 1-126-935-11 ELECT 470uF 20% 16V C1516 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1517 1-126-935-11 ELECT 470uF 20% 16V C1518 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1519 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1520 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1521 1-162-920-11 CERAMIC CHIP 27PF 5% 50V C1522 1-162-920-11 CERAMIC CHIP 27PF 5% 50V C1525 1-104-665-11 ELECT 100uF 20% 25V C1547 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C1566 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C1567 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C1568 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C1569 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C1604 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1605 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1620 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1653 1-126-964-11 ELECT 10uF 20% 50V C1654 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1656 1-126-964-11 ELECT 10uF 20% 50V C1657 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C1658 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C1659 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1670 1-126-964-11 ELECT 10uF 20% 50V C1671 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1672 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1673 1-126-947-11 ELECT 47uF 20% 35V C1674 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C1675 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1905 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1906 1-126-947-11 ELECT 47uF 20% 35V C1908 1-126-947-11 ELECT 47uF 20% 35V C1913 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1914 1-126-947-11 ELECT 47uF 20% 35V < CONNECTOR > CN197 1-568-826-11 CONNECTOR, FFC 7P CNS191 1-569-324-11 SOCKET, CONNECTOR 21P CNS193 1-784-778-11 CONNECTOR, FFC 17P CNS194 1-569-324-11 SOCKET, CONNECTOR 21P CNS195 1-569-321-11 SOCKET, CONNECTOR 15P < DIODE > D1003 8-719-049-09 DIODE 1SS367-T3SONY D1004 8-719-049-09 DIODE 1SS367-T3SONY D1107 8-719-016-74 DIODE 1SS352 D1108 8-719-016-74 DIODE 1SS352 D1110 8-719-016-74 DIODE 1SS352 D1301 8-719-016-74 DIODE 1SS352 D1600 6-501-193-01 DIODE 1SS355WTE-17 D1661 6-501-193-01 DIODE 1SS355WTE-17 < FERRITE BEAD > FB1101 1-414-235-22 INDUCTOR, FERRITE BEAD FB1301 1-414-235-22 INDUCTOR, FERRITE BEAD FB1302 1-414-235-22 INDUCTOR, FERRITE BEAD FB1305 1-414-235-22 INDUCTOR, FERRITE BEAD FB1308 1-414-235-22 INDUCTOR, FERRITE BEAD FB1351 1-400-862-11 BEAD, FERRITE FB1352 1-400-862-11 BEAD, FERRITE FB1452 1-400-862-11 BEAD, FERRITE FB1453 1-400-862-11 BEAD, FERRITE FB1501 1-414-235-22 INDUCTOR, FERRITE BEAD FB1502 1-414-235-22 INDUCTOR, FERRITE BEAD FB1503 1-400-862-11 BEAD, FERRITE < EARTH TERMINAL > * G1000 1-537-738-21 TERMINAL, EARTH * G1101 1-537-738-21 TERMINAL, EARTH * G1102 1-537-738-21 TERMINAL, EARTH < IC > IC1001 8-759-231-53 IC TA7805S IC1031 6-705-464-01 IC BA50BC0T IC1071 6-702-771-01 IC TA78033LS IC1111 6-702-913-01 IC S-80929CNMC-G8ZT2G IC1131 6-704-004-01 IC BR24L16F-WE2 IC1301 8-759-825-15 IC LC89056W-E IC1452 6-708-784-01 IC PCM1602APT IC1501 6-707-754-01 IC CXD9862R IC1502 6-709-278-01 IC IS61WV6416BLL-12TLI IC1601 6-806-534-01 IC MB90488BPF-G-196E1 IC1602 6-707-608-01 IC PCM1803DBR IC1651 8-759-491-47 IC TC74VHCT08AFT (EL) IC1901 6-707-168-01 IC SI-3008KWFE IC1902 8-759-701-59 IC NJM78M09FA IC1904 6-705-463-01 IC BA33BC0T < JUMPER RESISTOR > JR1020 1-216-864-11 SHORT CHIP 0 JR2000 1-211-950-11 SHORT CHIP 0 JR2001 1-211-950-11 SHORT CHIP 0 JR2002 1-211-950-11 SHORT CHIP 0 < COIL/JUMPER RESISTOR > L1604 1-469-525-11 INDUCTOR 10uH L1605 1-216-295-00 SHORT CHIP 0 < RESISTOR > R510 1-216-809-11 METAL CHIP 100 5% 1/10W R1039 1-216-833-11 METAL CHIP 10K 5% 1/10W R1041 1-216-809-11 METAL CHIP 100 5% 1/10W R1043 1-216-833-11 METAL CHIP 10K 5% 1/10W R1044 1-216-809-11 METAL CHIP 100 5% 1/10W R1049 1-216-833-11 METAL CHIP 10K 5% 1/10W R1050 1-216-833-11 METAL CHIP 10K 5% 1/10W R1051 1-216-833-11 METAL CHIP 10K 5% 1/10W R1052 1-216-809-11 METAL CHIP 100 5% 1/10W R1053 1-216-809-11 METAL CHIP 100 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 36 STR-KS500 DIGITAL R1058 1-216-813-11 METAL CHIP 220 5% 1/10W R1059 1-216-813-11 METAL CHIP 220 5% 1/10W R1070 1-216-833-11 METAL CHIP 10K 5% 1/10W R1071 1-216-833-11 METAL CHIP 10K 5% 1/10W R1072 1-216-833-11 METAL CHIP 10K 5% 1/10W R1073 1-216-833-11 METAL CHIP 10K 5% 1/10W R1088 1-216-833-11 METAL CHIP 10K 5% 1/10W R1096 1-216-833-11 METAL CHIP 10K 5% 1/10W R1097 1-216-845-11 METAL CHIP 100K 5% 1/10W R1105 1-216-833-11 METAL CHIP 10K 5% 1/10W R1106 1-216-809-11 METAL CHIP 100 5% 1/10W R1107 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1109 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1110 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1112 1-216-809-11 METAL CHIP 100 5% 1/10W R1113 1-216-809-11 METAL CHIP 100 5% 1/10W R1115 1-216-809-11 METAL CHIP 100 5% 1/10W R1119 1-216-821-11 METAL CHIP 1K 5% 1/10W R1121 1-216-809-11 METAL CHIP 100 5% 1/10W R1122 1-216-809-11 METAL CHIP 100 5% 1/10W R1123 1-216-809-11 METAL CHIP 100 5% 1/10W R1124 1-216-809-11 METAL CHIP 100 5% 1/10W R1125 1-216-821-11 METAL CHIP 1K 5% 1/10W R1126 1-216-821-11 METAL CHIP 1K 5% 1/10W R1127 1-216-809-11 METAL CHIP 100 5% 1/10W R1128 1-216-809-11 METAL CHIP 100 5% 1/10W R1129 1-216-809-11 METAL CHIP 100 5% 1/10W R1134 1-216-809-11 METAL CHIP 100 5% 1/10W R1135 1-216-809-11 METAL CHIP 100 5% 1/10W R1136 1-216-809-11 METAL CHIP 100 5% 1/10W R1137 1-216-809-11 METAL CHIP 100 5% 1/10W R1140 1-216-809-11 METAL CHIP 100 5% 1/10W R1142 1-216-809-11 METAL CHIP 100 5% 1/10W R1143 1-216-809-11 METAL CHIP 100 5% 1/10W R1144 1-216-809-11 METAL CHIP 100 5% 1/10W R1147 1-216-864-11 SHORT CHIP 0 R1149 1-216-809-11 METAL CHIP 100 5% 1/10W R1150 1-216-809-11 METAL CHIP 100 5% 1/10W R1151 1-216-809-11 METAL CHIP 100 5% 1/10W R1152 1-216-809-11 METAL CHIP 100 5% 1/10W R1153 1-216-809-11 METAL CHIP 100 5% 1/10W R1154 1-216-809-11 METAL CHIP 100 5% 1/10W R1156 1-216-809-11 METAL CHIP 100 5% 1/10W R1157 1-216-864-11 SHORT CHIP 0 R1158 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1159 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1160 1-216-809-11 METAL CHIP 100 5% 1/10W R1161 1-216-809-11 METAL CHIP 100 5% 1/10W R1162 1-216-809-11 METAL CHIP 100 5% 1/10W R1163 1-216-809-11 METAL CHIP 100 5% 1/10W R1167 1-216-809-11 METAL CHIP 100 5% 1/10W R1168 1-216-809-11 METAL CHIP 100 5% 1/10W R1169 1-216-809-11 METAL CHIP 100 5% 1/10W R1175 1-216-813-11 METAL CHIP 220 5% 1/10W R1179 1-216-833-11 METAL CHIP 10K 5% 1/10W R1180 1-216-833-11 METAL CHIP 10K 5% 1/10W R1186 1-216-833-11 METAL CHIP 10K 5% 1/10W R1189 1-216-833-11 METAL CHIP 10K 5% 1/10W R1190 1-216-833-11 METAL CHIP 10K 5% 1/10W R1201 1-216-837-11 METAL CHIP 22K 5% 1/10W R1251 1-216-840-11 METAL CHIP 39K 5% 1/10W R1252 1-216-840-11 METAL CHIP 39K 5% 1/10W R1260 1-216-864-11 SHORT CHIP 0 R1261 1-216-864-11 SHORT CHIP 0 R1301 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R1302 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1303 1-216-839-11 METAL CHIP 33K 5% 1/10W R1304 1-216-809-11 METAL CHIP 100 5% 1/10W R1305 1-216-817-11 METAL CHIP 470 5% 1/10W R1306 1-216-801-11 METAL CHIP 22 5% 1/10W R1307 1-216-809-11 METAL CHIP 100 5% 1/10W R1308 1-216-809-11 METAL CHIP 100 5% 1/10W R1309 1-216-809-11 METAL CHIP 100 5% 1/10W R1310 1-216-857-11 METAL CHIP 1M 5% 1/10W R1311 1-216-809-11 METAL CHIP 100 5% 1/10W R1312 1-216-809-11 METAL CHIP 100 5% 1/10W R1313 1-216-809-11 METAL CHIP 100 5% 1/10W R1314 1-216-833-11 METAL CHIP 10K 5% 1/10W R1315 1-216-809-11 METAL CHIP 100 5% 1/10W R1316 1-216-809-11 METAL CHIP 100 5% 1/10W R1317 1-216-833-11 METAL CHIP 10K 5% 1/10W R1318 1-216-833-11 METAL CHIP 10K 5% 1/10W R1360 1-216-809-11 METAL CHIP 100 5% 1/10W R1361 1-216-809-11 METAL CHIP 100 5% 1/10W R1362 1-216-809-11 METAL CHIP 100 5% 1/10W R1420 1-216-864-11 SHORT CHIP 0 R1421 1-216-864-11 SHORT CHIP 0 R1422 1-216-864-11 SHORT CHIP 0 R1423 1-216-864-11 SHORT CHIP 0 R1425 1-216-864-11 SHORT CHIP 0 R1426 1-216-821-11 METAL CHIP 1K 5% 1/10W R1435 1-216-864-11 SHORT CHIP 0 R1436 1-216-821-11 METAL CHIP 1K 5% 1/10W R1440 1-216-864-11 SHORT CHIP 0 R1441 1-216-864-11 SHORT CHIP 0 R1442 1-216-864-11 SHORT CHIP 0 R1445 1-216-864-11 SHORT CHIP 0 R1446 1-216-821-11 METAL CHIP 1K 5% 1/10W R1460 1-216-864-11 SHORT CHIP 0 R1461 1-216-864-11 SHORT CHIP 0 R1464 1-216-864-11 SHORT CHIP 0 R1466 1-216-821-11 METAL CHIP 1K 5% 1/10W R1470 1-216-864-11 SHORT CHIP 0 R1471 1-216-864-11 SHORT CHIP 0 R1476 1-216-821-11 METAL CHIP 1K 5% 1/10W R1484 1-216-864-11 SHORT CHIP 0 R1486 1-216-821-11 METAL CHIP 1K 5% 1/10W R1492 1-216-833-11 METAL CHIP 10K 5% 1/10W R1501 1-216-809-11 METAL CHIP 100 5% 1/10W R1502 1-216-809-11 METAL CHIP 100 5% 1/10W R1503 1-216-813-11 METAL CHIP 220 5% 1/10W R1504 1-216-809-11 METAL CHIP 100 5% 1/10W R1505 1-216-809-11 METAL CHIP 100 5% 1/10W R1506 1-216-809-11 METAL CHIP 100 5% 1/10W R1508 1-216-809-11 METAL CHIP 100 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 37 STR-KS500 DIGITAL DISPLAY R1509 1-216-809-11 METAL CHIP 100 5% 1/10W R1511 1-216-809-11 METAL CHIP 100 5% 1/10W R1512 1-216-833-11 METAL CHIP 10K 5% 1/10W R1513 1-216-833-11 METAL CHIP 10K 5% 1/10W R1514 1-216-833-11 METAL CHIP 10K 5% 1/10W R1515 1-216-857-11 METAL CHIP 1M 5% 1/10W R1517 1-216-813-11 METAL CHIP 220 5% 1/10W R1518 1-216-813-11 METAL CHIP 220 5% 1/10W R1519 1-216-813-11 METAL CHIP 220 5% 1/10W R1520 1-216-813-11 METAL CHIP 220 5% 1/10W R1521 1-216-813-11 METAL CHIP 220 5% 1/10W R1522 1-216-813-11 METAL CHIP 220 5% 1/10W R1523 1-216-813-11 METAL CHIP 220 5% 1/10W R1525 1-216-813-11 METAL CHIP 220 5% 1/10W R1526 1-216-813-11 METAL CHIP 220 5% 1/10W R1527 1-216-813-11 METAL CHIP 220 5% 1/10W R1528 1-216-813-11 METAL CHIP 220 5% 1/10W R1529 1-216-813-11 METAL CHIP 220 5% 1/10W R1532 1-216-813-11 METAL CHIP 220 5% 1/10W R1533 1-216-813-11 METAL CHIP 220 5% 1/10W R1534 1-216-813-11 METAL CHIP 220 5% 1/10W R1535 1-216-813-11 METAL CHIP 220 5% 1/10W R1536 1-216-813-11 METAL CHIP 220 5% 1/10W R1537 1-216-813-11 METAL CHIP 220 5% 1/10W R1538 1-216-813-11 METAL CHIP 220 5% 1/10W R1539 1-216-813-11 METAL CHIP 220 5% 1/10W R1540 1-216-813-11 METAL CHIP 220 5% 1/10W R1541 1-216-813-11 METAL CHIP 220 5% 1/10W R1542 1-216-813-11 METAL CHIP 220 5% 1/10W R1543 1-216-813-11 METAL CHIP 220 5% 1/10W R1544 1-216-813-11 METAL CHIP 220 5% 1/10W R1545 1-216-813-11 METAL CHIP 220 5% 1/10W R1546 1-216-813-11 METAL CHIP 220 5% 1/10W R1547 1-216-813-11 METAL CHIP 220 5% 1/10W R1548 1-216-813-11 METAL CHIP 220 5% 1/10W R1549 1-216-813-11 METAL CHIP 220 5% 1/10W R1550 1-216-813-11 METAL CHIP 220 5% 1/10W R1551 1-216-813-11 METAL CHIP 220 5% 1/10W R1552 1-216-813-11 METAL CHIP 220 5% 1/10W R1553 1-216-813-11 METAL CHIP 220 5% 1/10W R1554 1-216-813-11 METAL CHIP 220 5% 1/10W R1555 1-216-813-11 METAL CHIP 220 5% 1/10W R1556 1-216-809-11 METAL CHIP 100 5% 1/10W R1557 1-216-813-11 METAL CHIP 220 5% 1/10W R1570 1-216-833-11 METAL CHIP 10K 5% 1/10W R1571 1-216-833-11 METAL CHIP 10K 5% 1/10W R1572 1-216-833-11 METAL CHIP 10K 5% 1/10W R1573 1-216-833-11 METAL CHIP 10K 5% 1/10W R1574 1-216-833-11 METAL CHIP 10K 5% 1/10W R1606 1-216-809-11 METAL CHIP 100 5% 1/10W R1607 1-216-821-11 METAL CHIP 1K 5% 1/10W R1608 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1609 1-216-817-11 METAL CHIP 470 5% 1/10W R1618 1-216-817-11 METAL CHIP 470 5% 1/10W R1635 1-216-833-11 METAL CHIP 10K 5% 1/10W R1636 1-216-833-11 METAL CHIP 10K 5% 1/10W R1671 1-216-864-11 SHORT CHIP 0 R1672 1-216-809-11 METAL CHIP 100 5% 1/10W < VIBRATOR > X1101 1-813-448-21 PIEZOELECTRIC OSCILLATOR (24MHz) X1301 1-795-126-21 VIBRATOR, CRYSTAL (12.288MHz) X1502 1-813-276-21 QUARTZ CRYSTAL (13.9MHz) ************************************************************ DISPLAY BOARD ************** 4-246-476-01 HOLDER (FL) * 4-921-941-01 CUSHION (FL) < CAPACITOR > C111 1-127-888-11 CERAMIC 0.1uF 10% 50V C141 1-126-795-11 ELECT 10uF 20% 50V C143 1-128-821-11 CERAMIC 1000PF 5% 50V C144 1-127-888-11 CERAMIC 0.1uF 10% 50V C155 1-128-813-11 CERAMIC 220PF 5% 50V C156 1-128-813-11 CERAMIC 220PF 5% 50V C157 1-126-795-11 ELECT 10uF 20% 50V C158 1-127-888-11 CERAMIC 0.1uF 10% 50V C159 1-127-888-11 CERAMIC 0.1uF 10% 50V < CONNECTOR > CNP152 1-564-506-11 PLUG, CONNECTOR 3P CNS151 1-784-778-11 CONNECTOR, FFC 17P < FLUORESCENT INDICATOR TUBE > FL101 1-519-862-11 VACUUM FLUORESCENT DISPLAYS < IC > IC102 6-600-309-01 IC RPM7240-H9 IC152 8-759-643-83 IC uPD16315GB-3BS < RESISTOR > R153 1-247-807-31 CARBON 100 5% 1/4W R178 1-249-440-11 CARBON 82K 5% 1/4W R191 1-249-417-11 CARBON 1K 5% 1/4W R192 1-249-417-11 CARBON 1K 5% 1/4W R198 1-249-381-11 CARBON 1 5% 1/4W R199 1-249-381-11 CARBON 1 5% 1/4W < VARIABLE RESISTOR > RV101 1-418-632-11 ENCODER, ROTARY (12 TYPE) (MASTER VOLUME) < SWITCH > S117 1-771-349-21 SWITCH, KEYBOARD (SOUND FIELD +) S118 1-771-349-21 SWITCH, KEYBOARD (MUTING) S119 1-771-349-21 SWITCH, KEYBOARD (SOUND FIELD –) S122 1-771-349-21 SWITCH, KEYBOARD (INPUT SELECTOR) ************************************************************ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 38 STR-KS500 MAIN A-1185-639-A MAIN BOARD, COMPLETE ********************* 3-531-576-41 RIVET (DIA. 3), NYLON 4-857-425-00 BUSHING, 03P INSULATING 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3 < CAPACITOR > C301 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C303 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C304 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C305 1-104-662-91 ELECT 22uF 20% 25V C306 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C308 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C309 1-126-916-11 ELECT 1000uF 20% 6.3V C310 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C402 1-126-964-11 ELECT 10uF 20% 50V C403 1-126-964-11 ELECT 10uF 20% 50V C440 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C441 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C442 1-104-665-11 ELECT 100uF 20% 25V C443 1-104-665-11 ELECT 100uF 20% 25V C464 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C465 1-126-934-11 ELECT 220uF 20% 16V C466 1-126-934-11 ELECT 220uF 20% 16V C467 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C472 1-126-963-11 ELECT 4.7uF 20% 50V C473 1-126-961-11 ELECT 2.2uF 20% 50V C474 1-126-961-11 ELECT 2.2uF 20% 50V C475 1-126-963-11 ELECT 4.7uF 20% 50V C476 1-126-963-11 ELECT 4.7uF 20% 50V C477 1-126-961-11 ELECT 2.2uF 20% 50V C478 1-126-963-11 ELECT 4.7uF 20% 50V C479 1-126-961-11 ELECT 2.2uF 20% 50V C480 1-126-961-11 ELECT 2.2uF 20% 50V C481 1-126-961-11 ELECT 2.2uF 20% 50V C487 1-126-795-11 ELECT 10uF 20% 50V C488 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C489 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C490 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C491 1-126-963-11 ELECT 4.7uF 20% 50V C493 1-126-963-11 ELECT 4.7uF 20% 50V C496 1-126-963-11 ELECT 4.7uF 20% 50V C501 1-126-963-11 ELECT 4.7uF 20% 50V C502 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C503 1-164-739-11 CERAMIC CHIP 560PF 5% 50V C504 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C506 1-126-960-11 ELECT 1uF 20% 50V C507 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C508 1-126-960-11 ELECT 1uF 20% 50V C509 1-104-665-11 ELECT 100uF 20% 25V C510 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C511 1-136-157-00 FILM 0.022uF 5% 50V C518 1-126-960-11 ELECT 1uF 20% 50V C529 1-162-974-11 CERAMIC CHIP 0.01uF 50V C531 1-126-963-11 ELECT 4.7uF 20% 50V C532 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C533 1-164-739-11 CERAMIC CHIP 560PF 5% 50V C534 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C536 1-126-960-11 ELECT 1uF 20% 50V C537 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C538 1-126-960-11 ELECT 1uF 20% 50V C539 1-104-665-11 ELECT 100uF 20% 25V C540 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C548 1-126-960-11 ELECT 1uF 20% 50V C549 1-162-974-11 CERAMIC CHIP 0.01uF 50V C561 1-126-963-11 ELECT 4.7uF 20% 50V C562 1-126-960-11 ELECT 1uF 20% 50V C563 1-126-960-11 ELECT 1uF 20% 50V C564 1-126-963-11 ELECT 4.7uF 20% 50V C565 1-126-933-11 ELECT 100uF 20% 16V C581 1-136-157-00 FILM 0.022uF 5% 50V C590 1-136-171-00 FILM 0.33uF 5% 50V C592 1-136-175-00 FILM 0.68uF 5% 50V C593 1-136-157-00 FILM 0.022uF 5% 50V C594 1-136-169-00 FILM 0.22uF 5% 50V C601 1-126-967-11 ELECT 47uF 20% 50V C602 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C603 1-164-739-11 CERAMIC CHIP 560PF 5% 50V C604 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C606 1-126-960-11 ELECT 1uF 20% 50V C607 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C608 1-126-960-11 ELECT 1uF 20% 50V C609 1-104-665-11 ELECT 100uF 20% 25V C610 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C611 1-136-157-00 FILM 0.022uF 5% 50V C618 1-126-960-11 ELECT 1uF 20% 50V C643 1-162-974-11 CERAMIC CHIP 0.01uF 50V C651 1-126-963-11 ELECT 4.7uF 20% 50V C652 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C653 1-164-739-11 CERAMIC CHIP 560PF 5% 50V C654 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C656 1-126-960-11 ELECT 1uF 20% 50V C657 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C658 1-126-960-11 ELECT 1uF 20% 50V C659 1-104-665-11 ELECT 100uF 20% 25V C660 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C661 1-136-157-00 FILM 0.022uF 5% 50V C664 1-162-974-11 CERAMIC CHIP 0.01uF 50V C668 1-126-960-11 ELECT 1uF 20% 50V C694 1-162-959-11 CERAMIC CHIP 330PF 5% 50V C701 1-126-963-11 ELECT 4.7uF 20% 50V C702 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C703 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C704 1-162-920-11 CERAMIC CHIP 27PF 5% 50V C705 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C706 1-126-960-11 ELECT 1uF 20% 50V C707 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C708 1-126-960-11 ELECT 1uF 20% 50V C709 1-104-665-11 ELECT 100uF 20% 25V C710 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C711 1-136-157-00 FILM 0.022uF 5% 50V C718 1-126-960-11 ELECT 1uF 20% 50V C729 1-162-974-11 CERAMIC CHIP 0.01uF 50V C730 1-126-934-11 ELECT 220uF 20% 16V C732 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 39 STR-KS500 C741 1-162-974-11 CERAMIC CHIP 0.01uF 50V C744 1-164-392-11 CERAMIC CHIP 390PF 5% 50V C751 1-126-963-11 ELECT 4.7uF 20% 50V C752 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C753 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C754 1-162-920-11 CERAMIC CHIP 27PF 5% 50V C755 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C756 1-126-960-11 ELECT 1uF 20% 50V C757 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C758 1-126-960-11 ELECT 1uF 20% 50V C759 1-104-665-11 ELECT 100uF 20% 25V C760 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C761 1-136-157-00 FILM 0.022uF 5% 50V C768 1-126-960-11 ELECT 1uF 20% 50V C791 1-162-974-11 CERAMIC CHIP 0.01uF 50V C794 1-162-959-11 CERAMIC CHIP 330PF 5% 50V C801 1-136-169-00 FILM 0.22uF 5% 50V C802 1-136-169-00 FILM 0.22uF 5% 50V C811 1-126-942-61 ELECT 1000uF 20% 25V C812 1-126-942-61 ELECT 1000uF 20% 25V C813 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C814 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C815 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C816 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C817 1-126-936-11 ELECT 3300uF 20% 16V C818 1-119-940-51 ELECT 4700uF 20% 50V C819 1-119-940-51 ELECT 4700uF 20% 50V C820 1-126-968-11 ELECT 100uF 20% 50V C821 1-126-949-11 ELECT 220uF 20% 35V C842 1-112-128-11 ELECT 47uF 20% 25V C844 1-162-959-11 CERAMIC CHIP 330PF 5% 50V C871 1-126-933-11 ELECT 100uF 20% 16V CC01 1-162-927-11 CERAMIC CHIP 100PF 5% 50V CC02 1-162-927-11 CERAMIC CHIP 100PF 5% 50V CC03 1-162-927-11 CERAMIC CHIP 100PF 5% 50V CC51 1-162-927-11 CERAMIC CHIP 100PF 5% 50V CC52 1-162-927-11 CERAMIC CHIP 100PF 5% 50V CC53 1-162-927-11 CERAMIC CHIP 100PF 5% 50V < CONNECTOR > * CN700 1-564-241-11 PIN, CONNECTOR (3.96mm PITCH) 4P CN820 1-770-479-11 PLUG, CONNECTOR PIN (PC BOARD) 4P * CNP801 1-564-104-00 PIN, CONNECTOR (3.96mm PITCH) 3P * CNP802 1-564-508-11 PLUG, CONNECTOR 5P CNP804 1-564-506-11 PLUG, CONNECTOR 3P CNP861 1-779-978-11 PIN, CONNECTOR 3P CNS301 1-568-826-11 CONNECTOR, FFC 7P CNS403 1-569-324-11 SOCKET, CONNECTOR 21P CNS822 1-569-324-11 SOCKET, CONNECTOR 21P < DIODE > D301 6-501-193-01 DIODE 1SS355WTE-17 D448 6-501-193-01 DIODE 1SS355WTE-17 D449 6-501-193-01 DIODE 1SS355WTE-17 D520 6-501-193-01 DIODE 1SS355WTE-17 D521 6-501-193-01 DIODE 1SS355WTE-17 D529 6-501-193-01 DIODE 1SS355WTE-17 D549 6-501-193-01 DIODE 1SS355WTE-17 D550 6-501-193-01 DIODE 1SS355WTE-17 D620 6-501-193-01 DIODE 1SS355WTE-17 D621 6-501-193-01 DIODE 1SS355WTE-17 D720 6-501-193-01 DIODE 1SS355WTE-17 D721 6-501-193-01 DIODE 1SS355WTE-17 D729 6-501-193-01 DIODE 1SS355WTE-17 D731 6-501-193-01 DIODE 1SS355WTE-17 D801 8-719-053-18 DIODE 1SR154-400TE-25 D802 8-719-053-18 DIODE 1SR154-400TE-25 D803 8-719-053-18 DIODE 1SR154-400TE-25 D804 8-719-053-18 DIODE 1SR154-400TE-25 D805 8-719-053-18 DIODE 1SR154-400TE-25 D806 8-719-053-18 DIODE 1SR154-400TE-25 D807 8-719-053-18 DIODE 1SR154-400TE-25 D808 8-719-053-18 DIODE 1SR154-400TE-25 D809 8-719-072-05 DIODE RBV-602LF-A D810 8-719-053-18 DIODE 1SR154-400TE-25 D811 8-719-053-18 DIODE 1SR154-400TE-25 D812 8-719-083-71 DIODE UDZSTE-1730B D813 8-719-978-33 DIODE DTZ-TT11-6.8B D820 8-719-069-55 DIODE UDZSTE-175.6B D841 8-719-069-55 DIODE UDZSTE-175.6B < IC > IC301 6-600-466-01 IC TORX147L (SONY) (DIGITAL SA-CD/CD OPT IN) IC303 8-759-242-70 IC TC7WU04F IC401 6-707-169-01 IC M61542FP IC402 8-759-710-97 IC NJM4565M-D IC403 8-759-071-48 IC TA7807S IC404 8-759-071-47 IC TA79007S IC501 8-759-299-54 IC LM3886TF IC551 8-759-299-54 IC LM3886TF IC601 8-759-299-54 IC LM3886TF IC651 8-759-299-54 IC LM3886TF IC701 8-759-299-54 IC LM3886TF IC751 8-759-299-54 IC LM3886TF < JACK > J301 1-794-972-11 JACK, PIN 1P (DIGITAL DVD COAX IN) J1710 1-774-411-11 JACK, PIN 6P (SA-CD/CD AUDIO IN, VIDEO 1 AUDIO IN, VIDEO 2 AUDIO IN) < COIL > L507 1-420-872-52 COIL, AIR-CORE L587 1-420-872-52 COIL, AIR-CORE L607 1-420-872-52 COIL, AIR-CORE L657 1-420-872-52 COIL, AIR-CORE L707 1-420-872-52 COIL, AIR-CORE L757 1-420-872-52 COIL, AIR-CORE < TRANSISTOR > Q401 8-729-802-80 TRANSISTOR 2SC3661 Q520 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q550 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q551 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q620 8-729-120-28 TRANSISTOR 2SC1623-L5L6 MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 40 STR-KS500 Q720 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q730 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q731 8-729-216-31 TRANSISTOR 2SA1163-G Q732 8-729-271-31 TRANSISTOR 2SC2713-G Q861 8-729-140-97 TRANSISTOR 2SB734-34 Q862 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q863 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q866 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q867 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q868 8-729-027-31 TRANSISTOR DTA124EKA-T146 < RESISTOR > R303 1-218-285-11 METAL CHIP 75 5% 1/10W R304 1-216-817-11 METAL CHIP 470 5% 1/10W R305 1-216-841-11 METAL CHIP 47K 5% 1/10W R306 1-216-853-11 METAL CHIP 470K 5% 1/10W R307 1-216-809-11 METAL CHIP 100 5% 1/10W R376 1-216-821-11 METAL CHIP 1K 5% 1/10W R401 1-216-821-11 METAL CHIP 1K 5% 1/10W R402 1-216-821-11 METAL CHIP 1K 5% 1/10W R403 1-216-821-11 METAL CHIP 1K 5% 1/10W R451 1-216-821-11 METAL CHIP 1K 5% 1/10W R452 1-216-821-11 METAL CHIP 1K 5% 1/10W R453 1-216-821-11 METAL CHIP 1K 5% 1/10W R471 1-216-819-11 METAL CHIP 680 5% 1/10W R472 1-216-821-11 METAL CHIP 1K 5% 1/10W R475 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R481 1-216-809-11 METAL CHIP 100 5% 1/10W R482 1-216-809-11 METAL CHIP 100 5% 1/10W R501 1-216-809-11 METAL CHIP 100 5% 1/10W R502 1-216-837-11 METAL CHIP 22K 5% 1/10W R503 1-216-821-11 METAL CHIP 1K 5% 1/10W R504 1-216-815-11 METAL CHIP 330 5% 1/10W R505 1-216-837-11 METAL CHIP 22K 5% 1/10W 0R507 1-249-389-11 CARBON 4.7 5% 1/4W F R508 1-216-841-11 METAL CHIP 47K 5% 1/10W 0R509 1-249-393-11 CARBON 10 5% 1/4W F R510 1-216-838-11 METAL CHIP 27K 5% 1/10W R515 1-216-839-11 METAL CHIP 33K 5% 1/10W R522 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R529 1-216-833-11 METAL CHIP 10K 5% 1/10W R530 1-216-821-11 METAL CHIP 1K 5% 1/10W R531 1-216-809-11 METAL CHIP 100 5% 1/10W R532 1-216-837-11 METAL CHIP 22K 5% 1/10W R533 1-216-821-11 METAL CHIP 1K 5% 1/10W R534 1-216-815-11 METAL CHIP 330 5% 1/10W R535 1-216-837-11 METAL CHIP 22K 5% 1/10W R536 1-216-803-11 METAL CHIP 33 5% 1/10W R539 1-216-845-11 METAL CHIP 100K 5% 1/10W 0R540 1-249-401-11 CARBON 47 5% 1/4W F R545 1-216-839-11 METAL CHIP 33K 5% 1/10W R549 1-216-833-11 METAL CHIP 10K 5% 1/10W R550 1-216-845-11 METAL CHIP 100K 5% 1/10W R551 1-216-845-11 METAL CHIP 100K 5% 1/10W R552 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R553 1-216-833-11 METAL CHIP 10K 5% 1/10W R554 1-216-820-11 METAL CHIP 820 5% 1/10W R555 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R556 1-216-843-11 METAL CHIP 68K 5% 1/10W R557 1-216-849-11 METAL CHIP 220K 5% 1/10W R558 1-216-845-11 METAL CHIP 100K 5% 1/10W R581 1-216-841-11 METAL CHIP 47K 5% 1/10W R582 1-216-838-11 METAL CHIP 27K 5% 1/10W 0R587 1-249-389-11 CARBON 4.7 5% 1/4W F 0R589 1-249-393-11 CARBON 10 5% 1/4W F R591 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R593 1-216-842-11 METAL CHIP 56K 5% 1/10W R594 1-216-833-11 METAL CHIP 10K 5% 1/10W R595 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R596 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R597 1-216-853-11 METAL CHIP 470K 5% 1/10W R601 1-216-809-11 METAL CHIP 100 5% 1/10W R602 1-216-837-11 METAL CHIP 22K 5% 1/10W R603 1-216-821-11 METAL CHIP 1K 5% 1/10W R604 1-216-815-11 METAL CHIP 330 5% 1/10W R605 1-216-837-11 METAL CHIP 22K 5% 1/10W 0R607 1-249-389-11 CARBON 4.7 5% 1/4W F R608 1-216-841-11 METAL CHIP 47K 5% 1/10W 0R609 1-249-393-11 CARBON 10 5% 1/4W F R610 1-216-838-11 METAL CHIP 27K 5% 1/10W R615 1-216-839-11 METAL CHIP 33K 5% 1/10W R622 1-216-825-11 METAL CHIP 2.2K 5% 1/10W 0R640 1-249-401-11 CARBON 47 5% 1/4W F 0R643 1-249-389-11 CARBON 4.7 5% 1/4W F R651 1-216-809-11 METAL CHIP 100 5% 1/10W R652 1-216-837-11 METAL CHIP 22K 5% 1/10W R653 1-216-821-11 METAL CHIP 1K 5% 1/10W R654 1-216-815-11 METAL CHIP 330 5% 1/10W R655 1-216-837-11 METAL CHIP 22K 5% 1/10W 0R657 1-249-389-11 CARBON 4.7 5% 1/4W F R658 1-216-841-11 METAL CHIP 47K 5% 1/10W 0R659 1-249-393-11 CARBON 10 5% 1/4W F R660 1-216-838-11 METAL CHIP 27K 5% 1/10W 0R664 1-249-389-11 CARBON 4.7 5% 1/4W F R665 1-216-839-11 METAL CHIP 33K 5% 1/10W R701 1-216-809-11 METAL CHIP 100 5% 1/10W R702 1-216-837-11 METAL CHIP 22K 5% 1/10W R703 1-216-821-11 METAL CHIP 1K 5% 1/10W R704 1-216-815-11 METAL CHIP 330 5% 1/10W R705 1-216-837-11 METAL CHIP 22K 5% 1/10W 0R707 1-249-389-11 CARBON 4.7 5% 1/4W F R708 1-216-841-11 METAL CHIP 47K 5% 1/10W 0R709 1-249-393-11 CARBON 10 5% 1/4W F R710 1-216-838-11 METAL CHIP 27K 5% 1/10W R715 1-216-839-11 METAL CHIP 33K 5% 1/10W R722 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R729 1-216-833-11 METAL CHIP 10K 5% 1/10W R730 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R731 1-216-833-11 METAL CHIP 10K 5% 1/10W R732 1-216-839-11 METAL CHIP 33K 5% 1/10W 0R740 1-249-401-11 CARBON 47 5% 1/4W F 0R741 1-249-389-11 CARBON 4.7 5% 1/4W F R742 1-216-845-11 METAL CHIP 100K 5% 1/10W R750 1-216-821-11 METAL CHIP 1K 5% 1/10W R751 1-216-809-11 METAL CHIP 100 5% 1/10W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 41 STR-KS500 STANDBY R752 1-216-837-11 METAL CHIP 22K 5% 1/10W R753 1-216-821-11 METAL CHIP 1K 5% 1/10W R754 1-216-815-11 METAL CHIP 330 5% 1/10W R755 1-216-837-11 METAL CHIP 22K 5% 1/10W 0R757 1-249-389-11 CARBON 4.7 5% 1/4W F R758 1-216-841-11 METAL CHIP 47K 5% 1/10W 0R759 1-249-393-11 CARBON 10 5% 1/4W F R760 1-216-838-11 METAL CHIP 27K 5% 1/10W R765 1-216-839-11 METAL CHIP 33K 5% 1/10W 0R791 1-249-389-11 CARBON 4.7 5% 1/4W F 0R810 1-243-833-11 FUSIBLE 0.47 5% 1/2W F 0R811 1-243-833-11 FUSIBLE 0.47 5% 1/2W F 0R831 1-249-409-11 CARBON 220 5% 1/4W F R832 1-216-837-11 METAL CHIP 22K 5% 1/10W R840 1-216-833-11 METAL CHIP 10K 5% 1/10W R843 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R844 1-216-837-11 METAL CHIP 22K 5% 1/10W R864 1-216-841-11 METAL CHIP 47K 5% 1/10W R881 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R882 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R883 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R884 1-216-841-11 METAL CHIP 47K 5% 1/10W R885 1-216-809-11 METAL CHIP 100 5% 1/10W R886 1-216-809-11 METAL CHIP 100 5% 1/10W 0R910 1-219-121-11 FUSIBLE 0.22 5% 1/4W F < RELAY > RY501 1-755-170-11 RELAY (12V) RY601 1-755-170-11 RELAY (12V) RY701 1-755-170-11 RELAY (12V) < TERMINAL > TM500 1-694-652-11 TERMINAL BOARD (SP) (SPEAKERS FRONT/SURROUND) ************************************************************ POWER BOARD ************* < SWITCH > S123 1-771-349-21 SWITCH, KEYBOARD (I/1) ************************************************************ SPEAKER BOARD ************** < CAPACITOR > C544 1-162-959-11 CERAMIC CHIP 330PF 5% 50V C641 1-162-974-11 CERAMIC CHIP 0.01uF 50V C642 1-162-974-11 CERAMIC CHIP 0.01uF 50V C644 1-162-959-11 CERAMIC CHIP 330PF 5% 50V < RESISTOR > 0R641 1-249-389-11 CARBON 4.7 5% 1/4W F 0R642 1-249-389-11 CARBON 4.7 5% 1/4W F < TERMINAL > TM501 1-537-925-32 TERMINAL BOARD (SPEAKERS CENTER/SUB WOOFER) ************************************************************ STANDBY BOARD *************** < CAPACITOR > C921 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C922 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C923 1-126-936-11 ELECT 3300uF 20% 16V C924 1-126-960-11 ELECT 1uF 20% 50V C925 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V < CONNECTOR > CNP901 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P * CNP902 1-565-792-11 PIN, CONNECTOR (3.96mm PITCH) 2P CNP903 1-770-480-11 SOCKET, CONNECTOR PIN 4P < DIODE > D951 6-501-193-01 DIODE 1SS355WTE-17 D952 8-719-053-18 DIODE 1SR154-400TE-25 D953 8-719-053-18 DIODE 1SR154-400TE-25 D954 8-719-053-18 DIODE 1SR154-400TE-25 D955 8-719-053-18 DIODE 1SR154-400TE-25 D956 6-501-193-01 DIODE 1SS355WTE-17 D957 6-501-193-01 DIODE 1SS355WTE-17 < FUSE HOLDER > FH901 1-533-293-11 FUSE HOLDER FH902 1-533-293-11 FUSE HOLDER < EARTH TERMINAL > * G102 1-537-738-21 TERMINAL, EARTH < TRANSISTOR > Q901 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q951 8-729-120-28 TRANSISTOR 2SC1623-L5L6 < RESISTOR > R951 1-216-841-11 METAL CHIP 47K 5% 1/10W R952 1-216-829-11 METAL CHIP 4.7K 5% 1/10W 0R953 1-249-381-11 CARBON 1 5% 1/4W F R954 1-216-841-11 METAL CHIP 47K 5% 1/10W R955 1-216-845-11 METAL CHIP 100K 5% 1/10W R956 1-216-833-11 METAL CHIP 10K 5% 1/10W < RELAY > 0RY901 1-755-541-11 RELAY < TRANSFORMER > 0T902 1-443-517-11 POWER TRANSFORMER ************************************************************ MAIN SPEAKER POWER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 42 STR-KS500 TUNING BOARD ************* < RESISTOR > R194 1-249-417-11 CARBON 1K 5% 1/4W < SWITCH > S120 1-771-349-21 SWITCH, KEYBOARD (PRESET TUNING +) S121 1-771-349-21 SWITCH, KEYBOARD (PRESET TUNING –) ************************************************************ MISCELLANEOUS ************** 4 1-828-994-11 WIRE (FLAT TYPE) (17 CORE) 055 1-777-071-83 CORD, POWER 57 1-829-010-11 WIRE (FLAT TYPE) (21 CORE) 58 1-829-011-11 WIRE (FLAT TYPE) (21 CORE) 59 1-828-946-11 WIRE (FLAT TYPE) (7 CORE) 61 1-828-895-11 WIRE (FLAT TYPE) (15 CORE) 0F901 1-532-502-33 FUSE (T1.25AL/250V) M1 1-763-561-22 FAN, D.C. 0T901 1-445-045-11 POWER TRANSFORMER TN1 1-693-676-11 TUNER ************************************************************ ACCESSORIES ************ 0 1-770-019-61 ADAPTOR, CONVERSION PLUG (UK) TUNING www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SERVICE MANUAL STR-KS500 AEP Model UK Model 9-887-302-81 Ver. 1.1 2006.08 Subject: Change of DIGITAL board (Suffix-12) Change of MAIN board In this set, DIGITAL and MAIN boards have been changed in the midway of production. Printed wiring board and schematic diagram of new type, and changed parts list are described in this supplement-1. Refer to original service manual for other information. SUPPLEMENT-1 File this supplement with the service manual. TABLE OF CONTENTS 1. NEW/FORMER DISCRIMINATION .................... 2 2. DIAGRAMS 2-1. Printed Wiring Board – DIGITAL Board (Component Side) – .......................... 4 2-2. Printed Wiring Board – DIGITAL Board (Conductor Side) – ............................ 5 2-3. Schematic Diagram – DIGITAL Board (1/3) – ............... 6 2-4. Schematic Diagram – DIGITAL Board (2/3) – ............... 7 2-5. Schematic Diagram – DIGITAL Board (3/3) – ............... 8 2-6. Schematic Diagram – MAIN Board (1/3) – .................... 9 2-7. Schematic Diagram – MAIN Board (2/3) – .................... 10 2-8. Schematic Diagram – MAIN Board (3/3) – .................... 11 2-9. Printed Wiring Board – MAIN Board – .......................... 12 3. ELECTRICAL PARTS LIST ................................ 13 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 STR-KS500 • Discrimination of MAIN Board Discriminate with the serial No. written on the back panel. Destination Serial No. AEP 5501333 to 5501382 and since 5502284 UK 6501333 to 6501382 and since 6502284 1. NEW/FORMER DISCRIMINATION – DIGITAL Board (Component Side) – Former : 1-870-403-11 New : 1-870-403-12 DVD COAX IN OPT IN SA-CD/CD DIGITAL SA-CD/CD AUDIO IN VIDEO 2 AUDIO IN VIDEO 1 AUDIO IN L R L R SPEAKERS L R L R L R L R FRONT CENTER SUB WOOFER SURROUND U ANTENNA AM Serial No. – Back Panel – • Discrimination of DIGITAL Board Discriminate with the silk printed on the board. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-KS500 3 3 STR-KS500 • Note for Printed Wiring Boards and Schematic Diagrams Note on Printed Wiring Board: • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • f : internal component. • : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) Caution: Pattern face side: Parts on the pattern face side seen from (Conductor Side) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Component Side) the parts face are indicated. Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. (p: pF) 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • f : internal component. • 2 : nonflammable resistor. • 5 : fusible resistor. • C : panel designation. • A : B+ Line. • B : B– Line. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : TUNER • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. F : AUDIO (ANALOG) J : AUDIO (DIGITAL) f : TUNER Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. • Indication of transistor C B These are omitted. E Q • IC Block Diagram – MAIN Board – IC501, 551, 601, 651, 701, 751 TDA7296 2. DIAGRAMS THERMAL SHUTDOWN BIPOLAR TRANSCONDACTANCE INPUT STAGE STANDBY/ MUTE BOOST- STRAP MOS GAIN & LEVEL SHIFTING STAGE STBY-GND IN– IN+ IN+ MUTE NC BOOSTSTRAP +VS –VS STBY MUTE NC NC +PWVS OUT –PWVS 14 15 12 13 10 11 8 9 6 7 5 3 4 1 2 + – MOS OUTPUT STAGE SHORT CIRCUIT PROTECTION w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-KS500 4 4 STR-KS500 2-1. PRINTED WIRING BOARD – DIGITAL Board (Component Side) – : Uses unleaded solder. R1110 IC1301 IC1502 IC1651 R1362 C1301 C1302 R1301 R1302 R1303 R1304 C1303 C1304 C1305 R1446 R1486 X1301 X1502 R1436 R1476 R1426 R1466 C1483 R1445 R1425 FB1452 R1523 R1515 C1521 C1522 R1502 R1503 R1504 R1505 R1506 R1156 FB1503 R1151 R1152 R1153 R1305 R1311 R1360 JR1020 R1306 R1307 R1124 R1129 R1105 R1186 R1122 R1123 R1112 R1115 R1113 R1119 R1126 R1125 R1107 R1109 R1053 IC1131 R1529 R1308 R1309 R1310 D1301 R1312 R1313 R1315 R1316 R1136 R1137 R1134 R1135 R1041 R1142 R1143 R1144 R1160 R1161 R1162 R1121 R1150 R1501 R1149 R1508 R1509 R1511 R1541 R1555 R1168 R1548 R1549 R1550 R1551 R1552 R1553 R1554 R1525 R1526 R1518 R1519 R1520 R1521 R1522 R1517 R1547 R1532 R1533 R1534 R1535 R1536 R1537 R1538 R1539 R1540 R1542 R1543 R1544 R1527 R1528 FB1305 IC1111 R1106 R1127 R1189 C1107 C1137 R1128 R1435 C1252 R1251 R1252 C1063 C1131 C1913 FB1302 C1253 FB1501 FB1502 FB1101 C1123 R1070 C1124 C1122 C1108 FB1301 R1361 FB1352 IC1501 IC1452 R1147 R1154 R1157 C1432 C1472 C1422 C1462 R1464 C1441 R1484 R1460 R1440 R1470 X1101 IC1602 R1609 R1618 R1671 C1675 C1659 R1607 R1608 R1606 R1672 L1605 L1604 R1557 R1163 IC1601 C1454 1 12 13 24 48 37 36 25 1 12 13 24 48 37 36 25 1 30 31 60 120 91 90 61 1 30 31 50 100 81 80 51 DIGITAL BOARD (COMPONENT SIDE) 1-870-403- 12 (12) 1 10 20 11 4 5 3 1 A B C D E F G H I 1 2 3 4 5 6 7 8 • Semiconductor Location Ref. No. Location D1301 D-7 IC1111 G-3 IC1131 D-2 IC1301 D-7 IC1452 D-5 IC1501 F-6 IC1502 F-7 IC1601 E-3 IC1602 D-6 IC1651 E-2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-KS500 5 5 STR-KS500 2-2. PRINTED WIRING BOARD – DIGITAL Board (Conductor Side) – : Uses unleaded solder. JR2001 C1101 FB1308 R1261 R1260 R1059 R1052 R1570 R1175 R1169 R1044 R1201 R1546 R1545 R1556 R1167 C1487 C1547 C1566 C1567 C1568 C1569 C1002 C1251 R1314 C1310 C1309 C1308 C1312 C1313 C1314 C1315 R1317 R1318 C1003 C1004 D1003 D1004 C1905 C1031 R1513 R1571 R1572 R1573 R1574 C1508 C1507 C1506 C1504 C1505 C1503 C1501 C1502 C1509 C1510 R1514 C1511 R1512 C1513 C1514 C1519 C1520 C1516 C1518 C1021 D1107 D1108 D1110 C1299 R1088 R1180 R1179 C1065 C1066 C1067 C1068 R1071 R1072 R1073 R1158 R1159 R1096 R1097 R1049 R1043 R1050 R1051 R1190 R1039 C1100 C1138 C1120 C1142 R1635 R1636 C1620 C1604 C1605 C1605 C1805 C1804 C1129 C1130 C1121 C1125 C1102 FB1351 C1280 C1281 C1282 R1422 C1456 R1492 R1423 R1421 R1420 R1461 R1441 C1657 C1658 C1654 C1671 C1672 C1674 D1661 D1600 R1442 R1471 R510 C1139 C1450 R1058 FB1453 CN197 CNS195 CNS193 IC1001 G1101 IC1901 IC1904 IC1902 IC1031 IC1071 G1102 G1000 CNS191 CNS194 C1032 C1517 C1515 C1022 C1908 C1906 C1069 C1525 C1653 C1673 C1670 C1656 C1457 C1460 C1402 C1468 C1428 C1458 C1418 C1448 C1438 C1306 C1001 C1914 C1064 1-870-403- 12 (12) (CHASSIS) (CHASSIS) (CHASSIS) A MAIN BOARD CNS301 B MAIN BOARD CNS403 D DISPLAY BOARD CNS151 C MAIN BOARD CNS822 DIGITAL BOARD (CONDUCTOR SIDE) 1 3 1 3 1 3 1 3 1 1 5 2 4 3 TN1 TUNER SUPPLIED WITH THE ASSEMBLED BLOCK FM 75Ω COAXIAL ANTENNA AM C1127 A B C D E F G H I 1 2 3 4 5 6 7 8 (Refer to page 22 on service manual) (Page 12) (Page 12) (Page 12) • Semiconductor Location Ref. No. Location D1003 E-2 D1004 E-2 D1107 G-7 D1108 G-7 D1110 G-7 D1600 D-3 D1661 D-3 IC1001 C-3 IC1031 H-3 IC1071 E-1 IC1901 I-4 IC1902 E-2 IC1904 G-7 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-KS500 6 6 STR-KS500 2-3. SCHEMATIC DIAGRAM – DIGITAL Board (1/3) – R1307 R1309 R1312 R1313 R1315 R1306 R1317 R1318 C1315 R1314 C1312 C1301 C1305 R1362 R1361 R1301 C1302 R1303 R1302 C1304 R1304 C1303 C1306 C1308 R1310 X1301 C1309 FB1305 R1360 FB1301 C1454 FB1453 JR1020 CN197 R1470 R1471 R1461 R1460 R1421 R1420 FB1308 FB1302 R1442 R1441 R1440 R1423 R1422 CNS195 C1251 C1252 C1253 R1252 R1251 R1260 R1261 C1914 C1913 C1021 C1022 C1131 C1450 C1004 D1003 D1004 R1609 R1618 R1672 R510 C1657 C1658 C1654 C1671 C1672 L1604 10µH R1607 R1606 R1671 R1608 FB1351 FB1352 G1102 IC1301 G1101 C1460 FB1452 C1402 R1492 C1456 R1311 C1282 C1280 C1281 TN1 L1605 C1653 C1659 IC1071 C1063 C1064 C1674 IC1602 C1656 C1670 C1673 C1675 C1313 R1316 C1314 C1310 R1305 C1003 C1457 R1308 D1301 IC1452 IC1904 IC1902 D1600 D1661 100 100 100 100 100 22 10k 10k 0.1 10k 0.1 0.1 0.1 100 100 5.6k 0.01 33k 4.7k 0.01 100 0.1 47 16V 0.1 1M 12.288MHz 18p 100 0.1 0 7P 0 0 0 0 0 0 0 0 0 0 0 15P 0.1 0.1 0.1 39k 39k 0 0 47 16V 0.1 0.1 470 10V 0.1 0.1 0.022 ISS367 -T3 ISS367 -T3 470 470 100 100 0.01 0.01 0.1 0.1 0.1 1k 100 0 2.2k LC89056W 10 50V 10 50V 10k 0.1 100 0.1 0.1 0.1 0 10 50V 0.1 TA78033LS 0.1 47 16V 0.001 PCM1803DBR 10 50V 10 50V 47 10V 0.01 100p 100 0.1 18p 470 0.1 10 50V 100 1SS352 PCM1602APT BA33BC0T TA7809S 1SS355WTE-17 1SS355WTE-17 A1 A2 A3 A4 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 XMODE CLK GP8 XSTATE DATAO CE SCKI SDI2 LRCKI1 BCKI1 KFSIO PCM_ML PCM_MC PCM_MDI PCM_MDO DI DO EXLOCK PCM_RST SCKOUT BCKO LRCKO SDO2 SDO3 SDO1 FR FL SW C SR SL RDS DATA RDS CLK RDSSIGNAL LRCKI1 1803_RST BCKI1 SCKI SDI1 L IN R IN R CH L CH COAX-IN +5V GND +3.3V GND GND SACD-IN MUTING GND STEREO TUNED CE DATA DO CLOCK VDD 10V L CH R CH VDD 3.3V FM SIG OUT RDS INT RDS DATA (CHASSIS) (CHASSIS) DISEL DOUT DIN0 DIN1 DIN2 D.GND DVDD R VIN LPF AVDD AGND CKOUT BCK LRCK DATAO XSTATE DGND DVDD XMCK XOUT XIN EMPHA AUDIO XMODE CKSEL1 CKSEL0 DOSEL1 DOSEL0 DVDD DGND MODE1 MODE0 XSEL CLK CE DI DO ERROR BPSYNC AUTO DGND DVDD F3/P3/C3 CSFLAG F2/P2/C2 F1/P1/C1 F0/P0/C0 (1/3) RDS DATA RDS INT FM SIG OUT VDD 3.3V MUTING R CH GND L CH STEREO TUNED VDD 10V CE DATA DO CLOCK ANTENNA COAXIAL FM 75Ω AM TUNER SUPPLIED WITH BLOCK THE ASSEMBLED +3.3V REGULATOR +3.3V REGULATOR G I O G O I G O I +9V REGULATOR A/D CONVERTER DIGITAL AUDIO INTERFACE RECEIVER D/A CONVERTER RST SCKI SCKO BCK LRCK TEST VDD DGND DATA1 DATA2 DATA3 ZER0A NC NC VOUT6 VOUT5 VOUT4 VOUT3 ZER01 ZER02 ZER03 ZER04 ZER05 ZER06 ML MC MDI MDO NC NC NC NC VCC1 AGND1 VCC2 AGND2 VCC3 AGND3 VCC4 AGND4 NC AGND6 VCC5 AGND5 NC VCOM VOUT1 VOUT2 (Page 8) (Page 9) (Page 7) (Page 8) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-KS500 7 7 STR-KS500 2-4. SCHEMATIC DIAGRAM – DIGITAL Board (2/3) – C1507 R1541 R1544 R1502 R1504 R1508 R1509 R1511 R1503 R1505 R1506 FB1501 FB1502 C1511 R1513 C1501 R1523 C1522 C1521 X1502 C1503 R1515 FB1503 R1556 C1504 C1506 C1505 R1570 R1571 R1572 R1573 R1574 R1532 R1533 R1534 R1547 R1535 R1536 R1542 R1540 R1539 R1538 R1537 C1514 C1510 C1513 R1528 R1527 R1545 R1546 R1555 R1543 IC1502 R1548 R1549 R1550 R1551 R1526 R1525 R1552 R1553 R1554 R1517 R1518 R1519 R1557 R1522 R1521 R1520 C1520 C1566 R1436 R1426 R1466 R1486 R1446 C1438 C1448 C1458 C1418 C1428 R1512 R1501 C1502 C1525 C1516 C1515 C1518 C1517 C1001 C1002 C1519 C1508 R1514 C1509 IC1501 R1435 C1432 R1464 C1462 R1425 C1422 R1484 C1483 R1445 C1441 IC1001 R1529 C1472 C1468 R1476 C1569 C1568 C1567 C1487 C1547 CNS191 0.1 220 220 100 100 100 100 100 220 100 100 0.1 10k 0.1 220 27p 27p 13.9MHz 0.1 1M 100 0.1 0.1 0.1 10k 10k 10k 10k 10k 220 220 220 220 220 220 220 220 220 220 220 0.1 0.1 0.1 220 220 220 220 220 220 IS61WV6416BLL 220 220 220 220 220 220 220 220 220 220 220 220 220 220 220 220 0.1 0.0022 1k 1k 1k 1k 1k 10 50V 10 50V 10 50V 10 50V 10 50V 10k 100 0.1 100 10V 0.1 470 10V 0.1 470 10V 470 10V 0.1 0.1 0.1 10k 0.1 CXD9862R 0 0 0 0 0 0 0 0 0 0 TA7805S 220 0 10 50V 1k 0.0022 0.0022 0.0022 0.0022 0.0022 21P A1 A2 A3 A4 C1 C2 C3 C5 C6 A5 A6 A7 D15 D14 D13 D12 D11 D10 D9 D8 D8 A9 A10 A11 OE A12 A12 A13 A14 A15 A13 A14 A15 D4 D5 D6 D7 D4 D5 D6 D7 D0 D1 D2 D3 D0 D1 D2 D3 A3 A4 A3 A4 A0 A1 A0 A1 CS CS A2 A2 WE WE A5 A6 A7 A8 A9 A10 A11 D8 D9 D10 D11 D12 D13 D14 D15 GP9 GP8 OE PM SCKOUT SDI1 LRCKO BCKO KFSIO SDO1 SDO2 SDO3 LRCKI1 BCKI1 SDI2 XRST HACN HDIN HCLK HDOUT HCS GP12 EXLOCK BST SW FL FR SR SL C R CH R IN L IN L CH GND GND +7V GND LATCH DATA -7V GND GND (2/3) AUDIO DIGITAL SIGNAL PROCESSOR C SL TUNER-L TUNER-R SR R L L R SW CLOCK G I O +5V REGULATOR S-RAM VSS XRST EXTIN VDDI PLOCK VSS MCLK1 VSS VDDI MCLK2 MS SCKOUT LRCKI1 VDDE BCKI1 SDI1 LRCKO BCKO KFSIO VSS SDO1 SDO2 SDO4 SDO3 SPDIF LRCKI2 BCKI2 SDI2 LRCKI3 BCKI3 TDI TCK XTRST TMS TDO A10 A11 A12 A9 VSS D8 D9 D10 D11 VDDE D12 D13 D14 D15 VSS VDDI GP8 GP9 GP10 A13 A14 A15 A16 A17 VSS VDDI SYNC SDI4 SDI3 PM A0 VSS A1 A2 D0 D1 VDDE D2 D3 D4 D5 VSS VDDI D6 D7 A3 A4 A5 A6 A7 A8 VSS TST2 GP11 TST3 VSS HACN HDIN HCLK HDOUT HCS VDDI VSS CS0 WE0 VDDE WMD1 VSS WMD0 PAGE2 VSS PAGE1 PAGE0 BOOT BST MOD1 MOD0 EXLOCK VDDI TST1 OE0 GP15 GP14 GP13 GP12 GND (Page 8) (Page 8) (Page 9) (Page 6) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-KS500 8 8 STR-KS500 2-5. SCHEMATIC DIAGRAM – DIGITAL Board (3/3) – R1128 R1106 R1112 R1123 R1175 R1058 R1044 R1142 R1143 R1144 R1149 R1150 R1121 R1151 R1156 R1152 R1153 R1154 R1168 R1167 R1162 R1161 R1160 R1163 R1169 R1137 R1136 R1135 R1134 R1140 R1041 X1101 R1043 R1073 R1072 R1071 C1142 C1620 C1604 R1636 C1122 R1070 C1120 C1124 C1123 C1139 R1147 R1157 R1051 R1050 FB1101 R1053 R1052 R1110 R1109 R1107 R1126 R1119 R1113 R1115 R1122 R1059 R1159 R1088 R1180 R1179 R1124 R1129 R1186 R1105 CNS193 C1102 C1129 C1130 C1065 C1067 C1068 C1069 C1138 R1039 C1101 R1190 C1108 R1127 R1189 C1107 C1137 IC1111 D1110 D1108 D1107 C1066 R1201 C1100 CNS194 C1905 C1032 C1031 C1299 C1605 R1158 IC1651 R1635 C1125 C1121 IC1131 IC1601 R1049 IC1901 C1127 R1125 IC1031 100 100 100 100 220 220 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 R1097 100K R1096 10K 100 100 100 100 100 100 24MHz 10k 10k 10k 10k 0.1 0.1 0.1 10k 0.1 10k 0.01 0.1 0.1 0.1 0 0 10k 10k 100 100 2.2k 2.2k 2.2k 1k 1k 100 100 100 220 3.3k 10k 10k 10k 100 100 10k 10k 17P 0.1 0.01 0.01 220p 220p 0.1 10 50V 0.1 10k 0.1 10k 0.1 100 10k 0.1 0.01 S-80929CNMC ISS352 1SS352 1SS352 220p C1085 0.1 C1084 0.1 22k 0.1 21P 0.1 470 10V 0.1 0.1 0.1 3.3k TC74VHCT08AFT 10k 0.1 0.1 BR24L16 MB90488BPF-G -196E1 10k SI-3008KWF 0.1 1k BA50BC0T B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 C1 C2 C3 C5 C6 XSTATE EXLOCK DATAO GP9 BST HCLK HDIN HDOUT PCM_MDO PCM_MDI PCM_MC PCM_ML PCM_RST 1803_RST GP12 XRST PM HACN HCS DO DI CE CLK XMODE VOL A VOL B VOL A VOL B POWER KEY POWER KEY FUSE DET FUSE DET AD0 AD1 AD2 AD0 AD1 AD2 FL CLK FL CLK FL_STB FL_STB FL DIN FL DIN HI-DEC HI-DEC PWR_RY PWR_RY STOP STOP F1 F1 F2 F2 F_CLK PROTECTOR F_CTRL1 F_CTRL2 LEVEL_DETECT R_RY C_RY F_RY F_RY C_RY R_RY LEVEL_DETECT F_CTRL2 F_CTRL1 PROTECTOR F_CLK RDS CLK RDS DATA RDSSIGNAL T_MUTE T_MUTE T_CLK T_DATA T_DATA T_DCLK DO DO SLATCH SLATCH T_TUNER T_TUNER T_STEREO T_STEREO F1 F2 GND +3.3V(STBY) AD2 AD1 AD0 +5V GND F_CTRL2 PROTECTOR +V F_CLK GND GND F2 F1 STOP GND F_CTRL1 LEVEL_DETECT -30V -30V DATAO GP9 BST HCS HACN XRST PM VSS HDOUT HDIN HCLK VCC5 ANA/DIG AVCC AVRH AVSS A/D0 A/D1 A/D2 A/D3 VSS VERSION MD0 MD1 MD2 SIRCS POWER KEY DIN CLK POWER RELAY PROTECTOR REAR RELAY STEREO TUNED MUTE DO RSTX X1A X0A VSS X0 X1 VCC3 SLATCH XMODE CLK CE DI DO ERROR XSTATE FLASH2 CKSEL1 MODEL FL_STB FUSE DETECT SCL VOL(A) VOL(B) NC F_CTRL1 F_CTRL2 FAN_CLK FLASH1 NOT IN USE NOT IN USE RDS SIGNAL GP12 LRCK_SW NOT IN USE NOT IN USE NOT IN USE NOT IN USE PCM1602_RST PCM1602_ML PCM1602_MC PCM1602_MDI PCM1602_MDO NO USE NO USE PCM1803_RST LEVEL_DETECT FAN-HI-DETECT FRONT RELAY SDA NO USE VOL_DATA TUNER_DATA TUNER_CLK VOL_CLK NC POW_MUTE (3/3) FRONT SP RELAY CENTER SP RELAY REAR SP RELAY POW_MUTE STANBY+V DIGITAL+V POWER RELAY HIGH SPEED DETECT LEVEL SHIFT V G FL LAT FL CLK VOL DOWN(2B) VOL UP(2A) POWER ON/OFF SIRCS O I G +5V REGULATOR RESET SIGNAL GENERATOR CD NC O V G EEPROM CENTER RELAY STOP NO USE RDS DATA RDS CLK NOT IN USE NOT IN USE NOT IN USE SYSTEM CONTROLLER +1.85V/+3.3V REGULATOR O V G O NC FL DATA (Refer to page 23 on service manual) G1000 (CHASSIS) C1906 470 10V C1908 470 10V (Page 6) (Page 7) (Page 6) (Page 7) (Page 11) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-KS500 9 9 STR-KS500 2-6. SCHEMATIC DIAGRAM – MAIN Board (1/3) – C496 C491 CC03 CC53 CC02 CC52 CC01 CC51 R403 R402 R401 C464 C489 C490 C488 C467 R475 C466 R471 R472 C479 C477 C474 C473 C472 C475 C478 R376 C476 C493 C481 C480 R481 R482 C403 C402 CNS403 C590 R593 R594 R591 C592 R595 C594 R596 C593 R597 C440 C441 C443 R305 IC403 C442 Q401 C487 R453 R452 R451 C465 IC401 J1710 CNS301 IC404 R307 D301 C310 C309 C301 C308 R303 C306 C305 R304 C304 C303 J301 R306 IC402 IC303 IC301 4.7 50V 4.7 50V 100P 100P 100P 100P 100P 100P 1k 1k 1k 0.1 100p 100p 0.1 0.1 2.2k 220 10V 680 1k 2.2 50V 2.2 50V 2.2 50V 47 50V 4.7 50V 4.7 50V 4.7 50V 1k 4.7 50V 4.7 50V 47 50V 47 50V 100 100 10 50V 10 50V 21P 0.33 56k 10k 2.2k 0.68 5.6k 0.22 8.2k 0.022 470k 0.1 0.1 100 10V 47k TA7807S 100 10V 2SC3661 10 50V 1k 1k 1k 220 10V M61542FP 6P 7P TA79007S 100 1SS355WTE -17 0.1 1000 6.3V 0.1 47p 75 0.1 22 25V 470 0.1 0.001 1P 470k NJM4565M(TE2) TC7WU04F (TE12R) TORX147L(SONY) CHASSIS GND L CH R CH C CH SW CH SL CH GND SR CH AUDIO + AUDIO - +7V GND GND GND GND +7V GND GND -7V COAX-IN GND +3.3V GND +5V GND TUNER-R TUNER-L (1/3) GND INL5 INR5 INL4 INR4 INL3 INR3 INL2 INR2 INL1 INR1 AVEE ADIFL ADIFR GND LIN RIN SRIN SLIN CIN SWIN GND DGND DATA CLOCK DVDD AVCC GND SRC SROUT SLOUT SLC SLVIN SLIGO CIGO CVIN CVC COUT SWOUT SWC SWVIN SWIGO RECR2 RECL2 RECR1 RECL1 LIGO LVIN LVC LOUT ROUT RVC RVIN RIGO SRIGO SRVIN I G O I G O (CHASSIS) VCC GND VCC VEE LINE AMP -7V REGULATOR +7V REGULATOR +3.3V REGULATOR C SL SR R L L R SW DATA CLOCK LATCH L R L R L R SA-CD/CD AUDIO IN AUDIO IN AUDIO IN VIDEO 1 VIDEO 2 (CHASSIS) AUDIO SELECTOR, ELECTRICAL VOLUME SACD-IN INVERTER SA-CD/CD OPT IN IC301 DIGITAL OPTICAL RECEIVER DVD COAX IN DIGITAL (Page 7) (Page 10) (Page 6) (Page 11) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-KS500 10 10 STR-KS500 2-7. SCHEMATIC DIAGRAM – MAIN Board (2/3) – R610 L507 L757 R522 R534 R653 R533 R753 R754 C759 R729 R503 C729 R504 C509 C501 R603 R604 C609 C601 D841 C842 R844 C701 R654 C659 C651 C539 R709 C761 R759 R707 R509 R750 R710 R722 R731 C732 R732 Q731 Q730 D721 D731 Q732 R510 R760 R608 R508 Q520 D521 C581 D620 R622 D621 L707 L657 R657 R659 C661 L587 R587 R589 C531 D729 C751 C730 R730 R740 D720 RY701 RY501 D520 RY601 Q720 R758 R757 R708 C711 R507 R540 R640 R609 C611 C511 Q620 D448 D449 R840 R843 R511 C534 R705 D529 R703 R704 C709 R702 C712 R529 C529 R701 C713 IC701 IC751 C756 R751 D549 R752 C763 R755 IC501 IC601 R539 C704 R549 C549 R550 C754 R501 R502 C504 R742 R505 C506 R602 C513 R537 R601 R651 R652 C654 R532 R658 R581 R582 R660 IC551 IC651 R531 C613 C663 R655 C656 C543 R535 C536 C706 C708 C707 C710 C803 C800 R801 R802 R803 D830 C604 R605 C606 L607 R607 27k 2.2k 330 1k 1k 1k 330 100 10V 10k 1k 0.01 330 100 10V 4.7 50V 1k 330 100 10V 47 50V UDZSTE-175.6B 47 25V 22k 4.7 50V 330 100 10V 4.7 50V 100 10V 10 0.022 10 4.7 10 1k 27k 2.2k 10k 0.1 33k 2SA1163 2SC3052 1SS355WTE-17 1SS355WTE-17 2SC2713 27k 27k 47k 47k 2SC3052 1SS355WTE-17 0.022 1SS355WTE-17 2.2k 1SS355WTE-17 4.7 10 0.022 4.7 10 4.7 50V 1SS355WTE -17 4.7 50V 220 10V 6.8k 47 1SS355WTE-17 1SS355WTE-17 2SC3052 47k 4.7 47k 0.022 4.7 47 47 10 0.022 0.022 2SC3052 1SS355WTE-17 1SS355WTE-17 10k 4.7k 1k 27p 22k 1SS355WTE -17 1k 330 100 10V 22k 22 50V 10k 0.01 100 100p TDA7296 TDA7296 22 50V 100 1SS355WTE -17 22k 100p 22k TDA7296 TDA7296 100k 27p 10k 0.01 100k 27p 100 22k 27p 100k 22k 22 50V 22k 100p 33 100 100 22k 27p 22k 47k 47k 27k 27k TDA7296 TDA7296 100 100p 100p 22k 22 50V 100p 22k 22 50V 10 50V 10 50V 0.022 0.022 10 50V 10 50V 22k 10k 33k 1SS355WTE-17 27p 22k 22 50V 4.7 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 R CH C CH SW CH SL CH SR CH GND L CH F.RY C.RY S.RY SW CH C CH R CH L CH SW CH C CH R CH L CH (2/3) POWER AMP POWER AMP POWER AMP POWER AMP POWER AMP POWER AMP Q730-732 AC POWER PROTECTOR RELAY DRIVE RELAY DRIVE RELAY DRIVE -1 -2 -1 -2 -1 -2 -B OUT +B N.C N.C MUTE STBY -VS +VS BOOTSTART N.C STBY-GND IN - IN + SUR -B OUT +B N.C N.C MUTE STBY +VS -VS BOOTSTART N.C IN - IN + SUR STBY-GND -B OUT +B N.C N.C MUTE STBY +VS -VS BOOTSTART N.C IN - IN + SUR STBY-GND -B OUT +B N.C N.C MUTE STBY +VS -VS BOOTSTART N.C IN - IN + SUR STBY-GND -B OUT +B N.C N.C MUTE STBY +VS -VS BOOTSTART N.C IN - IN + SUR STBY-GND -B OUT +B N.C N.C MUTE STBY +VS -VS BOOTSTART N.C IN - IN + SUR STBY-GND (Page 9) (Page 11) • See page 3 for IC Block Diagram. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-KS500 11 11 STR-KS500 2-8. SCHEMATIC DIAGRAM – MAIN Board (3/3) – D805 CN820 CNS822 R558 C561 Q550 R553 R555 R557 R554 C562 R552 C563 Q551 R551 C564 C565 D550 CNP861 R881 C871 R556 R885 Q862 D820 R864 R884 R882 R883 R886 R664 C664 C643 R643 D808 D807 D806 C815 C816 C818 C819 C802 CN700 D801 D804 D803 D802 C813 C801 C791 R791 R741 C741 D810 C694 C844 C794 C744 C817 D813 R810 R811 CNP804 CNP802 CNP801 C820 R832 R831 C811 C812 C821 TM500 C814 R910 D812 D809 M1 D811 Q861 Q866 Q867 Q863 Q868 1SR154-400 4P 21P 100k 4.7 50V 2SC3052 10k 4.7k 220k 820 1 50V 3.3k 1 50V 2SC3052 100k 4.7 50V 100 16V 1SS355WTE-17 3P 1.5k 100 16V 68k 100 DTA124EKA UDZSTE-175.6B 47k 47k 3.3k 2.2k 100 4.7 0.01 0.01 4.7 1SR154-400 1SR154-400 1SR154-400 0.1 0.1 4700 50V 4700 50V 0.22 4P 1SR154-400 1SR154-400 1SR154-400 1SR154-400 0.001 0.22 0.01 4.7 4.7 0.01 1SR154-400 330p 330p 330p 390p 3300 16V UDZSTE-176.8B 0.47 1/2W 0.47 1/2W 3P 5P 3P 100 50V 22k 220 1000 25V 1000 25V 220 35V 0.001 0.47 UDZSTE -1730B D5SBA20 1SR154-400 2SB734 DTA124EKA DTA124EKA DTA124EKA DTA124EKA A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A15 A14 CHASSIS GND AUDIO + AUDIO - +7V F1 F2 F.RY C.RY S.RY F2 F1 F2 F1 GND STOP GND FRONT SP RELAY CENTER SP RELAY REAR SP RELAY STANBY+V POWER RELAY F_CTRL2 GND F_CTRL1 LEVEL_DETECT HIGH SPEED DETECT POW_MUTE -B +B +R2 +R4 -R2 -R4 L R C GND SW GND +R3 -R3 (3/3) (CHASSIS) FRONT SURROUND SPEAKERS 1 2 3 4 (FAN) FAN MOTOR ON/OFF SWITCH LEVEL SHIFT Q862,863 FAN MOTOR CONTROL SWITCH Q867,868 FAN MOTOR CONTROL SWITCH Q550,551 FAN MOTOR LEVEL DETECT PROTECTOR +V F_CLK -30V DIGITAL+V L R (Refer to page 19 on service manual) STANDBY BOARD CNP903 (Refer to page 19 on service manual) SPEAKER BOARD CN701 (Refer to page 19 on service manual) T901 MAIN POWER TRANSFORMER (Refer to page 19 on service manual) T901 MAIN POWER TRANSFORMER (Refer to page 19 on service manual) T901 MAIN POWER TRANSFORMER (Page 9) (Page 10) (Page 8) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-KS500 12 12 STR-KS500 2-9. PRINTED WIRING BOARD – MAIN Board – : Uses unleaded solder. R882 C694 R722 C815 C814 R758 R557 R558 R554 R522 R556 R884 C813 R883 R885 R555 R552 R654 R653 R655 C654 R651 R731 R551 R510 R608 R660 R610 R508 R732 R760 R730 R658 R481 C704 C301 R755 C816 R705 R482 R452 R553 R604 R603 R502 C604 R605 R601 C441 R504 R503 C504 R505 R501 R591 R475 R472 R602 R704 R701 R703 R702 C710 R754 R652 R751 R753 C754 R531 R533 R534 R535 C534 R708 R881 R303 R710 R582 R581 C744 R622 C844 C794 R752 C707 CC02 CC01 R403 R864 CC03 R594 R595 R596 R597 C440 R532 CC53 CC52 CC51 R451 R401 R402 R453 C310 R471 C308 R307 R305 C464 R306 R304 C306 C304 C303 R593 IC402 IC401 C490 C489 C467 C488 R376 R529 R539 D529 R549 C549 R550 D549 R729 C729 R742 D729 R844 R843 D841 R840 R750 R832 C791 C643 C664 C741 D550 D805 D808 D807 D806 D804 D801 D802 D803 D811 D810 Q731 C732 Q732 D731 Q730 D521 D621 D721 Q720 D720 D620 Q620 D520 Q520 Q401 D448 D449 C529 R886 D301 Q550 Q551 Q862 Q863 Q868 Q866 Q867 IC303 R537 R656 R802 R803 R801 D830 C713 C763 C513 C613 C663 C543 D812 D813 D820 R511 C804 C805 CN820 JWH03 JW378 RY701 C818 C819 C817 Q861 RY501 RY601 L657 C661 C812 C811 CNP801 L587 CNP861 C581 L607 C590 C611 L507 C511 IC403 IC404 L707 C711 L757 C761 CNS403 C594 C592 C593 J301 CNS301 IC301 C402 C403 C480 C476 C477 C478 C479 C475 C473 C474 C472 C842 CNS822 R831 R707 R709 R740 R759 R757 R507 R540 R509 R607 R640 R609 R657 R659 R587 R589 JW479 C487 C496 C493 C491 C481 C465 C442 C443 C466 C305 C751 C871 C756 C539 C759 C606 C609 C656 C659 C651 C506 C501 C730 C563 C561 C564 C565 C562 C708 C706 C701 C709 C536 C531 C509 R741 R791 R664 R643 TM500 J1710 JW392 JW200 JW201 JW202 JW203 JW206 JW207 JW208 JW209 JW210 JW211 JW212 JW214 JW215 JW216 JW218 JW219 JW220 JW221 JW222 JW223 JW224 JW225 JW226 JW228 JW229 JW231 JW232 JW233 JW234 JW236 JW237 JW238 JW239 JW240 JW241 JW242 JW243 JW248 JW249 JW250 JW251 JW252 JW256 JW257 JW258 JW259 JW260 JW261 JW262 JW263 JW264 JW266 JW267 JW278 JW279 JW280 JW287 JW288 JW290 JW291 JW292 JW295 JW296 JW297 JW298 JW299 JW301 JW302 JW307 JW312 JW313 JW314 JW315 JW316 JW317 JW318 JW319 JW320 JW321 JW324 JW325 JW326 JW327 JW328 JW329 JW330 JW331 JW332 JW333 JW337 JW338 JW341 JW342 JW352 JW353 JW375 JW379 JW385 JW395 JW397 JW398 JW399 JW403 JW404 JW406 JW407 JW408 JW409 JW410 JW411 JW412 JW414 JW415 JW416 R811 R810 JW350 JW351 R910 D809 C309 JW217 JW230 JW289 JW334 C821 C820 JW245 JW349 JW246 JW345 JW213 JW293 IC501 IC601 IC551 IC701 IC651 IC751 JW402 JW401 JW384 JW386 JW393 JWH04 JW381 JW389 JW387 JW396 JW380 JW363 JW344 JW400 JW368 JW377 JW376 JW359 JW358 JW366 JW365 JW335 JW348 JW343 JW371 JW372 JW374 JW370 JW265 C712 JW272 JW388 JW273 JW391 JW383 JW369 JW204 JW361 JW247 JW367 JW364 JW405 JW285 JW244 JW309 C800 JW274 JW276 JW277 JW305 JW308 JW310 JW311 JW253 JW382 JW417 JW413 JW418 JW394 JW270 JW269 JW357 JW356 JW306 JW205 JW373 JW283 JW282 JW281 JW286 JW505 JW506 JW508 JW509 JW510 JW511 JW512 JW513 JW514 JW516 JW517 JW518 JW519 JW520 JW521 JW522 JW523 JW528 JW529 JW530 JW531 JW532 JW533 JW526 JW294 JW303 JW304 C803 JW300 JW550 JWH05 JW552 JW525 JW323 JW527 C601 C802 C801 JW275 JW271 JW362 JW515 JW284 JW600 JW601 JW602 JW603 CNP804 CNP802 CN700 E E E -2 -1 -1 -2 -2 -1 E E E E STANDBY BOARD CNP903 H J G 1 4 F SPEAKER BOARD CN701 1 11 2 10 11 10 2 11 2 10 1 11 2 10 1 11 2 10 E E 1 1 3 5 1 4 1 3 11 10 2 C DIGITAL BOARD CNS194 B DIGITAL BOARD CNS191 A DIGITAL BOARD CN197 1 56 14 15 28 29 42 43 E E E E E 1 B C E 3 M1 (FAN) M E MAIN BOARD 1-871-543- 11 (11) T901 MAIN POWER TRANSFORMER R L + – + – + – + – SPEAKERS SURROUND R L FRONT L R VIDEO 1 AUDIO IN L R VIDEO 2 AUDIO IN L R SA-CD/CD AUDIO IN SA-CD/CD OPT IN DVD COAX IN IC301 DIGITAL 1 1 4 8 5 3 1 1 3 3 (CHASSIS) (CHASSIS) 1 4 A B C D E F G H I J 1 2 3 4 5 6 7 8 9 10 11 12 13 14 K (Refer to page 21 on service manual) (Refer to page 21 on service manual) (Refer to page 21 on service manual) T901 MAIN POWER TRANSFORMER (Refer to page 21 on service manual) T901 MAIN POWER TRANSFORMER (Refer to page 21 on service manual) (Page 5) (Page 5) (Page 5) • Semiconductor Location Ref. No. Location D301 J-3 D448 D-7 D449 D-7 D520 B-4 D521 B-6 D529 G-10 D549 G-4 D550 C-14 D620 B-5 D621 B-6 D720 B-5 D721 B-6 D729 D-5 D731 B-7 D801 B-13 D802 B-13 D803 B-13 D804 B-12 D805 B-14 D806 B-13 D807 B-13 D808 B-14 D809 B-10 D810 B-11 D811 B-11 D812 B-11 D813 B-12 D820 F-2 D830 H-11 D841 G-10 IC301 J-2 IC303 J-3 IC401 J-5 IC402 H-5 IC403 H-7 IC404 I-7 IC501 D-4 IC551 D-11 IC601 D-8 IC651 F-8 IC701 F-11 IC751 F-4 Q401 J-7 Q520 B-4 Q550 C-13 Q551 D-14 Q620 B-5 Q720 B-6 Q730 B-7 Q731 B-7 Q732 B-6 Q861 G-2 Q862 G-3 Q863 G-3 Q866 G-2 Q867 H-3 Q868 G-3 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 STR-KS500 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 3. ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • SEMICONDUCTORS In each case, u: µ, for example: uA... : µA... uPA... : µPA... uPB... : µPB... uPC... : µPC... uPD... : µPD... • CAPACITORS uF: µF • COILS uH: µH When indicating parts by reference number, please include the board. A-1185-637-A DIGITAL BOARD, COMPLETE *********************** 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 < CAPACITOR > C1001 1-126-935-11 ELECT 470uF 20% 16V C1002 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1003 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1004 1-162-995-11 CERAMIC CHIP 0.022uF 50V C1021 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1022 1-126-935-11 ELECT 470uF 20% 16V C1031 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1032 1-126-935-11 ELECT 470uF 20% 16V C1063 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1064 1-126-947-11 ELECT 47uF 20% 35V C1065 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C1066 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C1067 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C1068 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1069 1-126-964-11 ELECT 10uF 20% 50V C1084 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C1085 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1100 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1101 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1102 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1107 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1108 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1120 1-162-974-11 CERAMIC CHIP 0.01uF 50V C1121 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1122 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1123 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1124 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1125 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1127 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1129 1-162-974-11 CERAMIC CHIP 0.01uF 50V C1130 1-162-974-11 CERAMIC CHIP 0.01uF 50V C1131 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1137 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1138 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1139 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1142 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1251 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1252 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1253 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1280 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1281 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1282 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1299 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1301 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1302 1-162-974-11 CERAMIC CHIP 0.01uF 50V C1303 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1304 1-162-974-11 CERAMIC CHIP 0.01uF 50V C1305 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1306 1-126-947-11 ELECT 47uF 20% 35V C1308 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1309 1-162-918-11 CERAMIC CHIP 18PF 5% 50V C1310 1-162-918-11 CERAMIC CHIP 18PF 5% 50V C1312 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1313 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C1314 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1315 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1402 1-126-964-11 ELECT 10uF 20% 50V C1418 1-126-964-11 ELECT 10uF 20% 50V C1422 1-216-864-11 SHORT CHIP 0 C1428 1-126-964-11 ELECT 10uF 20% 50V C1432 1-216-864-11 SHORT CHIP 0 C1438 1-126-964-11 ELECT 10uF 20% 50V C1441 1-216-864-11 SHORT CHIP 0 C1448 1-126-964-11 ELECT 10uF 20% 50V C1450 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1454 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1456 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1457 1-126-964-11 ELECT 10uF 20% 50V C1458 1-126-964-11 ELECT 10uF 20% 50V C1460 1-126-964-11 ELECT 10uF 20% 50V C1462 1-216-864-11 SHORT CHIP 0 C1468 1-126-964-11 ELECT 10uF 20% 50V C1472 1-216-864-11 SHORT CHIP 0 C1483 1-216-864-11 SHORT CHIP 0 C1487 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C1501 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1502 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1503 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1504 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1505 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1506 1-164-156-11 CERAMIC CHIP 0.1uF 25V DIGITAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 14 STR-KS500 C1507 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1508 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1509 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1510 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1511 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1513 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1514 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1515 1-126-935-11 ELECT 470uF 20% 16V C1516 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1517 1-126-935-11 ELECT 470uF 20% 16V C1518 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1519 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1520 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1521 1-162-920-11 CERAMIC CHIP 27PF 5% 50V C1522 1-162-920-11 CERAMIC CHIP 27PF 5% 50V C1525 1-104-665-11 ELECT 100uF 20% 25V C1547 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C1566 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C1567 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C1568 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C1569 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C1604 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1605 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1620 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1653 1-126-964-11 ELECT 10uF 20% 50V C1654 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1656 1-126-964-11 ELECT 10uF 20% 50V C1657 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C1658 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C1659 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1670 1-126-964-11 ELECT 10uF 20% 50V C1671 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1672 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1673 1-126-947-11 ELECT 47uF 20% 35V C1674 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C1675 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1905 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1906 1-126-935-11 ELECT 470uF 20% 16V C1908 1-126-935-11 ELECT 470uF 20% 16V C1913 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1914 1-126-947-11 ELECT 47uF 20% 35V < CONNECTOR > CN197 1-568-826-11 CONNECTOR, FFC 7P CNS191 1-569-324-11 SOCKET, CONNECTOR 21P CNS193 1-784-778-11 CONNECTOR, FFC 17P CNS194 1-569-324-11 SOCKET, CONNECTOR 21P CNS195 1-569-321-11 SOCKET, CONNECTOR 15P < DIODE > D1003 8-719-049-09 DIODE 1SS367-T3SONY D1004 8-719-049-09 DIODE 1SS367-T3SONY D1107 8-719-016-74 DIODE 1SS352 D1108 8-719-016-74 DIODE 1SS352 D1110 8-719-016-74 DIODE 1SS352 D1301 8-719-016-74 DIODE 1SS352 D1600 6-501-193-01 DIODE 1SS355WTE-17 D1661 6-501-193-01 DIODE 1SS355WTE-17 < FERRITE BEAD > FB1101 1-414-235-22 INDUCTOR, FERRITE BEAD FB1301 1-414-235-22 INDUCTOR, FERRITE BEAD FB1302 1-414-235-22 INDUCTOR, FERRITE BEAD FB1305 1-414-235-22 INDUCTOR, FERRITE BEAD FB1308 1-414-235-22 INDUCTOR, FERRITE BEAD FB1351 1-400-862-11 BEAD, FERRITE FB1352 1-400-862-11 BEAD, FERRITE FB1452 1-400-862-11 BEAD, FERRITE FB1453 1-400-862-11 BEAD, FERRITE FB1501 1-414-235-22 INDUCTOR, FERRITE BEAD FB1502 1-414-235-22 INDUCTOR, FERRITE BEAD FB1503 1-400-862-11 BEAD, FERRITE < EARTH TERMINAL > * G1000 1-537-738-21 TERMINAL, EARTH * G1101 1-537-738-21 TERMINAL, EARTH * G1102 1-537-738-21 TERMINAL, EARTH < IC > IC1001 8-759-231-53 IC TA7805S IC1031 6-705-464-01 IC BA50BC0T IC1071 6-702-771-01 IC TA78033LS IC1111 6-702-913-01 IC S-80929CNMC-G8ZT2G IC1131 6-704-004-01 IC BR24L16F-WE2 IC1301 8-759-825-15 IC LC89056W-E IC1452 6-708-784-01 IC PCM1602APT IC1501 6-707-754-01 IC CXD9862R IC1502 6-709-278-01 IC IS61WV6416BLL-12TLI IC1601 6-806-534-01 IC MB90488BPF-G-196E1 IC1602 6-707-608-01 IC PCM1803DBR IC1651 8-759-491-47 IC TC74VHCT08AFT (EL) IC1901 6-707-168-01 IC SI-3008KWFE IC1902 8-759-701-59 IC NJM78M09FA IC1904 6-705-463-01 IC BA33BC0T < JUMPER RESISTOR > JR1020 1-216-864-11 SHORT CHIP 0 JR2001 1-211-950-11 SHORT CHIP 0 < COIL/JUMPER RESISTOR > L1604 1-469-525-11 INDUCTOR 10uH L1605 1-216-295-00 SHORT CHIP 0 < RESISTOR > R510 1-216-809-11 METAL CHIP 100 5% 1/10W R1039 1-216-833-11 METAL CHIP 10K 5% 1/10W R1041 1-216-809-11 METAL CHIP 100 5% 1/10W R1043 1-216-833-11 METAL CHIP 10K 5% 1/10W R1044 1-216-809-11 METAL CHIP 100 5% 1/10W R1049 1-216-833-11 METAL CHIP 10K 5% 1/10W R1050 1-216-833-11 METAL CHIP 10K 5% 1/10W R1051 1-216-833-11 METAL CHIP 10K 5% 1/10W R1052 1-216-809-11 METAL CHIP 100 5% 1/10W R1053 1-216-809-11 METAL CHIP 100 5% 1/10W R1058 1-216-813-11 METAL CHIP 220 5% 1/10W DIGITAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 15 STR-KS500 R1059 1-216-813-11 METAL CHIP 220 5% 1/10W R1070 1-216-833-11 METAL CHIP 10K 5% 1/10W R1071 1-216-833-11 METAL CHIP 10K 5% 1/10W R1072 1-216-833-11 METAL CHIP 10K 5% 1/10W R1073 1-216-833-11 METAL CHIP 10K 5% 1/10W R1088 1-216-833-11 METAL CHIP 10K 5% 1/10W R1096 1-216-833-11 METAL CHIP 10K 5% 1/10W R1097 1-216-845-11 METAL CHIP 100K 5% 1/10W R1105 1-216-833-11 METAL CHIP 10K 5% 1/10W R1106 1-216-809-11 METAL CHIP 100 5% 1/10W R1107 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1109 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1110 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1112 1-216-809-11 METAL CHIP 100 5% 1/10W R1113 1-216-809-11 METAL CHIP 100 5% 1/10W R1115 1-216-809-11 METAL CHIP 100 5% 1/10W R1119 1-216-821-11 METAL CHIP 1K 5% 1/10W R1121 1-216-809-11 METAL CHIP 100 5% 1/10W R1122 1-216-809-11 METAL CHIP 100 5% 1/10W R1123 1-216-809-11 METAL CHIP 100 5% 1/10W R1124 1-216-809-11 METAL CHIP 100 5% 1/10W R1125 1-216-821-11 METAL CHIP 1K 5% 1/10W R1126 1-216-821-11 METAL CHIP 1K 5% 1/10W R1127 1-216-809-11 METAL CHIP 100 5% 1/10W R1128 1-216-809-11 METAL CHIP 100 5% 1/10W R1129 1-216-809-11 METAL CHIP 100 5% 1/10W R1134 1-216-809-11 METAL CHIP 100 5% 1/10W R1135 1-216-809-11 METAL CHIP 100 5% 1/10W R1136 1-216-809-11 METAL CHIP 100 5% 1/10W R1137 1-216-809-11 METAL CHIP 100 5% 1/10W R1140 1-216-809-11 METAL CHIP 100 5% 1/10W R1142 1-216-809-11 METAL CHIP 100 5% 1/10W R1143 1-216-809-11 METAL CHIP 100 5% 1/10W R1144 1-216-809-11 METAL CHIP 100 5% 1/10W R1147 1-216-864-11 SHORT CHIP 0 R1149 1-216-809-11 METAL CHIP 100 5% 1/10W R1150 1-216-809-11 METAL CHIP 100 5% 1/10W R1151 1-216-809-11 METAL CHIP 100 5% 1/10W R1152 1-216-809-11 METAL CHIP 100 5% 1/10W R1153 1-216-809-11 METAL CHIP 100 5% 1/10W R1154 1-216-809-11 METAL CHIP 100 5% 1/10W R1156 1-216-809-11 METAL CHIP 100 5% 1/10W R1157 1-216-864-11 SHORT CHIP 0 R1158 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1159 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1160 1-216-809-11 METAL CHIP 100 5% 1/10W R1161 1-216-809-11 METAL CHIP 100 5% 1/10W R1162 1-216-809-11 METAL CHIP 100 5% 1/10W R1163 1-216-809-11 METAL CHIP 100 5% 1/10W R1167 1-216-809-11 METAL CHIP 100 5% 1/10W R1168 1-216-809-11 METAL CHIP 100 5% 1/10W R1169 1-216-809-11 METAL CHIP 100 5% 1/10W R1175 1-216-813-11 METAL CHIP 220 5% 1/10W R1179 1-216-833-11 METAL CHIP 10K 5% 1/10W R1180 1-216-833-11 METAL CHIP 10K 5% 1/10W R1186 1-216-833-11 METAL CHIP 10K 5% 1/10W R1189 1-216-833-11 METAL CHIP 10K 5% 1/10W R1190 1-216-833-11 METAL CHIP 10K 5% 1/10W R1201 1-216-837-11 METAL CHIP 22K 5% 1/10W R1251 1-216-840-11 METAL CHIP 39K 5% 1/10W R1252 1-216-840-11 METAL CHIP 39K 5% 1/10W R1260 1-216-864-11 SHORT CHIP 0 R1261 1-216-864-11 SHORT CHIP 0 R1301 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R1302 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1303 1-216-839-11 METAL CHIP 33K 5% 1/10W R1304 1-216-809-11 METAL CHIP 100 5% 1/10W R1305 1-216-817-11 METAL CHIP 470 5% 1/10W R1306 1-216-801-11 METAL CHIP 22 5% 1/10W R1307 1-216-809-11 METAL CHIP 100 5% 1/10W R1308 1-216-809-11 METAL CHIP 100 5% 1/10W R1309 1-216-809-11 METAL CHIP 100 5% 1/10W R1310 1-216-857-11 METAL CHIP 1M 5% 1/10W R1311 1-216-809-11 METAL CHIP 100 5% 1/10W R1312 1-216-809-11 METAL CHIP 100 5% 1/10W R1313 1-216-809-11 METAL CHIP 100 5% 1/10W R1314 1-216-833-11 METAL CHIP 10K 5% 1/10W R1315 1-216-809-11 METAL CHIP 100 5% 1/10W R1316 1-216-809-11 METAL CHIP 100 5% 1/10W R1317 1-216-833-11 METAL CHIP 10K 5% 1/10W R1318 1-216-833-11 METAL CHIP 10K 5% 1/10W R1360 1-216-809-11 METAL CHIP 100 5% 1/10W R1361 1-216-809-11 METAL CHIP 100 5% 1/10W R1362 1-216-809-11 METAL CHIP 100 5% 1/10W R1420 1-216-864-11 SHORT CHIP 0 R1421 1-216-864-11 SHORT CHIP 0 R1422 1-216-864-11 SHORT CHIP 0 R1423 1-216-864-11 SHORT CHIP 0 R1425 1-216-864-11 SHORT CHIP 0 R1426 1-216-821-11 METAL CHIP 1K 5% 1/10W R1435 1-216-864-11 SHORT CHIP 0 R1436 1-216-821-11 METAL CHIP 1K 5% 1/10W R1440 1-216-864-11 SHORT CHIP 0 R1441 1-216-864-11 SHORT CHIP 0 R1442 1-216-864-11 SHORT CHIP 0 R1445 1-216-864-11 SHORT CHIP 0 R1446 1-216-821-11 METAL CHIP 1K 5% 1/10W R1460 1-216-864-11 SHORT CHIP 0 R1461 1-216-864-11 SHORT CHIP 0 R1464 1-216-864-11 SHORT CHIP 0 R1466 1-216-821-11 METAL CHIP 1K 5% 1/10W R1470 1-216-864-11 SHORT CHIP 0 R1471 1-216-864-11 SHORT CHIP 0 R1476 1-216-821-11 METAL CHIP 1K 5% 1/10W R1484 1-216-864-11 SHORT CHIP 0 R1486 1-216-821-11 METAL CHIP 1K 5% 1/10W R1492 1-216-833-11 METAL CHIP 10K 5% 1/10W R1501 1-216-809-11 METAL CHIP 100 5% 1/10W R1502 1-216-809-11 METAL CHIP 100 5% 1/10W R1503 1-216-813-11 METAL CHIP 220 5% 1/10W R1504 1-216-809-11 METAL CHIP 100 5% 1/10W R1505 1-216-809-11 METAL CHIP 100 5% 1/10W R1506 1-216-809-11 METAL CHIP 100 5% 1/10W R1508 1-216-809-11 METAL CHIP 100 5% 1/10W R1509 1-216-809-11 METAL CHIP 100 5% 1/10W DIGITAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 16 STR-KS500 R1511 1-216-809-11 METAL CHIP 100 5% 1/10W R1512 1-216-833-11 METAL CHIP 10K 5% 1/10W R1513 1-216-833-11 METAL CHIP 10K 5% 1/10W R1514 1-216-833-11 METAL CHIP 10K 5% 1/10W R1515 1-216-857-11 METAL CHIP 1M 5% 1/10W R1517 1-216-813-11 METAL CHIP 220 5% 1/10W R1518 1-216-813-11 METAL CHIP 220 5% 1/10W R1519 1-216-813-11 METAL CHIP 220 5% 1/10W R1520 1-216-813-11 METAL CHIP 220 5% 1/10W R1521 1-216-813-11 METAL CHIP 220 5% 1/10W R1522 1-216-813-11 METAL CHIP 220 5% 1/10W R1523 1-216-813-11 METAL CHIP 220 5% 1/10W R1525 1-216-813-11 METAL CHIP 220 5% 1/10W R1526 1-216-813-11 METAL CHIP 220 5% 1/10W R1527 1-216-813-11 METAL CHIP 220 5% 1/10W R1528 1-216-813-11 METAL CHIP 220 5% 1/10W R1529 1-216-813-11 METAL CHIP 220 5% 1/10W R1532 1-216-813-11 METAL CHIP 220 5% 1/10W R1533 1-216-813-11 METAL CHIP 220 5% 1/10W R1534 1-216-813-11 METAL CHIP 220 5% 1/10W R1535 1-216-813-11 METAL CHIP 220 5% 1/10W R1536 1-216-813-11 METAL CHIP 220 5% 1/10W R1537 1-216-813-11 METAL CHIP 220 5% 1/10W R1538 1-216-813-11 METAL CHIP 220 5% 1/10W R1539 1-216-813-11 METAL CHIP 220 5% 1/10W R1540 1-216-813-11 METAL CHIP 220 5% 1/10W R1541 1-216-813-11 METAL CHIP 220 5% 1/10W R1542 1-216-813-11 METAL CHIP 220 5% 1/10W R1543 1-216-813-11 METAL CHIP 220 5% 1/10W R1544 1-216-813-11 METAL CHIP 220 5% 1/10W R1545 1-216-813-11 METAL CHIP 220 5% 1/10W R1546 1-216-813-11 METAL CHIP 220 5% 1/10W R1547 1-216-813-11 METAL CHIP 220 5% 1/10W R1548 1-216-813-11 METAL CHIP 220 5% 1/10W R1549 1-216-813-11 METAL CHIP 220 5% 1/10W R1550 1-216-813-11 METAL CHIP 220 5% 1/10W R1551 1-216-813-11 METAL CHIP 220 5% 1/10W R1552 1-216-813-11 METAL CHIP 220 5% 1/10W R1553 1-216-813-11 METAL CHIP 220 5% 1/10W R1554 1-216-813-11 METAL CHIP 220 5% 1/10W R1555 1-216-813-11 METAL CHIP 220 5% 1/10W R1556 1-216-809-11 METAL CHIP 100 5% 1/10W R1557 1-216-813-11 METAL CHIP 220 5% 1/10W R1570 1-216-833-11 METAL CHIP 10K 5% 1/10W R1571 1-216-833-11 METAL CHIP 10K 5% 1/10W R1572 1-216-833-11 METAL CHIP 10K 5% 1/10W R1573 1-216-833-11 METAL CHIP 10K 5% 1/10W R1574 1-216-833-11 METAL CHIP 10K 5% 1/10W R1606 1-216-809-11 METAL CHIP 100 5% 1/10W R1607 1-216-821-11 METAL CHIP 1K 5% 1/10W R1608 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1609 1-216-817-11 METAL CHIP 470 5% 1/10W R1618 1-216-817-11 METAL CHIP 470 5% 1/10W R1635 1-216-833-11 METAL CHIP 10K 5% 1/10W R1636 1-216-833-11 METAL CHIP 10K 5% 1/10W R1671 1-216-864-11 SHORT CHIP 0 R1672 1-216-809-11 METAL CHIP 100 5% 1/10W < VIBRATOR > X1101 1-813-448-21 PIEZOELECTRIC OSCILLATOR (24MHz) X1301 1-795-126-21 VIBRATOR, CRYSTAL (12.288MHz) X1502 1-813-276-21 QUARTZ CRYSTAL (13.9MHz) ************************************************************ A-1211-173-A MAIN BOARD, COMPLETE ******************** 3-531-576-41 RIVET (DIA. 3), NYLON 4-857-425-00 BUSHING, 03P INSULATING 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3 < CAPACITOR > C301 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C303 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C304 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C305 1-104-662-91 ELECT 22uF 20% 25V C306 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C308 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C309 1-126-916-11 ELECT 1000uF 20% 6.3V C310 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C402 1-126-964-11 ELECT 10uF 20% 50V C403 1-126-964-11 ELECT 10uF 20% 50V C440 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C441 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C442 1-104-665-11 ELECT 100uF 20% 25V C443 1-104-665-11 ELECT 100uF 20% 25V C464 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C465 1-126-934-11 ELECT 220uF 20% 16V C466 1-126-934-11 ELECT 220uF 20% 16V C467 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C472 1-126-963-11 ELECT 4.7uF 20% 50V C473 1-126-967-11 ELECT 47uF 20% 50V C474 1-126-961-11 ELECT 2.2uF 20% 50V C475 1-126-963-11 ELECT 4.7uF 20% 50V C476 1-126-963-11 ELECT 4.7uF 20% 50V C477 1-126-961-11 ELECT 2.2uF 20% 50V C478 1-126-963-11 ELECT 4.7uF 20% 50V C479 1-126-961-11 ELECT 2.2uF 20% 50V C480 1-126-967-11 ELECT 47uF 20% 50V C481 1-126-967-11 ELECT 47uF 20% 50V C487 1-126-795-11 ELECT 10uF 20% 50V C488 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C489 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C490 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C491 1-126-963-11 ELECT 4.7uF 20% 50V C493 1-126-963-11 ELECT 4.7uF 20% 50V C496 1-126-963-11 ELECT 4.7uF 20% 50V C501 1-126-963-11 ELECT 4.7uF 20% 50V C504 1-162-920-11 CERAMIC CHIP 27PF 5% 50V C506 1-126-965-11 ELECT 22uF 20% 50V C509 1-104-665-11 ELECT 100uF 20% 25V C511 1-136-157-00 FILM 0.022uF 5% 50V C513 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C529 1-162-974-11 CERAMIC CHIP 0.01uF 50V C531 1-126-963-11 ELECT 4.7uF 20% 50V C534 1-162-920-11 CERAMIC CHIP 27PF 5% 50V C536 1-126-965-11 ELECT 22uF 20% 50V DIGITAL MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 17 STR-KS500 C539 1-104-665-11 ELECT 100uF 20% 25V C543 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C549 1-162-974-11 CERAMIC CHIP 0.01uF 50V C561 1-126-963-11 ELECT 4.7uF 20% 50V C562 1-126-960-11 ELECT 1uF 20% 50V C563 1-126-960-11 ELECT 1uF 20% 50V C564 1-126-963-11 ELECT 4.7uF 20% 50V C565 1-126-933-11 ELECT 100uF 20% 16V C581 1-136-157-00 FILM 0.022uF 5% 50V C590 1-136-171-00 FILM 0.33uF 5% 50V C592 1-136-175-00 FILM 0.68uF 5% 50V C593 1-136-157-00 FILM 0.022uF 5% 50V C594 1-136-169-00 FILM 0.22uF 5% 50V C601 1-126-967-11 ELECT 47uF 20% 50V C604 1-162-920-11 CERAMIC CHIP 27PF 5% 50V C606 1-126-965-11 ELECT 22uF 20% 50V C609 1-104-665-11 ELECT 100uF 20% 25V C611 1-136-157-00 FILM 0.022uF 5% 50V C613 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C643 1-162-974-11 CERAMIC CHIP 0.01uF 50V C651 1-126-963-11 ELECT 4.7uF 20% 50V C654 1-162-920-11 CERAMIC CHIP 27PF 5% 50V C656 1-126-965-11 ELECT 22uF 20% 50V C659 1-104-665-11 ELECT 100uF 20% 25V C661 1-136-157-00 FILM 0.022uF 5% 50V C663 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C664 1-162-974-11 CERAMIC CHIP 0.01uF 50V C694 1-162-959-11 CERAMIC CHIP 330PF 5% 50V C701 1-126-963-11 ELECT 4.7uF 20% 50V C704 1-162-920-11 CERAMIC CHIP 27PF 5% 50V C706 1-126-964-11 ELECT 10uF 20% 50V C707 1-162-995-11 CERAMIC CHIP 0.022uF 50V C708 1-126-964-11 ELECT 10uF 20% 50V C709 1-104-665-11 ELECT 100uF 20% 25V C710 1-162-995-11 CERAMIC CHIP 0.022uF 50V C711 1-136-157-00 FILM 0.022uF 5% 50V C712 1-126-965-11 ELECT 22uF 20% 50V C713 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C729 1-162-974-11 CERAMIC CHIP 0.01uF 50V C730 1-126-934-11 ELECT 220uF 20% 16V C732 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C741 1-162-974-11 CERAMIC CHIP 0.01uF 50V C744 1-164-392-11 CERAMIC CHIP 390PF 5% 50V C751 1-126-963-11 ELECT 4.7uF 20% 50V C754 1-162-920-11 CERAMIC CHIP 27PF 5% 50V C756 1-126-965-11 ELECT 22uF 20% 50V C759 1-104-665-11 ELECT 100uF 20% 25V C761 1-136-157-00 FILM 0.022uF 5% 50V C763 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C791 1-162-974-11 CERAMIC CHIP 0.01uF 50V C794 1-162-959-11 CERAMIC CHIP 330PF 5% 50V C800 1-126-964-11 ELECT 10uF 20% 50V C801 1-136-169-00 FILM 0.22uF 5% 50V C802 1-136-169-00 FILM 0.22uF 5% 50V C803 1-126-964-11 ELECT 10uF 20% 50V C811 1-126-942-61 ELECT 1000uF 20% 25V C812 1-126-942-61 ELECT 1000uF 20% 25V C813 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C814 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C815 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C816 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C817 1-126-936-11 ELECT 3300uF 20% 16V C818 1-119-940-51 ELECT 4700uF 20% 50V C819 1-119-940-51 ELECT 4700uF 20% 50V C820 1-126-968-11 ELECT 100uF 20% 50V C821 1-126-949-11 ELECT 220uF 20% 35V C842 1-112-128-11 ELECT 47uF 20% 25V C844 1-162-959-11 CERAMIC CHIP 330PF 5% 50V C871 1-126-933-11 ELECT 100uF 20% 16V CC01 1-162-927-11 CERAMIC CHIP 100PF 5% 50V CC02 1-162-927-11 CERAMIC CHIP 100PF 5% 50V CC03 1-162-927-11 CERAMIC CHIP 100PF 5% 50V CC51 1-162-927-11 CERAMIC CHIP 100PF 5% 50V CC52 1-162-927-11 CERAMIC CHIP 100PF 5% 50V CC53 1-162-927-11 CERAMIC CHIP 100PF 5% 50V < CONNECTOR > CN700 1-564-507-11 PLUG, CONNECTOR 4P CN820 1-770-479-11 PLUG, CONNECTOR PIN (PC BOARD) 4P * CNP801 1-564-104-00 PIN, CONNECTOR (3.96mm PITCH) 3P * CNP802 1-564-508-11 PLUG, CONNECTOR 5P CNP804 1-564-506-11 PLUG, CONNECTOR 3P CNP861 1-779-978-11 PIN, CONNECTOR 3P CNS301 1-568-826-11 CONNECTOR, FFC 7P CNS403 1-569-324-11 SOCKET, CONNECTOR 21P CNS822 1-569-324-11 SOCKET, CONNECTOR 21P < DIODE > D301 6-501-193-01 DIODE 1SS355WTE-17 D448 6-501-193-01 DIODE 1SS355WTE-17 D449 6-501-193-01 DIODE 1SS355WTE-17 D520 6-501-193-01 DIODE 1SS355WTE-17 D521 6-501-193-01 DIODE 1SS355WTE-17 D529 6-501-193-01 DIODE 1SS355WTE-17 D549 6-501-193-01 DIODE 1SS355WTE-17 D550 6-501-193-01 DIODE 1SS355WTE-17 D620 6-501-193-01 DIODE 1SS355WTE-17 D621 6-501-193-01 DIODE 1SS355WTE-17 D720 6-501-193-01 DIODE 1SS355WTE-17 D721 6-501-193-01 DIODE 1SS355WTE-17 D729 6-501-193-01 DIODE 1SS355WTE-17 D731 6-501-193-01 DIODE 1SS355WTE-17 D801 8-719-053-18 DIODE 1SR154-400TE-25 D802 8-719-053-18 DIODE 1SR154-400TE-25 D803 8-719-053-18 DIODE 1SR154-400TE-25 D804 8-719-053-18 DIODE 1SR154-400TE-25 D805 8-719-053-18 DIODE 1SR154-400TE-25 D806 8-719-053-18 DIODE 1SR154-400TE-25 D807 8-719-053-18 DIODE 1SR154-400TE-25 D808 8-719-053-18 DIODE 1SR154-400TE-25 D809 8-719-072-05 DIODE RBV-602LF-A D810 8-719-053-18 DIODE 1SR154-400TE-25 D811 8-719-053-18 DIODE 1SR154-400TE-25 D812 8-719-083-71 DIODE UDZSTE-1730B D813 8-719-978-33 DIODE DTZ-TT11-6.8B MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 18 STR-KS500 D820 8-719-069-55 DIODE UDZSTE-175.6B D830 6-501-193-01 DIODE 1SS355WTE-17 D841 8-719-069-55 DIODE UDZSTE-175.6B < IC > IC301 6-600-466-01 IC TORX147L (SONY) (DIGITAL SA-CD/CD OPT IN) IC303 8-759-242-70 IC TC7WU04F IC401 6-707-169-01 IC M61542FP IC402 8-759-710-97 IC NJM4565M-D IC403 8-759-071-48 IC TA7807S IC404 8-759-071-47 IC TA79007S IC501 8-759-584-38 IC TDA7296 IC551 8-759-584-38 IC TDA7296 IC601 8-759-584-38 IC TDA7296 IC651 8-759-584-38 IC TDA7296 IC701 8-759-584-38 IC TDA7296 IC751 8-759-584-38 IC TDA7296 < JACK > J301 1-794-972-11 JACK, PIN 1P (DIGITAL DVD COAX IN) J1710 1-774-411-11 JACK, PIN 6P (SA-CD/CD AUDIO IN, VIDEO 1 AUDIO IN, VIDEO 2 AUDIO IN) < COIL > L507 1-420-872-52 COIL, AIR-CORE L587 1-420-872-52 COIL, AIR-CORE L607 1-420-872-52 COIL, AIR-CORE L657 1-420-872-52 COIL, AIR-CORE L707 1-420-872-52 COIL, AIR-CORE L757 1-420-872-52 COIL, AIR-CORE < TRANSISTOR > Q401 8-729-802-80 TRANSISTOR 2SC3661 Q520 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q550 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q551 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q620 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q720 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q730 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q731 8-729-216-31 TRANSISTOR 2SA1163-G Q732 8-729-271-31 TRANSISTOR 2SC2713-G Q861 8-729-140-97 TRANSISTOR 2SB734-34 Q862 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q863 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q866 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q867 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q868 8-729-027-31 TRANSISTOR DTA124EKA-T146 < RESISTOR > R303 1-218-285-11 METAL CHIP 75 5% 1/10W R304 1-216-817-11 METAL CHIP 470 5% 1/10W R305 1-216-841-11 METAL CHIP 47K 5% 1/10W R306 1-216-853-11 METAL CHIP 470K 5% 1/10W R307 1-216-809-11 METAL CHIP 100 5% 1/10W R376 1-216-821-11 METAL CHIP 1K 5% 1/10W R401 1-216-821-11 METAL CHIP 1K 5% 1/10W R402 1-216-821-11 METAL CHIP 1K 5% 1/10W R403 1-216-821-11 METAL CHIP 1K 5% 1/10W R451 1-216-821-11 METAL CHIP 1K 5% 1/10W R452 1-216-821-11 METAL CHIP 1K 5% 1/10W R453 1-216-821-11 METAL CHIP 1K 5% 1/10W R471 1-216-819-11 METAL CHIP 680 5% 1/10W R472 1-216-821-11 METAL CHIP 1K 5% 1/10W R475 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R481 1-216-809-11 METAL CHIP 100 5% 1/10W R482 1-216-809-11 METAL CHIP 100 5% 1/10W R501 1-216-809-11 METAL CHIP 100 5% 1/10W R502 1-216-837-11 METAL CHIP 22K 5% 1/10W R503 1-216-821-11 METAL CHIP 1K 5% 1/10W R504 1-216-815-11 METAL CHIP 330 5% 1/10W R505 1-216-837-11 METAL CHIP 22K 5% 1/10W 0R507 1-249-389-11 CARBON 4.7 5% 1/4W F R508 1-216-841-11 METAL CHIP 47K 5% 1/10W 0R509 1-249-393-11 CARBON 10 5% 1/4W F R510 1-216-838-11 METAL CHIP 27K 5% 1/10W R511 1-216-821-11 METAL CHIP 1K 5% 1/10W R522 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R529 1-216-833-11 METAL CHIP 10K 5% 1/10W R531 1-216-809-11 METAL CHIP 100 5% 1/10W R532 1-216-837-11 METAL CHIP 22K 5% 1/10W R533 1-216-821-11 METAL CHIP 1K 5% 1/10W R534 1-216-815-11 METAL CHIP 330 5% 1/10W R535 1-216-837-11 METAL CHIP 22K 5% 1/10W R537 1-216-803-11 METAL CHIP 33 5% 1/10W R539 1-216-845-11 METAL CHIP 100K 5% 1/10W 0R540 1-249-401-11 CARBON 47 5% 1/4W F R549 1-216-833-11 METAL CHIP 10K 5% 1/10W R550 1-216-845-11 METAL CHIP 100K 5% 1/10W R551 1-216-845-11 METAL CHIP 100K 5% 1/10W R552 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R553 1-216-833-11 METAL CHIP 10K 5% 1/10W R554 1-216-820-11 METAL CHIP 820 5% 1/10W R555 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R556 1-216-843-11 METAL CHIP 68K 5% 1/10W R557 1-216-849-11 METAL CHIP 220K 5% 1/10W R558 1-216-845-11 METAL CHIP 100K 5% 1/10W R581 1-216-841-11 METAL CHIP 47K 5% 1/10W R582 1-216-838-11 METAL CHIP 27K 5% 1/10W 0R587 1-249-389-11 CARBON 4.7 5% 1/4W F 0R589 1-249-393-11 CARBON 10 5% 1/4W F R591 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R593 1-216-842-11 METAL CHIP 56K 5% 1/10W R594 1-216-833-11 METAL CHIP 10K 5% 1/10W R595 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R596 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R597 1-216-853-11 METAL CHIP 470K 5% 1/10W R601 1-216-809-11 METAL CHIP 100 5% 1/10W R602 1-216-837-11 METAL CHIP 22K 5% 1/10W R603 1-216-821-11 METAL CHIP 1K 5% 1/10W R604 1-216-815-11 METAL CHIP 330 5% 1/10W R605 1-216-837-11 METAL CHIP 22K 5% 1/10W 0R607 1-249-389-11 CARBON 4.7 5% 1/4W F R608 1-216-841-11 METAL CHIP 47K 5% 1/10W 0R609 1-249-393-11 CARBON 10 5% 1/4W F MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 19 STR-KS500 R610 1-216-838-11 METAL CHIP 27K 5% 1/10W R622 1-216-825-11 METAL CHIP 2.2K 5% 1/10W 0R640 1-249-401-11 CARBON 47 5% 1/4W F 0R643 1-249-389-11 CARBON 4.7 5% 1/4W F R651 1-216-809-11 METAL CHIP 100 5% 1/10W R652 1-216-837-11 METAL CHIP 22K 5% 1/10W R653 1-216-821-11 METAL CHIP 1K 5% 1/10W R654 1-216-815-11 METAL CHIP 330 5% 1/10W R655 1-216-837-11 METAL CHIP 22K 5% 1/10W 0R657 1-249-389-11 CARBON 4.7 5% 1/4W F R658 1-216-841-11 METAL CHIP 47K 5% 1/10W 0R659 1-249-393-11 CARBON 10 5% 1/4W F R660 1-216-838-11 METAL CHIP 27K 5% 1/10W 0R664 1-249-389-11 CARBON 4.7 5% 1/4W F R701 1-216-809-11 METAL CHIP 100 5% 1/10W R702 1-216-837-11 METAL CHIP 22K 5% 1/10W R703 1-216-821-11 METAL CHIP 1K 5% 1/10W R704 1-216-815-11 METAL CHIP 330 5% 1/10W R705 1-216-837-11 METAL CHIP 22K 5% 1/10W 0R707 1-249-389-11 CARBON 4.7 5% 1/4W F R708 1-216-841-11 METAL CHIP 47K 5% 1/10W 0R709 1-249-393-11 CARBON 10 5% 1/4W F R710 1-216-838-11 METAL CHIP 27K 5% 1/10W R722 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R729 1-216-833-11 METAL CHIP 10K 5% 1/10W R730 1-218-867-11 METAL CHIP 6.8K 0.50% 1/10W R731 1-216-833-11 METAL CHIP 10K 5% 1/10W R732 1-216-839-11 METAL CHIP 33K 5% 1/10W 0R740 1-249-401-11 CARBON 47 5% 1/4W F 0R741 1-249-389-11 CARBON 4.7 5% 1/4W F R742 1-216-845-11 METAL CHIP 100K 5% 1/10W R750 1-216-821-11 METAL CHIP 1K 5% 1/10W R751 1-216-809-11 METAL CHIP 100 5% 1/10W R752 1-216-837-11 METAL CHIP 22K 5% 1/10W R753 1-216-821-11 METAL CHIP 1K 5% 1/10W R754 1-216-815-11 METAL CHIP 330 5% 1/10W R755 1-216-837-11 METAL CHIP 22K 5% 1/10W 0R757 1-249-389-11 CARBON 4.7 5% 1/4W F R758 1-216-841-11 METAL CHIP 47K 5% 1/10W 0R759 1-249-393-11 CARBON 10 5% 1/4W F R760 1-216-838-11 METAL CHIP 27K 5% 1/10W 0R791 1-249-389-11 CARBON 4.7 5% 1/4W F R801 1-216-837-11 METAL CHIP 22K 5% 1/10W R802 1-216-833-11 METAL CHIP 10K 5% 1/10W R803 1-216-839-11 METAL CHIP 33K 5% 1/10W 0R810 1-243-833-11 FUSIBLE 0.47 5% 1/2W F 0R811 1-243-833-11 FUSIBLE 0.47 5% 1/2W F 0R831 1-249-409-11 CARBON 220 5% 1/4W F R832 1-216-837-11 METAL CHIP 22K 5% 1/10W R840 1-216-833-11 METAL CHIP 10K 5% 1/10W R843 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R844 1-216-837-11 METAL CHIP 22K 5% 1/10W R864 1-216-841-11 METAL CHIP 47K 5% 1/10W R881 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R882 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R883 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R884 1-216-841-11 METAL CHIP 47K 5% 1/10W R885 1-216-809-11 METAL CHIP 100 5% 1/10W R886 1-216-809-11 METAL CHIP 100 5% 1/10W 0R910 1-219-123-11 FUSIBLE 0.47 5% 1/4W F < RELAY > RY501 1-755-170-11 RELAY (12V) RY601 1-755-170-11 RELAY (12V) RY701 1-755-170-11 RELAY (12V) < TERMINAL > TM500 1-694-652-11 TERMINAL BOARD (SP) (SPEAKERS FRONT/SURROUND) MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 STR-KS500 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2006.06 New 1.1 2006.08 Change of SPEAKER and STANDBY boards Change of DIGITAL board (Suffix-12) (SUPPLEMENT-1) Change of MAIN board (SUPPLEMENT-1) (ECN-ECB72135/ECB76578/ECB77522) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
