索尼SONY STR-DG920音响电路原理图

分类：电子电工日期：2023-04-08 点击：0

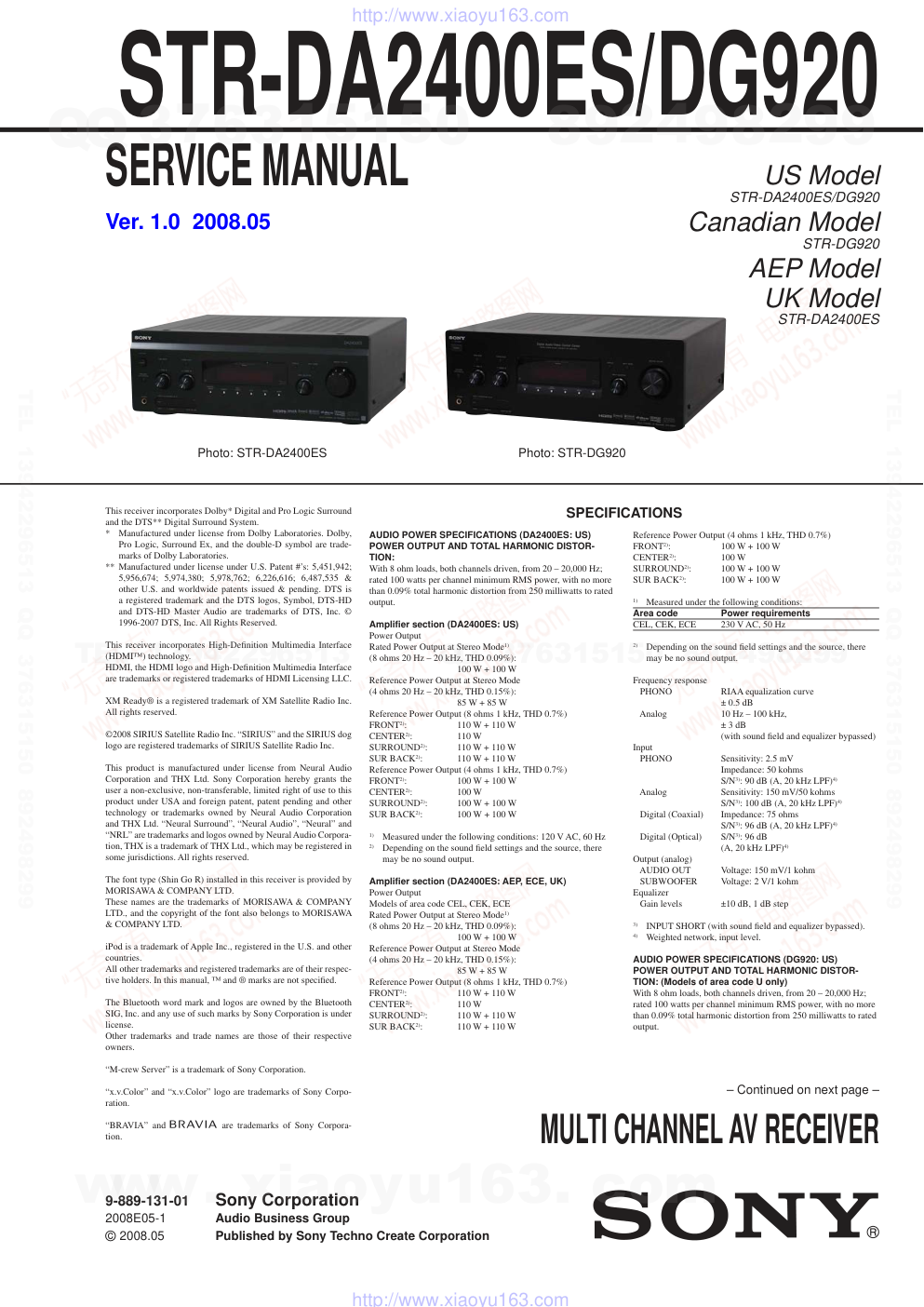

SERVICE MANUAL Sony Corporation Audio Business Group Published by Sony Techno Create Corporation SPECIFICATIONS MULTI CHANNEL AV RECEIVER 9-889-131-01 2008E05-1 © 2008.05 US Model STR-DA2400ES/DG920 Canadian Model STR-DG920 AEP Model UK Model STR-DA2400ES Ver. 1.0 2008.05 Photo: STR-DA2400ES Photo: STR-DG920 This receiver incorporates Dolby* Digital and Pro Logic Surround and the DTS** Digital Surround System. * Manufactured under license from Dolby Laboratories. Dolby, Pro Logic, Surround Ex, and the double-D symbol are trade- marks of Dolby Laboratories. ** Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS is a registered trademark and the DTS logos, Symbol, DTS-HD and DTS-HD Master Audio are trademarks of DTS, Inc. © 1996-2007 DTS, Inc. All Rights Reserved. This receiver incorporates High-Deﬁ nition Multimedia Interface (HDMI™) technology. HDMI, the HDMI logo and High-Deﬁ nition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. XM Ready® is a registered trademark of XM Satellite Radio Inc. All rights reserved. ©2008 SIRIUS Satellite Radio Inc. “SIRIUS” and the SIRIUS dog logo are registered trademarks of SIRIUS Satellite Radio Inc. This product is manufactured under license from Neural Audio Corporation and THX Ltd. Sony Corporation hereby grants the user a non-exclusive, non-transferable, limited right of use to this product under USA and foreign patent, patent pending and other technology or trademarks owned by Neural Audio Corporation and THX Ltd. “Neural Surround”, “Neural Audio”, “Neural” and “NRL” are trademarks and logos owned by Neural Audio Corpora- tion, THX is a trademark of THX Ltd., which may be registered in some jurisdictions. All rights reserved. The font type (Shin Go R) installed in this receiver is provided by MORISAWA & COMPANY LTD. These names are the trademarks of MORISAWA & COMPANY LTD., and the copyright of the font also belongs to MORISAWA & COMPANY LTD. iPod is a trademark of Apple Inc., registered in the U.S. and other countries. All other trademarks and registered trademarks are of their respec- tive holders. In this manual, ™ and ® marks are not speciﬁ ed. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners. “M-crew Server” is a trademark of Sony Corporation. “x.v.Color” and “x.v.Color” logo are trademarks of Sony Corpo- ration. “BRAVIA” and are trademarks of Sony Corpora- tion. AUDIO POWER SPECIFICATIONS (DA2400ES: US) POWER OUTPUT AND TOTAL HARMONIC DISTOR- TION: With 8 ohm loads, both channels driven, from 20 – 20,000 Hz; rated 100 watts per channel minimum RMS power, with no more than 0.09% total harmonic distortion from 250 milliwatts to rated output. Ampliﬁ er section (DA2400ES: US) Power Output Rated Power Output at Stereo Mode1) (8 ohms 20 Hz – 20 kHz, THD 0.09%): 100 W + 100 W Reference Power Output at Stereo Mode (4 ohms 20 Hz – 20 kHz, THD 0.15%): 85 W + 85 W Reference Power Output (8 ohms 1 kHz, THD 0.7%) FRONT2): 110 W + 110 W CENTER2): 110 W SURROUND2): 110 W + 110 W SUR BACK2): 110 W + 110 W Reference Power Output (4 ohms 1 kHz, THD 0.7%) FRONT2): 100 W + 100 W CENTER2): 100 W SURROUND2): 100 W + 100 W SUR BACK2): 100 W + 100 W 1) Measured under the following conditions: 120 V AC, 60 Hz 2) Depending on the sound ﬁ eld settings and the source, there may be no sound output. Ampliﬁ er section (DA2400ES: AEP, ECE, UK) Power Output Models of area code CEL, CEK, ECE Rated Power Output at Stereo Mode1) (8 ohms 20 Hz – 20 kHz, THD 0.09%): 100 W + 100 W Reference Power Output at Stereo Mode (4 ohms 20 Hz – 20 kHz, THD 0.15%): 85 W + 85 W Reference Power Output (8 ohms 1 kHz, THD 0.7%) FRONT2): 110 W + 110 W CENTER2): 110 W SURROUND2): 110 W + 110 W SUR BACK2): 110 W + 110 W Reference Power Output (4 ohms 1 kHz, THD 0.7%) FRONT2): 100 W + 100 W CENTER2): 100 W SURROUND2): 100 W + 100 W SUR BACK2): 100 W + 100 W 1) Measured under the following conditions: Area code Power requirements CEL, CEK, ECE 230 V AC, 50 Hz 2) Depending on the sound ﬁ eld settings and the source, there may be no sound output. Frequency response PHONO RIAA equalization curve ± 0.5 dB Analog 10 Hz – 100 kHz, ± 3 dB (with sound ﬁ eld and equalizer bypassed) Input PHONO Sensitivity: 2.5 mV Impedance: 50 kohms S/N3): 90 dB (A, 20 kHz LPF)4) Analog Sensitivity: 150 mV/50 kohms S/N3): 100 dB (A, 20 kHz LPF)4) Digital (Coaxial) Impedance: 75 ohms S/N3): 96 dB (A, 20 kHz LPF)4) Digital (Optical) S/N3): 96 dB (A, 20 kHz LPF)4) Output (analog) AUDIO OUT Voltage: 150 mV/1 kohm SUBWOOFER Voltage: 2 V/1 kohm Equalizer Gain levels ±10 dB, 1 dB step 3) INPUT SHORT (with sound ﬁ eld and equalizer bypassed). 4) Weighted network, input level. AUDIO POWER SPECIFICATIONS (DG920: US) POWER OUTPUT AND TOTAL HARMONIC DISTOR- TION: (Models of area code U only) With 8 ohm loads, both channels driven, from 20 – 20,000 Hz; rated 100 watts per channel minimum RMS power, with no more than 0.09% total harmonic distortion from 250 milliwatts to rated output. – Continued on next page – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 2 Ampliﬁ er section (DG920) Models of area code U, CA1) Minimum RMS Output Power (8 ohms, 20 Hz – 20 kHz, THD 0.09%) 100 W + 100 W Stereo Mode Output Power (8 ohms, 1 kHz, THD 0.7%) 110 W + 110 W Surround Mode Output Power2) (8 ohms, 1 kHz, THD 10%) 150 W per channel 1) Measured under the following conditions: Area code Power requirements U, CA 120 V AC, 60 Hz 2) Reference power output for front, center, surround and sur- round back speakers. Depending on the sound ﬁ eld settings and the source, there may be no sound output. Frequency response Analog 10 Hz – 100 kHz, ±3 dB (with sound ﬁ eld and equalizer bypassed) Input Analog Sensitivity: 150 mV/50 kohms S/N3): 96 dB (A, 20 kHz LPF) Digital (Coaxial) Impedance: 75 ohms S/N: 100 dB (A, 20 kHz LPF) Digital (Optical) S/N: 100 dB (A, 20 kHz LPF) Output (Analog) AUDIO OUT Voltage: 150 mV/1 kohms SUBWOOFER Voltage: 2 V/1 kohm Equalizer Gain levels ±10 dB, 1 dB step 3) INPUT SHOR FM tuner section Tuning range 87.5 – 108.0 MHz Antenna (aerial) FM wire antenna (aerial) Antenna (aerial) terminals 75 ohms, unbalanced Intermediate frequency 10.7 MHz AM tuner section (DA2400ES: US) Tuning range With 10-kHz tuning scale 530 – 1,710 kHz5) With 9-kHz tuning scale 531 – 1,710 kHz5) Antenna (aerial) Loop antenna (aerial) Intermediate frequency 450 kHz 5) You can change the AM tuning scale to either 9 kHz or 10 kHz. After tuning in any AM station, turn off the receiver. While holding down TUNING MODE, press POWER on the receiver. All preset stations will be erased when you change the tuning scale. To reset the scale to 10 kHz (or 9 kHz), repeat the procedure. AM tuner section (DA2400ES: AEP, ECE, UK) Tuning range Area code Tuning scale 10 kHz step 9 kHz step CEL, CEK, ECE – 531 kHz – 1,602 kHz Antenna (aerial) Loop antenna (aerial) Intermediate frequency 450 kHz AM tuner section (DG920) Tuning range Models of area code U, CA With 10-kHz tuning scale: 530 – 1,710 kHz4) With 9-kHz tuning scale: 531 – 1,710 kHz4) Antenna (aerial) Loop antenna (aerial) Intermediate frequency 450 kHz 4) You can change the AM tuning scale to 9 kHz or 10 kHz. After tuning in any AM station, turn off the receiver. While holding down TUNING MODE, press POWER. All preset stations will be erased when you change the tuning scale. To reset the scale to 10 kHz (or 9 kHz), repeat the procedure. Video section Inputs/Outputs Video: 1 Vp-p, 75 ohms COMPONENT VIDEO: Y: 1 Vp-p, 75 ohms PB/CB: 0.7 Vp-p, 75 ohms PR/CR: 0.7 Vp-p, 75 ohms 80 MHz HD Pass Through HDMI Video (DA2400ES) Input/Output (HDMI Repeater block) 640 × 480p@60 Hz 720 × 480p@59.94/60 Hz 1440 × 480p@59.94/60 Hz (pixel sent 2 times) 1280 × 720p@59.94/60 Hz 1920 × 1080i@59.94/60 Hz 1920 × 1080p@59.94/60 Hz 720 × 576p@50 Hz 1440 × 576p@50 Hz (pixel sent 2 times) 1280 × 720p@50 Hz 1920 × 1080i@50 Hz 1920 × 1080p@50 Hz 1920 × 1080p@24 Hz General (DA2400ES: US) Power requirements 120 V AC, 60 Hz Power output (DIGITAL MEDIA PORT) DC OUT: 5 V, 0.7 A MAX Power consumption 350 W Power consumption (during standby mode) 0.7 W (when “HDMI Control” and “RS-232C Control” are set to “OFF”) Dimensions 17 × 6 1/4 × 15 3/8 inches (430 × 157.5 × 388 mm) (width/height/depth) including projecting parts and controls Mass (Approx.) 26 lb 15 oz (12.2 kg) General (DA2400ES: AEP, ECE, UK) Power requirements Area code Power requirements CEL, CEK, ECE 230 V AC, 50/60 Hz Power output (DIGITAL MEDIA PORT) DC OUT: 5 V, 0.7 A MAX Power consumption Area code Power consumption CEL, CEK, ECE 360 W Power consumption (during standby mode) 0.7 W (when “Control for HDMI” is set to “OFF”) Dimensions 430 × 157.5 × 388 mm (width/height/depth) including projecting parts and controls Mass (Approx.) 12.5 kg General (DG920) Power requirements Area code Power requirements U, CA 120 V AC, 60 Hz Power output (DIGITAL MEDIA PORT) DC OUT: 5V, 0.7 A MAX Power consumption Area code Power consumption U 350 W CA 480 VA Power consumption (during standby mode) 0.7 W (When “Control For HDMI” is set to “OFF”) Dimensions (width/height/depth) (Approx.) 17 × 6 1/4 × 15 inches (430 × 157.5 × 378 mm) including projecting parts and controls Mass (Approx.) 26 lb 1 oz (11.8 kg) Supplied accessories Operating Instructions Quick Setup Guide (1) GUI Menu List (1) Optimizer microphone (ECM-AC2) (1) FM wire antenna (aerial) (1) AM loop antenna (aerial) (1) AC power cord (mains lead) (1) (DA2400ES) Remote commander (RM-AAP023) (1) (DG920) Remote commander (RM-AAP024) (1) (DA2400ES: AEP, ECE, UK) Remote commander (RM-AAP025) (1) (DA2400ES: US) Remote commander (RM-AAU039) (1) (DA2400ES) R6 (size-AA) batteries (4 (DA2400ES) or 2 (DG920)) Design and speciﬁ cations are subject to change without notice. • Abbreviation ECE : Continental European, East European and Russian models www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 3 NOTES ON CHIP COMPONENT REPLACEMENT • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. SAFETY CHECK-OUT After correcting the original service problem, perform the follow- ing safety check before releasing the set to the customer: Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes.). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2 V AC range are suitable. (See Fig. A) 1.5 kΩ 0.15 μF AC voltmeter (0.75 V) To Exposed Metal Parts on Set Earth Ground Fig. A. Using an AC voltmeter to check AC leakage. SAFETY-RELATED COMPONET WARNING! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONC- TIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DON- NÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 4 1. SERVICING NOTES ............................................. 5 2. GENERAL .................................................................. 7 3. DISASSEMBLY 3-1. Disassembly Flow ........................................................... 13 3-2. Case ................................................................................. 14 3-3. Front Panel Block (DA2400ES) ..................................... 14 3-4. Front Panel Block (DG920) ............................................ 15 3-5. Tuner (FM/AM), CIS Board and PREOUT Board ......... 15 3-6. DIGITAL VIDEO Board ................................................. 16 3-7. VIDEO Board ................................................................. 16 3-8. Back Panel Block (DA2400ES) ...................................... 17 3-9. Back Panel Block (DG920) ............................................ 17 3-10. MICON Board, DIGITAL Board .................................... 18 3-11. ACLASS Board .............................................................. 18 3-12. Main Block ..................................................................... 19 3-13. MAIN Board ................................................................... 19 4. TEST MODE ............................................................ 20 5. ELECTRICAL ADJUSTMENT ........................... 24 6. DIAGRAMS 6-1. Block Diagram - DIGITAL AUDIO/TUNER Section - ........................... 27 6-2. Block Diagram - DSP/XM Section - .............................. 28 6-3. Block Diagram - ANALOG AUDIO Section - ............... 29 6-4. Block Diagram - AMP Section - ..................................... 30 6-5. Block Diagram - HDMI Section - ................................... 31 6-6. Block Diagram - VIDEO (1/2) Section - ........................ 32 6-7. Block Diagram - VIDEO (2/2)/PANEL Section - ........... 33 6-8. Block Diagram - POWER SUPPLY Section - ................ 34 6-9. Printed Wiring Board - DIGITAL Board (Component Side) - ........................... 36 6-10. Printed Wiring Board - DIGITAL Board (Conductor Side) - ............................. 37 6-11. Schematic Diagram - DIGITAL Board (1/2) - ................ 38 6-12. Schematic Diagram - DIGITAL Board (2/2) - ................ 39 6-13. Printed Wiring Board - DIGITAL VIDEO Board (Component Side) - ............. 40 6-14. Printed Wiring Board - DIGITAL VIDEO Board (Conductor Side) - ............... 41 6-15. Schematic Diagram - DIGITAL VIDEO Board (1/4) - ................................... 42 6-16. Schematic Diagram - DIGITAL VIDEO Board (2/4) - ................................... 43 6-17. Schematic Diagram - DIGITAL VIDEO Board (3/4) - ................................... 44 6-18. Schematic Diagram - DIGITAL VIDEO Board (4/4) - ................................... 45 6-19. Printed Wiring Board - MAIN Board - ........................... 46 6-20. Schematic Diagram - MAIN Board (1/3) - ..................... 47 6-21. Schematic Diagram - MAIN Board (2/3) - ..................... 48 6-22. Schematic Diagram - MAIN Board (3/3) - ..................... 49 6-23. Printed Wiring Board - ACLASS Board - ...................... 50 6-24. Schematic Diagram - ACLASS Board - ......................... 51 6-25. Printed Wiring Board - VIDEO Board - ......................... 52 6-26. Schematic Diagram - VIDEO Board - ............................ 53 6-27. Printed Wiring Board - DSP Board - .............................. 54 6-28. Schematic Diagram - DSP Board - ................................. 55 6-29. Printed Wiring Board - MICON Board (Component Side) - ............................. 56 6-30. Printed Wiring Board - MICON Board (Conductor Side) - ............................... 57 TABLE OF CONTENTS 6-31. Schematic Diagram - MICON Board (1/3) - .................. 58 6-32. Schematic Diagram - MICON Board (2/3) - .................. 59 6-33. Schematic Diagram - MICON Board (3/3) - .................. 60 6-34. Printed Wiring Board - LIMITER Board - ..................... 61 6-35. Schematic Diagram - LIMITER Board - ........................ 61 6-36. Printed Wiring Boards - CONNECTOR Section - ......... 62 6-37. Schematic Diagram - CONNECTOR Section - .............. 63 6-38. Printed Wiring Board - DISPLAY Board - ..................... 64 6-39. Schematic Diagram - DISPLAY Board - ........................ 65 6-40. Printed Wiring Boards - PANEL Section - ..................... 66 6-41. Schematic Diagram - PANEL Section - .......................... 67 6-42. Printed Wiring Board - SURR SPEAKER Board - ........ 68 6-43. Schematic Diagram - SURR SPEAKER Board - ........... 69 6-44. Printed Wiring Board - CIS Board (DA2400ES: US model) - .......................... 70 6-45. Schematic Diagram - CIS Board (DA2400ES: US model) - .......................... 71 6-46. Printed Wiring Board - PREOUT Board (DA2400ES: AEP, ECE, UK models) - .......................... 72 6-47. Schematic Diagram - PREOUT Board (DA2400ES: AEP, ECE, UK models) - .......................... 72 6-48. Printed Wiring Board - DCDC CON Board - ................. 73 6-49. Schematic Diagram - DCDC CON Board - .................... 73 6-50. Printed Wiring Boards - POWER Section - .................... 74 6-51. Schematic Diagram - POWER Section - ........................ 75 7. EXPLODED VIEWS 7-1. Case Section .................................................................... 105 7-2. Front Panel Section (DA2400ES) ................................... 106 7-3. Front Panel Section (DG920) ......................................... 107 7-4. DIGITAL VIDEO Board Section .................................... 108 7-5. Back Panel Section ......................................................... 109 7-6. Chassis Section ............................................................... 110 8. ELECTRICAL PARTS LIST .............................. 111 Accessories are given in the last of the electrical parts list. • Abbreviation ECE : Continental European, East European and Russian models www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 5 SECTION 1 SERVICING NOTES UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size) : LEAD FREE MARK Unleaded solder has the following characteristics. • Unleaded solder melts at a temperature about 40 °C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 °C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! • Strong viscosity Unleaded solder is more viscous (sticky, less prone to ﬂ ow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. • Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. NOTE OF REPLACING THE IC3506 AND IC3508 ON THE DIGITAL VIDEO BOARD IC3506 and IC3508 on the DIGITAL VIDEO board cannot ex- change with single. When IC3506 and IC3508 on the DIGITAL VIDEO board are damaged, exchange the entire mounted board. NOTE OF REPLACING THE IC5021 ON THE DSP BOARD IC5021 on the DSP board cannot exchange with single. When IC5021 on the DSP board is damaged, exchange the entire mount- ed board. NOTE OF REPLACING THE IC8018 ON THE MICON BOARD IC8018 on the MICON board cannot exchange with single. When IC8018 on the MICON board is damaged, exchange the entire mounted board. Model Part No. DG920: US model 3-286-648-0[] DG920: Canadian model 3-286-648-1[] DA2400ES: US model 3-286-662-0[] DA2400ES: AEP and UK models 3-286-662-1[] DA2400ES: Continental European, East European and Russian models 3-286-662-7[] MODEL IDENTIFICATION PART No. – Back Panel – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 6 UPDATE OF SOFTWARE OF IC8014 ON THE MICON BOARD Perform operation of the following when the update of software of the IC8014 on the MICON board is necessary. • DA2400ES: US model Connect: for PC J861 Procedure: 1. Connect J861 on the CIS board and PC by using the RS-232C cable. 2. Turn on the main power. 3. The update is executed by using PC. 4. When the update ends, turn off the main power. 5. Remove the RS-232C cable from the J861 on the CIS board and PC. • DA2400ES: AEP, Continental European, East European, Russian and UK models/DG920 Connect: JIG (Part No. : J-2501-300-A) for PC DISPLAY Board CN717 Procedure: 1. Remove the KNOB (VOL) ASSY and connect CN717 on the DISPLAY board and PC by using the jig. 2. Turn on the main power. 3. The update is executed by using PC. 4. When the update ends, turn off the main power. 5. Remove the jig from the CN717 on the DISPLAY board and PC. ERROR MESSAGES If there is a malfunction, the display shows a code of two numbers and a message. You can check the condition of the system by the message. Refer to the following table to solve the problem. messages cause and response PROTECTOR Irregular current is output to the speakers, or the upper panel of the receiver is covered with something. The receiv- er will automatically turn off after a few seconds. Cheack the speakers connection and turn on the power again. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 7 SECTION 2 GENERAL This section is extracted from instruction manual. Front panel Name Function � POWER Press to turn the receiver on or off. ON/STANDBY lamp Lights up in green when the receiver is turned on. Lights up in red when the receiver is set to standby mode. � TONE MODE Adjusts the tonal quality (bass/treble level) of the front, center and surround speakers. Press TONE MODE repeatedly to select bass or treble level, then turn TONE +/– to adjust the level. TONE +/– � TUNING MODE Press to select the tuning mode. � TUNING +/– Turn to scan a station. � Remote sensor Receives signals from remote commander. � MULTI CHANNEL DECODING lamp Lights up when multi channel audio signals are decoded. � DIMMER Press repeatedly to adjust brightness of the display. � MEMORY/ ENTER Press to store a station or enter the selection when selecting the settings. � AUTO CAL MIC jack Connects to the supplied optimizer microphone for the Digital Cinema Auto Calibration function. � VIDEO 2 IN/ PORTABLE AV IN jacks Connect to a portable audio/videocomponent such as a camcorder or video game. � SPEAKERS (OFF/A/B/A+B) Press to select the speaker system. � PHONES jack Connects to headphones. Name Function � 2CH/A.DIRECT Press to select sound field. A.F.D. MOVIE MUSIC Name Function � Display window The current status of the selected component or a list of selectable items appears here. � Digital Cinema Sound lamp Lights up when a sound field with �� is selected. � DISPLAY Press repeatedly to select information displayed on the display. � INPUT MODE Press to select the input mode when the same components are connected to both digital and analog jacks. � MASTER VOLUME Turn to adjust the volume level of all speakers at the same time. � INPUT SELECTOR Turn to select the input source to play back. To remove the cover Press PUSH. When you remove the cover, keep it out of reach from children. Status of the POWER button � (Off) The receiver is turned off (initial setting). The ON/STANDBY lamp lights off. Press POWER to turn the receiver on. You cannot turn the receiver on using the remote. � (On/Standby) Press �/� on the remote to turn the receiver on or set it to the standby mode. When you press POWER on the receiver, the receiver will be turned off. (DA2400ES) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 8 Rear panel � DIGITAL INPUT/OUTPUT section OPTICAL IN/ OUT jacks Connect to a DVD player, etc. The COAXIAL jack provides a better sound quality. COAXIAL IN jacks HDMI IN/ OUT* jacks Connect to a DVD player, Blu-ray Disc Player, or a satellite tuner. The image is output to a TV or a projector while the sound can be output from a TV or/and speakers connected to this receiver. � ANTENNA section FMANTENNA jack Connects to the FM wire antenna (aerial) supplied with this receiver. AM ANTENNA jack Connects to the AM loop antenna (aerial) supplied with this receiver. XM jack (DA2400ES: US) Connects to the XM Mini Tuner and Home Dock (not supplied). SIRIUS jack (DA2400ES: US) Connects to a SiriusConnect Home tuner (not supplied). � RS-232C port (DA2400ES: US) Used for maintenance and service. � AUDIO INPUT/OUTPUT section AUDIO IN/ OUT jacks Connect to a Super Audio CD player, etc.. MULTI CHANNEL INPUT jacks Connect to a Super Audio CD player, etc. with an analog audio jack for 7.1 channel or 5.1 channel sound. PRE OUT jacks Connect to an external power amplifier. � SPEAKERS section Connects to speakers. * You can watch the selected input image when you connect the MONITOR OUT or HDMI OUT jack to a TV. You can operate this receiver using a GUI (Graphical User Interface). � COMPONENT VIDEO INPUT/ OUTPUT section Y, PB/CB, PR/ CR IN/OUT* jacks Connect to a DVD player, TV, or a satellite tuner etc.. � VIDEO/AUDIO INPUT/OUTPUT section AUDIO IN/ OUT jacks Connect to a VCR or a DVD player etc.. VIDEO IN/ OUT* jacks � DMPORT Connects to a DIGITAL MEDIA PORT adapter. (DA2400ES) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 9 Status of the POWER button � (Off) The receiver is turned off (initial setting). Press POWER to turn the receiver on. You cannot turn the receiver on using the remote. To remove the cover Press PUSH. When you remove the cover, keep it out of reach from children. SPEAKERS (OFF/A/B/A+B) PHONES VIDEO 2 IN/PORTABLE AV IN VIDEO L AUDIO R AUTO CAL MIC MEMORY/ ENTER 2CH/ A.DIRECT A.F.D. MOVIE MUSIC DIMMER MULTI CHANNEL DECODING INPUT SELECTOR TONE MODE ON/STANDBY TUNING MODE POWER TUNING DISPLAY INPUT MODE MASTER VOLUME TONE � � � � �� (DG920) � (On/Standby) Press �/� on the remote to turn the receiver on or set it to the standby mode. When you press POWER on the receiver, the receiver will be turned off. Name Function Name Function � 2CH/A.DIRECT Press to select a sound field. A.F.D. MOVIE MUSIC � DIMMER Press to adjust the brightness of the display. � MEMORY/ ENTER Press to store a station or enter the selection when selecting the settings. � AUTO CAL MIC jack Connects to the supplied optimizer microphone for the Auto Calibration function. � VIDEO 2 IN/ PORTABLE AV IN jacks Connects to a portable audio/video component such as a camcorder or video game. � PHONES jack Connects to headphones. � SPEAKERS (OFF/A/B/A+B) Press to select the speaker system. Name Function � ON/STANDBY lamp Lights up in green when the receiver is turned on. Lights up in red when the receiver is set to standby mode. � POWER Press to turn the receiver on or off. � TONE MODE Adjusts the tonal quality (bass/treble level) of the front, center and surround speakers. Press TONE MODE repeatedly to select bass or treble level, then turn TONE +/– to adjust the level. TONE +/– � TUNING +/– Turn to scan a station. � TUNING MODE Press to select the tuning mode. � Remote sensor Receives signals from remote commander. � MULTI CHANNEL DECODING lamp Lights up when multi channel audio signals are decoded. � Display The current status of the selected component or a list of selectable items appears here. � DISPLAY Press to select information displayed on the display. � INPUT MODE Press to select the input mode when the same components are connected to both digital and analog jacks. � MASTER VOLUME Turn to adjust the volume level of all speakers at the same time. � INPUT SELECTOR Turn to select the input source to playback. � Digital Cinema Sound lamp Lights up when a sound field with �� is selected. Front panel www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 10 � DIGITAL INPUT/OUTPUT section OPTICAL IN jacks Connects to a DVD player, etc. The COAXIAL jack provides a better quality sound. COAXIAL IN jacks HDMI IN/ OUT* jacks Connects to a DVD player, satellite tuner, or a Blu-ray disc player. The image is output to a TV or a projector while the sound can be output from a TV or/and speakers connected to this receiver. Rear panel DIGITAL ASSIGNABLE ASSIGNABLE (INPUT ONLY) OPTICAL IN OPTICAL VIDEO 1 IN COAXIAL DVD IN TV SAT IN SA-CD/ CD IN XM DMPORT DC5V 0.7A MAX SAT IN HDMI BD IN DVD IN VIDEO 1 IN OUT MD/TAPE OUT IN IN TV IN AUDIO IN VIDEO IN SAT AUDIO IN VIDEO IN BD MONITOR AUDIO IN VIDEO IN AUDIO IN VIDEO IN DVD AUDIO OUT AUDIO OUT VIDEO OUT VIDEO OUT VIDEO 1 MULTI CHANNEL INPUT SA-CD/CD IN PHONO SUBWOOFER FRONT SURROUND SUR BACK SUBWOOFER CENTER COMPONENT VIDEO MONITOR OUT COMPO 3 IN COMPO 2 IN COMPO 1 IN Y PB/ CB PR/ CR FRONT A L R FRONT B L R SURROUND CENTER L R SURROUND BACK L R SPEAKERS AM FM ANTENNA R L R L R L R L R L R L R L � SIGNAL GND � � � � � � � � (DG920) � ANTENNA section FM ANTENNA jack Connects to the FM wire antenna (aerial) supplied with this receiver. AM ANTENNA terminals Connects to the AM loop antenna (aerial) supplied with this receiver. XM jack Connects to the XM Mini-Tuner and Home Dock (not supplied). � COMPONENT VIDEO INPUT/ OUTPUT section Y, PB/CB, PR/CR IN/ OUT* jacks Connects to a DVD player, TV, satellite tuner, etc.. Green (Y) Blue (PB/CB) Red (PR/CR) � AUDIO INPUT/OUTPUT section AUDIO IN/ OUT jacks Connects to a Super Audio CD player, etc.. MULTI CHANNEL INPUT jacks Connect to a Super Audio CD player, etc. with an analog audio jack for 7.1 channel or 5.1 channel sound. AUDIO OUT jack Connects to subwoofer. White (L) Red (R) MULTI CHANNEL INPUT FRONT SURROUND SUR BACK SUBWOOFER CENTER R L R L Black * You can watch the selected input image when you connect the MONITOR OUT or HDMI OUT jack to a TV. You can operate this receiver using a GUI (Graphical User Interface). � VIDEO/AUDIO INPUT/OUTPUT section AUDIO IN/ OUT jacks Connects to a VCR, DVD player, etc.. VIDEO IN/ OUT* jacks � DMPORT DMPORT jack Connects to a DIGITAL MEDIA PORT adapter. White (L) Red (R) Yellow � SPEAKERS section Connects to speakers. RM-AAU039 (DA2400ES) This remote can only be used to operate the receiver. You can control the main functions of the receiver with simple operations using this remote. Name Function � �/� (on/ standby) Press to turn a receiver on or off. � 2CH/ A.DIRECT Press to select sound field. A.F.D. MOVIE MUSIC � GUI MODE Press to display the GUI menu on the TV screen. � �� After pressing GUI MODE (�), press �/�/�/� to select the menu items. Then press to enter the selection. � OPTIONS Press to display and select items from option menus. � MENU Press to display the menu to operate the receiver. � DMPORT Press to operate component connected to the DIGITAL MEDIA PORT adapter. � Starts play. � Stops play. �/� Skips tracks. � INPUT SELECTOR Press to select the input source to play back. � MASTER VOLUME +/– Press to adjust the volume level. � MUTING Press to turn off the sound temporarily. Press the button again to restore the sound. � RETURN/ EXIT � Press to return to the previous menu or exit the menu. � DISPLAY Press to select information displayed in the display window. � SLEEP Press to activate the sleep timer function and the duration which the receiver turns off automatically. Remote commander DISPLAY SLEEP GUI MODE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 11 • Abbreviation ECE : Continental European, East European and Russian models You can use the supplied remote to operate the receiver and to control the Sony audio/video components that the remote is assigned to operate. You can also program the remote to control non-Sony audio/video components. For details, see “Programming the remote”. RM-AAP023 (DG920) RM-AAP024 (DA2400ES: AEP, ECE, UK) RM-AAP025 (DA2400ES: US) TOP MENU TV INPUT WIDE MENU CATEGORY MODE TUNING DISC SKIP TUNING D.TUNING CATEGORY F1 F2 BD/DVD MODE GUI MODE SLEEP NIGHT MODE RESOLUTION MUSIC MOVIE SIRIUS XM MULTI IN PHONO DMPORT HOME VIDEO 2 VIDEO 1 BD TUNER THEATER AMP TV SHIFT DVD TV MD/ TAPE SA-CD/ CD A.F.D. A.DIRECT 2CH/ INPUT 7 8 9 4 5 6 1 2 3 0/10 ENT/MEM -/-- CLEAR/>10 SAT � HOME/ MENU Press to display the menus of the receiver, VCR, DVD player, satellite tuner, Blu-ray disc player, PSX, DVD/VHS COMBO, or DVD/HDD COMBO on the TV screen. Then, use �/�/�/� and to perform menu operations. To display the menus of Sony TV, press TV (�) and then press HOME/MENU. � �/� b) Press to skip tracks of the VCR, CD player, VCD player, LD player, DVD player, MD deck, DAT deck, tape deck, Blu-ray disc player, PSX, DVD/VHS COMBO, or DVD/HDD COMBO. �/� b) Press to – search tracks in the forward/ backward direction of the CD player, VCD player, DVD player, LD player, MD deck, Blu-ray disc player, PSX, DVD/VHS COMBO, or DVD/HDD COMBO. – fast forward/rewind of the VCR, DAT deck, or tape deck. � a)b) Press to start playback of the VCR, CD player, VCD player, LD player, DVD player, MD deck, DAT deck, tape deck, Blu-ray disc player, PSX, DVD/ VHS COMBO, or DVD/HDD COMBO. � b) Press to pause playback or recording of the VCR, CD player, VCD player, LD player, DVD player, MD deck, DAT deck, tape deck, Blu-ray disc player, PSX, DVD/VHS COMBO, or DVD/HDD COMBO. (Also starts recording with components in recording standby.) � b) Press to stop playback of the VCR, CD player, VCD player, LD player, DVD player, MD deck, DAT deck, tape deck, Blu-ray disc player, PSX, DVD/ VHS COMBO, or DVD/HDD COMBO. � TV VOL +/– Press TV (�) and then press TV VOL +/– to adjust the TV volume level. MASTER VOL +/– Press to adjust the volume level of all speakers at the same time. � MUTING Press to turn off the sound temporarily. Press MUTING again to restore the sound. Press TV (�), and then press MUTING to activate the TV’s muting function. � DISC SKIP Press to skip disc of the CD player, VCD player, DVD player, or MD deck (multi-disc changer only). � RETURN/ EXIT � Press to – return to the previous menu. – exit the menu while the menu or on-screen guide of the VCD player, LD player, DVD player, Blu-ray disc player, PSX, DVD/VHS COMBO, or satellite tuner is displayed on the TV screen. To return to the previous menu of Sony TV, press TV (�) and then press RETURN/EXIT �. � DISPLAY Press to select information displayed on the display window or TV screen of the VCR, VCD player, LD player, DVD player, CD player, MD deck, Blu-ray disc player, PSX, satellite tuner, DVD/ VHS COMBO, or DVD/HDD COMBO. To select information of Sony TV, press TV (�) and then press DISPLAY. � RESOLUTION Press repeatedly to change the resolution of signals output from the HDMI OUT or COMPONENT VIDEO MONITOR OUT jack. � INPUT MODE Press to select the input mode when the same components are connected to both digital and analog jacks. a)The number 5, TV CH +, PRESET + and � buttons have tactile dots. Use the tactile dots as references when operating the receiver. b)See the table for information on the buttons that you can use to control each component. Notes • Some functions explained in this section may not work depending on the model. • The above explanation is intended to serve as an example only. Therefore, depending on the component, the above operation may not be possible or may operate differently than described. � SHIFT Press to light up the buttons. It changes the remote button function to activate the buttons with pink printing. � TV Press to light up the button. It changes the remote key function to activate the buttons with yellow printing. It also activate the DISPLAY (�), OPTIONS TOOLS (�), HOME/MENU (�), RETURN/EXIT � (�), (�), and �/�/�/� (�) buttons to perform menu operations for Sony TVs only. � THEATER Press to enjoy optimal image suited for movies and to output the sound from the speakers connected to this receiver automatically. Note This button will only function if your TV is compatible with Theater Mode. For details, refer to the operating instructions supplied with the TV. � RM SET UP Press to set up the remote. Name Function � AV �/� (on/standby) Press to turn on or off the audio/ video components that the remote is programmed to operate. To turn the TV on or off, press TV (�) and then press AV �/�. If you press �/� (�) at the same time, it will turn off the receiver and other components (SYSTEM STANDBY). Note The function of the AV �/� switch changes automatically each time you press the input buttons (�). � �/� (on/standby) Press to turn the receiver on or set it to standby mode. To turn off all components, press �/� and �/� (�) at the same time (SYSTEM STANDBY). Saving the power in standby mode. When “Control for HDMI” and “RS-232C Control” is set to “OFF”. � AMP Press to enable the receiver operation. � Input buttons Press one of the buttons to select the component you want to use. When you press any of the input buttons, the receiver turns on. The buttons are factory assigned to control Sony components. You can program the remote to control non-Sony components following the steps in “Programming the remote”. � , �� After pressing AMP (�), press HOME/MENU (�) for receiver operation, then press �/ �/�/� to select the settings. After pressing BD/DVD TOP MENU (�) or BD/DVD MENU (�), press �/�/�/� to select the settings, and then press to enter the selection. Press also to enter the selection of the receiver, VCR, satellite tuner, DVD player, Blu-ray disc player, PSX, DVD/ VHS COMBO, or DVD/HDD COMBO. � OPTIONS TOOLS Press to display and select items from the option menus for receiver, DVD player, Blu-ray Disc Player, Satellite tuner and PSX. Press TV (�) and then press TOOLS to display the options of Sony TV. Name Function Name Function � BD/DVD TOP MENU Press to display the menu or on- screen guide of the DVD or Blu-ray disc on the TV screen. Then, use �/�/�/� and to perform menu operations. BD/DVD MENU Press to display the menu of the DVD or Blu-ray disc on the TV screen. Then, use �/�/�/� and to perform menu operations. TV INPUT Press TV (�) and then press TV INPUT to select the input signal (TV input or video input). WIDE Press TV (�) and then press WIDE to select the wide picture mode. Name Function VIDEO 1 VCR, etc., connected to the VIDEO 1 jack. VIDEO 2 Video camera and TV game, etc., connected to the VIDEO 2 IN/PORTABLE AV IN jack. BD Blu-ray disc player, etc., connected to the BD jack. DVD DVD player, etc., connected to the DVD jack. TUNING +/– Press to scan a station. D.TUNING Press to enter direct tuning mode. �•/•� Press to replay the previous scene or fast forward the current scene of the DVD player, Blu- ray disc player, DVD/VHS COMBO, or DVD/HDD COMBO. CATEGORY +/– Press to select a category for satellite tuner. CATEGORY MODE Press to select the category mode for satellite tuner. Numeric buttons (number 5a)) Press SHIFT (�) and then press numeric buttons to – preset/tune to preset stations. – select track numbers of the CD player, VCD player, LD player, DVD player, MD deck, DAT deck, or tape deck. Press 0/10 to select track number 10. – select channel numbers of the VCR, satellite tuner, Blu- ray disc player, PSX, DVD/ VHS COMBO, or DVD/ HDD COMBO. Press TV (�), and then press the numeric buttons to select the TV channels. ENT/MEM Press SHIFT (�) and then press ENT/MEM to – enter the value after selecting a channel, disc or track using the numeric buttons of the VCR, CD player, VCD player, LD player, MD deck, DAT deck, tape deck, satellite tuner, Blu-ray disc player, or PSX. – store a station during tuner operation. To enter the value of Sony TV, press TV (�) and then press ENT/MEM. CLEAR Press SHIFT (�) and then press CLEAR to – clear a mistake when you press the incorrect numeric button of the DVD player, Blu-ray disc player, PSX, satellite tuner, DVD/VHS COMBO, or DVD/HDD COMBO. – return to continuous playback, etc. of the satellite tuner or DVD player. -/-- Press SHIFT (�) and then press -/-- to select the channel entry mode, either one or two digit of the VCR or satellite tuner. To select the channel entry mode of the TV, press TV (�) and then press -/--. Selected input Components that can be played back MD/TAPE MD or Tape deck, etc., connected to the MD/TAPE jack. SA-CD/CD Super Audio CD or CD player, etc., connected to the SA-CD/CD jack. TUNER Built-in radio tuner. PHONO Turntable, etc., connected to the PHONO jack. MULTI IN Component connected to the MULTI CHANNEL INPUT jack. DMPORT Portable audio, etc., connected to the DIGITAL MEDIA PORT adapter connected to the receiver. XM (DA2400ES: US/ DG920) XM Mini-Tuner and Home Dock connected to the XM jack. SIRIUS (DA2400ES: US) SiriusConnect Home tuner connected to the SIRIUS jack. SAT Satellite tuner, etc., connected to the SAT jack. TV TV connected to the TV jack. >10 Press SHIFT (�) and then press >10 to – select track numbers over 10 of the CD player, VCD player, LD player, MD deck, tape deck, TV, VCR, or satellite tuner. – select channel numbers of the Digital CATV terminal. � 2CH/ A.DIRECT Press to select a sound field. A.F.D. MOVIE MUSIC � SLEEP Press to activate the Sleep Timer function and the duration which the receiver turns off automatically. � NIGHT MODE Press to activate the Night Mode function. � GUI MODE Press to display the GUI menu on the TV screen. � TV CH +a)/– Press TV (�) and then press TV CH +/– to select preset TV channels. PRESET + a)/– Press to – select preset stations. – select preset channels of the VCR, satellite tuner, Blu-ray disc player, DVD player, DVD/VHS COMBO, or DVD/HDD COMBO. � F1, F2 Press F1 or F2 to select a component. • DVD/HDD COMBO F1: HDD mode F2: DVD mode • DVD/VHS COMBO F1: DVD mode F2: VHS mode www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 12 About the indicators on the display window Name Function � SW Lights up when subwoofer is connected and the audio signal is output from the SUBWOOFER jack. While this indicator lights up, the receiver creates a subwoofer signal based on the LFE signal in the disc being played back or the low frequency components of the front channels. � LFE Lights up when the disc being played back contains an LFE (Low Frequency Effects) channel and the LFE channel signal is actually being reproduced. Since the LFE signal is not recorded in all parts of the input signal the bar indication will fluctuate (and may turn off) during playback. � COAX Lights up when INPUT MODE is set to “AUTO” and the source signal is a digital signal being input through the COAXIAL jack. � XM Lights up when XM Mini- Tuner and Home Dock are connected and “XM” is selected. � � PL/ � PL II/ � PL IIx “� PL” lights up when the receiver applies Pro Logic processing to 2 channel signals in order to output the center and surround channel signals. “� PL II” lights up when the Pro Logic II decoder is activated. “� PL IIx” lights up when the Pro Logic IIx decoder is activated. However, these indicators do not light up if both the center and surround speakers are not connected and you select a sound field using the A.F.D. button. Note Dolby Pro Logic IIx decoding does not function for signals with a sampling frequency of more than 48 kHz. � BI-AMP Lights up when BI-AMP Speaker setting is set to “ON”. � EQ Lights up when the equalizer is activated. � NEO:6 Lights up when DTS Neo:6 Cinema/Music decoding is activated. (DA2400ES: US/ DG920) (DA2400ES) �� Playback channel indicators L R C SL SR S SBL SBR SB The letters (L, C, R, etc.) indicate the channels being played back. The boxes around the letters vary to show how the receiver downmixes the source sound (based on the speaker settings). Front Left Front Right Center (monaural) Surround Left Surround Right Surround (monaural or the surround components obtained by Pro Logic processing) Surround Back Left Surround Back Right Surround Back (the surround back components obtained by 6.1 channel decoding) Example: Recording format (Front/ Surround): 3/2.1 When Speaker Pattern is set to “3/0.1” Sound Field: A.F.D. AUTO � OPT Lights up when INPUT MODE is set to “AUTO” and the source signal is a digital signal being input through the OPTICAL jack. � � D/ � D EX/ � D+/ � TrueHD “� D” lights up when the receiver is decoding Dolby Digital signals. “� D EX” lights up when the receiver is decoding Dolby Digital Surround EX signals. “� D+” lights up when the receiver is decoding Dolby Digital Plus signals. “� TrueHD” lights up when the receiver is decoding Dolby TrueHD signals. Note When playing a Dolby Digital format disc, be sure that you have made digital connections and that INPUT MODE is set to “AUTO”. � Neural-THX Lights up when the receiver applies Neural-THX processing to input signals. Name Function Name Function � DTS/ DTS-ES/ DTS 96/24 “DTS” lights up when the receiver is decoding DTS signals. “DTS-ES” lights up when the receiver is decoding DTS-ES signals. “DTS 96/24” lights up when the receiver is decoding DTS 96/24 (DTS 96 kHz/24 bit) signals. Note When playing a DTS format disc, be sure that you have made digital connections and that INPUT MODE is set to “AUTO”. � D.RANGE Lights up when dynamic range compression is activated. � CAT Lights up when category mode is selected during the satellite radio operation. � SP A/SP B/ SP A+ (DA2400ES: US/ DG920) B Lights up according to the speaker system used (page 44). However, these indicators do not light up if the speaker output is turned off or if headphones are connected. � Tuner indicators Lights up when using the receiver to tune in radio stations, etc. � SLEEP Lights up when the sleep timer is activated. � A.DIRECT Lights up when the receiver is processing Analog Direct signals. � SIRIUS Lights up when the SiriusConnect Home tuner is connected and “SIRIUS” is selected. � MEM Lights up when a memory function, such as Preset Memory etc., is activated. � DTS-HD MSTR/ DTS-HD HI RES “DTS-HD MSTR” lights up when the receiver is decoding DTS-HD Master Audio signals. “DTS-HD HI RES” lights up when the receiver is decoding DTS-HD High Resolution signals. � LPCM Lights up when Linear PCM signals are detected. � ANALOG Lights up when – INPUT MODE is set to “AUTO” and no digital signal is being input through the COAXIAL, OPTICAL or HDMI jacks. – INPUT MODE is set to “ANALOG”. – the “Analog Direct” is being used. � DMPORT Lights up when DIGITAL MEDIA PORT adapter is connected and “DMPORT” is selected. � MULTI IN Lights up when multi channel input is selected. � HDMI Lights up when the receiver recognizes a component connected via an HDMI IN jack. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 13 SECTION 3 DISASSEMBLY • This set can be disassembled in the order shown below. 3-1. DISASSEMBLY FLOW 3-2. CASE (Page 14) 3-3. FRONT PANEL BLOCK (DA2400ES) (Page 14) 3-4. FRONT PANEL BLOCK (DG920) (Page 15) 3-5. TUNER (FM/AM), CIS BOARD AND PREOUT BOARD (Page 15) 3-6. DIGITAL VIDEO BOARD (Page 16) 3-7. VIDEO BOARD (Page 16) 3-10. MICON BOARD, DIGITAL BOARD (Page 18) 3-11. ACLASS BOARD (Page 18) 3-12. MAIN BLOCK (Page 19) 3-13. MAIN BOARD (Page 19) 3-9. BACK PANEL BLOCK (DG920) (Page 17) 3-8. BACK PANEL BLOCK (DA2400ES) (Page 17) SET www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 14 3-3. FRONT PANEL BLOCK (DA2400ES) Note: Follow the disassembly procedure in the numerical order given. 3-2. CASE Note: Both STR-DA2400ES and STR-DG920 can be removed through the same procedure. � three flat head screws (TP) � case � two screws (BVST4 × 8 (for BLACK), BVTT4 × 8 (for SILVER)) � two screws (BVST4 × 8 (for BLACK), BVTT4 × 8 (for SILVER)) � two saranet cushions � � � three connectors (CN2015, CN2016, CN2017) � connector (CN1) � connector (CN721) � connector (CN728) � two screws (BVTP3 × 8) � five screws (BVTP3 × 8) � front panel block www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 15 3-4. FRONT PANEL BLOCK (DG920) 3-5. TUNER (FM/AM), CIS BOARD AND PREOUT BOARD � three connectors (CN2015, CN2016, CN2017) � connector (CN1) � connector (CN721) � connector (CN728) � four screws (BVTP3 × 8) � seven screws (BVTP3 × 8) � claw � claw � front panel block (DA2400ES: US) (DA2400ES: US) � (DA2400ES: AEP, ECE, UK) � � � � � � � � two connectors (CN4552, CN4553) � wire (flat type) (9 core) (DA2400ES: US/DG920 models), wire (flat type) (11 core) (DA2400ES: AEP, ECE, UK models) (MICON board: CN8004, tuner (FM/AM)) � wire (flat type) (13 core) (CIS board: CNS801, MICON board: CN2004) � tuner (FM/AM) � two accessory screws � two screws (BVTP3 × 8) � two screws (BVTP3 × 8) � PREOUT board � CIS board • Abbreviation ECE : Continental European, East European and Russian models www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 16 3-6. DIGITAL VIDEO BOARD Note: Both STR-DA2400ES and STR-DG920 can be removed through the same procedure. 3-7. VIDEO BOARD Note: Both STR-DA2400ES and STR-DG920 can be removed through the same procedure. � two connectors (CN3200, CN3800) � connector (CN3506) � two connectors (CN3000, CN3504) � two HS holders � two tapes 10mm width � two screws (BVTP3 × 8) �� two screws (BVTP3 × 8) � heat sink (S58) �� HDMI bracket �� DIGITAL VIDEO board �� radiation sheet (F) � five screws (BVTT3 × 6) � two screws (BVTP3 × 8) (DA2400ES) � screw (BVTP3 × 8) (DG920) � two connectors (CN6204, CN6501) � connector (CN6203) � VIDEO board � screw (BVTP3 × 8) � five screws (BVTP3 × 8) � HDMI video bracket www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 17 3-8. BACK PANEL BLOCK (DA2400ES) 3-9. BACK PANEL BLOCK (DG920) (US) � AC inlet connector (CNP51) � five screws (BVTP3 × 8) � seven screws (BVTP3 × 8) � eight screws (BVTP3 × 8) � two screws (BV/ring) � back panel block � three connectors (CN1501, CN1502, CN1503) � screw (BVTP3 × 8) � power cord connector (CNP51) � five screws (BVTP3 × 8) � eight screws (BVTP3 × 8) � eight screws (BVTP3 × 8) � two screws (BV/ring) � back panel block � three connectors (CN1501, CN1502, CN1503) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 18 3-10. MICON BOARD, DIGITAL BOARD Note: Both STR-DA2400ES and STR-DG920 can be removed through the same procedure. 3-11. ACLASS BOARD Note: Both STR-DA2400ES and STR-DG920 can be removed through the same procedure. � six connectors (CN2030, CN2031, CN2032, CN2230, CN2231, CN2232) � two connectors (CN2010, CN2023) � four screws (BVTP3 × 8) � MICON DIGITAL CONN board � Cut the two clamps. � MICON board � connector (CN5001) � connector (CN2208) �� two connectors (CN2217, CN2218) � DSP board �� DIGITAL board � two screws (BVTP3 × 8) � two screws (BVTP3 × 8) � two screws (BVTP3 × 8) � connector (CN1909) � four connectors (CN411, CN511, CN611, CN711) � A-CLASS SUPPORT A board � A-CLASS SUPPORT B board � ACLASS board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 19 3-12. MAIN BLOCK Note: Both STR-DA2400ES and STR-DG920 can be removed through the same procedure. 3-13. MAIN BOARD Note 1: Both STR-DA2400ES and STR-DG920 can be removed through the same procedure. Note 2: This illustration sees the MAIN board from pin jack side. � screw (BVTP3 × 8) � two screws (BVTP3 × 8) � two screws (BVTP3 × 8) � two screws (BVTP3 × 8) � bracket (video PWB) � connector (CN1401) � two connectors (CN811, CN801) � main block � two screws (BVTP3 × 8) � Remove the forty-two solders. � MAIN board � heat sink block www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 20 SECTION 4 TEST MODE TUNER AM STEP CHANGE MODE (DA2400ES: US/DG920 only) Either the 9 kHz step or 10 kHz step can be selected for the AM channel step. Procedure: 1. Press the [POWER] button to turn on the main power. 2. Turn the [INPUT SELECTOR] dial to select the “AM TUN- ER”. 3. Press the [POWER] button to turn off the main power. 4. While pressing the [TUNING MODE] button, press the [POWER] button to turn on the main power. 5. Either the message “AM 9k Step” or “AM10k Step” appears, select the desired step. SOUND FIELD CLEAR MODE The preset sound ﬁ eld is cleared when this mode is activated. Use this mode before returning the product to clients upon completion of repair. Procedure: 1. While pressing the [MUSIC] button, press the [POWER] but- ton to turn on the main power. 2. The message “S.F. CLEAR” appears and initialization is per- formed. INITIALIZE MODE All preset contents are cleared when this mode is activated. Use this mode before returning the product to clients upon completion of repair. Procedure: 1. While pressing the [TONE MODE] and [2CH/A.DIRECT] buttons, press the [POWER] button to turn on the main pow- er. 2. The message “CLEARING” appears and the memories are re- set to the default values. 3. When done, the message “CLEARED !” appears. FLUORESCENT INDICATOR TUBE DISPLAY TEST All ﬂ uorescent segments are tested. When this test is activated, all segments turn on at the same time, then each segment turns on one after another. Procedure: 1. While pressing the [TONE MODE] and [A.F.D.] buttons, press the [POWER] button to turn on the main power. 2. All segments and all LEDs turn on. SWAP MODE The signal will be swap to all channel so that all speaker will have sound output. Procedure: 1. While pressing the [MEMORY/ENTER] and [2CH/A. DIRECT] buttons, press the [POWER] button to turn on the main power. 2. The message “SWAP MODE” appears. (No change while dis- played.) SOUND FIELD LOCK ON/OFF CHANGE MODE All buttons operation on/off of the front panel is changed. Procedure: 1. While pressing the [SPEAKERS (OFF/A/B/A+B)] and [MUSIC] buttons, press the [POWER] button to turn on the main power. 2. Either the message “S.F. LOCK OFF” or “S.F. LOCK ON” appears. COMMAND MODE CHANGE MODE The command mode of the remote-commander which this set re- ceives can be changed. Procedure: 1. While pressing the [2CH/A. DIRECT] button, press the [POW ER] button to turn on the main power. 2. Either the message “C. MODE AV1” or “C. MODE AV2” ap- pears. Select the desired mode. XM FACTORY TEST MODE (DA2400ES: US/DG920 only) Mode to conﬁ rm operation of XM. Doing display of ID of XM antenna and output of audio signal that XM antenna generates, it is conﬁ rmed that there are no problems in the communication of the XM antenna and the transmission of the audio signal. Procedure: 1. The XM antenna was connected, while pressing the [TUNING MODE] and [MOVIE] buttons, press the [POWER] button to turn on the main power. 2. Whenever the [DISPLAY] button is pressed, the output of the audio signal of 1 kHz L/R, 20 Hz L/R, 5 kHz L/R, muting, 1 kHz L and 1kHz R are switched. SIRIUS FACTORY TEST MODE (DA2400ES: US only) Mode to conﬁ rm operation of SIRIUS. Doing display of ID of SIRIUS antenna and output of audio signal that SIRIUS antenna generates, it is conﬁ rmed that there are no problems in the com- munication of the SIRIUS antenna and the tranmission of the audio signal. Procedure: 1. The SIRIUS antenna was connected, while pressing the [TUN- ING MODE] and [A.F.D.] buttons, press the [POWER] button to turn on the main power. 2. Whenever the [DISPLAY] button is pressed, the output of the audio signal of 1 kHz L/R, 20 Hz L/R, 5 kHz L/R, muting, 1 kHz L and 1 kHz R are switched. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 21 HISTORY MODE The state that the set is used is memorized. Procedure: 1. While pressing the [MEMORY/ENTER] and [MUSIC] but- tons, press the [POWER] button to turn on the power and “HISTORY” is displayed. 2. Each time the [M] [m] key of remote commander is pressed, the item is switched in order as follows. Items Display Protector count COUNT XX Total single power on time SxxxxxHxxM Sound ﬁ eld xxxxxxxxxx Input function xxxxxxxxxx Input mode xxxxxxxxxx Digital select xxxxxxxxxx Stream information xxxxxxxxxx Signal conﬁ guration CONF xxxxx Headphones HEADPH xxx Volume VOL xxxxx Bass BASS xxdB Treble TREB xxdB Level FL/FR FL/R xx xx Level SL/SR SL/R xx xx Level CT/SW C/SW xx xx Level BL/BR BL/R xx xx Total power on time T xxHxxM Muting MUTING xxx Power on counter (Rebox test mode) REBOX xxxx DIGITAL MEDIA PORT TEST Procedure: 1. Connect the DMPORT check jig (P/N: J-2501-309-A) with the DMPORT jack (CN8003) on the MICON board. 2. While pressing the [MEMORY/ENTER] and [A.F.D.] buttons, press the [POWER] button to turn on the main power. 3. The message “DMPORT T.” and “DMPORT OK”appears on the ﬂ uorescent indicator tube and enter the digital media port test mode. (Conﬁ rmation of communication line) When “NO DETECT”, “UART NG” and “UART TO” are dis- played on the ﬂ uorescent indicator tube, conﬁ rm the connec- tion of the DMPORT check jig, and enter the mode again. Each time the [>] button on the remote commander is pressed, the connect check and adaptor version check are switched. Press the [.] button on the remote commander, connected conﬁ rmation of the DMPORT check jig is done again. 4. To a pinjack of the DMPORT check jig input information rele- vant to audio signal (sine-wave 1.0V rms) and composite video signal (white 100% 1.0Vp-p, color bar, etc.). 5. Conﬁ rm the output of speakers and monitor TV. (Conﬁ rmation of analog signal) 6. To release from this mode, press the [x] button on the remote commander. color pattern generator DMPORT check jig (Part No.: J-2501-309-A) J001 AF oscillator set TV monitor FL/FR speaker MICON board CN8003 MAIN board TM601 (DG920) TM602 (DA2400ES) VIDEO board J6004 SOFTWARE VERSION DISPLAY MODE The software version is displayed. Procedure: 1. While pressing the [TONE MODE] and [MUSIC] buttons, press the [POWER] button to turn on the main power. 2. The message “M.Ver X.XX” appears. Each time the [DISPLAY] button is pressed, “H.Ver X.XX”, “V.Ver X.XX”, “G.Ver X.XX”, “F.Ver X.XX” and “S.Ver X.XX” this order, and returns to the “M.Ver X.XX” dis- played. KEY CHECK MODE Button check Procedure: 1. While pressing the [MEMORY/ENTER] and the [MOVIE] buttons, press the [POWER] button to turn on the main pow- er. 2. Either the message “REST 11” appears. Every pressing of any button other than the [POWER] counts down the buttons. The buttons which are already counted once are not counted again. When all buttons are pressed “REST 00” appears. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 22 SPECIAL MENU MODE Procedure: 1. Press the [POWER] button to turn on the main power, then while pressing the [TONE MODE] button, press the [A.F.D.], [2CH/A. DIRECT], [MUSIC], [MOVIE] button in order, the message “SPECIALIZE” appears. 2. Press the [M] [m] button on the remote commander, the message “< SPECIAL>” appears. 3. Press the [,] button on the remote commander, the item is appears. 4. Each time the [M] [m] button on the remote commander is pressed, the item is switched in order as follows. Some items can change the content. Display the cursor by pressing the [,] button on the remote commander, and changing the content by pressing the [M] [m] button on the remote commander, and ﬁ x the content by pressing the [<] button on the remote commander when you want to change the content of the item. 5. To release from this mode, while pressing the [TONE MODE] button, press the [A.F.D.], [2CH/A. DIRECT], [MUSIC], [MOVIE] but- ton in order again, the message “OFF” appears. Items Display Remark Model/Destination change MODEL When [,] button on the remote commander is pressed, the message “A24 ** XXX” or “G92 ** XXX” is appears **: Destination XXX: FIX or AUT Main micom version display M.Ver X.XX X.XX: System controller software version Farouja version display F.Ver X.XX X.XX: Farouja software version CGROM micom version display G.Ver X.XX X.XX: CGROM controller software version HDMI micom version display H.Ver X.XX X.XX: HDMI controller software version DSP serial ﬂ ash version display S.Ver X.XX X.XX: Serial ﬂ ash software version FLI update FLI UPDATE When [,] button on the remote commander is pressed, the message “ON” or “OFF” is appears HD update HD UPDATE When [,] button on the remote commander is pressed, the message “ON” or “OFF” is appears HDCP key read HDCP KEY When [,] button on the remote commander is pressed, the message “ON” or “OFF” is appears Video Factroy V. FACTORY Menu mode to enter video calibration menu If the [ENTER] button of the remote commander is pressed, entering the menu, and operating two the following menu become possible Video calibration (Video factory) V.CALIBRATION START? Procedure: 1. “DVD” is selected by using [INPUT SELECTOR] jog. 2. Connect a color pattern generator to the COMPONENT VIDEO COMPO 2 IN jack (J6001) and DVD VIDEO IN jack (J6004) on the VIDEO board. 3. Input 100% color bars signal from the color pattern generator. 4. Menu that measures individual difference of hardness by automatic op- eration in pressing the [ENTER] button of the remote commander, and corrects reference value. In a measurement once, only one of NTSC/PAL/HD can be measured Auto cal mic test SP OUT When [,] button on the remote commander is pressed, the message “SOURCE” or “mic” is appears SOURCE: normal mode, MIC: mode that output audio from mic input FL display fonts test FL FONT When [,] button on the remote commander is pressed, the message “0X**=X” is appears **: 20 to FF, X: character FL display test All segments turn on Each time [DISPLAY] button to change as follows all on t test pattern 1 t test pattern 2 t all off t all on DSP halt DSP HALT When [,] button on the remote commander is pressed, the message “ON” or “OFF” is appears Super reset RESET Not used for the servicing When EEPROM initialization is required, perform the “memory clearing mode” RAM watch menu RAM WATCH When [,] button on the remote commander is pressed, the message “XXXXXXXXXX” is appears XXXXXXXXXX: Various internal RAM (Switching with [M] [m] button on the remote commander) EEPROM debug EEPROM When [,] button on the remote commander is pressed, the message “**** XX” is appears ****: EEPROM address, XX: EEPROM data Protector on/off PROTECTOR When [,] button on the remote commande is pressed, the message “ON” or “OFF” is appears Audio swap SWAP MODE When [,] button on the remote commander is pressed, the message “XXXXXXXXXX” is appears XXXXXXXXXX: audio swap mode Switching with [M] [m] button on the remote commander www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 23 Items Display Remark Volume value display (FL/FR) L****RXXXX ****: Front L-ch volume value, XXXX: Front R-ch volume value (for design evaluation) Volume value display (SL/SR) S****SXXXX ****: Surround L-ch volume value, XXXX: Surround R-ch volume value (for design evaluation) Volume value display (CT/SW) C****WXXXX ****: Center volume value, XXXX: Sub woofer volume value (for design evaluation) Volume value display (SBL/SBR) B****BXXXX ****: Surround back L-ch volume value, XXXX: Surround back R-ch volume value (for design evaluation) DAC mute information disclosure 1 U XXXXXXXX Display of module information to demand muting in system controller (for design evaluation) DAC mute information disclosure 2 L XXXXXXXX Display of module information to demand muting in system controller (for design evaluation) Volume Display VOL XXXX XXXX: Volume FL display duty change DUTY When [,] button on the remote commander is pressed, the message “XXX” is appears XXX: Duty value of FL display (1% to 100%) (for design evaluation) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 24 SECTION 5 ELECTRICAL ADJUSTMENT BIAS ALIGNMENT ADJUSTMENT (DA2400ES: AEP, Continental European, East European, Russian and UK only) Note: Afer 10 minutes or more have passed since the power supply was turned on, this adjustment is done. Connection: + – digital voltmeter CN6102 pin �, �, � (CN6104 pin �, �, �, �) CN6102 pin �, �, � (CN6104 pin �, �, �, �) Procedure: 1. Connect a digital voltmeter to the CN6102 (CN6104). 2. Press the [POWER] button to turn on the main power. 3. Adjust the RV400 (RV470, RV500, RV570, RV600, RV670, RV700) so that the digital voltmeter reading is 5 mV to 20 mV. Adjustment and Connection Location: RV500 (SUR-R) RV700 (SBR) RV570 (SUR-L) RV470 (F-L) RV400 (CENTER) RV600 (F-R) RV670 (SBL) – MAIN Board (Conductor Side) – – A-CLASS SUPPORT A Board (Conductor Side) – – A-CLASS SUPPORT B Board (Conductor Side) – 1 9 CN6104 1 9 CN6102 VIDEO CALIBRATION ADJUSTMENT Adjustment to decide the standard of the video input signal. Note: After replacing DIGITAL VIDEO board, or after “SUPER RESET” of the special menu mode is executed, perform this adjustment. Connection: set color pattern generator color bars 100% VIDEO board COMPONENT VIDEO COMPO 2 IN jack (J6001) DVD VIDEO IN jack (J6004) Procedure: 1. “DVD” is selected by using [INPUT SELECTOR] jog. 2. Connect a color pattern generator to the COMPONENT VID- EO COMPO 2 IN jack (J6001) on the VIDEO board and DVD VIDEO IN jack (J6004) on the VIDEO board. 3. Input NTSC color bars signal from the color pattern genera- tor. 4. Press the [POWER] button to turn off the main power 5. While pressing the [2CH/A.DIRECT] and [SPEAKERS (OFF/ A/B/A+B)] buttons, press the [POWER] button to turn on the main power. It enters the test mode, and display as below. V.CALIBRATION START? y N: MWx_____ (PAL input) P: MWx_____ (HD input) H: MWx_____ 6. In state of step 5, press the [MEMORY/ENTER] button. The adjustment is automatically completed, and result is written in the EEPROM, and display as below. (NTSC input) N: MWo C_V__ (PAL input) P: MWo C_V__ (HD input) H: MWo C____ 7. Input PAL color bars signal from the color pattern generator. 8. Perform step 4 to 6. 9. Input HD color bars signal (720p or 1080i) from the color pat- tern generator. 10. Perform step 4 to 6. 11. When all the adjustments end, display as below. FIN N:P:H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 25 FM AUTO STOP CHECK signal generator set Procedure: 1. Turn on the set. 2. Input the following signal from signal generator to FM antenna input directly. Carrier frequency : A = 87.5 MHz, B = 98 MHz, C = 108 MHz Deviation : 75 kHz Modulation : 1 kHz ANT input : 1 kHz Note: Use 75 ohm coaxial cable to connect signal generator and the set. You cannot use video cable for checking. Use signal generator whose output impedance is 75 ohm. 3. Set to FM tuner function and scan the input FM signal with automatic scanning. 4. Conﬁ rm that input frequency of A, B and C are detected and automatic scanning stops. When the station signal is received in good condition, automatic scanning stops. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 26 MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 27 27 SECTION 6 DIAGRAMS 6-1. BLOCK DIAGRAM - DIGITAL AUDIO/TUNER Section - SYSTEM CONTROLLER IC8014 (1/7) DIGITAL OPTICAL RECEIVER IC2201 DATA DECODER IC2210 TV IN DIGITAL AUDIO INTERFACE RECEIVER IC2208 DIGITAL AUDIO INPUT SELECTOR IC2237 J2202 A/D CONVERTER IC2233 D2203 RX0 RDATA CEC DATA SWITCH Q8005 – 8008 DIGITAL OPTICAL RECEIVER IC2202 VIDEO 1 IN DIGITAL OPTICAL RECEIVER IC2204 WAVE SHAPER IC2209 RS-232C DRIVER/RECEIVER IC861 SAT IN DVD IN SA-CD/CD IN OPTICAL COAXIAL DIGITAL ASSIGNABLE 2 21 XMCK DIR_DO R-CH 27 DOUT 9 RBCK DIR_BCK 17 BCK 8 VINL 13 VINR 14 LRCK 7 SCKI 6 DIN1 13 DOUT1 17 RIN1 (DA2400ES: US) 16 RLRCK DIR_LRCK 20 RMCK DIR_MCK 16 SI_A SI_A, DIR_BCK, DIR_LRCK, DIR_MCK L_OUT SI_B RX2 4 RX3 5 D4 15 D3 1 D1 3 RX6/UI 10 XIN DO 29 37 64 X1_(CLOCK_OUT) 40 EEPROM_SDA 174 EEPROM_SCL 175 RS232C_MOUT 135 RS232C_MIN 134 X0_(CLOCK_IN) 39 DMUART_M/DM 155 DMUART_DM/M 154 DMPORT_DET 94 DIR_ERROR REER 36 65 DIR_CKST CKST 34 66 DIR_DATA0 61 SDA 5 SCL 6 COM1_DATA DI 38 70 D595_LAT 67 D595_OE 68 COM1_CLK CL 40 69 DIR_CE CE 39 A0 11 A1 10 A2 9 S-IN 14 CLK 11 LAT 12 OE 13 63 DIR_XMODE XMODE 41 62 XOUT 28 1 SPDIF 4 RESET 2 DSP_SEL, ANA/DIGI 3 TUN_L SWITCHING IC2234 BUFFER IC8020 LINE AMP IC8002 5 AUDIO /VO 33 DIR_NON_AUDIO 8 DIR_ERROR 9 COM1_DATA, COM1_CLK COM1_CLK COM1_DATA 10 CEC 11 DM_L 13 DM_VIDEO 14 HDMI_SDA, HDMI_SCL HDMI_RESET 12 7 6 X2201 24.576MHz CN8003 17 VIDEO 5 RXD 6 TXD 7 DET 13 L+ 14 R+ R-CH DMPORT ROUT1 15 MD2 128 J861 3 2 RS-232C 101 CEC_M/DV 117 HDMI_SDA 118 HDMI_SCL 95 HDMI_RESET 121 CEC_DV/M X8002 4MHz EEPROM IC8018 : VIDEO : AUDIO (ANALOG) : AUDIO (DIGITAL) : TUNER SIGNAL PATH R-ch is omitted due to same as L-ch. Y 5 DSEL0 4 DSEL1 5 DSP_SEL 15 ANA/DIGI DSP_SEL ANA/DIGI 1 DSEL2 6 TUNER (FM/AM) AM FM ANT AM ANT TUN_L TUN_R TUN_DO R-CH RDS_DATA RDS_CLK TUN_DAT TUN_CLK TUN_CE FM 75Ω COAXIAL ANTENNA 90 TUN_DO TUN_TUNED 86 TUN_TUNED 93 RDS_DATA 165 RDS_CLK 91 TUN_DATA 92 TUN_CLK 87 TUN_LAT (DA2400ES: AEP, ECE, UK) Abbreviation : Continental European, East European and Russian models ECE (Page 31) (Page 28) (Page 34) (Page 28) (Page 29) (Page 28) (Page 28) (Page 28) (Page 28) (Page 31) (Page 31) (Page 29) (Page 32) (Page 29) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 28 28 6-2. BLOCK DIAGRAM - DSP/XM Section - DIR_BCK DIR_LRCK DIR_MCK SI_A SI_A, DIR_BCK, DIR_LRCK, DIR_MCK 5 HDMI_BCK SD1 HDMI_LRCK HDMI_MCK SD0 SD0 – SD3, HDMI_BCK, HDMI_LRCK, HDMI_MCK 15 SI_B 7 DIR_ERROR 9 DIR_NON_AUDIO 8 HDMI_NON_LPCM 17 DSP_SEL, ANA/DIGI DSP_SEL ANA/DIGI 2 MUTE (HDMI_ERROR) 16 SIGNAL SELECTOR IC2212 SIGNAL SELECTOR IC2236 A3 14 DSP IC5021 AXR0[10] /AXR1[3] B8 AXR0[11] /AXR1[2] A8 AXR0[12] /AXR1[1] B7 ACLKR0 A5 ACLKR1 E1 AXR0[13] /AXR1[0] B6 SD2 AXR0[14] /AXR2[1] A6 SD3 AXR0[15] /AXR2[0] AHCLKX0/ AHCLKX2 B5 B3 Y3 13 12 AXR0[0] A14 AXR0[1] B13 AXR0[2] A13 AXR0[3] B12 ACLKX0 A4 ACLKX1 E2 AFSR0 B4 AFSX2 C11 AFSR2 SPI0_SOMI C12 Y2 9 A2 11 B2 10 A1 5 B1 6 AFSR1 F1 C2 Y1 7 A0 2 B0 3 1 Y0 SELECT 4 MUTING IC2232 B2 9 A2 Y2 10 8 Y3 11 B3 12 A3 13 B1 5 A1 4 Y1 6 B0 2 A0 1 D/A CONVERTER IC2238 DATA1 45 DATA2 R-CH 46 DATA3 47 DATA4 31 Y0 3 CH0 7 CH1 6 5 COMMON A 2 SO 5 SI 6 SCK 1 CE# 1 BUFFER IC2211 96 168 FSRATE1 HDMI_ERROR 143 B14 SPI0_MISO SPI0_SIMO 144 B15 SPI0_MOSI SPI0_CLK 145 C16 SPI0_CLK SPI0_SCS# 77 C15 SPI0_SCS 72 SFLASH_CE 7 HOLD# 33 MDO 34 MDI 35 MC 36 ML 37 RST 71 SF_DSP_CS_CTL SPI0_ENA# 75 D16 SPI0_CE ACLKX2 164 D11 DSP_INT 55 DA_MD0 60 DAC_MUTE 56 DA_LATCH 78 DA_RST COM1_DATA, COM1_CLK COM1_CLK COM1_DATA 10 COM2_DATA, COM2_CLK COM2_CLK COM2_DATA 20 XM_L 21 RESET# 76 G2 DSP_RESET +D –D COMRXP 18 2 BCK DATA R-CH 1 SIRIUS_L 19 LRCK 3 SCK 16 COMRXM 19 COMTXP 23 COMTXM 22 XM_XM/M 3 137 SCTXOUT XM_M/XM 5 138 SCRXIN XM_RESET OSCOUT 26 OSCIN 28 X101 45.1584MHz 11 139 XRESET 13 MD(MDI) 14 MC XM_LAT 15 85 ML(MS) XM RECEIVER IC8003 D/A CONVERTER IC8005 I2SDATA 37 VOUTL 7 VOUTR 8 I2SSCLK 39 I2SLRCLK 41 I2SOCLK 43 LINE AMP IC8008 LEVEL SHIFT IC8022 (1/2) LEVEL SHIFT IC8024 RESET SWITCH Q8001, 8002 SERIAL FLASH IC5020 MUTING CONTROLLER IC2226 BCK 40 AFSX0 A3 AFSX1 EM_D[0] – EM_D[31] F2 EM_CLK R14 LRCK 41 SCKI 38 VOUT3 12 VOUT4 11 LINE AMP IC2220 VOUT5 DA_C DA_SL 10 VOUT6 9 LINE AMP IC2221 R-CH VOUT1 14 VOUT2 13 LINE AMP IC2219 R-CH VOUT7 16 VOUT8 SIRIUS_RX 20 3 LINE AMP IC2222 DA_SW DA_L DA_SBL DA_L, DA_SL, DA_C, DA_SW, DA_SBL SIRIUS_PWR _ENABLE 149 LEVEL SHIFT IC8023 SIRIUS_TX R-CH 148 18 + MUTING SWITCH Q2205 MUTING SWITCH Q2206 SD-RAM IC5022 CLK DQ0 – DQ31 EM_A[0] – EM_A[10] A0 – A10 68 EM_CKE T14 CKE 67 EM_CS[0]# F15 CS# 20 EM_RAS# F16 RAS# 19 EM_CAS# R3 CAS# 18 EM_WE# T3 WE# 17 EM_BA[0] G15 BA0 22 EM_BA[1] H16 BA1 23 EM_DQM[0] R4 DQM0 16 EM_DQM[1] T13 DQM1 71 EM_DQM[2] P13 DQM2 28 EM_DQM[3] R15 DQM3 59 D2201 SYSTEM CONTROLLER IC8014 (2/7) OSCIN J2 OSCOUT J3 X002 25MHz : AUDIO (ANALOG) : AUDIO (DIGITAL) SIGNAL PATH R-ch is omitted due to same as L-ch. (DA2400ES: US/DG920) (DA2400ES: US) CN8001 3 2 XM CN8002 1 5 8 4 6 SIRIUS (Page 29) (Page 27) (Page 29) (Page 32) (Page 29) (Page 27) (Page 27) (Page 31) (Page 27) (Page 31) (Page 27) (Page 31) (Page 27) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 29 29 6-3. BLOCK DIAGRAM - ANALOG AUDIO Section - R-CH R-CH R-CH L J401 (1/2) R L SA-CD/CD IN PHONO IN R R-CH R-CH L J402 R L TV IN MD/TAPE IN R R-CH L R SAT AUDIO IN DVD AUDIO IN BD AUDIO IN R-CH R-CH L FRONT SURROUND SUR BACK J407 R L R R-CH L R R-CH R-CH R-CH 3 TUN_L DA_L, DA_SL, DA_C, DA_SW, DA_SBL MULTI CHANNEL INPUT EQ AMP IC4001 INL9 38 INL6 32 INL5 30 IND2 8 13 DM_L INC2 6 INL4 28 INL3 26 INL2 24 INL1 22 LIN1 10 LVIN 90 SLVIN 99 CVIN 96 SWVIN 80 SLIN1 13 SBLIN1 15 CIN1 12 SWIN1 17 DATA 60 CLK 59 DA 22 CL 23 AUDIO INPUT SELECTOR IC8013 X0 12 X1 14 X 13 LIGO 91 SBLIGO 73 SBLVIN 74 INL7 34 CVGO 97 SWIGO 79 SUBL2 62 SLIGO 100 10 L MD/TAPE OUT R R-CH J401 (2/2) RECL2 46 AOUTL 41 L VIDEO 1 AUDIO OUT J4551 (DA2400ES: US) J4051 (DA2400ES: AEP, ECE, UK) (DA2400ES) J4552 (DA2400ES: US) J4052 (DA2400ES: AEP, ECE, UK) R R-CH J404 (2/2) RECL1 44 LOUT 88 SLOUT 85 SBLOUT 83 COUT 86 SWOUT L R FRONT L R SURROUND PRE OUT L R SUR BACK 81 L_OUT 6 SELECT SWITCH Q4010, 4012 AUDIO INPUT SELECTOR IC4002 L J403 R L R R-CH VIDEO 1 AUDIO IN L J404 (1/2) R R-CH CENTER J408 (DA2400ES: US/DG920) (DA2400ES: US) SUBWOOFER AUTO CAL MIC 21 XM_L INB2 4 EVOL_CLK 8 BRAVIA_SEL 16 EVOL_DATA 9 SEL_CLK 83 SEL_DATA 82 19 SIRIUS_L INA2 2 INL-8 36 J703 (1/2) R-CH OUT2 13 RECA2 17 L6 9 L5 8 L3 5 DATA 17 CK 16 ST 14 AUDIO INPUT SELECTOR IC403 L4 6 L1 2 L2 3 COM1 4 COM3 10 COM4 12 A 18 DA_SBL DA_SL DA_L DA_C DA_SW LIN2 49 SLIN2 52 SBLIN2 54 CIN2 51 SWIN2 56 LINE AMP IC4005 CENTER SUBWOOFER RELAY DRIVE –1 –2 RY4551 (DA2400ES: US) RY4051 (DA2400ES: AEP, ECE, UK) Q4551 (DA2400ES: US) Q4051 (DA2400ES: AEP, ECE, UK) RY4552 (DA2400ES: US) RY4052 (DA2400ES: AEP, ECE, UK) Q4552 (DA2400ES: US) Q4052 (DA2400ES: AEP, ECE, UK) RY4553 (DA2400ES: US) RY4053 (DA2400ES: AEP, ECE, UK) Q4553 (DA2400ES: US) Q4053 (DA2400ES: AEP, ECE, UK) RY4554 (DA2400ES: US) RY4054 (DA2400ES: AEP, ECE, UK) Q4554 (DA2400ES: US) Q4054 (DA2400ES: AEP, ECE, UK) RELAY DRIVE –1 –2 RELAY DRIVE –1 –2 RELAY DRIVE –1 –2 RELAY 23 22 L_OUT SL_OUT SBL_OUT SW_OUT C_OUT L_OUT, SL_OUT, SBL_OUT, C_OUT, SW_OUT VIDEO 2 IN PORTABLE AV IN AUDIO L R LINE AMP IC706 COM2_DATA, COM2_CLK COM2_DATA COM2_CLK 24 FUNC_LAT 169 MIC_ON 35 LEVEL SHIFT IC8022 (2/2) AUDIO INPUT SELECTOR, ELECTRICAL VOLUME IC404 MIC AMP IC705 MUTING Q713 MUTING CONTROL SWITCH Q712, 714 D709 J701 SYSTEM CONTROLLER IC8014 (3/7) Abbreviation : Continental European, East European and Russian models ECE : AUDIO (ANALOG) : TUNER SIGNAL PATH R-ch is omitted due to same as L-ch. (Page 28) (Page 27) (Page 27) (Page 28) (Page 28) (Page 27) (Page 30) (Page 30) (Page 32) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 30 30 6-4. BLOCK DIAGRAM - AMP Section - L R NF2 9 IN2 (DA2400ES: AEP, ECE, UK) 8 172 PROTECTOR 10 PREOUT_RY 54 HP_IN 20 C_RY 18 SB_RY 21 SP_B_RY 22 SP_A_RY 17 HP_RY SYSTEM CONTROLLER IC8014 (4/7) –VOUT2 11 BIAS Q471, 472 BOOSTER Q473 BOOSTER Q474 CURRENT DETECT Q475, 476 RELAY 23 PROTECTOR 25 AF POWER SENSOR Q477 POWER AMP IC500 NF2 9 IN2 8 –VOUT2 11 BIAS Q571, 572 BOOSTER Q573 BOOSTER Q574 CURRENT DETECT Q575, 576 AF POWER SENSOR Q577 POWER AMP IC600 NF2 9 IN2 8 –VOUT2 11 BIAS Q671, 672 BOOSTER Q673 BOOSTER Q674 CURRENT DETECT Q675, 676 AF POWER SENSOR Q677 POWER AMP IC400 POWER AMP IC700 NF1 5 IN1 AMP B– 6 –VOUT1 (DG920) 3 BIAS Q421, 422 BOOSTER Q423 BOOSTER Q424 VEE (FOR POWER AMP) CURRENT DETECT Q425, 426 OVER LOAD DETECT IC1901 LIMITER CONTROL Q1907, 1908 LIMITER CONTROL Q1901, 1914 LIMITER SWITCH Q1902 LIMITER SWITCH Q1903 AF POWER SENSOR Q427 AF POWER PROTECTOR Q720, 728, 729 RY401 19 SR_RY RELAY DRIVE Q560 RY1503 RELAY DRIVE Q1503 RY1502 RELAY DRIVE Q1502 RY611 RELAY DRIVE Q611 RY601 RELAY DRIVE Q601 23 4/8_RY RY500 RELAY DRIVE Q505 TM601 (DG920) TM602 (DA2400ES) TB1501 (DA2400ES) TB1503 (DG920) TB1502 (DA2400ES) TB1504 (DG920) RY1501 RELAY DRIVE Q1501 D4007 D4005 D4006 D4008 D4009 D4004 SUBWOOFER AUDIO OUT J406 D1907 RV470 D1911 CENTER + – + – + – R-CH L R + – + – SURROUND SURROUND BACK L R + – – FRONT B BIAS ALIGNMENT R-CH R-CH –1 –1 –2 –2 –1 –2 –1 –2 + L R J702 –2 –1 + – – FRONT A PHONES SPEAKERS + : AUDIO (ANALOG) SIGNAL PATH R-ch is omitted due to same as L-ch. SL_OUT L_OUT L_OUT, SL_OUT, SBL_OUT, C_OUT, SW_OUT 22 SBL_OUT C_OUT SW_OUT (DA2400ES: AEP, ECE, UK) RV570 BIAS ALIGNMENT (DA2400ES: AEP, ECE, UK) RV670 BIAS ALIGNMENT (DA2400ES: AEP, ECE, UK) RV400 BIAS ALIGNMENT Abbreviation : Continental European, East European and Russian models ECE (Page 29) (Page 34) (Page 29) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 31 31 6-5. BLOCK DIAGRAM - HDMI Section - CN3500 SAT IN ADT0P YDT0P 52 31 YDT0N 32 YDT1P 28 YDT1N 29 YDT2P 25 YDT2N 26 YCLKP 34 YCLKN 35 ADT0N 51 7 DATA0+ HDMI INPUT SELECTOR IC3501 HDMI RECEIVER IC3506 9 DATA0– ADT1P 55 ADT1N 54 4 DATA1+ 6 DATA1– ADT2P 58 ADT2N 57 1 DATA2+ 3 DATA2– ACLKP 49 ACLKN 48 10 CLOCK+ 12 CLOCK– SDA_A 45 SCL_A 46 16 SDA (5V) 15 SCL (5V) HPD_A 44 19 HOT PLUG DET 13 CEC 18 +5V POWER CN3503 VIDEO 1 IN 7 DATA0+ 9 DATA0– 4 DATA1+ 6 DATA1– 1 DATA2+ 3 DATA2– 10 CLOCK+ 12 CLOCK– 16 SDA (5V) 15 SCL (5V) 19 HOT PLUG DET 13 CEC 18 +5V POWER 7 DATA0+ 9 DATA0– 4 DATA1+ 6 DATA1– 1 DATA2+ 3 DATA2– 10 CLOCK+ 12 CLOCK– 16 SDA (5V) 15 SCL (5V) 19 HOT PLUG DET 13 CEC CN3505 HDMI OUT CN3501 BD IN BDT0P 71 BDT0N 70 7 DATA0+ 9 DATA0– BDT1P 74 BDT1N 73 4 DATA1+ 6 DATA1– BDT2P 77 BDT2N 76 1 DATA2+ 3 DATA2– R0X0+ 44 HSYNC 20 HSYNC 2 VSYNC 21 VSYNC 3 ODCK 5 IDCK 88 DE 19 DE 1 SPDIF 78 SPDIF SD0 – SD3 HDMI_BCK HDMI_LRCK HDMI_MCK 1 MUTE (HDMI_ERROR) 16 HDMI_SDA, HDMI_SCL, HDMI_RESET 12 SD0 – SD3, HDMI_BCK, HDMI_LRCK, HDMI_MCK Q[4] – Q[11], Q16] – Q[23], Q[28] – Q[35], HSYNC, VSYNC, ODCK, DE 15 SPDIF 4 SCK 86 SCK 11 WS CSDA 85 WS 10 49 CSCL 48 MCLK 89 MCLK 5 R0X0– 43 R0X1+ 48 R0X1– 47 R0X2+ 52 R0X2– 51 R0XC+ 40 R0XC– 39 DSDA0 33 DSCL0 34 R1X0+ 62 R1X0– 61 R1X1+ 66 R1X1– 65 R1X2+ 70 R1X2– 69 R1XC+ 58 R1XC– 57 DSDA1 28 DSCL1 R1PWR5V Q0 – Q35 SD0 – SD3 SD0 – SD3 D0 – D35 29 30 SDA_SINK 39 SCL_SINK 38 CSDA 26 CSCL 27 D3000 D3001 OUTDIS 42 HPD_SINK 40 SELA 1444_SELA 1444_SELB 1444_SELC 23 SELB 22 SELC 21 TX0+ 34 TX0– 33 TX1+ 37 TX1– 36 TX2+ 40 TX2– 39 TXC+ 31 TXC– 30 DSDA 47 DSCL 46 HPD 51 BCLKP 68 BCLKN 67 10 CLOCK+ 12 CLOCK– SDA_B 63 SCL_B 64 16 SDA (5V) 15 SCL (5V) HPD_B 62 19 HOT PLUG DET 13 CEC 18 +5V POWER HDMI CN3502 DVD IN CDT0P 9 CDT0N 8 7 DATA0+ 9 DATA0– CDT1P 12 CDT1N 11 4 DATA1+ 6 DATA1– CDT2P 15 CDT2N 14 1 DATA2+ 3 DATA2– CCLKP 6 CCLKN 5 10 CLOCK+ 12 CLOCK– SDA_C 2 SCL_C 3 16 SDA (5V) 15 SCL (5V) HPD_C 80 19 HOT PLUG DET CEC 11 26 13 CEC 18 +5V POWER LEVEL SHIFT IC3502 SWITCH Q3501 R0PWR5V 35 SWITCH Q3500 2Y1 5 2Y2 2-COM P5V_SELA XOUT XIN P5V_SELB 2 3 2Y3 4 10 SIGNAL SELECTOR IC3503 A 9 55 HPD_IN1 Q3505 22 56 1444_SELA 51 1444_SELB 52 1444_SELC 1444_OEB 1444_HPD 53 B EDID_SELA EDID_SELB A 35 36 CSDA CSCL 28 27 B INVERTER IC3513 1444_OEB 1444_HPD 54 21 INT 102 MUTEOUT 75 RESET# 100 RX_INT HSYNC VSYNC ODCK DE RX_RST RX_INT RX_RST 20 19 MUTE 65 INT 24 RESET# 25 TX_INT TX_RST TX_INT TX_RST 43 42 2Y0 1 1Y0 12 2Y3 4 1Y3 11 SDA 5 SCL 6 2Y1 5 1Y1 14 2-COM 3 1-COM 13 VUCOM_SDA HDMI_SDA HDMI_SCL HDMI_RESET 33 HDMI_NON_LPCM 17 NON LPCM 64 TX_5VPWR 27 TX_5VPWR 41 VUCOM_SCL 34 RESET 10 DATA SELECTOR IC3504 EEPROM IC3505 10 9 A B WP 7 XTALOUT 94 XTALIN 95 X3500 28.322MHz 16 – 13, 10 – 7, 3 – 1, 144, 141 – 138, 135 – 132, 129 – 126, 123 – 120, 117 –114, 111 – 108, 98 – 90, 86 – 77, 75 – 67, 63 – 56 36 24 4 81 – 84 9 – 6 BUFFER IC3507 13 11 X3000 10MHz HDMI TRANSCEIVER IC3508 Q[4] – Q[11], Q[16] – Q[23], Q28] – Q[35] HDMI CONTROLLER IC3000 : VIDEO : AUDIO (DIGITAL) SIGNAL PATH (Page 27) (Page 33) (Page 27) (Page 28) (Page 28) (Page 27) (Page 28) (Page 34) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 32 32 6-6. BLOCK DIAGRAM - VIDEO (1/2) Section - VIDEO 2 IN/ PORTABLE AV IN VIDEO SAT VIDEO IN DVD VIDEO IN J6004 (1/2) BD VIDEO IN VIDEO 1 VIDEO IN J6005 (1/2) J703 (2/2) 1 7 DM_VIDEO 3 2 VIDEO INPUT SELECTOR IC6505 SW1 VIDEO INPUT SELECTOR IC6302 VIDEO SWITCH IC6506 7 V3 VIN_1 VIN_2 13 V1. IN 9 V2. IN 5 LD 3 15 TV 3 VIN2 SW2 V1. OUT 10 VOUT1 1 M. OUT 2 SW5 V_OUT 6 SW4 4 SW3 10 SW2 14 SW1 SW2 J6004 (2/2) MONITOR VIDEO OUT J6005 (2/2) VIDEO 1 VIDEO OUT 13 MUTE1 11 BUFFER Q6104 SYNC SEPARATOR IC6102 Q6102 110 V_DET BUFFER Q6103 SYNC SEPARATOR IC6101 Q6101 111 COMPO_DET 108 M_MUTE 106 V595_LAT 107 V595_OE 104 COM2_DATA 105 COM2_CLK 109 VC_MUTE 102 C_MONI_MUTE 3 14 QD S-IN 2 QC 1 QB 15 QA 11 CLK 12 LAT 13 OE DATA DECODER IC6503 5 14 QF S-IN 2 QC SW2 VC_SEL VC_SEL2 VC_SEL VC_SEL2 COMP_OM/OFF COMP_ON/OFF 4 QE 7 QH 11 CLK 12 LAT 13 OE 3 QD 9 S-OUT DATA DECODER IC6502 Y PB/CB PR/CR Y PB/CB PR/CR Y PB/CB PR/CR Y PB/CB PR/CR J6001 (1/2) J6002 COMPONENT VIDEO ASSIGNABLE (INPUT ONLY) COMPONENT VIDEO ASSIGNABLE (INPUT ONLY) COMPO 3 IN COMPO 2 IN COMPO 1 IN MONITOR OUT 5 24 12 13 1 8 17 3 10 15 CH1IN3 CH2IN3 CH3IN3 CH1IN1 CH2IN1 CH3IN1 CH1IN2 CH2IN2 CH3IN2 CH1OUT 22 CH2OUT 20 CH3OUT2 VIDEO INPUT SELECTOR IC6001 17 20 22 24 CH3OUT2 CH2OUT CH1OUT CH3IN1 8 CH2IN1 1 23 CH1IN1 VIDEO SWITCH IC6104 SW1 2 SW2 4 PS 23 RY6001 RY6002 RY6003 J6001 (2/2) RELAY DRIVE Q6001 14 COM2-_DATA, COM2_CLK COM2_DATA COM2_CLK 24 COM2_DATA, COM2_CLK COM2_DATA COM2_CLK 20 30 CY_IN CY_IN, CB_IN, CR_IN 29 CY_OUT, CB_OUT, CR_OUT 28 CVBS_IN CB_IN CR_IN CY_OUT CB_OUT CR_OUT LEVEL SHIFT IC6501 SYSTEM CONTROLLER IC8014 (5/7) PS D6501 D6502 : VIDEO SIGNAL PATH (Page 27) (Page 28) (Page 29) (Page 33) (Page 33) (Page 33) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 33 33 6-7. BLOCK DIAGRAM - VIDEO (2/2)/PANEL Section - SD-RAM IC3200 DQ0 – DQ15 24 16 28 AF4 A3P CVBS_IN CY_IN CB_IN CR_IN 30 AC1 C1P CY_IN, CB_IN, CR_IN Q[16] – Q[23], Q[28] – Q[35] 26 Q[4] – Q[11], Q[16] – Q[23], Q[28] – Q[35], HSYNC, VSYNC, ODCK, DE AC2 B1P AB1 A1P ODCK Q[4] – Q[11], Q[16] – Q[23], Q[28] – Q[35] HSYNC DE P24 DCLK 33 HSYNC HSYNC P25 DHS VSYNC R26 DVS P26 DEN MSTR0_SDA D5 AA23 45 FSCLKP 5 SDA PD0 – PD23 P0 – P15 32 VSYNC 19 CLKIN SDA/SCKI VSYNC ODCK FSDATA0 – FSDATA15 FSDATA16 – FSDATA31 FSADDR0 – FSADDR12 A0 – A12 CLK C5 46 FSCLKN /CLK C4 44 FSCKE CKE C21 26 FSBKSEL0 BA0 C20 27 FSBKSEL1 BA1 D21 24 FSCS0 CS C24 23 FSRAS RAS D24 22 FSCAS CAS C23 21 FSWE WE A11 20 FSDQM1 LDM A6 47 FSDQM0 UDM B11 16 FSDQS1 LDQS B6 51 FSDQS0 UDQS FSDATA [0] – FSDATA [15] F_D [0] – F_D [15] F_A [1] – F_A [21] FSADDR [0] – FSADDR [12] FSADDR [0] – FSADDR [12] SD-RAM IC3203 DQ0 – DQ15 45 A0 – A12 CLK 46 /CLK 44 CKE 26 BA0 27 BA1 24 CS 23 RAS 22 CAS 21 WE CLKP CLKN CKE FSBKSEL0 FSBKSEL1 FSCS0 RAS CAS WE CLKP CLKN CKE FSBKSEL0 FSBKSEL1 FSCS0 RAS CAS WE B22 20 FSDQM3 LDM B17 47 FSDQM2 UDM A22 16 FSDQS3 LDQS A17 51 FSDQS2 B26 C26 XTAL TCLK UDQS FSDATA [16] – FSDATA [31] X3201 19.6608MHz EEPROM IC3211 2 IN FREQUENCY MULTIPLIER IC3810 MSTR0_SCL AA24 6 SCL ROM_CS_N AD24 26 CE DQ0 – DQ15 A0 – A20 FLASH MEMORY IC3210 OCN_RE_N AC25 28 OE OCN_WE_N DAC_CLK_SEL AC26 11 WE 12 RESET MSTR1_SDA A2 125 VIDEO_DAC_SDA MSTR1_SCL A3 142 FLI_BUSY OCM_UDI_1 B3 OCM_UDO_1 B2 141 FLI_RX 140 FLI_TX RESET AD9 136 FLI_RESET L23 – L26, N23 – N26, K23 – K26, J23, J24, G23 –G26, F23 – F26, E23, E24 OCMDATA0 – OCMDATA15 OCMADDR1 – OCMADDR21 SYSTEM CONTROLLER IC8014 (6/7) 8 – 11, 15 – 18, 34, 37 – 39 OUT2 FS0 8 4 157 DAC_SCL 112 VIDEO_DAC_RESET 124 DAC_SDA 113 13 SCL/MOSI 14 RESET 20 VIDEO PROCESSOR IC3601 D/A CONVERTER IC3800 28 DAC1 27 DAC2 26 DAC3 29 CY_OUT, CB_OUT, CR_OUT CY_OUT CB_OUT CR_OUT ND701 FLUORESCENT INDICATOR TUBE FL_DATA 152 FL_CLK 153 FL_LAT 151 FL_CLR 150 27 LED_STB LED DRIVE Q709, 710 24 LED_DCS LED DRIVE Q702 LED DRIVE Q701, 711 ON/STANDBY D701 D702 (GRN) (RED) 25 LED_MLT 26 LED_MLT_DIM LED DRIVE Q704 MULTI CHANNEL DECODING D703 REMOTE CONTROL RECEIVER IC701 DIMMER CONTROL Q703 Digital Cinema Sound 119 SIRCS-IN 2 POW-SW_DET STBY +3.3V 98 AD-KEY1 SW1 (1/2) POWER S711, 712 99 AD-KEY2 S701 – 705 100 AD-KEY3 S113 – 115, S708 49 FUNC_1 48 FUNC_2 ROTARY ENCODER INPUT SELECTOR S715 47 VOL_1 46 VOL_2 ROTARY ENCODER MASTER VOLUME S722 51 TUNE_1 50 TUNE_2 ROTARY ENCODER – TUNING + RV103 53 TONE_1 52 TONE_2 ROTARY ENCODER – TONE + RV104 : VIDEO SIGNAL PATH (Page 32) (Page 32) (Page 31) (Page 32) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 34 34 6-8. BLOCK DIAGRAM - POWER SUPPLY Section - RY01 RY801 RELAY DRIVE Q52 RELAY DRIVE Q801 LIMITER IC1902 SYSTEM CONTROLLER IC8014 (7/7) (AC IN) SW1 (2/2) POWER T002 (DA2400ES: US/DG920) T003 (DA2400ES: AEP, ECE, UK) SUB POWER TRANSFORMER 171 POW_RY 84 XM_POW 126 RST_TRG 170 STOP 131 INITX TH50 (DA2400ES: US/DG920) (DA2400ES) (DG920) (DA2400ES: AEP, ECE, UK) D3511, 3512 D3205, 3206 D8002 AC OFF DETECT Q51 RECT D52 – 55 RECT D801 REGULATOR Q53 – 55 D61 D51 D1912 D57 D56 +5V REGULATOR IC51 –5V REGULATOR IC6206 LIMITER DETECT Q1910, 1911 TEMPERATURE SENSOR IC1905 TEMPERATURE SENSOR IC1903 LIMITER DETECT Q1912, 1913 +3.3V REGULATOR IC8019 RESET SIGNAL GENERATOR IC8016 RESET SWITCH IC8015 RESET SIGNAL BUFFER IC8017 STBY +3.3V STBY +5V AMP B+ AMP B– F001 VIDEO –5V +9V REGULATOR IC8011 TUNER +9V D710 FOR FLUORESCENT INDICATOR TUBE +12V (FOR RELAY) +5V (FOR ADC/DAC) +12V (FOR RELAY) RECT D704 – 707 OSC Q705, 706 T701 DC/DC TRANSFORMER +12V REGULATOR IC803 LIMITER +5V HDMI +3.3V +7V REGULATOR IC801 +7V +5V REGULATOR IC2230 +5V REGULATOR IC6205 VIDEO +5V +1.26V REGULATOR IC5015 DSP +1.26V –7V REGULATOR IC802 –7V RECT D802 RECT D805 – D808 RECT D1406 T901 MAIN POWER TRANSFORMER F1405 F803 F804 F810 F811 +4V REGULATOR IC1402 +3.3V REGULATOR IC1403 +6.2V REGULATOR IC1401 +3.3V REGULATOR IC3511 HDMI +5V (FOR TX) VIDEO ADC +1.8V VIDEO ADC +3.3V HDMI +5V +5V REGULATOR IC3509 DMPORT +5V +5V REGULATOR IC8001 XM +5.5V +5.5 REGULATOR IC8006 B+ SWITCH Q8003, 8004 HDMI +1.8V +1.8V REGULATOR IC3512 DSP +3.3V DSP +2.5V +2.5V REGULATOR IC4100 +3.3V REGULATOR IC8004 XM +3.3V XM +5V +5V REGULATOR IC8007 +1.8V REGULATOR IC3205 +3.3V REGULATOR IC3206 VIDEO DDR +2.5V VIDEO IO +3.3V +2.5V REGULATOR IC3207 +3.3V REGULATOR IC3208 VIDEO DAC +1.8V VIDEO DAC +3.3V +1.8V REGULATOR IC3807 +3.3V REGULATOR IC3809 VIDEO LVDS/PLL +3.3V +3.3V REGULATOR IC3212 VIDEO CORE +1.8V +1.8V REGULATOR IC3209 (DA2400ES: US/DG920) +5V REGULATOR IC1904 +5V REGULATOR IC3510 TX_5VPWR 27 RESET 4 Abbreviation : Continental European, East European and Russian models ECE PROTECTOR 25 ~ AC INLET (Page 30) (Page 31) (Page 27) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 35 35 For Schematic Diagrams. Note: • All capacitors are in μF unless otherwise noted. (p: pF) 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise speciﬁ ed. • f : internal component. • 2 : nonﬂ ammable resistor. • C : panel designation. THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.) • A : B+ Line. • B : B– Line. • H : adjustment for repair. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : TUNER • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal production tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal production tolerances. • Circled numbers refer to waveforms. • Signal path. J : AUDIO (DIGITAL) F : AUDIO (ANALOG) f : TUNER E : VIDEO For Printed Wiring Boards. Note: • X : Parts extracted from the component side. • Y : parts extracted from the conductor side. • f : internal component. • : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) • Indication of transistor. C B These are omitted. E Q C E B These are omitted. Caution: Pattern face side: (SIDE B) Parts face side: (SIDE A) Parts on the pattern face side seen from the pattern face are indicated. Parts on the parts face side seen from the parts face are indicated. Note: The components identi- ﬁ ed by mark 0 or dotted line with mark 0 are criti- cal for safety. Replace only with part number speciﬁ ed. Note: Les composants identiﬁ és par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le nu- méro spéciﬁ é. Caution: Pattern face side: (Conductor Side) Parts face side: (Component Side) Parts on the pattern face side seen from the pattern face are indicated. Parts on the parts face side seen from the parts face are indicated. • DIGITAL VIDEO and DSP boards are multi-layer printed boards. However, the patterns of intermediate-layers have not been included in diagrams. • Circuit Boards Location JOG board LED board POWER SWITCH board STANDBY board DCDC CON board LIMITER board VIDEO board DIGITAL VIDEO board SURR SPEAKER board PRE OUT board (DA2400ES: AEP, ECE, UK models) CIS board (DA2400ES: US model) TUNER (FM/AM) MICON DIGITAL CONN board MICON board DSP board DIGITAL board MAIN board A-CLASS SUPPORT A board A-CLASS SUPPORT B board ACLASS board DISPLAY board MIC board VIDEO2 board • Lead layouts surface CSP (Chip Size Package) Lead layout of conventional IC • Abbreviation ECE : Continental European, East European and Russian models • The Voltage and waveform of CSP (Chip size package) cannot be measured, because its lead layout is different from that of conventional IC. • Abbreviation ECE : Continental European, East European and Russian models ∗ Replacement of IC3601 on the DIGITAL VIDEO board used in this set requires a special tool. ∗ Replacement of IC3601 on the DIGITAL VIDEO board used in this set requires a special tool. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 36 36 6-9. PRINTED WIRING BOARD - DIGITAL Board (Component Side) - • : Uses unleaded solder. • See Page 35 for Circuit Boards Location. IC2212 IC2236 IC2208 IC2209 IC2219 IC2220 IC2221 IC2222 IC2230 IC2233 IC2234 IC2226 IC2232 IC2238 IC2211 1 2 49 50 B E 1 24 25 36 37 48 12 13 14 1 8 7 1 14 8 7 1 8 9 16 8 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 1 8 5 4 1 14 8 7 1 1 1 5 5 4 4 3 3 14 8 7 1 8 5 4 1 24 25 36 37 48 12 13 B E R2287 R2288 R2486 R2487 R2293 R2488 R2295 R2296 R2490 X2201 FB2201 FB2203 FB2204 FB2206 FB2207 FB2208 C2329 R2301 R2302 R2304 R2307 FB2215 R2309 FB2217 R2504 R2310 R2312 R2507 R2508 R2509 R2315 R2316 R2317 R2319 R2511 R2513 R2321 R2516 R2322 R2325 R2326 R2327 R2336 R2337 R2338 R2347 R2349 R2354 C2397 C2398 R2375 R2376 R2377 R2379 R2380 R2381 CN2206 C2204 C2208 Q2205 Q2206 C2407 C2409 C2415 C2225 D2201 D2202 C2226 D2203 R2410 R2201 R2202 R2206 R2207 R2208 C2233 C2237 C2238 R2407 R2213 R2408 R2214 R2215 R2415 R2221 R2222 R2417 R2223 R2224 R2228 C2252 C2254 R2230 R2233 R2234 R2235 R2236 R2238 R2432 R2240 R2241 R2242 R2246 R2248 R2249 R2444 R2251 R2252 R2256 R2257 R2260 R2262 R2265 R2267 R2465 R2466 R2467 R2277 R2278 R2282 1-875-880- 11 (11) DIGITAL BOARD (COMPONENT SIDE) A B C D E 1 2 3 4 5 6 AL DSP BOARD CN5001 Ref. No. Location • Semiconductor Location D2201 C-4 D2202 D-2 D2203 C-3 IC2208 E-2 IC2209 E-2 IC2211 B-2 IC2212 B-2 IC2219 D-4 IC2220 D-5 IC2221 D-5 IC2222 D-6 IC2226 C-3 IC2230 E-3 IC2232 C-4 IC2233 D-3 IC2234 E-3 IC2236 C-2 IC2238 C-5 Q2205 C-4 Q2206 C-4 (Page 54) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 37 37 6-10. PRINTED WIRING BOARD - DIGITAL Board (Conductor Side) - • : Uses unleaded solder. • See Page 35 for Circuit Boards Location. IC2237 IC2202 IC2210 1 5 1 7 J2202 C2303 C2304 C2314 C2316 C2378 C2383 C2207 CN2218 C2402 C2404 C2210 C2212 C2221 C2230 C2231 C2258 C2256 IC2201 C2234 IC2204 C2243 C2251 C2262 C2271 C2272 C2273 C2278 C2279 C2282 C2295 C2296 1 2 15 16 1 2 19 20 1 2 7 8 C2414 CN2212 CN2213 CN2214 1 15 CN2217 CN2208 C2301 C2302 C2306 C2311 C2307 C2310 C2318 C2319 C2275 C2276 C2285 C2286 C2292 C2293 C2298 C2299 16 1 9 8 16 1 9 8 R2478 R2479 R2480 R2481 R2482 R2483 R2484 R2294 R2298 R2299 JL2501 JL2502 JL2503 JL2504 JL2505 JL2506 JL2507 JL2508 JL2510 JL2511 JL2512 JL2513 JL2514 JL2515 JL2516 JL2517 JL2518 JL2519 JL2520 JL2521 JL2522 JL2523 JL2524 JL2525 JL2526 JL2527 JL2528 C2300 JL2529 C2305 JL2530 JL2531 C2309 JL2532 JL2533 JL2534 JL2535 JL2537 JL2538 JL2539 C2317 JL2540 JL2541 JL2543 JL2544 JL2545 JL2546 FB2202 JL2548 JL2549 FB2205 JL2550 JL2553 FB2210 R2305 FB2212 FB2213 FB2214 R2308 R2500 FB2219 R2501 R2502 R2503 C2337 R2313 FB2220 FB2211 R2314 FB2221 R2318 R2512 R2514 R2320 R2515 R2323 R2517 R2324 JL2575 R2328 JL2579 JL2580 JL2581 JL2582 JL2583 R2333 JL2584 JL2585 JL2586 JL2587 JL2588 C2361 JL2589 C2362 C2363 C2364 C2365 C2366 C2367 C2368 JL2590 C2369 JL2591 R2342 JL2593 JL2594 R2344 JL2595 JL2596 JL2597 C2370 JL2598 1 3 2 1 3 2 1 3 2 C2371 JL2599 C2372 C2373 C2374 C2375 C2376 C2377 R2355 R2378 R2387 R2388 R2389 R2390 R2391 R2392 R2393 R2394 R2395 R2397 JL2600 JL2601 JL2605 JL2606 JL2607 JL2608 JL2609 JL2610 JL2611 JL2612 JL2613 JL2614 JL2615 JL2616 JL2619 C2201 C2202 C2203 JL2620 JL2621 JL2622 JL2623 JL2624 JL2625 C2209 JL2628 C2401 C2405 C2211 C2406 C2213 C2408 JL2630 JL2632 JL2633 JL2634 JL2635 JL2636 JL2637 JL2638 JL2639 C2412 C2413 C2222 C2223 JL2640 C2224 JL2641 JL2642 JL2643 C2227 JL2644 C2228 JL2645 C2229 JL2646 JL2647 R2203 JL2648 R2204 JL2649 R2209 C2232 JL2650 JL2651 C2235 JL2652 C2236 JL2653 JL2654 R2210 JL2655 JL2656 R2212 JL2657 JL2658 R2409 JL2659 R2217 R2219 JL2660 R2411 C2245 R2412 C2246 R2413 C2247 C2248 R2225 R2226 C2250 R2229 C2253 C2255 C2257 C2259 R2231 C2261 R2243 C2274 R2250 R2445 R2446 R2447 R2253 R2258 C2281 R2259 C2283 R2451 R2452 C2289 R2261 C2290 C2291 C2294 C2297 R2468 R2469 R2470 R2471 R2473 R2474 R2475 R2476 R2477 DIGITAL BOARD 1-875-880- B MAIN BOARD CN4004 COAXIAL SA-CD/CD IN COAXIAL DVD IN DIGITAL ASSIGNABLE OPTICAL SAT IN TV OPTICAL IN OPTICAL VIDEO 1 IN E MAIN BOARD CN4013 F MAIN BOARD CN4012 11 (11) C D A MICON DIGITAL CONN BOARD CN2030 MICON DIGITAL CONN BOARD CN2032 MICON DIGITAL CONN BOARD CN2031 (CONDUCTOR SIDE) A B C D E 1 2 3 4 5 6 7 DA2400ES: AEP,ECE,UK DA2400ES: US/DG920 (DA2400ES:US/DG920) DA2400ES: AEP,ECE,UK (DA2400ES:US/DG920) (DA2400ES:US/DG920) Ref. No. Location • Semiconductor Location IC2201 A-6 IC2202 B-6 IC2204 C-6 IC2210 A-6 IC2237 C-6 (Page 62) (Page 62) (Page 62) (Page 46) (Page 46) (Page 46) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 38 38 6-11. SCHEMATIC DIAGRAM - DIGITAL Board (1/2) - • See Page 76 for IC Block Diagrams. IC B/D IC B/D IC B/D IC B/D IC B/D IC B/D A MAIN (2/3) B CN4004 BOARD C BOARD DIGITAL (2/2) 1 (2/2) DIGITAL 2 BOARD MICON DIGITAL CONN BOARD CN2031 MICON DIGITAL CONN BOARD CN2032 3.3 3.3 0 0 0 0.3 0 3.3 3.3 3.3 0 0 0 0 0 0 0 3.3 0 0 0 0 0.1 0.1 0.1 0 0.1 C2204 0.1 C2201 0.1 C2202 C2203 0.1 0.1 C2211 0.1 C2213 0.1 C2209 0.1 C2222 C2224 0.1 0.1 C2223 C2227 0.1 C2228 0.1 0.1 C2229 C2232 0.1 0.1 C2233 0.1 C2236 0.1 C2247 0.1 C2248 C2225 5p C2226 6p 100p C2237 0.01 C2208 0.01 C2238 0.022 C2235 75 R2203 75 R2204 220 R2243 470 R2214 470 R2215 47k R2221 47k R2222 470k R2217 470k R2219 R2259 47 R2261 47 100 R2206 100 R2207 100 R2208 100 R2209 100 R2210 100 R2212 100 R2224 100 R2228 100 R2234 100 R2236 100 R2251 100 R2252 100 R2258 100 R2257 R2256 100 100 R2267 100 R2282 100 R2230 R2235 220 1k R2201 1k R2248 1k R2249 10k R2202 10k R2213 R2225 10k R2226 10k R2229 10k R2231 10k 10k R2250 R2233 1M FB2203 FB2204 FB2206 FB2201 FB2202 FB2205 FB2207 24.576MHz X2201 VCC OUT GND TORX147L IC2202 1 2 3 VCC OUT GND TORX147L IC2204 1 2 3 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 SN74HC595ANSR IC2210 B:ANA/DIGI C: D: E:DSEL0 F:DSEL1 G:DSEL2 H:REQ GND S-OUT RST CLK LAT OE S-IN A:DSP_SEL VCC VCC OUT GND TORX147L IC2201 1 2 3 R2246 220 0.01 C2245 MA2J1110GLS0 D2201 10k R2377 FB2210 1SR154-400TE-25 D2202 FB2217 10 R2387 10 R2390 JL2575 JL2579 JL2580 JL2581 JL2582 JL2583 JL2584 JL2585 JL2586 JL2587 JL2588 JL2589 JL2590 JL2591 JL2593 JL2594 10k R2395 10k R2397 100 R2407 1k R2410 1M R2411 MA2J1110GLS0 D2203 0 R2413 100 R2415 50V 10 C2230 10V 470 C2207 JL2596 JL2597 JL2598 JL2599 JL2600 JL2601 JL2605 JL2606 JL2607 JL2625 JL2628 JL2630 100 R2417 470p C2337 R2253 10k R2238 330 JL2595 FB2221 C2210 25V 47 25V 47 C2212 10V 470 C2221 10V 470 C2231 C2234 100 10V(DA200ES:US/DG920) 100 16V(DA200ES:AEP,ECE,UK) 10 R2451 10k R2452 0 R2475 0 R2476 0 R2477 0 R2478 0 R2479 0 R2480 0 R2481 0 R2482 0 R2483 0 R2484 0 R2500 JL2633 100 R2502 0.1 C2397 0.01 C2398 10k R2503 100 R2504 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 LC89057W-VF4A-E IC2208 RXOUT RX0 RX1 RX2 RX3 DGND DVDD RX4 RX5/VI RX6/UI DVDD DGND LPF AVDD AGND RMCK RBCK DGND DVDD RLRCK RDATA SBCK SLRCK SDIN DGND DVDD XMCK XOUT XIN DVDD DGND EMPHA /UO AUDIO /VO CKST INT RERR DO DI CE CL XMODE DGND DVDD TMCK/PIO0 TBCK/PIO1 LRCK/PIO2 TDATA/PIO3 TXO/PIOEN 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 TC74HC151AF(EL) IC2237 D3 D2 D1 D0 Y XY OE GND A2 A1 A0 D7 D6 D5 D4 Vcc 100 R2507 100 R2508 100 R2509 0.1 C2401 10V 470 C2383 10V 470 C2251 1k R2513 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 20P CN2213 SFLASH_HOLD# SPI0_CLK COM1_DATA COM1_CLK D595_CE D595_LATCH DIR_CKST DIR_ERROR DIR_DO DIR_CE DIR_XMODE DIR_DATA0 DAC_MUTE SYSTEM_MUTE DA_LATCH DA_MDO DA_RST V3_OPT3 V3_GND V3_+3.3V JL2634 JL2635 JL2638 JL2639 JL2640 JL2641 JL2656 10V 470 C2414 JL2657 100 R2516 10k R2517 8 7 6 5 4 3 2 1 TC7W53FU(TE12R) IC2236 SIGNAL SELECTOR COMMON INH VEE GND A CH1 CH0 VCC 150 R2265 100 R2277 100 R2278 47 R2487 220 R2488 R2242 100 JL2658 JL2659 JL2660 1 2 3 4 5 6 7 8 8P CN2214 D+6V D+6V DGND DGND FSRATE HDMI_LRCK HDMI_SPDIF HDMI_ERROR 1 2 3 4 5 5P CN2208 DSP2.5V D3.3V D6V D_GND D_GND 14 13 12 11 10 9 8 7 6 5 4 3 2 1 IC2211 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 IC2212 14 13 12 11 10 9 8 7 6 5 4 3 2 1 IC2209 1 5 3 2 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 VCC CKB RDB Q1B Q2B Q3B Q4B GND Q4A Q3A CKA RDA Q2A Q1A TC74VHC393FT(EL) TC74VHC157FT(EL) A2 Y1 A1 SELECT B3 B2 Y3 A0 Y0 A3 B0 Y2 GND VCC STOROBE B1 VCC GND TC74HCU04AF(EL) BUFFER IC2211 IC2212 DATA DECORDER IC2210 IC2204 IC2202 IC2201 IC2237 DIGITAL AUDIO INPUT SELECTOR DIGITAL AUDIO INTERFACE RECEIVER IC2236 SIGNAL SELECTOR (1/2) DIGITAL BOARD IC2208 WAVE SHAPER IC2209 DIGITAL OPTICAL RECEIVER DIGITAL DIGITAL OPTICAL RECEIVER DIGITAL OPTICAL RECEIVER TV OPTICAL IN OPTICAL VIDEO 1 IN OPTICAL SAT IN ASSIGNABLE COAXIAL DVD IN COAXIAL SA-CD/CD IN J2202 2P J B D N H L K C F M E G A I 4 16 6 9 11 15 10 17 3 5 12 18 1 19 8 14 2 13 7 (Page 63) (Page 48) (Page 63) (Page 39) (Page 39) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 39 39 6-12. SCHEMATIC DIAGRAM - DIGITAL Board (2/2) - • See Page 76 for IC Block Diagrams. IC B/D IC B/D IC B/D IC B/D D MAIN (1/3) CN4013 E BOARD F MAIN (1/3) CN4012 BOARD DIGITAL (1/2) BOARD 2 AL CN5001 DSP BOARD 1 BOARD (1/2) DIGITAL BOARD MICON DIGITAL CONN CN2030 R2262 47 R2260 47 FB2208 FB2211 JL2530 JL2514 JL2529 JL2513 JL2528 JL2512 JL2527 JL2511 JL2526 JL2510 JL2525 JL2524 JL2508 JL2523 JL2507 JL2522 JL2506 JL2521 JL2505 JL2520 JL2504 JL2519 JL2503 JL2518 JL2502 JL2517 JL2501 JL2516 JL2515 1 2 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39 41 43 45 47 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 49 50P CN2206 SFLASH_HOLD# SFLASH_CE# SPI0_ENA# SPI0_MISO DSP_INT NON_AU GND MCK GND SI_G SI_E SI_C SI_A GND BCK_OUT GND SO_E SO_C SO_A GND GND VDDINT VDDINT VDDEXT GND BCK GND LRCK SI_F SI_D SI_B GND LRCK_OUT GND SO_F SO_D SO_B GND GND VDDINT VDDINT VDDEXT SPI0_CLK GND SPI0_CE# SPI0_MOSI DSP_RESET ERROR VDDEXT VDDEXT 100 R2288 0.1 C2257 0.1 C2259 JL2544 2700p C2293 8.2k R2322 2700p C2306 JL2534 1000p C2305 JL2532 JL2537 1k R2321 1k R2337 0.1 C2290 1k R2316 100 R2310 1000p C2283 100k R2299 270p C2301 15k R2336 1k R2309 2700p C2311 JL2543 FB2214 2700p C2285 1000p C2317 100k R2314 JL2541 FB2213 1k R2295 2700p C2298 15k R2307 2700p C2276 JL2538 270p C2307 JL2545 JL2539 8.2k R2296 15k R2304 100k R2323 8.2k R2338 1000p C2309 1000p C2291 FB2212 15k R2293 8.2k R2325 15k R2317 JL2548 100k R2313 15k R2354 1k R2349 270p C2286 15k R2319 JL2546 FB2215 8.2k R2315 1000p C2297 8.2k R2301 270p C2292 8.2k R2347 8.2k R2312 C2275 270p 270p C2319 0.1 C2294 1k R2302 1k R2326 2700p C2302 0.1 C2281 100k R2324 1000p C2300 JL2550 15k R2327 2700p C2318 100k R2298 100k R2344 JL2553 270p C2310 1000p C2274 100k R2342 10k R2375 RT1N141C-TP-1 Q2205 MUTING SWITCH Q2205,2206 10k R2376 2SC3052EF-T1-LEF Q2206 10k R2287 0.1 C2254 0.1 C2252 0.1 C2246 0.1 C2250 100 R2378 100 R2379 100 R2380 100 R2381 10 R2388 10 R2389 10 R2391 10 R2392 10 R2393 10 R2394 100 R2408 10k R2409 47 R2412 JL2619 JL2620 JL2621 JL2622 JL2623 JL2624 220p C2329 JL2549 100 R2240 100 R2241 2200p C2253 2200p C2255 1k R2294 1k R2305 1k R2308 1k R2318 1k R2320 1k R2328 1k R2333 1k R2355 2700p C2361 2700p C2362 2700p C2363 2700p C2364 2700p C2365 2700p C2366 2700p C2367 2700p C2368 C2369 270p C2370 270p C2371 270p 270p C2372 270p C2373 270p C2374 270p C2375 270p C2376 270p C2299 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 15P CN2217 DA_L A_GND DA_R A_GND DA_C A_GND DA_SL A_GND DA_SR A_GND DA_SBL A_GND DA_SBR A_GND DA_W 14 13 12 11 10 9 8 7 6 5 4 3 2 1 PCM1808PWR IC2233 VREF AGND AVCC DVDD DGND SCKI LRCK BCK DOUT MD0 MD1 FMT VINL VINR 0.1 C2261 5 4 3 2 1 TC7SZ08FU(TE85R) IC2234 GND VCC FB2219 0.1 C2377 JL2632 FB2220 100 R2444 C2272 50V 10 C2278 50V 10 C2282 50V 10 C2295 50V 10 C2296 50V 10 C2303 50V 10 C2304 50V 10 C2314 50V 10 C2316 50V 22 C2273 50V 22 C2271 C2258 C2256 0 R2469 0 R2470 0 R2471 0 R2473 0 R2474 100 R2466 0 R2501 6.3V 1000 C2279 10V 470 C2402 0 R2486 0 R2490 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 PCM1609APT IC2238 ZERO1 ZERO2 ZERO3 ZERO4 ZERO5 ZERO6 NC NC VOUT6 VOUT5 VOUT4 VOUT3 VOUT2 VOUT1 VCOM VOUT7 AGND5 VCC5 AGND6 VOUT8 AGND4 VCC4 AGND3 VCC3 SGND2 VCC2 AGND1 VCC1 NC ZERO7 DATA4 ZERO8 MDO MDI MC ML RST SCKI SCKO BCK LRCK TEST VDD DGND DATA1 DATA2 DATA3 ZEROA 100p C2289 50V 10 C2404 0.1 C2405 0.1 C2406 0.1 C2407 100 R2511 10k R2512 10k R2514 0.01 C2408 C2409 0.01 JL2636 JL2637 JL2642 JL2643 JL2644 JL2645 JL2646 JL2647 JL2648 JL2649 JL2650 JL2651 JL2652 JL2653 JL2654 JL2655 47 R2515 50V 10 C2378 25V 47 C2243 1 2 3 4 5 6 7 7P CN2218 AD_L A_GND AD_R +7V -7V A_GND A_GND 25V 47 C2262 220 R2432 100 R2468 100 R2447 100 R2465 100 R2467 100 R2445 100 R2446 100p C2412 100p C2413 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 CN2212 HDMI_BCK GND HDMI_MCK GND HDMI_DATA0 HDMI_DATA1 HDMI_DATA2 HDMI_DATA3 HDMI_NON_LPCM SPI0_CE# SPI0_MOSI DSP_RESET DSP_INT SPI0_MISO SPI0_ENA# SFLASH_CE 0.01 C2415 14 13 12 11 10 9 8 7 1 2 3 4 5 6 IC2232 8 7 6 5 4 3 2 1 IC2222 8 7 6 5 4 3 2 1 IC2221 8 7 6 5 4 3 2 1 IC2220 8 7 6 5 4 3 2 1 IC2219 5 4 3 2 1 IC2230 8 7 6 5 4 3 2 1 IC2226 1 2 3 5 18 24 15 8 13 12 14 27 21 17 11 22 7 9 23 25 26 16 6 10 20 19 TC74VHC08FT(EL) NJM4565M(TE2) IC2222 NJM4565M(TE2) IC2221 NJM4565M(TE2) IC2220 NJM4565M(TE2) IC2219 LINE AMP LINE AMP LINE AMP LINE AMP VOUT NC GND ON/OFF VIN TK11150CSCL-G IC2230 +5V REGULATOR IC2226 TC7WH74FU(TE12R) MUTING CONTROLLER VCC CK PR D CLR Q Q GND IC2238 D/A CONVERTER MUTING IC2232 IC2233 A/D CONVERTER IC2234 SWITCHING DIGITAL BOARD (2/2) ∗ ∗C2256,2258 100 10V(DA200ES:US/DG920) 100 16V(DA200ES:AEP,ECE,UK) GND VCC (DA2400ES:AEP,ECE,UK) (DA2400ES:US/DG920) (DA2400ES:US/DG920) (DA2400ES:US/DG920) (DA2400ES:US/DG920) (DA2400ES:US/DG920) (DA2400ES:US/DG920) (DA2400ES:US/DG920) (DA2400ES:US/DG920) (DA2400ES:US/DG920) (DA2400ES:US/DG920) (DA2400ES:US/DG920) (DA2400ES:AEP,ECE,UK) (DA2400ES:AEP,ECE,UK) (DA2400ES:AEP,ECE,UK) (DA2400ES:AEP,ECE,UK) (DA2400ES:AEP,ECE,UK) ∗C22572 100 10V(DA200ES:US/DG920) 100 16V(DA200ES:AEP,ECE,OK) ∗ VDD VEE VDD VEE VDD VEE VDD VEE ∗ J B D H L K C F M E G A I 4 16 6 9 11 15 10 17 3 5 12 18 1 19 8 14 2 13 7 16P (DA2400ES:AEP,ECE,UK) (DA2400ES:AEP,ECE,UK) (DA2400ES:US/DG920) (DA2400ES:AEP,ECE,UK) (DA2400ES:AEP,ECE,UK) (DA2400ES:US/DG920) (Page 63) (Page 38) (Page 47) (Page 47) (Page 55) (Page 38) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 40 40 6-13. PRINTED WIRING BOARD - DIGITAL VIDEO Board (Component Side) - • : Uses unleaded solder. • See Page 35 for Circuit Boards Location. IC3505 IC3504 IC3507 IC3501 IC3502 IC3503 IC3506 IC3511 IC3512 IC3513 IC3207 IC3208 IC3508 IC3601 IC3800 IC3810 IC3510 IC3200 IC3203 IC3205 1 1 E 9 8 5 8 4 1 1 4 5 8 1 1 1 1 1 1 1 5 5 11 10 20 5 8 4 16 9 8 2 2 80 61 60 41 40 21 20 16 3 3 1 19 1 19 1 19 1 7 1 19 1 19 R3610 R3228 C3250 R3611 R3229 R3612 R3613 C3253 C3254 R3230 R3231 C3260 C3261 L3506 C3262 R3622 C3263 C3264 C3266 C3267 C3268 R3242 R3243 R3244 R3245 R3246 R3247 C3270 C3271 C3272 C3273 R3634 C3274 R3253 R3254 R3830 ET3501 R3255 ET3502 R3257 C3280 R3259 C3281 R3837 R3644 R3838 R3645 R3646 R3260 R3649 R3651 R3845 R3846 R3847 C3870 C3298 C3874 R3271 R3659 R3272 C3876 R3273 R3274 C3878 C3879 R3276 R3277 R3278 R3660 R3279 4 31 33 4 36 37 72 73 108 109 144 1 1 66 34 1 7 40 30 21 20 11 10 1 1 33 66 34 1 8 5 4 5 3 1 1 1 25 26 100 76 75 50 51 C3882 C3883 R3280 R3281 R3282 C3886 R3283 C3887 R3284 C3888 R3285 R3286 R3287 R3288 R3289 C3890 C3891 C3892 R3290 R3291 R3292 R3293 R3873 R3874 R3875 R3878 R3879 R3880 RB3211 RB3212 RB3213 RB3214 RB3215 RB3216 JL3506 JL3507 JL3508 JL3509 RB3801 RB3802 RB3803 RB3804 CN3500 X3201 CN3501 CN3502 CN3503 CN3505 C3307 JL3530 JL3535 Q3505 C3317 C3318 JL3543 JL3544 C3511 JL3545 JL3546 JL3547 FB3204 5 4 3 1 8 1 C3514 JL3548 FB3205 JL3549 FB3206 C3518 C3900 C3901 JL3550 C3329 R3314 R3315 R3316 C3533 R3317 C3534 R3319 C3538 R3510 R3511 C3346 R3514 C3348 R3515 C3349 R3321 R3517 R3323 R3518 C3543 C3544 R3328 C3350 C3545 R3329 C3546 C3547 C3353 R3520 C3354 TP3000 R3521 C3355 TP3001 TP3002 R3523 C3357 R3524 C3358 R3334 R3529 R3335 R3336 R3337 C3554 C3362 C3363 R3530 R3532 R3533 R3340 R3341 C3562 R3347 R3348 C3370 R3349 C3374 R3541 R3351 R3548 C3571 C3576 C3577 C3579 R3554 R3557 C3580 R3365 R3367 C3584 C3586 C3587 CL3000 R3561 C3589 CL3001 R3562 CL3002 R3563 CL3003 R3370 R3564 CL3004 R3565 R3371 CL3005 R3372 CL3006 R3567 R3373 CL3007 FL3500 R3374 C3590 R3568 CL3008 FL3501 C3591 CL3009 FL3502 FL3503 C3593 R3378 R3379 R3570 CL3010 CL3011 R3572 CL3012 R3573 CL3013 R3380 R3575 R3381 CL3015 R3382 R3577 R3383 CL3017 R3578 R3385 CL3019 R3386 R3387 R3388 R3389 R3580 CL3020 CL3021 R3582 CL3022 R3583 CL3023 R3390 CL3024 R3585 CL3025 R3392 R3586 CL3026 R3587 R3393 CL3027 R3588 CL3028 R3590 R3593 R3594 R3595 R3596 R3597 R3598 R3599 RB3500 RB3501 RB3502 RB3503 RB3504 RB3505 RB3506 RB3507 RB3508 RB3509 CN3001 RB3510 RB3511 RB3512 RB3513 RB3514 RB3515 RB3516 RB3517 CN3200 C3000 CN3201 C3001 C3003 C3004 C3005 C3006 C3216 C3217 C3600 X3500 C3218 CN3800 C3219 C3602 C3603 C3604 C3605 R3002 C3606 R3004 R3005 C3609 R3006 R3008 R3009 R3200 C3610 R3201 R3202 D3207 R3203 R3204 R3010 R3011 R3205 R3012 R3206 R3013 R3207 R3208 R3014 R3209 R3017 FB3500 FB3503 FB3504 FB3505 FB3506 FB3507 R3020 FB3509 R3023 R3600 R3601 R3602 R3603 R3029 R3606 R3607 R3608 R3609 ∗ 1-875-646- DIGITAL VIDEO BOARD X3201 K VIDEO BOARD CN6502 VIDEO 1 IN HDMI (NC) HDMI OUT SAT IN DVD IN BD IN (CHASSIS) (CHASSIS) (COMPONENT SIDE) (NC) L VIDEO BOARD CN6201 11 A B C D E F 1 2 3 4 5 6 7 8 9 AF26 AF25 AF24 AF23 AF22 AF21 AF20 AF19 AF18 AF17 AF16 AF15 AF14 AF13 AF12 AF11 AF10 AF9 AF8 AF7 AF6 AF5 AF4 AF3 AF2 AF1 AE26 AE25 AE24 AE23 AE22 AE21 AE20 AE19 AE18 AE17 AE16 AE15 AE14 AE13 AE12 AE11 AE10 AE9 AE8 AE7 AE6 AE5 AE4 AE3 AE2 AE1 AD26 AD25 AD24 AD23 AD22 AD21 AD20 AD19 AD18 AD17 AD16 AD15 AD14 AD13 AD12 1AD1 AD10 AD9 AD8 AD7 AD6 AD5 AD4 AD3 AD2 AD1 AC26 AC25 AC24 AC23 AC22 AC21 AC20 AC19 AC18 AC17 AC16 AC15 AC14 AC13 AC12 AC11 AC10 AC9 AC8 AC7 AC6 AC5 AC4 AC3 AC2 AC1 AB4 AB3 AB2 AB1 AA4 AA3 AA2 AA1 Y4 Y3 Y2 Y1 W4 W3 W2 W1 V4 V3 V2 V1 U4 U3 U2 U1 T4 T3 T2 T1 R4 R3 R2 R1 P4 P3 P2 P1 N4 N3 N2 N1 M4 M3 M2 M1 L4 L3 L2 L1 K4 K3 K2 K1 J4 J3 J2 J1 H4 H3 H2 H1 G4 G3 G2 G1 F4 F3 F2 F1 E4 E3 E2 E1 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16 D15 D14 D13 D12 D11 D10 K18 K17 K16 K15 K14 K13 K12 K11 K10 L18 L17 L16 L15 L14 L13 L12 L11 L10 M18 M17 M16 M15 M14 M13 M12 M11 M10 N18 N17 N16 N15 N14 N13 N12 N11 N10 P18 P17 P16 P15 P14 P13 P12 P11 P10 R18 R17 R16 R15 R14 R13 R12 R11 R10 T18 T17 T16 T15 T14 T13 T12 T11 T10 U18 U17 U16 U15 U14 U13 U12 U11 U10 D9 D8 D7 D6 D5 D4 D3 D2 D1 C26 C25 C24 C23 C22 C21 C20 C19 C18 C17 C16 C15 C14 C13 C12 C11 C10 C9 C8 C7 C6 C5 C4 C3 C2 C1 B26 B25 B24 B23 B22 B21 B20 B19 B18 B17 B16 B15 B14 B13 B12 B11 B10 B9 B8 B7 B6 B5 B4 B3 B2 B1 A26 A25 A24 A23 H26 H25 H24 H23 G26 G25 G24 G23 F26 F25 F24 F23 E26 E25 E24 E23 M26 M25 M24 M23 L26 L25 L24 L23 K26 K25 K24 K23 J26 J25 J24 J23 T26 T25 T24 T23 R26 R25 R24 R23 P26 P25 P24 P23 N26 N25 N24 N23 Y26 Y25 Y24 Y23 W26 W25 W24 W23 AB26 AB25 AB24 AB23 AA26 AA25 AA24 AA23 V26 V25 V24 V23 U26 U25 U24 U23 A22 A21 A20 A19 A18 A17 A16 A15 A14 A13 A12 A11 A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 Ref. No. Location • Semiconductor Location D3207 E-7 IC3200 E-2 IC3203 D-2 IC3205 F-5 IC3207 E-8 IC3208 E-9 IC3501 B-8 IC3502 A-6 IC3503 B-9 IC3504 D-9 IC3505 D-9 IC3506 C-6 IC3507 C-9 IC3508 B-4 IC3510 B-4 IC3511 C-8 IC3512 C-9 IC3513 B-9 IC3601 E-5 IC3800 C-3 IC3810 B-3 Q3505 B-9 Note: IC3506 and IC3508 cannot exchange with single. When IC3506 and IC3508 are damaged, exchange the entire mounted board. (Page 52) (Page 52) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 41 41 6-14. PRINTED WIRING BOARD - DIGITAL VIDEO Board (Conductor Side) - • : Uses unleaded solder. • See Page 35 for Circuit Boards Location. IC3807 IC3809 IC3212 IC3509 IC3000 IC3206 IC3210 IC3211 IC3209 R3030 R3031 R3032 R3802 R3033 48 25 24 1 1 E E 5 4 3 R3034 R3804 R3035 C3251 R3805 C3252 R3036 R3037 R3038 C3255 C3256 C3257 C3258 C3259 L3500 L3501 L3502 L3503 L3504 L3505 R3621 R3623 R3624 R3625 C3265 R3626 R3627 R3240 R3628 R3629 C3269 C3651 R3630 R3631 R3632 R3826 R3633 R3827 R3828 R3635 C3275 R3636 C3276 C3277 R3637 R3250 C3278 R3638 R3639 R3251 C3279 R3256 R3258 R3640 R3641 C3282 C3283 C3284 C3285 C3286 R3647 C3287 R3648 C3288 C3289 R3261 R3263 R3264 R3266 R3650 R3268 C3290 R3269 C3291 R3652 C3292 C3293 R3653 C3294 C3295 C3871 C3296 C3872 C3297 C3299 C3875 C3877 C3880 C3881 C3884 C3885 51 50 26 25 1 100 77 78 C3889 C3896 C3897 C3898 R3871 R3872 R3876 R3877 RB3200 RB3201 RB3204 RB3209 JL3500 JL3501 JL3502 JL3503 JL3504 JL3505 JL3510 JL3511 JL3512 X3000 JL3523 JL3524 JL3525 JL3526 JL3527 C3300 JL3528 C3301 JL3529 C3302 C3303 C3304 C3305 C3306 C3308 JL3531 C3309 JL3532 JL3533 JL3534 JL3536 C3503 JL3537 FB3000 C3310 Q3500 JL3538 C3505 C3311 Q3501 JL3539 C3506 C3312 C3507 C3313 C3314 C3508 C3509 C3315 C3316 JL3540 C3319 JL3541 JL3542 C3510 FB3202 C3512 FB3203 C3513 C3320 C3321 C3515 C3516 C3322 FB3207 C3323 C3517 FB3208 C3324 FB3209 C3519 C3325 C3326 C3327 C3328 JL3551 JL3552 FB3210 C3520 C3521 FB3211 C3522 FB3212 FB3213 C3523 FB3214 C3524 C3330 D3500 D3501 C3525 C3331 C3526 C3332 C3527 C3333 C3528 C3334 R3501 C3529 C3335 C3336 R3503 C3337 C3338 R3505 C3339 C3530 R3508 R3509 C3531 C3532 C3340 R3318 C3535 D3511 C3341 D3512 C3342 C3343 C3344 C3539 C3345 R3512 C3347 R3320 FB3808 FB3809 R3322 C3540 R3324 C3541 R3325 C3542 R3327 FB3810 C3351 FB3811 C3352 C3548 C3549 C3356 R3522 R3330 R3525 R3331 C3359 R3526 R3332 R3527 R3333 C3550 R3528 C3551 C3552 C3553 R3338 C3360 C3555 R3339 C3361 C3556 C3557 C3364 C3558 C3559 C3365 R3531 C3366 C3367 C3368 C3369 R3342 R3536 R3343 C3560 R3344 C3561 R3345 R3346 C3563 C3564 C3565 C3371 C3566 C3372 C3567 C3373 C3568 C3569 R3542 R3543 R3545 R3546 R3353 R3547 C3570 R3355 R3356 C3572 C3573 C3578 R3551 R3552 R3553 R3362 R3556 R3363 R3364 R3558 R3559 C3581 C3582 C3583 C3585 R3560 C3588 R3566 C3592 C3598 R3571 C3599 R3574 CL3014 CL3016 R3384 CL3018 R3579 R3391 R3394 R3589 R3395 R3396 R3397 R3591 R3592 JL3207 JL3209 JL3210 JL3211 JL3212 JL3213 JL3214 JL3215 JL3216 JL3217 JL3218 JL3219 JL3220 JL3221 JL3222 JL3223 JL3224 JL3225 JL3226 JL3227 JL3228 C3002 C3200 C3201 C3203 C3204 C3206 C3209 C3211 C3213 C3215 D3000 D3001 R3001 R3003 C3220 C3608 C3223 C3224 D3204 A K C3230 R3015 C3231 3 3 2 2 1 1 5 5 5 4 4 3 3 1 1 1 4 5 8 R3018 FB3508 R3021 R3024 C3240 R3025 C3242 R3026 R3027 R3604 R3028 R3605 C3245 C3248 C3249 1 2 9 1 2 15 16 CN3504 CN3506 CN3000 D3205 D3206 HS3200 1 5 4 2 10 1 4 3 DIGITAL VIDEO BOARD 1-875-646- 11 J G H DCDC CON BOARD CN1402 MICON BOARD CN2006 MICON BOARD CN2003 X3000 A B C D E F 1 2 3 4 5 6 7 8 9 10 (CONDUCTOR SIDE) Ref. No. Location • Semiconductor Location D3000 E-2 D3001 E-2 D3204 E-2 D3205 F-3 D3206 F-2 D3500 B-2 D3501 B-2 D3511 E-2 D3512 E-2 IC3000 D-3 IC3206 F-5 IC3209 E-3 IC3210 D-4 IC3211 D-5 IC3212 D-7 IC3509 B-2 IC3807 C-8 IC3809 C-8 Q3500 B-2 Q3501 B-2 (Page 57) (Page 57) (Page 73) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 42 42 6-15. SCHEMATIC DIAGRAM - DIGITAL VIDEO Board (1/4) - • See Page 61 for Waveforms. • See Page 76 for IC Block Diagram. • See Page 86 for IC Pin Function Description. 1 DIGITAL 11 VIDEO (2/4) BOARD 12 DIGITAL VIDEO BOARD (2/4) IC B/D IC B/D IC B/D 1.8 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 1.8 0 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 1.8 0 0.4 0.4 3.3 0 3.3 0 0 0 0 1.2 1.2 1.2 3.3 1.2 1.2 1.2 1.2 3.3 1.8 1.2 1.2 1.2 1.2 1.8 1.8 1.4 1.9 3.3 1.2 1.2 1.2 1.2 1.2 3.3 1.8 1.2 1.2 2.1 2.1 1.8 2.1 2.1 2.1 2.1 3.3 2.1 2.1 2.1 2.1 1.8 2.1 2.1 2.1 2.1 3.3 2.1 2.1 2.1 0 0 0 0 0 0 0 3.3 0 1.8 1.8 1.8 3.3 3.3 1.6 1.6 3.3 3.3 3.3 3.3 3.3 0 1.8 2.1 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 0 0 0 0 3.3 0 0 0 0 0 1.2 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.2 0 0 0 0.3 0.3 0 0 0 3.3 0 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 1.4 0.4 3.3 0.4 0 3.3 0.4 0.4 1.9 3.3 3.9 0 3.3 0.4 0.4 3.3 0 0 0 0 4.9 0 0 0 0 0 4.9 0 4.9 4.9 0 3.3 3.3 3.3 3.3 0 4.9 10uH L3500 0.1 C3556 0.1 C3539 0.1 C3538 0.1 C3528 0.1 C3524 0.1 C3525 0.1 C3526 0.1 C3527 0.1 C3529 0.1 C3521 0.1 C3522 0.1 C3530 0.1 C3523 0.1 C3532 0.1 C3535 0.1 C3541 10uH L3501 10uH L3502 0.1 C3545 0.1 C3549 6.3V 220 C3554 6.3V 220 C3555 47 R3567 47 R3570 47 R3572 47 R3575 47 R3577 47 R3578 0.1 C3542 R3589 100 47 R3571 47 R3574 JL3500 JL3501 JL3502 0 R3501 0 R3503 0 R3505 0 R3565 8 7 6 5 4 3 2 1 BR24L02F-WSE2 IC3505 10k R3586 JL3508 JL3509 47k R3522 47k R3523 47k R3524 22 RB3501 22 RB3502 47 RB3500 0 R3564 28.322MHz X3500 1M R3587 12p C3544 15p C3543 47 R3514 47 R3515 47 R3517 47 R3518 47 R3520 47 R3521 0.1 C3517 6.3V 220 C3518 JL3503 R3511 47 R3530 47k R3510 47 R3508 0 0.1 C3548 47 R3566 0.1 C3552 0.1 C3553 R3568 0 0.1 C3550 R3591 4.7k 47 R3562 47 R3563 JL3505 JL3506 JL3507 JL3511 JL3512 JL3510 FB3503 6.3V 220 C3546 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 111 Q10 Q9 Q8 IOGND ODCK IOVCC33 Q7 Q6 Q5 Q4 CGND CVCC18 Q3 Q2 Q1 Q0 IOGND IOVCC33 DE HSYNC VSYNC EVNODD CGND CVCC18 CVCC18 CSDA CSCL DSDA1 DSCL1 R1PWR5V IOGND IOVCC33 DSDA0 DSCL0 R0PWR5V AGND AVCC18 AVCC33 R0XC- R0XC+ AGND AVCC33 R0X0- R0X0+ AGND AVCC33 R0X1- R0X1+ AGND AVC33 R0X2- R0X2+ AGND AVCC18 RSVDNC AVCC33 R1XC- R1XC+ AGND AVCC33 R1X0- R1X0+ AGND AVCC33 R1X1- R1X1+ AGND AVCC33 R1X2- R1X2+ AGND AVCC18 IOGND IOVCC33 MUTEOUT RSVDNC RSVDNC SPDIF CGND CVCC18 SD0 SD1 SD2 SD3 WS SCK IOGND IOVCC33 MCLK CGND CVCC18 DVCC18 DGND2 XTALOUT XTALIN XTALVCC REGVCC RSVDNC RSVDL RESET# SCDT INT IOGND IOVCC33 CI2CA CGND CVCC18 Q35 Q34 Q33 Q32 IOGND IOVCC33 Q31 Q30 Q29 Q28 CGND CVCC18 Q27 Q26 Q25 Q24 IOGND IOVCC33 Q23 Q22 Q21 Q20 CGND CVCC Q19 Q18 Q17 Q16 IOGND IOVCC33 Q15 Q14 Q13 Q12 CGND CVCC18 Q11 0.1 C3531 E ET3501 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 RXTM SDA_C SCL_C GND CCLKN CCLKP VCC CDT0N CDT0P GND CDT1N CDT1P VCC CDT2N CDT2P GND VCC REXT OPACTRLN CEC_TX CVCC HPD_B SDA_B SCL_B GND GND BCLKN BCLKP VCC BDT0N BDT0P GND BDT1N BDT1P VCC BDT2N BDT2P GND VCC HDP_C 4.7k R3552 0 R3551 10k R3553 10k R3536 10k R3554 47 R3557 10k R3558 10k R3559 10k R3560 1k R3532 1k R3531 1k R3547 VCCA SCLA SDAA GND EN SDAB SCLB VCCB R3545 47 R3546 47 C3511 0.1 C3508 0.1 JL3532 R3647 10k 0.1 C3514 R3648 10k 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 SN74LV4052APWR IC3503 JL3504 0 R3541 JL3531 4.7k R3652 1k R3645 1k R3644 R3542 4.7k R3543 4.7k 1SS367-T3SONY D3000 DTC114YKA-T146 Q3505 0 R3548 0 R3529 0 R3533 R3561 47 R3527 10k ISA1235AC1TP-1EF Q3501 R3525 4.7k MA2J1110GLS0 D3501 R3528 22k 4.7k R3512 10k R3526 22k R3509 MA2J1110GLS0 D3500 G1 A1 Y2 GND A2 Y1 G2 VCC 0.1 C3610 0 R3573 10k R3649 10k R3015 0.1 C3562 R3650 R3651 220 R3579 220 R3583 0.1 C3510 0.1 C3513 0.1 C3515 0.1 C3520 0.1 C3519 0.1 C3516 0.1 C3512 0.1 C3509 0.1 C3503 0.1 C3505 0.1 C3506 0.1 C3507 47 R3580 1k R3588 1k R3653 FB3500 FB3504 FB3505 10 R3582 10 R3585 22 R3590 19P CN3500 19P CN3501 52 53 54 56 59 60 61 62 63 51 55 57 58 SCK SPDIF SD0 WS MCK SD2 SD3 SD1 Q[5] Q[6] Q[7] Q[8] Q[9] Q[10] Q[11] Q[19] Q[18] Q[17] Q[16] Q[20] Q[21] Q[22] Q[23] ODCK VSYNC HSYNC DE 1444_HPD RX_INT RX_RST Q[24] Q[25] Q[26] Q[27] Q[0] Q[1] Q[2] Q[3] Q[12] Q[13] Q[14] Q[15] Q[28] Q[29] Q[30] Q[31] Q[32] Q[33] Q[34] Q[35] HPD_IN1 Q[4] +5V_SELA +5V_SELB 1444_SELA 1444_SELB 1444_SELC EDID_MUX_B EDID_MUX_A 1444_OEB INH GND GND A B VCC SDA SCL WP VCC GND A2 A1 A0 B GND GND INH VCC A DIGITAL VIDEO BOARD (1/4) (CHASSIS) INVERTER SWITCH 7 11 D 21 B 16 6 9 17 10 F 5 N 15 L K 19 3 G 20 1 18 12 C M E H 8 J 4 13 A 14 2 I O IC3501 CXB1444R-T6 IC3501 HDMI INPUT SELECTOR SII9135CTU IC3506 IC3506 HDMI RECEIVER 47 RB3503 22 RB3504 22 RB3505 47 RB3506 22 RB3507 22 RB3508 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 HPD_SINK CEC_RX OUTDIS VCC HDP_A SDA_A SCL_A GND ACLKN ACLKP VCC ADT0N ADT0P GND ADT1N ADT1P VCC ADT2N ADT2P GND CECL_LINE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 SELC SELB SELA GND YDT2P YDT2N VCC YDT1P YDT1N GND YDT0P TDT0N VCC YCLKP YCLKN GND GND SCL_SINK SDA_SINK 0 R3556 PCA9517DP IC3502 LEVEL SHIFT IC3502 8 7 6 5 4 3 2 1 8 7 6 5 4 3 2 1 TC7WT125FU(TE12R) IC3513 INVERTER IC3513 SIGNAL SELECTOR IC3503 VIDEO 1 IN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 DATA2+ DATA2 SHIELD DATA2- DATA1+ DATA1 SHIELD DATA1- DATA0+ DATA0 SHIELD DATA0- CLOCK+ CLOCK SHIELD CLOCK- CEC RESERVE(NC) SCL(5V) SDA(5V) DDC/CEC GND +5V POWER HOT PLUG DET 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 DATA2+ DATA2 SHIELD DATA2- DATA1+ DATA1 SHIELD DATA1- DATA0+ DATA0 SHIELD DATA0- CLOCK+ CLOCK SHIELD CLOCK- CEC RESERVE(NC) SCL(5V) SDA(5V) DDC/CEC GND +5V POWER HOT PLUG DET BD IN 19P CN3502 19P CN3503 DATA2+ DATA2 SHIELD DATA2- DATA1+ DATA1 SHIELD DATA1- DATA0+ DATA0 SHIELD DATA0- CLOCK+ CLOCK SHIELD CLOCK- CEC RESERVE(NC) SCL(5V) SDA(5V) DDC/CEC GND +5V POWER HOT PLUG DET 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 DVD IN DATA2+ DATA2 SHIELD DATA2- DATA1+ DATA1 SHIELD DATA1- DATA0+ DATA0 SHIELD DATA0- CLOCK+ CLOCK SHIELD CLOCK- CEC RESERVE(NC) SCL(5V) SDA(5V) DDC/CEC GND +5V POWER HOT PLUG DET 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 SAT IN 8 7 6 5 4 3 2 1 16 15 14 13 12 11 10 9 SN74LV4052APWR IC3504 IC3504 DATA SELECTOR IC3505 EEPROM 10V 47 C3609 0.1 C3533 0.1 C3547 0.1 C3540 0.1 C3534 0.1 C3551 0.1 C3561 0.1 C3559 0.1 C3558 0.1 C3557 0.1 C3560 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 109 110 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 ISA1235AC1TP-1EF Q3500 SWITCH HDMI Note: IC3506 cannot exchange with single. When IC3506 is damaged, exchange the entire mounted board. (Page 43) (Page 43) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 43 43 6-16. SCHEMATIC DIAGRAM - DIGITAL VIDEO Board (2/4) - • See Page 76 for IC Block Diagrams. • See Page 86 for IC Pin Function Description. 11 DIGITAL VIDEO BOARD (1/4) IC B/D H BOARD (2/3) MICON CN2003 BOARD CN1402 DCDC CON J VIDEO BOARD (3/4) DIGITAL 13 IC B/D IC B/D IC B/D IC B/D 12 BOARD VIDEO (1/4) DIGITAL BOARD (2/3) MICON G CN2006 VIDEO BOARD (4/4) DIGITAL 14 1.8 0 1.8 2.1 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 3.3 1.2 1.1 1.2 1.2 1.2 1.2 1.2 1.2 1.2 0 0 0 0 0 0 0 0 0 0 0 1.8 3.3 3.3 3.3 0 0 1.8 0 0 0 0 0 0 1.8 1.8 1.8 0.2 1.4 1.9 4.9 1.8 3.3 4.9 4.9 0 3.3 1.8 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 1.8 3.3 3.3 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1.2 3.3 4 4 1.2 1.8 3.2 3.2 3.2 1.3 6 4.9 0.01 C3600 FB3509 10uH L3504 10uH L3503 10uH L3506 0.1 C3568 0.1 C3569 0.1 C3570 100 R3623 680 R3625 10V 100 C3587 10V 100 C3586 10 R3626 10 R3627 47 R3629 JL3526 JL3525 47k R3640 0 R3641 R3634 10k 1.8k R3638 1.8k R3639 10V 100 C3591 1 C3593 1 C3602 1 C3651 10V 100 C3590 1 C3592 10V 100 C3603 10V 100 C3604 JL3529 JL3528 47 R3631 4.7k R3624 47 RB3513 47 RB3512 47 RB3511 47 RB3510 47 RB3515 10 R3603 10 R3604 10 R3605 0 R3621 47 R3592 0 R3628 HDMI3.3V 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 DE HSYNC VSYNC SPDIF MCLK SD3 SD2 SD1 SD0 WS SCK CVCC18 GND IOVCC33 DCLK DR0 DL0 DR1 DL1 DR2 DL2 DR3 DL3 INT RESET# CVCC18 D18 D17 D16 D15 D14 D13 D12 D11 D10 D9 GND IDCK IOVCC33 D8 D7 D6 D5 D4 D3 D2 D1 D0 CVCC18 GND 1 2 3 4 5 TK73400AU3G0L-C IC3511 VCONT VIN GND VOUT FB 56k R3632 33k R3635 0.01 C3598 1 2 3 4 5 TK73400AU3G0L-C IC3512 VCONT VIN GND VOUT FB 47 R3606 47 R3607 47 R3608 47 R3609 47 R3610 47 R3611 47 R3612 47 R3613 0.01 C3599 3.3k R3633 6.8k R3636 JL3527 JL3523 E ET3502 10MHz X3000 0.1 C3003 0.1 C3004 FB3000 10V 100 C3002 47 R3010 47 R3012 47 R3018 47 R3021 47 R3024 47 R3025 47 R3027 47 R3036 47 R3031 47 R3035 47 R3030 47 R3034 47 R3033 47 R3032 47 R3001 10k R3008 10k R3004 0.1 C3000 10k R3005 100 R3002 10k R3006 22 R3013 22 R3014 10k R3026 10k R3029 0.1 C3005 0.1 C3006 0.1 C3001 CL3012 CL3013 CL3015 CL3017 CL3019 CL3020 CL3021 CL3022 CL3023 CL3024 CL3025 CL3026 CL3027 CL3016 CL3014 CL3018 CL3011 CL3010 CL3009 CL3008 CL3007 CL3006 CL3005 CL3003 CL3002 CL3004 CL3001 CL3000 0 R3028 1SS367-T3SONY D3001 JL3524 JL3534 HDMI1.8V 0 R3003 0 R3630 5 4 3 2 1 5 4 3 2 1 CONT GND NOISE VOUT VIN 0.01 C3572 10k R3622 0.22 C3585 0.22 C3588 EC21QS06-TE12L D3512 100 R3646 R3023 10k 10k R3020 R3017 10k EC21QS06-TE12L D3511 JL3533 JL3530 JL3535 10k R3037 1 2 3 4 4P CN3506 +4V NC GND +6.2V (NC) 7P CN3001 47 R3038 16P CN3000 JL3536 JL3537 JL3538 JL3539 JL3540 JL3541 JL3542 CL3028 20 19 18 17 16 15 14 13 12 11 G A1 A2 A3 A4 A5 A6 A7 A8 GND Y8 Y7 Y6 Y5 Y4 Y3 Y2 Y1 G2 Vcc JL3543 JL3544 JL3545 JL3546 JL3547 JL3548 JL3549 JL3550 10P CN3504 100 R3596 47 R3593 100 R3597 100 R3595 100 R3594 FB3507 FB3506 220 R3598 0 R3600 150 R3601 0 R3602 100 R3599 FB3508 1.5k R3009 1.5k R3011 22 RB3509 22 RB3514 22 RB3516 22 RB3517 19P CN3505 DATA2+ DATA2 SHIELD DATA2- DATA1+ DATA1 SHIELD DATA1- DATA0+ DATA0 SHIELD DATA0- CLOCK+ CLOCK SHIELD CLOCK- CEC RESERVE(NC) SCL(5V) SDA(5V) DDC/CEC GND +5V POWER HOT PLUG DET JL3551 JL3552 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 NC NC NC NC NC BYTE CNVSS NC NC RESET XOUT VSS XIN VCC_3.3V NMI NC NC NC RX_RST RX_INT 1444_HPD HPD_IN1 NC NC NC NC CSCL CSDA 232COUT (VU TX) 232CIN (VU RX) NC NC VUCOM_SDA VUCOM_SCL EDID_SELA EDID_SELB NC NC NC VDAC_RESET TX_5VPWR TX_RST TX_INT NC NC NC NC NC NC NC 1 4 2 3 FL3500 1 4 2 3 FL3501 1 4 2 3 FL3502 1 4 2 3 FL3503 0.1 C3571 0.1 C3567 0.1 C3566 0.1 C3564 0.1 C3563 0.1 C3565 0.1 C3573 0.1 C3579 0.1 C3582 0.1 C3578 10V 100 C3576 52 51 Q[5] Q[6] Q[7] Q[8] Q[9] Q[10] Q[11] Q[16] Q[17] Q[18] Q[19] VSYNC HSYNC DE ODCK TX_RST MCK SD3 SD2 SD1 SD0 WS SCK Q[0] Q[1] Q[2] Q[3] Q[15] Q[14] Q[13] Q[12] Q[28] Q[29] Q[30] Q[31] Q[32] Q[33] Q[34] Q[35] Q[20] Q[21] Q[22] Q[23] Q[24] Q[25] Q[26] Q[27] EDID_MUX_A EDID_MUX_B TX_INT SPDIF Q[4] TX_RST TX_INT TX_5VPWR HPD_IN1 RX_RST 1444_HPD RX_INT TX_5VPWR CONT GND NOISE VOUT VIN DIGITAL VIDEO BOARD (2/4) (CHASSIS) 7 11 D 21 B 16 6 9 17 10 F 5 15 L K 19 3 G 20 1 18 12 C E H 8 J 4 13 A 14 2 I 22 232C_IN 232C_OUT 3.3V RESET GND CNVSS GND 1 2 3 4 5 6 7 BUFFER IC3507 SPDIF SD0 SD1 SD2 SD3 LRCK BCK GND MCLK GND 1 2 3 4 5 6 7 8 9 10 10 9 8 7 6 5 4 3 2 1 IC3507 TC74VHC541FT(EL) 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 HPD TMODE IOVCC33 GND VPP18 D35 D34 D33 D32 D31 D30 D29 D28 CVCC18 GND IOVCC33 D27 D26 D25 D24 D23 D22 D21 D20 D19 AGND EXT_SWG PVCC1 AGND TXC- TXC+ AVCC18 TX0- TX0+ AGND TX1- TX1+ AVCC18 TX2- TX2+ AGND PVCC2 AGND AVCC33 DCCPWR5V DSCL DSDA CSCL CSDA CI2CA 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 SII9134CTU IC3508 HDMI TRANSCEIVER IC3508 0 R3637 OUT HDMI 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 10V 47 C3608 0.22 C3605 1 C3606 TK11150CSCL-G IC3510 IC3510 +5V REGULATOR 10V 47 C3589 TK11150CSCL-G IC3509 IC3509 +5V REGULATOR 10V 47 C3577 +1.8V REGULATOR IC3512 +3.3V REGULATOR IC3511 57 59 62 60 56 54 63 58 55 53 61 9 10 11 12 13 14 CEC HDMI_MICOM_RESET VUCOM_SDA VUCOM_SCL NON_LPCM HDMI_ERROR 1444_SELA 1444_SELB 1444_SELC 1444_OEB P5V_SELA P5V_SELB NC NC NC VCC_3.3V NC VSS NC NON LPCM MUTE NC NC NC NC NC NC NC NC NC NC 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC MODEL_SW3 MODEL_SW2 MODEL_SW1 AVSS NC VREF AVCC NC NC NC M30620FCPGP U5C IC3000 IC3000 HDMI CONTROLLER 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 10uH L3505 10V 47 C3583 10V 47 C3584 0.1 C3581 0.1 C3580 1444_SELA 1444_SELB 1444_SELC 1444_OEB +5V_SELA +5V_SELB MCK SCK WS SD3 SD2 SD1 SD0 SPDIF +6V +4V 1 2 3 4 5 6 FLI_RESET FLI_UART_RX FLI_UART_TX FLI_BUSY FLI_POW_DET DAC_RESET 7 8 DAC_SCL DAC_SDA 15 16 VSYNC DAC_CLK_SEL DAC_RESET FLI_POW_DET FLI_BUSY FLI_UART_TX FLI_UART_RX FLI_RESET DAC_SDA DAC_SCL DAC_CLK_SEL 10k R3660 A B Note: IC3508 cannot exchange with single. When IC3508 is damaged, exchange the entire mounted board. (Page 42) (Page 59) (Page 42) (Page 59) (Page 45) (Page 73) (Page 44) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 44 44 6-17. SCHEMATIC DIAGRAM - DIGITAL VIDEO Board (3/4) - • See Page 76 for IC Block Diagrams. • See Page 86 for IC Pin Function Description. IC B/D IC B/D IC B/D 2.5 3.3 3.3 3.9 1.1 1.8 3.3 3.3 0 R3394 0 R3391 0 R3388 0 R3385 0.1 C3362 0 R3390 0 R3389 1k R3386 0.1 C3360 FB3207 FB3209 0.1 C3351 FB3205 FB3210 10 C3323 10 C3296 10 C3342 10 C3287 10 C3332 10 C3320 FB3213 VCC GND OUT BA33BC0FP-E2 IC3212 1 2 3 FB3212 FB3214 10 C3361 10 C3369 10 C3366 FB3211 VCC GND OUT BA25BC0FP-E2 IC3207 1 2 3 0 R3393 0 R3392 10k R3381 10k R3382 10k R3383 0.1 C3341 0.1 C3340 0.1 C3339 0.1 C3328 0.1 C3327 0.1 C3326 0.1 C3325 0.1 C3313 0.1 C3311 0.1 C3308 0.1 C3305 0.1 C3303 0.1 C3297 0.1 C3283 0.1 C3284 0.1 C3285 0.1 C3286 0.1 C3288 0.1 C3289 0.1 C3290 0.1 C3343 0.1 C3345 0.1 C3333 0.1 C3334 0.1 C3335 0.1 C3336 0.1 C3337 0.1 C3338 0.1 C3322 0.1 C3319 0.1 C3314 0.1 C3309 0.1 C3304 0.1 C3294 0.1 C3292 0.01 C3321 0.01 C3316 0.01 C3312 0.01 C3306 0.01 C3295 0.01 C3293 0.01 C3291 0.1 C3331 0.1 C3344 0.1 C3359 0.1 C3363 0.1 C3364 0.1 C3367 0.1 C3368 0.1 C3365 0.1 C3356 0.1 C3373 0.1 C3372 0.1 C3346 0.1 C3330 0.1 C3349 0.1 C3353 4V 220 C3348 4V 220 C3329 10V 100 C3347 VCC GND OUT BA33BC0FP-E2 IC3208 1 2 3 10k R3353 10k R3355 10k R3356 R3362 10k 10k R3363 10k R3364 10k R3384 FB3208 10V 100 C3352 10k R3350 6.8k R3349 10k R3348 JL3223 R3387 10k 1SR154-400TE-25 D3207 120 R3351 4V 33 C3355 EC10QS04-TE12L5 D3204 12p C3357 4V 82 C3324 6.3V 220 C3350 1 2 3 4 4P CN3201 5V OCM_UDO_0 OCM_UDI_0 DGND JL3219 JL3220 R3397 10k R3396 2.7k R3395 2.7k JL3222 JL3221 0.1 C3371 FLI8638-LF IC3601(1/5) DVS R26 DCLK P24 DHS P25 DEN P26 PD0 N23 PD1 N24 PD2 N25 PD3 N26 LVDS_GND M24 LVDS_GND M25 LVDS_3.3V M26 PD4 L23 PD5 L24 PD6 L25 PD7 L26 PD8 K23 PD9 K24 PD10 K25 PD11 K26 PD12 J23 PD13 J24 LVDS_GND J25 LVDS_3.3V J26 LVDS_ PLL_GND H23 LVDS_ PLL_3.3V H24 LVDS_ GND H25 LVDS_ 3.3V H26 PD14 G23 PD15 G24 PD16 G25 PD17 G26 PD18 F23 PD19 F24 PD20 F25 PD21 F26 PD22 E23 PD23 E24 LVDS_GND E25 LVDS_3.3V E26 NC D25 RPLL_3.3V D26 RPLL_1.8V C25 TCLK C26 XTAL B26 RPLL_DGND B25 RPLL_AGND A25 RPLL_AGND A26 OCMADDR21 AF15 OCMADDR20 AE15 OCMADDR19 AD15 OCMADDR18 AC15 OCMADDR17 AF16 OCMADDR16 AE16 OCMADDR15 AD16 OCMADDR14 AF17 OCMADDR13 AE17 OCMADDR12 AD17 OCMADDR11 AC17 OCMADDR10 AF18 OCMADDR9 AE18 OCMADDR8 AD18 OCMADDR7 AF19 OCMADDR6 AE19 OCMADDR5 AD19 OCMADDR4 AC19 OCMADDR 3 AF20 OCMADDR2 AE20 OCMADDR1 AD20 OCMADDR0 AF21 OCMDATA15 AE21 OCMDATA14 AD21 OCMDATA13 AC21 OCMDATA12 AF22 OCMDATA11 AE22 OCMDATA10 AD22 OCMDATA9 AF23 OCMDATA8 AE23 OCMDATA7 AD23 OCMDATA6 AC23 OCMDATA5 AF24 OCMDATA4 AF25 OCMDATA3 AF26 OCMDATA2 AE24 OCMDATA1 AE25 OCMDATA0 AE26 ROM_CS_N AD24 OCM_CS0N AD25 OCM_CS1N AD26 OCM_CS2N AC24 OCN_RE_N AC25 OCN_WE_N AC26 IR0 AB24 MSTR2_SDA AB25 MSTR2_SCL AB26 MSTR0_SDA AA23 MSTR0_SCL AA24 VGA0_SDA AA25 VGA0_SCL AA26 OCM_INT2 Y24 VGA1_SDA Y25 VGA1_ SCL Y26 OCM_ INT1 W23 OCM_ TIMER1 W24 OCM_UDI_0 W25 ODM_UDO_0 W26 PWM0 V24 SLAVE_SDA V25 SLAVE_SCL V26 PWM1 U23 PWM2 U24 PPWR U25 PBIAS U26 JTAG_BS_TMS T24 JTAG_BS_TDO T25 GPIO_44 T26 JTAG_BS_TDI R23 JTAG_ BS_RST R24 JTAG_ BS_TCK R25 IO_ 3.3V E4 IO_3.3V F4 IO_3.3V G4 IO_3.3V H4 IO_3.3V J4 IO_3.3V K4 IO_3.3V L4 CORE_1.8V K10 CORE_1.8V K11 D_GND L10 CORE_1.8V L11 D_GND M10 D_GND M11 D_GND N10 D_GND N11 D_GND P10 D_GND P11 D_GND R10 D_GND R11 D_GND T10 CORE_1.8V T11 CORE_1.8V U10 CORE_1.8V U11 IO_ 3.3V AC14 IO_3.3V AC16 IO_3.3V AC18 IO_3.3V AC20 IO_3.3V AC22 D_GND U12 D_GND T12 D_GND R12 D_GND P12 D_GND U13 D_GND T13 D_GND R13 D_GND P13 D_GND U14 D_GND T14 D_GND R14 D_GND P14 D_GND U15 D_GND T15 D_GND R15 D_GND P15 IO_3.3V AB23 IO_3.3V Y23 IO_3.3V V23 IO_3.3V T23 IO_3.3V P23 IO_ 3.3V M23 CORE_1.8V U17 CORE_1.8V U16 CORE_1.8V T17 CORE_1.8V T16 D_GND R17 D_GND R16 D_GND P17 D_GND P16 D_GND N17 D_GND N16 D_GND M17 D_GND M16 D_GND L17 CORE_1.8V L16 CORE_1.8V K17 CORE_1.8V K16 DDR_2.5V D23 DDR_2.5V D22 DDR_2.5V D20 DDR_2.5V D18 DDR_2.5V D17 DDR_ 2.5V D15 DDR_ 2.5V D14 DDR_2.5V D13 DDR_2.5V D12 DDR_2.5V D11 DDR_2.5V D10 DDR_2.5V D8 DDR_2.5V D7 DDR_2.5V D6 DDR_2.5V D4 D_GND K15 D_GND L15 D_GND M15 D_GND N15 D_GND K14 D_GND L14 D_GND M14 D_GND N14 D_GND K13 D_GND L13 D_GND M13 D_GND N13 D_GND K12 D_GND L12 D_GND M12 D_GND N12 JL3224 JL3218 JL3217 JL3216 FMB-G16L D3205 FMB-G16L D3206 1 2 3 4 5 SI-3011ZFE IC3209 VC VIN GND VO ADJ 8 7 6 5 4 3 2 1 M24C32-WMN6T(B) IC3211 A0 A1 A2 GND SDA SCL WP VCC 10p C3358 35V 100 C3374 35V 100 C3354 10k R3872 10V 47 C3877 0.01 C3896 1 C3871 0.1 C3872 10V 47 C3876 5 4 3 2 1 TK11118CSCL- G IC3807 CONT GND NOISE VOUT VIN 100 R3871 10V 47 C3875 10V 47 C3874 5 4 3 2 1 TK11133CSCL- G IC3809 CONT GND NOISE VOUT VIN 1 C3897 0.01 C3898 100 R3876 10k R3877 4V 220 C3370 6.3V 330 C3870 JL3225 JL3226 JL3227 JL3228 48 43 6 5 46 4 3 2 1 47 45 44 42 41 37 38 39 40 12 10 11 9 8 7 36 31 32 33 34 35 18 17 16 15 14 13 30 29 28 27 26 25 24 23 22 21 20 19 SST39VF3202704IEKE-24FLIX10 IC3210 A15 A14 A13 A12 A11 A10 A9 A8 A19 A20 WE RESET NC WP/ACC NC A18 A17 A7 A6 A5 A4 A3 A2 A1 A0 CE VSS OE DQ0 DQ8 DQ1 DQ9 DQ2 DQ10 DQ3 DQ11 VCC DQ4 DQ12 DQ5 DQ13 DQ6 DQ14 DQ7 DQ15 VSS NC A16 FB3810 FB3809 FB3811 FB3808 FB3206 22 R3291 68 RB3215 68 RB3216 68 RB3214 68 RB3213 68 RB3212 68 RB3211 75 R3290 75 R3292 75 R3293 1 2 X3201 32 40 42 41 36 39 37 38 33 43 31 34 35 F_D[10] F_A[13] F_D[12] F_WE F_A[8] F_D[14] F_D[3] F_D[9] F_D[12] F_D[15] F_A[10] F_RE F_D[6] DE F_D[1] HSYNC F_D[15] ODCK F_D[1] VSYNC F_A[6] Q[20] F_A[17] F_D[0] F_D[3] F_D[10] F_D[0] F_A[20] Q[19] F_A[9] Q[18] F_D[4] F_A[14] Q[17] F_D[7] F_A[3] Q[16] F_A[4] F_D[2] F_A[16] F_D[9] F_D[14] F_A[11] F_D[5] F_A[2] F_WE F_A[19] F_D[6] F_A[15] F_D[7] F_A[12] F_D[5] F_A[18] F_A[7] F_RE F_CE F_A[21] Q[22] F_D[8] F_A[1] F_CE Q[21] F_D[13] F_A[5] F_D[13] F_D[8] F_D[11] F_D[2] F_D[4] Q[23] F_CS0 F_CS1 F_A[6] F_A[20] F_A[21] Q[35] Q[34] Q[33] Q[32] Q[31] Q[30] Q[29] Q[28] F_D[11] Q[8] Q[9] Q[10] Q[11] Q[7] Q[6] Q[5] Q[4] F_A[0] F_A[3] F_A[2] F_A[1] F_A[7] F_A[19] F_A[8] F_A[9] F_A[10] F_A[11] F_A[12] F_A[13] F_A[14] F_A[15] F_A[16] F_A[17] F_A[18] F_A[5] F_A[4] IC3208 IC3207 IC3209 FLASH MEMORY IC3210 IC3601 19.6608MHz IC3211 EEPROM IC3212 +3.3V REGULATOR IC3601 VIDEO PROCESSOR (3/4) DIGITAL VIDEO BOARD (2/4) 13 BOARD DIGITAL VIDEO IC3601 IC3807 IC3809 (4/4) DIGITAL VIDEO 15 BOARD (Chip Size Package) CSP ∗ +1.8V REGULATOR +3.3V REGULATOR +2.5V REGULATOR +3.3V REGULATOR +1.8V REGULATOR FLI8638-LF IC3601(2/5) VIDEO PROCESSOR (Chip Size Package) CSP ∗ FLI8638-LF IC3601(3/5) VIDEO PROCESSOR (Chip Size Package) CSP ∗ +4V +6V (NC) J 4 B 16 6 9 11 D N 15 H L 10 K 17 3 5 12 C F 18 M 1 E 8 G 14 A 2 13 I 7 10k R3365 R3367 10k 10k R3370 R3371 10k 10k R3372 10k R3373 10k R3374 10k R3378 10k R3379 10k R3380 19 (Page 45) (Page 43) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 45 45 6-18. SCHEMATIC DIAGRAM - DIGITAL VIDEO Board (4/4) - • See Page 61 for Waveforms. • See Page 76 for IC Block Diagrams. • See Page 86 for IC Pin Function Description. IC B/D IC B/D IC B/D 2 1.2 2.4 0.3 0.6 3.3 1.8 0.9 3.3 3.1 0 1.8 0 0 0 3.3 0 0 0 2.5 1.8 0 0 0 1.6 1.6 3.3 1.6 3.3 1.6 2.5 0.1 2.5 0.1 0.1 0.1 0.1 2.5 0.1 0.1 0.1 0.1 2.5 0 0 0 0 0 0 0 0 0 2.5 2.5 2.4 2.4 2.5 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0 0 0 0 0 0 0 0 0 0 0 1.2 2.5 2.5 2.5 2.5 0.1 2.5 0.2 0.2 0.1 0.1 0.1 2.5 0.1 0.1 2.5 0.2 2.5 2.5 2.4 2.4 0 0 0 0 0 0 0 2.5 0 0 0.1 0.1 0.1 0.1 0.1 0.1 1.2 1.3 1.2 2.5 0 0 0 0 0 0 0 0 0 2.5 0.1 0.1 2.5 3.3 1.3 3.3 1.8 0 0 0 1.6 3.3 2.5 0 0 3.3 0 1.2 VCC GND OUT BA33BC0FP-E2 IC3206 1 2 3 0.1 C3307 FB3204 10k R3250 10k R3251 0.1 C3223 0.1 C3203 0.1 C3215 0.01 C3224 0.01 C3204 0.01 C3218 0.1 C3206 0.1 C3211 0.1 C3219 0.1 C3230 0.1 C3220 0.1 C3213 0.1 C3209 0.1 C3201 0.1 C3200 0 R3268 0 R3269 33 R3240 33 R3259 33 R3260 33 R3277 33 R3276 0.1 C3301 4V 220 C3299 FB3202 4V 220 C3315 0.1 C3318 0.1 C3317 10 C3276 56 R3332 0.1 C3281 56 R3335 0.1 C3254 75 R3343 0 R3329 0.1 C3255 0.1 C3277 75 R3320 56 R3328 10 C3269 22 R3323 10 C3282 0.1 C3268 0.1 C3260 75 R3318 75 R3342 75 R3346 0.1 C3272 22 R3334 22 R3321 0.1 C3258 0.1 C3275 0.1 C3250 56 R3330 0.1 C3271 75 R3322 0.1 C3270 22 R3337 56 R3331 22 R3319 0.1 C3249 0.1 C3279 10 C3259 0.1 C3256 22 R3341 0.1 C3274 0.1 C3266 56 R3333 22 R3340 22 R3336 0.1 C3267 56 R3327 0.1 C3253 0.1 C3252 0.1 C3278 0.1 C3280 0.1 C3261 0.1 C3273 0.1 C3240 4V 220 C3231 0.1 C3242 0.1 C3248 0.1 C3257 0.1 C3302 0.1 C3245 0.1 C3251 33 R3208 33 R3209 33 R3242 33 R3243 0.1 C3265 0.1 C3263 0.01 C3264 10 C3217 10 C3262 560 R3258 560 R3256 560 R3338 560 R3339 33 RB3200 33 RB3201 33 RB3204 33 R3271 33 R3272 33 R3273 33 R3274 33 R3278 33 R3279 33 R3280 33 R3281 33 R3282 33 R3283 33 R3284 33 R3285 33 R3253 33 R3254 33 R3255 33 R3257 33 R3244 33 R3245 33 R3246 33 R3247 33 R3200 33 R3201 33 R3202 33 R3203 33 R3204 33 R3205 33 R3206 33 R3207 33 R3228 33 R3229 33 R3230 33 R3231 33 R3261 33 R3263 33 R3264 33 R3266 33 RB3209 JL3207 5 4 3 2 1 TK11118CSCL- G IC3205 CONT GND NOISE VOUT VIN 0.01 C3298 120 R3347 4V 33 C3300 JL3211 JL3210 JL3209 JL3213 JL3212 R3324 10k 10k R3325 1 2 3 4 5 6 7 8 8P CN3200 CVBS IN GND CY IN GND CB IN GND CR IN GND 2.5V 220 C3216 75 R3345 75 R3344 DIP_EXT_COAST M3 DIP_EXT_CLAMP M2 DIP_CLEAN_ HS_OUT M1 DIP_AODD N3 DIP_RAW_HS_CS N2 IPCLK0 N1 IPCLK1 P4 ADATA0 P3 ADATA1 P2 ADATA2 P1 ADATA3 R4 ADATA4 R3 ADATA5 R2 ADATA6 R1 ADATA7 T4 ADATA8 T3 ADATA9 T2 ADATA10 T1 ADATA11 U4 ADATA12 U3 ADATA13 U2 ADATA14 U1 ADATA15 V4 ADATA16 V3 ADATA17 V2 ADATA 18 V1 ADATA19 W4 ADATA20 W3 ADATA21 W2 ADATA22 W1 ADATA23 Y4 AHREF_DE Y3 AHS Y2 AVS Y1 DGND_ADC AA4 DGND_ADC AA3 DGND_ADC AA2 NC AA1 ADC_1.8V AB4 AGND_ADC AB3 SV1P AB2 A1P AB1 ADC_1.8V AC4 AGND_ADC AC3 B1P AC2 C1P AC1 ADC1_3.3V AD4 ADC1_3.3V AD3 AGND_ADC AD2 AN AD1 AGND_ ADC AE3 SV2P AE1 A2P AF1 B2P AE2 C2P AF2 BN AF3 SV3P AE4 A3P AF4 B3P AE5 C3P AF5 CN AF6 ADC_1.8V AC5 ADC1_3.3V AD5 AGND_ADC AC6 ADC2_3.3V AD6 AGND_ADC AE6 VOUT2 AC7 ADC2_3.3V AD7 SV4P AE7 AN2 AF7 AGND_ADC AC8 AGND_ADC AD8 BN2 AE8 CN2 AF8 AGND_ ADC AE9 SVN AF9 RESET AD9 LBADC_3.3V AC9 LBADC_IN1 AF10 LBADC_IN2 AE10 LBADC_IN3 AD10 LBADC_IN4 AC10 LBADC_IN5 AF11 LBADC_IN6 AE11 LBADC_RETURN AD11 LBADC_GND AC11 AIP_RAW_HS_CS AF12 AIP_RAW_VS AE12 AVSIN_WORDSEL AD12 AVSIN_DATA AC12 EXTOSD_CLK AF13 AVSOUT_SCL AE13 EXTOSD_VS AD13 EXTOSD_HS AC13 AVSIN_SCL AF14 AVSOUT_WORDSEL AE14 AVSOUT_DATA AD14 (Chip Size Package) IC3601(4/5) FLI8638-LF CSP ∗ NC A1 BDATA0 B1 BDATA1 C3 BDATA2 C2 BDATA3 C1 BDATA4 D3 BDATA5 D2 BDATA6 D1 BDATA7 E3 BDATA8 E2 BDATA9 E1 BDATA10 F3 BDATA11 F2 BDATA12 F1 BDATA13 G3 BDATA14 G2 BDATA15 G1 BDATA16 H3 BDATA17 H2 BDATA18 H1 BDATA19 J3 BDATA20 J2 BDATA21 J1 BDATA22 K3 BDATA23 K2 BHREF_DE K1 BHS L3 BVS L2 IPCLK3 L1 IPCLK2 M4 DIP_BODD N4 FSDATA31 A24 FSDATA30 B24 FSRAS C24 FSCAS D24 FSDATA29 A23 FSDATA28 B23 FSWE C23 FSDQS3 A22 FSDQM3 B22 FSCS1 C22 FSDATA27 A21 FSDATA26 B21 FSBKSEL0 C21 FSCS0 D21 FSDATA25 A20 FSDATA24 B20 FSBKSEL1 C20 FSDATA23 A19 FSDATA22 B19 FSVREF C19 FSVREF VSS D19 FSDATA 21 A18 FSDATA20 B18 FSADDR0 C18 FSDQS2 A17 FSDQM2 B17 FSADDR1 C17 FSDATA19 A16 FSDATA18 B16 FSADDR2 C16 FSADDR10 D16 FSDATA17 A15 FSDATA16 B15 FSADDR3 C15 VDDA18_DLL A14 VSSA18_DLL B14 FSADDR11 C14 FSDATA15 A13 FSDATA14 B13 FSADDR4 C13 FSDATA13 A12 FSDATA12 B12 FSADDR9 C12 FSDQM1 A11 FSDQS1 B11 FSADDR 12 C11 FSDATA 11 A10 FSDATA 10 B10 FSADDR5 C10 FSDATA9 A9 FSDATA8 B9 FSVREF C9 FSVREFVSS D9 FSDATA7 A8 FSDATA6 B8 FSADDR6 C8 FSDATA5 A7 FSDATA4 B7 FSADDR7 C7 FSDQM0 A6 FSDQS0 B6 FSADDR8 C6 FSDATA3 A5 FSDATA2 B5 FSCLKN C5 FSCLKP D5 FSDATA1 A4 FSDATA0 B4 FSCKE C4 MSTR1_SCL A3 MSTR1_SDA A2 OCM_UDI_1 B3 OCM_ UDO_1 B2 JL3214 JL3215 75 R3314 75 R3315 75 R3316 75 R3317 56 50 51 52 53 54 55 7 6 5 4 3 2 1 44 43 45 46 47 48 49 14 13 12 11 10 9 8 38 39 40 41 42 15 16 17 18 19 20 37 32 33 34 35 36 21 22 23 24 25 31 30 29 26 27 28 57 58 59 60 61 62 63 64 65 66 HY5DU561622ETP-4- C IC3200 VDD DQ0 VDDQ DQ1 DQ2 VSSQ DQ3 DQ4 VDDQ DQ5 DQ6 VSSQ DQ7 NC VDDQ LDQS NC VDD NC LDM WE CAS RAS CS NC BA0 BA1 A10/AP A0 A1 A2 A3 DQ15 VSS A4 A5 A6 A7 A8 A9 A11 A12 NC CKE CLK /CLK UDM VSS VREF NC UDQS VSSQ NC DQ8 VDDQ DQ9 DQ10 VSSQ DQ11 DQ12 VDDQ DQ13 DQ14 VSSQ VDD VSS 56 50 51 52 53 54 55 7 6 5 4 3 2 1 44 43 45 46 47 48 49 14 13 12 11 10 9 8 38 39 40 41 42 15 16 17 18 19 20 37 32 33 34 35 36 21 22 23 24 25 31 30 29 26 27 28 57 58 59 60 61 62 63 64 65 66 HY5DU561622ETP-4- C IC3203 VDD DQ0 VDDQ DQ1 DQ2 VSSQ DQ3 DQ4 VDDQ DQ5 DQ6 VSSQ DQ7 NC VDDQ LDQS NC VDD NC LDM WE CAS RAS CS NC BA0 BA1 A10/AP A0 A1 A2 A3 DQ15 VSS A4 A5 A6 A7 A8 A9 A11 A12 NC CKE CLK /CLK UDM VSS VREF NC UDQS VSSQ NC DQ8 VDDQ DQ9 DQ10 VSSQ DQ11 DQ12 VDDQ DQ13 DQ14 VSSQ VDD VSS 35V 100 C3310 47 R3845 47 R3826 2200p C3888 0.01 C3892 47 RB3804 47 RB3802 47 R3828 0 R3874 0.01 C3883 0.012 C3890 0.1 C3881 0 R3873 0.1 C3879 0.01 C3886 47 RB3801 0 R3875 47 R3827 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 2 3 4 5 6 7 8 9 1 ADV7392BCPZ IC3800 VDD_I O P4 P5 P6 P7 VDD DGND P8 P9 P10 P11 ALSB/SPI_SS SDA/SCLK SCL/MOSI P12 P13 P14 P15 CLKIN RESET PGND EXT_LF PVDD AGND VAA DAC3 DAC2 DAC1 COMP RSET SFL/MISO VSYNC HSYNC P0 VDD DGND P1 P2 P3 GND_I O 1 C3889 10k R3838 0.15 C3891 0.01 C3887 0.01 C3884 0.01 C3885 0.1 C3882 0.1 C3880 180 R3837 0.1 C3878 47 RB3803 0 R3804 0 R3805 0 R3802 8 7 6 5 4 3 2 1 CY2302-SXC IC3810 FBIN IN GND FSO FS1 OUT1 VDD OUT2 4V 33 C3900 0.1 C3901 33 R3878 33 R3879 1 2 3 4 5 6 7 7P CN3800 +3.3V_AVIDE O GND GR_OUT GND CB_OUT GND CY_OUT 3.9k R3830 220 R3880 FB3203 0 R3289 0 R3288 0 R3286 0 R3287 22 R3846 22 R3847 31 33 34 35 36 37 38 39 40 41 42 43 32 FSDATA[15] FSDATA[14] FSDATA[13] FSDATA[12] FSDATA[11] FSDATA[10] FSDATA[9] FSDATA[8] FSDATA[0] FSDATA[1] FSDATA[2] FSDATA[3] FSDATA[4] FSDATA[5] FSDATA[6] FSDATA[7] CKE FSADDR[8] FSADDR[7] FSADDR[6] FSADDR[4] FSADDR[11] FSADDR[3] FSADDR[10] FSADDR[2] FSADDR[4] FSADDR[5] FSADDR[6] FSADDR[7] FSADDR[8] FSADDR[9] FSADDR[11] FSADDR[12] FSADDR[3] FSADDR[2] FSADDR[1] FSADDR[0] FSADDR[10] CAS WE RAS FSCS0 FSDQS0 FSDQS1 FSDQM0 FSDQM1 FSBKSEL0 FSBKSEL1 FSBKSEL0 FSBKSEL1 FSADDR[0] FSADDR[1] FSDQM0 FSDQS0 FSDQM1 CKE CAS FSCS0 FSDQS2 FSDQM2 FSDQS3 FSDQM3 FSDATA[16] FSDATA[17] FSDATA[18] FSDATA[19] FSDATA[20] FSDATA[21] FSDATA[22] FSDATA[23] FSDQS2 FSDQM2 WE CAS RAS FSCS0 FSBKSEL0 FSBKSEL1 FSADDR[10] FSADDR[0] FSADDR[1] FSADDR[2] FSADDR[3] FSADDR[4] FSADDR[5] FSADDR[6] FSADDR[7] FSADDR[8] FSADDR[9] FSADDR[11] FSADDR[12] CKE FSDQM3 FSDQS3 FSDATA[24] FSDATA[25] FSDATA[26] FSDATA[27] FSDATA[28] FSDATA[29] FSDATA[30] FSDATA[31] CLKN CLKP FSDATA[15] FSDATA[14] FSDATA[13] FSDATA[12] FSDATA[10] FSDATA[9] FSDATA[7] FSDATA[6] FSDATA[4] FSDATA[0] FSDATA[1] FSDATA[2] FSDATA[3] FSDATA[31] FSDATA[30] FSDATA[29] FSDATA[28] FSDATA[24] FSDATA[25] FSDATA[26] FSDATA[27] FSDATA[20] FSDATA[21] RAS WE Q[16] Q[17] Q[18] Q[19] A B Q[22] Q[23] Q[20] Q[21] DAC_SCL DAC_SDA Q[35] Q[34] Q[33] Q[32] Q[31] Q[30] Q[29] Q[28] VSYNC HSYNC FSDATA[19] FSDATA[23] FSDATA[22] FSDATA[17] FSDATA[18] FSDATA[16] FSDATA[5] FSDATA[8] FSDATA[11] FSDQS1 CLKN CLKP FLI_P_DET FLI_URAT_RX FLI_URAT_TX FLI_BUSY FSADDR[5] DAC_CLK_SEL ODCK FLI_RESET DAC_RESET CLKP CLKN FSADDR[9] FSADDR[12] +1.8V REGULATOR IC3205 IC3206 +3.3V REGULATOR IC3601 IC3601 VIDEO IC3800 D/A CONVERTER IC3810 FREQUENCY MULTIPLIER K VIDEO BOARD CN6502 CN6201 BOARD L VIDEO (3/4) BOARD DIGITAL 15 VIDEO (2/4) DIGITAL VIDEO 14 BOARD DIGITAL VIDEO BOARD (4/4) IC3203 SD-RAM IC3200 SD-RAM PROCESSOR (Chip Size Package) IC3601(5/5) FLI8638-LF CSP ∗ VIDEO PROCESSOR J 4 B 16 6 21 9 11 D 15 H L 10 K 17 3 5 12 C F 18 M 1 19 E 8 G 20 14 A 2 13 I 7 22 (Page 53) (Page 43) (Page 44) (Page 53) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 46 46 6-19. PRINTED WIRING BOARD - MAIN Board - • : Uses unleaded solder. • See Page 35 for Circuit Boards Location. IC404 IC4001 IC4005 IC4002 IC403 IC801 IC802 IC803 IC4100 B E B E B E B E B E B E B E B E B E B E B E B E B E B E B E B E B E B E B E B E B E B E B E B E B E B E B E B E B E B E B E 30 16 15 1 8 1 4 5 8 1 4 5 1 8 9 16 1 100 80 81 50 51 30 31 CC64 R401 R402 R403 R404 R405 R406 R407 D560 R408 C4002 C4004 R410 R604 C4009 R413 R414 Q475 R415 Q476 R416 Q477 C4011 R803 Q4010 D576 Q4012 R613 R614 Q675 R421 R422 Q677 C4022 C4024 R621 R622 R4001 D4006 D4007 R433 R4003 D4008 R434 R629 R4005 R436 R4006 R437 R4008 C4031 R4009 R632 C402 R633 C403 R634 R4010 C404 R4011 C405 R636 R4012 C406 R637 R4013 R446 R4016 R4017 R451 C4049 R4021 R452 R646 R4022 R453 R4023 R454 R4024 R455 R649 R456 R4026 R457 C803 R458 R4028 R4029 C4055 R460 R461 D4806 R463 R4033 R464 R465 C811 R466 R4036 R4037 R468 C817 C625 R471 R472 R4042 R4043 R474 R671 R483 R677 R4053 R484 R4054 R679 R488 C4081 R680 C4086 R682 R683 R490 R491 R686 R687 R498 R499 R699 Q505 D601 D804 C676 Q525 Q527 Q720 Q725 Q726 Q560 R505 R509 C4102 C4105 C4107 Q575 Q577 D675 D676 R527 R721 R532 R533 R534 R535 R733 R734 R737 R546 C527 R740 R741 R746 C726 R571 R572 R579 R582 R583 R584 R585 R780 CC01 CC02 CC03 CC04 CC05 R596 CC06 CC07 CC08 R599 CC09 D500 CC10 CC12 CC13 CC15 CC16 CC17 CC19 C576 Q426 CL4015 CL4019 D525 D526 Q625 Q627 CL4022 D725 D726 D732 D733 CC51 CC52 CC53 CC54 CC55 CC56 CC57 CC58 CL4041 CC59 CL4042 CC60 CC62 CC63 CC65 R409 R603 D575 R420 Q676 R427 R429 R620 D4002 D4003 D4004 R430 D4005 C4029 R432 R4002 R627 R4004 D4009 R435 R4007 C4033 R630 C4035 R635 R4014 R4015 R449 C4048 R4025 R4027 R459 C4053 C425 C426 R4034 C810 R4035 C626 R470 C4069 R4044 R4045 R4046 R477 R4047 C4070 R4048 R479 R4049 R670 R672 R480 R482 R485 R486 R487 C4082 C4084 C4085 R684 R685 R4062 R4063 R4064 R4065 R496 R4066 R4067 R4068 R4069 D405 R696 D406 C475 C476 D803 D611 D805 D806 D807 D808 C675 D425 D426 D625 Q530 Q727 Q728 Q729 D646 R504 R508 C4106 D475 D476 Q576 R520 R521 R522 R529 R720 R722 R530 R4100 R4103 R727 R4104 R4105 R729 R536 R537 R730 R732 R735 R736 R738 R549 D896 CL401 CL402 CL403 CL404 CL405 CL406 CL407 CL408 CL409 CL410 CL411 C525 CL412 C526 CL413 CL414 CL415 CL416 CL417 CL419 C725 CL420 R570 CL421 CL422 CL423 CL424 CL425 CL427 R577 CL428 CL429 CL811 CL812 CL813 R770 CL430 R580 CL431 CL432 CL433 CL434 CL435 CL436 R586 CL437 R587 CL438 CL439 CL440 CL441 CL442 CL443 CL444 CL445 CL446 CL447 2 2 2 3 3 3 1 1 1 CL448 Q601 CC14 R799 CC18 CL4001 CL4002 CL4003 CL4004 CL4005 Q801 CL4006 CL4007 CL4008 CL4009 C575 Q611 CL4010 CL4011 Q425 CL4012 CL4013 Q427 CL4014 CL4016 CL4017 CL4018 Q626 CL4020 CL4021 D721 D722 CL4023 CL4024 CL4025 CL4026 CL4027 CL4028 CL4029 CL4030 CL4031 CL4032 CL4033 CL4034 CL4035 CL4036 CL4037 CL4038 CL4039 CL4040 CL4043 CL4044 CL4045 CL4046 CL4047 I 1 6 I 1 9 3 1 2 19 20 1 2 19 20 1 15 1 7 3 1 3 2 1 3 2 1 3 2 1 3 2 1 3 2 1 3 2 1 3 2 1 3 2 1 3 2 1 3 2 1 3 2 1 3 2 1 3 2 1 3 2 2 4 5 1 1 13 1 13 1 13 1 7 1 13 1 2 1 2 1 4 1 8 3 1 6 3 1 6 3 1 4 3 E B E B E B E B E B E B E B E B E B E B E B E B E B E B 6 1 1 6 3 10 1 3 1 7 3 1 2 1 2 1 2 1 2 1 2 1 2 1 2 CN4004 CN4005 JW180 JW182 JW183 JW187 C4003 C4005 R601 C4006 CN4016 Q472 JW190 R220 R801 R802 JW197 JW198 C4014 R804 JW199 CN401 C4015 R611 Q672 C4016 C4017 CN4025 C4019 CN4026 R616 CN4027 R425 R234 R428 CN601 CN603 CN604 CN605 C4025 C4026 R626 CN801 TM601 (DG920) TM602 (DA2400ES) W450 CN811 R639 W650 JWH1 JWH3 JWH4 JWH5 JWH6 JWH7 JWH8 JWH9 C801 C802 C804 C805 FH805 L4101 C806 FH806 C807 FH807 C808 FH808 RV500 C809 FH810 FH811 FH812 FH813 RV700 C4061 C815 C4062 C4068 R478 JW001 JW002 C4072 JW003 C4073 JW004 C4074 C4075 RY401 JW006 C4076 C4077 C4078 R676 JW200 R678 JW201 JW203 JW204 JW206 JW013 JW208 JW209 R681 JW017 JW018 JW019 JW211 C459 RY801 JW212 JW021 CN671 JW023 JW218 JW024 JW219 JW025 JW026 JW027 JW028 JW029 JW224 JW031 JW226 WP101 JW230 JW231 JW232 D802 JW233 JW234 JW239 JW046 JW047 JW048 JW049 Q522 JW242 JW243 JW244 JW051 RR16 RR17 RV570 RV470 RR18 JW055 RR19 Q722 JW057 Q723 JW058 Q724 JW059 JW251 JW253 HS803 JW254 JW061 JW256 JW062 JW257 JW258 JW064 JW066 JW067 JW068 JW260 JW262 JW263 JW266 JW072 JW073 JW268 JW074 W500 JW079 JW270 JW271 W700 JW275 JW276 JW082 JW277 JW084 JW085 JW087 JW090 JW093 C4103 JW094 JW096 JW098 R510 Q572 JWH10 JWH11 JWH12 JWH13 JWH14 JS4050 JS4051 R528 R728 W550 JS822 RV400 JS4081 RV600 R560 C727 TP810 TP811 TP812 TP813 F803 JW100 R578 F804 TP815 TP816 JW104 RY500 F810 F811 GP801 JW110 JW111 JW112 A802 JW115 JW119 JW120 JW121 JW124 JW131 JW132 JW134 JW136 Q422 Q423 Q424 JW143 Q622 Q623 JW151 JW152 JW153 JW154 RV670 JW157 JW162 JW165 JW167 JW168 W400 JW169 JW170 JW171 W600 CN4007 CN4008 JW181 JW184 JW185 C4001 JW186 JW188 JW189 CN4012 CN4013 C4007 JS500 Q471 L651 CN4015 CN4017 Q473 CN4018 CN4020 Q474 CN4019 JW192 JW193 JW194 JW195 C4012 C4013 JS700 CN4021 Q671 R805 CN4022 CN4023 Q673 CN4024 Q674 C4018 R423 R426 C4021 C4023 C4027 R623 R625 C4032 R631 C408 C409 JWH3 JWH6 C4052 C421 C424 C427 C429 C812 C813 C4060 C814 C621 C4063 C623 C4064 C624 C818 C4065 C4067 C627 R473 R475 R476 C4071 C631 JW005 JW007 R673 JW008 JS570 JW009 R675 JW010 JW205 JW011 JW012 JW207 JW014 JW015 JW210 C458 R689 JW213 JW214 JW020 JW215 RY611 RY601 JW216 JW022 JW217 C460 JW220 JW221 JW222 JW223 JW030 JW225 JW032 JW227 JW033 JW228 JW034 JW229 JW035 C471 JW036 WP102 C473 JW038 C474 JW039 C477 D801 JW040 JW235 JW041 C671 JW236 JW042 JW043 C673 JW238 JW044 C674 JW045 C677 Q521 Q523 JW240 Q524 JW241 JW050 C681 JW246 JW052 JW247 JW248 JW054 JW249 Q721 JW056 JW250 HS801 JW252 HS802 JW060 JW255 JW063 JW259 JW065 JW069 JW261 JW264 JW070 JW265 JW071 JW267 JW269 JW075 JW076 JW077 JW078 JW272 JW273 JW274 JW080 JW083 JW278 JW088 JS400 R507 C4100 JW091 JW092 JW095 JW097 JS600 Q571 Q573 Q574 CN501 R523 R525 R526 R723 R725 R726 JS4080 C521 C523 C524 TP800 C721 C722 C723 C724 R573 JS470 R575 R576 TP814 JW101 JW103 JW105 JW106 JW107 JW108 JS670 JW109 A801 JW113 A803 JW116 JW117 JW118 JW122 JW123 JW125 JW126 JW127 JW128 JW129 JW130 JW133 JW135 C571 JW137 C573 JW138 C574 JW139 C577 Q421 L601 JW140 JW141 C771 JW142 JW144 JW145 JW146 JW147 JW148 JW149 Q621 Q624 JW155 JW156 JW158 JW159 JW160 JW161 JW163 JW164 JW166 JW172 JW173 JW114 JW174 JW175 JW176 JW177 CN4001 JW179 R4106 JWH15 1-875-941- 11 (11) MAIN BOARD L R TV IN L R MD/TAPE OUT L R SAT AUDIO IN L R PHONO IN L R SA-CD/ CD IN MD/TAPE IN L R L R DVD AUDIO IN L R BD AUDIO IN L R VIDEO 1 AUDIO OUT L R VIDEO 1 AUDIO IN SUBWOOFER AUDIO OUT (CHASSIS) (CHASSIS) (CHASSIS) (CHASSIS) FRONT A R FRONT B R SPEAKERS MULTI CHANNEL INPUT (CHASSIS) RY500,601,611,801 -1 -2 RY401 FRONT B L FRONT A L J406 L R FRONT L R SURROUND SUBWOOFER CENTER L R SUR BACK J407 J408 (DG920) J404 J403 (CHASSIS) J402 J401 for BIAS RESISTOR CHECK to CN6103 (A-CLASS SUPPORT A board) for BIAS RESISTOR CHECK to CN6101 (A-CLASS SUPPORT B board) (DA2400ES:AEP,ECE,UK) (DA2400ES:AEP,ECE,UK) WHT BLU ORG RED DA2400ES: AEP,ECE,UK DA2400ES: AEP,ECE,UK DA2400ES: AEP,ECE,UK DA2400ES: AEP,ECE,UK DA2400ES: AEP,ECE,UK DA2400ES: AEP,ECE,UK (DA2400ES:AEP,ECE,UK) (DA2400ES:US) (DA2400ES:AEP,ECE,UK) (DA2400ES:AEP,ECE,UK) (DA2400ES:AEP,ECE,UK) (DA2400ES:AEP,ECE,UK) (DG920) (DA2400ES) (DA2400ES:AEP,ECE,UK) (DA2400ES:AEP,ECE,UK) (DA2400ES:AEP,ECE,UK) (DA2400ES:US/DG920) (DA2400ES:US/DG920) (DA2400ES:US/DG920) (DA2400ES:US/DG920) (DA2400ES:US/DG920) (DA2400ES:US/DG920) (DA2400ES:US/DG920) WHT RED E Q Y X S V B R T U Z F AE AD N2 N1 AF AC AG AB AA MICON BOARD CN2023 ACLASS BOARD CN611 ACLASS BOARD CN511 ACLASS BOARD CN711 SURR SPEAKER BOARD CN1501 VIDEO2 BOARD CN721 SURR SPEAKER BOARD CN1503 DIGITAL BOARD CN2208 DCDC CON BOARD CN1401 MAIN POWER TRANSFORMER T901 MAIN POWER TRANSFORMER T901 CIS BOARD CN4553 PREOUT BOARD CN453 SURR SPEAKER BOARD CN1502 ACLASS BOARD CN411 VIDEO 2 BOARD CN721 VIDEO BOARD CN6204 MICON BOARD CN2010 STANDBY BOARD CNP54 DIGITAL BOARD CN2218 DIGITAL BOARD CN2217 GRN YEL BRN RV400,470,500,570, RV600,670,700 DA2400ES: AEP,ECE,UK (DA2400ES:US) P2 P1 CIS BOARD CN4552 PREOUT BOARD CN452 A B C D E F G H I J 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 DA2400ES: AEP,ECE,UK DA2400ES: AEP,ECE,UK DA2400ES: AEP,ECE,UK DA2400ES: AEP,ECE,UK Ref. No. Location • Semiconductor Location Ref. No. Location Ref. No. Location Ref. No. Location Ref. No. Location Ref. No. Location Ref. No. Location Ref. No. Location Ref. No. Location Ref. No. Location Ref. No. Location Ref. No. Location D405 B-11 D406 B-11 D425 H-13 D426 H-13 D475 I-11 D476 H-11 D500 C-11 D525 I-5 D526 H-6 D560 C-7 D575 I-9 D576 H-10 D601 C-14 D611 C-13 D625 I-7 D646 I-7 D675 I-3 D676 I-4 D721 G-13 D722 H-12 D725 H-3 D726 I-3 D732 G-12 D733 G-12 D801 F-13 D802 F-12 D803 E-12 D804 E-12 D805 D-13 D806 D-13 D807 D-13 D808 D-13 D896 G-5 D4002 D-5 D4003 D-5 D4004 G-2 D4005 G-2 D4006 G-2 D4007 G-2 D4008 G-2 D4009 G-2 D4806 D-12 IC403 F-4 IC404 D-6 IC801 G-4 IC802 G-6 IC803 G-8 IC4001 C-3 IC4002 C-4 IC4005 D-2 IC4100 D-12 Q421 I-13 Q422 J-13 Q423 J-12 Q424 J-13 Q425 I-13 Q426 H-13 Q427 H-13 Q471 I-11 Q472 J-11 Q473 J-10 Q474 J-11 Q475 I-11 Q476 I-11 Q477 I-11 Q505 B-11 Q521 I-6 Q522 J-6 Q523 J-5 Q524 J-6 Q525 I-6 Q527 H-5 Q530 I-6 Q560 C-7 Q571 I-9 Q572 J-9 Q573 J-9 Q574 J-10 Q575 I-10 Q576 I-9 Q577 H-9 Q601 C-13 Q611 C-13 Q621 I-8 Q622 J-7 Q623 J-7 Q624 J-8 Q625 I-8 Q626 I-8 Q627 H-7 Q671 I-4 Q672 J-4 Q673 J-4 Q674 J-4 Q675 I-4 Q676 I-4 Q677 H-3 Q720 G-13 Q721 I-3 Q722 J-2 Q723 J-2 Q724 J-3 Q725 I-3 Q726 I-2 Q727 H-3 Q728 H-11 Q729 H-12 Q801 E-12 Q4010 C-5 Q4012 C-5 (Page 37) (Page 57) (Page 74) (Page 37) (Page 57) (Page 52) (Page 66) (Page 50) (Page 68) (Page 50) (Page 50) (Page 50) (Page 70) (Page 72) (Page 74) (Page 70) (Page 72) (Page 74) (Page 73) (Page 37) (Page 68) (Page 66) (Page 68) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 47 47 6-20. SCHEMATIC DIAGRAM - MAIN Board (1/3) - • See Page 76 for IC Block Diagrams. (3/3) MAIN 20 BOARD MAIN BOARD (2/3) 22 21 MAIN (2/3) BOARD IC B/D IC B/D BOARD DIGITAL (2/2) CN2217 F VIDEO2 CN721 BOARD Q CN2218 DIGITAL E BOARD (2/2) CN4552 CIS P1 BOARD N1 CIS CN4553 BOARD CN452 PREOUT P2 BOARD N2 PREOUT CN453 BOARD MAIN M BOARD (2/3) 7 0 0 0 0 0 0 0 0 0 0 0 6.9 -6.9 0 0 0 0 0 0 0 0 7 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 -7 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 -7 7 0 0 0 0 0 0 0 0 7 -7 0 0 0 7 6.9 0 -7 2.5 2.5 2.5 2.5 2.5 2.5 7 0.7 0 R457 1k R458 1k R407 1k R408 1k 1k R402 1k R452 1k R403 1k R453 C4060 50V 10 C4061 50V 10 C4062 50V 10 C4071 50V 10 C4072 50V 10 C4073 50V 10 C4074 50V 10 C4075 50V 10 C4077 50V 10 C4078 50V 10 C4076 50V 10 10k R4009 C4081 2200p 220p C4084 220p C4085 220p C4086 1k R464 J408 CL439 CL428 1k R413 7.1_INL 1k R415 CL436 CL430 CL435 CL429 1k R414 CL432 1k R463 CL431 CL434 CL438 CL433 CL437 1k R465 1k R416 1k R466 50V C4013 22 50V C4012 22 50V 22 C4015 50V 22 C4014 50V 22 C4016 50V 22 C4017 50V 22 C4019 50V 22 C4018 CL443 CL444 CL445 CL446 CL448 CL442 CL447 10k R4053 10k R4054 50V 22 C409 50V 22 C459 MA2J1110GLS0 D4003 MA2J1110GLS0 D4002 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 15P CN4012 DA_L A_GND DA_R A_GND DA_C A_GND DA_SL A_GND DA_SR A_GND DA_SBL A_GND DA_SBR A_GND DA_SW C4063 50V 10 CL420 CL419 CL418 CL417 CL416 CL415 CL414 CL413 CL412 CL411 CL410 CL409 CL408 CL407 CL406 CL405 CL404 CL403 CL401 CL402 1 2 3 4 5 6 7 7P CN4013 AD_L A_GND AD_R +7V -7V A_GND A_GND 1 2 2P CN4023 +7V/-7V REG GND SPIDER CHASIS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 LVC RVC CVC SLVC SRVC SBLVC SBRVC SWVC GND LIN1 RIN1 CIN1 SLIN1 SRIN1 SBLIN1 SBRIN1 SWIN1 GND SUBL1 SUBR1 GND INL1 INR1 INL2 INR2 INL3 INR3 INL4 INR4 INL5 INR5 INL6 INR6 INL7 INR7 INL8 INR8 INL9 INR9 GND ADOUTL ADOUTR GND RECL1 RECR1 RECL2 RECR2 GND LIN2 RIN2 1 8 3 4 5 6 7 8P CN4001 -7V GND +7V 2 NC VIDEO2_R AGND VIDEO2_L MIC_SIGNAL CL4009 CL4010 CL4011 CL4012 CL4013 1 3 4 5 6 7 8 9 10 10P CN4026 RELAY 12V 2 NC GND C_OUT GND SW_OUT SBL_OUT GND SBR_OUT 1 3 4 5 6 7 7P CN4027 SL_OUT GND 2 NC SR_OUT L_OUT GND R_OUT JS4080 JS4081 0 R4106 95 100 94 97 91 98 99 96 93 92 114 121 119 118 115 113 117 116 111 120 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 VIDEO3/MIC_IN_L 2ND_L 2ND_TUNER_L F_L SB_L SBR_OUT SBL_OUT SR_OUT SL_OUT C_OUT R_OUT L_OUT SBR_OUT TUNER_IN_R TUNER_IN_L VIDEO3/MIC_IN_R VIDEO3/MIC_IN_L SBL_OUT SW_OUT C_OUT SR_OUT SL_OUT R_OUT L_OUT VIDEO3_IN_L VIDEO3_IN_R VIDEO3_IN_L MIC_IN_L 7.1_INR 7.1_INC 7.1_INSL 7.1_INSR 7.1_INSBL 7.1_INSBR 7.1_INSW 7.1_INL 7.1_INR 7.1_INC 7.1_INSL 7.1_INSR 7.1_INSBL 7.1_INSBR 7.1_INSW F/SB/2ND_L F_L SW_OUT F_R MIC_IN_L C_OUT SBL_OUT SBR_OUT SL_OUT SR_OUT L_OUT R_OUT VEE L1 L2 LCOM1 L3 L4 LCOM2 L5 L6 LCOM3 L7 LCOM4 NC ST VSS VSS INH VEE ISA1235AC1TP-1EF Q4010 Q4012 RT1N141C-TP-1 Q4010, 4012 SELECT SWITCH R2S15206FP IC404 IC404 ELECTRICAL VOLUME AUDIO INPUT SELECTOR, CIN2 SLIN2 SRIN2 SBLIN2 SBRIN2 SWIN2 GND DGND CLK DATA GND SUBL2 SUBR2 GND GND AVCC GND AVEE GND SRIGO SRVIN GND SBLIGO SBLVIN GND SBRIGO SBRVIN GND SWIGO SWVIN SWOUT SBROUT SBLOUT SROUT SLOUT COUT ROUT LOUT GND LVIN LIGO GND RVIN RIGO GND CVIN CIGO GND SLVIN SLIGO 7 6 5 4 3 2 1 8 9 10 11 12 13 14 15 30 29 28 27 26 25 24 18 19 20 21 22 23 17 16 IC403 NJU7311AM AUDIO INPUT SELECTOR IC403 R7 R2 RCOM1 R6 RCOM3 VDD R4 NC R5 RCOM4 CK R3 DATA R1 RCOM2 IC4002 AUDIO INPUT SELECTOR IC4002 MC14052 BDR2 VDD B A (CHASSIS) (DG920) (DA2400ES) (DA2400ES: US) (DA2400ES: AEP, ECE, UK) (DA2400ES: US) (DA2400ES: AEP, ECE, UK) 2200p C405 (CHASSIS) 2200p C404 (CHASSIS) (CHASSIS) (CHASSIS) J406 1P CL427 CL426 1k R461 JS822 47k R474 RY401 100k R468 MA2J1110GLS0 D560 10 R805 2SC3052EF-T1-LEF RELAY DRIVE Q560 10k R509 4.7k R508 50V 22 C460 SUBWOOFER AUDIO OUT PHONO IN 1k R460 1k R459 1k R410 1k R409 R490 47k R491 47k 50V 22 C408 50V 22 C458 J404 4P (DA2400ES: AEP, ECE, UK) 4P J403 CC04 100p CC54 100p CC05 100p CC55 100p CC06 100p CC56 100p CC07 100p CC57 100p CC08 100p CC58 100p CC09 100p CC59 100p CC10 100p CC60 100p 100p CC02 CC52 100p CC03 100p CC53 100p 1k R404 R454 1k 1k R405 1k R455 1k R406 1k R456 R498 47k R488 47k C403 2200p C402 2200p J402 6P J401 6P CL424 CL423 CL422 CL421 CC51 100p CC01 100p C4022 220p R451 1k R4021 100k C4002 220p 1k R401 R4001 100k C4069 2200p C4070 2200p 0.1 C4106 JS4050 JS4051 EVOL_DATA EVOL_CLK BRAVIA_SEL C4048 220p C4049 220p 2ND_L 2ND_R SB_L F/SB/2ND_L SB_R F/SB/2ND_R C4021 50V 2.2 100k R4022 C4001 50V 2.2 100k R4002 0.022 C4029 180 R4023 C4023 16V 470 10k R4010 V+ IC4001 EQ AMP IC4001 NJM4565M(TE2) 8 7 6 5 4 3 2 1 V- C4007 2.2 50V 470 R4008 8.2k R4004 100k R4005 100 R4006 100k R4007 C4027 2.2 50V 470 R4028 0.022 C4009 100k R4027 C4004 100p 180 R4003 16V 470 C4003 C4024 100p 0.033 C4006 9100p C4005 8.2k R4024 100k R4025 100 R4026 9100p C4025 0.033 C4026 2200p C4031 10k R4029 C4105 0.1 22k R4012 4.7k R4011 CL4001 CL4002 CL4003 CL4004 CL4005 CL4006 CL4007 CL4008 C4064 10 50V C4065 10 50V C4067 10 50V C4068 10 50V 100p 100p 100p 100p 100p 100p 100p 100p CC15 CC64 CC63 CC13 CC65 CC62 CC14 CC12 D405 D406 MA2J1110GLS0 MA2J1110GLS0 VIDEO3_IN_R MIC_IN_L VIDEO3/MIC_IN_R 2ND_R 2ND_TUNER_R F_R SB_R F/SB/2ND_R C4082 2200p C4107 0.1 FUN_CLK FUN_DATA FUN_ST C4011 2200p V+ IC4005 NJM4565M(TE2) IC4005 LINE AMP 8 7 6 5 4 3 2 1 V- C4052 50V 22 2.2k R4013 0.022 C4035 C4053 2200p C4033 2200p 4.7k R4035 C4032 50V 22 2.2k R4034 4.7k R4015 2.2k R4014 2.2k R4033 0.022 C4055 100k R4065 100k R4064 100k R4063 100k R4062 100k R4066 100k R4067 100k R4069 100k R4068 100 R4049 100 R4048 100 R4047 100 R4046 100 R4042 100 R4043 100 R4044 100 R4045 220 R4036 8.2k R4037 220 R4016 8.2k R4017 (CHASSIS) A803 L R SA-CD/ CD IN L R MD/TAPE OUT L R MD/TAPE IN L R SAT AUDIO IN L R DVD AUDIO IN L R BD AUDIO IN L R VIDEO 1 AUDIO OUT L R VIDEO 1 AUDIO IN L R L R TV IN L R FRONT L R SURROUND L R SUR BACK MULTI CHANNEL INPUT CENTER SUBWOOFER J407 (CHASSIS) (1/3) MAIN BOARD J 4 B 16 6 21 9 11 D N O P 15 H L 10 K 17 3 5 12 C F 18 M 1 19 E 8 G 20 14 A 2 13 I 7 (Page 39) (Page 39) (Page 48) (Page 49) (Page 71) (Page 72) (Page 71) (Page 72) (Page 67) (Page 48) (Page 48) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 48 48 6-21. SCHEMATIC DIAGRAM - MAIN Board (2/3) - • See Page 76 for IC Block Diagrams. (3/3) MAIN BOARD 23 22 MAIN (1/3) BOARD (1/3) BOARD MAIN 21 MAIN POWER R TRANSFORMER T901 BOARD M (1/3) CN4023 MAIN BOARD S CN1503 SURR SPEAKER T TRANSFORMER MAIN POWER T901 CN6204 U BOARD VIDEO CN2208 (1/2) DIGITAL BOARD B DCDC CON BOARD V CN1401 MAIN BOARD (3/3) W VIDEO2 X BOARD CN721 SURR SPEAKER Y BOARD CN1501 BOARD CN2010 MICON Z (2/3) BOARD CN2023 MICON AA (2/3) BOARD CNP54 STANDBY AB 6 2.5 0.7 3.6 -13.1 -7 12.7 7 15.1 0.7 0 3.1 12.3 11.9 0.1 0 12.7 0.7 0 3.3 0 -44.6 -45.1 0.1 -45 I O G 1 2 3 1SR154-400TE-25 D896 G 1 2 3 10V 220 C721 1k R740 0.01 CC17 WP101 WP102 0.47 C811 0.47 C810 1k R603 1k R505 1 4 5 6 6P CN801 0.1 C803 C809 0.015 100V C807 0.015 100V 10k R803 RY801 C808 0.015 100V 1k R613 0.01 CC16 (DA2400ES: AEP, ECE, UK) 0.01 CC18 C814 25V 3300 CL812 CL811 CL813 C815 25V 3300 CL440 CL441 RBV-602LF- A D802 1SR154-400TE-25 D805 1SR154-400TE-25 D806 1SR154-400TE-25 D807 1SR154-400TE-25 D808 MA2J1110GLS0 D803 MA2J1110GLS0 D804 MA2J1110GLS0 D500 MA2J1110GLS0 D611 MA2J1110GLS0 D601 MA2J1110GLS0 D732 MA2J1110GLS0 D733 MA2J1110GLS0 D722 MA2J1110GLS0 D721 200V 0.1 C804 200V 0.1 C805 100V 0.015 C806 10k R770 10k R780 10k R738 22k R741 0.47 C817 47k R604 47k R614 47k R504 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 20P CN4008 FL+12V FL_GND 4/8_RY SP_A_RY SP_B_RY C_RY SR_RY SB_RY HP_RY BRAVIA_SEL 2ND_RY PREOUT_RY EVOL_DATA EVOL_CLK COM2_DAT COM2_CLK FUNC_LAT PROTECTOR POW_RY STOP 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 20P CN4007 STB+5V STB+5V STB_GND STB_GND STB_GND D+12V D+12V GND_(12V) GND_(12V) A_GND TUNER_COM_L A_GND TUNER_COM_R A_GND TUNER_2ND_L A_GND TUNER_2ND_R A_GND A+7V A-7V R4100 330 470 R4103 220 R4104 1.5k R4105 1 3 4 5 6 7 8 9 9P CN4005 1 2 2P CN604 L-CH R-CH RB060M-30 D4806 C4102 0.1 C812 16V 1000 C813 16V 1000 MA2J1110GLS0 D4004 MA2J1110GLS0 D4005 MA2J1110GLS0 D4006 MA2J1110GLS0 D4007 MA2J1110GLS0 D4008 MA2J1110GLS0 D4009 1 2 3 4 4P CN811 L4101 71V C801 8200 71V 8200 C802 RBV-602LF-A D801 RY500 RY611 RY601 1 3 4 4P CN4025 HP_L HP_GND 2 NC HP_R 1 3 4 5 6 7 7P CN4015 -7V 1 3 4 5 6 CN4024 6P +12V (REG) GND 2 NC STB+5V STOP POWER RY 1 3 4 5 6 6P CN4004 CL4018 CL4017 CL4016 CL4015 CL4014 CL4040 CL4041 CL4042 CL4022 CL4019 CL4020 CL4021 CL4043 CL4044 CL4045 CL4046 CL4047 CL4023 CL4024 CL4025 CL4026 CL4027 CL4028 CL4029 CL4030 CL4031 CL4032 CL4037 CL4036 CL4035 CL4034 CL4033 CL4038 CL4039 VCC GND OUT 1 2 3 1 2 3 4 5 6 6P CN603 1 3 4 5 6 6P CN605 +12V (R2) SB_RY SLSR_RY C_RY RY_GND 108 105 104 106 102 107 103 101 109 110 111 113 114 115 116 117 118 119 120 121 FUN_CLK FUN_DATA 2ND_TUNER_R 2ND_TUNER_L TUNER_IN_R TUNER_IN_L SPB_RY HP_RY SB_RY SLSR_RY C_RY SLSR_RY SB_RY C_RY FUN_ST EVOL_DATA EVOL_CLK BRAVIA_SEL SPA_RY SPA_RY HP_RY SPB_RY PROTECTOR PROTECTOR 1 2 3 4 5 IC4100 IN SW GND ADJ SS SI-8001FFE +2.5V REGULATOR IC4100 IC B/D I O TA79007S IC802 IC802 -7V REGULATOR TA7807S IC801 IC801 +7V REGULATOR BA12T IC803 IC803 +12V REGULATOR 2SC3052EF-T1-LEF RELAY DRIVE Q601 2SC3052EF-T1-LEF RELAY DRIVE Q611 2SC3052EF-T1-LEF RELAY DRIVE Q505 2SC3052EF-T1-LEF RELAY DRIVE Q801 2SC3052EF-T1-LEF Q728 AF POWER PROTECTER Q720, 728, 729 2SA1163L-TE85L Q729 2SC3052EF-T1-LEF Q720 T4AL/250V T4AL/250V F811 F810 T8AL/250V (DA2400ES:AEP,ECE,UK) T8AL/250V (DA2400ES:AEP,ECE,UK) F803 F804 T6.3AL/250V (DA2400ES:US/DG920) T6.3AL/250V (DA2400ES:US/DG920) 15 R802 15 R801 10 R804 10 RR19 10 RR18 10 RR16 10 RR17 22 R601 22 R611 2W 680 R510 2W 680 R560 22 R507 -1 -2 -1 -2 -1 -2 +7/-7V REG GND SPIDER CHASIS 3 2 GND HIG_A LOW_B LOW_A +14.5V GND+14.5V (RYGND) 2 NC GND (DCDCMAIN) GND (DCDCMAIN) +3.3V GND+3.3V +6.2V GND+6.2V AC_10V GND GND AC_10V +12V GND 2 NC +7V NC GND_VIDEO DSP2.5V D+3.3V 2 NC D+6V D_GND D_GND C_GND SR_GND SL_GND SBR_GND SBL_GND PH_GND HIG_B NC 16V C4100 1000 16V C4103 1000 FRONT B R FRONT A R FRONT B TM601 (DG920) TM602 (DA2400ES) L FRONT A L + + - - + + - - 0.01 CC19 10 50V C722 (2/3) MAIN BOARD J 4 B 16 6 9 11 D 15 H 10 K L 17 3 5 12 C F 18 1 19 E 8 G 14 A 2 13 I 7 -1 -2 SPEAKERS (Page 47) (Page 75) (Page 47) (Page 69) (Page 75) (Page 53) (Page 38) (Page 73) (Page 47) (Page 49) (Page 67) (Page 49) (Page 69) (Page 59) (Page 59) (Page 75) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 49 49 6-22. SCHEMATIC DIAGRAM - MAIN Board (3/3) - (1/3) 20 MAIN BOARD (2/3) 23 MAIN BOARD CN711 ACLASS BOARD AD CN511 ACLASS BOARD AE CN611 ACLASS BOARD AF ACLASS BOARD CN411 AG MAIN CN604 BOARD (2/3) W SUR SPEAKER CN1502 BOARD AC 0 0.3 0 0.3 0 0.3 0 0.3 0 0.3 0 0.3 0 -0.1 0.3 -0.1 -1.1 -1.1 -44.4 0 -0.1 -44.4 0 -0.1 -44.4 0 -0.1 -44.4 0 -0.1 -44.4 0 -0.1 -44.4 0 -0.1 -44.4 0 0 -0.6 0.5 -1.1 -0.6 0.5 -1.1 -0.6 0.5 -1.1 -0.6 0.5 0.5 1.1 -1.1 0.5 1.2 -1.1 0.5 1.2 -1.1 0.5 1.2 -1.1 -0.6 0.5 -1.1 0.5 1.2 -1.1 -0.6 0.5 -1.1 0.5 1.1 -1.1 -0.6 0.5 -1.1 0.5 1.1 0 -0.1 0 0 -0.1 0 0 -0.1 0 0 -0.1 0 0 -0.1 0 0 -0.1 0 0 1.1 45.4 0 1.1 45.4 0 1.2 45.4 0 1.2 45.4 0 1.2 45.4 0 1.2 45.4 0 1.1 45.4 0 0 -45.4 -1.1 0 -45.4 -1.1 0 -45.4 -1.1 0 -45.4 -1.1 0 -45.4 -1.1 0 -45.4 -1.1 0 -45.4 -1.1 BIAS ALIGNMENT RV400, 470, 500, 570, 600, 670, 700 E 1 2 3 B C E 2.2k R472 4.7k R477 6.2k R476 C471 25V 47 1.5k R479 15k R483 68k R480 47k R487 47k R437 10 R681 0.022 C681 1 2 3 B C E 68k R680 15k R683 C671 25V 47 6.2k R676 2.2k R672 1.5k R679 4.7k R677 15k R633 47k R637 10 R631 0.022 C631 68k R530 1 2 3 B C E 47k R537 6.2k R526 C521 25V 47 1.5k R529 2.2k R522 4.7k R527 6.2k R576 C571 25V 47 15k R583 4.7k R577 1.5k R579 1 2 3 B C E 47k R587 68k R580 15k R496 15k R484 0.01 C476 50V 10 C477 0.01 C426 22k R432 15k R446 50V 10 C427 15k R434 22k R682 0.01 C676 15k R696 50V 10 C677 15k R684 4.7 R689 47k R687 0.01 C626 15k R646 50V 10 C627 15k R634 4.7 R639 0.01 C526 22k R532 15k R546 50V 10 C527 15k R534 0.01 C576 22k R582 15k R596 50V 10 C577 15k R584 15k R533 22k R482 15k R433 22k R632 2.2k R572 1 2 3 B C E C E C771 25V 47 68k R730 6.2k R726 15k R746 1.5k R729 0.01 C726 47k R737 15k R733 50V 10 C727 4.7k R727 22k R732 15k R734 68k R430 2.2k R422 1.5k R429 1 2 3 B C E E C421 25V 47 1 2 3 B C E 2.2k R622 4.7k R627 C621 25V 47 68k R630 1.5k R629 6.2k R626 220 RV700 2.2k R722 220 RV570 220 RV500 220 RV600 220 RV670 220 RV400 220 RV470 MA2J1110GLS0 D476 MA2J1110GLS0 D475 MA2J1110GLS0 D425 MA2J1110GLS0 D426 MA2J1110GLS0 D675 MA2J1110GLS0 D676 MA2J1110GLS0 D625 MA2J1110GLS0 D646 MA2J1110GLS0 D525 MA2J1110GLS0 D526 MA2J1110GLS0 D575 MA2J1110GLS0 D576 MA2J1110GLS0 D725 MA2J1110GLS0 D726 82k R471 JS470 82k R421 82k R671 JS400 JS670 82k R621 JS600 82k R521 JS500 82k R571 JS570 82k R721 JS700 500V C473 33p 500V 33p C474 500V C429 33p 500V 33p C424 500V C673 33p 500V 33p C674 500V C623 33p 500V 33p C624 500V C523 33p 500V 33p C524 500V C573 33p 500V 33p C574 500V C723 33p 500V 33p C724 220k R499 220k R449 220k R699 220k R649 220k R549 220k R599 220k R799 13P CN401 13P CN671 13P CN601 13P CN501 220p C475 220p C525 220p C575 220p C625 220p C675 220p C725 47k R485 47k R435 47k R685 47k R635 47k R535 R585 47k R735 47k R736 22k R586 22k 22k R536 22k R636 22k R686 22k R436 22k R486 1 2 2P CN4016 FL_+V FL_-V 1 2 2P CN4017 C_+V C_-V 1 2 2P CN4018 SBL_+V SBL_-V 1 2 2P CN4019 FR_+V FR_-V 1 2 2P CN4020 SR_+V SR_-V 1 2 2P CN4021 SL_+V SL_-V 1 2 2P CN4022 SBR_+V SBR_-V 109 97 106 95 92 108 96 101 94 107 103 102 110 104 91 105 99 98 100 93 2SC3052EF-T1-LEF AF POWER SENSOR Q477 2SC3052EF-T1-LEF AF POWER SENSOR Q427 2SC3052EF-T1-LEF AF POWER SENSOR Q677 2SC3052EF-T1-LEF AF POWER SENSOR Q627 2SC3052EF-T1-LEF AF POWER SENSOR AF POWER SENSOR AF POWER SENSOR Q527 2SC3052EF-T1-LEF Q577 2SC3052EF-T1-LEF Q727 2SA1163L-TE85L Q726 2SA1163L-TE85L Q725 CURRENT DETECT Q725, 726 CURRENT DETECT Q575, 576 CURRENT DETECT Q525, 530 CURRENT DETECT Q625, 626 CURRENT DETECT Q675, 676 CURRENT DETECT Q425, 426 CURRENT DETECT Q475, 476 2SA1163L-TE85L Q576 2SA1163L-TE85L Q575 2SA1163L-TE85L Q530 2SA1163L-TE85L Q525 2SA1163L-TE85L Q626 2SA1163L-TE85L Q625 2SA1163L-TE85L Q676 2SA1163L-TE85L Q675 2SA1163L-TE85L Q426 2SA1163L-TE85L Q425 2SA1163L-TE85L Q476 2SA1163L-TE85L Q475 1 2 3 B C MN2488-OPY-MK Q473 1 2 3 B C MN2488-OPY-MK Q423 MP1620-OPY-MK Q424 MP1620-OPY-MK Q474 MN2488-OPY-MK Q673 1 2 3 B C E MP1620-OPY-MK Q674 MN2488-OPY-MK Q623 1 2 3 B C E MP1620-OPY-MK Q624 MN2488-OPY-MK Q523 1 2 3 B C E MP1620-OPY-MK Q524 MN2488-OPY-MK Q573 1 2 3 B C E MP1620-OPY-MK Q574 MN2488-OPY-MK Q723 1 2 3 B MP1620-OPY-MK BOOSTER BOOSTER BOOSTER BOOSTER BOOSTER BOOSTER BOOSTER BOOSTER BOOSTER BOOSTER BOOSTER BOOSTER BOOSTER BOOSTER Q724 2SC3623ATP-LK Q722 2SA1115TP-EF Q721 BIAS Q721, 722 BIAS Q571, 572 BIAS Q521, 522 BIAS Q621, 622 BIAS Q671, 672 BIAS Q421, 422 R420, 470, 520, 570, 620, 670, 720 ∗470 (DA2400ES: AEP, ECE, UK) 560 (DA2400ES: US/DG920) BIAS Q471, 472 2SC3623ATP-LK Q572 2SA1115TP-EF Q571 2SC3623ATP-LK Q522 2SA1115TP-EF Q521 2SC3623ATP-LK Q622 2SA1115TP-EF Q621 2SC3623ATP-LK Q672 2SA1115TP-EF Q671 2SC3623ATP-LK Q422 2SA1115TP-EF Q421 2SC3623ATP-LK Q472 2SA1115TP-EF Q471 1 2 3 4 5 6 7 8 9 10 11 12 13 C_IN AUDIO_GND +V_C -V_C NF_C TEMP 4/8 GND_ACLASS GND_ACLASS GND_ACLASS +B_ACLASS +B_ACLASS -B_ACLASS -B_ACLASS 1 R234 1 R220 1 2 3 4 5 6 7 8 9 10 11 12 13 4/8 AUDIO_GND L_IN AUDIO_GND AUDIO_GND R_IN AUDIO_GND NF_SL -V_SL +V_SL +V_L -V_L NF_L 1 2 3 4 5 6 7 8 9 10 11 12 13 SL_IN AUDIO_GND SR_IN AUDIO_GND +V_SR -v_SR NF_SR +7V -7V GND NF_R +V_R -V_R 1 2 3 4 5 6 7 8 9 10 11 12 13 SBL_IN AUDIO_GND SBR_IN AUDIO_GND +V_SBR -V_SBR NF_SBR -V_SBL +V_SBL NF_SBL LIM_CONTROL 4/8_RY PROTECTOR 100 R725 ∗ R720 0.22 5W R728 100 R723 100 R575 0.22 5W R578 100 R573 R570 ∗ 100 R525 0.22 5W R528 100 R523 R520 ∗ 100 R625 0.22 5W R616 100 R623 R620 ∗ 100 R675 0.22 5W R678 100 R673 R670 ∗ 100 R425 0.22 5W R428 100 R423 R420 ∗ 100 R475 0.22 5W R478 100 R473 R470 ∗ L651 220p C425 4.7k R427 6.2k R426 L601 MAIN BOARD (3/3) W450 W400 W650 W600 W500 W550 W700 W700 W650 SBL W500 W550 W400 W600 W450 SBR SR SL C R-CH L-CH for BIAS RESISTOR CHECK (to CN6101 (A-CLASS SUPPORT B board)) for BIAS RESISTOR CHECK (to CN6103 (A-CLASS SUPPORT A board)) for BIAS RESISTOR CHECK (to CN6101 (A-CLASS SUPPORT B board)) for BIAS RESISTOR CHECK (to CN6103 (A-CLASS SUPPORT A board)) for BIAS RESISTOR CHECK (to CN6101 (A-CLASS SUPPORT B board)) for BIAS RESISTOR CHECK (to CN6103 (A-CLASS SUPPORT A board)) for BIAS RESISTOR CHECK (to CN6103 (A-CLASS SUPPORT A board)) (DA2400ES: AEP, ECE, UK) (DA2400ES: US/DG920) (DA2400ES: AEP, ECE, UK) (DA2400ES: US/DG920) (DA2400ES: AEP, ECE, UK) (DA2400ES: US/DG920) (DA2400ES: AEP, ECE, UK) (DA2400ES: US/DG920) (DA2400ES: AEP, ECE, UK) (DA2400ES: US/DG920) (DA2400ES: AEP, ECE, UK) (DA2400ES: US/DG920) (DA2400ES: AEP, ECE, UK) (DA2400ES: US/DG920) (DA2400ES: AEP, ECE, UK) J 4 B 16 6 21 9 11 D N 15 H L 10 K 17 3 5 12 C F 18 M 1 19 E 8 G 20 14 A 2 13 I 7 (Page 48) (Page 69) (Page 47) (Page 48) (Page 51) (Page 51) (Page 51) (Page 51) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 50 50 6-23. PRINTED WIRING BOARD - ACLASS Board - • : Uses unleaded solder. • See Page 35 for Circuit Boards Location. IC1902 IC1904 IC600 IC500 IC700 IC400 IC1901 5 1 E B E B C C 1 2 3 1 2 14 15 1 1 2 2 14 14 15 15 1 2 14 15 1 13 1 13 1 13 1 13 R400 R600 CN1909 Q1902 Q1903 C1911 C1914 CN411 CN611 C403 R1904 R1905 R1906 R1908 C603 C411 C414 C415 C416 C611 C614 C615 C616 R1934 R1938 R1939 R1940 R1941 R1942 R1943 JW401 JW402 JW405 JW406 C655 C461 JW601 JW602 JW603 C464 C465 C466 JW413 JW414 JW418 C661 C665 C666 JW420 JW422 JW424 JW427 JW431 R500 R700 CN511 CN711 C503 C703 C511 C514 C515 C516 A001 C711 A002 A003 A004 C714 A005 C715 A006 C716 A007 JW1901 JW1902 JW1903 JW1904 JW1905 JW1909 C732 C733 C545 JW1920 JW501 JW502 JW506 C561 C564 JW511 C566 JW514 JW515 JW517 JW519 JW715 JW716 JW717 JW523 JW524 JW525 JW526 JW1560 JW529 JW1561 JW1562 JW1563 JW1564 JW1565 JW1566 JW1567 JW531 JW532 JW534 JW535 JW536 JW537 JW1570 JW1571 JW539 B E B E B E B E B E B E B E B E 8 1 4 5 8 1 4 5 R411 R412 R415 R416 Q1901 R611 R612 C1907 C1908 R615 R616 Q1907 Q1908 C1912 Q1910 C1915 Q1911 C1916 Q1912 Q1913 Q1914 D1901 D1902 D1903 R1901 D1905 R1902 D1907 R1907 R1909 D1911 C412 D1912 C413 R1910 R1914 R1915 R1916 R1917 R1918 R1919 C612 C613 R1920 R1921 R461 R1922 R462 R1924 R1925 R465 R466 R1927 R661 R662 R1930 R1931 R1549 R665 R1932 R666 R1933 R1937 C656 C462 C463 C662 R511 R512 R515 JL1649 R516 JL1650 R711 JL1651 R712 JL1652 JL1653 JL1654 R715 JL1655 R716 JL1656 JL1657 JL1659 JL1660 JL1661 JL1662 JL1663 JL1664 JL1665 JL1666 JL1667 JL1668 JL1669 JL1670 JL1668 JL1671 JL1672 JL1673 JL1674 JL1675 JL1676 JL1677 JL1678 JL1679 JL1680 JL1681 C512 JL1682 C513 JL1683 JL1684 JL1685 JL1686 JL1687 JL1688 JL1689 C712 C713 JL1690 JL1691 JL1692 JL1693 JL1694 JL1695 R561 JL1696 R562 JL1697 JL1698 R565 R566 C562 C563 1-875-886- (11) 11 ACLASS BOARD AH LIMITER BOARD CN1902 AF MAIN BOARD CN601 AE MAIN BOARD CN671 AD MAIN BOARD CN401 AG MAIN BOARD CN501 (DA2400ES:AEP,ECE,UK) DA2400ES: AEP,ECE,UK A B C D 1 2 3 4 5 6 7 8 9 Ref. No. Location • Semiconductor Location D1901 A-5 D1902 A-5 D1903 A-5 D1905 B-2 D1907 A-3 D1911 A-4 D1912 B-5 IC400 C-2 IC500 C-6 IC600 C-4 IC700 C-7 IC1901 A-2 IC1902 A-5 IC1904 B-5 Q1901 A-3 Q1902 B-8 Q1903 C-9 Q1907 A-3 Q1908 A-3 Q1910 A-5 Q1911 A-4 Q1912 A-4 Q1913 A-4 Q1914 B-4 (Page 61) (Page 46) (Page 46) (Page 46) (Page 46) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 51 51 6-24. SCHEMATIC DIAGRAM - ACLASS Board - • See Page 76 for IC Block Diagrams. CN401 MAIN BOARD (3/3) IC B/D IC B/D IC B/D IC B/D BOARD (3/3) MAIN CN601 AE AF AD BOARD (3/3) MAIN CN671 BOARD AG (3/3) MAIN CN501 BOARD AH LIMITER CN1902 3 -1.1 -43.5 -44.9 -44.9 45.1 45.1 0.1 0.1 3 -1.1 -1.1 -43.5 -44.9 -44.9 45.1 45.1 0.1 0.1 0 0 3 -1.1 -1.1 -43.5 -44.9 -44.9 45.1 45.1 0.1 0.1 0 0 3 -1.1 -1.1 -43.5 -44.9 -44.9 45.1 6.3 -5.6 -4.3 -7 45.1 0.1 0.1 0 0 -44.4 6.3 0 6.9 1.7 0.8 4.3 3.8 3.8 0 5 -44.9 -44.9 -44.1 6.9 6.9 -43.5 1.3 0 0.7 4.3 -44.9 7 7 -44.9 0 0 0 3.3 6.8 5 7 -5.6 2.1 0 5.9 68k R712 68k R565 1k R711 +VOUT1 MUTE COMP1 COMP2 -VOUT1 NF1 IN1 GND IN2 NF2 -VOUT2 +VOUT2 VCC VCC VEE 68k R715 2.2k R516 100p C713 500V 3p C715 100p C712 500V 3p C515 2.2k R566 68k R515 500V 3p C545 68k R562 68k R512 100p C562 100p C512 1k R511 2.2k R716 1k R561 1k R611 500V 3p C665 100p C662 2.2k R616 68k R665 500V 3p C615 68k R612 100p C612 68k R615 68k R662 1k R661 2.2k R666 68k R462 68k R415 68k R465 1k R461 2.2k R466 68k R412 100p C412 100p C413 2.2k R416 100p C462 1k R411 100p C463 500V 3p C415 JL1652 JL1650 1 3 4 5 5P CN1909 +7V GND 2 NC TEMP1 TEMP2 JL1649 JL1651 I O G 1 2 3 JL1653 JL1654 JL1655 JL1656 JL1657 JL1659 JL1660 JL1661 JL1662 JL1663 JL1664 JL1665 JL1666 JL1667 JL1668 JL1669 JL1670 JL1671 JL1672 JL1673 JL1674 JL1675 JL1676 JL1677 JL1678 JL1679 JL1680 JL1682 JL1683 JL1684 JL1687 JL1688 JL1690 JL1691 JL1692 JL1693 JL1685 JL1681 JL1689 JL1686 R1927 10k R1921 47p C1908 MA2J1110GLS0 D1907 MA2J1110GLS0 D1911 MA2J1110GLS0 D1903 MA2J1110GLS0 D1901 MA2J1110GLS0 D1902 MA2J1110GLS0 D1905 1SS367-T3SONY D1912 4 3 2 1 VSS VDD 13P CN711 1 2 3 4 5 6 7 8 9 10 11 12 13 13P CN511 1 2 3 4 5 6 7 8 9 10 11 12 13 13P CN611 1 2 3 4 5 6 7 8 9 10 11 12 13 13P CN411 JL1694 JL1695 JL1696 JL1697 JL1698 0.1 C1907 0.1 C1912 22k R1901 22k R1902 10k R1930 2.2k R1937 R1933 47k 12k R1916 22k R1914 22k R1915 470k R1917 47k R1918 10k R1919 3.3k R1922 10k R1932 33k R1909 100k R1549 100k R1907 1k R1920 1k R1931 16V 100 C1914 10V 220 C1911 50V 10 C711 50V 10 C611 50V 10 C661 50V 10 C411 50V 10 C461 50V 10 C511 50V 10 C561 10V 220 C516 10V 220 C616 10V 220 C416 10V 220 C716 10V 220 C566 10V 220 C666 10V 220 C466 C403 C603 C503 C703 C732 22 100V 0.1 C1915 0.1 C1916 100V 22 C733 R1910 330k 500V 33p C714 500V 33p C414 500V 33p C464 ACLASS BOARD C_IN AUDIO_GND +V_C -V_C NF_C TEMP 4/8 GND_ACLASS GND_ACLASS GND_ACLASS +B_ACLASS +B_ACLASS -B_ACLASS -B_ACLASS 1 2 3 4 5 6 7 8 9 10 11 12 13 IC700 POWER AMP POWER AMP POWER AMP POWER AMP 1 9 8 7 6 5 4 3 2 15 14 13 12 11 10 UPC2581V-S IC700 R1938 10k 10k R700 IC500 1 9 8 7 6 5 4 3 2 15 14 13 12 11 10 IN1 IN2 +VOUT1 MUTE -VOUT1 COMP1 COMP2 NF1 GND NF2 -VOUT2 +VOUT2 VCC VCC VEE UPC2581V-S IC500 10k R500 10k R1939 IC600 10k R600 R1940 10k 1 9 8 7 6 5 4 3 2 15 14 13 12 11 10 +VOUT1 MUTE COMP1 COMP2 -VOUT1 NF1 IN1 GND IN2 NF2 -VOUT2 +VOUT2 VCC VCC VEE UPC2581V-S IC600 4/8 AUDIO_GND L_IN AUDIO_GND AUDIO_GND R_IN AUDIO_GND NF_SL -V_SL +V_SL +V_L -V_L NF_L SL_IN AUDIO_GND SR_IN AUDIO_GND +V_SR -V_SR NF_SR +7V -7V GND NF_R +V_R -V_R IC400 1 9 8 7 6 5 4 3 2 15 14 13 12 11 10 +VOUT1 MUTE COMP1 COMP2 -VOUT1 NF1 IN1 GND IN2 NF2 -VOUT2 +VOUT2 VCC VCC VEE UPC2581V-S IC400 10k R400 10k R1941 500V 3p C465 SBL_IN AUDIO_GND SBR_IN AUDIO_GND +V_SBR -V_SBR NF_SBR -V_SBL +V_SBL NF_SBL LIM_CONTROL 4/8_RY PROTECTOR 10k R1924 +5V REGULATOR IC1904 LIMITER IC1902 4 3 2 1 5 6 7 8 NJM4565M(TE2) IC1902 Q1912, 1913 LIMITER DETECT Q1910, 1911 LIMITER DETECT DTC124EKA-T146 Q1912 DTC124EKA-T146 Q1913 DTC124EKA-T146 Q1911 DTC143TKA-T146 Q1910 8 7 6 5 VCC VEE 2SA1163L-TE85L Q1901 DTC124EKA-T146 Q1914 Q1901, 1914 LIMITER CONTROL NJM4565M(TE2) IC1901 OVER LOAD DETECT IC1901 2SA1163L-TE85L Q1907 2SD774-T-34 Q1902 LIMITER SWITCH 2SD774-T-34 Q1903 DTC124EKA-T146 Q1908 2W 330 R1905 1W 3.3k R1934 10k R1906 10k R1943 10k R1904 10k R1942 R1908 33 2W (DA2400ES: US/DG920) 68 2W (DA2400ES: AEP, ECE, UK) ∗R1921 20k (DA2400ES: AEP, ECE, UK) 22k (DA2400ES: US/DG920) (DA2400ES: AEP, ECE, UK) (DA2400ES: AEP, ECE, UK) R1925 ∗ 24k 500V 33p C514 100p C513 100p C563 500V 33p C564 IC1904 PQ050ES1MXPQ J 4 B 16 6 9 11 D 15 H 10 K 17 3 5 12 C F 18 1 E 8 G 14 A 2 13 I 7 500V 33p C614 100p C613 100p C656 500V 33p C655 LIMITER SWITCH Q1907, 1908 LIMITER CONTROL ∗ ∗ ∗ ∗ ∗C503 10 50V (DA2400ES: AEP, ECE, UK) 10 100V (DA2400ES: US/DG920) ∗C703 10 50V (DA2400ES: AEP, ECE, UK) 10 100V (DA2400ES: US/DG920) ∗C403, 603 10 50V (DA2400ES: AEP, ECE, UK) 10 100V (DA2400ES: US/DG920) (Page 49) (Page 49) (Page 49) (Page 61) (Page 49) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 52 52 6-25. PRINTED WIRING BOARD - VIDEO Board - • : Uses unleaded solder. • See Page 35 for Circuit Boards Location. IC6205 IC6206 IC6505 IC6506 IC6001 IC6104 IC6302 IC6101 IC6102 IC6501 IC6502 IC6503 1 24 13 12 16 9 8 1 14 1 8 7 16 1 9 8 16 1 9 8 3 3 2 2 1 1 8 1 4 5 1 14 8 7 B E 1 24 13 12 B E B E B E B E C6320 R6104 C6515 R6105 C6516 R6106 C6323 C6517 C6518 C6324 C6519 C6325 C6326 C6327 R6301 R6302 R6303 C6520 R6110 R6304 R6111 R6306 R6307 D6501 D6502 R6118 R6119 R6501 R6502 R6503 R6311 R6505 L6001 R6506 L6002 R6120 R6508 R6121 R6122 R6123 R6124 R6125 R6510 R6511 Q6001 C6011 C6012 C6013 JL6240 JL6241 JL6242 JL6243 JL6244 JL6247 JL6248 JL6249 D6003 JL6250 JL6251 R6001 JL6252 R6002 JL6253 R6003 JL6254 R6004 JL6255 R6005 R6006 R6007 R6008 R6009 JL6260 JL6261 R6011 JL6262 R6012 R6013 JL6264 R6014 JL6265 R6015 JL6266 R6016 JL6267 R6017 JL6268 R6018 JL6269 JL6270 JL6271 C6253 C6254 R6236 R6239 R6240 R6241 R6242 R6243 R6244 R6245 R6246 R6247 R6250 R6251 R6252 JL6501 JL6502 JL6503 JL6504 C6105 Q6101 C6106 Q6102 Q6103 Q6104 C6302 C6303 C6501 C6502 C6503 C6504 C6505 C6507 C6316 C6318 C6319 D6101 D6102 C6510 R6101 R6102 R6103 1 5 1 5 1 9 3 1 2 11 12 1 3 10 1 3 I O 1 6 C6514 C6328 C6329 JW6001 JW6002 JW6003 JW6004 JW6005 JW6006 JW6007 JW6008 JW6009 JW6010 JW6011 JW6012 JW6013 JW6015 JW6016 JW6017 JW6018 JW6019 JW6020 JW6021 JW6024 JW6025 JW6026 JW6027 JW6028 JW6029 JW6030 JW6031 JW6032 JW6033 JW6034 JW6035 JW6036 JW6037 JW6038 JW6039 JW6040 JW6041 JW6042 JW6043 JW6044 JW6045 JW6046 JW6047 JW6048 JW6049 JW6050 JW6051 JW6052 JW6053 JW6054 JW6055 JW6056 JW6057 JW6058 JW6059 JW1622 JW1623 JW1624 JW1625 JW1626 JW1627 JW6060 JW6061 JW6062 JW6063 JW6064 JW6065 JW6066 JW6067 JW6068 JW6069 JW6070 JW6071 JW6072 JW6073 JW6074 JW6075 JW6076 JW6077 JW6078 JW6079 JW6080 JW6081 JW6082 JW6083 JW6084 JW6085 JW6086 JW6087 JW6088 JW6089 JW6090 JW6091 JW6092 JW6094 JW6095 JW6096 JW6097 JW6098 CN6201 C6002 C6003 CN6203 CN6204 C6004 C6005 C6006 C6007 C6008 C6009 C6010 C6014 C6015 RY6001 RY6002 RY6003 R6010 C6235 C6251 C6252 JW6100 JW6101 JW6102 JW6103 JW6104 JW6105 JW6106 JW6107 JW6108 JW6109 JW6111 JW6112 JW6113 JW6114 JW6116 JW6118 JW6119 JW6120 JW6121 JW6122 LP6001 LP6002 C6101 C6102 C6103 C6104 C6108 C6109 CN6501 CN6502 C6110 C6304 C6305 C6306 C6307 C6309 C6116 C6117 C6118 C6311 C6315 C6513 VIDEO BOARD 1-875-885- AJ AK U L K VIDEO2 BOARD CN728 MAIN BOARD CN4015 DIGITAL VIDEO BOARD CN3200 DIGITAL VIDEO BOARD CN3800 MICON BOARD CN2005 11 (11) (CHASSIS) (CHASSIS) (CHASSIS) VIDEO 1 VIDEO IN VIDEO 1 VIDEO OUT BD VIDEO IN DVD VIDEO IN SAT VIDEO IN COMPO 2 IN COMPO 1 IN COMPO 3 IN MOITOR OUT MONITOR VIDEO OUT J6004 J6005 J6002 J6001 PB/CB PR/CR Y COMPONENT VIDEO ASSIGNABLE (INPUT ONRY) A B C D E F 1 2 3 4 5 6 7 8 9 RY6001 – 6003 Ref. No. Location • Semiconductor Location D6003 D-7 D6101 E-5 D6102 D-4 D6501 B-3 D6502 B-3 IC6001 D-9 IC6101 E-4 IC6102 D-4 IC6104 D-7 IC6205 F-3 IC6206 F-4 IC6302 C-5 IC6501 D-2 IC6502 C-3 IC6503 B-2 IC6505 E-2 IC6506 D-5 Q6001 E-7 Q6101 D-4 Q6102 D-4 Q6103 E-5 Q6104 D-4 (Page 57) (Page 66) (Page 46) (Page 40) (Page 40) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 53 53 6-26. SCHEMATIC DIAGRAM - VIDEO Board - • See Page 76 for IC Block Diagrams. L DIGITAL BOARD (4/4) CN3200 VIDEO K DIGITAL BOARD (4/4) VIDEO CN3800 BOARD (2/3) CN2005 AJ MICON BOARD CN728 AK VIDEO2 (2/3) U MAIN BOARD CN4015 IC B/D IC B/D IC B/D IC B/D IC B/D IC B/D IC B/D IC B/D IC B/D 10 R6010 MA2J1110GLS0 D6003 50V 10 C6002 50V 10 C6005 50V 10 C6010 50V 10 C6004 50V 10 C6007 50V 10C6008 CH1IN1 SW1 CH1IN2 SW2 CH1IN3 GND V+1 CH2IN1 GND CH2IN2 GND CH2IN3 50V 10 C6003 50V 10 C6006 50V 10 C6009 0.1 C6011 0.1 C6013 0.1 C6012 25V 47 C6014 25V 47 C6015 25V 47C6328 25V 47 C6329 0.1 C6253 0.1 C6254 6.3V 1000 C6251 16V 100 C6252 0.1 C6510 50V 10 C6514 50V 10 C6513 100 R6505 QB QC QD QE QF QG QH GND 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 QB QC QD QE QF QG QH GND 0.1 C6318 0.1 C6319 0.1 C6320 100 R6244 100 R6245 100 R6246 100 R6247 100 R6251 0.1 C6501 0.1 C6502 0.1 C6503 10k R6501 GND VCC JL6501 50V 10 C6315 75 R6303 75 R6304 75 R6302 75 R6301 50V 10 C6311 50V 10 C6309 75 R6307 75 R6306 25V 47 C6235 75 R6006 75 R6005 75 R6009 75 R6008 75 R6007 75 R6001 75 R6004 75 R6002 75 R6003 JL6241 JL6242 JL6243 JL6248 JL6249 JL6250 JL6251 JL6252 JL6253 JL6254 JL6255 JL6261 JL6262 JL6264 JL6269 JL6270 JL6502 RY6001 R6110 1k 16V C6103 100 IN HSYNC GND VSYNC VCC R6101 330 R6103 150k R6105 4.7k 50V C6101 3.3 C6105 0.1 R6111 1k IN HSYNC GND VSYNC VCC R6106 4.7k 16V C6104 100 R6102 330 C6106 0.1 50V C6102 3.3 R6104 150k RY6002 RY6003 NC V+ V_OUT GND JL6244 6.3V C6109 1000 1k R6012 0 R6239 0 R6240 0 R6241 0 R6242 R6243 0 JL6265 JL6266 JL6267 JL6240 JL6268 JL6271 JL6503 50V 10 C6304 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 M.OUT SW5 TV SW3 LD SW4 V3 VEE 75 R6017 75 R6015 75 R6018 50V 10 C6307 100 R6252 25V 47 C6110 25V 47C6108 CH3IN3 GND CH3IN2 V-1 CH3IN1 V-2 GND CH3OUT2 V+2 CH2OUT PS CH1OUT R6119 75 R6118 75 R6120 75 25V C6117 47 25V C6118 47 25V C6116 47 MA2J1110GLS0 D6101 MA2J1110GLS0 D6102 100 R6250 JL6260 12P CN6203 1 3 4 5 6 7 8 9 9P CN6201 CVBS IN GND 2 NC CY IN GND CB IN GND CR IN GND R6121 300 R6122 300 R6123 300 75 R6236 75 R6506 0 R6013 0 R6016 0 R6014 R6124 330 R6125 330 2SC3052EF-T1-LEF Q6103 2SC3052EF-T1-LEF Q6104 47k R6011 220 R6502 220 R6503 VIN3 SW1 VIN2 MUTE2 VOUT2 GND2 GND1 10k R6508 0.1 C6515 0.1 C6516 75 R6510 47p C6517 1 2 3 3P CN6501 0.1 C6518 0.1 C6519 0.1 C6520 JL6504 1 2 3 1 2 3 1 2 3 4 5 6 6P CN6204 J6002 3P 9P J6001 VC_SEL VC_SEL2 VC_SEL2 VC_SEL COMP_ON/OFF COMP_ON/OFF VIDEO BOARD 1 3 4 5 6 7 8 +3.3V_AVIDEO 2 NC GND CR_OUT GND CB_OUT GND CY_OUT 8P CN6502 R6511 0 1 2 3 4 5 6 7 8 9 10 11 12 C_MON MUTE COM2 DATA COM2 CLK V595 LAT V595 OE M MUTE VC MUTE DM GND DM VIDEO DM GND V DET(A23) COMPO DET(A23) GND VIDEO3 GND NJM2533M(TE2) IC6505 IC6505 VIDEO INPUT SELECTOR 5 6 7 8 4 3 2 1 VIN_1 SW1 VIN_2 NC S-OUT RST CLK LAT OE S-IN QA VCC SN74HC595ANSR IC6503 IC6503 DATA DECODER SN74HC595ANSR IC6502 IC6502 DATA DECODER 9 8 7 6 5 4 3 2 1 16 15 14 13 12 11 10 S-OUT RST CLK LAT OE S-IN QA VCC 14 13 12 11 10 8 9 7 6 5 4 3 2 1 TC74HCT7007AF(EL) IC6501 IC6501 LEVLE SHIFT NJM2279M-TE2 IC6506 IC6506 VIDEO SWITCH 14 13 12 11 10 8 9 7 6 5 4 3 2 1 V+ NC VOUT1 MUTE1 VIN1 SW2 V- NJM2586AM IC6104 IC6104 VIDEO SWITCH 24 13 14 15 16 17 18 19 20 21 22 23 9 8 7 6 5 4 3 2 1 12 11 10 CH1IN1 SW1 CH1IN2 SW2 CH1IN3 GND V+1 CH2IN1 GND CH2IN2 GND CH2IN3 RT1N441C-TP-1 Q6102 INVERTER RT1N441C-TP-1 Q6101 INVERTER LA7213 IC6101 SYNC SEPARATOR IC6101 LA7213 IC6102 SYNC SEPARATOR IC6102 1 2 3 4 5 1 2 3 4 5 Q6103, 6104 BUFFER 24 13 14 15 16 17 18 19 20 21 22 23 12 11 10 9 8 7 6 5 4 3 2 1 CH3IN3 GND CH3IN2 V-1 CH3IN1 V-2 GND CH3OUT2 V+2 CH2OUT PS CH1OUT NJM2586AM IC6001 IC6001 VIDEO INPUT SELECTOR 2SC3052EF-T1-LEF Q6001 RELAY DRIVE IC6205 KIA7805API COM I O +5V REGULATOR IC6205 I O G TA79005SB IC6206 -5V REGULATOR IC6206 +12V NC GND +7V VIDEO GND -7V NJM2595M-TE2 IC6302 IC6302 VIDEO INPUT SELECTOR V2.IN SW2 V2.OUT GND V1.IN SW1 V1.OUT VCC C6305 10 50V C6306 10 50V C6507 47p C6316 100p C6327 100p C6326 100p C6325 100p C6324 100p C6323 100p R6311 0 MA2J1110GLS0 D6501 MA2J1110GLS0 D6502 C6505 4700p 4700p C6504 10uH L6001 10uH L6002 Y PB/CB PR/CR COMPO 1 IN Y PB/CB PR/CR COMPO 2 IN COMPONENT VIDEO ASSIGNABLE (INPUT ONRY) Y PB/CB PR/CR COMPO 3 IN Y PB/CB PR/CR MONITOR OUT VIDEO 1 VIDEO IN BD VIDEO IN VIDEO 1 VIDEO OUT DVD VIDEO IN MONITOR VIDEO OUT SAT VIDEO IN (CHASSIS) (CHASSIS) (CHASSIS) J6005 3P J6004 3P J 4 B 16 6 9 11 D N 15 H L 10 K 17 3 5 12 C F 18 M 1 19 E 8 G 14 A 2 13 I 7 (Page 48) (Page 67) (Page 45) (Page 45) (Page 59) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 54 54 6-27. PRINTED WIRING BOARD - DSP Board - • : Uses unleaded solder. • See Page 35 for Circuit Boards Location. R5358 R5359 CN5002 C5199 R5368 R5369 R5375 R5376 R5377 R5384 R5385 R5387 X002 R5397 R5365 R5363 CN5003 C5001 C5007 C5200 C5201 C5012 R5402 R5403 IC5015 IC5020 R5411 IC5021 R5413 C5088 C5091 C5094 C5095 FL5006 FL5009 FL5011 FL5013 R5279 R5280 C5117 FB5003 RB009 RB011 C5132 RB015 RB016 RB019 RB021 RB022 RB024 R5379 R5002 RB025 RB026 R5321 R5322 R5323 R5324 R5325 R5326 R5327 C5161 C5162 C5163 C5164 R5331 C5165 R5332 C5166 R5333 R5334 C5168 R5335 R5336 R5337 C5170 C5172 C5173 R5341 C5178 R5347 R5349 C5181 R5350 C5185 C5188 R5355 R5357 C5195 C5196 C5197 C5198 CL5001 CL5002 CL5003 CL5004 CL5005 R5373 R5378 R5386 R5391 R5392 R5393 R5394 R5399 CL5036 CL5044 CL5045 CL5046 CL5047 CL5048 CN5001 CL5051 CL5052 CL5059 C5202 CL5062 R5404 R5405 R5406 R5407 R5410 R5412 IC5022 R5414 FL5010 CL5102 CL5104 CL5105 CL5107 CL5108 CL5109 CL5110 CL5111 CL5112 CL5113 CL5114 CL5115 CL5116 CL5117 CL5118 R5290 CL5120 CL5121 R5299 CL5139 CL5152 CL5153 CL5156 CL5157 CL5158 CL5159CL5160 CL5161 CL5162 CL5163 CL5164 CL5165 CL5166 C5120 C5126 RB010 RB012 RB013 RB014 C5139 C5140 C5144 C5150 C5155 C5175 C5176 C5177 C5179 R5346 R5348 C5180 C5182 C5183 C5189 1 10 1 8 5 4 1-875-772- (NC) (NC) 12 (12) DSP BOARD (SIDE A) 1 1 2 49 50 43 44 86 1-875-772- 12 (12) DSP BOARD (SIDE B) AL DIGITAL BOARD CN2206 A B C 1 2 3 4 5 6 7 1 5 A16 B16 C16D16 E16 F16 G16H16 J16 K16 L16 M16N16P16 R16T16 A15 B15 C15D15 E15 F15 G15H15 J15 K15 L15 M15N15P15 R15T15 A14 B14 C14D14 E14 F14 G14H14 J14 K14 L14 M14N14P14 R14T14 A13 B13 C13D13 E13 F13 G13H13 J13 K13 L13 M13N13P13 R13T13 A12 B12 C12D12 E12 F12 G12H12 J12 K12 L12 M12N12P12 R12T12 A11 B11 C11D11 E11 F11 G11H11 J11 K11 L11 M11N11P11 R11T11 A10 B10 C10D10 E10 F10 G10H10 J10 K10 L10 M10N10P10 R10T10 A9 B9 C9 D9 E9 F9 G9 H9 J9 K9 L9 M9 N9 P9 R9 T9 A8 B8 C8 D8 E8 F8 G8 H8 J8 K8 L8 M8 N8 P8 R8 T8 A7 B7 C7 D7 E7 F7 G7 H7 J7 K7 L7 M7 N7 P7 R7 T7 A6 B6 C6 D6 E6 F6 G6 H6 J6 K6 L6 M6 N6 P6 R6 T6 A5 B5 C5 D5 E5 F5 G5 H5 J5 K5 L5 M5 N5 P5 R5 T5 A4 B4 C4 D4 E4 F4 G4 H4 J4 K4 L4 M4 N4 P4 R4 T4 A3 B3 C3 D3 E3 F3 G3 H3 J3 K3 L3 M3 N3 P3 R3 T3 A2 B2 C2 D2 E2 F2 G2 H2 J2 K2 L2 M2 N2 P2 R2 T2 A1 B1 C1 D1 E1 F1 G1 H1 J1 K1 L1 M1 N1 P1 R1 T1 Note: IC5021 cannot exchange with single. When IC5021 is damaged, exchange the entire mounted board. (Page 36) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 55 55 6-28. SCHEMATIC DIAGRAM - DSP Board - • See Page 76 for IC Block Diagrams. • See Page 86 for IC Pin Function Description. AL BOARD (2/2) CN2206 DIGITAL IC B/D 10 C5095 10 C5091 10k R5002 0.1 C5088 0.1 C5012 0.1 C5094 CL5005 CL5004 CL5001 CL5002 CL5003 CL5036 FB5003 1 2 3 4 5 SI-3011ZD-TL IC5015 VC VIN GND VOUT SENSE CL5044 CL5045 CL5046 CL5047 CL5048 CL5051 CL5052 0.1 C5117 0.1 C5120 0.1 C5126 0.1 C5132 0.1 C5139 0.1 C5140 0.1 C5144 0.1 C5150 0.1 C5155 6.3V 470 C5161 6.3V 470 C5162 1M R5280 8p C5163 8p C5164 470p C5165 470p C5166 8 7 6 5 4 3 2 1 SST25VF016B-50-4C-S2AF-T IC5020 CE# SO WP# VSS CL5059 0.1 C5168 22 R5321 22 R5322 22 R5323 22 R5324 22 R5325 22 R5326 22 R5327 22 R5331 22 R5332 22 R5333 22 R5334 22 R5335 22 R5336 22 R5337 22 R5341 22 R5346 22 R5347 22 R5348 22 R5349 1k R5350 CL5062 10 C5170 10k R5355 CL5102 CL5104 CL5105 CL5107 CL5108 CL5109 CL5110 CL5111 CL5112 CL5113 CL5114 CL5115 CL5116 CL5117 CL5118 CL5120 CL5121 CL5139 1k R5357 1k R5358 1k R5359 6.3V 220 C5172 10P CN5003 0.1 C5173 0.1 C5175 0.1 C5176 0.1 C5177 0.1 C5178 0.1 C5179 0.1 C5180 0.1 C5181 0.1 C5182 10 C5183 10k R5363 10k R5368 10k R5369 22 R5375 22 R5376 22 R5377 1k R5379 CL5152 CL5153 CL5156 CL5157 CL5158 CL5159 CL5160 CL5161 CL5162 CL5163 CL5164 EMI FL5006 EMI FL5009 EMI FL5010 EMI FL5011 10 C5185 EMI FL5013 220 RB021 220 RB022 220 RB024 220 RB019 220 RB026 220 RB025 100 RB009 100 RB010 P1 100 RB012 100 RB013 P1 100 RB014 100 RB015 100 RB016 47 R5290 470 R5365 10k R5373 22 R5384 22 R5385 50P CN5001 SFLASH_HOLD# SFLASH_CE# SPIO_ENA# SPIO_MISO DSP_INT NON_AU GND MCK GND SI_G SI_E SI_C SI_A GND BCK_OUT GND SO_E SO_C SO_A GND GND VDDINT VDDINT VDDEXT GND BCK GND LRCK SI_F SI_D SI_B GND LRCK_OUT GND SO_F SO_D SO_B GND GND VDDINT VDDINT VDDEXT SPIO_CLK GND SPIO_CS# SPIO_MOSI DSP_RESET ERROR VDDEXT VDDEXT CL5165 22 R5386 22 R5387 10k R5391 10k R5392 0 R5393 22 R5394 R5397 10k R5399 10k R5402 10k 22 R5403 22 R5404 22 R5405 22 R5406 22 R5407 6.3V 470 C5188 10 C5189 M12L64322A-6TG IC5022 VDD DQ0 VDDQ DQ1 DQ2 VSSQ DQ3 DQ4 VDDQ DQ5 DQ6 VSSQ DQ7 NC VDD DQM0 WE# CAS# RAS# CS# NC BA0 BA1 A10/AP A0 A1 A2 DQM2 VDD NC DQ16 VSSQ DQ17 DQ18 VDDQ DQ19 DQ20 VSSQ DQ21 DQ22 VDDQ DQ23 VDD 0.1 C5195 0.1 C5196 0.1 C5197 0.1 C5198 0.1 C5199 0.1 C5200 0.1 C5201 0.1 C5202 10k R5410 R5299 10k CL5166 6.3V 220 C5001 22 R5411 22 R5412 22 R5413 22 R5414 180 R5279 1k R5378 H11 J11 J10 K16 K11 L12 M13 J14 R16 K12 J12 P16 P15 N16 N15 N14 M16 M15 M14 L16 L15 L14 L13 K15 K14 K13 J16 J15 J13 H15 H13 H14 H16 G13 G14 G15 F13 F14 F15 F16 E14 E15 E16 D14 D15 D16 C14 C15 C16 B15 G12 H12 E13 D13 B16 G16 A16 E12 F12 F11 G11 G10 H10 H9 VSS G9 VSS A10 VSS F10 VSS F9 VSS F8 DVDD D12 DVDD A15 CVDD E11 CVDD E10 CVDD E9 AXR0[0] A14 SPI0_SOMI B14 AXR0[2] A13 AXR0[1] B13 ACLKR2 C13 AXR0[4] A12 AXR0[3] B12 AFSR2 C12 AXR0[6]/SPI1_ENA# A11 AXR0[5]/SPI1_SCS# B11 AFSX2 C11 ACLKX2 D11 AXR0[7]/SPI1_CLK B10 UHPI_HCNTL[1] C10 AMUTE2_HINT# D10 AXR0[9]/AXR1[4]/SPI1-SIMO A9 AXR0[8]/AXR1[5]/SPI1_SOMI B9 UHPI_HAS# C9 UHPI_HCNTL[0] D9 AXR0[10]/AXR1[3] B8 UHPI_HRW D8 UHPI_HCS# C8 AXR0[11]/AXR1[2] A8 UHPI_HDS[1]# D7 UHPI_HDS[2]# C7 AXR0[12]/AXR1[1] B7 UHPI_HRDY# D6 UHPI_HBE[0]# C6 AXR0[13]/AXR1[0] B6 AXR0[14]/AXR2[1] A6 UHPI_HBE[1]# C5 AXRO[15]/AXR2[0] B5 ACLKR0 A5 UHPI_HBE[2]# C4 AFSR0 B4 ACLKXO A4 UHPI_HD[23] C3 AHCLKR0/AHCLKR1 B3 AFSX0 A3 UHPI_HBE[3]# B2 CVDD E6 CVDD E7 CVDD E8 DVDD A2 DVDD D4 DVDD D5 VSS H8 VSS G7 VSS G8 VSS F6 VSS F7 VSS E5 VSS A1 VSS A7 K4 K3 K2 L4 L3 L2 J9 K9 K8 L8 L7 T7 N5 P8 T2 M6 M7 M8 M9 T3 R3 T4 R4 P4 T5 R5 P5 T6 R6 P6 N6 R7 P7 N7 T8 R8 N8 T9 P9 N9 R9 N10 P10 R10 N11 P11 R11 T11 P12 R12 T12 N13 P13 R13 T13 P14 R14 T14 R15 M11 M10 N12 T15 T16 T10 M12 L11 L10 L9 K10 6P CN5002 16V 47 C5007 25MHz X002 D7 D6 D5 D4 D3 D0 D1 D2 D21 D15 D14 D13 D12 A2 A1 A0 A10 A3 A4 A5 A6 A7 A8 A9 DQM1 BA0 DQM2 DQM3 BA1 A0 A1 A2 A10 A3 A4 A5 A6 A7 A8 A9 BA1 BA0 RAS# CAS# D11 D10 D9 D8 DQM0 D0 D1 D7 D5 D6 D3 D4 D2 D14 D15 D13 D12 D11 D10 D9 D8 D31 D30 D27 D26 D25 D24 D21 D20 D19 D18 D17 D16 D22 SO_B SO_A SO_D SI_A SI_C SI_D SI_E SI_F D29 D23 D28 D28 D29 D31 D30 CAS# D24 D27 D26 D25 D23 RAS# SO_C D20 D22 DQM1 DQM2 DQM3 D19 D18 D17 D16 SO_F SI_B SI_G SO_B LRCK BCK SPI0_SCK DSP_LRCK SO_D SO_F SI_B SI_D SI_F DSP_RESET# SPI0_SIMO SPI0_CS# MCK LRCK DSP_LRCK BCK DSP_BCK SO_E NON_AUDIO ERR DSP_INT DSP_RESET# DQM0 ERR SFLASH_HOLD# SFLASH_CE# SPI0_SCK IC5020 SERIAL FLASH DSP BOARD (NC) (NC) 7 11 D B 16 6 9 17 10 F 5 N 15 L K 19 3 G 1 18 12 C M E H 8 J 4 13 A 14 2 I O SI SCK HOLD# VDD VSS VSS VSS VSS VSS VSS DVDD DVDD DVDD CVDD CVDD EM_A[9] EM_A[11] EM_A[7] EM_A[8] UHPI_HD[6] EM_A[5] EM_A[6] UHPI_HD[2] EM_A[3] EM_A[4] UHPI_HD[4] UHPI_HD[3] EM_A[2] UHPI_D[1] UHPI_HD[0] EM_A[0] EM_A[1] UHPI_HD[15] EM_A[10] UHPI_HD[14] UHPI_HD[13] EM_BA[1] UHPI_HD[12] UHPI_HD[11] EM_BA[0] UHPI_HD[10] UHPI_HD[9] EM_CS[0]# EM_RAS# UHPI_HD[8] EM_CS[2]# EM_RW EM_WAIT EM_OE# SPI0_ENA# AHCLKR2 SPI0_SCS# SPI0_CLK SPI0_SIMO CVDD CVDD DVDD DVDD DVDD VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS DVDD DVDD DVDD CVDD CVDD CVDD CVDD EM_WE# EM_CAS# EM_D[7] EM_DQM[0] EM_D[20] EM_D[5] EM_D6] EM_D[19] EM_D[3] EM_D[4] EM_D[17] EM_D[18] EM_D[2] EM_D[31] EM_D[16] EM_D[0] EM_D[1] EM_D[30] EM_D[14] EM_D[28] EM_D[29] EM_D[15] EM_D[27] EM_D[26] EM_D[13] EM_D[25] EM_D[24] EM_D[12] EM_D[11] EM_A[12] EM_D[10] EM_D[9] UHPI_HD[5] EM_DQM[2] EM_D[8] EM_DQM[1] UHPI_HD[7] EM_CLK EM_CKE EM_DQM[3] CVDD CVDD DVDD DVDD VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS DVDD DVDD CVDD CVDD AHCLKX0/AHCLKX2 AMUTE0 UHPI_HD[22] AMUTE1 AHCLKX1 UHPI_HD[21] ACLKX1 ACLKR1 UHPI_HD[20] UHPI_HD[19] AFSX1 AFSR1 UHPI_HD[18] UHPI_HD[17] RESET# UHPI_HD[31] CLKIN UHPI_HD[16] OSCVDD OSCIN OSCOUT OSCVSS TRST# TMS PLLHV UHPI_HD[29] UHPI_HD[28] UHPI_HD[30] TDI UHPI_HD[27] TDO EMU[0]# EM_D[22] UHPI_HD[26] UHPI_HD[25] EMU1# EM_D[21] UHPI_HD[24] TCK EM_D[23] CVDD CVDD DVDD DVDD VSS VSS VSS VSS VSS VSS VSS VSS VSS D790E002BZDH300 IC5021 (Chip Size Package) CSP IC5021 DSP +1.26V REGULATOR IC5015 SPI0_ENA# SPI0_SIMO SPI0_SOMI SPI0_CS# L1 M3 M2 M1 N4 N3 N2 N1 P3 P2 P1 R2 J5 K5 M4 R1 T1 K1 M5 L5 L6 K6 K7 J7 J8 H7 J6 H6 G6 F5 H3 G1 B1 E4 H5 G5 C2 C1 D3 D2 D1 E3 E2 E1 F4 F3 F2 F1 G4 G3 G2 H4 H2 H1 J4 J2 J3 J1 9 1 2 3 4 5 6 7 8 10 11 12 13 14 15 16 17 18 19 20 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 39 38 37 36 35 21 22 34 33 23 24 32 25 31 30 29 26 27 28 48 53 56 49 50 51 55 54 52 47 46 45 44 57 58 59 60 61 62 63 43 42 41 40 VSS DQ24 VSSQ DQ25 DQ26 VDDQ DQ27 DQ28 VSSQ DQ29 DQ30 VDDQ DQ31 NC VSS DQM3 A3 A4 A5 A6 A7 A8 A9 CKE CLk NC NC DQM1 VSS NC DQ8 VDDQ DQ9 DQ10 VSSQ DQ11 DQ12 VDDQ DQ13 DQ14 VSSQ DQ15 VSS 1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39 41 43 45 47 49 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 1 2 3 4 5 6 7 8 9 10 EMU1 EMU0 GND TCK TDO TDI TRST# TMS +3.3V GND SO_A SO_C SO_E DSP_BCK SI_A SI_C SI_E SI_G MCK NON_AUDIO DSP_INT SPI0_SOMI SPI0_ENA# SFLASH_CE# SFLASH_HOLD# GND +3.3V XRESET SO SI SCK 1 2 3 4 5 6 100 RB011 IC5022 SD-RAM Note: IC5021 cannot exchange with single. When IC5021 is damaged, exchange the entire mounted board. (Page 39) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 56 56 6-29. PRINTED WIRING BOARD - MICON Board (Component Side) - • : Uses unleaded solder. • See Page 35 for Circuit Boards Location. IC8019 IC8013 IC8003 IC8002 IC8015 IC8016 IC8020 IC8022 IC8008 1 6 1 18 E E E 1 4 A K K E B E B E B B E E 8 1 3 2 1 4 5 1 1 1 1 1 5 5 5 5 4 4 4 4 3 3 3 3 24 25 3637 48 12 13 1 8 9 16 8 1 4 5 12 1 13 24 176 1 44 45 89 88 133 132 1 1 1 8 5 5 5 4 4 4 3 3 5 8 1 4 18 54 14 1 8 7 R8044 R8046 C8070 R8048 C8071 C8074 R8240 C8075 C8076 R8242 C8077 R8243 C8078 R8050 R8052 R8246 R8053 R8055 R8057 C8080 C8083 C8086 C8092 R8070 R8071 R8080 R8081 R8082 R8083 R8084 R8085 R8086 R8087 R8092 R8093 R8094 RB8001 RB8002 RB8003 RB8004 RB8005 RB8006 RB8007 RB8008 RB8009 RB8010 RB8011 RB8012 RB8013 RB8014 RB8015 RB8016 RB8017 RB8018 RB8021 RB8022 X8001 C8102 X8002 C8103 C8104 C8057 C8110 C8111 FB8001 FB8002 FB8003 FB8004 C8120 FB8005 FB8007 FB8008 C8124 C8125 C8127 C8128 FB8011 R8106 FB8012 R8107 FB8013 R8108 FB8014 R8109 FB8015 C8136 C8137 C8138 C8139 R8112 R8113 R8116 R8117 R8118 C8140 R8119 C8141 C8142 C8143 C8144 L8001 L8002 C8147 C8148 C8149 R8122 R8123 R8125 R8126 R8127 R8128 C8150 R8129 C8151 C8152 C8153 R8130 R8131 R8132 R8133 R8134 R8124 R8138 C8165 C8166 C8167 C8168 R8141 R8143 R8144 R8147 R8148 R8149 C8171 C8172 R8152 R8156 R8159 R8162 R8164 R8167 R8168 R8169 R8170 R8171 R8172 R8173 R8175 R8176 R8177 R8179 R8180 R8183 JWH800 CN2013 R8187 R8188 R8189 R8192 R8194 R8195 R8196 CN8001 CN8003 C8002 C8003 C8004 C8005 Q8001 C8006 Q8002 C8007 Q8003 C8008 Q8004 C8009 Q8005 Q8006 Q8007 Q8008 C8011 C8012 C8013 C8014 C8016 C8017 C8021 C8023 C8024 D8001 C8027 D8003 C8028 D8004 C8029 D8005 C8030 C8031 C8034 IC8004 C8035 IC8005 IC8007 R8203 C8038 R8010 R8204 C8039 R8205 R8206 R8014 R8015 R8209 C8040 C8041 C8042 C8043 IC8014 R8212 IC8017 R8213 IC8018 R8217 R8219 C8050 C8051 C8052 C8053 IC8023 IC8024 R8221 C8056 C8109 R8223 R8224 R8227 R8034 R8228 JL8093 C8062 C8063 R8231 C8066 C8067 R8233 C8068 R8040 R8234 R8041 R8235 R8042 R8237 MICON BOARD 1-875-881- XM DMPORT (NC) (COMPONENT SIDE) 11 (11) A B C D E 1 2 3 4 5 6 7 (DA2400ES:US) (DA2400ES:US/DG920) (DA2400ES:US) (DA2400ES:AEP,ECE,UK) (DA2400ES:AEP,ECE,UK) (DA2400ES:US/DG920) (DA2400ES:US) Ref. No. Location • Semiconductor Location D8001 B-5 D8003 D-6 D8004 D-6 D8005 B-1 IC8002 C-2 IC8003 B-2 IC8004 B-2 IC8005 B-2 IC8007 B-3 IC8008 C-3 IC8013 D-2 IC8014 C-6 IC8015 D-6 IC8016 D-6 IC8017 D-6 IC8018 D-7 IC8019 E-4 IC8020 D-6 IC8022 D-5 IC8023 B-4 IC8024 B-4 Q8001 B-1 Q8002 B-1 Q8003 B-3 Q8004 B-3 Q8005 B-4 Q8006 B-5 Q8007 B-5 Q8008 B-5 Note: IC8018 cannot exchange with single. When IC8018 is damaged, exchange the entire mounted board. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 57 57 6-30. PRINTED WIRING BOARD - MICON Board (Conductor Side) - • : Uses unleaded solder. • See Page 35 for Circuit Boards Location. 1 2 1 2 10 9 2 1213 1 2 11 12 1 2 15 16 1 2 19 20 1 14 1 12 1 13 1 2 15 16 1 2 19 20 1 2 19 20 1 2 7 8 8 4 1 5 9 1 CN2003 CN2004 CN2005 CN2006 CN2010 CN2015 CN2016 CN2017 CN2021 CN2022 CN2023 CN2024 CN8004 2 10 8 9 11 IC8011 IC8001 IC8006 R8238 R8239 C8072 C8073 R8241 R8245 R8247 R8248 R8249 C8085 C8087 R8068 C8093 C8094 C8095 C8096 R8073 R8074 R8077 R8078 R8079 R8095 R8096 R8097 R8098 R8099 JL8100 JL8101 JL8102 JL8103 JL8104 JL8105 JL8106 JL8107 JL8108 JL8109 JL8110 1 JL8111 JL8112 JL8113 JL8114 JL8115 JL8116 JL8117 JL8118 JL8119 JL8120 JL8121 JL8122 JL8123 JL8124 JL8125 JL8127 JL8128 JL8129 JL8130 JL8131 JL8132 JL8133 JL8134 C8101 JL8135 JL8136 JL8137 JL8138 JL8139 JL8140 JL8141 JL8142 JL8143 JL8144 JL8145 C8112 JL8146 C8113 JL8147 C8114 JL8148 C8115 JL8149 C8116 C8117 C8118 C8119 JL8150 JL8151 JL8152 JL8153 JL8154 C8121 JL8155 FB8006 C8122 JL8156 C8123 JL8157 JL8158 FB8009 JL8159 C8126 R8100 R8101 C8129 R8102 R8103 R8104 FB8010 JL8160 R8105 JL8161 JL8162 JL8163 JL8164 C8130 JL8165 C8131 C8132 JL8167 C8133 JL8168 C8134 JL8169 C8135 R8110 R8111 JL8170 JL8171 JL8172 JL8173 JL8174 JL8175 JL8176 JL8177 JL8178 JL8179 R8120 R8121 JL8180 JL8181 JL8182 JL8183 JL8184 JL8185 JL8186 JL8187 JL8188 C8154 JL8189 C8155 C8156 C8157 C8158 C8159 JL8190 R8135 JL8191 R8136 JL8192 R8137 JL8193 JL8194 C8160 R8139 JL8195 C8161 JL8196 C8162 C8163 JL8198 C8164 JL8199 R8145 R8146 C8173 C8174 C8175 R8150 R8151 R8153 R8157 R8158 R8165 R8178 CL8001 CL8002 CL8003 CL8004 CL8005 CL8006 R8181 R8182 R8184 R8185 R8186 R8191 R8197 R8198 JL8001 R8199 JL8002 JL8003 JL8004 JL8005 JL8006 JL8007 JL8008 JL8009 JL8200 JL8201 JL8010 JL8011 JL8012 JL8013 JL8014 JL8208 JL8015 JL8209 JL8016 JL8017 JL8018 JL8019 JL8210 JL8211 JL8212 JL8213 JL8020 JL8214 JL8021 JL8215 JL8022 JL8216 JL8217 JL8218 JL8219 JL8220 JL8221 JL8222 JL8223 JL8224 JL8225 JL8226 JL8227 JL8228 JL8229 JL8230 JL8231 JL8232 JL8233 JL8234 JL8235 JL8236 JL8237 C8010 JL8238 JL8239 JL8240 JL8241 JL8242 JL8243 JL8244 JL8245 JL8246 JL8247 JL8248 JL8249 C8026 D8002 JL8250 JL8251 D8006 JL8252 JL8253 JL8254 D8009 JL8255 JL8256 JL8257 JL8258 JL8065 R8009 JL8259 JL8066 JL8067 JL8068 R8200 JL8069 R8201 R8202 JL8260 JL8261 JL8262 JL8263 JL8070 JL8264 JL8071 JL8265 JL8072 JL8266 JL8073 JL8267 JL8074 JL8268 JL8075 JL8269 JL8076 JL8077 JL8078 C8044 R8210 JL8079 C8045 C8046 JL8270 C8049 R8215 JL8271 R8216 JL8272 JL8273 JL8080 R8024 JL8274 JL8081 JL8275 JL8082 JL8276 JL8083 JL8277 JL8278 JL8279 R8220 JL8280 R8225 JL8281 R8032 R8226 JL8282 JL8283 JL8284 R8035 JL8285 R8036 JL8092 JL8286 JL8287 JL8094 JL8288 JL8095 R8039 JL8289 JL8096 JL8097 C8064 JL8098 JL8099 R8232 A8002 A8003 1 1 5 2 2 4 3 3 2 1 3 CN8005 1-875-881- 11 (11) MICON BOARD AA AN AM AP AQ AR AS AT AJ H Z G DIGITAL VIDEO BOARD CN3504 DIGITAL VIDEO BOARD CN3000 MAIN BOARD CN4007 MAIN BOARD CN4008 MICON DIGITAL CONN BOARD CN2231 MICON DIGITAL CONN BOARD CN2230 MICON DIGITAL CONN BOARD CN2232 CIS BOARD CNS801 DISPLAY BOARD CNP701 DISPLAY BOARD CNP702 DISPLAY BOARD CNP711 VIDEO BOARD CN6203 (CHASSIS) (CHASSIS) SIRIUS CN8002 (CONDUCTOR SIDE) (DA2400ES:AEP,ECE,UK) TUNER(FM/AM) FM 75Ω COAXIAL ANTENNA AM A B C D E F 1 2 3 4 5 6 7 8 (DA2400ES:US/DG920) (DA2400ES:US/DG920) (DA2400ES:US) Ref. No. Location • Semiconductor Location D8002 E-3 D8006 C-5 D8009 C-7 IC8001 C-7 IC8006 C-6 IC8011 C-5 (Page 64) (Page 64) (Page 64) (Page 46) (Page 41) (Page 52) (Page 46) (Page 41) (Page 70) (Page 62) (Page 62) (Page 62) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 58 58 6-31. SCHEMATIC DIAGRAM - MICON Board (1/3) - • See Page 61 for Waveforms. • See Page 76 for IC Block Diagrams. • See Page 86 for IC Pin Function Description. IC B/D IC B/D IC B/D IC B/D (2/3) BOARD MICON 31 (2/3) BOARD MICON 32 IC B/D 33 (2/3) MICOM BOAR 12 13 11 4.9 3.3 4.7 1.2 5.8 1.2 6 4.9 1.6 3.3 0 0 2.5 2.5 2.5 4.9 1.6 1.6 0 3.3 3.3 0 0 0 1.6 1.6 3.3 1.6 0 3.3 3.3 0 3.3 1.2 1.2 1.2 1.2 0 0 3.3 3.3 3.3 3.3 3.3 3.3 3 1.6 0 0 1.6 3.3 3.3 3.3 5.5 4.6 5.5 1.2 3.3 NSAD500F-T1B D8005 10k RB8002 C8024 0.1 R8032 100 1 2 3 4 5 BA00BC0WFP-E2 IC8006 R8085 680 R8086 100 R8035 100 R8079 100k R8084 680 C8046 1000p C8049 1000p C8004 22p JL8004 JL8003 R8034 1k R8082 8.2k 10k RB8001 C8040 0.1 C8003 22p R8040 45.1584MHz 100 C8009 22p R8080 12k C8035 0.1 C8073 6800p R8073 7.5k R8039 1k C8043 0.1 X8001 C8034 0.1 C8041 3p CN8001 100 R8070 10k RB8004 R8057 100 R8078 100k C8029 0.1 C8042 0.1 C8072 6800p 10k RB8003 R8087 100 10k R8071 C8076 680p KDS160-RTK D8009 JL8002 FB8001 R8041 4.7k C8038 3p C8039 0.1 10k R8009 C8023 0.1 C8077 680p C8052 0.1 R8074 2.2k 8 7 6 5 4 3 2 1 NJM4565M(TE2) IC8008 VCC 2SB1689-T106 Q8004 C8050 0.1 JL8001 R8052 100 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 PCM1753DBQR IC8005 BCK DATA LRCK DGND NC VCC(5V) VOUTL VOUTR AGND VCOM ZEROL ZEROR MD(MDI) MC ML(MS) SCK C8045 0.1 R8036 1k R8083 12k C8026 0.1 RT1P141C-TP-1 Q8002 C8080 0.1 RT1N141C-TP-1 Q8003 C8078 0.1 RT1N141C-TP-1 Q8001 C8066 0.1 C8013 22p R8081 8.2k JL8082 JL8081 JL8079 1 2 JL8078 JL8080 JL8076 JL8083 JL8077 1 2 3 4 5 6 7 8 9 10 11 CN8004 11P TUN_L 9V TUN_R GND TUN_TUNED TUN_CE TUN_DAT TUN_CLK TUN_DO RDS_CLK RDS_DATA 0.1 C8028 0.1 C8010 0.1 C8027 10uH L8001 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 18P CN8003 PGND VBUS(5V) NC VIDEO5V RXD TXD DET DGND WM DET WM A/D L- R- L+ R+ WM RX WM TX VIDEO VGND VCC GND OUT BA50BC0FP-E2 IC8001 1 2 3 10uH L8002 4.7k R8010 0.1 C8057 10k R8068 0.1 C8075 4.7 C8074 10k R8077 220p C8085 220p C8087 2200p C8083 2200p C8086 I O G TA7809AF-(T6L1SONQ IC8011 1 2 3 47 R8092 47 R8093 47 R8094 47 R8095 JL8005 JL8006 JL8007 JL8008 JL8009 JL8010 JL8011 JL8012 JL8013 JL8014 JL8015 JL8016 JL8017 JL8018 JL8019 JL8020 JL8021 JL8022 820P C8012 820P C8011 C8064 0.47 C8063 0.1 100 R8055 100 R8053 100 R8050 100 R8048 100 R8046 100 R8044 100 R8042 R8014 0 R8015 0 0.1 C8044 MA2J1110GLS0 D8006 FB8002 JL8065 JL8066 C8016 47 4V 47 4V C8017 16V C8002 10 4V C8051 100 16V C8062 100 10V C8067 47 16V C8068 10 16V C8070 10 16V C8071 10 16V 100 C8053 16V 47 C8092 50V 1 C8005 50V 1 C8006 50V 1 C8007 50V 1 C8008 10V 47 C8030 10V 47 C8031 10V 47 C8014 10V 47 C8021 CN8002 SIRIUS 47p C8093 47p C8094 47p C8095 47p C8096 XM_LAT XM_XM/M XM_M/XM XM-RST XM-POW SIUART_SI/M SIUART_M/SI SI_POW_EN RDS_DATA RDS_CLK TUN_DATA TUN_CLK TUN_LAT TUN_DO TUN_TUNED DMPORT_DM/M DMPORT_M/DM DMPORT_DET DM_VIDEO COM2-DAT COM2-CLK A-7V A_GND A+7V D+12V D+6V DM_GND TUNER_2ND_R TUNER_2ND_L TUNER_COM_R TUNER_COM_L 24 23 22 21 20 19 18 7 6 5 4 3 2 1 17 16 15 14 13 8 9 10 11 12 BD3842FS-FD2 IC8013 INA1 INA2 INB1 INB2 INC1 INC2 IND1 IND2 INE1 INE2 INF1 INF2 OUT2 OUT1 RECB2 RECB1 RECA2 RECA1 VCC GND VEE DA CL DGND 47k R8096 47k R8097 47k R8098 47k R8099 47k R8100 47k R8101 47k R8102 47k R8103 47k R8104 47k R8105 100 R8107 100 R8108 100 R8109 1k R8110 1k R8111 C8101 0.1 C8102 0.01 100 R8112 100 R8113 16V 100 C8103 16V 100 C8104 22k R8116 22k R8117 22k R8118 22k R8119 22k R8120 22k R8121 22k R8122 22k R8123 SEL_DATA SEL_CLK 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 F2602E-01-TR IC8003 LSOPTXRX VSS SCTXOUT VDD SCRXIN VSS COMMSEL VDD XIRQ VSS XRESET SLAVESL COMRXDIG COMTXDIG COMTXEN VSS VDD COMRXP COMRXM VDD VSS COMTXM COMTXP VSS VSS OSCOUT VDD OSCIN VSS TEST VSS HSDPDATA VDD HSDPCLK VSS HSDPEN I2SDATA VSS I2SSCLK VDD I2SLRCLK VSS I2SOCLK VSS SAIICLK VDD SAIIDATA SAIIEN FB8004 FB8005 100p C8109 FB8003 D_GND FL_GND R8249 0 0 R8024 220 R8106 0.22 C8056 0.01 C8172 0.01 C8171 FB8015 0.1 C8173 0.1 C8174 0.1 C8175 8 7 6 5 4 3 2 1 NJM4565M(TE2) IC8002 -V +V 5 4 3 2 1 5 4 3 2 1 RDS_CLK TUN_LAT TUN_TUNED TUN_DO RDS_DATA TUN_DATA TUN_CLK RDS_DATA RDS_CLK TUN_DATA TUN_CLK TUN_LAT TUN_DO TUN_TUNED NC GND ON/OFF VOUT VIN TK11133CSCL-G IC8004 ON/OFF TK11150CSCL-G VIN VOUT NC IC8007 GND IC8011 IC8002 LINE AMP IC8008 LINE AMP D/A CONVERTER IC8005 IC8007 IC8013 IC8004 MICON BOARD (1/3) IC8003 XM RECEIVER IC8006 +5V REGULATER IC8001 (DA2400ES:US) 4 3 5 8 6 7 RESET SWITCH Q8001,8002 (DA2400ES:US) (DA2400ES:US/DG920) +3.3V REGULATOR +5V REGULATOR AUDIO INPUT SELECTOR (DA2400ES:AEP,ECE,UK) (DA2400ES:AEP,ECE,UK) +9V REGULATOR JL8067 JL8068 JL8069 JL8070 JL8071 JL8072 JL8073 JL8074 JL8075 (DA2400ES:AEP,ECE,UK) CN8004 9P (DA2400ES:US/DG920) TUNER COAXIAL FM 75 Ω ANTENNA (FM/AM) AM VEE (DA2400ES:US/DG920) (DA2400ES:US/DG920) (DA2400ES:US) XM 1 4 VCC -D +D GND DMPORT +5.5V REGULATOR NC OUT GND IN CLT B+SWITCH Q8003,8004 J B D H L K C F M E G A I 4 16 6 21 9 11 15 10 17 3 5 12 18 1 19 8 20 14 2 13 7 (Page 59) (Page 59) (Page 59) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 59 59 6-32. SCHEMATIC DIAGRAM - MICON Board (2/3) - CNS801 CIS BOARD AM 31 (1/3) BOARD MICON 33 (1/3) BOARD MICON 32 (1/3) BOARD MICON BOARD DIGITAL VIDEO (2/4) CN3000 G CN6203 AJ BOARD VIDEO BOARD MAIN (2/3) CN4007 AA BOARD MAIN (2/3) CN4008 Z MICON (3/3) 34 BOARD MICON CN2232 AN BOARD CN3504 (2/4) DIGITAL DIGITAL CONN VIDEO BOARD H 0 3.3 5 5 3.3 3.3 0 5 2.7 2.7 2.7 1.6 2.7 3.2 3.3 3.3 0 0 3.3 0.1 C8142 VCC GND OUT BA33BC0FP-E2 IC8019 1 2 3 R8127 100 FB8006 R8124 0 100 R8134 100 R8140 100 R8141 100 R8167 RT1N141C-TP-1 Q8008 220 R8133 10k R8131 22k R8130 22k R8129 0.1 C8110 1k R8128 10k R8126 0 R8125 0.1 C8111 FB8007 0.1 C8138 100 R8169 14 13 12 11 10 9 8 7 6 5 4 3 2 1 TC74HCT7007AF(EL) IC8022 GND VDD 1 2 3 4 5 6 7 8 9 10 10P CN2003 SPDIF SD0 SD1 SD2 SD3 LMCK BCK GND MCLK GND JL8112 JL8121 JL8120 JL8119 JL8117 JL8116 JL8114 JL8123 JL8122 JL8124 JL8125 JL8127 JL8128 JL8129 JL8130 JL8131 100 R8172 0.1 C8149 4.7 C8150 JL8132 JL8133 JL8134 JL8135 JL8136 JL8137 JL8138 JL8139 JL8140 JL8141 JL8142 JL8144 JL8118 JL8109 JL8107 JL8105 JL8103 JL8101 JL8100 JL8099 JL8098 JL8097 JL8096 JL8115 JL8113 JL8111 JL8110 JL8108 JL8106 JL8104 JL8102 JL8157 JL8154 FB8013 100 R8170 0.1 C8151 5 4 3 2 1 TC7SET08FU(T5RSOJF) IC8024 GND VCC 0.1 C8152 ISA1235AC1TP-1EF Q8005 2SC3052EF-T1-LEF Q8006 2SC3052EF-T1-LEF Q8007 27k R8132 5 4 3 2 1 TC7SH08FU(T5RSOYJF) IC8023 GND VCC RB751V-40TE-17 D8001 1 2 3 4 5 6 7 8 9 10 11 12 12P CN2005 C_MON_MUTE COM2_DATA COM2_CLK V595_LAT V595_OE M_MUTE VC_MUTE DM_GND DM_VIDEO DM_GND V_DET COMPO_DET 4V 100 C8140 16V 100 C8143 A-7V A_GND A+7V D+12V D+6V D_GND XM_LAT XM_M/XM XM-RST XM-POW SIUART_M/SI SI_POW_EN XM_XM/M SIUART_SI/M DM_GND DM_VIDEO DMPORT_DET DMPORT_DM/M DMPORT_M/DM RDS_DATA TUN_DO TUN_TUNED RDS_CLK TUN_DATA TUN_CLK TUN_LAT TUNER_COM_L TUNER_COM_R TUNER_2ND_L TUNER_2ND_R JL8208 JL8209 JL8210 JL8211 JL8212 JL8233 JL8238 JL8241 100 RB8010 100 RB8011 JL8243 JL8244 JL8245 JL8246 JL8247 JL8248 100 R8210 R8225 0 R8226 0 JL8264 JL8265 JL8266 JL8267 JL8268 JL8269 JL8270 JL8271 JL8273 JL8274 JL8275 JL8276 COM2-DAT COM2-CLK JL8272 100 R8232 1 2 3 4 5 6 7 8 9 10 11 12 13 13P CN2004 STB_GND STB_+3.3V STB_+5V SIRCS_IN SIRCS_OUT TRG1 TX232 RX232 GND_+12V GND_+12V GND_+12V +12V +12V 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 16P CN2006 FLI_RESET FLI_UART_RX FLI_UART_TX FLI_BUSY FLI_POW_DET DAC_RESET DAC_SCL DAC_SDA CEC HDMI_MICOM_RESET VUCOM_SDA VUCOM_SCL NON_LPCM MUTE (HDMI_ERROR) VSYNC DAC_CLK_SEL JL8284 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 20P CN2010 FL+12V FL_GND 4/8_RY SP_A_RY SP_B_RY C_RY SR_RY SB_RY HP_RY BRAVIA_SEL 2ND_RY PREOUT_RY EVOL_DATA EVOL_CLK COM2_DAT COM2_CLK FUNC_LAT PROTECTOR POW_RY STOP 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 20P CN2023 STB+5V STB+5V STB_GND STB_GND STB_GND D+12V D+12V GND_(12V) GND_(12V) A_GND TUNER_COM_L A_GND TUNER_COM_R A_GND TUNER_2ND_L A_GND TUNER_2ND_R AGND A+7V A-7V 100 R8240 100 RB8021 JL8286 JL8287 FL_GND 1 2 3 4 5 6 7 8 8P CN2024 D+6V D+6V DGND DGND FSRATE HDMI_LRCK HDMI_SPDIF HDMI_ERROR JL8288 JL8289 FB8014 79 67 77 70 74 61 65 73 66 83 85 71 84 75 78 62 86 64 63 76 72 80 87 69 68 COMPO_DET XM_LAT XM-POW RDS_DATA V595_OE M_MUTE VC_MUTE V_DET C_MON_MUTE V595_LAT DMPORT_DET TUN_DATA TUN_CLK TUN_LAT TUN_DO TUN_TUNED XM_M/XM XM_XM/M XM_RST DMPORT_M/DM DMPORT_DM/M RDS_CLK COM2_DATA COM2_CLK TX232 HDMI_DATA1 HDMI_BCK HDMI_MCK COM2_CLK COM2_DATA POW_RY EVOL_DAT 2ND_RY HP_RY SR_RY HDMI_LRCK HDMI_DATA0 HDMI_LRCK VUCOM_M/VM VUCOM_VM/M SIRIUS_PWR_ENABLE 4/8_RY SP_A_RY SP_B_RY C_RY BRAVIA_SEL PREOUT_RY EVOL_CLK PROTECTOR STOP_MAIN VUCOM_RST SB_RY FUNC_LAT HDMI_VSYNC HDMI_SDA SIRI_SI/M HDMI_DATA3 HDMI_DATA2 SIRI_M/SI SEL_CLK SEL_DATA SEL_DATA SEL_CLK HDMI_SCL VUCOM_BUSY DAC_CLK_SEL RX232 IC8022 LEVEL SHIFT IC8019 +3.3V LEVEL SHIFT LEVEL SHIFT IC8024 IC8023 (2/3) MICON BOARD (DA2400ES:US) Q8005-8008 CEC DATA SWITCH (DA2400ES:US) (DA2400ES:US/DG920) REGULATOR (DA2400ES:US) JL8093 JL8094 JL8095 JL8092 17 J B D N H L K C F M E G A I 4 16 6 9 11 15 10 3 5 12 18 1 19 8 14 2 13 7 (Page 71) (Page 58) (Page 58) (Page 43) (Page 53) (Page 58) (Page 63) (Page 43) (Page 60) (Page 48) (Page 48) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 60 60 6-33. SCHEMATIC DIAGRAM - MICON Board (3/3) - • See Page 76 for IC Block Diagrams. • See Page 86 for IC Pin Function Description. IC B/D IC B/D MICON BOARD 34 (2/3) BOARD DISPLAY AT CNP701 AS BOARD CNP702 DISPLAY DISPLAY BOARD CNP711 AR AQ BOARD CN2231 MICON DIGITAL CONN AP BOARD MICON DIGITAL CONN CN2230 100 R8149 0.1 C8122 8 7 6 5 4 3 2 1 TC7W14FU(TE12R) IC8017 IN1 OUT2 IN3 GND OUT3 IN2 OUT1 VCC 0.1 C8116 470 R8144 100p C8133 10k R8143 100k R8151 0.1 C8117 0.1 C8132 10k R8145 0.1 C8112 4.7 C8118 5 4 3 2 1 TC7S08FU(TE85R) IC8015 GND VCC 0.1 C8131 JL8151 0.1 C8127 JL8149 JL8153 JL8159 0.1 C8125 4.7 C8123 0.1 C8130 0.1 C8136 10k R8139 0.1 C8129 0.1 C8135 10k R8150 0.1 C8119 0.1 C8121 JL8147 0.1 C8113 JL8150 JL8152 JL8158 10k R8146 0.1 C8141 100 R8148 5 4 3 2 1 S-80929CNMC-G8ZT2G IC8016 OUT VDD VSS NC CD 4.7 C8126 4.7 C8114 4.7 C8115 4.7 C8134 6 7 8 5 4 3 2 1 TC7W14FU(TE12R) IC8020 IN1 OUT2 IN3 GND OUT3 IN2 OUT1 VCC MA2J1110GLS0 D8002 220 R8156 MA2J1110GLS0 D8003 220 R8162 MA2J1110GLS0 D8004 220 R8152 100k R8153 100k R8158 10k R8157 0.1 C8144 4.7 C8128 R8137 10k 0.1 C8120 FB8008 FB8010 100 R8168 FB8009 JL8160 JL8161 R8164 100 FB8011 FB8012 JL8156 JL8155 JL8148 JL8146 JL8145 JL8143 100 R8171 JL8162 JL8163 JL8164 JL8201 CN2016 12P FL_BLK SI FL_LAT FL_CLK FL_DATA MIC_ON AD1 AD2 AD3 A-GND SO 8 7 6 5 4 3 2 1 S-24CS64A01-J8T1G IC8018 A0 A1 A2 GND SDA SCL WCB VCC JL8189 JL8188 JL8187 JL8186 JL8185 JL8184 JL8183 JL8182 JL8181 JL8180 JL8179 JL8178 JL8177 JL8176 JL8175 JL8174 JL8173 JL8172 JL8171 JL8170 JL8169 JL8168 JL8167 JL8190 JL8191 JL8192 JL8193 JL8194 JL8195 JL8196 JL8198 JL8199 JL8200 R8136 3.3k R8135 3.3k 10k R8165 330 R8147 1k R8173 R8138 0 4V 47 C8147 50V 1 C8137 4V 100 C8124 16V 10 C8139 1 2 3 4 5 6 6P CN2013 GND 3.3V RESET SO SI MD2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 MB91F467RAPMC-GE1 IC8014 VSS POW-SW_DET SIRIUS_PWR_ENABLE NO_USE NO_USE NO_USE NO_USE EVOL_CLK EVOL_DATA PREOUT_RY VCC3_(3.3V) VCC3_(3.3V) VSS_(GND) C_1 2ND_RY BRAVIA_SEL HP_RY SB_RY SR_RY C_RY SP_B_RY SP_A_RY 4/8_RY LED_DCS LED_MLT LED_MLT_DIM LED_STB NO_USE NO USE TRG-1 NO_USE NO_USE NO_USE NO_USE MIC_ON VCC3_(3.3V) C_2 VSS_(GND) X0_(CLOCK_IN) X1_(CLOCK_OUT) VSS_(GND) X0A_(SUB_CLOCK_IN) X1A_(SUB_CLOCK_OUT) VCC3_(3.3V) VSS_(GND) VOL_2 VOL_1 FUNC_2 FUNC_1 TUNE_2 TUNE_1 TONE_2 TONE_1 HP_IN DA_MDO DA_LATCH VCC3_(3.3V) VSS_(GND) SYSTEM_MUTE DAC_MUTE DIR_DATA0 DIR_XMODE DIR_CE DIR_D0 DIR_ERROR DIR_CKST D595_LAT D595_OE COM1_CLK COM1_DATA SF_DSP_CS_CTL SFLASH_CE VCC3_(3.3V) VSS_(GND) SPI0_CE DSP_RESET SPI0_SCS DA_RST NO_USE NO_USE NO_USE SEL_DATA SEL_CLK XM_POW XM_LAT TUN_TUNED TUN_LAT VSS_(GND) VCC3_(3.3V) TUN_DO TUN_DATA TUN_CLK RDS_DATA DMPORT_DET HDMI_RESET HDMI_ERROR NO_USE AD-KEY1 AD-KEY2 AD-KEY3 CEC-M/DV C_MONI_MUTE VERSION COM2_DATA COM2_CLK V595_LAT V595_OE M_MUTE VC_MUTE V_DET COMPO_DET DAC_SCL DAC_SDA AVSS/AVRL(ANALOG GND A/D) AVCC3(3.3V A/D) AVRH(STANDARD PS A/D) HDMI_SDA HDMI_SCL SIRCS-IN NO USE CEC_DV/M NO_USE ZONE_SEL VIDEO_DAC_RESET VIDEO_DAC_SDA RST_TRG(A34) MD3 MD2 MD1 MD0 INITX VSS_(GND) VCC5_(5V) RS232C_MIN RS232C_MOUT FLI_RESET XM_XM/M XM_M/XM XM_RESET FLI_TX FLI_RX FLI_BUSY SPI0_MISO SPI0_MOSI SPI0_CLK VSS_(GND) VCC5_(5V) SIRIUS_TX SIRIUS_RX FL_CLR FL_LAT FL_DATA FL_CLK DMUART_DM/M DMUART_M/DM HDMI_VSYNC DAC_CLK_SEL NO_USE NO_USE NO_USE VSS_(GND) VCC5_(5V) NO_USE DSP_INT RDS_CLK 232C-SEL1 232C-SEL2 FSRATE1 FUNC_LAT STOP POW_RY PROTECTOR NO_USE EEPROM_SDA EEPROM_SCL VCC5_(5V) 100 RB8005 100 RB8006 100 RB8007 JL8165 JL8213 JL8214 JL8215 JL8216 JL8217 JL8218 JL8219 JL8220 JL8221 JL8222 JL8223 JL8224 JL8225 JL8226 JL8227 JL8228 JL8229 JL8230 JL8231 JL8232 JL8234 JL8235 JL8236 JL8237 JL8239 JL8240 100 RB8008 47 RB8009 100 R8175 10k R8176 0.1 C8153 100 R8177 10k R8178 0.1 C8154 100 R8179 100 R8180 10k R8181 0.1 C8155 10k R8182 100 RB8012 100 RB8013 0.01 C8156 0.01 C8157 0.01 C8158 0.01 C8159 0.01 C8160 0.01 C8161 0.01 C8162 10k RB8014 10k RB8015 100 R8183 0.1 C8163 10k R8184 10k R8185 10k R8186 100 R8187 100 R8188 100 R8189 2.2k R8191 0.01 C8164 100 R8192 100 R8194 100 R8195 10k R8196 10k R8197 10k R8198 10k R8199 10k R8200 0.1 C8165 0.1 C8166 0.1 C8167 10k R8201 10k R8202 0.1 C8168 100 R8203 100 R8204 100 R8205 47 R8206 47 R8209 47 R8212 47 R8213 10k R8215 10k R8216 100 R8217 100 R8219 10k R8220 JL8249 JL8250 JL8251 JL8252 JL8253 JL8254 JL8255 JL8256 JL8257 JL8258 JL8259 JL8260 JL8261 100 RB8016 100 RB8017 JL8262 JL8263 100 R8221 100 R8223 100 R8224 100 RB8018 0 R8227 R8228 100 100 R8231 100 R8233 JL8277 JL8278 JL8279 JL8280 JL8281 R8234 100 R8235 100 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 20P CN2022 SFLASH_HOLD# SPI0_CLK COM1_DATA COM1_CLK D595_CE D595_LATCH DIR_CKST DIR_ERROR DIR_DO DIR_CE DIR_XMODE DIR_DATA0 DAC_MUTE SYSTEM_MUTE DA_LATCH DA_MDO DA_RST V3_OPT3 V3_GND V3_+3.3V JL8282 JL8283 100 R8237 JL8285 10k R8238 10k R8239 10k R8241 3.3k R8242 1k R8243 CL8001 CL8002 CL8003 CL8004 CL8005 CL8006 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 16P CN2021 HDMI_BCK GND HDMI_MCK GND HDMI_DATA0 HDMI_DATA1 HDMI_DATA2 HDMI_DATA3 HDMI_NON_LPCM SPI0_CE# SPI0_MOSI DSP_RESET DSP_INT SPI0_MISO SPI0_ENA# SFLASH_CE 22 C8148 6.3V 47k R8159 2.2k RB8022 100 R8245 100 R8246 2.2k R8247 2.2k R8248 14P CN2015 VOL_2 VOL_1 FUNC_2 FUNC_1 TUNE_2 TUNE_1 TONE_2 TONE_1 HP_IN POW-SW_DET D3.3V DGND V3_OPT 1 13 3 4 5 6 7 8 9 10 11 12 13P CN2017 DD_+12V SIRCS DD_GND FL_GND ZONE2/3_POW N.P STB_3.3V STB_5V LED_DCS LED_MLT LED_MLT-DIM LED_STB X8002 61 62 63 64 65 68 70 76 83 84 66 67 69 71 72 73 74 75 77 78 79 80 85 86 87 ADKEY1 ADKEY2 ADKEY3 FL_DAT FBLK FL_LAT LED_STB LED_DCS LED_MLT LED_MLT_DIM MIC_ON FCLK LED_DCS LED_MLT LED_MLT_DIM LED_STB FUNC_2 VOL_1 VOL_2 TONE_1 TONE_2 TUNE_1 TUNE_2 FUNC_1 HP_IN DAC_MUTE SYSTEM_MUTE DAC_MUTE DIR_DATA0 DIR_XMODE DIR_CE DIR_DO DIR_DATA0 DIR_XMODE DIR_CE DIR_DO DIR_ERROR DIR_CKST D595_LATCH D595_OE DIR_CKST D595_LATCH D595_OE COM1_CLK COM1_DATA SFLASH_CE SPI0_CE SF_DSP_CS_CTL DSP_RESET XM_LAT TUN_LAT TUN_DATA TUN_CLK ADKEY2 COM2_DATA C_MON_MUTE XM_M/XM XM_RST VUCOM_VM/M VUCOM_M/VM SIRI_SI/M SIRI_M/SI SPI0_SIMO SPI0_CLK DSP_INT COM2_CLK TX232 TX232 SYSTEM_MUTE DA_LATCH DA_LATCH DA_MDO FBLK FCLK FUNC_2 XM-POW SEL_CLK SEL_DATA HDMI_VSYNC DAC_CLK_SEL FUNC_LAT STOP_MAIN POW_RY PROTECTOR 2ND_RY PREOUT_RY EVOL_DAT EVOL_CLK FL_DAT SF_DSP_CS_CTL COM1_DATA DA_MDO DA_RST DA_RST COM1_CLK VUCOM_BUSY HDMI_DATA3 HDMI_DATA2 HDMI_DATA0 HDMI_MCK HDMI_BCK SP_A_RY SP_B_RY C_RY SR_RY BRAVIA_SEL 4/8_RY SB_RY HP_RY COMPO_DET V_DET VC_MUTE M_MUTE V595_LAT SPI0_CLK SPI0_SIMO DSP_RESET DSP_INT SPI0_SOMI SFLASH_CE SPI0_CE FUNC_1 TONE_1 TONE_2 TUNE_2 TUNE_1 HP_IN VOL_1 VOL_2 HDMI_DATA1 RX232 RDS_CLK DMPORT_M/DM FL_LAT DMPORT_DM/M SPI0_SOMI XM_XM/M VUCOM_RST ADKEY1 SIRIUS_PWR_ENABLE MIC_ON RX232 TUN_DO RDS_DATA HDMI_SDA HDMI_SCL DMPORT_DET ADKEY3 V595_OE TUN_TUNED DIR_ERROR SYSTEM CONTROLLER IC8014 4MHz IC8018 EEPROM MICON BOARD (3/3) IC8015 RESET SWITCH IC8020 BUFFER IC8016 IC8017 RESET SIGNAL 1 3 4 5 6 7 8 9 10 11 12 13 14 1 3 4 5 6 7 8 9 10 11 12 BUFFER RESET SIGNAL GENERATOR (NC) (DA2400ES:AEP,ECE,UK) (DA2400ES:US/DG920) NC 2 NC 2 NC 2 J B D N H L K C F M E G A I 4 16 6 21 9 11 15 10 17 3 5 12 18 1 19 8 20 14 2 13 7 O Note: IC8018 cannot exchange with single. When IC8018 is damaged, exchange the entire mounted board. (Page 59) (Page 63) (Page 63) (Page 65) (Page 65) (Page 65) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 61 61 6-34. PRINTED WIRING BOARD - LIMITER Board - 6-35. SCHEMATIC DIAGRAM - LIMITER Board - • Waveforms – DIGITAL VIDEO Board – • : Uses unleaded solder. • See Page 35 for Circuit Boards Location. � IC3506 �� (XTALOUT) 1 V/DIV, 20 ns/DIV 35.3 ns 3.8 Vp-p � IC3800 �� (CLKIN) 1 V/DIV, 20 ns/DIV 37 ns 3.6 Vp-p �� IC8003 �� (OSCOUT) 1 V/DIV, 10 ns/DIV 22.2 ns 4 Vp-p 357 ns 3.4 Vp-p �� IC8005 � (BCK) 1 V/DIV, 100 ns/DIV �� IC8005 �� (SCK) 1 V/DIV, 50 ns/DIV 88.6 ns 3.4 Vp-p �� Q706 (Collector) 10 V/DIV, 2 μs/DIV 4.6 μs 36 Vp-p – MICON Board – – DISPLAY Board – 3 1 2 3 1 2 1 5 3 IC1903 IC1905 C1909 C1910 JL1751 JL1752 JL1753 C1913 JL1754 D1906 R1928 CN1902 JW1203 JW1204 JW1205 1-875-901- LIMITER BOARD 11 (11) AH ACLASS BOARD CN1909 A 1 2 CN1909 AH ACLASS BOARD 0.8 6.9 0.8 6.9 1 2 3 1 2 3 0.1 C1909 100 R1928 1 C1913 1 C1910 1 3 4 5 5P CN1902 2 MAZ8062GMLS0 D1906 LIMITER BOARD LM61CIZ/LFT2 IC1905 IC1905 TEMPERATURE SENSOR LM61CIZ/LFT2 IC1903 IC1903 TEMPERATURE SENSOR GND OUT IN GND OUT IN +7V GND NC TEMP1 TEMP2 JL1751 JL1752 JL1753 JL1754 4 B 3 5 C 1 A 2 (Page 50) (Page 51) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 62 62 6-36. PRINTED WIRING BOARDS - CONNECTOR Section - • : Uses unleaded solder. • See Page 35 for Circuit Boards Location. JL2401 JL2402 JL2403 JL2404 JL2405 JL2406 JL2407 JL2408 JL2409 JL2410 JL2411 JL2412 JL2413 JL2414 JL2415 JL2416 JL2417 JL2418 JL2419 JL2420 JL2421 JL2422 JL2423 JL2424 JL2425 JL2426 JL2427 JL2428 JL2429 JL2430 JL2431 JL2432 JL2433 JL2434 JL2435 JL2436 JL2437 JL2438 JL2439 JL2440 JL2441 JL2442 JL2443 JL2444 1 2 1 2 1 1 1 2 2 15 20 20 19 19 15 16 16 1 2 7 8 2 7 8 JW2030 JW2031 JW2032 JW2034 JW2035 CN2030 CN2031 CN2032 CN2230 CN2231 CN2232 1 8 1 9 CN6103 CN6104 1 9 1 6 CN6101 CN6102 MICON DIGITAL CONN BOARD 1-875-900- 1-875-887- A-CLASS SUPPORT A BOARD A-CLASS SUPPORT B BOARD 1-875-888- to CN4017,CN4016, CN4021,CN4019, (MAIN board) for BIAS RESISTOR CHECK for BIAS RESISTOR CHECK to Bias Resistor Alignment Checker for BIAS RESISTOR CHECK to Bias Resistor Alignment Checker AP DIGITAL BOARD CN2213 DIGITAL BOARD CN2212 DIGITAL BOARD CN2214 AQ MICON BOARD CN2022 MICON BOARD CN2021 MICON BOARD CN2024 11 (11) A D C AN to CN4022,CN4018, CN4020 (MAIN board) for BIAS RESISTOR CHECK 11 (11) 11 (11) (DA2400ES:AEP,ECE,UK) (DA2400ES:AEP,ECE,UK) A B C D E 1 2 3 4 5 6 7 (Page 37) (Page 37) (Page 37) (Page 57) (Page 57) (Page 57) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 63 63 6-37. SCHEMATIC DIAGRAM - CONNECTOR Section - (1/2) C BOARD CN2214 DIGITAL (2/2) DIGITAL CN2212 BOARD D (1/2) DIGITAL CN2213 BOARD A (2/3) MICON CN2024 BOARD AN AP BOARD MICON CN2021 (3/3) AQ (3/3) BOARD CN2022 MICON 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 20P CN2031 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 20P CN2231 SFLASH_HOLD# SPI0_CLK COM1_DATA COM1_CLK D595_CE D595_LATCH DIR_CKST DIR_ERROR DIR_DO DIR_CE DIR_XMODE DIR_DATA0 DAC_MUTE SYSTEM_MUTE DA_LATCH DA_MDO DA_RST V3_OPT3 V3_GND V3_+3.3V JL2401 JL2402 JL2403 JL2404 JL2405 JL2406 JL2407 JL2408 JL2409 JL2410 JL2411 JL2412 JL2413 JL2414 JL2415 JL2416 JL2417 JL2418 JL2419 JL2420 JL2421 JL2422 JL2423 JL2424 JL2425 JL2426 JL2427 JL2428 JL2429 JL2430 JL2431 JL2432 JL2433 JL2434 JL2435 JL2436 JL2437 JL2438 JL2439 JL2440 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 16P CN2030 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 16P CN2230 HDMI_BCK GND HDMI_MCK GND HDMI_DATA0 HDMI_DATA1 HDMI_DATA2 HDMI_DATA3 HDMI_NON_LPCM SPI0_CE# SPI0_MOSI DSP_RESET DSP_INT SPI0_MISO SPI0_ENA# SFLASH_CE 1 2 3 4 5 6 7 8 8P CN2032 1 2 3 4 5 6 7 8 8P CN2232 D+6V D+6V DGND DGND FSRATE HDMI_LRCK HDMI_SPDIF HDMI_ERROR JL2441 JL2442 JL2443 JL2444 MICON DIGITAL CONN BOARD SF_DSP_CS_CTL SPI0_CLK COM1_DATA COM1_CLK D595_CE D595_LATCH DIR_CKST DIR_ERROR DIR_DO DIR_CE DIR_XMODE DIR_DATA0 DAC_MUTE SYSTEM_MUTE DA_LATCH DA_MDO DA_RST V3_OPT3 V3_GND V3_+3.3V HDMI_BCK GND HDMI_MCK GND HDMI_DATA0 HDMI_DATA1 HDMI_DATA2 HDMI_DATA3 HDMI_NON_LPCM SPI0_CE# SPI0_MOSI DSP_RESET DSP_INT SPI0_MISO SPI0_ENA# SFLASH_CE D+6V D+6V DGND DGND FSRATE HDMI_LRCK HDMI_SPDIF HDMI_ERROR 1 2 3 4 5 6 7 8 8P CN6103 1 3 4 5 6 7 8 9 9P CN6104 FR_+V FR_-V 2 NC SL_+V SL_-V FL_+V FL_-V C_+V C_-V A-CLASS SUPPORT A BOARD FR_+V (DA2400ES: AEP, ECE, UK) (DA2400ES: AEP, ECE, UK) FR_-V SL_+V SL_-V FL_+V FL_-V C_+V C_-V Alignment Checker to Bias Resistor RESISTOR CHECK for BIAS RESISTOR CHECK for BIAS CN4021, CN4019 (MAIN board) to CN4017, CN4016 1 3 4 5 6 7 8 9 9P CN6102 SBR_+V SBR_-V 2 NC SBL_+V SBL_-V SR_+V SR_-V NO USE NO USE 1 2 3 4 5 6 6P CN6101 SBR_+V SBR_-V SBL_+V SBL_-V SR_+V SR_-V A-CLASS SUPPORT B BOARD (DA2400ES: AEP, ECE, UK) Alignment Checker to Bias Resistor RESISTOR CHECK for BIAS (MAIN board) to CN4022, CN4018, CN4020 RESISTOR CHECK for BIAS (DA2400ES: AEP, ECE, UK) 4 B 6 9 11 D H 10 3 5 12 C F 1 E 8 G A 2 13 7 (Page 38) (Page 39) (Page 38) (Page 59) (Page 60) (Page 60) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 64 64 6-38. PRINTED WIRING BOARD - DISPLAY Board - • : Uses unleaded solder. • See Page 35 for Circuit Boards Location. IC705 IC701 1 12 2 1 8 9 1 2 5 37 50 49 46 6 1 13 1 7 3 1 7 1 14 1 6 3 1 6 3 A701 A702 A704 A705 A706 ND701 R707 R708 CN706 CN713 CN717 C701 C713 S701 S703 S704 S705 S708 S717 S712 S722 JW702 JW703 JW704 JW707 JW708 JW709 D702 C763 D703 JW710 C767 C769 JW723 C779 JW725 JW726 JW736 JW740 CNP701 JW741 CNP702 JW743 CNP711 CNP718 R801 A703 L701 ND701 CN707 C706 C708 C712 W762 C715 S702 S715 JW701 JW705 C759 JW706 C761 C764 JW711 JW712 JW713 JW714 JW715 JW717 JW718 JW719 JW720 JW721 JW722 JW724 JW727 JW728 JW729 JW730 JW731 10 1 JW732 JW733 JW734 JW735 JW737 JW738 JW739 JW742 JW744 JW746 JW747 JW748 JW749 JW752 JW753 JW754 JW755 JW756 JW757 8 1 1 4 2 3 5 B E B E C B E B E B E B E B E B E B E B E C B E B E R800 CL701 CL705 CL706 JL802 JL803 JL804 JL809 JL811 JL812 CL737 Q701 Q702 Q703 Q704 Q705 Q706 Q709 Q710 Q711 Q712 Q714 FB701 R701 R706 R709 R710 R711 R712 R713 R714 R715 R716 R717 R720 R721 R724 R728 R730 R731 R733 C707 C710 C711 C714 R758 JL701 JL702 JL705 JL711 JL714 JL715 JL716 JL717 JL718 JL719 R772 R773 R775 R777 JL720 R779 JL721 JL722 JL723 JL724 JL725 JL726 JL727 R780 R781 R782 R787 JL730 JL738 R791 JL739 R794 JL740 3 3 1 1 JL741 C760 D704 C765 JL749 D705 C766 D706 D707 D709 JL751 JL752 JL753 D710 JL754 JL757 JL758 JL759 C775 C776 C778 JL760 JL761 JL762 JL763 JL764 C780 JL765 JL766 JL767 JL768 JL774 JL776 JL777 JL780 JL790 JL791 JL792 JL793 JL794 JL728 JL796 JL797 JL798 JL799 CL702 JL800 JL801 JL805 JL806 JL807 JL808 JL810 JL813 CL738 Q713 L702 R704 R718 R719 R722 R727 R729 R734 R735 R736 C702 C703 C704 C705 C709 C716 R757 R759 JL706 JL707 JL708 R774 JL729 R783 R786 R788 JL732 C754 R790 R792 C768 R793 JL748 D708 JL750 C770 JL755 C771 JL756 JL769 JL770 JL771 JL772 JL773 JL775 JL778 JL779 JL781 JL782 JL783 JL784 JL785 JL786 JL787 JL788 JL789 DISPLAY BOARD 1-875-889- 11 (11) AS AR AU MICON BOARD CN2015 MICON BOARD CN2016 MIC BOARD CN718 (NC) MEMORY/ ENTER MULTE CHANNEL DECORDING FLUORESCENT INDICATOR TUBE DIMMER 2CH/ A.DIRECT A. F. D. MUSIC MOVIE Digital Cinema sound T701 DC/DC CONVERTER INPUT SELECTOR ROTARY ENCODER AT MICON BOARD CN2017 MASTER VOLUME ROTARY ENCODER INPUT MODE DISPLAY (FOR SERVCE) AX VIDEO 2 BOARD CN722 AY JOG BOARD CN104 AV LED BOARD CN719 AW POWER SWITCH BOARD CN2 A B C D E 1 2 3 4 5 6 7 8 9 10 11 12 S701 – 705, 708, S711, 712 Ref. No. Location • Semiconductor Location Ref. No. Location Ref. No. Location D702 C-6 D703 B-9 D704 D-4 D705 E-4 D706 D-4 D707 D-4 D708 D-5 D709 A-10 D710 E-4 IC701 C-12 IC705 A-11 Q701 C-7 Q702 C-6 Q703 C-7 Q704 C-7 Q705 D-4 Q706 D-3 Q709 C-7 Q710 C-7 Q711 C-8 Q712 A-9 Q713 A-10 Q714 B-9 (Page 66) (Page 66) (Page 74) (Page 66) (Page 57) (Page 57) (Page 57) (Page 66) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 65 65 6-39. SCHEMATIC DIAGRAM - DISPLAY Board - • See Page 61 for Waveforms. 21 CN718 BOARD AU MIC POWER SWITCH BOARD CN2 AW LED BOARD CN719 AV CN2016 BOARD (3/3) AS MICON BOARD CN722 AX VIDEO2 JOG CN104 AY BOARD MICON CN2015 BOARD AR (3/3) CN2017 BOARD (3/3) AT MICON 3.3 3.4 3.4 7 3.4 3.4 3.4 0 2.8 0 1.9 0.6 0 5 5 0 0 0 0 0 2.8 2.7 3.6 5 5 5 2.7 2 3.3 0 3.3 3.3 -0.4 11.1 -0.4 11.1 50V 10 C708 MA113-(TX) D704 MA113-(TX) D705 Q706 2SD1624T-TD-E Q705 2SD1624T-TD-E JL724 JL723 JL722 JL730 JL721 JL720 JL719 JL718 JL732 JL728 JL729 JL717 JL741 JL706 JL711 JL714 JL708 JL707 JL716 JL715 JL727 JL702 JL701 JL738 JL739 JL740 JL725 JL726 JL705 JL748 C713 200V 3900p RT1N141C-TP-1 Q701 RT1N141C-TP-1 Q709 1 12 3 4 5 6 7 8 9 10 11 CNP702 12P 2 Vcc 100p C760 4.7k R777 6.2k R780 47k R781 33p C765 33p C766 56k R782 47k R775 47k R774 4.7k R783 2200p C768 FB701 4.7k R786 4.7k R787 1k R788 JL749 JL750 RT1P141C-TP-1 Q712 10k R790 10k R791 100k R792 100k R793 RT1N141C-TP-1 Q714 1 2 3 1k R794 JL751 2 1 3 JL753 1 2 3 4 5 6 7 8 9 9P CN717 GND STB +3.3V RESET NC SO SI NC MD2 NC JL754 JL752 1k R724 1k R730 2.2k R729 2.2k R728 4.7k R727 100 R709 100 R713 100 R711 100 R710 100 R718 100 R714 100 R712 100 R715 1k R733 1k R735 330 R701 470 R758 2.2k R772 10k R759 100 R757 10 R706 100 R717 100 R716 5.6k R731 1k R736 27k R734 R722 10k 330 R719 R704 0 2200p C775 2200p C776 0.1 C778 50V C715 100 CL705 CL701 CL702 CL737 CL738 50V 1 C767 50V 1 C759 0.1 C709 16V 47 C701 16V 47 C706 50V 10 C761 0.022 C771 10k R779 MAZ8062GMLS0 D708 25V 100 C712 0.1 C754 10V 100 C779 0.1 C780 10uH L702 ND701 CL706 1 2 3 4 5 6 7 7P CN707 14P CNP711 13P CNP701 DD+12V SIRCS DD_GND FL_GND ZONE 2/3_POW N.P STB_3.3V STB_5V LED_DCS LED_MLT LED_MLT_DI M LED_STB 1 3 4 5 6 7 7P CN706 0.1 C707 C714 0.1 0.1 C716 MA2J1110GLS0 D709 2SC3052EF-T1-LEF Q710 ISA1235AC1TP-1EF Q711 C704 100p 1 3 4 5 6 6P CNP718 2 1 3 4 5 6 6P CN713 JL755 JL756 JL757 JL758 JL759 JL760 JL761 JL762 JL763 JL764 JL765 JL766 JL767 JL768 JL769 JL770 JL771 JL772 JL773 JL774 JL775 JL776 JL777 JL778 JL779 JL780 JL781 JL782 JL783 JL784 JL785 JL786 JL787 JL788 JL789 JL791 JL792 JL793 JL794 JL796 JL797 JL798 JL799 JL800 JL801 JL802 JL803 JL804 JL805 D703 SELT5E23C-S TP15 220 R721 150 R720 D702 SELS5B23C-TP15 C705 100p C703 100p C702 100p 16V 22 C763 16V 22 C764 JL806 JL807 JL808 JL809 JL810 JL811 JL812 JL813 6.8k R800 100 R773 FLUORESCENT INDICATOR TUBE MEMORY/ENTER S708 DISPLAY BOARD 5 6 7 8 4 3 2 1 NJM2904M(TE2) IC705 MIC AMP IC705 VCC OUT GND L GND 2 NC V3.OPT (NC) DGND (NC) D3.3V (NC) GND LED_GREEN NC LED_RED POW-SW-DET STB_3.3V 16V 47 C769 0.1 C770 FL_BK SI FL_LAT NC FL_CLK FL_DATA MIC AD1 AD2 AD3 AD-GND SO GND MIC LOUT 2 NC AD-GND H.P GND +7V 1 3 4 5 6 7 8 9 10 11 12 13 14 VOL_2 2 NC VOL_1 FUNC_2 FUNC_1 TUNE_2 TUNE_1 TONE_2 TONE_1 HP_IN POW-SW_DET D3.3V DGND V3_OPT 10 11 12 1 13 3 NC 2 4 5 6 7 8 9 MA113-(TX) D706 MA113-(TX) D707 2 3 5 6 8 7 1 10 4 9 1SR154-400TE-25 D710 JL790 L701 100uH T701 DC/DC CONVERTER MULTI CHANNEL D703 DECORDING Digital Cinema D702 Sound S711 DISPLAY S712 INPUT MODE C710 2200p C711 2200p Q705, 706 OSC ROTARY ENCODER S715 3 1 2 INPUT SELECTOR ROTARY ENCODER S722 MASTER VOLUME 2.2 R708 2.2 R707 1 5 6 2 37 38 39 40 41 42 43 44 45 46 49 50 A.F.D. S703 DIMMER S705 2CH/A.DIRECT S704 MOVIE S702 MUSIC S701 RT1N141C-TP-1 LED DRIVE Q702 RT1N141C-TP-1 LED DRIVE Q704 RT1N141C-TP-1 DIMMER CONTROL Q703 NJL24H400A IC701 REMOTE CONTROL RECEIVER IC701 LED DRIVE Q701, 711 LED DRIVE Q709, 710 MUTING CONTROL SWITCH Q712, 714 2SC3052EF-T1-LEF MUTING Q713 10 R801 (FOR SERVICE) J 4 B 16 6 9 11 D 15 H L 10 K 17 3 5 12 C F 18 M 1 19 E 8 G 14 A 2 13 I 7 TONE +/-2 TONE +/-1 TUNE +/-2 TUNE +/-1 ADGND AD3 NC GND (Page 67) (Page 67) (Page 75) (Page 60) (Page 67) (Page 67) (Page 60) (Page 60) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 66 66 6-40. PRINTED WIRING BOARDS - PANEL Section - • : Uses unleaded solder. • See Page 35 for Circuit Boards Location. IC706 1 3 1 7 1 11 A708 JW857 JW858 JW859 CN721 CN722 CN728 A004 ET702 JW822 JW823 C757 C758 ET703 RV103 RV104 1 1 7 1 S113 S114 S115 JW101 CN104 (STANDBY (RED)) (POWER ON (GRN)) 1 4 CN719 D701 3 1 ET791 CN718 A003 3 3 8 1 4 5 R810 C811 C812 C815 C816 C819 C820 C822 C823 JL814 JL815 JL816 JL817 JL821 JL822 JL823 JL827 JL828 JL829 JL830 JL831 JL832 JL834 JL835 JL836 JL837 JL838 JL839 JL840 JL842 JL843 JL850 JL851 R768 R769 C762 C810 C813 C817 C818 JL818 JL819 JL820 JL824 JL825 JL826 JL844 JL846 JL847 JL848 JL849 JL852 JL853 JL854 JL855 R763 R764 R765 R776 JL001 JL002 JL003 JL004 JL005 JL006 R112 R113 C104 C105 C106 C107 JL008 JL009 JL010 JL020 JL021 JL022 JL023 1-875-892- 11 (11) VIDEO2 BOARD JOG BOARD 1-875-896- 11 (11) 1-875-893- LED BOARD 1-875-890- 11 (11) MIC BOARD AUDIO VIDEO VIDEO 2 IN/ POTABLE AV IN L R PHONES J703 J702 (CHASSIS) (CHASSIS) (CHASSIS) X Q AK AX MAIN BOARD CN4025 MAIN BOARD CN4001 VIDEO BOARD CN6501 DISPLAY BOARD CN706 S113 – 115 – – – TONE – TUNING TUNING MODE ROTARY ENCODER ROTARY ENCODER SPEAKERS (OFF/A/B/A+B) TONE MODE AY DISPLAY BOARD CN707 ON/STANDBY 11 (11) AV DISPLAY BOARD CNP718 AUTO CAL MIC J701 (CHASSIS) (CHASSIS) AU DISPLAY BOARD CN713 A B C D E F 1 2 3 4 5 6 7 8 9 (Page 64) (Page 52) (Page 46) (Page 46) (Page 64) (Page 64) (Page 64) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 67 67 6-41. SCHEMATIC DIAGRAM - PANEL Section - VIDEO BOARD CN6501 AK AX CN706 BOARD DISPLAY BOARD CN4001 MAIN Q (1/3) BOARD CN4025 MAINX (2/3) CN707 AY DISPLAY BOARD CNP718 AV DISPLAY BOARD BOARD CN713 AU DISPLAY 0 0 0 7 -7 0 0 0 VDD E ET702 ET703 1 2 3 3P CN728 C812 0.1 1k R764 1k R763 R768 47k 0 R810 0 R776 100p C817 75 R765 7P CN722 1 3 4 5 6 7 8 9 10 11 11P CN721 2 JL814 JL815 JL816 JL817 JL818 JL819 JL820 JL821 JL822 JL823 JL830 JL831 JL832 JL834 JL835 JL836 JL844 JL846 JL847 JL848 JL849 JL850 JL851 JL852 JL853 JL854 JL855 (CHASSIS) (CHASSIS) VIDEO2 BOARD 8 7 6 5 4 3 2 1 VEE NJM4565M(TE2) IC706 LINE AMP IC706 E GND VIDEO3V GND 0.1 C823 C820 0.1 C819 0.1 0.1 C818 0.1 C822 JL837 JL838 JL839 820p C816 820p C815 R769 47k C758 10 50V C757 10 50V 1000p C811 1000p C810 JL840 JL842 JL843 0.01 C762 0.01 C813 -7V +7V NC VIDEO2-R A-GND VIDEO2-L MIC-SIGNAL GND HP_L HP-GND HP_R 1 3 4 5 6 7 GND 2 NC MIC LOUT AD-GND H.P GND +7V PHONES J702 VIDEO AUDIO L AUDIO R VIDEO 2 IN/ J703 POTABLE AV IN R112 2.2k R113 2.2k C105 2200p C104 2200p C106 2200p C107 2200p 1 2 3 4 5 6 7 7P CN104 TONE +/- 2 TONE +/- 1 TUNE +/- 2 TUNE +/- 1 ADGND AD3 NC JL001 JL002 JL003 JL004 JL005 JL006 JOG BOARD S115 3 1 2 3 1 2 - TONE + ROTARY ENCODER RV104 - TUNING + ROTARY ENCODER RV103 TONE MODE S114 TUNING MODE S113 SPEAKERS (OFF/A/B/A+B) (POWER ON (GRN)) (STANDBY (RED)) 1 3 4 4P CN719 GND LED_GREEN 2 NC LED_RED JL008 JL009 JL010 LED BOARD ON/STANDBY SML72423C-TP15 D701 ET791 JL020 JL021 JL022 JL023 1 2 3 3P CN718 MIC BOARD (CHASSIS) GND (NC) L GND E AUTO CAL MIC J701 4 B 6 9 11 D 10 3 5 12 C F 1 E 8 G 14 A 2 13 7 (Page 53) (Page 47) (Page 48) (Page 65) (Page 65) (Page 65) (Page 65) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 68 68 6-42. PRINTED WIRING BOARD - SURR SPEAKER Board - • : Uses unleaded solder. • See Page 35 for Circuit Boards Location. 1 6 1 5 1 6 C1501 C1502 C1503 C1504 C1505 RY1501 RY1502 RY1503 R1501 R1502 R1503 R1504 R1505 R1506 R1511 R1514 R1515 R1516 R1517 R1518 R1519 R1526 R1527 R1528 R1529 R1530 LP1502 L1501 L1502 L1503 L1504 L1505 JW1500 JW1502 JW1503 JW1504 JW1505 JW1506 JW1507 JW1508 JW1509 JW1510 JW1511 JW1512 JW1513 JW1514 JW1515 JW1516 JW1517 JW1518 JW1519 JW1520 JW1521 JW1522 JW1523 CN1501 CN1502 CN1503 B E B E B E Q1501 C1506 Q1502 C1507 Q1503 C1508 C1509 D1501 C1526 D1502 C1527 D1503 C1528 C1529 R1507 C1530 R1508 R1509 R1510 R1512 R1513 C1551 CL1501 CL1502 CL1503 CL1504 CL1505 CL1506 CL1507 CL1508 CL1509 CL1510 CL1515 CL1516 CL1517 CL1518 CL1519 CL1520 CL1521 JL1501 CL1522 JL1502 CL1523 JL1503 CL1524 JL1504 CL1525 JL1505 CL1526 JL1506 CL1527 CL1529 CL1530 SURR SPEAKER BOARD 1-875-899- 11 (11) SURROUND BACK R SPEAKERS TB1501 (DA2400ES) TB1503 (DG920) TB1502 (DA2400ES) TB1504 (DG920) SURROUND R SURROUND L SURROUND BACK L SPEAKERS CENTER (CHASSIS) (CHASSIS) (CHASSIS) RY1501 – 1503 -2 -1 S Y AC MAIN BOARD CN605 MAIN BOARD CN603 MAIN BOARD W400, W500, W550, W650, W700 (DA2400ES:AEP,ECE,UK) (DA2400ES:AEP,ECE,UK) (DA2400ES:AEP,ECE,UK) A B C D E 1 2 3 4 5 6 Ref. No. Location • Semiconductor Location D1501 D-1 D1502 D-4 D1503 C-5 Q1501 E-2 Q1502 D-5 Q1503 D-5 (Page 46) (Page 46) (Page 46) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 69 69 6-43. SCHEMATIC DIAGRAM - SURR SPEAKER Board - Y CN605 MAIN BOARD (2/3) MAIN AC (3/3) BOARD MAIN CN603 S (2/3) BOARD 0.1 0.1 0.1 0.7 0.7 0.7 CL1501 CL1502 CL1503 CL1505 CL1506 CL1507 CL1508 CL1509 CL1515 CL1517 CL1518 CL1520 CL1521 CL1522 CL1523 CL1524 CL1525 CL1526 CL1527 4.7 R1517 CL1504 JL1502 JL1503 JL1504 CL1529 1 2 3 4 5 5P CN1502 SBR SBL SR SL C 1 2 3 4 5 6 6P CN1503 C_GND SR_GND SL_GND SBR_GND SBL_GND PH_GND CL1519 CL1530 1 3 4 5 6 6P CN1501 12V (R2) SB_RY 2 NC SLSR_RY C_RY RY_GND CL1516 SURR SPEAKER BOARD C1504 0.022 C1503 0.022 C1501 0.022 C1502 0.022 C1505 0.022 R1504 10 R1503 10 R1502 10 R1501 10 R1505 10 4.7 R1518 L1503 L1504 4.7 R1519 4.7 R1516 L1502 L1501 4.7 R1515 L1505 -1 -2 -1 -2 -1 -2 22 R1511 2SC3052EF-T1-LEF RELAY DRIVE Q1503 2SC3052EF-T1-LEF RELAY DRIVE Q1501 22 R1506 2SC3052EF-T1-LEF RELAY DRIVE Q1502 R1528 10 C1528 2200p R1529 10 C1529 2200p R1526 10 C1526 2200p R1527 10 C1527 2200p R1530 10 C1530 2200p 100p C1509 100p C1507 100p C1508 100p C1506 100p C1551 (DA2400ES: AEP, ECE, UK) (DA2400ES: AEP, ECE, UK) MA2J1110GLS0 D1502 RY1502 10k R1510 JL1505 2.2k R1509 22 R1514 MA2J1110GLS0 D1501 RY1501 10k R1508 JL1506 2.2k R1507 10k R1513 JL1501 2.2k R1512 MA2J1110GLS0 D1503 RY1503 CL1510 - + (CHASSIS) (CHASSIS) SPEAKERS CENTER SURROUND L SURROUND R SURROUND BACK L SURROUND BACK R TB1502 (DA2400ES) TB1504 (DG920) SPEAKERS TB1501 (DA2400ES) TB1503 (DG920) + + - - + + - - 4 B 6 9 11 D 10 3 5 C F 1 E 8 G A 2 7 (Page 48) (Page 49) (Page 48) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 70 70 6-44. PRINTED WIRING BOARD - CIS Board (DA2400ES: US model) - • : Uses unleaded solder. • See Page 35 for Circuit Boards Location. IC861 13 12 1 2 1 6 5 9 10 1 6 1 CNS801 C806 C864 JW4550 JW4551 JW4552 JW4553 JW4554 JW4555 JW4556 JW4557 TP4550 JW4558 TP4551 JW4559 JW4560 JW4561 JW4562 JW4563 JW4564 JW4565 JW4566 JW4567 J861 CN4552 CN4553 RY4551 RY4552 RY4553 RY4554 R4553 R4556 R4559 R4562 B E B E B E B E 1 20 10 11 C805 FB861 JL802 JL803 JL804 JL805 JL806 JL807 JL808 R861 JL809 R862 R863 R864 R865 R866 JL810 JL811 JL812 JL813 JL814 JL817 JL821 JL822 JL823 JL824 C4675 R4651 R4652 R4653 R4654 C865 C866 C867 C868 C869 C870 R4671 R4672 R4673 R4674 JL861 JL862 JL863 JL864 JL868 JL869 JL879 JL885 JL886 JL887 JL888 JL889 JL890 JL891 JL892 JL893 JL894 JL895 JL896 JL897 JL898 JL899 CL4551 CL4552 CL4553 CL4554 CL4555 CL4556 CL4557 CL4558 CL4559 CL4560 CL4561 CL4562 CL4563 CL4564 CL4565 CL4566 CL4567 CL4568 CL4569 CL4570 CL4571 CL4572 CL4573 CL4574 CL4575 CL4576 CL4577 JL900 JL901 C4551 C4552 C4553 C4554 C4555 Q4551 Q4552 Q4553 Q4554 D4551 D4552 D4553 D4554 R4551 R4552 R4554 R4555 R4557 R4558 R4560 R4561 1-875-898- 11 (11) CIS BOARD RY4551 – 4554 -1 -2 (CHASSIS) (CHASSIS) L R FRONT RS-232C L R SURROUND L R SUR BACK PRE OUT SUB WOOFER CENTER J4552 J4551 N1 P1 AM MAIN BOARD CN4027 MAIN BOARD CN4026 MICON BOARD CN2004 A B C 1 2 3 4 5 6 7 (CHASSIS) Ref. No. Location • Semiconductor Location D4551 C-4 D4552 C-5 D4553 C-5 D4554 C-6 IC861 C-1 Q4551 B-4 Q4552 B-5 Q4553 B-5 Q4554 B-6 (Page 57) (Page 46) (Page 46) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 71 71 6-45. SCHEMATIC DIAGRAM - CIS Board (DA2400ES: US model) - • See Page 76 for IC Block Diagrams. CN2004 AM (2/3) BOARD MICON N1 CN4027 MAIN BOARD (1/3) CN4026 P1 (1/3) BOARD MAIN IC B/D 3.3 0 3.3 0 -5.6 3.3 3.3 -5.6 0.7 0 0.7 0 0.7 0 0.7 -5.6 0 0 5.6 3.3 0 R861 100 R862 100 JL808 JL809 JL810 JL811 JL812 JL813 JL814 JL823 JL824 JL861 JL862 JL863 JL864 JL868 JL869 JL817 1 2 3 4 5 6 7 8 9 13P CNS801 JL885 JL886 CL4559 CL4570 CL4566 CL4569 CL4574 CL4565 CL4553 CL4572 CL4567 CL4552 4.7k R4557 10k R4555 CL4568 CL4563 10k R4558 1k R4674 1k R4653 4.7k R4560 CL4562 CL4557 CL4564 1k R4654 CL4556 CL4561 10k R4561 CL4573 1k R4673 4.7k R4551 1k R4672 CL4555 4.7k R4554 CL4551 1k R4651 CL4558 1k R4671 10k R4552 CL4560 1k R4652 CL4571 CL4554 R864 0 R863 0 FB861 R865 10k JL887 JL888 JL889 JL890 JL891 JL892 JL893 JL894 JL895 JL896 JL897 JL898 JL899 JL900 220p C4675 220p C4555 0.1 C4551 0.1 C4552 0.1 C4553 0.1 C4554 C866 0.1 C868 0.1 MA2J1110GLS0 D4551 MA2J1110GLS0 D4552 MA2J1110GLS0 D4553 MA2J1110GLS0 D4554 CL4575 CL4576 CL4577 10P CN4552 RELAY 12V GND C_OUT GND SW_OUT SBL_OUT GND SBR_OUT 6P CN4553 SL_OUT GND SR_OUT L_OUT GND R_OUT CIS BOARD (CHASSIS) (CHASSIS) 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 EN# C1+ V+ C1- C2+ C2- V- DOUT2 RIN2 ROUT2 NC DIN2 DIN1 NC ROUT1 RIN1 DOUT1 GND VCC PWRDOWN# MAX3222IPWR IC861 IC861 1 2 3 4 5 6 7 8 9 10 11 12 13 +12V +12V GND_+12V GND_+12V GND_+12V RX232 TX232 TRG1 SIRCS_OUT SIRCS_IN STB_+5V STB_+3.3V STB_GND 1 2 3 4 5 6 1 3 NC 2 4 5 6 7 8 9 10 RS-232C DRIVER/RECEIVER 2SC3052EF-T1-LEF RELAY DRIVE Q4551 2SC3052EF-T1-LEF RELAY DRIVE Q4552 2SC3052EF-T1-LEF RELAY DRIVE Q4553 2SC3052EF-T1-LEF RELAY DRIVE Q4554 RY4554 -1 -2 -1 -2 -1 -2 -1 -2 RY4553 RY4552 RY4551 10 R4553 10 R4556 10 R4559 10 R4562 RS-232C J861 L R FRONT L R SURROUND L R SUR BACK CENTER SUBWOOFER PRE OUT J4551 PRE OUT J4552 JL901 R866 10k C867 0.1 C869 0.1 0.1 C870 25V 47 C806 0.1 C805 C865 0.1 16V C864 100 4 B 6 9 11 D H 10 3 5 12 C F 1 E 8 G A 2 7 (CHASSIS) (Page 59) (Page 47) (Page 47) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 72 72 6-46. PRINTED WIRING BOARD - PREOUT Board (DA2400ES: AEP, ECE, UK models) - 6-47. SCHEMATIC DIAGRAM - PREOUT Board (DA2400ES: AEP, ECE, UK models) - • : Uses unleaded solder. • See Page 35 for Circuit Boards Location. B E B E B E B E 10 6 1 1 CL4058 CL4073 Q4054 R4060 R4061 CL4054 CL4055 CL4056 CL4057 CL4065 CL4068 CL4069 CL4070 CL4072 CL4074 C4053 C4054 C4055 D4053 D4054 C4154 C4174 R4154 R4174 CN452 R4059 R4062 JW4056 JW4058 JW4059 JW4060 RY4053 RY4054 JW4057 JW4061 CN453 R4053 R4056 JW4052 RY4051 RY4054 A401 JW4051 JW4053 JW4054 JW4055 CL4060 CL4061 C4051 C4052 Q4051 Q4053 R4051 R4052 R4054 R4055 C4175 CL4051 CL4052 CL4053 CL4059 CL4062 CL4063 CL4064 CL4066 CL4067 CL4071 Q4052 D4051 D4052 R4057 R4058 C4151 C4152 C4153 C4171 C4172 C4173 R4151 R4152 R4153 R4171 R4172 R4173 1-875-891- 11 (11) PREOUT BOARD (CHASSIS) (CHASSIS) L R FRONT L R SURROUND L R SUR BACK SUB WOOFER CENTER PRE OUT RY4051-4054 -1 -2 J4052 J4051 P2 N2 MAIN BOARD CN4026 MAIN BOARD CN4027 A B C D 1 2 3 4 BOARD (1/3) MAIN N2 CN4027 (1/3) CN4026 P2 MAIN BOARD 0 0.7 0 0.7 0 0.7 0 0.7 CL4051 CL4052 CL4053 CL4054 CL4055 CL4056 CL4057 CL4058 CL4059 CL4060 CL4061 CL4062 CL4063 CL4064 CL4065 CL4066 CL4067 CL4068 CL4069 CL4070 CL4071 1k R4172 1k R4153 1k R4151 1k R4173 1k R4171 1k R4154 1k R4152 1k R4174 100p C4174 100p C4152 100p C4172 100p C4153 100p C4151 100p C4173 100p C4154 100p C4171 1SS355TE-17 D4051 4.7k R4054 1SS355TE-17 D4054 4.7k R4060 10k R4052 4.7k R4057 0.1 C4053 10k R4058 0.1 C4052 0.1 C4051 10k R4061 4.7k R4051 1SS355TE-17 D4052 1SS355TE-17 D4053 0.1 C4054 10k R4055 CL4072 CL4073 CL4074 220p C4175 C4055 220p 1 3 4 5 6 7 8 9 10 10P CN452 RELAY 12V 2 NC GND C_OUT GND SW_OUT SBL_OUT GND SBR_OUT 1 2 3 4 5 6 6P CN453 SL_OUT GND SR_OUT L_OUT GND R_OUT PREOUT BOARD (CHASSIS) (CHASSIS) 2SC3052EF-T1-LEF RELAY DRIVE Q4054 2SC3052EF-T1-LEF RELAY DRIVE Q4053 2SC3052EF-T1-LEF RELAY DRIVE Q4052 2SC3052EF-T1-LEF RELAY DRIVE Q4051 RY4054 -2 -1 -2 -1 -2 -1 -2 -1 RY4053 RY4052 RY4051 10 R4053 10 R4056 10 R4059 10 R4062 L R FRONT L R SURROUND L R SUR BACK CENTER SUBWOOFER PRE OUT J4051 PRE OUT J4052 4 B 6 9 D 3 5 C F 1 E 8 G A 2 7 Ref. No. Location • Semiconductor Location D4051 C-1 D4052 C-2 D4053 C-2 D4054 C-3 Q4051 B-1 Q4052 B-2 Q4053 B-2 Q4054 B-3 (Page 46) (Page 46) (Page 47) (Page 47) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 73 73 6-48. PRINTED WIRING BOARD - DCDC CON Board - • : Uses unleaded solder. • See Page 35 for Circuit Boards Location. 6-49. SCHEMATIC DIAGRAM - DCDC CON Board - • See Page 76 for IC Block Diagrams 2 2 4 4 5 1 1 3 1 3 1 9 1 5 1 5 IC1401 IC1402 IC1403 C1410 D1407 R1431 R1432 L1402 L1403 L1404 JW1401 JW1402 CN1400 C1402 FH1403 C1404 FH1404 C1405 C1406 D1404 D1406 F1405 C1409 C1423 D1405 R1417 R1425 R1427 R1428 R1429 R1430 R1433 R1434 R1435 R1436 L1407 L1408 L1410 C1414 C1415 C1416 H1400 JL1401 JL1402 JL1403 JL1404 JL1405 JL1406 JL1407 JL1408 C1426 C1427 C1430 JW1403 CN1401 CN1402 EB1400 C1411 DCDC CON BOARD 1-875-897- AZ MAIN POWER TRANSFORMER T901 11 (11) (CHASSIS) J V DIGITAL VIDEO BOARD CN3506 MAIN BOARD CN4005 A B C D E F 1 2 3 4 T901 AZ MAIN POWER TRANSFORMER BOARD V CN4005 MAIN (2/3) J DIGITAL (2/4) CN3506 VIDEO BOARD 14.7 6 4.9 2.4 14.7 3.9 0.7 3.5 14.7 3.3 0.7 3.4 16V 1000 C1414 FMB-G16L D1404 16V 1000 C1416 16V 2200 C1415 1k R1429 2.2k R1430 3P CN1400 RB051LA-40TR D1405 100uH L1404 100uH L1403 100uH L1402 100uH L1407 330 R1427 330 R1431 470 R1432 330 R1435 470 R1436 25V 1000 C1406 25V 2200 C1405 25V 1000 C1404 RB051LA-40TR D1407 1 2 3 3P CN1402 +4V GND +6.2V 0.1 C1411 0.1 C1410 0.1 C1409 C1423 2200p 0.1 C1426 0.1 C1427 R1417 22 1k R1433 1.5k R1434 1k R1428 220 R1425 0.1 C1430 1 3 4 5 6 7 8 9 9P CN1401 +14.5V GND+14.5V(RYGND) 2 NC GND(DCDCMAIN) GND(DCDCMAIN) +3.3V GND+3.3V +6.2V GND+6.2V JL1401 JL1402 JL1403 JL1404 JL1405 JL1406 JL1408 JL1407 D6SBN20-7001 D1406 35V 3300 C1402 DCDC CON BOARD 1 VIN SW OUT GND VOS S.S IN SW GND ADJ SS VIN SW OUT GND ADJ SOFT START 2 3 4 5 SI-8050S-LF1101 IC1401 IC1401 +6.2V REGULATOR 1 2 3 4 5 SI-8008HFE IC1402 IC1402 +4V REGULATOR 1 2 3 4 5 SI8008TM-TL IC1403 +3.3V REGULATOR IC1403 1 3 AC24V AC24V 2 NC F1405 6.3AL/250V IC B/D IC B/D IC B/D L1410 L1408 4 B 6 D H 3 5 C F 1 E 8 G A 2 7 Ref. No. Location • Semiconductor Location D1404 D-3 D1405 C-3 D1406 F-2 D1407 C-2 IC1401 D-2 IC1402 D-4 IC1403 C-3 (Page 46) (Page 41) (Page 74) (Page 75) (Page 48) (Page 43) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 74 74 6-50. PRINTED WIRING BOARDS - POWER Section - • : Uses unleaded solder. • See Page 35 for Circuit Boards Location. IC51 B E B E B E B E C54 JL016 JL017 JL018 Q51 Q52 Q53 D56 D57 D61 R51 R53 R54 R55 R61 C58 JL012 JL013 JL014 JL015 Q55 D58 R52 R59 CL1 CL2 CL3 CL4 1 3 E C B 1 6 1 4 CN003 C51 C52 C53 C55 C56 C57 CLP51 Q54 EE51 CNP53 D51 D52 D53 D54 D55 HT51 3 1 1 2 F001 JW1 TH50 R58 R60 FH01 FH02 RY01 R001 C59 11 5 4 1 JS007 JS008 CNP51 CNP54 EB01 EB02 JW2 JW3 C01 1 3 2 1 CN2 SW1 CN1 STANDBY BOARD 1-875-894- 11 (11) 1-875-895- 11 (11) T003(DA2400ES:US/DG920) T002(DA2400ES:AEP,ECE,UK)) 5 4 1 11 5 4 1 11 SW 1 POWER (AC IN) (DG920) (DA2400ES) T002,003 SUB POWER TRANSFORMER (CHASSIS) (CHASSIS) (CHASSIS) (DA2400ES:US/DG920) (DA2400ES:US/DG920) (DA2400ES:AEP,ECE,UK) WA DISPLAY BOARD CNP718 MAIN BOARD CN4024 AB AZ DCDC CON BOARD CN1400 T R MAIN BOARD CN801 MAIN BOARD CN811 T901 MAIN POWER TRANSFORMAR A B C D E F 1 2 3 4 5 6 7 8 9 POWER SWITCH BOARD ~AC INLET Ref. No. Location • Semiconductor Location D51 D-5 D52 D-2 D53 D-2 D54 D-3 D55 D-1 D56 D-2 D57 D-2 D58 B-5 D61 D-4 IC51 D-5 Q51 D-3 Q52 B-5 Q53 D-4 Q54 D-4 Q55 D-4 (Page 46) (Page 64) (Page 46) (Page 46) (Page 73) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 75 75 6-51. SCHEMATIC DIAGRAM - POWER Section - MAIN BOARD (2/3) CN4024 AB DISPLAY AW CNP718 BOARD MAIN BOARD (2/3) T CN801 MAIN BOARD (2/3) R CN811 DCDC CON BOARD AZ CN1400 5 0 0 0.8 11.1 0.6 0.2 15.2 5.7 11.1 0 15.8 15.2 1 3 3P CNP51 L 2 NC N 1 2 2P CNP53 L L 25V 2200 C53 TH50 RT1N241C-TP- 1 Q55 10EDB40-TB5 D54 4700p C55 E EE51 RT1N241C-TP-1 Q53 3.3k R52 10EDB40-TB5 D51 10EDB40-TB5 D55 50V 10 C51 OUT 1 3 2 10k R59 3.3k R58 2SB734-T-34 Q54 JS007 10EDB40-TB5 D53 680 R61 2.2k R54 10k R51 25V 2200 C52 25V 470 C57 22k R53 0.1 C58 10EDB40-TB5 D52 10k R55 JS008 470p C54 MA2J1110GLS0 D56 MA2J1110GLS0 D57 MA2J1110GLS0 D58 MAZ8062GMLS0 D61 JL012 JL013 JL014 JL015 JL016 JL017 6P CNP54 1 4 4P CN003 N L(U 120V, CE 230V) 2 NC 2 NC JL018 (CHASSIS) STANDBY BOARD 1 3 4 5 6 +12V (REG) GND 2 NC STB+5V STOP POWER RY BA05T IC51 IC51 +5V REGULATOR VCC GND 2SC3052EF-T1-LEF AC OFF DETECT Q51 2SC3052EF-T1-LEF RELAY DRIVE Q52 REGULATOR Q53 - 55 4.7 R60 RY01 C01 0.01 250V F901 T4AL/250V (DA2400ES: AEP, ECE, UK) 8A/125V (DA2400ES: US/DG920) 0.01 250V C59 R001 3.3M 1.2W EB01 (CHASSIS) 10 9 3 2 11 1 4 5 8 7 6 T002 SUB POWER TRANSFORMER (DA2400ES: AEP, ECE, UK) (DG920) (DA2400ES) (DA2400ES: US/DG920) 10 9 3 2 11 1 4 5 8 7 6 T003 SUB POWER TRANSFORMER 0.056 C56 (AC IN) CL1 1 3 2 L L NC 3P CN1 CL4 CL3 CL2 2P CN2 POWER SWITCH BOARD 1 2 POW-SW-DET STB_3.3V POWER SW1 T901 MAIN POWER TRANSFORMER 4 B 6 9 11 D 15 H 10 3 5 12 C F 1 E 8 G 14 A 2 13 7 ~AC INLET (Page 48) (Page 48) (Page 48) (Page 73) (Page 65) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 STR-DA2400ES/DG920 76 76 • IC Block Diagrams – DIGITAL Board – IC2208 LC89057W-VF4A-E 38 37 36 23 24 1 2 3 4 5 44 8 9 10 46 17 22 21 20 30 35 25 26 27 28 29 32 33 34 16 45 13 14 15 47 40 41 48 DI 39 CE DO RERR SLRCK SDIN RXOUT RX0 RX1 RX2 RX3 6 DGND 7 DVDD 11 DVDD 12 DGND TMCK/PIO RX4 RX5/V1 RX6/U1 TLRCK/PIO2 RBCK 18 DGND 19 DVDD SBCK RDATA RLRCK DVDD 31 DGND INT DGND DVDD XMCK XOUT XIN EMPHA/UO AUDIO/VO CKST RMCK TBCK/PIO1 LPF AVDD AGND TDATA/PIO3 CL XMODE 42 DGND 43 DVDD TXO/PIOEN MICROCONTROLLER INTERFACE DATA SELECTOR CLOCK SELECTOR INPUT SELECTOR DATA DEMODULATOR & LOCK DETECT MODULATOR & PARALLEL PORT PLL 1/N C bit, U bit 1 2 3 4 5 6 7 8 9 10 16 15 14 13 12 11 SHIFT REGISTER LATCH PARALLEL DATA OUTPUT GND VCC LATCH CLOCK PARALLEL DATA OUTPUT SERIAL DATA INPUT OUTPUT ENABLE SHIFT CLOCK SERIAL DATA OUTPUT RESET QB QC QD QE QF QG QH SQH A QA 14 13 12 11 10 9 8 1 2 3 4 5 6 7 QA QB QC QD A CLEAR VCC QA QB QC QD A CLEAR GND SELECT 111 1A 2 3 4 5 6 7 INPUT INPUT OUTPUT OUTPUT 1A 1B 1Y 2A 2B 2Y 1B 1Y 2A 2B 2Y GND 8 VCC STROBE 16 4A 15 14 13 11 12 11 10 INPUT INPUT OUTPUT OUTPUT G 4B 4Y 3A 4A 4B 4Y 3A 3B 9 3B 3Y 3Y S 6 CLR 7 PR 8 VCC 5 Q R S Q 3 Q 2 D 4 GND 1 CK Q D C CONTROL CIRCUIT BANDGAP REFERENCE + – OVER HEAT & OVER CURRENT PROTECTION 1 VCONT 3 NP 2 GND 4 VOUT 5 VIN DELTA-SIGMA MODULATOR DELTA-SIGMA MODULATOR ANTIALIAS LOW-PASS FILTER ANTIALIAS LOW-PASS FILTER AGND VCC 2 3 VDD DGND 4 5 LRCK 7 REFERENCE � 1/64 DECIMATION FILTER WITH HIGH-PASS FILTER SERIAL INTERFACE & MODE/FORMAT CONTROL FMT 12 VINR 14 VINL 13 MD1 11 MD0 10 DOUT 9 BCK 8 CLOCK & TIMING CONTROL POWER SUPPLY SCKI 6 VREF 1 COMMON 1 INH 2 VEE 3 GND 4 CH 0 7 VCC 8 A 5 LOGIC LEVEL CONVERTER C OUT IN CH 1 6 C OUT IN 1 2 3 4 5 6 7 8 16 15 14 13 12 11 10 9 D3 D2 D1 D0 Y W S C D4 D5 D6 D7 A B D3 D2 D1 D0 Y XY OE GND VCC D4 D5 D6 D7 A B C IC2210 SN74HC595ANS IC2211 TC74VHC393FT (EL) IC2212 TC74VHC157FT (EL) IC2226 TC7WH74FU (TE12R) IC2230 TK11150CSCL-G IC2233 PCM1808PWR IC2236 TC7W53FU (TE12R) IC2237 TC74HC151AF (EL) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 77 SYSTEM CLOCK MANAGER FUNCTION CONTROL INTERFACE SERIAL INPUT INTERFACE 4X/8X OVER SAMPLING DIGITAL FILTER WITH FUNCTION CONTROLLER ENHANCED MULTI- LEVEL DELTA- SIGMA MOJULE ZERO DETECT DAC LPF DAC LPF DAC LPF DAC LPF DAC LPF DAC LPF DAC LPF DAC LPF RST SCKI SCKO BCK TEST VDD DGND DATA1 DATA2 DATA3 ZEROA LRCK 37 38 39 40 42 43 44 45 46 47 48 41 ZERO1/GPO1 ZERO2/GPO2 ZERO3/GPO3 ZERO4/GPO4 ZERO5/GPO5 ZERO6/GPO6 NC NC VOUT6 VOUT5 VOUT4 VOUT3 1 2 3 4 5 6 7 8 9 10 11 12 VOUT2 VOUT1 VCOM VOUT7 AGND5 VCC5 AGND6 VOUT8 AGND4 VCC4 AGND3 VCC3 13 14 15 16 17 18 19 20 21 22 23 24 ML MC MDI MDO ZERO8 DATA4 ZERO7 NC VCC1 AGND1 VCC2 AGND2 36 35 34 33 32 31 30 29 28 27 26 25 CONTROL CIRCUIT BANDGAP REFERENCE + – OVER HEAT & OVER CURRENT PROTECTION 1 VCONT 3 NP 2 GND 4 VOUT 5 VIN – DIGITAL VIDEO Board – IC3205, 3807 TK11118CSCL-G IC3509, 3510 TK11150CSCL-G IC3809 TK11133CSCL-G IC2238 PCM1609APT 1 VC 2 VIN REGULATOR ON/OFF CONTROL THERMAL SHUTDOWN OVER CURRENT PROTECT 4 VOUT 5 ADJ 3 GND IC3209 SI-3011ZFE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 78 CEC_LINE 60 GND 59 VCC 56 ADT2P 58 ADT2N 57 SCL_SINK 38 SELC 21 RXTM 1 SDA_C 2 CCLKN 5 CCLKP 6 SELB 22 GND SELA 24 23 YDT2P 25 VCC 27 YDT2N 26 VCC 7 VCC 43 OUTDIS 42 CEC_RX 41 SCL_A 46 SDA_A 45 HPD_A 44 BDT2N 76 BDT2P 77 VCC 79 VCC 75 HPD_C 80 GND 78 OPACTRLN 19 CEC_TX 20 DDC I/O SCL_C 3 GND 4 DDC I/O HPD OUT SCL_B 64 DDC I/O SDA_B 63 DDC I/O HPD_B 62 HPD OUT CEC I/O T T BDT1N 73 BDT1P 74 GND 72 T BDT0N 70 BDT0P 71 VCC 69 T BCLKN 67 BCLKP 68 GND 66 GND 65 CVCC 61 T T GND 53 ADT1P 55 ADT1N 54 T VCC 50 ADT0P 52 ADT0N 51 T GND 47 ACLKP 49 ACLKN 48 T CDT0N 8 CDT0P 9 GND 10 T CDT1N 11 CDT1P 12 VCC 13 T CDT2N 14 CDT2P 15 GND 16 VCC 17 REXT 18 T BIAS GENERATOR T YDT1P 28 GND 30 YDT1N 29 T YDT0P 31 VCC 33 YDT0N 32 T YCLKP 34 GND 36 GND 37 YCLKN 35 T DDC I/O SDA_SINK 39 DDC I/O HPD_SINK 40 HPD IN HPD OUT DDC I/O DDC I/O EQUALIZER/ OUTPUT PIN ORDER CONTROL MAIN FUNCTION CONTROL DDC/HPD CONTROL 1 VCCA 8 VCCB 7 SCLB 6 SDAB 5 EN 2 SCLA 3 SDAA 4 GND 8 15 16 10 14 13 12 11 9 6 7 4 2 3 1 VCC G2 Y1 Y2 Y3 Y4 Y5 Y6 Y7 Y8 GND A8 A7 A6 A5 A4 A3 A2 G1 A1 20 19 18 17 5 1 VCONT 2 VIN 3 GND 4 VOUT 5 FB VREF – + THERMAL & OVER CURRENT PROTECTION ON/OFF CONTROL 1 G1# 2 A1 3 Y2 4 GND 7 G2# 8 VCC 6 Y1 5 A2 IC3501 CXB1444R-T6 IC3502 PCA9517DP.118 IC3507 TC74VHC541FT(EL) IC3511, 3512 TK73400AU3G0L-C IC3513 TC7WT125FU (TE12R) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 79 P11 11 ALSB/SPI_SS 12 HSYNC 33 VSYNC 32 SFL/MISO 31 P0 34 P1 37 VDD 35 DGND 36 GND_IO 40 RESET 20 SDA/SCLK SCL/MOSI 13 14 P15 18 P14 17 P13 16 P12 15 P6 4 P5 3 P4 2 P2 38 P3 39 P7 5 P8 8 P9 9 P10 10 DGND 7 VDD 6 VDD_IO 1 PVDD 23 VAA 25 AGND 24 DAC 1 28 4:2:2 TO 4:4:4 INPUT DEINTERLEAVE RGB/YCrCb TO YUV MATRIX ADD SYNC ADD BURST ASYNC BYPASS HDTV TEST PATTERN GENERATOR YUV TO YCrCb/RGB YCrCb TO RGB MATRIX 16× FILTER RSET 30 COMP 29 10-BIT D/A CONVERTER 1 SUBCARRIER FREQUENCY LOCK (SFL) VIDEO TIMING GENERATOR REFERENCE AND CABLE DETECT 16×/4× OVERSAMPLING PLL DAC 2 27 10-BIT D/A CONVERTER 2 DAC 3 26 EXT_LF 22 PGND 21 CLKIN 19 10-BIT D/A CONVERTER 3 16× FILTER 4× FILTER SIN/COS DDS BLOCK PROGRAMMABLE LUMINANCE FILTER VBI DATA SERVICE INSERTION PROGRAMMABLE CHROMINANCE FILTER MULTIPLEXER YCrCb PROGRAMMABLE ED/HD FILTERS SHARPNESS AND ADAPTIVE FILTER CONTROL POWER MANAGEMENT CONTROL MPU PORT 1 FBIN 2 IN 3 GND 4 FS0 6 OUT1 5 FS1 8 OUT2 7 VDD OUTPUT BUFFER OUTPUT BUFFER /Q PHASE DETECTOR CHARGE PUMP LOOP FILTER VCO /2 IC3800 ADV7392BCPZ IC3810 CY2302-SXC-1T www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 80 2 L1 1 VEE 3 L2 4 L3 5 L4 6 L_COM1 7 L5 8 L6 9 L_COM2 10 11 L7 12 L_COM3 13 NC 14 ST 15 GND LEVEL SHIFTER LATCH CIRCUIT CONTROL CIRCUIT LATCH CIRCUIT LEVEL SHIFTER 29 R1 30 VDD 28 R2 27 R3 26 R4 25 R_COM1 24 R5 23 R6 22 R_COM2 21 R7 20 19 R_COM3 18 NC 17 DATA 16 CK L_COM4 R_COM4 – MAIN Board – IC403 NJU7311AM (TE2) IC4100 SI-8001FFE IN 1 SW 2 SS 5 ADJ 4 LATCH & DRIVER ERROR AMP COMPARATOR OSCILLATOR RESET OVERCURRENT PROTECTION THERMAL PROTECTION REFERENCE VOLTAGE GND 3 ON/OFF SOFT START PREG + + – – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 81 + − + − + − + − + − + − INPUT ATT + − + − + − + − MICRO CONTROLLER INTERFACE INPUT GAIN CONTROL VOLUME CONTROL 1 2 3 4 5 6 7 8 10 11 12 13 14 15 16 9 18 19 20 21 22 23 24 25 26 27 28 29 30 51 52 53 54 55 56 57 58 59 60 62 63 61 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 31 32 33 34 35 36 37 38 39 41 42 40 44 43 45 46 47 49 48 50 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 LVC RVC CVC SLVC SRVC SBLVC SBRVC SWVC GND LIN1 RIN1 CIN1 SLIN1 SRIN1 SWIN1 SBLIN1 SBRIN1 GND GND SUBR1 SUBL1 INL1 INR1 INL2 INR2 INL3 INR3 INL4 INR4 INL5 INR5 INL6 INR6 INL7 INR7 INL8 INR8 INL9 INR9 ADIFL ADIFR GND GND RECL1 RECR1 RECL2 RECR2 LIN2 RIN2 GND GND GND GND GND GND GND GND GND GND GND GND DGND GND GND AVCC AVEE SUBR2 SUBL2 DATA CLOCK CIN2 SLIN2 SRIN2 SWIN2 SBLIN2 SBRIN2 SRVIN SRIGO SBLVIN SBLIGO SBRVIN SBRIGO SWVIN SWIGO SBROUT SWOUT SROUT SBLOUT COUT SLOUT ROUT LOUT RIGO RVIN CIGO CVIN SLIGO SLVIN LIGO LVIN LIGO LVIN 17 IC404 R2S15206FP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 82 CONT2 CONT2 CONT1 CONT1 CONT1 1 CH1 IN1 2 SW1 4 SW2 24 CH1 OUT 23 PS BIAS 3 CH1 IN2 BIAS 5 CH1 IN3 6 GND 7 V+1 BIAS 11 GND 12 CH2 IN3 BIAS 8 CH2 IN1 9 GND BIAS 10 CH2 IN2 BIAS 75 DRIVER 6dB AMP 22 CH2 OUT 75 DRIVER 6dB AMP 21 V+2 20 CH3 OUT 19 GND 18 V–2 16 V–1 17 CH3 IN1 75 DRIVER 6dB AMP BIAS 15 CH3 IN2 BIAS 13 CH3 IN3 14 GND BIAS CONT2 – VIDEO Board – IC6001, 6104 NJM2586AM 2 3 5 4 6 7 9 8 1 MUTE + VOUT1 – VOUT1 COMP1 MF1 IN1 GND IN2 NF2 COMP2 – VOUT2 + VOUT2 VCC1 VCC2 VEE PROTECTOR BIAS CIRCUIT REG DRIVE PRE DRIVE 11 10 12 13 15 14 DRIVE PRE DRIVE – ACLASS Board – IC400, 500, 600, 700 μPC2581V-S 1 SYNC SEP V-SYNC SEP 2 3 4 5 V IN HD VSS VD VDD 15 VOUT2 16 V+ 14 SW1 75 DRIVER 6dB AMP 75 DRIVER 6dB AMP 11 VOUT3 75 DRIVER 6dB AMP 13 VIN1 12 GND 10 SW2 9 VIN2 3 VIN5 4 SW3 5 VIN4 6 SW4 7 VIN3 2 SW5 1 VOUT1 8 V– IC6101, 6102 LA7213 IC6302 NJM2595M-TE2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 83 1 2 3 4 5 6 7 8 9 10 16 15 14 13 12 11 SHIFT REGISTER LATCH PARALLEL DATA OUTPUT GND VCC LATCH CLOCK PARALLEL DATA OUTPUT SERIAL DATA INPUT OUTPUT ENABLE SHIFT CLOCK SERIAL DATA OUTPUT RESET QB QC QD QE QF QG QH SQH A QA 2 SW1 3 VIN2 4 NC 1 VIN1 8 GND 7 VOUT 6 V+ 5 BIAS 75 Ω DRIVER NC SW 1 2 VIN 2 3 VIN 3 1 MUTE 2 4 VOUT 2 5 GND 2 6 GND 1 7 SW 2 13 VIN 1 12 V- 14 MUTE 1 11 VOUT 1 10 NC 9 V+ 8 1 2 IC6502, 6503 SN74HC595ANS IC6505 NJM2533M (TE2) IC6506 NJM2279M-TE2 1 VC 2 VIN 3 GND 4 VOUT 5 ADJ OCP – + + – + – – DSP Board – IC5015 SI-3011ZD-TL CONTROL CIRCUIT BANDGAP REFERENCE + – OVER HEAT & OVER CURRENT PROTECTION 1 VCONT 3 NP 2 GND 4 VOUT 5 VIN – MICON Board – IC8004 TK11133CSCL-G IC8007 TK11150CSCL-G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 84 1 AUDIO SERIAL PORT POWER SUPPLY BCK SYSTEM CLOCK 2 DATA 3 LRCK 4 DGND 5 NC 6 VCC 15 SERIAL CONTROL PORT ML 14 4x/8x OVERSAMPLING DIGITAL FILTER & FUNCTION CONTROL ENHANCED MULTILEVEL DELTA-SIGMA MODULATOR D/A CONVERTER D/A CONVERTER ZERO DETECT OUTPUT AMP & LOW-PASS FILTER OUTPUT AMP & LOW-PASS FILTER MC SYSTEM CLOCK MANAGER 16 SCK 13 MD 12 ZEROL/NA 11 ZEROR/ZEROA 9 AGND 7 VOUTL 8 VOUTR 10 VCOM THERMAL SHUT DOWN OVER CURRENT PROTECT VDD VCC 2 GND 3 NC 5 OUT 4 CTL 1 – + VREF DRIVER 1 7 8 3 4 5 2 6 1A 3Y 2A GND VCC 1Y 3A 2Y IC8005 PCM1753DBQR IC8006 BA00BC0WFP-E2 IC8017, 8020 TC7W14FU (TE12R) LOGIC 1 INA1 2 INA2 3 INB1 4 INB2 5 INC1 6 INC2 7 IND1 8 IND2 9 INE1 10 INE2 11 INF1 12 INF2 14 OUT1 15 RECB2 16 RECB1 13 OUT2 18 RECA1 19 VCC 20 GND 21 VEE 22 DA 23 CL 24 DGND 17 RECA2 IC8013 BD3842FS-FD2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 85 1 EN 2 C1+ 3 V+ 4 C1– 5 C2+ 6 C2– 7 V– 8 DOUT2 9 RIN2 10 11 ROUT2 NC 14 NC 15 ROUT1 17 DOUT1 18 GND 19 VCC 20 PWRDOWN 16 RIN1 12 DIN2 13 DIN1 POWERDOWN OVER CURRENT PROTECTOR LATCH & DRIVER OVER HEAT PROTECTOR REGULATOR + – + – RESET VREF COMPARATOR ERROR AMP OSC 1 VIN 2 SW OUT 3 GND 4 VOS 5 S.S – CIS Board – IC861 MAX3222IPWR – DCDC CON Board – IC1401 SI-8050S-LF1101 IN 1 SW 2 SS 5 ADJ 4 LATCH & DRIVER ERROR AMP COMPARATOR OSCILLATOR RESET OVERCURRENT PROTECTION THERMAL PROTECTION REFERENCE VOLTAGE GND 3 ON/OFF SOFT START PREG + ++ – – IC1402 SI-8008HFE IC1403 SI8008TM-TL OVER CURRENT PROTECTOR LATCH & DRIVER OVER HEAT PROTECTOR REGULATOR ON/OFF SOFT START + – + – RESET VREF COMPARATOR ERROR AMP OSC 1 VIN 2 SW OUT 3 GND 4 ADJ 5 SOFT START www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 86 • IC Pin Function Description DIGITAL VIDEO BOARD IC3000 M30620FCPGP U5C (HDMI CONTROLLER) Pin No. Pin Name I/O Description 1 to 5 NC O Not used 6 BYTE I External data bus width selection signal input terminal "L": 16 bit Fixed at "L" in this set 7 CNVSS I Processor mode selection signal input terminal "L": single chip mode Fixed at "L" in this set 8, 9 NC O Not used 10 RESET I Reset signal input from the system controller "L": reset 11 XOUT O System clock output terminal (10 MHz) 12 VSS - Ground terminal 13 XIN I System clock input terminal (10 MHz) 14 VCC_3.3V - Power supply terminal (+3.3V) 15 NMI I Non-maskable interrupt signal input terminal Not used 16 to 18 NC O Not used 19 RX_RST O Reset signal output to the HDMI receiver "L": reset 20 RX_INT I Interrupt signal input from the HDMI receiver 21 1444_HPD O Hot plug detection control signal output to the HDMI input selector 22 HPD_IN1 O Hot plug detection control signal output to the HDMI VIDEO 1 IN connector 23 to 26 NC O Not used 27 CSCL O I2C clock signal output to the EEPROM, HDMI receiver and HDMI transceiver 28 CSDA I/O I2C data bus with the EEPROM, HDMI receiver and HDMI transceiver 29 232COUT (VU TX) O Serial data output terminal for RS-232C 30 232CIN (VU RX) I Serial data input terminal for RS-232C 31 CLK 1 I Not used 32 RTS 1 O Not used 33 VUCOM_SDA I/O I2C data bus with the system controller 34 VUCOM_SCL I I2C clock signal input from the system controller 35, 36 EDID_SELA, EDID_SELB O Input data selection signal output terminal 37 to 39 NC O Not used 40 VDAC_RESET O Not used 41 TX_5VPWR O Power supply on/off control signal output terminal for HDM IOUT connector "H": power on 42 TX_RST O Reset signal output to the HDMI transceiver "L": reset 43 TX_INT I Interrupt signal input from the HDMI transceiver 44 to 50 NC O Not used 51 to 53 1444_SELA to 1444_SELC O HDMI input selection signal output to the HDMI input selector 54 1444_OEB O Output enable signal output to the HDMI input selector 55, 56 P5V_SELA, P5V_SELB O HDMI +5V power input selection signal output terminal 57 to 59 NC O Not used 60 VCC_3.3V - Power supply terminal (+3.3V) 61 NC O Not used 62 VSS - Ground terminal 63 NC O Not used 64 NON LPCM O Non-LPCM setting signal output terminal "L": LPCM 65 MUTE O System muting signal output terminal 66 to 90 NC O Not used 91 to 93 MODEL_SW3 to MODEL_SW1 I Model setting terminal 94 AVSS - Ground terminal 95 NC O Not used 96 VREF I Reference voltage (+3.3V) input terminal 97 AVCC - Power supply terminal (+3.3V) 98 to 100 NC O Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 87 DIGITAL VIDEO BOARD IC3506 SII9135CTU (HDMI RECEIVER) Pin No. Pin Name I/O Description 1 to 3 Q10 to Q8 O Serial data output to the HDMI transceiver and video processor 4 IOGND - Ground terminal 5 ODCK O Output data clock signal output to the HDMI transceiver and video processor 6 IOVCC33 - Power supply terminal (+3.3V) 7 to 10 Q7 to Q4 O Serial data output to the HDMI transceiver and video processor 11 CGND - Ground terminal 12 CVCC18 - Power supply terminal (+1.8V) 13 to 16 Q3 to Q0 O Serial data output to the HDMI transceiver 17 IOGND - Ground terminal 18 IOVCC33 - Power supply terminal (+3.3V) 19 DE O Data enable signal output to the HDMI transceiver and video processor 20 HSYNC O Horizontal sync signal output to the HDMI transceiver and video processor 21 VSYNC O Vertical sync signal output to the HDMI transceiver and video processor 22 EVNODD - Not used 23 CGND - Ground terminal 24, 25 CVCC18 - Power supply terminal (+1.8V) 26 CSDA I/O I2C data bus with the HDMI controller, EEPROM and HDMI transceiver 27 CSCL I I2C clock signal input from the HDMI controller 28 DSDA1 I/O I2C data bus with the HDMI VIDEO 1 IN connector and EEPROM 29 DSCL1 I I2C clock signal input from the HDMI VIDEO 1 IN connector 30 R1PWR5V I Power supply voltage (+5V) input from the HDMI VIDEO 1 IN connector 31 IOGND - Ground terminal 32 IOVCC33 - Power supply terminal (+3.3V) 33 DSDA0 I/O I2C data bus with the HDMI input selector and EEPROM 34 DSCL0 I I2C clock signal input from the HDMI input selector 35 R0PWR5V I Power supply voltage (+5V) input from the HDMI connector 36 AGND - Ground terminal 37 AVCC18 - Power supply terminal (+1.8V) 38 AVCC33 - Power supply terminal (+3.3V) 39 R0XC- I TMDS clock (negative) signal input from the HDMI input selector 40 R0XC+ I TMDS clock (positive) signal input from the HDMI input selector 41 AGND - Ground terminal 42 AVCC33 - Power supply terminal (+3.3V) 43 R0X0- I TMDS data (negative) input from the HDMI input selector 44 R0X0+ I TMDS data (positive) input from the HDMI input selector 45 AGND - Ground terminal 46 AVCC33 - Power supply terminal (+3.3V) 47 R0X1- I TMDS data (negative) input from the HDMI input selector 48 R0X1+ I TMDS data (positive) input from the HDMI input selector 49 AGND - Ground terminal 50 AVCC33 - Power supply terminal (+3.3V) 51 R0X2- I TMDS data (negative) input from the HDMI input selector 52 R0X2+ I TMDS data (positive) input from the HDMI input selector 53 AGND - Ground terminal 54 AVCC18 - Power supply terminal (+1.8V) 55 RSVDNC - Not used 56 AVCC33 - Power supply terminal (+3.3V) 57 R1XC- I TMDS clock (negative) signal input from the HDMI VIDEO 1 IN connector 58 R1XC+ I TMDS clock (positive) signal input from the HDMI VIDEO 1 IN connector 59 AGND - Ground terminal 60 AVCC33 - Power supply terminal (+3.3V) 61 R1X0- I TMDS data (negative) input from the HDMI VIDEO 1 IN connector 62 R1X0+ I TMDS data (positive) input from the HDMI VIDEO 1 IN connector 63 AGND - Ground terminal 64 AVCC33 - Power supply terminal (+3.3V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 88 Pin No. Pin Name I/O Description 65 R1X1- I TMDS data (negative) input from the HDMI VIDEO 1 IN connector 66 R1X1+ I TMDS data (positive) input from the HDMI VIDEO 1 IN connector 67 AGND - Ground terminal 68 AVCC33 - Power supply terminal (+3.3V) 69 R1X2- I TMDS data (negative) input from the HDMI VIDEO 1 IN connector 70 R1X2+ I TMDS data (positive) input from the HDMI VIDEO 1 IN connector 71 AGND - Ground terminal 72 AVCC18 - Power supply terminal (+1.8V) 73 IOGND - Ground terminal 74 IOVCC33 - Power supply terminal (+3.3V) 75 MUTEOUT O Audio muting control signal output terminal 76, 77 RSVDNC - Not used 78 SPDIF O S/PDIF signal output to the digital audio interface receiver and HDMI transceiver 79 CGND - Ground terminal 80 CVCC18 - Power supply terminal (+1.8V) 81 to 84 SD0 to SD3 O PCM audio signal output to the HDMI transceiver and DSP 85 WS O L/R sampling clock signal output to the HDMI transceiver, DSP and system controller 86 SCK O Bit clock signal output to the HDMI transceiver and DSP 87 IOGND - Ground terminal 88 IOVCC33 - Power supply terminal (+3.3V) 89 MCLK O Master clock signal output to the HDMI transceiver and DSP 90 CGND - Ground terminal 91 CVCC18 - Power supply terminal (+1.8V) 92 DVCC18 - Power supply terminal (+1.8V) 93 DGND2 - Ground terminal 94 XTALOUT O System clock output terminal (28.322 MHz) 95 XTALIN I System clock input terminal (28.322 MHz) 96 XTALVCC - Power supply terminal (+3.3V) 97 REGVCC - Power supply terminal (+3.3V) 98 RSVDNC - Not used 99 RSVDL - Not used 100 RESET# I Reset signal input from the HDMI controller "L": reset 101 SCDT - Not used 102 INT O Interrupt signal output to the HDMI controller 103 IOGND - Ground terminal 104 IOVCC33 - Power supply terminal (+3.3V) 105 CI2CA - Not used 106 CGND - Ground terminal 107 CVCC18 - Power supply terminal (+1.8V) 108 to 111 Q35 to Q32 O Serial data output to the HDMI transceiver and video processor 112 IOGND - Ground terminal 113 IOVCC33 - Power supply terminal (+3.3V) 114 to 117 Q31 to Q28 O Serial data output to the HDMI transceiver and video processor 118 CGND - Ground terminal 119 CVCC18 - Power supply terminal (+1.8V) 120 to 123 Q27 to Q24 O Serial data output to the HDMI transceiver 124 IOGND - Ground terminal 125 IOVCC33 - Power supply terminal (+3.3V) 126 to 129 Q23 to Q20 O Serial data output to the HDMI transceiver and video processor 130 CGND - Ground terminal 131 CVCC - Power supply terminal (+1.8V) 132 to 135 Q19 to Q16 O Serial data output to the HDMI transceiver and video processor 136 IOGND - Ground terminal 137 IOVCC33 - Power supply terminal (+3.3V) 138 to 141 Q15 to Q12 O Serial data output to the HDMI transceiver 142 CGND - Ground terminal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 89 Pin No. Pin Name I/O Description 143 CVCC18 - Power supply terminal (+1.8V) 144 Q11 O Serial data output to the HDMI transceiver and video processor www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 90 DIGITAL VIDEO BOARD IC3508 SII9134CTU (HDMI TRANSCEIVER) Pin No. Pin Name I/O Description 1 DE I Data enable signal input from the HDMI receiver 2 HSYNC I Horizontal sync signal input from the HDMI receiver 3 VSYNC I Vertical sync signal input from the HDMI receiver 4 SPDIF I S/PDIF signal input from the HDMI receiver 5 MCLK I Master clock signal input from the HDMI receiver 6 to 9 SD3 to SD0 I PCM audio signal input from the HDMI receiver 10 WS I L/R sampling clock signal input from the HDMI receiver 11 SCK I Bit clock signal input from the HDMI receiver 12 CVCC18 - Power supply terminal (+1.8V) 13 GND - Ground terminal 14 IOVCC33 - Power supply terminal (+3.3V) 15 DCLK I Not used 16 DR0 I Not used 17 DL0 I Not used 18 DR1 I Not used 19 DL1 I Not used 20 DR2 I Not used 21 DL2 I Not used 22 DR3 I Not used 23 DL3 I Not used 24 INT O Interrupt signal output to the HDMI controller 25 RESET# I Reset signal input from the HDMI controller "L": reset 26 AGND - Ground terminal 27 EXT_SWG - Not used 28 PVCC1 - Power supply terminal (+1.8V) 29 AGND - Ground terminal 30 TXC- O TMDS clock (negative) output to the HDMI OUT connector 31 TXC+ O TMDS clock (positive) output to the HDMI OUT connector 32 AVCC18 - Power supply terminal (+1.8V) 33 TX0- O TMDS data (negative) output to the HDMI OUT connector 34 TX0+ O TMDS data (positive) output to the HDMI OUT connector 35 AGND - Ground terminal 36 TX1- O TMDS data (negative) output to the HDMI OUT connector 37 TX1+ O TMDS data (positive) output to the HDMI OUT connector 38 AVCC18 - Power supply terminal (+1.8V) 39 TX2- O TMDS data (negative) output to the HDMI OUT connector 40 TX2+ O TMDS data (positive) output to the HDMI OUT connector 41 AGND - Ground terminal 42 PVCC2 - Power supply terminal (+1.8V) 43 AGND - Ground terminal 44 AVCC33 - Power supply terminal (+3.3V) 45 DCCPWR5V I Power supply voltage (+5V) input terminal 46 DSCL O I2C clock signal output to the HDMI OUT connector 47 DSDA I/O I2C data bus with the HDMI OUT connector 48 CSCL I I2C clock signal input from the HDMI controller 49 CSDA I/O I2C data bus with the HDMI controller, EEPROM, and HDMI receiver 50 CI2CA - Not used 51 HPD I Hot plug detection signal input from the HDMI OUT connector 52 TMODE - Not used 53 IOVCC33 - Power supply terminal (+3.3V) 54 GND - Ground terminal 55 VPP18 - Power supply terminal (+1.8V) 56 to 63 D35 to D28 I Serial data input from the HDMI receiver 64 CVCC18 - Power supply terminal (+1.8V) 65 GND - Ground terminal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 91 Pin No. Pin Name I/O Description 66 IOVCC33 - Power supply terminal (+3.3V) 67 to 75 D27 to D19 I Serial data input from the HDMI receiver 76 CVCC18 - Power supply terminal (+1.8V) 77 to 86 D18 to D9 I Serial data input from the HDMI receiver 87 GND - Ground terminal 88 IDCK I Output data clock signal input from the HDMI receiver 89 IOVCC33 - Power supply terminal (+3.3V) 90 to 98 D8 to D0 I Serial data input from the HDMI receiver 99 CVCC18 - Power supply terminal (+1.8V) 100 GND - Ground terminal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 92 DIGITAL VIDEO BOARD IC3601 FLI8638-LF (VIDEO PROCESSOR) Pin No. Pin Name I/O Description A1 NC - Not used A2 MSTR1_SDA O Power detection signal output to the system controller A3 MSTR1_SCL O Busy signal output to the system controller A4, A5 FSDATA1, FSDATA3 I/O Two-way data bus with the SD-RAM A6 FSDQM0 O Data mask signal output to the SD-RAM (upper byte) A7 to A10 FSDATA5, FSDATA7, FSDATA9, FSDATA11 I/O Two-way data bus with the SD-RAM A11 FSDQM1 O Data mask signal output to the SD-RAM (lower byte) A12, A13 FSDATA13, FSDATA15 I/O Two-way data bus with the SD-RAM A14 VDDA18_DLL - Power supply terminal (+1.8V) A15, A16 FSDATA17, FSDATA19 I/O Two-way data bus with the SD-RAM A17 FSDQS2 O Data strobe signal output to the SD-RAM (upper byte) A18 to A21 FSDATA21, FSDATA23, FSDATA25, FSDATA27 I/O Two-way data bus with the SD-RAM A22 FSDQS3 O Data strobe signal output to the SD-RAM (lower byte) A23, A24 FSDATA29, FSDATA31 I/O Two-way data bus with the SD-RAM A25, A26 RPLL_AGND - Ground terminal B1 BDATA0 I Digital video (blue) signal input terminal Not used B2 OCM_UDO_1 O UART communication transfer data output to the system controller B3 OCM_UDI_1 I UART communication transfer data input from the system controller B4, B5 FSDATA0, FSDATA2 I/O Two-way data bus with the SD-RAM B6 FSDQS0 O Data strobe signal output to the SD-RAM (upper byte) B7 to B10 FSDATA4, FSDATA6, FSDATA8, FSDATA10 I/O Two-way data bus with the SD-RAM B11 FSDQS1 O Data strobe signal output to the SD-RAM (lower byte) B12, B13 FSDATA12, FSDATA14 I/O Two-way data bus with the SD-RAM B14 VSSA18_DLL - Ground terminal B15, B16 FSDATA16, FSDATA18 I/O Two-way data bus with the SD-RAM B17 FSDQM2 O Data mask signal output to the SD-RAM (upper byte) B18 to B21 FSDATA20, FSDATA22, FSDATA24, FSDATA26 I/O Two-way data bus with the SD-RAM B22 FSDQM3 O Data mask signal output to the SD-RAM (lower byte) B23, B24 FSDATA28, FSDATA30 I/O Two-way data bus with the SD-RAM B25 RPLL_DGND - Ground terminal B26 XTAL O System clock output terminal (19.6608 MHz) C1 to C3 BDATA3 to BDATA1 I Digital video (blue) signal input terminal Not used C4 FSCKE O Clock enable signal output to the SD-RAM C5 FSCLKN O Clock signal (negative) output to the SD-RAM C6 to C8 FSADDR8 to FSADDR6 O Address signal output to the SD-RAM C9 FSVREF O Reference voltage output to the SD-RAM C10 to C18 FSADDR5, FSADDR12, FSADDR9, FSADDR4, FSADDR11, FSADDR3 to FSADDR0 O Address signal output to the SD-RAM C19 FSVREF O Reference voltage output to the SD-RAM C20, C21 FSBKSEL1, FSBKSEL0 O Bank select signal output to the SD-RAM C22 FSCS1 O Chip select signal output terminal Not used C23 FSWE O Write enable signal output to the SD-RAM C24 FSRAS O Row address strobe signal output to the SD-RAM C25 RPLL_1.8V - Power supply terminal (+1.8V) C26 TCLK I System clock input terminal (19.6608 MHz) D1 to D3 BDATA6 to BDATA4 I Digital video (blue) signal input terminal Not used D4 DDR_2.5V - Power supply terminal (+2.5V) D5 FSCLKP O Clock signal (positive) output to the SD-RAM D6 to D8 DDR_2.5V - Power supply terminal (+2.5V) D9 FSVREFVSS - Ground terminal D10 to D15 DDR_2.5V - Power supply terminal (+2.5V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 93 Pin No. Pin Name I/O Description D16 FSADDR10 O Address signal output to the SD-RAM D17, D18 DDR_2.5V - Power supply terminal (+2.5V) D19 FSVREFVSS - Ground terminal D20 DDR_2.5V - Power supply terminal (+2.5V) D21 FSCS0 O Chip select signal output to the SD-RAM D22, D23 DDR_2.5V - Power supply terminal (+2.5V) D24 FSCAS O Column address strobe signal output to the SD-RAM D25 NC - Not used D26 RPLL_3.3V - Power supply terminal (+3.3V) E1, E2 BDATA9, BDATA8 I Digital video (green) signal input terminal Not used E3 BDATA7 I Digital video (blue) signal input terminal Not used E4 IO_3.3V - Power supply terminal (+3.3V) E23, E24 PD22, PD23 I/O Serial data input from the HDMI receiver and serial data output to the HDMI transceiver and D/A converter (for video section) E25 LVDS_GND - Ground terminal E26 LVDS_3.3V - Power supply terminal (+3.3V) F1 to F3 BDATA12 to BDATA10 I Digital video (green) signal input terminal Not used F4 IO_3.3V - Power supply terminal (+3.3V) F23 to F26 PD18 to PD21 I/O Serial data input from the HDMI receiver and serial data output to the HDMI transceiver and D/A converter (for video section) G1 to G3 BDATA15 to BDATA13 I Digital video (green) signal input terminal Not used G4 IO_3.3V - Power supply terminal (+3.3V) G23 to G26 PD14 to PD17 I/O Serial data input from the HDMI receiver and serial data output to the HDMI transceiver and D/A converter (for video section) H1 to H3 BDATA18 to BDATA16 I Digital video (red) signal input terminal Not used H4 IO_3.3V - Power supply terminal (+3.3V) H23 LVDS_PLL_GND - Ground terminal H24 LVDS_PLL_3.3V - Power supply terminal (+3.3V) H25 LVDS_GND - Ground terminal H26 LVDS_3.3V - Power supply terminal (+3.3V) J1 to J3 BDATA21 to BDATA19 I Digital video (red) signal input terminal Not used J4 IO_3.3V - Power supply terminal (+3.3V) J23, J24 PD12, PD13 I/O Serial data input from the HDMI receiver and serial data output to the HDMI transceiver and D/A converter J25 LVDS_GND - Ground terminal J26 LVDS_3.3V - Power supply terminal (+3.3V) K1 BHREF_DE I Blanking period signal input terminal Not used K2, K3 BDATA23, BDATA22 I Digital video (red) signal input terminal Not used K4 IO_3.3V - Power supply terminal (+3.3V) K10, K11 CORE_1.8V - Power supply terminal (+1.8V) K12 to K15 D_GND - Ground terminal K16, K17 CORE_1.8V - Power supply terminal (+1.8V) K23 to K26 PD8 to PD11 I/O Serial data input from the HDMI receiver and serial data output to the HDMI transceiver and D/A converter L1 IPCLK3 I Clock signal input terminal Not used L2 BVS I Vertical sync signal input terminal Not used L3 BHS I Horizontal sync signal input terminal Not used L4 IO_3.3V - Power supply terminal (+3.3V) L10 D_GND - Ground terminal L11 CORE_1.8V - Power supply terminal (+1.8V) L12 to L15 D_GND - Ground terminal L16 CORE_1.8V - Power supply terminal (+1.8V) L17 D_GND - Ground terminal L23 to L26 PD4 to PD7 I/O Serial data input from the HDMI receiver and serial data output to the HDMI transceiver M1 DIP_CLEAN_HS_OUT O Horizontal sync signal output terminal Not used M2 DIP_EXT_CLAMP - Not used M3 DIP_EXT_COAST - Not used M4 IPCLK2 I Clock signal input terminal Not used M10 to M17 D_GND - Ground terminal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 94 Pin No. Pin Name I/O Description M23 IO_3.3V - Power supply terminal (+3.3V) M24, M25 LVDS_GND - Ground terminal M26 LVDS_3.3V - Power supply terminal (+3.3V) N1 IPCLK0 I Clock signal input terminal Not used N2 DIP_RAW_HS_CS - Not used N3 DIP_AODD - Not used N4 DIP_BODD - Not used N10 to N17 D_GND - Ground terminal N23 to N26 PD0 to PD3 I/O Serial data input from the HDMI receiver and serial data output to the HDMI transceiver P1 to P3 ADATA2 to ADATA0 - Not used P4 IPCLK1 I Clock signal input terminal Not used P10 to P17 D_GND - Ground terminal P23 IO_3.3V - Power supply terminal (+3.3V) P24 DCLK I Output data clock signal input from the HDMI receiver P25 DHS I Horizontal sync signal input from the HDMI receiver P26 DEN I Data enable signal input from the HDMI receiver R1 to R4 ADATA6 to ADATA3 - Not used R10 to R17 D_GND - Ground terminal R23 JTAG_BS_TDI - Not used R24 JTAG_BS_RST - Not used R25 JTAG_BS_TCK - Not used R26 DVS I Vertical sync signal input from the HDMI receiver T1 to T4 ADATA10 to ADATA7 - Not used T10 D_GND - Ground terminal T11 CORE_1.8V - Power supply terminal (+1.8V) T12 to T15 D_GND - Ground terminal T16, T17 CORE_1.8V - Power supply terminal (+1.8V) T23 IO_3.3V - Power supply terminal (+3.3V) T24 JTAG_BS_TMS - Not used T25 JTAG_BS_TDO - Not used T26 GPIO_44 - Not used U1 to U4 ADATA14 to ADATA11 - Not used U10, U11 CORE_1.8V - Power supply terminal (+1.8V) U12 to U15 D_GND - Ground terminal U16, U17 CORE_1.8V - Power supply terminal (+1.8V) U23, U24 PWM1, PWM2 - Not used U25 PPWR - Not used U26 PBIAS - Not used V1 to V4 ADATA18 to ADATA15 - Not used V23 IO_3.3V - Power supply terminal (+3.3V) V24 PWM0 - Not used V25 SLAVE_SDA - Not used V26 SLAVE_SCL - Not used W1 to W4 ADATA22 to ADATA19 - Not used W23 OCM_INT1 - Not used W24 OCM_TIMER1 - Not used W25 OCM_UDI_0 - Not used W26 ODM_UDO_0 - Not used Y1 AVS - Not used Y2 AHS - Not used Y3 AHREF_DE - Not used Y4 ADATA23 - Not used Y23 IO_3.3V - Power supply terminal (+3.3V) Y24 OCM_INT2 - Not used Y25 VGA1_SDA - Not used Y26 VGA1_SCL - Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 95 Pin No. Pin Name I/O Description AA1 NC - Not used AA2 to AA4 DGND_ADC - Ground terminal AA23 MSTR0_SDA I/O Two-way data bus with the EEPROM AA24 MSTR0_SCL O Serial clock signal output to the EEPROM AA25 VGA0_SDA - Not used AA26 VGA0_SCL - Not used AB1 A1P I Video signal (PR/CR) input from the video input selector (for component video signal) AB2 SV1P - Not used AB3 AGND_ADC - Ground terminal AB4 ADC_1.8V - Power supply terminal (+1.8V) AB23 IO_3.3V - Power supply terminal (+3.3V) AB24 IRO - Not used AB25 MSTR2_SDA I/O Not used AB26 MSTR2_SCL O Not used AC1 C1P I Video signal input (Y) from the video input selector (for component video signal) AC2 B1P I Video signal (PB/CB) input from the video input selector (for component video signal) AC3 AGND_ADC - Ground terminal AC4, AC5 ADC_1.8V - Power supply terminal (+1.8V) AC6 AGND_ADC - Ground terminal AC7 VOUT2 - Not used AC8 AGND_ADC - Ground terminal AC9 LBADC_3.3V - Power supply terminal (+3.3V) AC10 LBADC_IN4 - Not used AC11 LBADC_GND - Ground terminal AC12 AVSIN_DATA - Not used AC13 EXTOSD_HS - Not used AC14 IO_3.3V - Power supply terminal (+3.3V) AC15 OCMADDR18 O Address signal output to the ﬂ ash memory AC16 IO_3.3V - Power supply terminal (+3.3V) AC17 OCMADDR11 O Address signal output to the ﬂ ash memory AC18 IO_3.3V - Power supply terminal (+3.3V) AC19 OCMADDR4 O Address signal output to the ﬂ ash memory AC20 IO_3.3V - Power supply terminal (+3.3V) AC21 OCMDATA13 I/O Two-way data bus with the ﬂ ash memory AC22 IO_3.3V - Power supply terminal (+3.3V) AC23 OCMDATA6 I/O Two-way data bus with the ﬂ ash memory AC24 OCM_CS2N O Chip select signal output terminal Not used AC25 OCN_RE_N O Read enable signal output to the ﬂ ash memory AC26 OCN_WE_N O Write enable signal output to the ﬂ ash memory AD1 AN - Not used AD2 AGND_ADC - Ground terminal AD3 to AD5 ADC1_3.3V - Power supply terminal (+3.3V) AD6, AD7 ADC2_3.3V - Power supply terminal (+3.3V) AD8 AGND_ADC - Ground terminal AD9 RESET I Reset signal input from the system controller "L": reset AD10 LBADC_IN3 - Not used AD11 LBADC_RETURN - Not used AD12 AVSIN_WORDSEL - Not used AD13 EXTOSD_VS - Not used AD14 AVSOUT_DATA - Not used AD15 to AD20 OCMADDR19, OCMADDR15, OCMADDR12, OCMADDR8, OCMADDR5, OCMADDR1 O Address signal output to the ﬂ ash memory AD21 to AD23 OCMDATA14, OCMDA- TA10, OCMDATA7 I/O Two-way data bus with the ﬂ ash memory AD24 ROM_CS_N O Chip enable signal output to the ﬂ ash memory www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 96 Pin No. Pin Name I/O Description AD25, AD26 OCM_CS0N, OCM_CS1N O Chip select signal output terminal Not used AE1 SV2P - Not used AE2 B2P I Video signal input terminal Not used AE3 AGND_ADC - Ground terminal AE4 SV3P - Not used AE5 B3P I Video signal input terminal Not used AE6 AGND_ADC - Ground terminal AE7 SV4P - Not used AE8 BN2 - Not used AE9 AGND_ADC - Ground terminal AE10, AE11 LBADC_IN2, LBADC_IN6 - Not used AE12 AIP_RAW_VS - Not used AE13 AVSOUT_SCL - Not used AE14 AVSOUT_WORDSEL - Not used AE15 to AE20 OCMADDR20, OCMADDR16, OCMADDR13, OCMADDR9, OCMADDR6, OCMADDR2 O Address signal output to the ﬂ ash memory AE21 to AE26 OCMDATA15, OCMDATA11, OCMDATA8, OCMDATA2 to OCMDATA0 I/O Two-way data bus with the ﬂ ash memory AF1 A2P I Video signal input terminal Not used AF2 C2P I Video signal input terminal Not used AF3 BN - Not used AF4 A3P I Video signal (CVBS) input from video input selector (for component video signal) AF5 C3P I Video signal input terminal Not used AF6 CN - Not used AF7 AN2 - Not used AF8 CN2 - Not used AF9 SVN - Not used AF10, AF11 LBADC_IN1, LBADC_IN5 - Not used AF12 AIP_RAW_HS_CS - Not used AF13 EXTOSD_CLK - Not used AF14 AVSIN_SCL - Not used AF15 to AF20 OCMADDR21, OCMADDR17, OCMADDR14, OCMADDR10, OCMADDR7, OCMADDR3 O Address signal output to the ﬂ ash memory AF21 OCMADDR0 O Address signal output terminal Not used AE22 to AE26 OCMDATA12, OCMDATA9 OCMDATA5 to OCMDATA3 I/O Two-way data bus with the ﬂ ash memory www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 97 DSP BOARD IC5021 D790E002BZDH300 (DSP) Pin No. Pin Name I/O Description A1 VSS - Ground terminal A2 DVDD - Power supply terminal (+3.3V) (for IO) A3 AFSX0 O L/R sampling clock signal output to the D/A converter A4 ACLKX0 O Bit clock signal output to the D/A converter A5 ACLKR0 I Bit clock signal input from the digital audio interface receiver and HDMI receiver A6 AXR0[14]/AXR2[1] I PCM audio signal input from the HDMI receiver A7 VSS - Ground terminal A8 AXR0[11]/AXR1[2] I PCM audio signal input from the A/D converter A9 AXR0[9]/AXR1[4]/ SPI1_SIMO I/O Not used A10 VSS - Ground terminal A11 AXR0[6]/SPI1_ENA# I/O Not used A12 AXR0[4] I/O Not used A13, A14 AXR0[2], AXR0[0] O PCM audio signal output to the D/A converter A15 DVDD - Power supply terminal (+3.3V) (for IO) A16 VSS - Ground terminal B1 DVDD - Power supply terminal (+3.3V) (for IO) B2 UHPI_HBE[3]# I Not used B3 AHCLKR0/AHCLKR1 I/O Not used B4 AFSR0 I L/R sampling clock signal input from the digital audio interface receiver and HDMI receiver B5 to B7 AXR0[15]/AXR2[0], AXR0[13]/AXR1[0], AXR0[12]/AXR1[1] I PCM audio signal input from the HDMI receiver B8 AXR0[10]/AXR1[3] I PCM audio signal input from the digital audio interface receiver B9 AXR0[8]/AXR1[5]/ SPI1_SOMI I/O Not used B10 AXR0[7]/SPI1_CLK I/O Not used B11 AXR0[5]/SPI1_SCS# I/O Not used B12, B13 AXR0[3], AXR0[1] O PCM audio signal output to the D/A converter B14 SPI0_SOMI O Serial data output to the system controller B15 SPI0_SIMO I Serial data input from the system controller B16 DVDD - Power supply terminal (+3.3V) (for IO) C1 AMUTE0 O Not used C2 AHCLKX0/AHCLKX2 I Master clock signal input from the digital audio interface receiver and HDMI receiver C3 UHPI_HD[23] I/O Not used C4 to C6 UHPI_HBE[2]# to HPI_HBE[0] I Not used C7 UHPI_HDS[2]# I/O Not used C8 UHPI_HCS# I/O Not used C9 UHPI_HAS# I/O Not used C10 UHPI_HCNTL[1] I/O Not used C11 AFSX2 I Error signal input from the digital audio interface receiver, HDMI receiver and HDMI controller C12 AFSR2 I PCM audio data input from the digital audio interface receiver C13 ACLKR2 I/O Not used C14 AHCLKR2 I/O Not used C15 SPI0_SCS# I Chip select signal input from the system controller C16 SPI0_CLK I Serial data transfer clock signal input from the system controller D1 AHCLKX1 I/O Not used D2 AMUTE1 O Not used D3 UHPI_HD[22] I/O Not used D4, D5 DVDD - Power supply terminal (+3.3V) (for IO) D6 UHPI_HRDY# I Not used D7 UHPI_HDS[1]# I/O Not used D8 UHPI_HRW I Not used D9 UHPI_HCNTL[0] I Not used D10 AMUTE2/HINT# O Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 98 Pin No. Pin Name I/O Description D11 ACLKX2 O Interrupt signal output to the system controller D12, D13 DVDD - Power supply terminal (+3.3V) (for IO) D14 EM_WAIT I Not used D15 EM_OE# O Not used D16 SPI0_ENA# I Chip enable signal input from the system controller E1 ACLKR1 I Bit clock signal input from the digital audio interface receiver and HDMI receiver E2 ACLKX1 O Bit clock signal output to the D/A converter E3 UHPI_HD[21] I/O Not used E4 DVDD - Power supply terminal (+3.3V) (for IO) E5 VSS - Ground terminal E6 to E11 CVDD - Power supply terminal (+1.26V) (for core) E12 VSS - Ground terminal E13 DVDD - Power supply terminal (+3.3V) (for IO) E14 UHPI_HD[8] I/O Not used E15 EM_CS[2]# O Not used E16 EM_RW O Not used F1 AFSR1 I L/R sampling clock signal input from the digital audio interface receiver and HDMI receiver F2 AFSX1 O L/R sampling clock signal output to the D/A converter F3, F4 UHPI_HD[19], UHPI_HD[20] I/O Not used F5 to F12 VSS - Ground terminal F13, F14 UHPI_HD[10], UHPI_HD[9] I/O Not used F15 EM_CS[0]# O Chip select signal output to the SD-RAM F16 EM_RAS# O Row address strobe signal output to the SD-RAM G1 VSS - Ground terminal G2 RESET# I Reset signal input from the system controller "L": reset G3, G4 UHPI_HD[17], UHPI_HD[18] I/O Not used G5 CVDD - Power supply terminal (+1.26V) (for core) G6 to G11 VSS - Ground terminal G12 CVDD - Power supply terminal (+1.26V) (for core) G13, G14 UHPI_HD[12], UHPI_HD[11] I/O Not used G15 EM_BA[0] O Bank address signal output to the SD-RAM G16 VSS - Ground terminal H1 UHPI_HD[16] I/O Not used H2 CLKIN I Not used H3 VSS - Ground terminal H4 UHPI_HD[31] I/O Not used H5 CVDD - Power supply terminal (+1.26V) (for core) H6 to H11 VSS - Ground terminal H12 CVDD - Power supply terminal (+1.26V) (for core) H13, H14 UHPI_HD[14], UHPI_HD[13] I/O Not used H15 EM_A[10] O Address signal output to the SD-RAM H16 EM_BA[1] O Bank address signal output to the SD-RAM J1 OSCVSS - Ground terminal for oscillator J2 OSCIN I System clock input terminal (25 MHz) J3 OSCOUT O System clock output terminal (25 MHz) J4 OSCVDD - Power supply terminal for oscillator J5 CVDD - Power supply terminal (+1.26V) (for core) J6 to J11 VSS - Ground terminal J12 CVDD - Power supply terminal (+1.26V) (for core) J13 UHPI_HD[15] I/O Not used J14 DVDD - Power supply terminal (+3.3V) (for IO) J15, J16 EM_A[1], EM_A[0] O Address signal output to the SD-RAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 99 Pin No. Pin Name I/O Description K1 VSS - Ground terminal K2 PLLHV - Power supply terminal (+3.3V) (for PLL) K3 TMS I Test mode selection signal input terminal (for JTAG) K4 TRST# I Test reset signal input terminal (for JTAG) K5 CVDD - Power supply terminal (+1.26V) (for core) K6 to K11 VSS - Ground terminal K12 CVDD - Power supply terminal (+1.26V) (for core) K13, K14 UHPI_HD[0], UHPI_HD[1] I/O Not used K15 EM_A[2] O Address signal output to the SD-RAM K16 VSS - Ground terminal L1 TDI I Test data input terminal (for JTAG) L2 to L4 UHPI_HD[30] to UHPI_HD[28] I/O Not used L5 to L12 VSS - Ground terminal L13, L14 UHPI_HD[3], UHPI_HD[4] I/O Not used L15, L16 EM_A[4], EM_A[3] O Address signal output to the SD-RAM M1 EMU[0]# I/O Emulation terminal M2 TDO O Test data output terminal (for JTAG) M3 UHPI_HD[27] I/O Not used M4 DVDD - Power supply terminal (+3.3V) (for IO) M5 VSS - Ground terminal M6 to M11 CVDD - Power supply terminal (+1.26V) (for core) M12 VSS - Ground terminal M13 DVDD - Power supply terminal (+3.3V) (for IO) M14 UHPI_HD[2] I/O Not used M15, M16 EM_A[6], EM_A[5] O Address signal output to the SD-RAM N1 EMU[1]# I/O Emulation terminal N2, N3 UHPI_HD[25], UHPI_HD[26] I/O Not used N4 EM_D[22] I/O Two-way data bus with the SD-RAM N5 DVDD - Power supply terminal (+3.3V) (for IO) N6 to N11 EM_D[18], EM_D[16], EM_D[30], EM_D[29], EM_D[27], EM_D[25] I/O Two-way data bus with the SD-RAM N12 DVDD - Power supply terminal (+3.3V) (for IO) N13, N14 UHPI_HD[5], UHPI_HD[6] I/O Not used N15, N16 EM_A[8], EM_A[7] O Address signal output to the SD-RAM P1 TCK I Test clock signal input terminal (for JTAG) P2 UHPI_HD[24] I/O Not used P3 to P7 EM_D[21] to EM_D[19], EM_D[17], EM_D[31] I/O Two-way data bus with the SD-RAM P8 DVDD - Power supply terminal (+3.3V) (for IO) P9 to P11 EM_D[28], EM_D[26], EM_D[24] I/O Two-way data bus with the SD-RAM P12 EM_A[12] O Address signal output terminal Not used P13 EM_DQM[2] O Byte enable signal output to the SD-RAM P14 UHPI_HD[7] I/O Not used P15 EM_A[11] O Address signal output terminal Not used P16 EM_A[9] O Address signal output to the SD-RAM R1 DVDD - Power supply terminal (+3.3V) (for IO) R2 EM_D[23] I/O Two-way data bus with the SD-RAM R3 EM_CAS# O Column address strobe signal output to the SD-RAM R4 EM_DQM[0] O Byte enable signal output to the SD-RAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 100 Pin No. Pin Name I/O Description R5 to R13 EM_D[6], EM_D[4], EM_D[2], EM_D[1], EM_D[15], EM_D[13], EM_D[12], EM_D[10], EM_D[8] I/O Two-way data bus with the SD-RAM R14 EM_CLK O Clock signal output to the SD-RAM R15 EM_DQM[3] O Byte enable signal output to the SD-RAM R16 DVDD - Power supply terminal (+3.3V) (for IO) T1 VSS - Ground terminal T2 DVDD - Power supply terminal (+3.3V) (for IO) T3 EM_WE# O Write enable signal output to the SD-RAM T4 to T6 EM_D[7], EM_D[5], EM_D[3] I/O Two-way data bus with the SD-RAM T7 VSS - Ground terminal T8, T9 EM_D[0], EM_D[14] I/O Two-way data bus with the SD-RAM T10 VSS - Ground terminal T11, T12 EM_D[11], EM_D[9] I/O Two-way data bus with the SD-RAM T13 EM_DQM[1] O Byte enable signal output to the SD-RAM T14 EM_CKE O Clock enable signal output to the SD-RAM T15 DVDD - Power supply terminal (+3.3V) (for IO) T16 VSS - Ground terminal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 101 MICON BOARD IC8003 F2602E-01-TR (XM RECEIVER) Pin No. Pin Name I/O Description 1 LSOPTXRX - Not used 2 VSS - Ground terminal 3 SCTXOUT O Serial data output to the system controller 4 VDD - Power supply terminal (+3.3V) 5 SCRXIN I Serial data input from the system controller 6 VSS - Ground terminal 7 COMMSEL I Command mode selection signal input terminal Not used 8 VDD - Power supply terminal (+3.3V) 9 XIRQ O Interrupt request signal output terminal Not used 10 VSS - Ground terminal 11 XRESET I Reset signal input from the system controller "L": reset 12 SLAVESL I Master/slave mode selection signal input terminal "L": master mode, "H": slave mode Fixed at "L" in this set 13 COMRXDIG - Not used 14 COMTXDIG - Not used 15 COMTXEN - Not used 16 VSS - Ground terminal 17 VDD - Power supply terminal (+3.3V) 18 COMRXP I XM receiver differential signal (positive) input from the XM connector 19 COMRXM I XM receiver differential signal (negative) input from the XM connector 20 VDD - Power supply terminal (+3.3V) 21 VSS - Ground terminal 22 COMTXM O XM transmitter differential signal (negative) output to the XM connector 23 COMTXP O XM transmitter differential signal (positive) output to the XM connector 24, 25 VSS - Ground terminal 26 OSCOUT O System clock output terminal (45.1584 MHz) 27 VDD - Power supply terminal (+3.3V) 28 OSCIN I System clock input terminal (45.1584 MHz) 29 VSS - Ground terminal 30 TEST - Not used 31 VSS - Ground terminal 32 HSDPDATA - Not used 33 VDD - Power supply terminal (+3.3V) 34 HSDPCLK - Not used 35 VSS - Ground terminal 36 HSDPEN - Not used 37 I2SDATA O I2S digital audio data output to the D/A converter (for XM section) 38 VSS - Ground terminal 39 I2SSCLK O I2S bit clock signal output to the D/A converter (for XM section) 40 VDD - Power supply terminal (+3.3V) 41 I2SLRCLK O I2S L/R sampling clock signal output to the D/A converter (for XM section) 42 VSS - Ground terminal 43 I2SOCLK O I2S over sample clock signal output to the D/A converter (for XM section) 44 VSS - Ground terminal 45 SAIICLK - Not used 46 VDD - Power supply terminal (+3.3V) 47 SAIIDATA - Not used 48 SAIIEN - Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 102 MICON BOARD IC8014 MB91F467RAPMC-GE1 (SYSTEM CONTROLLER) Pin No. Pin Name I/O Description 1 VSS - Ground terminal 2 POW-SW_DET I POWER switch input terminal 3 SIRIUS_PWR_ENABLE O Sirius power detection signal output to the SIRIUS socket (DA2400ES: US model only) 4 to 7 NO USE O Not used 8 EVOL_CLK O Serial data transfer clock signal output to the electrical volume 9 EVOL_DATA O Serial data output to the electrical volume 10 PREOUT_RY O Relay drive signal (for preout (DA2400ES only)) and (for subwoofer (DG920 only)) output terminal "H": relay on 11, 12 VCC3_(3.3V) - Power supply terminal (+3.3V) 13 VSS_(GND) - Ground terminal 14 C_1 - External capacitor connection terminal for internal regulator 15 2ND_RY O Relay drive signal (for 2nd zone preout) output terminal Not used 16 BRAVIA _SEL O TV IN/PHONO IN selection signal output terminal "L": PHONO IN, "H": TV IN 17 HP_RY O Relay drive signal (for headphone) output terminal "H": relay on 18 SB_RY O Relay drive signal (for surround back) output terminal "H": relay on 19 SR_RY O Relay drive signal (for surround) output terminal "H": relay on 20 C_RY O Relay drive signal (for center) output terminal "H": relay on 21 SP_B_RY O Relay drive signal (for front B) output terminal "H": relay on 22 SP_A_RY O Relay drive signal (for front A) output terminal "H": relay on 23 4/8_RY O Relay drive signal (for speaker impedance 4/8 ohm selection) output terminal "L": 4 ohm, "H": 8 ohm 24 LED_DCS O LED drive signal output terminal for Digital Cinema Sound indicator "H": LED on 25 LED_MLT O LED drive signal output terminal for MULTI CHANNEL DECODING indicator "H": LED on 26 LED_MLT_DIM O Dimmer control signal output terminal for MULTI CHANNEL DECODING indicator 27 LED_STB O LED drive signal output terminal for ON/STANDBY indicator "L": green LED on (power on mode), "H": red LED on (standby mode) 28, 29 NO USE O Not used 30 TRG-1 O Trigger signal output terminal Not used 31 to 34 NO USE O Not used 35 MIC_ON O Microphone muting on/off control signal output terminal "H": muting on 36 VCC3_(3.3V) - Power supply terminal (+3.3V) 37 C_2 - External capacitor connection terminal for internal regulator 38 VSS_(GND) - Ground terminal 39 X0_ (CLOCK_IN) I Main system clock input terminal (4 MHz) 40 X1_(CLOCK_OUT) O Main system clock output terminal (4 MHz) 41 VSS_(GND) - Ground terminal 42 X0A_ (SUB_CLOCK_ IN) I Sub system clock input terminal Not used 43 X1A_(SUB_CLOCK_ OUT) O Sub system clock output terminal Not used 44 VCC3_(3.3V) - Power supply terminal (+3.3V) 45 VSS_(GND) - Ground terminal 46 VOL_2 I Jog dial pulse input from the rotary encoder (B phase input) (for MASTER VOLUME) 47 VOL_1 I Jog dial pulse input from the rotary encoder (A phase input) (for MASTER VOLUME) 48 FUNC_2 I Jog dial pulse input from the rotary encoder (B phase input) (for INPUT SELECTOR) 49 FUNC_1 I Jog dial pulse input from the rotary encoder (A phase input) (for INPUT SELECTOR) 50 TUNE_2 I Jog dial pulse input from the rotary encoder (B phase input) (for TUNING) 51 TUNE_1 I Jog dial pulse input from the rotary encoder (A phase input) (for TUNING) 52 TONE_2 I Jog dial pulse input from the rotary encoder (B phase input) (for TONE) 53 TONE_1 I Jog dial pulse input from the rotary encoder (A phase input) (for TONE) 54 HP_IN I Headphone plug insert detection signal input terminal "H": headphone plug is inserted 55 DA_MD0 I Serial data input from the D/A converter (for audio section) 56 DA_LATCH O Serial data latch pulse signal output to the D/A converter (for audio section) 57 VCC3_(3.3V) - Power supply terminal (+3.3V) 58 VSS_(GND) - Ground terminal 59 SYSTEM_MUTE O System muting on/off control signal output terminal Not used 60 DAC_MUTE O Muting control signal output terminal 61 DIR_DATA0 I Audio serial data input from the digital audio interface receiver 62 DIR_XMODE O Reset signal output to the digital audio interface receiver "L": reset www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 103 Pin No. Pin Name I/O Description 63 DIR_CE O Chip enable signal output to the digital audio interface receiver 64 DIR_DO I Serial data input from the digital audio interface receiver 65 DIR_ERROR I PLL lock error signal and data error ﬂ ag input from the digital audio interface receiver 66 DIR_CKST I Clock selection signal input from the digital audio interface receiver 67 D595_LAT O Serial data latch pulse signal output to the data decoder (for audio) 68 D595_OE O Output enable signal output to the data decoder (for audio) 69 COM1_CLK O Serial data transfer clock signal output to the digital audio interface receiver, data decoder (for audio section) and D/A converter (for audio section) 70 COM1_DATA O Serial data output to the digital audio interface receiver, data decoder (for audio section) and D/A converter (for audio section) 71 SF_DSP_CS_CTL O Hold signal output to the serial ﬂ ash 72 SFLASH_CE O Chip enable signal output to the serial ﬂ ash 73 VCC3_(3.3V) - Power supply terminal (+3.3V) 74 VSS_(GND) - Ground terminal 75 SPI0_CE O Chip enable signal output to the DSP 76 DSP_RESET O Reset signal output to the DSP "L": reset 77 SPI0_SCS O Chip select signal output to the DSP 78 DA_RESET O Reset signal output to the D/A converter (for audio section) "L": reset 79 to 81 NO USE O Not used 82 SEL_DATA O Serial data output to the audio input selector 83 SEL_CLK O Serial data transfer clock signal output to the audio input selector 84 XM_POW O Power supply on/off control signal output terminal for XM section "H": power on (DA2400ES/DG920: US model only) 85 XM_LAT O Serial data latch pulse signal output to the D/A converter (for XM section) (DA2400ES/DG920: US model only) 86 TUN_TUNED I Tuned detection signal input from the tuner (FM/AM) 87 TUN_LAT O Serial data latch pulse signal output to the tuner (FM/AM) 88 VSS_(GND) - Ground terminal 89 VCC3_(3.3V) - Power supply terminal (+3.3V) 90 TUN_DO I Serial data input from the tuner (FM/AM) 91 TUN_DATA O Serial data output to the tuner (FM/AM) 92 TUN_CLK O Serial data transfer clock signal output to the tuner (FM/AM) 93 RDS_DATA I RDS serial data input from the tuner (FM/AM) (DA2400ES: AEP, Continental European, East European, Russian and UK models only) 94 DMPORT_DET I Digital media port adapter connection detection signal input terminal "H": digital media port adapter is connected 95 HDMI_RESET O Reset signal output to the HDMI controller "L": reset 96 HDMI_ERROR I HDMI audio error signal input terminal 97 NO USE O Not used 98 to 100 AD-KEY1 toAD-KEY3 I Front panel key input terminal (A/D input) 101 CEC_M/DV O CEC serial data output to the HDMI connector 102 C_MONI_MUTE O Component video monitor out muting on/off control signal output to the video switch (for component video signal) "L": muting on 103 VERSION I Destination setting terminal 104 COM2_DATA I Serial data output to the audio input selector, data decoder (for video section) and D/A converter (for XM section) 105 COM2_CLK O Serial data transfer clock signal output to the audio input selector, data decoder (for video section) and D/A converter (for XM section) 106 V595_LAT O Serial data latch pulse signal output to the data decoder (for video section) 107 V595_OE O Output enable signal output to the data decoder (for video section) 108 M_MUTE O Composite video monitor out muting on/off control signal output to the video switch (for component video signal) "L": muting on 109 VC_MUTE O Component video muting on/off control signal output to the video input selector (for component video signal) "L": muting on 110 V_DET I CVBS video signal detection input terminal 111 COMPO_DET I Component video signal detection input terminal 112 DAC_SCL O Serial data transfer clock signal output to the D/A converter (for video section) 113 DAC_SDA O Serial data output to the D/A converter (for video section) 114 AVSS/AVRL (ANALOG GND A/D) - Ground terminal (for A/D converter) 115 AVCC3(3.3V A/D) - Power supply terminal (+3.3V) (for A/D converter) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 104 Pin No. Pin Name I/O Description 116 AVRH (STANDARD PS A/D) I Reference voltage (+3.3V) input terminal (for A/D converter) 117 HDMI_SDA I/O I2C data bus with the HDMI controller 118 HDMI_SCL O I2C clock signal output to the HDMI controller 119 SIRCS-IN I SIRCS signal input from the remote control receiver 120 NO USE O Not used 121 CEC_DV/M I CEC serial data input from the HDMI connector 122 NO USE O Not used 123 ZONE_SEL I Zone selection signal input terminal Not used 124 VIDEO_DAC_RESET O Reset signal output terminal for the D/A converter (for video section) "L": reset 125 VIDEO_DAC_SDA I Power detection signal input from the video processor 126 RST_TRG O Reset signal output terminal for the system controller "L": reset 127 MD3 - Mode setting terminal Fixed at "L" in this set 128 MD2 I Serial data input terminal 129, 130 MD1, MD0 - Mode setting terminal Fixed at "L" in this set 131 INITX I System reset signal input from the reset signal generator "L": reset For several hundreds msec. after the power supply rises, "L" is input, then it changes to "H" 132 VSS_(GND) - Ground terminal 133 VCC5_(5V) - Power supply terminal (+3.3V) 134 RS232C_MIN I Serial data input from the RS-232C connector 135 RS232C_MOUT O Serial data output to the RS-232C connector 136 FLI_RESET O Reset signal output to the ﬂ ash memory and video processor "L": reset 137 XM_XM/M I Serial data input from the XM receiver (DA2400ES/DG920: US model only) 138 XM_M/XM O Serial data output to the XM receiver (DA2400ES/DG920: US model only) 139 XM_RESET O Reset signal output to the XM receiver "L": reset (DA2400ES/DG920: US model only) 140 FLI_TX I UART communication transfer data input from the video processor 141 FLI_RX O UART communication transfer data output to the video processor 142 FLI_BUSY I Busy signal input from the video processor 143 SPI0_MISO I Serial data input from the serial ﬂ ash and DSP 144 SPI0_MOSI O Serial data output to the serial ﬂ ash and DSP 145 SPI0_CLK O Serial data transfer clock signal output to the serial ﬂ ash and DSP 146 VSS_(GND) - Ground terminal 147 VCC5_(5V) - Power supply terminal (+3.3V) 148 SIRIUS_TX I Serial data input from the SIRIUS socket (DA2400ES: US model only) 149 SIRIUS_RX O Serial data output to the SIRIUS socket (DA2400ES: US model only) 150 FL_CLR O Blanking period signal output to the ﬂ uorescent indicator tube 151 FL_LAT O Serial data latch pulse signal output to the ﬂ uorescent indicator tube 152 FL_DATA O Serial data output to the ﬂ uorescent indicator tube 153 FL_CLK O Serial data transfer clock signal output to the ﬂ uorescent indicator tube 154 DMUART_DM/M I Serial data input from the DMPORT connector 155 DMUART_M/DM O Serial data output to the DMPORT connector 156 HDMI_VSYNC I Vertical sync signal input terminal Not used 157 DAC_CLK_SEL O Clock control signal output to the frequency multiplier for D/A converter (for video section) 158 to 160 NO USE O Not used 161 VSS_(GND) - Ground terminal 162 VCC5_(5V) - Power supply terminal (+3.3V) 163 NO USE O Not used 164 DSP_INT I Interrupt signal input from the DSP 165 RDS_CLK I RDS serial data transfer clock signal input from the tuner (FM/AM) (DA2400ES: AEP, Continental European, East European, Russian and UK models only) 166, 167 232C-SEL1, 232C-SEL2 O Data selection signal output terminal Not used 168 FSRATE1 I L/R sampling clock signal input from the digital audio interface receiver or HDMI receiver 169 FUNC_LAT O Serial data latch pulse signal output to the audio input selector 170 STOP I AC off detection signal input terminal "L": AC off 171 POW_RY O Relay drive signal (for main power) output terminal "H": relay on 172 PROTECTOR I Protect detection signal input terminal 173 NO USE - Not used 174 EEPROM_SDA I/O Two-way data bus with the EEPROM 175 EEPROM_SCL O Serial data transfer clock signal output to the EEPROM 176 VCC5_(5V) - Power supply terminal (+3.3V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 105 STR-DA2400ES/DG920 SECTION 7 EXPLODED VIEWS 1 3-286-654-01 LID (BLACK) 1 3-286-654-11 LID (SILVER) 2 2-580-630-01 SCREW, +BVST 4X8 (for BLACK) 2 7-685-881-04 SCREW +BVTT 4X8 (S) (for SILVER) 3 4-227-843-03 SCREW (TP), FLAT HEAD (for BLACK) 3 4-227-843-31 SCREW (TP), FLAT HEAD (for SILVER) 4 3-286-852-11 CASE (BLACK) 4 3-286-852-51 CASE (SILVER) 5 1-828-589-11 WIRE (FLAT TYPE) (13 CORE) (DA2400ES: US) 6 A-1442-423-A CIS BOARD, COMPLETE (DA2400ES: US) 7 3-701-748-00 CLAMP 8 1-828-953-11 WIRE (FLAT TYPE) (9 CORE) (DA2400ES: US/DG920) 8 1-828-963-11 WIRE (FLAT TYPE) (11 CORE) (DA2400ES: AEP, ECE, UK) 9 1-693-728-11 TUNER (FM/AM) (DA2400ES: US/DG920) 9 1-693-737-11 TUNER (FM/AM) (DA2400ES: AEP, ECE, UK) J861 1-815-737-11 CONNECTOR, (D) SUB 9P (RS-232C) (DA2400ES: US) #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark Note: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine ser- vice. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not sup- plied. • Color Indication of Appearance Parts Ex- ample: KNOB, BALANCE (WHITE) . . . (RED) ↑ ↑ Parts Color Cabinet’s Color • Abbreviation CND : Canadian model ECE : Continental European, East European and Russian models • Color Variation BLACK : ALL models SILVER : AEP, UK, ECE models 7-1. CASE SECTION Les composants identiﬁ és par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spéciﬁ é. The components identiﬁ ed by mark 9 con- tain conﬁ dential information. Strictly follow the instructions whenever the components are repaired and/or replaced. Les composants identiﬁ és par la marque 9 contiennent des informations conﬁ den- tielles. Suivre scrupuleusement les instructions chaque fois qu’un composant est remplacé et / ou réparé. The components identiﬁ ed by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number speciﬁ ed. (DA2400ES: US) (DG920) (DA2400ES) (DA2400ES: US) front panel section #1 #1 #1 #1 #1 #1 front panel section DIGITAL VIDEO board section not supplied not supplied J861 � � � � � � � � � � � � � � � � � � � � � � � � � (DA2400ES: AEP, ECE, UK) not supplied (PREOUT board) � � � � � � � � � � � 1 2 3 4 5 6 7 7 7 7 7 8 9 1 2 3 supplied with J861 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 106 STR-DA2400ES/DG920 7-2. FRONT PANEL SECTION (DA2400ES) 51 X-2188-787-1 KNOB (VOL) ASSY (BLACK) 51 X-2189-679-1 KNOB (VOL) ASSY (SILVER) 52 X-2190-020-1 KNOB MENU ASSY (BLACK) 52 X-2190-021-1 KNOB MENU ASSY (SILVER) 53 A-1443-659-A FRONT PANEL ASSY (US) 53 A-1443-660-A FRONT PANEL ASSY (BLACK) (AEP, ECE, UK) 53 A-1527-478-A FRONT PANEL ASSY (SILVER) (AEP, ECE, UK) 54 4-942-568-41 EMBLEM (NO.5), SONY (for BLACK) 54 4-942-568-61 EMBLEM (NO.5), SONY (for SILVER) 55 3-113-929-01 BUTTON (POWER-A13) (BLACK) 55 3-113-929-11 BUTTON (POWER-A13) (SILVER) 56 3-087-053-01 +BVTP2.6 (3CR) 57 3-077-331-21 +BV3 (3-CR) 58 A-1441-434-A DISPLAY BOARD, COMPLETE RV103 1-418-817-11 ENCODER, ROTARY (– TUNING +) RV104 1-418-817-11 ENCODER, ROTARY (– TONE +) S715 1-418-817-31 ENCODER, ROTARY (INPUT SELECTOR) S722 1-418-725-41 ENCODER, ROTARY (12 TYPE) (MASTER VOLUME) #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 not supplied not supplied 52 52 53 54 55 56 56 56 56 56 56 56 57 57 58 not supplied (MIC board) not supplied (VIDEO2 board) not supplied (POWER SWITCH board) not supplied (LED board) not supplied (JOG board) supplied with S722 supplied with S715 supplied with RV103 supplied with RV104 not supplied not supplied RV103 #1 RV104 S715 S722 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 107 STR-DA2400ES/DG920 7-3. FRONT PANEL SECTION (DG920) 101 2-661-142-01 VOLUME KNOB 102 X-2190-020-1 KNOB MENU ASSY 103 X-2188-389-1 FRONT PANEL ASSY (DG920: US) 103 X-2188-390-1 FRONT PANEL ASSY (DG920: CND) 104 4-977-358-01 CUSHION 105 3-286-651-02 BUTTON, POWER 106 3-087-053-01 +BVTP2.6 (3CR) 107 3-077-331-21 +BV3 (3-CR) 108 A-1441-434-A DISPLAY BOARD, COMPLETE RV103 1-418-817-11 ENCODER, ROTARY (– TUNING +) RV104 1-418-817-11 ENCODER, ROTARY (– TONE +) S715 1-418-817-31 ENCODER, ROTARY (INPUT SELECTOR) S722 1-418-725-41 ENCODER, ROTARY (12 TYPE) (MASTER VOLUME) #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 101 not supplied not supplied 102 102 103 104 104 105 106 106 106 106 106 106 107 107 108 not supplied (MIC board) not supplied (VIDEO2 board) not supplied (POWER SWITCH board) not supplied (LED board) not supplied (JOG board) supplied with S722 supplied with S715 supplied with RV103 supplied with RV104 not supplied not supplied RV103 #1 RV104 S715 S722 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 108 STR-DA2400ES/DG920 151 A-1441-449-A SURR SPEAKER BOARD, COMPLETE (DG920) 151 A-1442-425-A SURR SPEAKER BOARD, COMPLETE (DA2400ES: US) 151 A-1442-453-A SURR SPEAKER BOARD, COMPLETE (DA2400ES: AEP, ECE, UK) 9 152 A-1441-458-A DIGITAL VIDEO BOARD, COMPLETE (for SERVICE) 153 A-1441-442-A VIDEO BOARD, COMPLETE (DA2400ES: US/DG920) 153 A-1559-013-A VIDEO BOARD, COMPLETE (DA2400ES: AEP, ECE, UK) 154 1-500-386-11 FILTER, CLAMP (FERRITE CORE) 155 3-704-515-51 SCREW (BV/RING) (DA2400ES) 155 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 (DG920) 156 1-500-082-11 CLAMP, SLEEVE FERRITE (DA2400ES: AEP, ECE, UK) 157 3-701-748-00 CLAMP #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 #2 7-685-871-01 SCREW +BVTT 3X6 (S) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 7-4. DIGITAL VIDEO BOARD SECTION � � � � � � � � � � � � � � � � � � � 151 152 153 154 157 156 155 not supplied not supplied not supplied not supplied back panel section not supplied not supplied not supplied not supplied not supplied not supplied 157 #1 #1 #1 #1 #1 #1 #1 #1 #2 (DA2400ES) (DA2400ES: AEP, ECE, UK) (DA2400ES) (DG920) (DG920) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 109 STR-DA2400ES/DG920 7-5. BACK PANEL SECTION 201 A-1441-438-A STANDBY BOARD, COMPLETE (DA2400ES: US/DG920) 201 A-1442-081-A STANDBY BOARD, COMPLETE (DA2400ES: AEP, ECE, UK) 202 A-1536-195-A ACLASS BOARD, COMPLETE (DA2400ES: AEP, ECE, UK) 202 A-1536-196-A ACLASS BOARD, COMPLETE (DA2400ES: US/DG920) 203 A-1441-455-A MICON BOARD, COMPLETE (DG920) 203 A-1442-428-A MICON BOARD, COMPLETE (DA2400ES: US) 203 A-1442-455-A MICON BOARD, COMPLETE (DA2400ES: AEP, ECE, UK) 204 A-1439-165-A DSP BOARD, COMPLETE 205 A-1441-453-A DIGITAL BOARD, COMPLETE (DG920) 205 A-1442-427-A DIGITAL BOARD, COMPLETE (DA2400ES: US) 205 A-1537-487-A DIGITAL BOARD, COMPLETE (DA2400ES: AEP, ECE, UK) 206 1-500-386-11 FILTER, CLAMP (FERRITE CORE) 0 207 1-821-082-21 INLET, AC 2P (-AC INLET) (DA2400ES) 208 2-580-644-01 SCREW, +KTP2 3X8 (DA2400ES) 209 3-704-515-51 SCREW (BV/RING) (DA2400ES) 210 4-947-010-01 SCREW, FEEDER FIXED 211 4-966-267-12 BUSHING (FBS001), CORD (DG920) 0 212 1-783-820-11 CORD, POWER (DG920) 213 3-701-748-00 CLAMP 0 F001 1-532-504-33 FUSE (T4AL/250V) (DA2400ES: AEP, ECE, UK) 0 F001 1-533-311-12 FUSE, GLASS CYLINDRICAL (DIA.5) (8A/125V) (DA2400ES: US/DG920) #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 #2 7-685-871-01 SCREW +BVTT 3X6 (S) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark (DA2400ES) (DA2400ES: AEP, ECE, UK) (DG920) (US) (US) a a a b b b c c c d d d e e e f f f g g h h h i i i 201 202 213 203 204 205 206 206 207 208 209 210 210 211 212 not supplied not supplied F001 chassis section not supplied not supplied not supplied not supplied #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #2 not supplied (A-CLASS SUPPORT A board) not supplied (A-CLASS SUPPORT B board) not supplied (MICON DIGITAL CONN board) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 110 STR-DA2400ES/DG920 7-6. CHASSIS SECTION 251 4-249-675-01 +BV SUMITITE S 4X6 ROUND 252 A-1441-448-A DCDC CON BOARD, COMPLETE 253 3-905-609-01 SCREW (TRANSISTOR) (DG920) 253 3-905-609-13 SCREW (TRANSISTOR) (DA2400ES) 254 A-1441-431-A MAIN BOARD, COMPLETE (DG920) 254 A-1442-418-A MAIN BOARD, COMPLETE (DA2400ES: US) 254 A-1442-450-A MAIN BOARD, COMPLETE (DA2400ES: AEP, ECE, UK) 255 X-4953-448-1 FOOT ASSY (DG920) 256 X-4955-348-1 FOOT ASSY (DA2400ES) 257 1-500-082-11 CLAMP, SLEEVE FERRITE (DA2400ES: AEP, ECE, UK) 258 3-701-748-00 CLAMP 0 F803 1-532-506-33 FUSE (T6.3AL/250V) (DA2400ES: US/DG920) 0 F803 1-533-949-33 FUSE, CYLINDRICAL (TIME LAG) (T8AL/250V) (DA2400ES: AEP, ECE, UK) 0 F804 1-532-506-33 FUSE (T6.3AL/250V) (DA2400ES: US/DG920) 0 F804 1-533-949-33 FUSE, CYLINDRICAL (TIME LAG) (T8AL/250V) (DA2400ES: AEP, ECE, UK) 0 F810 1-532-504-33 FUSE (T4AL/250V) 0 F811 1-532-504-33 FUSE (T4AL/250V) 0 F1405 1-532-506-33 FUSE (T6.3AL/250V) Q423 6-702-390-01 TRANSISTOR MN2488-OPY-MK Q424 6-702-391-01 TRANSISTOR MP1620-OPY-MK Q473 6-702-390-01 TRANSISTOR MN2488-OPY-MK Q474 6-702-391-01 TRANSISTOR MP1620-OPY-MK Q523 6-702-390-01 TRANSISTOR MN2488-OPY-MK Q524 6-702-391-01 TRANSISTOR MP1620-OPY-MK Q573 6-702-390-01 TRANSISTOR MN2488-OPY-MK Q574 6-702-391-01 TRANSISTOR MP1620-OPY-MK Q623 6-702-390-01 TRANSISTOR MN2488-OPY-MK Q624 6-702-391-01 TRANSISTOR MP1620-OPY-MK Q673 6-702-390-01 TRANSISTOR MN2488-OPY-MK Q674 6-702-391-01 TRANSISTOR MP1620-OPY-MK Q723 6-702-390-01 TRANSISTOR MN2488-OPY-MK Q724 6-702-391-01 TRANSISTOR MP1620-OPY-MK 0 T901 1-445-370-11 POWER TRANSFORMER (DA2400ES: US/DG920) 0 T901 1-445-372-11 POWER TRANSFORMER (DA2400ES: AEP, ECE, UK) #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 #3 7-685-885-09 SCREW +BVTT 4X16 (S) (DA2400ES) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark k k j j (DA2400ES) (DA2400ES) (DA2400ES) (DA2400ES) (DA2400ES: AEP, ECE, UK) (DA2400ES: AEP, ECE, UK) (DG920) 251 251 257 258 252 253 254 255 255 256 256 not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied #1 T901 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #3 #3 not supplied (LIMITER board) not supplied (WIRE GUIDE B board) not supplied not supplied not supplied supplied with Q423, Q424, Q473, Q474, Q523, Q524, Q573, Q574, Q623, Q624, Q673, Q674, Q723, Q724 not supplied Q423 Q424 Q473 Q474 Q523 Q524 Q573 Q574 Q623 Q624 Q673 Q674 F803 Q724 not supplied Q723 F804 F810 F811 F1405 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 111 STR-DA2400ES/DG920 SECTION 8 ELECTRICAL PARTS LIST A-1536-195-A ACLASS BOARD, COMPLETE (DA2400ES: AEP, ECE, UK) A-1536-196-A ACLASS BOARD, COMPLETE (DA2400ES: US/DG920) *********************** < CAPACITOR > C403 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C403 1-128-582-11 ELECT 10uF 20% 100V (DA2400ES: US/DG920) C411 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C411 1-126-964-11 ELECT 10uF 20% 50V (DA2400ES: US/DG920) C412 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C413 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C414 1-102-233-00 CERAMIC 33PF 10% 500V C415 1-107-583-11 CERAMIC 3PF 0.25PF 500V C416 1-112-079-11 ELECT 220uF 20% 10V (DA2400ES: AEP, ECE, UK) C416 1-126-923-91 ELECT 220uF 20% 10V (DA2400ES: US/DG920) C461 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C461 1-126-964-11 ELECT 10uF 20% 50V (DA2400ES: US/DG920) C462 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C463 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C464 1-102-233-00 CERAMIC 33PF 10% 500V C465 1-107-583-11 CERAMIC 3PF 0.25PF 500V C466 1-112-079-11 ELECT 220uF 20% 10V (DA2400ES: AEP, ECE, UK) C466 1-126-923-91 ELECT 220uF 20% 10V (DA2400ES: US/DG920) C503 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C503 1-128-582-11 ELECT 10uF 20% 100V (DA2400ES: US/DG920) C511 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C511 1-126-964-11 ELECT 10uF 20% 50V (DA2400ES: US/DG920) C512 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C513 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C514 1-102-233-00 CERAMIC 33PF 10% 500V C515 1-107-583-11 CERAMIC 3PF 0.25PF 500V C516 1-112-079-11 ELECT 220uF 20% 10V (DA2400ES: AEP, ECE, UK) C516 1-126-923-91 ELECT 220uF 20% 10V (DA2400ES: US/DG920) C545 1-107-583-11 CERAMIC 3PF 0.25PF 500V C561 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C561 1-126-964-11 ELECT 10uF 20% 50V (DA2400ES: US/DG920) C562 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C563 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C564 1-102-233-00 CERAMIC 33PF 10% 500V C566 1-112-079-11 ELECT 220uF 20% 10V (DA2400ES: AEP, ECE, UK) C566 1-126-923-91 ELECT 220uF 20% 10V (DA2400ES: US/DG920) C603 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C603 1-128-582-11 ELECT 10uF 20% 100V (DA2400ES: US/DG920) C611 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C611 1-126-964-11 ELECT 10uF 20% 50V (DA2400ES: US/DG920) C612 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C613 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C614 1-102-233-00 CERAMIC 33PF 10% 500V C615 1-107-583-11 CERAMIC 3PF 0.25PF 500V C616 1-112-079-11 ELECT 220uF 20% 10V (DA2400ES: AEP, ECE, UK) C616 1-126-923-91 ELECT 220uF 20% 10V (DA2400ES: US/DG920) C655 1-102-233-00 CERAMIC 33PF 10% 500V C656 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C661 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C661 1-126-964-11 ELECT 10uF 20% 50V (DA2400ES: US/DG920) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark ACLASS When indicating parts by reference num- ber, please include the board name. Note: • Due to standardization, replacements in the parts list may be different from the parts speciﬁ ed in the diagrams or the com- ponents used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine ser- vice. Some delay should be anticipated when ordering these items. • CAPACITORS uF: μF • COILS uH: μH • RESISTORS All resistors are in ohms. METAL: Metal-ﬁ lm resistor. METAL OXIDE: Metal oxide-ﬁ lm resistor. F: nonﬂ ammable • SEMICONDUCTORS In each case, u: μ, for example: uA. . : μA. . , uPA. . , μPA. . , uPB. . : μPB. . , uPC. . , μPC. . , uPD. . : μPD. . • Abbreviation CND : Canadian model ECE : Continental European, East European and Russian models The components identiﬁ ed by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number speciﬁ ed. Les composants identiﬁ és par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spéciﬁ é. The components identiﬁ ed by mark 9 con- tain conﬁ dential information. Strictly follow the instructions whenever the components are repaired and/or replaced. Les composants identiﬁ és par la marque 9 contiennent des informations conﬁ den- tielles. Suivre scrupuleusement les instructions chaque fois qu’un composant est remplacé et / ou réparé. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark STR-DA2400ES/DG920 112 C662 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C665 1-107-583-11 CERAMIC 3PF 0.25PF 500V C666 1-112-079-11 ELECT 220uF 20% 10V (DA2400ES: AEP, ECE, UK) C666 1-126-923-91 ELECT 220uF 20% 10V (DA2400ES: US/DG920) C703 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C703 1-128-582-11 ELECT 10uF 20% 100V (DA2400ES: US/DG920) C711 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C711 1-126-964-11 ELECT 10uF 20% 50V (DA2400ES: US/DG920) C712 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C713 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C714 1-102-233-00 CERAMIC 33PF 10% 500V C715 1-107-583-11 CERAMIC 3PF 0.25PF 500V C716 1-112-079-11 ELECT 220uF 20% 10V (DA2400ES: AEP, ECE, UK) C716 1-126-923-91 ELECT 220uF 20% 10V (DA2400ES: US/DG920) C732 1-112-109-11 ELECT 22uF 20% 100V (DA2400ES: AEP, ECE, UK) C732 1-128-560-11 ELECT 22uF 20% 100V (DA2400ES: US/DG920) C733 1-112-109-11 ELECT 22uF 20% 100V (DA2400ES: AEP, ECE, UK) C733 1-128-560-11 ELECT 22uF 20% 100V (DA2400ES: US/DG920) C1907 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1908 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C1911 1-126-923-91 ELECT 220uF 20% 10V C1912 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1914 1-126-933-11 ELECT 100uF 20% 16V C1915 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1916 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V < CONNECTOR > CN411 1-764-865-41 CONNECTOR, BOARD TO BOARD 13P CN511 1-764-865-41 CONNECTOR, BOARD TO BOARD 13P CN611 1-764-865-41 CONNECTOR, BOARD TO BOARD 13P CN711 1-764-865-41 CONNECTOR, BOARD TO BOARD 13P CN1909 1-784-921-11 PIN, CONNECTOR 4P < DIODE > D1901 6-501-817-01 DIODE MA2J1110GLS0 D1902 6-501-817-01 DIODE MA2J1110GLS0 D1903 6-501-817-01 DIODE MA2J1110GLS0 D1905 6-501-817-01 DIODE MA2J1110GLS0 D1907 6-501-817-01 DIODE MA2J1110GLS0 D1911 6-501-817-01 DIODE MA2J1110GLS0 D1912 8-719-049-09 DIODE 1SS367-T3SONY < IC > IC400 6-700-943-01 IC uPC2581V-S IC500 6-700-943-01 IC uPC2581V-S IC600 6-700-943-01 IC uPC2581V-S IC700 6-700-943-01 IC uPC2581V-S IC1901 8-759-710-97 IC NJM4565M-D IC1902 8-759-710-97 IC NJM4565M-D IC1904 6-711-698-01 IC PQ050ES1MXPQ ACLASS < TRANSISTOR > Q1901 8-729-216-31 TRANSISTOR 2SA1163-G Q1902 8-729-140-96 TRANSISTOR 2SD774-34 Q1903 8-729-140-96 TRANSISTOR 2SD774-34 Q1907 8-729-216-31 TRANSISTOR 2SA1163-G Q1908 8-729-901-00 TRANSISTOR DTC124EK Q1910 8-729-027-56 TRANSISTOR DTC143TKA-T146 Q1911 8-729-901-00 TRANSISTOR DTC124EK Q1912 8-729-901-00 TRANSISTOR DTC124EK Q1913 8-729-901-00 TRANSISTOR DTC124EK Q1914 8-729-901-00 TRANSISTOR DTC124EK < RESISTOR > 0 R400 1-249-429-91 CARBON 10K 5% 1/4W F R411 1-216-821-11 METAL CHIP 1K 5% 1/10W R412 1-216-843-11 METAL CHIP 68K 5% 1/10W R415 1-208-826-11 METAL CHIP 68K 0.5% 1/10W R416 1-208-445-41 RES-CHIP 2.2K 2% 1/10W R461 1-216-821-11 METAL CHIP 1K 5% 1/10W R462 1-216-843-11 METAL CHIP 68K 5% 1/10W R465 1-208-826-11 METAL CHIP 68K 0.5% 1/10W R466 1-208-445-41 RES-CHIP 2.2K 2% 1/10W 0 R500 1-249-429-91 CARBON 10K 5% 1/4W F R511 1-216-821-11 METAL CHIP 1K 5% 1/10W R512 1-216-843-11 METAL CHIP 68K 5% 1/10W R515 1-208-826-11 METAL CHIP 68K 0.5% 1/10W R516 1-208-445-41 RES-CHIP 2.2K 2% 1/10W R561 1-216-821-11 METAL CHIP 1K 5% 1/10W R562 1-216-843-11 METAL CHIP 68K 5% 1/10W R565 1-208-826-11 METAL CHIP 68K 0.5% 1/10W R566 1-208-445-41 RES-CHIP 2.2K 2% 1/10W 0 R600 1-249-429-91 CARBON 10K 5% 1/4W F R611 1-216-821-11 METAL CHIP 1K 5% 1/10W R612 1-216-843-11 METAL CHIP 68K 5% 1/10W R615 1-208-826-11 METAL CHIP 68K 0.5% 1/10W R616 1-208-445-41 RES-CHIP 2.2K 2% 1/10W R661 1-216-821-11 METAL CHIP 1K 5% 1/10W R662 1-216-843-11 METAL CHIP 68K 5% 1/10W R665 1-208-826-11 METAL CHIP 68K 0.5% 1/10W R666 1-208-445-41 RES-CHIP 2.2K 2% 1/10W 0 R700 1-249-429-91 CARBON 10K 5% 1/4W F R711 1-216-821-11 METAL CHIP 1K 5% 1/10W R712 1-216-843-11 METAL CHIP 68K 5% 1/10W R715 1-208-826-11 METAL CHIP 68K 0.5% 1/10W R716 1-208-445-41 RES-CHIP 2.2K 2% 1/10W R1549 1-216-845-11 METAL CHIP 100K 5% 1/10W R1901 1-216-837-11 METAL CHIP 22K 5% 1/10W R1902 1-216-837-11 METAL CHIP 22K 5% 1/10W 0 R1904 1-249-429-91 CARBON 10K 5% 1/4W F 0 R1905 1-215-889-51 METAL OXIDE 330 5% 2W F 0 R1906 1-249-429-91 CARBON 10K 5% 1/4W F R1907 1-216-845-11 METAL CHIP 100K 5% 1/10W 0 R1908 1-215-883-51 METAL OXIDE 33 5% 2W F (DA2400ES: US/DG920) 0 R1908 1-215-885-51 METAL OXIDE 68 5% 2W F (DA2400ES: AEP, ECE, UK) R1909 1-216-839-11 METAL CHIP 33K 5% 1/10W R1910 1-218-907-11 METAL CHIP 330K 0.5% 1/10W (DA2400ES: AEP, ECE, UK) R1914 1-216-837-11 METAL CHIP 22K 5% 1/10W R1915 1-216-837-11 METAL CHIP 22K 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark STR-DA2400ES/DG920 113 113 CIS R1916 1-216-834-11 METAL CHIP 12K 5% 1/10W R1917 1-216-853-11 METAL CHIP 470K 5% 1/10W R1918 1-216-841-11 METAL CHIP 47K 5% 1/10W R1919 1-216-833-11 METAL CHIP 10K 5% 1/10W R1920 1-216-821-11 METAL CHIP 1K 5% 1/10W R1921 1-218-878-11 METAL CHIP 20K 0.5% 1/10W (DA2400ES: AEP, ECE, UK) R1921 1-218-879-11 METAL CHIP 22K 0.5% 1/10W ((DA2400ES: US/DG920) R1922 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1924 1-218-871-11 METAL CHIP 10K 0.5% 1/10W R1925 1-218-880-11 METAL CHIP 24K 0.5% 1/10W R1927 1-218-871-11 METAL CHIP 10K 0.5% 1/10W R1930 1-216-833-11 METAL CHIP 10K 5% 1/10W R1931 1-216-821-11 METAL CHIP 1K 5% 1/10W R1932 1-216-833-11 METAL CHIP 10K 5% 1/10W R1933 1-216-841-11 METAL CHIP 47K 5% 1/10W 0 R1934 1-215-872-51 METAL OXIDE 3.3K 5% 1W F (DA2400ES: AEP, ECE, UK) R1937 1-216-825-11 METAL CHIP 2.2K 5% 1/10W 0 R1938 1-249-429-91 CARBON 10K 5% 1/4W F 0 R1939 1-249-429-91 CARBON 10K 5% 1/4W F 0 R1940 1-249-429-91 CARBON 10K 5% 1/4W F 0 R1941 1-249-429-91 CARBON 10K 5% 1/4W F 0 R1942 1-249-429-91 CARBON 10K 5% 1/4W F 0 R1943 1-249-429-91 CARBON 10K 5% 1/4W F ************************************************************* A-CLASS SUPPORT A BOARD ************************ < CONNECTOR > * CN6103 1-564-724-11 PIN, CONNECTOR (SMALL TYPE) 8P (DA2400ES: AEP, ECE, UK) CN6104 1-784-924-11 PIN, CONNECTOR 8P (DA2400ES: AEP, ECE, UK) ************************************************************ A-CLASS SUPPORT B BOARD ************************ < CONNECTOR > CN6101 1-564-722-11 PIN, CONNECTOR (SMALL TYPE) 6P (DA2400ES: AEP, ECE, UK) CN6102 1-784-924-11 PIN, CONNECTOR 8P (DA2400ES: AEP, ECE, UK) ************************************************************ A-1442-423-A CIS BOARD, COMPLETE (DA2400ES: US) ******************** < CAPACITOR > C805 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C806 1-126-947-11 ELECT 47uF 20% 35V C864 1-126-933-11 ELECT 100uF 20% 16V C865 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C866 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C867 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C868 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C869 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C870 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C4551 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C4552 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C4553 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C4554 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C4555 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C4675 1-162-960-11 CERAMIC CHIP 220PF 10% 50V < CONNECTOR > CN4552 1-779-799-11 PIN, CONNECTOR 9P CN4553 1-564-509-11 PLUG, CONNECTOR 6P CNS801 1-779-281-11 CONNECTOR, FFC (LIF (NON-ZIF)) 13P < DIODE > D4551 6-501-817-01 DIODE MA2J1110GLS0 D4552 6-501-817-01 DIODE MA2J1110GLS0 D4553 6-501-817-01 DIODE MA2J1110GLS0 D4554 6-501-817-01 DIODE MA2J1110GLS0 < FERRITE BEAD > FB861 1-469-152-11 FERRITE, EMI (SMD) (2012) < IC > IC861 6-705-514-01 IC MAX3222IPWR < JACK > J861 1-815-737-11 CONNECTOR, (D) SUB 9P (RS-232C) J4551 1-774-411-11 JACK, PIN 6P (PRE OUT FRONT/SURROUND/SUR BACK) J4552 1-793-777-12 JACK, PIN 2P (PRE OUT CENTER/SUBWOOFER) < TRANSISTOR > Q4551 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q4552 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q4553 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q4554 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF < RESISTOR > R861 1-216-809-11 METAL CHIP 100 5% 1/10W R862 1-216-809-11 METAL CHIP 100 5% 1/10W R863 1-216-864-11 SHORT CHIP 0 R864 1-216-864-11 SHORT CHIP 0 R865 1-216-833-11 METAL CHIP 10K 5% 1/10W R866 1-216-833-11 METAL CHIP 10K 5% 1/10W R4551 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R4552 1-216-833-11 METAL CHIP 10K 5% 1/10W 0 R4553 1-249-393-91 CARBON 10 5% 1/4W F R4554 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R4555 1-216-833-11 METAL CHIP 10K 5% 1/10W 0 R4556 1-249-393-91 CARBON 10 5% 1/4W F R4557 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R4558 1-216-833-11 METAL CHIP 10K 5% 1/10W 0 R4559 1-249-393-91 CARBON 10 5% 1/4W F R4560 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R4561 1-216-833-11 METAL CHIP 10K 5% 1/10W 0 R4562 1-249-393-91 CARBON 10 5% 1/4W F R4651 1-216-821-11 METAL CHIP 1K 5% 1/10W R4652 1-216-821-11 METAL CHIP 1K 5% 1/10W R4653 1-216-821-11 METAL CHIP 1K 5% 1/10W R4654 1-216-821-11 METAL CHIP 1K 5% 1/10W R4671 1-216-821-11 METAL CHIP 1K 5% 1/10W R4672 1-216-821-11 METAL CHIP 1K 5% 1/10W R4673 1-216-821-11 METAL CHIP 1K 5% 1/10W R4674 1-216-821-11 METAL CHIP 1K 5% 1/10W A-CLASS SUPPORT A ACLASS A-CLASS SUPPORT B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark STR-DA2400ES/DG920 114 < RELAY > RY4551 1-755-486-11 RELAY RY4552 1-755-486-11 RELAY RY4553 1-755-486-11 RELAY RY4554 1-755-486-11 RELAY ************************************************************ A-1441-448-A DCDC CON BOARD, COMPLETE ************************* 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 < CAPACITOR > C1402 1-112-095-11 ELECT 3300uF 20% 35V C1404 1-128-954-11 ELECT 1000uF 20% 25V C1405 1-128-955-21 ELECT 2200uF 20% 25V C1406 1-128-954-11 ELECT 1000uF 20% 25V C1409 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1410 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1411 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1414 1-128-950-21 ELECT 1000uF 20% 16V C1415 1-128-951-21 ELECT 2200uF 20% 16V C1416 1-128-950-21 ELECT 1000uF 20% 16V C1423 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C1426 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1427 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1430 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V < CONNECTOR > CN1400 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P CN1401 1-691-770-11 PLUG (MICRO CONNECTOR) 8P < DIODE > D1404 8-719-312-08 DIODE FMB-G16L D1405 6-501-361-01 DIODE RB051LA-40TR D1406 6-501-003-11 DIODE D6SBN20-7001 D1407 6-501-361-01 DIODE RB051LA-40TR < FUSE HOLDER > FH1403 1-533-233-11 FUSE HOLDER FH1404 1-533-233-11 FUSE HOLDER < IC > IC1401 8-759-474-09 IC SI-8050S-LF1101 IC1402 6-711-058-01 IC SI-8008HFE IC1403 6-709-441-01 IC SI8008TM-TL < COIL > L1402 1-456-545-11 COIL, CHOKE 100uH L1403 1-456-545-11 COIL, CHOKE 100uH L1404 1-456-545-11 COIL, CHOKE 100uH L1407 1-457-508-11 COIL, CHOKE L1408 1-481-254-11 COIL, CHOKE L1410 1-457-508-11 COIL, CHOKE < RESISTOR > R1417 1-211-977-11 METAL CHIP 22 0.5% 1/10W R1425 1-218-831-11 METAL CHIP 220 0.5% 1/10W R1427 1-218-835-11 METAL CHIP 330 0.5% 1/10W R1428 1-218-847-11 METAL CHIP 1K 0.5% 1/10W R1429 1-218-847-11 METAL CHIP 1K 0.5% 1/10W R1430 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W R1431 1-218-835-11 METAL CHIP 330 0.5% 1/10W R1432 1-218-839-11 METAL CHIP 470 0.5% 1/10W R1433 1-218-847-11 METAL CHIP 1K 0.5% 1/10W R1434 1-218-851-11 METAL CHIP 1.5K 0.5% 1/10W R1435 1-218-835-11 METAL CHIP 330 0.5% 1/10W R1436 1-218-839-11 METAL CHIP 470 0.5% 1/10W ************************************************************ A-1441-453-A DIGITAL BOARD, COMPLETE (DG920) A-1442-427-A DIGITAL BOARD, COMPLETE (DA2400ES: US) A-1537-487-A DIGITAL BOARD, COMPLETE (DA2400ES: AEP, ECE, UK) *********************** 3-087-053-01 +BVTP2.6 (3CR) < CAPACITOR > C2201 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2202 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2203 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2204 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2207 1-112-080-11 ELECT 470uF 20% 10V (DA2400ES: AEP, ECE, UK) C2207 1-126-925-91 ELECT 470uF 20% 10V (DA2400ES: US/DG920) C2208 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C2209 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2210 1-126-947-11 ELECT 47uF 20% 35V (DA2400ES: US/DG920) C2210 1-112-089-11 ELECT 47uF 20% 25V (DA2400ES: AEP, ECE, UK) C2211 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2212 1-126-947-11 ELECT 47uF 20% 35V (DA2400ES: US/DG920) C2212 1-112-089-11 ELECT 47uF 20% 25V (DA2400ES: AEP, ECE, UK) C2213 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2221 1-112-080-11 ELECT 470uF 20% 10V (DA2400ES: AEP, ECE, UK) C2221 1-126-925-91 ELECT 470uF 20% 10V (DA2400ES: US/DG920) C2222 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2223 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2224 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2225 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C2226 1-162-911-11 CERAMIC CHIP 6PF 0.5PF 50V C2227 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2228 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2229 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2230 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C2230 1-126-964-11 ELECT 10uF 20% 50V (DA2400ES: US/DG920) C2231 1-112-080-11 ELECT 470uF 20% 10V (DA2400ES: AEP, ECE, UK) C2231 1-126-925-91 ELECT 470uF 20% 10V (DA2400ES: US/DG920) C2232 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2233 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2234 1-104-658-91 ELECT 100uF 20% 10V (DA2400ES: US/DG920) CIS DCDC CON DIGITAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark STR-DA2400ES/DG920 115 115 C2234 1-112-083-11 ELECT 100uF 20% 16V (DA2400ES: AEP, ECE, UK) C2235 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C2236 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2237 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C2238 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C2243 1-126-947-11 ELECT 47uF 20% 35V (DA2400ES: US/DG920) C2243 1-112-089-11 ELECT 47uF 20% 25V (DA2400ES: AEP, ECE, UK) C2245 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C2246 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2247 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2248 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2250 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2251 1-112-080-11 ELECT 470uF 20% 10V (DA2400ES: AEP, ECE, UK) C2251 1-126-925-91 ELECT 470uF 20% 10V (DA2400ES: US/DG920) C2252 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2253 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C2254 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2255 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C2256 1-104-658-91 ELECT 100uF 20% 10V (DA2400ES: US/DG920) C2256 1-112-083-11 ELECT 100uF 20% 16V (DA2400ES: AEP, ECE, UK) C2257 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2258 1-104-658-91 ELECT 100uF 20% 10V (DA2400ES: US/DG920) C2258 1-112-083-11 ELECT 100uF 20% 16V (DA2400ES: AEP, ECE, UK) C2259 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2261 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2262 1-126-947-11 ELECT 47uF 20% 35V (DA2400ES: US/DG920) C2262 1-112-089-11 ELECT 47uF 20% 25V (DA2400ES: AEP, ECE, UK) C2271 1-112-114-11 ELECT 22uF 20% 50V (DA2400ES: AEP, ECE, UK) C2271 1-126-965-91 ELECT 22uF 20% 50V (DA2400ES: US/DG920) C2272 1-104-658-91 ELECT 100uF 20% 10V (DA2400ES: US/DG920) C2272 1-112-083-11 ELECT 100uF 20% 16V (DA2400ES: AEP, ECE, UK) C2273 1-112-114-11 ELECT 22uF 20% 50V (DA2400ES: AEP, ECE, UK) C2273 1-126-965-91 ELECT 22uF 20% 50V (DA2400ES: US/DG920) C2274 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C2275 1-137-429-11 MYLAR 270PF 5% 50V (DA2400ES: AEP, ECE, UK) C2276 1-137-457-11 MYLAR 0.0027uF 5% 100V (DA2400ES: AEP, ECE, UK) C2278 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C2278 1-126-964-11 ELECT 10uF 20% 50V (DA2400ES: US/DG920) C2279 1-112-077-11 ELECT 1000uF 20% 6.3V (DA2400ES: AEP, ECE, UK) C2279 1-126-916-11 ELECT 1000uF 20% 6.3V (DA2400ES: US/DG920) C2281 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2282 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C2282 1-126-964-11 ELECT 10uF 20% 50V (DA2400ES: US/DG920) C2283 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C2285 1-137-457-11 MYLAR 0.0027uF 5% 100V (DA2400ES: AEP, ECE, UK) C2286 1-137-429-11 MYLAR 270PF 5% 50V (DA2400ES: AEP, ECE, UK) C2289 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C2290 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2291 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C2292 1-137-429-11 MYLAR 270PF 5% 50V (DA2400ES: AEP, ECE, UK) C2293 1-137-457-11 MYLAR 0.0027uF 5% 100V (DA2400ES: AEP, ECE, UK) C2294 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2295 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C2295 1-126-964-11 ELECT 10uF 20% 50V (DA2400ES: US/DG920) C2296 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C2296 1-126-964-11 ELECT 10uF 20% 50V (DA2400ES: US/DG920) C2297 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C2298 1-137-457-11 MYLAR 0.0027uF 5% 100V (DA2400ES: AEP, ECE, UK) C2299 1-137-429-11 MYLAR 270PF 5% 50V (DA2400ES: AEP, ECE, UK) C2300 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C2301 1-137-429-11 MYLAR 270PF 5% 50V (DA2400ES: AEP, ECE, UK) C2302 1-137-457-11 MYLAR 0.0027uF 5% 100V (DA2400ES: AEP, ECE, UK) C2303 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C2303 1-126-964-11 ELECT 10uF 20% 50V (DA2400ES: US/DG920) C2304 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C2304 1-126-964-11 ELECT 10uF 20% 50V (DA2400ES: US/DG920) C2305 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C2306 1-137-457-11 MYLAR 0.0027uF 5% 100V (DA2400ES: AEP, ECE, UK) C2307 1-137-429-11 MYLAR 270PF 5% 50V (DA2400ES: AEP, ECE, UK) C2309 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C2310 1-137-429-11 MYLAR 270PF 5% 50V (DA2400ES: AEP, ECE, UK) C2311 1-137-457-11 MYLAR 0.0027uF 5% 100V (DA2400ES: AEP, ECE, UK) C2314 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C2314 1-126-964-11 ELECT 10uF 20% 50V (DA2400ES: US/DG920) C2316 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C2316 1-126-964-11 ELECT 10uF 20% 50V (DA2400ES: US/DG920) C2317 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C2318 1-137-457-11 MYLAR 0.0027uF 5% 100V (DA2400ES: AEP, ECE, UK) DIGITAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark STR-DA2400ES/DG920 116 C2319 1-137-429-11 MYLAR 270PF 5% 50V (DA2400ES: AEP, ECE, UK) C2329 1-164-816-11 CERAMIC CHIP 220PF 2% 50V C2337 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C2361 1-162-979-11 CERAMIC CHIP 0.0027uF 10% 50V (DA2400ES: US/DG920) C2362 1-162-979-11 CERAMIC CHIP 0.0027uF 10% 50V (DA2400ES: US/DG920) C2363 1-162-979-11 CERAMIC CHIP 0.0027uF 10% 50V (DA2400ES: US/DG920) C2364 1-162-979-11 CERAMIC CHIP 0.0027uF 10% 50V (DA2400ES: US/DG920) C2365 1-162-979-11 CERAMIC CHIP 0.0027uF 10% 50V (DA2400ES: US/DG920) C2366 1-162-979-11 CERAMIC CHIP 0.0027uF 10% 50V (DA2400ES: US/DG920) C2367 1-162-979-11 CERAMIC CHIP 0.0027uF 10% 50V (DA2400ES: US/DG920) C2368 1-162-979-11 CERAMIC CHIP 0.0027uF 10% 50V (DA2400ES: US/DG920) C2369 1-164-388-91 CERAMIC CHIP 270PF 5% 50V (DA2400ES: US/DG920) C2370 1-164-388-91 CERAMIC CHIP 270PF 5% 50V (DA2400ES: US/DG920) C2371 1-164-388-91 CERAMIC CHIP 270PF 5% 50V (DA2400ES: US/DG920) C2372 1-164-388-91 CERAMIC CHIP 270PF 5% 50V (DA2400ES: US/DG920) C2373 1-164-388-91 CERAMIC CHIP 270PF 5% 50V (DA2400ES: US/DG920) C2374 1-164-388-91 CERAMIC CHIP 270PF 5% 50V (DA2400ES: US/DG920) C2375 1-164-388-91 CERAMIC CHIP 270PF 5% 50V (DA2400ES: US/DG920) C2376 1-164-388-91 CERAMIC CHIP 270PF 5% 50V (DA2400ES: US/DG920) C2377 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2378 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C2378 1-126-964-11 ELECT 10uF 20% 50V (DA2400ES: US/DG920) C2383 1-112-080-11 ELECT 470uF 20% 10V (DA2400ES: AEP, ECE, UK) C2383 1-126-925-91 ELECT 470uF 20% 10V (DA2400ES: US/DG920) C2397 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2398 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C2401 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2402 1-112-080-11 ELECT 470uF 20% 10V (DA2400ES: AEP, ECE, UK) C2402 1-126-925-91 ELECT 470uF 20% 10V (DA2400ES: US/DG920) C2404 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C2404 1-126-964-11 ELECT 10uF 20% 50V (DA2400ES: US/DG920) C2405 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2406 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2407 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2408 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C2409 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C2412 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C2413 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C2414 1-112-080-11 ELECT 470uF 20% 10V (DA2400ES: AEP, ECE, UK) C2414 1-126-925-91 ELECT 470uF 20% 10V (DA2400ES: US/DG920) C2415 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V < CONNECTOR > CN2206 1-785-910-21 CONNECTOR, BOARD TO BOARD 50P * CN2208 1-564-508-11 PLUG, CONNECTOR 5P CN2212 1-770-409-11 CONNECTOR, BOARD TO BOARD 16P CN2213 1-770-411-11 CONNECTOR, BOARD TO BOARD 20P CN2214 1-770-405-11 CONNECTOR, BOARD TO BOARD 8P CN2217 1-573-829-11 CONNECTOR, BOARD TO BOARD 15P CN2218 1-766-724-11 CONNECTOR, BOARD TO BOARD 7P < DIODE > D2201 6-501-817-01 DIODE MA2J1110GLS0 D2202 8-719-053-18 DIODE 1SR154-400TE-25 D2203 6-501-817-01 DIODE MA2J1110GLS0 < FERRITE BEAD > FB2201 1-469-152-11 FERRITE, EMI (SMD) (2012) FB2202 1-469-152-11 FERRITE, EMI (SMD) (2012) FB2203 1-469-139-21 FERRITE, EMI (SMD) (2012) FB2204 1-469-139-21 FERRITE, EMI (SMD) (2012) FB2205 1-469-152-11 FERRITE, EMI (SMD) (2012) FB2206 1-469-139-21 FERRITE, EMI (SMD) (2012) FB2207 1-469-152-11 FERRITE, EMI (SMD) (2012) FB2208 1-469-152-11 FERRITE, EMI (SMD) (2012) FB2210 1-469-152-11 FERRITE, EMI (SMD) (2012) FB2211 1-469-152-11 FERRITE, EMI (SMD) (2012) FB2212 1-469-152-11 FERRITE, EMI (SMD) (2012) FB2213 1-469-152-11 FERRITE, EMI (SMD) (2012) FB2214 1-469-152-11 FERRITE, EMI (SMD) (2012) FB2215 1-469-152-11 FERRITE, EMI (SMD) (2012) FB2217 1-469-152-11 FERRITE, EMI (SMD) (2012) FB2219 1-469-152-11 FERRITE, EMI (SMD) (2012) FB2220 1-469-152-11 FERRITE, EMI (SMD) (2012) FB2221 1-469-152-11 FERRITE, EMI (SMD) (2012) < IC > IC2201 6-600-466-01 IC TORX147L (SONY) (TV OPTICAL IN) IC2202 6-600-466-01 IC TORX147L (SONY) (DIGITAL ASSIGNABLE OPTICAL VIDEO 1 IN) IC2204 6-600-466-01 IC TORX147L (SONY) (DIGITAL ASSIGNABLE OPTICAL SAT IN) IC2208 6-708-025-01 IC LC89057W-VF4A-E IC2209 8-759-233-64 IC TC74HCU04AF IC2210 8-759-268-29 IC SN74HC595ANS IC2211 8-759-524-48 IC TC74VHC393FT (EL) IC2212 8-759-524-10 IC TC74VHC157FT (EL) IC2219 8-759-710-97 IC NJM4565M-D IC2220 8-759-710-97 IC NJM4565M-D IC2221 8-759-710-97 IC NJM4565M-D IC2222 8-759-710-97 IC NJM4565M-D IC2226 8-759-447-77 IC TC7WH74FU (TE12R) IC2230 6-705-337-01 IC TK11150CSCL-G IC2232 8-759-523-81 IC TC74VHC08FT (EL) IC2233 6-710-554-01 IC PCM1808PWR IC2234 8-759-592-47 IC TC7SZ08FU (TE85R) IC2236 8-759-564-49 IC TC7W53FU (TE12R) DIGITAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark STR-DA2400ES/DG920 117 117 IC2237 8-759-236-19 IC TC74HC151AF (EL) IC2238 6-708-785-01 IC PCM1609APT < JACK > J2202 1-822-079-11 PIN JACK (DIGITAL ASSIGNABLE COAXIAL DVD/SA-CD/CD IN) < TRANSISTOR > Q2205 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q2206 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF < RESISTOR > R2201 1-216-821-11 METAL CHIP 1K 5% 1/10W R2202 1-216-833-11 METAL CHIP 10K 5% 1/10W R2203 1-208-755-11 METAL CHIP 75 0.5% 1/10W R2204 1-208-755-11 METAL CHIP 75 0.5% 1/10W R2206 1-216-809-11 METAL CHIP 100 5% 1/10W R2207 1-216-809-11 METAL CHIP 100 5% 1/10W R2208 1-216-809-11 METAL CHIP 100 5% 1/10W R2209 1-216-809-11 METAL CHIP 100 5% 1/10W R2210 1-216-809-11 METAL CHIP 100 5% 1/10W R2212 1-216-809-11 METAL CHIP 100 5% 1/10W R2213 1-216-833-11 METAL CHIP 10K 5% 1/10W R2214 1-208-774-11 METAL CHIP 470 0.5% 1/10W R2215 1-208-774-11 METAL CHIP 470 0.5% 1/10W R2217 1-208-550-41 RES-CHIP 470K 2% 1/10W R2219 1-208-550-41 RES-CHIP 470K 2% 1/10W R2221 1-208-526-41 RES-CHIP 47K 2% 1/10W R2222 1-208-526-41 RES-CHIP 47K 2% 1/10W R2224 1-216-809-11 METAL CHIP 100 5% 1/10W R2225 1-216-833-11 METAL CHIP 10K 5% 1/10W R2226 1-216-833-11 METAL CHIP 10K 5% 1/10W R2228 1-216-809-11 METAL CHIP 100 5% 1/10W R2229 1-216-833-11 METAL CHIP 10K 5% 1/10W R2230 1-216-809-11 METAL CHIP 100 5% 1/10W R2231 1-216-833-11 METAL CHIP 10K 5% 1/10W R2233 1-216-857-11 METAL CHIP 1M 5% 1/10W R2234 1-216-809-11 METAL CHIP 100 5% 1/10W R2235 1-216-813-11 METAL CHIP 220 5% 1/10W R2236 1-216-809-11 METAL CHIP 100 5% 1/10W R2238 1-216-815-11 METAL CHIP 330 5% 1/10W R2240 1-216-809-11 METAL CHIP 100 5% 1/10W R2241 1-216-809-11 METAL CHIP 100 5% 1/10W R2242 1-216-809-11 METAL CHIP 100 5% 1/10W R2243 1-216-635-11 METAL CHIP 220 0.5% 1/10W R2246 1-216-813-11 METAL CHIP 220 5% 1/10W R2248 1-216-821-11 METAL CHIP 1K 5% 1/10W R2249 1-216-821-11 METAL CHIP 1K 5% 1/10W R2250 1-216-833-11 METAL CHIP 10K 5% 1/10W R2251 1-216-809-11 METAL CHIP 100 5% 1/10W R2252 1-216-809-11 METAL CHIP 100 5% 1/10W R2253 1-216-833-11 METAL CHIP 10K 5% 1/10W R2256 1-216-809-11 METAL CHIP 100 5% 1/10W R2257 1-216-809-11 METAL CHIP 100 5% 1/10W R2258 1-216-809-11 METAL CHIP 100 5% 1/10W R2259 1-216-805-11 METAL CHIP 47 5% 1/10W R2260 1-216-805-11 METAL CHIP 47 5% 1/10W R2261 1-216-805-11 METAL CHIP 47 5% 1/10W R2262 1-216-805-11 METAL CHIP 47 5% 1/10W R2265 1-216-811-11 METAL CHIP 150 5% 1/10W R2267 1-216-809-11 METAL CHIP 100 5% 1/10W R2277 1-216-809-11 METAL CHIP 100 5% 1/10W R2278 1-216-809-11 METAL CHIP 100 5% 1/10W R2282 1-216-809-11 METAL CHIP 100 5% 1/10W R2287 1-216-833-11 METAL CHIP 10K 5% 1/10W R2288 1-216-809-11 METAL CHIP 100 5% 1/10W R2293 1-216-835-11 METAL CHIP 15K 5% 1/10W R2294 1-216-821-11 METAL CHIP 1K 5% 1/10W R2295 1-216-821-11 METAL CHIP 1K 5% 1/10W R2296 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R2298 1-216-845-11 METAL CHIP 100K 5% 1/10W R2299 1-216-845-11 METAL CHIP 100K 5% 1/10W R2301 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R2302 1-216-821-11 METAL CHIP 1K 5% 1/10W R2304 1-216-835-11 METAL CHIP 15K 5% 1/10W R2305 1-216-821-11 METAL CHIP 1K 5% 1/10W R2307 1-216-835-11 METAL CHIP 15K 5% 1/10W R2308 1-216-821-11 METAL CHIP 1K 5% 1/10W R2309 1-216-821-11 METAL CHIP 1K 5% 1/10W R2310 1-216-809-11 METAL CHIP 100 5% 1/10W R2312 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R2313 1-216-845-11 METAL CHIP 100K 5% 1/10W R2314 1-216-845-11 METAL CHIP 100K 5% 1/10W R2315 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R2316 1-216-821-11 METAL CHIP 1K 5% 1/10W R2317 1-216-835-11 METAL CHIP 15K 5% 1/10W R2318 1-216-821-11 METAL CHIP 1K 5% 1/10W R2319 1-216-835-11 METAL CHIP 15K 5% 1/10W R2320 1-216-821-11 METAL CHIP 1K 5% 1/10W R2321 1-216-821-11 METAL CHIP 1K 5% 1/10W R2322 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R2323 1-216-845-11 METAL CHIP 100K 5% 1/10W R2324 1-216-845-11 METAL CHIP 100K 5% 1/10W R2325 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R2326 1-216-821-11 METAL CHIP 1K 5% 1/10W R2327 1-216-835-11 METAL CHIP 15K 5% 1/10W R2328 1-216-821-11 METAL CHIP 1K 5% 1/10W R2333 1-216-821-11 METAL CHIP 1K 5% 1/10W R2336 1-216-835-11 METAL CHIP 15K 5% 1/10W R2337 1-216-821-11 METAL CHIP 1K 5% 1/10W R2338 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R2342 1-216-845-11 METAL CHIP 100K 5% 1/10W R2344 1-216-845-11 METAL CHIP 100K 5% 1/10W R2347 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R2349 1-216-821-11 METAL CHIP 1K 5% 1/10W R2354 1-216-835-11 METAL CHIP 15K 5% 1/10W R2355 1-216-821-11 METAL CHIP 1K 5% 1/10W R2375 1-216-833-11 METAL CHIP 10K 5% 1/10W R2376 1-216-833-11 METAL CHIP 10K 5% 1/10W R2377 1-216-833-11 METAL CHIP 10K 5% 1/10W R2378 1-216-809-11 METAL CHIP 100 5% 1/10W R2379 1-216-809-11 METAL CHIP 100 5% 1/10W R2380 1-216-809-11 METAL CHIP 100 5% 1/10W R2381 1-216-809-11 METAL CHIP 100 5% 1/10W R2387 1-216-797-11 METAL CHIP 10 5% 1/10W R2388 1-216-797-11 METAL CHIP 10 5% 1/10W R2389 1-216-797-11 METAL CHIP 10 5% 1/10W R2390 1-216-797-11 METAL CHIP 10 5% 1/10W R2391 1-216-797-11 METAL CHIP 10 5% 1/10W R2392 1-216-797-11 METAL CHIP 10 5% 1/10W DIGITAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark STR-DA2400ES/DG920 118 R2393 1-216-797-11 METAL CHIP 10 5% 1/10W R2394 1-216-797-11 METAL CHIP 10 5% 1/10W R2395 1-216-833-11 METAL CHIP 10K 5% 1/10W R2397 1-216-833-11 METAL CHIP 10K 5% 1/10W R2407 1-216-809-11 METAL CHIP 100 5% 1/10W R2408 1-216-809-11 METAL CHIP 100 5% 1/10W R2409 1-216-833-11 METAL CHIP 10K 5% 1/10W R2410 1-216-821-11 METAL CHIP 1K 5% 1/10W R2411 1-216-857-11 METAL CHIP 1M 5% 1/10W R2412 1-216-805-11 METAL CHIP 47 5% 1/10W R2413 1-216-864-11 SHORT CHIP 0 R2415 1-216-809-11 METAL CHIP 100 5% 1/10W R2417 1-216-809-11 METAL CHIP 100 5% 1/10W R2432 1-216-813-11 METAL CHIP 220 5% 1/10W R2444 1-216-809-11 METAL CHIP 100 5% 1/10W R2445 1-216-809-11 METAL CHIP 100 5% 1/10W R2446 1-216-809-11 METAL CHIP 100 5% 1/10W R2447 1-216-809-11 METAL CHIP 100 5% 1/10W R2451 1-216-797-11 METAL CHIP 10 5% 1/10W R2452 1-216-833-11 METAL CHIP 10K 5% 1/10W R2465 1-216-809-11 METAL CHIP 100 5% 1/10W R2466 1-216-809-11 METAL CHIP 100 5% 1/10W R2467 1-216-809-11 METAL CHIP 100 5% 1/10W R2468 1-216-809-11 METAL CHIP 100 5% 1/10W R2469 1-216-864-11 SHORT CHIP 0 R2470 1-216-864-11 SHORT CHIP 0 R2471 1-216-864-11 SHORT CHIP 0 R2473 1-216-864-11 SHORT CHIP 0 R2474 1-216-864-11 SHORT CHIP 0 R2475 1-216-864-11 SHORT CHIP 0 R2476 1-216-864-11 SHORT CHIP 0 R2477 1-216-864-11 SHORT CHIP 0 R2478 1-216-864-11 SHORT CHIP 0 R2479 1-216-864-11 SHORT CHIP 0 R2480 1-216-864-11 SHORT CHIP 0 R2481 1-216-864-11 SHORT CHIP 0 R2482 1-216-864-11 SHORT CHIP 0 R2483 1-216-864-11 SHORT CHIP 0 R2484 1-216-864-11 SHORT CHIP 0 R2486 1-216-864-11 SHORT CHIP 0 R2487 1-216-805-11 METAL CHIP 47 5% 1/10W R2488 1-216-813-11 METAL CHIP 220 5% 1/10W R2490 1-216-864-11 SHORT CHIP 0 R2500 1-216-864-11 SHORT CHIP 0 R2501 1-216-864-11 SHORT CHIP 0 R2502 1-216-809-11 METAL CHIP 100 5% 1/10W R2503 1-216-833-11 METAL CHIP 10K 5% 1/10W R2504 1-216-809-11 METAL CHIP 100 5% 1/10W R2507 1-216-809-11 METAL CHIP 100 5% 1/10W R2508 1-216-809-11 METAL CHIP 100 5% 1/10W R2509 1-216-809-11 METAL CHIP 100 5% 1/10W R2511 1-216-809-11 METAL CHIP 100 5% 1/10W R2512 1-216-833-11 METAL CHIP 10K 5% 1/10W R2513 1-216-821-11 METAL CHIP 1K 5% 1/10W R2514 1-216-833-11 METAL CHIP 10K 5% 1/10W R2515 1-216-805-11 METAL CHIP 47 5% 1/10W R2516 1-216-809-11 METAL CHIP 100 5% 1/10W R2517 1-216-833-11 METAL CHIP 10K 5% 1/10W < VIBRATOR > X2201 1-795-219-21 VIBRATOR, CRYSTAL (24.576MHz) ************************************************************ 9 A-1441-458-A DIGITAL VIDEO BOARD, COMPLETE (for SERVICE) ***************************** 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 < CAPACITOR > C3000 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3001 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3002 1-128-995-21 ELECT CHIP 100uF 20% 10V C3003 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3004 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3005 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3006 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3200 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3201 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3203 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3204 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V C3206 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3209 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3211 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3213 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3215 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3216 1-165-880-21 ELECT CHIP 220uF 20% 2.5V C3217 1-165-875-11 CERAMIC CHIP 10uF 10% 10V C3218 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V C3219 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3220 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3223 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3224 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V C3230 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3231 1-165-662-21 ELECT CHIP 220uF 20% 4V C3240 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3242 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3245 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3248 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3249 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3250 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3251 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3252 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3253 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3254 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3255 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3256 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3257 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3258 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3259 1-165-875-11 CERAMIC CHIP 10uF 10% 10V C3260 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3261 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3262 1-165-875-11 CERAMIC CHIP 10uF 10% 10V C3263 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3264 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V C3265 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3266 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3267 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3268 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3269 1-165-875-11 CERAMIC CHIP 10uF 10% 10V DIGITAL VIDEO DIGITAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark STR-DA2400ES/DG920 119 119 C3270 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3271 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3272 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3273 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3274 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3275 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3276 1-165-875-11 CERAMIC CHIP 10uF 10% 10V C3277 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3278 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3279 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3280 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3281 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3282 1-165-875-11 CERAMIC CHIP 10uF 10% 10V C3283 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3284 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3285 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3286 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3287 1-165-875-11 CERAMIC CHIP 10uF 10% 10V C3288 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3289 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3290 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3291 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V C3292 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3293 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V C3294 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3295 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V C3296 1-165-875-11 CERAMIC CHIP 10uF 10% 10V C3297 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3298 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C3299 1-165-662-21 ELECT CHIP 220uF 20% 4V C3300 1-126-207-11 ELECT CHIP 33uF 20% 4V C3301 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3302 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3303 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3304 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3305 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3306 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V C3307 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3308 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3309 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3310 1-114-552-21 ELECT CHIP 100uF 20% 35V C3311 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3312 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V C3313 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3314 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3315 1-165-662-21 ELECT CHIP 220uF 20% 4V C3316 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V C3317 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3318 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3319 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3320 1-165-875-11 CERAMIC CHIP 10uF 10% 10V C3321 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V C3322 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3323 1-165-875-11 CERAMIC CHIP 10uF 10% 10V C3324 1-100-635-21 ELECT CHIP 82uF 20% 4V C3325 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3326 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3327 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3328 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3329 1-165-662-21 ELECT CHIP 220uF 20% 4V C3330 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3331 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3332 1-165-875-11 CERAMIC CHIP 10uF 10% 10V C3333 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3334 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3335 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3336 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3337 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3338 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3339 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3340 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3341 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3342 1-165-875-11 CERAMIC CHIP 10uF 10% 10V C3343 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3344 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3345 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3346 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3347 1-128-995-21 ELECT CHIP 100uF 20% 10V C3348 1-165-662-21 ELECT CHIP 220uF 20% 4V C3349 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3350 1-165-669-21 ELECT CHIP 220uF 20% 6.3V C3351 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3352 1-128-995-21 ELECT CHIP 100uF 20% 10V C3353 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3354 1-114-552-21 ELECT CHIP 100uF 20% 35V C3355 1-126-207-11 ELECT CHIP 33uF 20% 4V C3356 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3357 1-162-916-11 CERAMIC CHIP 12PF 5% 50V C3358 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C3359 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3360 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3361 1-165-875-11 CERAMIC CHIP 10uF 10% 10V C3362 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3363 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3364 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3365 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3366 1-165-875-11 CERAMIC CHIP 10uF 10% 10V C3367 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3368 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3369 1-165-875-11 CERAMIC CHIP 10uF 10% 10V C3370 1-165-662-21 ELECT CHIP 220uF 20% 4V C3371 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3372 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3373 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3374 1-114-552-21 ELECT CHIP 100uF 20% 35V C3503 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3505 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3506 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3507 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3508 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3509 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3510 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3511 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3512 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3513 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3514 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3515 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3516 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3517 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3518 1-112-071-11 ELECT CHIP 220uF 20% 6.3V DIGITAL VIDEO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark STR-DA2400ES/DG920 120 C3519 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3520 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3521 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3522 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3523 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3524 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3525 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3526 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3527 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3528 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3529 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3530 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3531 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3532 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3533 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3534 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3535 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3538 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3539 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3540 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3541 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3542 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3543 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C3544 1-162-916-11 CERAMIC CHIP 12PF 5% 50V C3545 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3546 1-112-071-11 ELECT CHIP 220uF 20% 6.3V C3547 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3548 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3549 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3550 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3551 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3552 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3553 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3554 1-112-071-11 ELECT CHIP 220uF 20% 6.3V C3555 1-112-071-11 ELECT CHIP 220uF 20% 6.3V C3556 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3557 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3558 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3559 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3560 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3561 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3562 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3563 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3564 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3565 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3566 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3567 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3568 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3569 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3570 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3571 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3572 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C3573 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3576 1-128-995-21 ELECT CHIP 100uF 20% 10V C3577 1-128-994-21 ELECT CHIP 47uF 20% 10V C3578 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3579 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3580 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3581 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3582 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3583 1-128-994-21 ELECT CHIP 47uF 20% 10V C3584 1-128-994-21 ELECT CHIP 47uF 20% 10V C3585 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C3586 1-128-995-21 ELECT CHIP 100uF 20% 10V C3587 1-128-995-21 ELECT CHIP 100uF 20% 10V C3588 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C3589 1-128-994-21 ELECT CHIP 47uF 20% 10V C3590 1-100-669-11 ELECT CHIP 100uF 20% 10V C3591 1-100-669-11 ELECT CHIP 100uF 20% 10V C3592 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C3593 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C3598 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C3599 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C3600 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C3602 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C3603 1-128-995-21 ELECT CHIP 100uF 20% 10V C3604 1-128-995-21 ELECT CHIP 100uF 20% 10V C3605 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C3606 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C3608 1-128-994-21 ELECT CHIP 47uF 20% 10V C3609 1-128-994-21 ELECT CHIP 47uF 20% 10V C3610 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3651 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C3870 1-112-788-11 ELECT CHIP 330uF 20% 6.3V C3871 1-112-717-91 CERAMIC CHIP 1uF 10% 6.3V C3872 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3874 1-128-994-21 ELECT CHIP 47uF 20% 10V C3875 1-128-994-21 ELECT CHIP 47uF 20% 10V C3876 1-128-994-21 ELECT CHIP 47uF 20% 10V C3877 1-128-994-21 ELECT CHIP 47uF 20% 10V C3878 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3879 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3880 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3881 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3882 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C3883 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V C3884 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V C3885 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V C3886 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V C3887 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V C3888 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V * C3889 1-112-298-91 CERAMIC CHIP 1uF 10% 16V C3890 1-163-022-00 CERAMIC CHIP 0.012uF 10% 50V C3891 1-131-664-91 CERAMIC CHIP 0.15uF 10% 10V C3892 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V C3896 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V C3897 1-112-717-91 CERAMIC CHIP 1uF 10% 6.3V C3898 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V C3900 1-126-207-11 ELECT CHIP 33uF 20% 4V C3901 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V < CONNECTOR > CN3000 1-770-409-11 CONNECTOR, BOARD TO BOARD 16P CN3001 1-784-859-51 CONNECTOR, FFC (LIF (NON-ZIF)) 7P CN3200 1-779-992-11 PIN, CONNECTOR (PWB) 8P * CN3201 1-764-250-11 PIN, CONNECTOR (PC BOARD) 4P CN3500 1-820-735-31 HDMI CONNECTOR CN3501 1-820-735-31 HDMI CONNECTOR (HDMI SAT IN) CN3502 1-820-735-31 HDMI CONNECTOR (HDMI BD IN) CN3503 1-820-735-31 HDMI CONNECTOR (HDMI VIDEO 1 IN) DIGITAL VIDEO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark STR-DA2400ES/DG920 121 121 CN3504 1-770-406-11 CONNECTOR, BOARD TO BOARD 10P CN3505 1-820-735-31 HDMI CONNECTOR (HDMI OUT) CN3506 1-785-101-11 PIN, CONNECTOR (3.96mm PITCH) 3P CN3800 1-785-728-21 PIN (PC BOARD), CONNECTOR 7P < DIODE > D3000 8-719-049-09 DIODE 1SS367-T3SONY D3001 8-719-049-09 DIODE 1SS367-T3SONY D3204 8-719-210-39 DIODE EC10QS-04 D3205 8-719-312-08 DIODE FMB-G16L D3206 8-719-312-08 DIODE FMB-G16L D3207 8-719-053-18 DIODE 1SR154-400TE-25 D3500 6-501-817-01 DIODE MA2J1110GLS0 D3501 6-501-817-01 DIODE MA2J1110GLS0 D3511 8-719-073-81 DIODE EC21QS06-TE12L D3512 8-719-073-81 DIODE EC21QS06-TE12L < EARTH TERMINAL > ET3501 1-780-318-11 TERMINAL ET3502 1-780-318-11 TERMINAL < FERRITE BEAD > FB3000 1-469-152-11 FERRITE, EMI (SMD) (2012) FB3202 1-469-152-11 FERRITE, EMI (SMD) (2012) FB3203 1-469-324-21 FERRITE, EMI (SMD) (2012) FB3204 1-469-152-11 FERRITE, EMI (SMD) (2012) FB3205 1-469-152-11 FERRITE, EMI (SMD) (2012) FB3206 1-469-324-21 FERRITE, EMI (SMD) (2012) FB3207 1-469-152-11 FERRITE, EMI (SMD) (2012) FB3208 1-469-152-11 FERRITE, EMI (SMD) (2012) FB3209 1-469-324-21 FERRITE, EMI (SMD) (2012) FB3210 1-469-152-11 FERRITE, EMI (SMD) (2012) FB3211 1-469-152-11 FERRITE, EMI (SMD) (2012) FB3212 1-469-152-11 FERRITE, EMI (SMD) (2012) FB3213 1-469-152-11 FERRITE, EMI (SMD) (2012) FB3214 1-469-152-11 FERRITE, EMI (SMD) (2012) FB3500 1-469-324-21 FERRITE, EMI (SMD) (2012) FB3503 1-469-152-11 FERRITE, EMI (SMD) (2012) FB3504 1-469-324-21 FERRITE, EMI (SMD) (2012) FB3505 1-469-324-21 FERRITE, EMI (SMD) (2012) FB3506 1-469-139-21 FERRITE, EMI (SMD) (2012) FB3507 1-469-139-21 FERRITE, EMI (SMD) (2012) FB3508 1-469-324-21 FERRITE, EMI (SMD) (2012) FB3509 1-469-152-11 FERRITE, EMI (SMD) (2012) FB3808 1-469-152-11 FERRITE, EMI (SMD) (2012) FB3809 1-469-152-11 FERRITE, EMI (SMD) (2012) FB3810 1-469-152-11 FERRITE, EMI (SMD) (2012) FB3811 1-469-152-11 FERRITE, EMI (SMD) (2012) < COIL > * FL3500 1-813-880-11 COMMON MODE CHOKE COIL * FL3501 1-813-880-11 COMMON MODE CHOKE COIL * FL3502 1-813-880-11 COMMON MODE CHOKE COIL * FL3503 1-813-880-11 COMMON MODE CHOKE COIL < IC > IC3000 A-1550-924-A IC M30620FCPGP U5C (for SERVICE) IC3200 6-710-521-11 IC HY5DU561622ETP-4-C IC3203 6-710-521-11 IC HY5DU561622ETP-4-C IC3205 6-702-300-01 IC TK11118CSCL-G IC3206 6-705-468-01 IC BA33BC0FP-E2 IC3207 6-700-394-01 IC BA25BC0FP-E2 IC3208 6-705-468-01 IC BA33BC0FP-E2 IC3209 6-600-632-01 IC SI-3011ZFE IC3210 6-808-232-02 IC SST39VF3202704IEKE-24FLIX10 IC3211 6-704-573-01 IC M24C32-WMN6T (B) IC3212 6-705-468-01 IC BA33BC0FP-E2 IC3501 8-753-282-08 IC CXB1444R-T6 IC3502 6-708-758-01 IC PCA9517DP.118 IC3503 8-759-596-39 IC SN74LV4052APWR IC3504 8-759-596-39 IC SN74LV4052APWR IC3505 6-704-001-01 IC BR24L02F-WSE2 IC3506 (Not supplied) IC SII9135CTU IC3507 8-759-524-50 IC TC74VHC541FT (EL) IC3508 (Not supplied) IC SII9134CTU IC3509 6-705-337-01 IC TK11150CSCL-G IC3510 6-705-337-01 IC TK11150CSCL-G IC3511 6-708-913-01 IC TK73400AU3G0L-C IC3512 6-708-913-01 IC TK73400AU3G0L-C IC3513 8-759-679-36 IC TC7WT125FU (TE12R) @ IC3601 6-711-139-01 IC FLI8638-LF IC3800 6-711-254-01 IC ADV7392BCPZ IC3807 6-702-300-01 IC TK11118CSCL-G IC3809 6-702-302-01 IC TK11133CSCL-G IC3810 6-710-444-01 IC CY2302-SXC-1T < COIL > L3500 1-469-525-91 INDUCTOR 10uH L3501 1-469-525-91 INDUCTOR 10uH L3502 1-469-525-91 INDUCTOR 10uH L3503 1-469-525-91 INDUCTOR 10uH L3504 1-469-525-91 INDUCTOR 10uH L3505 1-469-525-91 INDUCTOR 10uH L3506 1-469-525-91 INDUCTOR 10uH < TRANSISTOR > Q3500 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF Q3501 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF Q3505 8-729-027-46 TRANSISTOR DTC114YKA-T146 < RESISTOR/FERRITE BEAD > R3001 1-216-805-11 METAL CHIP 47 5% 1/10W R3002 1-216-809-11 METAL CHIP 100 5% 1/10W R3003 1-216-864-11 SHORT CHIP 0 R3004 1-216-833-11 METAL CHIP 10K 5% 1/10W R3005 1-216-833-11 METAL CHIP 10K 5% 1/10W R3006 1-216-833-11 METAL CHIP 10K 5% 1/10W R3008 1-216-833-11 METAL CHIP 10K 5% 1/10W R3009 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3010 1-216-805-11 METAL CHIP 47 5% 1/10W R3011 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3012 1-216-805-11 METAL CHIP 47 5% 1/10W R3013 1-216-801-11 METAL CHIP 22 5% 1/10W R3014 1-216-801-11 METAL CHIP 22 5% 1/10W R3015 1-216-833-11 METAL CHIP 10K 5% 1/10W R3017 1-216-833-11 METAL CHIP 10K 5% 1/10W R3018 1-216-805-11 METAL CHIP 47 5% 1/10W R3020 1-216-833-11 METAL CHIP 10K 5% 1/10W R3021 1-216-805-11 METAL CHIP 47 5% 1/10W R3023 1-216-833-11 METAL CHIP 10K 5% 1/10W DIGITAL VIDEO Note: IC3506 and IC3508 cannot exchange with single. When IC3506 and IC3508 are damaged, exchange the entire mounted board. @ Replacement of IC3601 used in this set requires a special tool. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark STR-DA2400ES/DG920 122 R3024 1-216-805-11 METAL CHIP 47 5% 1/10W R3025 1-216-805-11 METAL CHIP 47 5% 1/10W R3026 1-216-833-11 METAL CHIP 10K 5% 1/10W R3027 1-216-805-11 METAL CHIP 47 5% 1/10W R3028 1-216-864-11 SHORT CHIP 0 R3029 1-216-833-11 METAL CHIP 10K 5% 1/10W R3030 1-216-805-11 METAL CHIP 47 5% 1/10W R3031 1-216-805-11 METAL CHIP 47 5% 1/10W R3032 1-216-805-11 METAL CHIP 47 5% 1/10W R3033 1-216-805-11 METAL CHIP 47 5% 1/10W R3034 1-216-805-11 METAL CHIP 47 5% 1/10W R3035 1-216-805-11 METAL CHIP 47 5% 1/10W R3036 1-216-805-11 METAL CHIP 47 5% 1/10W R3037 1-216-833-11 METAL CHIP 10K 5% 1/10W R3038 1-216-805-11 METAL CHIP 47 5% 1/10W R3200 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3201 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3202 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3203 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3204 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3205 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3206 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3207 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3208 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3209 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3228 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3229 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3230 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3231 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3240 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3242 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3243 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3244 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3245 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3246 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3247 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3250 1-218-871-11 METAL CHIP 10K 0.5% 1/10W R3251 1-218-871-11 METAL CHIP 10K 0.5% 1/10W R3253 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3254 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3255 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3256 1-208-677-11 METAL CHIP 560 0.5% 1/16W R3257 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3258 1-208-677-11 METAL CHIP 560 0.5% 1/16W R3259 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3260 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3261 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3263 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3264 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3266 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3268 1-218-990-81 SHORT CHIP 0 R3269 1-218-990-81 SHORT CHIP 0 R3271 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3272 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3273 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3274 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3276 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3277 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3278 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3279 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3280 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3281 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3282 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3283 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3284 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3285 1-208-647-11 METAL CHIP 33 0.5% 1/16W R3286 1-218-990-81 SHORT CHIP 0 R3287 1-218-990-81 SHORT CHIP 0 R3288 1-218-990-81 SHORT CHIP 0 R3289 1-218-990-81 SHORT CHIP 0 R3290 1-208-860-81 METAL CHIP 75 0.5% 1/16W R3291 1-218-933-11 RES-CHIP 22 5% 1/16W R3292 1-208-860-81 METAL CHIP 75 0.5% 1/16W R3293 1-208-860-81 METAL CHIP 75 0.5% 1/16W R3314 1-211-990-11 METAL CHIP 75 0.5% 1/10W R3315 1-211-990-11 METAL CHIP 75 0.5% 1/10W R3316 1-211-990-11 METAL CHIP 75 0.5% 1/10W R3317 1-211-990-11 METAL CHIP 75 0.5% 1/10W R3318 1-211-990-11 METAL CHIP 75 0.5% 1/10W R3319 1-211-977-11 METAL CHIP 22 0.5% 1/10W R3320 1-211-990-11 METAL CHIP 75 0.5% 1/10W R3321 1-211-977-11 METAL CHIP 22 0.5% 1/10W R3322 1-211-990-11 METAL CHIP 75 0.5% 1/10W R3323 1-211-977-11 METAL CHIP 22 0.5% 1/10W R3324 1-216-833-11 METAL CHIP 10K 5% 1/10W R3325 1-216-833-11 METAL CHIP 10K 5% 1/10W R3327 1-211-987-11 METAL CHIP 56 0.5% 1/10W R3328 1-211-987-11 METAL CHIP 56 0.5% 1/10W R3329 1-216-864-11 SHORT CHIP 0 R3330 1-211-987-11 METAL CHIP 56 0.5% 1/10W R3331 1-211-987-11 METAL CHIP 56 0.5% 1/10W R3332 1-211-987-11 METAL CHIP 56 0.5% 1/10W R3333 1-211-987-11 METAL CHIP 56 0.5% 1/10W R3334 1-211-977-11 METAL CHIP 22 0.5% 1/10W R3335 1-211-987-11 METAL CHIP 56 0.5% 1/10W R3336 1-211-977-11 METAL CHIP 22 0.5% 1/10W R3337 1-211-977-11 METAL CHIP 22 0.5% 1/10W R3338 1-208-677-11 METAL CHIP 560 0.5% 1/16W R3339 1-208-677-11 METAL CHIP 560 0.5% 1/16W R3340 1-211-977-11 METAL CHIP 22 0.5% 1/10W R3341 1-211-977-11 METAL CHIP 22 0.5% 1/10W R3342 1-211-990-11 METAL CHIP 75 0.5% 1/10W R3343 1-211-990-11 METAL CHIP 75 0.5% 1/10W R3344 1-211-990-11 METAL CHIP 75 0.5% 1/10W R3345 1-211-990-11 METAL CHIP 75 0.5% 1/10W R3346 1-211-990-11 METAL CHIP 75 0.5% 1/10W R3347 1-216-810-11 METAL CHIP 120 5% 1/10W R3348 1-218-871-11 METAL CHIP 10K 0.5% 1/10W R3349 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R3350 1-218-871-11 METAL CHIP 10K 0.5% 1/10W R3351 1-216-810-11 METAL CHIP 120 5% 1/10W R3353 1-216-833-11 METAL CHIP 10K 5% 1/10W R3355 1-216-833-11 METAL CHIP 10K 5% 1/10W R3356 1-216-833-11 METAL CHIP 10K 5% 1/10W R3362 1-216-833-11 METAL CHIP 10K 5% 1/10W R3363 1-216-833-11 METAL CHIP 10K 5% 1/10W R3364 1-216-833-11 METAL CHIP 10K 5% 1/10W R3365 1-216-833-11 METAL CHIP 10K 5% 1/10W R3367 1-216-833-11 METAL CHIP 10K 5% 1/10W R3370 1-216-833-11 METAL CHIP 10K 5% 1/10W DIGITAL VIDEO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark STR-DA2400ES/DG920 123 123 R3371 1-216-833-11 METAL CHIP 10K 5% 1/10W R3372 1-216-833-11 METAL CHIP 10K 5% 1/10W R3373 1-216-833-11 METAL CHIP 10K 5% 1/10W R3374 1-216-833-11 METAL CHIP 10K 5% 1/10W R3378 1-216-833-11 METAL CHIP 10K 5% 1/10W R3379 1-216-833-11 METAL CHIP 10K 5% 1/10W R3380 1-216-833-11 METAL CHIP 10K 5% 1/10W R3381 1-216-833-11 METAL CHIP 10K 5% 1/10W R3382 1-216-833-11 METAL CHIP 10K 5% 1/10W R3383 1-216-833-11 METAL CHIP 10K 5% 1/10W R3384 1-216-833-11 METAL CHIP 10K 5% 1/10W R3385 1-216-864-11 SHORT CHIP 0 R3386 1-216-821-11 METAL CHIP 1K 5% 1/10W R3387 1-216-833-11 METAL CHIP 10K 5% 1/10W R3388 1-216-864-11 SHORT CHIP 0 R3389 1-216-864-11 SHORT CHIP 0 R3390 1-216-864-11 SHORT CHIP 0 R3391 1-216-864-11 SHORT CHIP 0 R3392 1-216-864-11 SHORT CHIP 0 R3393 1-216-864-11 SHORT CHIP 0 R3394 1-216-864-11 SHORT CHIP 0 R3395 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R3396 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R3397 1-216-833-11 METAL CHIP 10K 5% 1/10W R3501 1-216-864-11 SHORT CHIP 0 R3503 1-216-864-11 SHORT CHIP 0 R3505 1-216-864-11 SHORT CHIP 0 R3508 1-216-864-11 SHORT CHIP 0 R3509 1-216-837-11 METAL CHIP 22K 5% 1/10W R3510 1-216-805-11 METAL CHIP 47 5% 1/10W R3511 1-216-805-11 METAL CHIP 47 5% 1/10W R3512 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3514 1-216-805-11 METAL CHIP 47 5% 1/10W R3515 1-216-805-11 METAL CHIP 47 5% 1/10W R3517 1-216-805-11 METAL CHIP 47 5% 1/10W R3518 1-216-805-11 METAL CHIP 47 5% 1/10W R3520 1-216-805-11 METAL CHIP 47 5% 1/10W R3521 1-216-805-11 METAL CHIP 47 5% 1/10W R3522 1-216-841-11 METAL CHIP 47K 5% 1/10W R3523 1-216-841-11 METAL CHIP 47K 5% 1/10W R3524 1-216-841-11 METAL CHIP 47K 5% 1/10W R3525 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3526 1-216-833-11 METAL CHIP 10K 5% 1/10W R3527 1-216-833-11 METAL CHIP 10K 5% 1/10W R3528 1-216-837-11 METAL CHIP 22K 5% 1/10W R3529 1-216-864-11 SHORT CHIP 0 R3530 1-216-841-11 METAL CHIP 47K 5% 1/10W R3531 1-216-821-11 METAL CHIP 1K 5% 1/10W R3532 1-216-821-11 METAL CHIP 1K 5% 1/10W R3533 1-216-864-11 SHORT CHIP 0 R3536 1-216-833-11 METAL CHIP 10K 5% 1/10W R3541 1-216-864-11 SHORT CHIP 0 R3542 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3543 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3545 1-216-805-11 METAL CHIP 47 5% 1/10W R3546 1-216-805-11 METAL CHIP 47 5% 1/10W R3547 1-216-821-11 METAL CHIP 1K 5% 1/10W R3548 1-216-864-11 SHORT CHIP 0 R3551 1-216-864-11 SHORT CHIP 0 R3552 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W R3553 1-216-833-11 METAL CHIP 10K 5% 1/10W R3554 1-216-833-11 METAL CHIP 10K 5% 1/10W R3556 1-216-864-11 SHORT CHIP 0 R3557 1-216-805-11 METAL CHIP 47 5% 1/10W R3558 1-216-833-11 METAL CHIP 10K 5% 1/10W R3559 1-216-833-11 METAL CHIP 10K 5% 1/10W R3560 1-216-833-11 METAL CHIP 10K 5% 1/10W R3561 1-216-805-11 METAL CHIP 47 5% 1/10W R3562 1-216-805-11 METAL CHIP 47 5% 1/10W R3563 1-216-805-11 METAL CHIP 47 5% 1/10W R3564 1-216-864-11 SHORT CHIP 0 R3565 1-216-864-11 SHORT CHIP 0 R3566 1-216-805-11 METAL CHIP 47 5% 1/10W R3567 1-216-805-11 METAL CHIP 47 5% 1/10W R3568 1-216-864-11 SHORT CHIP 0 R3570 1-216-805-11 METAL CHIP 47 5% 1/10W R3571 1-216-805-11 METAL CHIP 47 5% 1/10W R3572 1-216-805-11 METAL CHIP 47 5% 1/10W R3573 1-216-864-11 SHORT CHIP 0 R3574 1-216-805-11 METAL CHIP 47 5% 1/10W R3575 1-216-805-11 METAL CHIP 47 5% 1/10W R3577 1-216-805-11 METAL CHIP 47 5% 1/10W R3578 1-216-805-11 METAL CHIP 47 5% 1/10W R3579 1-216-813-11 METAL CHIP 220 5% 1/10W R3580 1-216-805-11 METAL CHIP 47 5% 1/10W R3582 1-216-797-11 METAL CHIP 10 5% 1/10W R3583 1-216-813-11 METAL CHIP 220 5% 1/10W R3585 1-216-797-11 METAL CHIP 10 5% 1/10W R3586 1-216-833-11 METAL CHIP 10K 5% 1/10W R3587 1-216-857-11 METAL CHIP 1M 5% 1/10W R3588 1-216-821-11 METAL CHIP 1K 5% 1/10W R3589 1-216-809-11 METAL CHIP 100 5% 1/10W R3590 1-216-801-11 METAL CHIP 22 5% 1/10W R3591 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3592 1-216-805-11 METAL CHIP 47 5% 1/10W R3593 1-216-805-11 METAL CHIP 47 5% 1/10W R3594 1-216-809-11 METAL CHIP 100 5% 1/10W R3595 1-216-809-11 METAL CHIP 100 5% 1/10W R3596 1-216-809-11 METAL CHIP 100 5% 1/10W R3597 1-216-809-11 METAL CHIP 100 5% 1/10W R3598 1-216-813-11 METAL CHIP 220 5% 1/10W R3599 1-216-809-11 METAL CHIP 100 5% 1/10W R3600 1-216-864-11 SHORT CHIP 0 R3601 1-216-029-00 RES-CHIP 150 5% 1/10W R3602 1-216-864-11 SHORT CHIP 0 R3603 1-216-797-11 METAL CHIP 10 5% 1/10W R3604 1-216-797-11 METAL CHIP 10 5% 1/10W R3605 1-216-797-11 METAL CHIP 10 5% 1/10W R3606 1-216-805-11 METAL CHIP 47 5% 1/10W R3607 1-216-805-11 METAL CHIP 47 5% 1/10W R3608 1-216-805-11 METAL CHIP 47 5% 1/10W R3609 1-216-805-11 METAL CHIP 47 5% 1/10W R3610 1-216-805-11 METAL CHIP 47 5% 1/10W R3611 1-216-805-11 METAL CHIP 47 5% 1/10W R3612 1-216-805-11 METAL CHIP 47 5% 1/10W R3613 1-216-805-11 METAL CHIP 47 5% 1/10W R3621 1-216-864-11 SHORT CHIP 0 R3622 1-216-833-11 METAL CHIP 10K 5% 1/10W R3623 1-216-809-11 METAL CHIP 100 5% 1/10W R3624 1-216-829-11 METAL CHIP 4.7K 5% 1/10W DIGITAL VIDEO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark STR-DA2400ES/DG920 124 R3625 1-218-843-11 METAL CHIP 680 0.5% 1/10W R3626 1-216-797-11 METAL CHIP 10 5% 1/10W R3627 1-216-797-11 METAL CHIP 10 5% 1/10W R3628 1-216-864-11 SHORT CHIP 0 R3629 1-216-805-11 METAL CHIP 47 5% 1/10W R3630 1-216-864-11 SHORT CHIP 0 R3631 1-216-805-11 METAL CHIP 47 5% 1/10W R3632 1-218-889-11 METAL CHIP 56K 0.5% 1/10W R3633 1-218-859-11 METAL CHIP 3.3K 0.5% 1/10W R3634 1-216-833-11 METAL CHIP 10K 5% 1/10W R3635 1-218-883-11 METAL CHIP 33K 0.5% 1/10W R3636 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R3637 1-216-864-11 SHORT CHIP 0 R3638 1-216-824-11 METAL CHIP 1.8K 5% 1/10W R3639 1-216-824-11 METAL CHIP 1.8K 5% 1/10W R3640 1-216-841-11 METAL CHIP 47K 5% 1/10W R3641 1-216-864-11 SHORT CHIP 0 R3644 1-216-821-11 METAL CHIP 1K 5% 1/10W R3645 1-216-821-11 METAL CHIP 1K 5% 1/10W R3646 1-216-809-11 METAL CHIP 100 5% 1/10W R3647 1-216-833-11 METAL CHIP 10K 5% 1/10W R3648 1-216-833-11 METAL CHIP 10K 5% 1/10W R3649 1-216-833-11 METAL CHIP 10K 5% 1/10W R3650 1-469-139-21 FERRITE, EMI (SMD) (2012) R3651 1-469-139-21 FERRITE, EMI (SMD) (2012) R3652 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3653 1-216-821-11 METAL CHIP 1K 5% 1/10W R3660 1-216-833-11 METAL CHIP 10K 5% 1/10W R3802 1-216-864-11 SHORT CHIP 0 R3804 1-216-864-11 SHORT CHIP 0 R3805 1-216-864-11 SHORT CHIP 0 R3826 1-216-805-11 METAL CHIP 47 5% 1/10W R3827 1-216-805-11 METAL CHIP 47 5% 1/10W R3828 1-216-805-11 METAL CHIP 47 5% 1/10W R3830 1-218-861-11 METAL CHIP 3.9K 0.5% 1/10W R3837 1-216-812-11 METAL CHIP 180 5% 1/10W R3838 1-216-833-11 METAL CHIP 10K 5% 1/10W R3845 1-216-805-11 METAL CHIP 47 5% 1/10W R3846 1-216-801-11 METAL CHIP 22 5% 1/10W R3847 1-216-801-11 METAL CHIP 22 5% 1/10W R3871 1-216-809-11 METAL CHIP 100 5% 1/10W R3872 1-216-833-11 METAL CHIP 10K 5% 1/10W R3873 1-216-864-11 SHORT CHIP 0 R3874 1-216-864-11 SHORT CHIP 0 R3875 1-216-864-11 SHORT CHIP 0 R3876 1-216-809-11 METAL CHIP 100 5% 1/10W R3877 1-216-833-11 METAL CHIP 10K 5% 1/10W R3878 1-216-803-11 METAL CHIP 33 5% 1/10W R3879 1-216-803-11 METAL CHIP 33 5% 1/10W R3880 1-218-831-11 METAL CHIP 220 0.5% 1/10W < COMPOSITION CIRCUIT BLOCK > RB3200 1-242-963-21 RES, NETWORK 33 (1005X4) RB3201 1-242-963-21 RES, NETWORK 33 (1005X4) RB3204 1-242-963-21 RES, NETWORK 33 (1005X4) RB3209 1-242-963-21 RES, NETWORK 33 (1005X4) RB3211 1-234-702-11 RES, NETWORK 68 (1005X4) RB3212 1-234-702-11 RES, NETWORK 68 (1005X4) RB3213 1-234-702-11 RES, NETWORK 68 (1005X4) RB3214 1-234-702-11 RES, NETWORK 68 (1005X4) RB3215 1-234-702-11 RES, NETWORK 68 (1005X4) RB3216 1-234-702-11 RES, NETWORK 68 (1005X4) RB3500 1-234-371-21 RES, NETWORK 47 (1005X4) RB3501 1-234-370-21 RES, NETWORK 22 (1005X4) RB3502 1-234-370-21 RES, NETWORK 22 (1005X4) RB3503 1-234-371-21 RES, NETWORK 47 (1005X4) RB3504 1-234-370-21 RES, NETWORK 22 (1005X4) RB3505 1-234-370-21 RES, NETWORK 22 (1005X4) RB3506 1-234-371-21 RES, NETWORK 47 (1005X4) RB3507 1-234-370-21 RES, NETWORK 22 (1005X4) RB3508 1-234-370-21 RES, NETWORK 22 (1005X4) RB3509 1-234-370-21 RES, NETWORK 22 (1005X4) RB3510 1-234-371-21 RES, NETWORK 47 (1005X4) RB3511 1-234-371-21 RES, NETWORK 47 (1005X4) RB3512 1-234-371-21 RES, NETWORK 47 (1005X4) RB3513 1-234-371-21 RES, NETWORK 47 (1005X4) RB3514 1-234-370-21 RES, NETWORK 22 (1005X4) RB3515 1-234-371-21 RES, NETWORK 47 (1005X4) RB3516 1-234-370-21 RES, NETWORK 22 (1005X4) RB3517 1-234-370-21 RES, NETWORK 22 (1005X4) RB3801 1-234-371-21 RES, NETWORK 47 (1005X4) RB3802 1-234-371-21 RES, NETWORK 47 (1005X4) RB3803 1-234-371-21 RES, NETWORK 47 (1005X4) RB3804 1-234-371-21 RES, NETWORK 47 (1005X4) < VIBRATOR > X3000 1-795-244-11 VIBRATOR, CERAMIC (10MHz) X3201 1-813-808-11 VIBRATOR, CRYSTAL (19.6608MHz) X3500 1-813-570-21 VIBRATOR, CRYSTAL (28.322MHz) ************************************************************ A-1441-434-A DISPLAY BOARD, COMPLETE *********************** < CAPACITOR > C701 1-126-786-11 ELECT 47uF 20% 16V C702 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C703 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C704 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C705 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C706 1-126-786-11 ELECT 47uF 20% 16V C707 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C708 1-126-795-11 ELECT 10uF 20% 50V C709 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C710 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C711 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C712 1-165-733-31 ELECT 100uF 20% 25V C713 1-107-378-11 MYLAR 0.0039uF 5% 200V C714 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C715 1-137-807-31 ELECT 100uF 20% 50V C716 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C754 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C759 1-115-871-11 ELECT 1uF 20% 50V C760 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C761 1-126-795-11 ELECT 10uF 20% 50V C763 1-124-234-00 ELECT 22uF 20% 16V C764 1-124-234-00 ELECT 22uF 20% 16V C765 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C766 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C767 1-115-871-11 ELECT 1uF 20% 50V DIGITAL VIDEO DISPLAY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark STR-DA2400ES/DG920 125 125 C768 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C769 1-126-786-11 ELECT 47uF 20% 16V C770 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C771 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C775 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C776 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C778 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C779 1-126-382-11 ELECT 100uF 20% 16V C780 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V < CONNECTOR > * CN707 1-691-408-11 CONNECTOR, BOARD TO BOARD 7P CN717 1-779-277-11 CONNECTOR, FFC (LIF (NON-ZIF)) 9P < CONNECTOR > CNP701 1-784-927-11 PIN, CONNECTOR 12P CNP702 1-784-926-11 PIN, CONNECTOR 11P CNP711 1-784-928-11 PIN, CONNECTOR 13P < DIODE > D702 8-719-075-59 LED SELS5B23C-TP15 (Digital Cinema Sound) D703 6-502-413-01 LED SELT5E23C-S TP15 (MULTI CHANNEL DECODING) D704 8-719-041-97 DIODE MA113- (TX) D705 8-719-041-97 DIODE MA113- (TX) D706 8-719-041-97 DIODE MA113- (TX) D707 8-719-041-97 DIODE MA113- (TX) D708 6-501-738-01 DIODE MAZ8062GMLS0 D709 6-501-817-01 DIODE MA2J1110GLS0 D710 8-719-053-18 DIODE 1SR154-400TE-25 < FERRITE BEAD > FB701 1-469-152-11 FERRITE, EMI (SMD) (2012) < IC > IC701 6-600-349-31 IC NJL24H400A IC705 8-759-701-01 IC NJM2904M < COIL > L701 1-421-967-11 INDUCTOR 100uH L702 1-414-398-11 INDUCTOR 10uH < FLUORESCENT INDICATOR TUBE > ND701 1-483-000-11 FL TUBE < TRANSISTOR > Q701 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q702 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q703 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q704 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q705 8-729-808-42 TRANSISTOR 2SD1624-T Q706 8-729-808-42 TRANSISTOR 2SD1624-T Q709 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q710 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q711 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF Q712 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q713 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q714 8-729-027-43 TRANSISTOR DTC114EKA-T146 < RESISTOR > R701 1-216-815-11 METAL CHIP 330 5% 1/10W R704 1-216-864-11 SHORT CHIP 0 R706 1-216-797-11 METAL CHIP 10 5% 1/10W 0 R707 1-249-385-91 CARBON 2.2 5% 1/4W F 0 R708 1-249-385-91 CARBON 2.2 5% 1/4W F R709 1-216-809-11 METAL CHIP 100 5% 1/10W R710 1-216-809-11 METAL CHIP 100 5% 1/10W R711 1-216-809-11 METAL CHIP 100 5% 1/10W R712 1-216-809-11 METAL CHIP 100 5% 1/10W R713 1-216-809-11 METAL CHIP 100 5% 1/10W R714 1-216-809-11 METAL CHIP 100 5% 1/10W R715 1-216-809-11 METAL CHIP 100 5% 1/10W R716 1-216-809-11 METAL CHIP 100 5% 1/10W R717 1-216-809-11 METAL CHIP 100 5% 1/10W R718 1-216-809-11 METAL CHIP 100 5% 1/10W R719 1-216-815-11 METAL CHIP 330 5% 1/10W R720 1-216-811-11 METAL CHIP 150 5% 1/10W R721 1-216-813-11 METAL CHIP 220 5% 1/10W R722 1-216-833-11 METAL CHIP 10K 5% 1/10W R724 1-216-821-11 METAL CHIP 1K 5% 1/10W R727 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R728 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R729 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R730 1-216-821-11 METAL CHIP 1K 5% 1/10W R731 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R733 1-216-821-11 METAL CHIP 1K 5% 1/10W R734 1-216-838-11 METAL CHIP 27K 5% 1/10W R735 1-216-821-11 METAL CHIP 1K 5% 1/10W R736 1-216-821-11 METAL CHIP 1K 5% 1/10W R757 1-216-809-11 METAL CHIP 100 5% 1/10W R758 1-216-817-11 METAL CHIP 470 5% 1/10W R759 1-216-833-11 METAL CHIP 10K 5% 1/10W R772 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R773 1-216-809-11 METAL CHIP 100 5% 1/10W R774 1-216-841-11 METAL CHIP 47K 5% 1/10W R775 1-216-841-11 METAL CHIP 47K 5% 1/10W R777 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R779 1-216-833-11 METAL CHIP 10K 5% 1/10W R780 1-218-866-11 METAL CHIP 6.2K 0.5% 1/10W R781 1-216-841-11 METAL CHIP 47K 5% 1/10W R782 1-216-842-11 METAL CHIP 56K 5% 1/10W R783 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R786 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R787 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R788 1-216-821-11 METAL CHIP 1K 5% 1/10W R790 1-216-833-11 METAL CHIP 10K 5% 1/10W R791 1-216-833-11 METAL CHIP 10K 5% 1/10W R792 1-216-845-11 METAL CHIP 100K 5% 1/10W R793 1-216-845-11 METAL CHIP 100K 5% 1/10W R794 1-216-821-11 METAL CHIP 1K 5% 1/10W 0 R800 1-218-867-91 METAL CHIP 6.8K 0.5% 1/10W F R801 1-249-393-11 CARBON 10 5% 1/4W < SWITCH > S701 1-771-410-21 SWITCH, TACTILE (MUSIC) S702 1-771-410-21 SWITCH, TACTILE (MOVIE) S703 1-771-410-21 SWITCH, TACTILE (A.F.D.) S704 1-771-410-21 SWITCH, TACTILE (2CH/A.DIRECT) S705 1-771-410-21 SWITCH, TACTILE (DIMMER) DISPLAY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark STR-DA2400ES/DG920 126 S708 1-771-410-21 SWITCH, TACTILE (MEMORY/ENTER) S711 1-771-410-21 SWITCH, TACTILE (DISPLAY) S712 1-771-410-21 SWITCH, TACTILE (INPUT MODE) S715 1-418-817-31 ENCODER, ROTARY (INPUT SELECTOR) S722 1-418-725-41 ENCODER, ROTARY (12 TYPE) (MASTER VOLUME) < TRANSFORMER > T701 1-445-015-11 TRANSFORMER, DC-DC CONVERTER ************************************************************ A-1439-165-A DSP BOARD, COMPLETE ******************** < CAPACITOR > C5001 1-112-071-11 ELECT CHIP 220uF 20% 6.3V C5007 1-112-075-11 ELECT CHIP 47uF 20% 16V C5012 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C5088 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C5091 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V C5094 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C5095 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V C5117 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C5120 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C5126 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C5132 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C5139 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C5140 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C5144 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C5150 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C5155 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C5161 1-114-385-11 ELECT CHIP 470uF 20% 6.3V C5162 1-114-385-11 ELECT CHIP 470uF 20% 6.3V C5163 1-162-913-11 CERAMIC CHIP 8PF 0.5PF 50V C5164 1-162-913-11 CERAMIC CHIP 8PF 0.5PF 50V C5165 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C5166 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C5168 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C5170 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V C5172 1-112-071-11 ELECT CHIP 220uF 20% 6.3V C5173 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C5175 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C5176 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C5177 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C5178 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C5179 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C5180 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C5181 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C5182 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C5183 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V C5185 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V C5188 1-114-385-11 ELECT CHIP 470uF 20% 6.3V C5189 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V C5195 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C5196 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C5197 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C5198 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C5199 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C5200 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C5201 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C5202 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V < CONNECTOR > CN5001 1-815-136-21 CONNECTOR, BOARD TO BOARD CN5002 1-785-125-21 CONNECTOR 6P CN5003 1-784-254-11 CONNECTOR 10P < FERRITE BEAD > FB5003 1-469-152-11 FERRITE, EMI (SMD) (2012) < FILTER > FL5006 1-400-874-11 FILTER, EMI REMOVAL (SMD) FL5009 1-400-874-11 FILTER, EMI REMOVAL (SMD) FL5010 1-400-874-11 FILTER, EMI REMOVAL (SMD) FL5011 1-400-874-11 FILTER, EMI REMOVAL (SMD) FL5013 1-239-480-11 FILTER, EMI < IC > IC5015 6-702-381-01 IC SI-3011ZD-TL IC5020 A-1551-000-A IC SST25VF016B-50-4C-S2AF-T (for SERVICE) IC5021 (Not supplied) IC D790E002BZDH300 IC5022 6-711-832-01 IC M12L64322A-6TG < RESISTOR > R5002 1-216-833-11 METAL CHIP 10K 5% 1/10W R5279 1-216-812-11 METAL CHIP 180 5% 1/10W R5280 1-216-857-11 METAL CHIP 1M 5% 1/10W R5290 1-216-805-11 METAL CHIP 47 5% 1/10W R5299 1-216-833-11 METAL CHIP 10K 5% 1/10W R5321 1-216-801-11 METAL CHIP 22 5% 1/10W R5322 1-216-801-11 METAL CHIP 22 5% 1/10W R5323 1-216-801-11 METAL CHIP 22 5% 1/10W R5324 1-216-801-11 METAL CHIP 22 5% 1/10W R5325 1-216-801-11 METAL CHIP 22 5% 1/10W R5326 1-216-801-11 METAL CHIP 22 5% 1/10W R5327 1-216-801-11 METAL CHIP 22 5% 1/10W R5331 1-216-801-11 METAL CHIP 22 5% 1/10W R5332 1-216-801-11 METAL CHIP 22 5% 1/10W R5333 1-216-801-11 METAL CHIP 22 5% 1/10W R5334 1-216-801-11 METAL CHIP 22 5% 1/10W R5335 1-216-801-11 METAL CHIP 22 5% 1/10W R5336 1-216-801-11 METAL CHIP 22 5% 1/10W R5337 1-216-801-11 METAL CHIP 22 5% 1/10W R5341 1-216-801-11 METAL CHIP 22 5% 1/10W R5346 1-216-801-11 METAL CHIP 22 5% 1/10W R5347 1-216-801-11 METAL CHIP 22 5% 1/10W R5348 1-216-801-11 METAL CHIP 22 5% 1/10W R5349 1-216-801-11 METAL CHIP 22 5% 1/10W R5350 1-216-821-11 METAL CHIP 1K 5% 1/10W R5355 1-216-833-11 METAL CHIP 10K 5% 1/10W R5357 1-216-821-11 METAL CHIP 1K 5% 1/10W R5358 1-216-821-11 METAL CHIP 1K 5% 1/10W R5359 1-216-821-11 METAL CHIP 1K 5% 1/10W R5363 1-218-871-11 METAL CHIP 10K 0.5% 1/10W R5365 1-218-839-11 METAL CHIP 470 0.5% 1/10W R5368 1-216-833-11 METAL CHIP 10K 5% 1/10W R5369 1-216-833-11 METAL CHIP 10K 5% 1/10W R5373 1-216-833-11 METAL CHIP 10K 5% 1/10W R5375 1-216-801-11 METAL CHIP 22 5% 1/10W R5376 1-216-801-11 METAL CHIP 22 5% 1/10W DISPLAY DSP Note: IC5021 cannot exchange with single. When IC5021 is damaged, exchange the entire mounted board. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark STR-DA2400ES/DG920 127 127 R5377 1-216-801-11 METAL CHIP 22 5% 1/10W R5378 1-216-821-11 METAL CHIP 1K 5% 1/10W R5379 1-218-847-11 METAL CHIP 1K 0.5% 1/10W R5384 1-216-801-11 METAL CHIP 22 5% 1/10W R5385 1-216-801-11 METAL CHIP 22 5% 1/10W R5386 1-216-801-11 METAL CHIP 22 5% 1/10W R5387 1-216-801-11 METAL CHIP 22 5% 1/10W R5391 1-216-833-11 METAL CHIP 10K 5% 1/10W R5392 1-216-833-11 METAL CHIP 10K 5% 1/10W R5393 1-216-864-11 SHORT CHIP 0 R5394 1-216-801-11 METAL CHIP 22 5% 1/10W R5397 1-216-833-11 METAL CHIP 10K 5% 1/10W R5399 1-216-833-11 METAL CHIP 10K 5% 1/10W R5402 1-216-833-11 METAL CHIP 10K 5% 1/10W R5403 1-216-801-11 METAL CHIP 22 5% 1/10W R5404 1-216-801-11 METAL CHIP 22 5% 1/10W R5405 1-216-801-11 METAL CHIP 22 5% 1/10W R5406 1-216-801-11 METAL CHIP 22 5% 1/10W R5407 1-216-801-11 METAL CHIP 22 5% 1/10W R5410 1-216-833-11 METAL CHIP 10K 5% 1/10W R5411 1-216-801-11 METAL CHIP 22 5% 1/10W R5412 1-216-801-11 METAL CHIP 22 5% 1/10W R5413 1-216-801-11 METAL CHIP 22 5% 1/10W R5414 1-216-801-11 METAL CHIP 22 5% 1/10W < COMPOSITION CIRCUIT BLOCK > RB009 1-234-372-11 RES, NETWORK 100 (1005X4) RB010 1-234-372-11 RES, NETWORK 100 (1005X4) RB011 1-234-372-11 RES, NETWORK 100 (1005X4) RB012 1-234-372-11 RES, NETWORK 100 (1005X4) RB013 1-234-372-11 RES, NETWORK 100 (1005X4) RB014 1-234-372-11 RES, NETWORK 100 (1005X4) RB015 1-234-372-11 RES, NETWORK 100 (1005X4) RB016 1-234-372-11 RES, NETWORK 100 (1005X4) RB019 1-234-373-21 RES, NETWORK 220 (1005X4) RB021 1-234-373-21 RES, NETWORK 220 (1005X4) RB022 1-234-373-21 RES, NETWORK 220 (1005X4) RB024 1-234-373-21 RES, NETWORK 220 (1005X4) RB025 1-234-373-21 RES, NETWORK 220 (1005X4) RB026 1-234-373-21 RES, NETWORK 220 (1005X4) < VIBRATOR > X002 1-813-868-21 VIBRATOR, CRYSTAL (25MHz) ************************************************************ JOG BOARD ********** < CAPACITOR > C104 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C105 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C106 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C107 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V < CONNECTOR > * CN104 1-691-406-11 CONNECTOR, BOARD TO BOARD 7P < RESISTOR > R112 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R113 1-216-825-11 METAL CHIP 2.2K 5% 1/10W < ROTARY ENCODER > RV103 1-418-817-11 ENCODER, ROTARY (– TUNING +) RV104 1-418-817-11 ENCODER, ROTARY (– TONE +) < SWITCH > S113 1-771-410-21 SWITCH, TACTILE (TUNING MODE) S114 1-771-410-21 SWITCH, TACTILE (TONE MODE) S115 1-771-410-21 SWITCH, TACTILE (SPEAKERS (OFF/A/B/A+B)) ************************************************************ LED BOARD ********** < CONNECTOR > CN719 1-779-978-11 PIN, CONNECTOR 3P < LED > D701 8-719-056-11 LED SML72423C-TP15 (ON/STANDBY) ************************************************************ LIMITER BOARD ************** < CAPACITOR > C1909 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1910 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C1913 1-165-908-11 CERAMIC CHIP 1uF 10% 10V < DIODE > D1906 6-501-738-01 DIODE MAZ8062GMLS0 < IC > IC1903 6-710-072-01 IC LM61CIZ/LFT2 IC1905 6-710-072-01 IC LM61CIZ/LFT2 < RESISTOR > R1928 1-216-809-11 METAL CHIP 100 5% 1/10W ************************************************************ A-1441-431-A MAIN BOARD, COMPLETE (DG920) A-1442-418-A MAIN BOARD, COMPLETE (DA2400ES: US) A-1442-450-A MAIN BOARD, COMPLETE (DA2400ES: AEP, ECE, UK) ******************** 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 < CAPACITOR > C402 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C403 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C404 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C405 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V (DG920) C408 1-126-965-91 ELECT 22uF 20% 50V C409 1-112-114-11 ELECT 22uF 20% 50V (DA2400ES: AEP, ECE, UK) C409 1-126-965-91 ELECT 22uF 20% 50V (DA2400ES: US/DG920) C421 1-126-947-11 ELECT 47uF 20% 35V (DA2400ES: US/DG920) C421 1-112-089-11 ELECT 47uF 20% 25V (DA2400ES: AEP, ECE, UK) LIMITER LED JOG DSP MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark STR-DA2400ES/DG920 128 C424 1-102-233-00 CERAMIC 33PF 10% 500V C425 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C426 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C427 1-126-964-11 ELECT 10uF 20% 50V C429 1-102-233-00 CERAMIC 33PF 10% 500V C458 1-126-965-91 ELECT 22uF 20% 50V C459 1-112-114-11 ELECT 22uF 20% 50V (DA2400ES: AEP, ECE, UK) C459 1-126-965-91 ELECT 22uF 20% 50V (DA2400ES: US/DG920) C460 1-126-965-91 ELECT 22uF 20% 50V (DG920) C471 1-126-947-11 ELECT 47uF 20% 35V (DA2400ES: US/DG920) C471 1-112-089-11 ELECT 47uF 20% 25V (DA2400ES: AEP, ECE, UK) C473 1-102-233-00 CERAMIC 33PF 10% 500V C474 1-102-233-00 CERAMIC 33PF 10% 500V C475 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C476 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C477 1-126-964-11 ELECT 10uF 20% 50V C521 1-126-947-11 ELECT 47uF 20% 35V (DA2400ES: US/DG920) C521 1-112-089-11 ELECT 47uF 20% 25V (DA2400ES: AEP, ECE, UK) C523 1-102-233-00 CERAMIC 33PF 10% 500V C524 1-102-233-00 CERAMIC 33PF 10% 500V C525 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C526 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C527 1-126-964-11 ELECT 10uF 20% 50V C571 1-126-947-11 ELECT 47uF 20% 35V (DA2400ES: US/DG920) C571 1-112-089-11 ELECT 47uF 20% 25V (DA2400ES: AEP, ECE, UK) C573 1-102-233-00 CERAMIC 33PF 10% 500V C574 1-102-233-00 CERAMIC 33PF 10% 500V C575 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C576 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C577 1-126-964-11 ELECT 10uF 20% 50V C621 1-126-947-11 ELECT 47uF 20% 35V (DA2400ES: US/DG920) C621 1-112-089-11 ELECT 47uF 20% 25V (DA2400ES: AEP, ECE, UK) C623 1-102-233-00 CERAMIC 33PF 10% 500V C624 1-102-233-00 CERAMIC 33PF 10% 500V C625 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C626 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C627 1-126-964-11 ELECT 10uF 20% 50V C631 1-136-157-00 FILM 0.022uF 5% 50V C671 1-126-947-11 ELECT 47uF 20% 35V (DA2400ES: US/DG920) C671 1-112-089-11 ELECT 47uF 20% 25V (DA2400ES: AEP, ECE, UK) C673 1-102-233-00 CERAMIC 33PF 10% 500V C674 1-102-233-00 CERAMIC 33PF 10% 500V C675 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C676 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C677 1-126-964-11 ELECT 10uF 20% 50V C681 1-136-157-00 FILM 0.022uF 5% 50V C721 1-126-923-91 ELECT 220uF 20% 10V C722 1-126-964-11 ELECT 10uF 20% 50V C723 1-102-233-00 CERAMIC 33PF 10% 500V C724 1-102-233-00 CERAMIC 33PF 10% 500V C725 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C726 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C727 1-126-964-11 ELECT 10uF 20% 50V C771 1-126-947-11 ELECT 47uF 20% 35V (DA2400ES: US/DG920) C771 1-112-089-11 ELECT 47uF 20% 25V (DA2400ES: AEP, ECE, UK) C801 1-114-537-11 ELECT (BLOCK) 8200uF 20% 71V C802 1-114-537-11 ELECT (BLOCK) 8200uF 20% 71V C803 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V C804 1-104-999-11 MYLAR 0.1uF 5% 200V C805 1-104-999-11 MYLAR 0.1uF 5% 200V C806 1-137-350-11 FILM 0.015uF 5% 100V C807 1-137-350-11 FILM 0.015uF 5% 100V C808 1-137-350-11 FILM 0.015uF 5% 100V C809 1-137-350-11 FILM 0.015uF 5% 100V C810 1-137-980-91 CERAMIC CHIP 0.47uF 10% 50V C811 1-137-980-91 CERAMIC CHIP 0.47uF 10% 50V C812 1-112-085-11 ELECT 1000uF 20% 16V (DA2400ES: AEP, ECE, UK) C812 1-126-767-11 ELECT 1000uF 20% 16V (DA2400ES: US/DG920) C813 1-112-085-11 ELECT 1000uF 20% 16V (DA2400ES: AEP, ECE, UK) C813 1-126-767-11 ELECT 1000uF 20% 16V (DA2400ES: US/DG920) C814 1-112-423-11 ELECT 3300uF 20% 25V (DA2400ES: AEP, ECE, UK) C814 1-126-944-11 ELECT 3300uF 20% 25V (DA2400ES: US/DG920) C815 1-112-423-11 ELECT 3300uF 20% 25V (DA2400ES: AEP, ECE, UK) C815 1-126-944-11 ELECT 3300uF 20% 25V (DA2400ES: US/DG920) C817 1-137-980-91 CERAMIC CHIP 0.47uF 10% 50V C818 1-112-084-11 ELECT 470uF 20% 16V (DA2400ES: AEP, ECE, UK) C818 1-126-935-11 ELECT 470uF 20% 16V (DA2400ES: US/DG920) C4001 1-112-097-11 ELECT 2.2uF 20% 50V (DA2400ES: AEP, ECE, UK) C4001 1-126-961-11 ELECT 2.2uF 20% 50V (DA2400ES: US/DG920) C4002 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C4003 1-112-084-11 ELECT 470uF 20% 16V (DA2400ES: AEP, ECE, UK) C4003 1-126-935-11 ELECT 470uF 20% 16V (DA2400ES: US/DG920) C4004 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C4005 1-125-896-91 MYLAR 0.0091uF 5% 50V C4006 1-136-159-00 MYLAR 0.033uF 5% 50V C4007 1-112-097-11 ELECT 2.2uF 20% 50V (DA2400ES: AEP, ECE, UK) C4007 1-126-961-11 ELECT 2.2uF 20% 50V (DA2400ES: US/DG920) C4009 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C4011 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C4012 1-112-114-11 ELECT 22uF 20% 50V (DA2400ES: AEP, ECE, UK) C4012 1-126-965-91 ELECT 22uF 20% 50V (DA2400ES: US) MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark STR-DA2400ES/DG920 129 129 C4013 1-112-114-11 ELECT 22uF 20% 50V (DA2400ES: AEP, ECE, UK) C4013 1-126-965-91 ELECT 22uF 20% 50V (DA2400ES: US) C4014 1-112-114-11 ELECT 22uF 20% 50V (DA2400ES: AEP, ECE, UK) C4014 1-126-965-91 ELECT 22uF 20% 50V (DA2400ES: US) C4015 1-112-114-11 ELECT 22uF 20% 50V (DA2400ES: AEP, ECE, UK) C4015 1-126-965-91 ELECT 22uF 20% 50V (DA2400ES: US) C4016 1-112-114-11 ELECT 22uF 20% 50V (DA2400ES: AEP, ECE, UK) C4016 1-126-965-91 ELECT 22uF 20% 50V (DA2400ES: US) C4017 1-112-114-11 ELECT 22uF 20% 50V (DA2400ES: AEP, ECE, UK) C4017 1-126-965-91 ELECT 22uF 20% 50V (DA2400ES: US) C4018 1-112-114-11 ELECT 22uF 20% 50V (DA2400ES: AEP, ECE, UK) C4018 1-126-965-91 ELECT 22uF 20% 50V (DA2400ES: US) C4019 1-112-114-11 ELECT 22uF 20% 50V (DA2400ES: AEP, ECE, UK) C4019 1-126-965-91 ELECT 22uF 20% 50V (DA2400ES: US) C4021 1-112-097-11 ELECT 2.2uF 20% 50V (DA2400ES: AEP, ECE, UK) C4021 1-126-961-11 ELECT 2.2uF 20% 50V (DA2400ES: US/DG920) C4022 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C4023 1-112-084-11 ELECT 470uF 20% 16V (DA2400ES: AEP, ECE, UK) C4023 1-126-935-11 ELECT 470uF 20% 16V (DA2400ES: US/DG920) C4024 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C4025 1-125-896-91 MYLAR 0.0091uF 5% 50V C4026 1-136-159-00 MYLAR 0.033uF 5% 50V C4027 1-112-097-11 ELECT 2.2uF 20% 50V (DA2400ES: AEP, ECE, UK) C4027 1-126-961-11 ELECT 2.2uF 20% 50V (DA2400ES: US/DG920) C4029 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C4031 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C4032 1-112-114-11 ELECT 22uF 20% 50V (DA2400ES: AEP, ECE, UK) C4032 1-126-965-91 ELECT 22uF 20% 50V (DA2400ES: US/DG920) C4033 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C4035 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C4048 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C4049 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C4052 1-112-114-11 ELECT 22uF 20% 50V (DA2400ES: AEP, ECE, UK) C4052 1-126-965-91 ELECT 22uF 20% 50V (DA2400ES: US/DG920) C4053 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C4055 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C4060 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C4060 1-126-964-11 ELECT 10uF 20% 50V (DA2400ES: US/DG920) C4061 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C4061 1-126-964-11 ELECT 10uF 20% 50V (DA2400ES: US/DG920) C4062 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C4062 1-126-964-11 ELECT 10uF 20% 50V (DA2400ES: US/DG920) C4063 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C4063 1-126-964-11 ELECT 10uF 20% 50V (DA2400ES: US/DG920) C4064 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C4064 1-126-964-11 ELECT 10uF 20% 50V (DA2400ES: US/DG920) C4065 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C4065 1-126-964-11 ELECT 10uF 20% 50V (DA2400ES: US/DG920) C4067 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C4067 1-126-964-11 ELECT 10uF 20% 50V (DA2400ES: US/DG920) C4068 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C4068 1-126-964-11 ELECT 10uF 20% 50V (DA2400ES: US/DG920) C4069 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C4070 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C4071 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C4071 1-126-964-11 ELECT 10uF 20% 50V (DA2400ES: US/DG920) C4072 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C4072 1-126-964-11 ELECT 10uF 20% 50V (DA2400ES: US/DG920) C4073 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C4073 1-126-964-11 ELECT 10uF 20% 50V (DA2400ES: US/DG920) C4074 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C4074 1-126-964-11 ELECT 10uF 20% 50V (DA2400ES: US/DG920) C4075 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C4075 1-126-964-11 ELECT 10uF 20% 50V (DA2400ES: US/DG920) C4076 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C4076 1-126-964-11 ELECT 10uF 20% 50V (DA2400ES: US/DG920) C4077 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C4077 1-126-964-11 ELECT 10uF 20% 50V (DA2400ES: US/DG920) C4078 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C4078 1-126-964-11 ELECT 10uF 20% 50V (DA2400ES: US/DG920) C4081 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C4082 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C4084 1-164-230-11 CERAMIC CHIP 220PF 5% 50V MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark STR-DA2400ES/DG920 130 C4085 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C4086 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C4100 1-128-950-31 ELECT 1000uF 20% 16V C4102 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V C4103 1-128-950-31 ELECT 1000uF 20% 16V C4105 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V C4106 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V C4107 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V CC01 1-162-927-11 CERAMIC CHIP 100PF 5% 50V (DA2400ES: AEP, ECE, UK) CC02 1-162-927-11 CERAMIC CHIP 100PF 5% 50V (DA2400ES: AEP, ECE, UK) CC03 1-162-927-11 CERAMIC CHIP 100PF 5% 50V (DA2400ES: AEP, ECE, UK) CC04 1-162-927-11 CERAMIC CHIP 100PF 5% 50V (DA2400ES: AEP, ECE, UK) CC05 1-162-927-11 CERAMIC CHIP 100PF 5% 50V (DA2400ES: AEP, ECE, UK) CC06 1-162-927-11 CERAMIC CHIP 100PF 5% 50V (DA2400ES: AEP, ECE, UK) CC07 1-162-927-11 CERAMIC CHIP 100PF 5% 50V (DA2400ES: AEP, ECE, UK) CC08 1-162-927-11 CERAMIC CHIP 100PF 5% 50V (DA2400ES: AEP, ECE, UK) CC09 1-162-927-11 CERAMIC CHIP 100PF 5% 50V (DA2400ES: AEP, ECE, UK) CC10 1-162-927-11 CERAMIC CHIP 100PF 5% 50V (DA2400ES: AEP, ECE, UK) CC12 1-162-927-11 CERAMIC CHIP 100PF 5% 50V CC13 1-162-927-11 CERAMIC CHIP 100PF 5% 50V CC14 1-162-927-11 CERAMIC CHIP 100PF 5% 50V CC15 1-162-927-11 CERAMIC CHIP 100PF 5% 50V CC16 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V (DA2400ES: AEP, ECE, UK) CC17 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V (DA2400ES: AEP, ECE, UK) CC18 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V (DA2400ES: AEP, ECE, UK) CC19 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V (DA2400ES: AEP, ECE, UK) CC51 1-162-927-11 CERAMIC CHIP 100PF 5% 50V (DA2400ES: AEP, ECE, UK) CC52 1-162-927-11 CERAMIC CHIP 100PF 5% 50V (DA2400ES: AEP, ECE, UK) CC53 1-162-927-11 CERAMIC CHIP 100PF 5% 50V (DA2400ES: AEP, ECE, UK) CC54 1-162-927-11 CERAMIC CHIP 100PF 5% 50V (DA2400ES: AEP, ECE, UK) CC55 1-162-927-11 CERAMIC CHIP 100PF 5% 50V (DA2400ES: AEP, ECE, UK) CC56 1-162-927-11 CERAMIC CHIP 100PF 5% 50V (DA2400ES: AEP, ECE, UK) CC57 1-162-927-11 CERAMIC CHIP 100PF 5% 50V (DA2400ES: AEP, ECE, UK) CC58 1-162-927-11 CERAMIC CHIP 100PF 5% 50V (DA2400ES: AEP, ECE, UK) CC59 1-162-927-11 CERAMIC CHIP 100PF 5% 50V (DA2400ES: AEP, ECE, UK) CC60 1-162-927-11 CERAMIC CHIP 100PF 5% 50V (DA2400ES: AEP, ECE, UK) CC62 1-162-927-11 CERAMIC CHIP 100PF 5% 50V CC63 1-162-927-11 CERAMIC CHIP 100PF 5% 50V CC64 1-162-927-11 CERAMIC CHIP 100PF 5% 50V CC65 1-162-927-11 CERAMIC CHIP 100PF 5% 50V < CONNECTOR > CN401 1-573-845-11 CONNECTOR, BOARD TO BOARD 13P CN501 1-573-845-11 CONNECTOR, BOARD TO BOARD 13P CN601 1-573-845-11 CONNECTOR, BOARD TO BOARD 13P CN671 1-573-845-11 CONNECTOR, BOARD TO BOARD 13P CN801 1-785-103-11 PIN, CONNECTOR (3.96mm PITCH) 5P * CN811 1-564-507-11 PLUG, CONNECTOR 4P CN4007 1-770-386-11 CONNECTOR, BOARD TO BOARD 20P CN4008 1-770-386-11 CONNECTOR, BOARD TO BOARD 20P CN4012 1-573-847-11 CONNECTOR, BOARD TO BOARD 15P CN4013 1-766-600-21 CONNECTOR, BOARD TO BOARD 7P CN4016 1-564-505-11 PLUG, CONNECTOR 2P (DA2400ES: AEP, ECE, UK) CN4017 1-564-505-11 PLUG, CONNECTOR 2P (DA2400ES: AEP, ECE, UK) CN4018 1-564-505-11 PLUG, CONNECTOR 2P (DA2400ES: AEP, ECE, UK) CN4019 1-564-505-11 PLUG, CONNECTOR 2P (DA2400ES: AEP, ECE, UK) CN4020 1-564-505-11 PLUG, CONNECTOR 2P (DA2400ES: AEP, ECE, UK) CN4021 1-564-505-11 PLUG, CONNECTOR 2P (DA2400ES: AEP, ECE, UK) CN4022 1-564-505-11 PLUG, CONNECTOR 2P (DA2400ES: AEP, ECE, UK) < DIODE > D405 6-501-817-01 DIODE MA2J1110GLS0 D406 6-501-817-01 DIODE MA2J1110GLS0 D425 6-501-817-01 DIODE MA2J1110GLS0 D426 6-501-817-01 DIODE MA2J1110GLS0 D475 6-501-817-01 DIODE MA2J1110GLS0 D476 6-501-817-01 DIODE MA2J1110GLS0 D500 6-501-817-01 DIODE MA2J1110GLS0 D525 6-501-817-01 DIODE MA2J1110GLS0 D526 6-501-817-01 DIODE MA2J1110GLS0 D560 6-501-817-01 DIODE MA2J1110GLS0 (DG920) D575 6-501-817-01 DIODE MA2J1110GLS0 D576 6-501-817-01 DIODE MA2J1110GLS0 D601 6-501-817-01 DIODE MA2J1110GLS0 D611 6-501-817-01 DIODE MA2J1110GLS0 D625 6-501-817-01 DIODE MA2J1110GLS0 D646 6-501-817-01 DIODE MA2J1110GLS0 D675 6-501-817-01 DIODE MA2J1110GLS0 D676 6-501-817-01 DIODE MA2J1110GLS0 D721 6-501-817-01 DIODE MA2J1110GLS0 D722 6-501-817-01 DIODE MA2J1110GLS0 D725 6-501-817-01 DIODE MA2J1110GLS0 D726 6-501-817-01 DIODE MA2J1110GLS0 D732 6-501-817-01 DIODE MA2J1110GLS0 D733 6-501-817-01 DIODE MA2J1110GLS0 D801 8-719-072-05 DIODE RBV-602LF-A D802 8-719-072-05 DIODE RBV-602LF-A D803 6-501-817-01 DIODE MA2J1110GLS0 D804 6-501-817-01 DIODE MA2J1110GLS0 D805 8-719-053-18 DIODE 1SR154-400TE-25 D806 8-719-053-18 DIODE 1SR154-400TE-25 D807 8-719-053-18 DIODE 1SR154-400TE-25 D808 8-719-053-18 DIODE 1SR154-400TE-25 D896 8-719-053-18 DIODE 1SR154-400TE-25 MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark STR-DA2400ES/DG920 131 131 D4002 6-501-817-01 DIODE MA2J1110GLS0 D4003 6-501-817-01 DIODE MA2J1110GLS0 D4004 6-501-817-01 DIODE MA2J1110GLS0 D4005 6-501-817-01 DIODE MA2J1110GLS0 D4006 6-501-817-01 DIODE MA2J1110GLS0 D4007 6-501-817-01 DIODE MA2J1110GLS0 D4008 6-501-817-01 DIODE MA2J1110GLS0 D4009 6-501-817-01 DIODE MA2J1110GLS0 D4806 6-502-218-01 DIODE RB060M-30 < FUSE HOLDER > FH805 1-533-233-11 FUSE HOLDER FH806 1-533-233-11 FUSE HOLDER FH807 1-533-233-11 FUSE HOLDER FH808 1-533-233-11 FUSE HOLDER FH810 1-533-233-11 FUSE HOLDER FH811 1-533-233-11 FUSE HOLDER FH812 1-533-233-11 FUSE HOLDER FH813 1-533-233-11 FUSE HOLDER < IC > IC403 6-711-163-01 IC NJU7311AM (TE2) IC404 6-710-586-01 IC R2S15206FP IC801 8-759-071-48 IC TA7807S IC802 8-759-071-47 IC TA79007S IC803 8-759-394-35 IC BA12T IC4001 8-759-710-97 IC NJM4565M-D IC4002 8-759-385-76 IC MC14052 BDR2 IC4005 8-759-710-97 IC NJM4565M-D IC4100 6-712-052-01 IC SI-8001FFE < JACK > J401 1-774-411-11 JACK, PIN 6P (PHONO/SA-CD/CD IN, MD/TAPE OUT) J402 1-774-411-11 JACK, PIN 6P (MD/TAPE/TV/SAT AUDIO IN) J403 1-770-614-11 JACK, PIN 4P (DVD/BD AUDIO IN) J404 1-770-614-11 JACK, PIN 4P (VIDEO 1 AUDIO IN/OUT) J406 1-770-377-21 JACK, PIN 1P (SUBWOOFER AUDIO OUT) (DG920) J407 1-774-411-11 JACK, PIN 6P (MULTI CHANNEL INPUT FRONT/SURROUND/SUR BACK) J408 1-793-777-12 JACK, PIN 2P (SUBWOOFER, CENTER) < COIL > L601 1-420-872-52 COIL, AIR-CORE L651 1-420-872-52 COIL, AIR-CORE L4101 1-457-508-11 COIL, CHOKE < TRANSISTOR > Q421 8-729-119-76 TRANSISTOR 2SA1175-HFE Q422 8-729-141-30 TRANSISTOR 2SC3623A-LK Q425 8-729-216-31 TRANSISTOR 2SA1163-G Q426 8-729-216-31 TRANSISTOR 2SA1163-G Q427 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q471 8-729-119-76 TRANSISTOR 2SA1175-HFE Q472 8-729-141-30 TRANSISTOR 2SC3623A-LK Q475 8-729-216-31 TRANSISTOR 2SA1163-G Q476 8-729-216-31 TRANSISTOR 2SA1163-G Q477 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q505 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q521 8-729-119-76 TRANSISTOR 2SA1175-HFE Q522 8-729-141-30 TRANSISTOR 2SC3623A-LK Q525 8-729-216-31 TRANSISTOR 2SA1163-G Q527 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q530 8-729-216-31 TRANSISTOR 2SA1163-G Q560 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF (DG920) Q571 8-729-119-76 TRANSISTOR 2SA1175-HFE Q572 8-729-141-30 TRANSISTOR 2SC3623A-LK Q575 8-729-216-31 TRANSISTOR 2SA1163-G Q576 8-729-216-31 TRANSISTOR 2SA1163-G Q577 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q601 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q611 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q621 8-729-119-76 TRANSISTOR 2SA1175-HFE Q622 8-729-141-30 TRANSISTOR 2SC3623A-LK Q625 8-729-216-31 TRANSISTOR 2SA1163-G Q626 8-729-216-31 TRANSISTOR 2SA1163-G Q627 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q671 8-729-119-76 TRANSISTOR 2SA1175-HFE Q672 8-729-141-30 TRANSISTOR 2SC3623A-LK Q675 8-729-216-31 TRANSISTOR 2SA1163-G Q676 8-729-216-31 TRANSISTOR 2SA1163-G Q677 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q720 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q721 8-729-119-76 TRANSISTOR 2SA1175-HFE Q722 8-729-141-30 TRANSISTOR 2SC3623A-LK Q725 8-729-216-31 TRANSISTOR 2SA1163-G Q726 8-729-216-31 TRANSISTOR 2SA1163-G Q727 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q728 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q729 8-729-216-31 TRANSISTOR 2SA1163-G Q801 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q4010 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF Q4012 8-729-027-43 TRANSISTOR DTC114EKA-T146 < RESISTOR > 0 R220 1-249-381-91 CARBON 1 5% 1/4W F 0 R234 1-249-381-91 CARBON 1 5% 1/4W F R401 1-216-821-11 METAL CHIP 1K 5% 1/10W R402 1-216-821-11 METAL CHIP 1K 5% 1/10W R403 1-216-821-11 METAL CHIP 1K 5% 1/10W R404 1-216-821-11 METAL CHIP 1K 5% 1/10W R405 1-216-821-11 METAL CHIP 1K 5% 1/10W R406 1-216-821-11 METAL CHIP 1K 5% 1/10W R407 1-216-821-11 METAL CHIP 1K 5% 1/10W R408 1-216-821-11 METAL CHIP 1K 5% 1/10W R409 1-216-821-11 METAL CHIP 1K 5% 1/10W R410 1-216-821-11 METAL CHIP 1K 5% 1/10W R413 1-216-821-11 METAL CHIP 1K 5% 1/10W R414 1-216-821-11 METAL CHIP 1K 5% 1/10W R415 1-216-821-11 METAL CHIP 1K 5% 1/10W R416 1-216-821-11 METAL CHIP 1K 5% 1/10W R420 1-216-817-11 METAL CHIP 470 5% 1/10W (DA2400ES: AEP, ECE, UK) R420 1-216-818-11 METAL CHIP 560 5% 1/10W (DA2400ES: US/DG920) R421 1-216-844-11 METAL CHIP 82K 5% 1/10W (DA2400ES: US/DG920) R422 1-216-825-11 METAL CHIP 2.2K 5% 1/10W 0 R423 1-249-405-91 CARBON 100 5% 1/4W F 0 R425 1-249-405-91 CARBON 100 5% 1/4W F MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark STR-DA2400ES/DG920 132 0 R426 1-240-855-91 CARBON 6.2K 5% 1/4W F R427 1-216-214-00 RES-CHIP 4.7K 2% 1/8W 0 R428 1-234-182-11 ENCAPSULATED COMPONENT 0.22 5W F R429 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R430 1-216-843-11 METAL CHIP 68K 5% 1/10W R432 1-216-837-11 METAL CHIP 22K 5% 1/10W R433 1-216-835-11 METAL CHIP 15K 5% 1/10W R434 1-216-835-11 METAL CHIP 15K 5% 1/10W R435 1-216-841-11 METAL CHIP 47K 5% 1/10W R436 1-216-837-11 METAL CHIP 22K 5% 1/10W R437 1-216-841-11 METAL CHIP 47K 5% 1/10W R446 1-216-835-11 METAL CHIP 15K 5% 1/10W R449 1-216-849-11 METAL CHIP 220K 5% 1/10W R451 1-216-821-11 METAL CHIP 1K 5% 1/10W R452 1-216-821-11 METAL CHIP 1K 5% 1/10W R453 1-216-821-11 METAL CHIP 1K 5% 1/10W R454 1-216-821-11 METAL CHIP 1K 5% 1/10W R455 1-216-821-11 METAL CHIP 1K 5% 1/10W R456 1-216-821-11 METAL CHIP 1K 5% 1/10W R457 1-216-821-11 METAL CHIP 1K 5% 1/10W R458 1-216-821-11 METAL CHIP 1K 5% 1/10W R459 1-216-821-11 METAL CHIP 1K 5% 1/10W R460 1-216-821-11 METAL CHIP 1K 5% 1/10W R461 1-216-821-11 METAL CHIP 1K 5% 1/10W R463 1-216-821-11 METAL CHIP 1K 5% 1/10W R464 1-216-821-11 METAL CHIP 1K 5% 1/10W R465 1-216-821-11 METAL CHIP 1K 5% 1/10W R466 1-216-821-11 METAL CHIP 1K 5% 1/10W R468 1-216-845-11 METAL CHIP 100K 5% 1/10W (DG920) R470 1-216-817-11 METAL CHIP 470 5% 1/10W (DA2400ES: AEP, ECE, UK) R470 1-216-818-11 METAL CHIP 560 5% 1/10W (DA2400ES: US/DG920) R471 1-216-844-11 METAL CHIP 82K 5% 1/10W (DA2400ES: US/DG920) R472 1-216-825-11 METAL CHIP 2.2K 5% 1/10W 0 R473 1-249-405-91 CARBON 100 5% 1/4W F R474 1-216-841-11 METAL CHIP 47K 5% 1/10W (DG920) 0 R475 1-249-405-91 CARBON 100 5% 1/4W F 0 R476 1-240-855-91 CARBON 6.2K 5% 1/4W F R477 1-216-214-00 RES-CHIP 4.7K 2% 1/8W 0 R478 1-234-182-11 ENCAPSULATED COMPONENT 0.22 5W F R479 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R480 1-216-843-11 METAL CHIP 68K 5% 1/10W R482 1-216-837-11 METAL CHIP 22K 5% 1/10W R483 1-216-835-11 METAL CHIP 15K 5% 1/10W R484 1-216-835-11 METAL CHIP 15K 5% 1/10W R485 1-216-841-11 METAL CHIP 47K 5% 1/10W R486 1-216-837-11 METAL CHIP 22K 5% 1/10W R487 1-216-841-11 METAL CHIP 47K 5% 1/10W R488 1-216-841-11 METAL CHIP 47K 5% 1/10W R490 1-216-841-11 METAL CHIP 47K 5% 1/10W R491 1-216-841-11 METAL CHIP 47K 5% 1/10W R496 1-216-835-11 METAL CHIP 15K 5% 1/10W R498 1-216-841-11 METAL CHIP 47K 5% 1/10W R499 1-216-849-11 METAL CHIP 220K 5% 1/10W R504 1-216-841-11 METAL CHIP 47K 5% 1/10W R505 1-216-821-11 METAL CHIP 1K 5% 1/10W 0 R507 1-249-397-91 CARBON 22 5% 1/4W F R508 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (DG920) R509 1-216-833-11 METAL CHIP 10K 5% 1/10W (DG920) 0 R510 1-215-891-51 METAL OXIDE 680 5% 2W F R520 1-216-817-11 METAL CHIP 470 5% 1/10W (DA2400ES: AEP, ECE, UK) R520 1-216-818-11 METAL CHIP 560 5% 1/10W (DA2400ES: US/DG920) R521 1-216-844-11 METAL CHIP 82K 5% 1/10W (DA2400ES: US/DG920) R522 1-216-825-11 METAL CHIP 2.2K 5% 1/10W 0 R523 1-249-405-91 CARBON 100 5% 1/4W F 0 R525 1-249-405-91 CARBON 100 5% 1/4W F 0 R526 1-240-855-91 CARBON 6.2K 5% 1/4W F R527 1-216-214-00 RES-CHIP 4.7K 2% 1/8W 0 R528 1-234-182-11 ENCAPSULATED COMPONENT 0.22 5W F R529 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R530 1-216-843-11 METAL CHIP 68K 5% 1/10W R532 1-216-837-11 METAL CHIP 22K 5% 1/10W R533 1-216-835-11 METAL CHIP 15K 5% 1/10W R534 1-216-835-11 METAL CHIP 15K 5% 1/10W R535 1-216-841-11 METAL CHIP 47K 5% 1/10W R536 1-216-837-11 METAL CHIP 22K 5% 1/10W R537 1-216-841-11 METAL CHIP 47K 5% 1/10W R546 1-216-835-11 METAL CHIP 15K 5% 1/10W R549 1-216-849-11 METAL CHIP 220K 5% 1/10W 0 R560 1-215-891-51 METAL OXIDE 680 5% 2W F R570 1-216-817-11 METAL CHIP 470 5% 1/10W (DA2400ES: AEP, ECE, UK) R570 1-216-818-11 METAL CHIP 560 5% 1/10W (DA2400ES: US/DG920) R571 1-216-844-11 METAL CHIP 82K 5% 1/10W (DA2400ES: US/DG920) R572 1-216-825-11 METAL CHIP 2.2K 5% 1/10W 0 R573 1-249-405-91 CARBON 100 5% 1/4W F 0 R575 1-249-405-91 CARBON 100 5% 1/4W F 0 R576 1-240-855-91 CARBON 6.2K 5% 1/4W F R577 1-216-214-00 RES-CHIP 4.7K 2% 1/8W 0 R578 1-234-182-11 ENCAPSULATED COMPONENT 0.22 5W F R579 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R580 1-216-843-11 METAL CHIP 68K 5% 1/10W R582 1-216-837-11 METAL CHIP 22K 5% 1/10W R583 1-216-835-11 METAL CHIP 15K 5% 1/10W R584 1-216-835-11 METAL CHIP 15K 5% 1/10W R585 1-216-841-11 METAL CHIP 47K 5% 1/10W R586 1-216-837-11 METAL CHIP 22K 5% 1/10W R587 1-216-841-11 METAL CHIP 47K 5% 1/10W R596 1-216-835-11 METAL CHIP 15K 5% 1/10W R599 1-216-849-11 METAL CHIP 220K 5% 1/10W 0 R601 1-249-397-91 CARBON 22 5% 1/4W F R603 1-216-821-11 METAL CHIP 1K 5% 1/10W R604 1-216-841-11 METAL CHIP 47K 5% 1/10W 0 R611 1-249-397-91 CARBON 22 5% 1/4W F R613 1-216-821-11 METAL CHIP 1K 5% 1/10W R614 1-216-841-11 METAL CHIP 47K 5% 1/10W 0 R616 1-234-182-11 ENCAPSULATED COMPONENT 0.22 5W F R620 1-216-817-11 METAL CHIP 470 5% 1/10W (DA2400ES: AEP, ECE, UK) R620 1-216-818-11 METAL CHIP 560 5% 1/10W (DA2400ES: US/DG920) MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark STR-DA2400ES/DG920 133 133 R621 1-216-844-11 METAL CHIP 82K 5% 1/10W (DA2400ES: US/DG920) R622 1-216-825-11 METAL CHIP 2.2K 5% 1/10W 0 R623 1-249-405-91 CARBON 100 5% 1/4W F 0 R625 1-249-405-91 CARBON 100 5% 1/4W F 0 R626 1-240-855-91 CARBON 6.2K 5% 1/4W F R627 1-216-214-00 RES-CHIP 4.7K 2% 1/8W R629 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R630 1-216-843-11 METAL CHIP 68K 5% 1/10W 0 R631 1-249-393-91 CARBON 10 5% 1/4W F R632 1-216-837-11 METAL CHIP 22K 5% 1/10W R633 1-216-835-11 METAL CHIP 15K 5% 1/10W R634 1-216-835-11 METAL CHIP 15K 5% 1/10W R635 1-216-841-11 METAL CHIP 47K 5% 1/10W R636 1-216-837-11 METAL CHIP 22K 5% 1/10W R637 1-216-841-11 METAL CHIP 47K 5% 1/10W 0 R639 1-249-389-91 CARBON 4.7 5% 1/4W F R646 1-216-835-11 METAL CHIP 15K 5% 1/10W R649 1-216-849-11 METAL CHIP 220K 5% 1/10W R670 1-216-817-11 METAL CHIP 470 5% 1/10W (DA2400ES: AEP, ECE, UK) R670 1-216-818-11 METAL CHIP 560 5% 1/10W (DA2400ES: US/DG920) R671 1-216-844-11 METAL CHIP 82K 5% 1/10W (DA2400ES: US/DG920) R672 1-216-825-11 METAL CHIP 2.2K 5% 1/10W 0 R673 1-249-405-91 CARBON 100 5% 1/4W F 0 R675 1-249-405-91 CARBON 100 5% 1/4W F 0 R676 1-240-855-91 CARBON 6.2K 5% 1/4W F R677 1-216-214-00 RES-CHIP 4.7K 2% 1/8W 0 R678 1-234-182-11 ENCAPSULATED COMPONENT 0.22 5W F R679 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R680 1-216-843-11 METAL CHIP 68K 5% 1/10W 0 R681 1-249-393-91 CARBON 10 5% 1/4W F R682 1-216-837-11 METAL CHIP 22K 5% 1/10W R683 1-216-835-11 METAL CHIP 15K 5% 1/10W R684 1-216-835-11 METAL CHIP 15K 5% 1/10W R685 1-216-841-11 METAL CHIP 47K 5% 1/10W R686 1-216-837-11 METAL CHIP 22K 5% 1/10W R687 1-216-841-11 METAL CHIP 47K 5% 1/10W 0 R689 1-249-389-91 CARBON 4.7 5% 1/4W F R696 1-216-835-11 METAL CHIP 15K 5% 1/10W R699 1-216-849-11 METAL CHIP 220K 5% 1/10W R720 1-216-817-11 METAL CHIP 470 5% 1/10W (DA2400ES: AEP, ECE, UK) R720 1-216-818-11 METAL CHIP 560 5% 1/10W (DA2400ES: US/DG920) R721 1-216-844-11 METAL CHIP 82K 5% 1/10W (DA2400ES: US/DG920) R722 1-216-825-11 METAL CHIP 2.2K 5% 1/10W 0 R723 1-249-405-91 CARBON 100 5% 1/4W F 0 R725 1-249-405-91 CARBON 100 5% 1/4W F 0 R726 1-240-855-91 CARBON 6.2K 5% 1/4W F R727 1-216-214-00 RES-CHIP 4.7K 2% 1/8W 0 R728 1-234-182-11 ENCAPSULATED COMPONENT 0.22 5W F R729 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R730 1-216-843-11 METAL CHIP 68K 5% 1/10W R732 1-216-837-11 METAL CHIP 22K 5% 1/10W R733 1-216-835-11 METAL CHIP 15K 5% 1/10W R734 1-216-835-11 METAL CHIP 15K 5% 1/10W R735 1-216-841-11 METAL CHIP 47K 5% 1/10W R736 1-216-837-11 METAL CHIP 22K 5% 1/10W R737 1-216-841-11 METAL CHIP 47K 5% 1/10W R738 1-216-833-11 METAL CHIP 10K 5% 1/10W R740 1-216-821-11 METAL CHIP 1K 5% 1/10W R741 1-216-837-11 METAL CHIP 22K 5% 1/10W R746 1-216-835-11 METAL CHIP 15K 5% 1/10W R770 1-216-833-11 METAL CHIP 10K 5% 1/10W R780 1-216-833-11 METAL CHIP 10K 5% 1/10W R799 1-216-849-11 METAL CHIP 220K 5% 1/10W 0 R801 1-249-395-91 CARBON 15 5% 1/4W F 0 R802 1-249-395-91 CARBON 15 5% 1/4W F R803 1-216-833-11 METAL CHIP 10K 5% 1/10W 0 R804 1-249-393-91 CARBON 10 5% 1/4W F 0 R805 1-249-393-91 CARBON 10 5% 1/4W F (DG920) R4001 1-216-845-11 METAL CHIP 100K 5% 1/10W R4002 1-216-845-11 METAL CHIP 100K 5% 1/10W R4003 1-216-812-11 METAL CHIP 180 5% 1/10W R4004 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R4005 1-216-845-11 METAL CHIP 100K 5% 1/10W R4006 1-216-809-11 METAL CHIP 100 5% 1/10W R4007 1-216-845-11 METAL CHIP 100K 5% 1/10W R4008 1-216-817-11 METAL CHIP 470 5% 1/10W R4009 1-216-833-11 METAL CHIP 10K 5% 1/10W R4010 1-216-833-11 METAL CHIP 10K 5% 1/10W R4011 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R4012 1-216-837-11 METAL CHIP 22K 5% 1/10W R4013 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R4014 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R4015 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R4016 1-216-813-11 METAL CHIP 220 5% 1/10W R4017 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R4021 1-216-845-11 METAL CHIP 100K 5% 1/10W R4022 1-216-845-11 METAL CHIP 100K 5% 1/10W R4023 1-216-812-11 METAL CHIP 180 5% 1/10W R4024 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R4025 1-216-845-11 METAL CHIP 100K 5% 1/10W R4026 1-216-809-11 METAL CHIP 100 5% 1/10W R4027 1-216-845-11 METAL CHIP 100K 5% 1/10W R4028 1-216-817-11 METAL CHIP 470 5% 1/10W R4029 1-216-833-11 METAL CHIP 10K 5% 1/10W R4033 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R4034 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R4035 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R4036 1-216-813-11 METAL CHIP 220 5% 1/10W R4037 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R4042 1-216-809-11 METAL CHIP 100 5% 1/10W (DA2400ES) R4043 1-216-809-11 METAL CHIP 100 5% 1/10W (DA2400ES) R4044 1-216-809-11 METAL CHIP 100 5% 1/10W (DA2400ES) R4045 1-216-809-11 METAL CHIP 100 5% 1/10W (DA2400ES) R4046 1-216-809-11 METAL CHIP 100 5% 1/10W (DA2400ES) R4047 1-216-809-11 METAL CHIP 100 5% 1/10W (DA2400ES) R4048 1-216-809-11 METAL CHIP 100 5% 1/10W (DA2400ES) MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark STR-DA2400ES/DG920 134 R4049 1-216-809-11 METAL CHIP 100 5% 1/10W (DA2400ES) R4053 1-216-833-11 METAL CHIP 10K 5% 1/10W R4054 1-216-833-11 METAL CHIP 10K 5% 1/10W R4062 1-216-845-11 METAL CHIP 100K 5% 1/10W (DA2400ES) R4063 1-216-845-11 METAL CHIP 100K 5% 1/10W (DA2400ES) R4064 1-216-845-11 METAL CHIP 100K 5% 1/10W (DA2400ES) R4065 1-216-845-11 METAL CHIP 100K 5% 1/10W (DA2400ES) R4066 1-216-845-11 METAL CHIP 100K 5% 1/10W (DA2400ES) R4067 1-216-845-11 METAL CHIP 100K 5% 1/10W (DA2400ES) R4068 1-216-845-11 METAL CHIP 100K 5% 1/10W (DA2400ES) R4069 1-216-845-11 METAL CHIP 100K 5% 1/10W (DA2400ES) R4100 1-218-835-11 METAL CHIP 330 0.5% 1/10W R4103 1-218-839-11 METAL CHIP 470 0.5% 1/10W R4104 1-218-831-11 METAL CHIP 220 0.5% 1/10W R4105 1-218-851-11 METAL CHIP 1.5K 0.5% 1/10W R4106 1-216-864-11 SHORT CHIP 0 0 RR16 1-249-393-91 CARBON 10 5% 1/4W F (DA2400ES: AEP, ECE, UK) 0 RR17 1-249-393-91 CARBON 10 5% 1/4W F (DA2400ES: AEP, ECE, UK) 0 RR18 1-249-393-91 CARBON 10 5% 1/4W F (DA2400ES: AEP, ECE, UK) 0 RR19 1-249-393-91 CARBON 10 5% 1/4W F (DA2400ES: AEP, ECE, UK) < VARIABLE RESISTOR > RV400 1-238-595-11 RES, ADJ, CARBON 220 (DA2400ES: AEP, ECE, UK) RV470 1-238-595-11 RES, ADJ, CARBON 220 (DA2400ES: AEP, ECE, UK) RV500 1-238-595-11 RES, ADJ, CARBON 220 (DA2400ES: AEP, ECE, UK) RV570 1-238-595-11 RES, ADJ, CARBON 220 (DA2400ES: AEP, ECE, UK) RV600 1-238-595-11 RES, ADJ, CARBON 220 (DA2400ES: AEP, ECE, UK) RV670 1-238-595-11 RES, ADJ, CARBON 220 (DA2400ES: AEP, ECE, UK) RV700 1-238-595-11 RES, ADJ, CARBON 220 (DA2400ES: AEP, ECE, UK) < RELAY > RY401 1-755-267-11 RELAY (DG920) RY500 1-755-307-21 RELAY RY601 1-755-307-21 RELAY RY611 1-755-307-21 RELAY RY801 1-755-031-11 RELAY < TERMINAL BOARD > 0 TM601 1-780-216-11 TERMINAL BOARD (SP) (8P) (SPEAKERS FRONT A/B) (DG920) 0 TM602 1-780-404-11 TERMINAL BOARD (SP) (8P) (SPEAKERS FRONT A/B) (DA2400ES) ************************************************************ MIC BOARD ********** < CONNECTOR > CN718 1-564-719-11 PIN, CONNECTOR (SMALL TYPE) 3P < EARTH TERMINAL > * ET791 1-537-738-21 TERMINAL, EARTH < JACK > J701 1-820-056-21 SMALL TYPE JACK (3.5mm) (AUTO CAL MIC) ************************************************************ A-1441-455-A MICON BOARD, COMPLETE (DG920) A-1442-428-A MICON BOARD, COMPLETE (DA2400ES: US) A-1442-455-A MICON BOARD, COMPLETE (DA2400ES: AEP, ECE, UK) *********************** < CAPACITOR > C8002 1-124-779-00 ELECT CHIP 10uF 20% 16V (DA2400ES: US/DG920) C8003 1-162-919-11 CERAMIC CHIP 22PF 5% 50V (DA2400ES: US/DG920) C8004 1-162-919-11 CERAMIC CHIP 22PF 5% 50V (DA2400ES: US/DG920) C8005 1-126-193-11 ELECT CHIP 1uF 20% 50V C8006 1-126-193-11 ELECT CHIP 1uF 20% 50V C8007 1-126-193-11 ELECT CHIP 1uF 20% 50V C8008 1-126-193-11 ELECT CHIP 1uF 20% 50V C8009 1-162-919-11 CERAMIC CHIP 22PF 5% 50V (DA2400ES: US/DG920) C8010 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C8011 1-164-733-11 CERAMIC CHIP 820PF 10% 50V (DA2400ES: US) C8012 1-164-733-11 CERAMIC CHIP 820PF 10% 50V (DA2400ES: US) C8013 1-162-919-11 CERAMIC CHIP 22PF 5% 50V (DA2400ES: US/DG920) C8014 1-128-994-21 ELECT CHIP 47uF 20% 10V C8016 1-126-208-21 ELECT CHIP 47uF 20% 4V (DA2400ES: US) C8017 1-126-208-21 ELECT CHIP 47uF 20% 4V (DA2400ES: US) C8021 1-128-994-21 ELECT CHIP 47uF 20% 10V C8023 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DA2400ES: US/DG920) C8024 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DA2400ES: US/DG920) C8026 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DA2400ES: US/DG920) C8027 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C8028 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C8029 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DA2400ES: US/DG920) C8030 1-128-994-21 ELECT CHIP 47uF 20% 10V C8031 1-128-994-21 ELECT CHIP 47uF 20% 10V C8034 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DA2400ES: US/DG920) C8035 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DA2400ES: US/DG920) C8038 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V (DA2400ES: US/DG920) MIC MAIN MICON www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark STR-DA2400ES/DG920 135 135 C8039 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DA2400ES: US/DG920) C8040 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DA2400ES: US/DG920) C8041 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V (DA2400ES: US/DG920) C8042 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DA2400ES: US/DG920) C8043 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DA2400ES: US/DG920) C8044 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C8045 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DA2400ES: US/DG920) C8046 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V (DA2400ES: US/DG920) C8049 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V (DA2400ES: US/DG920) C8050 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DA2400ES: US/DG920) C8051 1-126-209-11 ELECT CHIP 100uF 20% 4V (DA2400ES: US/DG920) C8052 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DA2400ES: US/DG920) C8053 1-117-681-11 ELECT CHIP 100uF 20% 16V C8056 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V (DA2400ES: US/DG920) C8057 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DA2400ES: US/DG920) C8062 1-117-681-11 ELECT CHIP 100uF 20% 16V (DA2400ES: US/DG920) C8063 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DA2400ES: US/DG920) C8064 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V (DA2400ES: US/DG920) C8066 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DA2400ES: US/DG920) C8067 1-128-994-21 ELECT CHIP 47uF 20% 10V (DA2400ES: US/DG920) C8068 1-124-779-00 ELECT CHIP 10uF 20% 16V (DA2400ES: US/DG920) C8070 1-124-779-00 ELECT CHIP 10uF 20% 16V (DA2400ES: US/DG920) C8071 1-124-779-00 ELECT CHIP 10uF 20% 16V (DA2400ES: US/DG920) C8072 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V (DA2400ES: US/DG920) C8073 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V (DA2400ES: US/DG920) C8074 1-117-720-11 CERAMIC CHIP 4.7uF 10V (DA2400ES: US/DG920) C8075 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DA2400ES: US/DG920) C8076 1-162-963-11 CERAMIC CHIP 680PF 10% 50V (DA2400ES: US/DG920) C8077 1-162-963-11 CERAMIC CHIP 680PF 10% 50V (DA2400ES: US/DG920) C8078 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DA2400ES: US/DG920) C8080 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DA2400ES: US/DG920) C8083 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C8085 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C8086 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C8087 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C8092 1-126-204-11 ELECT CHIP 47uF 20% 16V C8093 1-162-923-11 CERAMIC CHIP 47PF 5% 50V (DA2400ES: US/DG920) C8094 1-162-923-11 CERAMIC CHIP 47PF 5% 50V (DA2400ES: US/DG920) C8095 1-162-923-11 CERAMIC CHIP 47PF 5% 50V (DA2400ES: US/DG920) C8096 1-162-923-11 CERAMIC CHIP 47PF 5% 50V (DA2400ES: US/DG920) C8101 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C8102 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V (DA2400ES: US/DG920) C8103 1-117-681-11 ELECT CHIP 100uF 20% 16V C8104 1-117-681-11 ELECT CHIP 100uF 20% 16V C8109 1-162-927-11 CERAMIC CHIP 100PF 5% 50V (DA2400ES: US/DG920) C8110 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C8111 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C8112 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C8113 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C8114 1-117-720-11 CERAMIC CHIP 4.7uF 10V C8115 1-117-720-11 CERAMIC CHIP 4.7uF 10V C8116 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C8117 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C8118 1-117-720-11 CERAMIC CHIP 4.7uF 10V C8119 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C8120 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C8121 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C8122 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C8123 1-117-720-11 CERAMIC CHIP 4.7uF 10V C8124 1-126-209-11 ELECT CHIP 100uF 20% 4V C8125 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C8126 1-117-720-11 CERAMIC CHIP 4.7uF 10V C8127 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C8128 1-117-720-11 CERAMIC CHIP 4.7uF 10V C8129 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C8130 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C8131 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C8132 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C8133 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C8134 1-117-720-11 CERAMIC CHIP 4.7uF 10V C8135 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C8136 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C8137 1-126-193-11 ELECT CHIP 1uF 20% 50V C8138 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C8139 1-124-779-00 ELECT CHIP 10uF 20% 16V C8140 1-126-209-11 ELECT CHIP 100uF 20% 4V C8141 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C8142 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C8143 1-117-681-11 ELECT CHIP 100uF 20% 16V C8144 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C8147 1-126-208-21 ELECT CHIP 47uF 20% 4V C8148 1-124-778-00 ELECT CHIP 22uF 20% 6.3V C8149 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C8150 1-117-720-11 CERAMIC CHIP 4.7uF 10V C8151 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DA2400ES: US) C8152 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DA2400ES: US) C8153 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C8154 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C8155 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V MICON www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark STR-DA2400ES/DG920 136 C8156 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C8157 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C8158 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C8159 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C8160 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C8161 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C8162 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C8163 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C8164 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C8165 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C8166 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C8167 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C8168 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C8171 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V (DA2400ES: US/DG920) C8172 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V (DA2400ES: US/DG920) C8173 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C8174 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C8175 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V < CONNECTOR > CN2003 1-770-381-11 CONNECTOR, BOARD TO BOARD 10P CN2004 1-779-281-11 CONNECTOR, FFC (LIF (NON-ZIF)) 13P (DA2400ES: US) CN2005 1-770-382-11 CONNECTOR, BOARD TO BOARD 12P CN2006 1-770-384-21 CONNECTOR, BOARD TO BOARD 16P CN2010 1-770-411-11 CONNECTOR, BOARD TO BOARD 20P CN2013 1-785-125-21 CONNECTOR 6P CN2015 1-784-928-11 PIN, CONNECTOR 13P CN2016 1-784-926-11 PIN, CONNECTOR 11P CN2017 1-784-927-11 PIN, CONNECTOR 12P CN2021 1-770-409-11 CONNECTOR, BOARD TO BOARD 16P CN2022 1-770-411-11 CONNECTOR, BOARD TO BOARD 20P CN2023 1-770-411-11 CONNECTOR, BOARD TO BOARD 20P CN2024 1-770-405-11 CONNECTOR, BOARD TO BOARD 8P CN8001 1-793-642-21 CONNECTOR (USB) (4P), SQUARE (XM) (DA2400ES: US/DG920) CN8002 1-821-182-11 SOCKET, DIN 8P (SIRIUS) (DA2400ES: US) CN8003 1-817-615-21 CONNECTOR, SQUARE TYPE (RECE) (DMPORT) CN8004 1-568-830-11 CONNECTOR, FFC 11P (DA2400ES: AEP, ECE, UK) CN8005 1-784-770-11 CONNECTOR, FFC 9P (DA2400ES: US/DG920) < DIODE > D8001 8-719-060-48 DIODE RB751V-40TE-17 D8002 6-501-817-01 DIODE MA2J1110GLS0 D8003 6-501-817-01 DIODE MA2J1110GLS0 D8004 6-501-817-01 DIODE MA2J1110GLS0 D8005 6-500-462-01 DIODE NSAD500F-T1B (DA2400ES: US/DG920) D8006 6-501-817-01 DIODE MA2J1110GLS0 D8009 8-719-083-02 DIODE KDS160-RTK (DA2400ES: US/DG920) < FERRITE BEAD > FB8001 1-469-152-11 FERRITE, EMI (SMD) (2012) (DA2400ES: US/DG920) FB8002 1-469-152-11 FERRITE, EMI (SMD) (2012) (DA2400ES: US/DG920) FB8003 1-414-813-11 FERRITE, EMI (SMD) (2012) (DA2400ES: US/DG920) FB8004 1-469-152-11 FERRITE, EMI (SMD) (2012) FB8005 1-469-152-11 FERRITE, EMI (SMD) (2012) FB8006 1-469-152-11 FERRITE, EMI (SMD) (2012) (DA2400ES: US) FB8007 1-469-152-11 FERRITE, EMI (SMD) (2012) FB8008 1-469-152-11 FERRITE, EMI (SMD) (2012) FB8009 1-469-152-11 FERRITE, EMI (SMD) (2012) FB8010 1-469-152-11 FERRITE, EMI (SMD) (2012) FB8011 1-469-152-11 FERRITE, EMI (SMD) (2012) FB8012 1-469-152-11 FERRITE, EMI (SMD) (2012) FB8013 1-469-152-11 FERRITE, EMI (SMD) (2012) (DA2400ES: US) FB8014 1-469-152-11 FERRITE, EMI (SMD) (2012) FB8015 1-469-152-11 FERRITE, EMI (SMD) (2012) < IC > IC8001 6-705-469-01 IC BA50BC0FP-E2 IC8002 8-759-710-97 IC NJM4565M-D IC8003 6-709-251-01 IC F2602E-01-TR (DA2400ES: US/DG920) IC8004 6-702-302-01 IC TK11133CSCL-G (DA2400ES: US/DG920) IC8005 6-707-111-01 IC PCM1753DBQR (DA2400ES: US/DG920) IC8006 6-706-740-01 IC BA00BC0WFP-E2 (DA2400ES: US/DG920) IC8007 6-705-337-01 IC TK11150CSCL-G (DA2400ES: US/DG920) IC8008 8-759-710-97 IC NJM4565M-D (DA2400ES: US/DG920) IC8011 6-709-800-01 IC TA7809AF- (T6L1SONQ IC8013 6-703-518-01 IC BD3842FS-FD2 IC8014 A-1557-301-A IC MB91F467RAPMC-GE1 (for SERVICE) (DG920) IC8014 A-1557-664-A IC MB91F467RAPMC-GE1 (for SERVICE) (DA2400ES) IC8015 8-759-058-62 IC TC7S08FU (TE85R) IC8016 6-702-913-01 IC S-80929CNMC-G8ZT2G IC8017 8-759-277-63 IC TC7W14FU (TE12R) IC8018 (Not supplied) IC S-24CS64A01-J8T1G IC8019 6-705-468-01 IC BA33BC0FP-E2 IC8020 8-759-277-63 IC TC7W14FU (TE12R) IC8022 8-759-238-47 IC TC74HCT7007AF (EL) IC8023 6-706-487-01 IC TC7SH08FU (T5RSOYJF) (DA2400ES: US) IC8024 6-706-478-01 IC TC7SET08FU (T5RSOJF) (DA2400ES: US) < COIL > L8001 1-469-525-91 INDUCTOR 10uH L8002 1-469-525-91 INDUCTOR 10uH < TRANSISTOR > Q8001 8-729-027-43 TRANSISTOR DTC114EKA-T146 (DA2400ES: US/DG920) Q8002 8-729-027-23 TRANSISTOR DTA114EKA-T146 (DA2400ES: US/DG920) Q8003 8-729-027-43 TRANSISTOR DTC114EKA-T146 (DA2400ES: US/DG920) Q8004 6-550-044-01 TRANSISTOR 2SB1689-T106 (DA2400ES: US/DG920) Q8005 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF Q8006 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q8007 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q8008 8-729-027-43 TRANSISTOR DTC114EKA-T146 < RESISTOR > R8009 1-216-833-11 METAL CHIP 10K 5% 1/10W (DA2400ES: US/DG920) R8010 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R8014 1-216-864-11 SHORT CHIP 0 (DA2400ES: US/DG920) R8015 1-216-864-11 SHORT CHIP 0 (DA2400ES: US/DG920) R8024 1-219-365-11 SHORT CHIP 0 (DA2400ES: US/DG920) MICON Note: IC8018 cannot exchange with single. When IC8018 is damaged, exchange the entire mounted board. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark STR-DA2400ES/DG920 137 137 R8032 1-216-809-11 METAL CHIP 100 5% 1/10W (DA2400ES: US/DG920) R8034 1-216-821-11 METAL CHIP 1K 5% 1/10W (DA2400ES: US/DG920) R8035 1-216-809-11 METAL CHIP 100 5% 1/10W (DA2400ES: US/DG920) R8036 1-216-821-11 METAL CHIP 1K 5% 1/10W (DA2400ES: US/DG920) R8039 1-216-821-11 METAL CHIP 1K 5% 1/10W (DA2400ES: US/DG920) R8040 1-216-809-11 METAL CHIP 100 5% 1/10W (DA2400ES: US/DG920) R8041 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (DA2400ES: US/DG920) R8042 1-216-809-11 METAL CHIP 100 5% 1/10W (DA2400ES: AEP, ECE, UK) R8044 1-216-809-11 METAL CHIP 100 5% 1/10W (DA2400ES: AEP, ECE, UK) R8046 1-216-809-11 METAL CHIP 100 5% 1/10W R8048 1-216-809-11 METAL CHIP 100 5% 1/10W R8050 1-216-809-11 METAL CHIP 100 5% 1/10W R8052 1-216-809-11 METAL CHIP 100 5% 1/10W (DA2400ES: US/DG920) R8053 1-216-809-11 METAL CHIP 100 5% 1/10W R8055 1-216-809-11 METAL CHIP 100 5% 1/10W R8057 1-216-809-11 METAL CHIP 100 5% 1/10W (DA2400ES: US/DG920) R8068 1-216-833-11 METAL CHIP 10K 5% 1/10W (DA2400ES: US/DG920) R8070 1-216-809-11 METAL CHIP 100 5% 1/10W (DA2400ES: US/DG920) R8071 1-216-833-11 METAL CHIP 10K 5% 1/10W (DA2400ES: US/DG920) R8073 1-218-344-11 METAL CHIP 7.5K 5% 1/10W (DA2400ES: US/DG920) R8074 1-216-825-11 METAL CHIP 2.2K 5% 1/10W (DA2400ES: US/DG920) R8077 1-216-833-11 METAL CHIP 10K 5% 1/10W (DA2400ES: US/DG920) R8078 1-216-845-11 METAL CHIP 100K 5% 1/10W (DA2400ES: US/DG920) R8079 1-216-845-11 METAL CHIP 100K 5% 1/10W (DA2400ES: US/DG920) R8080 1-216-834-11 METAL CHIP 12K 5% 1/10W (DA2400ES: US/DG920) R8081 1-216-832-11 METAL CHIP 8.2K 5% 1/10W (DA2400ES: US/DG920) R8082 1-216-832-11 METAL CHIP 8.2K 5% 1/10W (DA2400ES: US/DG920) R8083 1-216-834-11 METAL CHIP 12K 5% 1/10W (DA2400ES: US/DG920) R8084 1-216-819-11 METAL CHIP 680 5% 1/10W (DA2400ES: US/DG920) R8085 1-216-819-11 METAL CHIP 680 5% 1/10W (DA2400ES: US/DG920) R8086 1-216-809-11 METAL CHIP 100 5% 1/10W (DA2400ES: US/DG920) R8087 1-216-809-11 METAL CHIP 100 5% 1/10W (DA2400ES: US/DG920) R8092 1-216-805-11 METAL CHIP 47 5% 1/10W (DA2400ES: US/DG920) R8093 1-216-805-11 METAL CHIP 47 5% 1/10W (DA2400ES: US/DG920) R8094 1-216-805-11 METAL CHIP 47 5% 1/10W (DA2400ES: US) R8095 1-216-805-11 METAL CHIP 47 5% 1/10W R8096 1-216-841-11 METAL CHIP 47K 5% 1/10W R8097 1-216-841-11 METAL CHIP 47K 5% 1/10W R8098 1-216-841-11 METAL CHIP 47K 5% 1/10W R8099 1-216-841-11 METAL CHIP 47K 5% 1/10W R8100 1-216-841-11 METAL CHIP 47K 5% 1/10W R8101 1-216-841-11 METAL CHIP 47K 5% 1/10W R8102 1-216-841-11 METAL CHIP 47K 5% 1/10W R8103 1-216-841-11 METAL CHIP 47K 5% 1/10W R8104 1-216-841-11 METAL CHIP 47K 5% 1/10W R8105 1-216-841-11 METAL CHIP 47K 5% 1/10W R8106 1-216-813-11 METAL CHIP 220 5% 1/10W (DA2400ES: US/DG920) R8107 1-216-809-11 METAL CHIP 100 5% 1/10W (DA2400ES: US/DG920) R8108 1-216-809-11 METAL CHIP 100 5% 1/10W (DA2400ES: US/DG920) R8109 1-216-809-11 METAL CHIP 100 5% 1/10W (DA2400ES: US/DG920) R8110 1-216-821-11 METAL CHIP 1K 5% 1/10W R8111 1-216-821-11 METAL CHIP 1K 5% 1/10W R8112 1-216-809-11 METAL CHIP 100 5% 1/10W (DA2400ES: US) R8113 1-216-809-11 METAL CHIP 100 5% 1/10W (DA2400ES: US) R8116 1-218-879-11 METAL CHIP 22K 0.5% 1/10W R8117 1-218-879-11 METAL CHIP 22K 0.5% 1/10W R8118 1-218-879-11 METAL CHIP 22K 0.5% 1/10W R8119 1-218-879-11 METAL CHIP 22K 0.5% 1/10W R8120 1-218-879-11 METAL CHIP 22K 0.5% 1/10W R8121 1-218-879-11 METAL CHIP 22K 0.5% 1/10W R8122 1-218-879-11 METAL CHIP 22K 0.5% 1/10W R8123 1-218-879-11 METAL CHIP 22K 0.5% 1/10W R8124 1-216-864-11 SHORT CHIP 0 R8125 1-216-864-11 SHORT CHIP 0 R8126 1-216-833-11 METAL CHIP 10K 5% 1/10W R8127 1-216-809-11 METAL CHIP 100 5% 1/10W (DA2400ES: US) R8128 1-216-821-11 METAL CHIP 1K 5% 1/10W R8129 1-216-837-11 METAL CHIP 22K 5% 1/10W R8130 1-216-837-11 METAL CHIP 22K 5% 1/10W R8131 1-216-833-11 METAL CHIP 10K 5% 1/10W R8132 1-216-838-11 METAL CHIP 27K 5% 1/10W R8133 1-216-813-11 METAL CHIP 220 5% 1/10W R8134 1-216-809-11 METAL CHIP 100 5% 1/10W R8135 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R8136 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R8137 1-216-833-11 METAL CHIP 10K 5% 1/10W (DA2400ES: US/DG920) R8138 1-216-864-11 SHORT CHIP 0 (DA2400ES: AEP, ECE, UK) R8139 1-216-833-11 METAL CHIP 10K 5% 1/10W R8140 1-216-809-11 METAL CHIP 100 5% 1/10W (DA2400ES: US) R8141 1-216-809-11 METAL CHIP 100 5% 1/10W (DA2400ES: US) R8143 1-216-833-11 METAL CHIP 10K 5% 1/10W R8144 1-216-817-11 METAL CHIP 470 5% 1/10W R8145 1-216-833-11 METAL CHIP 10K 5% 1/10W R8146 1-216-833-11 METAL CHIP 10K 5% 1/10W R8147 1-216-815-11 METAL CHIP 330 5% 1/10W R8148 1-216-809-11 METAL CHIP 100 5% 1/10W MICON www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark STR-DA2400ES/DG920 138 R8149 1-216-809-11 METAL CHIP 100 5% 1/10W R8150 1-216-833-11 METAL CHIP 10K 5% 1/10W R8151 1-216-845-11 METAL CHIP 100K 5% 1/10W R8152 1-216-813-11 METAL CHIP 220 5% 1/10W R8153 1-216-845-11 METAL CHIP 100K 5% 1/10W R8156 1-216-813-11 METAL CHIP 220 5% 1/10W R8157 1-216-833-11 METAL CHIP 10K 5% 1/10W R8158 1-216-845-11 METAL CHIP 100K 5% 1/10W R8159 1-216-841-11 METAL CHIP 47K 5% 1/10W R8162 1-216-813-11 METAL CHIP 220 5% 1/10W R8164 1-216-809-11 METAL CHIP 100 5% 1/10W R8165 1-216-833-11 METAL CHIP 10K 5% 1/10W R8167 1-216-809-11 METAL CHIP 100 5% 1/10W R8168 1-216-809-11 METAL CHIP 100 5% 1/10W R8169 1-216-809-11 METAL CHIP 100 5% 1/10W R8170 1-216-809-11 METAL CHIP 100 5% 1/10W (DA2400ES: US) R8171 1-216-809-11 METAL CHIP 100 5% 1/10W R8172 1-216-809-11 METAL CHIP 100 5% 1/10W (DA2400ES: US/DG920) R8173 1-216-821-11 METAL CHIP 1K 5% 1/10W R8175 1-216-809-11 METAL CHIP 100 5% 1/10W R8176 1-216-833-11 METAL CHIP 10K 5% 1/10W R8177 1-216-809-11 METAL CHIP 100 5% 1/10W R8178 1-216-833-11 METAL CHIP 10K 5% 1/10W R8179 1-216-809-11 METAL CHIP 100 5% 1/10W R8180 1-216-809-11 METAL CHIP 100 5% 1/10W R8181 1-216-833-11 METAL CHIP 10K 5% 1/10W R8182 1-216-833-11 METAL CHIP 10K 5% 1/10W R8183 1-216-809-11 METAL CHIP 100 5% 1/10W R8184 1-216-833-11 METAL CHIP 10K 5% 1/10W R8185 1-216-833-11 METAL CHIP 10K 5% 1/10W R8186 1-216-833-11 METAL CHIP 10K 5% 1/10W R8187 1-216-809-11 METAL CHIP 100 5% 1/10W R8188 1-216-809-11 METAL CHIP 100 5% 1/10W R8189 1-216-809-11 METAL CHIP 100 5% 1/10W R8191 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R8192 1-216-809-11 METAL CHIP 100 5% 1/10W R8194 1-216-809-11 METAL CHIP 100 5% 1/10W R8195 1-216-809-11 METAL CHIP 100 5% 1/10W R8196 1-216-833-11 METAL CHIP 10K 5% 1/10W R8197 1-216-833-11 METAL CHIP 10K 5% 1/10W R8198 1-216-833-11 METAL CHIP 10K 5% 1/10W R8199 1-216-833-11 METAL CHIP 10K 5% 1/10W R8200 1-216-833-11 METAL CHIP 10K 5% 1/10W R8201 1-216-833-11 METAL CHIP 10K 5% 1/10W R8202 1-216-833-11 METAL CHIP 10K 5% 1/10W R8203 1-216-809-11 METAL CHIP 100 5% 1/10W R8204 1-216-809-11 METAL CHIP 100 5% 1/10W R8205 1-216-809-11 METAL CHIP 100 5% 1/10W R8206 1-216-805-11 METAL CHIP 47 5% 1/10W R8209 1-216-805-11 METAL CHIP 47 5% 1/10W R8210 1-216-809-11 METAL CHIP 100 5% 1/10W R8212 1-216-805-11 METAL CHIP 47 5% 1/10W R8213 1-216-805-11 METAL CHIP 47 5% 1/10W R8215 1-216-833-11 METAL CHIP 10K 5% 1/10W R8216 1-216-833-11 METAL CHIP 10K 5% 1/10W R8217 1-216-809-11 METAL CHIP 100 5% 1/10W R8219 1-216-809-11 METAL CHIP 100 5% 1/10W R8220 1-216-833-11 METAL CHIP 10K 5% 1/10W R8221 1-216-809-11 METAL CHIP 100 5% 1/10W R8223 1-216-809-11 METAL CHIP 100 5% 1/10W R8224 1-216-809-11 METAL CHIP 100 5% 1/10W R8225 1-216-864-11 SHORT CHIP 0 R8226 1-216-864-11 SHORT CHIP 0 R8227 1-216-864-11 SHORT CHIP 0 R8228 1-216-809-11 METAL CHIP 100 5% 1/10W R8231 1-216-809-11 METAL CHIP 100 5% 1/10W R8232 1-216-809-11 METAL CHIP 100 5% 1/10W R8233 1-216-809-11 METAL CHIP 100 5% 1/10W R8234 1-216-809-11 METAL CHIP 100 5% 1/10W R8235 1-216-809-11 METAL CHIP 100 5% 1/10W R8237 1-216-809-11 METAL CHIP 100 5% 1/10W R8238 1-216-833-11 METAL CHIP 10K 5% 1/10W R8239 1-216-833-11 METAL CHIP 10K 5% 1/10W R8240 1-216-809-11 METAL CHIP 100 5% 1/10W R8241 1-216-833-11 METAL CHIP 10K 5% 1/10W R8242 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R8243 1-216-821-11 METAL CHIP 1K 5% 1/10W R8245 1-216-809-11 METAL CHIP 100 5% 1/10W R8246 1-216-809-11 METAL CHIP 100 5% 1/10W R8247 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R8248 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R8249 1-216-864-11 SHORT CHIP 0 < COMPOSITION CIRCUIT BLOCK > RB8001 1-234-378-21 RES, NETWORK 10K (1005X4) (DA2400ES: US/DG920) RB8002 1-234-378-21 RES, NETWORK 10K (1005X4) (DA2400ES: US/DG920) RB8003 1-234-378-21 RES, NETWORK 10K (1005X4) (DA2400ES: US/DG920) RB8004 1-234-378-21 RES, NETWORK 10K (1005X4) (DA2400ES: US/DG920) RB8005 1-234-372-11 RES, NETWORK 100 (1005X4) RB8006 1-234-372-11 RES, NETWORK 100 (1005X4) RB8007 1-234-372-11 RES, NETWORK 100 (1005X4) RB8008 1-234-372-11 RES, NETWORK 100 (1005X4) RB8009 1-234-371-21 RES, NETWORK 47 (1005X4) RB8010 1-234-372-11 RES, NETWORK 100 (1005X4) RB8011 1-234-372-11 RES, NETWORK 100 (1005X4) RB8012 1-234-372-11 RES, NETWORK 100 (1005X4) RB8013 1-234-372-11 RES, NETWORK 100 (1005X4) RB8014 1-234-378-21 RES, NETWORK 10K (1005X4) RB8015 1-234-378-21 RES, NETWORK 10K (1005X4) RB8016 1-234-372-11 RES, NETWORK 100 (1005X4) RB8017 1-234-372-11 RES, NETWORK 100 (1005X4) RB8018 1-234-372-11 RES, NETWORK 100 (1005X4) RB8021 1-234-372-11 RES, NETWORK 100 (1005X4) RB8022 1-234-376-11 RES, NETWORK 2.2K (1005X4) < VIBRATOR > X8001 1-760-841-11 VIBRATOR, CRYSTAL (45.1584MHz) (DA2400ES: US/DG920) X8002 1-781-646-21 VIBRATOR, CERAMIC (4MHz) ************************************************************ MICON DIGITAL CONN BOARD ************************ < CONNECTOR > CN2030 1-770-384-21 CONNECTOR, BOARD TO BOARD 16P MICON MICON DIGITAL CONN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark STR-DA2400ES/DG920 139 139 CN2031 1-770-386-11 CONNECTOR, BOARD TO BOARD 20P CN2032 1-770-380-11 CONNECTOR, BOARD TO BOARD 8P CN2230 1-770-384-21 CONNECTOR, BOARD TO BOARD 16P CN2231 1-770-386-11 CONNECTOR, BOARD TO BOARD 20P CN2232 1-770-380-11 CONNECTOR, BOARD TO BOARD 8P ************************************************************ POWER SWITCH BOARD ******************** < CONNECTOR > CN1 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P CN2 1-564-704-41 PIN, CONNECTOR (SMALL TYPE) 2P < SWITCH > 0 SW1 1-786-377-11 SWITCH, POWER (POWER) ************************************************************ PREOUT BOARD (DA2400ES: AEP, ECE, UK) ************* < CAPACITOR > C4051 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V C4052 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V C4053 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V C4054 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V C4055 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C4151 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C4152 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C4153 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C4154 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C4171 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C4172 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C4173 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C4174 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C4175 1-162-960-11 CERAMIC CHIP 220PF 10% 50V < CONNECTOR > CN452 1-779-799-11 PIN, CONNECTOR 9P CN453 1-564-509-11 PLUG, CONNECTOR 6P < DIODE > D4051 8-719-988-61 DIODE 1SS355TE-17 D4052 8-719-988-61 DIODE 1SS355TE-17 D4053 8-719-988-61 DIODE 1SS355TE-17 D4054 8-719-988-61 DIODE 1SS355TE-17 < JACK > J4051 1-774-411-11 JACK, PIN 6P (PRE OUT FRONT/SURROUND/SUR BACK) J4052 1-793-777-12 JACK, PIN 2P (PRE OUT CENTER/SUBWOOFER) < TRANSISTOR > Q4051 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q4052 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q4053 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q4054 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF < RESISTOR > R4051 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R4052 1-216-833-11 METAL CHIP 10K 5% 1/10W 0 R4053 1-249-393-91 CARBON 10 5% 1/4W F R4054 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R4055 1-216-833-11 METAL CHIP 10K 5% 1/10W 0 R4056 1-249-393-91 CARBON 10 5% 1/4W F R4057 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R4058 1-216-833-11 METAL CHIP 10K 5% 1/10W 0 R4059 1-249-393-91 CARBON 10 5% 1/4W F R4060 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R4061 1-216-833-11 METAL CHIP 10K 5% 1/10W 0 R4062 1-249-393-91 CARBON 10 5% 1/4W F R4151 1-216-821-11 METAL CHIP 1K 5% 1/10W R4152 1-216-821-11 METAL CHIP 1K 5% 1/10W R4153 1-216-821-11 METAL CHIP 1K 5% 1/10W R4154 1-216-821-11 METAL CHIP 1K 5% 1/10W R4171 1-216-821-11 METAL CHIP 1K 5% 1/10W R4172 1-216-821-11 METAL CHIP 1K 5% 1/10W R4173 1-216-821-11 METAL CHIP 1K 5% 1/10W R4174 1-216-821-11 METAL CHIP 1K 5% 1/10W < RELAY > RY4051 1-755-486-11 RELAY RY4052 1-755-486-11 RELAY RY4053 1-755-486-11 RELAY RY4054 1-755-486-11 RELAY ************************************************************ A-1441-438-A STANDBY BOARD, COMPLETE (DA2400ES: US/DG920) A-1442-081-A STANDBY BOARD, COMPLETE (DA2400ES: AEP, ECE, UK) ************************ 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 < CAPACITOR > 0 C01 1-113-925-51 CERAMIC 0.01uF 20% 250V C51 1-126-964-11 ELECT 10uF 20% 50V C52 1-112-093-11 ELECT 2200uF 20% 25V C53 1-112-093-11 ELECT 2200uF 20% 25V C54 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C55 1-136-287-11 FILM 0.0047uF 5% 100V C56 1-137-465-11 MYLAR 0.056uF 5% 100V C57 1-126-941-11 ELECT 470uF 20% 25V C58 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V 0 C59 1-113-925-51 CERAMIC 0.01uF 20% 250V < CONNECTOR > * CN003 1-565-792-11 PIN, CONNECTOR (3.96mm PITCH) 2P CNP51 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P CNP53 1-774-108-11 PIN, CONNECTOR (PC BOARD) CNP54 1-691-767-11 PLUG (MICRO CONNECTOR) 5P < DIODE > D51 6-500-522-31 DIODE 10EDB40-TB5 D52 6-500-522-31 DIODE 10EDB40-TB5 D53 6-500-522-31 DIODE 10EDB40-TB5 D54 6-500-522-31 DIODE 10EDB40-TB5 D55 6-500-522-31 DIODE 10EDB40-TB5 D56 6-501-817-01 DIODE MA2J1110GLS0 D57 6-501-817-01 DIODE MA2J1110GLS0 D58 6-501-817-01 DIODE MA2J1110GLS0 D61 6-501-738-01 DIODE MAZ8062GMLS0 STANDBY MICON DIGITAL CONN POWER SWITCH PREOUT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark STR-DA2400ES/DG920 140 < EARTH TERMINAL > * EE51 1-537-738-21 TERMINAL, EARTH < FUSE HOLDER > FH01 1-533-233-11 FUSE HOLDER FH02 1-533-233-11 FUSE HOLDER < IC > IC51 8-759-450-47 IC BA05T < TRANSISTOR > Q51 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q52 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q53 8-729-027-52 TRANSISTOR DTC124EKA-T146 Q54 8-729-140-97 TRANSISTOR 2SB734-34 Q55 8-729-027-52 TRANSISTOR DTC124EKA-T146 < RESISTOR > 0 R001 1-219-237-51 SOLID 3.3M 20% 1/2W F (DA2400ES: US/DG920) R51 1-216-833-11 METAL CHIP 10K 5% 1/10W R52 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R53 1-216-837-11 METAL CHIP 22K 5% 1/10W R54 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R55 1-216-833-11 METAL CHIP 10K 5% 1/10W R58 1-259-179-31 CARBON 3.3K 5% 1/4W R59 1-216-833-11 METAL CHIP 10K 5% 1/10W 0 R60 1-249-389-91 CARBON 4.7 5% 1/4W F R61 1-216-819-11 METAL CHIP 680 5% 1/10W < RELAY > 0 RY01 1-755-266-11 RELAY, AC POWER < TRANSFORMER > 0 T002 1-445-213-11 TRANSFORMER, POWER (DA2400ES: AEP, ECE, UK) 0 T003 1-445-212-11 TRANSFORMER, POWER (DA2400ES: US/DG920) < THERMISTOR > TH50 1-804-046-11 THERMISTOR, POSITIVE (RXE030) (DA2400ES: AEP, ECE, UK) ************************************************************ A-1441-449-A SURR SPEAKER BOARD, COMPLETE (DG920) A-1442-425-A SURR SPEAKER BOARD, COMPLETE (DA2400ES: US) A-1442-453-A SURR SPEAKER BOARD, COMPLETE (DA2400ES: AEP, ECE, UK) ****************************** < CAPACITOR > C1501 1-136-157-00 FILM 0.022uF 5% 50V C1502 1-136-157-00 FILM 0.022uF 5% 50V C1503 1-136-157-00 FILM 0.022uF 5% 50V C1504 1-136-157-00 FILM 0.022uF 5% 50V C1505 1-136-157-00 FILM 0.022uF 5% 50V C1506 1-162-927-11 CERAMIC CHIP 100PF 5% 50V (DA2400ES: AEP, ECE, UK) C1507 1-162-927-11 CERAMIC CHIP 100PF 5% 50V (DA2400ES: AEP, ECE, UK) C1508 1-162-927-11 CERAMIC CHIP 100PF 5% 50V (DA2400ES: AEP, ECE, UK) C1509 1-162-927-11 CERAMIC CHIP 100PF 5% 50V (DA2400ES: AEP, ECE, UK) C1526 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V (DA2400ES: AEP, ECE, UK) C1527 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V (DA2400ES: AEP, ECE, UK) C1528 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V (DA2400ES: AEP, ECE, UK) C1529 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V (DA2400ES: AEP, ECE, UK) C1530 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V (DA2400ES: AEP, ECE, UK) C1551 1-162-927-11 CERAMIC CHIP 100PF 5% 50V (DA2400ES: AEP, ECE, UK) < CONNECTOR > CN1501 1-784-922-11 PIN, CONNECTOR 5P * CN1502 1-564-242-00 PIN, CONNECTOR (3.96mm PITCH) 5P * CN1503 1-564-243-11 PIN, CONNECTOR (3.96mm PITCH) 6P < DIODE > D1501 6-501-817-01 DIODE MA2J1110GLS0 D1502 6-501-817-01 DIODE MA2J1110GLS0 D1503 6-501-817-01 DIODE MA2J1110GLS0 < COIL > L1501 1-420-872-52 COIL, AIR-CORE L1502 1-420-872-52 COIL, AIR-CORE L1503 1-420-872-52 COIL, AIR-CORE L1504 1-420-872-52 COIL, AIR-CORE L1505 1-420-872-52 COIL, AIR-CORE < TRANSISTOR > Q1501 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q1502 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q1503 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF < RESISTOR > 0 R1501 1-249-393-91 CARBON 10 5% 1/4W F 0 R1502 1-249-393-91 CARBON 10 5% 1/4W F 0 R1503 1-249-393-91 CARBON 10 5% 1/4W F 0 R1504 1-249-393-91 CARBON 10 5% 1/4W F 0 R1505 1-249-393-91 CARBON 10 5% 1/4W F 0 R1506 1-249-397-91 CARBON 22 5% 1/4W F R1507 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1508 1-216-833-11 METAL CHIP 10K 5% 1/10W R1509 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1510 1-216-833-11 METAL CHIP 10K 5% 1/10W 0 R1511 1-249-397-91 CARBON 22 5% 1/4W F R1512 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1513 1-216-833-11 METAL CHIP 10K 5% 1/10W 0 R1514 1-249-397-91 CARBON 22 5% 1/4W F 0 R1515 1-249-389-91 CARBON 4.7 5% 1/4W F 0 R1516 1-249-389-91 CARBON 4.7 5% 1/4W F 0 R1517 1-249-389-91 CARBON 4.7 5% 1/4W F 0 R1518 1-249-389-91 CARBON 4.7 5% 1/4W F 0 R1519 1-249-389-91 CARBON 4.7 5% 1/4W F 0 R1526 1-249-393-91 CARBON 10 5% 1/4W F (DA2400ES: AEP, ECE, UK) STANDBY SURR SPEAKER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark STR-DA2400ES/DG920 141 141 0 R1527 1-249-393-91 CARBON 10 5% 1/4W F (DA2400ES: AEP, ECE, UK) 0 R1528 1-249-393-91 CARBON 10 5% 1/4W F (DA2400ES: AEP, ECE, UK) 0 R1529 1-249-393-91 CARBON 10 5% 1/4W F (DA2400ES: AEP, ECE, UK) 0 R1530 1-249-393-91 CARBON 10 5% 1/4W F (DA2400ES: AEP, ECE, UK) < RELAY > RY1501 1-755-307-21 RELAY RY1502 1-755-307-21 RELAY RY1503 1-755-307-21 RELAY < TERMINAL BOARD > 0 TB1501 1-780-404-11 TERMINAL BOARD (SP) (8P) (SPEAKERS SURROUND/SURROUND BACK) (DA2400ES) 0 TB1502 1-780-405-11 TERMINAL BOARD (SP) (2P) (SPEAKERS CENTER) (DA2400ES) 0 TB1503 1-780-216-11 TERMINAL BOARD (SP) (8P) (SPEAKERS SURROUND/SURROUND BACK) (DG920) 0 TB1504 1-780-217-11 TERMINAL BOARD (SP) (2P) (SPEAKERS CENTER) (DG920) ************************************************************ A-1441-442-A VIDEO BOARD, COMPLETE (DA2400ES: US/DG920) A-1559-013-A VIDEO BOARD, COMPLETE (DA2400ES: AEP, ECE, UK) ********************* < CAPACITOR > C6002 1-126-964-11 ELECT 10uF 20% 50V C6003 1-126-964-11 ELECT 10uF 20% 50V C6004 1-126-964-11 ELECT 10uF 20% 50V C6005 1-126-964-11 ELECT 10uF 20% 50V C6006 1-126-964-11 ELECT 10uF 20% 50V C6007 1-126-964-11 ELECT 10uF 20% 50V C6008 1-126-964-11 ELECT 10uF 20% 50V C6009 1-126-964-11 ELECT 10uF 20% 50V C6010 1-126-964-11 ELECT 10uF 20% 50V C6011 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C6012 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C6013 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C6014 1-126-947-11 ELECT 47uF 20% 35V C6015 1-126-947-11 ELECT 47uF 20% 35V C6101 1-126-962-11 ELECT 3.3uF 20% 50V C6102 1-126-962-11 ELECT 3.3uF 20% 50V C6103 1-126-933-11 ELECT 100uF 20% 16V C6104 1-126-933-11 ELECT 100uF 20% 16V C6105 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C6106 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C6108 1-126-947-11 ELECT 47uF 20% 35V C6109 1-126-916-11 ELECT 1000uF 20% 6.3V C6110 1-126-947-11 ELECT 47uF 20% 35V C6116 1-126-947-11 ELECT 47uF 20% 35V C6117 1-126-947-11 ELECT 47uF 20% 35V C6118 1-126-947-11 ELECT 47uF 20% 35V C6235 1-126-947-11 ELECT 47uF 20% 35V C6251 1-126-916-11 ELECT 1000uF 20% 6.3V C6252 1-126-933-11 ELECT 100uF 20% 16V C6253 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C6254 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C6304 1-126-964-11 ELECT 10uF 20% 50V C6305 1-126-964-11 ELECT 10uF 20% 50V C6306 1-126-964-11 ELECT 10uF 20% 50V C6307 1-126-964-11 ELECT 10uF 20% 50V C6309 1-126-964-11 ELECT 10uF 20% 50V C6311 1-126-964-11 ELECT 10uF 20% 50V C6315 1-126-964-11 ELECT 10uF 20% 50V C6316 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C6318 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C6319 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C6320 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C6323 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C6324 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C6325 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C6326 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C6327 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C6328 1-126-947-11 ELECT 47uF 20% 35V C6329 1-126-947-11 ELECT 47uF 20% 35V C6501 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C6502 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C6503 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C6504 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C6505 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C6507 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C6510 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C6513 1-126-964-11 ELECT 10uF 20% 50V C6514 1-126-964-11 ELECT 10uF 20% 50V C6515 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C6516 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C6517 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C6518 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C6519 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C6520 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V < CONNECTOR > CN6203 1-770-407-11 CONNECTOR, BOARD TO BOARD 12P * CN6204 1-564-521-11 PLUG, CONNECTOR 6P CN6501 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P < DIODE > D6003 6-501-817-01 DIODE MA2J1110GLS0 D6101 6-501-817-01 DIODE MA2J1110GLS0 D6102 6-501-817-01 DIODE MA2J1110GLS0 D6501 6-501-817-01 DIODE MA2J1110GLS0 D6502 6-501-817-01 DIODE MA2J1110GLS0 < IC > IC6001 6-706-767-01 IC NJM2586AM IC6101 8-759-822-05 IC LA7213 IC6102 8-759-822-05 IC LA7213 IC6104 6-706-767-01 IC NJM2586AM IC6205 8-759-646-52 IC KIA7805API IC6206 8-759-373-92 IC TA79005SB IC6302 6-704-199-01 IC NJM2595M-TE2 IC6501 8-759-238-47 IC TC74HCT7007AF (EL) IC6502 8-759-268-29 IC SN74HC595ANS IC6503 8-759-268-29 IC SN74HC595ANS IC6505 8-759-353-02 IC NJM2533M (TE2) VIDEO SURR SPEAKER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark STR-DA2400ES/DG920 142 IC6506 8-759-474-37 IC NJM2279M-TE2 < JACK > J6001 1-816-592-11 JACK, PIN 9P (COMPONENT VIDEO ASSIGNABLE (INPUT ONRY) COMPO 2/3 IN/ MONITOR OUT) J6002 1-821-278-12 JACK 3P (COMPONENT VIDEO ASSIGNABLE (INPUT ONRY) COMPO 1 IN) J6004 1-794-978-11 JACK, PIN 3P (DVD/SAT VIDEO IN, MONITOR VIDEO OUT) J6005 1-794-978-11 JACK, PIN 3P (VIDEO 1 VIDEO IN/OUT, BD VIDEO IN) < COIL > L6001 1-469-525-91 INDUCTOR 10uH L6002 1-469-525-91 INDUCTOR 10uH < TRANSISTOR > Q6001 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q6101 8-729-038-28 TRANSISTOR RT1N441C-TP-1 Q6102 8-729-038-28 TRANSISTOR RT1N441C-TP-1 Q6103 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q6104 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF < RESISTOR > R6001 1-211-990-11 METAL CHIP 75 0.5% 1/10W R6002 1-211-990-11 METAL CHIP 75 0.5% 1/10W R6003 1-211-990-11 METAL CHIP 75 0.5% 1/10W R6004 1-211-990-11 METAL CHIP 75 0.5% 1/10W R6005 1-211-990-11 METAL CHIP 75 0.5% 1/10W R6006 1-211-990-11 METAL CHIP 75 0.5% 1/10W R6007 1-211-990-11 METAL CHIP 75 0.5% 1/10W R6008 1-211-990-11 METAL CHIP 75 0.5% 1/10W R6009 1-211-990-11 METAL CHIP 75 0.5% 1/10W 0 R6010 1-249-393-91 CARBON 10 5% 1/4W F R6011 1-216-841-11 METAL CHIP 47K 5% 1/10W R6012 1-216-821-11 METAL CHIP 1K 5% 1/10W R6013 1-216-864-11 SHORT CHIP 0 R6014 1-216-864-11 SHORT CHIP 0 R6015 1-211-990-11 METAL CHIP 75 0.5% 1/10W R6016 1-216-864-11 SHORT CHIP 0 R6017 1-211-990-11 METAL CHIP 75 0.5% 1/10W R6018 1-211-990-11 METAL CHIP 75 0.5% 1/10W R6101 1-216-815-11 METAL CHIP 330 5% 1/10W R6102 1-216-815-11 METAL CHIP 330 5% 1/10W R6103 1-216-847-11 METAL CHIP 150K 5% 1/10W R6104 1-216-847-11 METAL CHIP 150K 5% 1/10W R6105 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R6106 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R6110 1-216-821-11 METAL CHIP 1K 5% 1/10W R6111 1-216-821-11 METAL CHIP 1K 5% 1/10W R6118 1-211-990-11 METAL CHIP 75 0.5% 1/10W R6119 1-211-990-11 METAL CHIP 75 0.5% 1/10W R6120 1-211-990-11 METAL CHIP 75 0.5% 1/10W R6121 1-218-834-11 METAL CHIP 300 0.5% 1/10W R6122 1-218-834-11 METAL CHIP 300 0.5% 1/10W R6123 1-218-834-11 METAL CHIP 300 0.5% 1/10W R6124 1-216-815-11 METAL CHIP 330 5% 1/10W R6125 1-216-815-11 METAL CHIP 330 5% 1/10W R6236 1-211-990-11 METAL CHIP 75 0.5% 1/10W R6239 1-216-864-11 SHORT CHIP 0 R6240 1-216-864-11 SHORT CHIP 0 R6241 1-216-864-11 SHORT CHIP 0 R6242 1-216-864-11 SHORT CHIP 0 R6243 1-216-864-11 SHORT CHIP 0 R6244 1-216-809-11 METAL CHIP 100 5% 1/10W R6245 1-216-809-11 METAL CHIP 100 5% 1/10W R6246 1-216-809-11 METAL CHIP 100 5% 1/10W R6247 1-216-809-11 METAL CHIP 100 5% 1/10W R6250 1-216-809-11 METAL CHIP 100 5% 1/10W R6251 1-216-809-11 METAL CHIP 100 5% 1/10W R6252 1-216-809-11 METAL CHIP 100 5% 1/10W R6301 1-211-990-11 METAL CHIP 75 0.5% 1/10W R6302 1-211-990-11 METAL CHIP 75 0.5% 1/10W R6303 1-211-990-11 METAL CHIP 75 0.5% 1/10W R6304 1-211-990-11 METAL CHIP 75 0.5% 1/10W R6306 1-211-990-11 METAL CHIP 75 0.5% 1/10W R6307 1-211-990-11 METAL CHIP 75 0.5% 1/10W R6311 1-216-864-11 SHORT CHIP 0 R6501 1-216-833-11 METAL CHIP 10K 5% 1/10W R6502 1-216-813-11 METAL CHIP 220 5% 1/10W R6503 1-216-813-11 METAL CHIP 220 5% 1/10W R6505 1-216-809-11 METAL CHIP 100 5% 1/10W R6506 1-211-990-11 METAL CHIP 75 0.5% 1/10W R6508 1-216-833-11 METAL CHIP 10K 5% 1/10W R6510 1-211-990-11 METAL CHIP 75 0.5% 1/10W R6511 1-216-864-11 SHORT CHIP 0 < RELAY > RY6001 1-755-267-11 RELAY RY6002 1-755-267-11 RELAY RY6003 1-755-267-11 RELAY ************************************************************ VIDEO2 BOARD ************* < CAPACITOR > C757 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C757 1-126-964-11 ELECT 10uF 20% 50V (DA2400ES: US/DG920) C758 1-112-100-11 ELECT 10uF 20% 50V (DA2400ES: AEP, ECE, UK) C758 1-126-964-11 ELECT 10uF 20% 50V (DA2400ES: US/DG920) C762 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C810 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C811 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C812 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V C813 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C815 1-164-733-11 CERAMIC CHIP 820PF 10% 50V C816 1-164-733-11 CERAMIC CHIP 820PF 10% 50V C817 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C818 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V C819 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V C820 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V C822 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V C823 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V < CONNECTOR > CN721 1-784-925-11 PIN, CONNECTOR 10P VIDEO VIDEO2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark STR-DA2400ES/DG920 143 143 CN722 1-779-977-11 PIN, CONNECTOR 6P CN728 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P < EARTH TERMINAL > * ET702 1-537-738-21 TERMINAL, EARTH * ET703 1-537-738-21 TERMINAL, EARTH < IC > IC706 8-759-710-97 IC NJM4565M-D < JACK > J702 1-815-313-11 JACK (PHONES) J703 1-770-571-11 JACK BLOCK, PIN (L TYPE) 3P (VIDEO 2 IN/POTABLE AV IN VIDEO/AUDIO) < RESISTOR > R763 1-216-821-11 METAL CHIP 1K 5% 1/10W R764 1-216-821-11 METAL CHIP 1K 5% 1/10W R765 1-211-990-11 METAL CHIP 75 0.5% 1/10W R768 1-216-841-11 METAL CHIP 47K 5% 1/10W R769 1-216-841-11 METAL CHIP 47K 5% 1/10W R776 1-216-864-11 SHORT CHIP 0 R810 1-216-864-11 SHORT CHIP 0 ************************************************************* MISCELLANEOUS ************** 5 1-828-589-11 WIRE (FLAT TYPE) (13 CORE) (DA2400ES: US) 8 1-828-953-11 WIRE (FLAT TYPE) (9 CORE) (DA2400ES: US/DG920) 8 1-828-963-11 WIRE (FLAT TYPE) (11 CORE) (DA2400ES: AEP, ECE, UK) 9 1-693-728-11 TUNER (FM/AM) (DA2400ES: US/DG920) 9 1-693-737-11 TUNER (FM/AM) (DA2400ES: AEP, ECE, UK) 154 1-500-386-11 FILTER, CLAMP (FERRITE CORE) 206 1-500-386-11 FILTER, CLAMP (FERRITE CORE) 0 207 1-821-082-21 INLET, AC 2P (-AC INLET) (DA2400ES) 0 212 1-783-820-11 CORD, POWER (DG920) 0 F001 1-532-504-33 FUSE (T4AL/250V) (DA2400ES: AEP, ECE, UK) 0 F001 1-533-311-12 FUSE, GLASS CYLINDRICAL (DIA.5) (8A/125V) (DA2400ES: US/DG920) 0 F803 1-532-506-33 FUSE (T6.3AL/250V) (DA2400ES: US/DG920) 0 F803 1-533-949-33 FUSE, CYLINDRICAL (TIME LAG) (T8AL/250V) (DA2400ES: AEP, ECE, UK) 0 F804 1-532-506-33 FUSE (T6.3AL/250V) (DA2400ES: US/DG920) 0 F804 1-533-949-33 FUSE, CYLINDRICAL (TIME LAG) (T8AL/250V) (DA2400ES: AEP, ECE, UK) 0 F810 1-532-504-33 FUSE (T4AL/250V) 0 F811 1-532-504-33 FUSE (T4AL/250V) 0 F1405 1-532-506-33 FUSE (T6.3AL/250V) Q423 6-702-390-01 TRANSISTOR MN2488-OPY-MK Q424 6-702-391-01 TRANSISTOR MP1620-OPY-MK Q473 6-702-390-01 TRANSISTOR MN2488-OPY-MK Q474 6-702-391-01 TRANSISTOR MP1620-OPY-MK Q523 6-702-390-01 TRANSISTOR MN2488-OPY-MK Q524 6-702-391-01 TRANSISTOR MP1620-OPY-MK Q573 6-702-390-01 TRANSISTOR MN2488-OPY-MK Q574 6-702-391-01 TRANSISTOR MP1620-OPY-MK Q623 6-702-390-01 TRANSISTOR MN2488-OPY-MK Q624 6-702-391-01 TRANSISTOR MP1620-OPY-MK Q673 6-702-390-01 TRANSISTOR MN2488-OPY-MK VIDEO2 Q674 6-702-391-01 TRANSISTOR MP1620-OPY-MK Q723 6-702-390-01 TRANSISTOR MN2488-OPY-MK Q724 6-702-391-01 TRANSISTOR MP1620-OPY-MK 0 T901 1-445-370-11 POWER TRANSFORMER (DA2400ES: US/DG920) 0 T901 1-445-372-11 POWER TRANSFORMER (DA2400ES: AEP, ECE, UK) ************************************************************* ACCESSORIES ************ 1-480-699-11 REMOTE COMMANDER (RM-AAU039) (SUB) (DA2400ES) 1-501-374-12 ANTENNA, LOOP (AM loop antenna (aerial)) 1-501-807-12 ANTENNA (FM) (FM wire antenna (aerial)) (DA2400ES: AEP, ECE, UK) 1-542-670-11 MEASUREMENT MIC (MONO) (Optimizer microphone (ECM-AC2)) 1-793-184-23 CONNECTOR (F TYPE ADAPTOR) (DA2400ES: US/DG920) 0 1-824-964-13 CORD, POWER (DA2400ES: US) 0 1-831-474-11 CORD, POWER (DA2400ES: AEP, ECE) 0 1-833-794-11 CORD, POWER (DA2400ES: UK) 3-289-200-12 INSTRUCTION MANUAL (ENGLISH) (DG920) 3-289-200-22 INSTRUCTION MANUAL (FRENCH) (DG920: CND) 3-289-200-32 INSTRUCTION MANUAL (SPANISH) (DG920: US) 3-289-204-12 INSTRUCTION MANUAL (ENGLISH) (DA2400ES: US) 3-289-204-32 INSTRUCTION MANUAL (SPANISH) (DA2400ES: US) 3-289-204-41 INSTRUCTION MANUAL (ENGLISH) (DA2400ES: AEP, ECE, UK) 3-289-204-51 INSTRUCTION MANUAL (FRENCH) (DA2400ES: AEP, ECE) 3-289-204-61 INSTRUCTION MANUAL (SPANISH, GERMAN) (DA2400ES: AEP, ECE) 3-289-204-71 INSTRUCTION MANUAL (DUTCH, SWEDISH) (DA2400ES: AEP, ECE) 3-289-204-81 INSTRUCTION MANUAL (ITALIAN, POLISH) (DA2400ES: AEP, ECE) 3-289-205-11 INSTRUCTION MANUAL (DANISH, FINNISH) (DA2400ES: AEP, ECE) 3-289-205-21 INSTRUCTION MANUAL (PORTUGUESE) (DA2400ES: AEP, ECE) 3-289-205-31 INSTRUCTION MANUAL (RUSSIAN) (DA2400ES: AEP, ECE) 3-289-205-41 INSTRUCTION MANUAL (GREEK) (DA2400ES: AEP, ECE) 3-289-205-51 INSTRUCTION MANUAL (TURKISH) (DA2400ES: AEP, ECE) 3-289-205-61 INSTRUCTION MANUAL (SLOVAKIAN) (DA2400ES: AEP, ECE) 3-289-205-71 INSTRUCTION MANUAL (HUNGARIAN, CZECH) (DA2400ES: AEP, ECE) A-1512-405-A RM-AAP023 (Remote commander) (DG920) A-1512-409-A RM-AAP024 (Remote commander (MAIN)) (DA2400ES: AEP, ECE, UK) A-1512-413-A RM-AAP025 (Remote commander (MAIN)) (DA2400ES: US) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STR-DA2400ES/DG920 REVISION HISTORY Checking the version allows you to jump to the revised page. Also, clicking the version at the top of the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2008.05 New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com

立即购买

下载本素材需消耗 50 积分

无法下载？立即反馈

标签：

版权声明

1. 本站所有素材，仅限学习交流，仅展示部分内容，如需查看完整内容，请下载原文件。
2. 会员在本站下载的所有素材，只拥有使用权，著作权归原作者所有。
3. 所有素材，未经合法授权，请勿用于商业用途，会员不得以任何形式发布、传播、复制、转售该素材，否则一律封号处理。
4. 如果素材损害你的权益请联系客服QQ：77594475 处理。

索尼SONY STR-DG920音响电路原理图

版权声明

相关素材

索尼XTL-W70汽车电视说明书

索尼SONY TC-K770ES电路图

索尼LMD-152172W232W121322W液晶监视器说明书

索尼KLV-46W300A液晶电视背光板电路图

索尼KLV-17HR2彩电说明书

索尼KDL-75W850C液晶电视说明书

索尼KDL-70W858B液晶电视说明书

索尼KDL-70W850B液晶电视说明书

随机推荐

安桥 CR-305FX功放图纸

三星SP-56L3HR彩电使用说明书

建伍KENWOOD DV-605 CDDVD播放机维修手册

飞利浦150S8FB93液晶显示器说明书

LG 49LX310C-CA液晶电视说明书

PHLIPS 190B8CB69 LCD液晶显示器说明书

先锋PIONEER DEH-P550MPXNUC电路图

Panasonic NV-122摄像机电路图

松下PANASONIC NV-GS57GC数码摄像机图纸

会员登录
