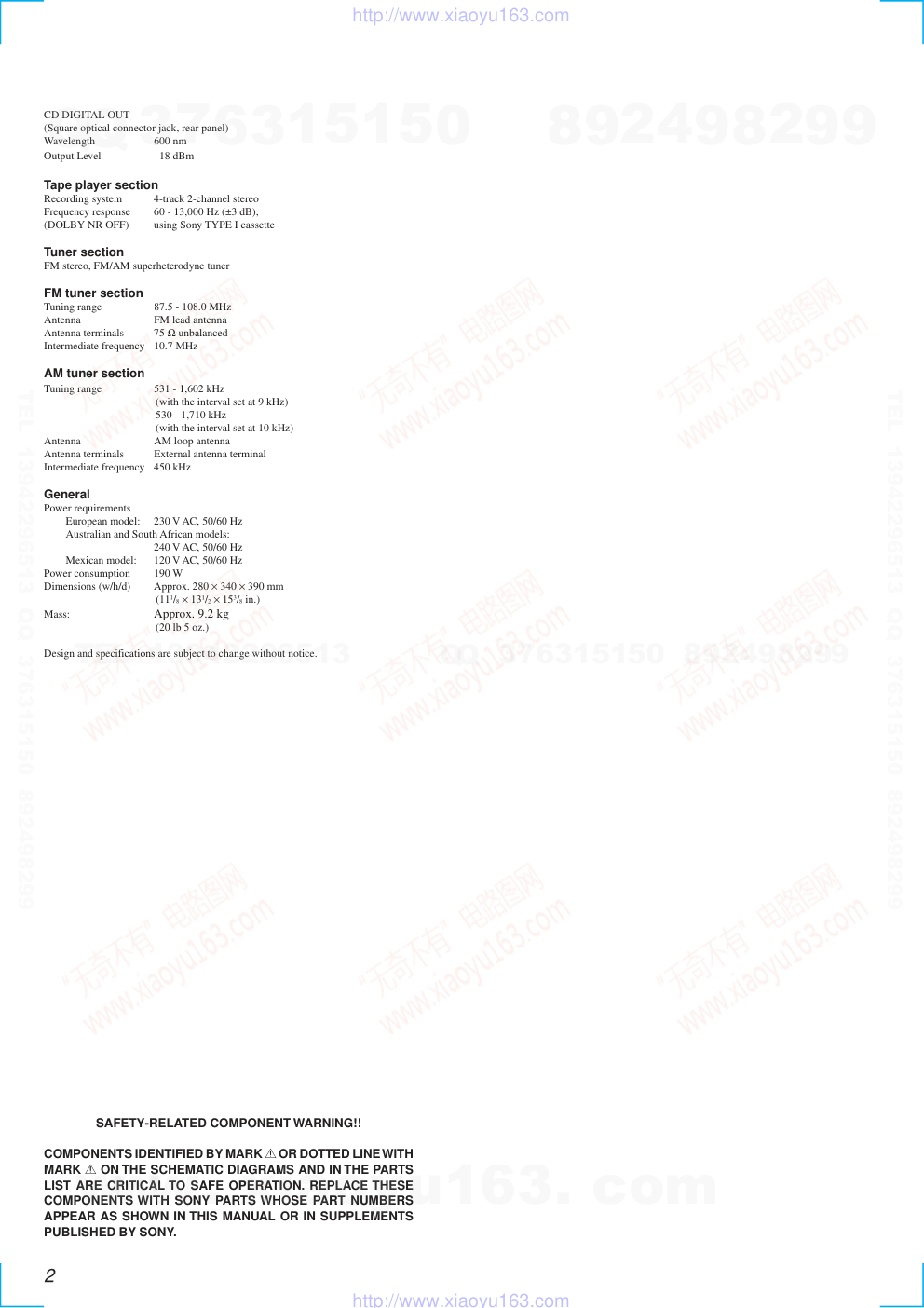

HCD-GRX40AV/RXD6AV AEP Model UK Model HCD-RXD6AV E Model Australian Model HCD-GRX40AV SERVICE MANUAL MINI Hi-Fi COMPONENT SYSTEM MICROFILM Manufactured under license from Dolby Laboratories Licensing Corporation. “DOLBY” and the double-D symbol a are trademarks of Dolby Laboratories Licensing Corporation. Model Name Using Similar Mechanism HCD-RXD3 CD CD Mechanism Type CX3 Section Base Unit Name KSM-213ECM Optical Pick-up Name KSS-213ECM/C2NP Tape deck Model Name Using Similar Mechanism HCD-RXD3 Section Tape Transport Mechanism Type CWL-44-RR SPECIFICATIONS HCD-GRX40AV/RXD6AV is the Amplifier, CD player, Tape Deck and Tuner section in MHC-GRX40AV/RXD6AV. Amplifier section MHC-RXD6AV (European model): Front Speaker : DIN power output (rated)50 + 50 W (6 Ω at 1 kHz, DIN) Continuous RMS power output (reference) 60 + 60 W (6 Ω at 1 kHz, 10% THD) Music power output (reference) 100 + 100 W (6 Ω at 1 kHz, 10% THD) Center Surround Speaker : DIN power output (rated) 25 W (12 Ω at 1 kHz, DIN) Continuous RMS power output (reference) 30 W (12 Ω at 1 kHz, 10% THD) Music power output (reference) 50 W (12 Ω at 1 kHz, 10% THD) Rear Surround Speaker : DIN power output (rated) 12.5 + 12.5 W (6 Ω at 1 kHz, DIN) Continuous RMS power output (reference) 15 + 15 W (6 Ω at 1 kHz, 10% THD) Music power output (reference) 25 + 25 W (6 Ω at 1 kHz, 10% THD) MHC-GRX40AV (Other model): The following measured at AC 120, 240 V, 50/60 Hz Front Speaker : DIN power output (rated)60 + 60 W (6 Ω at 1 kHz, DIN) Continuous RMS power output (reference) 70 + 70 W (6 Ω at 1 kHz, 10% THD) Center Surround Speaker : DIN power output (rated) 25 W (12 Ω at 1 kHz, DIN) Continuous RMS power output (reference) 30 W (12 Ω at 1 kHz, 10% THD) Rear Surround Speaker : DIN power output (rated) 12.5 + 12.5 W (6 Ω at 1 kHz, DIN) Continuous RMS power output (reference) 15 + 15 W (6 Ω at 1 kHz, 10% THD) Inputs MD/VIDEO IN : voltage 450 mV/250 mV (phono jacks) inpedance 47 kΩ Outputs MD/VIDEO OUT : voltage 250 mV (phono jacks) impedance 1 kΩ PHONES : accepts headphones of 8 Ω or (stereo phone jack) more FRONT SPEAKER : accepts impedance of 6 to 16 Ω REAR SPEAKER : accepts impedance of 6 to 16 Ω CENTER SPEAKER : accepts impedance of 12 to 16 Ω SUPER WOOFER : Voltage 1 V, impedance 1 kΩ CD player section System Compact disc and digital audio system Laser Semiconductor laser (λ=780nm) Emission duration: continuous Laser output Max. 44.6 µW* *This output is the value measured at a distance of 200 mm from the objective lens surface on the Optical Pick-up Block with 7 mm aperture. Frequency response 20 Hz - 20 kHz (±0.5 dB) Wavelength 780 -790 nm Signal-to-noise ratio More than 90 dB Dynamic range More than 90 dB Continued on next page Photo : HCD-RXD6AV www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 CD DIGITAL OUT (Square optical connector jack, rear panel) Wavelength 600 nm Output Level –18 dBm Tape player section Recording system 4-track 2-channel stereo Frequency response 60 - 13,000 Hz (±3 dB), (DOLBY NR OFF) using Sony TYPE I cassette Tuner section FM stereo, FM/AM superheterodyne tuner FM tuner section Tuning range 87.5 - 108.0 MHz Antenna FM lead antenna Antenna terminals 75 Ω unbalanced Intermediate frequency 10.7 MHz AM tuner section Tuning range 531 - 1,602 kHz (with the interval set at 9 kHz) 530 - 1,710 kHz (with the interval set at 10 kHz) Antenna AM loop antenna Antenna terminals External antenna terminal Intermediate frequency 450 kHz General Power requirements European model: 230 V AC, 50/60 Hz Australian and South African models: 240 V AC, 50/60 Hz Mexican model: 120 V AC, 50/60 Hz Power consumption 190 W Dimensions (w/h/d) Approx. 280 × 340 × 390 mm (111/8 × 131/2 × 153/8 in.) Mass: Approx. 9.2 kg (20 lb 5 oz.) Design and specifications are subject to change without notice. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 SECTION 1 SERVICING NOTES The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270 ˚C dur- ing repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. The following caution label is located inside the unit. 1. SERVICING NOTES ··················································· 3 2. GENERAL ······································································ 4 3. DISASSEMBLY 3-1. CD door ·············································································· 6 3-2. CD Mechanism Deck ························································· 6 3-3. Front Panel ········································································· 7 3-4. Main Board ········································································· 7 3-5. Key Board ··········································································· 8 3-6. Mech Deck ········································································· 8 3-7. Front Panel (B) ··································································· 9 3-8. Front Board, H/P Board······················································ 9 3-9. Front AMP Board, AMP Board, Photo Socket Board, Fuse Board ················································································ 10 3-10. CD Tray ············································································ 10 3-11. CD Decord Board ····························································· 11 3-12. Base Unit ·········································································· 12 3-13. Cassette Lid (A)/(B) ························································· 12 4. TEST MODE ································································ 13 5. MECHANICAL ADJUSTMENTS·························· 14 6. ELECTRICAL ADJUSTMENTS ··························· 14 7. DIAGRAMS 7-1. Block Diagrams Tuner CD Section ························································ 19 Main Section ······························································· 20 7-2. Circrit Boards Location ···················································· 21 7-3. Printed Wiring Board Main Section ······························ 22 7-4. Schematic Diagram Tuner Section ································ 23 7-5. Schematic Diagram Dolby Section ······························· 24 7-6. Schematic Diagram Tape Power Section······················· 25 7-7. Printed Wiring Board Front Section ······························ 26 7-8. Schematic Diagram Front Section································· 27 7-9. Printed Wiring Board FLD Section ······························· 28 7-10. Schematic Diagram FLD Section ·································· 29 7-11. Printed Wiring Board CD Section ································· 30 7-12. Schematic Diagram CD Section ···································· 31 7-13. Printed Wiring Board Center/Rear AMP Section ·········· 32 7-14. Schematic Diagram Center/Rear AMP Section············· 33 7-15. Schematic Diagram Front AMP Section ······················· 34 7-16. Printed Wiring Board Front AMP Section ···················· 35 7-17. IC Block Diagrams ··························································· 36 7-23. IC PIN Function Description ············································ 40 8. EXPLODED VIEWS 8-1. Cabinet Section································································· 42 8-2. Front Panel Section-1 ······················································· 43 8-3. Front Panel Section-2 ······················································· 44 8-4. CD Mechanism Deck Section-1 ······································· 45 8-5. CD Mechanism Deck Section-2 ······································· 46 8-6. Base Unit Section (KSM-213ECM) ································· 47 9. ELECTRICAL PARTS LIST ··································· 48 TABLE OF CONTENTS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 SECTION 2 GENARAL 1 2 3 4 5 6 7 8 9 0 !¡� !™� !£� !¢� !∞� !§� !¶� !•� !ª� @º� @¡� @™� @£� @¢� @∞� @§� @¶� @•� @ª� #º� #•� #¶� #§� #¢� #∞� #£� #™� #¡� @¢ Fluorescent indicator tube @∞ ENTER/NEXT button and indicator @§ REC button and indicator @¶ PAUSE button @• CD SYNC button @ª VOLUME knob #º +, ) button and indicator #¡ JOG dial #™ –, 0 button and indicator #£ TIMER SELECT button and indicator #¢ CLOCK/TIMER SET button #∞ DISPLAY button #§ DEMO button #¶ GROOVE button and indicator #• Remote sensor 1 1/u (Power) button and indicator 2 DISC 1 to 3 button and indicators 3 DISC SKIP button 4 § (CD) button 5 CD disc tray 6 p button 7 CD, ^ button and indicator 8 TUNER/BAND button 9 FILE SELECT button 0 DBFB button !¡ DSP button !™ § (deck B) !£ Tape deck B !¢ Tape deck A !∞ § (deck A) !§ DOLBY PRO LOGIC button !¶ PHONES jack !• REPEAT, STEREO/MONO button !ª PLAY MODE, TUNER MEMORY button @º EDIT DIRECTION button @¡ FUNCTION button @™ TAPE A, 9 and ( buttons and indications @£ TAPE B, 9 and ( buttons and indications www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 This section is extracted from instruction manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 3-2. CD MECHANISM DECK 7 CD mechanism deck 4 Flat type wire (CN705) 2 Screw (PTPWH 3 × 10) 1 Screw (PTPWH 3 × 10) 3 Screws (BVTP 3 × 10) 6 Connector (CN703) 5 Harness (CN304) SECTION 3 DISASSEMBLY Note : Follow the disassembly procedure in the numerical order given. 3-1. CD DOOR 1 Pull out the CD tray and remove the CD door with releasing claws into the direction of arrow. 2 CD door Three claws www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 3-3. FRONT PANEL 2 Connector (CN502) 5 Screw (PTPWH 3 × 10) 1 Connector (CN301) (CN302) 6 Screws (BVTP 3 × 10) 4 Screw (PTPWH 3 × 10) 3 Screws (BVTT 3 × 10) 9 Front panel 8 Screws (BVTP 3 × 10) 7 Screws (BVTP 3 × 14) 3-4. MAIN BOARD 6 Screws (BVTP 3 × 10) 4 Screw (BVTP 3 × 8) 5 PWB stopper 1 Harness (CN303) 7 MAIN board 2 Connector (CN201) 3 Connector (CN202) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 3-6. MECH DECK, FLD BOARD 4 Screws (BVTP 3 × 10) 2 Screws (BVTP 3 × 8) 5 Connector (CN601) 6 Connector (CN602) 3 Mech deck 1 Flat type wire (CN603) 7 FLD board 3-5. KEY BOARD 1 Screws (BVTP 3 × 12) 2 CD PC board bracket 4 Connector (CN606) 3 Connector (CN607) 6 KEY BOARD Two claws 5 Button www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 3-7. FRONT PANEL (B) 1 Screws (BVTP 3 × 10) 2 Front panel (B) Two claws Three claws Three claws 3-8. FRONT BOARD, H/P BOARD 7 Screw (BVTP 3 × 10) 5 Screws (BVTP 3 × 10) 6 Front board 2 Volume knob 1 Jog knob 9 H/P board 8 Holder Washer (VR602) Five claws Washer (VR601) 4 Nut(VR602) 3 Nut (VR601) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 3-10. CD TRAY 1 Screw (+P 2.6 × 4) 2 Bracket 4 Bracket 5 Flat type wire (CN06) 3 Screw (+P 2.6 × 4) 6 CD tray 3-9. FRONT AMP BOARD, AMP BOARD, PHOTO SOCKET BOARD, FUSE BOARD 3 Screws (BVTP 3 × 10) 7 Photo socket board 5 Front amp/Amp board 1 Connector (CN501) 2 Screws (BVTP 3 × 10) Power cord HOW TO SET THE POWER CORD 9 Screws (BVTP 3 × 10) 8 Remove the four solderings 4 Screws (P 4 × 12) 0 Fuse board 6 Screw (BVTP 3 × 10) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 3-11. CD DECORD BOARD 1 Two screws (+BVTP 3 × 10) 2 Two screws (+BVTP 3 × 10) Two claws 0 CD decord board 3 Belt 6 Flat type wire (CN06) 5 Flat type wire (CN01) 4 Connector (CN05) 9 Connector (CN03) 7 Two screw (+BVTP 3 × 10) 8 Sheet Claw Claw www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 3-12. BASE UNIT 3-13. CASSETTE LID (A)/(B) 1 Two screws (+KTP 3 × 8) 2 Screw (+PTPWH 3 × 8) 3 UD-gear 4 Screw (+PTPWH 2.6 × 8) 5 UD-cam 6 Spring 7 Spring 8 Spring 9 Base unit 1 Remove the cassette lids in the direction of arrow. Four claws Four claws www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 SECTION 4 TEST MODE Initialization Press the STOP button and POWER OFF button at the same time. All preset data is re-set to the initial (default) value. Model display Press the STOP button and DISC 1 button at the same time. Model name is displayed. Destination display Press the STOP button and DISC 2 button at the same time. Destination is displayed. Version display Press the STOP button and DISC 3 button at the same time. Version number of the microprocessor is displayed. CD aging mode Press the STOP button and DISC SKIP/EX-CHANGE button at the same time. Set discs to DISC 1 and DISC 3. The following operations are repeated when aging starts: 1. DISC 1: TOC Read 2. Plays back the last music of the DISC 1 3. DISC 3 : TOC Read 4. Plays back the last music of the DISC 3. 5. STOP 6. Tray is open and closed. TAPE aging mode Press the STOP button and PLAY A button at the same time. Insert a commercially available cassette tape (10 min) to the decks A and B. When aging starts, each tape is rewound and the following operations are repeated: 1. TAPE A: FWD PLAY for one minute 2. TAPE A: FWD STOP for one second 3. TAPE A: FWD PLAY for three minutes 4. TAPE A: FWD FF to tape end 5. TAPE B: FWD PLAY for one minute 6. TAPE B: FWD REC PAUSE for one second 7. TAPE B: FWD REC for three minutes 8. TAPE B: FWD FF to tape end 9. TAPE B: REV PLAY for one minute 10. TAPE B: REV REC PAUSE for one second 11. TAPE B: REV REC for three minutes 12. TAPE B: REV FF to tape end. CD service mode Press the STOP button and OPEN/CLOSE button at the same time. The message “CD S - -” is displayed on the screen. The sled is moved to the outer circumference while the FF button is pressed. Also, the SLED is moved to the inner circumference while the REW button is pressed. After pressing the PLAY button, FOCUS is turned ON, CLV-S is set, TRACKING and SLED servos are turned OFF and ADDRESS 3 = 3F, 37 is set. Display Press the STOP button and DBFB button at the same time. All displays are turned ON. Balance adjustment value Press the STOP button and DISPLAY button at the same time. The balance adjustment value is displayed. Key check Press the STOP button and FILE SELECT button at the same time. Function of the pressed key is displayed. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 Precaution 1. Clean the following parts with a denatured alcohol-moistened swab: record/playback head pinch rollers erase head rubber belts capstan idlers 2. Demagnetize the record/playback head with a head demagnetizer. 3. Do not use a magnetized screwdriver for the adjustments. 4. After the adjustments, apply suitable locking compound to the parts adjusted. 5. The adjustments should be performed with the rated power supply voltage unless otherwise noted. Torque Measurement SECTION 5 MECHANICAL ADJUSTMENTS Meter reading 40 to 70 g • cm (0.56 - 0.97 oz • inch) 1 to 5 g • cm (0.01 - 0.07 oz • inch) 55 to 140 g • cm (0.76 - 1.94 oz • inch) Torque FWD FWD back tension FF/REW Torque meter CQ-102C CQ-102C CQ-201B SECTION 6 ELECTRICAL ADJUSTMENTS 1. Demagnetize the record/playback head with a head demagnetizer. 2. Do not use a magnetized screwdriver for the adjustments. 3. After the adjustments, apply suitable locking compound to the parts adjusted. 4. The adjustments should be performed with the rated power supply voltage unless otherwise noted. 5. The adjustments should be performed in the order given in this service manual. (As a general rule, playback circuit adjustment should be completed before performing recording circuit adjustment.) 6. The adjustments should be performed for both L-CH and R- CH. Record/Playback Head Azimuth Adjustment (Deck A, Deck B) Note: Perform this adjustments for both decks. Procedure: 1. Mode : Playback 2. Turn the adjustment screw and check output peaks. If the peaks do not match for L-CH and R-CH, turn the adjustment screw so that outputs match within 2 dB of peak. DECK SECTION 0 dB=0.775V Tape P-4-A100 WS-48B Signal 10 kHz, –10 dB 3 kHz, 0 dB Used for Azimuth Adjustment Tape Speed Adjustment test tape P-4-A100 (10kHz, –10dB) set SPEAKER terminal (JK401) level meter L-CH peak R-CH peak screw position output level within 2dB L-CH peak R-CH peak screw position within 2dB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 3. Mode: Playback 4. After the adjustments, apply suitable locking compound to the parts adjusted. Adjustment Location: Remove the cassette lid before adjustment (See page 9) Tape Speed Adjustment (Deck A) Procedure: 1. Mode: Playback 2. Adjust the SFR601 so that the frequency counter reads 3,000 Hz ± 90Hz. Adjustment Location: MAIN board Sample Value of Wow and flutter W. RMS (JIS) within 0.3% (test tape: WS-48B) [FLD BOARD] — Component side — test tape P-4-A100 (10kHz, –10dB) SPEAKER terminal (JK401) (L-CH) SPEAKER terminal (JK401) (R-CH) oscilloscope L R Waveform of oscilloscope in phase 45˚ 90˚ 135˚ 180˚ good wrong Adjustment screws REC/PB head (deck B) or PB head (deck A) test tape WS-48B (3kHz, 0dB) set SPEAKER terminal (JK401) frequency counter + – Tape Speed CN604 SFR601 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 TUNER SECTION 0 dB=1µV AM Tuning Voltage Adjustment Procedure: 1. Set the reception frequency of the unit to 530 kHz. 2. Adjust L107 for 1.2 ± 0.05 V reading on the DC voltmeter. 3. Set the reception frequency of the unit to 1,710 kHz. 4. Confirm that the voltage reading on the DC voltmeter is within 8.0 ± 0.5 V. Adjustment Location: MAIN board (See page 17) AM Tracking Adjustment Procedure: 1. Tune the set to 600 kHz. 2. Set the output of AM RF SSG so that the input level of the set will become 60 dB (µV/m). 3. Adjust L104 so that when the waveform on the oscilloscope is maximum, no noise appears. 4. Tune the set to 1,400 kHz. 5. Adjust TC101 so that when the waveform on the oscilloscope is maximum, no noise appears. • Repeat the procedures in each adjustment several times, and the tracking adjustment should be finally done by the trimmer capacitors. Adjustment Location: MAIN board (See page 17) Main board TP1 G VT DC voltmeter + – AM RF SSG loop antenna set loop antenna (Supplied accessories) 60 cm AM ANTENNA terminal (TM1) 30% amplitude modulation by 400 Hz signal Field strength dB (µV/m) =SSG output level dB (µV/m) –26 dB. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 FM Tuned Level Adjustment Procedure: 1. Supply a 28 dB 98 MHz signal from the ANTENNA terminal. 2. Tune the set to 98 MHz. 3. Adjust SFR101 to the point (moment) when the TUNED indicator will change from going off to going on. Adjustment Location: MAIN board Adjustment Location [MAIN BOARD] Component side FM RF SSG 75 Ω coaxial Carrier frequency : 98 MHz Modulation : AUDIO 1 kHz, 75 kHz deviation (100%) Output level : 28 dB (at 75 W open) FM ANTENNA terminal (JK101) set L104 TC101 TP1 SFR101 L107 FM Tuned Level AM Tuning Voltage AM Tracking JK101 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 CD SECTION Note: 1. CD Block is basically constructed to operate without adjustment. Therefore, check each item in order given. 2. Use YEDS-18 disc (3-702-101-01) unless otherwise indicated. 3. Use an oscilloscope with more than 10MΩ impedance. 4. Clean the object lens by an applicator with neutral detergent when the signal level is low than specified value with the following checks. 5. Adjust the focus bias adjustment when optical block is replaced. RF Level Check Procedure : 1. Connect oscilloscope to test point TP (RF) on CD DECODER board. 2. Turned Power switch on. 3. Put disc (YEDS-18) in and playback. 4. Confirm that oscilloscope waveform is clear and check RF signal level is correct or not. Note: Clear RF signal waveform means that the shape “◊” can be clearly distinguished at the center of the waveform. Adjustment Location: [CD DECODER BOARD] Component side CD DECODER board oscilloscope TP (RF) TP (VC) VOLT/DIV: 200 mV TIME/DIV: 500 nS level: 1.0 Vp-p +0.3 –0.2 IC702 IC701 J778 J789 TP (VC) TP (RF) CN701 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GRX40AV/RXD6AV 19 19 7-1. BLOCK DIAGRAMS TUNER/CD SECTION CE 16 10 6 4 5 3 22 1 PLL IC103 FM XO XI CLK DI DO CE CLK DI DO OPTICAL PICK-UP BLOCK APC Q701 41 +5V VC LD GND A C B E F FOCUS COIL F+ F T+ T TRACKING COIL 36 37 42 39 38 51 APC FOCUS PHASE COMPENSATION DECODER SERIAL/ PARALLEL CONVERTER FE AMP RF AMP IIL TTL TTL IIL COMAND VC TRACKING PHASE COMPENSATION LD PD E F PD1 PD2 6 25 24 21 20 23 22 33 27 SENS1 RFO FOK C OUT DATA XLT CLK XRST 13 FEO TAO IC703 T.T/TRAY MOTOR DRIVER CD RF/SERVO PROSSESOR IC701 (1/2) 2 5 T IN 1 3 4 VR PD PD 18 17 19 20 6 F IN 22 SL IN 13 T.T F IN F+ F T+ T SL+ SL SP+ SP M M MOTOR M102 SLED MOTOR M101 SPINDOL EFM DEMO. XRST CLV SERVO DIGITAL CLV D/A I/F SUB CODE PROSSESOR CPU I/F 7 9 4 5 6 62 57 MDP SENS SCOR SQSO SQCK CLOK DATA CLK XLT DAT SE CIN FOK RF SERIAL I/F PWM 67 70 71 NL XTA1 XTA0 X701 SYS M R-CH CD DIGITAL SIGNAL PROCESSOR IC702 16 :FM :CD • SIGNAL PATH 14 7 8 4 2 1 6 10 DETECTOR 16 OSC FM JK101 3 8 RF MIX 1 4 FM FRONT END FE101 RF IF AMP Q101 CF101 10.7MHz CF102 10.7MHz L107 MW OSC L104 AM ANT AM RF AMP MPX 16 FM IF 1 OSC 23 AFC 22 AM RF 21 FM IF FM OUT 19 FM DET AM/FM IF BUFF AM OSC AM MIX AM DET SMET 20 CF103 450kHz MUTE AGC AM IF DECODER 13 L 14 R 4 2 T102 AM IFT 8 FM DET CF104 10.7MHz R CH FM/AM MPX IC102 FM TUNED LEVEL PD1 18 X201 7.2MHz FM B+ 7 TUB+ +12V Q103 ST MONO 12 15 AM OSC/FMSD 24 B+ 11 SD IN 9 ST/MONO TU LED 6 12 IF IN SD SPEED 7 ST IND 10 AM/FM MUTE Q109 TU L ST IND TU MUTE DO A MAIN SECTION (Page 20) D 5 LD PD F/T COIL SL/SP MOTOR 14 15 30 31 T.T+ T.T TR+ TR M M MOTOR T/T MOTOR TRAY 21 SP IN 29 TR F IN 12 T.T R IN 28 TR T IN 27 MUTE IN IC705 IC701 (2/2) 6 7 REG Q703 9 REG I 10 REG B 11 REG OUT 7 VCC 8 VCC +5V B+ XRST 6 CONTROL 11 CONTROL 5 SWITCH Q702 13 12 TR+ TR 7 14 T.T+ T.T 4 MUTE 3 CLOK 1 STB IC704 MOTOR DRIVE REG CONTROL T.T/TRAY 35 18 11 10 12 13 14 79 21 15 SPOA STOP SWITCH S05 8 XLAT CLOCK GEN. PWM 74 NR MUTE Q705,707 CD L SCOR SENS1 SQSO XLAT SQCK DATA CE STB CLK DI C MAIN SECTION (Page 20) :AM • RCH is omitted SFR101 SENS2 LOCK VT 2 DATA 26 SENS2 19 LOCK 16.9344MHz 2 L MUTE 53 D OUT DIGITAL OUT PH701 B MAIN SECTION (Page 20) CLK DATA IN Q104 D105 8 AM/FM PH DET 11 AM TC101 SECTION 7 DIAGRAMS w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GRX40AV/RXD6AV 20 20 MAIN SECTION HP901 PB HEAD DECK A HRP901 REC/PB HEAD DECK B R CH R CH R CH PLAY/REC CONTROL Q203, 205 PLAY/REC CONTROL DRIVE Q207 PLAY/REC CONTROL D201 L201 BIAS OSC BIAS OSC Q251 HE901 ERASE HEAD R CH 1 2 9 3 REC OUT PB OUT A/B 5 19 11 10 REC/PB EQ AMP IC201 TAPE A/B Q213 MUTE AMS Q210,211 D418 D419 D202 : FM : CD • Signal Path • RCH is omitted C CD SECTION (Page 19) TU L ST IND TU MUTE DO Q513 4 PROTECT DET 1 2 6 IC503 RL401 SPEAKER JK401 SCOR SENS1 SQSO XLAT SQCK CLK DI CLK CE STB 11 STB 21 CE 25 SCLK 27 SDATA OUT 24 DATA 22 SQCK 20 XLAT 23 SQSO 42 SENS1 4 SCOR 26 SDATA IN Q411 MUTE SWITCH Q603,604 62 TU MUTE 28 FM ST IND 15 CLOCK 63 SYSTEM MUTE 64 POWER SW 19 LATCH XTAL 40 XTAL 39 VR UP 52 X601 10MHz VR DOWN 53 VR601 VOLUME PIC UP 46 PIC DOWN 47 TRAY OPEN 50 TRAY CLOSE 51 TURN TABLE 49 DISC COUNT 48 A B S02 TRAY OPEN/CLOSE S03 DISC COUNTER S04 TURNTABLE OPERATION S01 CD DECK UP/DOWN KEY MATRIX P1 P24 KI0 KI2 FLD601 FLD DISPLAY SYSTEM CONTROLLER/ FLD DRIVER IC601 +5.6V REG Q401 SITCHING Q103 TU +5V +12V +7.5V REG Q502 CD +7.5V +12V REG Q501 RECT D501-504 AC OFF DET Q509 Q510 RECT D403 -VCC1 +VCC1 -27V REG Q406 -27V AC IN T001 AC4.8V AC4.8V 16 A TUNER SECTION (Page 19) : PB (DECK A) : PB (DECK B) : REC (DECK B) Q207 Q201 CE CLK DI 12 LOCK MUTE Q208,209 BIAS SWITCH Q252,253 6 TAPE (L) 13 TUNER (L) 12 CD (L) 11 B CD SECTION (Page 19) CD L LINE AMP IC301 6 L OUT BUS REGISTER IC602 REC MUTE 13 A/B 11 BIAS 12 REC 14 DI 2 CLK 3 STB 1 DI CLK SCL 30 4 PLAY 5 SOL A 6 SOL B SOL A DRIVE Q610,613 M+12V SWITCH Q608,611 +12V SOL B DRIVE Q609,612 SHIFT REGISTER IC603 CK 2 S/L 1 QH 9 CLK 3 B REC FWD 5 PHOTO A 11 A MODE SW 13 A HALF 6 PHOTO B 12 B MODE SW 14 B HALF MECHA BLOCK SFR501 MOTOR H/L D515 +5.6V 65 88 29 31 G1 G13 Q'S 10 DATA IN DATA SENS2 LOCK 13 CLOK 43 SENS2 37 AMS 10 S/L 9 DATA IN L R MD/VIDEO JK301 R CH MD (L) 14 : MD 15 MUX OUT AMP Q303 DET IC304 4 B REC REV Q407 Q301 MUTE Q419 MUTE L R MD/VIDEO JK301 R CH µCON B+ CD +5V D602 D601 RESET SWITCH POWER DOWN DET Q601 Q602 2 3 RM601 REMOTE CONTROL RECEIVER RESET 38 POWER DOWN 6 REMOTE 8 VCC VCC 2 1 . 100 90 . 57 DOLBY ON/OFF 32 VACS 36 SPEANA 4 SPEANA 35 SPEANA 3 34 SPEANA 2 33 SPEANA 1 LED DRIVE IC701 2 3 4 DI CLK LED706-713 LED DRIVE IC702 3 4 LED DRIVE DI CLK Q703-708 LED714-718 LED701-703 15 2 12 LED DRIVE Q701,702 LED704 11 14 13 5 9 . . 16 15 11 5 9 18 LATCH C MUT R MUT 17 DATA SDA 1 16 IN L L IN 57 L OUT 1 DATA 14 REQ 16 SCK 15 DATA SCK DOLBY PROLOGIC SURROUND DECODER IC302 3 C VOL 8 S VOL IC303B IC303A Q312 Q314 MUTE Q313 Q315 MUTE Q308 Q310 61 MD MUTE 58 DOLBY HI 16 CE 60 2CH OUT IC501 IC501 10 6 MUTE DBFB DBFB IC502 IC306 IC305 14 7 7 14 OVER LOAD DETCTER Q512 OVER LOAD DETCTER Q503 OVER LOAD DETCTER Q505 OVER LOAD DETCTER Q504 OVER LOAD DET SWITCH Q515 OVER HEAT Q516 +VCC1 PROTECTOR Q412 SWITCH SWITCH Q413 RELAY DRIVE Q414 RELAY DRIVE Q415 RL402 L R REAR JK402 CENTER PHONES JK403 R CH +12V JK303 SUB WOOFER BUFFER Q317 Q318 MUTE IC304 FAN DRIVE Q508 FAN CONTROL Q305,517 FAN +7.5V SWITCH Q405 AU +12V -12V REG Q403 -12V S701-714 S718-728 S731-736 CD ENCODER A 54 CD ENCODER B 55 VR602 CD ENCODER A B D510 D516 LED705 R CH R CH D305 D306 R CH D417 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GRX40AV/RXD6AV 21 21 Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • ¢ : internal component. • C : panel designation. Note on Printed Wiring Boards: • X : parts extracted from the component side. • p : parts mounted on the conductor side. • ® : Through hole. • b : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) Caution: Pattern face side: Parts on the pattern face side seen from (Side B) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Side A) the parts face are indicated. • U : B+ Line. • V : B– Line. • H : adjustment for repair. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. F : FM f : AM E : PB (DECK A) d : PB (DECK B) G : REC (DECK B) J : CD c : digital out : MD • Abbreviation MX : Mexican model SA : South American model AUS : Australian model G : German model AED : North European model THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.) • Indication of transistor. C B These are omitted. E Q B These are omitted. C E Q 1 IC701 #£ (PLAY MODE) 2 IC701 2 (FEI) (PLAY MODE) 3 IC701 $¶ (TEI) (PLAY MODE) 4 IC703 @¡ (MDP) 5 IC702 $ª (B) GFS 7 IC702 &¡ (XTAO) Approx. 1.0Vp-p Approx. 0.1Vp-p Approx. 0.1Vp-p 2.4Vp-p 0.1µsec/div 0.1V/div 7.7 µsec 5.7Vp-p 4.2336MHz 16.9344MHz 5.6Vp-p (PLAY MODE) 8 IC601 $º (X' TAL) 4.8Vp-p 10MHz 7.2MHz 3.6Vp-p 9 IC103 @™ (X OUT) 90.790kHz 52Vp-p !º CN202 4 (PLAY MODE) (REC MODE) 6 IC702 %™ (A) C4M CD DECODER SECTION FLD SECTION MAIN SECTION • WAVEFORM 7-2. CIRCUIT BOARD LOCATION The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. MAIN board CD DECORD board AMP board FLD board FUSE board SW (A) board SW (B) board SW (C) board KEY board SENSER board H/P board FRONT AMP board FRONT board SW (D) board MOTOR board PHOTO SOCKET board TR board MOTOR (6P) (S) board w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GRX40AV/RXD6AV 22 22 7-3. PRINTED WIRING BOARD MAIN SECTION • Refer to page 21 for Circuit Boards Location. • Refer to page 21 for Note on Printed Wiring Boards. RL401 Q414 D421 R472 D420 R441 R427A Q412 Q415 R427 Q413 R403A R425 R424 R473 R474 Q401 R403 R426 Q405 R408 C440 R440 C424 D405 C425 C426 CN301 Q403 R406 C432 D407 C431 C434 C433 R253 C218 R219 C217 R220 D205 R237 Q252 R254 C352 R392 IC306 C348 R390 C350 R387 R235 R236 Q214 C234 Q253 R222 C230 R232 R228 C232 Q251 R252 C251 C222 R230 R224 C219 C228 IC201 C231 C272 C224 R226 C254 C252 R251 C255 C226 C212 R208 R210 C208 C206 C201 C205 R201 C253 C204 R206 C210 L201 Q202 R204 Q201 R240 D201 C202 R202 R206A CN201 1 11 13 24 R239 R225 C225 CN203 Q206 R240A Q204 Q419 L405 C453 R442 R443 Q420 C454 CN303 R444 CN102 C422A Q203 R242 R241 R246 R243 R244 R245 D202 CN202 R203 Q205 C237 Q207 C203 R205A C223 R205 C209 C221 D204 D203 R373 R367 Q309 R370 R368 R374 R372 Q311 C256 R262 R255 R365 R366 D418 R247 Q209 Q208 C238 R248 R263 C271 R371 R378 R380 C342 C344 C3133 R376 R379 C343 IC305 R3134 R358 R360 Q315 R3118 R3133 R3119 Q313 Q312 R3117 C3121 R363 R3135 R3132 R3114 R3112 C3120 C3122 R3113 R3115 R359 IC303 C3119 C3117 C3118 R3110 R3111 C372 C368 C367 R3108 R3109 C375 C374 R318 R317 C356 R375 C357 C341 C329 Q314 R3116 CN101 R316 C366 R339 C370 R315 C371 C369 R338 C363 C3106 C3105 R342 R341 R340 C365 R337 C364 C362 C3107 C3104 C3103 C3100 C394 C395 C3108 C3102 C3101 C399 R324 C392 C393 R336 C396 C397 C398 R325 C388 C389 C390 C391 R399 C380 R3100 R3101 C103 R101 R148 Q110 C3143 C382 C381 C383 C384 C385 C386 IC302 1 64 49 48 32 33 17 16 D302 C316 C318 R327 C311 C379 C3109 C3116 C3115 C373 C376 C378 C377 R149 Q109 R129 R127 C387 R128 C132 R126 C160 C130 R137 R141 R142 R143 R146 TP2 C129 C154 R121 R124 SFR101 C135 C137 R139 C131 C133 C161 IC102 C153 R136 C147 R122A C138 R150 13 24 C134 C128 R102 R135 D106 R140 C136 C164 C171 X101 C157 IC103 C163 C158 C148 C155 R134 C109 C143 R133 C144 R125 1 11 22 12 CF101 R171 C113 R105 R107 C107 CF102 TV R132 C140 D107 L106 Q101 R103 C105 R122 C139 R114 C114 C166 D103 TC101 JK101 D101 D102 C111 C106 C102 L103 R117 R112 Q103 C106A C108A L113 L102 R106 R115 R116 C104 C150 R108 R113 D S G Q104 C116 R109 C167 L104 C117 C165 L109 L107 C3127 R3123 C3126 R357 R130 R131 R3139 C141 C142 C118 Q305 R356 C330 D308 D307 R3140 R355 C332 C334 C328 C331 C327 C323 Q303 C404 C405 C406 C407 C3129 R305 R306 Q301 R313 R311 R309 Q302 C3128 D104 R3124 R3125 R310 R312 C310 IC304 R3121 C3131 R3122 R346 R314 C309 R350 Q304 R348 R347 C3130 R349 C325 R345 C326 C324 D305 R3137 R362 D306 R3136 R3138 Q318 CN502 C415 C416 D403 R412 C419 D411 D412 C418 C417 RL402 CN302 R471 C460 C420 D422 R470 R409 R410 D409 C421 R402 R401 C412 D410 C423 Q406 C422 D419 R416 C442 CN304 R301 R302 R304 R303 R395 R396 C351 C349 R391 C340 C347 R382 R389 R381 C339 C301 C302 R388 C346 C345 R271 R258 R212 C214 R234 R233 R214 C216 Q210 R238 R261 C236 C233 C229 Q213 R231 R227 R229 R217 R218 R264 R256 R250 C257 R215 C235 C235A C227 R221 R209 R207 C207 C211 R211 R369 Q308 Q310 Q211 R249 R257 C236A C335 R213 R377 C213 R223 C265 C215 R307A C305 C303 R216 D303 C336 C306 IC301 C322 R344 R308A C304 Q316 R332 Q317 R319 R334 D417 Q411 Q407 R414 R476 C442A R475 R476A C354 C353 C121 CF103 CF104 R138 C123 R331 C321 C307 C317 C315 C313 C319 C320 C308 C149 C152 C151 C124 C122 C120 C127 R123 C172 C146 R119 C126 R3129 R3128 R335 C335 R120 C125 1 12 T102 1 15 16 30 R329 C314 C312 R330 R328 R3138A C120A R118 1 5 E B E B E B E B D105 A A K B E B E B E B E B E B E B E B E B E B E B E B B E E B E B B E E B E B E B B B E E E B B E E B E B E B B E E B E B E B E B E B E B E B B E E B E B E 1 1 1 16 16 2 1 1 5 1 5 5 1 3 FE101 C156 GND TP1 CNK CN303 MAIN BOARD H/P BOARD TO FLD BOARD CN101 (Page 28) E TO FLD BOARD CN102 (Page 28) D TO AMP BOARD CN301 (Page 32) TO FRONT AMP BOARD CN302 (Page 35) A B C TO POWER TRANSFORMER F 11 (11) 1-675-354 (4142270610) 11 (11) 1-675-355 (4142270620) R L R JK401 JK301 AM ANTENNA FM JK101 WOOFER OUT MD/VIDEO IN L OUT JK303 PHONES JK403 FRONT SPEAKER JK402 REAR SPEAKER CENTER SPEAKER TO CD DECORD BOARD CN704 (Page 30) HE901 ERASE HEAD HRP901 RECORD/ PLAYBACK HEAD X 2 1 2 1 5 4 3 B DECK HP901 PLAYBACK HEAD A DECK 1 8 R L 16 1 2 A B C D E F G H I 3 4 5 6 7 8 9 10 11 12 13 (Page 32) Ref. No. Location D105 H-3 D107 H-4 D303 F-8 D307 G-4 D308 G-4 D403 E-3 D405 B-5 D407 B-6 D409 D-6 D410 D-6 D411 D-4 D412 D-4 IC102 G-6 IC103 I-5 IC201 C-9 IC301 F-9 IC302 H-10 IC303 F-11 IC304 G-3 IC305 E-10 IC306 C-7 Q101 H-6 Q103 I-3 Q104 H-3 Q109 G-8 Q110 H-8 Q201 C-10 Q202 B-10 Q203 C-10 Q204 B-10 Q205 C-10 Q206 B-10 Q207 C-11 Q208 C-10 Q209 C-11 Q210 D-8 Q211 D-9 Q213 C-8 Q214 B-8 Q251 B-9 Q252 B-7 Q253 B-7 Q301 F-2 Q302 G-2 Q303 F-3 Q304 F-3 Q305 F-5 Q308 D-9 Q309 D-10 Q310 D-9 Q311 D-10 Q312 E-10 Q313 E-11 Q314 F-10 Q315 F-11 Q316 F-7 Q317 F-7 Q318 F-5 Q401 B-5 Q403 C-6 Q405 B-5 Q406 D-6 Q407 E-7 Q411 E-7 Q412 B-4 Q413 B-4 Q414 C-3 Q415 B-4 Q419 B-11 Q420 A-11 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GRX40AV/RXD6AV 23 23 7-4. SCHEMATIC DIAGRAM TUNER SECTION • Refer to page 21 for Note on Schematic Diagrams. • Refer to page 39 for IC Block Diagrams. * * * C130,131 0.033:GRX40AV 0.022:RXD6AV 9 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GRX40AV/RXD6AV 24 24 7-5. SCHEMATIC DIAGRAM DOLBY SECTION • Refer to page 21 for Note on Schematic Diagrams. • Refer to page 22 for Printed Wiring Board. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GRX40AV/RXD6AV 25 25 7-6. SCHEMATIC DIAGRAM TEPE/POWER SECTION • Refer to page 21 for Note on Schematic Diagrams. • Refer to page 22 for Printed Wiring Board. • Refer to page 39 for IC Block Diagrams. 12 JK402 JK401 0 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GRX40AV/RXD6AV 26 26 7-7. PRINTED WIRING BOARD FRONT SECTION S706 R748 S705 R749 R750 S704 LED703 LED702 LED701 CN606 DISC SKIP DISC 3 DISC 2 DISC 1 S703 S702 R751 CN607 S701 CN607 S732 S735 S719 LED709 R742 R743 S733 R745 R746 R747 R744 S717 S731 LED708 R706 S734 S712 R725 R722 R723 S708 FUNCTION S707 R724 R753 LED718 S727 R721 R731 R730 R729 R727 S714 R728 R756 C702 C701 R702 R701 LED706 1 18 10 9 1 18 10 9 IC701 IC702 R717 R755 CN601 C705 R718 LED715 S713 C703 C704 R720 R741 R719 R707A LED707 D631 LED716 LED714 S736 S728 CN602 VR602 Q706 LED717 R760 S711 S722 CD R759 R737 S710 R726 R709 LED712 LED713 S724 R738 R710 S725 S726 R739 R740 R758 R757 R736 S723 Q703 R711 R712 CN606 LED704 R713 R714 R715 R716 Q704 Q705 R703 R704 Q702 Q701 R761 Q707 Q708 R762 R732 S718 R755A LED710 LED711 R733 S720 R707 R735 R734 S721 R708 R705 R756A G S G S G S G S G S G S G S G S TAPE A TAPE A VR601 ENTER/ NEXT TUNER /BAND FILE SELECT REC PAUSE CD SYNC DBFB VOLUME 1 10 1 5 TIMER SELECT DOLBY PRO LOGIC CLOCK/ TIMER SET S709 DISPLAY DEMO GROOVE STEREO/ MONO REPEAT PLAY MODE TUNER MEMORY EDIT/ DIRECTION DSP FRONT BOARD KEY BOARD TO FLD BOARD CN601 (Page 28) H G TO FLD BOARD CN602 (Page 28) 11 (11) 1-675-350 (4144270510) 11 (11) 1-675-351 (4144270520) TAPE B TAPE B + – 16 1 2 A B C D E F G H 3 4 5 6 7 8 9 10 11 12 Ref. No. Location D631 F-6 IC701 G-8 IC702 F-6 Q701 D-4 Q702 D-4 Q703 D-1 Q704 D-2 Q705 D-2 Q706 E-4 Q707 D-5 Q708 D-5 • Semiconductor Location • Refer to page 21 for Note on Printed Wiring Boards. • Refer to page 21 for Circuit Boards Location. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GRX40AV/RXD6AV 27 27 7-8. SCHEMATIC DIAGRAM FRONT SECTION • Refer to page 21 for Note on Schematic Diagrams. • Refer to page 38 for IC Block Diagrams. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GRX40AV/RXD6AV 28 28 7-9. PRINTED WIRING BOARD FLD SECTION RXD6AV MODEL GRX40AV MODEL GRX40AV MODEL C608 R601 Q601 C615 C607 R603 D604 C605 Q602 R624 C606 R602 D603 R657 C643 R660 R659 C632 R604 R605 C609 R643 R673 D619 RA604 RA602 D605 D617 D608 100 D618 C635 C633 R661 RA603 D611 D612 D614 D615 R606 D610 RA605 C603 C614 C613 X601 IC601 R609 R617 R618 R619 R620 TP601 Q603 C616 R607 R608 C611 C610 R676 L601 D602 C602 Q604 C612 C646 D627 R675 R630 R635 R636 C622 C629 SFR601 RA601 1 8 16 1 16 9 8 9 F R649 R648 CN604 IC602 R638 Q608 R639 Q610 R654 R656 Q611 R637 R655 Q613 D625 C625 C626 IC603 Q612 R641 R642 R632 C624 R640 Q609 R633 C623 R631 R643 R653 R644 R652 C630 R645 R650 R646 R651 R647 C622A F' D G D626 C621A CN102 D601 C601 CN603 C604 R621 R622 CN605 CN601 C618 C617 R614 C619 R623 R613 C620 R616 R615 CN602 CN101 D622 R671 R626 R625 D624 C642 R672 R669 C640 C634 D623 C641 C639 D629 D628 R662 D620 D630 R664 R665 D621 C637 C636 C638 R666 R674 R658 R668 E E B B 1 80 81 51 50 31 30 22 21 1 2 1 5 1 2 15 16 1 16 1 16 1 10 B E B E B E B E B E B E B E B E 1 3 1 2 5 10 15 20 25 30 35 40 45 48 49 FLD601 RM601 C644 CN604 3 FLD BOARD SENSOR BOARD TO MAIN BOARD CN102 (Page 22) TO TAPE MECHANISM D I G E H TO CD DECORD BOARD CN705 (Page 30) TO FRONT BOARD CN601 (Page 26) TO MAIN BOARD CN101 (Page 22) TO FRONT BOARD CN602 (Page 26) 1-675-353 11 (11) 11 (11) (4144270540) 1-675-352 (4144270530) 1 16 1 2 A B C D E F G 3 4 5 6 7 8 9 10 11 12 13 14 Ref. No. Location D601 E-9 D602 D-9 D603 C-2 D604 C-2 D605 B-6 D608 B-6 D610 B-7 D611 B-6 D612 B-6 D614 C-6 D615 B-7 D617 B-5 D618 D-2 D619 D-2 D620 E-2 D621 F-2 D622 F-2 D623 E-2 D624 F-3 D625 D-12 D626 G-10 D627 C-11 D628 E-2 D629 E-1 D630 E-2 IC601 C-5 IC602 C-11 IC603 D-11 Q601 B-2 Q602 C-3 Q603 B-9 Q604 D-9 Q608 C-12 Q609 D-12 Q610 C-12 Q611 D-12 Q612 D-12 Q613 D-12 • Semiconductor Location • Refer to page 21 for Note on Printed Wiring Boards. • Refer to page 21 for Circuit Boards Location. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GRX40AV/RXD6AV 29 29 7-10. SCHEMATIC DIAGRAM FLD SECTION • Refer to page 21 for Note on Schematic Diagrams. • Refer to page 21 for Wavefoms. • Refer to page 38 for IC Block Diagrams. • Refer to page 40 for IC Pin Function Description. 8 GRX40AV MODEL GRX40AV MODEL RXD6AV MODEL RXD6AV MODEL w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GRX40AV/RXD6AV 30 30 7-11. PRINTED WIRING BOARD CD SECTION CD DECORD BOARD 5 1 CN709 R779 Q705 C787 R789 R790 C788 Q706 R780 C793 C794 C792 R796 R795 D797A CN704 C790 C790A L706 C789 R797 R748A Q707 Q708 C795 R798L R778L R798R R778R C780A C779A C751 R777 R795A R796A D707 R778 D708 C791 CN705 R780A 22 R767A R787 R788 C768 R767 R766 C797 IC704 D703 C748A Q702 R747A R746 R775 R747 C732 C733 R751 C745 C752 C744 R752 C703 C704 R744 R745 R748 IC 705 C742 C743 C738 R753 C707 R705 CN702 C737 C741 Q703 C740 R742 IC703 C706 R707 C735 C734 C701 R701 C736 R768A C798 C746 C785 C773 C774 R774 R773 Q701 C705 C702 R721 R706 R704 C731 C708 R717 R715 R716 R713 R718 R714 IC701 C719 C721 C720 C715 C725 C730 R726 R732 C729 C727 R727 T.P02 (E-F) T.P01 (RF) R734 R735 R740 R743 R728 R739 R736 R737 R722 C766 C765 C769 C778 C779 C799 C784 R786 R784 R782 C772 C782 C770 CN707 C783 R785 R783 R781 C781 C799B XTL01 R755 C771A C754 C753 R771 CN703 CN703 C777 C771 C764 C762 R764 R763 R710A C710A C761 C760 R762 C763 IC702 C755 R759 R758 C757 C759 R731 R756 R765 R733 C756 R760 R761 C728 R741 R730 C718 R729 C726 C724 C723 R725 R726A C726A C722 C717 R723 R724 C712 C716 C711 R720 R710 R711 C713 C714 R719 C767 C780 R766A C786 B E B E 1 8 1 6 1 16 17 32 E B 8 1 E B 1 8 9 16 E B E B 1 2 21 1 7 1 20 21 40 41 60 61 80 3 1 1 13 14 26 27 39 40 52 E B CN701 1 2 16 15 I TO FLD BOARD CN605 (Page 28) MOTOR M102 SLED CN01 6 1 M101 SPINDLE MOTOR M_ + _ S01 LIMIT + _ M_ 5 1 1 2 1 2 2 1 CN19 CN18 C01 C082 CN06 M_ M103 TURN TABLE MOTOR 1 2 CN19 S03 1-674-789- 1-674-788- CN18 S04 1-674-792- 1-639-678- TURN TABLE OPERATION DET 1 3 5 1 CN05 CN16 S01 1-674-791- (4142269820) (4145258230) (4145258240) (4145258210) (4142269810) (4145258220) (4145258250) OPTICAL PICK-UP DET OPEN/CLOSE DET 1 3 S02 CN16 1-674-790- 1-674-794- TURN TABLE POSITION DET MOTOR (6P) (S) BOARD MOTOR BOARD SW (B) BOARD SW (A) BOARD SW (D) BOARD PHOTO SOCKET BOARD SW (C) BOARD C TO MAIN BOARD CN304 (Page 22) M_ M104 TRAY MOTOR OPTICAL PICK-UP BLOCK KSS-213ECM/C2NP Y Y _ 11 11 (11) 11 (11) 11 (11) 11 (11) 11 11 (11) (11) 16 1 3 PH701 PH701 OPTICAL OUT 7+ 6– +B 1-674-793- 11 (11) 1 2 A B C D E F G H I 3 4 5 6 7 8 9 10 11 12 13 Ref. No. Location D703 G-7 D707 E-7 D708 F-7 D797A E-6 IC701 H-9 IC702 E-10 IC703 I-7 IC704 F-7 IC705 H-6 Q701 H-8 Q702 G-6 Q703 I-6 Q705 E-6 Q706 F-6 Q707 E-7 Q708 E-7 • Semiconductor Location • Refer to page 21 for Note on Printed Wiring Boards. • Refer to page 21 for Circuit Boards Location. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GRX40AV/RXD6AV 31 31 7-12. SCHEMATIC DIAGRAM CD SECTION I FLD 29 C 24 2 NOTE • Voltages and waveforms are dc with respect to ground. no mark : STOP ISS133 ISS133 • Refer to page 21 for Note on Schematic Diagrams. • Refer to page 21 for Wavefoms. • Refer to page 36 for IC Block Diagrams. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GRX40AV/RXD6AV 32 32 7-13. PRINTED WIRING BOARD CENTER/REAR AMP SECTION • Refer to page 21 for Note on Printed Wiring Boards. • Refer to page 21 for Circuit Boards Location. AMP BOARD FUSE BOARD C593 C594 CN504 IC501 CN503 CN503 CN504 R507 R534 C531 R535 R536 C530 C529 C508 R521 R515 C515 C517 R510 C520 R506 R508 R509 R511 C519 R512 R513 R520 R514 R517 R516 C521 C522 C523 C524 C518 C516 C528 C526 Q504 R518 D508 C525 Q503 R519 D509 C527 R524 R523 CN302 C532 R522 Q505 C502 D502 C501 D501 C503 D504 D503 CN501 D505 C513 R503 R504 C514 R576 R505 D511 D510 C506 R501 C507 C504 C505 C506 CN506 C511 C509 D507 C512 Q501 Q502 C510 R502 R001 AC1 AC2 P7 P6 P8 F001 F501 TO FRONT AMP BOARD CN506 (Page 35) A J F TO MAIN BOARD CN301 (Page 22) TO MAIN BOARD CN502 (Page 22) E E B E B E B E B B 3 1 1-675-357 11 (4144270720) 1-675-358 11 (4144270730) 1 1 RED 2 BLK 3 RED 4 BLU 5 BLU 3 2 T001 POWER TRANSFORMER GND 1 1 11 15 1 1 7 1 6 1 6 6 NOT REPLACEABLE: BUILT IN TRANSFORMER 16 1 2 A B C D E F 3 4 5 6 7 8 9 10 11 12 13 14 Ref. No. Location D501 E-8 D502 E-8 D503 E-8 D504 E-8 D505 D-9 D506 B-8 D507 C-6 D508 E-6 D509 D-6 D510 B-9 D511 B-8 IC501 B-4 Q501 B-6 Q502 B-6 Q503 D-5 Q504 E-5 Q505 E-7 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GRX40AV/RXD6AV 33 33 7-14. SCHEMATIC DIAGRAM CENTER/REAR AMP SECTION • Refer to page 21 for Note on Schematic Diagrams. F001 4.0A 125V : MX MODEL T2.0AL 250V : EXCEPT MX MODEL F501 2.5A 250V : MX MODEL T2.0AL 250V : EXCEPT MX MODEL The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GRX40AV/RXD6AV 34 34 7-15. SCHEMATIC DIAGRAM FRONT AMP SECTION • Refer to page 21 for Note on Schematic Diagrams. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 CN507 IC502 CN507 C559 C592 CN508 CN508 C560 R549 R550 R573 C541 R541 C542 R542 C540 R574 C539 R575 C561 C562 R548 C591 R545 C543 C544 R546 C545 Q514 R538 R540 R537 R539 Q513 C538 C546 R544 R543 C548 R553 R558 R554 R552 R547 R551 C547 C549 Q511 R555 D513 R559 C550 Q512 R556 D512 CN301 Q515 C558 R561 C554 C555 G G S S D D R564 R560 R562 D517 IC503 C557 C533 D516 CN506 Q510 Q509 R581 D518 R567 R563 D515 C553 R566 D519 C556 R578 R565 D514 R580 Q517 R529 R528 C551 C552 CN505 R569 RED BLK R582 R530 R571 Q508 Q507 R557 R525 R526 R527 D520 Q516 R579 TH501 R577 R568 B B E B E E B E B E B E B E B E B E FRONT AMP BOARD TO MAIN BOARD CN302 (Page 22) B TO AMP BOARD CN506 (Page 32) J 1-675-356 11 (4144270710) FAN MOTOR GND-1 1 1 1 1 1 7 1 7 6 1 6 15 12 1 1 6 8 2 16 1 2 A B C D E 3 4 5 6 7 7-16. PRINTED WIRING BOARD FRONT AMP SECTION Ref. No. Location D512 D-5 D513 C-5 D514 B-5 D515 C-6 D516 D-6 D517 C-6 D518 D-6 D519 C-5 D520 B-4 IC502 B-3 IC503 C-6 Q507 B-6 Q508 B-6 Q509 D-6 Q510 C-6 Q511 C-4 Q512 D-4 Q513 C-2 Q514 C-1 Q515 D-5 Q516 B-4 Q517 B-6 • Semiconductor Location • Refer to page 21 for Note on Printed Wiring Boards. • Refer to page 21 for Circuit Boards Location. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 7-17. IC BLOCK DIAGRAMS IC701 CXA1992BR (CD DECORD Board) FZC VC TDFCT TZC ATSC TEI LPFI TEO VEE EI E F FE BIAS SL P SL M SL O ISET VCC XRST DATA XLT CLK LOCK SENS2 SENS1 C. OUT VCC DFCTO IFB1 – IFB6 BAL1 – BAL4 TOG1 – TOG4 FS1 – FS4 TG1 – TG2 TM1 – TM7 PS1 – PS4 TGH TGL BALH BALL ATSC DFCT TM1 TG1 FS2 IFB1 – IFB6 VCC VEE VCC VEE VEE PD 2 I-V AMP FOK CC2 CC1 CB CP RF O RF I RFTC PD2 PD1 PD LD RF M TA O TA M FSET TG2 TGU SRCH FEO FEI FDFCT FGD FLB FE O FE M TZC FZC FOL FOH MIRR LDON LPCL LPC TGFL DFCT1 CC1 1 2 3 4 5 6 7 8 9 10 26 25 24 23 22 21 20 19 18 17 16 15 14 40 41 42 43 44 45 46 47 48 49 50 51 52 39 PD 1 I-V AMP 38 PD AMP 37 LD AMP LASER POWER CONTROL FOCUS BIAS WINDOW COMPARATOR FOCUS ERROR AMP F I-V AMP E I-V AMP TGFL TRACKING GAIN WINDOW COMPARATOR E-F BALANCE WINDOW COMPARATOR ATSC WINDOW COMPARATOR TZC COMPARATOR TRACKING PHASE COMPENSATION CENTER VOLTAGE GENERATOR FZC COMPARATOR FOCUS PHASE COMPENSATION CHARGE UP FSET ISET IIC DATA REGISTER, INPUT SHIFT REGISTER, ADDRESS DECODER, SENSE SELECTOR, OUTPUT DECODER TTL ↓ IIL IIL ↓ TTL IIL ↓ TTL RF SUMMING AMP FOCUS OK COMPARATOR PEAK/BOTTOM HOLD PEAK/BOTTOM HOLD DEFECT AMP MIRR COMPARATOR 36 34 31 30 29 28 27 35 33 32 BAL1 – BAL4 TM6 TM2 VCC VEE TM5 11 12 13 TG2 TM4 VCC VEE TM3 FS1 VCC VEE TOG1 – TOG4 TM7 FS4 DFCT + – + – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 IC703 BA5936S (CD DECORD Board) IC702 CXD2589Q (CD DECORD Board) 51 52 35 38 37 36 31 29 33 10 11 18 13 14 15 16 17 57 58 74 21 22 53 75 76 67 66 65 59 9 8 7 5 4 6 12 30 48 25 26 27 47 49 54 56 50 39 41 43 55 40 42 44 62 70 3 2 71 79 23 24 28 Clock Generator OSC EFM demoduretor Error Corrector 16K RAM Asymmetry Corrector Digital PLL Servko Auto Sequencer Sub Code Processor CPU Interface D/A Interface Serial In Interface Over Sampling Digital Filter 3rd Order Noise Shaper Timing Logic Digital OUT Digital CLV PWM PWM XTSL VPCO VCKI V16M VCTL XUGF GFS EMPH WFCK C2PO LECK PCMD BCK EMPHI LECKI PCMDI BCKI SYSM TES1 TEST XRST RMUT LMUT XTAI XTAO AOUT1 AIN1 LOUT1 AOUT2 AIN2 LOUT2 DOUT PWMI MDP SQCK SQSO EXCK SBSO SCOR XLON SPOB SPOA CLOK XTAL DATA SENS CLKO XLTO DATO CNIN SEIN FOK CLTV PCO FILI FILO XPCK BIAS ASYO ASYI RF C4M 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 LEVEL SHIFT LEVEL SHIFT LEVEL SHIFT LEVEL SHIFT LEVEL SHIFT LEVEL SHIFT MUTE T.S.D BIAS BIAS BIAS VCC 100 BIAS BIAS VCC VCC DETECTION DF REG-OUT CURRENT 100 100 10K 10K D D D D D D D D D D D D 100 OUT1– OUT1+ OUT2– OUT2+ IN2 IN1 VCC VCC REG-I REG-B REG OUT IN3-R IN3-F OUT3+ OUT3– GND OUT4– OUT5– OUT4+ OUT5+ IN 5 IN 4 VCC BIAS IN GND GND MUTE IN IN6-R IN6-F OUT6+ OUT6– GND 13.3K 13.3K 13.3K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 IC701, 702 BU2092 (FRONT Board) IC603 74HC165 (FLD Board) 1 2 3 4 5 6 7 8 9 10 16 15 14 13 12 11 CONTROL CIRCUIT 12 BIT SHIFT REGISTER 12 BIT STORAGE REGISTER OUTPUT BUFFER (OPEN DRAIN) 17 18 VDD OE Q11 Q10 Q9 Q8 Q7 Q6 Q5 Q4 Q3 Q2 Q1 Q0 LCK CLOCK DATA VSS 1 2 3 4 5 6 7 8 9 10 16 15 14 13 12 11 CK E F G H QH D C B A SERIAL IN CLOCK INHIBIT SHIFT/ LOAD GND QH VCC OUTPUT QH SERIAL INPUT A B C D CLOCK INHIBIT SHIFT/ LOAD CLOCK E F G H OUTPUT QH PARALLEL INPUTS PARALLEL INPUTS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 IC103 LC72131 (MAIN Board) IC201 TA8189N (MAIN Board) PHASE DETECTOR CHARGE PUMP SWALLOW COUNTER 1/16, 1/17 4BITS 12BITS PROGRAMMABLE DRIVER UNIVERSAL COUNTER REFERENCE DIVIDER POWER ON RESET 1/2 CCB INTERFACE 1 2 3 4 5 6 7 8 9 16 15 14 13 12 11 10 17 18 19 20 XOUT VSS AOUT AIN PD VDD FMIN AMIN XIN DO CL DI CE IFIN IO1 BO4 BO3 BO2 BO1 IO2 UNLOCK DETECTOR DATA SHIFT REGISTER LATCH CH2/A CH2/B NF VCC CG NF ALC METAL OUT PRE OUT TAPE A /TAPE B REC OUT REC IN CH1/A CH1/B NF GND1 M/H NF CH2 CH2 ALC M/N CH1 GND GND CH1 + – + – + – + – A/B GND METAL OUT PRE OUT MIX OUT REC OUT REC IN IREF VREF2 VREF1 24 23 22 21 20 19 18 17 16 15 14 13 1 2 3 4 5 6 7 8 9 10 11 12 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 7-18. IC PIN FUNCTION DESCRIPTION • FLD BOARD IC601 CXP82040-109Q (SYSTEM CONTROL) Pin No. 1,2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 to 31 32 33 to 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 I/O O — I I I I I I O O O O O O O O O O O O O O O O I O I I I I I I — — — I I — — I I I I I Description FLD grid output. Not used. CXD2589Q SCOR input. CXD2589Q COUNT input. Power data input. FOK input. Remote signal input. Data input.(DECK secton) S/L output.(DECK secton) STB output.(CD,DECK section) CXA1992BR LOCK output. CXD2589Q CLOCK output. Mode switch input. TDA7439 CLOCK output. M62463 CE output. Function control output. LATCH output. LATCH output. CXD2589Q XLAT output. LC72131 CE output. CXD2589Q SQCK output. CXD2589Q SQSO output. CXD2589Q DATA output. S.CLOCK output. S.DATA input. S.DATA output. FM Stereo input. Key input 0 to 2. VACS input. Spectrum Analyzer input. AMS input. RESET input. X’TAL 10MHz X’TAL 10MHz Ground. CXD2589Q SENS1 input. CXD2589Q SENS2 input. VDD. VFDP. Pick-up up switch signal input. Pick-up down switch signal input. Disc count switch signal input. Turn Table switch signal input. Tray open switch signal input. Pin Name 2G,1G NC SCOR COUNT POWER DOWN IN FOK REMOTE IN DATA IN S/L DECK,CD STB LOCK CLOCK MODE SW IN CLOCK CE CTRL LATCH B LATCH A XLAT CE SQCK SQSO DATA S.CLOCK S,DATA IN S.DATA OUT FM STEREO IN KEY IN O to 2 VACS IN SPEANA IN 1 to 4 ANS IN RESET EXTAL XTAL VSS SENS1 SENS2 VDD VFDP PICK UP SW PICK DOWN SW DISC COUNT SW TURN TABLE SW TRAY O. SW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 Pin No. 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 to 88 89 90 to 100 I/O I I I I I O O O O O O O O O O O O O O O O O O O O O O O O O — O Description Tray close switch signal input. Volume up signal input. Volume down signal input. CD JOG encode signal A input. CD JOG encode signal B input. Not used. DBFB ON/OFF output. DBFB HI/LO output. DOLBY NR ON/OFF output. Rear/center ON/OFF output. MD Mute output. Tuner Mute output. System Mute output. POWER switch output. FLD segment output. FLD segment output. Mode switch 1. FLD segment output. Mode switch 2. FLD segment output. Mode switch 3. FLD segment output. Mode switch 4. FLD segment output. Mode switch 5. FLD segment output. Mode switch 6. FLD segment output. Mode switch 7. FLD segment output. Mode switch 8. FLD segment output. Mode switch 9. FLD segment output. Mode switch 10. FLD segment output. Mode switch 11. FLD segment output. Mode switch 12. FLD segment output. Mode switch 13. FLD segment output. Mode switch 14. FLD segment output. VDD. FLD grid output. Pin Name TRAY C. SW VR UP VR DN CD ENCODER IN A CD ENCODER IN B SURROUND OUT DBFB NOR&HI OUT DBFB HI OUT DOLBY NR OUT 2CH OUT MD MUTE TUNER MUTE OUT SYSTEM MUTE OUT POWER SW OUT P1 P2(MODE SW 1) P3(MODE SW 2) P4(MODE SW 3) P5(MODE SW 4) P6(MODE SW 5) P7(MODE SW 6) P8(MODE SW 7) P9(MODE SW 8) P10(MODE SW 9) P11(MODE SW 10) P12(MODE SW 11) P13(MODE SW 12) P14(MODE SW 13) P15(MODE SW 14) P16 to 24 VDD 13G to 3G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SECTION 8 EXPLODED VIEWS NOTE: • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Abbreviation MX : Mexican model SA : South African model AED : North European model G : German model AUS : Australian model The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. 42 • Hardware (# mark) list and accessories and packing materials are given in the last of this parts list. 8-1. CABINET SECTION Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 1 1-674-794-11 PHOTO SOCKET BOARD 2 4-223-011-01 DOOR, CD (RXD6AV) 2 4-224-509-01 DOOR, CD (GRX40AV) 3 4-223-018-01 STOPPER, PWB 4 1-763-410-11 FAN,DC 5 A-4426-701-A AMP BOARD, COMPLETE 6 A-4426-700-A FRONT AMP BOARD, COMPLETE 7 4-223-060-01 HOLDER, BLOCK 8 4-223-017-01 CABINET, TOP 9 4-223-030-01 BRACKET, MAIN PC BOARD 10 A-4426-696-A MAIN BOARD, COMPLETE (GRX40AV) 10 A-4426-962-A MAIN BOARD, COMPLETE (RXD6AV) 12 1-675-358-11 FUSE BOARD !13 1-551-506-99 CORD, POWER (GRX40AV:MX) !13 1-555-795-00 CORD, POWER (GRX40AV:SA,RXD6AV:AEP,AED,CIS,G) !13 1-696-570-21 CORD, POWER (RXD6AV:UK) !13 1-696-966-11 CORD, POWER (GRX40AV:AUS) 14 4-223-063-01 FOOT(B) 15 4-223-061-01 WASHER, AC CORD !T001 1-435-132-11 TRANSFORMER, POWER (RXD6AV) !T001 1-435-133-11 TRANSFORMER, POWER (GRX40AV:MX) !T001 1-435-134-11 TRANSFORMER, POWER (GRX40AV:AUS,SA) 13 13 13 13 E,MX MODEL UK MODEL AUS MODEL SA,AEP,AED, CIS,G MODEL 2 1 3 14 15 12 5 4 6 7 9 8 10 #17 #7 #7 #21 #21 #7 #7 #16 #11 A #15 #17 A #17 #17 #17 #17 #17 #18 #19 not supplied #20 #16 #7 #7 #7 #7 #18 #15 #11 #17 #7 #12 #20 #20 T001 #12 not supplied IC502 (included in 6) IC501 (included in 5) not supplied not supplied not supplied not supplied www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 8-2. FRONT PANEL SECTION-1 51 4-223-020-01 PANEL (A), FRONT 52 4-220-602-01 RUBBER, FOOT 53 4-223-029-01 SPRING (B), EJECT 54 4-223-028-01 SPRING (A), EJECT 55 4-223-014-01 DOOR(B), CASS 56 4-223-013-01 DOOR(A), CASS 57 4-223-026-01 HOLDER (A), CASS 58 4-223-027-01 HOLDER (B), CASS 59 4-223-016-01 WINDOW (B), CASS 60 4-223-015-01 WINDOW (A), CASS 61 4-223-012-01 WINDOW, DISPLAY 62 4-223-021-01 BUTTON, CD DISC 63 A-4426-691-A KEY BOARD, COMPLETE 64 4-223-025-01 BRACKET, CD PC BOARD 65 4-223-019-01 EMBLEM, LOGO Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 66 4-223-022-01 LENS(1), CD DISC 67 4-223-023-01 LENS(2), CD DISC 68 4-223-024-01 LENS(3), CD DISC 69 1-675-353-11 SENSOR BOARD 70 A-4426-956-A FLD BOARD, COMPLETE (GRX40AV:AUS,SA) 70 A-4426-960-A FLD BOARD, COMPLETE (RXD6AV) 70 A-4426-958-A FLD BOARD, COMPLETE (GRX40AV:MX) 71 1-769-273-11 WIRE(FLAT TYPE) (22 CORE) 72 1-783-579-11 WIRE(FLAT TYPE) (16 CORE) 73 1-772-164-11 DECK, MECH 74 4-220-629-01 LEVER, EJECT 75 4-220-628-01 SPRING, EJECT LEVER 76 4-220-622-01 DAMPER (GRY), GEAR 77 4-223-031-01 SPRING (L), PUSHING 78 4-223-032-01 SPRING (R), PUSHING 60 59 58 53 55 52 54 51 56 57 61 75 62 63 64 74 65 66 67 68 76 69 71 72 74 73 75 78 77 76 70 #10 #22 #11 #17 #17 #17 #17 #17 #15 #15 #15 #10 #22 #17 not supplied not supplied www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 101 4-223-034-01 PANEL (B), FRONT 102 4-223-057-01 KNOB, VOLUME 103 4-223-046-01 LENS, JOG RING 104 4-223-045-01 RING, JOG 105 4-223-044-01 KNOB, JOG 106 4-223-055-01 BUTTON, FUNCTION 107 4-223-058-01 HOLDER, H/P JACK 108 1-675-355-11 H/P BOARD 109 4-223-042-01 BUTTON, PROLOGIC 110 4-223-043-01 LENS, PROLOGIC 111 4-223-035-01 BUTTON, TAPE PLAY 112 4-223-033-01 LENS (1), TAPE PLAY 113 4-223-036-01 LENS (2), TAPE PLAY 114 4-223-037-01 LENS (3), TAPE PLAY 115 4-223-038-01 LENS (4), TAPE PLAY 116 4-223-054-01 BUTTON, SKIP (+/-) 117 4-223-047-01 KNOB, GROOVE 118 4-223-048-01 KNOB, ENTER 119 4-223-050-01 LENS, SKIP (-) 120 4-223-049-01 LENS, SKIP (+) 121 4-223-039-01 BUTTON, CD PLAY 122 4-223-040-01 LENS, DSP 123 4-223-041-01 LENS, CD PLAY 124 4-223-056-01 BUTTON, TUNER/BAND 125 4-223-051-01 BUTTON, CD SYNC 126 4-223-052-01 LENS, RECORD 127 4-223-053-01 LENS, PAUSE 128 A-4426-690-A FRONT BOARD, COMPLETE Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 8-3. FRONT PANEL SECTION-2 105 104 103 102 101 125 127 126 124 121 122 123 118 117 119 116 111 112 110 109 107 106 108 113 114 115 128 120 #17 Supplied with VR602 Supplied with VR601 #17 #17 #17 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 8-4. CD MECHANISM DECK SECTION-1 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 151 1-674-792-11 MOTOR BOARD 153 4-221-891-01 BASE, CHANGER 154 4-221-895-01 SHEET, BLIND 155 4-221-896-01 LEVER, SENSOR SW 156 4-992-182-01 SPRING, SENSOR (SW) LEVER 157 4-992-170-01 BELT, LOADING 158 4-992-171-01 PULLEY, GEAR 159 4-221-894-01 GEAR, TR 160 4-221-892-01 GEAR, TR LOCK 161 4-221-893-01 GEAR (C), RELAY 162 4-992-187-01 CUSHION 163 4-992-186-01 CUSHION, SW LEVER 164 4-992-173-01 GEAR (B), RELAY 165 4-992-183-01 SCREW, RELAY GEAR (B) 166 4-992-174-01 GEAR, CHANGE 167 4-992-184-01 WASHER, CHANGE GEAR 168 4-992-176-01 SPRING, CHANGE GEAR 169 4-992-185-01 WASHER, CHANGE PLATE 170 4-992-172-01 GEAR (A), RELAY 171 4-221-902-01 PLATE, T/T 172 4-992-201-01 WASHER, POLYETHYLENE 173 1-674-789-11 SW(B) BOARD 174 1-674-788-11 SW(A) BOARD * 175 4-993-034-01 GUIDE, RAIL 176 4-221-901-01 TABLE, TURN M103 X-4948-765-1 MOTOR ASSY (TURN TABLE) 153 173 154 159 175 175 167 165 169 164 171 161 172 168 166 170 157 160 163 162 158 156 155 151 174 162 176 #5 #10 #2 #10 #5 M103 #5 #2 #2 #9 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 8-5. CD MECHANISM DECK SECTION-2 209 213 212 207 217 206 208 211 210 204 219 216 202 203 201 220 218 209 #17 #17 #17 #4 #4 #2 #2 not supplied #2 #18 #18 Base unit block #8 M104 not supplied Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 201 1-769-856-11 WIRE (FLAT TYPE) (5 CORE) 202 4-221-897-01 CAM, UD 203 4-992-191-01 UD-GEAR 204 4-992-195-01 MAGNET 206 4-992-197-01 BELT, LOADING GEAR 207 4-992-198-01 PULLEY (B), GEAR 208 4-992-199-01 GEAR, SLIDE 209 4-992-200-01 ROLLER 210 4-992-192-01 SPRING, BRAKE CAM 211 4-992-193-01 LEVER, SW 212 1-674-791-11 SW(D) BOARD 213 1-674-790-11 SW(C) BOARD 215 4-992-201-01 WASHER, POLYETHYLENE 216 4-221-898-01 HOLDER, MAGNET 218 A-4426-391-A CDDECORD BOARD, COMPLETE 219 4-221-900-01 COVER, MAGNET 220 4-221-903-01 SPRING, MECHANICAL BASE M104 X-4948-766-1 MOTOR ASSY (A) (TRAY) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 8-6. BASE UNIT SECTION (KSM-213ECM) 252 253 262 262 262 252 257 256 253 255 260 261 254 259 254 251 M102 #1 not supplied not supplied M101 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 251 4-992-164-01 BASE, KSM MECHANICAL 252 4-992-165-01 DAMPER (GREEN) 253 4-992-166-01 DAMPER (RED) 254 4-992-167-01 SPRING, MECHANICAL BASE 255 2-626-907-01 GEAR (A)(S) 256 2-626-908-01 SHAFT, SLED 257 2-627-003-02 GEAR (B) 259 1-639-678-12 MOTOR (6P)(S) BOARD 260 1-783-740-11 WIRE (FLAT TYPE) !261 8-820-054-03 OPTICAL PICK-UP KSM-213ECM/C2NP 262 3-319-501-51 CREW (+ PTPWH) (2.6 × 16) M101 X-2625-877-1 MOTOR ASSY (SPINDLE) M102 X-2625-769-1 MOTOR ASSY (SLED) The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • CAPACITORS: uF: µF • RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable • Abbreviation MX : Mexican model SA : South African model AED : North European model G : German model AUS : Australian model The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. • COILS uH: µH • SEMICONDUCTORS In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD... When indicating parts by reference number, please include the board name. Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 48 SECTION 9 ELECTRICAL PARTS LIST A-4426-701-A AMP BOARD, COMPLETE ******************** * 1-533-213-31 HOLDER, FUSE < CAPACITOR > C501 1-161-494-00 CERAMIC 0.022uF 25V C502 1-161-494-00 CERAMIC 0.022uF 25V C503 1-126-943-11 ELECT 2200uF 20% 25V C504 1-126-934-11 ELECT 220uF 20% 16V C505 1-161-494-00 CERAMIC 0.022uF 25V C506 1-161-494-00 CERAMIC 0.022uF 25V C507 1-126-935-11 ELECT 470uF 20% 16V C508 1-104-665-11 ELECT 100uF 20% 10V C509 1-161-494-00 CERAMIC 0.022uF 25V C510 1-161-494-00 CERAMIC 0.022uF 25V C511 1-126-925-11 ELECT 470uF 20% 10V C512 1-161-494-00 CERAMIC 0.022uF 25V C513 1-161-494-00 CERAMIC 0.022uF 25V C514 1-126-960-11 ELECT 1uF 20% 50V C515 1-162-302-11 CERAMIC 0.0022uF 20% 16V C516 1-162-302-11 CERAMIC 0.0022uF 20% 16V C517 1-109-953-11 ELECT 2.2uF 20% 50V C518 1-109-953-11 ELECT 2.2uF 20% 50V C519 1-162-207-31 CERAMIC 22PF 5% 50V C520 1-162-207-31 CERAMIC 22PF 5% 50V C521 1-137-399-11 FILM 0.1uF 5% 100V C522 1-137-399-11 FILM 0.1uF 5% 100V C523 1-126-966-11 ELECT 33uF 20% 16V C524 1-126-966-11 ELECT 33uF 20% 16V C525 1-161-494-00 CERAMIC 0.022uF 25V C526 1-161-494-00 CERAMIC 0.022uF 25V C527 1-126-961-11 ELECT 2.2uF 20% 50V C528 1-126-964-11 ELECT 10uF 20% 50V C529 1-126-964-11 ELECT 10uF 20% 50V C530 1-128-582-11 ELECT 10uF 20% 63V C531 1-128-582-11 ELECT 10uF 20% 63V C532 1-128-551-11 ELECT 22uF 20% 25V C593 1-162-282-31 CERAMIC 100PF 10% 50V C594 1-162-282-31 CERAMIC 100PF 10% 50V < CONNECTOR > * CN501 1-564-506-11 PLUG, CONNECTOR 3P < DIODE > D501 8-719-031-85 DIODE 1N4002L D502 8-719-031-85 DIODE 1N4002L D503 8-719-031-85 DIODE 1N4002L D504 8-719-031-85 DIODE 1N4002L D505 8-719-031-85 DIODE 1N4002L D506 8-719-010-76 DIODE UZ-13BS D507 8-719-110-08 DIODE UZ-8.2BS D508 8-719-991-33 DIODE 1SS133T-77 D509 8-719-991-33 DIODE 1SS133T-77 D510 8-719-991-33 DIODE 1SS133T-77 D511 8-719-991-33 DIODE 1SS133T-77 < FUSE > !F501 1-532-388-31 FUSE, TIME LAG 2A 250V (GRX40AV:AUS,SA/RXD6AV) !F501 1-576-104-11 FUSE 2A/250V (GRX40AV:MX) < IC > IC501 8-749-015-44 IC STK407-070E < TRANSISTOR > Q501 8-729-822-89 TRANSISTOR 2SD1667 Q502 8-729-188-23 TRANSISTOR 2SD882-P Q503 8-729-184-53 TRANSISTOR 2SC1841-EA Q504 8-729-184-53 TRANSISTOR 2SC1841-EA Q505 8-729-140-82 TRANSISTOR 2SA988-EA < RESISTOR > R501 1-249-401-11 CARBON 47 5% 1/4W F R502 1-249-399-11 CARBON 33 5% 1/4W F R503 1-247-855-11 CARBON 10K 5% 1/4W R504 1-247-863-11 CARBON 22K 5% 1/4W R505 1-247-855-11 CARBON 10K 5% 1/4W R506 1-249-438-11 CARBON 56K 5% 1/4W R507 1-249-438-11 CARBON 56K 5% 1/4W R508 1-249-420-11 CARBON 1.8K 5% 1/4W F R509 1-249-420-11 CARBON 1.8K 5% 1/4W F R510 1-249-438-11 CARBON 56K 5% 1/4W R511 1-249-438-11 CARBON 56K 5% 1/4W R512 1-260-072-11 CARBON 4.7 5% 1/2W R513 1-260-072-11 CARBON 4.7 5% 1/2W R514 1-247-879-11 CARBON 100K 5% 1/4W R515 1-247-879-11 CARBON 100K 5% 1/4W R516 1-249-417-11 CARBON 1K 5% 1/4W F R517 1-249-417-11 CARBON 1K 5% 1/4W F R518 1-249-431-11 CARBON 15K 5% 1/4W R519 1-249-431-11 CARBON 15K 5% 1/4W R520 1-220-755-11 METAL 0.22 10% 2W R521 1-220-755-11 METAL 0.22 10% 2W R522 1-249-430-11 CARBON 12K 5% 1/4W R523 1-247-839-11 CARBON 2.2K 5% 1/4W R524 1-249-430-11 CARBON 12K 5% 1/4W R534 1-247-862-11 CARBON 20K 5% 1/4W AMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 49 R535 1-249-405-11 CARBON 100 5% 1/4W F R536 1-249-405-11 CARBON 100 5% 1/4W F R576 1-247-871-11 CARBON 47K 5% 1/4W ************************************************************ A-4426-391-A CD DECORD BOARD, COMPLETE ************************** < CAPACITOR > C701 1-104-664-11 ELECT 47uF 20% 16V C702 1-137-399-11 FILM 0.1uF 5% 100V C703 1-137-399-11 FILM 0.1uF 5% 100V C704 1-137-352-11 FILM 0.033uF 5% 100V C705 1-137-393-11 FILM 0.01uF 5% 100V C706 1-128-551-11 ELECT 22uF 20% 25V C707 1-162-203-31 CERAMIC 15PF 5% 50V C708 1-164-159-11 CERAMIC 0.1uF 50V C711 1-162-600-11 CERAMIC 0.0047uF 30% 16V C712 1-162-306-11 CERAMIC 0.01uF 20% 16V C713 1-136-291-11 FILM 0.0068uF 5% 100V C714 1-137-397-11 FILM 0.047uF 5% 100V C715 1-161-494-00 CERAMIC 0.022uF 25V C716 1-137-399-11 FILM 0.1uF 5% 100V C717 1-104-665-11 ELECT 100uF 20% 10V C718 1-104-665-11 ELECT 100uF 20% 10V C719 1-137-399-11 FILM 0.1uF 5% 100V C720 1-137-389-11 FILM 0.0022uF 5% 100V C721 1-137-399-11 FILM 0.1uF 5% 100V C722 1-137-399-11 FILM 0.1uF 5% 100V C723 1-137-399-11 FILM 0.1uF 5% 100V C724 1-107-713-11 ELECT 4.7uF 20% 50V C725 1-137-352-11 FILM 0.033uF 5% 100V C726 1-137-462-11 FILM 0.018uF 5% 100V C727 1-162-199-31 CERAMIC 10PF 5% 50V C728 1-137-398-11 FILM 0.068uF 5% 100V C729 1-126-962-11 ELECT 3.3uF 20% 50V C730 1-162-215-31 CERAMIC 47PF 5% 50V C731 1-164-159-11 CERAMIC 0.1uF 50V C732 1-161-494-00 CERAMIC 0.022uF 25V C733 1-104-665-11 ELECT 100uF 20% 10V C734 1-161-494-00 CERAMIC 0.022uF 25V C735 1-126-925-11 ELECT 470uF 20% 10V C736 1-162-294-31 CERAMIC 0.001uF 10% 50V C737 1-162-306-11 CERAMIC 0.01uF 20% 16V C738 1-164-159-11 CERAMIC 0.1uF 50V C740 1-126-925-11 ELECT 470uF 20% 10V C741 1-161-494-00 CERAMIC 0.022uF 25V C742 1-161-494-00 CERAMIC 0.022uF 25V C743 1-126-927-11 ELECT 2200uF 20% 10V C744 1-162-306-11 CERAMIC 0.01uF 20% 16V C745 1-162-306-11 CERAMIC 0.01uF 20% 16V C746 1-107-713-11 ELECT 4.7uF 20% 35V C746A 1-126-963-11 ELECT 4.7uF 20% 50V C751 1-162-306-11 CERAMIC 0.01uF 20% 16V C752 1-126-964-11 ELECT 10uF 20% 50V C753 1-161-494-00 CERAMIC 0.022uF 25V C754 1-104-665-11 ELECT 100uF 20% 10V C755 1-161-494-00 CERAMIC 0.022uF 25V C756 1-136-173-00 FILM 0.47uF 5% 50V C757 1-162-306-11 CERAMIC 0.01uF 20% 16V C759 1-162-290-31 CERAMIC 470PF 10% 50V C760 1-162-286-31 CERAMIC 220PF 10% 50V C761 1-136-169-00 FILM 0.22uF 5% 50V C762 1-137-393-11 FILM 0.01uF 5% 100V C763 1-161-494-00 CERAMIC 0.022uF 25V C764 1-104-665-11 ELECT 100uF 20% 10V C765 1-162-294-31 CERAMIC 0.001uF 10% 50V C766 1-162-294-31 CERAMIC 0.001uF 10% 50V C767 1-162-294-31 CERAMIC 0.001uF 10% 50V C768 1-162-294-31 CERAMIC 0.001uF 10% 50V C769 1-162-294-31 CERAMIC 0.001uF 10% 50V C770 1-164-159-11 CERAMIC 0.1uF 50V C771 1-161-494-00 CERAMIC 0.022uF 25V C772 1-161-494-00 CERAMIC 0.022uF 25V C773 1-102-961-00 CERAMIC 27PF 5% 50V C774 1-102-961-00 CERAMIC 27PF 5% 50V C777 1-162-294-31 CERAMIC 0.001uF 10% 50V C778 1-162-294-31 CERAMIC 0.001uF 10% 50V C779 1-162-282-31 CERAMIC 100PF 10% 50V C780 1-162-294-31 CERAMIC 0.001uF 10% 50V C781 1-162-284-31 CERAMIC 150PF 10% 50V C782 1-162-284-31 CERAMIC 150PF 10% 50V C783 1-162-292-31 CERAMIC 680PF 10% 50V C784 1-162-292-31 CERAMIC 680PF 10% 50V C785 1-126-963-11 ELECT 4.7uF 20% 50V C786 1-126-963-11 ELECT 4.7uF 20% 50V C787 1-162-294-31 CERAMIC 0.001uF 10% 50V C788 1-162-294-31 CERAMIC 0.001uF 10% 50V C789 1-161-494-00 CERAMIC 0.022uF 25V C790 1-126-927-11 ELECT 2200uF 20% 10V C791 1-164-159-11 CERAMIC 0.1uF 50V C792 1-162-302-11 CERAMIC 0.0022uF 30% 16V C793 1-162-302-11 CERAMIC 0.0022uF 30% 16V C794 1-162-302-11 CERAMIC 0.0022uF 30% 16V C795 1-164-159-11 CERAMIC 0.1uF 50V C797 1-161-494-00 CERAMIC 0.022uF 25V C798 1-126-963-11 ELECT 4.7uF 20% 50V C799 1-161-494-00 CERAMIC 0.022uF 25V C771A 1-161-494-00 CERAMIC 0.022uF 25V C779A 1-126-960-11 ELECT 1uF 20% 50V C780A 1-126-960-11 ELECT 1uF 20% 50V C790A 1-161-494-00 CERAMIC 0.022uF 25V C799B 1-104-665-11 ELECT 100uF 20% 10V < CONNECTOR > CN701 1-580-475-11 SOCKET, CONNECTOR 16P CN705 1-568-822-21 SOCKET, CONNECTOR 22P * CN706 1-568-824-11 SOCKET, CONNECTOR 5P * CN707 1-564-709-11 PIN, CONNECTOR (SMALL TYPE) 7P < DIODE > D703 8-719-991-33 DIODE 1SS133T-77 D707 8-719-991-33 DIODE 1SS133T-77 D708 8-719-991-33 DIODE 1SS133T-77 D797A 8-719-991-33 DIODE 1SS133T-77 < IC > IC701 8-752-082-14 IC CXA1992BR IC702 8-752-384-13 IC CXD2589Q IC703 8-759-579-80 IC BA5936S IC704 8-759-234-75 IC TC74HC4094AP IC705 8-759-505-55 IC NJM4558L CD DECORD AMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 50 < COIL > L704 1-410-509-11 INDUCTOR 10uH L705 1-410-509-11 INDUCTOR 10uH < TRANSISTOR > Q701 8-729-195-23 TRANSISTOR 2SA952-L Q702 8-729-195-23 TRANSISTOR 2SA952-L Q703 8-729-195-23 TRANSISTOR 2SA952-L Q705 8-729-194-57 TRANSISTOR 2SC945TP-P Q706 8-729-194-57 TRANSISTOR 2SC945TP-P Q707 8-729-195-23 TRANSISTOR 2SA952-L Q708 8-729-195-23 TRANSISTOR 2SA952-L < RESISTOR > R701 1-249-393-11 CARBON 10 5% 1/4W F R704 1-247-862-11 CARBON 20K 5% 1/4W R705 1-247-855-11 CARBON 10K 5% 1/4W R706 1-249-430-11 CARBON 12K 5% 1/4W R707 1-247-903-00 CARBON 1M 5% 1/4W R710 1-247-887-00 CARBON 220K 5% 1/4W R711 1-247-883-00 CARBON 150K 5% 1/4W R713 1-247-879-11 CARBON 100K 5% 1/4W R714 1-249-439-11 CARBON 68K 5% 1/4W R715 1-249-439-11 CARBON 68K 5% 1/4W R716 1-249-439-11 CARBON 68K 5% 1/4W R717 1-249-439-11 CARBON 68K 5% 1/4W R718 1-247-879-11 CARBON 100K 5% 1/4W R719 1-247-883-00 CARBON 150K 5% 1/4W R720 1-247-891-00 CARBON 330K 5% 1/4W R721 1-247-885-00 CARBON 180K 5% 1/4W R722 1-247-807-11 CARBON 100 5% 1/4W R723 1-247-855-11 CARBON 10K 5% 1/4W R724 1-247-855-11 CARBON 10K 5% 1/4W R725 1-247-899-11 CARBON 680K 5% 1/4W R726 1-249-440-11 CARBON 82K 5% 1/4W R727 1-247-896-11 CARBON 510K 5% 1/4W R728 1-247-807-11 CARBON 100 5% 1/4W R729 1-249-439-11 CARBON 68K 5% 1/4W R730 1-247-871-11 CARBON 47K 5% 1/4W R731 1-249-417-11 CARBON 1K 5% 1/4W F R732 1-247-883-00 CARBON 150K 5% 1/4W R733 1-249-430-11 CARBON 12K 5% 1/4W R734 1-247-876-11 CARBON 75K 5% 1/4W R735 1-247-879-11 CARBON 100K 5% 1/4W R736 1-247-807-11 CARBON 100 5% 1/4W R737 1-249-417-11 CARBON 1K 5% 1/4W F R739 1-247-807-11 CARBON 100 5% 1/4W R740 1-249-431-11 CARBON 15K 5% 1/4W R741 1-249-431-11 CARBON 15K 5% 1/4W R742 1-249-385-11 CARBON 2.2 5% 1/6W F R743 1-247-863-11 CARBON 22K 5% 1/4W R744 1-247-863-11 CARBON 22K 5% 1/4W R745 1-247-863-11 CARBON 22K 5% 1/4W R746 1-249-432-11 CARBON 18K 5% 1/4W R747 1-249-432-11 CARBON 18K 5% 1/4W R748 1-247-847-11 CARBON 4.7K 5% 1/4W R751 1-247-863-11 CARBON 22K 5% 1/4W R752 1-247-867-11 CARBON 33K 5% 1/4W R753 1-249-428-11 CARBON 8.2K 5% 1/4W F R755 1-247-871-11 CARBON 47K 5% 1/4W R756 1-247-867-11 CARBON 33K 5% 1/4W R758 1-247-871-11 CARBON 47K 5% 1/4W R759 1-247-843-11 CARBON 3.3K 5% 1/4W R760 1-249-417-11 CARBON 1K 5% 1/4W F R761 1-247-855-11 CARBON 10K 5% 1/4W R762 1-247-903-00 CARBON 1M 5% 1/4W R763 1-247-887-00 CARBON 220K 5% 1/4W R764 1-247-855-11 CARBON 10K 5% 1/4W R765 1-247-871-11 CARBON 47K 5% 1/4W R766 1-249-417-11 CARBON 1K 5% 1/4W F R767 1-249-417-11 CARBON 1K 5% 1/4W F R771 1-249-417-11 CARBON 1K 5% 1/4W F R773 1-249-442-11 CARBON 510 5% 1/4W R774 1-247-903-00 CARBON 1M 5% 1/4W R775 1-247-867-11 CARBON 33K 5% 1/4W R777 1-247-839-11 CARBON 2.2K 5% 1/4W R778 1-247-839-11 CARBON 2.2K 5% 1/4W R779 1-247-839-11 CARBON 2.2K 5% 1/4W R780 1-247-839-11 CARBON 2.2K 5% 1/4W R781 1-249-430-11 CARBON 12K 5% 1/4W R782 1-249-430-11 CARBON 12K 5% 1/4W R783 1-249-430-11 CARBON 12K 5% 1/4W R784 1-249-430-11 CARBON 12K 5% 1/4W R785 1-249-430-11 CARBON 12K 5% 1/4W R786 1-249-430-11 CARBON 12K 5% 1/4W R787 1-247-839-11 CARBON 2.2K 5% 1/4W R788 1-247-839-11 CARBON 2.2K 5% 1/4W R789 1-247-847-11 CARBON 4.7K 5% 1/4W R790 1-247-847-11 CARBON 4.7K 5% 1/4W R795 1-249-417-11 CARBON 1K 5% 1/4W F R796 1-249-417-11 CARBON 1K 5% 1/4W F R797 1-249-417-11 CARBON 1K 5% 1/4W F R710A 1-249-417-11 CARBON 1K 5% 1/4W F R747A 1-247-855-11 CARBON 10K 5% 1/4W R748A 1-249-417-11 CARBON 1K 5% 1/4W F R766A 1-249-417-11 CARBON 1K 5% 1/4W F R767A 1-249-417-11 CARBON 1K 5% 1/4W F R768A 1-249-417-11 CARBON 1K 5% 1/4W F R778L 1-247-847-11 CARBON 4.7K 5% 1/4W R778R 1-247-847-11 CARBON 4.7K 5% 1/4W R780A 1-249-417-11 CARBON 1K 5% 1/4W F R795A 1-247-855-11 CARBON 10K 5% 1/4W R796A 1-247-855-11 CARBON 10K 5% 1/4W R798L 1-247-855-11 CARBON 10K 5% 1/4W R798R 1-247-855-11 CARBON 10K 5% 1/4W < VIBRATOR > XTL01 1-567-908-11 VIBRATOR, CRYSTAL 16.9344MHz ************************************************************ CD DECORD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 51 A-4426-956-A FLD BOARD, COMPLETE (GRX40AV:AUS,SA) ******************* A-4426-960-A FLD BOARD, COMPLETE (RXD6AV) ******************* A-4426-958-A FLD BOARD, COMPLETE (GRX40AV:MX) ******************* < CAPACITOR > C601 1-126-926-11 ELECT 1000uF 20% 10V C602 1-161-494-00 CERAMIC 0.022uF 25V C603 1-164-159-11 CERAMIC 0.1uF 50V C604 1-126-933-11 ELECT 100uF 20% 16V C605 1-104-664-11 ELECT 47uF 20% 16V C606 1-164-159-11 CERAMIC 0.1uF 50V C608 1-126-958-11 ELECT 0.33uF 20% 50V C609 1-164-159-11 CERAMIC 0.1uF 50V C610 1-126-964-11 ELECT 10uF 20% 50V C611 1-161-494-00 CERAMIC 0.022uF 25V C612 1-126-160-11 ELECT 1uF 20% 50V C613 1-102-960-00 CERAMIC 24PF 5% 50V C614 1-102-960-00 CERAMIC 24PF 5% 50V C615 1-126-964-11 ELECT 10uF 20% 50V C616 1-164-206-41 CERAMIC 0.047uF 99% 50V C617 1-162-286-31 CERAMIC 220PF 10% 50V C618 1-162-286-31 CERAMIC 220PF 10% 50V C619 1-162-286-31 CERAMIC 220PF 10% 50V C620 1-162-286-31 CERAMIC 220PF 10% 50V C622 1-162-286-31 CERAMIC 220PF 10% 50V C623 1-162-286-31 CERAMIC 220PF 10% 50V C624 1-162-286-31 CERAMIC 220PF 10% 50V C625 1-162-286-31 CERAMIC 220PF 10% 50V C626 1-162-286-31 CERAMIC 220PF 10% 50V C629 1-126-934-11 ELECT 220uF 20% 16V C630 1-162-286-31 CERAMIC 220PF 10% 50V C632 1-126-957-11 ELECT 0.22uF 20% 50V C633 1-130-489-11 MYLAR 0.033uF 5% 50V C634 1-126-957-11 ELECT 0.22uF 20% 50V C635 1-162-302-11 CERAMIC 0.0022uF 20% 16V C636 1-126-957-11 ELECT 0.22uF 20% 50V C637 1-126-957-11 ELECT 0.22uF 20% 50V C638 1-162-306-11 CERAMIC 0.01uF 20% 16V C639 1-126-959-11 ELECT 0.47uF 20% 50V C640 1-126-957-11 ELECT 0.22uF 20% 50V C641 1-164-206-41 CERAMIC 0.047uF 99% 50V C642 1-126-957-11 ELECT 0.22uF 20% 50V C643 1-162-293-31 CERAMIC 820PF 10% 50V C646 1-124-259-11 ELECT 4.7uF 20% 50V < CONNECTOR > CN101 1-793-583-11 HOUSING, CONNECTOR 16P CN102 1-793-583-11 HOUSING, CONNECTOR 16P CN603 1-568-835-21 SOCKET, CONNECTOR 16P CN605 1-568-822-21 SOCKET, CONNECTOR 22P < DIODE > D601 8-719-200-02 DIODE 1N4002 D602 8-719-200-02 DIODE 1N4002 D603 8-719-911-19 DIODE 1SS133T-72 D604 8-719-911-19 DIODE 1SS133T-72 D605 8-719-911-19 DIODE 1SS133T-72 D608 8-719-911-19 DIODE 1SS133T-72 D609 8-719-911-19 DIODE 1SS133T-72 (RXD6AV) D610 8-719-911-19 DIODE 1SS133T-72 (GRX40AV) D611 8-719-911-19 DIODE 1SS133T-72 (RXD6AV) D612 8-719-911-19 DIODE 1SS133T-72 (GRX40AV) D613 8-719-911-19 DIODE 1SS133T-72 D615 8-719-911-19 DIODE 1SS133T-72 D617 8-719-911-19 DIODE 1SS133T-72 D618 8-719-911-19 DIODE 1SS133T-72 D619 8-719-911-19 DIODE 1SS133T-72 D620 8-719-911-19 DIODE 1SS133T-72 D621 8-719-911-19 DIODE 1SS133T-72 D622 8-719-911-19 DIODE 1SS133T-72 D623 8-719-911-19 DIODE 1SS133T-72 D624 8-719-911-19 DIODE 1SS133T-72 D625 8-719-911-19 DIODE 1SS133T-72 D626 8-719-911-19 DIODE 1SS133T-72 D627 8-719-911-19 DIODE 1SS133T-72 D628 8-719-911-19 DIODE 1SS133T-72 D629 8-719-911-19 DIODE 1SS133T-72 D630 8-719-911-19 DIODE 1SS133T-72 < FLUORESCENT INDICATOR > FLD601 1-517-731-21 INDICATOR TUBE, FLUORESCENT < IC > IC601 8-752-905-80 IC CXP82040-109Q IC602 8-759-234-75 IC TC74HC4094AP IC603 8-759-916-52 IC TC74HC165AP < COIL > L601 1-408-096-00 COIL 470uH < TRANSISTOR > Q601 8-729-194-57 TRANSISTOR 2SC945TP-P Q602 8-729-194-57 TRANSISTOR 2SC945TP-P Q603 8-729-194-57 TRANSISTOR 2SC945TP-P Q604 8-729-119-76 TRANSISTOR 2SA733-P Q608 8-729-194-57 TRANSISTOR 2SC945TP-P Q609 8-729-194-57 TRANSISTOR 2SC945TP-P Q610 8-729-194-57 TRANSISTOR 2SC945TP-P Q611 8-729-993-43 TRANSISTOR 2SA934R Q612 8-729-993-43 TRANSISTOR 2SA934R Q613 8-729-993-43 TRANSISTOR 2SA934R < RESISTOR > R601 1-247-871-11 CARBON 47K 5% 1/4W R602 1-249-417-11 CARBON 1K 5% 1/4W F R603 1-247-871-11 CARBON 47K 5% 1/4W R604 1-249-417-11 CARBON 1K 5% 1/4W F R605 1-247-871-11 CARBON 47K 5% 1/4W R606 1-249-417-11 CARBON 1K 5% 1/4W F R607 1-249-431-11 CARBON 15K 5% 1/4W R608 1-247-871-11 CARBON 47K 5% 1/4W R609 1-247-871-11 CARBON 47K 5% 1/4W R613 1-247-855-11 CARBON 10K 5% 1/4W R614 1-247-855-11 CARBON 10K 5% 1/4W R615 1-247-855-11 CARBON 10K 5% 1/4W R616 1-247-855-11 CARBON 10K 5% 1/4W R617 1-247-855-11 CARBON 10K 5% 1/4W R618 1-247-855-11 CARBON 10K 5% 1/4W FLD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 52 R619 1-247-855-11 CARBON 10K 5% 1/4W R620 1-247-855-11 CARBON 10K 5% 1/4W R621 1-247-855-11 CARBON 10K 5% 1/4W R622 1-247-855-11 CARBON 10K 5% 1/4W R623 1-247-855-11 CARBON 10K 5% 1/4W R624 1-247-855-11 CARBON 10K 5% 1/4W R625 1-247-855-11 CARBON 10K 5% 1/4W R626 1-247-855-11 CARBON 10K 5% 1/4W R630 1-249-417-11 CARBON 1K 5% 1/4W F R631 1-247-839-11 CARBON 2.2K 5% 1/4W R632 1-247-839-11 CARBON 2.2K 5% 1/4W R633 1-247-839-11 CARBON 2.2K 5% 1/4W R634 1-247-847-11 CARBON 4.7K 5% 1/4W R635 1-247-847-11 CARBON 4.7K 5% 1/4W R636 1-247-847-11 CARBON 4.7K 5% 1/4W R637 1-247-855-11 CARBON 10K 5% 1/4W R638 1-249-417-11 CARBON 1K 5% 1/4W F R639 1-247-847-11 CARBON 4.7K 5% 1/4W R640 1-247-855-11 CARBON 10K 5% 1/4W R641 1-249-417-11 CARBON 1K 5% 1/4W F R642 1-247-847-11 CARBON 4.7K 5% 1/4W R643 1-247-847-11 CARBON 4.7K 5% 1/4W R644 1-247-847-11 CARBON 4.7K 5% 1/4W R645 1-247-847-11 CARBON 4.7K 5% 1/4W R646 1-247-847-11 CARBON 4.7K 5% 1/4W R647 1-249-424-11 CARBON 3.9K 5% 1/4W F R648 1-249-417-11 CARBON 1K 5% 1/4W F R649 1-249-417-11 CARBON 1K 5% 1/4W F R650 1-247-863-11 CARBON 22K 5% 1/4W R651 1-247-863-11 CARBON 22K 5% 1/4W R652 1-247-847-11 CARBON 4.7K 5% 1/4W R653 1-247-847-11 CARBON 4.7K 5% 1/4W R654 1-247-847-11 CARBON 4.7K 5% 1/4W R655 1-247-855-11 CARBON 10K 5% 1/4W R656 1-249-417-11 CARBON 1K 5% 1/4W F R657 1-247-835-11 CARBON 1.5K 5% 1/4W R658 1-247-887-00 CARBON 220K 5% 1/4W R659 1-247-871-11 CARBON 47K 5% 1/4W R660 1-247-895-00 CARBON 470K 5% 1/4W R661 1-247-871-11 CARBON 47K 5% 1/4W R662 1-247-895-00 CARBON 470K 5% 1/4W R664 1-247-871-11 CARBON 47K 5% 1/4W R665 1-247-895-00 CARBON 470K 5% 1/4W R666 1-247-835-11 CARBON 1.5K 5% 1/4W R668 1-247-871-11 CARBON 47K 5% 1/4W R669 1-247-895-00 CARBON 470K 5% 1/4W R671 1-249-438-11 CARBON 56K 5% 1/4W R672 1-247-895-00 CARBON 470K 5% 1/4W R673 1-247-835-11 CARBON 1.5K 5% 1/4W R674 1-247-835-11 CARBON 1.5K 5% 1/4W R675 1-247-871-11 CARBON 47K 5% 1/4W R676 1-249-407-11 CARBON 150 5% 1/4W F < ADJUSTABLE RESISTOR > SRF601 1-238-598-11 RES, ADJ, CARBON 2.2K < VIBRATOR > X601 1-567-925-11 VIBRATOR, CRYSTAL 10MHz ************************************************************ A-4426-690-A FRONT BOARD, COMPLETE ********************** < CAPACITOR > C701 1-124-261-00 ELECT 10uF 20% 50V C702 1-161-494-00 CERAMIC 0.022uF 25V C703 1-162-286-31 CERAMIC 220PF 10% 50V C704 1-162-286-31 CERAMIC 220PF 10% 50V C705 1-162-286-31 CERAMIC 220PF 10% 50V < CONNECTOR > CN601 1-564-707-11 PIN, CONNECTOR (SMALL TYPE) 5P * CN602 1-564-713-11 PIN, CONNECTOR (SMALL TYPE)11P < DIODE > D631 8-719-911-19 DIODE 1SS133T-72 < IC > IC701 8-759-275-23 IC BU2092 IC702 8-759-275-23 IC BU2092 < LED > LED704 8-719-046-80 LED SML19416W-TP4 (^ CD) LED706 8-719-317-11 LED SEL1710Y (GROOVE) LED707 8-719-921-01 LED SEL1110R (ENTER/EXIT) LED708 8-719-310-60 LED SEL1510C-C (( TAPE A) LED709 8-719-310-60 LED SEL1510C-C (9 TAPE A) LED710 8-719-310-60 LED SEL1510C-C (9 TAPE B) LED711 8-719-310-60 LED SEL1510C-C (( TAPE B) LED712 8-719-921-01 LED SEL1110R (REC) LED713 8-719-317-11 LED SEL1710Y (PAUSE) LED714 8-719-317-11 LED SEL1710Y (0 –) LED715 8-719-317-11 LED SEL1710Y () +) LED716 8-719-921-01 LED SEL1110R (=+) LED717 8-719-317-11 LED SEL1710Y (DSP) LED718 8-719-317-11 LED SEL1710Y (DOLBY PRO LOGIC) < TRANSISTOR > Q701 8-729-026-29 TRANSISTOR 2SJ346 Q702 8-729-026-29 TRANSISTOR 2SJ346 Q703 8-729-026-29 TRANSISTOR 2SJ346 Q704 8-729-026-29 TRANSISTOR 2SJ346 Q705 8-729-026-29 TRANSISTOR 2SJ346 Q706 8-729-026-29 TRANSISTOR 2SJ346 Q707 8-729-026-29 TRANSISTOR 2SJ346 Q708 8-729-026-29 TRANSISTOR 2SJ346 < RESISTOR > R701 1-249-408-11 CARBON 180 5% 1/4W F R702 1-249-410-11 CARBON 270 5% 1/4W F R703 1-249-407-11 CARBON 150 5% 1/4W F R704 1-249-407-11 CARBON 150 5% 1/4W F R705 1-249-410-11 CARBON 270 5% 1/4W F R706 1-249-410-11 CARBON 270 5% 1/4W F R707 1-249-410-11 CARBON 270 5% 1/4W F R708 1-249-410-11 CARBON 270 5% 1/4W F R709 1-249-410-11 CARBON 270 5% 1/4W F R710 1-249-410-11 CARBON 270 5% 1/4W F FLD FRONT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 53 R711 1-249-407-11 CARBON 150 5% 1/4W F R712 1-249-407-11 CARBON 150 5% 1/4W F R713 1-249-407-11 CARBON 150 5% 1/4W F R714 1-249-407-11 CARBON 150 5% 1/4W F R715 1-249-407-11 CARBON 150 5% 1/4W F R716 1-249-407-11 CARBON 150 5% 1/4W F R717 1-249-410-11 CARBON 270 5% 1/4W F R718 1-249-410-11 CARBON 270 5% 1/4W F R719 1-249-410-11 CARBON 270 5% 1/4W F R720 1-249-410-11 CARBON 270 5% 1/4W F R721 1-249-410-11 CARBON 270 5% 1/4W F R722 1-247-827-11 CARBON 680 5% 1/4W R723 1-249-416-11 CARBON 820 5% 1/4W F R724 1-249-418-11 CARBON 1.2K 5% 1/4W F R725 1-247-835-11 CARBON 1.5K 5% 1/4W R726 1-247-839-11 CARBON 2.2K 5% 1/4W R727 1-247-843-11 CARBON 3.3K 5% 1/4W R728 1-247-847-11 CARBON 4.7K 5% 1/4W R729 1-249-428-11 CARBON 8.2K 5% 1/4W F R730 1-249-431-11 CARBON 15K 5% 1/4W R731 1-247-864-11 CARBON 24K 5% 1/4W R732 1-247-827-11 CARBON 680 5% 1/4W R733 1-249-416-11 CARBON 820 5% 1/4W F R734 1-249-418-11 CARBON 1.2K 5% 1/4W F R735 1-247-835-11 CARBON 1.5K 5% 1/4W R736 1-247-839-11 CARBON 2.2K 5% 1/4W R737 1-247-843-11 CARBON 3.3K 5% 1/4W R738 1-247-847-11 CARBON 4.7K 5% 1/4W R739 1-249-428-11 CARBON 8.2K 5% 1/4W F R740 1-249-431-11 CARBON 15K 5% 1/4W R741 1-247-864-11 CARBON 24K 5% 1/4W R742 1-247-827-11 CARBON 680 5% 1/4W R743 1-249-416-11 CARBON 820 5% 1/4W F R744 1-249-418-11 CARBON 1.2K 5% 1/4W F R745 1-247-835-11 CARBON 1.5K 5% 1/4W R746 1-247-839-11 CARBON 2.2K 5% 1/4W R747 1-247-843-11 CARBON 3.3K 5% 1/4W R753 1-249-439-11 CARBON 68K 5% 1/4W R755 1-247-863-11 CARBON 22K 5% 1/4W R756 1-247-863-11 CARBON 22K 5% 1/4W R757 1-247-879-11 CARBON 100K 5% 1/4W R758 1-247-879-11 CARBON 100K 5% 1/4W R759 1-247-879-11 CARBON 100K 5% 1/4W R760 1-247-879-11 CARBON 100K 5% 1/4W R761 1-247-879-11 CARBON 100K 5% 1/4W R762 1-247-879-11 CARBON 100K 5% 1/4W R707A 1-247-855-11 CARBON 10K 5% 1/4W R755A 1-247-879-11 CARBON 100K 5% 1/4W R756A 1-247-879-11 CARBON 100K 5% 1/4W < SWITCH > S707 1-572-647-11 SWITCH, KEY BOARD (CLOCK/TIMER SET) S708 1-572-647-11 SWITCH, KEY BOARD (TIMER SELECT) S709 1-572-647-11 SWITCH, KEY BOARD (DISPLAY) S710 1-572-647-11 SWITCH, KEY BOARD (FILE SELECT) S711 1-572-647-11 SWITCH, KEY BOARD (DBFB) S712 1-572-647-11 SWITCH, KEY BOARD (GROOVE) S713 1-572-647-11 SWITCH, KEY BOARD (+ )) S714 1-572-647-11 SWITCH, KEY BOARD (0 –) S717 1-572-647-11 SWITCH, KEY BOARD (DEMO) S718 1-572-647-11 SWITCH, KEY BOARD (p) S719 1-572-647-11 SWITCH, KEY BOARD (9 TAPE A) S720 1-572-647-11 SWITCH, KEY BOARD (9 TAPE B) S721 1-572-647-11 SWITCH, KEY BOARD (( TAPE B) S722 1-572-647-11 SWITCH, KEY BOARD (^ CD) S723 1-572-647-11 SWITCH, KEY BOARD (TUNER/BAND) S724 1-572-647-11 SWITCH, KEY BOARD (REC) S725 1-572-647-11 SWITCH, KEY BOARD (PAUSE) S726 1-572-647-11 SWITCH, KEY BOARD (CD SYNC) S727 1-572-647-11 SWITCH, KEY BOARD (DOLBY PRO LOGIC) S728 1-572-647-11 SWITCH, KEY BOARD (DSP) S731 1-572-647-11 SWITCH, KEY BOARD (( TAPE B) S732 1-572-647-11 SWITCH, KEY BOARD (FUNCION) S733 1-572-647-11 SWITCH, KEY BOARD (PLAY MODE TUNER MEMORY) S734 1-572-647-11 SWITCH, KEY BOARD (STEREO/MONO REPEAT) S735 1-572-647-11 SWITCH, KEY BOARD (EDIT/DIRECTION) S736 1-572-647-11 SWITCH, KEY BOARD (ENTER/NEXT) < VARIABLE RESISTOR > VR601 1-475-841-11 ENCODER (=+) VR602 1-475-807-11 ENCODER, ROTARY (VOLUME) ************************************************************ A-4426-700-A FRONT AMP BOARD, COMPLETE ************************** 7-685-645-79 SCREW +BVTP 3 × 6 TYPE2 TT(B) 7-685-646-79 SCREW +BVTP 3 × 8 TYPE2 TT(B) 7-685-649-91 SCREW +BVTP 3 × 14 TYPE2 TT(B) < CAPACITOR > C533 1-126-933-11 ELECT 100uF 20% 16V C538 1-109-953-11 ELECT 2.2uF 20% 50V C539 1-162-302-11 CERAMIC 0.0022uF 20% 16V C540 1-162-302-11 CERAMIC 0.0022uF 20% 16V C541 1-109-953-11 ELECT 2.2uF 20% 50V C542 1-109-953-11 ELECT 2.2uF 20% 50V C543 1-162-199-31 CERAMIC 10PF 5% 50V C544 1-162-199-31 CERAMIC 10PF 5% 50V C545 1-126-966-11 ELECT 33uF 20% 16V C546 1-126-966-11 ELECT 33uF 20% 16V C547 1-137-399-11 FILM 0.1uF 5% 100V C548 1-137-399-11 FILM 0.1uF 5% 100V C549 1-161-494-00 CERAMIC 0.022uF 25V C550 1-161-494-00 CERAMIC 0.022uF 25V C551 1-104-664-11 ELECT 47uF 20% 16V C552 1-126-767-11 ELECT 1000uF 20% 16V C553 1-104-664-11 ELECT 47uF 20% 16V C555 1-126-963-11 ELECT 4.7uF 20% 50V C556 1-162-306-11 CERAMIC 0.01uF 20% 16V C557 1-126-933-11 ELECT 100uF 20% 16V C558 1-126-961-11 ELECT 2.2uF 20% 50V C559 1-126-964-11 ELECT 10uF 20% 50V C560 1-126-964-11 ELECT 10uF 20% 50V C561 1-128-582-11 ELECT 10uF 20% 63V C562 1-128-582-11 ELECT 10uF 20% 63V C591 1-162-282-31 CERAMIC 100PF 10% 50V C592 1-162-282-31 CERAMIC 100PF 10% 50V < CONNECTOR > * CN505 1-564-704-11 PIN, CONNECTOR (SMALL TYPE) 2P FRONT FRONT AMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 54 < DIODE > D512 8-719-991-33 DIODE 1SS133T-77 D513 8-719-991-33 DIODE 1SS133T-77 D514 8-719-991-33 DIODE 1SS133T-77 D515 8-719-991-33 DIODE 1SS133T-77 D516 8-719-991-33 DIODE 1SS133T-77 D517 8-719-991-33 DIODE 1SS133T-77 D518 8-719-991-33 DIODE 1SS133T-77 D519 8-719-991-33 DIODE 1SS133T-77 D520 8-719-010-68 DIODE UZ-11BS < IC > IC502 8-749-015-45 IC STK407-090E IC503 8-759-111-68 IC uPC1237HA < TRANSISTOR > Q507 8-729-993-43 TRANSISTOR 2SA934R Q508 8-729-142-46 TRANSISTOR 2SC2001-L Q509 8-729-048-99 TRANSISTOR 2SK2541 Q510 8-729-048-99 TRANSISTOR 2SK2541 Q511 8-729-184-53 TRANSISTOR 2SC1841-EA Q512 8-729-184-53 TRANSISTOR 2SC1841-EA Q513 8-729-231-55 TRANSISTOR 2SC2878-A Q514 8-729-231-55 TRANSISTOR 2SC2878-A Q515 8-729-140-82 TRANSISTOR 2SA988-EA Q516 8-729-103-63 TRANSISTOR 2SA953-KA Q517 8-729-119-78 TRANSISTOR 2SC945-P < RESISTOR > R525 1-247-863-11 CARBON 22K 5% 1/4W R526 1-247-863-11 CARBON 22K 5% 1/4W R527 1-247-855-11 CARBON 10K 5% 1/4W R528 1-247-879-11 CARBON 100K 5% 1/4W R529 1-247-903-00 CARBON 1M 5% 1/4W R530 1-249-417-11 CARBON 1K 5% 1/4W F R537 1-249-417-11 CARBON 1K 5% 1/4W F R538 1-249-417-11 CARBON 1K 5% 1/4W F R539 1-247-855-11 CARBON 10K 5% 1/4W R540 1-247-855-11 CARBON 10K 5% 1/4W R541 1-249-438-11 CARBON 56K 5% 1/4W R542 1-249-438-11 CARBON 56K 5% 1/4W R543 1-249-420-11 CARBON 1.8K 5% 1/4W F R544 1-249-420-11 CARBON 1.8K 5% 1/4W F R545 1-249-438-11 CARBON 56K 5% 1/4W R546 1-249-438-11 CARBON 56K 5% 1/4W R547 1-260-072-11 CARBON 4.7 5% 1/2W R548 1-260-072-11 CARBON 4.7 5% 1/2W R549 1-249-405-11 CARBON 100 5% 1/4W F R550 1-249-405-11 CARBON 100 5% 1/4W F R551 1-247-887-00 CARBON 220K 5% 1/4W R552 1-247-887-00 CARBON 220K 5% 1/4W R553 1-249-417-11 CARBON 1K 5% 1/4W F R554 1-249-417-11 CARBON 1K 5% 1/4W F R555 1-249-431-11 CARBON 15K 5% 1/4W R556 1-249-431-11 CARBON 15K 5% 1/4W R557 1-220-890-11 METAL 0.22 10% 3W R558 1-220-890-11 METAL 0.22 10% 3W R559 1-249-430-11 CARBON 12K 5% 1/4W R560 1-249-430-11 CARBON 12K 5% 1/4W R561 1-247-839-11 CARBON 2.2K 5% 1/4W R562 1-247-871-11 CARBON 47K 5% 1/4W R563 1-247-855-11 CARBON 10K 5% 1/4W R564 1-247-879-11 CARBON 100K 5% 1/4W R565 1-247-839-11 CARBON 2.2K 5% 1/4W R566 1-249-438-11 CARBON 56K 5% 1/4W R567 1-247-847-11 CARBON 4.7K 5% 1/4W R568 1-247-847-11 CARBON 4.7K 5% 1/4W R569 1-247-855-11 CARBON 10K 5% 1/4W R571 1-249-417-11 CARBON 1K 5% 1/4W F R573 1-247-862-11 CARBON 20K 5% 1/4W R574 1-247-855-11 CARBON 10K 5% 1/4W R575 1-247-855-11 CARBON 10K 5% 1/4W R577 1-260-093-11 CARBON 330 5% 1/2W R578 1-247-871-11 CARBON 47K 5% 1/4W R579 1-247-854-11 CARBON 9.1K 5% 1/4W R580 1-247-847-11 CARBON 4.7K 5% 1/4W R581 1-247-879-11 CARBON 100K 5% 1/4W R582 1-247-693-11 CARBON 27 5% 1/4W F < THERMISTOR > TH501 1-803-779-11 THERMISTOR ************************************************************ 1-675-358-11 FUSE BOARD *********** * 1-533-213-31 HOLDER, FUSE < FUSE > !F001 1-532-388-31 FUSE, TIME LAG 2A 250V (GRX40AV:AUS,SA/RXD6AV) !F001 1-576-108-11 FUSE 4A/125V (GRX40AV: MX) < RESISTOR > !R001 1-219-238-11 SOLID 4.7M 20% 1/2W ************************************************************ A-4426-691-A KEY BOARD, COMPLETE ********************* < CONNECTOR > * CN606 1-564-708-11 PIN, CONNECTOR (SMALL TYPE) 6P * CN607 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P < LED > LED701 8-719-046-80 DIODE SML19416W-TP4 LED702 8-719-046-80 DIODE SML19416W-TP4 LED703 8-719-046-80 DIODE SML19416W-TP4 < RESISTOR > R748 1-249-434-11 CARBON 27K 5% 1/4W R749 1-249-431-11 CARBON 15K 5% 1/4W R750 1-249-428-11 CARBON 8.2K 5% 1/4W F R751 1-247-847-11 CARBON 4.7K 5% 1/4W FRONT AMP FUSE KEY The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 55 < SWITCH > S701 1-572-647-11 SWITCH, KEY BOARD (POWER) S702 1-572-647-11 SWITCH, KEY BOARD (DISC 1) S703 1-572-647-11 SWITCH, KEY BOARD (DISC 2) S704 1-572-647-11 SWITCH, KEY BOARD (DISC 3) S705 1-572-647-11 SWITCH, KEY BOARD (DISC SKIP) S706 1-572-647-11 SWITCH, KEY BOARD (EJECT) ************************************************************ 1-675-355-11 H/P BOARD ********* < JACK > JK403 1-569-612-11 JACK, MINIATURE (PHONE) ************************************************************ A-4426-696-A MAIN BOARD, COMPLETE (GRX40AV) ********************* A-4426-962-A MAIN BOARD, COMPLETE (RXD6AV) ********************* < CAPACITOR > C102 1-161-494-00 CERAMIC 0.022uF 25V C103 1-126-959-11 ELECT 0.47uF 20% 50V C104 1-161-494-00 CERAMIC 0.022uF 25V C105 1-161-494-00 CERAMIC 0.022uF 25V C106 1-161-494-00 CERAMIC 0.022uF 25V C107 1-161-494-00 CERAMIC 0.022uF 25V C109 1-126-964-11 ELECT 10uF 20% 50V C111 1-161-494-00 CERAMIC 0.022uF 25V C113 1-161-494-00 CERAMIC 0.022uF 25V C114 1-164-159-11 CERAMIC 0.1uF 50V C116 1-136-356-11 FILM 470PF 5% 50V C117 1-162-205-31 CERAMIC 18PF 5% 50V C118 1-104-665-11 ELECT 100uF 20% 10V C120 1-164-206-41 CERAMIC 0.047uF 99% 50V C121 1-162-215-31 CERAMIC 47PF 5% 50V C122 1-126-960-11 ELECT 1uF 20% 50V C123 1-126-959-11 ELECT 0.47uF 20% 50V C124 1-162-206-31 CERAMIC 20PF 5% 50V C125 1-126-960-11 ELECT 1uF 20% 50V C126 1-161-494-00 CERAMIC 0.022uF 25V C127 1-126-964-11 ELECT 10uF 20% 50V C128 1-161-494-00 CERAMIC 0.022uF 25V C129 1-126-964-11 ELECT 10uF 20% 50V C130 1-130-489-11 MYLAR 0.033uF 5% 50V (GRX40AV) C130 1-130-487-00 MYLAR 0.022uF 5% 50V (RXD6AV) C131 1-130-489-11 MYLAR 0.033uF 5% 50V (GRX40AV) C131 1-130-487-00 MYLAR 0.022uF 5% 50V (RXD6AV) C132 1-162-600-11 CERAMIC 0.0047uF 30% 16V C133 1-162-600-11 CERAMIC 0.0047uF 30% 16V C134 1-126-962-11 ELECT 3.3uF 20% 50V C135 1-162-293-31 CERAMIC 820PF 10% 50V C136 1-128-551-11 ELECT 22uF 20% 25V C137 1-126-959-11 ELECT 0.47uF 20% 50V C138 1-164-159-11 CERAMIC 0.1uF 50V C139 1-161-494-00 CERAMIC 0.022uF 25V C140 1-104-665-11 ELECT 100uF 20% 10V C141 1-161-494-00 CERAMIC 0.022uF 25V C142 1-126-933-11 ELECT 100uF 20% 16V C143 1-137-162-11 FILM 0.22uF 10% 63V C144 1-130-483-00 MYLAR 0.01uF 5% 50V C146 1-162-294-31 CERAMIC 0.001uF 10% 50V C147 1-162-306-11 CERAMIC 0.01uF 20% 16V C148 1-161-494-00 CERAMIC 0.022uF 25V C149 1-162-294-31 CERAMIC 0.001uF 10% 50V C150 1-164-159-11 CERAMIC 0.1uF 50V C151 1-126-959-11 ELECT 0.47uF 20% 50V C152 1-126-959-11 ELECT 0.47uF 20% 50V C153 1-162-600-11 CERAMIC 0.0047uF 30% 16V C154 1-164-159-11 CERAMIC 0.1uF 50V C155 1-162-294-31 CERAMIC 0.001uF 10% 50V C156 1-102-951-00 CERAMIC 15PF 5% 50V C157 1-102-951-00 CERAMIC 15PF 5% 50V C158 1-104-664-11 ELECT 47uF 20% 10V C160 1-126-963-11 ELECT 4.7uF 20% 50V C161 1-126-963-11 ELECT 4.7uF 20% 50V C163 1-161-494-00 CERAMIC 0.022uF 25V C164 1-162-282-31 CERAMIC 100PF 10% 50V C165 1-161-494-00 CERAMIC 0.022uF 25V C166 1-161-494-00 CERAMIC 0.022uF 25V C167 1-162-286-31 CERAMIC 220PF 10% 50V C169 1-162-199-31 CERAMIC 10PF 5% 50V C171 1-162-282-31 CERAMIC 100PF 10% 50V C201 1-162-292-31 CERAMIC 680PF 10% 50V C202 1-162-292-31 CERAMIC 680PF 10% 50V C203 1-162-292-31 CERAMIC 680PF 10% 50V C204 1-162-292-31 CERAMIC 680PF 10% 50V C205 1-162-286-31 CERAMIC 220PF 10% 50V C206 1-162-286-31 CERAMIC 220PF 10% 50V C207 1-162-286-31 CERAMIC 220PF 10% 50V C208 1-162-286-31 CERAMIC 220PF 10% 50V C209 1-104-664-11 ELECT 47uF 20% 10V C210 1-104-664-11 ELECT 47uF 20% 10V C211 1-130-486-00 MYLAR 0.018uF 10% 50V C212 1-130-486-00 MYLAR 0.018uF 10% 50V C213 1-126-960-11 ELECT 1uF 20% 50V C214 1-126-960-11 ELECT 1uF 20% 50V C215 1-162-303-11 CERAMIC 0.0033uF 20% 16V C216 1-162-303-11 CERAMIC 0.0033uF 20% 16V C217 1-104-664-11 ELECT 47uF 20% 16V C218 1-126-940-11 ELECT 330uF 20% 16V C219 1-126-962-11 ELECT 3.3uF 20% 50V C221 1-126-962-11 ELECT 3.3uF 20% 50V C222 1-126-962-11 ELECT 3.3uF 20% 50V C223 1-162-290-31 CERAMIC 470PF 10% 50V C224 1-162-290-31 CERAMIC 470PF 10% 50V C225 1-162-301-11 CERAMIC 0.0015uF 20% 16V C226 1-162-301-11 CERAMIC 0.0015uF 20% 16V C227 1-162-286-31 CERAMIC 220PF 10% 50V C228 1-162-286-31 CERAMIC 220PF 10% 50V C229 1-104-665-11 ELECT 100uF 20% 10V C230 1-104-665-11 ELECT 100uF 20% 10V C231 1-126-958-11 ELECT 0.33uF 20% 50V C232 1-126-958-11 ELECT 0.33uF 20% 50V C233 1-162-294-31 CERAMIC 0.001uF 10% 50V C234 1-162-294-31 CERAMIC 0.001uF 10% 50V MAIN KEY H/P www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 56 C235 1-126-960-11 ELECT 1uF 20% 50V C236 1-126-933-11 ELECT 100uF 20% 16V C237 1-161-494-00 CERAMIC 0.022uF 25V C238 1-126-961-11 ELECT 2.2uF 20% 50V C251 1-137-366-11 FILM 0.0022uF 5% 50V C252 1-130-485-00 MYLAR 0.015uF 5% 50V C253 1-130-483-00 MYLAR 0.01uF 5% 50V C254 1-130-479-00 MYLAR 0.0047uF 5% 50V C255 1-104-664-11 ELECT 47uF 20% 16V C256 1-126-960-11 ELECT 1uF 20% 50V C257 1-126-956-11 ELECT 0.1uF 20% 50V C265 1-162-306-11 CERAMIC 0.01uF 20% 16V C271 1-126-963-11 ELECT 4.7uF 20% 50V C272 1-126-961-11 ELECT 2.2uF 20% 50V C301 1-126-959-11 ELECT 0.47uF 20% 50V C302 1-126-959-11 ELECT 0.47uF 20% 50V C303 1-126-959-11 ELECT 0.47uF 20% 50V C304 1-126-959-11 ELECT 0.47uF 20% 50V C305 1-126-933-11 ELECT 100uF 20% 16V C306 1-126-964-11 ELECT 10uF 20% 50V C307 1-162-286-31 CERAMIC 220PF 10% 50V C308 1-162-286-31 CERAMIC 220PF 10% 50V C309 1-126-963-11 ELECT 4.7uF 20% 50V C310 1-126-963-11 ELECT 4.7uF 20% 50V C311 1-130-486-00 MYLAR 0.018uF 10% 50V C312 1-130-486-00 MYLAR 0.018uF 10% 50V C313 1-130-487-00 MYLAR 0.022uF 5% 50V C314 1-130-487-00 MYLAR 0.022uF 5% 50V C315 1-130-495-11 MYLAR 0.1uF 5% 50V C316 1-130-495-11 MYLAR 0.1uF 5% 50V C317 1-130-495-11 MYLAR 0.1uF 5% 50V C318 1-130-495-11 MYLAR 0.1uF 5% 50V C319 1-130-480-00 MYLAR 0.0056uF 5% 50V C320 1-130-480-00 MYLAR 0.0056uF 5% 50V C321 1-126-960-11 ELECT 1uF 20% 50V C322 1-126-960-11 ELECT 1uF 20% 50V C323 1-126-960-11 ELECT 1uF 20% 50V C324 1-126-960-11 ELECT 1uF 20% 50V C325 1-162-199-31 CERAMIC 10PF 5% 50V C326 1-162-199-31 CERAMIC 10PF 5% 50V C327 1-126-963-11 ELECT 4.7uF 20% 50V C328 1-126-963-11 ELECT 4.7uF 20% 50V C329 1-161-494-00 CERAMIC 0.022uF 25V C330 1-126-962-11 ELECT 3.3uF 20% 50V C331 1-126-961-11 ELECT 2.2uF 20% 50V C332 1-126-961-11 ELECT 2.2uF 20% 50V C334 1-126-933-11 ELECT 100uF 20% 16V C335 1-126-959-11 ELECT 0.47uF 20% 50V C336 1-126-959-11 ELECT 0.47uF 20% 50V C339 1-126-963-11 ELECT 4.7uF 20% 50V C340 1-126-963-11 ELECT 4.7uF 20% 50V C341 1-130-495-11 MYLAR 0.1uF 5% 50V C342 1-130-495-11 MYLAR 0.1uF 5% 50V C343 1-130-495-11 MYLAR 0.1uF 5% 50V C344 1-130-495-11 MYLAR 0.1uF 5% 50V C345 1-162-294-31 CERAMIC 0.001uF 10% 50V C346 1-162-294-31 CERAMIC 0.001uF 10% 50V C347 1-162-286-31 CERAMIC 220PF 10% 50V C348 1-162-286-31 CERAMIC 220PF 10% 50V C349 1-161-494-00 CERAMIC 0.022uF 25V C350 1-161-494-00 CERAMIC 0.022uF 25V C351 1-126-960-11 ELECT 1uF 20% 50V C352 1-126-960-11 ELECT 1uF 20% 50V C353 1-126-962-11 ELECT 3.3uF 20% 50V C354 1-126-962-11 ELECT 3.3uF 20% 50V C355 1-126-933-11 ELECT 100uF 20% 16V C356 1-126-964-11 ELECT 10uF 20% 50V C357 1-126-964-11 ELECT 10uF 20% 50V C362 1-130-487-00 MYLAR 0.022uF 5% 50V C363 1-164-159-11 CERAMIC 0.1uF 50V C364 1-136-357-11 FILM 680PF 5% 50V C365 1-130-495-11 MYLAR 0.1uF 5% 50V C366 1-136-357-11 FILM 680PF 5% 50V C367 1-130-495-11 MYLAR 0.1uF 5% 50V C368 1-130-495-11 MYLAR 0.1uF 5% 50V C369 1-130-495-11 MYLAR 0.1uF 5% 50V C370 1-126-934-11 ELECT 220uF 20% 16V C371 1-126-964-11 ELECT 10uF 20% 50V C372 1-130-481-00 MYLAR 0.0068uF 5% 50V C373 1-104-664-11 ELECT 47uF 20% 16V C374 1-126-964-11 ELECT 10uF 20% 50V C375 1-126-964-11 ELECT 10uF 20% 50V C376 1-126-964-11 ELECT 10uF 20% 50V C377 1-126-960-11 ELECT 1uF 20% 50V C378 1-130-495-11 MYLAR 0.1uF 5% 50V C379 1-104-664-11 ELECT 47uF 20% 10V C380 1-162-286-31 CERAMIC 220PF 10% 50V C381 1-162-286-31 CERAMIC 220PF 10% 50V C382 1-162-286-31 CERAMIC 220PF 10% 50V C383 1-126-960-11 ELECT 1uF 20% 50V C384 1-130-479-00 MYLAR 0.0047uF 5% 50V C385 1-130-471-00 MYLAR 0.001uF 5% 50V C386 1-130-493-00 MYLAR 0.068uF 5% 50V C387 1-130-495-11 MYLAR 0.1uF 5% 50V C389 1-130-493-00 MYLAR 0.068uF 5% 50V C390 1-130-479-00 MYLAR 0.0047uF 5% 50V C391 1-130-471-00 MYLAR 0.001uF 5% 50V C392 1-109-889-11 ELECT 1uF 20% 50V C393 1-109-889-11 ELECT 1uF 20% 50V C394 1-130-480-00 MYLAR 0.0056uF 5% 50V C395 1-130-491-00 MYLAR 0.047uF 5% 50V C396 1-137-165-11 FILM 0.68uF 10% 63V C397 1-137-162-11 FILM 0.22uF 10% 63V C398 1-137-162-11 FILM 0.22uF 10% 63V C399 1-126-963-11 ELECT 4.7uF 20% 50V C404 1-104-482-11 ELECT 4700uF 20% 63V C405 1-104-482-11 ELECT 4700uF 20% 63V C406 1-161-494-00 CERAMIC 0.022uF 25V C407 1-161-494-00 CERAMIC 0.022uF 25V C412 1-104-664-11 ELECT 47uF 20% 16V C415 1-101-004-00 CERAMIC 0.01uF 50V C416 1-101-004-00 CERAMIC 0.01uF 50V C417 1-126-968-11 ELECT 100uF 20% 50V C418 1-161-494-00 CERAMIC 0.022uF 25V C419 1-161-494-00 CERAMIC 0.022uF 25V C420 1-128-553-11 ELECT 220uF 20% 63V C421 1-126-948-11 ELECT 100uF 20% 35V C422 1-126-949-11 ELECT 220uF 20% 35V C423 1-161-494-00 CERAMIC 0.022uF 25V C424 1-104-665-11 ELECT 100uF 20% 10V MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 57 C425 1-104-665-11 ELECT 100uF 20% 10V C426 1-161-494-00 CERAMIC 0.022uF 25V C431 1-161-494-00 CERAMIC 0.022uF 25V C432 1-126-933-11 ELECT 100uF 20% 16V C433 1-126-933-11 ELECT 100uF 20% 16V C434 1-161-494-00 CERAMIC 0.022uF 25V C440 1-126-933-11 ELECT 100uF 20% 16V C442 1-164-159-11 CERAMIC 0.1uF 50V C453 1-162-302-11 CERAMIC 0.0022uF 20% 16V C454 1-162-302-11 CERAMIC 0.0022uF 20% 16V C460 1-126-959-11 ELECT 0.47uF 20% 50V C106A 1-104-664-11 ELECT 47uF 20% 16V C108A 1-164-206-41 CERAMIC 0.047uF 99% 50V C120A 1-161-494-00 CERAMIC 0.022uF 25V C235A 1-162-215-31 CERAMIC 47PF 5% 50V C236A 1-162-215-31 CERAMIC 47PF 5% 50V C3100 1-126-963-11 ELECT 4.7uF 20% 50V C3101 1-137-162-11 FILM 0.22uF 10% 63V C3102 1-137-162-11 FILM 0.22uF 10% 63V C3103 1-164-159-11 CERAMIC 0.1uF 50V C3104 1-130-491-00 MYLAR 0.047uF 5% 50V C3105 1-130-491-00 MYLAR 0.047uF 5% 50V C3106 1-164-159-11 CERAMIC 0.1uF 50V C3107 1-164-159-11 CERAMIC 0.1uF 50V C3108 1-130-487-00 MYLAR 0.022uF 5% 50V C3109 1-164-159-11 CERAMIC 0.1uF 50V C3115 1-126-964-11 ELECT 10uF 20% 50V C3116 1-126-964-11 ELECT 10uF 20% 50V C3117 1-162-286-31 CERAMIC 220PF 10% 50V C3118 1-162-286-31 CERAMIC 220PF 10% 50V C3119 1-161-494-00 CERAMIC 0.022uF 25V C3120 1-161-494-00 CERAMIC 0.022uF 25V C3121 1-126-960-11 ELECT 1uF 20% 50V C3122 1-126-960-11 ELECT 1uF 20% 50V C3126 1-162-286-31 CERAMIC 220PF 10% 50V C3127 1-126-961-11 ELECT 2.2uF 20% 50V C3128 1-161-494-00 CERAMIC 0.022uF 25V C3129 1-161-494-00 CERAMIC 0.022uF 25V C3130 1-161-494-00 CERAMIC 0.022uF 25V C3131 1-161-494-00 CERAMIC 0.022uF 25V C3133 1-161-494-00 CERAMIC 0.022uF 25V C3143 1-126-964-11 ELECT 10uF 20% 50V C422A 1-126-767-11 ELECT 1000uF 20% 16V C442A 1-164-206-41 CERAMIC 0.047uF 99% 50V < FILTER > CF101 1-579-568-11 FILTER, CERAMIC CF102 1-567-390-11 FILTER,CERAMIC 10.7M (GRX40AV) CF102 1-567-107-00 FILTER, CERAMIC (RXD6AV) CF103 1-527-996-11 FILTER, CERAMIC CF104 1-579-856-11 DISCRIMINATOR, CERAMIC < CONNECTOR > CN101 1-793-584-11 PIN, CONNECTOR 16P CN102 1-793-584-11 PIN, CONNECTOR 16P * CN301 1-564-515-11 PLUG, CONNECTOR 12P CN302 1-764-334-11 PLUG, CONNECTOR 11P * CN502 1-564-508-11 PLUG, CONNECTOR 5P < DIODE > D101 8-719-911-19 DIODE ISS133 D102 8-719-911-19 DIODE ISS133 D103 8-719-911-19 DIODE ISS133 D104 8-719-911-19 DIODE ISS133 D105 8-719-053-11 DIODE KV1560-TL34 D106 8-719-911-19 DIODE ISS133 D107 8-719-010-40 DIODE UZ-5.6BS D201 8-719-911-19 DIODE ISS133 D202 8-719-911-19 DIODE ISS133 D203 8-719-911-19 DIODE ISS133 D204 8-719-911-19 DIODE ISS133 D205 8-719-911-19 DIODE ISS133 D302 8-719-911-19 DIODE ISS133 D303 8-719-010-60 DIODE UZ-9.1BS D305 8-719-911-19 DIODE ISS133 D306 8-719-911-19 DIODE ISS133 D307 8-719-010-44 DIODE UZ-6.2BS D308 8-719-010-44 DIODE UZ-6.2BS D403 8-719-027-23 DIODE GBU6D D405 8-719-010-44 DIODE UZ-6.2BS D407 8-719-921-82 DIODE UZ-12BS D409 8-719-012-32 DIODE UZ-27BS D410 8-719-010-31 DIODE UZ-4.7BS D411 8-719-200-02 DIODE 1N4002 D412 8-719-200-02 DIODE 1N4002 D417 8-719-911-19 DIODE ISS133 D418 8-719-911-19 DIODE ISS133 D419 8-719-911-19 DIODE ISS133 D420 8-719-911-19 DIODE ISS133 D421 8-719-911-19 DIODE ISS133 D422 8-719-911-19 DIODE ISS133 < FRONT END > FE101 1-693-469-11 FRONT END < IC > IC102 8-759-590-14 IC LA1833L IC103 8-759-590-13 IC LC72131D IC201 8-759-242-58 IC TA8189N IC301 8-759-585-01 IC TDA7439 IC302 8-759-640-20 IC M62463FP IC303 8-759-505-55 IC NJM4558L IC304 8-759-505-55 IC NJM4558L IC305 8-759-505-55 IC NJM4558L IC306 8-759-505-55 IC NJM4558L < JACK > JK101 1-694-092-21 TERMINAL BOARD (SPEAKER)(ANTENNA)(GRX40AV) JK101 1-694-126-11 TERMINAL BOARD (ANTENNA)(RXD6AV) JK301 1-793-581-11 JACK, PIN 4P (MD/VIDEO IN/OUT) JK303 1-793-582-11 JACK, PIN 1P (WOOFER) JK401 1-694-604-11 TERMINAL, SPEAKER (4P) (FRONT SPEAKER) JK402 1-694-605-11 TERMINAL, SPEAKER (6P) (REAR SPEAKER) MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 58 < COIL > L102 1-410-330-11 INDUCTOR 22uH L103 1-410-330-11 INDUCTOR 22uH L104 1-411-901-11 COIL, ANTENNA L106 1-410-517-11 INDUCTOR 47uH L107 1-429-555-11 TRANSFORMER, MW OSC L109 1-410-330-11 INDUCTOR 22uH L113 1-410-330-11 INDUCTOR 22uH L201 1-419-200-11 COIL, BIAS OSCILLATION L405 1-408-096-00 COIL 470uH < TRANSISTOR > Q101 1-806-093-71 TRANSISTOR 2SC1675-L1 Q103 8-729-119-76 TRANSISTOR 2SA733-P Q104 8-729-041-83 TRANSISTOR 2SK544E Q109 8-729-194-57 TRANSISTOR 2SC945TP-P Q110 8-729-194-57 TRANSISTOR 2SC945TP-P Q201 8-729-194-57 TRANSISTOR 2SC945TP-P Q202 8-729-194-57 TRANSISTOR 2SC945TP-P Q203 8-729-194-57 TRANSISTOR 2SC945TP-P Q204 8-729-194-57 TRANSISTOR 2SC945TP-P Q205 8-729-194-57 TRANSISTOR 2SC945TP-P Q206 8-729-194-57 TRANSISTOR 2SC945TP-P Q207 8-729-119-76 TRANSISTOR 2SA733-P Q208 8-729-119-76 TRANSISTOR 2SA733-P Q209 8-729-194-57 TRANSISTOR 2SC945TP-P Q210 8-729-194-57 TRANSISTOR 2SC945TP-P Q211 8-729-194-57 TRANSISTOR 2SC945TP-P Q213 8-729-194-57 TRANSISTOR 2SC945TP-P Q214 8-729-194-57 TRANSISTOR 2SC945TP-P Q251 8-729-142-46 TRANSISTOR 2SC2001-L Q252 8-729-119-76 TRANSISTOR 2SA733-P Q253 8-729-194-57 TRANSISTOR 2SC945TP-P Q301 8-729-231-55 TRANSISTOR 2SC2878-A Q302 8-729-231-55 TRANSISTOR 2SC2878-A Q303 8-729-194-57 TRANSISTOR 2SC945TP-P Q304 8-729-194-57 TRANSISTOR 2SC945TP-P Q305 8-729-194-57 TRANSISTOR 2SC945TP-P Q308 8-729-194-57 TRANSISTOR 2SC945TP-P Q309 8-729-194-57 TRANSISTOR 2SC945TP-P Q310 8-729-194-57 TRANSISTOR 2SC945TP-P Q311 8-729-194-57 TRANSISTOR 2SC945TP-P Q312 8-729-026-29 TRANSISTOR 2SJ346 Q313 8-729-026-29 TRANSISTOR 2SJ346 Q314 8-729-231-55 TRANSISTOR 2SC2878-A Q315 8-729-231-55 TRANSISTOR 2SC2878-A Q316 8-729-194-57 TRANSISTOR 2SC945TP-P Q317 8-729-194-57 TRANSISTOR 2SC945TP-P Q318 8-729-194-57 TRANSISTOR 2SC945TP-P Q401 8-729-188-23 TRANSISTOR 2SD882-P Q403 8-729-232-32 TRANSISTOR 2SA965-O/Y(TPE6) Q405 8-729-140-96 TRANSISTOR 2SC2060-R Q406 8-729-232-32 TRANSISTOR 2SA965-O/Y(TPE6) Q407 8-729-026-29 TRANSISTOR 2SJ346 Q411 8-729-026-29 TRANSISTOR 2SJ346 Q412 8-729-119-76 TRANSISTOR 2SA733-P Q413 8-729-194-57 TRANSISTOR 2SC945TP-P Q414 8-729-048-99 TRANSISTOR 2SK2541 Q415 8-729-048-99 TRANSISTOR 2SK2541 Q419 8-729-194-57 TRANSISTOR 2SC945TP-P Q420 8-729-194-57 TRANSISTOR 2SC945TP-P < RESISTOR > R101 1-247-855-11 CARBON 10K 5% 1/4W R102 1-249-411-11 CARBON 330 5% 1/4W R103 1-247-835-11 CARBON 1.5K 5% 1/4W R105 1-249-411-11 CARBON 330 5% 1/4W R106 1-247-839-11 CARBON 2.2K 5% 1/4W R107 1-249-427-11 CARBON 6.8K 5% 1/4W F R108 1-247-871-11 CARBON 47K 5% 1/4W R109 1-247-871-11 CARBON 47K 5% 1/4W R112 1-247-807-11 CARBON 100 5% 1/4W R113 1-247-843-11 CARBON 3.3K 5% 1/4W R114 1-249-417-11 CARBON 1K 5% 1/4W F R115 1-249-417-11 CARBON 1K 5% 1/4W F R116 1-249-397-11 CARBON 22 5% 1/4W F R117 1-247-863-11 CARBON 22K 5% 1/4W R118 1-247-807-11 CARBON 100 5% 1/4W R119 1-249-410-11 CARBON 270 5% 1/4W F R120 1-247-843-11 CARBON 3.3K 5% 1/4W R121 1-247-855-11 CARBON 10K 5% 1/4W R122 1-249-432-11 CARBON 18K 5% 1/4W R123 1-249-428-11 CARBON 8.2K 5% 1/4W F R124 1-247-843-11 CARBON 3.3K 5% 1/4W R125 1-249-409-11 CARBON 220 5% 1/4W F R126 1-247-843-11 CARBON 3.3K 5% 1/4W R127 1-247-843-11 CARBON 3.3K 5% 1/4W R128 1-249-424-11 CARBON 3.9K 5% 1/4W F R129 1-249-424-11 CARBON 3.9K 5% 1/4W F R130 1-249-405-11 CARBON 100 5% 1/4W F R131 1-249-417-11 CARBON 1K 5% 1/4W F R132 1-247-855-11 CARBON 10K 5% 1/4W R133 1-247-849-11 CARBON 5.6K 5% 1/4W R134 1-247-855-11 CARBON 10K 5% 1/4W R135 1-249-417-11 CARBON 1K 5% 1/4W F R136 1-247-879-11 CARBON 100K 5% 1/4W R137 1-247-855-11 CARBON 10K 5% 1/4W R138 1-247-807-11 CARBON 100 5% 1/4W R139 1-247-855-11 CARBON 10K 5% 1/4W R140 1-247-855-11 CARBON 10K 5% 1/4W R141 1-247-839-11 CARBON 2.2K 5% 1/4W R142 1-247-839-11 CARBON 2.2K 5% 1/4W R143 1-247-839-11 CARBON 2.2K 5% 1/4W R146 1-249-417-11 CARBON 1K 5% 1/4W F R148 1-247-855-11 CARBON 10K 5% 1/4W R149 1-247-855-11 CARBON 10K 5% 1/4W R150 1-247-843-11 CARBON 3.3K 5% 1/4W R171 1-249-411-11 CARBON 330 5% 1/4W R201 1-249-393-11 CARBON 10 5% 1/4W F R202 1-249-393-11 CARBON 10 5% 1/4W F R203 1-249-393-11 CARBON 10 5% 1/4W F R204 1-249-393-11 CARBON 10 5% 1/4W F R205 1-249-401-11 CARBON 47 5% 1/4W F R206 1-249-401-11 CARBON 47 5% 1/4W F R207 1-249-428-11 CARBON 8.2K 5% 1/4W F R208 1-249-428-11 CARBON 8.2K 5% 1/4W F R209 1-247-889-00 CARBON 270K 5% 1/4W R210 1-247-889-00 CARBON 270K 5% 1/4W R211 1-247-891-00 CARBON 330K 5% 1/4W R212 1-247-891-00 CARBON 330K 5% 1/4W R213 1-247-847-11 CARBON 4.7K 5% 1/4W R214 1-247-847-11 CARBON 4.7K 5% 1/4W R215 1-247-891-00 CARBON 330K 5% 1/4W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 59 R216 1-247-891-00 CARBON 330K 5% 1/4W R217 1-247-855-11 CARBON 10K 5% 1/4W R218 1-247-885-00 CARBON 180K 5% 1/4W R219 1-247-871-11 CARBON 47K 5% 1/4W R220 1-247-863-11 CARBON 22K 5% 1/4W R221 1-247-855-11 CARBON 10K 5% 1/4W R222 1-249-409-11 CARBON 220 5% 1/4W F R223 1-247-885-00 CARBON 180K 5% 1/4W R224 1-247-885-00 CARBON 180K 5% 1/4W R225 1-247-863-11 CARBON 22K 5% 1/4W R226 1-247-863-11 CARBON 22K 5% 1/4W R227 1-247-881-00 CARBON 120K 5% 1/4W R228 1-247-881-00 CARBON 120K 5% 1/4W R229 1-249-420-11 CARBON 1.8K 5% 1/4W F R230 1-249-420-11 CARBON 1.8K 5% 1/4W F R231 1-247-839-11 CARBON 2.2K 5% 1/4W R232 1-247-839-11 CARBON 2.2K 5% 1/4W R233 1-247-871-11 CARBON 47K 5% 1/4W R234 1-247-871-11 CARBON 47K 5% 1/4W R235 1-247-847-11 CARBON 4.7K 5% 1/4W R236 1-247-847-11 CARBON 4.7K 5% 1/4W R237 1-247-855-11 CARBON 10K 5% 1/4W R238 1-247-899-11 CARBON 680K 5% 1/4W R239 1-249-381-11 CARBON 1 5% 1/4W F R240 1-247-855-11 CARBON 10K 5% 1/4W R241 1-247-847-11 CARBON 4.7K 5% 1/4W R242 1-247-847-11 CARBON 4.7K 5% 1/4W R243 1-249-430-11 CARBON 12K 5% 1/4W R244 1-247-839-11 CARBON 2.2K 5% 1/4W R245 1-247-839-11 CARBON 2.2K 5% 1/4W R246 1-249-434-11 CARBON 27K 5% 1/4W R247 1-247-855-11 CARBON 10K 5% 1/4W R248 1-247-847-11 CARBON 4.7K 5% 1/4W R249 1-247-899-11 CARBON 680K 5% 1/4W R250 1-247-885-00 CARBON 180K 5% 1/4W R251 1-249-434-11 CARBON 27K 5% 1/4W R252 1-249-393-11 CARBON 10 5% 1/4W F R253 1-247-825-11 CARBON 560 5% 1/4W R254 1-247-855-11 CARBON 10K 5% 1/4W R255 1-247-847-11 CARBON 4.7K 5% 1/4W R256 1-247-855-11 CARBON 10K 5% 1/4W R257 1-249-412-11 CARBON 390 5% 1/4W F R258 1-249-409-11 CARBON 220 5% 1/4W F R261 1-249-412-11 CARBON 390 5% 1/4W F R262 1-247-879-11 CARBON 100K 5% 1/4W R263 1-247-855-11 CARBON 10K 5% 1/4W R264 1-247-855-11 CARBON 10K 5% 1/4W R271 1-249-417-11 CARBON 1K 5% 1/4W F R301 1-249-417-11 CARBON 1K 5% 1/4W F R302 1-249-417-11 CARBON 1K 5% 1/4W F R303 1-249-418-11 CARBON 1.2K 5% 1/4W F R304 1-249-418-11 CARBON 1.2K 5% 1/4W F R305 1-247-839-11 CARBON 2.2K 5% 1/4W R306 1-247-839-11 CARBON 2.2K 5% 1/4W R309 1-249-417-11 CARBON 1K 5% 1/4W F R310 1-249-417-11 CARBON 1K 5% 1/4W F R311 1-247-879-11 CARBON 100K 5% 1/4W R312 1-247-879-11 CARBON 100K 5% 1/4W R313 1-247-855-11 CARBON 10K 5% 1/4W R314 1-247-855-11 CARBON 10K 5% 1/4W R315 1-247-879-11 CARBON 100K 5% 1/4W R316 1-247-887-00 CARBON 220K 5% 1/4W R317 1-249-417-11 CARBON 1K 5% 1/4W F R318 1-249-417-11 CARBON 1K 5% 1/4W F R319 1-247-855-11 CARBON 10K 5% 1/4W R324 1-247-839-11 CARBON 2.2K 5% 1/4W R325 1-247-839-11 CARBON 2.2K 5% 1/4W R327 1-247-841-11 CARBON 2.7K 5% 1/4W R328 1-247-841-11 CARBON 2.7K 5% 1/4W R329 1-247-849-11 CARBON 5.6K 5% 1/4W R330 1-247-849-11 CARBON 5.6K 5% 1/4W R331 1-247-903-00 CARBON 1M 5% 1/4W R332 1-247-903-00 CARBON 1M 5% 1/4W R334 1-247-855-11 CARBON 10K 5% 1/4W R335 1-249-413-11 CARBON 470 5% 1/4W F R336 1-247-891-00 CARBON 330K 5% 1/4W R337 1-249-431-11 CARBON 15K 5% 1/4W R338 1-247-871-11 CARBON 47K 5% 1/4W R339 1-249-431-11 CARBON 15K 5% 1/4W R340 1-247-852-11 CARBON 7.5K 5% 1/4W R341 1-247-871-11 CARBON 47K 5% 1/4W R342 1-247-852-11 CARBON 7.5K 5% 1/4W R344 1-249-403-11 CARBON 68 5% 1/4W F R345 1-247-903-00 CARBON 1M 5% 1/4W R346 1-247-903-00 CARBON 1M 5% 1/4W R347 1-247-847-11 CARBON 4.7K 5% 1/4W R348 1-247-847-11 CARBON 4.7K 5% 1/4W R349 1-247-839-11 CARBON 2.2K 5% 1/4W R350 1-247-839-11 CARBON 2.2K 5% 1/4W R355 1-247-871-11 CARBON 47K 5% 1/4W R356 1-247-871-11 CARBON 47K 5% 1/4W R357 1-247-897-11 CARBON 560K 5% 1/4W R358 1-247-879-11 CARBON 100K 5% 1/4W R359 1-247-903-00 CARBON 1M 5% 1/4W R360 1-247-903-00 CARBON 1M 5% 1/4W R362 1-249-409-11 CARBON 220 5% 1/4W F R363 1-247-879-11 CARBON 100K 5% 1/4W R365 1-249-417-11 CARBON 1K 5% 1/4W F R366 1-249-417-11 CARBON 1K 5% 1/4W F R367 1-247-847-11 CARBON 4.7K 5% 1/4W R368 1-247-847-11 CARBON 4.7K 5% 1/4W R369 1-249-427-11 CARBON 6.8K 5% 1/4W F R370 1-249-427-11 CARBON 6.8K 5% 1/4W F R371 1-247-883-00 CARBON 150K 5% 1/4W R372 1-247-883-00 CARBON 150K 5% 1/4W R373 1-247-847-11 CARBON 4.7K 5% 1/4W R374 1-247-847-11 CARBON 4.7K 5% 1/4W R375 1-247-891-00 CARBON 330K 5% 1/4W R376 1-247-891-00 CARBON 330K 5% 1/4W R377 1-249-432-11 CARBON 18K 5% 1/4W R378 1-249-432-11 CARBON 18K 5% 1/4W R379 1-247-839-11 CARBON 2.2K 5% 1/4W R380 1-247-839-11 CARBON 2.2K 5% 1/4W R381 1-249-417-11 CARBON 1K 5% 1/4W F R382 1-249-417-11 CARBON 1K 5% 1/4W F R387 1-247-879-11 CARBON 100K 5% 1/4W R388 1-247-879-11 CARBON 100K 5% 1/4W R389 1-249-427-11 CARBON 6.8K 5% 1/4W F R390 1-249-427-11 CARBON 6.8K 5% 1/4W F R391 1-247-855-11 CARBON 10K 5% 1/4W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 60 R392 1-247-855-11 CARBON 10K 5% 1/4W R395 1-249-417-11 CARBON 1K 5% 1/4W F R396 1-249-417-11 CARBON 1K 5% 1/4W F R399 1-247-839-11 CARBON 2.2K 5% 1/4W R401 1-247-807-11 CARBON 100 5% 1/4W R402 1-247-807-11 CARBON 100 5% 1/4W R403 1-247-827-11 CARBON 680 5% 1/4W R405 1-215-863-11 METAL OXIDE 100 5% 1W F R406 1-249-418-11 CARBON 1.2K 5% 1/4W F R408 1-249-417-11 CARBON 1K 5% 1/4W F R409 1-215-863-11 METAL OXIDE 100 5% 1W F R410 1-247-839-11 CARBON 2.2K 5% 1/4W R412 1-215-863-11 METAL OXIDE 100 5% 1W F R414 1-247-903-00 CARBON 1M 5% 1/4W R416 1-247-903-00 CARBON 1M 5% 1/4W R424 1-249-417-11 CARBON 1K 5% 1/4W F R425 1-249-417-11 CARBON 1K 5% 1/4W F R426 1-247-847-11 CARBON 4.7K 5% 1/4W R427 1-247-855-11 CARBON 10K 5% 1/4W R440 1-247-708-11 CARBON 470 5% 1/4W F R441 1-247-708-11 CARBON 470 5% 1/4W F R442 1-247-855-11 CARBON 10K 5% 1/4W R443 1-247-855-11 CARBON 10K 5% 1/4W R444 1-249-393-11 CARBON 10 5% 1/4W F R470 1-247-879-11 CARBON 100K 5% 1/4W R471 1-247-903-00 CARBON 1M 5% 1/4W R472 1-249-417-11 CARBON 1K 5% 1/4W F R473 1-247-863-11 CARBON 22K 5% 1/4W R474 1-247-863-11 CARBON 22K 5% 1/4W R475 1-247-879-11 CARBON 100K 5% 1/4W R476 1-247-889-00 CARBON 270K 5% 1/4W R122A 1-249-427-11 CARBON 6.8K 5% 1/4W F R205A 1-249-409-11 CARBON 220 5% 1/4W F R206A 1-249-409-11 CARBON 220 5% 1/4W F R240A 1-247-855-11 CARBON 10K 5% 1/4W R307A 1-249-417-11 CARBON 1K 5% 1/4W F R308A 1-249-417-11 CARBON 1K 5% 1/4W F R3100 1-247-839-11 CARBON 2.2K 5% 1/4W R3101 1-247-839-11 CARBON 2.2K 5% 1/4W R3108 1-249-417-11 CARBON 1K 5% 1/4W F R3109 1-249-417-11 CARBON 1K 5% 1/4W F R3110 1-247-879-11 CARBON 100K 5% 1/4W R3111 1-247-879-11 CARBON 100K 5% 1/4W R3112 1-247-855-11 CARBON 10K 5% 1/4W R3113 1-247-843-11 CARBON 3.3K 5% 1/4W R3114 1-247-855-11 CARBON 10K 5% 1/4W R3115 1-247-855-11 CARBON 10K 5% 1/4W R3116 1-247-879-11 CARBON 100K 5% 1/4W R3117 1-247-879-11 CARBON 100K 5% 1/4W R3118 1-249-417-11 CARBON 1K 5% 1/4W F R3119 1-249-417-11 CARBON 1K 5% 1/4W F R3121 1-247-879-11 CARBON 100K 5% 1/4W R3122 1-249-416-11 CARBON 820 5% 1/4W F R3123 1-247-855-11 CARBON 10K 5% 1/4W R3124 1-249-417-11 CARBON 1K 5% 1/4W F R3125 1-247-879-11 CARBON 100K 5% 1/4W R3128 1-247-839-11 CARBON 2.2K 5% 1/4W R3129 1-247-839-11 CARBON 2.2K 5% 1/4W R3132 1-247-879-11 CARBON 100K 5% 1/4W R3133 1-247-879-11 CARBON 100K 5% 1/4W R3134 1-247-855-11 CARBON 10K 5% 1/4W R3135 1-247-855-11 CARBON 10K 5% 1/4W R3136 1-247-863-11 CARBON 22K 5% 1/4W R3137 1-247-847-11 CARBON 4.7K 5% 1/4W R3138 1-247-839-11 CARBON 2.2K 5% 1/4W R3139 1-247-839-11 CARBON 2.2K 5% 1/4W R3140 1-247-863-11 CARBON 22K 5% 1/4W R403A 1-215-857-11 METAL OXIDE 10 5% 1W F R427A 1-247-855-11 CARBON 10K 5% 1/4W R476A 1-247-835-11 CARBON 1.5K 5% 1/4W R3138A 1-247-855-11 CARBON 10K 5% 1/4W < RELAY > RL401 1-515-921-11 RELAY (12V) RL402 1-515-921-11 RELAY (12V) < ADJUSTABLE RESISTOR > SRF101 1-238-601-11 RES, ADJ, CARBON, 22K < TRANSFORMER > T102 1-429-554-11 TRANSFORMER, AM IFT < TRIMMER > TC101 1-141-304-21 CAP, TRIMMER 10PF < VIBRATOR > X101 1-579-585-11 VIBRATOR, CRYSTAL 7.2MHz ************************************************************ 1-674-792-11 MOTOR BOARD ************ < CAPACITOR > C01 1-124-259-11 ELECT 4.7uF 20% 50V C082 1-164-159-11 CERAMIC 0.1uF 50V < CONNECTOR > * CN06 1-568-824-11 SOCKET, CONNECTOR 5P ************************************************************ * 1-639-678-12 MOTOR (6P)(S) BOARD ******************* CN1 1-564-722-11 PIN, CONNECTOR (SMALL TYPE) 6P < MOTOR > M101 X-2625-877-1 MOTOR ASSY (SPINDLE) M102 X-2625-769-1 MOTOR ASSY (SLED) < RESISTOR > R710A 1-249-417-11 CARBON 1K 5% 1/4W F < SWITCH > S1 1-572-085-11 SWITCH, LEAF (LIMIT) ************************************************************ MAIN MOTOR MOTOR (6P) (S) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 61 1-674-794-11 PHOTO SOCKET BOARD ******************* < CAPACITOR > C710A 1-164-159-11 CERAMIC 0.1uF 50V < CONNECTOR > * CN703 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P < PHOTO INTERRUPTER > PH701 8-749-923-04 IC TOTX178A ************************************************************ 1-675-353-11 SENSOR BOARD ************* < CAPACITOR > C644 1-126-964-11 ELECT 10uF 20% 50V < IC > RM601 8-749-013-84 IC SPS-447-1 ************************************************************ 1-674-788-11 SW (A) BOARD ************ < SWITCH > S04 1-771-169-11 SWITCH (TURN TABLE OPERATION DET) ************************************************************ 1-674-789-11 SW (B) BOARD ************ < SWITCH > S03 1-771-169-11 SWITCH (TURN TABLE POSITION DET) ************************************************************ 1-674-790-11 SW (C) BOARD ************ < SWITCH > S02 1-571-300-21 SWITCH, ROTARY (OPEN/CLOSE DET) ************************************************************ 1-674-791-11 SW (D) BOARD ************ < SWITCH > S01 1-571-300-21 SWITCH, ROTARY (OPTICAL PICK-UP DET) ************************************************************ MISCELLANEOUS ************** 4 1-763-410-11 FAN, DC !13 1-551-506-99 CORD, POWER (GRX40AV:MX) !13 1-555-795-00 CORD, POWER (GRX40AV:SA,RXD6AV) !13 1-696-966-11 CORD, POWER (GRX40AV:AUS) 71 1-769-273-11 WIRE (FLAT TYPE) (22 CORE) 72 1-783-579-11 WIRE (FLAT TYPE) (16 CORE) 73 1-772-164-11 DECK, MECH 108 1-675-355-11 H/P BOARD 201 1-769-856-11 WIRE (FLAT TYPE) (5 CORE) 260 1-783-740-11 WIRE (FLAT TYPE) !261 8-820-054-03 OPTICAL PICK-UP KSM-213ECM/C2NP M101 X-2625-877-1 MOTOR ASSY (SPINDLE) M102 X-2625-769-1 MOTOR ASSY (SLED) M103 X-4948-765-1 MOTOR ASSY (TURN TABLE) M104 X-4948-766-1 MOTOR ASSY (A) (TRAY) !T001 1-435-132-11 TRANSFORMER, POWER (RXD6AV) !T001 1-435-133-11 TRANSFORMER, POWER (GRX40AV:MX) !T001 1-435-134-11 TRANSFORMER, POWER (GRX40AV:AUS,SA) *********************************************************** ************** HARDWARE LIST ************** #1 7-685-106-19 SCREW +P 2 × 10 TYPE2 SLIT #2 7-685-902-21 SCREW +PTPWH 2.6 × 8 (TYPE2) #3 7-624-105-04 STOP RING 2.3, TYPE -E #4 7-685-546-04 SCREW +B 3 × 5 #5 7-685-131-19 SCREW +P 2.6 × 4 TYPE2 SLIT #6 7-685-139-29 SCREW, TAPPING (M2.6 × 20) #7 7-685-645-79 SCREW +BVTP 3 × 6 TYPE2 TT(B) #8 7-685-138-19 SCREW +BTP 2.6 × 16 TYPE2 N-2 #9 7-624-118-01 RING, RETAINING E-2.5 #10 7-685-903-21 SCREW +PTPWH 3 × 8 (TYPE2) #11 7-685-648-79 SCREW +BVTP 3 × 12 TYPE2 N-S #12 7-682-904-11 SCREW +PWH 4 × 8 #13 7-685-649-79 SCREW +BVTP 3 × 14 TYPE2 N-S #14 7-685-660-79 SCREW +PTPWH 4 × 10 TYPE 2 #15 7-685-646-79 SCREW +BVTP 3 × 8 TYPE2 TT(B) #16 7-685-246-19 SCREW +KTP 3 × 8 TYPE2 NON-SLIT #17 7-685-647-79 SCREW, TAPPING #18 7-685-903-31 SCREW +PTPWH 3 × 10 (TYPE2) #19 7-685-883-01 SCREW +BVTT 4 × 12 (S) #20 7-685-661-79 SCREW +P 4 × 12 TYPE2 NON-SLIT #21 7-685-153-19 SCREW +P 3 × 30 TYPE2 NON-SLIT #22 7-624-105-04 STOP RING 2.3, TYPE -E SW (D) SW (C) SW (B) SENSOR SW (A) The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. PHOTO SOCKET www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 HCD-GRX40AV/RXD6AV Sony Corporation Home Audio Company 9-928-991-11 99G1671-1 Printed in Japan ©1999.7 Published by Quality Assurance Dept. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
