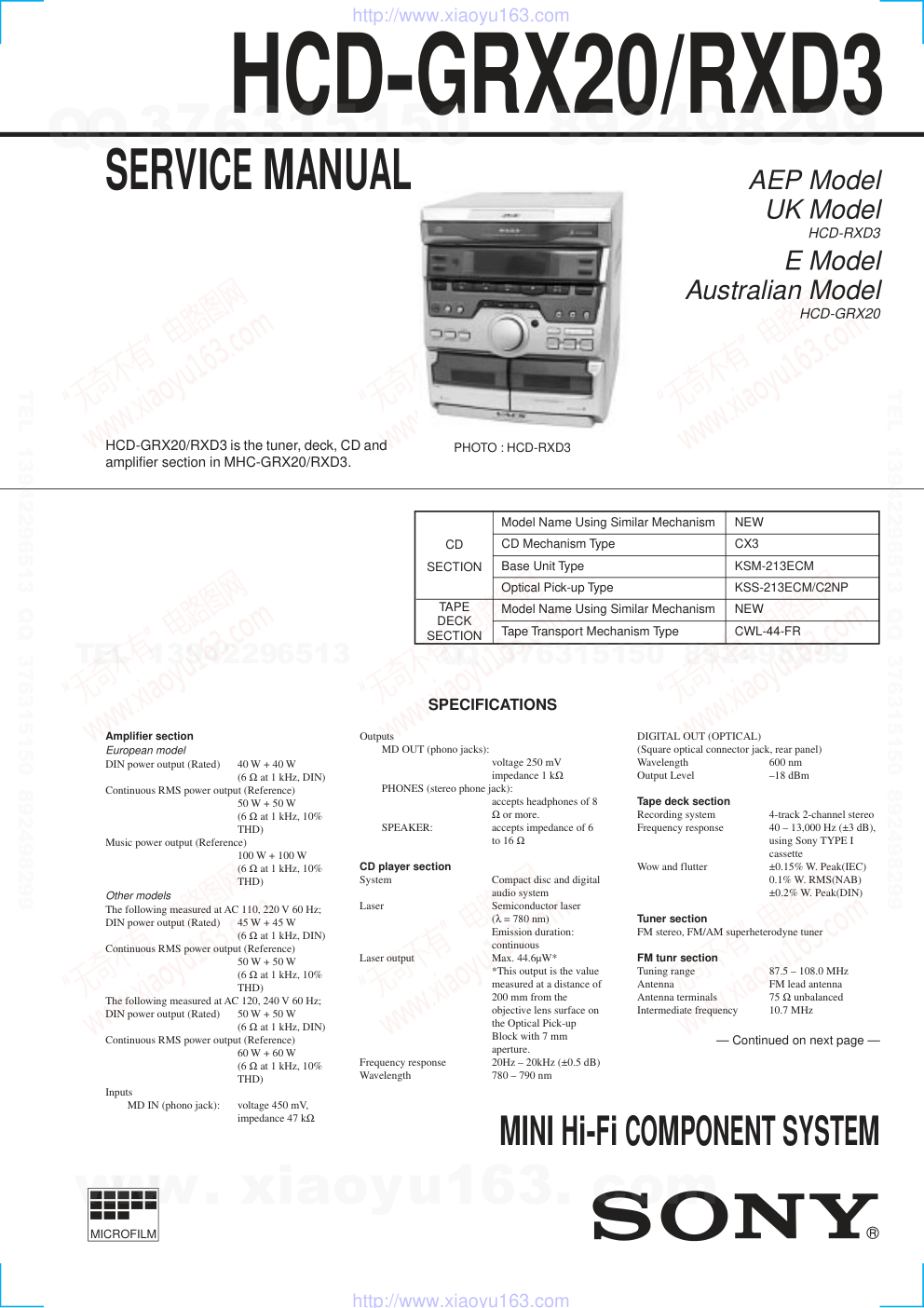

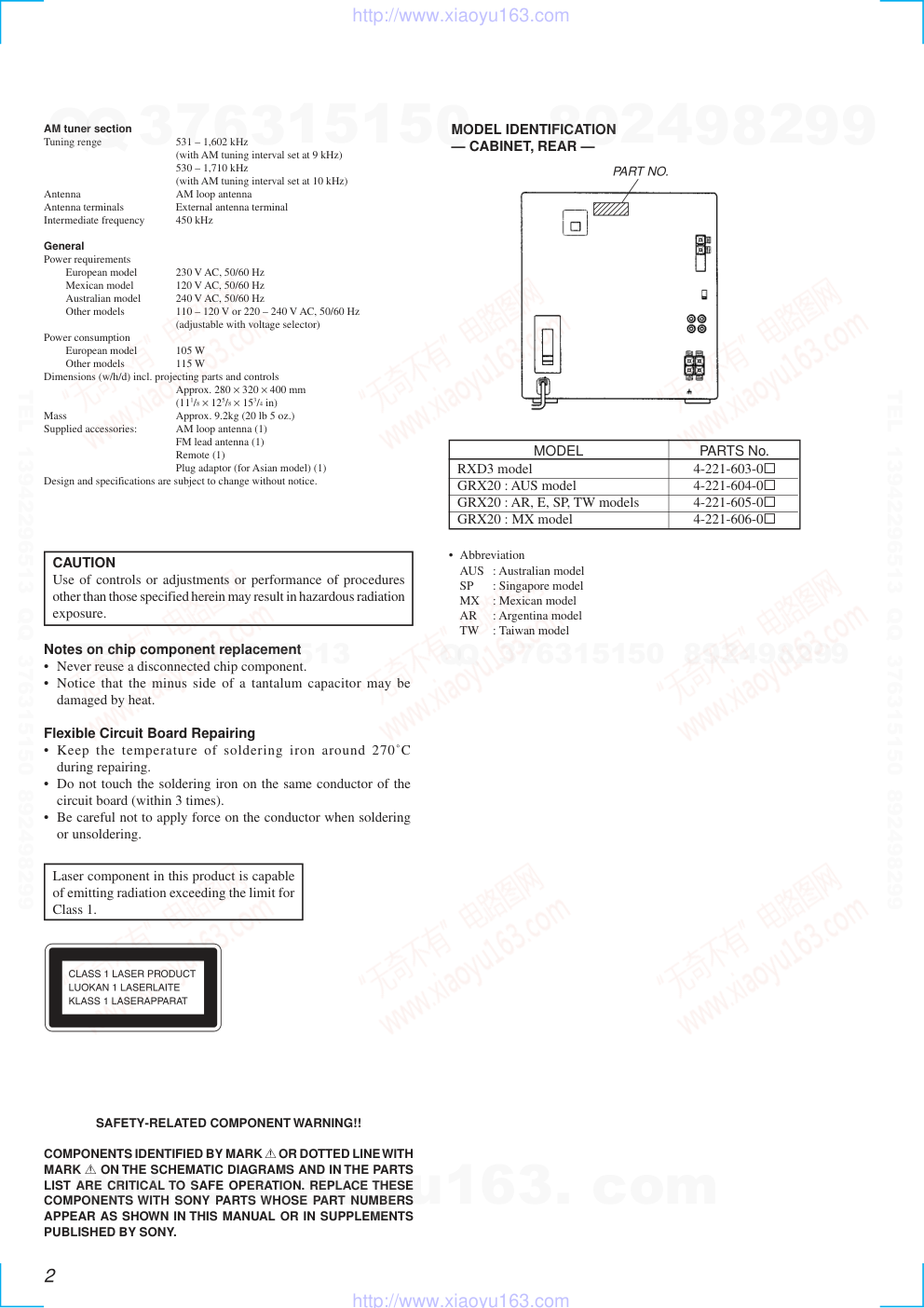

AEP Model UK Model HCD-RXD3 E Model Australian Model HCD-GRX20 SERVICE MANUAL MINI Hi-Fi COMPONENT SYSTEM MICROFILM — Continued on next page — SPECIFICATIONS Model Name Using Similar Mechanism NEW CD Mechanism Type CX3 Base Unit Type KSM-213ECM Optical Pick-up Type KSS-213ECM/C2NP Model Name Using Similar Mechanism NEW Tape Transport Mechanism Type CWL-44-FR CD SECTION TAPE DECK SECTION HCD-GRX20/RXD3 is the tuner, deck, CD and amplifier section in MHC-GRX20/RXD3. PHOTO : HCD-RXD3 Amplifier section European model DIN power output (Rated) 40 W + 40 W (6 Ω at 1 kHz, DIN) Continuous RMS power output (Reference) 50 W + 50 W (6 Ω at 1 kHz, 10% THD) Music power output (Reference) 100 W + 100 W (6 Ω at 1 kHz, 10% THD) Other models The following measured at AC 110, 220 V 60 Hz; DIN power output (Rated) 45 W + 45 W (6 Ω at 1 kHz, DIN) Continuous RMS power output (Reference) 50 W + 50 W (6 Ω at 1 kHz, 10% THD) The following measured at AC 120, 240 V 60 Hz; DIN power output (Rated) 50 W + 50 W (6 Ω at 1 kHz, DIN) Continuous RMS power output (Reference) 60 W + 60 W (6 Ω at 1 kHz, 10% THD) Inputs MD IN (phono jack): voltage 450 mV, impedance 47 kΩ Outputs MD OUT (phono jacks): voltage 250 mV impedance 1 kΩ PHONES (stereo phone jack): accepts headphones of 8 Ω or more. SPEAKER: accepts impedance of 6 to 16 Ω CD player section System Compact disc and digital audio system Laser Semiconductor laser (λ = 780 nm) Emission duration: continuous Laser output Max. 44.6µW* *This output is the value measured at a distance of 200 mm from the objective lens surface on the Optical Pick-up Block with 7 mm aperture. Frequency response 20Hz – 20kHz (±0.5 dB) Wavelength 780 – 790 nm DIGITAL OUT (OPTICAL) (Square optical connector jack, rear panel) Wavelength 600 nm Output Level –18 dBm Tape deck section Recording system 4-track 2-channel stereo Frequency response 40 – 13,000 Hz (±3 dB), using Sony TYPE I cassette Wow and flutter ±0.15% W. Peak(IEC) 0.1% W. RMS(NAB) ±0.2% W. Peak(DIN) Tuner section FM stereo, FM/AM superheterodyne tuner FM tunr section Tuning range 87.5 – 108.0 MHz Antenna FM lead antenna Antenna terminals 75 Ω unbalanced Intermediate frequency 10.7 MHz www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing • Keep the temperature of soldering iron around 270˚C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. MODEL IDENTIFICATION — CABINET, REAR — • Abbreviation AUS : Australian model SP : Singapore model MX : Mexican model AR : Argentina model TW : Taiwan model PART NO. RXD3 model 4-221-603-0π GRX20 : AUS model 4-221-604-0π GRX20 : AR, E, SP, TW models 4-221-605-0π GRX20 : MX model 4-221-606-0π PARTS No. MODEL AM tuner section Tuning renge 531 – 1,602 kHz (with AM tuning interval set at 9 kHz) 530 – 1,710 kHz (with AM tuning interval set at 10 kHz) Antenna AM loop antenna Antenna terminals External antenna terminal Intermediate frequency 450 kHz General Power requirements European model 230 V AC, 50/60 Hz Mexican model 120 V AC, 50/60 Hz Australian model 240 V AC, 50/60 Hz Other models 110 – 120 V or 220 – 240 V AC, 50/60 Hz (adjustable with voltage selector) Power consumption European model 105 W Other models 115 W Dimensions (w/h/d) incl. projecting parts and controls Approx. 280 × 320 × 400 mm (111/8 × 125/8 × 153/4 in) Mass Approx. 9.2kg (20 lb 5 oz.) Supplied accessories: AM loop antenna (1) FM lead antenna (1) Remote (1) Plug adaptor (for Asian model) (1) Design and specifications are subject to change without notice. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 TABLE OF CONTENTS 1. GENERAL ·········································································· 4 2. DISASSEMBLY 2-1. CD Door ············································································· 5 2-2. Front Panel ········································································· 6 2-3. Main Board ········································································· 6 2-4. Amplifier Board ································································· 7 2-5. CD Tray ·············································································· 7 2-6. Decord Board ····································································· 8 2-7. Base Unit ············································································ 9 2-8. Cassette Lid ········································································ 9 3. TEST MODE ···································································· 10 4. MECHANICAL ADJUSTMENTS ····························· 11 5. ELECTRICAL ADJUSTMENTS ······························· 11 6. DIAGRAMS 6-1. Circuit Boards Location ··················································· 16 6-2. Block Diagrams ································································ 17 Main Section····································································· 17 Tuner, CD Section ···························································· 18 6-3. Printed Wiring Board Main Section ······························· 20 6-4. Schematic Diagram Main (1/3) Section ························· 21 6-5. Schematic Diagram Main (2/3) Section ························· 22 6-6. Schematic Diagram Main (3/3) Section ························· 23 6-7. Printed Wiring Board Front Panel Section ····················· 24 6-8. Schematic Diagram Front Panel Section ························ 25 6-9. Printed Wiring Board Amplifier Section ························ 26 6-10. Schematic Diagram Amplifier Section ··························· 27 6-11. Printed Wiring Board CD Section ·································· 28 6-12. Schematic Diagram CD Section ····································· 29 6-13. IC Pin Function ································································ 30 6-14. IC Block Diagrams ··························································· 31 7. EXPLODED VIEWS 7-1. Cabinet Section································································· 35 7-2. Front Panel Section ·························································· 36 7-3. CD Mechanism Deck Section-1 ······································· 37 7-4. CD Mechanism Deck Section-2 ······································· 38 7-5. Base Unit Section (KSM-213ECM) ································· 39 8. ELECTRICAL PARTS LIST ······································· 40 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 1 1/u (Power) button 2 TIMER SELECT button 3 CLOCK/TIMER SET button 4 ( (TAPE A) button 5 9 (TAPE B) button 6 ( (TAPE B) button 7 p (STOP) button 8 ^ (CD) button 9 DISPLAY/DEMO button !º FUNCTION button !¡ TUNER/BAND button !™ + button !£ + + button !¢ CD SYNC button !∞ PAUSE button !§ REC button !¶ 6 OPEN/CLOSE button !• DISC SKIP/EX-CHANGE button !ª DISC 3 button @º DISC 2 button @¡ DISC 1 button @™ DECK B @£ ENTER/NEXT button @¢ VOLUME knob @∞ DECK A @§ REPEAT/STEREO/MONO button @¶ PLAY MODE/TUNER MEMORY button @• EDIT/DIRECTION button @ª DBFB button #º FILE SELECT button #¡ PHONES jack #™ = – button #£ = button SECTION 1 GENERAL 4 3 2 #¡� @¶� @•� @§� @∞� @¢� @£� @™� @¡� @º� !ª� !§� !∞� !¶� !•� !¢� !£� !™� 5 6 7 8 9 !º� !¡� 1 #£� #™� #º� @ª� www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 SECTION 2 DISASSEMBLY Note : Follow the disassembly procedure in the numerical order given. 2-1. CD DOOR 8 CD door 5 Top cover 4 Remove the claws 4 Remove the claws 7 Remove the claws 2 Three screws 1 Three srews 3 Five screws 6 Pull out the CD tray and remove the CD door with releasing claws into the directioin of arrow. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 2-2. FRONT PANEL 2-3. MAIN BOARD 9 Board to board connectors (CN602) (CN601) MAIN board 3 Harness (CN303) 1 Three screws 2 Screw !º Front panel 4 Flat type wire (CN705) 5 Flat type wire (CN501) 7 Connector (CN201) 8 Remove the claws 6 Connector (to deckB) 6 Five screws 4 CD mechanism deck 2 Two screws 3 Connector (CN703) 5 Harness (CN701) 1 Harness (CN301) 7 MAIN board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 2-4. AMPLIFIER BOARD 2-5. CD TRAY 2 Two screws 6 Rear cover 5 Remove the claws 4 Two screws 1 Connector (CN703) 8 Three screws 7 Three screws 9 Three screws !º AMPLIFIER board 3 Three screws 1 Screw 2 Bracket 4 Bracket 5 Flat type wire (CN06) 3 Screw 6 CD tray www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 2-6. DECORD BOARD 4 Three screws 6 CD decode board 1 Flat cable (CN706) 3 Flat cable (CN701) 2 Connector (CN707) 5 Connector (CN702) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 2-8. CASSETTE LID 2-7. BASE UNIT 2 Screw 3 UD-gear 4 Screw 5 UD-Cam 8 Spring 7 Spring 6 Spring 1 Two screws 9 Base unit Cassette door (Note: Four claws are used.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 SECTION 3 TEST MODE Function Key combination Description Initialization STOP + POWER OFF All preset data is re-set to the initial (default) value. Model display STOP + DISC 1 Mode name is displayed. Destination display STOP + DISC 2 Destination is displayed. Version display STOP + DISC 3 Version number of the microprocessor is displayed. CD aging mode STOP + DISC SKIP/EX-CHANGE Set discs to DISC 1 and DISC 3. The following operations are repeated when aging starts: 1. DISC 1: TOC Read 2. Plays back the last music of the DISC 1. 3. DISC 3 : TOC Read 4. Plays back the last music of the DISC 3. 5. STOP 6. Tray is open and closed. TAPE aging mode STOP + PLAY A Insert a commercially available cassette tape (10 min) to the decks A and B. When aging starts, each tape is rewound and the following operations are repeated: 1. TAPE A: FWD PLAY for one minute 2. TAPE A: FWD STOP for one second 3. TAPE A: FWD PLAY for three minutes 4. TAPE A: FWD FF to tape end 5. TAPE B: FWD PLAY for one minute 6. TAPE B: FWD REC PAUSE for one second 7. TAPE B: FWD REC for three minutes 8. TAPE B: FWD FF to tape end 9. TAPE B: REV PLAY for one minute 10. TAPE B: REV REC PAUSE for one second 11. TAPE B: REV REC for three minutes 12. TAPE B: REV FF to tape end. CD service mode STOP + OPEN/CLOSE The message “CD S - -” is displayed on the screen. The sled is moved to the outer circumference while the FF button is pressed. Also, the SLED is moved to the inner circumference while the REW button is pressed. After pressing the PLAY button, FOCUS is turned ON, CLV-S is set, TRACKING and SLED servos are turned OFF and ADDRESS 3 = 3F, 37 is set. Display STOP + DBFB All displays are turned ON. Balance adjustment value STOP + DISPLAY/DEMO The balance adjustment value is displayed. Key check STOP + FILE SELECT Function of the pressed key is displayed. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 Precaution 1. Clean the following parts with a denatured alcohol-moistened swab: record/playback head pinch rollers erase head rubber belts capstan idlers 2. Demagnetize the record/playback head with a head demagnetizer. 3. Do not use a magnetized screwdriver for the adjustments. 4. After the adjustments, apply suitable locking compound to the parts adjusted. 5. The adjustments should be performed with the rated power supply voltage unless otherwise noted. Torque Measurement SECTION 4 MECHANICAL ADJUSTMENTS Meter reading 40 to 70 g • cm (0.56 - 0.97 oz • inch) 1 to 5 g • cm (0.01 - 0.07 oz • inch) 55 to 140 g • cm (0.76 - 1.94 oz • inch) Torque FWD FWD back tension FF/REW Torque meter CQ-102C CQ-102C CQ-201B SECTION 5 ELECTRICAL ADJUSTMENTS 1. Demagnetize the record/playback head with a head demagnetizer. 2. Do not use a magnetized screwdriver for the adjustments. 3. After the adjustments, apply suitable locking compound to the parts adjusted. 4. The adjustments should be performed with the rated power supply voltage unless otherwise noted. 5. The adjustments should be performed in the order given in this service manual. (As a general rule, playback circuit adjustment should be completed before performing recording circuit adjustment.) 6. The adjustments should be performed for both L-CH and R- CH. Record/Playback Head Azimuth Adjustment (Deck A, Deck B) Note: Perform this adjustments for both decks. Procedure: 1. Mode : Playback 2. Turn the adjustment screw and check output peaks. If the peaks do not match for L-CH and R-CH, turn the adjustment screw so that outputs match within 2 dB of peak. DECK SECTION 0 dB=0.775V Tape P-4-A100 WS-48B Signal 10 kHz, –10 dB 3 kHz, 0 dB Used for Azimuth Adjustment Tape Speed Adjustment test tape P-4-A100 (10kHz, –10dB) set SPEAKER terminal (JK401) level meter L-CH peak R-CH peak screw position output level within 2dB L-CH peak R-CH peak screw position within 2dB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 3. Mode: Playback 4. After the adjustments, apply suitable locking compound to the parts adjusted. Adjustment Location: Remove the cassette lid before adjustment (See page 9) Tape Speed Adjustment (Deck A) Procedure: 1. Mode: Playback 2. Adjust the SFR501 so that the frequency counter reads 3,000 Hz ± 90Hz. Adjustment Location: MAIN board Sample Value of Wow and flutter W. RMS (JIS) within 0.3% (test tape: WS-48B) [MAIN BOARD] — Component side — test tape P-4-A100 (10kHz, –10dB) SPEAKER terminal (JK401) (L-CH) SPEAKER terminal (JK401) (R-CH) oscilloscope L R Waveform of oscilloscope in phase 45˚ 90˚ 135˚ 180˚ good wrong Adjustment screws REC/PB head (deck B) or PB head (deck A) test tape WS-48B (3kHz, 0dB) set SPEAKER terminal (JK401) frequency counter + – Tape Speed CN501 CN601 SFR501 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 TUNER SECTION 0 dB=1µV AM Tuning Voltage Adjustment Procedure: 1. Set the reception frequency of the unit to 530 kHz. 2. Adjust L105 for 1.2 ± 0.05 V reading on the DC voltmeter. 3. Set the reception frequency of the unit to 1,710 kHz. 4. Confirm that the voltage reading on the DC voltmeter is within 8.0 ± 0.5 V. Adjustment Location: MAIN board (See page 14) AM Tracking Adjustment Procedure: 1. Tune the set to 600 kHz. 2. Set the output of AM RF SSG so that the input level of the set will become 60 dB (µV/m). 3. Adjust L104 so that when the waveform on the oscilloscope is maximum, no noise appears. 4. Tune the set to 1,400 kHz. 5. Adjust TC102 so that when the waveform on the oscilloscope is maximum, no noise appears. • Repeat the procedures in each adjustment several times, and the tracking adjustment should be finally done by the trimmer capacitors. Adjustment Location: MAIN board (See page 14) Main board TP1 G VT DC voltmeter + – AM RF SSG loop antenna set loop antenna (Supplied accessories) 60 cm AM ANTENNA terminal (TM1) 30% amplitude modulation by 400 Hz signal Field strength dB (µV/m) =SSG output level dB (µV/m) –26 dB. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 FM Tuned Level Adjustment Procedure: 1. Supply a 28 dB 98 MHz signal from the ANTENNA terminal. 2. Tune the set to 98 MHz. 3. Adjust SFR101 to the point (moment) when the TUNED indicator will change from going off to going on. Adjustment Location: MAIN board Adjustment Location [MAIN BOARD] — Component side — FM RF SSG 75 Ω coaxial Carrier frequency : 98 MHz Modulation : AUDIO 1 kHz, 75 kHz deviation (100%) Output level : 28 dB (at 75 W open) FM ANTENNA terminal (JK101) set L104 TC102 TP1 SFR101 L105 FM Tuned Level AM Tuning Voltage AM Tracking JK101 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 CD SECTION Note: 1. CD Block is basically constructed to operate without adjustment. Therefore, check each item in order given. 2. Use YEDS-18 disc (3-702-101-01) unless otherwise indicated. 3. Use an oscilloscope with more than 10MΩ impedance. 4. Clean the object lens by an applicator with neutral detergent when the signal level is low than specified value with the following checks. 5. Adjust the focus bias adjustment when optical block is replaced. RF Level Check Procedure : 1. Connect oscilloscope to test point TP (RF) on CD DECODER board. 2. Turned Power switch on. 3. Put disc (YEDS-18) in and playback. 4. Confirm that oscilloscope waveform is clear and check RF signal level is correct or not. Note: Clear RF signal waveform means that the shape “◊” can be clearly distinguished at the center of the waveform. Adjustment Location: [CD DECODER BOARD] — Component side — CD DECODER board oscilloscope TP (RF) TP (VC) VOLT/DIV: 200 mV TIME/DIV: 500 nS level: 1.0 Vp-p +0.3 –0.2 IC702 IC701 J778 J789 TP (VC) TP (RF) CN701 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 SECTION 6 DIAGRAMS 6-1. CIRCUIT BOARDS LOCATION MAIN board CD DECORD board TR board AC SWITCH board FRONT board SW (A) board PHOTO SOCKET board SW (B) board SW (C) board SW (D) board MOTOR board H/P board VR board SENSOR board MOTOR (6P) (S) board FUSE board AMPLIFIER board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GRX20/RXD3 17 17 HP901 PB HEAD TAPE B HRP901 REC/PB HEAD TAPE A R CH R CH R CH PLAY/REC CONTROL Q203, 205 PLAY/REC CONTROL DRIVE Q207 PLAY/REC CONTROL D201 L291 BIAS OSC BIAS OSC Q251 HE901 ERASE HEAD R CH 1 2 9 3 REC OUT PB OUT A/B 5 19 11 10 REC/PB EQ AMP IC201 TAPE A/B Q213 MUTE Q320 AMS Q551,552 D202 : FM : CD • Signal Path • RCH is omitted C CD SECTION TU L ST IND TU MUTE DO1 Q401 MUTE 14 7 4 POWER AMP IC401 SPEAKER RELAY DRIVE Q403 Q405 1 2 6 IC402 RL401 SPEAKER JK401 SCOR SENS1 SQSO XLAT SQCK CLK DI CLK CE STB 11 STB 21 CE 25 SCLK 27 SDATA OUT 24 DATA 22 SQCK 20 XLAT 23 SQSO 42 SENS1 4 SCOR 26 SDATA IN MUTE DRIVE Q411 MUTE SWITCH Q603,604 62 TU MUTE 28 FM ST IND 17 CTRL 63 SYSTEM MUTE 64 POWER SW LED DRIVE IC602 2 3 4 19 ALATCH 11 LED DRIVE DI CLK Q607,608 LED602-607 LED601 XTAL 40 XTAL 39 VR UP 52 X601 10MHz VR DOWN 53 VR601 VOLUME PIC UP 46 PIC DOWN 47 TRAY OPEN 50 TRAY CLOSE 51 TURN TABLE 49 DISC COUNT 48 A B S02 TRAY OPEN/CLOSE DET S03 DISC COUNTER DET S04 TURNTABLE OPERATION DET S01 CD DECK UP/DOWN DET KEY MATRIX S601-629 P2 P24 KI0 KI2 FLD601 FLD DISPLAY SYSTEM CONTROLLER/ FLD DRIVER IC601 +5.6V REG Q308 SITCHING Q705 +5V +12V +7.5V REG Q702 CD +7.5V +12V REG Q701 RECT D705-708 P MUTE CONT Q703 AC OFF DET Q704 D713 D704 RECT D701 -12V IC401 B- IC401 B+ -27V REG Q705 -27V T001 AC4.8V AC4.8V 16 A TUNER SECTION : PB (DECK A) : PB (DECK B) : REC (DECK B) Q207 Q201 CE CLK DI 12 LOCK MUTE Q208,209 BIAS SWITCH Q252,253 6 Q351 TAPE (L) 4 TUNER (L) 3 CD (L) 2 B CD SECTION CD L LINE AMP IC301 9 VOL OUT BUS REGISTER IC501 REC MUTE 13 A/B 11 BIAS 12 PLAY MUTE 14 DI 2 CLK 3 STB 1 DI CLK CONT 11 4 PLAY 5 SOL A 6 SOL B SOL A DRIVE Q505,506 M+12V SWITCH Q501,502 M+12V SOL B DRIVE Q503,504 SHIFT REGISTER IC502 CK 2 S/L 1 QH 9 CLK 3 B REC FWD 5 PHOTO A 11 A MODE SW 13 A HALF 6 PHOTO B 12 B MODE SW 14 B HALF MECHA BLOCK SFR501 MOTOR H/L Q412 MUTE D406 +5.6V 66 88 29 31 G1 G13 Q'S 10 DATA IN DATA SENS2 LOCK 13 CLOK 43 SENS2 37 AMS 12 10 S/L 9 DATA IN L R MD JK301 R CH MD (L) 5 : MD 1 REC OUT AMP Q306 Q302 4 B REC REV Q320 Q551 MUTE L R LINE OUT JK301 R CH D405 µCON B+ VCC D602 D601 RESET SWITCH POWER DOWN DET Q601 Q602 2 3 RM601 REMOTE CONTROL RECEIVER RESET 38 POWER DOWN 6 REMOTE 8 VCC VCC VCC 2 1 . 100 90 . 61 MD MUTE 32 VACS 36 SPEANA 4 SPEANA 35 SPEANA 3 34 SPEANA 2 33 SPEANA 1 13 10 8 5 . . (Page 18) (Page 18) (Page 18) AC IN F702 F703 SW401 AC IN F702 GRX20 : AUS, RXD3 MODEL AC VOLTAGE GRX20: E,SP,TW MODELS GRX20 : E,SP,TW,MX,AR MODELS 220 – 240 V 110 – 120 V • Abbreviation AUS : Australian model SP : Singapore model MX : Mexican model AR : Argentina model TW : Taiwan model 6-2. BLOCK DIAGRAMS MAIN SECTION w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GRX20/RXD3 18 18 TUNER/CD SECTION CE 16 10 6 4 5 3 22 1 PLL IC103 FM XO XI CLK DI DO CE CLK DI DO OPTICAL PICK-UP BLOCK APC Q701 41 +5V VC LD GND A C B E F FOCUS COIL F+ F T+ T TRACKING COIL 36 37 42 39 38 51 APC FOCUS PHASE COMPENSATION DECODER SERIAL/ PARALLEL CONVERTER FE AMP RF AMP IIL TTL TTL IIL COMAND VC TRACKING PHASE COMPENSATION LD PD E F PD1 PD2 6 25 24 21 20 23 22 33 27 SENS1 RFO FOK C OUT DATA XLT CLK XRST 13 FEO TAO IC703 T.T/TRAY MOTOR DRIVER CD RF/SERVO PROSSESOR IC701 (1/2) 2 5 T IN 1 3 4 VR PD PD 18 17 19 20 6 F IN 22 SL IN 13 T.T F IN F+ F T+ T SL+ SL SP+ SP M M MOTOR M102 SLED MOTOR M101 SPINDOL EFM DEMO. XRST CLV SERVO DIGITAL CLV D/A I/F SUB CODE PROSSESOR CPU I/F 7 9 4 5 6 62 57 MDP SENS SCOR SQSO SQCK CLOCK DATA CLK XLT DAT SE CIN FOK RF SERIAL I/F PWM 67 70 71 NL XTA1 XTA0 X701 MUTE R-CH CD DIGITAL SIGNAL PROCESSOR IC702 16 :FM :CD • SIGNAL PATH 14 7 8 4 2 1 6 10 DETECTOR 16 OSC FM 75Ω AM ANTENNA JK101 3 8 RF MIX 1 4 FM FRONT END FE101 RF IF AMP Q101 CF101 10.7MHz CF102 10.7MHz L105 MW OSC IF G L104 AM ANT AM RF AMP Q108 MPX 16 FM IF 1 OSC 23 AFC 22 AM RF 21 FM IF FM OUT 19 FM DET AM/FM IF BUFF AM OSC AM MIX AM DET SMET 20 CF103 450kHz MUTE AGC AM IF DECODER 13 L 14 R 4 2 T102 AM IFT 8 FM DET CF104 10.7MHz R CH FM/AM MPX IC102 FM TUNED LEVEL PD1 18 X201 7.2MHz FM B+ 7 TUB+ +12V Q114 ST MONO 12 15 AM OSC/FMSD 24 B+ 11 SD IN 9 ST/MONO TU LED 6 12 IF IN SD SPEED 7 ST IND 10 AM/FM MUTE Q117 TU L ST IND TU MUTE DO1 A MAIN SECTION D 5 LD PD F/T COIL SL/SP MOTOR 14 15 30 31 T.T+ T.T TR+ TR M M MOTOR T/T MOTOR TRAY 21 SP IN 29 TR F IN 12 T.T R IN 28 TR T IN 27 MUTE IN IC705 IC701 (2/2) 6 7 REG Q703 9 REG I 10 REG B 11 REG OUT 7 VCC 8 VCC +5V B+ XRST 6 SPEED 11 CONTROL 5 SWITCH Q702 13 12 TR+ TR 7 14 T.T+ T.T 4 MUTE 3 CLOK 1 STB IC704 MOTOR DRIVE REG CONTROL T.T/TRAY 35 18 11 10 12 13 14 79 21 18 SPOA STOP SWITCH S05 8 XLAT CLOCK GEN. PWM 74 NR MUTE Q705,707 CD L SCOR SENS1 SQSO XLAT SQCK DATA CE STB CLK DI C MAIN SECTION :AM • RCH is omitted SFR101 SENS2 LOCK VT TP9 2 DATA 26 SENS2 19 LOCK 16.9344MHz 2 L MUTE 53 D OUT DIGITAL OUT PH701 B MAIN SECTION CLK DATA IN Q108 D553 8 AM/FM PH DET 11 (Page 17) (Page 17) (Page 17) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GRX20/RXD3 19 19 1 IC701 #£ (PLAY MODE) 2 IC701 2 (FEI) (PLAY MODE) 3 IC701 $¶ (TEI) (PLAY MODE) 4 IC703 @¶ (MDP) 5 IC702 $ª (B) GFS 7 IC702 &¡ (XTAO) Approx. 1.0Vp-p Approx. 0.1Vp-p Approx. 0.1Vp-p 2.4Vp-p 0.1µsec/div 0.1V/div 7.7 µsec 5.7Vp-p 4.2336MHz 16.9344MHz 5.6Vp-p (PLAY MODE) 8 IC601 $º (X' TAL) 4.8Vp-p 10MHz 7.2MHz 3.6Vp-p 9 IC103 @™ (X OUT) 90.790kHz 52Vp-p !º L251 7 (PLAY MODE) (REC MODE) 6 IC702 %™ (A) C4M — BD SECTION — — PANEL SECTION — — MAIN SECTION — • WAVEFORM For schematic diagrams. Note: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • % : indicates tolerance. • ¢ : internal component. • 2 : nonflammable resistor. • 1 : fusible resistor. • C : panel designation. • U : B+ Line. • V : B– Line. • H : adjustment for repair. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. • Circled numbers refer to waveforms. • Signal path. F : FM f : AM E : PB (DECK A) d : PB (DECK B) G : REC (DECK B) J : CD • Abbreviation AUS : Australian model SP : Singapore model MX : Mexican model AR : Argentina model TW : Taiwan model THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this necessary note is printed in each block.) The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. For printed wiring boards. Note: • X : parts extracted from the component side. • ® : Through hole. • ¢ : internal component. • b : Pattern from the side which enables seeing. B This is omitted. C E Q • Indication of transistor. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GRX20/RXD3 20 20 6-3. PRINTED WIRING BOARD MAIN SECTION Ref. No. Location D101 D-2 D102 D-2 D103 B-2 D104 B-2 D109 D-4 D110 B-8 D111 A-8 D201 E-9 D202 D-8 D203 E-11 D301 H-8 D302 C-10 D303 F-5 D304 G-4 D305 H-10 D306 H-10 D307 D-10 D501 F-10 D502 C-10 D551 D-12 D552 D-12 IC102 B-6 IC103 D-3 IC201 F-8 IC301 D-3 IC302 G-10 IC501 D-11 IC502 F-11 Q101 C-4 Q108 A-3 Q114 D-2 Q116 B-7 Q117 B-7 Q201 G-9 Q202 F-9 Q203 G-9 Q204 E-9 Q205 G-9 Q206 E-9 Q207 E-7 Q208 D-8 Q209 D-7 Q213 G-7 Q214 F-7 Q251 D-9 Q252 D-8 Q301 G-3 Q302 G-3 Q305 G-5 Q306 F-5 Q307 H-3 Q308 B-10 Q309 G-5 Q314 E-5 Q315 E-5 Q320 G-5 Q501 C-11 Q502 C-11 Q503 C-11 Q504 C-11 Q505 C-11 Q506 C-11 Q523 C-10 Q551 G-11 Q552 H-11 • Semiconductor Location • Refer to page 16 for Circit Boards Location. • Refer to page 19 for Note on Printed Wiring Board. CN303 1 1 5 5 MAIN BOARD H/P BOARD 1-674-559- 11 (11) 1-674-557- 11 (11) JK101 ANTENNA JK302 PHONES TO FRONT BOARD CN601 (Page 21) B TO AMPLIFIER BOARD CN701 (Page 26) D TO CD DECORD BOARD CN704 (Page 28) C TO DECK A TO DECK B TO DECK A/B TO FRONT BOARD CN602 (Page 24) A FM AM (4144270040) C360 C361 C365 1 1 1 11 1 11 1 1 12 13 24 1 1 1 8 9 16 3 5 2 10 16 15 8 9 16 2 4 8 1 12 13 24 1 4 5 8 G S D 1 11 12 22 1 10 11 20 1 8 1 19 11 2 10 20 TO DECK B (4144270010) R L R L IN MD OUT 16 R368 R366 R365 R371 R373A R369 R370 R372 R367 R326 R320 R336 R330 D304 R324 R316 R314 R318 Q302 Q301 Q307 C348 C349 C327 C340 C303 C304 C337 C312 C363 C341 C319 C320 C308 C310 C355 C345 C343 C313 C311 C309 D303 C344 C346 C342 C339 C306 C305 C354 Q315 Q309 Q306 Q305 Q320 Q314 C307 R329 R325 R233 R323 R263 R321 R310 R312 R311 R309 R322 R363 Q214 R319 R315 R313 R317 R328 R359 R361 R362 R364 R342 R360 R327 R337 R358 R333 R331 R335 R332 R334 R373 C347 C352 C301 C302 C100 10kHz E,AUS,SP, TW MODEL SW101 9kHz C199 C197 C196 C152 C185 C155 R135 R171 R132 R112 R147 C177 R107 R104 R155 R115 C163 C120 C167 C146 C149 C379 R119 R136 R100 R173 R137 C108 C150 C117 C128 C137 R175 R140 L113 R139 R134 C148 C144 C194 C195 X101 C159 C143 C186 C158 L106 C157 C156 R301 R303 R302 R304 R117 R133 R105 R167 R106 C351 IC301 CN301 C331 CN701 Q114 D102 D101 IC103 TP1 D109 FE101 CF101 CF102 CF103 SFR101 R118 R151 R124 R123 R120 R127 R129 R156 R172 R157 R131 R138 R339 R341 R504 R506 R505 R503 R248 R235 R236 R237 D307 D203 D501 C501 R507 R572 R518 R524 R522 R521 R501 R508 R560 R557 R558 R559 R519 R523 R520 R553 R551 R555 R554 R556 R352 R350 R347 D305 D306 R513 R241 R205 R346 R345 R207 R209 R223 R222 R232 R230 R224 R208 R206 R202 C206 C217 C208 C212 C204 R206A R220 R244 R227 R228 R215 R221 R231 R213 C209 C211 C201 C203 C207 C205 R201 C213 Q213 R211 C227 C231 C202 C230 C234 C232 C228 C233 C215 C218 C219 R229 C229 C261 C322 R205A R502 R255 R254 R515 R562 R561 R514 R526 R525 R511 R512 R141 L401 R142 R143 R130 R116 R126 R121 R128 IC102 C162 C187 C179 C114 C116 R114 R113 Q101 L108 L105 L114 C113 Q108 TC102 L104 D104 D103 T102 L109 C121 C122 C127 C135 C164 C107 C154 C189 C126 C118 C115 C161 C140 C141 C142 C132 C378 C324 C325 C322 C323 C251 C223 C254 C252 C226 C224 D201 C253 C255 C216 C262 R262 C221 C210 C225 C238 Q251 Q252 Q208 Q207 Q209 D202 R252 R225 R226 R212 R251 R253 R246 R264 R243 R247 R245 R214 R216 CN203 C555 C504 C505 C503 C571 C364 C333 C237 C556 C326 C553 C551 C554 Q551 Q552 C500 D302 D502 D552 D551 C139 C198 C123 C125 C124 C130 C131 C129 C151 C138 C188 TP9 C160 CF104 Q117 D110 D111 Q116 G C193 Q308 Q505 Q506 Q503 Q504 Q502 Q501 Q523 CN602 CN601 CN303 IC501 R509 R527 R516 R517 R510 R219 R500 R528 C511 GND C512 CN501 CN202 CN201 SFR501 Q205 Q203 Q201 R204 R203 G IC502 C502 R349 R563 IC302 C334 C500A D301 R261 IC201 R234 R239 L251 Q206 Q204 Q202 R242 R240 C214 C222 G S D B E B E S G D B B B B B B B B B B B E B E B B B E E E B B B E E E E E E E E E E E E E B E B B E E B E B B E E B B B B E E E E B E B B E E G D S JK301 A B F RXD3 MODEL RXD3 MODEL 1 2 A B C D E F G H I 3 4 5 6 7 8 9 10 11 12 13 14 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GRX20/RXD3 21 21 6-4. SCHEMATIC DIAGRAM MAIN (1/3) SECTION • Refer to page 19 for Waveforms. • Refer to page 33 for IC Block Diagrams. • Refer to page 19 for Note on Schematic Diagram. 0.47µ R136 R175 * * * * * * C186 0.001µ mH C167 L109 22µH 47 0.047µ 0.047µ 68 220 16V R167 2.2k C107 mH 0.047µ C100 0.001 MARK : GRX20 C107 NO MOUNT NO MOUNT 220 5.6k 1k 100 0.01µ 0.022(T) 560p(T) 10p C135 C167 R105 R106 RXD3 25 23 22 23 25 E,AUS,SP,TW MODEL w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GRX20/RXD3 22 22 6-5. SCHEMATIC DIAGRAM MAIN (2/3) SECTION • Refer to page 19 for Waveforms. • Refer to page 33 for IC Block Diagrams. • Refer to page 19 for Note on Schematic Diagram. 10 Q552 Q551 502 Q252 0.0012 0.0012 0.018 22µ 0.018µ 23 21 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GRX20/RXD3 23 23 6-6. SCHEMATIC DIAGRAM MAIN (3/3) SECTION • Refer to page 33 for IC Block Diagrams. • Refer to page 19 for Note on Schematic Diagram. 47µ D302 UZ6.2B R341 470 R336 680 R333 47k R358 470 C352 0.1 C351 0.1 C363 0.1 29 22 27 21 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GRX20/RXD3 24 24 6-7. PRINTED WIRING BOARD FRONT PANEL SECTION • Refer to page 16 for Circuit Boards Location. • Refer to page 19 for Note on Printed Wiring Board. Ref. No. Location • Semiconductor Location Ref. No. Location Ref. No. Location D601 G-11 D602 G-11 D603 G-10 D604 G-10 D611 B-5 D612 C-7 D613 B-5 D614 B-6 D615 B-6 D616 B-6 D617 B-6 D618 B-6 D619 B-7 D620 B-7 D621 B-7 D622 B-5 D623 B-5 D625 G-5 D626 G-5 D627 G-6 D628 G-6 D629 G-7 D630 G-7 D631 G-7 D633 H-6 D634 G-7 D635 G-7 D651 G-2 D652 G-2 D653 C-4 D654 E-4 Ref. No. Location Ref. No. Location IC601 C-5 IC602 D-9 Q601 G-10 Q602 G-9 Q602A G-3 Q603 D-10 Q604 D-10 Ref. No. Location Q605 C-8 Q606 C-8 Q607 D-3 Q608 D-3 VR601 VOLUME VR601 S623 S621 R672 R604 D604 R600 R671 R603 R605 R601 R602 D603 C605 C606 D602 D601 Q601 Q602 R640 R608 R641 R642 R643 R658 R657 R656 R621 R622 R623 R660 R644 R646 R645 R611 R609 C616 R674 R675 D652 D651 R673 R670 C602 C604 C611 C610 C603 C609 C601 CN601 CN602 S606 DBFB S618 CD SYNC S625 DISC 1 S626 DISC 2 S627 DISC 3 S628 DISC SKIP/ EX-CHANGE S617 PAUSE S616 REC S620 FUNCTION S601 S603 TIMER SELECT 1-674-561- 11 (11) 1-674-556- (4142271920) (414627020) (4142271910) 11 (11) 1 1 3 3 1 3 1 21 22 20 2 10 11 E TO CD DECORD BOARD CN705 (Page 28) B TO MAIN BOARD CN601 (Page 20) CN603 1-674-555- 11 (11) C600 RM601 CN604 E E B B E B E B EDIT/ DIRECTION PLAY MODE TUNER MEMORY S608 S605 FILE SELECT S602 CLOCK TIMER SET S622 REPEAT /STEREO/MONO S604 DISPLAY /DEMO S615 C615 TUNER /BAND S624 ENTER /NEXT S619 TAPE A S609 S629 S613 TAPE B S612 TAPE B S610 S614 S611 S607 CD OPEN/CLOSE R655 LED602 LED601 LED604 LED603 CN605 CN603 R664 LED605 LED607 R678 R600A Q602A R600B R668 C608 E B C608A R665 R666 R667 R677 R676 R669 R626 R634 R633 Q607 Q608 R625 R648 R649 R647 RA605 RA606 Q603 Q604 C612 C625 C626 C622 C623 C624 R606 R607 RA607 RA608 RA609 D617 D618 D612 C613 C614 D619 IC601 LED606 X601 79 80 100 51 50 30 31 1 1 10 20 29 40 49 D614 D616 RA603 RA602 RA601 FLD601 RA604 CN604 R652 R630 R610 R628 R624 R627 R638 R636 R631 R629 R663 R659 R662 R697 R685 R693 R689 R691 R687 R683 R694 R684 R692 R688 R695 R696 R681 R680 C641 C642 C644 C645 C648 C651 C652 C650 C647 C649 C646 D634 D633 D625 D631 D629 D628 D627 D630 D635 D626 R661 R653 R654 R651 FRONT BOARD SENSOR BOARD VR BOARD 16 S D G S D G F L601 C620 C621 TP601 IC602 1 1 11 1 11 1 3 9 10 18 A TO MAIN BOARD CN602 (Page 20) R600D D654 D653 Q605 Q606 E E B B R612 EXCEPT MX MODEL EXCEPT MX MODEL AR,E,MX MODEL 1 2 A B C D E F G H 3 4 5 6 7 8 9 10 11 12 13 14 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GRX20/RXD3 25 25 6-8. SCHEMATIC DIAGRAM FRONT PANEL SECTION • Refer to page 19 for Waveforms. • Refer to page 30 for IC Pin Function. • Refer to page 19 for Note on Schematic Diagram. R612 ROTARY ENCODER 0.01 0.01 100k EXCEPT E,SP,TW,MX,AR MODELS EXCEPT MX MODEL EXCEPT MX MODEL AR,E,MX MODELS C622 10µ 2SA733 0.1 0.022 6.3V 150 SPS-447-1 21 21 29 82040 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GRX20/RXD3 26 26 D TO MAIN BOARD CN701 (Page 20) 1-674-560- 11 (11) 1-674-558- 1-674-880- 11 (11) 11 (11) AMPLIFIER BOARD FUSE BOARD AC SWITCH BOARD R JK401 SPEAKER SW401 AC VOLTAGE 1-674-554- 11 (11) TR BOARD 1 3 1 3 B E B E Q701 CN704 ~AC IN L 16 19 1 2 20 F702 GND RED YEL BLU WHT WHT AC4 AC3 AC5 P2 P6 P5 P9 P2 P4 P3 P9 P4 P5 AC6 AC4.8V AC4.8V T001 POWER TRANSFORMER GND AC4 AC3 AC5 P6 P7 AC6 AC4.8V AC4.8V T001 POWER TRANSFORMER AC1 AC2 P7 RED P5 P3 P9 P8 P6 RED JK401 C415 C416 L402 L401 R434 R435 R418 R417 GND P10 Q702 C424 C426 C423 C425 C727 C726 C728 C724 C730 R404 C722 C729 C725 C723 R712 D712 D709 D404 R702 RL401 CN704 Q402 R402 R401 R405 R433 R406 C402 C408 C498 C497 C406 C405 C404 C409 C407 C401 Q401 Q411 C403 R409 R403 D405 D713 D705 D707 D714 D702 R706 R707 R449 R448 R456 R455 R427 R432 C735 Q412 Q403 Q413 R413 R412 R421 R422 D402 IC402 D406 C731 C417 CN701 C716 C418 C422 C427 D708 D706 R442 R451 R443 R704 R753 R407 R408 R446 R410 C413 C751 C721 C717 C712 C718 C720 C734 C735 R703 R710 C719 C706 C708 C710 C704 C705 C703 C414 C411 C410 R411 R414 IC401 GND C430 R420 R419 R725 D704 Q704 D701 C701 C702 C714 C713 C715 C709 C707 C711 R751 F701 Q703 R705 CN703 D703 D716 D711 R708 R709 C733 Q705 R423 R425 R415 R416 R430 R428 C428 C421 C419 R424 C429 Q405 Q404 R444 R429 R426 D403 B B B E E B B B E E E E 1 8 B E 1 15 B E S S S D G D D G G (4146270110) (4144270020) (4146270130) D AC6 AC5 AC3.4V AC3.4V AC4 AC3 GND C499 110-120V 220-240V GRX20 MODEL GRX20:AUS,RXD3 MODEL GRX20:E,SP,TW,MX,AR MODEL RXD3 MODEL WHT WHT ORG F703 GRX20: AR,E,SP,TW MODEL 1 2 A B C D E F G H I 3 4 5 6 7 8 9 10 11 12 13 14 6-9. PRINTED WIRING BOARD AMPLIFIER SECTION • Refer to page 16 for Circuit Boards Location. • Refer to page 19 for Note on Printed Wiring Board. Ref. No. Location • Semiconductor Location Ref. No. Location Ref. No. Location D402 E-7 D403 E-7 D404 D-6 D405 F-3 D406 E-7 D701 H-4 D702 I-6 D703 I-7 D704 H-3 D705 G-2 D706 G-3 D707 G-3 D708 G-3 D709 D-5 D711 H-7 D712 D-6 D713 F-3 D714 G-4 D716 I-8 IC401 C-3 IC402 E-7 Q401 E-2 Q402 D-5 Q403 F-7 Q404 F-7 Q405 E-8 Q411 F-2 Q412 G-6 Q413 G-6 Q701 A-4 Q702 C-6 Q703 H-2 Q704 I-2 Q705 H-8 Ref. No. Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GRX20/RXD3 27 27 6-10. SCHEMATIC DIAGRAM AMPLIFIER SECTION • Refer to page 19 for Note on Schematic Diagram. AC IN C726 100µ 16V UZ-12BSA UZ-8.2BSA UZ-27BSA-TA C701 3300µ 50V : EXCEPT AUS MODEL 3300µ 63V : AUS MODEL C702 3300µ 50V : EXCEPT AUS MODEL 3300µ 63V : AUS MODEL 100µ 50V : EXCEPT AUS MODEL 100µ 63V : AUS MODEL 100µ 50V: EXCEPT AUS MODEL 100µ 63V:AUS MODEL 100µ 50V: EXCEPT AUS MODEL 100µ 63V:AUS MODEL * 100µ 50V : EXCEPT AUS MODEL 100µ 63V : AUS MODEL * -070E R444 10 0.022 (CHASSIS) J746 J475 GRX20 MODEL GRX20 MODEL RXD3 MODEL RXD3 MODEL T2A AC IN SW401 GRX20 : AR,E,SP,TW : 4.0A 250V GRX20 : AR,E,SP,TW MODEL GRX20 : MX : 4.0A 125V F702 AC VOLTAGE 220 – 240 V 110 – 120 V GRX20 : AUS, RXD3 MODELS GRX20 : E,SP,TW,MX,AR MODELS AC SWITCH FUSE F703 T2AL 250V 23 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GRX20/RXD3 28 28 6-11. PRINTED WIRING BOARD CD SECTION • Refer to page 16 for Circuit Boards Location. • Refer to page 19 for Note on Printed Wiring Board. Ref. No. Location D703 G-7 D707 E-7 D708 F-7 D797A E-6 IC701 H-9 IC702 E-10 IC703 I-7 IC704 F-7 IC705 H-6 Q701 H-8 Q702 G-6 Q703 I-6 Q705 E-6 Q706 F-6 Q707 E-7 Q708 E-7 • Semiconductor Location CD DECORD BOARD 5 1 CN709 R779 Q705 C787 R789 R790 C788 Q706 R780 C793 C794 C792 R796 R795 D797A CN704 C790 C790A L706 C789 R797 R748A Q707 Q708 C795 R798L R778L R798R R778R C780A C779A C751 R777 R795A R796A D707 R778 D708 C791 CN705 R780A 22 R767A R787 R788 C768 R767 R766 C797 IC704 D703 C748A Q702 R747A R746 R775 R747 C732 C733 R751 C745 C752 C744 R752 C703 C704 R744 R745 R748 IC 705 C742 C743 C738 R753 C707 R705 CN702 C737 C741 Q703 C740 R742 IC703 C706 R707 C735 C734 C701 R701 C736 R768A C798 C746 C785 C773 C774 R774 R773 Q701 C705 C702 R721 R706 R704 C731 C708 R717 R715 R716 R713 R718 R714 IC701 C719 C721 C720 C715 C725 C730 R726 R732 C729 C727 R727 T.P02 (E-F) T.P01 (RF) R734 R735 R740 R743 R728 R739 R736 R737 R722 C766 C765 C769 C778 C779 C799 C784 R786 R784 R782 C772 C782 C770 CN707 C783 R785 R783 R781 C781 C799B XTL01 R755 C771A C754 C753 R771 CN703 CN703 C777 C771 C764 C762 R764 R763 R710A C710A C761 C760 R762 C763 IC702 C755 R759 R758 C757 C759 R731 R756 R765 R733 C756 R760 R761 C728 R741 R730 C718 R729 C726 C724 C723 R725 R726A C726A C722 C717 R723 R724 C712 C716 C711 R720 R710 R711 C713 C714 R719 C767 C780 R766A C786 B E B E 1 8 1 6 1 16 17 32 E B 8 1 E B 1 8 9 16 E B E B 1 2 21 1 7 1 20 21 40 41 60 61 80 3 1 1 13 14 26 27 39 40 52 E B CN701 1 2 16 15 E TO FRONT BOARD CN605 (Page 24) MOTOR M102 SLED CN03 6 1 M101 SPINDLE MOTOR M_ + _ S05 LIMIT + _ M_ 5 1 1 2 1 2 2 1 CN19 CN18 C01 C82A CN06 M_ M103 TURN TABLE MOTOR 1 2 CN19 S03 1-674-789- 1-674-788- CN18 S04 1-674-792- 1-639-678- TURN TABLE OPERATION DET 1 3 5 1 CN05 CN16 S01 1-674-791- (4142269820) (4145258230) (4145258240) (4145258210) (4142269810) (4145258220) (4145258250) OPTICAL PICK-UP DET OPEN/CLOSE DET 1 3 S02 CN16 1-674-790- 1-674-794- TURN TABLE POSITION DET MOTOR (6P) (S) BOARD MOTOR BOARD SW (B) BOARD SW (A) BOARD SW (D) BOARD PHOTO SOCKET BOARD SW (C) BOARD C TO MAIN BOARD CN301 (Page 20) M_ M104 TRAY MOTOR OPTICAL PICK-UP BLOCK KSM-213ECM/C2NP Y Y _ 11 11 (11) 11 (11) 11 (11) 11 (11) 11 11 (11) (11) 16 1 3 PH701 PH701 OPTICAL OUT 7+ 6– +B 1-674-793- 11 (11) 1 2 A B C D E F G H I 3 4 5 6 7 8 9 10 11 12 13 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GRX20/RXD3 29 29 6-12. SCHEMATIC DIAGRAM CD SECTION • Refer to page 19 for Waveforms. • Refer to page 31,32 for IC Block Diagrams. • Refer to page 19 for Note on Schematic Diagram. 25 23 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GRX20/RXD3 30 30 6-13. IC PIN FUNCTION IC601 CXP82040-108Q(SYSTEM CONTROL) FRONT BOARD Pin No. 1,2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 to 31 32 33 to 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 I/O O — I I I I I I O O O O O O O O O O O O O O O O I O I I I I I I — — — I I — — I I I I I Description FLD grid output. Not used. CXD2589Q SCOR input. CXD2589Q COUNT input. Power data input. FOK input. Remote signal input. Data input.(DECK secton) S/L output.(DECK secton) STB output.(CD,DECK section) CXA1992BR LOCK output. CXD2589Q CLOCK output. Mode switch input. Not used. Not used. Function control output. Not used. LATCH output. CXD2589Q XLAT output. LC72131 CE output. CXD2589Q SQCK output. CXD2589Q SQSO output. CXD2589Q DATA output. S.CLOCK output. S.DATA input. S.DATA output. FM Stereo input. Key input 0 to 2. Not used. Not used. AMS input. RESET input. X’TAL 10MHz X’TAL 10MHz Ground. CXD2589Q SENS1 input. CXD2589Q SENS2 input. VDD. VFDP. Pick-up up switch signal input. Pick-up down switch signal input. Disc count switch signal input. Turn Table switch signal input. Tray open switch signal input. Pin Name 2G,1G NC SCOR COUNT POWER DOWN IN FOK REMOTE IN DATA IN S/L DECK,CD STB LOCK CLOCK MODE SW IN NC CE CTRL LATCH B LATCH A XLAT CE SQCK SQSO DATA S.CLOCK S,DATA IN S.DATA OUT FM STEREO IN KEY IN O to 2 VACS IN SPEANA IN 1 to 4 ANS IN RESET EXTAL XTAL VSS SENS1 SENS2 VDD VFDP PICK UP SW PICK DOWN SW DISC COUNT SW TURN TABLE SW TRAY O. SW Pin No. 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 to 85 86 87,88 89 90 to 100 I/O I I I I I O O O O O O O O O O O O O O O O O O O O O O O O O — O — O Description Tray close switch signal input. Volume up signal input. Volume down signal input. Not used. Not used. Not used. Not used. Not used. Not used. Not used. Not used. Tuner Mute output. System Mute output. POWER switch output. FLD segment output. FLD segment output. Mode switch 1. FLD segment output. Mode switch 2. FLD segment output. Mode switch 3. FLD segment output. Mode switch 4. FLD segment output. Mode switch 5. FLD segment output. Mode switch 6. FLD segment output. Mode switch 7. FLD segment output. Mode switch 8. FLD segment output. Mode switch 9. FLD segment output. Mode switch 10. FLD segment output. Mode switch 11. FLD segment output. Mode switch 12. FLD segment output. Mode switch 13. FLD segment output. Mode switch 14. FLD segment output. Not used. FLD grid output. VDD. FLD grid output. Pin Name TRAY C. SW VR UP VR DN CD ENCODER IN A CD ENCODER IN B SURROUND OUT DBFB NOR&HI OUT DBFB HI OUT DOLBY NR OUT 2CH OUT MD MUTE TUNER MUTE OUT SYSTEM MUTE OUT POWER SW OUT P1 P2(MODE SW 1) P3(MODE SW 2) P4(MODE SW 3) P5(MODE SW 4) P6(MODE SW 5) P7(MODE SW 6) P8(MODE SW 7) P9(MODE SW 8) P10(MODE SW 9) P11(MODE SW 10) P12(MODE SW 11) P13(MODE SW 12) P14(MODE SW 13) P15(MODE SW 14) P16 to 21 NC 15G,14G VDD 13G to 3G w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 6-14. IC BLOCK DIAGRAMS — CD DECORD SECTION — IC701 CXA1992BR FZC VC TDFCT TZC ATSC TEI LPFI TEO VEE EI E F FE BIAS SL P SL M SL O ISET VCC XRST DATA XLT CLK LOCK SENS2 SENS1 C. OUT VCC DFCTO IFB1 – IFB6 BAL1 – BAL4 TOG1 – TOG4 FS1 – FS4 TG1 – TG2 TM1 – TM7 PS1 – PS4 TGH TGL BALH BALL ATSC DFCT TM1 TG1 FS2 IFB1 – IFB6 VCC VEE VCC VEE VEE PD 2 I-V AMP FOK CC2 CC1 CB CP RF O RF I RFTC PD2 PD1 PD LD RF M TA O TA M FSET TG2 TGU SRCH FEO FEI FDFCT FGD FLB FE O FE M TZC FZC FOL FOH MIRR LDON LPCL LPC TGFL DFCT1 CC1 1 2 3 4 5 6 7 8 9 10 26 25 24 23 22 21 20 19 18 17 16 15 14 40 41 42 43 44 45 46 47 48 49 50 51 52 39 PD 1 I-V AMP 38 PD AMP 37 LD AMP LASER POWER CONTROL FOCUS BIAS WINDOW COMPARATOR FOCUS ERROR AMP F I-V AMP E I-V AMP TGFL TRACKING GAIN WINDOW COMPARATOR E-F BALANCE WINDOW COMPARATOR ATSC WINDOW COMPARATOR TZC COMPARATOR TRACKING PHASE COMPENSATION CENTER VOLTAGE GENERATOR FZC COMPARATOR FOCUS PHASE COMPENSATION CHARGE UP FSET ISET IIC DATA REGISTER, INPUT SHIFT REGISTER, ADDRESS DECODER, SENSE SELECTOR, OUTPUT DECODER TTL ↓ IIL IIL ↓ TTL IIL ↓ TTL RF SUMMING AMP FOCUS OK COMPARATOR PEAK/BOTTOM HOLD PEAK/BOTTOM HOLD DEFECT AMP MIRR COMPARATOR 36 34 31 30 29 28 27 35 33 32 BAL1 – BAL4 TM6 TM2 VCC VEE TM5 11 12 13 TG2 TM4 VCC VEE TM3 FS1 VCC VEE TOG1 – TOG4 TM7 FS4 DFCT + – + – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 IC702 CXD2589Q IC703 BA5936S 51 52 35 38 37 36 31 29 33 10 11 18 13 14 15 16 17 57 58 74 21 22 53 75 76 67 66 65 59 9 8 7 5 4 6 12 30 48 25 26 27 47 49 54 56 50 39 41 43 55 40 42 44 62 70 3 2 71 79 23 24 28 Clock Generator OSC EFM demoduretor Error Corrector 16K RAM Asymmetry Corrector Digital PLL Servko Auto Sequencer Sub Code Processor CPU Interface D/A Interface Serial In Interface Over Sampling Digital Filter 3rd Order Noise Shaper Timing Logic Digital OUT Digital CLV PWM PWM XTSL VPCO VCKI V16M VCTL XUGF GFS EMPH WFCK C2PO LECK PCMD BCK EMPHI LECKI PCMDI BCKI SYSM TES1 TEST XRST RMUT LMUT XTAI XTAO AOUT1 AIN1 LOUT1 AOUT2 AIN2 LOUT2 DOUT PWMI MDP SQCK SQSO EXCK SBSO SCOR XLON SPOB SPOA CLOK XTAL DATA SENS CLKO XLTO DATO CNIN SEIN FOK CLTV PCO FILI FILO XPCK BIAS ASYO ASYI RF C4M 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 LEVEL SHIFT LEVEL SHIFT LEVEL SHIFT LEVEL SHIFT LEVEL SHIFT LEVEL SHIFT MUTE T.S.D BIAS BIAS BIAS VCC 100 BIAS BIAS VCC VCC DETECTION DF REG-OUT CURRENT 100 100 10K 10K D D D D D D D D D D D D 100 OUT1– OUT1+ OUT2– OUT2+ IN2 IN1 VCC VCC REG-I REG-B REG OUT IN3-R IN3-F OUT3+ OUT3– GND OUT4– OUT5– OUT4+ OUT5+ IN 5 IN 4 VCC BIAS IN GND GND MUTE IN IN6-R IN6-F OUT6+ OUT6– GND 13.3K 13.3K 13.3K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 — MAIN BOARD — IC103 LC72131 PHASE DETECTOR CHARGE PUMP SWALLOW COUNTER 1/16, 1/17 4BITS 12BITS PROGRAMMABLE DRIVER UNIVERSAL COUNTER REFERENCE DIVIDER POWER ON RESET 1/2 CCB INTERFACE 1 2 3 4 5 6 7 8 9 16 15 14 13 12 11 10 17 18 19 20 XOUT VSS AOUT AIN PD VDD FMIN AMIN XIN DO CL DI CE IFIN IO1 BO4 BO3 BO2 BO1 IO2 UNLOCK DETECTOR DATA SHIFT REGISTER LATCH IC201 TA8189N CH2/A CH2/B NF VCC CG NF ALC METAL OUT PRE OUT TAPE A /TAPE B REC OUT REC IN CH1/A CH1/B NF GND1 M/H NF CH2 CH2 ALC M/N CH1 GND GND CH1 + – + – + – + – A/B GND METAL OUT PRE OUT MIX OUT REC OUT REC IN IREF VREF2 VREF1 24 23 22 21 20 19 18 17 16 15 14 13 1 2 3 4 5 6 7 8 9 10 11 12 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 IC252 74HC165 IC301 M62439SP 1 2 3 4 5 6 7 8 9 10 16 15 14 13 12 11 CK E F G H QH D C B A SERIAL IN CLOCK INHIBIT SHIFT/ LOAD GND QH VCC OUTPUT QH SERIAL INPUT A B C D CLOCK INHIBIT SHIFT/ LOAD CLOCK E F G H OUTPUT QH PARALLEL INPUTS PARALLEL INPUTS — FRONT BOARD — IC602 BU2092 1 2 3 4 5 6 7 8 9 10 16 15 14 13 12 11 CONTROL CIRCUIT 12 BIT SHIFT REGISTER 12 BIT STORAGE REGISTER OUTPUT BUFFER (OPEN DRAIN) 17 18 VDD OE Q11 Q10 Q9 Q8 Q7 Q6 Q5 Q4 Q3 Q2 Q1 Q0 LCK CLOCK DATA VSS 20 19 18 17 16 15 14 13 12 11 1 2 3 4 5 6 7 8 9 10 CONTROL LOGIC REC OUT SW INPUT SW MONAURAL SW MUTE VOLUME CONTROL Low boost High boost REC OUT2 INA2 INB2 INC2 IND2 TONEH2 TONEL2 OUT2 Vss CONT VDD GND OUT1 TONEL1 TONEH1 IND1 INC1 INB1 INA1 REC OUT1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 SECTION 7 EXPLODED VIEWS NOTE: • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Hardware (# mark) list and accessories and packing materials are given in the last of this parts list. • Abbreviation AUS : Australian model G : German model SP : Singapore model MX : Mexican model AR : Argentina model TW : Taiwan model AED : North European model The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. 7-1. CABINET SECTION 1 2 4 5 6 12 7 11 8 9 9 9 9 10 13 13 14 15 CD mechanism deck Front panel section T001 not supplied #10 #10 #10 #15 #15 #18 #18 #18 #12 #12 #15 #15 #15 #4 #15 #14 #14 #15 #17 #17 #17 #17#17 #11 #17 #15 #10 #22 not supplied not supplied E,MX MODEL UK MODEL AUS MODEL SP,TW MODEL SP,TW,AEP,AED, CIS,G MODEL Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 1 4-220-797-01 DOOR,CD (RXD3) 1 4-221-607-01 DOOR,CD (GRX20) 2 4-220-799-01 COVER, TOP 4 A-4426-302-A MAIN BOARD ,COMPLETE (RXD3) 4 A-4426-303-A MAIN BOARD ,COMPLETE (GRX20) * 5 4-210-591-01 CABINET (A), REAR 6 4-221-603-01 CABINET, REAR (RXD3) 6 4-221-604-01 CABINET, REAR (GRX20:AUS) 6 4-221-605-01 CABINET, REAR (GRX20:AR,E,SP,TW) 6 4-221-606-01 CABINET, REAR (GRX20:MX) 7 A-4426-292-A AMPLIFIER BOARD ,COMPLETE (RXD3) 7 A-4426-293-A AMPLIFIER BOARD ,COMPLETE (GRX20:AUS) 7 A-4426-294-A AMPLIFIER BOARD ,COMPLETE (GRX20:AR,E,MX,SP,TW) 8 1-674-558-11 FUSE BOARD !9 1-551-506-99 CORD, POWER (GRX20:E,MX) !9 1-555-795-00 CORD, POWER (GRX20:SP,TW/RXD3:AED,AEP,CIS,G) !9 1-696-572-21 CORD, POWER (RXD3:UK) !9 1-696-966-11 CORD, POWER (GRX20:AUS) !9 1-783-941-41 CORD, POWER (GRX20:AR) 10 3-703-244-21 BUSHING, CORD 11 1-674-554-11 TR BOARD 12 1-674-794-11 PHOTO SOCKET BOARD 13 4-220-602-01 RUBBER, FOOT !14 1-569-008-21 ADAPTOR, CONVERSION 2P (SP,TW) 15 1-674-880-11 AC SWITCH BOARD (GRX20:AR,E,MX,SP,TW) !T001 1-433-917-11 TRANSFORMER, POWER (GRX20:MX) !T001 1-433-918-11 TRANSFORMER, POWER (RXD3) !T001 1-433-919-11 TRANSFORMER, POWER (GRX20:AR,E,SP,TW) !T001 1-433-920-11 TRANSFORMER, POWER (GRX20:AUS) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 7-2. FRONT PANEL SECTION 54 64 63 55 65 56 57 59 58 71 83 69 68 83 85 70 86 87 76 89 90 77 88 78 67 60 51 61 62 75 72 74 73 79 80 81 85 93 92 63 53 52 not supplied #17 #18 #12 #12 #18 #17 #17 #17 #18 not supplied not supplied not supplied 66 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 51 A-4411-712-A PANEL ASSY, FRONT (GRX20:AUS/RXD3) 51 A-4411-741-A PANEL ASSY, FRONT (GRX20:SP,TW) 51 A-4411-739-A PANEL ASSY, FRONT (GRX20:AR,E) 51 A-4411-740-A PANEL ASSY, FRONT (GRX20:MX) 52 4-220-592-01 WINDOW (L), CASSETTE 53 4-220-595-01 DOOR(L), CASSETTE 54 4-220-626-01 HOLDER (L), CASSETTE 55 4-220-623-01 SPRING (L), DOOR 56 4-220-593-01 WINDOW (R), CASSETTE 57 4-220-796-01 DOOR(R), CASSETTE 58 4-220-627-01 HOLDER (R), CASSETTE 59 4-220-624-01 SPRING (R), DOOR 60 4-220-614-01 EMBLEM, LOGO 61 4-220-605-01 WINDOW, DISPLAY 62 4-220-804-01 COVER, FRONT 63 4-220-622-01 DAMPER (GRY), GEAR 64 4-220-594-01 KNOB, VOLUME 65 4-220-621-01 RING, VOLUME 66 4-220-602-01 RUBBER, FOOT 67 1-674-559-11 H/P BOARD 68 4-220-612-01 BUTTON, ENTER/NEXT 69 4-220-611-01 BUTTON, CASS/REC 70 4-220-610-01 BUTTON, DISC 71 1-674-561-11 VR BOARD 72 4-220-805-01 BUTTON, FUNCTION 73 4-220-617-01 LENS(A), BUTTON 74 4-220-618-01 LENS(B/L), BUTTON 75 4-220-619-01 LENS(B/R), BUTTON 76 4-220-806-01 BUTTON, TUNER 77 4-220-807-01 LENS(CD), BUTTON 78 4-220-609-01 BUTTON, FILE SELECT 79 A-4426-056-A FRONT BOARD ,COMPLETE(GRX20:AUS/RXD3) 79 A-4426-289-A FRONT BOARD ,COMPLETE (GRX20:AR,E) 79 A-4426-290-A FRONT BOARD ,COMPLETE (GRX20:MX) 79 A-4426-291-A FRONT BOARD ,COMPLETE (GRX20:SP,TW) 80 4-220-616-01 BUTTON, CLOCK 81 4-220-606-01 BUTTON, DISPLAY 83 4-220-628-01 SPRING, EJECT LEVER 85 4-220-629-01 LEVER, EJECT 86 1-772-163-11 DECK, MECH 87 1-783-579-11 WIRE(FLAT TYPE) (16 CORE) 88 1-769-273-11 WIRE(FLAT TYPE) (22 CORE) 89 4-220-613-01 BUTTON, REC 90 4-220-615-01 LENS, PAUSE BUTTON 92 4-220-811-01 SPRING (R), BUSHING 93 4-220-810-01 SPRING (L), BUSHING www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 7-3. CD MECHANISM DECK SECTION-1 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 101 1-674-792-11 MOTOR BOARD 103 4-221-891-01 BASE CHANGER 104 4-221-895-01 SHEET, BLIND 105 4-221-896-01 LEVER, SENSOR (SW) 106 4-992-182-01 SPRING, SENSOR (SW) LEVER 107 4-992-170-01 BELT, LOADING 108 4-992-171-01 PULLEY, GEAR 109 4-221-894-01 GEAR, TR 110 4-221-892-01 GEAR, TR LOCK 111 4-221-893-01 GEAR (C), RELAY 112 4-992-187-01 CUSHION 113 4-992-186-01 CUSHION, SW LEVER 114 4-992-173-01 GEAR (B), RELAY 115 4-992-183-01 SCREW, RELAY GEAR (B) 116 4-992-174-01 GEAR, CHANGE 117 4-992-184-01 WASHER, CHANGE GEAR 118 4-992-176-01 SPRING, CHANGE GEAR 119 4-992-185-01 WASHER, CHANGE PLATE 120 4-992-172-01 GEAR (A), RELAY 121 4-221-902-01 PLATE, T/T 122 4-992-201-01 WASHER, POLYEHTHYLENE 123 1-674-789-11 SW (B) BOARD 124 1-674-788-11 SW (A) BOARD * 125 4-993-034-01 GUIDE, RAIL 126 4-221-901-01 TURNTABLE M103 X-4948-765-1 MOTOR ASSY 103 123 104 109 125 125 117 115 119 114 121 111 122 118 116 120 107 110 113 112 108 106 105 101 124 112 126 #9 #10 #11 #10 #9 M103 #9 #11 #11 #12 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 7-4. CD MECHANISM DECK SECTION-2 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 151 1-769-856-11 WIRE (FLAT TYPE) (5 CORE) 152 4-221-897-01 UD-CAM 153 4-992-191-01 UD-GEAR 154 4-992-195-01 MAGNET 156 4-992-197-01 BELT, LOADING GEAR 157 4-992-198-01 PULLEY (B), GEAR 158 4-992-199-01 GEAR, SLIDE 159 4-992-200-01 ROLLER 160 4-992-192-01 SPRING, BRAKE CAM 161 4-992-193-01 LEVER, SW 162 1-674-791-11 SW (D) BOARD 163 1-674-790-11 SW (C) BOARD 164 4-992-194-01 CLAMP 165 4-992-201-01 WASHER, POLYETHYLENE 166 4-221-898-01 HOLDER, MAGNET 168 A-4426-391-A CD DECORD BOARD, COMPLETE 169 4-221-900-01 COVER, MAGNET 170 4-221-903-01 SPRING, MECHANICAL BASE M104 X-4948-766-1 MOTOR ASSY (A) 159 164 163 157 167 156 158 162 161 154 169 166 152 153 151 170 168 159 #5 #5 #5 #4 #4 #11 #11 not supplied #11 #3 #3 Base unit block not supplied #8 M104 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 7-5. BASE UNIT SECTION (KSM-213ECM) Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 201 4-992-164-01 BASE, KSM MECHANICAL 202 4-992-165-01 DAMPER (GREEN) 203 4-992-166-01 DAMPER (RED) 204 4-992-167-01 SPRING, MECHANICAL BASE 205 2-626-907-01 GEAR (A)(S) 206 2-626-908-01 SHAFT, SLED 207 2-627-003-02 GEAR (B) 209 1-639-678-12 MOTOR (6P)(S) BOARD 210 1-783-740-11 WIRE (FLAT TYPE) !211 8-820-054-03 OPTICAL PICK-UP KSS-213ECM/C2NP 212 3-319-501-51 SCREW (+PTPWH) (2.6 × 16) M101 X-2625-877-1 MOTOR ASSY (SPINDLE) M102 X-2625-769-1 MOTOR ASSY (SLED) 202 203 212 212 202 207 206 203 205 210 211 204 209 204 201 M102 #1 not supplied M101 The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • CAPACITORS: uF: µF • RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable • COILS uH: µH • Abbreviation AUS : Australian model G : German model SP : Singapore model MX : Mexican model AR : Argentina model TW : Taiwan model AED : North European model The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. • SEMICONDUCTORS In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD... When indicating parts by reference number, please include the board name. Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 40 SECTION 8 ELECTRICAL PARTS LIST 1-674-880-1 AC SWITCH BOARD (GRX20:AR,E,MX,SP,TW) **************** < SWITCH > !SW401 1-771-477-11 SELECTOR, VOLTAGE (VOLTAGE SELECTOR) (GRX20:AR,E,MX,SP,TW) ************************************************************ A-4426-292-A AMPLIFIER BOARD, COMPLETE (RXD3) ************************* A-4426-293-A AMPLIFIER BOARD, COMPLETE (GRX20:AUS) ************************* A-4426-294-A AMPLIFIER BOARD, COMPLETE (GRX20:AR,E,MX,SP,TW) ************************* * 1-533-213-31 HOLDER, FUSE < CAPACITOR > C401 1-126-961-11 ELECT 2.2uF 20% 50V C402 1-126-961-11 ELECT 2.2uF 20% 50V C403 1-162-294-31 CERAMIC 0.001uF 10% 50V C404 1-162-294-31 CERAMIC 0.001uF 10% 50V C405 1-104-664-11 ELECT 47uF 20% 25V C406 1-104-664-11 ELECT 47uF 20% 25V C407 1-126-968-11 ELECT 100uF 20% 50V (GRX20:AR,E,MX,SP,TW/RXD3) C407 1-128-576-11 ELECT 100uF 20% 63V (GRX20:AUS) C408 1-126-968-11 ELECT 100uF 20% 50V (GRX20:AR,E,MX,SP,TW/RXD3) C408 1-128-576-11 ELECT 100uF 20% 63V (GRX20:AUS) C409 1-130-495-11 MYLAR 0.1uF 5% 50V C410 1-126-968-11 ELECT 100uF 20% 50V (GRX20:AR,E,MX,SP,TW/RXD3) C410 1-128-576-11 ELECT 100uF 20% 63V (GRX20:AUS) C411 1-126-968-11 ELECT 100uF 20% 50V (GRX20:AR,E,MX,SP,TW/RXD3) C411 1-128-576-11 ELECT 100uF 20% 63V (GRX20:AUS) C413 1-162-199-31 CERAMIC 10PF 5% 50V C414 1-162-199-31 CERAMIC 10PF 5% 50V C415 1-137-399-11 FILM 0.1uF 5% 100V C416 1-137-399-11 FILM 0.1uF 5% 100V C417 1-161-494-00 CERAMIC 0.022uF 25V C418 1-161-494-00 CERAMIC 0.022uF 25V C419 1-162-294-31 CERAMIC 0.001uF 10% 50V C421 1-126-933-11 ELECT 100uF 20% 16V C422 1-161-494-00 CERAMIC 0.022uF 25V C423 1-162-294-31 CERAMIC 0.001uF 10% 50V C424 1-162-294-31 CERAMIC 0.001uF 10% 50V C425 1-162-294-31 CERAMIC 0.001uF 10% 50V C426 1-162-294-31 CERAMIC 0.001uF 10% 50V C427 1-126-963-11 ELECT 4.7uF 20% 50V C428 1-126-933-11 ELECT 100uF 20% 16V C429 1-126-960-11 ELECT 1uF 20% 50V C430 1-109-889-11 ELECT 1uF 20% 50V C433 1-130-495-11 MYLAR 0.1uF 5% 50V C497 1-162-282-31 CERAMIC 100PF 10% 50V C498 1-162-282-31 CERAMIC 100PF 10% 50V C499 1-161-494-00 CERAMIC 0.022uF 25V C701 1-126-974-11 ELECT 3300uF 20% 50V (GRX20:AR,E,MX,SP,TW/RXD3) C701 1-127-812-11 ELECT 3300uF 20% 63V (GRX20:AUS) C702 1-126-974-11 ELECT 3300uF 20% 50V (GRX20:AR,E,MX,SP,TW/RXD3) C702 1-127-812-11 ELECT 3300uF 20% 63V (GRX20:AUS) C703 1-130-483-00 MYLAR 0.01uF 5% 50V C704 1-130-483-00 MYLAR 0.01uF 5% 50V C705 1-130-483-00 MYLAR 0.01uF 5% 50V C706 1-130-483-00 MYLAR 0.01uF 5% 50V C707 1-126-968-11 ELECT 100uF 20% 50V C708 1-161-494-00 CERAMIC 0.022uF 25V C709 1-161-494-00 CERAMIC 0.022uF 25V C710 1-128-553-11 ELECT 220uF 20% 63V C711 1-161-494-00 CERAMIC 0.022uF 25V C712 1-126-961-11 ELECT 2.2uF 20% 50V C713 1-126-948-11 ELECT 100uF 20% 35V C714 1-161-494-00 CERAMIC 0.022uF 25V C715 1-126-949-11 ELECT 220uF 20% 35V C716 1-161-494-00 CERAMIC 0.022uF 25V C717 1-161-494-00 CERAMIC 0.022uF 25V C718 1-161-494-00 CERAMIC 0.022uF 25V C719 1-161-494-00 CERAMIC 0.022uF 25V C720 1-161-494-00 CERAMIC 0.022uF 25V C721 1-126-943-11 ELECT 2200uF 20% 25V C722 1-126-933-11 ELECT 100uF 20% 16V C723 1-161-494-00 CERAMIC 0.022uF 25V C724 1-161-494-00 CERAMIC 0.022uF 25V C725 1-126-933-11 ELECT 100uF 20% 16V C726 1-126-933-11 ELECT 100uF 20% 16V C727 1-161-494-00 CERAMIC 0.022uF 25V C728 1-161-494-00 CERAMIC 0.022uF 25V C729 1-126-935-11 ELECT 470uF 20% 16V C730 1-161-494-00 CERAMIC 0.022uF 25V C731 1-161-494-00 CERAMIC 0.022uF 25V AC SWITCH AMPLIFIER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 41 C732 1-161-494-00 CERAMIC 0.022uF 25V C733 1-104-664-11 ELECT 47uF 20% 25V C734 1-126-934-11 ELECT 220uF 20% 16V C735 1-161-494-00 CERAMIC 0.022uF 25V C751 1-126-967-11 ELECT 47uF 20% 50V < CONNECTOR > * CN701 1-568-837-11 SOCKET, CONNECTOR 20P * CN703 1-564-510-11 PLUG, CONNECTOR 7P < DIODE > D402 8-719-991-33 DIODE 1SS133T-77 D403 8-719-991-33 DIODE 1SS133T-77 D404 8-719-991-33 DIODE 1SS133T-77 D405 8-719-991-33 DIODE 1SS133T-77 D406 8-719-991-33 DIODE 1SS133T-77 D701 8-719-027-23 DIODE GBU6D D702 8-719-200-02 DIODE 1N4002 D703 8-719-200-02 DIODE 1N4002 D704 8-719-200-02 DIODE 1N4002 D705 8-719-200-02 DIODE 1N4002 D706 8-719-200-02 DIODE 1N4002 D707 8-719-200-02 DIODE 1N4002 D708 8-719-200-02 DIODE 1N4002 D709 8-719-010-73 DIODE UZ-12BSA D711 8-719-012-33 DIODE UZ-27BSA-TA D712 8-719-010-57 DIODE UZ-8.2BSA D713 8-719-991-33 DIODE 1SS133T-77 D714 8-719-010-73 DIODE UZ-12BSA D716 8-719-947-12 DIODE UZ-4.7BSA < FUSE > !F701 1-532-388-31 FUSE TL2.0A 250V (GRX20:AR,AUS,E,SP,TW/RXD3) !F701 1-576-104-11 FUSE 2.0A 250V (GRX20:MX) < IC > IC401 8-749-015-44 IC STK407-070E IC402 8-759-111-68 IC uPC1237HA < JACK > JK401 1-694-443-11 TERMINAL BOARD (SPEAKER) < COIL > L401 1-420-872-00 COIL, AIR-CORE (RXD3) L402 1-420-872-00 COIL, AIR-CORE (RXD3) < TRANSISTOR > Q401 8-729-231-55 TRANSISTOR 2SC2878-A Q402 8-729-231-55 TRANSISTOR 2SC2878-A Q403 8-729-184-53 TRANSISTOR 2SC1841-EA Q404 8-729-184-53 TRANSISTOR 2SC1841-EA Q405 8-729-140-82 TRANSISTOR 2SA988-FA Q411 8-729-026-29 TRANSISTOR 2SJ346 Q412 8-729-231-55 TRANSISTOR 2SC2878-A Q413 8-729-231-55 TRANSISTOR 2SC2878-A Q701 8-729-822-89 TRANSISTOR 2SD1667 Q702 8-729-188-23 TRANSISTOR 2SD882-P Q703 8-729-202-67 TRANSISTOR 2SK246-GR3 Q704 8-729-202-67 TRANSISTOR 2SK246-GR3 Q705 8-729-232-32 TRANSISTOR 2SA965-O/Y(TPE6) < RESISTOR > R401 1-247-879-11 CARBON 100K 5% 1/4W R402 1-247-879-11 CARBON 100K 5% 1/4W R403 1-247-839-11 CARBON 2.2K 5% 1/4W R404 1-247-839-11 CARBON 2.2K 5% 1/4W R405 1-249-438-11 CARBON 56K 5% 1/4W R406 1-249-438-11 CARBON 56K 5% 1/4W R407 1-249-420-11 CARBON 1.8K 5% 1/4W F R408 1-249-420-11 CARBON 1.8K 5% 1/4W F R409 1-249-438-11 CARBON 56K 5% 1/4W R410 1-249-438-11 CARBON 56K 5% 1/4W R411 1-260-087-11 CARBON 100 5% 1/2W R412 1-249-417-11 CARBON 1K 5% 1/4W F R413 1-249-417-11 CARBON 1K 5% 1/4W F R414 1-260-087-11 CARBON 100 5% 1/2W R415 1-249-431-11 CARBON 15K 5% 1/4W R416 1-249-431-11 CARBON 15K 5% 1/4W R417 1-260-072-11 CARBON 4.7 5% 1/2W R418 1-260-072-11 CARBON 4.7 5% 1/2W R419 1-220-889-11 METAL 0.22 10% 3W R420 1-220-889-11 METAL 0.22 10% 3W R421 1-247-879-11 CARBON 100K 5% 1/4W R422 1-247-879-11 CARBON 100K 5% 1/4W R423 1-247-839-11 CARBON 2.2K 5% 1/4W R424 1-249-430-11 CARBON 12K 5% 1/4W R425 1-249-430-11 CARBON 12K 5% 1/4W R426 1-247-871-11 CARBON 47K 5% 1/4W R427 1-249-417-11 CARBON 1K 5% 1/4W F R428 1-249-438-11 CARBON 56K 5% 1/4W R429 1-247-855-11 CARBON 10K 5% 1/4W R430 1-247-879-11 CARBON 100K 5% 1/4W R432 1-247-847-11 CARBON 4.7K 5% 1/4W R434 1-260-072-11 CARBON 4.7 5% 1/2W (RXD3) R435 1-260-072-11 CARBON 4.7 5% 1/2W (RXD3) R442 1-247-835-11 CARBON 1.5K 5% 1/4W R443 1-247-903-00 CARBON 1M 5% 1/4W R444 1-249-393-11 CARBON 10 5% 1/4W F R446 1-247-862-11 CARBON 20K 5% 1/4W R448 1-247-843-11 CARBON 3.3K 5% 1/4W R449 1-247-843-11 CARBON 3.3K 5% 1/4W R451 1-247-879-11 CARBON 100K 5% 1/4W R455 1-215-867-00 METAL OXIDE 470 5% 1W F R456 1-215-867-00 METAL OXIDE 470 5% 1W F R702 1-249-413-11 CARBON 470 5% 1/4W F R703 1-215-863-11 METAL OXIDE 100 5% 1W F R704 1-247-847-11 CARBON 4.7K 5% 1/4W R705 1-247-855-11 CARBON 10K 5% 1/4W R706 1-215-863-11 METAL OXIDE 100 5% 1W F R707 1-249-413-11 CARBON 470 5% 1/4W F R708 1-247-807-11 CARBON 100 5% 1/4W R709 1-247-807-11 CARBON 100 5% 1/4W The components identified b y mar k ! or dotted line with mar k ! are cr itical f or saf ety. Replace only with par t number specified. AMPLIFIER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 42 R710 1-215-892-11 METAL OXIDE 1K 5% 2W F R712 1-249-413-11 CARBON 470 5% 1/4W F R751 1-247-839-11 CARBON 2.2K 5% 1/4W R752 1-247-863-11 CARBON 22K 5% 1/4W R753 1-247-855-11 CARBON 10K 5% 1/4W < RELAY > RL401 1-515-921-11 RELAY 12V ************************************************************ A-4426-391-A CD DECORD BOARD, COMPLETE ************************** < CAPACITOR > C701 1-104-664-11 ELECT 47uF 20% 16V C702 1-137-399-11 FILM 0.1uF 5% 100V C703 1-137-399-11 FILM 0.1uF 5% 100V C704 1-137-352-11 FILM 0.033uF 5% 100V C705 1-137-393-11 FILM 0.01uF 5% 100V C706 1-128-551-11 ELECT 22uF 20% 25V C707 1-162-203-31 CERAMIC 15PF 5% 50V C708 1-164-159-11 CERAMIC 0.1uF 50V C711 1-162-600-11 CERAMIC 0.0047uF 30% 16V C712 1-162-306-11 CERAMIC 0.01uF 20% 16V C713 1-136-291-11 FILM 0.0068uF 5% 100V C714 1-137-397-11 FILM 0.047uF 5% 100V C715 1-161-494-00 CERAMIC 0.022uF 25V C716 1-137-399-11 FILM 0.1uF 5% 100V C717 1-104-665-11 ELECT 100uF 20% 10V C718 1-104-665-11 ELECT 100uF 20% 10V C719 1-137-399-11 FILM 0.1uF 5% 100V C720 1-137-389-11 FILM 0.0022uF 5% 100V C721 1-137-399-11 FILM 0.1uF 5% 100V C722 1-137-399-11 FILM 0.1uF 5% 100V C723 1-137-399-11 FILM 0.1uF 5% 100V C724 1-107-713-11 ELECT 4.7uF 20% 50V C725 1-137-352-11 FILM 0.033uF 5% 100V C726 1-137-462-11 FILM 0.018uF 5% 100V C727 1-162-199-31 CERAMIC 10PF 5% 50V C728 1-137-398-11 FILM 0.068uF 5% 100V C729 1-126-962-11 ELECT 3.3uF 20% 50V C730 1-162-215-31 CERAMIC 47PF 5% 50V C731 1-164-159-11 CERAMIC 0.1uF 50V C732 1-161-494-00 CERAMIC 0.022uF 25V C733 1-104-665-11 ELECT 100uF 20% 10V C734 1-161-494-00 CERAMIC 0.022uF 25V C735 1-126-925-11 ELECT 470uF 20% 10V C736 1-162-294-31 CERAMIC 0.001uF 10% 50V C737 1-162-306-11 CERAMIC 0.01uF 20% 16V C738 1-164-159-11 CERAMIC 0.1uF 50V C740 1-126-925-11 ELECT 470uF 20% 10V C741 1-161-494-00 CERAMIC 0.022uF 25V C742 1-161-494-00 CERAMIC 0.022uF 25V C743 1-126-927-11 ELECT 2200uF 20% 10V C744 1-162-306-11 CERAMIC 0.01uF 20% 16V C745 1-162-306-11 CERAMIC 0.01uF 20% 16V C746 1-107-713-11 ELECT 4.7uF 20% 35V C746A 1-126-963-11 ELECT 4.7uF 20% 50V C751 1-162-306-11 CERAMIC 0.01uF 20% 16V C752 1-126-964-11 ELECT 10uF 20% 50V C753 1-161-494-00 CERAMIC 0.022uF 25V C754 1-104-665-11 ELECT 100uF 20% 10V C755 1-161-494-00 CERAMIC 0.022uF 25V C756 1-136-173-00 FILM 0.47uF 5% 50V C757 1-162-306-11 CERAMIC 0.01uF 20% 16V C759 1-162-290-31 CERAMIC 470PF 10% 50V C760 1-162-286-31 CERAMIC 220PF 10% 50V C761 1-136-169-00 FILM 0.22uF 5% 50V C762 1-137-393-11 FILM 0.01uF 5% 100V C763 1-161-494-00 CERAMIC 0.022uF 25V C764 1-104-665-11 ELECT 100uF 20% 10V C765 1-162-294-31 CERAMIC 0.001uF 10% 50V C766 1-162-294-31 CERAMIC 0.001uF 10% 50V C767 1-162-294-31 CERAMIC 0.001uF 10% 50V C768 1-162-294-31 CERAMIC 0.001uF 10% 50V C769 1-162-294-31 CERAMIC 0.001uF 10% 50V C770 1-164-159-11 CERAMIC 0.1uF 50V C771 1-161-494-00 CERAMIC 0.022uF 25V C771A 1-161-494-00 CERAMIC 0.022uF 25V C772 1-161-494-00 CERAMIC 0.022uF 25V C773 1-102-961-00 CERAMIC 27PF 5% 50V C774 1-102-961-00 CERAMIC 27PF 5% 50V C777 1-162-294-31 CERAMIC 0.001uF 10% 50V C778 1-162-294-31 CERAMIC 0.001uF 10% 50V C779 1-162-282-31 CERAMIC 100PF 10% 50V C779A 1-126-960-11 ELECT 1uF 20% 50V C780 1-162-294-31 CERAMIC 0.001uF 10% 50V C780A 1-126-960-11 ELECT 1uF 20% 50V C781 1-162-284-31 CERAMIC 150PF 10% 50V C782 1-162-284-31 CERAMIC 150PF 10% 50V C783 1-162-292-31 CERAMIC 680PF 10% 50V C784 1-162-292-31 CERAMIC 680PF 10% 50V C785 1-126-963-11 ELECT 4.7uF 20% 50V C786 1-126-963-11 ELECT 4.7uF 20% 50V C787 1-162-294-31 CERAMIC 0.001uF 10% 50V C788 1-162-294-31 CERAMIC 0.001uF 10% 50V C789 1-161-494-00 CERAMIC 0.022uF 25V C790 1-126-927-11 ELECT 2200uF 20% 10V C790A 1-161-494-00 CERAMIC 0.022uF 25V C791 1-164-159-11 CERAMIC 0.1uF 50V C792 1-162-302-11 CERAMIC 0.0022uF 30% 16V C793 1-162-302-11 CERAMIC 0.0022uF 30% 16V C794 1-162-302-11 CERAMIC 0.0022uF 30% 16V C795 1-164-159-11 CERAMIC 0.1uF 50V C797 1-161-494-00 CERAMIC 0.022uF 25V C798 1-126-963-11 ELECT 4.7uF 20% 50V C799 1-161-494-00 CERAMIC 0.022uF 25V C799B 1-104-665-11 ELECT 100uF 20% 10V < CONNECTOR > CN701 1-580-475-11 SOCKET, CONNECTOR 16P CN705 1-568-822-21 SOCKET, CONNECTOR 22P * CN706 1-568-824-11 SOCKET, CONNECTOR 5P * CN707 1-564-709-11 PIN, CONNECTOR (SMALL TYPE) 7P < DIODE > D703 8-719-991-33 DIODE 1SS133T-77 D707 8-719-991-33 DIODE 1SS133T-77 D708 8-719-991-33 DIODE 1SS133T-77 CD DECORD AMPLIFIER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 43 < IC > IC701 8-752-082-14 IC CXA1992BR IC702 8-752-384-13 IC CXD2589Q IC703 8-759-579-80 IC BA5936S IC704 8-759-234-75 IC TC74HC4094AP IC705 8-759-505-55 IC NJM4558L < COIL > L704 1-410-509-11 INDUCTOR 10uH L705 1-410-509-11 INDUCTOR 10uH < TRANSISTOR > Q701 8-729-195-23 TRANSISTOR 2SA952-L Q702 8-729-195-23 TRANSISTOR 2SA952-L Q703 8-729-195-23 TRANSISTOR 2SA952-L Q705 8-729-194-57 TRANSISTOR 2SC945TP-P Q706 8-729-194-57 TRANSISTOR 2SC945TP-P Q707 8-729-195-23 TRANSISTOR 2SA952-L Q708 8-729-195-23 TRANSISTOR 2SA952-L < RESISTOR > R701 1-249-393-11 CARBON 10 5% 1/4W F R704 1-247-862-11 CARBON 20K 5% 1/4W R705 1-247-855-11 CARBON 10K 5% 1/4W R706 1-249-430-11 CARBON 12K 5% 1/4W R707 1-247-903-00 CARBON 1M 5% 1/4W R710 1-247-887-00 CARBON 220K 5% 1/4W R710A 1-249-417-11 CARBON 1K 5% 1/4W F R711 1-247-883-00 CARBON 150K 5% 1/4W R713 1-247-879-11 CARBON 100K 5% 1/4W R714 1-249-439-11 CARBON 68K 5% 1/4W R715 1-249-439-11 CARBON 68K 5% 1/4W R716 1-249-439-11 CARBON 68K 5% 1/4W R717 1-249-439-11 CARBON 68K 5% 1/4W R718 1-247-879-11 CARBON 100K 5% 1/4W R719 1-247-883-00 CARBON 150K 5% 1/4W R720 1-247-891-00 CARBON 330K 5% 1/4W R721 1-247-885-00 CARBON 180K 5% 1/4W R722 1-247-807-11 CARBON 100 5% 1/4W R723 1-247-855-11 CARBON 10K 5% 1/4W R724 1-247-855-11 CARBON 10K 5% 1/4W R725 1-247-899-11 CARBON 680K 5% 1/4W R726 1-249-440-11 CARBON 82K 5% 1/4W R727 1-247-896-11 CARBON 510K 5% 1/4W R728 1-247-807-11 CARBON 100 5% 1/4W R729 1-249-439-11 CARBON 68K 5% 1/4W R730 1-247-871-11 CARBON 47K 5% 1/4W R731 1-249-417-11 CARBON 1K 5% 1/4W F R732 1-247-883-00 CARBON 150K 5% 1/4W R733 1-249-430-11 CARBON 12K 5% 1/4W R734 1-247-876-11 CARBON 75K 5% 1/4W R735 1-247-879-11 CARBON 100K 5% 1/4W R736 1-247-807-11 CARBON 100 5% 1/4W R737 1-249-417-11 CARBON 1K 5% 1/4W F R739 1-247-807-11 CARBON 100 5% 1/4W R740 1-249-431-11 CARBON 15K 5% 1/4W R741 1-249-431-11 CARBON 15K 5% 1/4W R742 1-249-385-11 CARBON 2.2 5% 1/6W F R743 1-247-863-11 CARBON 22K 5% 1/4W R744 1-247-863-11 CARBON 22K 5% 1/4W R745 1-247-863-11 CARBON 22K 5% 1/4W R746 1-249-432-11 CARBON 18K 5% 1/4W R747 1-249-432-11 CARBON 18K 5% 1/4W R747A 1-247-855-11 CARBON 10K 5% 1/4W R748 1-247-847-11 CARBON 4.7K 5% 1/4W R748A 1-249-417-11 CARBON 1K 5% 1/4W F R751 1-247-863-11 CARBON 22K 5% 1/4W R752 1-247-867-11 CARBON 33K 5% 1/4W R753 1-249-428-11 CARBON 8.2K 5% 1/4W F R755 1-247-871-11 CARBON 47K 5% 1/4W R756 1-247-867-11 CARBON 33K 5% 1/4W R758 1-247-871-11 CARBON 47K 5% 1/4W R759 1-247-843-11 CARBON 3.3K 5% 1/4W R760 1-249-417-11 CARBON 1K 5% 1/4W F R761 1-247-855-11 CARBON 10K 5% 1/4W R762 1-247-903-00 CARBON 1M 5% 1/4W R763 1-247-887-00 CARBON 220K 5% 1/4W R764 1-247-855-11 CARBON 10K 5% 1/4W R765 1-247-871-11 CARBON 47K 5% 1/4W R766 1-249-417-11 CARBON 1K 5% 1/4W F R766A 1-249-417-11 CARBON 1K 5% 1/4W F R767 1-249-417-11 CARBON 1K 5% 1/4W F R767A 1-249-417-11 CARBON 1K 5% 1/4W F R768A 1-249-417-11 CARBON 1K 5% 1/4W F R771 1-249-417-11 CARBON 1K 5% 1/4W F R773 1-249-442-11 CARBON 510 5% 1/4W R774 1-247-903-00 CARBON 1M 5% 1/4W R775 1-247-867-11 CARBON 33K 5% 1/4W R777 1-247-839-11 CARBON 2.2K 5% 1/4W R778 1-247-839-11 CARBON 2.2K 5% 1/4W R778L 1-247-847-11 CARBON 4.7K 5% 1/4W R778R 1-247-847-11 CARBON 4.7K 5% 1/4W R779 1-247-839-11 CARBON 2.2K 5% 1/4W R780 1-247-839-11 CARBON 2.2K 5% 1/4W R780A 1-249-417-11 CARBON 1K 5% 1/4W F R781 1-249-430-11 CARBON 12K 5% 1/4W R782 1-249-430-11 CARBON 12K 5% 1/4W R783 1-249-430-11 CARBON 12K 5% 1/4W R784 1-249-430-11 CARBON 12K 5% 1/4W R785 1-249-430-11 CARBON 12K 5% 1/4W R786 1-249-430-11 CARBON 12K 5% 1/4W R787 1-247-839-11 CARBON 2.2K 5% 1/4W R788 1-247-839-11 CARBON 2.2K 5% 1/4W R789 1-247-847-11 CARBON 4.7K 5% 1/4W R790 1-247-847-11 CARBON 4.7K 5% 1/4W R795 1-249-417-11 CARBON 1K 5% 1/4W F R795A 1-247-855-11 CARBON 10K 5% 1/4W R796 1-249-417-11 CARBON 1K 5% 1/4W F R796A 1-247-855-11 CARBON 10K 5% 1/4W R797 1-249-417-11 CARBON 1K 5% 1/4W F R798L 1-247-855-11 CARBON 10K 5% 1/4W R798R 1-247-855-11 CARBON 10K 5% 1/4W < VIBRATOR > XTL01 1-567-908-11 VIBRATOR, CRYSTAL (16.9344MHz) ************************************************************ CD DECORD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 44 A-4426-056-A FRONT BOARD, COMPLETE(GRX20:AUS/RXD3) ********************** A-4426-289-A FRONT BOARD, COMPLETE (GRX20:AR,E) ********************** A-4426-290-A FRONT BOARD, COMPLETE (GRX20:MX) ********************** A-4426-291-A FRONT BOARD, COMPLETE (GRX20:SP,TW) ********************** 4-220-812-01 HOLDER, DISPLAY < CAPACITOR > C601 1-126-916-11 ELECT 1000uF 20% 6.3V C602 1-161-494-00 CERAMIC 0.022uF 25V C603 1-164-159-11 CERAMIC 0.1uF 50V C604 1-126-933-11 ELECT 100uF 20% 16V C605 1-104-664-11 ELECT 47uF 20% 16V C606 1-164-159-11 CERAMIC 0.1uF 50V C608 1-126-958-11 ELECT 0.33uF 20% 50V C608A 1-126-960-11 ELECT 1uF 20% 50V C609 1-164-159-11 CERAMIC 0.1uF 50V C610 1-126-964-11 ELECT 10uF 20% 50V C611 1-161-494-00 CERAMIC 0.022uF 25V C612 1-126-960-11 ELECT 1uF 20% 50V C613 1-102-852-91 CERAMIC 47PF 5% 50V C614 1-102-852-91 CERAMIC 47PF 5% 50V C615 1-126-964-11 ELECT 10uF 20% 50V C616 1-164-206-41 CERAMIC 0.047uF 99% 50V C620 1-162-306-11 CERAMIC 0.01uF 30% 16V C621 1-162-306-11 CERAMIC 0.01uF 30% 16V C622 1-126-964-11 ELECT 10uF 20% 50V C623 1-161-494-00 CERAMIC 0.022uF 25V C624 1-162-286-31 CERAMIC 220PF 10% 50V C625 1-162-286-31 CERAMIC 220PF 10% 50V C626 1-162-286-31 CERAMIC 220PF 10% 50V C641 1-126-957-11 ELECT 0.22uF 20% 50V C642 1-126-957-11 ELECT 0.22uF 20% 50V C643 1-164-206-41 CERAMIC 0.047uF 99% 50V C644 1-126-959-11 ELECT 0.47uF 20% 50V C645 1-126-957-11 ELECT 0.22uF 20% 50V C646 1-162-306-11 CERAMIC 0.01uF 30% 16V C647 1-126-957-11 ELECT 0.22uF 20% 50V C648 1-126-957-11 ELECT 0.22uF 20% 50V C649 1-162-302-11 CERAMIC 0.0022uF 30% 16V C650 1-130-489-11 MYLAR 0.033uF 5% 50V C651 1-126-957-11 ELECT 0.22uF 20% 50V C652 1-162-293-31 CERAMIC 820PF 10% 50V < CONNECTOR > CN601 1-770-404-11 HOUSING,CONNECTOR(PC BOARD)11P CN602 1-770-404-11 HOUSING,CONNECTOR(PC BOARD)11P CN603 1-568-822-21 SOCKET, CONNECTOR 22P < DIODE > D601 8-719-200-02 DIODE 1N4002 D602 8-719-200-02 DIODE 1N4002 D603 8-719-911-19 DIODE 1SS133T-72 D604 8-719-911-19 DIODE 1SS133T-72 D612 8-719-911-19 DIODE 1SS133T-72 (GRX20:AUS/RXD3) D614 8-719-911-19 DIODE 1SS133T-72 D616 8-719-911-19 DIODE 1SS133T-72 (GRX20:AR,AUS,E,SP,TW/RXD3) D617 8-719-911-19 DIODE 1SS133T-72 (GRX20:AR,AUS,E,SP,TW/RXD3) D618 8-719-911-19 DIODE 1SS133T-72 (GRX20:AR,E,MX) D619 8-719-911-19 DIODE 1SS133T-72 (GRX20:AR,AUS,E,SP,TW/RXD3) D625 8-719-911-19 DIODE 1SS133T-72 D626 8-719-911-19 DIODE 1SS133T-72 D627 8-719-911-19 DIODE 1SS133T-72 D628 8-719-911-19 DIODE 1SS133T-72 D629 8-719-911-19 DIODE 1SS133T-72 D630 8-719-911-19 DIODE 1SS133T-72 D631 8-719-911-19 DIODE 1SS133T-72 D633 8-719-911-19 DIODE 1SS133T-72 D634 8-719-911-19 DIODE 1SS133T-72 D635 8-719-911-19 DIODE 1SS133T-72 D650 8-719-911-19 DIODE 1SS133T-72 (GRX20:AUS/RXD3) D651 8-719-911-19 DIODE 1SS133T-72 (GRX20:AUS/RXD3) D652 8-719-911-19 DIODE 1SS133T-72 (GRX20:AUS/RXD3) D653 8-719-911-19 DIODE 1SS133T-72 (GRX20:AUS/RXD3) D654 8-719-911-19 DIODE 1SS133T-72 (GRX20:AUS/RXD3) < FLUORESCENT INDICATOR > FLD601 1-517-731-11 INDICATOR TUBE, FLUORESCENT < IC > IC601 8-759-593-40 IC CXP82040-108Q IC602 8-759-275-23 IC BU2092 < COIL > L601 1-414-151-11 INDUCTOR 470uH < LED > LED601 8-719-046-80 LED SML19416W-TP4 (+) LED602 8-719-311-60 LED SEL2810D-C (ENTER/NEXT) LED603 8-719-311-60 LED SEL2810D-C (P) LED604 8-719-321-10 LED SEL2110R (r) LED605 8-719-301-42 LED SEL2410E (TAPE B 9) LED606 8-719-301-42 LED SEL2410E (TAPE B () LED607 8-719-301-42 LED SEL2410E(TAPE A () < TRANSISTOR > Q601 8-729-194-57 TRANSISTOR 2SC945TP-P Q602 8-729-194-57 TRANSISTOR 2SC945TP-P Q603 8-729-194-57 TRANSISTOR 2SC945TP-P Q604 8-729-119-76 TRANSISTOR 2SA733-P Q605 8-729-119-76 TRANSISTOR 2SA733-P (GRX20:AR,E,SP,TW) Q606 8-729-194-57 TRANSISTOR 2SC945TP-P (GRX20:AR,E,SP,TW) Q607 8-729-026-29 TRANSISTOR 2SJ346 Q608 8-729-026-29 TRANSISTOR 2SJ346 FRONT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 45 < RESISTOR > R600 1-249-407-11 CARBON 150 5% 1/4W F R600A 1-249-417-11 CARBON 1K 5% 1/4W F R600B 1-249-417-11 CARBON 1K 5% 1/4W F R600C 1-247-871-11 CARBON 47K 5% 1/4W R600D 1-247-847-11 CARBON 4.7K 5% 1/4W R600E 1-247-847-11 CARBON 4.7K 5% 1/4W R600F 1-247-847-11 CARBON 4.7K 5% 1/4W R601 1-247-871-11 CARBON 47K 5% 1/4W R602 1-249-417-11 CARBON 1K 5% 1/4W F R603 1-247-871-11 CARBON 47K 5% 1/4W R604 1-249-417-11 CARBON 1K 5% 1/4W F R605 1-247-871-11 CARBON 47K 5% 1/4W R606 1-249-417-11 CARBON 1K 5% 1/4W F R607 1-249-431-11 CARBON 15K 5% 1/4W R608 1-247-871-11 CARBON 47K 5% 1/4W R609 1-247-871-11 CARBON 47K 5% 1/4W R610 1-247-879-11 CARBON 100K 5% 1/4W (GRX20:AR,E,SP,TW) R611 1-247-879-11 CARBON 100K 5% 1/4W (GRX20:AR,E,SP,TW) R612 1-247-847-11 CARBON 4.7K 5% 1/4W (GRX20:AR,E,SP,TW) R621 1-249-417-11 CARBON 1K 5% 1/4W F R622 1-249-417-11 CARBON 1K 5% 1/4W F R623 1-249-417-11 CARBON 1K 5% 1/4W F R624 1-249-407-11 CARBON 150 5% 1/4W F R625 1-249-407-11 CARBON 150 5% 1/4W F R626 1-249-407-11 CARBON 150 5% 1/4W F R627 1-249-407-11 CARBON 150 5% 1/4W F R628 1-249-407-11 CARBON 150 5% 1/4W F R629 1-249-407-11 CARBON 150 5% 1/4W F R630 1-249-407-11 CARBON 150 5% 1/4W F R631 1-249-407-11 CARBON 150 5% 1/4W F R633 1-247-879-11 CARBON 100K 5% 1/4W R634 1-247-879-11 CARBON 100K 5% 1/4W R638 1-247-847-11 CARBON 4.7K 5% 1/4W R639 1-247-847-11 CARBON 4.7K 5% 1/4W R640 1-247-839-11 CARBON 2.2K 5% 1/4W R641 1-247-847-11 CARBON 4.7K 5% 1/4W R642 1-247-847-11 CARBON 4.7K 5% 1/4W R643 1-247-847-11 CARBON 4.7K 5% 1/4W R644 1-247-847-11 CARBON 4.7K 5% 1/4W R645 1-247-847-11 CARBON 4.7K 5% 1/4W R646 1-247-847-11 CARBON 4.7K 5% 1/4W R647 1-247-855-11 CARBON 10K 5% 1/4W R648 1-247-855-11 CARBON 10K 5% 1/4W R649 1-247-855-11 CARBON 10K 5% 1/4W R651 1-247-827-11 CARBON 680 5% 1/4W R652 1-249-416-11 CARBON 820 5% 1/4W F R653 1-249-418-11 CARBON 1.2K 5% 1/4W F R654 1-247-835-11 CARBON 1.5K 5% 1/4W R655 1-247-839-11 CARBON 2.2K 5% 1/4W R656 1-247-843-11 CARBON 3.3K 5% 1/4W R657 1-247-847-11 CARBON 4.7K 5% 1/4W R658 1-249-428-11 CARBON 8.2K 5% 1/4W F R659 1-249-951-11 CARBON 15K 1% 1/4W R660 1-249-957-11 CARBON 27K 1% 1/4W R661 1-247-827-11 CARBON 680 5% 1/4W R662 1-249-416-11 CARBON 820 5% 1/4W F R663 1-249-418-11 CARBON 1.2K 5% 1/4W F R664 1-247-835-11 CARBON 1.5K 5% 1/4W R665 1-247-839-11 CARBON 2.2K 5% 1/4W R666 1-247-843-11 CARBON 3.3K 5% 1/4W R667 1-247-847-11 CARBON 4.7K 5% 1/4W R668 1-249-428-11 CARBON 8.2K 5% 1/4W F R669 1-247-827-11 CARBON 680 5% 1/4W R670 1-249-416-11 CARBON 820 5% 1/4W F R671 1-249-418-11 CARBON 1.2K 5% 1/4W F R672 1-247-835-11 CARBON 1.5K 5% 1/4W R673 1-247-839-11 CARBON 2.2K 5% 1/4W R674 1-247-843-11 CARBON 3.3K 5% 1/4W R675 1-247-847-11 CARBON 4.7K 5% 1/4W R676 1-249-428-11 CARBON 8.2K 5% 1/4W F R677 1-249-951-11 CARBON 15K 1% 1/4W R678 1-249-957-11 CARBON 27K 1% 1/4W R680 1-247-895-00 CARBON 470K 5% 1/4W R681 1-249-957-11 CARBON 27K 1% 1/4W R683 1-247-895-00 CARBON 470K 5% 1/4W R684 1-247-871-11 CARBON 47K 5% 1/4W R685 1-247-835-11 CARBON 1.5K 5% 1/4W R687 1-247-895-00 CARBON 470K 5% 1/4W R688 1-247-871-11 CARBON 47K 5% 1/4W R689 1-247-835-11 CARBON 1.5K 5% 1/4W R691 1-247-895-00 CARBON 470K 5% 1/4W R692 1-247-871-11 CARBON 47K 5% 1/4W R693 1-247-835-11 CARBON 1.5K 5% 1/4W R694 1-247-887-00 CARBON 220K 5% 1/4W R695 1-247-895-00 CARBON 470K 5% 1/4W R696 1-247-871-11 CARBON 47K 5% 1/4W R697 1-247-835-11 CARBON 1.5K 5% 1/4W RA605 1-247-871-11 CARBON 47K 5% 1/4W RA606 1-247-871-11 CARBON 47K 5% 1/4W RA607 1-247-871-11 CARBON 47K 5% 1/4W RA608 1-247-871-11 CARBON 47K 5% 1/4W RA609 1-247-871-11 CARBON 47K 5% 1/4W < SWITCH > S601 1-572-647-11 SWITCH, KEY BOARD (1/u) S602 1-572-647-11 SWITCH, KEY BOARD (CLOCK/TIMER SHOT) S603 1-572-647-11 SWITCH, KEY BOARD (TIMER SELECT) S604 1-572-647-11 SWITCH, KEY BOARD (DISPLAY/DEMO) S605 1-572-647-11 SWITCH, KEY BOARD (FILE SELECT) S606 1-572-647-11 SWITCH, KEY BOARD (DBFB) S607 1-572-647-11 SWITCH, KEY BOARD (+, )) S608 1-572-647-11 SWITCH, KEY BOARD (–, 0) S609 1-572-647-11 SWITCH, KEY BOARD (+) S610 1-572-647-11 SWITCH, KEY BOARD (=) S611 1-572-647-11 SWITCH, KEY BOARD (p) S612 1-572-647-11 SWITCH, KEY BOARD (TAPE B () S613 1-572-647-11 SWITCH, KEY BOARD (TAPE B () S614 1-572-647-11 SWITCH, KEY BOARD (CD ^) S615 1-572-647-11 SWITCH, KEY BOARD (TUNER/BAND) FRONT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 46 S616 1-572-647-11 SWITCH, KEY BOARD (REC) S617 1-572-647-11 SWITCH, KEY BOARD (PAUSE) S618 1-572-647-11 SWITCH, KEY BOARD (CD SYNC) S619 1-572-647-11 SWITCH, KEY BOARD (TAPE A () S620 1-572-647-11 SWITCH, KEY BOARD (FUNCTION) S621 1-572-647-11 SWITCH, KEY BOARD (PLAY MODE,TUNER MEMORY) S622 1-572-647-11 SWITCH, KEY BOARD (REPEAT,STEREO/MONO) S623 1-572-647-11 SWITCH, KEY BOARD (EDIT/DIRECTION) S624 1-572-647-11 SWITCH, KEY BOARD (ENTER/NEXT) S625 1-572-647-11 SWITCH, KEY BOARD (DISC 1) S626 1-572-647-11 SWITCH, KEY BOARD (DISC 2) S627 1-572-647-11 SWITCH, KEY BOARD (DISC 3) S628 1-572-647-11 SWITCH, KEY BOARD (DISC SKIP/EX-CHANGE) S629 1-572-647-11 SWITCH, KEY BOARD (6 OPEN/CLOSE) < VIBRATOR > X601 1-567-925-11 VIBRATOR, CRYSTAL (10MHz) ************************************************************ 1-674-558-11 FUSE BOARD ********** * 1-533-213-31 HOLDER, FUSE < FUSE > !F702 1-532-504-31 FUSE 4.0A 250V (GRX20:AR,AUS,E,SP,TW) !F702 1-576-108-11 FUSE 4.0A 125V (GRX20:MX) !F702 1-532-388-31 FUSE 2.0A 250V (RXD3) !F703 1-532-388-31 FUSE 2.0A 250V (GRX20:AR,AUS,E,SP,TW) ************************************************************ 1-674-559-11 H/P BOARD ********* < CAPACITOR > C360 1-161-494-00 CERAMIC 0.022uF 25V C361 1-161-494-00 CERAMIC 0.022uF 25V C365 1-164-159-11 CERAMIC 0.1uF 50V < JACK > JK302 1-569-612-11 JACK, MINIATURE (PHONES) ************************************************************ A-4426-303-A MAIN BOARD, COMPLETE (GRX20) ********************* A-4426-302-A MAIN BOARD, COMPLETE (RXD3) ********************* < CAPACITOR > C100 1-162-294-31 CERAMIC 0.001uF 10% 50V C107 1-162-306-11 CERAMIC 0.01uF 20% 16V (RXD3) C108 1-126-933-11 ELECT 100uF 20% 16V C113 1-161-494-00 CERAMIC 0.022uF 25V C114 1-130-495-11 MYLAR 0.1uF 5% 50V C115 1-161-494-00 CERAMIC 0.022uF 25V C116 1-130-467-00 MYLAR 470PF 5% 50V C117 1-162-205-31 CERAMIC 18PF 5% 50V C118 1-126-933-11 ELECT 100uF 20% 16V C120 1-130-491-00 MYLAR 0.047uF 5% 50V C121 1-162-203-31 CERAMIC 15PF 5% 50V C122 1-126-960-11 ELECT 1uF 20% 50V C123 1-126-959-11 ELECT 0.47uF 20% 50V C124 1-162-206-31 CERAMIC 20PF 5% 50V C125 1-126-960-11 ELECT 1uF 20% 50V C126 1-130-491-00 MYLAR 0.047uF 5% 50V C128 1-161-494-00 CERAMIC 0.022uF 25V C129 1-126-964-11 ELECT 10uF 20% 50V C130 1-130-489-11 MYLAR 0.033uF 5% 50V C131 1-130-489-11 MYLAR 0.033uF 5% 50V C135 1-161-494-00 CERAMIC 0.022uF 25V (GRX20) C135 1-162-291-31 CERAMIC 560PF 10% 50V (RXD3) C137 1-126-959-11 ELECT 0.47uF 20% 50V C138 1-164-159-11 CERAMIC 0.1uF 50V C139 1-161-494-00 CERAMIC 0.022uF 25V C140 1-126-933-11 ELECT 100uF 20% 16V C141 1-161-494-00 CERAMIC 0.022uF 25V C142 1-126-933-11 ELECT 100uF 20% 16V C143 1-130-499-00 MYLAR 0.22uF 5% 50V C144 1-136-153-00 FILM 0.01uF 5% 50V C146 1-162-294-31 CERAMIC 0.001uF 10% 50V C148 1-161-494-00 CERAMIC 0.022uF 25V C149 1-162-294-31 CERAMIC 0.001uF 10% 50V C150 1-161-494-00 CERAMIC 0.022uF 25V C151 1-128-551-11 ELECT 22uF 20% 25V C152 1-162-282-31 CERAMIC 100PF 10% 50V C154 1-164-159-11 CERAMIC 0.1uF 50V C155 1-162-294-31 CERAMIC 0.001uF 10% 50V C156 1-162-209-31 CERAMIC 27PF 5% 50V C157 1-162-209-31 CERAMIC 27PF 5% 50V C158 1-104-664-11 ELECT 47uF 20% 16V C159 1-162-306-11 CERAMIC 0.01uF 20% 16V C160 1-126-963-11 ELECT 4.7uF 20% 50V C161 1-126-963-11 ELECT 4.7uF 20% 50V C162 1-161-494-00 CERAMIC 0.022uF 25V C163 1-161-494-00 CERAMIC 0.022uF 25V C164 1-126-962-11 ELECT 3.3uF 20% 50V C166 1-162-294-31 CERAMIC 0.001uF 10% 50V (RXD3) C167 1-162-199-31 CERAMIC 10PF 5% 50V (RXD3) C177 1-161-494-00 CERAMIC 0.022uF 25V C179 1-130-491-00 MYLAR 0.047uF 5% 50V C185 1-161-494-00 CERAMIC 0.022uF 25V C186 1-162-294-31 CERAMIC 0.001uF 10% 50V C187 1-161-494-00 CERAMIC 0.022uF 25V C188 1-164-159-11 CERAMIC 0.1uF 50V C189 1-162-600-11 CERAMIC 0.0047uF 30% 16V C193 1-164-159-11 CERAMIC 0.1uF 50V C194 1-162-286-31 CERAMIC 220PF 10% 50V C195 1-162-286-31 CERAMIC 220PF 10% 50V C196 1-162-286-31 CERAMIC 220PF 10% 50V C197 1-162-286-31 CERAMIC 220PF 10% 50V C198 1-126-959-11 ELECT 0.47uF 20% 50V C199 1-130-491-00 MYLAR 0.047uF 5% 50V C201 1-162-292-31 CERAMIC 680PF 10% 50V C202 1-162-292-31 CERAMIC 680PF 10% 50V MAIN H/P FRONT FUSE The components identified b y mar k ! or dotted line with mar k ! are cr itical f or saf ety. Replace only with par t number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 47 C203 1-162-292-31 CERAMIC 680PF 10% 50V C204 1-162-292-31 CERAMIC 680PF 10% 50V C205 1-162-286-31 CERAMIC 220PF 10% 50V C206 1-162-286-31 CERAMIC 220PF 10% 50V C207 1-162-286-31 CERAMIC 220PF 10% 50V C208 1-162-286-31 CERAMIC 220PF 10% 50V C209 1-104-664-11 ELECT 47uF 20% 16V C210 1-104-664-11 ELECT 47uF 20% 16V C211 1-136-156-00 FILM 0.018uF 5% 50V C212 1-136-156-00 FILM 0.018uF 5% 50V C213 1-126-960-11 ELECT 1uF 20% 50V C214 1-126-960-11 ELECT 1uF 20% 50V C215 1-162-303-11 CERAMIC 0.0033uF 30% 16V C216 1-162-303-11 CERAMIC 0.0033uF 30% 16V C217 1-128-551-11 ELECT 22uF 20% 25V C218 1-126-940-11 ELECT 330uF 20% 16V C219 1-126-962-11 ELECT 3.3MF 20% 50V C221 1-126-962-11 ELECT 3.3MF 20% 50V C222 1-126-962-11 ELECT 3.3MF 20% 50V C223 1-162-290-31 CERAMIC 470PF 10% 50V C224 1-162-290-31 CERAMIC 470PF 10% 50V C225 1-164-736-31 CERAMIC 0.0012uF 10% 50V C226 1-164-736-31 CERAMIC 0.0012uF 10% 50V C227 1-162-286-31 CERAMIC 220PF 10% 50V C228 1-162-286-31 CERAMIC 220PF 10% 50V C229 1-126-933-11 ELECT 100uF 20% 16V C230 1-126-933-11 ELECT 100uF 20% 16V C231 1-126-962-11 ELECT 3.3MF 20% 50V C232 1-126-962-11 ELECT 3.3MF 20% 50V C233 1-162-294-31 CERAMIC 0.001uF 10% 50V C234 1-162-294-31 CERAMIC 0.001uF 10% 50V C237 1-161-494-00 CERAMIC 0.022uF 25V C238 1-126-961-11 ELECT 2.2uF 20% 50V C251 1-130-485-00 MYLAR 0.015uF 5% 50V C252 1-137-371-11 FILM 0.015uF 5% 50V C253 1-130-483-00 MYLAR 0.01uF 5% 50V C254 1-137-368-11 FILM 0.0047uF 5% 50V C255 1-104-664-11 ELECT 47uF 20% 16V C261 1-137-374-11 FILM 0.047uF 5% 50V C262 1-137-374-11 FILM 0.047uF 5% 50V C301 1-162-294-31 CERAMIC 0.001uF 10% 50V C302 1-162-294-31 CERAMIC 0.001uF 10% 50V C303 1-126-961-11 ELECT 2.2uF 20% 50V C304 1-126-961-11 ELECT 2.2uF 20% 50V C305 1-126-961-11 ELECT 2.2uF 20% 50V C306 1-126-961-11 ELECT 2.2uF 20% 50V C307 1-130-489-00 MYLAR 0.033uF 5% 50V C309 1-130-499-00 MYLAR 0.22uF 5% 50V C310 1-130-499-00 MYLAR 0.22uF 5% 50V C311 1-130-499-00 MYLAR 0.22uF 5% 50V C312 1-130-499-00 MYLAR 0.22uF 5% 50V C308 1-130-489-00 MYLAR 0.033uF 5% 50V C313 1-162-199-31 CERAMIC 10PF 5% 50V C319 1-126-961-11 ELECT 2.2uF 20% 50V C320 1-126-961-11 ELECT 2.2uF 20% 50V C322 1-161-494-00 CERAMIC 0.022uF 25V C323 1-164-159-11 CERAMIC 0.1uF 50V C324 1-126-933-11 ELECT 100uF 20% 16V C325 1-126-933-11 ELECT 100uF 20% 16V C326 1-161-494-00 CERAMIC 0.022uF 25V C327 1-126-933-11 ELECT 100uF 20% 16V C331 1-126-961-11 ELECT 2.2uF 20% 50V C332 1-126-961-11 ELECT 2.2uF 20% 50V C333 1-104-664-11 ELECT 47uF 20% 16V C334 1-104-664-11 ELECT 47uF 20% 16V C337 1-109-889-11 ELECT 1uF 20% 50V C339 1-126-961-11 ELECT 2.2uF 20% 50V C340 1-126-962-11 ELECT 3.3uF 20% 50V C341 1-109-953-11 ELECT 2.2uF 20% 50V C342 1-109-953-11 ELECT 2.2uF 20% 50V C343 1-126-962-11 ELECT 3.3uF 20% 50V C344 1-126-962-11 ELECT 3.3uF 20% 50V C345 1-162-199-31 CERAMIC 10PF 5% 50V C346 1-162-199-31 CERAMIC 10PF 5% 50V C347 1-126-961-11 ELECT 2.2uF 20% 50V C348 1-126-961-11 ELECT 2.2uF 20% 50V C349 1-126-933-11 ELECT 100uF 20% 16V C351 1-164-159-11 CERAMIC 0.1uF 50V C352 1-164-159-11 CERAMIC 0.1uF 50V C354 1-126-934-11 ELECT 220uF 20% 16V C355 1-126-934-11 ELECT 220uF 20% 16V C363 1-164-159-11 CERAMIC 0.1uF 50V C364 1-164-159-11 CERAMIC 0.1uF 50V C378 1-126-961-11 ELECT 2.2uF 20% 50V C379 1-126-961-11 ELECT 2.2uF 20% 50V C500 1-126-960-11 ELECT 1uF 20% 50V C501 1-126-934-11 ELECT 220uF 20% 16V C502 1-126-960-11 ELECT 1uF 20% 50V C503 1-162-286-31 CERAMIC 220PF 10% 50V C504 1-162-286-31 CERAMIC 220PF 10% 50V C505 1-162-286-31 CERAMIC 220PF 10% 50V C506 1-126-967-11 ELECT 47uF 20% 50V C507 1-126-967-11 ELECT 47uF 20% 50V C511 1-162-286-31 CERAMIC 220PF 10% 50V C512 1-162-286-31 CERAMIC 220PF 10% 50V C551 1-162-306-11 CERAMIC 0.01uF 20% 16V C553 1-126-960-11 ELECT 1uF 20% 50V C554 1-126-956-11 ELECT 0.1uF 20% 50V C555 1-126-960-11 ELECT 1uF 20% 50V C556 1-126-933-11 ELECT 100uF 20% 16V C571 1-126-963-11 ELECT 4.7uF 20% 50V C193A 1-161-494-00 CERAMIC 0.022uF 25V C500A 1-161-494-00 CERAMIC 0.022uF 25V < FILTER > CF101 1-579-568-11 FILTER, CERAMIC (GRX20) CF101 1-567-415-11 FILTER, CERAMIC (RXD3) CF102 1-567-390-11 FILTER,CERAMIC 10.7M (GRX20) CF102 1-567-415-11 FILTER, CERAMIC (RXD3) CF103 1-527-996-11 FILTER, CERAMIC CF104 1-579-856-31 DISCRIMINATOR, CERAMIC < CONNECTOR > * CN201 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P * CN501 1-568-835-11 SOCKET, CONNECTOR 16P CN601 1-770-395-11 PIN, CONNECTOR (PC BOARD) 11P CN602 1-770-395-11 PIN, CONNECTOR (PC BOARD) 11P * CN701 1-568-837-11 SOCKET, CONNECTOR 20P MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 48 < DIODE > D101 8-719-991-33 DIODE 1SS133T-77 D102 8-719-991-33 DIODE 1SS133T-77 D103 8-719-991-33 DIODE 1SS133T-77 D104 8-719-991-33 DIODE 1SS133T-77 D109 8-719-991-33 DIODE 1SS133T-77 D110 8-719-109-89 DIODE RD5.6EB1T D111 8-719-991-33 DIODE 1SS133T-77 D201 8-719-991-33 DIODE 1SS133T-77 D202 8-719-991-33 DIODE 1SS133T-77 D203 8-719-991-33 DIODE 1SS133T-77 D301 8-719-991-33 DIODE 1SS133T-77 D302 8-719-010-45 DIODE UZ-6.2BSA D303 8-719-010-16 DIODE UZ-3.0BSA D304 8-719-010-16 DIODE UZ-3.0BSA D305 8-719-921-49 DIODE MTZJ-6.2 D306 8-719-921-49 DIODE MTZJ-6.2 D307 8-719-991-33 DIODE 1SS133T-77 D501 8-719-991-33 DIODE 1SS133T-77 D502 8-719-991-33 DIODE 1SS133T-77 D551 8-719-991-33 DIODE 1SS133T-77 D552 8-719-991-33 DIODE 1SS133T-77 D553 8-719-053-11 DIODE KV1560-TZ < FRONTEND > FE101 1-693-469-11 FRONTEND (EXCEPT AEP) FE101 1-693-422-11 FRONTEND (AEP) < IC > IC102 8-759-590-14 IC LA1833L IC103 8-759-590-13 IC LC72131D IC201 8-759-242-58 IC TA8189N IC301 8-759-595-08 IC M62439SP IC302 8-759-505-55 IC NJM4558L IC502 8-759-916-52 IC TC74HC165AP < JACK > JK101 1-694-092-21 TERMINAL BOARD (SPEAKER) (GRX20) JK101 1-694-126-11 TERMINAL BOARD (SPEAKER) (RXD3) JK301 1-770-613-11 JACK, PIN 4P (MD IN/OUT) < COIL > L104 1-411-901-11 COIL, ANTENNA L105 1-429-555-11 TRANSFORMER, MW OSC L106 1-408-611-31 INDUCTOR 47µH L108 1-410-091-31 INDUCTOR 22µH L109 1-412-503-11 INDUCTOR 22µH L113 1-412-503-11 INDUCTOR 22µH L114 1-412-503-11 INDUCTOR 22µH L251 1-429-552-11 TRANSFORMER, BIAS OSCILLATION L401 1-408-096-00 INDUCTOR 470µH < TRANSISTOR > Q101 1-807-810-21 TRANSISTOR 2SC1675TP-L Q108 8-729-041-83 TRANSISTOR 2SK544E Q114 8-729-026-29 TRANSISTOR 2SJ346 Q116 8-729-194-57 TRANSISTOR 2SC945TP-P Q117 8-729-194-57 TRANSISTOR 2SC945TP-P Q201 8-729-194-57 TRANSISTOR 2SC945TP-P Q202 8-729-194-57 TRANSISTOR 2SC945TP-P Q203 8-729-194-57 TRANSISTOR 2SC945TP-P Q204 8-729-194-57 TRANSISTOR 2SC945TP-P Q205 8-729-194-57 TRANSISTOR 2SC945TP-P Q206 8-729-194-57 TRANSISTOR 2SC945TP-P Q207 8-729-119-76 TRANSISTOR 2SA733TP-P Q208 8-729-119-76 TRANSISTOR 2SA733TP-P Q209 8-729-194-57 TRANSISTOR 2SC945TP-P Q213 8-729-194-57 TRANSISTOR 2SC945TP-P Q214 8-729-194-57 TRANSISTOR 2SC945TP-P Q251 8-729-142-46 TRANSISTOR 2SC2001TP-K1 Q252 8-729-119-76 TRANSISTOR 2SA733TP-P Q253 8-729-194-57 TRANSISTOR 2SC945TP-P Q301 8-729-194-57 TRANSISTOR 2SC945TP-P Q302 8-729-194-57 TRANSISTOR 2SC945TP-P Q305 8-729-194-57 TRANSISTOR 2SC945TP-P Q306 8-729-194-57 TRANSISTOR 2SC945TP-P Q307 8-729-026-29 TRANSISTOR 2SJ346 Q308 8-729-140-96 TRANSISTOR 2SC2060-R Q309 8-729-140-96 TRANSISTOR 2SC2060-R Q320 8-729-026-29 TRANSISTOR 2SJ346 Q501 8-729-194-57 TRANSISTOR 2SC945TP-P Q502 8-729-903-32 TRANSISTOR 2SA933-R Q503 8-729-903-32 TRANSISTOR 2SA933-R Q504 8-729-194-57 TRANSISTOR 2SC945TP-P Q505 8-729-903-32 TRANSISTOR 2SA933-R Q506 8-729-194-57 TRANSISTOR 2SC945TP-P Q551 8-729-194-57 TRANSISTOR 2SC945TP-P Q552 8-729-194-57 TRANSISTOR 2SC945TP-P < RESISTOR > R100 1-249-427-11 CARBON 6.8K 5% 1/4W F R104 1-247-807-11 CARBON 100 5% 1/4W R105 1-249-409-11 CARBON 220 5% 1/4W F (GRX20) R105 1-249-417-11 CARBON 1K 5% 1/4W F (RXD3) R106 1-247-849-11 CARBON 5.6K 5% 1/4W (GRX20) R106 1-247-807-11 CARBON 100 5% 1/4W (RXD3) R107 1-249-427-11 CARBON 6.8K 5% 1/4W F R112 1-247-698-11 CARBON 68 5% 1/4W F R113 1-249-417-11 CARBON 1K 5% 1/4W F R115 1-249-417-11 CARBON 1K 5% 1/4W F R116 1-249-397-11 CARBON 22 5% 1/4W F R117 1-247-855-11 CARBON 10K 5% 1/4W R118 1-247-807-11 CARBON 100 5% 1/4W R119 1-249-410-11 CARBON 270 5% 1/4W F R120 1-247-843-11 CARBON 3.3K 5% 1/4W R121 1-249-432-11 CARBON 18K 5% 1/4W R123 1-249-428-11 CARBON 8.2K 5% 1/4W F R124 1-247-843-11 CARBON 3.3K 5% 1/4W R126 1-247-843-11 CARBON 3.3K 5% 1/4W R127 1-247-843-11 CARBON 3.3K 5% 1/4W R128 1-249-431-11 CARBON 15K 5% 1/4W R129 1-249-431-11 CARBON 15K 5% 1/4W R130 1-249-405-11 CARBON 100 5% 1/4W F R131 1-249-417-11 CARBON 1K 5% 1/4W F R132 1-247-855-11 CARBON 10K 5% 1/4W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 49 R133 1-247-849-11 CARBON 5.6K 5% 1/4W R134 1-247-855-11 CARBON 10K 5% 1/4W R135 1-249-417-11 CARBON 1K 5% 1/4W F R136 1-247-879-11 CARBON 100K 5% 1/4W R137 1-247-855-11 CARBON 10K 5% 1/4W R138 1-247-807-11 CARBON 100 5% 1/4W R139 1-247-855-11 CARBON 10K 5% 1/4W R140 1-247-839-11 CARBON 2.2K 5% 1/4W R141 1-247-839-11 CARBON 2.2K 5% 1/4W R142 1-247-839-11 CARBON 2.2K 5% 1/4W R143 1-247-839-11 CARBON 2.2K 5% 1/4W R144 1-249-409-11 CARBON 220 5% 1/4W F R147 1-247-843-11 CARBON 3.3K 5% 1/4W R151 1-247-843-11 CARBON 3.3K 5% 1/4W R155 1-247-843-11 CARBON 3.3K 5% 1/4W R156 1-247-863-11 CARBON 22K 5% 1/4W R157 1-247-863-11 CARBON 22K 5% 1/4W R172 1-247-847-11 CARBON 4.7K 5% 1/4W R173 1-247-867-11 CARBON 33K 5% 1/4W R174 1-249-409-11 CARBON 220 5% 1/4W F R175 1-249-431-11 CARBON 15K 5% 1/4W R201 1-249-393-11 CARBON 10 5% 1/4W F R202 1-249-393-11 CARBON 10 5% 1/4W F R203 1-249-393-11 CARBON 10 5% 1/4W F R204 1-249-393-11 CARBON 10 5% 1/4W F R205 1-249-401-11 CARBON 47 5% 1/4W F R205A 1-249-409-11 CARBON 220 5% 1/4W F R206 1-249-401-11 CARBON 47 5% 1/4W F R206A 1-249-409-11 CARBON 220 5% 1/4W F R207 1-249-428-11 CARBON 8.2K 5% 1/4W F R208 1-249-428-11 CARBON 8.2K 5% 1/4W F R209 1-247-889-00 CARBON 270K 5% 1/4W R210 1-247-889-00 CARBON 270K 5% 1/4W R211 1-247-891-00 CARBON 330K 5% 1/4W R212 1-247-891-00 CARBON 330K 5% 1/4W R213 1-247-847-11 CARBON 4.7K 5% 1/4W R214 1-247-847-11 CARBON 4.7K 5% 1/4W R215 1-247-891-00 CARBON 330K 5% 1/4W R216 1-247-891-00 CARBON 330K 5% 1/4W R219 1-247-871-11 CARBON 47K 5% 1/4W R220 1-247-863-11 CARBON 22K 5% 1/4W R221 1-247-855-11 CARBON 10K 5% 1/4W R222 1-249-409-11 CARBON 220 5% 1/4W F R223 1-247-885-00 CARBON 180K 5% 1/4W R224 1-247-885-00 CARBON 180K 5% 1/4W R225 1-247-863-11 CARBON 22K 5% 1/4W R226 1-247-863-11 CARBON 22K 5% 1/4W R227 1-247-881-00 CARBON 120K 5% 1/4W R228 1-247-881-00 CARBON 120K 5% 1/4W R229 1-249-418-11 CARBON 1.2K 5% 1/4W F R230 1-249-418-11 CARBON 1.2K 5% 1/4W F R231 1-247-839-11 CARBON 2.2K 5% 1/4W R232 1-247-839-11 CARBON 2.2K 5% 1/4W R233 1-247-863-11 CARBON 22K 5% 1/4W R234 1-247-863-11 CARBON 22K 5% 1/4W R235 1-247-847-11 CARBON 4.7K 5% 1/4W R236 1-247-847-11 CARBON 4.7K 5% 1/4W R237 1-247-855-11 CARBON 10K 5% 1/4W R239 1-249-381-11 CARBON 1 5% 1/4W F R240 1-247-855-11 CARBON 10K 5% 1/4W R241 1-247-847-11 CARBON 4.7K 5% 1/4W R242 1-247-847-11 CARBON 4.7K 5% 1/4W R243 1-249-430-11 CARBON 12K 5% 1/4W R244 1-247-839-11 CARBON 2.2K 5% 1/4W R245 1-247-839-11 CARBON 2.2K 5% 1/4W R246 1-249-434-11 CARBON 27K 5% 1/4W R247 1-247-855-11 CARBON 10K 5% 1/4W R248 1-247-847-11 CARBON 4.7K 5% 1/4W R251 1-249-434-11 CARBON 27K 5% 1/4W R252 1-249-393-11 CARBON 10 5% 1/4W F R253 1-249-413-11 CARBON 470 5% 1/4W F R254 1-247-855-11 CARBON 10K 5% 1/4W R255 1-247-847-11 CARBON 4.7K 5% 1/4W R261 1-247-843-11 CARBON 3.3K 5% 1/4W R262 1-247-843-11 CARBON 3.3K 5% 1/4W R301 1-249-427-11 CARBON 6.8K 5% 1/4W F R302 1-249-427-11 CARBON 6.8K 5% 1/4W F R303 1-249-417-11 CARBON 1K 5% 1/4W F R304 1-249-417-11 CARBON 1K 5% 1/4W F R309 1-249-427-11 CARBON 6.8K 5% 1/4W F R310 1-249-427-11 CARBON 6.8K 5% 1/4W F R311 1-247-847-11 CARBON 4.7K 5% 1/4W R312 1-247-847-11 CARBON 4.7K 5% 1/4W R313 1-247-871-11 CARBON 47K 5% 1/4W R314 1-247-871-11 CARBON 47K 5% 1/4W R315 1-247-871-11 CARBON 47K 5% 1/4W R316 1-247-871-11 CARBON 47K 5% 1/4W R317 1-247-871-11 CARBON 47K 5% 1/4W R318 1-247-871-11 CARBON 47K 5% 1/4W R319 1-247-871-11 CARBON 47K 5% 1/4W R320 1-247-871-11 CARBON 47K 5% 1/4W R323 1-247-871-11 CARBON 47K 5% 1/4W R324 1-247-871-11 CARBON 47K 5% 1/4W R325 1-247-839-11 CARBON 2.2K 5% 1/4W R326 1-247-839-11 CARBON 2.2K 5% 1/4W R327 1-247-839-11 CARBON 2.2K 5% 1/4W R328 1-247-855-11 CARBON 10K 5% 1/4W R329 1-249-430-11 CARBON 12K 5% 1/4W R330 1-249-417-11 CARBON 1K 5% 1/4W F R331 1-249-417-11 CARBON 1K 5% 1/4W F R332 1-247-871-11 CARBON 47K 5% 1/4W R333 1-247-871-11 CARBON 47K 5% 1/4W R334 1-247-849-11 CARBON 5.6K 5% 1/4W R335 1-247-849-11 CARBON 5.6K 5% 1/4W R336 1-247-827-11 CARBON 680 5% 1/4W R337 1-247-827-11 CARBON 680 5% 1/4W R339 1-215-857-11 METAL OXIDE 10 5% 1W F R341 1-249-413-11 CARBON 470 5% 1/4W F R342 1-249-418-11 CARBON 1.2K 5% 1/4W F R345 1-247-871-11 CARBON 47K 5% 1/4W R346 1-247-871-11 CARBON 47K 5% 1/4W R347 1-247-901-11 CARBON 820K 5% 1/4W R349 1-249-418-11 CARBON 1.2K 5% 1/4W F R350 1-247-827-11 CARBON 680 5% 1/4W R352 1-247-863-11 CARBON 22K 5% 1/4W R358 1-249-413-11 CARBON 470 5% 1/4W F R359 1-202-463-00 SOLID 2.2M 5% 1/4W R360 1-202-463-00 SOLID 2.2M 5% 1/4W R361 1-247-855-11 CARBON 10K 5% 1/4W R362 1-247-855-11 CARBON 10K 5% 1/4W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 50 R363 1-249-418-11 CARBON 1.2K 5% 1/4W F R364 1-249-418-11 CARBON 1.2K 5% 1/4W F R365 1-247-839-11 CARBON 2.2K 5% 1/4W R366 1-247-839-11 CARBON 2.2K 5% 1/4W R367 1-247-839-11 CARBON 2.2K 5% 1/4W R368 1-247-839-11 CARBON 2.2K 5% 1/4W R369 1-247-871-11 CARBON 47K 5% 1/4W R370 1-247-871-11 CARBON 47K 5% 1/4W R371 1-249-417-11 CARBON 1K 5% 1/4W F R372 1-249-417-11 CARBON 1K 5% 1/4W F R373 1-247-879-11 CARBON 100K 5% 1/4W R500 1-249-417-11 CARBON 1K 5% 1/4W F R501 1-249-418-11 CARBON 1.2K 5% 1/4W F R502 1-249-417-11 CARBON 1K 5% 1/4W F R503 1-249-417-11 CARBON 1K 5% 1/4W F R504 1-247-847-11 CARBON 4.7K 5% 1/4W R505 1-249-417-11 CARBON 1K 5% 1/4W F R506 1-249-417-11 CARBON 1K 5% 1/4W F R507 1-249-417-11 CARBON 1K 5% 1/4W F R508 1-247-847-11 CARBON 4.7K 5% 1/4W R509 1-247-839-11 CARBON 2.2K 5% 1/4W R510 1-247-855-11 CARBON 10K 5% 1/4W R511 1-247-855-11 CARBON 10K 5% 1/4W R512 1-249-417-11 CARBON 1K 5% 1/4W F R513 1-247-846-11 CARBON 4.3K 5% 1/4W R514 1-247-855-11 CARBON 10K 5% 1/4W R515 1-249-417-11 CARBON 1K 5% 1/4W F R516 1-249-417-11 CARBON 1K 5% 1/4W F R517 1-247-847-11 CARBON 4.7K 5% 1/4W R518 1-247-839-11 CARBON 2.2K 5% 1/4W R519 1-247-847-11 CARBON 4.7K 5% 1/4W R520 1-247-847-11 CARBON 4.7K 5% 1/4W R521 1-247-847-11 CARBON 4.7K 5% 1/4W R522 1-247-847-11 CARBON 4.7K 5% 1/4W R523 1-247-847-11 CARBON 4.7K 5% 1/4W R524 1-247-839-11 CARBON 2.2K 5% 1/4W R525 1-247-855-11 CARBON 10K 5% 1/4W R526 1-249-417-11 CARBON 1K 5% 1/4W F R527 1-249-413-11 CARBON 470 5% 1/4W F R528 1-247-847-11 CARBON 4.7K 5% 1/4W R551 1-247-855-11 CARBON 10K 5% 1/4W R553 1-247-885-00 CARBON 180K 5% 1/4W R554 1-247-899-11 CARBON 680K 5% 1/4W R555 1-247-855-11 CARBON 10K 5% 1/4W R556 1-249-411-11 CARBON 330 5% 1/4W R557 1-247-885-00 CARBON 180K 5% 1/4W R558 1-247-899-11 CARBON 680K 5% 1/4W R559 1-247-855-11 CARBON 10K 5% 1/4W R560 1-249-411-11 CARBON 330 5% 1/4W R561 1-247-855-11 CARBON 10K 5% 1/4W R562 1-247-879-11 CARBON 100K 5% 1/4W R563 1-249-409-11 CARBON 220 5% 1/4W F R572 1-247-871-11 CARBON 47K 5% 1/4W < ADJUSTABLE RESISTOR > SRF101 1-228-996-00 RES, ADJ, METAL47K SRF501 1-228-991-00 RES, ADJ, METAL2.2K < SWITCH> SW101 1-762-735-11 SWITCH, SLIDE (9kH/10kHz)(E,AUS,SP,TW) < TRANSFORMER > T102 1-429-554-11 TRANSFORMER, AM IFT < TRIMMER CAP > TC102 1-141-304-21 CAP, TRIMMER 10PF TC104 1-141-304-21 CAP, TRIMMER 10PF < VIBRATOR > X101 1-579-585-11 VIBRATOR, CRYSTAL (7.2MHz) ************************************************************ 1-674-792-11 MOTOR BOARD ************* < CAPACITOR > C775 1-124-259-11 ELECT 4.7uF 20% 50V C776 1-164-159-11 CERAMIC 0.1uF 50V < CONNECTOR > * CN06 1-568-824-11 SOCKET, CONNECTOR 5P ************************************************************ * 1-639-678-12 MOTOR (6P) (S) BOARD ******************** < CONNECTOR > CN1 1-564-722-11 PIN, CONNECTOR (SMALL TYPE) 6P < MOTOR > M101 X-2625-877-1 MOTOR ASSY (SPINDLE) M102 X-2625-769-1 MOTOR ASSY (SLED) < SWITCH > S1 1-572-085-11 SWITCH, LEAF (LIMIT) ************************************************************ 1-674-794-11 PHOTO SOCKET BOARD ******************** < CAPACITOR > C710A 1-164-159-11 CERAMIC 0.1uF 50V < CONNECTOR > * CN703 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P < IC > PH701 8-749-923-04 IC TOTX178A ************************************************************ MOTOR MOTOR (6P) (S) MAIN PHOTO SOCKET www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 51 1-674-556-11 SENSOR BOARD ************* < CAPACITOR > C600 1-126-964-11 ELECT 10uF 20% 50V < IC > RM601 8-749-013-84 IC SPS-447-1 ************************************************************ 1-674-788-11 SW (A) BOARD ************ < SWITCH > S04 1-771-169-11 SWITCH (TURN TABLE OPERATION) ************************************************************ 1-674-789-11 SW (B) BOARD ************ < SWITCH > S03 1-771-169-11 SWITCH (TURN TABLE POSITION) ************************************************************ 1-674-790-11 SW (C) BOARD ************ < SWITCH > S02 1-571-300-31 SWITCH, ROTART (OPEN/CLOSE) ************************************************************ 1-674-791-11 SW (D) BOARD ************ < SWITCH > S01 1-571-300-31 SWITCH, ROTARY (OPTICAL PICK-UP DET) ************************************************************ 1-674-554-11 TR BOARD ******** < TRANSISTOR > Q701 8-729-822-89 TRANSISTOR 2SD1667 ************************************************************ 1-674-561-11 VR BOARD ******** < VARIABLE RESISTOR > VR601 1-475-807-11 ENCODER, ROTARY (VOLUME) ************************************************************ The components identified b y mar k ! or dotted line with mar k ! are cr itical f or saf ety. Replace only with par t number specified. SENSOR SW (A) SW (B) SW (C) SW (D) TR VR MISCELLANEOUS ************** !9 1-551-506-99 CORD, POWER (GRX20:E,MX) !9 1-555-795-00 CORD, POWER (GRX20:SP,TW/RXD3:AED,AEP,CIS,G) !9 1-696-572-21 CORD, POWER (RXD3:UK) !9 1-696-966-11 CORD, POWER (GRX20:AUS) !9 1-783-941-41 CORD, POWER (GRX20:AR) !14 1-569-008-21 ADAPTOR, CONVERSION 2P (SP,TW) 86 1-772-163-11 DECK, MECH 87 1-783-579-11 WIRE(FLAT TYPE) (16 CORE) 88 1-769-273-11 WIRE(FLAT TYPE) (22 CORE) 151 1-769-856-11 WIRE (FLAT TYPE) (5 CORE) 210 1-783-740-11 WIRE (FLAT TYPE) !211 8-820-054-03 OPTICAL PICK-UP KSS-213ECM/C2NP M101 X-2625-877-1 MOTOR ASSY (SPINDLE) M102 X-2625-769-1 MOTOR ASSY (SLED) M103 X-4948-765-1 MOTOR ASSY M104 X-4948-766-1 MOTOR ASSY (A) !T001 1-433-917-11 TRANSFORMER, POWER (GRX20:MX) !T001 1-433-918-11 TRANSFORMER, POWER (RXD3) !T001 1-433-919-11 TRANSFORMER, POWER (GRX20:AR,E,SP,TW) !T001 1-433-920-11 TRANSFORMER, POWER (GRX20:AUS) ************************************************************ ************* HARDWARE LIST ************* #1 7-685-246-19 SCREW +KTP 3 × 8 TYPE2 NON-SLIT #2 7-685-660-79 SCREW +PTPWH 4 × 10 TYPE 2 #3 7-685-903-31 SCREW +PTPWH 3 × 10 (TYPE2) #4 7-682-548-09 SCREW +B 3 × 8 #5 7-685-647-79 SCREW +BVTP 3 × 10 TYPE2 N-S #6 7-685-648-79 SCREW +BVTP 3 × 12 TYPE2 N-S #7 7-685-649-14 SCREW +BVTP 3 × 14 TYPE2 N-S #8 7-685-106-19 SCREW +P 2 × 10 TYPE2 SLIT #9 7-685-131-19 SCREW +P 2.6 × 4 TYPE2 SLIT #10 7-685-138-19 SCREW +BTP 2.6 × 16 TYPE2 N-S #11 7-685-902-21 SCREW +PTPWH 2.6 × 8 (TYPE2) #12 7-624-118-01 RING, RETAINING E-2.5 #13 7-685-903-21 SCREW +PTPWH 3 × 8 (TYPE2) #14 7-685-139-29 SCREW, TAPPING, (M2.6 × 20) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 Sony Corporation Home Audio Company 9-928-949-11 99E1671-1 Printed in Japan ©1999.5 Published by Quality Assurance Dept. HCD-GRX20/RXD3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
