索尼SONY HCD-RG70AV音响图纸

分类：电子电工日期：2023-04-08 点击：0

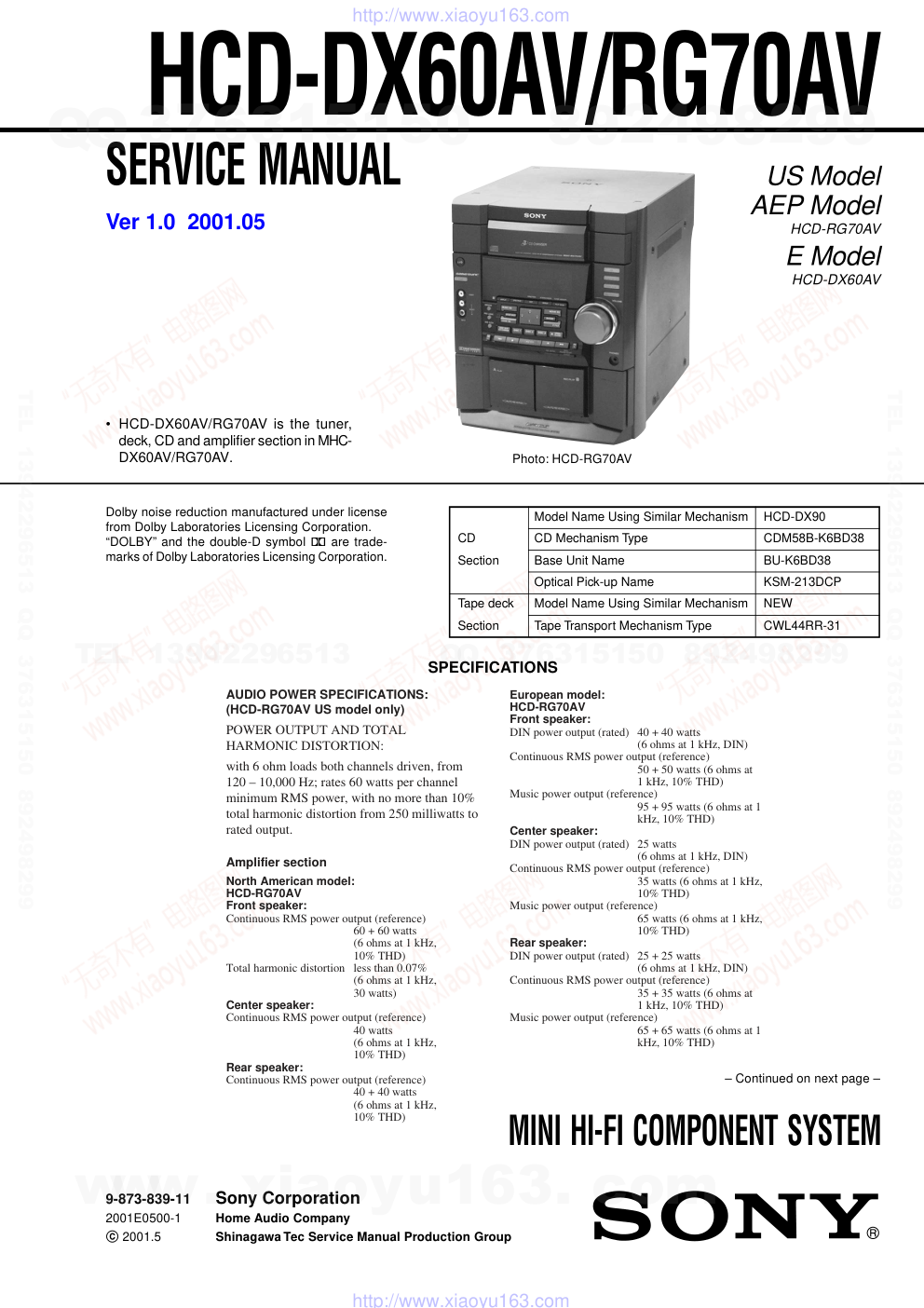

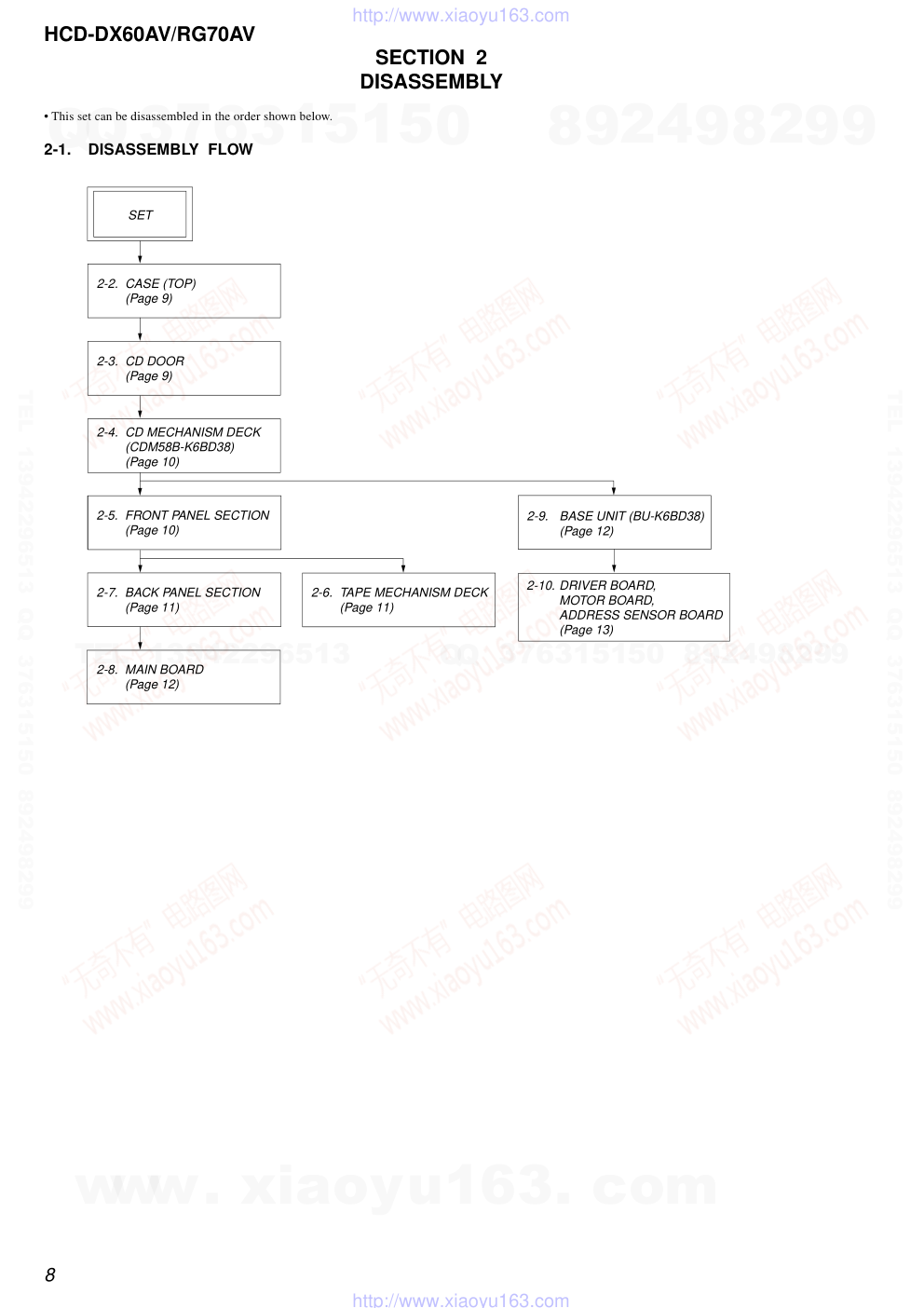

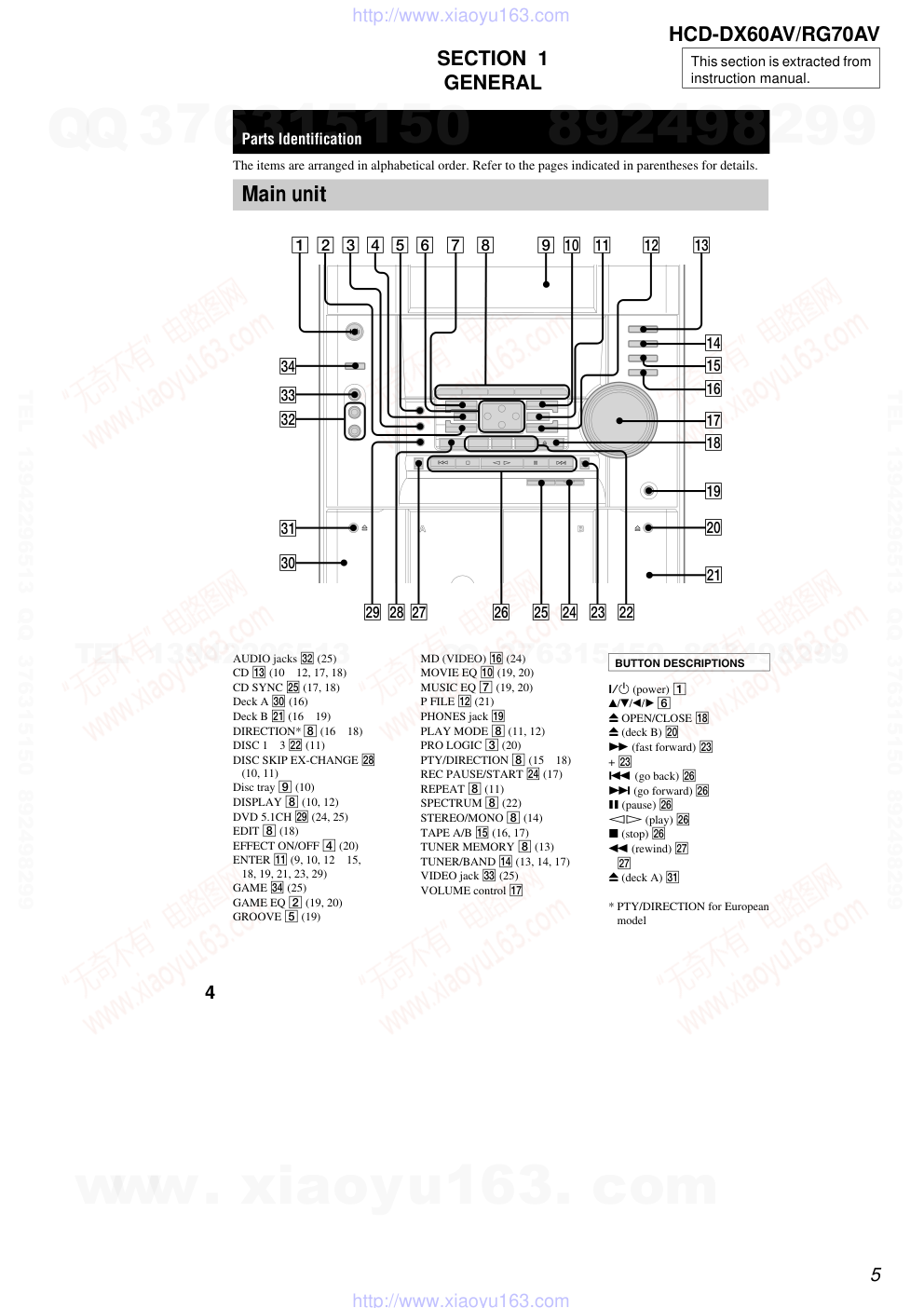

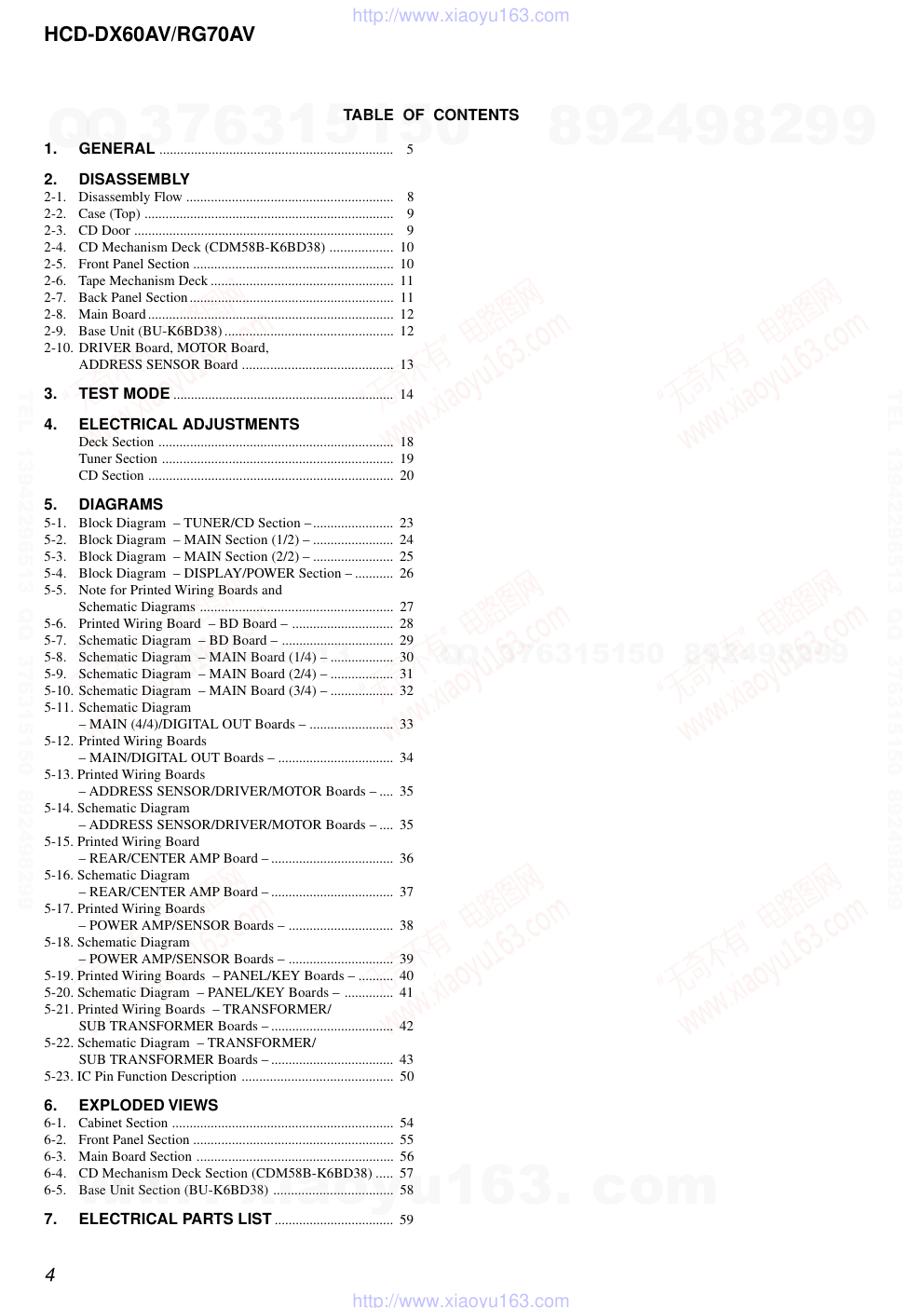

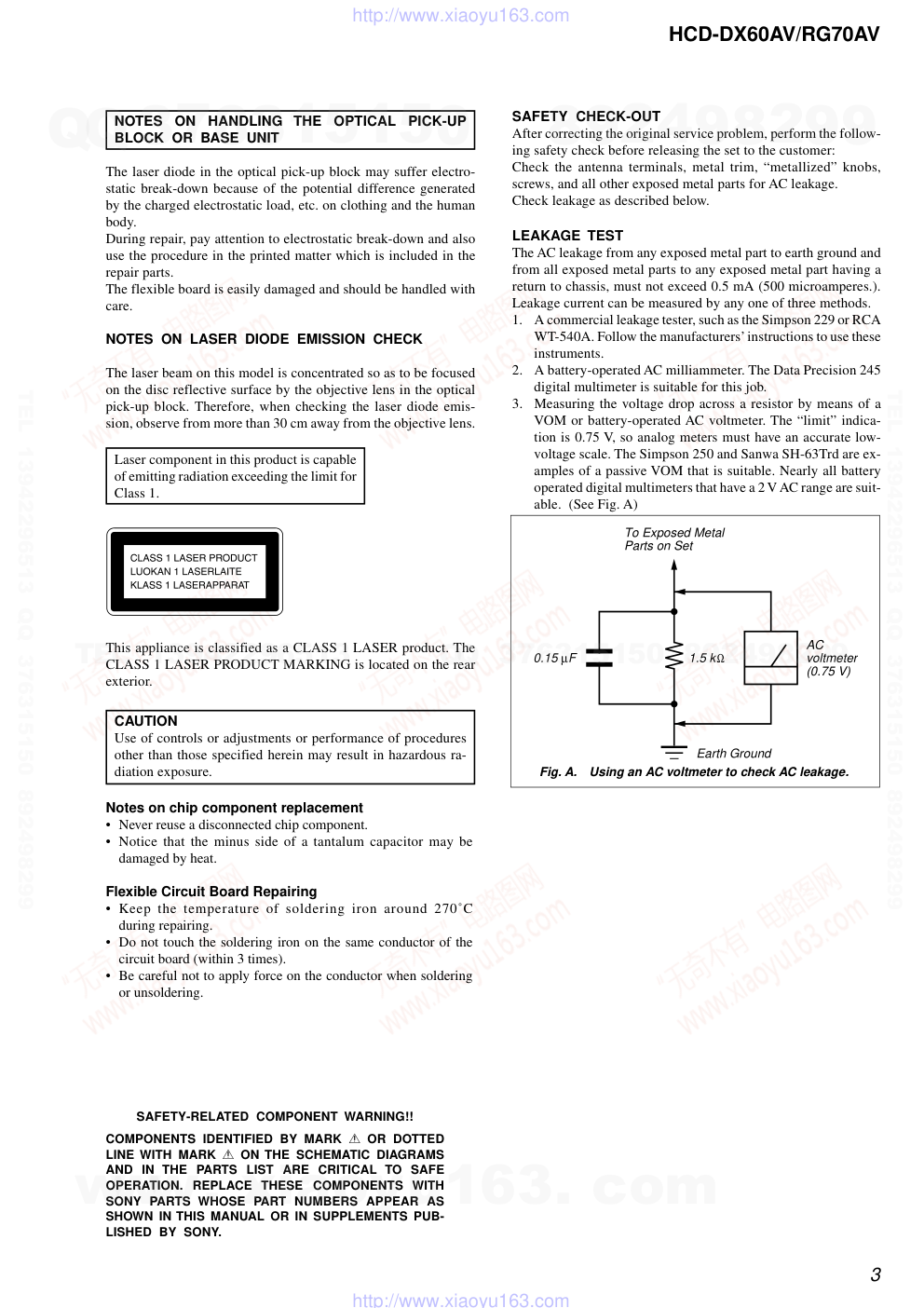

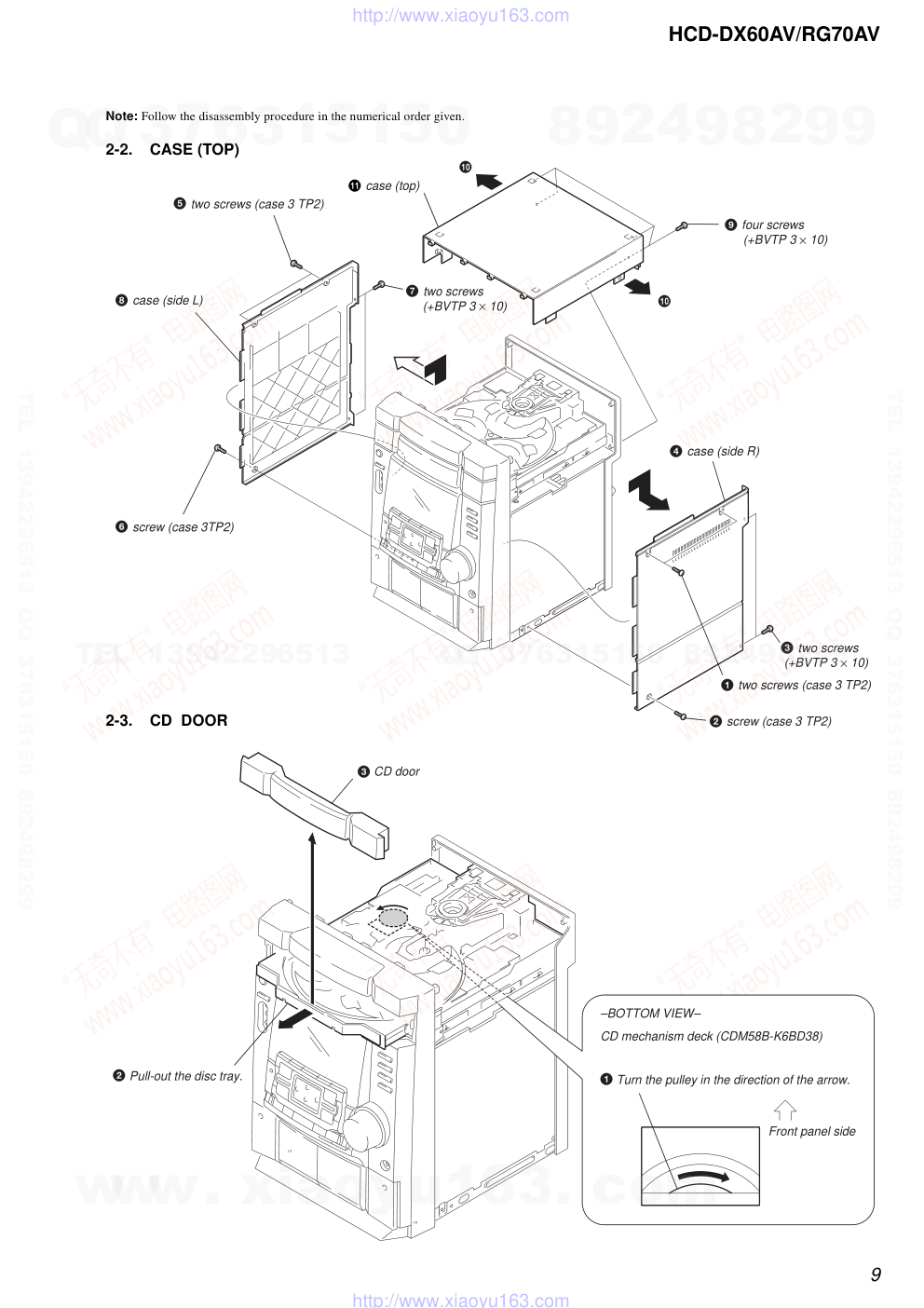

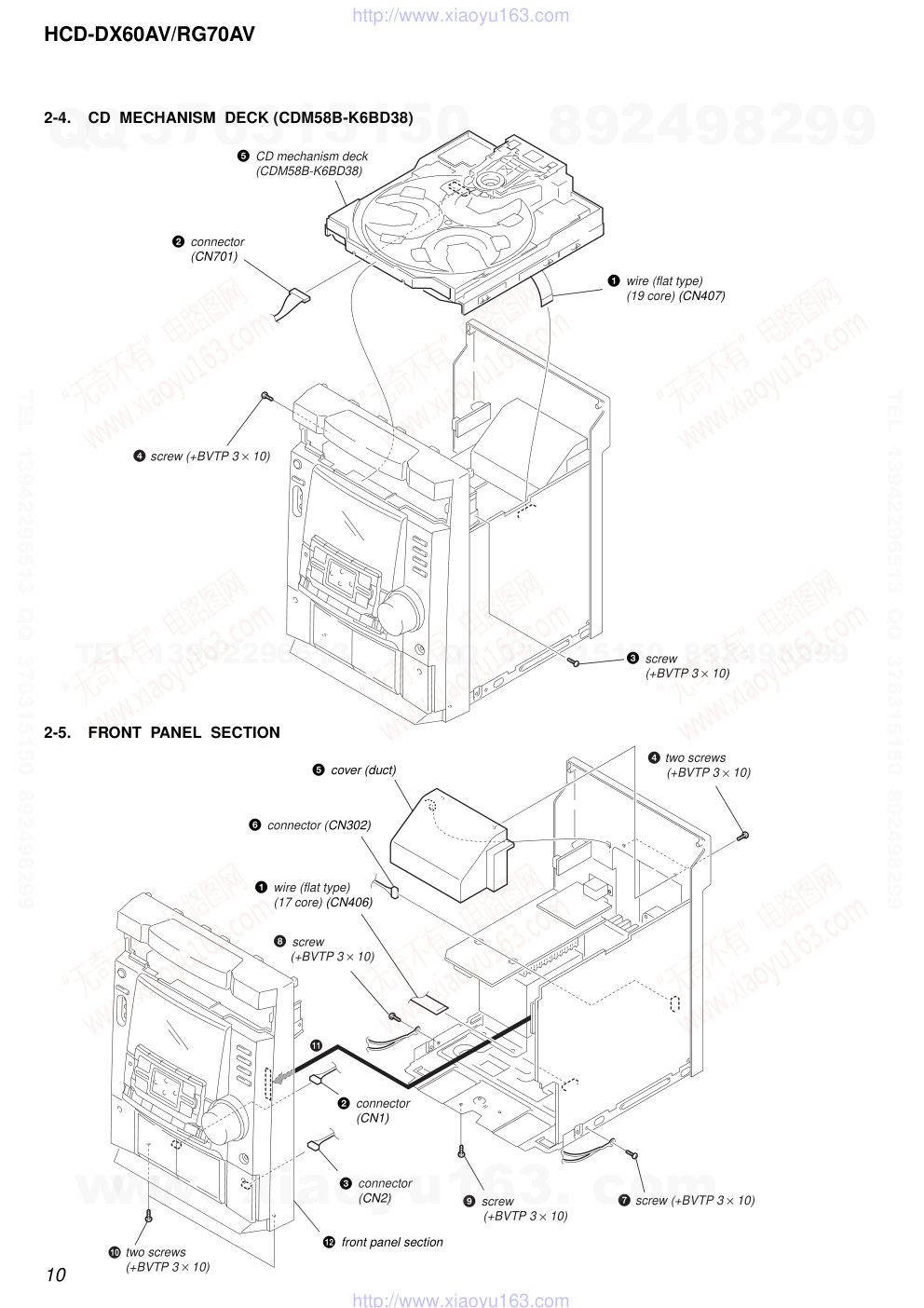

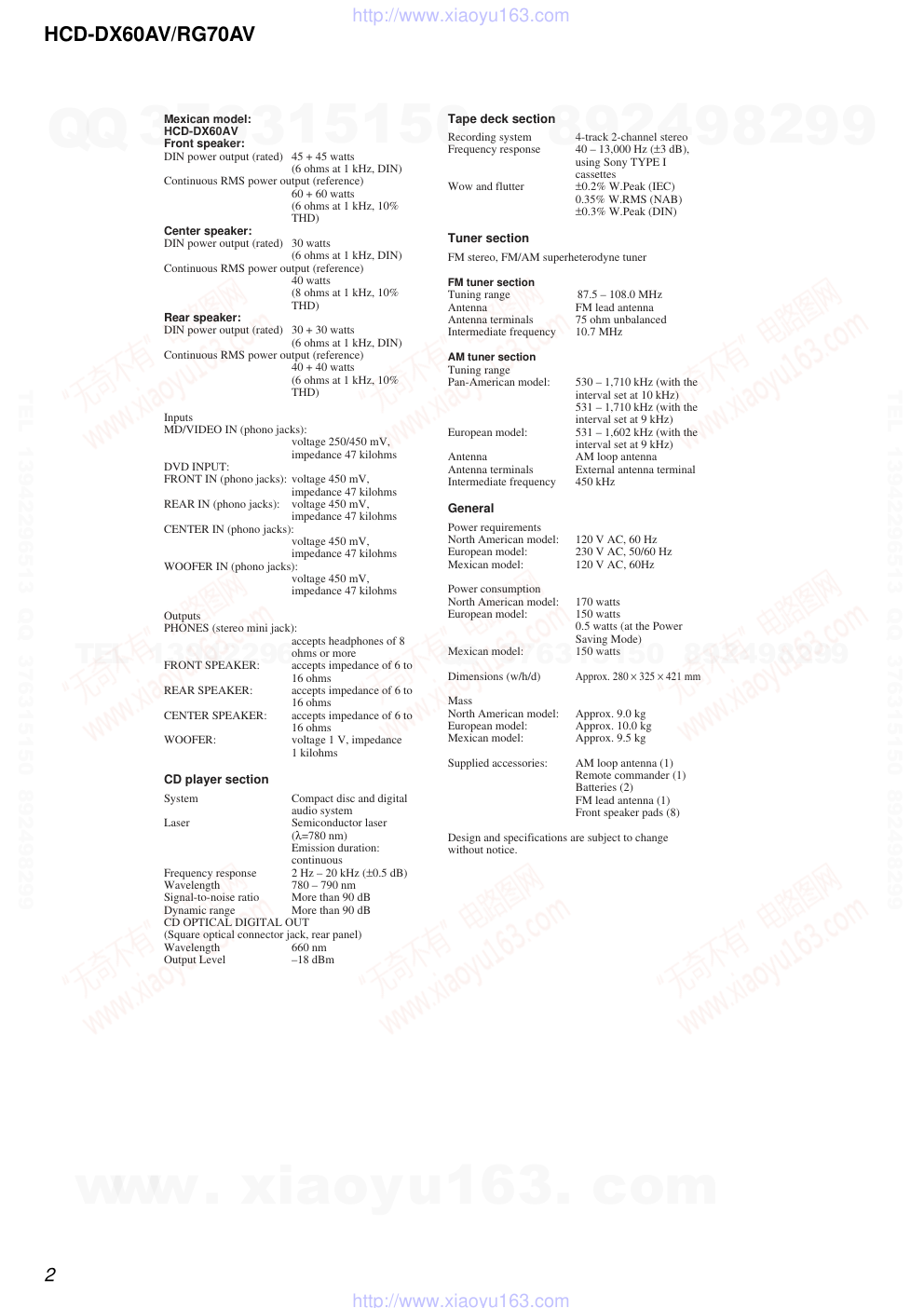

SERVICE MANUAL MINI HI-FI COMPONENT SYSTEM US Model AEP Model HCD-RG70AV E Model HCD-DX60AV SPECIFICATIONS HCD-DX60AV/RG70AV Ver 1.0 2001.05 9-873-839-11 Sony Corporation 2001E0500-1 Home Audio Company C 2001.5 Shinagawa Tec Service Manual Production Group • HCD-DX60AV/RG70AV is the tuner, deck, CD and amplifier section in MHC- DX60AV/RG70AV. Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation. “DOLBY” and the double-D symbol ; are trade- marks of Dolby Laboratories Licensing Corporation. Model Name Using Similar Mechanism HCD-DX90 CD CD Mechanism Type CDM58B-K6BD38 Section Base Unit Name BU-K6BD38 Optical Pick-up Name KSM-213DCP Tape deck Model Name Using Similar Mechanism NEW Section Tape Transport Mechanism Type CWL44RR-31 – Continued on next page – Photo: HCD-RG70AV AUDIO POWER SPECIFICATIONS: (HCD-RG70AV US model only) POWER OUTPUT AND TOTAL HARMONIC DISTORTION: with 6 ohm loads both channels driven, from 120 – 10,000 Hz; rates 60 watts per channel minimum RMS power, with no more than 10% total harmonic distortion from 250 milliwatts to rated output. Amplifier section North American model: HCD-RG70AV Front speaker: Continuous RMS power output (reference) 60 + 60 watts (6 ohms at 1 kHz, 10% THD) Total harmonic distortion less than 0.07% (6 ohms at 1 kHz, 30 watts) Center speaker: Continuous RMS power output (reference) 40 watts (6 ohms at 1 kHz, 10% THD) Rear speaker: Continuous RMS power output (reference) 40 + 40 watts (6 ohms at 1 kHz, 10% THD) European model: HCD-RG70AV Front speaker: DIN power output (rated) 40 + 40 watts (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference) 50 + 50 watts (6 ohms at 1 kHz, 10% THD) Music power output (reference) 95 + 95 watts (6 ohms at 1 kHz, 10% THD) Center speaker: DIN power output (rated) 25 watts (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference) 35 watts (6 ohms at 1 kHz, 10% THD) Music power output (reference) 65 watts (6 ohms at 1 kHz, 10% THD) Rear speaker: DIN power output (rated) 25 + 25 watts (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference) 35 + 35 watts (6 ohms at 1 kHz, 10% THD) Music power output (reference) 65 + 65 watts (6 ohms at 1 kHz, 10% THD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 HCD-DX60AV/RG70AV Outputs PHONES (stereo mini jack): accepts headphones of 8 ohms or more FRONT SPEAKER: accepts impedance of 6 to 16 ohms REAR SPEAKER: accepts impedance of 6 to 16 ohms CENTER SPEAKER: accepts impedance of 6 to 16 ohms WOOFER: voltage 1 V, impedance 1 kilohms CD player section System Compact disc and digital audio system Laser Semiconductor laser (λ=780 nm) Emission duration: continuous Frequency response 2 Hz – 20 kHz (±0.5 dB) Wavelength 780 – 790 nm Signal-to-noise ratio More than 90 dB Dynamic range More than 90 dB CD OPTICAL DIGITAL OUT (Square optical connector jack, rear panel) Wavelength 660 nm Output Level –18 dBm Tape deck section Recording system 4-track 2-channel stereo Frequency response 40 – 13,000 Hz (±3 dB), using Sony TYPE I cassettes Wow and flutter ±0.2% W.Peak (IEC) 0.35% W.RMS (NAB) ±0.3% W.Peak (DIN) Tuner section FM stereo, FM/AM superheterodyne tuner FM tuner section Tuning range 87.5 – 108.0 MHz Antenna FM lead antenna Antenna terminals 75 ohm unbalanced Intermediate frequency 10.7 MHz AM tuner section Tuning range Pan-American model: 530 – 1,710 kHz (with the interval set at 10 kHz) 531 – 1,710 kHz (with the interval set at 9 kHz) European model: 531 – 1,602 kHz (with the interval set at 9 kHz) Antenna AM loop antenna Antenna terminals External antenna terminal Intermediate frequency 450 kHz General Power requirements North American model: 120 V AC, 60 Hz European model: 230 V AC, 50/60 Hz Mexican model: 120 V AC, 60Hz Power consumption North American model: 170 watts European model: 150 watts 0.5 watts (at the Power Saving Mode) Mexican model: 150 watts Dimensions (w/h/d) Approx. 280 × 325 × 421 mm Mass North American model: Approx. 9.0 kg European model: Approx. 10.0 kg Mexican model: Approx. 9.5 kg Supplied accessories: AM loop antenna (1) Remote commander (1) Batteries (2) FM lead antenna (1) Front speaker pads (8) Design and specifications are subject to change without notice. Mexican model: HCD-DX60AV Front speaker: DIN power output (rated) 45 + 45 watts (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference) 60 + 60 watts (6 ohms at 1 kHz, 10% THD) Center speaker: DIN power output (rated) 30 watts (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference) 40 watts (8 ohms at 1 kHz, 10% THD) Rear speaker: DIN power output (rated) 30 + 30 watts (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference) 40 + 40 watts (6 ohms at 1 kHz, 10% THD) Inputs MD/VIDEO IN (phono jacks): voltage 250/450 mV, impedance 47 kilohms DVD INPUT: FRONT IN (phono jacks): voltage 450 mV, impedance 47 kilohms REAR IN (phono jacks): voltage 450 mV, impedance 47 kilohms CENTER IN (phono jacks): voltage 450 mV, impedance 47 kilohms WOOFER IN (phono jacks): voltage 450 mV, impedance 47 kilohms www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 HCD-DX60AV/RG70AV SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous ra- diation exposure. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing • Keep the temperature of soldering iron around 270˚C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electro- static break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick-up block. Therefore, when checking the laser diode emis- sion, observe from more than 30 cm away from the objective lens. SAFETY CHECK-OUT After correcting the original service problem, perform the follow- ing safety check before releasing the set to the customer: Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes.). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indica- tion is 0.75 V, so analog meters must have an accurate low- voltage scale. The Simpson 250 and Sanwa SH-63Trd are ex- amples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2 V AC range are suit- able. (See Fig. A) Fig. A. Using an AC voltmeter to check AC leakage. 1.5 kΩ 0.15 µF AC voltmeter (0.75 V) To Exposed Metal Parts on Set Earth Ground www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 HCD-DX60AV/RG70AV 1. GENERAL ................................................................... 5 2. DISASSEMBLY 2-1. Disassembly Flow ........................................................... 8 2-2. Case (Top) ....................................................................... 9 2-3. CD Door .......................................................................... 9 2-4. CD Mechanism Deck (CDM58B-K6BD38) .................. 10 2-5. Front Panel Section ......................................................... 10 2-6. Tape Mechanism Deck .................................................... 11 2-7. Back Panel Section.......................................................... 11 2-8. Main Board...................................................................... 12 2-9. Base Unit (BU-K6BD38) ................................................ 12 2-10. DRIVER Board, MOTOR Board, ADDRESS SENSOR Board ........................................... 13 3. TEST MODE ............................................................... 14 4. ELECTRICAL ADJUSTMENTS Deck Section ................................................................... 18 Tuner Section .................................................................. 19 CD Section ...................................................................... 20 5. DIAGRAMS 5-1. Block Diagram – TUNER/CD Section –....................... 23 5-2. Block Diagram – MAIN Section (1/2) – ....................... 24 5-3. Block Diagram – MAIN Section (2/2) – ....................... 25 5-4. Block Diagram – DISPLAY/POWER Section – ........... 26 5-5. Note for Printed Wiring Boards and Schematic Diagrams ....................................................... 27 5-6. Printed Wiring Board – BD Board – ............................. 28 5-7. Schematic Diagram – BD Board – ................................ 29 5-8. Schematic Diagram – MAIN Board (1/4) – .................. 30 5-9. Schematic Diagram – MAIN Board (2/4) – .................. 31 5-10. Schematic Diagram – MAIN Board (3/4) – .................. 32 5-11. Schematic Diagram – MAIN (4/4)/DIGITAL OUT Boards – ........................ 33 5-12. Printed Wiring Boards – MAIN/DIGITAL OUT Boards – ................................. 34 5-13. Printed Wiring Boards – ADDRESS SENSOR/DRIVER/MOTOR Boards – .... 35 5-14. Schematic Diagram – ADDRESS SENSOR/DRIVER/MOTOR Boards – .... 35 5-15. Printed Wiring Board – REAR/CENTER AMP Board – ................................... 36 5-16. Schematic Diagram – REAR/CENTER AMP Board – ................................... 37 5-17. Printed Wiring Boards – POWER AMP/SENSOR Boards – .............................. 38 5-18. Schematic Diagram – POWER AMP/SENSOR Boards – .............................. 39 5-19. Printed Wiring Boards – PANEL/KEY Boards – .......... 40 5-20. Schematic Diagram – PANEL/KEY Boards – .............. 41 5-21. Printed Wiring Boards – TRANSFORMER/ SUB TRANSFORMER Boards – ................................... 42 5-22. Schematic Diagram – TRANSFORMER/ SUB TRANSFORMER Boards – ................................... 43 5-23. IC Pin Function Description ........................................... 50 6. EXPLODED VIEWS 6-1. Cabinet Section ............................................................... 54 6-2. Front Panel Section ......................................................... 55 6-3. Main Board Section ........................................................ 56 6-4. CD Mechanism Deck Section (CDM58B-K6BD38) ..... 57 6-5. Base Unit Section (BU-K6BD38) .................................. 58 7. ELECTRICAL PARTS LIST .................................. 59 TABLE OF CONTENTS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 HCD-DX60AV/RG70AV SECTION 1 GENERAL This section is extracted from instruction manual. 4 Parts Identification The items are arranged in alphabetical order. Refer to the pages indicated in parentheses for details. Main unit w; wa qk qj ql qh qf qg ws wd wf wg wh wj wl wk ef ed es ea 1 2 3 4 7 6 5 9 0 qa qs qd 8 e; AUDIO jacks es (25) CD qd (10 � 12, 17, 18) CD SYNC wg (17, 18) Deck A e; (16) Deck B wa (16 � 19) DIRECTION* 8 (16 � 18) DISC 1 � 3 ws (11) DISC SKIP EX-CHANGE wk (10, 11) Disc tray 9 (10) DISPLAY 8 (10, 12) DVD 5.1CH wl (24, 25) EDIT 8 (18) EFFECT ON/OFF 4 (20) ENTER qa (9, 10, 12 � 15, 18, 19, 21, 23, 29) GAME ef (25) GAME EQ 2 (19, 20) GROOVE 5 (19) MD (VIDEO) qh (24) MOVIE EQ 0 (19, 20) MUSIC EQ 7 (19, 20) P FILE qs (21) PHONES jack ql PLAY MODE 8 (11, 12) PRO LOGIC 3 (20) PTY/DIRECTION 8 (15 � 18) REC PAUSE/START wf (17) REPEAT 8 (11) SPECTRUM 8 (22) STEREO/MONO 8 (14) TAPE A/B qg (16, 17) TUNER MEMORY 8 (13) TUNER/BAND qf (13, 14, 17) VIDEO jack ed (25) VOLUME control qj BUTTON DESCRIPTIONS ?/1 (power) 1 v/V/b/B 6 Z OPEN/CLOSE qk Z (deck B) w; M (fast forward) wd + wd . (go back) wh > (go forward) wh X (pause) wh hH (play) wh x (stop) wh m (rewind) wj � wj Z (deck A) ea * PTY/DIRECTION for European model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 HCD-DX60AV/RG70AV 1 7 2 3 5 6 4 Setting the time 1 Turn on the system. 2 Press CLOCK/TIMER SET on the remote. Proceed to step 5 when “CLOCK” appears in the display. 3 Press v or V repeatedly to select “SET CLOCK”. 4 Press ENTER. 5 Press v or V repeatedly to set the hour. 6 Press B. The minute indication flashes. 7 Press v or V repeatedly to set the minute. 8 Press ENTER. Tip If you made a mistake or want to change the time, start over from step 1. Note The clock settings are canceled when you disconnect the power cord or if a power failure occurs. – Rear Panel – 1 ANTENNA terminal 2 MD (VIDEO) IN jack 3 DVD INPUT FRONT/REAR/CENTER jack 4 WOOFER/VIDEO OUT jack 5 REAR/CENTER SPEAKER terminal 6 FRONT SPEAKER terminal 7 CD DIGITAL OUT terminal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 HCD-DX60AV/RG70AV 5 Parts Identification Remote Control 5 6 7 8 9 0 qa qs qd qf qg 1 2 3 4 qh qj qk ql wa ws wd w; CD w; (10 � 12, 17, 18) CLEAR 7 (12) CLOCK/TIMER SELECT 2 (19, 23) CLOCK/TIMER SET 3 (9, 18, 23) D.SKIP 5 (11) DSP 0 (21) DVD 5.1CH ws (24, 25) EFFECT ON/OFF qf (20) ENTER qj (9, 10, 12 � 15, 18, 19 21, 23, 29) GAME wa (25) MD (VIDEO) qa (24) P FILE qh (21) PRESET EQ qk (19) PRESET + wd (14) PRESET � wd (14) PROLOGIC ON/OFF 8 (20) REAR/CENTER LEVEL 6 (8) SLEEP 1 (22) TAPE A/B qs (16, 17) TEST TONE qd (8, 9) TUNER/BAND ql (13, 14, 17) TUNING + wd (13) TUNING � wd (13) VOL +/� 9 BUTTON DESCRIPTIONS ?/1 (power) 4 v/V/b/B qg M (fast forward) wd . (go back) wd > (go forward) wd X (pause) wd nN (play) wd m (rewind) wd x (stop) wd www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX60AV/RG70AV 8 • This set can be disassembled in the order shown below. 2-1. DISASSEMBLY FLOW SECTION 2 DISASSEMBLY 2-4. CD MECHANISM DECK (CDM58B-K6BD38) (Page 10) 2-3. CD DOOR (Page 9) 2-2. CASE (TOP) (Page 9) 2-5. FRONT PANEL SECTION (Page 10) 2-7. BACK PANEL SECTION (Page 11) 2-8. MAIN BOARD (Page 12) 2-6. TAPE MECHANISM DECK (Page 11) 2-10. DRIVER BOARD, MOTOR BOARD, ADDRESS SENSOR BOARD (Page 13) 2-9. BASE UNIT (BU-K6BD38) (Page 12) SET www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX60AV/RG70AV 9 3 CD door 1 Turn the pulley in the direction of the arrow. Front panel side CD mechanism deck (CDM58B-K6BD38) 2 Pull-out the disc tray. –BOTTOM VIEW– q; q; 5 two screws (case 3 TP2) 7 two screws (+BVTP 3 × 10) 3 two screws (+BVTP 3 × 10) 1 two screws (case 3 TP2) 6 screw (case 3TP2) 8 case (side L) 4 case (side R) 2 screw (case 3 TP2) 9 four screws (+BVTP 3 × 10) qa case (top) 2-3. CD DOOR Note: Follow the disassembly procedure in the numerical order given. 2-2. CASE (TOP) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX60AV/RG70AV 10 qa 0 two screws (+BVTP 3 × 10) 7 screw (+BVTP 3 × 10) 8 screw (+BVTP 3 × 10) 9 screw (+BVTP 3 × 10) 4 two screws (+BVTP 3 × 10) 1 wire (flat type) (17 core) (CN406) 2 connector (CN1) 3 connector (CN2) qs front panel section 6 connector (CN302) 5 cover (duct) 4 screw (+BVTP 3 × 10) 1 wire (flat type) (19 core) (CN407) 2 connector (CN701) 3 screw (+BVTP 3 × 10) 5 CD mechanism deck (CDM58B-K6BD38) 2-4. CD MECHANISM DECK (CDM58B-K6BD38) 2-5. FRONT PANEL SECTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX60AV/RG70AV 11 2-6. TAPE MECHANISM DECK 2-7. BACK PANEL SECTION 3 Tape mechanism deck 1 five screws (+BVTP 2.6 × 8) 1 screw (+BVTP 2.6 × 8) 2 harness 3 seven screws (+BVTP 3 × 10) 1 connector (CN506) 1 connector (CN901) 1 connector (CN2) 4 two screws (+BVTP 3 × 10) 5 back panel section 2 connector (CN408) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX60AV/RG70AV 12 qs 0 two screws (+PTPWH M2.6) 2 screw (+PTPWH M2.6) qa screws (DIA. 12) 8 two screws (M2.6) 7 BD board 6 Remove four solders. qd two insulators 3 holder BU assy qd two insulators 9 two stoppers (BU) 5 screw (M2.6) 4 wire (flat type) (16 core) qf base unit (BU-K6BD38) 1 wire (flat type) (19 core) (CN101) 2-8. MAIN BOARD 2-9. BASE UNIT (BU-K6BD38) 1 two screws (+BVTP 3 × 10) 2 MAIN board MAIN board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX60AV/RG70AV 13 2-10. DRIVER BOARD, MOTOR BOARD, ADDRESS SENSOR BOARD qa Pull-out the table. 6 two screws (BTTP M2.6) qs screw (+PTPWH 2.6 × 8) qd tray 1 screw (BTTP M2.6) qf screw (BTTP M2.6) 7 0 MOTOR board qg ADDRESS SENSOR board 4 driver board 2 5 Remove the two solderings of motor. 9 connector 3 wire (flat type) (8 core) (CN702) 8 wire (flat type) (8 core) (CN721) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 HCD-DX60AV/RG70AV SECTION 3 TEST MODE [MC Cold Reset] • The cold reset clears all data including preset data stored in the RAM to initial conditions. Execute this mode when returning the set to the customer. Procedure: 1. Press three buttons x , ENTER , and I/1 simultaneously. 2. The fluorescent indicator tube displays “COLD RESET” and the set is reset. [CD Ship Mode] • This mode moves the pickup to the position durable to vibra- tion. Use this mode when returning the set to the customer after repair. Procedure: 1. Press I/1 button to turn the set ON. 2. Press CD button and I/1 button simultaneously. (Until “STANDBY” appears) 3. When you release the buttons, a message “LOCK” is displayed on the fluorescent indicator tube, and the CD ship mode is set. [MC Hot Reset] • This mode resets the set with the preset data kept stored in the memory. The hot reset mode functions same as if the power cord is plugged in and out. Procedure: 1. Press three buttons x , ENTER , and DISPLAY simultaneously. 2. The fluorescent indicator tube becomes blank instantaneously, and the set is reset. [CD Service Mode] • This mode can run the CD sled motor freely. Use this mode, for instance, when cleaning the pickup. Procedure: 1. Press I/1 button to turn the set ON. 2. Select the function “CD”. 3. Press three buttons x , ENTER , and Z OPEN/CLOSE simul- taneously. 4. The CD service mode is selected. 5. With the CD in stop status, press and hold the > button to move the pickup to outside track, or press and hold the . button to inside track. 6. To exit from this mode, perform as follows: 1) Move the pickup to the most inside track. 2) Press three buttons in the same manner as step 2. Note: • Always move the pickup to most inside track when exiting from this mode. Otherwise, a disc will not be unloaded. • Do not run the sled motor excessively, otherwise the gear can be chipped. [Change-over of AM Tuner Step between 9 kHz and 10 kHz] • A step of AM channels can be changed over between 9 kHz and 10 kHz. Procedure: 1. Press I/1 button to turn the set ON. 2. Select the function “TUNER”, and press TUNER/BAND button to select the BAND “AM”. 3. Press I/1 button to turn the set OFF. 4. Press ENTER and I/1 buttons simultaneously, and the display of fluorescent indicator tube changes to “AM 9 k STEP” or “AM 10 k STEP”, and thus the channel step is changed over. [GC Test Mode] • This mode is used to check the software version, fluorescent indicator tube, LED, keyboard, headphone and volume. Procedure: 1. Press three buttons x , ENTER , and DISC 2 simultaneously. 2. LEDs and fluorescent indicator tube are all turned on. 3. When ENTER and DISC 2 buttons are pressed simultaneously, the key number check mode is activated. Key numbers of each key series are displayed and the key check mode is activated. 4. In the key check mode, the fluorescent indicator tube displays “KEY 000”. 5. When ENTER and DISC 2 buttons are pressed simultaneously, the key count mode is activated. In this mode, the fluorescent indicator tube displays “KEYCNT 00”. When each button is pressed, the key series number increases first, then key value increases next. However, once a button is pressed, key value is no longer counted up with the same button. 6. When ENTER and DISC 2 buttons are pressed simultaneously, the headphone check mode is activated. “H_P ON” is displayed when headphones are connected, and “H_P OFF” is displayed when no headphones are connected. 7. When ENTER and DISC 2 buttons are pressed simultaneously, the volume check mode is activated and “VOLUME FLAT” is displayed on the fluorescent indicator tube. When you rotate the volume knob in + direction, “VOLUME UP” is displayed, and when you rote it in – direction, “VOLUME DOWN” is displayed. 8. To exit this mode, press three buttons mentioned at step 1 in the same manner, or press ENTER and DISC 2 buttons simultaneously at step 8. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 HCD-DX60AV/RG70AV [MC Test Mode] • This mode is used to check operations of the respective sections of Amplifier, Tuner, CD and Tape. Procedure: 1. Press the I/1 button to turn on the set. 2. Press the three buttons of x , ENTER and DISC 3 simultaneously. 3. A message “TEST MODE” appears on the fluorescent indicator tube. In this mode, it is set as a default setting that VACS 1 to 5 is displayed when VACS is changed and that number of repeating times for a tape and a CD is set as endless. 4. When f (CURSOR UP) button is pressed, GEQ increases to its maximum and a message “GEQ MAX” appears. 5. When F (CURSOR DOWN) button is pressed, GEQ decreases to its minimum and a message “GEQ MIN” appears. 6. When g (CURSOR LEFT) or G (CURSOR RIGHT) button is pressed, GEQ is set to flat and a message “GEQ FLAT” appears. 7. In the test mode, the default-preset channel is called even when the TUNER is selected and an attempt is made to call the preset channel that has been stored in memory, by operating the Shuttle knob. (It means that the memory is cleared.) 8. When a tape is inserted in Deck B and Tape B function is activated, and when REC PAUSE/START button is pressed twice, recording is started. In this case, VIDEO function is selected automatically as the input source. 9. Select the desired loop by pressing the PLAY MODE button in the condition that Tape B function is selected as the input source. Insert a test tape AMS-110A or AMS-RO to Deck A. 10. Press the SPECTRUM button to enter the AMS test mode. 11. After a tape is rewound first, the FF AMS is checked, and the mechanism is shut off after detecting the AMS signal twice. 12. Then the REW AMS is checked and the mechanism is shut off after detecting the AMS signal twice. 13. When the check is complete, a message of either OK or NG appears. 14. With pressing SPECTRUM and DISC 1 buttons simultaneously, you can select that VACS is functioned (“VACS ON” is displayed) or not (“VACS OFF” is displayed) under any function. 15. When you want to exit this mode, press the I/1 button twice. The cold reset is enforced at the same time. [Indicating Version of the Micro Processor] When power is off and the set is not in power save mode, (the status that a demo or a clock is displayed) Procedure: 1. Press x , ENTER and F (CURSOR DOWN) buttons simultaneously. Version of MC and GC microprocessor are displayed, for example, “M1.00 G1.00”. 2. Press x , ENTER and f (CURSOR UP) buttons simultaneously. Model and destination are displayed, for example, “BG1AV NA G5”. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 HCD-DX60AV/RG70AV [Aging Mode] This mode can be used for operation check of CD section and tape deck section. • If an error occurred: The aging operation stops and display status. • If no error occurs: The aging operation continues repeatedly. 1. Operating method of Aging Mode Turn on the main power and select “CD” of the function. 1) Set a disc in DISC1 tray. Select ALL DISC CONTINUE, and REPEAT OFF. 2) Load the tapes recording use into the decks A and B respectively. 3) Press three buttons x , ENTER , and DISC SKIP/EX-CHANGE simultaneously. 4) Aging operations of CD and tape are started at the same time. 5) To exit the aging mode, perform [MC Cold Reset]. 3. Aging Mode in CD section 1) Display state • No error occurs Note: [*][*][*][*] : Number of aging operations Error display E ** s ## $$ %% 1 2 3 4 5 • When the buttons x , ENTER and DISC 1 are pressed simultaneously, number of time of the mechanism error and the NO DISC error can be checked. Display: EMC**EDC** **: Number of times of error (Maximum three times) EMC: Mechanism error EDC: NO DISC error • When aging operation is complete, be sure to perform the MC Cold Reset to reset the error history. D: No disc error 01: FOCUS ERROR 02: GFS ERROR 03: SETUP ERROR 01: NO DISC judgment without chucking retry 02: NO DISC judgment after chucking retry Status at the time of NO DISC judgment (High order digits only) 1: STOP 2: SETUP 3: TOC READ 4: ACCESS 5: PLAY BACK 6: PAUSE 7: MANUAL SEARCH (PLAY) 8: MANUAL SEARCH (PAUSE) AGING[*][*][*][*] 1 ** 2 s 3 ## 4 $$ 5 %% M: Mechanism error Don’t care High order digits only D: Stopped during closing due to problems other than mechanism. E: Stopped during opening due to problems other than mechanism. C: Stopped during chucking due to problems other than mechanism. F: Stopped during EX-opening due to problems other than mechanism. Emergency related errors (High order digits only) 1: Stopped during chuck-up 2: Stopped during chuck-down 3: Time out by EX-OPEN 5: Time out by EX-CLOSE The error No. 00 indicates the newest error. As the error No. increases, it means the older error. When you want to retrieve the error history, press the PLAY MODE button in the case of mechanism error. Or press the REPEAT button in the case of NO DISC error. Display www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 HCD-DX60AV/RG70AV 2) Operation during aging mode In the aging mode, the program is executed in the following sequence. (1) The disc tray opens and closes. (2) The mechanism accesses DISC 2 and makes an attempt to read TOC. However, since there are no discs, a message “CD2 NO DISC” appears. (3) The mechanism accesses DISC 3 and a message “CD3 NO DISC” appears. (4) The disc tray turns to select a disc1. (5) A disc is chucked. (6) TOC of disc is read. (7) The pickup accesses to the track 1, and playing 2 seconds. (8) The pickup accesses to the last track, and playing 2 seconds. (9) Every time when an aging operation of step 1 to step 8 is complete, the display “AGING[*][*][*][*]” value increases as the number of aging operations is counted up. (10) Returns to step 1. 3. Aging Mode in Tape Deck section 1) Display state • No error occurs Display action now • Error occurred Display action last time 2) Operation during aging mode In the aging mode, the program is executed in the following sequence. (1) Rewind is executed up to the top of tape A and B. (2) A tape on FWD side is played for 2 minutes. (3) FF is executed up to either made for 20 second or the end of tape. (4) A tape is reversed, and the tape on REV side is played for 2 minutes. Note * REV side of both Tape A and Tape B are played. (5) Rewind is executed up to the top of tape. (6) Returns to step 2, and repeat steps from 2 to 5. [Function Change Mode] * elect either VIDEO or MD of the external FUNCTION input. Procedure: 1. Turn on the power. 2. Press the two buttons MD (VIDEO) and I/1 at the same time. The main power is turned on and the other function of the previous function is selected and displayed. “MD” or “VIDEO”. NO. Display action Action contents Final timing 1 TAPE A AG-6 Rewind the TAPE A The top of tape TAPE B AG-1 Rewind the TAPE B 2 TAPE A AG-2 FWD play the TAPE A 2 minutes playing 3 TAPE A AG-3 F.F. the TAPE A 20 second FF or the end of tape 4 TAPE A AG-4 REV play the TAPE A 2 minutes playing 5 TAPE A AG-5 Rewind the TAPE A The top of tape 6 TAPE B AG-2 FWD play the TAPE B 2 minutes playing 7 TAPE B AG-3 F.F. the TAPE B 20 second FF or the end of tape 8 TAPE B AG-4 REV play the TAPE B 2 minutes playing 9 TAPE B AG-5 Rewind the TAPE B The top of tape www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 HCD-DX60AV/RG70AV SECTION 4 ELECTRICAL ADJUSTMENTS 2. Turn the adjustment screw and check output peaks. If the peaks do not match for L-CH and R-CH, turn the adjustment screw so that outputs match within 1dB of peak. 3. Mode: Playback 4. Repeat step 1 to 3 in playback (REV) mode. 5. After the adjustments, apply suitable locking compound to the parts adjusted. Adjustment Location: Playback Head (Deck A). Record/Playback/Erase Head (Deck B). Screw position L-CH peak within 1dB Output level L-CH peak R-CH peak within 1dB Screw position R-CH peak set test tape P-4-A100 (10 kHz, –10 dB) L-CH R-CH waveform of oscilloscope in phase 45° 90° 135° 180° good wrong PANEL board PHONES jack (JACK701) oscilloscope V H + + – – 32 Ω 32 Ω 0 dB=0.775 V DECK SECTION 1. Demagnetize the record/playback head with a head demagnetizer. 2. Do not use a magnetized screwdriver for the adjustments. 3. After the adjustments, apply suitable locking compound to the parts adjust. 4. The adjustments should be performed with the rated power supply voltage unless otherwise noted. 5. The adjustments should be performed in the order given in this service manual. (As a general rule, playback circuit adjustment should be completed before performing recording circuit adjustment.) 6. The adjustments should be performed for both L-CH and R- CH. • Test Tape Record/Playback Head Azimuth Adjustment Note: Perform this adjustments for both decks Procedure: 1. Mode: Playback DECK A DECK B set test tape P-4-A100 (10 kHz, –10 dB) level meter PANEL board PHONES jack (JACK701) 32 Ω + – Tape Signal Used for P-4-A100 10 kHz, –10 dB Azimuth Adjustment WS-48B 3 kHz, 0 dB Tape Speed Adjustment forward reverse www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 HCD-DX60AV/RG70AV Tape Speed Adjustment DECK B Note: Start the Tape Speed adjustment as below after setting to the test mode. Procedure: 1. Turn the power switch on. 2. Press the x button, ENTER button and DISC 3 button simultaneously. (The “TEST MODE” on the fluorescent indicator tube display while in the test mode.) To exit from the test mode, press the I/1 button. Mode: Playback 1. Insert the WS-48B into the deck A and the blank tape into the deck B. 2. Press the REC PAUSE/START button on the deck B. Then the deck B is at recording mode. 3. Set the deck A to playback mode. 4. Adjust SFR401 on the MAIN board so that frequency counter reads 3,000 ± 15 Hz. 5. Frequency difference between deck A and deck B the beginning of the tape should be within ±1.5 %. Adjustment Location: set test tape WS-48B (3 kHz, 0 dB) frequency counter PANEL board PHONES jack (JACK701) – + 32 Ω TUNER SECTION FM Tuned Level Adjustment Procedure: 1. Supply a 28 dB 98 MHz signal from the ANTENNA terminal. 2. Tune the set to 98 MHz. 3. Adjust SFR101 to the point (moment) when the TUNED indicator will change from going off to going on. Adjustment Location: MAIN board Null Adjustment Procedure: 1. Supply a 60 dB 98 MHz signal from the ANTENNA terminal. 2. Tune the set to 98 MHz. 3. Measure voltage between pin wa of IC101. Adjust T101 ubtil the voltage becomes 0 V. Adjustment Location: MAIN board Adjustment Location FM RF SSG 75 Ω coaxial Carrier frequency : 98 MHz Modulation : AUDIO 1 kHz, 75 kHz deviation (100%) Output level : 28 dB (at 75 W open) FM ANTENNA terminal (JK101) set FM RF SSG 75 Ω coaxial Carrier frequency : 98 MHz Modulation : AUDIO 1 kHz, 75 kHz deviation (100%) Output level : 60 dB (at 75 W open) FM ANTENNA terminal (JK101) set [MAIN BOARD] (Component side) CN406 SFR401 TAPE SPEED [MAIN BOARD] (Component side) SRF101 FE101 or FE102 FM TUNED LEVEL NULL T101 IC101 Sample Value of Wow and Flutter: 0.3% or less W. RMS (WS-48B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 HCD-DX60AV/RG70AV CD SECTION Note : 1. CD Block is basically designed to operate without adjustment. Therefore, check each item in order given. 2. Use YEDS-18 disc (3-702-101-01) unless otherwise indicated. 3. Use an oscilloscope with more than 10MΩ impedance. 4. Clean the object lens by an applicator with neutral detergent when the signal level is low than specified value with the following checks. S-Curve Check Procedure : 1. Connect oscilloscope to TP (FEO). 2. Connect between TP (FEI) and TP (VC) by lead wire. 3. Connect between TP (AGCCON) and TP (GND) by lead wire. 4. Turn Power switch on. 5. Load a disc (YEDS-18) and actuate the focus search. (In consequence of open and close the disc tray, actuate the focus search) 6. Confirm that the oscilloscope waveform (S-curve) is symmetrical between A and B. And confirm peak to peak level within 4 ±1 Vp-p. 7. After check, remove the lead wire connected in step 2 and 3. Note : • Try to measure several times to make sure than the ratio of A : B or B : A is more than 10 : 7. • Take sweep time as long as possible and light up the brightness to obtain best waveform. RF Level Check Procedure : 1. Connect oscilloscope to TP (RF). 2. Connect between TP (AGCCON) and TP (GND) by lead wire. 3. Turned Power switch on. 4. Load a disc (YEDS-18) and playback. 5. Confirm that oscilloscope waveform is clear and check RF signal level is correct or not. 6. After check, remove the lead wire connected in step 2. BD board Oscilloscope TP(FEO) TP(VC) symmetry S-curve waveform within 4 ±1Vp-p A B TP(RF) TP(VC) BD board oscilloscope Note: Clear RF signal waveform means that the shape “◊” can be clearly distinguished at the center of the waveform. RF signal waveform E-F Balance (1 Track jump) Check Procedure: 1. Connect oscilloscope to TP (TEO) and TP (VC) board. 2. Turned Power switch on. 3. Load a disc (YEDS-18) and playback the number five track. 4. Press the gG button. (Becomes the 1 track jump mode.) 5. Confirm that the level B and A (DC voltage) on the oscilloscope waveform. 1 track jump waveform Specification level: x 100=less than ±22% 6. After check, remove the lead wire connected in step 1. RF PLL Free-run Frequency Procedure : 1. Connect frequency counter to test point (XPCK) with lead wire. 2. Turned Power switch on. 3. Put the disc (YEDS-18) in to play the number five track. Confirm that reading on frequency counter is 4.3218MHz. VOLT/DIV : 200mV TIME/DIV : 500ns level : 1.45 ± 0.3Vp-p oscilloscope BD board TP (TEO) TP (VC) + – 0V Center of waveform B Symmetry A (DC voltage) level=1.3 ±0.6Vp-p A B + – frequency counter BD board TP (XPCK) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 HCD-DX60AV/RG70AV TP (XPCK) TP (TEO) TP (FEO) TP (FEI) TP (RF) TP (VC) TP (DGND) TP (AGCCON) 1 12 24 1 20 21 40 60 80 41 61 IC101 IC103 Adjustment Location: [BD BOARD] (Conductor Side) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 HCD-DX60AV/RG70AV MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX60AV/RG70AV 23 23 ANTENNA JK101 ANT IN 1 7 IF OUT 8 OSC OUT 5 VT FE101 (DX60AV/RG70AV: US) ANT IN 1 7 IF OUT 8 OSC OUT 5 VT FE102 (RG70AV: AEP) JR102 +B +12V Q102 FM 10 FM OSC 15 VT1 IN 18 VT1 17 PD1 19 FM/AM PLL IC102 12 FM/AM IF 7 FM 14 AM OSC 2 VCO STOP 8 IF REQ 6 DO 4 DI 5 CL 3 CE XIN 1 XOUT 24 X101 4.5MHz RF IF AMP Q101 CF101 CF102 DO DI CL CE 1 13 3 4 5 12 2 14 15 11 6 7 9 RB101 19 AM MIX OUT IF OUT 9 AM/IF 12 AM OSC 24 VCO STOP 13 IF REQ MUTE 8 AM RF IN 20 AM OSC 22 V REG 23 FM IF 1 11 L OUT 10 R OUT BUFFER Q103 18 AM IF IN IFT101 16 FM/AM DET R-CH Q105 MUX 4 XO 14 XI 13 2 DATA 16 INT RDS DECODER IC103 6 TUNED 7 STEREO 3 FM SD ADJ (RG70AV: AEP) SRF101 X102 4.332MHz RDS DATA 21 RDS INT 20 ST MUTE 22 ST CE 25 ST CLK 28 ST DOUT 26 ST DIN 27 STEREO 23 TUNED 24 SYSTEM CONTROLLER IC401 (1/4) DO CL CE DI DI A B C D E F LD VC +5V GND PD VR LESER DRIVE FOCUS COIL TRACKING COIL Q101 RF AMP IC103 VC 12 A 5 B 6 C 7 D 8 E 11 F 10 LD 3 PD 4 IC102 MOTOR/COIL DRIVE CH1OUTR 13 CH1OUTF 14 CH2OUTR 11 CH2OUTF 12 CH3OUTR 18 CH3OUTF 17 SLED MOTOR CH4OUTR 16 CH4OUTF 15 SPINDLE MOTOR F+ F- T+ T- 3 CH1RIN 2 CH1FIN 6 CH2RIN 5 CH2FIN 23 CH3RIN 24 CH3FIN 25 CH4IN 20 MUTE MDP 26 SFDR 28 SRDR 29 TRDR 31 TFDR 30 FRDR 33 FFDR 32 60 DOUT RFAC 51 17 RFI 16 RFO 14 FE 13 TE 22 LD ON 21 HOLD SW RFDC 43 FE 39 TE 41 SE 40 XLON 14 72 LOUT1 DIGITAL OUT OPTICAL CD DIGITAL OUT 75 LOUT2 5 DATA R-CH CD L OUT L-CH 7 CLOK 6 XLAT 2 SQCK 9 SCLK 20 SCOR 1 SQSO 27 SSTP 66 XTAI 67 XTAO 3 XRST S101 LIMIT IN SW X101 16.9344MHz CD DAT OUT 35 CD CLK 37 XLT (CD) 42 SQ CLK 33 SCOR 19 SQ DAT IN 32 XRST (CD) 43 HOLD 40 TBL ADDRESS SENSOR 49 T SENS IC711 48 BU UP/DOWN 46 OPEN 47 CLOSE 44 LOAD IN OPEN/CLOSE S701 UP/DOWN S711 45 LOAD OUT MOTOR DRIVE 9 7 4 2 M IC701 TURN MOTOR M721 8 SENS SENS (CXD2587 SENS) 34 JK101 FM 75Ω FM 75Ω COAXIAL ANTENNA AM AM (RG70AV: AEP) (DX60AV/RG70AV: US) D108 DIGITAL SERVO DIGITAL SIGNAL PROCESSOR D/A CONVERTER IC101 OPTICAL PICK-UP BLOCK (KSM-213DCP) B (Page 24) A (Page 24) AM/FM IF AMP, MPX IC101 • R-CH : R-ch is omitted due to same as L-ch. • Signal Path : FM : CD : DIGITAL OUT M M PH401 FM DET 5 NULL T101 FM TUNED LEVEL SECTION 5 DIAGRAMS 5-1. BLOCK DIAGRAM – TUNER/CD Section – w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX60AV/RG70AV 24 24 JK301 (1/4) FRONT L R MD (VIDEO) IN JK301 (2/4) L R DVD INPUT AUDIO JACK704-1 L R INPUT A (Page 23) L-CH B (Page 23) CD L OUT R-CH R-CH R-CH MUTING Q303 MUTING Q301 R-CH R-CH MUTING DRIVE Q313, 314 MUTING DRIVE Q315 43 TU L 41 CD L 47 MD/VD L 49 DVD GAME L L-CH R-CH PLAYBACK HEAD R-CH DECK-A L-CH R-CH RECORD/PLAYBACK HEAD R-CH CH1/A CH1/B 1 2 REC/PB MUTING Q201 BIAS Q209 L201 Q217 Q218 REC/PB SWITCHING R-CH REC/PB SWITCH Q214 R-CH D201 REC/PB SWITCH Q212, 213 REC OUT 9 ERASE HEAD DECK-B A HALF 68 A PLAY 70 A SHUT 89 B RECFWD 66 B RECREV 67 B HALF 69 B PLAY 71 B SHUT 90 A TRG 60 B TRG 61 CAMP CONTL 65 A HALF A PLAY A PHOT RECFWD RECREV B HALF B PLAY B PHOT A SOL B SOL CAMP+ MOTOR H MOTOR L SRF401 BIAS SWITCH Q215, 216 DECK-A SOLENOID DRIVE Q405, 406 DECK-B SOLENOID DRIVE Q403, 404 CAPSTAN MOTOR DRIVE Q407, 408 TC BLOCK A/B 72 AMS IN 6 MIX1 OUT 76 PB A/B 19 TAPE A/B 75 BIAS 50 GAME/DVD 77 TC RELAY AMS AMP Q207, 208 5 PRE OUT R-CH R-CH MIX BUFFER ALC R-CH 11 REC IN REC/PB EQ AMP IC201 AF AMP Q203 45 TA L AUDIO SOUND PROCESSOR IC301 MODE SELECTOR R-CH 57 DPLL1 REC MUTING Q205 79 REC MUTE 95 NC R-CH R-CH 82 SP LAT C 81 SP LAT B 80 SP LAT A 38 SP LATC 37 SP LATB 36 SP LATA MPX SPEANA BAND- PASS FILTER 39 BPOUT 91 SP/VACS 7 3878 CLK 5 3878 DAT 35 34 6 3878 LAT SCK SI DIGITAL CONTROL D304 SYSTEM CONTROLLER IC401 (2/4) R-CH 32 OUTL 5 BAND EQ 17 HPFL1 20 HPFR1 31 OUTR R-CH 58 DPLL2 R-CH 1 L OUT R-CH L/R HPF HPF R-CH 72 LIN 74 LTIN DOLBY SURROUND PRO-LOGIC/PASSIVE DECODER IC302 (1/2) BUFFER Q307 BUFFER Q308 5 7 IC307 (1/2) D (Page 25) SUB W OUT C (Page 25) FRONT L OUT BUFFER Q305 X401 32.768kHz XCIN 10 XCOUT 11 RES401 16MHz XOUT 13 XIN 15 IIC CLK 29 IIC DAT 30 • R-CH : R-ch is omitted due to same as L-ch. • Signal Path : FM : CD : PLAYBACK (DECK-A) : PLAYBACK (DECK-B) : RECORD TAPE SPEED 5-2. BLOCK DIAGRAM – MAIN Section (1/2) – w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX60AV/RG70AV 25 25 TRIM VOL TRIM VOL TRIM VOL JK301 (4/4) JK301 (3/4) R-CH CENTER WOOFER REAR L R DVD INPUT 76 CIN 79 SWIN 77 SLIN 5 15 11 COUT SWOUT SLOUT 4 CVOUT 16 SWVOL IN 10 SLVOL IN 3 CVOL OUVT 9 SLVOL OUT 80 VRSWIN 17 SWVOLOUT D (Page 24) SUB W OUT DOLBY SURROUND PRO-LOGIC/PASSIVE DECODER IC302 (2/2) 22 DATA 23 SCK 24 REQ MCU INTERFACE 54 55 56 464 DAT 464 CLK 464 LT SYSTEM CONTROLLER IC401 (3/4) 16 CH3 IN 18 CH3 +VE 19 CH3 –VE POWER AMP POWER AMP IC503 (3/3) 1 CH1 IN 6 CH1 +VE 7 CH1 –VE POWER AMP POWER AMP IC503 (1/3) 12 PRE –VCC Q513 B– POWER CONTROL Q511, 512 MUTING Q312 MUTING DRIVE Q428, 429 MUTING Q319 R-CH MUTING DRIVE Q430, 431 C (Page 24) FRONT L OUT 1 CH1 IN 6 CH1 +VE 7 CH1 –VE POWER AMP POWER AMP IC501 12 PRE –VCC Q581 B– POWER CONTROL Q503, 504 MUTING Q317 MUTING Q316 MUTING DRIVE Q426, 427 R-CH Q311 SWITCH CONTROL Q309, 310 IC307 (2/2) MUTING Q423 R-CH JACK701 PHONES MUTING DRIVE Q413 OVER LOAD DETECT Q505 OVER LOAD DETECT Q514 OVER LOAD DETECT Q510 D518 D502 CURRENT DETECT Q416, 417, 420 PROTECTOR Q419 PROTECTOR Q418 RL401 RELAY DRIVE Q421, 422 RL403 RELAY DRIVE Q409, 410 RL402 RELAY DRIVE Q411, 412 88 FRONT RELAY 53 REAR MUT 52 CENTER MUT 83 LINE MUT 84 STK MUT 87 REAR RELAY 85 PROTECT JK302 WOOFER OUT VIDEO OUT + – + – – + JK402 L R CENTER SPEAKER REAR R-CH D436 D418 D419 R-CH + – – + L R R-CH M B+ M901 (FAN MOTOR) FAN MOTOR DRIVE Q424, 425 TEMP SENSOR TH501 BUFFER Q582 BUFFER Q584 TEMP PROTECT Q583 JK401 TEMP PROTECT Q515 E (Page 26) HP SW JACK704-2 VIDEO INPUT JW710 • R-CH : R-ch is omitted due to same as L-ch. • Signal Path : FM FRONT SPEAKER IMPEDANCE USE 6 – 16Ω REAR SPEAKER IMPEDANCE USE 6 – 16Ω 5-3. BLOCK DIAGRAM – MAIN Section (2/2) – w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX60AV/RG70AV 26 26 17 HEADPHONE 13 VOL A 14 VOL B E HP SW (Page 25) VR701 VOLUME 22 KEY0 KEY FUNCTION S713 – 725 21 KEY1 KEY FUNCTION S723 – 738 20 KEY2 KEY FUNCTION S702 – 712 3 X1 4 X2 RES701 5MHz 32 TAPE LED 34 TUNER LED 30 GAME LED 31 MD/VIDEO LED 33 CD LED 28 ENTER LED 29 REC LED 26 DVD5.1 LED 27 PRO LED 35 GROOVE 68 – 61, 58 – 37 80 – 69 S0 – S29 G0 – G11 FLD1 FLUORESCENT INDICATOR TUBE G0 – G11 S0 – S29 VF2 VP (–30V) VP (–30V) LED DRIVE Q707 – 710, Q712 LED DRIVE Q702, Q704 D707 – 711 D702, 704, D716, 718 LED DRIVE Q703, 705, Q706 D703, 705, 706, D717, 719, 720 VDD 9 S OUT 8 S IN 7 S CLK 10 SBSY 6 RESET 100 S IN 1 S OUT 2 S CLK 3 S BSY 41 M RESET SYSTEM CONTROLLER IC401 (4/4) 73 DISPLAY KEY S726 DISPLAY 74 POWER KEY S701 97 POWER LED 18 AC CUT 12 RESET LED DRIVE Q701 D701 D721 +5.6V Q432 RESET SIGNAL GENERATOR IC402 4 REMOTE IN REMOTE CONTROL RECEIVER SENS701 D423 EVER +5.6V +5V (VCC) +5V (VREF) +5V (REMOTE CONTROL RECEIVER) D+5V +5V (IC302) D420 D430 D421 D409 D427 D429 SYSTEM CONTROLLER (IC401) 38 CD POWER 86 STBY RELAY D+5V D+5V A+5V L406 FB402 FB403 +5.6V REGULATOR IC405 +5.6V REGULATOR IC901 B+ SWITCH Q401, 402 +5V REGULATOR IC406 +12V (MUTING DRIVE) +12V IC201, 301, 302, 307 +12V SWITCH Q415 +12V REGULATOR IC404 +12V UNREG (RELAY DRIVE) B+ RELAY DRIVE (RL401) D432 D433 +9V (TC CONTROL) +7V CD (IC102) CD MOTOR DRIVE (IC701) D410 – 412 +9V REGULATOR IC403 VP (–30V) –30V REGULATOR Q911 RECT D401 – 404 RECT D911 RECT D542, 543 RECT D405 – 408 RECT D902 – 905 RECT D514 F515 F516 RECT D541 B+ (+VCC) B– (–VCC) B+ B– FRONT POWER AMP (IC501) REAR/CENTER POWER AMP (IC503) VF1 VF2 DISPLAY (FLD1) 240V 220V 120V/230V F919 NEVTRAL JW6 (DX60AV/RG70AV: AEP) JW5 JW1 JW3 AC IN RELAY DRIVE Q901 T901 POWER TRANSFORMER T911 POWER TRANSFORMER DISPLAY CONTROL IC701 VF1 RY901 ROTARY ENCODER (RG70AV: US) F914 F920 JW912 5-4. BLOCK DIAGRAM – DISPLAY/POWER Section – w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX60AV/RG70AV 27 27 5-5. NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS (In addition to this, the necessary note is printed in each block) Note on Printed Wiring Boards: • X : parts extracted from the component side. • : Pattern from the side which enables seeing. • indication of transistor. Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • f : internal component. • 2 : nonflammable resistor. • 5 : fusible resistor. • C : panel designation. • A : B+ Line. • B : B– Line. • H : adjustment for repair. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. F : FM f : AM E : PB (DECK A) d : PB (DECK B) G : REC (DECK B) J : CD c : digital out Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. • Circuit Boards Location C B These are omitted. E Q B These are omitted. C E Q B These are omitted. C E Q MOTOR board ADDRESS SENSOR board DRIVER board BD board MAIN board PANEL board KEY board board DIGITAL OUT board TRANSFORMER board REAR/CENTER AMP board SENSOR board SUB TRANSFORMER board POWER AMP board w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX60AV/RG70AV 28 28 CN407 A 23 (23) (KSM-213DCP) TP (AGCCON) TP (XPCK) TP (FEI) TP (GND) TP (RF) TP (FEO) TP (TEO) TP (VC) A B C D E F 1 2 3 4 5 6 IC103 IC101 IC102 5-6. PRINTED WIRING BOARD – BD Board – • See page 27 for Circuit Boards Location. • Semiconductor Location Ref. No. Location IC101 C-2 IC102 D-4 IC103 B-3 Q101 A-4 There are a few cases that the part printed on this diagram isn’t mounted in this model. (Page 34) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX60AV/RG70AV 29 29 5-7. SCHEMATIC DIAGRAM – BD Board – • See page 44 for Wavefoms. • See page 44 for IC Block Diagrams. OPTICAL PICK-UP BLOCK (KSM-213DCP) MAIN BOARD (4/4) CN407 TP (XPCK) TP (VC) TP (RFO) TP (FEO) TP (TEO) TP (AGCCON) TP (FE1) MHz 2SB710A-RTX • Voltages and waveforms are dc with respect to ground under no-signal conditions. no mark : CD STOP ( ) : CD PLAY The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. (Page 33) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX60AV/RG70AV 30 30 5-8. SCHEMATIC DIAGRAM – MAIN Board (1/4) – • See page 44 for Wavefoms. • See page 44 for IC Block Diagrams. IC B/D IC B/D IC B/D MAIN BOARD (3/4) 1 MAIN BOARD (2/4) 2 1 2 4.1 4.8 8.7 0.1 10.0 10.2 2.6 2.7 0 0 (5) 0 0 (5) 0 (0.2) 5.3 1.9 (10) 0.1 0 1.1 1.1 2.1 5.3 2.6 (0) 1.7 2.1 2.1 1.7 (2.1) 2.1 5.4 5.4 0.1 1.9 (2.1) 2.1 2.1 1.3 (0) 1.9 1.6 1.6 4.6 5.1 5.1 5.3 0.4 5.4 2.1 1.6 8.0 1.0 1.6 8.0 1.0 0 (2.6) (RG70AV : AEP) (DX60AV/RG70AV : US) (DX60AV/RG70AV : US) DX60AV/RG70AV : US (RG70AV : AEP) (RG70AV : AEP) (DX60AV/RG70AV : US) (RG70AV : AEP) NULL FM TUNED LEVEL (DX60AV/RG70AV : US) (RG70AV : AEP) (DX60AV/RG70AV : US) (RG70AV : AEP) (DX60AV/RG70AV : US) (RG70AV : AEP) (DX60AV/RG70AV : US) (DX60AV/RG70AV : US) (RG70AV : AEP) (RG70AV : AEP) (RG70AV : AEP) * 2.9 2.9 5.4 0 2.9 2.7 2.7 2.3 5.4 (RG70AV : AEP) (DX60AV/RG70AV : US) (RG70AV : AEP) 2.1 2.9 0 U 2 u U 3 u U 4 u U 5 u U 6 u U 7 u U 8 u U 9 u U 10 u U 11 u U 12 u U 13 u U 14 u U 15 u I 81 i I 82 i I 83 i I 84 i I 85 i JK101 ANTENNA FM 75Ω AM FM 75Ω COAXIAL AM MAIN BOARD (1/4) IC102 FM/AM PLL Q101 2SC2410S RF IF AMP IC101 AM/FM IF AMP, MPX BUFFER BUFFER Q105 RDS BUFFER IC103 RDS DECODER QUAL RCLK NC XO XI VDD2 VSS2 T1 T2 RDATA VREF MUX VDD1 VSS1 VSS3 CMP IC103 BU1924 0.01u 0.01u 0.01U 0.01U 0.01U 0.01U 0.01U 0.01U 0.47u/50V 0.001U 0.001U 0.01U B+ SWITCH 0.01U 16V UDZ-6.8B 0.01U 0.01U 0.01U 0.01U * * 0.22U/50V 0.047U *C131, 132 0.015U 0.01U 0.047u 22u/50V *C142 100P 470P 0.01U 0.01U 0.01U FE102 0.01U 0.01U 0.01U 0.01U 0.1U *C139 680P 220P • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : FM ( ) : AM (Page 31) (Page 32) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX60AV/RG70AV 31 31 5-9. SCHEMATIC DIAGRAM – MAIN Board (2/4) – • See page 44 for Wavefoms. • See page 44 for IC Block Diagrams. IC B/D MAIN BOARD (1/4) 2 MAIN BOARD (4/4) 3 7 6 5 4.9 0.8 0.2 4.9 0.8 0.2 0 0 0.7 0 0 0.7 5.3 2.0 1.4 6.1 0.2 –23.0 0.7 0 –16.3 0.7 –23.0 0.7 –22.9 0.7 0 –15.3 0 10.1 9.6 0.4 10.5 0 0.7 0 9.6 5.0 –23.0 5.0 8.8 4.3 9.1 12.0 0.2 12.0 12.0 0 0 4.9 1.4 2.0 5.3 0.7 0 0.7 0 0.1 1.3 3.3 1.5 7.8 1.6 {1.6} [0] 1.9 1.3 0 0 0 0 1.3 1.4 1.4 3.3 1.3 0.1 0 10.0 10.0 11.0 1.7 4.8 6.5 0.7 1.7 0 1.4 0 5.1 12.0 12.1 0 0 12.1 0 12.1 –6.5 0 –6.5 0 4.9 5.3 –6.5 0.4 0.1 (RG70AV : AEP) (DX60AV/RG70AV : US) U 16 u U 17 u U 18 u U 19 u U 1 u U 20 u U 21 u U 22 u U 23 u U 24 u U 25 u U 26 u U 27 u U 28 u U 29 u U 30 u U 31 u U 32 u U 33 u U 34 u U 35 u U 36 u U 37 u U 38 u U 39 u U 40 u U 41 u U 42 u U 43 u U 44 u U 45 u U 46 u U 47 u U 48 u U 49 u I 81 i I 82 i I 83 i I 84 i I 85 i 1 1 R-CH L-CH A DECK (PB HEAD) R-CH ERASE L-CH B DECK (REC/PB/ERASE HEAD) Q424, 425 FAN MOTOR DRIVE Q421, 422 RELAY DRIVE Q414 2SC3623 MUTING Q423 2SC3623A MUTING Q201, 202 REC/PB MUTING Q215, 216 BIAS SWITCH Q204 2SC2785 AF AMP Q207, 208 AMS AMP Q206 2SC3623A REC MUTING Q205 2SC3623A REC MUTING Q203 2SC2785 AF AMP Q209 2SC2001L BIAS Q210, 211 REC/PB SWITCHING IC201 REC/PB EQ AMP IC201 TA8189N ALC GND REC IN NF M/H GND1 MIX OUT PRE OUT METAL OUT NF CH1/B CH1/A REC OUT REC IN NF REC OUT CG VCC TAPE A/ TAPE/B PRE OUT METAL OUT NF CH2/B CH2/A MAIN BOARD (2/4) 0.1U/50V 0.047U 0.0047U 0.001U 0.015U 0.022U 0.0022U Q217, 218 REC/PB SWITCHING Q212, 213 REC/PB SWITCH 0.022U Q214 REC/PB SWITCH 0.33U/50V 0.0022U 0.0015U 0.047U 0.0015U 0.018U 0.33U/50V 0.01U 0.018U Q418, 419 PROTECTOR 0.1U 0.1U 0.1u 0.001U 0.001U Q416, 417, 420 CURRENT DETECT MUTING DRIVE + + – – L R R L FRONT SPEAKER IMPEDANCE USE 6-16Ω JK401 1 1 M M901 (FAN) (Page 30) (Page 33) • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : FM 〈〈 〉〉 : RECORD w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX60AV/RG70AV 32 32 PANEL BOARD CN714 B MAIN BOARD (1/4) 1 MAIN BOARD (4/4) 4 IC B/D IC B/D MAIN BOARD (3/4) 0 –2.2 0 –2.2 0 0.7 0 0.7 3.2 3.2 3.2 0 0.7 0 4.6 4.6 4.6 8.8 8.8 6.2 8.8 6.1 6.2 8.8 6.1 2.3 5.0 1.8 2.3 5.0 1.8 0.7 0 0.7 8.8 0.7 0 0 0.7 0 0.7 0 0.7 11.0 10.3 12.1 4.2 4.2 4.2 4.2 4.2 4.2 4.2 4.2 4.2 4.2 4.2 4.2 4.2 4.2 4.2 4.2 4.2 4.2 4.2 4.2 4.1 4.2 4.2 4.1 4.2 1.2 4.2 4.2 4.2 4.1 4.2 4.2 8.3 4.2 4.2 3.9 0 0 1.5 1.5 1.0 4.2 4.2 4.2 4.2 4.2 4.2 4.2 4.2 4.2 4.2 4.1 –2.2 0 4.1 4.1 4.2 2.6 8.1 4.1 1.3 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1 3.4 2.3 4.1 4.1 4.1 4.1 3.4 2.3 4.1 4.1 2.3 3.3 2.3 4.1 3.3 4.1 4.8 0 0 0 4.1 2.3 2.3 2.3 2.3 2.3 2.3 0.7 [0.7] {0.7} (1.5) 0.7 0.7 [0.7] {0.7} (1.2) 0.7 2.3 2.3 2.3 2.3 2.3 2.3 4.1 4.1 4.1 0.1 4.1 4.0 [9.0] {8.0} (4.0) 3.0 4.1 4.0 [4.0] {4.0} (4.0) 3.0 4.1 4.0 [4.0] {4.0} (4.0) 3.0 4.2 4.1 4.1 4.1 4.2 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.6 9.2 4.6 4.6 0.7 0 U 2 u U 3 u U 4 u U 5 u U 6 u U 7 u U 8 u U 9 u U 10 u U 11 u U 12 u U 13 u U 14 u U 15 u I 51 i I 52 i I 53 i I 54 i I 55 i I 56 i I 57 i I 58 i I 59 i I 60 i I 62 i I 61 i I 62 i I 63 i I 64 i I 65 i I 66 i I 67 i I 68 i I 69 i I 70 i I 71 i I 72 i I 73 i I 74 i I 75 i I 76 i I 77 i I 78 i I 79 i I 80 i L R MD (VIDEO) IN VIDEO OUT WOOFER OUT L R FRONT L R REAR DVD INPUT CENTER WOOFER 2P Q316 MUTING IC307 DOLBY SURROUND PRO-LOGIG/PASSIVE DECODER IC302 M62464FP IC302 IC307 MUTING MUTING MUTING MUTING MUTING AUDIO SOUND PROCESSOR IC301 BH3878KS2 IC301 Q301, 302 MUTING JK301 (1/4) 0.001U 0.1U 0.047U 0.1U 0.22U 0.22U 0.22u 0.22U MUTING DRIVE MUTING MUTING Q313, 314 MUTING DRIVE JK301 (2/4) JK301 (3/4) JK301 (4/4) IC307 (1/2) NJM4565M 2.2k SWITCH Q309, 310 SWITCH CONTROL BUFFER BUFFER BUFFER BUFFER 0.022U 0.022U 0.022U 0.022U 0.0022U 0.0022U 0.027U 0.027U 0.027U 0.027U 0.1U 0.1U 0.27U 0.022U 0.22U IC307 (2/2) NJM4565M AMP 0.022U UDZ-9.1B 0.1U 0.1U 0.1U 0.1U 0.1U 0.001U 0.1U 0.0047U 0.001U 0.15U 0.22U 0.22U 0.15U 0.047U 0.001U 0.0056U 0.047U 0.22U 0.22U 0.22U 0.22U 0.047U 0.047U 0.022U 0.022U 0.68U 0.1U 0.1U 0.1U 0.1U 0.01U 0.01U 0.01U 0.01U 0.0068U STEREO +12V SWITCH 1 0.33U 50V 5-10. SCHEMATIC DIAGRAM – MAIN Board (3/4) – • See page 44 for IC Block Diagrams. (Page 41) (Page 33) (Page 30) • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : TUNER (FM/AM) ( ) : CD PLAY { } : TAPE PLAYBACK (DECK A) [ ] : TAPE PLAYBACK (DECK B) 〈〈 〉〉 : RECORD w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX60AV/RG70AV 33 33 5-11. SCHEMATIC DIAGRAM – MAIN (4/4)/DIGITAL OUT Boards – • See page 44 for Wavefoms. BD BOARD CN101 A DRIVER BOARD CN701 F POWER AMP BOARD CN503 D POWER AMP BOARD CN502 E REAR/CENTER AMP BOARD CN508 C PANEL BOARD CN711 G 13P 13P 7P MAIN BOARD (2/4) 3 MAIN BOARD (3/4) 4 4 3 TAPE MECHANISM DECK BLOCK SUPPLIED AS THE ASSEMBLED BLOCK DIGITAL OUT BOARD CENTER/REAR SPK O/P 0 0.1 0 0 5.1 0 0 0 (4.9) 0 (4.9) 4.9 0 0 (4.9) 0 (4.9) 0 (4.0) 0 (4.8) {0} [0] 0 5.1 5.1 0 5.3 0 0 6.1 5.1 0 (4.9) {4.9} [4.9] 4.9 0 0 0 5.1 5.1 4.9 2.2 2.2 4.9 1.7 1.1 0 0 0 5.0 2.5 4.4 3.9 1.5 4.9 5.1 4.9 0 3.9 0.4 0.3 0.2~5.0 [0.2~5.0] {0.2} (5.1) 5.1 0.2 [0.2] {0.2~5.0} (5.1) 5.1 4.9 0 4.9 5.1 4.9 4.9 1.0 1.5 1.5 4.8 (4.8) {0} [0] 0 4.9 (4.9) {4.9} [0] 4.9 0 (0) {0} [0] 4.1 5.1 5.1 0 (0) {0.1~1.5} [0.1~1.5] 2.3 5.1 (5.1) {5.1} [0] 0 5.1 (5.1) {0} [5.1] 5.1 5.1 (0) {5.1} [0] 0 5.1 (0) {0} [5.1] 5.1 5.1 (0) {0} [0] 0 5.1 (0) {0} [0] 0 0 (0) {4.9} [4.9] 4.9 0 4.9 0 0 0 0 0 4.9 4.9 5.1 5.1 4.8 4.9 0 0 12.1 12.1 4.9 0 4.9 12.1 12.1 0 12.1 12.1 4.9 19.0 0 0 0.6 19.0 0 0 0.6 0.1 [0.1] {0.1} 9.1 4.9 [4.9] {4.9} 0 9.1 9.1 9.0 [9.0] {9.0} 0 9.1 0 9.1 0 0 9.1 0 9.1 9.1 11.0 0.1 [0.1] {0.1} (10.4) 0.1 11.5 (0.1) {11.5} [11.5] 11.5 0 (4.9) {0} [0] 0 0 [0] {0} (5.0) 0 * * 9.1 {8.3} [8.3] 8.3 (DX60AV/RG70AV : US) (RG70AV : AEP) (DX60AV/RG70AV : US) (DX60AV/RG70AV : US) (RG70AV : AEP) TAPE SPEED 5.6 11.0 12.1 9.1 (DX60AV/RG70AV : US) 16.8 12.8 I 51 i I 52 i I 53 i I 54 i I 55 i I 56 i I 57 i I 58 i I 59 i I 60 i I 62 i I 61 i I 62 i I 63 i I 64 i I 65 i I 66 i I 67 i I 68 i I 69 i I 70 i I 71 i I 72 i I 73 i I 74 i I 75 i I 76 i I 77 i I 78 i I 79 i I 80 i U 16 u U 17 u U 18 u U 19 u U 1 u U 20 u U 21 u U 22 u U 23 u U 24 u U 25 u U 26 u U 27 u U 28 u U 29 u U 30 u U 31 u U 32 u U 33 u U 34 u U 35 u U 36 u U 37 u U 38 u U 39 u U 40 u U 41 u U 42 u U 43 u U 44 u U 45 u U 46 u U 47 u U 48 u U 49 u SYSTEM CONTROLLER IC401 M30622MCA-B43FP IC401 MUTING DRIVE IC402 IC406 3P 17P 3P 19P 10P 30P (4/4) MAIN BOARD Q428, 429 MUTING DRIVE Q430, 431 MUTING DRIVE 0.1U INVERTER 0.1U 0.1U RESET SIGNAL GENERATOR 22U/25V 0.1U 0.1U 0.001U * * *R473 15k (RG70AV) 47k (DX60AV) *R474 47k (RG70AV) 22k (DX60AV) Q411, 412 RELAY DRIVE Q409, 410 RELAY DRIVE 0.001U 0.001U 0.001U 0.1U – + – + – + (CHASSIS) R L R L CENTER SPEAKER REAR SPEAKER IMPEDANCE USE 6-16Ω JK402 0.1U 0.1U Q407, 408 CAPSTAN MOTOR DRIVE Q405, 406 DECK-A SOLENOID DRIVE Q403, 404 DECK-B SOLENOID DRIVE +5V REGULATOR 0.1U 0.1U 0.1U 0.1U 2.2k IC404 +12V REGULATOR IC403 +9V REGULATOR IC405 +5.6V REGULATOR Q401, 402 B+ SWITCH 1 2 3 CD DIGITAL OUT VIDEO SW +7V MIC +12V MICSIG MIC–GND +5.6V (SW) (Page 32) (Page 31) (Page 29) (Page 35) (Page 39) (Page 39) (Page 37) (Page 41) • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : TUNER (FM/AM) ( ) : CD PLAY { } : TAPE PLAYBACK (DECK A) [ ] : TAPE PLAYBACK (DECK B) 〈〈 〉〉 : RECORD w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX60AV/RG70AV 34 34 IC102 1 12 24 13 IC101 IC307 1 12 24 13 E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E 1 7 E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E 1 3 1 3 1 3 E E E E IC103 IC301 IC302 IC406 1 16 8 9 IC201 1 1 1 3 7 24 12 13 19 1 1 10 1 1 1 3 3 3 18 2 A BD BOARD CN101 F DRIVER BOARD CN701 1 1 3 2 B PANEL BOARD CN714 M M901 FAN C REAR/CENTER AMP BOARD CN508 D POWER AMP BOARD CN503 1 13 1 13 E E E POWER AMP BOARD CN502 IC403 IC405 IC404 TAPE MECHANISM DECK BLOCK R4102, 4103 (DX60AV/RG70AV: US) IC401 IC402 1 3 G PANEL BOARD CN711 MAIN BOARD DIGITAL OUT BOARD A B C D E F G H I J K L 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1 3 7 R-CH L-CH R-CH L-CH ERASE 1 (PB HEAD) (REC/PB/ERASE HEAD) A DECK B DECK 1 29 30 2 1 17 2 16 41 1 2 3 4 5 6 7 8 9 (RG70AV: AEP) E E E 3 1 CD DIGITAL OUT (11) 11 1-682-255- 4 5 6 7 8 8 7 6 5 4 3 2 1 1 2 3 5 10 11 14 15 6 9 7 4 6 1 1 2 3 6 4 2 3 12 13 4 3 2 1 (DX60AV/RG70AV: US) 5 4 8 3 2 1 6 7 1 2 5 6 4 1 2 5 6 4 1 2 5 6 4 3 K A K/A (CHASSIS) (11) 11 1-682-254- FM 75Ω FM 75Ω COAXIAL MD (VIDEO) IN WOOFER OUT CENTER SPEAKER VIDEO OUT AM ANTENNA AM R L R L FRONT (DX60AV/RG70AV: US) (RG70AV: AEP) JK101 + – + + – – + + – – R L R L L R R L WOOFER CENTER REAR DVD INPUT JK302 JK301 JK402 JK401 REAR SPEAKER IMPEDANCE USE 6 – 16Ω FRONT SPEAKER IMPEDANCE USE 6 – 16Ω (RG70AV: AEP) (RG70AV: AEP) (RG70AV: AEP) (RG70AV: AEP) (RG70AV: AEP) (RG70AV: AEP) (RG70AV: AEP) (DX60AV/RG70AV: US) FE102 (RG70AV: AEP) (RG70AV: AEP) (RG70AV: AEP) (RG70AV: AEP) (DX60AV/RG70AV: US) (DX60AV/RG70AV: US) X102 SUPPLIED AS THE ASSEMBLED BLOCK 5-12. PRINTED WIRING BOARDS – MAIN/DIGITAL OUT Boards – • See page 27 for Circuit Boards Location. • Semiconductor Location Ref. No. Location D101 D-15 D104 E-11 D107 E-9 D108 B-11 D201 J-4 D202 J-4 D203 I-5 D204 I-5 D205 L-5 D302 E-5 D303 G-6 D304 D-5 D305 D-7 D401 J-12 D402 J-12 D403 J-12 D404 J-12 D405 J-11 D406 J-11 D407 J-11 D408 J-11 D409 D-9 D410 K-7 D411 K-7 D412 K-7 D413 J-13 D414 J-13 D415 L-8 D416 J-13 D417 K-13 D418 I-14 D419 J-14 D420 D-2 D421 D-2 D423 F-5 D424 F-5 D425 D-5 D426 E-5 D427 G-5 D428 K-8 D429 D-2 D430 D-2 D431 G-2 D432 J-9 D433 J-9 D436 K-14 IC101 E-12 IC102 B-13 IC103 E-9 IC201 K-6 IC301 D-7 IC302 G-6 IC307 G-11 IC401 D-4 IC402 E-5 IC403 K-7 IC404 K-9 IC405 K-8 IC406 D-10 PH401 A-10 Q101 D-11 Q102 B-12 Q103 F-11 Q104 F-11 Q105 E-10 Q201 J-5 Ref. No. Location Q202 K-5 Q203 J-6 Q204 K-6 Q205 F-6 Q206 F-7 Q207 I-5 Q208 I-5 Q209 L-4 Q210 J-4 Q211 J-4 Q212 J-4 Q213 I-4 Q214 J-4 Q215 K-6 Q216 L-6 Q217 K-4 Q218 K-4 Q301 G-10 Q302 G-9 Q303 E-14 Q304 E-14 Q305 C-7 Q306 C-8 Q307 H-11 Q308 H-11 Q309 H-10 Q310 H-10 Q311 H-10 Q312 I-8 Q313 G-10 Q314 G-10 Q315 H-13 Q316 G-14 Q317 J-7 Q318 K-7 Q319 J-8 Q320 J-8 Q401 C-10 Q402 C-10 Q403 H-5 Q404 H-5 Q405 H-4 Q406 H-4 Q407 H-4 Q408 H-4 Q409 G-13 Q410 H-13 Q411 H-13 Q412 H-13 Q413 L-8 Q414 L-9 Q415 J-9 Q416 G-14 Q417 G-14 Q418 H-13 Q419 H-13 Q420 H-14 Q421 K-13 Q422 K-13 Q423 L-8 Q424 H-14 Q425 H-14 Q426 G-4 Q427 G-4 Q428 G-4 Q429 G-4 Q430 G-4 Q431 G-4 Q432 D-5 (Page 40) (Page 35) (Page 28) (Page 40) (Page 38) (Page 36) (Page 38) There are a few cases that the part printed on this diagram isn’t mounted in this model. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX60AV/RG70AV 35 35 (4/4) C712 0.1 CN409 IC B/D 14 (14) 14 (14) 14 (14) C712 CN409 F IC711 IC701 A B C D 1 2 3 4 5 6 7 8 9 10 11 12 4 1 5-13. PRINTED WIRING BOARDS – ADDRESS SENSOR/DRIVER/MOTOR Boards – • See page 27 for Circuit Boards Location. 5-14. SCHEMATIC DIAGRAM – ADDRESS SENSOR/DRIVER/MOTOR Boards – • See page 44 for IC Block Diagrams. D701 C-9 IC701 B-10 IC711 C-6 • Semiconductor Location Ref. No. Location There are a few cases that the part printed on this diagram isn’t mounted in this model. (Page 34) • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : CD STOP (Page 33) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX60AV/RG70AV 36 36 J TRANSFORMER BOARD CN916 3 1 1 7 C MAIN BOARD CN403 E E E E E E E 1 19 4 1 H POWER AMP BOARD CN505 IC503 REAR/CENTER AMP BOARD A B C D E F G 1 2 3 4 5 6 7 (CHASSIS) (CHASSIS) (RG70AV: AEP) (11) 11 1-682-257- 5-15. PRINTED WIRING BOARD – REAR/CENTER AMP Board – • See page 27 for Circuit Boards Location. • Semiconductor Location Ref. No. Location D514 C-7 D515 C-3 D516 D-3 D517 F-4 D518 C-3 IC503 C-1 Q505 C-2 Q506 D-2 Q511 C-3 Q512 B-3 Q513 C-2 Q514 F-3 Q515 D-3 (Page 38) (Page 42) (Page 34) There are a few cases that the part printed on this diagram isn’t mounted in this model. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX60AV/RG70AV 37 37 5-16. SCHEMATIC DIAGRAM – REAR/CENTER AMP Board – TRANSFORMER BOARD CN916 J POWER AMP BOARD CN505 H MAIN BOARD(4/4) CN403 C –0.1 –0.1 32.0 34.0 0 0 –31.5 0 –31.5 –31.5 –30.8 34.0 34.0 33.0 0 11.7 0 11.7 0 0 0.1 0.6 –30.2 –0.1 –34.0 0 0 –0.1 (RG70AV : AEP) –0.1 –0.1 0 0 11.7 0 0 11.7 0 (REAR AMP L-CH) STK402-240 IC503 (1/3) STK402-240 IC503 (2/3) CN917 3P (REAR AMP R-CH) IC503 POWER AMP Q511, 512 POWER CONTROL OVER LOAD DETECT OVER LOAD DETECT REAR/CENTER AMP BOARD 1/2W B– SWITCH 0.001U * *C540 0.001 : (RG70AV : AEP) 0.1 : (DX60AV/RG70AV : US) 1/2W (CHASSIS) (CHASSIS) CN507 4P (CENTER AMP) STK402-240 IC503 (3/3) CN508 7P OVER LOAD DETECT TEMP PROTECT 1SS133T 1SS133T 6.3A/125V (RG70AV : US) T6.3A/250V (DX60AV/RG70AV : AEP) 6.3A/125V (RG70AV : US) T6.3A/250V (DX60AV/RG70AV : AEP) (Page 43) (Page 39) (Page 33) • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : FM The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX60AV/RG70AV 38 38 _ + E MAIN BOARD CN402 D MAIN BOARD CN401 H REAR/CENTER AMP BOARD CN507 I TRANSFORMER BOARD CN915 13 4 1 13 2 E E E E E E E E 1 POWER AMP BOARD SENSOR BOARD IC501 2 1 A B C D E F 1 2 3 4 5 6 7 8 9 10 (RG70AV: AEP) (CHASSIS) (RG70AV: AEP) (CHASSIS) (32) 31 1-681-448- (11) 11 1-682-255- 5-17. PRINTED WIRING BOARDS – POWER AMP/SENSOR Boards – • See page 27 for Circuit Boards Location. • Semiconductor Location Ref. No. Location D501 C-7 D502 C-5 D541 D-6 D542 B-3 D543 B-3 D551 C-5 IC501 A-6 Q501 B-7 Q503 C-7 Q504 C-6 Q551 B-5 Q581 B-6 Q582 C-7 Q583 C-8 Q584 C-8 (Page 34) (Page 34) (Page 36) (Page 42) There are a few cases that the part printed on this diagram isn’t mounted in this model. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX60AV/RG70AV 39 39 5-18. SCHEMATIC DIAGRAM – POWER AMP/SENSOR Boards – TRANSFORMER BOARD CN915 I REAR/CENTER AMP BOARD CN507 H MAIN BOARD (4/4) CN401 D MAIN BOARD (4/4) CN402 E –0.1 –0.1 37.0 37.7 0 0 –36.0 0 –36.0 –36.0 –35.0 37.7 37.7 37.0 0 11.7 0 11.7 0 0.6 0 11.7 0 0 0.6 0 –35.0 –38.0 0 0 –0.1 –0.1 (RG70AV : AEP) 0 0.7 POWER AMP BOARD IC501 POWER AMP 4P Q581 B– SWITCH OVER LOAD DETECT OVER LOAD DETECT BUFFER IC501 (1/2) STK402 1500P 1.2k 25V (CHASSIS) (CHASSIS) 1500P 1.2k (RG70AV : AEP) 0.001U IC501 (2/2) STK402 Q503, 504 POWER CONTROL BUFFER DTC124ES TEMP PROTECT SENSOR BOARD (TEMP SENSOR) (Page 37) (Page 33) (Page 33) (Page 43) • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : FM The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX60AV/RG70AV 40 40 30 13 + DISC SKIP EX-CHANGE PTY/DIRECTION EDIT GAME EQ MUSIC EQ SPECTRUM DIRECTION/EDIT MOVE EQ EFFECT ON/OFF STEREO/MONO/REPEAT (RG70AV: AEP) (DX60AV/RG70AV: US) – V v b B VOLUME PHONES TUNER/BAND 29 2 FLD1 (FLUORESCENT INDICATOR TUBE) I/1 VIDEO AUDIO L R INPUT JACK704 JACK701 Z G MAIN BOARD CN411 E E E E E E 2 1 B MAIN BOARD CN302 PANEL BOARD E E E E E 13 KEY BOARD A B C D E F G H I J K L 1 2 3 4 5 6 7 8 9 10 11 12 13 14 DVD 5.1CH (32) 31 1-681-447- (CHASSIS) 1 5 10 15 20 25 30 35 40 45 50 C775 53 (32) 31 1-681-446- IC701 1 2 3 4 5 7 6 (CHASSIS) S701 – 738 5-19. PRINTED WIRING BOARDS – PANEL/KEY Board – • See page 27 for Circuit Boards Location. • Semiconductor Location Ref. No. Location D701 A-13 D702 C-2 D703 B-2 D704 A-2 D705 B-2 D706 C-13 D707 K-3 D708 I-4 D709 J-8 D710 J-8 D711 I-8 D713 D-5 D716 C-3 D717 B-3 D718 A-3 D719 B-3 D720 C-13 D721 E-5 IC701 C-7 Q701 B-12 Q702 C-4 Q703 C-4 Q704 B-4 Q705 C-4 Q706 C-12 Q707 I-2 Q708 I-2 Q709 J-7 Q710 J-7 Q712 J-7 There are a few cases that the part printed on this diagram isn’t mounted in this model. (Page 34) (Page 34) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX60AV/RG70AV 41 41 5-20. SCHEMATIC DIAGRAM – PANEL/KEY Boards – MAIN BOARD (3/4) CN302 B MAIN BOARD (4/4) CN411 G 1 –25.3 –25.3 –25.3 –25.3 –25.3 –25.3 –25.3 –25.3 –25.3 –25.3 –25.3 –25.3 –12.5 –28.0 –25 –9 ~ –17 –9 ~ –17 –9 ~ –17 –9, –13 –4 ~ –13 –2.8 4.8 –9 ~ –17 –9 ~ –17 –16 ~ –20 –18 ~ –21 –22.5 –25.2 –22.5 –25.0 –20.0 –17.8 –28.0 –28.0 –28.0 –20.2 –20.2 –20.2 –17.8 –25.2 –27.8 –22.5 –20.2 –17.5 4.8 4.8 0 0 0 0 0 0 0 0 4.8 4.8 4.8 4.8 4.8 0 4.8 4.8 2.4 1.4 3.9 4.4 4.8 2.9 2.6 4.8 0 3.7 0 2.8 0 3.7 4.8 0.1 0 2.6 –1.1 5.1 4.9 0 4.7 0 4.7 4.8 0.1 0 5.1 0 4.7 (DX60AV/RG70AV : US) (RG70AV : AEP) UPD780232GC-031-8BT IC701 DISPLAY CONTROL VIDEO PHONES PANEL BOARD IC701 Q701–706 LED DRIVE 13P 13P Q707–710, 712 LED DRIVE 30P 2P VOLUME MD (VIDEO) TAPE A/B CD TUNER/BAND GAME GAME MD (VIDEO) TAPE A/B TUNER/BAND CD I / 1 DVD5.1CH PRO LOGIC ENTER REC PAUSE/START GROOVE DISC SKIP EX-CHANGE DISC1 DISC2 DISC3 ZOPEN/CLOSE PRO LOGIC DVD5.1CH REC PAUSE/START CD SYNC M + > X x . m – DISPALY SPECRUM GAME EQ ENTER P.FILE MUSIC EQ EFFECT ON/OFF DIRECTION /EDIT STEREO/MONO REPETE TUNER MEMORY /PLAY MODE MOVE EQ v V B b GROOVE (FLOURESCENT INDICATOR TUBE) HEADPHONE D702 – 706, D716 – 720 LTL77HKYTNN 1k SELS5223C REMOTE CONTROL RECEIVER D709–711 SEL5923A D707, 708 SEL5223S PTY/DIRECTION EDIT L R AUDIO INPUT JACK704 KEY BOARD C775 0.01 JW714 • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : FM (Page 32) (Page 33) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX60AV/RG70AV 42 42 JW912 F920 F914 I POWER AMP BOARD CN501 J REAR/CENTER AMP BOARD CN917 1 3 3 1 B C E 1 2 1 2 TRANSFORMER BOARD SUB TRANSFORMER BOARD 1 2 AC IN E 1 3 IC901 1 3 A B C D E F G H 1 2 3 4 5 6 7 8 9 10 (RG70AV) (CHASSIS) (RG70AV: US) (DX60AV/RG70AV: AEP) (11) 11 1-682-258- 5 1 2 3 4 10 15 16 (11) 11 1-682-259- 1 2 3 4 1 2 3 4 POWER TRANSFORMER 5-21. PRINTED WIRING BOARDS – TRANSFORMER/SUB TRANSFORMER Boards – • See page 27 for Circuit Boards Location. • Semiconductor Location Ref. No. Location D901 H-9 D902 G-7 D903 G-7 D904 G-8 D905 G-7 D911 B-4 D912 B-3 D913 A-2 IC901 H-7 Q901 H-8 Q911 A-2 There are a few cases that the part printed on this diagram isn’t mounted in this model. (Page 38) (Page 36) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX60AV/RG70AV 43 43 5-22. SCHEMATIC DIAGRAM – TRANSFORMER/SUB TRANSFORMER Boards – REAR/CENTER AMP BOARD CN917 J POWER AMP BOARD CN501 I –28.4 –27.8 –39.0 (DX60AV/RG70AV : AEP) (RG70AV : US) (RG70AV) 0.7 0.1 0 3P 13P 3P –30V REGULATOR TRANSFORMER BOARD 1/2W 0.1U F919 6.3A/125V POWER TRANSFORMER *R920 0.33 (RG70AV) 0.1 (DX60AV) R920 * RELAY DRIVE IC901 +5.6V REGULATOR SUB TRANSFORMER BOARD SUB TRANSFORMER 250V TA8057S 2P 2P F914 6.3A/125V (RG70AV : US) T6.3A/250V (DX60AV/RG70AV : AEP) F920 6.3A/125V (RG70AV : US) T6.3A/250V (DX60AV/RG70AV : AEP) JW912 (Page 37) (Page 39) • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : FM The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX60AV/RG70AV 44 44 LEVEL SHIFT INTERFACE INTERFACE INTERFACE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 20 21 22 23 24 25 26 27 28 19 18 17 16 15 F R R F F R R F R R F F MUTE THERMAL SHUTDOWN VREFOUT VREFIN POWVCC CH1FIN CH1RIN CH2FIN CH2RIN CH2OUTR CH2OUTF CH1OUTR CH1OUTF CAPAIN1 CAPAIN2 GND PRFVCC MUTE POWVCC CH4SIN' CH4SIN CH4BIN CH3FIN CH3RIN CH3OUTR CH3OUTF CH4OUTR CH4OUTF CAPAIN3 GND TE RFDC CE IGEN AVSS0 ADIO AVDD0 CLTV FILO AVSS3 VSS AVDD3 DOUT VDD PCO FILI ASYO ASYI RFAC BIAS SSTP DFCT MIRR MDP LOCK FOK SFDR VSS TEST FRDR FE VC COUT SE XTSL TES1 SRDR TFDR FFDR TRDR 2 1 70 71 68 69 66 67 64 65 62 61 63 73 74 72 75 76 77 78 79 80 4 XRST 3 SQCK SQSO 5 9 8 7 6 56 60 53 54 55 59 57 58 51 52 48 49 50 47 44 45 46 43 41 42 XLAT CLOK SENS SYSM DATA XUGF XPCK GFS C2PO WFCK 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 32 33 30 31 36 37 34 35 39 40 38 28 27 29 SPOA ATSK SCLK VDD SCOR SPOB XLON XTAI XVDD EMPH AVDD1 AOUT1 AIN1 XTAO XVSS AIN2 AOUT2 AVDD2 RMUT LOUT2 LOUT1 BCK LRCK PCMD LMUT AVSS1 AVSS2 CPU INTERFACE SERVO AUTO SEQUENCER SERIAL IN INTERFACE OVER SAMPLING DIGITAL FILTER 3rd ORDER NOISE SHAPER PWM PWM EFM DEMODULATOR TIMING LOGIC DIGITAL OUT D/A INTERFACE DIGITAL PLL ASYMMETRY CORRECTOR CLOCK GENERATOR MIRR, DFCT, FOK DETECTOR DIGITAL CLV SUBCODE PROCESSOR SERVO INTERFACE SERVO DSP FOCUS SERVO TRACKING SERVO SLED SERVO PWM GENERATOR FOCUS PWM GENERATOR TRACKING PWM GENERATOR SLED PWM GENERATOR 16K RAM ERROR CORRECTOR INTERNAL BUS A/D CONVERTER OPERATIONAL AMPLIFIER ANALOG SWITCH 4.8 Vp-p 5 MHz 3.1 Vp-p 16 MHz 1.4 Vp-p 32.768 kHz 4.8 Vp-p 4.332 MHz 4.7 Vp-p 4.5 MHz Approx. 170 mVp-p 1.45 ± 0.3 Vp-p 6.4 Vp-p 16.9344 MHz 2.5 Vp-p 7.5 µs Approx. 200 mVp-p • Waveforms – BD Board – 1 IC101 yj (XTAO) (CD Play mode) 2 IC101 ta (RFAC) (CD Play mode) 3 IC101 ra (TE) (CD Play mode) 4 IC101 el (FE) (CD Play mode) 5 IC101 wh (MDP) – MAIN Board – 1 IC102 wf (XOUT) 2 IC103 qf (XO) (AEP model only) 3 IC401 qa (XCOUT) 4 IC401 qd (XOUT) – PANEL Board – 1 IC701 4 (X2) 5 Q209 (Base) 6 Q209 (Collector) 7 Q209 (Emitter) 2.3 Vp-p 11.4 µs 13.6 Vp-p 11.4 µs 0.5 Vp-p 11.4 µs • IC Block Diagrams – BD Board – IC101 CXD2587Q IC102 BA5974FP-E2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 HCD-DX60AV/RG70AV APC PD AMP APC LD AMP RF SUMMING AMP RF EQ AMP FOCUS ERROR AMP TRACKING ERROR AMP VC BUFFER VCC 50µA VEE VEE VC VC VC VC VC VC VC VC VC VC VCC VEE VCC VEE VEE VC VCC LC/PD LD ON HOLD SW AGC CONT RFTC RF I RF O RFE TE FE RF BOT HOLD AGC VTH LD PD A B C D VEE F E VC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 + – + – + – + – + – + – + – VCC + – + – + – + – + – + – + – + – + – IC103 CXA2568M-T6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 HCD-DX60AV/RG70AV CH2/A CH2/B NF VCC CG NF ALC METAL OUT PRE OUT TAPE A /TAPE B REC OUT REC IN CH1/A CH1/B NF GND1 M/H NF CH2 CH2 ALC M/N CH1 GND GND CH1 + – + – + – + – A/B GND METAL OUT PRE OUT MIX OUT REC OUT REC IN IREF VREF2 VREF1 24 23 22 21 20 19 18 17 16 15 14 13 1 2 3 4 5 6 7 8 9 10 11 12 ANALOG DIGITAL RCLK NC XO XI VSS2 T2 VDD2 T1 QUAL RDAT VREF MUX VDD1 VSS1 VSS3 CMP 1 4 3 6 5 8 7 2 14 15 16 13 12 11 10 9 CLOCK PLL 57kHz RDS/ARI COMPARATOR 8th SWITCHED CAPACITOR FILTER ANTI-ALIASING FILTER BIPHASE DECODER PLL 1187.5Hz DEFFERENTIAL DECODER TEST 1 2 3 4 5 6 7 8 9 CONTROL LOGIC TSD VREF OUT2 OUT1 RNF VM VCC FIN GND RIN – DRIVER Board – IC701 BA6956AN – MAIN Board – IC103 BU1924 IC201 TA8189N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 HCD-DX60AV/RG70AV PHASE DETECTOR CHARGE PUMP SWALLOW COUNTER 1/16, 1/17 4BITS 12BITS PROGRAMMABLE DRIVER UNIVERSAL COUNTER REFERENCE DIVIDER POWER ON RESET 1/2 C2B I/F 1 2 3 4 5 6 7 8 9 10 20 19 18 17 16 15 14 13 12 11 21 22 23 24 XOUT VSS AOUT2 AIN2 PD2 PD1 AIN1 AOUT1 VDD FMIN AMIN IO2 XIN D0 CL D1 CE BO5 BO1 BO2 BO3 BO4 IO1 IFIN UNLOCK DETECTOR DATA SHIFT REGISTER LATCH 1 2 3 4 5 6 7 8 9 10 11 12 16 17 18 19 20 21 22 23 24 15 14 13 AM OSC AM MIX AM IF FM IF FM DET AM DET SD DET AGC LED DRIVER COMP SD SW VCO PD 1/2 DECODER VREG 1/2 FM IN FM DET TUNED STEREO IF OUT R OUT L OUT AM/FM FM/AM DET OUT AM MPX IN FM MPX IN IN REQ MUTE FM SD ADJ VCC GND AM OSC OUT AM OSC VCO STOP AM RF IN AM IF IN AM AGC AM MIX OUT FM BAND WIDTH V . REG IC101 BA1450 IC102 LC72130 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 HCD-DX60AV/RG70AV IC301 BH3878KS2 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 1 2 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 + – DET 10.5KHz DET 3.4KHz DET MPX 1KHz DET 340Hz DET 105Hz 2.8dB 1.7dB 2.8dB DIGITAL CONTROL + – + + – + – + MODE SELECTOR + EFFECT 5 BAND EQ + + 15 12 11 8 7 4 3 64 63 5 BAND EQ 16 14 13 10 9 6 5 2 1 3 4 5 6 7 8 9 10 11 12 13 14 15 16 63 64 3 4 7 8 11 12 15 1 2 5 6 9 10 13 14 16 HPF HPF VCA FILTER + + – + – + + 29 28 27 26 25 24 23 22 21 20 19 18 17 ALC + – VCC VCC 2 1 + + + + + – + + + – PS INLE INRE RECL RECR VFC1 GND VFC2 MIC DPLL1 DPLL2 DPLR1 DPLR2 PS1 PS2 F1L1 F1L2 F1R1 F1R2 F2L1 F2L2 F2R1 F2R2 F3L1 F3L2 F3R1 F3R2 F4L1 F4L2 F4R1 F4R2 F5L F5R INRD INLD INRC INLC INRB INLB INRA INLA BPNF BPOUT C B A SCK SI STEPC OUTL OUTR VCC CAP FILTER BASS3 BASS2 BASS1 ALCR ALCC HPFR3 HPFR2 HPFR1 HPFL3 HPFL2 HPFL1 0to30dB –30dBto–∞ –5dB –6dB –5dB –6dB L-R www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 HCD-DX60AV/RG70AV IC302 M62464FP 40 72 71 24 26 25 73 74 75 76 77 78 79 80 MCU INTERFACE DATA SCK REQ 23 22 20 19 18 17 16 VOL 15 TRIM 13 VOL 12 14 TRIM 11 9 VOL 8 7 6 5 2 1 10 TRIM 3 VOL 4 TRIM PSEUDO SURROUND AUTO BALANCE VCA SERVO IREF 70 69 68 67 66 65 63 64 62 VREF BPF L+R L-R 61 60 BPF 59 58 57 56 FULL WAVE RECTIFER VCA 55 54 53 52 LOG DIFFERENCE AMPLIFIERS 45 44 43 42 41 MODIFIED B-TYPE NR DECODER 51 50 47 46 49 48 DUAL-TIME CONSTANT AND THRESHOLD SWITCHES SELECTOR LOGIC 28 27 + SRAM 10KBIT L-R VOL F. B. VOL DELAY CLK 29 30 31 32 33 34 35 36 37 38 39 LPF D/A 2 L+R NETWORKS COMBINNING CONTROL CENTER MODE L L R C S R C + + SL-SW C-SW L-SW R-SW DI-SW BNR-SW DO-SW SR-SW SW-SW REQ SCK DATA MICIN AGND CMC SWVOLOUT SWVOLIN SWOUT SRVOLIN SROUT SRVOLOUT SLOUT SLVOLOUT SRIN SLIN SOUT COUT ROUT LOUT SLVOLIN CVOLOUT CVOLIN DVOLOUT DSELOUT DVSS LPF1IN1 DIN LPF1IN2 LPF1OUT ADINTIN ADINTOUT ADCONT DACONT DAINTIN DAINTOUT LPF2IN1 LPF2IN2 LPF2OUT RBPF1 ABL RBPF2 LBPF1 LBPF2 RLC6 RLC8 RLC3 RLC7 RLC4 RLC1 RLC2 RLC5 DBC3 DBC2 DBC1 BNR IN ECHOOUT PSC4 PSC1 PSC6 PSC3 PSC5 PSC2 LIN IREF RIN LTIN RTIN CIN SLIN SRIN SWIN VRSWIN VREF1 AVCC NGC1 NGC2 NGC3 ABR SEQUENCER NOISE LPF A/D 21 DVDD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 HCD-DX60AV/RG70AV 5-23. IC PIN FUNCTION DESCRIPTION • MAIN BOARD IC401 M30622MCA-B43FP (SYSTEM CONTROLLER) Pin No. Pin Name I/O Description 1 S-OUT O Serial data output to the display control (IC701) 2 S-CLK O Serial data transfer clock signal output to the display control (IC701) 3 S-BSY I Busy signal input from the display control (IC701) “L”: busy 4 REMOTE-IN I Remote control signal input terminal 5 3878-DAT O Serial data output to the BH3878KS2 (IC301) 6 3878-LAT O Serial data latch pulse output to the BH3878KS2 (IC301) 7 3878-CLK O Serial data transfer clock signal output to the BH3878KS2 (IC301) 8 BYTE I External data bus line byte selection signal input terminal Fixed at “L”: in this set 9 CNVSS — Ground terminal 10 XCIN I Sub system clock input terminal (32.768 kHz) 11 XCOUT O Sub system clock output terminal (32.768 kHz) 12 RESET I System reset signal input from the reset signal generator (IC402) “L”: reset For several hundreds msec. after the power supply rises, “L”: is input, then it changes to “H” 13 XOUT O Main system clock output terminal (16 MHz) 14 VSS — Ground terminal 15 XIN I Main system clock input terminal (16 MHz) 16 VCC — Power supply terminal (+5V) 17 NMI I Non-maskable interrupt input terminal Fixed at “H” in this set 18 AC-CUT I AC off detection signal input from the reset signal generator (IC402) “L”: AC cut checked 19 SCOR I Subcode sync (S0+S1) detection signal input terminal 20 RDS-INT I Serial data transfer clock siganl input terminal Used for the AEP model only 21 RDS-DATA I Serial data input terminal Used for the AEP model only 22 ST-MUT O Tuner muting contorl signal output terminal “H”: muting on 23 STEREO I FM stereo detection signal input from the FM/AM tuner system (IC101) “L”: stereo 24 TUNED I Tuning detection signal input from the FM/AM tuner system (IC101) “L”: tuned 25 ST-CE O PLL chip enable signal output to the PLL (IC102) 26 ST-DOUT O PLL serial data output to the PLL (IC102) 27 ST-DIN I PLL serial data input from the PLL (IC102) 28 ST-CLK O PLL serial data transfer clock signal output to the PLL (IC102) 29 IIC-CLK I/O Shift clock signal input/output terminal for the IIC bus Fixed at “H” in this set 30 IIC-DAT I/O Data input/output terminal for the IIC bus Fixed at “H” in this set 31 CAN' T-USE — Not used (open) 32 SQ-DAT IN I Subcode Q data input terminal 33 SQ-CLK O Subcode Q data reading clock signal output terminal 34 SENS (CXD2587 SENS) I Internal status (SENSE) signal input from the CXD2587Q (IC101) 35 CD-DAT OUT O Serial data output to the CXD2587Q (IC101) 36 CAN' T-USE — Not used (fixed at “L”) 37 CD-CLK O Serial data transfer clock signal output to the CXD2587Q (IC101) 38 CD-POWER O CD power on/off control signal output “L”: on, “H”: off 39 (CLOCK-OUT) — Clock signal output terminal Not used (open) 40 HOLD O Laser power control signal output to the CXA2568M (IC103) 41 M-RESET O Micom reset signal output to the display control (IC701) “L”: reset 42 XLT (CD) O Serial data latch pulse output to the CXD2587Q (IC101) 43 XRST (CD) O CD reset signal output to the CXD2587Q (IC101) and BA5974FP (IC102) “L”: reset www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 HCD-DX60AV/RG70AV Pin No. Pin Name I/O Description 44 LOAD-IN O Turn motor control signal output to the BA6956AN (IC701) 45 LOAD-OUT O Turn motor control signal output to the BA6956AN (IC701) 46 OPEN I Tray open detect signal input terminal “L”: open 47 CLOSE I Tray close detect signal input terminal “L”: close 48 UP/DOWN O Pick-up up/down detect signal input terminal 49 T-SENS I CD table detect signal input from the SG-264 (IC711) 50 GAME/DVD I Game/DVD selection signal input terminal “H”: game in, “L”: DVD in 51 — — Not used (fixed at “H”) 52 CENTER-MUT O Muting on/off control signal output terminal “L”: muting on 53 REAR-MUT O Muting on/off control signal output terminal “L”: muting on 54 464-DAT O Serial data output to the M62464BFP (IC302) 55 464-CLK O Serial data transfer clock signal output to the M62464BFP (IC302) 56 464-LT O Serial data latch pulse output to the M62464BFP (IC302) 57 SUR1 O Surround control signal output terminal Not used (open) 58 SUR2 O Surround control signal output terminal Not used (open) 59 SUR3 O Surround control signal output terminal Not used (open) 60 A-TRG O Deck-A side trigger plunger drive signal output terminal “H”: plunger on 61 B-TRG O Deck-B side trigger plunger drive signal output terminal “H”: plunger on 62 VCC — Power supply terminal (+5V) 63 SOFT-TEST O Output terminal for the software test (open) 64 VSS — Ground terminal 65 CAMP-CONTL O Capstan motor on/off control signal output terminal “H”: motor on 66 B-RECFWD I Detection input from the deck-B rec forward detect switch “L”: rec 67 B-RECREV I Detection input from the deck-B rec reverse detect switch “L”: rec 68 A-HALF I Detection input from the deck-A half detect switch “L”: cassete in, “H”: no cassette 69 B-HALF I Detection input from the deck-B half detect switch “L”: cassete in, “H”: no cassette 70 A-PLAY I Detection input from the deck-A play detect switch “H”: deck-A play 71 B-PLAY I Detection input from the deck-B play detect switch “H”: deck-B play 72 AMS-IN I AMS signal input terminal “L”: AMS in 73 DISPLAY-KEY I Display key input terminal S726 (DISPLAY) 74 POWER-KEY I Power key input terminal S701 (I/1) 75 BIAS O Recording bias on/off control signal output terminal “H”: bias on, “L”: bias off 76 PB-A/B O Deck-A/B selection signal output to the TA8189N (IC201) “L”: deck-A, “H”: deck-B 77 TC-RELAY O Tape deck relay on/off control signal output terminal 78 PB MUTE O Play back muting on/off control signal output terminal Not used (open) 79 REC MUTE O Recording muting on/off control signal output terminal “H”: muting on 80 SP-LAT-A O Serial data latch pulse output to the BH3878KS2 (IC302) 81 SP-LAT-B O Serial data latch pulse output to the BH3878KS2 (IC302) 82 SP-LAT-C O Serial data latch pulse output to the BH3878KS2 (IC302) 83 LINE-MUT O Audio line muting on/off control signal output terminal “H”: muting on 84 STK-MUT O Muting on/off control signal output terminal “H”: muting on 85 PROTECT I Speaker protect signal input terminal “L”: protect on 86 STBY-RELAY O Standby relay on/off control signal output terminal “H”: relay on 87 REAR-RELAY O Rear speaker relay on/off control signal output terminal “H”: relay on 88 FRONT-RELAY O Front speaker relay on/off control signal output terminal “H”: relay on 89 A-SHUT I Shut off detection signal input from the deck-A side reel pulse detector www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 HCD-DX60AV/RG70AV Pin No. Pin Name I/O Description 90 B-SHUT I Shut off detection signal input from the deck-B side reel pulse detector 91 SP/VACS I Spectrum analyzer signal input from the BH3878KS2 (IC301) 92 MODEL-IN I Model select signal input terminal 93 SPEC-IN I Version select signal input terminal 94 NC — Not used (open) 95 NC — Not used 96 AVSS — Ground terminal (for analog) 97 POWER-LED O POWER LED on/off control signal output terminal “H”: LED on, “L”: LED off 98 VREF I Reference voltage (+5V) input terminal (for analog) 99 AVCC — Power supply terminal (+5V) (for analog) 100 S-IN I Serial data input to the display control (IC701) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 HCD-DX60AV/RG70AV • PANEL BOARD IC701 µPD780232GC-031-8BT (DISPLAY CONTROL) Pin No. Pin Name I/O Description 1 VDD — Power supply terminal (+5V) 2 VSS — Ground terminal 3 X1 I System clock input terminal (5MHz) 4 X2 O System clock output terminal (5MHz) 5 IC — Not used (fixed at “L”) 6 RESET I Reset signal input from the system controller (IC401) 7 S-CLK I Serial data transfer clock signal input from the system controller (IC401) 8 S-IN I Serial data input to the system controller (IC401) 9 S-OUT O Serial data output to the system controller (IC401) 10 SBSY O Busy signal output to the system controller (IC401) 11 NO USE — Not used (open) 12 NO USE — Not used (open) 13 VOL-A I Rotary encoder pulse input from the VR701 (VOLUME) 14 VOL-B I Rotary encoder pulse input from the VR701 (VOLUME) 15 NO USE — Not used (open) 16 NO USE — Not used (open) 17 HEADPHONE I Headphone detect signal input terminal “H”: Headphone Yes, “L”: Headphone No 18 AVSS — Ground terminal (for A/D) 19 NO USE — Not used (fixed at “L”) 20 KEY2 I Key input terminal (A/D input) S702 to S712 (GAME-LINK, GROOVE, DISC SKIP/EX-CHANGE, DISC1, DISC2, DISC3, OPEN/CLOSE, v , V, PICTURE (GROOVE), DVD5.1) 21 KEY1 I Key input terminal (A/D input) S727 to S738 (SPECTRUM, DIRECTION/EDIT, STEREO/MONO REPEAT, TUNER MEN/PLAY MODE, GAME, ENTER, P.FILE, B, b, MUSIC, EFFECT ON/OFF, MOVE) 22 KEY0 I Key input terminal (A/D input) S713 to S721 (M/+, ., x, gG, X, >, –/m, CD SYNC, REC PAUSE/START) 23 VSS — Ground terminal 24 AVDD — Power supply terminal (for analog) 25 VDD — Power supply terminal (+5V) 26 DVD5.1-LED O DVD5.1 LED on/off control signal output terminal “H”: LED on, “L”: LED off 27 PRO-LED O PRO LOGIC LED on/off control signal output terminal “H”: LED on, “L”: LED off 28 ENTER-LED O ENTER LED on/off control signal output terminal “H”: LED on, “L”: LED off 29 REC-LED O REC PAUSE/START LED on/off control signal output terminal “H”: LED on, “L”: LED off 30 GAME-LED O GAME LED on/off control signal output terminal “H”: LED on, “L”: LED off 31 MD/VIDEO- LED O MD (VIDEO) LED on/off control signal output terminal “H”: LED on, “L”: LED off 32 TAPE-LED O TAPE A/B LED on/off control signal output terminal “H”: LED on, “L”: LED off 33 CD-LED O CD LED on/off control signal output terminal “H”: LED on, “L”: LED off 34 TUNER-LED O TUNER/BAND LED on/off control signal output terminal “H”: LED on, “L”: LED off 35 GROOVE O GROOVE LED on/off control signal output terminal “H”: LED on, “L”: LED off 36 NO USE — Not used (open) 37 to 58 S29 to S8 O Segment drive signal output to the fluorescent indicator tube (FLD1) 59 VDD2 — Power supply terminal (+5V) 60 VLOAD — Negative power supply 61 to 68 S7 to S0 O Segment drive signal output to the fluorescent indicator tube (FLD1) 69 to 80 G11 to G0 O Grid drive signal output to the fluorescent indicator tube (FLD1) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 HCD-DX60AV/RG70AV 6-1. CABINET SECTION SECTION 6 EXPLODED VIEWS The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference num- ber in the exploded views are not supplied. • Hardware (# mark) list is given in the last of the electrical parts list. NOTE: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑ ↑ Parts Color Cabinet's Color Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark CDM58B-K6BD38 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 5 4 6 2 2 3 3 7 Front Panel section Main board section M961 1 8 10 11 12 9 not supplied not supplied 1 4-225-252-01 CUSHION (FOOT) 2 3-363-099-01 SCREW (CASE 3 TP2) 3 3-363-099-41 SCREW (CASE 3 TP2) 4 4-224-549-21 CASE (SIDE-L) 5 4-234-009-21 CD DOOR 6 4-224-548-61 CASE (SIDE-R) 7 4-224-550-41 CASE (TOP) 8 4-234-340-01 BACK PANEL 9 4-227-984-21 COVER (DUCT) 10 1-682-259-11 SUB TRANSFORMER BOARD 11 A-4726-318-A DIGITAL OUT BOARD, COMPLETE 12 1-682-255-11 SENSOR BOARD M961 1-763-072-11 FAN, DC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 HCD-DX60AV/RG70AV 6-2. FRONT PANEL SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 56 55 52 51 57 53 54 68 64 59 58 58 61 62 63 65 67 59 62 66 59 59 59 59 not supplied 60 not supplied 51 4-234-015-01 VOL KNOB RING 52 4-234-019-01 VOLUME KNOB 53 A-4735-179-A PANEL ASSY, FRONT 54 4-225-252-01 CUSHION (FOOT) 55 X-4953-889-1 CASSETTE WINDOW R ASSY 56 X-4953-760-1 CASSETTE WINDOW L ASSY 57 4-233-981-01 CASSETTE DOOR SPRING L 58 4-224-104-11 DAMPER 59 4-951-620-01 SCREW (2.6X8), +BVTP 60 A-4726-316-A KEY BOARD, COMPLETE 61 4-224-562-21 BRACKET (HEART CAM L) 62 4-224-803-01 SPRING (PUSH), COMPRESSION 63 4-224-560-01 CAM (L), HEART 64 A-4726-315-A PANEL BOARD, COMPLETE 65 4-224-559-01 CAM (R), HEART 66 1-796-124-11 DECK, MECH 67 4-224-561-21 BRACKET (HEART CAM R) 68 4-233-982-01 CASSETTE DOOR SPRING R www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 HCD-DX60AV/RG70AV 6-3. MAIN BOARD SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark #2 #1 #2 #3 #3 #1 #1 #4 #1 #4 103 107 106 101 102 104 105 T911 not supplied not supplied not supplied not supplied 108 109 101 1-773-049-11 WIRE (FLAT TYPE) (17 CORE) 102 A-4726-319-A MAIN BOARD, COMPLETE (RG70AV: US) 102 A-4726-549-A MAIN BOARD, COMPLETE (RG70AV: AEP) 102 A-4726-688-A MAIN BOARD, COMPLETE (DX60AV) 103 4-988-533-01 HOLDER, PWB 104 1-791-897-12 WIRE (FLAT TYPE) (19 CORE) 105 1-682-258-11 TRANSFORMER BOARD 106 3-703-244-00 BUSHING (FBS001), CORD 107 A-4726-312-A POWER AMP BOARD, COMPLETE (DX60AV/RG70AV: US) 107 A-4726-547-A POWER AMP BOARD, COMPLETE (RG70AV: AEP) 0108 1-769-744-81 CORD, POWER (RG70AV: AEP) 0108 1-783-532-11 CORD, POWER (RG70AV: US) 0108 1-791-901-11 CORD, POWER (DX60AV) 109 A-4726-325-A REAR/CENTER AMP BOARD, COMPLETE (DX60AV/RG70AV: US) 109 A-4726-553-A REAR/CENTER AMP BOARD, COMPLETE (RG70AV: AEP) 0T911 1-437-427-11 TRANSFORMER, POWER (DX60AV) 0T911 1-437-433-11 TRANSFORMER, POWER (RG70AV: US) 0T911 1-437-434-11 TRANSFORMER, POWER (RG70AV: AEP) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 HCD-DX60AV/RG70AV 6-4. CD MECHANISM DECK SECTION (CDM58B-K6BD38) not supplied BU-K6BD38 501 502 503 504 505 506 524 525 526 519 507 509 508 508 508 510 511 512 513 501 514 521 515 518 529 521 534 517 516 521 520 520 520 520 533 533 533 508 535 M721 532 534 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 501 4-218-254-21 SCREW (M2.6), +PTPWH 502 4-231-187-01 CAM (RELAY) 503 4-231-177-01 TABLE (NEW) 504 4-231-181-01 LEVER (CHANGE) 505 4-221-676-01 TRAY 506 4-933-134-51 SCREW (+PTPWH 2.6X8) 507 1-675-910-14 MOTOR BOARD 508 4-218-253-01 SCREW (M2.6), +BTTP 509 1-791-983-12 WIRE (FLAT TYPE) (8 CORE) 510 1-675-911-14 ADDRESS SENSOR BOARD 511 1-675-912-14 DRIVER BOARD 512 X-4953-283-2 CAM (U/D) ASSY 513 4-231-186-01 LEVER (EX) 514 4-231-190-01 LEVER (LIFTER) 515 4-231-189-01 PULLEY (B), CHUCKING 516 1-471-035-11 MAGNET ASSY 517 X-4953-282-1 PULLEY (A) ASSY, CHUCKING 518 X-4953-281-1 HOLDER (BU) ASSY 519 4-222-095-01 BELT 520 4-227-045-31 SPRING (INSULATOR), COIL 521 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING 524 4-231-180-01 CAM (CONTROL) 525 4-231-182-01 GEAR (U) 526 4-231-183-01 PULLEY (S) 529 4-227-899-01 SCREW (DIA. 12), FROATING 532 4-222-097-01 SCREW, STEP 533 4-227-549-11 INSULATOR 534 4-231-151-01 STOPPER (BU) 535 1-541-632-12 MOTOR, DC (TURN) M721 A-4672-826-A MOTOR ASSY (TURN) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 HCD-DX60AV/RG70AV 6-5. BASE UNIT SECTION (BU-K6BD38) 552 554 553 551 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 0551 A-4735-080-A BASE ASSY, OP (KSM-213DAP) (including SLED and SPINDLE MOTOR) 552 1-792-024-11 WIRE (FLAT TYPE) (16 CORE) 553 A-4724-934-A BD BOARD, COMPLETE 554 4-218-253-01 SCREW (M2.6), +BTTP The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 HCD-DX60AV/RG70AV SECTION 7 ELECTRICAL PARTS LIST ADDRESS SENSOR BD Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1-675-911-14 ADDRESS SENSOR BOARD ********************** < CAPACITOR > C712 1-164-159-11 CERAMIC 0.1uF 50V < PHOTO INTERRUPTER > IC711 8-749-014-38 PHOTO INTERRUPTER SG-264 < RESISTOR > R711 1-247-876-11 CARBON 75K 5% 1/4W R712 1-249-409-11 CARBON 220 5% 1/4W R713 1-249-429-11 CARBON 10K 5% 1/4W < SWITCH > S711 1-771-821-11 SWITCH, PUSH (1 KEY) (UP/DOWN) ************************************************************** A-4724-934-A BD BOARD, COMPLETE ******************* < CAPACITOR > C101 1-163-005-11 CERAMIC CHIP 470PF 10% 50V C102 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C103 1-163-005-11 CERAMIC CHIP 470PF 10% 50V C104 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C108 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C109 1-163-011-11 CERAMIC CHIP 0.0015uF 10% 50V C110 1-164-182-11 CERAMIC CHIP 0.0033uF 10% 50V C111 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C112 1-107-682-11 CERAMIC CHIP 1uF 10% 16V C114 1-163-038-00 CERAMIC CHIP 0.1uF 25V C115 1-104-665-11 ELECT 100uF 20% 10V C116 1-104-665-11 ELECT 100uF 20% 10V C117 1-104-665-11 ELECT 100uF 20% 10V C118 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C119 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C121 1-163-038-00 CERAMIC CHIP 0.1uF 25V C122 1-104-665-11 ELECT 100uF 20% 10V C123 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C124 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C125 1-163-038-00 CERAMIC CHIP 0.1uF 25V C126 1-163-038-00 CERAMIC CHIP 0.1uF 25V NOTE: • Due to standardization, replacements in the parts list may be different from the parts speci- fied in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when order- ing these items. • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. . • CAPACITORS uF: µF • COILS uH: µH The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. C127 1-104-665-11 ELECT 100uF 20% 10V C129 1-163-031-11 CERAMIC CHIP 0.01uF 50V C130 1-164-346-11 CERAMIC CHIP 1uF 16V C131 1-126-964-11 ELECT 10uF 20% 50V C133 1-164-346-11 CERAMIC CHIP 1uF 16V C140 1-164-346-11 CERAMIC CHIP 1uF 16V C141 1-164-346-11 CERAMIC CHIP 1uF 16V C143 1-163-038-00 CERAMIC CHIP 0.1uF 25V C145 1-163-038-00 CERAMIC CHIP 0.1uF 25V C153 1-163-038-00 CERAMIC CHIP 0.1uF 25V C159 1-163-019-00 CERAMIC CHIP 0.0068uF 10% 50V C162 1-104-665-11 ELECT 100uF 20% 10V C163 1-104-665-11 ELECT 100uF 20% 10V C165 1-163-038-00 CERAMIC CHIP 0.1uF 25V C167 1-163-237-11 CERAMIC CHIP 27PF 5% 50V C168 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C171 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C172 1-163-123-00 CERAMIC CHIP 180PF 5% 50V C181 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C182 1-163-123-00 CERAMIC CHIP 180PF 5% 50V < CONNECTOR > CN101 1-784-741-11 CONNECTOR, FFC 19P CN102 1-793-907-11 CONNECTOR, FFC/FPC 16P < FERRITE BEAD > FB101 1-469-731-21 INDUCTOR 0uH FB103 1-469-731-21 INDUCTOR 0uH < IC > IC101 8-752-386-85 IC CXD2587Q IC102 8-759-549-28 IC BA5974FP-E2 IC103 8-752-085-51 IC CXA2568M-T6 < TRANSISTOR > Q101 8-729-049-31 TRANSISTOR 2SB710A-RTX < RESISTOR > R101 1-216-077-00 RES-CHIP 15K 5% 1/10W R102 1-216-097-11 RES-CHIP 100K 5% 1/10W R103 1-216-077-00 RES-CHIP 15K 5% 1/10W R104 1-216-085-00 RES-CHIP 33K 5% 1/10W R105 1-216-073-00 RES-CHIP 10K 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 60 HCD-DX60AV/RG70AV BD DIGITAL OUT DRIVER KEY R106 1-216-049-11 RES-CHIP 1K 5% 1/10W R107 1-216-073-00 RES-CHIP 10K 5% 1/10W R108 1-216-061-00 RES-CHIP 3.3K 5% 1/10W R109 1-216-121-11 RES-CHIP 1M 5% 1/10W R110 1-216-025-11 RES-CHIP 100 5% 1/10W R111 1-216-121-11 RES-CHIP 1M 5% 1/10W R113 1-216-121-11 RES-CHIP 1M 5% 1/10W R114 1-216-073-00 RES-CHIP 10K 5% 1/10W R116 1-216-001-00 METAL CHIP 10 5% 1/10W R117 1-216-049-11 RES-CHIP 1K 5% 1/10W R118 1-216-025-11 RES-CHIP 100 5% 1/10W R119 1-216-059-00 METAL CHIP 2.7K 5% 1/10W R123 1-216-073-00 RES-CHIP 10K 5% 1/10W R124 1-216-097-11 RES-CHIP 100K 5% 1/10W R131 1-216-033-00 METAL CHIP 220 5% 1/10W R143 1-216-103-00 METAL CHIP 180K 5% 1/10W R144 1-216-103-00 METAL CHIP 180K 5% 1/10W R147 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R148 1-216-001-00 METAL CHIP 10 5% 1/10W R149 1-216-001-00 METAL CHIP 10 5% 1/10W R158 1-216-111-00 METAL CHIP 390K 5% 1/10W R159 1-216-101-00 METAL CHIP 150K 5% 1/10W R162 1-216-101-00 METAL CHIP 150K 5% 1/10W R171 1-216-078-00 RES-CHIP 16K 5% 1/10W R172 1-216-073-00 RES-CHIP 10K 5% 1/10W R173 1-216-077-00 RES-CHIP 15K 5% 1/10W R181 1-216-078-00 RES-CHIP 16K 5% 1/10W R182 1-216-073-00 RES-CHIP 10K 5% 1/10W R183 1-216-077-00 RES-CHIP 15K 5% 1/10W < NETWORK RESISTOR > RN101 1-233-576-11 RES, CHIP NETWORK 100 < SWITCH > S101 1-771-853-11 SWITCH, DETECTION (LIMIT IN) < VIBRATOR > X101 1-579-280-11 VIBRATOR, CRYSTAL (16.9344MHz) ************************************************************** A-4726-318-A DIGITAL OUT BOARD, COMPLETE *************************** < CONNECTOR > * CN413 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P < PHOTO INTERRUPTER > PH401 8-749-923-04 IC TOTX178A (CD DIGITAL OUT) ************************************************************** 1-675-912-14 DRIVER BOARD ************* < CAPACITOR > C702 1-126-964-51 ELECT 10uF 20% 50V < CONNECTOR > CN701 1-785-336-11 PIN, CONNECTOR (LIGHT ANGLE) 10P CN702 1-785-550-11 CONNECTOR, FFC/FPC 8P < DIODE > D701 8-719-983-15 DIODE MTZJ-T-77-3.9A < IC > IC701 8-759-598-69 IC BA6956AN < RESISTOR > R701 1-249-411-11 CARBON 330 5% 1/4W R702 1-249-401-11 CARBON 47 5% 1/4W ************************************************************** A-4726-316-A KEY BOARD, COMPLETE ******************** < LED > D707 8-719-058-04 LED SEL5223S-TP15 (REC PAUSE/START) D708 8-719-058-04 LED SEL5223S-TP15 (ENTER) D709 8-719-057-97 LED SEL5923A-TP15 (DVD 5.1CH) D710 8-719-057-97 LED SEL5923A-TP15 (PRO LOGIC) D711 8-719-057-97 LED SEL5923A-TP15 (GROOVE) < TRANSISTOR > Q707 8-729-900-80 TRANSISTOR BA1A4M-TP Q708 8-729-900-80 TRANSISTOR BA1A4M-TP Q709 8-729-900-80 TRANSISTOR BA1A4M-TP Q710 8-729-900-80 TRANSISTOR BA1A4M-TP Q712 8-729-900-80 TRANSISTOR BA1A4M-TP < RESISTOR > R703 1-249-413-11 CARBON 470 5% 1/4W R704 1-249-414-11 CARBON 560 5% 1/4W R705 1-249-415-11 CARBON 680 5% 1/4W R706 1-249-417-11 CARBON 1K 5% 1/4W R707 1-249-418-11 CARBON 1.2K 5% 1/4W R708 1-249-420-11 CARBON 1.8K 5% 1/4W R709 1-249-422-11 CARBON 2.7K 5% 1/4W R710 1-247-843-11 CARBON 3.3K 5% 1/4W R711 1-249-425-11 CARBON 4.7K 5% 1/4W R713 1-249-410-11 CARBON 270 5% 1/4W R714 1-249-411-11 CARBON 330 5% 1/4W R715 1-249-413-11 CARBON 470 5% 1/4W R716 1-249-414-11 CARBON 560 5% 1/4W R717 1-249-415-11 CARBON 680 5% 1/4W R718 1-249-417-11 CARBON 1K 5% 1/4W R719 1-249-418-11 CARBON 1.2K 5% 1/4W R720 1-249-420-11 CARBON 1.8K 5% 1/4W R721 1-249-422-11 CARBON 2.7K 5% 1/4W R726 1-249-410-11 CARBON 270 5% 1/4W R727 1-249-411-11 CARBON 330 5% 1/4W R728 1-249-413-11 CARBON 470 5% 1/4W R729 1-249-414-11 CARBON 560 5% 1/4W R730 1-249-415-11 CARBON 680 5% 1/4W R731 1-249-417-11 CARBON 1K 5% 1/4W R732 1-249-418-11 CARBON 1.2K 5% 1/4W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 61 HCD-DX60AV/RG70AV KEY MAIN R733 1-249-420-11 CARBON 1.8K 5% 1/4W R734 1-249-422-11 CARBON 2.7K 5% 1/4W R735 1-247-843-11 CARBON 3.3K 5% 1/4W R736 1-249-425-11 CARBON 4.7K 5% 1/4W R737 1-249-427-11 CARBON 6.8K 5% 1/4W R745 1-249-411-11 CARBON 330 5% 1/4W R746 1-249-411-11 CARBON 330 5% 1/4W R797 1-249-411-11 CARBON 330 5% 1/4W R798 1-249-411-11 CARBON 330 5% 1/4W R804 1-249-411-11 CARBON 330 5% 1/4W < SWITCH > S703 1-762-875-21 SWITCH, KEYBOARD (GROOVE) S704 1-762-875-21 SWITCH, KEYBOARD (DISC SKIP/EX-CHANGE) S705 1-762-875-21 SWITCH, KEYBOARD (DISC 1) S706 1-762-875-21 SWITCH, KEYBOARD (DISC 2) S707 1-762-875-21 SWITCH, KEYBOARD (DISC 3) S708 1-762-875-21 SWITCH, KEYBOARD (Z OPEN/CLOSE) S709 1-762-875-21 SWITCH, KEYBOARD (v) S710 1-762-875-21 SWITCH, KEYBOARD (V) S711 1-762-875-21 SWITCH, KEYBOARD (PRO LOGIC) S712 1-762-875-21 SWITCH, KEYBOARD (DVD 5.1CH) S713 1-762-875-21 SWITCH, KEYBOARD (m/–) S714 1-762-875-21 SWITCH, KEYBOARD (.) S715 1-762-875-21 SWITCH, KEYBOARD (x) S716 1-762-875-21 SWITCH, KEYBOARD (g G) S717 1-762-875-21 SWITCH, KEYBOARD (X) S718 1-762-875-21 SWITCH, KEYBOARD (>) S719 1-762-875-21 SWITCH, KEYBOARD (M/+) S720 1-762-875-21 SWITCH, KEYBOARD (CD SYNC) S721 1-762-875-21 SWITCH, KEYBOARD (REC PAUSE/START) S726 1-762-875-21 SWITCH, KEYBOARD (DISPLAY) S727 1-762-875-21 SWITCH, KEYBOARD (SPECTRUM) S728 1-762-875-21 SWITCH, KEYBOARD (DIRECTION EDIT) S729 1-762-875-21 SWITCH, KEYBOARD (STEREO/MONO/REPEAT) S730 1-762-875-21 SWITCH, KEYBOARD (TUNER MEMORY/PLAY MODE) S731 1-762-875-21 SWITCH, KEYBOARD (GAME EQ) S732 1-762-875-21 SWITCH, KEYBOARD (ENTER) S733 1-762-875-21 SWITCH, KEYBOARD (P.FILE) S734 1-762-875-21 SWITCH, KEYBOARD (B) S735 1-762-875-21 SWITCH, KEYBOARD (b) S736 1-762-875-21 SWITCH, KEYBOARD (MUSIC EQ) S737 1-762-875-21 SWITCH, KEYBOARD (EFFECT ON/OFF) S738 1-762-875-21 SWITCH, KEYBOARD (MOVE EQ) ************************************************************** A-4726-319-A MAIN BOARD, COMPLETE (RG70AV: US) A-4726-549-A MAIN BOARD, COMPLETE (RG70AV: AEP) A-4726-688-A MAIN BOARD, COMPLETE (DX60AV) ********************* 7-685-872-09 SCREW +BVTT 3X8 (S) < CAPACITOR > C101 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C102 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C103 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V (DX60AV/RG70AV: US) C104 1-104-660-11 ELECT 47uF 20% 16V C105 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C106 1-126-933-11 ELECT 100uF 20% 16V C107 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C108 1-126-964-11 ELECT 10uF 20% 50V C109 1-162-935-11 CERAMIC CHIP 4PF 0.25PF 50V C110 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C111 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C112 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C113 1-126-959-11 ELECT 0.47uF 20% 50V C114 1-104-660-11 ELECT 47uF 20% 16V C115 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C116 1-126-961-11 ELECT 2.2uF 20% 50V C117 1-104-660-11 ELECT 47uF 20% 16V C118 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C119 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C120 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C121 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C122 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C123 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C124 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C125 1-104-660-11 ELECT 47uF 20% 16V C126 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C127 1-126-960-11 ELECT 1uF 20% 50V C128 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C129 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C130 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C131 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V (DX60AV/RG70AV: US) C131 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V (RG70AV: AEP) C132 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V (DX60AV/RG70AV: US) C132 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V (RG70AV: AEP) C133 1-126-957-11 ELECT 0.22uF 20% 50V C134 1-104-760-11 CERAMIC CHIP 0.047uF 10% 50V C135 1-162-921-11 CERAMIC CHIP 33PF 5% 50V (RG70AV: AEP) C136 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V (RG70AV: AEP) C137 1-126-964-11 ELECT 10uF 20% 50V C138 1-164-363-11 CERAMIC CHIP 560PF 5% 50V (RG70AV: AEP) C139 1-162-957-11 CERAMIC CHIP 220PF 5% 50V (DX60AV/RG70AV: US) C139 1-164-471-11 CERAMIC CHIP 680PF 5% 50V (RG70AV: AEP) C140 1-126-960-11 ELECT 1uF 20% 50V C141 1-104-760-11 CERAMIC CHIP 0.047uF 10% 50V C142 1-162-953-11 CERAMIC CHIP 100PF 5% 50V (DX60AV/RG70AV: US) C142 1-164-362-11 CERAMIC CHIP 470PF 5% 50V (RG70AV: AEP) C143 1-126-965-11 ELECT 22uF 20% 50V C144 1-126-962-11 ELECT 3.3uF 20% 50V C145 1-126-962-11 ELECT 3.3uF 20% 50V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 62 HCD-DX60AV/RG70AV C171 1-104-660-11 ELECT 47uF 20% 16V (RG70AV: AEP) C172 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C173 1-164-156-11 CERAMIC CHIP 0.1uF 25V (RG70AV: AEP) C175 1-164-363-11 CERAMIC CHIP 560PF 5% 50V (RG70AV: AEP) C176 1-162-959-11 CERAMIC CHIP 330PF 5% 50V (RG70AV: AEP) C177 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V (RG70AV: AEP) C178 1-104-660-11 ELECT 47uF 20% 16V C179 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V (RG70AV: AEP) C180 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V (RG70AV: AEP) C181 1-126-961-11 ELECT 2.2uF 20% 50V (RG70AV: AEP) C182 1-162-924-11 CERAMIC CHIP 56PF 5% 50V (RG70AV: AEP) C183 1-162-924-11 CERAMIC CHIP 56PF 5% 50V (RG70AV: AEP) C184 1-126-961-11 ELECT 2.2uF 20% 50V (RG70AV: AEP) C185 1-164-363-11 CERAMIC CHIP 560PF 5% 50V (RG70AV: AEP) C186 1-126-964-11 ELECT 10uF 20% 50V (RG70AV: AEP) C187 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V (RG70AV: AEP) C201 1-162-963-11 CERAMIC CHIP 680PF 10% 50V C202 1-162-963-11 CERAMIC CHIP 680PF 10% 50V C203 1-162-963-11 CERAMIC CHIP 680PF 10% 50V C204 1-162-963-11 CERAMIC CHIP 680PF 10% 50V C205 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C206 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C207 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C208 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C209 1-130-486-00 MYLAR 0.018uF 10% 50V C210 1-130-486-00 MYLAR 0.018uF 10% 50V C211 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C212 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C213 1-126-962-11 ELECT 3.3uF 20% 50V C214 1-126-962-11 ELECT 3.3uF 20% 50V C215 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C216 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C217 1-104-665-11 ELECT 100uF 20% 10V C218 1-104-665-11 ELECT 100uF 20% 10V C219 1-124-252-00 ELECT 0.33uF 20% 50V C220 1-124-252-00 ELECT 0.33uF 20% 50V C221 1-162-949-11 CERAMIC CHIP 47PF 5% 50V C222 1-162-949-11 CERAMIC CHIP 47PF 5% 50V C223 1-126-960-11 ELECT 1uF 20% 50V C224 1-126-960-11 ELECT 1uF 20% 50V C225 1-126-963-11 ELECT 4.7uF 20% 50V C226 1-126-963-11 ELECT 4.7uF 20% 50V C227 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C228 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C229 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C230 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C231 1-104-660-11 ELECT 47uF 20% 16V C232 1-104-660-11 ELECT 47uF 20% 16V C233 1-164-361-11 CERAMIC CHIP 0.047uF 16V C234 1-164-361-11 CERAMIC CHIP 0.047uF 16V C235 1-126-963-11 ELECT 4.7uF 20% 50V C236 1-126-961-11 ELECT 2.2uF 20% 50V C237 1-162-995-11 CERAMIC CHIP 0.022uF 50V C240 1-126-933-11 ELECT 100uF 20% 16V C241 1-126-934-11 ELECT 220uF 20% 16V C246 1-162-974-11 CERAMIC CHIP 0.01uF 50V C247 1-104-660-11 ELECT 47uF 20% 16V C248 1-104-660-11 ELECT 47uF 20% 16V C249 1-126-962-11 ELECT 3.3uF 20% 50V C250 1-130-479-00 MYLAR 0.0047uF 5% 50V C251 1-130-471-00 MYLAR 0.001uF 5% 50V C252 1-130-485-00 MYLAR 0.015uF 5% 50V C253 1-130-487-00 MYLAR 0.022uF 5% 50V C254 1-104-660-11 ELECT 47uF 20% 16V C255 1-162-949-11 CERAMIC CHIP 47PF 5% 50V C256 1-162-949-11 CERAMIC CHIP 47PF 5% 50V C257 1-126-960-11 ELECT 1uF 20% 50V C258 1-126-956-11 ELECT 0.1uF 20% 50V C259 1-126-960-11 ELECT 1uF 20% 50V C301 1-126-963-11 ELECT 4.7uF 20% 50V C302 1-126-963-11 ELECT 4.7uF 20% 50V C303 1-126-963-11 ELECT 4.7uF 20% 50V C304 1-126-963-11 ELECT 4.7uF 20% 50V C305 1-126-963-11 ELECT 4.7uF 20% 50V C306 1-126-963-11 ELECT 4.7uF 20% 50V C307 1-126-963-11 ELECT 4.7uF 20% 50V C308 1-126-963-11 ELECT 4.7uF 20% 50V C309 1-126-963-11 ELECT 4.7uF 20% 50V C310 1-126-963-11 ELECT 4.7uF 20% 50V C311 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C312 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C313 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C314 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C315 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C316 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C317 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C318 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C319 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C320 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C321 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C322 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C323 1-126-960-11 ELECT 1uF 20% 50V C324 1-126-960-11 ELECT 1uF 20% 50V C325 1-162-945-11 CERAMIC CHIP 22PF 5% 50V C326 1-162-945-11 CERAMIC CHIP 22PF 5% 50V C327 1-126-963-11 ELECT 4.7uF 20% 50V C328 1-126-963-11 ELECT 4.7uF 20% 50V C329 1-126-960-11 ELECT 1uF 20% 50V C330 1-126-960-11 ELECT 1uF 20% 50V C331 1-162-949-11 CERAMIC CHIP 47PF 5% 50V C332 1-162-949-11 CERAMIC CHIP 47PF 5% 50V C333 1-126-960-11 ELECT 1uF 20% 50V C334 1-126-960-11 ELECT 1uF 20% 50V MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 63 HCD-DX60AV/RG70AV C335 1-136-169-00 FILM 0.22uF 5% 50V C336 1-136-169-00 FILM 0.22uF 5% 50V C337 1-136-169-00 FILM 0.22uF 5% 50V C338 1-136-169-00 FILM 0.22uF 5% 50V C339 1-130-487-00 MYLAR 0.022uF 5% 50V C340 1-130-487-00 MYLAR 0.022uF 5% 50V C341 1-130-487-00 MYLAR 0.022uF 5% 50V C342 1-130-487-00 MYLAR 0.022uF 5% 50V C343 1-130-475-00 MYLAR 0.0022uF 5% 50V C344 1-130-475-00 MYLAR 0.0022uF 5% 50V C345 1-130-488-00 MYLAR 0.027uF 5% 50V C346 1-130-488-00 MYLAR 0.027uF 5% 50V C347 1-130-488-00 MYLAR 0.027uF 5% 50V C348 1-130-488-00 MYLAR 0.027uF 5% 50V C349 1-104-660-11 ELECT 47uF 20% 16V C350 1-162-995-11 CERAMIC CHIP 0.022uF 50V C351 1-126-964-11 ELECT 10uF 20% 50V C352 1-126-964-11 ELECT 10uF 20% 50V C353 1-126-964-11 ELECT 10uF 20% 50V C354 1-126-933-11 ELECT 100uF 20% 16V C355 1-136-165-00 FILM 0.1uF 5% 50V C356 1-136-165-00 FILM 0.1uF 5% 50V C357 1-126-934-11 ELECT 220uF 20% 16V C358 1-136-170-00 FILM 0.27uF 5% 50V C359 1-136-169-00 FILM 0.22uF 5% 50V C360 1-126-964-11 ELECT 10uF 20% 50V C361 1-136-165-00 FILM 0.1uF 5% 50V C362 1-130-491-00 MYLAR 0.047uF 5% 50V C363 1-136-165-00 FILM 0.1uF 5% 50V C364 1-162-995-11 CERAMIC CHIP 0.022uF 50V C365 1-126-960-11 ELECT 1uF 20% 50V C366 1-126-960-11 ELECT 1uF 20% 50V C367 1-126-934-11 ELECT 220uF 20% 16V C368 1-126-960-11 ELECT 1uF 20% 50V C369 1-136-165-00 FILM 0.1uF 5% 50V C370 1-164-156-11 CERAMIC CHIP 0.1uF 25V C371 1-126-934-11 ELECT 220uF 20% 16V C372 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C373 1-164-156-11 CERAMIC CHIP 0.1uF 25V C374 1-164-156-11 CERAMIC CHIP 0.1uF 25V C375 1-126-960-11 ELECT 1uF 20% 50V C376 1-130-479-00 MYLAR 0.0047uF 5% 50V C377 1-130-471-00 MYLAR 0.001uF 5% 50V C378 1-136-167-00 FILM 0.15uF 5% 50V C379 1-136-169-00 FILM 0.22uF 5% 50V C380 1-136-169-00 FILM 0.22uF 5% 50V C381 1-136-167-00 FILM 0.15uF 5% 50V C382 1-130-479-00 MYLAR 0.0047uF 5% 50V C383 1-130-471-00 MYLAR 0.001uF 5% 50V C384 1-126-960-11 ELECT 1uF 20% 50V C385 1-130-480-00 MYLAR 0.0056uF 5% 50V C386 1-130-491-00 MYLAR 0.047uF 5% 50V C387 1-136-169-00 FILM 0.22uF 5% 50V C388 1-136-169-00 FILM 0.22uF 5% 50V C389 1-136-175-00 FILM 0.68uF 5% 50V C390 1-126-963-11 ELECT 4.7uF 20% 50V C391 1-126-963-11 ELECT 4.7uF 20% 50V C392 1-136-169-00 FILM 0.22uF 5% 50V C393 1-136-169-00 FILM 0.22uF 5% 50V C394 1-136-165-00 FILM 0.1uF 5% 50V C395 1-130-491-00 MYLAR 0.047uF 5% 50V C396 1-130-491-00 MYLAR 0.047uF 5% 50V C397 1-136-165-00 FILM 0.1uF 5% 50V C398 1-136-165-00 FILM 0.1uF 5% 50V C399 1-130-487-00 MYLAR 0.022uF 5% 50V C401 1-136-165-00 FILM 0.1uF 5% 50V C402 1-136-165-00 FILM 0.1uF 5% 50V C403 1-126-943-11 ELECT 2200uF 20% 25V C404 1-126-926-11 ELECT 1000uF 20% 10V C405 1-136-165-00 FILM 0.1uF 5% 50V C406 1-136-165-00 FILM 0.1uF 5% 50V C407 1-126-933-11 ELECT 100uF 20% 16V C408 1-104-665-11 ELECT 100uF 20% 10V C409 1-126-935-11 ELECT 470uF 20% 10V C411 1-126-916-11 ELECT 1000uF 20% 6.3V C412 1-104-665-11 ELECT 100uF 20% 10V C414 1-164-156-11 CERAMIC CHIP 0.1uF 25V (RG70AV: AEP) C416 1-126-935-11 ELECT 470uF 20% 6.3V C417 1-107-717-11 ELECT 47uF 20% 50V C419 1-104-665-11 ELECT 100uF 20% 10V C420 1-126-961-11 ELECT 2.2uF 20% 50V C421 1-126-961-11 ELECT 2.2uF 20% 50V C423 1-126-963-11 ELECT 4.7uF 20% 50V C424 1-164-156-11 CERAMIC CHIP 0.1uF 25V C425 1-126-934-11 ELECT 220uF 20% 16V C426 1-126-964-11 ELECT 10uF 20% 50V C427 1-126-768-11 ELECT 2200uF 20% 16V C428 1-126-964-11 ELECT 10uF 20% 50V C429 1-164-156-11 CERAMIC CHIP 0.1uF 25V (RG70AV: AEP) C430 1-164-156-11 CERAMIC CHIP 0.1uF 25V (RG70AV: AEP) C431 1-107-721-11 ELECT 4.7uF 20% 100V C432 1-107-721-11 ELECT 4.7uF 20% 100V C433 1-164-156-11 CERAMIC CHIP 0.1uF 25V (RG70AV: AEP) C434 1-164-156-11 CERAMIC CHIP 0.1uF 25V (RG70AV: AEP) C460 1-128-551-11 ELECT 22uF 20% 25V C461 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C462 1-162-918-11 CERAMIC CHIP 18PF 5% 50V C463 1-136-165-00 FILM 0.1uF 5% 50V C464 1-136-165-00 FILM 0.1uF 5% 50V C465 1-126-916-11 ELECT 1000uF 20% 6.3V C466 1-164-156-11 CERAMIC CHIP 0.1uF 25V C467 1-126-964-11 ELECT 10uF 20% 50V C468 1-164-156-11 CERAMIC CHIP 0.1uF 25V C469 1-162-953-11 CERAMIC CHIP 100PF 5% 50V C470 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C471 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C472 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C473 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C474 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C475 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C476 1-164-156-11 CERAMIC CHIP 0.1uF 25V MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 64 HCD-DX60AV/RG70AV C477 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C482 1-109-953-11 ELECT 2.2uF 20% 50V C483 1-109-953-11 ELECT 2.2uF 20% 50V C484 1-109-953-11 ELECT 2.2uF 20% 50V C3100 1-130-487-00 MYLAR 0.022uF 5% 50V C3101 1-136-357-11 MYLAR 680PF 5% 50V C3102 1-136-165-00 FILM 0.1uF 5% 50V C3103 1-130-483-00 MYLAR 0.01uF 5% 50V C3104 1-136-357-11 MYLAR 680PF 5% 50V C3105 1-130-483-00 MYLAR 0.01uF 5% 50V C3106 1-104-665-11 ELECT 100uF 20% 10V C3107 1-130-481-00 MYLAR 0.0068uF 5% 50V C3108 1-126-963-11 ELECT 4.7uF 20% 50V C3109 1-126-963-11 ELECT 4.7uF 20% 50V C3110 1-126-934-11 ELECT 220uF 20% 16V C3111 1-126-964-11 ELECT 10uF 20% 50V C3112 1-126-964-11 ELECT 10uF 20% 50V C3113 1-126-964-11 ELECT 10uF 20% 50V C3114 1-126-964-11 ELECT 10uF 20% 50V C3115 1-136-165-00 FILM 0.1uF 5% 50V C3116 1-136-165-00 FILM 0.1uF 5% 50V C3117 1-126-960-11 ELECT 1uF 20% 50V C3118 1-126-960-11 ELECT 1uF 20% 50V C3119 1-130-483-00 MYLAR 0.01uF 5% 50V C3120 1-104-660-11 ELECT 47uF 20% 16V C3123 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C3124 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C3125 1-126-960-11 ELECT 1uF 20% 50V C3126 1-124-252-00 ELECT 0.33uF 20% 50V C3127 1-130-483-00 MYLAR 0.01uF 5% 50V C3128 1-126-960-11 ELECT 1uF 20% 50V C3129 1-126-934-11 ELECT 220uF 20% 16V C3130 1-126-960-11 ELECT 1uF 20% 50V C3132 1-126-961-11 ELECT 2.2uF 20% 50V C3133 1-126-964-11 ELECT 10uF 20% 50V C3136 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C3137 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C3138 1-126-964-11 ELECT 10uF 20% 50V C3139 1-126-960-11 ELECT 1uF 20% 50V C3140 1-126-960-11 ELECT 1uF 20% 50V C3141 1-126-960-11 ELECT 1uF 20% 50V C3142 1-126-960-11 ELECT 1uF 20% 50V < FILTER > CF101 1-760-023-11 FILTER, CERAMIC (DX60AV/RG70AV: US) CF101 1-579-185-21 FILTER, CERAMIC (RG70AV: AEP) CF102 1-760-023-11 FILTER, CERAMIC (DX60AV/RG70AV: US) CF102 1-579-185-21 FILTER, CERAMIC (RG70AV: AEP) < CONNECTOR > CN302 1-564-505-41 PLUG, CONNECTOR 2P CN401 1-778-982-21 CONNECTOR, BOARD TO BOARD 13P CN402 1-778-982-21 CONNECTOR, BOARD TO BOARD 13P CN406 1-784-778-11 CONNECTOR, FFC 17P CN407 1-784-741-11 CONNECTOR, FFC 19P * CN408 1-564-506-11 PLUG, CONNECTOR 3P CN411 1-793-766-11 CONNECTOR, BOARD TO BOARD 30P < DIODE > D101 8-719-914-42 DIODE DA204K-T-146 D104 8-719-978-33 DIODE UDZSTE-176.8B D107 8-719-988-61 DIODE 1SS355TE-17 (RG70AV: AEP) D108 8-719-988-61 DIODE 1SS355TE-17 D201 8-719-988-61 DIODE 1SS355TE-17 D202 8-719-988-61 DIODE 1SS355TE-17 D203 8-719-988-61 DIODE 1SS355TE-17 D204 8-719-988-61 DIODE 1SS355TE-17 D205 8-719-988-61 DIODE 1SS355TE-17 D302 8-719-069-60 DIODE UDZSTE-179.1B D303 8-719-988-61 DIODE 1SS355TE-17 D304 8-719-988-61 DIODE 1SS355TE-17 D305 8-719-988-61 DIODE 1SS355TE-17 D401 8-719-083-89 DIODE 11ES2N-TB5 D402 8-719-083-89 DIODE 11ES2N-TB5 D403 8-719-083-89 DIODE 11ES2N-TB5 D404 8-719-083-89 DIODE 11ES2N-TB5 D405 8-719-083-89 DIODE 11ES2N-TB5 D406 8-719-083-89 DIODE 11ES2N-TB5 D407 8-719-083-89 DIODE 11ES2N-TB5 D408 8-719-083-89 DIODE 11ES2N-TB5 D409 8-719-988-61 DIODE 1SS355TE-17 D410 8-719-988-61 DIODE 1SS355TE-17 D411 8-719-988-61 DIODE 1SS355TE-17 D412 8-719-988-61 DIODE 1SS355TE-17 D413 8-719-988-61 DIODE 1SS355TE-17 D414 8-719-988-61 DIODE 1SS355TE-17 D415 8-719-988-61 DIODE 1SS355TE-17 D416 8-719-988-61 DIODE 1SS355TE-17 D417 8-719-988-61 DIODE 1SS355TE-17 D418 8-719-988-61 DIODE 1SS355TE-17 D419 8-719-988-61 DIODE 1SS355TE-17 D420 8-719-988-61 DIODE 1SS355TE-17 D421 8-719-988-61 DIODE 1SS355TE-17 D423 8-719-988-61 DIODE 1SS355TE-17 D424 8-719-988-61 DIODE 1SS355TE-17 D425 8-719-988-61 DIODE 1SS355TE-17 D426 8-719-988-61 DIODE 1SS355TE-17 D427 8-719-988-61 DIODE 1SS355TE-17 D428 8-719-988-61 DIODE 1SS355TE-17 D429 8-719-988-61 DIODE 1SS355TE-17 D430 8-719-988-61 DIODE 1SS355TE-17 D431 8-719-988-61 DIODE 1SS355TE-17 D432 8-719-083-89 DIODE 11ES2N-TB5 D433 8-719-083-89 DIODE 11ES2N-TB5 D436 8-719-988-61 DIODE 1SS355TE-17 < EARTH TERMINAL > * EP1 1-537-738-21 TERMINAL, EARTH < FERRITE BEAD > FB401 1-550-907-21 FERRITE 0uH FB402 1-550-907-21 FERRITE 0uH FB403 1-550-907-21 FERRITE 0uH MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 65 HCD-DX60AV/RG70AV < FRONT END > FE101 1-693-478-11 FRONT END (FM3 GANGS) (DX60AV/RG70AV: US) FE102 1-693-496-11 FRONT END (4 GANG) (RG70AV: AEP) < EARTH TERMINAL > * GND1 1-537-738-21 TERMINAL, EARTH < IC > IC101 8-759-652-00 IC BA1450 IC102 8-759-288-54 IC LC72130 IC103 8-759-541-48 IC BU1924 (RG70AV: AEP) IC201 8-759-242-58 IC TA8189N IC301 8-759-832-80 IC BH3878KS2 IC302 8-759-571-51 IC M62464FP IC307 8-759-710-97 IC NJM4565M (TE2) IC401 6-800-610-01 IC M30622MCA-B43FP IC402 8-759-635-63 IC M51943BSL IC403 8-759-701-59 IC M5F7809L IC404 8-759-088-08 IC uPC7812AHF IC405 8-759-039-69 IC uPC7805AHF IC406 8-759-039-69 IC uPC7805AHF < IFT > IFT101 1-435-295-12 TRANSFORMER, IF < TERMINAL > JK101 1-694-555-12 TERMINAL BOARD (4P) (ANTENNA) (DX60AV/RG70AV: US) JK101 1-694-556-22 TERMINAL BOARD (ANT.PAL) (ANTENNA) (RG70AV: AEP) JK301 1-815-422-11 USB CONNECTOR (VERTICAL) (MD (VIDEO) IN, DVD INPUT) JK302 1-815-775-11 JACK, PIN 2P (VIDEO OUT/WOOFER OUT) JK401 1-694-635-12 TERMINAL BOARD (4P) JK402 1-694-825-11 TERMINAL BOARD (6P) < JUMPER RESISTOR > JR1 1-216-864-11 METAL CHIP 0 5% 1/16W JR4 1-216-864-11 METAL CHIP 0 5% 1/16W JR101 1-216-864-11 METAL CHIP 0 5% 1/16W (DX60AV/RG70AV: US) JR103 1-216-864-11 METAL CHIP 0 5% 1/16W (DX60AV/RG70AV: US) JR104 1-216-864-11 METAL CHIP 0 5% 1/16W (RG70AV: AEP) JR106 1-216-864-11 METAL CHIP 0 5% 1/16W (DX60AV/RG70AV: US) JR108 1-216-864-11 METAL CHIP 0 5% 1/16W JR109 1-216-864-11 METAL CHIP 0 5% 1/16W JR110 1-216-864-11 METAL CHIP 0 5% 1/16W (DX60AV/RG70AV: US) JR111 1-216-864-11 METAL CHIP 0 5% 1/16W (DX60AV/RG70AV: US) JR112 1-216-864-11 METAL CHIP 0 5% 1/16W (RG70AV: AEP) JR201 1-216-864-11 METAL CHIP 0 5% 1/16W JR202 1-216-864-11 METAL CHIP 0 5% 1/16W JR203 1-216-864-11 METAL CHIP 0 5% 1/16W JR204 1-216-864-11 METAL CHIP 0 5% 1/16W JR205 1-216-864-11 METAL CHIP 0 5% 1/16W JR301 1-216-864-11 METAL CHIP 0 5% 1/16W JR302 1-216-864-11 METAL CHIP 0 5% 1/16W JR303 1-216-864-11 METAL CHIP 0 5% 1/16W JR304 1-216-864-11 METAL CHIP 0 5% 1/16W JR307 1-216-864-11 METAL CHIP 0 5% 1/16W JR405 1-216-864-11 METAL CHIP 0 5% 1/16W JR406 1-216-864-11 METAL CHIP 0 5% 1/16W JR407 1-216-864-11 METAL CHIP 0 5% 1/16W JR408 1-216-864-11 METAL CHIP 0 5% 1/16W JR409 1-216-864-11 METAL CHIP 0 5% 1/16W JR410 1-216-864-11 METAL CHIP 0 5% 1/16W JR411 1-216-864-11 METAL CHIP 0 5% 1/16W JR412 1-216-864-11 METAL CHIP 0 5% 1/16W JR413 1-216-864-11 METAL CHIP 0 5% 1/16W JR414 1-216-864-11 METAL CHIP 0 5% 1/16W JR415 1-216-864-11 METAL CHIP 0 5% 1/16W < COIL > L107 1-410-387-11 INDUCTOR CHIP 33uH (RG70AV: AEP) L108 1-410-369-11 INDUCTOR CHIP 1uH (RG70AV: AEP) L170 1-410-393-11 INDUCTOR CHIP 100uH (RG70AV: AEP) L201 1-437-220-11 TRANSFORMER, BIAS OSCILLATION L301 1-414-189-31 INDUCTOR 100uH L302 1-414-189-31 INDUCTOR 100uH L401 1-420-872-00 COIL,AIR-CORE (RG70AV: AEP) L402 1-420-872-00 COIL,AIR-CORE (RG70AV: AEP) L403 1-420-872-00 COIL,AIR-CORE (RG70AV: AEP) L404 1-420-872-00 COIL,AIR-CORE (RG70AV: AEP) L405 1-420-872-00 COIL,AIR-CORE (RG70AV: AEP) L406 1-414-189-31 INDUCTOR 100uH < TRANSISTOR > Q101 8-729-922-66 TRANSISTOR 2SC2410S-TPNP Q102 8-729-422-57 TRANSISTOR BN1A4M-TP Q103 8-729-120-28 TRANSISTOR 2SC2412K-T-146-QR Q104 8-729-120-28 TRANSISTOR 2SC2412K-T-146-QR Q105 8-729-120-28 TRANSISTOR 2SC2412K-T-146-QR (RG70AV: AEP) Q201 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q202 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q203 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q204 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q205 8-729-141-30 TRANSISTOR 2SC3623ATP-LK Q206 8-729-141-30 TRANSISTOR 2SC3623ATP-LK Q207 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q208 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q209 8-729-142-46 TRANSISTOR 2SC2001TP-LK Q210 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q211 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q212 8-729-140-04 TRANSISTOR 2SB1116-TP-LK Q213 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q214 8-729-140-04 TRANSISTOR 2SB1116-TP-LK Q215 8-729-900-63 TRANSISTOR BN1F4M-TP Q216 8-729-900-80 TRANSISTOR BA1A4M-TP MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 66 HCD-DX60AV/RG70AV Q217 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q218 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q301 8-729-141-30 TRANSISTOR 2SC3623ATP-LK Q302 8-729-141-30 TRANSISTOR 2SC3623ATP-LK Q303 8-729-141-30 TRANSISTOR 2SC3623ATP-LK Q304 8-729-141-30 TRANSISTOR 2SC3623ATP-LK Q305 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q306 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q307 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q308 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q309 8-729-900-63 TRANSISTOR BN1F4M-TP Q310 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q311 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q312 8-729-141-30 TRANSISTOR 2SC3623ATP-LK Q313 8-729-900-63 TRANSISTOR BN1F4M-TP Q314 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q315 8-729-900-63 TRANSISTOR BN1F4M-TP Q316 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q317 8-729-141-30 TRANSISTOR 2SC3623ATP-LK Q318 8-729-141-30 TRANSISTOR 2SC3623ATP-LK Q319 8-729-141-30 TRANSISTOR 2SC3623ATP-LK Q320 8-729-141-30 TRANSISTOR 2SC3623ATP-LK Q401 8-729-900-80 TRANSISTOR BA1A4M-TP Q402 8-729-049-79 TRANSISTOR RT1P137S-TP Q403 8-729-900-80 TRANSISTOR BA1A4M-TP Q404 8-729-140-04 TRANSISTOR 2SB1116-TP-LK Q405 8-729-900-80 TRANSISTOR BA1A4M-TP Q406 8-729-140-04 TRANSISTOR 2SB1116-TP-LK Q407 8-729-900-80 TRANSISTOR BA1A4M-TP Q408 8-729-140-04 TRANSISTOR 2SB1116-TP-LK Q409 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q410 8-729-900-80 TRANSISTOR BA1A4M-TP Q411 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q412 8-729-900-80 TRANSISTOR BA1A4M-TP Q413 8-729-900-63 TRANSISTOR BN1F4M-TP Q414 8-729-141-30 TRANSISTOR 2SC3623ATP-LK Q415 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q416 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q417 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q418 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q419 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q420 8-729-119-76 TRANSISTOR 2SA1175TP-HFE Q421 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q422 8-729-900-80 TRANSISTOR BA1A4M-TP Q423 8-729-141-30 TRANSISTOR 2SC3623ATP-LK Q424 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q425 8-729-140-04 TRANSISTOR 2SB1116-TP-LK Q426 8-729-900-80 TRANSISTOR BA1A4M-TP Q427 8-729-900-63 TRANSISTOR BN1F4M-TP Q428 8-729-900-80 TRANSISTOR BA1A4M-TP Q429 8-729-900-63 TRANSISTOR BN1F4M-TP Q430 8-729-900-80 TRANSISTOR BA1A4M-TP Q431 8-729-900-63 TRANSISTOR BN1F4M-TP Q432 8-729-119-78 TRANSISTOR 2SC2785TP-HFE < RESISTOR > R101 1-216-805-11 METAL CHIP 47 5% 1/16W R102 1-216-819-11 METAL CHIP 680 5% 1/16W R103 1-216-819-11 METAL CHIP 680 5% 1/16W R104 1-216-811-11 METAL CHIP 150 5% 1/16W R105 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R106 1-216-819-11 METAL CHIP 680 5% 1/16W R108 1-216-815-11 METAL CHIP 330 5% 1/16W R109 1-216-805-11 METAL CHIP 47 5% 1/16W R110 1-216-833-11 METAL CHIP 10K 5% 1/16W R111 1-216-809-11 METAL CHIP 100 5% 1/16W R112 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R113 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R114 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R115 1-216-833-11 METAL CHIP 10K 5% 1/16W R116 1-216-809-11 METAL CHIP 100 5% 1/16W R117 1-216-845-11 METAL CHIP 100K 5% 1/16W R118 1-216-809-11 METAL CHIP 100 5% 1/16W R119 1-216-833-11 METAL CHIP 10K 5% 1/16W R120 1-216-833-11 METAL CHIP 10K 5% 1/16W R121 1-216-821-11 METAL CHIP 1K 5% 1/16W R122 1-216-833-11 METAL CHIP 10K 5% 1/16W R123 1-216-833-11 METAL CHIP 10K 5% 1/16W R124 1-216-813-11 METAL CHIP 220 5% 1/16W R125 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R126 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R127 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R128 1-216-818-11 METAL CHIP 560 5% 1/16W R129 1-216-818-11 METAL CHIP 560 5% 1/16W R130 1-216-833-11 METAL CHIP 10K 5% 1/16W R131 1-216-834-11 METAL CHIP 12K 5% 1/16W R132 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R133 1-216-815-11 METAL CHIP 330 5% 1/16W R134 1-216-815-11 METAL CHIP 330 5% 1/16W R135 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R136 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R138 1-216-809-11 METAL CHIP 100 5% 1/16W R171 1-216-809-11 METAL CHIP 100 5% 1/16W (RG70AV: AEP) R173 1-216-817-11 METAL CHIP 470 5% 1/16W (RG70AV: AEP) R174 1-216-821-11 METAL CHIP 1K 5% 1/16W (RG70AV: AEP) R175 1-216-851-11 METAL CHIP 330K 5% 1/16W (RG70AV: AEP) R177 1-216-809-11 METAL CHIP 100 5% 1/16W (RG70AV: AEP) R178 1-216-809-11 METAL CHIP 100 5% 1/16W R181 1-216-829-11 METAL CHIP 4.7K 5% 1/16W (RG70AV: AEP) R183 1-216-829-11 METAL CHIP 4.7K 5% 1/16W (RG70AV: AEP) R201 1-216-797-11 METAL CHIP 10 5% 1/16W R202 1-216-797-11 METAL CHIP 10 5% 1/16W R203 1-216-833-11 METAL CHIP 10K 5% 1/16W R204 1-216-833-11 METAL CHIP 10K 5% 1/16W R205 1-216-805-11 METAL CHIP 47 5% 1/16W R206 1-216-805-11 METAL CHIP 47 5% 1/16W R207 1-216-832-11 METAL CHIP 8.2K 5% 1/16W R208 1-216-832-11 METAL CHIP 8.2K 5% 1/16W R209 1-216-850-11 METAL CHIP 270K 5% 1/16W R210 1-216-850-11 METAL CHIP 270K 5% 1/16W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 67 HCD-DX60AV/RG70AV R211 1-216-833-11 METAL CHIP 10K 5% 1/16W R212 1-216-841-11 METAL CHIP 47K 5% 1/16W R213 1-216-833-11 METAL CHIP 10K 5% 1/16W R214 1-216-837-11 METAL CHIP 22K 5% 1/16W R215 1-216-848-11 METAL CHIP 180K 5% 1/16W R216 1-216-848-11 METAL CHIP 180K 5% 1/16W R217 1-216-846-11 METAL CHIP 120K 5% 1/16W R218 1-216-846-11 METAL CHIP 120K 5% 1/16W R219 1-216-824-11 METAL CHIP 1.8K 5% 1/16W R220 1-216-824-11 METAL CHIP 1.8K 5% 1/16W R221 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R222 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R223 1-216-857-11 METAL CHIP 1M 5% 1/16W R224 1-216-857-11 METAL CHIP 1M 5% 1/16W R225 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R226 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R227 1-216-845-11 METAL CHIP 100K 5% 1/16W R228 1-216-845-11 METAL CHIP 100K 5% 1/16W R229 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R230 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R231 1-216-845-11 METAL CHIP 100K 5% 1/16W R232 1-216-845-11 METAL CHIP 100K 5% 1/16W R233 1-216-837-11 METAL CHIP 22K 5% 1/16W R234 1-216-837-11 METAL CHIP 22K 5% 1/16W R235 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R236 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R237 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R238 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R239 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R240 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R241 1-216-843-11 METAL CHIP 68K 5% 1/16W R242 1-216-843-11 METAL CHIP 68K 5% 1/16W R247 1-216-855-11 METAL CHIP 680K 5% 1/16W R248 1-216-855-11 METAL CHIP 680K 5% 1/16W R249 1-216-813-11 METAL CHIP 220 5% 1/16W R250 1-216-813-11 METAL CHIP 220 5% 1/16W R251 1-216-813-11 METAL CHIP 220 5% 1/16W R252 1-216-833-11 METAL CHIP 10K 5% 1/16W R253 1-216-833-11 METAL CHIP 10K 5% 1/16W R259 1-216-848-11 METAL CHIP 180K 5% 1/16W R260 1-216-848-11 METAL CHIP 180K 5% 1/16W R261 1-216-816-11 METAL CHIP 390 5% 1/16W R262 1-216-816-11 METAL CHIP 390 5% 1/16W R263 1-216-833-11 METAL CHIP 10K 5% 1/16W R264 1-216-845-11 METAL CHIP 100K 5% 1/16W R265 1-216-833-11 METAL CHIP 10K 5% 1/16W R266 1-216-838-11 METAL CHIP 27K 5% 1/16W R267 1-216-816-11 METAL CHIP 390 5% 1/16W R268 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R269 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R270 1-216-833-11 METAL CHIP 10K 5% 1/16W R271 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R272 1-216-834-11 METAL CHIP 12K 5% 1/16W R273 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R274 1-216-838-11 METAL CHIP 27K 5% 1/16W R275 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R301 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R302 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R303 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R304 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R305 1-216-833-11 METAL CHIP 10K 5% 1/16W R306 1-216-833-11 METAL CHIP 10K 5% 1/16W R307 1-216-838-11 METAL CHIP 27K 5% 1/16W R308 1-216-838-11 METAL CHIP 27K 5% 1/16W R309 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R310 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R311 1-216-845-11 METAL CHIP 100K 5% 1/16W R312 1-216-845-11 METAL CHIP 100K 5% 1/16W R313 1-216-836-11 METAL CHIP 18K 5% 1/16W R314 1-216-836-11 METAL CHIP 18K 5% 1/16W R315 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R316 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R317 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R318 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R319 1-216-845-11 METAL CHIP 100K 5% 1/16W R320 1-216-845-11 METAL CHIP 100K 5% 1/16W R321 1-216-836-11 METAL CHIP 18K 5% 1/16W R322 1-216-836-11 METAL CHIP 18K 5% 1/16W R323 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R324 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R325 1-216-821-11 METAL CHIP 1K 5% 1/16W R326 1-216-821-11 METAL CHIP 1K 5% 1/16W R327 1-216-845-11 METAL CHIP 100K 5% 1/16W R328 1-216-845-11 METAL CHIP 100K 5% 1/16W R329 1-216-857-11 METAL CHIP 1M 5% 1/16W R330 1-216-857-11 METAL CHIP 1M 5% 1/16W R331 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R332 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R333 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R334 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R335 1-216-857-11 METAL CHIP 1M 5% 1/16W R336 1-216-845-11 METAL CHIP 100K 5% 1/16W R336 1-216-857-11 METAL CHIP 1M 5% 1/16W R337 1-216-833-11 METAL CHIP 10K 5% 1/16W R338 1-216-833-11 METAL CHIP 10K 5% 1/16W R339 1-216-837-11 METAL CHIP 22K 5% 1/16W R340 1-216-837-11 METAL CHIP 22K 5% 1/16W R341 1-216-845-11 METAL CHIP 100K 5% 1/16W R342 1-216-845-11 METAL CHIP 100K 5% 1/16W R343 1-216-839-11 METAL CHIP 33K 5% 1/16W R344 1-216-839-11 METAL CHIP 33K 5% 1/16W R345 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R346 1-216-845-11 METAL CHIP 100K 5% 1/16W R347 1-216-850-11 METAL CHIP 270K 5% 1/16W R348 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R349 1-216-833-11 METAL CHIP 10K 5% 1/16W R350 1-216-847-11 METAL CHIP 150K 5% 1/16W R351 1-216-833-11 METAL CHIP 10K 5% 1/16W R352 1-216-833-11 METAL CHIP 10K 5% 1/16W R353 1-216-835-11 METAL CHIP 15K 5% 1/16W R354 1-216-833-11 METAL CHIP 10K 5% 1/16W R355 1-216-821-11 METAL CHIP 1K 5% 1/16W R356 1-216-821-11 METAL CHIP 1K 5% 1/16W R357 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R358 1-216-829-11 METAL CHIP 4.7K 5% 1/16W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 68 HCD-DX60AV/RG70AV R359 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R360 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R361 1-216-845-11 METAL CHIP 100K 5% 1/16W R362 1-216-845-11 METAL CHIP 100K 5% 1/16W R363 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R364 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R365 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R366 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R367 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R368 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R369 1-216-845-11 METAL CHIP 100K 5% 1/16W R370 1-216-845-11 METAL CHIP 100K 5% 1/16W R371 1-216-833-11 METAL CHIP 10K 5% 1/16W R372 1-216-833-11 METAL CHIP 10K 5% 1/16W R373 1-216-845-11 METAL CHIP 100K 5% 1/16W R374 1-216-801-11 METAL CHIP 22 5% 1/16W R375 1-216-813-11 METAL CHIP 220 5% 1/16W R376 1-216-835-11 METAL CHIP 15K 5% 1/16W R377 1-216-835-11 METAL CHIP 15K 5% 1/16W R378 1-216-821-11 METAL CHIP 1K 5% 1/16W R379 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R380 1-216-845-11 METAL CHIP 100K 5% 1/16W R381 1-216-841-11 METAL CHIP 47K 5% 1/16W R382 1-216-857-11 METAL CHIP 1M 5% 1/16W R383 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R384 1-216-845-11 METAL CHIP 100K 5% 1/16W R385 1-216-845-11 METAL CHIP 100K 5% 1/16W R386 1-218-296-11 RES-CHIP 75K 5% 1/16W R387 1-216-847-11 METAL CHIP 150K 5% 1/16W R388 1-218-296-11 RES-CHIP 75K 5% 1/16W R389 1-216-841-11 METAL CHIP 47K 5% 1/16W R390 1-216-847-11 METAL CHIP 150K 5% 1/16W R391 1-216-841-11 METAL CHIP 47K 5% 1/16W R392 1-216-851-11 METAL CHIP 330K 5% 1/16W R393 1-216-861-11 METAL CHIP 2.2M 5% 1/16W R394 1-216-845-11 METAL CHIP 100K 5% 1/16W R395 1-216-817-11 METAL CHIP 470 5% 1/16W R396 1-216-809-11 METAL CHIP 100 5% 1/16W R397 1-216-809-11 METAL CHIP 100 5% 1/16W R398 1-216-833-11 METAL CHIP 10K 5% 1/16W R399 1-216-833-11 METAL CHIP 10K 5% 1/16W R401 1-242-950-31 CARBON 10 5% 1/2W (RG70AV: AEP) R402 1-242-950-31 CARBON 10 5% 1/2W (RG70AV: AEP) R403 1-242-950-31 CARBON 10 5% 1/2W (RG70AV: AEP) R404 1-242-950-31 CARBON 10 5% 1/2W (RG70AV: AEP) R405 1-216-841-11 METAL CHIP 47K 5% 1/16W R406 1-216-828-11 METAL CHIP 3.9K 5% 1/16W R407 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R408 1-216-833-11 METAL CHIP 10K 5% 1/16W R409 1-216-841-11 METAL CHIP 47K 5% 1/16W R410 1-216-821-11 METAL CHIP 1K 5% 1/16W R411 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R412 1-216-842-11 METAL CHIP 56K 5% 1/16W R413 1-216-821-11 METAL CHIP 1K 5% 1/16W R414 1-216-819-11 METAL CHIP 680 5% 1/16W R415 1-216-819-11 METAL CHIP 680 5% 1/16W R416 1-216-819-11 METAL CHIP 680 5% 1/16W R417 1-216-821-11 METAL CHIP 1K 5% 1/16W R418 1-216-821-11 METAL CHIP 1K 5% 1/16W R419 1-216-821-11 METAL CHIP 1K 5% 1/16W R420 1-216-833-11 METAL CHIP 10K 5% 1/16W 0R421 1-215-891-11 METAL OXIDE 680 5% 2W F 0R422 1-215-891-11 METAL OXIDE 680 5% 2W F R423 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R424 1-216-833-11 METAL CHIP 10K 5% 1/16W R425 1-216-833-11 METAL CHIP 10K 5% 1/16W R426 1-216-833-11 METAL CHIP 10K 5% 1/16W R427 1-216-821-11 METAL CHIP 1K 5% 1/16W R428 1-216-841-11 METAL CHIP 47K 5% 1/16W R429 1-242-950-31 CARBON 10 5% 1/2W (RG70AV: AEP) R430 1-216-841-11 METAL CHIP 47K 5% 1/16W R431 1-242-950-31 CARBON 10 5% 1/2W (RG70AV: AEP) R432 1-216-841-11 METAL CHIP 47K 5% 1/16W R433 1-216-833-11 METAL CHIP 10K 5% 1/16W R434 1-216-833-11 METAL CHIP 10K 5% 1/16W R435 1-216-833-11 METAL CHIP 10K 5% 1/16W R436 1-216-833-11 METAL CHIP 10K 5% 1/16W R437 1-216-833-11 METAL CHIP 10K 5% 1/16W R438 1-216-833-11 METAL CHIP 10K 5% 1/16W R439 1-216-809-11 METAL CHIP 100 5% 1/16W R440 1-216-809-11 METAL CHIP 100 5% 1/16W R441 1-216-833-11 METAL CHIP 10K 5% 1/16W R442 1-216-833-11 METAL CHIP 10K 5% 1/16W R443 1-216-833-11 METAL CHIP 10K 5% 1/16W R444 1-216-833-11 METAL CHIP 10K 5% 1/16W R445 1-216-833-11 METAL CHIP 10K 5% 1/16W R446 1-216-833-11 METAL CHIP 10K 5% 1/16W R447 1-216-833-11 METAL CHIP 10K 5% 1/16W R448 1-216-833-11 METAL CHIP 10K 5% 1/16W R449 1-216-809-11 METAL CHIP 100 5% 1/16W R450 1-216-809-11 METAL CHIP 100 5% 1/16W R451 1-216-809-11 METAL CHIP 100 5% 1/16W R452 1-216-809-11 METAL CHIP 100 5% 1/16W R453 1-216-809-11 METAL CHIP 100 5% 1/16W R454 1-216-809-11 METAL CHIP 100 5% 1/16W R455 1-216-809-11 METAL CHIP 100 5% 1/16W R456 1-216-809-11 METAL CHIP 100 5% 1/16W R457 1-216-809-11 METAL CHIP 100 5% 1/16W R458 1-216-809-11 METAL CHIP 100 5% 1/16W R459 1-216-809-11 METAL CHIP 100 5% 1/16W R460 1-216-809-11 METAL CHIP 100 5% 1/16W R461 1-216-809-11 METAL CHIP 100 5% 1/16W R462 1-216-809-11 METAL CHIP 100 5% 1/16W R463 1-216-809-11 METAL CHIP 100 5% 1/16W R464 1-216-809-11 METAL CHIP 100 5% 1/16W R465 1-216-833-11 METAL CHIP 10K 5% 1/16W R466 1-216-833-11 METAL CHIP 10K 5% 1/16W R467 1-216-841-11 METAL CHIP 47K 5% 1/16W R468 1-216-841-11 METAL CHIP 47K 5% 1/16W R469 1-216-821-11 METAL CHIP 1K 5% 1/16W MAIN The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 69 HCD-DX60AV/RG70AV R470 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R471 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R472 1-216-833-11 METAL CHIP 10K 5% 1/16W R473 1-216-841-11 METAL CHIP 47K 5% 1/16W (DX60AV) R473 1-216-835-11 METAL CHIP 15K 5% 1/16W (RG70AV) R474 1-216-837-11 METAL CHIP 22K 5% 1/16W (DX60AV) R474 1-216-841-11 METAL CHIP 47K 5% 1/16W (RG70AV) R475 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R476 1-216-841-11 METAL CHIP 47K 5% 1/16W R477 1-216-809-11 METAL CHIP 100 5% 1/16W R478 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R479 1-216-837-11 METAL CHIP 22K 5% 1/16W R480 1-216-833-11 METAL CHIP 10K 5% 1/16W R481 1-216-809-11 METAL CHIP 100 5% 1/16W R482 1-216-837-11 METAL CHIP 22K 5% 1/16W R483 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R484 1-216-809-11 METAL CHIP 100 5% 1/16W R485 1-216-845-11 METAL CHIP 100K 5% 1/16W R486 1-216-845-11 METAL CHIP 100K 5% 1/16W R487 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R488 1-216-809-11 METAL CHIP 100 5% 1/16W R489 1-216-841-11 METAL CHIP 47K 5% 1/16W R490 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R491 1-216-841-11 METAL CHIP 47K 5% 1/16W R492 1-216-841-11 METAL CHIP 47K 5% 1/16W R493 1-242-950-31 CARBON 10 5% 1/2W (RG70AV: AEP) R494 1-242-950-31 CARBON 10 5% 1/2W (RG70AV: AEP) R495 1-216-216-00 RES-CHIP 5.6K 5% 1/8W R496 1-216-837-11 METAL CHIP 22K 5% 1/16W R497 1-216-839-11 METAL CHIP 33K 5% 1/16W R498 1-216-833-11 METAL CHIP 10K 5% 1/16W R499 1-216-833-11 METAL CHIP 10K 5% 1/16W R3100 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R3101 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R3102 1-216-845-11 METAL CHIP 100K 5% 1/16W R3103 1-216-833-11 METAL CHIP 10K 5% 1/16W R3104 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R3105 1-216-833-11 METAL CHIP 10K 5% 1/16W R3106 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R3107 1-216-841-11 METAL CHIP 47K 5% 1/16W R3108 1-216-845-11 METAL CHIP 100K 5% 1/16W R3109 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R3110 1-216-833-11 METAL CHIP 10K 5% 1/16W R3111 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R3112 1-216-833-11 METAL CHIP 10K 5% 1/16W R3113 1-216-833-11 METAL CHIP 10K 5% 1/16W R3115 1-216-833-11 METAL CHIP 10K 5% 1/16W R3116 1-216-845-11 METAL CHIP 100K 5% 1/16W R3117 1-216-813-11 METAL CHIP 220 5% 1/16W R4100 1-216-833-11 METAL CHIP 10K 5% 1/16W R4101 1-216-833-11 METAL CHIP 10K 5% 1/16W R4102 1-216-864-11 METAL CHIP 0 5% 1/16W (DX60AV/RG70AV: US) R4103 1-216-864-11 METAL CHIP 0 5% 1/16W (DX60AV/RG70AV: US) R4104 1-242-950-31 CARBON 10 5% 1/2W (RG70AV: AEP) R4105 1-216-851-11 METAL CHIP 330K 5% 1/16W R4106 1-216-817-11 METAL CHIP 470 5% 1/16W R4107 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R4108 1-216-837-11 METAL CHIP 22K 5% 1/16W R4109 1-216-845-11 METAL CHIP 100K 5% 1/16W R4110 1-242-950-31 CARBON 10 5% 1/2W (RG70AV: AEP) R4111 1-216-837-11 METAL CHIP 22K 5% 1/16W R4112 1-216-821-11 METAL CHIP 1K 5% 1/16W R4113 1-216-833-11 METAL CHIP 10K 5% 1/16W R4115 1-216-806-11 RES-CHIP 56 5% 1/16W R4116 1-216-806-11 RES-CHIP 56 5% 1/16W < COMPOSITION CIRCUIT BLOCK > RB101 1-234-457-11 ENCAPSULATED COMPONENT < VIBRATOR > RES401 1-781-107-21 VIBRATOR, SERAMIC (16MHz) < RELAY > RL401 1-755-373-11 RELAY RL402 1-755-373-11 RELAY RL403 1-755-373-11 RELAY < VARIABLE RESISTOR > SFR101 1-241-765-11 RES, ADJ, CARBON 22K SFR401 1-241-762-11 RES, ADJ, CARBON 2.2K < TRANSFORMER > T101 1-435-195-31 TRANSFORMER, DISCRIMINATOR T102 1-234-477-11 ENCAPSULATED COMPONENT (RG70AV: AEP) < VIBRATOR > X101 1-760-549-31 VIBRATOR, CRYSTAL (4.5MHz) X102 1-579-900-21 VIBRATOR, CRYSTAL (4.332MHz) (RG70AV: AEP) X401 1-567-098-41 VIBRATOR, CRYSTAL (32.768kHz) ************************************************************** 1-675-910-14 MOTOR BOARD ************* < CAPACITOR > C721 1-162-306-11 CERAMIC 0.01uF 30% 16V < CONNECTOR > CN721 1-770-516-31 CONNECTOR, FFC 8P CN722 1-785-330-11 PIN, CONNECTOR (LIGHT ANGLE) 4P < SWITCH > S701 1-771-822-11 SWITCH, LEVER (SLIDE) (OPEN/CLOSE) ************************************************************** MAIN MOTOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 70 HCD-DX60AV/RG70AV A-4726-315-A PANEL BOARD, COMPLETE ********************** < CAPACITOR > C701 1-126-966-11 ELECT 33uF 20% 50V C702 1-126-966-11 ELECT 33uF 20% 50V C703 1-162-306-11 CERAMIC 0.01uF 30% 16V C704 1-124-589-11 ELECT 47uF 20% 16V C705 1-162-294-31 CERAMIC 0.001uF 10% 50V C706 1-162-294-31 CERAMIC 0.001uF 10% 50V C707 1-162-294-31 CERAMIC 0.001uF 10% 50V C708 1-162-282-31 CERAMIC 100PF 10% 50V C709 1-162-282-31 CERAMIC 100PF 10% 50V C710 1-162-282-31 CERAMIC 100PF 10% 50V C711 1-162-282-31 CERAMIC 100PF 10% 50V C712 1-162-282-31 CERAMIC 100PF 10% 50V C713 1-162-282-31 CERAMIC 100PF 10% 50V C714 1-162-282-31 CERAMIC 100PF 10% 50V C715 1-162-282-31 CERAMIC 100PF 10% 50V C716 1-161-494-00 CERAMIC 0.022uF 25V C720 1-162-306-11 CERAMIC 0.01uF 30% 16V C721 1-124-589-11 ELECT 47uF 20% 16V C722 1-162-282-31 CERAMIC 100PF 10% 50V C723 1-162-282-31 CERAMIC 100PF 10% 50V C724 1-162-282-31 CERAMIC 100PF 10% 50V C725 1-162-282-31 CERAMIC 100PF 10% 50V C726 1-162-282-31 CERAMIC 100PF 10% 50V C727 1-162-282-31 CERAMIC 100PF 10% 50V C728 1-162-282-31 CERAMIC 100PF 10% 50V C729 1-162-282-31 CERAMIC 100PF 10% 50V C730 1-162-282-31 CERAMIC 100PF 10% 50V C731 1-162-282-31 CERAMIC 100PF 10% 50V C732 1-162-282-31 CERAMIC 100PF 10% 50V C733 1-162-282-31 CERAMIC 100PF 10% 50V C734 1-162-306-11 CERAMIC 0.01uF 30% 16V C735 1-162-306-11 CERAMIC 0.01uF 30% 16V C736 1-162-294-31 CERAMIC 0.001uF 10% 50V C737 1-162-294-31 CERAMIC 0.001uF 10% 50V C770 1-164-159-21 CERAMIC 0.1uF 50V C775 1-162-306-11 CERAMIC 0.01uF 30% 16V C777 1-164-159-21 CERAMIC 0.1uF 50V C778 1-164-159-21 CERAMIC 0.1uF 50V C779 1-164-159-21 CERAMIC 0.1uF 50V < CONNECTOR > CN711 1-793-767-11 CONNECTOR, BOARD TO BOARD 30P * CN712 1-564-729-11 PIN, CONNECTOR (SMALL TYPE) 13P < DIODE > D701 8-719-071-44 LED SELS5223C-TP15 (I/1) D702 8-719-084-19 LED LTL77HKYTNN (MD (VIDEO)) D703 8-719-084-19 LED LTL77HKYTNN (TAPE A/B) D704 8-719-084-19 LED LTL77HKYTNN (CD) D705 8-719-084-19 LED LTL77HKYTNN (TUNER/BAND) D706 8-719-084-19 LED LTL77HKYTNN (GAME) D713 8-719-991-33 DIODE 1SS133T-77 D716 8-719-084-19 LED LTL77HKYTNN (MD (VIDEO)) D717 8-719-084-19 LED LTL77HKYTNN (TAPE A/B) D718 8-719-084-19 LED LTL77HKYTNN (CD) D719 8-719-084-19 LED LTL77HKYTNN (TUNER/BAND) D720 8-719-084-19 LED LTL77HKYTNN (GAME) D721 8-719-991-33 DIODE 1SS133T-77 < FERRITE BEAD > FB701 1-412-473-21 INDUCTOR 0uH < FLUORESCENT INDICATOR > FLD1 1-518-729-12 INDICATOR TUBE, FLUORESCENT < IC > IC701 6-800-220-01 IC uPD780232GC-031-8BT < JACK > JACK701 1-691-293-21 JACK (PHONES) JACK704 1-815-430-11 JACK, PIN 3P (INPUT VIDEO/AUDIO) < TRANSISTOR > Q701 8-729-900-63 TRANSISTOR BN1F4M-TP Q702 8-729-900-80 TRANSISTOR BA1A4M-TP Q703 8-729-900-80 TRANSISTOR BA1A4M-TP Q704 8-729-900-80 TRANSISTOR BA1A4M-TP Q705 8-729-900-80 TRANSISTOR BA1A4M-TP Q706 8-729-900-80 TRANSISTOR BA1A4M-TP < RESISTOR > R701 1-249-410-11 CARBON 270 5% 1/4W R702 1-249-411-11 CARBON 330 5% 1/4W R722 1-247-843-11 CARBON 3.3K 5% 1/4W R723 1-249-425-11 CARBON 4.7K 5% 1/4W R724 1-249-427-11 CARBON 6.8K 5% 1/4W R725 1-249-429-11 CARBON 10K 5% 1/4W R738 1-249-417-11 CARBON 1K 5% 1/4W R740 1-249-404-00 CARBON 82 5% 1/4W R741 1-249-417-11 CARBON 1K 5% 1/4W R742 1-249-417-11 CARBON 1K 5% 1/4W R743 1-249-437-11 CARBON 47K 5% 1/4W R744 1-249-437-11 CARBON 47K 5% 1/4W R747 1-249-429-11 CARBON 10K 5% 1/4W R748 1-249-429-11 CARBON 10K 5% 1/4W R749 1-249-429-11 CARBON 10K 5% 1/4W R750 1-249-429-11 CARBON 10K 5% 1/4W R752 1-249-429-11 CARBON 10K 5% 1/4W R753 1-249-429-11 CARBON 10K 5% 1/4W R755 1-249-429-11 CARBON 10K 5% 1/4W R756 1-247-807-31 CARBON 100 5% 1/4W R757 1-249-429-11 CARBON 10K 5% 1/4W R758 1-247-807-31 CARBON 100 5% 1/4W R759 1-249-429-11 CARBON 10K 5% 1/4W R760 1-247-807-31 CARBON 100 5% 1/4W R761 1-249-429-11 CARBON 10K 5% 1/4W R762 1-247-807-31 CARBON 100 5% 1/4W R763 1-249-429-11 CARBON 10K 5% 1/4W R764 1-249-429-11 CARBON 10K 5% 1/4W PANEL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 71 HCD-DX60AV/RG70AV R765 1-247-903-00 CARBON 1M 5% 1/4W R768 1-247-807-31 CARBON 100 5% 1/4W R769 1-249-401-11 CARBON 47 5% 1/4W R796 1-249-401-11 CARBON 47 5% 1/4W R805 1-247-807-31 CARBON 100 5% 1/4W R806 1-249-403-11 CARBON 68 5% 1/4W < VIBRATOR > RES701 1-795-058-21 VIBRATOR, CERAMIC (5MHz) < SWITCH > S701 1-762-875-21 SWITCH, KEYBOARD (I/1) S702 1-762-875-21 SWITCH, KEYBOARD (GAME) S722 1-762-875-21 SWITCH, KEYBOARD (MD (VIDEO)) S723 1-762-875-21 SWITCH, KEYBOARD (TAPE A/B) S724 1-762-875-21 SWITCH, KEYBOARD (TUNER/BAND) S725 1-762-875-21 SWITCH, KEYBOARD (CD) < IC > SENS7018-759-827-70 IC NJL64H400A-1 (REMOTE CONTROL RECEIVER) < ROTARY ENCODER > VR701 1-418-725-11 ENCODER, ROTARY (12 TYPE) (VOLUME) ************************************************************** A-4726-312-A POWER AMP BOARD, COMPLETE (DX60AV/RG70AV: US) A-4726-547-A POWER AMP BOARD, COMPLETE (RG70AV: AEP) *************************** 4-234-016-01 FL HOLDER 7-685-872-09 SCREW +BVTT 3X8 (S) < CAPACITOR > C501 1-126-964-11 ELECT 10uF 20% 50V C502 1-127-866-21 CERAMIC 1500PF 10% 50V C503 1-162-282-31 CERAMIC 100PF 10% 50V C504 1-128-551-11 ELECT 22uF 20% 25V C507 1-130-493-00 MYLAR 0.068uF 5% 50V C508 1-130-493-00 MYLAR 0.068uF 5% 50V C509 1-126-965-11 ELECT 22uF 20% 50V C511 1-162-306-11 CERAMIC 0.01uF 30% 16V C512 1-162-294-31 CERAMIC 0.001uF 10% 50V (RG70AV: AEP) C513 1-164-159-21 CERAMIC 0.1uF 50V (RG70AV: AEP) C541 1-130-777-00 MYLAR 0.1uF 10% 100V C542 1-135-832-11 ELECT 2200uF 20% 50V C543 1-164-159-21 CERAMIC 0.1uF 50V C544 1-126-942-61 ELECT 1000uF 20% 25V C546 1-128-549-11 ELECT 3300uF 20% 35V C551 1-126-964-11 ELECT 10uF 20% 50V C552 1-127-866-21 CERAMIC 1500PF 10% 50V C553 1-162-282-31 CERAMIC 100PF 10% 50V C554 1-128-551-11 ELECT 22uF 20% 25V C557 1-130-493-00 MYLAR 0.068uF 5% 50V C558 1-130-493-00 MYLAR 0.068uF 5% 50V C559 1-126-965-11 ELECT 22uF 20% 50V C591 1-130-777-00 MYLAR 0.1uF 10% 100V C592 1-135-832-11 ELECT 2200uF 20% 50V < CONNECTOR > CN502 1-778-981-21 CONNECTOR, BOARD TO BOARD 13P CN503 1-778-981-21 CONNECTOR, BOARD TO BOARD 13P * CN504 1-564-704-11 PIN, CONNECTOR (SMALL TYPE) 2P < DIODE > D501 8-719-991-33 DIODE 1SS133T-77 D502 8-719-991-33 DIODE 1SS133T-77 D541 8-719-510-68 DIODE D5SBA204101 D542 8-719-200-82 DIODE 11ES2-NTA1B D543 8-719-200-82 DIODE 11ES2-NTA1B D551 8-719-991-33 DIODE 1SS133T-77 < EARTH TERMINAL > * EP501 1-537-738-21 TERMINAL, EARTH (RG70AV: AEP) * EP502 1-537-738-21 TERMINAL, EARTH < IC > IC501 8-749-016-93 IC STK402-070S < TRANSISTOR > Q501 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA Q503 8-729-140-82 TRANSISTOR 2SA988TP-PAFAEA Q504 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA Q551 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA Q581 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA Q582 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q583 8-729-029-86 TRANSISTOR DTC124ES Q584 8-729-119-78 TRANSISTOR 2SC2785TP-HFE < RESISTOR > R501 1-249-417-11 CARBON 1K 5% 1/4W R502 1-249-438-11 CARBON 56K 5% 1/4W R503 1-249-418-11 CARBON 1.2K 5% 1/4W R504 1-249-438-11 CARBON 56K 5% 1/4W R505 1-249-417-11 CARBON 1K 5% 1/4W R506 1-249-431-11 CARBON 15K 5% 1/4W R507 1-249-441-11 CARBON 100K 5% 1/4W 0R508 1-217-151-00 METAL 0.22 10% 2W F R509 1-260-076-11 CARBON 10 5% 1/2W 0R510 1-217-151-00 METAL 0.22 10% 2W F 0R511 1-212-881-11 FUSIBLE 100 5% 1/4W F 0R512 1-202-972-61 FUSIBLE 1 5% 1/4W F R513 1-249-433-11 CARBON 22K 5% 1/4W R514 1-249-421-11 CARBON 2.2K 5% 1/4W R515 1-249-433-11 CARBON 22K 5% 1/4W R516 1-249-429-11 CARBON 10K 5% 1/4W R517 1-249-421-11 CARBON 2.2K 5% 1/4W R518 1-249-429-11 CARBON 10K 5% 1/4W R519 1-249-433-11 CARBON 22K 5% 1/4W R520 1-249-441-11 CARBON 100K 5% 1/4W R521 1-249-441-11 CARBON 100K 5% 1/4W PANEL POWER AMP The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 72 HCD-DX60AV/RG70AV R522 1-249-441-11 CARBON 100K 5% 1/4W R523 1-249-409-11 CARBON 220 5% 1/4W R524 1-247-897-11 CARBON 560K 5% 1/4W R525 1-249-437-11 CARBON 47K 5% 1/4W R541 1-260-115-11 CARBON 22K 5% 1/2W R551 1-249-417-11 CARBON 1K 5% 1/4W R552 1-249-438-11 CARBON 56K 5% 1/4W R553 1-249-418-11 CARBON 1.2K 5% 1/4W R554 1-249-438-11 CARBON 56K 5% 1/4W R555 1-249-417-11 CARBON 1K 5% 1/4W R556 1-249-431-11 CARBON 15K 5% 1/4W R557 1-249-441-11 CARBON 100K 5% 1/4W 0R558 1-217-151-00 METAL 0.22 10% 2W F R559 1-260-076-11 CARBON 10 5% 1/2W 0R560 1-217-151-00 METAL 0.22 10% 2W F 0R561 1-212-881-11 FUSIBLE 100 5% 1/4W F R581 1-249-435-11 CARBON 33K 5% 1/4W R582 1-249-435-11 CARBON 33K 5% 1/4W R591 1-260-115-11 CARBON 22K 5% 1/2W ************************************************************** A-4726-325-A REAR/CENTER AMP BOARD, COMPLETE (DX60AV/RG70AV: US) A-4726-553-A REAR/CENTER AMP BOARD, COMPLETE (RG70AV: AEP) ********************************* < CAPACITOR > C529 1-164-159-21 CERAMIC 0.1uF 50V C530 1-126-964-11 ELECT 10uF 20% 50V C531 1-126-965-11 ELECT 22uF 20% 50V C532 1-126-964-11 ELECT 10uF 20% 50V C533 1-164-159-21 CERAMIC 0.1uF 50V (RG70AV: AEP) C534 1-126-964-11 ELECT 10uF 20% 50V C535 1-130-777-00 MYLAR 0.1uF 10% 100V C536 1-130-777-00 MYLAR 0.1uF 10% 100V C537 1-135-832-11 ELECT 2200uF 20% 50V C538 1-135-832-11 ELECT 2200uF 20% 50V C539 1-126-965-11 ELECT 22uF 20% 50V C540 1-164-159-21 CERAMIC 0.1uF 50V (DX60AV/RG70AV: US) C540 1-162-294-31 CERAMIC 0.001uF 10% 50V (RG70AV: AEP) C546 1-162-282-31 CERAMIC 100PF 10% 50V C547 1-162-302-11 CERAMIC 0.0022uF 20% 16V C548 1-128-551-11 ELECT 22uF 20% 25V C549 1-130-493-00 MYLAR 0.068uF 5% 50V C550 1-130-493-00 MYLAR 0.068uF 5% 50V C555 1-162-294-31 CERAMIC 0.001uF 10% 50V C560 1-162-282-31 CERAMIC 100PF 10% 50V C561 1-162-282-31 CERAMIC 100PF 10% 50V C562 1-162-302-11 CERAMIC 0.0022uF 20% 16V C563 1-162-302-11 CERAMIC 0.0022uF 20% 16V C564 1-128-551-11 ELECT 22uF 20% 25V C565 1-128-551-11 ELECT 22uF 20% 25V C566 1-130-493-00 MYLAR 0.068uF 5% 50V C567 1-130-493-00 MYLAR 0.068uF 5% 50V C568 1-130-493-00 MYLAR 0.068uF 5% 50V C569 1-130-493-00 MYLAR 0.068uF 5% 50V < CONNECTOR > * CN507 1-564-706-11 PIN, CONNECTOR (SMALL TYPE) 4P * CN508 1-564-510-11 PLUG, CONNECTOR 7P CN917 1-564-506-11 PLUG, CONNECTOR 3P < DIODE > D514 8-719-510-68 DIODE D5SBA204101 D515 8-719-991-33 DIODE 1SS133T-77 (DX60AV/RG70AV: US) D516 8-719-991-33 DIODE 1SS133T-77 (DX60AV/RG70AV: US) D517 8-719-991-33 DIODE 1SS133T-77 D518 8-719-991-33 DIODE 1SS133T-77 < EARTH TERMINAL > * EP503 1-537-738-21 TERMINAL, EARTH (RG70AV: AEP) * EP504 1-537-738-21 TERMINAL, EARTH < FUSE > 0F515 1-533-454-11 FUSE, GLASS TUBE (DIA. 5) (6.3A/125V) (RG70AV: US) 0F515 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) (T6.3A/250V) (DX60AV/RG70AV: AEP) 0F516 1-533-454-11 FUSE, GLASS TUBE (DIA. 5) (6.3A/125V) (RG70AV: US) 0F516 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) (T6.3A/250V) (DX60AV/RG70AV: AEP) < FUSE HOLDER > FH501 1-533-217-31 HOLDER, FUSE FH502 1-533-217-31 HOLDER, FUSE FH503 1-533-217-31 HOLDER, FUSE FH504 1-533-217-31 HOLDER, FUSE < IC > IC503 8-749-017-97 IC STK402-240 < TRANSISTOR > Q505 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA Q506 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA Q511 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA Q512 8-729-140-82 TRANSISTOR 2SA988TP-PAFAEA Q513 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA Q514 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA Q515 8-729-900-36 TRANSISTOR BA1F4M-TP < RESISTOR > R526 1-249-417-11 CARBON 1K 5% 1/4W R527 1-249-417-11 CARBON 1K 5% 1/4W R528 1-249-438-11 CARBON 56K 5% 1/4W R529 1-249-438-11 CARBON 56K 5% 1/4W R530 1-249-415-11 CARBON 680 5% 1/4W 0R532 1-212-881-11 FUSIBLE 100 5% 1/4W F 0R533 1-202-972-61 FUSIBLE 1 5% 1/4W F 0R534 1-212-881-11 FUSIBLE 100 5% 1/4W F R535 1-260-115-11 CARBON 22K 5% 1/2W R536 1-260-115-11 CARBON 22K 5% 1/2W R537 1-249-415-11 CARBON 680 5% 1/4W R538 1-260-120-11 CARBON 56K 5% 1/2W POWER AMP REAR/CENTER AMP The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 73 HCD-DX60AV/RG70AV R539 1-260-120-11 CARBON 56K 5% 1/2W R540 1-260-328-11 CARBON 1K 5% 1/2W R542 1-249-429-11 CARBON 10K 5% 1/4W R543 1-249-435-11 CARBON 33K 5% 1/4W R544 1-249-435-11 CARBON 33K 5% 1/4W R545 1-249-421-11 CARBON 2.2K 5% 1/4W R546 1-260-111-11 CARBON 10K 5% 1/2W R547 1-249-421-11 CARBON 2.2K 5% 1/4W R548 1-249-433-11 CARBON 22K 5% 1/4W R549 1-249-433-11 CARBON 22K 5% 1/4W R550 1-249-433-11 CARBON 22K 5% 1/4W 0R562 1-217-151-00 METAL 0.22 10% 2W F R563 1-249-441-11 CARBON 100K 5% 1/4W R564 1-249-415-11 CARBON 680 5% 1/4W R565 1-249-431-11 CARBON 15K 5% 1/4W R566 1-249-441-11 CARBON 100K 5% 1/4W R567 1-260-076-11 CARBON 10 5% 1/2W R568 1-249-438-11 CARBON 56K 5% 1/4W 0R569 1-217-151-00 METAL 0.22 10% 2W F R570 1-249-417-11 CARBON 1K 5% 1/4W R571 1-249-438-11 CARBON 56K 5% 1/4W R572 1-260-328-11 CARBON 1K 5% 1/2W R573 1-249-433-11 CARBON 22K 5% 1/4W 0R574 1-217-151-00 METAL 0.22 10% 2W F 0R575 1-217-151-00 METAL 0.22 10% 2W F 0R576 1-217-151-00 METAL 0.22 10% 2W F 0R577 1-217-151-00 METAL 0.22 10% 2W F R578 1-260-076-11 CARBON 10 5% 1/2W R579 1-260-076-11 CARBON 10 5% 1/2W R580 1-249-441-11 CARBON 100K 5% 1/4W R583 1-249-441-11 CARBON 100K 5% 1/4W R585 1-249-431-11 CARBON 15K 5% 1/4W R586 1-249-431-11 CARBON 15K 5% 1/4W R587 1-260-328-11 CARBON 1K 5% 1/2W ************************************************************** 1-682-255-11 SENSOR BOARD ************** < THERMISTOR > TH501 1-807-796-11 THERMISTOR ************************************************************** 1-682-259-11 SUB TRANSFORMER BOARD *********************** < CAPACITOR > C901 1-113-925-11 CERAMIC 0.01uF 20% 250V C902 1-126-768-11 ELECT 2200uF 20% 16V C903 1-126-933-11 ELECT 100uF 20% 16V < CONNECTOR > * CN2 1-564-321-21 PIN, CONNECTOR 2P CN901 1-564-321-00 PIN, CONNECTOR 2P * CN903 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P < DIODE > D901 8-719-991-33 DIODE 1SS133T-77 D902 8-719-200-82 DIODE 11ES2-NTA1B D903 8-719-200-82 DIODE 11ES2-NTA1B D904 8-719-200-82 DIODE 11ES2-NTA1B D905 8-719-200-82 DIODE 11ES2-NTA1B < IC > IC901 8-759-158-62 IC TA78057S < TRANSISTOR > Q901 8-729-119-78 TRANSISTOR 2SC2785TP-HFE < RESISTOR > R902 1-249-429-11 CARBON 10K 5% 1/4W < RELAY > 0RY901 1-755-276-11 RELAY, POWER < TRANSFORMER > 0T901 1-435-823-11 TRANSFORMER, POWER ************************************************************** 1-682-258-11 TRANSFORMER BOARD ******************** < CAPACITOR > C911 1-128-553-11 ELECT 220uF 20% 63V C912 1-126-964-11 ELECT 10uF 20% 50V C913 1-126-968-11 ELECT 100uF 20% 50V C915 1-164-159-21 CERAMIC 0.1uF 50V < CONNECTOR > CN915 1-564-528-11 PLUG, CONNECTOR 13P < DIODE > D911 8-719-200-82 DIODE 11ES2-NTA1B D912 8-719-982-20 DIODE MTZJ-T-77-30B D913 8-719-109-89 DIODE MTZJ-T-77-5.6B < FUSE > 0F914 1-533-454-11 FUSE, GLASS TUBE (DIA. 5) (6.3A/125V) (RG70AV: US) 0F914 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) (T6.3A/250V) (DX60AV/RG70AV: AEP) 0F919 1-533-454-11 FUSE, GLASS TUBE (DIA. 5) (6.3A/125V) (RG70AV: US) 0F920 1-533-454-11 FUSE, GLASS TUBE (DIA. 5) (6.3A/125V) (RG70AV: US) 0F920 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) (T6.3A/250V) (DX60AV/RG70AV: AEP) < FUSE HOLDER > FH901 1-533-217-31 HOLDER, FUSE (DX60AV/RG70AV: US) FH902 1-533-217-31 HOLDER, FUSE (DX60AV/RG70AV: US) FH903 1-533-217-31 HOLDER, FUSE (RG70AV: AEP) FH904 1-533-217-31 HOLDER, FUSE (RG70AV: AEP) < TRANSISTOR > Q911 8-729-048-52 TRANSISTOR 2SA1932 (TP) REAR/CENTER AMP SENSOR SUB TRANSFORMER TRANSFORMER The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 74 HCD-DX60AV/RG70AV The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. < RESISTOR > R905 1-249-429-11 CARBON 10K 5% 1/4W 0R911 1-217-637-00 FUSIBLE 1 5% 1/4W F R912 1-249-417-11 CARBON 1K 5% 1/4W R913 1-249-429-11 CARBON 10K 5% 1/4W R915 1-247-807-31 CARBON 100 5% 1/4W R916 1-247-807-31 CARBON 100 5% 1/4W R918 1-202-725-00 SOLID 3.3M 10% 1/2W (RG70AV) 0R919 1-219-122-91 FUSIBLE 0.33 5% 1/4W F 0R920 1-219-119-81 FUSIBLE 0.1 5% 1/4W F (DX60AV) 0R920 1-219-122-91 FUSIBLE 0.33 5% 1/4W F (RG70AV) < TRANSFORMER > 0T911 1-437-427-11 TRANSFORMER, POWER (DX60AV) 0T911 1-437-433-11 TRANSFORMER, POWER (RG70AV:US) 0T911 1-437-434-11 TRANSFORMER, POWER (RG70AV:AEP) ************************************************************** MISCELLANEOUS ************** 66 1-796-124-11 DECK, MECH 101 1-773-049-11 WIRE (FLAT TYPE) (17 CORE) 104 1-791-897-12 WIRE (FLAT TYPE) (19 CORE) 0108 1-769-744-81 CORD, POWER (RG70AV: AEP) 0108 1-783-532-11 CORD, POWER (RG70AV: US) 0108 1-791-901-11 CORD, POWER (DX60AV) 509 1-791-983-12 WIRE (FLAT TYPE) (8 CORE) 516 1-471-035-11 MAGNET ASSY 535 1-541-632-12 MOTOR, DC (TURN) 0551 A-4735-080-A BASE ASSY, OP (KSM-213DAP) (including SLED and SPINDLE MOTOR) 552 1-792-024-11 WIRE (FLAT TYPE) (16 CORE) M721 A-4672-826-A MOTOR ASSY (TURN) M961 1-763-072-11 FAN, DC 0T910 1-437-427-11 TRANSFORMER, POWER (DX60AV) 0T910 1-437-433-11 TRANSFORMER, POWER (RG70AV: US) ************************************************************ ************** HARDWARE LIST ************** #1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S #2 7-685-871-01 SCREW +BVTT 3X6 (S) #3 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3 #4 7-685-880-09 SCREW +BVTT 4X6 (S) TRANSFORMER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 75 HCD-DX60AV/RG70AV MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX60AV/RG70AV REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2001.05 New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
