索尼SONY HCD-HDZ278音响图纸

分类：电子电工日期：2023-04-08 点击：0

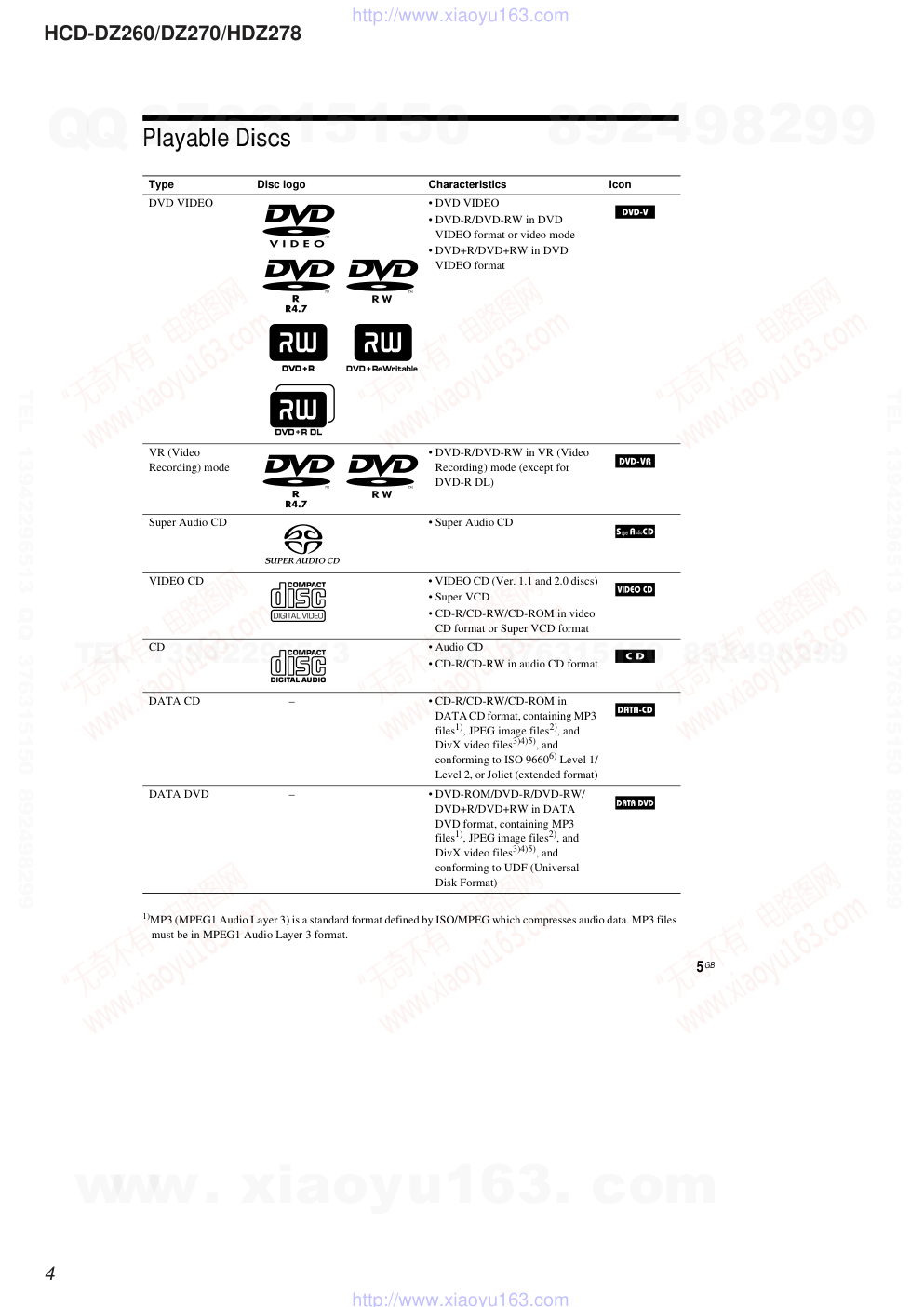

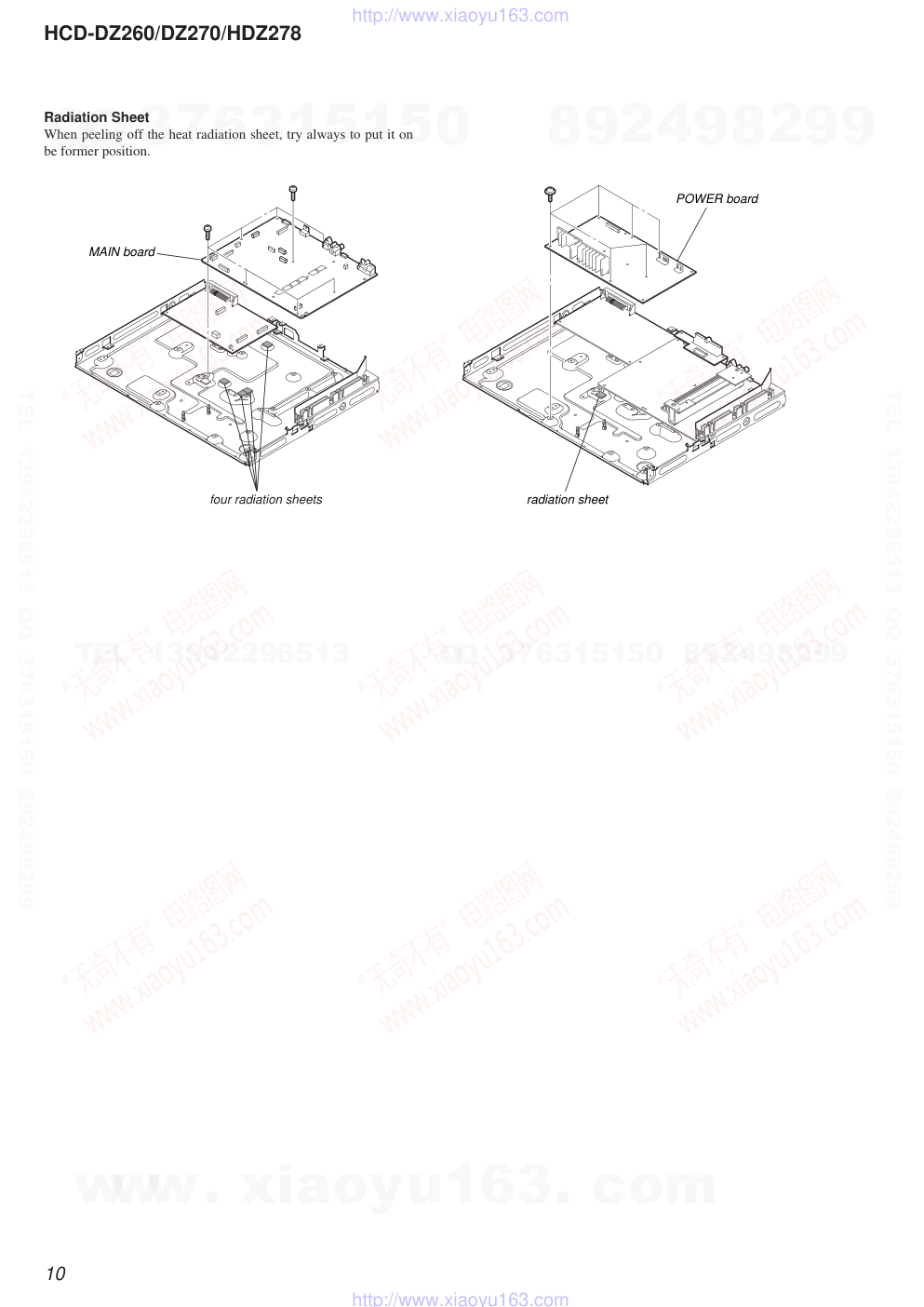

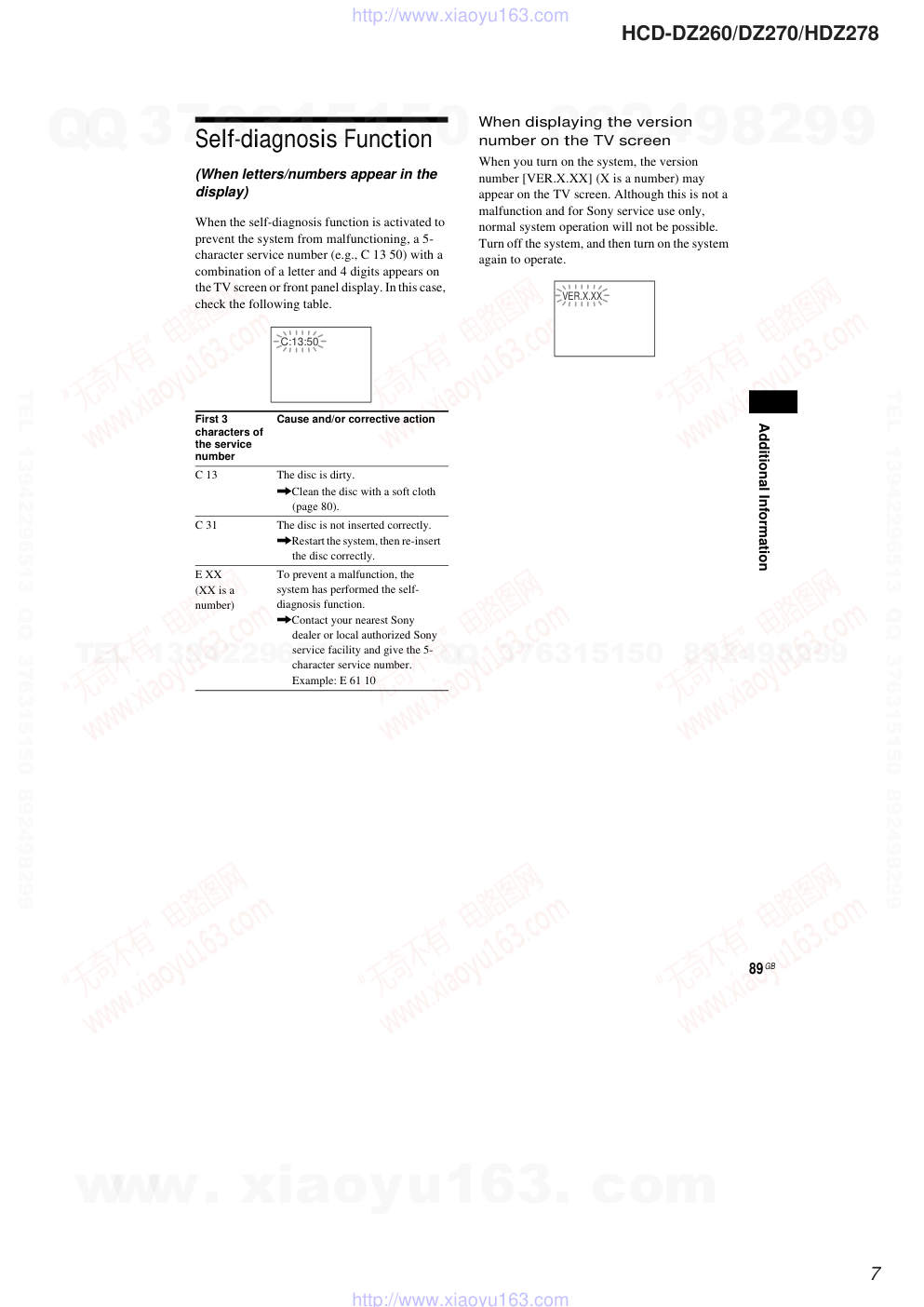

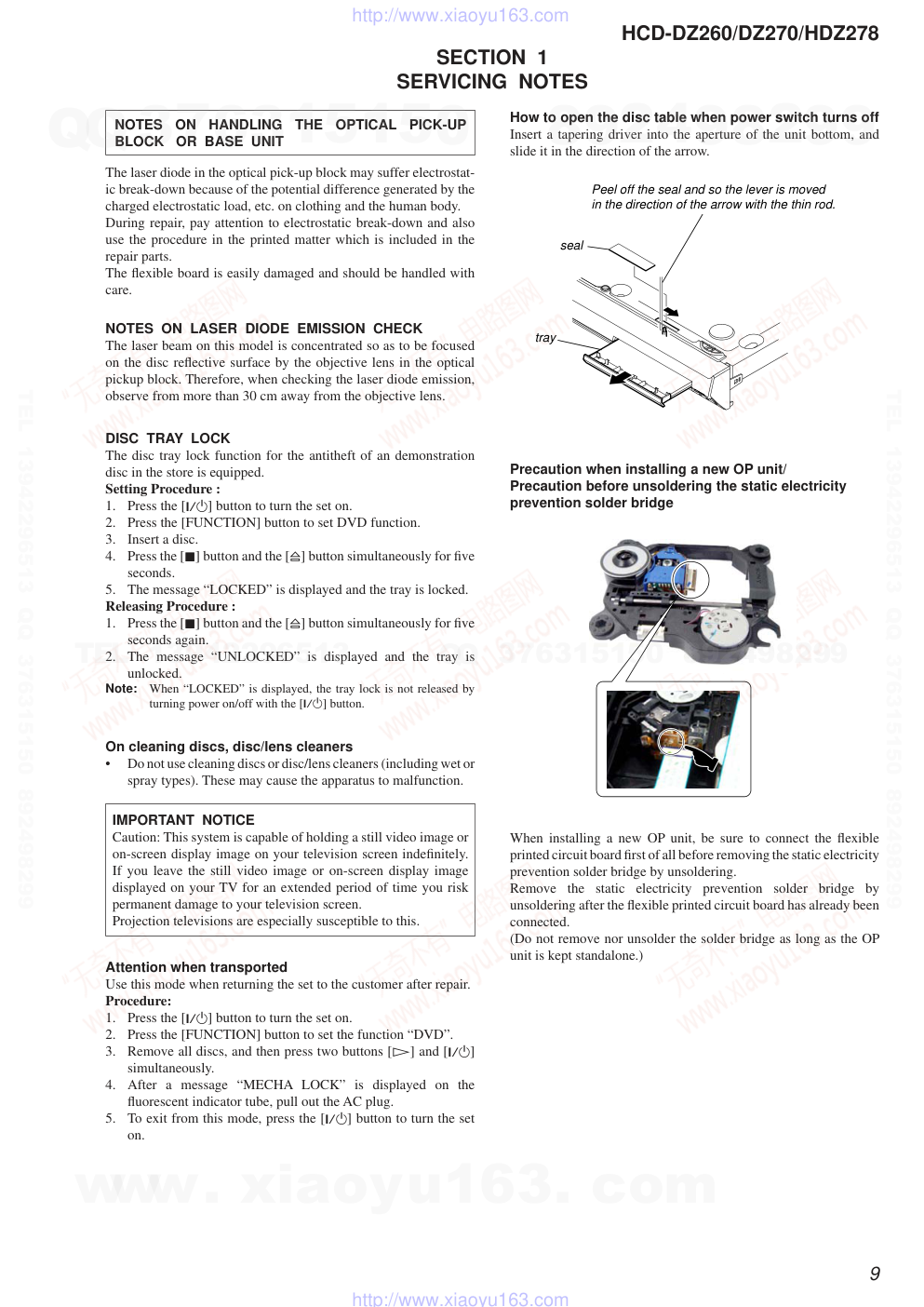

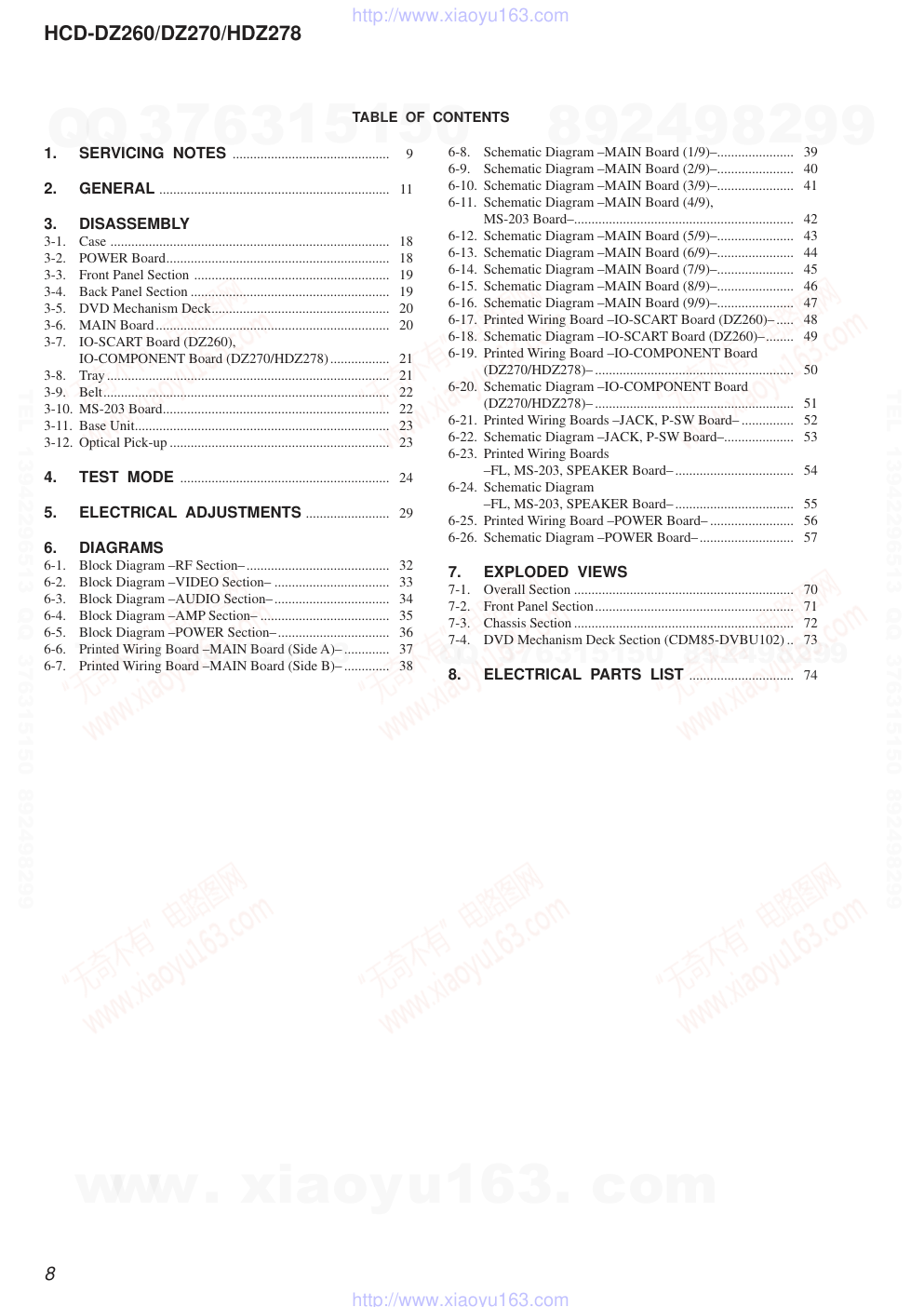

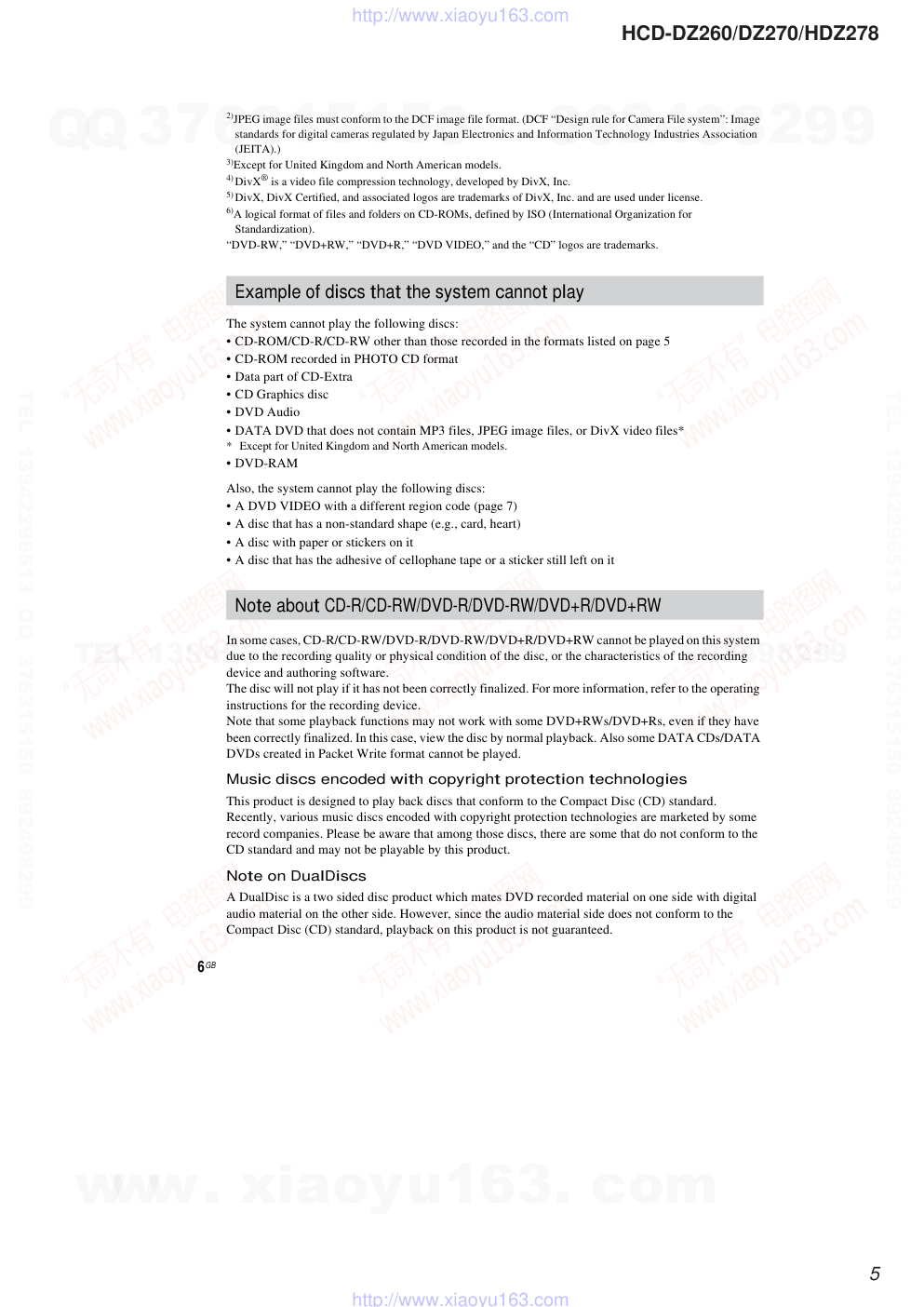

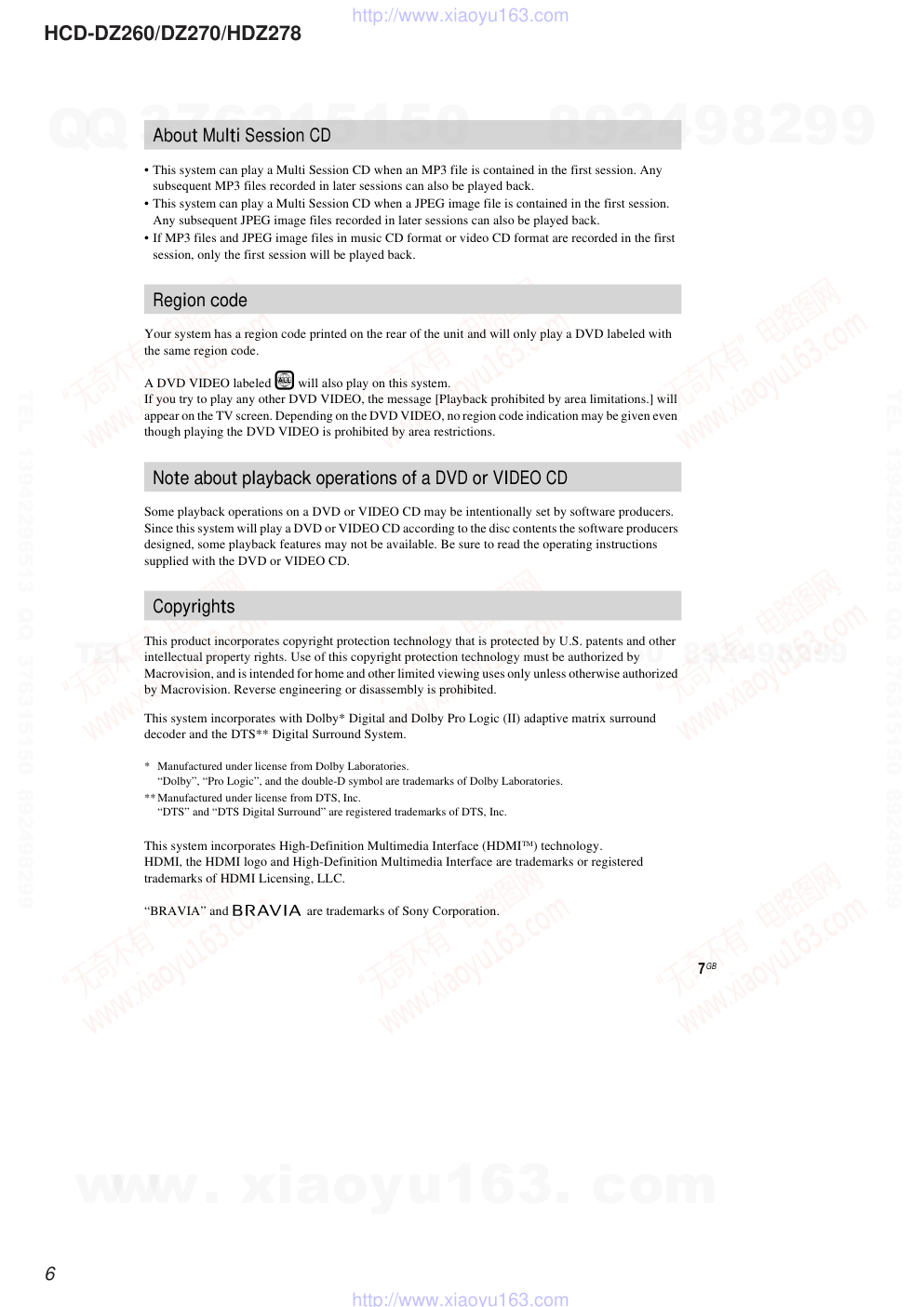

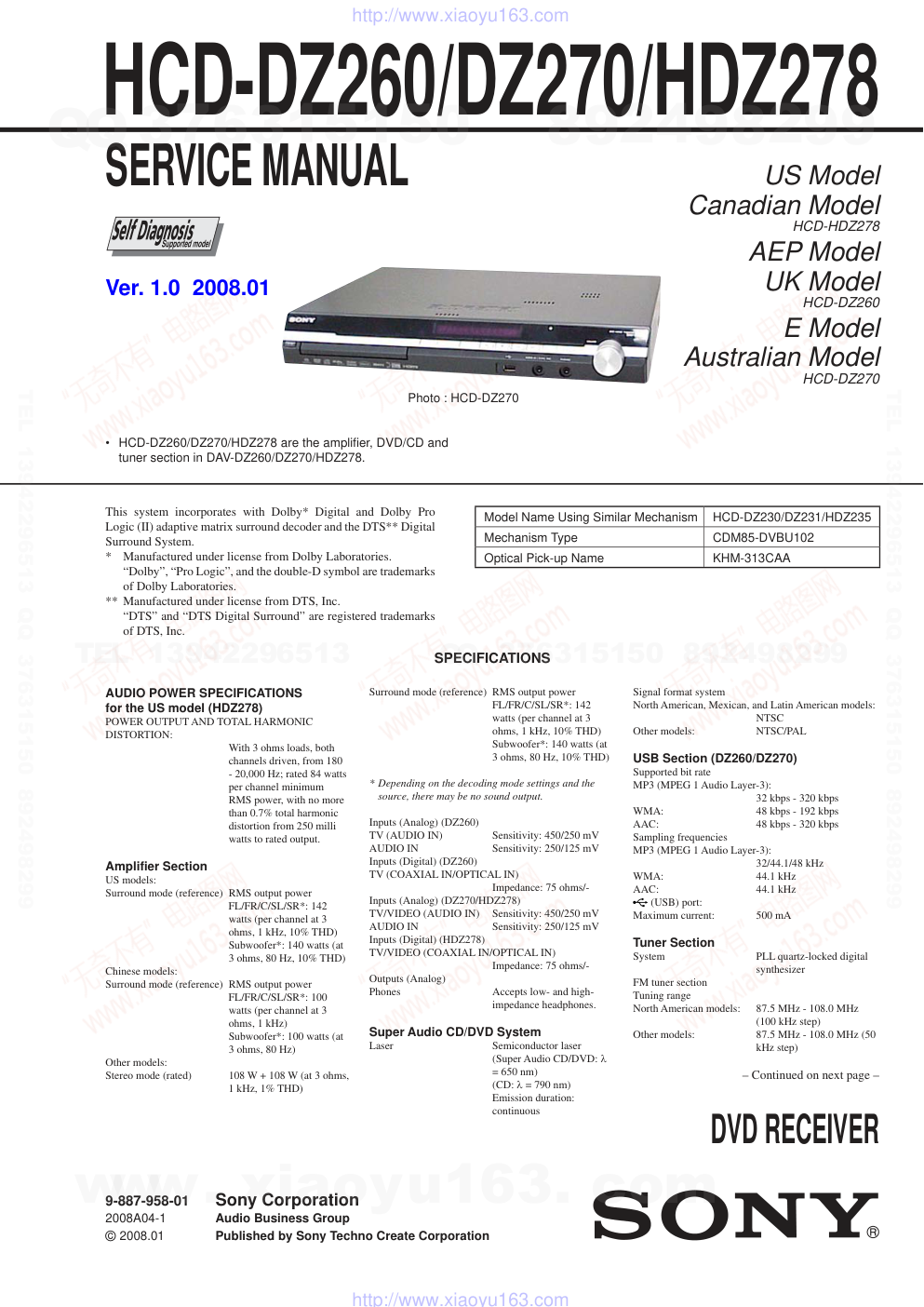

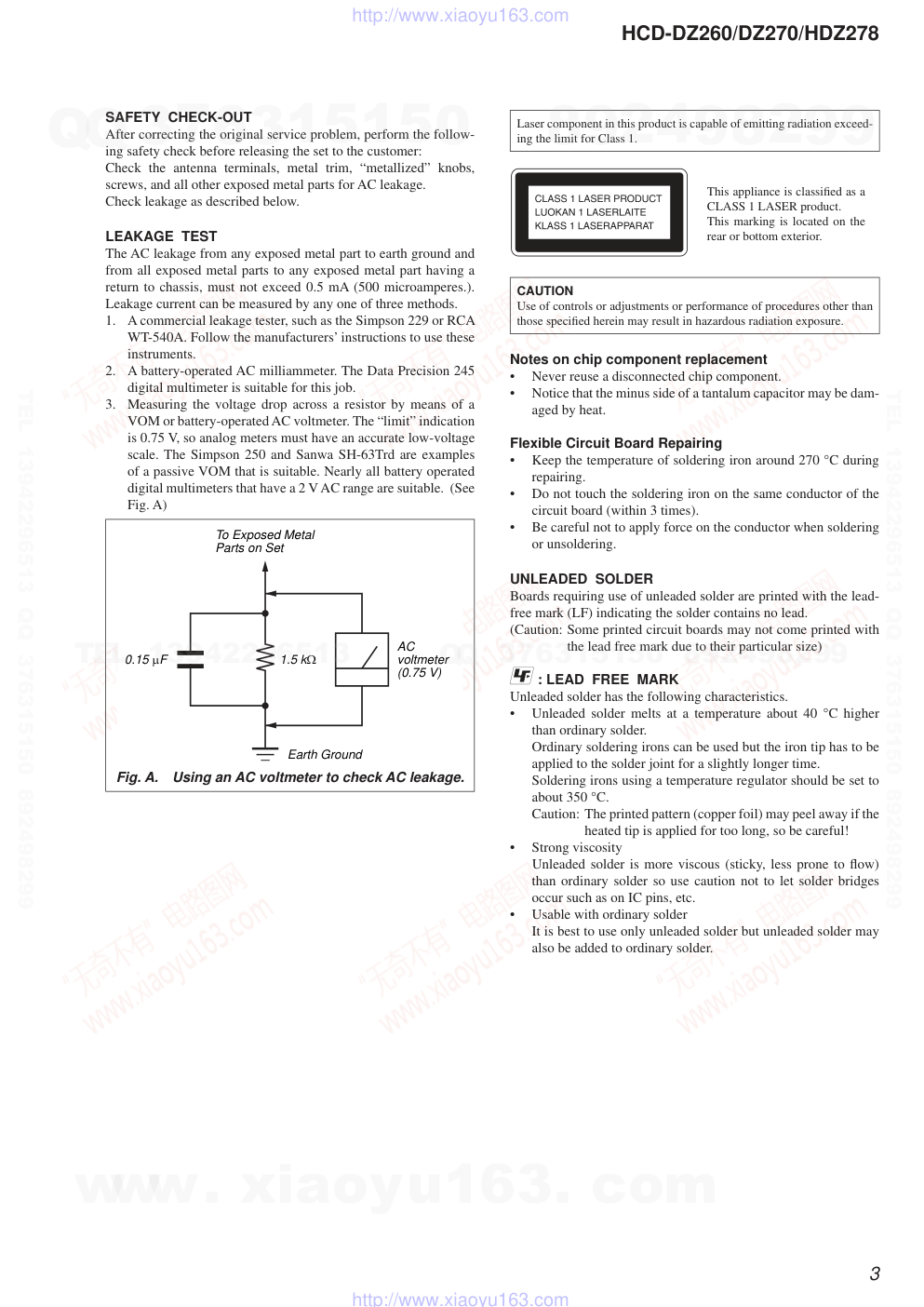

SERVICE MANUAL Sony Corporation Audio Business Group Published by Sony Techno Create Corporation HCD-DZ260/DZ270/HDZ278 SPECIFICATIONS DVD RECEIVER 9-887-958-01 2008A04-1 © 2008.01 US Model Canadian Model HCD-HDZ278 AEP Model UK Model HCD-DZ260 E Model Australian Model HCD-DZ270 Ver. 1.0 2008.01 Model Name Using Similar Mechanism HCD-DZ230/DZ231/HDZ235 Mechanism Type CDM85-DVBU102 Optical Pick-up Name KHM-313CAA • HCD-DZ260/DZ270/HDZ278 are the ampliﬁ er, DVD/CD and tuner section in DAV-DZ260/DZ270/HDZ278. Photo : HCD-DZ270 This system incorporates with Dolby* Digital and Dolby Pro Logic (II) adaptive matrix surround decoder and the DTS** Digital Surround System. * Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby Laboratories. ** Manufactured under license from DTS, Inc. “DTS” and “DTS Digital Surround” are registered trademarks of DTS, Inc. AUDIO POWER SPECIFICATIONS for the US model (HDZ278) POWER OUTPUT AND TOTAL HARMONIC DISTORTION: With 3 ohms loads, both channels driven, from 180 - 20,000 Hz; rated 84 watts per channel minimum RMS power, with no more than 0.7% total harmonic distortion from 250 milli watts to rated output. Ampliﬁ er Section US models: Surround mode (reference) RMS output power FL/FR/C/SL/SR*: 142 watts (per channel at 3 ohms, 1 kHz, 10% THD) Subwoofer*: 140 watts (at 3 ohms, 80 Hz, 10% THD) Chinese models: Surround mode (reference) RMS output power FL/FR/C/SL/SR*: 100 watts (per channel at 3 ohms, 1 kHz) Subwoofer*: 100 watts (at 3 ohms, 80 Hz) Other models: Stereo mode (rated) 108 W + 108 W (at 3 ohms, 1 kHz, 1% THD) Surround mode (reference) RMS output power FL/FR/C/SL/SR*: 142 watts (per channel at 3 ohms, 1 kHz, 10% THD) Subwoofer*: 140 watts (at 3 ohms, 80 Hz, 10% THD) * Depending on the decoding mode settings and the source, there may be no sound output. Inputs (Analog) (DZ260) TV (AUDIO IN) Sensitivity: 450/250 mV AUDIO IN Sensitivity: 250/125 mV Inputs (Digital) (DZ260) TV (COAXIAL IN/OPTICAL IN) Impedance: 75 ohms/- Inputs (Analog) (DZ270/HDZ278) TV/VIDEO (AUDIO IN) Sensitivity: 450/250 mV AUDIO IN Sensitivity: 250/125 mV Inputs (Digital) (HDZ278) TV/VIDEO (COAXIAL IN/OPTICAL IN) Impedance: 75 ohms/- Outputs (Analog) Phones Accepts low- and high- impedance headphones. Super Audio CD/DVD System Laser Semiconductor laser (Super Audio CD/DVD: λ = 650 nm) (CD: λ = 790 nm) Emission duration: continuous Signal format system North American, Mexican, and Latin American models: NTSC Other models: NTSC/PAL USB Section (DZ260/DZ270) Supported bit rate MP3 (MPEG 1 Audio Layer-3): 32 kbps - 320 kbps WMA: 48 kbps - 192 kbps AAC: 48 kbps - 320 kbps Sampling frequencies MP3 (MPEG 1 Audio Layer-3): 32/44.1/48 kHz WMA: 44.1 kHz AAC: 44.1 kHz (USB) port: Maximum current: 500 mA Tuner Section System PLL quartz-locked digital synthesizer FM tuner section Tuning range North American models: 87.5 MHz - 108.0 MHz (100 kHz step) Other models: 87.5 MHz - 108.0 MHz (50 kHz step) – Continued on next page – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 2 SAFETY-RELATED COMPONET WARNING! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONC- TIONNEMENT. NE REMPLACER CES COM- POSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DON- NÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. Antenna (aerial) FM wire antenna (aerial) Antenna (aerial) terminals 75 ohms, unbalanced Intermediate frequency 10.7 MHz AM tuner section Tuning range North American, Mexican, and Latin American models: 530 kHz - 1,710 kHz (with the interval set at 10 kHz) 531 kHz - 1,710 kHz (with the interval set at 9 kHz) European, Russian, and Middle Eastern models: 531 kHz - 1,602 kHz (with the interval set at 9 kHz) Australian and New Zealand models: 531 kHz - 1,710 kHz (with the interval set at 9 kHz) 530 kHz - 1,710 kHz (with the interval set at 10 kHz) Other models: 531 kHz - 1,602 kHz (with the interval set at 9 kHz) 530 kHz - 1,610 kHz (with the interval set at 10 kHz) Antenna (aerial) AM loop antenna (aerial) Intermediate frequency 450 kHz Video Section (DZ260) Outputs R/G/B: 0.7 Vp-p 75 ohms HDMI OUT: Type A (19 pin) Video Section (DZ270/HDZ278) Outputs VIDEO: 1 Vp-p 75 ohms COMPONENT: Y: 1 Vp-p 75 ohms PB/CB, PR/CR: 0.7 Vp-p 75 ohms HDMI OUT: Type A (19 pin) General Power requirements North American models: 120 V AC, 60 Hz Mexican models: 120 V AC, 60 Hz Argentine models: 20 V - 240 V AC, 50/60 Hz Latin American models: 110 V - 240 V AC, 50/60 Hz Other models: 220 V - 240 V AC, 50/60 Hz Power consumption HDZ278: On: 155 W Standby: 0.3 W (at the Power Saving mode) DZ260/DZ270: On: 160 W Standby: 0.3 W (at the Power Saving mode) Output voltage (DIGITAL MEDIA PORT) (DZ260/HDZ278 only) DC 5 V Output current (DIGITAL MEDIA PORT) (DZ260/HDZ278 only) 700 mA Dimensions (approx.) 430 mm × 66 mm × 385 mm (17 in × 2 5/8 in × 15 1/4 in) (w/h/d) incl. projecting parts Mass (approx.) 4.2 kg (9 lb 5 oz) Design and speciﬁ cations are subject to change without notice. Special Component Notice The components identiﬁ ed by mark 9 contain conﬁ dential infor- mation. Strictly follow the instructions whenever the components are re- paired and/or replaced. Notice pour composants spéciaux Les composants identiﬁ és par la marque 9 contiennent des infor- mations conﬁ dentielles. Suivre scrupuleusement les instructions chaque fois qu’un com- posant est remplacé et / ou réparé. • Abbreviation AR : Argentina model AUS : Australian model CND : Canadian model E3 : 240 V AC Area in E model E12 : 220-240 V AC area in E model E15 : Iran model MX : Mexican model Model Part No. AEP, UK models 3-273-759-0[] US model 3-273-759-1[] CND model 3-273-759-2[] E3 model 3-273-760-0[] MX model 3-273-760-2[] E12 model 3-273-760-4[] AUS model 3-273-760-5[] AR model 3-273-760-6[] E15 model 3-273-760-9[] MODEL IDENTIFICATION – Back Panel – Parts No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 3 UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size) : LEAD FREE MARK Unleaded solder has the following characteristics. • Unleaded solder melts at a temperature about 40 °C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 °C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! • Strong viscosity Unleaded solder is more viscous (sticky, less prone to ﬂ ow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. • Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. Flexible Circuit Board Repairing • Keep the temperature of soldering iron around 270 °C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. SAFETY CHECK-OUT After correcting the original service problem, perform the follow- ing safety check before releasing the set to the customer: Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes.). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2 V AC range are suitable. (See Fig. A) Fig. A. Using an AC voltmeter to check AC leakage. 1.5 kΩ 0.15 μF AC voltmeter (0.75 V) To Exposed Metal Parts on Set Earth Ground Laser component in this product is capable of emitting radiation exceed- ing the limit for Class 1. This appliance is classiﬁ ed as a CLASS 1 LASER product. This marking is located on the rear or bottom exterior. CAUTION Use of controls or adjustments or performance of procedures other than those speciﬁ ed herein may result in hazardous radiation exposure. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 4 5GB Playable Discs 1)MP3 (MPEG1 Audio Layer 3) is a standard format defined by ISO/MPEG which compresses audio data. MP3 files must be in MPEG1 Audio Layer 3 format. n o c I s c it s ir e t c a r a h C o g o l c s i D e p y T O E D I V D V D • O E D I V D V D • DVD-R/DVD-RW in DVD VIDEO format or video mode • DVD+R/DVD+RW in DVD VIDEO format VR (Video Recording) mode • DVD-R/DVD-RW in VR (Video Recording) mode (except for DVD-R DL) D C oid u A re p u S • D C oid u A re p u S )s c sid 0.2 d n a 1.1 .re V ( D C O E D I V • D C O E D I V • Super VCD • CD-R/CD-RW/CD-ROM in video CD format or Super VCD format D C oid u A • D C • CD-R/CD-RW in audio CD format ni M O R - D C / W R - D C / R - D C • – D C A T A D DATA CD format, containing MP3 files1), JPEG image files2), and DivX video files3)4)5), and conforming to ISO 96606) Level 1/ Level 2, or Joliet (extended format) / W R - D V D / R - D V D / M O R - D V D • – D V D A T A D DVD+R/DVD+RW in DATA DVD format, containing MP3 files1), JPEG image files2), and DivX video files3)4)5), and conforming to UDF (Universal Disk Format) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 5 6GB 2)JPEG image files must conform to the DCF image file format. (DCF “Design rule for Camera File system”: Image standards for digital cameras regulated by Japan Electronics and Information Technology Industries Association (JEITA).) 3)Except for United Kingdom and North American models. 4)DivX® is a video file compression technology, developed by DivX, Inc. 5)DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license. 6)A logical format of files and folders on CD-ROMs, defined by ISO (International Organization for Standardization). “DVD-RW,” “DVD+RW,” “DVD+R,” “DVD VIDEO,” and the “CD” logos are trademarks. The system cannot play the following discs: • CD-ROM/CD-R/CD-RW other than those recorded in the formats listed on page 5 • CD-ROM recorded in PHOTO CD format • Data part of CD-Extra • CD Graphics disc • DVD Audio • DATA DVD that does not contain MP3 files, JPEG image files, or DivX video files* * Except for United Kingdom and North American models. • DVD-RAM Also, the system cannot play the following discs: • A DVD VIDEO with a different region code (page 7) • A disc that has a non-standard shape (e.g., card, heart) • A disc with paper or stickers on it • A disc that has the adhesive of cellophane tape or a sticker still left on it In some cases, CD-R/CD-RW/DVD-R/DVD-RW/DVD+R/DVD+RW cannot be played on this system due to the recording quality or physical condition of the disc, or the characteristics of the recording device and authoring software. The disc will not play if it has not been correctly finalized. For more information, refer to the operating instructions for the recording device. Note that some playback functions may not work with some DVD+RWs/DVD+Rs, even if they have been correctly finalized. In this case, view the disc by normal playback. Also some DATA CDs/DATA DVDs created in Packet Write format cannot be played. Music discs encoded with copyright protection technologies This product is designed to play back discs that conform to the Compact Disc (CD) standard. Recently, various music discs encoded with copyright protection technologies are marketed by some record companies. Please be aware that among those discs, there are some that do not conform to the CD standard and may not be playable by this product. Note on DualDiscs A DualDisc is a two sided disc product which mates DVD recorded material on one side with digital audio material on the other side. However, since the audio material side does not conform to the Compact Disc (CD) standard, playback on this product is not guaranteed. Example of discs that the system cannot play Note about CD-R/CD-RW/DVD-R/DVD-RW/DVD+R/DVD+RW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 6 7GB • This system can play a Multi Session CD when an MP3 file is contained in the first session. Any subsequent MP3 files recorded in later sessions can also be played back. • This system can play a Multi Session CD when a JPEG image file is contained in the first session. Any subsequent JPEG image files recorded in later sessions can also be played back. • If MP3 files and JPEG image files in music CD format or video CD format are recorded in the first session, only the first session will be played back. Your system has a region code printed on the rear of the unit and will only play a DVD labeled with the same region code. A DVD VIDEO labeled will also play on this system. If you try to play any other DVD VIDEO, the message [Playback prohibited by area limitations.] will appear on the TV screen. Depending on the DVD VIDEO, no region code indication may be given even though playing the DVD VIDEO is prohibited by area restrictions. Some playback operations on a DVD or VIDEO CD may be intentionally set by software producers. Since this system will play a DVD or VIDEO CD according to the disc contents the software producers designed, some playback features may not be available. Be sure to read the operating instructions supplied with the DVD or VIDEO CD. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited. This system incorporates with Dolby* Digital and Dolby Pro Logic (II) adaptive matrix surround decoder and the DTS** Digital Surround System. * Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby Laboratories. **Manufactured under license from DTS, Inc. “DTS” and “DTS Digital Surround” are registered trademarks of DTS, Inc. This system incorporates High-Definition Multimedia Interface (HDMITM) technology. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC. “BRAVIA” and are trademarks of Sony Corporation. About Multi Session CD Region code Note about playback operations of a DVD or VIDEO CD Copyrights ALL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 7 Additional Information 89 GB Self-diagnosis Function (When letters/numbers appear in the display) When the self-diagnosis function is activated to prevent the system from malfunctioning, a 5- character service number (e.g., C 13 50) with a combination of a letter and 4 digits appears on the TV screen or front panel display. In this case, check the following table. When displaying the version number on the TV screen When you turn on the system, the version number [VER.X.XX] (X is a number) may appear on the TV screen. Although this is not a malfunction and for Sony service use only, normal system operation will not be possible. Turn off the system, and then turn on the system again to operate. First 3 characters of the service number Cause and/or corrective action C 13 The disc is dirty. �Clean the disc with a soft cloth (page 80). C 31 The disc is not inserted correctly. �Restart the system, then re-insert the disc correctly. E XX (XX is a number) To prevent a malfunction, the system has performed the self- diagnosis function. �Contact your nearest Sony dealer or local authorized Sony service facility and give the 5- character service number. Example: E 61 10 C:13:50 VER.X.XX www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 8 1. SERVICING NOTES ............................................. 9 2. GENERAL .................................................................. 11 3. DISASSEMBLY 3-1. Case ................................................................................ 18 3-2. POWER Board ................................................................ 18 3-3. Front Panel Section ........................................................ 19 3-4. Back Panel Section ......................................................... 19 3-5. DVD Mechanism Deck ................................................... 20 3-6. MAIN Board ................................................................... 20 3-7. IO-SCART Board (DZ260), IO-COMPONENT Board (DZ270/HDZ278) ................. 21 3-8. Tray ................................................................................. 21 3-9. Belt .................................................................................. 22 3-10. MS-203 Board ................................................................. 22 3-11. Base Unit ......................................................................... 23 3-12. Optical Pick-up ............................................................... 23 4. TEST MODE ............................................................ 24 5. ELECTRICAL ADJUSTMENTS ........................ 29 6. DIAGRAMS 6-1. Block Diagram –RF Section– ......................................... 32 6-2. Block Diagram –VIDEO Section– ................................. 33 6-3. Block Diagram –AUDIO Section– ................................. 34 6-4. Block Diagram –AMP Section– ..................................... 35 6-5. Block Diagram –POWER Section– ................................ 36 6-6. Printed Wiring Board –MAIN Board (Side A)– ............. 37 6-7. Printed Wiring Board –MAIN Board (Side B)– ............. 38 TABLE OF CONTENTS 6-8. Schematic Diagram –MAIN Board (1/9)– ...................... 39 6-9. Schematic Diagram –MAIN Board (2/9)– ...................... 40 6-10. Schematic Diagram –MAIN Board (3/9)– ...................... 41 6-11. Schematic Diagram –MAIN Board (4/9), MS-203 Board– ............................................................... 42 6-12. Schematic Diagram –MAIN Board (5/9)– ...................... 43 6-13. Schematic Diagram –MAIN Board (6/9)– ...................... 44 6-14. Schematic Diagram –MAIN Board (7/9)– ...................... 45 6-15. Schematic Diagram –MAIN Board (8/9)– ...................... 46 6-16. Schematic Diagram –MAIN Board (9/9)– ...................... 47 6-17. Printed Wiring Board –IO-SCART Board (DZ260)– ..... 48 6-18. Schematic Diagram –IO-SCART Board (DZ260)– ........ 49 6-19. Printed Wiring Board –IO-COMPONENT Board (DZ270/HDZ278)– ......................................................... 50 6-20. Schematic Diagram –IO-COMPONENT Board (DZ270/HDZ278)– ......................................................... 51 6-21. Printed Wiring Boards –JACK, P-SW Board– ............... 52 6-22. Schematic Diagram –JACK, P-SW Board– .................... 53 6-23. Printed Wiring Boards –FL, MS-203, SPEAKER Board– .................................. 54 6-24. Schematic Diagram –FL, MS-203, SPEAKER Board– .................................. 55 6-25. Printed Wiring Board –POWER Board– ........................ 56 6-26. Schematic Diagram –POWER Board– ........................... 57 7. EXPLODED VIEWS 7-1. Overall Section ............................................................... 70 7-2. Front Panel Section ......................................................... 71 7-3. Chassis Section ............................................................... 72 7-4. DVD Mechanism Deck Section (CDM85-DVBU102) .. 73 8. ELECTRICAL PARTS LIST .............................. 74 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 9 SECTION 1 SERVICING NOTES How to open the disc table when power switch turns off Insert a tapering driver into the aperture of the unit bottom, and slide it in the direction of the arrow. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostat- ic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The ﬂ exible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reﬂ ective surface by the objective lens in the optical pickup block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. DISC TRAY LOCK The disc tray lock function for the antitheft of an demonstration disc in the store is equipped. Setting Procedure : 1. Press the [?/1] button to turn the set on. 2. Press the [FUNCTION] button to set DVD function. 3. Insert a disc. 4. Press the [x] button and the [A] button simultaneously for ﬁ ve seconds. 5. The message “LOCKED” is displayed and the tray is locked. Releasing Procedure : 1. Press the [x] button and the [A] button simultaneously for ﬁ ve seconds again. 2. The message “UNLOCKED” is displayed and the tray is unlocked. Note: When “LOCKED” is displayed, the tray lock is not released by turning power on/off with the [?/1] button. On cleaning discs, disc/lens cleaners • Do not use cleaning discs or disc/lens cleaners (including wet or spray types). These may cause the apparatus to malfunction. IMPORTANT NOTICE Caution: This system is capable of holding a still video image or on-screen display image on your television screen indeﬁ nitely. If you leave the still video image or on-screen display image displayed on your TV for an extended period of time you risk permanent damage to your television screen. Projection televisions are especially susceptible to this. Attention when transported Use this mode when returning the set to the customer after repair. Procedure: 1. Press the [?/1] button to turn the set on. 2. Press the [FUNCTION] button to set the function “DVD”. 3. Remove all discs, and then press two buttons [H] and [?/1] simultaneously. 4. After a message “MECHA LOCK” is displayed on the ﬂ uorescent indicator tube, pull out the AC plug. 5. To exit from this mode, press the [?/1] button to turn the set on. Peel off the seal and so the lever is moved in the direction of the arrow with the thin rod. tray seal Precaution when installing a new OP unit/ Precaution before unsoldering the static electricity prevention solder bridge When installing a new OP unit, be sure to connect the ﬂ exible printed circuit board ﬁ rst of all before removing the static electricity prevention solder bridge by unsoldering. Remove the static electricity prevention solder bridge by unsoldering after the ﬂ exible printed circuit board has already been connected. (Do not remove nor unsolder the solder bridge as long as the OP unit is kept standalone.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 10 Radiation Sheet When peeling off the heat radiation sheet, try always to put it on be former position. four radiation sheets MAIN board radiation sheet POWER board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 11 SECTION 2 GENERAL This section is extracted from instruction manual. Index to Parts and Control (DZ260) For more information, refer to the pages indicated in parentheses. � �/� (on/standby) (20, 78) � � (open/close) (28) � Front panel display (96) � Play operation buttons (28) � (remote sensor) (9) � FUNCTION (23) � VOLUME control (28) � PHONES jack (28) � AUDIO IN/A.CAL MIC jack (16, 20, 72) � (USB) port (60) � Disc tray (28) Front panel Additional Information � SPEAKER jacks (14) � COAXIAL 75Ω FM jack (18) � AM terminal (18) � EURO AV � OUTPUT (TO TV) jack (15) � DMPORT (DIGITAL MEDIA PORT) jack (16, 69) � HDMI OUT jack (15) � TV (DIGITAL IN COAXIAL/OPTICAL) jacks (15) Rear panel CENTER SUBWOOFER DIGITAL IN COAXIAL OPTICAL FRONT R FRONT L SUR R SUR L SPEAKER T U O I M D H V T SPEAKER EURO AV OUTPUT(TO TV) COAXIAL 75 AM FM ANTENNA DMPORT DC5V 0.7A MAX www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 12 96GB About the indications in the front panel display � Playing status � Flashes when the sleep timer is set. (74) � Displays system’s status such as chapter, title, or track number, time information, radio frequency, playing status, decoding mode, etc. � Lights up when a station is received. (Radio only) (53) � Stereo/Monaural effect (Radio only) (54) � Lights up when the HDMI OUT jack is correctly connected to HDCP (High- bandwidth Digital Content Protection) compliant device with HDMI or DVI (Digital Visual Interface) input. (15) � Current surround format (Except for JPEG image file) � Lights up when an NTSC disc is loaded. � Lights up during USB recording/ copying. (66) � Lights up when Super Audio CD/CD is loaded. (31) Front panel display www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 13 Additional Information 97 GB Remote control S N O I T P I R C S E D N O T T U B R E D R O L A C I T E B A H P L A Z – P O – A ANGLE � (29) AUDIO �� (30) CLEAR �� (34, 46, 54) D.TUNING �� (54) DISC SKIP1) �� DISPLAY �� (55, 65, 75) DVD MENU �� (36) DVD TOP MENU �� (36) DYNAMIC BASS � (74) ENTER2) �� (19, 20, 31, 34, 53, 71) FUNCTION +/– � (23, 28) MENU �� (73) MUTING � (28) NIGHT �� (74) ONE-TOUCH PLAY �� (58) PICTURE NAVI �� (39, 62) PRESET +/– �� (54) PROG +/– �� (73) S-AIR MODE1) � SLEEP �� (74) SOUND MODE � (27) SUBTITLE �� (30) SYSTEM MENU �� (19, 23, 74, 75) THEATRE �� (57) TOOLS �� (73) TUNING +/– � (53) TV �� (73) TV INPUT �� (73) TV VOL +/– �� (73) VOLUME +/– � (28) Number buttons �� (32, 53, 73) �/� (on/standby) � (19, 20, 28) TV �/� (on/standby) �� (73) �/�/�/�/ �� (19, 20, 31, 34, 53, 71) REPLAY/ADVANCE � (28) �/� �� (28) �/� � (28) STEP / � (28) SLOW / � (28) ��(play) �� (28) � (stop) �� (28) � (pause) �� (28) DISPLAY3) �� (20, 31, 34, 71) � RETURN �� (32, 73) -/-- �� (73) 1)This button is not available for this model. 2)The ENTER button has the same function as the button. When you operate the TV, the ENTER button is used for selecting a channel, and the button is used for selecting menu items (page 73). 3)This button is only available for the “DVD” or “USB” function. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 14 Additional Information Index to Parts and Control (DZ270/HDZ278) For more information, refer to the pages indicated in parentheses. � �/� (on/standby) (27, 85) � � (open/close) (35) � Front panel display (105) � Play operation buttons (35) � (remote sensor) (11) � FUNCTION (30) � VOLUME control (35) � PHONES jack (35) � AUDIO IN/A.CAL MIC jack (21, 27, 79) � (USB) port (DAV-DZ270 only) (67) � Disc tray (35) Front panel DAV-DZ270 DAV-HDZ278 � SPEAKER jacks (16) � COAXIAL 75Ω FM jack (24) � AM terminal (24) � TV/VIDEO (AUDIO IN R/L) jacks (18, 21) � VIDEO OUT jack (18) � COMPONENT VIDEO OUT jacks (18) � DMPORT (DIGITAL MEDIA PORT) jack (DAV-HDZ278 only) (21, 76) � HDMI OUT jack (18) � TV/VIDEO (DIGITAL IN COAXIAL/ OPTICAL) jacks (DAV-HDZ278 only) (18) Rear panel CENTER SUBWOOFER AUDIO IN PB/CB PR/CR Y L R FRONT R FRONT L SUR R SUR L SPEAKER VIDEO OUT TV/VIDEO SPEAKER COMPONENT VIDEO OUT COAXIAL 75 AM FM ANTENNA HDMI OUT CENTER SUBWOOFER DIGITAL IN PB/CB PR/CR Y COAXIAL OPTICAL FRONT R FRONT L SUR R SUR L SPEAKER T U O I M D H O E D I V / V T VIDEO OUT SPEAKER COMPONENT VIDEO OUT COAXIAL 75 AM FM ANTENNA DMPORT DC5V 0.7A MAX AUDIO IN L R TV/VIDEO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 15 Additional Information 105 GB About the indications in the front panel display � Playing status � Flashes when the sleep timer is set. (81) � Displays system’s status such as chapter, title, or track number, time information, radio frequency, playing status, decoding mode, etc. � Lights up when a station is received. (Radio only) (61) � Stereo/Monaural effect (Radio only) (62) � Lights up when the HDMI OUT jack is correctly connected to HDCP (High- bandwidth Digital Content Protection) compliant device with HDMI or DVI (Digital Visual Interface) input. (18) � Current surround format (Except for JPEG image file) � Lights up when the color system is set to NTSC. (Asian, Australian, and Middle Eastern models only) � Lights up during USB recording/ copying. (DAV-DZ270 only) (73) � Lights up when Super Audio CD/CD is loaded. (38) Front panel display www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 16 106 GB Remote control S N O I T P I R C S E D N O T T U B R E D R O L A C I T E B A H P L A Z – P O – A ANGLE � (36) AUDIO �� (37) CLEAR �� (40, 52, 62) D.TUNING �� (62) DISC SKIP1) �� DISPLAY �� (63, 72, 82) DVD MENU �� (43) DVD TOP MENU �� (43) DYNAMIC BASS � (81) ENTER2) �� (26, 27, 38, 40, 61, 78) FUNCTION +/– � (30, 35) MENU �� (80) MUTING � (35) NIGHT �� (81) ONE-TOUCH PLAY �� (65) PICTURE NAVI �� (45, 69) PRESET +/– �� (62) PROG +/–3) �� (80) S-AIR MODE1) � SLEEP �� (81) SOUND MODE � (34) SUBTITLE �� (37) SYSTEM MENU �� (26, 31, 81, 82) THEATER/THEATRE4) �� (64) TOOLS �� (80) TUNING +/– � (61) TV �� (80) TV CH +/–5) �� (80) TV INPUT �� (80) TV VOL +/– �� (80) VOLUME +/– � (35) Number buttons �� (39, 61, 80) �/� (on/standby) � (26, 27, 35) TV �/� (on/standby) �� (80) �/�/�/�/ �� (26, 27, 38, 40, 61, 78) REPLAY/ADVANCE � (35) �/� �� (35) �/� � (35) STEP / � (35) SLOW / � (35) ��(play) �� (35) � (stop) �� (35) � (pause) �� (35) DISPLAY6) �� (27, 38, 40, 78) � RETURN �� (39, 80) -/--3) �� (80) 5) �� (80) 1)This button is not available for this model. 2)The ENTER button has the same function as the button. When you operate the TV, the ENTER button is used for selecting a channel, and the button is used for selecting menu items (page 80). 3)Except for North American models. 4)The button name differs depending on the area. 5)North American models only. 6)This button is only available for the “DVD” or “USB*” function. * DAV-DZ270 only www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 17 SECTION 3 DISASSEMBLY • This set can be disassembled in the order shown below. 3-4. BACK PANEL SECTION (Page 19) 3-6. MAIN BOARD (Page 20) 3-1. CASE (Page 18) 3-2. POWER BOARD (Page 18) SET 3-3. FRONT PANEL SECTION (Page 19) 3-5. DVD MECHANISM DECK (Page 20) 3-8. TRAY (Page 21) 3-10. MS-203 BOARD (Page 22) 3-12. OPTICAL PICK-UP (Page 23) 3-7. IO-SCART BOARD (DZ260) IO-COMPONENT BOARD (DZ270/HDZ278) (Page 21) 3-9. BELT (Page 22) 3-11. BASE UNIT (Page 23) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 18 Note: Follow the disassembly procedure in the numerical order shown below. 3-1. CASE 3-2. POWER BOARD � five screws (BV/RING) � case � two screws (case 3 TP2) � two screws (case 3 TP2) � CN3001 (4P) � CN904 (4P) � CN906 (13P) � two screws (+PWH 3 × 8) � shield plate (HP) � six screws (+PWH 3 × 8) � POWER board � cover (USB) two claws www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 19 3-3. FRONT PANEL SECTION 3-4. BACK PANEL SECTION � two screws (+BV3 (3-CR)) � five screws (+BV3 (3-CR)) � front panel section � loading panel � CN412 (4P) (DZ260/DZ270) � CN2101 (5P) � wire (flat type)(19 core) (CN502) � label tray � � � CN3000 (2P) � wire (flat type) (11 core) (CN414) (DZ260) wire (flat type) (9 core) (CN419) (DZ270/HDZ278) � two screws (+BVTP 3 × 8) � back panel section � two screws (+BVTP 3 × 8) � two screws (+BVTP 3 × 8) � screw (+BVTP 3 × 8) � screw (+BVTP 3 × 8) � screw (+B 3 × 6) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 20 � CN1201 (6P) � wire (flat type)(24 core) (CN101) � wire (flat type)(5 core) (CN1202) � screw (+BV3 (3-CR)) � two screws (+BV3 (3-CR)) � DVD mechanism deck � screw (+BV3 (3-CR)) � screw (+BV3 (3-CR)) � screw (+BV3 (3-CR)) � cover (CDM-DSR) 3-6. MAIN BOARD � CN1141 (8P) � wire (flat type)(5 core) (CN702) � two screws (+BV3 (3-CR)) � two screws (+BV3 (3-CR)) �� two screws (+BV3 (3-CR)) �� six screws (+BV3 (3-CR)) �� MAIN board � heat sink section � two radiation sheet � SPEAKER board � wire (flat type) (19 core) (CN602) (DZ260) wire (flat type) (17 core) (CN603) (DZ270/HDZ278) � wire (flat type) (19 core) (CN4301) (DZ260) wire (flat type) (15 core) (CN4303) (DZ270) wire (flat type) (17 core) (CN4302) (HDZ278) � screw (+BVTP 3 × 12) 3-5. DVD MECHANISM DECK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 21 3-8. TRAY 3-7. IO-SCART BOARD (DZ260), IO-COMPONENT BOARD (DZ270/HDZ278) � two screws (+BV3 (3-CR)) � IO-SCART board (DZ260) IO-COMPONENT board (DZ270/HDZ278) � � � two claws � tray � Move the chuck cam in the direction of the arrow. bottom side www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 22 3-10. MS-203 BOARD 3-9. BELT � three claws � MS-203 board � DC motor � screw (M 1.7 × 2.5) � two claws � belt � chuck cam www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 23 3-11. BASE UNIT 3-12. OPTICAL PICK-UP � two claws � two claws � chuck cam � base unit � FFC holder � two insulator screws � two insulator screws � two insulators � two insulators � optical pick-up (KHM-313CAA) � two claws www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 24 SECTION 4 TEST MODE Note: Incorrect operations may be performed if the test mode is not entered properly. In this case, press the [?/1] button to turn the power off, and retry to enter the test mode. 1. Cold Reset • The cold reset clears all data including preset data stored in the RAM to initial conditions. Execute this mode when returning the set to the customers. Procedure: 1. Press the [?/1] button to turn the power on. 2. Press three buttons [x], [A] and [?/1] simultaneously. 3. When this button is operated, display as “COLD RESET” for a while and all of the settings are reset. 2. Panel Test Mode • This mode is used to check the software version, FL and KEY. 2-1. Display Test Mode Procedure: 1. Press the [?/1] button to turn the power on. 2. Press three buttons [X], [.] and [A] simultaneously. 3. When the display test mode is activated, all segments are turned on. 4. To exit from this mode, press three buttons [X], [.] and [A] simultaneously. 2-2. Version Test Mode Procedure: 1. When the display test mode is activated, press the [.] button and the message “DSR2E” (DZ260), “DSR2N” (HDZ278), “DSR2” (DZ270) are displayed, the version test mode is activated. 2. Whenever the [.] button is pressed, the display changes in the following order. “DSR2E” (Model name) ��“CE2*1” (Destination) � ��MC Version � SYS Version ��UI Version � ��DVD Version ��ST Version � TA Version � ��DSP Version ��TM Version ��MM Version � �� CLA Version ��CEC Version ��SAIR Version *1: CE2 changes depending on destination. 3. Press the [>] button and the date of the software production is displayed. 4. Press the [>] button again and the version is displayed. 5. To exit from this mode, press three buttons [X], [.] and [A] simultaneously. 2-3. Key Test Mode Procedure: 1. When the display test mode is activated, press the [H] button, to select the key test mode. 2. To enter the KEY test mode, the ﬂ uorescent indicator displays “K0 V0”. Each time an another button is pressed, “KEY” value increases. However, once a button is pressed, it is no longer taken into account. When all keys are pressed correctly, “K8 V0” is displayed. 3. When the [VOLUME] control is turned in the direction of (+), “V0” is changed to “V1”, then ... “V9”. When the [VOLUME] control is turned in the direction of (–), “V0” is changed to “V9”, then ... “V1”. 4. To exit from this mode, press three buttons [X], [.] and [A] simultaneously. 3. Disc Tray Lock The disc tray lock function for the antitheft of an demonstration disc in the store is equipped. Setting Procedure : 1. Press the [?/1] button to turn the set on. 2. Press the [FUNCTION] button to set DVD function. 3. Insert a disc. 4. Press the [x] button and the [A] button simultaneously for ﬁ ve seconds. 5. The message “LOCKED” is displayed and the tray is locked. Releasing Procedure : 1. Press the [x] button and the [A] button simultaneously for ﬁ ve seconds again. 2. The message “UNLOCKED” is displayed and the tray is unlocked. Note: When “LOCKED” is displayed, the tray lock is not released by turning power on/off with the [?/1] button. 4. DVD Ship Mode Use this mode when returning the set to the customer after repair. Procedure: 1. Press the [?/1] button to turn the set on. 2. Press the [FUNCTION] button to set the function “DVD”. 3. Remove all disc, and then press two buttons [H] and [?/1] simultaneously. 4. After a message “MECHA LOCK” h “PULL PLUG” is displayed on the ﬂ uorescent indicator tube, pull out the AC plug. 5. To exit from this mode, press the [?/1] button to turn the set on. 5. AM Step Change (Except AEP, UK, E models) • A step of AM channels can be changed over between 9 kHz and 10 kHz. Procedure: 1. Press the [?/1] button to turn the set ON. 2. Select the function “TUNER”, and press [FUNCTION] button to select the BAND “AM”. 3. Press the [?/1] button to turn the set OFF. 4. Press two buttons [>] and [?/1] simultaneously, and the display of ﬂ uorescent indicator tube changes to “AM 9k STEP” or “AM 10k STEP”, and thus the channel step is changed over. 6. Product Out This mode moves the optical pick-up to the position durable to vibration and clears all data including preset data stored in the RAM to initial conditions. Use this mode when returning the set to the customer after repair. Procedure: 1. Press the [?/1] button to turn the power on. 2. Press the [FUNCTION] button to set the function “DVD”. 3. Remove all disc, and then press three buttons [>], [A] and [?/1] simultaneously. 4. After the “STANDBY” blinking display ﬁ nishes, the message “MECHA LOCK” h “PULL PLUG” is displayed on the ﬂ uorescent indicator tube disconnect the AC power plug, then the ship mode is set. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 25 7-1. GENERAL DESCRIPTION The IOP measurement allows you to make diagnosis and adjustment simply by using the remote commander and monitor TV. The instructions, diagnosis results, etc. are given on the on- screen display (OSD). Be sure to execute the IOP measurement when a BU (Base Unit) is replaced. 7-2. HOW TO ENTER TEST MODE While pressing the [x] and [A] buttons simultaneously, turn [VOLUME] control in the direction of (+) with the DVD player in power on. The Test Mode starts, displayed “SERVICE IN” on this model display then the menu shown below will be displayed on the TV screen. * The display of the “Model Name” of the “Remocon Diagnosis Menu” change with the model and the destination. Refer to below on the model name. DZ260 : DSR2E HDZ278 : DSR2N DZ270 : DSR2 The menu above is the Remocon Diagnosis Menu screen which consists of ﬁ ve main functions. At the bottom of the menu screen, the model name and IF-con version. To exit from the Test Mode, press the power button on the remote commander. 7-3. EXECUTING IOP MEASUREMENT In order to execute IOP measurement, the following standard procedures must be followed. (1) In power on, while pressing the [x] and [A] buttons simultaneously, turn the [VOLUME] control in the direction of (+). (2) Select “2. Drive Manual Operation” by pressing the [2] button on the remote commander. The screen will appear as shown. (3) Select “3. Manual Adjustment” by pressing the [3] button on the remote commander. The screen will appear as shown. (4) Select “6. IOP” by pressing the [6] button on the remote commander. (5) Wait until a hexadecimal number appear. (6) Convert each data from hexadecimal to decimal using conversion table. (7) Please ﬁ nd the label on the rear of the BU (Base Unit). The default IOP value is written in the label. (8) Subtract between these two values. (9) If the remainder is smaller than 93 (decimal), then it is OK. However if the value is higher than 93, then the BU is defective and need to be change. (10) Press the [RETURN] button on the remote commander to return back to previous menu. (11) Press the [0] button on the remote commander to return to Top Menu. DVD SECTION Remocon Diagnosis Menu 0. External Chip Check 1. Servo Parameter Check 2. Drive Manual Operation 3. Emergency History 4. Version Information Model Name IF-con : Ver. XX.XX (XXXX) Syscon : Ver. X.XXX : DSR2E_XX *1 *1: Changes depending on destination Remocon Diagnosis Menu 0. External Chip Check 1. Servo Parameter Check 2. Drive Manual Operation 3. Emergency History 4. Version Information Model Name IF-con : Ver. XX.XX (XXXX) Syscon : Ver. X.XXX : DSR2E_XX *1 *1: Changes depending on destination Drive Manual Operation 1. Servo Control 2. Track/Layer Jump 3. Manual Adjustment 4. Tray Aging Mode 5. MIRR time adjust 0. Return to Top Menu Manual Adjust 1. Track Balance Adjust: 2. Track Gain Adjust: 3. Focus Balance Adjust: 4. Focus Gain Adjust: 5. Eq Boost Adjust: 6. Iop: 7. TRV. Level: 8. S curve(FE) Level: 9. RFL(PI) Level: 0. MIRR Time: � � Change Value [RETURN] Return to previous menu Manual Adjust 1. Track Balance Adjust: 2. Track Gain Adjust: 3. Focus Balance Adjust: 4. Focus Gain Adjust: 5. Eq Boost Adjust: 6. Iop. 5B: 7. TRV. Level: 8. S curve(FE) Level: 9. RFL(PI) Level: 0. MIRR Time: [RETURN] Return to previous menu � � Change Value www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 26 7-4. EMERGENCY HISTORY To check the emergency history, please follow the following procedure. (1) From the Top Menu of Remocon Diagnosis Menu, select “3. Emergency History Check” by pressing the [3] button on the remote commander. The following screen appears on the on- screen display. (2) You can check the total time when the laser is turned on during playback of DVD and CD from the above menu. The maximum time, which can be displayed are 999h 59min. (3) You can check the error code of latest 10 emergency history from the above menu. To view the previous or next page of emergency history, press [.] or [>] button on the remote commander. The error code consists of the following three blocks. The ﬁ rst block indicates the error code. The second block indicates the parameter and the third block indicates the time of error code as shown below. • Error Code *1 : Error Code *2 : Parameter of error code *3 : Time of error code The meaning of error code is as below: 01: Communication error (No reply from syscon) 02: Syscon hung up 03: Power OFF request when syscon hung up 19: Thermal shutdown 24: MoveSledHome error 25: Mechanical move error (5 Changer) 26: Mechanical move stack error 30: DC motor adjustment error 31: DPD offset adjustment error 32: TE balance adjustment error 33: TE sensor adjustment error 34: TE loop gain adjustment error 35: FE loop gain adjustment error 36: Bad jitter after adjustment 40: Focus NG 42: Focus layer jump NG 52: Open kick spindle error 51: Spindle stop error 60: Focus on error 61: Seek fail error 62: Read Q data/ID error 70: Lead in data read fail 71: TOC read time out (CD) 80: Can’t buffering 81: Unknown media type 7-4-1. Clear the Laser Hour Press [ DISPLAY] button and then press [CLEAR] button on the remote commander. The data for both CD and DVD data are reset. 7-4-2. Clear the Emergency History Press [DVD TOP MENU] button and then press [CLEAR] button on the remote commander. The error code for all emergency history would be reset. 7-4-3. Clear the Initialize Setup Data Press [DVD MENU] button and then press [CLEAR] button on the remote commander. Emg. History Check 01. 01 05 04 04 Laser Hours CD 999h 59min DVD 999h 59min 00 92 46 00 00 00 00 00 00 00 23 45 02. 02 02 01 01 00 A9 4B 00 00 00 00 00 00 00 23 45 [Next] Next Page [Prev] Prev Page [O] Return to Top Menu Emg. History Check 01. 01 05 04 04 Laser Hours CD 999h 59min DVD 999h 59min 00 92 46 00 00 00 00 00 00 00 23 45 02. 02 02 01 01 00 A9 4B 00 00 00 00 00 00 00 23 45 [Next] Next Page [Prev] Prev Page [O] Return to Top Menu *1 *2 *3 Emg. History Check 01. 01 05 04 04 Laser Hours CD 0h 0min DVD 0h 0min 00 92 46 00 00 00 00 00 00 00 23 45 02. 02 02 01 01 00 A9 4B 00 00 00 00 00 00 00 23 45 [Next] Next Page [Prev] Prev Page [O] Return to Top Menu 01. 00 00 00 00 Laser Hours CD 999h 59min DVD 999h 59min 00 00 00 00 00 00 00 00 00 00 00 00 02. 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 [Next] Next Page [Prev] Prev Page [O] Return to Top Menu Emg. History Check Emg. History Check initialize setup data... Laser Hours CD 999h 59min DVD 999h 59min [Next] Next Page [Prev] Prev Page [O] Return to Top Menu www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 27 8. DEMO PLAY OUT It is a mode to release the demonstration reproduct by the dedicated demonstration disc. 1. During playback the DEMO Disc, press the [x] and [H] buttons for ﬁ ve seconds simultaneously. 2. The message “DEMO OFF” is displayed, a mode to reproduct the demonstration is released. 9. DIGITAL MEDIA PORT TEST (DZ260) 1. Connect the DMPORT CHECK JIG (P/N: J-2501-309-A) with the terminal DMPORT. 2. Press the [?/1] button to turn the power on. 3. Conﬁ rm that both LEDs of the DMPORT conﬁ rmation JIG lights. (Conﬁ rmation the power supply line.) 4. Set the [FUNCTION] button with “DMPORT” on this model. 5. Press the [X], [.] buttons and turn the [VOLUME] control in the direction of (+) simultaneously, the DMPORT test mode is activated. 6. It is conﬁ rmed that “DMPORT OK” is displayed on this set display. (Conﬁ rmation of communication line) 7. To a pin jack of the DMPORT conﬁ rmation JIG input information relevant to audio signal (sine-wave 1.0Vrms) and composite video signal (white 100% 1.0Vp-p, color bar, etc.) 8. Conﬁ rm the output of speakers and monitor TV. (Conﬁ rmation of analog signal) 9. To exit from this mode, press the [X], [.] buttons and turn the [VOLUME] control in the direction of (+). 7-4-4. Return to the Top Menu of Remocon Diagnosis Menu Press [0] button on the remote commander. • Check Version Information To check the version information, please follow the following procedure. (1) From the Top Menu of Remocon Diagnosis Menu, select “4. Version Information” by pressing the [4] button on the remote commander. The following screen appears on the on-screen display. To return to the Top Menu of Remocon Diagnosis Menu, press [0] button on the remote commander. 7-5. AUTOMATIC ACOUSTIC FIELD CALIBRATION MICROPHONE TEST MODE Procedure: 1. Press the [?/1] button to turn the power on. 2. Press the [FUNCTION] button to set the function “ DVD”. 3. Insert ECM-AC2 supplied as an accessory into the AUDIO IN/ A.CAL MIC jack. 4. While pressing the [X] and [A] buttons simultaneously, turn the [VOLUME] control in the direction of (+). 5. Conﬁ rm that the following are shown on the display panel. 1 The JACK inserted/non-inserted detection display and the STEREO/MONO detection display. 2 Presence of DIGITAL voice input to the microcomputer. (OK: input, NG: no input) 3 The value of the MIC input to the microcomputer. (shown “255h”) 6. To exit from this mode, press the [X] and [A] buttons simulta- neously, turn the [VOLUME] control in the direction of (+). Version information [O] Return to Top Menu Firm (Main) : Ver. xxxxx Firm (Sub) : xxxxx RISC : xxxxx 8032 : xxxxx Audio DSP : xxxxx Servo DSP : xxxxx � � �� “NON” : Not detected “ST” : STEREO “MN” : MONO � OK : input NG : no input � 0-255 (Changes in real time) � � � color pattern generator DMPORT CHECK JIG (P/N: J-2501-309-A) MAIN board TV SET CN204 CN400 J001 � AF oscillator FL speaker, FR speaker IO-SCART board SPEAKER board TB100 VIDEO AUDIO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 28 11. PROTECTION FACTOR (SD DETECTION/ DC DETECTION) IDENTIFICATION TEST MODE When an error is detected, the FL tube alternately displays “PROTECTOR h PUSH POWER”. r Press the [?/1] button. * Buttons other than the [?/1] button are invalid. “STANDBY” blinks three times on the FL tube. r The protection release state (POWER OFF) is established. (No FL tube display) r Press the [?/1] button two times. The power to the system turns on, and the normal operation is established. (Restore) During the protection state: 1. If the AC plug is connected or disconnected during the protection state, the protection state is released, and the normal operation is established. (The protection state is not maintained.) 2. The protection factor is displayed by pressing the [FUNCTION], [A] and [>] buttons at the same time during the protection state (during the “PROTECTOR h PUSH POWER” display). k When SD is detected: Repeats “SD DETECT h PROTECTOR”. k When DC is detected: Repeats “DC DETECT h PROTECTOR”. PL: SD detection When the “L” output from the SD (shutdown) port on the S-MASTER POWER Driver is detected, the power system other than that of the FL tube is turned off, and the protection state is established. DC detection When the “L” output from the power/speaker error detection circuit (DC detection port) is detected for two seconds continually, the power system other than that of the FL tube is turned off, and the protection state is established. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 29 SECTION 5 ELECTRICAL ADJUSTMENTS When the optical pick-up assy is replaced, perform the “EXECUTING IOP MEASUREMENT”. EXECUTING IOP MEASUREMENT (See page 25) [FM Tune Level Check] Procedure: 1. Turn the power on. 2. Input the following signal from Signal Generator to FM antenna input directly. * Carrier Freq : A = 87.5 MHz, B = 98 MHz, C = 108 MHz Deviation : 75 kHz Modulation : 1 kHz ANT input : 35 dBu (EMF) Note: Please use 75 ohm “coaxial cable” to connect SG and the set. You cannot use video cable for checking. Please use SG whose output impedance is 75 ohm. 3. Set to FM tuner function and tune A, B and C signals. 4. Conﬁ rm “TUNED” is lit on the display for A, B and C signals. The mark of “TUNED” means “The selected station signal is received in good condition.” DVD SECTION TUNER SECTION generator OUT (75 Ω) SET www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 30 SECTION 6 DIAGRAMS For Schematic Diagrams. Note: • All capacitors are in μF unless otherwise noted. (p: pF) 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise speciﬁ ed. • f : internal component. • C : panel designation. THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.) • A : B+ Line. • B : B– Line. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. • Voltages and waveforms are dc with respect to ground in service mode. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal production tolerances. no mark : TUNER (FM) < > : DVD PLAY * : Impossible to measure • Voltages are taken with VOM (Input impedance 10 MΩ). • Circled numbers refer to waveforms. • Signal path. F : TUNER J : DVD PLAY L : VIDEO E : Y a : CHROMA r : COMPONENT VIDEO • Abbreviation AR : Argentina model AUS : Australian model CND : Canadian model E3 : 240 V AC Area in E model E12 : 220-240 V AC area in E model E15 : Iran model MX : Mexican model For Printed Wiring Boards. Note: • X : Parts extracted from the component side. • a : Through hole. • : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) Note: The components identi- ﬁ ed by mark 0 or dotted line with mark 0 are criti- cal for safety. Replace only with part number speciﬁ ed. Note: Les composants identiﬁ és par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le nu- méro spéciﬁ é. • Indication of transistor. C B These are omitted. E Q C E B These are omitted. Caution: Pattern face side: (SIDE B) Parts face side: (SIDE A) Parts on the pattern face side seen from the pattern face are indicated. Parts on the parts face side seen from the parts face are indicated. • Abbreviation AR : Argentina model AUS : Australian model CND : Canadian model E3 : 240 V AC Area in E model E12 : 220-240 V AC area in E model E15 : Iran model MX : Mexican model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 HCD-DZ260/DZ270/HDZ278 31 31 • Waveforms – MAIN Board – • Circuit Boards Location – IO-SCART Board (DZ260) – – IO-COMPONENT Board (DZ270/HDZ278) – � IC404 �� (Cr OUT) 500 mV/DIV, 20 μs/DIV � IC404 �� (Cb OUT) 500 mV/DIV, 20 μs/DIV � IC404 �� (CY OUT) 500 mV/DIV, 20 μs/DIV H 1Vp-p 1Vp-p H 1Vp-p H � IC400 � (Cin) 1 V/DIV, 20 μs/DIV � IC400 � (Yin) 1 V/DIV, 20 μs/DIV � IC400 � (CVin) 1 V/DIV, 20 μs/DIV � IC400 �� (Cbin) 500 mV/DIV, 20 μs/DIV � IC400 �� (Crin) 500 mV/DIV, 20 μs/DIV � IC400 �� (CVBSout) 500 mV/DIV, 20 μs/DIV 0.72Vp-p 0.72Vp-p H 1Vp-p H 1Vp-p H H 1Vp-p H H 1.3Vp-p � IC1101 � (DVDRFIP) 200 mV/DIV, 100 ns/DIV � IC1101 �� (R/Cr/Pr) 500 mV/DIV, 20 μs/DIV � IC1101 �� (B/Cb/Pb) 500 mV/DIV, 20 μs/DIV � IC1101 �� (Y/G) 1 V/DIV, 20 μs/DIV � IC1101 �� (C) 1 V/DIV, 20 μs/DIV � IC1101 �� (Y) 1 V/DIV, 20 μs/DIV � IC1101 �� (XTALO) 500 mV/DIV, 20 ns/DIV � IC501 �� (Xout) 1 V/DIV, 100 ns/DIV � IC702 �� (XOUT (O)) 1 V/DIV, 20 ns/DIV � IC3010 �� (XFSOOUT) 1 V/DIV, 10 ns/DIV �� IC3010 �� (XFSOIN) 1 V/DIV, 10 ns/DIV �� IC3051 � (3Y) 1 V/DIV, 10 ns/DIV 0.72Vp-p 0.72Vp-p H 1Vp-p H 1Vp-p H H 1Vp-p 4.3Vp-p 49.1MHz 1.6Vp-p 27MHz 4.3Vp-p 49.1MHz 4.3Vp-p 49.1MHz 3.4Vp-p 4Vp-p 5MHz 12.288MHz 650mVp-p H SPEAKER board IO-SCART board (DZ260) IO-COMPONENT board (DZ270/HDZ278) MAIN board POWER board MS-203 board P-SW board FL board JACK board w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 HCD-DZ260/DZ270/HDZ278 32 32 6-1. BLOCK DIAGRAM – RF Section – RF DETECTOR LASER DIODE (FOR CD) OPTICAL PICK-UP BLOCK (KHM-313CAA) Q1102 (1/2) LD DRIVE CONTROL (FOR CD) DVDRFIP 10 OSN 1 OSP V2REFO 27 RXD TXD DVDA VOA/A VOB/B VOC/C VOD/D VOF/F+H VOE/E+G VC PD CD LD (780) 6 DVDB 7 DVDC 8 DVDD 9 TNI 17 TPI A A B C D B C D 18 NA 11 NB 12 MC 13 MD 14 V20 (2.0V) 28 LD01 22 MDI1 19 MDI2 20 LASER DIODE (FOR DVD) Q1102 (2/2) LD DRIVE CONTROL (FOR DVD) Q1101 PD VOLUME CONTROL IC1201 FOCUS/TRACKING DRIVER, LOADING/SPINDLE/SLED MOTOR DRIVER IC1101 (1/3) CD/DVD RF AMP, FOCUS/TRACKING ERROR AMP, DVD SYSTEM CONTROL DIGITAL SERVO PROCESSOR IC501 (1/5) SYSTEM CONTROLLER XSYSRST IFSCK IFSDO IFSDI XIFCS IC510 EEPROM IC4502 BUFFER IC707 A/D CONVERTER (SERVICE JIG) BUFFER DVD LD VR (650) VR (780) MSW Q1103 10P VCC (650) LD02 MSW FOO VREFO TRO FMO DMO 21 TROPENPWM 38 MTK RST NC MCKO LRCKO BCKO AMP_D2 AMP_D1 AMP_D0 38 BCK 8 DOUT TXD RXD V2REFO RFMON CN1105 1 2 5 6 L-IN R-IN 9 LRCK 7 7 5 SCKI 6 9 11 SDA 5 SCL 6 DVD_SCO 33 DVD_SOD 32 DVD_SID 31 DVD XIFCS 37 CDM_OPEN_SW/XM_SEL 27 DVD_XIFBUSY XSYSRST S001 (CHUCK/TRAY DETECT) M203 (LOADING MOTOR) XSYSRST OCSW1 CKSW LDM+ LDM- 34 98 FMO 37 FOO 41 DMO 36 TRO FMO FOO DMO TRO 40 V REFO 29 FWD 94 REV 95 IOPMON 39 SPFG OP_INP 35 MUTE123 MUTE TSD_M LIMITSW (LIMITSW) 53 42 25 21 22 20 19 45 7 6 40 17 16 13 10 4 3 1 48 43 15 24 41 54 2AXIS DEVICE FOCUS/ TRACKING COIL (SLED MOTOR) REG01 REG02 (SPINDLE MOTOR) FCS+ FCS- TRK+ TRK- SP- SP+ SL- SL+ BUFFER 46 47 MCS BUFFER 32 31 30 29 SPINDLE MOTOR DRIVE 27 28 SLED MOTOR DRIVE FOCUS COIL DRIVE 36 37 TRACKING COIL DRIVE 35 34 M M 130 158 157 105 106 MC_DATA (ADIN) 206 ASDATA3 222 XSYSRST IFCK 47 I2C_DATA 48 I2C_CLK 99 XIFCS 14 VINR 13 VINL 97 IFSDO 108 OCSW 104 IFBSY 110 CKSW 103 IFSDI 100 256 8 12 ASDATA0 226 7 13 ASDATA1 225 6 14 ASDATA2 223 5 15 ABCK 204 4 16 ALRCK 205 2 18 ACLK 203 1 3 AUDIO SECTION B AMP SECTION A VIDEO SECTION C AUDIO SECTION D M + + IC410 BUFFER IC410 (DZ270/HDZ278) IC410 (DZ260) • SIGNAL PATH : TUNER : DVD PLAY (Page 34) (Page 35) (Page 34) (Page 33) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 HCD-DZ260/DZ270/HDZ278 33 33 6 YIN 2 CIN 10 CVIN 12 CBIN 14 CRIN 16 CrOUT 80 2ND_XM_SEL/ TV_SEL/ MIC_DATA VIDEO 83 V_SEL1 82 V_SEL0 87 IO_DO/VSEL2 210 RGB_SEL_DSEL DZ260 DZ260 DZ270/HDZ278 191 Y 189 C 185 Y/G 183 B/Cb/Pb 182 R/Cr/Pr 209 WIDE 180 TX2P 179 TX2N 177 TX1P 176 TX1N 174 TX0P 173 TX0N 171 TCKP 170 TCKN 162 HTPLG 20 CYOUT 18 CbOUT 23 CVBSOUT 16 CrOUT 20 CYOUT 18 CbOUT 23 CVBSOUT CROUT CYOUT CBOUT VOUT Q400,402,404 BLANKING CONTROL Q401,405,406 FUNCTION SWITCH Q403 IC404 VIDEO DRIVER IC400 VIDEO DRIVER CN400 (1/2) CN404 (1/2) VIDEO OUT J401 CN1701 4 CVBSIN 5 YC MIX 6 YIN 2 CIN 10 CVIN 12 CBIN 14 CRIN 4 CVBSIN 5 YC MIX CEC_RX_IN CEC_TX_OUT 3 MUTE1 3 MUTE1 13 MUTE2 13 MUTE2 5 YC MIX 5 YC MIX 7 8 16 19 15 11 R/COUT 1 TMDS DATA2 + 3 TMDS DATA2 – 4 TMDS DATA1 + 6 TMDS DATA1 – 7 TMDS DATA0 + 9 TMDS DATA0 – 10 TMDS CLOCK + 12 TMDS CLOCK – 19 HPD G OUT BOUT CVBSOUT BLANKING OUT FUNCTION SW Y PB/CB COMPONENT VIDEO OUT PR/CR HDMI OUT +6V IC1103 EEPROM IC1102 FLASH ROM IC1101 (2/3) DVD SYSTEM CONTROL, DSP IC501 (2/5) SYSTEM CONTROLLER IC1104 SDRAM IC1707 +5V REG. IC1705 BUFFER WF EEWP SCL SDA 18 +5V POWER 13 CEC 15 SCL 16 SDA Q9724,9726, Q9728,9729 CEC RX/TX I/F 7 112 101 102 DDC_CLK 161 DDC_DA 159 CLKE 37 UDQM 39 LDQM 15 WE 11 OE 28 CE 26 45 12 /CAS 17 /RAS 18 /WE 16 /CS 19 CLK 38 BA1 21 BA0 20 CKE 147 DQM1 132 DQM0 111 _CAS 134 _RAS 135 _RWE 133 _RCS 136 DRCLK 146 BA1 138 BA0 137 XWR 66 XRD 78 XROMCS XWR XRD XROMCS A1–A21 A0 76 SCL 6 SDA 5 Q1701 LEVEL SHIFT 139–141,143,144 149–155 2,4,5,7,8,10,11,13,42, 44,45,47,48,50,51,53 117–113,119–129 22–26,29–35 RD0–RD15 RA0–RA11 RD0–RD15 RA0–RA11 56–64,67–75,77, 87,91,92 29,31,33,35, 38,40,42,44 79,80,82–86,89 25–16,10–1,48 HD0–HD7 HA0–HA21 A0–A21 HD0–HD7 HD0–HD7 DQ0–DQ7 RA0–RA21 DQ15/A-1 RESET XSYSRST C RF SECTION G AUDIO SECTION E AUDIO SECTION ��OUTPUT (TO TV) EURO AV • SIGNAL PATH : VIDEO : Y : CHROMA : COMPONENT VIDEO 6-2. BLOCK DIAGRAM – VIDEO Section – (Page 32) (Page 34) (Page 34) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 HCD-DZ260/DZ270/HDZ278 34 34 6-3. BLOCK DIAGRAM – AUDIO Section – Q101,104,105 MIC DC SWITCH J100 SW3.3V DC-CONT R-CH R-CH R-CH D107 Q102 Q103 Q413 Q412 D104 Y1 Y GAIN_CONT PLUG_DET1 MONO_ST_DET A.CAL DC_CONT IC103 MIC AMP IC104 MIC LEVEL DETECT IC411 INPUT SELECT IC202 DMPOART AUDIO AMP IC2101 VBUS CONTROL IC1101 (3/3) DIR/USB CONTROL IC501 (3/5) SYSTEM CONTROL CN104 USB5V 1 2 3 4 IC301 OPTICAL RECEIVER IC702 DIR IC302 WAVE SHAPE AUDIO IN/ A.CAL MIC J404(2/2) CN204 CN400 (2/2) TU401 FM/AM TUNER RACK TV/VIDEO DMPOART DC 5V 0.7V MAX EURO AV AM COAXICAL DZ260/HDZ278 DZ260 DZ260/HDZ278 DZ260/HDZ278 DZ260 OPTICAL TV DIGITAL IN AUDIO IN � OUTPUT (TO TV) 3 5 7 2 3 48 25 1 VIDEO VIDEO LCH RCH VBUS (5V) DET RXD TXD DET RXD TXD VIDEO 5V A(L)IN A(R)IN L-CH R-CH TUNED DI DO CL CE RDS_DATA RDS_CLK VIDEO 5V (DMPOART) 13 14 5 6 7 6 2 2 4 17 1 5 3 A 10 B 9 Y2 2 Y3 4 Y0 1 L R VIDEO SECTION E AMP SECTION F R-CH R-CH XMODE (I) XVOICE/DIR_CSFLAG MDIR_CSFLAG MDIR_CL MDIR_CE MDIR_DI MDIR_DO VBUS D- D+ GND SPMCK SPLRCK SPBCK SPDATA CSFLAG (O) 38 CL (I) 37 CE (I) 36 DI (I) 35 DO (O) 13 CKOUT (O) 15 LRCK (O) 14 BCK (O) 16 52 51 DATA (O) 24 AUDIO- (O) 34 ERROR (O) 4 2 DIN1 (I) (OPT) 5 DIN2 (I) (COAX) 4 XOUT (O) 22 XIN (I) XSYSRST RF SECTION D X701 12.288MHz 214 196 DIR_CL 227 DIR_CE 221 RT/DIR_DI 230 LT/DIR_DO 231 SPMCK 199 SPLRCK 201 SPBCK 200 ADIN (SPDATA) DIR_AUDIO/NC DIR_ERROR/NC INT3 RDS_CLK/LED_LAT VBUS_OC USB_DM 202 197 MDIR_ERROR MDIR_AUDIO 1 75 45 CEC_RX_IN CEC_RX_IN 3 CEC_TX_OUT CEC_TX_OUT 22 USB_DP 44 VBUS_OE VBUS_SW 3 75Ω FM COAXIAL ANTENNA DZ260/DZ270 DZ260 RDS_DATA/XM_RST (PCONT) 76 ST_CE 71 ST_CLK 69 ST_DO 70 ST_DI 72 TUNED TUNED DI DO CE RDS_DATA RDS_CLK 68 DMP_TX_OUT 30 DC_CONT 28 A.CAL MIC LEVEL/DSP_MASTER 91 MIC_GAIN 26 MONO/ST_DET MONO_ST_DET GAIN_CONT A.CAL DC_CONT TXD RXD DET PLUG_DET1 PLUG_DET2 ASEL1 ASEL0 ASEL0 L-IN R-IN R-CH ASEL1 90 JACK1/JACK2/S-ART DET 66 IO_RESET/ASEL1 85 IO_CE/ASEL0 84 DMP_RX_IN 29 DMP_DET 89 RF SECTION B VIDEO SECTION G • R-ch is omitted due to same as L-ch. POWER SECTION I • SIGNAL PATH : TUNER : VIDEO IC411 (DZ270/HDZ278) IC411 (DZ260) (Page 32) (Page 32) (Page 33) (Page 33) (Page 35) (Page 36) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 HCD-DZ260/DZ270/HDZ278 35 35 6-4. BLOCK DIAGRAM – AMP Section – 14 PWM_B 6 PWM_A 5 4 RESET SD OUT_B 31 3 1 2 6 DATA 36 XFSIIN AMP_D0 AMP_D2 AMP_D1 AMP_D2 MCK0 BCK0 LRCK0 OVF2 SCDT SHIFT LAT3 INIT SOFTMUTE AMP_D0 AMP_D1 AMP_D1 MCK0 BCK0 LRCK0 OVF SCDT SHIFT LAT1 INIT SOFTMUTE MCK0 BCK0 LRCK0 SCDT SHIFT LAT2 INIT SOFTMUTE PLUG_DET2 BCKO LRCKO MCKO 30 BCK 29 LRCK 25 OVF FLAGL 24 OVF FLAGR 21 SCDT 22 SCSHIFT 23 SCLATCH 27 INIT 19 SOFTMUTE OUTR1(+) 4 OUTR2(–) 11 OUTL1(+) 9 OUTL2(–) 48 XFS0IN 38 FS0I 25 - 27 28 - 30 OUT_A LPF SUBWOOFER TB3901 TB100 SPEAKER CENTER PHONES J101 IC3400 DIGITAL POWER AMP PLUG DET2 HPMUTE Q107,109, Q106,108 MUTE Q3081 H/P MUTE DRIVE L R IC3001 HEADPHONE AMP LPF Q3251,3252 DC BALANCE DETECT D3551 6 PWM_A 14 PWM_B 5 4 RESET SD OUT_B 25 - 27 28 - 30 OUT_A LPF IC3300 DIGITAL POWER AMP LPF Q3301,3302 DC BALANCE DETECT 14 PWM_B HP HP HP HP WF WF C C FR FR FL FL SR SR SL SL 6 PWM_A 5 4 RESET SD OUT_B 25 - 27 28 - 30 OUT_A LPF IC3100 DIGITAL POWER AMP LPF Q3101,3102 DC BALANCE DETECT 6 PWM_A 14 PWM_B 5 4 RESET SD OUT_A 28 - 30 25 - 27 OUT_B LPF IC3150 DIGITAL POWER AMP IC3051 CLOCK OSCILLATOR LPF Q3151,3152 DC BALANCE DETECT 14 PWM_B 6 PWM_A 5 4 RESET SD OUT_B 25 - 27 28 - 30 OUT_A LPF IC3200 DIGITAL POWER AMP IC3020 S-MASTER PROCESSOR IC3010 S-MASTER PROCESSOR IC501 (4/5) SYSTEM CONTROLLER D3071 – D3073 IC3030 S-MASTER PROCESSOR LPF Q3401,3402 DC BALANCE DETECT 6 PWM_A 14 PWM_B 5 4 RESET SD OUT_A 28 - 30 25 - 27 OUT_B M+14V LPF IC3250 DIGITAL POWER AMP LPF Q3202,3201 DC BALANCE DETECT Q3551 DC BALANCE PROTECT Q3552 – 3555 B+ DOWN PROTECT D3552 EN +31V Q631,632 BUFFER FAN DRIVE Q3000 – 3002 31 6 DATA 36 XFSIIN 30 BCK 29 LRCK 25 OVF FLAGL 24 OVF FLAGR 21 SCDT 22 SCSHIFT 23 SCLATCH 27 INIT 19 SOFTMUTE 2 1 5 6 OUTR1(+) 41 HPOUTR1 39 HPOUTR2 45 HPOUTL1 43 HPOUTL2 53 HP_MUTE 52 1 DAMP_SCDT/DIR_DIN 2 DAMP_SHIFT/DIR_CLK 65 DAMP LATCH1 56 DAMP LATCH2 49 DAMP LATCH3 50 DAMP INIT 51 DAMP SOFT MUTE 44 OVERFLOW1 45 OVERFLOW2 HPMUTE SCDT SHIFT LAT1 LAT2 LAT3 INIT SOFTMUTE OVF OVF2 EN DIAG DC-DET 42 DRIVE RST(EN) 43 SD(DIAG)/PVDD_DET 57 DC_DET 4 OUTR2(–) 11 OUTL1(+) 9 OUTL2(–) 48 XFS0IN 14 XFS0OUT X3051 49.1MHZ 38 FS0I 37 FS0CKOUT 31 6 DATA IC3003 DATA SELECT 36 XFSIIN 30 BCK 29 LRCK 25 OVF FLAGL 21 SCDT 22 SCSHIFT 23 SCLATCH 27 INIT 19 SOFTMUTE 24 OVF FLAGR OUTR1(+) 4 OUTR2(–) 11 OUTL1(+) 9 OUTL2(–) 48 XFS0IN 14 XFS0OUT 38 FS0I 5 7 6 (+) (–) (–) (+) FRONT R SPEAKER FRONT L (+) (–) SUR R (+) (–) SUR L (+) (–) (+) (–) FAN3001 DC FAN H POWER SECTION F AUDIO SECTION 15 13 X501 5MHz M_ST Xin Xout 19 DIRCSFLAG AMP_D0 – D3 A RF SECTION • SIGNAL PATH : TUNER (Page 32) (Page 34) (Page 36) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 HCD-DZ260/DZ270/HDZ278 36 36 6-5. BLOCK DIAGRAM – POWER Section – 94 AD KEY2 21 FL_CLK/LED_CLK 30 VEE F1 S2 – 16 FL100 FLUORESCENT INDICATOR TUBE T100 DC/DC CONVERTER TRANSFORMER T901 MAIN TRANSFORMER D931 +31V (DIGITAL AMP) D901 D905 T903 SUB TRANSFORMER Q100 DC/DC CONVERTER D100 D101 24 FL_D_OUT/LED_DATA 23 FUNCTION KEY S102 – 104 IC501 (5/5) SYSTEM CONTROL IC100 FL DISPLAY DRIVER 95 AD KEY1 FUNCTION KEY S100,101 10 ENA ROTARY ENCODER S107 VOLUME 11 ENB 12 RESET E4V 20 AC CUT 4 SIRCS_IN 97 AD KEY0 7 VIN 4 VCC Q922 +21V REG. PC902 FEED BACK PC904 STANDBY CONTROL Q930 – 932 POWER CONTROL IC922 SHUNT REG. IC921 SWITCHING REGULATOR IC506 +3.3V REG. IC505 +5V REG. IC507 +5V REG. IC504 +5V REG. IC201 +5V REG. IC620 +5V REG. IC620 +5V REG. IC931 SHUNT REG. IC1105 +3.3V REG. IC1107 +3.3V REG. IC1708 +3.3V REG. IC502 +5V REG. IC102 +3.3V REG. IC3050 +1.8V REG. D902 D923 Q921 D947 D502 PS954 P.CONT3 P.CONT3 E4V E+4V 6V +6V E3.3V BUP3.3V DZ904 2 FB 1 ZC 9 D 3 C 4 VCC IC901 SWITCHING REGULATOR F901 LF901,902 FILTER PC901 FEED BACK PC903 STANDBY CONTROL Q943,947 POWER DOWN DETECT Q949,950 POWER PROTECT EN EN 5 FB 8 CLK 7 DIN 9 STB FUNCTION KEY S105,106 D505 74 KEY INT �/� S108 15 – 29 G1 – 12 DZ270/HDZ278 DZ260/HDZ278 DZ260/DZ270 DZ260 42 – 31 F2 F1 F2 5V 13 15 X501 5MHz FL_CS/STB 40 P.CONT2 39 P.CONT1 P.CONT2 +3.3V5 +3.3V4 USB 5V VBUS_SW A+5V +5V D3.3V +1.8V 5V (FL) SW3.3V VIDEO 5V (DMPOART) +1.8V (IC1101) +5V (IC400) +5V (IC404) +3.3V3 (IC1101) VDD3.3V (IC1101) RF+3.3V P.CONT1 41 WRITE EMP P_CONT3 X OUT X IN Q503 RESET IC503 RESET IC101 REMOTE CONTROL RECEIVER D911 PS956 D916 D941 Q945 B+ SWITCH D912 M+14V M+9V P.CONT1 12V M+14V M+9V +9V A12V IC941 +12V REG. IC413 +9V REG. IC1110 +1.8V REG. IC413 +9V REG. (AC IN) Q901 ON/OFF SWITCH H AMP SECTION I AUDIO SECTION DZ270/HDZ278 DZ260 DZ270/HDZ278 DZ260 (Page 34) (Page 35) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 HCD-DZ260/DZ270/HDZ278 37 37 1 2 3 4 5 6 7 8 9 10 11 12 13 14 A B C D E F G H I J MAIN BOARD (SIDE A) OPTICAL PICK-UP DZ270/HDZ278 DZ260 DZ270 HDZ278 DZ260 MS-203 BOARD CN001 R J IO-SCART BOARD CN401 IO-COMPONENT BOARD CN403 K IO-COMPONENT BOARD CN402 I IO-COMPONENT BOARD CN407 IO-SCART BOARD CN406 M L JACK BOARD CN103 N IC3300 IC3300 IC3250 IC3200 IC3150 IC3050 IC3003 IC3001 IC507 IC501 IC503 IC510 IC502 IC3100 IC3020 IC2101 IC3030 IC3010 IC3051 IC4502 IC702 IC1110 IC1101 IC1708 IC1705 IC1104 IC1103 IC302 IC1102 IC1707 IC202 IC707 IC1201 IC1107 IC1105 IC3400 1 19 B E B E 1 18 24 1 25 48 5 8 1 4 I O 1 17 19 16 18 2 B E 8 1 4 5 B E B E B E 1 4 5 8 B E B E 1 2 4 5 B E B E 19 1 18 2 1 2 B E B E B E B E B E 1 12 13 48 24 25 36 37 19 1 18 2 1 9 B E B E B E B E 1 10 11 20 B E B E B E B E I O B E B E 48 1 12 13 24 25 36 37 5 8 1 4 8 1 5 4 1 7 8 14 B E 2 24 1 23 B E B E 37 48 36 25 24 13 12 1 C3058 C1118 R3225 R3031 C3059 C1119 CN1701 R3226 R3032 R3227 R3033 R3034 C3250 R3035 ICT562 R3037 ICT563 C3254 C3060 ICT564 C1120 R214 Q3251 ICT565 C1121 R215 Q3252 ICT566 C1122 ICT567 C1123 C3258 ICT568 JL3098 C1124 R3425 R3426 R3427 R3041 Q1701 R3042 R3043 R3044 ICT570 JL1160 CN204 DMPOART CN204 HDMI OUT CN1701 DC 5V 0.7A MAX R3045 ICT571 ICT572 C3263 R1107 R3047 R1108 R1109 R3049 C3072 C1132 C3073 C1133 1 64 65 128 129 192 193 256 R227 R228 C1135 1 3 4 5 R229 C1136 R613 C1137 C1138 R1110 R3050 R615 C1139 R1111 R3052 R1112 R616 R3053 R1113 R617 TP3110 R3054 R1114 R230 R3055 R1115 R619 R231 R1116 R3057 R1117 R1118 CN602 C3083 CN603 R620 CN602 (19P) CN603 (17P) C3084 SL3001 R3251 Q3081 C3085 C1145 R3252 C3086 C3087 C1147 R3254 C3088 R1120 C1148 R3061 TP3311 C1725 R1121 R626 R3257 C1727 R1123 R1124 C1728 ICT591 C1729 R1125 ICT592 R3067 R3068 C3092 C1152 C3093 C1153 TP3510 C1730 D3071 TP3129 R631 C1731 D3072 R632 C1732 D3073 C1733 C1734 R3265 R3074 TP3130 R639 R3075 TP3131 R1135 R3076 R1136 R3077 R3078 R3079 R1139 C2101 TP3136 C2103 R3080 C220 R3275 C2109 R3276 R1142 R3277 C223 R648 R3085 R649 R3086 R1146 R3087 C227 R3088 C2110 R3089 C229 R3090 C230 R3091 R1151 C231 R3092 C232 R3093 TP3150 R3094 TP700 cam011 R4805 R1156 R3097 C237 R3098 R3099 R1159 C1182 C1183 C1184 C1186 R1160 R1161 R2101 C241 L4501 R1162 R1163 R1164 JL3101 R1165 R1742 JL3104 R1744 C2130 IC2101 C1192 5 4 3 1 JL3107 R1747 C1193 R1748 C1195 TP528 R2110 C1198 TP529 JL3110 R2114 R2115 JL3112 R1752 JL3113 JL3114 JL3115 1 3 5 4 1 3 5 4 JL3116 JL3117 R1757 R2120 R2121 R1183 R2123 R1184 CL1201 R1185 R2127 CL1204 R2128 CL1205 CL1206 CL1207 LP3000 CL1208 R691 R692 TP548 R2130 TP549 R1191 R2131 Q503 R2133 R1193 R697 R2136 CL1213 C3100 SL501 SL502 SL503 SL504 C3104 Q3101 Q3102 ICL522 RB1103 C3108 RB1104 RB1105 RB1106 RB1107 C3300 RB1108 RB1109 R1783 C3304 R1784 Q3301 R1785 Q3302 R1786 C3113 C3308 RB1110 RB1111 RB1112 RB1113 RB1114 RB1115 R2154 C3313 1 18 19 36 1 18 19 36 1 18 19 36 1 18 19 36 1 18 19 36 1 18 19 36 1 18 19 36 TP573 C3124 TP574 C3125 C3126 C3127 C3128 C3129 R3101 R2161 R3102 R2162 R3104 R3107 R2167 R2168 R2746 R3301 R3302 CN1202 R3304 R3307 R3115 R2176 R2177 R3501 X1101 R3502 C1203 C1205C1206 C1208 R3315 C1209 R3125 12 1-875-158- R3126 R3127 FB508 C3150 C1210 X3051 C1211 C1212 C1213 C3154 C1214 Q3151 C1215 Q3152 FB510 C3158 C1218 R3901 R3325 C1219 R2191 R3902 R3326 R2192 R3327 R2193 R3904 R504 R2194 JL3385 R3905 R505 R2195 JL3386 R506 R507 C1220 R509 C1221 CN4301 TP3002 C1222 FB1106 CN4302 C3163 C1223 CN4303 FB1108 C1224 R318 TP3005 TP3006 R510 R511 R512 C3553 R513 R514 R1204 R515 Q3551 R709 C3556 Q3552 R516 R1206 R3917 Q3553 R1207 R3918 R1208 Q3554 R3919 R519 R1209 Q3555 C1233 TP3015 CN502 R712 R713 R714 R1210 CN504 C4501 R3151 C3561 R3152 R1212 R717 C4504 TP3210 R718 R3154 R1214 R1215 R1216 R3157 R529 R1219 TP3022 R720 TP3024 R721 LP501 TP3026 TP3410 R1220 TP3029 R1221 R532 R1222 R1223 R1224 R729 R3165 R1225 R536 R1226 D3552 R537 R1227 TP3030 R1228 LP701 R3552 TP3032 R730 R3554 R731 L3051 R3555 TP3229 R3556 R732 TP3036 R733 L3053 R3558 R734 L3054 Q9724 R1230 R1231 R3559 R541 R736 R542 Q9726 R1233 R737 R738 TP3230 Q9728 C509 R3175 TP3231 Q9729 R3176 R546 R547 R3177 R548 R3560 R4501 R3561 R549 R4502 TP3236 R3562 R3563 C510 R740 R741 C511 D9712 C512 R742 C707 R743 C708 L1701 C516 R552 L1702 R746 L1703 R747 L1704 R748 R749 R1246 R1247 R4510 X701 R4511 R4512 R4513 R4514 C520 R750 CL218 R4515 C521 CL219 R4516 C522 C523 1 3 4 5 C718 R4518 C719 R561 R562 TP3250 R564 CL220 R565 CL221 R566 FB2102 R567 R568 C721 R569 C723 C724 R9920 C725 C531 C727 R763 R9924 R764 R765 R572 R766 R573 R767 R9928 R768 R9929 R769 R4721 JL3010 JL3011 JL3013 JL3014 JL3015 JL3016 JL3017 JL3018 R9934 JL3019 R9935 R583 R778 FB2120 R584 FB2121 FB2122 R587 JL3020 R588 FB2124 JL3021 FB2125 CL1101 R589 JL3022 JL3023 JL3024 JL3025 R9941 CL1105 L2101 JL3026 R782 JL3027 R783 JL3028 R784 CL1108 R590 JL3029 R785 R9945 R788 CL1301 C9972 R596 CL1302 R597 CL1303 JL3030 CL1110 R598 CL1304 JL3031 R599 CL1305 JL3032 CL1112 JL3033 CL1113 JL3034 R790 CL1114 L200 DZ260/HDZ278 CN4303 (15P) CN4302 (17P) CN4301 (19P) DZ260/HDZ278 DZ260/HDZ278 DZ260/HDZ278 DZ260/HDZ278 DZ260/HDZ278 DZ260/DZ270 DZ260/HDZ278 DZ260/DZ270 DZ260/HDZ278 DZ260/HDZ278 DZ260/DZ270 DZ270 DZ270 AEP,MX.AR,US,CND,UK, E3,E12,E15,AUS MODEL E12,E3,E15,AUS,UK, AR,MX,US,CND MODEL D501 JL3035 R791 CL1115 JL3036 CL1116 JL3037 CL1117 C3003 R793 JL3038 CL1118 Q3001 JL3039 Q3002 C3008 C3200 JL3040 CL1121 JL3041 JL3042 JL3043 C3204 JL3044 Q3201 JL3045 C571 Q3202 JL3046 CL1702 JL3047 C3208 ICT518 JL3048 C574 FL4501 JL3049 C3400 C3404 ICT520 JL3050 Q3401 JL3051 Q3402 JL3052 C3213 JL3053 C3408 JL3054 C774 JL3055 ICT526 JL3056 JL3057 JL3058 JL3059 R3001 C3413 JL3060 JL3062 ICT537 R3201 CN1101 Q631 R3202 Q632 R3204 R3011 R3012 R3207 R3013 R3014 R3015 R3017 C1101 R3404 ICT549 C1105 Q1101 Q1102 R3407 Q1103 R3215 R3021 R3022 R3023 R3024 CL2101 R3026 CL2102 CL2103 37 48 36 25 24 13 12 1 C1110 JL3085 C1111 C3052 JL3086 C1112 C3053 JL3087 C1113 CL2107 ICT558 CL2108 R3415 C3055 ICT559 CL2109 C3057 C1117 1 12 13 24 25 36 37 48 6-6. PRINTED WIRING BOARD – MAIN Board (Side A) – • : Uses unleaded solder. • See page 31 for Circuit Boards Location. When IC501, IC510 and IC1103 on the Main board are damaged, exchange the new Main board for the Main board which IC damaged. Ref. No. Location • Semiconductor Location D501 H-11 D3071 G-6 D3072 G-6 D3073 G-6 D3552 B-3 D9712 C-7 IC202 B-11 IC302 B-5 IC501 H-10 IC502 I-11 IC503 G-11 IC507 I-9 IC510 I-11 IC702 F-7 IC707 F-11 IC1101 C-8 IC1102 D-7 IC1103 C-7 IC1104 B-8 IC1105 D-11 IC1107 D-10 IC1110 B-10 IC1201 E-10 IC1705 B-8 IC1707 B-9 IC1708 B-9 IC2101 E-7 IC3001 H-6 IC3003 G-6 IC3010 F-5 IC3020 E-5 IC3030 D-5 IC3050 H-6 IC3051 G-5 IC3100 H-4 IC3150 H-4 Ref. No. Location IC3200 G-4 IC3250 F-4 IC3300 E-4 IC3400 D-4 IC4502 F-9 Q503 H-11 Q631 H-5 Q632 H-5 Q1101 E-7 Q1102 E-10 Q1103 E-7 Q1701 C-8 Q3001 C-4 Q3002 C-4 Q3081 H-6 Q3101 G-1 Q3102 G-1 Q3151 H-1 Q3152 H-1 Q3201 F-1 Q3202 F-1 Q3251 D-1 Q3252 D-1 Q3301 E-1 Q3302 E-1 Q3401 F-1 Q3402 F-1 Q3551 B-2 Q3552 B-2 Q3553 B-3 Q3554 B-3 Q3555 B-3 Q9724 D-7 Q9726 C-6 Q9728 C-7 Q9729 C-6 (Page 54) (Page 52) (Page 48) (Page 50) (Page 50) (Page 48) (Page 50) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 HCD-DZ260/DZ270/HDZ278 38 38 6-7. PRINTED WIRING BOARD – MAIN Board (Side B) – • : Uses unleaded solder. • See page 31 for Circuit Boards Location. 1 A B C D E F G H I J 2 3 4 5 6 7 8 9 10 11 12 13 14 + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + M MAIN BOARD (SIDE B) DZ260 DZ270/HDZ278 DZ260/DZ270 DVD DRIVE SPINDLE/ SLED MOROR SPEAKER BOARD CN114 B SPEAKER BOARD CN114 A JACK BOARD CN108 C POWER BOARD CN904 D POWER BOARD CN906 E JACK BOARD CN105 H IO-COMPONENT BOARD CN418 G IO-SCART BOARD CN410 F IC506 IC505 IC504 IC201 IC301 1 5 1 5 1 5 1 5 ICT560 ICT561 C3253 C3255 C3256 JL3096 C3257 R601 ICT569 C1125 R602 C1126 R603 C1127 R604 R3040 R605 R1101 C1129 R606 R1102 R607 R1103 R220 CL2120 R608 CN513 CN512 1 4 1 4 1 6 1 2 TP3101 R1105 JL2101 R221 CL2121 R609 TP3102 R1106 JL2102 R222 CL2122 TP3103 ICT573 JL2103 R223 CL2123 TP3104 C1130 JL2104 CL2124 C3071 JL2105 CL2125 JL2106 CL2126 C3267 JL2107 JL2108 R611 JL2109 R612 R614 TP3301 R3051 TP3302 TP3303 TP3304 ICT580 JL2110 R618 TP3305 ICT581 JL2111 TP3306 ICT582 JL2112 R232 C238 C239 TP3307 JL2113 TP3308 C1140 JL2114 R3058 R3059 TP3309 JL2115 CL2135 JL2116 ICT587 JL2117 CL2137 C1144 JL2118 CL2138 ICT588 ICT589 JL2119 CL2139 C1146 R3253 R3060 TP3310 C1149 R3063 R627 R3064 JL2120 CL2140 R628 R3065 JL2121 CL2141 R3066 JL2122 JL2123 JL2124 R3069 C1151 C3094 C1154 C1155 C1156 R3070 C1158 JL001 R3071 C1159 JL002 R636 1 14 R3266 R3072 R1132 JL003 R3073 R1133 CL100 JL004 R1134 R638 JL005 JL006 JL007 JL008 R1138 C1160 C2100 JL009 C1161 C2102 C1162 C1163 X501 C1164 C1165 JL010 R1140 C2108 C1169 R1141 C221 JL011 JL012 C222 JL013 JL015 R1145 JL016 R1147 JL018 R1148 C1170 TP501 JL019 C1171 CN2101 C2112 TP502 C1172 TP503 C1174 C2114 R650 TP504 TP505 C1175 C2115 TP506 C1176 C2116 TP507 C2117 TP508 JL020 C2118 TP509 JL021 C1179 C2119 C1177 C315 C313 C1190 R1152 C2502 JL023 R1153 C2503 JL024 R1730 R1154 TP701 R3095 R1155 TP702 JL026 R3096 TP703 JL027 TP704 TP510 C1180 JL028 TP705 C1181 JL029 TP706 TP512 TP707 TP513 TP708 C527 C528 C526 C717 C706 TP514 TP709 TP515 D2101 TP516 D2102 TP517 D2103 TP518 C240 TP519 TP710 R2104 TP711 TP712 TP713 TP520 R2108 TP714 TP521 C1191 TP522 TP523 R1749 CN1105 C775 C4503 C720 6 1 TP527 C1197 C1199 R1171 R1750 R1175 R1751 R1176 R1753 R2117 R1754 TP531 R2119 D4251 D4252 TP533 TP534 TP729 TP535 TP536 TP537 TP538 TP539 R1181 R1182 CL1202 CL1203 TP540 R2129 TP541 TP542 TP543 TP544 TP545 CL1209 TP547 R693 R694 R695 R696 R2134 CL1210 CL1211 CL1212 R1196 TP550 R1198 TP551 L301 L302 TP552 C3103 TP553 TP554 C3105 C3106 C3107 JL1201 R1781 JL1202 R1782 C3303 JL1203 CN1201 JL1204 C3305 JL1205 C3306 JL1206 C3307 JL1207 TP563 JL1208 TP564 JL1209 C3117 CN3001 R2150 L701 R2151 L702 R2152 L703 JL1210 JL1211 R2155 JL1212 R2156 JL1213 R2157 R2158 R2159 C3122 C3317 C3123 R2160 R3103 C3322 C3323 C3901 TP581 C3902 TP582 C3903 TP583 C3904 TP584 TP585 TP586 R3303 TP587 TP588 L3401 3 1 4 2 L3301 3 1 4 2 L3202 3 1 2 L3201 3 1 2 L3102 3 1 2 L3101 3 1 2 R3116 R2178 C1187 C3911 R2179 C3912 C3913 L3000 Q3000 B C E C3914 R2180 R2181 R3316 R2182 R2184 FB505 R2185 FB506 R2188 R2189 JL4701 JL4702 C3153 JL4703 JL4511 C3155 JL4705 C3156 JL4706 C3157 JL4707 R501 JL4709 EB505 EB702 EB3002 (CHASSIS) (CHASSIS) EB3001 EB3004 C3005 C3001 C3551 C3552 CENTER SUBWOOFER COAXIAL OPTICAL TV DIGITAL IN J302 SPEAKER C3412 C3409 C3312 C3309 C3262 C3259 C3212 C3209 C3162 C3159 C3112 C3109 CN904 1 4 C3114 C3164 C3165 C3214 C3215 C3264 C3265 C3314 C3315 C3414 C3415 C3115 C3081 C3082 C3000 CN3000 TB3901 FAN3001 FAN RED BLK TB3901 1 2 EB3003 R3907 TP3000 R508 TP3001 JL4711 TP3003 FB1107 R317 JL4713 TP3004 C1225 FB1109 R319 JL4715 C1226 JL4716 TP3007 C3167 JL4717 JL4718 R3911 JL4719 R3912 R3913 R3914 R1205 FB1111 FB1112 R517 FB1113 R518 FB1115 C3172 FB1116 C3173 FB1117 FB1118 R328 R710 R329 R711 R715 C530 C524 C573 R716 R3153 R1213 R526 R527 R528 R530 R531 R726 L3902 L3903 R533 R534 R535 D3551 R3166 R539 R3551 D4301 D4302 R3553 C501 D4111 C502 L3052 D4112 C503 C504 R540 C505 R735 C312 VCC OUT C507 R544 C508 R1234 C314 CL201 R1236 C1217 CL202 R1237 CL203 C317 R1238 R1239 CL206 CL207 CL208 CL209 R744 C515 R745 C517 R553 R1243 C518 CL210 R555 CL211 R556 CL212 R557 CL213 C710 R558 CL214 C711 C709 R559 CL215 TP601 C712 CL216 TP602 TP603 TP3053 CL217 TP604 TP3054 TP605 C705 TP606 C716 TP607 TP608 TP609 C525 R563 R9918 C529 FB2101 JL701 JL702 FB2103 JL703 TP610 FB2104 JL3001 TP611 FB2105 JL3002 TP612 C722 R4716 JL3003 TP613 R4717 JL3004 TP614 R4718 TP615 R4719 TP616 C532 R9922 TP617 C533 CN506 TP618 TP619 R2201 R2203 C538 R576 R577 TP620 R578 R579 TP623 TP624 TP625 D4151 TP626 D4152 TP627 R580 TP628 R581 CN702 TP629 R582 R585 R586 TP630 TP3081 1 4 CN3100 1 5 CN3200 1 5 TP631 TP3082 TP632 TP3083 TP633 R780 TP3084 R781 TP635 CL1106 TP636 CL1107 TP637 CL1109 R592 R593 R595 C3002 D502 R794 D505 R796 R797 TP651 D701 TP652 C3203 TP653 CL1123 TP654 C3205 TP655 CL1701 C3206 C3012 TP656 C572 C3207 C3013 ICT517 TP657 JL1107 C3014 JL1108 TP658 C3015 ICT519 JL1109 TP659 C3016 C3017 C3018 C3019 C3403 TP660 JL1110 C3405 ICT521 JL1111 TP661 C3406 JL1112 TP662 C3407 ICT523 TP663 C3020 ICT524 TP664 TP665 C581 C584 C3022 C582 C583 C594 C593 C3217 C3023 ICT527 TP667 C3024 ICT528 C3025 ICT529 C3026 C3027 C3028 C3029 R3002 R3003 R3004 ICT532 TP672 C3417 C3416 C3316 C3266 C3216 C3166 C3116 TP673 ICT533 C3030 TP674 D4201 C591 D4202 C3032 TP676 C592 C3033 C3034 ICT538 TP678 C3035 TP679 C3036 R3203 C3037 C3038 C3039 C3422 C3423 TP680 D4401 ICT541 TP681 D4402 ICT543 C3040 C3031 C3021 C3011 C3056 C3054 C3091 C3090 C539 ICT544 ICT545 ICT546 CL682 C1102 R3403 ICT547 C1106 C1108 C1109 R3216 R203 CL2104 C3051 ICT555 ICT556 ICT557 C1114 R208 DZ260/HDZ278 DZ260/HDZ278 DZ260/DZ270 DZ260/ DZ270 DZ260/DZ270 DZ260/HDZ278 DZ260/DZ270 DZ260/HDZ278 DZ260 DZ270/ HDZ278 DZ260 DZ270 C1115 TP699 R3416 C1116 L3901 L3904 12 1-875-158- Ref. No. Location • Semiconductor Location D502 G-11 D505 H-11 D701 F-11 D2101 E-9 D2102 E-9 D2103 E-9 D3551 C-4 D4111 I-5 D4112 H-5 D4151 H-5 D4152 H-5 D4201 G-5 D4202 G-5 D4251 F-5 D4252 F-5 D4301 E-5 D4302 E-5 D4401 D-5 D4402 D-5 IC201 C-12 IC301 B-7 IC504 I-11 IC505 I-9 IC506 I-9 Q3000 B-5 (Page 56) (Page 56) (Page 54) (Page 54) (Page 52) (Page 52) (Page 50) (Page 48) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 HCD-DZ260/DZ270/HDZ278 39 39 6-8. SCHEMATIC DIAGRAM – MAIN Board (1/9) – • See page 59 for IC Block Diagrams. (5/9) MAIN BOARD 5 (2/9) MAIN BOARD 4 (2/9) MAIN BOARD 1 MAIN (3/9) BOARD MAIN 2 (4/9) BOARD 40 MAIN 3 (4/9) BOARD JACK H CN105 BOARD IC B/D IC B/D 1.8 3.3 4.9 3.3 3.3 1.3 0 3.3 0.2 0 0 0 0 3.3 3.5 3.3 0 0<2.4> <2.6> 3.3 3.5<3.3> 3.1 4.8 4.9 9.2 9.2 3.3 1.3 4.9 3.3 DZ260/DZ270 CL1118 47k R1124 0.1 C1192 5 4 3 2 1 TK11133CSCL-G IC1105 CONT GND NOISE VOUT VIN 0.5% 22 R1112 100k R1114 0 R1109 0.01 C1113 0.5% 22 R1115 100 R1101 10k R1107 10V 47 C1105 0.22 C1195 47k R1117 0.22 C1182 1k R1116 0.01 C1101 22 R1121 0.1 C1184 10V 47 C1112 1M R1108 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 CN1101 24P GND (LD) LD (650) NC NC PD LD (780) VR (650) VR (780) NC VOE/E+G VCC VC GND (PDIC) VOF/F+H VOB/B VOA/A RF (LO:DVD.HI:CD)MSW VOD/D VOC/C TRK- TRK+ FCS+ FCS- 0.01 C1106 0.5% 22 R1113 5 4 3 2 1 TK11133CSCL-G IC1107 CONT GND NOISE VOUT VIN 0 R1123 47k R1110 0.22 C1193 22 R1118 RT1N241C-TP-1 Q1103 INVERTER 22 R1120 100k R2129 100 R1111 D1 G2 S2 D2 G1 S1 UM6K1N-TN Q1101 PD VOLUME CONTROL Q1102 QST8TR LD DRIVE CONTROL JL2101 JL2102 JL2105 JL2106 JL2107 JL2108 JL2110 JL2111 JL2112 JL2113 JL2114 JL2115 JL2116 JL2117 JL2118 JL2119 JL2120 JL2121 JL2122 JL2123 JL2124 CL1106 CL1107 0 R2133 REG01 TRK- TRK+ FCS+ FCS- REG02 IOP VREFO RF+3.3V 5V D3.3V I O G MM1661JTRE IC1110 1 C1198 0.33 C1183 1k R2178 0.22 C1186 10k R1151 FB1112 0 R2134 CL1112 CL1113 CL1114 CL1115 CL1116 CL1117 CL2103 CL2104 JL2103 JL2104 JL2109 6.3V 100 C1111 10 C1129 0.1 C1159 0.1 C2102 FB2104 0uH FB2105 1 2 3 4 90uH L2101 1 2 3 4 5 5P CN2101 VBUS D- D+ GND SHIELD CL1301 RF CL1302 D-GND CL1303 FE CL1304 TE CL1305 PI USB5V 0.1 C2101 0.5% 330 R2192 0.5% 33k R2194 0.5% 33k R2193 1W 0.1 R2191 0.1 C2103 100 R2195 8 7 6 5 4 3 2 1 NJM2903M-TE2 IC2101 OUT1 IN-1 IN+1 GND IN+2 IN-2 OUT2 V+ M+9V FB2102 10V C2112 220 10V 47 C1187 R1102 0 MAZ8068G0LS0 D2103 MAZ8068G0LS0 D2102 MAZ8082G0LS0 D2101 FE,PI,TE USBP,USBM 1.8V VREFO VDD3.3V PD VC RF MSW LDO1 LDO2 RFMON VBUS_OC 3.3V3 D-GND TRK+ FCS+ FCS- FCS+ TRK- FCS- TRK+ TRK- DVD_LD CD_LD FE TE PI VOE VOF VOB VOA VOD VOC USBP USBM CD_LD DVD_LD (1/9) MAIN BOARD +1.8V REG IC1110 +3.3V REG IC1107 VBUS CONTROL IC2101 +3.3V REG IC1105 E2 E1 B2 B1 C2 C1 VOA,VOB,VOC, VOD,VOE,VOF OPTICAL PICK-UP (KHM-313CAA) 8 J 2 9 E A 6 F 7 B C D H 1 5 4 I G 3 (Page 41) (Page 42) (Page 42) (Page 53) (Page 40) (Page 43) (Page 40) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 HCD-DZ260/DZ270/HDZ278 40 40 6-9. SCHEMATIC DIAGRAM – MAIN Board (2/9) – • See page 31 for waveforms. • See page 64 for IC Pin Function Description of IC1101. (5/9) MAIN BOARD 16 2 3 4 5 6 7 1 BOARD MAIN (6/9) 20 BOARD 15 (7/9) MAIN BOARD 17 (7/9) MAIN BOARD 14 (6/9) MAIN BOARD 13 (4/9) MAIN BOARD (3/9) MAIN 12 MAIN BOARD (5/9) 10 9 MAIN BOARD (4/9) BOARD 4 (1/9) MAIN BOARD MAIN (4/9) 7 BOARD 6 (7/9) MAIN MAIN (1/9) BOARD 1 1.9<0.9> 1.5 1.2 0.9 3.3 1.6 1.6 1.6 1.6 2 2 2 2 2 2 2 0 0 3.3<2.6> 3.3 3.3 0.5<2.2> 2.7 2 1.4 1.2<1.4> 1.4<1.2> 1.2 1.7 1.7 1.4<0.2> 1.4<2.1> 1.4 0 1.6<1.4> 1.3 1.4 1.8 0 0 3.3 0.8 1.8 3.3 0 0<3.3> 0<3.3> 1.8 0<2.1> 0<2> 1.9 1.6 1.8<2.4> 2<0> 2 0.5<3> 0 3.3 3.3 1.2<0> 2.1<0.6> 1.4<0.5> 1.4<0.5> 1.2<2> 1.4 1.8 0 0 2 0 1.6<1.4> 1.4<0.6> 1.5 1.5 1.9<1.5> 1.9 1.9 0 1.1 2<1.5> 0.1<2.3> 0<2> 1.8 3.3 3.3 3.3 0 3.3 3.3 3.3 0<3.3> 3.3 0.3 0.3 3.3 3.3 3.3 2.5 2.4 3.3 0.8 0.8 0.9 0.9 1 3.3 1 1 1.1 0.9 1.1<1.6> 1.2 1 1.1 0.8 0.8 1.1 3.3 3.3 2.4 3.3 3.1 3.2 3 1.9<1.5> 2 0 0.4 2.1<1.7> 1.8 2.1 1.3 3.3 1.5 3.3 0 0 0 2.2<1.7> 1.5 1.5 1.8 3.3 3.3 3.3 3.2 1.8 3.2 0 1.3 3.3 3.3 0 0.3<0> 0.3<0> 1.8 1.3<0> 1.3<0> 1.3<0> 1.3<0> 1.3<0> 1.3<0> 0.6 0.7 0.4 0.3 0.6 3.3 0.4 1.4 1.3<1.8> 3.3 1.3 0.1<1.4> 3.3 3.3 0<1.5> 2<1.6> 0<1.6> 1.7 3.3 0.9 1<0.6> 0.7 1.8 1.8 3.3 0.1 0 3.3 3.3 0 1.2 0<1.2> 1.6 0.6<1.2> 1.2 0 1.7 3.3 3.3 0 1.8 0 3.3 0<3.3> 0 3.3 1.2 1.6 1.6 1.2 0 1.6 1.6 1.6 3.3 3.1 3.3 3.3 1.2 1.2 (HDZ278) (DZ260/DZ270) 1 1 2 2 1 (DZ260/DZ270) (DZ270) 2 3 3 4 4 5 6 7 7 8 8 8 8 9 10 11 11 11 11 11 (DZ260/HDZ278) 3 4 (DZ260/HDZ278) 5 (DZ260/HDZ278) 6 (DZ270) 7 (DZ260) 8 (DZ260/HDZ278) 9 (DZ260/HDZ278) 10 (DZ260/DZ270) 11 (DZ270) 0.1 C1149 0.1 C1133 47 R1185 0.01 C1162 R1161 22 3.3k R2151 100 R1156 0.01 C1156 4700p C1199 2.7k R2110 0 RB1113 0.1 C1116 0.1 C1137 0.01 C1164 1 C1120 0.01 C1175 0.033 C1135 0 R1152 1 C1122 0.01 C1136 0.1 C1126 47 R1184 0.01 C1161 1 C1124 3.3k R2150 0.047 C1148 0.1 C1115 0.1 C1130 0.01 C1155 47 R1159 0.1 C1140 27MHz X1101 47 R1160 0.1 C1125 3.3k R2152 0.01 C1163 47 R1183 0.1 C1132 0 R1155 22p C1139 0.01 C1158 0 RB1112 0.01 C1174 100k R1132 0.01 C1127 0.1 C1146 0.01 C1160 0.01 C1176 1 C1123 0.047 C1147 15k R1136 R2115 0 C1169 0.1 1 C1121 JL1160 JL1107 JL1108 JL1109 JL1110 JL1111 JL1112 CL1108 CL1105 CL1101 REV TRO FWD FOO IOPMON SPFG TSD_M DMO FMO TROPENPWM 0 R2176 CL1121 CL2101 CL2102 0 R1145 0 R1147 0 R1148 0 R2119 0 R1153 0 R1154 CL1123 LIMITSW 0 R1139 22 R2114 0 RB1110 0 RB1104 0 RB1111 0 RB1109 0 RB1103 0 RB1115 0 RB1114 R1176 10k 0 R1133 R1138 0 R1175 FB2121 FB2120 FB2124 FB2122 MUTE MUTE123 ADIN 0.1 C1171 100k R1142 0 R2167 12p C1152 12p C1153 1000p C1151 680k R1141 FB1107 16V 10 C1145 FB2101 4.7 C2108 6.3V 100 C2109 FB2103 FB1106 1000p C1138 330 R2168 6.3V 100 C2110 R1125 47 0.1 C1114 CL2120 0.1 C1154 CL2139 CL2140 CL2141 0.1 C1165 FB1109 3.3k R1782 CL1109 100 R1171 100 R2179 100 R2177 0.5% 5.1k R1103 CL2138 CL2137 CL2135 R1182 R1165 SPMCK R2189 R1164 SPDATA R1181 R1163 SPLRCK R2181 R1162 SPBCK 100 R2184 100 R2185 10k R2180 OCSW CKSW R1134 4.7k R2104 CL1110 CL2107 CL2108 CL2109 R2154 10V 47 C1117 10V 47 C1118 10V 47 C1119 5600p C2502 0.1 C1108 0.1 C1109 FB1115 FB1116 10 C2115 0.1 C2114 0.1 C2116 10 C2117 FB1117 0.1 C2118 4.7 C2503 FB1118 0.1 C1172 1000p C2119 CL2121 CL2122 CL2123 CL2124 CL2125 CL2126 R2108 1500p C1170 10k R2155 10k R2156 10k R2157 10k R2158 10k R2159 2.7k R1730 0.5% 560 R2101 R2117 R2131 R2121 R2123 1k R1140 XSYSRST XIFCS XIFBSY IFSDI MIC 0.01 C1144 MDIR_ERROR MDIR_AUDIO MDIR_XSTATE R2130 MDIR_CSFLAG R2136 R2120 R2161 R2162 MDIR_DO 1 2 3 4 5 6 6P CN1105 TXD RXD GND +3.3V V2REFO RFMON 47 R1146 3.3k R1781 R2188 0 R2182 0 R2127 R2128 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 240 231 232 233 234 235 236 237 238 239 241 242 243 244 255 256 245 246 247 248 249 250 251 252 253 254 IC1101 OSN RFGC IREF AVDD3 AGND DVDA DVDB DVDC DVDD DVDRFIP MA MB MC MD SA SB TNI TPI MDI1 MDI2 LDO2 LDO1 SVDD3 CSO RFLVL SGND V2REFO V2O VREFO FEO TEO TEZISLV OP_OUT OP_INN OP_INP DMO FMO TROPENPWM IOPMON TRO FOO AGND18 AVDD18 USB_DP USB_DM USB_VDD3 USB_VSS PAD_VRT USB_VDD18 USB_VSS DIR_ERROR/NC DIR_AUDIO/NC LIMITSW MSW DVDD18 HA2 HA3 HA4 HA5 HA6 HA7 HA8 HA18 HA19 DVDD3 XWR HA16 HA15 HA14 HA13 HA12 HA11 HA10 HA9 HA20 XROMCS HA1 XRD HD0 HD1 DVSS HD2 HD3 HD4 HD5 HD6 HA21 RESERVED HD7 DVSS HA17 HA0 DVDD18 FWD REV DVDD3 IFSDO IFCK xIFCS IFSDI SCL SDA CKSW OCSW RXD TXD ICE xSYSRST RESERVED xIFBSY DQM0 EEWP RD7 RD6 RD5 RD4 RD3 DVDD3 RD2 RD1 RD0 RD15 RD14 RD13 RD12 RD11 RD10 RD9 RD8 TSD_M DVDD3 DQM1 _RWE _CAS _RAS _RCS BA0 BA1 RA10 RA0 RA1 DVDD18 RA2 RA3 DVDD3 DRCLK CKE DVSS RA11 RA9 RA8 RA7 RA6 RA5 RA4 DVDD3 MUTE123 MUTE DDC_DA DVDD18 DDC_CLK HTPLG AGND3 EXT_RES AVDD3 AVDD3 EXT_CAP AGND3 AGND18 TXCN TXCP AVDD18 TX0N TX0P AGND18 TX1N TX1P AVDD18 TX2N TX2P AGND18 R/Cr/Pr B/Cb/Pb DACVSSA Y/G DACVDDA CVBS DACVSSB C DACVDDB Y DACVSSC FS VREF DACVDDC VBUS_OE VBUS_OC SCORE/DIR_XSTATE SPMCK SPBCK SPLRCK ADIN(SPDATA) ACLK ABCK ALRCK MC_DATA(ADIN) DVDD3 MIC WIDE RGB_SEL/DSEL TRG_SW DVDD18 KMOD XVOICE/DIR_CSFLAG SPDIF APLLVDD3 APLLCAP APLLVSS ADACVSS2 ADACVSS1 DIR_CE ASDATA3 ASDATA2 AVCM ASDATA1 ASDATA0 DIR_CL ADACVDD1 ADACVDD2 Rt/DIR_DI Lt/DIR_DO ADACVSS3 ADACVDD3 SADCVDD18 SADCVSS18 RFGND18 RFVDD18 XTALO XTALI JITFO JITFN PLLVSS PLLVDD3 LPFON LPFIP LPFIN LPFOP ADCVDD3 ADCVSS RFVDD3 RFRPDC RFRPAC HRFZC CRTPLP RFGND18 OSP RGBSEL WIDE ALRCK ACLK ABCK ASDATA0 ASDATA1 ASDATA2 MDIR_CL ASDATA3 MDIR_CE MDIR_DI C CB/B CR/R Y/G IFSCK KRMOD IFSDO VBUS_SW FB2125 Y 10V 47 C1177 FB1113 R2160 10k USBP,USBM FE,PI,TE D-GND 3.3V3 VBUS_OC RFMON LDO2 LDO1 MSW RF VC PD VDD3.3V VREFO 1.8V XRD,XROMCS,XWR HD0-HD7 SCL,SDA,WE A0-A21 RD8-RD15 CAS,DQM1,DQMO,RAS,RWE XSYSRST D3.3V D-GND DRCLK DDC-DA DDC-CLK 3.3V4 3.3V5 HTPLG XSYSRST ABCK ALRCK ACLK A0 A20 A13 A14 A15 A16 XWR HD2 HD3 HD4 HD6 RD6 RD5 RD4 RD3 RD2 RD1 RD0 A19 A18 A2 A3 A4 A5 A6 A7 XROMCS A1 XRD HD0 HD1 HD5 HD7 A17 DQMO RD7 RA4 RA5 RA6 RA7 RA8 RA9 RA11 CLKE DRCLK RA3 RA2 RA1 RA0 RA10 BA1 BA0 RCS RAS CAS RWE DQM1 RD8 RD9 RD10 RD11 RD12 RD13 RD14 RD15 VOD VOC VOB VOA VOE VOF PI FE TE DMO FMO TROPENPWM TRO FOO USBP USBM DMO FMO TROPENPWM TRO FOO A12 A11 A10 A9 A21 SDA WE SCL DATA2+ DATA2- DATA1- CLK+ DATA1+ DATA0+ DATA0- CLK- 1.8V 1.8V 3.3V A8 WIDE RGBSEL RGBSEL WIDE ASDATA3 ASDATA2 ASDATA1 ASDATA0 ASDATA0 ASDATA1 ASDATA2 ASDATA3 ADIN ALRCK ABCK ACLK ADIN ALRCK ABCK ACLK MDIR_XSTATE SPMCK SPBCK SPLRCK SPDATA MDIR_DO MDIR_DI MDIR_CL MDIR_CE MDIR_CSFLAG MDIR_CSFLAG MDIR_CE MDIR_CL MDIR_DI MDIR_DO SPDATA SPLRCK SPBCK SPMCK MDIR_XSTATE [DRIVE] [2.0V] [2.8V] Laser Driver Output [1.4V] Laser Driver Output Laser Power Monitor Input (2/9) MAIN BOARD CD/DVD RF AMP, FOCUS/TRACKING ERROR AMP, IC1101 1.4 DVD SYSTEM CONTROL, DSP, CLK+,CLK-,DATA0+,DATA0-, DATA1+,DATA1-,DATA2+,DATA2- VOA,VOB,VOC, VOD,VOE,VOF BA0,BA1,RA0,RA1, RA2,RA3,RA10,RCS CLKE,RA4,RA5,RA6, RA7,RA8,RA9,RA11 RD0,RD1,RD2,RD3, RD4,RD5,RD6,RD7 SERVICE JIG ( ) H 5 13 G 6 M C 16 4 1 D 7 L A 2 15 9 F 11 K I 10 14 3 B 12 E J 8 DIR/USB CONTROL CXD9927R CXD9917R R2121,2123 0 R2127,2128 10k 0 R2161,2162 100 R2120,2131 R2136 47 R2117 10k R1134,1138 100 R1162-1165 47 R2130 100 R2108 0 1181,1182,2154,2181,2189 10k (Page 44) (Page 45) (Page 45) (Page 43) (Page 44) (Page 42) (Page 41) (Page 39) (Page 45) (Page 42) (Page 39) (Page 42) (Page 43) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 HCD-DZ260/DZ270/HDZ278 41 41 6-10. SCHEMATIC DIAGRAM – MAIN Board (3/9) – • See page 59 for IC Block Diagrams. When IC1103 on the Main board is damaged, exchange the new Main board for the Main board which IC damaged. BOARD MAIN (5/9) 23 BOARD MAIN (2/9) 12 MAIN 24 (5/9) BOARD 39 (5/9) MAIN BOARD 40 (1/9) MAIN BOARD IC B/D IC B/D 3.3 1.7 2.8 0 3.8 3.3 3.3 3.5 3.5 0 5 3.3 3.2 3.2 3.3 5 0.6 0 3.3 5 6.6 1.3 3.3 1.8 1.5 1.5 2.2<1.7> 0 0 0 3.3 1.5 2.4 1.1 3.3 0.8 0.8 1.1 1 3.3 1.2 1.1 <1.6> 0.9 3.3 1.3 2.1 2.1 <1.7> 0.4 0 2 1.9 <1.5> 3 3.2 3.1 3.3 2.4 3.3 0.8 0.8 0.9 3.3 0.9 1 1 1 3.3 1.1 3.3 3.3 0 <3.3> 3.3 3.3 2 0 0 1.6 <1.4> 1.5 1.5 1.5 3.3 1.9<1.5> 1.9 1.9 2<1.5> 0<2> 0.1<2.3> 0<2.1> 0<2> 1.9 1.6 1.8<2.4> 2<0> 2 0.5<3> 0 3.3 3.3 3.3 3.3 0 0 1.8 1.4 1.2<2> 1.4<0.5> 1.9<0.5> 1.9<0.9> 2.1<0.6> 1.2<0> (AEP,UK,E3,E12,E15,AUS) (US,CND,AR,MX) 3.3 3.3 5 3.3 1.3 47 RB1106 1 C1102 0.1 C1179 10k R1105 1k R1193 47 RB1105 10k R1106 1k R1191 0.1 C1191 0.1 C1197 0.1 C1180 D-GND D3.3V FB1108 0.1 C1181 1k R1135 0.01 C2130 FB1111 C1110 0.1 47 RB1107 47 RB1108 D1 G2 S2 D2 G1 S1 UM6K1N-TN Q1701 LEVEL SHIFT 5 4 3 2 1 CONT GND NOISE VOUT VIN 5 4 3 2 1 TC7SZ08FU(TE85R) IC1705 A B VSS Y VDD 0 R1786 0 R1785 0 R1784 0 R1783 0 R1747 0 R1748 0 R1751 1.8k R1750 0 R1752 CL1701 0.01 C1725 R1744 4.7k 0.1 C1727 0 R1753 0.22 C1730 0.22 C1729 10V 47 C1728 CL1702 0 R2746 220 R9945 0 R9935 RT1N141C-TP-1 Q9729 2SC4154TP-1EF Q9728 2SC4154TP-1EF Q9726 27k R9941 22k R9928 1k R9924 10k R9934 22k R9929 10k R9922 R9920 0 1k R9918 0.1 C9972 48 43 6 5 46 4 3 2 1 47 45 44 42 41 37 38 39 40 12 10 11 9 8 7 36 31 32 33 34 35 18 17 16 15 14 13 30 29 28 27 26 25 24 23 22 21 20 19 IC1102 A15 A14 A13 A12 A11 A10 A9 A8 A19 N.C WE RESET N.C. N.C. RY/BY A18 A17 A7 A6 A5 A4 A3 A2 A1 A0 CE VSS OE DQ0 DQ8 DQ1 DQ9 DQ2 DQ10 DQ3 DQ11 VCC DQ4 DQ12 DQ5 DQ13 DQ6 DQ14 DQ7 DQ15/A-1 VSS BYTE A16 E3.3V CEC_TX_OUT 1.8k R1749 100 R1198 +6V ISA1602AM1TP-1EF Q9724 R1754 0 0.01 C2100 47k R1742 CEC_RX_IN MA2J1110GLS0 D9712 10V 100 C1190 47 48 49 8 50 51 52 53 54 1 2 3 4 5 6 7 41 42 43 44 45 46 14 13 12 11 10 9 34 40 35 36 37 38 39 16 15 17 18 19 20 21 28 27 29 30 31 32 33 26 25 24 23 22 V54C365164VEI7 IC1104 VDD DQ0 VDDQ DQ1 DQ2 VSSQ DQ3 DQ4 VDDQ DQ5 DQ6 VSSQ DQ7 VDD LDQM /WE /CAS /RAS /CS BA0 BA1 A10 A0 A1 A2 A3 VDD VSS A4 A5 A6 A7 A8 A9 A11 NC CKE CLK UDQM NC VSS DQ8 VDDQ DQ9 DQ10 VSSQ DQ11 DQ12 VDDQ DQ13 DQ14 VSSQ DQ15 VSS R2203 0 1 2 3 4 L1701 90uH 1 2 3 4 L1704 90uH 1 2 3 4 L1702 90uH 1 2 3 4 L1703 90uH 8 7 6 5 4 3 2 1 S-24CS64A01-J8T1G IC1103 A0 A1 A2 GND SDA SCL WE VCC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 CN1701 19P TMDS DATA2+ TMDS DATA2 SHIELD TMDS DATA2- TMDS DATA1+ TMDS DATA1 SHIELD TMDS DATA1- TMDS DATA0+ TMDS DATA0 SHIELD TMDS DATA0- TMDS CLOCK+ TMDS CLOCK SHIELD TMDS CLOCK- CEC Reserved SCL SDA DOC/CEC GND +5 POWER HPD 5 4 3 2 1 CONT GND NOISE VOUT VIN C1732 0.01 C1731 0.22 5V C1733 0.22 C1734 1 R2201 0 XRD,XROMCS,XWR HD0-HD7 SCL,SDA,WE A0-A21 RD0,RD1,RD2,RD3,RD4,RD5,RD6,RD7 RD8-RD15 CLKE,RA4,RA5,RA6,RA7,RA8,RA9,RA11 BA0,BA1,RA0,RA1,RA2,RA3,RA10,RCS CAS,DQM1,DQMO,RAS,RWE XSYSRST D3.3V D-GND DRCLK DDC-DA DDC-CLK 3.3V4 3.3V5 HTPLG D3.3V R1757 0 A17 A0 A1 A16 A15 A14 A13 A12 A11 A10 A9 A20 A19 A18 A8 A7 A6 A5 A4 A3 A2 HD7 HD6 HD5 HD4 HD3 HD2 HD1 HD0 XRD XROMCS XWR RA4 RA5 RA6 RA7 RA8 RA9 RA11 CLKE RAS CAS RWE DQMO RD8 RD7 RD6 RD5 RD4 RD3 RD2 RD1 RD0 RA3 RA2 RA1 RA0 RA10 BA1 BA0 RCS A21 RD12 RD13 RD14 RD15 RD9 RD10 RD11 CLK+ DATA0- DATA0+ DATA1- DATA2- DATA1+ DATA2+ CLK- WE SCL SDA DQM1 32M FLASH ROM (3/9) MAIN BOARD FLASH ROM IC1102 SDRAM IC1104 BUFFER IC1705 +3.3V REG IC1708 +5V REG IC1707 EEPROM IC1103 Q9724,9726,9728,9729 CEC RX/TX I/F HDMI OUT CLK+,CLK-,DATA0+,DATA0-, DATA1+,DATA1-,DATA2+,DATA2- 6 D 9 4 5 H 1 E 10 A F C K G J B 11 3 8 7 2 I S29AL032D70TF-OHIL-0801UC S29AL032D70TF-OHIL-0801CE TK11150CSCL-G IC1707 TK11133CSCL-G IC1708 (Page 43) (Page 40) (Page 43) (Page 43) (Page 39) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 HCD-DZ260/DZ270/HDZ278 42 42 6-11. SCHEMATIC DIAGRAM – MAIN Board (4/9), MS-203 Board – • See page 58 for IC Block Diagram. (1/9) 3 BOARD MAIN (2/9) 9 BOARD MAIN (5/9) BOARD MAIN 25 MAIN 2 BOARD (1/9) 7 BOARD (2/9) MAIN BOARD (2/9) MAIN 13 IC B/D 1.4 1.4 1.4 1.4 1.4 3.3 3.3 2.2 1.4 1.4 1.4 1.4 1.4 1.4<1.1> 0 3.3 3.3 3.3 0<3.3> 3.3 3.3 9.2 4.4 4.2 4.4 4.4 4.9 3.5 4.6<4.4> 4.6<4.4> 0.9<3.4> 0.9<5.4> 4.4 1.4 1.2<2.1> 1.2<2.2> 1.4<0.3> 4.9 1.4 3.3<3> 3.3<3> 2.6<1.7> 9.2 9.2 4.6 0.01 C1212 0.5% 100k R1223 33k R1208 220p C1205 0.5% 56k R1221 0.5% 15k R1231 27k R1219 16V 10 C1218 1.2k R1204 0.033 C1211 0.01 C1203 1000p C1226 12k R1216 0.01 C1219 15k R1214 0.5% 56k R1226 0.01 C1213 0.01 C1210 1k R1237 4700p C1233 16V 10 C1220 33k R1209 10k R1205 10k R1206 0 R1228 0.5% 18k R1232 1000p C1225 0.5% 82k R1230 0 R1227 0.5% 100k R1225 0.033 C1209 0.1 C1223 1k R1236 10k R1224 0.01 C1208 1k R1247 47k R1210 33k R1222 10k R1234 0.01 C1224 10k R1212 6.8k R1213 12k R1215 4.7k R1246 1k R1220 220p C1206 0.01 C1215 1000p C1214 2.7k R1207 JL1206 JL1205 JL1203 JL1204 JL1202 JL1201 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 FIN FIN FIN FIN IC1201 FAN8036L IN1- OUT1 IN2+ IN2- OUT2 RES1 RES2 REGCTL IN3+ IN3- OUT3 IN4+ IN4- OUT4 CTL FWD REV SGND MUTE123 MUTE4 PS TSD_M PVCC2 DO5- DO5+ PGND2 DO4- DO4+ DO3- DO3+ REGO2 REGO1 PGND1 DO2- DO2+ DO1- DO1+ PVCC1 REGVCC OPOUT2 OPIN2- OPIN2+ VREF SVCC OPOUT1 OPIN1- OPIN1+ IN1+ JL1207 JL1208 JL1209 JL1210 JL1211 JL1212 JL1213 CL1213 SPFG 5V TRO VREFO CKSW FMO D3.3V IOP OCSW DMO IOPMON OCSW1 TROPENPWM FCS- D-GND LIMITSW FWD FCS+ REV TRK+ MUTE123 FOO TRK- RF+3.3V MUTE REG01 TSD_M REG02 M+9V M-GND 0.1 C1222 CL1201 CL1202 CL1203 CL1204 CL1205 CL1206 CL1207 CL1208 CL1209 CL1210 CL1211 CL1212 0.1 C1221 0.5% 33k R1233 1k R1239 1k R1238 47 R1243 1 2 3 4 5 5P CN1202 LDM+ LDM- GND CKSW1/FWD OCSW1/REV 1 2 3 4 5 6 6P CN1201 SP- SP+ LIMIT (GND)LIMIT SL- SL+ 16V 47 C1217 1 2 3 4 5 5P CN001 LDM+ LDM- GND CKSW1/FWD OCSW1/REV S001 M M001 (LOADING) FCS- FCS- FCS+ TRK+ TRK- FCS+ TRK+ TRK- SL+ SP- SP+ SL+ SL- SL- SP- SP+ MAIN BOARD (4/9) FOCUS/TRACKING DRIVER, IC1201 MS-203 BOARD CHUCK/TRAY DETECT ) ( + - LOADING/SPINDLE/SLED MOTOR DRIVER DVD DRIVE SPINDLE/SLED MOTOR ( ) 8 5 13 F C 6 4 1 B 7 A 2 9 11 10 3 E 12 D (Page 39) (Page 40) (Page 40) (Page 39) (Page 40) (Page 43) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 HCD-DZ260/DZ270/HDZ278 43 43 6-12. SCHEMATIC DIAGRAM – MAIN Board (5/9) – • See page 31 for waveform. • See page 59, 63 for IC Block Diagrams. • See page 68 for IC Pin Function Description of IC501. When IC501 and IC510 on the Main board are damaged, exchange the new Main board for the Main board which IC damaged. MAIN (6/9) BOARD 26 MAIN (6/9) BOARD MAIN (3/9) BOARD 38 39 MAIN (8/9) BOARD 29 MAIN (9/9) BOARD 28 MAIN (8/9) BOARD 34 BOARD MAIN 16 (2/9) BOARD MAIN 24 (3/9) BOARD 5 MAIN (1/9) MAIN (4/9) BOARD 25 MAIN (3/9) BOARD 23 MAIN (2/9) BOARD 10 31 MAIN BOARD (7/9) MAIN BOARD (7/9) 30 JACK N BOARD CN103 CN406 L IO-SCART BOARD CN407 M IO-COMPONENT BOARD E CN906 POWER BOARD 8 IC B/D IC B/D IC B/D IC B/D 0<3.3> 0<3.3> 0<3.3> 3.3<0> 3.3<0> 0 0 0<3.3> 3.3 0 0 3.3 0 3.3 3.3 3.3 3.3 3.3 0 0 0 0 3.4 3.3 3.3 0 3.3 3.3 3.3 1.9 1.7 3.3 3.3 2.7 3.3 3.1 0 2.9 0.2 3.3 0.1 0 0 3.3 3.3<0.3> 0 3.3 2.5 0 2<1> 3.3 3.3 3.3 3.3 3.1 3.3 3.1 3.1 3.1 3.1 3.2 3.2 3.3 3.3 3.3 3.3 3.3 1.8<0.1> 1.5<0> 1.9<2.3> 0<3.3> 0 2.7 0 0.1<3.3> 2.9 3.3 3.1 3.3 0 3.3 3.2 0 0.6 5 5 6 3.1 3.3 3.3 4 5 5 6 3.1 3.3 3.3 3.3 3.7 3.3 4 3.3 0 0 0 0 4.9 DZ270/DZ278 DZ260 DZ260/DZ270 DZ260 DZ260/ HDZ278 (US,CND) 1 3 2 (DZ260/HDZ278) 1 2 3 4 5 6 (DZ260/HDZ278) (AEP) (UK,E3,E12,E15,AUS) (AR) (MX) (E12) 4 (UK) (AUS) (US,CND,AR,MX) (E3,E15) 5 (DZ270/HDZ278) 6 (DZ260) (DZ270) (HDZ278) 3.3 3.1 3.3 1.3 5 6 0.01 C505 R604 100 100 R605 100 R606 R616 100 100 R607 100 R611 100 R612 100 R613 R614 100 R506 R504 R532 1k R534 10k R531 10k R559 10k 10k R527 R528 10k R569 0 R568 0 R567 0 R566 0 R565 0 R564 0 C504 0.01 R505 R507 ICT545 ICT543 ICT547 ICT541 TP502 TP614 TP507 TP607 TP513 TP514 TP610 TP519 TP609 TP605 TP608 TP611 TP518 TP613 TP510 TP509 TP574 TP606 TP603 TP508 TP612 TP516 TP501 TP506 TP604 TP512 TP515 TP517 TP573 TP505 A.CAL_OUT OVF2 OVF1 DIAG 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 IC501 R5F3640DDFA DAMP_SCDT/DIR_DIN DAMP_SHIFT/DIR_CLK CEC_RX_IN SIRCS_IN DSP_MOSI/ASEL4 DSP_MISO/ASEL5 DSP_SPICLK BYTE CNVss EN_A EN_B RESET Xout Vss Xin Vcc NMI DIR_ZERO INT2 DIR_CSFLAG INT1 /A.CAL_OUT_LEVEL AC_CUT INT0 FL_CLK/LED_CLK CEC_TX_OUT FL_CS/STB FL_D_OUT/LED_DATA DRIVER_RST_C/S-AIR_SRC_MUTE MIC_GAIN CDM_OPEN_SW/XM_SEL DC_CONT DMP_RX_IN DMP_TX_OUT DVD_SID DVD_SOD DVD_SCO DVD_XIFBUSY XM_TX_OUT/MIC_DET_OUT XM_RX_IN/KRMOD DVD XIFCS MTK RST P_CONT1 P_CONT2 WRITE EMP P_CONT3 DRIVE_RST(EN) SD(DIAG)/PVDD_DET OVERFLOW1 OVERFLOW2 WRITE CE I2C_DATA I2C_CLK DAMP LATCH3 DAMP INIT DAMP SOFT MUTE M_ST HP_MUTE S-AIR_ADC_SEL MIC_CLK DAMP LATCH2 DC_DET S-AIR_RST DIR_HCE DIR_ERR DIR_XSTATE Vcc HDMI_PCONT Vss DAMP LATCH1 JACK1/JACK2/S-AIR_DET GPIO2 TUNED ST_CLK ST_DO ST_CE ST_DI DSP_INTR INT4 KEY INT INT3 RDS_CLK/LED_LAT RDS_DATA/XM_RST(PCONT) S-AIR I2C_SDA S-AIR I2C_SCL DSP_SF_CE 2ND_XM_SEL/ TV_SEL/ MIC_DATA ASEL3/ DSP_SPIDS/ XM_SRC_RST V_SEL0 V_SEL1 IO_CE/ASEL0 IO_RESET/ASEL1 IO_DI/ASEL2 IO_DO/VSEL2 IO_CLK DMP_DET MONO/ST_DET A.CAL MIC LEVEL/DSP_MASTER DESTINATION MODEL KEY2 KEY1 Vss KEY0 Vref Vcc DIR_ HDOUT TP617 TP616 TP615 TP618 R601 100 R602 100 R603 100 R615 100 10k R519 1k R529 0.1 C515 0 R536 5MHz X501 0.1 C517 10k R539 47k R556 ICT544 47k R557 2SC3052EF-T1-LEF Q503 RESET ICT546 100k R561 47k R562 0.22 C520 10k R563 0.01 C521 5 4 3 2 1 PST3635NR IC503 OUT VDD GND NC Cd 0.1 C523 0.22 C522 10k R558 R593 10k R595 10k 0.1 C518 ICT538 1k R515 1k R516 100 R509 10k R512 0.1 C501 0.1 C502 0.1 C508 0.1 C503 0.1 C507 10k R514 100 R517 100 R518 100 R533 100 R535 100 R530 1k R526 0.1 C510 10V 100 C524 50V C530 22 0.01 C529 0.5% R573 10k 0.5% R572 1.5k 10V 100 C526 0.1 C531 0.1 C533 TP527 TP528 TP541 TP529 TP531 TP533 TP538 TP534 TP537 TP535 FB510 FB506 100 R579 0.1 C532 1000p C538 TP553 TP551 TP554 TP550 TP542 TP539 TP540 TP543 TP544 TP548 TP545 TP549 TP547 R581 100 R636 0 KRMOD IFSCK IFSDO CEC_RX_IN R617 100 R618 100 R639 TP619 TP620 1k R552 R553 R547 0 R548 0 1 2 3 4 4P CN512 D-GND E3.3V I2C_CLK I2C_DATA ICT549 6.3V 1000 C528 R555 10k 10k R542 DC-DET 10k R586 1M R501 ICT591 ICT592 10k R544 R620 100 R583 47k SL501 SL502 SL503 SL504 1k R511 1k R513 TP564 TP563 ICT537 10k R631 2SC3052EF-T1-LEF Q631 47k R632 TP635 TP636 TP637 MC2836 D505 2SC3052EF-T1-LEF Q632 E EB505 R584 1k P_CONT2 6V DMP_TXD DMP_RXD R619 0 16V 100 C539 1 2 3 4 5 6 7 8 9 9P CN504 D-GND TXD1 RTS1 3.3V CLK1 RXD1 CNVSS RESET D-GND R537 1k TP503 TP504 0.01 C581 0.01 C592 0.5% 1.5k R598 10k R587 0.5% 39k R588 0.5% 0.1 C582 0.5% 22k R597 10V 100 C583 0.5% 1k R589 0.5% 10k R596 0.01 C591 1 2 3 4 5 SI-3010KM-TL IC506 Vcont Vin GND Vout Sense 10V 100 C593 1 2 3 4 5 SI-3010KM-TL IC505 Vcont Vin GND Vout Sense 100 R580 R590 1k R599 1k TP536 16V 100 C594 16V 100 C584 1 2 3 3P CN507 GND E4V A+5V TP522 TP523 R585 0 47k R628 22k R627 10k R626 4.7k R577 4.7k R576 4.7k R578 100 R650 100 R551 1 2 3 4 4P CN513 D-GND E3.3V I2C_CLK I2C_DATA M-GND 1 3 4 5 6 7 8 9 10 11 12 13 14 14P CN506 P_CONT1 EN P_CONT3 E4V 6V 6V D-GND D-GND M+9V M-GND M+14V 12V A-GND M+14V TP552 LAT3 EN NS_INIT D3.3V A12V SOFT_MUTE HPMUTE SCDT SHIFT LAT1 D-GND LAT2 D-GND MIC E3.3V D3.3V XSYSRST OCSW1 5V XIFCS IFSDI XIFBSY CEC_TX_OUT M+9V M-GND D-GND D3.3V A-GND A5V M_ST 1 2 3 4 5 SI-3010KM-TL IC504 Vcont Vin GND Vout Sense 0.1 C525 0.5% R549 39k USB5V 1000p C574 1 C571 0.1 C572 50V 22 C573 5 4 3 2 1 TK11150CSCL-G IC507 CONT GND NP VOUT VIN R546 1k 10k R510 MA2J1110GLS0 D501 MC2836 D502 VBUS_SW R541 1k DMP_DET R638 0 R540 10k 1 C516 1 C509 TP581 TP582 TP583 TP584 TP585 TP586 TP587 TP588 R608 4.7k R609 4.7k C511 0.1 R648 0 R582 10k FB508 FB505 0.1 C512 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 19P CN602 8 7 6 5 4 3 2 1 S-24CS16A0I-J8T1G IC510 A0 A1 A2 GND SDA SCL WE VCC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 19P CN502 R508 0 1 2 3 4 5 6 TK11250CMCL-G IC502 CONT GND Np Vout GND Vin C527 1000 6.3V Bup3.3V R592 0 P_CONT3 A5V D-GND D3.3V 6V D3.3V D-GND D-GND A12V M+9V 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 17P CN603 SIRCS FL_DATA MIC_GAIN DC_CONT A.CAL_OUT HPMUTE OVF2 OVF1 LAT3 LAT2 LAT1 SHIFT SCDT SOFT_MUTE NS_INIT RDS_CLK TUNED ST_DI ST_CE ST_DO ST_CLK RDS_DATA IFSDI IFSDO IFSCK XIFBSY XIFCS XSYSRST EN DIAG OVF1 OVF2 LAT3 NS_INIT RDS_DATA HPMUTE SOFT_MUTE MIC XIFCS EN_A EN_B TUNED ST_CLK ST_DO ST_DI ST_CE KRMOD MIC CEC_TX_OUT CEC_RX_IN CEC_RX_IN CEC_TX_OUT DC-DET DC-DET IFSCK IFSDO IFSDI EN IFSCK IFSDO CNVSS RESET XIFBSY IFSDI XSYSRST XIFBSY LAT1 RDS_CLK M_ST I2C_CLK FL_CS LAT2 I2C_DATA MIC_GAIN JACK2 MONO/ST_DET A.CAL DC_CONT EN_A JACK1 FL_CLK FL_DATA FL_CS KEY0 SIRCS KEY1 KEY2 EN_B P_CONT3 DIAG FL_CLK XM_RX_IN E4V I2C_DATA I2C_CLK KEY1 MONO/ST_DET KEY0 JACK1 JACK2 RESET SHIFT SCDT OCSW1SIG CNVSS A.CAL_OUT OCSW1SIG M_ST D3.3V A.CAL KEY2 E3.3V E3.3V TO WRITE JIG TO +3.3V REG IC506 +5V REG IC505 IC507 +5V REG IC504 +5V REG IC510 EEPROM IC503 RESET IC502 +5V REG SYSTEM CONTROL IC501 (5/9) MAIN BOARD Q631,632 BUFFER RDS/MIC DATA RDS/MIC CLK TUNED ST_CLK ST_DO ST_CE ST_DI A12V V_SEL0 V_SEL1 TV_SEL A_SEL0 A_SEL1 A_SEL2 A_SEL3 A_SEL4 A_SEL5 V_SEL2 NC FL_CLK FL_DATA FL_CS 5V D-GND(FL) KEY0 SIRCS KEY1 E+4V KEY2 D-GND ENCODER_B PLAG-DET1 ENCODER_A DC-CONT A.CAL MO/ST-DET PLAG-DET2 GAIN-CONT 4 6 I G L B E 2 7 11 9 14 K H 10 17 12 3 15 1 16 C 18 5 8 13 J D F A A_SEL4 A_SEL3 V_SEL0 TUNED ST_DI ST_CE A12V TV_SEL ST_DO A_SEL5 A_SEL2 V_SEL2 A_SEL0 ST_CLK A_SEL1 V_SEL1 V_SEL3 S-AIR CON TO FOR SOFTWARE JIG FOR SOFTWARE JIG R639 R505 100 22k R553 10k 4.7k 47k 10k 6.8k 10k 6.8k 47k 15k 1.5k R504 R507 47k R506 1k 3.3k 1.5k (Page 49) (Page 51) (Page 53) (Page 44) (Page 41) (Page 45) (Page 45) (Page 46) (Page 47) (Page 57) (Page 46) (Page 39) (Page 41) (Page 42) (Page 41) (Page 40) (Page 44) (Page 40) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 HCD-DZ260/DZ270/HDZ278 44 44 6-13. SCHEMATIC DIAGRAM – MAIN Board (6/9) – • See page 63 for IC Block Diagram. MAIN BOARD 26 (5/9) BOARD MAIN 32 (7/9) BOARD MAIN 20 (2/9) BOARD MAIN 38 (5/9) BOARD MAIN 14 (2/9) J IO-COMPONENT BOARD I IO-SCART BOARD CN401 CN402,403 IC B/D 1.2 1.2 1.2 1.2 1.6 1.7 1.5 1.2 1.2 1.2 1.2 1.7 1.6 1.7 3.3 5 3 3 3 3 3 3 3.1 6 5 5 DZ260/HDZ278 DZ270/HDZ278 (HDZ278) (DZ270) (HDZ278) DZ270/HDZ278 DZ260 3.3k C4504 0.01 22 R4502 22 R4501 JL4511 JL4701 JL4702 JL4703 JL4705 JL4706 JL4707 JL4709 C4501 10 R4718 0 ASDATA2 ASDATA1 D-GND C D3.3V Y/G CB/B WIDE CR/R RGBSEL ABCK ALRCK ACLK 22 R4805 EMI G FL4501 0uH D-GND D-GND CL100 ASDATA0 R4717 0 R4512 47 C4503 10V 100 JL4711 +6V 47 R4516 47 R4515 47 R4510 47 R4514 33 R4511 ASDATA3 ASD0 BCKO ASD2 ASD1 LRCKO MCKO ASD3 R4719 0 R4721 0 R4513 47 R4518 0 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 TC74LCX541FT(EKJ) IC4502 JL4713 JL4718 JL4715 JL4716 JL4717 Y JL4719 R4716 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 19P CN4301 DMP-L A-GND DMP-R +6V AMP-V D-GND Y D-GND C D-GND Y/G D-GND Cb/B D-GND Cr/R D-GND WIDE DSEL / I/P SEL RGB SEL 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 17P CN4302 47uH L4501 A5V 0.5% R227 22k CL216 0.5% R221 1k CL206 CL213 DMP_RXD R214 0.5% 22k CL210 CL202 C239 16V 47 CL214 0.5% R222 39k CL221 DMP_TXD CL220 C231 1 CL218 0.5% R208 22k CL211 6.3V C223 100 C227 1000p R231 P_CONT2 CL208 1 2 3 4 5 SI-3010KM-TL IC201 EN IN GND OUT FB DMP_DET CL217 0.5% R230 22k CL203 C230 1 R215 0.5% 22k CL219 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 18P CN204 D-GND VBUS(5V) NC VIDEO5V RXD TXD DET DGND WM DET WM A/D (Lch)AGND (Rch)AGND Lch Rch WM RX WM TX VIDEO VGND 0.1 C237 C222 0.1 C229 1 0.5% R223 10k CL207 R232 4.7k 0.5% R228 22k 10V C220 100 C240 0.1 C232 1 C241 0.1 CL215 CL201 10uH L200 8 7 6 5 4 3 2 1 NJM4565M(TE2) IC202 AOUT A-IN A+IN V- B+IN B-IN BOUT V+ C221 0.1 0.5% R203 22k 0.5% R229 22k CL209 CL212 R220 1k 50V C238 22 IC4502 BUFFER MAIN BOARD (6/9) IC202 DMPOART AUDIO AMP 1Vrms=2.2dBm +5V REG 1Vrms=2.2dBm IC201 DMPOART MEDIA PORT WIDE Cr/R D-GND D-GND Cb/B D-GND Y/G D-GND C D-GND Y D-GND AMP-V +6V DMP-R A-GND DMP-L 4 6 G B E 2 7 9 H 10 3 1 C 5 8 D F A DIGITAL CN4303 15P (Page 40) (Page 43) (Page 40) (Page 45) (Page 51) (Page 49) (Page 43) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 HCD-DZ260/DZ270/HDZ278 45 45 6-14. SCHEMATIC DIAGRAM – MAIN Board (7/9) – • See page 31 for waveform. • See page 58, 59, 60 for IC Block Diagrams. 9 CN410 IO-SCART F BOARD CN418 IO-COMPONENT G BOARD MAIN BOARD (2/9) 15 MAIN BOARD 32 (6/9) MAIN BOARD 31 (5/9) (2/9) 17 BOARD MAIN BOARD MAIN (2/9) 6 30 MAIN (5/9) BOARD 33 MAIN BOARD (8/9) IC B/D IC B/D IC B/D 3.3 0 0 0 1.2 0.1 1.7 3.3 1.5 2.9 2.9 3.3 0 0.1 3.3 3.3 3.3 3.3 3.3 3.3 3.3 0 0 0 1.5 1.6 1.6 0 3.3 3.3 1.5 1.5 0 2.5 2.5 3.3 1.2 1.6 2.5 5 3.3 1.5 1.6 (DZ260) (DZ270/HDZ278) DZ260/HDZ278 (DZ260) (HDZ278) 3.3 3.3 0.1 1.7 1.7 ICT518 TP708 TP707 TP706 TP705 TP704 TP703 TP702 TP711 TP710 TP709 A5V A-GND D-GND 0 R721 R729 100 100 R730 1k R731 0.1 C722 TP729 1M R733 12.288 MHz X701 100 R736 ICT527 ICT526 ICT528 ICT529 100 R738 R740 0 R741 0 0.1 C727 100 R735 100 R734 100 R726 100 R718 100 R717 0.1 C723 0.01 C721 ICT523 ICT524 10V 220 C720 0.01 C716 0.1 C719 0.1 C711 C712 0.01 R713 33k R716 100 R715 5.6K R714 4.7k ICT533 ICT532 10V 220 C709 C317 0.1 IC301 TORX147L R329 470 R328 75 1 2 R319 47K R317 100 R318 100 C315 100 16V C313 100 16V C314 0.1 C312 0.1 ICT517 ICT519 R691 0 R692 0 R693 0 R694 0 R695 0 R696 0 D-GND D3.3V D3.3V D-GND D-GND GND OUT VCC 3 2 1 ASD0 ASD1 ASD2 BCKO LRCKO MCKO R778 0 47 R780 47 R781 ABCK ACLK ALRCK ADIN R782 22 R783 22 R784 22 R785 22 ICT588 ICT587 ICT581 ICT589 ICT582 ICT555 ICT556 ICT557 ICT558 ICT559 ICT560 ICT561 ICT562 ICT563 ICT564 ICT565 ICT568 ICT569 ICT570 ICT572 ICT573 0 R790 R791 0 C774 0.1 50V C775 10 50V 10 C706 50V 10 C717 50V 10 C705 0.1 C707 0.1 C708 0.1 C718 1 2 3 4 5 5P CN702 MUSIC L+R A-GND R-IN A-GND L-IN C3073 0.1 8 7 6 5 4 3 2 1 TC7WH157FK(TE85R) IC3003 A B Y GND Y A/B G VCC R3079 100 M_ST 0.1 C3072 R3097 100 R3077 100 R3078 100 C710 0.01 14 13 12 11 10 9 8 7 6 5 4 3 2 1 Vref AGND AVcc DVdd DGND SCKI LRCK BCK DOUT MOD0 MOD1 FMT VinL VinR C724 10p C725 10p R732 330 MC2837 D701 E EB702 R743 100 R744 0 R745 0 R746 0 R747 0 R748 0 R765 0 R766 0 R767 0 R768 0 R769 0 R749 0 R750 100 SPMCK SPBCK SPLRCK SPDATA MDIR_XSTATE MDIR_AUDIO MDIR_ERROR XSYSRST MDIR_CL MDIR_CE MDIR_DI MDIR_DO MDIR_CSFLAG ASD3 R697 0 R763 0 R793 0 R788 0 R794 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 DISEL(I) SPDIF(O) DIN0(I) DIN1(I) DIN2(I) DGND DVDD SDIN / R AGND / VIN LPF(O) AVDD AGND CKOUT(O) BCK(O) LRCK(O) DATA(O) XSTATE(O) DGND DVDD XMCK(O) XOUT(O) XIN(I) EMPHA(O) AUDIO-(O) CSFLAG(O) F0(O) F1(O) F2(O) VF(O) DVDD DGND VREF BPSYNC(O) ERROR(O) DO(O) DI(I) CE(I) CL(I) XSEL(I) MODE0(I) MODE1(I) DGND DVDD DOSEL0(I) DOSEL1(I) CKSEL0(I) CKSEL1(I) XMODE(I) AMP_D2 AMP_D3 AMP_BCKO AMP_LRCKO AMP_MCKO AMP_D1 R709 0 R796 0 R764 0 TP700 10uH L701 10uH L702 10uH L302 10uH L301 10uH L703 R710 10k R720 10k R737 10k R742 10k R797 0 FRONT ASD0 REAR ASD1 C/SW ASD2 BCKO MCKO ASD3 DMIX L/R LRCKO MCKO ASD2 ASD1 ASD3 LRCKO BCKO ASD0 (MTK) (OPT) (COAX) XSEL 24.576MHz 512fs DATA SELECT IC3003 IC702 MAIN BOARD (7/9) 5 3 G A 1 H 7 10 11 D 9 2 F 8 6 E 4 B C 5 4 3 2 1 IC707 IC302 TC7SHU04FU (T5RSOJF) WAVE SHAPER IC302 OPTICAL RECEIVER IC301 OPTICAL TV/VIDEO DIGITAL IN TV DIGITAL IN COAXIAL J302 IC707 PCM1808PWR A/D CONVERTER L H CKSEL1 256fs 12.288MHz IC702 LC89056W-E DIR (Page 40) (Page 51) (Page 49) (Page 43) (Page 44) (Page 46) (Page 43) (Page 40) (Page 40) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 HCD-DZ260/DZ270/HDZ278 46 46 6-15. SCHEMATIC DIAGRAM – MAIN Board (8/9) – • See page 58, 61 for IC Block Diagrams. MAIN BOARD 34 (5/9) MAIN BOARD (9/9) 34 MAIN BOARD (7/9) 33 BOARD 29 MAIN (5/9) IC B/D IC B/D IC B/D 3.3 0 3.3 1.6 1.7 0.6 3.3 1.8 1.7 1.7 3.3 3.3 3.3 1.5 1.7 3.3 1.7 1.6 3.3 1.7 27 11.9 3.3 3.1 3.3 1.7 1 3.3 1.6 11.9 11.9 27 32 32 32 16 16 16 16 16 16 32 32 32 16 32 32 16 32 32 27 16 32 1 27 11.9 3.3 3.3 11.9 32 3.3 3.1 16 16 11.9 1.7 16 1.6 0.6 0 0.7 0 3.3 0 3.1 0 0 7.5 13.7 8.2 0 0.7 0 15.9 15.9 0 15.9 15.9 15.9 15.9 0 15.9 15.9 0.1 C3308 0.1 C3313 0.1 C3413 0.1 C3408 16V 47 C3001 16V 47 C3031 35V 100 C3412 35V 100 C3409 35V 100 C3312 35V 100 C3309 0.1 C3002 16V 100 C3000 C3416 2200 35V C3316 2200 35V 50V 1 C3551 50V 10 C3552 1 C3315 1 C3314 1 C3414 1 C3415 0.1 C3040 0.1 C3039 0.1 C3038 0.1 C3037 0.1 C3036 0.1 C3035 0.1 C3034 0.1 C3033 0.1 C3032 R3502 100 R3501 100 100 R3302 100 R3301 R3076 100 R3075 100 100 R3073 100 R3072 100 R3071 100 R3070 100 R3069 100 R3068 100 R3067 100 R3066 47 R3057 100 R3037 R3035 100 R3034 22 470 R3032 470 R3031 1k R3063 100 R3065 1k R3064 2.2k R3004 1k R3003 10k R3001 10k R3002 10k R3033 10k R3059 10k R3060 10k R3553 100k R3554 100k R3551 100k R3326 100k R3325 100k R3276 100k R3275 R3080 100k 0 R3304 0 R3404 0 R3555 47uH L3000 1 2 2P CN3000 DC-FAN - DC-FAN + 2SC3052EF-T1-LEF Q3002 2SC3052EF-T1-LEF Q3551 DC BALANCE PROTECT 2SC3052EF-T1-LEF Q3001 JL3062 JL3060 JL3052 JL3051 JL3020 JL3019 JL3018 JL3017 JL3016 JL3015 JL3014 JL3013 JL3011 JL3010 JL3002 JL3001 TP3004 TP3311 TP3006 TP3003 TP3000 TP3410 TP3005 TP3236 TP3032 TP3001 A.CAL_OUT NS_INIT SOFT_MUTE SCDT SHIFT LAT1 LAT2 LAT3 EN DIAG OVF1 OVF2 D-GND AMP_D1 AMP_D2 AMP_D3 AMP_BCKO AMP_LRCKO AMP_MCKO 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 8 4 1 2 3 5 6 7 9 10 11 12 13 14 15 16 17 CXD9883M IC3400 BST_A GVDD_A /DTW /SD /RESET PWM_A OC_ADJ GND GND VREG M3 M2 M1 PWM_B VDD GND GVDD_B BST_B PVDD_B PVDD_B PVDD_B GND GND GND OUT_B OUT_B OUT_B OUT_A OUT_A OUT_A GND GND GND PVDD_A PVDD_A PVDD_A 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 8 4 1 2 3 5 6 7 9 10 11 12 13 14 15 16 17 CXD9883M IC3300 BST_A GVDD_A /DTW /SD /RESET PWM_A OC_ADJ GND GND VREG M3 M2 M1 PWM_B VDD GND GVDD_B BST_B PVDD_B PVDD_B PVDD_B GND GND GND OUT_B OUT_B OUT_B OUT_A OUT_A OUT_A GND GND GND PVDD_A PVDD_A PVDD_A 15k R3407 JL3101 JL3104 15k R3307 JL3086 JL3085 JL3096 0.033 C3307 0.033 C3306 0.033 C3407 0.033 C3406 0.1 C3400 0.1 C3403 0.1 C3405 0.1 C3303 0.1 C3305 0.1 C3300 D-GND 0 R3044 A12V 0 R3061 0.01 C3071 TP3231 TP3230 TP3229 TP3307 TP3308 TP3309 TP3310 100k R3327 100k R3277 R3074 100 C3904 1000p C3902 1000p C3903 1000p C3901 1000p 0.01 C3914 0.01 C3913 C3912 0.01 C3911 0.01 C3128 2.2 10 C3129 DC-DET TP3007 2SC3052EF-T1-LEF Q3553 C3556 0.1 10k R3558 4.7k R3556 22k R3552 C3553 0.1 2SC3052EF-T1-LEF Q3552 R3901 0 R3902 0 R3905 0 R3906 0 R3914 0 R3913 0 R3907 0 R3917 0 R3911 0 R3912 0 SL3001 R3918 0 R3919 0 + - + - TB3901 10 R3415 0 R3303 0 R3416 0 R3316 0 R3403 10 R3315 MC2837 D3551 D4301 RSA39LTE25 D4302 RSA39LTE25 D4401 RSA39LTE25 D4402 RSA39LTE25 E EB3001 0.1 C3317 0.1 C3417 R3560 0 0.1 C3304 0.1 C3404 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 CXD9788AR IC3030 XVSS VSUBC VSSR OUTR2(-) VDDR OUTR1(+) VSSR VSSL OUTL2(-) VDDL OUTL1(+) VSSL XOVSS XFSOOUT XOVDD DVDD DVSS NSPMUTE SOFTMUTE PGMUTE SCDT SCSHIFT SCLATCH OVF FLAGR OVF FLAGL SFLAG INIT MCKSEL LRCK BCK DATA BFVDD BFVSS TEST DVDD XFSIIN FSOCKO FSOI HPOUTR2 HPVSSR HPOUTR1 HPVDDR HPOUTL2 HPVSSL HPOUTL1 HPVDDL XVDD XFSOIN 2SC3052EF-T1-LEF Q3554 2SC3052EF-T1-LEF Q3555 10k R3559 47k R3561 0 R3058 10k R3562 M-GND M+14V 100k R3563 10 C3561 ISA1235AC1TP-1EF Q3301 ISA1235AC1TP-1EF Q3252 ISA1235AC1TP-1EF Q3302 ISA1235AC1TP-1EF Q3251 MA2J1110GLS0 D3072 MA2J1110GLS0 D3073 MA2J1110GLS0 D3071 0.6uH L3903 0.6uH L3901 0.6uH L3904 0.6uH L3902 3 2 1 4 10uH L3301 3 2 1 4 10uH L3401 MAZ8150G0LS0 D3552 13.9-15.6V 50V 10 C3005 2SD1388TP-34 Q3000 P-GND1 DCDET 32V P-GND A12V SD RESET XFSO NSPMUTE D3.3V DVDD D-GND OVF FSOI AMP_LRCKO AMP_BCKO DATA2 DATA1 AMP_MCKO INIT INIT SOFTMUTE SC_DT SCSHIFT SOLATCH2 OVFFLAGR2 SCSHIFT SC_DT SOFTMUTE OVF SOLATCH1 SOLATCH3 SOLATCH3 OVFFLAGR2 PGMUTE (DATA3) (OpenDrain) (OpenDrain) (OpenDrain) (OpenDrain) CENTER SW R S.Woofer SW L DIGITAL POWER AMP IC3400 DIGITAL POWER AMP IC3300 S-MASTER PROCESSOR IC3030 INIT,OVF,OVFFLAGR2, PGMUTE,SCSHIFT,SC_DT, SMASTER-CONTROL, SOFTMUTE,SOLATCH1, SOLATCH2,SOLATCH3 (8/9) MAIN BOARD 3.3 3.3 0 0 3.3 3.3 3.3 1.8 3.3 FAN3001 FAN Q3552-3555 B+ DOWN PROTECT FAN MOTOR DRIVE Q3000-3002 DC BALANCE DETECT Q3301,3302 Q3251,3252 Q3451,3452 SUB WOOFER CENTER SPEAKER 12 2 G 1 A 9 10 I 6 B H 4 5 14 D 3 15 7 E F 8 11 13 C (Page 43) (Page 45) (Page 47) (Page 43) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 HCD-DZ260/DZ270/HDZ278 47 47 6-16. SCHEMATIC DIAGRAM – MAIN Board (9/9) – • See page 31 for waveforms. • See page 58, 59, 61 for IC Block Diagrams. CN904 D BOARD POWER JACK BOARD C CN108 (5/9) BOARD MAIN 28 CN114 BOARD SPEAKER A B CN114 SPEAKER BOARD MAIN BOARD (8/9) 34 12 11 10 IC B/D IC B/D IC B/D IC B/D IC B/D IC B/D IC B/D 3.3 0 3.3 11.9 6.7 4 4 6.7 4 4 3.3 1.8 3.3 1.3 3.3 1.6 3.3 0 3.3 1.6 1.7 1.2 3.3 1.8 1.7 1.6 3.3 1.6 1.6 3.3 1.6 3.3 3.3 0 0 3.3 3.3 3.3 1.8 3.3 1.5 1.7 1.7 1.7 1.7 3.3 1.7 1.7 3.3 3.3 1.6 1.8 3.3 1.2 3.3 0 1.7 3.3 1.7 1.6 3.3 1.6 1.7 3.3 3.3 3.3 1.6 3.3 1.6 1.6 1.6 1.5 3.3 0 3.3 3.3 3.3 3.3 0 1.8 3.3 1 16 27 3.3 3.1 3.3 32 16 32 3.3 32 32 11.9 1.6 16 16 27 32 16 11.9 16 32 1.7 11.9 1 16 27 3.3 3.1 3.3 32 16 32 3.3 32 32 11.9 1.6 16 16 27 32 16 11.9 16 32 1.7 11.9 1 16 27 3.3 3.1 3.3 32 16 32 3.3 32 32 11.9 1.6 16 16 27 32 16 11.9 16 32 1.7 11.9 1 16 27 3.3 3.1 3.3 32 16 32 3.3 32 32 11.9 1.6 16 16 27 32 16 11.9 16 32 1.7 11.9 15.9 15.9 0 15.9 15.9 15.9 15.9 0 15.9 15.9 15.9 15.9 0 15.9 15.9 15.9 15.9 0 15.9 15.9 R3086 R3049 100k 0.1 C3163 0.1 C3208 0.1 C3263 0.1 C3258 0.1 C3108 0.1 C3213 0.1 C3158 10V 100 C3090 16V 47 C3021 16V 47 C3011 35V 100 C3212 35V 100 C3159 35V 100 C3259 35V 100 C3162 35V 100 C3109 35V 100 C3209 35V 100 C3112 35V 100 C3262 0.1 C3051 10V 220 C3056 16V 100 C3054 16V 220 C3091 C3216 2200 35V C3266 2200 35V C3166 2200 35V 1 C3114 1 C3115 1 C3164 1 C3264 1 C3165 1 C3265 1 C3215 1 C3214 5p C3058 100p C3083 100p C3087 100p C3088 100p C3094 100p C3085 100p C3086 100p C3084 0.1 C3053 1000p C3059 1000p C3123 1000p C3423 1000p C3122 1000p C3172 1000p C3422 1000p C3173 0.01 C3055 0.01 C3057 0.1 C3018 0.1 C3030 0.1 C3012 0.1 C3028 0.1 C3027 0.1 C3026 0.1 C3023 0.1 C3022 0.1 C3020 0.1 C3019 0.1 C3017 0.1 C3016 0.1 C3015 0.1 C3014 0.1 C3029 0.1 C3025 0.1 C3024 0.1 C3013 100 R3054 100 R3102 100 R3252 100 R3251 100 R3202 100 R3201 R3152 100 R3151 100 100 R3101 47 R3055 470 R3053 100 R3026 100 R3024 22 R3023 100 R3017 R3015 100 R3014 22 470 R3012 470 R3011 470 R3021 470 R3022 10k R3013 15k R3157 22k R3091 22k R3092 22k R3093 22k R3094 33k R3085 33k 100k R3226 100k R3426 100k R3425 100k R3125 100k R3225 R3176 100k R3175 100k 100k R3126 1M R3052 0 R3104 0 R3154 0 R3204 0 R3254 1uH L3054 49.1MHz X3051 5 4 3 2 1 CONT GND NP VOUT VIN RT1P141C-TP-1 Q3081 H/P MUTE DRIVE 8 7 6 5 4 3 2 1 NJM4565M(TE2) IC3001 C3113 0.1 C3116 2200 35V C3060 10p JL3059 JL3058 JL3057 JL3056 JL3055 JL3054 JL3053 JL3044 JL3043 JL3042 JL3041 JL3040 JL3039 JL3038 JL3037 JL3036 JL3035 JL3034 JL3033 JL3032 JL3031 JL3030 JL3029 JL3028 JL3027 JL3026 JL3025 JL3024 JL3023 JL3022 JL3021 JL3004 JL3003 TP3301 TP3102 TP3103 TP3084 TP3083 TP3082 TP3054 TP3030 TP3304 TP3022 TP3053 TP3302 TP3015 TP3250 TP3002 TP3081 TP3136 TP3101 TP3024 TP3303 TP3110 TP3036 TP3150 TP3210 TP3026 TP3104 1 2 3 4 4P CN3001 HP-R GND HP-L H/P MUTE HPMUTE D3.3V A12V 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 8 4 1 2 3 5 6 7 9 10 11 12 13 14 15 16 17 CXD9883M IC3150 BST_A GVDD_A /DTW /SD /RESET PWM_A OC_ADJ GND GND VREG M3 M2 M1 PWM_B VDD GND GVDD_B BST_B PVDD_B PVDD_B PVDD_B GND GND GND OUT_B OUT_B OUT_B OUT_A OUT_A OUT_A GND GND GND PVDD_A PVDD_A PVDD_A 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 8 4 1 2 3 5 6 7 9 10 11 12 13 14 15 16 17 CXD9883M IC3200 BST_A GVDD_A /DTW /SD /RESET PWM_A OC_ADJ GND GND VREG M3 M2 M1 PWM_B VDD GND GVDD_B BST_B PVDD_B PVDD_B PVDD_B GND GND GND OUT_B OUT_B OUT_B OUT_A OUT_A OUT_A GND GND GND PVDD_A PVDD_A PVDD_A 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 8 4 1 2 3 5 6 7 9 10 11 12 13 14 15 16 17 CXD9883M IC3250 BST_A GVDD_A /DTW /SD /RESET PWM_A OC_ADJ GND GND VREG M3 M2 M1 PWM_B VDD GND GVDD_B BST_B PVDD_B PVDD_B PVDD_B GND GND GND OUT_B OUT_B OUT_B OUT_A OUT_A OUT_A GND GND GND PVDD_A PVDD_A PVDD_A 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 8 4 1 2 3 5 6 7 9 10 11 12 13 14 15 16 17 CXD9883M IC3100 BST_A GVDD_A /DTW /SD /RESET PWM_A OC_ADJ GND GND VREG M3 M2 M1 PWM_B VDD GND GVDD_B BST_B PVDD_B PVDD_B PVDD_B GND GND GND OUT_B OUT_B OUT_B OUT_A OUT_A OUT_A GND GND GND PVDD_A PVDD_A PVDD_A 1 3 4 5 5P CN3100 FR + FR - FL - FL + 1 C3052 JL3107 JL3110 JL3112 JL3113 JL3114 JL3115 JL3116 JL3117 15k R3257 15k R3207 15k R3107 1000p C3323 JL3087 0.033 C3157 0.033 C3107 0.033 C3257 0.033 C3156 0.033 C3206 0.033 C3207 0.033 C3256 0.033 C3106 0.1 C3253 0.1 C3255 0.1 C3150 0.1 C3203 0.1 C3155 0.1 C3205 0.1 C3105 0.1 C3250 0.1 C3153 0.1 C3200 0.1 C3103 0.1 C3100 0 R3041 0 R3042 1000p C3322 0 R3040 0 R3043 TP3029 TP3131 TP3130 TP3129 1 3 4 5 5P CN3200 SR + SR - SL - SL + R3127 100k R3177 100k R3427 100k R3227 C3124 2.2 C3125 2.2 C3126 2.2 C3127 2.2 100p C3092 100p C3093 10k R3087 10k R3088 10k R3090 10k R3089 33k R3099 3.3k R3095 4.7k R3096 0 R3253 0 R3103 0 R3153 R3165 0 R3265 0 0 R3216 R3115 0 0 R3166 0 R3266 0 R3203 0 R3116 R3215 0 100k R3051 RSA39LATE25 D4111 RSA39LATE25 D4112 RSA39LATE25 D4151 RSA39LATE25 D4152 RSA39LATE25 D4201 RSA39LATE25 D4202 RSA39LATE25 D4251 RSA39LATE25 D4252 E EB3002 C3003 1000p 0.1 C3117 0.1 C3167 0.1 C3217 0.1 C3267 0.1 C3154 0.1 C3104 0.1 C3254 0.1 C3204 10V 220 C3082 10V 220 C3081 C3008 0.1 1 2 3 4 4P CN904 P-GND P-GND +31.5V +31.5V 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 CXD9788AR IC3010 XVSS VSUBC VSSR OUTR2(-) VDDR OUTR1(+) VSSR VSSL OUTL2(-) VDDL OUTL1(+) VSSL XOVSS XFSOOUT XOVDD DVDD DVSS NSPMUTE SOFTMUTE PGMUTE SCDT SCSHIFT SCLATCH OVF FLAGR OVF FLAGL SFLAG INIT MCKSEL LRCK BCK DATA BFVDD BFVSS TEST DVDD XFSIIN FSOCKO FSOI HPOUTR2 HPVSSR HPOUTR1 HPVDDR HPOUTL2 HPVSSL HPOUTL1 HPVDDL XVDD XFSOIN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 CXD9788AR IC3020 XVSS VSUBC VSSR OUTR2(-) VDDR OUTR1(+) VSSR VSSL OUTL2(-) VDDL OUTL1(+) VSSL XOVSS XFSOOUT XOVDD DVDD DVSS NSPMUTE SOFTMUTE PGMUTE SCDT SCSHIFT SCLATCH OVF FLAGR OVF FLAGL SFLAG INIT MCKSEL LRCK BCK DATA BFVDD BFVSS TEST DVDD XFSIIN FSOCKO FSOI HPOUTR2 HPVSSR HPOUTR1 HPVDDR HPOUTL2 HPVSSL HPOUTL1 HPVDDL XVDD XFSOIN 10uH L3053 10uH L3051 L3052 10uH ISA1235AC1TP-1EF Q3152 ISA1235AC1TP-1EF Q3101 ISA1235AC1TP-1EF Q3151 ISA1235AC1TP-1EF Q3102 ISA1235AC1TP-1EF Q3201 ISA1235AC1TP-1EF Q3402 ISA1235AC1TP-1EF Q3202 ISA1235AC1TP-1EF Q3401 8 7 6 5 4 3 2 1 IC3051 TC7WHU04FK(T5RSOYF) 1A 3Y 2A GND 2Y 3A 1Y VCC 0 R3050 3 2 1 4 10uH L3101 3 2 1 4 10uH L3102 3 2 1 4 10uH L3201 3 2 1 4 10uH L3202 Bup3.3V 0 D-GND R3047 10k 33k R3098 AMP_MCKO DATA1 DATA2 AMP_BCKO AMP_LRCKO OVF D-GND FSOI DVDD D3.3V NSPMUTE XFSO RESET SD A12V P-GND 32V DCDET P-GND1 SC_DT PGMUTE INIT SOFTMUTE SCSHIFT SC_DT PGMUTE SCSHIFT SOLATCH1 SOFTMUTE INIT SOLATCH2 OVF - - + + (DATA1) (DATA2) (OpenDrain) (OpenDrain) (OpenDrain) (OpenDrain) (OpenDrain) (OpenDrain) (OpenDrain) (OpenDrain) IC3250 IC3200 IC3150 IC3100 CLOCK OSCILLATOR IC3051 IC3050 HEADPHONE AMP IC3001 IC3010 IC3020 (9/9) MAIN BOARD INIT,OVF,OVFFLAGR2, PGMUTE,SCSHIFT,SC_DT, SMASTER-CONTROL, SOFTMUTE,SOLATCH1, SOLATCH2,SOLATCH3 Q3201,3202 DC BALANCE DETECT Q3401,3402 DC BALANCE DETECT Q3151,3152 DC BALANCE DETECT Q3101,3102 DC BALANCE DETECT DIGITAL POWER AMP DIGITAL POWER AMP DIGITAL POWER AMP DIGITAL POWER AMP S-MASTER PROCESSOR S-MASTER PROCESSOR 15 A 16 11 3 12 H K 8 2 13 1 G I F C 5 J 10 14 6 D B E 4 7 9 TK11118CSCL-G IC3050 +1.8V REG (Page 53) (Page 43) (Page 57) (Page 46) (Page 55) (Page 55) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 HCD-DZ260/DZ270/HDZ278 48 48 6-17. PRINTED WIRING BOARD – IO-SCART Board (DZ260) – • : Uses unleaded solder. • See page 31 for Circuit Boards Location. 1 A B C D E F G H I J 2 3 4 5 6 7 8 9 10 11 12 13 14 IO-SCART BOARD (DZ260) MAIN BOARD CN4301 I MAIN BOARD CN602 L MAIN BOARD CN702 F JACK BOARD CN106 P IC400 IC411 IC620 IC410 IC413 21 1 20 2 22 I O B E B E B E 8 1 4 5 1 8 9 16 JR JR 15 14 28 1 JR JR JR JR JR JR R400 R401 R402 R403 R404 R405 R406 R407 R408 R409 R600 R601 R602 R603 R410 R411 R412 R413 R414 R415 R609 R416 R417 R418 R419 R610 CN400 CN401 1 2 18 19 R611 R612 R421 CN406 R422 R424 R425 R426 R620 CN410 LP401 CN412 CN414 R431 R432 R433 R434 R435 C400 C401 C402 C403 C404 C405 C406 C407 C408 C409 C410 C411 C412 C413 C414 C415 C416 C417 C419 JL400 JL401 JL402 JL403 EURO AV ��OUTPUT (TO TV) C420 JL404 CL501 C421 JL405 CL502 C422 JL406 C423 JL407 C424 JL408 C425 JL409 C620 JL410 C621 JL411 C622 JL412 JL413 JL414 JL415 JL416 JL417 R479 JL421 JL424 R480 R481 R485 R486 R489 JL435 JL437 R490 JW401 R491 JL439 JW402 JW403 JW404 JW406 11 1 10 2 JW407 JW408 JL440 JW409 JL442 D401 D402 JW411 D407 JW414 JR401 JW415 JW416 JR403 JW417 JR404 JW418 JR405 JW419 JR406 JR407 JW421 JW422 JW423 JW424 JW426 JW427 JW428 JW429 JW430 JW431 JW432 JW433 JW434 JW435 JW436 JW437 JW439 C491 JW440 JW441 C495 JW442 C496 JW445 C499 JW447 JL486 JW450 JL488 JW451 JL489 JW453 JW454 JW455 JW457 JW458 JL491 J403 JW461 JW462 JW463 JW464 JW465 JW467 JW468 JW470 JW471 JW474 JW475 JW477 JW481 JW482 JW483 JW484 R515 JW485 R516 JW487 JW488 JW489 JW490 JW492 R523 JW494 JW495 R526 JW497 R527 JW498 R528 JW499 R529 R533 R537 R538 R539 R540 R541 R542 R544 1-875-181- R548 CL400 R552 R553 C517 C518 R557 R558 JL500 R559 JL502 JL504 C521 C522 JL506 C524 R561 C525 R562 C526 C527 R564 R566 R567 JL510 JL511 JL512 C530 JL514 JL516 C533 C534 JL518 C535 C536 C537 C538 R575 R576 JL520 R579 JL524 C541 C542 JL526 JL528 R582 R584 C548 1 2 3 R585 C549 JL530 JL532 JL533 C552 C556 JW503 C557 C558 Q400 JW505 C559 Q401 JW506 Q402 JW507 Q403 JW508 R598 Q404 JW509 R599 Q405 Q406 JL543 JL544 C561 JL545 C562 JL547 JW510 JL548 JW511 JL549 Q412 Q413 JL550 JL551 L401 JL552 JL553 JL555 JL556 JL557 L407 JL558 JW521 JL559 JW526 JL560 JL561 JL562 JL563 JW530 JW531 JW533 1 2 19 18 1 5 2 4 1 4 B E B E B E B E 23 E B E B TU401 FM/AM TUNER COAXIAL 75½ FM ANTENNA AM 11 (11) (Page 52) (Page 38) (Page 37) (Page 37) Ref. No. Location • Semiconductor Location D401 F-6 D402 E-6 D407 H-4 IC400 D-5 IC410 H-8 IC411 F-11 IC413 H-4 IC620 F-3 Q400 F-6 Q401 D-6 Q402 F-5 Q403 D-6 Q404 F-5 Q405 F-6 Q406 E-6 Q412 D-11 Q413 D-11 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 HCD-DZ260/DZ270/HDZ278 49 49 6-18. SCHEMATIC DIAGRAM – IO-SCART Board (DZ260) – • See page 31 for waveforms. • See page 62 for IC Block Diagrams. 1 2 3 4 5 6 BOARD MAIN (7/9) F CN702 BOARD (5/9) MAIN L CN602 BOARD (6/9) MAIN I CN4301 BOARD CN106 JACK P IC B/D IC B/D 3.3 5 5 3.2 0 0 0 11.2 11.3 10.4 0 3.3 0 5 2.4 0 <3.3> 1.1 0 1.6 2.4 5 1.8 5 2.7 0 2.7 1.9 1.6 2 2.1 5 3.2 <0> 0<9.1> 3.2 <0> 0<9.1> 9.1 4.5 4.5 4.4 3.7 4.4 0 <9.1> 0 <9.1> 3.7 4.5 4.5 4.5 4.4 11.9 5 6.5 11.8 1.3 (DZ260) 9.1 4.7 4.7 4.7 9.1 4.7 4.7 4.7 C534 22 2.2k R415 50V C425 10 2.2k R414 6.3V 1000 C417 2.2k R413 1k R408 0.1 C420 JL413 JL414 50V 10 C416 RT1P141C-TP-1 Q406 1 C421 RT1N441C-TP-1 Q405 22k R405 R422 75 1k R424 JL424 1 C423 16V 100 C414 330 R400 330 R404 16V 100 C424 RT1N441C-TP-1 Q401 JL415 330 R401 0.5% 150 R433 RT1P141C-TP-1 Q404 CN400 21P 1 A(R) OUT 2 A(R) IN A(L) OUT AUDIO GND B GND A(L) IN B OUT FUNCTION SW G GND NC G OUT NC R GND BLANKING GND R/C OUT BLANKING OUT VIDEO OUT GND VIDEO IN GND CVBS OUT 20 CVBS IN 21 GND PULUG CL400 220k R403 10k R409 0.5% 150 R432 RT1N241C-TP-1 Q403 330 R402 1 C422 0.5% 150 R434 C419 1 47k R411 10uH L401 JL412 2SC3052EF-T1-LEF Q402 0.5% 150 R431 RT1N441C-TP-1 Q400 0.1 C415 16V 100 C403 25V 22 C559 16V 100 C541 47k R491 47k R552 RT1N241C-TP-1 Q413 4.7k R551 4.7k R559 25V 22 C499 50V 1 C518 220p C491 47k R539 R576 0 4.7k R561 4.7k R564 C548 1 C562 0.01 C561 0.01 220p C525 0.1 C542 10uH L407 220p C535 25V 22 C530 16V 100 C557 47k R599 1k R579 25V 22 C495 47k R567 4.7k R486 47k R527 10k R582 1k R584 4.7k R489 47k R566 47k R481 3.3k R533 R612 0 25V 22 C524 4.7k R485 50V 1 C533 0.1 C556 RB501V-40TE-17 D407 47k R528 25V 22 C536 R562 0 100k R603 47k R553 220p C496 0.1 C552 220p C521 R611 0 220p C537 47k R540 4.7k R479 100 R609 3.3k R538 16V 47 C549 25V 22 C538 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 MC14052 BDR2 IC411 Y0 Y2 Y Y3 Y1 INH VEE VSS B A X3 X0 X X1 X2 VDD 1 2 3 4 5 6 7 8 9 10 11 11P CN414 L-CH + B 9V R-CH GND TUNED CE DI CL DO RDS_CLK RDS_DATA 10k R575 25V 22 C558 47k R490 47k R480 1 2 3 4 4P CN412 F.Audio(L)/MIC1 9V F.Audio(R) A-GND JL530 JL532 JL533 1000p C412 1000p C401 C402 1000p C400 2200p C409 100p JL401 JL402 JL403 JL404 JL405 JL406 JL407 JL408 JL409 JL410 JL411 JL400 JL417 JL421 JL435 JL437 JL439 JL442 JL488 JL516 JL506 JL520 JL514 JL510 JL502 JL512 JL500 JL504 JL518 JL528 JL526 JL524 JL543 JL544 JL545 JL547 JL550 JL548 JL549 JL552 JL551 JL553 150 R419 150 R418 C410 100p C408 100p C407 100p C406 100p C405 100p 150 R407 150 R406 150 R410 150 R412 150 R416 150 R417 100 R610 100k R602 100k R600 100k R601 47k R598 1 2 3 4 5 5P CN410 L-IN A-GND R-IN A-GND MUSIC L+R I O COM KIA7809API IC413 1 2 3 4 5 6 TK11250CMCL-G IC620 CONT GND Np Vout GND Vin 1 C621 1 C622 R620 1k 0.1 C620 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 19P CN406 V_SEL3 V_SEL2 A_SEL5 A_SEL4 A_SEL3 A_SEL2 A_SEL1 A_SEL0 TV_SEL V_SEL1 V_SEL0 A12V ST_DI ST_CE ST_DO ST_CLK TUNED RDS/MIC_CLK RDS/MIC_DATA JL511 28 27 26 25 24 23 22 7 6 5 4 3 2 1 21 20 16 17 18 19 13 12 11 10 8 9 15 14 IC400 MM1758AFBE Vcc1 Cin MUTE1 CVBSin YC MIX Yin GND1 BIAS I/P CVin CLP Cbin MUTE2 Crin GND2 Crout GND2 Cbout GND2 CYout Yout GND2 CVBSout S2 S1 Cout S-DCout Vcc2 MA2J1110GLS0 D401 MA2J1110GLS0 D402 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 19P CN401 DMP_Lch AGND DMP_Rch +6V DMP_VIDEO VGND Y VGND C VGND CY/G VGND Cb/B VGND Cr/R VGND WIDE I/P_SEL RGB_SEL 0.5% 150 R435 JL416 16V 100 C413 16V 100 C411 16V 100 C404 R585 0 0 R557 0 R558 CL501 CHASSIS 0 R542 100 R425 100 R426 0 R421 R541 0 RT1N241C-TP-1 Q412 R537 4.7k R526 47k R529 4.7k R548 470 25V C522 22 0 R515 0 R516 R523 470 16V C527 100 8 7 6 5 4 3 2 1 IC410 NJM4558M-TE2 25V C517 22 25V C526 0.1 R544 47k DO ASEL0 ASEL1 VSEL0 VSEL1 ASEL0 ASEL1 VSEL2 DI CE DO DO VSEL0 CK TD TD CE DI CK VIDEO Y C CY/G CB/B CY/G CR/R CB/B VIDEO VSEL1 VSEL2 CR/R Y C INPUT SELECT IC411 +9V REG. IC413 IC400 VIDEO DRIVER IC620 +5V REG IO-SCART BOARD 75½ FM PACK FM/AM AM COAXIAL TUNER TU401 ANTENNA OUTPUT (TO TV) EURO AV 15 2 12 6 11 C 14 H G 3 B E F 4 7 A 9 1 10 5 D 8 13 BUFFER IC410 + - + - Q412,413 INVERTER FUNCTION SWITCH Q401,405,406 BLANKING CONTROL Q400,402,404 (Page 53) (Page 43) (Page 45) (Page 44) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 HCD-DZ260/DZ270/HDZ278 50 50 6-19. PRINTED WIRING BOARD – IO-COMPONENT Board (DZ270/HDZ278) – • : Uses unleaded solder. • See page 31 for Circuit Boards Location. 1 A B C D E F G H I J 2 3 4 5 6 7 8 9 10 11 12 13 14 IO-COMPONENT BOARD (DZ270/HDZ278) JACK BOARD CN107 Q MAIN BOARD CN702 G MAIN BOARD CN603 M MAIN BOARD CN4303 J MAIN BOARD CN4302 K IC413 IC410 IC620 IC404 IC411 1 4 I O 1 8 9 16 15 14 28 1 B E B E 8 1 4 5 JR JR JR JR JR JR JR JR JR JW564 JW565 JW566 JW567 JW568 JW569 JW570 R600 JW571 R601 JW572 R602 JW573 R603 JW574 JW575 JW576 JW577 JW578 R609 JW580 R610 CN402 1 2 2 14 15 1 JW582 CN403 JW583 JW584 JW585 CN407 1 17 2 16 JW589 JW590 R620 5 1 6 2 LP401 JW591 CN412 JW594 8 2 9 1 JW596 JW597 CN418 CN419 R439 R444 R445 R446 R447 R448 R449 R452 CL501 CL502 C620 DZ270 HDZ278 HDZ278 HDZ278 HDZ278 HDZ278 R468 C621 1 3 4 6 C622 R471 R473 R479 R480 R481 R485 R486 R489 R490 C454 R491 C456 C457 C458 JL440 JL441 JL442 C460 JL444 JW601 JL445 JW602 C462 C463 JL447 JL449 D406 C466 JW607 C467 D407 C468 JW609 JL450 JL451 Y COMPONENT VIDEO OUT TV/VIDEO PB/CB PR/CR JL452 JL453 C470 JL454 CN403 (15P) (DZ270) CN402 (17P) (HDZ278) JL456 C473 JL457 C474 C476 C478 JL460 C480 JL466 JL467 JL468 C488 JL470 C491 JL478 C495 C496 C499 JL480 JL481 JL486 JL488 JL490 JL491 J401 VIDEO OUT R L AUDIO IN J404 JL492 JL493 JL495 JL497 JL498 JL499 R515 R516 R523 R525 R526 R527 R528 R529 R533 R537 R538 R539 R540 R541 1 2 3 R542 R544 R548 R551 R552 R553 C517 C518 R557 R558 JL500 R559 JL502 JL504 C521 C522 JL506 C524 JL508 R561 C525 R562 C526 C527 R564 R566 R567 JL510 JL512 C530 JL514 JL516 C533 C534 JL518 C535 C536 C537 C538 R575 R576 JL520 R579 JL522 JL523 JL524 C541 C542 JL526 JL528 JL529 R582 R584 C548 C549 JL530 JL531 JL532 JL533 JL535 C552 JL536 1-875-179- 11 (11) JL538 JW501 JL539 JW502 C556 JW503 C557 JW504 C558 JW505 R595 C559 JW506 JW507 JW508 R598 JL540 JW509 R599 JL541 JL542 JL543 JL544 JL545 JL547 JW510 JL548 JW511 JL549 JW512 JW513 JW514 TU401 FM/AM TUNER COAXIAL 75½ FM ANTENNA AM JW515 JW516 JR502 Q412 JW517 JR503 Q413 JR504 JL550 JR505 JL551 JR506 JL552 JR507 JL553 JR508 JL554 L404 JL555 JL556 JL557 L407 JW520 JL558 JW521 JW522 JW523 JW524 JW526 JL560 JR515 JL561 JR516 JL564 JL565 JW530 JW532 JW533 JW534 JW535 JW538 JW539 JW541 JW543 JW544 JW545 JW546 JW548 JW549 JW551 JW554 JW555 JW557 JW559 JW561 JW562 JW563 (Page 52) (Page 38) (Page 37) (Page 37) (Page 37) Ref. No. Location • Semiconductor Location D406 B-6 D407 H-3 IC404 D-5 IC410 H-10 IC411 E-9 IC413 H-3 IC620 E-2 Q412 D-7 Q413 D-8 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 HCD-DZ260/DZ270/HDZ278 51 51 6-20. SCHEMATIC DIAGRAM – IO-COMPONENT Board (DZ270/HDZ278) – • See page 31 for waveforms. • See page 62 for IC Block Diagrams. MAIN CN603 BOARD M (5/9) (7/9) MAIN BOARD G CN702 CN4302, CN4303 BOARD MAIN J (6/9) BOARD JACK Q CN106 3 2 1 IC B/D IC B/D 3.3 2.7 2.1 2.7 1.1 2.4 1.6 3.3 0 1.6 3.3 1.9 1.8 5 2 5 4.5 3.7 0 4.5 9.1 4.5 4.4 4.5 4.5 4.4 <9.1> 4.5 3.7 <9.1> 0 3.2 <0> 0<9.1> <0> 3.2 0<9.1> 5 11.8 1.3 6.5 9.1 11.9 (DZ270) (HDZ278) HDZ278 DZ270 1 1 (DZ270) (HDZ278) HDZ278 HDZ278 (DZ270/HDZ278) 4.7 4.7 4.7 4.7 4.7 4.7 9.1 C460 C620 O R600 R601 75½ 6.3V 1000 C462 75 R439 75 R449 75 R452 L404 10uH 16V 100 C456 16V 100 C458 50V 10 C470 0.1 C463 0.1 C473 10V 470 C474 C488 1000p 0.5% 150 R445 0.5% 150 R448 0.5% 150 R447 50V 10 C476 R473 JL478 JL480 1 C457 1 C454 1 28 27 26 25 24 23 22 7 6 5 4 3 2 1 21 20 16 17 18 19 13 12 11 10 8 9 15 14 IC404 MM1758AFBE Vcc1 Cin MUTE1 CVBSin YC MIX Yin GND1 BIAS I/P CYin CLP Cb in MUTE2 Cr in GND2 Cr OUT GND2 Cb OUT GND2 CY OUT Y OUT GND2 CVBS OUT S2 S1 C OUT S-DC OUT Vcc2 50V 22 C466 0.5% 150 R446 25V 22 C559 16V 100 C541 47k R491 47k R552 RT1N241C-TP-1 Q413 4.7k R551 4.7k R559 25V 22 C499 50V 1 C518 220p C491 47k R539 R576 0 4.7k R561 4.7k R564 C548 1 220p C525 RT1N241C-TP-1 Q412 Q412, 413 INVERTER 0.1 C542 10uH L407 220p C535 25V 22 C530 16V 100 C557 R599 47k 1k R579 25V 22 C495 47k R567 4.7k R486 47k R527 10k R582 1k R584 4.7k R489 47k R566 47k R481 3.3k R533 25V 22 C524 4.7k R485 50V 1 C533 0.1 C556 RB501V-40TE-17 D407 47k R528 25V 22 C536 R562 0 100k R603 47k R553 220p C496 0.1 C552 220p C521 220p C537 47k R540 4.7k R479 0 R609 3.3k R538 16V 47 C549 25V 22 C538 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 MC14052 BDR2 IC411 Y0 Y2 Y Y3 Y1 INH VEE VSS B A X3 X0 X X1 X2 VDD 10k R575 25V 22 C558 47k R490 47k R480 75 R468 6.3V 1000 C478 1000p C467 JL457 JL447 JL445 JL444 JL453 JL530 JL532 JL533 JL460 JL456 JL454 JL452 JL451 JL449 JL466 JL468 JL470 JL488 JL490 JL497 JL499 JL493 JL492 JL495 JL498 JL516 JL506 JL514 JL510 JL502 JL512 JL500 JL508 JL528 JL526 JL524 JL543 JL544 JL545 JL547 JL550 JL548 JL549 JL551 0 R610 100k R602 100k 100k R598 47k JL440 JL441 JL442 R G J401 1 2 3 4 5 6 7 I COM KIA7809API IC413 JL504 1 2 3 4 5 5P CN418 L-IN A-GND R-IN A-GND MUSIC L+R 1 2 3 4 5 6 7 8 9 9P CN419 L-CH + B 9V R-CH GND TUNED CE DI CL DO 1 2 3 4 5 6 TK11250CMCL-G IC620 CONT GND Np Vout GND Vin 1 C621 R620 1k 1 C622 0.1 JL467 R V L G J404 2200p C468 MC2837 D406 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 CN402 DMP_Lch AGND DMP_Rch +6V DMP_VIDEO VGND Y VGND C VGND CY/G VGND Cb/B VGND Cr/R VGND WIDE 0.5% 150 R444 JL450 1 C480 R595 0 0 R557 R558 0 C481 100p CL501 CHASSIS R541 0 R542 0 R471 0 JW574 0 R515 8 7 6 5 4 3 2 1 IC410 NJM4558M-TE2 0 R516 25V C534 22 R544 47k 25V C522 22 16V C527 100 R537 4.7k 25V C517 22 C526 0.1 R529 4.7k R523 470 R526 47k R548 470 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 17P CN407 1 2 3 4 4P CN412 F.Audio(L)/MIC1 9V F.Audio(R) A-GND ASEL0 ASEL1 CK TD CE DI CK DO TD VSEL1 VSEL0 VSEL2 DO CE DI VSEL0 VSEL1 ASEL0 ASEL1 VSEL2 Y G BL R R L IO-COMPONENT BOARD IC404 VIDEO DRIVER IC411 INPUT SELECT +5V REG IC620 IC413 +9V REG PACK FM TUNER AM FM/AM ANTENNA TU401 COAXIAL VIDEO OUT R L AUDIO IN COMPONENT VIDEO OUT Y P /C P /C B B R R 15 2 12 6 11 C 14 I H G 3 B E F 4 7 A 9 1 10 5 D 8 13 + - + - BUFFER IC410 A_SEL1 V_SEL2 ST_DI ST_DO A12V ST_CLK A_SEL2 V_SEL0 V_SEL3 V_SEL1 TV_SEL TUNED A_SEL5 A_SEL0 ST_CE A_SEL4 A_SEL3 15P 17P 75 0 R473 TV/VIDEO CN403 (Page 53) (Page 43) (Page 45) (Page 44) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 HCD-DZ260/DZ270/HDZ278 52 52 6-21. PRINTED WIRING BOARDS – JACK, P-SW Board – • : Uses unleaded solder. • See page 31 for Circuit Boards Location. 1 A B C D E F 2 3 4 5 6 7 8 9 10 11 12 13 14 P-SW BOARD JACK BOARD DZ270/HDZ278 DZ260 � � � � � � IO-SCART BOARD CN412 P MAIN BOARD CN2101 H FL BOARD CN100 O MAIN BOARD CN502 N IO-COMPONENT BOARD CN412 Q MAIN BOARD CN3001 C IC103 IC102 IC104 1 2 1 9 2 8 JR JR JR B E B E B E B E B E B E 8 1 4 5 B E 8 1 4 5 B E B E A100 GRY BLK Q101 Q102 Q103 Q104 Q105 Q106 Q107 Q108 Q109 CL153 CL154 CL155 CL156 CL157 CL158 CL159 CL160 CL161 CL162 CL163 CL164 CL165 CL166 CL167 CL168 CL169 CL170 CL171 CL172 CL173 CL174 CL175 CL177 CL179 CL181 CL183 CL184 CL185 CL186 CL187 CL188 CL189 CL190 CL191 CL192 CL193 CL194 CL195 CL196 CL197 CL198 CL199 R109 R110 R111 R112 R113 R114 R115 R117 R118 CN101 CN102 CN103 CN104 CN104 DZ260/DZ270 R121 CN105 5 2 18 1 19 1 R122 CN106 R123 CN107 CN108 R126 R128 R129 R130 R131 R132 R133 R134 R135 R136 R137 R138 R139 R140 R141 R143 R144 R145 R146 R147 R148 R149 R150 R151 R152 R153 R154 R155 CL200 C121 CL201 C122 CL202 CL203 R160 C124 CL204 S100 CL205 S101 R162 C126 S102 S102 S106 FUNCTION J101 PHONES J100 AUDIO IN A.CAL MIC S107 VOLUME S105 S103 S104 S101 S100 C127 S103 S104 R165 S105 R166 S106 R167 S107 R168 1 4 1 5 4 R169 C132 C133 R170 C134 R171 C135 R172 C136 R173 C137 R174 C138 C139 C142 C143 C144 C145 C147 R184 C148 C149 R186 R187 C150 C151 C152 C153 JW100 JW101 JW102 JW103 C158 D104 C165*4 *1 R179 (E12,AR,MX model) FB102 (EXCEPT E12,AR,MX model) *2 R180 (E12,AR,MX model) FB103 (EXCEPT E12,AR,MX model) *3 R181 (E12,AR,MX model) FB104 (EXCEPT E12,AR,MX model) *4 R182 (E12,AR,MX model) FB105 (EXCEPT E12,AR,MX model) *5 R183 (E12,AR,MX model) FB106 (EXCEPT E12,AR,MX model) *5 *3 *1 *2 D107 C168 D108 JR101 JW115 C169 D109 JR102 JW116 JR103 1-875-161- JW117 JW118 JW119 JW120 JW121 JW122 JW123 JW124 JW125 JW126 JW129 JW130 JW131 JW132 JW133 JW134 JW135 JW136 JW137 JW138 JW139 JW140 JW141 JW142 JW143 JW145 J100 J101 1 2 CN109 CL206 GRY BLK CL207 1-875-160- C170 11 (11) 11 (11) �� C166 C159 S108 S108 (Page 54) (Page 38) (Page 37) (Page 38) (Page 50) (Page 48) Ref. No. Location • Semiconductor Location D104 C-10 D107 B-8 D108 C-5 D109 C-5 IC102 B-12 IC103 B-5 IC104 B-3 Q101 C-7 Q102 B-5 Q103 B-5 Q104 B-7 Q105 C-7 Q106 C-3 Q107 C-3 Q108 C-3 Q109 C-3 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 HCD-DZ260/DZ270/HDZ278 53 53 6-22. SCHEMATIC DIAGRAM – JACK, P-SW Board – O FL BOARD CN100 H MAIN BOARD (1/9) N MAIN BOARD (5/9) CN2101 CN502 BOARD IO-SCART CN412 P BOARD IO-COMPONENT CN412 Q MAIN (9/9) C BOARD CN3001 4 3.3 0 2.6 0 3.3 0 0 2.9 0 3.3 0 4.7 4.7 4.7 4.7 4.7 4.7 4.7 4.7 9.1 4.7 4.7 4.7 9.1 0 8.8 8.8 0.6 0.6 0.6 0.6 0 0 0 0 2.9 (DZ270/HDZ278) (DZ260) E12,AR,MX MODEL EXCEPT E12,AR,MX MODEL E12,AR,MX MODEL EXCEPT E12,AR,MX MODEL EXCEPT E12,AR,MX MODEL E12,AR,MX MODEL EXCEPT E12,AR,MX MODEL E12,AR,MX MODEL DZ260/DZ270 R162 0.47 C153 16V 10 C138 16V 10 C144 16V 47 C135 10V 100 C137 470p C148 470p C151 470p C134 68p C149 220p C133 220p C147 C145 1000p 0.1 C139 0.1 C158 0.068 C150 470 R143 470 R146 1k R130 1k R131 1k R150 1k R149 2.2k R151 4.7k R144 10k R135 15k R134 22k R148 22k R137 22k R154 100k R145 100k R147 1M R153 0 R155 0 R152 FB102 FB103 FB104 RT1N441C-TP-1 Q102 INVERTER 8 7 6 5 4 3 2 1 NJM4558M-TE2 IC103 8 7 6 5 4 3 2 1 NJM4558M-TE2 IC104 J100 J101 1000p C152 C166 0.01 C165 0.01 Q103 RT1P140C-TP-1 AMP GAIN SWITCH R160 0 3.3k R128 S105 2.2k R126 S106 3.3k R115 S101 S100 2.2k R121 S102 S104 S103 2.2k R122 1k R123 1 2 2P CN101 GND KEY0 22 R129 100 R132 RT1P141C-TP-1 Q104 2.2k R139 RT1P141C-TP-1 Q105 2.2k R136 10V 100 C132 MA2J1110GLS0 D107 680 R133 100k R138 47 R140 RT1N441C-TP-1 Q101 0.01 C168 0.01 C169 FB105 1 2 3 4 CN106 4P F-AUDIO(L) 9V F-AUDIO(R) GND 2SC5938-T112-1B Q107 2SC5938-T112-1B Q109 R172 4.7k R167 22 1 2 3 4 4P CN108 HP.R GND HP.L MUTE R173 47 R174 47 2SC5938-T112-1B Q106 R171 4.7k 2SC5938-T112-1B Q108 R165 4.7k R168 22 R166 4.7k R169 4.7k R170 4.7k 1000p C143 1000p C142 MC2837 D108 MC2837 D109 FB106 0 0.1 C159 C127 0.1 10k R110 330 R114 1 C124 330 R113 JW100 3.3k R109 100 R111 1 C122 5 4 3 2 1 S-T111B33MC-OGSTFG IC102 xSD VSS NC VOUT VIN 100 R112 MC2837 D104 1 C121 15k R118 0.47 C126 12k R117 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 19P CN103 GAIN_CONT PLUG_DET2 MONO_ST_DET A_CAL DC-CONT EN_A PLUG_DET1 EN_B D_GND KEY2 E4V KEY1 SIRCS KEY0 D_GND(FL) 5V FL_CS FL_DATA FL_CLK Mount Mecha 153799342 A100 1 2 3 4 5 6 7 8 9 9P CN102 SIRCS E4V DGND FL_DATA FL_CLK 5V FL_CS DGND(FL) SW3.3V CL173 CL179 CL200 CL204 CL203 CL172 CL181 CL169 CL158 CL168 CL171 CL187 CL160 CL167 CL189 CL193 CL157 CL164 CL196 CL162 CL183 CL161 CL194 CL165 CL188 CL184 CL159 CL195 CL192 CL166 CL153 CL186 CL201 CL190 CL198 CL202 CL185 CL155 CL199 CL191 CL154 CL175 CL163 CL170 CL156 CL177 CL205 C136 0.1 R179 0 R180 0 R181 0 R182 0 R183 0 CN104 1 2 3 4 5 CN105 5P VBUS D- D+ GND SHIELD S107 3.3k R141 1k R184 R185 0 1k R186 1k R187 JW145 1 2 2P CN109 GND P-SW 100p C170 CL207 CL206 S108 (CHASSIS) (CHASSIS) (CHASSIS) + + - - + + - - VOLUME IC102 +3.3V REG IC103 MIC AMP IC104 MIC LEVEL DETECT JACK BOARD P-SW BOARD FUNCTION / Q101,104,105 MIC DC SWITCH Q106-109 H/P MUTE PHONES AUDIO IN/ A.CAL MIC 8 F E G 2 I H 10 7 5 11 D A 9 C 4 6 1 3 B (Page 55) (Page 43) (Page 39) (Page 47) (Page 51) (Page 49) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 HCD-DZ260/DZ270/HDZ278 54 54 6-23. PRINTED WIRING BOARDS – FL, MS-203, SPEAKER Board – • : Uses unleaded solder. • See page 31 for Circuit Boards Location. 1 A B C D E F G H I 2 3 4 5 6 7 8 9 10 11 12 13 14 M + - FL BOARD SPEAKER BOARD MS-203 BOARD 1-861-327- O JACK BOARD CN102 R MAIN BOARD CN1202 B MAIN BOARD CN3200 A MAIN BOARD CN3100 IC100 IC101 O VCC 1 2 5 51 48 52 23 33 22 34 12 44 1 11 C CB B E CL100 CL101 CL102 CL103 CL104 CL105 CL106 CL107 CL108 1-875-159- CL109 CL110 CL111 CL112 CL113 CL114 CL115 CL116 CL117 CL118 CL119 CL120 CL121 CL122 CL123 CL124 CL125 CL126 CL127 CL128 CL129 CL130 CL131 CL132 CL133 CL134 CL135 CL136 CL137 CL138 CL139 CL140 CL141 CL142 CL143 CL144 Q100 CL145 CL146 CL147 CL148 CL149 CL150 CL151 CL152 L100 L101 L102 ND100 FLUORESCENT INDICATOR TUBE R100 R101 R102 R103 R104 R105 R106 R107 R108 CN100 C101 C102 C103 C104 C105 C106 C107 C108 C116 C117 JW104 JW105 JW106 JW107 JW108 D100 D101 D102 D103 JW110 JW111 JW112 JW113 JW114 T100 1 1 1 9 8 2 2 3 4 5 2 3 4 5 6 7 8 9 C189 C190 1 8 TB101 CN114 CL239 CL240 CL241 CL242 CL243 CL244 CL245 CL246 CL247 CL248 CL249 C173 C174 C175 C176 ET102 C177 ET103 C178 C179 C180 C181 C182 C183 C184 C185 C186 C187 C188 JW149 (11) 11 (11) 11 (CHASSIS) (CHASSIS) FRONT R FRONT L SUR R SUR L SPEAKER TB100 4 2 5 1 CN001 S001 (CHUCK/TRAY DETECT) 12 M203 (LOADING) 1-875-162- (Page 38) (Page 38) (Page 52) (Page 37) Ref. No. Location • Semiconductor Location D100 C-7 D101 C-7 D102 C-7 D103 B-3 IC100 C-5 IC101 B-3 Q100 C-8 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 HCD-DZ260/DZ270/HDZ278 55 55 6-24. SCHEMATIC DIAGRAM – FL, SPEAKER Board – CN102 BOARD O JACK CN3100 (9/9) BOARD A MAIN (9/9) BOARD B MAIN CN3200 4.5 4.5 -0.5 -0.1 3.4 3.4 -24.9 -24.9 -24.8 -24.8 -24.8 -24.8 -24.8 -25.1 -24.9 3.3 -18.3 -18.3 -16.4 -20.4 -24.5 -24.6 -24.5 -16.4 -26.7 3.3 -24.8 -24.8 -24.8 -27.2 -24.6 -20.5 -26.7 -26.7 -26.7 -22.5 -16.2 0 0 2.1 0.4 0.2 3.1 2.9 0 0 EXCEPT E12,AR,MX MODEL 16V 10 C116 47 R108 100 R106 100 R105 82k R107 4700p C102 0.022 C103 47 R103 0.1 C106 0.01 C104 47uH L100 47uH L101 3.9k R100 47 R102 CPH5504-TL-E Q100 DC/DC CONVERTER 33k R101 D102 MAZ8051GLLS0 10V 100 C101 0.01 C117 MA2J1110GLS0 D103 16V 10 C107 MC2837 D100 MC2837 D101 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 PT6315 IC100 LED1 LED2 LED3 LED4 OSC DOUT DIN CLK STB K1 K2 VSS VDD SG1 SG2 SG3 SG4 SG5 SG6 SG7 SG8 SG9 SG10 SG11 SG12 SG13 SG14 SG15 SG16 VEE GR12 GR11 GR10 GR9 GR8 GR7 GR6 GR5 GR4 GR3 GR2 GR1 VDD VSS 2 3 5 6 8 7 1 4 9 T100 1 2 3 4 5 6 7 8 9 9P CN100 SW3.3V D_GND(FL) FL_CS 5V FL_CLK FL_DATA D_GND E4V SIRCS 100 R104 CL136 CL134 CL100 CL101 CL102 CL108 CL107 CL106 CL137 CL105 CL104 CL103 CL131 CL140 CL110 CL111 CL144 CL149 CL139 CL142 CL150 CL132 CL151 CL109 CL148 CL112 CL113 CL114 CL115 CL116 CL117 CL118 CL119 CL120 CL121 CL122 CL123 CL124 CL125 CL126 CL127 CL128 CL129 CL130 CL133 CL135 CL138 CL141 CL143 CL145 CL146 CL147 CL152 10 C189 VCC OUT GND NJL23H400A IC101 ND100 FLUORESCENT INDICATOR TUBE 1 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 52 2 51 50V 47 C105 0.1 C108 0.1 C190 47uH L102 CL246 E ET102 C188 1000p 0.01 C179 CL240 0.01 C173 1 2 3 4 5 6 7 8 8P CN114 FR+ FR- FL- FL+ SR+ SR- SL- SL+ CL241 0.01 C175 - + - + - + + - TB100 CL248 CL242 JW149 0.01 C177 1000p C174 CL243 CL247 1000p C176 0.01 C185 CL244 1000p C178 E ET103 CL245 0.01 C181 1000p C180 0.01 C183 CL239 1000p C182 0.01 C187 1000p C184 CL249 1000p C186 S10 S12 S13 S11 S14 S15 S9 S8 S7 S6 S5 S4 S3 S2 G2 G3 G4 G5 G6 G7 G8 G9 G10 G11 G1 G12 G4 G5 G6 G7 G8 G9 G10 G11 G12 S16 S15 S14 S13 S12 S11 S10 S9 S8 S7 S6 S5 S4 S3 S2 S16 G3 G2 G1 CHASSIS FL DISPLAY DRIVER IC100 REMOTE CONTROL RECEIVER IC101 FL BOARD SPEAKER BOARD 3 5 4 1 2 FRONT R FRONT L SUR R SUR L SPEAKER F 1 B 9 G C H 2 3 A 5 8 D E 7 4 6 (Page 53) (Page 47) (Page 47) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 HCD-DZ260/DZ270/HDZ278 56 56 6-25. PRINTED WIRING BOARD – POWER Board – • : Uses unleaded solder. • See page 31 for Circuit Boards Location. 1 A B C D E F G H I 2 3 4 5 6 7 8 9 10 11 12 13 14 POWER BOARD MAIN BOARD CN904 D MAIN BOARD CN506 E IC941 IC922 IC921 IC901 IC931 A K B 1 5 2 4 C E C E 3 1 E B A K 1 5 C E C E 1 9 1 1 13 1 13 B E G S B E 1 5 B E B E B E B E B E B E DZ904 D941 D947 D948 D949 HS931 DZ915 DZ932 JW981 JW982 JW983 JW984 JW985 JW986 JW988 DZ953 TP901 TP902 TP903 TP904 TP905 TP906 TP907 TP908 TP910 F901 TP911 TP912 TP913 TP914 1 13 TP915 TP916 TP917 TP918 TP919 TP921 TP922 TP923 TP924 TP925 TP926 TP927 TP928 Q921 Q922 PC901 PC902 PC903 PC904 (AC IN) EB902 Q930 EB904 Q931 EB905 Q932 EB907 Q943 L931 Q945 Q947 Q949 Q950 VDR901 L944 L945 L947 L948 R901 R903 R904 R905 1 2 3 4 5 6 8 9 10 11 12 13 14 R906 L953 R907 L954 R908 R909 L956 R910 R911 R912 R913 R914 R916 R917 R919 CN901 1 1 5 3 CN904 R920 CL001 R921 CN906 R922 1 3 7 1 3 5 2 4 2 4 9 CL003 R923 R924 1 2 3 4 5 7 8 9 10 11 12 13 14 15 16 R925 R926 R927 R928 R930 JV901 R931 JV902 R932 JV903 R933 JV904 R934 JV905 R935 JV906 R936 R937 JV907 JV908 R938 JV909 R939 PS954 FR929 FH901 C901 PS956 FH902 C902 C903 R940 JV910 JV911 TH901 C905 R941 JV912 R942 JV913 C907 JV914 C908 JV915 R945 C909 JV916 R946 JV917 JV918 JV919 R949 C910 C911 C912 C913 JV921 R951 C916 R952 JV923 C918 R954 1 2 3 LF901 R955 LF902 R956 R957 R958 R959 C920 C921 C922 C923 R960 C924 C925 C926 C927 R963 C928 C929 R965 R966 R967 C930 C932 C933 C934 C935 R972 C936 C937 C938 R974 R975 C939 R976 R978 C940 C942 C943 C945 C948 C950 C951 R992 R993 R994 R995 JW905 JW908 R998 R999 D901 D902 D903 C963 JW910 C964 JW911 D905 JW912 D906 JW913 D907 JW914 D908 JW915 D909 C969 JW916 JW917 JW918 D910 C970 D911 C971 D912 D913 D914 C975 D916 C976 JW925 HS901 D921 C982 D922 D923 C983 D924 C984 T901 T903 C990 C991 D931 C992 C993 JW940 C995 JW941 C996 JW942 C997 DZ901 E DZ902 1-875-124- 11 (11) DZ903 (CHASSIS) (CHASSIS) (CHASSIS) 1 2 3 *1 C906 (EXCEPT MX,US,CND model) C980 (MX,US,CND model) *1 DZ260/HDZ278 Q901 E (Page 38) (Page 38) Ref. No. Location • Semiconductor Location D901 G-3 D902 G-12 D903 H-10 D905 F-9 D906 H-9 D907 H-8 D908 G-9 D909 F-6 D910 H-9 D911 E-11 D912 E-12 D913 G-9 D914 F-8 D916 E-12 D921 H-11 D922 G-13 D923 F-12 D924 F-12 D931 C-8 D941 C-13 D947 E-11 D948 G-13 D949 G-13 DZ901 H-12 DZ902 H-12 DZ903 G-13 DZ904 H-11 DZ915 F-8 DZ932 D-7 DZ953 F-12 IC901 G-8 IC921 G-11 IC922 E-13 IC931 E-5 IC941 B-12 Q901 G-9 Q921 F-12 Q922 H-12 Q930 D-13 Q931 E-13 Q932 E-13 Q943 E-6 Q945 C-12 Q947 E-6 Q949 E-6 Q950 E-6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 HCD-DZ260/DZ270/HDZ278 57 57 6-26. SCHEMATIC DIAGRAM – POWER Board – • See page 63 for IC Block Diagrams. MAIN (9/9) D BOARD CN904 (5/9) BOARD CN506 MAIN E IC B/D IC B/D 303 3.3 19.9 303 0.4 19.9 19.2 19.9 32 30.9 1.7 0.1 4.1 3 0 30.9 0 3.1 2.5 28.9 0.3 3.1 0 9.5 9.6 11.9 3.3 13.8 11.9 1 2.3 2.6 3.5 2.6 1.6 0 1.2 0 0 3.4 3.4 0 0 0.7 0.1 2.7 1.2 1.6 15.4 0 303 302 27.5 21.6 21 32 3.3 3.2 2.9 4.1 6.6 9.5 13.7 11.9 1 1 (US,CND,MX) (EXCEPT US,CND,MX) 2 2 (EXCEPT US,CND,MX) (US,CND,MX) 3 3 (EXCEPT US,CND,MX) (US,CND,MX) 3 4 (US,CND) 4 (AEP,UK) (E3,E12,E15,AUS,AR) (MX) 5 6 6 6 9 8 7 US,CND,MX US,CND,MX MODEL EXCEPT US,CND,MX MODEL (US,CND,MX) (EXCEPT US,CND,MX) (US,CND,MX) 5 (EXCEPT US,CND,MX) (US,CND,MX) 6 (EXCEPT US,CND,MX) (US,CND,MX) 7 (EXCEPT US,CND,MX) (US,CND,MX) 8 (EXCEPT US,CND,MX) (US,CND,MX) 9 (EXCEPT US,CND,MX) (US,CND,MX) 10 (EXCEPT US,CND,MX) Q921 C975 TP927 NC FMX-22SL 275V 0.22 C902 TH901 D5SBA60F01 D901 250V 0.01 C920 250V 0.01 C918 250V 100p C930 250V 100p C913 R903 R904 SARS03 D913 1 2 3 4 5 STR-F6138-LF1352 IC901 OCP/SYNC GND D VCC FB/OLP 1.5kV C906 1000p 35V 47 C908 4700p C911 220p C909 220 R911 10 R905 D1NL20U-TR2 D905 3.3k R906 Q901 ON/OFF SWITCH 2SA1015TP 10k R907 C907 2.2k R910 C910 100k R909 PC901 TLP421F(D4-GRJ) 35V 2200 C932 35V 2200 C933 35V 2200 C934 0.1 C939 470k R936 4.7k R933 0.047 C937 3 1 2 TA76431AS(TPE6) IC931 1k R935 RT1N441C-TP-1 Q943 RT1N441C-TP-1 Q947 10uH L945 10V 470 C948 25V 470 C942 0.1 C951 TP901 TP902 TP903 TP904 TP911 TP907 TP908 TP914 TP918 TP912 TP913 1k R967 1k R966 16V 470 C945 10uH L947 10uH L948 S RSR025N03TL Q945 B+ SWITCH 47k R957 1k R958 16V 100 C976 3.3k R974 TP915 TP916 TP917 275V 0.22 C901 F901 1 3 CN901 2P LIVE NUTRAL C903 R912 R913 0.22 2W CL001 CL003 1.5kV 3300p C980 C905 1 4 3 2 LF901 1 4 3 2 LF902 1 3 10 11 2 9 12 13 14 5 8 4 6 T901 MAIN TRANSFORMER NC NC JW905 JW916 JW915 JW912 JW913 JW911 JW910 JW981 JW982 TP919 FH901 FH902 JW983 JW984 JW988 JW986 L944 10uH 0.01 C936 0.01 C971 1 2 3 4 5 SI-3010KM-TL IC941 Vcont Vin GND Vout Sense C935 0.01 C964 C963 D931 5.6uH L931 E EB902 E EB904 R914 VDR901 100k R928 Q922 2SC3243 +21V REG 10V 3300 C927 16V 1000 C940 1000p C922 3 1 2 TA76L431S(TPE6,Q) IC922 1k R955 D10SC9M D912 400V 3300p C924 D1NL20U-TR2 D902 2200p C923 PC902 TLP421F(D4-GRJ) 25V 1000 C929 25V 47 C912 10 R925 16V 2700 C928 SF5S6 D916 4.7k R917 470 R930 0.5% 22k R923 0.5% 3.9k R954 0.5% 2.2k R998 470 R956 10k R921 22k R919 0.01 C992 SF5S6 D947 3W 100k R916 2W 0.18 R922 JW918 2SC3052EF-T1-LEF Q949 RT1N441C-TP-1 Q950 22k R945 3.3k R946 4.7 R992 JW941 JW940 D10SC4M D911 2SC3052EF-T1-LEF 2SC3052EF-T1-LEF Q930 1 3 4 5 CN904 4P P-GND P-GND +31.5V +31.5V R975 100k 0.5% R976 220k 0.5% 22k R927 0.5% 10k R999 MA2J1110GLS0 D909 MA2J1110GLS0 D907 MA2J1110GLS0 D914 MA2J1110GLS0 D908 MA2J1110GLS0 D924 MA2J1110GLS0 D923 MA2J1110GLS0 D922 MA2J1110GLS0 D949 MA2J1110GLS0 D948 MA2J1110GLS0 D910 MAZ8120GMLS0 DZ903 MAZ8100GMLS0 DZ915 MA2J1110GLS0 D906 100V 22 C926 TP910 0.5% 2.2k R939 0.5% 1k R931 0.5% 4.7k R965 TP905 TP906 TP921 TP922 TP923 TP924 TP925 TP926 TP928 JW985 PC904 PS2561AL1 PC903 PS2561AL1 JW914 SARS03 D903 JW908 JW925 JW942 0.01 C984 2kV 150p C921 0.5% 22k R932 MAZ8056GMLS0 DZ904 MA2J1110GLS0 D941 0.5% 10k R972 100k R941 0.5% 10k R942 0.5% 10uH L953 R952 1k MAZ8033G0LS0 DZ953 470 R960 0.5% 10k R937 0.5% 10k R940 0.5% 1k R938 MAZ8056GMLS0 DZ932 0.1 C950 0.5% 10k R959 0.047 C983 1 9 7 5 4 3 2 MR4020-7103 IC921 ZC FB GND VCC S/OCL VIN D T903 SUB TRANSFORMER 22k R924 EG01C LF-F7 D921 10uH L956 10uH L954 1/2W FR929 1 MAZ8180GMLS0 DZ901 MAZ8220GLLSO DZ902 2SC3052EF-T1-LEF Q931 RT1N441C-TP-1 Q932 R993 10k R994 330k R995 100k C996 10 250V C938 470p PS954 PS956 C995 0.1 1k R920 0.1 C997 0.5% 470 R963 0.1 C990 0.1 C991 0.1 C993 16V 220 C943 0.1 C969 0.1 C970 C916 0.1 E EB907 0.1 1 2 3 4 5 6 7 8 9 10 11 12 13 13P CN906 P.CONT1 EN P.CONT3 E+4V 6V 6V D-GND D-GND M+9V M-GND 14V 12V A-GND 0.5% 100k R926 0.5% 1k R951 1k R934 2KV 47p C925 4.7k R978 4.7k R908 100 R949 E EB905 R901 P_GND POWER BOARD SWITCHING REGULATOR IC901 SWITCHING REGULATOR IC921 SHUNT REG IC931 SHUNT REG IC922 4 3 1 2 4 3 1 4 3 1 2 4 3 1 2 2 Q943,947 POWER DOWN DETECT Q949,950 POWER PROTECT Q930-932 POWER CONTROL AC IN 3 F D 13 10 A 8 H 2 11 4 E 5 I G C 6 7 1 12 B 9 1 2 3 4 5 7 8 9 10 11 12 13 14 15 16 F901 8A 125V T6.3AL 250V 1.5M 1/2W 1M 1/2W R901 470p 250V C963,964 2200p 250V 330 400V C903 1000 200V 330 450V 1000 250V STR-F6168-LF1352 3300p 400V C905 0.01 400V 100k 3W R903,904 33k 3W 0.1 5W R914 0.05 5W 0.33 2W R912 0.22 2W 1500p C907 1000p 22 50V C910 10 50V +12V REG IC941 (Page 47) (Page 43) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 HCD-DZ260/DZ270/HDZ278 58 58 • IC Block Diagrams IC1201 FAN8036L (MAIN Board (4/9)) IC3003 TC7WH157FK(TE85R) (MAIN Board (7/9)) SELECT 116 ST 117 A 1 2 3 A B Y 5 Y B GND 4 VCC 8 Y EN G Y OUT1 IN 1- FI N (GND) FI N (GND) IN2 + IN 2- OUT2 RES1 REGCTL IN 3+ IN3 - OUT3 IN 4+ FI N (GND) IN4- OUT4 CTL FW D REV MUTE123 MU TE4 TSD_M PVCC2 DO5- DO5+ PGND2 DO4- DO4+ DO3- DO3+ REGO2 REGO1 PGND1 DO2- DO2+ DO1- FI N (GND) DO1+ PVCC1 REGVCC OPOUT2 OPIN2- OPIN2+ VREF SVCC OPOUT1 OPIN1- OPIN1+ IN 1+ SGND REGVCC RES2 REGVCC REGVCC REGVCC PS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 MUTE123 MUTE4 PS TSD_M S W M S C + - TSD REGVCC IC3010 CDX9788AR (MAIN Board (9/9)) IC3020 CDX9788AR (MAIN Board (9/9)) IC3030 CDX9788AR (MAIN Board (8/9)) 12 11 10 9 8 7 6 5 4 3 VSUBC XVSS OUTR2(–) VSSR OUTR1(+) VDDR VSSL VSSR OUTL2(–) OUTL1(+) VSSL VDDL 2 1 PWM CLOCK GENERATOR (SECONDARY) CLOCK GENERATOR (PRIMARY) 31 29 25 OVFFLAGL 26 SFLAG 27 INIT 30 S � P GAIN CONTROL INIT/ MUTE SAMPLING RATE CONVERTER FILTER & LOW CUT FILTER LINER INTERPOLATOR Δ Σ 48 XFSOIN 47 XVDD HPVDDL 46 45 HPOUTL1 HPVSSL 44 43 HPOUTL2 HPVDDR 42 41 HPOUTR1 HPVSSR 40 HPOUTR2 39 37 FSOCKO 38 FSOI 13 XOVSS 14 XFSOOUT 15 XOVDD 16 DVDD 17 DVSS 18 NSPMUTE 19 SOFTMUTE 20 PGMUTE SERIAL CONTROLLER 21 SCDT 22 SCSHIFT 23 SCLATCH 24 OVFFLAGR 28 MCKSEL 32 BFVDD 33 BFVSS 34 TEST 35 DVDD 36 XFSIIN LRCK BCK DATA w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 59 IC702 LC89056W-E (MAIN Board (7/9)) 38 37 36 23 24 1 2 3 4 5 44 8 9 10 46 17 22 21 20 30 35 25 26 27 28 29 32 33 34 16 45 13 14 15 47 40 41 48 CL (I) 39 XSEL (I) CE (I) DI (I) EMPHA (O) AUDIO (O) DISEL (I) SPDIF (O) DINO (I) (MTK) DINI (I) (OPT) DIN2 (I) (COAX) 6 DGND 7 DVDD 11 AVDD 12 AGND DOSEL0 (I) SDIN/R AGND/VIN LPF (O) CKSEL0 (I) XSTATE (O) 18 DGND 19 DVDD XIN (I) XOUT (O) XMCK (O) DVDD 31 DGND DO (O) CSFLAG (O) F0 (O) F1 (O) F2 (O) VF (O) VREF BPSYNC (O) ERROR (O) DATAO (O) DOSEL1 (I) CKOUT (O) BCK (O) LRCK (O) CKSEL1 (I) MODE0 (I) MODE1 (I) 42 DGND 43 DVDD XMODE (I) TIMING MICROCOMPUTER INTERFACE SAMPLING FREQUENCY C BIT DETECT PA/PB DETECT LOCK DETECT SYSTEM RESET MODE SELECT INPUT CIRCUIT DATA DEMODULATOR PLL CLOCK IC507 TK11150CSCL-G (MAIN Board (5/9)) IC1105 TK11133CSCL-G (MAIN Board (1/9)) IC1107 TK11133CSCL-G (MAIN Board (1/9)) IC1707 TK11150CSCL-G (MAIN Board (3/9)) IC1708 TK11133CSCL-G (MAIN Board (3/9)) IC3050 TK11118CSCL-G (MAIN Board (9/9)) 1 2 3 5 4 CONT GND NP VIN VOUT CONTROL CIRCUIT OVER HEAT & OVER CURRENT PROTECTION BANDGAP REFERENCE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 60 IC707 PCM1808PWR (MAIN Board (7/9)) Reference Delta Sigma Modulator ×1/64 Decimation Filter with HighúPass Filter Power Supply Clock and Control Timing Antialias LPF Delta Sigma Modulator Serial Interface Mode/ Format Control Antialias LPF BCK VINL VREF VINR AGND VCC 1 VDD DGND LRCK DOUT SCKI FMT MD1 MD0 2 3 4 5 6 7 8 9 10 13 14 11 12 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 61 IC3100 CXD9883M (MAIN Board (9/9)) IC3150 CXD9883M (MAIN Board (9/9)) IC3200 CXD9883M (MAIN Board (9/9)) IC3250 CXD9883M (MAIN Board (9/9)) IC3300 CXD9883M (MAIN Board (8/9)) IC3400 CXD9883M (MAIN Board (8/9)) 1 10 9 8 11 12 13 14 7 6 15 16 17 18 3 4 5 20 19 2 GND GND GND GND GND GND 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 Stuck Detect Stuck Detect Timing Control Timing Control Protection Logic Protection Logic Gate Drive Gate Drive Gate Drive Gate Drive Over Current Fault Over Current Fault Over Current Fault Over Current Fault Programmable Current sense OUT_B OUT_B OUT_B PVDD_B PVDD_B PVDD_B OUT_A OUT_A OUT_A PVDD_A PVDD_A PVDD_A REG Protection and Reset Logic OLP OTP CB3C Temperature waming/error Power-Up Reset Under Voltage Protection /HIZ_HS_B /HIZ_HS_A /HIZ_LS_B /HIZ_LS_A /OCL_B /OCL_A /OCH_B /OCH_A /RESET_A /RESET_B VREG /HIZ_HS_X /HIZ_LS_X /OCH_X /OCL_X /RESET_X /PCR /UVP /UVP /UVP_VREG VREG GVDD_A GVDD_B VREG GND GND GND BST_B GVDD_B VDD PWM_B M1 M2 M3 VREG OC_ADJ PWM_A RESET SD OTW GVDD_A BST_A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 62 IC400 MM1758AFBE (IO-SCART Board (DZ260)) IC404 MM1758AFBE (IO-COMPONENT Board (DZ270/HDZ278)) 1 2 3 4 28 VCC2 23 CVBS OUT 25 S1 150kΩ BIAS 12 150kΩ BIAS CLAMP 6dB 6dB 6 7 8 CLAMP BIAS 6dB 9 10 11 13 5 + 6dB –6dB 6dB 27 S-DC OUT 24 S2 LOW-PASS FILTER 21 YOUT 22 GND2 6.75MHz 75Ω DRIVER LOW-PASS FILTER 6.75MHz 75Ω DRIVER 20 CYOUT 75Ω DRIVER S-DC OUT S1/S2 26 COUT LOW-PASS FILTER 6.75MHz 75Ω DRIVER CLAMP 150kΩ BIAS LOW-PASS FILTER 6.75MHz LOW-PASS FILTER 13.5MHz 18 CBOUT 19 GND2 17 GND2 15 GND2 75Ω DRIVER LOW-PASS FILTER 6.75MHz LOW-PASS FILTER 13.5MHz 14 150kΩ BIAS 16 CROUT 75Ω DRIVER LOW-PASS FILTER 6.75MHz LOW-PASS FILTER 13.5MHz 6dB 6dB VCC1 CIN MUTE 1 CVBS IN CBIN YIN GND BIAS I/P CYIN CLP MUTE2 YC MIX CRIN IC411 MC14052BDR2 (IO-SCART Board (DZ260)) IC411 MC14052BDR2 (IO-COMPONENT Board (DZ270/HDZ278)) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 63 IC901 STR-F6138-LF1352 (POWER Board) OCP/INH 1 GND 2 D 3 VCC 4 FB/OLP 5 + – + – + – + – + – Delay OVP TSD Delay Reg2 Reg1 Reg3 Current mirror POWER MOS FET Latch OSC Boottom Skip Logic OCP2 Logic Internal Bias OCP1 Vocp Rg3 Rg2 Rg1 OCP2 + – UVL0 ON=16V OFF=10.5V INH1 INH2 FB Vth1 + – IOLP Volp Vth2 Vocp(BSIN,OUT) IC941 SI-3010KM-TL (POWER Board) IC201 SI-3010KM-TL (MAIN Board (6/9)) IC504 SI-3010KM-TL (MAIN Board (5/9)) IC505 SI-3010KM-TL (MAIN Board (5/9)) IC506 SI-3010KM-TL (MAIN Board (5/9)) TSD REF 4 3 2 1 5 + – VOUT GND VIN VCONT SENSE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 64 • IC Pin Function Description MAIN BOARD (2/9) IC1101 CXD9917R (DZ260/DZ270)/CXD9927R (HDZ278) (CD/DVD RF AMP, FOCUS/TRACKING ERROR AMP, DVD SYSTEM CONTROL, DIGTAL SERVO PROCESSOR, DIR/USB CONTROL) Pin No. Pin Name I/O Description 1 OSN — RF offset cancellation capacitor connecting terminal 2 RFGC I RF AGC loop capacitor connecting terminal 3 IREF I Current reference setting terminal 4 AVDD3 — Power supply (VDD3.3V) 5 AGND — Ground 6 DVDA I AC coupled input path A 7 DVDB I AC coupled input path B 8 DVDC I AC coupled input path C 9 DVDD I AC coupled input path D 10 DVDRFIP I DC coupled DVD RF signal input RFIP 11 MA I DC coupled main-beam RF signal input A 12 MB I DC coupled main-beam RF signal input B 13 MC I DC coupled main-beam RF signal input C 14 MD I DC coupled main-beam RF signal input D 15 SA — Not used (Open) 16 SB — Not used (Open) 17 TNI I DC coupled main-beam RF signal input E 18 TPI I DC coupled main-beam RF signal input F 19 MDI1 I Laser power monitor input 20 MDI2 I Laser power monitor input 21 LDO2 O Laser diode (DVD) drive signal output 22 LDO1 O Laser diode (CD) drive signal output 23 SVDD3 — Power supply (RF+3.3V) 24 CSO O Not used (Open) 25 RFLVL O RFRP low pass output 26 SGND — Ground 27 V2REFO O Reference voltage (2.8V) output 28 V20 O Reference voltage (2.0V) output 29 VREFO O Reference voltage (1.4V) output 30 FEO O Focus error monitor output 31 TEO O Tracking error monitor output 32 TEZISLV O TE Slicing Level input 33 OP_OUT O Op amp output 34 OP_INN I Op amp negative input 35 OP_INP I Spindle feedback signal input 36 DMO O Disc motor control PWM output 37 FMO O Feed motor control PWM output 38 TROPENPWM O Tray PWM output/Tray open output 39 IOPMON I Iop Monitor input 40 TRO O Tracking servo control signal output 41 FOO O Focus servo control signal output 42 AGND18 — Ground 43 AVDD18 — Power supply (+1.8V) 44 USB_DP I/O USB port serial data input/output 45 USBDM I/O USB port serial data input/output 46 USB_VDD3 — USB power supply (+3.3V) 47 USB_VSS — USB ground 48 PAD_VRT — Not used 49 USB_VDD18 — Power supply (+1.8V) 50 USB_VSS I Ground 51 DIR_ERROR/NC I DIR PLL error signal input 52 DIR_AUDIO/NC I DIR audio signal input (Not used in this set) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 65 Pin No. Pin Name I/O Description 53 LIMITSW I LIMIT SW signal input 54 MSW O DVD/CD PD –VR select signal output 55 DVDD18 — Power supply (+1.8V) 56 to 62 HA2 to HA8 O Flash ROM address bus A2 to A8 output 63, 64 HA18, HA19 O Flash ROM address bus A18, A19 output 65 DVDD3 — Power supply (+3.3V) 66 XWR O Flash ROM write signal output 67 to 74 HA16 to HA9 O Flash ROM address bus A16 to A9 output 75 HA20 Flash ROM address bus A20 output 76 XROMCS O Flash ROM chip select signal output 77 HA1 O Flash ROM address bus A1 output 78 XRD O Flash ROM read signal output 79, 80 HD0, HD1 I/O Flash ROM data bus D0, D1 input/output 81 DVSS — Ground terminal 82 to 86 HD2 to HD6 I/O Flash ROM data bus D2 to D6 input/output 87 HA21 I/O Flash ROM data bus D21 input/output 88 RESERVED — Not used (Open) 89 HD7 I/O Flash ROM data bus D7 input/output 90 DVSS — Ground terminal 91, 92 HA17, HA0 O Flash ROM address bus A17, A0 output 93 DVDD18 O Flash ROM data bus D18 input/output 94 FWR O Loading motor control (FWR) signal output 95 REV O Loading motor control (REV) signal output 96 DVDD3 — Power supply (+3.3V) 97 IFSDO O CPU I/F serial data output 98 IFCK O CPU I/F serial clock output 99 xIFCS O CPU I/F chip select output 100 IFSDI I CPU I/F serial data input 101 SCL O EEPROM serial clock output 102 SDA I/O EEPROM serial data input/output 103 CKSW I Chuck/Tray detect switch signal input 104 OCSW I Chuck/Tray detect switch signal input 105 RXD I RXD signal input from Jig 106 TXD O TXD signal output to Jig 107 ICE O Not used (Open) 108 xSYSRST I System reset signal input 109 RESERVED I Not used (Open) 110 xIFBSY I Busy signal input from CPU I/F 111 DQM0 O SDRAM lower byte mask signal output 112 EEWP I EEPROM ready/Busy wake up signal input 113 to 117 RD7 to 3 I/O SDROM data bus D7 to D3 input/output 118 DVDD3 — Power supply (+3.3V) 119 to 121 RD2 to RD0 I/O SDROM data bus D2 to D0 input/output 122 to 129 RD15 to RD8 I/O SDROM data bus D15 to D8 input/output 130 TSD_M I TSD signal input 131 DVDD3 — Power supply (+3.3V) 132 DQM1 O SDRAM lower byte mask signal output 133 _RWE O SDRAM write enable signal output 134 _CAS O SDRAM column address strobe signal output 135 _RAS O SDRAM row address strobe signal output 136 _RCS O SDRAM chip select signal output 137, 138 BA0, BA1 O SDRAM bank address 0, 1 output 139 RA10 O SDRAM address bus A10 output 140, 141 RA0, RA1 O SDRAM address bus A0, A1 output 142 DVDD18 — Power supply (+1.8V) 143, 144 RA2, RA3 O SDRAM address bus A0, A3 output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 66 Pin No. Pin Name I/O Description 145 DVDD3 — Power supply (+3.3V) 146 DRCLK O SDRAM clock output 147 CKE O SDRAM clock enable signal output 148 DVSS — Ground terminal 149 RA11 O SDRAM address bus A11 output 150 to 155 RA9 to RA4 O SDRAM address bus A9 to A4 output 156 DVDD3 — Power supply (+3.3V) 157 MUTE123 O Mute signal output for Focus/Tracking/Sledding 158 MUTE O Mute signal output for Spindle motor 159 DDC_DA I/O HDMI DDC line data input/output 160 DVDD18 — Power supply (+1.8V) 161 DDC_CLK I/O HDMI DDC line clock input/output 162 HIPLG I HDMI HPD signal input 163 AGND3 — Ground 164 EXT_RES I Ext. resistor connected terminal 165, 166 AVDD3 — Power supply (+3.3V) 167 EXT_CAP I Ext. capacitor connected terminal 168, 169 AGND3, AGND18 — Ground 170 TXCN O HDMI TXD-clock output 171 TXCP O HDMI TXD-clock output 172 AVDD18 — Power supply (+1.8V) 173 TX0N O HDMI TXD-0 output 174 TX0P O HDMI TXD-0 output 175 AGND18 — Power supply (+1.8V) 176 TX1N O HDMI TXD-1 output 177 TX1P O HDMI TXD-1 output 178 AVD18 — Power supply (+1.8V) 179 TX2N O HDMI TXD-2 output 180 TX2P O HDMI TXD-2 output 181 AGND18 — Power supply (+1.8V) 182 R/Cr/Pr O Video chroma R/Cr/Pr signal output 183 B/Cb/Pb O Video chroma B/Cb/Pb signal output 184 DACVSSA — Ground 185 Y/G O Video Y/chroma G signal output 186 DACVDDA — Power supply (+3.3V) 187 CVBS O Video Composite signal output 188 DACVSSB — Ground 189 C O Video chroma signal output 190 DACVDDB — Power supply (+3.3V) 191 Y O Video Y signal output 192 DACVSSC — Ground 193 FS I Full Scale Adjustment setting terminal 194 VREF I Reference Voltage input terminal 195 DACVDDC — Power supply (+3.3V) 196 VBUS_OE O VBUS power control signal output 197 VBUS_OC I VBUS detect signal input 198 SCORE/DIR_XSTATE I DIR status signal input 199 SPMCK I DIR MCK clock input 200 SPBCK I DIR BCK clock input 201 SPLRCK I DIR LRCK clock input 202 ADIN (SPDATA) I Audio digital data input 203 ACLK O A/D converter and DAMP clock output 204 ABCK O A/D converter and DAMP BCK clock output 205 ALRCK O A/D converter and DAMP LRCK clock output 206 MC_DATA (ADIN) I A/D converter data input 207 DVDD3 — Power supply (+3.3V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 67 Pin No. Pin Name I/O Description 208 MIC O Not used (Fixed to Ground) 209 WIDE O WIDE select signal output 210 RGB_SEL/DSEL O Video output select signal output 211 TRG_SW I Not used 212 DVDD18 — Power supply (+3.3V) 213 KMOD O Not used (Open) 214 XVOICE/DIR_CSFLAG O Not used (Open) 215 SPDIF O Not used (Open) 216 APLLVDD3 — Power supply (+3.3V) 217 APLLCAP — Ext capacitor connected terminal 218 APLLVSS — Ground 219 ADACVSS2 — Ground 220 ADACVSS1 — Ground 221 DIR_CE O DIR I/F chip select signal output 222 ASDATA3 O Audio digital signal output to D-AMP (Not used in this set) 223 ASDATA2 O Audio digital signal output to D-AMP 224 AVCM — Ext capacitor connected terminal 225 ASDATA1 O Audio digital signal output to D-AMP 226 ASDATA0 O Audio digital signal output to D-AMP 227 DIR_CL O DIR I/F clock output 228 ADACVDD1 — Power supply (+3.3V) 229 ADACVDD2 — Power supply (+3.3V) 230 Rt/DIR_DI O DIR I/F data output 231 Lt/DIR_DO I DIR I/F data input 232 ADACSS3 — Ground 233 ADACVDD3 — Power supply (+3.3V) 234 SADCVDD18 — Power supply (+1.8V) 235 SADCVSS18 — Ground 236 FGND18 — Ground 237 RFVDD18 — Power supply (+1.8V) 238 XTALO O Crystal output for main clock (27MHz) 239 XTALI I Crystal input for main clock (27MHz) 240 JITFO O The output terminal of RF jitter meter 241 JITFN I The input terminal of RF jitter meter 242 PLLVSS — Ground 243 PLLVDD3 — Power supply (+3.3V) 244 LPFON O The negative output of loop ﬁ lter ampliﬁ er 245 LPFIP I The positive input terminal of loop ﬁ lter ampliﬁ er 246 LPFIN I The negative input terminal of loop ﬁ lter ampliﬁ er 247 LPFOP O The positive output of loop ﬁ lter ampliﬁ er 248 ADCVDD3 — Power supply (+3.3V) 249 ADCVSS — Ground 250 RFVDD3 — Power supply (+3.3V) 251 RFRPDC O RF ripple detect output 252 RFRPAC I RF ripple detect input (through AC-coupling) 253 HRFZC I High frequency RF ripple zero crossing 254 CRTPLP O Defect level ﬁ lter capacitor connected terminal 255 RFGND18 — Power supply (+3.3V) 256 OSP O RF offset cancellation capacitor connecting www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 68 Pin No. Pin Name I/O Description 1 DAMP_SCDT/DIR_DIN O DAMP processor and DIR data output 2 DAMP_SHIFT/DIR_CLK O DAMP processor and DIR clock output 3 CEC_RX_IN I CEC data input 4 SIRCS_IN I Sircs input 5 DSP_MOSI/ASEL4 O Audio input select signal output. (Not used in this set) 6 DSP_MISO/ASEL5 O Audio input select signal output. (Not used in this set) 7 DSP_SPICLK O Not used (Open) 8 BYTE I External data bus input. (Connected to ground) 9 CNVSS I Change processor mode input (L: Single chip mode) 10, 11 EN_A, EN_B I Volume control pulse input for ENCODER 12 RESET I System reset signal input 13 XOUT O Crystal output for main clock (5MHz) 14 VSS — Ground 15 XIN I Crystal input for main clock (5MHz) 16 VCC — Power supply (BUP+3.3V) 17 NMI I Not used (Fixed to “H” (BUP+3.3V)) 18 DIR_ZERO INT2 O Not used (Open) 19 DIRCSFLAG INT3 /A.CAL_OUT_LEVEL I Out level detect for auto calibration input 20 AC_CUT INT0 I AC-CUT detect signal input 21 FL_CLK/LED_CLK O FL and LED driver clock output 22 CEC_TX_OUT O CEC data output 23 FL_CS/STB O FL and LED driver chip select signal output 24 FL_D_OUT/LED_DATA O FL and LED driver data output 25 DIVER_RST_CS/ S-AIR_SRC_MUTE O Not used (Open) 26 MIC_GAIN O MIC gain control signal output 27 CDM_OPEN_SW/ XM_SEL I CDM open switch signal input 28 DC_CONT O A.CAL MIC DC control signal output 29 DMP_RX_IN I DMPOART data input 30 DMP_TX_OUT O DMPOART data output 31 DVD_SID O Serial data output to CDX9917R/CDX9927R 32 DVD_SOD I Serial data input from CDX9917R/CDX9927R 33 DVD_SCO I Serial clock input from CDX9917R/CDX9927R 34 DVD_XIFBUSY O RTS signal output to CDX9917R/CDX9927R 35 XM_TX_OUT/ MIC_DET_OUT O Not used (Open) 36 XM_RX_IN/KRMOD I Not used (Open) 37 DVD XIFCS I Chip select signal output from CXD9917R/CDX9927R 38 MTK RST O System reset output 39 P_CONT1 O Power control signal output 40 P_CONT2 O Power control signal output 41 WRITE EMP P_CONT3 O Power control signal output 42 DRIVE_RST(EN) O D-AMP driver reset signal output 43 SD(DIAG)/PVDD_DET I D-AMP driver shut down signal input 44 OVERFLOW1 I D-AMP processor F/C/S over ﬂ ow detect signal input 45 OVERFLOW2 I D-AMP processor SW over ﬂ ow detect signal input 46 WRITE CE I Not used (Fixed to “H” (+3.3V))) 47 I2C_DATA I/O EEPROM I2C serial data input/output 48 I2C_CLK I/O EEPROM I2C serial clock input/output 49 DAMP LATCH3 O D-AMP processor latch-3 signal output 50 DAMP INIT O D-AMP processor reset signal output 51 DAMP SOFT MUTE O D-AMP processor soft mute signal output MAIN BOARD (5/9) IC501 R5F3640DDFA (SYSTEM CONTROL) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 69 Pin No. Pin Name I/O Description 52 M_ST O LINK (Multi STEREO) control signal output 53 HP_MUTE O Headphone mute signal output 54 S-AIR_ADC_SEL O Not used (Open) 55 MIC_CLK O Not used (Open) 56 DAMP LATCH2 O D-AMP processor latch-2 signal output 57 DC_DET I Speaker DC balance protect signal input 58 S-AIR_RST O Not used (Open) 59 DIR_HCE O Not used (Open) 60 DIR_ERR O Not used (Open) 61 DIR_XSTATE O Not used (Open) 62 VCC — Power supply (BUP+3.3V) 63 HDMI_PCONT O HDMI hot plug power control signal output 64 VSS — Ground 65 DAMP LATCH1 O D-AMP processor latch-1 signal output 66 JACK1/JACK2/ S-AIR_DET I MIC or Headphone insert detect signal input 67 GPIO2 I Not used (Open) 68 TUNED I TUNER TUNED signal input 69 ST_CLK O TUNER clock output 70 ST_DO I TUNER data input 71 ST_CE O TUNER chip enable signal output 72 ST_DI O TUNER data output 73 DSP_INTR O Not used (Open) 74 INT4 KEY INT I Wake up signal input from function key 75 INT3 RDS_CLK/ LED_LAT I RDS clock input 76 RDS-DATA/ XM_RST(PCONT) I RDS data input 77 S-AIR I2C_SDA I/O I2C serial data input/output (Not used in this set) 78 S-AIR I2C_SCL I/O I2C serial clock input/output (Not used in this set) 79 DSP_SF_CE O Not used (Open) 80 2ND_XM_SEL/ TV_SEL/MIC_DATA O TV control signal output 81 ASEL3/DSP_SPIDS/ XM_SRC_RST O Audio select signal output (Not used in this set) 82 V_SEL0 O Video select signal output 83 V_SEL1 O Audio select signal output 84 IO_CE/ASEL0 O Audio select signal output 85 IO_RESET/ASEL1 O Audio select signal output 86 IO_DI/ASEL2 O Audio select signal output (Not used in this set) 87 IO_DO/VSEL2 O Audio select signal output (Not used in this set) 88 IO_CLK O Not used (Open) 89 DMP_DET I DMPOART detect signal input 90 MONO/ST_DET I AUDIO IN jack MONO or STEREO detect signal input 91 A.CAL MIC LEVEL/ DSP_MASTER I MIC level detect signal input for auto calibration 92 DESTINATION I Destination select input 93 MODEL I Model select input 94 KEY2 I Key input 2 input 95 KEY1 I Key input 1 input 96 VSS — Ground 97 KEY0 I Key input 0 input 98 VREF — Reference voltage (E3.3V) 99 VCC — Power supply (BUP+3.3V) 100 DIR_HDOUT O Not used (Open) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 70 HCD-DZ260/DZ270/HDZ278 SECTION 7 EXPLODED VIEWS 1 3-273-758-01 CASE (DSR) (BLACK) 1 3-273-758-21 CASE (DSR) (SILVER) 2 3-363-099-22 SCREW (CASE 3 TP2) (for BLACK) 2 3-363-099-51 SCREW (CASE 3 TP2) (for SILVER) 3 3-704-515-01 SCREW (BV/RING) 4 1-827-720-11 WIRE (FLAT TYPE) (11 CORE) (DZ260) 4 1-828-955-11 WIRE (FLAT TYPE) (9 CORE) (DZ270/HDZ278) 0 5 1-829-387-11 CORD, POWER (AR) 0 5 1-834-966-21 CORD, POWER (AEP,E3,E12,E15) 0 5 1-834-967-21 CORD, POWER (AUS) 0 5 1-834-978-11 CORD, POWER (MX,US,CND) 0 5 1-835-078-21 CORD, POWER (UK) 6 3-703-244-00 BUSHING (2104), CORD 7 2-677-839-01 +PWH 3X8 (SUMITITE) 8 3-077-331-21 +BV 3 (3-CR) 9 3-273-727-01 PANEL, LOADING (DSR) (BLACK) 9 3-273-727-11 PANEL, LOADING (DSR) (SILVER) 0 10 1-569-008-22 ADAPTOR, CONVERSION 2P (E15) FAN3001 1-787-331-11 FAN, D.C. TU401 1-693-759-11 TUNER (FM/AM) (ANTENNA) (DZ260) TU401 1-693-761-11 TUNER (FM/AM) (ANTENNA) (DZ270) TU401 1-693-762-11 TUNER (FM/AM) (ANTENNA) (HDZ278) #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 #2 7-685-871-01 SCREW +BVTT 3X6 (S) #3 7-682-547-04 SCREW +B 3X6 #4 7-685-881-09 SCREW +BVTT 4X8 (S) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark Note: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine ser- vice. Some delay should be anticipated when ordering these items. • Abbreviation AR : Argentina model AUS : Australian model CND : Canadian model E3 : 240 V AC Area in E model E12 : 220-240 V AC area in E model E15 : Iran model MX : Mexican model • The mechanical parts with no reference number in the exploded views are not sup- plied. 7-1. OVERALL SECTION The components identiﬁ ed by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number speciﬁ ed. Les composants identiﬁ és par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spéciﬁ é. The components identiﬁ ed by mark 9 con- tain conﬁ dential information. Strictly follow the instructions whenever the components are repaired and/or replaced. Les composants identiﬁ és par la marque 9 contiennent des informations conﬁ den- tielles. Suivre scrupuleusement les instructions chaque fois qu’un composant est remplacé et / ou réparé. Note: If the wire (ﬂ at type) was replaced, fold it some as the wire (ﬂ at type) before replacement. 1 2 2 4 3 TU401 #1 #1 #1 #1 #1 #4 #3 #2 FAN3001 not supplied not supplied front panel section chassis section 5 10 6 7 8 8 9 � �� www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 71 HCD-DZ260/DZ270/HDZ278 51 2-889-990-01 KNOB (VOL) 52 3-273-726-01 ORNAMENT (DSR) 53 3-273-728-01 BUTTON (PLAY-SP) 54 3-943-995-01 EMBLEM (NO. 5), SONY 55 3-273-724-01 WINDOW, INDICATION (DSR-1) (DZ270) 55 3-273-724-11 WINDOW, INDICATION (DSR-1) (HDZ278) 55 3-273-724-81 WINDOW, INDICATION (DSR-1) (DZ260) 56 3-280-669-01 SHEET (DSR WINDOW), ADHESIVE 57 3-273-722-01 PANEL, FRONT (DSR-1) (BLACK) (DZ260:AEP) 57 3-273-722-11 PANEL, FRONT (DSR-1) (BLACK) (DZ260:UK) 57 3-273-722-21 PANEL, FRONT (DSR-1) (BLACK) (DZ270) 57 3-273-722-31 PANEL, FRONT (DSR-1) (BLACK) (HDZ278) 57 3-273-722-91 PANEL, FRONT (DSR-1) (SILVER) (DZ260:AEP) 58 3-273-730-01 BUTTON (POWER-DSR) (BLACK) 58 3-273-730-11 BUTTON (POWER-DSR) (SILVER) 59 3-273-732-01 FILTER, COLOR 60 3-273-731-01 HOLDER (FL) 61 A-1382-431-A FL BOARD, COMPLETE 62 3-087-053-01 +BVTP 2.6 (3CR) 63 1-828-307-11 WIRE (FLAT TYPE) (9 CORE) 64 1-828-363-11 WIRE (FLAT TYPE) (19 CORE) 65 A-1382-433-A JACK BOARD, COMPLETE (AEP,UK,E3,E15,AUS) 65 A-1382-484-A JACK BOARD, COMPLETE (US,CND) 65 A-1382-542-A JACK BOARD, COMPLETE (E12,AR,MX) ND100 1-519-988-11 INDICATOR TUBE, FLUORESCENT Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 7-2. FRONT PANEL SECTION 51 not supplied (P-SW board) ND100 not supplied not supplied not supplied supplied with S107 not supplied not supplied not supplied 52 53 54 55 56 57 58 59 60 61 62 62 62 63 64 65 62 62 62 Note: If the wire (ﬂ at type) was replaced, fold it some as the wire (ﬂ at type) before replacement. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 72 HCD-DZ260/DZ270/HDZ278 7-3. CHASSIS SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 101 A-1334-282-A POWER BOARD, COMPLETE (DZ260) 101 A-1382-421-A POWER BOARD, COMPLETE (DZ270:E3,E12,E15,AUS,AR) 101 A-1382-476-A POWER BOARD, COMPLETE (HDZ278) 101 A-1382-537-A POWER BOARD, COMPLETE (DZ270:MX) 102 2-677-839-01 +PWH 3X8 (SUMITITE) 103 4-232-478-31 FOOT 104 4-231-099-91 SHEET, RADIATION 105 3-077-331-21 +BV 3 (3-CR) 106 1-828-293-11 WIRE (FLAT TYPE) (5 CORE) 107 1-828-349-11 WIRE (FLAT TYPE) (17 CORE) (DZ270/HDZ278) 107 1-828-359-11 WIRE (FLAT TYPE) (19 CORE) (DZ260) 108 1-828-337-11 WIRE (FLAT TYPE) (15 CORE) (DZ270) 108 1-828-347-11 WIRE (FLAT TYPE) (17 CORE) (HDZ278) 108 1-828-357-11 WIRE (FLAT TYPE) (19 CORE) (DZ260) 109 A-1382-453-A IO-SCART BOARD, COMPLETE (DZ260) 109 A-1382-500-A IO-COMPONENT BOARD, COMPLETE (HDZ278) 109 A-1382-887-A IO-COMPONENT BOARD, COMPLETE (DZ270) 110 3-077-331-11 +BV 3 (3-CR) 111 2-597-972-61 SHEET, RADIATION (HDZ278) 111 3-100-158-21 SHEET, RADIATION (DZ260/DZ270) 112 2-597-972-41 SHEET, RADIATION (HDZ278) 112 3-100-158-11 SHEET, RADIATION (DZ260/DZ270) 113 4-231-099-41 SHEET, RADIATION 114 1-828-287-11 WIRE (FLAT TYPE) (5 CORE) 9 115 A-1382-455-A MAIN PC BOARD COMPL F13340348 (AEP) 9 115 A-1382-502-A MAIN PC BOARD COMPL F13340330 (US,CND) 9 115 A-1382-545-A MAIN PC BOARD COMPL F13340370 (E3,E15) 9 115 A-1382-614-A MAIN PC BOARD COMPL F13340382 (AR) 9 115 A-1382-622-A MAIN PC BOARD COMPL F13340337 (MX) 9 115 A-1486-440-A MAIN PC BOARD COMPL F13340360 (UK) 9 115 A-1497-750-A MAIN PC BOARD COMPL F13340381 (E12) 9 115 A-1497-761-A MAIN PC BOARD COMPL F13340395 (AUS) 116 3-273-733-01 COVER (CDM-DSR) (DZ260/DZ270) 116 3-273-733-11 COVER (CDM-DSR) (HDZ278) 0 F901 1-533-311-12 FUSE, GLASS CYLINDRICAL (DIA. 5) (8A/125V) (MX,US,CND) 0 F901 1-576-233-51 FUSE (H.B.C.) (T6.3AL/250V) (EXCEPT MX,US,CND) #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 #5 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3 101 102 103 104 105 105 109 107 108 110 111 112 113 114 115 105 105 105 116 105 106 105 105 103 102 #5 #1 #1 not supplied not supplied F901 not supplied not supplied not supplied (HEAT SINK A board) not supplied (SPEAKER board) not supplied (HEAT SINK B board) not supplied not supplied CDM85-DVBU102 Note: If the wire (ﬂ at type) was replaced, fold it some as the wire (ﬂ at type) before replacement. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 73 HCD-DZ260/DZ270/HDZ278 7-4. DVD MECHANISM DECK SECTION (CDM85-DVBU102) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 151 A-6071-669-A LOADING ASSY (M) 152 3-088-371-01 BELT 153 4-974-725-11 SCREW (M1.7X2.5), P 154 4-674-137-11 SCREW (PTP 2X5) 155 2-634-618-01 INSULATOR 156 3-087-599-01 INSULATOR SCREW 0 157 8-820-321-05 OPTICAL PICK-UP KHM-313CAA/C2RP 158 1-828-773-51 WIRE (FLAT TYPE) (24 CORE) not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied (MS-203 board) not supplied 151 154 152 153 155 155 155 155 157 158 156 156 156 156 Note: If the wire (ﬂ at type) was replaced, fold it some as the wire (ﬂ at type) before replacement. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 74 HCD-DZ260/DZ270/HDZ278 SECTION 8 ELECTRICAL PARTS LIST A-1382-431-A FL BOARD, COMPLETE ****************** 3-273-731-01 HOLDER (FL) < CAPACITOR > C101 1-126-382-11 ELECT 100uF 20% 16V C102 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C103 1-163-037-11 CERAMIC CHIP 0.022uF 10% 50V C104 1-162-974-11 CERAMIC CHIP 0.01uF 50V C105 1-119-943-11 ELECT 47uF 20% 50V C106 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C107 1-126-157-11 ELECT 10uF 20% 16V C108 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C116 1-126-157-11 ELECT 10uF 20% 16V C117 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C189 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V C190 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V < CONNECTOR > CN100 1-779-546-11 CONNECTOR, FFC (LIF(NON-ZIF)) 9P < DIODE > D100 6-501-579-01 DIODE MC2837 D101 6-501-579-01 DIODE MC2837 D102 6-501-729-01 DIODE MAZ8051GLLS0 D103 6-501-817-01 DIODE MA2J1110GLS0 < IC > IC100 6-701-729-01 IC PT6315 IC101 6-600-349-21 IC NJL23H400A (IR) < COIL > L100 1-410-671-31 INDUCTOR 47uH L101 1-410-671-31 INDUCTOR 47uH L102 1-410-671-31 INDUCTOR 47uH < FLUORESCENT INDICATOR TUBE > ND100 1-519-988-11 INDICATOR TUBE, FLUORESCENT < TRANSISTOR > Q100 6-550-065-01 FET CPH5504-TL-E < RESISTOR > R100 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R101 1-216-839-11 METAL CHIP 33K 5% 1/10W R102 1-216-805-11 METAL CHIP 47 5% 1/10W R103 1-216-805-11 METAL CHIP 47 5% 1/10W R104 1-216-809-11 METAL CHIP 100 5% 1/10W R105 1-216-809-11 METAL CHIP 100 5% 1/10W R106 1-216-809-11 METAL CHIP 100 5% 1/10W R107 1-216-844-11 METAL CHIP 82K 5% 1/10W R108 1-216-805-11 METAL CHIP 47 5% 1/10W < TRANSFORMER > T100 1-443-645-11 TRANSFORMER, DC-DC CONVERTER ************************************************************* A-1382-500-A IO-COMPONENT BOARD, COMPLETE (HDZ278) A-1382-887-A IO-COMPONENT BOARD, COMPLETE (DZ270) ***************************** < CAPACITOR > C454 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C456 1-126-933-11 ELECT 100uF 20% 16V C457 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C458 1-126-933-11 ELECT 100uF 20% 16V C460 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C462 1-126-916-11 ELECT 1000uF 20% 6.3V C463 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C466 1-126-965-11 ELECT 22uF 20% 50V C467 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C468 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C470 1-126-964-11 ELECT 10uF 20% 50V (HDZ278) C473 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C474 1-126-925-11 ELECT 470uF 20% 10V C476 1-126-964-11 ELECT 10uF 20% 50V C478 1-126-916-11 ELECT 1000uF 20% 6.3V C480 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C488 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C491 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C495 1-104-662-11 ELECT 22uF 20% 25V C496 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C499 1-104-662-11 ELECT 22uF 20% 25V C517 1-104-662-11 ELECT 22uF 20% 25V Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark IO-COMPONENT When indicating parts by reference num- ber, please include the board name. Note: • Due to standardization, replacements in the parts list may be different from the parts speciﬁ ed in the diagrams or the com- ponents used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine ser- vice. Some delay should be anticipated when ordering these items. • CAPACITORS uF: μF • COILS uH: μH • RESISTORS All resistors are in ohms. METAL: Metal-ﬁ lm resistor. METAL OXIDE: Metal oxide-ﬁ lm resistor. F: nonﬂ ammable • SEMICONDUCTORS In each case, u: μ, for example: uA. . : μA. . , uPA. . , μPA. . , uPB. . : μPB. . , uPC. . , μPC. . , uPD. . : μPD. . The components identiﬁ ed by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number speciﬁ ed. Les composants identiﬁ és par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spéciﬁ é. FL The components identiﬁ ed by mark 9 con- tain conﬁ dential information. Strictly follow the instructions whenever the components are repaired and/or replaced. Les composants identiﬁ és par la marque 9 contiennent des informations conﬁ den- tielles. Suivre scrupuleusement les instructions chaque fois qu’un composant est remplacé et / ou réparé. • Abbreviation AR : Argentina model AUS : Australian model CND : Canadian model E3 : 240 V AC Area in E model E12 : 220-240 V AC area in E model E15 : Iran model MX : Mexican model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark HCD-DZ260/DZ270/HDZ278 75 75 C518 1-126-960-11 ELECT 1uF 20% 50V C521 1-162-960-11 CERAMIC CHIP 220PF 10% 50V (HDZ278) C522 1-104-662-11 ELECT 22uF 20% 25V C524 1-104-662-11 ELECT 22uF 20% 25V (HDZ278) C525 1-162-960-11 CERAMIC CHIP 220PF 10% 50V (HDZ278) C526 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C527 1-126-933-11 ELECT 100uF 20% 16V C530 1-104-662-11 ELECT 22uF 20% 25V (HDZ278) C533 1-126-960-11 ELECT 1uF 20% 50V C534 1-104-662-11 ELECT 22uF 20% 25V C535 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C536 1-104-662-11 ELECT 22uF 20% 25V C537 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C538 1-104-662-11 ELECT 22uF 20% 25V C541 1-126-933-11 ELECT 100uF 20% 16V C542 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C548 1-127-573-11 CERAMIC CHIP 1uF 10% 16V C549 1-126-947-11 ELECT 47uF 20% 35V C552 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C556 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C557 1-126-933-11 ELECT 100uF 20% 16V C558 1-104-662-11 ELECT 22uF 20% 25V C559 1-104-662-11 ELECT 22uF 20% 25V C620 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C621 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C622 1-165-908-11 CERAMIC CHIP 1uF 10% 10V < CONNECTOR > CN402 1-779-285-11 CONNECTOR, FFC (LIF(NON-ZIF)) 17P (HDZ278) CN403 1-779-283-11 CONNECTOR, FFC (LIF(NON-ZIF)) 15P (DZ270) CN407 1-779-285-11 CONNECTOR, FFC (LIF(NON-ZIF)) 17P CN412 1-564-706-11 PIN, CONNECTOR (SMALL TYPE) 4P CN418 1-779-273-11 CONNECTOR, FFC (LIF(NON-ZIF)) 5P CN419 1-568-828-11 CONNECTOR, FFC 9P < DIODE > D406 6-501-579-01 DIODE MC2837 D407 8-719-058-24 DIODE RB501V-40TE-17 < IC > IC404 6-710-470-01 IC MM1758AFBE IC410 8-759-100-96 IC uPC4558G2 IC411 8-759-385-76 IC MC14052 BDR2 IC413 6-700-830-01 IC KIA7809API IC620 6-705-338-01 IC TK11250CMCL-G < JACK > J401 1-817-601-11 JACK, PIN 3P (COMPONENT VIDEO OUT (Y,PB/CB,PR/CR)) J404 1-820-862-11 JACK, PIN 3P (VIDEO OUT, TV/VIDEO (AUDIO IN R/L)) < JUMPER RESISTOR > JR502 1-216-864-11 SHORT CHIP 0 JR503 1-216-864-11 SHORT CHIP 0 JR504 1-216-864-11 SHORT CHIP 0 JR505 1-216-864-11 SHORT CHIP 0 JR506 1-216-864-11 SHORT CHIP 0 JR507 1-216-864-11 SHORT CHIP 0 JR508 1-216-864-11 SHORT CHIP 0 JR515 1-216-864-11 SHORT CHIP 0 JR516 1-216-864-11 SHORT CHIP 0 < COIL > L404 1-469-525-11 INDUCTOR 10uH L407 1-469-525-11 INDUCTOR 10uH < TRANSISTOR > Q412 8-729-027-52 TRANSISTOR DTC124EKA-T146 Q413 8-729-027-52 TRANSISTOR DTC124EKA-T146 < RESISTOR > R439 1-218-285-11 METAL CHIP 75 5% 1/10W R444 1-218-827-11 METAL CHIP 150 0.5% 1/10W R445 1-218-827-11 METAL CHIP 150 0.5% 1/10W R446 1-218-827-11 METAL CHIP 150 0.5% 1/10W R447 1-218-827-11 METAL CHIP 150 0.5% 1/10W R448 1-218-827-11 METAL CHIP 150 0.5% 1/10W R449 1-218-285-11 METAL CHIP 75 5% 1/10W R452 1-218-285-11 METAL CHIP 75 5% 1/10W R468 1-218-285-11 METAL CHIP 75 5% 1/10W R471 1-216-864-11 SHORT CHIP 0 (DZ270) R473 1-216-864-11 SHORT CHIP 0 (DZ270) R473 1-218-285-11 METAL CHIP 75 5% 1/10W (HDZ278) R479 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R480 1-216-841-11 METAL CHIP 47K 5% 1/10W R481 1-216-841-11 METAL CHIP 47K 5% 1/10W R485 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R486 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R489 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R490 1-216-841-11 METAL CHIP 47K 5% 1/10W R491 1-216-841-11 METAL CHIP 47K 5% 1/10W R515 1-216-864-11 SHORT CHIP 0 R516 1-216-864-11 SHORT CHIP 0 R523 1-216-817-11 METAL CHIP 470 5% 1/10W R526 1-216-841-11 METAL CHIP 47K 5% 1/10W R527 1-216-841-11 METAL CHIP 47K 5% 1/10W (HDZ278) R528 1-216-841-11 METAL CHIP 47K 5% 1/10W (HDZ278) R529 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R533 1-216-827-11 METAL CHIP 3.3K 5% 1/10W (HDZ278) R537 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R538 1-216-827-11 METAL CHIP 3.3K 5% 1/10W (HDZ278) R539 1-216-841-11 METAL CHIP 47K 5% 1/10W (HDZ278) R540 1-216-841-11 METAL CHIP 47K 5% 1/10W (HDZ278) R541 1-216-864-11 SHORT CHIP 0 R542 1-216-864-11 SHORT CHIP 0 R544 1-216-841-11 METAL CHIP 47K 5% 1/10W R548 1-216-817-11 METAL CHIP 470 5% 1/10W R551 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R552 1-216-841-11 METAL CHIP 47K 5% 1/10W R553 1-216-841-11 METAL CHIP 47K 5% 1/10W R557 1-216-864-11 SHORT CHIP 0 IO-COMPONENT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark HCD-DZ260/DZ270/HDZ278 76 R558 1-216-864-11 SHORT CHIP 0 R559 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R561 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R562 1-216-864-11 SHORT CHIP 0 (HDZ278) R564 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R566 1-216-841-11 METAL CHIP 47K 5% 1/10W R567 1-216-841-11 METAL CHIP 47K 5% 1/10W R575 1-216-833-11 METAL CHIP 10K 5% 1/10W R576 1-216-864-11 SHORT CHIP 0 (HDZ278) R579 1-216-821-11 METAL CHIP 1K 5% 1/10W R582 1-216-833-11 METAL CHIP 10K 5% 1/10W R584 1-216-821-11 METAL CHIP 1K 5% 1/10W R595 1-216-864-11 SHORT CHIP 0 R598 1-216-841-11 METAL CHIP 47K 5% 1/10W R599 1-216-841-11 METAL CHIP 47K 5% 1/10W R600 1-216-845-11 METAL CHIP 100K 5% 1/10W R601 1-216-845-11 METAL CHIP 100K 5% 1/10W R602 1-216-845-11 METAL CHIP 100K 5% 1/10W R603 1-216-845-11 METAL CHIP 100K 5% 1/10W R609 1-216-864-11 SHORT CHIP 0 R610 1-216-864-11 SHORT CHIP 0 R620 1-216-821-11 METAL CHIP 1K 5% 1/10W ************************************************************* A-1382-453-A IO-SCART BOARD, COMPLETE (DZ260) ************************ < CAPACITOR > C400 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C401 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C402 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C403 1-126-933-11 ELECT 100uF 20% 16V C404 1-126-933-11 ELECT 100uF 20% 16V C405 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C406 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C407 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C408 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C409 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C410 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C411 1-126-933-11 ELECT 100uF 20% 16V C412 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C413 1-126-933-11 ELECT 100uF 20% 16V C414 1-126-933-11 ELECT 100uF 20% 16V C415 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C416 1-126-964-11 ELECT 10uF 20% 50V C417 1-126-916-11 ELECT 1000uF 20% 6.3V C419 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C420 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C421 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C422 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C423 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C424 1-126-933-11 ELECT 100uF 20% 16V C425 1-126-964-11 ELECT 10uF 20% 50V C491 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C495 1-104-662-11 ELECT 22uF 20% 25V C496 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C499 1-104-662-11 ELECT 22uF 20% 25V C517 1-104-662-11 ELECT 22uF 20% 25V C518 1-126-960-11 ELECT 1uF 20% 50V C521 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C522 1-104-662-11 ELECT 22uF 20% 25V C524 1-104-662-11 ELECT 22uF 20% 25V C525 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C526 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C527 1-126-933-11 ELECT 100uF 20% 16V C530 1-104-662-11 ELECT 22uF 20% 25V C533 1-126-960-11 ELECT 1uF 20% 50V C534 1-104-662-11 ELECT 22uF 20% 25V C535 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C536 1-104-662-11 ELECT 22uF 20% 25V C537 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C538 1-104-662-11 ELECT 22uF 20% 25V C541 1-126-933-11 ELECT 100uF 20% 16V C542 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C548 1-127-573-11 CERAMIC CHIP 1uF 10% 16V C549 1-126-947-11 ELECT 47uF 20% 35V C552 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C556 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C557 1-126-933-11 ELECT 100uF 20% 16V C558 1-104-662-11 ELECT 22uF 20% 25V C559 1-104-662-11 ELECT 22uF 20% 25V C561 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C562 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C620 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C621 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C622 1-165-908-11 CERAMIC CHIP 1uF 10% 10V < CONNECTOR > CN400 1-816-044-11 CONNECTOR, SQUARE TYPE 21P (EURO AV T OUTPUT(TO TV)) CN401 1-779-287-11 CONNECTOR, FFC (LIF(NON-ZIF)) 19P CN406 1-779-287-11 CONNECTOR, FFC (LIF(NON-ZIF)) 19P CN410 1-779-273-11 CONNECTOR, FFC (LIF(NON-ZIF)) 5P CN412 1-564-706-11 PIN, CONNECTOR (SMALL TYPE) 4P CN414 1-568-830-11 CONNECTOR, FFC 11P < DIODE > D401 6-501-817-01 DIODE MA2J1110GLS0 D402 6-501-817-01 DIODE MA2J1110GLS0 D407 8-719-058-24 DIODE RB501V-40TE-17 < IC > IC400 6-710-470-01 IC MM1758AFBE IC410 8-759-100-96 IC uPC4558G2 IC411 8-759-385-76 IC MC14052 BDR2 IC413 6-700-830-01 IC KIA7809API IC620 6-705-338-01 IC TK11250CMCL-G < JUMPER RESISTOR > JR401 1-216-864-11 SHORT CHIP 0 JR403 1-216-864-11 SHORT CHIP 0 JR404 1-216-864-11 SHORT CHIP 0 JR405 1-216-864-11 SHORT CHIP 0 JR406 1-216-864-11 SHORT CHIP 0 JR407 1-216-864-11 SHORT CHIP 0 JW427 1-216-864-11 SHORT CHIP 0 JW433 1-216-864-11 SHORT CHIP 0 < COIL > L401 1-469-525-11 INDUCTOR 10uH L407 1-469-525-11 INDUCTOR 10uH IO-COMPONENT IO-SCART www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark HCD-DZ260/DZ270/HDZ278 77 77 < TRANSISTOR > Q400 8-729-038-28 TRANSISTOR RT1N441C-TP-1 Q401 8-729-038-28 TRANSISTOR RT1N441C-TP-1 Q402 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q403 8-729-027-52 TRANSISTOR DTC124EKA-T146 Q404 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q405 8-729-038-28 TRANSISTOR RT1N441C-TP-1 Q406 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q412 8-729-027-52 TRANSISTOR DTC124EKA-T146 Q413 8-729-027-52 TRANSISTOR DTC124EKA-T146 < RESISTOR > R400 1-216-815-11 METAL CHIP 330 5% 1/10W R401 1-216-815-11 METAL CHIP 330 5% 1/10W R402 1-216-815-11 METAL CHIP 330 5% 1/10W R403 1-216-849-11 METAL CHIP 220K 5% 1/10W R404 1-216-815-11 METAL CHIP 330 5% 1/10W R405 1-216-837-11 METAL CHIP 22K 5% 1/10W R406 1-216-811-11 METAL CHIP 150 5% 1/10W R407 1-216-811-11 METAL CHIP 150 5% 1/10W R408 1-216-821-11 METAL CHIP 1K 5% 1/10W R409 1-216-833-11 METAL CHIP 10K 5% 1/10W R410 1-216-811-11 METAL CHIP 150 5% 1/10W R411 1-216-841-11 METAL CHIP 47K 5% 1/10W R412 1-216-811-11 METAL CHIP 150 5% 1/10W R413 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R414 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R415 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R416 1-216-811-11 METAL CHIP 150 5% 1/10W R417 1-216-811-11 METAL CHIP 150 5% 1/10W R418 1-216-811-11 METAL CHIP 150 5% 1/10W R419 1-216-811-11 METAL CHIP 150 5% 1/10W R421 1-216-864-11 SHORT CHIP 0 R422 1-218-285-11 METAL CHIP 75 5% 1/10W R424 1-216-821-11 METAL CHIP 1K 5% 1/10W R425 1-216-809-11 METAL CHIP 100 5% 1/10W R426 1-216-809-11 METAL CHIP 100 5% 1/10W R431 1-218-827-11 METAL CHIP 150 0.5% 1/10W R432 1-218-827-11 METAL CHIP 150 0.5% 1/10W R433 1-218-827-11 METAL CHIP 150 0.5% 1/10W R434 1-218-827-11 METAL CHIP 150 0.5% 1/10W R435 1-218-827-11 METAL CHIP 150 0.5% 1/10W R479 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R480 1-216-841-11 METAL CHIP 47K 5% 1/10W R481 1-216-841-11 METAL CHIP 47K 5% 1/10W R485 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R486 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R489 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R490 1-216-841-11 METAL CHIP 47K 5% 1/10W R491 1-216-841-11 METAL CHIP 47K 5% 1/10W R515 1-216-864-11 SHORT CHIP 0 R516 1-216-864-11 SHORT CHIP 0 R523 1-216-817-11 METAL CHIP 470 5% 1/10W R526 1-216-841-11 METAL CHIP 47K 5% 1/10W R527 1-216-841-11 METAL CHIP 47K 5% 1/10W R528 1-216-841-11 METAL CHIP 47K 5% 1/10W R529 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R533 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R537 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R538 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R539 1-216-841-11 METAL CHIP 47K 5% 1/10W R540 1-216-841-11 METAL CHIP 47K 5% 1/10W R541 1-216-864-11 SHORT CHIP 0 R542 1-216-864-11 SHORT CHIP 0 R544 1-216-841-11 METAL CHIP 47K 5% 1/10W R548 1-216-817-11 METAL CHIP 470 5% 1/10W R551 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R552 1-216-841-11 METAL CHIP 47K 5% 1/10W R553 1-216-841-11 METAL CHIP 47K 5% 1/10W R557 1-216-864-11 SHORT CHIP 0 R558 1-216-864-11 SHORT CHIP 0 R559 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R561 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R562 1-216-864-11 SHORT CHIP 0 R564 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R566 1-216-841-11 METAL CHIP 47K 5% 1/10W R567 1-216-841-11 METAL CHIP 47K 5% 1/10W R575 1-216-833-11 METAL CHIP 10K 5% 1/10W R576 1-216-864-11 SHORT CHIP 0 R579 1-216-821-11 METAL CHIP 1K 5% 1/10W R582 1-216-833-11 METAL CHIP 10K 5% 1/10W R584 1-216-821-11 METAL CHIP 1K 5% 1/10W R585 1-216-864-11 SHORT CHIP 0 R598 1-216-841-11 METAL CHIP 47K 5% 1/10W R599 1-216-841-11 METAL CHIP 47K 5% 1/10W R600 1-216-845-11 METAL CHIP 100K 5% 1/10W R601 1-216-845-11 METAL CHIP 100K 5% 1/10W R602 1-216-845-11 METAL CHIP 100K 5% 1/10W R603 1-216-845-11 METAL CHIP 100K 5% 1/10W R609 1-216-809-11 METAL CHIP 100 5% 1/10W R610 1-216-809-11 METAL CHIP 100 5% 1/10W R611 1-216-864-11 SHORT CHIP 0 R612 1-216-864-11 SHORT CHIP 0 R620 1-216-821-11 METAL CHIP 1K 5% 1/10W ************************************************************* A-1382-433-A JACK BOARD, COMPLETE (DZ260/DZ270:E3,E15,AUS) A-1382-484-A JACK BOARD, COMPLETE (HDZ278) A-1382-542-A JACK BOARD, COMPLETE (DZ270:E12,AR,MX) ********************* < CAPACITOR > C121 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C122 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C124 1-115-156-11 CERAMIC CHIP 1uF 10V C126 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C127 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DZ260/DZ270) C132 1-104-658-11 ELECT 100uF 20% 10V C133 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C134 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C135 1-124-589-11 ELECT 47uF 20% 16V C136 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C137 1-124-584-00 ELECT 100uF 20% 10V C138 1-126-157-11 ELECT 10uF 20% 16V C139 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C142 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C143 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C144 1-126-157-11 ELECT 10uF 20% 16V C145 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C147 1-162-960-11 CERAMIC CHIP 220PF 10% 50V IO-SCART JACK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark HCD-DZ260/DZ270/HDZ278 78 C148 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C149 1-162-925-11 CERAMIC CHIP 68PF 5% 50V C150 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V C151 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C152 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C153 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C158 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C159 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C165 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C166 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C168 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C169 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V < CONNECTOR > CN102 1-779-277-11 CONNECTOR, FFC (LIF(NON-ZIF)) 9P CN103 1-779-287-11 CONNECTOR, FFC (LIF(NON-ZIF)) 19P CN104 1-819-866-11 CONNECTOR, USB (A) 4P (USB) (DZ260/DZ270) CN105 1-564-721-11 PIN, CONNECTOR (SMALL TYPE) 5P (DZ260/DZ270) < DIODE > D104 6-501-579-01 DIODE MC2837 D107 6-501-817-01 DIODE MA2J1110GLS0 D108 6-501-579-01 DIODE MC2837 D109 6-501-579-01 DIODE MC2837 < FERRITE BEAD > FB102 1-500-236-22 BEAD, FERRITE (CHIP) (1608) (EXCEPT E12,AR,MX) FB103 1-500-236-22 BEAD, FERRITE (CHIP) (1608) (EXCEPT E12,AR,MX) FB104 1-500-236-22 BEAD, FERRITE (CHIP) (1608) (EXCEPT E12,AR,MX) FB105 1-500-236-22 BEAD, FERRITE (CHIP) (1608) (EXCEPT E12,AR,MX) FB106 1-500-236-22 BEAD, FERRITE (CHIP) (1608) (EXCEPT E12,AR,MX) < IC > IC102 6-705-312-01 IC S-T111B33MC-OGSTFG IC103 8-759-100-96 IC uPC4558G2 IC104 8-759-100-96 IC uPC4558G2 < JACK > J100 1-819-878-51 JACK (AUDIO IN/A.CAL MIC) J101 1-819-878-51 JACK (PHONES) < JUMPER RESISTOR > JR101 1-216-864-11 SHORT CHIP 0 JR102 1-216-864-11 SHORT CHIP 0 JR103 1-216-864-11 SHORT CHIP 0 < TRANSISTOR > Q101 8-729-038-28 TRANSISTOR RT1N441C-TP-1 Q102 8-729-038-28 TRANSISTOR RT1N441C-TP-1 Q103 8-729-038-11 TRANSISTOR RT1P140C-TP-1 Q104 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q105 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q106 6-550-889-01 TRANSISTOR 2SC5938-T112-1B Q107 6-550-889-01 TRANSISTOR 2SC5938-T112-1B Q108 6-550-889-01 TRANSISTOR 2SC5938-T112-1B Q109 6-550-889-01 TRANSISTOR 2SC5938-T112-1B < RESISTOR > R109 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R110 1-216-833-11 METAL CHIP 10K 5% 1/10W R111 1-216-809-11 METAL CHIP 100 5% 1/10W R112 1-216-809-11 METAL CHIP 100 5% 1/10W R113 1-216-815-11 METAL CHIP 330 5% 1/10W R114 1-216-815-11 METAL CHIP 330 5% 1/10W R115 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R117 1-216-834-11 METAL CHIP 12K 5% 1/10W R118 1-216-835-11 METAL CHIP 15K 5% 1/10W R121 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R122 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R123 1-216-821-11 METAL CHIP 1K 5% 1/10W R126 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R128 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R129 1-216-801-11 METAL CHIP 22 5% 1/10W R130 1-216-821-11 METAL CHIP 1K 5% 1/10W R131 1-216-821-11 METAL CHIP 1K 5% 1/10W R132 1-216-809-11 METAL CHIP 100 5% 1/10W R133 1-216-819-11 METAL CHIP 680 5% 1/10W R134 1-216-835-11 METAL CHIP 15K 5% 1/10W R135 1-216-833-11 METAL CHIP 10K 5% 1/10W R136 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R137 1-216-837-11 METAL CHIP 22K 5% 1/10W R138 1-216-845-11 METAL CHIP 100K 5% 1/10W R139 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R140 1-216-805-11 METAL CHIP 47 5% 1/10W R141 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R143 1-216-817-11 METAL CHIP 470 5% 1/10W R144 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R145 1-216-845-11 METAL CHIP 100K 5% 1/10W R146 1-216-817-11 METAL CHIP 470 5% 1/10W R147 1-216-845-11 METAL CHIP 100K 5% 1/10W R148 1-216-837-11 METAL CHIP 22K 5% 1/10W R149 1-216-821-11 METAL CHIP 1K 5% 1/10W R150 1-216-821-11 METAL CHIP 1K 5% 1/10W R151 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R152 1-216-864-11 SHORT CHIP 0 R153 1-216-857-11 METAL CHIP 1M 5% 1/10W R154 1-216-837-11 METAL CHIP 22K 5% 1/10W R155 1-216-864-11 SHORT CHIP 0 R160 1-216-864-11 SHORT CHIP 0 R162 1-216-864-11 SHORT CHIP 0 R165 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R166 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R167 1-216-801-11 METAL CHIP 22 5% 1/10W R168 1-216-801-11 METAL CHIP 22 5% 1/10W R169 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R170 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R171 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R172 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R173 1-216-805-11 METAL CHIP 47 5% 1/10W R174 1-216-805-11 METAL CHIP 47 5% 1/10W R179 1-216-864-11 SHORT CHIP 0 (E12,AR,MX) R180 1-216-864-11 SHORT CHIP 0 (E12,AR,MX) R181 1-216-864-11 SHORT CHIP 0 (E12,AR,MX) R182 1-216-864-11 SHORT CHIP 0 (E12,AR,MX) R183 1-216-864-11 SHORT CHIP 0 (E12,AR,MX) R184 1-216-821-11 METAL CHIP 1K 5% 1/10W R185 1-216-864-11 SHORT CHIP 0 JACK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark HCD-DZ260/DZ270/HDZ278 79 79 R186 1-216-821-11 METAL CHIP 1K 5% 1/10W R187 1-216-821-11 METAL CHIP 1K 5% 1/10W < SWITCH > S100 1-762-875-21 SWITCH, KEYBOARD (A) S101 1-762-875-21 SWITCH, KEYBOARD (H) S102 1-762-875-21 SWITCH, KEYBOARD (>) S103 1-762-875-21 SWITCH, KEYBOARD (x) S104 1-762-875-21 SWITCH, KEYBOARD (X) S105 1-762-875-21 SWITCH, KEYBOARD (.) S106 1-762-875-21 SWITCH, KEYBOARD (FUNCTION) S107 1-480-136-11 ENCODER, ROTARY (12 TYPE) (VOLUME) ************************************************************* 9 A-1382-455-A MAIN PC BOARD COMPL F13340348 (AEP) 9 A-1382-502-A MAIN PC BOARD COMPL F13340330 (US,CND) 9 A-1382-545-A MAIN PC BOARD COMPL F13340370 (E3,E15) 9 A-1382-614-A MAIN PC BOARD COMPL F13340382 (AR) 9 A-1382-622-A MAIN PC BOARD COMPL F13340337 (MX) 9 A-1486-440-A MAIN PC BOARD COMPL F13340360 (UK) 9 A-1497-750-A MAIN PC BOARD COMPL F13340381 (E12) 9 A-1497-761-A MAIN PC BOARD COMPL F13340395 (AUS) **************************** 4-231-099-41 SHEET, RADIATION < CAPACITOR > C220 1-128-995-21 ELECT CHIP 100uF 20% 10V (DZ260/HDZ278) C221 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DZ260/HDZ278) C222 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DZ260/HDZ278) C223 1-126-206-11 ELECT CHIP 100uF 20% 6.3V (DZ260/HDZ278) C227 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V (DZ260/HDZ278) C229 1-165-908-11 CERAMIC CHIP 1uF 10% 10V (DZ260/HDZ278) C230 1-165-908-11 CERAMIC CHIP 1uF 10% 10V (DZ260/HDZ278) C231 1-165-908-11 CERAMIC CHIP 1uF 10% 10V (DZ260/HDZ278) C232 1-165-908-11 CERAMIC CHIP 1uF 10% 10V (DZ260/HDZ278) C237 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DZ260/HDZ278) C238 1-126-965-11 ELECT 22uF 20% 50V (DZ260/HDZ278) C239 1-126-947-11 ELECT 47uF 20% 35V (DZ260/HDZ278) C240 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DZ260/HDZ278) C241 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DZ260/HDZ278) C312 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DZ260/HDZ278) C313 1-126-933-11 ELECT 100uF 20% 16V (DZ260/HDZ278) C314 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DZ260/HDZ278) C315 1-126-933-11 ELECT 100uF 20% 16V (DZ260/HDZ278) C317 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DZ260/HDZ278) C501 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C502 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C503 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C504 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C505 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C507 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C508 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C509 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C510 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C511 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C512 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C515 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C516 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C517 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C518 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C520 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C521 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C522 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C523 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C524 1-104-658-11 ELECT 100uF 20% 10V (DZ260/DZ270) C525 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DZ260/DZ270) C526 1-104-658-11 ELECT 100uF 20% 10V C527 1-126-916-11 ELECT 1000uF 20% 6.3V C528 1-126-916-11 ELECT 1000uF 20% 6.3V C529 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V (DZ260/DZ270) C530 1-126-965-11 ELECT 22uF 20% 50V (DZ260/DZ270) C531 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C532 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C533 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C538 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C539 1-126-933-11 ELECT 100uF 20% 16V C571 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C572 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C573 1-126-965-11 ELECT 22uF 20% 50V C574 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C581 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C582 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C583 1-104-658-11 ELECT 100uF 20% 10V C584 1-126-933-11 ELECT 100uF 20% 16V C591 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C592 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C593 1-104-658-11 ELECT 100uF 20% 10V C594 1-126-933-11 ELECT 100uF 20% 16V C705 1-126-964-11 ELECT 10uF 20% 50V C706 1-126-964-11 ELECT 10uF 20% 50V C707 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C708 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C709 1-126-923-11 ELECT 220uF 20% 10V (DZ260/HDZ278) C710 1-107-726-11 CERAMIC CHIP 0.01uF 10% 16V (DZ260/HDZ278) C711 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DZ260/HDZ278) C712 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V (DZ260/HDZ278) JACK MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark HCD-DZ260/DZ270/HDZ278 80 C716 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V (DZ260/HDZ278) C717 1-126-964-11 ELECT 10uF 20% 50V C718 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C719 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DZ260/HDZ278) C720 1-126-923-11 ELECT 220uF 20% 10V (DZ260/HDZ278) C721 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V (DZ260/HDZ278) C722 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DZ260/HDZ278) C723 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DZ260/HDZ278) C724 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V (DZ260/HDZ278) C725 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V (DZ260/HDZ278) C727 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DZ260/HDZ278) C774 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DZ260/HDZ278) C775 1-126-964-11 ELECT 10uF 20% 50V (DZ260/HDZ278) C1101 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1102 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C1105 1-128-994-21 ELECT CHIP 47uF 20% 10V C1106 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1108 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1109 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1110 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1111 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C1112 1-128-994-21 ELECT CHIP 47uF 20% 10V C1113 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1114 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1115 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1116 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1117 1-128-994-21 ELECT CHIP 47uF 20% 10V C1118 1-128-994-21 ELECT CHIP 47uF 20% 10V C1119 1-128-994-21 ELECT CHIP 47uF 20% 10V C1120 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C1121 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C1122 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C1123 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C1124 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C1125 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1126 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1127 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1129 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V C1130 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1132 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1133 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1135 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C1136 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1137 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1138 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C1139 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C1140 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1144 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1145 1-124-779-00 ELECT CHIP 10uF 20% 16V C1146 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1147 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C1148 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C1149 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1151 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C1152 1-162-916-11 CERAMIC CHIP 12PF 5% 50V C1153 1-162-916-11 CERAMIC CHIP 12PF 5% 50V C1154 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1155 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1156 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1158 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1159 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1160 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1161 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1162 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1163 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1164 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1165 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1169 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1170 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C1171 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1172 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1174 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1175 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1176 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1177 1-126-947-11 ELECT 47uF 20% 35V C1179 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1180 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1181 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1182 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C1183 1-128-934-11 CERAMIC CHIP 0.33uF 20% 10V C1184 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1186 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C1187 1-126-947-11 ELECT 47uF 20% 35V C1190 1-104-658-11 ELECT 100uF 20% 10V C1191 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1192 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1193 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C1195 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C1197 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1198 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C1199 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C1203 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1205 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C1206 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C1208 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1209 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C1210 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1211 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C1212 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1213 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1214 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C1215 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1217 1-126-947-11 ELECT 47uF 20% 35V C1218 1-124-779-00 ELECT CHIP 10uF 20% 16V C1219 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1220 1-124-779-00 ELECT CHIP 10uF 20% 16V C1221 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1222 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1223 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1224 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1225 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark HCD-DZ260/DZ270/HDZ278 81 81 C1226 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C1233 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C1725 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1727 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1728 1-128-994-21 ELECT CHIP 47uF 20% 10V C1729 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C1730 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C1731 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C1732 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1733 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C1734 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C2100 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C2101 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DZ260/DZ270) C2102 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DZ260/DZ270) C2103 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (DZ260/DZ270) C2108 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V C2109 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C2110 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C2112 1-126-923-11 ELECT 220uF 20% 10V (DZ260/DZ270) C2114 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2115 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V C2116 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2117 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V C2118 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2119 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C2130 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C2502 1-164-172-11 CERAMIC CHIP 0.0056uF 10% 25V C2503 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V C3000 1-126-382-11 ELECT 100uF 20% 16V C3001 1-126-947-11 ELECT 47uF 20% 35V C3002 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C3003 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C3005 1-126-795-11 ELECT 10uF 20% 50V C3008 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3011 1-126-947-11 ELECT 47uF 20% 35V C3012 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3013 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3014 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3015 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3016 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3017 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3018 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3019 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3020 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3021 1-126-947-11 ELECT 47uF 20% 35V C3022 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3023 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3024 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3025 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3026 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3027 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3028 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3029 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3030 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3031 1-126-947-11 ELECT 47uF 20% 35V C3032 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3033 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3034 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3035 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3036 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3037 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3038 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3039 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3040 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3051 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C3052 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C3053 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3054 1-126-933-11 ELECT 100uF 20% 16V C3055 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C3056 1-126-923-11 ELECT 220uF 20% 10V C3057 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C3058 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C3059 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C3060 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C3071 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C3072 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3073 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3081 1-126-923-11 ELECT 220uF 20% 10V C3082 1-126-923-11 ELECT 220uF 20% 10V C3083 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C3084 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C3085 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C3086 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C3087 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C3088 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C3090 1-104-658-11 ELECT 100uF 20% 10V C3091 1-126-934-11 ELECT 220uF 20% 16V C3092 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C3093 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C3094 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C3100 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3103 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V C3104 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3105 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V C3106 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C3107 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C3108 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3109 1-112-246-11 ELECT 100uF 20% 35V C3112 1-112-246-11 ELECT 100uF 20% 35V C3113 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3114 1-137-198-81 FILM 1uF 5% 50V C3115 1-137-198-81 FILM 1uF 5% 50V C3116 1-112-831-11 ELECT 2200uF 20% 35V (DZ270/HDZ278) C3116 1-126-953-11 ELECT 2200uF 20% 35V (DZ260) C3117 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3122 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C3123 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C3124 1-164-505-11 CERAMIC CHIP 2.2uF 16V C3125 1-164-505-11 CERAMIC CHIP 2.2uF 16V C3126 1-164-505-11 CERAMIC CHIP 2.2uF 16V C3127 1-164-505-11 CERAMIC CHIP 2.2uF 16V C3128 1-164-505-11 CERAMIC CHIP 2.2uF 16V C3129 1-117-370-11 CERAMIC CHIP 10uF 10V C3150 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3153 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V C3154 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark HCD-DZ260/DZ270/HDZ278 82 C3155 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V C3156 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C3157 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C3158 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3159 1-112-246-11 ELECT 100uF 20% 35V C3162 1-112-246-11 ELECT 100uF 20% 35V C3163 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3164 1-137-198-81 FILM 1uF 5% 50V C3165 1-137-198-81 FILM 1uF 5% 50V C3166 1-112-831-11 ELECT 2200uF 20% 35V (DZ270/HDZ278) C3166 1-126-953-11 ELECT 2200uF 20% 35V (DZ260) C3167 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3172 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C3173 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C3200 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3203 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V C3204 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3205 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V C3206 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C3207 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C3208 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3209 1-112-246-11 ELECT 100uF 20% 35V C3212 1-112-246-11 ELECT 100uF 20% 35V C3213 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3214 1-137-198-81 FILM 1uF 5% 50V C3215 1-137-198-81 FILM 1uF 5% 50V C3216 1-112-831-11 ELECT 2200uF 20% 35V (DZ270/HDZ278) C3216 1-126-953-11 ELECT 2200uF 20% 35V (DZ260) C3217 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3250 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3253 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V C3254 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3255 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V C3256 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C3257 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C3258 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3259 1-112-246-11 ELECT 100uF 20% 35V C3262 1-112-246-11 ELECT 100uF 20% 35V C3263 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3264 1-137-198-81 FILM 1uF 5% 50V C3265 1-137-198-81 FILM 1uF 5% 50V C3266 1-112-831-11 ELECT 2200uF 20% 35V (DZ270/HDZ278) C3266 1-126-953-11 ELECT 2200uF 20% 35V (DZ260) C3267 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3300 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3303 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V C3304 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3305 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V C3306 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C3307 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C3308 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3309 1-112-246-11 ELECT 100uF 20% 35V C3312 1-112-246-11 ELECT 100uF 20% 35V C3313 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3314 1-137-198-81 FILM 1uF 5% 50V C3315 1-137-198-81 FILM 1uF 5% 50V C3316 1-112-831-11 ELECT 2200uF 20% 35V (DZ270/HDZ278) C3316 1-126-953-11 ELECT 2200uF 20% 35V (DZ260) C3317 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3322 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C3323 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C3400 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3403 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V C3404 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3405 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V C3406 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C3407 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C3408 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3409 1-112-246-11 ELECT 100uF 20% 35V C3412 1-112-246-11 ELECT 100uF 20% 35V C3413 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3414 1-137-198-81 FILM 1uF 5% 50V C3415 1-137-198-81 FILM 1uF 5% 50V C3416 1-112-831-11 ELECT 2200uF 20% 35V (DZ270/HDZ278) C3416 1-126-953-11 ELECT 2200uF 20% 35V (DZ260) C3417 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3422 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C3423 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C3551 1-126-960-11 ELECT 1uF 20% 50V C3552 1-126-964-11 ELECT 10uF 20% 50V C3553 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C3556 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C3561 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V C3901 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C3902 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C3903 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C3904 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C3911 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C3912 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C3913 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C3914 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C4501 1-117-370-11 CERAMIC CHIP 10uF 10V C4503 1-104-658-11 ELECT 100uF 20% 10V C4504 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C9972 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V < CONNECTOR > CN204 1-817-615-21 CONNECTOR, SQUARE TYPE (RECE) 18P (DMPORT) (DZ260/HDZ278) CN502 1-820-117-41 CONNECTOR, FFC/FPC 19P CN504 1-784-861-51 CONNECTOR, FFC (LIF(NON-ZIF)) 9P CN602 1-820-117-41 CONNECTOR, FFC/FPC 19P (DZ260) CN603 1-820-116-41 CONNECTOR, FFC/FPC 17P (DZ270/HDZ278) CN702 1-779-273-11 CONNECTOR, FFC (LIF(NON-ZIF)) 5P CN1101 1-815-763-32 CONNECTOR, FFC/FPC 24P * CN1105 1-564-708-11 PIN, CONNECTOR (SMALL TYPE) 6P * CN1201 1-564-708-11 PIN, CONNECTOR (SMALL TYPE) 6P CN1202 1-784-365-51 CONNECTOR, FFC/FPC 5P CN1701 1-821-755-11 CONNECTOR, HDMI 19P (HDMI OUT) CN2101 1-564-707-11 PIN, CONNECTOR (SMALL TYPE) 5P (DZ260/DZ270) CN3000 1-564-704-41 PIN, CONNECTOR (SMALL TYPE) 2P CN3001 1-564-706-11 PIN, CONNECTOR (SMALL TYPE) 4P MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark HCD-DZ260/DZ270/HDZ278 83 83 CN4301 1-820-117-41 CONNECTOR, FFC/FPC 19P (DZ260) CN4302 1-820-116-41 CONNECTOR, FFC/FPC 17P (HDZ278) CN4303 (Not supplied) CONNECTOR, FFC/FPC 15P (DZ270) < DIODE > D501 6-501-817-01 DIODE MA2J1110GLS0 D502 6-500-334-01 DIODE MC2836-T112-1 D505 6-500-334-01 DIODE MC2836-T112-1 D701 6-501-579-01 DIODE MC2837 D2101 6-501-749-01 DIODE MAZ8082G0LS0 (DZ260/DZ270) D2102 6-501-740-01 DIODE MAZ8068G0LS0 (DZ260/DZ270) D2103 6-501-740-01 DIODE MAZ8068G0LS0 (DZ260/DZ270) D3071 6-501-817-01 DIODE MA2J1110GLS0 D3072 6-501-817-01 DIODE MA2J1110GLS0 D3073 6-501-817-01 DIODE MA2J1110GLS0 D3551 6-501-579-01 DIODE MC2837 D3552 6-501-774-01 DIODE MAZ8150G0LS0 D4111 6-501-696-01 DIODE RSA39LTE25 D4112 6-501-696-01 DIODE RSA39LTE25 D4151 6-501-696-01 DIODE RSA39LTE25 D4152 6-501-696-01 DIODE RSA39LTE25 D4201 6-501-696-01 DIODE RSA39LTE25 D4202 6-501-696-01 DIODE RSA39LTE25 D4251 6-501-696-01 DIODE RSA39LTE25 D4252 6-501-696-01 DIODE RSA39LTE25 D4301 6-501-696-01 DIODE RSA39LTE25 D4302 6-501-696-01 DIODE RSA39LTE25 D4401 6-501-696-01 DIODE RSA39LTE25 D4402 6-501-696-01 DIODE RSA39LTE25 D9712 6-501-817-01 DIODE MA2J1110GLS0 < FERRITE BEAD > FB505 1-469-365-21 INDUCTOR, FERRITE BEAD FBMJ2125 FB506 1-469-324-21 FERRITE, EMI (SMD) (2012) FB508 1-469-365-21 INDUCTOR, FERRITE BEAD FBMJ2125 FB510 1-469-324-21 FERRITE, EMI (SMD) (2012) FB1106 1-469-324-21 FERRITE, EMI (SMD) (2012) FB1107 1-469-324-21 FERRITE, EMI (SMD) (2012) FB1108 1-469-324-21 FERRITE, EMI (SMD) (2012) FB1109 1-469-324-21 FERRITE, EMI (SMD) (2012) FB1111 1-469-670-21 FERRITE, EMI (SMD) (2012) FB1112 1-469-670-21 FERRITE, EMI (SMD) (2012) FB1113 1-469-670-21 FERRITE, EMI (SMD) (2012) FB1115 1-469-670-21 FERRITE, EMI (SMD) (2012) FB1116 1-469-670-21 FERRITE, EMI (SMD) (2012) FB1117 1-469-670-21 FERRITE, EMI (SMD) (2012) FB1118 1-469-670-21 FERRITE, EMI (SMD) (2012) FB2101 1-469-324-21 FERRITE, EMI (SMD) (2012) FB2102 1-469-379-11 FERRITE, EMI (SMD) (2012) (DZ260/DZ270) FB2103 1-469-324-21 FERRITE, EMI (SMD) (2012) FB2104 1-469-379-11 FERRITE, EMI (SMD) (2012) (DZ260/DZ270) FB2105 1-469-379-11 FERRITE, EMI (SMD) (2012) (DZ260/DZ270) FB2120 1-469-118-21 FERRITE, EMI (SMD) (1608) FB2121 1-469-118-21 FERRITE, EMI (SMD) (1608) FB2122 1-469-118-21 FERRITE, EMI (SMD) (1608) FB2124 1-469-118-21 FERRITE, EMI (SMD) (1608) FB2125 1-469-118-21 FERRITE, EMI (SMD) (1608) < FILTER > FL4501 1-234-177-21 FILTER, CHIP EMI < IC > IC201 6-705-308-01 IC SI-3010KM-TL (DZ260/HDZ278) IC202 8-759-710-97 IC NJM4565M-D (DZ260/HDZ278) IC301 6-600-466-01 IC TORX147L(SONY) (TV (DIGITAL IN OPTICAL)) (DZ260) IC301 6-600-466-01 IC TORX147L(SONY) (TV/VIDEO (DIGITAL IN OPTICAL)) (HDZ278) IC302 6-706-492-01 IC TC7SHU04FU(T5RSOJF) (DZ260/HDZ278) IC501 (Not supplied) IC R5F3640DDFA IC502 6-705-338-01 IC TK11250CMCL-G IC503 6-708-922-01 IC PST3635NR IC504 6-705-308-01 IC SI-3010KM-TL (DZ260/DZ270) IC505 6-705-308-01 IC SI-3010KM-TL IC506 6-705-308-01 IC SI-3010KM-TL IC507 6-705-337-01 IC TK11150CSCL-G IC510 (Not supplied) IC S-24CS16A0I-J8T1G IC702 8-759-825-15 IC LC89056W-E (DZ260/HDZ278) IC707 6-710-554-01 IC PCM1808PWR IC1101 6-711-522-01 IC CXD9917R (DZ260/DZ270) IC1101 6-711-953-01 IC CXD9927R (HDZ278) IC1102 6-807-956-01 IC S29AL032D70TF-OHI1-0801UC (AR,MX,US,CND) IC1102 6-8079-570-A IC S29AL032D70TF-OHI1-0801CE (AEP,UK,E3,E12,E15,AUS) IC1103 (Not supplied) IC S-24CS64A01-J8T1G IC1104 6-707-897-01 IC EDS6416AHTA-75-E IC1105 6-702-302-01 IC TK11133CSCL-G IC1107 6-702-302-01 IC TK11133CSCL-G IC1110 6-707-739-01 IC MM1661JTRE IC1201 6-704-524-01 IC FAN8036L IC1705 8-759-592-47 IC TC7SZ08FU(TE85R) IC1707 6-705-337-01 IC TK11150CSCL-G IC1708 6-702-302-01 IC TK11133CSCL-G IC2101 8-759-700-07 IC NJM2903M (DZ260/DZ270) IC3001 8-759-710-97 IC NJM4565M-D IC3003 8-759-680-48 IC TC7WH157FK(TE85R) IC3010 6-705-979-01 IC CXD9788AR IC3020 6-705-979-01 IC CXD9788AR IC3030 6-705-979-01 IC CXD9788AR IC3050 6-702-300-01 IC TK11118CSCL-G IC3051 6-709-888-01 IC TC7WHU04FK(T5RSOYF) IC3100 6-708-921-01 IC CXD9883M IC3150 6-708-921-01 IC CXD9883M IC3200 6-708-921-01 IC CXD9883M IC3250 6-708-921-01 IC CXD9883M IC3300 6-708-921-01 IC CXD9883M IC3400 6-708-921-01 IC CXD9883M IC4502 6-707-853-01 IC TC74LCX541FT(EKJ) < JACK > J302 1-784-431-11 JACK, PIN 1P (TV (DIGITAL IN COAXIAL)) (DZ260) J302 1-784-431-11 JACK, PIN 1P (TV/VIDEO (DIGITAL IN COAXIAL)) (HDZ278) < COIL > L200 1-469-525-11 INDUCTOR 10uH (DZ260/HDZ278) L301 1-469-525-11 INDUCTOR 10uH (DZ260/HDZ278) L302 1-469-525-11 INDUCTOR 10uH (DZ260/HDZ278) L701 1-469-525-11 INDUCTOR 10uH L702 1-469-525-11 INDUCTOR 10uH (DZ260/HDZ278) MAIN When IC501, IC510 and IC1103 on the Main board are damaged, exchange the new Main board for the Main board which IC damaged. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark HCD-DZ260/DZ270/HDZ278 84 L703 1-469-525-11 INDUCTOR 10uH (DZ260/HDZ278) L1701 1-457-374-21 COIL, COMMON MODE CHOKE (DZ260/DZ270) * L1701 1-813-308-11 COIL, COMMON MODE CHOKE (HDZ278) L1702 1-457-374-21 COIL, COMMON MODE CHOKE (DZ260/DZ270) * L1702 1-813-308-11 COIL, COMMON MODE CHOKE (HDZ278) L1703 1-457-374-21 COIL, COMMON MODE CHOKE (DZ260/DZ270) * L1703 1-813-308-11 COIL, COMMON MODE CHOKE (HDZ278) L1704 1-457-374-21 COIL, COMMON MODE CHOKE (DZ260/DZ270) * L1704 1-813-308-11 COIL, COMMON MODE CHOKE (HDZ278) L2101 1-457-374-21 COIL, COMMON MODE CHOKE (DZ260/DZ270) L3000 1-469-527-11 INDUCTOR 47uH L3051 1-469-525-11 INDUCTOR 10uH L3052 1-469-525-11 INDUCTOR 10uH L3053 1-469-525-11 INDUCTOR 10uH L3054 1-412-939-11 INDUCTOR 1uH L3101 1-457-579-11 COIL, CHOKE 10uH L3102 1-457-579-11 COIL, CHOKE 10uH L3201 1-457-579-11 COIL, CHOKE 10uH L3202 1-457-579-11 COIL, CHOKE 10uH L3301 1-457-579-11 COIL, CHOKE 10uH L3401 1-457-579-11 COIL, CHOKE 10uH L3901 1-457-078-11 COIL, AIR-CORE L3902 1-457-077-11 COIL, AIR-CORE L3903 1-457-078-11 COIL, AIR-CORE L3904 1-457-077-11 COIL, AIR-CORE L4501 1-469-527-11 INDUCTOR 47uH < TRANSISTOR > Q503 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q631 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q632 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q1101 6-550-008-01 TRANSISTOR UM6K1N-TN Q1102 6-550-653-01 TRANSISTOR QST8TR Q1103 8-729-027-52 TRANSISTOR DTC124EKA-T146 Q1701 6-550-008-01 TRANSISTOR UM6K1N-TN Q3000 8-729-111-29 TRANSISTOR 2SD1616A-K Q3001 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q3002 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q3081 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q3101 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF Q3102 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF Q3151 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF Q3152 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF Q3201 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF Q3202 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF Q3251 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF Q3252 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF Q3301 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF Q3302 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF Q3401 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF Q3402 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF Q3551 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q3552 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q3553 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q3554 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q3555 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q9724 6-551-699-01 TRANSISTOR ISA1602AM1TP-1EF Q9726 8-729-620-13 TRANSISTOR 2SC4154TP-1EF Q9728 8-729-620-13 TRANSISTOR 2SC4154TP-1EF Q9729 8-729-027-43 TRANSISTOR DTC114EKA-T146 < RESISTOR > R203 1-218-879-11 METAL CHIP 22K 0.5% 1/10W (DZ260/HDZ278) R208 1-218-879-11 METAL CHIP 22K 0.5% 1/10W (DZ260/HDZ278) R214 1-218-879-11 METAL CHIP 22K 0.5% 1/10W (DZ260/HDZ278) R215 1-218-879-11 METAL CHIP 22K 0.5% 1/10W (DZ260/HDZ278) R220 1-216-821-11 METAL CHIP 1K 5% 1/10W (DZ260/HDZ278) R221 1-218-847-11 METAL CHIP 1K 0.5% 1/10W (DZ260/HDZ278) R222 1-218-885-11 METAL CHIP 39K 0.5% 1/10W (DZ260/HDZ278) R223 1-218-871-11 METAL CHIP 10K 0.5% 1/10W (DZ260/HDZ278) R227 1-218-879-11 METAL CHIP 22K 0.5% 1/10W (DZ260/HDZ278) R228 1-218-879-11 METAL CHIP 22K 0.5% 1/10W (DZ260/HDZ278) R229 1-218-879-11 METAL CHIP 22K 0.5% 1/10W (DZ260/HDZ278) R230 1-218-879-11 METAL CHIP 22K 0.5% 1/10W (DZ260/HDZ278) R231 1-216-827-11 METAL CHIP 3.3K 5% 1/10W (DZ260/HDZ278) R232 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (DZ260/HDZ278) R317 1-216-809-11 METAL CHIP 100 5% 1/10W (DZ260/HDZ278) R318 1-216-809-11 METAL CHIP 100 5% 1/10W (DZ260/HDZ278) R319 1-216-841-11 METAL CHIP 47K 5% 1/10W (DZ260/HDZ278) R328 1-218-285-11 METAL CHIP 75 5% 1/10W (DZ260/HDZ278) R329 1-216-817-11 METAL CHIP 470 5% 1/10W (DZ260/HDZ278) R501 1-216-857-11 METAL CHIP 1M 5% 1/10W R504 1-216-823-11 METAL CHIP 1.5K 5% 1/10W (UK) R504 1-216-833-11 METAL CHIP 10K 5% 1/10W (E3,E15) R504 1-216-835-11 METAL CHIP 15K 5% 1/10W (AUS) R504 1-216-841-11 METAL CHIP 47K 5% 1/10W (AR,MX,US,CND) R504 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W (E12) R505 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (AEP) R505 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W (MX) R505 1-216-833-11 METAL CHIP 10K 5% 1/10W (AR) R505 1-216-837-11 METAL CHIP 22K 5% 1/10W (US,CND) R505 1-216-841-11 METAL CHIP 47K 5% 1/10W (UK,E3,E12,E15,AUS) R506 1-216-821-11 METAL CHIP 1K 5% 1/10W (DZ260) R506 1-216-823-11 METAL CHIP 1.5K 5% 1/10W (HDZ278) MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark HCD-DZ260/DZ270/HDZ278 85 85 R506 1-216-827-11 METAL CHIP 3.3K 5% 1/10W (DZ270) R507 1-216-841-11 METAL CHIP 47K 5% 1/10W (DZ270/HDZ278) R508 1-216-864-11 SHORT CHIP 0 R509 1-216-809-11 METAL CHIP 100 5% 1/10W R510 1-216-833-11 METAL CHIP 10K 5% 1/10W R511 1-216-821-11 METAL CHIP 1K 5% 1/10W R512 1-216-833-11 METAL CHIP 10K 5% 1/10W R513 1-216-821-11 METAL CHIP 1K 5% 1/10W R514 1-216-833-11 METAL CHIP 10K 5% 1/10W R515 1-216-821-11 METAL CHIP 1K 5% 1/10W R516 1-216-821-11 METAL CHIP 1K 5% 1/10W R517 1-216-809-11 METAL CHIP 100 5% 1/10W R518 1-216-809-11 METAL CHIP 100 5% 1/10W R519 1-216-833-11 METAL CHIP 10K 5% 1/10W R526 1-216-821-11 METAL CHIP 1K 5% 1/10W R527 1-216-833-11 METAL CHIP 10K 5% 1/10W R528 1-216-833-11 METAL CHIP 10K 5% 1/10W R529 1-216-821-11 METAL CHIP 1K 5% 1/10W R530 1-216-809-11 METAL CHIP 100 5% 1/10W R531 1-216-833-11 METAL CHIP 10K 5% 1/10W R532 1-216-821-11 METAL CHIP 1K 5% 1/10W R533 1-216-809-11 METAL CHIP 100 5% 1/10W R534 1-216-833-11 METAL CHIP 10K 5% 1/10W R535 1-216-809-11 METAL CHIP 100 5% 1/10W R536 1-216-864-11 SHORT CHIP 0 R537 1-216-821-11 METAL CHIP 1K 5% 1/10W R539 1-216-833-11 METAL CHIP 10K 5% 1/10W R540 1-216-833-11 METAL CHIP 10K 5% 1/10W R541 1-216-821-11 METAL CHIP 1K 5% 1/10W (DZ260/DZ270) R542 1-216-833-11 METAL CHIP 10K 5% 1/10W R544 1-216-833-11 METAL CHIP 10K 5% 1/10W R546 1-216-821-11 METAL CHIP 1K 5% 1/10W R547 1-216-864-11 SHORT CHIP 0 R548 1-216-864-11 SHORT CHIP 0 R549 1-218-885-11 METAL CHIP 39K 0.5% 1/10W (DZ260/DZ270) R551 1-216-809-11 METAL CHIP 100 5% 1/10W R552 1-216-821-11 METAL CHIP 1K 5% 1/10W R553 1-216-833-11 METAL CHIP 10K 5% 1/10W (DZ260/HDZ278) R555 1-216-833-11 METAL CHIP 10K 5% 1/10W R556 1-216-841-11 METAL CHIP 47K 5% 1/10W R557 1-216-841-11 METAL CHIP 47K 5% 1/10W R558 1-216-833-11 METAL CHIP 10K 5% 1/10W R559 1-216-833-11 METAL CHIP 10K 5% 1/10W R561 1-216-845-11 METAL CHIP 100K 5% 1/10W R562 1-216-841-11 METAL CHIP 47K 5% 1/10W R563 1-216-833-11 METAL CHIP 10K 5% 1/10W R564 1-216-864-11 SHORT CHIP 0 R565 1-216-864-11 SHORT CHIP 0 R566 1-216-864-11 SHORT CHIP 0 R567 1-216-864-11 SHORT CHIP 0 R568 1-216-864-11 SHORT CHIP 0 R569 1-216-864-11 SHORT CHIP 0 R572 1-218-851-11 METAL CHIP 1.5K 0.5% 1/10W (DZ260/DZ270) R573 1-218-871-11 METAL CHIP 10K 0.5% 1/10W (DZ260/DZ270) R576 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R577 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R578 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R579 1-216-809-11 METAL CHIP 100 5% 1/10W R580 1-216-809-11 METAL CHIP 100 5% 1/10W R581 1-216-809-11 METAL CHIP 100 5% 1/10W R582 1-216-833-11 METAL CHIP 10K 5% 1/10W R583 1-216-841-11 METAL CHIP 47K 5% 1/10W R584 1-216-821-11 METAL CHIP 1K 5% 1/10W R585 1-216-864-11 SHORT CHIP 0 (DZ260) R586 1-216-833-11 METAL CHIP 10K 5% 1/10W R587 1-218-871-11 METAL CHIP 10K 0.5% 1/10W R588 1-218-885-11 METAL CHIP 39K 0.5% 1/10W R589 1-218-847-11 METAL CHIP 1K 0.5% 1/10W R590 1-216-821-11 METAL CHIP 1K 5% 1/10W R592 1-216-864-11 SHORT CHIP 0 R593 1-216-833-11 METAL CHIP 10K 5% 1/10W R595 1-216-833-11 METAL CHIP 10K 5% 1/10W R596 1-218-871-11 METAL CHIP 10K 0.5% 1/10W R597 1-218-879-11 METAL CHIP 22K 0.5% 1/10W R598 1-218-851-11 METAL CHIP 1.5K 0.5% 1/10W R599 1-216-821-11 METAL CHIP 1K 5% 1/10W R601 1-216-809-11 METAL CHIP 100 5% 1/10W (DZ260) R602 1-216-809-11 METAL CHIP 100 5% 1/10W (DZ260) R603 1-216-809-11 METAL CHIP 100 5% 1/10W R604 1-216-809-11 METAL CHIP 100 5% 1/10W R605 1-216-809-11 METAL CHIP 100 5% 1/10W R606 1-216-809-11 METAL CHIP 100 5% 1/10W R607 1-216-809-11 METAL CHIP 100 5% 1/10W R608 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R609 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R611 1-216-809-11 METAL CHIP 100 5% 1/10W R612 1-216-809-11 METAL CHIP 100 5% 1/10W R613 1-216-809-11 METAL CHIP 100 5% 1/10W R614 1-216-809-11 METAL CHIP 100 5% 1/10W R615 1-216-809-11 METAL CHIP 100 5% 1/10W R616 1-216-809-11 METAL CHIP 100 5% 1/10W R617 1-216-809-11 METAL CHIP 100 5% 1/10W R618 1-216-809-11 METAL CHIP 100 5% 1/10W R619 1-216-864-11 SHORT CHIP 0 R620 1-216-809-11 METAL CHIP 100 5% 1/10W R626 1-216-833-11 METAL CHIP 10K 5% 1/10W R627 1-216-837-11 METAL CHIP 22K 5% 1/10W R628 1-216-841-11 METAL CHIP 47K 5% 1/10W R631 1-216-833-11 METAL CHIP 10K 5% 1/10W R632 1-216-841-11 METAL CHIP 47K 5% 1/10W R636 1-216-864-11 SHORT CHIP 0 R638 1-216-864-11 SHORT CHIP 0 (DZ260/HDZ278) R639 1-216-809-11 METAL CHIP 100 5% 1/10W (DZ260/HDZ278) R648 1-216-864-11 SHORT CHIP 0 R650 1-216-809-11 METAL CHIP 100 5% 1/10W R691 1-216-864-11 SHORT CHIP 0 R692 1-216-864-11 SHORT CHIP 0 R693 1-216-864-11 SHORT CHIP 0 R694 1-216-864-11 SHORT CHIP 0 R695 1-216-864-11 SHORT CHIP 0 R696 1-216-864-11 SHORT CHIP 0 R697 1-216-864-11 SHORT CHIP 0 R709 1-216-864-11 SHORT CHIP 0 MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark HCD-DZ260/DZ270/HDZ278 86 R710 1-216-833-11 METAL CHIP 10K 5% 1/10W (DZ260/HDZ278) R713 1-216-839-11 METAL CHIP 33K 5% 1/10W (DZ260/HDZ278) R714 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (DZ260/HDZ278) R715 1-216-830-11 METAL CHIP 5.6K 5% 1/10W (DZ260/HDZ278) R716 1-216-809-11 METAL CHIP 100 5% 1/10W (DZ260/HDZ278) R717 1-216-809-11 METAL CHIP 100 5% 1/10W (DZ260/HDZ278) R718 1-216-809-11 METAL CHIP 100 5% 1/10W (DZ260/HDZ278) R720 1-216-833-11 METAL CHIP 10K 5% 1/10W (DZ260/HDZ278) R721 1-216-864-11 SHORT CHIP 0 R726 1-216-809-11 METAL CHIP 100 5% 1/10W (DZ260/HDZ278) R729 1-216-809-11 METAL CHIP 100 5% 1/10W (DZ260/HDZ278) R730 1-216-809-11 METAL CHIP 100 5% 1/10W (DZ260/HDZ278) R731 1-216-821-11 METAL CHIP 1K 5% 1/10W (DZ260/HDZ278) R732 1-216-815-11 METAL CHIP 330 5% 1/10W (DZ260/HDZ278) R733 1-216-857-11 METAL CHIP 1M 5% 1/10W (DZ260/HDZ278) R734 1-216-809-11 METAL CHIP 100 5% 1/10W (DZ260/HDZ278) R735 1-216-809-11 METAL CHIP 100 5% 1/10W (DZ260/HDZ278) R736 1-216-809-11 METAL CHIP 100 5% 1/10W (DZ260/HDZ278) R737 1-216-833-11 METAL CHIP 10K 5% 1/10W (DZ260/HDZ278) R738 1-216-809-11 METAL CHIP 100 5% 1/10W (DZ260/HDZ278) R740 1-216-864-11 SHORT CHIP 0 (DZ260/HDZ278) R741 1-216-864-11 SHORT CHIP 0 (DZ260/HDZ278) R742 1-216-833-11 METAL CHIP 10K 5% 1/10W (DZ260/HDZ278) R743 1-216-809-11 METAL CHIP 100 5% 1/10W (DZ260/HDZ278) R744 1-216-864-11 SHORT CHIP 0 (DZ260/HDZ278) R745 1-216-864-11 SHORT CHIP 0 (DZ260/HDZ278) R746 1-216-864-11 SHORT CHIP 0 (DZ260/HDZ278) R747 1-216-864-11 SHORT CHIP 0 (DZ260/HDZ278) R748 1-216-864-11 SHORT CHIP 0 (DZ260/HDZ278) R749 1-216-864-11 SHORT CHIP 0 (DZ260/HDZ278) R750 1-216-809-11 METAL CHIP 100 5% 1/10W (DZ260/HDZ278) R763 1-216-864-11 SHORT CHIP 0 (DZ260/HDZ278) R764 1-216-864-11 SHORT CHIP 0 (DZ260/HDZ278) R765 1-216-864-11 SHORT CHIP 0 (DZ260/HDZ278) R766 1-216-864-11 SHORT CHIP 0 (DZ260/HDZ278) R767 1-216-864-11 SHORT CHIP 0 (DZ260/HDZ278) R768 1-216-864-11 SHORT CHIP 0 (DZ260/HDZ278) R769 1-216-864-11 SHORT CHIP 0 (DZ260/HDZ278) R778 1-216-864-11 SHORT CHIP 0 R780 1-216-805-11 METAL CHIP 47 5% 1/10W R781 1-216-805-11 METAL CHIP 47 5% 1/10W R782 1-216-801-11 METAL CHIP 22 5% 1/10W R783 1-216-801-11 METAL CHIP 22 5% 1/10W R784 1-216-801-11 METAL CHIP 22 5% 1/10W R785 1-216-801-11 METAL CHIP 22 5% 1/10W R788 1-216-864-11 SHORT CHIP 0 R790 1-216-864-11 SHORT CHIP 0 R791 1-216-864-11 SHORT CHIP 0 R793 1-216-864-11 SHORT CHIP 0 R794 1-216-864-11 SHORT CHIP 0 R796 1-216-864-11 SHORT CHIP 0 (DZ260/HDZ278) R797 1-216-864-11 SHORT CHIP 0 (DZ260/HDZ278) R1101 1-216-809-11 METAL CHIP 100 5% 1/10W R1102 1-216-864-11 SHORT CHIP 0 R1103 1-218-864-11 METAL CHIP 5.1K 0.5% 1/10W R1105 1-216-833-11 METAL CHIP 10K 5% 1/10W R1106 1-216-833-11 METAL CHIP 10K 5% 1/10W R1107 1-216-833-11 METAL CHIP 10K 5% 1/10W R1108 1-216-857-11 METAL CHIP 1M 5% 1/10W R1109 1-216-864-11 SHORT CHIP 0 R1110 1-216-841-11 METAL CHIP 47K 5% 1/10W R1111 1-216-809-11 METAL CHIP 100 5% 1/10W R1112 1-211-977-11 METAL CHIP 22 0.5% 1/10W R1113 1-211-977-11 METAL CHIP 22 0.5% 1/10W R1114 1-216-845-11 METAL CHIP 100K 5% 1/10W R1115 1-211-977-11 METAL CHIP 22 0.5% 1/10W R1116 1-216-821-11 METAL CHIP 1K 5% 1/10W R1117 1-216-841-11 METAL CHIP 47K 5% 1/10W R1118 1-216-801-11 METAL CHIP 22 5% 1/10W R1120 1-216-801-11 METAL CHIP 22 5% 1/10W R1121 1-216-801-11 METAL CHIP 22 5% 1/10W R1123 1-216-864-11 SHORT CHIP 0 R1124 1-216-841-11 METAL CHIP 47K 5% 1/10W R1125 1-216-805-11 METAL CHIP 47 5% 1/10W R1132 1-216-845-11 METAL CHIP 100K 5% 1/10W R1133 1-216-864-11 SHORT CHIP 0 R1134 1-216-809-11 METAL CHIP 100 5% 1/10W (DZ260) R1135 1-216-821-11 METAL CHIP 1K 5% 1/10W R1136 1-216-835-11 METAL CHIP 15K 5% 1/10W R1138 1-216-809-11 METAL CHIP 100 5% 1/10W (DZ260) R1139 1-216-864-11 SHORT CHIP 0 R1140 1-216-821-11 METAL CHIP 1K 5% 1/10W R1141 1-216-855-11 METAL CHIP 680K 5% 1/10W R1142 1-216-845-11 METAL CHIP 100K 5% 1/10W R1145 1-216-864-11 SHORT CHIP 0 R1146 1-216-805-11 METAL CHIP 47 5% 1/10W R1147 1-216-864-11 SHORT CHIP 0 R1148 1-216-864-11 SHORT CHIP 0 R1151 1-216-833-11 METAL CHIP 10K 5% 1/10W R1152 1-216-864-11 SHORT CHIP 0 R1153 1-216-864-11 SHORT CHIP 0 R1154 1-216-864-11 SHORT CHIP 0 R1155 1-216-864-11 SHORT CHIP 0 R1156 1-216-809-11 METAL CHIP 100 5% 1/10W R1159 1-216-805-11 METAL CHIP 47 5% 1/10W R1160 1-216-805-11 METAL CHIP 47 5% 1/10W R1161 1-216-801-11 METAL CHIP 22 5% 1/10W R1162 1-216-805-11 METAL CHIP 47 5% 1/10W (DZ260/HDZ278) R1163 1-216-805-11 METAL CHIP 47 5% 1/10W (DZ260/HDZ278) MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark HCD-DZ260/DZ270/HDZ278 87 87 R1164 1-216-805-11 METAL CHIP 47 5% 1/10W (DZ260/HDZ278) R1165 1-216-805-11 METAL CHIP 47 5% 1/10W (DZ260/HDZ278) R1171 1-216-809-11 METAL CHIP 100 5% 1/10W R1175 1-216-864-11 SHORT CHIP 0 R1176 1-216-833-11 METAL CHIP 10K 5% 1/10W R1181 1-216-833-11 METAL CHIP 10K 5% 1/10W (DZ270) R1182 1-216-833-11 METAL CHIP 10K 5% 1/10W (DZ270) R1183 1-216-805-11 METAL CHIP 47 5% 1/10W R1184 1-216-805-11 METAL CHIP 47 5% 1/10W R1185 1-216-805-11 METAL CHIP 47 5% 1/10W R1191 1-216-821-11 METAL CHIP 1K 5% 1/10W R1193 1-216-821-11 METAL CHIP 1K 5% 1/10W R1198 1-216-809-11 METAL CHIP 100 5% 1/10W R1204 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R1205 1-216-833-11 METAL CHIP 10K 5% 1/10W R1206 1-216-833-11 METAL CHIP 10K 5% 1/10W R1207 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R1208 1-216-839-11 METAL CHIP 33K 5% 1/10W R1209 1-216-839-11 METAL CHIP 33K 5% 1/10W R1210 1-216-841-11 METAL CHIP 47K 5% 1/10W R1212 1-216-833-11 METAL CHIP 10K 5% 1/10W R1213 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R1214 1-216-835-11 METAL CHIP 15K 5% 1/10W R1215 1-216-834-11 METAL CHIP 12K 5% 1/10W R1216 1-216-834-11 METAL CHIP 12K 5% 1/10W R1219 1-216-838-11 METAL CHIP 27K 5% 1/10W R1220 1-216-821-11 METAL CHIP 1K 5% 1/10W R1221 1-218-889-11 METAL CHIP 56K 0.5% 1/10W R1222 1-216-839-11 METAL CHIP 33K 5% 1/10W R1223 1-218-895-11 METAL CHIP 100K 0.5% 1/10W R1224 1-216-833-11 METAL CHIP 10K 5% 1/10W R1225 1-218-895-11 METAL CHIP 100K 0.5% 1/10W R1226 1-218-889-11 METAL CHIP 56K 0.5% 1/10W R1227 1-216-864-11 SHORT CHIP 0 R1228 1-216-864-11 SHORT CHIP 0 R1230 1-218-893-11 METAL CHIP 82K 0.5% 1/10W R1231 1-218-875-11 METAL CHIP 15K 0.5% 1/10W R1232 1-218-877-11 METAL CHIP 18K 0.5% 1/10W R1233 1-218-883-11 METAL CHIP 33K 0.5% 1/10W R1234 1-216-833-11 METAL CHIP 10K 5% 1/10W R1236 1-216-821-11 METAL CHIP 1K 5% 1/10W R1237 1-216-821-11 METAL CHIP 1K 5% 1/10W R1238 1-216-821-11 METAL CHIP 1K 5% 1/10W R1239 1-216-821-11 METAL CHIP 1K 5% 1/10W R1243 1-216-805-11 METAL CHIP 47 5% 1/10W R1246 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1247 1-216-821-11 METAL CHIP 1K 5% 1/10W R1730 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R1742 1-216-841-11 METAL CHIP 47K 5% 1/10W R1744 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1747 1-216-864-11 SHORT CHIP 0 R1748 1-216-864-11 SHORT CHIP 0 R1749 1-216-824-11 METAL CHIP 1.8K 5% 1/10W R1750 1-216-824-11 METAL CHIP 1.8K 5% 1/10W R1751 1-216-864-11 SHORT CHIP 0 R1752 1-216-864-11 SHORT CHIP 0 R1753 1-216-864-11 SHORT CHIP 0 R1754 1-216-864-11 SHORT CHIP 0 R1757 1-216-864-11 SHORT CHIP 0 R1781 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1782 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1783 1-216-864-11 SHORT CHIP 0 R1784 1-216-864-11 SHORT CHIP 0 R1785 1-216-864-11 SHORT CHIP 0 R1786 1-216-864-11 SHORT CHIP 0 R2101 1-218-841-11 METAL CHIP 560 0.5% 1/10W R2104 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R2108 1-216-864-11 SHORT CHIP 0 (DZ260/DZ270) R2110 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R2114 1-216-801-11 METAL CHIP 22 5% 1/10W R2115 1-216-864-11 SHORT CHIP 0 R2117 1-216-833-11 METAL CHIP 10K 5% 1/10W (DZ270) R2119 1-216-864-11 SHORT CHIP 0 R2120 1-216-809-11 METAL CHIP 100 5% 1/10W (DZ260/HDZ278) R2121 1-216-864-11 SHORT CHIP 0 (DZ260/DZ270) R2123 1-216-864-11 SHORT CHIP 0 (DZ260/DZ270) R2127 1-216-833-11 METAL CHIP 10K 5% 1/10W (DZ270) R2128 1-216-833-11 METAL CHIP 10K 5% 1/10W (DZ270) R2129 1-216-845-11 METAL CHIP 100K 5% 1/10W R2130 1-216-809-11 METAL CHIP 100 5% 1/10W (DZ260/HDZ278) R2131 1-216-809-11 METAL CHIP 100 5% 1/10W (DZ260/HDZ278) R2133 1-216-864-11 SHORT CHIP 0 R2134 1-216-864-11 SHORT CHIP 0 R2136 1-216-805-11 METAL CHIP 47 5% 1/10W (DZ260/HDZ278) R2150 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R2151 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R2152 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R2154 1-216-833-11 METAL CHIP 10K 5% 1/10W (DZ270) R2155 1-216-833-11 METAL CHIP 10K 5% 1/10W R2156 1-216-833-11 METAL CHIP 10K 5% 1/10W R2157 1-216-833-11 METAL CHIP 10K 5% 1/10W R2158 1-216-833-11 METAL CHIP 10K 5% 1/10W R2159 1-216-833-11 METAL CHIP 10K 5% 1/10W R2160 1-216-833-11 METAL CHIP 10K 5% 1/10W R2161 1-216-864-11 SHORT CHIP 0 (DZ260/HDZ278) R2162 1-216-864-11 SHORT CHIP 0 (DZ260/HDZ278) R2167 1-216-864-11 SHORT CHIP 0 R2168 1-216-815-11 METAL CHIP 330 5% 1/10W R2176 1-216-864-11 SHORT CHIP 0 R2177 1-216-809-11 METAL CHIP 100 5% 1/10W R2178 1-216-821-11 METAL CHIP 1K 5% 1/10W R2179 1-216-809-11 METAL CHIP 100 5% 1/10W R2180 1-216-833-11 METAL CHIP 10K 5% 1/10W R2181 1-216-833-11 METAL CHIP 10K 5% 1/10W (DZ270) R2182 1-216-864-11 SHORT CHIP 0 R2184 1-216-809-11 METAL CHIP 100 5% 1/10W R2185 1-216-809-11 METAL CHIP 100 5% 1/10W R2188 1-216-864-11 SHORT CHIP 0 R2189 1-216-833-11 METAL CHIP 10K 5% 1/10W (DZ270) MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark HCD-DZ260/DZ270/HDZ278 88 R2191 1-245-287-11 METAL CHIP 0.1 1% 1W (DZ260/DZ270) R2192 1-218-835-11 METAL CHIP 330 0.5% 1/10W (DZ260/DZ270) R2193 1-218-883-11 METAL CHIP 33K 0.5% 1/10W (DZ260/DZ270) R2194 1-218-883-11 METAL CHIP 33K 0.5% 1/10W (DZ260/DZ270) R2195 1-216-809-11 METAL CHIP 100 5% 1/10W (DZ260/DZ270) R2201 1-216-864-11 SHORT CHIP 0 R2203 1-216-864-11 SHORT CHIP 0 R2746 1-216-864-11 SHORT CHIP 0 R3001 1-216-833-11 METAL CHIP 10K 5% 1/10W R3002 1-216-833-11 METAL CHIP 10K 5% 1/10W R3003 1-216-821-11 METAL CHIP 1K 5% 1/10W R3004 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R3011 1-216-817-11 METAL CHIP 470 5% 1/10W R3012 1-216-817-11 METAL CHIP 470 5% 1/10W R3013 1-216-833-11 METAL CHIP 10K 5% 1/10W R3014 1-216-801-11 METAL CHIP 22 5% 1/10W R3015 1-216-809-11 METAL CHIP 100 5% 1/10W R3017 1-216-809-11 METAL CHIP 100 5% 1/10W R3021 1-216-817-11 METAL CHIP 470 5% 1/10W R3022 1-216-817-11 METAL CHIP 470 5% 1/10W R3023 1-216-801-11 METAL CHIP 22 5% 1/10W R3024 1-216-809-11 METAL CHIP 100 5% 1/10W R3026 1-216-809-11 METAL CHIP 100 5% 1/10W R3031 1-216-817-11 METAL CHIP 470 5% 1/10W R3032 1-216-817-11 METAL CHIP 470 5% 1/10W R3033 1-216-833-11 METAL CHIP 10K 5% 1/10W R3034 1-216-801-11 METAL CHIP 22 5% 1/10W R3035 1-216-809-11 METAL CHIP 100 5% 1/10W R3037 1-216-809-11 METAL CHIP 100 5% 1/10W R3040 1-216-864-11 SHORT CHIP 0 R3041 1-216-864-11 SHORT CHIP 0 R3042 1-216-864-11 SHORT CHIP 0 R3043 1-216-864-11 SHORT CHIP 0 R3044 1-216-864-11 SHORT CHIP 0 R3047 1-216-833-11 METAL CHIP 10K 5% 1/10W R3049 1-216-864-11 SHORT CHIP 0 R3050 1-216-864-11 SHORT CHIP 0 R3051 1-216-097-11 RES-CHIP 100K 5% 1/10W R3052 1-216-857-11 METAL CHIP 1M 5% 1/10W R3053 1-216-817-11 METAL CHIP 470 5% 1/10W R3054 1-216-809-11 METAL CHIP 100 5% 1/10W R3055 1-216-805-11 METAL CHIP 47 5% 1/10W R3057 1-216-805-11 METAL CHIP 47 5% 1/10W R3058 1-216-864-11 SHORT CHIP 0 R3059 1-216-833-11 METAL CHIP 10K 5% 1/10W R3060 1-216-833-11 METAL CHIP 10K 5% 1/10W R3061 1-216-864-11 SHORT CHIP 0 R3063 1-216-821-11 METAL CHIP 1K 5% 1/10W R3064 1-216-821-11 METAL CHIP 1K 5% 1/10W R3065 1-216-809-11 METAL CHIP 100 5% 1/10W R3066 1-216-809-11 METAL CHIP 100 5% 1/10W R3067 1-216-809-11 METAL CHIP 100 5% 1/10W R3068 1-216-809-11 METAL CHIP 100 5% 1/10W R3069 1-216-809-11 METAL CHIP 100 5% 1/10W R3070 1-216-809-11 METAL CHIP 100 5% 1/10W R3071 1-216-809-11 METAL CHIP 100 5% 1/10W R3072 1-216-809-11 METAL CHIP 100 5% 1/10W R3073 1-216-809-11 METAL CHIP 100 5% 1/10W R3074 1-216-809-11 METAL CHIP 100 5% 1/10W R3075 1-216-809-11 METAL CHIP 100 5% 1/10W R3076 1-216-809-11 METAL CHIP 100 5% 1/10W R3077 1-216-809-11 METAL CHIP 100 5% 1/10W R3078 1-216-809-11 METAL CHIP 100 5% 1/10W R3079 1-216-809-11 METAL CHIP 100 5% 1/10W R3080 1-216-845-11 METAL CHIP 100K 5% 1/10W R3085 1-216-839-11 METAL CHIP 33K 5% 1/10W R3086 1-216-839-11 METAL CHIP 33K 5% 1/10W R3087 1-216-833-11 METAL CHIP 10K 5% 1/10W R3088 1-216-833-11 METAL CHIP 10K 5% 1/10W R3089 1-216-833-11 METAL CHIP 10K 5% 1/10W R3090 1-216-833-11 METAL CHIP 10K 5% 1/10W R3091 1-216-837-11 METAL CHIP 22K 5% 1/10W R3092 1-216-837-11 METAL CHIP 22K 5% 1/10W R3093 1-216-837-11 METAL CHIP 22K 5% 1/10W R3094 1-216-837-11 METAL CHIP 22K 5% 1/10W R3095 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R3096 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3097 1-216-809-11 METAL CHIP 100 5% 1/10W R3098 1-216-839-11 METAL CHIP 33K 5% 1/10W R3099 1-216-839-11 METAL CHIP 33K 5% 1/10W R3101 1-216-809-11 METAL CHIP 100 5% 1/10W R3102 1-216-809-11 METAL CHIP 100 5% 1/10W R3103 1-216-864-11 SHORT CHIP 0 R3104 1-216-864-11 SHORT CHIP 0 R3107 1-216-835-11 METAL CHIP 15K 5% 1/10W R3115 1-216-864-11 SHORT CHIP 0 R3116 1-216-864-11 SHORT CHIP 0 R3125 1-216-845-11 METAL CHIP 100K 5% 1/10W R3126 1-216-845-11 METAL CHIP 100K 5% 1/10W R3127 1-216-845-11 METAL CHIP 100K 5% 1/10W R3151 1-216-809-11 METAL CHIP 100 5% 1/10W R3152 1-216-809-11 METAL CHIP 100 5% 1/10W R3153 1-216-864-11 SHORT CHIP 0 R3154 1-216-864-11 SHORT CHIP 0 R3157 1-216-835-11 METAL CHIP 15K 5% 1/10W R3165 1-216-864-11 SHORT CHIP 0 R3166 1-216-864-11 SHORT CHIP 0 R3175 1-216-845-11 METAL CHIP 100K 5% 1/10W R3176 1-216-845-11 METAL CHIP 100K 5% 1/10W R3177 1-216-845-11 METAL CHIP 100K 5% 1/10W R3201 1-216-809-11 METAL CHIP 100 5% 1/10W R3202 1-216-809-11 METAL CHIP 100 5% 1/10W R3203 1-216-864-11 SHORT CHIP 0 R3204 1-216-864-11 SHORT CHIP 0 R3207 1-216-835-11 METAL CHIP 15K 5% 1/10W R3215 1-216-864-11 SHORT CHIP 0 R3216 1-216-864-11 SHORT CHIP 0 R3225 1-216-845-11 METAL CHIP 100K 5% 1/10W R3226 1-216-845-11 METAL CHIP 100K 5% 1/10W R3227 1-216-845-11 METAL CHIP 100K 5% 1/10W R3251 1-216-809-11 METAL CHIP 100 5% 1/10W R3252 1-216-809-11 METAL CHIP 100 5% 1/10W R3253 1-216-864-11 SHORT CHIP 0 R3254 1-216-864-11 SHORT CHIP 0 R3257 1-216-835-11 METAL CHIP 15K 5% 1/10W R3265 1-216-864-11 SHORT CHIP 0 MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark HCD-DZ260/DZ270/HDZ278 89 89 R3266 1-216-864-11 SHORT CHIP 0 R3275 1-216-845-11 METAL CHIP 100K 5% 1/10W R3276 1-216-845-11 METAL CHIP 100K 5% 1/10W R3277 1-216-845-11 METAL CHIP 100K 5% 1/10W R3301 1-216-809-11 METAL CHIP 100 5% 1/10W R3302 1-216-809-11 METAL CHIP 100 5% 1/10W R3303 1-216-864-11 SHORT CHIP 0 R3304 1-216-864-11 SHORT CHIP 0 R3307 1-216-835-11 METAL CHIP 15K 5% 1/10W R3315 1-216-864-11 SHORT CHIP 0 R3316 1-216-864-11 SHORT CHIP 0 R3325 1-216-845-11 METAL CHIP 100K 5% 1/10W R3326 1-216-845-11 METAL CHIP 100K 5% 1/10W R3327 1-216-845-11 METAL CHIP 100K 5% 1/10W R3403 1-216-864-11 SHORT CHIP 0 R3404 1-216-864-11 SHORT CHIP 0 R3407 1-216-835-11 METAL CHIP 15K 5% 1/10W R3415 1-216-864-11 SHORT CHIP 0 R3416 1-216-864-11 SHORT CHIP 0 R3425 1-216-845-11 METAL CHIP 100K 5% 1/10W R3426 1-216-845-11 METAL CHIP 100K 5% 1/10W R3427 1-216-845-11 METAL CHIP 100K 5% 1/10W R3501 1-216-809-11 METAL CHIP 100 5% 1/10W R3502 1-216-809-11 METAL CHIP 100 5% 1/10W R3551 1-216-845-11 METAL CHIP 100K 5% 1/10W R3552 1-216-837-11 METAL CHIP 22K 5% 1/10W R3553 1-216-833-11 METAL CHIP 10K 5% 1/10W R3554 1-216-845-11 METAL CHIP 100K 5% 1/10W R3555 1-216-864-11 SHORT CHIP 0 R3556 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3558 1-216-833-11 METAL CHIP 10K 5% 1/10W R3559 1-216-833-11 METAL CHIP 10K 5% 1/10W R3560 1-216-864-11 SHORT CHIP 0 R3561 1-216-841-11 METAL CHIP 47K 5% 1/10W R3562 1-216-833-11 METAL CHIP 10K 5% 1/10W R3563 1-216-845-11 METAL CHIP 100K 5% 1/10W R3901 1-216-296-11 SHORT CHIP 0 R3902 1-216-296-11 SHORT CHIP 0 R3905 1-216-296-11 SHORT CHIP 0 R3906 1-216-296-11 SHORT CHIP 0 R3907 1-216-864-11 SHORT CHIP 0 R3911 1-216-864-11 SHORT CHIP 0 R3912 1-216-864-11 SHORT CHIP 0 R3913 1-216-864-11 SHORT CHIP 0 R3914 1-216-864-11 SHORT CHIP 0 R3917 1-216-864-11 SHORT CHIP 0 R3918 1-216-864-11 SHORT CHIP 0 R3919 1-216-864-11 SHORT CHIP 0 R4501 1-216-801-11 METAL CHIP 22 5% 1/10W R4502 1-216-801-11 METAL CHIP 22 5% 1/10W R4510 1-216-805-11 METAL CHIP 47 5% 1/10W R4511 1-216-803-11 METAL CHIP 33 5% 1/10W R4512 1-216-805-11 METAL CHIP 47 5% 1/10W R4513 1-216-805-11 METAL CHIP 47 5% 1/10W R4514 1-216-805-11 METAL CHIP 47 5% 1/10W R4515 1-216-805-11 METAL CHIP 47 5% 1/10W R4516 1-216-805-11 METAL CHIP 47 5% 1/10W R4518 1-216-864-11 SHORT CHIP 0 R4716 1-216-864-11 SHORT CHIP 0 (DZ270/HDZ278) R4717 1-216-864-11 SHORT CHIP 0 (DZ270/HDZ278) R4718 1-216-864-11 SHORT CHIP 0 R4719 1-216-864-11 SHORT CHIP 0 R4721 1-216-864-11 SHORT CHIP 0 R4805 1-216-801-11 METAL CHIP 22 5% 1/10W R9918 1-216-821-11 METAL CHIP 1K 5% 1/10W R9920 1-216-864-11 SHORT CHIP 0 R9922 1-216-833-11 METAL CHIP 10K 5% 1/10W R9924 1-216-821-11 METAL CHIP 1K 5% 1/10W R9928 1-216-837-11 METAL CHIP 22K 5% 1/10W R9929 1-216-837-11 METAL CHIP 22K 5% 1/10W R9934 1-216-833-11 METAL CHIP 10K 5% 1/10W R9935 1-216-864-11 SHORT CHIP 0 R9941 1-216-838-11 METAL CHIP 27K 5% 1/10W R9945 1-216-813-11 METAL CHIP 220 5% 1/10W < NETWORK RESISTOR > RB1103 1-234-400-21 CONDUCTOR, NETWORK 0X4 (1005) RB1104 1-234-400-21 CONDUCTOR, NETWORK 0X4 (1005) RB1105 1-234-944-21 RES, NETWORK 47X4 (1005X4) RB1106 1-234-944-21 RES, NETWORK 47X4 (1005X4) RB1107 1-234-944-21 RES, NETWORK 47X4 (1005X4) RB1108 1-234-944-21 RES, NETWORK 47X4 (1005X4) RB1109 1-234-400-21 CONDUCTOR, NETWORK 0X4 (1005) RB1110 1-234-400-21 CONDUCTOR, NETWORK 0X4 (1005) RB1111 1-234-400-21 CONDUCTOR, NETWORK 0X4 (1005) RB1112 1-234-400-21 CONDUCTOR, NETWORK 0X4 (1005) RB1113 1-234-400-21 CONDUCTOR, NETWORK 0X4 (1005) RB1114 1-234-400-21 CONDUCTOR, NETWORK 0X4 (1005) RB1115 1-234-400-21 CONDUCTOR, NETWORK 0X4 (1005) < TERMINAL BOARD > TB3901 1-780-453-11 TERMINAL BOARD (SPEAKER) 2P (SPEAKER (CENTER,SUBWOOFER)) < VIBRATOR > X501 1-795-058-21 VIBRATOR, CERAMIC (5MHz) X701 1-795-692-11 QUARTZ CRYSTAL UNIT (12.288MHz) (DZ260/HDZ278) X1101 1-795-630-11 VIBRATOR, CRYSTAL (27MHz) X3051 1-795-660-21 QUARTZ CRYSTAL UNIT (49.1MHz) ************************************************************* MS-203 BOARD ************ < CONNECTOR > CN001 1-815-412-11 CONNECTOR, FFC/FPC 5P < SWITCH > S001 1-786-693-11 SWITCH, DETECTION (CHUCK/TRAY DETECT) ************************************************************* MS-203 MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark HCD-DZ260/DZ270/HDZ278 90 A-1334-282-A POWER BOARD, COMPLETE (DZ260) A-1382-421-A POWER BOARD, COMPLETE (DZ270:E3,E12,E15,AUS,AR) A-1382-476-A POWER BOARD, COMPLETE (HDZ278) A-1382-537-A POWER BOARD, COMPLETE (DZ270:MX) *********************** 1-533-217-41 HOLDER, FUSE 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3 < CAPACITOR > 0 C901 1-165-529-11 MYLAR 0.22uF 10% 275V 0 C902 1-165-529-11 MYLAR 0.22uF 10% 275V 0 C903 1-112-331-11 ELECT(BLOCK) 1000uF 20% 250V (MX) 0 C903 1-112-333-11 ELECT(BLOCK) 330uF 20% 450V (E3,E12,E15,AUS,AR) 0 C903 1-114-345-11 ELECT(BLOCK) 1000uF 20% 200V (US,CND) 0 C903 1-114-346-11 ELECT(BLOCK) 330uF 20% 400V (AEP,UK) 0 C905 1-112-334-11 FILM 0.01uF 5% 400V (MX,US,CND) 0 C905 1-112-335-11 FILM 0.0033uF 5% 400V (EXCEPT MX,US,CND) 0 C906 1-117-815-11 FILM 0.001uF 3% 1.5KV (EXCEPT MX,US,CND) C907 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V (EXCEPT MX,US,CND) C907 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V (MX,US,CND) C908 1-104-962-11 ELECT 47uF 20% 35V C909 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C910 1-107-906-11 ELECT 10uF 20% 50V (MX,US,CND) C910 1-107-907-11 ELECT 22uF 20% 50V (EXCEPT MX,US,CND) C911 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C912 1-126-947-11 ELECT 47uF 20% 35V 0 C913 1-112-866-51 CERAMIC 100PF 10% 250V C916 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V 0 C918 1-112-887-51 CERAMIC 0.01uF 20% 250V 0 C920 1-112-887-51 CERAMIC 0.01uF 20% 250V 0 C921 1-117-220-81 CERAMIC 150PF 5% 2KV C922 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C923 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V 0 C924 1-112-335-11 FILM 0.0033uF 5% 400V 0 C925 1-107-974-81 CERAMIC 47PF 5% 2KV 0 C926 1-128-560-11 ELECT 22uF 20% 100V C927 1-128-947-31 ELECT 3300uF 20% 10V C928 1-137-947-21 ELECT 2700uF 20% 16V C929 1-128-954-11 ELECT 1000uF 20% 25V 0 C930 1-112-866-51 CERAMIC 100PF 10% 250V C932 1-100-924-21 ELECT 2200uF 20% 35V C933 1-100-924-21 ELECT 2200uF 20% 35V C934 1-126-953-11 ELECT 2200uF 20% 35V (DZ260/HDZ278) C935 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C936 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C937 1-100-756-11 CERAMIC CHIP 0.047uF 50V 0 C938 1-112-869-51 CERAMIC 470PF 10% 250V C939 1-136-165-00 FILM 0.1uF 5% 50V C940 1-128-950-31 ELECT 1000uF 20% 16V C942 1-126-941-11 ELECT 470uF 20% 25V C943 1-126-934-11 ELECT 220uF 20% 16V C945 1-126-935-11 ELECT 470uF 20% 16V C948 1-126-925-11 ELECT 470uF 20% 10V C950 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C951 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V 0 C963 1-112-869-51 CERAMIC 470PF 10% 250V (EXCEPT MX,US,CND) 0 C963 1-112-871-51 CERAMIC 0.0022uF 20% 250V (MX,US,CND) 0 C964 1-112-869-51 CERAMIC 470PF 10% 250V (EXCEPT MX,US,CND) 0 C964 1-112-871-51 CERAMIC 0.0022uF 20% 250V (MX,US,CND) C969 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V C970 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V C971 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C975 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V C976 1-126-933-11 ELECT 100uF 20% 16V 0 C980 1-117-828-11 FILM 0.0033uF 3% 1.5KV (MX,US,CND) C983 1-104-760-11 CERAMIC CHIP 0.047uF 10% 50V C984 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C990 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V C991 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V C992 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C993 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V C995 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C996 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V C997 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V < CONNECTOR > CN901 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P CN904 1-785-102-11 PIN, CONNECTOR (3.96mm PITCH) 4P * CN906 1-564-715-11 PIN, CONNECTOR (SMALL TYPE) 13P < DIODE > D901 8-719-082-57 DIODE D5SBA60F01 D902 8-719-063-74 DIODE D1NL20U-TR2 D903 6-500-241-01 DIODE SARS03 D905 8-719-063-74 DIODE D1NL20U-TR2 D906 6-501-817-01 DIODE MA2J1110GLS0 D907 6-501-817-01 DIODE MA2J1110GLS0 D908 6-501-817-01 DIODE MA2J1110GLS0 D909 6-501-817-01 DIODE MA2J1110GLS0 D910 6-501-817-01 DIODE MA2J1110GLS0 D911 8-719-510-12 DIODE D10SC4M D912 8-719-510-41 DIODE D10SC9M D913 6-500-241-01 DIODE SARS03 D914 6-501-817-01 DIODE MA2J1110GLS0 D916 6-501-412-01 DIODE SF5S6 D921 6-502-234-01 DIODE EG01C LF-F7 D922 6-501-817-01 DIODE MA2J1110GLS0 D923 6-501-817-01 DIODE MA2J1110GLS0 D924 6-501-817-01 DIODE MA2J1110GLS0 D931 6-501-849-01 DIODE FMX-22SL D941 6-501-817-01 DIODE MA2J1110GLS0 D947 6-501-412-01 DIODE SF5S6 D948 6-501-817-01 DIODE MA2J1110GLS0 D949 6-501-817-01 DIODE MA2J1110GLS0 DZ901 6-501-782-01 DIODE MAZ8180GMLS0 DZ902 6-502-231-01 DIODE MAZ8220GLLSO POWER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark HCD-DZ260/DZ270/HDZ278 91 91 DZ903 6-501-768-01 DIODE MAZ8120GMLS0 DZ904 6-501-734-01 DIODE MAZ8056GMLS0 DZ915 6-501-760-01 DIODE MAZ8100GMLS0 DZ932 6-501-734-01 DIODE MAZ8056GMLS0 DZ953 6-501-713-01 DIODE MAZ8033G0LS0 < TERMINAL BOARD > EB902 1-537-770-21 TERMINAL BOARD, GROUND EB904 1-537-770-21 TERMINAL BOARD, GROUND EB907 1-537-770-21 TERMINAL BOARD, GROUND < RESISTOR > 0 FR929 1-246-373-11 FUSIBLE 1 10% 1/2W F < IC > IC901 6-707-741-01 IC STR-F6138-LF1352 (MX,US,CND) IC901 6-707-742-01 IC STR-F6168-LF1352 (EXCEPT MX,US,CND) IC921 6-711-790-01 IC MR4020-7103 IC922 6-707-743-01 IC TA76L431S(TPE6,Q) IC931 8-759-648-34 IC TA76431AS(TPE6) IC941 6-705-308-01 IC SI-3010KM-TL < COIL > L931 1-457-438-11 COIL, CHOKE 5.6uH L944 1-414-398-11 INDUCTOR 10uH L945 1-414-398-11 INDUCTOR 10uH L947 1-414-398-11 INDUCTOR 10uH L948 1-414-398-11 INDUCTOR 10uH L953 1-414-398-11 INDUCTOR 10uH L954 1-457-578-11 COIL, CHOKE 10uH L956 1-457-578-11 COIL, CHOKE 10uH < LINE FILTER > 0 LF901 1-457-054-21 COIL, LINE FILTER (EXCEPT MX,US,CND) 0 LF901 1-457-449-11 COIL, LINE FILTER (MX,US,CND) 0 LF902 1-457-054-21 COIL, LINE FILTER (EXCEPT MX,US,CND) 0 LF902 1-457-449-11 COIL, LINE FILTER (MX,US,CND) < PHOTO COUPLER > PC901 6-600-438-01 PHOTO COUPLER TLP421F(D4-GRJ) PC902 6-600-438-01 PHOTO COUPLER TLP421F(D4-GRJ) PC903 6-600-276-01 PHOTO COUPLER PS2561AL1-1-V-W PC904 6-600-276-01 PHOTO COUPLER PS2561AL1-1-V-W < THERMISTOR (POSITIVE) > PS954 1-802-595-11 THERMISTOR, POSITIVE MF-R250 PS956 1-802-596-11 THERMISTOR, POSITIVE MF-R300 < TRANSISTOR > Q901 8-729-201-53 TRANSISTOR 2SA1015-GR Q921 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q922 6-550-702-01 TRANSISTOR 2SC3243-TP-E Q930 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q931 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q932 8-729-038-28 TRANSISTOR RT1N441C-TP-1 Q943 8-729-038-28 TRANSISTOR RT1N441C-TP-1 Q945 6-550-718-01 TRANSISTOR RSR025N03TL Q947 8-729-038-28 TRANSISTOR RT1N441C-TP-1 Q949 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q950 8-729-038-28 TRANSISTOR RT1N441C-TP-1 < RESISTOR > 0 R901 1-219-759-11 METAL 1M 5% 1/2W F (MX,US,CND) 0 R901 1-240-938-11 METAL 1.5M 5% 1/2W F (EXCEPT MX,US,CND) 0 R903 1-215-926-00 METAL OXIDE 33K 5% 3W F (MX,US,CND) 0 R903 1-215-929-11 METAL OXIDE 100K 5% 3W F (EXCEPT MX,US,CND) 0 R904 1-215-926-00 METAL OXIDE 33K 5% 3W F (MX,US,CND) 0 R904 1-215-929-11 METAL OXIDE 100K 5% 3W F (EXCEPT MX,US,CND) R905 1-216-797-11 METAL CHIP 10 5% 1/10W R906 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R907 1-216-833-11 METAL CHIP 10K 5% 1/10W R908 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R909 1-216-845-11 METAL CHIP 100K 5% 1/10W R910 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R911 1-216-813-11 METAL CHIP 220 5% 1/10W 0 R912 1-216-361-61 METAL OXIDE 0.22 5% 2W F (MX,US,CND) 0 R912 1-216-363-00 METAL OXIDE 0.33 5% 2W F (EXCEPT MX,US,CND) 0 R913 1-216-361-61 METAL OXIDE 0.22 5% 2W F (MX,US,CND) 0 R914 1-220-891-11 METAL 0.1 10% 5W F (EXCEPT MX,US,CND) 0 R914 1-243-669-11 METAL 0.05 5% 5W F (MX,US,CND) 0 R916 1-215-929-11 METAL OXIDE 100K 5% 3W F R917 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R919 1-216-837-11 METAL CHIP 22K 5% 1/10W R920 1-216-821-11 METAL CHIP 1K 5% 1/10W R921 1-216-833-11 METAL CHIP 10K 5% 1/10W 0 R922 1-244-317-71 METAL 0.18 5% 2W F R923 1-218-879-11 METAL CHIP 22K 0.5% 1/10W R924 1-216-837-11 METAL CHIP 22K 5% 1/10W R925 1-216-797-11 METAL CHIP 10 5% 1/10W R926 1-218-895-11 METAL CHIP 100K 0.5% 1/10W R927 1-216-837-11 METAL CHIP 22K 5% 1/10W R928 1-216-845-11 METAL CHIP 100K 5% 1/10W R930 1-216-817-11 METAL CHIP 470 5% 1/10W R931 1-218-847-11 METAL CHIP 1K 0.5% 1/10W R932 1-218-879-11 METAL CHIP 22K 0.5% 1/10W R933 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R934 1-216-821-11 METAL CHIP 1K 5% 1/10W R935 1-216-821-11 METAL CHIP 1K 5% 1/10W R936 1-216-853-11 METAL CHIP 470K 5% 1/10W R937 1-218-871-11 METAL CHIP 10K 0.5% 1/10W R938 1-218-847-11 METAL CHIP 1K 0.5% 1/10W R939 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W R940 1-218-871-11 METAL CHIP 10K 0.5% 1/10W R941 1-218-895-11 METAL CHIP 100K 0.5% 1/10W R942 1-218-871-11 METAL CHIP 10K 0.5% 1/10W R945 1-216-837-11 METAL CHIP 22K 5% 1/10W R946 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R949 1-216-809-11 METAL CHIP 100 5% 1/10W R951 1-218-847-11 METAL CHIP 1K 0.5% 1/10W R952 1-216-821-11 METAL CHIP 1K 5% 1/10W R954 1-218-861-11 METAL CHIP 3.9K 0.5% 1/10W R955 1-216-821-11 METAL CHIP 1K 5% 1/10W POWER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark HCD-DZ260/DZ270/HDZ278 92 R956 1-216-817-11 METAL CHIP 470 5% 1/10W R957 1-216-841-11 METAL CHIP 47K 5% 1/10W R958 1-216-821-11 METAL CHIP 1K 5% 1/10W R959 1-218-871-11 METAL CHIP 10K 0.5% 1/10W R960 1-216-817-11 METAL CHIP 470 5% 1/10W R963 1-218-839-11 METAL CHIP 470 0.5% 1/10W R965 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W R966 1-216-821-11 METAL CHIP 1K 5% 1/10W R967 1-216-821-11 METAL CHIP 1K 5% 1/10W R972 1-218-871-11 METAL CHIP 10K 0.5% 1/10W R974 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R975 1-218-895-11 METAL CHIP 100K 0.5% 1/10W R976 1-218-903-11 METAL CHIP 220K 0.5% 1/10W R978 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R992 1-216-793-11 METAL CHIP 4.7 5% 1/10W R993 1-216-833-11 METAL CHIP 10K 5% 1/10W R994 1-216-851-11 METAL CHIP 330K 5% 1/10W R995 1-216-845-11 METAL CHIP 100K 5% 1/10W R998 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W R999 1-218-871-11 METAL CHIP 10K 0.5% 1/10W < TRANSFORMER > 0 T901 1-443-649-11 TRANSFORMER, CONVERTER (MX,US,CND) 0 T901 1-443-874-11 TRANSFORMER, CONVERTER (EXCEPT MX,US,CND) 0 T903 1-445-320-11 TRANSFORMER, CONVERTER < THERMISTOR > 0 TH901 1-805-841-21 THERMISTOR, NTC 3.0 (MX,US,CND) 0 TH901 1-805-842-21 THERMISTOR, NTC 6.0 (EXCEPT MX,US,CND) < VARISTOR > 0 VDR901 1-805-482-11 VARISTOR ************************************************************* P-SW BOARD *********** < CAPACITOR > C170 1-162-927-11 CERAMIC CHIP 100PF 5% 50V < SWITCH > S108 1-762-875-21 SWITCH, KEYBOARD (?/1) ************************************************************* SPEAKER BOARD ************** < CAPACITOR > C173 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V (EXCEPT E12,AR,MX) C174 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C175 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V (EXCEPT E12,AR,MX) C176 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C177 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V (EXCEPT E12,AR,MX) C178 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C179 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V (EXCEPT E12,AR,MX) C180 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C181 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V (EXCEPT E12,AR,MX) C182 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C183 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V (EXCEPT E12,AR,MX) C184 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C185 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V (EXCEPT E12,AR,MX) C186 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C187 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V (EXCEPT E12,AR,MX) C188 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V < CONNECTOR > * CN114 1-564-523-11 PLUG, CONNECTOR 8P < TERMINAL BOARD > TB100 1-780-454-11 TERMINAL BOARD (SPEAKER) 4P (SPEAKER (FRONT R,FRONT L,SUR R,SUR L)) ************************************************************* MISCELLANEOUS ************** 4 1-827-720-11 WIRE (FLAT TYPE) (11 CORE) (DZ260) 4 1-828-955-11 WIRE (FLAT TYPE) (9 CORE) (DZ270/HDZ278) 0 5 1-829-387-11 CORD, POWER (AR) 0 5 1-834-966-21 CORD, POWER (AEP,E3,E12,E15) 0 5 1-834-967-21 CORD, POWER (AUS) 0 5 1-834-978-11 CORD, POWER (MX,US,CND) 0 5 1-835-078-21 CORD, POWER (UK) 0 10 1-569-008-22 ADAPTOR, CONVERSION 2P (E15) 63 1-828-307-11 WIRE (FLAT TYPE) (9 CORE) 64 1-828-363-11 WIRE (FLAT TYPE) (19 CORE) 106 1-828-293-11 WIRE (FLAT TYPE) (5 CORE) 107 1-828-349-11 WIRE (FLAT TYPE) (17 CORE) (DZ270/HDZ278) 107 1-828-359-11 WIRE (FLAT TYPE) (19 CORE) (DZ260) 108 1-828-337-11 WIRE (FLAT TYPE) (15 CORE) (DZ270) 108 1-828-347-11 WIRE (FLAT TYPE) (17 CORE) (HDZ278) 108 1-828-357-11 WIRE (FLAT TYPE) (19 CORE) (DZ260) 114 1-828-287-11 WIRE (FLAT TYPE) (5 CORE) 0 157 8-820-321-05 OPTICAL PICK-UP KHM-313CAA/C2RP 158 1-828-773-51 WIRE (FLAT TYPE) (24 CORE) 0 F901 1-533-311-12 FUSE, GLASS CYLINDRICAL (DIA. 5) (8A/125V) (MX,US,CND) 0 F901 1-576-233-51 FUSE (H.B.C.) (T6.3AL/250V) (EXCEPT MX,US,CND) FAN3001 1-787-331-11 FAN, D.C. TU401 1-693-759-11 TUNER (FM/AM) (ANTENNA) (DZ260) TU401 1-693-761-11 TUNER (FM/AM) (ANTENNA) (DZ270) TU401 1-693-762-11 TUNER (FM/AM) (ANTENNA) (HDZ278) POWER P-SW SPEAKER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MEMO HCD-DZ260/DZ270/HDZ278 93 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ260/DZ270/HDZ278 REVISION HISTORY Checking the version allows you to jump to the revised page. Also, clicking the version at the top of the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2008.01 New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
