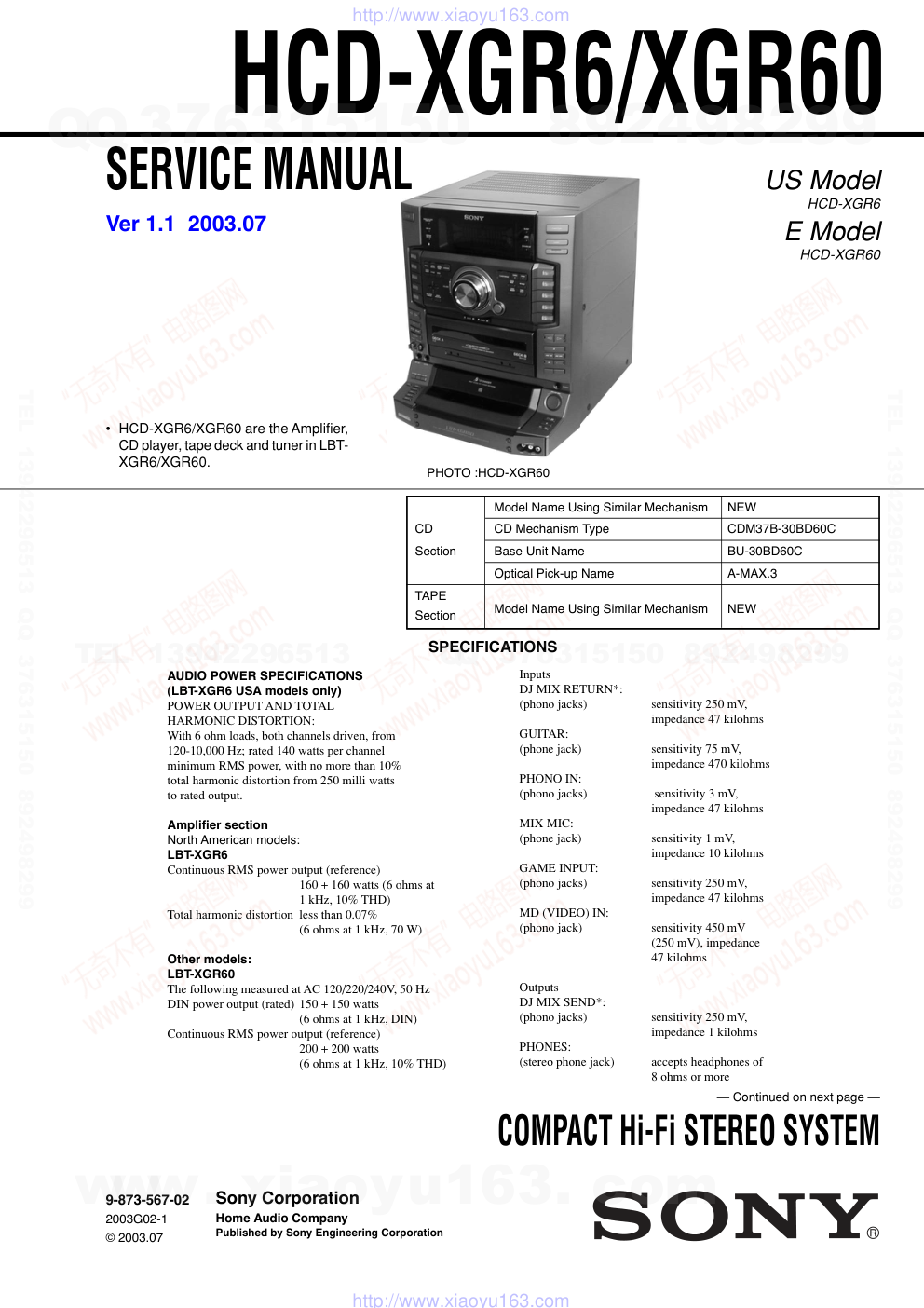

HCD-XGR6/XGR60 US Model HCD-XGR6 E Model HCD-XGR60 COMPACT Hi-Fi STEREO SYSTEM — Continued on next page — SPECIFICATIONS • HCD-XGR6/XGR60 are the Amplifier, CD player, tape deck and tuner in LBT- XGR6/XGR60. Ver 1.1 2003.07 9-873-567-02 2003G02-1 © 2003.07 Model Name Using Similar Mechanism NEW CD CD Mechanism Type CDM37B-30BD60C Section Base Unit Name BU-30BD60C Optical Pick-up Name A-MAX.3 TAPE Model Name Using Similar Mechanism NEW Section SERVICE MANUAL Sony Corporation Home Audio Company Published by Sony Engineering Corporation PHOTO :HCD-XGR60 AUDIO POWER SPECIFICATIONS (LBT-XGR6 USA models only) POWER OUTPUT AND TOTAL HARMONIC DISTORTION: With 6 ohm loads, both channels driven, from 120-10,000 Hz; rated 140 watts per channel minimum RMS power, with no more than 10% total harmonic distortion from 250 milli watts to rated output. Amplifier section North American models: LBT-XGR6 Continuous RMS power output (reference) 160 + 160 watts (6 ohms at 1 kHz, 10% THD) Total harmonic distortion less than 0.07% (6 ohms at 1 kHz, 70 W) Other models: LBT-XGR60 The following measured at AC 120/220/240V, 50 Hz DIN power output (rated) 150 + 150 watts (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference) 200 + 200 watts (6 ohms at 1 kHz, 10% THD) Inputs DJ MIX RETURN*: (phono jacks) sensitivity 250 mV, impedance 47 kilohms GUITAR: (phone jack) sensitivity 75 mV, impedance 470 kilohms PHONO IN: (phono jacks) sensitivity 3 mV, impedance 47 kilohms MIX MIC: (phone jack) sensitivity 1 mV, impedance 10 kilohms GAME INPUT: (phono jacks) sensitivity 250 mV, impedance 47 kilohms MD (VIDEO) IN: (phono jack) sensitivity 450 mV (250 mV), impedance 47 kilohms Outputs DJ MIX SEND*: (phono jacks) sensitivity 250 mV, impedance 1 kilohms PHONES: (stereo phone jack) accepts headphones of 8 ohms or more www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 HCD-XGR6/XGR60 This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing • Keep the temperature of soldering iron around 270˚C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. MD (VIDEO) OUT: (phono jacks) voltage 250 mV impedance 1 kilohms FRONT SPEAKER: accepts impedance of 6 to 16 ohms * North American and Mexican models only CD player section System Compact disc and digital audio system Laser Semiconductor laser (λ=795 nm), Emission duration: continuous Frequency response 2 Hz – 20 kHz (±0.5 dB) Signal-to-noise ratio More than 90 dB Dynamic range More than 90 dB CD OPTICAL DIGITAL OUT (Square optical connector jack, rear panel) Wavelength: 660 nm Output level –18 dBm Tape player section Recording system 4-track 2-channel stereo Frequency response 40 – 13,000 Hz (±3 dB), using Sony TYPE I cassette Tuner section FM stereo, FM/AM superheterodyne tuner FM tuner section Tuning range North American models: 87.5 – 108.0 MHz (100 kHz step) Other models: 87.5 – 108.0 MHz (50 kHz step) Antenna FM lead antenna Antenna terminals 75 ohms unbalanced Intermediate frequency 10.7 MHz AM tuner section Tuning range Pan- American models: 530 – 1,710 kHz (with the interval set at 10 kHz) 531 – 1,710 kHz (with the interval set at 9 kHz) Other models: 531 – 1,602 kHz (with the interval set at 9 kHz) 530 – 1,710 kHz (with the interval set at 10 kHz) Antenna AM loop antenna Antenna terminals External antenna terminal Intermediate frequency 450 kHz General Power requirements North American models: 120 V AC, 60 Hz Mexican model: 120 V AC, 60 Hz Other models: 120 V, 220 V or 230 – 240 V AC, 50/60 Hz Adjustable with voltage selector Power consumption U.S.A. models: LBT-XGR6 240 watts Other models: LBT-XGR60 180 watts Dimensions (w/h/d) Approx. 355 x 425 x 451 mm Mass : LBT-XGR6 Approx. 13.0 kg LBT-XGR60 Approx. 14.7 kg Supplied accessories: AM loop antenna (1) FM lead antenna (1) Speaker cords (2) Speaker pads (8) Remote commander (1) Batteries (2) Design and specifications are subject to change without notice. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 HCD-XGR6/XGR60 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. To Exposed Metal Parts on Set 0.15 µF 1.5 kΩ AC Voltmeter (0.75 V) Earth Ground Fig. A. Using an AC voltmeter to check AC leakage. After correcting the original service problem, perform the following safety checks before releasing the set to the customer: Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microampers). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) SAFETY CHECK-OUT NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. LASER DIODE AND FOCUS SEARCH OPERATION CHECK Carry out the “S curve check” in “CD section adjustment” and check that the S curve waveforms is output three times. • MODEL IDENTIFICATION – Rear Panel – PART No. MODEL US model E model E51 model Mexican model Argentina model PARTS No. 4-237-748-0s 4-237-748-2s 4-237-748-3s 4-237-748-4s 4-237-748-5s • Abbreviation E51 : Chilean and Peruvian model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 HCD-XGR6/XGR60 TABLE OF CONTENTS 1. GENERAL ·········································································· 5 2. DISASSEMBY··································································· 7 3. TEST MODE ···································································· 15 4. MECHANICAL ADJUSTMENTS ····························· 17 5. ELECTRICAL ADJUSTMENTS ······························· 17 6. DIAGRAMS 6-1. CIRCUIT BOARD LOCATION ······································· 21 6-2. BLOCK DIAGRAM – CD SERVO SECTION – ············· 22 BLOCK DIAGRAM – TUNER/TAPE DECK SECTION – ························ 23 BLOCK DIAGRAM – MAIN SECTION – ····················· 24 BLOCK DIAGRAM – DISPLAY/KEY CONTROL/ POWER SUPPLY SECTION – ··································· 25 6-3. PRINTED WIRING BOARD – BD SECTION – ············· 26 6-4. SCHEMATIC DIAGRAM – BD SECTION – ·················· 27 6-5. PRINTED WIRING BOARD – MOTOR LED SECTION – ······································ 28 6-6. SCHEMATIC DIAGRAM – MOTOR LED SECTION – ······································ 28 6-7. SCHEMATIC DIAGRAM – MIC/GUITAR SECTION –····································· 29 6-8. PRINTED WIRING BOARD – MIC/GUITAR SECTION –······································ 29 6-9. SCHEMATIC DIAGRAM – MAIN (1/3) SECTION – ···· 30 6-10.SCHEMATIC DIAGRAM – MAIN (2/3) SECTION – ···· 31 6-11. SCHEMATIC DIAGRAM – MAIN (3/3) SECTION – ···· 32 6-12.PRINTED WIRING BOARD – MAIN SECTION – ········ 33 6-13.PRINTED WIRING BOARD – CD-L,CD-R,HEADPHONE,FRONT INPUT, D-SW SECTION – ··················································· 34 6-14.SCHEMATIC DIAGRAM – CD-L,CD-R,HEADPHONE,FRONT INPUT, D-SW SECTION – ··················································· 35 6-15.PRINTED WIRING BOARD – PANEL VR SECTION – ·········································· 36 6-16.SCHEMATIC DIAGRAM – PANEL VR SECTION – ·········································· 37 6-17.PRINTED WIRING BOARD – PANEL FL,TC-A,TC-B SECTION –······················· 38 6-18.SCHEMATIC DIAGRAM – PANEL FL,TC-A,TC-B SECTION –······················· 39 6-19.PRINTED WIRING BOARD – PA SECTION – ·············· 40 6-20.SCHEMATIC DIAGRAM – PA SECTION – ··················· 41 6-21. PRINTED WIRING BOARD– TRANS,SUB – TRANS(XGR6,XGR60:MX MODEL) SECTION –42 6-22.SCHEMATIC DIAGRAM – TRANS,SUB – TRANS(XGR6,XGR60:MX MODEL) SECTION –42 6-23. PRINTED WIRING BOARD– TRANS,SUB – TRANS(XGR60:E,E51,AR MODEL) SECTION – 43 6-24. SCHEMATIC DIAGRAM – TRANS,SUB – TRANS(XGR60:E,E51,AR MODEL) SECTION – 43 6-25. IC PIN FUNCTION DESCRIPTION ······························· 44 6-26. IC BLOCK DIAGRAMS ·················································· 50 7. EXPLODED VIEWS 7-1. CASE,BACK PANEL SECTION······································ 53 7-2. FRONT PANEL SECTION-1············································ 54 7-3. FRONT PANEL SECTION-2············································ 55 7-4. CHASSIS SECTION ························································· 56 7-5. CD MECHANISM DECK SECTION (CDM-30BD60C) ······························································· 57 7-6. BASE UNIT SECTION (BU-30BD60C) ·························· 58 8. ELECTRICAL PARTS LIST ······································· 59 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 HCD-XGR6/XGR60 This section is extracted from instruction manual. SECTION 1 GENERAL ALPHABETICAL ORDER E – G EDIT ea (15) EFFECT 5 (17) ENTER 5 (8, 15, 17, 19) FM MODE 8 (12) FUNCTION qd (7, 9, 10, 14, 20, 22, 26) GAME qf (22) GAME INPUT AUDIO L/R wd (25) GAME INPUT VIDEO wd (25) GAME MIXING qg (22) GROOVE ek (16) GUITAR DISTORTION wl (21) GUITAR jack ed (21) GUITAR LEVEL ef (21) H – R H SPEED DUB ql (14) MIC LEVEL ef (20) MIX GUITAR/KARAOKE wl (20, 21) MIX MIC jack ed (20) P FILE 5 (17) PHONES jack w; PLAY MODE es (9, 10) POWER SAVE/DEMO (STANDBY) 3 (23) Power stream indicator 6 PUSH OPEN wj (9) REPEAT es (10) Main unit wf wg wh wj wl e; ea es ed ef eg eh ek ej wk qf qd 2345 7 6 890 qaqs qg qh qj qk ql w; wa ws wd 1 A – D A EJECTZ/Z B EJECT wh (13) AMS./> wa (9, 10) CD SYNC ql (14, 15) Direct equalizer qh ej (17) GUITAR/ROCK/JAZZ/DANCE/ GAME SALSA/REGGAE/TANGO/ SAMBA/MOVIE DIRECTION eg (13, 14, 15, 20) DISC SKIP es (9, 10) DISC 1 to 5 e; (9) DISPLAY 2 (23) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 HCD-XGR6/XGR60 Remote control ALPHABETICAL ORDER ql qk qj qh qg qf ws wa w; 5 6 7 9 8 q; 3 2 1 4 qd qs qa S – X SLEEP 0 (18) SPECTRUM ANALYZER 4 (20) SUPER WOOFER ek (16) SUPER WOOFER MODE ek (16) SURROUND ek (18) TIMER SELECT qa (16, 19) TUNER/BAND 9 (11, 12) TUNER ENTER wf (11) TUNER MEMORY wf (11) TUNING MODE 8 (11, 12) TUNING - /+ 9 (11, 12) VOLUME control 7 (10) X-GROOVE wg (16) BUTTON DESCRIPTIONS @/1 1 c/CLOCK SET qs h/H qj eh x qj eh .m /M> qj eh X qk z REC qk HX ws x ws m /M ws R/r/T/t (cursor) wk C – F CD N qg (9) CLEAR 4 (10) CLOCK/TIMER SELECT ws (16, 19) CLOCK/TIMER SET 1 (8, 15, 19) DISC SKIP w; (9, 10) DISPLAY qa (23) EFFECT 9 (17) ENTER 0 (8, 15, 17, 19) FILE SELECT +/- qd (17) FUNCTION 3 (7, 9, 10, 14, 20, 22, 26) P – V PRESET - /+ ql SLEEP wa (18) SURROUND 5 (18) TUNER/BAND qf (11, 12) TUNING - /+ qk (11, 12) VOL +/- 6 (10) BUTTON DESCRIPTIONS @/1 2 nN 78 R/r/T/t (cursor) qs x qh X qj m/M qk ./> ql This section is extracted from instruction manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 HCD-XGR6/XGR60 SECTION 2 DISASSEMBLY Note : Follow the disassembly procedure in the numerical order given. 2-1. CASE • The equipment can be removed using the following procedure. 3 Five screws (BVTT 3 × 6) 4 Two screws (BVTP 3 × 8) 2 Three screws (CASE3 TP2) 1 Three screws (CASE3 TP2) 8 Case 6 7 5 5 6 Set Case Front panel section Tape mechanism deck PANEL FL board, TC-A board, TC-B board PANEL VR board MIC/GUITAR board, HEADPHONE board FRONT INPUT board D-SW board, CD-L board, Lid (CD) assy, CD-R board Back panel, DC fan, MAIN board CD mechanism deck (CDM37B-30BD60C) Base unit-1 (BU-30BD60C) Disc table Base unit-2 (BU-30BD60C) BD board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 HCD-XGR6/XGR60 2-2. FRONT PANEL SECTION 2-3. TAPE MECHANISM DECK 2Flat type wire (CN431) 8 Lug 7 Screw (BVTP 3 X 8) 3 Connector (CN311) 4 Connector (CN903) 5 Connector (CN722) 1 Flat type wire (CN371) 9 Screw (BVTP 3 X 8) qs Screw (BVTP 3 X 8) qd Four screws (BVTP 3 X 8) qg Front panel section qf Claw 0 Lug 6 Connector (CN806) qa Connector (B deck) 1 Flat type wire (15 core) 2 Two screws (BVTP 2.6 X 8) 3 Two screws (BVTP 2.6 X 8) 5 Tape mechanism deck Front panel 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 HCD-XGR6/XGR60 2-4. PANEL FL BOARD, TC-A BOARD, TC-B BOARD 2-5. PANEL VR BOARD 2Lug 1Screw (BVTP 2.6 X 8) qaFour screws (BVTP 2.6 X 8) qsThree screws (BVTP 2.6 X 8) qkPANEL FL board w;TC-A board qdEight screws (BVTP 2.6 X 8) qgFour screws (BVTP 2.6 X 8) 8Connector (CN703) 6Connector (CN812) 7Connector (CN704) wsTC-B board 0Two knobs (MIC) qlTwo claws 4Screw (BVTP 2.6 X 8) qfFour screws (BVTP 2.6 X 8) 5Bracket (TA) qhThree claws 3Bracket (TA) qj 9Flat type wire (CN601) waTwo claws Front panel 1Screws (BVTP 2.6 X 8) 2Lug 4Knob (VOLUME) 3Bracket (TA) 7 6Preess the two buttons (EJECT) Front panel qsPANEL VR board qaNine screws (BVTP 2.6 X 8) 0Eight screws (BVTP 2.6 X 8) 5Flat type wire (CN701) 9Lever (EJECT) assy 8Two screws (BVTP 2.6 X 8) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 HCD-XGR6/XGR60 2-6. MIC/GUITAR BOARD, HEADPHONE BOARD 1Connector (CN812) 2Two screws (BVTP 2.6 X 8) 4MIC/GUITAR board 7HEADPHONE board 5Two screws (BVTP 2.6 X 8) 3MIC bracket 6HEADPHONE bracket Front panel 2-7. FRONT INPUT BOARD 2Bumper (Panel) Front panel FRONT INPUT board J804 4FRONT INPUT board 1Four screws (BVTP 2.6 X 8) 3 Front panel www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 HCD-XGR6/XGR60 2-9. BACK PANEL, DC FAN, MAIN BOARD qsDC FAN (M901) 1Flat type wire (CN441) 9Back panel 2Jumper plug 4Seven screws (BVTP 3 X 8) 7Four screws (BVTP 3 X 8) 6Three screws (BVTP 3 X 8) qgTwo screws (BVTP 3 X 8) qhTwo connectors (CN901, 902) 5Two screws (BVTP 3 X 8) qaTwo screws (BVTP 3 X 8) 3Screw (BVTP 3 X 8) 0Connector (CN961) XGR6, XGR60: MX model qfConnector (CN411) qdFlat type wire (CN401) qjMAIN board 8 2-8. D-SW BOARD, CD-L BOARD, LID (CD) ASSY, CD-R BOARD 5Two screws (BVTP 2.6 X 8) 7Four screws (BVTP 2.6 X 8) qjFour screws (BVTP 2.6 X 8) qkCD-Rboard 4Two screws (BVTP 2.6 X 8) qgTwo screws (BVTP 2.6 X 8) qfTwo screws (BVTP 2.6 X 8) 2D-SW board 1Screw (BVTP 2.6 X8) 0Spring (CD) 3Connector (CN704) qdKnob (CD) qaLid (CD) assy 9Sub panel (CD-L) assy 8CD-L board 6 qlSub panel (CD-R) assy qsConnector (CN703) qh www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 HCD-XGR6/XGR60 2-10. CD MECHANISM DECK (CDM37B-30BD60C) qa CD mechanism deck (CDM37B-30BD60) 6Two screws (BVTP 3 X 8) 5Two screws (BVTP 3 X 8) 4Three screws (BVTP 3 X 8) 1Flat type wire (CN401) 2Connector (CN411) 3Four screws (BVTP 3 X 8) Wire holder 0 Five screws (BVTP3 × 8) 7 7 8 9remove two cables from wire holder. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 HCD-XGR6/XGR60 2-11. BASE UNIT-1 (BU-30BD60C) 2-12. BASE UNIT-2 (BU-30BD60C) 3 base unit (BU-30BD60C) 1 BU fitting screw 2 boss 1Two floating screws (DIA.12) 6Base unit (BU-30BD60C) 2Two screws (BVTP 2.6 X 8) 3Two stoppers (BU) 5Two coil springs (insulator) 4Two coil springs (insulator) Holder (BU30) assy www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 HCD-XGR6/XGR60 2-14. DISC TABLE 2-13. BD BOARD Note: When the disc table is installed, adjust the positions of roller cam and mark B as shown in the figure, then set to the groove of disc table. 1Screw (BVTP 3 × 8) 2Bracket (BU) 3Step screw 4Disc table A A 1Remove the two solders. 4Flat type wire (CN102) BU-30BD60C 5BD board 3Rivet 2Remove the two solders. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 HCD-XGR6/XGR60 SECTION 3 TEST MODE [MC Cold Reset] • The cold reset clears all data including preset data stored in the RAM to initial conditions. Execute this mode when returning the set to the customer. Procedure: 1. Turn the power ON or set to the DEMO mode. 2. Press three buttons of c/CLOCK SET , TUNER ENTER , and \/1 simultaneously. 3. The set is reset, and displays “COLD RESET”, then becomes DEMO mode. [Change-over the AM Tuning Interval] • The AM tuning interval can be changed over 9 kHz or 10 kHz. Procedure: 1. Press the \/1 button to turn the power ON. 2. Select the function “TUNER”, and press the TUNER/BAND button to select the BAND “AM”. 3. Press the \/1 button to turn the power OFF. 4. Press the ENTER/NEXT and \/1 buttons simultaneously, and the display on the fluorescent indicator tube changes to “AM 9 K STEP” or “AM 10 K STEP”, and thus the tuning interval is changed over. [CD Ship Mode] (No memory clear) • This mode moves the optical pick-up to the position durable to vibration. Use this mode when returning the set to the customer after repair. Procedure: 1. Press the \/1 button to turn the power ON. 2. Press the EDIT and \/1 buttons simultaneously. 3. A message “LOCK” is displayed on the fluorescent indicator tube, and the CD delivery mode is set. [LED and Fluorescent Indicator Tube All Lit, Key Check Mode] Procedure: 1. Press three buttons of c/CLOCK SET , ENTER/NEXT , and DISC 2 simultaneously. 2. LEDs and fluorescent indicator tube are all turned on. 3. Press the DISC 1 button, the MODE and DESTINATION are displayed fluorescent indicator tube. 4. Each time the DISC 1 button is pressed, the MC/GC category version is displayed in the following order. 5. Press the DISC 2 button, and the key check mode is acti-vated. 6. In the key check mode, the fluorescent indicator tube displays “K 0 J0 V0”. Each time a button is pressed, “K” value in-creases to “K69”call the button is pressed.However, once a button is pressed, it is no longer taken into account. “J” value increases like 1, 2, 3 ... if turn the . AMS > JOG dial clock-wise,or it decreases like 0, 9, 8 ... if turn the . AMS > JOG dial counter-clockwise. “V” value increases like 1, 2, 3 ... if turn the VOLUME dial clockwise (“+” direction), or it decreases like 0, 9, 8 ... if turn the VOLUME dial counterclockwise (“–” direction). 7. To release from this mode, press three buttons in the same manner as step 1, or disconnect the power cord. NR MC GC CD CDDM CDMA CDMB BDA BDB ST TA TM TC [Sled Servo Mode] (CD service mode) • This mode can run the CD sled motor freely. Use this mode, for instance, when cleaning the pick-up. Procedure: 1. Select the function “CD”. 2. Press three buttons c/CLOCK SET , TUNER ENTER , and DISC 5 simultaneously. 3. The Sled Servo mode is selected, if “CD” is blanking on the fluorescent indicator tube. 4. With the CD in stop status, press M button in CD section to move the pick-up to outside track, or m button to inside track. 5. To exit from this mode, press \/1 button turn to the power OFF. Note: • Always move the pick-up to most inside track when exiting from this mode. Otherwise, a disc will not be unloaded. • Do not run the sled motor excessively, otherwise the gear can be chipped. [Change-over of FUNCTION Name] • The FUNCTION name of external input terminal can be changed over to VIDEO or MD. With the FUNCTION selected to “MD”, about 5dB mute is applied to the input gain. Procedure: 1. Press \/1 button to turn the power OFF. 2. Press \/1 button together with FUNCTION button for several seconds, and the power is turned on, the display of fluorescent indicator tube changes to “MD” or “VIDEO” instantaneously, and thus the FUNCTION is changed over. [Aging Mode] This mode can be used for operation check of tape deck section. Tape deck section work in parallel. • If an error occurred: The aging operation stops and display then status. • If no error occurs: The aging operation continues repeatedly. Procedure: 1. Load the tapes into the decks A and B respectively. 2. Press the FUNCTION button to select the function “CD”. 3. Press the PLAY MODE button to set the “ALL DISCS” mode, and press the REPEAT button to “REPEAT” off. 4. Press three buttons of c/CLOCK SET , TUNER ENTER , and DISC 4 simultaneously. 5. The aging mode is activated, if the indicator of disc tray num- ber on the fluorescent indicator tube is blinking. 6. To release from the aging mode, press the \/1 button to turn the power OFF and operate the cold reset. (Refer to the “MC Cold Reset”) 1. Display at the Aging Mode • Display operating state of tape deck section alternately. • If an error occurred, stop display. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 HCD-XGR6/XGR60 FWD the tape A “TAPE A AG-2” Fast forward the tape A “TAPE A AG-3” RVS the tape A “TAPE A AG-4” Rewind the tape A “TAPE A AG-5” FWD the tape B “TAPE B AG-2” Rewind the tape A “TAPE A AG-1” Fast forward the tape B “TAPE B AG-3” RVS the tape B “TAPE B AG-4” Rewind the tape B “TAPE B AG-5” Shut off 2 minutes Shut off or 20 seconds 2 minutes Shut off 2 minutes Shut off or 20 seconds 2 minutes Shut off Aging mode sequence (Tape deck section): 2. Tape Deck Section • The sequence during the aging mode is following as below. • If an error occurred, stop display that step. Note: “TAPE * AG- * ” is display of each step. 3. CD Section • The sequence during the aging mode is following as below. • If an error occurred, stop display that step. Aging mode sequence (CD section): DISC 1 chucking TOC Read Track 1 Play Tray Tun Tray Turn DISC 4 Chucking 2 seconds Last Track Play TOC Read Track 1 Play Last Track play [VACS ON/OFF] • The volume control by VACS is turned ON/OFF. Procedure: 1. Press the \/1 button to turn the power ON. 2. Press the PLAY MODE and \/1 buttons simultaneously. 3. The reaction display appears when switcing ON/OFF. 2 seconds 2 seconds www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 HCD-XGR6/XGR60 Torque Measurement Mode Torque Meter Meter Reading 2.9~6.9 mN•m FWD (30 to 70 g•cm) (0.42 – 0.97 oz•inch) FWD CQ-102C 0.19~0.59 mN•m back tension (2 to 6 g•cm) (0.03 – 0.08 oz•inch) 7.8~16.7 mN•m FF/REW CQ-201B (80 to 170 g•cm) (1.11 – 2.36 oz • inch) SECTION 4 MECHANICAL ADJUSTMENTS Precaution 1. Clean the following parts with a denatured alcohol-moistened swab: record/playback heads pinch rollers erase head rubber belts capstan idlers 2. Demagnetize the record/playback head with a head demagne- tizer. 3. Do not use a magnetized screwdriver for the adjustments. 4. After the adjustments, apply suitable locking compound to the parts adjusted. 5. The adjustments should be performed with the rated power sup- ply voltage unless otherwise noted. SECTION 5 ELECTRICAL ADJUSTMENTS DECK SECTION 0 dB = 0.775 V Precaution 1. Demagnetize the record/playback head with a head demagne- tizer. 2. Do not use a magnetized screwdriver for the adjustments. 3. After the adjustments, apply suitable locking compound to the parts adjust. 4. The adjustments should be performed with the rated power supply voltage unless otherwise noted. 5. The adjustments should be performed in the order given in this service manual. (As a general rule, playback circuit adjustment should be completed before performing recording circuit adjustment.) 6. The adjustments should be performed for both L-CH and R-CH. 7. Switches and controls should be set as follows unless other- wise specified. 8. Set to the DOLBY NR OFF. 9. Set to the test mode. (1) Press the \/1 button to turn the power ON. (2) Select the function “TAPE A or B”. (3) Press the button of c/CLOCK SET , TUNER ENTER , and DISC 3 simultaneously, to set the tape deck test mode and displays “TEST MODE” on the fluorescent indicator tube. (4) To release from the test mode, press the \/1 button. • Test Tape Tape Signal Used for P-4-A100 10 kHz, – 10 dB Azimuth Adjustment WS-48B 3 kHz, 0 dB Tape Speed Adjustment P-4-L300 315 Hz, 0 dB Playback Level Adjustment www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 HCD-XGR6/XGR60 Record/Playback Head Azimuth Adjustment DECK A DECK B Note: Perform this adjustments for both decks Procedure: 1. Mode: Playback (FWD) set MAIN board MD (VIDEO) OUT jack (J701) L-CH, R-CH + – level meter test tape P-4-A100 (10 kHz, – 10 dB) Screw position L-CH peak within 1dB Output level L-CH peak R-CH peak within 1dB Screw position R-CH peak 3. Mode: Playback set test tape P-4-A100 (10 kHz, – 10 dB) R-CH oscilloscope L-CH R-CH V H waveform of oscilloscope in phase 45° 90° 135° 180° good wrong MAIN board MD (VIDEO) OUT jack (J701) L-CH 4. Repeat step 1 to 3 in playback (REV) mode. 5. After the adjustments, apply suitable locking compound to the pats adjusted. Adjustment Location: Playback Head (Deck A). Record/Playback/Erase Head (Deck B). Tape Speed Adjustment DECK B Mode: Playback + – set test tape WS-48B (3 kHz, 0 dB) MAIN board MD (VIDEO) OUT jack (J701) L-CH, R-CH frequency counter 1. Insert the WS-48B into the deck B. 2. Press the H button on the deck B. 3. Press the H SPEED DUB button in playback mode. Then at HIGH speed mode. 4. Adjust RV392 on the LEAF SW board do that frequency counter reads 6,000 ± 180 Hz. 5. Press the H SPEED DUB button. Then back to NORMAL speed mode. 6. Adjust RV391 on the LEAF SW board so that frequency counter reads 3,000 ± 90 Hz. Adjustment Location: MAIN board Sample value of Wow and Flutter: 0.3% or less W.RMS (JIS) (WS-48B) forward reverse 2. Turn the adjustment screw and check output peaks. If the peaks do not match for L-CH and R-CH, turn the adjustment screw so that outputs match within 1dB of peak. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 HCD-XGR6/XGR60 REC Bias Adjustment DECK B Procedure: 1. Mode: Record FUNCTION: VIDEO attenuator set MAIN board MD(VIDEO) IN jack (J701) L-CH, R-CH 1) 315 Hz 2) 10 kHz 50 mV (– 23.8 dB)    600 Ω blank tape CS-123 AF OSC 2. Mode: Playback + – set recorded portion MAIN board CN301 pin 1 (L-CH) pin 3 (R-CH) level meter 3. Confirm playback the signal recorded in step 1 become speci- fication values as follows. If these values are out of specification values, adjust the RV321 (L-CH) and RV322 (R-CH) on the MAIN board to repeat steps 1and 2. Adjustment level: The playback output of 10kHz level difference against 315 Hz reference should ±0.5 dB. Adjustment Location: MAIN board REC Level Adjustment DECK B Procedure: 1. Mode: Record FUNCTION: VIDEO set MAIN board MD (VIDEO) IN jack (J701) L-CH, R-CH 315 Hz, 50 mV (– 23.8 dB) blank tape CS-123 600 Ω attenuator AF OSC 2. Mode: Playback + – set recorded portion MAIN board CN301 pin 1 (L-CH) pin 3 (R-CH) level meter 3. Confirm playback the signal recorded in step 1 become speci- fication values as follows. If these values are out of specification values, adjust the RV351 (L-CH) and RV301 (R-CH) on the MAIN board to repeat steps 1 and 2. Specification values: CN301 playback level: 47.2 to 53.0 mV (– 24.3 to – 23.3 dB) Adjustment Location: MAIN board – MAIN BOARD (Component Side) – 1 18 1 15 CN431 CN371 1 3 IN OUT MD (VIDEO) CN301 IC301 IC501 RV321 REC BIAS L-CH RV351 REC LEVEL L-CH RV301 REC LEVEL R-CH RV391 TAPE SPEED (NORMAL) RV392 TAPE SPEED (HIGH) RV322 REC BIAS R-CH www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 HCD-XGR6/XGR60 CD SECTION Note : 1. CD Block is basically designed to operate without adjustment. Therefore, check each item in order given. 2. Use LUV-P01 (4-999-032-01) unless otherwise indicated. 3. Use an oscilloscope with more than 10M impedance. 4. Clean the object lens by an applicator with neutral detergent when the signal level is low than specified value with the following checks. S-Curve Check BD board Oscilloscope TP(FE) TP(DVC) Procedure : 1. Connect oscilloscope to TP (FE). 2. Connect between TP (FE) and TP (DVC ( 1.65 V) by lead wire. 3. Press the \/1 button to turn the power ON. 4. Load a disc (LUV-P01) and actuate the focus search. (In conse- quence of open and close the disc tray, actuate the focus search) 5. Confirm that the oscilloscope waveform (S-curve) is symmetri- cal between A and B. And confirm peak to peak level within 2 ±0.5 Vp-p. symmetry S-curve waveform within 4 ±1Vp-p A B 6. After check, remove the lead wire connected in step 2. Note : • Try to measure several times to make sure than the ratio of A : B or B : A is more than 10 : 7. • Take sweep time as long as possible and light up the brightness to obtain best waveform. RF Level Check TP(RFDC) TP(RFAC) BD board oscilloscope Procedure : 1. Connect oscilloscope to TP2 (RFDC) and TP1 (RFAC). 2. Press the \/1 button to turn the power ON. 3. Load a disc (LUV-P01) and playback. 4. Confirm that oscilloscope waveform is clear and check RF signal level is correct or not. Note: Clear RF signal waveform means that the shape “◊” can be clearly distinguished at the center of the waveform. VOLT/DIV : 200mV TIME/DIV : 500ns level : 1.45 ± 0.3Vp-p E-F Balance (1 Track jump) Check TP(TE) TP(DVC) BD board oscilloscope Procedure: 1. Connect oscilloscope to TP (TE) and TP (DVC) board. 2. Press the \/1 button to turn the power ON. 3. Load a disc (LUV-P01) and playback the number nine track. 4. Press the bB button. (Becomes the 1track jump mode.) 5. Confirm that the level B and A (DC voltage) on the oscillo- scope waveform. B=1.3 ± 0.6Vp-p symmetry A (DC voltage) center of waveform B 0V Specified level: × 100=less than – 22% B A 6. Adjust RV101 so that A (DC voltage) becomes 0. Checking Location: [BD BOARD] DVC RFAC FE SE TE RFDC RV101 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 21 HCD-XGR6/XGR60 Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • 2 : nonflammable resistor. • 5 : fusible resistor. • C : panel designation. Note on Printed Wiring Boards: • X : parts extracted from the component side. • : Pattern from the side which enables seeing. (The other layers´ Patterns are not indicated.) • Indication of transistor. • A : B+ Line. • B : B– Line. • H : adjustment for repair. • Voltages and waveforms are dc with respect to ground under no-signal conditions. BD board section no mark: CD PLAY Other board section no mark: TUNER (FM/AM) ( ): TAPE PLAY < >: TAPE REC [ ]: CD PLAY • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. F : TUNER (FM/AM) E : TAPE PALY (DECK A) d : TAPE PALY (DECK B) G : RECORD J : CD PALY (ANALOG OUT) c : CD PALY (DIGITAL OUT) N : MIC INPUT • Abbreviation AR : Argentina model MX : Mexican model E51 : Chilean and Peruvian model Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. SECTION 6 DIAGRAMS PANEL FL board TRANS board SUB TRANS board MAIN board PA board TC-B board HEADPHONE board FRONT INPUT board CD-R board SENSOR board D-SW board MOTOR board LED board BD board CD-L board MIC/GUITAR board TC-A board PANEL VR board TUNER PACK (FM/AM TUNER UNIT) 6-1. CIRCUIT BOARD LOCATION B These are omitted. C E Q B These are omitted. C E Q C B These are omitted. E Q w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-XGR6/XGR60 22 22 6-2. BLOCK DIAGRAMS – CD SERVO SECTION – SQSO SQCK A/D CONVERTER CH1OUTF CH1OUTR 6 7 8 9 15 16 18 11 10 12 2 1 51 49 48 43 24 41 40 39 64 15 28 29 30 31 32 33 24 25 23 5 6 2 3 17 18 15 16 E B C D A PD1 PD2 I1-6 I5-10 LD PWM3 PWM1 PWM2 PD CD D+5V F A B C D RF SUMMING AMP ∑ A-D FOCUS ERROR AMP RF EQ AMP DC AMP TRACKING ERROR AMP RFAC RFDCO RFDCI FE FEI RF AMP, FOCUS/TRACKING ERROR AMP IC103 TE E F F I-V AMP E I-V AMP LD DRIVE Q101 APC LD AMP APC PD AMP BUFFER Q451-454 LD LD PD LASER DIODE RFAC ASYO ASYI ASYMMETRY CORRECTION DIGITAL PLL DIGITAL SIGNAL PROCESSOR, DIGITAL FILTER, D/A CONVERTER IC101 (1/2) DATA XLAT CLOK 14 5 6 MDP 26 7 8 XLON 3 XRST DIGITAL CLV D/A INTERFACE SE TE FE RFDC FOCUS/TRACKING/SLED SERVO DSP FOCUS/TRACKING/SLED PWM GENERATOR SFDR CH3FIN CH4SIN CH3RIN CH3OUTF CH3OUTR CH2FIN T+ T- F+ F- CH2RIN CH1FIN CH1RIN 20 MUTE SRDR TFDR TRDR FFDR FRDR S101 (LIMIT) EMPH WFCK GFS MIRR/DFCT/ FOK DETECTOR SERVO AUTO SEQUENCER SERVO INTERFACE CPU INTERFACE 18 63 62 61 19 SENS 20 35 40 36 37 34 19 SCOR SQ-DATA SQ-CLK CD-DATA XLT CD-CLK SENS SCOR 1 2 32 33 SCLK COUT 9 21 SSTP 27 FOK 22 23 MIRR DFCT TO SERVO INTERFACE CH4OUTF CH4OUTR M101 SPINDLE MOTOR MOTOR DRIVE MOTOR DRIVE COIL DRIVE CH2OUTF CH2OUTR COIL DRIVE M M M102 SLED MOTOR FOCUS/TRACKING COIL DRIVE, SPINDLE/SLED MOTOR DRIVE IC102 TRACKING COIL FOCUS COIL DIGITAL SERVO PROCESSOR IC101 (2/2) OPTICAL PICK-UP BLOCK (A-MAX.3) SW PD I-V AMP 12 11 13 14 54 56 53 55 FILTER FILO PCO CLTV FILI EFM DEMODULATOR SERIAL IN INTERFACE DIGITAL FILTER, NOISE SHAPER PWM & INTEGRATOR BUFFER CLOCK GENERATOR OPTICAL TRANSCEIVER IC451 CD DIGITALOUT OPTICAL TIMING LOGIC MUTE Q401 DIGITAL OUT INTERNAL BUS 16K RAM ERROR CORRECTOR SUBCODE PROCESSOR 60 HOLD 26 28 BU-PWM1 BU-PWM2 BU-PWM3 PWM1 PWM2 PWM3 24 43 XRST XTAI X101 16.9344MHz AIN1 AIN2 R-CH J702 CD-L XGR6/XGR60: MX XGR60: E,E51,AR R-CH R-CH R SEND R L L AOUT1 AOUT2 TO MIRR/DFCT/ FOK DETECTOR PCMD BCK LRCK C2PO DOUT 66 XTAO 67 70 77 LOUT1 LOUT2 72 75 71 76 : CD PLAY (ANALOG OUT) : CD PLAY (DIGITAL OUT) SYSTEM CONTROLLER (CD MECHANISM CONTROL) IC501 (1/4) When the optical pick-up is inner position. ON : (Page 24) A • SIGNAL PATH • R-ch is omitted due to same as L-ch. MTR-CTRL1 MTR-CTR2 M TABLE MOTOR DRIVER IC201 OUT2 OUT1 IN2 IN1 M201 (TABLE) DISC TABLE SENSOR IC202 BU UP/DW SW S201 (UP SWITCH) TBL-SENS MOTOR DRIVE 49 CD-MUTE 5 48 45 44 LED-DISK 47 1 9 3 7 LED DRIVE Q201 D201 (DISC No.) 28 29 NC NC NC NC NC NC NC NC NC 17 NC NC NC Q412 Q411 RETURN DJ MIX w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 23 HCD-XGR6/XGR60 –TUNER/TAPE DECK SECTION – PB-L B (Page 24) ST-L RV391 D (Page 24) REC-L C (Page 24) PB HEAD DECK-A DECK-B TC BLOCK 32 BIAS OSC Q331,332 RIPPLE FILTER Q333 A TRIG DRIVE • SIGNAL PATH : PLAYBACK (DECK A) : PLAYBACK (DECK B) : RECORD : TUNER (FM/AM) R-CH FM/AM TUNER UNIT CN371 ANTENNA ST-LOUT FM ANT FM ANT AM ANT AM ANT ST-ROUT ST-MUTE STEREO TUNED OUT(ST-DIN) IN(ST-DOUT) ST-CLK ST-CE FM 75Ω MOTOR-H MOTOR-L CAP M+ B-SOL A-SOL A-HALF B-HALF A-MODE B-MODE B-PHOTO A-PHOTO REC(FWD) REC(REW) CAPM-H/L CAPM-CTRL B-TRIG A-TRIG TC-RELAY A-HALF B-HALF A-PLAY SW B-PLAY SW B-SHUT A-SHUT REC-A REC-B BIAS PB-A/B EQ-H/N ALC REC-MUTE TC-MUTE AMS-IN AM • R-ch is omitted due to same as L-ch. 70 A B 120 ST-MUTE STEREO TUNED ST-DIN ST-DOUT ST-CLK ST-CE ST-MUTE STEREO TUNED ST-DIN ST-DOUT ST-CLK ST-CE RV392 BIAS TRAP REC BIAS(L) 34 1 2 3 4 28 27 26 23 21 65 67 66 68 61 58 53 50 46 90 89 57 56 91 70 69 51 B TRIG DRIVE 52 CAP MOTOR DRIVE 55 CAP MOTOR SPEED CONT 54 21 2 3 27 22 25 23 13 12 11 15 14 SWITCH Q321,322 HPF R-CH PB-OUT1 ALC1 MUTE Q344,345 AMS DETECT Q341-343 R-CH R-CH R-CH R-CH RV321 REC(L) LEVEL RV351 C322,L321 TC A+10 REC/PB SWITCH IC321 REC/PB HEAD ERASE HEAD A/B NORM/HIGH ALC ON/OFF REC MUTE ON/OFF MUTE ON/OFF IC341 DECK A/B SELECT PB/REC EQUALIZER AMP IC301 Q334,335 T331 Q383,384 Q381,382 Q385,386 TAPE SPEED LOW RV931 TAPE SPEED HIGH RV932 Q387,388 SYSTEM CONTROL (CD MECHANISM CONTROL) IC501(2/4) REC-OUT + w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-XGR6/XGR60 24 24 – MAIN SECTION – RESET SIGNAL GENERATOR IC801 RESET SWITCH Q801 PHONO EQ AMP IC601 POWER AMP IC801 CD-L J701 (1/2) A (Page 22) (Page 25) (Page 23) C (Page 23) PB-L B FUNCTION SELECT SWITCH IC181 R-CH VOLUME CONTROL CPU INTERFACE INPUT SELECT SWITCH SURROUND OR DPL BUFFER MID/ BASS & TREBLE R-CH R-CH COMMAND F OUT2 OUT1 VL IN1 + EVER +3.9V Q802,803 LEVEL SHIFT D803 Q112 Q165,166 Q169,170 Q167,168 R-CH R-CH R-CH Q113 Q111 R-CH + + + RV601 MIC AMP IC850 (2/2) MUTE Q115 MUTE Q701 MUTE Q805,855 DELAY Q833 MUTE Q114 OVER LOAD DETECT Q801, 851 TEMPERATURE DETECT SWITCH Q831, 832 DC DETECT SWITCH Q433, 434 INPUT SELECT SWITCH, GRAPHIC EQUALIZER CONTROL, ELECTRICAL VOLUME IC111 INA1 INEX1 IND1 L+R SPEANA DATA CLK EQIC-DAT EQIC-CLK SW-MODE BB-A1 BB-B1 SWOUT REC-L R-CH R-CH X0 X A B X1 TH831 XGR60 XGR6 R-CH R-CH + R-CH M901 (FAN) R-CH –1 –2 FAN MOTOR DRIVE Q961, 962 R-CH R-CH OVER LOAD DETECT SWITCH Q432 PROTECT SWITCH Q439 OVER LOAD DETECT SWITCH Q437 FRONT SPEAKER PROTECT RELAY DRIVE Q401, 402 STANDBY SWITCH Q803, 804, 834 TM401 J802 J801 L R PHONO IN L R MD IN GAME INPUT AUDIO J701 (2/2) L R MD OUT D401 RY401 J803 PHONES + – – + SYSTEM CONTROLLER (CD MECHANISM CONTROL) IC501 (3/4) + GUITAR AMP IC853 88 FRONT-RELAY 87 94 97 AUDIO-OUT 1 STK-MUTE 83 LINE-MUTE 82 HP-MUTE 86 RESET 12 AC-CUT 20 1 18 11 12 POWER AMP IC801 14 7 8 3 HP-IN 95 80 81 2 14 15 24 18 22 16 21 5 3 6 INB1 INC1 4 M L R 19 XC-OUT X502 16MHz X501 32.768kHz XC-IN X-OUT X-IN FUNC-SEL0 FUNC-SEL1 11 10 13 71 14 13 10 9 12 15 J804 (2/2) L R X2 15 X3 11 72 PROTECT DBFB-H/L GUITAR MIX MIC DISTORTION E (Page 25) F DISTORTION ON/OFF SWITCH Q880 – 883 GUITAR AMP IC852 MIC AMP IC850 (1/2) MIC LEVEL RV602 GUITAR LEVEL ST-L D (Page 23) J804 (1/2) J721 GAME INPUT VIDEO VIDEO OUT • SIGNAL PATH : TUNER (FM/AM) : CD PLAY • R-ch is omitted due to same as L-ch. : TAPE PLAY : RECORD : MIC INPUT PROTECT SWITCH Q431 FRONT SPEAKER IMPEDANCE USE 4 – 16Ω R-CH TC +10V -VEE 17 NC Q805,806 LEVEL SHIFT 8 MIC RECB1 7 MIC OUT C A B C A B Q181 Q182 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 25 HCD-XGR6/XGR60 – DISPLAY/KEY CONTROL/POWER SUPPLY SECTION – +10V REGULATOR IC931 +12V REGULATOR IC911 +12V REGULATOR IC961 +3.9V REGULATOR IC922 ST +10V (FM/AM TUNER UNIT B+) FAN MOTOR B+ TC M+9V (TC MOTOR SECTION B+) CD M+7V (CD MOTOR SECTION B+) +5V REGULATOR IC921 RECT D833 – 836 RECT D841 – 844 POWER AMP (IC801), PROTECT CIRCUIT POWER TRANSFORMER T951 RECT D832 RECT D831 –35V REGULATOR Q903, 908 AC IN XGR6/ XRF60:MX D+3.9V LED 3.9V –VEE VF TO FLUORESCENT INDICATOR TUBE (FL601) VF +VL –VL +VH –VH GRID DRIVE Q608,609 FLUORESCENT INDICATOR TUBE DRIVER, KEY CONTROL IC601 SYSTEM CONTROLLER CD MECHANISM CONTROL IC501 (4/4) LED DRIVER IC701 BAND-PASS FILTER IC602 LED +3.9V BPF-F02 BPF-F03 BPF-F04 BPF-F05 BPF-F06 72 73 74 GRID DRIVE Q606,Q607 DET DET B.P.F. 75 ALL BAND REC IN LINE IN ROTARY ENCODER S763 LED DRIVE Q601 REMOTE CONTROL RECEIVER IC603 ROTARY ENCODER S700 59 JOG A 57 VOL A 58 JOG B 56 82 83 VOL B XOUT XIN B+ SWITCH Q901-904 B+ SWITCH Q602-605 KEY 0 – KEY 5 NFF02 NFF04 INF05 F06 INF03 GR-3 (Page 24) F D701-723 D603-613 D700 D801-804 SPEANA LED SELB 55 LED SELA 80 LED DAT 78 LED SCK 76 LED LATCH DATA CLK 79 16 17 18 15 GR-1 17 GR-16 1 GR-9 8 I2C-DATA I2C-CLK IIC-DATA IIC-CLK 71 61 60 29 LED-STBY D-SW S746 52 75 KEY-POWER 74 KEY-ECO 73 SIRCS 4 1 30 CD-POWER 38 A+10V TC+10V 70 14 13 12 REC LEVEL 11 15 16 4 6 64 – 69 SEG-1 – SEG-25 18 – 21,24 – 41 43,44 GR-2 ,GR-4-GR8 GR9-GR15 20-29,1-7,9-12 P1 – P21 S763 (JOG DIAL) S611,612,S741-751 S613-634,S801-809 S601-605,S701-716 S606-610,S752-755 S713-725 S700 VOLUME AMS X601 4MHz STB +5V (LED) (PANEL SECTION B+) D+5V (UNSW) (CD TRAY SECTION B+) FLUORESCENT INDICATOR TUBE FL601 LID (CD) OPEN/CLOSE –35V FL DRIVER (IC601) B– CD A+5V (SW) , CD D+5V (SW) CD MECHANISM DECK SECTION B+ Q922 AU D+5V M62493FP (IC101) B+ D+5V (SW) (CD SENSOR SECTION B+) RESET OTM-RESET 77 41 S620 ON/FF D602 S619 POWER SAVE (Page 24) E DIST 53 DISTORTION B+ SWITCH Q921 RECT D902 – 905 +5V REGULATOR IC901 EVER +3.9V SYSTEM CONTROLLER (IC501) , FL DRIVER (IC601) B+ F963 F964 F961 F962 XGR60:E,E51,AR RY901 STBY-RELAY 84 SUB POWER TRANSFORMER T901 POWER ON/OFF RELAY DRIVE Q901 16,14 – 12 10,9,7-2 .> VOLTAGE SELECTOR S901 D911-913 VF w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-XGR6/XGR60 26 26 6-3.PRINTED WIRING BOARD – BD SECTION – • See page 21 for Circuit Boards Location. Ref. No. Location D101 D-4 IC101 C-2 IC102 B-4 IC103 C-1 Q101 B-2 Q102 D-4 • Semiconductor Location 12 (12) 1-680-003- BD BOARD M101 SPINDLE MOTOR M JR106 JR124 JR125 C183 C185 R122 C110 C192 C196 R143 C130 R144 C126 IC102 C153 C195 C197 R148 C159 R158 R159 C109 R103 C145 R118 JR104 C143 C111 C182 IC101 C172 R191 C129 R149 C165 RN101 R116 R102 R193 R194 C125 R192 R190 C181 C121 R105 R109 R196 C167 R114 C108 C104 R120 C114 R104 R173 R108 R147 C194 C112 C171 R107 R183 R131 C123 C103 R172 C102 R181 R124 R119 Q101 R182 R106 C168 R171 C190 R195 C124 R117 R123 JR103 C118 JR123 JR101 JR122 JR105 JR102 R101 C101 IC103 FB101 Q102 D101 R198 C184 C133 R111 JW102 FB102 L101 R162 JW132 JW136 JW126 JW142 C131 JW120 JW110 JW128 JW111 C117 C116 JW133 C191 CN102 X101 C162 C198 C122 JW121 CN101 JW119 JW118 JW127 JW113 JW114 JW141 JW125 JW131 JW138 JW143 JW135 JW145 JW129 JW144 JW117 JW139 JW137 JW130 JW116 JW124 JW123 JW140 C127 C193 JW134 JW122 RV101 JW115 JW112 – + OPTICAL PICK-UP BLOCK OP ASSY(A-MAX.3) M – + E 1 2 7 8 M102 SLED MOTOR A MAIN BOARD (Page 33) 1 7 8 14 28 22 21 15 1 15 30 16 E 2 3 4 5 A 1 B C D E w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 27 HCD-XGR6/XGR60 6-4. SCHEMATIC DIAGRAM – BD SECTION – • See page 44 for Waveforms. • See page 44 for IC Pin Function. • See page 50,51 for IC Block Diagrams. FE1 TE1 SE1 SPD1 TD1 TD2 FD1 FD2 C109 M102 M101 TP1 TP2 TP3 C101 C102 C103 C104 C108 C114 C121 C124 C125 C126 C129 C143 C145 C162 C171 C172 C181 C182 C190 C196 CN101 CN102 D101 IC101 Q101 Q102 R101 R102 R103 R104 R105 R106 R107 R108 R114 R116 R117 R119 R120 R131 R143 R144 R149 R171 R172 R173 R181 R182 R183 R190 R191 R192 R193 R198 RV101 X101 C112 C168 C198 C122 C191 C127 C195 R158 R159 R162 FB101 FB102 L101 4.7µH C183 C184 C185 R196 R195 R194 C192 C116 C130 C118 C131 R122 C117 R148 C110 R123 C123 C111 R109 C159 R118 RN101 R124 C165 C197 C153 IC103 IC102 R147 R111 C133 C193 C194 C167 1500p B SLED MOTOR SPINDLE MOTOR RFAC RFDC VC 3300p B 0.1 B 470p B 470p B 0.1 B 0.1 F 0.1 F 0.47 B 0.1 F 0.1 F 0.01 F 0.1 F 0.1 F 100 10V 680p CH 100p CH 680p CH 100p CH 1 F 0.1 F 21P 16P UDZ-TE-17-3.9B CXD3017Q 2SB710-RTX 2SD1664 1k 100k 15k 33k 1k 1k 10k 3.3k 160k 10 1k 2.7k 15k 220 33k 33k 10 22k 22k 22k 22k 22k 22k 220 33k 33k 120k 0 47k 16.9344 1 B 33p CH 100 10V 5L 100 10V 5L 100 10V 5L 100 10V 5L 0.1 F 27k 27k 100k 1-500-445-21 1-500-445-21 22000p B 1µ B 0.01µ B 680 220k 33k 0.1 F 100 10V 0.1 F 1000p B 100 10V 100k 100 10V 10 3300p B 10k 0.01 B 100p CH 1M 0.01 B 100 100 100k 0.1 F 0.1 B 0.1 F BA5974FM-E2 2.4k 120k 33p CXA2581N CH 100 10V 0.1 F 22p CH RCH LCH FE SE VC XTSL TES1 TEST VSS FRDR FFDR TRDR TFDR SRDR SFDR SSTP MDP LOCK FOK DFCT MIRR COUT SQSO SQCK XRST SYSM DATA XLAT CLOK SENS SCLK VDD ATSK SPOA SPOB XLON WFCK XUGF XPCK GFS C2PO SCOR LRCK PCMD BCK EMPH XVDD XTAI XTAO XVSS AVDD1 AOUT1 AIN1 LOUT1 AVSS1 AVSS2 LOUT2 AIN2 AOUT2 AVDD2 RMUT LMUT DOUT VDD VSS AVDD3 PCO FILI FILO CLTV AVSS3 RFAC BIAS ASYI ASYO AVDDO IGEN AVSSO ADIO RFDC CE TE LOUT ROUT AVDD DOUT SQCK XRST DATA SENS SCOR MGND DGND DVDD SQSO VC VCC T- T+ F+ F- PD LD LD DRIVE AGND +7V XLT CLOK PWM1 PWM2 PWM3 PD1 PD2 LDON SW VCC GND LD GND I1-6 I5-10 FE FEI TE TE_BAL CEI CE VCC RFG BST VFC RFC VC RFDCO RFDCI DC_OFST LD PD EQ_IN AC_SUM GND A B C D E F SW DVCC DVC RFAC PROCESSOR DIGITAL SIGNAL DIGITAL SERVO RF AMP DRIVE MOTOR/CIL RV101 E-F BALANCE . w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-XGR6/XGR60 28 28 6-6.SCHEMATIC DIAGRAM – MOTOR LED SECTION – • See page 56 for IC Block Diagrams. B MAIN BOARD (Page 33) SENSOR BOARD LED BOARD MOTOR BOARD 6-5.PRINTED WIRING BOARD – MOTOR LED SECTION – • See page 21 for Circuit Boards Location. B MAIN BOARD(2/3) (Page 31) 4.8 4.8 4.8 4.8 LED DRIVE TABLE MOTOR DRIVER DISC TABLE SENSOR TRAY w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 29 HCD-XGR6/XGR60 6-8.PRINTED WIRING BOARD – MIC/GUITAR SECTION – • See page 21 for Circuit Boards Location. Ref. No. Location IC850 B-3 IC852 C-4 IC853 C-5 Q880 C-6 Q881 D-6 Q882 C-6 Q883 C-6 Q884 B-4 • Semiconductor Location 6-7.SCHEMATIC DIAGRAM – MIC/GUITAR SECTION – C802 C801 C836 R854 C810 R852 C805 C818 IC850(1/2) IC850(2/2) C821 R855 C803 C804 IC852(2/2) R869 C814 IC852(1/2) R872 C815 FL801 IC853(2/2) IC853(1/2) Q881 Q883 Q882 Q880 C880 C813 C816 C884 C881 C882 R891 C806 R807 R809 J801 J802 C817 R853 NO802 R882 R881 R880 R883 R884 R885 R887 CN812 R888 C822 R874 R867 R873 R857 C837 R878 Q884 R876 R877 R879 C838 R850 R870 C819 R856 NO811 C824 R886 47p 10000p 10000p 47k 220p 100k 1000p 47p NJM4558L NJM4558L 47/16 10k 1 50V 0.47 50V NJM4558L 68k 47p NJM4558L 2.2k 47p NJM4558L NJM4558L DTC124ESA DTA124ESA DTC124ESA 2SC2603 2.2 50V 0.022 2.2 50V 2.2 50V 47p 47p 1M 47p 10k 1k 2.2 50V 1k 47k 47k 10k 47k 470 10k 10k 8P CT-S 1k 47/16 15k 2.2k 2.2k 4.7k 10 50V 1k 2SC2785 1k 330 1k 10 50V 1k 220k 47p 680k 3P 2.2 50V 390k MIC-VR-IN MIC-VR-OUT GND MIC-OUT MIC_GND ECHO/GUITAR-IN ECHO/GUITAR-OUT DISTORTION GUITAR MIX MIC +10V (CHASSIS) 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 GUITAR AMP IC852 AMP IC850 MIC 1 2 3 4 5 6 7 8 GUITAR AMP Q880-883 DISTORTION ON/OFF SWITCH IC853 MIC/GUITAR BOARD 11 (11) 1-683-455- J802 GUITAR J801 MIX MIC IC852 IC853 C881 1 8 1 8 IC850 C806 C818 R858 R887 JW813 JW817 Q880 R857 R873 JW824 JW818 FL801 C838 C837 C880 C884 R876 R879 R877 R874 Q884 Q883 JW812 R888 Q882 R885 Q881 R883 R880 R882 R881 C882 JW822 R886 R872 JW823 JW814 JW819 JW805 JW820 JW806 C824 R884 C810 R867 C836 C801 R807 R809 R854 C804 C802 C813 R891 C814 R870 C815 R850 R855 C819 R856 R853 JW801 R878 JW816 C821 C805 R852 C817 C803 C822 CN812 C816 JW821 JW481 JW804 NO811 CLP804 NO802 (CHASSIS) JW815 E E 1 6 E E E L TC–A BOARD (Page 38) E MAIN BOARD (Page 33) 1 8 1 3 2 3 4 A 1 B C D E F w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-XGR6/XGR60 30 30 6-9.SCHEMATIC DIAGRAM – MAIN (1/3) SECTION – C603 C607 C653 C724 R602 R607 R657 C774 IC601(2/2) IC601(1/2) C602 C652 R604 C654 R654 C655 C656 R656 R655 C605 C606 R605 R606 R609 C604 R701 R702 R703 R704 R751 R752 R753 R754 C701 C751 Q751 Q611 R611 R612 R614 C612 R613 CN722 JR723 R724 C753 C112 C161 C162 C163 C164 C165 C115 C113 C114 C111 C166 C167 C170 C171 C168 C121 C118 C120 C117 C116 R172 R163 R122 R113 R111 R161 R112 R162 C133 C132 C610 C182 Q182 Q167 Q169 Q168 Q170 Q165 C160 C110 Q113 Q163 Q111 Q112 Q162 Q161 R127 R128 R125 R179 C124 C174 Q114 Q164 R174 R124 R126 R180 Q115 Q116 R134 R118 R116 R115 R165 R166 C137 C138 R135 C772 R603 R653 R608 R658 C657 C702 C752 Q701 R755 R705 C704 C754 R706 R756 C703 C183 R182 R181 C722 C613 C611 C135 C134 R167 R117 R129 R130 Q166 C771 C136 R707 J721 J702 R708 R709 R758 R759 R710 R760 C705 C755 JW701 JW751 R131 C131 JR181 JR182 J701 C169 C119 R114 R132 R164 R123 R173 R119 R169 R175 R177 R178 C609 C193 C181 JW722 R722 Q181 R136 R133 R176 R168 C122 C123 R137 R120 R121 C173 C172 R170 R138 R171 IC111 IC181 C601 C651 R601 C608 R652 R651 C658 R757 100p 100p 470p 1k 1k 1k 0.1 NJM4558M NJM4558M 100p 100p 0.0047 PET 0.0015 PET 47k 560k 0.0047 PET 0.0015 PET 560k 47k 220 1/10W 1k 100k 1k 100k 1k 100k 1k 100k 220p 220p 2SC3623A 2SC2603 1k 1k 1k 0.01 330 5P EH-S 0 10k 10 50V 10 50V 10 50V 10 50V 10 50V 10 50V 10 50V 10 50V 10 50V 10 50V 10 50V 0.022 0.022 4700p 10 50V 10 50V 10 50V 10 50V 4700p 0.022 0.022 2.2k 1M 2.2k 1M 2.2k 2.2k 10k 10k 10 50V 100 16V 100 16V 0.1 DTC124ESA DTA124ESA DTA124ESA DTC124ESA DTC124ESA DTA124ESA 10 50V 10 50V 2SK1825 2SK1825 2SK1825 2SK1825 2SK1825 2SK1825 220k 220k 10k 10k 2.2 50V 2.2 50V 2SC3623ATP 2SC3623ATP 10k 10k 10k 10k 2SC3623ATP 2SC3623ATP 1M 220k 47k 47k 47k 47k 3300p 3300p 0 0.1 47k 47k 100k 100k 220p 220p 2SC3623A 10k 10k 10 50V 10 50V 2.2k 2.2k 10 50V 0.1 10k 10k 1000 10V 47 16V 47 16V 47 16V 0.01 220k 220k 1M 1M 2SC2603 0.1 10 50V 47k 1P 1P 1k 1k 1k 1k 100k 100k 220p 220p 10k 10 50V 0 0 6P 0.047 0.047 1M 10k 1M 100k 100k 560 560 47k 47k 47k 0.01 0.1 0.1 39 DTC124ESA 0 4.7k 22k 220k 0.33 MF 0.33 MF 100k 100k 680k 0.33 MF 0.33 MF 100k 100k 680k M61519FP MC14052BF- 330p 330p 1k 10 50V 1k 1k 10 50V 47k TA-MUTE MC1 SPE-SIG DBFB MIC-SIG L-CH SIG R-CH SIG CD-R CD-L TCPB-R TCPB-L ST-L ST-R TCREC-R TCREC-L PL A+10V +10V RECOUT-MUTE AC-MUTE 80 81 71 72 94 97 * MF * * 50 * * 50 * MF VIDEO2 V.GND V2.AU.L-CH A.GND V2.AU.R-CH 2.2/50V 4.7/50V 820 1K 0.033 MF 0.1 MF C607,657 C604,654 R604,654 XGR60 XGR6 IC601 PHONO EQ AMP L L R R SEND RETURN DJ MIX L R L R L R PHONO IN MD IN MD OUT VIDEO OUT (CHASSIS) 1 2 3 4 8 5 6 7 MUTE MUTE MUTE MUTE Q116,164 Q114,115 S S S S S S XGR6, XGR60:MX MODEL VOLUME INPUT SELECT SWITCH, EQ CONTROL, GRAPHIC ELECTRICAL INVERTER Q181,182 FUNCTION SELECT SWITCH AMP Q167-170 SWITCH Q111,112,113 SWITCH Q161,162,163 AMP Q165,166 EXCEPT XGR6, XGR60:MX MODEL w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 31 HCD-XGR6/XGR60 6-10.SCHEMATIC DIAGRAM – MAIN(2/3) SECTION – • See page 44 for Waveforms. • See page 46 for IC Pin Function. R513 R527 R529 R530 R532 R533 R543 R557 R573 R574 R575 R580 R581 R584 R585 R587 R588 R589 R590 R591 R802 R804 R805 R806 Q801 R517 D802 X502 D808 D807 D806 D805 D431 D809 R556 R595 C598 C599 FB599 R504 R549 JW404 JW405 C401 C402 C407 Q401 Q402 R407 R408 JW406 JW407 JW408 JW409 JW410 C410 CN411 R413 R414 Q411 Q412 R534 TP539 R541 R547 R521 R522 R523 C801 C802 C803 C806 FB516 FB562 R570 TP563 FB402 FB403 R586 R583 R503 R501 R505 R572 R571 R509 C512 JW600 R803 IC801 C804 R453 R452 R454 Q452 Q454 Q453 Q451 R412 R810 R808 Q803 Q805 C405 C406 FB404 L451 100µH C452 JW401 JW402 JW403 R525 R528 C510 C511 IC451 R540 Q802 Q806 R812 JW414 R519 R531 R516 CN431 R537 R536 R535 R599 R582 R451 R403 R406 R405 C414 C431 R410 R401 D810 C562 C563 R511 C516 JW518 R402 R404 C403 C404 CN401 IC501 CN441 R597 R598 R592 R593 R596 R594 R524 R526 R801 R502 C408 R807 X501 R548 D803 R813 R431 0 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 4.7k 47k 47k 10k 2SC2603 10k 1SS355 16MHz 1SS355TE-1 1SS355TE-1 1SS355TE-1 1SS355TE-1 1SS355 EC10DS2 100 100 0.1 47 16V 100 10k 0.1 1000 6.3V 0.1 2SC3623A 2SC3623A 0 0 470 10V 9P CT-S 10k 10k DTC124ESA DTC124ESA 100 100 100 100 100 100 10 50 0.1 MF 0.1 MF 2.2 50V B.P. 100 100 100 100 10k 10k 15k 15k 10k 0.1 4.7k M62703ML 1000 6.3 10k 10k 10k 2SA1115 2SC2603 2SA1115 2SC2603 15k 100k 100k DTA124ESA DTA124ESA 100p 100p 47 16V 100 100k 18p 22p TOTX141 47k DTC124ESA DTC124ESA 3.3k 100 10k 10k 19P FFC-S 100 100 100 10k 10k 10k 100 10k 10k 0.1 0.1 4.7k 100 EC10DS2-TE 0.1 47 16V 330k 0.1 3.3k 3.3k 2.2 50V 2.2 50V 21P M30622MCN-A01FP 11P 75k 75k 4.7k 0 4.7k 100 100 470 100 1000 6.3V 0 32.768kHz 100 1SS355 10k 100k TA-MUTE MC1 ST-R ST-L ST +10V CD-L CD-R CD D+5V SW CD A+5V SW M +7V SPE-SIG VFDP MC2 VF1 VF2 MIC-SIG MIC D+5V UNSW EVER+3.9V RECOUT-MUTE TC+10V -VEE LED 3.9V D 3.9V BPF+10V AC-MUTE MC3 D+3.3V 33 37 38 32 35 30 29 35 37 32 33 19 29 30 29 30 49 45 44 47 48 44 45 47 48 49 19 34 34 43 43 80 81 97 71 72 24 26 28 24 26 28 83 84 85 87 88 95 4 4 73 74 75 73 74 75 82 51 52 53 54 55 56 57 58 65 66 67 68 69 70 61 40 40 41 41 94 86 46 50 36 36 82 89 90 91 27 25 23 22 3 2 21 2 3 23 22 21 25 27 * ST-CE ST+10V STER EO TUNED ST-MUTE ST-CLK A-GND RESET X-OUT VSS X-IN NMI SCOR IIC-CLK IIC-DATA SQ-CLK CD-DATA CD-CLK VSS B-SHUT A-SHUT AVSS VREF AVCC XC-IN XC-OUT D-GND D-0UT R-CH A-GND L-CH M-GND X-RST X-LAT SENS SQ-CLK SQ-DATA SCOR CD-DATA CD-CLK D.GND D.OUT M+7V(UNSW) TBL.R TBL.L M.GND TRAY.SENS D.GND LED UP.SW VF VF VFDP SPEANA RESET MIC-SIG CD-POWER REAR-RELAY STBY-RELAY FRONT-RELAY PROTECT STK-MUTE HP-IN EQIC -CLK LINE-MUTE EQIC-DAT PL-CLK PL-DAT PL-LAT VIDEO-MUTE LED-STBY KEY-POWER KEY-ECO FUNC-SEL1 FUNC-SEL0 MODEL-IN DEST-IN SW-MODE AUDIO -OUT STEREO TUNED SIRCS BYTE CNVSS VCC RDS-INT ST-MUTE ST-CE ST-DOUT BU-PWM3 ST-DIN BU-PWM2 ST-CLK BU-PWM1 SENS SQ-DATA CLK-OUT HOLD OTM-RESET XLT XRST MTR-CTRL2 MTR-CTRL1 LED-DISC BU UP/DW SW TBL-SENS A-HALF TC-RELAY ALC PB-A/B EQ-H/N BIAS SOFT-TEST VCC REC-MUTE NR-ON/OFF REC/PB/PASS TC-MUTE B-PLAY SW A-PLAY SW CAPM-CTRL CAPM-H/L AMS-IN B-TRG A-TRG PWM3 PWM2 PWM1 LD-ON ST-LOUT ST-ROUT IIC DATA IIC CLK 3.3V EVER 3.3V SIRCS KEY ECO KEY POWER LED STBY +5V +7V GC 3.3V DBFB-H/L CD-MUTE HP-MUTE +10V PANEL GND REC-B REC-A RDS-DATA AC-CUT IN(ST-DOUT) OUT(ST-DIN) B-HALF LED 3.9V DSP+5V(SW) RF+5V(SW) PANEL GND LED 3.9V INVERTER Q411,412 BUFFER Q451-454 MUTE Q401,402 RESET SWITCH GENERATOR SYSTEM CONTROL LEVEL SHIFT Q802,803 LEVEL SHIFT Q805,806 RESET SIGNAL *R594 1k 2.2k CD DIGITAL OUT OPTICAL TUNER PACK XGR60 XGR6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-XGR6/XGR60 32 32 C354 TP351 TP352 R354 C356 C306 TP302 TP301 C304 R304 C307 C357 TP303 TP304 IC321 µPC1330H C321 RV321 RV322 C327 C326 T331 Q331 Q332 C334 C335 C336 R333 R334 C338 C332 C333 Q381 Q383 R381 R384 R383 R386 R390 R388 R389 C381 R382 C382 R385 CN301 C312 C341 R350 R346 R347 IC341(2/2) IC341(1/2) R378 R371 R372 CN371 Q384 Q385 Q386 R387 C351 C301 R377 R375 R374 C347 C358 C308 C359 C309 R393 C322 C323 L322 L321 C324 C325 D381 D382 Q382 Q388 Q387 R394 RV392 RV391 CN311 CN321 R349 R338 R339 Q342 Q343 Q341 R340 C342 R341 R342 R326 R327 R324 R325 C328 C329 C343 C344 C348 R308 RV351 R328 R329 R336 C337 Q333 C331 Q322 Q321 R330 Q335 Q334 R337 JR301 L301 100µ C353 C303 R302 C302 R352 C313 R311 Q344 Q345 R318 R320 C350 JR353 JR303 C912 C911 Q922 C924 C926 IC931 C903 CN902 CN903 C921 C962 CN901 C902 C925 C922 C963 C311 D913 D912 D911 R963 CN961 JW962 C961 R961 Q962 Q961 R962 IC911 IC922 µPC3504AHF C923 R922 C901 R391 R392 R309 IC301 R301 R303 C305 RV301 R310 R358 R305 R351 C355 R353 R355 C352 JR351 C310 R343 C349 R348 Q921 R321 R331 R332 R335 EP901 C913 R344 C345 R345 C346 R319 IC921 µPC7805AHF IC961 µPC7812AHF 10 50V 2.2k 2.2 50V 2.2 50V 10 50V 2.2k 47 16V 47 16V 10 50V 220k 220k 27p 50V 27p 50V BIAS TRANS 2SC2001 2SC2001 6800p PET 6800p PET 18000p PET 18k 18k 47 16V 2.2 50V 15000p PET 2SB1116 2SB1116 680 680 2.2k 2.2k 3.3k 3.3k 3.3k 0.0047 2.2k 0.0047 2.2k 3P MOLEX 10 50V 470 10V 10k 10k 10k NJM4558M 10k 10k 10k 15P FFC-S DTC124ESA 2SB1068 DTC124ESA 47k 0.01 PET 0.01 PET 10k 10k 10k 10 50V 390p 390p 390p 390p 10k 0.00012 PET 0.00012 PET 27mH 27mH 330p 330p 1SS355 1SS355 DTC124ESA 2SK1825 DTC124ESA 220k 2.2k 4.7k 3P EH 8P EH 4.7k 22k 10k DTC124ESA DTC124ESA 2SC2603 10k 0.1 1k 1k 10k 10k 2.2k 2.2k 10000p B 10000p B 0.022 PET 0.022 PET 22 50V 22k 22k 12k 12k 2.2k 10 50V 2SD1387 0.01 100V PET DTA124ESA DTC124ESA 22k 2SB1116 DTC124ESA 3.3k 0 0.1 MF 0.1 MF 4.7k 10 50V 4.7k 10 50V 4.7k DTC124ESA DTC124ESA 10k 2.2k 1 0 0 470 10V 100 25V DTC124ESA 47 16V 470 6.3V M5F7810L 470 16V 13P 3P CT-S 2200 16V 0.1 13P 0.1 25V 0.1 16V 0.1 16V 47 16V 100 16V EC10DS2 EC10DS2 EC10DS2 2.2k 3P EH-L 0.1 4.7k 2SB1116A-L 2SC2603-EF 22k TA8662N 1000 6.3V 0 4700 25V 1.5k 2.7k 2.2k HA12236F 4.7k 10k 0.1 50V 22k 10k 10k 8.2k 4.7k 0.1 50V 10k 8.2k 10 50V 0 470p 47k 470p 4.7k 2SB1375 10k 5.6 1/4W FR 5.6 1/4W FR 5.6k 47 16V 4.7k 2.2 50V 4..7k 2.2 50V 100k TCREC-L TCPB-L TCREC-R TCPB-R D+3.3V D+5V UNSW CD D+5V SW CD A+5V SW M +7V ST +10V +10V VF1 VF2 VFDP MC2 DBFB L-CH SIG R-CH SIG MIC TC+10V EVER+3.9V BPF+10V LED 3.9V -VEE D 3.9V PL A+10V MC3 69 52 65 51 54 55 84 83 88 85 38 87 95 86 50 46 57 70 56 53 61 67 66 68 58 89 90 91 46 56 57 70 91 50 L-PB L-REC R-PB E-HOT R-REC L-PB R-PB GND GND GND A-HALF B-HALF REC(REW) REC(FWD) A-SOL B-SOL A-MODE B-MODE A-PHOTO CAPM+ B-PHOTO MOTOR-H MOTOR-L GND M-GND SW-GND FAN+ FAN- A.GND DBFB LCH-IN RCH-IN F-RELAY FAN.DE T PL-RELA Y POWER GND VF VF VF(-35V) D.GND MIC GND MIC HP.SW POWER STK POWER FAN+ HP MUTE EVER+3.9V +10V NC UNR EG+10V UNR EG+15V +10V NC 15VGN D 10VGN D -VEE PROTECT PB-REC SWITCH IC321 1 2 3 5 4 6 7 8 Q961,962 FAN SWITCH +12V REGULATOR +12V REGULATOR +5V REGULATOR +10V REGULATOR +3.9V REGULATOR M901 DRIVE B TRIG Q381,382 DRIVE DRIVE Q383,384 Q385,386 Q387,388 CAP MOTOR SPEED CONT CAP MOTOR A TRIG SELECT DECK A/B REC/PB EQ AMP IC341 HPF MUTE Q344,345 Q341-343 AMS DETECT INVERTER INVERTER SWITCH Q321,322 OSC BIAS Q331,332 RIPPLE FILTER SWITCH Q334,335 Q333 CHECK FOR TAPE A HEAD HEAD TAPE B TAPE MECHANISM DECK (CHASSIS) TAPE SPEED TAPE SPEED (NORMAL) (HIGH) REC LEVEL (R) REC LEVEL (L) (L) REC BIAS REC BIAS (R) 6-11. SCHEMATIC DIAGRAM – MAIN (3/3) SECTION – • See page 44 for Waveforms. • See page 51 for IC Block Diagrams. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 33 HCD-XGR6/XGR60 6-12.PRINTED WIRING BOARD – MAIN SECTION – • See page 21 for Circuit Boards Location. 11 (11) 1-683-458- MAIN BOARD D802 C922 C925 C902 D911 D912 D913 FB404 FB402 FB403 L451 IC111 R111 R112 R131 R161 R162 R113 R114 R115 R116 R117 R118 R119 R120 R121 R122 R123 R124 R163 R164 R165 R166 R167 R168 R169 R170 R171 R172 R173 R174 R132 JR22 R405 R406 R451 R452 R453 R454 R412 R413 R414 D805 R963 R961 R962 R922 R402 R401 R408 R407 R403 R404 R810 R808 R807 R519 R521 R524 R523 R527 R535 JR191 D806 C961 C451 CD DIGITAL OUT OPTICAL C405 C407 C401 C406 JR7 R133 C134 R177 R178 R175 R176 C962 C414 R410 C413 R812 R813 R127 R128 R125 R179 R180 R126 R134 R130 R129 C138 R136 C137 R135 JR23 JR27 JR21 JR20 JR14 JR1 R138 R137 IC181 IC601 IC501 R757 D810 R534 FB562 R599 R592 FB599 FB516 D809 R509 C512 R598 R652 R651 R654 R655 R653 R656 R657 R658 R609 R605 R604 R602 R601 R606 R607 R759 R760 R709 R758 R710 R708 R754 R753 R756 R701 R755 R751 R752 R702 R707 R703 R704 R706 R705 R724 R722 R803 R505 R503 R504 R593 R596 R595 R591 R594 R590 R597 R588 R586 R587 R585 R584 R583 R581 R580 R578 R570 R573 R574 R577 R575 R572 R557 R556 R548 R547 R549 R541 R529 R530 R513 R579 R377 R374 R375 R371 R372 R378 R431 R600 R501 R502 C653 C652 C609 C603 C601 C651 C602 C755 C705 C772 C771 C752 C701 C751 C702 C193 C182 C724 C183 C181 C516 C511 C510 R511 C598 C562 C431 R603 JR182 JR724 JR181 D803 R381 R382 R383 R384 R385 R386 R387 R388 R389 R390 R391 C381 C382 R341 R342 R343 R344 R345 R346 R347 R348 IC341 C342 R350 C326 C327 R333 R334 R321 R324 R325 C324 C325 C308 C358 C359 C309 R309 R308 R301 R302 R303 R304 R305 R351 R352 R353 R354 R355 R392 C349 R340 R571 C612 R614 R612 R611 R613 R608 D431 R589 JR30 R182 R181 C329 C328 R327 R326 R358 R349 R339 R338 R310 R393 R394 D381 D382 R582 R328 R329 R330 R335 R336 R337 JR16 JR17 JR25 JR15 JR29 JR31 JR3 JR4 JR5 JR6 JR26 R318 R319 R320 JR301 JR351 L301 JR353 JR303 R311 JR13 D807 D808 R802 R804 R801 R806 R805 R543 R532 R533 R526 R525 R522 R517 R537 R540 C774 JR723 JR192 R531 R516 R528 R536 CLP2 CLP4 IC921 IC931 Q803 Q921 CN901 EP901 Q962 Q961 CN902 C923 Q922 C924 IC922 C926 C903 C901 IC911 C912 C911 CN961 M901 FAN C913 CN411 C410 JW407 JW408 C408 IC451 C452 C111 C112 C113 C114 C115 C116 C117 C118 C119 C120 21 1 22 42 C121 C131 C161 C162 C163 C164 C165 C166 C167 C168 C169 C170 C171 C133 C135 C124 C174 Q113 Q114 Q164 Q163 Q162 Q161 Q112 Q111 C122 C123 C172 C173 C132 Q401 Q402 Q453 Q454 Q451 Q452 Q411 Q412 JW405 JW404 JW401 JW402 JW403 C806 C801 Q805 Q806 JW409 JW410 CN401 C404 C403 C402 JW12 JW110 JW112 JW113 JW116 JW117 JW119 JW121 JW123 JW124 JW125 JW126 JW127 JW131 JW133 JW190 JW191 JW192 JW193 JW196 JW197 JW198 JW199 JW200 JW201 JW202 JW203 JW204 JW205 JW206 JW207 JW208 JW209 JW210 JW211 JW212 JW213 JW214 JW215 JW216 JW217 JW218 JW219 JW221 JW223 JW227 JW228 JW229 JW230 JW231 JW232 JW233 JW234 JW235 JW236 JW237 JW238 JW239 JW248 JW249 JW250 JW251 JW252 JW253 JW254 JW255 JW256 JW257 JW258 JW259 JW260 JW262 JW267 JW268 JW269 JW270 JW271 JW272 JW273 JW274 JW275 JW332 JW333 JW338 JW343 JW344 JW347 JW348 JW353 JW357 JW380 JW381 JW382 JW386 JW388 JW553 JW336 JW337 JW182 JW246 JW247 JW414 JW379 JW378 JW377 JW559 JW560 JW264 JW345 JW70 JW130 JW129 JW242 JW243 JW244 JW128 Q165 Q166 Q167 Q168 Q169 Q170 JW575 JW114 JW384 JW330 JW263 JW298 JW265 JW261 JW266 JW346 C160 C110 IC961 C963 JW961 JW962 JW135 JW120 JW579 JW580 JW352 JW350 JW581 JW582 JW576 Q115 Q116 JW583 JW342 C136 C921 JW220 JW222 JW225 JW226 JW224 JW340 JW587 JW588 JW115 JW122 JW136 JW137 JW240 JW245 JW132 JW241 JW134 JW194 JW406 JW339 JW584 JW411 JW328 JW329 C604 C654 C722 X502 C599 RV301 J701 CN722 Q751 Q701 C753 C754 C703 J702 JW751 JW701 C704 C658 C608 C610 C657 Q611 C611 C613 CN903 X501 JW518 JW600 CN441 Q381 Q383 Q385 CN371 C563 C341 C345 C346 C347 C348 Q341 C343 C344 IC321 T331 C331 RV321 RV322 C332 Q331 Q332 C333 C334 C335 C336 Q334 Q321 C321 C322 C323 C311 R331 R332 L321 L322 C307 C312 C357 C301 C351 C304 C306 C302 C354 C352 RV351 C356 Q386 Q384 Q382 JW16 JW25 JW28 JW34 JW36 JW37 JW38 JW39 JW40 JW41 JW42 JW43 JW44 JW49 JW51 JW55 JW57 JW58 JW59 JW60 JW61 JW64 JW65 JW66 JW67 JW74 JW75 JW76 JW80 JW81 JW82 JW83 JW84 JW85 JW86 JW87 JW88 JW90 JW91 JW92 JW93 JW95 JW96 JW97 JW101 JW138 JW139 JW142 JW143 JW145 JW146 JW147 JW148 JW149 JW150 JW151 JW153 JW154 JW155 JW157 JW158 JW163 JW166 JW167 JW168 JW169 JW170 JW171 JW172 JW173 JW174 JW175 JW176 JW183 JW184 JW185 JW280 JW281 JW282 JW286 JW301 JW302 JW304 JW305 JW306 JW307 JW308 JW309 JW359 JW360 JW366 JW367 JW368 JW371 JW372 JW373 JW374 JW375 JW397 JW399 JW501 JW502 JW503 JW504 JW505 JW506 JW507 JW508 JW509 JW510 JW511 JW512 JW513 JW514 JW515 JW516 JW517 JW520 JW521 JW522 JW523 JW524 JW525 JW526 XGR6,XGR60:MX MODEL EXCEPT XGR6, XGR60:MX MODEL EXCEPT XGR6, XGR60:MX MODEL JW527 JW528 JW529 JW530 JW531 JW532 JW533 JW534 JW535 JW536 JW537 JW538 JW539 JW540 JW541 JW542 JW543 JW544 JW545 JW546 JW547 JW550 JW551 C607 C606 C605 C655 C656 JW556 JW376 JW287 JW288 JW285 JW284 JW283 JW156 JW310 JW361 JW396 JW398 JW295 JW296 JW297 JW164 RV392 RV391 JW557 JW18 JW558 JW500 JW561 JW562 JW563 JW564 JW565 JW566 JW573 JW574 JW141 JW144 JW140 JW56 JW20 JW19 JW161 JW162 JW71 JW72 JW62 JW63 JW1 JW73 JW94 JW77 JW79 JW78 JW15 JW17 JW5 JW4 JW2 JW3 JW14 JW13 Q388 Q387 JW548 JW549 JW10 JW89 JW98 Q181 Q182 JW577 JW395 JW394 JW7 JW290 JW294 JW555 JW165 JW299 JW293 JW289 JW292 JW291 JW300 JW6 JW365 JW9 JW21 JW370 JW369 JW571 JW572 JW364 JW363 JW362 JW569 JW570 JW320 JW322 JW324 JW325 JW326 JW567 JW311 JW312 JW313 JW315 JW316 JW317 CN152 JW319 JW349 Q342 Q343 JW568 JW24 CN311 CN321 C310 JW32 JW31 JW103 JW578 JW29 JW35 JW160 JW159 JW48 JW50 JW30 JW46 JW53 JW585 JW586 Q322 JW45 JW47 JW52 JW152 JW100 JW99 Q335 C338 Q333 C337 JW303 C305 C355 JW27 JW26 JW33 JW415 JW321 JW400 JW23 JW554 JW602 JW603 Q344 Q345 C350 JW341 C313 JW331 C303 C353 CN431 JW54 Q802 C803 C804 IC801 Q801 JW102 JW105 JW106 JW107 JW177 JW178 JW179 JW180 JW181 JW186 JW187 JW188 JW189 JW276 JW277 JW278 JW323 JW354 JW355 JW356 JW358 JW385 JW387 JW389 JW391 C802 JW279 J721 VIDEO OUT JW118 JW111 JW327 JW314 JW318 JW22 JW68 JW104 JW69 JW108 JW109 JW601 E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E (CHASSIS) PA BOARD (Page 40) G PA BOARD (Page 40) F 1 9 A MOTOR BOARD (Page 28) BD BOARD (Page 26) B PANEL FL BOARD (Page 38) TAPE MECHANISM DECK D TUNER PACK TAPE B HEAD TAPE A HEAD 1 3 E MIC/GUITAR BOARD (Page 29) 1 5 C FRONT INPUT BOARD (Page 34) MD (VIDEO) PHONO IN L OUT SEND RETURN DJ MIX IN R L R 1 15 1 8 14 2 1 8 4 5 1 8 16 9 11 10 30 31 IC301 20 21 1 40 1 3 CN301 1 8 4 5 1 100 81 80 50 51 30 31 2 1 21 20 2 3 4 5 6 7 8 9 10 11 A 1 B C D E F G H I D381 B-9 D382 B-9 D431 B-7 D802 B-5 D803 B-6 D805 B-5 D806 B-5 D807 B-5 D808 B-6 D809 B-7 D810 B-7 D911 C-3 D912 C-3 D913 C-3 IC111 F-4 IC181 H-7 IC301 D-10 IC321 E-9 IC341 B-10 IC451 H-2 IC501 C-7 IC601 H-10 IC801 B-5 IC911 C-3 IC921 D-3 IC922 E-3 IC931 F-3 IC961 H-2 Q111 F-3 Q112 F-3 Q113 F-3 Q114 G-2 Q115 G-2 Q116 G-2 Q161 G-3 Q162 G-2 Q163 G-3 Q164 G-2 Q165 G-2 Q166 G-2 Q167 H-3 Q168 H-2 • Semiconductor Location Ref. No. Location Ref. No. Location Q169 H-3 Q170 H-2 Q181 H-6 Q182 H-6 Q321 E-9 Q322 E-9 Q331 F-9 Q332 F-9 Q333 F-9 Q334 F-8 Q335 E-8 Q341 B-9 Q342 C-10 Q343 B-10 Q344 B-11 Q345 B-10 Q381 B-9 Q382 B-8 Q383 B-9 Q384 B-8 Q385 B-9 Q386 B-9 Q387 B-8 Q388 B-8 Q401 B-3 Q402 B-4 Q411 B-2 Q412 B-2 Q451 D-4 Q452 D-4 Q453 D-3 Q454 D-4 Q611 G-10 Q701 H-6 Q751 H-7 Q801 B-6 Q802 B-6 Q803 B-5 Q805 B-5 Q806 B-5 Q921 C-3 Q922 D-4 Q961 H-3 Q962 H-3 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-XGR6/XGR60 34 34 6-13.PRINTED WIRING BOARD – CD-L, CD-R, HEADPHONE, FRONT INPUT, D-SW SECTION – • See page 21 for Circuit Boards Location. HEADPHONE BOARD 11 (11) 1-683-450- D–SW BOARD 11 (11) 1-684-683- CD–R BOARD 11 (11) 1-683-453- S741 S742 S743 S745 S746 S747 S748 DISC SKIP PLAY MODE REPEAT EDIT DISC 1 DISC 2 DISC 3 DISC 4 DISC 5 R771 R772 R773 R774 R775 R776 R777 R778 S744 S749 CN704 NO705 J804 EPT720 R724 C705 C703 R721 C702 FL730 R723 C701 1 5 NO801 R725 C704 R722 JW799 JW798 FRONT INPUT BOARD 11 (11) 1-683-454- CD–L BOARD 11 (11) 1-683-452- R891 C891 C892 C893 NO801 CLP891 NO802 J891 PHONES JW891 C741 S704 (DOOR) NO706 S763 3 2 1 AMS S752 S753 S754 S755 R783 R784 R782 R790 R791 C751 C752 CN703 D700 JW898 JW897 JW896 I H C TC–A BOARD (Page 38) TC–B BOARD (Page 38) MAIN BOARD (Page 33) GAME INPUT VIDEO AUDIO L R (CHASSIS) > > M x B X M J PA BOARD (Page 40) 1 4 2 3 4 5 6 7 8 A 1 B C D E F w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 35 HCD-XGR6/XGR60 6-14. SCHEMATIC DIAGRAM – CD-L, CD-R, HEADPHONE, FRONT INPUT, D-SW SECTION – C701 C702 C703 C704 C705 JW798 JW799 R721 R722 R723 R724 R725 J804 FL730 S752 S753 S754 S755 C752 C751 S743 S744 S745 S746 S747 S740 S741 S742 S749 CN704 S748 D700 C741 S763 C891 J803 C893 NO801 R891 C892 R771 R772 R773 R774 R775 R776 R777 R778 R784 R783 R782 EPT720 CN703 NO801 NO802 R790 R791 1000p 1000p 1 50V 0.1 100p 47k 1k 47k 75 1k 10000p 10000p 3P SML79423C ORG/GREEN 10000p CD-JOG 1000p 0.1 100 1000p 1.5k 1.5k 2.2k 3.3k 4.7k 6.8k 10k 15k 6.8k 4.7k 3.3k 7P 4P 22 22 JOG GND D-SW DISC1 DISC2 DISC3 DISC4 DISC5 KEY0 JOGA JOGB GND +5VL LED CD KEY4 +5VH HP.SW HP-R HP.GND HP-L (DOOR SW) EDIT REPEAT SKIP DISC PLAY MODE PHONES VIDEO2 V.GND V2.AU.L-CH A.GND V2.AU.R-CH (CHASSIS) (CHASSIS) AMS / R L GAME INPUT AUDIO VIDEO w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-XGR6/XGR60 36 36 6-15.PRINTED WIRING BOARD – PANEL VR SECTION – • See page 21 for Circuit Boards Location. 1 2 21 20 K PANEL FL BOARD (Page 38) 1 15 16 30 SURROUND SUPER WOOFER MODE SUPER WOOFER D713 S701 S703 EFFECT ON/OFF S710 MIX GUITER /KARAOKE GUITAR DISTORTION S708 S704 P FILE D717 S705 ENTER S709 D715 D701 D703 D704 D705 S715 S716 S717 S718 S719 S721 S720 D719 D716 S711 S722 D720 IC701 R702 R708 R709 R710 R711 R712 R713 R714 R716 C704 R718 R743 R744 R747 R719 R720 R721 R722 TUNING + TUNING – R723 R724 R725 R726 R731 R732 R733 R734 R735 R736 D702 D706 D707 D708 D709 D710 D711 D712 R737 R738 R704 R703 C701 C702 R739 R750 R749 R741 R742 R740 R715 D714 S707 JW704 JW705 JW706 JW710 JW708 JW709 JW713 JW712 JW711 JW714 JW717 JW719 JW720 JW724 JW725 JW726 JW731 R701 L701 JW730 JW716 JW715 S702 S714 S713 JW700 JW740 JW734 CN701 C703 JW750 C706 JW721 R705 C707 C708 JW718 JW732 R707 R746 R745 JW722 JW723 JW701 JW728 C705 JW727 S706 JW707 JW733 R706 JW751 EPT701 S700 VOLUME PANEL VR BOARD 11 (11) 1-683-447- TUNINER /BAND FM MODE TUNING MODE TUNER MEMORY TUNER ENTER X–GROOVE GROOVE 2 3 4 5 6 7 A 1 B C D D701 C-5 D702 C-5 D703 B-5 D704 B-5 D705 B-5 D706 A-4 D707 A-4 D708 B-3 D709 B-3 D710 B-3 D711 C-3 D712 C-3 D713 A-7 D714 A-7 D715 A-6 D716 B-6 D717 C-6 D719 A-2 D720 B-1 IC701 C-4 Ref. No. Location • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 37 HCD-XGR6/XGR60 6-16. SCHEMATIC DIAGRAM – PANEL VR SECTION – S716 S717 S718 S719 R723 R701 C703 C702 C701 D705 D706 D709 R702 R703 R704 S715 S714 S713 R713 R709 R714 R715 R716 R712 R711 R710 R708 C708 C707 C706 S721 R725 S720 D715 D717 R726 S722 D707 D708 D711 R707 S700 R721 R722 L701 10µ R718 R719 D702 D701 S707 S703 S708 S709 S710 S711 S706 S705 S704 S701 EPT701 R724 D712 D713 D714 R720 D720 D703 D704 D710 D719 IC701 S702 C705 CN701 R732 R734 R736 R738 R740 R742 R731 R733 R735 R737 R739 R741 R743 R745 R747 R749 D716 R744 R746 R750 C704 R706 R705 3.3k 10k 1000p 1000p 1000p SEL5823A AMBER SEL5823A AMBER SEL5823A AMBER 100 100 100 6.8k 1.5k 10k 15k 22k 4.7k 3.3k 2.2k 1.5k 10000p 10000p 0.1 6.8k SEL5223S RED SEL5223S RED 10k SEL5823A AMBER SEL5823A AMBER SEL5223E RED 1k 1.5k 2.2k 680 1k SEL5823A AMBER SEL5823A AMBER 4.7k SEL5223S RED SEL5223S RED SEL5223S RED 1.5k SEL5223S RED SEL5823A AMBER SEL5823A AMBER SEL5223S RED SEL5423E RED NJU 3719L 10000p 21P 22 22 22 22 47 47 22 22 22 22 22 47 100 100 100 22 SEL5223S RED 100 100 100 47 16 1k 1k P11 P12 P13 P14 P15 P16 P17 P18 P19 P20 P1 P2 P3 P4 P5 P6 P10 P9 STB DATA P8 P7 CLK P15 P14 P16 P17 P18 P19 P11 P12 P13 P20 P10 P9 P8 P7 P6 P5 P4 P3 P2 P1 DATA CLK STB VOLUME GND STB CLK DATA VU 1 VU 3 VU 5 VU 7 VU 9 VU 11 VU 2 VU 4 VU 6 VU 8 VU 10 VU 12 TUNER/BAND DATA CLK STB CLR P1 P2 P3 P4 P5 P6 P7 P8 Vdd P9 P10 P11 P12 P13 P14 Vss P15 P16 P17 P18 P19 P20 GROOVE KEY 3 TUNER/BAND KEY 5 P21 P22 P23 P24 GROOVE ENTER FM MODE LED P10 LED P9 LED P8 LED P7 LED P6 LED P5 LED P4 LED P3 LED P2 LED P1 TUNING(-) TUNING(+) VOL A VOL B GND LED3.9V LED3.9V +3.9V VH +3.9V VL X-GROOVE SUPER WOOFER GUITAR DISTORSION SURROUND P FILE ENTER TUNER ENTER GUITAR DISTORTION SURROUND TUNING MODE TUNER MEMORY TUNER ENTER SUPER WOOFER MODE MIX GUITAR /KARAOKE LCD DRIVER (CHASSIS) EFFECT ON/OFF SUPER WOOFER w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-XGR6/XGR60 38 38 Ref. No. Location D601 C-9 D602 A-11 D603 D-11 D604 D-11 D605 E-11 D606 E-11 D607 F-11 D608 B-1 D609 D-2 D610 D-2 D611 E-2 D612 E-2 D613 F-2 D801 F-4 D802 G-4 D803 F-6 D804 G-6 D805 D-8 D806 E-8 IC601 B-7 IC602 B-4 IC603 A-9 Q601 B-10 Q602 C-8 Q603 C-8 Q604 C-8 Q605 C-8 Q606 A-8 Q607 A-8 Q608 B-8 Q609 B-8 • Semiconductor Location 6-17.PRINTED WIRING BOARD – PANEL FL, TC-A, TC-B SECTION – • See page 21 for Circuit Boards Location. 1 2 16 17 D MAIN BOARD (Page 33) GAME SALSA REGGAE TANGO SAMBA MOVIE TC-B BOARD 11 (11) 1-683-449- TC-A BOARD 11 (11) 1-683-448- IC601 IC602 R644 R645 R646 R647 R648 R649 R650 R654 R655 R656 R657 R658 R659 C616 C617 C619 S601 S602 S603 S604 S605 S607 S608 S609 S610 S611 SPECTRUM ANALYZER S612 DISPLAY S613 TIMER SELECT S614 SLEEP S615 CN602 S616 FUNCTION S617 GAME GAME MIXING S618 S619 POWER SAVE/DEMO (STANDBY) D602 D603 D604 D605 D606 D607 D613 D612 D611 D610 D609 ROCK GUITAR JAZZ DANCE D608 NO601 1 1 10 10 NO602 Q604 Q605 R688 R689 L604 L605 R681 R683 R684 R685 Q602 Q603 X601 R620 R612 R613 R614 R615 R616 R617 R696 R618 R619 C612 R601 R694 R693 C628 R602 R603 FB601 IC603 L602 C603 C604 R624 R625 R626 R627 R628 R637 S606 R638 R639 R641 R640 R675 R676 R679 R678 R677 R669 R670 R671 R672 R673 R692 R621 R622 R629 R630 R631 Q601 R680 R635 R636 R674 R642 R700 R608 R610 R643 C601 C602 L603 R600 R623 L601 C613 C615 R651 R652 R632 R633 R634 Q606 Q607 Q608 Q609 R665 R666 R667 R668 R609 R606 C618 R653 C625 C614 R607 C607 JW603 JW604 JW608 JW609 JW610 JW614 JW616 JW617 JW618 JW619 JW620 JW621 JW622 JW623 JW624 JW625 JW626 JW627 JW628 JW629 JW630 JW631 JW632 JW633 JW634 JW635 JW636 JW638 JW641 JW642 JW645 JW648 JW649 JW650 JW651 JW652 JW653 JW657 JW658 JW659 JW660 JW661 R699 R698 JW601 JW662 JW663 JW612 JW665 JW600 R605 R691 S620 C605 80 81 31 30 50 51 1 100 R695 FL601 R697 JW637 D601 CN601 JW644 JW643 JW667 JW668 JW656 JW655 R686 R604 C606 C627 JW640 JW639 JW646 JW647 JW605 JW606 JW607 JW602 R690 JW613 JW611 JW669 JW671 JW672 JW654 JW664 JW803 JW670 E E E E E E E E E PANEL FL BOARD 11 (11) 1-683-446- CLOCK SET K PANEL VR BOARD (Page 36) D805 D806 S810 S811 S813 S814 S815 DIERCTION S812 D801 D802 S801 S802 S803 S804 S805 S809 CD SYNC S808 H SPEED DUB D803 D804 NO805 R819 R813 R814 R815 R816 R817 NX602 NO803 1 1 9 7 NX601 R809 R801 R802 R803 R804 R807 R808 R811 R812 JW741 R810 RV801 GUITAR LEVEL RV802 MIC LEVEL S806 S807 REC R805 R806 JW801 R820 JW802 I L H MIC/ GUITAR BOARD (Page 29) CD–L BOARD (Page 34) CD–R BOARD (Page 34) > M > M x h h z X > M > M x h h 1 8 1 8 1 9 18 10 2 3 4 5 6 7 8 9 10 11 A 1 B C D E F G w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 39 HCD-XGR6/XGR60 6-18.SCHEMATIC DIAGRAM – PANEL FL, TC-A, TC-B SECTION – • See page 44 for Waveforms. • See page 48 for IC Pin Function. • See page 52 for IC Block Diagrams. S810 S811 S812 S813 S814 S815 S809 S808 S805 S806 S807 S801 S802 S803 S804 S616 S617 S618 L601 C601 S615 S612 L602 S606 S602 S607 S608 S609 S604 S603 S601 S610 S611 S614 S613 D802 NO601 NX601 NX602 NO602 D801 D803 D805 D806 D804 Q601 S605 NO805 NO803 Q606 D602 D603 D604 D605 D606 D607 D608 D609 D610 D611 D612 D613 R604 R605 R606 R607 R608 R610 R628 C617 C619 C606 R693 R694 R683 R688 R643 R695 R696 R697 R602 R603 R629 R630 R631 R632 R633 R801 R802 R803 R804 R805 R806 R807 R808 R635 R636 R637 R638 R639 R640 R641 R642 R627 R626 R625 R624 R623 R813 R814 R815 R816 R817 R621 R634 R622 R648 R600 L603 47µ R609 C602 C614 R698 R644 R645 S620 S619 R692 R691 IC602 Q607 Q608 Q609 R668 R666 R665 R667 C628 C627 Q605 R689 Q604 Q603 Q602 R684 R686 R681 R620 C605 C604 C603 X601 R809 R810 R811 R812 CN602 R654 R699 R646 R647 C613 IC603 R651 C615 R652 C607 R680 R690 L604 47µ 47µ R685 L605 IC601 FB601 0µH R601 R671 R673 R675 R677 R679 R670 R672 R674 R676 R678 R669 R820 R819 RV802 RV801 R618 R653 C625 R612 R613 R614 R615 R616 R617 C612 0.1µF R619 R650 R649 C616 C618 D601 R700 CN601 FL601 FL TUBE R655 R656 R657 R658 R659 JW 1000p 50V JW SEL5423E GREEN 10P 10P 8P 8P SEL5423E GREEN SEL5923A ORANGE SEL5423E GREEN SEL5423E GREEN SEL5223S RED DTC124ESA-TP 9P 7P DTC114TLTL2 SEL5223S RED SEL5423E GREEN SEL5423E GREEN SEL5423E GREEN SEL5423E GREEN SEL5423E GREEN SEL5423E GREEN SEL5423E GREEN SEL5423E GREEN SEL5423E GREEN SEL5423E GREEN SEL5423E GREEN 10k 100 10k 10k 100 100 470 10 16V 10000p 16V 4.7 50V 10k 10k 47k 47k 47 100 100 100 10k 10k 470 680 1k 1.5k 1.5k 3.3k 4.7k 6.8k 10k 15k 22k 33k 68k 470 680 470 680 1k 1.5k 1.5k 2.2k 680 1k 1.5k 1.5k 2.2k 3.3k 4.7k 6.8k 10k 15k 470 2.2k 680 47k 1k 10k 47 16V 47 16V 680 330k 330k 470 470 BA3830F-E2 DTC114TLTL2 DTC114TLTL2 DTC114TLTL2 100k 100k 100k 100k 1 50V 1 50V 2SB1116 1k 2SC2603 2SB1116 2SC2603 1k 47k 47k 1M 10000p 16V 47 16V 10000p 16V 4MHz 22 22 22 47 19P 6.8k 470 100k 82k 10 50V NJL64H400A-1 10k 10 50 3.3k 0.1 330 1k 1k 100k 22 22 22 22 22 22 22 22 22 22 22 22 22 50k 50k 100 100k 10 50V 15k 15k 15k 15k 15k 15k 22k 82k 100k 3300p 16V 10 16V 1SS133T-77 470 21P JW JW JW JW JW 64 65 66 66 69 70 71 72 73 74 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 43 44 67 68 75 58 57 53 52 56 59 80 77 60 61 52 64 67 53 2 3 5 6 7 9 10 12 13 14 16 44 43 41 40 39 38 37 22 21 20 19 18 59 58 75 16 14 13 12 10 9 7 6 5 4 3 2 80 55 P2 P3 68 22 21 20 19 18 76 78 79 24 25 26 27 28 29 30 31 32 33 35 34 36 55 65 70 71 72 73 74 P1 69 P9 P8 P7 P6 P2 P3 P4 P5 P6 57 56 76 79 78 P9 P8 P7 P1 77 60 61 51 51 56 57 58 59 64 65 66 67 68 69 4 P5 P4 F01 F02 F03 F04 VCC BIAS GND LINE IN LINE NF RST.C RST R02 REC NF REC IN F06 F05 VCC-CPU VSS-CPU AVSS AVCC MD2 VSS-IO VKK MD0 VSS-IO VDD-FIP RESET KEY 0 KEY 1 KEY 2 XIN XOUT GND D-SW MIC-VR-OUT MIC-VR-IN TIMER SELECT DISPLAY FUNCTION GAME LED LATCH LED DAT GND JOG A JOG B KEY0 KEY 3 KEY 4 JOG A JOG B VOL A VOL B LED SCK LEVEL REC TANGO GUITAR DANCE GAME SALSA MOVIE REGGAE SAMBA GUITAR ROCK JAZZ DANCE GAME POWER NO USE NO USE NO USE NO USE NO USE NO USE NO USE NO USE D-SW I2C-DAT I2C-CLK ALL BAND JOG B JOG A GND MD1/VDD-VFT DIST R01 KEY 4 SOFT TEST KEY 5 BPF1-F02 BPF2-F03 BPF3-F04 BPF4-F05 BPF5-F06 NO USE NO USE NO USE NO USE NO USE NO USE NO USE NO USE SLEEP KEY2 ROCK JAZZ KEY 4 SEG-25 SEG-24 SEG-23 SEG-22 SEG-21 SEG-20 SEG-19 SEG-18 SEG-17 SEG-16 SEG-15 SEG-14 SEG-13 SEG-12 SEG-11 SEG-10 SEG-9 SEG-8 SEG-7 SEG-6 SEG-5 SEG-4 SEG-3 SEG-2 SEG-1 GR-1 GR-2 GR-3 GR-4 GR-5 GR-6 GR-7 GR-8 GR-9 GR-10 GR-11 GR-12 GR-13 GR-14 GR-15 GR-16 NO USE NO USE NO USE SALSA REGGAE TANGO SAMBA MOVIE LED SELB LED SELA +3.3VH +3.3VL LED P3 LED P2 LED P1 KEY 1 LEDP10 +3.3VH +3.3VL DIST D-GND KEY 0 D-SW LED P1 +3.3V VL +3.3V VH VC GAME MIXING ECHO/GUITAR-IN ECHO/GUITAR-OUT DISTORTION D GND VF VF SPEANA MIC SIG SIRCS I2C CLK I2C DATA EVER3.3V GC+3.3V A+10V LED STBY RESET VFDP KEY-ECO KEY POWER D GND LED+3.9V LED+3.9V REC REC (STANDBY) POWER SAVE/DEMO GAME MIXING /CLOCK SET DIRECTION SPECTRUM ANALYZER FILTER BANDPASS KEY 1 LEDP10 +3.3VH +3.3VL DIST D-GND KEY 0 D-SW SYNC CD DUB H SPEED I/ REMOTE CONTROL RECEIVER LED DRIVE B+ SWITCH Q602-605 FLUORESCENT KEY CONTROL MB90M407AFP-G-112-BND INDICATOR TUBE DRIVER, DRIVE Q606-609 GRID LEVEL LEVEL GUITAR MIC w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-XGR6/XGR60 40 40 6-19.PRINTED WIRING BOARD – PA SECTION – • See page 21 for Circuit Boards Location. 1 4 J HEADPHONE BOARD (Page 34) JW475 R432 TM401 IC801 Q851 Q804 Q803 R820 Q431 Q401 R808 R858 1 1 14 18 RY401 D831 TH831 EPT801 Q402 IC901 R857 R859 R406 JW406 C811 C812 C861 C862 C413 D841 C852 R802 R809 C432 C433 C801 C804 C807 C831 C903 C904 C851 C854 C857 C905 CN803 R407 JW405 R431 JW447 R434 R437 R439 R440 R441 JW462 R447 R801 R811 C853 R807 R861 R812 R813 R815 R816 R817 R821 R822 R823 R824 R827 R828 R831 R833 R832 R851 R852 R853 JW75 R863 R903 R904 R905 R906 R907 D401 JW493 R446 D801 D803 D842 D912 D911 D836 D833 D835 D834 EPT802 JW438 JW481 JW482 JW478 JW480 JW473 JW483 XGR60 XGR60 XGR60 XGR6 D402 C412 JW402 JW403 JW404 JW453 JW458 C802 JW412 C401 JW410 D844 JW432 JW411 JW409 JW414 JW427 D843 JW415 JW419 JW455 JW456 Q832 JW445 JW460 JW446 JW461 JW477 JW459 JW434 R401 Q833 Q834 C832 D805 R837 R838 D804 R836 R840 R880 R818 R868 JW422 JW499 Q831 C813 R860 R835 R834 C808 C809 JW454 JW452 R814 C844 C894 C848 JW485 JW486 C906 R429 C842 C892 JW420 JW418 D406 D405 JW820 JW821 JW822 JW823 JW824 D853 R864 R865 C909 Q805 Q434 Q432 Q437 JW466 Q433 R803 Q855 R805 R806 JW504 R855 R825 D802 C841 C891 C850 C895 C830 JW421 JW500 JW495 JW472 JW442 JW441 R460 JW813 JW494 JW449 C863 R839 R889 Q908 R915 R888 R898 JW507 JW508 JW511 JW516 JW519 C803 R804 R810 R916 JW JW423 JW448 JW451 JW429 R819 JW444 JW443 JW496 JW474 JW435 JW700 JW433 JW430 JW701 C849 C847 NO702 1 1 11 3 JW505 JW809 JW517 JW512 CN804 LP802 CN904 C902 C910 Q901 NO701 JW704 JW513 JW514 JW515 JW476 Q903 E E C815 D902 D905 D904 D903 R901 R902 C845 CN806 C810 D852 C858 C859 C814 JW439 JW520 JW522 JW488 JW450 JW424 JW426 JW436 JW521 JW497 JW524 JW523 JW416 JW811 JW808 JW479 JW491 JW816 JW817 JW465 JW407 JW490 JW440 JW818 JW509 JW815 JW810 R866 R867 C864 JW489 JW807 JW805 JW806 JW825 JW826 JW487 JW506 Q439 D851 R862 Q801 JW431 E E 4 1 E E E E E E E E E E E E E E E E PA BOARD 11 (11) 1-683-443- + – + – L FRONT SPEAKER R 1 13 F MAIN BOARD (Page 33) 1 13 G MAIN BOARD (Page 33) (CHASSIS) (CHASSIS) M SUB TRANS BOARD (Page 42,43) N O TRANS BOARD (Page 42,43) TRANS BOARD (Page 42,43) – + - - XGR60 XGR60 XGR6 XGR6 2 3 4 5 6 7 A 1 B C D E F G Ref. No. Location D401 C-5 D402 E-6 D405 F-6 D406 F-6 D801 C-5 D802 D-4 D803 D-3 D804 C-6 D805 D-5 D831 B-2 D833 A-4 D834 A-4 D835 A-4 D836 A-4 D841 A-5 D842 A-5 D843 A-5 D844 A-5 D851 C-5 D852 D-4 D853 A-3 D902 C-2 D903 C-1 D904 B-1 D905 B-2 D911 A-2 D912 A-2 IC801 E-4 IC901 B-1 Q401 E-6 Q402 E-6 Q431 C-2 Q432 C-2 Q433 C-2 Q434 C-2 Q437 C-2 Q439 C-2 Q801 C-5 Q803 C-3 Q804 C-3 Q805 B-5 Q831 C-6 Q832 C-6 Q833 C-5 Q834 C-5 Q851 C-4 Q855 B-5 Q901 C-1 Q903 A-1 Q908 B-1 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 41 HCD-XGR6/XGR60 6-20.SCHEMATIC DIAGRAM – PA SECTION – 2 2 2 C831 C904 D401 D801 D834 D835 D836 D851 R429 R437 R439 R447 R811 R812 R813 R814 R815 R823 R827 R831 R832 R861 R862 R863 C909 D402 D833 Q402 Q801 Q804 Q851 Q803 EPT801 EPT802 R820 R804 R821 R837 C832 Q831 D853 R865 C863 Q832 JW820 JW821 R864 CN803 R819 C845 D842 D843 D844 D841 C841 C891 R833 R401 TH831 R858 JW809 JW807 C804 C854 JW701 R460 C401 R406 R407 D406 D405 C807 C857 Q908 Q901 R901 R902 R802 R852 C812 R839 R889 C903 C902 D911 R915 R905 R904 Q903 D803 R822 R828 R441 R434 C906 C412 C413 C432 C802 C803 C808 C809 C811 C813 C814 C815 C830 C847 C849 C852 C853 C858 C859 C861 C862 C905 D912 Q432 Q433 Q437 Q434 Q805 Q834 Q855 R809 R818 R825 R834 R835 R836 R838 R840 R857 R859 R868 R880 R903 RY401 D805 R888 C801 C851 R801 C850 C895 R855 CN804 D904 D905 D902 D903 R866 JW818 JW819 CN806 CN904 R817 D906 R867 R816 R431 R432 C848 C864 R807 C433 R440 Q401 D802 D852 R806 R805 R810 R860 R803 R853 C894 D831 C842 C892 C844 C810 R824 C910 R916 TM401 D804 R446 R808 R898 JW806 R851 JW827 NO702 NO701 JW IC901 µPC3504AHF Q431 Q439 Q833 R907 R906 10 50 10 50 1SS133T 1SS133T 11ES2 11ES2 11ES2 1SS133T 47k 10k 4.7k 47k 1k 15k 100k 2.2k 22k 22k 100k 100k 100k 1k 15k 100k 0.1 1SS133T 11ES2 2SC1841 2SC1841 2SC1841 2SC1841 2SA988 1 33k 33k 33k 47 50 DTC124ESA 22K/22K 1SS133T 22k 2.2 50V 2SC2603 4.7k 13P BTB 68k 2200 25 11ES2 11ES2 11ES2 11ES2 0.22/5W 47 50 47 50 10k 4.7 50 47k 47k 1SS133T 1SS133T 22 100 22 100 2SA1115 2SC2603 10k 100k 47k 47k 0.047 PE 100k 1/4W 100k 1/4W 100 16 0.1 HZS33-1L 22 10k 1k 2SB1375 2SA1932 1SS133T 22k 1M 33k 22k 2200 25 0.01 0.01 100 16 470p 220p 0.1 100V TF 0.1 100V TF 0.047 PE 0.01 1000p 0.47 50V 10 50 0.1 0.1 470p 220p 0.1 0.1 0.047 PE 0.047 PE 100 50 MTZJ-7-77-5.6 2SA1115 2SC2603 2SC2603 2SC2603 2SC2878AB 2SC1841 2SC2878AB 10 1/2W 220 680 2W 10k 47k 1k 33k 56 100 1/4W 10 1/2W 220 56 10k 24V 1SS133T 0.22/5W 10/100 10/100 1k 4.7/100 4.7/100 680/2W 13P BTB 11ES2 11ES2 11ES2 11ES2 10k 4P AMP 47k 1SS133T 2.2k 10k 56k 47k 0.1 10 50V 100 1/4W DTA1124ESA MTZJ-T-77-15A MTZJ-T-77-15A 3.9k 1W 3.9k 1W 560 560 0.1 100V D5SBA204101 3300 80V 3300 80V 0.1 100V 470 47 16V 680 3W 1SS133T 10k 0.22 5W 0.22 5W 1k 11P 2SC1841 2SC2603 DTA124ESA 100 100 2 2 3 1 3 2 1 2 3 1 1 3 2 3 1 5 1 2 3 5 * * * * * * * * * * * * * GND +10V VF VF VF(-35V) PROTECT HP-L HP.GND HP-R D.GND A.GND DBFB FAN.DET LCH-IN RCH-IN F-RELAY POWERGND AC12V AC12V PRI-GND AC7V AC7V AC-L P-GND AC-H FRONT POWER AC-H AC-L S-GND +UN10V STK POWER HP-SW HP-SW HP-MUTE VF VF P-GND PL/SW RELAY -VEE D.GND +10V EVER +3.9V POWERGND +UNREG.15V 10V GND 15V GND STBY_RY +9V AC_IN AC_IN SPEAKER 70 35.4 21.5 -21.8 -35.8 -70.5 0 -12.4 -12.4 0 70.4 70.4 0 0.6 0 0 9.8 9.8 0 0 3.5 -12.4 2.7 3.9 10.5 0 62.4 -30.7 -30.7 -30.4 -31.3 0.6 0 0 9.8 35.4 35.2 34.8 0 3.1 70 0 10 10 0 10 10 10 0 0.7 0 3.3 3.3 0 0.7 (CHASSIS) (CHASSIS) XGR60 XGR6 XGR60 XGR6 *C433 *R440 22k 47k 3.3/50V 2.2/50V XGR60 XGR6 *R401 560 1.8k XGR60 XGR6 *R833 18k 22k XGR60 XGR60 47k *R810 33k 47k XGR60 XGR6 33k *R860 *C841,891 3300/50V 3300/71V XGR60 XGR6 *C810 1/100V 47/100V XGR60 STK412-040 STK442-130 R L – – + + IC801 IC801 POWER AMP POWER AMP XGR60 SWITCH STANDBY Q831,832 TEMPERATURE DETECT SWITCH DETECT SWITCH STANDBY SWITCH STANDBY Q801,851 OVER LOAD RELAY DRIVE Q401,402 FRONT SPEAKER PROTECT MUTE MUTE XGR6 -35V REGULATOR Q903,908 +5V REGULATOR RELAY DRIVE POWER ON/OFF Q901 DELAY SWITCH Q732,437 OVER LOAD Q433,434 SWITCH DETECT DC DETECT PROTECT SWITCH PROTECT SWITCH XGR6 35.4 -70.5 0 0 0 0 0 0 0 0 0 -68.8 69.1 -67.5 XGR6 XGR60 XGR60 XGR6 XGR60 -69.6 -70.6 -70.5 XGR60 XGR6 0 0 0 0 0 0 0 0 0 -68.8 69.1 -67.5 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-XGR6/XGR60 42 42 6-21.SCHEMATIC DIAGRAM – TRANS, SUB TRANS SECTION (XGR6, XGR60: MX MODEL) – • See page 21 for Circuit Boards Location. 6-22.SCHEMATIC DIAGRAM – TRANS, SUB TRANS SECTION (XGR6, XGR60: MX MODEL) – (CHASSIS) RY901 C901 CN901 CN902 JW944 JW948 JW945 JW946 MT901 NO903 T901 SUB TRANSFORMER D901 LP901 LP903 JW950 D832 + – C893 F961 F962 XGR60:MX XGR60:MX F963 F964 R953 R951 R952 C834 LP963 LP961 C961 C963 JW968 R961 CN952 CN951 JW973 JW975 JW706 JW702 CN905 JW965 JW960 JW972 JW974 JW976 JW977 JW978 JW979 JW980 JW981 JW982 JW983 JW984 JW985 JW986 TRANS BOARD 11 (11) 1-683-444- SUB TRANS BOARD 11 (11) 1-683-445- 1 4 M PA BOARD (Page 40) O PA BOARD (Page 40) AC IN T951 POWER TRANSFORMER 1 2 1 2 N PA BOARD (Page 40) 1 3 - - * * NOT REPLACEABLE: BUILT IN TRANSFORMER JW942 2 3 4 5 A 1 B C D E F C893 C834 CN901 R951 R952 R953 C963 C961 CN952 CN951 JW944 D832 RY901 D901 C901 R961 NO903 JW945 JW946 JW942 JW965 F964 F963 F962 F961 CN902 CN905 0.1 100 0.1 100 2P AMP 0.33 0.33 0.1 10000p 10000p EH VH-3P D5SBA20 STANDBY RELAY 9V 1SS133T 0.01 250V 3.3M T8.0AL 250V T8.0AL 250V *1 *1 VF VF AC IN AC12V AC12V PRI-GND AC7V AC7V AC-L P-GND AC-L S-GND STBY_RY +9V AC_IN AC_IN 120V NEUTRAL * AC-H AC-H P-GND 120V NEUTRAL POWER TRANSFORMER T951 BUILT IN TRANSFORMER NOT REPLACEABLE: * TRANSFORMER T901 SUB XGR6 XGR60:MX XGR60:MX *1 F963,964 6.3AL 250V 6.3A 125V XGR6 XGR60:MX XGR60:MX The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 43 HCD-XGR6/XGR60 6-23.PRINTED WIRING BOARD – TRANS, SUB TRANS SECTION (XGR60:E, E51, AR MODEL) – • See page 21 for Circuit Boards Location. 6-24.SCHEMATIC DIAGRAM – TRANS, SUB TRANS SECTION (XGR60:E, E51, AR MODEL) – C893 C834 CN901 R951 R952 R953 C963 C961 CN952 CN905 JW971 CN951 JW941 JW944 JW949 D832 RY901 D901 C901 NO903 CN902 S901 F951 F963 F964 F962 F961 0.1 100 0.1 100 2P AMP 0.33 0.33 0.1 10000p 10000p EH VH-4P VH-3P D5SBA20 STANDBY RELAY 9V 1SS133T 0.01 250V VH-4P T6.3AL 250V T6.3AL 250V T6.3AL 250V T8.0AL 250V T8.0AL 250V VF VF AC IN AC12V AC12V PRI-GND AC7V AC7V AC-L P-GND AC-L S-GND STBY_RY +9V AC_IN AC_IN 120V 230V NEUTRAL * AC-H AC-H P-GND 120V 230V NEUTRAL POWER TRANSFORMER T951 BUILT IN TRANSFORMER NOT REPLACEABLE: * TRANSFORMER T901 SUB VOLTAGE SELECTOR 120V 220-240V 220V VOLTAGE SELECTOR 120V 220V 220-240V (CHASSIS) RY901 C901 CN901 CN902 S901 JW944 JW949 MT901 NO903 T901 SUB TRANSFORMER D901 LP901 LP903 JW950 JW941 D832 + – C893 F961 F962 F963 F964 R953 R951 R952 C834 LP963 LP961 C961 C963 JW971 F951 R961 CN952 CN951 JW973 JW975 JW706 JW702 CN905 JW960 JW972 JW974 JW976 JW977 JW978 JW979 JW980 JW981 JW982 JW983 JW984 JW985 JW986 TRANS BOARD 11 (11) 1-683-444- SUB TRANS BOARD 11 (11) 1-683-445- 1 4 M PA BOARD (Page 40) O PA BOARD (Page 40) AC IN T951 POWER TRANSFORMER 1 4 1 4 N PA BOARD (Page 40) 1 3 - - * * NOT REPLACEABLE: BUILT IN TRANSFORMER 2 3 4 5 A 1 B C D E F G The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-XGR6/XGR60 44 44 T331 5 r WAVEFORMS 1 IC501 qa XC-OUT 2 3 IC501 qd X-OUT T331 4 4 – MAIN BOARD – – BD BOARD – IC101 el FE 1 IC101 ra TE 2 IC101 rd RFDC 3 IC101 yj XTAO 4 – PANEL FL BOARD – IC601 is X OUT 1 3.0Vp-p 32KHz VOL/DIV : 1V AC TIME/DIV : 10µsec VOL/DIV : 1V AC TIME/DIV : 50nsec 2.0Vp-p 16MHz 240Vp-p 13µsec VOL/DIV : 50V AC TIME/DIV : 10µsec TAPE REC only VOL/DIV : 50V AC TIME/DIV : 10µsec TAPE REC only 64Vp-p 13µsec 4MHz 2.4Vp-p VOL/DIV : 1V AC TIME/DIV : 0.2µsec VOL/DIV : 0.1V AC TIME/DIV : 1msec VOL/DIV : 0.2V AC TIME/DIV : 0.2msec VOL/DIV : 0.2V AC TIME/DIV : 0.5µsec VOL/DIV : 0.2V AC TIME/DIV : 50nsec 0.15Vp-p 0.4Vp-p 0.62Vp-p 0.8Vp-p 16.9344MHz 6-25. IC PIN FUNCTIONS 1 SOSQ O Sub-Q serial output 2 SQCK I Clock input for SQSO read-out 3 XRST I System reset 4 SYSM I Muting input 5 DATA I Serial date input,supplied from CPU 6 XLAT I Latch input,supplied from CPU 7 CLOK I Serial date transfer clock input,supplied from CPU 8 SENS O SENS output 9 SCLK I SENS serial data read-out clock 10 VDD — Power supply (+3.3V) 11 ATSK — Input pin for anti-shock (Ground) 12 SPOA — Ground 13 SPOB — Ground 14 XLON O Not used (open) 15 WFCK O Not used (open) 16 XUGF O Not used (open) 17 XPCK O Not used (open) 18 GFS O Not used (open) 19 2SPO O Not used (open) 20 SCOR O Sub-code sync output 21 COUT I/O Not used (open) 22 MIRR I/O Not used (open) 23 DFCT I/O Not used (open) 24 FOK I/O Not used (open) 25 LOCK I/O Not used (open) 26 MDP O Output to control spindle motor servo 27 SSTP I Input signal to detect disc inner most trak 28 SFDR O Sled drive output 29 SRDR O Sled drive output 30 TFDR O Tracking drive output 31 TRDR O Tracking drive output 32 FFDR O Focus drive output 33 FRDR O Focus drive output 34 VSS — Ground 35 TEST I TEST pin (connected to ground) 36 TES1 I TEST pin (connected to ground) 37 XTSL I X’tal selection circuit input (connected to ground) 38 VC I Center voltage input 39 FE I FOCUS error signal input 40 SE I Sled error signal input 41 TE I Tracking error signal input 42 CE I Center servo analog input 43 RFDC I RF signal input 44 ADIO O Not used (open) 45 AVSS0 — Analog ground 46 IGEN I Power supply pin operational amplifiers 47 AVDDO — Power supply (+3.3V) 48 ASYO O EFM full swing output 49 ASYI I Asymmetry comparator voltage input 50 BIAS I Asymmetry circuit constant current input 51 RFAC I EFM signal input 52 AVSS3 — Ground Description Pin Name Pin No. I/O • IC101 DIGITAL SIGNAL PROCESSOR (CXD3017Q) (BD Board) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 HCD-XGR6/XGR60 53 CLTV I Control voltage input for master VCO 54 FILO O Filter output for master PLL 55 FILI I Filter input for master PLL 56 PCO O Chage-pump output for master PLL 57 AVDD3 — Powr supply (+3.3V) 58 VSS — Ground 59 VDD — Power supply (+3.3V) 60 DOUT O CD data output 61 LRCK O Not used (open) 62 PCMD O Not used (open) 63 BCK O Not used (open) 64 EMPH O Not used (open) 65 XVDD — Power supply (+3.3V) 66 XTAI I X’tal oscillator circuit input (16.9344MHz) 67 XTAO O X’tal oscillator circuit output (16.9344MHz) 68 XVSS — Ground 69 AVDD1 — Power supply (+3.3V) 70 AOUT1 O Lch : Analog output 71 AIN1 I Lch : OPAMP input 72 LOUT1 O Lch : LINE output 73 AVSS1 — Ground 74 AVSS2 — Ground 75 LOUT2 O Rch : LINE output 76 AIN2 I Rch : OPAMP input 77 AOUT2 O Rch : Analog output 78 AVDD2 — Power supply (+3.3V) 79 RMUT O Not used (open) 80 LMUT O Not used (open) Description Pin Name Pin No. I/O www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 HCD-XGR6/XGR60 Description Pin Name Pin No. I/O 1 AUDIO-OUT O MD output mute signal output 2 STEREO I Stereo signal input 3 TUNED I Tuned signal input 4 SIRCS I SIRCS input 5 CD-MUTE O CD mute signal output 6 – — Not used (open) 7 – — Not used (open) 8 BYTE I Not used (connected to ground) 9 CNVSS — Not used (Connected to ground with resistor) 10 XC-IN I Sub clock input 11 XC-OUT O Sub clock output 12 RESET I System reset input 13 X-OUT O Main system clock output (16MHz) 14 VSS — Ground 15 X-IN I Main system clock input (16MHz) 16 VCC — Power supply (+5V) 17 NMI I Not used (Pull up with resistor) 18 RDS-INT I Not used (Connected to ground with resistor) 19 SCOR I CD Q-Data request input 20 AC-CUT I AC cut check signal input 21 ST-MUTE O Tuner mute signal output 22 ST-CE O Tuner chip enable signal output 23 ST-DOUT O Tuner data output 24 BU-PWM3 O BU PWM 3 (for CD-RW) signal output 25 ST-DIN I Tuner data input 26 BU-PWM2 O BU PWM 2 (for CD-RW) signal output 27 ST-CLK O Tuner clock signal output 28 BU-PWM1 O BU PWM 1 (for CD-RW) signal output 29 IIC-CLK I IIC serial data clock input 30 IIC-DATA I IIC serial data input 31 – — Not used (open) 32 SQ-DATA I CD data input 33 SQ-CLK O CD data clock output 34 SENS I SENS signal input from CXD3017Q 35 CD-DATA O CD data output 36 XLT O CD latch signal output 37 CD-CLK O CD data clock output 38 CD-POWER O CD power on/off signal output 39 CLK-OUT O Not used (open) 40 HOLD O Laser diode control signal output 41 OTM-RESET O Other micom reset 42 – — Not used (open) 43 XRST O CD reset signal output 44 MTR-CTRL1 O CD motor control 1 output 45 MTR-CTRL2 O CD motor control 2 output 46 REC-A I Record tab switch for SIDE-A signal input 47 LED-DISC O DISC LED on/off signal output 48 BU UP/DW SW I BU up switch signal input 49 TBL-SENS I Table sensor signal input 50 REC-B I Record tab switch for SIDE-B signal input 51 A-TRG O TCM-A trigger output 52 B-TRG O TCM-B Trigger output 53 AMS-IN I AMS signal input • IC501 M30620MCN-A01FP SYSTEM CONTOL (MAIN Board) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 HCD-XGR6/XGR60 Pin Name Pin No. I/O Discription 54 CAPM-H/L O Capstan motor high/low signal output 55 CAPM-CTRL O Capstan motor REV/FWD/STOP control signal output 56 A-PLAY I TCM-A play switch input 57 B-PLAY I TCM-B play switch input 58 TC-MUTE O TC line mute signal output 59 REC/PB/PASS O Not used (open) 60 NR ON/OFF O Not used (open) 61 REC-MUTE O REC mute signal output 62 VCC — Power supply (+3.3V) 63 SOFT-TEST O Soft check output 64 VSS — Ground 65 BIAS O Bias on/off signal output 66 EQ-H/N O EQ high/Normal signal output 67 PB-A/B O TC A/B select signal output 68 ALC O ALC signal output 69 TC-RELAY O TC relay control signal output 70 A-HALF I A deck half detection signal input 71 FUNC-SEL0 O Function select A signal output 72 FUNC-SEL1 O Function select B signal output 73 KEY-ECO I ECO key signal input 74 KEY-POWER I Power key signal input 75 LED-STBY O Standby LED driver signal output 76 VIDEO-MUTE O Video mute signal output 77 PL-LAT O Not used (open) 78 PL-DAT O Not used (open) 79 PL-CLK O Not used (open) 80 EQIC-DAT O Serial data output to Audio EQIC 81 EQIC-CLK O Serial data clock output to Audio EQIC 82 LINE-MUTE O TA LINE mute signal output 83 STK-MUTE O Mute signal output to power IC 84 STBY-RELAY O Standby relay driver signal output 85 REAR-RELAY O Rear speaker relay driver signal output 86 HP-MUTE O Headphone mute signal output 87 FRONT-RELAY O Front speaker relay driver signal output 88 PROTECT I Speaker protection signal input 89 A-SHUT I TCM-A reel pulse input 90 B-SHUT I TCM-B reel pulse input 91 B-HALF I B deck half detection input 92 MODEL-IN I Model input 93 DEST-IN I Destination input 94 DBFB-H/L O DBFB high/low signal output 95 HP-IN I Headphone detect input 96 AVSS — Ground 97 SW-MODE O Super woofer mode signal output 98 VREF I Reference voltage input 99 AVCC — Power supply (+3.3V) 100 RDS-DATA I Not used (Connected to ground) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 HCD-XGR6/XGR60 • IC601 MB90M407APF-G-112-BND DISPLAY CONTROL (PANEL FL Board) Description Pin Name Pin No. I/O 1 GR-16 O FLD grid output 2 GR-15 O FLD grid output 3 GR-14 O FLD grid output 4 GR-13 O FLD grid output 5 GR-12 O FLD grid output 6 GR-11 O FLD grid output 7 GR-10 O FLD grid output 8 GR-9 O FLD grid output 9 GR-8 O FLD grid output 10 GR-7 O FLD grid output 11 VSS-IO — Ground 12 GR-6 O FLD grid output 13 GR-5 O FLD grid output 14 GR-4 O FLD grid output 15 GR-3 O FLD grid output 16 GR-2 O FLD grid output 17 GR-1 O FLD grid output 18 SEG-1 O FLD segment output 19 SEG-2 O FLD segment output 20 SEG-3 O FLD segment output 21 SEG-4 O FLD segment output 22 SEG-5 O FLD segment output 23 VDD-FIP — Power supply (+3.3V) 24 SEG-6 O FLD segment output 25 SEG-7 O FLD segment output 26 SEG-8 O FLD segment output 27 SEG-9 O FLD segment output 28 SEG-10 O FLD segment output 29 SEG-11 O FLD segment output 30 SEG-12 O FLD segment output 31 SEG-13 O FLD segment output 32 SEG-14 O FLD segment output 33 SEG-15 O FLD segment output 34 SEG-16 O FLD segment output 35 SEG-17 O FLD segment output 36 SEG-18 O FLD segment output 37 SEG-19 O FLD segment output 38 SEG-20 O FLD segment output 39 SEG-21 O FLD segment output 40 SEG-22 O FLD segment output 41 SEG-23 O FLD segment output 42 VSS-IO — Ground 43 SEG-24 O FLD segment output 44 SEG-25 O FLD segment output 45 NO USED O Not used (open) 46 NO USED O Not used (open) 47 NO USED O Not used (open) 48 VKK — Power supply (-35V) 49 MD0 I Not used (pull up with resistor) 50 MD1/VDD-VFT I Not used (pull up with resistor) 51 MD2 I Not used (pull down with resistor) 52 D-SW I CD lid open/close detect signal input 53 DIST O Guitar distortion ON/OFF signal output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 HCD-XGR6/XGR60 Description Pin Name Pin No. I/O 54 SOFT TEST O Not used (open) 55 LED SELB O LED group B select signal output 56 VOL A I Volume encoder signal A input 57 VOL B I Volume encoder signal B input 58 JOG A I AMS jog dial encoder signal A input 59 JOG B I AMS jog dial encoder signal B input 60 I2C-DATA O IIC serial data output 61 I2C-CLOCK O IIC clock signal output 62 AVCC — Power supply (+3.3V) 63 AVSS — Ground 64 KEY0 I Key input (A/D port) 65 KEY1 I Key input (A/D port) 66 KEY2 I Key input (A/D port) 67 KEY3 I Key input (A/D port) 68 KEY4 I Key input (A/D port) 69 KEY5 I Key input (A/D port) 70 BPF1-F02 I Spectrum analyzer BPF signal input 71 BPF2-F03 I Spectrum analyzer BPF signal input 72 BPF2-F04 I Spectrum analyzer BPF signal input 73 BPF2-F05 I Spectrum analyzer BPF signal input 74 BPF2-F06 I Spectrum analyzer BPF signal input 75 ALL BAND I L+R signal input 76 LED-SCK O Serial clock output to LED driver 77 RESET I Reset input 78 LED-DAT O Serial data output to LED driver 79 LED-LATCH O Latch signal output to LED driver 80 LED-SELA O LED group A select signal output 81 VSS-CPU — Ground 82 XOUT O Crystal oscillator output (4MHz) 83 XIN I Crystal oscillator input (4MHz) 84 VCC-CPU — Power supply (+3.3V) 85 to 100 NO USED O Not used (open) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 HCD-XGR6/XGR60 6-26. IC BLOCK DIAGRAMS IC101 CXD3017Q (BD BOARD) IC102 BA5974FM-E2 (BD BOARD) 1 2 3 10 11 12 13 14 15 16 17 18 19 20 60 59 58 57 56 55 54 52 51 50 49 48 47 46 45 44 53 21 39 40 41 42 43 22 23 79 24 26 25 28 27 29 30 31 32 35 36 37 38 33 34 80 62 61 77 78 75 76 73 74 72 71 70 69 66 65 64 63 68 67 4 5 6 7 8 9 D/A Interface Digital PLL CPU Interface Digital OUT Serial-In Interface Over Sampling Digital Filter Timing Logic PWM 3rd-Order Noise Shaper PWM Asymmetry Corrector A/D Converter OP Amp Analog SW Clock Generator Digital CLV MIRR DFCT FOK SERVO DSP FOCUS SERVO TRACKING SERVO SELED SERVO EFM Demodurator Servo Auto Sequencer SERVO Interface Error Corrector 16K RAM Sub Code Processor PWM GENERATOR FOCUS PWM GENERATOR TRACKING PWM GENERATOR SLED PWM GENERATOR SQSO SQCK XRST DATA XLAT CLOK SENS SCLK VDD SPOA SPOB XLON XPCK SCOR COUT MIRR DFCT FOK LOCK MDP SSTP SFDR SRDR TFDR TRDR FFDR FRDR TEST TES1 VC FE SE TE CE RFDC ADIO IGEN ASYO ASYI BIAS RFAC CLTV FILO FILI PCO DOUT XTAI XTAO AVDD1 AOUT1 AIN1 LOUT1 LOUT2 AIN2 AOUT2 LMUT XVSS RMUT SYSM ATSK WFCK XUGF GFS C2PO VSS XTSL AVDD AVSS AVSS AVDD VSS VDD LRCK PCMD BCK EMPH XVDD AVSS1 AVSS2 AVDD2 LEVEL SHIFT INTERFACE INTERFACE INTERFACE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 20 21 22 23 24 25 26 27 28 19 18 17 16 15 F R R F F R R F R R F F MUTE THERMAL SHUTDOWN VREFOUT VREFIN POWVCC CH1FIN CH1RIN CH2FIN CH2RIN CH2OUTR CH2OUTF CH1OUTR CH1OUTF CAPAIN1 CAPAIN2 GND PRFVCC MUTE POWVCC CH4SIN' CH4SIN CH4BIN CH3FIN CH3RIN CH3OUTR CH3OUTF CH4OUTR CH4OUTF CAPAIN3 GND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 HCD-XGR6/XGR60 IC321 µPC1330HA (MAIN BOARD (3/3)) IC103 CXA2581N-T4 (BD BOARD) 1 2 3 4 5 6 7 8 9 INVERTER COMPARATER SW R1 GND SW P1 CONT GND VCC SW P2 GND SW R2 27 29 30 4 3 EQ IN 9 D 10 F E 8 C 7 B 6 A AC SUM DC_OFST RFDCI 28 RFDCO VC 24 BST 25 VFC CEI EQ APC 5 GND AC SUM 26 RFC AC VCA 23 RFG 22 VCC 20 21 CE 19 TE_BAL 18 TE 17 FEI 16 FE 1 LD 2 PD 11 SW 12 13 DVCC 14 DVC 15 RFAC VC EQ ON/OFF VC VC VC VC DVC DVC APC-OFF(Hi-Z) RW/ROM (H/L) DVC DVC AVC DVCC VC DVC RW/ROM RW/ROM RW/ROM RW/ROM RW/ROM RW/ROM DVCC VCC VCC VCC VOFST VOFST VOFST B C A D gm gm DVCC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 HCD-XGR6/XGR60 IC201 TA8409 (MOTOR BOARD) IC602 BA3830F (PANEL FL BOARD) 1 2 3 4 5 6 7 8 9 HEAT CUT OFF BLOCK STANDBY BLOCK VREF BLOCK IN2 VCC OUT2 NC GND VS OUT1 VREF IN1 F01 R02 R01 LINE NF LINE IN REFERENCE CURRENT REFERENCE CURRENT RESET BAND PASS FILTER DET 17 RESET 18 F02 16 F03 15 F04 14 F05 13 F06 12 REC LEVEL 11 VCC 10 4 3 2 1 + – REC NF REC IN 6 RESET C 7 BIAS C 8 GND 9 5 + – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 HCD-XGR6/XGR60 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks SECTION 7 EXPLODED VIEWS The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. 7-1. CASE, BACK PANEL SECTION NOTE: • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Hardware (# mark) list and accessories are given in the last of this parts list. • Abbreviation MX : Mexican model E51 : Chilean and Peruvian model AR : Argentina model 1 4-948-236-21 CUSHION (107) 2 3-363-099-01 SCREW (CASE 3 TP2) 3 4-237-661-11 CASE 4 1-693-572-11 TUNER (FM/AM) (XGR60:AR,MX) 4 1-693-573-11 TUNER (FM/AM) (XGR6) 4 1-693-574-11 TUNER (FM/AM) (XGR60:E,E51) 3 2 2 5 4 7 1 #3 #1 a a #1 #1 #1 not supplied not supplied not supplied Front panel section Chassis section M901 #1 #1 #2 #1 #1 #1 #1 #1 #1 XGR6, XGR60: MX model 5 1-769-945-11 WIRE (FLAT TYPE) (11 CORE) 7 1-535-706-21 PLUG, JUMPER (XGR6,XGR60:MX) M901 1-763-072-11 FAN, DC #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S #2 7-685-872-09 SCREW +BVTT 3X8 (S) #3 7-685-871-01 SCREW +BVTT 3X6 (S) Ver 1.1 2003.07 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 HCD-XGR6/XGR60 7-2. FRONT PANEL SECTION-1 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 54 53 54 54 54 54 54 63 64 63 65 54 62 60 61 55 56 57 58 54 59 52 51 not supplied not supplied Front panel section-2 #1 not supplied 54 51 4-237-635-01 KNOB (MIC) 52 A-4727-633-A MIC/GUITAR BOARD, COMPLETE 53 1-683-448-11 TC-A BOARD 54 4-951-620-01 SCREW (2.6X8), +BVTP 55 4-237-648-01 COVER (EJECT) 56 4-237-645-01 LEVER (EJECT-A) 57 4-237-647-01 LEVER (EJECT-C) 58 4-237-646-01 LEVER (EJECT-B) 59 4-237-659-01 SPRING (LEVER) 60 1-796-333-11 DECK, MECHANICAL 61 1-773-021-11 WIRE (FLAT TYPE) (15 CORE) 62 1-683-449-11 TC-B BOARD 63 3-354-963-01 DAMPER 64 1-683-450-11 HEADPHONE BOARD 65 1-684-683-11 D-SW BOARD #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 HCD-XGR6/XGR60 7-3. FRONT PANEL SECTION-2 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 109 109 114 109 109 109 109 109 109 109 109 109 109 107 118 102 103 105 106 104 108 109 117 122 121 120 119 101 109 112 114 115 116 123 113 111 110 110 not supplied not supplied not supplied supplied with S763 #7 #7 FL601 101 4-237-649-01 BUMPER (PANEL) (XGR6) 101 4-237-649-11 BUMPER (PANEL) (XGR60) 102 1-683-452-11 CD-L BOARD 103 X-4954-371-1 SUB PANEL (CD-L) ASSY 104 4-237-638-01 LID(CD) 105 4-237-630-01 WINDOW (CD) 106 4-237-658-01 SPRING (CD) 107 4-040-472-01 LATCH, D.C. 108 4-237-634-01 KNOB (VOLUME) 109 4-951-620-01 SCREW (2.6X8), +BVTP 110 4-949-935-81 CUSHION (FL) 111 4-225-511-01 HOLDER FL TUBE 112 A-4727-623-A PANEL FL BOARD, COMPLETE 113 1-773-118-11 WIRE (FLAT TYPE) (19 CORE) 114 4-237-639-01 HOLDER (LED 1) 115 1-773-178-11 WIRE (FLAT TYPE) (23 CORE) 116 A-4727-624-A PANEL VR BOARD, COMPLETE 117 X-4954-360-1 FRONT PANEL ASSY (XGR6) 117 X-4954-378-1 FRONT PANEL ASSY (XGR60) 118 4-224-104-01 DAMPER 119 X-4954-372-1 SUB PANEL (CD-R) ASSY 120 4-237-636-01 KNOB (CD) 121 1-683-453-11 CD-R BOARD 122 1-683-454-11 FRONT INPUT BOARD 123 4-237-640-01 HOLDER (LED 2) FL601 1-518-794-11 INDICATOR TUBE, FLUORESCENT #7 7-685-533-19 SCREW +BTP 2.6X6 TYPE2 N-S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 HCD-XGR6/XGR60 7-4. CHASSIS SECTION Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 154 153 159 155 156 158 160 152 151 161 #2 #4 #1 #2 not supplied not supplied not supplied not supplied not supplied CDM37B-30BD60C #5 #1 #1 #1 #1 #1 #1 #1 #5 F951 F961 F962 F964 F963 T951 b b 151 1-823-750-11 WIRE (FLAT TYPE) (21 CORE) 152 4-235-701-01 DUST COVER 153 A-4727-618-A PA BOARD, COMPLETE (XGR60) 153 A-4727-641-A PA BOARD, COMPLETE (XGR6) 154 1-683-444-11 TRANS BOARD 155 3-703-244-00 BUSHING (FBS001), CORD (XGR6,XGR60:AR,E51) 155 4-966-266-01 BUSHING (S) (FBS002), CORD (XGR60:E,MX) 0156 1-575-653-11 CORD, POWER (XGR60:MX) 0156 1-777-071-81 CORD, POWER (XGR60:E51) 0156 1-783-820-11 CORD, POWER (XGR6) 0156 1-783-941-12 CORD, POWER (XGR60:AR) 0156 1-791-901-11 CORD, POWER (XGR60:E) 158 1-683-445-11 SUB TRANS BOARD * 159 4-988-533-01 HOLDER, PWB 160 A-4440-764-A MAIN BOARD, COMPLETE (XGR60:AR,E,E51) 160 A-4676-330-A MAIN BOARD, COMPLETE (XGR60:MX) 160 A-4727-645-A MAIN BOARD, COMPLETE (XGR6) 161 X-494-122-81 FOOT (F22125H-M) 0F951 1-532-506-31 FUSE (6.3A 250V) (XGR60:AR,E,E51) 0F961 1-533-949-31 FUSE, CYLINDRICAL (TIME LUG) (8.0A 250V) (XGR60) 0F962 1-533-949-31 FUSE, CYLINDRICAL (TIME LUG) (8.0A 250V) (XGR60) 0F963 1-532-506-31 FUSE (6.3A 250V) (XGR60) 0F963 1-533-310-11 FUSE, GLASS CYLINDRICAL(DIA.5) (6.3A 125V) (XGR6) 0F964 1-532-506-31 FUSE (6.3A 250V) (XGR60) 0F964 1-533-310-11 FUSE, GLASS CYLINDRICAL(DIA.5) (6.3A 125V)(XGR6) 0T951 1-433-606-11 TRANSFORMER, POWER (XGR60) 0T951 1-435-797-11 TRANSFORMER, POWER (XGR6) #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S #2 7-685-872-09 SCREW +BVTT 3X8 (S) #4 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3 #5 7-685-881-09 SCREW +BVTT 4X8 (S) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 HCD-XGR6/XGR60 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 7-5. CD MECHANISM DECK SECTION (CDM-30BD60C) 501 509 504 506 505 511 501 503 501 502 502 M201 514 516 520 520 519 518 522 521 523 524 521 520 519 518 520 510 508 517 507 515 513 510 510 512 #1 #1 #1 #1 #1 BU-30BD60C 501 4-987-976-01 SCREW, STEP 502 4-944-490-01 BELT (TIMING) 503 A-4660-978-A GEAR (PULLEY) ASSY 504 4-978-421-01 GEAR (MID) 505 4-978-425-01 ROLLER (CAM) 506 4-978-420-01 CAM (HOLDER) 507 4-237-981-01 PULLEY (B) (30), CHUCKING 508 X-4953-307-1 PULLEY (A) ASSY, CHUCKING 509 4-238-261-01 TABLE, DISK 510 X-4947-960-1 ROLLER ASSY * 511 4-978-583-01 BRACKET (BU) 512 4-238-260-01 CHASSIS * 513 A-4673-765-A MOTOR BOARD, COMPLETE 514 4-978-426-01 INDICATOR (NO.) 515 1-659-059-13 LED BOARD 516 1-659-058-13 SENSOR BOARD 517 4-228-414-01 BRACKET (YOKE) 518 4-951-620-01 SCREW (2.6X8), +BVTP 519 4-231-151-01 STOPPER (BU) 520 4-231-451-11 INSULATOR (BU-30) 521 4-227-045-11 SPRING (INSULATOR), COIL 522 4-227-899-01 SCREW (DIA. 12), FROATING 523 4-998-716-01 SCREW, BU FITTING 524 X-4954-451-1 HOLDER (BU30) ASSY M201 A-4660-977-A MOTOR ASSY #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 HCD-XGR6/XGR60 7-6. BASE UNIT SECTION (BU-30BD60C) Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 555 552 551 554 553 556 551 3-531-576-11 RIVET 552 A-4728-678-A BD BOARD, COMPLETE 553 4-233-832-01 GEAR (LB) 554 4-233-831-01 GEAR (LA) 555 1-757-710-11 WIRE (FLAT TYPE) (16 CORE) 556 A-4735-188-A BU-30 (60) ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-XGR6/XGR60 SECTION 8 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • CAPACITORS: uF: µF • RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable • COILS uH: µH • SEMICONDUCTORS In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD... • Abbreviation MX : Mexican model E51 : Chilean and Peruvian model AR : Argentina model When indicating parts by reference number, please include the board name. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. BD A-4728-678-A BD BOARD, COMPLETE ***************** < CAPACITOR > C101 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C102 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C103 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C104 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C108 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C109 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C110 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C111 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C112 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C114 1-164-360-11 CERAMIC CHIP 0.1uF 16V C116 1-104-665-11 ELECT 100uF 20% 10V C117 1-104-665-11 ELECT 100uF 20% 10V C118 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C121 1-164-360-11 CERAMIC CHIP 0.1uF 16V C122 1-124-584-00 ELECT 100uF 20% 10V C123 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C124 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C125 1-164-360-11 CERAMIC CHIP 0.1uF 16V C126 1-164-360-11 CERAMIC CHIP 0.1uF 16V C127 1-124-584-00 ELECT 100uF 20% 10V C129 1-162-974-11 CERAMIC CHIP 0.01uF 50V C130 1-164-360-11 CERAMIC CHIP 0.1uF 16V C131 1-104-665-11 ELECT 100uF 20% 10V C133 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C143 1-164-360-11 CERAMIC CHIP 0.1uF 16V C145 1-164-360-11 CERAMIC CHIP 0.1uF 16V C153 1-164-360-11 CERAMIC CHIP 0.1uF 16V C159 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C162 1-104-665-11 ELECT 100uF 20% 10V C165 1-164-360-11 CERAMIC CHIP 0.1uF 16V C167 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C168 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C171 1-115-412-11 CERAMIC CHIP 680PF 5% 25V C172 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C181 1-115-412-11 CERAMIC CHIP 680PF 5% 25V C182 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C183 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C184 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C185 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C190 1-115-156-11 CERAMIC CHIP 1uF 10V C191 1-124-584-00 ELECT 100uF 20% 10V C192 1-164-360-11 CERAMIC CHIP 0.1uF 16V C193 1-104-665-11 ELECT 100uF 20% 10V C194 1-164-360-11 CERAMIC CHIP 0.1uF 16V C195 1-164-360-11 CERAMIC CHIP 0.1uF 16V C196 1-164-360-11 CERAMIC CHIP 0.1uF 16V C197 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C198 1-124-584-00 ELECT 100uF 20% 10V < CONNECTOR > CN101 1-568-864-11 CONNECTOR, FFC 21P CN102 1-793-907-11 CONNECTOR, FFC/FPC 16P < DIODE > D101 8-719-083-58 DIODE UDZSTE-173.9B < FERRITE BEAD > FB101 1-500-445-21 FERRITE 0UH FB102 1-500-445-21 FERRITE 0UH < IC > IC101 8-752-402-31 IC CXD3017Q IC102 8-759-827-41 IC BA5974FM-E2 IC103 8-752-089-74 IC CXA2581N-T4 < JUMPER RESISTOR > JR101 1-216-864-11 METAL CHIP 0 5% 1/16W JR102 1-216-864-11 METAL CHIP 0 5% 1/16W JR103 1-216-864-11 METAL CHIP 0 5% 1/16W JR104 1-216-864-11 METAL CHIP 0 5% 1/16W JR105 1-216-864-11 METAL CHIP 0 5% 1/16W JR106 1-216-864-11 METAL CHIP 0 5% 1/16W JR122 1-216-296-11 SHORT 0 JR123 1-216-296-11 SHORT 0 JR124 1-216-296-11 SHORT 0 JR125 1-216-296-11 SHORT 0 < COIL > L101 1-469-553-21 INDUCTOR 4.7uH < TRANSISTOR > Q101 8-729-049-31 TRANSISTOR 2SB710A-RTX Q102 8-729-920-85 TRANSISTOR 2SD1664-T100-QR < RESISTOR > R101 1-216-821-11 METAL CHIP 1K 5% 1/16W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-XGR6/XGR60 BD R102 1-216-845-11 METAL CHIP 100K 5% 1/16W R103 1-216-835-11 METAL CHIP 15K 5% 1/16W R104 1-216-839-11 METAL CHIP 33K 5% 1/16W R105 1-216-821-11 METAL CHIP 1K 5% 1/16W R106 1-216-821-11 METAL CHIP 1K 5% 1/16W R107 1-216-833-11 METAL CHIP 10K 5% 1/16W R108 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R109 1-216-857-11 METAL CHIP 1M 5% 1/16W R111 1-216-846-11 METAL CHIP 120K 5% 1/16W R114 1-218-745-11 RES-CHIP 160K 5% 1/10W R116 1-216-001-00 METAL CHIP 10 5% 1/10W R117 1-216-821-11 METAL CHIP 1K 5% 1/16W R118 1-216-809-11 METAL CHIP 100 5% 1/16W R119 1-216-826-11 METAL CHIP 2.7K 5% 1/16W R120 1-216-835-11 METAL CHIP 15K 5% 1/16W R122 1-216-845-11 METAL CHIP 100K 5% 1/16W R123 1-216-833-11 METAL CHIP 10K 5% 1/16W R124 1-216-845-11 METAL CHIP 100K 5% 1/16W R131 1-216-813-11 METAL CHIP 220 5% 1/16W R143 1-216-839-11 METAL CHIP 33K 5% 1/16W R144 1-216-839-11 METAL CHIP 33K 5% 1/16W R147 1-218-701-11 RES-CHIP 2.4K 5% 1/10W R148 1-216-797-11 METAL CHIP 10 5% 1/16W R149 1-216-797-11 METAL CHIP 10 5% 1/16W R158 1-216-838-11 METAL CHIP 27K 5% 1/16W R159 1-216-838-11 METAL CHIP 27K 5% 1/16W R162 1-216-845-11 METAL CHIP 100K 5% 1/16W R171 1-216-837-11 METAL CHIP 22K 5% 1/16W R172 1-216-837-11 METAL CHIP 22K 5% 1/16W R173 1-216-837-11 METAL CHIP 22K 5% 1/16W R181 1-216-837-11 METAL CHIP 22K 5% 1/16W R182 1-216-837-11 METAL CHIP 22K 5% 1/16W R183 1-216-837-11 METAL CHIP 22K 5% 1/16W R190 1-216-813-11 METAL CHIP 220 5% 1/16W R191 1-216-839-11 METAL CHIP 33K 5% 1/16W R192 1-216-839-11 METAL CHIP 33K 5% 1/16W R193 1-216-846-11 METAL CHIP 120K 5% 1/16W R194 1-216-839-11 METAL CHIP 33K 5% 1/16W R195 1-216-849-11 METAL CHIP 220K 5% 1/16W R196 1-216-819-11 METAL CHIP 680 5% 1/16W R198 1-216-864-11 METAL CHIP 0 5% 1/16W < NETWORK > RN101 1-233-576-11 RES, CHIP NETWORK 100 < VARIABLE RESISTOR > RV101 1-238-602-11 RES, ADJ, CARBON 47K (E-F BALANCE) < VIBRATOR > X101 1-579-280-11 VIBRATOR, CRYSTAL (16.9344MHz) ****************************************************** 1-683-452-11 CD-L BOARD ********* < CONNECTOR > * CN704 1-564-719-11 PIN, CONNECTOR (SMALL TYPE) 3P < RESISTOR > R771 1-249-419-11 CARBON 1.5K 5% 1/4W F R772 1-249-419-11 CARBON 1.5K 5% 1/4W F R773 1-249-421-11 CARBON 2.2K 5% 1/4W F R774 1-247-843-11 CARBON 3.3K 5% 1/4W R775 1-249-425-11 CARBON 4.7K 5% 1/4W F R776 1-249-427-11 CARBON 6.8K 5% 1/4W F R777 1-249-429-11 CARBON 10K 5% 1/4W R778 1-249-431-11 CARBON 15K 5% 1/4W < SWITCH > S741 1-762-875-21 SWITCH, KEYBOARD (DISC 1) S742 1-762-875-21 SWITCH, KEYBOARD (DISC 2) S743 1-762-875-21 SWITCH, KEYBOARD (DISC 3) S744 1-762-875-21 SWITCH, KEYBOARD (DISC 4) S745 1-762-875-21 SWITCH, KEYBOARD (DISC 5) S746 1-762-875-21 SWITCH, KEYBOARD (DISC SKIP) S747 1-762-875-21 SWITCH, KEYBOARD (REPEAT) S748 1-762-875-21 SWITCH, KEYBOARD (PLAY MODE) S749 1-762-875-21 SWITCH, KEYBOARD (EDIT) ****************************************************** 1-683-453-11 CD-R BOARD ********** < CAPACITOR > C751 1-162-306-11 CERAMIC 0.01uF 30% 16V C752 1-162-306-11 CERAMIC 0.01uF 30% 16V < CONNECTOR > CN703 1-785-333-11 PIN, CONNECTOR (LIGHT ANGLE)7P < DIODE > D700 8-719-056-13 DIODE SML79423C-TP15 (GX ) < RESISTOR > R782 1-247-843-11 CARBON 3.3K 5% 1/4W R783 1-249-425-11 CARBON 4.7K 5% 1/4W F R784 1-249-427-11 CARBON 6.8K 5% 1/4W F R790 1-247-791-91 CARBON 22 5% 1/4W R791 1-247-791-91 CARBON 22 5% 1/4W < SWITCH > S752 1-762-875-21 SWITCH, KEYBOARD (GX ) S753 1-762-875-21 SWITCH, KEYBOARD (x ) S754 1-762-875-21 SWITCH, KEYBOARD (m ) S755 1-762-875-21 SWITCH, KEYBOARD (M ) S763 1-473-393-11 ENCODER, ROTARY ( . AMS > ) ****************************************************** 1-684-683-11 D-SW BOARD ********** < CAPACITOR > C741 1-162-306-11 CERAMIC 0.01uF 30% 16V < SWITCH > S740 1-762-587-11 SWITCH, PUSH (1 KEY) (DOOR) ****************************************************** 1-683-454-11 FRONT INPUT BOARD **************** < CAPACITOR > C701 1-162-294-31 CERAMIC 0.001uF 10% 50V C702 1-162-294-31 CERAMIC 0.001uF 10% 50V CD-L CD-R D-SW FRONT INPUT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-XGR6/XGR60 LED C703 1-126-960-11 ELECT 1uF 20% 50V C704 1-164-159-21 CERAMIC 0.1uF 50V C705 1-162-282-31 CERAMIC 100PF 10% 50V < FILTER > FL730 1-424-228-11 FILTER, NOISE < JACK > J804 1-815-310-11 JACK 3P (GAME INPUT) < RESISTOR > R721 1-249-437-11 CARBON 47K 5% 1/4W R722 1-249-417-11 CARBON 1K 5% 1/4W F R723 1-249-437-11 CARBON 47K 5% 1/4W R724 1-247-804-11 CARBON 75 5% 1/4W R725 1-249-417-11 CARBON 1K 5% 1/4W F ****************************************************** 1-683-450-11 HEADPHONE BOARD *************** < CAPACITOR > C891 1-162-294-31 CERAMIC 0.001uF 10% 50V C892 1-162-294-31 CERAMIC 0.001uF 10% 50V C893 1-164-159-21 CERAMIC 0.1uF 50V < JACK > J891 1-770-226-11 JACK (LARGE TYPE) (PHONES) < RESISTOR > R891 1-247-807-31 CARBON 100 5% 1/4W ****************************************************** * 1-659-059-13 LED BOARD ********* < DIODE > D201 8-719-032-98 DIODE SEL5820A (DISC No.) < TRANSISTOR > Q201 8-729-119-78 TRANSISTOR 2SC2785-HFE < RESISTOR > R201 1-249-433-11 CARBON 22K 5% 1/4W R202 1-249-411-11 CARBON 330 5% 1/4W R203 1-249-437-11 CARBON 47K 5% 1/4W ****************************************************** A-4440-764-A MAIN BOARD, COMPLETE (XGR60:AR,E,E51) A-4676-330-A MAIN BOARD, COMPLETE (XGR60:MX) A-4727-645-A MAIN BOARD, COMPLETE (XGR6) ******************* 4-875-327-31 HEAT SINK 4-948-236-21 CUSHION (107) 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S < CAPACITOR > C72 1-136-169-00 FILM 0.22uF 5% 50V C73 1-136-169-00 FILM 0.22uF 5% 50V C110 1-126-795-11 ELECT 10uF 20% 50V C111 1-126-795-11 ELECT 10uF 20% 50V C112 1-126-795-11 ELECT 10uF 20% 50V C113 1-126-795-11 ELECT 10uF 20% 50V C114 1-126-795-11 ELECT 10uF 20% 50V C115 1-126-795-11 ELECT 10uF 20% 50V C116 1-130-487-00 MYLAR 0.022uF 5% 50V C117 1-130-487-00 MYLAR 0.022uF 5% 50V C118 1-126-795-11 ELECT 10uF 20% 50V C119 1-130-491-00 MYLAR 0.047uF 5% 50V C120 1-130-479-00 MYLAR 0.0047uF 5% 50V C121 1-126-795-11 ELECT 10uF 20% 50V C122 1-136-171-00 FILM 0.33uF 5% 50V C123 1-136-171-00 FILM 0.33uF 5% 50V C124 1-126-961-11 ELECT 2.2uF 20% 50V C131 1-126-795-11 ELECT 10uF 20% 50V C132 1-125-972-91 ELECT 100uF 20% 16V C133 1-126-795-11 ELECT 10uF 20% 50V C134 1-162-974-11 CERAMIC CHIP 0.01uF 50V C135 1-124-589-11 ELECT 47uF 20% 16V C136 1-126-964-11 ELECT 10uF 20% 50V C137 1-162-967-11 CERAMIC CHIP 3300pF 10% 50V C138 1-162-967-11 CERAMIC CHIP 3300pF 10% 50V C160 1-126-795-11 ELECT 10uF 20% 50V C161 1-126-795-11 ELECT 10uF 20% 50V C162 1-126-795-11 ELECT 10uF 20% 50V C163 1-126-795-11 ELECT 10uF 20% 50V C164 1-126-795-11 ELECT 10uF 20% 50V C165 1-126-795-11 ELECT 10uF 20% 50V C166 1-130-487-00 MYLAR 0.022uF 5% 50V C167 1-130-487-00 MYLAR 0.022uF 5% 50V C168 1-126-795-11 ELECT 10uF 20% 50V C169 1-130-491-00 MYLAR 0.047uF 5% 50V C170 1-130-479-00 MYLAR 0.0047uF 5% 50V C171 1-126-795-11 ELECT 10uF 20% 50V C172 1-136-171-00 FILM 0.33uF 5% 50V C173 1-136-171-00 FILM 0.33uF 5% 50V C174 1-126-961-11 ELECT 2.2uF 20% 50V C181 1-164-156-11 CERAMIC CHIP 0.1uF 25V C182 1-164-156-11 CERAMIC CHIP 0.1uF 25V C183 1-164-156-11 CERAMIC CHIP 0.1uF 25V C193 1-164-156-11 CERAMIC CHIP 0.1uF 25V C301 1-130-483-00 MYLAR 0.01uF 5% 50V C302 1-126-964-11 ELECT 10uF 20% 50V C303 1-136-165-00 FILM 0.1uF 5% 50V C304 1-126-964-11 ELECT 10uF 20% 50V C305 1-136-165-00 FILM 0.1uF 5% 50V C306 1-126-961-11 ELECT 2.2uF 20% 50V C307 1-126-947-11 ELECT 47uF 20% 16V C308 1-164-392-11 CERAMIC CHIP 390PF 10% 50V C309 1-164-392-11 CERAMIC CHIP 390PF 10% 50V C310 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C311 1-126-933-11 ELECT 100uF 20% 16V C312 1-126-964-11 ELECT 10uF 20% 50V C313 1-126-964-11 ELECT 10uF 20% 50V C321 1-126-964-11 ELECT 10uF 20% 50V C322 1-135-575-11 MYLAR 120PF 5% 50V C323 1-135-575-11 MYLAR 120PF 5% 50V C324 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C325 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C326 1-162-946-11 CERAMIC CHIP 27PF 5% 50V C327 1-162-946-11 CERAMIC CHIP 27PF 5% 50V C328 1-162-974-11 CERAMIC CHIP 0.01uF 50V C329 1-162-974-11 CERAMIC CHIP 0.01uF 50V HEADPHONE MAIN FRONT INPUT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-XGR6/XGR60 C331 1-137-150-11 MYLAR 0.01uF 5% 100V C332 1-126-961-11 ELECT 2.2uF 20% 50V C333 1-130-485-00 MYLAR 0.015uF 5% 50V C334 1-130-481-00 MYLAR 0.0068uF 5% 50V C335 1-130-481-00 MYLAR 0.0068uF 5% 50V C336 1-130-486-00 MYLAR 0.018uF 10% 50V C337 1-126-964-11 ELECT 10uF 20% 50V C338 1-126-947-11 ELECT 47uF 20% 16V C341 1-126-935-11 ELECT 470uF 20% 10V C342 1-164-156-11 CERAMIC CHIP 0.1uF 25V C343 1-130-487-00 MYLAR 0.022uF 5% 50V C344 1-130-487-00 MYLAR 0.022uF 5% 50V C345 1-126-961-11 ELECT 2.2uF 20% 50V C346 1-126-961-11 ELECT 2.2uF 20% 50V C347 1-126-964-11 ELECT 10uF 20% 50V C348 1-126-965-11 ELECT 22uF 20% 50V C349 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C350 1-137-198-11 FILM 1uF 5% 50V C351 1-130-483-00 MYLAR 0.01uF 5% 50V C352 1-126-964-11 ELECT 10uF 20% 50V C353 1-136-165-00 FILM 0.1uF 5% 50V C354 1-126-964-11 ELECT 10uF 20% 50V C355 1-136-165-00 FILM 0.1uF 5% 50V C356 1-126-961-11 ELECT 2.2uF 20% 50V C357 1-126-947-11 ELECT 47uF 20% 16V C358 1-164-392-11 CERAMIC CHIP 390PF 10% 50V C359 1-164-392-11 CERAMIC CHIP 390PF 10% 50V C381 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C382 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C401 1-164-156-11 CERAMIC CHIP 0.1uF 25V C402 1-126-916-11 ELECT 1000uF 20% 6.3V C403 1-126-961-11 ELECT 2.2uF 20% 50V C404 1-126-961-11 ELECT 2.2uF 20% 50V C405 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C406 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C407 1-164-156-11 CERAMIC CHIP 0.1uF 25V C408 1-126-916-11 ELECT 1000uF 20% 6.3V C410 1-126-935-11 ELECT 470uF 20% 10V C414 1-164-156-11 CERAMIC CHIP 0.1uF 25V C431 1-164-156-11 CERAMIC CHIP 0.1uF 25V C452 1-126-947-11 ELECT 47uF 20% 16V C510 1-162-918-11 CERAMIC CHIP 18PF 5% 50V C511 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C512 1-164-156-11 CERAMIC CHIP 0.1uF 25V C516 1-164-156-11 CERAMIC CHIP 0.1uF 25V C562 1-164-156-11 CERAMIC CHIP 0.1uF 25V C563 1-126-947-11 ELECT 47uF 20% 16V C598 1-164-156-11 CERAMIC CHIP 0.1uF 25V C599 1-126-947-11 ELECT 47uF 20% 16V C601 1-162-959-11 CERAMIC CHIP 330PF 5% 50V C602 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C603 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C604 1-126-961-11 ELECT 2.2uF 20% 50V (XGR60) C604 1-126-963-11 ELECT 4.7uF 20% 50V (XGR6) C605 1-130-479-00 MYLAR 0.0047uF 5% 50V C606 1-130-473-00 MYLAR 0.0015uF 5% 50V C607 1-136-159-00 FILM 0.033uF 5% 50V (XGR60) C607 1-136-165-00 FILM 0.1uF 5% 50V (XGR6) C608 1-126-964-11 ELECT 10uF 20% 50V C609 1-162-974-11 CERAMIC CHIP 0.01uF 50V C610 1-126-933-11 ELECT 100uF 20% 16V C611 1-126-947-11 ELECT 47uF 20% 16V C612 1-162-974-11 CERAMIC CHIP 0.01uF 50V C613 1-126-947-11 ELECT 47uF 20% 16V C651 1-162-959-11 CERAMIC CHIP 330PF 5% 50V C652 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C653 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C654 1-126-961-11 ELECT 2.2uF 20% 50V (XGR60) C654 1-126-963-11 ELECT 4.7uF 20% 50V (XGR6) C655 1-130-479-00 MYLAR 0.0047uF 5% 50V C656 1-130-473-00 MYLAR 0.0015uF 5% 50V C657 1-136-159-00 FILM 0.033uF 5% 50V (XGR60) C657 1-136-165-00 FILM 0.1uF 5% 50V (XGR6) C658 1-126-964-11 ELECT 10uF 20% 50V C701 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C702 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C703 1-126-964-11 ELECT 10uF 20% 50V C704 1-126-964-11 ELECT 10uF 20% 50V C705 1-162-960-11 CERAMIC CHIP 220PF 10% 50V (XGR6,XGR60:MX) C722 1-126-926-11 ELECT 1000uF 20% 10V C724 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C751 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C752 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C753 1-126-964-11 ELECT 10uF 20% 50V C754 1-126-964-11 ELECT 10uF 20% 50V C755 1-162-960-11 CERAMIC CHIP 220PF 10% 50V (XGR6,XGR60:MX) C771 1-164-156-11 CERAMIC CHIP 0.1uF 25V C772 1-164-156-11 CERAMIC CHIP 0.1uF 25V C774 1-164-156-11 CERAMIC CHIP 0.1uF 25V C801 1-126-964-11 ELECT 10uF 20% 50V C802 1-136-165-00 FILM 0.1uF 5% 50V C803 1-136-165-00 FILM 0.1uF 5% 50V C804 1-126-916-11 ELECT 1000uF 20% 6.3V C806 1-109-953-11 ELECT 2.2uF 20% 50V C901 1-128-548-11 ELECT 4700uF 20% 25V C902 1-164-156-11 CERAMIC CHIP 0.1uF 25V C903 1-126-935-11 ELECT 470uF 20% 16V C911 1-104-665-11 ELECT 100uF 20% 25V C912 1-126-935-11 ELECT 470uF 20% 10V C913 1-126-947-11 ELECT 47uF 20% 16V C921 1-126-768-11 ELECT 2200uF 20% 16V C922 1-164-156-11 CERAMIC CHIP 0.1uF 25V C923 1-126-916-11 ELECT 1000uF 20% 6.3V C924 1-126-947-11 ELECT 47uF 20% 16V C925 1-164-156-11 CERAMIC CHIP 0.1uF 25V C926 1-126-935-11 ELECT 470uF 20% 6.3V C961 1-164-156-11 CERAMIC CHIP 0.1uF 25V C962 1-164-156-11 CERAMIC CHIP 0.1uF 25V C963 1-126-947-11 ELECT 47uF 20% 16V < CONNECTOR > * CN301 1-568-449-11 HOUSING, CONNECTOR(PC BOARD)3P CN311 1-691-765-11 PLUG (MICRO CONNECTOR) 3P CN321 1-691-770-11 PLUG (MICRO CONNECTOR) 8P MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-XGR6/XGR60 CN371 1-784-776-11 CONNECTOR, FFC 15P CN401 1-568-838-11 CONNECTOR, FFC 21P CN411 1-785-321-11 PIN, CONNECTOR (STRAIGHT) 9P CN431 1-784-780-11 CONNECTOR, FFC 19P CN441 1-563-614-31 CONNECTOR, FLEXIBLE 11P CN722 1-691-767-11 PLUG (MICRO CONNECTOR) 5P CN901 1-778-982-21 CONNECTOR, BOARD TO BOARD 13P CN902 1-778-982-21 CONNECTOR, BOARD TO BOARD 13P CN903 1-785-315-11 PIN, CONNECTOR (STRAIGHT) 3P CN961 1-564-506-11 PLUG, CONNECTOR 3P < DIODE > D381 8-719-988-61 DIODE 1SS355TE-17 D382 8-719-988-61 DIODE 1SS355TE-17 D431 8-719-988-61 DIODE 1SS355TE-17 D802 8-719-988-61 DIODE 1SS355TE-17 D803 8-719-988-61 DIODE 1SS355TE-17 D805 8-719-988-61 DIODE 1SS355TE-17 D806 8-719-988-61 DIODE 1SS355TE-17 D807 8-719-988-61 DIODE 1SS355TE-17 D808 8-719-988-61 DIODE 1SS355TE-17 D809 8-719-210-33 DIODE EC10DS2 D810 8-719-210-33 DIODE EC10DS2 D911 8-719-210-33 DIODE EC10DS2 D912 8-719-210-33 DIODE EC10DS2 D913 8-719-210-33 DIODE EC10DS2 < FERRITE BEAD > FB402 1-414-772-11 FERRITE 0UH FB403 1-414-772-11 FERRITE 0UH FB404 1-414-772-11 FERRITE 0UH FB516 1-414-772-11 FERRITE 0UH FB562 1-414-772-11 FERRITE 0UH FB599 1-414-772-11 FERRITE 0UH < IC > IC111 6-701-686-01 IC M61519FPD60G IC181 8-759-009-06 IC MC14052BFEL IC301 6-701-655-01 IC HA12236F IC321 8-759-143-54 IC uPC1330HA IC341 8-759-100-96 IC NJM4558M-TE2 IC451 8-749-019-25 IC TOTX141 (CD DIGITAL OUT OPTICAL) IC501 6-801-051-01 IC M30620MCN-A01FP IC601 8-759-100-96 IC NJM4558M-TE2 IC801 8-759-533-04 IC M62703ML-E1 IC911 8-759-231-09 IC TA8662N IC921 8-759-039-69 IC uPC7805AHF IC922 6-701-760-01 IC uPC3504AHF IC931 8-759-604-32 IC M5F7810L IC961 8-759-088-08 IC uPC7812AHF < JACK > J701 1-691-887-11 JACK, PIN 6P (PHONO IN, MD IN/OUT) J702 1-573-028-31 JACK, PIN 4P (DJ MIX) (XGR6,XGR60:MX) J721 1-774-227-11 JACK, PIN 1P (VIDEO OUT) < JUMPER RESISTOR > JR1 1-216-295-00 SHORT 0 JR2 1-216-295-00 SHORT 0 JR3 1-216-295-00 SHORT 0 JR4 1-216-295-00 SHORT 0 JR5 1-216-295-00 SHORT 0 JR6 1-216-295-00 SHORT 0 JR7 1-216-295-00 SHORT 0 JR12 1-216-295-00 SHORT 0 JR13 1-216-296-11 SHORT 0 JR14 1-216-296-11 SHORT 0 JR15 1-216-295-00 SHORT 0 JR16 1-216-295-00 SHORT 0 JR17 1-216-295-00 SHORT 0 JR18 1-216-295-00 SHORT 0 JR19 1-216-296-11 SHORT 0 JR20 1-216-295-00 SHORT 0 JR21 1-216-295-00 SHORT 0 JR22 1-216-295-00 SHORT 0 JR23 1-216-295-00 SHORT 0 JR27 1-216-295-00 SHORT 0 JR28 1-216-296-11 SHORT 0 JR29 1-216-295-00 SHORT 0 JR181 1-216-295-00 SHORT 0 JR182 1-216-295-00 SHORT 0 JR191 1-216-295-00 SHORT 0 JR192 1-216-295-00 SHORT 0 JR301 1-216-295-00 SHORT 0 JR303 1-216-295-00 SHORT 0 JR351 1-216-295-00 SHORT 0 JR353 1-216-295-00 SHORT 0 JR721 1-216-295-00 SHORT 0 JR722 1-216-295-00 SHORT 0 JR723 1-216-295-00 SHORT 0 JR910 1-216-296-11 SHORT 0 (XGR6) < COIL > L301 1-412-032-11 INDUCTOR CHIP 100uH L321 1-410-780-11 INDUCTOR 27mH L322 1-410-780-11 INDUCTOR 27mH L331 1-412-033-11 INDUCTOR CHIP 220uH L451 1-412-032-11 INDUCTOR CHIP 100uH < TRANSISTOR > Q111 8-729-048-96 TRANSISTOR 2SK1825 Q112 8-729-048-96 TRANSISTOR 2SK1825 Q113 8-729-048-96 TRANSISTOR 2SK1825 Q114 8-729-141-30 TRANSISTOR 2SC3623A-LK Q115 8-729-141-30 TRANSISTOR 2SC3623A-LK Q116 8-729-141-30 TRANSISTOR 2SC3623A-LK Q161 8-729-048-96 TRANSISTOR 2SK1825 Q162 8-729-048-96 TRANSISTOR 2SK1825 Q163 8-729-048-96 TRANSISTOR 2SK1825 Q164 8-729-141-30 TRANSISTOR 2SC3623A-LK Q165 8-729-029-40 TRANSISTOR DTA124ESA Q166 8-729-620-05 TRANSISTOR 2SC2603-EF Q167 8-729-029-40 TRANSISTOR DTA124ESA Q168 8-729-029-86 TRANSISTOR DTC124ESA Q169 8-729-029-40 TRANSISTOR DTA124ESA Q170 8-729-029-86 TRANSISTOR DTC124ESA Q181 8-729-029-86 TRANSISTOR DTC124ESA Q182 8-729-029-86 TRANSISTOR DTC124ESA Q321 8-729-029-86 TRANSISTOR DTC124ESA Q322 8-729-029-40 TRANSISTOR DTA124ESA Q331 8-729-113-07 TRANSISTOR 2SC2001TP-K Q332 8-729-113-07 TRANSISTOR 2SC2001TP-K MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-XGR6/XGR60 Q333 8-729-801-93 TRANSISTOR 2SD1387 Q334 8-729-029-86 TRANSISTOR DTC124ESA Q335 8-729-140-04 TRANSISTOR 2SB1116A-L Q341 8-729-620-05 TRANSISTOR 2SC2603-EF Q342 8-729-029-86 TRANSISTOR DTC124ESA Q343 8-729-029-86 TRANSISTOR DTC124ESA Q344 8-729-029-86 TRANSISTOR DTC124ESA Q345 8-729-029-86 TRANSISTOR DTC124ESA Q381 8-729-140-04 TRANSISTOR 2SB1116A-L Q382 8-729-029-86 TRANSISTOR DTC124ESA Q383 8-729-140-04 TRANSISTOR 2SB1116A-L Q384 8-729-029-86 TRANSISTOR DTC124ESA Q385 8-729-116-59 TRANSISTOR 2SB1068TP Q386 8-729-029-86 TRANSISTOR DTC124ESA Q387 8-729-029-86 TRANSISTOR DTC124ESA Q388 8-729-048-96 TRANSISTOR 2SK1825 Q401 8-729-141-30 TRANSISTOR 2SC3623A-LK Q402 8-729-141-30 TRANSISTOR 2SC3623A-LK Q411 8-729-029-86 TRANSISTOR DTC124ESA Q412 8-729-029-86 TRANSISTOR DTC124ESA Q451 8-729-620-05 TRANSISTOR 2SC2603-EF Q452 8-729-119-76 TRANSISTOR 2SA1175-HFE Q453 8-729-119-76 TRANSISTOR 2SA1175-HFE Q454 8-729-620-05 TRANSISTOR 2SC2603-EF Q611 8-729-620-05 TRANSISTOR 2SC2603-EF Q701 8-729-141-30 TRANSISTOR 2SC3623A-LK Q751 8-729-141-30 TRANSISTOR 2SC3623A-LK Q801 8-729-620-05 TRANSISTOR 2SC2603-EF Q802 8-729-029-86 TRANSISTOR DTC124ESA Q803 8-729-029-40 TRANSISTOR DTA124ESA Q805 8-729-029-40 TRANSISTOR DTA124ESA Q806 8-729-029-86 TRANSISTOR DTC124ESA Q921 8-729-209-60 TRANSISTOR 2SB1375 Q922 8-729-029-86 TRANSISTOR DTC124ESA Q961 8-729-620-05 TRANSISTOR 2SC2603-EF Q962 8-729-140-04 TRANSISTOR 2SB1116A-L < RESISTOR > R111 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R112 1-216-833-11 METAL CHIP 10K 5% 1/16W R113 1-216-857-11 METAL CHIP 1M 5% 1/16W R114 1-216-857-11 METAL CHIP 1M 5% 1/16W R115 1-216-841-11 METAL CHIP 47K 5% 1/16W R116 1-216-841-11 METAL CHIP 47K 5% 1/16W R117 1-216-849-11 METAL CHIP 220K 5% 1/16W R118 1-216-849-11 METAL CHIP 220K 5% 1/16W R119 1-216-818-11 METAL CHIP 560 5% 1/16W R120 1-216-845-11 METAL CHIP 100K 5% 1/16W R121 1-216-855-11 METAL CHIP 680K 5% 1/16W R122 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R123 1-216-845-11 METAL CHIP 100K 5% 1/16W R124 1-216-833-11 METAL CHIP 10K 5% 1/16W R125 1-216-833-11 METAL CHIP 10K 5% 1/16W R126 1-216-833-11 METAL CHIP 10K 5% 1/16W R127 1-216-849-11 METAL CHIP 220K 5% 1/16W R128 1-216-849-11 METAL CHIP 220K 5% 1/16W R129 1-216-857-11 METAL CHIP 1M 5% 1/16W R130 1-216-857-11 METAL CHIP 1M 5% 1/16W R131 1-216-833-11 METAL CHIP 10K 5% 1/16W R132 1-216-833-11 METAL CHIP 10K 5% 1/16W R133 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R134 1-216-857-11 METAL CHIP 1M 5% 1/16W R135 1-216-295-00 SHORT 0 R136 1-216-295-00 SHORT 0 R137 1-216-845-11 METAL CHIP 100K 5% 1/16W R138 1-216-845-11 METAL CHIP 100K 5% 1/16W R161 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R162 1-216-833-11 METAL CHIP 10K 5% 1/16W R163 1-216-857-11 METAL CHIP 1M 5% 1/16W R164 1-216-857-11 METAL CHIP 1M 5% 1/16W R165 1-216-841-11 METAL CHIP 47K 5% 1/16W R166 1-216-841-11 METAL CHIP 47K 5% 1/16W R167 1-216-849-11 METAL CHIP 220K 5% 1/16W R168 1-216-849-11 METAL CHIP 220K 5% 1/16W R169 1-216-818-11 METAL CHIP 560 5% 1/16W R170 1-216-845-11 METAL CHIP 100K 5% 1/16W R171 1-216-855-11 METAL CHIP 680K 5% 1/16W R172 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R173 1-216-845-11 METAL CHIP 100K 5% 1/16W R174 1-216-833-11 METAL CHIP 10K 5% 1/16W R175 1-216-841-11 METAL CHIP 47K 5% 1/16W R176 1-216-081-00 METAL CHIP 22K 5% 1/10W R177 1-216-841-11 METAL CHIP 47K 5% 1/16W R178 1-216-841-11 METAL CHIP 47K 5% 1/16W R179 1-216-833-11 METAL CHIP 10K 5% 1/16W R180 1-216-833-11 METAL CHIP 10K 5% 1/16W R181 1-216-833-11 METAL CHIP 10K 5% 1/16W R182 1-216-833-11 METAL CHIP 10K 5% 1/16W R301 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R302 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R303 1-216-833-11 METAL CHIP 10K 5% 1/16W R304 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R305 1-216-832-11 METAL CHIP 8.2K 5% 1/16W R308 1-216-081-00 METAL CHIP 22K 5% 1/10W R309 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R310 1-216-833-11 METAL CHIP 10K 5% 1/16W R311 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R318 1-216-833-11 METAL CHIP 10K 5% 1/16W R319 1-216-845-11 METAL CHIP 100K 5% 1/16W R320 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R321 1-216-833-11 METAL CHIP 10K 5% 1/16W R324 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R325 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R326 1-216-833-11 METAL CHIP 10K 5% 1/16W R327 1-216-833-11 METAL CHIP 10K 5% 1/16W R328 1-216-834-11 METAL CHIP 12K 5% 1/16W R329 1-216-834-11 METAL CHIP 12K 5% 1/16W R330 1-216-081-00 METAL CHIP 22K 5% 1/10W 0R331 1-219-787-17 FUSIBLE 5.6 5% 1/4W 0R332 1-219-787-17 FUSIBLE 5.6 5% 1/4W R333 1-216-836-11 METAL CHIP 18K 5% 1/16W R334 1-216-836-11 METAL CHIP 18K 5% 1/16W R335 1-216-830-11 METAL CHIP 5.6K 5% 1/16W R336 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R337 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R338 1-216-081-00 METAL CHIP 22K 5% 1/10W R339 1-216-833-11 METAL CHIP 10K 5% 1/16W R340 1-216-833-11 METAL CHIP 10K 5% 1/16W MAIN The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-XGR6/XGR60 MAIN R341 1-216-821-11 METAL CHIP 1K 5% 1/16W R342 1-216-821-11 METAL CHIP 1K 5% 1/16W R343 1-216-841-11 METAL CHIP 47K 5% 1/16W R344 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R345 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R346 1-216-833-11 METAL CHIP 10K 5% 1/16W R347 1-216-833-11 METAL CHIP 10K 5% 1/16W R348 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R349 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R350 1-216-833-11 METAL CHIP 10K 5% 1/16W R351 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R352 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R353 1-216-833-11 METAL CHIP 10K 5% 1/16W R354 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R355 1-216-832-11 METAL CHIP 8.2K 5% 1/16W R358 1-216-833-11 METAL CHIP 10K 5% 1/16W R371 1-216-833-11 METAL CHIP 10K 5% 1/16W R372 1-216-833-11 METAL CHIP 10K 5% 1/16W R374 1-216-833-11 METAL CHIP 10K 5% 1/16W R375 1-216-833-11 METAL CHIP 10K 5% 1/16W R377 1-216-833-11 METAL CHIP 10K 5% 1/16W R378 1-216-833-11 METAL CHIP 10K 5% 1/16W R381 1-216-819-11 METAL CHIP 680 5% 1/16W R382 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R383 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R384 1-216-819-11 METAL CHIP 680 5% 1/16W R385 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R386 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R387 1-216-841-11 METAL CHIP 47K 5% 1/16W R388 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R389 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R390 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R391 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R392 1-216-826-11 METAL CHIP 2.7K 5% 1/16W R393 1-216-833-11 METAL CHIP 10K 5% 1/16W R394 1-216-849-11 METAL CHIP 220K 5% 1/16W R401 1-216-809-11 METAL CHIP 100 5% 1/16W R402 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R403 1-216-809-11 METAL CHIP 100 5% 1/16W R404 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R405 1-216-833-11 METAL CHIP 10K 5% 1/16W R406 1-216-833-11 METAL CHIP 10K 5% 1/16W R407 1-216-295-00 SHORT 0 R408 1-216-295-00 SHORT 0 R410 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R412 1-216-835-11 METAL CHIP 15K 5% 1/16W R413 1-216-833-11 METAL CHIP 10K 5% 1/16W R414 1-216-833-11 METAL CHIP 10K 5% 1/16W R431 1-216-845-11 METAL CHIP 100K 5% 1/16W R451 1-216-833-11 METAL CHIP 10K 5% 1/16W R452 1-216-833-11 METAL CHIP 10K 5% 1/16W R453 1-216-833-11 METAL CHIP 10K 5% 1/16W R454 1-216-833-11 METAL CHIP 10K 5% 1/16W R501 1-216-833-11 METAL CHIP 10K 5% 1/16W R502 1-216-809-11 METAL CHIP 100 5% 1/16W R503 1-216-809-11 METAL CHIP 100 5% 1/16W R504 1-216-809-11 METAL CHIP 100 5% 1/16W R505 1-216-833-11 METAL CHIP 10K 5% 1/16W R509 1-216-833-11 METAL CHIP 10K 5% 1/16W R511 1-216-851-11 METAL CHIP 330K 5% 1/16W R513 1-216-295-00 SHORT 0 R516 1-216-833-11 METAL CHIP 10K 5% 1/16W R517 1-216-833-11 METAL CHIP 10K 5% 1/16W R519 1-216-809-11 METAL CHIP 100 5% 1/16W R521 1-216-809-11 METAL CHIP 100 5% 1/16W R522 1-216-809-11 METAL CHIP 100 5% 1/16W R523 1-216-809-11 METAL CHIP 100 5% 1/16W R524 1-216-809-11 METAL CHIP 100 5% 1/16W R525 1-216-809-11 METAL CHIP 100 5% 1/16W R526 1-216-809-11 METAL CHIP 100 5% 1/16W R527 1-216-809-11 METAL CHIP 100 5% 1/16W R528 1-216-809-11 METAL CHIP 100 5% 1/16W R529 1-216-809-11 METAL CHIP 100 5% 1/16W R530 1-216-809-11 METAL CHIP 100 5% 1/16W R531 1-216-833-11 METAL CHIP 10K 5% 1/16W R532 1-216-809-11 METAL CHIP 100 5% 1/16W R533 1-216-809-11 METAL CHIP 100 5% 1/16W R534 1-216-809-11 METAL CHIP 100 5% 1/16W R535 1-216-809-11 METAL CHIP 100 5% 1/16W R536 1-216-809-11 METAL CHIP 100 5% 1/16W R537 1-216-809-11 METAL CHIP 100 5% 1/16W R540 1-216-841-11 METAL CHIP 47K 5% 1/16W R541 1-216-809-11 METAL CHIP 100 5% 1/16W R542 1-216-809-11 METAL CHIP 100 5% 1/16W R543 1-216-809-11 METAL CHIP 100 5% 1/16W R547 1-216-809-11 METAL CHIP 100 5% 1/16W R548 1-216-809-11 METAL CHIP 100 5% 1/16W R549 1-216-833-11 METAL CHIP 10K 5% 1/16W R556 1-216-809-11 METAL CHIP 100 5% 1/16W R557 1-216-809-11 METAL CHIP 100 5% 1/16W R570 1-216-809-11 METAL CHIP 100 5% 1/16W R571 1-216-835-11 METAL CHIP 15K 5% 1/16W R572 1-216-835-11 METAL CHIP 15K 5% 1/16W R573 1-216-809-11 METAL CHIP 100 5% 1/16W R574 1-216-809-11 METAL CHIP 100 5% 1/16W R575 1-216-809-11 METAL CHIP 100 5% 1/16W R580 1-216-809-11 METAL CHIP 100 5% 1/16W R581 1-216-809-11 METAL CHIP 100 5% 1/16W R582 1-216-833-11 METAL CHIP 10K 5% 1/16W R583 1-216-809-11 METAL CHIP 100 5% 1/16W R584 1-216-809-11 METAL CHIP 100 5% 1/16W R585 1-216-809-11 METAL CHIP 100 5% 1/16W R586 1-216-809-11 METAL CHIP 100 5% 1/16W R587 1-216-809-11 METAL CHIP 100 5% 1/16W R588 1-216-809-11 METAL CHIP 100 5% 1/16W R589 1-216-809-11 METAL CHIP 100 5% 1/16W R590 1-216-809-11 METAL CHIP 100 5% 1/16W R591 1-216-809-11 METAL CHIP 100 5% 1/16W R592 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R593 1-216-295-00 SHORT 0 R594 1-216-821-11 METAL CHIP 1K 5% 1/16W (XGR60) R594 1-216-825-11 METAL CHIP 2.2K 5% 1/16W (XGR6) R595 1-216-809-11 METAL CHIP 100 5% 1/16W R596 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R597 1-218-892-11 METAL CHIP 75K 0.5% 1/10W R598 1-218-892-11 METAL CHIP 75K 0.5% 1/10W R599 1-216-821-11 METAL CHIP 1K 5% 1/16W R601 1-216-821-11 METAL CHIP 1K 5% 1/16W R602 1-216-821-11 METAL CHIP 1K 5% 1/16W R603 1-216-841-11 METAL CHIP 47K 5% 1/16W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-XGR6/XGR60 MAIN R604 1-216-820-11 METAL CHIP 820 5% 1/16W (XGR6) R604 1-216-821-11 METAL CHIP 1K 5% 1/16W (XGR60) R605 1-216-854-11 METAL CHIP 560K 5% 1/16W R606 1-216-841-11 METAL CHIP 47K 5% 1/16W R607 1-216-821-11 METAL CHIP 1K 5% 1/16W R608 1-216-845-11 METAL CHIP 100K 5% 1/16W R609 1-216-033-00 METAL CHIP 220 5% 1/10W R611 1-216-821-11 METAL CHIP 1K 5% 1/16W R612 1-216-821-11 METAL CHIP 1K 5% 1/16W R613 1-216-815-11 METAL CHIP 330 5% 1/16W R614 1-216-821-11 METAL CHIP 1K 5% 1/16W R651 1-216-821-11 METAL CHIP 1K 5% 1/16W R652 1-216-821-11 METAL CHIP 1K 5% 1/16W R653 1-216-841-11 METAL CHIP 47K 5% 1/16W R654 1-216-820-11 METAL CHIP 820 5% 1/16W (XGR6) R654 1-216-821-11 METAL CHIP 1K 5% 1/16W (XGR60) R655 1-216-854-11 METAL CHIP 560K 5% 1/16W R656 1-216-841-11 METAL CHIP 47K 5% 1/16W R657 1-216-821-11 METAL CHIP 1K 5% 1/16W R658 1-216-845-11 METAL CHIP 100K 5% 1/16W R701 1-216-821-11 METAL CHIP 1K 5% 1/16W R702 1-216-845-11 METAL CHIP 100K 5% 1/16W R703 1-216-821-11 METAL CHIP 1K 5% 1/16W R704 1-216-845-11 METAL CHIP 100K 5% 1/16W R705 1-216-833-11 METAL CHIP 10K 5% 1/16W R706 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R707 1-216-841-11 METAL CHIP 47K 5% 1/16W R708 1-216-821-11 METAL CHIP 1K 5% 1/16W (XGR6,XGR60:MX) R709 1-216-821-11 METAL CHIP 1K 5% 1/16W (XGR6,XGR60:MX) R710 1-216-845-11 METAL CHIP 100K 5% 1/16W (XGR6,XGR60:MX) R722 1-216-804-11 METAL CHIP 39 5% 1/16W R724 1-216-833-11 METAL CHIP 10K 5% 1/16W R751 1-216-821-11 METAL CHIP 1K 5% 1/16W R752 1-216-845-11 METAL CHIP 100K 5% 1/16W R753 1-216-821-11 METAL CHIP 1K 5% 1/16W R754 1-216-845-11 METAL CHIP 100K 5% 1/16W R755 1-216-833-11 METAL CHIP 10K 5% 1/16W R756 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R757 1-216-841-11 METAL CHIP 47K 5% 1/16W R758 1-216-821-11 METAL CHIP 1K 5% 1/16W (XGR6,XGR60:MX) R759 1-216-821-11 METAL CHIP 1K 5% 1/16W (XGR6,XGR60:MX) R760 1-216-845-11 METAL CHIP 100K 5% 1/16W (XGR6,XGR60:MX) R801 1-216-817-11 METAL CHIP 470 5% 1/16W R802 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R803 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R804 1-216-841-11 METAL CHIP 47K 5% 1/16W R805 1-216-841-11 METAL CHIP 47K 5% 1/16W R806 1-216-833-11 METAL CHIP 10K 5% 1/16W R807 1-216-295-00 SHORT 0 R808 1-216-845-11 METAL CHIP 100K 5% 1/16W R810 1-216-845-11 METAL CHIP 100K 5% 1/16W R812 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R813 1-216-833-11 METAL CHIP 10K 5% 1/16W R922 1-216-295-00 SHORT 0 R961 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R962 1-216-837-11 METAL CHIP 22K 5% 1/16W R963 1-216-825-11 METAL CHIP 2.2K 5% 1/16W < VARIABLE RESISTOR > RV301 1-241-765-11 RES, ADJ, CARBON 22K (REC LEVEL (R)) RV321 1-241-768-11 RES, ADJ, CARBON 220K (REC BIAS (L)) RV322 1-241-768-11 RES, ADJ, CARBON 220K (REC BIAS (R)) RV351 1-241-765-11 RES, ADJ, CARBON 22K (REC LEVEL (L)) RV391 1-238-599-11 RES, ADJ, CARBON 4.7K (TAPE SPEED (NORMAL)) RV392 1-238-598-11 RES, ADJ, CARBON 2.2K (TAPE SPEED (HIGH)) < TRANSFORMER > T331 1-423-980-11 TRANSFORMER, BIAS OSCILLATION < VIBRATOR > X501 1-567-098-41 VIBRATOR, CRYSTAL (32.768kHz) X502 1-781-107-21 VIBRATOR, CERAMIC (16MHz) ****************************************************** A-4727-633-A MIC/GUITAR BOARD, COMPLETE *********************** < CAPACITOR > C801 1-162-306-11 CERAMIC 0.01uF 30% 16V C802 1-162-215-31 CERAMIC 47PF 5% 50V C803 1-126-960-11 ELECT 1uF 20% 50V C804 1-126-959-11 ELECT 0.47uF 20% 50V C805 1-162-294-31 CERAMIC 0.001uF 10% 50V C806 1-162-215-31 CERAMIC 47PF 5% 50V C810 1-162-286-21 CERAMIC 220PF 10% 50V C813 1-137-372-11 MYLAR 0.022uF 5% 50V C814 1-162-215-31 CERAMIC 47PF 5% 50V C815 1-162-215-31 CERAMIC 47PF 5% 50V C816 1-126-961-11 ELECT 2.2uF 20% 50V C817 1-126-961-11 ELECT 2.2uF 20% 50V C818 1-162-215-31 CERAMIC 47PF 5% 50V C819 1-162-215-31 CERAMIC 47PF 5% 50V C821 1-126-947-11 ELECT 47uF 20% 16V C822 1-126-947-11 ELECT 47uF 20% 16V C824 1-126-961-11 ELECT 2.2uF 20% 50V C836 1-162-306-11 CERAMIC 0.01uF 30% 16V C837 1-126-964-11 ELECT 10uF 20% 50V C838 1-126-964-11 ELECT 10uF 20% 50V C880 1-126-961-11 ELECT 2.2uF 20% 50V C881 1-162-215-31 CERAMIC 47PF 5% 50V C882 1-162-215-31 CERAMIC 47PF 5% 50V C884 1-126-961-11 ELECT 2.2uF 20% 50V < CONNECTOR > * CN812 1-564-708-11 PIN, CONNECTOR (SMALL TYPE) 6P < FILTER > FL801 1-424-228-11 FILTER, NOISE < IC > IC850 8-759-505-55 IC NJM4558L IC852 8-759-505-55 IC NJM4558L MIC/GUITAR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-XGR6/XGR60 IC853 8-759-505-55 IC NJM4558L < JACK > J801 1-770-226-11 JACK (LARGE TYPE) (MIX MIC) J802 1-770-226-11 JACK (LARGE TYPE) (GUITAR) < TRANSISTOR > Q880 8-729-620-05 TRANSISTOR 2SC2603-EF Q881 8-729-029-86 TRANSISTOR DTC124ESA Q882 8-729-029-86 TRANSISTOR DTC124ESA Q883 8-729-029-40 TRANSISTOR DTA124ESA Q884 8-729-119-78 TRANSISTOR 2SC2785-HFE < RESISTOR > R807 1-249-429-11 CARBON 10K 5% 1/4W R809 1-249-417-11 CARBON 1K 5% 1/4W F R850 1-249-417-11 CARBON 1K 5% 1/4W F R852 1-249-441-11 CARBON 100K 5% 1/4W R853 1-249-417-11 CARBON 1K 5% 1/4W F R854 1-249-437-11 CARBON 47K 5% 1/4W R855 1-249-429-11 CARBON 10K 5% 1/4W R856 1-247-899-11 CARBON 680K 5% 1/4W R857 1-249-425-11 CARBON 4.7K 5% 1/4W F R867 1-249-421-11 CARBON 2.2K 5% 1/4W F R869 1-249-439-11 CARBON 68K 5% 1/4W R870 1-247-887-00 CARBON 220K 5% 1/4W R872 1-249-421-11 CARBON 2.2K 5% 1/4W F R873 1-249-421-11 CARBON 2.2K 5% 1/4W F R874 1-249-431-11 CARBON 15K 5% 1/4W R876 1-249-417-11 CARBON 1K 5% 1/4W F R877 1-249-411-11 CARBON 330 5% 1/4W R878 1-249-417-11 CARBON 1K 5% 1/4W F R879 1-249-417-11 CARBON 1K 5% 1/4W F R880 1-249-429-11 CARBON 10K 5% 1/4W R881 1-249-437-11 CARBON 47K 5% 1/4W R882 1-249-437-11 CARBON 47K 5% 1/4W R883 1-249-437-11 CARBON 47K 5% 1/4W R884 1-249-413-11 CARBON 470 5% 1/4W F R885 1-249-429-11 CARBON 10K 5% 1/4W R886 1-247-893-11 CARBON 390K 5% 1/4W R887 1-249-429-11 CARBON 10K 5% 1/4W R888 1-249-417-11 CARBON 1K 5% 1/4W F R891 1-247-903-00 CARBON 1M 5% 1/4W ******************************************************* * A-4673-765-A MOTOR BOARD, COMPLETE ******************** * 4-980-385-01 HOLDER (SW) < CAPACITOR > C201 1-126-964-11 ELECT 10uF 20% 50V C202 1-164-159-21 CERAMIC 0.1uF 50V C203 1-126-964-11 ELECT 10uF 20% 50V < CONNECTOR > * CN201 1-568-947-11 PIN, CONNECTOR 9P < IC > IC201 8-759-365-94 IC TA8409S < COIL > L201 1-408-117-00 INDUCTOR 10uH < RESISTOR > R205 1-249-427-11 CARBON 6.8K 5% 1/4W F R206 1-249-425-11 CARBON 4.7K 5% 1/4W F < SWITCH > S201 1-762-587-11 SWITCH, PUSH (1 KEY) (UP) ****************************************************** A-4727-618-A PA BOARD, COMPLETE (XGR60) A-4727-641-A PA BOARD, COMPLETE (XGR6) ***************** 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S < CAPACITOR > C401 1-126-963-11 ELECT 4.7uF 20% 50V C412 1-162-306-11 CERAMIC 0.01uF 30% 16V C413 1-162-306-11 CERAMIC 0.01uF 30% 16V C432 1-126-933-11 ELECT 100uF 20% 16V C433 1-126-962-11 ELECT 3.3uF 20% 50V (XGR60) C433 1-126-961-11 ELECT 2.2uF 20% 50V (XGR6) C801 1-128-582-11 ELECT 10uF 20% 100V C802 1-162-290-31 CERAMIC 470PF 10% 50V C803 1-162-286-21 CERAMIC 220PF 10% 50V C804 1-126-967-11 ELECT 47uF 20% 50V C807 1-128-560-11 ELECT 22uF 20% 100V C808 1-137-749-11 MYLAR 0.1uF 100V C809 1-137-749-11 MYLAR 0.1uF 100V C810 1-128-562-11 ELECT 47uF 20% 100V (XGR60) C810 1-128-578-11 ELECT 1uF 20% 100V (XGR6) C811 1-130-491-00 MYLAR 0.047uF 5% 50V C812 1-130-491-00 MYLAR 0.047uF 5% 50V C813 1-162-306-11 CERAMIC 0.01uF 30% 16V C814 1-162-294-31 CERAMIC 0.001uF 10% 50V C815 1-126-959-11 ELECT 0.47uF 20% 50V C830 1-107-714-11 ELECT 10uF 20% 50V C831 1-126-964-11 ELECT 10uF 20% 50V C832 1-126-967-11 ELECT 47uF 20% 50V C841 1-127-811-11 ELECT 3300uF 20% 50V (XGR60) C841 1-127-753-11 ELECT 3300uF 20% 71V (XGR6) C842 1-127-814-11 ELECT 3300uF 20% 80V (XGR60) C844 1-137-749-11 MYLAR 0.1uF 100V (XGR60) C845 1-126-943-11 ELECT 2200uF 20% 25V C847 1-164-159-21 CERAMIC 0.1uF 50V C848 1-164-159-21 CERAMIC 0.1uF 50V C849 1-164-159-21 CERAMIC 0.1uF 50V C850 1-107-721-11 ELECT 4.7uF 20% 100V C851 1-128-582-11 ELECT 10uF 20% 100V C852 1-162-290-31 CERAMIC 470PF 10% 50V C853 1-162-286-21 CERAMIC 220PF 10% 50V PA MOTOR MIC/GUITAR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-XGR6/XGR60 C854 1-126-967-11 ELECT 47uF 20% 50V C857 1-128-560-11 ELECT 22uF 20% 100V C858 1-164-159-21 CERAMIC 0.1uF 50V C859 1-164-159-21 CERAMIC 0.1uF 50V C861 1-130-491-00 MYLAR 0.047uF 5% 50V C862 1-130-491-00 MYLAR 0.047uF 5% 50V C863 1-126-961-11 ELECT 2.2uF 20% 50V C864 1-126-964-11 ELECT 10uF 20% 50V C891 1-127-811-11 ELECT 3300uF 20% 50V (XGR60) C891 1-127-753-11 ELECT 3300uF 20% 71V (XGR6) C892 1-127-814-11 ELECT 3300uF 20% 80V (XGR60) C894 1-137-749-11 MYLAR 0.1uF 100V (XGR60) C895 1-107-721-11 ELECT 4.7uF 20% 100V C902 1-164-159-21 CERAMIC 0.1uF 50V C903 1-126-933-11 ELECT 100uF 20% 16V C904 1-126-964-11 ELECT 10uF 20% 50V C905 1-126-968-11 ELECT 100uF 20% 50V C906 1-126-943-11 ELECT 2200uF 20% 25V C909 1-164-159-21 CERAMIC 0.1uF 50V C910 1-126-947-11 ELECT 47uF 20% 16V (XGR6) < CONNECTOR > CN803 1-778-981-21 CONNECTOR, BOARD TO BOARD 13P CN804 1-778-981-21 CONNECTOR, BOARD TO BOARD 13P CN806 1-785-316-11 PIN, CONNECTOR (STRAIGHT) 4P CN904 1-785-316-11 PIN, CONNECTOR (STRAIGHT) 4P < DIODE > D401 8-719-991-33 DIODE 1SS133T-77 D402 8-719-991-33 DIODE 1SS133T-77 D405 8-719-991-33 DIODE 1SS133T-77 D406 8-719-991-33 DIODE 1SS133T-77 D801 8-719-991-33 DIODE 1SS133T-77 D802 8-719-110-39 DIODE RD15ESB1 (XGR60) D803 8-719-991-33 DIODE 1SS133T-77 D804 8-719-991-33 DIODE 1SS133T-77 D805 8-719-991-33 DIODE 1SS133T-77 D831 8-719-510-68 DIODE D5SBA204101 (XGR60) D833 8-719-200-82 DIODE 11ES2 D834 8-719-200-82 DIODE 11ES2 D835 8-719-200-82 DIODE 11ES2 D836 8-719-200-82 DIODE 11ES2 D841 8-719-200-82 DIODE 11ES2 D842 8-719-200-82 DIODE 11ES2 D843 8-719-200-82 DIODE 11ES2 D844 8-719-200-82 DIODE 11ES2 D851 8-719-991-33 DIODE 1SS133T-77 D852 8-719-110-39 DIODE MTZJ-T-77-15A (XGR60) D853 8-719-991-33 DIODE 1SS133T-77 D902 8-719-200-82 DIODE 11ES2 D903 8-719-200-82 DIODE 11ES2 D904 8-719-200-82 DIODE 11ES2 D905 8-719-200-82 DIODE 11ES2 D911 8-719-982-24 DIODE MTZJ-33A D912 8-719-109-89 DIODE RD5.6ESB2 < IC > IC801 8-749-017-05 IC STK412-040 (XGR60) IC801 8-749-017-16 IC STK442-130 (XGR6) IC901 6-701-760-01 IC uPC3504AHF < TRANSISTOR > Q401 8-729-029-40 TRANSISTOR DTA124ESA (XGR60) Q401 8-729-140-82 TRANSISTOR 2SA988-PAFAEA (XGR6) Q402 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA Q431 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA Q432 8-729-119-76 TRANSISTOR 2SA1175-HFE Q433 8-729-620-05 TRANSISTOR 2SC2603-EF Q434 8-729-620-05 TRANSISTOR 2SC2603-EF Q437 8-729-620-05 TRANSISTOR 2SC2603-EF Q439 8-729-620-05 TRANSISTOR 2SC2603-EF Q801 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA Q803 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q804 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA Q805 8-729-231-55 TRANSISTOR 2SC2878-AB Q831 8-729-029-86 TRANSISTOR DTC124ESA Q832 8-729-620-05 TRANSISTOR 2SC2603-EF Q833 8-729-029-40 TRANSISTOR DTA124ESA Q834 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA Q851 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA Q855 8-729-231-55 TRANSISTOR 2SC2878-AB Q901 8-729-620-05 TRANSISTOR 2SC2603-EF Q903 8-729-048-52 TRANSISTOR 2SA1932(TP) Q908 8-729-119-76 TRANSISTOR 2SA1175-HFE < RESISTOR > 0R401 1-216-431-11 METAL OXIDE 560 5% 1W (XGR60) 0R401 1-216-458-11 METAL OXIDE 1.8K 5% 2W (XGR6) R406 1-249-437-11 CARBON 47K 5% 1/4W R407 1-249-437-11 CARBON 47K 5% 1/4W R429 1-249-437-11 CARBON 47K 5% 1/4W R431 1-249-438-11 CARBON 56K 5% 1/4W R432 1-249-437-11 CARBON 47K 5% 1/4W R434 1-249-433-11 CARBON 22K 5% 1/4W R437 1-249-429-11 CARBON 10K 5% 1/4W R439 1-249-425-11 CARBON 4.7K 5% 1/4W F R440 1-249-433-11 CARBON 22K 5% 1/4W (XGR60 R440 1-249-437-11 CARBON 47K 5% 1/4W (XGR6) R441 1-249-435-11 CARBON 33K 5% 1/4W R446 1-249-429-11 CARBON 10K 5% 1/4W R447 1-249-437-11 CARBON 47K 5% 1/4W R460 1-249-429-11 CARBON 10K 5% 1/4W (XGR6) R801 1-249-417-11 CARBON 1K 5% 1/4W F R802 1-249-437-11 CARBON 47K 5% 1/4W R803 1-249-414-11 CARBON 560 5% 1/4W F R804 1-249-435-11 CARBON 33K 5% 1/4W R805 1-216-436-00 METAL OXIDE 3.9K 5% 1W (XGR60) R806 1-216-436-00 METAL OXIDE 3.9K 5% 1W (XGR60) 0R807 1-212-881-11 FUSIBLE 100 5% 1/4W 0R808 1-220-893-11 METAL 0.22 10% 5W R809 1-260-076-11 CARBON 10 5% 1/2W PA The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-XGR6/XGR60 R810 1-249-435-11 CARBON 33K 5% 1/4W (XGR60) R810 1-249-437-11 CARBON 47K 5% 1/4W (XGR6) R811 1-249-417-11 CARBON 1K 5% 1/4W F R812 1-249-431-11 CARBON 15K 5% 1/4W R813 1-249-441-11 CARBON 100K 5% 1/4W R814 1-249-421-11 CARBON 2.2K 5% 1/4W F R815 1-249-433-11 CARBON 22K 5% 1/4W R816 1-249-429-11 CARBON 10K 5% 1/4W (XGR6) R817 1-249-437-11 CARBON 47K 5% 1/4W R818 1-249-409-11 CARBON 220 5% 1/4W F R819 1-249-439-11 CARBON 68K 5% 1/4W 0R820 1-202-972-61 FUSIBLE 1 5% 1/4W R821 1-249-435-11 CARBON 33K 5% 1/4W R822 1-249-433-11 CARBON 22K 5% 1/4W R823 1-249-433-11 CARBON 22K 5% 1/4W R824 1-249-413-11 CARBON 470 5% 1/4W F 0R825 1-215-891-11 METAL OXIDE 680 5% 2W R827 1-249-441-11 CARBON 100K 5% 1/4W R828 1-247-903-00 CARBON 1M 5% 1/4W R831 1-249-441-11 CARBON 100K 5% 1/4W R832 1-249-441-11 CARBON 100K 5% 1/4W R833 1-249-432-11 CARBON 18K 5% 1/4W (XGR60) R833 1-249-433-11 CARBON 22K 5% 1/4W (XGR6) R834 1-249-429-11 CARBON 10K 5% 1/4W R835 1-249-437-11 CARBON 47K 5% 1/4W R836 1-249-417-11 CARBON 1K 5% 1/4W F R837 1-249-435-11 CARBON 33K 5% 1/4W R838 1-249-435-11 CARBON 33K 5% 1/4W R839 1-249-441-11 CARBON 100K 5% 1/4W (XGR60) R840 1-249-402-11 CARBON 56 5% 1/4W F R851 1-249-417-11 CARBON 1K 5% 1/4W F R852 1-249-437-11 CARBON 47K 5% 1/4W R853 1-249-414-11 CARBON 560 5% 1/4W F 0R855 1-215-891-11 METAL OXIDE 680 5% 2W 0R857 1-212-881-11 FUSIBLE 100 5% 1/4W 0R858 1-220-893-11 METAL 0.22 10% 5W R859 1-260-076-11 CARBON 10 5% 1/2W R860 1-249-435-11 CARBON 33K 5% 1/4W (XGR60) R860 1-249-437-11 CARBON 47K 5% 1/4W (XGR6) R861 1-249-417-11 CARBON 1K 5% 1/4W F R862 1-249-431-11 CARBON 15K 5% 1/4W R863 1-249-441-11 CARBON 100K 5% 1/4W R864 1-249-425-11 CARBON 4.7K 5% 1/4W F R865 1-249-433-11 CARBON 22K 5% 1/4W R866 1-249-429-11 CARBON 10K 5% 1/4W R867 1-249-421-11 CARBON 2.2K 5% 1/4W F (XGR6) R868 1-249-409-11 CARBON 220 5% 1/4W F R880 1-249-402-11 CARBON 56 5% 1/4W F 0R888 1-220-893-11 METAL 0.22 10% 5W R889 1-249-441-11 CARBON 100K 5% 1/4W (XGR60) 0R898 1-220-893-11 METAL 0.22 10% 5W R901 1-249-429-11 CARBON 10K 5% 1/4W R902 1-249-441-11 CARBON 100K 5% 1/4W R903 1-249-429-11 CARBON 10K 5% 1/4W R904 1-249-417-11 CARBON 1K 5% 1/4W F R905 1-249-429-11 CARBON 10K 5% 1/4W R906 1-247-807-31 CARBON 100 5% 1/4W R907 1-247-807-31 CARBON 100 5% 1/4W R915 1-247-791-91 CARBON 22 5% 1/4W 0R916 1-215-916-00 METAL OXIDE 680 5% 3W (XGR60) < RELAY > RY401 1-515-920-11 RELAY < THERMISTOR > TH831 1-807-796-11 THERMISTOR < TERMINAL > TM401 1-537-925-62 TERMINAL BOARD (FRONT SPEAKER) ****************************************************** A-4727-623-A PANEL FL BOARD, COMPLETE ************************ 4-225-511-01 HOLDER FL TUBE * 4-949-935-81 CUSHION (FL) < CAPACITOR > C601 1-162-294-31 CERAMIC 0.001uF 10% 50V C602 1-126-947-11 ELECT 47uF 20% 16V C603 1-162-306-11 CERAMIC 0.01uF 30% 16V C604 1-126-947-11 ELECT 47uF 20% 16V C605 1-162-306-11 CERAMIC 0.01uF 30% 16V C606 1-126-963-11 ELECT 4.7uF 20% 50V C607 1-164-159-21 CERAMIC 0.1uF 50V C612 1-162-294-31 CERAMIC 0.001uF 10% 50V C613 1-126-964-11 ELECT 10uF 20% 50V C614 1-126-947-11 ELECT 47uF 20% 16V C615 1-126-964-11 ELECT 10uF 20% 50V C616 1-162-303-11 CERAMIC 0.0033uF 30% 16V C617 1-126-157-11 ELECT 10uF 20% 16V C618 1-126-157-11 ELECT 10uF 20% 16V C619 1-162-306-11 CERAMIC 0.01uF 30% 16V C625 1-126-964-11 ELECT 10uF 20% 50V C627 1-126-960-11 ELECT 1uF 20% 50V C628 1-126-960-11 ELECT 1uF 20% 50V < CONNECTOR > * CN601 1-568-865-11 SOCKET, CONNECTOR 23P CN602 1-784-780-11 CONNECTOR, FFC 19P < DIODE > D601 8-719-991-33 DIODE 1SS133T-77 D602 8-719-058-04 DIODE SEL5223S-TP15 (]/1) D603 8-719-058-03 DIODE SEL5423E-TP15 (SALSA) D604 8-719-058-03 DIODE SEL5423E-TP15 (REGGAE) D605 8-719-058-03 DIODE SEL5423E-TP15 (TANGO) D606 8-719-058-03 DIODE SEL5423E-TP15 (SAMBA) D607 8-719-058-03 DIODE SEL5423E-TP15 (MOVIE) D608 8-719-058-03 DIODE SEL5423E-TP15 (GAME MIXING) D609 8-719-058-03 DIODE SEL5423E-TP15 (GUITAR) D610 8-719-058-03 DIODE SEL5423E-TP15 (ROCK) PA The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. PANEL FL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 70 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-XGR6/XGR60 D611 8-719-058-03 DIODE SEL5423E-TP15 (JAZZ) D612 8-719-058-03 DIODE SEL5423E-TP15 (DANCE) D613 8-719-058-03 DIODE SEL5423E-TP15 (GAME) < FERRITE BEAD > FB601 1-412-473-21 INDUCTOR 0UH < FLUORESCENT INDICATOR TUBE > FL601 1-518-794-11 INDICATOR TUBE, FLUORESCENT < IC > IC601 6-801-052-01 IC MB90M407APF-G-112-BND IC602 8-759-083-77 IC BA3830F IC603 8-759-826-34 IC NJL74H400A < COIL > L603 1-410-517-11 INDUCTOR 47uH < TRANSISTOR > Q601 8-729-029-86 TRANSISTOR DTC124ESA Q602 8-729-620-05 TRANSISTOR 2SC2603-EF Q603 8-729-140-04 TRANSISTOR 2SB1116A-L Q604 8-729-620-05 TRANSISTOR 2SC2603-EF Q605 8-729-140-04 TRANSISTOR 2SB1116A-L Q606 8-729-047-58 TRANSISTOR DTC114TLTL2 Q607 8-729-047-58 TRANSISTOR DTC114TLTL2 Q608 8-729-047-58 TRANSISTOR DTC114TLTL2 Q609 8-729-047-58 TRANSISTOR DTC114TLTL2 < RESISTOR > R600 1-249-417-11 CARBON 1K 5% 1/4W F R601 1-249-441-11 CARBON 100K 5% 1/4W R602 1-249-429-11 CARBON 10K 5% 1/4W R603 1-249-429-11 CARBON 10K 5% 1/4W R604 1-249-429-11 CARBON 10K 5% 1/4W R605 1-247-807-31 CARBON 100 5% 1/4W R606 1-249-429-11 CARBON 10K 5% 1/4W R607 1-249-429-11 CARBON 10K 5% 1/4W R608 1-247-807-31 CARBON 100 5% 1/4W R609 1-249-429-11 CARBON 10K 5% 1/4W R610 1-247-807-31 CARBON 100 5% 1/4W R612 1-249-431-11 CARBON 15K 5% 1/4W R613 1-249-431-11 CARBON 15K 5% 1/4W R614 1-249-431-11 CARBON 15K 5% 1/4W R615 1-249-431-11 CARBON 15K 5% 1/4W R616 1-249-431-11 CARBON 15K 5% 1/4W R617 1-249-431-11 CARBON 15K 5% 1/4W R618 1-247-807-31 CARBON 100 5% 1/4W R619 1-249-433-11 CARBON 22K 5% 1/4W R620 1-247-903-00 CARBON 1M 5% 1/4W R621 1-249-413-11 CARBON 470 5% 1/4W F R622 1-249-415-11 CARBON 680 5% 1/4W F R623 1-249-421-11 CARBON 2.2K 5% 1/4W F R624 1-249-419-11 CARBON 1.5K 5% 1/4W F R625 1-249-419-11 CARBON 1.5K 5% 1/4W F R626 1-249-417-11 CARBON 1K 5% 1/4W F R627 1-249-415-11 CARBON 680 5% 1/4W F R628 1-249-413-11 CARBON 470 5% 1/4W F R629 1-249-413-11 CARBON 470 5% 1/4W F R630 1-249-415-11 CARBON 680 5% 1/4W F R631 1-249-417-11 CARBON 1K 5% 1/4W F R632 1-249-419-11 CARBON 1.5K 5% 1/4W F R633 1-249-419-11 CARBON 1.5K 5% 1/4W F R634 1-249-421-11 CARBON 2.2K 5% 1/4W F R635 1-249-413-11 CARBON 470 5% 1/4W F R636 1-249-415-11 CARBON 680 5% 1/4W F R637 1-249-413-11 CARBON 470 5% 1/4W F R638 1-249-415-11 CARBON 680 5% 1/4W F R639 1-249-417-11 CARBON 1K 5% 1/4W F R640 1-249-419-11 CARBON 1.5K 5% 1/4W F R641 1-249-419-11 CARBON 1.5K 5% 1/4W F R642 1-249-421-11 CARBON 2.2K 5% 1/4W F R643 1-249-401-11 CARBON 47 5% 1/4W F R644 1-247-891-00 CARBON 330K 5% 1/4W R645 1-247-891-00 CARBON 330K 5% 1/4W R646 1-249-441-11 CARBON 100K 5% 1/4W R647 1-249-440-11 CARBON 82K 5% 1/4W R648 1-249-437-11 CARBON 47K 5% 1/4W R649 1-249-441-11 CARBON 100K 5% 1/4W R650 1-249-440-11 CARBON 82K 5% 1/4W R651 1-249-429-11 CARBON 10K 5% 1/4W R652 1-247-843-11 CARBON 3.3K 5% 1/4W R653 1-249-441-11 CARBON 100K 5% 1/4W R654 1-249-427-11 CARBON 6.8K 5% 1/4W F R665 1-249-441-11 CARBON 100K 5% 1/4W R666 1-249-441-11 CARBON 100K 5% 1/4W R667 1-249-441-11 CARBON 100K 5% 1/4W R668 1-249-441-11 CARBON 100K 5% 1/4W R669 1-247-791-91 CARBON 22 5% 1/4W R670 1-247-791-91 CARBON 22 5% 1/4W R671 1-247-791-91 CARBON 22 5% 1/4W R672 1-247-791-91 CARBON 22 5% 1/4W R673 1-247-791-91 CARBON 22 5% 1/4W R674 1-247-791-91 CARBON 22 5% 1/4W R675 1-247-791-91 CARBON 22 5% 1/4W R676 1-247-791-91 CARBON 22 5% 1/4W R677 1-247-791-91 CARBON 22 5% 1/4W R678 1-247-791-91 CARBON 22 5% 1/4W R679 1-247-791-91 CARBON 22 5% 1/4W R680 1-249-411-11 CARBON 330 5% 1/4W R681 1-249-437-11 CARBON 47K 5% 1/4W R683 1-249-437-11 CARBON 47K 5% 1/4W R684 1-249-417-11 CARBON 1K 5% 1/4W F R685 1-249-417-11 CARBON 1K 5% 1/4W F R686 1-249-437-11 CARBON 47K 5% 1/4W R688 1-249-437-11 CARBON 47K 5% 1/4W R689 1-249-417-11 CARBON 1K 5% 1/4W F R690 1-249-417-11 CARBON 1K 5% 1/4W F R691 1-249-413-11 CARBON 470 5% 1/4W F R692 1-249-413-11 CARBON 470 5% 1/4W F R693 1-249-429-11 CARBON 10K 5% 1/4W R694 1-249-429-11 CARBON 10K 5% 1/4W R695 1-247-807-31 CARBON 100 5% 1/4W R696 1-247-807-31 CARBON 100 5% 1/4W R697 1-247-807-31 CARBON 100 5% 1/4W R698 1-249-415-11 CARBON 680 5% 1/4W F R699 1-249-413-11 CARBON 470 5% 1/4W F R700 1-249-413-11 CARBON 470 5% 1/4W F < SWITCH > S601 1-762-875-21 SWITCH, KEYBOARD (SALSA) S602 1-762-875-21 SWITCH, KEYBOARD (REGGAE) S603 1-762-875-21 SWITCH, KEYBOARD (TANGO) PANEL FL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 71 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-XGR6/XGR60 S604 1-762-875-21 SWITCH, KEYBOARD (SAMBA) S605 1-762-875-21 SWITCH, KEYBOARD (MOVIE) S606 1-762-875-21 SWITCH, KEYBOARD (GUITAR) S607 1-762-875-21 SWITCH, KEYBOARD (ROCK) S608 1-762-875-21 SWITCH, KEYBOARD (JAZZ) S609 1-762-875-21 SWITCH, KEYBOARD (DANCE) S610 1-762-875-21 SWITCH, KEYBOARD (GAME) S611 1-762-875-21 SWITCH, KEYBOARD (SPECTRUM ANALYZER) S612 1-762-875-21 SWITCH, KEYBOARD (DISPLAY) S613 1-762-875-21 SWITCH, KEYBOARD (SLEEP) S614 1-762-875-21 SWITCH, KEYBOARD (TIMER SELECT) S615 1-762-875-21 SWITCH, KEYBOARD ( c/CLOCK SET) S616 1-762-875-21 SWITCH, KEYBOARD (FUNCTION) S617 1-762-875-21 SWITCH, KEYBOARD (GAME) S618 1-762-875-21 SWITCH, KEYBOARD (GAME MIXING) S619 1-762-875-21 SWITCH, KEYBOARD (POWER SAVE/DEMO(STANDBY)) S620 1-762-875-21 SWITCH, KEYBOARD ( ]/1) < VIBRATOR > X601 1-577-358-21 VIBRATOR, CERAMIC (4MHz) ****************************************************** A-4727-624-A PANEL VR BOARD, COMPLETE ********************** < CAPACITOR > C701 1-162-294-31 CERAMIC 0.001uF 10% 50V C702 1-162-294-31 CERAMIC 0.001uF 10% 50V C703 1-162-294-31 CERAMIC 0.001uF 10% 50V C704 1-126-947-11 ELECT 47uF 20% 16V C705 1-162-306-11 CERAMIC 0.01uF 30% 16V C706 1-164-159-21 CERAMIC 0.1uF 50V C707 1-162-306-11 CERAMIC 0.01uF 30% 16V C708 1-162-306-11 CERAMIC 0.01uF 30% 16V < CONNECTOR > * CN701 1-568-865-11 SOCKET, CONNECTOR 23P < DIODE > D701 8-719-058-64 DIODE SEL5823A-TP15 (VU1) D702 8-719-058-64 DIODE SEL5823A-TP15 (VU2) D703 8-719-058-64 DIODE SEL5823A-TP15 (VU3) D704 8-719-058-64 DIODE SEL5823A-TP15 (VU4) D705 8-719-058-64 DIODE SEL5823A-TP15 (VU5) D706 8-719-058-64 DIODE SEL5823A-TP15 (VU6) D707 8-719-058-64 DIODE SEL5823A-TP15 (VU7) D708 8-719-058-64 DIODE SEL5823A-TP15 (VU8) D709 8-719-058-64 DIODE SEL5823A-TP15 (VU9) D710 8-719-058-04 DIODE SEL5223S-TP15 (VU10) D711 8-719-058-04 DIODE SEL5223S-TP15 (VU11) D712 8-719-058-04 DIODE SEL5223S-TP15 (VU12) D713 8-719-058-04 DIODE SEL5223S-TP15 (GROOVE) D714 8-719-058-04 DIODE SEL5223S-TP15 (SUPER WOOFER) D715 8-719-058-04 DIODE SEL5223S-TP15 (SURROUND) D716 8-719-058-04 DIODE SEL5223S-TP15 (ENTER) D717 8-719-058-04 DIODE SEL5223S-TP15 (GUITAR DISTORSION) D719 8-719-058-03 DIODE SEL5423E-TP15 (TUNER/BAND) D720 8-719-058-04 DIODE SEL5223S-TP15 (TUNER ENTER) < IC > IC701 8-759-373-50 IC NJU3719L < COIL > L701 1-410-509-11 INDUCTOR 10uH < RESISTOR > R701 1-249-429-11 CARBON 10K 5% 1/4W R702 1-247-807-31 CARBON 100 5% 1/4W R703 1-247-807-31 CARBON 100 5% 1/4W R704 1-247-807-31 CARBON 100 5% 1/4W R705 1-249-417-11 CARBON 1K 5% 1/4W F R706 1-249-417-11 CARBON 1K 5% 1/4W F R707 1-249-417-11 CARBON 1K 5% 1/4W F R708 1-249-419-11 CARBON 1.5K 5% 1/4W F R709 1-249-419-11 CARBON 1.5K 5% 1/4W F R710 1-249-421-11 CARBON 2.2K 5% 1/4W F R711 1-247-843-11 CARBON 3.3K 5% 1/4W R712 1-249-425-11 CARBON 4.7K 5% 1/4W F R713 1-249-427-11 CARBON 6.8K 5% 1/4W F R714 1-249-429-11 CARBON 10K 5% 1/4W R715 1-249-431-11 CARBON 15K 5% 1/4W R716 1-249-433-11 CARBON 22K 5% 1/4W R718 1-249-415-11 CARBON 680 5% 1/4W F R719 1-249-417-11 CARBON 1K 5% 1/4W F R720 1-249-419-11 CARBON 1.5K 5% 1/4W F R721 1-249-419-11 CARBON 1.5K 5% 1/4W F R722 1-249-421-11 CARBON 2.2K 5% 1/4W F R723 1-247-843-11 CARBON 3.3K 5% 1/4W R724 1-249-425-11 CARBON 4.7K 5% 1/4W F R725 1-249-427-11 CARBON 6.8K 5% 1/4W F R726 1-249-429-11 CARBON 10K 5% 1/4W R731 1-247-791-91 CARBON 22 5% 1/4W R732 1-247-791-91 CARBON 22 5% 1/4W R733 1-247-791-91 CARBON 22 5% 1/4W R734 1-247-791-91 CARBON 22 5% 1/4W R735 1-247-791-91 CARBON 22 5% 1/4W R736 1-247-791-91 CARBON 22 5% 1/4W R737 1-247-791-91 CARBON 22 5% 1/4W R738 1-247-791-91 CARBON 22 5% 1/4W R739 1-247-791-91 CARBON 22 5% 1/4W R740 1-249-401-11 CARBON 47 5% 1/4W F R741 1-249-401-11 CARBON 47 5% 1/4W F R742 1-249-401-11 CARBON 47 5% 1/4W F R743 1-247-807-31 CARBON 100 5% 1/4W R744 1-247-807-31 CARBON 100 5% 1/4W R745 1-247-807-31 CARBON 100 5% 1/4W R746 1-247-807-31 CARBON 100 5% 1/4W R747 1-247-807-31 CARBON 100 5% 1/4W R749 1-247-791-91 CARBON 22 5% 1/4W R750 1-247-807-31 CARBON 100 5% 1/4W < SWITCH > S700 1-473-392-11 ENCODER, ROTARY (VOLUME) S701 1-762-875-21 SWITCH, KEYBOARD (GROOVE) S702 1-762-875-21 SWITCH, KEYBOARD (SURROUND) S703 1-762-875-21 SWITCH, KEYBOARD (EFFECT ON/OFF) S704 1-762-875-21 SWITCH, KEYBOARD (P FILE) S705 1-762-875-21 SWITCH, KEYBOARD (ENTER) S706 1-762-875-21 SWITCH, KEYBOARD (R) S707 1-762-875-21 SWITCH, KEYBOARD (r) S708 1-762-875-21 SWITCH, KEYBOARD (t) S709 1-762-875-21 SWITCH, KEYBOARD (T) S710 1-762-875-21 SWITCH, KEYBOARD (MIX GUITAR/KARAOKE) PANEL VR PANEL FL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 72 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-XGR6/XGR60 S711 1-762-875-21 SWITCH, KEYBOARD (GUITAR DISTORTION) S713 1-762-875-21 SWITCH, KEYBOARD (SUPER WOOFER) S714 1-762-875-21 SWITCH, KEYBOARD (SUPER WOOFER MODE) S715 1-762-875-21 SWITCH, KEYBOARD (X-GROOVE) S716 1-762-875-21 SWITCH, KEYBOARD (TUNER/BAND) S717 1-762-875-21 SWITCH, KEYBOARD (TUNING -) S718 1-762-875-21 SWITCH, KEYBOARD (TUNUNG +) S719 1-762-875-21 SWITCH, KEYBOARD (FM MODE) S720 1-762-875-21 SWITCH, KEYBOARD (TUNER ENTER) S721 1-762-875-21 SWITCH, KEYBOARD (TUNER MEMORY) S722 1-762-875-21 SWITCH, KEYBOARD (TUNING MODE) ****************************************************** * 1-659-058-13 SENSOR BOARD ************ < IC > IC202 8-749-924-18 PHOTO INTERRUPTER RPI-1391 < RESISTOR > R207 1-249-416-11 CARBON 820 5% 1/4W F ****************************************************** 1-683-445-11 SUB TRANS BOARD ************** < CAPACITOR > 0C901 1-113-925-11 CERAMIC 0.01uF 20% 250V < CONNECTOR > CN901 1-564-321-00 PIN, CONNECTOR 2P CN902 1-568-106-11 PIN, CONNECTOR 4P (XGR60:AR,E,E51) * CN902 1-564-321-21 PIN, CONNECTOR 2P (XGR6,XGR60:MX) < DIODE > D901 8-719-983-61 DIODE MTZJ-T-72-3.3 (XGR60) D901 8-719-991-33 DIODE 1SS133T-77 (XGR6) < RELAY > 0RY901 1-755-276-11 RELAY, POWER < SWITCH > 0S901 1-786-055-21 SELECTOR, VOLTAGE (VOLTAGE SELECT) (XGR60:AR,E,E51) < TRANSFORMER > 0T901 1-437-331-11 TRANSFORMER, POWER (XGR60) 0T901 1-435-826-11 TRANSFORMER, POWER (XGR6) ****************************************************** 1-683-448-11 TC-A BOARD ********* < DIODE > D805 8-719-058-03 DIODE SEL5423E-TP15 (G ) D806 8-719-058-03 DIODE SEL5423E-TP15 (g ) < RESISTOR > R813 1-247-843-11 CARBON 3.3K 5% 1/4W R814 1-249-425-11 CARBON 4.7K 5% 1/4W F R815 1-249-427-11 CARBON 6.8K 5% 1/4W F R816 1-249-429-11 CARBON 10K 5% 1/4W R817 1-249-431-11 CARBON 15K 5% 1/4W R819 1-247-791-91 CARBON 22 5% 1/4W R820 1-247-791-91 CARBON 22 5% 1/4W < VARIABLE RESISTOR > RV801 1-225-739-11 RES, VAR CARBON 50K (GUITAR LEVEL) RV802 1-225-739-11 RES, VAR CARBON 50K (MIC LEVEL) < SWITCH > S810 1-762-875-21 SWITCH, KEYBOARD (G) S811 1-762-875-21 SWITCH, KEYBOARD (g) S812 1-762-875-21 SWITCH, KEYBOARD (x) S813 1-762-875-21 SWITCH, KEYBOARD (.m) S814 1-762-875-21 SWITCH, KEYBOARD (M>) S815 1-762-875-21 SWITCH, KEYBOARD (DIRECTION) ****************************************************** 1-683-449-11 TC-B BOARD ********** < DIODE > D801 8-719-058-03 DIODE SEL5423E-TP15 (G) D802 8-719-058-03 DIODE SEL5423E-TP15 (g) D803 8-719-057-97 DIODE SEL5923A-TP15 (X) D804 8-719-058-04 DIODE SEL5223S-TP15 (zREC) < RESISTOR > R801 1-247-843-11 CARBON 3.3K 5% 1/4W R802 1-249-425-11 CARBON 4.7K 5% 1/4W F R803 1-249-427-11 CARBON 6.8K 5% 1/4W F R804 1-249-429-11 CARBON 10K 5% 1/4W R805 1-249-431-11 CARBON 15K 5% 1/4W R806 1-249-433-11 CARBON 22K 5% 1/4W R807 1-249-435-11 CARBON 33K 5% 1/4W R808 1-249-439-11 CARBON 68K 5% 1/4W R809 1-247-791-91 CARBON 22 5% 1/4W R810 1-247-791-91 CARBON 22 5% 1/4W R811 1-247-791-91 CARBON 22 5% 1/4W R812 1-249-401-11 CARBON 47 5% 1/4W F < SWITCH > S801 1-762-875-21 SWITCH, KEYBOARD (G) S802 1-762-875-21 SWITCH, KEYBOARD (g) S803 1-762-875-21 SWITCH, KEYBOARD (x) S804 1-762-875-21 SWITCH, KEYBOARD (.m) S805 1-762-875-21 SWITCH, KEYBOARD (M>) S806 1-762-875-21 SWITCH, KEYBOARD (zREC) S807 1-762-875-21 SWITCH, KEYBOARD (X) S808 1-762-875-21 SWITCH, KEYBOARD (H SPEED DUB) S809 1-762-875-21 SWITCH, KEYBOARD (CD SYNC) ****************************************************** 1-683-444-11 TRANS BOARD *********** 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S < CAPACITOR > C834 1-137-749-11 MYLAR 0.1uF 100V SUB TRANS TC-A TC-B TRANS The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. SENSOR PANEL VR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 73 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-XGR6/XGR60 C893 1-137-749-11 MYLAR 0.1uF 100V C961 1-162-306-11 CERAMIC 0.01uF 30% 16V C963 1-162-306-11 CERAMIC 0.01uF 30% 16V < CONNECTOR > * CN951 1-564-214-11 PIN, CONNECTOR (B3PS-VH) 3P (XGR60) * CN952 1-564-526-11 PLUG, CONNECTOR 11P < DIODE > D832 8-719-510-68 DIODE D5SBA204101 < FUSE HOLDER > FH951 1-533-217-31 HOLDER, FUSE (XGR60:AR,E,E51) FH952 1-533-217-31 HOLDER, FUSE (XGR60:AR,E,E51) FH961 1-533-217-31 HOLDER, FUSE (XGR60) FH962 1-533-217-31 HOLDER, FUSE (XGR60) FH963 1-533-217-31 HOLDER, FUSE FH964 1-533-217-31 HOLDER, FUSE FH965 1-533-217-31 HOLDER, FUSE FH966 1-533-217-31 HOLDER, FUSE FH967 1-533-217-31 HOLDER, FUSE (XGR60) FH968 1-533-217-31 HOLDER, FUSE (XGR60) < RESISTOR > 0R951 1-219-122-91 FUSIBLE 0.33 5% 1/4W 0R952 1-219-122-91 FUSIBLE 0.33 5% 1/4W 0R953 1-219-591-11 FUSIBLE 0.1 5% 1/2W 0R961 1-219-777-91 CARBON 3.3M 10% 1/2W (XGR6) ******************************************************* TRANS The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. MISCELLANEOUS ************* 0 1-569-008-21 ADAPTOR, CONVERSION (XGR60:E51) 4 1-693-572-11 TUNER (FM/AM) (XGR60:AR,MX) 4 1-693-573-11 TUNER (FM/AM) (XGR6) 4 1-693-574-11 TUNER (FM/AM) (XGR60:E,E51) 5 1-769-945-11 WIRE (FLAT TYPE) (11 CORE) 7 1-535-706-21 PLUG, JUMPER (XGR6,XGR60:MX) 60 1-796-333-11 DECK, MECHANICAL 61 1-773-021-11 WIRE (FLAT TYPE) (15 CORE) 113 1-773-118-11 WIRE (FLAT TYPE) (19 CORE) 115 1-773-178-11 WIRE (FLAT TYPE) (23 CORE) 151 1-823-750-11 WIRE (FLAT TYPE) (21 CORE) 0156 1-575-653-11 CORD, POWER (XGR60:MX) 0156 1-777-071-81 CORD, POWER (XGR60:E51) 0156 1-783-820-11 CORD, POWER (XGR6) 0156 1-783-941-12 CORD, POWER (XGR60:AR) 0156 1-791-901-11 CORD, POWER (XGR60:E) 556 A-4735-188-A BU-30 (60) ASSY 0F951 1-532-506-31 FUSE (6.3A 250V) (XGR60:AR,E.E51) 0F961 1-533-949-31 FUSE, CYLINDRICAL (TIME LUG) (8.0A 250V) (XGR60) 0F962 1-533-949-31 FUSE, CYLINDRICAL (TIME LUG) (8.0A 250V) (XGR60) 0F963 1-532-506-31 FUSE (6.3A 250V) (XGR60) 0F963 1-533-310-11 FUSE, GLASS CYLINDRICAL(DIA.5) (6.3A 125V)(XGR6) 0F964 1-532-506-31 FUSE (6.3A 250V) (XGR60) 0F964 1-533-310-11 FUSE, GLASS CYLINDRICAL(DIA.5) (6.3A 125V)(XGR6) M201 A-4660-977-A MOTOR ASSY M901 1-763-072-11 FAN, DC 0T951 1-433-606-11 TRANSFORMER, POWER (XGR60) 0T951 1-435-797-11 TRANSFORMER, POWER (XGR6) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-XGR6/XGR60 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2002.02 New 1.1 2003.07 Change of the supply classification of the back panel (Ref. No. 6). (SPM-03059) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
