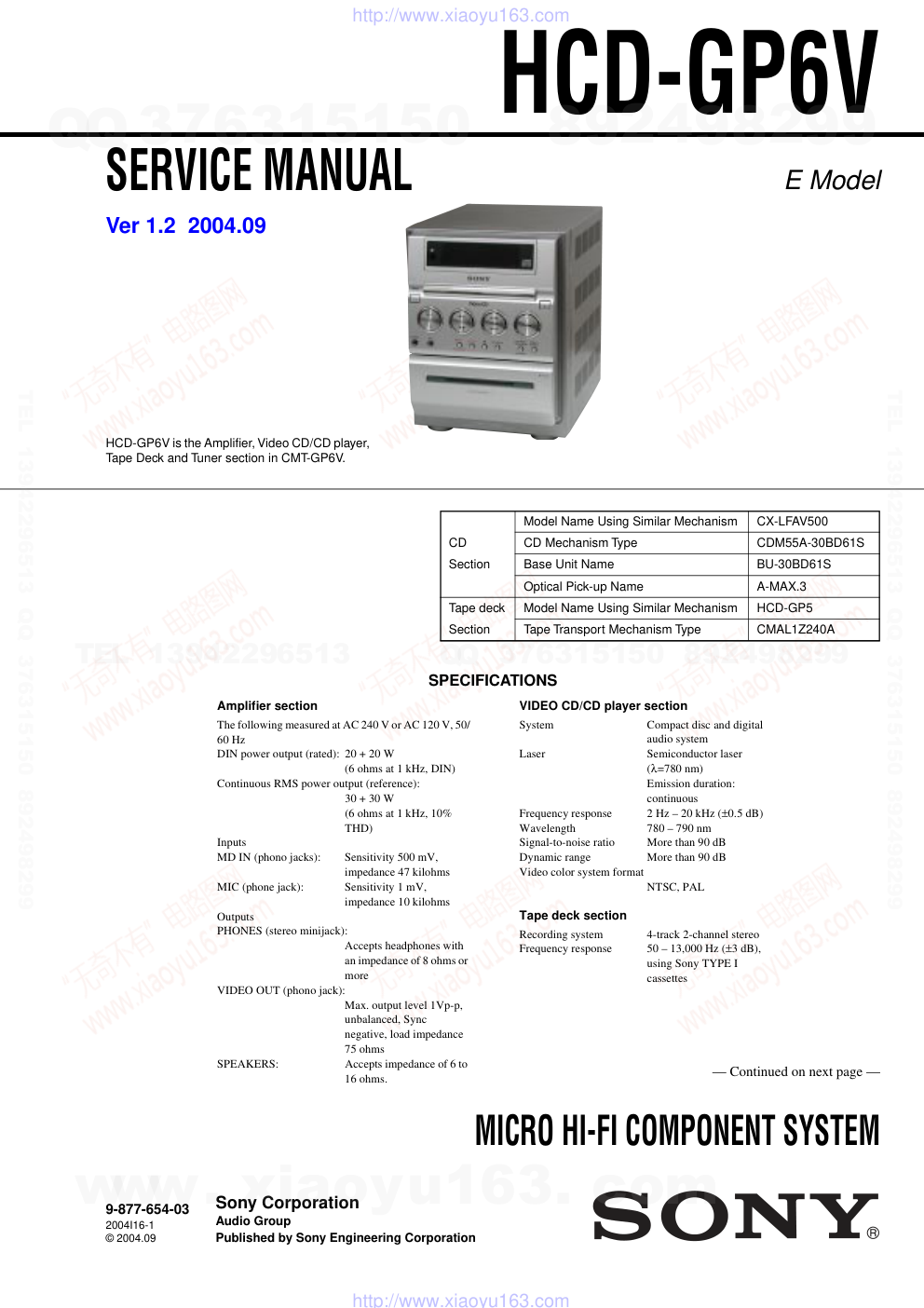

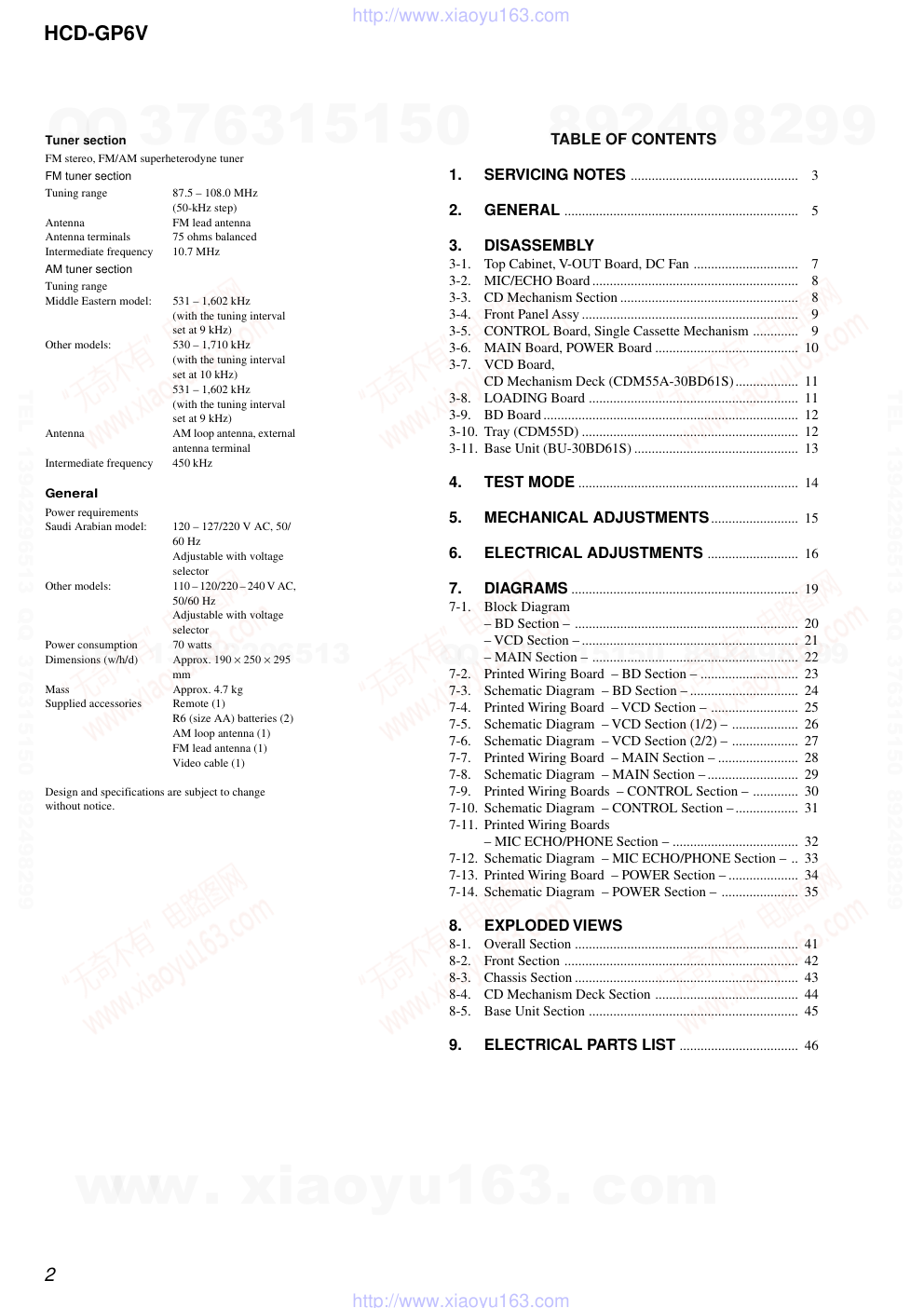

SERVICE MANUAL Sony Corporation Audio Group Published by Sony Engineering Corporation E Model MICRO HI-FI COMPONENT SYSTEM 9-877-654-03 2004I16-1 © 2004.09 Ver 1.2 2004.09 SPECIFICATIONS HCD-GP6V Model Name Using Similar Mechanism CX-LFAV500 CD CD Mechanism Type CDM55A-30BD61S Section Base Unit Name BU-30BD61S Optical Pick-up Name A-MAX.3 Tape deck Model Name Using Similar Mechanism HCD-GP5 Section Tape Transport Mechanism Type CMAL1Z240A HCD-GP6V is the Amplifier, Video CD/CD player, Tape Deck and Tuner section in CMT-GP6V. — Continued on next page — Amplifier section The following measured at AC 240 V or AC 120 V, 50/ 60 Hz DIN power output (rated): 20 + 20 W (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference): 30 + 30 W (6 ohms at 1 kHz, 10% THD) Inputs MD IN (phono jacks): Sensitivity 500 mV, impedance 47 kilohms MIC (phone jack): Sensitivity 1 mV, impedance 10 kilohms Outputs PHONES (stereo minijack): Accepts headphones with an impedance of 8 ohms or more VIDEO OUT (phono jack): Max. output level 1Vp-p, unbalanced, Sync negative, load impedance 75 ohms SPEAKERS: Accepts impedance of 6 to 16 ohms. VIDEO CD/CD player section System Compact disc and digital audio system Laser Semiconductor laser (λ=780 nm) Emission duration: continuous Frequency response 2 Hz – 20 kHz (±0.5 dB) Wavelength 780 – 790 nm Signal-to-noise ratio More than 90 dB Dynamic range More than 90 dB Video color system format NTSC, PAL Tape deck section Recording system 4-track 2-channel stereo Frequency response 50 – 13,000 Hz (±3 dB), using Sony TYPE I cassettes www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 HCD-GP6V Tuner section FM stereo, FM/AM superheterodyne tuner FM tuner section Tuning range 87.5 – 108.0 MHz (50-kHz step) Antenna FM lead antenna Antenna terminals 75 ohms balanced Intermediate frequency 10.7 MHz AM tuner section Tuning range Middle Eastern model: 531 – 1,602 kHz (with the tuning interval set at 9 kHz) Other models: 530 – 1,710 kHz (with the tuning interval set at 10 kHz) 531 – 1,602 kHz (with the tuning interval set at 9 kHz) Antenna AM loop antenna, external antenna terminal Intermediate frequency 450 kHz General Power requirements Saudi Arabian model: 120 – 127/220 V AC, 50/ 60 Hz Adjustable with voltage selector Other models: 110 – 120/220 – 240 V AC, 50/60 Hz Adjustable with voltage selector Power consumption 70 watts Dimensions (w/h/d) Approx. 190 × 250 × 295 mm Mass Approx. 4.7 kg Supplied accessories Remote (1) R6 (size AA) batteries (2) AM loop antenna (1) FM lead antenna (1) Video cable (1) Design and specifications are subject to change without notice. TABLE OF CONTENTS 1. SERVICING NOTES ................................................ 3 2. GENERAL ................................................................... 5 3. DISASSEMBLY 3-1. Top Cabinet, V-OUT Board, DC Fan .............................. 7 3-2. MIC/ECHO Board........................................................... 8 3-3. CD Mechanism Section ................................................... 8 3-4. Front Panel Assy .............................................................. 9 3-5. CONTROL Board, Single Cassette Mechanism ............. 9 3-6. MAIN Board, POWER Board ......................................... 10 3-7. VCD Board, CD Mechanism Deck (CDM55A-30BD61S).................. 11 3-8. LOADING Board ............................................................ 11 3-9. BD Board......................................................................... 12 3-10. Tray (CDM55D) .............................................................. 12 3-11. Base Unit (BU-30BD61S) ............................................... 13 4. TEST MODE ............................................................... 14 5. MECHANICAL ADJUSTMENTS......................... 15 6. ELECTRICAL ADJUSTMENTS .......................... 16 7. DIAGRAMS ................................................................. 19 7-1. Block Diagram – BD Section – ................................................................ 20 – VCD Section – .............................................................. 21 – MAIN Section – ........................................................... 22 7-2. Printed Wiring Board – BD Section – ............................ 23 7-3. Schematic Diagram – BD Section – ............................... 24 7-4. Printed Wiring Board – VCD Section – ......................... 25 7-5. Schematic Diagram – VCD Section (1/2) – ................... 26 7-6. Schematic Diagram – VCD Section (2/2) – ................... 27 7-7. Printed Wiring Board – MAIN Section – ....................... 28 7-8. Schematic Diagram – MAIN Section –.......................... 29 7-9. Printed Wiring Boards – CONTROL Section – ............. 30 7-10. Schematic Diagram – CONTROL Section –.................. 31 7-11. Printed Wiring Boards – MIC ECHO/PHONE Section – .................................... 32 7-12. Schematic Diagram – MIC ECHO/PHONE Section – .. 33 7-13. Printed Wiring Board – POWER Section – .................... 34 7-14. Schematic Diagram – POWER Section – ...................... 35 8. EXPLODED VIEWS 8-1. Overall Section ................................................................ 41 8-2. Front Section ................................................................... 42 8-3. Chassis Section ................................................................ 43 8-4. CD Mechanism Deck Section ......................................... 44 8-5. Base Unit Section ............................................................ 45 9. ELECTRICAL PARTS LIST .................................. 46 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 HCD-GP6V Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270 °C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size) : LEAD FREE MARK Unleaded solder has the following characteristics. • Unleaded solder melts at a temperature about 40 °C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 °C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! • Strong viscosity Unleaded solder is more viscou-s (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. • Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. SECTION 1 SERVICING NOTES This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the exterior. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. LASER DIODE AND FOCUS SEARCH OPERATION CHECK Carry out the “S curve check” in “CD section adjustment” and check that the S curve waveforms is output three times. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 HCD-GP6V Service Position of the CD Mechanism Deck and VCD Board Service Position of the Tape Cassette Mechanism Deck CD Mechanism Deck (CDM55A-30BD61S) VCD Board CN806 MAIN Board CN802 Extension cable J-2501-245-A (1.00mm/23P/L300) Extension cable J-2501-225-A (1.00mm/9P/L300) MAIN Board Tape Cassette Mechanism Deck (CMAL1Z240A) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 HCD-GP6V SECTION 2 GENERAL This section is extracted from instruction manual. Main unit Cassette compartment qg CD SYNC qd (18) DIRECTION 9 (17, 18, 22) Disc tray 4 Display window 3 MD qk (26) MIC/ECHO qa (19) MIC jack qh PHONES jack qj PLAY MODE/TUNING MODE 9 (9, 12, 14, 16) Remote sensor 2 REPEAT/FM MODE 8 (12, 16) TUNER/BAND qk (14, 16) TUNING +/– 6 (14, 16) VOLUME +/– 7 (19, 21) ?/1 (power) 1 (7, 8, 15, 21, 22) .m/M> (go back/go forward or fast forward/ rewind) 6 (8, 10, 12, 13, 17, 18, 19, 21, 22, 24) x (stop) qs (10, 11, 13, 15, 17, 18, 20, 29) zREC PAUSE/START qf (18, 20) CD NX (play/pause) ql (9, 11, 12, 15, 33) TAPE nN (play) ql (17, 18) Z (CD open/close) 5 (9, 10) Z PUSH (tape open/close) 0 (17) List of button locations and reference pages How to use this page Use this page to find the location of buttons and other parts of the system that are mentioned in the text. Illustration number r DISPLAY 2 (16, 24) R R Name of button/part Reference page ALPHABETICAL ORDER A – M P – Z BUTTON DESCRIPTIONS 1 2 3 4 5 6 7 8 ql qk qj qh 9 0 qa qs qd qf qg www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 HCD-GP6V Remote control ALBUM +/– qf (10) BASS/TREBLE wa (19) CD wf (9, 12, 15) CLEAR qk (13, 15) CLOCK/TIMER SELECT w; (22, 23) CLOCK/TIMER SET 4 (8, 21, 22) DISPLAY 2 (16, 24) DSG qd (19) ENTER 3 (8, 12, 15, 21, 22) KEY CONTROL 7 (20) K.PON/MPX ql (19) NEXT 9 (11) Numeric buttons 6 (10, 11, 13, 16) ON SCREEN wj (25) PICTURE EFFECT* wh PREV 9 (11) SELECT q; SLEEP qj (21) SPECIAL MENU qh (13) TAPE wd (17) TUNER BAND ws (14, 16) TUNING MEMORY 5 (14) VOLUME +/– qs (19, 21) ?/1 (power) 1 (7, 8, 15, 21, 22) m/M (fast forward/rewind) 8 (10, 13, 17) ./> (go back/go forward) 9 (8, 10, 12, 18, 19, 21, 22, 24) x (stop) qa (10, 11, 13, 15, 17, 18, 20, 29) X (pause) qg (10, 17) N (play) q; (9, 11, 12, 17, 18, 33) +/– 9 RETURN O wg (11) * This button cannot be used in this system. ALPHABETICAL ORDER A – K N – Z BUTTON DESCRIPTIONS `/1 X O 1 3 2 qj qk qh 4 5 6 8 7 qs qf 0 qa qg qd 9 `/1 X O w; ql wa ws wd wf wj wg wh Use buttons on the remote for the operation. 1 Press ?/1 to turn on the system. 2 Press CLOCK/TIMER SET. 3 Press ./> repeatedly to set the hour. 4 Press ENTER. 5 Press ./> repeatedly to set the minute. 6 Press ENTER. The clock starts working. To adjust the clock 1 Press CLOCK/TIMER SET. 2 Press ./> to select “CLOCK”, then press ENTER. 3 Do the same procedures as step 3 to 6 above. Setting the clock www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 HCD-GP6V SECTION 3 DISASSEMBLY • This set can be disassembled in the order shown below. 3-6.MAIN BOARD, POWER BOARD (Page 10) 3-8.LOADING BOARD (Page 11) 3-9.BD BOARD (Page 12) 3-10.TRAY (CDM55D) (Page 12) 3-11.BASE UNIT (BU-30BD61S) (Page 13) 3-7.VCD BOARD, CD MECHANISM DECK (CDM55A-30BD61S) (Page 11) 3-5.CONTROL BOARD, SINGLE CASSETTE MECHANISM (Page 9) 3-4.FRONT PANEL ASSY (Page 9) 3-3.CD MECHANISM SECTION (Page 8) 3-2.MIC/ECHO BOARD (Page 8) SET 3-1.TOP CABINET, V-OUT BOARD, DC FAN (Page 7) 7 two screws (+BVTP 3 ×10) qh two screws (+BVTP 3 ×10) qd screw (+BVTP 3 ×10) qs screw (+BVWH 3 ×10) 6 three screws (+BVTP 3 ×10) 4 qk rear panel qj DC fan q; tuner (FM/AM) 9 wire (flat type) 11p a a b b 5 top cabinet 1 three screws (+KTP 3 ×12) 2 three screws (+KTP 3 ×12) 3 six screws (+BVTP 3 ×10) 8 three screws (+BVTP 3 ×10) qa connector 4p (CN202) qf V-OUT board qg connector 2p (CN401) Note: Follow the disassembly procedure in the numerical order given. 3-1. TOP CABINET, V-OUT BOARD, DC FAN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 HCD-GP6V 3-2. MIC/ECHO BOARD 3-3. CD MECHANISM SECTION 3 two screws (+BVTP 3 ×10) 1 connector 4p (CN501) 4 MIC/ECHO board 2 wire (flat type) 6p (CN502) 6 four screws (+BVTP 3 ×10) 3 screw (+BVTP 3 ×10) 8 wire (flat type) 5p (CN801) q; CD mechanism section 7 4 wire (flat type) 11p (CN303) 5 wire 1p (CLP401) 9 connector 5p (CN1) 1 four claws 2 CD lid www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 HCD-GP6V 3-4. FRONT PANEL ASSY 3-5. CONTROL BOARD, SINGLE CASSETTE MECHANISM 1 two screws (+KTP 3 ×12) 3 wire (flat type) 21p (CN302) 4 8 front panel assy 5 connector 6p 6 connector 5p (CN201) 2 wire (flat type) 6p (CN305) 7 wire 1p (CLP201) qa single cassette mechanism (CMAL1Z240A) 8 CONTROL board 1 four screws (+BVTP 3 × 10) 2 four screws (+BVTP 3 × 10) 3 five screws (+BVTP 3 × 10) 9 four screws (+BVTP 3 × 10) 6 wire (flat type) 21p (CN601) 4 wire (flat type) 5p (CN602) 5 wire (flat type) 6p (CN605) 7 wire (flat type) 8p (CN603) q; two clamp www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 HCD-GP6V 3-6. MAIN BOARD, POWER BOARD qa four screws (+B 4 ×8) 8 heat sink assy 1 connector 11p (CN801) a a q; MAIN board 2 two screws (+BVTP 3 ×10) 3 screw (+BVTP 3 ×10) 4 holder heat sink qs silicon shield plate 6 two screws (+BTP 2.6 × 8) 5 two screws (+BVTP 3 ×10) 7 two screws (+BVTP 3 ×10) qd TRANSFORMER board qf power transformer 9 wire (flat type) 6p (CN306) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 HCD-GP6V 3-7. VCD BOARD, CD MECHANISM DECK (CDM55A-30BD61S) qd screw (+BVTP 3 × 10) qa two screws (+BVTP 3 × 10) qs holder, shield case 8 two screws (+BVTP 3 × 10) q; two screws (+BVTP 3 × 10) 9 VCD board qf CD holder 2 two screws (+BVTP 3 × 10) qh CD mechanism deck 4 lid (VCD), shield case 3 wire assy 6 wire (flat type) 23p (CN802) 1 wire (flat type) 9p (CN803) 7 wire (flat type) 11p (CN806) 5 connector 4p (CN804) qg CD plate 5 LOADING board 2 two screws (+BTP 2.6 × 6) 4 motor (LD) assy (M901) 1 Remove the belt. 3 Remove soldering from the two points. 3-8. LOADING BOARD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 HCD-GP6V 3-9. BD BOARD 2 Remove soldering from the four points. 5 BD board 1 wire (flat type) 25p (CN103) 4 wire (flat type) 16p 3 claw 2 tray 1 While pressing the two protrusions A and B to unlock the two claws as shown, pull the tray in the direction of the arrow C. (Be careful of the claws.) claw claw C A B 3-10. TRAY (CDM55D) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 HCD-GP6V 4 two floating screws (+PTPWH M2.6) 3 two floating screws (+PTPWH M2.6) 1 floating screws (+PTPWH M2.6) 2 5 BU holder (BU-30) 7 two insulators 6 two insulators base unit (BU-30BD61S) 8 wire (flat type) 9p (CN105) 3-11. BASE UNIT (BU-30BD61S) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 HCD-GP6V [Cold Reset] • The cold reset clears all data including preset data stored in the RAM to initial conditions. Execute this mode when re- turning the set to the customer. Procedure: 1. Press the "/1 button to turn off the main power. 2. While depressing the x button, press the "/1 button. 3. The fluorescent indicator tube does not display any message and the set is reset. [Fluorescent Indicator Tube Test Mode] • Fluorescent segments are tested when this test is activated. Procedure: 1. Extract an AC plug. 2. While depressing the CD u button, insert an AC plug. 3. All segments of the fluorescent indicator tube turn on. 4. CD test mode is activated. 5. To exit from this mode, press the "/1 button or disconnect the power cord. [Version Display Mode] • The model and the version are displayed. Procedure: 1. Press the "/1 button to turn the set on. 2. To enter the test mode, press two buttons x and "/1 simulta- neously for more than five seconds. The model and the ver- sion are displayed. [AMP Test] • This mode is used to check the function of the amplifier. Procedure: 1. Extract an AC plug. 2. While depressing the [MD] button, insert an AC plug to enter the AMP test mode. The message “AMP TEST” is displayed. 3. The message “Volume MAX” is displayed, when pressing the [VOLUME +] button. The message “Volume MIN” is displayed, when pressing the [VOLUME --] button. 4. Each time pressing the [PLAY MODE/TUNING MODE] button, the message “EQ MAX”, “EQ MIN” or “EQ FLAT” is dis- played in this order. 5. To release from this mode, disconnect the AC plug and turn the power off. [AM Channel Step 9 kHz/10kHz Selection Mode] • Either the 9 kHz step or 10 kHz step can be selected for the AM channel step. Procedure: 1. Set the function to AM. 2. While depressing the [TUNER/BAND] button, press the "/1 button. 3. The channel step is changed over. [TC Test Mode] Procedure: 1. Extract an AC plug. 2. While depressing the TAPE nN button, insert an AC plug. 3. The message “TC TEST” is displayed and TC test mode is activated. • Zero Return 1. Press the + > M or – .m button. 2. The tape is rewound to the counter zero position. • Automatic record/playback test 1. Press the [REC START/REC PAUSE] button. 2. The message “MD” is displayed and AUX input is selected. 3. The tape is rewound to the counter zero position and record- ing is started automatically. 4. When the x button is pressed, the tape is rewound to the recording stated point and the set starts playback. 5. To exit from this mode, press the "/1 button or disconnect the power cord. SECTION 4 TEST MODE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 HCD-GP6V SECTION 5 MECHANICAL ADJUSTMENTS 3.04 – 6.96 mN • m (31 to 71 g • cm) (0.43 – 0.98 oz • inch) 0.20 – 0.58 mN • m (2 to 6 g • cm) (0.02 – 0.08 oz • inch) 3.04 – 6.96 mN • m (31 to 71 g • cm) (0.43 – 0.98 oz • inch) 0.20 – 0.58 mN • m (2 to 6 g • cm) (0.02 – 0.08 oz • inch) 6.97 – 14.02 mN • m (71 to 143 g • cm) (0.98 – 1.99 oz • inch) 9.8 mN • m or more (100 g • cm or more) (1.4 oz • inch or more) 9.8 mN • m or more (100 g • cm or more) (1.4 oz • inch or more) CQ-102C CQ-102C CQ-102RC CQ-102RC CQ-201B CQ-403A CQ-403R Precaution 1. Clean the following parts with a denatured alcohol-moistened swab: record/playback heads pinch rollers erase head rubber belts capstan idlers 2. Demagnetize the record/playback head with a head demag- netizer. 3. Do not use a magnetized screwdriver for the adjustments. 4. After the adjustments, apply suitable locking compound to the parts adjusted. 5. The adjustments should be performed with the rated power supply voltage unless otherwise noted. Torque Measurement Mode FWD FWD back tension REV REV back tension FF/REW FWD tension REV tension Torque meter Meter reading www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 HCD-GP6V SECTION 6 ELECTRICAL ADJUSTMENTS [Record/Playback Head Azimuth Adjustment] Procedure: 1. Mode : Playback 2. Turn the adjustment screw and check output peaks. If the peaks do not match for L-CH and R-CH, turn the adjustment screw so that outputs match within 1 dB of peak. test tape P-4-A100 (10kHz, –10dB) MAIN board J203 speaker terminal level meter set + – L-CH peak R-CH peak screw position output level within 1 dB L-CH peak R-CH peak screw position within 1dB Signal Used for Tape P-4-A100 WS-48B 10 kHz, –10 dB 3 kHz, 0 dB Azimuth Adjustment Tape Speed Adjustment DECK SECTION 0 dB=0.775V 1. Demagnetize the record/playback head with a head demagnetizer. 2. Do not use a magnetized screwdriver for the adjustments. 3. After the adjustments, apply suitable locking compound to the parts adjusted. 4. The adjustments should be performed with the rated power supply voltage unless otherwise noted. 5. The adjustments should be performed in the order given in this service manual. (As a general rule, playback circuit adjustment should be completed before performing recording circuit adjustment.) 6. The adjustments should be performed for both L-CH and R- CH. 7. Switches and controls should be set as follows unless otherwise specified. 4. After the adjustments, apply suitable locking compound to the parts adjusted. Adjustment Location: Record/Playback/Erase Head [Tape Speed Check] Procedure: 1. Turn the power on. 2. Insert the WS-48B into deck. 3. Press the Y button of deck. 4. Check the reading of frequency counter becomes 3000 ± 90 Hz. Sample Value of Wow and flutter W.RMS (JIS) less than 0.3% (test tape: WS-48B) 3. Mode: Playback test tape P-4-A100 (10kHz, –10dB) oscilloscope set Waveform of oscilloscope in phase 45° 90° 135° 180° good wrong MAIN board J203 speaker terminal L R www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 HCD-GP6V RFDC signal waveform Checking Location: BD board (Conductor side) RFAC Level Check Connection: Procedure: 1. Connect an oscilloscope to test point TP6 (RFAC) and TP7 (VC) on the BD board. 2. Turn the power on. 3. Put the disc (YEDS-18) in to playback the number five track. 4. Confirm that oscilloscope waveform is clear and check RFAC signal level is correct or not. Note: A clear RFAC signal waveform means that the shape “◊” can be clearly distinguished at the center of the waveform. RFAC signal waveform Checking Location: BD board (Conductor side) CD SECTION Note: 1. CD Block is basically designed to operate without adjustment. There- fore, check each item in order given. 2. Use YEDS-18 disc (3-702-101-01) unless otherwise indicated. 3. Use an oscilloscope with more than 10MΩ impedance. 4. Clean the object lens by an applicator with neutral detergent when the signal level is low than specified value with the following checks. S-curve Check Connection: Procedure: 1. Connect an oscilloscope to test point TP4 (FE) and TP7 (VC) on the BD board. 2. Turn the power on. 3. Put the disc (YEDS-18) in and turned power switch on again and actuate the focus search. (actuate the focus search when disc table is moving in and out) 4. Check the oscilloscope waveform (S-curve) is symmetrical between A and B. And confirm peak to peak level within 2 ± 1 Vp-p. S-curve waveform Note: • Try to measure several times to make sure than the ratio of A : B or B : A is more than 10 : 7. • Take sweep time as long as possible and light up the brightness to obtain best waveform. Checking Location: BD board (Conductor side) RFDC Level Check Connection: Procedure: 1. Connect an oscilloscope to test point TP6 (RFDC) and TP7 (VC) on the BD board. 2. Turn the power on. 3. Put the disc (YEDS-18) in to playback the number five track. 4. Confirm that oscilloscope waveform is clear and check RFDC signal level is correct or not. Note: A clear RFDC signal waveform means that the shape “◊” can be clearly distinguished at the center of the waveform. + – BD board TP4 (FE) TP7 (VC) oscilloscope A B symmetry within 2 ± 1 Vp-p + – BD board TP6 (RFDC) TP7 (VC) oscilloscope VOLT/DIV: 200 mV TIME/DIV: 500 ns level: 0.7 ± 0.2 Vp-p + – BD board TP6 (RFAC) TP7 (VC) oscilloscope VOLT/DIV: 200 mV TIME/DIV: 500 ns level: 1.0 ± 0.4 Vp-p www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 HCD-GP6V Connecting Location: – BD BOARD (Conductor Side) – IC101 TP7 (VC) IC103 TP8 (RFAC) TP6 (RFDC) TP4 (FE) TP2 (TE) Ver 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 19 HCD-GP6V SECTION 7 DIAGRAMS • Circuit Boards Location For Schematic Diagrams. Note: • All capacitors are in µF unless otherwise noted. (p: pF) 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • f : internal component. • 5 : fusible resistor. • C : panel designation. • A : B+ Line. • H : adjustment for repair. • Voltages and waveforms are dc with respect to ground un- der no-signal (detuned) conditions. no mark: CD PLAY ( ): TAPE REC • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal production tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal production tolerances. • Circled numbers refer to waveforms. • Signal path. F : TUNER (FM/AM) J : CD PLAY E : TAPE PLAY a : REC j : AUX (VIDEO) IN L : VIDEO OUT • Abbreviation EA : Saudi Arabia model MY : Malaysia model SP : Singapore model For Printed Wiring Boards. Note: • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • W : indicates side identified with part number. • f : internal component. • : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.) Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Caution: Pattern face side: Parts on the pattern face side seen from (Side B) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Side A) the parts face are indicated. • Indication of transistor. C B These are omitted. E Q B These are omitted. C E Q B These are omitted. C E Q MAIN board BD board LOADING board CONTROL board PHONE board V-OUT BOARD MIC/ECHO BOARD VCD BOARD POWER BOARD 1.0 ± 0.4Vp-p Approx. 360mVp-p Approx. 1.2Vp-p 0.6 ± 0.15Vp-p 3.7Vp-p 59.1ns 4.6Vp-p 37 ns 5.5Vp-p 30.6 µs 2.4Vp-p 115ns • Waveforms – BD Board – – VCD Board – 11.7Vp-p 11.7 µs 1 IC103 qg (RFAC) (CD play mode) 200 mV/DIV 1 µs/DIV 2 IC101 qh (FE) (CD play mode) 100 mV/DIV 200 µs/DIV 6 IC802 ua (XOUT) 1 V/DIV 10 ns/DIV 7 Q301 collector (REC mode) 2 V/DIV 5 µs/DIV 8 IC601 qd (O-XT2) 1 V/DIV 10 µs/DIV 9 IC601 qh (XOUT) 1 V/DIV 50 ns/DIV 4 IC103 wk (RFDC) (CD play mode) 5 IC101 us (XTAO) 100 mV/DIV 1 µs/DIV 1 V/DIV 20 ns/DIV 3 IC101 qk (TE) (CD play mode) 500 mV/DIV 200 µs/DIV – CONTROL Board – – MAIN Board – w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 20 HCD-GP6V 7-1. BLOCK DIAGRAM — BD SECTION — : CD • Signal Path OPTICAL PICK-UP BLOCK PD1 PD2 I5-10 I1-6 LD VC VCC 7 5 3 1 2 4 +3.3V GND IL-SW PD VR LD DRIVE FOCUS COIL TRACKING COIL Q101 RF AMP IC103 VC 27 A 6 B 7 C 8 D 9 E 10 F 11 LD 1 PD 2 IC102 MOTOR/COIL DRIVE VO1+ 52 VO1- 47 VO2+ 56 VO2- 55 VO3+ 2 VO3- 1 M (SLED) M102 M101 VO4+ 10 VO4- 5 M (SPINDLE) F+ F- T+ T- 35 IN1+ 34 IN1- 32 IN2+ 31 IN2- 27 IN3+ 26 IN3- 24 IN4R 8 STBY MDP 25 SRDR 30 SFDR 29 TRDR 32 TFDR 31 FRDR 34 FFDR 33 DIGITAL SIGNAL PROC. IC101 DIGITAL SERVO RFAC 50 29 RFDCI 28 RFDC 16 FE 17 FEI 12 SW TE_BAL RFDC 43 FE 39 TE 41 SE 40 SSTP 26 66 PCMD 4 DATA 16.9344MHz 6 CLOK 5 XLAT DATA XLAT 77 SQCK SQCK 8 SCLK 15 SCOR 76 SQSO 2 XRST XRST RF-SW PWM3 PWM2 PWM1 7 SENS SCOR SQSO SENS 14 C2PO C2PO 15 RF AC 18 TE 67 BCLK 65 LRCK 13 GFS 22 FOK PCMD CLK BCLK LRCK GFS FOK 71 XTAI 72 XTAO 19 RV101 X201 AVDD(3.3V) A VCD SECTION B VCD SECTION C VCD SECTION w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 21 HCD-GP6V — VCD SECTION — • Signal Path • R-CH is omitted due to same as L-CH. : VIDEO : CD 55-62 68-79, 82-87 13-15, 17-21 12-5,27, 26,23,25, 4,28,29, 3,2,30 64 65 24 22 LOE AUX7 AUX2 AUX6 AOUT/SELPLL0 ACLK ATCLK ATPS/SELPLL1 AIN ARCLK ARFS PCLK PCLK2X CPUCLK HSYNC VSYNC LSC1 AUX5 AUX4 I-CDDATA I-CDACK O-CDSTB O-CDDATA MCLK TSD VIDEO DATA BUS AUX15 AOL+ L-OUT R-OUT AOL- 3 1 IC701(1/2) AMP IC701(2/2) AMP Q901 BUFFER 7 2 5 6 AOR+ AOR- VDAC AUX00 AUX01 XIN XOUT TBCK TWS/PLLOUT RSD/SPLL0 RBCK/SER IN PWS/SPLL1 PCK PCK2 DCLK/EXT-CLK HSYNC VSYNC DSC-C DSC-S AUX11 LSC3 CE OE LD0-LD7 32-39 YUV0-YUV7 YUV0-YUV7 DQ0-DQ7 LA0-LA17 A0-A17 8,99, 97,95, 93,85, 83,81 DSCD0-DSCD7 IC803 ROM IC801 VCD MPEG PROCESSOR IC802 AUDIO DAC, VIDEO DAC, CONTROLLER IC601 (1/2) SYSTEM CONTROLLER 89 88 90 91 93 94 95 21 40 17 22 19 33 37 23 54 47 52 95 94 97 96 PWM3 DI A03 A02 A01 CLK CLK LD PWM2 PWM1 DATA DATA D805 XLAT SQCK XRST RF-SW SCOR SQSO SENS C2PO PCMD CLK BCLK LRCK GFS FOK TDMDP AUX3 RESET TDMCLK TDMFS AUX0 AUX1 98,96, 94,92, 89-86 43 42 41 40 66 53 49 80 12 82 84 6 10 35 44 79 X801 27MHz 13-28 18-21, 24-28 2-4, 7-10, 35-38, 40-43 15 16 31 3 2 99 WE RAS RAS DWE CAS CASL 30 CASH DBUS0-DBUS15 4-12 MA0-MA8 DQ0-DQ15 A0-A8 29 92 OE DOE IC804 DRAM IC805 DAC J771 S771 VIDEO OUT D MAIN SECTION A BD SECTION B BD SECTION C BD SECTION 48 64 7 9 74 71 47 45 46 RST 13 NTSC AUTO PAL Q802 RESET Q309 CD 3.3V CD-VM (7V) +3.3V REG Q801 IC801 3.3V CD-VM (7V) +3.3V REG 97 96 98 45 46 48 29 3 2 1 6 7 8 AUX05 AUX07 AUX12 AUX06 AUX10 AUX14 AUX09 68 AUX08 18 AUX04 69 RSTOUT AUX02 11 24 67 34 39 20 14 36 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 22 HCD-GP6V — MAIN SECTION — : TUNER : CD • Signal Path • R-CH is omitted due to same as L-CH. : AUX : PB (TAPE) : REC (TAPE) : MIC R-CH BIAS OSC Q301 Q302 +VM ERASE HEAD REC/PB HEAD TAPE MECHANISM DECK Q607 REC/PB SWITCH R-COUNT 99 R-CLK 100 R-CE 84 SYSTEM CONTROLLER IC601(2/2) R-DATA 98 L R AUX IN J201 MUTE CONT Q506 J202 PHONES R-CH R-CH +L -L +R -R FUCTION KEY REMOTE CONTROL RECEIVER IC603 S601-607, 612 LED601 STANDBY TUNER UNIT L-CH R-CH R-CH DO DI CLK CE TUNED R-CH R-TUNED 93 Q310,311 REC/PB SWITCH Q305,306,307 L301 REC BIAS Q303, 304 SW1 PLAY SOL DRIVER Q605 MOTOR DRIVER Q606 T-REC 77 O-BIAS 81 T-SW 24 I-XT1 12 O-XT2 13 X601 32.768kHz X IN 15 X OUT 16 O-SHIFT 7 X602 8.64MHz MUTE Q504 MUTE Q261 9 P AMP-MUTE 29 RMC IN FUCTION KEY S608-611,S613-616 19 I-KEY2 75 LED-CONT 3 1 RESET SWITCH Q601 LED DRIVER Q608 11 I-RESET RESET IC602 2 1 D603 26 I-POWER DOWN D801-804 RELAY DRIVE AC IN PT802 SUB Q401 RY801 18 I-KEY1 82 CD-ON RIPPLE FILTER Q314 +10V +10V SOUND PROCESSOR IC301 AUX-L 19 18 L-OUT TUNER-L 23 TAPE-L 2 CD-L 21 16 R-OUT R-CH 13 CONT 28 RECO-L 6 PBO-L 7 VOLIN-L R-MUTE 80 R-ST 92 STEREO MUTE R-CH R-CH SW2 R REC SW3 F REC SW4 PACK SW5 END M M1 DECK MOTOR SOLENOID R-OUT R-CH L-OUT F DATA 10 T-PLAY SW 79 T-MTR.CONT 6 T-END 5 T-SOL 4 O-VF-ON O-DSG 97 76 O-BU-DATA 86 O-BUSTB 87 O-BUCLK 85 MOTOR DRIVER IC604 OUT1 4 7 FIN OUT2 2 9 RIN OPEN SW M (LOADING) CLOSE SW CD OPEN/CLOSE 28 CD-DOOR-SW 74 O-OPEN 73 O-CLOSE Q501 +VP -VP OVERLOAD DET SWITCH Q502, Q511 OVERLOAD R-CH J203 SPEAKERS 45 47 50 . 52 66 . SEG1 SEG20 34 44 GRID1 GRID11 FLUORESCENT INDICATOR TUBE FL601 FIL1 R-CH R-CH FIL2 D602 +5V REG Q602-604 Q503 SWITCH Q407 SWITCH µCON +B V ECO D608 8 P-CON VOLTAGE SELECTOR S801 V ECO PT801 POWER TRANS FIL2 FIL1 AC1 AC1 D402, 403, D408, 409 +VM REG Q402,403,404 +VM +VM +VM +10V REG Q315, 316 +10V D502 D605 AC DET Q508 DC DET Q509,510 HOLD Q507 25 83 I-POWER-MONI TUNER L-CH D VCD SECTION 5.8V REG Q409, 410 5V REG Q405,406 CD+5V CD+7V SUB WOOFER J204 FAN DRIVER Q411-414 VM S1 M901 R-CH 14 13 10 12 IC502SELECTOR IC501 VOCAL FADER MIC J501 Q511,512 MIC MUTE MIC IN 6 7 3 1 DISK IC504ECHO PROCESSOR IC503 MIC AMP (2/2) IC503MIC AMP (1/2) SDI SLT SCK 31 3 4 5 23 VL AC VH AC VH AC VL AC POWER AMP IC201 CH1 IN 8 3 CH1 OUT STB 10 CH2 IN 12 4 CH2 OUT 2 +VCC 1 -VCC D416 D406 -VFL REG Q408 -VFL +VP -VP w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 23 HCD-GP6V 7-2. PRINTED WIRING BOARD — BD SECTION — • Semiconductor Location Ref. No. Location IC101 D-13 IC102 F-12 IC103 F-9 Q101 G-6 • See page 19 for Circuit Boards Location. :Uses unleaded solder. R320 FB101 FB161 C133 R166 R167 R169 FB203 C152 C114 C119 R111 R199 C103 C101 C111 C108 C109 C102 R123 C131 C104 C132 R122 C115 R105 Q101 C113 R103 R102 C118 C153 C151 R226 R225 R227 R224 R223 R309 R318 R308 R202 C215 R231 C150 FB104 C273 C254 R207 R232 R203 C226 C202 R101 C205 C230 R233 C209 C227 C112 C258 FB102 FB201 C231 M102 M101 C121 R312 CN105 CN102 C277 R116 RV101 TP7 (VC) CN101 R131 R118 L163 R113 IC103 C116 R114 R133 R115 R117 C107 R126 C110 R125 R132 R120 R104 R220 R221 R155 R158 C310 FB103 R201 R218 R152 R205 IC101 C222 R230 R151 C212 R204 C224 R219 R206 C211 X201 C208 R253 C250 FB291 IC102 R291 R287 R286 JR4 R285 R311 C156 C158 R222 R289 R288 R313 R317 R303 R260 C272 C117 C354 R316 R252 R310 C216 C313 R168 R290 C316 R261 C122 C213 TP2 (TE) TP4 (FE) TP6 (RFDC) TP8 (RFAC) (COMPONENT SIDE) BD BOARD 1-687-189- 12 (12) 1 20 21 40 60 41 80 61 1 28 56 29 1 15 30 16 1-687-189- 12 (12) B VCD BOARD CN802 (Page 25) (SLED) (SPINDLE) OPTICAL PICK-UP BLOCK (A-MAX. 3) A VCD BOARD CN803 (Page 25) (CONDUCTOR SIDE) BD BOARD 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 A B C D E F G H M – + M – + E w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 24 HCD-GP6V 7-3. SCHEMATIC DIAGRAM — BD SECTION — R118 R111 R220 R221 R226 R225 R227 R222 R224 R223 R201 C110 C108 C111 R113 R120 C109 C119 IC103 R125 R126 C118 R117 R132 C107 RV101 R105 R104 R102 C103 C101 R103 R116 R115 C102 C104 C133 C153 C151 C117 C115 C152 C150 C273 C205 R218 C132 C227 C216 C215 R202 C224 C310 C131 CN101 R320 C248 R313 R166 R168 R167 R169 FB101 IC101 R318 FB104 FB102 R114 R199 Q101 M102 M101 R133 R203 C277 R233 R232 R231 R230 C114 C230 R131 C158 C113 R122 R123 FB161 TP2 TP4 TP6 TP8 TP5 TP7 R312 C226 R158 C272 C250 C354 FB291 FB201 FB103 R260 C208 R311 C231 R317 CN102 R290 R285 R286 R287 R288 R289 R291 C121 R310 R252 R253 C258 X201 C254 C122 C316 FB203 R308 R309 C222 R303 C209 R207 R206 R205 C211 R204 C212 C313 C213 R101 R316 R219 IC102 R155 L163 C156 R152 R151 C202 C116 C112 R261 CN105 10k 150k 1k 100 100 100 100 100 100 100 33k 0.1 0.1 47 4V 2.4k 120k 0.1 1 CXA2647 39k 39k 1 120k 330k 33p 47k 1k 15k 15k 470p 470p 100k 33k 33k 0.1 3300p 2.2 0.1 0.1 0.1 100 10V 0.1 220 10V 220p 0.1 1k 0.022 0.1 0.01 0.47 10k 1 0.1 0.068 16P 0 2.2 0 0 0 0 0 0 CXD3068Q 0 0 0 390k 0 2SB970 2.2k 100k 0 330 330 330 150 1000p 0.1 68k 0.01 100 10V 100k 3.3 (TE) (FE) (RFDC) (RFAC) (RFACI) (VC) 0 47 4V 1k 0 0 0 0 0 0 0 0 0 220 10V 0 23P 0 0 0 0 100 100 0 0.1 0 1M 1k 22p 16.9344MHz 22p 0.1 0.1 0 0 0 0.1 0 100p 1M 4.7k 1k 0.1 3.3k 1500p 0.1 3300p 0 0 1k AN41020A 0 0 0.01 2.2k 100k 0.1 0.1 0.1 0.1 9P SQSO DATA XLAT CLOK SENS XRST SCOR SQCK SD+ SD- SP+ SP- PWM1 PWM2 PWM3 PWM2 SQSO XRST DATA XLAT CLOK SENS SQCK SCOR TD- FD- TD+ FD+ PWM3 PWM1 FD+ FD- TD+ TD- SD- SD+ SP+ SP- I1 I2 I3 I4 I5 I1 I2 I3 I4 I5 RFAC RFAC RFDC SE SE FE FE TE TE AA1 AA2 AA3 AA4 AA5 AA6 AA5 AA6 AA3 AA4 AA1 AA2 RFDC RFSW RFSW XTAI XTAO XTSL MD2 DOUT EMPH WFCK SCOR SBSO EXCK SQCK MUTE SENS XRST SCLK ATSK DATA XLAT CLOK COUT MIRR DFCT FOK MDP LOCK SSTP SFDR SRDR TFDR TRDR FFDR FRDR VPCO IGEN TE SE FE VC FILO FILI PCO CLTV RFAC BIAS ASYI ASYO WDCK LRCK BCLK RFDC ADIO FSTO ASYE XOLT SOCK SOUT SCSY PWMI CE V16M VCTL DVDD0 XPCK GFS C2PO DVDD1 DVSS1 TEST TES1 AVSS0 AVDD0 AVSS1 AVDD1 DVDD2 PCMD DVSS2 SQSO T+ VC VCC GND LD PD F+ T- F- DATA CLK SENS SQCK SCOR RFSW XRST GND VCC PD2 PD1 I1-6 I5-10 LD DGND PGND2 PGND2 NC NC STBY NC NC PVCC2 NC NC PVCC2 IN3- IN3+ SVCC SGND IN2- IN2+ IN1- IN1+ PVCC1 PVCC1 NC NC NC NC PGND1 PGND1 NC(VDD) NC(BC1) NC NC(SW) NC(CT) NC(VPUMP2) NC(BC2) NC(VPUMP1) NC(BC4) NC(BC3) NC(FB) OPO3(NC) OPO2(NC) OPO1(NC) VO1- VO1+ DOUT LD PD A B C D F E EQ_IN AC_SUM GND SW DVCC DVC RFAC FE FEI TE TE_BAL CE CEI VCC RFG BST VFC RFC VC RFDCI DC_OFST RFDC C4M IN4R IN4 VREF PVCC/2(NC) VO3- VO3+ VO4- VO4+ VO2- VO2+ PWM3(RFDC) PWM2(TE) PWM1(FE) NC(I-OP+) NC(I-OP-) NC(O-OP) IL-SW RF AMP, FOCUS/TRACKING ERROR AMP FOCUS/TRACKING COIL DRIVE, AUTOMATIC POWER CONTROL (SLED) (SPINDLE) +3.3V D-GND D-GND +3.3V P-GND P-GND +7V +7V C2PO GFS FOK (NC) CD-DATA CD-WCLK CD-SCLK (NC) DGND XLAT SQSO DIGITAL SIGNAL PROCESSOR, DIGITAL SERVO PROCESSOR XUGF SPINDLE/SLED MOTOR DRIVE DVSS0 D-GND TO VCD BOARD (2/2) CN803 (Page 27) A TO VCD BOARD (1/2) CN802 (Page 26) B 3 • See page 19 for Waveforms. • See page 36 for IC Block Diagrams. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 25 HCD-GP6V 7-4. PRINTED WIRING BOARD — VCD SECTION — • See page 19 for Circuit Boards Location. :Uses unleaded solder. IC804 IC701 IC805 IC802 IC801 IC803 TO V-OUT BOARD CN202 (Page 32) TO MAIN BOARD CN303 (Page 28) TO BD BOARD CN105 (Page 23) TO BD BOARD CN102 (Page 23) TO CONTROL BOARD CN602 (Page 30) • Semiconductor Location Ref. No. Location D301 C-7 D701 C-6 D801 C-2 D803 B-6 D805 B-5 IC701 C-6 IC801 B-1 IC802 B-3 IC803 B-1 IC804 C-8 IC805 A-2 Q309 C-7 Q801 C-7 Q802 C-3 Q901 A-5 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 26 HCD-GP6V 7-5. SCHEMATIC DIAGRAM — VCD SECTION (1/2) — 24 R843 R841 R842 R844 C836 C837 C835 C834 C863 C830 C804 R802 R801 C801 C802 R850 R851 R940 R930 R931 R932 R933 R947 R934 R935 R937 R936 R921 R922 R923 R832 C923 C846 C844 C843 C847 R938 R939 R804 R852 R818 R823 R822 Q801 R833 C827 C805 C862 C806 CN801 C803 R906 JR802 JR803 CN802 C822 IC804 IC801 R909 R925 R926 R927 IC803 IC805 R942 R944 R946 R941 R943 R945 D801 100 100 100 100 47 16V 0.1 0.1 0.1 0.1 0.1 0.1 4.7k 4.7k 47 16V 0.1 0 0 68k 100 100 100 100 100 100 100 100 100 100 100 100 4.7k 0.01 22p 22p 22p 22p 2.7k 150k 1k 0 18 1/8W 18 1/8W 100 1/8W 2SC3266 GR 82 0.1 0.1 100p 47 16V 5P 1.0MM FFC 0.1 1k 23P 1.0MM FFC 47 16V GLT44016-30TC ES3880FMF 1k 0 0 0 HT27C020-70 (U2) BH2220 FMV-TR 4.7k 4.7k 4.7k 2.2k 2.2k 2.2k UDZSTE-173.9B 0 0 TO CONTROL BOARD CN605 (Page 31) 27 • See page 37 for IC Block Diagram. Ver 1.2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 27 HCD-GP6V 7-6. SCHEMATIC DIAGRAM — VCD SECTION (2/2) — 26 TO V-OUT BOARD CN202 (Page 33) TO MAIN BOARD CN303 (Page 29) C807 C825 C824 C819 C818 C817 C815 FB803 C711 C713 C712 C902 C903 C905 C839 C813 C838 C909 C853 C854 C723 C855 C856 R830 R831 C608 C611 R815 R814 R816 R817 R808 R813 R812 R809 R819 R820 R810 R821 R811 R711 R713 R714 R716 R718 R717 R715 R710 R719 R721 R720 R722 R709 R701 R702 R902 R903 R901 C610 C311 R304 R305 C609 FB815 FB813 FB814 FB816 FB817 C612 R825 L901 C904 C831 C816 C814 C826 C310 R853 C810 C808 C719 C715 716 C710 C704 D701 CN804 Q901 C722 C718 C717 C721 C720 C714 R708 CN806 C703 IC701(1/2) IC701(2/2) R705 R703 R706 R704 C705 C706 C708 C707 R849 FB802 R707 C709 FB811 FB801 Q309 C308 X801 C821 12p C820 15p R824 Q802 D803 D301 C309 R341 C302 R306 IC802 CN803 D805 C823 0.1 0.1 1 0.1 0.1 0.1 0.1 0 68p 68p 68p 220p 470p 22p 100p 0.1 0.1 0.1 47p 47p 0.1 8p 8p 10k 10k 220 10V 0.1 100 100 100 100 4.7k 100k 4.7k 100 10k 10k 4.7k 4.7k 220 22k 22k 22k 27k 27k 27k 27k 22k 820k 820k 820k 820k 10k 100 100 220 0 75 1/10W 0.1 0.1 6.8 1/8W 100 1/8W 220 10V 0 0 0 0 0 3.3k 470 6.3V 2.2 50V 100 10V 47 16V 47 16V 100 10V 8.2k 1 0.1 1 1 1 47 16V 1 UDZSTE-176.2B 4P 2SA1162-G 1 1 1 1 1 68p 10k EARTH TERMINAL 11P 1 0.0047 0.0047 0.0047 0.0047 NJM14558V -TE2 NJM14558V -TE2 220 220 220 220 100 0 180 1/8W 100 10V 0 0 2SC3266 GR 220 10V 27MHz 1k 2SC2712G-TE85L 1SS355TE-17 UDZSTE-173.9B 0.1 270 10 50V 0 ES3883FF 9P 1.0MM FFC 1SS355TE-17 10 50V 0 10uH 24 JR804 0 C857 0.01 C858 0.1 C859 0.1 L802 10uH L801 • See page 19 for Waveform. Ver 1.2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 28 HCD-GP6V 7-7. PRINTED WIRING BOARD — MAIN SECTION — • Semiconductor Location Ref. No. Location D301 E-2 D302 E-5 D303 B-4 D304 E-4 D402 G-2 D403 H-1 D405 I-4 D408 G-2 D409 H-2 D410 G-1 D411 G-1 D412 H-4 D413 E-7 D414 F-6 D415 F-6 D416 H-2 D418 F-6 D420 H-4 D421 C-6 D422 E-7 D423 E-7 D425 D-6 D426 D-6 D428 H-4 D501 H-4 D502 D-6 D503 H-4 D505 H-5 D506 H-5 IC201 H-7 IC301 E-4 IC501 B-2 IC502 B-3 Q301 F-1 Q302 F-2 Q303 E-1 Q304 E-4 Q305 E-3 Q306 E-2 Q307 E-2 Q308 D-3 Q309 E-3 Q310 E-3 Q311 E-2 Q312 D-5 Q313 E-5 Q314 B-5 Q315 B-5 Q316 B-5 Q401 H-2 Q402 F-7 Q403 F-6 Q404 F-6 Q405 E-6 Q406 E-6 Q407 D-7 Q408 F-1 Q409 F-6 Q410 F-7 Q411 C-7 Q412 C-7 Q413 D-7 Q414 D-7 Q416 H-2 Q501 H-4 Q502 H-5 Q503 G-5 Q504 G-6 Q505 H-6 Q506 H-6 Q507 D-7 Q508 H-1 Q509 I-3 Q510 I-3 Q511 H-4 • See page 19 for Circuit Boards Location. IC201 IC301 IC502 IC501 R L AUX IN E E E E E E E E E E SUBWOOFER SPEAKERS R L TO POWER BOARD CN801 (Page 34) I TO CONTROL BOARD CN605 (Page 30) J TO CONTROL BOARD CN601 (Page 30) F TO MIC/ECHO BOARD CN502 (Page 32) G TO VCD BOARD CN806 (Page 25) C TUNER BLOCK FAN 5 6 7 1 2 3 4 L-CH R-CH ERASE REC/PB TO PHONE BOARD CN201A (Page 32) H E E E MAIN BOARD 1 14 28 15 1 1 4 5 8 8 16 9 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 29 HCD-GP6V 7-8. SCHEMATIC DIAGRAM — MAIN SECTION — No mark:CD STOP ( ) : TAPE REC 4.6 0 0 0 0 -4.8 0 0 5.0 4.6 0 0 0 0 0 -4.8 0 -2.5(-14.4) 0 -0.7 10.2(10.1) 10.2(10.1) 10.2(2.9) 10.2(2.9) 0.5(0.7) 0.5 (0.7) 6.1 1.1(1.3) 9.7(3.3) 9.7(2.5) 0.5(0.8) -0.7 -2.5(-14.4) -2.3(-6.6) 0(0) 0(0) 0 0(0) -2.0 (-11.2) -2.1(-6.4) -2.1(-6.4) 6.1 6.7 17.3 16.7 4.0 4.6 6.8 5.4 0.6 0.4 6.2 5.3 2.9 0.1 0 0 0 0 0 0 0 0 0 0 0 0 4.6 0 -4.8 5.1 5.1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 10.2 9.6 0.8 9.6 0.8 5.2 0.6 0.1 0.4 0.4 0.8 0.8 4.4 4.9 4.6 -2.3 -2.3 0 0 -2.4 0.4 0.1 0 0 0.6 0 0 36.3 0 0 37.6 -37.5 37.3 0 0 0 0 2.5 2.6 0.7 0.7 0 0.3 0.3 0.3 10.2 0 0 0 0.2 0.7 -45.4 -33.3 -33.9 17.5 16.6 0.9 10.2 17.1 0 0.6 0.6 7 MUTE MUTE MUTE MUTE MUTE CONT SWITCH OVERLOAD DET OVERLOAD SWITCH Q502, Q511 Q411, Q412, Q413, Q414 FAN DRIVER V V -YG G V 0.4 2SC1623-L5L6 33K 33K T-77 V V 16V 33K 16V 16V 100 10V -T2B -T2B A-T106 A-T106 T-77 -T2B -G -G V L L L 2SC1623-L5L6 MTZJ-T-77-5.6B 2SC1623-L5L6 2.4K GR T-77 T-77 V V V 16V 16V V V V 33K 33K 0.45uH 0.45uH 4.7K 4.7K 0.0056 16V -G 16V -YG -YG -YG -G V T-77 1K -YG 5.1K 91K T-77 T-77 L L T-77 RD5.6ESB2 36K 36K LES MTZJ-T-77-33D MTZJ-T-77-10C 80G T-77 4.3K -YG 330 2SB1565E T-77 -YG T-77 82K 2SB1565E RD8.2ESB3 -YG 0.047 0.047 V 2SC1623-L5L6 2SC1623-L5L6 GR T-77 T-77 V V V V V V V T-77 -G 33K V V V V V TUNER PACK J204 SUB WOOFER L SPEAKERS R IC301 SOUND PROCESSOR HEAD (REC/PLAY/ERASE) R-CH REC/PB HEAD L-CH ERASE HEAD IC501 VOCAL FADER SELECTOR IC502 IC201 POWER AMP NOTE: RXXX MAIN BOARD TO MIC/ECHO BOARD CN502 (Page 33) G TO VCD BOARD CN806 (Page 27) C TO CONTROL BOARD CN601 (Page 31) F TO CONTROL BOARD CN605 (Page 31) J FAN AUX IN L R TO PHONE BOARD CN201A (Page 33) H TO POWER BOARD CN801 (Page 35) I RIPPLE FILTER +10V REG +10V REG Q305, Q306, Q307, Q308, Q309, Q310, Q311 REC/PB SWITCH Q309, Q310 REC/PB SWITCH BIAS OSC BIAS OSC BIAS SWITCH BIAS SWITCH 5V REG 7V REG 7V REG 5V REG RELAY DRIVE +VM REG +VM REG -VFL VOLTAGE REG SWITCH +VM REG Q406, Q407 +VCC REGULATOR AC DET HOLD DC DET DC DET IC B/D IC B/D • See page 19 for Waveforms. • See page 37, 38 for IC Block Diagrams. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 30 HCD-GP6V 7-9. PRINTED WIRING BOARD — CONTROL SECTION — • Semiconductor Location Ref. No. Location D601 A-2 D602 B-5 D603 B-6 D604 B-5 D605 A-1 D606 D-5 D607 B-5 D608 B-5 D609 B-5 IC601 A-4 IC602 B-5 IC603 A-6 IC604 D-7 LED601 C-6 Q601 B-4 Q602 A-2 Q603 A-2 Q604 A-2 Q605 D-5 Q606 D-5 Q607 E-6 Q608 C-6 • See page 19 for Circuit Boards Location. IC603 IC604 IC601 IC602 E SP,MY EA E E 1 3 1 2 4 3 TO MAIN BOARD CN302 (Page 28) F TO VCD BOARD CN801 (Page 25) D TO DECK BLOCK (MOTOR) M901 1-674-336- (12) 12 FLUORESCENT INDICATOR TUBE TO MAIN BOARD CN305 (Page 28) J CONTROL BOARD LOADING BOARD ?/1 TUNER/ BAND CD NX + M > . m – TAPE nN zREC PAUSE/START MD VOLUME + Z VOLUME – PLAY MODE/ TUNING MODE REPEAT/ FM MODE MIC/ECHO CD SYNC x w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 31 HCD-GP6V 7-10. SCHEMATIC DIAGRAM — CONTROL SECTION — No mark: CD STOP ( ): TAPE REC 8 9 5.9 8.7 8.2 2.1 9.4 2.1 1.5 0.5 2.0 10.1 (10.1) 0.9 (10.0) 10.1(19.3) 0.8(10.0) 0 0(0) 5.6 5.1 5.6 0 4.6 0 0 10.1 10.1 3.9 3.9 -1.4 5.2 -1.8 5.2 5.2 NO. VOLTAGE CHART IC601 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 VOLT – – 5.1 1.0 5.2 10.1 0 5.0 1.5 0 5.1 1.7 2.6 0 2.5 2.6 5.2 5.2 5.2 – – – – 2.0 5.5 NO. 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 VOLT 5.5 – 0 5.2 – – – – -30.0 -30.0 -30.0 -30.0 -30.4 -30.0 -30.0 -30.0 -30.0 -30.0 -30.0 -33.0 5.1 -15.5 -33.0 -33.0 33.0 NO. 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 VOLT – -22.2 -18.5 -18.9 -15.3 -25.7 -8.3 -33.0 -29.4 -29.3 -12.0 -29.3 -29.3 -33.0 -33.0 -33.0 – – 0 0 4.9 5.1 5.1 5.1 -2.4 NO. 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 VOLT 5.1 0 0 4.8 5.1 0 5.1 0 0 5.1 5.1 0 5.1 0 5.1 – 5.2 5.2 0 0 5.1 5.1 0 0.8 0 CLOSE OPEN TAPE MECHANISM DECK IC603 STANDBY TUNER/BAND VOLUME + VOLUME – MD nN x z REC PAUSE/START .m − M> + Z ?/1 u LED DRIVER 10 50V V T-77 T-77 T-77 A-T265 A-T265 GR-(TPE2) V UL T-77 -YG V 0 0.01 0.01 0 3F 10 50V RPM7140-V4 0.001 V 0 V T-77 V G -YG -YG T-77 0 22K 22K 22K 22K 22K CONTROL BOARD LOADING BOARD M901 (LODING) S1 (LEAF) + - NOTE: RXXX FLUORESCENT INDICATOR TUBE IC604 IC602 IC603 TO MAIN BOARD CN302 (Page 29) F TO MAIN BOARD CN305 (Page 29) J TO VCD BOARD CN801 (Page 26) D MOTOR DRIVER IC B/D REMOTE CONTROL RECEIVER IC601 SYSTEM CONTROLLER +5V REG +5V REG +5V REG SOL DRIVER MOTOR DRIVER SWITCH RESET SWITCH RESET SP,MY SP,MY EA • See page 39 for IC Pin Function Description. • See page 38 for IC Block Diagram. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 32 HCD-GP6V 7-11. PRINTED WIRING BOARD — MIC ECHO/PHONE SECTION — • See page 19 for Circuit Boards Location. IC504 IC503 1 16 1 4 8 5 32 17 MIC/ECHO BOARD PHONE BOARD V-OUT BOARD VIDEO OUT NTSC AUTO PAL TO VCD BOARD CN804 (Page 25) E PHONES MIC TO MAIN BOARD CN201 (Page 28) H TO MAIN BOARD CN306 (Page 28) G • Semiconductor Location Ref. No. Location D203 A-1 D204 A-1 D205 A-1 D206 B-1 D503 C-1 IC503 D-3 IC504 C-2 Q511 C-3 Q512 C-3 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 33 HCD-GP6V 7-12. SCHEMATIC DIAGRAM — MIC ECHO/PHONE SECTION — IC B/D No mark:CD STOP 2.4 2.4 5.3 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 0 5.2 5.1 0 5.1 2.6 2.5 2.6 2.6 2.6 2.6 2.6 2.6 0 0 0 9.9 0 0 5.3 0 5.3 5.3 0 5.2 5.3 9.9 CN501 4P CN502 6P CN201A 5P CN203A 4P CN202 4P 120 0 0 2.2K V 0 10K 10K 22K T-77 T-77 220 220 V V V V V V V V V V V MIC PHONES VIDEO OUT NTSC AUTO PAL MIC AMP ECHO PROCESSOR MIC MUTE MIC MUTE IC504 IC503 NOTE: RXXX V-OUT BOARD MIC/ECHO BOARD PHONE BOARD TO MAIN BOARD CN201 (Page 29) H TO MAIN BOARD CN306 (Page 29) G TO VCD BOARD CN804 (Page 27) E • See page 38 for IC Block Diagram. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 34 HCD-GP6V 7-13. PRINTED WIRING BOARD — POWER SECTION — • See page 19 for Circuit Boards Location. POWER BOARD AC VOLTAGE 110V 120V 220V 240V TO MAIN BOARD PN401 (Page 28) I AC IN PT801 POWER TRANSFORMER PT802 SUB POWER TRANSFORMER * NOT REPLACEABLE : BUILT IN TRANSFORMER w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 35 HCD-GP6V 7-14. SCHEMATIC DIAGRAM — POWER SECTION — * Not replaceable : Built in transformer * T-77 T-77 T-77 T-77 V TO MAIN BOARD PN901 (Page 29) I AC IN POWER TRANSFORMER SUB POWER TRANSFORMER POWER BOARD AC VOLTAGE 110V 120V 220V 240V w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 36 HCD-GP6V 1 67 68 65 66 63 64 61 62 75 76 73 74 79 80 77 78 71 72 69 70 34 33 36 35 38 37 40 39 26 25 28 27 22 21 24 23 30 29 32 31 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 DVDD0 XRST DATA XLAT CLOK SENS WFCK XUGF (RFCK) XPCK GFS C2PO SCOR C4N WDCK XTSL EMPH DVSS2 DVDD2 ASYE MD2 DOUT XTAI LRCK PCMD BCLK XTAO SOUT SOCK XOLT SQCK SCSY SBSO EXCK SQSO COUT MIRR DVSS SCLK ATSK MUTE ADIO AVSS0 IGEN AVDD0 AVSS1 AVDD1 BIAS RFDC CE TE PCO FILI FILO CLTV RFAC ASYI ASYO VPCO V16M VCTL MDP SSTP FSTO DVDD1 SFDR SRDR TFDR TRDR FFDR FRDR DVSS1 TEST TES1 VC FE SE LOCK PWMI FOK DFCT INTERFACE SERVO MIRR DFCT FOK SERVO FOCUS SERVO DSP SERVO SERVO SLED TRACKING FOCUS PWM GENERATOR GENERATOR GENERATOR SLED PWM TRACKING PWM A/D CONVERTER OPAMP ANALOG SW PWM GENERATOR SERVO BLOCK CLOCK GENERATOR ASYMMETRY CORRECTOR DIGITAL PLL CPU INTERFACE INTERFACE CORRECTOR PROCESSOR SUB CODE RAM 32K DEMODURATOR EFM ERROR D/A DIGITAL OUT INTERFACE SERVO AUTO DIGITAL CLV 1 2 3 4 5 6 7 9 8 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 16 17 18 19 20 15 14 13 12 11 10 PGND1 PGND1 DIRECTION DETECTION DIRECTION DETECTION RESET CIRCUIT .STANDBY .BAND-GAP .SVCC DIRECTION DETECTION DIRECTION DETECTION PVCC/2 PVCC/2 PVCC/2 PVCC1 PVCC1 VO2+ VO1+ VO1- IN1+ IN1- OPO1 OPO2 SGND IN2+ IN2- NC NC NC NC NC NC NC NC NC NC NC NC VO2- PGND2 PGND2 STANDBY PVCC2 PVCC2 VO3- VO4- VO4+ VREF IN4 IN4R IN3+ SVCC OPO3 IN3- NC NC NC NC NC NC NC NC NC NC NC NC VO3+ ROM/RW ROM/RW RF OFF AT VCC VOFST VOFST DVC VC VC VC ROM/RW VC VC 30 29 28 + – + – VC VCC DVC 27 26 25 24 ROM/RW EQ 23 22 21 20 19 RFAC VCA VCC + – DVC + – + – ROM/RW VC ROM/RW DVC + – 3 A B C D B C A A A B C D B C D D + – 1 2 APC AMP 5 6 7 8 9 4 RFAC SUMMING AMP ROM/RW DVC OR Hi-Z SLEEP, APC OFF VOFST VC ROM/RW + – 10 18 17 16 B D A C 13 14 15 12 EQ IN LD PD GND A B C D AC SUM E DVCC DVC RFAC SW DC OFST RFDCI RFDC VC RFC VFC BST RFG VCC CEI CE TE BAL TE FEI FE VC + – VC + – 11 GM F GM ROM/RW (L/H) VOFST • IC Block Diagrams – BD Board – IC101 CXD3068Q IC102 AN41020A IC103 CXA2647N-T4 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 HCD-GP6V IC805 BH2220FVM-TR – VCD Board – REC-O_L REC-O_R TUNER-R TUNER-L CD-L AUX-L OUT-L OUT-R TON_L-L TON_L-R AUX-R CD-R VSS TON_H-R TON_H-L TAPE-L TAPE-R IC301 BD3881FV – MAIN Board – R-2R DAC 8bit REG + DEC R-2R DAC 8bit REG + DEC SERIAL INTERFACE R-2R DAC 8bit REG + DEC POWER ON RESET 1 AO1 2 AO2 7 CLK 3 AO3 4 VCC 8 LD 6 DI 5 GND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 HCD-GP6V IC504 BU9262AFS – CONTROL Board – 1 2 3 4 5 6 7 8 9 CONTROL LOGIC TSD VREF OUT2 OUT1 RNF VM VCC FIN GND RIN IC604 BA6956AN 1 N. C. 2 TESTB 3 SCK 4 SLT 5 SI 6 CLKO 7 CLKI 8 N. C. 9 DSOUT 10 TESTOUT 11 LPF1I1 12 LPF1I2 13 LPF1O 14 ADI 15 ADO 16 GND 32 MIXIN 31 MICIN 30 VDD 29 LCIN 28 RCIN 27 FBOUT 26 LCOUT 25 RCOUT 24 VREF 23 DSIG 22 VOIN 21 LPF2O 20 LPF2I2 19 LPF2I1 18 DAO 17 DAI SERIAL CONTROL CIRCUIOT CLOCK A/D CONVERETR LOW-PASS FILTER INPUT MIX SELECTOR DLYVOL MIX OUT REFERENCE RESET FBVOL LOW-PASS FILTER D/A CONVERETR PROCESSOR RAM TEST OUT CONTROL LOGIC INPUT – MIC/ECHO Board – IC201 STK403-040 PRE DRIVER IC CH1 1 2 3 4 5 6 7 8 9 10 11 12 PRE DRIVER IC CH2 BIAS CIRCUIT –VCC (–VP) +VCC (+VP) CH1 OUT CH2 OUT +PRE SUB GND CH1 IN CH1 NF ST BY CH2 NF CH2 IN C4 C2 C1 C3 TR4 TR6 TR3 TR2 TR5 TR1 R5 R6 R1 R2 R3 R4 R7 R8 SUB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 HCD-GP6V • IC Pin Function Description • CONTROL BOARD IC601 LC876756C-52C3 (SYSTEM CONTROLLER) Pin No. Pin Name I/O Description 1 NC — Not used (open) 2 NC — Not used (open) 3 O-CD DATA O Data output to the video CD circuit 4 T-SOL O Solenoid control signal output to the tape deck 5 T-END I Tape deck reel switch signal input 6 T-MTR.CONT O Motor control signal output to the tape deck 7 O-SHIFT O Clock shift control signal output 8 P-CONT O Power relay control signal output 9 P AMP-MUTE O Muting control signal output to the power amplifier 10 F-DATA O Control signal output to the sound processor 11 I-RESET I Reset signal input from the reset IC (IC602) 12 I-XT1 I Resonator terminal (32.768kHz) 13 O-XT2 O Resonator terminal (32.768kHz) 14 GND. — Ground terminal 15 XIN I Resonator terminal (8.64MHz) 16 XOUT O Resonator terminal (8.64MHz) 17 VDD1 — Power supply terminal 18 I-KEY1 I Key AD input 1 19 I-KEY2 I Key AD input 2 20 NC — Not used (open) 21 NC — Not used (open) 22 NC — Not used (open) 23 NC — Not used (open) 24 T-SW I Tape switch status signal input from the tape deck (SW2 to 4) 25 I-POWER_MONI I Power amplifier overload monitoring signal input 26 I-POWER_DOWN I Power down detection signal input 27 NC — Not used (open) 28 CD-DOOR-SW I CD door open/close switch signal input 29 RMC_IN I Remote sensor signal input 30 to 33 NC — Not used (open) 34 to 44 O-GRID1 to 11 O Grid signal output to the fluorescent indicator tube 45 O-SEG1 O Segment signal output to the fluorescent indicator tube 46 VDD3 — Power supply terminal 47 to 50 O-SEG2 to 5 O Segment signal output to the fluorescent indicator tube 51 GND. — Ground terminal 52 to 66 O-SEG6 to 20 O Segment signal output to the fluorescent indicator tube 67, 68 NC — Not used (open) 69 to 71 I-INI-1 to 3 I Initial selection signal input 72 VDD4 — Power supply terminal 73 O-CLOSE O CD tray close control signal output 74 O-OPEN O CD tray open control signal output 75 LED-CONT O Standby LED control signal output 76 O-DSG O Muting control signal output to the sound processor (IC301) 77 T-REC O REC/PLAY control signal output to the REC/PLAY switch circuit 78 I-INI.DSG OFF — Not used (fixed at “L”) 79 T-PLAY.SW I Play switch signal input from the tape deck 80 R-MUTE O Muting signal output to the tuner www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 HCD-GP6V Pin No. Pin Name I/O Description 81 O-BIAS O Bias control signal output to the bias oscillation circuit 82 CD O CD power supply control signal output 83 TUNER O Tuner power supply control signal output 84 R-CE O Tuner chip enable signal output to the tuner 85 O-BU-CLK O Clock output to the echo processor (IC504) 86 O-BU-DATA O Data output to the echo processor (IC504) 87 O-BU-STB O Latch signal output to the echo processor (IC504) 88 I-CD DATA I Data input from the video CD circuit 89 VSS2 — Ground terminal 90 VDD2 — Power supply terminal 91 NC — Not used (open) 92 R-ST I Stereo/mono detection signal input from the tuner 93 R-TUNED I Tuner tuned status signal input 94 O-CD ACK O Acknowledge signal output from the video CD circuit 95 NC — Not used (open) 96 O-CD STB O Data output to the video CD circuit 97 C-VF ON O Vocal fader on/off control signal output 98 R-DATA O Strobe signal output to the tuner 99 R-COUNT I IF count signal input from the tuner 100 R-CLK O Clock signal output to the tuner www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 HCD-GP6V SECTION 8 EXPLODED VIEWS NOTE: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. Ref. No. Part No. Description Remark 1 4-247-756-51 CABINET, TOP 2 3-229-336-01 SCREW,+BVWH TAPPING 3 1-693-620-11 TUNER (FM/AM) 4 4-247-367-01 LID, CD 5 not supplied 6 not supplied 8-1. OVERALL SECTION The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. not supplied not supplied not supplied not supplied not supplied chassis assy a c c 3 8 5 #3 #3 #3 #3 #3 #2 6 2 7 #2 #2 #2 #2 #2 #2 #2 CD mechanism deck section not supplied not supplied not supplied 1 a #3 #1 #1 b 4 #1 front panel section not supplied b #2 #2 7 not supplied 8 A-1082-586-A VCD BOARD,COMPLETE #1 7-685-248-14 SCREW +KTP 3X12 TYPE2 NON-SLIT #2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S #3 7-685-647-14 SCREW +BVTP 3X10 TYPE2 N-S Ref. No. Part No. Description Remark Ver 1.2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 HCD-GP6V Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 4-247-757-01 SPR-T, CASS 52 X-4955-860-1 LID TC ASSY 53 X-4955-859-1 HOLDER CASSETTE ASSY 54 4-238-631-01 TAPE SPRINGZ 55 4-247-361-01 COVER, DISPLAY 56 4-247-374-11 WINDOW, DISPLAY 57 4-247-366-41 CABINET, FRONT 58 4-247-376-01 POWER, INDICATER 59 4-247-370-01 BUTTON, POWER 60 4-247-357-01 CAP, AUX 61 4-247-358-01 CAP, CD 62 4-247-359-01 CAP, TUNING 63 4-247-356-01 CAP, VOL 64 4-247-360-01 COVER, RING 66 4-247-369-01 BUTTON, OPEN/CLOSE 67 4-247-368-01 BUTTON, FUNCTION 68 4-231-841-01 SPRING (HEART CAM-B) 69 4-231-825-01 CAM (B), HEART 70 4-242-318-01 OIL-DMPR, 70 71 4-247-752-01 RUBBER, FOOT 73 1-796-351-51 MECHANISM, SIGNAL CASSETTE 74 not supplied 75 not supplied 76 4-247-371-01 BUTTON, CD 77 A-4750-198-A CONTROL BOARD,COMPLETE 78 not supplied 79 3-229-336-01 SCREW,+BVWH TAPPING 80 4-228-643-01 SCREW (+BVTTWHM3) STEP 81 not supplied 82 not supplied #2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S 8-2. FRONT SECTION 51 52 53 54 55 56 57 58 59 60 61 62 63 64 66 67 68 69 70 71 80 81 81 73 74 82 75 76 77 78 79 #2 #2 #2 #2 #2 #2 #2 not supplied not supplied not supplied not supplied www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 HCD-GP6V Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 101 4-247-752-01 RUBBER, FOOT 103 A-4750-202-A MAIN BOARD, COMPLETE 104 not supplied 0105 1-765-558-11 CORD, POWER 108 not supplied 109 not supplied 110 not supplied 0PT801 not supplied #2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S #4 7-682-561-09 SCREW +B 4X8 #5 7-685-534-19 SCREW +BTP 2.6X8 TYPE2 N-S 8-3. CHASSIS SECTION not supplied not supplied not supplied PT801 not supplied not supplied not supplied #2 #2 #4 #2 #2 #2 #5 #2 101 103 105 104 110 108 b b 109 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 HCD-GP6V Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 151 1-674-336-12 LOADING BOARD 152 4-925-315-31 DAMPER 153 4-224-894-22 TRAY (CDM55D) 154 4-220-233-01 CAM (CDM55) 155 4-221-815-11 ROLLER 156 4-220-237-01 GEAR (A) 157 4-220-234-01 PULLEY (LDG) 158 4-221-816-01 BELT (CDM55) 159 4-227-598-01 SPACER (55) 160 4-220-238-01 GEAR (B) 161 4-220-229-02 LEVER (SW) 162 4-220-239-01 SPRING, TORSION 165 4-231-777-02 SHEET (KH2) 166 4-238-004-01 HOLDER (BU-30), BU 167 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING 168 4-229-358-01 SHAFT (BU21) 169 4-231-451-01 INSULATOR (BU-30) 170 4-227-045-31 SPRING (INSULATOR), COIL 171 X-4954-597-1 PULLEY (AT-2) ASSY 172 4-227-899-01 SCREW (DIA. 12), FROATING M901 A-4735-337-A MOTOR (LD) ASSY #7 7-685-533-19 SCREW +BTP 2.6X6 TYPE2 N-S 8-4. CD MECHANISM DECK SECTION M901 #7 151 152 153 154 155 156 157 158 160 159 161 162 172 172 167 165 171 168 169 170 170 170 169 169 166 169 not supplied not supplied base unit (BU-30BD61S) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 HCD-GP6V 201 A-4733-498-A BD BOARD, COMPLETE (A) 202 1-782-817-11 WIRE (FLAT TYPE) (16 CORE) 0203 A-4735-189-A BU-30(61)ASSY 204 4-236-304-02 SPRING (SLED), LEAF 205 3-372-761-01 SCREW (M1.7), TAPPING Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. 8-5. BASE UNIT SECTION 201 202 203 204 205 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 HCD-GP6V SECTION 9 ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • CAPACITORS uF: µF • COILS uH: µH • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. . • Abbreviation EA : Saudi Arabia model MY : Malaysia model SP : Singapore model When indicating parts by reference number, please include the board name. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark A-4733-498-A BD BOARD, COMPLETE ******************* < CAPACITOR > C101 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V C102 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V C103 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V C104 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C107 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C108 1-164-360-11 CERAMIC CHIP 0.1uF 16V C109 1-164-360-11 CERAMIC CHIP 0.1uF 16V C110 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V C111 1-126-607-11 ELECT CHIP 47uF 20% 4V C112 1-164-360-11 CERAMIC CHIP 0.1uF 16V C113 1-128-995-21 ELECT CHIP 100uF 20% 10V C114 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C115 1-128-995-21 ELECT CHIP 100uF 20% 10V C116 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V C117 1-164-360-11 CERAMIC CHIP 0.1uF 16V C118 1-115-156-11 CERAMIC CHIP 1uF 10V C119 1-115-156-11 CERAMIC CHIP 1uF 10V C121 1-164-360-11 CERAMIC CHIP 0.1uF 16V C122 1-164-360-11 CERAMIC CHIP 0.1uF 16V C131 1-110-563-11 CERAMIC CHIP 0.068uF 10.00% 16V C132 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C133 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V C150 1-128-394-11 ELECT CHIP 220uF 20% 10V C151 1-164-360-11 CERAMIC CHIP 0.1uF 16V C152 1-164-360-11 CERAMIC CHIP 0.1uF 16V C153 1-164-360-11 CERAMIC CHIP 0.1uF 16V C156 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C202 1-164-360-11 CERAMIC CHIP 0.1uF 16V C205 1-164-360-11 CERAMIC CHIP 0.1uF 16V C208 1-216-864-11 METAL CHIP 0 5% 1/16W C209 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C211 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V C212 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C213 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C215 1-117-863-11 CERAMIC CHIP 0.47uF 10.00% 6.3V C216 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C222 1-164-360-11 CERAMIC CHIP 0.1uF 16V C224 1-115-156-11 CERAMIC CHIP 1uF 10V C226 1-126-607-11 ELECT CHIP 47uF 20% 4V C227 1-164-360-11 CERAMIC CHIP 0.1uF 16V C230 1-164-360-11 CERAMIC CHIP 0.1uF 16V C231 1-128-394-11 ELECT CHIP 220uF 20% 10V C250 1-216-864-11 METAL CHIP 0 5% 1/16W C254 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C258 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C272 1-216-864-11 METAL CHIP 0 5% 1/16W C273 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C277 1-216-864-11 METAL CHIP 0 5% 1/16W C310 1-164-360-11 CERAMIC CHIP 0.1uF 16V C313 1-164-360-11 CERAMIC CHIP 0.1uF 16V C316 1-164-360-11 CERAMIC CHIP 0.1uF 16V C354 1-216-864-11 METAL CHIP 0 5% 1/16W < CONNECTOR > CN101 1-794-424-11 CONNECTOR, FCC/FPC 16P CN102 1-784-834-21 CONNECTOR,FFC(LIF(NON-ZIF))23P CN105 1-784-861-21 CONNECTOR, FFC(LIF(NON-ZIF))9P < FERRITE BEAD > FB101 1-216-295-91 SHORT CHIP 0 FB102 1-216-864-11 METAL CHIP 0 5% 1/16W FB103 1-216-864-11 METAL CHIP 0 5% 1/16W FB104 1-216-864-11 METAL CHIP 0 5% 1/16W * FB161 1-469-670-21 FERRITE 0uH FB201 1-216-295-91 SHORT CHIP 0 FB203 1-216-864-11 METAL CHIP 0 5% 1/16W FB291 1-216-864-11 METAL CHIP 0 5% 1/16W < IC > IC101 8-752-408-73 IC CXD3068Q IC102 8-759-713-70 IC AN41020A IC103 8-752-106-21 IC CXA2647N-T4 < JUMPER RESISTOR > JR4 1-216-864-11 METAL CHIP 0 5% 1/16W < COIL > L163 1-216-864-11 METAL CHIP 0 5% 1/16W < TRANSISTOR > Q101 8-729-046-90 TRANSISTOR 2SB970-(TX).S0 < RESISTOR > R101 1-216-864-11 METAL CHIP 0 5% 1/16W R102 1-216-835-11 METAL CHIP 15K 5% 1/16W The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. BD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 HCD-GP6V Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R103 1-216-845-11 METAL CHIP 100K 5% 1/16W R104 1-216-835-11 METAL CHIP 15K 5% 1/16W R105 1-216-821-11 METAL CHIP 1K 5% 1/16W R111 1-216-847-11 METAL CHIP 150K 5% 1/16W R113 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R114 1-216-852-11 METAL CHIP 390K 5% 1/16W R115 1-216-839-11 METAL CHIP 33K 5% 1/16W R116 1-216-839-11 METAL CHIP 33K 5% 1/16W R117 1-216-852-11 METAL CHIP 390K 5% 1/16W R118 1-216-833-11 METAL CHIP 10K 5% 1/16W R120 1-216-846-11 METAL CHIP 120K 5% 1/16W R122 1-216-845-11 METAL CHIP 100K 5% 1/16W R123 1-216-791-11 METAL CHIP 3.3 5% 1/16W R125 1-216-841-11 METAL CHIP 47K 5% 1/16W R126 1-216-841-11 METAL CHIP 47K 5% 1/16W R131 1-216-843-11 METAL CHIP 68K 5% 1/16W R132 1-216-851-11 METAL CHIP 330K 5% 1/16W R133 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R151 1-216-845-11 METAL CHIP 100K 5% 1/16W R152 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R155 1-216-864-11 METAL CHIP 0 5% 1/16W R166 1-216-864-11 METAL CHIP 0 5% 1/16W R167 1-216-864-11 METAL CHIP 0 5% 1/16W R168 1-216-864-11 METAL CHIP 0 5% 1/16W R169 1-216-864-11 METAL CHIP 0 5% 1/16W R199 1-216-864-11 METAL CHIP 0 5% 1/16W R201 1-216-839-11 METAL CHIP 33K 5% 1/16W R202 1-216-833-11 METAL CHIP 10K 5% 1/16W R203 1-216-845-11 METAL CHIP 100K 5% 1/16W R204 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R205 1-216-821-11 METAL CHIP 1K 5% 1/16W R206 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R207 1-216-857-11 METAL CHIP 1M 5% 1/16W R218 1-216-821-11 METAL CHIP 1K 5% 1/16W R219 1-216-821-11 METAL CHIP 1K 5% 1/16W R220 1-216-821-11 METAL CHIP 1K 5% 1/16W R221 1-216-809-11 METAL CHIP 100 5% 1/16W R222 1-216-809-11 METAL CHIP 100 5% 1/16W R223 1-216-809-11 METAL CHIP 100 5% 1/16W R224 1-216-809-11 METAL CHIP 100 5% 1/16W R225 1-216-809-11 METAL CHIP 100 5% 1/16W R226 1-216-809-11 METAL CHIP 100 5% 1/16W R227 1-216-809-11 METAL CHIP 100 5% 1/16W R230 1-216-811-11 METAL CHIP 150 5% 1/16W R231 1-216-801-11 METAL CHIP 22 5% 1/16W R232 1-216-801-11 METAL CHIP 22 5% 1/16W R233 1-216-801-11 METAL CHIP 22 5% 1/16W R252 1-216-857-11 METAL CHIP 1M 5% 1/16W R253 1-216-821-11 METAL CHIP 1K 5% 1/16W R260 1-216-864-11 METAL CHIP 0 5% 1/16W R261 1-164-360-11 CERAMIC CHIP 0.1uF 16V R285 1-216-864-11 METAL CHIP 0 5% 1/16W R286 1-216-864-11 METAL CHIP 0 5% 1/16W R287 1-216-864-11 METAL CHIP 0 5% 1/16W R288 1-216-809-11 METAL CHIP 100 5% 1/16W R289 1-216-809-11 METAL CHIP 100 5% 1/16W R290 1-216-809-11 METAL CHIP 100 5% 1/16W R291 1-216-864-11 METAL CHIP 0 5% 1/16W R303 1-216-864-11 METAL CHIP 0 5% 1/16W R308 1-216-864-11 METAL CHIP 0 5% 1/16W R309 1-216-864-11 METAL CHIP 0 5% 1/16W R310 1-216-864-11 METAL CHIP 0 5% 1/16W R311 1-216-864-11 METAL CHIP 0 5% 1/16W R312 1-216-864-11 METAL CHIP 0 5% 1/16W R313 1-216-864-11 METAL CHIP 0 5% 1/16W R316 1-216-864-11 METAL CHIP 0 5% 1/16W R317 1-216-864-11 METAL CHIP 0 5% 1/16W R318 1-216-864-11 METAL CHIP 0 5% 1/16W R320 1-216-864-11 METAL CHIP 0 5% 1/16W < VARIABLE RESISTOR > RV101 1-223-997-21 RES, CARBON ADJ VAR 47K < VIBRATOR > X201 1-767-408-21 VIBRATOR, CRYSTAL 16.9344MHz ************************************************************ A-4750-198-A CONTROL BOARD, COMPLETE ************************ 4-247-818-01 GUIDE (FL) 4-247-819-01 HOLDER, SENSOR < CAPACITOR > C604 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C605 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C606 1-126-963-11 ELECT 4.7uF 20% 50V C607 1-126-963-11 ELECT 4.7uF 20% 50V C608 1-126-916-11 ELECT 1000uF 20% 6.3V C609 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C610 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C611 1-124-584-00 ELECT 100uF 20% 10V C612 1-124-234-00 ELECT 22uF 20% 10V C613 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C614 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C615 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C616 1-162-913-11 CERAMIC CHIP 8PF 0.5PF 50V C617 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C618 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C619 1-162-913-11 CERAMIC CHIP 8PF 0.5PF 50V C620 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C621 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C622 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C623 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C624 1-126-947-11 ELECT 47uF 20.00% 16V C625 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C626 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C627 1-126-964-11 ELECT 10uF 20% 50V C628 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C629 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C630 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C631 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C632 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C633 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C634 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C635 1-162-927-11 CERAMIC CHIP 100PF 5% 50V CONTROL BD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 HCD-GP6V Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C637 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C638 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C639 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C640 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C641 1-127-884-21 CERAMIC CHIP 0.047uF 10% 50V C642 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C643 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C644 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C645 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C646 1-126-964-11 ELECT 10uF 20% 50V C647 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C648 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C649 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C650 1-126-933-11 ELECT 100uF 20% 16V < CONNECTOR > CN601 1-784-743-11 CONNECTOR, FFC 21P CN602 1-779-273-11 CONNECTOR, FFC (LIF (NON-ZIF))5P CN603 not supplied CN604 not supplied CN605 not supplied < DIODE > D601 8-719-010-41 DIODE UZ-5.6BSA D602 8-719-991-33 DIODE 1SS133T-77 D603 8-719-991-33 DIODE 1SS133T-77 D604 8-719-991-33 DIODE 1SS133T-77 D605 8-719-991-33 DIODE 1SS133T-77 D606 8-719-991-33 DIODE 1SS133T-77 D607 8-719-991-33 DIODE 1SS133T-77 D608 8-719-989-91 DIODE 1N4148A-T265 D609 8-719-989-91 DIODE 1N4148A-T265 < FERRITE BEAD > FB601 1-412-473-21 INDUCTOR (SMALL TYPE) < FILTER > FL601 1-518-908-11 INDICATOR TUBE, FLUORESCENT < IC > IC601 6-803-713-01 IC LC876756C-52C3 IC602 6-700-250-01 IC PST3445UL IC603 6-701-681-01 IC RPM7140-V4 ( ) IC604 8-759-598-69 IC BA6956AN < SHORT > JR601 1-216-864-11 SHORT CHIP 0 JR602 1-216-864-11 SHORT CHIP 0 JR603 1-216-864-11 SHORT CHIP 0 JR604 1-216-864-11 SHORT CHIP 0 JR606 1-216-864-11 SHORT CHIP 0 < COIL > L203 1-410-509-11 INDUCTOR 10uH L601 1-410-509-11 INDUCTOR 10uH L602 1-410-509-11 INDUCTOR 10uH < LED > LED601 8-719-059-98 DIODE SLR-342VC3F < TRANSISTOR > Q601 8-729-230-49 TRANSISTOR 2SC2712-YG Q602 6-550-296-01 TRANSISTOR 2SA1980G Q603 8-729-230-49 TRANSISTOR 2SC2712-YG Q604 8-729-230-49 TRANSISTOR 2SC2712-YG Q605 6-550-297-01 TRANSISTOR 2SA1981Y Q606 6-550-305-01 TRANSISTOR 2SA1296GR-(TPE2) Q607 8-729-900-53 TRANSISTOR DTC114EK Q608 8-729-903-49 TRANSISTOR DTC144TK < RESISTOR > R517 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R543 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V R546 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V R547 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V R548 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V R601 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R602 1-216-821-11 METAL CHIP 1K 5% 1/10W R603 1-216-821-11 METAL CHIP 1K 5% 1/10W R604 1-216-821-11 METAL CHIP 1K 5% 1/10W R605 1-216-821-11 METAL CHIP 1K 5% 1/10W R606 1-216-841-11 METAL CHIP 47K 5% 1/10W R607 1-247-807-31 CARBON 100 5% 1/4W R608 1-247-807-31 CARBON 100 5% 1/4W R609 1-247-807-31 CARBON 100 5% 1/4W R610 1-247-807-31 CARBON 100 5% 1/4W R611 1-247-807-31 CARBON 100 5% 1/4W R612 1-216-833-11 METAL CHIP 10K 5% 1/10W R613 1-247-831-91 CARBON 1K 5% 1/4W R614 1-247-831-91 CARBON 1K 5% 1/4W R615 1-247-831-91 CARBON 1K 5% 1/4W R616 1-247-831-91 CARBON 1K 5% 1/4W R617 1-249-422-11 CARBON 2.7K 5% 1/4W R618 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R619 1-216-845-11 METAL CHIP 100K 5% 1/10W R620 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R621 1-216-821-11 METAL CHIP 1K 5% 1/10W R622 1-216-835-11 METAL CHIP 15K 5% 1/10W R623 1-216-817-11 METAL CHIP 470 5% 1/10W R624 1-216-833-11 METAL CHIP 10K 5% 1/10W R625 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R626 1-216-833-11 METAL CHIP 10K 5% 1/10W R627 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R628 1-216-825-91 METAL CHIP 2.2K 5% 1/10W (EA) R629 1-249-436-11 CARBON 39K 5% 1/4W R632 1-216-845-11 METAL CHIP 100K 5% 1/10W R633 1-216-845-11 METAL CHIP 100K 5% 1/10W R634 1-216-833-11 METAL CHIP 10K 5% 1/10W R635 1-216-845-11 METAL CHIP 100K 5% 1/10W R636 1-216-845-11 METAL CHIP 100K 5% 1/10W R637 1-216-845-11 METAL CHIP 100K 5% 1/10W R638 1-216-845-11 METAL CHIP 100K 5% 1/10W CONTROL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 HCD-GP6V Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R639 1-216-845-11 METAL CHIP 100K 5% 1/10W R640 1-216-845-11 METAL CHIP 100K 5% 1/10W R641 1-216-845-11 METAL CHIP 100K 5% 1/10W R642 1-216-845-11 METAL CHIP 100K 5% 1/10W R643 1-216-845-11 METAL CHIP 100K 5% 1/10W R644 1-216-845-11 METAL CHIP 100K 5% 1/10W R645 1-216-845-11 METAL CHIP 100K 5% 1/10W R646 1-216-845-11 METAL CHIP 100K 5% 1/10W R647 1-216-845-11 METAL CHIP 100K 5% 1/10W R648 1-216-845-11 METAL CHIP 100K 5% 1/10W R649 1-216-845-11 METAL CHIP 100K 5% 1/10W R650 1-216-845-11 METAL CHIP 100K 5% 1/10W R651 1-216-845-11 METAL CHIP 100K 5% 1/10W R652 1-216-845-11 METAL CHIP 100K 5% 1/10W R653 1-216-845-11 METAL CHIP 100K 5% 1/10W R654 1-216-845-11 METAL CHIP 100K 5% 1/10W R655 1-216-845-11 METAL CHIP 100K 5% 1/10W R656 1-216-845-11 METAL CHIP 100K 5% 1/10W R657 1-216-845-11 METAL CHIP 100K 5% 1/10W R658 1-216-845-11 METAL CHIP 100K 5% 1/10W R659 1-216-835-11 METAL CHIP 15K 5% 1/10W R660 1-216-845-11 METAL CHIP 100K 5% 1/10W R661 1-216-845-11 METAL CHIP 100K 5% 1/10W R662 1-216-841-11 METAL CHIP 47K 5% 1/10W R663 1-216-841-11 METAL CHIP 47K 5% 1/10W R664 1-247-887-00 CARBON 220K 5% 1/4W R665 1-216-841-11 METAL CHIP 47K 5% 1/10W R666 1-216-821-11 METAL CHIP 1K 5% 1/10W R667 1-216-853-11 METAL CHIP 470K 5% 1/10W R668 1-216-809-11 METAL CHIP 100 5% 1/10W R669 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R670 1-216-833-11 METAL CHIP 10K 5% 1/10W R671 1-216-841-11 METAL CHIP 47K 5% 1/10W R672 1-216-841-11 METAL CHIP 47K 5% 1/10W R673 1-216-298-00 RES-CHIP 2.2 5% 1/10W R674 1-216-833-11 METAL CHIP 10K 5% 1/10W R675 1-216-837-11 METAL CHIP 22K 5% 1/10W R676 1-216-837-11 METAL CHIP 22K 5% 1/10W R677 1-216-839-11 METAL CHIP 33K 5% 1/10W R678 1-216-837-11 METAL CHIP 22K 5% 1/10W R679 1-218-179-11 RES-CHIP 10M 5% 1/10W R680 1-216-821-11 METAL CHIP 1K 5% 1/10W R681 1-216-821-11 METAL CHIP 1K 5% 1/10W R682 1-216-819-11 METAL CHIP 680 5% 1/10W R683 1-216-845-11 METAL CHIP 100K 5% 1/10W R684 1-249-426-11 CARBON 5.6K 5% 1/4W R685 1-216-845-11 METAL CHIP 100K 5% 1/10W R686 not supplied R687 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R688 1-216-833-11 METAL CHIP 10K 5% 1/10W R689 1-216-821-11 METAL CHIP 1K 5% 1/10W R690 1-247-831-91 CARBON 1K 5% 1/4W R691 1-247-831-91 CARBON 1K 5% 1/4W R692 1-249-426-11 CARBON 5.6K 5% 1/4W R693 1-247-831-91 CARBON 1K 5% 1/4W R694 1-247-831-91 CARBON 1K 5% 1/4W R695 1-247-831-91 CARBON 1K 5% 1/4W R696 1-216-845-11 METAL CHIP 100K 5% 1/10W R697 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R698 1-216-845-11 METAL CHIP 100K 5% 1/10W R699 1-216-845-11 METAL CHIP 100K 5% 1/10W R700 1-216-837-11 METAL CHIP 22K 5% 1/10W (SP,MY) R701 1-216-837-11 METAL CHIP 22K 5% 1/10W R702 1-216-837-11 METAL CHIP 22K 5% 1/10W (SP,MY) R703 1-247-831-91 CARBON 1K 5% 1/4W R704 1-247-831-91 CARBON 1K 5% 1/4W R705 1-216-845-11 METAL CHIP 100K 5% 1/10W R706 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R707 1-249-430-11 CARBON 12K 5% 1/4W R708 1-216-840-11 METAL CHIP 39K 5% 1/10W R709 1-216-833-11 METAL CHIP 10K 5% 1/10W R710 1-247-831-91 CARBON 1K 5% 1/4W R711 1-216-833-11 METAL CHIP 10K 5% 1/10W R712 1-247-831-91 CARBON 1K 5% 1/4W R713 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R714 1-216-824-11 METAL CHIP 1.8K 5% 1/10W R715 1-249-422-11 CARBON 2.7K 5% 1/4W R716 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R717 1-249-427-11 CARBON 6.8K 5% 1/4W R718 1-216-834-11 METAL CHIP 12K 5% 1/10W R719 1-247-835-81 CARBON 1.5K 5% 1/4W R720 1-216-824-11 METAL CHIP 1.8K 5% 1/10W R721 1-247-831-91 CARBON 1K 5% 1/4W R722 1-216-838-11 METAL CHIP 27K 5% 1/10W R723 1-247-879-91 CARBON 100K 5% 1/4W R724 1-247-879-91 CARBON 100K 5% 1/4W < SWITCH > S601 1-786-050-21 SWITCH, KEY BOARD (TUNER/BAND) S602 1-786-050-21 SWITCH, KEY BOARD (nN TAPE) S603 1-786-050-21 SWITCH, KEY BOARD (MD) S604 1-786-050-21 SWITCH, KEY BOARD (Z) S605 1-786-050-21 SWITCH, KEY BOARD (x) S606 1-786-050-21 SWITCH, KEY BOARD (+ M>) S607 1-786-050-21 SWITCH, KEY BOARD (.m -) S608 1-786-050-21 SWITCH, KEY BOARD (\/1) S609 1-786-050-21 SWITCH, KEY BOARD (REPEAT/FM MODE) S610 1-786-050-21 SWITCH, KEY BOARD (PLAY MODE/TUNING MODE) S611 1-786-050-21 SWITCH, KEY BOARD (CD SYNC) S612 1-786-050-21 SWITCH, KEY BOARD (z REC PAUSE/START) S613 1-786-050-21 SWITCH, KEY BOARD (CD u) S614 1-786-050-21 SWITCH, KEY BOARD (MIC/ECHO) S615 1-786-050-21 SWITCH, KEY BOARD (VOLUME +) S616 1-786-050-21 SWITCH, KEY BOARD (VOLUME -) < VIBRATOR > X601 9-300-001-87 VIB, XTAL 32.768KHZ CFS-308 CT X602 1-795-880-11 VIBRATOR, CERAMIC (8.64 MHz) ************************************************************ CONTROL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 HCD-GP6V Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1-674-336-12 LOADING BOARD ************** < CONNECTOR > * CN151 1-568-943-11 PIN, CONNECTOR 5P < SWITCH > S1 1-786-203-11 SWITCH, LEVER (SLIDE)(OPEN/CLOSE) ************************************************************ A-4750-202-A MAIN BOARD, COMPLETE ********************* < CAPACITOR > C205 1-162-967-11 CERAMIC CHIP 0.0033uF 5% 50V C206 1-162-967-11 CERAMIC CHIP 0.0033uF 5% 50V C208 1-164-156-11 CERAMIC CHIP 0.1uF 25V C209 1-164-156-11 CERAMIC CHIP 0.1uF 25V C210 1-164-156-11 CERAMIC CHIP 0.1uF 25V C215 1-126-963-11 ELECT 4.7uF 20% 50V C216 1-126-963-11 ELECT 4.7uF 20% 50V C301 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C302 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C305 1-106-361-00 MYLAR 0.0056uF 5% 100V C306 1-126-923-91 ELECT 220uF 20% 10V C307 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C308 1-162-979-11 CERAMIC CHIP 0.0027uF 10% 50V C309 1-162-979-11 CERAMIC CHIP 0.0027uF 10% 50V C310 1-162-979-11 CERAMIC CHIP 0.0027uF 10% 50V C311 1-164-156-11 CERAMIC CHIP 0.1uF 25V C312 1-164-156-11 CERAMIC CHIP 0.1uF 25V C314 1-164-156-11 CERAMIC CHIP 0.1uF 25V C315 1-126-157-11 ELECT 10uF 20% 16V C316 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C317 1-126-923-91 ELECT 220uF 20% 10V C318 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C319 1-104-660-91 ELECT CHIP 47uF 20% 16V C320 1-162-967-11 CERAMIC CHIP 0.0033uF 5% 50V C321 1-162-967-11 CERAMIC CHIP 0.0033uF 5% 50V C322 1-126-961-11 ELECT 2.2uF 20% 50V C323 1-126-961-11 ELECT 2.2uF 20% 50V C324 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C325 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 50V C326 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 50V C327 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C328 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C329 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C330 1-104-660-91 ELECT CHIP 47uF 20% 16V C331 1-104-660-91 ELECT CHIP 47uF 20% 16V C332 1-164-733-91 CERAMIC CHIP 820p 10% 50V C333 1-104-660-91 ELECT CHIP 47uF 20% 16V C334 1-164-733-91 CERAMIC CHIP 820p 10% 50V C335 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C338 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C339 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C341 1-162-968-11 CERAMIC CHIP 0.0047uF 5% 50V C342 1-162-979-11 CERAMIC CHIP 0.0027uF 10% 50V C343 1-162-979-11 CERAMIC CHIP 0.0027uF 10% 50V C344 1-104-660-91 ELECT CHIP 47uF 20% 16V C347 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C350 1-164-156-11 CERAMIC CHIP 0.1uF 25V C351 1-126-157-11 ELECT 10uF 20% 16V C352 1-126-956-91 ELECT 0.1uF 20% 50V C353 1-126-956-91 ELECT 0.1uF 20% 50V C354 1-126-160-11 ELECT 1uF 20% 50V C355 1-126-957-11 ELECT 0.22uF 20.00% 50V C356 1-126-160-11 ELECT 1uF 20% 50V C357 1-126-957-11 ELECT 0.22uF 20.00% 50V C358 1-126-157-11 ELECT 10uF 20% 16V C359 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C360 1-162-977-11 CERAMIC CHIP 0.0018uF 10% 50V C361 1-162-977-11 CERAMIC CHIP 0.0018uF 10% 50V C362 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C363 1-164-218-11 CERAMIC CHIP 180PF 5% 50V C364 1-164-218-11 CERAMIC CHIP 180PF 5% 50V C365 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C366 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C367 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C368 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C369 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C370 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C372 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C375 1-126-157-11 ELECT 10uF 20% 16V C376 1-126-157-11 ELECT 10uF 20% 16V C377 1-126-157-11 ELECT 10uF 20% 16V C378 1-164-156-11 CERAMIC CHIP 0.1uF 25V C379 1-164-156-11 CERAMIC CHIP 0.1uF 25V C380 1-162-964-91 CERAMIC CHIP 0.001uF 10% 50V C381 1-124-584-00 ELECT 100uF 20% 10V C401 1-162-968-11 CERAMIC CHIP 0.0047uF 5% 50V C402 1-162-968-11 CERAMIC CHIP 0.0047uF 5% 50V C403 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C404 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C405 1-137-420-11 MYLAR 0.047uF 10% 100V C406 1-137-420-11 MYLAR 0.047uF 10% 100V C407 not supplied C408 not supplied C409 not supplied C411 1-104-660-91 ELECT CHIP 47uF 20% 16V C413 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C414 1-104-660-91 ELECT CHIP 47uF 20% 16V C416 1-164-156-11 CERAMIC CHIP 0.1uF 25V C418 not supplied C419 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C420 1-164-156-91 CERAMIC CHIP 0.1uF 25V C422 not supplied C423 1-164-156-91 CERAMIC CHIP 0.1uF 25V C424 not supplied C425 1-130-321-11 FILM 0.1uF 5% 100V C426 1-130-321-11 FILM 0.1uF 5% 100V C427 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C429 1-124-584-00 ELECT 100uF 20% 10V C430 1-164-156-91 CERAMIC CHIP 0.1uF 25V C432 1-164-156-91 CERAMIC CHIP 0.1uF 25V MAIN LOADING www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 HCD-GP6V Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C433 1-104-660-91 ELECT CHIP 47uF 20% 16V C434 1-126-963-11 ELECT 4.7uF 20% 50V C435 7-611-032-01 WIRE, TINNING COPPER C501 1-104-660-91 ELECT CHIP 47uF 20% 16V C502 not supplied C503 not supplied C504 1-164-156-11 CERAMIC CHIP 0.1uF 25V C505 1-164-156-11 CERAMIC CHIP 0.1uF 25V C506 1-164-156-11 CERAMIC CHIP 0.1uF 25V C507 not supplied C508 not supplied C509 not supplied C510 1-126-157-11 ELECT 10uF 20% 16V C511 1-126-157-11 ELECT 10uF 20% 16V C512 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C513 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C514 1-106-361-00 MYLAR 0.0056uF 5% 100V C515 1-106-361-00 MYLAR 0.0056uF 5% 100V C516 1-104-660-91 ELECT CHIP 47uF 20% 16V C517 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C518 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C519 1-126-962-11 ELECT 3.3uF 20% 50V C520 1-104-660-91 ELECT CHIP 47uF 20% 16V C521 not supplied C522 not supplied C523 1-165-176-91 CERAMIC CHIP 0.047uF 10.00% 16V C524 not supplied C525 not supplied C527 1-164-156-11 CERAMIC CHIP 0.1uF 25V C528 7-611-032-01 WIRE, TINNING COPPER C529 7-611-032-01 WIRE, TINNING COPPER C530 1-164-156-11 CERAMIC CHIP 0.1uF 25V C531 1-164-156-11 CERAMIC CHIP 0.1uF 25V C532 1-104-660-91 ELECT CHIP 47uF 20% 16V C533 not supplied C534 not supplied C535 1-164-156-11 CERAMIC CHIP 0.1uF 25V C536 1-126-157-11 ELECT 10uF 20% 16V < CONNECTOR > * CN201 1-564-520-11 PLUG, CONNECTOR 5P * CN301 1-564-709-11 PIN, CONNECTOR (SMALL TYPE) 7P CN302 1-568-838-11 CONNECTOR FFC 21P CN303 not supplied CN304 1-784-733-21 CONNECTOR, FFC 11P CN305 not supplied CN306 not supplied * CN401 1-564-518-11 PLUG, CONNECTOR 3P < DIODE > D301 8-719-991-33 DIODE 1SS133T-77 D302 8-719-010-32 DIODE UZ-4.7BSA D303 8-719-991-33 DIODE 1SS133T-77 D304 8-719-010-32 DIODE UZ-4.7BSA D402 not supplied D403 not supplied D405 8-719-109-89 DIODE RD5.6ESB2 D406 not supplied D408 not supplied D409 not supplied D410 6-500-376-01 DIODE 1N4003LES D411 8-719-983-35 DIODE MTZJ-T-77-33D D412 8-719-991-33 DIODE 1SS133T-77 D413 8-719-923-38 DIODE MTZJ-T-77-5.6B D414 8-719-991-33 DIODE 1SS133T-77 D415 8-719-110-09 DIODE RD8.2ESB3 D416 6-500-335-01 DIODE MC2838 D418 not supplied D420 8-719-991-33 DIODE 1SS133T-77 D421 8-719-991-33 DIODE 1SS133T-77 D422 8-719-991-33 DIODE 1SS133T-77 D423 8-719-991-33 DIODE 1SS133T-77 D425 8-719-991-33 DIODE 1SS133T-77 D426 8-719-991-33 DIODE 1SS133T-77 D428 8-719-048-55 DIODE MTZJ-T-77-10C D501 8-719-991-33 DIODE 1SS133T-77 D502 8-719-991-33 DIODE 1SS133T-77 D503 8-719-991-33 DIODE 1SS133T-77 D505 8-719-991-33 DIODE 1SS133T-77 D506 8-719-991-33 DIODE 1SS133T-77 < FERRITE BEAD > FB202 7-611-032-01 WIRE, TINNING COPPER FB301 1-410-396-41 FERRITE 0.45uH FB302 1-410-396-41 FERRITE 0.45uH FB303 1-410-396-41 FERRITE 0.45uH FB304 7-611-032-01 WIRE, TINNING COPPER FB305 7-611-032-01 WIRE, TINNING COPPER FB306 7-611-032-01 WIRE, TINNING COPPER < IC > IC201 6-704-106-01 IC STK403-040 IC301 6-702-895-01 IC BD3881FV IC501 6-702-788-01 IC NJM14558MD-TE2 IC502 not supplied < JACK > J201 1-793-478-11 JACK, PIN 2P (AUX IN) J203 1-537-240-31 TERMINAL BOARD (CHECKER PIN) J204 1-774-785-21 JACK, PIN 1P (SUBWOOFER) < JUMPER RESISTOR > JR301 1-216-864-91 METAL CHIP 0 5% 1/16W < COIL > L201 1-456-107-11 COIL, AIR-CORE L202 1-456-107-11 COIL, AIR-CORE L301 1-456-094-11 TRANSFORMER, BIAS OSCILLATION L302 not supplied L303 not supplied L304 not supplied L401 1-408-105-31 INDUCTOR 1uH MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 HCD-GP6V Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < RESISTOR > PR410 not supplied < TRANSISTOR > Q301 6-550-333-01 TRANSISTOR 2SC5343GL Q302 6-550-333-01 TRANSISTOR 2SC5343GL Q303 6-550-333-01 TRANSISTOR 2SC5343GL Q304 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q305 8-729-045-62 TRANSISTOR 2SK2158-T2B Q306 8-729-028-83 TRANSISTOR DTA124EUA-T106 Q307 8-729-045-62 TRANSISTOR 2SK2158-T2B Q308 8-729-045-62 TRANSISTOR 2SK2158-T2B Q309 8-729-216-22 TRANSISTOR 2SA1162-G Q310 8-729-216-22 TRANSISTOR 2SA1162-G Q311 8-729-028-83 TRANSISTOR DTA124EUA-T106 Q312 1-801-806-11 TR DTC144EKA Q313 1-801-806-11 TR DTC144EKA Q314 8-729-230-49 TRANSISTOR 2SC2712-YG Q315 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q316 6-550-296-01 TRANSISTOR 2SA1980G Q401 8-729-230-49 TRANSISTOR 2SC2712-YG Q402 8-729-024-93 TRANSISTOR 2SB1565E Q403 6-550-333-01 TRANSISTOR 2SC5343GL Q404 8-729-230-49 TRANSISTOR 2SC2712-YG Q405 6-550-344-01 TRANSISTOR 2SC3266GR Q406 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q407 8-729-216-22 TRANSISTOR 2SA1162-G Q408 6-550-296-01 TRANSISTOR 2SA1980G Q409 8-729-230-49 TRANSISTOR 2SC2712-YG Q410 8-729-024-93 TRANSISTOR 2SB1565E Q411 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q412 6-550-344-01 TRANSISTOR 2SC3266GR Q413 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q414 not supplied Q501 6-550-640-01 TRANSISTOR KTA1267 Q502 6-550-333-01 TRANSISTOR 2SC5343GL Q503 8-729-230-49 TRANSISTOR 2SC2712-YG Q504 not supplied Q505 not supplied Q506 8-729-216-22 TRANSISTOR 2SA1162-G Q507 8-729-230-49 TRANSISTOR 2SC2712-YG Q508 8-729-230-49 TRANSISTOR 2SC2712-YG Q509 8-729-230-49 TRANSISTOR 2SC2712-YG Q510 8-729-216-22 TRANSISTOR 2SA1162-G Q511 6-550-333-01 TRANSISTOR 2SC5343GL < RESISTOR > R205 1-128-801-21 CERAMIC CHIP 22p 5% 50V R206 1-216-793-11 METAL CHIP 4.7 5% 1/10W R207 1-128-801-21 CERAMIC CHIP 22p 5% 50V R208 1-216-793-11 METAL CHIP 4.7 5% 1/10W R209 1-216-847-11 METAL CHIP 150K 5% 1/10W R210 1-216-847-11 METAL CHIP 150K 5% 1/10W R212 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R213 1-216-821-11 METAL CHIP 1K 5% 1/10W R214 1-216-821-11 METAL CHIP 1K 5% 1/10W R215 1-216-833-11 METAL CHIP 10K 5% 1/10W R216 1-216-833-11 METAL CHIP 10K 5% 1/10W R217 1-249-422-11 CARBON 2.7K 5% 1/4W R218 1-249-422-11 CARBON 2.7K 5% 1/4W R301 1-216-842-11 METAL CHIP 56K 5% 1/10W R302 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R303 1-216-840-11 METAL CHIP 39K 5% 1/10W R304 1-247-847-91 CARBON 4.7K 5% 1/4W R305 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R306 1-216-836-11 METAL CHIP 18K 5% 1/10W R307 1-216-836-11 METAL CHIP 18K 5% 1/10W R308 1-249-392-11 CARBON 8.2 5% 1/4W R309 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R310 1-216-835-11 METAL CHIP 15K 5% 1/10W R311 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R312 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R313 1-216-833-11 METAL CHIP 10K 5% 1/10W R315 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R316 1-216-857-11 METAL CHIP 1M 5% 1/10W R317 1-216-840-11 METAL CHIP 39K 5% 1/10W R318 1-216-817-11 METAL CHIP 470 5% 1/10W R320 1-216-836-11 METAL CHIP 18K 5% 1/10W R321 1-216-809-11 METAL CHIP 100 5% 1/10W R322 1-216-809-11 METAL CHIP 100 5% 1/10W R323 1-216-852-11 METAL CHIP 390K 5% 1/10W R324 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R325 1-216-836-11 METAL CHIP 18K 5% 1/10W R326 1-216-836-11 METAL CHIP 18K 5% 1/10W R327 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R328 1-216-852-11 METAL CHIP 390K 5% 1/10W R329 1-216-835-11 METAL CHIP 15K 5% 1/10W R330 1-216-833-11 METAL CHIP 10K 5% 1/10W R331 1-249-409-11 CARBON 220 5% 1/4W R332 1-216-833-11 METAL CHIP 10K 5% 1/10W R333 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R334 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R335 1-216-836-11 METAL CHIP 18K 5% 1/10W R336 1-249-409-11 CARBON 220 5% 1/4W R337 not supplied R338 not supplied R339 1-247-807-31 CARBON 100 5% 1/4W R340 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R341 1-216-837-11 METAL CHIP 22K 5% 1/10W R342 1-216-833-11 METAL CHIP 10K 5% 1/10W R343 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R344 1-216-833-11 METAL CHIP 10K 5% 1/10W R345 1-216-843-11 METAL CHIP 68K 5% 1/10W R346 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R347 1-216-843-11 METAL CHIP 68K 5% 1/10W R348 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R349 1-249-429-11 CARBON 10K 5% 1/4W R350 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R351 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R352 1-249-429-11 CARBON 10K 5% 1/4W R353 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R354 1-249-435-11 CARBON 33K 5% 1/4W R355 1-216-827-11 METAL CHIP 3.3K 5% 1/10W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 HCD-GP6V Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R356 1-249-435-11 CARBON 33K 5% 1/4W R357 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R358 1-247-847-91 CARBON 4.7K 5% 1/4W R359 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R360 1-247-847-91 CARBON 4.7K 5% 1/4W R361 1-216-820-11 METAL CHIP 820 5% 1/10W R362 1-216-833-11 METAL CHIP 10K 5% 1/10W R363 1-216-821-11 METAL CHIP 1K 5% 1/10W R364 1-216-821-11 METAL CHIP 1K 5% 1/10W R365 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R366 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R367 1-216-824-11 METAL CHIP 1.8K 5% 1/10W R368 1-216-833-11 METAL CHIP 10K 5% 1/10W R369 1-216-820-11 METAL CHIP 820 5% 1/10W R370 1-216-834-11 METAL CHIP 12K 5% 1/10W R371 1-216-834-11 METAL CHIP 12K 5% 1/10W R372 1-216-824-11 METAL CHIP 1.8K 5% 1/10W R373 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R374 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R375 1-216-809-11 METAL CHIP 100 5% 1/10W R376 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R377 1-216-838-11 METAL CHIP 27K 5% 1/10W R378 1-216-838-11 METAL CHIP 27K 5% 1/10W R389 1-216-840-11 METAL CHIP 39K 5% 1/10W R390 1-216-817-11 METAL CHIP 470 5% 1/10W R391 1-247-767-91 RES,CARBON 2.2 5% 1/4W R394 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R395 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R396 1-216-833-11 METAL CHIP 10K 5% 1/10W R401 1-247-846-11 CARBON 4.3K 5% 1/4W R402 1-216-802-11 METAL CHIP 27 5% 1/10W R403 not supplied R404 1-216-837-11 METAL CHIP 22K 5% 1/10W R405 1-218-446-11 METAL CHIP 1 5% 1/10W R406 1-218-446-11 METAL CHIP 1 5% 1/10W R407 1-218-446-11 METAL CHIP 1 5% 1/10W R408 1-218-446-11 METAL CHIP 1 5% 1/10W R409 1-247-868-11 CARBON 36K 5% 1/4W R410 1-247-868-11 CARBON 36K 5% 1/4W R412 1-216-833-11 METAL CHIP 10K 5% 1/10W R413 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R414 1-216-817-11 METAL CHIP 470 5% 1/10W R415 1-216-844-11 METAL CHIP 82K 5% 1/10W R416 1-216-804-11 METAL CHIP 39 5% 1/10W R417 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R420 1-216-833-11 METAL CHIP 10K 5% 1/10W R421 1-216-833-11 METAL CHIP 10K 5% 1/10W R422 1-216-813-11 METAL CHIP 220 5% 1/10W R423 1-216-817-11 METAL CHIP 470 5% 1/10W R424 1-216-837-11 METAL CHIP 22K 5% 1/10W R425 1-216-833-11 METAL CHIP 10K 5% 1/10W R426 1-216-845-11 METAL CHIP 100K 5% 1/10W R427 1-216-833-11 METAL CHIP 10K 5% 1/10W R428 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R430 1-216-833-11 METAL CHIP 10K 5% 1/10W R431 not supplied R432 1-216-841-11 METAL CHIP 47K 5% 1/10W R433 1-216-818-11 METAL CHIP 560 5% 1/10W R434 1-216-815-11 METAL CHIP 330 5% 1/10W R435 1-216-821-11 METAL CHIP 1K 5% 1/10W R436 1-216-833-11 METAL CHIP 10K 5% 1/10W R437 1-247-840-00 CARBON 2.4K 5% 1/4W R438 1-216-836-11 METAL CHIP 18K 5% 1/10W R439 1-216-833-11 METAL CHIP 10K 5% 1/10W R440 1-249-435-11 CARBON 33K 5% 1/4W R441 not supplied R442 1-216-821-11 METAL CHIP 1K 5% 1/10W R443 1-216-836-11 METAL CHIP 18K 5% 1/10W R444 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R445 1-216-833-11 METAL CHIP 10K 5% 1/10W R446 1-216-833-11 METAL CHIP 10K 5% 1/10W R447 1-216-845-11 METAL CHIP 100K 5% 1/10W R448 1-216-833-11 METAL CHIP 10K 5% 1/10W R449 1-216-833-11 METAL CHIP 10K 5% 1/10W R450 1-216-845-11 METAL CHIP 100K 5% 1/10W R501 1-216-842-11 METAL CHIP 56K 5% 1/10W R502 1-216-842-11 METAL CHIP 56K 5% 1/10W R503 1-216-845-11 METAL CHIP 100K 5% 1/10W R504 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R504 1-247-848-11 CARBON 5.1K 5% 1/4W R505 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R506 1-216-845-11 METAL CHIP 100K 5% 1/10W R507 1-216-845-11 METAL CHIP 100K 5% 1/10W R508 1-247-879-91 CARBON 100K 5% 1/4W R509 1-247-879-91 CARBON 100K 5% 1/4W R510 1-216-839-11 METAL CHIP 33K 5% 1/10W R512 1-249-430-11 CARBON 12K 5% 1/4W R513 not supplied R514 1-216-824-11 METAL CHIP 1.8K 5% 1/10W R515 1-216-824-11 METAL CHIP 1.8K 5% 1/10W R516 1-216-821-11 METAL CHIP 1K 5% 1/10W R518 1-216-841-11 METAL CHIP 47K 5% 1/10W R519 1-216-857-11 METAL CHIP 1M 5% 1/10W R520 1-216-833-11 METAL CHIP 10K 5% 1/10W R521 1-247-831-91 CARBON 1K 5% 1/4W R522 1-216-842-11 METAL CHIP 56K 5% 1/10W R523 1-216-842-11 METAL CHIP 56K 5% 1/10W R524 1-216-821-11 METAL CHIP 1K 5% 1/10W R525 1-216-821-11 METAL CHIP 1K 5% 1/10W R526 1-216-841-11 METAL CHIP 47K 5% 1/10W R527 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R528 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R529 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R530 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R531 1-216-833-11 METAL CHIP 10K 5% 1/10W R532 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R533 1-216-821-11 METAL CHIP 1K 5% 1/10W R534 1-216-857-11 METAL CHIP 1M 5% 1/10W R535 1-216-845-11 METAL CHIP 100K 5% 1/10W R536 1-247-847-91 CARBON 4.7K 5% 1/4W R537 1-249-435-11 CARBON 33K 5% 1/4W R538 1-249-435-11 CARBON 33K 5% 1/4W R539 1-247-847-91 CARBON 4.7K 5% 1/4W R540 1-216-857-11 METAL CHIP 1M 5% 1/10W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 HCD-GP6V Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R541 1-216-857-11 METAL CHIP 1M 5% 1/10W R542 1-216-833-11 METAL CHIP 10K 5% 1/10W R543 1-216-837-11 METAL CHIP 22K 5% 1/10W R544 1-249-435-11 CARBON 33K 5% 1/4W R545 1-216-837-11 METAL CHIP 22K 5% 1/10W R546 1-216-837-11 METAL CHIP 22K 5% 1/10W R547 1-216-837-11 METAL CHIP 22K 5% 1/10W R548 1-216-837-11 METAL CHIP 22K 5% 1/10W R549 1-216-837-11 METAL CHIP 22K 5% 1/10W R550 1-216-841-11 METAL CHIP 47K 5% 1/10W R551 1-216-841-11 METAL CHIP 47K 5% 1/10W R553 1-216-845-11 METAL CHIP 100K 5% 1/10W R554 1-216-845-11 METAL CHIP 100K 5% 1/10W R555 1-247-878-00 CARBON 91K 5% 1/4W R556 1-247-878-00 CARBON 91K 5% 1/4W R570 1-216-845-11 METAL CHIP 100K 5% 1/10W ************************************************************ MIC/ECHO BOARD *************** < CAPACITOR > C523 1-124-252-91 ELECT 0.33uF 20% 50V C524 not supplied C525 1-164-230-91 CERAMIC CHIP 220PF 5% 50V C526 1-162-915-91 CERAMIC CHIP 10PF 0.5PF 50V C537 1-124-236-91 ELECT CHIP 47 20% 16V C538 1-164-217-91 CERAMIC CHIP 150PF 5.00% 50V C539 1-164-217-91 CERAMIC CHIP 150PF 5.00% 50V C540 1-164-217-91 CERAMIC CHIP 150PF 5.00% 50V C541 1-164-217-91 CERAMIC CHIP 150PF 5.00% 50V C542 1-164-217-91 CERAMIC CHIP 150PF 5.00% 50V C543 1-162-970-91 CERAMIC CHIP 0.01uF 10% 25V C545 not supplied C546 1-162-970-91 CERAMIC CHIP 0.01uF 10% 25V C547 1-162-970-91 CERAMIC CHIP 0.01uF 10% 25V C548 1-162-970-91 CERAMIC CHIP 0.01uF 10% 25V C544 1-126-960-11 ELECT 1uF 20% 50V C549 not supplied C550 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C551 not supplied C552 1-124-236-91 ELECT CHIP 47 20% 16V C553 not supplied C554 1-124-236-91 ELECT CHIP 47 20% 16V C555 1-124-236-91 ELECT CHIP 47 20% 16V C556 1-162-915-91 CERAMIC CHIP 10PF 0.5PF 50V C557 1-162-968-81 CERAMIC CHIP 0.0047uF 10% 50V C558 1-126-964-11 ELECT 10uF 20% 50V C559 1-124-236-91 ELECT CHIP 47 20% 16V C560 1-124-236-91 ELECT CHIP 47 20% 16V C561 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C562 1-164-156-91 CERAMIC CHIP 0.1uF 25V < CONNECTOR > CN501 not supplied CN502 not supplied < DIODE > D503 8-719-012-92 DIODE UZ-5.1BSA-TP < IC > IC503 6-702-788-01 IC NJM14558MD-TE2 IC504 6-702-896-01 IC BU9262AFS < COIL > L501 not supplied < SHORT > JR501 1-216-864-11 SHORT CHIP 0 JR502 1-216-864-11 SHORT CHIP 0 JR503 1-216-864-11 SHORT CHIP 0 < TRANSISTOR > Q511 8-729-045-62 TRANSISTOR 2SK2158-T2B Q512 not supplied < RESISTOR > R553 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R554 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R555 1-249-406-11 CARBON 120 5% 1/4W R556 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R557 not supplied R558 1-216-837-11 METAL CHIP 22K 5% 1/10W R559 1-216-809-11 METAL CHIP 100 5% 1/10W R560 1-216-851-11 METAL CHIP 330K 5% 1/10W R561 1-216-847-11 METAL CHIP 150K 5% 1/10W R562 1-216-837-11 METAL CHIP 22K 5% 1/10W R563 1-216-833-11 METAL CHIP 10K 5% 1/10W R564 1-216-837-11 METAL CHIP 22K 5% 1/10W R565 1-216-821-11 METAL CHIP 1K 5% 1/10W R566 1-216-821-11 METAL CHIP 1K 5% 1/10W R567 1-216-833-11 METAL CHIP 10K 5% 1/10W R568 1-216-849-11 METAL CHIP 220K 5% 1/10W R569 1-247-807-31 CARBON 100 5% 1/4W R571 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R572 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R573 1-216-845-11 METAL CHIP 100K 5% 1/10W R574 1-216-845-11 METAL CHIP 100K 5% 1/10W ************************************************************ PHONE BOARD ************ C201 1-162-970-91 CERAMIC CHIP 0.01uF 10% 25V C202 1-162-970-91 CERAMIC CHIP 0.01uF 10% 25V < DIODE > D203 not supplied D204 not supplied D205 not supplied D206 not supplied < JACK > J202 1-816-219-11 JACK, HEADPHONE (PHONES) MIC/ECHO PHONE MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 HCD-GP6V Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < JUMPER RESISTOR > JR201 1-216-864-91 METAL CHIP 0 5% 1/16W < COIL > L205 1-414-142-11 INDUCTOR 1uH < RESISTOR > R201 1-249-409-11 CARBON 220 5% 1/4W R202 1-249-409-11 CARBON 220 5% 1/4W R203 1-249-409-11 CARBON 220 5% 1/4W R204 1-249-409-11 CARBON 220 5% 1/4W ************************************************************ POWER BOARD ************* < CAPACITOR > C801 1-126-941-11 ELECT 470uF 20% 25V < CONNECTOR > CN801 not supplied < DIODE > D801 8-719-991-33 DIODE 1SS133T-77 D802 8-719-991-33 DIODE 1SS133T-77 D803 8-719-991-33 DIODE 1SS133T-77 D804 8-719-991-33 DIODE 1SS133T-77 < RESISTOR > 0PR802 not supplied < TRANSFORMER > 0PT802 1-439-976-11 TRANSFORMER, POWER (SUB) < RELAY > 0RY801 1-755-276-11 RELAY, POWER < SWITCH > 0SW801 not supplied ************************************************************ A-1082-586-A VCD BOARD, COMPLETE ******************** < CAPACITOR > C302 1-124-261-00 ELECT 10uF 20% 50V C308 1-126-176-11 ELECT 220uF 20% 10V C309 1-164-360-11 CERAMIC CHIP 0.1uF 16V C310 1-124-584-00 ELECT 100uF 20% 10V C311 1-164-360-11 CERAMIC CHIP 0.1uF 16V C608 1-126-176-11 ELECT 220uF 20% 10V C609 1-126-176-11 ELECT 220uF 20% 10V C610 1-164-360-11 CERAMIC CHIP 0.1uF 16V C611 1-164-360-11 CERAMIC CHIP 0.1uF 16V C612 1-216-864-11 METAL CHIP 0 5% 1/16W C703 1-164-346-11 CERAMIC CHIP 1uF 16V C704 1-164-346-11 CERAMIC CHIP 1uF 16V C705 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C706 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C707 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C708 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C709 1-124-584-00 ELECT 100uF 20% 10V C710 1-124-589-11 ELECT 47uF 20% 16V C711 1-162-925-11 CERAMIC CHIP 68PF 5.00% 50V C712 1-162-925-11 CERAMIC CHIP 68PF 5.00% 50V C713 1-162-925-11 CERAMIC CHIP 68PF 5.00% 50V C714 1-162-925-11 CERAMIC CHIP 68PF 5.00% 50V C715 1-164-346-11 CERAMIC CHIP 1uF 16V C716 1-164-346-11 CERAMIC CHIP 1uF 16V C717 1-164-346-11 CERAMIC CHIP 1uF 16V C718 1-164-346-11 CERAMIC CHIP 1uF 16V C719 1-164-346-11 CERAMIC CHIP 1uF 16V C720 1-164-346-11 CERAMIC CHIP 1uF 16V C721 1-164-346-11 CERAMIC CHIP 1uF 16V C722 1-164-346-11 CERAMIC CHIP 1uF 16V C723 1-164-360-11 CERAMIC CHIP 0.1uF 16V C801 1-124-589-11 ELECT 47uF 20% 16V C802 1-164-360-11 CERAMIC CHIP 0.1uF 16V C803 1-164-360-11 CERAMIC CHIP 0.1uF 16V C804 1-164-360-11 CERAMIC CHIP 0.1uF 16V C805 1-164-360-11 CERAMIC CHIP 0.1uF 16V C806 1-124-589-11 ELECT 47uF 20% 16V C807 1-164-360-11 CERAMIC CHIP 0.1uF 16V C808 1-164-360-11 CERAMIC CHIP 0.1uF 16V C810 1-115-156-11 CERAMIC CHIP 1uF 10V C813 1-164-360-11 CERAMIC CHIP 0.1uF 16V C814 1-124-589-11 ELECT 47uF 20% 16V C815 1-164-360-11 CERAMIC CHIP 0.1uF 16V C816 1-124-584-00 ELECT 100uF 20% 10V C817 1-164-360-11 CERAMIC CHIP 0.1uF 16V C818 1-164-360-11 CERAMIC CHIP 0.1uF 16V C819 1-164-360-11 CERAMIC CHIP 0.1uF 16V C820 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C821 1-162-916-11 CERAMIC CHIP 12PF 5% 50V C822 1-124-589-11 ELECT 47uF 20% 16V C823 1-124-261-00 ELECT 10uF 20% 50V C824 1-115-156-11 CERAMIC CHIP 1uF 10V C825 1-164-360-11 CERAMIC CHIP 0.1uF 16V C826 1-124-589-11 ELECT 47uF 20% 16V C827 1-164-360-11 CERAMIC CHIP 0.1uF 16V C830 1-164-360-11 CERAMIC CHIP 0.1uF 16V C831 1-126-961-11 ELECT 2.2uF 20.00% 50V C834 1-164-360-11 CERAMIC CHIP 0.1uF 16V C835 1-164-360-11 CERAMIC CHIP 0.1uF 16V C836 1-124-589-11 ELECT 47uF 20% 16V C837 1-164-360-11 CERAMIC CHIP 0.1uF 16V C838 1-164-360-11 CERAMIC CHIP 0.1uF 16V C839 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C843 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C844 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C846 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C847 1-162-919-11 CERAMIC CHIP 22PF 5% 50V VCD POWER PHONE The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Ver 1.2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 HCD-GP6V Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C853 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C854 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C855 1-162-913-11 CERAMIC CHIP 8PF 0.50PF 50V C856 1-162-913-11 CERAMIC CHIP 8PF 0.50PF 50V C857 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C858 1-164-360-11 CERAMIC CHIP 0.1uF 16V C859 1-164-360-11 CERAMIC CHIP 0.1uF 16V C862 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C863 1-164-360-11 CERAMIC CHIP 0.1uF 16V C902 1-162-957-11 CERAMIC CHIP 220PF 5% 50V C903 1-164-362-11 CERAMIC CHIP 470PF 5.00% 50V C904 1-126-935-11 ELECT 470uF 20.00% 6.3V C905 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C909 1-164-360-11 CERAMIC CHIP 0.1uF 16V C923 1-162-974-11 CERAMIC CHIP 0.01uF 50V < CONNECTOR > CN801 1-779-542-21 CONNECTOR, FFC(LIF(NON-ZIF))5P CN802 1-779-560-21 CONNECTOR,FFC(LIF(NON-ZIF))23P CN803 1-779-546-11 CONNECTOR, FFC(LIF(NON-ZIF))9P * CN804 1-564-720-11 PIN, CONNECTOR (SMALL TYPE) 4P CN806 1-779-548-21 CONNECTOR,FFC(LIF(NON-ZIF))11P < DIODE > D301 8-719-083-58 DIODE UDZSTE-173.9B D701 8-719-069-56 DIODE UDZSTE-176.2B D801 8-719-083-58 DIODE UDZSTE-173.9B D803 8-719-988-61 DIODE 1SS355TE-17 D805 8-719-988-61 DIODE 1SS355TE-17 < GROUND TERMINAL > EP601 1-537-770-21 TERMINAL BOARD, GROUND < FERRITE BEAD > FB801 1-216-295-91 SHORT CHIP 0 FB802 1-216-295-91 SHORT CHIP 0 FB803 1-216-295-91 SHORT CHIP 0 FB811 1-216-295-91 SHORT CHIP 0 FB813 1-216-295-91 SHORT CHIP 0 FB814 1-216-295-91 SHORT CHIP 0 FB815 1-216-295-91 SHORT CHIP 0 FB816 1-216-295-91 SHORT CHIP 0 FB817 1-216-295-91 SHORT CHIP 0 < IC > IC701 6-702-945-01 IC NJM14558V-TE2 IC801 6-705-878-01 IC ES3880FMF IC802 6-705-800-01 IC ES3883FF IC803 6-804-826-01 IC HT27C020-70(U2) IC804 6-703-603-01 IC GLT44016-30TC IC805 6-701-985-01 IC BH2220FVM-TR < JUMPER RESISTOR > JR802 1-216-864-11 METAL CHIP 0 5% 1/16W JR803 1-216-864-11 METAL CHIP 0 5% 1/16W JR804 1-216-296-11 SHORT CHIP 0 VCD < COIL > L801 1-414-410-21 INDUCTOR 10uH L802 1-414-410-21 INDUCTOR 10uH L901 1-408-962-21 INDUCTOR 2.2uH < TRANSISTOR > Q309 6-550-344-01 TRANSISTOR 2SC3266GR Q801 6-550-344-01 TRANSISTOR 2SC3266GR Q802 8-729-200-71 TRANSISTOR 2SC2712G-TE85L Q901 8-729-216-22 TRANSISTOR 2SA1162-G < RESISTOR > R304 1-216-146-00 RES-CHIP 6.8 5% 1/8W R305 1-216-174-00 RES-CHIP 100 5% 1/8W R306 1-216-296-11 SHORT CHIP 0 R341 1-216-184-00 RES-CHIP 270 5% 1/8W R701 1-216-809-11 METAL CHIP 100 5% 1/16W R702 1-216-809-11 METAL CHIP 100 5% 1/16W R703 1-216-813-11 METAL CHIP 220 5% 1/16W R704 1-216-813-11 METAL CHIP 220 5% 1/16W R705 1-216-813-11 METAL CHIP 220 5% 1/16W R706 1-216-813-11 METAL CHIP 220 5% 1/16W R707 1-216-180-00 RES-CHIP 180 5% 1/8W R708 1-216-833-11 METAL CHIP 10K 5% 1/16W R709 1-216-833-11 METAL CHIP 10K 5% 1/16W R710 1-216-837-11 METAL CHIP 22K 5% 1/16W R711 1-216-837-11 METAL CHIP 22K 5% 1/16W R713 1-216-837-11 METAL CHIP 22K 5% 1/16W R714 1-216-837-11 METAL CHIP 22K 5% 1/16W R715 1-216-838-11 METAL CHIP 27K 5% 1/16W R716 1-216-838-11 METAL CHIP 27K 5% 1/16W R717 1-216-838-11 METAL CHIP 27K 5% 1/16W R718 1-216-838-11 METAL CHIP 27K 5% 1/16W R719 1-218-917-11 METAL CHIP 820K 5% 1/10W R720 1-218-917-11 METAL CHIP 820K 5% 1/10W R721 1-218-917-11 METAL CHIP 820K 5% 1/10W R722 1-218-917-11 METAL CHIP 820K 5% 1/10W R801 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R802 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R804 1-216-821-11 METAL CHIP 1K 5% 1/16W R808 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R809 1-216-809-11 METAL CHIP 100 5% 1/16W R810 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R811 1-216-813-11 METAL CHIP 220 5% 1/16W R812 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R813 1-216-845-11 METAL CHIP 100K 5% 1/16W R814 1-216-809-11 METAL CHIP 100 5% 1/16W R815 1-216-809-11 METAL CHIP 100 5% 1/16W R816 1-216-809-11 METAL CHIP 100 5% 1/16W R817 1-216-809-11 METAL CHIP 100 5% 1/16W R818 1-216-156-00 RES-CHIP 18 5% 1/8W R819 1-216-833-11 METAL CHIP 10K 5% 1/16W R820 1-216-833-11 METAL CHIP 10K 5% 1/16W R821 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R822 1-216-174-00 RES-CHIP 100 5% 1/8W R823 1-216-156-00 RES-CHIP 18 5% 1/8W R824 1-216-819-11 METAL CHIP 680 5% 1/16W Ver 1.2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 HCD-GP6V Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. R825 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R830 1-216-833-11 METAL CHIP 10K 5% 1/16W R831 1-216-833-11 METAL CHIP 10K 5% 1/16W R832 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R833 1-216-808-11 METAL CHIP 82 5% 1/16W R841 1-216-809-11 METAL CHIP 100 5% 1/16W R842 1-216-809-11 METAL CHIP 100 5% 1/16W R843 1-216-809-11 METAL CHIP 100 5% 1/16W R844 1-216-809-11 METAL CHIP 100 5% 1/16W R849 1-216-809-11 METAL CHIP 100 5% 1/16W R850 1-216-864-11 METAL CHIP 0 5% 1/16W R851 1-216-864-11 METAL CHIP 0 5% 1/16W R852 1-216-864-11 METAL CHIP 0 5% 1/16W R853 1-216-832-11 METAL CHIP 8.2K 5% 1/16W R901 1-218-285-11 METAL CHIP 75 5% 1/10W R902 1-216-813-11 METAL CHIP 220 5% 1/16W R903 1-216-864-11 METAL CHIP 0 5% 1/16W R906 1-216-821-11 METAL CHIP 1K 5% 1/16W R909 1-216-821-11 METAL CHIP 1K 5% 1/16W R921 1-216-809-11 METAL CHIP 100 5% 1/16W R922 1-216-809-11 METAL CHIP 100 5% 1/16W R923 1-216-809-11 METAL CHIP 100 5% 1/16W R925 1-216-864-11 METAL CHIP 0 5% 1/16W R926 1-216-864-11 METAL CHIP 0 5% 1/16W R927 1-216-864-11 METAL CHIP 0 5% 1/16W R930 1-216-809-11 METAL CHIP 100 5% 1/16W R931 1-216-809-11 METAL CHIP 100 5% 1/16W R932 1-216-809-11 METAL CHIP 100 5% 1/16W R933 1-216-809-11 METAL CHIP 100 5% 1/16W R934 1-216-809-11 METAL CHIP 100 5% 1/16W R935 1-216-809-11 METAL CHIP 100 5% 1/16W R936 1-216-809-11 METAL CHIP 100 5% 1/16W R937 1-216-809-11 METAL CHIP 100 5% 1/16W R938 1-216-826-11 METAL CHIP 2.7K 5% 1/16W R939 1-216-847-11 METAL CHIP 150K 5% 1/16W R940 1-216-843-11 METAL CHIP 68K 5% 1/16W R941 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R942 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R943 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R944 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R945 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R946 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R947 1-216-809-11 METAL CHIP 100 5% 1/16W R951 1-216-864-11 METAL CHIP 0 5% 1/16W < VIBRATOR > X801 1-795-630-11 VIBRATOR, CRYSTAL (27 MHz) ************************************************************ V-OUT BOARD ************ < CAPACITOR > C211 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C212 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C213 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V < CONNECTOR > CN202 1-564-720-11 PIN, CONNECTOR (SMALL TYPE) 4P < DIODE > D201 8-719-991-33 DIODE 1SS133T-77 D202 8-719-991-33 DIODE 1SS133T-77 < FERRITE BEAD > FB203 1-412-473-21 INDUCTOR (SMALL TYPE) FB204 1-412-473-21 INDUCTOR (SMALL TYPE) FB205 not supplied < JACK > J205 1-774-227-11 JACK, PIN 1P (VIDEO OUT) < SWITCH > S201 not supplied ************************************************************ MISCELLANEOUS ************** 3 1-693-620-11 TUNER (FM/AM) 73 1-796-351-51 MECHANISM, SIGNAL CASSETTE 0105 1-765-558-11 CORD, POWER 202 1-782-817-11 WIRE (FLAT TYPE) (16 CORE) 0203 A-4735-189-A BU-30(61)ASSY M901 A-4735-337-A MOTOR (LD) ASSY VCD V-OUT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GP6V REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2004.05 New 1.1 2004.08 Change of Part No. for IC803 (SPM-04078) 1.2 2004.09 Change of Part No. for “VCD BOARD, COMPLETE”, IC801, IC802 and Q802 (SPM-04097) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
