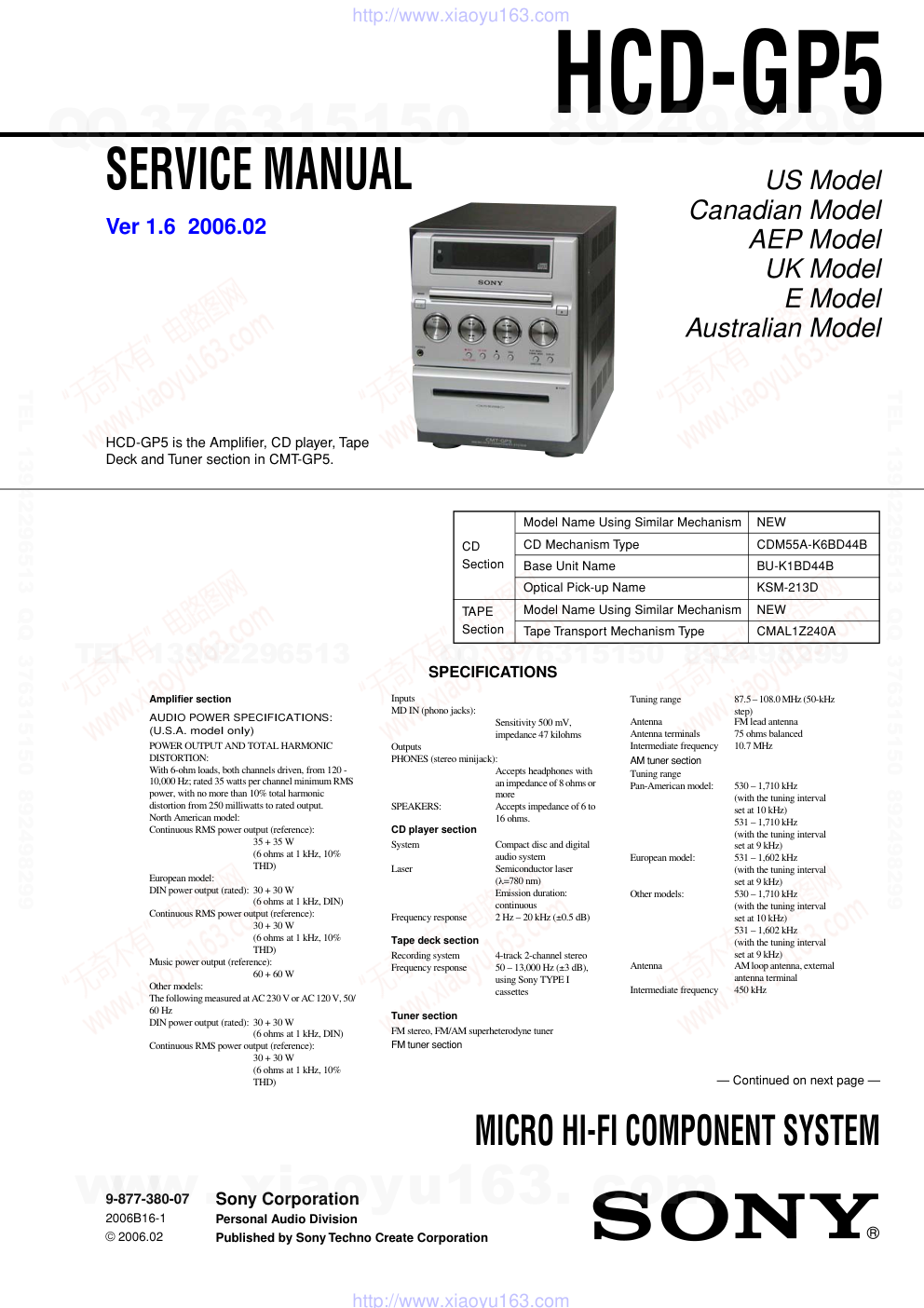

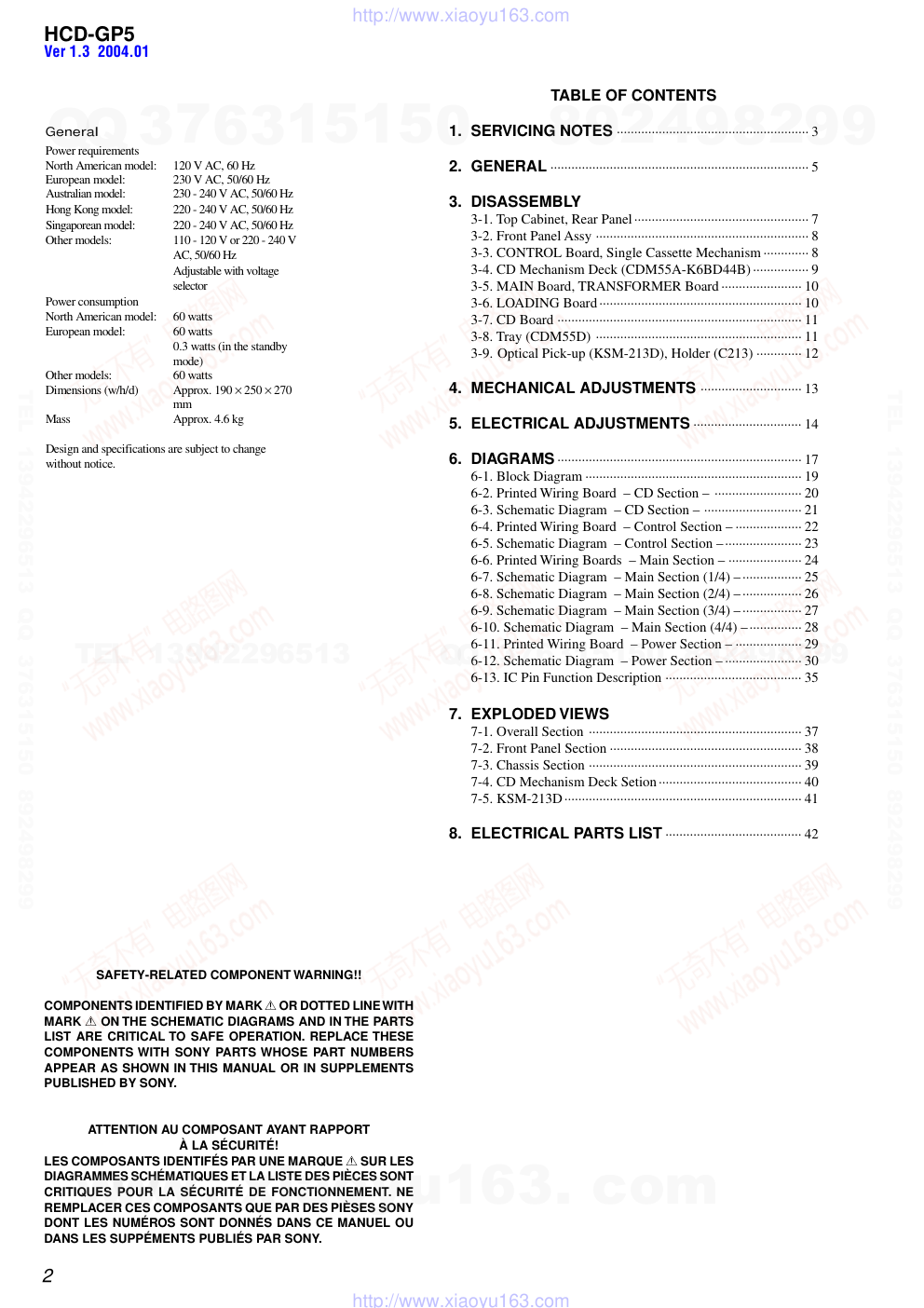

HCD-GP5 US Model Canadian Model AEP Model UK Model E Model Australian Model SERVICE MANUAL MICRO HI-FI COMPONENT SYSTEM Sony Corporation Personal Audio Division Published by Sony Techno Create Corporation 9-877-380-07 2006B16-1 © 2006.02 HCD-GP5 is the Amplifier, CD player, Tape Deck and Tuner section in CMT-GP5. SPECIFICATIONS Ver 1.6 2006.02 Model Name Using Similar Mechanism NEW CD CD Mechanism Type CDM55A-K6BD44B Section Base Unit Name BU-K1BD44B Optical Pick-up Name KSM-213D TAPE Model Name Using Similar Mechanism NEW Section Tape Transport Mechanism Type CMAL1Z240A — Continued on next page — Amplifier section AUDIO POWER SPECIFICATIONS: (U.S.A. model only) POWER OUTPUT AND TOTAL HARMONIC DISTORTION: With 6-ohm loads, both channels driven, from 120 - 10,000 Hz; rated 35 watts per channel minimum RMS power, with no more than 10% total harmonic distortion from 250 milliwatts to rated output. North American model: Continuous RMS power output (reference): 35 + 35 W (6 ohms at 1 kHz, 10% THD) European model: DIN power output (rated): 30 + 30 W (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference): 30 + 30 W (6 ohms at 1 kHz, 10% THD) Music power output (reference): 60 + 60 W Other models: The following measured at AC 230 V or AC 120 V, 50/ 60 Hz DIN power output (rated): 30 + 30 W (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference): 30 + 30 W (6 ohms at 1 kHz, 10% THD) Inputs MD IN (phono jacks): Sensitivity 500 mV, impedance 47 kilohms Outputs PHONES (stereo minijack): Accepts headphones with an impedance of 8 ohms or more SPEAKERS: Accepts impedance of 6 to 16 ohms. CD player section System Compact disc and digital audio system Laser Semiconductor laser (λ=780 nm) Emission duration: continuous Frequency response 2 Hz – 20 kHz (±0.5 dB) Tape deck section Recording system 4-track 2-channel stereo Frequency response 50 – 13,000 Hz (±3 dB), using Sony TYPE I cassettes Tuner section FM stereo, FM/AM superheterodyne tuner FM tuner section Tuning range 87.5 – 108.0 MHz (50-kHz step) Antenna FM lead antenna Antenna terminals 75 ohms balanced Intermediate frequency 10.7 MHz AM tuner section Tuning range Pan-American model: 530 – 1,710 kHz (with the tuning interval set at 10 kHz) 531 – 1,710 kHz (with the tuning interval set at 9 kHz) European model: 531 – 1,602 kHz (with the tuning interval set at 9 kHz) Other models: 530 – 1,710 kHz (with the tuning interval set at 10 kHz) 531 – 1,602 kHz (with the tuning interval set at 9 kHz) Antenna AM loop antenna, external antenna terminal Intermediate frequency 450 kHz www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 HCD-GP5 TABLE OF CONTENTS 1. SERVICING NOTES ······················································· 3 2. GENERAL ·········································································· 5 3. DISASSEMBLY 3-1. Top Cabinet, Rear Panel·················································· 7 3-2. Front Panel Assy ····························································· 8 3-3. CONTROL Board, Single Cassette Mechanism ············· 8 3-4. CD Mechanism Deck (CDM55A-K6BD44B)················ 9 3-5. MAIN Board, TRANSFORMER Board ······················· 10 3-6. LOADING Board·························································· 10 3-7. CD Board ······································································ 11 3-8. Tray (CDM55D) ··························································· 11 3-9. Optical Pick-up (KSM-213D), Holder (C213) ············· 12 4. MECHANICAL ADJUSTMENTS ····························· 13 5. ELECTRICAL ADJUSTMENTS ······························· 14 6. DIAGRAMS ······································································ 17 6-1. Block Diagram ······························································ 19 6-2. Printed Wiring Board – CD Section – ························· 20 6-3. Schematic Diagram – CD Section – ···························· 21 6-4. Printed Wiring Board – Control Section – ··················· 22 6-5. Schematic Diagram – Control Section –······················ 23 6-6. Printed Wiring Boards – Main Section – ····················· 24 6-7. Schematic Diagram – Main Section (1/4) –················· 25 6-8. Schematic Diagram – Main Section (2/4) –················· 26 6-9. Schematic Diagram – Main Section (3/4) –················· 27 6-10. Schematic Diagram – Main Section (4/4) –··············· 28 6-11. Printed Wiring Board – Power Section – ··················· 29 6-12. Schematic Diagram – Power Section – ······················ 30 6-13. IC Pin Function Description ······································· 35 7. EXPLODED VIEWS 7-1. Overall Section ····························································· 37 7-2. Front Panel Section ······················································· 38 7-3. Chassis Section ····························································· 39 7-4. CD Mechanism Deck Setion········································· 40 7-5. KSM-213D···································································· 41 8. ELECTRICAL PARTS LIST ······································· 42 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPÉMENTS PUBLIÉS PAR SONY. Ver 1.3 2004.01 General Power requirements North American model: 120 V AC, 60 Hz European model: 230 V AC, 50/60 Hz Other models: Power consumption North American model: 60 watts European model: 60 watts 0.3 watts (in the standby mode) Other models: 60 watts Dimensions (w/h/d) Approx. 190 × 250 × 270 mm Mass Approx. 4.6 kg Design and specifications are subject to change without notice. Australian model: 230 - 240 V AC, 50/60 Hz Hong Kong model: 220 - 240 V AC, 50/60 Hz Singaporean model: 220 - 240 V AC, 50/60 Hz 110 - 120 V or 220 - 240 V AC, 50/60 Hz Adjustable with voltage selector www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 HCD-GP5 SECTION 1 SERVICING NOTES Fig. A. Using an AC voltmeter to check AC leakage. 1.5 kΩ 0.15 µF AC voltmeter (0.75 V) To Exposed Metal Parts on Set Earth Ground SAFETY CHECK-OUT After correcting the original service problem, perform the following safety check before releasing the set to the customer: Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes.). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2 V AC range are suitable. (See Fig. A) CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the exterior. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. LASER DIODE AND FOCUS SEARCH OPERATION CHECK Carry out the “S curve check” in “CD section adjustment” and check that the S curve waveforms is output three times. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270 ˚C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 HCD-GP5 Service Position of the CD Mechanism Deck Service Position of the Tape Cassette Mechanism Deck MAIN Board CD Mechanism Deck (CDM55A-K6BD44B) MAIN Board Tape Cassette Mechanism Deck (CMAL1Z240A) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 HCD-GP5 SECTION 2 GENERAL This section is extracted from instruction manual. Main unit Cassette compartment qg CD SYNC qd (12) DIRECTION 9 (11, 12, 15) Disc tray 4 DISPLAY 8 (9, 10, 16) Display window 3 DSG qa (13) MD qj (17) PHONES jack qh PLAY MODE/TUNING MODE 9 (6, 7) Remote sensor 2 TUNER/BAND qj (8, 9) TUNING +/– 6 (8, 9) VOLUME +/– 7 (14, 15) ?/1 (power) 1 (5, 9, 14, 15) .m/M> (go back/go forward or fast forward/ rewind) 6 (5, 6, 7, 11, 12, 14, 15, 16) x (stop) qs (6, 7, 11, 12, 20) REC PAUSE/START z qf (12, 15) CD NX (play/pause) qk (6, 7) TAPE nN (play) qk (11, 12, 15) Z (CD open/close) 5 (6) Z PUSH (tape open/close) 0 (11) List of button locations and reference pages How to use this page Use this page to find the location of buttons and other parts of the system that are mentioned in the text. Illustration number r DISPLAY 8 (9, 10, 16) R R Name of button/part Reference page ALPHABETICAL ORDER A – M P – Z BUTTON DESCRIPTIONS 1 2 3 4 5 6 7 8 qk qj qh 9 0 qa qs qd qf qg www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 HCD-GP5 Remote control BASS +/– 0 (13) CLEAR 8 (8, 9) CLOCK/TIMER SELECT w; (14, 15) CLOCK/TIMER SET wa (5, 14, 15) DISPLAY 2 (9, 10, 16) DSG qa (13) MD qk (17) PLAY MODE/DIRECTION qd (6, 7, 11, 12, 15) PRESET +/– 5 (9) REPEAT/FM MODE qf (7, 9) SLEEP ql (13) TREBLE +/– 9 (13) TUNER BAND qh (8, 9) TUNER MEMORY qs (8) TUNING +/– 6 (8, 9) VOL +/– 7 (14, 15) ?/1 (power) 1 (5, 9, 14, 15) m/M (fast forward/rewind) 6 (6, 11) ./> (go back/go forward) 5 (5, 6, 7, 12, 14, 15, 16) x (stop) 4 (6, 7, 11, 12, 20) X (pause) 3 (6, 11) CD N (play) qj (6, 7) TAPE nN (play) qg (11, 12, 15) ALPHABETICAL ORDER A – M P – Z BUTTON DESCRIPTIONS 1 wa w; ql qk qj qh qg qf qd qs qa 2 3 4 5 6 7 8 9 0 Use buttons on the remote for the operation. 1 Press ?/1 to turn on the system. 2 Press CLOCK/TIMER SET. 3 Press ./> repeatedly to set the hour. 4 Press CLOCK/TIMER SET. 5 Press ./> repeatedly to set the minute. 6 Press CLOCK/TIMER SET. The clock starts working. To adjust the clock 1 Press CLOCK/TIMER SET. 2 Press ./> to select “CLOCK”, then press CLOCK/TIMER SET. 3 Do the same procedures as step 3 to 6 above. Setting the clock www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 HCD-GP5 SECTION 3 DISASSEMBLY Note: Follow the disassembly procedure in the numerical order given. • This set can be disassembled in the order shown below. 3-1. Top Cabinet, Rear Panel MAIN BOARD, TRANSFORMER BOARD LOADING BOARD CD BOARD TRAY (CDM55D) OPTICAL PICK-UP (KSM-213D), HOLDER (C213) CD MECHANISM DECK (CDM55A-K6BD44B) CONTROL BOARD, SINGLE CASSETTE MECHANISM FRONT PANEL ASSY SET TOP CABINET, REAR PANEL 4 a a b b 5 top cabinet 1 three screws (+KTP 3 ×12) 2 three screws (+KTP 3 ×12) 3 six screws (+BVTP 3 ×10) 6wire (flat type) 11p q; tuner (FM/AM) CN304 7 two screws (+BVTP 3 ×10) 9 three screws (+BVTP 3 ×10) 8 three screws (+BVTP 3 ×10) qa rear panel Ver 1.2 2003.11 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 HCD-GP5 3-2. Front Panel Assy 3-3. CONTROL Board, Single Cassette Mechanism 5 wire (flat type) 13p (CN303) 4 four screws (+BVTP 3 ×10) 3 two screws (+KTP 3 ×12) 6 wire (flat type) 26p (CN302) q; front panel assy 7 connector 5p (CN1) 1 four claws 2 CD lid 9 connector 5p (CN201) 8 connector 6p q; single cassette mechanism (CMAL1Z240A) 7 CONTROL board 1 three screws (+BVTP 3 × 10) 2 four screws (+BVTP 3 × 10) 3 four screws (+BVTP 3 × 10) 8 four screws (+BVTP 3 × 10) 4 wire (flat type) 26p (CN601) 5 wire (flat type) 13p (CN602) 6 wire (flat type) 8p (CN603) 9 two clamp www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 HCD-GP5 3-4. CD Mechanism Deck (CDM55A-K6BD44B) 5 2 screw (+BVTP 3 ×10) CN305 4 screw (+BVTP 3 ×10) 1 CD plate 6 CD holder 3 wire (flat type) 21p (CN101,305) 7 CD mechanism deck (CDM55A-K6BD44B) CN101 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 HCD-GP5 3-5. MAIN Board, TRANSFORMER Board 3-6. LOADING Board 5 LOADING board 2 two screws (+BTP 2.6 × 6) 4 motor (LD) assy (M901) 1 Remove the belt. 3 Remove soldering from the two points. 1 connector 9p (CN801) 5 main heat sink 8 sub heat sink 9 MAIN board 2 two screws (+BVTP 3 ×10) 7 two screws (+BVTP 3 ×10) 6 two screws (+BVTP 3 ×10) 4 two screws (+BVTP 3 ×10) 3 three screws (+BVTP 3 ×10) q; four screws (+BVTP 3 ×10) qs TRANSFORMER board qa power transformer www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 HCD-GP5 2 Remove soldering from the four points. 3 wire (flat type) 16p 5 CD board 4 wire (flat type) 21p (CN101) 1 screw(+P 2.6 × 5) 2 tray 1 While pressing the two protrusions A and B to unlock the two claws as shown, pull the tray in the direction of the arrow C. (Be careful of the claws.) claw claw C A B 3-7. CD Board 3-8. Tray (CDM55D) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 HCD-GP5 3-9. Optical Pick-up (KSM-213D), Holder (C213) 1 two floating screws (+PTPWH M2.6) qf floating screws (+PTPWH M2.6) qg holder (C213) 5 screw (+PTTP M2.6) 6 stopper (BU) 2 two compression spring (T213) 7 compression spring (T213) 3 insulator 8 insulator 9 screw (+PTTP M2.6) q; stopper (BU) qa compression spring (T213) qs insulator qd optical pick-up (KSM-213D) 4 insulator Ver 1.2 2003.11 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 HCD-GP5 SECTION 4 MECHANICAL ADJUSTMENTS 3.04 – 6.96 mN • m (31 to 71 g • cm) (0.43 – 0.98 oz • inch) 0.20 – 0.58 mN • m (2 to 6 g • cm) (0.02 – 0.08 oz • inch) 3.04 – 6.96 mN • m (31 to 71 g • cm) (0.43 – 0.98 oz • inch) 0.20 – 0.58 mN • m (2 to 6 g • cm) (0.02 – 0.08 oz • inch) 6.97 – 14.02 mN • m (71 to 143 g • cm) (0.98 – 1.99 oz • inch) 9.8 mN • m or more (100 g • cm or more) (1.4 oz • inch or more) 9.8 mN • m or more (100 g • cm or more) (1.4 oz • inch or more) CQ-102C CQ-102C CQ-102RC CQ-102RC CQ-201B CQ-403A CQ-403R Precaution 1. Clean the following parts with a denatured alcohol-moistened swab: record/playback heads pinch rollers erase head rubber belts capstan idlers 2. Demagnetize the record/playback head with a head demag- netizer. 3. Do not use a magnetized screwdriver for the adjustments. 4. After the adjustments, apply suitable locking compound to the parts adjusted. 5. The adjustments should be performed with the rated power supply voltage unless otherwise noted. Torque Measurement Mode FWD FWD back tension REV REV back tension FF/REW FWD tension REV tension Torque meter Meter reading www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 HCD-GP5 SECTION 5 ELECTRICAL ADJUSTMENTS [Record/Playback Head Azimuth Adjustment] Procedure: 1. Mode : Playback 2. Turn the adjustment screw and check output peaks. If the peaks do not match for L-CH and R-CH, turn the adjustment screw so that outputs match within 1 dB of peak. test tape P-4-A100 (10kHz, –10dB) MAIN board J203 speaker terminal level meter set + – L-CH peak R-CH peak screw position output level within 1 dB L-CH peak R-CH peak screw position within 1dB Signal Used for Tape P-4-A100 WS-48B 10 kHz, –10 dB 3 kHz, 0 dB Azimuth Adjustment Tape Speed Adjustment DECK SECTION 0 dB=0.775V 1. Demagnetize the record/playback head with a head demagnetizer. 2. Do not use a magnetized screwdriver for the adjustments. 3. After the adjustments, apply suitable locking compound to the parts adjusted. 4. The adjustments should be performed with the rated power supply voltage unless otherwise noted. 5. The adjustments should be performed in the order given in this service manual. (As a general rule, playback circuit adjustment should be completed before performing recording circuit adjustment.) 6. The adjustments should be performed for both L-CH and R- CH. 7. Switches and controls should be set as follows unless otherwise specified. 4. After the adjustments, apply suitable locking compound to the parts adjusted. Adjustment Location: Record/Playback/Erase Head [Tape Speed Check] Procedure: 1. Turn the power on. 2. Insert the WS-48B into deck. 3. Press the Y button of deck. 4. Check the reading of frequency counter becomes 3000 ± 90 Hz. Sample Value of Wow and flutter W.RMS (JIS) less than 0.3% (test tape: WS-48B) 3. Mode: Playback test tape P-4-A100 (10kHz, –10dB) oscilloscope set Waveform of oscilloscope in phase 45° 90° 135° 180° good wrong MAIN board J203 speaker terminal L R www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 HCD-GP5 RFDC signal waveform Checking Location: CD board (Conductor side) RFAC Level Check Connection: Procedure: 1. Connect an oscilloscope to test point TP (RFAC) and TP (VC) on the CD board. 2. Turn the power on. 3. Put the disc (YEDS-18) in to playback the number five track. 4. Confirm that oscilloscope waveform is clear and check RFAC signal level is correct or not. Note: A clear RFAC signal waveform means that the shape “◊” can be clearly distinguished at the center of the waveform. RFAC signal waveform Checking Location: CD board (Conductor side) CD SECTION Note: 1. CD Block is basically designed to operate without adjustment. There- fore, check each item in order given. 2. Use YEDS-18 disc (3-702-101-01) unless otherwise indicated. 3. Use an oscilloscope with more than 10MΩ impedance. 4. Clean the object lens by an applicator with neutral detergent when the signal level is low than specified value with the following checks. S-curve Check Connection: Procedure: 1. Connect an oscilloscope to test point TP (FE) and TP (DVC) on the CD board. 2. Turn the power on. 3. Put the disc (YEDS-18) in and turned power switch on again and actuate the focus search. (actuate the focus search when disc table is moving in and out) 4. Check the oscilloscope waveform (S-curve) is symmetrical between A and B. And confirm peak to peak level within 2 ± 1 Vp-p. S-curve waveform Note: • Try to measure several times to make sure than the ratio of A : B or B : A is more than 10 : 7. • Take sweep time as long as possible and light up the brightness to obtain best waveform. Checking Location: CD board (Conductor side) RFDC Level Check Connection: Procedure: 1. Connect an oscilloscope to test point TP (RFDC) and TP (DVC) on the CD board. 2. Turn the power on. 3. Put the disc (YEDS-18) in to playback the number five track. 4. Confirm that oscilloscope waveform is clear and check RFDC signal level is correct or not. Note: A clear RFDC signal waveform means that the shape “◊” can be clearly distinguished at the center of the waveform. + – CD board TP (FE) TP (DVC) oscilloscope A B symmetry within 2 ± 1 Vp-p + – CD board TP (RFDC) TP (DVC) oscilloscope VOLT/DIV: 200 mV TIME/DIV: 500 ns level: 0.7 ± 0.2 Vp-p + – CD board TP (RFAC) TP (VC) oscilloscope VOLT/DIV: 200 mV TIME/DIV: 500 ns level: 0.9 ± 0.4 Vp-p www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 HCD-GP5 E-F Balance Check Connection: Procedure: 1. Connect an oscilloscpe to test point TP (TE) and TP (DVC) on the CD board. 2. AC is put in pushing CD u button. 3. FL tube carries out all lights and goes into CD test mode. 4. Put the disc (YEDS-18) in to playback the number five track. 5. Press the CD u button. (The tracking servo and the sledding servo are turned OFF) 6. Check the level B of the oscilliscope's waveform and the A (DC voltage) of the center of the Traverse waveform. Confirm the following : A/B x 100 = less than ± 22% Traverse Waveform 7. Press the CD u button. (The tracking servo and sledding servo are turned ON) Confirm the C (DC voltage) is almost equal to the A (DC voltage) is step 4. 8. To exit from this mode, turn the power off. Notes: • Always move the optical pick-up to most inside track when exiting from this mode. Otherwise, a disc will not be unloaded. • Do not run the sled motor excessively, otherwise the gear can be chipped. Traverse Waveform Checking Location: CD board (Conductor side) + – CD board TP (TE) TP (DVC) oscilloscope 0V B level: 1.15 ± 0.5 Vp-p Center of the waveform A (DC voltage) 0V Tracking servo Sled servo ON C (DC voltage) Tracking servo Sled servo OFF Checking Location: – CD BOARD (Conductor Side) – TP (VC) TP (FE) TP (TE) TP (RFDC) TP (DVC) TP (RFAC) IC103 IC101 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 HCD-GP5 SECTION 6 DIAGRAMS • Circuit Boards Location THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.) For printed wiring boards. Note: • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • f : internal component. • : Pattern from the side which enables seeing. • A : B+ Line. • B : B– Line. • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. F : TUNER J : CD d : MD E : PB (TAPE) a : REC (TAPE) • Abbreviation AUS : Australian model CND : Canadian model E51 : Chilean and Peruvian models HK : Hong Kong model KR : Korean model SP : Singapore model TW : Taiwan model • Indication of transistor Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Note: Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. MAIN board CD board LOADING board TRANSFORMER board CONTROL board HEADPHONE board C B These are omitted. E Q B These are omitted. C E B These are omitted. C E Ver 1.3 2004.01 For schematic diagrams. Note: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • f : internal component. • 2 : nonflammable resistor. • 1 : fusible resistor. • C : panel designation. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 HCD-GP5 • Waveforms – CD Board – 1.1Vp-p 1 IC103 qg (RFAC) (CD Play Mode) 2 IC101 el (FE) (CD Play Mode) 200mV/DIV, 1 µs/DIV 50mV/DIV, 200 µs/DIV 100mV/DIV, 200 µs/DIV 1V/DIV, 20ns/DIV 200mVp-p 250mVp-p 3 IC101 ra (TE) (CD Play Mode) 4 IC101 yj (XTAO) 5.4Vp-p 59ns 6 IC601 qh (XOUT) 2V/DIV, 10 µs/DIV 5 IC601 qd (O-XT2) 5.4Vp-p 30.5 µs 1V/DIV, 40ns/DIV 2.7Vp-p 116ns 7 Q301 collector (Rec mode) 5V/DIV, 5 µs/DIV 10.6Vp-p 10.9 µs – CONTROL Board – – MAIN Board – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 19 HCD-GP5 6-1. Block Diagram : TUNER : CD • Signal Path • RCH is omitted due to same as L-CH. : MD : PB (TAPE) : REC (TAPE) R-CH +VM ERASE HEAD REC/PB HEAD DECK BLOCK REC/PB SWITCH R DATA 98 R CLK 100 R CE 84 µ CON IC601 R COUNT 99 L R MD J201 MUTE CONT Q506 J202 PHONES L R FUCTION KEY REMOTE CONTROL RECEIVER IC603 S601-607,612 TUNER UNIT L-CH R-CH R-CH D OUT D IN CLK CE TUNED R-CH R TUNED 93 Q305-311 L301 BIAS Q303,304 DECK BLOCK MOTOR DRIVE Q606 T REC 77 I XT1 12 O XT2 13 X601 32.768kHz X IN 15 X OUT 16 X602 8.64MHz MUTE Q504 76 O DSG Q312 29 RMC IN FUCTION KEY S608-611 S613-616 19 I KEY2 3 1 RESET SWITCH Q601 11 I RESET RESET IC602 2 1 26 POWER DOWN D801-804 RELAY DRIVE AC IN PT802 SUB TRANS Q401 RY801 18 I KEY1 REG +10V +VM PB/REC EQ AMP IC301 AUX L 19 18 OUT L TU L 23 TAPE L 2 CD L 21 16 OUT R R-CH 13 CONT 28 REC OUT R MUTE 80 R STEREO 92 STEREO MUTE R-CH M1 DECK MOTOR T PLAY SW 79 C DATA 87 POWER AMP IC201 J203 SPEAKER SEG1 SEG20 34 44 GRID1 GRID11 FLUORESCENT DISPLAY FL601 +5V REG Q602-604 µCON +B VM D608 LINE FILTER L801 V ECO PT801 POWER TRANS M SW1 PLAY SW2 R REC BIAS OSC Q301 Q302 O PW M3E 83 T END 5 C CLK 97 C XLT 86 C SQSD 96 C SCOR 3 C SENS 94 C XRST 85 T SOL 4 82 CD ON 75 LED CONT LED601 ECO LED D605 D603 9 P AMP MUTE 8 P CONT 4 L OUT STBY 10 L IN 12 3 R OUT +VM D422 D405 8 POWER CONT +5V Q314-316 RDS SIG RDS DATA RDS CLK SW3 F REC SW4 PACK SW5 END T SOL DRIVE Q605 Q607 C LDON 95 C PWM1 1 C PWM2 2 T MTR CONT 6 T SW 24 O SHIFT 7 O BIAS 81 RDS SIG 23 RDS CLK 27 RDS DATA 91 F DATA 10 PWR CONT Q503 5 +PRE 2 +VCC 1 -VCC Q501,502 +VH AC DET Q508 DC DET Q509,510 D434 D435 +7V D502 +VM 25 P MONI HOLD Q507 OVER LOAD DET J204 SUBWOOFER 45 47 50 . 52 66 . FIL1 FIL2 D609 FIL1 FIL2 D403 D402 D413 D427 D409 D410 +VM REG Q402,403,405 +VCC REG Q407 +VCC CD P CONT Q415,417,418 +7V REG Q416 P CONT Q406 +7V +5V REG Q419 D418 D436 CD +5V -VFL REG Q413 -VFL -VL +VL D423 D406 D404 +VH -VH DC DET Q410 D431 +VL +VH REG Q408,409 D425 DC DET Q411 D432 -VL -VH REG Q404 D416 D417 -VP +VP D407 OUT1 OUT2 M VM RIN FIN CD DOOR MOTOR UNIT OPEN CLOSE MOTOR DRIVE IC604 TRAY MOTOR +VM (7V) 4 2 5 9 7 74 O OPEN 73 O CLOSE 28 CD DOOR SW OPTICAL PICK-UP BLOCK (KSM-213D) A B C D E F LD VC +5V GND PD VR LD DRIVE FOCUS COIL TRACKING COIL Q101 RF AMP IC103 VC 27 A 6 B 7 C 8 D 9 E 10 F 11 LD 1 PD 2 MOTOR/COIL DRIVE IC102 CH1RO 13 CH1FO 14 CH2RO 11 CH2FO 12 CH3RO 18 CH3FO 17 M SLED MOTOR CH4RO 16 CH4FO 15 M SPINDLE MOTOR F+ F- T- T+ 3 CH1RI 2 CH1FI 6 CH2RI 5 CH2FI 23 CH3RI 24 CH3FI 25 CH4INS 20 MUTE MDP 26 SFDR 28 SRDR 29 TRDR 31 TFDR 30 FRDR 33 FFDR 32 DIGITAL SERVO IC101 RFDC 43 17 FEI 28 RFDCO 16 FE 18 TE 29 RFDCI 12 SW FE 39 TE 41 SE 40 72 L OUT 75 R OUT 5 DATA R-CH 7 CLOK 6 XLAT 2 SQCK 9 SCLK 20 SCOR 1 SQSO 27 SSTP 66 XTAI 67 XTAO 3 XRST S101 LIMIT X101 16.9344MHz 8 SENS RFAC 51 15 RFAC +3.3V REG Q102,D101 +3.3V +5.5V C SQCK 88 STANDBY Ver 1.2 2003.11 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 20 HCD-GP5 6-2. Printed Wiring Board – CD Section – IC102 IC101 IC103 TP (VC) TP (RFAC) TP (DVC) CN305 24 1-680-849- D C199 1 2 A B C D E F G 3 4 5 6 7 8 Ref. No. Location D101 F-5 IC101 E-4 IC102 C-5 IC103 D-2 Q101 C-2 Q102 G-5 • Semiconductor Location • See page 17 for Circuit Boards Location. Ver 1.2 2003.11 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 21 HCD-GP5 6-3. Schematic Diagram – CD Section – KSM-213D (1/4) CN305 0uH 0uH 25 470p JR101 0 • See page 18 for Waveforms. • See page 31, 32 for IC Block Diagrams. Ver 1.2 2003.11 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 22 HCD-GP5 6-4. Printed Wiring Board – Control Section – • See page 17 for Circuit Boards Location. IC601 IC602 IC603 IC604 US,CND,AEP,UK,KR E51,HK,SP, TW,AUS R680 JW658 JW657 JW609 JW656 R718 R721 R713 C649 R688 CONTROL BOARD ?/1 TUNER/ BAND CD NX + M > . m – TAPE bB zREC PAUSE/START MD VOL + DISPLAY Z VOL – PLAY MODE/ TUNING MODE DSG CD SYNC x 1-689-573- LOADING BOARD 1 2 4 3 JW659 TO MAIN BOARD CN302 (Page 24) C TO MAIN BOARD CN303 (Page 24) B TAPE MECHANISM DECK M901 1-674-336- (12) 12 FLUORESCENT INDICATOR TUBE STANDBY S1 (OPEN/CLOSE) LOADING MOTOR ( ) Ver. 1.6 Ref. No. Location D601 A-2 D602 B-5 D603 B-6 D604 B-5 D605 A-1 D606 D-5 D607 B-5 D608 B-5 D609 B-5 IC601 A-3 IC602 B-5 IC603 B-6 IC604 D-7 Q601 B-4 Q602 A-2 Q603 A-2 Q604 A-2 Q605 D-5 Q606 D-5 Q607 E-6 Q608 B-6 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 23 HCD-GP5 6-5. Schematic Diagram – Control Section – IC601 VOLTAGE CHART PIN NO. PIN NO. PIN NO. VOLT. VOLT. VOLT. 1 2.3 41 -31.0 81 0.5 2 2.3 42 -31.0 82 5.2 3 0 43 -31.0 83 0.4 4 0.8 44 -31.0 84 0 5 5.3 45 -31.0 85 5.2 6 10.2 46 5.2 86 5.2 7 0 47 -31.0 87 5.2 8 5.1 48 -31.0 88 5.2 9 0 49 -31.0 89 0 10 0 50 -31.0 90 5.2 11 5.1 51 0 91 0.2 12 0 52 -31.0 92 5.3 13 2.6 53 -31.0 93 5.3 14 0 54 -31.0 94 3.3 15 2.6 55 -31.0 95 0 16 2.6 56 -31.0 96 3.3 17 5.2 57 -31.0 97 5.2 18 5.3 58 -31.0 98 0 19 5.3 59 -31.0 99 0.7 20 0.1 60 -31.0 100 0 21 0.1 61 -31.0 22 0.1 62 -31.0 23 0.1 63 -31.0 24 2.0 64 -31.0 25 3.1 65 -31.0 26 5.6 66 -31.0 27 0.1 67 - 28 0 68 - 29 5.3 69 2.5 30 - 70 5.0 31 - 71 0 32 - 72 5.2 33 - 73 5.2 34 -31.0 74 5.2 35 -31.0 75 0 36 -31.0 76 5.2 37 -31.0 77 0 38 -31.3 78 0 39 -31.0 79 4.9 40 -31.0 80 5.2 5.3 5.3 0 0 5.3 4.7 0 0 10.2 10.2 4.0 5.1 0 5.6 5.6 9.5 (10.2) 10.2 (10.2) 10.2 (0.9) 10.1 (1.0) 10.2 (10.2) 0 2.0 9.5 8.8 5.9 2.5 8.2 1.9 2.5 0.5 RPM7140-V4 FLUORESCENT INDICATOR TUBE 100K T-72 0 T-72 1SS133 LC876764C-51E5 10k DTC144TKA-T146 680 SLR-342VCT31 1SS133T-72 2SC3052- T12-1F 1SS133T-72 1N4148A-T265 1N4148A -T265 1SS133T-77 1SS133T-72 2SA1296 GR-(TYPE2) TUNER/BAND MD TAPE Y x z REC PAUSE/START . m - M > + Z u CD I/1 CONTROL BOARD LOADING BOARD M901 (TRAY) S1 CN151 5P (OPEN/CLOSE) + - CN601 26P TAPE MECHANISM DECK STANDBY SWITCH Q601 RESET T SOL DRIVE Q605 MOTOR DRIVE Q606 SWITCH Q607 8P Q602-Q604 5V REGULATOR CN602 13P 2SC3052-T12-1F 2SC3052-T12-1F R JR602 0 7p 0.1 R TO MAIN BOARD (1/4) CN302 (Page 25) C TO MAIN BOARD (1/4) CN303 (Page 25) B 5 6 IC603 IC604 MOTOR DRIVE IC602 RESET IC601 u Com R601 R631 R700 R701 R702 US, CND, AEP, UK, KR OTHER MODELS 10K NO MOUNT 0 10K 1K 3.9K 22K 22K NO MOUNT 22K • See page 18 for Waveforms. • See page 33 for IC Block Diagram. • See page 35 for IC Pin Function Description. Ver. 1.6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 24 HCD-GP5 6-6. Printed Wiring Boards – Main Section – IC301 IC201 AEP,UK,KR AEP,UK,KR S S G G D D S G D 1 14 15 28 R L MD R+ L+ R- L- 20 12 MAIN BOARD SUBWOOFER SPEAKERS R L TO TRANSFORMER BOARD CN801 (Page 29) D TO CD BOARD CN101 (Page 20) A TO CONTROL BOARD CN601 (Page 22) C TO CONTROL BOARD CN602 (Page 22) B TUNER UNIT 1-689-575- 1-689-576- PHONES HEADPHONE BOARD TAPE MECHANISM DECK Ref. No. Location • Semiconductor Location Ref. No. Location D301 E-2 D302 E-5 D303 B-4 D304 E-4 D402 F-6 D403 F-6 D404 H-6 D405 H-6 D406 G-6 D407 G-6 D408 C-7 D409 C-7 D410 C-7 D411 C-7 D412 C-7 D413 F-6 D414 H-6 D415 H-6 D417 F-6 D418 C-6 D419 H-7 D420 H-7 D421 C-6 D422 H-4 D423 H-4 D424 H-4 D425 G-4 D427 G-4 D428 H-4 D429 H-4 D430 H-4 D431 H-4 D432 G-4 D433 F-1 D434 H-2 D435 H-1 D501 G-1 IC201 H-3 IC301 E-4 Q301 F-1 Q302 F-2 Q303 E-1 Q304 E-1 Q305 E-3 Q306 E-2 Q307 E-2 Q308 D-3 Q309 E-3 Q310 E-3 Q311 E-2 Q312 D-5 Q313 E-5 Q314 C-3 Q315 C-3 Q316 C-3 Q401 E-7 Q402 I-6 Q403 H-6 Q404 G-4 Q405 H-7 Q406 F-1 Q407 F-1 Q408 H-4 Q409 H-4 Q410 H-4 Q411 G-4 Q415 H-7 Q416 I-7 Q417 H-7 Q418 C-6 Q419 C-6 Q501 G-1 Q502 G-1 Q503 G-2 Q504 H-3 Q505 H-3 Q506 G-3 Q507 G-1 Q508 G-1 Q509 G-1 Q510 G-1 Ver 1.3 2004.01 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 25 HCD-GP5 6-7. Schematic Diagram – Main Section (1/4) – 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0.1 -4.3 4.8 0 5.1 5.1 0 10.2 (10.3) 8.0 (2.5) 4.6 (1.0) 5.2 (1.7) 0uH CN304 15P CN302 26P CN303 13P C339 1 / 50V C338 1 / 50V L203 10uH FB303 0uH L302 1uH L204 10uH CN305 21P V D304 UZ-4.7BSA-TP V V JR301 0 C357 0.22 / 50V C356 0.22 / 50V C355 0.22 / 50V C354 0.22 / 50V C351 4.7 / 50V C358 4.7 / 50V V V R369 820 FB302 0uH C345 100 / 10V JW342 D303 UZ-5.1BSB-TP Q316 2SA1980G Q314 2SC3052F-T1-LF Q315 2SC3052F-T1-LF 0uH 16V AEP, UK, KR AEP, UK, KR 1 2 3 4 5 28 6 7 8 9 10 11 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 MAIN BOARD (1/4) TUNER UNIT IC301 PB/REC EQ AMP Q312, Q313 SWITCH Q314 - Q316 REG AEP,UK,KR 10k 1k TO CONTROL BOARD CN601 (Page 23) C TO CONTROL BOARD CN602 (Page 23) B TO CD BOARD CN101 (Page 21) A TO MAIN BOARD (3/4) (Page 27) 2 TO MAIN BOARD (2/4) (Page 26) 1 IC B/D • See page 33 for IC Block Diagram. Ver. 1.6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 26 HCD-GP5 6-8. Schematic Diagram – Main Section (2/4) – 0.6 0 0 -0.3 0.4 0.4 0 -0.4 -0.4 3.1 0.1 0 0 0 0 0 30.6 15.6 -17.1 0.1 0.6 0.5 0.9 4.8 4.3 10.2 0.9 0.5 36.2 17.9 18.9 18.8 12.3 18.8 4.6 12.4 18.8 -11.8 -19.5 -36.9 -36.7 -12 -36.9 -19.4 -19.2 3.1 -19.2 3.1 3 FB203 0.45uH 25V MD R L IC201 *1 *1 IC201 AEP,UK,KR MODELS : STK403-030 OTHER MODELS : STK403-040 PHONES 5P 22p 22p 0.45uH 2.7k 2.7k SPEAKERS J203 SUBWOOFER J204 V MTZJ-T-77-8.2C F RL203GW-TA RL203GW-TA MTZJ-T-77-7.5B V 1SS133T-72 1SS133T-72 UZ-10BSC-TP F 2SC3052F-T1-LF 2SA1235F V 1K V 2SC3052F-T1-LF 2SC3052F-T1-LF 2SC3052F -T1-LF 2SC3052F-T1-LF V V KTC3199GR -TP 1SS133T-72 V V 10/50V 10/50V 1.8 1.8 0.0068 0.0068 DTC323TK DTC323TK 2SA1235F R L 0 1 2 3 4 5 28 6 7 8 9 29 30 34 33 32 31 38 37 36 35 MAIN BOARD (2/4) HEADPHONE BOARD IC201 POWER AMP HOLD AC DET Q509, Q510 DC DET +VH REG +VH REG -VH REG DC DET DC DET Q506 MUTE CONTROL Q504, Q505 MUTE POWER CONTROL 4.7k R R TO MAIN BOARD (1/4) (Page 25) 1 TO MAIN BOARD (4/4) (Page 28) 3 IC B/D • See page 34 for IC Block Diagram. Ver. 1.6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 27 HCD-GP5 6-9. Schematic Diagram – Main Section (3/4) – 3.4 (-0.4) 3.8 (0) 0 (-0.4) 0 -0.2 (-0.7) 3.7 (-0.4) 3.4 (-0.4) 0 0 0 (-0.4) 0 0 10.3 10.2 10.2 10.3 9.8 9.8 0.7 (4.9) 1.2 (5.5) 1.2 (6.9) 0.5 0.5 0.5 1.1 Q308 2SK2158-T2B D301 1SS133T-72 Q310 2SA1162-G Q307 2SK2158-T2B Q309 2SA1162-G Q306 DTA124EUA-T106 Q311 DTA124EUA-T106 Q305 2SK2158-T2B C333 100 / 16V CN301 7P L301 BIAS OSCILLATION Q302 2SC5343GL Q301 2SC5343GL Q303 2SC5343GL Q304 2SC3052F-T1-LF V V V Q419 2SC3266GR D421 MTZJ-T-72-5.6B R331 0 C346 0.1 D302 UZ-4.7BSA-TP V 25V 25V 10 11 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 40 41 47 46 45 44 43 42 MAIN BOARD (3/4) TAPE MECHANISM DECK Q305 - Q311 REC/PLAY SWITCH Q301, Q302 BIAS OSC Q303, Q304 BIAS SWITCH REGULATOR s s s TO MAIN BOARD (1/4) (Page 25) 2 TO MAIN BOARD (4/4) (Page 28) 4 7 • See page 18 for Waveform. Ver. 1.6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 28 HCD-GP5 6-10. Schematic Diagram – Main Section (4/4) – 10.2 10.3 5.6 5 1.2(7) 17.9(17) 17.9(16.3) 1.6(0) 0(4.7) 1.5(0.1) 1.7(0.8) 18.3(17.6) 1.8(1.0) 0(0.6) 9.6 17.5 17 10.3 16.2 0.9 0.6 0 0 0.6 -31.2 -31.7 -34.5 0.7 0.2 D418 UZ-5.1BSB-TP PN401 2SC2712L-TE85R 0.047 0.047 (F20) (F20) (F20) (F20) RL203GW-TA RL203GW-TA RL203GW-TA RL203GW-TA 1N4003LES 1N4003LES 1N4003LES 1N4003LES V 2SA1979 V MTZJ-T-77-33D -E L 1SS133T-72 C427 470P 2SC2712L -TE85L MTZJ-T-72-8.2C V 1SS133T-72 50V 2SC3052F-T1-LF G 0 V R319 JW L T-72 T-72 -E L 1SS133T-72 MTZJ-T-77-8.2C 29 40 41 30 34 33 32 31 38 37 36 35 47 46 45 44 43 42 RELAY DRIVE Q402, Q403, Q405 REG Q415, Q417 POWER CONTROL POWER CONTROL Q406, Q407 REG Q413 -VFL VOLTAGE REGULATOR MAIN BOARD (4/4) TO MAIN BOARD (3/4) (Page 27) 4 TO MAIN BOARD (2/4) (Page 26) 3 TO TRANSFORMER BOARD CN801 (Page 30) D Ver. 1.6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 29 HCD-GP5 6-11. Printed Wiring Board – Power Section – • See page 17 for Circuit Boards Location. TRANSFORMER BOARD TRANSFORMER BOARD POWER TRANSFORMER POWER TRANSFORMER PT802 POWER TRANSFORMER (SUB) PT802 POWER TRANSFORMER (SUB) TO MAIN BOARD PN401 (Page 24) 1 2 JW807 JW806 TW AC IN TW E51 E51 E51,TW SW801 VOLTAGE SELECTOR 220-240V 230V AC IN D TO MAIN BOARD PN401 (Page 24) D 1 2 EXCEPT E51,TW US,CND Ver. 1.6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 30 HCD-GP5 PT801 POWER TRANSFORMER 0 0 RY801 POWER RELAY CN801 9P PT802 POWER TRANSFORMER (SUB) 0 0 D802 1SS133T-72 D803 1SS133T-72 D801 1SS133T-72 D804 1SS133T-72 AC IN 0 AC IN 0 0 CN802 2P * * not replaceable bult in transformer L801 LINE FILTER E51 US,CND E51 TW TW SW801 VOLTAGE SELECTOR TRANSFORMER BOARD E51, TW EXCEPT E51, TW 220-240V 120V 0 L801 LINE FILTER 0 0 RY801 POWER RELAY PT802 POWER TRANSFORMER (SUB) 0 PT801 POWER TRANSFORMER 0 D802 1SS133T-72 D803 1SS133T-72 D801 1SS133T-72 D804 1SS133T-72 * * not replaceable bult in transformer TRANSFORMER BOARD CN802 2P CN801 9P TO MAIN BOARD (4/4) PN401 (Page 28) D TO MAIN BOARD (4/4) PN401 (Page 28) D 6-12. Schematic Diagram – Power Section – Ver. 1.6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 HCD-GP5 LEVEL SHIFT INTERFACE INTERFACE INTERFACE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 20 21 22 23 24 25 26 27 28 19 18 17 16 15 F R R F F R R F R R F F MUTE THERMAL SHUTDOWN VREFOUT VREFIN POWVCC CH1FIN CH1RIN CH2FIN CH2RIN CH2OUTR CH2OUTF CH1OUTR CH1OUTF CAPAIN1 CAPAIN2 GND PRFVCC MUTE POWVCC CH4SIN' CH4SIN CH4BIN CH3FIN CH3RIN CH3OUTR CH3OUTF CH4OUTR CH4OUTF CAPAIN3 GND • IC Block Diagrams IC101 CXD3017Q IC102 BA5974FP-E2 TE RFDC CE IGEN AVSS0 ADIO AVDD0 CLTV FILO AVSS3 VSS AVDD3 DOUT VDD PCO FILI ASYO ASYI RFAC BIAS SSTP DFCT MIRR MDP LOCK FOK SFDR VSS TEST FRDR FE VC COUT SE XTSL TES1 SRDR TFDR FFDR TRDR 2 1 70 71 68 69 66 67 64 65 62 61 63 73 74 72 75 76 77 78 79 80 4 XRST 3 SQCK SQSO 5 9 8 7 6 56 60 53 54 55 59 57 58 51 52 48 49 50 47 44 45 46 43 41 42 XLAT CLOK SENS SYSM DATA XUGF XPCK GFS C2PO WFCK 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 32 33 30 31 36 37 34 35 39 40 38 28 27 29 SPOA ATSK SCLK VDD SCOR SPOB XLON XTAI XVDD EMPH AVDD1 AOUT1 AIN1 XTAO XVSS AIN2 AOUT2 AVDD2 RMUT LOUT2 LOUT1 BCK LRCK PCMD LMUT AVSS1 AVSS2 CPU INTERFACE SERVO AUTO SEQUENCER SERIAL IN INTERFACE OVER SAMPLING DIGITAL FILTER 3rd ORDER NOISE SHAPER PWM PWM EFM DEMODULATOR TIMING LOGIC DIGITAL OUT D/A INTERFACE DIGITAL PLL ASYMMETRY CORRECTOR CLOCK GENERATOR MIRR, DFCT, FOK DETECTOR DIGITAL CLV SUBCODE PROCESSOR SERVO INTERFACE SERVO DSP FOCUS SERVO TRACKING SERVO SLED SERVO PWM GENERATOR FOCUS PWM GENERATOR TRACKING PWM GENERATOR SLED PWM GENERATOR 16K RAM ERROR CORRECTOR INTERNAL BUS A/D CONVERTER OPERATIONAL AMPLIFIER ANALOG SWITCH – CD Board – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 HCD-GP5 IC103 CXA2581N-T4 RW/ROM RW/ROM EQ ON/OFF VOFST VOFST DVC VC VC VC RW/ROM VC DVC 30 29 28 + – + – DVC VCC DVC 27 26 25 24 RW/ROM EQ 23 22 21 20 19 RFAC VCA VCC + – DVC + – + – RW/ROM VC RW/ROM DVC + – 3 A B C D B C A A A B C D B C D D + – 1 2 APC AMP 5 6 7 8 9 4 RFAC SUMMING AMP RW/ROM APC-OFF (Hi-Z) RW/ROM (H/L) VOFST VC RW/ROM + – 10 11 GM GM 18 17 16 B D A C 13 14 15 12 EQ IN LD PD GND A B C D AC SUM E F DVCC DVC RFAC SW DC OFST RFDCI RFDCO VC RFC VFC BST RFG VCC CEI CE TE BAL TE FEI FE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 HCD-GP5 REC-O_L REC-O_R TUNER-R TUNER-L CD-L AUX-L OUT-L OUT-R TON_L-L TON_L-R AUX-R CD-R VSS TON_H-R TON_H-L TAPE-L TAPE-R IC301 BD3881FV – MAIN Board – 1 2 3 4 5 6 7 8 9 CONTROL LOGIC TSD VREF OUT2 OUT1 RNF VM VCC FIN GND RIN IC604 BA6956AN – CONTROL Board – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 HCD-GP5 IC201 STK403-040 PRE DRIVER IC CH1 1 2 3 4 5 6 7 8 9 10 11 12 PRE DRIVER IC CH2 BIAS CIRCUIT –VCC (–VP) +VCC (+VP) CH1 OUT CH2 OUT +PRE SUB GND CH1 IN CH1 NF ST BY CH2 NF CH2 IN C4 C2 C1 C3 TR4 TR6 TR3 TR2 TR5 TR1 R5 R6 R1 R2 R3 R4 R7 R8 SUB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 HCD-GP5 6-13. IC Pin Function Description IC601 LC876764A-51E5 System Control (CONTROL Board) Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 to 33 34 to 44 45 46 47 to 50 51 52 to 66 67, 68 69 to 71 72 73 74 75 76 77 78 79 80 81 82 83 I/O O O I O I O O O O O I I O — I O — I I I I I I I I I I I I — O O — O — O — I — O O O O O — I O O O O Pin Name C-PWM1 C-PWM2 C-SCOR T-SOL T-END T-MTR.CONT O-SHIFT P-CON PAMP-MUTE F-DATA I-RESET I-XT1 O-XT2 GND. XIN XOUT VDD1 I-KEY1 I-KEY2 BASS ENC INPUT TRBLE ENC INPUT VOL-ENC RDS-SIG T-SW I-POWER MONI I-POWER DOWN RDS-CLK CD-DOOR-SW RMC-IN NC O-GRID1 to 11 O-SEG1 VDD3 O-SEG2 to 5 GND. O-SEG6 to 20 NC I-INI-1 to 3 VDD4 O-CLOSE O-OPEN LED-CONT O-DSG T-REC I-INI.BASS+2 T-PLAY.SW R-MUTE O-BIAS CD-FUN O-PWM3E Description PWM1 signal output to the CD unit PWM2 signal output to the CD unit SCOR (SUBQ request) signal output to the CD unit Solenoid control signal output to the tape deck Tape deck reel switch signal input Motor control signal output to the tape deck Clock shift control signal output Power relay control signal output Muting control signal output to the power amplifier Control signal output to the sound processor Reset signal input from the reset IC (IC603) Resonator terminal (32.768kHz) Resonator terminal (32.768kHz) Ground terminal Resonator terminal (8.64MHz) Resonator terminal (8.64MHz) Power supply terminal Key AD input 1 Key AD input 2 Encoder signal input from the bass encoder Encoder signal input from the treble encoder Encoder signal input from the volume encoder RDS signal level input from the tuner Tape switch status signal input from the tape deck (SW2 to 4) Power amplifier overload monitoring signal input Power down detection signal input RDS clock input from the tuner CD door open/close switch signal input Remote sensor signal input Not used (open) Grid signal output to the fluorescent indicator tube Segment signal output to the fluorescent indicator tube Power supply terminal Segment signal output to the fluorescent indicator tube Ground terminal Segment signal output to the fluorescent indicator tube Not used (open) Initial selection signal input Power supply terminal CD tray close control signal output CD tray open control signal output Standby LED control signal output Not used (open) REC/PLAY control signal output to the REC/PLAY switch circuit Not used (fixed at “L”) Play switch signal input from the tape deck Muting signal output to the tuner Bias control signal output to the bias oscillation circuit CD power supply control signal output Tuner power supply control siganl output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 HCD-GP5 Pin No. 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 I/O O O O O O — — I I I I O I O O I O Pin Name R-CE C-XRST C-XLT C-DATA C-SQCK VSS2 VDD2 RDS-DATA R-ST R-TUNED C-SENS C-LDON C-SQSO C-CLK R-DATA R-COUNT R-CLK Description Tuner chip enable signal output to the tuner Reset signal output to the CD unit Latch signal output to the CD unit Data output to the CD unit SUBQ clock output to the CD unit Ground terminal Power supply terminal RDS data input from the tuner Stereo/mono detection signal input from the tuner Tuner tuned status signal input SENS signal input from the CD unit LD ON signal output to the CD unit SUB-Q data input from the CD unit Clock output to the CD unit Data output to the tuner IF count signal input from the tuner Clock signal output to the tuner www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SECTION 7 EXPLODED VIEWS 37 HCD-GP5 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. NOTE: • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Abbreviation AUS : Australian model CND : Canadian model E51 : Chilean and Peruvian models HK : Hong Kong model KR : Korean model SP : Singapore model TW : Taiwan model Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 7-1. Overall Section 5 1 3 4 #3 #2 #2 #2 #2 #3 #3 a a #3 #1 #1 #1 front panel section chassis section CD mechanism deck section not supplied not supplied not supplied b b 2 6 1 4-247-756-01 CABINET, TOP (US,CND,AEP,UK,KR) 1 4-247-756-21 CABINET, TOP (AUS,E51,HK,SP,TW) 2 1-827-731-11 WIRE (FLAT TYPE)(11 CORE) (EXCEPT AEP,UK,KR) 2 1-828-984-11 WIRE (FLAT TYPE)(15 CORE)(AEP,UK,KR) 3 1-693-619-11 TUNER (FM/AM)(AEP,UK,KR) 3 1-693-620-11 TUNER (FM/AM)(AUS,E51,HK,SP,TW) 3 1-693-624-11 TUNER (FM/AM)(US,CND) 4 4-247-367-01 LID,CD 05 1-765-558-11 CORD, POWER (EXCEPT US,CND,TW,KR) 05 1-769-079-22 CORD, POWER (KR) 05 1-783-532-11 CORD, POWER (US,CND,TW) 6 1-827-714-11 WIRE (FLAT TYPE)(21 CORE) #1 7-685-248-14 SCREW +KTP 3X12 TYPE2 NON-SLIT #2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 NON-S #3 7-685-647-14 SCREW +BVTP 3X10 TYPE2 NON-S Ver 1.5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 HCD-GP5 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 7-2. Front Panel Section 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 73 76 77 79 #2 #2 #2 #2 #2 #2 #2 not supplied not supplied not supplied not supplied not supplied not supplied 72 51 4-247-757-01 SPR-T,CASS 52 X-4955-860-1 LID TC ASSY 53 X-4955-859-1 HOLDER CASSETTE ASSY 54 4-238-631-01 TAPE SPRING 55 4-247-361-01 COVER, DISPLAY 56 4-247-374-01 WINDOW,DISPLAY 57 4-247-366-01 CABINET, FRONT (AEP,UK) 57 4-247-366-21 CABINET, FRONT (EXCEPT AEP,UK) 58 4-247-376-01 POWER,INDICATER 59 4-247-370-01 BUTTON,POWER 60 4-247-357-01 CAP, AUX 61 4-247-358-01 CAP, CD 62 4-247-359-01 CAP, TUNING 63 4-247-356-01 CAP, VOL 64 4-247-360-01 COVER, RING 65 1-689-576-11 HEADPHONE BOARD 66 4-247-369-01 BUTTON,OPEN/CLOSE 67 4-247-368-01 BUTTON,FUNCTION 68 4-231-841-01 SPRING (HEART CAM-B) 69 4-231-825-01 CAM (B), HEART 70 4-242-318-01 OIL-DMPR, 70 71 4-247-752-01 RUBBER, FOOT 72 1-829-747-11 WIRE (FLAT TYPE)(26 CORE) 73 1-796-351-51 MECHANISM, SINGLE CASSETTE 76 4-247-371-01 BUTTON,CD 77 A-4747-954-A CONTROL BOARD, COMPLETE (AEP,UK,KR) 77 A-4747-960-A CONTROL BOARD, COMPLETE (US,CND) 77 A-4748-774-A CONTROL BOARD, COMPLETE (E51,HK,SP,TW,AUS) 79 3-229-336-01 SCREW +BVWH TAPPING #2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 NON-S Ver 1.5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 HCD-GP5 7-3. Chassis Section not supplied not supplied PT801 not supplied not supplied #2 #2 #4 #2 #2 #2 #2 #2 101 102 103 not supplied 101 4-247-752-01 RUBBER, FOOT 102 1-689-574-11 TRANSFORMER BOARD (EXCEPT E51,TW) 102 1-870-066-11 TRANSFORMER BOARD (E51, TW) 103 A-4747-957-A MAIN BOARD, COMPLETE (AEP,UK,KR) 103 A-4747-962-A MAIN BOARD, COMPLETE (US,CND) 103 A-4748-777-A MAIN BOARD, COMPLETE (E51,HK,SP,TW,AUS) 0PT801 1-443-032-11 TRANSFORMER, POWER (US,CND) 0PT801 1-443-033-11 TRANSFORMER, POWER (AEP,UK) 0PT801 1-443-034-11 TRANSFORMER, POWER (HK,SP,AUS) 0PT801 1-443-035-11 TRANSFORMER, POWER (E51,TW) 0PT801 1-443-036-11 TRANSFORMER, POWER (KR) #2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 NON-S #4 7-682-561-09 SCREW +B 4X8P Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. Ver. 1.6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 HCD-GP5 7-4. CD Mechanism Deck Setion M901 #6 #7 151 152 153 154 155 156 157 158 160 159 161 162 166 167 164 165 174 168 169 171 170 170 172 163 170 167 173 171 169 169 169 not supplied not supplied optical pick-up (KSM-213D) 151 1-674-336-12 LOADING BOARD 152 4-925-315-31 DAMPER 153 4-224-894-22 TRAY (CDM55D) 154 4-220-233-01 CAM (CDM55) 155 4-221-815-11 ROLLER 156 4-220-237-01 GEAR (A) 157 4-220-234-01 PULLEY (LDG) 158 4-221-816-01 BELT (CDM55) 159 4-227-598-01 SPACER (55) 160 4-220-238-01 GEAR (B) 161 4-220-229-02 LEVER (SW) 162 4-220-239-01 SPRING, TORSION 163 A-4728-536-A CD BOARD, COMPLETE 164 A-4735-082-A MAGNET 165 4-231-777-02 SHEET (KH2) 166 4-244-962-01 HOLDER (C213) 167 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING 168 4-229-358-01 SHAFT (BU21) 169 4-227-549-11 INSULATOR 170 4-244-959-01 SPRING (T213), COMPRESSION 171 4-231-151-01 STOPPER (BU) 172 4-218-253-31 SCREW (M2.6), +BTTP 173 1-757-055-11 WIRE, PARALLEL (FFC) (16 CORE) 174 4-231-781-02 PULLEY (AT-55F) M901 A-4735-337-A MOTOR (LD) ASSY (TRAY) #6 7-685-533-19 SCREW +BTP 2.6X6 TYPE2 N-S #7 7-621-255-32 SCREW +P 2X5 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks Ver 1.2 2003.11 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 HCD-GP5 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. 7-5. KSM-213D 601 Ref. No. Part No. Description Remarks Ver 1.2 2003.11 0601 A-4735-357-A OPTICAL PICK-UP ASSY (KSM213DHAP/ZRP1) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 42 SECTION 8 ELECTRICAL PARTS LIST HCD-GP5 NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable • CAPACITORS: uF: µF • COILS uH: µH • SEMICONDUCTORS In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD... • Abbreviation AUS : Australian model CND: Canadian model E51 : Chilean and Peruvian models When indicating parts by reference number, please include the board name. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. HK : Hong Kong model KR : Korean model SP : Singapore model TW : Taiwan model A-4728-536-A CD BOARD, COMPLETE ******************* < CAPACITOR > C101 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C102 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C103 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C104 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C108 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C109 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C110 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C111 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C112 1-115-156-11 CERAMIC CHIP 1uF 10V C114 1-164-360-11 CERAMIC CHIP 0.1uF 16V C116 1-126-382-11 ELECT 100uF 20% 16V C117 1-126-382-11 ELECT 100uF 20% 16V C118 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C121 1-164-360-11 CERAMIC CHIP 0.1uF 16V C122 1-126-933-11 ELECT 100uF 20% 16V C123 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C124 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C125 1-164-360-11 CERAMIC CHIP 0.1uF 16V C126 1-164-360-11 CERAMIC CHIP 0.1uF 16V C127 1-126-382-11 ELECT 100uF 20% 16V C130 1-164-360-11 CERAMIC CHIP 0.1uF 16V C131 1-126-933-11 ELECT 100uF 20% 16V C133 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C140 1-115-156-11 CERAMIC CHIP 1uF 10V C143 1-164-360-11 CERAMIC CHIP 0.1uF 16V C145 1-164-360-11 CERAMIC CHIP 0.1uF 16V C146 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C153 1-164-360-11 CERAMIC CHIP 0.1uF 16V C159 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V C162 1-126-382-11 ELECT 100uF 20% 16V C163 1-126-933-11 ELECT 100uF 20% 16V C165 1-164-360-11 CERAMIC CHIP 0.1uF 16V C167 1-162-920-11 CERAMIC CHIP 27PF 5% 50V C168 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C171 1-115-412-11 CERAMIC CHIP 680PF 5% 25V C172 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C181 1-115-412-11 CERAMIC CHIP 680PF 5% 25V C182 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C183 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C184 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C185 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C190 1-115-156-11 CERAMIC CHIP 1uF 10V C191 1-126-933-11 ELECT 100uF 20% 16V C192 1-126-382-11 ELECT 100uF 20% 16V C193 1-126-382-11 ELECT 100uF 20% 16V C194 1-164-360-11 CERAMIC CHIP 0.1uF 16V C196 1-164-360-11 CERAMIC CHIP 0.1uF 16V C197 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C198 1-126-933-11 ELECT 100uF 20% 16V C199 1-162-962-11 CERAMIC CHIP 470PF 10% 50V < CONNECTOR > CN101 1-770-528-31 CONNECTOR, FFC/FPC 21P CN102 1-779-466-21 CONNECTOR, FFC (LIF (NON-ZIF)) 16P < DIODE > D101 8-719-056-77 DIODE UDZ-TE-17-3.9B < FERRITE BEAD > FB101 1-469-144-21 FERRITE, EMI (SMD) (2012) FB103 1-469-144-21 FERRITE, EMI (SMD) (2012) < IC > IC101 8-752-402-31 IC CXD3017Q IC102 8-759-549-28 IC BA5974FP-E2 IC103 8-752-089-74 IC CXA2581N-T4 < JUMPER RESISTOR > JR101 1-216-864-11 SHORT CHIP 0 < TRANSISTOR > Q101 8-729-049-31 TRANSISTOR 2SB710A-RTX Q102 8-729-920-85 TRANSISTOR 2SD1664-QR < RESISTOR > R101 1-216-821-11 METAL CHIP 1K 5% 1/10W R102 1-216-845-11 METAL CHIP 100K 5% 1/10W R103 1-216-835-11 METAL CHIP 15K 5% 1/10W R104 1-216-839-11 METAL CHIP 33K 5% 1/10W R106 1-216-821-11 METAL CHIP 1K 5% 1/10W R107 1-216-833-11 METAL CHIP 10K 5% 1/10W R108 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R109 1-216-857-11 METAL CHIP 1M 5% 1/10W R111 1-216-846-11 METAL CHIP 120K 5% 1/10W R114 1-218-745-11 METAL CHIP 160K 0.5% 1/10W R116 1-216-797-11 METAL CHIP 10 5% 1/10W CD Ver. 1.6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 43 HCD-GP5 R117 1-216-821-11 METAL CHIP 1K 5% 1/10W R118 1-216-809-11 METAL CHIP 100 5% 1/10W R119 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R120 1-216-835-11 METAL CHIP 15K 5% 1/10W R122 1-216-845-11 METAL CHIP 100K 5% 1/10W R123 1-216-833-11 METAL CHIP 10K 5% 1/10W R124 1-216-845-11 METAL CHIP 100K 5% 1/10W R143 1-216-836-11 METAL CHIP 18K 5% 1/10W R144 1-216-836-11 METAL CHIP 18K 5% 1/10W R147 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R148 1-216-797-11 METAL CHIP 10 5% 1/10W R149 1-216-797-11 METAL CHIP 10 5% 1/10W R150 1-216-833-11 METAL CHIP 10K 5% 1/10W R151 1-216-845-11 METAL CHIP 100K 5% 1/10W R158 1-216-837-11 METAL CHIP 22K 5% 1/10W R159 1-216-837-11 METAL CHIP 22K 5% 1/10W R162 1-216-847-11 METAL CHIP 150K 5% 1/10W R171 1-216-837-11 METAL CHIP 22K 5% 1/10W R172 1-216-837-11 METAL CHIP 22K 5% 1/10W R173 1-216-837-11 METAL CHIP 22K 5% 1/10W R181 1-216-837-11 METAL CHIP 22K 5% 1/10W R182 1-216-837-11 METAL CHIP 22K 5% 1/10W R183 1-216-837-11 METAL CHIP 22K 5% 1/10W R190 1-216-813-11 METAL CHIP 220 5% 1/10W R191 1-216-839-11 METAL CHIP 33K 5% 1/10W R192 1-216-839-11 METAL CHIP 33K 5% 1/10W R193 1-216-846-11 METAL CHIP 120K 5% 1/10W R194 1-216-845-11 METAL CHIP 100K 5% 1/10W R195 1-216-853-11 METAL CHIP 470K 5% 1/10W R196 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R197 1-216-821-11 METAL CHIP 1K 5% 1/10W < RESISTOR > RN101 1-233-576-11 RES, CHIP NETWORK 100 (3216) < SWITCH > S101 1-771-853-11 SWITCH, DETECTION (LIMIT) < VIBRATOR > X101 1-767-226-11 VIBRATOR, CRYSTAL (16.9344MHz) ************************************************************ A-4747-954-A CONTROL BOARD, COMPLETE (AEP, UK, KR) A-4747-960-A CONTROL BOARD, COMPLETE (US, CND) A-4748-774-A CONTROL BOARD, COMPLETE (E51, HK, SP, TW, AUS) ************************ 4-247-818-01 GUIDE (FL) 4-247-819-01 HOLDER, SENSOR 4-247-820-01 FILTER, FL < CAPACITOR > C604 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C605 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C606 1-126-963-11 ELECT 4.7uF 20% 50V C607 1-126-963-11 ELECT 4.7uF 20% 50V C608 1-126-916-11 ELECT 1000uF 20% 6.3V C609 1-163-059-91 CERAMIC CHIP 0.01uF 10% 50V C610 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C611 1-124-584-00 ELECT 100uF 20% 10V C612 1-124-234-00 ELECT 22uF 20% 10V C614 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C615 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C616 1-162-913-11 CERAMIC CHIP 8PF 0.5PF 50V C617 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C618 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C619 1-162-912-11 CERAMIC CHIP 7PF 0.5PF 50V C620 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C621 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C622 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C623 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C624 1-126-947-11 ELECT 47uF 20% 35V C625 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C628 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C627 1-126-964-11 ELECT 10uF 20% 50V C628 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C629 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C630 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C631 1-162-282-31 CERAMIC 100PF 10% 50V C632 1-162-282-31 CERAMIC 100PF 10% 50V C633 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C634 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C635 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C636 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C637 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C638 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C639 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C640 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C641 1-126-960-11 ELECT 1uF 20% 50V C642 1-126-963-11 ELECT 4.7uF 20% 50V C643 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C644 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C645 1-162-282-31 CERAMIC 100PF 10% 50V C646 1-126-964-11 ELECT 10uF 20% 50V C647 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C648 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C649 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C650 1-126-933-11 ELECT 100uF 20% 16V C651 1-162-282-31 CERAMIC 100PF 10% 50V C652 1-126-160-11 ELECT 1.0uF 20% 50V C653 1-126-160-11 ELECT 1.0uF 20% 50V < CONNECTOR > CN601 1-779-294-11 CONNECTOR, FFC (LIF (NON-ZIF)) 26P CN602 1-779-550-21 CONNECTOR, FFC (LIF (NON-ZIF)) 13P * CN603 1-770-516-31 CONNECTOR, FFC/FPC 8P < DIODE > D601 8-719-010-41 DIODE UZ-5.6BSA D602 8-719-991-33 DIODE 1SS133T-77 D603 8-719-991-33 DIODE 1SS133T-77 D604 8-719-991-33 DIODE 1SS133T-77 D605 8-719-991-33 DIODE 1SS133T-77 D606 8-719-991-33 DIODE 1SS133T-77 CD CONTROL Ver. 1.6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 44 HCD-GP5 D607 8-719-991-33 DIODE 1SS133T-77 D608 8-719-989-91 DIODE 1N4148A-T265 D609 8-719-989-91 DIODE 1N4148A-T265 < FERRITE BEAD > FB601 1-412-473-21 INDUCTOR (SMALL TYPE) < FLUORESCENT INDICATOR TUBE > FL601 1-518-908-11 INDICATOR TUBE, FLUORESCENT < IC > IC601 6-803-170-01 IC LC876764C-51E5 IC602 6-700-250-01 IC PST3445UL IC603 6-701-681-01 IC RPM7140-V4 IC604 8-759-598-69 IC BA6956AN < JUMPER RESISTOR > JR601 1-216-864-11 SHORT CHIP 0 JR602 1-216-864-11 SHORT CHIP 0 JR604 1-216-864-11 SHORT CHIP 0 JR607 1-216-864-11 SHORT CHIP 0 < COIL > L601 1-410-509-11 INDUCTOR 10uH L602 1-410-509-11 INDUCTOR 10uH < LED > LED601 8-719-059-98 DIODE SLR-342VC3F < TRANSISTOR > Q601 8-729-230-49 TRANSISTOR 2SC2712-YG Q602 6-550-296-01 TRANSISTOR 2SA1980G Q603 8-729-230-49 TRANSISTOR 2SC2712-YG Q604 8-729-230-49 TRANSISTOR 2SC2712-YG Q605 6-550-297-01 TRANSISTOR 2SA1981Y Q606 6-550-305-01 TRANSISTOR 2SA1296GR-(TPE2) Q607 8-729-900-53 TRANSISTOR DTC114EK Q608 8-729-027-60 TRANSISTOR DTC144TKA-T146 < RESISTOR > R601 1-216-828-11 METAL CHIP 3.9K 5% 1/10W (E51, HK, SP, TW, AUS) R601 1-216-833-11 METAL CHIP 10K 5% 1/10W (US, CND, AEP, UK, KR) R602 1-216-821-11 METAL CHIP 1K 5% 1/10W R603 1-216-821-11 METAL CHIP 1K 5% 1/10W R604 1-216-821-11 METAL CHIP 1K 5% 1/10W R605 1-216-821-11 METAL CHIP 1K 5% 1/10W R606 1-216-841-11 METAL CHIP 47K 5% 1/10W R607 1-247-807-31 CARBON 100 5% 1/4W R608 1-247-807-31 CARBON 100 5% 1/4W R609 1-216-809-11 METAL CHIP 100 5% 1/10W R610 1-216-809-11 METAL CHIP 100 5% 1/10W R611 1-216-809-11 METAL CHIP 100 5% 1/10W R612 1-249-429-11 CARBON 10K 5% 1/4W R613 1-247-831-91 CARBON 1K 5% 1/4W R614 1-247-831-91 CARBON 1K 5% 1/4W R615 1-247-831-91 CARBON 1K 5% 1/4W R616 1-247-831-91 CARBON 1K 5% 1/4W R617 1-247-831-91 CARBON 1K 5% 1/4W R618 1-247-831-91 CARBON 1K 5% 1/4W R619 1-216-845-11 METAL CHIP 100K 5% 1/10W R620 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R621 1-216-821-11 METAL CHIP 1K 5% 1/10W R622 1-216-835-11 METAL CHIP 15K 5% 1/10W R623 1-216-817-11 METAL CHIP 470 5% 1/10W R624 1-216-833-11 METAL CHIP 10K 5% 1/10W R625 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R626 1-216-833-11 METAL CHIP 10K 5% 1/10W R627 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R629 1-249-436-11 CARBON 39K 5% 1/4W R631 1-216-837-11 METAL CHIP 22K 5% 1/10W R632 1-216-845-11 METAL CHIP 100K 5% 1/10W R633 1-216-845-11 METAL CHIP 100K 5% 1/10W R634 1-216-833-11 METAL CHIP 10K 5% 1/10W R635 1-216-845-11 METAL CHIP 100K 5% 1/10W R636 1-216-845-11 METAL CHIP 100K 5% 1/10W R637 1-216-845-11 METAL CHIP 100K 5% 1/10W R638 1-216-845-11 METAL CHIP 100K 5% 1/10W R639 1-216-845-11 METAL CHIP 100K 5% 1/10W R640 1-216-845-11 METAL CHIP 100K 5% 1/10W R641 1-216-845-11 METAL CHIP 100K 5% 1/10W R642 1-216-845-11 METAL CHIP 100K 5% 1/10W R643 1-216-845-11 METAL CHIP 100K 5% 1/10W R644 1-216-845-11 METAL CHIP 100K 5% 1/10W R645 1-216-845-11 METAL CHIP 100K 5% 1/10W R646 1-216-845-11 METAL CHIP 100K 5% 1/10W R647 1-216-845-11 METAL CHIP 100K 5% 1/10W R648 1-216-845-11 METAL CHIP 100K 5% 1/10W R649 1-216-845-11 METAL CHIP 100K 5% 1/10W R650 1-216-845-11 METAL CHIP 100K 5% 1/10W R651 1-216-845-11 METAL CHIP 100K 5% 1/10W R652 1-216-845-11 METAL CHIP 100K 5% 1/10W R653 1-216-845-11 METAL CHIP 100K 5% 1/10W R654 1-216-845-11 METAL CHIP 100K 5% 1/10W R655 1-216-845-11 METAL CHIP 100K 5% 1/10W R656 1-216-845-11 METAL CHIP 100K 5% 1/10W R657 1-216-845-11 METAL CHIP 100K 5% 1/10W R658 1-216-845-11 METAL CHIP 100K 5% 1/10W R659 1-216-835-11 METAL CHIP 15K 5% 1/10W R660 1-216-845-11 METAL CHIP 100K 5% 1/10W R661 1-216-845-11 METAL CHIP 100K 5% 1/10W R662 1-216-841-11 METAL CHIP 47K 5% 1/10W R663 1-216-841-11 METAL CHIP 47K 5% 1/10W R664 1-247-887-00 CARBON 220K 5% 1/4W R665 1-216-841-11 METAL CHIP 47K 5% 1/10W R666 1-216-821-11 METAL CHIP 1K 5% 1/10W R667 1-216-853-11 METAL CHIP 470K 5% 1/10W R668 1-216-809-11 METAL CHIP 100 5% 1/10W R669 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R670 1-216-833-11 METAL CHIP 10K 5% 1/10W R671 1-216-841-11 METAL CHIP 47K 5% 1/10W R672 1-216-841-11 METAL CHIP 47K 5% 1/10W R673 1-216-298-00 RES-CHIP 2.2 5% 1/10W R674 1-216-833-11 METAL CHIP 10K 5% 1/10W CONTROL Ver. 1.6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 45 HCD-GP5 R675 1-216-837-11 METAL CHIP 22K 5% 1/10W R676 1-216-837-11 METAL CHIP 22K 5% 1/10W R677 1-216-839-11 METAL CHIP 33K 5% 1/10W R678 1-216-837-11 METAL CHIP 22K 5% 1/10W R679 1-218-179-11 RES-CHIP 10M 5% 1/10W R680 1-216-821-11 METAL CHIP 1K 5% 1/10W R681 1-216-821-11 METAL CHIP 1K 5% 1/10W R682 1-249-415-11 CARBON 680 5% 1/4W R683 1-216-845-11 METAL CHIP 100K 5% 1/10W R684 1-249-426-11 CARBON 5.6K 5% 1/4W R685 1-216-845-11 METAL CHIP 100K 5% 1/10W R686 1-218-817-11 METAL CHIP 3.3 10% 1/2W R687 1-249-426-11 CARBON 5.6K 5% 1/4W R688 1-249-429-11 CARBON 10K 5% 1/4W R689 1-216-809-11 METAL CHIP 100 5% 1/10W R690 1-216-809-11 METAL CHIP 100 5% 1/10W R691 1-247-807-31 CARBON 100 5% 1/4W R692 1-216-809-11 METAL CHIP 100 5% 1/10W R693 1-216-809-11 METAL CHIP 100 5% 1/10W R694 1-216-809-11 METAL CHIP 100 5% 1/10W R695 1-216-809-11 METAL CHIP 100 5% 1/10W R696 1-216-809-11 METAL CHIP 100 5% 1/10W R697 1-247-807-31 CARBON 100 5% 1/4W R698 1-247-807-31 CARBON 100 5% 1/4W R699 1-247-807-31 CARBON 100 5% 1/4W R700 1-216-295-91 SHORT CHIP 0 (US, CND, AEP, UK, KR) R700 1-216-837-11 METAL CHIP 22K 5% 1/10W (E51, HK, SP, TW, AUS) R701 1-216-833-11 METAL CHIP 10K 5% 1/10W (US, CND, AEP, UK, KR) R702 1-216-837-11 METAL CHIP 22K 5% 1/10W (E51, HK, SP, TW, AUS) R702 1-247-831-91 CARBON 1K 5% 1/4W (US, CND, AEP, UK, KR) R703 1-249-425-11 CARBON 4.7K 5% 1/4W R704 1-249-425-11 CARBON 4.7K 5% 1/4W R705 1-216-845-11 METAL CHIP 100K 5% 1/10W R706 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R707 1-249-430-11 CARBON 12K 5% 1/4W R708 1-216-840-11 METAL CHIP 39K 5% 1/10W R709 1-216-833-11 METAL CHIP 10K 5% 1/10W R710 1-247-831-91 CARBON 1K 5% 1/4W R711 1-218-833-11 METAL CHIP 270 0.5% 1/10W R712 1-247-831-91 CARBON 1K 5% 1/4W R713 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R714 1-216-824-11 METAL CHIP 1.8K 5% 1/10W R715 1-249-422-11 CARBON 2.7K 5% 1/4W R716 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R717 1-249-427-11 CARBON 6.8K 5% 1/4W R718 1-216-834-11 METAL CHIP 12K 5% 1/10W R719 1-249-419-11 CARBON 1.5K 5% 1/4W R720 1-216-824-11 METAL CHIP 1.8K 5% 1/10W R721 1-249-422-11 CARBON 2.7K 5% 1/4W R722 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R723 1-247-831-91 CARBON 1K 5% 1/4W R724 1-249-426-11 CARBON 5.6K 5% 1/4W R725 1-216-845-11 METAL CHIP 100K 5% 1/10W R726 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R727 1-216-845-11 METAL CHIP 100K 5% 1/10W R728 1-216-845-11 METAL CHIP 100K 5% 1/10W R729 1-247-831-91 CARBON 1K 5% 1/4W R734 1-216-838-11 METAL CHIP 27K 5% 1/10W R735 1-247-879-91 CARBON 100K 5% 1/4W R736 1-247-879-91 CARBON 100K 5% 1/4W < SWITCH > S601 1-786-050-21 SWITCH, KEY BOARD (TUNER/BAND) S602 1-786-050-21 SWITCH, KEY BOARD (bB TAPE) S603 1-786-050-21 SWITCH, KEY BOARD (MD) S604 1-786-050-21 SWITCH, KEY BOARD (Z) S605 1-786-050-21 SWITCH, KEY BOARD (x) S606 1-786-050-21 SWITCH, KEY BOARD (+ M>) S607 1-786-050-21 SWITCH, KEY BOARD (.m -) S608 1-786-050-21 SWITCH, KEY BOARD (~/1) S609 1-786-050-21 SWITCH, KEY BOARD (DISPLAY) S610 1-786-050-21 SWITCH, KEY BOARD (PLAY MODE/TUNING MODE) S611 1-786-050-21 SWITCH, KEY BOARD (CD SYNC) S612 1-786-050-21 SWITCH, KEY BOARD (z REC PAUSE/START) S613 1-786-050-21 SWITCH, KEY BOARD (CD u) S614 1-786-050-21 SWITCH, KEY BOARD (DSG) S615 1-786-050-21 SWITCH, KEY BOARD (VOL+) S616 1-786-050-21 SWITCH, KEY BOARD (VOL-) < VIBRATOR > X601 9-300-001-87 VIB, XTAL 32.768KHZ CFS-308 CT (32.768kHz) X602 1-795-880-11 VIBRATOR, CERAMIC (8.64MHz) ************************************************************ 1-689-576-11 HEADPHONE BOARD ***************** < JACK > J202 1-816-219-11 JACK, HEADPHONE (PHONES) < COIL > L205 1-414-142-11 INDUCTOR 1uH < RESISTOR > R201 1-249-409-11 CARBON 220 5% 1/4W R202 1-249-412-11 CARBON 390 5% 1/4W R203 1-249-409-11 CARBON 220 5% 1/4W R204 1-249-412-11 CARBON 390 5% 1/4W ************************************************************ 1-674-336-12 LOADING BOARD ************* < CONNECTOR > * CN151 1-568-943-11 PIN, CONNECTOR 5P < SWITCH > S1 1-786-203-11 SWITCH, LEVER (SLIDE)(OPEN/CLOSE) ************************************************************ CONTROL HEADPHONE LOADING Ver. 1.6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 46 HCD-GP5 A-4747-957-A MAIN BOARD, COMPLETE (AEP, UK, KR) A-4747-962-A MAIN BOARD, COMPLETE (US, CND) A-4748-777-A MAIN BOARD, COMPLETE (E51, HK, SP, TW, AUS) ******************** < CAPACITOR > C205 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C206 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C207 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C208 1-164-156-11 CERAMIC CHIP 0.1uF 25V C219 1-164-156-11 CERAMIC CHIP 0.1uF 25V C220 1-164-156-11 CERAMIC CHIP 0.1uF 25V C231 1-164-156-11 CERAMIC CHIP 0.1uF 25V C301 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C302 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C305 1-106-361-00 MYLAR 0.0056uF 5% 100V C306 1-126-923-91 ELECT 220uF 20% 10V C307 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C308 1-162-979-11 CERAMIC CHIP 0.0027uF 10% 50V C309 1-162-979-11 CERAMIC CHIP 0.0027uF 10% 50V C310 1-162-979-11 CERAMIC CHIP 0.0027uF 10% 50V C311 1-164-156-11 CERAMIC CHIP 0.1uF 25V C312 1-164-156-11 CERAMIC CHIP 0.1uF 25V C313 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V (AEP, UK, KR) C314 1-164-156-11 CERAMIC CHIP 0.1uF 25V C315 1-124-589-11 ELECT 47uF 20% 16V C316 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C317 1-126-923-91 ELECT 220uF 20% 10V C318 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C319 1-126-947-11 ELECT 47uF 20% 35V C320 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C321 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C322 1-126-961-11 ELECT 2.2uF 20% 50V C323 1-126-961-11 ELECT 2.2uF 20% 50V C324 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C325 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V C326 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V C327 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C328 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C329 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C330 1-126-947-11 ELECT 47uF 20% 35V C331 1-126-947-11 ELECT 47uF 20% 35V C332 1-164-733-11 CERAMIC CHIP 820PF 10% 50V C333 1-126-933-11 ELECT 100uF 20% 16V C334 1-164-733-11 CERAMIC CHIP 820PF 10% 50V C335 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C338 1-126-160-11 ELECT 1uF 20% 50V C339 1-126-160-11 ELECT 1uF 20% 50V C341 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C344 1-126-947-11 ELECT 47uF 20% 35V C345 1-104-658-91 ELECT 100uF 20% 10V C346 1-127-888-21 CERAMIC 0.1uF 10% 50V C351 1-126-963-11 ELECT 4.7uF 20% 50V C352 1-126-956-91 ELECT 0.1uF 20% 50V C353 1-126-956-91 ELECT 0.1uF 20% 50V C354 1-124-464-11 ELECT 0.22uF 20% 50V C355 1-124-464-11 ELECT 0.22uF 20% 50V C356 1-124-464-11 ELECT 0.22uF 20% 50V C357 1-124-464-11 ELECT 0.22uF 20% 50V C358 1-126-963-11 ELECT 4.7uF 20% 50V C359 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C360 1-162-977-11 CERAMIC CHIP 0.0018uF 10% 50V C361 1-162-977-11 CERAMIC CHIP 0.0018uF 10% 50V C362 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C363 1-164-218-11 CERAMIC CHIP 180PF 5% 50V C364 1-164-218-11 CERAMIC CHIP 180PF 5% 50V C367 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C368 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C384 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C385 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C387 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C390 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C392 1-164-156-11 CERAMIC CHIP 0.1uF 25V C396 1-128-801-21 CERAMIC 22PF 5% 50V C397 1-164-733-11 CERAMIC CHIP 820PF 10% 50V C398 1-164-733-11 CERAMIC CHIP 820PF 10% 50V C401 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C402 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C403 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C404 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C405 1-137-420-11 MYLAR 0.047uF 10% 100V C406 1-137-420-11 MYLAR 0.047uF 10% 100V C407 1-119-940-51 ELECT 4700uF 20% 50V C408 1-119-940-51 ELECT 4700uF 20% 50V C409 1-128-548-11 ELECT 4700uF 20% 25V C410 1-128-548-11 ELECT 4700uF 20% 25V C412 1-126-947-11 ELECT 47uF 20% 35V C413 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C414 1-126-947-11 ELECT 47uF 20% 35V C416 1-126-966-11 ELECT 33uF 20% 50V C417 1-126-966-11 ELECT 33uF 20% 50V C418 1-126-968-11 ELECT 100uF 20% 50V C419 1-164-156-11 CERAMIC CHIP 0.1uF 25V C420 1-124-261-00 ELECT 10uF 20% 25V C421 1-126-967-11 ELECT 47uF 20% 50V C422 1-126-967-11 ELECT 47uF 20% 50V C424 1-124-584-00 ELECT 100uF 20% 10V C427 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C428 1-164-733-11 CERAMIC CHIP 820PF 10% 50V C431 1-164-733-11 CERAMIC CHIP 820PF 10% 50V C432 1-124-589-11 ELECT 47uF 20% 16V C433 1-124-584-00 ELECT 100uF 20% 10V C434 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C435 1-124-589-11 ELECT 47uF 20% 16V C436 1-126-967-11 ELECT 47uF 20% 50V C437 1-126-967-11 ELECT 47uF 20% 50V C438 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C439 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C440 1-130-321-11 FILM 0.1uF 5% 100V C441 1-130-321-11 FILM 0.1uF 5% 100V C501 1-126-966-11 ELECT 33uF 20% 50V C502 1-162-192-31 CERAMIC 2.7PF 10% 50V C503 1-162-192-31 CERAMIC 2.7PF 10% 50V MAIN Ver. 1.6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 47 HCD-GP5 C504 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C505 1-113-342-11 CERAMIC 0.1uF 50V C506 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C507 1-126-157-11 ELECT 10uF 20% 16V C508 1-126-157-11 ELECT 10uF 20% 16V C509 1-126-968-11 ELECT 100uF 20% 50V C510 1-124-261-00 ELECT 10uF 20% 25V C511 1-124-261-00 ELECT 10uF 20% 25V C512 1-128-817-21 CERAMIC 470PF 5% 50V C513 1-128-817-21 CERAMIC 470PF 5% 50V C514 1-130-481-91 FILM 0.0068uF 5% 50V C515 1-130-481-91 FILM 0.0068uF 5% 50V C516 1-126-947-11 ELECT 47uF 20% 35V C517 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C518 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C519 1-126-962-11 ELECT 3.3uF 20% 50V C520 1-126-967-11 ELECT 47uF 20% 50V < CONNECTOR > * CN201 1-564-520-11 PLUG, CONNECTOR 5P CN301 1-564-709-11 PIN, CONNECTOR (SMALL TYPE) 7P CN302 1-779-294-11 CONNECTOR, FFC (LIF (NON-ZIF)) 26P CN303 1-779-281-11 CONNECTOR, FFC (LIF (NON-ZIF)) 13P CN304 1-784-772-11 CONNECTOR, FFC 11P (EXCEPT AEP, UK, KR) CN304 1-784-776-11 CONNECTOR, FFC 15P (AEP, UK, KR) CN305 1-568-838-11 CONNECTOR, FFC 21P < DIODE > D301 8-719-991-33 DIODE 1SS133T-77 D302 8-719-010-32 DIODE UZ-4.7BSA D303 8-719-923-38 DIODE MTZJ-T-77-5.6B D304 8-719-010-32 DIODE UZ-4.7BSA D402 6-500-382-01 DIODE RL203GW-TA D403 6-500-382-01 DIODE RL203GW-TA D404 6-500-378-01 DIODE 1N5402GW (F20) D405 6-500-378-01 DIODE 1N5402GW (F20) D406 6-500-378-01 DIODE 1N5402GW (F20) D407 6-500-378-01 DIODE 1N5402GW (F20) D408 6-500-376-01 DIODE 1N4003LES D409 6-500-376-01 DIODE 1N4003LES D410 6-500-376-01 DIODE 1N4003LES D411 8-719-983-35 DIODE MTZJ-T-77-33D D412 6-500-376-01 DIODE 1N4003LES D413 6-500-382-01 DIODE RL203GW-TA D414 8-719-991-33 DIODE 1SS133T-77 D415 8-719-110-09 DIODE RD8.2ESB3 D416 6-500-335-01 DIODE MC2838-T112-1 D417 6-500-382-01 DIODE RL203GW-TA D418 8-719-923-38 DIODE MTZJ-T-77-5.6B D419 8-719-991-33 DIODE 1SS133T-77 D420 8-719-991-33 DIODE 1SS133T-77 D421 8-719-109-89 DIODE RD5.6ESB2 D422 8-719-921-63 DIODE MTZJ-7.5B D423 6-500-382-01 DIODE RL203GW-TA D425 8-719-110-09 DIODE RD8.2ESB3 D427 6-500-382-01 DIODE RL203GW-TA D428 8-719-991-33 DIODE 1SS133T-77 D429 8-719-991-33 DIODE 1SS133T-77 D430 8-719-048-55 DIODE MTZJ-T-77-10C D431 6-500-335-01 DIODE MC2838-T112-1 D432 6-500-334-01 DIODE MC2836-T112-1 D433 8-719-991-33 DIODE 1SS133T-77 D434 8-719-110-09 DIODE RD8.2ESB3 D435 8-719-991-33 DIODE 1SS133T-77 D501 8-719-991-33 DIODE 1SS133T-77 < FERRITE BEAD > FB202 1-410-396-41 FERRITE 0.45uH FB203 1-410-396-41 FERRITE 0.45uH FB301 1-412-473-21 INDUCTOR (SMALL TYPE) FB302 1-412-473-21 INDUCTOR (SMALL TYPE) FB303 1-412-473-21 INDUCTOR (SMALL TYPE) FB304 1-412-473-21 INDUCTOR (SMALL TYPE) < IC > IC201 6-703-084-01 IC STK403-030-E (AEP, UK, KR) IC201 6-704-106-01 IC STK403-040-E (EXCEPT AEP, UK, KR) IC301 6-702-895-01 IC BD3881FV < JACK > J201 1-793-478-11 JACK, PIN 2P (MD) J203 1-537-240-31 TERMINAL BOARD (CHECKER PIN)(SPEAKERS) J204 1-774-785-21 JACK, PIN 1P (SUB WOOFER) < COIL > L201 1-456-107-11 COIL, AIR-CORE L202 1-456-107-11 COIL, AIR-CORE L203 1-408-117-00 INDUCTOR 10uH L204 1-408-117-00 INDUCTOR 10uH L301 1-456-094-11 TRANSFORMER, BIAS OSCILLATION L302 1-408-105-31 INDUCTOR 1uH < CABLE HOLDER > PN401 1-784-584-11 HOLDER, CABLE (2.5mm PITCH) 7P < RESISTOR > 0PR501 1-220-890-11 METAL 0.22 10% 3W < TRANSISTOR > Q301 6-550-333-01 TRANSISTOR 2SC5343GL Q302 6-550-333-01 TRANSISTOR 2SC5343GL Q303 6-550-333-01 TRANSISTOR 2SC5343GL Q304 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q305 8-729-045-62 TRANSISTOR 2SK2158-T2B Q306 8-729-028-83 TRANSISTOR DTA124EUA-T106 Q307 8-729-045-62 TRANSISTOR 2SK2158-T2B Q308 8-729-045-62 TRANSISTOR 2SK2158-T2B Q309 8-729-216-22 TRANSISTOR 2SA1162-G Q310 8-729-216-22 TRANSISTOR 2SA1162-G Q311 8-729-028-83 TRANSISTOR DTA124EUA-T106 Q312 1-801-806-11 TRANSISTOR DTC144EKA Q313 1-801-806-11 TRANSISTOR DTC144EKA MAIN Ver. 1.6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 48 HCD-GP5 Q314 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q315 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q316 6-550-296-01 TRANSISTOR 2SA1980G Q401 8-729-230-49 TRANSISTOR 2SC2712-YG Q402 8-729-024-93 TRANSISTOR 2SB1565E Q403 6-550-333-01 TRANSISTOR 2SC5343GL Q404 6-550-293-01 TRANSISTOR 2SK2937 Q405 8-729-230-49 TRANSISTOR 2SC2712-YG Q406 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q407 6-550-296-01 TRANSISTOR 2SA1980G Q408 6-550-293-01 TRANSISTOR 2SK2937 Q409 6-550-289-01 TRANSISTOR 2SA1235F Q410 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q411 6-550-289-01 TRANSISTOR 2SA1235F Q415 8-729-900-53 TRANSISTOR DTC114EK Q416 8-729-024-93 TRANSISTOR 2SB1565E Q417 6-550-333-01 TRANSISTOR 2SC5343GL Q418 6-550-333-01 TRANSISTOR 2SC5343GL Q419 6-550-344-01 TRANSISTOR 2SC3266GR Q501 6-550-640-01 TRANSISTOR KTA1267 Q502 8-729-016-42 TRANSISTOR KTC3199GR-TP Q503 8-729-600-91 TRANSISTOR 2SC3052F-T1-LF Q504 8-729-010-84 TRANSISTOR DTC323TKT146 Q505 8-729-010-84 TRANSISTOR DTC323TKT146 Q506 6-550-289-01 TRANSISTOR 2SA1235F Q507 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q508 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q509 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q510 6-550-289-01 TRANSISTOR 2SA1235F < RESISTOR > R205 1-128-801-21 CERAMIC 22PF 5% 50V R206 1-216-793-11 METAL CHIP 4.7 5% 1/10W R207 1-128-801-21 CERAMIC 22PF 5% 50V R208 1-216-793-11 METAL CHIP 4.7 5% 1/10W R209 1-216-847-11 METAL CHIP 150K 5% 1/10W R210 1-216-847-11 METAL CHIP 150K 5% 1/10W R212 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R213 1-216-821-11 METAL CHIP 1K 5% 1/10W R214 1-216-821-11 METAL CHIP 1K 5% 1/10W R215 1-216-833-11 METAL CHIP 10K 5% 1/10W R216 1-216-833-11 METAL CHIP 10K 5% 1/10W R217 1-249-422-11 CARBON 2.7K 5% 1/4W R218 1-249-422-11 CARBON 2.7K 5% 1/4W R301 1-216-842-11 METAL CHIP 56K 5% 1/10W R302 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R303 1-216-840-11 METAL CHIP 39K 5% 1/10W R304 1-247-847-91 CARBON 4.7K 5% 1/4W R305 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R306 1-216-836-11 METAL CHIP 18K 5% 1/10W R307 1-216-836-11 METAL CHIP 18K 5% 1/10W R308 1-249-392-11 CARBON 8.2 5% 1/4W R309 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R310 1-216-835-11 METAL CHIP 15K 5% 1/10W R311 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R312 1-247-847-91 CARBON 4.7K 5% 1/4W R313 1-216-813-11 METAL CHIP 220 5% 1/10W (AEP, UK, KR) R314 1-216-813-11 METAL CHIP 220 5% 1/10W (AEP, UK, KR) R315 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R316 1-216-857-11 METAL CHIP 1M 5% 1/10W R317 1-216-840-11 METAL CHIP 39K 5% 1/10W R318 1-216-817-11 METAL CHIP 470 5% 1/10W R321 1-216-809-11 METAL CHIP 100 5% 1/10W R322 1-216-809-11 METAL CHIP 100 5% 1/10W R323 1-216-852-11 METAL CHIP 390K 5% 1/10W R324 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R325 1-216-836-11 METAL CHIP 18K 5% 1/10W R326 1-216-836-11 METAL CHIP 18K 5% 1/10W R327 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R328 1-216-852-11 METAL CHIP 390K 5% 1/10W R329 1-216-835-11 METAL CHIP 15K 5% 1/10W R330 1-216-833-11 METAL CHIP 10K 5% 1/10W R331 1-216-864-11 SHORT CHIP 0 R332 1-216-833-11 METAL CHIP 10K 5% 1/10W R333 1-247-847-91 CARBON 4.7K 5% 1/4W R334 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R335 1-216-836-11 METAL CHIP 18K 5% 1/10W R336 1-249-409-11 CARBON 220 5% 1/4W R337 1-249-413-11 CARBON 470 5% 1/4W R338 1-249-413-11 CARBON 470 5% 1/4W R339 1-247-807-31 CARBON 100 5% 1/4W R340 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R341 1-216-833-11 METAL CHIP 10K 5% 1/10W R342 1-216-833-11 METAL CHIP 10K 5% 1/10W R343 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R344 1-216-833-11 METAL CHIP 10K 5% 1/10W R345 1-216-843-11 METAL CHIP 68K 5% 1/10W R346 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R347 1-216-843-11 METAL CHIP 68K 5% 1/10W R348 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R349 1-249-429-11 CARBON 10K 5% 1/4W R350 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R351 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R352 1-249-429-11 CARBON 10K 5% 1/4W R353 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R354 1-216-837-11 METAL CHIP 22K 5% 1/10W R355 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R356 1-216-837-11 METAL CHIP 22K 5% 1/10W R357 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R358 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R359 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R360 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R361 1-216-820-11 METAL CHIP 820 5% 1/10W R362 1-216-833-11 METAL CHIP 10K 5% 1/10W R363 1-216-821-11 METAL CHIP 1K 5% 1/10W R364 1-216-821-11 METAL CHIP 1K 5% 1/10W R365 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R366 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R367 1-216-824-11 METAL CHIP 1.8K 5% 1/10W R368 1-216-833-11 METAL CHIP 10K 5% 1/10W R369 1-216-820-11 METAL CHIP 820 5% 1/10W R370 1-216-836-11 METAL CHIP 18K 5% 1/10W R371 1-216-836-11 METAL CHIP 18K 5% 1/10W R372 1-216-824-11 METAL CHIP 1.8K 5% 1/10W R373 1-216-826-11 METAL CHIP 2.7K 5% 1/10W MAIN Ver. 1.6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 49 HCD-GP5 R374 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R377 1-249-434-11 CARBON 27K 5% 1/4W R378 1-249-434-11 CARBON 27K 5% 1/4W R389 1-216-840-11 METAL CHIP 39K 5% 1/10W R390 1-216-817-11 METAL CHIP 470 5% 1/10W R391 1-216-789-11 METAL CHIP 2.2 5% 1/10W R394 1-216-821-11 METAL CHIP 1K 5% 1/10W R395 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R396 1-216-809-11 METAL CHIP 100 5% 1/10W R397 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R401 1-249-430-11 CARBON 12K 5% 1/4W R402 1-216-802-11 METAL CHIP 27 5% 1/10W R403 1-216-083-00 RES-CHIP 27K 5% 1/10W R404 1-216-083-00 RES-CHIP 27K 5% 1/10W R405 1-218-446-11 METAL CHIP 1 5% 1/10W R406 1-249-381-11 CARBON 1 5% 1/4W R407 1-218-446-11 METAL CHIP 1 5% 1/10W R408 1-249-381-11 CARBON 1 5% 1/4W R412 1-216-833-11 METAL CHIP 10K 5% 1/10W R413 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R414 1-249-413-11 CARBON 470 5% 1/4W R415 1-216-844-11 METAL CHIP 82K 5% 1/10W R416 1-216-807-11 METAL CHIP 68 5% 1/10W R417 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R419 1-216-833-11 METAL CHIP 10K 5% 1/10W R421 1-216-833-11 METAL CHIP 10K 5% 1/10W R422 1-216-813-11 METAL CHIP 220 5% 1/10W R423 1-216-817-11 METAL CHIP 470 5% 1/10W R424 1-247-883-00 CARBON 150K 5% 1/4W R425 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R427 1-216-833-11 METAL CHIP 10K 5% 1/10W R428 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R429 1-249-413-11 CARBON 470 5% 1/4W R430 1-216-845-11 METAL CHIP 100K 5% 1/10W R431 1-216-797-11 METAL CHIP 10 5% 1/10W R432 1-247-847-91 CARBON 4.7K 5% 1/4W R433 1-216-817-11 METAL CHIP 470 5% 1/10W R434 1-249-422-11 CARBON 2.7K 5% 1/4W R435 1-249-422-11 CARBON 2.7K 5% 1/4W R436 1-216-797-11 METAL CHIP 10 5% 1/10W R437 1-216-861-11 METAL CHIP 2.2M 5% 1/10W R438 1-216-049-11 RES-CHIP 1K 5% 1/10W R439 1-216-057-00 RES-CHIP 2.2K 5% 1/10W R440 1-216-057-00 RES-CHIP 2.2K 5% 1/10W R441 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R442 1-216-049-11 RES-CHIP 1K 5% 1/10W R444 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R445 1-216-073-91 RES-CHIP 10K 5% 1/10W R447 1-216-218-91 RES-CHIP 6.8K 5% 1/8W R449 1-216-218-91 RES-CHIP 6.8K 5% 1/8W R450 1-216-833-11 METAL CHIP 10K 5% 1/10W R451 1-216-833-11 METAL CHIP 10K 5% 1/10W R452 1-216-841-11 METAL CHIP 47K 5% 1/10W R453 1-216-841-11 METAL CHIP 47K 5% 1/10W R454 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R455 1-247-847-91 CARBON 4.7K 5% 1/4W R456 1-216-817-11 METAL CHIP 470 5% 1/10W R457 1-216-841-11 METAL CHIP 47K 5% 1/10W R458 1-216-841-11 METAL CHIP 47K 5% 1/10W R459 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R460 1-247-847-91 CARBON 4.7K 5% 1/4W R461 1-216-817-11 METAL CHIP 470 5% 1/10W R465 1-216-813-11 METAL CHIP 220 5% 1/10W R466 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R467 1-216-807-11 METAL CHIP 68 5% 1/10W R468 1-249-429-11 CARBON 10K 5% 1/4W R469 1-216-817-11 METAL CHIP 470 5% 1/10W R470 1-247-831-91 CARBON 1K 5% 1/4W R471 1-216-837-11 METAL CHIP 22K 5% 1/10W R474 1-216-821-11 METAL CHIP 1K 5% 1/10W R501 1-247-873-91 CARBON 56K 5% 1/4W R502 1-247-873-91 CARBON 56K 5% 1/4W R503 1-249-429-11 CARBON 10K 5% 1/4W R504 1-216-057-00 RES-CHIP 2.2K 5% 1/10W R505 1-216-837-11 METAL CHIP 22K 5% 1/10W R506 1-216-833-11 METAL CHIP 10K 5% 1/10W R507 1-216-833-11 METAL CHIP 10K 5% 1/10W R508 1-247-879-91 CARBON 100K 5% 1/4W R509 1-247-879-91 CARBON 100K 5% 1/4W R510 1-216-848-11 METAL CHIP 180K 5% 1/10W R512 1-249-430-11 CARBON 12K 5% 1/4W R513 1-215-863-11 METAL OXIDE 100 5% 1W R514 1-216-824-11 METAL CHIP 1.8K 5% 1/10W R515 1-216-824-11 METAL CHIP 1.8K 5% 1/10W R516 1-216-821-11 METAL CHIP 1K 5% 1/10W R518 1-216-841-11 METAL CHIP 47K 5% 1/10W R519 1-216-857-11 METAL CHIP 1M 5% 1/10W R520 1-216-833-11 METAL CHIP 10K 5% 1/10W R521 1-247-831-91 CARBON 1K 5% 1/4W R522 1-216-842-11 METAL CHIP 56K 5% 1/10W R523 1-216-842-11 METAL CHIP 56K 5% 1/10W R524 1-216-821-11 METAL CHIP 1K 5% 1/10W R525 1-216-821-11 METAL CHIP 1K 5% 1/10W R526 1-247-871-91 CARBON 47K 5% 1/4W R527 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R528 1-216-824-11 METAL CHIP 1.8K 5% 1/10W R529 1-216-824-11 METAL CHIP 1.8K 5% 1/10W R530 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R531 1-216-833-11 METAL CHIP 10K 5% 1/10W R532 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R533 1-216-821-11 METAL CHIP 1K 5% 1/10W R534 1-216-857-11 METAL CHIP 1M 5% 1/10W R535 1-216-845-11 METAL CHIP 100K 5% 1/10W ************************************************************ 1-689-574-11 TRANSFORMER BOARD (EXCEPT E51,TW) 1-870-066-11 TRANSFORMER BOARD (E51,TW) ******************* < CAPACITOR > C101 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C801 1-126-941-11 ELECT 470uF 20% 25V < CONNECTOR > * CN801 1-564-512-11 PLUG, CONNECTOR 9P MAIN TRANSFORMER Ver. 1.6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks 50 HCD-GP5 CN802 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P < DIODE > D801 8-719-991-33 DIODE 1SS133T-77 D802 8-719-991-33 DIODE 1SS133T-77 D803 8-719-991-33 DIODE 1SS133T-77 D804 8-719-991-33 DIODE 1SS133T-77 < COIL > 0L801 1-402-663-11 TRANSFORMER, LINE FILTER (LFT) < TRANSFORMER > 0PT802 1-439-781-11 TRANSFORMER, POWER (US, CND) 0PT802 1-439-772-11 TRANSFORMER, POWER (E51, HK, SP, TW, AUS) 0PT802 1-443-041-11 TRANSFORMER, POWER (AEP, UK, KR) < RESISTOR > 0R803 1-219-776-11 CARBON 2.2M 10% 1/2W (US, CND) < RELAY > 0RY801 1-755-276-11 RELAY, POWER < SWITCH > 0SW801 1-786-404-11 SELECTOR, VOLTAGE (SWS-2201) (VOLTAGE SELECTOR) (E51) ************************************************************ MISCELLANEOUS *************** 2 1-827-731-11 WIRE (FLAT TYPE) (11 CORE) (EXCEPT AEP, UK, KR) 2 1-828-984-11 WIRE (FLAT TYPE) (15 CORE) (AEP, UK, KR) 3 1-693-619-11 TUNER (FM/AM) (AEP, UK, KR) 3 1-693-620-11 TUNER (FM/AM) (E51, HK, SP, TW, AUS) 3 1-693-624-11 TUNER (FM/AM) (US, CND) 05 1-555-795-00 CORD, POWER (EXCEPT US, CND, TW, KR) 05 1-769-079-22 CORD, POWER (KR) 05 1-783-532-11 CORD, POWER (US, CND, TW) 6 1-827-714-11 WIRE (FLAT TYPE) (21 CORE) 72 1-829-747-11 WIRE (FLAT TYPE) (26 CORE) 73 1-796-351-51 MECHANISM, SIGNAL CASSETTE 173 1-757-055-11 WIRE, PARALLEL (FFC) (16 CORE) 0601 A-4735-357-A OPTICAL PICK-UP ASSY (KSM213DHAP/ZRP1) M901 A-4735-337-A MOTOR (LD) ASSY (TRAY) 0PT801 1-443-032-11 TRANSFORMER, POWER (US, CND) 0PT801 1-443-033-11 TRANSFORMER, POWER (AEP, UK) 0PT801 1-443-034-11 TRANSFORMER, POWER (HK, SP, AUS) 0PT801 1-443-035-11 TRANSFORMER, POWER (E51, TW) 0PT801 1-443-036-11 TRANSFORMER, POWER (KR) ` The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. TRANSFORMER Ver. 1.6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 HCD-GP5 MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GP5 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2003.06 New 1.1 2003.07 Addition of Singapore, Hong Kong, Chilean, Peruvian and Australian models 1.2 2003.11 Deletion of 3-10. KSS-213D in DISASSEMBLY. Change of Part No. for Ref. No. 601 (KSM-213D) (SPM-03061) 1.3 2004.01 Addition of Korean and Taiwan models 1.4 2004.08 Change of Part No. for PT801 and PT802 (SPM-04075) 1.5 2004.10 Addition of FLAT WIRE for Ref.No. 2, 6 and 72 (SPM-04133) 1.6 2006.02 Change of Parts No. for Ref. PT801 and PT802 on TRANSFORMER BOARD Change of CONTROL BOARD Change of ELECTRIC PARTS LIST (SPM-06011) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
