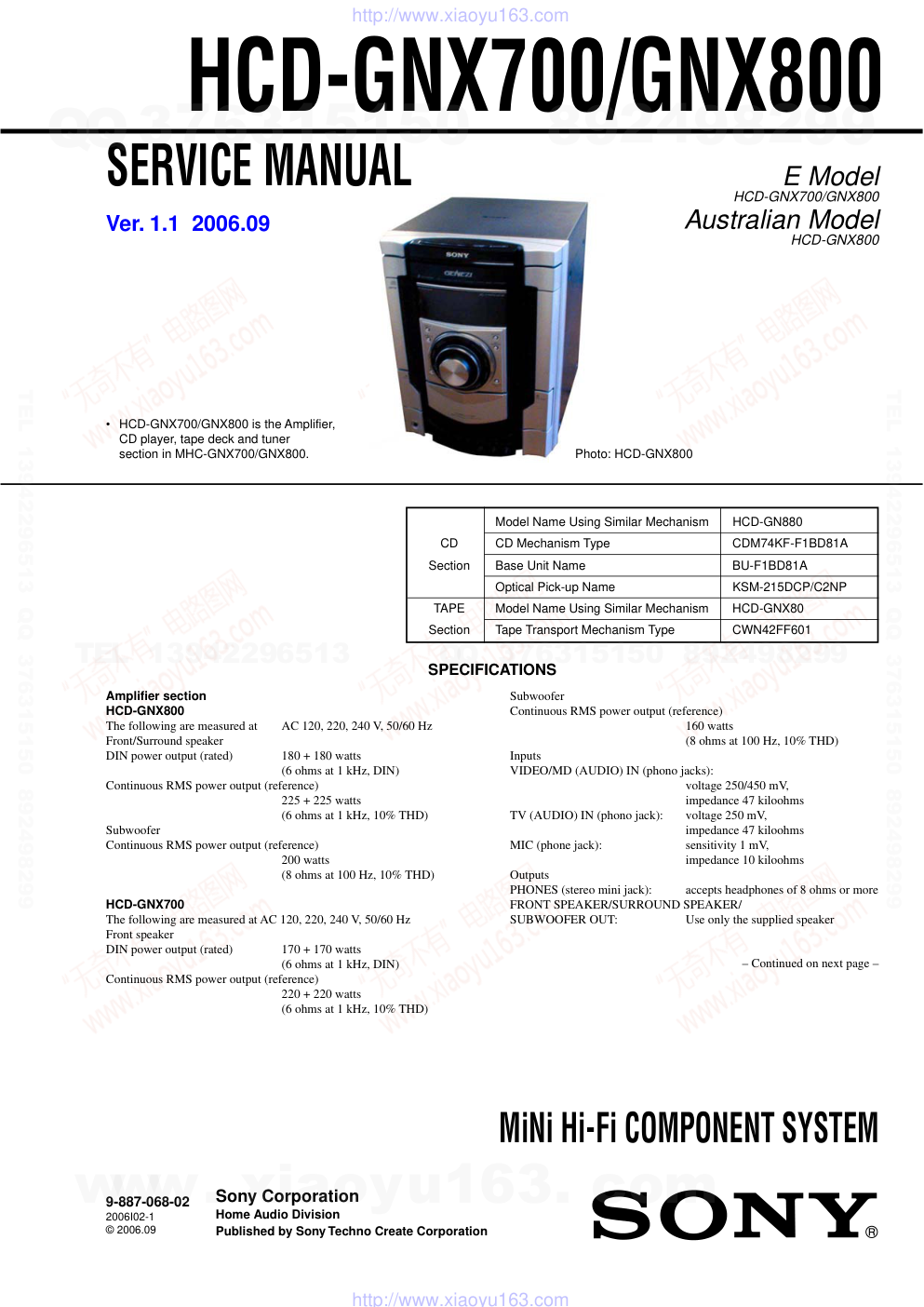

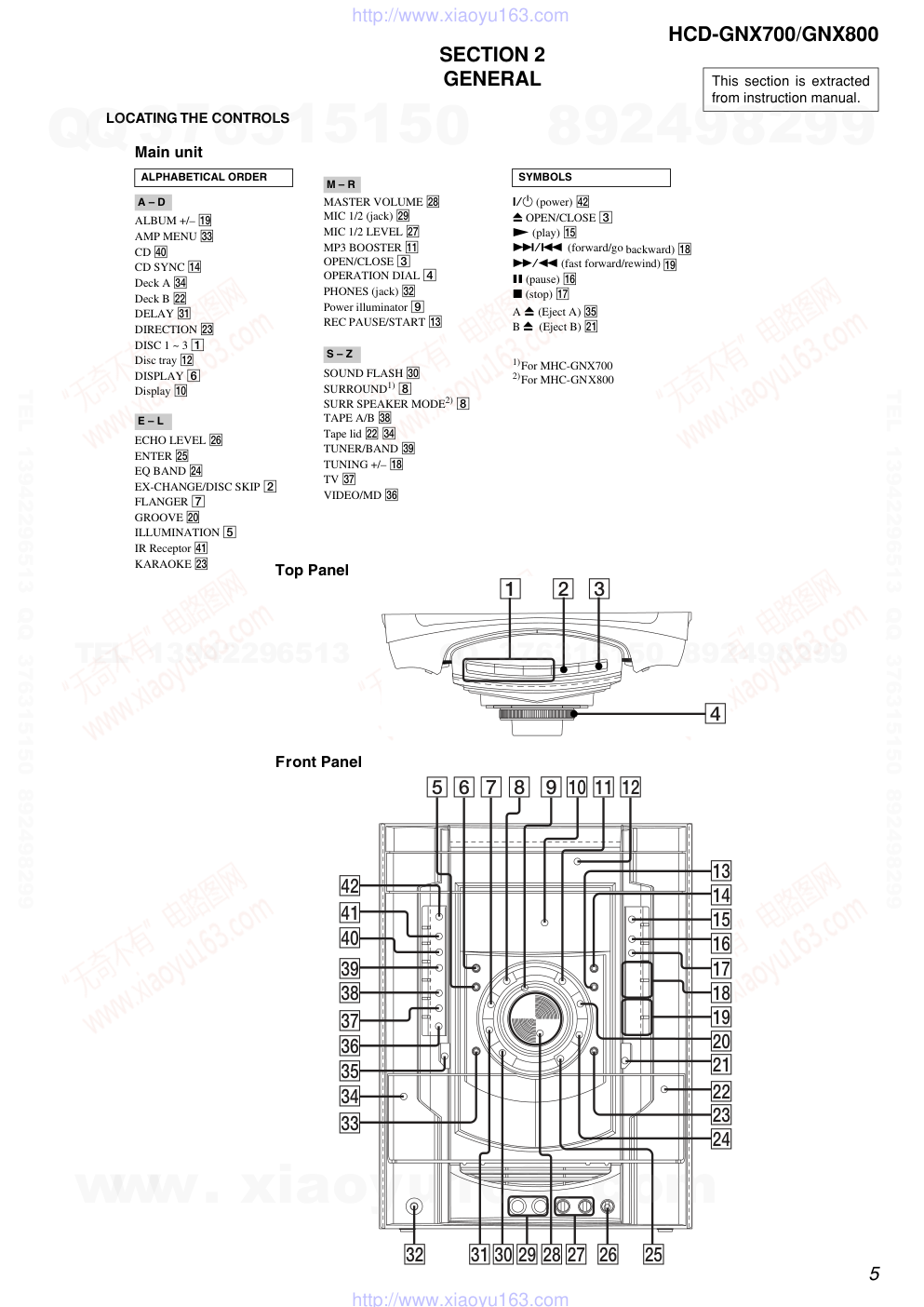

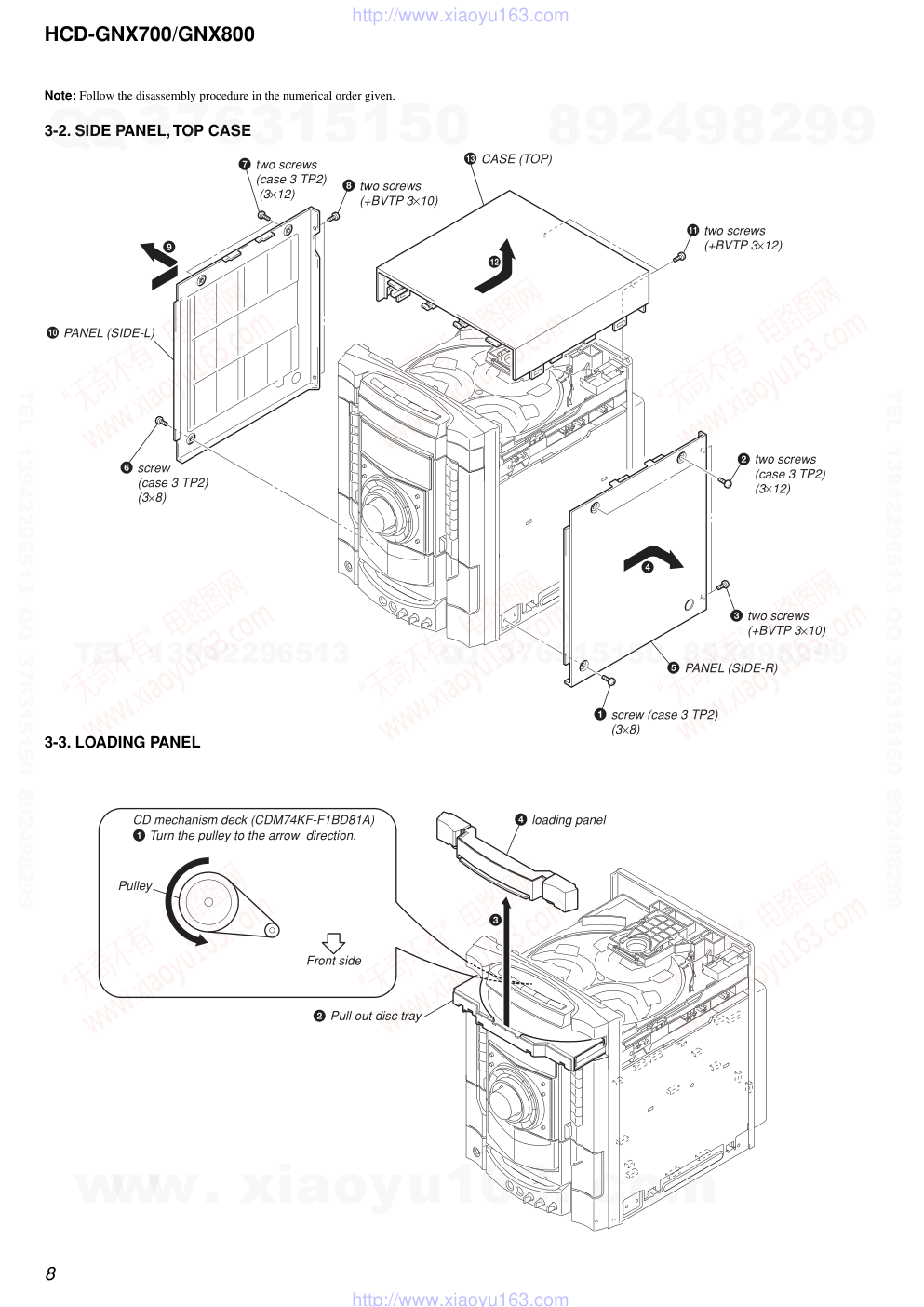

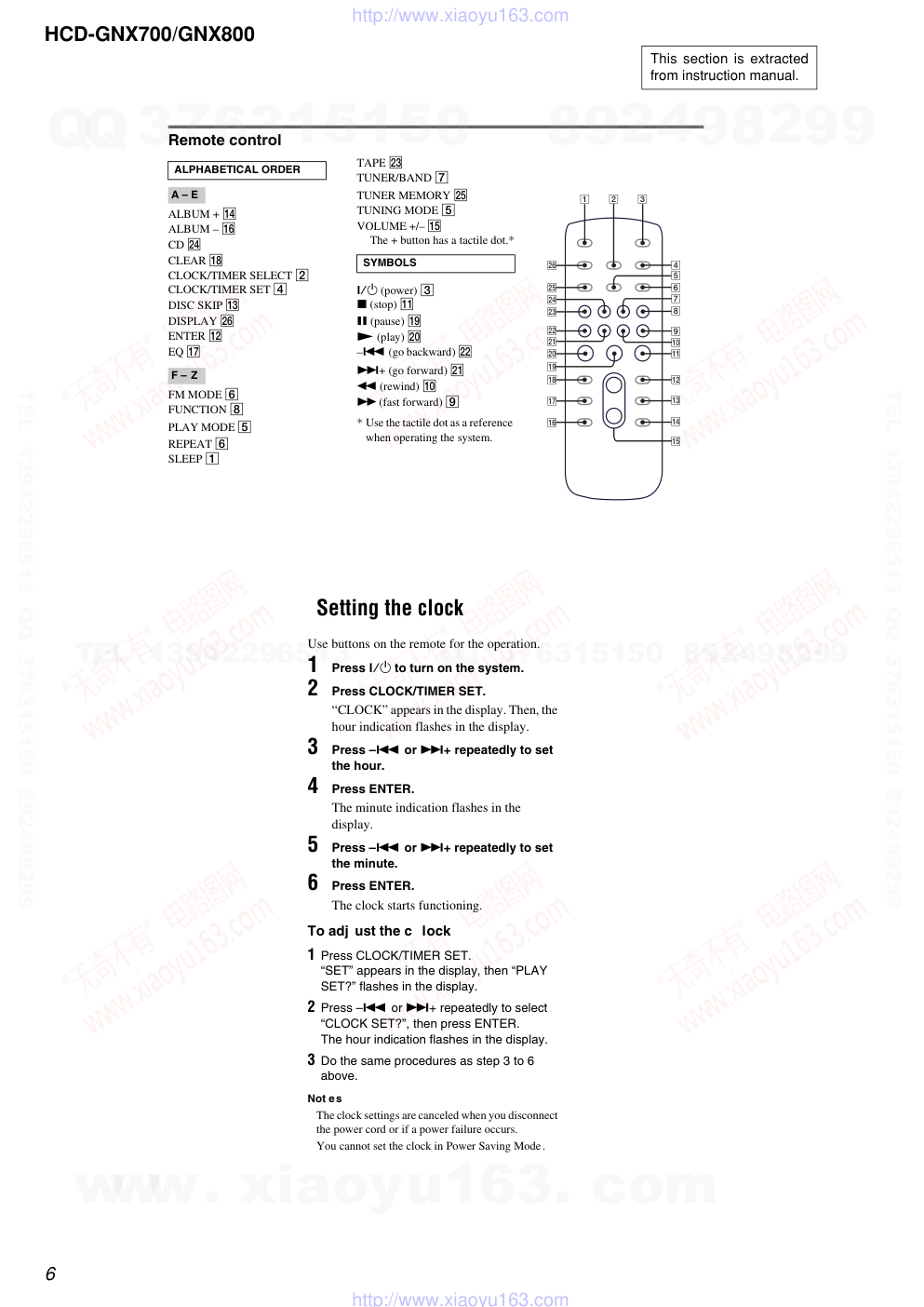

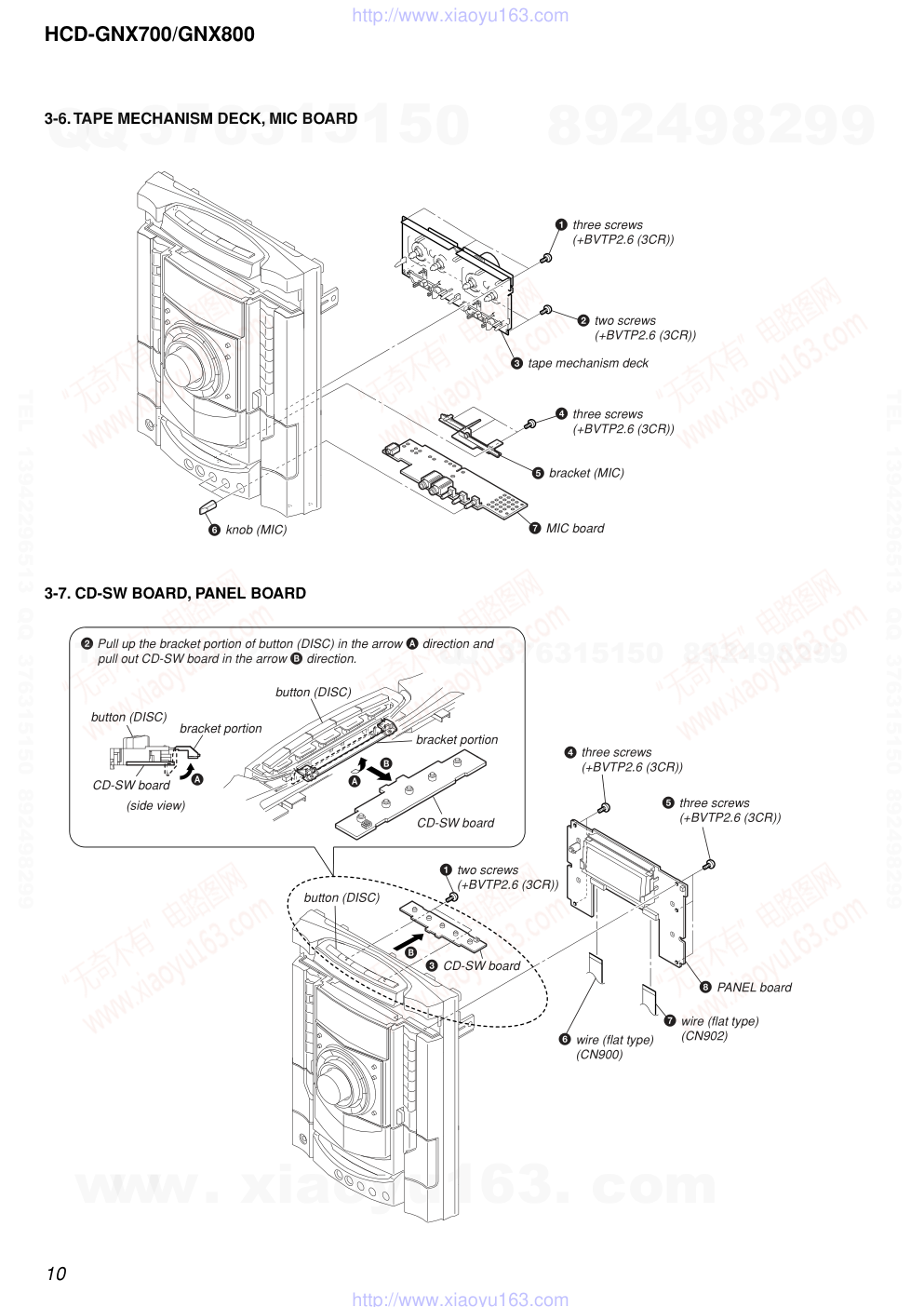

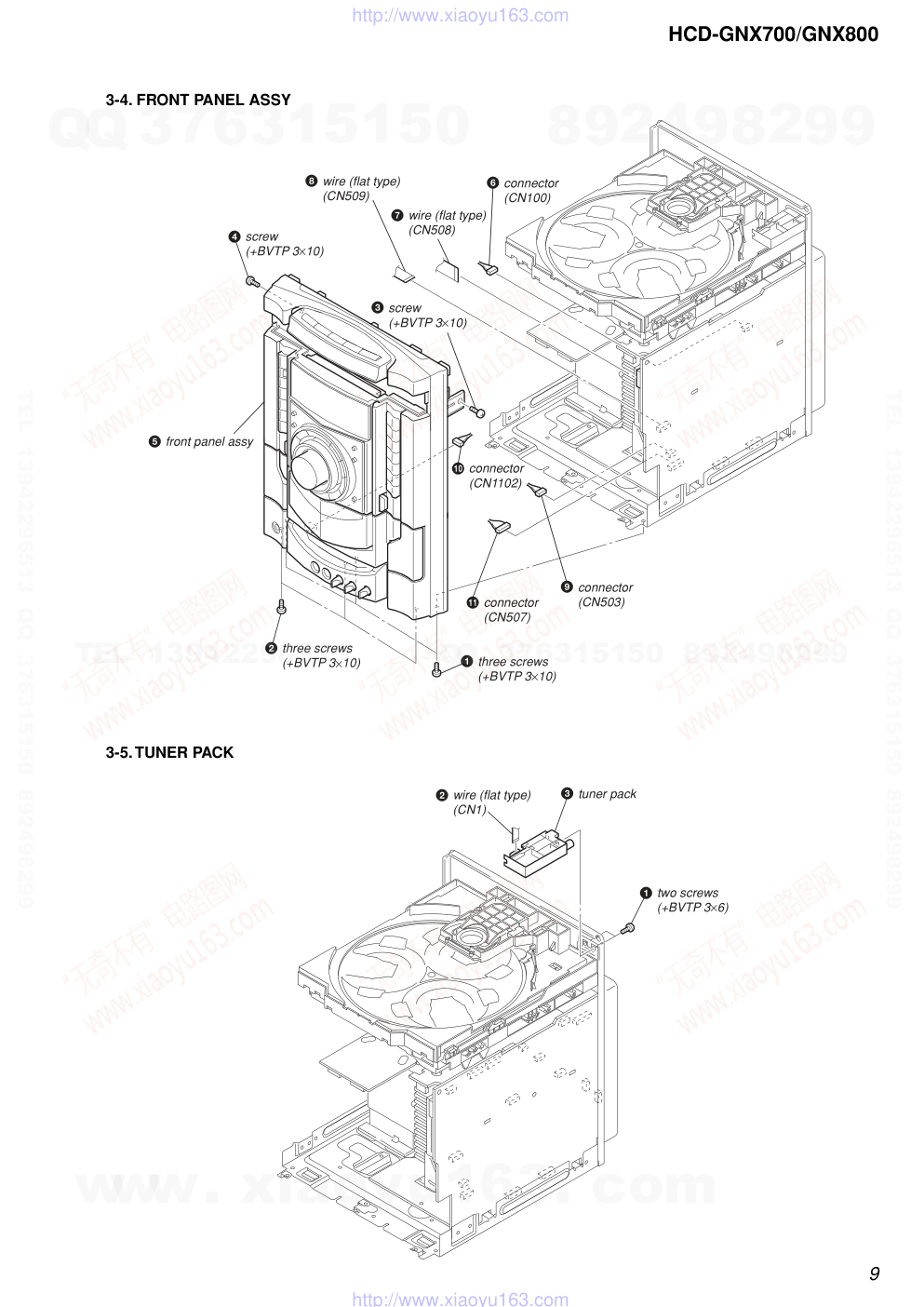

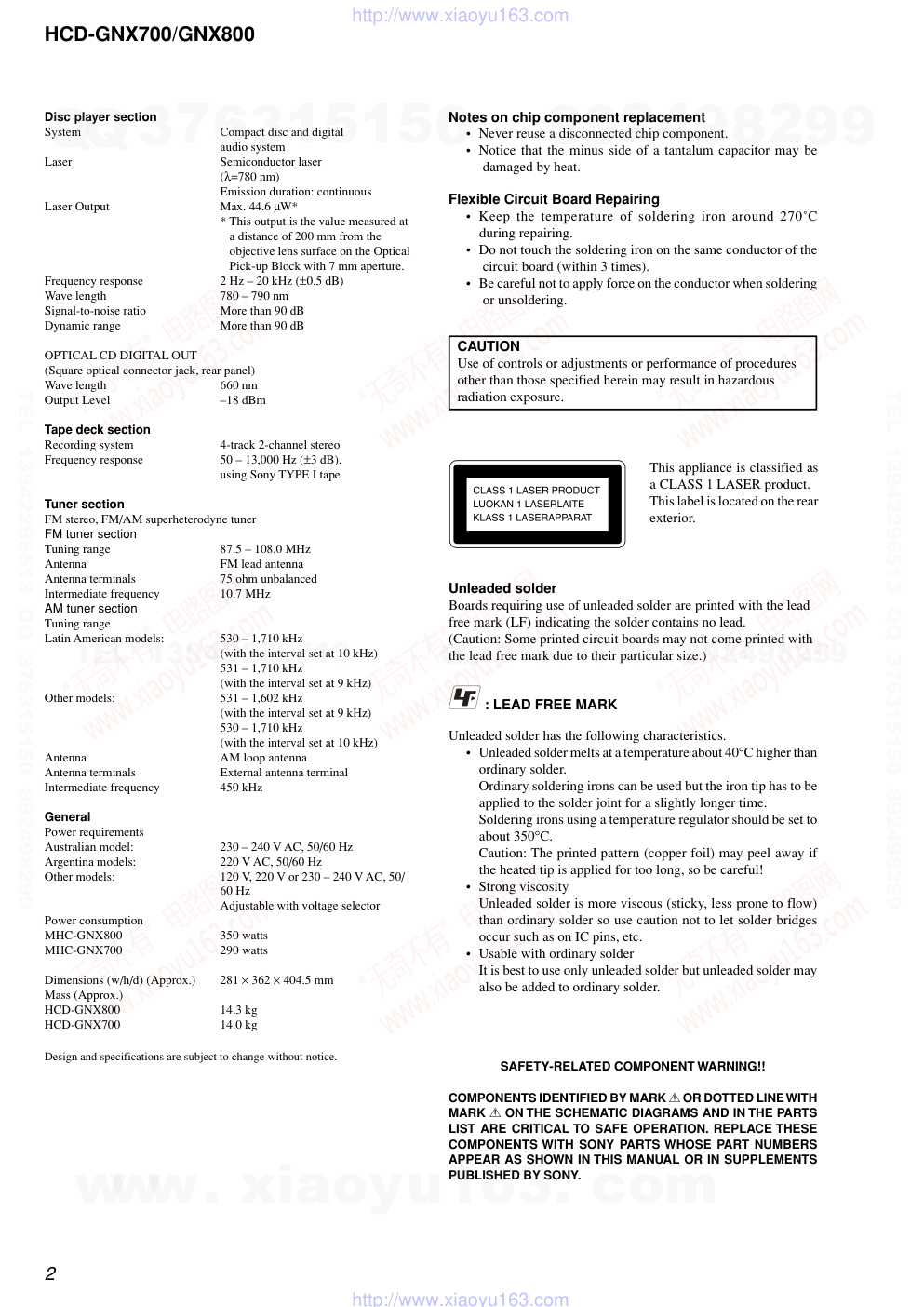

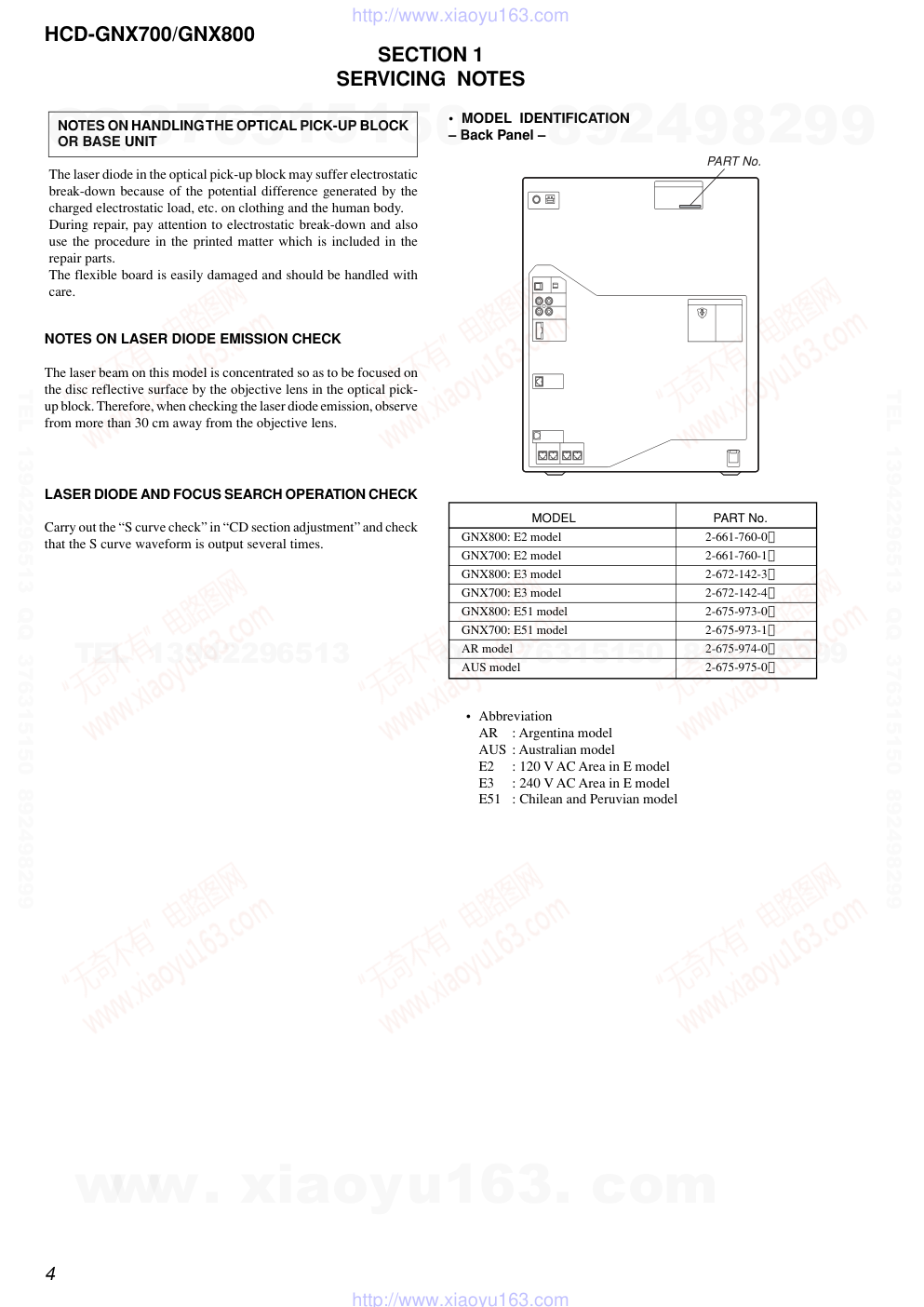

HCD-GNX700/GNX800 E Model HCD-GNX700/GNX800 Australian Model HCD-GNX800 SERVICE MANUAL MiNi Hi-Fi COMPONENT SYSTEM SPECIFICATIONS Ver. 1.1 2006.09 – Continued on next page – • HCD-GNX700/GNX800 is the Amplifier, CD player, tape deck and tuner section in MHC-GNX700/GNX800. Model Name Using Similar Mechanism HCD-GN880 CD CD Mechanism Type CDM74KF-F1BD81A Section Base Unit Name BU-F1BD81A Optical Pick-up Name KSM-215DCP/C2NP TAPE Model Name Using Similar Mechanism HCD-GNX80 Section Tape Transport Mechanism Type CWN42FF601 Amplifier section HCD-GNX800 The following are measured at AC 120, 220, 240 V, 50/60 Hz Front/Surround speaker DIN power output (rated) 180 + 180 watts (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference) 225 + 225 watts (6 ohms at 1 kHz, 10% THD) Subwoofer Continuous RMS power output (reference) 200 watts (8 ohms at 100 Hz, 10% THD) HCD-GNX700 The following are measured at AC 120, 220, 240 V, 50/60 Hz Front speaker DIN power output (rated) 170 + 170 watts (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference) 220 + 220 watts (6 ohms at 1 kHz, 10% THD) Subwoofer Continuous RMS power output (reference) 160 watts (8 ohms at 100 Hz, 10% THD) Inputs VIDEO/MD (AUDIO) IN (phono jacks): voltage 250/450 mV, impedance 47 kiloohms TV (AUDIO) IN (phono jack): voltage 250 mV, impedance 47 kiloohms MIC (phone jack): sensitivity 1 mV, impedance 10 kiloohms Outputs PHONES (stereo mini jack): accepts headphones of 8 ohms or more FRONT SPEAKER/SURROUND SPEAKER/ SUBWOOFER OUT: Use only the supplied speaker Photo: HCD-GNX800 Sony Corporation Home Audio Division Published by Sony Techno Create Corporation 9-887-068-02 2006I02-1 © 2006.09 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 HCD-GNX700/GNX800 Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing • Keep the temperature of soldering iron around 270˚C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. This appliance is classified as a CLASS 1 LASER product. This label is located on the rear exterior. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. Unleaded solder Boards requiring use of unleaded solder are printed with the lead free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.) : LEAD FREE MARK Unleaded solder has the following characteristics. • Unleaded solder melts at a temperature about 40°C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350°C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! • Strong viscosity Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. • Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. Disc player section System Compact disc and digital audio system Laser Semiconductor laser (λ=780 nm) Emission duration: continuous Laser Output Max. 44.6 μW* * This output is the value measured at a distance of 200 mm from the objective lens surface on the Optical Pick-up Block with 7 mm aperture. Frequency response 2 Hz – 20 kHz (±0.5 dB) Wave length 780 – 790 nm Signal-to-noise ratio More than 90 dB Dynamic range More than 90 dB OPTICAL CD DIGITAL OUT (Square optical connector jack, rear panel) Wave length 660 nm Output Level –18 dBm Tape deck section Recording system 4-track 2-channel stereo Frequency response 50 – 13,000 Hz (±3 dB), using Sony TYPE I tape Tuner section FM stereo, FM/AM superheterodyne tuner FM tuner section Tuning range 87.5 – 108.0 MHz Antenna FM lead antenna Antenna terminals 75 ohm unbalanced Intermediate frequency 10.7 MHz AM tuner section Tuning range Latin American models: 530 – 1,710 kHz (with the interval set at 10 kHz) 531 – 1,710 kHz (with the interval set at 9 kHz) Other models: 531 – 1,602 kHz (with the interval set at 9 kHz) 530 – 1,710 kHz (with the interval set at 10 kHz) Antenna AM loop antenna Antenna terminals External antenna terminal Intermediate frequency 450 kHz General Power requirements Australian model: 230 – 240 V AC, 50/60 Hz Argentina models: 220 V AC, 50/60 Hz Other models: 120 V, 220 V or 230 – 240 V AC, 50/ 60 Hz Adjustable with voltage selector Power consumption MHC-GNX800 350 watts MHC-GNX700 290 watts Dimensions (w/h/d) (Approx.) 281 × 362 × 404.5 mm Mass (Approx.) HCD-GNX800 14.3 kg HCD-GNX700 14.0 kg Design and specifications are subject to change without notice. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 HCD-GNX700/GNX800 TABLE OF CONTENTS 1. SERVICING NOTES ................................................ 4 2. GENERAL Locating the Controls ...................................................... 5 3. DISASSEMBLY 3-1. Disassembly Flow ........................................................... 7 3-2. Side Panel, Top Case ....................................................... 8 3-3. Loading Panel .................................................................. 8 3-4. Front Panel Assy.............................................................. 9 3-5. Tuner Pack ....................................................................... 9 3-6. Tape Mechanism Deck, MIC Board ................................ 10 3-7. CD-SW Board, PANEL Board ........................................ 10 3-8. FUNCTION Board, JOG Board ...................................... 11 3-9. CD Mechanism Deck ...................................................... 11 3-10. Back Panel ....................................................................... 12 3-11. PRIMARY Board, EFFECTOR Board............................ 12 3-12. Power Amp Pc Board Assy, MAIN Board ...................... 13 3-13. SURROUND Board, PA Board ....................................... 13 3-14. Power Transformer (T1200) ............................................ 14 3-15. DRIVER Board, SW Board............................................. 14 3-16. CD Board......................................................................... 15 3-17. SENSOR Board ............................................................... 15 3-18. MOTOR (TB) Board ....................................................... 16 3-19. MOTOR (LD) Board ....................................................... 16 4. TEST MODE .............................................................. 17 5. MECHANICAL ADJUSTMENTS ....................... 21 6. ELECTRICAL ADJUSTMENTS Deck section .................................................................... 21 CD Section ...................................................................... 22 7. DIAGRAMS 7-1. Block Diagram – CD Section – ...................................... 27 7-2. Block Diagram – Tape/Tuner Section – ......................... 28 7-3. Block Diagram – Main Section – ................................... 29 7-4. Block Diagram – AMP Section – ................................... 30 7-5. Block Diagram – Display/Power Section –.................... 31 7-6. Printed Wiring Board – CD Board – .............................. 32 7-7. Schematic Diagram – CD Board – ................................. 33 7-8. Printed Wiring Boards – CD Mechanism Sectiom –...... 34 7-9. Schematic Diagram – CD Mechanism Section – ........... 35 7-10. Printed Wiring Board – MAIN Board – ......................... 36 7-11. Schematic Diagram – MAIN Board (1/3) – ................... 37 7-12. Schematic Diagram – MAIN Board (2/3) – ................... 38 7-13. Schematic Diagram – MAIN Board (3/3) – ................... 39 7-14. Printed Wiring Board – PANEL Board – ....................... 40 7-15. Schematic Diagram – PANEL Board – ........................... 41 7-16. Printed Wiring Boards – CD-SW, JOG, MIC and FUNCTION Boards – ........... 42 7-17. Schematic Diagram – CD-SW, JOG, MIC and FUNCTION Boards – ........... 43 7-18. Printed Wiring Board – PA Board – ............................... 44 7-19. Schematic Diagram – PA Board – .................................. 45 7-20. Printed Wiring Board – SURROUND Board – .............. 46 7-21. Schematic Diagram – SURROUND Board –................. 47 7-22. Printed Wiring Board – EFFECTOR Board – ................ 48 7-23. Schematic Diagram – EFFECTOR Board –................... 49 7-24. Printed Wiring Boards – Power Section – ...................... 50 7-25. Schematic Diagram – Power Section – .......................... 51 7-26. IC Pin Function Description ............................................ 56 8. EXPLODED VIEWS 8-1. Case (Top), Back Panel Section ...................................... 62 8-2. Front Panel Section-1 ...................................................... 63 8-3. Front Panel Section-2 ...................................................... 64 8-4. Chassis Section ................................................................ 65 8-5. CD Mechanism Deck Section-1 (CDM74KF-F1BD81A) .................................................. 66 8-6. CD Mechanism Deck Section-2 (CDM74KF-F1BD81A) .................................................. 67 9. ELECTRICAL PARTS LIST ................................ 68 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 HCD-GNX700/GNX800 SECTION 1 SERVICING NOTES NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. LASER DIODE AND FOCUS SEARCH OPERATION CHECK Carry out the “S curve check” in “CD section adjustment” and check that the S curve waveform is output several times. • MODEL IDENTIFICATION – Back Panel – MODEL PART No. GNX800: E2 model 2-661-760-0[] GNX700: E2 model 2-661-760-1[] GNX800: E3 model 2-672-142-3[] GNX700: E3 model 2-672-142-4[] GNX800: E51 model 2-675-973-0[] GNX700: E51 model 2-675-973-1[] AR model 2-675-974-0[] AUS model 2-675-975-0[] • Abbreviation AR : Argentina model AUS : Australian model E2 : 120 V AC Area in E model E3 : 240 V AC Area in E model E51 : Chilean and Peruvian model PART No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 HCD-GNX700/GNX800 SECTION 2 GENERAL This section is extracted from instruction manual. LOCATING THE CONTROLS Main unit ALBUM +/– ql AMP MENU ed CD r; CD SYNC qf Deck A ef Deck B ws DELAY ea DIRECTION wd DISC 1 ~ 3 1 Disc tray qs DISPLAY 6 Display q; ECHO LEVEL wh ENTER wg EQ BAND wf EX-CHANGE/DISC SKIP 2 FLANGER 7 GROOVE w; ILLUMINATION 5 IR Receptor ra KARAOKE wd MASTER VOLUME wk MIC 1/2 (jack) wl MIC 1/2 LEVEL wj MP3 BOOSTER qa OPEN/CLOSE 3 OPERATION DIAL 4 PHONES (jack) es Power illuminator 9 REC PAUSE/START qd SOUND FLASH e; SURROUND1) 8 SURR SPEAKER MODE2) 8 TAPE A/B ek Tape lid ws ef TUNER/BAND el TUNING +/– qk TV ej VIDEO/MD eh ?/1 (power) rs Z OPEN/CLOSE 3 N (play) qg >/. (forward/go backward) qk M/m (fast forward/rewind) ql X (pause) qh x (stop) qj A Z (Eject A) eg B Z (Eject B) wa 1)For MHC-GNX700 2)For MHC-GNX800 ALPHABETICAL ORDER A – D E – L M – R S – Z SYMBOLS Top Panel Front Panel 2 4 1 3 5 6 7 8 9q;qa qs qd qf qg qh qj qk ql w; wa ws wg wf wd wh wj wk wl e; ea es ed ef eg eh ej ek el r; ra rs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 HCD-GNX700/GNX800 This section is extracted from instruction manual. Remote control ALBUM + qf ALBUM – qh CD wf CLEAR qk CLOCK/TIMER SELECT 2 CLOCK/TIMER SET 4 DISC SKIP qd DISPLAY wh ENTER qs EQ qj FM MODE 6 FUNCTION 8 PLAY MODE 5 REPEAT 6 SLEEP 1 TAPE wd TUNER/BAND 7 TUNER MEMORY wg TUNING MODE 5 VOLUME +/– qg The + button has a tactile dot.* ?/1 (power) 3 x (stop) qa X (pause) ql N (play) w; –. (go backward) ws >+ (go forward) wa m (rewind) q; M (fast forward) 9 * Use the tactile dot as a reference when operating the system. ALPHABETICAL ORDER A – E F – Z SYMBOLS 7 5 q; qg qh qj qk w; ws wd wg wh qf qd qs qa 9 8 6 4 3 1 2 ql wa wf Use buttons on the remote for the operation. 1 Press ?/1 to turn on the system. 2 Press CLOCK/TIMER SET. “CLOCK” appears in the display. Then, the hour indication flashes in the display. 3 Press –. or >+ repeatedly to set the hour. 4 Press ENTER. The minute indication flashes in the display. 5 Press –. or >+ repeatedly to set the minute. 6 Press ENTER. The clock starts functioning. To adj ust the c lock 1 Press CLOCK/TIMER SET. “SET” appears in the display, then “PLAY SET?” flashes in the display. 2 Press –. or >+ repeatedly to select “CLOCK SET?”, then press ENTER. The hour indication flashes in the display. 3 Do the same procedures as step 3 to 6 above. Not es The clock settings are canceled when you disconnect the power cord or if a power failure occurs. You cannot set the clock in Power Saving Mode . Setting the clock www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 HCD-GNX700/GNX800 SECTION 3 DISASSEMBLY • This set can be disassembled in the order shown below. 3-1. DISASSEMBLY FLOW 3-2.SIDE PANEL, TOP CASE (Page 8) 3-3.LOADING PANEL (Page 8) 3-4.FRONT PANEL ASSY (Page 9) 3-5.TUNER PACK (Page 9) 3-14.POWER TRANSFORMER (T1200) (Page 14) 3-12.POWER AMP PC BOARD ASSY, MAIN BOARD (Page 13) 3-9.CD MECHANISM DECK (Page 11) 3-7.PANEL BOARD, CD-SW BOARD (Page 10) 3-6.TAPE MECHANISM DECK, MIC BOARD (Page 10) 3-15.DRIVER BOARD, SW BOARD (Page 14) 3-11.PRIMARY BOARD EFFECTOR BOARD (Page 12) 3-18.MOTOR (TB) BOARD (Page 16) 3-19.MOTOR (LD) BOARD (Page 16) 3-17.SENSOR BOARD (Page 15) 3-13.SURROUND BOARD, PA BOARD (Page 13) 3-8.FUNCTION BOARD, JOG BOARD (Page 11) 3-10.BACK PANEL (Page 12) 3-16.CD BOARD (Page 15) SET www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 HCD-GNX700/GNX800 Note: Follow the disassembly procedure in the numerical order given. 3-2. SIDE PANEL, TOP CASE 3-3. LOADING PANEL 1 screw (case 3 TP2) (3×8) 2 two screws (case 3 TP2) (3×12) 3 two screws (+BVTP 3×10) 4 5 PANEL (SIDE-R) 6 screw (case 3 TP2) (3×8) 7 two screws (case 3 TP2) (3×12) 8 two screws (+BVTP 3×10) 9 0 PANEL (SIDE-L) qa two screws (+BVTP 3×12) qs qd CASE (TOP) CD mechanism deck (CDM74KF-F1BD81A) 1 Turn the pulley to the arrow direction. Front side Pulley 2 Pull out disc tray 3 4 loading panel www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 HCD-GNX700/GNX800 3-4. FRONT PANEL ASSY 3-5. TUNER PACK 1 three screws (+BVTP 3×10) 2 three screws (+BVTP 3×10) 3 screw (+BVTP 3×10) 4 screw (+BVTP 3×10) 5 front panel assy 6 connector (CN100) 7 wire (flat type) (CN508) 8 wire (flat type) (CN509) 9 connector (CN503) q; connector (CN1102) qa connector (CN507) 1 two screws (+BVTP 3×6) 2 wire (flat type) (CN1) 3 tuner pack www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 HCD-GNX700/GNX800 3-6. TAPE MECHANISM DECK, MIC BOARD 3-7. CD-SW BOARD, PANEL BOARD 1 three screws (+BVTP2.6 (3CR)) 2 two screws (+BVTP2.6 (3CR)) 3 tape mechanism deck 4 three screws (+BVTP2.6 (3CR)) 5 bracket (MIC) 7 MIC board 6 knob (MIC) 5 three screws (+BVTP2.6 (3CR)) 1 two screws (+BVTP2.6 (3CR)) 6 wire (flat type) (CN900) 7 wire (flat type) (CN902) 4 three screws (+BVTP2.6 (3CR)) 3 CD-SW board 8 PANEL board CD-SW board CD-SW board bracket portion button (DISC) button (DISC) button (DISC) (side view) bracket portion A A B B 2 Pull up the bracket portion of button (DISC) in the arrow A direction and pull out CD-SW board in the arrow B direction. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 HCD-GNX700/GNX800 3-8. FUNCTION BOARD, JOG BOARD 3-9. CD MECHANISM DECK 3 FUNCTION board 2 nine screws (+BVTP2.6 (3CR)) 5 two screws (+BVTP2.6 (3CR)) 6 two screws (+BVTP2.6 (3CR)) 1 knob vol 4 knob jog assy 7 JOG board MAIN board 2 CD mechanism deck 4 wire (flat type) (CN701) 3 wire (flat type) (CN505) 1 screw (+BVTP 3×8) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 HCD-GNX700/GNX800 3-10. BACK PANEL 3-11. PRIMARY BOARD, EFFECTOR BOARD 1 connector (CN1200) 2 connector (CN1204) 3 wire (flat type) (CN1501) 6 two screws (GNX800) screw (GNX700) (+BVTP 3×10) 4 five screws (+BVTP 3×10) 5 two screws (+BVTP 3×12) 7 two screws (+BVTP 3×12) 9 connector (CN580) 8 back panel 1 connector (CN101) 2 connector (CN201) 3 screw (+BVTP 3×8) 5 two screws (+BVTP 3×10) 4 PRIMARY board 6 EFFECTOR board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 HCD-GNX700/GNX800 3-13. SURROUND BOARD, PA BOARD 3-12. POWER AMP PC BOARD ASSY, MAIN BOARD 1 connector (CN1213) 2 connector (CN1212) 8 connector (CN105) 3 screw (+BV3 (3-CR)) 4 two screws (+BV3 (3-CR)) 5 screw (+BV3 (3-CR)) 6 screw (+BVTP 3×10) 7 power AMP PC board assy 9 two screws (+BVTP 3×10) q; screw (+BVTP 3×10) qa MAIN board 4 connector (CN607) 1 two screws (+BVTP 3×10) 2 two screws (transistor) 3 SURROUND board 5 two screws (+BVTP 3×10) 6 holder 7 three screws (+BVTP 3×10) 8 two screws (transistor) 9 two screws (+BVTP 3×10) qa screw (+BVTP 3×10) 0 heat sink qs bracket qd PA board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 HCD-GNX700/GNX800 3-14. POWER TRANSFORMER (T1200) 3-15. DRIVER BOARD, SW BOARD 1 connector (CN1213) 2 connector (CN1212) 3 two screws 4 two screws 5 power transfomer (T1200) TRANS board 5 connector (CN703) 2 cover (CDM) 6 DRIVER board 8 SW board 4 wire (flat type) (CN702) 3 two screws (+BTTP (M2.6)) 1 three screws (+BVTP 3×10) 7 screw (+BTTP (M2.6)) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 HCD-GNX700/GNX800 3-16. CD BOARD 3-17. SENSOR BOARD 5 two coil springs (insulator) 9 two coil springs (insulator) 6 two insulators 0 two insulators qs screw (+BVTP 2.6 (3CR)) 7 two screws (+BTTP (M2.6)) 3 screw (+BTTP (M2.6)) 2 holder (213) ASSY 8 two stoppers (BU) qd Remove the four solderings of motor. qf CN101 (flat type) qg CD board qh optical pick-up (KSM-215DCP/C2NP) 1 floating screw (+PTPWH M2.6) 4 floating screw (+PTPWH M2.6) qa 2 tray 3 belt (table) 5 pulley (table) 8 screw (+BTTP (M2.6)) 0 SENSOR board 7 gear (geneva) 9 connector (CN731) 1 floating screw (+PTPWH M2.6) 6 floating screw (+PTPWH M2.6) 4 floating screw (+PTPWH M2.6) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 HCD-GNX700/GNX800 3-18. MOTOR (TB) BOARD 6 Remove the two solderings of motor. 8 MOTOR (TB) board 7 table motor assy (M741) 5 two screws (+BTTP (M2.6)) 4 3 wire (flat type) 5 core (CN742) 1 stopper 2 stopper 3-19. MOTOR (LD) BOARD 4 Remove the two solderings of motor. 3 MOTOR (LD) board 1 belt (loading) 5 loading motor assy (M751) 2 two screws (+BTTP (M2.6)) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 HCD-GNX700/GNX800 [MC TEST MODE] • This mode is used to check operations of the respective sections of Amplifier, Tuner, and Tape. Procedure: * To enter MC Test Mode 1. Press x button, [ENTER] button and [DISC 3] button simultaneously. 2. The CD ring indicators TAPE A and B indicators flash on the fluorescent indicator tube. The function is changed to TV. * Check of Amplifier 1. Press [EQ BAND] button repeatedly until a message “GEQ MAX” appears on the fluorescent indicator tube. GEQ increases to its maximum. 2. Press [EQ BAND] button repeatedly until a message “GEQ MIN” appears on the fluorescent indicator tube. GEQ decreases to its minimum. 3. Press [EQ BAND] button repeatedly until a message “GEQ FLAT” appears on the fluorescent indicator tube. GEQ is set to flat. 4. When the [VOLUME] knob is turned clockwise even slightly, the sound volume increases to its maximum and a message “VOLUME MAX” appears on the fluorescent indicator tube. 5. When the [VOLUME] knob is turned counter-clockwise even slightly, the sound volume decreases to its minimum and a message “VOLUME MIN” appears on the fluorescent indicator tube. * Tape function 1. When a tape is inserted in Deck B and recording is started, the function is changed to TV automatically. When [CD SYNC] button is pressed during recording in function, ALC (Automatic Logic Control) is turned on. 2. During recording, press m will stop the recording and the function is changed to TAPE B and rewind the tape in Deck B until the recording start position and playback of the tape in Deck B is started. If the [REC PAUSE/ START] button is pressed for a pause and pressed again to resume recording during recording time, when the tape is rewind, the tape will be rewind until the position where the pause is applied. * To release MC Test mode. 1. To release this mode, press ?/1 button. 2. The cold reset is enforced at the same time. [COLD RESET] • The cold reset clears all data including preset data stored in the RAM to initial conditions. Execute this mode when returning the set to the customer. Procedure: 1. Press x button, [ENTER] button, and ?/1 button simultaneously. 2. The fluorescent indicator tube becomes blank for a while, and the set is reset. [GC TEST MODE] • This mode is used to check the fluorescent indicator tube, LEDs, keys, VOLUME jog, OPERATION DIAL jog, AMS jog, destination, software version and VACS level. Procedure: 1. Press x button, [ENTER] button and [DISC 2] button- simultaneously. 2. All LEDs and segments in fluorescent indicator tube are lighted up. All LEDs are lighted up in red color. 3. When you want to enter the software version display mode, press [DISC 1] button. The model is displayed. Press [DISC 1] button again to show destination. 4. Each time [DISC 1] button is pressed, the display changes from MC version, GC version, SYS version, CD version, CDDM version, CDMA version, CDMB version, BDA version, BDB version, ST version, TC version, TA version, TM version in this order, and returns to the MC version display. 5. When [DISC 3] button is pressed while the version numbers are being displayed except model and destination, the date of the software creation appear. When [DISC 3] button is pressed again, the display returns to the software version display. When [DISC 1] button is pressed while the date of the software creation is being displayed, the date of the software creation is displayed in the same order of software version display. 6. Press [DISC 2] button, the key check mode is activated. 7. In the key check mode, the fluorescent indicator tube displays “K 0 V0J0”. Each time a button is pressed, “K” value increases. However, once a button has been pressed, it is no longer taken into account. “V” value increases in the manner of 0,1, 2, 3 ... if [VOLUME] knob is turned clockwise, or it decreases in the manner of 0, 9, 8, 7 ... if [VOLUME] knob is turned counter-clockwise. “J” value increases in the manner of 0,1, 2, 3 ... if [OPERATION DIAL] knob is turned clockwise, or it decreases in the manner of 0, 9, 8, 7 ... if [OPERATION DIAL] knob is turned counter- clockwise. 8. When [DISC 3] button is pressed after all LEDs and segments in fluorescent indicator tube light up, the fluorescent indicator tube displays “VACS A+B FAPC”. A is VACS level which is trigger by signal level, B is VACS level which is trigger by temperature and C is VACS level which is trigger by APVACS (Abuse Protection VACS). F is shown if the fan is turned in high speed and vice-versa. The signal level, which will trigger VACS A is shown in the center area of fluorescent indicator tube. 9. When [EX-CHANGE/DISC SKIP] button is pressed after all LEDs and segments in fluorescent indicator tube light up, alternate segments in fluorescent indicator tube would light up. If you press [EX-CHANGE/DISC SKIP] button again, another half of alternate segments in fluorescent indicator tube would light up. Pressing [EX-CHANGE/DISC SKIP] button again would cause all segments lights up. 10. To release this mode, press three buttons in the same manner as step 1, or disconnect the power cord. SECTION 4 TEST MODE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 HCD-GNX700/GNX800 [VACS ON/OFF] • This mode is used to switch ON and OFF the VACS (Variable Attenuation Control System). Procedure: 1. Press ?/1 button to turn the set ON. 2. Press x button and [ILLUMINATION] button simultaneously. The message “VACS OFF” or “VACS ON” appears on the fluorescent indicator tube. [TUNER STEP CHANGE] • The step interval of AM channels can be toggled between 9 kHz and 10 kHz. Procedure: 1. Press ?/1 button to turn the set ON. 2. Press [TUNER/BAND] button to select the “AM”. 3. Press ?/1 button to turn the set OFF. 4. Press [ENTER] button and ?/1 button simultaneously. The system will turn ON automatically. The message “AM 9k STEP” or AM 10k STEP” appears on the fluorescent indicator tube and thus the channel step is changed. [CD SERVICE MODE] • This mode let you move the CD sled motor freely. Use this mode when you want to clean the optical pick-up. Procedure: 1. Press ?/1 button to turn the set ON. 2. Select CD function. 3. Press x , [ENTER] button, and Z OPEN/CLOSE button simultaneously. 4. The CD service mode is activated. The message “SERVICE MODE” appears on the fluorescent indicator tube. 5. With the CD in stop status, press M to move the optical pick-up to outside track, or press m to move to inside track. The message “SLED OUT” or “SLED IN” appears on the fluorescent indicator tube. 6. To turn on or off the laser, press [DIRECTION] button. The message “LD ON” or “LD OFF” appears on the fluorescent indicator tube. 7. To release this mode, press ?/1 button. [CD AGING MODE] This mode can be used for operation check of CD section. • If an error occurs, the aging operation would stops and the status is displayed. • If there are no error occurs, the aging operation would continues repeatedly. Procedure: 1. Press ?/1 button to turn the set ON 2. Select CD function. 3. Load three discs on the disc tray. 4. Press [PLAY MODE] button on the remote repeatedly to select the “ALL DISCS” mode, and press the [REPEAT] button on the remote repeatedly to select “REPEAT OFF” mode. 5. Press x button, [ENTER] button, and [EX-CHANGE/DISC SKIP] button simultaneously. 6. Aging operation is started. 7. To release this mode, press ?/1 button or disconnect the power cord to turn the power OFF. Aging mode sequence: Start (from disc 1) Disc chucking TOC reading Play first track for 2 seconds Play last track for 2 seconds EX-CHANGE open/close Open the disc tray Disc skip Close the disk tray Change the next disc www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 HCD-GNX700/GNX800 Display M*$$%%&&##00 3) Display of no disc errors D*: The number of mechanical error (“00” is latest one) (Rotate > . knob in the direction of either to display next error) $$: Error type 01: Focus error 02: GFS error 03: Setup error %%: Not used &&: 00: No disc judgment without chucking retry. 01: No disc judgment after chucking retry. ##: The state when judged as no disc 01: Stop 02: Setup 03: TOC reading 04: Access 05: Playback 06: Pause 07: Manual search (Play) 08: Manual search (Pause) [CD REPEAT 5 LIMIT OFF MODE] • The number of repeat for CD playback is 5 times when the repeat mode is “REPEAT ALL”. This mode enables CD to repeat playback for limitless times. Procedure: 1. Press ?/1 button to turn the set ON. 2. Select CD function. 3. Press x button, [CD] button and [DISC 1] button simultaneously to enter the CD repeat 5 limit off mode and the fluorescent indicator tube displays “LIMIT OFF”. 4. To release this mode, operate the cold reset. (Refer to the “MC COLD RESET”) [CD SHIP MODE (WITH MEMORY CLEAR)] • This mode moves the optical pick-up to the position durable to vibration and clears all data including preset data stored in the RAM to initial conditions. Use this mode when returning the set to the customer after repair. Procedure: 1. Press ?/1 button to turn the set ON. 2. Select CD function. 3. Press x button, [SOUND FLASH] button and ?/1 button simultaneously. The set will power off automatically. 4. After the “STANDBY” blinking display finish, a message “MECHA LOCK” is displayed on the fluorescent indicator tube and the CD ship mode is set. Display D*$$%%&&##00 • Display when an error occurred (CD Error Code Mode) Procedure: 1. Press x button, [ENTER] button and [DISC 1] button simultaneously to enter the error code display mode. 2. The fluorescent indicator tube displays the number of total error. 3. Each time M m knob is rotated, display change as below. Display of total error > + direction – . direction Display of Mechanical errors > + direction – . direction Display of no disc errors 4. To clear the error record, operate the cold reset. (Refer to the “MC COLD RESET”) 5. To release this mode, press the ?/1 button or disconnect the power plug to turn the power OFF. 1) Display of total error Em**: The number of mechanical errors. Ed **: The number of no disc errors after chucking the disc. 2) Display of mechanical errors M*: The number of mechanical error (“00” is latest one) (Rotate > . knob in the direction of either to display next error) $$: Not used %%: Loading related error (Second figure is not used) D: Stop by the problem other than mechanical problem while closing. E: Stop by the problem other than mechanical problem while opening. C: Stop by the problem other than mechanical problem while chucking up. F: Stop by the problem other than mechanical problem while chucking down. &&: Emerging error 01: Stop while chucking up. 02: Stop while chucking up. 03: Time-out of EX-CHANGE open. 05: Time-out of EX-CHANGE close. ##: Not used Display Em**Ed** www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 HCD-GNX700/GNX800 [CD TRAY LOCK MODE] • This mode let you lock the disc trays. When this mode is activated, the disc tray will not open when Z OPEN/CLOSE button or [EX-CHANGE/DISC SKIP] button is pressed. The message “LOCKED” will be displayed in the will be displayed on the fluorescent indicator tube. Procedure: 1. Press ?/1 button to turn the set ON. 2. Select CD function. 3. Press x button and Z OPEN/CLOSE button simultaneously and hold down until “LOCKED” or “UNLOCKED” displayed on the fluorescent indicator tube (around 5 seconds). [VIDEO/MD SWITCHING] • This mode let you switch from VIDEO to MD and vice-versa. Procedure: 1. Press ?/1 button to turn the set ON. 2. Select VIDEO function. 3. Press [VIDEO/MD] button and ?/1 button simultaneously. The function will change to MD. Press the same buttons again to change from MD to VIDEO. [TCM OFFLINE MODE] • This mode prevents set from power off automatically when TCM is not connected. Therefore, measurements can be done even when TCM is not connected during production. • Procedure: 1. When the system in turned off, press [EQ BAND] button, [TAPE A/B] button and ?/1 button simultaneously. The set will power on automatically. 2. The message “TCM OFFLINE” will be displayed on the fluorescent indicator tube. [CD SHIP MODE (WITHOUT MEMORY CLEAR)] • This mode moves the optical pick-up to the position durable to vibration. Use this mode when returning the set to the customer after repair. Procedure: 1. Press ?/1 button to turn the set ON. 2. Select CD function. 3. Press [CD] button and ?/1 button simultaneously. The set will power off automatically. 4. After the “STANDBY” blinking display finish, a message “MECHA LOCK” is displayed on the fluorescent indicator tube and the CD ship mode is set. [CD POWER MANAGE] • This mode let you switch on or off power supply to the BU during TUNER function. • When CD POWER is set to OFF, the power supply to the BU is cut off during TUNER function. It will increase the time taken to access CD when function change from TUNER to CD but it will improve tuner reception. • When CD POWER is set to ON, the power supply to the BU is not cut off during TUNER function. It will reduce the time taken to access CD when function change from TUNER to CD but it will decrease tuner reception performance. Procedure: 1. Press ?/1 button to turn the set ON. 2. Select CD function. 3. Press ?/1 button to turn the set OFF. 4. Press x button and ?/1 button simultaneously. The set will power on automatically. 5. The message “CD POWER ON” or “CD POWER OFF” will be displayed on the fluorescent indicator tube. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 HCD-GNX700/GNX800 SECTION 5 MECHANICAL ADJUSTMENTS SECTION 6 ELECTRICAL ADJUSTMENTS Precaution 1. Clean the following parts with a denatured alcohol-moistened swab: record/playback heads pinch rollers erase head rubber belts capstan idlers 2. Demagnetize the record/playback head with a head demagnetizer. 3. Do not use a magnetized screwdriver for the adjustments. 4. After the adjustments, apply suitable locking compound to the parts adjusted. 5. The adjustments should be performed with the rated power supply voltage unless otherwise noted. Torque Measurement 2.9 mN • m to 6.9 mN • m FWD CQ-102C 30 to 70 g • cm (0.42 – 0.97 oz • inch) FWD 0.15 mN • m to 0.59 mN • m back tension CQ-102C 1.6 to 6 g • cm (0.022 – 0.08 oz • inch) 4.8 mN • m to 16.7 mN • m FF/REW CQ-201B 49 to 170 g • cm (0.69 – 2.36 oz • inch) Mode Torque meter Meter reading 0 dB=0.775 V DECK SECTION 1. Demagnetize the record/playback head with a head demagnetizer. 2. Do not use a magnetized screwdriver for the adjustments. 3. After the adjustments, apply suitable locking compound to the parts adjust. 4. The adjustments should be performed with the rated power supply voltage unless otherwise noted. 5. The adjustments should be performed in the order given in this service manual. (As a general rule, playback circuit adjustment should be completed before performing recording circuit adjustment.) 6. The adjustments should be performed for both L-CH and R- CH. 7. Switches and controls should be set as follows unless otherwise specified. • Test Tape RECORD/PLAYBACK HEAD AZIMUTH ADJUSTMENT DECK A DECK B Note: Perform this adjustments for both decks Procedure: 1. Mode: Playback Tape Signal Used for P-4-A100 10 kHz, –10 dB Azimuth Adjustment set MAIN board CN510 Pin 1 (L-CH) Pin 3 (R-CH) MAIN board CN510 Pin 2 (GND) + – level meter test tape P-4-A100 (10 kHz, –10 dB) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 HCD-GNX700/GNX800 2. Turn the adjustment screw and check output peaks. If the peaks do not match for L-CH and R-CH, turn the adjustment screw so that outputs match within 1dB of peak. 3. Mode: Playback 4. After the adjustments, apply suitable locking compound to the pats adjusted. Adjustment Location: Playback Head (Deck A). Record/Playback/Erase Head (Deck B). Screw position L-CH peak within 1dB Output level L-CH peak R-CH peak within 1dB Screw position R-CH peak MAIN board CN510 set test tape P-4-A100 (10 kHz, –10 dB) pin 3 oscilloscope L-CH R-CH V H waveform of oscilloscope in phase 45° 90° 135° 180° good wrong pin 2 pin 1 L R CD SECTION Note: 1. CD Block is basically designed to operate without adjustment. Therefore, check each item in order given. 2. Use YEDS-18 disc (3-702-101-01) unless otherwise indicated. 3. Use an oscilloscope with more than 10MΩ impedance. 4. Clean the object lens by an applicator with neutral detergent when the signal level is low than specified value with the following checks. S-curve Check Connection: Procedure: 1. Connect an oscilloscope to test point JPO102 (FE1) and TP 117(VC) on the CD board. 2. Turn the power on. 3. Put the disc (YEDS-18) in and turned power switch on again and actuate the focus search. (actuate the focus search when disc table is moving in and out) 4. Check the oscilloscope waveform (S-curve) is symmetrical between A and B. And confirm peak to peak level within 2.4 ± 1 Vp-p. S-curve waveform Note: • Try to measure several times to make sure than the ratio of A : B or B : A is more than 10 : 7. • Take sweep time as long as possible and light up the brightness to obtain best waveform. Checking Location: CD board (SIDE B) (See page 24.) + – CD board JPO102 (FE1) TP117 (VC) oscilloscope A B symmetry within 2.4 ± 1 Vp-p azimuth screw www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 HCD-GNX700/GNX800 RFAC Level Check Connection: Procedure: 1. Connect an oscilloscope to test point TP124 (RFAC) and TP 117(VC) on the CD board. 2. Turn the power on. 3. Put the disc (YEDS-18) in to playback the number five track. 4. Confirm that oscilloscope waveform is clear and check RFAC signal level is correct or not. Note: A clear RFAC signal waveform means that the shape “◊” can be clearly distinguished at the center of the waveform. RFAC signal waveform Checking Location: CD board (SIDE B) (See page 24.) E-F Balance Check Connection: Procedure: 1. Connect an oscilloscpe to test point TPO103 (TE1) and TP117 (VC) on the CD board. 2. Turn the power on. 3. Select the function “CD”. 4. Press three buttons of [ENTER], M , and [SURRUUND MODE] simultaneously to set the CD service mode. 5. Put the disc (YEDS-18) in to playback the number five track. 6. Press the . button. The message “TRAVERSE” is displayed. (The tracking servo and the sledding servo are turned OFF) 7. Check the level B of the oscilliscope's waveform and the A (DC voltage) of the center of the Traverse waveform. Confirm the following : A/B x 100 = less than ± 22% Traverse Waveform 8. Press the . button. The message “TRAVERSE” is displayed. (The tracking servo and sledding servo are turned ON) Confirm the C (DC voltage) is almost equal to the A (DC voltage) is step 5. 9. To exit from this mode, perform as follows. 1) Move the optical pick-up to the most inside track. 2)Press three buttons of x , [CLEAR], and [DISPLAY] simultaneously. (cold reset) Notes: • Always move the optical pick-up to most inside track when exiting from this mode. Otherwise, a disc will not be unloaded. • Do not run the sled motor excessively, otherwise the gear can be chipped. Traverse Waveform Checking Location: CD board (SIDE B) (See page 24.) + – CD board TP124 (RFAC) TP117 (VC) oscilloscope VOLT/DIV: 200 mV TIME/DIV: 500 ns level: 0.9 ± 0.4 Vp-p + – CD board JPO103 (TE1) TP117 (VC) oscilloscope 0V B level: 1.0 ± 0.5 Vp-p Center of the waveform A (DC voltage) 0V Tracking servo Sled servo ON C (DC voltage) Tracking servo Sled servo OFF www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 HCD-GNX700/GNX800 Checking Location: – CD BOARD (SIDE B) – TP117 (VC) TP124 (RFAC) JPO103 (TE1) JPO102 (FE1) IC101 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 HCD-GNX700/GNX800 SECTION 7 DIAGRAMS For schematic diagrams. Note: • All capacitors are in μF unless otherwise noted. (p: pF) 50 V or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • % : indicates tolerance. • f : internal component. • 2 : nonflammable resistor. • 5 : fusible resistor. • C : panel designation. • A : B+ Line. • B : B– Line. • H : adjustment for repair. • Voltages and waveforms are dc with respect to ground under no-signal conditions. CD board no mark: CD PLAY Other boards no mark: TUNER (FM/AM) ( ) : CD PLAY < > : TAPE PLAY [ ] : TAPE REC * : Impossible to measure • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Signal path. F : TUNER (FM/AM) E : TAPE PLAY (DECK A) d : TAPE PLAY (DECK B) G : RECORD J : CD PLAY N : MIC INPUT • Abbreviation AR : Argentina model AUS : Australian model E2 : 120V AC Area in E model E3 : 240V AC Area in E model E51 : Chilean and Peruvian model Note: The components identified by mark 0 or dotted line with mark ! are critical for safety. Replace only with part number specified. (The other layers' patterns are not indicated.) • Indication of transistor. Caution: Parts face side: Parts on the parts face side seen from (Side A) the parts face are indicated. Pattern face side: Parts on the pattern face side seen from (Side B) the pattern face are indicated. C B These are omitted. E Q B These are omitted. C E Q B These are omitted. C E Q Note: • X : parts extracted from the component side. • : Pattern from the side which enables seeing. Note on Printed Wiring Boards: www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 HCD-GNX700/GNX800 • CIRCUIT BOARDS LOCATION CD-SW board TRANS board PA board SURROUND board EFFECTOR board SWITCHING POWER TUNER PACK PRIMARY board MAIN board MIC board JOG board PANEL board FUNCTION board MOTOR (LD) board SW board SENSOR board CD board DRIVER board MOTOR (TB) board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX700/GNX800 27 27 HCD-GNX700/GNX800 7-1. BLOCK DIAGRAM – CD SECTION – A MAIN SECTION (Page 29) B DISPLAY/POWER SECTION (Page 31) MP3 STB MP3 REQ XTCN MP3 REQ MP3 STB MP3 CLK MP3 CLK MP3 ACK MP3 ACK MP3 DATA OUT MP3 DATA MP3 LP MP3 LP MP3 CS MP3 RST MP3 CS MP3 RST MP3 DATA IN SCOR SENS CD-CLK XLAT CD-DATA XRST XTCN SCOR SENS CLOCK XLT DATA XRST R-CH CD-L CD MUTE IC731 TBL ADDRESS SENS IC701 TABLE LOADING MOTOR DRIVER 4 2 9 7 RIN FIN OUT1 OUT2 IC712 TABLE MOTOR DRIVER 4 2 9 7 RIN FIN OUT1 OUT2 LMR LMF TM-R TM-F TBL_SENS E-1 E-2 E-3 OPEN SW Q731 M751 (TABLE LOADING) M741 (TABLE) S711 S751 (OPEN) ROTARY ENCODER E-3 E-2 E-1 INVERTER M M M+9V OPTICAL PICK-UP BLOCK (KSM-215DCP/C2NP) LD DRIVER Q10 CD DIGITAL OUT OPTICAL CD MUTE Q250,251 +3.3V LD GND FOCUS COIL F+ F T+ T TRACKING COIL IC251 X171 16.9MHz SL/SP MOTOR DRIVER 12 6 11 13 14 VR PD 15 16 17 18 4 26 23 2 20 MUTE CH2OUT-F CH1FIN OUT VREF CH1RIN CH2FIN SFDR OPIN+ CH2OUT-R CH1OUT-R CH1OUT-F CH4OUT-R CH4OUT-F CH3OUT-F CH3OUT-R M M M101 (SPINDLE) M102 (SLED) S101 (LIMIT) VCC VC A B C D E F DETECTOR A B E 19 F 20 LD 36 PD 37 TFDR 11 FFDR 13 CH3FIN 9 OPTICAL OUT 3 SSTP 7 MPD 6 95 XTACN 100 XRST 102 DATA 104 XLAT 105 CLOCK 86 AOUT2 81 AOUT1 71 DOUT 61 PCMD1 62 LRCKI 63 LRCK 65 PCMD DIGITAL SIGNAL IC301 PROCESSOR SYSTEM IC401 (1/5) CONTROL IC210 21 40 SDO0 11 LRCKIA 16 SFSY/LRCK1B 19 SDI0 14 77 XTAO 78 XTAI 55 VDD VDD VDDM 26 25 VC 27 C 28 D 29 107 SENS XTCN XRST DATA XLT CLOCK SENS TRDR 12 22 SRDR CH3RIN 10 CH2RIN FRDR 14 XRST 100 66 BCK 60 BCK1 BCKIA 15 SBSY/BCK1B 18 5 +3.3V IC303 7 5 1 3 26 27 25 7 5 24 23 22 46 45 44 43 39 42 41 6 19 21 40 38 RESET 12 IIC-DATA 30 IIC-CLK 29 18 3 2 1 28 37 STANBY 36 PO11/BUCK/AD1 8 MIACK 7 MICK 6 MIDIO 4 MICS 5 MILP 2 RESET 41 SRMSTB 115 SCOR SCOR REG CD MUTE DRIVE Q540, 541 IC101 RF AMP NO402 CN402 IIC-CLK IIC-DATA IIC-CLK IIC-DATA 3 4 CNVSS TXD1 RTS1 ON BOARD PROGRAM CLK1 RXD1 CN VSS RESET RESET VMUTE 3 2 6 9 7 8 CDG/-POWER CDG/_BGC CDG/-DET 34 33 31 32 9 VMUTE CDG/_BGC CDG-DET CDG-POWER CNVCC VMUTE CDG/BGC CDG DET CD POWER CNVCC : CD • SIGNAL PATH • R-CH is omitted due to same as L-CH. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX700/GNX800 28 28 HCD-GNX700/GNX800 7-2. BLOCK DIAGRAM – TAPE/TUNER SECTION – Ver. 1.1 E MAIN SECTION (Page 29) D MAIN SECTION (Page 29) C MAIN SECTION (Page 29) ST-L REC-OUT-L TAPE MECHANISM DECK 32 A TRIG DRIVE Q340, 343 : PLAYBACK (DECK B) : PLAYBACK (DECK A) R-CH FM/AM TUNER UNIT CN509 ANTENNA ST-L FM ANT AM ANT AM ANT ST-R TUNED ST-DIN ST-DOUT ST-CLK ST-CE FM 75 COAXIAL CAP M+ BTRGM+ ATRGM+ AHALF BHALF B SHUT A SHUT REC(FWD) CAPM-CONT B-TRIG A-TRIG TC-RELAY A-HALF B-HALF BSHUT ASHUT REC BIAS PB-A/B ALC REC-MUTE TC-MUTE/IO-EXP DATA OUT AM EQ OUT1 A B TUNED MC DOUT(ST) MC DIN(ST) ST-CLK ST-CE 34 28 27 26 24 21 56 59 58 67 65 90 89 94 48 95 83 57 53 55 54 88 86 84 87 85 13 11 15 14 PB OUT1 TAI1 REC IN1 AIN1 BIN1 A/B ALC ON/OFF REC MUTE ON/OFF MUTE ON/OFF IC301 DECK A/B SELECT, PB/REC EQUALIZER AMP IC401(2/5) SYSTEM CONTROL (CD/TAPE MECHANISM CONTROL) REC-OUT1 EQ TC-PB-L TEST CONNECTOR CN510 R-CH R L PB HEAD DECK-A DECK-B BIAS OSC Q370 BIAS TRAP SWITCH DRIVE Q377, 379 SWITCH DRIVE Q382, 383 R-CH R-CH Q376 Q373, 374 Q381 L – CH R – CH R-CH C380, L371 BIAS+9V REC/PB HEAD ERASE HEAD Q378,380 T301 L – CH R – CH : TUNER (FM/AM) : RECORD • SIGNAL PATH • R-CH is omitted due to same as L-CH. CN102 SW VOL SYSTEM CONTROL SW LED SW VOL LED-SW-ON 3 4 B TRIG DRIVE Q342, 345 CAP MOTOR DRIVE Q341, 344 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX700/GNX800 29 29 HCD-GNX700/GNX800 7-3. BLOCK DIAGRAM – MAIN SECTION – D (Page 28) AMP SECTION (Page 30) AMP SECTION (Page 30) DISPLAY/POWER SECTION TAPE/TUNER SECTION (Page 31) H G F (Page 27) A CD SECTION C (Page 28) (Page 28) E TAPE/TUNER SECTION TAPE/TUNER SECTION J101 R-CH VOLUME CONTROL CPU INTERFACE INPUT SELECT SWITCH SURROUND OR DPL BUFFER MID/ BASS & TREBLE R-CH R-CH COMMAND TOUT1 OUT1 VOLIN1 + Q101 R-CH R-CH SPEANA DBFB F/B F-R F-L SW OUT + + + RV1100 IC1101 MIC AMP IC101 INPUT SELECT SWITCH, GRAPHIC EQUALIZER CONTROL, ELECTRICAL VOLUME IC401(3/5) SYSTEM CONTROL IC201 SURROUND VOL CONTROL IC1506 SELECTOR CCT INA1 INEX1 INC1 SAOUT DATA CLK BB-A1 BB-B1 SWOUT REC-OUT-L R-CH TC-PB-L ST-L CD-L VREF OUTPUT R OUTPUT L DATA CLOCK EFFECTOR SELECT M16530-CLK LINE MUTE M61529-DATA M61529-CLK NC NC NC NC NC VREF NC NC NC NC NC NC R-CH LINE-MUE J1100(1/3) J1101(2/3) L R MD/VIDEO AUDIO IN L R TV AUDIO IN LPF I/F 2 14 15 24 18 22 16 21 5 3 6 INB1 IND1 4 19 41 40 37 39 38 MIC 1 ECHO LEVEL RV1102 MIC 1 LEVEL RV1101 MIC 2 LEVEL 17 8 MIC RECB1 7 MIC OUT C A B C A B A+9V 34 2 33 32 IC1100 DIGTAL ECHO MC1P MC2P 13 12 6 5 10 9 15 24 14 34 80 81 82 66 + 11 31 25 35 29 7 23 28 27 26 22 3 MUTE Q180, 181 LINE MUTE DRIVE Q544, 545 VREF VREF EFFECTOR CTRL 1 52 17 18 J1101(1/3) J1100(2/3) J1101(3/3) J1100(3/3) MIC 2 15 16 + + + PRE LPF POST LPF ADPCM ENCODE ADPCM DECODE ADC DAC S/H DELAY 25 29 23 5 6 7 DA OUT POOUT AD IN ALC ALC MIC VOL ECHO VOL MIC VOL VOLUME CONTROL VOL1 VOL2 VOL3 4 8 30 Y COM 3Y 0Y 3 4 1 X COM 3X OX B A 13 11 12 9 10 EFFECTOR S1 49 EFFECTOR S2 50 EFFECTOR S0 36 A IC1505 MIXER L/R 7 13 5 3 IC1500 MIXER 1 3 CD-R IC1501 EFFECTOR R CCT IC1503 MULTIPLEXER 9 12 11 10 5 3 Q1508 Q1506 Q1502 LPF2OUT LPF1IN LPF1OUT LPF2IN OP2OUT OP2IN CLOCK A B COM C + + 14 3 10 9 11 2 7 BUFFER Q1509, 1510 : TUNER (FM/AM) : CD : TAPE PLAY : RECORD : MIC INPUT • SIGNAL PATH • R-CH is omitted due to same as L-CH. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX700/GNX800 30 30 HCD-GNX700/GNX800 7-4. BLOCK DIAGRAM – AMP SECTION – H MAIN SECTION (Page 29) MAIN SECTION (Page 29) G DISPLAY/POWER SECTION (Page 31) J DISPLAY/POWER SECTION (Page 31) I MUTING Q604, 606, 610 F-R DBFB F/B F-L SW OUT LINE-MUTE 78 70 STK-MUTE PROT STK-MUTE 14 13 11 4 3 12 STK MUTE FAN DET FAN-CTL FAN-ON FAN-K HI SPEED OVER LOAD DETECT Q668, 618 + + + + MUTING Q640, 641 MUTING CONTROL Q634,682 F-RELAY HP-DET HP-MUTE FAN-K 100 HD DETT 75 HP-MUTE 77 LINE/SURR-RLY 61 UNDER VOLTAGE DET 60 FAN HI SPEED 76 FR-RELAY 36 FAN KICK-OFF OVER LOAD DETECT Q800, 850 RELAY DRIVE Q644, 647 H/P DET F-RELAY HP-MUTE + - - + FRONT SPEAKER SUB WOOFER OUT L R PHONES J1103 RY646 RY665 SYSTEM CONTROLLER IC401 (4/5) TM600 + - - + SURR SPEAKER L R TM601 M FAN MOTOR DRIVE Q580,582,585 DC FAN M891 GNX800 VL(AC) TH629 THERMAL DETECT Q628, 630 SW MUTE Q812 MUTE Q810 Q583, 584 + 68 SW RY/IO-EXP CLK RY862 E2, E3, E51 TM101 RELAY DRIVE Q814, 815 6 4 OVER LOAD DC DET VP OCP CT OUT D624 D812 D550 2 1 PROTECT SWITCH Q666 Q648 18 11 10 9 14 8 - HI SPEED SWITCH Q581 Q506 7 5 • SIGNAL PATH IC600 POWER AMP IC550 OVER CURRENT PROTECTOR IC800 POWER AMP : FM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX700/GNX800 31 31 HCD-GNX700/GNX800 7-5. BLOCK DIAGRAM – DISPLAY/ POWER SECTION – X MAIN SECTION (Page 29) F X AMP SECTION (Page 30) I X AMP SECTION (Page 30) J CD SECTION (Page 27) B IC561 +9V REGULATOR IC560 +9V REGULATOR IC562 +3.3V REGULATOR IC402 LEVEL DETECT FL901 FLUORESCENT INDICATOR TUBE 9,10, 12 – 22, 24 – 41, 43 – 47 8 – 1, 100 – 96, 92-85 P1 – 36 G1 – 13 G17-24 64 – 66 93–95 BPF4 1 IC904 BPF, RECT 67 68 16 2 15 69 71 48 80 ALL BAND BPF3 BPF1 IN2 IN1 VKK SELECTOR G14-16 G14-16 G1-13,G17-24 13 17 74 VOLUME ROTARY ENCODER S970 MASTER VOLUME SPEANA FAN CTL P1 – 36 VF1 VF2 D905 -VG (-32V) X901 4MHz 83 XIN 82 XOUT 52– 59, 72,78,79 LED DRIVE Q908-913,915, 918,919,921 D909, 915, 916, 920, 922, 924, 926, 929, 930, 1017, 1145, 1153 D908, 910, 911, 913, 914, 917, 919, 921, 923, 925, 1020 LED+9V Q905 Q907 Q904 Q906 D927 (R) D928 (G) KEY2 | KEY0 S901 – 906, 1166 - 1170 60 I2C DATA 61 I2C CLK 77 RESET 30 IIC-DATA 29 IIC-CLK IIC-DATA IIC-CLK 71 GC-RESET 74 POWER-KEY 73 DISPLAY-KEY S925 S900 DISPLAY 72 STBY-LED/FAN CTL 4 SIRCS RESET X402 16MHz 15 X-IN 13 X-OUT X401 32.768kHz 10 XC-IN 11 XC-OUT 32 CD-POWER 63 OVER VOLTAGE IC401 (5/5) SYSTEM CONTROL 69 STBY-RY 12 RESET 20 AC-CUT B+ SWITCH Q560, 561 B+ SWITCH Q504, 505 OVER VOLTAGE DETECT Q550 RECT D560 M +9V MT +7V A +9V TC +9V D561 – 563 D660, 661 +3.3V LED+9V BIAS+3.3V D505 POWER SWITCHING LED DRIVE Q903,917 RECT D658 RECT D656 +VL VL(AC) F1261 VL VL VH VH VP VF VF AC3 AC4 NC NC AC4 AC3 GND F1271 F1241 F1251 F1281 R1292 –VL +VH –VH – 33V REGULATOR Q1264 POWER ON/OFF RELAY DRIVE Q1200 – VG (-32V) D1292 RECT VF1 VF2 RY1200 JW1204 JW1234 JW1235 AC IN T1200 POWER TRANSFORMER RESET SWITCH Q501 IC903 REMOTE CONTROL RECEIVER TO FLUORESCENT INDICATOR TUBE FL901 EVER +4V M+9V D3.3V IC902 DISPLAY CONTROL, KEY CONTROL BUFFER Q901,902,914 70 BPF2 14 72 OPERATION DIAL ROTARY ENCODER S1161 OPERATION DIAL 1 2 S1200 S1200 VOLTAGE SELECTOR E2, E3, E51 EXCEPT AR AR AR, AUS E2, E3, E51 230 – 240V 220V 120V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX700/GNX800 32 32 HCD-GNX700/GNX800 7-6. PRINTED WIRING BOARD – CD BOARD – • See page 26 for Circuit Boards Location. Ref. No. Location IC101 D-8 IC251 C-6 IC301 C-8 IC303 B-8 Q10 E-4 • Semiconductor Location : Uses unleaded solder. C10 C260 C14 C15 C16 C18 C11 R405 C316 R354 R353 R352 R351 R302 R253 C315 R191 R172 R171 R162 R313 X171 R121 R12 R11 R10 Q10 C116 C312 C184 C183 C303 C302 C305 C259 C258 C257 C255 C203 C196 C195 C201 C182 C171 C172 C308 C151 C134 C125 C314 C123 R165 R13 C17 FB301 C318 R201 C174 R173 R205 C209 C210 13 (13) 1-860-502- CD BOARD (SIDE A) E R419 R412 R411 R410 R409 R408 R407 R406 R404 R403 R402 1 R401 R305 R303 R301 R252 JPO103 (TE1) JPO102 (FE1) TP117 (VC) TP124 (RFAC) R251 R182 R181 R163 R151 R143 R142 R141 R133 R132 R131 R114 R113 R112 R111 R307 C313 C311 C310 C309 C307 C306 IC251 C252 C251 C194 C181 C320 S101 (LIMIT) IC101 C163 C162 C143 C142 C141 C133 C132 C131 C124 C111 C122 C115 C114 C113 C112 IC301 C185 C186 R306 CN101 IC303 CN201 28 22 21 15 1 7 8 14 C317 R203 R161 C161 C211 C212 R204 C213 1 3 4 5 M101 (SPINDLE) M102 (SLED) M M CD BOARD (SIDE B) 13 (13) 1-860-502- OPTICAL PICK-UP BLOCK (KSM-215DCP) A MAIN BOARD (Page 36) 16 17 32 49 48 64 1 33 27 2 3 4 5 6 7 8 9 10 A 1 B C D E F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX700/GNX800 33 33 HCD-GNX700/GNX800 7-7. SCHEMATIC DIAGRAM – CD BOARD – • See page 52 and 53 for IC Block Diagrams. • See page 52 for Waveforms. • See page 56 for IC Pin Function Description TP165 TP166 TP144 TP147 TP153 TP167 TP160 TP162 TP117 TP145 TP148 TP121 C305 JPO004 JPO10 TP301 TP302 TP303 TP304 TP146 R161 R163 R351 R352 R353 R354 R401 R402 R403 R404 R405 R406 R407 R408 R409 R411 R412 R419 R11 R191 R132 R251 R253 R12 R142 R143 R10 JPO102 JPO103 M101 (SPINDLE) S101 C15 C17 C115 C116 C122 C125 C132 C133 C134 C141 C142 C143 C151 C161 C181 C194 C201 C203 C252 C255 C257 C303 C306 MP3 ACK MP3 CLK MP3 DATA MP3 LP MP3 CS MP3 ACK MP3 CLK MP3 DATA MP3 LP MP3 CS MP3 ACK MP3 CLK MP3 DATA MP3 LP MP3 CS C308 C309 C310 C311 C312 CN101 OPTICAL PICK-UP BLOCK (KSM-215DCP) R121 R171 C171 C313 C314 C183 C184 R252 C259 R13 Q10 C16 C123 C260 R172 C124 R133 R313 C316 C10 C11 C162 C317 C315 C307 C195 C182 C174 R131 C131 C18 R301 FB301 R303 R182 R181 X171 C172 R173 R203 IC303 R302 R162 R165 C211 C210 C212 R151 R205 R410 C320 C213 C14 CN201 C185 C186 C163 C196 C152 C318 R306 IC251 C258 C251 C302 M102 (SLED) C111 R112 R114 R111 R113 C112 C113 C114 C209 R305 IC301 R141 IC101 R307 TP124 TP142 TP149 R204 R201 MIRR DFCT TP178 FOK XUGF XPCK GFS LOCK WDCK COUT VC WFCK SBSO RFDCO 220 4V MDP APC C2PO 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 0 0 10k 10k 10k 100k 1k 3.3k 3.3 FEI TEI 0.1 220 4V 0.1 100 10V 0.1 0.1 0.47 0.01 0.1 0.1 0.0015 0.1 100 10V 0.1 0.1 0.1 100 10V 100 10V 0.1 0.1 0.1 0.1 0.1 47 4V 0.1 0.1 0.1 0.1 16P 15k 0.1 47 4V 22 6.3V 22 6.3V 22k 1 2SA2119K 1 0.1 220 10V 330p 180k 220 0.0022 10 10 0.1 0.01 0.1 0.1 0.1 0.1 0.1 1M 100p 0.001 100k BLM21B272S 100k 100 100 0 0 BH15FB1WG 10k 47k 220p 0.1 22p 0 0 100 0 22p 0.1 470p 470p 0.1 0.1 1 0.01 0 0.0068 0.1 0.0033 15k 15k 1k 1k 470p 0.0033 470p 0.01 100k TC94A34FG-002 4.7k CXD3059AR 10k RFAC EXCK 0 0 470 22p 0.1 1M 16.9MHz 27p 0 27P BA5947FM-E2 0.1 MAIN BOARD (3/3) CN505 (Page 39) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX700/GNX800 34 34 HCD-GNX700/GNX800 7-8. PRINTED WIRING BOARDS – CD MECHANISM SECTION – • See page 26 for Circuit Boards Location. : Uses unleaded solder. M741 (TABLE) M751 (TABLE LOADING) 1 3 CN721 IC731 CN731 CN741 CN742 C715 C731 C735 C736 R701 R711 R731 R721 R722 R723 R732 R733 R734 D701 D711 Q731 C751 IC712 IC701 CN704 C737 R713 R712 C741 R702 JW702 JW703 JW704 JW705 JW706 JW707 JW708 JW711 CN703 S711 ROTARY ENCODER CN702 CN751 CN705 R751 C752 JW712 JW701 JW709 JW713 JW714 S751 (OPEN) CN701 JW710 R735 R736 BOARD MOTOR(LD) 12 (12) 1-687-133- BOARD MOTOR(TB) 12 (12) 1-687-134- BOARD SW 12 (12) 1-687-669- BOARD SENSOR 12 (12) 1-687-132- BOARD DRIVER 12 (12) 1-866-201- M M 1 4 1 2 1 2 E 1 1 9 9 G MAIN BOARD CN511 (Page 36) 1 2 1 2 2 3 4 5 6 7 A 1 B C D E Ref. No. Location D701 C-5 D711 C-5 IC701 C-5 IC712 B-5 IC731 B-2 Q731 B-4 • Semiconductor Location www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX700/GNX800 35 35 HCD-GNX700/GNX800 7-9. SCHEMATIC DIAGRAM – CD MECHANISM SECTION – • See page 52 for IC Block Diagrams. CN721 CN711 E1 E2 E3 CN742 CN741 CN731 C751 CN704 CN703 IC731 IC701 R702 R701 IC712 R713 R712 R711 C741 C715 CN701 C731 R751 R731 R732 R733 R734 R736 CN702 CN705 CN751 R723 R722 R721 C736 C737 C735 D711 D701 C752 M741 M751 Q731 S751 2P 4P 5P 3P 3P 0.01 2P 4P RPI-576 BA6956AN 100 470 BA6956AN 22k 4.7k 1k 0.01 100 16V 13P 10 50V 4.7k 100 10k 1k 12k 390 5P 2P 2P 4.7k 4.7k 4.7k 0.1 0.1 0.1 MTZJ-T-72-3.6B MTZJ-T-72-5.1A 0.1 (TABLE) (TABLE LOADING) DTC114ESA INVERTER (OPEN) (Page 38) (2/3) BOARD MAIN CN511 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX700/GNX800 36 36 HCD-GNX700/GNX800 7-10. PRINTED WIRING BOARD – MAIN BOARD – • See page 26 for Circuit Boards Location. : Uses unleaded solder. (FOR CHECK) TUNER PACK 1 21 22 42 1 21 22 42 1 2 3 4 5 1 2 3 C536 IC401 R508 Q506 Q550 D551 R551 R553 R509 R563 Q561 IC101 IC201 C210 R431 R432 R433 R434 R430 R406 R418 R419 R420 R311 R421 R422 R423 R424 R339 R426 FB508 FB507 FB512 FB509 R429 R395 R336 R397 R307 R396 R355 R302 R438 R439 R440 R441 R442 R443 R444 R445 R446 R436 D501 R394 R529 R530 R427 R319 R428 C464 D341 Q341 R472 Q340 Q342 IC402 Q501 D503 D504 R501 D502 D505 R500 R400 R592 (GNX800) R593 R492 R493 Q345 R343 R111 R294 R295 R342 C341 R489 R490 R273 C405 R389 Q374 Q371 R304 Q372 Q373 R384 Q376 Q375 Q382 R383 R399 R381 R380 R382 C381 Q381 R371 R374 IC301 C380 C384 C386 R392 C377 FB261 FB510 FB263 C264 FB260 R150 C534 C547 C546 R268 R270 R269 R265 R267 R264 R266 R261 R263 R260 R262 R203 C205 C203 R204 C372 R205 C206 R325 R229 R228 D101 D102 D325 C373 R305 R303 R312 R306 C364 R310 R308 R309 R387 R354 R352 R385 R351 R221 R560 R220 C376 Q379 C263 FB506 C537 C262 C260 C261 R253 R254 R257 R256 R255 R252 R250 R251 Q250 Q251 Q343 R532 C539 R104 IC550 R495 C564 C565 D550 R483 R484 R485 R486 R487 C538 R586 C110 D402 R140 R157 R116 C581 C580 Q584 Q582 Q580 R575 R577 R578 D581 D584 C115 R562 R106 R107 R488 Q378 C382 R585 C385 Q380 R373 C383 R369 D342 R379 R388 R344 R347 C340 Q377 D340 D103 D104 C378 R372 R391 R378 R375 R393 Q370 R102 R103 R101 C160 C567 Q560 R346 R341 R345 R349 R538 Q545 R546 R582 R581R531 R184 R185 R186 R187 R180 R181 R182 R183 Q180 Q181 R370 C551 R337 D401 R390 R353 C419 Q583 R571 R473 Q344 R474 R271 Q325 R301 R376 R272 R348 C375 C314 R386 Q383 R587 R377 C371 R425 C499 R151 R152 R340 R502 R573 R574 FB262 D583 FB150 R356 R357 C525 C523 C522 C524 C521 C520 R595 Q505 Q504 C497 R401 R402 R404 R405 R411 C411 R412 R413 R417 R505 C410 C412 R503 R403 R409 R407 JR101 JR102 31 30 1 100 80 81 50 51 JR107 JR108 JR109 JR110 JR114 JR117 JR119 JR120 JR123 JR124 JR125 JR126 JR127 JR129 JR130 JR131 R112 JR112 JR121 JR115 R452 JW563 NO401 JW001 JW002 JW006 JW010 JW011 JW012 JW013 JW015 JW016 JW017 JW018 JW019 JW023 JW027 JW028 JW029 JW030 JW031 JW032 JW033 JW037 (AR,AUS) JW038 JW039 JW040 JW041 JW044 JW045 JW049 JW051 JW052 JW053 JW055 JW056 JW058 JW059 JW062 JW065 JW067 JW074 JW075 JW076 JW098 JW108 JW112 JW113 JW141 JW142 JW144 JW171 JW172 JW173 JW174 JW189 JW191 JW202 JW216 JW229 JW230 JW231 JW232 JW233 JW237 JW238 JW240 JW239 JW241 JW243 JW244 JW245 JW248 JW254 JW255 JW263 JW264 JW265 JW268 JW273 JW274 JW276 JW279 JW280 JW281 JW284 JW288 JW294 JW299 JW300 JW301 JW302 JW312 JW317 JW320 JW321 JW322 JW323 JW324 JW325 JW326 JW327 JW328 JW329 JW331 JW332 JW333 JW334 JW335 JW338 JW339 JW340 JW341 JW342 JW343 JW344 JW345 JW356 JW357 JW359 JW360 JW361 JW362 JW364 JW366 JW367 JW368 JW369 JW370 JW371 JW373 JW387 JW376 JW378 JW377 R598 L101 L102 R599 JW007 JW400 JW365 JW125 JW123 JW124 JW291 JW295 JW501 JW315 JW316 JW402 JW406 JW213 JW310 JW242 JW234 JW412 JW318 JW319 JW413 JW416 JW417 JW419 JW267 JW420 JW421 JW384 JW383 JW337 JW363 JW450 JW307 JW308 JW336 JW452 C511 NO503 JW135 NO402 EPT561 JW277 JW566 JW567 JW568 JW061 JW145 CN102 CN102 SYSTEM CONTROL JW260 JW184 JW188 JW121 JW119 JW397 JW118 JW117 JW116 JW115 JW114 JW042 JW043 JW014 JW138 JW054 JW009 JW008 JW005 JW004 JW003 JW050 JW071 JW070 JW048 JW084 JW086 JW085 JW047 JW046 JW057 JW399 JW066 JW063 JW064 JW091 JW092 JW093 JW096 JW095 JW236 JW257 JW258 JW020 JW418 JW381 JW379 JW090 JW162 JW161 JW160 JW127 JW395 JW192 JW275 JW304 JW408 JW247 JW208 JW182 JW407 JW355 JW346 JW347 JW348 JW278 JW235 JW225 JW140 JW143 JW148 JW181 JW186 JW187 JW110 JW190 JW177 JW130 JW156 JW166 JW170 JW211 JW212 JW210 JW215 JW224 JW226 JW227 JW259 JW298 JW203 JW205 JW222 JW351 JW396 JW398 JW349 JW372 JW393 JW394 JW358 JW380 JW385 JW390 JW403 JW411 JW422 JW426 JW428 JW430 JW431 JW432 JW103 JW433 JW434 JW253 JW256 JW389 JW375 JW209 CN511 X402 X401 C568 C308 C355 CN505 C310 C462 CN508 C501 C503 C416 IC561 IC210 D560 L371 C374 CN502 C351 C250 CN501 CN512 C100 C150 C103 C222 J101 C540 C202 C207 C154 C311 C204 C230 CN506 C211 C231 C223 C309 C498 C541 C305 C353 C306 C359 C220 C354 C356 C301 C251 CN507 C104 C105 C111 IC560 C566 C180 C560 C561 CN100 C102 C221 C152 C280 C156 C157 C158 CN580 Q585 C112 CN510 C106 C107 C108 C281 C153 L302 T301 C502 L370 C312 TM101 C303 L372 C544 C545 C181 D561 D562 C379 C109 C562 EPT560 C563 C161 C370 C304 C361 C307 CN402 C140 C159 IC562 CN503 C553 (E2,E3,E51) JW069 CN513 JW352 JW354 JW561 JW072 JW078 JW391 JW392 JW128 JW164 JW165 JW223 JW167 JW415 JW129 JW100 JW109 C535 JW270 JW200 JW079 JW201 JW176 JW199 JW120 JW178 JW424 JW423 JW425 JW282 JW175 JW073 JW068 JW080 JW094 JW097 JW107 JW036 JWH001 CN509 JW228 JW251 JW081 JW087 JW111 JW139 JW082 JW035 JW183 CN105 JW220 J103 JW126 JW179 JW180 JW195 JW196 JW193 JW221 JW287 JW286 JW404 JW285 JW206 JW292 JW296 JW289 JW293 JW522 JW153 JW159 JW185 JW429 JW163 JW197 JW198 R108 JW022 11 1-868-763- BOARD MAIN F PANEL BOARD CN902 (Page 40) G DRIVER BOARD CN701 (Page 34) J PRIMARY BOARD CN1200 (Page 50) B MIC BOARD CN1101 (Page 42) H EFFECTOR BOARD CN1501 (Page 48) A CD BOARD CN201 (Page 32) E PA BOARD CN601 (Page 44) D PA BOARD CN600 (Page 44) K TRANS BOARD CN1213 (Page 50) C SURROUND BOARD NO801 (Page 46) I SURROUND BOARD CN700 (Page 46) E E E E E E E E E E E (E2,E3,E51) (E2,E3,E51) E E E E E E E E E E E Q581 E E E E E E E E E E E E E E E E E E E E E E (FOR CHECK) (FOR CHECK) TAPE A HEAD TAPE B HEAD TAPE MECHANISM DECK M891 DC FAN 1 2 3 1 6 1 2 3 1 8 1 3 1 4 1 6 3 4 1 4 1 2 3 4 5 SUBWOOFER OUT CD DIGITAL OUT OPTICAL G-LIGHT SYNC + - + 1 4 TV L R VIDEO/MD AUDIO IN L R 1 1 3 3 1 27 1 17 1 3 1 3 R594 C417 D403 C401 D404 JW083 JW023 JW024 JW025 JW026 JW021 JW137 C113 R119 R131 JW131 JW262 JW146 JW134 JW122 JW133 JW132 JW219 C149 R133 R156 R105 Q151 Q101 R122 R153 R121 R130 JR122 JW149 JW169 JW168 JW150 JW151 JW152 JW154 JW155 JW157 JW158 JW303 C162 C116 JW136 JW451 JW409 JW313 JW217 JW218 JW204 JW147 C163 C101 R132 R155 C131 R475 R478 R570 R469 JR113 R468 R497 R293 R296 R297 R476 R477 R470 R463 JW077 Q540 R541 R542 JW088 R547 R548 JW089 Q544 R540 Q541 JR116 JW105 JW104 JW106 JW350 JW290 C552 JW297 C550 JW401 R449 R450 R448 JR104 R166 C155 R154 NO403 (E2) 2 3 4 5 6 7 8 9 10 11 12 13 14 A 1 B C D E F G H J I K Ver. 1.1 Ref. No. Location D101 J-13 D102 J-13 D103 D-9 D104 D-9 D325 I-14 D340 E-3 D341 E-3 D342 E-3 D401 D-5 D402 D-5 D403 C-3 D404 C-3 D501 C-5 D502 C-5 D503 C-5 D504 C-5 D505 C-6 D550 I-12 D551 I-12 D560 I-8 D561 G-9 D562 G-10 D581 H-13 D583 H-13 D584 H-13 IC101 D-10 IC201 D-12 IC210 A-14 IC301 H-5 IC401 C-4 IC402 C-5 IC550 I-12 IC560 H-9 IC561 H-9 IC562 C-6 Q101 C-9 Q151 C-8 Q180 J-10 Q181 J-10 • Semiconductor Location Ref. No. Location Q250 C-12 Q251 C-13 Q325 J-13 Q340 E-2 Q341 E-4 Q342 E-3 Q343 E-2 Q344 E-3 Q345 E-2 Q370 J-4 Q371 I-3 Q372 I-4 Q373 I-4 Q374 I-4 Q375 I-4 Q376 I-4 Q377 I-5 Q378 I-5 Q379 I-5 Q380 J-5 Q381 I-5 Q382 H-5 Q383 H-5 Q501 C-5 Q504 B-6 Q505 C-6 Q506 E-3 Q540 E-5 Q541 F-4 Q542 E-5 Q545 F-5 Q550 I-12 Q560 C-7 Q561 C-6 Q580 H-12 Q581 H-13 Q582 H-13 Q583 D-4 Q584 H-13 Q585 H-13 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX700/GNX800 37 37 HCD-GNX700/GNX800 7-11. SCHEMATIC DIAGRAM – MAIN BOARD (1/3) – • See page 52 for Waveforms. (2/3) BOARD MAIN (Page 38) (3/3) BOARD MAIN (Page 39) BOARD BOARD PA SURROUND (Page 47) (Page 45) CN600 CN700 BOARD PA (Page 45) CN601 R294 R296 R293 R272 C340 R340 R344 R343 R342 R347 R348 C341 R341 R345 R349 CN509 CN510 R385 R387 C375 R382 R381 R384 R399 R383 R390 R396 L371 R376 R373 R372 R375 C378 L370 C380 C384 R392 C386 R397 R393 C383 C385 R391 C372 C373 R374 R371 R370 C371 C370 R379 R386 R377 R378 C377 T301 C379 R394 R395 L372 100uH R306 R307 R308 R310 R312 R309 R311 L302 100uH C312 C308 C307 R319 C314 R302 R301 C303 C304 R304 R305 C306 C305 C301 C310 C351 R351 C353 R352 C354 C355 R354 C356 R355 C311 R339 R337 R548 R542 R541 C541 R540 C540 C545 R546 R547 C544 CN501 C553 C551 C550 C552 C563 C564 C566 C565 C562 D561 D562 R575 R577 CN580 C580 C581 Q585 R560 R562 C567 C568 CN502 R186 R187 C181 C180 R184 R185 R182 R183 R180 R181 CN507 CN503 D341 D342 D340 D550 R495 R108 R551 R553 D551 CN513 D581 D583 Q580 Q582 JW561 JW568 JW566 R336 C309 C359 R380 C374 Q376 Q375 Q371 Q372 Q373 Q374 Q377 Q379 Q381 Q382 Q383 Q378 Q380 Q370 Q541 Q540 IC560 IC561 Q341 Q344 Q342 Q345 Q340 Q343 R346 Q181 Q180 IC562 R563 Q560 Q561 R388 C382 C381 R273 JW567 IC301 C376 R389 R357 C361 C364 R353 R369 R303 CN102 Q550 IC550 Q584 R356 R297 R295 Q544 Q545 EPT560 R578 Q581 D584 4.7k 4.7k 47k 22k 0.0047 2.2k 680 2.2k 2.2k 2.2k 680 0.0047 3.3k 3.3k 3.3k 11P 3P 2.2k 2.2k 680p 2.2k 2.2k 2.2k 10k 2.2k 10k 10k 27mH 4.7k 4.7k 10k 10k 120p 27mH 120p 330p 10k 0.022 2.2k 2.2k 330p 0.022 10k 0.001 0.001 4.7k 4.7k 3.3k 0.0047 0.01 100V 10 33 47 10k 0.01 0.0068 4.7k 47k 22k 1M 100 100 100 4.7k 0 10 50V 470 10V 10 50V 2.2k 0.0022 4.7k 3.3k 0.1 10 50V 2.2k 47k 2.2 50V 1 50V 0.012 10 50V 0.012 3.3k 0.1 4.7k 10 16V 1 50V 2.2k 2.2 50V 47k 10 50V 22k 10k 470k 470k 15k 1 50V 68k 1 50V 1 50V 68k 15k 1 50V 13P 1000 25V 0.1 100 16V 2.2 50V 470 10V 0.1 4700 25V 0.1 100 16V 10EDB40 10EDB40 1k 10k R594 330 2W 3P 0.1 0.1 2SD2525 2.7k 2.2k 0.1 1000 6.3V 8P 10k 10k 4.7 50V 4.7 50V 1k 1k 47k 47k 10k 10k 8P 3P 1SS355WTE-17 1SS355WTE-17 1SS355WTE-17 1SS355WTE-17 100 1 56k 1.8k 1SS355WTE-17 9P UDZSTE-176.2B UDZSTE-176.8B 2SC2712-YG 2SC2712-YG 6.8k 0.5% 47 35V 47 35V 6.8k 0.5% 47 35V 2SD2704K SWITCH 2SD2704K SWITCH 2SD2704K SWITCH 2SD2704K SWITCH 2SD2704K SWITCH 2SD2704K SWITCH 2SA1235 SWITCH DRIVE DTC114EKA SWITCH DRIVE DTC114EKA BUFFER DTA114EKA SWITCH DRIVE DTC114EKA SWITCH DRIVE RT1P137P-TP-1 SWITCH DTC114EKA SWITCH 2SD596DV345 BIAS OSC DTC114EKA CD MUTE DRIVE DTA124EKA CD MUTE DRIVE BA09T BA09T 2SB1132 CAP MOTOR DRIVE DTC114EKA CAP MOTOR DRIVE 2SB1132 B TRIG DRIVE DTC114EKA B TRIG DRIVE 2SB1132 A TRIG DRIVE DTC114EKA A TRIG DRIVE 680 2SD2114K MUTE 2SD2114K MUTE TA78033LS 2.2k RT1P137P B+ SWITCH DTC114EKA B+ SWITCH 6.8k 0.5% 1200p 1200p 10k HA12237F 680p 22k 10k 10 50V 0.0022 10k 2.2k 10k 4P DTC143TKA OVER VOLTAGE DETECT RT8H015C-T112-1 DTC114EKA BUFFER 6.8k 0.5% 3.3k 3.3k DTA124EKA LINE MUTE DRIVE DTC114EKA LINE MUTE DRIVE 1k 2SC2712-YG HI SPEED SWITCH HZU2.0BTRF A-TRG B-TRG BUS8 BUS7 BUS4 BUS6 LED+9V AC-CUT EVER+3.3V B+ D GND OVER VOLTAGE GND SW OUT M+7V A+9V DBFB FB CD MUTE 3.3V REC-OUT-R REC-OUT-L TC-PB-R TC-PB-L R-OUT L-OUT D GND GND BUS4 UNREG 58 59 37 75 78 53 54 55 90 89 48 94 66 67 65 97 57 32 76 77 70 68 78 56 95 83 60 72 SYSTEM CONTROL (FOR CHECK) DECK A/B SELECT, PB/REC EQUALIZER AMP +9V REGULATOR +9V REGULATOR REGULATOR +3.3V OVER CURRENT PROTECTOR M891 DC FAN E2,E3,E51 Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX700/GNX800 38 38 HCD-GNX700/GNX800 7-12. SCHEMATIC DIAGRAM – MAIN BOARD (2/3) – VREF SYSTEM CONTROL CN402 NO402 R431 R432 R433 R434 R436 R438 R439 R440 R441 R442 R443 R444 R445 R446 R448 R449 R450 R483 R484 R486 R485 R487 R489 R488 R490 R595 C499 R587 R586 R585 R430 NO403 R529 R530 R429 D404 1SS355WTE-17 D403 1SS355WTE-17 R428 R427 R426 R425 R424 R423 R422 R421 R420 R419 R418 R417 R407 R406 R405 R404 R403 R402 R401 R411 R413 C411 C419 C410 R505 R409 C412 R412 X401 C464 C462 C405 R468 R470 R472 R473 R474 R475 R476 R477 R478 R570 R571 R573 R574 R452 C560 C561 CN508 NO503 IC401 NO401 R503 C503 C502 C501 R502 R400 R463 D505 D501 D502 D503 D504 D402 D401 R592 R493 R593 R492 C511 JR131 R508 X402 R497 R501 CN511 Q583 Q505 Q504 Q501 R500 C498 C497 R538 R509 IC402 R469 C416 D560 Q506 10P 4P 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 1M 0.1 10k 10k 10k 100 C401 0.1 10k 10k 100 100 100 100 100 100 100 100 100 1k 100 220 10k 100 100 100 100 100 100 100 330k 0 22p 220p 22p 4.7k 10k 0.1 100k 32.768kHz 0.01 100 10V 0.1 100 100 100 100 100 100 100 100 100 10k 10k 10k 10k 100 0.01 0.01 17P 6P M30622MEP-A75FPU0 3P 0 0.1 0.1 10 50V 1k 100 10k 1SS355WTE-17 1SS355WTE-17 1SS355WTE-17 1SS355WTE-17 1SS355WTE-17 1SS355WTE-17 1SS355WTE-17 4.7k 10 6.3V 0 10k 5MHz 1k 220 13P DTA124EKA BUFFER DTC124EKA B+ SWITCH DTA114EKA B+ SWITCH DTC124EKA RESET SWITCH 10k 10 50V 0.1 10k BD4929G-TR 100 2200 C417 0.1 6.3V D3SBA20-4101 DTC114EKA BUFFER BUS8 BUS7 BUS6 BUS5 BUS4 BUS3 SPEANA AC-CUT D GND LED+9V EVER+3.3V B+ OVER VOLTAGE HP-DET GND GND D GND BUS4 UNREG 89 90 38 39 40 41 42 43 44 45 46 31 32 33 1 2 3 5 7 18 19 21 22 23 24 25 26 27 28 32 34 84 85 86 87 73 74 4 48 71 72 67 66 88 36 49 50 34 52 29 30 37 71 29 30 4 73 74 72 29 30 12 9 32 33 34 31 81 82 79 80 83 95 12 9 30 29 72 94 38 39 40 41 42 43 44 45 46 53 54 55 56 57 58 59 78 77 76 75 70 68 60 97 1 R492 2.2k 0 R493 330 1.5k 4.7k R593 680 1k 4.7k 2.2k R509 3.3K (FOR CHECK) (FOR CHECK) LEVEL DETECT * 1 * 2 * 2 * 3 * 3 * 4 * 4 * (1/3) MAIN BOARD (Page 37) (3/3) MAIN BOARD (Page 39) BOARD TRANS (Page 51) CN1213 BOARD PANEL (Page 41) CN902 BOARD PRIMARY (Page 51) CN1200 BOARD DRIVER (Page 35) CN701 GNX700 GNX800 E3 AUS E2,E51,AR GNX800 AR E2,E51 E3,AUS GNX700 GNX800 E2,E3,E51 AR,AUS • See page 52 for Waveforms. • See page 59 for IC Pin Function Description Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX700/GNX800 39 39 HCD-GNX700/GNX800 7-13. SCHEMATIC DIAGRAM – MAIN BOARD (3/3)– BOARD EFFECTOR (Page 49) CN1501 CD BOARD (Page 33) CN201 BOARD MIC (Page 43) NO1101 BOARD SURROUND (Page 47) NO801 MAIN BOARD (1/3) (Page 37) CN506 FB512 C537 FB509 C521 C546 C547 FB508 FB507 FB506 C524 C525 C520 C523 C522 CN512 C534 C535 R263 C263 R267 R262 C262 R266 R261 C261 R265 R269 R260 C260 R264 R268 FB260 FB261 R271 FB263 JR129 C264 FB262 R270 R112 R111 C131 R132 R133 R105 C130 C116 C115 R156 R155 D103 C101 R106 C111 C113 C108 R102 C109 C106 C107 R101 C105 R107 R116 C103 C281 C150 R150 C104 R104 C280 C102 C100 C159 R151 R152 C157 C156 R153 C163 C161 C158 C140 R140 C155 R166 CN100 C149 C210 C211 R251 C152 FB150 C114 R119 D102 D101 R325 C230 C231 C223 C222 R221 R220 C220 C221 JW260 R205 R204 R203 C207 C202 C203 C206 R598 R599 TM101 CN105 L101 L102 JW270 JW208 R103 CN505 R255 R532 R531 R532,582 C539 C251 C250 R253 R254 R257 R250 R256 R252 IC101 R157 Q151 Q101 C205 C204 D325 R229 R228 J101 R121 R122 C162 C160 C112 C110 R131 R130 IC201 Q251 Q250 R154 C154 R582 C153 FB510 C538 IC210 JW419 J103 Q325 9P 0UH 0.1 0UH 220p 220p 220p 0UH 0UH 0UH 220p 220p 0.1 220p 220p 17P 0.1 1000 10V 0 220p 100k 0 220p 100k 0 220p 100k 1k 0 220p 100k 1k 0 0 1k 0 0 0.47 0 1k 0 0 0.47 50V 1M 100k 47k 10 50V 220 10V 0.1 10k 47k 10k 10 50V 0.27 0.033 10k 1 50V 0.022 0.022 2.2k 10 50V 220 100 10 50V 10 50V 10 50V 100 10 50V 1k 10 50V 10 50V 100 10V 1 50V 2.2k 10k 0.022 0.022 560 0.27 10 50V 0.033 0.068 10k 10 50V 100 4P 0.1 0.1 100 10V 10k 10 50V 0 JW 100 1SS355WTE-17 1SS355WTE-17 680 0.1 0.1 100 10V 100 10V 12k 100k 0.1 0.1 1k 1k 0 1 50V 10 50V 220p 220p 10 1/2W 10 1/2W 2P 3P 560 27P 10k 0.1 10 50V 10 50V 10k 10k 1k 1k 33k 33k 4.7k R581 4.7k M61529FP-60G 220 2SC2712-YG SWITCH WTA-17 1SS335 D104 WTA-17 1SS335 0.1 2SC2712-YG SWITCH 0.1 220 10V UDZSTE-174.7B 6.8k 0.5% 6.8k 0.5% 4P 10k 10k 2.2k 2.2k M61530FP-D60G 2SD2114K CD MUTE 2SD2114K CD MUTE 1k 10 50V 10 50V 0UH 0.1 TOTX147 2SC5053 REG SW-IN SW-OUT BUS4 BUS5 BUS3 SPEANA D GND HP-DET SW OUT M+7V A+9V DBFB FB CD MUTE GND 3.3V REC-OUT-R REC-OUT-L TC-PB-L TC-PB-R R-OUT L-OUT GND D GND BUS4 79 80 82 81 34 50 49 36 52 88 87 86 85 84 1 21 22 24 5 7 23 27 26 25 19 18 3 2 28 4 3 2 1 (2/3) BOARD MAIN 1 5 10 15 20 25 27 CD DIGITAL OUT OPTICAL D-LIGHT SYNC SUBWOOFER OUT AUDIO IN TV AUDIO IN VIDEO/MD CONTROL SURROUND VOL INPUT SELECT SWITCH, GRAPHIC EQUALIZER CONTROL, ELECTRICAL VOLUME OPTICAL OUT C160 0.0068 0.01 C162 0.22 0.27 0.0068 0.01 0.22 0.27 C110 C112 (Page 38) * 3 * * * 2 * * 1 * 4 * * * * GNX700 GNX800 GNX700 GNX800 GNX700 GNX800 GNX700 GNX800 0 680 EXCEPT E2 E2 E2 E2 Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX700/GNX800 40 40 HCD-GNX700/GNX800 7-14. PRINTED WIRING BOARD – PANEL BOARD – • See page 26 for Circuit Boards Location. : Uses unleaded solder. Ref. No. Location D901 A-9 D905 A-8 D908 C-9 D909 D-9 D910 D-9 D911 A-2 D913 C-2 D914 D-2 D915 B-2 D916 E-9 D917 E-9 D927 B-9 D928 B-9 D929 E-2 D930 F-2 D931 C-3 D932 C-3 D1145 B-2 D1153 C-2 IC902 B-5 IC903 B-9 IC904 B-3 Q901 B-8 Q902 B-8 Q903 A-9 Q904 E-3 Q905 E-3 Q906 D-3 Q907 F-3 Q908 D-9 Q909 E-9 Q910 B-2 Q914 B-8 Q917 A-9 Q918 D-3 Q919 D-3 • Semiconductor Location F MAIN BOARD CN508 (Page 36) VIDEO/ MD TUNER/ BAND TV TAPE A/B TV VIDEO/ MD TAPE A/B CD CD x x B B X X ALBUM - TUNING + TUNING - ALBUM + > > M ALBUM + M M ALBUM - M R1143 R925 R1179 R1112 R1021 31 30 80 81 50 51 C979 C980 C926 C927 JR914 C928 C929 C930 C931 C932 C933 C934 C935 C936 C937 C938 C939 C981 C982 C983 C972 R942 R943 R941 D905 C920 R922 FB901 C904 R901 R900 C940 C909 C903 C945 C947 R984 R983 R956 C946 C948 R947 R949 R950 R952 R953 C949 C951 C953 C955 C957 C950 C975 R902 C901 C902 C1180 R905 R903 R904 R906 R907 C910 D932 C954 R948 C952 C958 C956 R951 C959 R954 R1022 R1023 R1024 R1025 R1026 R909 R1027R1028 R1187 C906 C925 C905 R912 C916 C908 D931 R1180 R1181 C962 R944 R968 R964 R965 R966 R910 R911 R987 R988 Q908 R914 R915 R990 R991 Q909 R916 R917 R974 R975 Q907 Q910 R957 R997 R1135 R1136 Q918 Q919 R1141 R1142 R923 R924 R1007 R1008 R1009 R1010 R1011 R1012 R1013 Q904 R979 R982 R980 R981 Q905 Q906 Q901 Q902 Q914 R919 R920 R918 C961 IC904 D901 IC902 R1098 R1171 R926 C973 C964 JW904 JW903 NO904 D927 D928 D908 D909 D909,S924 D910 D916 D917 D911 D915 D1145 D1153 D913 D914 D929 D930 S927 S925 S924 S923 S922 S921 S907 S908 S909 S910 S910,D913 S911 S911,D914 S912 S913 CN902 C943 X901 C922 C923 C924 C900 C941 C942 CN900 C967 IC903 FL901 JW1105 JW900 JW906 JW907 JW908 JW909 JW911 JW912 JW913 JW914 JW915 JW916 JW917 JW918 JW919 JW920 JW921 JW923 JW924 JW925 JW926 JW927 JW928 JW929 JW931 JW932 JW933 JW934 JW935 JW936 JW963 JW964 JW965 JW966 JW967 JW970 JW971 JW972 JW973 JW974 JW975 JW976 JW977 JW978 JW979 JW980 JW981 JW982 JW983 JW984 JW985 JW987 JW988 JW989 JW994 JW995 JW996 JW997 JW998 JW1000 JW1001 JW1002 JW1003 JW1004 JW1005 JW1006 JW1007 JW1008 JW1009 JW1010 JW1011 JW1012 JW1013 JW1014 JW1015 JW1016 JW1017 JW1018 JW1019 JW1020 JW1021 JW1022 JW1023 JW1024 JW1026 JW1027 JW1028 JW1029 JW1030 JW1031 JW1032 JW1033 JW1034 JW1035 JW1036 JW1037 JW1038 JW1039 JW1040 JW1041 JW1042 JW1043 JW1044 JW1045 JW1046 JW1047 JW1049 JW1050 JW901 JW902 JW1051 JW1052 JW1053 JW1054 JW1055 JW1056 JW1057 JW1058 JW1059 JW1090 L FUNCTION BOARD CN901 (Page 42) M CD-SW BOARD NO1151 (Page 42) E E E E E E E E E E E E E E 1 2 3 65 70 64 1 6 7 1 2 11 (13) 1-868-670- BOARD PANEL JR925 C917 Q903 R908 JW968 R1178 JW969 R967 JW986 JR919 JR918 Q917 JW990 JW991 JW992 JW993 C974 C977 C978 JW941 JW940 JW939 JW937 JW938 JW922 2 3 4 5 6 7 8 9 10 A 1 B C D E F Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX700/GNX800 41 41 HCD-GNX700/GNX800 7-15. SCHEMATIC DIAGRAM – PANEL BOARD – • See page 52 for IC Block Diagrams. • See page 52 for Waveforms. • See page 61 for IC Pin Function Description. I / I / I / DISPLAY CONTROL, KEY CONTROL R957 R1098 R997 R1136 R1141 R1171 R1143 R1142 R1135 R1112 R1179 R923 R926 R925 R924 C957 C949 C942 C951 C953 C955 R953 R952 R950 R949 R947 C948 C946 C959 C958 C956 C954 C952 C950 C947 C945 R984 R983 R954 R951 C905 R902 C909 C901 C902 C1180 C906 C916 C908 R912 R903 R904 C910 R1021 R1022 R1023 R1024 R1025 R1026 R1027 R1028 R905 R906 R907 R909 R1187 C961 C940 C941 R956 S907 S908 S909 S910 S911 S912 S913 R1007 R1008 R1009 R1010 R1011 R1012 R1013 C922 C923 C924 C925 FB901 D931 D932 R942 R941 R943 C900 C904 R901 R900 C903 JR914 C974 R974 R975 R917 R916 R990 R991 R915 R914 R987 R988 R910 R911 R981 R980 R982 S921 S922 S923 S924 S925 S927 R968 R967 R966 R964 CN900 R944 CN902 R1181 R908 R919 R918 R920 FL901 C943 CLP912 R922 JW904 JW1105 D901 R1180 R1178 D927 D908 D909 D910 D916 D917 D1145 D1153 D911 D913 D929 D930 D914 C977 C978 C979 C980 C926 C927 C928 C929 C930 C931 C932 C933 C934 C935 C936 C937 C938 C939 C981 C982 C983 C972 C973 C975 IC904 D905 NO904 Q917 Q903 Q902 Q901 Q914 Q904 Q905 Q906 Q907 Q908 Q909 Q910 Q919 Q918 C967 JW903 D915 D928 C920 C962 C964 IC902 X901 R979 IC903 R965 R948 680 680 680 680 680 680 680 680 680 680 680 680 680 680 680 1 1 10 50V 1 1 1 1k 1k 1k 1k 1k 470p 470p 0.047 0.047 0.022 0.022 0.0047 0.0047 1 1 33k 56k 10k 5.6k 0.1 10k 220p 220p 220p 220p 220p 0.1 220p 100 100 100 0.1 100 100 100 100 100 100 100 100 15k 15k 15k 4.7k 10k 0.1 0.1 10 50V 2.7k 3.3k 4.7k 6.8k 10k 15k 22k 33k 470 6.3V 470 6.3V 470 6.3V 0.01 0 1SS355WTE-17 1SS355WTE-17 100 100 10k 4.7 50V 0.1 10k 10k 0.1 0 0.01 680 JR925 0 680 680 680 680 680 680 680 680 680 680 680 JR918 0 JR919 0 1k 1k 470 22k 15k 10k 4.7k C917 0.1 17P 47 17P 270 100 100k 100k 100k 10 50V 1M 1SS355WTE-17 82 22 SEL5223S-TP15 SEL5223S-TP15 SEL5223S-TP15 SEL5223S-TP15 SEL5223S-TP15 SEL5223S-TP15 SEL5223S-TP15 SEL5223S-TP15 SEL5223S-TP15 SEL5223S-TP15 SEL5223S-TP15 SEL5223S-TP15 SEL5223S-TP15 100p 100p 100p 100p 100p 100p 100p 100p 100p 100p 100p 470p 100p 100p 100p 100p 100p 100p 100p 100p 100p 100p 100p 100p NJM2760V-TE2 UDZSTE-176.8B 2P DTC123JKA LED DRIVE DTA123JKA LED DRIVE DTC143TKA BUFFER DTC143TKA BUFFER DTC143TKA BUFFER 2SB1132 SWITCH 2SB1132 SWITCH DTC123JKA BUFFER DTC123JKA BUFFER DTC123JKA LED DRIVE DTC123JKA LED DRIVE DTC123JKA LED DRIVE DTC123JKA LED DRIVE DTC123JKA LED DRIVE 10 50V SELU5420E-STP15 SELU5420E-STP15 0.1 0.001 47 10V MB90M407PF-G-148E1 4MHz 47 RPM7240-H9 6.8k 0.5% 6.8k 0.5% 1 2 3 4 5 6 7 8 9 12 13 14 15 16 17 18 19 20 21 22 24 25 26 27 28 29 30 10 31 32 33 34 35 36 37 38 39 40 41 43 44 45 46 47 85 86 87 88 89 90 91 93 94 96 97 98 99 100 95 92 64 65 66 67 68 70 71 72 73 77 78 80 79 76 69 61 60 59 58 57 56 55 54 53 52 51 79 77 61 60 52 53 54 95 94 93 86 87 88 89 90 91 85 92 97 100 1 2 3 4 5 6 7 8 99 98 9 10 12 13 14 15 16 17 18 19 22 20 24 21 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 47 46 45 44 43 80 49 74 55 96 67 70 68 69 71 56 57 58 59 72 74 64 65 76 78 66 FLUORESCENT INDICATOR TUBE REMOTE CONTROL RECEIVER BOARD CD-SW (Page 43) NO1151 BOARD MAIN (2/3) (Page 38) CN508 BOARD FUNCTION (Page 43) CN901 Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX700/GNX800 42 42 HCD-GNX700/GNX800 7-16. PRINTED WIRING BOARDS – CD-SW, JOG, MIC and FUNCTION BOARDS – • See page 26 for Circuit Boards Location. : Uses unleaded solder. • Semiconductor Location Ref. No. Location D919 C-3 D920 C-3 D921 C-2 D922 C-2 D923 D-2 D924 D-3 D925 D-4 D926 C-3 D1100 F-5 D1101 F-5 D1102 F-8 D1017 C-11 D1020 C-11 IC1100 G-6 IC1101 G-8 Q911 C-3 Q912 C-2 Q913 D-3 Q915 D-3 Q921 C-11 1 8 EX-CHANGE/ DISC SKIP DISC 3 DISC 1 DISC 2 OPEN/CLOSE MIC1 MIC2 J1103 PHONES ECHO LEVEL MIC 2 LEVEL MIC 1 LEVEL DIRECTION MPX REC PAUSE/START GROOVE EQ BAND MP3 BOOSTER ENTER CD SYNC MASTER VOLUME AMP MENU SOUND FLASH DELAY SURROUND SPEAKER MODE FLANGER DISPLAY ILLUMINATION R1152 R1156 JR1 JR922 C1128 R1113 R1119 C1125 R1138 R1126 R1103 R1109 C1101 R1107 R1106 R1105 R1104 C1113 D1102 C1122 IC1101 C1104 R1115 R1116 C1103 R1121 C1110 C1109 R1122 R1123 C1124 R1120 R1137 R1118 R1124 R1114 FB1100 FB1101 C1142 R1161 S1161 C1150 R1162 Q911 R1144 R1145 R1146 R1165 R1164 Q915 Q913 JR2 JR4 R1149 R1150 R1151 R1163 Q912 R1153 R1154 R1155 JR5 JR3 R1157 R1158 R1159 IC1100 R1166 R1167 R1168 R1169 R1170 R1111 C1119 R1100 C1102 R1140 R1147 RV1101 RV1101 RV1102 RV1102 CN1102 RV1100 RV1100 C1112 C1108 C1114 C1123 C1116 C1117 D922 D925 D924 D926 D920 CNS903 D919 D921 D923 S1161 JW1102 C1105 NO1151 S1170 S1169 S1168 S1167 S1166 JW1104 JW1088 JW1106 JW1108 J1100 J1101 JW1110 JW1111 JW1112 JW1113 JW1114 JW1115 JW1116 JW1117 JW1118 JW1119 JW1120 JW1121 JW1122 JW1123 EPT1103 EPT1104 11 (11) 1-868-673- BOARD CD-SW BOARD JOG 11 (11) 1-868-675- 11 (11) 1-868-672- VOL 2 VOL 1 VOL 8 VOL 7 VOL 6 VOL 5 VOL 4 VOL 3 OPERATION DIAL 1 2 3 S1161 1 2 3 K Z 1 2 M PANEL BOARD NO904 (Page 40) 1 4 1 3 Q PA BOARD NO601 (Page 44) B MAIN BOARD CN100 (Page 36) BOARD MIC E E E E R1003 R1004 R1005 R1006 R963 R1001 R1002 R962 R961 R960 R959 R958 R1014 C907 R972 R1018 R1019 Q921 R1186 CNS902 JW1150 S916 S970 S914 S904 S903 S902 S905 S906 S901 S918 S928 S919 S917 S920 S915 CN901 D1017 D1020 JW1060 JW1064 JW1070 JW1071 JW1072 JW1073 JW1075 JW1063 11 (11) 1-868-671- BOARD FUNCTION L PANEL BOARD CN900 (Page 40) 1 8 E R1040 JR1096 JW1078 JW1074 C976 C971 C970 C969 C966 C965 C984 JW1080 R973 JW1061 JW1062 JW1065 JW1066 JW1067 JW1068 JW1069 JR921 JR923 JW1086 C1127 JW1126 JW1127 C1111 C1121 JW1133 C1115 R1139 R1108 R1102 R1110 C1100 JW1109 D1100 C1133 D1101 JW1107 JW1132 C1106 C1107 R1132 C1139 JW1134 2 3 4 5 6 7 8 9 10 11 12 A 1 B C D E F G H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX700/GNX800 43 43 HCD-GNX700/GNX800 7-17. SCHEMATIC DIAGRAM – CD-SW, JOG, MIC and FUNCTION BOARDS – CNS903 C1142 R1116 R1115 R1104 R1106 R1105 R1107 R1108 RV1102 D1100 D1101 EPT1103 R1103 R1102 R1109 R1110 R1152 R1147 R1140 J1100 J1101 CN1102 C1122 C1115 C1114 C1108 C1103 C1106 C1112 C1101 C1100 C1104 C1113 JW1104 C1124 C1109 R1118 C1121 C1105 R1113 R1123 C1110 R1122 R1120 C1127 R1124 R1114 C1128 R1111 C1111 R1119 C1125 C1119 C1102 R1100 NO1101 EPT1104 R1144 R1145 R1146 R1149 R1150 R1151 R1153 R1154 R1155 R1157 R1158 R1159 R1162 R1163 R1164 R1165 D920 D922 D926 D925 D923 D921 D919 D924 NO1151 C1123 D1102 R1126 R1156 C1107 R1121 C1117 RV1100 RV1101 IC1100 IC1101(2/2) IC1101(1/2) S1161 R1161 C1150 R1040 Q911 Q912 Q913 Q915 R972 R973 R962 R961 R960 R963 R1186 R1014 R958 R959 R1001 R1002 R1003 R1004 R1005 R1006 CN901 Q921 R1018 D1017 D1020 S970 C907 S920 S919 S918 S917 S916 S915 S928 S914 S901 S902 S903 S904 S905 S906 JW1150 CNS902 FB1101 FB1100 S1170 S1169 S1168 S1167 S1166 R1170 R1169 R1168 R1167 R1166 R1132 C1133 J1103 C1116 R1137 R1139 R1138 8P 0.1 330 330 5.6k 100 100 100 10k 50k 1SS355WTE-17 1SS355WTE-17 1k 1k 10k 10k 1.5k 15k 10k 3P 0.068 4.7 50V 4.7 50V 1 50V 0.1 4.7 50V 1 50V 0.01 0.01 0.1 68p 1200p 4700p 1k 1 50V 0.1 50V 12k 15k 1 12k 3.9k 10 50V 10k 10k 47p 10k 0.22 50V 47k 470p 47p 1500p 15k 4P 820 820 820 820 820 820 820 820 820 820 820 820 100 100 100 100 SELU5223C-STP15 SELU5223C-STP15 SELU5223C-STP15 SELU5223C-STP15 SELU5223C-STP15 SELU5223C-STP15 SELU5223C-STP15 SELU5223C-STP15 2P 47 16V UDZSTE-175.1B 10k 1.5k 4.7 50V 6.8k 0.5% 47 16V 50k 50k TC9488FG NJM4565M-D NJM4565M-D 1k 0.001 1k DTC114EKA LED DRIVE DTC114EKA LED DRIVE DTC114EKA LED DRIVE DTC114EKA LED DRIVE 1k 6.8k 0.5% 2.2k 1.5k 1.5k 3.3k 270 C984 100p C965 0.1 C966 0.1 C969 0.1 C970 0.1 C971 0.1 C976 0.1 470 680 1k 470 680 1k 1.5k 1.5k 2.2k 17P DTC123JKA-T146 LED DRIVE 680 SLR-343VCT32 SLR-343VCT32 0.001 8P 0 0 1.5k 1.5k 1k 680 470 0 0.1 C1139 0.1 47 16V 10k 10k 10k MIC 1 LEVEL ECHO LEVEL MIC 2 LEVEL JR1096 0 BOARD PANEL (Page 41) NO904 BOARD PANEL (Page 41) CN900 MAIN BOARD(3/3) PA BOARD (Page 45) (Page 39) NO601 CN100 • See page 55 for IC Block Diagrams. Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX700/GNX800 44 44 HCD-GNX700/GNX800 7-18. PRINTED WIRING BOARD – PA BOARD – • See page 26 for Circuit Boards Location. : Uses unleaded solder. L R L R JR603 R694 D611 R611 R610 R620 C654 C604 D612 R603 R653 R602 R652 C601 C651 R601 R651 R600 R650 R617 R695 R696 R625 R624 R674 C606 R628 R629 R630 R631 Q628 Q630 C605 C683 C693 C682 C681 C691 C692 R676 R656 R657 R658 R660 R661 R677 R678 C660 D620 R621 D646 R609 R698 R608 R693 R606 R692 R607 Q634 R604 R605 Q610 R642 R662 R640 R635 R641 Q682 R643 R663 R639 R638 R697 R634 Q641 Q640 R683 R619 Q604 Q618 D609 D665 Q666 R682 Q644 R666 R667 D661 D660 R649 Q648 R685 Q647 R645 R644 R648 R673 R623 R671 Q668 R669 R670 D670 D655 D654 R655 R654 R633 JR602 JR601 JR600 R647 D624 JR612 D658 D656 JW626 NO601 JW601 NO600 JW627 JW600 JW677 JW676 JW602 JW681 JW691 JW604 JW605 JW606 JW608 JW614 JW617 JW618 JW619 JW620 JW621 JW622 JW623 JW628 JW629 JW630 JW633 JW634 JW635 JW637 JW638 JW639 JW640 JW641 JW642 JW643 JW644 JW645 JW646 JW649 JW651 JW652 JW653 JW654 JW655 JW656 JW657 JW658 JW659 JW660 JW661 JW664 JW665 JW668 JW678 JW679 JW616 JW607 JW613 JW603 JW662 JW663 JW631 JW688 JW692 JW693 JW694 JW695 JW698 JW699 JW700 JW667 JW669 (GNX800) JW682 JW683 JW650 JW674 JW675 JW670 JW671 JW672 JW673 JW647 JW648 JW696 JW632 JW680 JW636 JW684 JW624 JW625 C676 C656 C678 IC600 C658 R668 RY665 RY646 EP690 CN600 CN601 CN607 TM600 R618 JWH603 JWH602 C602 C600 C650 C652 TH629 C617 C666 R672 R622 C635 C634 C636 C608 C655 C648 C649 R636 R637 R613 R614 R612 R615 R616 R691 R681 R665 JWH601 TM601 Q606 C667 C637 C616 JWH600 TH630 EP660 R646 BOARD PA 11 (22) 1-864-930- P TRANS BOARD CN1212 (Page 50) D MAIN BOARD CN501 (Page 36) E MAIN BOARD CN502 (Page 36) Q MIC BOARD CN1102 (Page 42) O SURROUND BOARD NO800 (Page 46) 1 3 1 5 (GNX800) (GNX800:E3,AUS) (GNX800:E3,AUS) (GNX800) SURR SPEAKER FRONT SPEAKER E 1 7 E E E E E E E E E E E E E E 2 3 4 5 6 7 8 9 10 11 12 A 1 B C D E F G Ref. No. Location D609 A-6 D611 E-7 D612 E-7 D620 B-7 D624 E-9 D646 B-10 D654 B-9 D655 B-10 D656 D-3 D658 D-5 D660 E-1 D661 E-1 D665 C-10 D670 B-7 IC600 D-8 Q604 B-6 Q606 B-6 Q610 B-6 Q618 B-7 Q628 E-9 Q630 E-9 Q634 B-5 Q640 B-6 Q641 B-5 Q644 F-1 Q647 F-1 Q648 E-1 Q666 E-1 Q668 B-7 Q682 A-6 • Semiconductor Location Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX700/GNX800 45 45 HCD-GNX700/GNX800 7-19. SCHEMATIC DIAGRAM – PA BOARD – BOARD TRANS (Page 51) CN1212 BOARD MIC (Page 43) CN1102 BOARD SURROUND (Page 47) NO800 POWER GND POWER GND NO600 CN601 CN600 C656 R657 R656 R676 R677 C676 C660 C608 R609 R694 R610 R698 R608 R693 R696 R695 R617 R603 R653 C666 C667 R672 R622 C617 C616 TH629 R631 R630 R611 R606 R607 R692 R605 R604 C651 C601 R651 R601 R650 R600 C600 C650 R682 R683 R697 R634 C634 C635 R635 R640 R641 R642 R662 R643 R663 R638 R639 R673 R623 R674 R624 C606 C649 C648 R685 R649 R645 R644 C683 C693 EP690 R654 R655 C655 RY646 NO601 R691 R646 R637 R636 R671 R670 R620 R621 R628 R629 R614 R613 C658 C678 R658 R678 C681 C682 C692 C691 D620 D670 D660 D661 D646 D609 D624 D611 D612 C604 C654 C602 C652 R602 R652 R647 R648 RY665 R665 D665 R667 R666 R661 R660 R681 JW681 JW691 JW677 JW678 D655 D654 R625 EP660 TH630 JR612 R633 C605 CN607 Q606 TM600 TM601 R669 R619 Q604 Q610 Q634 Q682 Q640 Q641 Q644 Q647 Q648 Q666 D656 D658 R615 R616 R612 Q618 Q668 R618 R668 IC600 C636 C637 Q628 Q630 7P 8P 13P 3300 100V 220k 220k 220k 220k 3300 100V 0.1 22 50V 68k 68k 68k 100k 100k 100k 100k 100k 100k 47k 47k 0.068 0.068 10 1/2W 10 1/2W 0.068 0.068 100k 100k 33k 47k 2.2k 47k 10k 10k 0.0022 0.0022 47k 47k 1k 1k 4.7 50V 4.7 50V 1k 4.7k 2.2k 2.2k 100 25V 100 25V 10k 1k 1k 150 150 150 150 100k 100k 56k 68k 22k 22k 0.1 10 50V 100 10V 10k 22k 10k 2.2k 0.1 0.1 47k 47k 10 50V 3P 10 1/2W 82 1/2W 680 2W 680 2W 100k 33k 33k 100k 22k 5.6k 3.3k 1W 3.3k 1W 4700 63V 4700 63V 100k 100k 0.068 0.068 0.068 0.068 1SS355WTE-17 1SS355WTE-17 1SS355WTE-17 1SS355WTE-17 1SS355WTE-17 1SS355WTE-17 1SS355WTE-17 UDZ-TE-17-18B UDZ-TE-17-18B 220p 220p 100 10V 100 10V 82 1/2W 1SS355WTE-17 10k 4.7k 10 1/2W 1SS355WTE-17 1SS355WTE-17 0 0 0.1 5P 2SA1207 2P 2P 1k 1k 2SC3906K-T146 2SC3906K-T146 DTA124EKA MUTING CONTROL SWITCH 2SC2712-YG MUTING CONTROL SWITCH 2SD2114K HEADPHONE MUTING 2SD2114K HEADPHONE MUTING 2SC2712-YG FRONT SPEAKER RELAY DRIVE 2SC2712-YG FRONT SPEAKER RELAY DRIVE 2SC2712-YG OVER LOAD DETECT SWITCH 2SC2712-YG SPEAKER PROTECT RELAY DRIVE D15XB20 D25XB60 100 1 100 2SC3906K-T146 OVER LOAD DET 2SC3906K-T146 OVER LOAD DET 0.22 5W 0.22 5W STK412-150 4.7 100V 4.7 100V 2SC2712-YG THERMAL DETECT 2SC2712-YG THERMAL DETECT -PRE * * * * * * * * * R602,652 390 10k 12k R661,660 R648 R647 22k 4.7k 1k 1.5k 2.7k R625 MAIN BOARD(1/3) MAIN BOARD(1/3) POWER AMP Q604,606,610 MUTING 3.3k 430 (Page 37) (Page 37) CN501 CN502 * * * GNX800 GNX800 GNX800:E3,AUS GNX800:E3,AUS GNX800 GNX700 GNX800 GNX700 GNX800 GNX700 GNX800 GNX700 GNX800:E3,AUS EXCEPT GNX800:E3,AUS Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX700/GNX800 46 46 HCD-GNX700/GNX800 7-20. PRINTED WIRING BOARD – SURROUND BOARD – • See page 26 for Circuit Boards Location. Ref. No. Location D800 D-4 D810 D-2 D811 E-3 D812 D-4 D850 D-4 IC800 B-4 Q800 D-4 Q810 C-1 Q812 C-2 Q814 D-3 Q815 D-3 Q850 D-3 • Semiconductor Location : Uses unleaded solder. C803 C805 R860 C853 R800 C807 R807 R806 R801 C801 R803 Q810 R851 R850 R802 Q800 Q850 R841 R891 R890 R840 D800 D850 R839 D810 R817 R812 Q812 D812 R889 R843 R861 Q814 Q815 R863 R864 R866 C804 R865 D811 C808 C858 (GNX700) (GNX700) R852 R808 R858 C851 R814 NO800 JW801 JW803 JW828 C888 C889 B791 JW806 JW802 NO801 JW804 JW811 JW807 JW805 JW810 JW816 JW800 EP700 JW809 CN700 JW813 JW753 JW754 JW814 JW819 JW818 JW812 IC800 RY862 R888 R862 C800 C806 C850 C852 C802 R827 R828 R804 R892 R842 C820 R805 C843 C839 C838 JW826 JW815 JW808 R838 C825 C826 JW713 11 (12) 1-868-667- BOARD SURROUND 1 15 1 1 3 9 I MAIN BOARD CN512 (Page 36) C MAIN BOARD CN105 (Page 36) 1 5 O PA BOARD CN607 (Page 44) E E E E E E 2 3 4 5 6 7 8 9 10 A 1 B C D E F Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX700/GNX800 47 47 HCD-GNX700/GNX800 7-21. SCHEMATIC DIAGRAM –SURROUND BOARD – MAIN BOARD MAIN BOARD BOARD (1/3) PA (3/3) (Page 39) (Page 37) (Page 45) CN607 CN105 CN513 SW OUT RY862 D811 R865 R866 R863 R864 R861 R860 D812 R891 R841 R840 D850 D800 R890 R843 C843 R812 R817 C820 C804 C826 R838 R888 C803 C853 R800 C800 C805 B791 R803 R807 C851 C850 R801 C801 R851 R850 C852 R814 C802 NO800 R842 R892 R862 R808 C808 C858 R858 R804 R805 C838 C839 C889 C888 CN700 C825 D810 R839 R889 Q850 Q800 Q815 Q814 Q812 C807 C806 R806 R827 R828 R802 R852 Q810 NO801 IC800 1SS355WTE-17 1k 22k 2.2k 22k 47k 56k 1SS355WTE-17 100k 100k 22k 1SS355WTE-17 1SS355WTE-17 22k 47k 4.7 50V 2.2k 10k 10 50V 0.1 100 50V 0.22 5W 0.22 5W 100p 100p * 4.7 50V 0.1 2.2k 47k 0.01 4.7 50V 47k 1 47k 1k 100 10V 10k 100 10V 5P 10 1/2W 10 1/2W 82 1/2W 47k 8.2p 8.2p 47k 1 1 0.068 0.068 0.068 0.068 9P 100 50V 1SS355WTE-17 1k 1k 2SC3906K OVER LOAD DETECT 2SC3906K OVER LOAD DETECT 2SC2712-YG RELAY DRIVE 2SC2712-YG RELAY DRIVE 2SC3906K SW MUTE 1 2.2 50V 1k 100 100 2SD2114K MUTE 3P * * * * * STK403-090 STK403-120 IC800 1 9 GNX700 POWER AMP R802 820 1.2k * R852 1k 910 * R800 1k 10k GNX700 GNX800 GNX700 GNX700 GNX800 GNX700 GNX800 GNX800 GNX700 Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX700/GNX800 48 48 HCD-GNX700/GNX800 7-22. PRINTED WIRING BOARD – EFFECTOR BOARD – • See page 26 for Circuit Boards Location. : Uses unleaded solder. Ref. No. Location D1502 B-6 IC1500 D-3 IC1501 E-3 IC1503 D-2 IC1505 E-5 IC1506 C-6 Q1502 E-2 Q1506 F-5 Q1507 B-6 Q1508 D-5 Q1509 B-1 Q1510 A-1 • Semiconductor Location Ver. 1.1 BOARD EFFECTOR 11 (13) 1-868-596- R1589 R1500 IC1501 IC1506 IC1505 IC1500 IC1503 R1560 R1585 R1573 R1559 C1548 R1572 R1576 R1571 C1555 R1575 R1574 R1565 R1566 R1567 R1569 R1579 R1591 C1520 R1546 R1511 R1512 C1517 C1521 R1514 R1515 R1510 C1509 R1526 R1505 R1528 R1529 R1502 R1525 R1504 R1527 R1534 R1536 R1586 C1529 R1584 JW1507 JW1524 JW1525 JW1526 JW1528 JW1529 JW1533 JW1542 JW1544 JW1545 JW1547 JW1549 JW1557 JW1558 JW1508 JW1527 JW1555 JW1561 JW1511 JW1538 JW1539 JW1505 JW1553 JW1540 JW1541 JW1517 JW1512 JW1503 JW1502 JW1521 CN1502 JW1530 C1570 C1569 C1576 C1554 C1524 C1546 C1559 C1545 C1512 C1516 C1523 C1525 C1519 C1515 C1507 C1561 C1560 C1542 C1544 C1552 EP1500 C1506 C1530 EP1501 1 17 H MAIN BOARD CN512 (Page 36) E E E E E E R1530 R1531 R1532 R1533 R1535 R1537 Q1502 R1538 R1522 R1519 R1520 R1592 R1568 R1570 R1590 Q1506 JW1548 C1526 C1522 JW1504 C1513 JW1535 JW1515 JW1546 JW1534 JW1518 JW1522 JW1523 JW1570 JW1531 JW1532 JW1536 Q1510 R1517 JW1537 R1516 L1500 C1571 R1549 R1558 R1557 R1581 R1582 R1547 JW1520 JW1550 JW1551 JW1560 JW1552 JW1513 C1578 C1584 JW1559 JW100 JW1519 Q1507 C1572 D1502 C1568 Q1508 R1580 R1508 JW1556 R1595 R1594 Q1509 R1501 R1606 JW1571 R1602 C1602 C1601 R1600 R1604 2 3 4 5 6 7 8 A 1 B C D E F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX700/GNX800 49 49 HCD-GNX700/GNX800 7-23. SCHEMATIC DIAGRAM – EFFECTOR BOARD – IC1505(2/2) IC1501 C1513 C1517 R1512 R1511 C1520 R1546 C1516 C1521 R1514 R1515 C1523 R1510 C1522 C1519 C1529 R1565 R1566 C1554 R1567 R1568 R1570 C1546 R1569 C1545 C1548 R1571 R1572 C1552 R1589 C1555 C1559 C1560 R1500 R1504 R1525 R1502 R1501 C1572 C1568 R1547 C1584 C1571 R1549 R1557 R1558 C1576 R1559 R1560 R1550 R1582 R1579 C1561 R1580 R1581 C1562 R1532 R1531 R1530 R1533 R1584 R1585 R1586 R1529 C1509 R1505 C1507 C1506 R1526 C1512 R1590 C1542 R1520 R1519 R1522 R1538 R1592 C1526 C1530 C1515 C1524 C1525 R1576 R1574 R1575 R1573 D1502 R1527 CN1501 JW1513 IC1506 R1508 JW1510 JW1511 IC1503 R1534 R1536 R1537 R1535 C1569 C1570 C1544 R1591 Q1506 Q1502 Q1508 Q1507 C1578 IC1505(1/2) R1528 NJM4565M-D M65850FP-E1 0.1 0.0015 18k 18k 330p 18k 0.068 330p 18k 18k 0.068 18k 0.0015 10 50V 0.01 2.2k 2.2k 10 50V 22k 22k R1594 0 R1604 0 R1606 0 R1595 0 100k 10 50V 100k 10 50V 47p 100k 1k 10 50V 33 47p 10 50V 10 50V 100 100 100 100 100 0.1 0.1 10k 100 0.1 R1517 10k L1500 10uH R1516 10k 10k R1602 0 R1600 0 100k 100k 10 50V 100k 100k 10k 100k 100k 10 50V 22k 22k 10 50V 820 470 330 1.2k 0 0 0 100k 1p 10k 0.068 0.068 10k 10 50V BP 33k 0.0047 0 0 0 27k 0 0.1 0.033 47 35V 0.22 50V 0.22 50V 680 100k 1k 680 UDZSTE-176.2B 100 17P TC74LVX4052FT Q1510 DTC114EKA-T146 BUFFER Q1509 DTC114EKA-T146 BUFFER 10k TC74LVX4051FT 1.8k 3.9k 47k 2.7k 10 50V 10V 10 50V 0.0047 33k 2SK3378ENTL SWITCH 2SK3378ENTL SWITCH 2SK3378ENTL SWITCH 2SC5053T100Q B+ SWITCH 10 50V C1602 10 50V C1601 10 50V NJM4565M-D 100k S0 S1 S2 S2 S1 S0 MIXER EFFECTOR R CCT IC1500 NJM4565M-D MIXER R MIXER L SELECTOR CCT MULTIPLEXER BOARD MAIN (3/3) CN512 (Page 39) • See page 54 for IC Block Diagrams. Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX700/GNX800 50 50 HCD-GNX700/GNX800 7-24. PRINTED WIRING BOARDS – POWER SECTION – • See page 26 for Circuit Boards Location. : Uses unleaded solder. R1262 R1263 R1264 D1264 Q1200 C1204 R1200 R1201 C1202 C1201 D1200 JR1202 JW1204 NO1201 NO1203 NO1211 JW1202 JW1201 JW1206 JW1207 JW1208 JW1209 JW1214 JW1220 JW1221 JW1211 JW1216 JW1230 JW1212 JW1231 JW1222 JW1223 JW1213 JW1215 JW1235 JW1234 (E2,E3,E51) (AR,AUS) (AR,AUS) (AR) (EXCEPT AR) CN1212 R1292 C1263 Q1264 C1262 CN1204 FH1241 F1241 FH1242 FH1251 F1251 FH1261 F1261 FH1271 F1271 FH1252 FH1262 FH1272 FH1282 FH1281 F1281 CN1213 CN1202 C1206 RY1200 S1200 C1292 EP1203 CN1200 L1201 D1292 BOARD TRANS 11 (21) 1-864-931- BOARD PRIMARY 11 (21) 1-864-932- 1 4 (E2,E3,E51) (E2,E3,E51) (AR,AUS) (AR,AUS) (AR,AUS) 1 4 E C B * NOT REPLACEABLE: BUILT IN TRANSFORMER T1200 POWER TRANSFORMER POWER SWITCHING 230-240V 220V 120V t t VOLTAGE SELECTOR AC IN 1 2 1 2 1 2 1 3 E 1 7 P PA BOARD NO600 (Page 44) 1 6 K MAIN BOARD NO503 (Page 36) J MAIN BOARD NO401 (Page 36) * 2 3 4 5 6 7 8 9 10 A 1 B C D E F G H I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX700/GNX800 51 51 HCD-GNX700/GNX800 7-25. SCHEMATIC DIAGRAM – POWER SECTION – (2/3) MAIN BOARD NO401 (Page 38) MAIN BOARD (2/3) (Page 38) NO503 BOARD PA NO600 (Page 45) CN1212 C1292 FH1282 FH1281 FH1271 FH1261 FH1251 FH1241 FH1242 FH1252 FH1262 FH1272 D1292 R1292 C1262 R1262 R1263 R1264 C1263 CN1200 C1206 R1201 C1201 R1200 L1201 18uH C1202 JR1202 C1204 EP1203 NO1203 CN1202 NO1201 JW1204 RY1200 T1200 F1241 F1251 F1261 F1271 F1281 JW1211 JW1222 JW1223 JW1235 JW1234 D1200 CN1213 D1264 Q1264 CN1204 NO1211 S1200 Q1200 7P 100 63V 10EDB40-TB3 0.68 10 50V 8.2k 8.2k 1k 100 50V 3P 1000 6.3V 100k 0.1 3.3k 0.1 0 0.1 2P 2P 2P POWER TRANSFORMER T8AL 250V T8AL 250V T8AL 250V T8AL 250V T3.15AL 250V 1SS355WTE-17 6P HZU36BTRF 2SB1565E -33V REGURATOR 2SC2712-YG POWER ON/OFF RELAY DRIVE AC IN BUILT IN TRANSFORMER NOT REPLACEABLE: * * VOLTAGE SELECTOR EXCEPT AR AR AR,AUS E2,E3,E51 E2,E3,E51 AR,AUS Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX700/GNX800 52 52 HCD-GNX700/GNX800 • WAVEFORMS – MAIN BOARD – – CD BOARD – – PANEL BOARD – 2.7 Vp-p 32.768 kHz 2.0 Vp-p 16 MHz 1V/DIV, 10 μsec/DIV 1V/DIV, 50 nsec/DIV 10.5 μsec 50V/DIV, 10 μsec/DIV 50V/DIV, 10 μsec/DIV 67 Vp-p 10.5 μsec 82 Vp-p 1 IC401 qa XC-OUT 2 IC401 qd X-OUT 3 T301 5 TAPE REC only 4 T301 4 TAPE REC only 0.15 Vp-p 0.2V/DIV, 0.2 msec/DIV 0.1V/DIV, 1 msec/DIV 0.9 ± 0.4 Vp-p 0.2V/DIV, 0.5 μsec/DIV 0.4 Vp-p 1 IC101 wa TEI 2 IC101 wd FEI 3 IC101 ra RFAC 3.1 Vp-p 4 MHz 1V/DIV, 0.2 μsec/DIV 1 IC902 is X OUT – DRIVER Board – IC701, 712 BA6956AN • IC Block Diagram – CD Board – IC251 BA5947FM-E2 1 2 3 4 5 6 7 8 9 CONTROL LOGIC TSD VREF OUT2 OUT1 RNF VM VCC FIN GND RIN 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 1 2 3 4 5 6 7 8 9 10 LEVEL SHIFT F R R F R F F 19k 6.5k 50k 50k 100k 50k PIN3 10k Vref 50k 50k PIN26 (ch1, 2) POW VCC (ch3, 4) SW Pre Vcc INTER FACE INTER FACE INTER FACE R F 50k 50k POW VCC MUTE Vref POW VCC POW VCC R F 10k CH1OUTF CH1OUTR CH2OUTF CH2OUTR POWVCC CNF4 GND GND CH2RIN CH2FIN CH1RIN CH1FIN SW OPIN+ OPIN- CH4OUTR CH4OUTF CH3OUTF CH3OUTR POWVCC MUTE GND GND CH3RIN CH3FIN CH4IN CH4CAPA OUTVREF DPOUT PREVCC D D D D D D D D – PANEL Board – IC904 NJM2760V-TE2 BPF1IN2 DET IN1 1 IN2 2 BPF2IN1 4 BPF2IN2 5 18 BPF3OUT 15 BPF1IN1 19 BPF2OUT 20 BPF DET BPF3IN1 6 BPF3IN2 7 BPF2OUT 14 BPF DET BPF4IN1 8 BPF4IN2 9 BPF1OUT 13 BPF DET GND 10 NC 12 BUF1OUT 3 VCC 11 RECOUT 17 BPF4OUT 16 BPF DET www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 HCD-GNX700/GNX800 – CD Board – IC301 TC94A34FG-002 33 34 35 36 37 38 39 40 41 42 1 8 43 61 62 63 64 60 59 56 52 50 47 46 45 44 48 49 25 26 27 28 29 30 31 32 17 18 19 20 21 22 23 24 9 10 11 2 3 4 5 6 7 58 57 55 53 51 12 13 14 15 16 54 CS/RAS/SDO2 AD15/CAS/PD12 SDO3/OE WE/SDO1 PIO7/BUS3/IO7 PIO6/FI3/BUS2/IO7 PIO5/FI2/BUS1/IO5 PIO4/FI1/BUS0/IO4 Bus Switch PO11/BUCK/AD14 PO10/CCE/AD13 PO9/AD12 PO08/AD11 General In/Output Port Address Calc. 2sets Y-Pointer register C-Pointer register X-Pointer register VDDM SRMSTB VDDT AD10 AD9 ERAM 2k word CRAM 4k word CROM 4k word YRAM 4k word XRAM 4k word SRAM/ DRAM I/F SRAM I/F 1Mbit SRAM X-Bus Y-Bus PO07/AD7 PO06/AD6 PO05/AD5 AD8 VC0 Timing Generator PRAM Instruction Decoder Program Control MCU. I/F register XO • X1 • X2 Y0 • Y1 • Y2 MX MY MZ MAC A0 A1 AX AY ALU A2 A3 DIT round & limit round & limit Audio I/F LRCKIA BCKIA SDI0 LRCKO BCKO SDO0 VSS VDDT MIACK MICK MIDIO MILP MICS STANBY RESET VDDP AD4/PO04 AD3/PO03 AD2/PO02 AD1/PO01 AD0/PO00 VSS VDD CKO/PO13/AD16 VDDX XO TEST VCOI VSSX XI MIMD VSSP PIO3/IO3 PIO2/IO2 PIO1/SDI3/IO1 PIO0/SDI2/IO0 VSS CKI/CLOCK/IRQ/FIO VDD TXO SFSY/LRCKIB SBSY/BCKIB SDI1/DATA POM Sub code I/F CDP Cont I/F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 HCD-GNX700/GNX800 – EFFECTOR Board – IC1501 M65850FP-E1 OSCILLATOR 1/2 VCC AUTO RESET LPF1 MAIN CONTROL A/D 20KBIT SRAM LPF2 D/A 2 3 4 5 6 7 8 9 10 11 15 14 13 12 CLOCK RESET MO MI D1 D0 DO1 VCC 16 NC CLOCK REF OP2IN OP2OUT LPF2IN LPF2OUT LPF1IN 1 NC LPF1OUT OP1OUT OP1IN CC1 CC2 GND IC1503 TC74LVX4051FT 1 D4 2 D6 3 COM 4 D7 5 D5 6 INH 7 VEE 8 GND 9 C 10 B 11 A 12 D3 13 D0 14 D1 15 D2 16 VCC OUT C IN OUT C IN OUT C IN OUT C IN OUT C IN OUT C IN OUT C IN OUT C IN LOGIC LEVEL CONVERTER IC1506 TC74LVX4052FT 1 0Y 2 3Y 3 Y COM 4 3Y 5 1Y 6 INH 7 VEE 8 GND 13 X COM 9 B 10 A 11 3X 12 0X 14 1X 15 2X 16 VCC OUT C IN OUT C IN OUT C IN OUT C IN OUT C IN OUT C IN OUT C IN OUT C IN LOGIC LEVEL CONVERTER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 HCD-GNX700/GNX800 – MIC Board – IC1100 TC9488FG 2 OSC ADPCM DECODE DELAY DRAM ADPCM ENCODE ADC DAC S/H POST LPF ALC VOLUME CONTROL OSCC 1 VDD 3 OSCR 4 NC 5 VOL1 (CS) 6 VOL2 (SCL) 7 VOL3 (SDA) 8 NC 9 VRO VREF VDA NC ALC1 MC1N MC1P 15 16 14 13 12 11 10 VREF VREF VREF VREF ALC VREF MC2P 17 MC2N 18 ALC1 19 NC 20 VSA 21 MCO 22 PRIN 23 ADIN 24 NC 25 DA OUT 26 VOLST 27 NC 28 TEST 29 POOUT 30 VSS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 HCD-GNX700/GNX800 7-26. IC Pin Function Descriptions • IC101 CXD3059AR (RF AMP) (CD BOARD) Pin No. Pin Name I/O Description 1 MIRR I/O Not used (Open) 2 DFCT I/O Not used (Open) 3 FOK I/O Not used (Open) 4 VSS – Ground terminal 5 LOCK I/O Not used (Open) 6 MDP O Spindle motor servo control signal output 7 SSTP I Disc innermost detection signal input 8 IOVSS1 – Ground terminal 9 SFDR O Sled drive signal output 10 SRDR O Sled drive signal output 11 TFDR O Tracking drive signal output 12 TRDR O Tracking drive signal output 13 FFDR O Focus drive signal output 14 FRDR O Focus drive signal output 15 IOVDD1 – Power supply terminal (+3.3V) 16 AVDD0 – Power supply terminal (+3.3V) 17 AVSS0 – Ground terminal 18 NC – Not used (Open) 19 E I E signal input 20 F I F signal input 21 TEI I Tracking error signal input 22 TEO O Tracking error signal output 23 FEI I Focus error signal input 24 FEO O Focus error signal output 25 VC O Center voltage output from RF amplifier block 26 A I A signal input 27 B I B signal input 28 C I C signal input 29 D I D signal input 30 NC – Not used (Open) 31 AVDD4 – Power supply terminal (+3.3V) 32 RFDCO O RFDC signal output (Open) 33 PDSENS I Reference voltage terminal 34 AC_SUM O RFAC summing amplifier signal output 35 EG_IN I Equalizer circuit signal input 36 LD O APC LD drive signal output 37 PD I APC PD signal input 38 NC – Not used (Open) 39 RFC I Equalizer cut-off frequency adjustment terminal 40 AVSS4 – Ground terminal 41 RFACO O RFAC signal output 42 RFACI I RFAC signal input or EFM signal input 43 AVDD3 – Power supply terminal (+3.3V) 44 BIAS I Asymmetry circuit constant current input 45 ASYI I Asymmetry comparator voltage input 46 ASYO O EFM full-swing signal output 47 VPCO O Not used (Open) 48 VCTL I Wide-band EFM PLL VCO2 control voltage input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 HCD-GNX700/GNX800 Pin No. Pin Name I/O Description 49 AVSS3 – Ground terminal 50 CLTV I Multiplier VCO1 control voltage input 51 FILO O Master PLL (slave = digital PLL) filter signal output 52 FILI I Master PLL filter signal input 53 PCO O Master PLL charge pump signal output 54 AVDD5 – Power supply terminal (+3.3V) 55 DDVROUT O DC/DC converter output (+2.5V) 56 DDVRSEN I DC/DC converter output voltage monitor signal input 57 AVSS5 – Ground terminal 58 DDCR I DC/DC converter reset signal input 59 NC – Not used (Open) 60 BCKI I D/A interface bit clock input 61 PCMDI I D/A interface serial data input 62 LRCKl I D/A interface LR clock input 63 LRCK O D/A interface LR clock output f = Fs 64 VSS – Ground terminal 65 PCMD O D/A interface serial data output 66 BCK O D/A interface bit clock output 67 VDD – Power supply terminal (+2.5V) 68 EMPH O High when the playback disc has emphasis, low it has not 69 EMPHI I High when de-emphasis is ON, low when input OFF 70 IOVDD2 – Power supply terminal (+3.3V) 71 DOUT O Digital Out signal output 72 TEST I Test terminal (Connected to ground) 73 TEST1 I Test terminal (Connected to ground) 74 IOVSS2 – Ground terminal 75 NC – Not used (Open) 76 XVSS – Ground terminal 77 XTAO O Crystal oscillation circuit signal output 78 XTAI I Crystal oscillation circuit signal input 79 XVDD – Power supply terminal (+2.5V) 80 AVDD1 – Power supply terminal (+3.3V) 81 AOUT1 O L-ch analog signal output 82 VREFL O L-ch reference voltage output 83 AVSS1 – Ground terminal 84 AVSS2 – Ground terminal 85 VREFR O R-ch reference voltage output 86 AOUT2 O R-ch analog signal output 87 AVDD2 – Power supply terminal (+3.3V) 88 NC – Not used (Open) 89 IOVDD0 – Power supply terminal (+3.3V) 90 RMUT O Not used (Open) 91 LMUT O Not used (Open) 92 NC – Not used (Open) 93 XTSL I Crystal selection signal input (Pull down) 94 IOVSS0 – Ground terminal 95 XTACN I Oscillation circuit control signal input (“H”: self-oscillation, “L”: oscillation stop) 96 SQSO O Not used (Open) 97 SQCK I SQSO readout clock input (Connected to +VDD(+3.3V)) 98 SBSO O Not used (Open) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 HCD-GNX700/GNX800 Pin No. Pin Name I/O Description 99 EXCK I Not used (Open) 100 XRST I System reset signal input from M30622MEP 101 SYSM I Muting signal input (Connected to ground) 102 DATA I Serial data input from M30622MEP 103 VSS – Ground terminal 104 XLAT I Latch signal input from M30622MEP 105 CLOCK I Serial data transfer clock input from M30622MEP 106 VDD – Power supply terminal (+2.5V) 107 SENS O SENS output to M30622MEP 108 SCLK I SENS serial data readout clock input (Connected to +VDD(+3.3v)) 109 ATSK I/O Not used (Open) 110 WFCK O Not used (Open) 111 XUGF O Not used (Open) 112 XPCK O Not used (Open) 113 GFS O Not used (Open) 114 C2PO O Not used (Open) 115 SCOR O High output when the sub code sync, S0 or S1, is detected 116 VDD – Power supply terminal (+2.5V) 117 C4M O Not used (Open) 118 WDCK O Not used (Open) 119 COUT I/O Not used (Open) 120 NC – Not used (Open) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 HCD-GNX700/GNX800 Pin No. Pin Name I/O Description 1 XRST O Reset signal output to CXD3059AR (“L”: reset) 2 CD-DATA O Serial data output to CXD3059AR 3 XLAT O Serial data latch signal output to CXD3059AR 4 SIRCS I Remote control signal input 5 MP3 DATA OUT O Serial data output to TC94A34FG 6 MP3 DATA IN I Serial data input from TC94A34FG 7 MP3 CLK O Serial data transfer clock output to TC94A34FG 8 BYTE I Not used (Connected to ground) 9 CNVSS – Ground at test (Pull down) 10 XC-IN I Sub system clock input (32.768KHz) 11 XC-OUT O Sub system clock output (32.768KHz) 12 RESET I System reset signal input 13 X-OUT O Main system clock output (5MHz) 14 VSS – Ground terminal 15 X-IN I Main system clock input (5MHz) 16 VCC – Power supply terminal (+3.3V) 17 NMI I Non-maskable interrupt input (Not used) (Pull up with resistor) 18 CD-CLK O Serial data transfer clock output to CXD3059AR 19 SCOR I Sub code sync (S0+S1) detection signal input from CXD3059AR 20 AC-CUT I AC off detection signal input (“L”: AC cut detected) 21 SENS I Internal status detection monitor input from CXD3059AR 22 MP3 RST O Reset signal output to TC94A34FG 23 MP3 CS O Chip select signal output to TC94A34FG (“L”: enable) 24 MP3 LP O Latch pulse output to TC94A34FG (“L”: enable) 25 MP3 ACK I Acknowledgement signal input from TC94A34FG (“L”: acknowledged) 26 MP3 REQ I Request signal input to TC94A34FG 27 MP3 STB O Standby mode signal output to TC94A34FG (“L”: standby mode) 28 XTCN O Oscillation on/off control signal output to CXD3059AR (“H”: on) 29 IIC-CLK I/O IIC bus serial clock input/output 30 IIC-DATA I/O IIC bus serial data input/output 31 VMUTE O CDG video signal muting on/off control signal output (“H”: muting on) 32 CD POWER O Power on/off control signal output (“H”: power on) 33 CDG DET I CDG disc detection signal input (“H”: CDG disc detected) 34 EFFECTOR-SELECT O Effector circuitry bypass control signal output (“L”: bypass) 35 CDG RST O Reset signal output to the CDG decoder (“L”: reset) (Not used) (Open) 36 EFFECTOR-S0 O Effector circuitry delay time selection bit 0 output 37 CD MUTE O CD analog signal muting on/off control signal output “H”: muting on) 38 OPEN SW I Eject detection signal input from CD mechanism deck 39 TBL-SENS I Disc tray position detection signal input from CD mechanism deck 40 E-3 I Disc tray status detection signal input from CD mechanism deck 41 E-2 I Disc tray status detection signal input from CD mechanism deck 42 E-1 I Disc tray status detection signal input from CD mechanism deck 43 TM-F O Table motor control signal output 44 TM-R O Table motor control signal output 45 LMF O Table loading motor control signal output 46 LMR O Table loading motor control signal output 47 NO USE I Not used 48 A-HALF I Deck A cassette detection signal input (“H”: Cassette detected) 49 EFFECTOR-S1 O Effector circuitry delay time selection bit 1 output • IC401 M30622MEP-A75FPUO SYSTEM CONTROL (MAIN BOARD) Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 HCD-GNX700/GNX800 Pin No. Pin Name I/O Description 50 EFFECTOR-S2 O Effector circuitry delay time selection bit 2 output 51 NO USE I Not used 52 EFFECTOR CTRL 1 O Flanger on/off signal output (“H”: on) 53 A-TRIG O Deck A side trigger plunger drive signal output (“H”: plunger on) 54 CAPM-CONT O Capstan motor drive signal output 55 B-TRIG O Deck B side trigger plunger drive signal output (“H”: plunger on) 56 REC BIAS O Recording bias on/off control signal output (“H”: bias on) 57 TC-RELAY O Recording/playback selection signal output (“H”: recording “L”: playback) 58 ALC O Automatic limiter control signal output (“H”: limiter on) 59 PB-AB O “Deck A/B playback selection signal output (“H”: deck A “L”: deck B) 60 FAN HI SPEED O Fan speed control signal output (“L”: high speed) 61 UNDER VOLTAGE DET I Under-voltage protection detection input (“H”: under-voltage detected) 62 VCC – Power supply terminal (+3.3V) 63 OVER VOLTAGE I Over-voltage protection detection input (“L”: over-voltage detected) 64 VSS – Ground terminal 65 TC MUTE O Tape playback muting on/off control signal output (“H”: muting on) 66 LINE MUTE O Line muting on/off control signal output (“H”: muting on) 67 REC MUTE O Recording muting on/off control signal output (“H”: muting on) 68 SW RY O Sub woofer relay drive signal output (“H”: relay on) 69 STBY-RLY O Main power on/off control signal output (“H”: power on) ____________ 70 PROT I Speaker protect detection signal input (“L”: protector on) 71 GC-RESET O Reset signal output to MB90M407PF (“L”: reset) 72 STBY-LED/FAN CTRL O POWER indicator LED drive signal output (“H”: green color “L”: red color) 73 DISPLAY-KEY I DISPLAY key press detection Interrupt signal input 74 POWER-KEY I POWER key press detection Interrupt signal input ______________________ 75 HP-MUTE O Headphone muting on/off control signal output (“H”: muting on) 76 FR RELAY O Front speakers relay drive signal output (“H”:relay on) 77 LINK/SURR-RLY O Surround speaker mode control signal output (“H”: LINK “L”: MATRIX SURROUND1/2) 78 STK-MUTE O Power amplifier and sub woofer amplifier on/off control signal output (“H”: amplifier on) 79 M61530-DATA O Serial data output to M61530FP 80 M61530-CLK O Serial data transfer clock output to M61530FP 81 M61529-DATA O Serial data output to M61529FP 82 M61529-CLK O Serial data transfer clock output to M61529FP 83 SW ON LED O SUB WOOFER ON LED drive signal output (“H”: LED on) 84 ST-CE O PLL chip enable signal output to the tuner unit 85 MC DIN (ST) I PLL serial data input to the tuner unit 86 ST-CLK O PLL serial data transfer clock output to the tuner unit 87 MC DOUT (ST) O PLL serial data output from the tuner unit (“L”: tuned) 88 TUNED I Tuning detection signal input from the tuner unit 89 A SHUT I Shut off detection signal input from deck A side reel pulse detector 90 B SHUT I Shut off detection signal input from deck A side reel pulse detector 91 NO USE I Not used 92 MODEL-IN I Model setting input 93 DEST-IN I Destination input 94 B-HALF I Deck B cassette , forward side recording tab and reverse side recording tab detection signal input 95 SW VOL IN I Subwoofer volume level detect signal input from subwoofer volume jog 96 AVSS – Ground terminal (for A/D conversion) 97 THERMAL VACS I Temperature detection signal input from thermistor 98 VREF I A/D converter reference voltage input terminal (+3.3V) 99 AVCC – Power supply terminal (+3.3V) (for A/D conversion) 100 HP DET I Headphone connection detection signal input (“H”: headphone connected) Pin No.Pin www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 HCD-GNX700/GNX800 Pin No. Pin Name I/O Description 1 to 8 G8 to G1 O FLD grid signal output 9, 10 P1,P2 O FLD segment signal output 11 VSS-IO – Ground terminal 12 to 22 P3 to P13 O FLD segment signal output 23 VDD-FIP – Power supply terminal(+3.3V) 24 to 41 P14 to P31 O FLD segment signal output 42 VSS-IO – Ground terminal 43 to 47 P32 to P36 O FLD segment signal output 48 VKK – Power supply terminal (-35V) 49 MD0 I Micom operating mode (Pull up) 50 MD1/VDD-VFT I Micom operating mode (Pull up) 51 MD2 I Micom operating mode (Pull down) 52 LED-CD/DVD,TUNER O LED drive signal output 53 LED-TAPE,TV/SAT O LED drive signal output 54 LED-VIDEO (PAUSE,STOP) O LED drive signal output 55 LED-(AMS+,AMS-),(FF,FR) O LED drive signal output 56 LED-VOLUME 1,2 O LED drive signal output 57 LED-VOLUME 3,4 O LED drive signal output 58 LED-VOLUME 5,6 O LED drive signal output 59 LED-VOLUME 7,8 O LED drive signal output 60 IIC DATA I/O IIC bus serial data input/output 61 IIC CLOCK I/O IIC bus serial clock input/output 62 AVCC – Power supply terminal (+3.3V) 63 AVSS – Ground terminal 64 to 66 KEY0 to KEY2 I Key input (A/D) 67 ALL BAND I Audio L+R signal input 68 to 71 BPF4 to BPF1 I Spectrum analyzer signal input 72 OPERATION DIAL I OPERATION DIAL encoder signal input 73 JOG X-ROUND I X-ROUND JOG encoder signal input (Not used) 74 VOLUME I Volume encoder signal input 75 LED-(BEAT JUMP,BEAT MAX) O LED drive signal output (Not used) 76 LED-(BALANCE,WAVE, O LED drive signal output (Not used) FADER,RANDOM),DELAY 77 RESET I Reset signal input 78 LED-FLANGER,CHORUS O LED drive signal output 79 LED-PLAY O LED drive signal output 80 LED-SELECTOR O LED group select signal output 81 VSS-CPU – Ground terminal 82 XOUT O Crystal oscillator output (4MHz) 83 XIN I Crystal oscillator input (4MHz) 84 VCC-CPU – Power supply terminal (+3.3V) 85 to 100 G24 to G9 O FLD grid signal output • IC902 MB90M407PF-G-148E1 DISPLAY CONTROL (PANEL BOARD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 HCD-GNX700/GNX800 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks SECTION 8 EXPLODED VIEWS 8-1. CASE (TOP), BACK PANEL SECTION NOTE: • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Hardware (# mark) list and accessories are given in the last of this parts list. • Abbreviation AR : Argentina model AUS: Australian model E2 : 120V AC Area in E model E3 : 240V AC Area in E model E51 : Chilean and Peruvian model The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. 1 2 3 4 #3 not supplied #1 #1 #1 #1 #3 #1 #2 #1 #1 5 7 6 10 #2 #2 #1 8 9 #1 #1 #3 #3 not supplied #1 3 4 not supplied not supplied #1 M891 not supplied not supplied not supplied #1 #1 11 1 2-655-708-01 PANEL, LOADING (GNX800: E2, E51, AR) 1 2-655-708-11 PANEL, LOADING (GNX700: E2, E51) 1 2-655-708-71 PANEL, LOADING (GNX800: E3, AUS) 1 2-655-708-81 PANEL, LOADING (GNX700: E3) 2 2-342-117-01 CASE (TOP) 3 3-363-099-32 SCREW (CASE 3 TP2) 4 3-363-099-02 SCREW (CASE 3 TP2) 5 1-693-702-21 TUNER (FM/AM) (TM10SE) 6 A-1156-257-A EFFECTOR BOARD, COMPLETE 07 1-468-737-51 POWER SWITCHING 8 1-824-048-12 WIRE (FLAT TYPE) (27 CORE) 9 3-077-331-21 +BV3 (3-CR) 10 1-823-718-11 WIRE (FLAT TYPE) (17 CORE) (100mm) 11 3-378-109-12 CUSHION, SARANET M891 1-787-400-11 D.C. FAN #1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3 #2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 #3 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 HCD-GNX700/GNX800 8-2. FRONT PANEL SECTION-1 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks not supplied not supplied not supplied 58 59 59 51 52 53 54 55 56 62 63 59 59 59 59 59 59 59 70 59 67 68 69 64 65 66 60 61 62 57 55 51 2-655-724-01 LID (TC) 52 2-655-732-01 SPRING (LID) 53 4-252-579-11 HOLDER (TC-R) 54 4-252-578-11 HOLDER (TC-L) 55 4-959-229-11 DETENT, CASSETTE 56 4-224-578-31 KNOB (MIC) 57 4-252-575-01 KNOB VOL 58 X-2103-230-1 KNOB JOG ASSY 59 3-087-053-01 +BVTP2.6 (3CR) 60 A-1156-244-A JOG BOARD, COMPLETE 61 2-655-717-01 WINDOW (FL) 62 4-224-104-11 DAMPER 63 A-1156-227-A FUNCTION BOARD, COMPLETE 64 A-1156-224-A PANEL BOARD, COMPLETE 65 1-828-990-11 WIRE (FLAT TYPE) (17 CORE) (80mm) 66 1-828-991-11 WIRE (FLAT TYPE) (17 CORE) (100mm) 67 1-417-656-11 MECHA DECK (CWN42FF601) 68 2-655-734-01 SPRING (R) 69 2-655-733-01 SPRING (L) 70 A-1156-233-A MIC BOARD, COMPLETE Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 HCD-GNX700/GNX800 8-3. FRONT PANEL SECTION-2 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks not supplied not supplied not supplied 101 102 103 104 105 106 107 108 109 119 110 111 112 113 114 114 115 116 117 118 112 101 2-655-711-01 BUTTON (PLAY) 102 2-655-713-01 ESCUTCHEON (R) 103 2-655-730-01 ESCUTCHEON (MIC) 104 2-655-718-01 RING (VOL) 105 2-655-722-01 BASE (VOL) 106 2-655-723-01 BUTTON (EQ) (GNX800) 106 2-655-723-11 BUTTON (EQ) (GNX700) 107 2-655-712-01 ESCUTCHEON (L) 108 2-655-710-01 BUTTON (POWER) 109 2-655-716-01 INDICATOR (REMOTE) 110 2-655-707-01 ESCUTCHEON (CD) 111 2-655-709-01 BUTTON (DISC) 112 3-087-053-01 +BVTP2.6 (3CR) 113 2-655-705-01 PANEL, FRONT 114 4-244-092-01 SPRING (EJECT) 115 2-655-728-01 BUTTON (EJECT A) 116 2-655-729-01 BUTTON (EJECT B) 117 2-655-715-01 BUTTON (DISPLAY) 118 2-655-714-01 BUTTON (MODE) 119 2-655-731-01 INDICATOR (EQ) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 HCD-GNX700/GNX800 8-4. CHASSIS SECTION Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks not supplied not supplied not supplied not supplied not supplied not supplied not supplied #1 #1 #1 #1 #1 #1 #1 #1 F1241 T1200 F1251 F1261 F1271 F1281 152 151 151 153 153 153 153 154 155 155 157 158 160 151 4-900-386-01 SCREW 152 A-1156-247-A PA BOARD, COMPLETE (GNX700: E2, E51) 152 A-1156-261-A PA BOARD, COMPLETE (GNX800: E2, E51, AR) 152 A-1178-475-A PA BOARD, COMPLETE (GNX800: E3, AUS) 152 A-1178-478-A PA BOARD, COMPLETE (GNX700: E3) 153 3-077-331-21 +BV3 (3-CR) 154 A-1156-249-A SURROUND BOARD, COMPLETE (GNX800) 154 A-1156-252-A SURROUND BOARD, COMPLETE (GNX700) 155 3-905-609-31 SCREW (TRANSISTOR) 0157 1-777-071-53 CORD, POWER (E2, E3, E51) 0157 1-783-941-12 CORD, POWER (AR) 0157 1-827-295-22 CORD, POWER (AUS) * 158 3-703-244-00 BUSHING (2104), CORD 160 A-1156-216-A MAIN BOARD, COMPLETE (GNX800: E2) 160 A-1156-472-A MAIN BOARD, COMPLETE (GNX700: E2) 160 A-1174-067-A MAIN BOARD, COMPLETE (GNX800: E3) 160 A-1174-073-A MAIN BOARD, COMPLETE (GNX800:AR) 160 A-1174-317-A MAIN BOARD, COMPLETE (GNX800:AUS) 160 A-1178-442-A MAIN BOARD, COMPLETE (GNX700: E3) 160 A-1188-344-A MAIN BOARD, COMPLETE (GNX800: E51) 160 A-1188-363-A MAIN BOARD, COMPLETE (GNX700: E51) 0F1241 1-533-949-33 FUSE, CYLINDRICAL (TIME LUG) (T8AL/250V) 0F1251 1-533-949-33 FUSE, CYLINDRICAL (TIME LUG) (T8AL/250V) 0F1261 1-533-949-33 FUSE, CYLINDRICAL (TIME LUG) (T8AL/250V) 0F1271 1-533-949-33 FUSE, CYLINDRICAL (TIME LUG) (T8AL/250V) 0F1281 1-532-465-33 FUSE (T3.15AL/250V) 0T1200 1-443-538-11 POWER TRANSFORMER (GNX800) 0T1200 1-443-972-11 POWER TRANSFORMER (GNX700) Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 HCD-GNX700/GNX800 8-5. CD MECHANISM DECK SECTION-1 (CDM74KF-F1BD81A) Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 202 204 205 205 206 206 207 207 208 208 209 201 206 212 213 206 215 210 211 206 CD mechanism deck section-2 201 203 216 M741 201 4-218-253-32 SCREW (M2.6), +BTTP 202 1-776-182-11 WIRE (FLAT TYPE) (5 CORE) 203 1-687-134-12 MOTOR (TB) BOARD 204 4-243-815-01 TABLE (LOADING) 205 4-245-571-02 GEAR (STOPPER) 206 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING 207 4-245-570-01 GEAR (JOINT) 208 4-245-572-01 BUSHING (GEAR) 209 1-687-132-12 SENSOR BOARD 210 4-243-820-01 GEAR (TABLE) 211 4-243-819-01 GEAR (GENEVA) 212 4-243-816-01 TRAY 213 4-243-823-01 BELT (TABLE) 215 4-243-821-01 PULLEY (TABLE) 216 3-231-598-01 SHEET (BA) M741 A-1108-965-A MOTOR ASSY, TABLE (TABLE) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 HCD-GNX700/GNX800 251 252 252 252 253 254 255 256 257 258 260 261 262 263 264 265 266 267 269 281 270 255 272 273 273 274 274 275 275 276 282 280 268 273 273 272 279 272 272 255 255 255 255 M751 not supplied not supplied S711 278 251 1-471-035-11 MAGNET ASSY 252 4-218-253-52 SCREW (M2.6), +BTTP 253 1-687-669-12 SW BOARD 254 4-244-034-01 BELT (LOADING) 255 4-218-252-52 SCREW (+PTPWH M2.6), FLOATING 256 4-225-844-01 GEAR (LOADING A) 257 4-224-613-01 GEAR (SHAFT) 258 1-687-133-12 MOTOR (LD) BOARD 260 4-244-108-01 GEAR, SWING 261 4-224-609-01 GEAR (LOADING C) 262 4-224-608-01 COLLAR, SWING 263 3-016-533-11 WASHER (FR), STOPPER 264 4-224-611-01 GEAR (LOADING B) 265 4-224-606-01 GEAR (RV) 266 4-243-818-01 GEAR (U/D) 267 4-243-822-02 LEVER (LIFTER) 268 X-4955-774-2 PULLEY (SM) ASSY, CHUCKING 269 4-221-688-01 PULLEY (B), CHUCKING 270 X-2055-190-1 HOLDER (213) ASSY 272 4-227-549-11 INSULATOR 273 4-227-045-11 SPRING (INSULATOR), COIL 274 4-231-151-01 STOPPER (BU) 275 4-218-253-42 SCREW (M2.6), +BTTP 276 1-832-404-21 CABLE, FLEXIBLE FLAT (16 CORE) 278 A-4751-045-A CD BOARD, COMPLETE 0279 8-820-244-01 OPTICAL PICK-UP KSM-215DCP/C2NP 280 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING 281 4-243-817-22 CHASSIS 282 3-087-053-01 +BVTP2.6 (3CR) M751 A-4737-553-A MOTOR ASSY, LOADING (TABLE LOADING) S711 1-477-680-12 ENCODER, ROTARY Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 8-6. CD MECHANISM DECK SECTION-2 (CDM74KF-F1BD81A) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68 HCD-GNX700/GNX800 SECTION 9 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • CAPACITORS: uF: μF • RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable • COILS uH: μH • SEMICONDUCTORS In each case, u: μ, for example: uA...: μA... , uPA... , μPA... , uPB... , μPB... , uPC... , μPC... , uPD..., μPD... • Abbreviation AR : Argentina model AUS: Australian model E2 : 120V AC Area in E model E3 : 240V AC Area in E model E51 : Chilean and Peruvian model The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. CD A-4751-045-A CD BOARD, COMPLETE ******************* < CAPACITOR > C10 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V C11 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V C14 1-164-360-11 CERAMIC CHIP 0.1uF 16V C15 1-164-360-11 CERAMIC CHIP 0.1uF 16V C16 1-115-156-11 CERAMIC CHIP 1uF 10V C17 1-126-246-11 ELECT CHIP 220uF 20% 4V C18 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C111 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C112 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C113 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C114 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C115 1-164-360-11 CERAMIC CHIP 0.1uF 16V C116 1-128-995-21 ELECT CHIP 100uF 20% 10V C122 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C123 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C124 1-162-959-11 CERAMIC CHIP 330PF 5% 50V C125 1-164-360-11 CERAMIC CHIP 0.1uF 16V C131 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C132 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C133 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C134 1-164-360-11 CERAMIC CHIP 0.1uF 16V C141 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C142 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C143 1-164-360-11 CERAMIC CHIP 0.1uF 16V C151 1-128-995-21 ELECT CHIP 100uF 20% 10V C161 1-164-360-11 CERAMIC CHIP 0.1uF 16V C162 1-164-360-11 CERAMIC CHIP 0.1uF 16V C163 1-164-360-11 CERAMIC CHIP 0.1uF 16V C171 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C172 1-162-920-11 CERAMIC CHIP 27PF 5% 50V C174 1-164-360-11 CERAMIC CHIP 0.1uF 16V C181 1-164-360-11 CERAMIC CHIP 0.1uF 16V C182 1-164-360-11 CERAMIC CHIP 0.1uF 16V C183 1-124-778-00 ELECT CHIP 22uF 20% 6.3V C184 1-124-778-00 ELECT CHIP 22uF 20% 6.3V C185 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C186 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C194 1-164-360-11 CERAMIC CHIP 0.1uF 16V C195 1-164-360-11 CERAMIC CHIP 0.1uF 16V C196 1-164-360-11 CERAMIC CHIP 0.1uF 16V C201 1-128-995-21 ELECT CHIP 100uF 20% 10V C203 1-128-995-21 ELECT CHIP 100uF 20% 10V C209 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C210 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C211 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C212 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C213 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C251 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V C252 1-164-360-11 CERAMIC CHIP 0.1uF 16V C255 1-164-360-11 CERAMIC CHIP 0.1uF 16V C257 1-164-360-11 CERAMIC CHIP 0.1uF 16V C258 1-164-360-11 CERAMIC CHIP 0.1uF 16V C259 1-164-360-11 CERAMIC CHIP 0.1uF 16V C260 1-128-394-11 ELECT CHIP 220uF 20% 10V C302 1-164-360-11 CERAMIC CHIP 0.1uF 16V C303 1-164-360-11 CERAMIC CHIP 0.1uF 16V C305 1-126-246-11 ELECT CHIP 220uF 20% 4V C306 1-164-360-11 CERAMIC CHIP 0.1uF 16V C307 1-164-360-11 CERAMIC CHIP 0.1uF 16V C308 1-126-208-21 ELECT CHIP 47uF 20% 4V C309 1-164-360-11 CERAMIC CHIP 0.1uF 16V C310 1-164-360-11 CERAMIC CHIP 0.1uF 16V C311 1-164-360-11 CERAMIC CHIP 0.1uF 16V C312 1-164-360-11 CERAMIC CHIP 0.1uF 16V C313 1-164-360-11 CERAMIC CHIP 0.1uF 16V C314 1-126-208-21 ELECT CHIP 47uF 20% 4V C315 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C316 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C317 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C318 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C320 1-216-864-11 SHORT CHIP 0 < CONNECTOR > CN101 1-770-425-51 CONNECTOR, FFC/FPC 16P CN201 1-818-350-51 CONNECTOR, FFC (LIF (NON-ZIF)) 27P < FERRITE BEAD > FB301 1-500-445-21 FERRITE, EMI (SMD) (2012) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 HCD-GNX700/GNX800 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks CD CD-SW DRIVER < IC > IC101 8-752-425-12 IC CXD3059AR IC251 6-705-808-01 IC BA5947FM-E2 IC301 6-705-365-01 IC TC94A34FG-002 IC303 6-705-807-01 IC BH15FB1WG < TRANSISTOR > Q10 6-551-120-01 TRANSISTOR 2SA2119K < RESISTOR > R10 1-216-791-11 METAL CHIP 3.3 5% 1/10W R11 1-216-864-11 SHORT CHIP 0 R12 1-216-845-11 METAL CHIP 100K 5% 1/10W R13 1-218-446-11 METAL CHIP 1 5% 1/10W R111 1-216-821-11 METAL CHIP 1K 5% 1/10W R112 1-216-835-11 METAL CHIP 15K 5% 1/10W R113 1-216-821-11 METAL CHIP 1K 5% 1/10W R114 1-216-835-11 METAL CHIP 15K 5% 1/10W R121 1-216-835-11 METAL CHIP 15K 5% 1/10W R131 1-216-857-11 METAL CHIP 1M 5% 1/10W R132 1-216-833-11 METAL CHIP 10K 5% 1/10W R133 1-216-848-11 METAL CHIP 180K 5% 1/10W R141 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R142 1-216-821-11 METAL CHIP 1K 5% 1/10W R143 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R151 1-216-864-11 SHORT CHIP 0 R161 1-216-809-11 METAL CHIP 100 5% 1/10W R162 1-216-841-11 METAL CHIP 47K 5% 1/10W R163 1-216-809-11 METAL CHIP 100 5% 1/10W R165 1-216-864-11 SHORT CHIP 0 R171 1-216-817-11 METAL CHIP 470 5% 1/10W R172 1-216-857-11 METAL CHIP 1M 5% 1/10W R173 1-216-295-91 SHORT CHIP 0 R181 1-216-809-11 METAL CHIP 100 5% 1/10W R182 1-216-809-11 METAL CHIP 100 5% 1/10W R191 1-216-864-11 SHORT CHIP 0 R201 1-500-445-21 FERRITE, EMI (SMD) (2012) R203 1-216-864-11 SHORT CHIP 0 R204 1-500-445-21 FERRITE, EMI (SMD) (2012) R205 1-216-864-11 SHORT CHIP 0 R251 1-216-833-11 METAL CHIP 10K 5% 1/10W R252 1-216-837-11 METAL CHIP 22K 5% 1/10W R253 1-216-833-11 METAL CHIP 10K 5% 1/10W R301 1-216-845-11 METAL CHIP 100K 5% 1/10W R302 1-216-833-11 METAL CHIP 10K 5% 1/10W R303 1-216-845-11 METAL CHIP 100K 5% 1/10W R305 1-216-845-11 METAL CHIP 100K 5% 1/10W R306 1-216-864-11 SHORT CHIP 0 R307 1-216-833-11 METAL CHIP 10K 5% 1/10W R313 1-216-813-11 METAL CHIP 220 5% 1/10W R351 1-216-809-11 METAL CHIP 100 5% 1/10W R352 1-216-809-11 METAL CHIP 100 5% 1/10W R353 1-216-809-11 METAL CHIP 100 5% 1/10W R354 1-216-809-11 METAL CHIP 100 5% 1/10W R401 1-216-809-11 METAL CHIP 100 5% 1/10W R402 1-216-809-11 METAL CHIP 100 5% 1/10W R403 1-216-809-11 METAL CHIP 100 5% 1/10W R404 1-216-809-11 METAL CHIP 100 5% 1/10W R405 1-216-809-11 METAL CHIP 100 5% 1/10W R406 1-216-809-11 METAL CHIP 100 5% 1/10W R407 1-216-809-11 METAL CHIP 100 5% 1/10W R408 1-216-809-11 METAL CHIP 100 5% 1/10W R409 1-216-809-11 METAL CHIP 100 5% 1/10W R410 1-216-809-11 METAL CHIP 100 5% 1/10W R411 1-216-809-11 METAL CHIP 100 5% 1/10W R412 1-216-809-11 METAL CHIP 100 5% 1/10W R419 1-216-809-11 METAL CHIP 100 5% 1/10W R502 1-216-864-11 SHORT CHIP 0 < SWITCH > S101 1-771-853-11 SWITCH, DETECTION (LIMIT) < VIBRATOR > X171 1-767-408-21 VIBRATOR, CRYSTAL (16.9344 MHz) ************************************************************ CD-SW BOARD ************ < RESISTOR > R1166 1-216-817-11 METAL CHIP 470 5% 1/10W R1167 1-216-819-11 METAL CHIP 680 5% 1/10W R1168 1-216-821-11 METAL CHIP 1K 5% 1/10W R1169 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1170 1-216-823-11 METAL CHIP 1.5K 5% 1/10W < SWITCH > S1166 1-762-875-21 SWITCH, KEYBOARD (ZOPEN/CLOSE) S1167 1-762-875-21 SWITCH, KEYBOARD (EX-CHANGE/DISC SKIP) S1168 1-762-875-21 SWITCH, KEYBOARD (DISC 3) S1169 1-762-875-21 SWITCH, KEYBOARD (DISC 2) S1170 1-762-875-21 SWITCH, KEYBOARD (DISC 1) ************************************************************ DRIVER BOARD ************* < CAPACITOR > C715 1-126-933-11 ELECT 100uF 20% 16V C731 1-126-964-11 ELECT 10uF 20% 50V C735 1-164-159-11 CERAMIC 0.1uF 50V C736 1-164-159-11 CERAMIC 0.1uF 50V C737 1-164-159-11 CERAMIC 0.1uF 50V C741 1-162-306-11 CERAMIC 0.01uF 20% 16V C751 1-162-306-11 CERAMIC 0.01uF 20% 16V C752 1-164-159-11 CERAMIC 0.1uF 50V < CONNECTOR > CN701 1-784-735-11 CONNECTOR, FFC 13P CN702 1-784-766-11 CONNECTOR, FFC 5P * CN703 1-564-720-11 PIN, CONNECTOR (SMALL TYPE) 4P CN704 1-785-328-11 PIN, CONNECTOR (LIGHT ANGRE) 2P < DIODE > D701 8-719-947-16 DIODE MTZJ-T-72-5.1A D711 8-719-983-66 DIODE MTZJ-T-72-3.6B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 70 HCD-GNX700/GNX800 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks DRIVER < IC > IC701 8-759-598-69 IC BA6956AN IC712 8-759-598-69 IC BA6956AN < TRANSISTOR > Q731 8-729-029-66 TRANSISTOR DTC114ESA < RESISTOR > R701 1-249-413-11 CARBON 470 5% 1/4W R702 1-247-807-31 CARBON 100 5% 1/4W R711 1-247-831-91 CARBON 1K 5% 1/4W R712 1-247-847-91 CARBON 4.7K 5% 1/4W R713 1-247-863-91 CARBON 22K 5% 1/4W R721 1-247-847-91 CARBON 4.7K 5% 1/4W R722 1-247-847-91 CARBON 4.7K 5% 1/4W R723 1-247-847-91 CARBON 4.7K 5% 1/4W R731 1-247-807-31 CARBON 100 5% 1/4W R732 1-249-429-11 CARBON 10K 5% 1/4W R733 1-247-831-91 CARBON 1K 5% 1/4W R734 1-249-430-11 CARBON 12K 5% 1/4W R736 1-249-412-11 CARBON 390 5% 1/4W R751 1-247-847-91 CARBON 4.7K 5% 1/4W ************************************************************ A-1156-257-A EFFECTOR BOARD, COMPLETE ************************* < CAPACITOR > C1506 1-136-495-11 FILM 0.068uF 5% 50V C1507 1-136-495-11 FILM 0.068uF 5% 50V C1509 1-162-905-11 CERAMIC CHIP 1PF 0.25PF 50V C1512 1-107-714-11 ELECT 10uF 20% 50V C1513 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1515 1-126-947-11 ELECT 47uF 20% 35V C1516 1-136-495-11 FILM 0.068uF 5% 50V C1517 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C1519 1-126-964-11 ELECT 10uF 20% 50V C1520 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C1521 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C1522 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C1523 1-136-495-11 FILM 0.068uF 5% 50V C1524 1-126-957-11 ELECT 0.22uF 20% 50V C1525 1-126-957-11 ELECT 0.22uF 20% 50V C1526 1-136-497-81 FILM 0.1uF 5% 50V C1529 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C1530 1-136-159-00 FILM 0.033uF 5% 50V C1542 1-130-479-00 MYLAR 0.0047uF 5% 50V C1544 1-130-479-00 MYLAR 0.0047uF 5% 50V C1545 1-126-964-11 ELECT 10uF 20% 50V C1546 1-126-964-11 ELECT 10uF 20% 50V C1548 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C1552 1-126-964-11 ELECT 10uF 20% 50V C1554 1-126-964-11 ELECT 10uF 20% 50V C1555 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C1559 1-126-964-11 ELECT 10uF 20% 50V C1560 1-126-964-11 ELECT 10uF 20% 50V C1561 1-126-964-11 ELECT 10uF 20% 50V C1562 1-126-964-11 ELECT 10uF 20% 50V C1568 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1569 1-126-964-11 ELECT 10uF 20% 50V C1570 1-126-964-11 ELECT 10uF 20% 50V C1571 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1572 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1576 1-126-964-11 ELECT 10uF 20% 50V C1578 1-126-964-11 ELECT 10uF 20% 50V C1584 1-104-658-91 ELECT 100uF 20% 10V C1601 1-126-964-11 ELECT 10uF 20% 50V C1602 1-126-964-11 ELECT 10uF 20% 50V < CONNECTOR > CN1501 1-779-285-11 CONNECTOR, FFC (LIF (NON-ZIF)) 17P < DIODE > D1502 8-719-069-56 DIODE UDZSTE-176.2B < IC > IC1500 8-759-710-97 IC NJM4565M-D IC1501 8-759-496-41 IC M65850FP-E1 IC1503 6-709-217-01 IC TC74LVX4051FT IC1505 8-759-710-97 IC NJM4565M-D IC1506 6-709-218-01 IC TC74LVX4052FT < COIL > L1500 1-414-183-41 INDUCTOR 10uH < TRANSISTOR > Q1502 8-729-055-10 TRANSISTOR 2SK3378ENTL Q1506 8-729-055-10 TRANSISTOR 2SK3378ENTL Q1507 8-729-056-46 TRANSISTOR 2SC5053T100Q Q1508 8-729-055-10 TRANSISTOR 2SK3378ENTL Q1509 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q1510 8-729-027-43 TRANSISTOR DTC114EKA-T146 < RESISTOR > R1500 1-216-809-11 METAL CHIP 100 5% 1/10W R1501 1-216-809-11 METAL CHIP 100 5% 1/10W R1502 1-216-809-11 METAL CHIP 100 5% 1/10W R1504 1-216-809-11 METAL CHIP 100 5% 1/10W R1505 1-216-833-11 METAL CHIP 10K 5% 1/10W R1508 1-216-833-11 METAL CHIP 10K 5% 1/10W R1510 1-216-836-11 METAL CHIP 18K 5% 1/10W R1511 1-216-836-11 METAL CHIP 18K 5% 1/10W R1512 1-216-836-11 METAL CHIP 18K 5% 1/10W R1514 1-216-836-11 METAL CHIP 18K 5% 1/10W R1515 1-216-836-11 METAL CHIP 18K 5% 1/10W R1516 1-216-833-11 METAL CHIP 10K 5% 1/10W R1517 1-216-833-11 METAL CHIP 10K 5% 1/10W R1519 1-216-864-11 SHORT CHIP 0 R1520 1-216-864-11 SHORT CHIP 0 R1522 1-216-864-11 SHORT CHIP 0 R1525 1-216-809-11 METAL CHIP 100 5% 1/10W R1526 1-216-833-11 METAL CHIP 10K 5% 1/10W R1527 1-216-809-11 METAL CHIP 100 5% 1/10W R1528 1-216-845-11 METAL CHIP 100K 5% 1/10W R1529 1-216-845-11 METAL CHIP 100K 5% 1/10W EFFECTOR Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 71 HCD-GNX700/GNX800 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks R1530 1-216-815-11 METAL CHIP 330 5% 1/10W R1531 1-216-817-11 METAL CHIP 470 5% 1/10W R1532 1-216-820-11 METAL CHIP 820 5% 1/10W R1533 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R1534 1-216-824-11 METAL CHIP 1.8K 5% 1/10W R1535 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R1536 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R1537 1-216-841-11 METAL CHIP 47K 5% 1/10W R1538 1-216-838-11 METAL CHIP 27K 5% 1/10W R1546 1-216-836-11 METAL CHIP 18K 5% 1/10W R1547 1-216-833-11 METAL CHIP 10K 5% 1/10W R1549 1-216-833-11 METAL CHIP 10K 5% 1/10W R1550 1-216-833-11 METAL CHIP 10K 5% 1/10W R1557 1-216-845-11 METAL CHIP 100K 5% 1/10W R1558 1-216-845-11 METAL CHIP 100K 5% 1/10W R1559 1-216-845-11 METAL CHIP 100K 5% 1/10W R1560 1-216-845-11 METAL CHIP 100K 5% 1/10W R1565 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1566 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1567 1-216-837-11 METAL CHIP 22K 5% 1/10W R1568 1-216-837-11 METAL CHIP 22K 5% 1/10W R1569 1-216-845-11 METAL CHIP 100K 5% 1/10W R1570 1-216-845-11 METAL CHIP 100K 5% 1/10W R1571 1-216-845-11 METAL CHIP 100K 5% 1/10W R1572 1-216-821-11 METAL CHIP 1K 5% 1/10W R1573 1-216-819-11 METAL CHIP 680 5% 1/10W R1574 1-216-845-11 METAL CHIP 100K 5% 1/10W R1575 1-216-821-11 METAL CHIP 1K 5% 1/10W R1576 1-216-819-11 METAL CHIP 680 5% 1/10W R1579 1-216-845-11 METAL CHIP 100K 5% 1/10W R1580 1-216-837-11 METAL CHIP 22K 5% 1/10W R1581 1-216-837-11 METAL CHIP 22K 5% 1/10W R1582 1-216-845-11 METAL CHIP 100K 5% 1/10W R1584 1-216-864-11 SHORT CHIP 0 R1585 1-216-864-11 SHORT CHIP 0 R1586 1-216-864-11 SHORT CHIP 0 R1589 1-216-803-11 METAL CHIP 33 5% 1/10W R1590 1-216-839-11 METAL CHIP 33K 5% 1/10W R1591 1-216-839-11 METAL CHIP 33K 5% 1/10W R1592 1-216-864-11 SHORT CHIP 0 R1594 1-216-864-11 SHORT CHIP 0 R1595 1-216-864-11 SHORT CHIP 0 R1600 1-216-864-11 SHORT CHIP 0 R1602 1-216-864-11 SHORT CHIP 0 R1604 1-216-864-11 SHORT CHIP 0 R1606 1-216-864-11 SHORT CHIP 0 ************************************************************ A-1156-227-A FUNCTION BOARD, COMPLETE ************************* < CAPACITOR > C907 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C965 1-164-156-11 CERAMIC CHIP 0.1uF 25V C966 1-164-156-11 CERAMIC CHIP 0.1uF 25V C969 1-164-156-11 CERAMIC CHIP 0.1uF 25V C970 1-164-156-11 CERAMIC CHIP 0.1uF 25V C971 1-164-156-11 CERAMIC CHIP 0.1uF 25V C976 1-164-156-11 CERAMIC CHIP 0.1uF 25V C984 1-162-953-11 CERAMIC CHIP 100PF 5% 50V < CONNECTOR > * CN901 1-569-934-11 SOCKET, CONNECTOR 17P CNS902 1-820-050-11 BOARD TO BOARD HEADER (8P) < DIODE > D1017 6-500-725-01 DIODE SLR-343VCT32 (DELAY) D1020 6-500-725-01 DIODE SLR-343VCT32 (FLANGER) < JUMPER RESISTOR > JR921 1-216-864-11 SHORT CHIP 0 JR923 1-216-864-11 SHORT CHIP 0 < TRANSISTOR > Q921 8-729-027-50 TRANSISTOR DTC123JKA-T146 < RESISTOR > R958 1-216-819-11 METAL CHIP 680 5% 1/10W R959 1-216-821-11 METAL CHIP 1K 5% 1/10W R960 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R961 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R962 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R963 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R972 1-216-821-11 METAL CHIP 1K 5% 1/10W R973 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R1001 1-216-817-11 METAL CHIP 470 5% 1/10W R1002 1-216-819-11 METAL CHIP 680 5% 1/10W R1003 1-216-821-11 METAL CHIP 1K 5% 1/10W R1004 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1005 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1006 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1014 1-216-817-11 METAL CHIP 470 5% 1/10W R1018 1-216-819-11 METAL CHIP 680 5% 1/10W R1186 1-216-814-11 METAL CHIP 270 5% 1/10W < SWITCH > S901 1-762-875-21 SWITCH, KEYBOARD (MP3 BOOSTER) S902 1-762-875-21 SWITCH, KEYBOARD (GROOVE) S903 1-762-875-21 SWITCH, KEYBOARD (EQ BAND) S904 1-762-875-21 SWITCH, KEYBOARD (DIRECTION MPX) S905 1-762-875-21 SWITCH, KEYBOARD (REC PAUSE/START) S906 1-762-875-21 SWITCH, KEYBOARD (CD SYNC) S914 1-762-875-21 SWITCH, KEYBOARD (ENTER) S915 1-762-875-21 SWITCH, KEYBOARD (SOUND FLASH) S916 1-762-875-21 SWITCH, KEYBOARD (DELAY) S917 1-762-875-21 SWITCH, KEYBOARD (FLANGER) S918 1-762-875-21 SWITCH, KEYBOARD (SURROUND SPEAKER MODE) S919 1-762-875-21 SWITCH, KEYBOARD (ILLUMINATION) S920 1-762-875-21 SWITCH, KEYBOARD (AMP MENU) S928 1-762-875-21 SWITCH, KEYBOARD (DISPLAY) S970 1-418-725-51 ENCODER, ROTARY (12 TYPE) (MASTER VOLUME) ************************************************************ EFFECTOR FUNCTION JOG Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 72 HCD-GNX700/GNX800 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks MAIN A-1156-244-A JOG BOARD, COMPLETE ******************* < CAPACITOR > C1150 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V < CONNECTOR > CNS903 1-562-573-31 SOCKET, CONNECTOR 8P < DIODE > D919 6-500-809-01 DIODE SELU5223C-STP15 (VOL 1) D920 6-500-809-01 DIODE SELU5223C-STP15 (VOL 2) D921 6-500-809-01 DIODE SELU5223C-STP15 (VOL 3) D922 6-500-809-01 DIODE SELU5223C-STP15 (VOL 4) D923 6-500-809-01 DIODE SELU5223C-STP15 (VOL 5) D924 6-500-809-01 DIODE SELU5223C-STP15 (VOL 6) D925 6-500-809-01 DIODE SELU5223C-STP15 (VOL 7) D926 6-500-809-01 DIODE SELU5223C-STP15 (VOL 8) < JUMPER RESISTOR > JR1 1-216-864-11 SHORT CHIP 0 JR2 1-216-864-11 SHORT CHIP 0 JR3 1-216-864-11 SHORT CHIP 0 JR4 1-216-864-11 SHORT CHIP 0 JR5 1-216-864-11 SHORT CHIP 0 JR922 1-216-864-11 SHORT CHIP 0 JR1096 1-216-864-11 SHORT CHIP 0 < TRANSISTOR > Q911 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q912 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q913 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q915 8-729-027-43 TRANSISTOR DTC114EKA-T146 < RESISTOR > R1040 1-216-821-11 METAL CHIP 1K 5% 1/10W R1144 1-216-820-11 METAL CHIP 820 5% 1/10W R1145 1-216-820-11 METAL CHIP 820 5% 1/10W R1146 1-216-820-11 METAL CHIP 820 5% 1/10W R1149 1-216-820-11 METAL CHIP 820 5% 1/10W R1150 1-216-820-11 METAL CHIP 820 5% 1/10W R1151 1-216-820-11 METAL CHIP 820 5% 1/10W R1153 1-216-820-11 METAL CHIP 820 5% 1/10W R1154 1-216-820-11 METAL CHIP 820 5% 1/10W R1155 1-216-820-11 METAL CHIP 820 5% 1/10W R1157 1-216-820-11 METAL CHIP 820 5% 1/10W R1158 1-216-820-11 METAL CHIP 820 5% 1/10W R1159 1-216-820-11 METAL CHIP 820 5% 1/10W R1161 1-216-821-11 METAL CHIP 1K 5% 1/10W R1162 1-216-809-11 METAL CHIP 100 5% 1/10W R1163 1-216-809-11 METAL CHIP 100 5% 1/10W R1164 1-216-809-11 METAL CHIP 100 5% 1/10W R1165 1-216-809-11 METAL CHIP 100 5% 1/10W < SWITCH > S1161 1-479-203-11 ENCODER (ROTARY) (OPERATION DIAL) ************************************************************ A-1156-216-A MAIN BOARD, COMPLETE (GNX800: E2) A-1156-472-A MAIN BOARD, COMPLETE (GNX700: E2) A-1174-067-A MAIN BOARD, COMPLETE (GNX800: E3) A-1174-073-A MAIN BOARD, COMPLETE (GNX800:AR) A-1174-317-A MAIN BOARD, COMPLETE (GNX800:AUS) A-1178-442-A MAIN BOARD, COMPLETE (GNX700: E3) A-1188-344-A MAIN BOARD, COMPLETE (GNX800: E51) A-1188-363-A MAIN BOARD, COMPLETE (GNX700: E51) ********************* 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 < CAPACITOR > C100 1-104-658-91 ELECT 100uF 20% 10V C101 1-164-156-11 CERAMIC CHIP 0.1uF 25V C102 1-126-964-11 ELECT 10uF 20% 50V C103 1-126-964-11 ELECT 10uF 20% 50V C104 1-126-964-11 ELECT 10uF 20% 50V C105 1-126-964-11 ELECT 10uF 20% 50V C106 1-130-487-00 MYLAR 0.022uF 5% 50V C107 1-130-487-00 MYLAR 0.022uF 5% 50V C108 1-130-489-00 MYLAR 0.033uF 5% 50V C109 1-126-960-11 ELECT 1uF 20% 50V C110 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V (GNX700) C110 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V (GNX800) C111 1-126-964-11 ELECT 10uF 20% 50V C112 1-137-190-91 FILM 0.22uF 5% 50V (GNX800) C112 1-136-170-00 FILM 0.27uF 5% 50V (GNX700) C113 1-136-170-00 FILM 0.27uF 5% 50V C115 1-164-156-11 CERAMIC CHIP 0.1uF 25V C116 1-126-176-11 ELECT 220uF 20% 10V C130 1-126-964-11 ELECT 10uF 20% 50V C131 1-126-959-11 ELECT 0.47uF 20% 50V C140 1-130-493-00 MYLAR 0.068uF 5% 50V C149 1-164-156-11 CERAMIC CHIP 0.1uF 25V C150 1-126-964-11 ELECT 10uF 20% 50V C152 1-126-964-11 ELECT 10uF 20% 50V C153 1-126-964-11 ELECT 10uF 20% 50V C154 1-126-964-11 ELECT 10uF 20% 50V C155 1-126-964-11 ELECT 10uF 20% 50V C156 1-130-487-00 MYLAR 0.022uF 5% 50V C157 1-130-487-00 MYLAR 0.022uF 5% 50V C158 1-130-489-00 MYLAR 0.033uF 5% 50V C159 1-126-960-11 ELECT 1uF 20% 50V C160 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V (GNX700) C160 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V (GNX800) C161 1-126-964-11 ELECT 10uF 20% 50V C162 1-137-190-91 FILM 0.22uF 5% 50V (GNX800) C162 1-136-170-00 FILM 0.27uF 5% 50V (GNX700) C163 1-136-170-00 FILM 0.27uF 5% 50V C180 1-126-963-11 ELECT 4.7uF 20% 50V C181 1-126-963-11 ELECT 4.7uF 20% 50V JOG Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 73 HCD-GNX700/GNX800 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks MAIN C202 1-126-964-11 ELECT 10uF 20% 50V C203 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C204 1-126-923-91 ELECT 220uF 20% 10V C205 1-164-156-11 CERAMIC CHIP 0.1uF 25V C206 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C207 1-126-960-11 ELECT 1uF 20% 50V C210 1-164-156-11 CERAMIC CHIP 0.1uF 25V C211 1-104-658-91 ELECT 100uF 20% 10V C220 1-136-497-81 FILM 0.1uF 5% 50V C221 1-136-497-81 FILM 0.1uF 5% 50V C222 1-104-658-91 ELECT 100uF 20% 10V C223 1-104-658-91 ELECT 100uF 20% 10V C230 1-136-497-81 FILM 0.1uF 5% 50V C231 1-136-497-81 FILM 0.1uF 5% 50V C250 1-126-964-11 ELECT 10uF 20% 50V C251 1-126-964-11 ELECT 10uF 20% 50V C260 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C261 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C262 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C263 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C264 1-165-647-91 CERAMIC CHIP 0.47uF 10% 6.3V C280 1-126-964-11 ELECT 10uF 20% 50V C281 1-126-964-11 ELECT 10uF 20% 50V C301 1-136-967-11 FILM 0.012uF 5% 100V C303 1-136-497-81 FILM 0.1uF 5% 50V C304 1-126-964-11 ELECT 10uF 20% 50V C305 1-126-960-11 ELECT 1uF 20% 50V C306 1-126-961-11 ELECT 2.2uF 20% 50V C307 1-126-964-11 ELECT 10uF 20% 50V C308 1-126-925-91 ELECT 470uF 20% 10V C309 1-126-947-11 ELECT 47uF 20% 35V C310 1-126-964-11 ELECT 10uF 20% 50V C311 1-126-964-11 ELECT 10uF 20% 50V C312 1-126-964-11 ELECT 10uF 20% 50V C314 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C340 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C341 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C351 1-136-967-11 FILM 0.012uF 5% 100V C353 1-136-497-81 FILM 0.1uF 5% 50V C354 1-126-157-11 ELECT 10uF 20% 16V C355 1-126-960-11 ELECT 1uF 20% 50V C356 1-126-961-11 ELECT 2.2uF 20% 50V C359 1-126-947-11 ELECT 47uF 20% 35V C361 1-126-964-11 ELECT 10uF 20% 50V C364 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C370 1-137-150-11 FILM 0.01uF 5% 100V C371 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C372 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C373 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C374 1-126-947-11 ELECT 47uF 20% 35V C375 1-162-963-11 CERAMIC CHIP 680PF 10% 50V C376 1-162-963-11 CERAMIC CHIP 680PF 10% 50V C377 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C378 1-162-928-11 CERAMIC CHIP 120PF 5% 50V C379 1-130-481-00 MYLAR 0.0068uF 5% 50V C380 1-162-928-11 CERAMIC CHIP 120PF 5% 50V C381 1-164-670-11 CERAMIC CHIP 1200PF 5% 16V C382 1-164-670-11 CERAMIC CHIP 1200PF 5% 16V C383 1-162-959-11 CERAMIC CHIP 330PF 5% 50V C384 1-162-959-11 CERAMIC CHIP 330PF 5% 50V C385 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C386 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C401 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C405 1-164-156-11 CERAMIC CHIP 0.1uF 25V C410 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C411 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C412 1-164-156-11 CERAMIC CHIP 0.1uF 25V C416 1-104-656-11 ELECT 2200uF 20% 6.3V C417 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C419 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C462 1-104-658-91 ELECT 100uF 20% 10V C464 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C497 1-164-156-11 CERAMIC CHIP 0.1uF 25V C498 1-126-964-11 ELECT 10uF 20% 50V C499 1-164-156-11 CERAMIC CHIP 0.1uF 25V C501 1-126-964-11 ELECT 10uF 20% 50V C502 1-136-497-81 FILM 0.1uF 5% 50V C503 1-136-497-81 FILM 0.1uF 5% 50V C511 1-126-157-11 ELECT 10uF 20% 16V (E2, E3, E51) C520 1-164-156-11 CERAMIC CHIP 0.1uF 25V C521 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C522 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C523 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C524 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C525 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C534 1-164-156-11 CERAMIC CHIP 0.1uF 25V C535 1-126-926-11 ELECT 1000uF 20% 10V C537 1-164-156-11 CERAMIC CHIP 0.1uF 25V C538 1-164-156-11 CERAMIC CHIP 0.1uF 25V C539 1-164-156-11 CERAMIC CHIP 0.1uF 25V C540 1-126-960-11 ELECT 1uF 20% 50V C541 1-126-960-11 ELECT 1uF 20% 50V C544 1-126-960-11 ELECT 1uF 20% 50V C545 1-126-960-11 ELECT 1uF 20% 50V C546 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C547 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C550 1-126-933-11 ELECT 100uF 20% 16V C551 1-164-156-11 CERAMIC CHIP 0.1uF 25V C552 1-126-961-11 ELECT 2.2uF 20% 50V C553 1-126-942-61 ELECT 1000uF 20% 25V C560 1-130-483-00 MYLAR 0.01uF 5% 50V C561 1-130-483-00 MYLAR 0.01uF 5% 50V C562 1-126-933-11 ELECT 100uF 20% 16V C563 1-126-925-91 ELECT 470uF 20% 10V C564 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C565 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C566 1-128-548-11 ELECT 4700uF 20% 25V C567 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C568 1-126-916-11 ELECT 1000uF 20% 6.3V C580 1-164-156-11 CERAMIC CHIP 0.1uF 25V C581 1-164-156-11 CERAMIC CHIP 0.1uF 25V < CONNECTOR > CN100 1-564-706-11 PIN, CONNECTOR (SMALL TYPE) 4P Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 74 HCD-GNX700/GNX800 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks MAIN CN102 1-820-049-11 CONNECTOR (SUBWOOFER) (SYSTEM CONTROL) CN105 1-691-765-11 PLUG (MICRO CONNECTOR) 3P CN402 1-785-336-11 PIN, CONNECTOR (LIGHT ANGLE) 10P CN501 1-573-845-11 CONNECTOR, BOARD TO BOARD 13P * CN502 1-774-876-21 CONNECTOR, BOARD TO BOARD 8P CN503 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P CN505 1-779-295-11 CONNECTOR, FFC (LIF (NON-ZIF)) 27P CN506 1-568-441-11 SOCKET, CONNECTOR 9P * CN507 1-564-710-11 PIN, CONNECTOR (SMALL TYPE) 8P * CN508 1-569-934-11 SOCKET, CONNECTOR 17P CN509 1-569-928-11 SOCKET, CONNECTOR 11P * CN510 1-568-449-11 HOUSING, CONNECTOR (PC BOARD) 3P CN511 1-784-735-11 CONNECTOR, FFC 13P CN512 1-779-285-11 CONNECTOR, FFC (LIF (NON-ZIF)) 17P CN513 1-784-038-21 CONNECTOR, BOARD TO BOARD 9P CN580 1-564-506-11 PLUG, CONNECTOR 3P < DIODE > D101 6-501-193-01 DIODE 1SS355WTE-17 D102 6-501-193-01 DIODE 1SS355WTE-17 D103 6-501-193-01 DIODE 1SS355WTE-17 D104 6-501-193-01 DIODE 1SS355WTE-17 D325 8-719-083-60 DIODE UDZSTE-174.7B D340 6-501-193-01 DIODE 1SS355WTE-17 D341 6-501-193-01 DIODE 1SS355WTE-17 D342 6-501-193-01 DIODE 1SS355WTE-17 D401 6-501-193-01 DIODE 1SS355WTE-17 D402 6-501-193-01 DIODE 1SS355WTE-17 D403 6-501-193-01 DIODE 1SS355WTE-17 D404 6-501-193-01 DIODE 1SS355WTE-17 D501 6-501-193-01 DIODE 1SS355WTE-17 D502 6-501-193-01 DIODE 1SS355WTE-17 D503 6-501-193-01 DIODE 1SS355WTE-17 D504 6-501-193-01 DIODE 1SS355WTE-17 D505 6-501-193-01 DIODE 1SS355WTE-17 D550 6-501-193-01 DIODE 1SS355WTE-17 D551 6-501-193-01 DIODE 1SS355WTE-17 (E2, E3, E51) D560 8-719-028-23 DIODE D3SBA20-4101 D561 6-500-522-21 DIODE 10EDB40-TB3 D562 6-500-522-21 DIODE 10EDB40-TB3 D581 8-719-069-56 DIODE UDZSTE-176.2B D583 8-719-978-33 DIODE DTZ-TT11-6.8B D584 8-719-071-54 DIODE HZU2.0BTRF < FERRITE BEAD > FB150 1-216-864-11 SHORT CHIP 0 FB260 1-216-864-11 SHORT CHIP 0 FB261 1-216-864-11 SHORT CHIP 0 FB262 1-216-864-11 SHORT CHIP 0 FB263 1-216-864-11 SHORT CHIP 0 FB506 1-500-283-11 INDUCTOR, FERRITE BEAD FB507 1-500-283-11 INDUCTOR, FERRITE BEAD FB508 1-500-283-11 INDUCTOR, FERRITE BEAD FB509 1-500-283-11 INDUCTOR, FERRITE BEAD FB510 1-500-283-11 INDUCTOR, FERRITE BEAD FB512 1-500-283-11 INDUCTOR, FERRITE BEAD < IC > IC101 6-703-650-11 IC M61529FP-D60G IC201 6-703-651-11 IC M61530FP-D60G IC210 6-600-465-11 IC TOTX147 (CD DIGITAL OUT OPTICAL) IC301 6-702-130-01 IC HA12237F IC401 6-806-610-01 IC M30622MEP-A75FPU0 IC402 6-705-809-01 IC BD4929G-TR IC550 6-703-610-01 IC RT8H015C-T112-1 IC560 8-759-394-36 IC BA09T IC561 8-759-394-36 IC BA09T IC562 6-702-771-01 IC TA78033LS < JACK > J101 1-794-981-11 JACK, PIN 4P (AUDIO IN) J103 1-820-048-11 CONNECTOR (LIGHTING) (D-LIGHT SYNC) < JUMPER RESISTOR > JR101 1-216-864-11 SHORT CHIP 0 JR102 1-216-864-11 SHORT CHIP 0 JR104 1-216-864-11 SHORT CHIP 0 JR107 1-216-864-11 SHORT CHIP 0 JR108 1-216-864-11 SHORT CHIP 0 JR109 1-216-864-11 SHORT CHIP 0 JR110 1-216-864-11 SHORT CHIP 0 JR112 1-216-864-11 SHORT CHIP 0 JR113 1-216-864-11 SHORT CHIP 0 JR114 1-216-864-11 SHORT CHIP 0 JR115 1-216-864-11 SHORT CHIP 0 JR116 1-216-864-11 SHORT CHIP 0 JR117 1-216-864-11 SHORT CHIP 0 JR119 1-216-864-11 SHORT CHIP 0 JR120 1-216-864-11 SHORT CHIP 0 JR121 1-216-864-11 SHORT CHIP 0 JR122 1-216-864-11 SHORT CHIP 0 JR123 1-216-864-11 SHORT CHIP 0 JR124 1-216-296-11 SHORT CHIP 0 JR125 1-216-296-11 SHORT CHIP 0 JR126 1-216-296-11 SHORT CHIP 0 JR127 1-216-864-11 SHORT CHIP 0 JR129 1-216-864-11 SHORT CHIP 0 JR130 1-216-864-11 SHORT CHIP 0 JR131 1-216-864-11 SHORT CHIP 0 (AR, AUS) < COIL > L101 1-420-872-52 COIL, AIR-CORE L102 1-420-872-52 COIL, AIR-CORE L302 1-414-189-31 INDUCTOR 100uH L370 1-410-780-11 INDUCTOR 27mH L371 1-410-780-11 INDUCTOR 27mH L372 1-414-189-31 INDUCTOR 100uH < TRANSISTOR > Q101 8-729-230-49 TRANSISTOR 2SC2712-YG Q151 8-729-230-49 TRANSISTOR 2SC2712-YG Q180 8-729-023-22 TRANSISTOR 2SD2114K Q181 8-729-023-22 TRANSISTOR 2SD2114K Q250 8-729-023-22 TRANSISTOR 2SD2114K Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 75 HCD-GNX700/GNX800 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks Q251 8-729-023-22 TRANSISTOR 2SD2114K Q325 8-729-056-46 TRANSISTOR 2SC5053T100Q Q340 8-729-903-46 TRANSISTOR 2SB1132-P Q341 8-729-903-46 TRANSISTOR 2SB1132-P Q342 8-729-903-46 TRANSISTOR 2SB1132-P Q343 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q344 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q345 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q370 8-729-141-75 TRANSISTOR 2SD596DV345 Q371 6-551-287-01 TRANSISTOR 2SD2704K-T146 Q372 6-551-287-01 TRANSISTOR 2SD2704K-T146 Q373 6-551-287-01 TRANSISTOR 2SD2704K-T146 Q374 6-551-287-01 TRANSISTOR 2SD2704K-T146 Q375 6-551-287-01 TRANSISTOR 2SD2704K-T146 Q376 6-551-287-01 TRANSISTOR 2SD2704K-T146 Q377 8-729-216-22 TRANSISTOR 2SA1162-G Q378 6-550-185-01 TRANSISTOR RT1P137P-TP-1 Q379 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q380 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q381 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q382 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q383 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q501 8-729-901-00 TRANSISTOR DTC124EK Q504 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q505 8-729-901-00 TRANSISTOR DTC124EK Q506 8-729-027-43 TRANSISTOR DTC114EKA-T146 (E2, E3, E51) Q540 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q541 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q544 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q545 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q550 8-729-027-56 TRANSISTOR DTC143TKA-T146 (E2, E3, E51) Q560 6-550-185-01 TRANSISTOR RT1P137P-TP-1 Q561 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q580 8-729-230-49 TRANSISTOR 2SC2712-YG Q581 8-729-230-49 TRANSISTOR 2SC2712-YG Q582 8-729-230-49 TRANSISTOR 2SC2712-YG Q583 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q584 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q585 8-729-026-68 TRANSISTOR 2SD2525 (TP) < RESISTOR > R101 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R102 1-216-833-11 METAL CHIP 10K 5% 1/10W R103 1-216-818-11 METAL CHIP 560 5% 1/10W R104 1-216-821-11 METAL CHIP 1K 5% 1/10W R105 1-216-841-11 METAL CHIP 47K 5% 1/10W R106 1-216-833-11 METAL CHIP 10K 5% 1/10W R107 1-216-813-11 METAL CHIP 220 5% 1/10W 0R108 1-217-637-00 FUSIBLE 1 5% 1/4W R111 1-216-864-11 SHORT CHIP 0 R112 1-216-864-11 SHORT CHIP 0 R116 1-216-809-11 METAL CHIP 100 5% 1/10W R119 1-216-809-11 METAL CHIP 100 5% 1/10W R121 1-216-833-11 METAL CHIP 10K 5% 1/10W R122 1-216-833-11 METAL CHIP 10K 5% 1/10W R130 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R131 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R132 1-216-857-11 METAL CHIP 1M 5% 1/10W R133 1-216-845-11 METAL CHIP 100K 5% 1/10W R140 1-216-833-11 METAL CHIP 10K 5% 1/10W R150 1-216-809-11 METAL CHIP 100 5% 1/10W R151 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R152 1-216-833-11 METAL CHIP 10K 5% 1/10W R153 1-216-818-11 METAL CHIP 560 5% 1/10W R154 1-216-821-11 METAL CHIP 1K 5% 1/10W R155 1-216-841-11 METAL CHIP 47K 5% 1/10W R156 1-216-833-11 METAL CHIP 10K 5% 1/10W R157 1-216-813-11 METAL CHIP 220 5% 1/10W R166 1-216-809-11 METAL CHIP 100 5% 1/10W R180 1-216-833-11 METAL CHIP 10K 5% 1/10W R181 1-216-833-11 METAL CHIP 10K 5% 1/10W R182 1-216-841-11 METAL CHIP 47K 5% 1/10W R183 1-216-841-11 METAL CHIP 47K 5% 1/10W R184 1-216-821-11 METAL CHIP 1K 5% 1/10W R185 1-216-821-11 METAL CHIP 1K 5% 1/10W R186 1-216-833-11 METAL CHIP 10K 5% 1/10W R187 1-216-833-11 METAL CHIP 10K 5% 1/10W R203 1-216-864-11 SHORT CHIP 0 R204 1-216-821-11 METAL CHIP 1K 5% 1/10W R205 1-216-821-11 METAL CHIP 1K 5% 1/10W R220 1-216-845-11 METAL CHIP 100K 5% 1/10W R221 1-216-834-11 METAL CHIP 12K 5% 1/10W R228 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R229 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R250 1-216-821-11 METAL CHIP 1K 5% 1/10W R251 1-216-833-11 METAL CHIP 10K 5% 1/10W R252 1-216-839-11 METAL CHIP 33K 5% 1/10W R253 1-216-833-11 METAL CHIP 10K 5% 1/10W R254 1-216-833-11 METAL CHIP 10K 5% 1/10W R255 1-216-833-11 METAL CHIP 10K 5% 1/10W R256 1-216-839-11 METAL CHIP 33K 5% 1/10W R257 1-216-821-11 METAL CHIP 1K 5% 1/10W R260 1-216-864-11 SHORT CHIP 0 R261 1-216-864-11 SHORT CHIP 0 R262 1-216-864-11 SHORT CHIP 0 R263 1-216-864-11 SHORT CHIP 0 R264 1-216-845-11 METAL CHIP 100K 5% 1/10W R265 1-216-845-11 METAL CHIP 100K 5% 1/10W R266 1-216-845-11 METAL CHIP 100K 5% 1/10W R267 1-216-845-11 METAL CHIP 100K 5% 1/10W R268 1-216-821-11 METAL CHIP 1K 5% 1/10W R269 1-216-821-11 METAL CHIP 1K 5% 1/10W R270 1-216-821-11 METAL CHIP 1K 5% 1/10W R271 1-216-821-11 METAL CHIP 1K 5% 1/10W R272 1-216-837-11 METAL CHIP 22K 5% 1/10W R273 1-216-833-11 METAL CHIP 10K 5% 1/10W R293 1-216-841-11 METAL CHIP 47K 5% 1/10W R294 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R295 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R296 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R297 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R301 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R302 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R303 1-216-833-11 METAL CHIP 10K 5% 1/10W R304 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R305 1-216-841-11 METAL CHIP 47K 5% 1/10W MAIN Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 76 HCD-GNX700/GNX800 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks R307 1-216-857-11 METAL CHIP 1M 5% 1/10W R308 1-216-809-11 METAL CHIP 100 5% 1/10W R309 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R310 1-216-809-11 METAL CHIP 100 5% 1/10W R311 1-216-864-11 SHORT CHIP 0 R312 1-216-809-11 METAL CHIP 100 5% 1/10W R319 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R325 1-216-819-11 METAL CHIP 680 5% 1/10W R336 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R337 1-216-833-11 METAL CHIP 10K 5% 1/10W R339 1-216-837-11 METAL CHIP 22K 5% 1/10W R340 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R341 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R342 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R343 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R344 1-216-819-11 METAL CHIP 680 5% 1/10W R345 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R346 1-216-819-11 METAL CHIP 680 5% 1/10W R347 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R348 1-216-819-11 METAL CHIP 680 5% 1/10W R349 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R351 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R352 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R353 1-216-833-11 METAL CHIP 10K 5% 1/10W R354 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R355 1-216-841-11 METAL CHIP 47K 5% 1/10W R356 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R357 1-216-833-11 METAL CHIP 10K 5% 1/10W R369 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R370 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R371 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R372 1-216-833-11 METAL CHIP 10K 5% 1/10W R373 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R374 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R375 1-216-833-11 METAL CHIP 10K 5% 1/10W R376 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R377 1-216-805-11 METAL CHIP 47 5% 1/10W R378 1-216-833-11 METAL CHIP 10K 5% 1/10W R379 1-216-797-11 METAL CHIP 10 5% 1/10W R380 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R381 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R382 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R383 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R384 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R385 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R386 1-216-803-11 METAL CHIP 33 5% 1/10W R387 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R388 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R389 1-216-837-11 METAL CHIP 22K 5% 1/10W R390 1-216-833-11 METAL CHIP 10K 5% 1/10W R391 1-216-833-11 METAL CHIP 10K 5% 1/10W R392 1-216-833-11 METAL CHIP 10K 5% 1/10W R393 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R394 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R395 1-216-841-11 METAL CHIP 47K 5% 1/10W R396 1-216-833-11 METAL CHIP 10K 5% 1/10W R397 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R399 1-216-833-11 METAL CHIP 10K 5% 1/10W R400 1-216-809-11 METAL CHIP 100 5% 1/10W R401 1-216-809-11 METAL CHIP 100 5% 1/10W R402 1-216-809-11 METAL CHIP 100 5% 1/10W R403 1-216-809-11 METAL CHIP 100 5% 1/10W R404 1-216-809-11 METAL CHIP 100 5% 1/10W R405 1-216-809-11 METAL CHIP 100 5% 1/10W R406 1-216-809-11 METAL CHIP 100 5% 1/10W R407 1-216-809-11 METAL CHIP 100 5% 1/10W R409 1-216-833-11 METAL CHIP 10K 5% 1/10W R411 1-216-851-11 METAL CHIP 330K 5% 1/10W R412 1-216-845-11 METAL CHIP 100K 5% 1/10W R413 1-216-864-11 SHORT CHIP 0 R417 1-216-833-11 METAL CHIP 10K 5% 1/10W R418 1-216-813-11 METAL CHIP 220 5% 1/10W R419 1-216-809-11 METAL CHIP 100 5% 1/10W R420 1-216-821-11 METAL CHIP 1K 5% 1/10W R421 1-216-809-11 METAL CHIP 100 5% 1/10W R422 1-216-809-11 METAL CHIP 100 5% 1/10W R423 1-216-809-11 METAL CHIP 100 5% 1/10W R424 1-216-809-11 METAL CHIP 100 5% 1/10W R425 1-216-809-11 METAL CHIP 100 5% 1/10W R426 1-216-809-11 METAL CHIP 100 5% 1/10W R427 1-216-809-11 METAL CHIP 100 5% 1/10W R428 1-216-809-11 METAL CHIP 100 5% 1/10W R429 1-216-809-11 METAL CHIP 100 5% 1/10W R430 1-216-809-11 METAL CHIP 100 5% 1/10W R431 1-216-809-11 METAL CHIP 100 5% 1/10W R432 1-216-809-11 METAL CHIP 100 5% 1/10W R433 1-216-809-11 METAL CHIP 100 5% 1/10W R434 1-216-809-11 METAL CHIP 100 5% 1/10W R436 1-216-809-11 METAL CHIP 100 5% 1/10W R438 1-216-809-11 METAL CHIP 100 5% 1/10W R439 1-216-809-11 METAL CHIP 100 5% 1/10W R440 1-216-809-11 METAL CHIP 100 5% 1/10W R441 1-216-809-11 METAL CHIP 100 5% 1/10W R442 1-216-809-11 METAL CHIP 100 5% 1/10W R443 1-216-809-11 METAL CHIP 100 5% 1/10W R444 1-216-809-11 METAL CHIP 100 5% 1/10W R445 1-216-809-11 METAL CHIP 100 5% 1/10W R446 1-216-809-11 METAL CHIP 100 5% 1/10W R448 1-216-809-11 METAL CHIP 100 5% 1/10W R449 1-216-809-11 METAL CHIP 100 5% 1/10W R450 1-216-809-11 METAL CHIP 100 5% 1/10W R452 1-216-809-11 METAL CHIP 100 5% 1/10W R463 1-216-833-11 METAL CHIP 10K 5% 1/10W R468 1-216-809-11 METAL CHIP 100 5% 1/10W R469 1-216-809-11 METAL CHIP 100 5% 1/10W R470 1-216-809-11 METAL CHIP 100 5% 1/10W R472 1-216-809-11 METAL CHIP 100 5% 1/10W R473 1-216-809-11 METAL CHIP 100 5% 1/10W R474 1-216-809-11 METAL CHIP 100 5% 1/10W R475 1-216-809-11 METAL CHIP 100 5% 1/10W R476 1-216-809-11 METAL CHIP 100 5% 1/10W R477 1-216-809-11 METAL CHIP 100 5% 1/10W R478 1-216-809-11 METAL CHIP 100 5% 1/10W R483 1-216-809-11 METAL CHIP 100 5% 1/10W R484 1-216-809-11 METAL CHIP 100 5% 1/10W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 77 HCD-GNX700/GNX800 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks R484 1-216-809-11 METAL CHIP 100 5% 1/10W R485 1-216-809-11 METAL CHIP 100 5% 1/10W R486 1-216-809-11 METAL CHIP 100 5% 1/10W R487 1-216-809-11 METAL CHIP 100 5% 1/10W R488 1-216-809-11 METAL CHIP 100 5% 1/10W R489 1-216-809-11 METAL CHIP 100 5% 1/10W R490 1-216-809-11 METAL CHIP 100 5% 1/10W R492 1-216-825-11 METAL CHIP 2.2K 5% 1/10W (GNX800) R492 1-216-864-11 SHORT CHIP 0 (GNX700) R493 1-216-815-11 METAL CHIP 330 5% 1/10W (E3) R493 1-216-823-11 METAL CHIP 1.5K 5% 1/10W (AUS) R493 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (E2, E51, AR) R495 1-216-809-11 METAL CHIP 100 5% 1/10W R497 1-216-821-11 METAL CHIP 1K 5% 1/10W R500 1-216-833-11 METAL CHIP 10K 5% 1/10W R501 1-216-813-11 METAL CHIP 220 5% 1/10W R502 1-216-821-11 METAL CHIP 1K 5% 1/10W R503 1-216-864-11 SHORT CHIP 0 R505 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R508 1-216-833-11 METAL CHIP 10K 5% 1/10W (E2, E3, E51) R509 1-216-825-11 METAL CHIP 2.2K 5% 1/10W (GNX800: E2, E3, E51) R509 1-216-827-11 METAL CHIP 3.3K 5% 1/10W (GNX700) R529 1-216-833-11 METAL CHIP 10K 5% 1/10W R530 1-216-833-11 METAL CHIP 10K 5% 1/10W R531 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (E2) R532 1-216-819-11 METAL CHIP 680 5% 1/10W (E2) R532 1-216-864-11 SHORT CHIP 0 (EXCEPT E2) R538 1-216-833-11 METAL CHIP 10K 5% 1/10W R540 1-216-843-11 METAL CHIP 68K 5% 1/10W R541 1-216-835-11 METAL CHIP 15K 5% 1/10W R542 1-216-853-11 METAL CHIP 470K 5% 1/10W R546 1-216-843-11 METAL CHIP 68K 5% 1/10W R547 1-216-835-11 METAL CHIP 15K 5% 1/10W R548 1-216-853-11 METAL CHIP 470K 5% 1/10W R551 1-216-842-11 METAL CHIP 56K 5% 1/10W (E2, E3, E51) R553 1-216-824-11 METAL CHIP 1.8K 5% 1/10W (E2, E3, E51) R560 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R562 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R563 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R570 1-216-833-11 METAL CHIP 10K 5% 1/10W R571 1-216-833-11 METAL CHIP 10K 5% 1/10W R573 1-216-833-11 METAL CHIP 10K 5% 1/10W R574 1-216-833-11 METAL CHIP 10K 5% 1/10W R575 1-216-821-11 METAL CHIP 1K 5% 1/10W R577 1-216-833-11 METAL CHIP 10K 5% 1/10W R578 1-216-821-11 METAL CHIP 1K 5% 1/10W R581 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (E2) R582 1-216-819-11 METAL CHIP 680 5% 1/10W (E2) R582 1-216-864-11 SHORT CHIP 0 (EXCEPT E2) R585 1-216-833-11 METAL CHIP 10K 5% 1/10W R586 1-216-833-11 METAL CHIP 10K 5% 1/10W R587 1-216-833-11 METAL CHIP 10K 5% 1/10W R592 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (GNX800) R593 1-216-819-11 METAL CHIP 680 5% 1/10W (AR) R593 1-216-821-11 METAL CHIP 1K 5% 1/10W (E2, E51) R593 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (E3, AUS) R594 1-215-889-00 METAL OXIDE 330 5% 2W R595 1-216-857-11 METAL CHIP 1M 5% 1/10W R598 1-245-711-31 CARBON 10 5% 1/2W R599 1-245-711-31 CARBON 10 5% 1/2W < TRANSFORMER > T301 1-433-372-11 TRANSFORMER, BIAS OSCILLATION < TERMINAL BOARD > TM101 1-780-170-21 TERMINAL BOARD (SPEAKER) (SUBWOOFER OUT) < VIBRATOR > X401 1-760-252-12 VIBRATOR, CRYSTAL (32.768 kHz) X402 1-795-058-21 VIBRATOR, CERAMIC (5 MHz) ************************************************************ A-1156-233-A MIC BOARD, COMPLETE ******************** < CAPACITOR > C1100 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1101 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1102 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C1103 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1104 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1105 1-124-463-00 ELECT 0.1uF 20% 50V C1106 1-126-163-11 ELECT 4.7uF 20% 50V C1107 1-126-163-11 ELECT 4.7uF 20% 50V C1108 1-126-160-11 ELECT 1uF 20% 50V C1109 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C1110 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C1111 1-124-464-11 ELECT 0.22uF 20% 50V C1112 1-126-160-11 ELECT 1uF 20% 50V C1113 1-162-925-11 CERAMIC CHIP 68PF 5% 50V C1114 1-126-163-11 ELECT 4.7uF 20% 50V C1115 1-126-163-11 ELECT 4.7uF 20% 50V C1116 1-124-589-11 ELECT 47uF 20% 16V C1117 1-124-589-11 ELECT 47uF 20% 16V C1119 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C1121 1-126-160-11 ELECT 1uF 20% 50V C1122 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V C1123 1-124-589-11 ELECT 47uF 20% 16V C1124 1-164-730-11 CERAMIC CHIP 0.0012uF 10% 50V C1125 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C1127 1-124-261-00 ELECT 10uF 20% 50V MIC MAIN Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 78 HCD-GNX700/GNX800 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks PA C1128 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C1133 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1139 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1142 1-164-156-11 CERAMIC CHIP 0.1uF 25V < CONNECTOR > CN1102 1-785-329-11 PIN, CONNECTOR (LIGHT ANGLE) 3P < DIODE > D1100 6-501-193-01 DIODE 1SS355WTE-17 D1101 6-501-193-01 DIODE 1SS355WTE-17 D1102 8-719-069-54 DIODE UDZSTE-175.1B < FERRITE BEAD > FB1100 1-216-864-11 SHORT CHIP 0 FB1101 1-216-864-11 SHORT CHIP 0 < IC > IC1100 6-709-116-01 IC TC9488FG IC1101 8-759-710-97 IC NJM4565M-D < JACK > J1100 1-817-630-11 JACK (LARGE TYPE) (MIC 1) J1101 1-817-630-11 JACK (LARGE TYPE) (MIC 2) J1103 1-794-702-11 JACK, HEADPHONE (PHONES) < RESISTOR > R1100 1-216-835-11 METAL CHIP 15K 5% 1/10W R1102 1-216-821-11 METAL CHIP 1K 5% 1/10W R1103 1-216-821-11 METAL CHIP 1K 5% 1/10W R1104 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R1105 1-216-809-11 METAL CHIP 100 5% 1/10W R1106 1-216-809-11 METAL CHIP 100 5% 1/10W R1107 1-216-809-11 METAL CHIP 100 5% 1/10W R1108 1-216-833-11 METAL CHIP 10K 5% 1/10W R1109 1-216-833-11 METAL CHIP 10K 5% 1/10W R1110 1-216-833-11 METAL CHIP 10K 5% 1/10W R1111 1-216-833-11 METAL CHIP 10K 5% 1/10W R1113 1-216-834-11 METAL CHIP 12K 5% 1/10W R1114 1-216-833-11 METAL CHIP 10K 5% 1/10W R1115 1-216-815-11 METAL CHIP 330 5% 1/10W R1116 1-216-815-11 METAL CHIP 330 5% 1/10W R1118 1-216-821-11 METAL CHIP 1K 5% 1/10W R1119 1-216-841-11 METAL CHIP 47K 5% 1/10W R1120 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R1121 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R1122 1-216-834-11 METAL CHIP 12K 5% 1/10W R1123 1-216-835-11 METAL CHIP 15K 5% 1/10W R1124 1-216-833-11 METAL CHIP 10K 5% 1/10W R1126 1-216-833-11 METAL CHIP 10K 5% 1/10W R1132 1-216-864-11 SHORT CHIP 0 R1137 1-216-833-11 METAL CHIP 10K 5% 1/10W R1138 1-216-833-11 METAL CHIP 10K 5% 1/10W R1139 1-216-833-11 METAL CHIP 10K 5% 1/10W R1140 1-216-833-11 METAL CHIP 10K 5% 1/10W R1147 1-216-835-11 METAL CHIP 15K 5% 1/10W R1152 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1156 1-216-823-11 METAL CHIP 1.5K 5% 1/10W < VARIABLE RESISTOR > RV1100 1-227-452-11 RES, VAR, CARBON 50K (ECHO LEVEL) RV1101 1-227-452-11 RES, VAR, CARBON 50K (MIC 2 LEVEL) RV1102 1-227-452-11 RES, VAR, CARBON 50K (MIC 1 LEVEL) ************************************************************ 1-687-133-12 MOTOR (LD) BOARD ***************** ************************************************************ 1-687-134-12 MOTOR (TB) BOARD ***************** < CONNECTOR > CN742 1-784-727-11 CONNECTOR, FFC 5P ************************************************************ A-1156-247-A PA BOARD, COMPLETE (GNX700: E2, E51) A-1156-261-A PA BOARD, COMPLETE (GNX800: E2, E51, AR) A-1178-475-A PA BOARD, COMPLETE (GNX800: E3, AUS) A-1178-478-A PA BOARD, COMPLETE (GNX700: E3) ******************* < CAPACITOR > C600 1-126-963-11 ELECT 4.7uF 20% 50V C601 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C602 1-104-658-91 ELECT 100uF 20% 10V C604 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C605 1-164-156-11 CERAMIC CHIP 0.1uF 25V C606 1-164-156-11 CERAMIC CHIP 0.1uF 25V C608 1-126-965-91 ELECT 22uF 20% 50V C616 1-136-495-11 FILM 0.068uF 5% 50V C617 1-136-495-11 FILM 0.068uF 5% 50V C634 1-104-665-11 ELECT 100uF 20% 25V C635 1-104-665-11 ELECT 100uF 20% 25V C636 1-107-721-11 ELECT 4.7uF 20% 100V C637 1-107-721-11 ELECT 4.7uF 20% 100V C648 1-104-658-91 ELECT 100uF 20% 10V C649 1-126-964-11 ELECT 10uF 20% 50V C650 1-126-963-11 ELECT 4.7uF 20% 50V C651 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C652 1-104-658-91 ELECT 100uF 20% 10V C654 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C655 1-126-964-11 ELECT 10uF 20% 50V C656 1-127-815-11 ELECT 3300uF 20% 100V C658 1-127-812-11 ELECT 3300uF 20% 63V C660 1-164-156-11 CERAMIC CHIP 0.1uF 25V C666 1-136-495-11 FILM 0.068uF 5% 50V C667 1-136-495-11 FILM 0.068uF 5% 50V C676 1-127-815-11 ELECT 3300uF 20% 100V C678 1-127-812-11 ELECT 3300uF 20% 63V C681 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V (GNX800:E3, AUS) C682 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V (GNX800:E3, AUS) MIC MOTOR (LD) MOTOR (TB) Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 79 HCD-GNX700/GNX800 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks C683 1-164-156-11 CERAMIC CHIP 0.1uF 25V C691 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V (GNX800:E3, AUS) C691 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V C692 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V (GNX800:E3, AUS) C693 1-164-156-11 CERAMIC CHIP 0.1uF 25V < CONNECTOR > CN600 1-764-865-41 CONNECTOR, BOARD TO BOARD 13P CN601 1-784-031-41 CONNECTOR, BOARD TO BOARD 8P * CN607 1-564-508-11 PLUG, CONNECTOR 5P < DIODE > D609 6-501-193-01 DIODE 1SS355WTE-17 D611 8-719-056-93 DIODE UDZ-TE-17-18B D612 8-719-056-93 DIODE UDZ-TE-17-18B D620 6-501-193-01 DIODE 1SS355WTE-17 D624 6-501-193-01 DIODE 1SS355WTE-17 D646 6-501-193-01 DIODE 1SS355WTE-17 D654 6-501-193-01 DIODE 1SS355WTE-17 D655 6-501-193-01 DIODE 1SS355WTE-17 D656 6-500-249-01 DIODE D15XB20 D658 8-719-073-32 DIODE D25XB60 D660 6-501-193-01 DIODE 1SS355WTE-17 D661 6-501-193-01 DIODE 1SS355WTE-17 D665 6-501-193-01 DIODE 1SS355WTE-17 (GNX800) D670 6-501-193-01 DIODE 1SS355WTE-17 < IC > IC600 8-749-017-06 IC STK412-150 < JUMPER RESISTOR > JR600 1-216-296-11 SHORT CHIP 0 JR601 1-216-296-11 SHORT CHIP 0 JR602 1-216-296-11 SHORT CHIP 0 JR603 1-216-296-11 SHORT CHIP 0 JR612 1-216-864-11 SHORT CHIP 0 < TRANSISTOR > Q604 8-729-924-99 TRANSISTOR 2SC3722K-E Q606 8-729-821-00 TRANSISTOR 2SA1207 Q610 8-729-924-99 TRANSISTOR 2SC3722K-E Q618 8-729-924-99 TRANSISTOR 2SC3722K-E Q628 8-729-230-49 TRANSISTOR 2SC2712-YG Q630 8-729-230-49 TRANSISTOR 2SC2712-YG Q634 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q640 8-729-023-22 TRANSISTOR 2SD2114K Q641 8-729-023-22 TRANSISTOR 2SD2114K Q644 8-729-230-49 TRANSISTOR 2SC2712-YG Q647 8-729-230-49 TRANSISTOR 2SC2712-YG Q648 8-729-230-49 TRANSISTOR 2SC2712-YG Q666 8-729-230-49 TRANSISTOR 2SC2712-YG (GNX800) Q668 8-729-924-99 TRANSISTOR 2SC3722K-E Q682 8-729-230-49 TRANSISTOR 2SC2712-YG < RESISTOR > R600 1-216-821-11 METAL CHIP 1K 5% 1/10W R601 1-216-841-11 METAL CHIP 47K 5% 1/10W R602 1-216-816-11 METAL CHIP 390 5% 1/10W (GNX700) R602 1-218-482-11 METAL CHIP 430 5% 1/10W (GNX800) R603 1-216-841-11 METAL CHIP 47K 5% 1/10W R604 1-216-833-11 METAL CHIP 10K 5% 1/10W R605 1-216-833-11 METAL CHIP 10K 5% 1/10W R606 1-216-841-11 METAL CHIP 47K 5% 1/10W R607 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R608 1-216-845-11 METAL CHIP 100K 5% 1/10W R609 1-216-843-11 METAL CHIP 68K 5% 1/10W R610 1-216-843-11 METAL CHIP 68K 5% 1/10W R611 1-216-839-11 METAL CHIP 33K 5% 1/10W 0R612 1-245-605-51 FUSIBLE 100 5% 1/4W R613 1-215-872-11 METAL OXIDE 3.3K 5% 1W R614 1-215-872-11 METAL OXIDE 3.3K 5% 1W 0R615 1-245-605-51 FUSIBLE 100 5% 1/4W 0R616 1-217-637-00 FUSIBLE 1 5% 1/4W R617 1-216-845-11 METAL CHIP 100K 5% 1/10W 0R618 1-234-798-11 ENCAPSULATED COMPONENT R619 1-216-821-11 METAL CHIP 1K 5% 1/10W R620 1-216-839-11 METAL CHIP 33K 5% 1/10W R621 1-216-845-11 METAL CHIP 100K 5% 1/10W R622 1-245-711-31 CARBON 10 5% 1/2W R623 1-216-843-11 METAL CHIP 68K 5% 1/10W R624 1-216-837-11 METAL CHIP 22K 5% 1/10W R625 1-216-826-11 METAL CHIP 2.7K 5% 1/10W (GNX800) R625 1-216-827-11 METAL CHIP 3.3K 5% 1/10W (GNX700) R628 1-216-837-11 METAL CHIP 22K 5% 1/10W R629 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R630 1-216-845-11 METAL CHIP 100K 5% 1/10W R631 1-216-845-11 METAL CHIP 100K 5% 1/10W R633 1-216-864-11 SHORT CHIP 0 R634 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R635 1-216-833-11 METAL CHIP 10K 5% 1/10W R636 1-215-891-11 METAL OXIDE 680 5% 2W R637 1-215-891-11 METAL OXIDE 680 5% 2W R638 1-216-845-11 METAL CHIP 100K 5% 1/10W R639 1-216-845-11 METAL CHIP 100K 5% 1/10W R640 1-216-821-11 METAL CHIP 1K 5% 1/10W R641 1-216-821-11 METAL CHIP 1K 5% 1/10W R642 1-216-811-11 METAL CHIP 150 5% 1/10W R643 1-216-811-11 METAL CHIP 150 5% 1/10W R644 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R645 1-216-833-11 METAL CHIP 10K 5% 1/10W 0R646 1-260-086-31 CARBON 82 5% 1/2W R647 1-216-821-11 METAL CHIP 1K 5% 1/10W (GNX800) R647 1-216-823-11 METAL CHIP 1.5K 5% 1/10W (GNX700) R648 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (GNX700) R648 1-216-837-11 METAL CHIP 22K 5% 1/10W (GNX800) R649 1-216-837-11 METAL CHIP 22K 5% 1/10W R650 1-216-821-11 METAL CHIP 1K 5% 1/10W PA Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 80 HCD-GNX700/GNX800 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks PANEL R651 1-216-841-11 METAL CHIP 47K 5% 1/10W R652 1-216-816-11 METAL CHIP 390 5% 1/10W (GNX700) R652 1-218-482-11 METAL CHIP 430 5% 1/10W (GNX800) R653 1-216-841-11 METAL CHIP 47K 5% 1/10W R654 1-216-841-11 METAL CHIP 47K 5% 1/10W R655 1-216-841-11 METAL CHIP 47K 5% 1/10W R656 1-216-849-11 METAL CHIP 220K 5% 1/10W R657 1-216-849-11 METAL CHIP 220K 5% 1/10W R658 1-216-845-11 METAL CHIP 100K 5% 1/10W R660 1-216-833-11 METAL CHIP 10K 5% 1/10W (GNX800) R660 1-216-834-11 METAL CHIP 12K 5% 1/10W (GNX700) R661 1-216-833-11 METAL CHIP 10K 5% 1/10W (GNX800) R661 1-216-834-11 METAL CHIP 12K 5% 1/10W (GNX700) R662 1-216-811-11 METAL CHIP 150 5% 1/10W R663 1-216-811-11 METAL CHIP 150 5% 1/10W 0R665 1-260-086-31 CARBON 82 5% 1/2W (GNX800) R666 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (GNX800) R667 1-216-833-11 METAL CHIP 10K 5% 1/10W (GNX800) 0R668 1-234-798-11 ENCAPSULATED COMPONENT R669 1-216-821-11 METAL CHIP 1K 5% 1/10W R670 1-216-839-11 METAL CHIP 33K 5% 1/10W R671 1-216-845-11 METAL CHIP 100K 5% 1/10W R672 1-245-711-31 CARBON 10 5% 1/2W R673 1-216-842-11 METAL CHIP 56K 5% 1/10W R674 1-216-837-11 METAL CHIP 22K 5% 1/10W R676 1-216-849-11 METAL CHIP 220K 5% 1/10W R677 1-216-849-11 METAL CHIP 220K 5% 1/10W R678 1-216-845-11 METAL CHIP 100K 5% 1/10W R681 1-245-711-31 CARBON 10 5% 1/2W (GNX800:E3, AUS) R682 1-216-821-11 METAL CHIP 1K 5% 1/10W R683 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R685 1-216-833-11 METAL CHIP 10K 5% 1/10W R691 1-245-711-31 CARBON 10 5% 1/2W (GNX800:E3, AUS) R692 1-216-841-11 METAL CHIP 47K 5% 1/10W R693 1-216-845-11 METAL CHIP 100K 5% 1/10W R694 1-216-843-11 METAL CHIP 68K 5% 1/10W R695 1-216-845-11 METAL CHIP 100K 5% 1/10W R696 1-216-845-11 METAL CHIP 100K 5% 1/10W R697 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R698 1-216-845-11 METAL CHIP 100K 5% 1/10W < RELAY > RY646 1-755-500-11 RELAY RY665 1-755-500-11 RELAY (GNX800) < THERMISTOR > TH629 1-807-796-11 THERMISTOR TH630 1-807-796-11 THERMISTOR < TERMINAL > TM600 1-780-001-21 TERMINAL BOARD (SPEAKER) (FRONT SPEAKER) TM601 1-780-001-21 TERMINAL BOARD (SPEAKER) (SURR SPEAKER) (GNX800) ************************************************************ A-1156-224-A PANEL BOARD, COMPLETE ********************** < CAPACITOR > C900 1-126-163-11 ELECT 4.7uF 20% 50V C901 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C902 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C903 1-164-156-11 CERAMIC CHIP 0.1uF 25V C904 1-164-156-11 CERAMIC CHIP 0.1uF 25V C905 1-164-156-11 CERAMIC CHIP 0.1uF 25V C906 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C908 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C909 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C910 1-164-156-11 CERAMIC CHIP 0.1uF 25V C916 1-164-156-11 CERAMIC CHIP 0.1uF 25V C917 1-164-156-11 CERAMIC CHIP 0.1uF 25V C920 1-164-156-11 CERAMIC CHIP 0.1uF 25V C922 1-119-941-91 ELECT 470uF 20% 6.3V C923 1-119-941-91 ELECT 470uF 20% 6.3V C924 1-119-941-91 ELECT 470uF 20% 6.3V C925 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C926 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C927 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C928 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C929 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C930 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C931 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C932 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C933 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C934 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C935 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C936 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C937 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C938 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C939 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C940 1-164-156-11 CERAMIC CHIP 0.1uF 25V C941 1-124-261-00 ELECT 10uF 20% 50V C942 1-124-261-00 ELECT 10uF 20% 50V C943 1-124-261-00 ELECT 10uF 20% 50V C945 1-115-156-11 CERAMIC CHIP 1uF 10V C946 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C947 1-115-156-11 CERAMIC CHIP 1uF 10V C948 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C949 1-115-156-11 CERAMIC CHIP 1uF 10V C950 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C951 1-115-156-11 CERAMIC CHIP 1uF 10V C952 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C953 1-115-156-11 CERAMIC CHIP 1uF 10V C954 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C955 1-115-156-11 CERAMIC CHIP 1uF 10V C956 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V PA Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 81 HCD-GNX700/GNX800 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks C957 1-115-156-11 CERAMIC CHIP 1uF 10V C958 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C959 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C961 1-164-156-11 CERAMIC CHIP 0.1uF 25V C962 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C964 1-124-589-11 ELECT 47uF 20% 16V C967 1-124-261-00 ELECT 10uF 20% 50V C972 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C973 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C974 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C975 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C977 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C978 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C979 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C980 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C981 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C982 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C983 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C1180 1-162-960-11 CERAMIC CHIP 220PF 10% 50V < CONNECTOR > CN900 1-784-739-11 CONNECTOR, FFC 17P CN902 1-784-739-11 CONNECTOR, FFC 17P < DIODE > D901 6-501-193-01 DIODE 1SS355WTE-17 D905 8-719-978-33 DIODE DTZ-TT11-6.8B D908 8-719-058-04 DIODE SEL5223S-TP15 (CD) D909 8-719-058-04 DIODE SEL5223S-TP15 (TUNER BAND) D910 8-719-058-04 DIODE SEL5223S-TP15 (TAPE A/B) D911 8-719-058-04 DIODE SEL5223S-TP15 (B) D913 8-719-058-04 DIODE SEL5223S-TP15 (TUNING+ >) D914 8-719-058-04 DIODE SEL5223S-TP15 (TUNING- .) D915 6-501-228-01 DIODE SELU5420E-STP15 (B) D916 8-719-058-04 DIODE SEL5223S-TP15 (TV) D917 8-719-058-04 DIODE SEL5223S-TP15 (VIDEO/MD) D927 8-719-058-04 DIODE SEL5223S-TP15 (^/1) D928 6-501-228-01 DIODE SELU5420E-STP15 (^/1) D929 8-719-058-04 DIODE SEL5223S-TP15 (ALBUM+ M) D930 8-719-058-04 DIODE SEL5223S-TP15 (ALBUM- m) D931 6-501-193-01 DIODE 1SS355WTE-17 D932 6-501-193-01 DIODE 1SS355WTE-17 D1145 8-719-058-04 DIODE SEL5223S-TP15 (X) D1153 8-719-058-04 DIODE SEL5223S-TP15 (x) < FERRITE BEAD > FB901 1-216-864-11 SHORT CHIP 0 < FLUORESCENT INDICATOR > FL901 1-519-794-21 VACUUM FLUORESCENT DISPLAYS < IC > IC902 6-806-205-01 IC MB90M407PF-G-148E1 IC903 6-600-309-01 IC RPM7240-H9 (g) IC904 6-705-678-01 IC NJM2760V-TE2 < JUMPER RESISTOR > JR914 1-216-864-11 SHORT CHIP 0 JR918 1-216-864-11 SHORT CHIP 0 JR919 1-216-864-11 SHORT CHIP 0 JR925 1-216-296-11 SHORT CHIP 0 < TRANSISTOR > Q901 8-729-027-56 TRANSISTOR DTC143TKA-T146 Q902 8-729-027-56 TRANSISTOR DTC143TKA-T146 Q903 8-729-027-29 TRANSISTOR DTA123JKA-T146 Q904 8-729-106-60 TRANSISTOR 2SB1115A-YQ Q905 8-729-106-60 TRANSISTOR 2SB1115A-YQ Q906 8-729-027-50 TRANSISTOR DTC123JKA-T146 Q907 8-729-027-50 TRANSISTOR DTC123JKA-T146 Q908 8-729-027-50 TRANSISTOR DTC123JKA-T146 Q909 8-729-027-50 TRANSISTOR DTC123JKA-T146 Q910 8-729-027-50 TRANSISTOR DTC123JKA-T146 Q914 8-729-027-56 TRANSISTOR DTC143TKA-T146 Q917 8-729-027-50 TRANSISTOR DTC123JKA-T146 Q918 8-729-027-50 TRANSISTOR DTC123JKA-T146 Q919 8-729-027-50 TRANSISTOR DTC123JKA-T146 < RESISTOR > R900 1-216-833-11 METAL CHIP 10K 5% 1/10W R901 1-216-833-11 METAL CHIP 10K 5% 1/10W R902 1-216-833-11 METAL CHIP 10K 5% 1/10W R903 1-216-809-11 METAL CHIP 100 5% 1/10W R904 1-216-809-11 METAL CHIP 100 5% 1/10W R905 1-216-835-11 METAL CHIP 15K 5% 1/10W R906 1-216-835-11 METAL CHIP 15K 5% 1/10W R907 1-216-835-11 METAL CHIP 15K 5% 1/10W R908 1-216-809-11 METAL CHIP 100 5% 1/10W R909 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R910 1-216-819-11 METAL CHIP 680 5% 1/10W R911 1-216-819-11 METAL CHIP 680 5% 1/10W R912 1-216-809-11 METAL CHIP 100 5% 1/10W R914 1-216-819-11 METAL CHIP 680 5% 1/10W R915 1-216-819-11 METAL CHIP 680 5% 1/10W R916 1-216-819-11 METAL CHIP 680 5% 1/10W R917 1-216-819-11 METAL CHIP 680 5% 1/10W R918 1-216-845-11 METAL CHIP 100K 5% 1/10W R919 1-216-845-11 METAL CHIP 100K 5% 1/10W R920 1-216-845-11 METAL CHIP 100K 5% 1/10W R922 1-216-857-11 METAL CHIP 1M 5% 1/10W R923 1-216-819-11 METAL CHIP 680 5% 1/10W R924 1-216-819-11 METAL CHIP 680 5% 1/10W R925 1-216-819-11 METAL CHIP 680 5% 1/10W R926 1-216-819-11 METAL CHIP 680 5% 1/10W R941 1-216-809-11 METAL CHIP 100 5% 1/10W R942 1-216-809-11 METAL CHIP 100 5% 1/10W R943 1-216-833-11 METAL CHIP 10K 5% 1/10W R944 1-216-805-11 METAL CHIP 47 5% 1/10W R947 1-216-821-11 METAL CHIP 1K 5% 1/10W R948 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R949 1-216-821-11 METAL CHIP 1K 5% 1/10W R950 1-216-821-11 METAL CHIP 1K 5% 1/10W R951 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R952 1-216-821-11 METAL CHIP 1K 5% 1/10W PANEL Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 82 HCD-GNX700/GNX800 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks R953 1-216-821-11 METAL CHIP 1K 5% 1/10W R954 1-216-833-11 METAL CHIP 10K 5% 1/10W R956 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R957 1-216-819-11 METAL CHIP 680 5% 1/10W R964 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R965 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R966 1-216-833-11 METAL CHIP 10K 5% 1/10W R967 1-216-835-11 METAL CHIP 15K 5% 1/10W R968 1-216-837-11 METAL CHIP 22K 5% 1/10W R974 1-216-819-11 METAL CHIP 680 5% 1/10W R975 1-216-819-11 METAL CHIP 680 5% 1/10W R979 1-216-805-11 METAL CHIP 47 5% 1/10W R980 1-216-821-11 METAL CHIP 1K 5% 1/10W R981 1-216-809-11 METAL CHIP 100 5% 1/10W R982 1-216-817-11 METAL CHIP 470 5% 1/10W R983 1-216-842-11 METAL CHIP 56K 5% 1/10W R984 1-216-839-11 METAL CHIP 33K 5% 1/10W R987 1-216-819-11 METAL CHIP 680 5% 1/10W R988 1-216-819-11 METAL CHIP 680 5% 1/10W R990 1-216-819-11 METAL CHIP 680 5% 1/10W R991 1-216-819-11 METAL CHIP 680 5% 1/10W R997 1-216-819-11 METAL CHIP 680 5% 1/10W R1007 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1008 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1009 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R1010 1-216-833-11 METAL CHIP 10K 5% 1/10W R1011 1-216-835-11 METAL CHIP 15K 5% 1/10W R1012 1-216-837-11 METAL CHIP 22K 5% 1/10W R1013 1-216-839-11 METAL CHIP 33K 5% 1/10W R1021 1-216-809-11 METAL CHIP 100 5% 1/10W R1022 1-216-809-11 METAL CHIP 100 5% 1/10W R1023 1-216-809-11 METAL CHIP 100 5% 1/10W R1024 1-216-809-11 METAL CHIP 100 5% 1/10W R1025 1-216-809-11 METAL CHIP 100 5% 1/10W R1026 1-216-809-11 METAL CHIP 100 5% 1/10W R1027 1-216-809-11 METAL CHIP 100 5% 1/10W R1028 1-216-809-11 METAL CHIP 100 5% 1/10W R1098 1-216-819-11 METAL CHIP 680 5% 1/10W R1112 1-216-819-11 METAL CHIP 680 5% 1/10W R1135 1-216-819-11 METAL CHIP 680 5% 1/10W R1136 1-216-819-11 METAL CHIP 680 5% 1/10W R1141 1-216-819-11 METAL CHIP 680 5% 1/10W R1142 1-216-819-11 METAL CHIP 680 5% 1/10W R1143 1-216-819-11 METAL CHIP 680 5% 1/10W R1171 1-216-819-11 METAL CHIP 680 5% 1/10W R1178 1-216-801-11 METAL CHIP 22 5% 1/10W R1179 1-216-819-11 METAL CHIP 680 5% 1/10W R1180 1-216-808-11 METAL CHIP 82 5% 1/10W R1181 1-216-814-11 METAL CHIP 270 5% 1/10W R1187 1-216-833-11 METAL CHIP 10K 5% 1/10W < SWITCH > S907 1-762-875-21 SWITCH, KEYBOARD (B) S908 1-762-875-21 SWITCH, KEYBOARD (X) S909 1-762-875-21 SWITCH, KEYBOARD (x) S910 1-762-875-21 SWITCH, KEYBOARD (TUNING+ >) S911 1-762-875-21 SWITCH, KEYBOARD (TUNING- .) S912 1-762-875-21 SWITCH, KEYBOARD (ALBUM+ M) S913 1-762-875-21 SWITCH, KEYBOARD (ALBUM- m) S921 1-762-875-21 SWITCH, KEYBOARD (VIDEO/MD) S922 1-762-875-21 SWITCH, KEYBOARD (TV) S923 1-762-875-21 SWITCH, KEYBOARD (TAPE A/B) S924 1-762-875-21 SWITCH, KEYBOARD (TUNER BAND) S925 1-762-875-21 SWITCH, KEYBOARD (CD) S927 1-762-875-21 SWITCH, KEYBOARD (^/1) < VIBRATOR > X901 1-781-282-51 VIBRATOR, CERAMIC (4 MHz) ************************************************************ PRIMARY BOARD ************** < CAPACITOR > C1201 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1202 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1204 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1206 1-126-916-11 ELECT 1000uF 20% 6.3V < CONNECTOR > CN1200 1-785-329-11 PIN, CONNECTOR (LIGHT ANGLE) 3P CN1202 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P CN1204 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P (AR, AUS) CN1204 1-568-106-11 PIN, CONNECTOR (3.96mm PITCH) 4P (E2, E3, E51) < DIODE > D1200 6-501-193-01 DIODE 1SS355WTE-17 < JUMPER RESISTOR > JR1202 1-216-864-11 SHORT CHIP 0 < COIL > L1201 1-410-666-31 INDUCTOR 18uH < TRANSISTOR > Q1200 8-729-230-49 TRANSISTOR 2SC2712-YG < RESISTOR > R1200 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1201 1-216-845-11 METAL CHIP 100K 5% 1/10W < RELAY > 0RY1200 1-755-299-11 RELAY < SWITCH > 0S1200 1-771-291-31 SWITCH, POWER (VOLTAGE SELECTOR) (E2, E3, E51) ************************************************************ PRIMARY PANEL Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 83 HCD-GNX700/GNX800 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 1-687-132-12 SENSOR BOARD ************* < CONNECTOR > CN731 1-785-329-21 PIN, CONNECTOR (LIGHT ANGLE) 3P < IC > IC731 6-600-022-01 IC RPI-576 ************************************************************ A-1156-249-A SURROUND BOARD, COMPLETE (GNX800) A-1156-252-A SURROUND BOARD, COMPLETE (GNX700) ************************** < CAPACITOR > C800 1-126-963-11 ELECT 4.7uF 20% 50V C801 1-100-717-91 CERAMIC CHIP 1uF 16V C802 1-104-658-91 ELECT 100uF 20% 10V C803 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C804 1-164-156-11 CERAMIC CHIP 0.1uF 25V C805 1-164-156-11 CERAMIC CHIP 0.1uF 25V C806 1-126-961-11 ELECT 2.2uF 20% 50V C807 1-100-717-91 CERAMIC CHIP 1uF 16V C808 1-131-749-11 CERAMIC CHIP 8.2PF 50V (GNX700) C820 1-126-964-11 ELECT 10uF 20% 50V C825 1-126-968-11 ELECT 100uF 20% 50V C826 1-126-968-11 ELECT 100uF 20% 50V C838 1-136-495-11 FILM 0.068uF 5% 50V C839 1-136-495-11 FILM 0.068uF 5% 50V C843 1-126-963-11 ELECT 4.7uF 20% 50V C850 1-126-963-11 ELECT 4.7uF 20% 50V C851 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C852 1-104-658-91 ELECT 100uF 20% 10V C853 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C858 1-131-749-11 CERAMIC CHIP 8.2PF 50V (GNX700) C888 1-136-495-11 FILM 0.068uF 5% 50V C889 1-136-495-11 FILM 0.068uF 5% 50V < CONNECTOR > CN700 1-784-041-41 CONNECTOR, BOARD TO BOARD 9P < DIODE > D800 6-501-193-01 DIODE 1SS355WTE-17 D810 6-501-193-01 DIODE 1SS355WTE-17 D811 6-501-193-01 DIODE 1SS355WTE-17 D812 6-501-193-01 DIODE 1SS355WTE-17 D850 6-501-193-01 DIODE 1SS355WTE-17 < IC > IC800 6-705-845-01 IC STK403-090 (GNX700) IC800 6-705-853-01 IC STK403-120 (GNX800) < TRANSISTOR > Q800 8-729-924-99 TRANSISTOR 2SC3722K-E Q810 8-729-023-22 TRANSISTOR 2SD2114K Q812 8-729-924-99 TRANSISTOR 2SC3722K-E Q814 8-729-230-49 TRANSISTOR 2SC2712-YG Q815 8-729-230-49 TRANSISTOR 2SC2712-YG Q850 8-729-924-99 TRANSISTOR 2SC3722K-E < RESISTOR > R800 1-216-821-11 METAL CHIP 1K 5% 1/10W (GNX700) R800 1-216-833-11 METAL CHIP 10K 5% 1/10W (GNX800) R801 1-216-841-11 METAL CHIP 47K 5% 1/10W R802 1-216-820-11 METAL CHIP 820 5% 1/10W (GNX700) R802 1-216-822-11 METAL CHIP 1.2K 5% 1/10W (GNX800) R803 1-216-825-11 METAL CHIP 2.2K 5% 1/10W 0R804 1-217-637-00 FUSIBLE 1 5% 1/4W 0R805 1-217-637-00 FUSIBLE 1 5% 1/4W R806 1-216-821-11 METAL CHIP 1K 5% 1/10W R807 1-216-841-11 METAL CHIP 47K 5% 1/10W R808 1-216-841-11 METAL CHIP 47K 5% 1/10W R812 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R814 1-216-833-11 METAL CHIP 10K 5% 1/10W R817 1-216-833-11 METAL CHIP 10K 5% 1/10W 0R827 1-245-605-51 FUSIBLE 100 5% 1/4W 0R828 1-245-605-51 FUSIBLE 100 5% 1/4W 0R838 1-220-893-11 METAL 0.22 10% 5W R839 1-216-821-11 METAL CHIP 1K 5% 1/10W R840 1-216-837-11 METAL CHIP 22K 5% 1/10W R841 1-216-845-11 METAL CHIP 100K 5% 1/10W R842 1-245-711-31 CARBON 10 5% 1/2W R843 1-216-841-11 METAL CHIP 47K 5% 1/10W R850 1-216-821-11 METAL CHIP 1K 5% 1/10W R851 1-216-841-11 METAL CHIP 47K 5% 1/10W R852 1-216-821-11 METAL CHIP 1K 5% 1/10W (GNX700) R852 1-218-457-11 METAL CHIP 910 5% 1/10W (GNX800) R858 1-216-841-11 METAL CHIP 47K 5% 1/10W R860 1-216-842-11 METAL CHIP 56K 5% 1/10W R861 1-216-841-11 METAL CHIP 47K 5% 1/10W 0R862 1-260-086-31 CARBON 82 5% 1/2W R863 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R864 1-216-837-11 METAL CHIP 22K 5% 1/10W R865 1-216-821-11 METAL CHIP 1K 5% 1/10W R866 1-216-837-11 METAL CHIP 22K 5% 1/10W 0R888 1-220-893-11 METAL 0.22 10% 5W R889 1-216-821-11 METAL CHIP 1K 5% 1/10W R890 1-216-837-11 METAL CHIP 22K 5% 1/10W R891 1-216-845-11 METAL CHIP 100K 5% 1/10W R892 1-245-711-31 CARBON 10 5% 1/2W < RELAY > RY862 1-755-500-11 RELAY ************************************************************ SURROUND SENSOR Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 84 HCD-GNX700/GNX800 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 1-687-669-12 SW BOARD ********* < SWITCH > S751 1-786-514-11 SWITCH, LEVER (SLIDE) (LEVEL) ************************************************************ TRANS BOARD ************ 1-533-217-41 HOLDER, FUSE < CAPACITOR > C1262 1-126-964-11 ELECT 10uF 20% 50V C1263 1-126-968-11 ELECT 100uF 20% 50V C1292 1-128-576-11 ELECT 100uF 20% 63V < CONNECTOR > * CN1212 1-564-522-11 PLUG, CONNECTOR 7P * CN1213 1-564-521-11 PLUG, CONNECTOR 6P < DIODE > D1264 8-719-071-83 DIODE HZU36BTRF D1292 6-500-522-21 DIODE 10EDB40-TB3 < TRANSISTOR > Q1264 8-729-024-93 TRANSISTOR 2SB1565E < RESISTOR > R1262 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R1263 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R1264 1-216-821-11 METAL CHIP 1K 5% 1/10W 0R1292 1-219-124-11 FUSIBLE 0.68 5% 1/4W ************************************************************ MISCELLANEOUS ************** 0 1-569-008-21 ADAPTOR, CONVERSION (E2, E3, E51) 5 1-693-702-21 TUNER (FM/AM) (TM10SE) 07 1-468-737-51 POWER SWITCHING 8 1-824-048-12 WIRE (FLAT TYPE) (27 CORE) 10 1-823-718-11 WIRE (FLAT TYPE) (17 CORE) (100mm) 65 1-828-990-11 WIRE (FLAT TYPE) (17 CORE) (80mm) 66 1-828-991-11 WIRE (FLAT TYPE) (17 CORE) (100mm) 0157 1-777-071-53 CORD, POWER (E2,E3,E51) 0157 1-783-941-12 CORD, POWER (AR) 0157 1-827-295-22 CORD, POWER (AUS) 202 1-776-182-11 WIRE (FLAT TYPE) (5 CORE) 251 1-471-035-11 MAGNET ASSY 276 1-832-404-21 CABLE, FLEXIBLE FLAT (16 CORE) 0279 8-820-244-01 OPTICAL PICK-UP KSM-215DCP/C2NP 0F1241 1-533-949-33 FUSE, CYLINDRICAL (TIME LUG) (T8AL/250V) 0F1251 1-533-949-33 FUSE, CYLINDRICAL (TIME LUG) (T8AL/250V) 0F1261 1-533-949-33 FUSE, CYLINDRICAL (TIME LUG) (T8AL/250V) 0F1271 1-533-949-33 FUSE, CYLINDRICAL (TIME LUG) (T8AL/250V) 0F1281 1-532-465-33 FUSE (T3.15AL/250V) M741 A-1108-965-A MOTOR ASSY, TABLE (TABLE) M751 A-4737-553-A MOTOR ASSY, LOADING (TABLE LOADING) SW TRANS Ver. 1.1 M891 1-787-400-11 D.C. FAN S711 1-477-680-12 ENCODER, ROTARY 0T1200 1-443-538-11 POWER TRANSFORMER (GNX800) 0T1200 1-443-972-11 POWER TRANSFORMER (GNX700) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 85 HCD-GNX700/GNX800 MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
