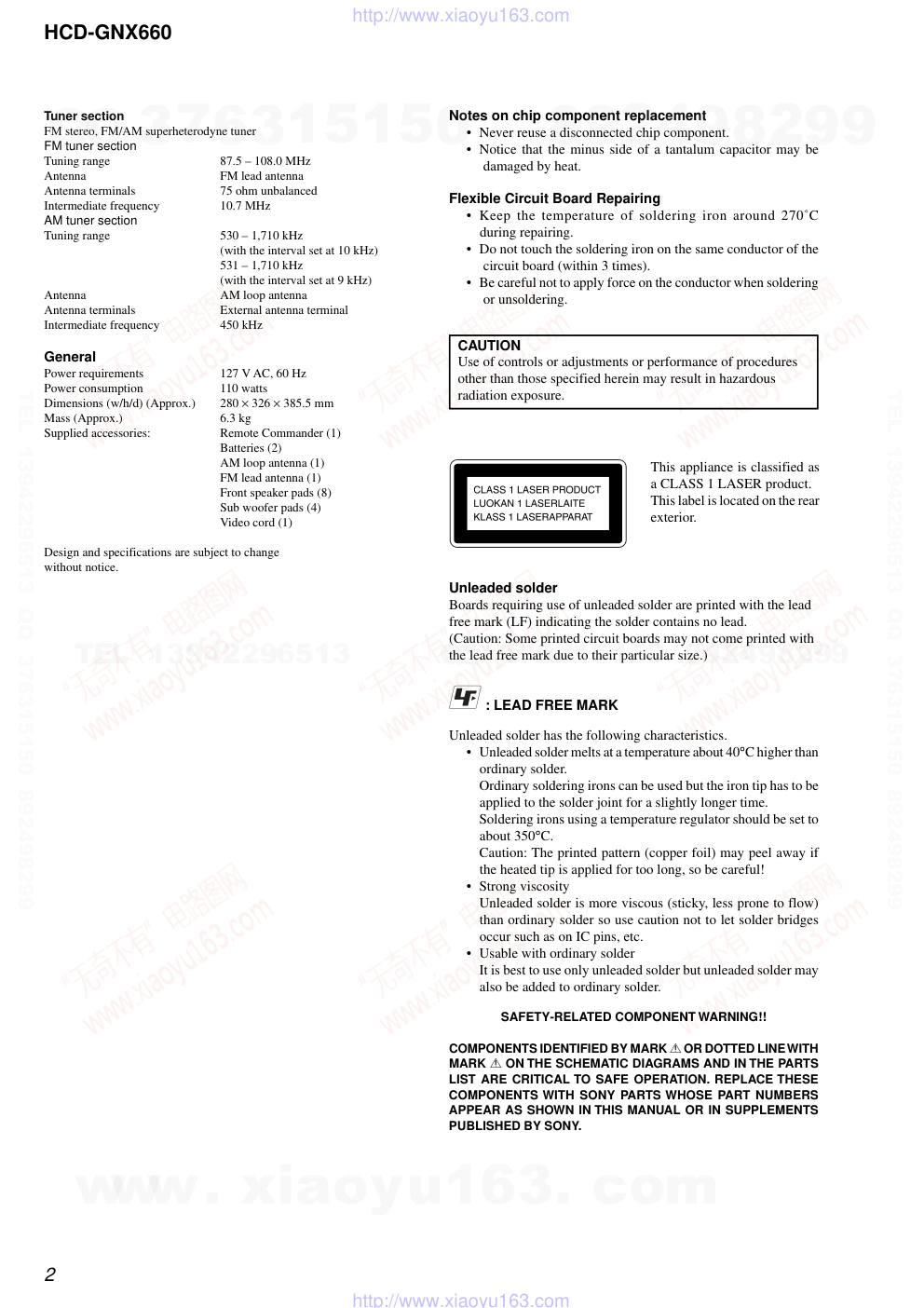

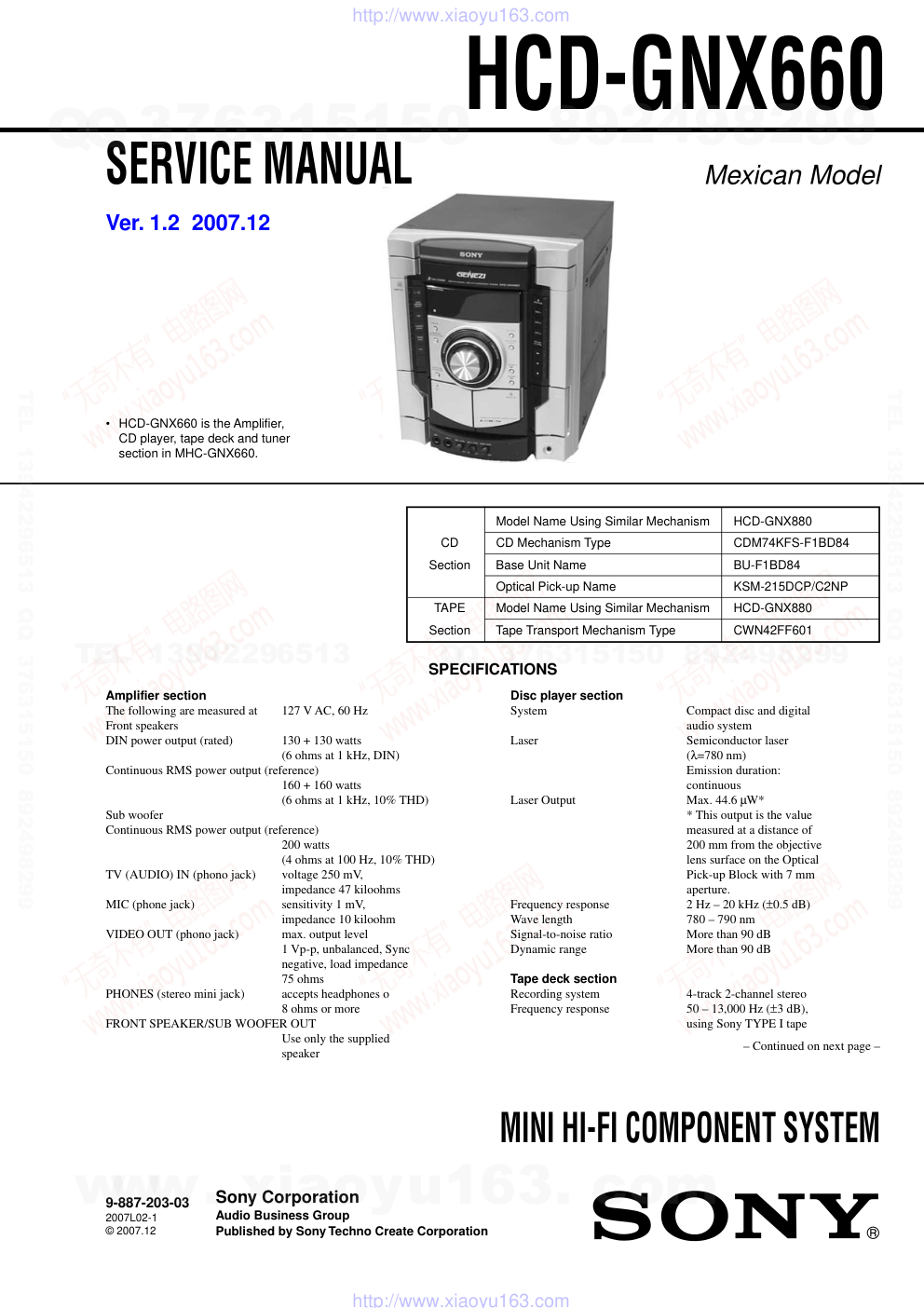

HCD-GNX660 Mexican Model SERVICE MANUAL MINI HI-FI COMPONENT SYSTEM SPECIFICATIONS Ver. 1.2 2007.12 – Continued on next page – • HCD-GNX660 is the Amplifier, CD player, tape deck and tuner section in MHC-GNX660. Model Name Using Similar Mechanism HCD-GNX880 CD CD Mechanism Type CDM74KFS-F1BD84 Section Base Unit Name BU-F1BD84 Optical Pick-up Name KSM-215DCP/C2NP TAPE Model Name Using Similar Mechanism HCD-GNX880 Section Tape Transport Mechanism Type CWN42FF601 Amplifier section The following are measured at 127 V AC, 60 Hz Front speakers DIN power output (rated) 130 + 130 watts (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference) 160 + 160 watts (6 ohms at 1 kHz, 10% THD) Sub woofer Continuous RMS power output (reference) 200 watts (4 ohms at 100 Hz, 10% THD) TV (AUDIO) IN (phono jack) voltage 250 mV, impedance 47 kiloohms MIC (phone jack) sensitivity 1 mV, impedance 10 kiloohm VIDEO OUT (phono jack) max. output level 1 Vp-p, unbalanced, Sync negative, load impedance 75 ohms PHONES (stereo mini jack) accepts headphones o 8 ohms or more FRONT SPEAKER/SUB WOOFER OUT Use only the supplied speaker Disc player section System Compact disc and digital audio system Laser Semiconductor laser (λ=780 nm) Emission duration: continuous Laser Output Max. 44.6 µW* * This output is the value measured at a distance of 200 mm from the objective lens surface on the Optical Pick-up Block with 7 mm aperture. Frequency response 2 Hz – 20 kHz (±0.5 dB) Wave length 780 – 790 nm Signal-to-noise ratio More than 90 dB Dynamic range More than 90 dB Tape deck section Recording system 4-track 2-channel stereo Frequency response 50 – 13,000 Hz (±3 dB), using Sony TYPE I tape Sony Corporation Audio Business Group Published by Sony Techno Create Corporation 9-887-203-03 2007L02-1 © 2007.12 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 HCD-GNX660 Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing • Keep the temperature of soldering iron around 270˚C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. This appliance is classified as a CLASS 1 LASER product. This label is located on the rear exterior. Unleaded solder Boards requiring use of unleaded solder are printed with the lead free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.) : LEAD FREE MARK Unleaded solder has the following characteristics. • Unleaded solder melts at a temperature about 40°C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350°C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! • Strong viscosity Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. • Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. Tuner section FM stereo, FM/AM superheterodyne tuner FM tuner section Tuning range 87.5 – 108.0 MHz Antenna FM lead antenna Antenna terminals 75 ohm unbalanced Intermediate frequency 10.7 MHz AM tuner section Tuning range 530 – 1,710 kHz (with the interval set at 10 kHz) 531 – 1,710 kHz (with the interval set at 9 kHz) Antenna AM loop antenna Antenna terminals External antenna terminal Intermediate frequency 450 kHz General Power requirements 127 V AC, 60 Hz Power consumption 110 watts Dimensions (w/h/d) (Approx.) 280 × 326 × 385.5 mm Mass (Approx.) 6.3 kg Supplied accessories: Remote Commander (1) Batteries (2) AM loop antenna (1) FM lead antenna (1) Front speaker pads (8) Sub woofer pads (4) Video cord (1) Design and specifications are subject to change without notice. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 HCD-GNX660 TABLE OF CONTENTS 1. SERVICING NOTES ................................................ 4 2. GENERAL Locating the Controls ...................................................... 5 Setting the Clock ............................................................. 6 3. DISASSEMBLY 3-1. Disassembly Flow ........................................................... 7 3-2. Side Case, Top Case ........................................................ 8 3-3. Loading Panel .................................................................. 8 3-4. Front Panel Assy.............................................................. 9 3-5. Tuner Pack ....................................................................... 9 3-6. Tape Mechanism Deck, MIC Board ................................ 10 3-7. PANEL Board, IR Board, VOL Board ............................ 10 3-8. CD Mechanism Deck ...................................................... 11 3-9. Back Panel, DC FAN (M891) ......................................... 11 3-10. MAIN Board, ADC Board............................................... 12 3-11. POWER Board, SPEAKER Board.................................. 12 3-12. SMASTER Board ............................................................ 13 3-13. CDG Board, DRIVER Board, SW Board ....................... 13 3-14. BD84 Board, Optical Pick-up ......................................... 14 3-15. SENSOR Board ............................................................... 14 3-16. MOTOR (TB) Board ....................................................... 15 3-17. MOTOR (LD) Board ....................................................... 15 4. TEST MODE .............................................................. 16 5. MECHANICAL ADJUSTMENTS ....................... 20 6. ELECTRICAL ADJUSTMENTS Deck section .................................................................... 20 CD Section ...................................................................... 21 7. DIAGRAMS ................................................................. 24 7-1. Block Diagram – CDG Section – ................................... 26 7-2. Block Diagram – Tape/Tuner Section – ......................... 27 7-3. Block Diagram – Main Section – ................................... 28 7-4. Block Diagram – AMP Section – ................................... 29 7-5. Block Diagram – Display/Power Section –.................... 30 7-6. Printed Wiring Board – BD84 Board – .......................... 31 7-7. Schematic Diagram – BD84 Board – ............................. 32 7-8. Printed Wiring Boards – CD Mechanism Sectiom –...... 33 7-9. Schematic Diagram – CD Mechanism Section – ........... 34 7-10. Printed Wiring Board – MAIN Board – ......................... 35 7-11. Schematic Diagram – MAIN Board (1/3) – ................... 36 7-12. Schematic Diagram – MAIN Board (2/3) – ................... 37 7-13. Schematic Diagram – MAIN Board (3/3) – ................... 38 7-14. Printed Wiring Boards – PANEL Section –.................... 39 7-15. Schematic Diagram – PANEL Section – ......................... 40 7-16. Printed Wiring Boards – MIC,VOL and SPEAKER Boards – ............................ 41 7-17. Schematic Diagram – MIC,VOL and SPEAKER Boards – ............................ 42 7-18. Printed Wiring Board – ADC Board –............................ 43 7-19. Schematic Diagram – ADC Board – .............................. 44 7-20. Printed Wiring Board – SMASTER Board (Side A)– ... 45 7-21. Printed Wiring Board – SMASTER Board (Side B)– .... 46 7-22. Schematic Diagram – SMASTER Board (1/2)– ............ 47 7-23. Schematic Diagram – SMASTER Board (2/2)– ............ 48 7-24. Printed Wiring Board – CDG Board – ........................... 49 7-25. Schematic Diagram – CDG Board – .............................. 50 7-26. Printed Wiring Boards – Power Board – ........................ 51 7-27. Schematic Diagram – Power Board – ............................ 52 7-28. IC Pin Function Description ............................................ 56 8. EXPLODED VIEWS 8-1. Case (Top), Back Panel Section ...................................... 63 8-2. Front Panel Section ......................................................... 64 8-3. Chassis Section ................................................................ 65 8-4. CD Mechanism Deck Section-1 ...................................... 66 8-5. CD Mechanism Deck Section-2 ..................................... 67 9. ELECTRICAL PARTS LIST ................................ 68 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 HCD-GNX660 SECTION 1 SERVICING NOTES NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. LASER DIODE AND FOCUS SEARCH OPERATION CHECK Carry out the “S curve check” in “CD section adjustment” and check that the S curve waveform is output several times. Ver. 1.2 CHANGE OF THE COMBINED BOARD SUFFIX Suffix of the Main, Panel and Power combined board was changed from -12 to -13. Suffix of the SMASTER combined board was changed from -12 to -13 or -21 (-13 and -21 are the same patterns). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 HCD-GNX660 SECTION 2 GENERAL This section is extracted from instruction manual. LOCATING THE CONTROLS ALBUM + qk ALBUM – ql CD es CD SYNC 8 Deck A wh Deck B qh DIRECTION wg DISC 1 ~ 3 qa DISC SKIP/EX-CHANGE qs Disc tray 6 DISPLAY 3 Display 5 ECHO LEVEL wa EQ BAND/MEMORY 4 GROOVE w; ILLUMINATION/ SUB WOOFER LEVEL 2 KARAOKE wg MASTER VOLUME ws MIC 1/2 (jack) wf MIC 1/2 LEVEL wd MP3 BOOSTER 7 PHONES (jack) qj POWER ILLUMINATOR wk PRESET EQ wj REC PAUSE/START 9 SUB WOOFER ON/OFF ed TAPE A/B e; Tape lid qh, wh TUNER/BAND ea TV wl ?/1 (power) ef Z OPEN/CLOSE q; N (play) qd . OPERATION DIAL > (forward/go backward) 1 M (fast forward) qk m (rewind) ql X (pause) qf x (stop) qg PUSH Z (Eject A) wh PUSH Z (Eject B) qh ALPHABETICAL ORDER A – D E – L M – R S – Z SYMBOLS Top Panel Front Panel 1 5 4 3 2 6789 qd qf qg q; qa qs qh wg wh wj wl e; qk wd ql wf ws w; ea ed ef es wa wk qj www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 HCD-GNX660 This section is extracted from instruction manual. Remote control ALBUM + qf ALBUM – qh CD wf CLEAR qk CLOCK/TIMER SELECT 2 CLOCK/TIMER SET 4 DISC SKIP qd DISPLAY wh ENTER qs EQ qj FM MODE 6 FUNCTION 8 PLAY MODE 5 REPEAT 6 SLEEP 1 TAPE wd TUNER/BAND 7 TUNER MEMORY wg TUNING MODE 5 VOLUME +/– qg The + button has a tactile dot.* ?/1 (power) 3 x (stop) qa 29, 31) X (pause) ql N (play) w; –. (go backward) ws >+ (go forward) wa m (rewind) q; M (fast forward) 9 * Use the tactile dot as a reference when operating the system. ALPHABETICAL ORDER A – E F – Z SYMBOLS 7 5 q; qg qh qj qk w; ws wd wg wh qf qd qs qa 9 8 6 4 3 1 2 ql wa wf Use buttons on the remote for the operation. 1 Press ?/1 to turn on the system. 2 Press CLOCK/TIMER SET. “CLOCK” appears in the display. Then, the hour indication flashes in the display. 3 Press –. or >+ repeatedly to set the hour. 4 Press ENTER. The minute indication flashes in the display. 5 Press –. or >+ repeatedly to set the minute. 6 Press ENTER. The clock starts functioning. To adjust the clock 1 Press CLOCK/TIMER SET. “SET” appears in the display, then “PLAY SET” flashes in the display. 2 Press –. or >+ repeatedly to select “CLOCK SET”, then press ENTER. The hour indication flashes in the display. 3 Do the same procedures as step 3 to 6 above. Notes The clock settings are canceled when you disconnect the power cord or if a power failure occurs. You cannot set the clock in Power Saving Mode (page 23). Setting the clock www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 HCD-GNX660 SECTION 3 DISASSEMBLY • This set can be disassembled in the order shown below. 3-1. DISASSEMBLY FLOW 3-2. SIDE CASE, TOP CASE (Page 8) 3-3. LOADING PANEL (Page 8) 3-4. FRONT PANEL ASSY (Page 9) 3-5. TUNER PACK (Page 9) 3-10. MAIN BOARD, ADC BOARD (Page 12) 3-8. CD MECHANISM DECK (Page 11) 3-7. PANEL BOARD, IR BOARD, VOL BOARD (Page 10) 3-6. TAPE MECHANISM DECK, MIC BOARD (Page 10) 3-13. CDG BOARD DRIVER BOARD, SW BOARD (Page 13) 3-11. POWER BOARD, SPEAKER BOARD (Page 12) 3-16. MOTOR (TB) BOARD (Page 15) 3-17. MOTOR (LD) BOARD (Page 15) 3-15. SENSOR BOARD (Page 14) 3-12. SMASTER BOARD, (Page 13) 3-9. BACK PANEL, DC FAN (M981) (Page 11) 3-14. BD84 BOARD, OPTICAL PIC-UP (Page 14) SET www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 HCD-GNX660 Note: Follow the disassembly procedure in the numerical order given. 3-2. SIDE CASE, TOP CASE 3-3. LOADING PANEL 2 screw (case 3 TP2) (3×12) 1 screw (case 3 TP2) (3×8) 4 9 qd 3 screw (+BVTP 3×8) 5 case (side-R) 6 screw (case 3 TP2) (3×8) 7 screw (case 3 TP2) (3×12) 8 screw (+BVTP 3×8) 0 case (side-L) qs two screws (+BVTP 3×8) qa two tapping screws qf case (top) CD mechanism deck (CDM74KFS-F1BD84) 1 Turn the pulley to the arrow direction. Front side Pulley 2 Pull out disc tray. 3 4 loading panel www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 HCD-GNX660 3-4. FRONT PANEL ASSY 3-5. TUNER PACK 1 four screws (+BVTP 3×8) 2 tapping screw 3 tapping screw 4 front panel assy 5 wire (flat type) (CN201) 6 wire (flat type) (CN509) 7 connector (CN121) q; connector (CN503) 8 connector (CN131) 9 connector (CN205) 1 two screws (+BVTT 3×6) 2 wire (flat type) (CN1) 3 tuner pack www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 HCD-GNX660 3-6. TAPE MECHANISM DECK, MIC BOARD 3-7. PANEL BOARD, IR BOARD, VOL BOARD 1 six screws (+BVTP2.6) 8 four screws (+BVTP2.6) qa three screws (+BVTP3×8) 0 9 bracket (pivot) qs bracket (TC) qd MIC board 2 tape mechanism deck 3 spring (R) 5 holder (TC-R) 7 three mic knobs 6 holder (TC-L) 4 splring (L) front panel lug 7 knob (vol) 9 knob jog assy 8 accessory nut front panel 0 VOL board 5 PANEL board 2 6 IR board 7 four screws (+BVTP2.6) 1 eighteen screws (+BVTP2.6) 3 wire (flat type) (CN1402) 4 connector (CN1452) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 HCD-GNX660 3-8. CD MECHANISM DECK MAIN board 1 CD mechanism deck 3 wire (flat type) (CN701) 4 wire (flat type) (CN1001) (CDG board) 2 wire (flat type) (CN351) 5 connector (CN1003) (CDG board) 2 three screws (+BVTP 3×8) 3 three screws (+BVTP 3×8) 1 screw (+BVTP 3×8) 4 screw (+BVTP 3×8) 5 two screws (+BVTP 3×8) 7 two screws (+BVTP 3×8) 9 connector (CN580) 6 back panel 8 DC fan (M891) 3-9. BACK PANEL, DC FAN (M891) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 HCD-GNX660 3-11. POWER BOARD, SPEAKER BOARD 3 two screws (+BVTT 3×6) 4 two screws (+BVTP 3×8) 2 connector (CN501) 7 connector (CN590) 8 board to board connector (CN381,CN01) 5 shield plate (TC MAIN) 6 MAIN board 9 ADC board 1 wire (flat type) (CN105) wa two screws (+BVTP 3×8) 7 three screws (+BVTP 3×8) 9 two screws (+BVTP 3×8) qa tapping screw qg screw (+BVTP 3×8) qh three screws (+BVTP 3×8) qk three screws (+BVTP 3×8) 8 bracket (support top) qs bracket (support pwb) qj bracket (SMPS 5ch) ql bracket (SMPS -B5) qf bracket (trans 5ch) ws SPEAKER board w; POWER board qd two tapping screws q; bracket (support front) 1 screw (+BVTT 3×6) 3 2 three screws (+BVTT 3×6) 4 connector (CNP1100) 6 connector (CN1200) 5 connector (CN1101) 3-10. MAIN BOARD, ADC BOARD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 HCD-GNX660 3-13. CDG BOARD, DRIVER BOARD, SW BOARD 3-12. SMASTER BOARD 3 two screws (+BVTT 3×6) 1 two screws (+BVTT 3×6) 2 heat sink (SMAS) 5 SMASTER board 4 three screws (+BVTT 3×6) 7 connector (CN703) 4 cover (CDM) 8 DRIVER board 2 CDG board 0 SW board 6 wire (flat type) (CN702) 5 two screws (+BTTP (M2.6)) 3 three screws (+BVTP 3×10) 1 two screws (+BVTP 3×10) 9 screw (+BTTP (M2.6)) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 HCD-GNX660 3-14. BD84 BOARD, OPTICAL PICK-UP 3-15. SENSOR BOARD 4 two coil springs (insulator) 7 two coil springs (insulator) 5 two insulators 8 two insulators q; screw (+BVTP 2.6 (3CR)) 2 holder (213) ASSY qa Remove the four solderings of motor. qs wire (flat type) (CN101) qd BD84 board qf optical pick-up (KSM-215DCP/C2NP) 1 floating screw (+PTPWH M2.6) 3 two floating screws (+PTPWH M2.6) 6 two floating screws (+PTPWH M2.6) 9 2 tray 3 belt (table) 5 pulley (table) 8 screw (+BTTP (M2.6)) 0 SENSOR board 7 gear (geneva) 9 connector (CN731) 1 floating screw (+PTPWH M2.6) 6 floating screw (+PTPWH M2.6) 4 floating screw (+PTPWH M2.6) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 HCD-GNX660 3-16. MOTOR (TB) BOARD 3-17. MOTOR (LD) BOARD 6 Remove the two solderings of motor. 8 MOTOR (TB) board 7 table motor assy (M741) 5 two screws (+BTTP (M2.6)) 4 3 wire (flat type) 5 core (CN742) 1 stopper 2 stopper 4 Remove the two solderings of motor. 3 MOTOR (LD) board 1 belt (loading) 5 loading motor assy (M751) 2 two screws (+BTTP (M2.6)) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 HCD-GNX660 [COMMON TEST MODE] • This mode is used to check operations of the respective sections of Amplifier and Tape. Procedure: * To enter Common Test Mode 1. Press x button, [ILLUMINATION] button and [DISC 3] button simultaneously. 2. The CD ring indicators and line below CD ring indicator flash synchronously on the fluorescent indicator tube. The function is changed to TV. * Check of Amplifier 1. Press [EQ BAND/MEMORY] button repeatedly until a message “GEQ MAX” appears on the fluorescent indicator tube. GEQ increases to its maximum. 2. Press [EQ BAND/MEMORY] button repeatedly until a message “GEQ MIN” appears on the fluorescent indicator tube. GEQ decreases to its minimum. 3. Press [EQ BAND/MEMORY] button repeatedly until a message “GEQ FLAT” appears on the fluorescent indicator tube. GEQ is set to flat. 4. When the [MASTER VOLUME] knob is turned clockwise even slightly, the sound volume increases to its maximum and a message “VOLUME MAX” appears on the fluorescent indicator tube. 5. When the [MASTER VOLUME] knob is turned counter- clockwise even slightly, the sound volume decreases to its minimum and a message “VOLUME MIN” appears on the fluorescent indicator tube. * Tape function 1. When a tape is inserted in Deck B and recording is started, the function is changed to TV automatically. When [CD SYNC] button is pressed during recording in function, ALC (Automatic Logic Control) is turned on. 2. During recording, press m button will stop the recording and the function is changed to TAPE B and rewind the tape in Deck B until the recording start position and playback of the tape in Deck B is started. If the [REC PAUSE/ START] button is pressed for a pause and pressed again to resume recording during recording time, when the tape is rewind, the tape will be rewind until the position where the pause is applied. * To release from Common Test mode. 1. To release this mode, press ?/1 button. 2. The cold reset is enforced at the same time. [COLD RESET] • The cold reset clears all data including preset data stored in the RAM to initial conditions. Execute this mode when returning the set to the customer. Procedure: 1. Press button to turn on the set. 2. Press x button, [ILLUMINATION/SUB WOOFER LEVEL] button, and ?/1 button simultaneously. 3. The message “COLD RESET” appears on the fluorescent indicator tube. then, the fluorescent indicator tube becomes blank for a while, and the set is reset. [PANEL TEST MODE] • This mode is used to check the fluorescent indicator tube, LEDs, buttons, MASTER VOLUME knob, model, destination, software version and VACS level. Procedure: 1. Press x button, [ILLUMINATION] button and [DISC 2] button simultaneously. 2. All LEDs and segments in fluorescent indicator tube are lighted up. All LEDs are lighted up in red color except the SUB WOOFER ON/OFF LED (green). 3. When you want to enter to the software version display mode, press [DISC 1] button. The model infomation is displayed. Press [DISC 1] button again to view destination infomation. 4. Each time [DISC 1] button is pressed, the display changes from MC version, SYS version, UI version, CD version, CDDM version, CDMA version, CDMB version, BDA version, BDB version, ST version, TA version, TM version, TC version in this order, and returns to the model version display. 5. When [DISC 3] button is pressed while the version numbers are being displayed except model and destination, the date of the software creation appear. When [DISC 3] button is pressed again, the display returns to the software version display. When [DISC 1] button is pressed while the date of the software creation is being displayed, the date of the software creation is displayed in the same order of software version display. 6. Press [DISC 2] button, the key check mode is activated. 7. In the key check mode, the fluorescent indicator tube displays “K 0 V0”. Turn the [OPERATION DIAL] clockwise, “K” value increases by one. Turn the [OPERATION DIAL] counter- clockwise, “K” value increases by one. Each time a button is pressed, “K” value increases. Press other buttons on main unit to check whether the button is detected. However, once a button has been pressed, it is no longer taken into account. “V” value increases in the manner of 0,1, 2, 3 ... if [MASTER VOLUME] knob is turned clockwise, or it decreases in the manner of 0, 9, 8, 7 ... if [MASTER VOLUME] knob is turned counter-clockwise. 8. When [DISC 3] button is pressed after all LEDs and segments in fluorescent indicator tube light up, the fluorescent indicator tube displays “VACS A”. A is VACS level which is trigger by signal level. 9. When [DISC SKIP/EX-CHANGE] button is pressed after all LEDs and segments in fluorescent indicator tube light up, alternate segments in fluorescent indicator tube would light up. If you press [DISC SKIP/EX-CHANGE] button again, another half of alternate segments in fluorescent indicator tube would light up. When [DISC SKIP/EX-CHANGE] button is pressed again, all segments lights off. Press [DISC SKIP/EX-CHANGE] button again would cause all segments lights up. 10. To release from this mode, press three buttons in the same manner as step 1, or disconnect the power plug. SECTION 4 TEST MODE ?/1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 HCD-GNX660 [VACS ON/OFF] • This mode is used to switch ON and OFF the VACS (Variable Attenuation Control System). Procedure: 1. Press ?/1 button to turn on the set. 2. Press x button and [DIRECTION] button and [DISC 1] button simultaneously. The message “VACS OFF” or “VACS ON” appears on the fluorescent indicator tube. [TUNER STEP CHANGE] • The step interval of AM channels can be toggled between 9 kHz and 10 kHz. Procedure: 1. Press ?/1 button to turn on the set. 2. Press [TUNER/BAND] button repeatedly to select the “AM”. 3. Press ?/1 button to turn off the set. 4. Press [ILLUMINATION/SUB WOOFER LEVEL] button and ?/1 button simultaneously. The system will turn on automatically. The message “AM 9K STEP” or AM 10K STEP” appears on the fluorescent indicator tube and thus the channel step is changed. [CD SERVICE MODE] • This mode let you move the CD sled motor freely. Use this mode when you want to clean the optical pick-up. Procedure: 1. Press ?/1 button to turn on the set. 2. Select CD function. 3. Press x button, [ILLUMINATION/SUB WOOFER LEVEL] button and Z OPEN/CLOSE button simultaneously. 4. The CD service mode is activated. The message “SERVICE MODE” appears on the fluorescent indicator tube. 5. With the CD in stop status, press M button to move the optical pick-up to outside track, or press m button to move to inside track. The message “SLED OUT” or “SLED IN” appears on the fluorescent indicator tube. 6. To turn on or off the laser, press [GROOVE] button. The message “LD ON” or “LD OFF” appears on the fluorescent indicator tube. 7. To release from this mode, press ?/1 button. [CD AGING MODE] This mode can be used for operation check of CD section. • If an error occurs, the aging operation would stops and the status is displayed. • If there were no error occurs, the aging operation would continue repeatedly. Procedure: 1. Press ?/1 button to turn on the set. 2. Select CD function. 3. Load three discs on the disc tray. 4. Press [PLAY MODE] button on the remote repeatedly to select the “ALL DISCS” mode, and press the [REPEAT] button on the remote repeatedly to select “REPEAT OFF” mode. 5. Press x button, [ILLUMINATION/SUB WOOFER LEVEL] button, and[DISC SKIP/EX-CHANGE] button simultaneously.The CD ring indicator and line below CD ring indicator turn on afternately to indicate aging mode. 6. Aging operation is started. 7. To release from this mode, press ?/1 button or disconnect the power plug. Aging mode sequence: Start (from disc 1) Disc chucking TOC reading Play first track for 2 seconds Play last track for 2 seconds EX-CHANGE open/close Open the disc tray Disc skip Close the disk tray Change to the next disc www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 HCD-GNX660 • Display when an error occurred (CD Error Code Mode) Procedure: 1. Press x button, [ILLUMINATION/SUB WOOFER LEVEL] button and [DISC 1] button simultaneously to enter the error code display mode. 2. The fluorescent indicator tube displays the number of total error. 3. Each time m or M button is pressed, display change as below. 4. To clear the error record, operate the cold reset. (Refer to the “COLD RESET”) 5. To release from this mode, press the ?/1 button or disconnect the power plug. 1) Display of total error EM**: The number of mechanical errors. ED**: The number of no disc errors after chucking the disc. 2) Display of mechanical errors M*: The number of mechanical error (“00” is latest one) (Rotate > . knob in the direction of either to display next error) $$: Not used %%: Loading related error (Second figure is not used) D: Stop by the problem other than mechanical problem while closing. E: Stop by the problem other than mechanical problem while opening. C: Stop by the problem other than mechanical problem while chucking up. F: Stop by the problem other than mechanical problem while chucking down. &&: Emerging error 01: Stop while chucking up. 02: Stop while chucking up. 03: Time-out of EX-CHANGE open. 05: Time-out of EX-CHANGE close. ##: Not used Display M*$$%%&&##00 3) Display of no disc errors D*: The number of no disc error (“00” is latest one) (Rotate > . knob in the direction of either to display next error) $$: Error type 01: Focus error 02: GFS error 03: Setup error %%: Not used &&: 00: No disc judgment without chucking retry. 01: No disc judgment after chucking retry. ##: The state when judged as no disc 01: Stop 02: Setup 03: TOC reading 04: Access 05: Playback 06: Pause 07: Manual search (Play) 08: Manual search (Pause) [CD REPEAT 5 LIMIT OFF MODE] • The number of repeat for CD playback is 5 times when the repeat mode is “REPEAT ALL”. This mode enables CD to repeat playback for limitless times. Procedure: 1. Press ?/1 button to turn on the set. 2. Select CD function. 3. Press x button, [CD] button and [DISC 1] button simultaneously to enter the CD repeat 5 limit off mode and the fluorescent indicator tube displays “LIMIT OFF”. 4. To release from this mode, operate the cold reset. (Refer to the “COLD RESET”) [CD SHIP MODE (WITH MEMORY CLEAR)] • This mode moves the optical pick-up to the position durable to vibration and clears all data including preset data stored in the RAM to initial conditions. Use this mode when returning the set to the customer after repair. Procedure: 1. Press ?/1 button to turn on the set. 2. Select CD function. 3. Press x button, [DIRECTION] button and ?/1 button simultaneously. The set will turn off automatically. 4. After the “STANDBY” blinking display finishes, a message “MECHA LOCK” is displayed on the fluorescent indicator tube and the CD ship mode is set. Display D*$$%%&&##00 Display EM**ED** Display of total error M m > Display of Mechanical errors . direction direction M m > Display of no disc errors . direction direction www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 HCD-GNX660 [CD TRAY LOCK MODE] • This mode let you lock the disc tray. When this mode is activated, the disc tray will not open when Z OPEN/CLOSE button or [DISC SKIP/EX-CHANGE] button is pressed. The message “LOCKED” will be displayed on the fluorescent indicator tube. Procedure: 1. Press ?/1 button to turn on the set. 2. Select CD function. 3. Press x button and Z OPEN/CLOSE button simultaneously and hold down until “LOCKED” or “UNLOCKED” displayed on the fluorescent indicator tube (around 5 seconds). [TCM OFFLINE MODE] • This mode prevents set from power off automatically when TCM is not connected. Therefore, measurements can be done even when TCM is not connected during production. • Procedure: 1. When the set in turned off, press [EQ BAND/MEMORY] button, [TAPE A/B] button and ?/1 button simultaneously. The set will turn on automatically. 2. The message “TCM OFFLINE” will be displayed on the fluorescent indicator tube. [CD SHIP MODE (WITHOUT MEMORY CLEAR)] • This mode moves the optical pick-up to the position durable to vibration. Use this mode when returning the set to the customer after repair. Procedure: 1. Press ?/1 button to turn on the set. 2. Select CD function. 3. Press [CD] button and ?/1 button simultaneously. The set will turn off automatically. 4. After the “STANDBY” blinking display finishes, a message “MECHA LOCK” is displayed on the fluorescent indicator tube and the CD ship mode is set. [CD POWER MANAGE] • This mode let you switch on or off power supply to the BU during TUNER function. • When CD POWER is set to OFF, the power supply to the BU is cut off during TUNER function. It will increase the time taken to access CD when function change from TUNER to CD but it will improve tuner reception. • When CD POWER is set to ON, the power supply to the BU is not cut off during TUNER function. It will reduce the time taken to access CD when function change from TUNER to CD but it will decrease tuner reception performance. Procedure: 1. Press ?/1 button to turn on the set. 2. Select CD function. 3. Press ?/1 button to turn off the set. 4. Press x button and ?/1 button simultaneously. The set will turn on automatically. 5. The message “CD POWER ON” or “CD POWER OFF” will be displayed on the fluorescent indicator tube. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 HCD-GNX660 SECTION 5 MECHANICAL ADJUSTMENTS SECTION 6 ELECTRICAL ADJUSTMENTS Precaution 1. Clean the following parts with a denatured alcohol-moistened swab: record/playback heads pinch rollers erase head rubber belts capstan idlers 2. Demagnetize the record/playback head with a head demagnetizer. 3. Do not use a magnetized screwdriver for the adjustments. 4. After the adjustments, apply suitable locking compound to the parts adjusted. 5. The adjustments should be performed with the rated power supply voltage unless otherwise noted. Torque Measurement 2.9 mN • m to 6.9 mN • m FWD CQ-102C 30 to 70 g • cm (0.42 – 0.97 oz • inch) FWD 0.15 mN • m to 0.59 mN • m back tension CQ-102C 1.6 to 6 g • cm (0.022 – 0.08 oz • inch) 4.8 mN • m to 16.7 mN • m FF/REW CQ-201B 49 to 170 g • cm (0.69 – 2.36 oz • inch) Mode Torque meter Meter reading 0 dB=0.775 V DECK SECTION 1. Demagnetize the record/playback head with a head demagnetizer. 2. Do not use a magnetized screwdriver for the adjustments. 3. After the adjustments, apply suitable locking compound to the parts adjust. 4. The adjustments should be performed with the rated power supply voltage unless otherwise noted. 5. The adjustments should be performed in the order given in this service manual. (As a general rule, playback circuit adjustment should be completed before performing recording circuit adjustment.) 6. The adjustments should be performed for both L-CH and R- CH. 7. Switches and controls should be set as follows unless otherwise specified. • Test Tape RECORD/PLAYBACK HEAD AZIMUTH ADJUSTMENT DECK A DECK B Note: Perform this adjustments for both decks Procedure: 1. Mode: Playback Tape Signal Used for P-4-A100 10 kHz, –10 dB Azimuth Adjustment set MAIN board CN121 Pin 3 (L-CH) Pin 1 (R-CH) MAIN board CN121 Pin 2 (GND) + – level meter test tape P-4-A100 (10 kHz, –10 dB) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 HCD-GNX660 2. Turn the adjustment screw and check output peaks. If the peaks do not match for L-CH and R-CH, turn the adjustment screw so that outputs match within 1dB of peak. 3. Mode: Playback 4. After the adjustments, apply suitable locking compound to the pats adjusted. Adjustment Location: Playback Head (Deck A). Record/Playback Head (Deck B). Screw position L-CH peak within 1dB Output level L-CH peak R-CH peak within 1dB Screw position R-CH peak MAIN board CN121 set test tape P-4-A100 (10 kHz, –10 dB) pin 1 oscilloscope L-CH R-CH V H waveform of oscilloscope in phase 45° 90° 135° 180° good wrong pin 2 pin 3 L R CDG SECTION Note: 1. CDG Block is basically designed to operate without adjustment. Therefore, check each item in order given. 2. Use YEDS-18 disc (3-702-101-01) unless otherwise indicated. 3. Use an oscilloscope with more than 10MΩ impedance. 4. Clean the object lens by an applicator with neutral detergent when the signal level is low than specified value with the following checks. S-curve Check Connection: Procedure: 1. Connect an oscilloscope to test point JPO102 (FE1) and TP 117(VC) on the BD84 board. 2. Turn the power on. 3. Put the disc (YEDS-18) in and turned power switch on again and actuate the focus search. (actuate the focus search when disc table is moving in and out) 4. Check the oscilloscope waveform (S-curve) is symmetrical between A and B. And confirm peak to peak level within 2.4 ± 1 Vp-p. S-curve waveform Note: • Try to measure several times to make sure than the ratio of A : B or B : A is more than 10 : 7. • Take sweep time as long as possible and light up the brightness to obtain best waveform. Checking Location: BD84 board (SIDE B) (See page 23.) + – BD84 board JPO102 (FE1) TP117 (VC) oscilloscope A B symmetry within 2.4 ± 1 Vp-p azimuth screw www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 HCD-GNX660 RFAC Level Check Connection: Procedure: 1. Connect an oscilloscope to test point TP124 (RFAC) and TP 117(VC) on the BD84 board. 2. Turn the power on. 3. Put the disc (YEDS-18) in to playback the number five track. 4. Confirm that oscilloscope waveform is clear and check RFAC signal level is correct or not. Note: A clear RFAC signal waveform means that the shape “◊” can be clearly distinguished at the center of the waveform. RFAC signal waveform Checking Location: BD84 board (SIDE B) (See page 23.) E-F Balance Check Connection: Procedure: 1. Connect an oscilloscpe to test point TPO103 (TE1) and TP117 (VC) on the BD84 board. 2. Turn the power on. 3. Select the function “CD”. 4. Press three buttons of [ENTER], M , and [SURRUUND MODE] simultaneously to set the CD service mode. 5. Put the disc (YEDS-18) in to playback the number five track. 6. Press the . button. The message “TRAVERSE” is displayed. (The tracking servo and the sledding servo are turned OFF) 7. Check the level B of the oscilliscope's waveform and the A (DC voltage) of the center of the Traverse waveform. Confirm the following : A/B x 100 = less than ± 22% Traverse Waveform 8. Press the . button. The message “TRAVERSE” is displayed. (The tracking servo and sledding servo are turned ON) Confirm the C (DC voltage) is almost equal to the A (DC voltage) is step 5. 9. To exit from this mode, perform as follows. 1) Move the optical pick-up to the most inside track. 2)Press three buttons of x , [CLEAR], and [DISPLAY] simultaneously. (cold reset) Notes: • Always move the optical pick-up to most inside track when exiting from this mode. Otherwise, a disc will not be unloaded. • Do not run the sled motor excessively, otherwise the gear can be chipped. Traverse Waveform Checking Location: BD84 board (SIDE B) (See page 23.) + – BD84 board TP124 (RFAC) TP117 (VC) oscilloscope VOLT/DIV: 200 mV TIME/DIV: 500 ns level: 0.9 ± 0.4 Vp-p + – BD84 board JPO103 (TE1) TP117 (VC) oscilloscope 0V B level: 1.0 ± 0.5 Vp-p Center of the waveform A (DC voltage) 0V Tracking servo Sled servo ON C (DC voltage) Tracking servo Sled servo OFF www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 HCD-GNX660 Checking Location: – BD84 BOARD (SIDE B) – TP117 (VC) TP124 (RFAC) JPO103 (TE1) JPO102 (FE1) IC101 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 HCD-GNX660 SECTION 7 DIAGRAMS For schematic diagrams. Note: • All capacitors are in µF unless otherwise noted. (p: pF) 50 V or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • % : indicates tolerance. • f : internal component. • 2 : nonflammable resistor. • 5 : fusible resistor. • C : panel designation. • A : B+ Line. • B : B– Line. • Voltages and waveforms are dc with respect to ground under no-signal conditions. BD84 board no mark: CD PLAY Other boards no mark: TUNER (FM/AM) ( ) : CD PLAY < > : TAPE PLAY [ ] : TAPE REC * : Impossible to measure • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Signal path. F : AUDIO f : TUNER (FM/AM) E : TAPE PLAY (DECK A) d : TAPE PLAY (DECK B) G : RECORD J : CD PLAY N : MIC INPUT c : CDG g : VIDEO Note: The components identified by mark 0 or dotted line with mark ! are critical for safety. Replace only with part number specified. (The other layers' patterns are not indicated.) • Indication of transistor. Caution: Parts face side: Parts on the parts face side seen from (Side A) the parts face are indicated. Pattern face side: Parts on the pattern face side seen from (Side B) the pattern face are indicated. C B These are omitted. E Q B These are omitted. C E Q B These are omitted. C E Q Note on Printed Wiring Boards: Note: • X : parts extracted from the component side. • : Pattern from the side which enables seeing. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX660 25 25 HCD-GNX660 • CIRCUIT BOARDS LOCATION TUNER pack MAIN board SMASTER board SPEAKER board ADC board MIC board VOL board PANEL board POWER board IR board MOTOR (LD) board SW board SENSOR board BD84 board DRIVER board CDG board MOTOR (TB) board • WAVEFORMS – MAIN BOARD – – BD84 BOARD – – SMASTER BOARD – 0.15 Vp-p 0.2V/DIV, 0.2 msec/DIV 0.1V/DIV, 1 msec/DIV 0.9 ± 0.4 Vp-p 0.2V/DIV, 0.5 µsec/DIV 0.4 Vp-p 1 IC101 wa TEI 2 IC101 wd FEI 3 IC101 ra RFAC 0.5V/DIV, 20 nsec/DIV 0.8 Vp-p 20.3 nsec 1 IC800 2 2V/DIV, 50 nsec/DIV 4 Vp-p 81.3 nsec 1 IC03 1 – ADC BOARD – 2.7 Vp-p 30.5 µsec 3.3 Vp-p 2 µsec 1V/DIV, 10 µsec/DIV 1V/DIV, 1 µsec/DIV 10.5 µsec 50V/DIV, 10 µsec/DIV 50V/DIV, 10 µsec/DIV 67 Vp-p 10.5 µsec 82 Vp-p 1 IC401 qa XC-OUT 2 IC401 qd X-OUT 3 T101 5 TAPE REC only 4 T101 4 TAPE REC only – CDG BOARD – 5.9 Vp-p 69.84 µsec 2V/DIV, 50 nsec/DIV 1 IC1001 tl XI1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX660 26 26 HCD-GNX660 7-1. BLOCK DIAGRAM – CDG SECTION – A MAIN SECTION (Page 28) OPTICAL PICK-UP BLOCK (KSM-215DCP/C2NP) LD DRIVER Q10 CD MUTE Q237,287 +3.3V LD GND FOCUS COIL F+ F T+ T TRACKING COIL IC251 X171 16.9MHz SL/SP MOTOR DRIVER 12 6 11 13 14 VR PD 15 16 17 18 4 26 23 2 20 MUTE CH2OUT-F CH1FIN OUT VREF CH1RIN CH2FIN SFDR OPIN+ CH2OUT-R CH1OUT-R CH1OUT-F CH4OUT-R CH4OUT-F CH3OUT-F CH3OUT-R M M M101 (SPINDLE) M102 (SLED) S101 (LIMIT) VCC VC A B C D E F DETECTOR A B E 19 F 20 LD 36 PD 37 TFDR 11 FFDR 13 CH3FIN 9 SSTP 7 MDP 6 95 XTACN 100 XRST 102 DATA 104 XLAT 105 CLOCK 86 AOUT2 81 AOUT1 61 PCMD1 62 LRCKI 63 LRCK 65 PCMD IC301 MP3 DECODER SYSTEM IC401 (1/5) CONTROL 21 40 SDO0 11 LRCKIA 16 SFSY/LRCK1B 19 SDI0 14 77 XTAO 78 XTAI 55 VDD VDD VDDM 26 25 VC 27 C 28 D 29 107 SENS XTACN XRST DATA XLT CLOCK SENS TRDR 12 22 SRDR CH3RIN 10 CH2RIN FRDR 14 XRST 100 66 BCK 60 BCK1 BCKIA 15 SBSY/BCK1B 18 5 +3.3V IC303 7 5 1 3 26 27 25 7 5 24 23 22 49 48 47 46 42 45 44 6 19 21 43 41 82 3 2 1 28 35 34 STANBY 36 PO11/BUCK/AD14 8 MIACK 7 MICK 6 MIDIO 4 MICS 5 MILP 2 RESET 41 SRMSTB 115 SCOR SCOR REG CD MUTE DRIVE Q307, 308 IC101 RF AMP, DSP, DAC IC1002 DRAM IC1001 VIDEO D/A IC1003 +5V REG IC1006 VIDEO BUFFER 25,27,29,30 VA0-7 15-22 VD0-3 14 4 26 23 RAS CAS A0-7 DQ1-4 X1002 14.31818MHz 60 XO1 59 XI1 +B SWITCH Q1007,1008 NO401 CN402 IIC-CLK IIC-DATA 3 4 CNVSS RESET J1001 TXD1 RTS1 ON BOARD PROGRAM CLK1 RXD1 CN VSS RESET VIDEO OUT VMUTE 13 3 WE 28 22 CE 3 2 6 9 7 8 RAS CAS WE CE 3 98 DATA SBSO 5 110 SFSY WFCK 2 99 CLCK EXCK 6 MUTE 56 PDOWN 1,2,24,25 9-12,14-17 9 8 5 4 Q1004 SBSY Q1005,1009 6 3 4 1 2 11 10 13 12 IC1005 Q1010 VCC 55 SENTSC 54 RESET Q1002,1006 52 DEN 37 GDET MUTE DATA HALT_CLK PAL/_NTSC CDG-RST EVER+3.3V CDG-DET CDG-DET MUTE DATA CDG-RST 44 VDOUT Q1001 33 31 32 12 MUTE DATA HALT_CLK VMUTE CDG-POWER CDG-RST CDG-DET RESET VMUTE CDG-POWER CDG RST CDG-DET RESET 9 CNVSS CNVSS VMUTE CDG-POWER 1 4 3 2 PWR SAVE VIN VSAG 6 VCC VOUT 1 3 VIN VOUT : CD : CDG • SIGNAL PATH • R-CH is omitted due to same as L-CH. : VIDEO R-CH CD-L MP3 STB MP3 REQ XTACN MP3 REQ MP3 STB MP3 CLK MP3 CLK MP3 ACK MP3 ACK MP3 DATA OUT MP3 DATA MP3 LP MP3 LP MP3 CS MP3 RST MP3 CS MP3 RST MP3 DATA IN SCOR SENS CD-CLK XLAT CD-DATA XRST XTACN SCOR SENS CLOCK XLT DATA XRST CD MUTE LM-R LM-F TM-R TM-F TBL_SENS E-1 E-2 E-3 OPEN SW 30 IIC-DATA 29 IIC-CLK IC701 TABLE LOADING MOTOR DRIVER 4 2 9 7 RIN FIN OUT1 OUT2 IC712 TABLE MOTOR DRIVER 4 2 9 7 RIN FIN OUT1 OUT2 M751 (TABLE LOADING) M741 (TABLE) S751 (OPEN) ROTARY ENCODER INVERTER M M IC731 TBL ADDRESS SENS S711 E-3 E-2 E-1 M+9V Q731 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX660 27 27 HCD-GNX660 7-2. BLOCK DIAGRAM – TAPE/TUNER SECTION – E MAIN SECTION (Page 28) D MAIN SECTION (Page 28) C MAIN SECTION (Page 28) ST-L REC-OUT-L TAPE MECHANISM DECK 75 A TRIG DRIVE Q122, 123 : PLAYBACK (DECK B) : PLAYBACK (DECK A) R-CH FM/AM TUNER UNIT CN101 ANTENNA ST-L FM ANT AM ANT AM ANT ST-R TUNED ST-DIN ST-DOUT ST-CLK ST-CE FM 75 COAXIAL CAP M+ BTRGM+ ATRGM+ AHALF BHALF B SHUT A SHUT REC(FWD) CAPM-CNT B-TRIG A-TRIG TC-RELAY A-HALF B-HALF B SHUT A SHUT AM EQ OUT1 A B TUNED ST-DOUT ST-DIN ST-CLK ST-CE 76 78 79 80 15 26 DI1 66 IO-EXP-DATA-OUT 2 RESET 68 IO-EXP-RST 3 CLK 69 IO-EXP-CLK 4 LATCH 5 TC-MUTE 70 IO-EXP-LAT 17 90 89 91 63 21 REC-MUTE 7 REC BIAS 20 17 19 18 40 38 36 39 37 PB OUT1 TAI1 REC IN1 AIN1 BIN1 IC101(1/2) DECK A/B SELECT, PB/REC EQUALIZER AMP IC401(2/5) SYSTEM CONTROL (CD/TAPE MECHANISM CONTROL) IC403(1/2) SIGNAL IN/OUT CONTROL REC-OUT1 EQ TC-PB-L TEST CONNECTOR CN111 R-CH R-CH R L 1 3 MUTE Q103 MUTE DRIVE Q303, 304 PB HEAD DECK-A DECK-B BIAS OSC Q101 BIAS TRAP SWITCH DRIVE Q107, 108 SWITCH DRIVE Q110, 111 R-CH R-CH Q166 Q154, 155 Q109 L – CH R – CH R-CH C174, L104 BIAS+9V REC/PB HEAD ERASE HEAD Q113,114 T101 L – CH R – CH R-CH MUTE Q175 TC REC MUTE DRIVE Q301, 302 : TUNER (FM/AM) : RECORD • SIGNAL PATH • R-CH is omitted due to same as L-CH. B TRIG DRIVE Q118, 119 CAP MOTOR DRIVE Q120, 121 Ver. 1.2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX660 28 28 HCD-GNX660 7-3. BLOCK DIAGRAM – MAIN SECTION – AMP SECTION (Page 29) B TAPE/TUNER SECTION (Page 27) D (Page 26) A CDG SECTION MCU INTERFACE SURROUND INPUT SELECT SWITCH COMMAND + + RV1402 IC1401 MIC AMP IC101(2/2) INPUT SELECT SWITCH, GRAPHIC EQUALIZER CONTROL, ELECTRICAL VOLUME IC401(3/5) SYSTEM CONTROL DATA CLK REC-OUT-L CD-L J1400(1/3) J1450(2/3) 59 34 35 5 J501 R-CH R-CH + R-CH R-CH FRONT-L R-CH L R AUDIO IN MIC 1 ECHO LEVEL RV1400 MIC 1 LEVEL RV1401 MIC 2 LEVEL 14 23 24 28 30 31 29 MIC 3 MIC OUT IC1400 DIGTAL ECHO MC1P MC2P VACS IN 88 J1450(1/3) J1400(2/3) J1450(3/3) J1400(3/3) MIC 2 15 16 + + + PRE LPF POST LPF ADPCM ENCODE ADPCM DECODE ADC DAC S/H DELAY 25 29 23 5 6 7 DA OUT POOUT AD IN ALC ALC MIC VOL ECHO VOL MIC VOL VOLUME CONTROL VOL1 VOL2 VOL3 M61537-CLK 84 M61537-DATA 83 3 7 FRONT-R 37 SW TONE L + R 53 J506 D-LIGHT SYNC OUT L+R D+4V 2 3 1 (Page 27) E TAPE/TUNER SECTION ST-L 1 C (Page 27) TAPE/TUNER SECTION TC-PB-L 4 : TUNER (FM/AM) : CD : TAPE PLAY : RECORD : MIC : AUDIO • SIGNAL PATH • R-CH is omitted due to same as L-CH. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX660 29 29 HCD-GNX660 7-4. BLOCK DIAGRAM – AMP SECTION – (+) (–) IC500 STREAM PROCESSOR 31 DATA 36 XFSIIN 30 BCK 23 SCLATCH 27 INIT 18 NSPMUTE SOFTMUTE 21 SCDT 29 LRCK 22 SCSHIFT SCLATCH 1 INIT NSPMUTE SCDT SCSHIFT 4 OUTR2 11 OUTL1 6 OUTR1 9 OUTL2 38 FS0I R L FRONT SPEAKER (+) (–) FEED BACK SWITCH Q101 FEED BACK SWITCH Q151 IC401 (4/5) SYSTEM CONTROL (+) (–) IC600 STREAM PROCESSOR 31 DATA 36 XFSIIN 30 BCK 23 SCLATCH 27 INIT 18 19 NSPMUTE SOFTMUTE SCDT 29 LRCK 22 21 SCSHIFT 4 OUTR2 6 OUTR1 38 FS0I 48 XFS0IN 48 XFS0IN DC DETECT Q865, 866 IC650 POWER DRIVER SD 4 14 PWM-B 6 5 PWM-A RESET OUTB OUTA 4 IC530 POWER DRIVER SD 6 PWM-A 14 5 PWM-B RESET OUTA OUTB 4 IC550 POWER DRIVER SD 14 PWM-B 6 5 PWM-A RESET OUTB OUTA 72 SM-SD 85 HP-DET 86 HP-MUTE SUB WOOFER TM1500 DOUT1 R R L L XFSIIN BCK1 LRCK1 SCLATCH1 SCLATCH2 SCDT SCSHIFT SCLATCH2 INIT NSPMUTE SCDT SCSHIFT DOUT2 XFSIIN BCK1 LRCK1 19 HPOUTL2 43 HPOUTR2 39 PROTECT DETECT Q840 IC800 OSC X800 49.152MHz 78 SM-DATA 77 SM-CLK 76 SM-LATCH-1 79 SM-LATCH-2 65 SM RESET LPF LPF LPF LPF LPF LPF IC403 (2/2) SIGNAL IN/OUT CONTROL INIT SOFTMUTE NSPMUTE 9 SM-NSP-MUTING 22 ADC-RESET 12 SM-INIT 10 SM-SOFT-MUTING 24 FAN CTRL FAN DRIVE M891 DC FAN Q580,582, Q584,585 UNREG +12V 14 XFS0OUT 37 FSOCKO 37 FSOCKO SOFTMUTE SOFTMUTE SW SW IC12 A/D CONVERTER 12 2 DOUT DOUT_2 LRCK BCK RIN 10 LRCK SCKI 11 BCK 7 PDWN 15 IC11 A/D CONVERTER 12 1 2 DOUT DOUT_1 LRCK BCK LIN RIN 10 LRCK SCKI FRONT-L SW FRONT-R 11 BCK 7 PDWN 15 XFSIIN 28 30 25 27 28 30 25 27 25 27 28 30 1 7 IC03 CLOCK GENERATOR 2 6 3 5 2 4 IC802 IC880 5 7 3 1 X001 12.288MHz B MAIN SECTION (Page 28) PHONES J1401 DC DETECT Q855, 856 DC DETECT Q850, 851 HP MUTE Q1400,1401 HP MUTE Q1450,1451 MUTE SWITCH Q486 : AUDIO • Signal Path -13 MAIN ON/OFF DELAY Q156, 157 F DISPLAY/POWER SECTION (Page 30) Ver. 1.2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX660 30 30 HCD-GNX660 7-5. BLOCK DIAGRAM – DISPLAY/ POWER SECTION – IC402 LEVEL DETECT IC1101 VOLTAGE DETECT IC1102 +12V REG IC552 +9V REG IC01 +5V REG IC562 +4V REG T1100 MAIN POWER TRANSFORMER D1103 D1114 D1119 D1112 D1100 SMASTER G+12V M+7V M+9V LED+9V AUDIO A+9V BIAS A+9V ST A+9V IC551 +9V REG IC1100 POWER SWITCHING CONVERTER AC IN PHOTO COUPLER +8V REG Q1205, 1206 LED DRIVE Q1309 SUB WOOFER ON/OFF +3.3V REG Q560 +B SWITCH Q561 +4V REG Q1203, 1204 6 7 1 2 4 3 FB VCC C VIN Q1102 D1101 C1112 PC1100 PHOTO COUPLER PC1101 PHOTO COUPLER PC1102 IC1201 VOLTAGE DETECT T1200 SUB POWER TRANSFORMER D1212 D1213 D1211 D1207 D1204 D1118 +44V IC1200 PRIMARY SWITCHING, MAIN CONVERTER PHOTO COUPLER MAIN ON/OFF SWITCH Q1100, 1101 5 4 2 1 Z/C F/B VCC D Q1200 PC1200 A+5V IC02 +3.3V REG IC810 +1.8V REG +1.8V EVER +4V FL+4V D+4V D+3.3V(1) D506 D+3.3V(2) D394 D395 D594 D562 D561 D563 +3.3V EVER +3.3V D393 D396 94,95,97 LED DRIVE Q1305-1307 D1310-1312 D1307-1309 LED+9V Q1304 Q1308 Q1303 Q1310 D1304 AD-KEY-1 | AD-KEY-3 LED-ILLUMINATION-1 | LED-ILLUMINATION-3 S1302,1306,1307, 1309-1328,1331 74 POWER-KEY 73 DISPLAY-KEY S1301 S1300 DISPLAY 56 STBY-LED D1313 EVER +4V 61 53 LED-CTRL SW-LED 4 SIRCS X402 5MHz 15 X-IN 13 X-OUT X401 32.768kHz 10 XC-IN 11 XC-OUT 35 CD-POWER 100 MAIN ON/OFF IC401 (5/5) SYSTEM CONTROL 12 RESET 20 AC-CUT RESET SWITCH Q213 IC1301 REMOTE CONTROL RECEIVER 54 VOL-A 55 VOL-B ROTARY ENCODER S1305 MASTER VOLUME 1 2 T1300 DC/DC CONVERTER RECT D1300-1303 OSC Q1300 LED +9V FL1300 FLUORESCENT INDICATOR TUBE DR17-35 DR5-14 2-6,18 50-52 16–38 7-13,15-17 DR0-4,15 1G, 12G-16G 2G-11G P1 – 20 F1 F2 40 IC1300 FL DRIVER BUFFER Q1311-1316 VFDP 49 SI 48 SCK 52 RSTb 57 FL-DRIVER-DATA 58 FL-DRIVER-CLK 59 FL-DRIVER-RESET 51 CSb 60 FL-DRIVER-CS D1102 C1113 F AMP SECTION (Page 29) -13 Ver. 1.2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX660 31 31 HCD-GNX660 7-6. PRINTED WIRING BOARD – BD84 BOARD – • See page 25 for Circuit Boards Location. : Uses unleaded solder. TP117 (VC) JPO103 (TE1) JPO102 (FE1) TP124 (RFAC) R412 R422 R406 R252 R251 R182 R181 R423 R151 R143 R142 R141 R133 R132 R131 R114 R113 R112 R111 IC303 IC251 CN101 C252 C251 C194 C181 IC101 C162 C143 C142 C141 C133 C132 C131 C124 C111 C122 C115 C114 C113 C112 C185 C186 R204 R203 C161 R161 C211 C317 R306 C212 IC301 C163 C320 C213 R421 C306 C307 C309 C310 C311 C313 R307 R163 R301 R303 R305 R351 R352 R353 R354 R401 R402 R403 R404 R405 R407 R408 R409 R410 R419 R411 CN201 S101 (LIMIT) M101 (SPINDLE) M102 (SLED) M M 1 3 4 5 1 16 17 32 64 49 33 48 � MAIN BOARD CN351 (Page 35) OPTICAL PICK-UP BLOCK (KSM-215DCP) C10 C260 C14 C15 C16 C18 C11 R253 R191 R172 R121 R171 R162 C209 X171 R12 R11 R10 Q10 E C116 C184 C183 C303 C302 C305 C259 C258 C257 C255 C203 C196 C195 C201 C182 C171 C172 C210 C151 C134 C125 C123 R165 R13 C17 FB301 R201 R173 R205 C174 C318 C314 C308 C312 R313 C315 R302 C316 11 (11) 1-864-566- BD84 BOARD (SIDE A) BD84 BOARD (SIDE B) 11 (11) 1-864-566- � � � � � � � � �� �� � � � � � � � � Ref. No. Location IC101 E-9 IC251 C-7 IC301 C-9 IC303 B-10 Q10 F-4 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX660 32 32 HCD-GNX660 7-7. SCHEMATIC DIAGRAM – BD84 BOARD – • See page 53 and 54 for IC Block Diagrams. • See page 25 for Waveforms. • See page 56 for IC Pin Function Description JPO004 JPO10 JPO102 JPO103 C307 C309 C308 R303 C310 C311 R306 C312 C313 C314 C316 C315 R313 C320 C306 R351 C305 C302 R182 R181 C183 C184 C162 C174 R173 C161 R203 R151 C151 C143 C142 R143 R132 R133 C133 C132 C124 C122 C125 C131 R131 R121 C123 C134 C141 R142 R141 C111 C112 C113 C114 R112 R114 R111 R113 C115 C195 R191 C163 R165 C210 R162 R163 C196 IC101 C185 C181 C182 C201 C209 C203 R204 R423 R422 R421 C213 R411 R410 R409 R408 R407 R406 R412 C211 C212 R205 CN201 R302 C318 R301 R305 C317 R401 R402 R405 R404 R419 R403 C194 C17 R12 R11 C16 R10 C18 C11 C10 C14 C15 CN101 R252 R251 R253 C258 C259 C257 C252 C260 C255 M102 M101 IC301 C251 R13 R307 IC303 C171 C172 R172 R171 IC251 Q10 S101 C116 X171 R352 R354 R353 R161 C186 R201 0uH FB301 TP117 TP124 C303 MDP APC FEI TEI 0.1 0.1 47 4V 100k 0.1 0.1 0 0.1 0.1 47 4V 0.0022 0.1 220 0.001 0.1 100 220 4V 0.1 100 100 22 6.3V 22 6.3V 0.1 0.1 0 0.1 0 0 100 10V 0.1 0.0015 3.3k 10k 180k 0.01 0.47 330p 0.1 0.1 100p 1M 15k 0.1 0.1 0.1 1k 4.7k 0.0033 470p 0.0033 470p 15k 15k 1k 1k 0.1 0.1 0 0.1 0 0.1 47k 100 0.1 CXD3059AR 470p 0.1 0.1 100 10V 0.01 100 10V 0UH 100 100 100 22p 100 100 100 100 100 100 100 220p 22p 0 31P 10k 0.01 100k 100k 0.01 100 100 100 100 100 100 0.1 220 4V 100k 0 1 3.3 0.001 10 10 0.1 0.1 16P 22k 10k 10k 0.1 0.1 0.1 0.1 220 10V 0.1 TC94A34FG-002 0.0068 1 10k BH15FB1WG 22p 27p 1M 470 BA5947FM-E2 2SA2119K LD DRIVER (LIMIT) 100 10V 16.9344MHz 100 100 100 100 470p 0UH (VC) (RFAC) 0.1 E F F E D A B C MIACK MICK MIDIO MILP MICS SCOR SENS CLOCK DATA XRST XLT CLOCK SENS SCOR XRST MP3REQ DATA MP3STB XTACN XTACN MP3STB D C B A MP3RST XLT MP3REQ MIACK MICK MIDIO MILP MICS MP3RST SBSO EXCK WFCK SBSO EXCK WFCK (SPINDLE) (SLED) DRIVE SL/SP MOTOR RF AMP, DSP, DAC MP3 DECODER REG (1/3) MAIN BOARD CN351 (Page 36) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX660 33 33 HCD-GNX660 7-8. PRINTED WIRING BOARDS – CD MECHANISM SECTION – • See page 25 for Circuit Boards Location. : Uses unleaded solder. Ref. No. Location D701 C-5 D711 C-5 IC701 C-5 IC712 B-5 IC731 B-2 Q731 B-4 • Semiconductor Location M741 (TABLE) M751 (TABLE LOADING) 1 3 CN721 IC731 CN731 CN741 CN742 C715 C731 C735 C736 R701 R711 R731 R721 R722 R723 R732 R733 R734 D701 D711 Q731 C751 IC712 IC701 CN704 C737 R713 R712 C741 R702 JW702 JW703 JW704 JW705 JW706 JW707 JW708 JW711 CN703 S711 ROTARY ENCODER CN702 CN751 CN705 R751 C752 JW712 JW701 JW709 JW713 JW714 S751 (OPEN) CN701 JW710 R735 R736 BOARD MOTOR(LD) 12 (12) 1-687-133- BOARD MOTOR(TB) 12 (12) 1-687-134- BOARD SW 12 (12) 1-687-669- BOARD SENSOR 12 (12) 1-687-132- BOARD DRIVER 12 (12) 1-866-201- M M 1 4 1 2 1 2 E 1 1 9 9 G MAIN BOARD CN511 (Page 35) 1 2 1 2 2 3 4 5 6 7 A 1 B C D E w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX660 34 34 HCD-GNX660 7-9. SCHEMATIC DIAGRAM – CD MECHANISM SECTION – • See page 53 for IC Block Diagrams. CN721 CN711 E1 E2 E3 CN742 CN741 CN731 C751 CN704 CN703 IC731 IC701 R702 R701 IC712 R713 R712 R711 C741 C715 CN701 C731 R751 R731 R732 R733 R734 R736 CN702 CN705 CN751 R723 R722 R721 C736 C737 C735 D711 D701 C752 M741 M751 Q731 S751 2P 4P 5P 3P 3P 0.01 2P 4P RPI-576 BA6956AN 100 470 BA6956AN 22k 4.7k 1k 0.01 100 16V 13P 10 50V 4.7k 100 10k 1k 12k 390 5P 2P 2P 4.7k 4.7k 4.7k 0.1 0.1 0.1 MTZJ-T-77-3.6B MTZJ-T-77-5.1A 0.1 (TABLE) (TABLE LOADING) DTC114ESA INVERTER (OPEN) (Page 36) (1/3) BOARD MAIN CN405 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX660 35 35 HCD-GNX660 7-10. PRINTED WIRING BOARD – MAIN BOARD – • See page 25 for Circuit Boards Location. : Uses unleaded solder. N A B MIC BOARD NO1401 (Page 41) IC401 R465 R508 R576 R401 FB101 R311 R312 R309 IC101 C498 R188 FB103 Q307 Q308 R118 C185 C179 R413 R411 C178 R591 R590 30 31 50 100 51 80 81 R432 R412 Q112 C410 R422 R417 R587 R586 Q125 R427 R584 R585 Q175 C184 R406 R150 C412 R200 R302 R183 FB102 R303 R419 FB152 R103 C197 C106 C156 R101 R420 FB151 R423 R404 JR032 JR033 C120 C585 R304 R301 R182 Q303 Q304 R168 C135 R425 R403 R305 C199 R184 R593 R189 C134 C411 R133 C130 R125 R175 R174 R124 R142 R141 R140 R123 R122 R173 R172 Q111 Q110 Q109 Q108 Q107 Q105 Q104 Q155 Q154 Q106 C123 C173 Q166 R407 C174 C124 Q113 C125 C175 R177 Q153 R127 R310 R162 R163 R161 R159 C200 C162 C161 R166 R158 C159 C158 R167 R165 C186 R190 R114 Q302 JR004 R153 R424 R152 JR011 R160 C170 R428 R429 R195 R430 R431 R482 R450 C112 C111 R116 C108 C109 R108 C147 R405 R117 R111 R112 Q103 R110 R119 R106 R105 Q101 R193 R194 R156 R169 Q151 R155 C190 R191 R192 C189 Q582 R402 R138 R144 R145 R146 R147 R148 R149 FB153 R151 Q114 C141 R143 C138 R592 C126 C176 R126 R176 R164 R421 Q301 JR012 R426 R139 C581 R113 R102 R433 R435 JR001 R437 R436 R438 R439 R440 R441 R442 R443 R444 R445 R446 R447 R448 R449 R355 JR002 D506 R337 R338 R340 R341 IC402 R451 R452 R453 R454 R354 R456 R457 R458 R459 R460 IC403 R397 R203 R216 R214 Q213 C499 R500 R497 R494 R495 R394 R395 R393 R492 R493 R490 R489 R385 R483 R484 R485 R477 R478 R479 D230 D231 D232 R225 R227 R230 R231 R476 R374 C464 R202 Q120 R472 R473 R474 R372 R373 Q118 R181 Q122 Q119 Q121Q123 R178 R179 R180 C144 R104 D101 R196 R197 R186 R107 R115 C201 R120 R121 R128 R129 R463 R130 R131 JR028 C203 JR050 Q560 Q561 C202 C204 R204 R205 R491 JR005 R207 R209 R210 R212 C228 R220 R221 R222 R224 R226 JR228 JR027 JR008 JR030 JR007 JR009 JR006 JR015 JR014 JR013 JR550 R509 JR003 R579 R580 R577 R578 D581 D583 Q584 Q580 C531 FB505 FB555 R524 R525 C521 R574 R575 C571 C534 C522 C523 FB506 FB507 FB508 FB509 FB510 FB512 C537 C567 C538 C536 R560 R563 C188 JR042 JR031 R267 JR267 JR176 JR126 JR037 JR036 R244 R245 R246 Q237 R294 R295 R296 Q287 JR047 R199 JR024 JR017 JR018 JR016 R198 JR044 JR046 JR043 C145 C180 C226 C414 C526 C527 JR048 C547 C546 C555 C556 C580 R329 R330 JR261 R215 JR051 R582 R532 C539 D104 D102 D215 D396 D393 D213 D214 D216 D394 D395 JR055 R308 R306 JR022 R455 D580 D582 Q486 JR049 JR020 R486 JR026 JR152 JR153 JR021 R488 D486 JR019 R461 JR481 JR057 R583 JR029 FB104 JR467 JR487 JR318 JR381 FB514 FB513 JR480 JW275 NO401 JW592 JW272 JW001 JW002 JW003 JW004 JW005 JW006 JW007 JW012 JW013 JW016 JW017 JW018 JW019 JW020 JW021 JW022 JW023 JW024 JW025 JW026 JW027 JW028 JW029 JW030 JW032 JW033 JW034 JW035 JW036 JW037 JW038 JW039 JW041 JW043 JW045 JW048 JW049 JW051 JW052 JW053 JW054 JW055 JW057 JW058 JW059 JW061 JW062 JW064 JW065 JW066 JW067 JW070 JW071 JW072 JW073 JW074 JW075 JW076 JW077 JW079 JW080 JW082 JW083 JW085 JW086 JW087 JW088 JW089 JW090 JW091 JW092 JW093 JW094 JW095 JW096 JW097 JW098 JW099 JW100 JW101 JW102 JW103 JW104 JW105 JW106 JW107 JW108 JW110 JW111 JW112 JW113 JW114 JW115 JW116 JW117 JW118 JW119 JW122 JW126 JW127 JW128 JW131 JW132 JW134 JW136 JW137 JW138 JW139 JW140 JW142 JW143 JW144 JW145 JW146 JW148 JW152 JW155 JW157 JW158 JW161 JW162 JW163 JW164 JW165 JW166 JW168 JW169 JW170 JW171 JW173 JW174 JW175 JW176 JW177 JW178 JW179 JW181 JW182 JW183 JW184 JW187 JW188 JW189 JW200 JW202 JW203 JW204 JW205 JW206 JW207 JW208 JW209 JW210 JW211 JW212 JW213 JW214 JW215 JW216 JW217 JW218 JW219 JW220 JW221 JW228 JW231 JW232 JW233 JW238 JW239 JW240 JW244 JW245 JW246 JW247 JW248 JW252 JW253 JW254 JW255 JW259 JW261 JW262 JW263 JW264 JW265 JW266 JW267 JW271 JW277 JW278 JW279 JW280 JW281 JW282 JW283 JW285 JW286 JW287 JW288 JW289 JW290 JW291 JW292 JW293 JW294 JW295 JW296 JW297 JW300 JW301 JW303 JW304 JW306 JW310 JW312 JW313 JW314 JW318 JW319 JW320 JW321 JW323 JW324 JW325 JW326 JW328 JW329 JW331 JW333 JW334 JW336 JW337 JW341 JW342 JW344 JW345 JW346 JW347 JW351 JW352 JW358 JW363 JW364 JW367 JW368 JW369 JW373 JW374 JW375 JW226 JW380 JW335 JW235 JW084 JW381 JW383 JW360 JW390 JW391 JW385 JW393 CLP01 CLP02 CLP03 CLP04 CN402 CN351 CN406 C308 X401 C496 CN381 C301 C105 C303 C304 CN201 C307 C302 CN101 C133 CN121 CN111 L103 T101 C148 X402 C191 C142 L105 L104 C504 CN405 C416 IC562 C568 C230 C462 CN131 IC551 IC552 CN580 Q585 C520 C570 C535 C552 C554 C551 C553 D562 D563 EP501 D561 C267 C238 C288 C193 J501 CN105 JW186 JW185 JW180 C160 C115 C194 C116 C114 C192 C198 C166 C113 C110 C132 C136 C137 C169 C171 C172 C151 C153 C150 C154 C164 C165 C163 C157 C177 C139 JW274 JW330 C107 C103 C195 C101 C104 C187 JW357 C121 C122 C119 JW234 D586 D594 JW236 JW237 JW242 R506 JW315 JW316 JW153 JW384 JW222 JW223 JW224 JW227 JW150 JW151 JW149 JW305 JW159 JW354 JW370 JW230 JW008 JW009 JW010 JW011 JW135 JW311 JW241 JW284 JW229 JW298 JW299 JW307 JW156 JW243 JW063 JW060 CLP05 CLP06 C583 JW042 CLP07 C582 C550 B501 B502 JW500 JW501 JW502 JW190 JW302 JW372 JW047 JW046 JW147 JW125 JW196 C486 JW130 JW120 JW109 JW121 JW191 JW192 JW193 JW167 JW081 JW194 JW195 JW129 JW133 JW068 JW353 JW355 JW371 JW273 JW268 JW343 JW069 JW015 JW251 JW270 JW332 JW340 JW394 JW395 JW396 JW056 JW260 JW044 JW386 JW031 JW398 JW389 JW256 JW258 JW388 JW257 JW123 JW199 JW198 JW201 J506 JW276 JW338 JW339 JW308 JW322 JW317 CN205 JW160 JW269 JW309 JW377 JW378 C140 JW124 JW376 C214 C215 C216 C213 CN590 JW356 JW050 JW359 JW361 JW366 JW365 JW327 JW362 JW078 JW014 JW040 JW475 JW471 JW379 JW250 JW382 JW249 JW399 F PANEL BOARD CN1402 (Page 39) C SMASTER BOARD CN500 (Page 45) TAPE A HEAD TAPE B HEAD TAPE MECHANISM DECK (FOR CHECK) (FOR CHECK) G DRIVER BOARD CN701 (Page 33) TUNER PACK AUDIO IN L R M891 DC FAN E POWER BOARD CN1200 (Page 51) D ADC BOARD CN01 (Page 43) 1 1 1 1 2 3 3 3 1 3 4 5 7 D-LIGHT SYNC OUT 1 1 2 5 1 1 3 8 E E E E E E E E E E E E E E E E E E E E E E E E E C B E C B E C B E E E E C B E E E E 1 3 E E (FOR CHECK) E 1 3 4 5 E E E E C B 1 3 BOARD MAIN 11 (12) 11 (13) 1-868-829- 1 4 JR056 JR059 C118 C168 R109 R157 R581 R531 NO011 NO012 NO013 JW141 CDG BOARD CN1003 (Page 49) NO560 1 2 R392 31 30 BD84 BOARD CN201 (Page 31) R510 R512 R513 R511 CN321 1 13 R CDG BOARD CN1001 (Page 49) 2 3 4 5 6 7 8 9 10 11 12 13 A 1 B C D E F G H J I C497 JW403 R500 Q156 Q157 R398 R399 E E -13 -12 11 (13) -13 -12 R501 Ref. No. Location D101 E-3 D102 E-2 D104 E-2 D213 C-6 D214 C-5 D215 C-6 D216 C-5 D230 D-6 D231 D-5 D232 D-6 D393 C-6 D394 B-5 D395 C-5 D396 C-6 D486 D-6 D506 B-4 D561 F-11 D562 F-11 D563 F-11 D580 G-12 D581 G-12 D582 G-11 D583 G-12 D586 C-11 D594 G-10 IC101 G-5 IC401 C-4 IC402 C-5 IC403 E-3 IC551 G-11 IC552 G-11 IC562 D-11 Q101 H-5 Q103 G-3 Q104 H-2 Q105 H-3 Q106 G-2 Q107 H-3 Q108 H-3 • Semiconductor Location Ref. No. Location Q109 H-3 Q110 F-3 Q111 G-3 Q112 I-4 Q113 I-4 Q114 I-4 Q118 D-2 Q119 D-2 Q120 D-2 Q121 D-2 Q122 E-3 Q123 D-2 Q125 I-3 Q151 G-6 Q153 F-5 Q154 G-2 Q155 H-2 Q156 D-13 Q157 D-13 Q166 G-2 Q175 I-3 Q213 C-5 Q237 G-8 Q287 F-9 Q301 H-4 Q302 I-4 Q303 H-4 Q304 H-4 Q307 H-4 Q308 I-4 Q486 D-7 Q560 C-11 Q561 D-10 Q580 G-11 Q582 G-12 Q584 G-12 Q585 G-12 Ver. 1.2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX660 36 36 HCD-GNX660 7-11. SCHEMATIC DIAGRAM – MAIN BOARD (1/3) – CN405 D506 NO401 C537 C536 JR176 JR126 C238 C288 R294 R244 R295 R245 Q237 Q287 R246 R296 JR267 R267 C267 JR261 D594 JW226 CN402 CN381 IC551 C552 C555 C551 Q486 C486 D486 R488 R486 Q560 D586 R563 R560 C568 C567 CN351 FB512 FB510 C538 C527 C546 C547 C526 C522 C523 FB506 FB507 FB508 FB509 C534 C535 D563 D562 D561 CN406 C539 R582 JW390 R532 CN205 J506 C531 R524 FB505 R574 FB555 R575 R525 C521 C571 C570 C520 FB513 R506 R509 R508 FB514 JR550 Q585 C581 CN580 M891 DC FAN R580 R579 R583 Q584 R577 D581 Q582 D583 Q580 R578 D582 C583 R576 C580 D580 C550 JW391 C582 JW592 JW385 EP501 C553 C556 IC552 C554 CN590 IC562 J501 Q561 13P 1SS355W 4P 0.1 0.1 0 0 10 50V 10 50V 2.2k R513 1k R512 1k R511 1k R510 1k 2.2k 47k 47k 2SC3661 MUTING 2SC3661 MUTING 10k 10k 0 0 10 50V 0 10EDB40 10P 17P TA7809LS 470 10V 0.1 1 50V DTC114EKA HP MUTING 470 16V 1SS355W 2.2k 2.2k RT1P137P-TP-1 BD +3.3V REG 10EDB40 1k 2.7k 1000 6.3V 0.1 31P CN321 DGND VMUTE CDG-POWER CDG-DET CDG/_BGC _CDG_RST PAL/_NTSC _HALT-CLK MUTE-DATA EXCK SBSO WFCK SCOR EXCK SBSO WFCK DGND GND VCC 13P NO560 2P 31 1 1 2 13 0uH 0uH 0.1 220p 220p 220p 0.1 220p 220p 0uH 0uH 0uH 0uH 0.1 1 1000 10V 10EDB40 10EDB40 10EDB40 9P 0.1 0 0 5P 0.1 1k 0 1k 0 100k 100k 220p 220p 10 50V 10 50V 0uH 10 4.7k 5.6k 0uH 0 2SD2525 0.1 3P 3.3k 3.3k 3.3k DTC114EKA BUFFER 100k UDZ6.2B 2SC2412 UDZ6.8B 2SC2412 4.7k 1SS355W 4.7 50V 47k 0.1 1SS355W 4700 16V 4700 16V 1 50V 0.1 TA7809LS 470 10V 7P TA7804LS DTC114EKA B+ SWITCH GND A B FRONT-L FRONT-R GND EVER+4V AUDIO+9V E F G D+4V FAN DET BD MGND M+9V D+3.3V FL+4V VRSW CD MUTE EVER+3.3V 30 29 28 1 2 3 EXCK SBSO WFCK WFCK SBSO EXCK 31 35 32 33 28 34 19 82 21 19 22 23 24 5 7 25 26 27 36 37 38 39 40 31 34 33 9 12 41 42 43 44 45 46 47 48 49 MIC TV/SAT-L TV/SAT-R 32 L+R_LIGHTING 35 86 85 CD-L CD-R 100 I/O 22 I/O 24 ST-R ST-L (FOR CHECK) (FOR CHECK) SYNC OUT D-LIGHT R L AUDIO IN BOARD (Page 34) BOARD (Page 44) BOARD (Page 42) BOARD (Page 52) BOARD (Page 32) BD84 CN201 BOARD (Page 50) CDG CN1003 BOARD (Page 50) CDG CN1001 POWER CN1200 ADC CN01 DRIVER CN701 MIC NO1401 IC562 IC551 IC552 +4V REG +9V REG Q580,582,585 DRIVE FAN MOTOR (2/3) MAIN BOARD (Page 37) (3/3) MAIN BOARD (Page 38) +9V REG C504 1000 10V 470 10V N R -13 -12 Ver. 1.2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX660 37 37 HCD-GNX660 7-12. SCHEMATIC DIAGRAM – MAIN BOARD (2/3) – • See page 25 for Waveforms. • See page 59 for IC Pin Function Description Q118 C144 R178 D104 R180 Q119 R179 Q120 R181 R183 R182 R184 D102 Q121 Q122 D101 C145 Q123 R196 R186 R197 CN101 R104 R107 R120 R121 R129 R130 R131 R128 R115 CN201 JR228 C228 C226 R226 R224 C201 IC403 R222 R221 R220 R210 R205 R207 R209 R212 C204 C203 C202 R202 R204 R203 D213 Q213 R214 C213 C214 C215 C216 R216 D216 D215 D214 R215 D395 D396 D394 D393 CN105 D231 D232 R227 R225 C230 R231 R230 R482 R485 R385 D230 R497 R494 R495 R397 R394 R393 R392 R492 R395 C498 C499 C496 R493 4.7k JR487 R489 R490 R491 R483 R484 JR381 JR480 C462 C464 R341 R340 R338 R337 X402 R306 C414 C416 R329 R330 R450 R431 R432 R433 R435 R436 R437 R438 R439 R440 R441 R442 R443 R444 R445 R446 R447 R448 R449 R430 R429 R428 R427 R426 R425 R424 R423 R422 R421 R420 R419 R407 R405 R404 R403 R402 R401 R406 JR318 R417 R413 R411 X401 C410 C411 C412 R412 R451 R452 R453 R454 R455 R456 R457 R458 R459 R460 R461 R463 R465 R355 R354 R472 R473 R474 R476 R477 R478 R479 R372 R373 R374 JW475 JW471 JR467 IC402 R309 JW135 2SB1132-T100-QR 0.0047 680 1SS355W 2.2k DTC114EKA 2.2k 2SB1132-T100-QR 680 3.3k 3.3k 3.3k 1SS355W DTC114EKA 2SB1132-T100-QR 1SS355W 0.0047 DTC114EKA 2.2k 2.2k 680 11P 47k 4.7k 4.7k 3.3k 4.7k 47k 3.3k 22k 10k 25P 0 100p 100p 100 100 100p BH2210FV 100 100 100 100 100 100 100 100 100p 100p 0.01 100 100 100 1SS355W DTC124EKA RESET SWITCH 0 0.1 0.1 10 50V 0.1 220 1SS355W 1SS355W 1SS355W 1k 1SS355W 1SS355W 1SS355W 1SS355W 19P 1SS355W 1SS355W 0 33k 2.2 50V 47k 100 100 100 10k 1SS355W 220 220 220 3.3k 3.3k 150 1k 4.7k 3.3k 0.1 0.1 10 50V 0 100 100 100 100 100 0 0 100 10V 0.1 10k 10k 10k 10k 5MHz 4.7k 0.1 3300 6.3V 10k 10k 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 1k 100 100 100 100 100 100 100 100 0 10k 0 330k 32.768kHz 22p 18p 0.1 100k 100 100 100 100 100 180 100 100 100 100 100 100 100 10k 10k 100 100 100 100 100 100 100 10k 10k 10k 0 0 0 IC PST3629NR 10k D E F G VACSIN EVER+4V VP DBFB FEEDBACK GND D+4V FAN DET BD MGND M+9V D+3.3V EVER+3.3V FL+4V GND 31 32 33 35 36 37 38 39 40 4 I/O 19 I/O 18 I/O 17 90 63 89 91 90 89 97 95 94 I/O 18 I/O 19 I/O 17 91 I/O 9 I/O 10 I/O 12 I/O 12 I/O 10 I/O 9 65 I/O 21 I/O 20 I/O 7 I/O 5 100 I/O 22 I/O 24 83 84 34 74 60 59 55 54 51 50 94 95 97 4 73 53 85 63 86 65 61 76 77 78 79 72 12 20 72 79 78 77 76 42 43 44 45 46 47 48 49 41 34D 82 3 1 2 28 27 26 25 24 19 20 12 9 7 5 21 22 23 29 30 59 60 73 74 61 50 51 53 54 55 LEVEL DETECT DRIVE DRIVE DRIVE B TRIG A TRIG CAP MOTOR Q118,119 Q120,121 Q122,123 BOARD (Page 40) (Page 47) SMASTER CN500 PANEL CN1402 IC401 IC402 IC403 BOARD(1/2) SYSTEM CONTROL BOARD MAIN (1/3) (Page 36) (3/3) MAIN BOARD (Page 38) SIGNAL IN/OUT CONTROL IC401 M30622MGP-A54FPU0 R500 100 1K -12 -13 Q157 R501 R399 R398 2SC2712 Q156 2SC2712 4.7k 100k 220k C497 1 50V Q156, 157 MAIN ON/OFF DELAY -13 Ver. 1.2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX660 38 38 HCD-GNX660 7-13. SCHEMATIC DIAGRAM – MAIN BOARD (3/3)– CN111 CN121 FB101 FB103 C106 C156 FB153 FB152 CN131 FB104 C123 C173 Q166 R124 R174 Q110 Q106 FB151 Q154 Q155 R173 R172 Q107 R140 R141 R142 Q111 Q105 Q104 R164 L104 C174 R177 C175 C199 C178 R590 R592 Q175 R584 R585 R586 R587 Q125 R127 C200 C176 C124 L103 R175 R593 C179 R591 C125 C126 R125 R114 R126 R176 R147 Q113 L105 100uH Q112 R148 R149 Q114 R146 C140 C142 R145 C141 R144 T101 R143 C138 C139 R113 C301 C302 R302 R303 R301 Q302 Q301 R305 R308 C304 C303 R304 Q303 Q304 C308 C307 R311 R312 R310 Q308 Q307 R123 R122 Q108 Q109 R112 C130 Q103 R138 C101 C103 R189 C104 R117 R195 C195 R150 C147 C148 R108 C110 R116 C111 C109 R118 C107 C108 C113 Q101 R105 R106 C115 C114 R119 C116 C194 C188 C187 R194 C193 R193 C192 C191 C190 C189 R192 R191 C166 R169 R156 C164 C165 C133 R133 R155 Q151 IC101 C163 C160 R158 C198 R167 C158 C159 C161 R168 C157 C105 C186 R190 C177 C150 R200 C197 R188 Q153 R163 C180 C137 C151 C172 R161 R162 R199 R198 R165 R159 C169 C136 C119 C134 C135 R101 C120 R102 R103 C121 C122 R111 R110 C585 C132 C184 C185 R160 R153 R152 C170 R151 C171 C154 R139 C153 FB102 R166 3P 3P 0uH 0uH 680p 680p 0uH 0uH 8P 0uH 220p 220p 2SC3661 MUTING 2.2k 2.2k DTA114EKA MUTING SWITCH 2SC3661 MUTING 0uH 2SC3661 SWITCH 2SC3661 SWITCH 2.2k 2.2k 2SA812 SWITCH DRIVE 10k 10k 10k DTC114EKA SWITCHI DRIVE 2SC3661 SWITCH 2SC3661 SWITCH 0 27mH 120p 5.6k 330p 0.0022 0.01 10k 100k 2SC3661 REC MUTING 5.6k 47k 5.6k 47k 2SC3661 REC MUTING 5.6k 0.0022 0.001 120p 27mH 27k 100k 0.01 10k 330p 0.001 27k 0 4.7k 4.7k 33 RT1P137P-TP-1 SWITCH 2SD596T1 BIAS OSC 47k 4.7k DTC114EKA SWITCH 10 47 35V 0.0068 10k 0.01 47 3.3k 0.0047 0.01 10k 2.2 50V 2.2 50V 22k 100k 10k DTC114EKA DTA124EKA 68k 470k 2.2 50V 2.2 50V 15k DTA124EKA DTC114EKA 2.2 50V 2.2 50V 68k 470k 15k DTC114EKA DTA124EKA 2.2k 2.2k DTC114EKA SWITCH DRIVE DTC114EKA BUFFER 10k 0.0056 2SC3661 MUTING 47k 10 50V 10 50V 0 10 50V 2.2k 1M 1 50V 47k 0.0047 2.2 50V 2.2k 10 50V 10k 0.033 0.027 15k 0.1 0.027 10 50V 2SC2412 SWITCH 47k 5.6k R109 18k R157 18k 0.56 0.68 470 4.7 50V 10 50V 0.1 100 10V 4.7k 0.18 4.7k 1 50V 0.18 220p 220p 470 470 4.7 50V 470 5.6k 0.68 0.56 1 50V 1M 47k 2SC2412 SWITCH M61537FP-RFOG 10 50V 10 50V 2.2k 2.2 50V 2.2k 0.027 0.027 0.033 15k 0.1 10 50V 0.068 10k 0.47 10 50V 47k 0.0047 47k 2SC3661 MUTING 10k 0.0056 470 16V 10 50V 10 50V 1k 10k 0 0 0 0 10 50V 100 16V 10 50V 100p 100p 180 0.01 C118 470p 2.2k 10k 1 50V 10 50V 1k 330k 0.1 100 16V 100p 100p 330k 10k 2.2k 0.01 C168 470p 180 1 50V 10 50V 0 10 50V 0uH 10k A+4.5V D A B GND FRONT-L FRONT-R AUDIO+9V VACSIN VP DBFB FEEDBACK VRSW CD MUTE GND TC-L ST-R MIC ST-L I/O 21 I/O 7 TV/SAT-R TV/SAT-L I/O 5 34D L+R_LIGHTING 83 84 TC-R I/O 20 TC-L TC-R CD-L CD-R (FOR CHECK) IC101 Q301,302 Q303,304 Q307,308 CD MUTING TC MUTING TC REC MUTING INPUT SELECT SWITCH, PB/REC EQUALIZER AMP, GRAPHIC EQUALIZER CONTROL, ELECTRICAL VOLUME BOARD MAIN (1/3) (2/3) MAIN BOARD (Page 37) (Page 36) C162 0.0047 0.0068 C112 0.0047 0.0068 -12 -13 -12 -13 • See page 25 for Waveforms. Ver. 1.2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX660 39 39 HCD-GNX660 IC1300 C1319 C1318 C1317 C1320 C1321 C1322 C1323 C1324 C1325 C1326 C1327 C1328 C1329 C1330 C1331 R1347 C1316 C1302 Q1313 Q1316 Q1314 Q1312 Q1311 Q1315 R1356 R1357 R1358 R1359 R1360 R1361 27 26 52 1 14 13 39 40 R1308 Q1307 Q1300 R1300 C1301 D1302 D1303 D1301 D1300 D1305 C1306 R1304 R1303 C1307 C1357 R1301 R1302 R1307 C1310 C1312 R1351 C1313 R1352 C1314 C1315 R1355 Q1306 Q1305 Q1310 Q1308 R1345 R1346 R1348 R1311 R1313 D1306 R1324 R1323 R1322 R1321 JR1305 R1320 R1319 R1318 R1317 R1332 R1331 R1330 R1328 R1327 R1326 R1325 R1314 D1314 Q1309 Q1303 Q1304 R1353 JW1320 JW1304 JW1305 JW1306 JW1307 JW1309 JW1310 JW1311 JW1312 JW1313 JW1314 JW1315 JW1316 JW1317 JW1318 JW1321 JW1323 JW1324 JW1328 JW1330 JW1331 JW1333 JW1334 JW1335 JW1336 JW1337 JW1338 JW1339 JW1340 JW1341 JW1351 JW1355 JW1356 JW1372 JW1376 JW1377 JW1381 FL1300 JW1391 JW1392 JW1393 JW1394 JW1395 CN1453 S1301 S1323 S1322 S1309 S1307 S1321 S1320 S1300 S1327 S1326 S1325 S1316 S1315 S1314 S1313 S1312 S1311 S1310 S1317 S1324 CN1402 T1300 C1305 C1311 1 S1302 CN1452 C1300 L1300 C1304 R1305 D1304 D1313 JW1303 JW1369 JW1343 JW1354 JW1364 JW1365 JW1357 JW1359 JW1360 JW1390 JW1319 JW1322 JW1342 JW1352 JW1344 JW1308 JW1371 JW1302 JW1329 JW1345 JW1346 JW1347 JW1348 JW1349 JW1350 JW1353 JW1358 JW1361 JW1362 JW1363 JW1366 JW1367 JW1368 JW1370 JW1378 JW1379 JW1380 JW1382 JW1383 JW1384 JW1301 JW1300 C1309 JW1374 JW1375 JW1386 JW1388 JW1387 C1308 R1306 CN1403 IC1301 11 (11) 1-868-934- 11 (12) 1-868-830- BOARD IR BOARD PANEL 1 3 1 3 x B X ALBUM + M ALBUM - M DISC 2 DISC 2 DISC 3 CD SYNC REC PAUSE START DISC SKIP EX-CHANGE FLUORESCENT INDICATOR TUBE Z OPEN/CLOSE DISPLAY ILLUMINATION/ SUB WOOFER LEVEL DIRECTION/ KARAOKE TUNER/ BAND TAPE A/B SUB WOOFER ON/OFF CD TV E E E E E E E E E E E E E C C B B F MAIN BOARD CN201 (Page 35) I VOL BOARD NO1402 (Page 41) 1 1 2 3 3 5 2 3 4 5 6 7 8 9 10 A 1 B C D E F 7-14. PRINTED WIRING BOARDS – PANEL SECTION – • See page 25 for Circuit Boards Location. : Uses unleaded solder. Ref. No. Location D1300 D-7 D1301 D-7 D1302 D-7 D1303 D-7 D1304 A-10 D1305 D-7 D1306 B-10 D1313 B-10 D1314 B-4 IC1300 B-5 IC1301 E-7 Q1300 C-8 Q1303 C-5 Q1304 C-6 Q1305 C-6 Q1306 C-6 Q1307 D-6 Q1308 C-5 Q1309 B-10 Q1310 C-5 Q1311 B-8 Q1312 B-7 Q1313 B-7 Q1314 B-7 Q1315 B-6 Q1316 A-6 • Semiconductor Location Ver. 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX660 40 40 HCD-GNX660 7-15. SCHEMATIC DIAGRAM – PANEL SECTION – Q1307 Q1306 Q1305 CN1452 R1311 S1302 CN1402 R1306 C1308 CN1403 CN1453 C1309 R1314 D1306 D1313 R1313 Q1309 Q1300(2/2) Q1300(1/2) C1300 R1300 C1301 L1300 47uH T1300 C1302 C1304 D1305 C1306 R1305 R1304 R1303 R1302 R1301 D1300 D1301 D1302 D1303 FL1300 IC1300 Q1316 R1361 R1307 C1305 D1314 C1311 C1310 C1312 C1315 JW1322 JW1300 R1353 R1355 C1314 C1313 R1351 R1352 D1304 R1308 S1301 S1300 Q1310 R1346 Q1308 R1347 R1348 R1345 Q1304 Q1303 R1328 R1327 R1326 R1325 S1317 S1325 S1326 S1327 S1324 S1320 S1321 R1332 R1331 S1322 S1323 R1330 Q1311 Q1312 Q1313 Q1314 Q1315 R1317 R1318 R1319 R1320 R1321 R1322 R1323 R1324 S1316 S1315 S1314 S1313 S1312 S1311 S1310 S1309 S1307 R1356 R1357 R1358 R1359 R1360 IC1301 C1307 C1357 C1331 C1330 C1329 C1328 C1327 C1326 C1325 C1324 C1322 C1323 C1321 C1320 C1319 C1318 C1317 C1316 DTC123JKA-T146 LED DRIVER DTC123JKA-T146 LED DRIVER DTC123JKA-T146 LED DRIVER 11P 2.2k 25P 47 0.001 3P 3P 47 16V 0 1SS355WTE-17 SELU5420E-STP15 270 DTC123JKA-T146 LED DRIVER CPH5504 OSC CPH5504 OSC 22 50V 3.3k 0.022 (DC/DC CONVERTER) 0.01 220 50V RD6.2FM 0.01 2.2k 1W 100 100 22k 22k 1SS355WTE-17 1SS355WTE-17 1SS355WTE-17 1SS355WTE-17 NJU3427FA2 DTC143TKA FL DRIVER 4.7k 4.7k 10 50V 1SS355WTE-17 10 16V 100p 0.001 0.001 100 100 0.001 0.001 100 100 SELU5223C-STP15 1k DTC114EKA LED CONTROL 1k DTC114EKA LED DRIVER 470 JR1305 0 1k 100 2SB1132-P LED DRIVER 2SB1132-P LED DRIVER 1k 680 470 330 680 470 330 DTC143TKA FL DRIVER DTC143TKA FL DRIVER DTC143TKA FL DRIVER DTC143TKA FL DRIVER DTC143TKA FL DRIVER 10k 4.7k 2.2k 1.5k 1k 680 470 330 4.7k 4.7k 4.7k 4.7k 4.7k RPM7240-H9 0.1 0.1 100p 100p 100p 100p 100p 100p 100p 100p 100p 100p 100p 100p 100p 100p 100p 100p LED1 LED2 38 37 36 35 34 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 13 12 11 10 24 33 14 48 47 46 43 42 41 45 44 40 39 10 11 12 13 14 15 19 20 21 22 23 25 26 27 28 29 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 16 17 18 IC1301 IC1300 FLUORESCENT TUBE DISPLAY 1 2 3 4 5 SUB WOOFER ON/OFF I/ I/ OPEN/CLOSE ILLUMINATION/ SUB WOOFER LEVEL EX-CHANGE DISC SKIP SUB WOOFER ON/OFF MAIN (Page 37) BOARD (Page 42) VOL NO1402 CN201 RECEIVER REMOTE CONTROL DISPLAY CONTROL BOARD(2/3) DIRECTION/ KARAOKE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX660 41 41 HCD-GNX660 7-16. PRINTED WIRING BOARDS – MIC, VOL and SPEAKER BOARDS – • See page 25 for Circuit Boards Location. : Uses unleaded solder. • Semiconductor Location Ref. No. Location D1307 G-3 D1308 F-4 D1309 E-3 D1310 G-2 D1311 F-2 D1312 E-2 D1400 B-6 IC1400 C-4 IC1401 C-5 Q1400 C-8 Q1401 C-8 Q1450 C-8 Q1451 C-8 L R C1602 C1612 C1502 C1512 C1522 C1532 IC1400 C1468 R1441 R1461 R1426 C1411 C1461 R1410 R1460 R1409 R1459 R1411 C1418 R1427 R1476 JR1417 IC1401 R1425 R1438 C1413 R1412 R1413 C1419 R1414 R1415 R1402 R1403 R1404 R1405 R1406 C1412 C1400 C1433 R1401 C1403 C1405 R1439 R1440 R1431 JR1427 R1437 D1400 C1415 R1422 C1424 C1401 R1417 R1416 R1418 R1407 R1457 R1477 R1432 C1436 C1437 JR1433 R1492 R1493 Q1450 Q1400 Q1401 R1442 R1435 R1443 R1436 R1433 R1434 JR1403 R1482 C1486 JR1483 C1487 R1485 R1486 Q1451 R1483 R1484 JW1430 C1427 R1424 TM1500 JW1610 EP1501 EP1500 JW1520 JW1500 JW1510 JW1600 JW1521 CN1500 CN1600 JW1530 C1479 JW1402 JW1404 JW1405 JW1407 JW1408 JW1410 JW1411 JW1414 JW1415 JW1416 JW1418 JW1419 JW1420 JW1421 JW1413 JW1409 PL1400 PL1402 JW1437 C1460 C1410 C1459 C1458 C1408 C1409 C1407 C1406 C1429 C1430 C1416 RV1401 RV1402 RV1400 J1450 EPT1403 J1401 J1400 C1434 C1404 EPT1400 EPT1402 JW1423 JW1424 NO1404 JW1438 JW1439 JW1440 NO1401 JW1417 JW1429 JW1400 JW1425 JW1432 JW1412 PL1500 PL1700 JW1401 JW1403 LP1701 R1329 R1333 R1334 R1335 R1336 R1337 C1334 JR1301 R1374 R1375 R1376 R1371 R1372 R1373 R1368 R1369 R1370 R1362 R1363 R1365 R1366 R1367 R1364 JR1300 JR1302 R1377 R1378 R1379 S1318 S1306 D1309 (LED 3) D1312 (LED 4) D1307 (LED 1) D1310 (LED 6) D1308 (LED 2) D1311 (LED 5) S1328 S1319 S1331 NO1402 PL1300 JW1389 JW1396 JW1397 JW1398 JW1399 JW1427 S1305 JW1431 MIC 1 MIC 2 MIC 1 LEVEL MIC 2 LEVEL ECHO LEVEL PHONES FRONT SPEAKER SUB WOOFER MP3 BOOSTER GROOVE EQ BAND/MEMORY PRESET EQ MASTER VOLUME OPERATION DIAL > > I PANEL BOARD CN1452 (Page 39) M SMASTER BOARD NO680 (Page 45) L SMASTER BOARD NO580 (Page 45) J SMASTER BOARD CN503 (Page 45) B MAIN BOARD CN205 (Page 35) 1 11 1 3 1 5 BOARD SPEAKER BOARD VOL BOARD MIC 11 (12) 1-868-831- 11 (12) 1-868-832- 11 (12) 1-869-011- E E E E 1 2 1 15 16 30 11 (13) 11 (13) 11 (13) – + – – + + 2 3 4 5 6 7 8 9 10 11 A 1 B C D E F G C1438 C1435 -13 C1401 C1432 -13 -12 Ver. 1.2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX660 42 42 HCD-GNX660 7-17. SCHEMATIC DIAGRAM – MIC, VOL and SPEAKER BOARDS – • See page 53 for IC Block Diagrams. R1333 J1401 C1424 R1422 EPT1403 EPT1400 EPT1402 C1415 C1401 JR1433 R1436 C1437 C1487 R1486 JR1483 R1484 R1443 JR1401 R1493 R1482 R1483 R1485 C1486 R1492 R1442 R1432 R1433 C1436 R1435 R1434 NO1404 R1441 R1437 R1439 R1440 C1418 R1426 R1427 R1425 R1424 C1435 R1431 R1438 C1429 JW1400 R1477 C1468 R1476 R1406 R1405 IC1400 R1457 C1459 C1460 R1410 C1411 R1409 R1411 R1461 R1459 C1461 J1450 J1400 R1407 C1409 C1410 R1460 C1408 C1406 C1407 RV1402 R1418 R1417 RV1400 JR1417 R1404 R1402 R1401 C1403 R1403 RV1401 R1416 C1405 D1400 C1404 C1412 C1400 C1458 R1414 R1415 R1413 R1412 C1413 C1419 JR1427 C1427 JW1500 JW1510 JW1520 JW1530 EP1500 EP1501 JW1610 JW1600 C1602 C1612 C1502 C1532 C1522 C1512 CN1600 CN1500 D1312 D1311 D1310 D1309 D1308 D1307 JR1301 JR1302 R1334 S1319 S1306 R1335 R1336 R1337 C1334 PL1300 R1329 NO1402 R1362 R1363 R1364 R1365 R1366 R1367 R1368 R1369 R1371 R1372 R1373 R1376 R1375 R1374 R1377 R1378 R1379 R1370 S1305 C1479 IC1401(2/2) C1416 IC1401(1/2) Q1451 Q1401 Q1400 Q1450 C1434 C1430 S1331 S1318 S1328 TM1500 C1433 1k 0.1 0 0.1 0.1 0 4.7k 0.01 0.01 4.7k 0 10 1k 0 1k 10 10 10 0.0047 1k 1k 10 10 0.0047 10 10 3P 0 NO1401 5P 100k 2.2k 2.7k 390p 56k 22k 10k 10K 220 10V 0 0 0.1 50V 15k 0.001 22k 330 330 TC9488FG 1.5k 1 50V 1 50V 1k 0.01 10k 10k 10k 10k 0.01 1.5k 1 50V 1 50V 1k 4.7 50V 47 16V 47 16V 50k 1k 5.6k 50k 0 100 100 4.7k 68p 100 50k 5.6k 0.01 UDZSTE-175.1B 47 35V 0.1 0.1 4.7 50V 12k 15k 6.8k 0.5% 3.9k 0.0012 0.0047 0 1 1000p 1000p 1000p 1000p 1000p 1000p 2P 4P SELU5223C-STP15 SELU5223C-STP15 SELU5223C-STP15 SELU5223C-STP15 SELU5223C-STP15 SELU5223C-STP15 0 0 1.5k 2.2k 4.7k 10k 0.1 1.5k 11P 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 4.7 50V NJM4565M-D 22 50V NJM4565M-D 2SC3661 MUTING 2SC3661 MUTING 2SC3661 MUTING 2SC3661 MUTING 10 50V 0.1 50V 47p IC1400 IC1401 R L SUB WOOFER FRONT SPEAKER MASTER VOLUME LEVEL LEVEL LEVEL MIC 1 MIC 2 ECHO (Page 47) (Page 48) (Page 48) BOARD (Page 40) PANEL CN1452 SMASTER SMASTER NO580 SMASTER CN503 MIC AMP DIGITAL ECHO BOARD(2/2) BOARD(2/2) BOARD(1/2) NO680 MAIN (Page 36) CN205 BOARD(1/3) C1438 0.1 C1432 0.1 -13 -13 Ver. 1.2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX660 43 43 HCD-GNX660 7-18. PRINTED WIRING BOARD – ADC BOARD – • See page 25 for Circuit Boards Location. : Uses unleaded solder. C32 C81 C25 C64 C66 R67 R59 R64 C93 R58 D61 JR21 R57 C61 D51 D52 C90 C91 C56 C58 C50 D11 D12 C42 C41 C40 D13 D14 (SIDE A) BOARD ADC (SIDE B) BOARD ADC 11 (11) 1-868-834- 11 (11) 1-868-834- D MAIN BOARD CN381 (Page 35) H SMASTER BOARD CN501 (Page 45) 1 10 IC12 R63 C68 R65 R60 IC11 R52 R53 R25 R29 R27 R31 R36 R41 C29 C23 R50 C54 R55 JR51 JR52 R38 R40 C26 C28 FL01 FL02 IC01 IC02 IC03 L0 1 1 1 3 3 L02 L03 X001 EP02 C62 C70 C65 C67 C63 NO05 CN01 C59 C51 C53 C55 C20 C57 C60 C24 C22 C27 EP01 LP01 2 3 4 5 A 1 B C D Ref. No. Location D11 A-2 D12 A-2 D13 A-1 D14 A-1 D51 B-3 D52 B-2 D61 B-4 IC01 C-2 IC02 D-1 IC03 D-2 IC11 D-2 IC12 D-4 • Semiconductor Location Ver. 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX660 44 44 HCD-GNX660 7-19. SCHEMATIC DIAGRAM – ADC BOARD – FL01 L02 10uH C26 C27 JR52 R36 EP1 C25 D13 D14 C40 C23 L01 1uH C24 IC02 uPC2933T-E2 C22 C20 IC01 uPC2905T-E1 CN01 R25 R29 R27 R31 FL02 L03 10uH R60 C62 C61 IC12 R65 C67 C68 D61 C93 C70 R63 R57 R58 R67 NO05 C42 D11 D12 R64 R50 C50 C51 JR51 IC11 C90 C29 X001 R41 R40 C28 R38 C91 R52 C59 R53 C60 R55 C54 C53 D51 D52 C81 C32 EP02 C63 C64 C65 C66 C55 C56 C57 C58 JR21 C41 R59 IC03 0uH 0.1 4.7 50V 56 0 0.01 1SS355TE-17 1SS355TE-17 0.1 0.1 100 10V 100 10V 0.1 50V 17P 2.2k 2.2k 100k 100k 0uH 0 10 50V 0.1 PCM1803DBR 0 100 10V 0.1 1SS355TE-17 1000p 1 50V 100 0 0 0 10P 0.1 1SS355TE-17 1SS355TE-17 0 0 0.1 10 50V 56 PCM1803DBR 0.001 10p 12.288MHz 1M 1k 10p 0 0.001 100 1 50V 100 1 50V 0 0.1 100 10V 1SS355TE-17 1SS355TE-17 0.01 0.01 10 50V 0.1 10 50V 0.1 10 50V 0.1 10 50V 0.1 0 0.1 0 TC7WU04F (TE12R) IC11 IC12 IC03 IC02 IC01 MAIN (Page 36) (Page 47) CN501 CN381 A/D CONVERTER A/D CONVERTER CLOCK GENERATOR +3.3V REG +5V REG SMASTER BOARD(1/2) BOARD(1/3) • See page 55 for IC Block Diagrams. Ver. 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX660 45 45 HCD-GNX660 7-20. PRINTED WIRING BOARD – SMASTER BOARD (SIDE A) – • See page 25 for Circuit Boards Location. : Uses unleaded solder. D553 D554 D533 D534 D653 D654 C804 C803 C881 L802 R811 C811 C871 IC810 D880 D881 R568 C591 C548 D820 R820 R821 R822 D890 R858 R851 R859 R852 R850 R855 R856 R857 R823 D891 C876 R868 C840 Q840 R865 R866 R867 R860 R861 R862 R840 R841 R892 FB881 C872 D883 D882 R884 C891 R894 C892 R895 R886 C889 D896 D895 C879 L801 C802 C506 R512 R502 C504 R550 C567 R562 C555 C551 C568 C556 R510 C592 R591 C606 C607 C610 C611 C608 C612 R612 R602 C604 R567 R569 C593 R548 C585 C668 R530 C547 R542 C535 C531 C536 C587 R583 R547 R549 C586 R668 C691 R650 C667 R662 C655 C651 C656 C692 NO680 R691 R667 R669 C693 C507 C510 C511 C508 C512 (SIDE A) BOARD SMASTER L SPEAKER BOARD CN1500 (Page 41) M SPEAKER BOARD CN1600 (Page 41) C MAIN BOARD CN105 (Page 35) H ADC BOARD NO05 (Page 43) J MIC BOARD NO1404 (Page 41) 1 1 2 4 1 1 3 10 K POWER BOARD CN1101 (Page 51) E EP884 C830 C886 EP882 C810 C805 EP880 C609 CN501 C694 C669 C690 C658 C665 L691 L690 C653 CN500 CN503 C509 C883 C887 C533 C565 C538 C545 L590 C590 C584 L581 L580 C580 C549 NO580 C569 EP885 C594 L591 C558 EP886 C890 EP881 C888 C800 C553 1 3 4 5 11 (21) 11 (13) 11 (12) 1-868-959- 2 3 4 5 6 7 8 A 1 B C D E F EP886 C890 EP881 -13, -21 -12 -13, -21 -12 EP885 EP880 -13, -21 -12 CN502 NO502 -13, -21 -12 • Semiconductor Location Ver. 1.2 Ref. No. Location D533 D-2 D534 D-3 D553 D-1 D554 D-2 D653 D-4 D654 D-4 D820 B-1 D880 E-8 D881 E-8 D882 E-1 D883 E-1 D890 B-1 D891 B-1 D895 D-1 D896 D-1 IC810 E-8 Q840 B-6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX660 46 46 HCD-GNX660 7-21. PRINTED WIRING BOARD – SMASTER BOARD (SIDE B) – • See page 25 for Circuit Boards Location. : Uses unleaded solder. • Semiconductor Location D555 D556 C576 C577 C574 C575 C676 C677 D535 D536 D655 D656 R509 C582 R558 C520 D892 D893 C878 FL810 C806 R609 LP800 FB800 Q856 Q855 C850 Q866 Q850 Q851 C855 Q865 C865 R804 R806 D884 R891 R889 R890 R887 R888 R881 R893 R885 R883 R882 C885 C882 C880 R880 R805 D885 C873 IC880 FB801 FL800 L800 C801 R807 R801 R800 X800 R802 IC800 C695 C696 R693 R610 R623 R624 R615 R551 R553 R552 IC500 R526 R521 R520 R519 R517 R516 R500 R511 R503 R505 R506 R507 R501 C513 C505 R529 IC550 R561 C526 R555 R557 C523 C552 C554 C564 R515 R524 R523 R593 C597 C581 C595 C583 R581 IC600 R621 R620 R619 R617 R616 R600 R603 R605 R606 R607 R601 C613 C605 C884 C521 C596 C557 C527 C522 C529 R560 C524 R531 R533 R532 IC530 R541 C626 R535 R559 C578 C532 C534 C544 C525 C537 C579 C528 R658 C620 R651 R653 R652 IC650 R661 R655 R657 C623 C652 C654 C664 C621 C657 C622 C629 C697 D888 D889 C877 IC802 FL801 C809 R809 LP801 (SIDE B) BOARD SMASTER 1 3 4 5 E E E E E E 1 3 4 5 11 (21) 11 (13) 11 (12) 1-868-959- 2 3 4 5 6 7 8 A 1 B C D E -13, -21 -12 -13, -21 -12 Ver. 1.2 Ref. No. Location D535 C-7 D536 C-6 D555 C-8 D556 C-7 D655 C-5 D656 C-4 D884 D-1 D885 D-1 D888 A-1 D889 A-1 D892 E-5 D893 E-5 IC500 E-7 IC530 D-6 IC550 D-7 IC600 E-5 IC650 D-5 IC800 E-7 IC802 E-3 IC880 E-8 Q850 A-6 Q851 A-6 Q855 A-6 Q856 A-6 Q865 A-6 Q866 A-5 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX660 47 47 HCD-GNX660 7-22. SCHEMATIC DIAGRAM – SMASTER BOARD (1/2) – • See page 55 for IC Block Diagrams. IC500 IC802 R809 C809 FL801 L802 C604 R609 C605 R602 R603 R601 R600 C613 R612 C612 R615 C887 R891 C885 R890 R889 C884 R887 R888 IC880 R885 C882 C889 C888 R882 R883 C880 R880 R894 R895 R884 C881 C892 C891 C890 R893 R881 FL800 L800 FB800 R510 R511 C507 C506 C508 C800 C801 IC800 R800 R801 X800 L801 1uH C803 C804 C802 R802 FB801 C509 C510 C511 R523 R524 R526 R529 EP881 C872 D882 D883 R892 R886 FB881 C883 FL810 C811 IC810 C810 R502 R503 C504 C505 R501 R500 R505 R506 R507 R509 R512 C606 C607 C608 R610 C609 C610 C611 R623 R624 R616 R617 R619 R620 R621 R607 R606 R605 IC600 CN501 CN500 CN503 R804 R805 R806 R807 C512 C513 R515 R516 R517 R519 R520 R521 D893 D892 C878 R811 C806 C805 CXD9843AR MC74VHC1GU04DFT1 56 0.1 0uH 0 0.1 0 0.1 10k 100 0 0 0.1 10k 0.1 56 470 10V 33k 100p 22k 22k 100p 22k 22k NJM4580V 33k 100p 0.1 100 16V 22k 22k 100p 22k 2.2k 22k 22k 100p 100p 0.1 100 16V 2.7k 22k 0uH 0 0 0 0 0.1 0.1 0.1 22 25V 0.01 MC74VHC1GU04DFT1 1M 100 49.152MHz 0.001 10p 5p 56 0 100 10V 0.1 0.1 0 0 0 0 0 0 0 0 0 0 470 10V 0uH 0.01 NJM2870F18 100 10V 10k 100 0.1 0.1 0 0 470 470 470 0 10k 0.1 0.1 0.1 0 100 10V 0.1 0.1 0 0 100 100 1k 1k 1k 470 470 470 CXD9843AR 10P 19P 3P 0 0 0 0 0.1 0.1 56 100 100 1k 1k 1k 1SS355TE 1SS355TE 0.1 100k 0.01 100 10V INIT INIT OVF OVF SCSHIFT SCSHIFT SCDT SCDT SOFTMUTE SOFTMUTE NSPMUTE NSPMUTE SCLATCH_2 LRCK_2 BCK_2 DATA_2 SCLATCH_1 LRCK_1 BCK_1 DATA_1 6 8 9 1 2 3 4 5 7 BUS1 NSPMUTE SOFTMUTE SCDT SCSHIFT OVF INIT NSPMUTE SOFTMUTE SCDT SCSHIFT OVF INIT DBFB F/B SCLATCH_2 DATA_2 SCLATCH_1 LRCK_1 BCK_1 DATA_1 OVF(SW) XFSIIN XFSIIN XFSIIN LRCK_1 BCK_1 NSPMUTE SOFTMUTE INIT /OTW /SD /RST OVF SCLATCH_1 SCSHIFT SCDT DBFB F/B FAN DET SCLATCH_2 OVF(SW) DATA_2 LRCK_1 BCK_1 DATA_1 IC802 IC600 IC500 IC880 IC810 IC800 BOARD (Page 44) MAIN (Page 37) BOARD (Page 42) ADC NO05 CN105 MIC NO1404 (2/2) BOARD SMASTER (Page48) PROCESSOR PROCESSOR HP AMP +1.8V REG INVERTER OSC BOARD(2/3) STREAM STREAM EP880 EP882 EP884 C871 D880 D881 C873 D884 D885 C877 D888 D889 0 0 0 0 0 0 0 0 0 -12 -13 -21 -12 -13 -21 -13 -21 -13 -21 Ver. 1.2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX660 48 48 HCD-GNX660 7-23. SCHEMATIC DIAGRAM – SMASTER BOARD (2/2) – C879 D895 D896 EP886 Q866 Q865 L690 10uH C690 L691 10uH C669 C668 D553 D555 D556 D554 D533 D535 D534 D536 D653 D655 D654 D656 C840 R841 R840 C623 C622 R658 R668 C667 C677 C665 C676 C658 R657 C621 C620 R667 C656 C578 C579 R560 C547 IC530 R548 C575 C545 C548 C549 C538 C574 C537 R559 C525 C524 C536 R547 C567 R568 IC550 C523 C522 R558 C565 C577 C568 C569 C558 C576 C557 R557 C521 C520 R567 C556 R820 R821 D820 C886 R822 R823 L591 10uH C594 L590 10uH C590 EP885 C876 D890 D891 C591 C593 C592 R591 R593 C596 C597 C595 NO580 R859 R858 NC680 R868 R855 R857 R856 C855 Q855 Q856 Q851 Q850 C850 R851 R850 R852 C582 C583 R581 R583 C586 C587 C581 C585 C580 C584 L580 10uH L581 10uH C830 C865 R867 R866 R865 C692 C693 R691 R693 C696 C697 C695 C691 C694 IC650 C651 C629 R655 R669 C626 C652 C655 R661 C531 C528 R549 C527 C532 R541 R535 C551 C529 C526 C552 R555 R569 R561 C555 R553 R552 R551 C535 R533 R532 R531 R653 R652 R651 C657 C664 C544 C564 C653 C654 C533 C534 C553 C554 Q840 0 0 0 2SA1602 DC DETECT 2SA1602 DC DETECT 1 2200 63V 0.1 P6SMB62AT3 EC10UA20 EC10UA20 P6SMB62AT3 P6SMB62AT3 EC10UA20 P6SMB62AT3 EC10UA20 P6SMB62AT3 EC10UA20 P6SMB62AT3 EC10UA20 2.2 16V 0 100k 0.001 0.001 4.7 1.5 0.033 1 120 63V 1 120 63V 4.7 0.001 0.001 1.5 0.033 0.001 0.001 4.7 0.033 CXD9879M 1.5 1 120 63V 0.1 2200 63V 120 63V 1 0.1 4.7 0.001 0.001 0.033 1.5 0.033 1.5 CXD9879M 0.001 0.001 4.7 120 63V 1 0.1 100V 2200 63V 120 63V 1 0.1 4.7 0.001 0.001 1.5 0.033 22k 1.5k 1SS355TE-17 470 16V 22k 22k 1 63V 1 63V 0 0 0 0.22 0.0022 0.0022 2.7 2.7 0.0022 0.0022 0.22 4P 47k 47k 2P 47k 100k 100k 100k 10 2SA1602 DC DETECT 2SA1602 DC DETECT 2SA1602 DC DETECT 2SA1602 DC DETECT 10 100k 100k 100k 0.0022 0.0022 2.7 2.7 0.0022 0.0022 0.22 0.22 1 1 10 50V 10 100k 100k 100k 0.0022 0.0022 2.7 2.7 0.0022 0.0022 0.22 0.22 1 CXD9879M 0.1 0.01 33k 3.3 470p 0.1 0.1 10 0.1 0.01 3.3 470p 0.1 10 33k 0.1 0.01 470p 0.1 33k 3.3 10 0.1 100 100 100 0.1 100 100 100 100 100 100 0.1 0.1 0.1 0.1 22 25V 0.1 22 25V 0.1 22 25V 0.1 2SC1623 PROTECT DETECT BUS1 6 8 9 1 2 3 4 5 7 /OTW /SD /RST /SD FAN DET IC650 IC530 IC550 BOARD (Page 42) BOARD (Page 42) BOARD (Page 52) SPEAKER CN1600 SPEAKER CN1500 POWER CN1101 (Page 47) BOARD (1/2) SMASTER POWER DRIVER POWER DRIVER POWER DRIVER 16V C840 220 R650 10 0 R662 R530 10 0 10 0 R550 R542 10 0 10 0 NO502 6P CN502 6P -12 -13, -21 -12 -13, -21 -13, -21 -12 -12 -13, -21 R562 10 0 -13, -21 -12 -12 -13, -21 -12 -13, -21 -12 -13, -21 -12 -13, -21 -13, -21 -12 Ver. 1.2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX660 49 49 HCD-GNX660 IC1001 IC1002 IC1005 Q1007 IC1006 R1034 R1030 R1033 Q1005 Q1009 Q1002 Q1001 Q1006 Q1004 C1004 C1001 C1018 D1003 D1004 C1021 C1011 FB1001 C1014 R1004 L1002 L1001 C1005 C1015 C1027 R1005 R1006 R1031 C1007 R1012 R1013 R1029 C1003 R1022 R1023 R1021 R1017 R1011 R1018 R1019 R1020 R1015 R1003 C1022 C1019 C1006 Q1010 R1016 R1032 C1002 16 15 45 46 30 31 1 60 C1025 C1029 C1036 C1037 C1038 C1039 EP1001 JW1002 JW1003 JW1004 JW1005 JW1006 JW1007 JW1008 JW1009 JW1010 JW1011 JW1012 JW1013 JW1014 JW1015 JW1016 JW1017 JW1019 JW1020 JW1018 CN1003 X1002 Q1008 CN1001 IC1003 C1008 C1010 C1028 C1012 C1013 C1023 C1026 C1030 C1024 E E E E E E E E E 1 3 1 2 N MAIN BOARD NO560 (Page 35) BOARD CDG R MAIN BOARD CN321 (Page 35) 11 (11) 1-864-878- J1001 VIDEO OUT 1 6 3 4 1 5 9 13 14 18 22 26 2 3 4 5 6 7 A 1 B C D E 7-24. PRINTED WIRING BOARD – CDG BOARD – • See page 25 for Circuit Boards Location. : Uses unleaded solder. Ref. No. Location D1003 B-5 D1004 A-5 IC1001 C-5 IC1002 B-3 IC1003 C-2 IC1005 B-6 IC1006 D-3 Q1001 D-5 Q1002 D-5 Q1004 D-6 Q1005 C-7 Q1006 D-5 Q1007 A-3 Q1008 B-2 Q1009 C-6 Q1010 D-3 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX660 50 50 HCD-GNX660 7-25. SCHEMATIC DIAGRAM – CDG BOARD – C1021 R1020 X1002 C1018 C1019 R1017 C1015 C1003 R1016 R1013 C1007 R1029 C1022 R1011 C1023 R1005 C1004 C1013 C1025 C1024 R1030 C1010 L1001 C1008 CN1003 R1034 R1033 R1032 C1027 C1026 C1030 C1028 C1002 IC1003 IC1005 IC1002 C1001 C1011 R1003 R1004 R1021 R1022 R1023 L1002 R1019 R1018 IC1006 C1014 R1031 R1015 C1006 C1005 C1012 C1029 EP1001 IC1001 FB1001 Q1007 Q1008 Q1010 Q1001 Q1002 Q1006 Q1004 Q1005 Q1009 D1004 D1003 CN1001 R1012 R1006 J1001 0.001 C1037 220p C1036 220p C1038 220p C1039 220p 10k 14.31818MHz 22p 22p 10k 0.01 0.01 10k 820 0.01 100 22p 2.2k 1 50V 2.2k 0.01 100 10V 0.01 100 10V 22k 100 10V 0 1 50V 2P 4.7k 4.7k 10k 220p 470 6.3V 22 50V 100 10V 0.01 TA7805LS SN74AHCT04NSR MSM514400E-60TS-K 0.01 0.01 4.7k 2.2k 220 220 220 0 10k 10k NJM2575F1-TE2 0.01 75 0 0.01 0.01 47 35V 0.47 TC9411AFG 0 DTC114EKA-T146 +B SWITCH 2SB1116A-L +B SWITCH DTC114EKA-T146 BUFFER DTC114EKA-T146 BUFFER DTC114EKA-T146 BUFFER DTA114EKA-T146 BUFFER DTC114EKA-T146 BUFFER DTC114EKA-T146 BUFFER DTA114EKA-T146 BUFFER 1SS355TE-17 1SS355TE-17 13P 4.7k 4.7k WFCK SCOR EXCK CDG/_BGC CDG-DET _HALT-CLK CDG-POWER VMUTE EXCK WFCK SCOR MUTE_DATA _CDG-RST MUTE_DATA _HALT-CLK VMUTE CDG-DET _CDG-RST CDG/_BGC CDG-POWER VIDEO D/A DRAM +5V REG VIDEO BUFFER BUFFER R (1/3) N MAIN BOARD NO560 (Page 36) (1/3) MAIN BOARD CN321 (Page 36) • See page 53 for IC Block Diagrams. • See page 25 for Waveforms. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX660 51 51 HCD-GNX660 JR1108 JR1106 JR1107 R1228 R1227 R1226 R1225 C1207 C1206 R1209 R1210 Q1102 R1114 R1111 Q1101 R1142 Q1205 R1112 R1202 R1110 C1120 R1116 Q1100 C1203 C1122 C1130 C1131 R1121 R1122 R1117 R1126 R1127 R1140 D1120 R1145 C1140 R1144 R1230 R1224 R1229 R1232 R1233 R1234 R1123 R1124 R1130 R1146 Q1200 D1111 JR1101 R1217 R1135 R1220 R1136 C1214 R1221 R1218 R1216 R1215 R1131 R1132 R1133 R1139 R1219 R1223 D1208 Q1203 R1207 R1208 R1212 R1211 C1137 C1139 C1219 C1217 C1218 C1129 Q1204 C1119 C1208 R1141 C1124 D1115 R1128 R1129 R1115 JR1105 JR1103 Q1206 C1116 C1148 F1100 JW1104 JW1109 JW1110 JW1111 JW1112 JW1120 JW1121 JW1122 JW1123 JW1124 JW1125 JW1126 JW1127 JW1128 JW1129 JW1130 JW1133 JW1134 JW1135 JW1136 JW1137 JW1185 JW1138 JW1139 JW1140 JW1141 JW1142 JW1143 JW1146 JW1147 JW1148 JW1150 JW1151 JW1152 JW1154 JW1155 JW1157 JW1158 JW1159 JW1160 JW1161 JW1163 JW1164 JW1165 JW1166 JW1167 JW1168 JW1131 JW1162 JW1101 JW1106 JW1132 JW1173 JW1145 JW1149 JW1169 JW1170 JW1176 JW1178 C1109 JW1179 JW1156 JW1184 JW1144 R1103 D1103 D1200 C1210 L1201 1 7 EP1200 EP1106 EP1104 C1127 D1203 IC1200 PC1102 PC1200 D1202 C1212 C1202 C1147 C1216 D1205 D1110 D1109 D1107 C1121 D1119 D1112 D1106 C1118 PC1100 PC1101 R1109 R1108 R1105 R1106 C1113 C1209 R1201 R1118 R1137 R1138 C1135 C1136 C1138 C1221 C1134 CN1200 R1113 TH1100 EP1103 C1115 D1100 R1100 D1114 EP1105 D1118 CNP1100 C1101 FH1101 FH1100 LF1101 VD1100 D1213 C1222 R1120 C1213 D1212 IC1201 D1113 C1200 R1200 R1214 D1211 D1117 C1125 C1126 C1107 D1207 D1204 C1110 C1112 IC1101 C1123 D1206 C1117 CN1101 EP1100 EP1101 EP1102 D1214 L1100 D1215 R1203 T1200 IC1100 T1100 L1200 IC1102 D1116 L1102 D1102 D1101 D1108 AC IN 1 2 MAIN POWER TRANSFORMER SUB POWER TRANSFORMER K E C A K E C A E MAIN BOARD CN590 (Page 35) K SMASTER BOARD CN502 (Page 45) S S E E E E E E BOARD POWER 1 7 6 2 3 4 5 1 2 4 5 K A K E C A K E C A C1149 D1122 R1231 JW1171 JW1172 11 (12) 1-868-958- 11 (13) 2 3 4 5 6 7 8 9 10 A 1 B C D E F G 11 C1149 D1110 D1109 D1112 Q1102 R1111 JW1176 JW1150 JW1149 R1112 JR1150 R1147 R1110 C1122 C1120 R1141 R1116 R1114 R1115 R1143 C1150 R1152 D1111 D1122 R1142 D1108 E -13 -12 7-26. PRINTED WIRING BOARD – POWER BOARD – • See page 25 for Circuit Boards Location. : Uses unleaded solder. • Semiconductor Location Ver. 1.2 D1100 C-2 D1101 C-3 D1102 C-2 D1103 A-4 D1106 B-4 D1107 A-5 D1108 B-6 D1109 B-6 D1110 B-6 D1111 B-6 D1112 B-6 D1113 A-7 D1114 A-8 D1115 E-8 D1116 B-9 D1117 C-9 D1118 E-4 D1119 D-5 D1120 B-7 D1122 A-6 D1200 E-5 D1202 F-5 D1203 F-4 D1204 D-4 D1205 D-4 D1206 E-5 D1207 E-4 D1208 E-4 D1211 F-4 D1212 F-6 D1213 F-7 D1214 D-5 D1215 F-8 IC1100 A-5 IC1101 B-7 IC1102 A-9 IC1200 E-4 IC1201 G-6 Q1100 E-8 Q1101 E-8 Q1102 A-5 Q1200 D-4 Q1203 F-8 Q1204 F-8 Q1205 E-8 Q1206 G-8 Ref. No. Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX660 52 52 HCD-GNX660 7-27. SCHEMATIC DIAGRAM – POWER BOARD – C1202 D1203 C1203 D1204 D1206 R1207 C1206 R1208 R1209 R1210 R1234 C1207 D1207 C1208 R1211 R1212 D1208 JR1108 C1209 C1210 R1214 D1211 D1200 R1200 C1200 R1201 C1212 PC1102 PC1101 PC1100 R1116 R1114 C1122 R1115 Q1102 C1120 D1110 D1109 R1138 R1137 D1118 D1202 R1202 D1107 D1108 R1108 R1109 C1118 D1106 JW1179 D1214 D1112 C1121 D1111 R1111 R1113 D1119 D1103 R1106 R1105 C1117 D1102 C1113 R1103 D1101 C1112 C1110 C1109 TH1100 C1107 D1100 LF1101 JW1112 JW1111 JW1109 JW1110 VD1100 R1120 C1101 F1100 CNP1100 JW1178 EP1102 C1115 JW1104 R1118 C1123 D1113 JW1106 JW1101 D1114 JR1101 L1100 10uH R1121 C1130 R1122 C1124 C1125 C1126 R1145 C1127 R1146 C1147 D1120 C1116 JR1105 JR1103 R1140 R1127 C1131 R1126 EP1103 R1117 R1128 IC1101 R1139 R1132 R1133 C1129 R1144 D1116 R1131 D1115 D1117 C1134 R1136 R1135 C1140 C1148 100uH L1102 JW1184 R1124 R1123 R1130 R1129 C1135 C1136 C1137 C1138 C1139 CN1101 C1221 C1219 CN1200 C1218 C1217 R1227 R1228 L1201 R1223 L1200 10uH R1229 R1232 R1225 R1226 R1224 C1222 R1217 R1218 C1214 R1220 R1219 R1221 EP1200 IC1201 D1212 JW1173 D1213 C1216 C1213 R1216 R1215 PC1200 R1233 C1119 D1205 D1215 R1112 Q1203 Q1204 Q1205 T1200 T1100 Q1100 Q1101 R1203 R1230 IC1100 IC1200 Q1206 Q1200 IC1102 100p 2kV MTZJ-T-72-22D 0.1 D1NL20U-TR MTZJ-T-72-22D 4.7k 47p 12k 2.2k 15k 47k 1000p D1NL20U-TR2 0.0068 1k 10k UDZSTE-1711B 0 100 25V 22 50V 1 R1231 330 1W D1NL20U-TR2 ERA22-08KF 100k 2W 3300p 500V 2.2 1/2W 330p 125V TLP421F(D4-GR) TLP421F(D4-GR) TLP421F(D4-GR) 0 22k 0.0033 4.7k 2SC2713 SWITCH 68p D1NL20U-TR2 MTZJ-T-72-22D 470k 470k 10EDB60-TA2B5 D1NL20U-TR 33k MTZJ-T-72-22D MTZJ-T-72-22D 0.33 1W 0.05 5W 820p EG01CV1 MTZJ-4.7C D1NL20U-TR2 220 35V UDZSTE-1716B 27k 4.7 D1NL20U-TR2 D1122 HRU0103ATRF SARS03 (TO-220) 100k 3W 100k 3W 0.0033 400V 680 220V 680 220V 0.1 1W R4KLB-LF015-303 R4KLB-LF015-303 330p 125V 330p 125V 0.22 275V D5SBA60F01 3.3M 1/2W 0.22 275V T6.3AL/250V 2P 220p 125V JW1185 1 2W 0.01 630V FCH20A20 SF20NC15M 0 6.8k 0.5% 0.0022 2.2k 0.5% 0.1 100V 1200 63V 1200 63V 100 1200 35V 6.8k 0.5% 22 63V UDZSTE-17 5.1B 10 0 0 1k 47k 470p 0 3.3k 0.5% 1.8k 0.5% TA76L431S 10k 10k 10k 0.1 10k RK36LF-B3 10k UDZSTE-17 5.1B MTZJ-72-22D-T 820 25V 0 0 0.1 0.0027 56k 0.5% 3.9k 0.5% 6.8k 0.5% 6.8k 0.5% 470 63V 470 63V 0.1 100V 470 16V 0.1 6P 470 16V 0.1 7P 0.1 0.1 100k 330 10k 10k 10k 100 1M 68k 10 50V 47k 6.8k 0.5% 0.1 220 0.5% 2.2k 0.5% 3.9k 0.5% TA76L431S SF5S6 RK36LF-B3 2200 16V 470 10V 220 1k TLP421F(D4-GR) 10k 0.1 MTZJ-T-72-22D MTZJ-T-72-22D 47k RSR25P03 +4V REG 2SC2713 +4V REG 2SC2713 +8V REG SUB POWER TRANSFORMER MAIN POWER TRANSFORMER 2SC2713 MAIN ON/OFF SWITCHI 2SC2713 MAIN ON/OFF SWITCHI 10 1k MR5060 MR1722 RSR25P03 +8V REG 2SC2713 SWITCH SI-8120JF AC IN (Page 48) MAIN (Page 36) SMASTER CN502 CN590 BOARD(1/3) BOARD(2/2) PRIMARY SWITCHING, MAIN CONVERTER POWER SWITCHING CONVERTER +12V REG VOLTAGE DET VOLTAGE DET R1110 15k 10k JR1107 -12 -13 R1141 R1152 Q1102 2SC2713 SWITCH C1150 470p R1142 47k 10k 10 35V 470k -13 -13 D1122 HRU0103ATRF C1149 R1147 5.6k R1143 3.3k -12 JR1150 R1141 6.8k R1142 47K C1149 33 25v Ver. 1.2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 HCD-GNX660 – DRIVER Board – IC701, 712 BA6956AN – BD84 Board – IC251 BA5947FM-E2 1 2 3 4 5 6 7 8 9 CONTROL LOGIC TSD VREF OUT2 OUT1 RNF VM VCC FIN GND RIN 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 1 2 3 4 5 6 7 8 9 10 LEVEL SHIFT F R R F R F F 19k 6.5k 50k 50k 100k 50k PIN3 10k Vref 50k 50k PIN26 (ch1, 2) POW VCC (ch3, 4) SW Pre Vcc INTER FACE INTER FACE INTER FACE R F 50k 50k POW VCC MUTE Vref POW VCC POW VCC R F 10k CH1OUTF CH1OUTR CH2OUTF CH2OUTR POWVCC CNF4 GND GND CH2RIN CH2FIN CH1RIN CH1FIN SW OPIN+ OPIN- CH4OUTR CH4OUTF CH3OUTF CH3OUTR POWVCC MUTE GND GND CH3RIN CH3FIN CH4IN CH4CAPA OUTVREF DPOUT PREVCC D D D D D D D D • IC Block Diagrams 2 OSC ADPCM DECODE DELAY DRAM ADPCM ENCODE ADC DAC S/H POST LPF ALC VOLUME CONTROL OSCC 1 VDD 3 OSCR 4 NC 5 VOL1 (CS) 6 VOL2 (SCL) 7 VOL3 (SDA) 8 NC 9 VRO VREF VDA NC ALC1 MC1N MC1P 15 16 14 13 12 11 10 VREF VREF VREF VREF ALC VREF MC2P 17 MC2N 18 ALC1 19 NC 20 VSA 21 MCO 22 PRIN 23 ADIN 24 NC 25 DA OUT 26 VOLST 27 NC 28 TEST 29 POOUT 30 VSS – MIC Board – IC1400 TC9488FG 2 SAVE 3 VOUT VIN 1 PWR 6 VCC GND 5 LPF 75 DRIVER 6dB CLAMP 4 – CDG Board – IC1006 NJM2575F1-TE2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 HCD-GNX660 – BD84 Board – IC301 TC94A34FG-002 33 34 35 36 37 38 39 40 41 42 1 8 43 61 62 63 64 60 59 56 52 50 47 46 45 44 48 49 25 26 27 28 29 30 31 32 17 18 19 20 21 22 23 24 9 10 11 2 3 4 5 6 7 58 57 55 53 51 12 13 14 15 16 54 CS/RAS/SDO2 AD15/CAS/PD12 SDO3/OE WE/SDO1 PIO7/BUS3/IO7 PIO6/FI3/BUS2/IO7 PIO5/FI2/BUS1/IO5 PIO4/FI1/BUS0/IO4 Bus Switch PO11/BUCK/AD14 PO10/CCE/AD13 PO9/AD12 PO08/AD11 General In/Output Port Address Calc. 2sets Y-Pointer register C-Pointer register X-Pointer register VDDM SRMSTB VDDT AD10 AD9 ERAM 2k word CRAM 4k word CROM 4k word YRAM 4k word XRAM 4k word SRAM/ DRAM I/F SRAM I/F 1Mbit SRAM X-Bus Y-Bus PO07/AD7 PO06/AD6 PO05/AD5 AD8 VC0 Timing Generator PRAM Instruction Decoder Program Control MCU. I/F register XO • X1 • X2 Y0 • Y1 • Y2 MX MY MZ MAC A0 A1 AX AY ALU A2 A3 DIT round & limit round & limit Audio I/F LRCKIA BCKIA SDI0 LRCKO BCKO SDO0 VSS VDDT MIACK MICK MIDIO MILP MICS STANBY RESET VDDP AD4/PO04 AD3/PO03 AD2/PO02 AD1/PO01 AD0/PO00 VSS VDD CKO/PO13/AD16 VDDX XO TEST VCOI VSSX XI MIMD VSSP PIO3/IO3 PIO2/IO2 PIO1/SDI3/IO1 PIO0/SDI2/IO0 VSS CKI/CLOCK/IRQ/FIO VDD TXO SFSY/LRCKIB SBSY/BCKIB SDI1/DATA POM Sub code I/F CDP Cont I/F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 HCD-GNX660 – ADC Board – IC11,12 PCM1803DBR FMT 1 DELTA-SIGMA MODULATOR L IN 1 R IN 2 V_REF_1 3 V_REF_2 4 18 SCKI 15 MODE 0 19 MODE 1 20 REFERENCE PDWN 7 BYPASS 8 VDD 14 VCC 5 AGND 6 DGND 13 POWER SUPPLY CLOCK AND TIMING CONTROL LRCK 10 DOUT 12 FSYNC 9 BCK 11 FMT 0 17 TEST 16 x1/64, x1/128 DECIMATION FILTER WITH HIGH-PASS FILTER MODE/ FORMAT CONTROL SERIAL INTERFACE DELTA-SIGMA MODULATOR – SMASTER Board – IC500,600 CXD9843AR S P SAMPLING RATE CONVERTER DF2 DF1 GAIN CONTROL FILTER & LOW CUT FILTER SERIAL CONTROL LINER INTERPOLATOR ∆ ∑ CONVERTER XVSS PWM INIT/MUTE CLOCK GENERATOR CLOCK GENERATOR (SECONDARY CLOCK SYSTEM) 1 VSUBC 2 VSSR VSSL VSSL VSSR 3 OUTR2 OUTL2 OUTR1 OUTL1 4 VDDR DVDD DVSS VDDL 5 6 7 8 XOVSS XOVDD 9 XFSOOUT 10 11 NSPMUTE 12 SOFTMUTE 13 PGMUTE SCSHIFT 14 SCDT 15 SCLATCH OVF FLAGR OVF FLAGL 16 SFLAG INIT 17 MCKSEL 18 LRCK 19 BCK 20 DATA BFVDD BFVSS TEST DVDD XFSIIN 21 42 43 41 40 39 38 37 XFSOIN 36 XVDD 35 HPVDDL 34 HPOUTL2 33 HPVSSL 32 31 HPVDDR 30 HPOUTR1 HPOUTL1 29 28 HPVSSR 27 26 25 HPOUTR2 24 FSOI 23 FSOCKO 22 44 45 46 47 48 (PRIMARY CLOCK SYSTTEM) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 HCD-GNX660 7-28. IC Pin Function Descriptions • IC101 CXD3059AR (RF AMP,DSP,DAC) (BD84 BOARD) Pin No. Pin Name I/O Description 1 MIRR I/O Not used (Open) 2 DFCT I/O Not used (Open) 3 FOK I/O Not used (Open) 4 VSS – Ground terminal 5 LOCK I/O Not used (Open) 6 MDP O Spindle motor servo control signal output 7 SSTP I Disc innermost detection signal input 8 IOVSS1 – Ground terminal 9 SFDR O Sled drive signal output 10 SRDR O Sled drive signal output 11 TFDR O Tracking drive signal output 12 TRDR O Tracking drive signal output 13 FFDR O Focus drive signal output 14 FRDR O Focus drive signal output 15 IOVDD1 – Power supply terminal (+3.3V) 16 AVDD0 – Power supply terminal (+3.3V) 17 AVSS0 – Ground terminal 18 NC – Not used (Open) 19 E I E signal input 20 F I F signal input 21 TEI I Tracking error signal input 22 TEO O Tracking error signal output 23 FEI I Focus error signal input 24 FEO O Focus error signal output 25 VC O Center voltage output from RF amplifier block 26 A I A signal input 27 B I B signal input 28 C I C signal input 29 D I D signal input 30 NC – Not used (Open) 31 AVDD4 – Power supply terminal (+3.3V) 32 RFDCO O RFDC signal output (Open) 33 PDSENS I Reference voltage terminal 34 AC_SUM O RFAC summing amplifier signal output 35 EG_IN I Equalizer circuit signal input 36 LD O APC LD drive signal output 37 PD I APC PD signal input 38 NC – Not used (Open) 39 RFC I Equalizer cut-off frequency adjustment terminal 40 AVSS4 – Ground terminal 41 RFACO O RFAC signal output 42 RFACI I RFAC signal input or EFM signal input 43 AVDD3 – Power supply terminal (+3.3V) 44 BIAS I Asymmetry circuit constant current input 45 ASYI I Asymmetry comparator voltage input 46 ASYO O EFM full-swing signal output 47 VPCO O Not used (Open) 48 VCTL I Wide-band EFM PLL VCO2 control voltage input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 HCD-GNX660 Pin No. Pin Name I/O Description 49 AVSS3 – Ground terminal 50 CLTV I Multiplier VCO1 control voltage input 51 FILO O Master PLL (slave = digital PLL) filter signal output 52 FILI I Master PLL filter signal input 53 PCO O Master PLL charge pump signal output 54 AVDD5 – Power supply terminal (+3.3V) 55 DDVROUT O DC/DC converter output (+2.5V) 56 DDVRSEN I DC/DC converter output voltage monitor signal input 57 AVSS5 – Ground terminal 58 DDCR I DC/DC converter reset signal input 59 NC – Not used (Open) 60 BCKI I D/A interface bit clock input 61 PCMDI I D/A interface serial data input 62 LRCKl I D/A interface LR clock input 63 LRCK O D/A interface LR clock output f = Fs 64 VSS – Ground terminal 65 PCMD O D/A interface serial data output 66 BCK O D/A interface bit clock output 67 VDD – Power supply terminal (+2.5V) 68 EMPH O High when the playback disc has emphasis, low it has not 69 EMPHI I High when de-emphasis is ON, low when input OFF 70 IOVDD2 – Power supply terminal (+3.3V) 71 DOUT O Digital Out signal output 72 TEST I Test terminal (Connected to ground) 73 TEST1 I Test terminal (Connected to ground) 74 IOVSS2 – Ground terminal 75 NC – Not used (Open) 76 XVSS – Ground terminal 77 XTAO O Crystal oscillation circuit signal output 78 XTAI I Crystal oscillation circuit signal input 79 XVDD – Power supply terminal (+2.5V) 80 AVDD1 – Power supply terminal (+3.3V) 81 AOUT1 O L-ch analog signal output 82 VREFL O L-ch reference voltage output 83 AVSS1 – Ground terminal 84 AVSS2 – Ground terminal 85 VREFR O R-ch reference voltage output 86 AOUT2 O R-ch analog signal output 87 AVDD2 – Power supply terminal (+3.3V) 88 NC – Not used (Open) 89 IOVDD0 – Power supply terminal (+3.3V) 90 RMUT O Not used (Open) 91 LMUT O Not used (Open) 92 NC – Not used (Open) 93 XTSL I Crystal selection signal input (Pull down) 94 IOVSS0 – Ground terminal 95 XTACN I Oscillation circuit control signal input (“H”: self-oscillation, “L”: oscillation stop) 96 SQSO O Not used (Open) 97 SQCK I SQSO readout clock input (Connected to +VDD(+3.3V)) 98 SBSO O Not used (Open) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 HCD-GNX660 Pin No. Pin Name I/O Description 99 EXCK I Not used (Open) 100 XRST I System reset signal input from M30622MEP 101 SYSM I Muting signal input (Connected to ground) 102 DATA I Serial data input from M30622MEP 103 VSS – Ground terminal 104 XLAT I Latch signal input from M30622MEP 105 CLOCK I Serial data transfer clock input from M30622MEP 106 VDD – Power supply terminal (+2.5V) 107 SENS O SENS output to M30622MEP 108 SCLK I SENS serial data readout clock input (Connected to +VDD(+3.3v)) 109 ATSK I/O Not used (Open) 110 WFCK O Not used (Open) 111 XUGF O Not used (Open) 112 XPCK O Not used (Open) 113 GFS O Not used (Open) 114 C2PO O Not used (Open) 115 SCOR O High output when the sub code sync, S0 or S1, is detected 116 VDD – Power supply terminal (+2.5V) 117 C4M O Not used (Open) 118 WDCK O Not used (Open) 119 COUT I/O Not used (Open) 120 NC – Not used (Open) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 HCD-GNX660 Pin No. Pin Name I/O Description • IC401 M30622MGP-A54FPU0 SYSTEM CONTROL (MAIN BOARD) 1 BD-RST O Reset signal output to the digital signal processor ( “L”:reset) 2 CD-DATA-OUT O Serial data output to the digital signal processor 3 XLAT O Serial data latch pulse output to the digital signal processor 4 SIRCS I Remote control signal input 5 MP3-DATA-OUT O Serial data output signal to MP3 decoder IC 6 MP3-DATA-IN I Serial data input signal from MP3 decoder IC 7 MP3-CLK O Serial data transfer clock signal to MP3 decoder IC 8 BYTE - Ground terminal 9 CNVSS - Ground terminal 10 XC-IN I Sub system clock input terminal (32.768kHz) 11 XC-OUT O Sub system clock output terminal (32.768kHz) 12 RESET I System reset signal input from the reset signal IC (“L”: reset) After the power supply rises, “L” is input for several hundreds msec and then change to “H”. 13 X-OUT O Main system clock output terminal (5MHz) 14 VSS - Ground terminal 15 X-IN I Main system clock input terminal (5MHz) 16 VCC - Power supply terminal (+3.3V) 17 NMI I Non-maskable interrupt input terminal (Pull to +3.3V) 18 NO-USE I Unused port (Pull to ground) 19 SCOR I Subcode sync (S0+S1) detection signal input from the digital signal processor 20 AC-CUT I “C off detection signal input from the reset signal IC (“L”: AC cut detected) 21 SENS I Internal status detection monitor input from the digital signal processor 22 MP3-RST O Reset signal output to MP3 decoder IC 23 MP3-CS O Chip select output signal to MP3 decoder IC (“L”:enable) 24 MP3-LP O Latch output signal to MP3 decoder IC (“L”:enable) 25 MP3-ACK I Acknowledgement input signal from MP3 decoder IC (“L”:acknowledged) 26 MP3-REQ I Request signal from MP3 decoder IC 27 MP3-STB O Standby mode signal output to MP3 decoder IC (“L”:standby mode) 28 XTACN O BD DSP oscillation on/off control signal output (“H”:on) 29 IIC-CLK I/O Clock signal for IIC communcation between the microcomputer and the IIC checker 30 IIC-DATA I/O Data signal for IIC communcation between the microcomputer and the IIC checker 31 VMUTE O CDG video signal muting on/off control signal output (“H”: muting on) 32 CDG-DET I CDG disc detection signal input from CDG decoder (“H”: CDG disc detected) 33 CDG-RST O Reset signal output to the CDG decoder (“L”:reset) 34 CD-MUTE O CD analog signal muting on/off control signal output (“H”:muting on) 35 CD-POWER O Power on/off control signal output to BU section (“H”:power on) 36 ST-CE O PLL chip enable signal output to the tuner unit 37 ST-DOUT/MC-DIN I PLL serial data input from the tuner unit 38 ST-CLK O PLL serial data transfer clock signal output to the tuner unit 39 ST-DIN/MC-DOUT O PLL serial data output to the tuner unit 40 TUNED I Tuning detection signal input from the tuner unit (“L”:tuned) 41 OPEN-SW I Eject detection signal input from the CD mechanism deck 42 TBL-SENSE I Disc tray position detection signal input from the CD mechanism deck 43 E-3 I Disc tray status detection signal input from the CD mechanism deck 44 E-2 I Disc tray status detection signal input from the CD mechanism deck 45 E-1 I Disc tray status detection signal input from the CD mechanism deck 46 TM-F O Turning motor control signal output to the CD mechanism deck 47 TM-R O Turning motor control signal output to the CD mechanism deck Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 HCD-GNX660 48 LM-F O Loading motor control signal output to the CD mechanism deck 49 LM-R O Loading motor control signal output to the CD mechanism deck 50 LED-ILLUMINATION-1 O Dynamic LED drive signal output to the ILLUMINATION 1st indicator and 2nd indicator 51 LED-ILLUMINATION-2 O Dynamic LED drive signal output to the ILLUMINATION 3rd indicator and 4th indicator 52 LED-ILLUMINATION-3 O Dynamic LED drive signal output to the ILLUMINATION 5th indicator and 6h indicator 53 LED-CTRL O Dynamic LED drive select signal output 54 VOL-A I Jog dial pulse input from the VOLUME rotary encoder (A phase input) 55 VOL-B I Jog dial pulse input from the VOLUME rotary encoder (B phase input) 56 STBY-LED O LED drive signal output of POWER indicator (“H”:LED is turned on) 57 FL-DRIVER-DATA O Serial data output signal to FL Driver, NJU3427 58 FL-DRIVER-CLK O Serial data clock signal to FL Driver, NJU3427 59 FL-DRIVER-RESET O Serial data reset signal to FL Driver, NJU3427 60 FL-DRIVER-CS O Serial data chip select signal to FL Driver, NJU3427 61 SW-LED O LED drive signal output of SUB WOOFER ON indicator (“H”:LED on) 62 VCC - Power supply terminal (+3.3V) 63 A-HALF I Deck A cassette detection signal input terminal (“H”:cassette detected) 64 VSS - Ground terminal 65 SM-RESET O Reset signal output to the S-Master Power IC 66 IO-EXP-DATA-OUT O Serial data output signal to IO expander, BH2210V 67 NO-USE I Unused port (Pull to ground) 68 IO-EXP-RST O Reset signal output to the I/O expander, BH2210V 69 IO-EXP-CLK O Serial data latch signal to I/O expander, BH2210V 70 IO-EXP-LAT O Serial data clock signal to I/O expander, BH2210V 71 NO-USE I Unused port (Pull to ground) 72 SM-SD I Shutdown (protector) detection signal from the S-Master Power IC 73 DISPLAY-KEY I DISPLAY key press detection signal (Interrupt input) 74 POWER-KEY I POWER key press detection signal (Interrupt input) 75 NO-USE I Unused port (Pull to ground) 76 SM-LATCH-1 O Serial data latch pulse output to the S-Master Processor IC (Front channel) 77 SM-CLK O Serial data transfer clock signal to the S-Master Processor IC 78 SM-DATA O Serial data output signal to the S-Master Processor IC 79 SM-LATCH-2 O Serial data latch pulse output to the S-Master Processor IC (Sub woofer channel) 80 NO-USE I Unused port (Pull to ground) 81 NO-USE I Unused port (Pull to ground) 82 CD-CLK O Serial data transfer clock signal output to the digital signal processor 83 M61537-DATA O Serial data output to audio signal processor, M61537FP 84 M61537-CLK O Serial data transfer clock signal output to audio signal processor, M61537FP 85 HP DET I Headphone connection detection signal input “H”: headphone connected 86 HP-MUTE O Headphone muting on/off control signal (“L”: muting on) 87 NO-USE I Unused port (Pull to ground) 88 VACS-IN I VACS level detection signal (A/D input) 89 A-SHUT I Shut off detection signal input from deck A side reel pulse detector (A/D input) 90 B-SHUT I Shut off detection signal input from deck B side reel pulse detector (A/D input) 91 B-HALF I Deck B cassette detection and forward side recording tab detection signal input terminal (A/D input) 92 MODEL-IN I Model setting terminal (A/D input) 93 DEST-IN I Destination setting terminal (A/D input) 94 AD-KEY-3 I Key input terminal (A/D input) 95 AD-KEY-2 I Key input terminal (A/D input) Pin No. Pin Name I/O Description www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 HCD-GNX660 96 AVSS - Ground terminal (for A/D conversion) 97 AD-KEY-1 I Key input terminal (A/D input) 98 VREF I A/D Converter reference voltage input terminal (+3.3V) 99 AVCC - Power supply terminal (+3.3V) (for A/D conversion) 100 MAIN ON/OFF O Main power on/off control signal output (“H”:power on) Pin No. Pin Name I/O Description www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 HCD-GNX660 Pin No. Pin Name I/O Description 1 CTLIO I Input/output mode select port (Fixed at "H") 2 RESET I Reset signal input 3 CLK I Serial data clock input 4 LATCH I Serial data latch input 5 TC-MUTE O Tape playback muting on/off control signal output ( "H":muting on) 6 NO-USE O Not used (Open) 7 REC-MUTE O Recording muting on/off control signal output ("H":muting on) 8 NO-USE O Not used (Open) 9 SM-NSP-MUTING O S-Master Processor IC PWM 50% duty muting on/off control signal output ("L":muting on) 10 SM-SOFT-MUTING O S-Master Processor IC Soft muting on/off control signal output ("L":muting on) 11 NO USE O Not used (Open) 12 SM-INIT O Initialization signal output to the S-Master Processor IC 13 LATCHO O Serial data latch output signal (Not used) (Open) 14 CLKO O Serial data clock output signal (Not used) (Open) 15 DO1 O Serial data output signal 1 (Not used) (Open) 16 DI2 I Serial data input signal 2 (Not used) (Open) 17 A-TRIG O Deck A side trigger plunger drive signal output ("H":plunger on) 18 CAPM-CNT O Capstan motor drive signal output 19 B-TRIG O Deck B side trigger plunger drive signal output ("H":plunger on) 20 REC-BIAS O Recording bias on/off control signal output ("H":bias on) 21 TC-RELAY O Recording/playback selection signal output ("H":recording "L":playback) 22 ADC-RESET O Power down control signal to Analog to Digital converter, PCM1803 ("L": Power down) 23 NO-USE O Not used (Open) 24 FAN-CTRL O Fan driving signal output ("L": Fan on) 25 DO2 O Serial data output signal 2 (Not used) (Open) 26 DI1 I Serial data input signal 1 27 VSS - Ground terminal 28 VDD - Power supply terminal (+3.3V) • IC403 BH2210FV-E2 (SIGNAL IN/OUT CONTROL) (MAIN BOARD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 HCD-GNX660 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks SECTION 8 EXPLODED VIEWS 8-1. CASE (TOP), BACK PANEL SECTION NOTE: • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Hardware (# mark) list and accessories are given in the last of this parts list. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. 1 2-658-345-11 PANEL, LOADING 2 3-363-099-02 SCREW (CASE 3 TP2) 3 3-363-099-32 SCREW (CASE 3 TP2) 4 2-680-202-01 CASE (SIDE-L) 5 2-670-216-01 CASE (TOP) 6 3-703-136-12 SCREW, TAPPING 7 1-693-702-11 TUNER (FM/AM) (TM10SE) 8 2-630-050-01 +BVTT 3X6 (SUMITITE) 9 2-680-201-01 CASE (SIDE-R) 10 1-775-284-11 WIRE (FLAT TYPE) (31 CORE) 11 1-829-030-11 WIRE (FLAT TYPE) (25 CORE) 12 1-827-720-11 WIRE (FLAT TYPE) (11 CORE) 13 3-378-109-12 CUSHION, SARANET 14 1-828-973-11 WIRE (FLAT TYPE) (13 CORE) 15 A-1164-015-A CDG BOARD, COMPLETE M891 1-763-072-11 FAN, DC #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 TT (B) M891 #1 #1 #1 not supplied not supplied not supplied not supplied not supplied #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 1 6 6 2 3 4 5 6 7 8 10 13 14 15 11 12 3 9 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 HCD-GNX660 8-2. FRONT PANEL SECTION Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 51 2-658-356-01 HOLDER (TC-R) 52 2-658-355-01 HOLDER (TC-L) 53 2-669-613-01 DETENT SPRING 54 2-590-671-01 KNOB (VOL) 55 X-2103-595-1 KNOB JOG ASSY 56 4-238-628-03 MIC KNOB 57 2-658-350-01 WINDOW (FL) 58 4-231-841-01 SPRING (HEART CAM-B) 59 4-224-104-41 DAMPER 60 4-231-825-01 CAM (B), HEART 61 2-658-343-11 PANEL, FRONT 62 X-2103-443-1 BUTTON (FUNCTION) ASSY 63 A-1167-717-A PANEL BOARD, COMPLETE 64 2-658-347-01 BUTTON (DISC) 65 3-087-053-01 +BVTP2.6 (3CR) 66 1-417-656-11 MECHA DECK (CWN42FF601) 67 A-1167-713-A MIC BOARD, COMPLETE 68 4-225-252-01 CUSHON (FOOT) 69 2-658-367-01 SPRING (L) 70 4-231-836-01 SPRING (HEART CAM-A) 71 2-658-368-01 SPRING (R) 72 4-231-824-01 CAM (A), HEART 73 2-659-548-01 BUTTON (EQ2) 74 2-658-354-01 BUTTON (EQ) 75 2-658-349-01 BUTTON (DISPLAY) 76 2-658-348-01 BUTTON (REC) #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 TT (B) 51 52 53 53 54 55 57 58 59 60 61 62 63 65 65 65 64 66 65 65 67 68 69 70 71 72 73 74 75 76 59 #1 not supplied not supplied supplied with S1305 not supplied 56 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 HCD-GNX660 8-3. CHASSIS SECTION Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 101 2-630-050-01 +BVTT 3X6 (SUMITITE) 102 3-703-136-12 SCREW, TAPPING 103 A-1167-598-A POWER BOARD, COMPLETE 104 2-597-972-31 SHEET, RADIATION 105 A-1164-113-A SMASTER BOARD, COMPLETE 106 1-500-497-11 FILTER, CLAMP (FERRITE CORE) * 107 3-703-571-12 BUSHING (S) (4516), CORD 0108 1-827-226-31 CORD, POWER 109 A-1164-115-A ADC BOARD, COMPLETE 110 A-1159-558-A MAIN BOARD, COMPLETE 111 4-225-252-01 CUSHION (FOOT) 0F1100 1-532-506-33 FUSE (T6.3AL/250V) #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 TT (B) not supplied not supplied not supplied not supplied not supplied not supplied F1100 #1 #1 #1 #1 #1 #1 #1 101 101 105 101 101 103 101 101 111 111 110 109 102 102 101 104 107 106 108 not supplied not supplied www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 HCD-GNX660 8-4. CD MECHANISM DECK SECTION-1 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 151 4-218-253-62 SCREW (M2.6), +BTTP 152 1-832-798-21 CABLE, FLEXIBLE FLAT (5 CORE) 153 1-687-134-12 MOTOR (TB) BOARD 154 4-243-815-11 TABLE (LOADING) 155 4-245-571-02 GEAR (STOPPER) 156 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING 157 4-245-570-01 GEAR (JOINT) 158 4-245-572-01 BUSHING (GEAR) 159 1-687-132-12 SENSOR BOARD 160 4-243-820-01 GEAR (TABLE) 161 4-243-819-01 GEAR (GENEVA) 162 4-243-816-11 TRAY 163 4-243-823-11 BELT (TABLE) 164 4-218-252-61 SCREW (+PTPWH M2.6), FLOATING 165 4-243-821-01 PULLEY (TABLE) 166 3-231-598-01 SHEET (BA) M741 A-1108-965-A MOTOR ASSY, TABLE (TABLE) 152 154 155 155 156 156 157 157 158 158 159 151 156 162 163 164 165 160 161 164 CD mechanism deck section-2 151 153 166 M741 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 HCD-GNX660 8-5. CD MECHANISM DECK SECTION-2 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 201 A-1103-756-B DRIVER BOARD, COMPLETE 202 4-218-253-52 SCREW (M2.6), +BTTP 203 1-687-669-12 SW BOARD 204 4-244-034-11 BELT (LOADING) 205 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING 206 4-225-844-01 GEAR (LOADING A) 207 4-224-613-11 GEAR (SHAFT) 208 1-687-133-12 MOTOR (LD) BOARD 210 4-244-108-01 GEAR, SWING 211 4-224-609-01 GEAR (LOADING C) 212 4-224-608-01 COLLAR, SWING 213 3-016-533-11 WASHER (FR), STOPPER 214 4-224-611-01 GEAR (LOADING B) 215 4-224-606-01 GEAR (RV) 216 4-243-818-01 GEAR (U/D) 217 4-243-822-02 LEVER (LIFTER) 218 X-2102-809-2 PULLEY (KH) ASSY 219 4-231-189-01 PULLEY (B), CHUCKING 220 X-2055-190-1 HOLDER (213) ASSY 222 4-227-549-11 INSULATOR 223 4-227-045-31 SPRING (INSULATOR), COIL 226 1-832-404-21 CABLE, FLEXIBLE FLAT (16 CORE) 228 A-1095-982-A BD84 BOARD, COMPLETE 0229 8-820-244-01 OPTICAL PICK-UP KSM-215DCP/C2NP 230 1-471-035-21 MAGNET ASSY 231 4-243-817-22 CHASSIS 232 3-087-053-01 +BVTP2.6 (3CR) M751 A-1108-966-A MOTOR ASSY, LOADING (LOADING) S711 1-477-680-12 ENCODER, ROTARY 201 202 202 202 203 204 205 206 207 208 210 211 212 213 214 215 216 217 219 231 220 205 222 223 223 205 205 226 232 230 218 223 223 222 229 222 222 205 205 205 205 M751 not supplied S711 228 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68 HCD-GNX660 SECTION 9 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • CAPACITORS: uF: µF • RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable • COILS uH: µH • SEMICONDUCTORS In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD... The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. ADC A-1164-115-A ADC BOARD, COMPLETE ******************** < CAPACITOR > C20 1-126-956-91 ELECT 0.1uF 20% 50V C22 1-104-658-91 ELECT 100uF 20% 10V C23 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C24 1-104-658-91 ELECT 100uF 20% 10V C25 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C26 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C27 1-126-963-11 ELECT 4.7uF 20% 50V C28 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C29 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C32 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C40 1-164-156-11 CERAMIC CHIP 0.1uF 25V C41 1-164-156-11 CERAMIC CHIP 0.1uF 25V C42 1-164-156-11 CERAMIC CHIP 0.1uF 25V C50 1-164-156-11 CERAMIC CHIP 0.1uF 25V C51 1-126-964-11 ELECT 10uF 20% 50V C53 1-104-658-91 ELECT 100uF 20% 10V C54 1-164-156-11 CERAMIC CHIP 0.1uF 25V C55 1-126-964-11 ELECT 10uF 20% 50V C56 1-164-156-11 CERAMIC CHIP 0.1uF 25V C57 1-126-964-11 ELECT 10uF 20% 50V C58 1-164-156-11 CERAMIC CHIP 0.1uF 25V C59 1-126-960-11 ELECT 1uF 20% 50V C60 1-126-960-11 ELECT 1uF 20% 50V C61 1-164-156-11 CERAMIC CHIP 0.1uF 25V C62 1-126-964-11 ELECT 10uF 20% 50V C63 1-126-964-11 ELECT 10uF 20% 50V C64 1-164-156-11 CERAMIC CHIP 0.1uF 25V C65 1-126-964-11 ELECT 10uF 20% 50V C66 1-164-156-11 CERAMIC CHIP 0.1uF 25V C67 1-104-658-91 ELECT 100uF 20% 10V C68 1-164-156-11 CERAMIC CHIP 0.1uF 25V C70 1-126-960-11 ELECT 1uF 20% 50V C81 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C90 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C91 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C93 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V < CONNECTOR > CN01 1-766-720-41 CONNECTOR, BOARD TO BOARD 17P < DIODE > D11 8-719-988-61 DIODE 1SS355TE-17 D12 8-719-988-61 DIODE 1SS355TE-17 D13 8-719-988-61 DIODE 1SS355TE-17 D14 8-719-988-61 DIODE 1SS355TE-17 D51 8-719-988-61 DIODE 1SS355TE-17 D52 8-719-988-61 DIODE 1SS355TE-17 D61 8-719-988-61 DIODE 1SS355TE-17 < EARTH TERMINAL > EP01 1-537-738-21 TERMINAL, GROUND EP02 1-537-738-21 TERMINAL, GROUND < FILTER > FL01 1-234-177-21 FILTER, CHIP EMI FL02 1-234-177-21 FILTER, CHIP EMI < IC > IC01 8-759-473-95 IC uPC2905T-E1 IC02 8-759-583-47 IC uPC2933T-E2 IC03 8-759-387-77 IC TC7WU04F (TE12R) IC11 6-707-608-01 IC PCM1803DBR IC12 6-707-608-01 IC PCM1803DBR < JUMPER RESISTOR > JR21 1-216-864-11 SHORT CHIP 0 JR51 1-216-806-11 METAL CHIP 56 5% 1/10W JR52 1-216-806-11 METAL CHIP 56 5% 1/10W < COIL > L01 1-412-939-11 INDUCTOR 1uH L02 1-412-951-11 INDUCTOR 10uH L03 1-412-951-11 INDUCTOR 10uH < RESISTOR > R25 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R27 1-216-845-11 METAL CHIP 100K 5% 1/10W R29 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R31 1-216-845-11 METAL CHIP 100K 5% 1/10W R36 1-216-864-11 SHORT CHIP 0 R38 1-216-864-11 SHORT CHIP 0 R40 1-216-821-11 METAL CHIP 1K 5% 1/10W R41 1-216-857-11 METAL CHIP 1M 5% 1/10W R50 1-216-864-11 SHORT CHIP 0 R52 1-216-809-11 METAL CHIP 100 5% 1/10W Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 HCD-GNX660 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks BD84 ADC R53 1-216-809-11 METAL CHIP 100 5% 1/10W R55 1-216-864-11 SHORT CHIP 0 R57 1-216-864-11 SHORT CHIP 0 R58 1-216-864-11 SHORT CHIP 0 R59 1-216-864-11 SHORT CHIP 0 R60 1-216-864-11 SHORT CHIP 0 R63 1-216-809-11 METAL CHIP 100 5% 1/10W R64 1-216-864-11 SHORT CHIP 0 R65 1-216-864-11 SHORT CHIP 0 R67 1-216-864-11 SHORT CHIP 0 < VIBRATOR > X001 1-795-843-11 VIBRATOR, CRYSTAL (12.288MHz) ************************************************************ A-1095-982-A BD84 BOARD, COMPLETE ********************* < CAPACITOR > C10 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V C11 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V C14 1-164-360-11 CERAMIC CHIP 0.1uF 16V C15 1-164-360-11 CERAMIC CHIP 0.1uF 16V C16 1-115-156-11 CERAMIC CHIP 1uF 10V C17 1-126-246-11 ELECT CHIP 220uF 20% 4V C18 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C111 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C112 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C113 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C114 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C115 1-164-360-11 CERAMIC CHIP 0.1uF 16V C116 1-128-995-21 ELECT CHIP 100uF 20% 10V C122 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C123 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C124 1-162-959-11 CERAMIC CHIP 330PF 5% 50V C125 1-164-360-11 CERAMIC CHIP 0.1uF 16V C131 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C132 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C133 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C134 1-164-360-11 CERAMIC CHIP 0.1uF 16V C141 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C142 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C143 1-164-360-11 CERAMIC CHIP 0.1uF 16V C151 1-128-995-21 ELECT CHIP 100uF 20% 10V C161 1-164-360-11 CERAMIC CHIP 0.1uF 16V C162 1-164-360-11 CERAMIC CHIP 0.1uF 16V C163 1-164-360-11 CERAMIC CHIP 0.1uF 16V C171 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C172 1-162-920-11 CERAMIC CHIP 27PF 5% 50V C174 1-164-360-11 CERAMIC CHIP 0.1uF 16V C181 1-164-360-11 CERAMIC CHIP 0.1uF 16V C182 1-164-360-11 CERAMIC CHIP 0.1uF 16V C183 1-124-778-00 ELECT CHIP 22uF 20% 6.3V C184 1-124-778-00 ELECT CHIP 22uF 20% 6.3V C185 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C186 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C194 1-164-360-11 CERAMIC CHIP 0.1uF 16V C195 1-164-360-11 CERAMIC CHIP 0.1uF 16V C196 1-164-360-11 CERAMIC CHIP 0.1uF 16V C201 1-128-995-21 ELECT CHIP 100uF 20% 10V C203 1-128-995-21 ELECT CHIP 100uF 20% 10V C209 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C210 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C211 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C212 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C213 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C251 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V C252 1-164-360-11 CERAMIC CHIP 0.1uF 16V C255 1-164-360-11 CERAMIC CHIP 0.1uF 16V C257 1-164-360-11 CERAMIC CHIP 0.1uF 16V C258 1-164-360-11 CERAMIC CHIP 0.1uF 16V C259 1-164-360-11 CERAMIC CHIP 0.1uF 16V C260 1-128-394-11 ELECT CHIP 220uF 20% 10V C302 1-164-360-11 CERAMIC CHIP 0.1uF 16V C303 1-164-360-11 CERAMIC CHIP 0.1uF 16V C305 1-126-246-11 ELECT CHIP 220uF 20% 4V C306 1-164-360-11 CERAMIC CHIP 0.1uF 16V C307 1-164-360-11 CERAMIC CHIP 0.1uF 16V C308 1-126-208-21 ELECT CHIP 47uF 20% 4V C309 1-164-360-11 CERAMIC CHIP 0.1uF 16V C310 1-164-360-11 CERAMIC CHIP 0.1uF 16V C311 1-164-360-11 CERAMIC CHIP 0.1uF 16V C312 1-164-360-11 CERAMIC CHIP 0.1uF 16V C313 1-164-360-11 CERAMIC CHIP 0.1uF 16V C314 1-126-208-21 ELECT CHIP 47uF 20% 4V C315 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C316 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C317 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C318 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C320 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V < CONNECTOR > CN101 1-770-425-51 CONNECTOR, FFC/FPC 16P CN201 1-784-879-51 CONNECTOR, FFC (LIF (NON-ZIF)) 31P < FERRITE BEAD > FB301 1-500-445-21 FERRITE, EMI (SMD) (2012) < IC > IC101 8-752-425-12 IC CXD3059AR IC251 6-705-808-01 IC BA5947FM-E2 IC301 6-705-365-01 IC TC94A34FG-002 IC303 6-705-807-01 IC BH15FB1WG < TRANSISTOR > Q10 6-551-120-01 TRANSISTOR 2SA2119K < RESISTOR > R10 1-216-791-11 METAL CHIP 3.3 5% 1/10W R11 1-216-864-11 SHORT CHIP 0 R12 1-216-845-11 METAL CHIP 100K 5% 1/10W R13 1-218-446-11 METAL CHIP 1 5% 1/10W R111 1-216-821-11 METAL CHIP 1K 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 70 HCD-GNX660 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks CDG R112 1-216-835-11 METAL CHIP 15K 5% 1/10W R113 1-216-821-11 METAL CHIP 1K 5% 1/10W R114 1-216-835-11 METAL CHIP 15K 5% 1/10W R121 1-216-835-11 METAL CHIP 15K 5% 1/10W R131 1-216-857-11 METAL CHIP 1M 5% 1/10W R132 1-216-833-11 METAL CHIP 10K 5% 1/10W R133 1-216-848-11 METAL CHIP 180K 5% 1/10W R141 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R142 1-216-821-11 METAL CHIP 1K 5% 1/10W R143 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R151 1-216-864-11 SHORT CHIP 0 R161 1-216-809-11 METAL CHIP 100 5% 1/10W R162 1-216-841-11 METAL CHIP 47K 5% 1/10W R163 1-216-809-11 METAL CHIP 100 5% 1/10W R165 1-216-864-11 SHORT CHIP 0 R171 1-216-817-11 METAL CHIP 470 5% 1/10W R172 1-216-857-11 METAL CHIP 1M 5% 1/10W R173 1-216-295-91 SHORT CHIP 0 R181 1-216-809-11 METAL CHIP 100 5% 1/10W R182 1-216-809-11 METAL CHIP 100 5% 1/10W R191 1-216-864-11 SHORT CHIP 0 R201 1-500-445-21 FERRITE, EMI (SMD) (2012) R203 1-216-864-11 SHORT CHIP 0 R204 1-216-864-11 SHORT CHIP 0 R205 1-216-864-11 SHORT CHIP 0 R251 1-216-833-11 METAL CHIP 10K 5% 1/10W R252 1-216-837-11 METAL CHIP 22K 5% 1/10W R253 1-216-833-11 METAL CHIP 10K 5% 1/10W R301 1-216-845-11 METAL CHIP 100K 5% 1/10W R302 1-216-833-11 METAL CHIP 10K 5% 1/10W R303 1-216-845-11 METAL CHIP 100K 5% 1/10W R305 1-216-845-11 METAL CHIP 100K 5% 1/10W R306 1-216-864-11 SHORT CHIP 0 R307 1-216-833-11 METAL CHIP 10K 5% 1/10W R313 1-216-813-11 METAL CHIP 220 5% 1/10W R351 1-216-809-11 METAL CHIP 100 5% 1/10W R352 1-216-809-11 METAL CHIP 100 5% 1/10W R353 1-216-809-11 METAL CHIP 100 5% 1/10W R354 1-216-809-11 METAL CHIP 100 5% 1/10W R401 1-216-809-11 METAL CHIP 100 5% 1/10W R402 1-216-809-11 METAL CHIP 100 5% 1/10W R403 1-216-809-11 METAL CHIP 100 5% 1/10W R404 1-216-809-11 METAL CHIP 100 5% 1/10W R405 1-216-809-11 METAL CHIP 100 5% 1/10W R406 1-216-809-11 METAL CHIP 100 5% 1/10W R407 1-216-809-11 METAL CHIP 100 5% 1/10W R408 1-216-809-11 METAL CHIP 100 5% 1/10W R409 1-216-809-11 METAL CHIP 100 5% 1/10W R410 1-216-809-11 METAL CHIP 100 5% 1/10W R411 1-216-809-11 METAL CHIP 100 5% 1/10W R412 1-216-809-11 METAL CHIP 100 5% 1/10W R419 1-216-809-11 METAL CHIP 100 5% 1/10W R421 1-216-809-11 METAL CHIP 100 5% 1/10W R422 1-216-809-11 METAL CHIP 100 5% 1/10W R423 1-216-809-11 METAL CHIP 100 5% 1/10W < SWITCH > S101 1-771-853-11 SWITCH, DETECTION (LIMIT) < VIBRATOR > X171 1-767-408-21 VIBRATOR, CRYSTAL (16.9344MHZ) ************************************************************ A-1164-015-A CDG BOARD, COMPLETE ******************** < CAPACITOR > C1001 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1002 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1003 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1004 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1005 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1006 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1007 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1008 1-126-960-11 ELECT 1uF 20% 50V C1010 1-104-658-91 ELECT 100uF 20% 10V C1011 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1012 1-126-947-11 ELECT 47uF 20% 35V C1013 1-104-658-91 ELECT 100uF 20% 10V C1014 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1015 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1018 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C1019 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C1021 1-162-971-11 CERAMIC CHIP 0.001uF 10% 50V C1022 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C1023 1-126-960-11 ELECT 1uF 20% 50V C1024 1-104-658-91 ELECT 100uF 20% 10V C1025 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1026 1-104-655-91 ELECT 470uF 20% 6.3V C1027 1-162-957-11 CERAMIC CHIP 220PF 5% 50V C1028 1-104-658-91 ELECT 100uF 20% 10V C1029 1-165-647-91 CERAMIC CHIP 0.47uF 10% 6.3V C1030 1-126-965-91 ELECT 22uF 20% 50V C1036 1-162-957-11 CERAMIC CHIP 220PF 5% 50V C1037 1-162-957-11 CERAMIC CHIP 220PF 5% 50V C1038 1-162-957-11 CERAMIC CHIP 220PF 5% 50V C1039 1-162-957-11 CERAMIC CHIP 220PF 5% 50V < CONNECTOR > * CN1001 1-784-774-11 CONNECTOR, FFC 13P CN1003 1-785-314-11 PIN, CONNECTOR (STRAIGHT) 2P < DIODE > D1003 6-501-193-01 DIODE 1SS355WTE-17 D1004 6-501-193-01 DIODE 1SS355WTE-17 < FERRITE BEAD > FB1001 1-216-864-11 SHORT CHIP 0 < IC > IC1001 6-707-420-01 IC TC9411AFG (BS, K) IC1002 6-704-474-01 IC MSM514400E-60TS-K BD84 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 71 HCD-GNX660 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks DRIVER IC1003 6-703-547-01 IC TA7805LS IC1005 8-759-584-98 IC SN74AHCT04NSR IC1006 6-703-378-01 IC NJM2575F1-TE2 < JACK > J1001 1-794-970-11 JACK, PIN 1P (VIDEO OUT) < COIL > L1001 1-216-296-11 SHORT CHIP 0 L1002 1-216-296-11 SHORT CHIP 0 < TRANSISTOR > Q1001 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q1002 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q1004 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q1005 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q1006 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q1007 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q1008 8-729-140-04 TRANSISTOR 2SB1116A-L Q1009 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q1010 8-729-027-43 TRANSISTOR DTC114EKA-T146 < RESISTOR > R1003 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1004 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1005 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1006 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1011 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1012 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1013 1-216-820-11 METAL CHIP 820 5% 1/10W R1015 1-216-864-11 SHORT CHIP 0 R1016 1-216-833-11 METAL CHIP 10K 5% 1/10W R1017 1-216-833-11 METAL CHIP 10K 5% 1/10W R1018 1-216-833-11 METAL CHIP 10K 5% 1/10W R1019 1-216-833-11 METAL CHIP 10K 5% 1/10W R1020 1-216-833-11 METAL CHIP 10K 5% 1/10W R1021 1-216-813-11 METAL CHIP 220 5% 1/10W R1022 1-216-813-11 METAL CHIP 220 5% 1/10W R1023 1-216-813-11 METAL CHIP 220 5% 1/10W R1029 1-216-809-11 METAL CHIP 100 5% 1/10W R1030 1-216-837-11 METAL CHIP 22K 5% 1/10W R1031 1-218-285-11 METAL CHIP 75 5% 1/10W R1032 1-216-833-11 METAL CHIP 10K 5% 1/10W R1033 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1034 1-216-829-11 METAL CHIP 4.7K 5% 1/10W < VIBRATOR > X1002 1-781-821-21 VIBRATOR, CRYSTAL (14.31818MHz) ************************************************************ A-1103-756-B DRIVER BOARD, COMPLETE *********************** < CAPACITOR > C715 1-126-933-11 ELECT 100uF 20% 16V C731 1-126-964-11 ELECT 10uF 20% 50V C735 1-164-159-21 CERAMIC 0.1uF 50V C736 1-164-159-21 CERAMIC 0.1uF 50V C737 1-164-159-21 CERAMIC 0.1uF 50V C741 1-162-306-11 CERAMIC 0.01uF 20% 16V C751 1-162-306-11 CERAMIC 0.01uF 20% 16V C752 1-164-159-21 CERAMIC 0.1uF 50V < CONNECTOR > CN701 1-784-735-11 CONNECTOR, FFC 13P CN702 1-784-766-11 CONNECTOR, FFC 5P * CN703 1-564-720-11 PIN, CONNECTOR (SMALL TYPE) 4P CN704 1-785-328-11 PIN, CONNECTOR (LIGHT ANGRE) 2P < DIODE > D701 8-719-921-42 DIODE MTZJ-5.1A D711 8-719-109-69 DIODE RD3.6ESB2 < IC > IC701 8-759-598-69 IC BA6956AN IC712 8-759-598-69 IC BA6956AN < TRANSISTOR > Q731 8-729-029-66 TRANSISTOR DTC114ESA < RESISTOR > R701 1-249-413-11 CARBON 470 5% 1/4W R702 1-247-807-31 CARBON 100 5% 1/4W R711 1-249-417-11 CARBON 1K 5% 1/4W R712 1-249-425-11 CARBON 4.7K 5% 1/4W R713 1-249-433-11 CARBON 22K 5% 1/4W R721 1-249-425-11 CARBON 4.7K 5% 1/4W R722 1-249-425-11 CARBON 4.7K 5% 1/4W R723 1-249-425-11 CARBON 4.7K 5% 1/4W R731 1-247-807-31 CARBON 100 5% 1/4W R732 1-249-429-11 CARBON 10K 5% 1/4W R733 1-249-417-11 CARBON 1K 5% 1/4W R734 1-249-430-11 CARBON 12K 5% 1/4W R736 1-249-412-11 CARBON 390 5% 1/4W R751 1-249-425-11 CARBON 4.7K 5% 1/4W ************************************************************ IR BOARD ******** < CAPACITOR > C1308 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V < CONNECTOR > CN1403 1-816-423-11 SOCKET, CONNECTOR 3P < IC > IC1301 6-600-309-01 IC RPM7240-H9 ( g ) < RESISTOR > R1306 1-216-805-11 METAL CHIP 47 5% 1/10W ************************************************************ CDG IR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 72 HCD-GNX660 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks A-1159-558-A MAIN BOARD, COMPLETE ********************* 7-685-646-79 SCREW +BVTP 3X8 TYPE2 TT (B) < CAPACITOR > C101 1-126-964-11 ELECT 10uF 20% 50V C103 1-126-964-11 ELECT 10uF 20% 50V C104 1-126-964-11 ELECT 10uF 20% 50V C105 1-126-964-11 ELECT 10uF 20% 50V C106 1-115-412-11 CERAMIC CHIP 680PF 5% 25V C107 1-136-497-81 FILM 0.1uF 5% 50V C108 1-104-700-11 CERAMIC CHIP 0.027uF 10% 16V C109 1-104-700-11 CERAMIC CHIP 0.027uF 10% 16V C110 1-126-964-11 ELECT 10uF 20% 50V C111 1-100-436-91 CERAMIC CHIP 0.033uF 10% 25V C112 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V (-12) C112 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V (-13) C113 1-126-964-11 ELECT 10uF 20% 50V C114 1-136-175-00 FILM 0.68uF 5% 50V C115 1-137-195-11 FILM 0.56uF 5% 50V C116 1-126-963-11 ELECT 4.7uF 20% 50V C118 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C119 1-126-964-11 ELECT 10uF 20% 50V C120 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C121 1-126-960-11 ELECT 1uF 20% 50V C122 1-126-964-11 ELECT 10uF 20% 50V C123 1-162-957-11 CERAMIC CHIP 220PF 5% 50V C124 1-162-928-11 CERAMIC CHIP 120PF 5% 50V C125 1-162-959-11 CERAMIC CHIP 330PF 5% 50V C126 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C130 1-164-172-11 CERAMIC CHIP 0.0056uF 10% 25V C132 1-126-933-11 ELECT 100uF 20% 16V C133 1-126-960-11 ELECT 1uF 20% 50V C134 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C135 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C136 1-126-933-11 ELECT 100uF 20% 16V C137 1-126-925-91 ELECT 470uF 20% 10V C138 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C139 1-137-150-11 FILM 0.01uF 5% 100V C140 1-126-947-11 ELECT 47uF 20% 35V C141 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C142 1-130-481-00 MYLAR 0.0068uF 5% 50V C144 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C145 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C147 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C148 1-126-961-11 ELECT 2.2uF 20% 50V C150 1-126-964-11 ELECT 10uF 20% 50V C151 1-126-964-11 ELECT 10uF 20% 50V C153 1-126-964-11 ELECT 10uF 20% 50V C154 1-126-964-11 ELECT 10uF 20% 50V C156 1-115-412-11 CERAMIC CHIP 680PF 5% 25V C157 1-136-497-81 FILM 0.1uF 5% 50V C158 1-104-700-11 CERAMIC CHIP 0.027uF 10% 16V C159 1-104-700-11 CERAMIC CHIP 0.027uF 10% 16V C160 1-126-964-11 ELECT 10uF 20% 50V C161 1-100-436-91 CERAMIC CHIP 0.033uF 10% 25V C162 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V (-12) C162 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V (-13) C163 1-126-964-11 ELECT 10uF 20% 50V C164 1-137-196-11 FILM 0.68uF 5% 50V C165 1-137-195-11 FILM 0.56uF 5% 50V C166 1-126-963-11 ELECT 4.7uF 20% 50V C168 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C169 1-126-964-11 ELECT 10uF 20% 50V C170 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C171 1-126-960-11 ELECT 1uF 20% 50V C172 1-126-964-11 ELECT 10uF 20% 50V C173 1-162-957-11 CERAMIC CHIP 220PF 5% 50V C174 1-162-928-11 CERAMIC CHIP 120PF 5% 50V C175 1-162-959-11 CERAMIC CHIP 330PF 5% 50V C176 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C177 1-137-194-81 FILM 0.47uF 5% 50V C178 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C179 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C180 1-164-172-11 CERAMIC CHIP 0.0056uF 10% 25V C184 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C185 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C186 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V C187 1-104-658-91 ELECT 100uF 20% 10V C188 1-163-077-00 CERAMIC CHIP 0.1uF 10% 25V C189 1-162-957-11 CERAMIC CHIP 220PF 5% 50V C190 1-162-957-11 CERAMIC CHIP 220PF 5% 50V C191 1-137-189-11 FILM 0.18uF 5% 50V C192 1-126-960-11 ELECT 1uF 20% 50V C193 1-137-189-11 FILM 0.18uF 5% 50V C194 1-126-964-11 ELECT 10uF 20% 50V C195 1-126-960-11 ELECT 1uF 20% 50V C197 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C198 1-126-961-11 ELECT 2.2uF 20% 50V C199 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C200 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C201 1-162-953-11 CERAMIC CHIP 100PF 5% 50V C202 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C203 1-162-953-11 CERAMIC CHIP 100PF 5% 50V C204 1-162-953-11 CERAMIC CHIP 100PF 5% 50V C213 1-136-497-81 FILM 0.1uF 5% 50V C214 1-136-497-81 FILM 0.1uF 5% 50V C215 1-126-964-11 ELECT 10uF 20% 50V C216 1-136-497-81 FILM 0.1uF 5% 50V C226 1-162-953-11 CERAMIC CHIP 100PF 5% 50V C228 1-162-953-11 CERAMIC CHIP 100PF 5% 50V C230 1-126-961-11 ELECT 2.2uF 20% 50V C238 1-126-964-11 ELECT 10uF 20% 50V C267 1-126-964-11 ELECT 10uF 20% 50V C288 1-126-964-11 ELECT 10uF 20% 50V C301 1-126-965-91 ELECT 22uF 20% 50V C302 1-126-965-91 ELECT 22uF 20% 50V C303 1-126-961-11 ELECT 2.2uF 20% 50V C304 1-126-961-11 ELECT 2.2uF 20% 50V C307 1-126-961-11 ELECT 2.2uF 20% 50V C308 1-126-961-11 ELECT 2.2uF 20% 50V C410 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C411 1-162-918-11 CERAMIC CHIP 18PF 5% 50V C412 1-164-156-11 CERAMIC CHIP 0.1uF 25V C414 1-164-156-11 CERAMIC CHIP 0.1uF 25V MAIN Ver. 1.2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 73 HCD-GNX660 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks MAIN C416 1-126-917-11 ELECT 3300uF 20% 6.3V C462 1-104-658-91 ELECT 100uF 20% 10V C464 1-164-156-11 CERAMIC CHIP 0.1uF 25V C486 1-104-655-91 ELECT 470uF 20% 6.3V C496 1-126-964-11 ELECT 10uF 20% 50V C497 1-126-960-11 ELECT 1uF 20% 50V (-13) C498 1-164-156-11 CERAMIC CHIP 0.1uF 25V C499 1-164-156-11 CERAMIC CHIP 0.1uF 25V C504 1-126-925-91 ELECT 470uF 20% 10V (-13) C504 1-126-926-11 ELECT 1000uF 20% 10V (-12) C520 1-126-964-11 ELECT 10uF 20% 50V C521 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C522 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C523 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C526 1-164-156-11 CERAMIC CHIP 0.1uF 25V C527 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C531 1-164-156-11 CERAMIC CHIP 0.1uF 25V C533 1-126-926-11 ELECT 1000uF 20% 10V C534 1-164-156-11 CERAMIC CHIP 0.1uF 25V C535 1-126-926-11 ELECT 1000uF 20% 10V C536 1-164-156-11 CERAMIC CHIP 0.1uF 25V C537 1-164-156-11 CERAMIC CHIP 0.1uF 25V C538 1-164-156-11 CERAMIC CHIP 0.1uF 25V C539 1-164-156-11 CERAMIC CHIP 0.1uF 25V C546 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C547 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C550 1-126-937-11 ELECT 4700uF 20% 16V C551 1-126-960-11 ELECT 1uF 20% 50V C552 1-126-925-91 ELECT 470uF 20% 10V C553 1-126-960-11 ELECT 1uF 20% 50V C554 1-126-925-91 ELECT 470uF 20% 10V C555 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C556 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C567 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C568 1-126-916-11 ELECT 1000uF 20% 6.3V C570 1-126-964-11 ELECT 10uF 20% 50V C571 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C580 1-164-156-11 CERAMIC CHIP 0.1uF 25V C581 1-164-156-11 CERAMIC CHIP 0.1uF 25V C582 1-126-937-11 ELECT 4700uF 20% 16V C583 1-126-963-11 ELECT 4.7uF 20% 50V C585 1-164-156-11 CERAMIC CHIP 0.1uF 25V < CONNECTOR > CN101 1-784-772-11 CONNECTOR, FFC 11P CN105 1-784-780-11 CONNECTOR, FFC 19P * CN111 1-568-449-11 HOUSING, CONNECTOR (PC BOARD) 3P CN121 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P * CN131 1-564-710-11 PIN, CONNECTOR (SMALL TYPE) 8P CN201 1-784-786-11 CONNECTOR, FFC 25P CN205 1-785-317-11 PIN, CONNECTOR (STRAIGHT) 5P * CN321 1-784-774-11 CONNECTOR, FFC 13P CN351 1-779-299-11 CONNECTOR, FFC (LIF (NON-ZIF)) 31P * CN381 1-766-718-21 CONNECTOR, BOARD TO BOARD 17P CN402 1-785-336-11 PIN, CONNECTOR (LIGHT ANGLE) 10P CN405 1-784-774-11 CONNECTOR, FFC 13P CN406 1-568-828-11 CONNECTOR, FFC 9P CN580 1-564-506-11 PLUG, CONNECTOR 3P * CN590 1-564-510-11 PLUG, CONNECTOR 7P < DIODE > D101 6-501-193-01 DIODE 1SS355WTE-17 D102 6-501-193-01 DIODE 1SS355WTE-17 D104 6-501-193-01 DIODE 1SS355WTE-17 D213 6-501-193-01 DIODE 1SS355WTE-17 D214 6-501-193-01 DIODE 1SS355WTE-17 D215 6-501-193-01 DIODE 1SS355WTE-17 D216 6-501-193-01 DIODE 1SS355WTE-17 D230 6-501-193-01 DIODE 1SS355WTE-17 D231 6-501-193-01 DIODE 1SS355WTE-17 D232 6-501-193-01 DIODE 1SS355WTE-17 D393 6-501-193-01 DIODE 1SS355WTE-17 D394 6-501-193-01 DIODE 1SS355WTE-17 D395 6-501-193-01 DIODE 1SS355WTE-17 D396 6-501-193-01 DIODE 1SS355WTE-17 D486 6-501-193-01 DIODE 1SS355WTE-17 D506 6-501-193-01 DIODE 1SS355WTE-17 D561 6-500-522-21 DIODE 10EDB40-TB3 D562 6-500-522-21 DIODE 10EDB40-TB3 D563 6-500-522-21 DIODE 10EDB40-TB3 D580 6-501-193-01 DIODE 1SS355WTE-17 D581 8-719-069-56 DIODE UDZSTE-176.2B D582 6-501-193-01 DIODE 1SS355WTE-17 D583 8-719-978-33 DIODE DTZ-TT11-6.8B D586 6-500-522-21 DIODE 10EDB40-TB3 D594 6-500-522-21 DIODE 10EDB40-TB3 < FERRITE BEAD > FB101 1-216-864-11 SHORT CHIP 0 FB102 1-469-125-21 FERRITE, EMI (SMD) (1608) FB103 1-216-864-11 SHORT CHIP 0 FB104 1-469-125-21 FERRITE, EMI (SMD) (1608) FB151 1-216-864-11 SHORT CHIP 0 FB152 1-469-125-21 FERRITE, EMI (SMD) (1608) FB153 1-216-864-11 SHORT CHIP 0 FB505 1-216-864-11 SHORT CHIP 0 FB506 1-500-283-11 INDUCTOR, FERRITE BEAD FB507 1-500-283-11 INDUCTOR, FERRITE BEAD FB508 1-500-283-11 INDUCTOR, FERRITE BEAD FB509 1-500-283-11 INDUCTOR, FERRITE BEAD FB510 1-500-283-11 INDUCTOR, FERRITE BEAD FB512 1-500-283-11 INDUCTOR, FERRITE BEAD FB513 1-414-235-22 INDUCTOR, FERRITE BEAD FB514 1-414-235-22 INDUCTOR, FERRITE BEAD FB555 1-216-864-11 SHORT CHIP 0 < IC > IC101 6-705-667-01 IC M61537FP-RF0G IC401 6-807-073-01 IC M30622MGP-A54FPU0 IC402 6-701-680-01 IC PST3629NR IC403 6-707-095-01 IC BH2210FV-E2 IC551 6-703-550-01 IC TA7809LS IC552 6-703-550-01 IC TA7809LS IC562 6-703-546-01 IC TA7804LS Ver. 1.2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 74 HCD-GNX660 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks MAIN < JACK > J501 1-815-045-11 JACK, PIN 2P (AUDIO IN) J506 1-820-048-11 CONNECTOR (LIGHTING) (D-LIGHT SYNC OUT) < JUMPER RESISTOR > JR001 1-216-296-11 SHORT CHIP 0 JR002 1-216-864-11 SHORT CHIP 0 JR003 1-216-864-11 SHORT CHIP 0 JR004 1-216-864-11 SHORT CHIP 0 JR005 1-216-864-11 SHORT CHIP 0 JR006 1-216-864-11 SHORT CHIP 0 JR007 1-216-864-11 SHORT CHIP 0 JR008 1-216-864-11 SHORT CHIP 0 JR009 1-216-864-11 SHORT CHIP 0 JR011 1-216-864-11 SHORT CHIP 0 JR012 1-216-864-11 SHORT CHIP 0 JR013 1-216-296-11 SHORT CHIP 0 JR014 1-216-296-11 SHORT CHIP 0 JR015 1-216-864-11 SHORT CHIP 0 JR016 1-216-864-11 SHORT CHIP 0 JR017 1-216-864-11 SHORT CHIP 0 JR018 1-216-864-11 SHORT CHIP 0 JR019 1-216-864-11 SHORT CHIP 0 JR020 1-216-864-11 SHORT CHIP 0 JR021 1-216-296-11 SHORT CHIP 0 JR022 1-216-864-11 SHORT CHIP 0 JR024 1-216-296-11 SHORT CHIP 0 JR026 1-216-864-11 SHORT CHIP 0 JR027 1-216-864-11 SHORT CHIP 0 JR028 1-216-864-11 SHORT CHIP 0 JR029 1-216-864-11 SHORT CHIP 0 JR030 1-216-864-11 SHORT CHIP 0 JR031 1-216-864-11 SHORT CHIP 0 JR032 1-216-864-11 SHORT CHIP 0 JR033 1-216-864-11 SHORT CHIP 0 JR036 1-216-864-11 SHORT CHIP 0 JR037 1-216-864-11 SHORT CHIP 0 JR042 1-216-864-11 SHORT CHIP 0 JR043 1-216-864-11 SHORT CHIP 0 JR044 1-216-864-11 SHORT CHIP 0 JR046 1-216-864-11 SHORT CHIP 0 JR047 1-216-864-11 SHORT CHIP 0 JR048 1-216-296-11 SHORT CHIP 0 JR049 1-216-864-11 SHORT CHIP 0 JR050 1-216-864-11 SHORT CHIP 0 JR051 1-216-864-11 SHORT CHIP 0 JR056 1-216-296-11 SHORT CHIP 0 JR057 1-216-296-11 SHORT CHIP 0 JR059 1-216-296-11 SHORT CHIP 0 JR126 1-216-864-11 SHORT CHIP 0 JR152 1-216-296-11 SHORT CHIP 0 JR153 1-216-296-11 SHORT CHIP 0 JR176 1-216-864-11 SHORT CHIP 0 JR228 1-216-864-11 SHORT CHIP 0 JR261 1-216-864-11 SHORT CHIP 0 JR267 1-216-864-11 SHORT CHIP 0 JR318 1-216-864-11 SHORT CHIP 0 JR381 1-216-864-11 SHORT CHIP 0 JR467 1-216-864-11 SHORT CHIP 0 JR480 1-216-864-11 SHORT CHIP 0 JR481 1-216-864-11 SHORT CHIP 0 JR487 1-216-864-11 SHORT CHIP 0 JR550 1-216-864-11 SHORT CHIP 0 JR555 1-216-864-11 SHORT CHIP 0 < COIL > L103 1-410-780-11 INDUCTOR 27mH L104 1-410-780-11 INDUCTOR 27mH L105 1-414-189-31 INDUCTOR 100uH < TRANSISTOR > Q101 8-729-901-81 TRANSISTOR 2SC2412K-T-146-R Q103 8-729-802-80 TRANSISTOR 2SC3661 Q104 8-729-802-80 TRANSISTOR 2SC3661 Q105 8-729-802-80 TRANSISTOR 2SC3661 Q106 8-729-802-80 TRANSISTOR 2SC3661 Q107 8-729-216-22 TRANSISTOR 2SA1162-G Q108 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q109 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q110 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q111 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q112 8-729-141-75 TRANSISTOR 2SD596DV345 Q113 6-550-185-01 TRANSISTOR RT1P137P-TP-1 Q114 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q118 8-729-903-46 TRANSISTOR 2SB1132-P Q119 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q120 8-729-903-46 TRANSISTOR 2SB1132-P Q121 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q122 8-729-903-46 TRANSISTOR 2SB1132-P Q123 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q125 8-729-802-80 TRANSISTOR 2SC3661 Q151 8-729-901-81 TRANSISTOR 2SC2412K-T-146-R Q153 8-729-802-80 TRANSISTOR 2SC3661 Q154 8-729-802-80 TRANSISTOR 2SC3661 Q155 8-729-802-80 TRANSISTOR 2SC3661 Q156 8-729-230-49 TRANSISTOR 2SC2712-YG (-13) Q157 8-729-230-49 TRANSISTOR 2SC2712-YG (-13) Q166 8-729-802-80 TRANSISTOR 2SC3661 Q175 8-729-802-80 TRANSISTOR 2SC3661 Q213 8-729-901-00 TRANSISTOR DTC124EK Q237 8-729-802-80 TRANSISTOR 2SC3661 Q287 8-729-802-80 TRANSISTOR 2SC3661 Q301 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q302 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q303 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q304 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q307 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q308 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q486 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q560 6-550-185-01 TRANSISTOR RT1P137P-TP-1 Q561 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q580 8-729-901-81 TRANSISTOR 2SC2412K-T-146-R Q582 8-729-901-81 TRANSISTOR 2SC2412K-T-146-R Q584 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q585 8-729-026-68 TRANSISTOR 2SD2525 (TP) Ver. 1.2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 75 HCD-GNX660 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks MAIN < RESISTOR > R101 1-216-812-11 METAL CHIP 180 5% 1/10W R102 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R103 1-216-833-11 METAL CHIP 10K 5% 1/10W R104 1-216-841-11 METAL CHIP 47K 5% 1/10W R105 1-216-841-11 METAL CHIP 47K 5% 1/10W R106 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R107 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R108 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R109 1-216-836-11 METAL CHIP 18K 5% 1/10W R110 1-216-851-11 METAL CHIP 330K 5% 1/10W R111 1-216-821-11 METAL CHIP 1K 5% 1/10W R112 1-216-833-11 METAL CHIP 10K 5% 1/10W R113 1-216-833-11 METAL CHIP 10K 5% 1/10W R114 1-216-864-11 SHORT CHIP 0 R115 1-216-833-11 METAL CHIP 10K 5% 1/10W R116 1-216-833-11 METAL CHIP 10K 5% 1/10W R117 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R118 1-216-835-11 METAL CHIP 15K 5% 1/10W R119 1-216-817-11 METAL CHIP 470 5% 1/10W R120 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R121 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R122 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R123 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R124 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R125 1-216-838-11 METAL CHIP 27K 5% 1/10W R126 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R127 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R128 1-216-837-11 METAL CHIP 22K 5% 1/10W R129 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R130 1-216-841-11 METAL CHIP 47K 5% 1/10W R131 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R133 1-216-857-11 METAL CHIP 1M 5% 1/10W R138 1-216-841-11 METAL CHIP 47K 5% 1/10W R139 1-216-864-11 SHORT CHIP 0 R140 1-216-833-11 METAL CHIP 10K 5% 1/10W R141 1-216-833-11 METAL CHIP 10K 5% 1/10W R142 1-216-833-11 METAL CHIP 10K 5% 1/10W R143 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R144 1-216-805-11 METAL CHIP 47 5% 1/10W R145 1-216-833-11 METAL CHIP 10K 5% 1/10W R146 1-216-797-11 METAL CHIP 10 5% 1/10W R147 1-216-803-11 METAL CHIP 33 5% 1/10W R148 1-216-841-11 METAL CHIP 47K 5% 1/10W R149 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R150 1-216-841-11 METAL CHIP 47K 5% 1/10W R151 1-216-812-11 METAL CHIP 180 5% 1/10W R152 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R153 1-216-833-11 METAL CHIP 10K 5% 1/10W R155 1-216-841-11 METAL CHIP 47K 5% 1/10W R156 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R157 1-216-836-11 METAL CHIP 18K 5% 1/10W R158 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R159 1-469-125-21 FERRITE, EMI (SMD) (1608) R160 1-216-851-11 METAL CHIP 330K 5% 1/10W R161 1-216-821-11 METAL CHIP 1K 5% 1/10W R162 1-216-833-11 METAL CHIP 10K 5% 1/10W R163 1-216-833-11 METAL CHIP 10K 5% 1/10W R164 1-216-864-11 SHORT CHIP 0 R165 1-469-125-21 FERRITE, EMI (SMD) (1608) R166 1-216-833-11 METAL CHIP 10K 5% 1/10W R167 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R168 1-216-835-11 METAL CHIP 15K 5% 1/10W R169 1-216-817-11 METAL CHIP 470 5% 1/10W R172 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R173 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R174 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R175 1-216-838-11 METAL CHIP 27K 5% 1/10W R176 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R177 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R178 1-216-819-11 METAL CHIP 680 5% 1/10W R179 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R180 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R181 1-216-819-11 METAL CHIP 680 5% 1/10W R182 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R183 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R184 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R186 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R188 1-216-841-11 METAL CHIP 47K 5% 1/10W R189 1-216-864-11 SHORT CHIP 0 R190 1-216-833-11 METAL CHIP 10K 5% 1/10W R191 1-216-817-11 METAL CHIP 470 5% 1/10W R192 1-216-817-11 METAL CHIP 470 5% 1/10W R193 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R194 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R195 1-216-857-11 METAL CHIP 1M 5% 1/10W R196 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R197 1-216-819-11 METAL CHIP 680 5% 1/10W R198 1-469-125-21 FERRITE, EMI (SMD) (1608) R199 1-469-125-21 FERRITE, EMI (SMD) (1608) R200 1-216-841-11 METAL CHIP 47K 5% 1/10W R202 1-216-809-11 METAL CHIP 100 5% 1/10W R203 1-216-809-11 METAL CHIP 100 5% 1/10W R204 1-216-809-11 METAL CHIP 100 5% 1/10W R205 1-216-809-11 METAL CHIP 100 5% 1/10W R207 1-216-809-11 METAL CHIP 100 5% 1/10W R209 1-216-809-11 METAL CHIP 100 5% 1/10W R210 1-216-809-11 METAL CHIP 100 5% 1/10W R212 1-216-809-11 METAL CHIP 100 5% 1/10W R214 1-216-864-11 SHORT CHIP 0 R215 1-216-821-11 METAL CHIP 1K 5% 1/10W R216 1-216-813-11 METAL CHIP 220 5% 1/10W R220 1-216-809-11 METAL CHIP 100 5% 1/10W R221 1-216-809-11 METAL CHIP 100 5% 1/10W R222 1-216-809-11 METAL CHIP 100 5% 1/10W R224 1-216-809-11 METAL CHIP 100 5% 1/10W R225 1-216-839-11 METAL CHIP 33K 5% 1/10W R226 1-216-809-11 METAL CHIP 100 5% 1/10W R227 1-216-864-11 SHORT CHIP 0 R230 1-216-809-11 METAL CHIP 100 5% 1/10W R231 1-216-841-11 METAL CHIP 47K 5% 1/10W R244 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R245 1-216-841-11 METAL CHIP 47K 5% 1/10W R246 1-216-833-11 METAL CHIP 10K 5% 1/10W R267 1-216-864-11 SHORT CHIP 0 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 76 HCD-GNX660 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks MAIN R294 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R295 1-216-841-11 METAL CHIP 47K 5% 1/10W R296 1-216-833-11 METAL CHIP 10K 5% 1/10W R301 1-216-833-11 METAL CHIP 10K 5% 1/10W R302 1-216-837-11 METAL CHIP 22K 5% 1/10W R303 1-216-845-11 METAL CHIP 100K 5% 1/10W R304 1-216-835-11 METAL CHIP 15K 5% 1/10W R305 1-216-843-11 METAL CHIP 68K 5% 1/10W R306 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R308 1-216-853-11 METAL CHIP 470K 5% 1/10W R309 1-216-833-11 METAL CHIP 10K 5% 1/10W R310 1-216-835-11 METAL CHIP 15K 5% 1/10W R311 1-216-843-11 METAL CHIP 68K 5% 1/10W R312 1-216-853-11 METAL CHIP 470K 5% 1/10W R329 1-216-833-11 METAL CHIP 10K 5% 1/10W R330 1-216-833-11 METAL CHIP 10K 5% 1/10W R337 1-216-833-11 METAL CHIP 10K 5% 1/10W R338 1-216-833-11 METAL CHIP 10K 5% 1/10W R340 1-216-833-11 METAL CHIP 10K 5% 1/10W R341 1-216-833-11 METAL CHIP 10K 5% 1/10W R354 1-216-833-11 METAL CHIP 10K 5% 1/10W R355 1-216-833-11 METAL CHIP 10K 5% 1/10W R372 1-216-833-11 METAL CHIP 10K 5% 1/10W R373 1-216-833-11 METAL CHIP 10K 5% 1/10W R374 1-216-833-11 METAL CHIP 10K 5% 1/10W R385 1-216-833-11 METAL CHIP 10K 5% 1/10W R392 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R393 1-216-821-11 METAL CHIP 1K 5% 1/10W R394 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R395 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R397 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R398 1-216-849-11 METAL CHIP 220K 5% 1/10W (-13) R399 1-216-845-11 METAL CHIP 100K 5% 1/10W (-13) R401 1-216-809-11 METAL CHIP 100 5% 1/10W R402 1-216-809-11 METAL CHIP 100 5% 1/10W R403 1-216-809-11 METAL CHIP 100 5% 1/10W R404 1-216-809-11 METAL CHIP 100 5% 1/10W R405 1-216-809-11 METAL CHIP 100 5% 1/10W R406 1-216-809-11 METAL CHIP 100 5% 1/10W R407 1-216-809-11 METAL CHIP 100 5% 1/10W R411 1-216-851-11 METAL CHIP 330K 5% 1/10W R412 1-216-845-11 METAL CHIP 100K 5% 1/10W R413 1-216-864-11 SHORT CHIP 0 R417 1-216-833-11 METAL CHIP 10K 5% 1/10W R419 1-216-809-11 METAL CHIP 100 5% 1/10W R420 1-216-821-11 METAL CHIP 1K 5% 1/10W R421 1-216-809-11 METAL CHIP 100 5% 1/10W R422 1-216-809-11 METAL CHIP 100 5% 1/10W R423 1-216-809-11 METAL CHIP 100 5% 1/10W R424 1-216-809-11 METAL CHIP 100 5% 1/10W R425 1-216-809-11 METAL CHIP 100 5% 1/10W R426 1-216-809-11 METAL CHIP 100 5% 1/10W R427 1-216-809-11 METAL CHIP 100 5% 1/10W R428 1-216-809-11 METAL CHIP 100 5% 1/10W R429 1-216-809-11 METAL CHIP 100 5% 1/10W R430 1-216-809-11 METAL CHIP 100 5% 1/10W R431 1-216-809-11 METAL CHIP 100 5% 1/10W R432 1-216-809-11 METAL CHIP 100 5% 1/10W R433 1-216-809-11 METAL CHIP 100 5% 1/10W R435 1-216-809-11 METAL CHIP 100 5% 1/10W R436 1-216-809-11 METAL CHIP 100 5% 1/10W R437 1-216-809-11 METAL CHIP 100 5% 1/10W R438 1-216-809-11 METAL CHIP 100 5% 1/10W R439 1-216-809-11 METAL CHIP 100 5% 1/10W R440 1-216-809-11 METAL CHIP 100 5% 1/10W R441 1-216-809-11 METAL CHIP 100 5% 1/10W R442 1-216-809-11 METAL CHIP 100 5% 1/10W R443 1-216-809-11 METAL CHIP 100 5% 1/10W R444 1-216-809-11 METAL CHIP 100 5% 1/10W R445 1-216-809-11 METAL CHIP 100 5% 1/10W R446 1-216-809-11 METAL CHIP 100 5% 1/10W R447 1-216-809-11 METAL CHIP 100 5% 1/10W R448 1-216-809-11 METAL CHIP 100 5% 1/10W R449 1-216-809-11 METAL CHIP 100 5% 1/10W R450 1-216-809-11 METAL CHIP 100 5% 1/10W R451 1-216-809-11 METAL CHIP 100 5% 1/10W R452 1-216-809-11 METAL CHIP 100 5% 1/10W R453 1-216-809-11 METAL CHIP 100 5% 1/10W R454 1-216-809-11 METAL CHIP 100 5% 1/10W R455 1-216-809-11 METAL CHIP 100 5% 1/10W R456 1-216-812-11 METAL CHIP 180 5% 1/10W R457 1-216-809-11 METAL CHIP 100 5% 1/10W R458 1-216-809-11 METAL CHIP 100 5% 1/10W R459 1-216-809-11 METAL CHIP 100 5% 1/10W R460 1-216-809-11 METAL CHIP 100 5% 1/10W R461 1-216-809-11 METAL CHIP 100 5% 1/10W R463 1-216-809-11 METAL CHIP 100 5% 1/10W R465 1-216-809-11 METAL CHIP 100 5% 1/10W R472 1-216-809-11 METAL CHIP 100 5% 1/10W R473 1-216-809-11 METAL CHIP 100 5% 1/10W R474 1-216-809-11 METAL CHIP 100 5% 1/10W R476 1-216-809-11 METAL CHIP 100 5% 1/10W R477 1-216-809-11 METAL CHIP 100 5% 1/10W R478 1-216-809-11 METAL CHIP 100 5% 1/10W R479 1-216-809-11 METAL CHIP 100 5% 1/10W R482 1-216-809-11 METAL CHIP 100 5% 1/10W R483 1-216-809-11 METAL CHIP 100 5% 1/10W R484 1-216-809-11 METAL CHIP 100 5% 1/10W R485 1-216-809-11 METAL CHIP 100 5% 1/10W R486 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R488 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R489 1-216-809-11 METAL CHIP 100 5% 1/10W R490 1-216-809-11 METAL CHIP 100 5% 1/10W R491 1-216-809-11 METAL CHIP 100 5% 1/10W R492 1-216-811-11 METAL CHIP 150 5% 1/10W R493 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R494 1-216-813-11 METAL CHIP 220 5% 1/10W R495 1-216-813-11 METAL CHIP 220 5% 1/10W R497 1-216-813-11 METAL CHIP 220 5% 1/10W R500 1-216-809-11 METAL CHIP 100 5% 1/10W (-12) R500 1-216-821-11 METAL CHIP 1K 5% 1/10W (-13) R501 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (-13) 0R506 1-219-153-11 FUSIBLE 10 5% 1/4W R508 1-216-830-11 METAL CHIP 5.6K 5% 1/10W Ver. 1.2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 77 HCD-GNX660 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks R509 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R510 1-216-821-11 METAL CHIP 1K 5% 1/10W R511 1-216-821-11 METAL CHIP 1K 5% 1/10W R512 1-216-821-11 METAL CHIP 1K 5% 1/10W R513 1-216-821-11 METAL CHIP 1K 5% 1/10W R524 1-216-821-11 METAL CHIP 1K 5% 1/10W R525 1-216-845-11 METAL CHIP 100K 5% 1/10W R532 1-216-864-11 SHORT CHIP 0 R560 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R563 1-216-821-11 METAL CHIP 1K 5% 1/10W R574 1-216-821-11 METAL CHIP 1K 5% 1/10W R575 1-216-845-11 METAL CHIP 100K 5% 1/10W R576 1-216-841-11 METAL CHIP 47K 5% 1/10W R577 1-216-845-11 METAL CHIP 100K 5% 1/10W R578 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R579 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R580 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R582 1-216-864-11 SHORT CHIP 0 R583 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R584 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R585 1-216-841-11 METAL CHIP 47K 5% 1/10W R586 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R587 1-216-841-11 METAL CHIP 47K 5% 1/10W R590 1-216-833-11 METAL CHIP 10K 5% 1/10W R591 1-216-833-11 METAL CHIP 10K 5% 1/10W R592 1-216-845-11 METAL CHIP 100K 5% 1/10W R593 1-216-845-11 METAL CHIP 100K 5% 1/10W < TRANSFORMER > T101 1-433-372-11 TRANSFORMER, BIAS OSCILLATION < VIBRATOR > X401 1-760-252-12 VIBRATOR, CRYSTAL (32.768kHz) X402 1-795-058-21 VIBRATOR, CERAMIC (5MHz) ************************************************************ A-1167-713-A MIC BOARD, COMPLETE ******************** < CAPACITOR > C1400 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1401 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V C1403 1-109-864-91 CERAMIC CHIP 68PF 2% 50V C1404 1-119-772-11 ELECT 47uF 20% 35V C1405 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1406 1-124-589-11 ELECT 47uF 20% 16V C1407 1-124-589-11 ELECT 47uF 20% 16V C1408 1-126-163-11 ELECT 4.7uF 20% 50V C1409 1-126-160-11 ELECT 1uF 20% 50V C1410 1-126-160-11 ELECT 1uF 20% 50V C1411 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1412 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1413 1-164-730-11 CERAMIC CHIP 0.0012uF 10% 50V C1415 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V C1416 1-128-131-11 ELECT 22uF 20% 50V C1418 1-164-392-11 CERAMIC CHIP 390PF 5% 50V C1419 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C1424 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V C1427 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C1429 1-124-463-00 ELECT 0.1uF 20% 50V C1430 1-124-463-00 ELECT 0.1uF 20% 50V C1432 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V (-13) C1433 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C1434 1-124-261-00 ELECT 10uF 20% 50V C1435 1-126-176-11 ELECT 220uF 20% 10V C1436 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C1437 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1438 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V (-13) C1458 1-126-163-11 ELECT 4.7uF 20% 50V C1459 1-126-160-11 ELECT 1uF 20% 50V C1460 1-126-160-11 ELECT 1uF 20% 50V C1461 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1468 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V C1479 1-126-163-11 ELECT 4.7uF 20% 50V C1486 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C1487 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V < DIODE > D1400 8-719-069-54 DIODE UDZSTE-175.1B < IC > IC1400 6-709-116-01 IC TC9488FG IC1401 8-759-710-97 IC NJM4565M-D < JACK > J1400 1-817-629-11 JACK (LARGE TYPE) (MIC 1) J1401 1-794-702-11 JACK, HEADPHONE (PHONES) J1450 1-817-629-11 JACK (LARGE TYPE) (MIC 2) < JUMPER RESISTOR > JR1401 1-216-864-11 SHORT CHIP 0 JR1403 1-216-296-11 SHORT CHIP 0 JR1417 1-216-864-11 SHORT CHIP 0 JR1427 1-216-864-11 SHORT CHIP 0 JR1433 1-216-864-11 SHORT CHIP 0 JR1483 1-216-864-11 SHORT CHIP 0 < TRANSISTOR > Q1400 8-729-802-80 TRANSISTOR 2SC3661 Q1401 8-729-802-80 TRANSISTOR 2SC3661 Q1450 8-729-802-80 TRANSISTOR 2SC3661 Q1451 8-729-802-80 TRANSISTOR 2SC3661 < RESISTOR > R1401 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1402 1-216-809-11 METAL CHIP 100 5% 1/10W R1403 1-216-809-11 METAL CHIP 100 5% 1/10W R1404 1-216-809-11 METAL CHIP 100 5% 1/10W R1405 1-216-815-11 METAL CHIP 330 5% 1/10W R1406 1-216-815-11 METAL CHIP 330 5% 1/10W R1407 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1409 1-216-833-11 METAL CHIP 10K 5% 1/10W R1410 1-216-821-11 METAL CHIP 1K 5% 1/10W R1411 1-216-833-11 METAL CHIP 10K 5% 1/10W MAIN MIC Ver. 1.2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 78 HCD-GNX660 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks PANEL R1412 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R1413 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R1414 1-216-834-11 METAL CHIP 12K 5% 1/10W R1415 1-216-835-11 METAL CHIP 15K 5% 1/10W R1416 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R1417 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R1418 1-216-821-11 METAL CHIP 1K 5% 1/10W R1422 1-216-864-11 SHORT CHIP 0 R1424 1-216-833-11 METAL CHIP 10K 5% 1/10W R1425 1-216-833-11 METAL CHIP 10K 5% 1/10W R1426 1-216-842-11 METAL CHIP 56K 5% 1/10W R1427 1-216-837-11 METAL CHIP 22K 5% 1/10W R1431 1-216-864-11 SHORT CHIP 0 R1432 1-216-797-11 METAL CHIP 10 5% 1/10W R1433 1-216-797-11 METAL CHIP 10 5% 1/10W R1434 1-216-797-11 METAL CHIP 10 5% 1/10W R1435 1-216-797-11 METAL CHIP 10 5% 1/10W R1436 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1437 1-216-845-11 METAL CHIP 100K 5% 1/10W R1438 1-216-864-11 SHORT CHIP 0 R1439 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1440 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R1441 1-216-864-11 SHORT CHIP 0 R1442 1-216-821-11 METAL CHIP 1K 5% 1/10W R1443 1-216-821-11 METAL CHIP 1K 5% 1/10W R1457 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1459 1-216-833-11 METAL CHIP 10K 5% 1/10W R1460 1-216-821-11 METAL CHIP 1K 5% 1/10W R1461 1-216-833-11 METAL CHIP 10K 5% 1/10W R1476 1-216-837-11 METAL CHIP 22K 5% 1/10W R1477 1-216-835-11 METAL CHIP 15K 5% 1/10W R1482 1-216-797-11 METAL CHIP 10 5% 1/10W R1483 1-216-797-11 METAL CHIP 10 5% 1/10W R1484 1-216-797-11 METAL CHIP 10 5% 1/10W R1485 1-216-797-11 METAL CHIP 10 5% 1/10W R1486 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1492 1-216-821-11 METAL CHIP 1K 5% 1/10W R1493 1-216-821-11 METAL CHIP 1K 5% 1/10W < VARIABLE RESISTOR > RV1400 1-223-983-11 RES, VAR, CARBON 50K (MIC 1 LEVEL) RV1401 1-223-983-11 RES, VAR, CARBON 50K (MIC 2 LEVEL) RV1402 1-223-983-11 RES, VAR, CARBON 50K (ECHO LEVEL) ************************************************************ 1-687-133-12 MOTOR (LD) BOARD ***************** ************************************************************ 1-687-134-12 MOTOR (TB) BOARD ***************** < CONNECTOR > CN742 1-784-727-11 CONNECTOR, FFC 5P ************************************************************ A-1167-711-A PANEL BOARD, COMPLETE ********************** < CAPACITOR > C1300 1-126-965-91 ELECT 22uF 20% 50V C1301 1-162-995-11 CERAMIC CHIP 0.022uF 50V C1302 1-162-974-11 CERAMIC CHIP 0.01uF 50V C1304 1-126-969-11 ELECT 220uF 20% 50V C1305 1-124-261-00 ELECT 10uF 20% 50V C1306 1-162-974-11 CERAMIC CHIP 0.01uF 50V C1307 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1309 1-124-589-11 ELECT 47uF 20% 16V C1310 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C1311 1-126-157-11 ELECT 10uF 20% 16V C1312 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V C1313 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V C1314 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V C1315 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V C1316 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C1317 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C1318 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C1319 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C1320 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C1321 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C1322 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C1323 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C1324 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C1325 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C1326 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C1327 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C1328 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C1329 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C1330 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C1331 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C1357 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V < CONNECTOR > CN1402 1-784-747-11 CONNECTOR, FFC 25P CN1452 1-785-337-11 PIN, CONNECTOR (LIGHT ANGLE) 11P CN1453 1-818-282-11 PIN, CONNECTOR (FOR PWB) 3P < DIODE > D1300 6-501-193-01 DIODE 1SS355WTE-17 D1301 6-501-193-01 DIODE 1SS355WTE-17 D1302 6-501-193-01 DIODE 1SS355WTE-17 D1303 6-501-193-01 DIODE 1SS355WTE-17 D1304 6-500-809-01 DIODE SELU5223C-STP15 ( ^/1 ) D1305 8-719-059-18 DIODE RD6.2FM-T1 D1306 6-501-193-01 DIODE 1SS355WTE-17 D1313 6-501-228-01 DIODE SELU5420E-STP15 (SUB WOOFER ON/OFF) D1314 6-501-193-01 DIODE 1SS355WTE-17 < FLUORESCENT INDICATOR > FL1300 1-519-859-11 VACUUM FLUORESCENT DISPLAYS < IC > IC1300 6-709-115-11 IC NJU3427FA2 MIC MOTOR (LD) MOTOR (TB) Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 79 HCD-GNX660 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks PANEL POWER < JUMPER RESISTOR > JR1305 1-216-864-11 SHORT CHIP 0 < COIL > L1300 1-410-671-31 INDUCTOR 47uH < TRANSISTOR > Q1300 6-550-065-01 TRANSISTOR CPH5504-TL-E Q1303 8-729-903-46 TRANSISTOR 2SB1132-P Q1304 8-729-903-46 TRANSISTOR 2SB1132-P Q1305 8-729-027-50 TRANSISTOR DTC123JKA-T146 Q1306 8-729-027-50 TRANSISTOR DTC123JKA-T146 Q1307 8-729-027-50 TRANSISTOR DTC123JKA-T146 Q1308 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q1309 8-729-027-50 TRANSISTOR DTC123JKA-T146 Q1310 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q1311 8-729-027-56 TRANSISTOR DTC143TKA-T146 Q1312 8-729-027-56 TRANSISTOR DTC143TKA-T146 Q1313 8-729-027-56 TRANSISTOR DTC143TKA-T146 Q1314 8-729-027-56 TRANSISTOR DTC143TKA-T146 Q1315 8-729-027-56 TRANSISTOR DTC143TKA-T146 Q1316 8-729-027-56 TRANSISTOR DTC143TKA-T146 < RESISTOR > R1300 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1301 1-216-837-11 METAL CHIP 22K 5% 1/10W R1302 1-216-837-11 METAL CHIP 22K 5% 1/10W R1303 1-216-809-11 METAL CHIP 100 5% 1/10W R1304 1-216-809-11 METAL CHIP 100 5% 1/10W R1305 1-215-871-11 METAL OXIDE 2.2K 5% 1W R1307 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1308 1-216-821-11 METAL CHIP 1K 5% 1/10W R1311 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1313 1-216-814-11 METAL CHIP 270 5% 1/10W R1314 1-216-864-11 SHORT CHIP 0 R1317 1-216-833-11 METAL CHIP 10K 5% 1/10W R1318 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1319 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1320 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1321 1-216-821-11 METAL CHIP 1K 5% 1/10W R1322 1-216-819-11 METAL CHIP 680 5% 1/10W R1323 1-216-817-11 METAL CHIP 470 5% 1/10W R1324 1-216-815-11 METAL CHIP 330 5% 1/10W R1325 1-216-815-11 METAL CHIP 330 5% 1/10W R1326 1-216-817-11 METAL CHIP 470 5% 1/10W R1327 1-216-819-11 METAL CHIP 680 5% 1/10W R1328 1-216-821-11 METAL CHIP 1K 5% 1/10W R1330 1-216-815-11 METAL CHIP 330 5% 1/10W R1331 1-216-817-11 METAL CHIP 470 5% 1/10W R1332 1-216-819-11 METAL CHIP 680 5% 1/10W R1345 1-216-809-11 METAL CHIP 100 5% 1/10W R1346 1-216-821-11 METAL CHIP 1K 5% 1/10W R1347 1-216-817-11 METAL CHIP 470 5% 1/10W R1348 1-216-821-11 METAL CHIP 1K 5% 1/10W R1351 1-216-809-11 METAL CHIP 100 5% 1/10W R1352 1-216-809-11 METAL CHIP 100 5% 1/10W R1353 1-216-809-11 METAL CHIP 100 5% 1/10W R1355 1-216-809-11 METAL CHIP 100 5% 1/10W R1356 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1357 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1358 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1359 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1360 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1361 1-216-829-11 METAL CHIP 4.7K 5% 1/10W < SWITCH > S1300 1-762-875-21 SWITCH, KEYBOARD (DISPLAY) S1301 1-762-875-21 SWITCH, KEYBOARD ( ^/1 ) S1302 1-762-875-21 SWITCH, KEYBOARD (SUB WOOFER ON/OFF) S1307 1-762-875-21 SWITCH, KEYBOARD (TV) S1309 1-762-875-21 SWITCH, KEYBOARD (TAPE A/B) S1310 1-762-875-21 SWITCH, KEYBOARD ( X ) S1311 1-762-875-21 SWITCH, KEYBOARD ( B ) S1312 1-762-875-21 SWITCH, KEYBOARD (DISC SKIP, EX-CHANGE) S1313 1-762-875-21 SWITCH, KEYBOARD (DISC 3) S1314 1-762-875-21 SWITCH, KEYBOARD (DISC 2) S1315 1-762-875-21 SWITCH, KEYBOARD (DISC 1) S1316 1-762-875-21 SWITCH, KEYBOARD ( Z OPEN/CLOSE) S1317 1-762-875-21 SWITCH, KEYBOARD (x) S1320 1-762-875-21 SWITCH, KEYBOARD (DIRECTION/KARAOKE) S1321 1-762-875-21 SWITCH, KEYBOARD (ILLUMINATION/SUB WOOFER LEVEL) S1322 1-762-875-21 SWITCH, KEYBOARD (TUNER/BAND) S1323 1-762-875-21 SWITCH, KEYBOARD (CD) S1324 1-762-875-21 SWITCH, KEYBOARD (CD SYNC) S1325 1-762-875-21 SWITCH, KEYBOARD (ALBUM- m) S1326 1-762-875-21 SWITCH, KEYBOARD (ALBUM+ M) S1327 1-762-875-21 SWITCH, KEYBOARD (REC PAUSE/START) < TRANSFORMER > T1300 1-443-894-11 DC/DC CONVERTER TRANSFORMER ************************************************************ A-1167-598-A POWER BOARD, COMPLETE ********************** 1-533-217-41 FUSE HOLDER < CAPACITOR > 0C1101 1-165-529-11 MYLAR 0.22uF 10 275V 0C1107 1-165-529-11 MYLAR 0.22uF 10 275V 0C1109 1-112-868-11 CERAMIC 330PF 10% 125V 0C1110 1-112-868-11 CERAMIC 330PF 10% 125V 0C1112 1-144-206-11 ELECT (BLOCK) 680uF 20% 220V 0C1113 1-114-206-11 ELECT (BLOCK) 680uF 20% 220V 0C1115 1-112-867-11 CERAMIC 220PF 10% 125V C1116 1-117-370-11 CERAMIC CHIP 10uF 10V 0C1117 1-112-335-91 FILM 0.0033uF 5% 400V 0C1118 1-112-841-11 CAP, METALIZED PP FILM 820PF 0C1119 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V 0C1120 1-162-925-11 CERAMIC CHIP 68PF 5% 50V 0C1121 1-126-949-11 ELECT 220uF 20% 35V 0C1122 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C1123 1-136-203-11 MYLAR 0.01uF 5% 630V C1124 1-100-623-91 CERAMIC CHIP 0.1uF 10% 100V Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 80 HCD-GNX660 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks POWER C1125 1-165-761-21 ELECT 1200uF 20% 63V C1126 1-165-761-21 ELECT 1200uF 20% 63V C1127 1-165-744-11 ELECT 1200uF 20% 35V C1129 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1130 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C1131 1-164-362-11 CERAMIC CHIP 470PF 5% 50V C1134 1-131-976-11 ELECT 820uF 20% 25V C1135 1-128-555-11 ELECT 470uF 20% 63V C1136 1-128-555-11 ELECT 470uF 20% 63V C1137 1-100-623-91 CERAMIC CHIP 0.1uF 10% 100V C1138 1-126-935-11 ELECT 470uF 20% 16V C1139 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1140 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C1147 1-128-551-11 ELECT 22uF 20% 63V C1148 1-162-979-11 CERAMIC CHIP 0.0027uF 10% 50V 0C1149 1-104-663-11 ELECT 33uF 20% 25V (-12) 0C1149 1-126-964-11 ELECT 10uF 20% 50V (-13) 0C1150 1-164-315-11 CERAMIC CHIP 470PF 5% 50V (-13) C1200 1-165-136-11 CERAMIC 3300PF 10% 500V 0C1202 1-107-444-11 CERAMIC 100PF 5% 2KV 0C1203 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V 0C1206 1-162-923-11 CERAMIC CHIP 47PF 5% 50V 0C1207 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V 0C1208 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V 0C1209 1-104-665-11 ELECT 100uF 20% 25V 0C1210 1-126-965-11 ELECT 22uF 20% 50V 0C1212 1-112-868-11 CERAMIC 330PF 10% 125V C1213 1-135-372-11 ELECT 470uF 20% 10V C1214 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1216 1-128-951-21 ELECT 2200uF 20% 16V C1217 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1218 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1219 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C1221 1-126-935-11 ELECT 470uF 20% 16V C1222 1-126-964-11 ELECT 10uF 20% 50V < CONNECTOR > * CN1101 1-564-243-11 PIN, CONNECTOR (3.96mm PITCH) 6P * CN1200 1-564-510-11 PLUG, CONNECTOR 7P CNP1100 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P < DIODE > 0D1100 8-719-082-57 DIODE D5SBA60F01 0D1101 8-719-068-00 DIODE ERC04-06SE 0D1102 8-719-068-00 DIODE ERC04-06SE 0D1103 6-500-241-01 DIODE SARS03 0D1106 8-719-030-33 DIODE EG01CV1 0D1107 8-719-947-79 DIODE MTZJ-T-72-22D 0D1108 8-719-947-79 DIODE MTZJ-T-72-22D 0D1109 8-719-947-79 DIODE MTZJ-T-72-22D 0D1110 8-719-063-74 DIODE D1NL20U-TR2 0D1111 8-719-083-52 DIODE UDZSTE-1716B 0D1112 8-719-063-74 DIODE D1NL20U-TR2 D1113 6-501-398-01 DIODE FCH20A20 D1114 6-501-411-01 DIODE SF20NC15M D1115 8-719-069-54 DIODE UDZSTE-175.1B D1116 8-719-080-53 DIODE RK36LF-B3 D1117 8-719-947-79 DIODE MTZJ-T-72-22D 0D1118 6-500-593-41 DIODE 10EDB60-TA2B5 0D1119 8-719-063-74 DIODE D1NL20U-TR2 D1120 8-719-069-54 DIODE UDZSTE-175.1B D1122 8-719-071-94 DIODE HRU0103ATRF 0D1200 6-500-849-01 DIODE ERA22-08KFLB 0D1202 8-719-063-74 DIODE D1NL20U-TR2 0D1203 8-719-947-79 DIODE MTZJ-T-72-22D 0D1204 8-719-063-74 DIODE D1NL20U-TR2 0D1205 8-719-947-79 DIODE MTZJ-T-72-22D 0D1206 8-719-947-79 DIODE MTZJ-T-72-22D 0D1207 8-719-063-74 DIODE D1NL20U-TR2 0D1208 8-719-083-61 DIODE UDZSTE-1711B 0D1211 8-719-063-74 DIODE D1NL20U-TR2 D1212 6-501-412-01 DIODE SF5S6 D1213 8-719-080-53 DIODE RK36LF-B3 0D1214 8-719-921-40 DIODE MTZJ-4.7C D1215 8-719-947-79 DIODE MTZJ-T-72-22D < EARTH TERMINAL > * EP1100 1-537-738-21 TERMINAL, EARTH * EP1101 1-537-738-21 TERMINAL, EARTH * EP1102 1-537-738-21 TERMINAL, EARTH * EP1103 1-537-738-21 TERMINAL, EARTH * EP1104 1-537-738-21 TERMINAL, EARTH * EP1105 1-537-738-21 TERMINAL, EARTH * EP1106 1-537-738-21 TERMINAL, EARTH * EP1200 1-537-738-21 TERMINAL, EARTH < IC > 0IC1100 6-709-168-01 IC MR5060 IC1101 6-707-743-01 IC TA76L431S (TPE6, Q) IC1102 6-701-021-01 IC SI-8120JF 0IC1200 6-707-962-01 IC MR1722 IC1201 6-707-743-01 IC TA76L431S (TPE6, Q) < JUMPER RESISTOR > JR1101 1-216-864-11 SHORT CHIP 0 JR1103 1-216-864-11 SHORT CHIP 0 JR1105 1-216-864-11 SHORT CHIP 0 JR1106 1-216-296-11 SHORT CHIP 0 JR1107 1-216-296-11 SHORT CHIP 0 0JR1108 1-216-296-11 SHORT CHIP 0 0JR1150 1-216-864-11 SHORT CHIP 0 (-13) < COIL > L1100 1-457-058-21 COIL, CHOKE 10uH L1102 1-456-545-11 INDUCTOR 100uH L1200 1-410-470-11 INDUCTOR 10uH L1201 1-456-545-11 INDUCTOR 100uH < LINE FILTER > 0LF1101 1-457-268-11 LINE FILTER COIL < PHOTO COUPLER > 0PC1100 6-600-438-01 IC TLP421F (D4-GR) 0PC1101 6-600-438-01 IC TLP421F (D4-GR) Ver. 1.2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 81 HCD-GNX660 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks SENSOR POWER 0PC1102 6-600-438-01 IC TLP421F (D4-GR) 0PC1200 6-600-438-01 IC TLP421F (D4-GR) < TRANSISTOR > Q1100 8-729-271-31 TRANSISTOR 2SC2713-G Q1101 8-729-271-31 TRANSISTOR 2SC2713-G 0Q1102 8-729-271-31 TRANSISTOR 2SC2713-G 0Q1200 8-729-271-31 TRANSISTOR 2SC2713-G Q1203 6-551-460-01 TRANSISTOR RSR25P03TL Q1204 8-729-271-31 TRANSISTOR 2SC2713-G Q1205 8-729-271-31 TRANSISTOR 2SC2713-G Q1206 6-551-460-01 TRANSISTOR RSR25P03TL < RESISTOR > 0R1103 1-242-949-11 FUSIBLE 0.1 10% 1W 0R1105 1-215-929-11 METAL OXIDE 100K 5% 3W 0R1106 1-215-929-11 METAL OXIDE 100K 5% 3W 0R1108 1-216-343-00 METAL OXIDE 0.33 5% 1W 0R1109 1-243-669-11 METAL 0.05 5% 5W 0R1110 1-216-833-11 METAL CHIP 10K 5% 1/10W (-13) 0R1110 1-216-835-11 METAL CHIP 15K 5% 1/10W (-12) 0R1111 1-216-838-11 METAL CHIP 27K 5% 1/10W 0R1112 1-216-841-11 METAL CHIP 47K 5% 1/10W 0R1113 1-249-389-11 CARBON 4.7 5% 1/4W 0R1114 1-216-837-11 METAL CHIP 22K 5% 1/10W 0R1115 1-216-829-11 METAL CHIP 4.7K 5% 1/10W 0R1116 1-216-864-11 SHORT CHIP 0 R1117 1-218-859-11 METAL CHIP 3.3K 0.5% 1/10W 0R1118 1-246-097-31 METAL OXIDE 1 5% 2W 0R1120 1-219-769-11 METAL 3.3M 5% 1/2W R1121 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R1122 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W R1123 1-218-861-11 METAL CHIP 3.9K 0.5% 1/10W R1124 1-218-889-11 METAL CHIP 56K 0.5% 1/10W R1126 1-216-864-11 SHORT CHIP 0 R1127 1-216-841-11 METAL CHIP 47K 5% 1/10W R1128 1-218-853-11 METAL CHIP 1.8K 0.5% 1/10W R1129 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R1130 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R1131 1-216-833-11 METAL CHIP 10K 5% 1/10W R1132 1-216-833-11 METAL CHIP 10K 5% 1/10W R1133 1-216-833-11 METAL CHIP 10K 5% 1/10W R1135 1-216-864-11 SHORT CHIP 0 R1136 1-216-864-11 SHORT CHIP 0 0R1137 1-247-895-00 CARBON 470K 5% 1/4W 0R1138 1-247-895-00 CARBON 470K 5% 1/4W R1139 1-216-833-11 METAL CHIP 10K 5% 1/10W R1140 1-216-821-11 METAL CHIP 1K 5% 1/10W 0R1141 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W (-12) 0R1141 1-216-833-11 METAL CHIP 10K 5% 1/10W (-13) 0R1142 1-216-841-11 METAL CHIP 47K 5% 1/10W (-12) 0R1142 1-216-853-11 METAL CHIP 470K 5% 1/10W (-13) 0R1143 1-216-827-11 METAL CHIP 3.3K 5% 1/10W (-13) R1144 1-216-833-11 METAL CHIP 10K 5% 1/10W R1145 1-216-809-11 METAL CHIP 100 5% 1/10W R1146 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W 0R1147 1-216-830-11 METAL CHIP 5.6K 5% 1/10W (-13) 0R1152 1-216-841-11 METAL CHIP 47K 5% 1/10W (-13) 0R1200 1-215-904-61 METAL OXIDE 100K 5% 2W 0R1201 1-249-478-11 CARBON 2.2 5% 1/2W 0R1202 1-216-839-11 METAL CHIP 33K 5% 1/10W 0R1203 1-249-393-11 CARBON 10 5% 1/4W 0R1207 1-216-829-11 METAL CHIP 4.7K 5% 1/10W 0R1208 1-216-834-11 METAL CHIP 12K 5% 1/10W 0R1209 1-216-825-11 METAL CHIP 2.2K 5% 1/10W 0R1210 1-216-835-11 METAL CHIP 15K 5% 1/10W 0R1211 1-216-821-11 METAL CHIP 1K 5% 1/10W R1212 1-216-833-11 METAL CHIP 10K 5% 1/10W 0R1214 1-249-381-11 CARBON 1 5% 1/4W R1215 1-216-821-11 METAL CHIP 1K 5% 1/10W- R1216 1-216-813-11 METAL CHIP 220 5% 1/10W R1217 1-216-841-11 METAL CHIP 47K 5% 1/10W R1218 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R1219 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W R1220 1-218-831-11 METAL CHIP 220 0.5% 1/10W R1221 1-218-861-11 METAL CHIP 3.9K 0.5% 1/10W 0R1223 1-216-833-11 METAL CHIP 10K 5% 1/10W 0R1224 1-216-843-11 METAL CHIP 68K 5% 1/10W R1225 1-216-809-11 METAL CHIP 100 5% 1/10W R1226 1-216-857-11 METAL CHIP 1M 5% 1/10W R1227 1-216-845-11 METAL CHIP 100K 5% 1/10W R1228 1-216-815-11 METAL CHIP 330 5% 1/10W R1229 1-216-833-11 METAL CHIP 10K 5% 1/10W R1230 1-216-821-11 METAL CHIP 1K 5% 1/10W R1231 1-215-866-11 METAL CHIP 330 5% 1W R1232 1-216-833-11 METAL CHIP 10K 5% 1/10W R1233 1-216-833-11 METAL CHIP 10K 5% 1/10W R1234 1-216-841-11 METAL CHIP 47K 5% 1/10W < TRANSFORMER > 0T1100 1-443-893-11 POWER TRANSFORMER 0T1200 1-443-895-11 POWER TRANSFORMER < THERMISTOR > 0TH1100 1-805-841-21 THERMISTOR, NTC 3.0 < VARISTOR > 0VD1100 1-805-482-11 VARISTOR ************************************************************ 1-687-132-12 SENSOR BOARD ************* < CONNECTOR > CN731 1-785-329-21 PIN, CONNECTOR (LIGHT ANGLE) 3P < IC > IC731 6-600-022-01 IC RPI-576 ************************************************************ Ver. 1.2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 82 HCD-GNX660 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks SMASTER A-1164-113-A SMASTER BOARD, COMPLETE ************************* < CAPACITOR > C504 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C505 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C506 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C507 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C508 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C509 1-104-658-91 ELECT 100uF 20% 10V C510 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C511 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C512 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C513 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C520 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C521 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C522 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C523 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C524 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C525 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C526 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C527 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C528 1-162-970-11 CERAMIC CHIP 0.01uF 10% 50V C529 1-162-970-11 CERAMIC CHIP 0.01uF 10% 50V C531 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C532 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C533 1-104-662-91 ELECT 22uF 20% 25V C534 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C535 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C536 1-100-436-91 CERAMIC CHIP 0.033uF 10% 25V C537 1-100-623-91 CERAMIC CHIP 0.1uF 10% 100V C538 1-114-119-31 ELECT 120uF 20% 63V C544 1-100-623-91 CERAMIC CHIP 0.1uF 10% 100V C545 1-114-119-31 ELECT 120uF 20% 63V C547 1-100-436-91 CERAMIC CHIP 0.033uF 10% 25V C548 1-100-623-91 CERAMIC CHIP 0.1uF 10% 100V C549 1-135-632-51 ELECT 2200uF 20% 63V C551 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C552 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C553 1-124-248-00 ELECT 22uF 20% 25V C554 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C555 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C556 1-100-436-91 CERAMIC CHIP 0.033uF 10% 25V C557 1-100-623-91 CERAMIC CHIP 0.1uF 10% 100V C558 1-114-119-31 ELECT 120uF 20% 63V C564 1-100-623-91 CERAMIC CHIP 0.1uF 10% 100V C565 1-114-119-31 ELECT 120uF 20% 63V C567 1-100-436-91 CERAMIC CHIP 0.033uF 10% 25V C568 1-100-623-91 CERAMIC CHIP 0.1uF 10% 100V C569 1-135-632-51 ELECT 2200uF 20% 63V C574 1-114-160-91 CERAMIC CHIP 1uF 10% 100V C575 1-114-160-91 CERAMIC CHIP 1uF 10% 100V C576 1-114-160-91 CERAMIC CHIP 1uF 10% 100V C577 1-114-160-91 CERAMIC CHIP 1uF 10% 100V C578 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C579 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C580 1-135-618-11 MYLAR 1uF 5% 63V C581 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C582 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C583 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C584 1-135-618-11 MYLAR 1uF 5% 63V C585 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C586 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C587 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C590 1-135-618-11 MYLAR 1uF 5% 63V C591 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C592 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C593 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C594 1-135-618-11 MYLAR 1uF 5% 63V C595 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C596 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C597 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C604 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C605 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C606 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C607 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C608 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C609 1-104-658-91 ELECT 100uF 20% 10V C610 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C611 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C612 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C613 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C620 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C621 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C622 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C623 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C626 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C629 1-162-970-11 CERAMIC CHIP 0.01uF 10% 50V C651 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C652 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C653 1-104-662-91 ELECT 22uF 20% 25V C654 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C655 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C656 1-100-436-91 CERAMIC CHIP 0.033uF 10% 25V C657 1-100-623-91 CERAMIC CHIP 0.1uF 10% 100V C658 1-114-119-31 ELECT 120uF 20% 63V C664 1-100-623-91 CERAMIC CHIP 0.1uF 10% 100V C665 1-114-119-31 ELECT 120uF 20% 63V C667 1-100-436-91 CERAMIC CHIP 0.033uF 10% 25V C668 1-100-623-91 CERAMIC CHIP 0.1uF 10% 100V C669 1-135-632-51 ELECT 2200uF 20% 63V C676 1-114-160-91 CERAMIC CHIP 1uF 10% 100V C677 1-114-160-91 CERAMIC CHIP 1uF 10% 100V C690 1-135-618-11 MYLAR 1uF 5% 63V C691 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C692 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C693 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C694 1-135-618-11 MYLAR 1uF 5% 63V C695 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C696 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C697 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C800 1-104-662-91 ELECT 22uF 20% 25V C801 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C802 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C803 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 83 HCD-GNX660 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks SMASTER C804 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C805 1-104-658-91 ELECT 100uF 20% 10V C806 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C809 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C810 1-104-658-91 ELECT 100uF 20% 10V C811 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C830 1-126-964-11 ELECT 10uF 20% 50V C840 1-126-934-11 ELECT 220uF 20% 16V (-13, -21) C840 1-164-337-11 CERAMIC CHIP 2.2uF 16V (-12) C850 1-117-370-11 CERAMIC CHIP 10uF 10V C855 1-117-370-11 CERAMIC CHIP 10uF 10V C865 1-117-370-11 CERAMIC CHIP 10uF 10V C871 1-216-864-11 SHORT CHIP 0 (-12) C872 1-216-864-11 SHORT CHIP 0 (-12) C873 1-216-864-11 SHORT CHIP 0 (-12) C876 1-216-864-11 SHORT CHIP 0 (-12) C877 1-216-864-11 SHORT CHIP 0 (-12) C878 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C879 1-216-864-11 SHORT CHIP 0 (-12) C880 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C881 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C882 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C883 1-126-925-91 ELECT 470uF 20% 10V C884 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C885 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C886 1-126-935-11 ELECT 470uF 20% 16V C887 1-126-925-91 ELECT 470uF 20% 10V C888 1-119-774-11 ELECT 100uF 20% 16V C889 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C890 1-119-774-11 ELECT 100uF 20% 16V C891 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C892 1-162-927-11 CERAMIC CHIP 100PF 5% 50V < CONNECTOR > CN500 1-784-780-11 CONNECTOR, FFC 19P * CN501 1-564-712-11 PIN, CONNECTOR (SMALL TYPE) 10P * CN502 1-564-243-11 PIN, CONNECTOR (3.96mm PITCH) 6P (-12) CN503 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P < DIODE > D533 6-501-484-01 DIODE P6SMB62AT3 D534 6-501-484-01 DIODE P6SMB62AT3 D535 6-501-485-01 DIODE EC10UA20 D536 6-501-485-01 DIODE EC10UA20 D553 6-501-484-01 DIODE P6SMB62AT3 D554 6-501-484-01 DIODE P6SMB62AT3 D555 6-501-485-01 DIODE EC10UA20 D556 6-501-485-01 DIODE EC10UA20 D653 6-501-484-01 DIODE P6SMB62AT3 D654 6-501-484-01 DIODE P6SMB62AT3 D655 6-501-485-01 DIODE EC10UA20 D656 6-501-485-01 DIODE EC10UA20 D820 8-719-988-61 DIODE 1SS355TE-17 D880 1-216-295-91 SHORT CHIP 0 (-12) D881 1-216-295-91 SHORT CHIP 0 (-12) D882 1-216-295-91 SHORT CHIP 0 (-12) D883 1-216-295-91 SHORT CHIP 0 (-12) D884 1-216-295-91 SHORT CHIP 0 (-12) D885 1-216-295-91 SHORT CHIP 0 (-12) D888 1-216-295-91 SHORT CHIP 0 (-12) D889 1-216-295-91 SHORT CHIP 0 (-12) D890 1-216-295-91 SHORT CHIP 0 (-12) D891 1-216-295-91 SHORT CHIP 0 (-12) D892 8-719-988-61 DIODE 1SS355TE-17 D893 8-719-988-61 DIODE 1SS355TE-17 D895 1-216-295-91 SHORT CHIP 0 (-12) D896 1-216-295-91 SHORT CHIP 0 (-12) < EARTH TERMINAL > EP880 1-537-738-21 TERMINAL, GROUND EP881 1-537-738-21 TERMINAL, GROUND EP882 1-537-738-21 TERMINAL, GROUND EP884 1-537-738-21 TERMINAL, GROUND EP885 1-537-738-21 TERMINAL, GROUND EP886 1-537-738-21 TERMINAL, GROUND < FERRITE BEAD > FB800 1-216-864-11 SHORT CHIP 0 FB801 1-216-864-11 SHORT CHIP 0 FB881 1-216-295-91 SHORT CHIP 0 < FILTER > FL800 1-234-177-21 FILTER, CHIP EMI FL801 1-234-177-21 FILTER, CHIP EMI FL810 1-234-177-21 FILTER, CHIP EMI < IC > IC500 6-707-939-01 IC CXD9843AR IC530 6-709-087-01 IC CXD9879M IC550 6-709-087-01 IC CXD9879M IC600 6-707-939-01 IC CXD9843AR IC650 6-709-087-01 IC CXD9879M IC800 6-701-189-01 IC MC74VHC1GU04DFT1 IC802 6-701-189-01 IC MC74VHC1GU04DFT1 IC810 6-700-263-01 IC NJM2870F18 (TE2) IC880 8-759-422-21 IC NJM4580V (TE2) < COIL > L580 1-457-237-11 CHOKE COIL 10uH L581 1-457-237-11 CHOKE COIL 10uH L590 1-457-237-11 CHOKE COIL 10uH L591 1-457-237-11 CHOKE COIL 10uH L690 1-457-237-11 CHOKE COIL 10uH L691 1-457-237-11 CHOKE COIL 10uH L800 1-216-295-91 SHORT CHIP 0 L801 1-412-939-11 INDUCTOR 1uH L802 1-216-295-91 SHORT CHIP 0 < TRANSISTOR > Q840 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q850 8-729-602-36 TRANSISTOR 2SA1602-F Q851 8-729-602-36 TRANSISTOR 2SA1602-F Q855 8-729-602-36 TRANSISTOR 2SA1602-F Q856 8-729-602-36 TRANSISTOR 2SA1602-F Ver. 1.2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 84 HCD-GNX660 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks SMASTER Q865 8-729-602-36 TRANSISTOR 2SA1602-F Q866 8-729-602-36 TRANSISTOR 2SA1602-F < RESISTOR > R500 1-216-864-11 SHORT CHIP 0 R501 1-216-864-11 SHORT CHIP 0 R502 1-216-833-11 METAL CHIP 10K 5% 1/10W R503 1-216-809-11 METAL CHIP 100 5% 1/10W R505 1-216-817-11 METAL CHIP 470 5% 1/10W R506 1-216-817-11 METAL CHIP 470 5% 1/10W R507 1-216-817-11 METAL CHIP 470 5% 1/10W R509 1-216-864-11 SHORT CHIP 0 R510 1-216-864-11 SHORT CHIP 0 R511 1-216-864-11 SHORT CHIP 0 R512 1-216-833-11 METAL CHIP 10K 5% 1/10W R515 1-216-806-11 METAL CHIP 56 5% 1/10W R516 1-216-809-11 METAL CHIP 100 5% 1/10W R517 1-216-809-11 METAL CHIP 100 5% 1/10W R519 1-216-821-11 METAL CHIP 1K 5% 1/10W R520 1-216-821-11 METAL CHIP 1K 5% 1/10W R521 1-216-821-11 METAL CHIP 1K 5% 1/10W R523 1-216-864-11 SHORT CHIP 0 R524 1-216-864-11 SHORT CHIP 0 R526 1-216-864-11 SHORT CHIP 0 R529 1-216-864-11 SHORT CHIP 0 R530 1-216-797-11 METAL CHIP 10 5% 1/10W (-12) R530 1-216-864-11 SHORT CHIP 0 (-13, -21) R531 1-216-809-11 METAL CHIP 100 5% 1/10W R532 1-216-809-11 METAL CHIP 100 5% 1/10W R533 1-216-809-11 METAL CHIP 100 5% 1/10W R535 1-216-839-11 METAL CHIP 33K 5% 1/10W R541 1-216-797-11 METAL CHIP 10 5% 1/10W R542 1-216-797-11 METAL CHIP 10 5% 1/10W (-12) R542 1-216-864-11 SHORT CHIP 0 (-13, -21) R547 1-219-107-91 RES-CHIP 1.5 5% 1/8W R548 1-219-107-91 RES-CHIP 1.5 5% 1/8W R549 1-216-791-11 METAL CHIP 3.3 5% 1/10W R550 1-216-797-11 METAL CHIP 10 5% 1/10W (-12) R550 1-216-864-11 SHORT CHIP 0 (-13, -21) R551 1-216-809-11 METAL CHIP 100 5% 1/10W R552 1-216-809-11 METAL CHIP 100 5% 1/10W R553 1-216-809-11 METAL CHIP 100 5% 1/10W R555 1-216-839-11 METAL CHIP 33K 5% 1/10W R557 1-216-142-00 RES-CHIP 4.7 5% 1/8W R558 1-216-142-00 RES-CHIP 4.7 5% 1/8W R559 1-216-142-00 RES-CHIP 4.7 5% 1/8W R560 1-216-142-00 RES-CHIP 4.7 5% 1/8W R561 1-216-797-11 METAL CHIP 10 5% 1/10W R562 1-216-797-11 METAL CHIP 10 5% 1/10W (-12) R562 1-216-864-11 SHORT CHIP 0 (-13, -21) R567 1-219-107-91 RES-CHIP 1.5 5% 1/8W R568 1-219-107-91 RES-CHIP 1.5 5% 1/8W R569 1-216-791-11 METAL CHIP 3.3 5% 1/10W R581 1-216-790-11 METAL CHIP 2.7 5% 1/10W R583 1-216-790-11 METAL CHIP 2.7 5% 1/10W R591 1-216-790-11 METAL CHIP 2.7 5% 1/10W R593 1-216-790-11 METAL CHIP 2.7 5% 1/10W R600 1-216-864-11 SHORT CHIP 0 R601 1-216-864-11 SHORT CHIP 0 R602 1-216-833-11 METAL CHIP 10K 5% 1/10W R603 1-216-809-11 METAL CHIP 100 5% 1/10W R605 1-216-817-11 METAL CHIP 470 5% 1/10W R606 1-216-817-11 METAL CHIP 470 5% 1/10W R607 1-216-817-11 METAL CHIP 470 5% 1/10W R609 1-216-864-11 SHORT CHIP 0 R610 1-216-864-11 SHORT CHIP 0 R612 1-216-833-11 METAL CHIP 10K 5% 1/10W R615 1-216-806-11 METAL CHIP 56 5% 1/10W R616 1-216-809-11 METAL CHIP 100 5% 1/10W R617 1-216-809-11 METAL CHIP 100 5% 1/10W R619 1-216-821-11 METAL CHIP 1K 5% 1/10W R620 1-216-821-11 METAL CHIP 1K 5% 1/10W R621 1-216-821-11 METAL CHIP 1K 5% 1/10W R623 1-216-864-11 SHORT CHIP 0 R624 1-216-864-11 SHORT CHIP 0 R650 1-216-797-11 METAL CHIP 10 5% 1/10W (-12) R650 1-216-864-11 SHORT CHIP 0 (-13, -21) R651 1-216-809-11 METAL CHIP 100 5% 1/10W R652 1-216-809-11 METAL CHIP 100 5% 1/10W R653 1-216-809-11 METAL CHIP 100 5% 1/10W R655 1-216-839-11 METAL CHIP 33K 5% 1/10W R657 1-216-142-00 RES-CHIP 4.7 5% 1/8W R658 1-216-142-00 RES-CHIP 4.7 5% 1/8W R661 1-216-797-11 METAL CHIP 10 5% 1/10W R662 1-216-797-11 METAL CHIP 10 5% 1/10W (-12) R662 1-216-864-11 SHORT CHIP 0 (-13, -21) R667 1-219-107-91 RES-CHIP 1.5 5% 1/8W R668 1-219-107-91 RES-CHIP 1.5 5% 1/8W R669 1-216-791-11 METAL CHIP 3.3 5% 1/10W R691 1-216-790-11 METAL CHIP 2.7 5% 1/10W R693 1-216-790-11 METAL CHIP 2.7 5% 1/10W R800 1-216-857-11 METAL CHIP 1M 5% 1/10W R801 1-216-809-11 METAL CHIP 100 5% 1/10W R802 1-216-806-11 METAL CHIP 56 5% 1/10W R804 1-216-864-11 SHORT CHIP 0 R805 1-216-864-11 SHORT CHIP 0 R806 1-216-864-11 SHORT CHIP 0 R807 1-216-864-11 SHORT CHIP 0 R809 1-216-806-11 METAL CHIP 56 5% 1/10W R811 1-216-845-11 METAL CHIP 100K 5% 1/10W R820 1-216-837-11 METAL CHIP 22K 5% 1/10W R821 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R822 1-216-837-11 METAL CHIP 22K 5% 1/10W R823 1-216-837-11 METAL CHIP 22K 5% 1/10W R840 1-216-845-11 METAL CHIP 100K 5% 1/10W R841 1-216-864-11 SHORT CHIP 0 R850 1-216-845-11 METAL CHIP 100K 5% 1/10W R851 1-216-845-11 METAL CHIP 100K 5% 1/10W R852 1-216-845-11 METAL CHIP 100K 5% 1/10W R855 1-216-845-11 METAL CHIP 100K 5% 1/10W R856 1-216-845-11 METAL CHIP 100K 5% 1/10W R857 1-216-845-11 METAL CHIP 100K 5% 1/10W Ver. 1.2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 85 HCD-GNX660 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks R858 1-216-841-11 METAL CHIP 47K 5% 1/10W R859 1-216-841-11 METAL CHIP 47K 5% 1/10W R865 1-216-845-11 METAL CHIP 100K 5% 1/10W R866 1-216-845-11 METAL CHIP 100K 5% 1/10W R867 1-216-845-11 METAL CHIP 100K 5% 1/10W R868 1-216-841-11 METAL CHIP 47K 5% 1/10W R880 1-216-837-11 METAL CHIP 22K 5% 1/10W R881 1-216-837-11 METAL CHIP 22K 5% 1/10W R882 1-216-837-11 METAL CHIP 22K 5% 1/10W R883 1-216-837-11 METAL CHIP 22K 5% 1/10W R884 1-216-837-11 METAL CHIP 22K 5% 1/10W R885 1-216-839-11 METAL CHIP 33K 5% 1/10W R886 1-216-864-11 SHORT CHIP 0 R887 1-216-837-11 METAL CHIP 22K 5% 1/10W R888 1-216-837-11 METAL CHIP 22K 5% 1/10W R889 1-216-837-11 METAL CHIP 22K 5% 1/10W R890 1-216-837-11 METAL CHIP 22K 5% 1/10W R891 1-216-839-11 METAL CHIP 33K 5% 1/10W R892 1-216-864-11 SHORT CHIP 0 R893 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R894 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R895 1-216-837-11 METAL CHIP 22K 5% 1/10W < VIBRATOR > X800 1-795-660-21 QUARTZ CRYSTAL UNIT (49.152MHz) ************************************************************ SPEAKER BOARD ************** < CAPACITOR > C1502 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C1512 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C1522 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C1532 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C1602 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C1612 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V < CONNECTOR > * CN1500 1-564-241-11 PIN, CONNECTOR (3.96mm PITCH) 4P CN1600 1-564-320-00 PIN, CONNECTOR (3.96mm PITCH) 2P < EARTH TERMINAL > * EP1500 1-537-738-21 TERMINAL, EARTH * EP1501 1-537-738-21 TERMINAL, EARTH < TERMINAL > TM1500 1-820-057-11 CONNECTOR (SPEAKER) 3P (SUB WOOFER, FRONT SPEAKER) ************************************************************ 1-687-669-12 SW BOARD ******** < SWITCH > S751 1-786-514-11 SWITCH, LEVER (SLIDE) (OPEN) ************************************************************ VOL BOARD ********** < CAPACITOR > C1334 1-164-360-11 CERAMIC CHIP 0.1uF 16V < DIODE > D1307 6-500-809-01 DIODE SELU5223C-STP15 (LED 1) D1308 6-500-809-01 DIODE SELU5223C-STP15 (LED 2) D1309 6-500-809-01 DIODE SELU5223C-STP15 (LED 3) D1310 6-500-809-01 DIODE SELU5223C-STP15 (LED 6) D1311 6-500-809-01 DIODE SELU5223C-STP15 (LED 5) D1312 6-500-809-01 DIODE SELU5223C-STP15 (LED 4) < JUMPER RESISTOR > JR1300 1-216-864-11 SHORT CHIP 0 JR1301 1-216-864-11 SHORT CHIP 0 JR1302 1-216-864-11 SHORT CHIP 0 < RESISTOR > R1329 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1333 1-216-821-11 METAL CHIP 1K 5% 1/10W R1334 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1335 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1336 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1337 1-216-833-11 METAL CHIP 10K 5% 1/10W R1362 1-216-821-11 METAL CHIP 1K 5% 1/10W R1363 1-216-821-11 METAL CHIP 1K 5% 1/10W R1364 1-216-821-11 METAL CHIP 1K 5% 1/10W R1365 1-216-821-11 METAL CHIP 1K 5% 1/10W R1366 1-216-821-11 METAL CHIP 1K 5% 1/10W R1367 1-216-821-11 METAL CHIP 1K 5% 1/10W R1368 1-216-821-11 METAL CHIP 1K 5% 1/10W R1369 1-216-821-11 METAL CHIP 1K 5% 1/10W R1370 1-216-821-11 METAL CHIP 1K 5% 1/10W R1371 1-216-821-11 METAL CHIP 1K 5% 1/10W R1372 1-216-821-11 METAL CHIP 1K 5% 1/10W R1373 1-216-821-11 METAL CHIP 1K 5% 1/10W R1374 1-216-821-11 METAL CHIP 1K 5% 1/10W R1375 1-216-821-11 METAL CHIP 1K 5% 1/10W R1376 1-216-821-11 METAL CHIP 1K 5% 1/10W R1377 1-216-821-11 METAL CHIP 1K 5% 1/10W R1378 1-216-821-11 METAL CHIP 1K 5% 1/10W R1379 1-216-821-11 METAL CHIP 1K 5% 1/10W < SWITCH > S1305 1-418-725-41 ENCODER, ROTARY (12 TYPE) (MASTER VOLUME) S1306 1-786-289-31 SWITCH, DETECTION (OPERATION DIAL) S1318 1-762-875-21 SWITCH, KEYBOARD (EQ BAND/MEMORY) S1319 1-762-875-21 SWITCH, KEYBOARD (MP3 BOOSTER) S1328 1-762-875-21 SWITCH, KEYBOARD (PRESET EQ) S1331 1-762-875-21 SWITCH, KEYBOARD (GROOVE) ************************************************************ SW VOL SPEAKER Ver. 1.1 SMASTER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 86 HCD-GNX660 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks MISCELLANEOUS ************** 7 1-693-702-11 TUNER (FM/AM) (TM10SE) 10 1-775-284-11 WIRE (FLAT TYPE) (31 CORE) 11 1-829-030-11 WIRE (FLAT TYPE) (25 CORE) 12 1-827-720-11 WIRE (FLAT TYPE) (11 CORE) 14 1-828-973-11 WIRE (FLAT TYPE) (13 CORE) 66 1-417-656-11 MECHA DECK (CWN42FF601) 106 1-500-497-11 FILTER, CLAMP (FERRITE CORE) 0108 1-827-226-31 CORD, POWER 152 1-832-798-21 CABLE, FLEXIBLE FLAT (5 CORE) 0229 8-820-244-01 OPTICAL PICK-UP KSM-215DCP/C2NP 230 1-471-035-21 MAGNET ASSY 0F1100 1-532-506-33 FUSE (T6.3AL/250V) M741 A-1108-965-A MOTOR ASSY, TABLE (TABLE) M751 A-1108-966-A MOTOR ASSY, LOADING (LOADING) M891 1-763-072-11 FAN, DC S711 1-477-680-12 ENCODER, ROTARY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNX660 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the top of the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2006.04 New 1.1 2006.10 Change of CN590 (Main board). (ECB-62427) Change of C301,302, R585 and 587 (Main board). (ECB-63860) Change of R1421 (MIC board). (ECB-64469) Change of S1306 (Switch board). (ECB-67927) Change of C528, 529, 629, R532, 552 and 652 (SMASTER board). (ECB-70769) Change of R515, 615 and 802 (SMASTER board). (ECB-70967) Change of R1416 and 1417 (MIC board). (ECB-79325) Change of IC401 microprocessor (Main board). (ECB-80690) Change of C535, 550 and 582 (Main board). (ECB-82670) 1.2 2007.12 Suffix change of Main, Panel and Power combined board from -12 to -13. Suffix change of SMASTER combined board from -12 to -13 or -21. (SPM-07044) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
