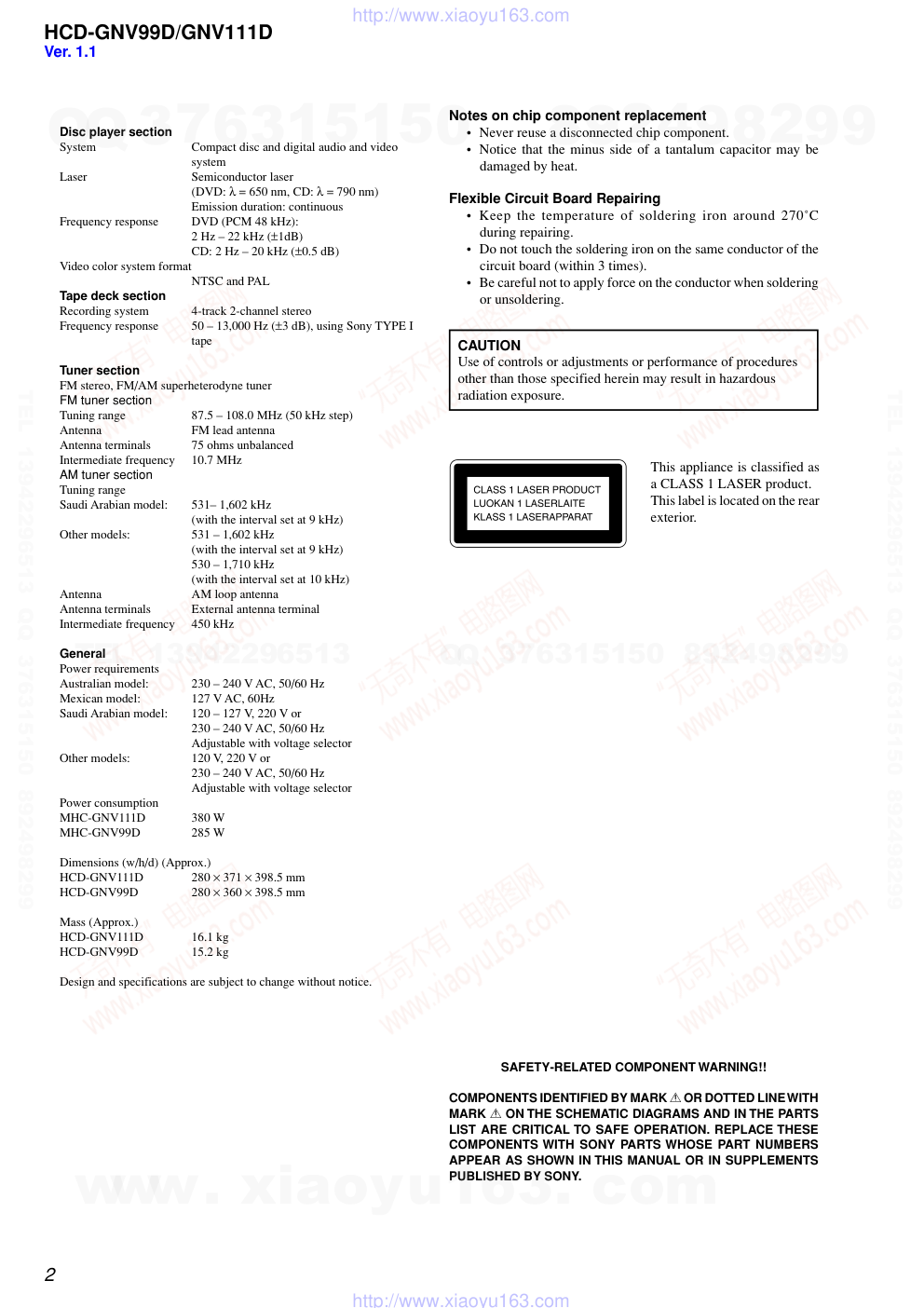

HCD-GNV99D/ GNV111D E Model HCD-GNV99D/GNV111D Australian Model HCD-GNV111D SERVICE MANUAL MiNi Hi-Fi COMPONENT SYSTEM Sony Corporation Audio Group Published by Sony Engineering Corporation 9-879-585-02 2005E02-1 © 2005.05 SPECIFICATIONS Ver.1.1 2005.05 – Continued on next page – • HCD-GNV99D/GNV111D are the Amplifier, DVD player, tape deck and tuner section in MHC-GNV99D/GNV111D. DVD Model Name Using Similar Mechanism NEW DVD Mechanism Type CDM74H-DVBU101 Section Optical Pick-up Name KHM-310CAB/C2NP TAPE Model Name Using Similar Mechanism NEW Section Tape Transport Mechanism Type CMAT2E2 Photo : HCD-GNV111D Inputs VIDEO INPUT: VIDEO: 1 Vp-p, 75 ohms (phono jacks) AUDIO L/R: Voltage 250 mV, impedance 47 kilohms TV/SAT AUDIO IN L/R: voltage 250 mV/450 mV, (phono jacks) impedance 47 kilohms MIC 1/2: sensitivity 1 mV, (phone jack) impedance 10 kilohms Outputs AUDIO OUT: Voltage 250 mV (phono jacks) impedance 1 kilohm VIDEO OUT: max. output level 1 Vp-p, (phono jack) unbalanced, Sync. negative load impedance 75 ohms COMPONENT VIDEO OUT: Y: 1 Vp-p, 75 ohms PB/CB: 0.7 Vp-p, 75 ohms PR/CR: 0.7 Vp-p, 75 ohms S VIDEO OUT: Y: 1 Vp-p, unbalanced, (4-pin/mini-DIN jack) Sync. negative C: 0.286 Vp-p load impedance 75 ohms PHONES: accepts headphones of (stereo mini jack) 8 ohms or more FRONT SPEAKER: Use only the supplied speakers SURR SPEAKER: Use only the supplied speakers CENTER SPEAKER: Use only the supplied speaker SUBWOOFER OUT: Voltage 250 mV (phono jack) impedance 1 kilohm Amplifier section HCD-GNV111D The following are measured at AC 120, 127, 220, 240V 50/60 Hz DIN power output (rated) Front speaker: 110 W + 110 W (6 ohms at 1 kHz, DIN) Center speaker: 50 W (16 ohms at 1 kHz, DIN) Surround speaker: 110 W + 110 W (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference) Front speaker: 160 W + 160 W (6 ohms at 1 kHz, 10% THD) Center speaker: 80 W (16 ohms at 1 kHz, 10% THD) Surround speaker: 160 W + 160 W (6 ohms at 1 kHz, 10% THD) HCD-GNV99D The following are measured at AC 120, 127, 220, 240V 50/60 Hz DIN power output (rated) Front speaker: 130 W + 130 W (6 ohms at 1 kHz, DIN) Center speaker: 30 W (8 ohms at 1 kHz, DIN) Surround speaker: 30 W + 30 W (8 ohms at 1 kHz, DIN) Continuous RMS power output (reference) Front speaker: 180 W + 180 W (6 ohms at 1 kHz, 10% THD) Center speaker: 50 W (8 ohms at 1 kHz, 10% THD) Surround speaker: 50 W + 50 W (8 ohms at 1 kHz, 10% THD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 HCD-GNV99D/GNV111D Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing • Keep the temperature of soldering iron around 270˚C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. This appliance is classified as a CLASS 1 LASER product. This label is located on the rear exterior. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. Disc player section System Compact disc and digital audio and video system Laser Semiconductor laser (DVD: λ = 650 nm, CD: λ = 790 nm) Emission duration: continuous Frequency response DVD (PCM 48 kHz): 2 Hz – 22 kHz (±1dB) CD: 2 Hz – 20 kHz (±0.5 dB) Video color system format NTSC and PAL Tape deck section Recording system 4-track 2-channel stereo Frequency response 50 – 13,000 Hz (±3 dB), using Sony TYPE I tape Tuner section FM stereo, FM/AM superheterodyne tuner FM tuner section Tuning range 87.5 – 108.0 MHz (50 kHz step) Antenna FM lead antenna Antenna terminals 75 ohms unbalanced Intermediate frequency 10.7 MHz AM tuner section Tuning range Saudi Arabian model: 531– 1,602 kHz (with the interval set at 9 kHz) Other models: 531 – 1,602 kHz (with the interval set at 9 kHz) 530 – 1,710 kHz (with the interval set at 10 kHz) Antenna AM loop antenna Antenna terminals External antenna terminal Intermediate frequency 450 kHz General Power requirements Australian model: 230 – 240 V AC, 50/60 Hz Mexican model: 127 V AC, 60Hz Saudi Arabian model: 120 – 127 V, 220 V or 230 – 240 V AC, 50/60 Hz Adjustable with voltage selector Other models: 120 V, 220 V or 230 – 240 V AC, 50/60 Hz Adjustable with voltage selector Power consumption MHC-GNV111D 380 W MHC-GNV99D 285 W Dimensions (w/h/d) (Approx.) HCD-GNV111D 280 × 371 × 398.5 mm HCD-GNV99D 280 × 360 × 398.5 mm Mass (Approx.) HCD-GNV111D 16.1 kg HCD-GNV99D 15.2 kg Design and specifications are subject to change without notice. Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 HCD-GNV99D/GNV111D 1. SERVICING NOTES ................................................ 4 2. GENERAL ................................................................... 6 3. DISASSEMBLY 3-1. Disassembly Flow ........................................................... 8 3-2. Case ................................................................................. 9 3-3. Loading Panel Assy ......................................................... 9 3-4. Front Panel Assy .............................................................. 10 3-5. Tuner Pack ....................................................................... 11 3-6. Tape Mechanism Deck, MIC Board ................................ 12 3-7. Panel Board, CD-SW Board ............................................ 13 3-8. DVD Mechanism Deck ................................................... 14 3-9. Video Board, DMB10 Board ........................................... 15 3-10. Back Panel ....................................................................... 16 3-11. Primary Board ................................................................. 16 3-12. Power Amp PC Board Assy, Main Board ........................ 17 3-13. DVD SURR Board, PA Board ......................................... 17 3-14. Power Transformer (T1200) ............................................ 18 3-15. Driver Board, SW Board ................................................. 18 3-16. DVD Assy ........................................................................ 19 3-17. Optical Pick-up ................................................................ 19 3-18. Sensor Board ................................................................... 20 3-19. Motor (TB) Board ........................................................... 20 3-20. Motor (LD) Board ........................................................... 21 4. TEST MODE ............................................................... 22 5. MECHANICAL ADJUSTMENTS......................... 27 6. ELECTRICAL ADJUSTMENTS .......................... 27 TABLE OF CONTENTS 7. DIAGRAMS .......................................................... 29 7-1. Block Diagram – RF Section –....................................... 30 7-2. Block Diagram – Video Section – ................................... 31 7-3. Block Diagram – Tape/Tuner Section – .......................... 32 7-4. Block Diagram – Main Section – .................................... 33 7-5. Block Diagram – AMP Section – .................................... 34 7-6. Block Diagram – Display/Power Section – ..................... 35 7-7. Printed Wiring Board – DMB10 Board (Side A) – ......... 36 7-8. Printed Wiring Board – DMB10 Board (Side B) – ........ 37 7-9. Schematic Diagram – DMB10 Board (1/4) –................ 38 7-10. Schematic Diagram – DMB10 Board (2/4) –................ 39 7-11. Schematic Diagram – DMB10 Board (3/4) –................ 40 7-12. Schematic Diagram – DMB10 Board (4/4) –................ 41 7-13. Printed Wiring Boards – CD Mechanism Boards – ....... 42 7-14. Schematic Diagram – CD Mechanism Boards – ........... 43 7-15. Printed Wiring Board – Main Board – ............................ 44 7-16. Schematic Diagram – Main Board (1/5) – ..................... 45 7-17. Schematic Diagram – Main Board (2/5) – ..................... 46 7-18. Schematic Diagram – Main Board (3/5) – ..................... 47 7-19. Schematic Diagram – Main Board (4/5) – ..................... 48 7-20. Schematic Diagram – Main Board (5/5) – ..................... 49 7-21. Printed Wiring Board – Panel Board – ............................ 50 7-22. Schematic Diagram – Panel Board – .............................. 51 7-23. Printed Wiring Boards – CD-SW, JOG And MIC Boards – .......................................................... 52 7-24. Schematic Diagram – CD-SW, JOG And MIC Boards – .......................................................... 53 7-25. Printed Wiring Board – PA Board – ................................ 54 7-26. Schematic Diagram – PA Board – .................................. 55 7-27. Printed Wiring Board – DVD SURR Board – ................. 56 7-28. Schematic Diagram – DVD SURR Board –................... 57 7-29. Printed Wiring Board – Video Board – ........................... 58 7-30. Schematic Diagram – Video Board – ............................. 59 7-31. Printed Wiring Boards – Trans And Primary Boards – ... 60 7-32. Schematic Diagram – Trans And Primary Boards –....... 61 8. EXPLODED VIEWS 8-1. Case, Rear Panel Section ................................................. 73 8-2. Front Panel Section ......................................................... 74 8-3. Chassis Section ................................................................ 75 8-4. DVD Mechanism Section-1 (CDM74H-DVBU101) ...... 76 8-5. DVD Mechanism Section-2 (CDM74H-DVBU101) ...... 77 9. ELECTRICAL PARTS LIST ....................... 78 Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 HCD-GNV99D/GNV111D SECTION 1 SERVICING NOTES NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. LASER DIODE AND FOCUS SEARCH OPERATION CHECK Carry out the “S curve check” in “CD section adjustment” and check that the S curve waveform is output several times. NOTE ON REPLACEMENT OF DMB10 BOARD New part of EEPROM (IC103) on the DMB10 board can not be used. Therefore, if the mounted DMB10 board (A-1099-272-A or A-1099-344-A or A-1115-347-A) is replaced, exchange new EEPROM with that used before the replacement. UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size) : LEAD FREE MARK Unleaded solder has the following characteristics. • Unleaded solder melts at a temperature about 40 °C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 °C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! • Strong viscosity Unleaded solder is more viscou-s (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. • Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. When the self-diagnosis function is activated to prevent the system from malfunctioning, a 5- character service number (e.g., C 13 50) with a combination of a letter and 4 digits appears in the on-screen display and the front panel Self-diagnosis Function (When letters/numbers appear in the display) First 3 characters of the service number Cause and/or corrective action C 13 The disc is dirty. • Clean the disc with a soft cloth (page xx). C 31 The disc is not inserted correctly. • Restart the system, then re-insert the disc correctly. E XX (xx is a number) To prevent a malfunction, the system has performed the self- diagnosis function. • Contact your nearest Sony dealer or local authorized Sony service facility and give the 5- character service number. Example: E 61 10 display. In this case, check the following table. • MODEL IDENTIFICATION – Back Panel – PART No. MODEL PART No. GNV99D : E3, E15 models 2-584-723-0[] GNV111D : E2 model 2-584-724-0[] GNV99D : EA model 2-596-940-0[] GNV99D : PH model 2-596-941-0[] GNV111D : MY, SP models 2-596-943-0[] GNV111D : EA model 2-596-944-0[] GNV111D : E3, E15 models 2-596-945-0[] GNV111D : AUS model 2-596-946-0[] GNV111D : PH model 2-596-947-0[] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 HCD-GNV99D/GNV111D J-2501-102-A (1mm/13p/L300) J-2501-086-A (1mm/19p/L300) DMB10 board MAIN board DVD mechanism deck CN521 CN520 CN106 CN302 front panel assy TCM block CN509 CN508 back panel PA board PANEL board MAIN board DVD SURR board J-2501-167-A (1.25mm/17p/L300) J-2501-077-A (1.25mm/13p/L300) • Service Position-1 (DMB10 Board) • Service Position-2 (PA and DVD SURR Boards) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 HCD-GNV99D/GNV111D SECTION 2 GENERAL This section is extracted from instruction manual. LOCATING THE CONTROLS AMP MENU ef AUTO/MANUAL* 2 CD SYNC qd Deck A es Deck B ws DIRECTION qk DISC 1 ~ 3 7 Disc tray 9 DISPLAY rf Display rg DVD r; ECHO LEVEL wf ENTER wa EQ BAND qa EX-CHANGE/DISC SKIP 6 GROOVE ej ILLUMINATION rd IR Receptor ra MASTER VOLUME 8 MIC 1 (jack) wj MIC 2 (jack) wh MIC LEVEL wg OPERATION DIAL e; PHONES (jack) wl Power illuminator wd PRESET +/– qj PROGRESSIVE q; REC PAUSE/START qh SOUND FIELD rh SOUND FLASH ea SPEAKERS* 1 TAPE A/B ek Tape lid ws es TUNER/BAND el TUNING +/– ql TV/SAT eh VIDEO INPUT (jacks) wk VIDEO eg X-ROUND buttons* 3 WAVE/FADER/BALANCE/ RANDOM/TWISTER X-ROUND JOG* 4 X-ROUND OFF* 1 ?/1 (power) rs Z OPEN/CLOSE 5 nN (play) qs .> (go backward/forward) qj mM (rewind/fast forward) ql SLOW ql X (pause) qf x (stop) qg Z A (Eject A) ed B Z (Eject B) w; * MHC-GNV111D only ALPHABETICAL ORDER A – D E – L M – R S – Z SYMBOLS Top Panel Front Panel 4 6 5 7 1 2 3 wk wg wh wj X qj qk ql w; wz ws wd rg rh rd ra el ej eg wl e; ea es ed ef eh ek r; rs rf 8 0 qa qs qd qf qg qh 9 Unit List of button locations and reference pages How to use page 106 to 108 Use this page to find the location of buttons and other parts of the unit and remote that are mentioned in the text. Illustration number r TAPE A/B ek (63–65, 75, 78, 79) R R Name of button/part Reference page www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 HCD-GNV99D/GNV111D This section is extracted from instruction manual. Remote control ADVANCE wd ALBUM +/– qa ANGLE q; AUDIO 8 CLEAR wj DISC SKIP 3 DISPLAY es ENTER wg FM MODE 7 FUNCTION +/– 4 KARAOKE MODE e; KARAOKE PON wl KEY CONTROL #/2 ea MENU qs Numeric Buttons1)2) wk PICTURE NAVI 6 PRESET + qg PRESET – ws REPEAT 7 REPLAY wd SLEEP ef SLOW qh SLOW wa SOUND FIELD 5 STEP C wd SUBTITLE 9 THEATRE SYNC 1 TIMER MENU eg TIME/TEXT ed TOP MENU wh TUNING + qh TUNING – wa TV2) ql TV CH +2) qg TV CH –2) ws TV/VIDEO2) ef TV VOL +/–1)2) qd TV &/12) 2 VOLUME +/–1) qd ?/1 (power) 2 x (stop) qj X (pause) qk H1) (play) w; > (go forward) qg . (go backward) ws M (fast forward) qh m (rewind) wa M/m/ knob is turned clockwise, or it decreases in the manner of 0, 9, 8,7 ... if .> knob is turned counter-clockwise. “X” value increases in the manner of 0, 1, 2, 3 ... if [X-ROUND JOG] knob is turned clockwise or it decreases in the manner of 0, 9, 8, 7 ... if [X-ROUND JOG] knob is turned counterclockwise. (For GNV111D only) 8. When [DISC3] button is pressed after all LEDs and segments in fluorescent indicator tube light up, the fluorescent indicator tube displays “VACS A+B APCC”. A is VACS level which is trigger by signal level, B is VACS level which is trigger by temperature and CC is VACS level which is trigger by APVACS (Abuse Protection VACS). The signal level, which will trigger VACS A is shown in the center area of the fluorescent indicator tube. 9. When [EX-CHANGE/DISC SKIP] button is pressed after all LEDs and segments in fluorescent indicator tube light up, alternate segments in fluorescent indicator tube would light up. If you press [EX-CHANGE/DISC SKIP] button again, another half of alternate segments in fluorescent indicator tube would light up. Pressing [EX-CHANGE/DISC SKIP] button again would cause all segments lights up. 10. To release from this mode, press three buttons in the same manner as step 1, or disconnect the power cord. [MC TEST MODE] • This mode is used to check operations of the respective sections of Amplifier, Tuner, and Tape. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 HCD-GNV99D/GNV111D [TUNER STEP CHANGE] • The step interval of AM channels can be toggled between 9 kHz and 10 kHz. Procedure: 1. Press ?/1 button to turn the set ON. 2. Press [TUNER/BAND] button to select the “AM”. 3. Press ?/1 button to turn the set OFF. 4. Press [ENTER] button and ?/1 button simultaneously. The set will power ON automatically. The message “AM 9k STEP” or “AM 10k STEP” appears on the fluorescent indicator tube and thus the channel step is changed. [DVD SHIP MODE (WITH MEMORY CLEAR)] • This mode moves the optical pick-up to the position durable to vibration and clears all data including preset data stored in the RAM to initial conditions. Use this mode when returning the set to the customer after repair. Procedure: 1. Press ?/1 button to turn the set ON. 2. Select DVD function. 3. Press x button, [DVD] button and ?/1 button simultaneously. The set will power off automatically. 4. After the “STANDBY” blinking display finish, a message “MECHALOCK” is displayed on the fluorescent indicator tube and the DVD ship mode is set. [DVD SHIP MODE (WITHOUT MEMORY CLEAR)] • This mode moves the optical pick-up to the position durable to vibration. Procedure: 1. Press ?/1 button to turn the set ON. 2. Select DVD function. 3. Press [DVD] button and ?/1 button simultaneously. The set will power off automatically. 4. After the “STANDBY” blinking display finish, a message “MECHALOCK” is displayed on the fluorescent indicator tube and the DVD ship mode is set. [DVD TRAY LOCK MODE] • This mode let you lock the disc tray. When this mode is activated, the disc tray will not open when [OPEN/CLOSE] button or [EX-CHANGE/DISC SKIP] button is pressed. The message “LOCKED” will be displayed in on the fluorescent indicator tube. Procedure: 1. Press ?/1 button to turn the set ON. 2. Select DVD function. 3. Press x button and [OPEN/CLOSE] button simultaneously and hold down until “LOCKED” or “UNLOCKED” displayed on the fluorescent indicator tube (around 5 seconds). [VIDEO/SAT SWITCHING] • This mode let you switch from VIDEO to SAT and vice-versa. Procedure: 1. Press ?/1 button to turn the set ON. 2. Select TV/SAT function. 3. Press [TV/SAT] button and ?/1 button simultaneously. The function will change to SAT. Press the same buttons again to change from SAT to VIDEO. [DVD COLOR SYSTEM SWITCHING] • This mode let you change the color system of the video output from PAL to NTSC or vice-versa. Procedure: 1. Press ?/1 button to turn the set ON. 2. Select DVD function. 3. Press ?/1 button to turn the set OFF. 4. Press [PAUSE] button and ?/1 button simultaneously. The set will power on automatically. 5. The message “COLOR PAL” or “COLOR NTSC” will be displayed on the fluorescent indicator tube. [REMOTE COMMANDER DISABLE MODE] • This mode let you disable the remote commander reception. When this mode is activated, the set will not response if the button on the remote commander is pressed. The message “RemoteDisable” will be displayed on the fluorescent indicator tube. Use this mode during aging to avoid disturbance. Procedure: 1. Press x button, [GROOVE] button and [DISC 2] button simultaneously, “RemoteDisable” displayed on the fluorescent indicator tube. To enable the remote commander reception, press the same buttons again. “RemoteEnable” displayed on the fluorescent indicator tube. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 HCD-GNV99D/GNV111D [DVD SERVICE MODE] • This mode let you make diagnosis and adjustment easily by us- ing the remote commander and TV. The instructions, diagnostic results, etc. are given on the on-screen display (OSD). Procedure: 1. Press ?/1 button to turn the set ON. 2. Select DVD function. 3. Press x button and [OPEN/CLOSE] button simultaneously and then turn the [VOLUME] knob clockwise. 4. The message “SERVICE IN” will be displayed on the fluorescent indicator tube and the Test Mode Menu is displayed on the on-screen display on the TV. The model name and revision number is displayed at the bottom of the on-screen display. Remocon Diagnosis Menu 0. External Chip Check 1. Servo Parameter Check 2. Drive Manual Operation 3. Emergency History Check 4. Version information 5. Video Level Adjustment Model : GNV99D_E IF-con Ver : 00.10(0000) Syscon Ver : 0.165 5. To execute each function, press its number by using numeric button on the remote commander. 6. To release from this mode, press ?/1 button to turn the set OFF. [EXECUTING IOP MEASUREMENT] In order to execute mirror time adjustment, the following standard procedures must be followed. 1. In standby mode, press x button and [OPEN/CLOSE] button simultaneously and the turn the [VOLUME] knob clockwise. Remocon Diagnosis Menu 0. External Chip Check 1. Servo Parameter Check 2. Drive Manual Operation 3. Emergency History Check 4. Version information 5. Video Level Adjustment Model : GNV99D_E IF-con Ver : 00.10(0000) Syscon Ver : 0.165 2. Select “2. Drive Manual Operation” by pressing the [2] button on the remote commander. The screen will appear as below. Drive Manual Operation 1. Servo Control 2. Track/Layer Jump 3. Manual Adjustment 4. Tray Aging Mode 5. MIRR time adjust 0. Return to top Menu 3. Select “3. Manual Adjustment” by pressing the [3] button on the remote commander. The screen will appear as below. Manual Adjust 1. Track Balance Adjust: 2. Track Gain Adjust: 3. Focus Balance Adjust: 4. Focus Gain Adjust: 5. Eg boost Adjust: 6. Iop: 7. TRV. Level: 8. S curve(FE) Level: 9. RFL(PI) Level: 0. MIRR Time: ? ? Change Value [RETURN] Return to previous menu 4. Select Iop by pressing [6] button on the remote commander. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 HCD-GNV99D/GNV111D 5. Wait until a hexadecimal number appear. Manual Adjust 1. Track Balance Adjust: 2. Track Gain Adjust: 3. Focus Balance Adjust: 4. Focus Gain Adjust: 5. Eq Boost Adjust: 6. Iop. ED: 7. TRV. Level: 8. S curve(FE) Level: 9. RFL(PI) Level: 0. MIRR Time: Change Value [0] Return to previous menu 6. Convert data from hexadecimal to decimal using conversion table. 7. Press [RETURN] to return back to previous menu. 8. Press [0] to return to Top Menu and power OFF the DVD Player. [EMERGENCY HISTORY CHECK] Information of Emergency History. 1. In standby mode, press [TOP MENU], [CLEAR], ?/1 buttons to enter Remocon Diagnosis Mode. 2. Select “3. Emergency History”. Emg. History Check Laser Hours CD 999h 59min DVD 999h 59min 1. 01 05 04 04 00 92 46 00 00 00 00 00 00 00 23 45 2. 02 02 01 01 00 A9 4B 00 00 00 00 00 00 00 23 45 [Next] Next Page [Prev] Prev Page 3. Laser Hours DVD Laser ON time. (Total ON time) CD Laser ON time. (Total ON time) 4. Emergency History The history information from last “1” to “10” can be scrolled with [NEXT] button or [PREV] button. 5. Error code Example of Error code 1. 01 05 04 04 00 92 46 00 00 00 00 00 00 00 23 45 6. Error code list 01: Communication error (No reply from syscon) 02: Syscon hung up 03: Power OFF request when syscon hung up 19: Thermal shutdown 24: MoveSledHome error 25: Mecha move error (5 Changer) 26: Mecha move stack error 30: DC Motor adjustment error 31: DPD offset adjustment error 32: TE Balance adjustment error 33. TE Sensor adjustment error 34. TE loop gain adjustment error 35. FE loop gain adjustment error 36. Bad jitter after adjustment 40. Focus NG 42. Focus Layer Jump NG 52. Open kick spindle error 51: Spindle stop error 60: Focus on error 61: Seek fail error 62: read Qdata/ID error 70: Lead In Data Read Fail 71: TOC read time out (CD) 80: Can’t Buffering 81: Unknown media type 7. Error code parameters Example of Error code 1. 01 05 04 04 00 92 46 00 00 00 00 00 00 00 23 45 This is the detailed contents od error information 8. Laser hours at error happend. Example of Error code 1. 01 05 04 04 00 92 46 00 00 00 00 00 00 00 23 45 This is Laser hours when an error happaned. 9. How to Clearing laser hours Press [DISPLAY], [CLEAR] buttons in this order. Both CD and DVD data are cleared. Emg. History Check Laser Hours CD 0h 0min DVD 0h 0min 1. 01 05 04 04 00 92 46 00 00 00 00 00 00 00 23 45 2. 02 02 01 01 00 A9 4B 00 00 00 00 00 00 00 23 45 [Next] Next Page [Prev] Prev Page [0] Return to Top Menuas www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 HCD-GNV99D/GNV111D 10. How to Clearing Emergency code Press [TOPMENU], [CLEAR] buttons in this order. All emergency code are cleared. Emg. History Check Laser Hours CD 999h 59min DVD 999h 59min 1. 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 2. 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 [Next] Next Page [Prev] Prev Page 11. Press [0] button, return to TOP MENU. [INITIALIZING SETUP DATA] How to initializing setup data. 1. In standby mode, press [TOP MENU], [CLEAR], ?/1 buttons to enter Remocon Diagnosis Mode. 2. Select “3. Emergency History”. Emg. History Check Laser Hours CD 999h 59min DVD 999h 59min 1. 01 05 04 04 00 92 46 00 00 00 00 00 00 00 23 45 2. 02 02 01 01 00 A9 4B 00 00 00 00 00 00 00 23 45 [Next] Next Page [Prev] Prev Page 3. Initializing setup data Press [MENU], [CLEAR] buttons in this order. The data have been initialized when “Initialize setup data...” mesage is displayed. Emg. History Check Laser Hours CD 999h 59min DVD 999h 59min Initialize setup data ... [Next] Next Page [Prev] Prev Page 4. The Emergency history display screen will be restored soon. Emg. History Check Laser Hours CD 999h 59min DVD 999h 59min 1. 01 05 04 04 00 92 46 00 00 00 00 00 00 00 23 45 2. 02 02 01 01 00 A9 4B 00 00 00 00 00 00 00 23 45 [Next] Next Page [Prev] Prev Page 5. Press [0] button, return to TOP MENU. [VERSION INFORMATION] Information of firmware version. 1. In standby mode, press [TOP MENU], [CLEAR], [POWER] buttons to enter Remocon Diagnosis Mode. 2. Select “4. Version Information”. Version information Firm (Main) : Ver. xxxxx Firm (Sub) : xxxxx RISC : xxxxx 8032 : xxxxx Audio DSP : xxxxx Servo DSP : xxxxx [0] Return to Top Menu 3. Press [0] button, return to TOP MENU. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 HCD-GNV99D/GNV111D SECTION 5 MECHANICAL ADJUSTMENTS SECTION 6 ELECTRICAL ADJUSTMENTS Precaution 1. Clean the following parts with a denatured alcohol-moistened swab: record/playback heads pinch rollers erase head rubber belts capstan idlers 2. Demagnetize the record/playback head with a head demagnetizer. 3. Do not use a magnetized screwdriver for the adjustments. 4. After the adjustments, apply suitable locking compound to the parts adjusted. 5. The adjustments should be performed with the rated power supply voltage unless otherwise noted. Torque Measurement 3.06 N • m to 6.96 N • m FWD CQ-102C 31 to 71 g • cm (0.43 – 0.98 oz • inch) FWD 0.19 N • m to 0.58 N • m back tension CQ-102C 2 to 6 g • cm (0.02 – 0.08 oz • inch) 3.06 N • m to 6.96 N • m REV CQ-102RC 31 to 71 g • cm (0.43 – 0.98 oz • inch) 0.19 N • m to 0.58 N • m REV CQ-102RC 2 to 6 g • cm back tension (0.02 – 0.08 oz • inch) 6.96 N • m to 14.02 N • m FF/REW CQ-201B 71 to 143 g • cm (0.98 – 1.99 oz • inch) 9.80 N • m FWD tension CQ-403A 100 g or more (3.53 oz or more) 9.80 N • m REV tension CQ-403R 100 g or more (3.53 oz or more) Mode Torque meter Meter reading 0 dB=0.775 V DECK SECTION 1. Demagnetize the record/playback head with a head demagnetizer. 2. Do not use a magnetized screwdriver for the adjustments. 3. After the adjustments, apply suitable locking compound to the parts adjust. 4. The adjustments should be performed with the rated power supply voltage unless otherwise noted. 5. The adjustments should be performed in the order given in this service manual. (As a general rule, playback circuit adjustment should be completed before performing recording circuit adjustment.) 6. The adjustments should be performed for both L-CH and R- CH. 7. Switches and controls should be set as follows unless otherwise specified. • Test Tape RECORD/PLAYBACK HEAD AZIMUTH ADJUST-MENT DECK A DECK B Note: Perform this adjustments for both decks Procedure: 1. Mode: Playback Tape Signal Used for P-4-A100 10 kHz, –10 dB Azimuth Adjustment set MAIN board CN510 Pin 1 (L-CH) Pin 3 (R-CH) MAIN board CN510 Pin 2 (GND) + – level meter test tape P-4-A100 (10 kHz, –10 dB) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 HCD-GNV99D/GNV111D DVD SECTION AUTO SERVO ADJUSTMENT After parts related to the servo circuit (RF amplifier , DSP (IC102), motor driver (IC201), EEPROM (IC103) so on) are replaced, re- adjusting the servo circuit is necessary. [TEST DISC LIST] Use the following test disc on test mode. TDV-520CSO (DVD-SL): PART No. J-2501-236-A LUV-P01 (CD): PART No. 4-999-032-01 TDV-540C (DVD-DL): PART No. J-2501-235-A Note: Do not use exiting test disc for DVD. [RFMON Level Check] Connection: Procedure: 1. Connect an oscilloscope to CN105 pin 6 (RFMON) and CN105 pin 3 (GND) on the DMB10 board. 2. Turn the power on. 3. Set the test disc (DVD: TDV-520CSO, CD: LUV-P01) on the tray and press H button to playback. 4. Confirm that oscilloscope waveform is clear and check RFMON signal level is correct or not. Note: A clear RFMON signal waveform means that the shape “◊” can be clearly distinguished at the center of the waveform. Checking Location: DMB10 board (Side A) + – CN105 pin 6 (RFMON) CN105 pin 3 (GND) oscilloscope DMB10 board VOLT/DIV: 200 mV TIME/DIV: 500 ns RFMON signal waveform level: 0.8 ± 0.2 Vp-p (DVD) 0.8 ± 0.2 Vp-p (CD) IC102 IC101 IC104 IC201 CN105 CN106 CN105 pin 3 (GND) CN105 pin 6 (RFMON) 1 6 2. Turn the adjustment screw and check output peaks. If the peaks do not match for L-CH and R-CH, turn the adjustment screw so that outputs match within 1dB of peak. 3. Mode: Playback 4. After the adjustments, apply suitable locking compound to the pats adjusted. Adjustment Location: Playback Head (Deck A). Record/Playback/Erase Head (Deck B). Screw position L-CH peak within 1dB Output level L-CH peak R-CH peak within 1dB Screw position R-CH peak MAIN board CN510 set test tape P-4-A100 (10 kHz, –10 dB) pin 3 oscilloscope L-CH R-CH V H waveform of oscilloscope in phase 45° 90° 135° 180° good wrong pin 2 pin 1 L R forward reverse www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 29 HCD-GNV99D/GNV111D HCD-GNV99D/GNV111D SECTION 7 DIAGRAMS • Circuit Boards Location For Schematic Diagrams. Note: • All capacitors are in µF unless otherwise noted. (p: pF) 50 V or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • % : indicates tolerance. • f : internal component. • 2 : nonflammable resistor. • 5 : fusible resistor. • C : panel designation. • A : B+ Line. • B : B– Line. • Voltages and waveforms are dc with respect to ground un- der no-signal (detuned) conditions. DMB10 and VIDEO boards no mark : DVD PLAY Other board no mark : TUNER (FM/AM) ( ) : DVD PLAY < > : TAPE PLAY [ ] : TAPE REC * : Impossible to measure • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal production tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal production tolerances. • Circled numbers refer to waveforms. • Signal path. F : AUDIO e : TUNER k : TAPE PLAY (DECK A) d : TAPE PLAY (DECK B) G : REC (DECK B) J : CD PLAY N : MIC c : DVD PLAY L : VIDEO E : Y a : CHROMA r : COMPONENT VIDEO q : R, G, B Note on Printed Wiring Boards. Note: • X : parts extracted from the component side. • : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) • Indication of transistor. Caution: Pattern face side: Parts on the pattern face side seen from (SIDE A) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (SIDE B) the parts face are indicated. Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. C B These are omitted. E Q B These are omitted. C E Q B These are omitted. C E Q • Abbreviation AUS : Australian model E2 : 120V AC Area in E model E3 : 240V AC Area in E model E12 : 220V-240V AC Area in E model E13 : 220V-230V AC Area in E model E15 : Iran model EA : Saudi Arabia model MY : Malaysia model MX : Mexican model PH : Philippines model SP : Singapore model TH : Thai model PA board DVD SURR board SWITCHING POWER TUNER PACK PRIMARY board DMB10 board CD-SW board TRANS board VIDEO board MAIN board MIC board JOG board PANEL board MOTOR (LD) board SW board SENSOR board DRIVER board MOTOR (TB) board Ver 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 30 HCD-GNV99D/GNV111D HCD-GNV99D/GNV111D 7-1. BLOCK DIAGRAM – RF SECTION – : CD PLAY : DVD PLAY DETECTOR 6 2 3 4 5 10 19 18 252 253 DVDRFIP DVDA DVDB DVDC DVDD TPI TNI MD MC LD01 MDI2 LD02 MSW MDI1 OSP OSN IC102 (1/2) CD/DVD RF AMP, FOCUS/TRACKING ERROR AMP DVD SYSTEM PROCESSOR DIGITAL SERVO PROCESSOR OPTICAL PICK-UP BLOCK (KHM-310CAB) 2AXIS DEVICE FOCUS/ TRACKING COIL 23 20 22 21 36 48 43 12 9 37 1 Q102 (2/2) AUTOMATIC POWER CONTROL (FOR DVD) Q102 (1/2) AUTOMATIC POWER CONTROL (FOR CD) LASER DIODE (FOR CD) LASER DIODE (FOR DVD) FOCUS COIL DRIVE 42 41 BUFFER 35 3 34 4 TRACKING COIL DRIVE 32 31 38 42 37 41 30 SLED MOTOR DRIVE IC201 FOCUS/TRACKING COIL DRIVER, SPINDLE, SLED MOTOR DRIVER 27 28 SPINDLE MOTOR DRIVE M M1 (SPINDLE) S1 (LIMIT) 46 47 FMO FOO DND TRO VREFO 40 IOPMON FOO RF A B C D F E CD LD PD WR650 VR780 DVD LD FCS+ FCS– TRK+ REG01 REG02 TRK– SP+ SP– SL+ SL– NC NC VREFO VREFO 9 NB 8 NA 30 29 SLED MOTOR DRIVE M M2 (SLED) 187 BUFFER 19 20 22 45 21 42 40 IC401 (1/6) SYSTEM CONTROLLER 99 IFCK 107 TXD 28 V2 REF0 DVD_SCO/CLK1 33 100 XIFCS XIFCS 24 110 PRST TXD CN105 RXD V2REF0 TXD1 RXD1 CLK1 RFMON 106 RXD SYSRST 25 98 IFSDO DVD_SOD/RXD1 32 101 IFSDI 205 MIC/VSYNC MIC SW 21 105 IFBSY IFBUSY 23 207 KRMOD/HSYNC KRMOD 18 114 MREQ MREQ 22 DVD_SID/TXD1 31 TRO FMO FOO DMO TRO 10 13 FMO IOP IOPMON DMO IC301 D/A CONVERTER IC3601 D/A CONVERTER IC3771 AMP IC3711 AMP IC3751 AMP IC3731 AMP 219 ASDATA2 SDTI3 16 222 ASDATQ3 SDTI4 13 218 ASDATA1 SDTI2 15 32 ROUT4- 6 1 7 38 LOUT4+ 3 217 ASDATA0 SDTI1 14 37 LOUT4- 2 33 ROUT4+ 103 SDA SCKI LIN RIN 15 102 SCL BCK 11 LRCK 10 209 SPDATA/SMSDI DOUT 12 5 47 ROUT1- 6 2 LOUT1+ 3 1 LOUT1- 2 48 DM_L DM_R MB_FL MB_FR FC SW(LEE) MB_SL MB_SR Q3801 BIAS BIAS (IC3711,3731,3751,3771) AU+5V ROUT1+ 5 39 ROUT3- 6 42 LOUT3+ 3 41 LOUT3- 2 40 ROUT3+ 5 43 ROUT2- 6 46 LOUT2+ 3 45 LOUT2- 2 44 ROUT2+ 5 213 ALRCK LRCK 17 220 XRST PDN 8 214 ABCK BICK 9 215 ACLK MCLK 10 CSL 19 SDA 20 184 MUTE123 183 MUTE 181 TSDM 47 SPFG 176 LIMSW IC103 EEPROM SCL SDA Q101 Q103 1 7 1 7 1 7 LIN RIN 1 2 5 6 1 2 5 6 11 MAIN SECTION (Page 33) A MAIN SECTION (Page 33) F DISPLAY/POWER SECTION (Page 35) B • Signal Path w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 31 HCD-GNV99D/GNV111D HCD-GNV99D/GNV111D 7-2. BLOCK DIAGRAM – VIDEO SECTION – • Signal Path : VIDEO : Y : CHROMA : COMPONENT VIDEO : R, G, B IC102(2/3) DVD SYSTEM PROCESSOR 194 YUV1 203 YUV6 196 198 YUV2 YUY3 200 YUY4 202 YUY5 171 WODE IC801 VIDEO AMP, 75 DRIVER IC401(2/6) SYSTEM CONTROL J801 J802 J800 12 CBIN 10 CYIN 4 9 CVBSIN I/P 18 3 13 CBOUT MUTE1 14 25 CRIN SI 20 CYOUT 23 VOUT 2 CIN 6 YIN 26 COUT 21 YOUT 16 CROUT CBOUT CYOUT Q800 VOUT CROUT AV SEL1 88 87 MUTE2 4 3 2 1 IC101 FLASH ROM 125-123, 121, 120, 118, 117, 115, 135, 133-128, 126 146, 147, 149-151, 158-160, 162, 164-166 22-26, 29-35 HIGHA0-7 IOA0-7, IOA18-IOA20 A16, A17 AB0 – AB7 A1-A21 81-84,86-88,91 53-61, 67-72, 74-76, 78, 89, 92, 93 HD0 – HD7 A0 – A21 A0 26 45 CE WE 28 OE 11 A0 – A19 DQ15/A-1 77 IOCS IOWA 79 IOUE 66 DQ0 – DQ7 RCLK IC104 SDRAM 38 DRCLK RD0 – RD15 RA0 – RA11 RA0 – RA11 RD0 – RD15 142 RCS 19 RCS 138 RWE 16 RWE 140 RAS 18 RAS 139 CAS 17 CAS MDQM0 15 DQM0 MDQM1 39 DQM1 CLE 37 DRCLE 143 BA0 20 227 BS0 BA1 21 BS1 COMPONENT VIDEO OUT S VIDEO OUT VIDEO OUT Y Y C PB/CB PR/CR V MUTE VIDEO OUT SW V MUTE VIDEO OUT SW 29,31,33,35,38,40,42,44 25-16, 9-1, 40,12,48 145 156 113 137 157 2,4,5,7,8,10,11,13,42,44,45,47,48,50,51,53 TBL-SENS 27 OPENSW Q731 S751 (OPEN) D+3.3V RTS1 26 3 4 1 2 IC731 TABLE SENSOR LM-F 38 LM-R 39 36 TM-R E-1 E-2 E-3 37 35 34 28 TM-F RIN FIN 9 7 MOTOR DRIVE 4 2 9 7 4 2 MOTOR DRIVE OUT1 OUT2 OUT1 OUT2 RIN FIN IC712 TBL MOTOR DRIVER RE701 ROTARY ENCODER IC701 LD MOTOR DRIVER M751 (LOADING) M M M741 (TABLE) EVER 4V M+9V Q523,524 +3.3V REG. IC800 VIDEO SELECT 7 3 1 2 VIDEO INPUT VIDEO J1102(1/2) RF+3.3V SW+5V 5 4 IC107 +3.3V REG. +3.3V VDD 5 4 IC105 +3.3V REG. SW+3.3V RF1.8V REVGND18 1 3 IC106 +1.8V REG. DISPLAY/POWER SECTION (Page 35) L D505 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 32 HCD-GNV99D/GNV111D HCD-GNV99D/GNV111D 7-3. BLOCK DIAGRAM – TAPE/TUNER SECTION – : TAPE PLAY (DECK B) : TAPE PLAY (DECK A) : TUNER : REC (DECK B) • Signal Path ST-L E MAIN SECTION (Page 33) REC-OUT-L D MAIN SECTION (Page 33) TC BLOCK 32 A TRIG DRIVE R-CH FM/AM TUNER UNIT CN509 ANTENNA ST-L FM ANT AM ANT AM ANT ST-R TUNED ST-DIN/MC-DOUT ST-DOUT ST-CLK ST-CE FM 75 COAXIAL CAP M+ BTRGM+ ATRGM+ AHALF BHALF APLAY BPLAY B PULSE A PULSE REC(FWD) REC(REV) CAPM-CONT B-TRIG A-TRIG TC-RELAY A-HALF B-HALF A-PLAY B-PLAY B SHUT A SHUT REC BIAS PB-A/B ALC REC-MUTE TC-MUTE AM EQ OUT1 A B TUNED MC DOUT(ST) MC DIN(ST) ST-CLK ST-CE 34 28 27 26 24 21 52 55 56 54 71 90 89 91 46 94 47 53 48 B TRIG DRIVE 49 CAP MOTOR DRIVE 50 1 3 6 2 5 13 11 15 14 PB OUT1 TAI1 REC IN1 AIN1 BIN1 A/B ALC ON/OFF REC MUTE ON/OFF MUTE ON/OFF DECK A/B SELECT PB/REC EQUALIZER AMP IC301 Q340, 343 Q342, 345 Q341,344 SYSTEM CONTROL (DVD/TAPE MECHANISM CONTROL) IC401(3/6) REC-OUT1 EQ TC-PB-L TEST CONNECTOR CN510 R-CH R-CH R L C MAIN SECTION (Page 33) MUTE Q106 MUTE DRIVE Q509, 510 PB HEAD DECK-A DECK-B BIAS OSC Q370 BIAS TRAP SWITCH DRIVE Q377, 379 SWITCH DRIVE Q382, 383 R-CH R-CH Q325 Q321, 322 Q381 L – CH R – CH R-CH BIAS+9V REC/PB HEAD ERASE HEAD Q378,380 T301 L – CH R – CH • R-CH is omitted due to same as L-CH. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 33 HCD-GNV99D/GNV111D HCD-GNV99D/GNV111D 7-4. BLOCK DIAGRAM – MAIN SECTION – J201 J1102(2/2) C D E R-CH VOLUME CONTROL CPU INTERFACE INPUT SELECT SWITCH SURROUND OR DPL BUFFER MID/ BASS & TREBLE R-CH R-CH COMMAND TOUT1 LINK-L OUT1 VOLIN1 + Q101 R-CH R-CH SPEANA LIN RIN DBFB F/B F-R F-L CENTER L+R SL SR + + + RV1100 RV1101 INPUT SELECT SWITCH, GRAPHIC EQUALIZER CONTROL, ELECTRICAL VOLUME IC101 SYSTEM CONTROL IC401 (4/6) TC-L VIDEO-L ST-L SAOUT DATA CLK BB-A1 BB-B1 SWOUT REC-OUT-L R-CH TC-PB-L TAPE/TUNER SECTION (Page 32) TAPE/TUNER SECTION (Page 32) ST-L M16530-DATA M16530-CLK LINE MUTE M61529-DATA M61529-CLK R-CH LINE-MUTE J1101(1/3) J1101(2/3) L R VIDEO INPUT AUDIO L R TV/SAT AUDIO IN 2 14 15 24 18 22 16 21 4 3 6 DVD1 SAT-L 5 19 MIC 2 ECHO LEVEL MIC LEVEL 17 8 MIC RECB1 7 SUR-L MIC OUT C A B C A B A+9V + 2 1 3 9 6 7 DIGTAL ECHO IC1101 LPF2 OUT LPF1 IN 79 80 DVD A MUTE MIC DETECT 77 85 81 82 SW MUTE 75 ANALOG MUTE 78 LINE OUT MUTE 83 76 AMP SECTION (Page 34) H I F AMP SECTION (Page 34) RF SECTION (Page 30) TAPE/TUNER SECTION (Page 32) G DISPLAY/POWER SECTION (Page 35) MUTE Q514, 564 MUTE Q117 MUTE DRIVE Q516, 517 MUTE Q206 MUTE DRIVE Q521, 522 J1100(1/3) J1100(2/3) J1101(3/3) J1100(3/3) MIC 1 AC DETECT J203 SUBWOOFER OUT J DISPLAY/POWER SECTION (Page 35) MUTE DRIVE Q511 MUTE DRIVE Q519,512,515 MUTE DRIVE Q505,506 MUTE Q200,202-204, 250,252-254 MUTE DRIVE Q507,508 MUTE Q207, 208 R-CH R-CH J202 AUDIO OUT L R R-CH 2 6 7 1 42 SPEANA IN AMP IC304 SURROUND VOL CONTROL IC201 DM_L DM_R MB_FL MB_FR FC MB_SL MB_SR SW (LFE) DATA CLOCK R-CH R-CH R-CH LPF I/F 41 40 37 39 38 RF SECTION (Page 30) A 34 2 32 13 12 6 5 10 9 15 24 14 + 11 4 31 25 30 29 8 7 23 28 27 26 22 3 Q205 GNV111D Q255 17 18 • R-CH is omitted due to same as L-CH. : AUDIO : DVD PLAY : TAPE PLAY : REC (DECK B) : MIC : TUNER • Signal Path MIC AMP IC1100(1/2) MIC AMP IC1100 (2/2) Ver 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 34 HCD-GNV99D/GNV111D HCD-GNV99D/GNV111D 7-5. BLOCK DIAGRAM – AMP SECTION – IC600 POWER AMP IC702 POWER AMP CENTER AUDIO SELECT IC703 IC550 OVER CURRENT PROTECTOR GNV111D : AUDIO • Signal Path MUTING Q604,606,610 MUTE DRIVE Q721,720 F-R DBFB F/B F-L SR CENTER GNV111D GNV99D JW798 SL 60 78 STK-MUTE 59 CTR SPK SW 70 THERMAL VA S PROTECTOR STK-MUTE 14 19 18 4 3 12 STK MUTE FAN DET FAN-KICK FAN-CTRL OVER LOAD DETECT Q618,668 + + + MUTING Q641, 640 MUTING CONTROL Q682,634 F-RELAY HP-DET HP-MUTE FAN-CTRL 84 HP-DE 72 HP-MUTE 58 AC CUT MAIN 66 FR RELAY 42 FAN-CTRL OVER LOAD DETECT Q730,780,770 RELAY DRIVE Q644,647 H/P DET F-RELAY HP-MUTE + - - + FRONT SPEAKER REAR SPEAKER CENTER SPEAKER L R PHONES J1103 FAN-KICK RY646 SYSTEM CONTROL IC401 (5/6) TM600 MAIN SECTION (Page 33) H MAIN SECTION (Page 33) M FAN MOTOR DRIVE Q578,585,579 Q581,582 DC FAN M891 AC CUT DETECT TH629 TH630 Q629 THERMAL DETECT Q628,630 + + + 65 CTR-RELAY 61 REAR/SW-RELAY RY760 RY761 L R L+R LINEMUTE RELAY DRIVE Q762 RELAY DRIVE Q763 I DISPLAY/POWER SECTION (Page 35) K 8 21 7 4 2 11 OVER LOAD DC DET VP OCP CT OUT D550 D624 MUTE Q750 MUTE Q700 MUTE Q740 2 1 D655 D654 Q648 Q722 -VH 18 11 14 8 - - - 10 9 TM701 TM700 10 9 22 12 3 D764 D763 D765 D720 Ver 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 35 HCD-GNV99D/GNV111D HCD-GNV99D/GNV111D 7-6. BLOCK DIAGRAM – DISPLAY/POWER SECTION – FL901 FLUORESCENT INDICATOR TUBE 9,10, 12 – 22, 24 – 41, 43 – 47 8– 1, 100 – 96, 92-85 P1 – 36 G1 – 13, G17-24 64 – 66 SUPER LOW FREQUENCY (BPF0) 1 BPF, RECT IC904 67 68 16 2 15 69 71 48 80 52 53 54 55 ALL BAND BPF1 BPF3 IN2 IN1 VKK SELECTOR 49 MD0 51 MD1 G14-16 G14-16 G1 – 13, 17-24 13 17 74 VOLUME ROTARY ENCODER S970 VOLUME 73 JOG X-ROUND ROTARY ENCODER S1148 X-ROUND JIG 75 OPERATION DIAL ROTARY ENCODER S1161 MULTI JOG 76 AMS ROTARY ENCODER S916 . > X MAIN SECTION (Page 33) G RF SECTION (Page 30) B VIDEO SECTION (Page 31) L SPEANA P1 – 36 VF1 VF2 D905 -VG (-32V) X AMP SECTION (Page 34) K AC CUT DETECT X901 4MHz 83 XIN 82 XOUT 52 – 57 95–93 LED DRIVE Q911 – 913 Q908,915,910,909, 916,918,919,920 D907,909,914,916,918,919, 921,923926,930 D906,908,910,911,913,912, 917,,920,922,924,925,928,929 LED+9V Q905 Q907 Q904 Q906 D902,927 CN402 2 3 6 7 9 5 8 ON BOARD PROGRAM KEY2 | KEY0 S1156 – 1160, S1149-1155 S910,911,918-920,927-932 S901-904,912-915,917 60 IIC DATA 61 IIC CLK 77 RESET 30 IIC-DATA 29 IIC-CLK 40 GC-RESET 74 POWER-KEY 73 DISPLAY-KEY S925 S900 DISPLAY 41 STBY-LED 9 CNVSS CNVSS 4 SIRCS TXD1 CLK1 RTS1 RXD1 TXD1 CNVSS TXD1 RTS1 CLK1 RXD1 RESET MCU VCC CN VSS X402 5MHz 15 X-IN 13 X-OUT X401 32.768kHz 10 XC-IN 11 XC-OUT 86 MTK-POWER 68 UNRER VOLTAGE 7 STBY-RELAY 12 RESET 20 AC-CUT AVCC VCC REG. SWITCH Q518, 503 REG. SWITCH Q104 +5V REG. Q103 +5V REG. Q105 RECT D763 M +9V D660, 661 +9V REG. IC561 LED +9V A +9V ST +9V MB +9V +9V REG. IC560 +9V REG. IC507 VOLTAGE CHECK Q550 AU +5V V +5V RESET IC501 D504 SWITCHING REGULATOR LED DRIVE Q917,900,903 RECT D658 RECT D656 +VL F1261 VL VL VH VH VP VF VF AC3 AC4 AC4 AC3 GND F1271 F1241 F1251 F1281 R1292 –VL +VH –VH – 33V REGULATOR Q1264 POWER ON/OFF RELAY DRIVE Q1200 – VG (-32V) D1292 RECT VF1 VF2 RY1200 AC IN T1200 POWER TRANSFORMER RESET SWITCH Q501 REMOTE CONTROL RECEIVER IC903 TO FLUORESCENT INDICATOR TUBE FL901 EVER +4V AUDIO +9V RECT D561 +SW3.3V +3.3V REG. IC559 +B SWITCH Q513,520 +SW5V (ZIVA) +5V REG. IC558 DISPLAY CONTROL KEY CONTROL IC902 SYSTEM CONTROL IC401(6/6) BUFFER Q901,902,914 70 BPF2 14 F1291 X MAIN SECTION (Page 33) J AC CUT DETECT D660, 661 D401 IIC-DATA CHECK CONNECTOR IIC-CLK NO402 1 2 S1200 S1200 230 – 240V | 220V | 120V VOLTAGE SELECTOR CN5901 1 2 3 4 5 MD0 MD2 INT0 INT1 SI0 6 SI1 4 3 GNV111D GNV111D TH, MX, AUS EXCEPT TH, MX, AUS Ver 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 36 HCD-GNV99D/GNV111D HCD-GNV99D/GNV111D 7-7. PRINTED WIRING BOARD – DMB10 BOARD (SIDE A) – • Semiconductor Location Ref. No. Location D1001 D-7 D3501 A-6 D3502 A-6 IC101 G-4 IC102 D-4 IC103 D-6 IC104 E-6 IC106 E-8 IC201 F-7 Q103 D-2 Q3801 B-6 B VIDEO BOARD (Page 58) A MAIN BOARD (Page 44) FOR TEST FOR TEST OPTICAL PICK-UP BLOCK (KHM-310CAB) C MAIN BOARD (Page 44) D MAIN BOARD (Page 44) DMB10 BOARD (SIDE A) E 11 (11) 1-864-397- * CN103 R3607 C3802 L3602 FB115 FB114 FB113 FB112 R3653 IC201 R319 Q103 E R116 R117 C224 IC102 R136 IC106 R142 IC104 IC103 R1107 R3805 R144 C222 C221 R153 R155 C220 C219 FL101 C218 C215 R1109 FL107 C210 R208 C208 CN105 CN106 CN201 CN401 R209 C206 C205 R210 R214 FB401 FB402 FB403 FB404 FB405 FB406 R215 R216 R219 R224 FL403 FL402 C190 R233 R234 C180 C179 R161 R107 R101 R1527 1 5 RB107 C217 C102 C105 C402 C108 RB108 RB113 R189 C307 C305 R190 R1557 C302 R192 C153 C152 R1101 C117 R1102 R1105 R1108 R3651 C145 R1111 C142 C138 C137 C135 R1129 C133 C132 R1168 C119 C118 C116 C112 R195 C306 C101 R197 C167 C170 C181 C187 CN101 RB112 C189 C177 R1544 C403 C129 R152 C3707 (EXCEPT TH) R4706 R4705 R1543 C3804 R3763 C3761 C3705 C3783 C3782 C3781 C3774 C3773 C3772 C3771 R3782 R3781 C3784 R3773 R3774 R3775 R3776 R3777 R3772 R3771 R3768 R3767 R3766 R3765 R3764 R3758 R3757 R3778 R3783 R3756 R3784 R3785 R3786 R3755 R3754 R3753 C3764 R3787 C3763 C3762 C3754 R3788 C3753 C3752 C3751 R3762 R3761 R3752 R3751 Q3801 D3502 C308 D3501 CN302 C150 R3804 R3803 CN301 C3609 C3608 C3606 C3605 C3603 R3603 R3748 R3747 R3746 R3745 R3744 R3743 C3744 C3743 C3742 C3741 C3724 C3723 C3722 C3721 R3728 R3727 R3726 R3725 R3724 R3723 R3738 R3737 R3736 R3735 R3734 R3733 C3734 C3733 C3732 C3731 C3703 C3714 R3742 R3741 C3713 C3712 C3711 R3732 R3731 C3701 R3711 R3712 R3722 R3721 R3718 R3713 R3714 R3715 R3717 R3716 C178 R3801 R3802 FL401 C3801 R1549 R1550 R1553 D1001 X101 IC101 R193 R191 C3803 C3805 2 3 4 5 6 7 8 9 10 A 1 B C D E F G H • See page 29 for Circuit Boards Location. :Uses unleaded solder. New part of EEPROM (IC103) on the DMB10 board can not be used. Therefore, if the mounted DMB10 board (A-1099-272-A or A-1099-344-A or A-1115-347-A) is replaced, exchange new EEPROM with that used before the replacement. Ver 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 37 HCD-GNV99D/GNV111D HCD-GNV99D/GNV111D 7-8. PRINTED WIRING BOARD – DMB10 BOARD (SIDE B) – DMB10 BOARD (SIDE B) 11 (11) 1-864-397- 1 10 11 20 1 3 4 5 D S G D S G C B E C B E 1 3 4 5 L3601 C114 C115 C120 C121 C122 C123 C124 C125 C126 FB111 C130 R109 C139 C140 C143 C146 C147 C148 C149 C151 C154 C156 C159 C161 C163 R3652 R105 R106 R123 R3605 C171 C172 C173 R110 R118 R120 R121 R187 C193 C195 R134 R135 C301 R164 R169 R1133 R204 R205 R146 R151 FL104 R206 R207 R212 R213 FL106 FL105 R220 R221 IC301 R223 R225 IC105 R226 R230 R231 R232 Q102 R246 R247 R133 R1110 R196 R1150 IC107 R1151 R1152 R1530 R1531 RB104 RB111 Q101 RB105 RB106 C214 C213 C212 R108 C211 R1540 R111 R112 R113 R114 R115 C209 R126 R124 C203 C191 R141 R143 C188 R160 C184 C182 R1134 R1125 R1124 R1123 R1122 R1121 C176 C175 C174 R314 R1104 R1120 R1103 C164 R2504 R1504 C106 C109 R1502 C113 C127 C128 C131 C136 R104 C144 C155 C158 C160 C162 C3708 R4704 R4703 R4702 R4701 R1542 C192 RB103 IC3751 C3706 IC3731 R3501 FL108 R3606 R3611 C141 R3621 C3704 IC3711 IC3601 C3601 R308 R138 C3621 C3702 C3611 C3610 C3607 C3602 R3601 R3602 IC3771 R1526 R1524 R3609 R3789 R3779 R3769 R3759 R3749 R3739 R3729 R3719 R1546 C196 D3601 D3602 C233 R1547 R1548 R1551 R1554 R1555 2 3 4 5 6 7 8 A 1 B C D E F G H • See page 29 for Circuit Boards Location. :Uses unleaded solder. • Semiconductor Location Ref. No. Location D3601 B-2 D3602 B-2 IC105 F-7 IC107 C-7 IC301 C-3 IC3601 B-2 IC3711 B-2 IC3731 C-2 IC3751 C-3 IC3771 B-3 Q101 D-7 Q102 E-7 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 38 HCD-GNV99D/GNV111D HCD-GNV99D/GNV111D 7-9. SCHEMATIC DIAGRAM – DMB10 BOARD (1/4) – • See page 62 for Waveforms. • See page 64 for IC Block Diagrams. C3610 C3609 C3608 C3607 C3611 C3621 C3606 C3605 C3603 R3607 C3602 C3601 L3601 10µH R3609 R3605 R3606 C301 R3653 R3652 R3651 IC301 C302 R319 C3801 C3805 C3804 10/16V 47/6.3V C3803 C3802 C306 C305 R3802 R3801 C3781 IC3771 C3783 C3784 C3708 C3707 C3773 C3774 C3772 C3771 C3761 IC3751 C3764 C3763 R3782 R3784 R3785 R3789 R3779 R3778 R3776 R3777 R3767 R3768 R3766 R3775 R3771 R3773 R3762 R3764 R3765 R3621 R3603 R3602 R3803 R3804 R3805 R3601 R314 R3761 R3763 C3762 R3774 R3772 R3769 R3759 C3753 R3756 R3755 C3705 C3754 R3758 R3752 R3754 R3751 R3753 C3752 C3751 R3741 R3743 R3742 R3744 C3741 C3742 R3745 C3743 R3746 R3747 R3748 C3744 IC3731 C3733 R3735 C3703 R3736 C3734 R3738 R3737 R3732 R3734 R3731 R3733 C3732 C3731 R3721 R3722 R3724 R3723 C3721 C3722 C3723 R3725 R3728 C3724 R3727 R3726 IC3711 R3719 R3718 C3714 R3717 R3716 C3713 R3715 C3701 R3712 R3714 C3712 C3711 R3711 R3713 CN302 R3501 D3502 D3501 R3739 C3782 R3781 R3783 R3788 C307 R3757 D3602 D3601 C3706 R3749 C3704 R3729 C3702 R3611 IC3601 L3602 Q3801 R3786 R3787 0.1 10 16V 10 16V 0.1 0.01 0.01 0.1 47 6.3V 0.1 0 0.1 10 0 0 0 0.01 0 0 0 AK4358VQ-L 0.47 0 100 6.3V 47 4V *2 *2 C3804 *1 10 100 6.3V 0.47 0 0 0.0018 NJM3414AV 330p 330p 0.1 0.1 330p 330p 0.0022 0.0018 0.0018 NJM3414AV 330p 330p 1.5k 3.9k 4.7k 1k 1k 4.7k 1k 1k 1k 4.7k 1k 4.7k 1.5k 3.9k 1.5k 3.9k 4.7k 100 10k 100 10k 18k 1k 100 100 1.5k 3.9k 0.0022 3.9k 1.5k 1k 1k 330p 1k 4.7k 0.1 330p 4.7k 1.5k 3.9k 1.5k 3.9k 0.0022 0.0018 1.5k 3.9k 1.5k 3.9k 0.0018 0.0022 4.7k 330p 1k 1k 4.7k 330p NJM3414AV 330p 4.7k 0.1 1k 330p 4.7k 1k 1.5k 3.9k 1.5k 3.9k 0.0022 0.0018 1.5k 1.5k 3.9k 3.9k 0.0018 0.0022 330p 4.7k 4.7k 330p 1k 1k NJM3414AV 1k 4.7k 330p 1k 1k 330p 4.7k 0.1 1.5k 3.9k 0.0022 0.0018 1.5k 3.9k 19P 0 1SS355TE-17 1SS355TE-17 1k 0.0022 1.5k 3.9k 4.7k 100 6.3V 1k 1SS355TE-17 1SS355TE-17 0.1 1k 0.1 C308 0.1 1k 0.1 100 PCM1803DBR 2SC2712-YG EXCEPT TH EXCEPT TH TH 10/16V 100/4V *1 C3803 EXCEPT TH TH BIAS 1k 1k XRST ASDATA4 ALRCK ASDATA2 ASDATA1 ASDATA0 SDA SCL SPDIF SW+5V ABCK ACLK SW+3.3V GND SPDATA LOUT1+ LOUT1- ART+ ART- ALT- ALT+ ROUT3- ROUT3+ LOUT3- LOUT3+ ROUT2- ROUT2+ LOUT2- LOUT2+ ROUT1- ROUT1+ ART- ART+ ALT+ ALT- ROUT3- ROUT3+ LOUT3+ LOUT3- LOUT2+ LOUT2- ROUT1- ROUT1+ LOUT1+ LOUT1- RT LT SW FR FL SR SL RT LT SW FC SR SL FR FL FC ROUT2- ROUT2+ A/D CONVERTER (2/4) BOARD DMB10 (3/4) (4/4) (2/4) BOARD DMB10 (2/4) BOARD DMB10 (2/4) BOARD DMB10 (3/4) BOARD DMB10 BOARD MAIN (3/5) DM L/R AMP C/SB AMP SURR L/R AMP FRONT L/R AMP (Page 47) (Page 39) (Page 40) (Page 41) (Page 39) (2/4) BOARD DMB10 (3/4) (4/4) (Page 40) (Page 41) (Page 39) (Page 39) (Page 40) (Page 39) 10µH 15 19 Ver 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 39 HCD-GNV99D/GNV111D HCD-GNV99D/GNV111D DMB10 BOARD (Page 40) (3/4) 16 DMB10 BOARD (Page 40) (3/4) 17 DMB10 BOARD (Page 41) (4/4) 11 DMB10 BOARD (Page 41) (4/4) 12 15 B DMB10 BOARD VIDEO BOARD (Page 59) (Page 38) (Page 40) (Page 41) (1/4) (3/4) (4/4) DMB10 BOARD DMB10 BOARD (Page 38) (Page 40) (Pagge 41) (Page 41) (1/4) (3/4) (4/4) (4/4) DMB10 BOARD (Page 41) (4/4) 4 DMB10 BOARD (Page 38) (1/4) DMB10 BOARD (Page 38) (1/4) DMB10 BOARD (Page 40) (3/4) DMB10 BOARD (Page 40) (3/4) DMB10 BOARD (1/4) (Page 38) 2 18 3 10 14 13 5 DMB10 BOARD (Page 41) (4/4) DMB10 BOARD (Page 41) (4/4) DMB10 BOARD (Page 41) (4/4) DMB10 BOARD (Page 41) (4/4) DMB10 BOARD (Page 40) (3/4) 1 7 6 8 9 ASDATA4 XRST KRMOD VOICE MIC RF GND FE FOR TEST TE PI PI PI FE FE TE TE R109 R123 R126 R144 R152 R196 CL101 CL110 CL109 CL108 CL107 ICT130 0 TH EXCEPT TH 10K JL101 JL102 JL130 JL167 JL127 JL132 JL133 JL103 JL104 JL105 JL106 ICT133 JL113 JL171 JL161 JL162 JL168 JL169 JL170 JL163 JL172 JL173 CL120 R1530 R1531 C105 C112 C119 C129 C150 C177 IC102 R1542 R1553 R1120 R1121 R1122 R1123 R1124 R1125 FL101 FL105 FL106 R1527 JL4702 R4701 R4702 R4703 R4704 R4705 R4706 CN301 C142 C147 C148 R141 C151 R142 C154 C138 C133 R1543 R136 C132 C130 C137 C135 R1168 X101 C159 R189 R190 R192 R195 R197 R1102 R160 R153 R151 C156 R1547 R1549 R1551 R1550 R155 R1548 C149 C152 C153 C139 C140 C141 C143 C145 C146 R138 C127 C128 R133 R134 R135 C196 C126 C125 C120 C121 C122 C123 C124 C193 C195 C192 IC107 C114 C117 C118 C163 C161 C101 Q101 Q103 R124 R113 R112 C113 C106 Q102 R117 R116 R121 R120 R111 R108 R118 R115 R110 R1129 R114 R101 R107 C131 C136 C144 C155 C162 C164 RB113 RB112 R1557 R161 R164 C160 C158 R1101 R1105 R1103 C170 R1104 C171 C172 R1554 R1107 R1108 R1109 C173 C174 C175 C176 RB108 RB107 RB103 RB104 RB111 R143 R1540 C116 C115 CN101 R1504 0 0 0 0 0 0 0 0 47 6.3V 47 6.3V 10 16V 10 16V 10 16V 47 6.3V CXD9804R 0UH 0UH 0UH 0.1 0.047 0.047 750k 0.001 100k 0.1 0.001 0.1 15k 0.1 0.1 0.1 0.033 470 27MHz 0.01 47 47 47 0.01 4.7k 4.7k 4.7k 4.7k 47 4.7k 0.1 12p 12p 22p 0.1 0.1 0.1 1 0.1 100k 0.01 0.0015 3.3k 3.3k 3.3k 0.0047 0.1 0.1 1 1 1 1 1 0.22 0.22 0.01 TK11133CSCL-G 0.1 10 16V 10 16V 0.01 0.01 0.01 UM6K1N-TN DTC124EKA-T146 47k 22 22 0.01 0.01 QST8TR 47k 1k 22 22 100 1M 22 22 47k 100k 100k 100 10k 2.2 0.01 0.01 0.01 0.01 0.01 22 22 100 100 100 0.01 0.01 10k 10k 0.01 10k 0.01 0.01 4.7k 0 *1 *1 R1108 0 R1111 0 R308 0 R1555 4.7k 0.01 0.01 0.01 0.01 22 22 0 0 0 4.7k 0.1 0.1 24P 0 10k 0 0 0 0 0 0 0 0 0 0 0 0 0 0 13P 10k R1526 0 R1524 0 150 150 150 150 150 150 2.2k 100 CN103 5P 3.3 4.9 3.3 1.3 3.3 3.2 3.2 2.6 2.6 2.3 2.3 0.7 0.1 0 0.1 0.1 0 2.1 2.1 2.1 2.1 0.1 0.1 2.6 1.4 1.3 0 1.4 0.2 1.8 1.8 0.8 1 1.3 0.9 3.3 1.2 1.6 1.3 1.5 1.2 1.2 3.3 2.5 1.4 3.3 3.3 3.3 3.3 1.8 1.2 0 0 3.3 0 0 1.3 0 0 0 0 0 3.3 1.6 0 1.8 0.6 0.7 0.7 1.2 0.1 3.3 0 0 1.6 0 3.3 0 0 0 0 0 0 0 1.2 3.3 0 1.6 1.6 1.3 1.2 0.6 3.2 3.3 3.3 1.3 0 0 0.7 0 0 0.4 1.4 1.5 1.5 1.6 3.3 3.3 0 0 1.8 3.3 3.3 1.6 0 0.7 1.9 2 1.6 1.8 3.3 1.6 1.9 0 0 0 3.3 3.3 2.6 2.7 3.3 3.3 3.2 1.7 3.3 1 1.3 1.8 3.1 2.7 3.1 1.4 1.5 2.4 1.7 0.9 1 1.2 1.5 0 0 1.2 3.3 3.3 0.6 1 0.5 2.7 1.3 1.3 3.1 2.1 2 3.3 2.5 2 0 0 1.8 0 3.3 3.3 2.1 0 3.3 0 0 0 1.4 3.3 3.3 3.3 1.8 2 2 2 2 1.7 1.6 2.1 2.3 1.5 2.2 2.8 1.7 1.7 1.7 1.7 1.7 0.2 1.3 1.4 1.4 2.1 1.3 1.4 2 7-10. SCHEMATIC DIAGRAM – DMB10 BOARD (2/4) – • See page 62 for Waveforms. • See page 65 for IC Pin Function Description. Ver 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 40 HCD-GNV99D/GNV111D HCD-GNV99D/GNV111D 16 DMB10 BOARD (2/4) (Page 39) 17 DMB10 BOARD (2/4) (Page 39) 13 DMB10 BOARD (Page 38) (Page 39) (Page 41) (1/4) (2/4) (4/4) 10 DMB10 BOARD (Page 39) (2/4) 7 DMB10 BOARD (Page 39) (2/4) 15 DMB10 BOARD (Page 38) (Page 39) (Page 41) (1/4) (2/4) (4/4) 18 A DMB10 BOARD (Page 39) (2/4) MAIN BOARD (Page 45) (1/5) 19 DMB10 BOARD (Page 38) (1/4) MIC VOICE KRMOD FOR TEST MIC VOICE SDA SCL KRMOD R187 R1133 R1134 CN105 IC104 FL104 FL107 FL108 C190 C187 C178 R104 FB115 FB114 FB113 FB112 FB111 RB106 RB105 C180 C179 C181 C191 R169 C184 C182 C188 IC106 D1001 C189 R191 R193 C167 IC103 R1150 R1546 R1151 R1152 C108 C109 R1110 C102 R106 R105 IC105 CN106 IC101 R1544 R1502 0 0 0 6P K4S641632H-UC75T 0UH 0UH 0UH 47 6.3V 47 4V 47 4V 0 0UH 0UH 0UH 0UH 0UH 47 47 0.1 0.1 0.1 0.1 10k 0.01 0.22 0.22 PQ018EN01ZPH RB501V-40TE-17 0.33 1k 1k 0.01 BR24L64F-WE2 3.3k 3.3k 3.3k 3.3k 0.001 0.001 2.7k 0.01 10k 10k TK11133CSCL-G 13P MBM29DL32TF70-CBA2 0 0 * 0 1.8 2 1.6 2.9 0.6 0.5 0.9 0 2 1.3 1.2 1.6 1.2 3.3 1 0.9 1.6 0 0 0 0 2.8 3.3 1.6 2.4 2.5 0.6 0 1.6 1.3 2.5 3.1 2.7 0 0 3.3 1.8 0.9 1 3.3 1 1.5 1.3 1.5 3.3 1.2 3.3 4.9 0 3.3 3.3 3.3 3.3 0 0 1.3 2.3 2.1 1.6 1.6 0 1.7 1.4 0 0 0 1.9 1.6 1.2 0.9 3.3 0 0 0.9 1.4 3.3 0.9 1.3 1.5 1.7 2 2 7-11. SCHEMATIC DIAGRAM – DMB10 BOARD (3/4) – New part of EEPROM (IC103) on the DMB10 board can not be used. Therefore, if the mounted DMB10 board (A-1099-272-A or A-1099-344-A or A-1115-347-A) is replaced, exchange new EEPROM with that used before the replacement. Ver 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 41 HCD-GNV99D/GNV111D HCD-GNV99D/GNV111D 1 DMB10 BOARD (Page 39) (2/4) 11 DMB10 BOARD (Page 39) (2/4) 13 15 DMB10 BOARD (Page 38) (Page 39) (Page 40) (2/4) (1/4) (3/4) DMB10 BOARD (Page 38) (Page 39) (Page 40) (2/4) (1/4) (3/4) 8 DMB10 BOARD (Page 39) (2/4) 9 DMB10 BOARD (Page 39) (2/4) 6 D 5 DMB10 BOARD (2/4) (Page 39) DMB10 BOARD (2/4) (Page 39) DMB10 BOARD (2/4) (Page 39) 14 DMB10 BOARD (Page 39) (2/4) 12 MAIN BOARD (Page 49) (5/5) 4.3 1.4 2.1 2.1 0.3 4.9 1.4 2.9 2.9 1.7 9 9 4.3 1.4 1.1 0 3.3 3.3 3.3 3 9 4.3 4.3 4.8 3.5 1.4 1.4 1.4 1.4 3.3 3.3 2.2 1.4 1.4 1.4 1.4 4.4 4.2 3.3 5.3 JL205 C217 C218 C220 CN201 R247 R246 R204 R207 C203 R205 R210 C208 R216 R213 R206 R209 C206 R215 R212 R208 C205 R214 R220 C233 C209 R221 R223 R225 C211 R226 C214 C212 R230 R231 R232 R234 C215 R233 C219 C224 C221 C222 R219 R224 C210 R2504 C213 IC201 47 16V 10 16V 10 16V 6P 1k 4.7k 1.2k 2.7k 0.01 10k 47k 0.01 12k 6.8k 10k 33k 220p 12k 10k 33k 220p 15k 10k 0.0047 0.033 56k 100k 100k 0.033 56k 0.001 0.01 82k 15k 18k 10k 0.01 33k 0.01 0.01 0.1 0.1 27k 10k 0.01 0.01 FAN8036L 4.7k C402 C403 FL402 FB401 FB402 FL401 FB403 FB404 FB405 FB406 FL403 CN401 47 16V 47 6.3V 0UH EMI 0UH 0UH 0UH 0UH 0UH 0UH 0UH 5P 7-12. SCHEMATIC DIAGRAM – DMB10 BOARD (4/4) – w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 42 HCD-GNV99D/GNV111D HCD-GNV99D/GNV111D 7-13. PRINTED WIRING BOARDS – CD MECHANISM BOARDS – • See page 29 for Circuit Boards Location. :Uses unleaded solder. (OPEN) E CN751 SW BOARD SENSOR BOARD DRIVER BOARD MOTOR(TB) BOARD MOTOR(LD) BOARD S751 IC731 CN731 CN741 CN742 C715 C731 C735 C736 R701 R711 R731 R721 R722 R723 R735 R732 R733 R734 D701 D711 Q731 C751 IC712 IC701 CN704 C737 R713 R712 C741 R702 JW702 JW703 JW704 JW705 JW706 JW707 JW708 JW711 CN703 CN702 CN705 R751 C752 CN701 JW712 JW701 JW709 JW710 JW713 JW714 CN721 MAIN BOARD (Page 44) 1 A B C D E F G H 2 3 4 5 6 7 8 9 10 11 12 13 14 • Semiconductor Location Ref. No. Location D701 D-6 D711 D-7 IC701 E-6 IC712 E-7 IC731 E-11 Q731 C-9 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 43 HCD-GNV99D/GNV111D HCD-GNV99D/GNV111D 7-14. SCHEMATIC DIAGRAM – CD MECHANISM BOARDS – • See page 63 for IC Block Diagrams. MAIN BOARD (1/5) (Page 45) E E-1 E-2 E-3 ROTARY ENCODER TABLE SENSOR TBL ADDRES SENS SWITCH DRIVER TBL MOTOR (LOADING) (OPEN) (TBL) VREF OUT2 RNF OUT1 VM VCC FIN GND RIN VREF OUT2 RNF OUT1 VM VCC FIN GND RIN LD MOTOR DRIVER R701 D701 R712 R711 R721 C735 C736 R722 C737 R723 R733 R734 R735 C741 CN731 CN741 CN742 CN702 CN703 CN751 CN704 CN721 C751 R751 C752 CN705 CN751 R732 R731 M741 CN701 IC731 Q731 D711 R713 C731 C715 S751 R702 470 MTZJ-T-72-5.1A 4.7k 1k 4.7k 0.1 0.1 4.7k 0.1 4.7k 1k 12k 100 0.01 3P 3P 5P 5P 4P 4P 2P 2P 0.01 4.7k 0.1 2P 2P 10k 100 12P RPI-576 DTC114ESA MTZJ-T-72-3.6B 22k 10 50V 100 16V 100 IC701 BA6956AN BA6956AN IC712 RE701 M751 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 44 HCD-GNV99D/GNV111D HCD-GNV99D/GNV111D 7-15. PRINTED WIRING BOARD – MAIN BOARD – • See page 29 for Circuit Boards Location. :Uses unleaded solder. • Semiconductor Location Ref. No. Location D136 E-12 D340 E-4 D341 E-3 D342 E-3 D401 D-5 D402 D-5 D403 D-6 D501 C-5 D502 B-5 D503 B-5 D504 B-6 D505 B-6 D506 J-6 D507 J-6 D550 I-12 D551 I-12 D560 I-9 D561 H-8 D581 I-12 D582 I-12 D583 I-13 IC101 C-8 IC201 C-12 IC301 H-4 IC304 E-6 IC401 B-3 IC501 B-5 IC507 H-12 IC550 J-12 IC558 F-8 IC559 F-8 IC560 G-12 IC561 G-12 Q101 B-7 Q103 E-12 Q104 E-12 Q105 E-13 Q106 C-9 Q117 B-11 Q151 C-7 Q156 C-9 Q167 B-11 Q200 B-12 Q202 B-12 Q203 B-13 Q204 B-13 Q205 D-11 Q206 H-13 Q207 G-13 Q208 G-13 Q250 B-12 Q252 B-13 Ref. No. Location Q253 B-13 Q254 A-14 Q255 D-11 Q256 H-13 Q321 I-4 Q322 I-4 Q325 I-4 Q340 E-4 Q341 E-3 Q342 E-4 Q343 D-4 Q344 D-3 Q345 D-4 Q370 J-4 Q372 I-3 Q373 I-3 Q375 I-4 Q377 I-4 Q378 J-4 Q379 I-5 Q380 I-4 Q381 H-5 Q382 I-4 Q383 H-5 Q501 B-5 Q503 H-12 Q504 E-2 Q505 J-9 Q506 J-9 Q507 J-8 Q508 J-8 Q509 J-7 Q510 J-10 Q511 J-7 Q512 J-7 Q513 G-9 Q514 J-10 Q515 J-6 Q516 I-8 Q517 I-8 Q518 H-12 Q519 J-7 Q520 F-9 Q521 J-8 Q522 J-8 Q523 B-6 Q524 B-5 Q550 I-11 Q564 J-10 Q578 I-13 Q579 I-13 Q581 I-12 Q582 I-12 Q585 I-1 1 4 1 5 3 4 1 21 42 22 E E E E E E E E E E E E 1 21 42 22 1 1 9 5 1 8 1 4 8 5 1 3 1 3 1 3 B C E E 1 5 1 E E E E 3 1 3 1 1 3 6 4 3 1 B E E E E E E C 4 E E I PANEL BOARD (Page 50) A DMB10 BOARD (Page 36) E DRIVER BOARD (Page 42) C DMB10 BOARD (Page 36) K DVD SURR BOARD (Page 56) J DVD SURR BOARD (Page 56) TUNER PACK F MIC BOARD (Page 52) M VIDEO BOARD (Page 58) L PRIMARY BOARD (Page 60) (FOR CHECK) TAPE MECHANISM DECK TAPE A HEAD TAPE B HEAD G PA BOARD (Page 54) H PA BOARD (Page 54) N TRANS BOARD (Page 60) D DMB10 BOARD (Page 36) M891 DC FAN L R AUDIO IN TV/SAT R L AUDIO OUT SUB WOOFER OUT 12 (12) 1-865-439- MAIN BOARD E E E C530 C233 JR359 C235 R213 R263 R531 JR521 GNV111D: TH R581 JR500 JR501 JR503 JR504 JR505 JR506 JR300 JR302 JR304 JR507 JR305 JR306 JR400 JR508 JR510 JR511 JR401 JR100 JR200 JR201 JR202 JR203 JR204 JR205 JR206 JR207 JR208 C410 C411 C412 C429 C430 C464 C522 D502 IC401 IC501 Q504 E E E E E E E R300 R406 R410 GNW111D:E2,E3 EXCEPT TH EXCEPT EA, AUS R411 R412 R413 R414 R415 R417 R418 R420 R422 R423 R424 R425 R426 R427 R428 R429 R430 R431 C340 C341 C350 C360 C513 C515 C551 C564 C565 C568 C569 C580 C581 R432 R433 R434 R435 D340 D341 D342 D401 D402 D501 D503 D504 D505 D506 D507 D550 D551 D581 D582 D583 FB204 FB254 R436 R437 R438 R439 IC304 R440 R441 JR218 JR219 R442 R443 R444 R446 R447 R451 R452 R453 R454 R455 Q206 Q207 Q208 (GNV99D/GNV111D: EXCEPT TH) (GNV99D/GNV111D: EXCEPT TH) R456 R457 Q256 Q340 Q341 Q342 Q343 Q344 Q345 Q514 Q564 R525 R526 R527 R528 R575 R576 R577 Q501 E E E Q503 Q505 Q506 Q507 Q508 Q509 Q510 Q511 Q512 Q513 Q515 Q516 Q517 Q518 Q519 Q521 Q522 Q550 Q578 Q579 Q581 Q582 R458 R466 R467 R468 R469 R378 C382 R337 Q321 R368 R303 R305 R339 R301 R355 R314 R312 Q375 C335 R306 R380 C364 R311 R354 R318 R389 Q370 R392 R352 R338 R238 R239 Q372 R243 R244 R245 R246 R247 R248 R250 R251 R252 R601 R602 R253 Q382 R370 Q379 C333 R394 C326 R288 R289 R293 R294 R295 R296 R297 R578 R313 R315 R316 R317 IC550 R585 R584 R580 R340 R341 R342 R343 R344 R345 R346 R347 R348 R349 R350 R579 R586 R369 R356 R357 R358 R359 R360 R361 R362 R363 R365 R366 R367 R554 R553 R552 R551 R549 R539 R537 R536 R535 R534 R533 R381 R382 R530 R529 R524 R523 R522 R400 R401 R402 R403 R404 R405 R407 R408 R409 R593 R592 R574 R573 R502 R497 R495 R493 R492 R491 R490 R489 R488 R487 R486 R485 R484 R475 R474 R473 R472 R471 R501 R470 R503 R505 R506 R507 R508 R509 R510 R511 R512 R513 R514 R515 R516 R517 R518 R519 R520 R387 Q373 Q322 Q325 R336 R373 R388 R385 E E E E E E E E E E E E E E C332 Q383 R375 R371 R374 C314 R319 R310 R307 R309 R351 R395 R396 Q380 R386 R304 R353 R390 R308 R372 Q378 C385 R399 C372 IC301 R376 C371 R364 R379 Q377 R377 Q381 C383 R302 C373 R101 R102 R103 R104 R105 R106 R107 R108 R109 R110 R111 R112 R113 R114 R115 R116 R117 R121 R122 R130 R131 R132 R133 E E R150 R151 R152 R153 R154 R155 R156 R157 R158 R159 R160 R161 R162 R163 R164 R165 R166 R167 R200 Q255 Q254 Q253 Q252 Q250 Q205 Q204 Q203 Q202 Q200 Q167 Q156 Q151 Q117 Q106 Q101 R204 R205 R206 R207 R208 R209 R210 R211 R212 JR509 JR502 JR221 J201 JR104 JR103 R214 R215 R216 R217 R218 R219 R220 R221 C279 C274 C273 C270 C268 C264 C261 C260 C256 C242 C229 C223 C220 C218 C214 C212 C211 C210 C206 C122 C121 C115 R229 R222 R223 R224 R225 IC201 IC101 FB261 R299 R298 R292 R273 FB260 R249 R242 R203 R202 R226 R582 R227 R532 R291 R290 R287 R286 R285 R284 R228 R230 R231 R232 R233 R234 R235 R236 R237 R283 R282 R240 GNV99D/ GNV111D: EXCEPT TH R241 R281 R280 R279 R278 R277 R276 R275 R274 R272 R271 R270 R269 R268 R267 R266 R265 R264 R262 R261 R260 R259 R258 R256 R257 R255 R254 JR303 JR301 C376 C377 D403 R383 R384 R583 R500 R335 R391 Q523 Q524 R540 R421 R419 R612 R662 R538 NO401 NO603 JW500 NO402 (FOR CHECK) NO503 JW501 JW502 JW503 JW504 JW505 JW506 JW507 JW508 JW509 JW510 JW511 JW512 JW513 JW514 JW515 JW516 JW517 JW518 JW519 JW520 JW521 JW522 JW523 JW524 JW529 JW530 JW532 JW533 JW534 JW535 JW536 JW537 JW538 JW542 JW543 JW544 JW545 JW546 JW547 JW548 JW531 JW549 JW550 JW551 JW554 JW555 JW556 JW558 JW560 JW561 JW562 JW563 JW615 JW614 JW559 JW564 JW565 JW566 JW567 JW568 JW569 JW570 JW571 JW572 JW573 JW574 JW575 JW576 JW577 JW578 JW579 JW580 JW581 JW582 JW583 JW584 JW300 JW301 JW302 JW303 JW304 JW306 JW307 JW310 JW311 JW312 JW313 JW314 JW315 JW316 JW317 JW320 JW321 JW322 JW323 JW324 JW325 JW326 JW327 JW328 JW329 JW330 JW331 JW332 JW333 JW335 JW336 JW337 JW338 JW339 JW340 JW341 JW342 JW343 JW344 JW345 JW346 JW347 JW348 JW349 JW350 JW351 JW352 JW353 JW354 JW355 JW356 JW357 JW358 JW359 JW360 JW361 JW363 JW364 JW365 JW366 JW600 JW601 JW602 JW603 JW604 JW605 JW606 JW607 JW608 JW586 JW587 JW588 JW589 JW590 JW591 JW592 JW593 JW594 JW595 JW596 JW597 JW598 JW599 JW367 JW585 JW401 JW402 JW403 JW404 JW405 JW406 JW407 JW408 JW409 JW411 JW412 JW413 JW414 JW415 JW416 JW417 JW418 JW420 JW421 JW422 JW423 JW424 JW425 JW426 JW427 JW428 JW429 JW430 JW431 JW432 JW433 JW434 JW435 JW437 JW438 JW439 JW440 JW441 JW442 JW443 JW444 JW445 JW446 JW447 JW448 JW449 JW450 JW451 JW452 JW454 JW455 JW456 JW457 JW458 JW460 JW461 JW462 JW463 JW464 JW465 JW467 JW468 JW469 JW470 JW471 JW472 JW473 JW474 JW475 JW476 JW477 JW478 JW479 JW480 JW481 JW482 JW483 JW484 JW485 JW200 JW201 JW203 JW204 JW207 JW208 JW209 JW210 JW212 JW213 JW214 JW215 JW216 JW217 JW218 JW219 JW220 JW221 JW222 JW225 L530 JW226 JW227 JW228 JW229 JW230 JW231 JW232 JW233 JW235 JW236 JW237 JW238 JW239 JW242 JW243 JW244 JW245 JW246 JW247 JW248 JW249 JW250 JW251 JW252 JW100 JW101 JW102 JW104 JW105 JW106 JW107 JW108 JW109 JW110 JW111 JW112 JW113 JW114 JW115 JW116 JW117 JW118 JW119 JW120 JW121 JW122 JW123 JW124 JW125 JW126 JW127 JW128 JW129 JW130 JW131 JW133 JW134 JW135 JW253 JW459 JW466 JW254 JW255 JW256 JW410 JW309 JW362 JW305 JW138 JW436 JW202 JW234 JW257 JW609 JW613 JW610 JW525 JW526 JW527 JW528 JW139 JW132 JW486 JW368 JW258 JW241 C416 C502 C503 CN402 C202 CN508 CN509 CN520 C231 C234 C252 C281 C352 D561 C357 C358 C365 D560 C501 JW259 C506 C507 C508 C509 C510 C511 C514 C516 C517 C519 C523 C524 C557 C558 C562 C563 C566 C571 C570 CN501 1 13 CN580 EPT560 IC558 IC559 IC560 IC561 J202 J203 C505 C554 CN502 Q520 Q585 C308 C307 C301 C305 C355 L372 L370 C397 C391 C366 C316 C370 L320 T301 C374 CN515 IC507 C354 C310 NO507 X402 C396 CN510 (FOR CHECK) C328 C309 C311 C306 C390 C312 L302 C303 C379 C356 C304 C315 C378 C359 C351 C353 C361 C278 C277 C276 C272 C269 C267 C266 C265 C263 C262 C259 C258 C257 C255 C254 C253 C251 C228 C227 C226 C225 C224 C222 C221 C219 C217 C216 C215 C213 C209 C207 C205 C204 GNV111D C203 C201 C200 C164 C163 C162 C161 C160 C159 C158 C157 C156 C155 C154 C153 C152 C150 C131 C130 C116 C114 C113 C112 C111 C110 C109 C108 C107 C106 C105 C104 C103 C102 C101 CN514 C520 C521 CN100 CN506 JW400 C462 JW539 C567 C525 C325 C166 C167 JW223 C559 JW541 JW557 CN504 CN521 JW205 JW224 CN503 JW611 JW612 NO523 C512 JW136 JW540 C553 X401 JW137 JW140 JWH500 C552 C550 JW240 C518 JW369 JW370 JW371 JW553 JW552 E E 1 9 1 3 1 8 E E E E E E E E E 8 1 E E E E E E E 1 8 R623 Q104 R135 Q103 D136 Q105 2 3 4 5 6 7 8 9 10 11 12 13 14 A 1 B C D E F G H J K I Ver 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 45 HCD-GNV99D/GNV111D HCD-GNV99D/GNV111D 7-16. SCHEMATIC DIAGRAM – MAIN BOARD (1/5) – • See page 70 for IC Pin Function Description. • See page 62 for Waveform. R430 R429 R426 R425 R415 R423 R414 R421 R420 R418 R417 R422 R424 R419 C411 C410 R410 R412 R411 X401 R413 C416 C412 R408 R407 R405 R402 R401 R400 R404 R403 R406 R432 R433 R434 R435 R438 R439 R440 R442 R436 R443 R441 R446 R447 R427 R428 C429 C430 R437 R492 R488 R491 R487 R484 R486 R485 R452 R453 R454 R457 R458 R470 R473 R472 R474 R475 R467 R455 R574 R573 C464 R466 R471 C462 R456 R469 R451 R538 R540 C512 R520 CN508 CN402 NO402 NO507 CN520 R409 R444 C501 R503 C503 C502 C360 R359 R384 R360 C325 R357 R356 C357 C350 R362 R358 R363 NO401 CN100 NO503 C522 R495 R490 R489 R502 R501 IC401 Q504 Q523 Q524 Q501 D505 D504 D501 D502 IC501 C518 R431 D503 R592 R593 R493 D401 D402 D403 R497 X402 IC304(1/2) IC304(2/2) R361 R383 C358 C352 R468 100 100 100 100 100 100 100 1k *4 *4 10k *4 100 47k 15p 22p 10k 100k 330k 32.768kHz 0 2200 6.3V 0.1 100 100 100 100 100 10k 10k 10k 100 100 100 100 100 100 100 100 100 10k 100 100 100 100 10k 10k 47p 47p 10k 4.7k 100 100 10k 10k 100 100 100 100 100 100 100 100 100 100 100 100 100 10k 10k 10k 0.01 10k 10k 100 10V 10k 100 100 5.6k 10k 10 6.3V 10k 17P 10P 4P 12P 13P 100 1k 10 50V 0 0.1 0.1 33p 33k 330 15k 10 50V 4.7k 4.7k 4.7 50V 33p 4.7k 33k 4.7k 3P 9P 5P 0 100 100 100 1k 220 M30620MCP -A03FPUO DTC143TKA BUFFER DTA114EKA-T146 B+ SWITCH DTC124EK B+ SWITCH DTC124EK RESET SWITCH 1SS355TE-17 1SS355TE-17 1SS355TE-17 1SS355TE-17 BD4929G-TR 1000 10V 100 1SS355TE-17 1SS355TE-17 1SS355TE-17 1SS355TE-17 100 5MHz NJM4565M-D NJM4565M-D 15k 330 4.7 50V 47 35V 100 BUS1 V +5V +9V VIDEO R VIDEO L MIC SIG M+9V VG VF 2 VF 1 BUS7 AC CUT DETECT BUS8 3.3V D403 OVER VOLTAGE TC MUTE REC-OUT-R REC-OUT-L BUS4 GND 9 9 12 12 4 31 32 33 73 74 74 79 80 81 82 53 54 55 51 4 73 32 33 47 56 57 34 31 32 33 38 39 89 90 91 1 2 3 5 6 18 22 23 24 25 35 36 37 40 40 46 48 49 50 52 21 41 41 95 42 26 27 28 24 23 95 22 25 18 31 32 21 33 29 30 31 34 26 27 28 34 35 36 37 38 39 86 83 75 78 76 77 71 67 65 66 72 70 58 61 60 59 30 29 *1 *2 *3 MASTER CONTROL BOARD BOARD BOARD BOARD BOARD BOARD PRIMARY MIC VIDEO DMB10 (3/4) DRIVER PANEL BOARD MAIN (5/5) BOARD MAIN (2/5) BOARD MAIN (3/5) (4/5) BOARD MAIN (2/5) BOARD MAIN (3/5) BOARD MAIN (5/5) BOARD MAIN (2/5) (5/5) 0 330 1k 150 4.7k 0 330 680 1k 1.5k 4.7k GNV111D GNV99D *1 R592 *2 R593 *3 R493 E2, MX E13 EXCEPT E2, E13, MX EXCEPT EA, AUS MY,SP,PH,TH E3,E15 E12 EA AUS E2, E13, MX GNV111D:EXCEPT TH (3/5) (4/5) (5/5) AMP SPEANA (Page 46) (Page 49) (Page 43) (Page 51) (Page 46) (Page 47) (Page 48) (Page 49) (Page 47) (Page 48) (Page 46) (Page 49) RESET (Page 47) (Page 53) (Page 49) (Page 59) (Page 40) (Page 61) 100 0 EXCEPT EA, AUS EA, AUS *4 R418, 421, 422 14 Ver 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 46 HCD-GNV99D/GNV111D HCD-GNV99D/GNV111D 7-17. SCHEMATIC DIAGRAM – MAIN BOARD (2/5) – R319 C305 R304 R335 R303 C314 R339 C311 R305 R109 R111 CN510 R351 C353 R352 C351 C354 R353 R354 C355 C356 R355 C364 R369 R391 R389 C361 C310 C304 C303 R302 R301 C301 C306 C308 R306 C307 R307 R308 R310 R311 R312 C312 R309 L302 10�H C371 R370 R371 C372 R374 C373 R372 R375 R376 R373 T301 R388 C333 C335 R338 R314 R364 C383 C385 R385 L320 C328 L370 C378 R387 R337 R336 R368 C376 C326 R318 R390 R396 R386 R395 R394 L372 R379 R377 R378 C377 C379 CN503 CN504 C382 C332 R344 R346 R348 R347 C340 R342 C341 CN509 R316 R317 R343 R349 R340 R345 R341 Q325 Q375 Q322 Q378 IC301 Q373 Q372 Q321 Q156 Q106 R399 R110 R160 R159 R350 R381 R366 R300 R313 R315 R365 R367 R382 D342 D340 Q343 Q345 Q344 Q382 Q379 Q381 Q383 Q380 Q377 Q370 C370 C374 R392 R380 R158 R108 C309 C359 Q340 Q342 Q341 D341 R161 2.2k 1 50V 2.2k 2.2k 10k 0.0022 18k 10 50V 47k 3.3k 10k 3P 2.2k 0.1 4.7k 0.012 10 50V 10k 2.2k 1 50V 2.2 50V 47k 0.0022 2.2k 2.2k 18k 10 50V 10 50V 10 50V 0.1 4.7k 2.2k 0.012 2.2 50V 470 10V 22k 10 50V 1M 100 100 100 100 10 50V 4.7k 0.0047 3.3k 4.7k 0.001 4.7k 0.001 10k 10k 4.7k 4.7k 10k 330p 0.022 10k 2.2k 2.2k 330p 0.022 2.2k 27mH 120p 27mH 120p 2.2k 2.2k 2.2k 2.2k 680p 680p 2.2k 10k 10k 33 47k 4.7k 10 47 10k 0.01 0.0068 8P 3P 1200p 1200p 680 680 680 2.2k 0.0047 2.2k 0.0047 13P 22k 10k 2.2k 3.3k 2.2k 3.3k 3.3k 2SC3661 SWITCH 2SC3661 SWITCH 2SC3661 SWITCH RT1P137P-TP-1 SWITCH HA12237 2SC3661 SWITCH 2SC3661 SWITCH 2SC3661 SWITCH 2SC3661 MUTE 2SC3661 MUTE 10k 10k 10k 3.3k 47k 4.7k 4.7k 47k 47k 4.7k 47k 47k 47k 1SS355TE-17 1SS355TE-17 DTC114EKA-T146 A TRIG DRIVE DTC114EKA-T146 B TRIG DRIVE DTC114EKA-T146 CAP MOTOR DRIVE DTA114EKA-T146 SWITCH DRIVE DTC114EKA-T146 SWITCH DRIVE DTC114EKA-T146 BUFFER DTC114EKA-T146 SWITCH DRIVE DTC114EKA-T146 SWITCH 2SA1162-G SWITCH DRIVE 2SD596DV345 BIAS OSC 0.01 100V 47 35V 6.8k 0.5% 6.8k 0.5% 6.8k 0.5% 6.8k 0.5% 47 35V 47 35V 2SB1132-P A TRIG DRIVE 2SB1132-P B TRIG DRIVE 2SB1132-P CAP MOTOR DRIVE 1SS355TE-17 10k BUS5 +9V TC R TC L MUTE 3 TC MUTE BUS8 M+9V 3.3V GND 55 56 54 53 52 51 90 89 46 47 91 50 49 48 REC-OUT-L REC-OUT-R TAPE A HEAD HEAD TAPE B PB/REC EQUALIZER AMP DECK A/B SELECT, BOARD MAIN (1/5) BOARD MAIN (1/5) (5/5) BOARD MAIN (1/5) (3/5) (4/5) (5/5) BOARD MAIN (3/5) (5/5) BOARD MAIN (5/5) BOARD MAIN (3/5) (Page 47) (Page 49) (Page 49) (Page 47) (Page 45) (Page 47) (Page 48) (Page 49) (Page 45) (Page 45) (Page 49) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 47 HCD-GNV99D/GNV111D HCD-GNV99D/GNV111D 7-18. SCHEMATIC DIAGRAM – MAIN BOARD (3/5) – CN506 R532 C150 R150 C104 R104 R116 C105 C102 C101 C103 R107 R101 C109 C111 R102 C108 R103 C115 C116 R130 R106 R121 C121 R105 C164 R167 R117 C114 R164 R114 R162 R112 R165 R115 R163 R113 C167 C166 C559 JR502 JR509 CN521 R122 C122 R155 R156 C161 R152 C159 R151 C156 C158 R157 C152 C106 C107 JR104 C157 C153 IC101 Q167 Q117 C154 C155 R166 JR103 L530 Q101 Q151 C112 C113 C163 C162 R531 R581 R582 R154 GNV111D: TH JR521 0 C110 R153 R131 R133 R132 C131 C130 C160 9P 3.3k 10 50V 2.2k 10 50V 1k 100 10 50V 10 50V 100 10V 10 50V 100 2.2k 1 50V 10 50V 10k 0.033 560 0.1 220 10V 2.2k 10k 1k 220p 47k 10 50V 0 0 10 50V 10k 10k 47k 47k 1k 1k 10k 10k 10 50V 10 50V 1000 10V 0 0 19P 1k 220p 47k 10k 10 50V 10k 1 50V 2.2k 0.022 0.033 100 10 50V 0.022 0.022 0 0.022 10 50V M61529FP-D60G 2SC3661 MUTE 2SC3661 MUTE 10 50V 10 50V 100 0 2SC2412K-T-146-R SWITCH 2SC2412K-T-146-R SWITCH 0.27 0.27 0.27 0.27 6.8k 0.5% 6.8k 0.5% 3.3k 1k 0.01 100V 560 2.2k 100k 1M 0.47 50V 10 50V 0.01 100V BUS1 BUS2 BUS3 BUS4 BUS5 AU+5V +9V L+R DBFB 1 DBFB 2 DBFB VIDEO L VIDEO R MIC SIG TC L TC R GND MUTE 4 REC-OUT-R REC-OUT-L FL FR SW SAT-R DOWNMIX-R L-OUT LINK-R 80 79 LFE FC DM_L DM_R MB_SL MB_SR MB_FR MB_FL 1 2 3 5 6 REC-OUT-L REC-OUT-R R-OUT LINK-L SAT-L DOWNMIX-L ELECTRICAL VOLUME GRAPHIC EQUALIZER CONTROL, INPUT SELECT SWITCH, TUNER PACK BOARD (1/4) DMB10 BOARD MAIN (2/5) BOARD MAIN (2/5) (5/5) BOARD MAIN (1/5) BOARD MAIN (1/5) BOARD MAIN (1/5) (4/5) BOARD MAIN (5/5) BOARD MAIN (5/5) BOARD MAIN (4/5) (2/5) (4/5) (5/5) (Page 46) (Page 46) (Page 49) (Page 45) (Page 49) (Page 48) (Page 46) (Page 45) (Page 45) (Page 48) (Page 49) (Page 49) (Page 48) (Page 38) Ver 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 48 HCD-GNV99D/GNV111D HCD-GNV99D/GNV111D 7-19. SCHEMATIC DIAGRAM – MAIN BOARD (4/5) – C270 C242 C274 R274 R223 R623 C258 R218 C223 C222 R220 R265 C267 R264 R267 R262 C265 R266 C269 C268 R662 R215 C218 R217 R214 R216 C219 C215 C266 R261 R260 C264 R259 R612 C251 C221 C276 C226 C277 R271 R269 R279 R229 R282 R278 R277 R273 R249 R242 R268 R222 R221 R270 C224 R219 C225 C217 R212 R280 C201 R204 R200 C200 C204 C203 R205 R286 C254 C253 R255 R236 R287 R237 R276 R275 R225 R226 C259 C213 R233 R234 C209 R235 R299 C228 C278 C263 R231 R283 R284 R230 R298 R232 R285 R292 C227 C205 C214 R209 R210 C211 R257 C256 R258 R256 R211 C255 C212 C210 R208 C206 R207 R206 C216 R272 R254 C257 C207 JR219 R253 R251 R250 R248 CN514 C234 R238 R288 C252 C202 R239 R289 R297 R247 R246 R296 R295 R245 C231 C281 R294 R244 R293 R243 FB204 FB254 FB260 FB261 R240 C229 R290 C279 C521 C520 J201 Q253 Q202 Q252 Q200 Q250 Q203 Q204 Q254 Q207 Q256 Q206 J202 J203 R202 R203 C220 C261 R281 R227 R228 R252 JR218 R224 C273 C262 R241 JW259 C272 C260 R291 R263 R213 C233 C530 C235 Q205 Q255 IC201 JR221 0.001 0.001 220p 1k 8.2k 6.8k 10 50V 4.7k 0.001 10 50V 10k 4.7k 10 50V 47k 10k 8.2k 10 50V 2.2k 10 50V 0.001 6.8k 4.7k 0.001 10k 47k 2.2k 10 50V 10 50V 10 50V 47k 470 220p 10k 6.8k 1 50V 1 50V 1 50V 1 50V 1 50V 10k 10k 10k 10k 10k 1k 47k 10k 10k 10k 1k 1k 47k 47k 10 50V 2.2k 1 50V 10 50V 8.2k 1k 0.1 1k 2.2k 0.22 0.27 0.27 560 10k 0.27 0.27 560 10k 47k 47k 22k 10k 10k 22k 10 50V 10 50V 47k 1k 10 50V 10k 10k 1 50V 1 50V 10 50V 47k 47k 1k 1k 10k 10k 10k 10k 1 50V 100 10V 220p 10k 470 220p 2.2k 0.0022 2.2k 47k 47k 100 10V 0.001 0.001 2.2k 0.0022 2.2k 47k 10 50V 3.3k 3.3k 10 50V 10 50V 0 100k 2.2k R601 1k 33k 100k 8P 10 50V 0 0 10 50V 10 50V 10k 10k 1k 1k 47k 47k 10k 10k 2.2 50V 2.2 50V 100k 100k 1k 1k 0 0 0 0 15k 220p 15k 220p 10 50V 10 50V 2SC3661 MUTE 2SC3661 MUTE 2SC3661 MUTE 2SC3661 MUTE 2SC3661 MUTE 2SC3661 MUTE 2SC3661 MUTE 2SC3661 MUTE 2SC3661 MUTE 2SC3661 MUTE 2SC3661 MUTE 10k 10k 0.001 220p 47k 47k 1k 10k Q208 R602 2SC3661 MUTE 10k 0 1k 220p 10 50V 33k 220 10V 0.1 33k 6.8k 0.5% 6.8k 0.5% 2SC2412K-T-146-R DBFB F/B SWITCH 2SC2412K-T-146-R DBFB F/B SWITCH M61530FP-D60G 0 BUS3 BUS4 BUS2 MUTE +9V MUTE 2 GND L+R DBFB 1 DBFB 2 DVD MUTE LINK-L LINK-R SW DOWNMIX-L DOWNMIX-R SAT-R SAT-L 81 82 REC-OUT-L REC-OUT-R DM_L DM_R MB_FL MB_FR MB_SL MB_SR FC LFE FL FR 100p 100p 100p R L SURROUND VOL CONTROL R L BOARD DVD SURR BOARD MAIN (3/5) BOARD MAIN (5/5) BOARD MAIN (1/5) (2/5) (3/5) (5/5) (3/5) BOARD MAIN (1/5) GNV99D/GNV111D:EXCEPT TH GNV99D/GNV111D: EXCEPT TH GNV111D GNV111D (Page 49) (Page 57) (Page 47) (Page 45) (Page 47) (Page 45)(Page 46) (Page 47)(Page 49) GNV99D/GNV111D: EXCEPT TH Ver 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 49 HCD-GNV99D/GNV111D HCD-GNV99D/GNV111D 7-20. SCHEMATIC DIAGRAM – MAIN BOARD (5/5) – IC559 CN515 R578 R528 R527 R577 R575 R525 R526 R576 C554 C504 CN502 C550 C551 C552 R549 R551 C553 R583 R585 R584 D581 C580 Q585 R580 R579 C581 CN580 R500 R506 R523 R539 C569 R505 C519 2200/6.3V 2200/10V C567 D561 C570 C571 R524 R507 C514 C513 C515 C566 C564 C563 C565 C562 C568 C516 C557 C558 D560 NO603 R536 R535 R522 C365 R534 R517 R519 R533 C525 R518 C517 C511 R552 R553 R554 R516 R515 C510 C509 R514 R513 R512 C507 C508 R511 R529 R530 C524 C523 R537 R510 R509 C506 C505 CN501 Q514 Q564 NO523 R508 D550 D506 D507 D551 EPT560 Q550 IC558 IC507 Q578 Q579 IC561 IC560 D582 D583 Q582 Q581 Q505 Q506 Q522 Q521 Q507 Q508 Q509 Q510 Q515 Q512 Q519 Q511 Q516 Q517 Q520 Q513 Q518 Q503 IC550 TA78033LS 9P 10k 10k 47k 47k 10k 10k 1k 1k 10 50V 10 50V 8P 100 16V 0.1 2.2 50V 1.8k 56k 220 25V 47k 4.7k 100k JR 0.1 2SD2525 10k R586 10k 10k 0.1 3P 4.7k 4.7k 4.7k 4.7k 0.1 2.7k R315 2.2k *1 *1 C519 6800 25V D5SBA20 0.01 0.01 10k 10k 2200 16V 0.1 0.1 10000 25V 0.1 470 16V 0.1 470 16V 0.1 2200 10V 0.01 0.01 D5SBA20 WIRE MT 10k 10k 4.7k 1 50V 10k 47k 1k 10k 1000 10V 10k 2.2 50V 2.2 50V 68k 470k 15k 15k 68k 2.2 50V 2.2 50V 470k 15k 68k 2.2 50V 2.2 50V 470k 15k 68k 2.2 50V 2.2 50V 470k 15k 68k 2.2 50V 2.2 50V 13P 2SC3661 MUTE 2SC3661 MUTE WIRE MT 470k 1SS355TE-17 1SS355TE-17 1SS355TE-17 1SS355TE-17 DTC143TKA-T146 TA7805LS PQ09RF21 DTC114EKA-T146 DTC114EKA-T146 NJM78M09FA NJM78M09FA UDZSTE-176.2B UDZSTE-176.2B D136 UDZSTE-175.6B 2SC2412K-T-146-R 2SC2412K-T-146-R DTA124EKA-T146 MUTE DRIVE DTC114EKA-T146 MUTE DRIVE DTA124EKA-T146 MUTE DRIVE DTC114EKA-T146 MUTE DRIVE DTA124EKA-T146 MUTE DRIVE DTC114EKA-T146 MUTE DRIVE DTA124EKA-T146 MUTE DRIVE DTC114EKA-T146 MUTE DRIVE DTC143TKA-T146 MUTE DRIVE DTC114EKA-T146 MUTE DRIVE DTA124EKA-T146 MUTE DRIVE DTA124EKA-T146 MUTE DRIVE DTA124EKA-T146 MUTE DRIVE DTC114EKA-T146 MUTE DRIVE 2SB1565F B+ SWITCH Q103 2SC5053T100Q AU +5V REG Q105 2SC5053T100Q V +5V REG DTC114EKA-T146 TH EXCEPT TH B+ SWITCH DTC114EKA-T146 REG SWITCH Q104 DTC114EKA-T146 REG SWITCH DTC114EKA-T146 REG SWITCH RT8H015C-T112-1 BUS5 BUS7 AU +5V +9V MUTE MUTE 2 DBFB MUTE 3 M+9V MUTE 4 GND VF 2 VF 1 VG AC CUT DETECT D403 OVER VOLTAGE DVD MUTE 60 72 60 70 67 59 86 42 58 61 65 66 76 77 71 78 75 83 R-OUT L-OUT M+9V REG. A+9V REG. MB+9V REG. OVER VOLTAGE DETECT FAN MOTOR DRIVE Q578,579,581,582,585 SW +3.3V REG. SW +5V REG. BOARD BOARD BOARD BOARD BOARD PA TRANS DVD SURR PA DMB10 (4/4) BOARD MAIN (1/5) (3/5) BOARD MAIN BOARD MAIN (1/5) BOARD MAIN (2/5) BOARD MAIN (4/5) BOARD MAIN (3/5) BOARD MAIN (2/5) (3/5) BOARD MAIN (1/5) (2/5) (2/5) (3/5) (4/5) (Page 47) (Page 55) (Page 45) (Page 46) (Page 61) (Page 45) (Page 57) (Page 55) (Page 46) (Page 47) (Page 46) (Page 48) (Page 45) (Page 46) (Page 47) (Page 48) (Page 41) (Page 47) V +5V (1/5) BOARD MAIN (Page 45) OVER CURRENT PROTECTOR Ver 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 50 HCD-GNV99D/GNV111D HCD-GNV99D/GNV111D 7-21. PRINTED WIRING BOARD – PANEL BOARD – • See page 29 for Circuit Boards Location. :Uses unleaded solder. • Semiconductor Location Ref. No. Location D901 B-10 D902 B-10 D903 D-7 D904 D-6 D905 A-9 D906 C-10 D907 C-10 D908 D-10 D909 D-10 D910 D-10 D911 A-3 D912 C-3 D913 D-3 D914 E-3 D915 B-3 D916 E-10 D917 E-10 D918 F-10 D925 F-10 D926 F-10 D927 A-10 D928 C-3 D929 E-3 D930 F-3 IC902 C-7 IC903 B-10 IC904 C-4 Q900 B-10 Q901 V-8 Q902 B-8 Q903 B-11 Q904 B-10 Q905 C-10 Q906 C-11 Q907 C-11 Q908 C-10 Q909 E-10 Q910 F-10 Q914 C-8 Q915 D-10 Q916 F-10 Q917 A-11 Q918 B-2 Q919 D-3 Q920 E-3 IC902 C957 R1179 C901 C902 C903 C904 C905 C909 C910 C916 C917 C919 C923 C924 C925 C926 C927 C928 C929 C930 C931 C932 C933 C934 C935 C936 C937 C938 C939 C945 C946 C947 C948 C949 C950 C951 C952 C953 C954 C955 C956 C958 C959 C961 C966 C980 C981 C982 C983 Q906 Q907 Q908 Q909 Q910 Q915 Q916 Q917 Q918 Q919 R900 R901 R902 R903 R904 R905 R906 R907 R912 R918 R919 R920 R922 R939 R940 R941 R942 R944 R945 R946 R947 R948 R949 R950 R951 R952 R953 R954 R956 R958 R959 R960 R961 R962 R963 R964 R965 R966 R967 R968 R970 R971 R975 R977 R978 R980 R981 R982 R983 R984 R985 R986 R987 R988 R989 R990 R991 R992 R993 R994 R995 R999 R1135 R1136 R1137 R1141 R1142 R1147 R1148 R1160 R1161 R1162 R1163 R1164 R1165 R1166 R1167 R1175 R1176 R1177 R1178 R1180 R1186 R1187 R1188 IC904 Q901 C972 C973 C977 C978 C979 R917 Q902 Q914 D905 JR914 JR915 R909 JR910 Q903 Q900 Q920 D901 Q904 R1189 R1183 Q905 JR911 JR912 JR922 JR909 JR913 R908 E E E E E E E 1 3 E E E E E E E E C907 JR918 JR916 JR917 C906 C908 JR921 FB901 R910 R943 R933 R1194 R1197 R914 R957 R1198 R1195 R911 R915 R969 R972 R973 R974 R996 R997 E E 8 1 1 3 C940 JW904 FL901 CNS902 JW905 NO903 JW901 JW902 JW906 JW907 JW908 JW909 JW910 JW912 JW913 JW914 JW915 JW916 JW917 JW918 JW919 JW920 JW921 JW922 JW923 JW924 JW925 JW926 JW927 JW928 JW930 JW931 JW932 JW933 JW934 JW935 JW936 JW937 JW938 JW939 JW940 JW941 JW942 JW943 JW944 JW945 JW946 JW947 JW948 JW949 JW950 JW956 JW957 JW959 JW961 JW962 JW963 JW964 JW965 JW969 JW974 JW994 JW995 JW996 JW997 JW998 JW999 JW1117 JW1118 JW1120 JW1123 JW1124 JW1131 JW903 JW911 JW1128 JW1110 JW1112 JW1113 JW1126 JW958 JW1115 JW1116 JW953 JW1114 JW968 JW1119 JW1129 JW1133 JW1138 JW1139 JW1140 JW1141 JW1142 JW1143 JW1122 JW977 JW1144 JW1146 JW1147 JW1148 JW1149 JW1150 JW1152 JW1153 JW1154 JW1155 JW1156 JW966 S917 S916 S916 S925 CNS901 (NOT USED) D913 D914 X901 C922 C920 C944 C900 C942 C941 IC903 JW993 JW991 JW990 JW989 JW988 JW987 JW985 JW986 JW984 JW983 JW982 JW981 JW980 JW979 JW978 D903 D904 JW967 CN902 D906 D907 D908 D909 D910 D916 D917 D918 D925 D926 D902 D927 JW975 JW1160 JW1161 JW929 JW1130 JW1127 JW1137 JW1135 JW1134 JW1132 JW1162 JW1145 JW955 JW976 JW954 JW970 JW952 JW960 D930 D929 C971 C970 C918 JW972 JW973 JW900 JW971 JW1136 JW1125 JW1151 JW951 JW1105 S920 S919 TUNER/ BAND S929 SOUND FIELD S970 MASTER VOLUME S904 REC PAUSE /START TUNER/ BAND TUNER/ BAND TAPE A/B TAPE A/B TAPE A/B TV/SAT TV/SAT TV/SAT VIDEO VIDEO DVD DVD DVD VIDEO S918 S900 DISPLAY S930 GROOVE S903 DIRECTION S932 ENTER S902 EQ BAND S912 CD SYNC PROGRESSIVE S901 S928 ILLUMINATION S927 AMP MENU S931 SOUND FLASH S911 S910 S913 Y D911 Y D915 Y D928 X D912 x S915 x S914 X > + R PRESET r − . S917 M + R TUNING r − m > + R PRESET r − . M + R TUNING r − m E P CD-SW BOARD (Page 52) O J0G BOARD (Page 52) I MAIN BOARD (Page 44) 1 6 7 64 65 70 11 (11) 1-864-912- PANEL BOARD 2 3 4 5 6 7 8 9 10 11 A 1 B C D E F G Ver 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 51 HCD-GNV99D/GNV111D HCD-GNV99D/GNV111D 7-22. SCHEMATIC DIAGRAM – PANEL BOARD – • See page 72 for IC Pin Function Description. • See page 64 for IC Block Diagrams. DVD DVD TUNER/BAND AMP MENU ILLUMINATION SOUND FIELD SOUND FLASH GROOVE ENTER TAPE A/B VIDEO TV/SAT TUNER/BAND TAPE A/B VIDEO PROGRESSIVE DIRECTION REC PAUSE/START EQ BAND DISPLAY CD SYNC TUNING PRESET MASTER VOLUME TV/SAT LED DRIVE BUFFER BUFFER LED DRIVE LED DRIVE BUFFER LED DRIVE I/ 95 94 93 27 28 29 30 31 32 33 34 35 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 43 44 45 46 47 24 25 26 2 3 4 5 6 7 8 9 10 12 13 15 16 17 18 19 20 21 22 14 8 9 10 12 13 14 15 16 17 18 19 20 21 22 24 1 87 88 89 90 91 92 96 97 98 99 100 1 2 3 4 5 6 7 85 86 I/ 48 67 70 69 68 71 87 88 89 90 91 92 93 94 95 96 97 98 99 100 85 86 52 53 54 55 56 57 65 66 67 68 69 70 71 72 60 61 74 75 64 76 79 80 77 73 78 58 59 49 48 51 LED DRIVE LED DRIVE LED DRIVE 49 51 52 53 54 56 73 66 (NOT USE) 54 55 65 79 LED DRIVE LED DRIVE LED DRIVE TUNING PRESET - - + - - + 77 61 60 64 52 53 LED DRIVE 56 PRESET + TUNING + 76 74 78 75 57 58 59 80 72 36 37 38 39 40 41 43 44 45 46 47 BUFFER BUFFER SWITCH SWITCH D901 R958 R959 R960 R961 R962 R963 R964 R965 R966 R967 R968 S920 S919 S918 S911 S910 S927 S928 S929 S930 S931 S932 NO903 CNS901 C900 C903 R900 C904 R901 C908 C916 R912 R920 R1187 R909 R907 R906 R905 C910 R904 R903 C902 C901 C909 R902 C905 R999 R975 R978 R977 R980 R1188 CNS902 R970 S970 C907 R971 S912 S913 S914 S915 R1163 R1164 R1165 R1166 R1160 R1161 R1162 C906 R954 R951 R948 C947 R945 C945 C959 C958 C956 C954 C952 C950 C946 C948 C949 C953 C955 C957 C951 R952 R953 R950 R949 R947 C966 CLP912 JR915 C961 C941 R941 R942 R940 CN902 S925 S900 R1167 R1180 C922 C923 S903 S904 S902 S901 D904 D903 C919 C918 C970 C971 R1178 R1177 R1176 R1175 C944 FL901 JW900 R919 R918 R917 R908 R1189 R1183 D927 D902 R910 R911 R943 R933 R914 R915 R1197 R1198 R1194 R1195 R993 R994 R995 R990 R991 R992 R987 R988 R989 R984 R985 R986 R981 R982 R983 R969 D908 D907 D909 D916 R972 R973 D925 D926 R996 D917 D918 R974 D910 D906 R957 R1179 R1141 R1142 R1148 R997 R1135 R1136 R1137 D930 D914 D929 D913 R1147 D928 D912 D915 D911 IC904 S916 C940 R946 R956 C942 D905 X901 R1186 C924 C925 C926 C927 C928 C929 C930 C931 C932 C933 C934 C935 C937 C936 C938 C980 C981 C982 C983 C972 C973 C979 C978 C977 C917 FB901 R922 Q906 Q907 Q904 Q905 Q900 Q903 Q902 Q901 Q914 Q917 Q910 Q920 Q919 Q918 Q916 Q909 Q915 Q908 IC903 JR914 R944 C939 R939 JR912 JW905 S917 IC902 1SS355TE-17 470 680 1k 1.5k 1.5k 2.2k 3.3k 4.7k 6.8k 10k 15k 4.7 50V 0.1 10k 0.1 10k 220p 0.1 100 10k 10k 10k 15k 15k 15k 0.1 100 100 220p 220p 220p 10k 0.1 0 470 470 1k 1k 1k 6.8k 0.001 1k 1.5k 2.2k 3.3k 4.7k 6.8k 10k 6.8k 0.001 10k 5.6k 6.8k 1 33k 1 0.047 0.047 0.022 0.022 0.0047 0.0047 470p 470p 1 1 1 1 1 1k 1k 1k 1k 1k 0.1 100 0.1 10 50V 100 100 10k 17P 270 270 10 50V 0.01 10EDB40-TB3 10EDB40-TB3 0.01 470 6.3V 470 6.3V 470 6.3V 1.5k 1k 680 470 10 50V 100k 100k 100k 100 22 82 SELU5620S-STP15 SELU5420E-STP15 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 680 680 680 680 680 680 680 680 680 680 680 680 680 680 680 680 SELU5620S-STP15 SELU5420E-STP15 SELU5420E-STP15 SELU5420E-STP15 680 680 SELU5620S-STP15 SELU5420E-STP15 680 SELU5620S-STP15 SELU5420E-STP15 680 SELU5620S-STP15 SELU5620S-STP15 1k 1k 1k 1k 1k 680 680 680 680 SELU5620S-STP15 SELU5620S-STP15 SELU5620S-STP15 SELU5620S-STP15 1k SELU5620S-STP15 SELU5620S-STP15 SELU5420E-STP15 SELU5620S-STP15 NJM2760V-TE2 0.1 56k 2.7k 10 50V UDZ-TE-17-6.8B 4MHz 4.7k 100p 100p 100p 100p 100p 100p 100p 100p 100p 470p 100p 100p 100p 100p 100p 100p 100p 100p 100p 100p 100p 100p 100p 100p 0.1 0 1M DTC114EKA-T146 DTC114EKA-T146 2SB1115A-YQ 2SB1115A-YQ DTA114EKA-T146 DTA114EKA-T146 DTC143TKA-T146 DTC143TKA-T146 DTC143TKA-T146 DTC114EKA-T146 DTC114EKA-T146 DTC114EKA-T146 DTC114EKA-T146 DTC114EKA-T146 DTC114EKA-T146 DTC114EKA-T146 DTC114EKA-T146 DTC114EKA-T146 RPM7240-H8 REMOTE CONTROL RECEIVER 0 47 0.001 1k 0 MB90M407PF-G DISPLAY CONTROL, KEY CONTROL -145E1 (1/5) MAIN BOARD (Page 45) I O BOARD JOG (Page 53) P BOARD CD-SW (Page 53) Ver 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 52 HCD-GNV99D/GNV111D HCD-GNV99D/GNV111D 7-23. PRINTED WIRING BOARDS – CD-SW, JOG AND MIC BOARDS – • See page 29 for Circuit Boards Location. :Uses unleaded solder. • Semiconductor Location Ref. No. Location D919 E-11 D920 E-11 D921 E-12 D922 D-12 D923 C-11 D924 C-10 D1100 F-6 D1101 F-6 D1102 G-8 D1103 G-6 D1104 G-6 IC1100 G-7 IC1101 G-8 Q911 C-11 Q912 D-12 Q913 E-11 R1149 R1150 R1151 R1152 R1153 R1154 R1155 R1169 R1171 R1172 R1173 R1174 NO1150 1 3 S1148 JW1157 JW1158 JW1159 11 (11) 1-864-914- P PANEL BOARD (Page 50) S1149 TWISTER S1150 RANDOM S1151 AUTO/MANUAL S1152 BALANCE S1153 FADER S1154 WAVE S1158 DISC 3 S1157 DISC 2 S1156 DISC 1 S1160 OPEN/CLOSE S1159 EX-CHANGE/ DISC SKIP S1148 X-ROUND JOG S1155 SPEAKERS/ X-ROUND OFF CD-SW BOARD R1170 R1193 C1146 C1150 Q911 Q912 Q913 R1138 R1139 R1140 R1144 R1145 R1146 R1156 1 8 1 3 2 E E E R1157 R1158 R1159 JR904 JR905 R1190 R1191 R1192 CNS903 D919 (VOL 2) D920 (VOL 3) D921 (VOL 4) D922 (VOL 5) D923 (VOL 6) D924 (VOL 1) S1161 OPERATION DIAL JOG BOARD 11 (11) 1-864-915- O PANEL BOARD (Page 50) C1116 C1118 C1119 C1125 R1117 R1116 R1124 16 9 1 1 9 8 C1126 R1115 R1123 R1121 R1113 R1114 R1122 R1119 R1120 R1118 IC1101 D1103 D1104 D1102 JR1100 R1130 JR1102 FB1101 FB1100 JR1108 JR1101 JR1113 JR1114 JR1105 R1100 R1102 C1104 C1134 C1135 C1105 C1109 C1110 C1111 JR1106 C1136 C1142 R1132 R1101 R1103 R1104 R1105 R1106 R1107 R1108 R1109 R1110 R1111 R1125 R1126 R1127 R1128 R1131 IC1100 JR1104 D1100 D1101 JR1103 C1100 C1101 C1103 C1133 C1122 C1120 C1123 CN1100 JW1104 C1144 C1130 JW1109 JW1107 JW1102 C1102 C1113 C1131 CN1102 JW1101 NO1101 C1129 C1121 C1117 C1124 C1106 C1115 C1108 C1112 C1139 C1114 C1127 C1128 C1145 EPT1103 EPT1104 11 (11) 1-864-913- F MAIN BOARD (Page 44) Q VIDEO BOARD (Page 58) R PA BOARD (Page 54) RV1101 ECHO LEVEL RV1100 MIC LEVEL J1101 MIC2 J1100 MIC1 J1103 PHONES J1102 VIDEO INPUT VIDEO AUDIO L R MIC BOARD 1 2 1 3 GNV111D 2 3 4 5 6 7 8 9 10 11 12 A 1 B C D E F G H Ver 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 53 HCD-GNV99D/GNV111D HCD-GNV99D/GNV111D 7-24. SCHEMATIC DIAGRAM – CD-SW, JOG AND MIC BOARDS – VIDEO INPUT OPERATION DIAL AUTO/MANUAL RANDOM TWISTER BALANCE DISC 2 DISC 3 DISC 1 FADER WAVE X-ROUND JOG SPEAKERS/ X-ROUND OFF EX-CHANGE/ DISC SKIP VIDEO AUDIO L R PHONES ECHO LEVEL MIC LEVEL VOL 2 VOL 3 VOL 4 VOL 5 VOL 6 VOL 1 MIC 2 MIC 1 NO1101 H/P DETECT A+9V MIC SIG MIC AGND MIC DETECT NC VIDE0(A)-R VIDE0-SIG VIDE0-GND J1102 VIDE0(A)-L 9 1 VIDE0(A)-GND 9P CN1100 2P D924 D922 D920 D919 D921 D923 R1138 R1139 R1140 R1190 R1144 R1145 R1146 R1191 R1157 R1158 R1159 R1192 CNS903 R1169 R1174 R1173 R1171 R1172 S1160 S1159 S1158 S1157 S1156 C1100 R1101 C1102 R1103 C1104 R1104 C1103 C1101 R1102 R1105 C1139 C1105 R1106 IC1100(1/2) R1107 RV1100 R1108 C1109 IC1100(2/2) R1109 C1110 C1111 R1125 R1127 R1126 R1132 D1100 D1101 C1142 J1103 NO1150 S1161 J1100 J110 1 C1108 C1125 C1127 C1130 C1126 R1122 R1123 R1124 R1121 C1119 C1118 C1120 D1102 C1123 R1119 R1117 R1118 R1114 R1120 C1122 C1115 R1113 R1115 R1116 C1131 C1112 C1116 C1117 C1121 C1124 C1129 C1128 C1133 CN1102 RV1101 C1106 FB1100 FB1101 JW1101 EPT1104 EPT1103 R1156 C1150 Q913 Q912 Q911 IC1101 R1100 C1113 R1110 C1114 R1111 R1153 R1152 R1150 R1151 R1149 R1170 R1155 R1154 JW1157 C1146 S1148 S1155 S1154 S1153 S1152 S1151 S1150 S1149 JW1159 R1193 SELS5223C-TP115 RED SELS5223C-TP115 RED SELS5223C-TP115 RED SELS5223C-TP115 RED SELS5223C-TP115 RED SELS5223C-TP115 RED 820 820 820 100 820 820 820 100 820 820 820 100 8P 470 680 1k 1.5k 1.5k 0.01 1k 2.2 50V 1k 0.001 100k 47p 0.01 10k 1k 1 50V 470p 47k NJM4565M-D 100 50k 10k 47p NJM4565M-D 150k 150p 47p 2.2k 2.2k 0 1SS355TE-17 D1104 1SS355TE-17 1SS355TE-17 D1103 1SS355TE-17 0 3P 2.2 50V 0.0015 0.068 0.015 0.0068 15k 15k 47k 15k 0.0015 0.0068 0.068 DTZ5.1B 0.068 15k 15k 15k 15k 120k 47 16V 2.2 50V 15k 330 330 220 10V 10 50V 0.022 1 50V 47 16V 1 50V 0.22 50V 0.22 50V 0.47 C1136 0.1 33k C1134 220p C1135 220p C1145 10 50V C1144 10 50V R1128 33k R1130 15k R1131 15k 3P 50k 2.2 50V 0 0 1k 0.001 DTC114EKA LED DRIVE DTC114EKA LED DRIVE DTC114EKA LED DRIVE M65850FP-E1 10k 10 50V 3.3k 0.22 50V 6.8k 4.7k 6.8k 15k 10k 22k 6.8k 2.2k 3.3k 1000p 1k OPEN/CLOSE DIGITAL ECHO BOARD PANEL (Page 51) O P BOARD PANEL (Page 51) BOARD PA (Page 55) (1/5) MAIN BOARD (Page 45) R F VIDEO BOARD (Page 59) Q GNV111D Ver 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 54 HCD-GNV99D/GNV111D HCD-GNV99D/GNV111D 7-25. PRINTED WIRING BOARD – PA BOARD – • See page 29 for Circuit Boards Location. :Uses unleaded solder. T DVD SURR BOARD (Page 56) S TRANS BOARD (Page 60) G MAIN BOARD (Page 44) H MAIN BOARD (Page 44) R MIC BOARD (Page 52) R L FRONT SPEAKER (ONLY FOR SS-GNV111D) JR603 JR600 R694 D611 R611 R610 D612 C601 C651 R600 R650 R617 R695 R696 R624 R674 R630 R631 Q628 Q630 C605 C683 C606 C693 R676 R656 R657 R658 R677 R678 C660 D620 D646 R609 R698 R608 R693 R606 R692 R607 Q634 R604 R605 Q610 R642 R662 R640 R635 R641 Q682 R643 R663 R639 R638 R697 R634 Q641 E E E E E E E E E 1 3 Q640 R683 Q618 D609 R682 Q644 D661 E D660 R649 Q648 R685 Q647 E E R645 R644 R673 R623 Q668 D670 D655 D654 R655 R654 R632 R633 Q629 R620 C654 C604 R603 R653 R602 R652 R601 R651 R625 R628 R629 R660 R661 R621 R619 Q604 R648 R671 R669 R670 R626 R627 R647 D624 D658 D656 L680 L690 JW626 NO601 R690 R680 JW601 NO600 1 7 JW627 JW600 JW602 JW604 JW605 JW606 JW608 JW614 JW617 JW618 JW619 JW620 JW621 JW622 JW623 JW628 JW629 JW630 JW633 JW634 JW635 JW637 JW638 JW639 JW640 JW641 JW642 JW643 JW644 JW645 JW646 JW649 JW651 JW652 JW653 JW654 JW655 JW656 JW657 JW658 JW659 9 1 JW660 JW661 JW664 JW665 JW668 JW678 JW679 JW616 JW607 JW613 JW603 JW662 JW663 JW631 JW688 JW692 JW693 JW694 JW695 JW698 JW699 JW700 RY646 CN600 CN601 1 8 TM600 JWH603 JWH602 C602 C600 C650 C652 TH629 C617 C666 R672 R622 C609 C618 C619 C610 C635 C634 C636 C608 C655 C648 C649 R636 R637 R616 JWH601 C657 C659 C677 C679 Q606 C667 C637 C616 JWH600 TH630 C676 C656 C678 IC600 C658 R668 R618 R613 R614 R612 R615 JW667 JW669 JW682 JW683 JW650 JW674 JW675 JW670 JW671 JW672 JW673 JW647 JW648 JW696 JW632 CN602 JW680 R646 JW636 JW684 JW624 JW625 EP660 EP690 PA BOARD 11 (11) 1-864-930- + ~ ~ - + ~ ~ - E E E 2 3 4 5 6 7 8 9 10 11 12 A 1 B C D E F G • Semiconductor Location Ref. No. Location D609 B-6 D611 E-7 D612 E-7 D620 B-7 D624 E-9 D646 B-10 D654 B-9 D655 B-10 D660 E-2 D661 E-1 D670 B-7 D656 D-4 D658 D-5 IC600 D-8 Q604 B-7 Q606 B-6 Q610 B-7 Q618 B-7 Q628 E-9 Q629 D-10 Q630 E-9 Q634 B-6 Q640 B-6 Q641 B-5 Q644 F-1 Q647 F-1 Q648 E-2 Q668 B-7 Q682 A-6 Ver 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 55 HCD-GNV99D/GNV111D HCD-GNV99D/GNV111D 7-26. SCHEMATIC DIAGRAM – PA BOARD – R L FRONT SPEAKER FRONT SPEAKER RELAY DRIVE FRONT SPEAKER RELAY DRIVE OVER LOAD DETECT SWITCH MUTING CONTROL SWITCH MUTING CONTROL SWITCH HEADPHONE MUTING HEADPHONE MUTING FAN MOTOR ON SWITCH TEMPERATURE DETECT SWITCH TEMPERATURE DETECT SWITCH STANBY SWITCH 1 9 OVERLOAD DET OVERLOAD DET Q606 R607 R692 R606 R693 R608 R698 R694 D609 R609 R611 R610 C608 R604 R605 R674 R624 R623 R673 R696 R695 R617 C666 C667 C616 C617 R631 R632 R633 TH630 TH629 R622 R672 C609 C610 C619 R616 C618 C657 C677 R656 R676 R677 R657 C656 C676 NO600 C660 R658 R678 C659 C679 D660 D661 C652 C602 EP690 D655 D654 R655 R654 D646 R644 R645 R685 C648 C649 R649 R682 R683 R697 R634 R638 R639 C634 C635 R635 R640 R641 C636 R636 R643 C637 R637 R642 R662 R663 C651 C601 R650 R600 C650 C600 D624 NO601 CN601 CN600 C605 R647 R648 Q648 Q647 R668 R618 R612 R603 R653 R669 D670 D620 R619 Q618 R615 D612 D611 D656 D658 C658 C678 EP660 Q668 Q604 Q610 R651 R601 Q634 Q682 Q640 Q641 R646 R628 R630 R626 R629 R627 Q644 Q629 Q630 Q628 TM600 RY646 CN602 L690 L680 R670 R671 R621 R620 R652 330 330 R602 R614 R613 C604 C654 R625 R660 R661 C683 C693 C655 IC600 2SA1207 2.2k 47k 47k 100k 100k 100k 68k 1SS355TE-17 68k 33k 68k 22 50V 10k 10k 22k 22k 68k 56k 100k 100k 100k 0.068 0.068 0.068 0.068 100k 100k 56k 10 1/2W 10 1/2W 22 C606 0.1 100V 22 100V 10 100V 1 10 100V 0.1 100V 0.1 100V 220k 220k 220k 220k 3300 100V 3300 100V 7P 100000p 100k 100k 0.1 100V 0.1 100V 1SS355TE-17 1SS355TE-17 220 10V 220 10V GND PLATE 1SS355TE-17 1SS355TE-17 47k 47k R690 10 1/2W R680 10 1/2W 10 1SS355TE-17 2.2k 10k 10k 100 10V 10 50V 22k 1k 4.7k 2.2k 2.2k 100k 100k 100 25V 100 25V 10k 1k 1k 4.7 100V 820 2W 150 4.7 100V 820 2W 150 150 150 0.0022 0.0022 1k 1k 4.7 50V 4.7 50V 1SS355TE-17 3P 8P 13P 0.1 1k 22k 2SC1623-L5L6 2SC1623-L5L6 0.22 5W 0.22 5W 100 47k 47k 1k 1SS355TE-17 1SS355TE-17 1k 2SC3722K-E 100 UDZ-TE-17-18B UDZ-TE-17-18B D25XB60 (GNV111D) RBV1306 (GNV99D) RBV1306 (GNV111D) D5SBA20 (GNV99D) 4700 63V 4700 63V 2SC3722K-E 2SC3722K-E 2SC3722K-E 47k 47k DTA124EKA-T146 2SC1623-L5L6 2SC3661 2SC3661 100 1/2W 22k 100k 56k 5.6k 1k 2SC1623-L5L6 2SC1623-L5L6 2SC1623-L5L6 2SC1623-L5L6 2P 9P 18k 150k 150k 18k 1k 1W 1k 1W 100p 100p 6.8k 0.5% 6.8k 0.5% 0.1 0.1 10 50V STK412-240 Q604,606,610 POWER AMP 2 * * 2 R625 4.7k 2.2k BOARD TRANS (Page 61) S T BOARD DVD SURR (Page 57) G (5/5) MAIN BOARD (Page 49) (5/5) MAIN BOARD (Page 49) H R BOARD MIC (Page 53) GNV111D GNV99D Ver 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 56 HCD-GNV99D/GNV111D HCD-GNV99D/GNV111D 7-27. PRINTED WIRING BOARD – DVD SURR BOARD – • See page 29 for Circuit Boards Location. :Uses unleaded solder. JR700 GNV111D GNV111D GNV99D C743 C703 C753 IC703 R711 R712 R778 C710 22 18 C712 C711 R710 C733 C772 C773 C782 C783 D761 D710 R756 D711 Q700 R753 Q730 Q740 Q750 R703 R704 R705 R700 R701 R702 R706 R750 R751 R752 R788 R754 R755 R740 R741 R742 R743 R744 R745 R746 C755 C756 C757 R747 R748 R760 R749 C741 C751 C701 Q720 Q722 R720 R721 R722 R723 R724 R727 R725 R726 D762 Q763 Q765 E E E Q762 R792 R797 R798 R768 R769 R766 R767 JR791 R762 R761 D720 R774 Q780 Q770 D730 D780 D770 R771 R772 R773 R731 R732 R733 R781 R782 R783 R784 R734 C791 C792 R779 D763 D764 D765 C732 R757 B791 JW795 JW794 JW702 JW703 JW708 JW796 JW790 JW710 JW711 JW793 JW797 JW721 JW722 JW723 JW724 JW701 JW727 JW728 JW729 JW731 JW733 JW709 JW725 JW734 JW716 JW736 JW739 JW740 JW741 JW742 JW743 JW744 JW735 JW745 JW746 JW747 JW750 JW748 JW751 JW752 JW753 JW755 JW719 JW759 JW798 JW760 JW763 JW766 JW761 JW762 JW705 JW720 JW717 JW718 JW767 JW754 JW712 JW715 JW713 JW788 NO701 JW714 JW765 JW764 JW700 JW768 IC702 CN701 CN700 1 1 8 9 B790 R794 R780 R795 RY761 RY760 R793 R735 R785 R775 C771 C770 C780 C781 C730 C731 L770 L730 L780 R737 R787 R777 R786 R736 R776 C796 C742 C794 C793 R770 C758 C795 C704 C754 C744 C700 C740 C750 C749 C748 C747 C746 C752 C702 C721 R764 Q721 R730 EP700 R765 R796 R799 JW777 JW778 C759 JW706 JW802 JW726 JW773 JW774 TM700 SURR SPEAKER L R + − + − TM701 CENTER SPEAKER (ONLY FOR SS-CT111D) + − DVD SURR BOARD 11 (11) 1-865-442- E E E E E E E E E 5 1 1 K MAIN BOARD (Page 44) J MAIN BOARD (Page 44) T PA BOARD (Page 54) GNV99Dt GNV111Dt GNV111D GNV99D GNV111D GNV111D GNV111D GNV111D GNV111D 2 3 4 5 6 7 8 9 A 1 B C D E F • Semiconductor Location Ref. No. Location D710 B-6 D711 B-5 D720 E-6 D730 E-5 D761 C-2 D762 D-7 D763 E-7 D764 E-8 D765 C-7 D770 C-3 D780 C-5 IC702 B-5 IC702 B-5 IC703 D-3 Q700 E-4 Q720 E-5 Q721 E-6 Q722 E-6 Q730 E-7 Q740 D-4 Q750 D-4 Q762 D-2 Q763 D-2 Q765 D-1 Q770 C-3 Q780 C-5 Ver 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 57 HCD-GNV99D/GNV111D HCD-GNV99D/GNV111D 7-28. SCHEMATIC DIAGRAM – DVD SURR BOARD – C751 C701 C702 C752 C750 C700 C740 C741 C742 R722 R720 R721 C754 C704 C744 JW798 GNV99D GNV111D R725 R724 R723 CN701 CN700 R764 R786 R736 C733 C732 R737 C783 R787 C782 C772 C773 R777 RY761 R765 NO701 C793 C794 R770 R799 R796 R775 C771 C770 R785 C781 C780 R735 C731 C730 R780 C753 C743 R726 C796 C795 C746 C747 C759 C755 C756 C749 C758 IC703 C748 JW795 JW793 JW797 JW790 JW796 L770 L780 L730 D711 D710 R727 C721 R732 R711 R712 R740 R745 R743 R744 R754 R704 R753 R703 R755 R705 R750 R700 R701 R751 R741 R710 R772 R773 R784 R774 R778 R779 R788 R769 R766 R767 R797 R798 R768 R760 R749 R757 R733 R771 R782 R783 D762 D763 D770 D780 D730 R747 R748 C757 JR700 R762 R761 R792 R702 R742 JR791 D764 D761 D765 TM700 JW794 R731 R781 C791 C792 IC702 C703 C711 C712 R752 R730 C710 R795 R794 D720 R776 R734 RY760 EP700 R793 Q780 Q730 Q770 Q763 Q762 Q765 TM701 Q740 Q750 Q700 R746 R756 R706 Q722 Q721 Q720 220p 220p 220 10V 220 10V 4.7 50V 4.7 50V 4.7 50V 220p 220 10V 22k 10k 10k 4.7 50V 4.7 50V 4.7 50V 47k 33k 2.2k 8P 9P 100 1/2W 10 1/2W 10 1/2W 0.1 0.1 10 1/2W 0.1 10 1/2W 0.1 0.1 0.1 10 1/2W 100 1/2W 9P 100 100V 100 100V 0.22 5W 3.3k 3.3k 10 1/2W 0.068 0.068 10 1/2W 0.068 0.068 10 1/2W 0.068 0.068 0.22 5W 100p 100p 33k 22 100V 22 100V 4.7 50V 4.7 50V 10 50V 22p 22p 4.7 50V 4.7 50V NJM2520M-TE2 100 10V UDZSTE-1718B UDZSTE-1718B 33k 22 50V 27k 47k 47k 1k 47k 1k 10k 10k 10k 1k 1k 47k 47k 1k 1k 47k 47k 47k 47k 27k 100k 47k 68k 47k 47k 47k 22k 2.2k 22k 22k 1k 2.2k 100 10k 2.2k 100k 1k 27k 100k ISS355TE-17 ISS355TE-17 ISS355TE-17 ISS355TE-17 ISS355TE-17 6.8k 0.5% 8.2k 0.1 0 0 ISS355TE-17 ISS355TE-17 ISS355TE-17 1k 1k 0.01 0.01 STK413-430 100p 0.22 5W 100 100 1S355TE-17 10 1/2W 56k 1 STK443-070 2SC3722K-E OVERLOAD DETECT 2SC3722K-E OVERLOAD DETECT 2SC3722K-E OVERLOAD DETECT 2SC2412K-T-146-R RELAY DRIVE 2SC2412K-T-146-R RELAY DRIVE 2SC3661 RELAY DRIVE CONTROL 2SC3661 MUTE 2SC3661 MUTE 2SC3661 MUTE 10k 10k 10k 2SC3722K-E SWITCH 2SA1207 MUTE DRIVE 2SC2412K-T-146-R MUTE DRIVE *2 *2 *2 *1 *3 *4 *4 *1 *5 IC702 POWER AMP POWER AMP GNV111D GNV111D GNV111D GNV99D GNV111D *2 R761,762,792 33k 100k GNV99D: TH *1 R702,752 330 GNV99D: EXCEPT TH 390 180 GNV111D GNV99D GNV111D 12P 18P GNV99D GNV111D 12P 18P GNV111D GNV99D R L GNV99D GNV111D BOARD MAIN BOARD MAIN BOARD PA GNV99D *4 C711,712 *5 C710 (4/5) (5/5) (Page 48) (Page 49) (Page 55) GNV99D: TH *3 R742 330 GNV99D: EXCEPT TH 470 220 GNV111D Ver 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 58 HCD-GNV99D/GNV111D HCD-GNV99D/GNV111D 7-29. PRINTED WIRING BOARD – VIDEO BOARD – • See page 29 for Circuit Boards Location. :Uses unleaded solder. JR802 IC801 IC800 R800 R801 R802 R803 R804 R805 R806 R807 R808 R809 R810 R812 R813 R814 FB800 FB801 FB802 FB803 FB804 FB805 FB806 JR801 Q800 JR800 JR803 JR804 C818 C817 C816 C819 C820 C821 C822 C823 C824 C825 C831 C809 C804 C810 JW801 JW802 JW804 E JW805 JW807 JW811 JW803 JW806 JW810 JW809 JW800 CN800 EPT800 C811 C812 C813 C814 C815 C800 C801 C802 C803 C805 C806 C807 C808 C829 CN802 1 1 4 8 5 2 L801 C830 CN801 C826 C827 5 1 J800 COMPONENT VIDEO OUT J802 VIDEO OUT J801 S VIDEO OUT PB/CB PR/CR Y C Y G G Q MIC BOARD (Page 52) M MAIN BOARD (Page 44) B DMB10 BOARD (Page 36) 11 (11) 1-865-440- VIDEO BOARD 2 3 4 5 6 A 1 B C D E • Semiconductor Location Ref. No. Location IC800 D-3 IC801 C-3 Q800 B-3 Ver 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 59 HCD-GNV99D/GNV111D HCD-GNV99D/GNV111D 7-30. SCHEMATIC DIAGRAM – VIDEO BOARD – • See page 62 for Waveforms. • See page 63 for IC Block Diagrams. C815 C814 C813 C811 C812 R802 R803 R804 R805 R808 R806 FB800 FB801 FB802 FB803 FB804 FB805 C822 C823 C820 C816 C817 C818 C809 R809 C810 C800 C801 C802 C803 C804 C806 C808 FB806 R801 TP803 R807 CN801 CN802 CN800 L801 JR801 JR800 JR802 C826 R812 C827 C831 C830 C829 R813 R810 R814 TP800 JW800 EPT800 C825 JR803 C824 JR804 C821 C819 C805 C807 IC800 Q800 J802 R800 IC801 J801 1000 6.3V 1000 6.3V 1000 6.3V 1000 6.3V 1000 6.3V 75 75 75 75 75 0 0 0 0 0 0 0 22p 22p 22p 22p 22p 22p 0.1 10k 0.1 1 50V 1 50V 1 50V 22 50V 0.1 1 50V 100 10V 0 10k 100 13P 2P 5P 0 0 0 10 50V 1M 10 50V 0.01 100 10V 1000 6.3V 100k 75 10k 0.01 0.01 0.01 0 0.01 0.01 1 50V 1 50V NJM2244M-TE2 DTC114EKA-T146 BUFFER 100 MM1623BFBE VIDEO SELECTOR BOARD BOARD MAIN BOARD DMB10 MIC (2/4) (1/5) (Page 39) (Page 45) (Page 53) Ver 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 60 HCD-GNV99D/GNV111D HCD-GNV99D/GNV111D 7-31. PRINTED WIRING BOARDS – TRANS AND PRIMARY BOARDS – • See page 29 for Circuit Boards Location. :Uses unleaded solder. 1 2 4 1 1 2 AC IN 1 2 S1200 VOLTAGE SELECTOR 230 - 240V r 220V r 120V POWER SWITCHING 11 (11) 1-864-932- 1 3 PRIMARY BOARD TRANS BOARD L E MAIN BOARD (Page 44) R1262 R1263 R1264 D1264 JW1210 CN1212 C1263 Q1264 C1262 NO1211 CN1213 FH1242 FH1251 FH1252 FH1261 FH1262 FH1271 FH1272 FH1282 E FH1281 R1292 FH1241 F1241 F1251 F1261 F1271 FH1291 FH1292 F1291 F1281 JW1202 JW1201 JW1206 JW1207 JW1208 JW1209 JW1220 JW1221 JW1211 C1292 JW1216 JW1222 JW1223 D1292 11 (11) 1-864-931- 1 4 1 1 7 8 S PA BOARD (Page 54) N MAIN BOARD (Page 44) NOT REPLACEABLE: BUILT IN TRANSFORMER T1200 POWER TRANSFORMER * * C1204 Q1200 R1200 R1201 C1202 C1201 D1200 JR1202 JW1204 NO1201 NO1203 CN1202 C1206 RY1200 CN1200 L1201 EP1203 JW1213 JW1214 JW1215 CN1204 TH, MX, AUS EXCEPT TH, MX, AUS TH, MX, AUS EXCEPT TH, MX, AUS TH, MX, AUS EXCEPT TH, MX, AUS 2 3 4 5 6 7 8 9 10 A 1 B C D E F G H I • Semiconductor Location Ref. No. Location D1200 F-3 D1264 D-8 D1292 C-7 Q1200 F-2 Q1264 D-8 Ver 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 61 HCD-GNV99D/GNV111D HCD-GNV99D/GNV111D 7-32. SCHEMATIC DIAGRAM – TRANS AND PRIMARY BOARDS – 1 8 BUILT IN TRANSFORMER NOT REPLACEABLE: * POWER TRANSFORMER * –35V REG RELAY DRIVE VOLTAGE SELECTOR AC IN CN1212 NO1211 CN1200 NO1201 NO1203 CN1202 RY1200 D1200 JW1204 C1202 L1201 JR1202 18uH C1201 C1206 R1201 R1200 R1264 R1263 R1262 C1262 C1263 C1292 R1292 JW1292 JW1293 JW1211 CN1204 CN1204 T1200 S1200 120V 220V 230-240V F1271 F1261 F1251 F1241 F1281 CN1213 D1264 D1292 Q1200 Q1264 7P 3P 2P 2P 2P 1SS355TE-17 0 0.1 C1204 EP1203 0.1 0.1 1000 6.3V 100k 4.7k 1k 8.2k 8.2k 10 50V 100 50V 100 63V 0.68 T8.00AL 250V T8.00AL 250V T8.00AL 250V T8.00AL 250V T3.15AL 250V F1291 T3.15AL 250V 8P HZU36BTRF 10EDB40 2SC1623-L5L6 2SB1565E 2P 4P * * S MAIN BOARD (5/5) (Page 49) N L PA BOARD (Page 55) MAIN BOARD (1/5) (Page 45) TH, MX, AUS TH, MX, AUS TH, MX, AUS EXCEPT TH, MX, AUS EXCEPT TH, MX, AUS EXCEPT TH, MX, AUS Ver 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 62 HCD-GNV99D/GNV111D HCD-GNV99D/GNV111D • Waveforms – DMB10 Board – – MAIN Board – – VIDEO Board – 1 IC301 9 BICK 2 IC301 0 MCLK 3 IC102 6 DVDRFIP 4 IC102 ea FED 5 IC102 es TEO 6 IC102 XTALO 228 3.3 Vp-p 4.0 Vp-p 41 nsec 0.33 �sec 2V/DIV, 0.1 �sec/DIV 2V/DIV, 20 nsec/DIV 0.6 Vp-p 0.2V/DIV, 50 nsec/DIV 40 nsec 0.1V/DIV, 0.5 msec/DIV 0.1 V/DIV, 0.5 msec/DIV 1.1 Vp-p 0.5V/DIV, 20 nsec/DIV 0.1 Vp-p 0.1 Vp-p 1.7 Vp-p 3.3 Vp-p 0.5 V/DIV, 10 �sec/DIV 1V/DIV, 50 nsec/DIV 11 �sec 200 nsec 20V/DIV, 5 �sec/DIV 60 Vp-p 32 �sec 1 IC401 qa XC OUT 2 IC401 qd X-OUT 3 CN503 8 E-HOT 1.0 Vp-p H 0.5 V/DIV, 20 �sec/DIV 1.3 Vp-p H 0.5 V/DIV, 20 �sec/DIV 1.6 Vp-p H 0.5 V/DIV, 20 �sec/DIV 1.6 Vp-p H 0.5 V/DIV, 20 �sec/DIV 0.8 Vp-p H 0.5 V/DIV, 20 �sec/DIV 2.0 Vp-p H 1 V/DIV, 20 �sec/DIV 2.6 Vp-p H 1 V/DIV, 20 �sec/DIV 1 V/DIV, 20 �sec/DIV 0.8 Vp-p H 0.5 V/DIV, 20 �sec/DIV 1.5 Vp-p H 1 V/DIV, 20 �sec/DIV 1 V/DIV, 20 �sec/DIV 2.0 Vp-p H 1 V/DIV, 20 �sec/DIV 1 V/DIV, 20 �sec/DIV 2.0 Vp-p H 1.5 Vp-p H 2.6 Vp-p H 1 IC801 2 CIN 2 IC801 4 CVBSIN 3 IC801 6 YIN qa IC801 wd CVBSOUT qs IC801 wh C OUT qd IC800 7 VOUT 4 IC801 0 CTIN 5 IC801 qs CBIN 6 IC801 qf CRIN 7 IC801 qh CROUT 8 IC801 qk CBOUT 9 IC801 w; CYOUT 0 IC801 wa YOUT w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 HCD-GN99D/GNV111D • IC Block Diagrams IC701, 712 BA6956AN (DRIVER BOARD) 1 2 3 4 5 6 7 8 9 CONTROL LOGIC TSD VREF OUT2 OUT1 RNF VM VCC FIN GND RIN IC800 NJM2244M-TE2 (VIDEO BOARD) 2 SW1 3 VIN2 4 SW2 1 VIN1 8 GND 7 VOUT 6 VCC 5 VIN3 BIAS 75 Ω DRIVER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 HCD-GNV99D/GNV111D IC904 NJM2760V-TE2 (PANEL BOARD) IC3601 PCM1803DBR (DMB10 BOARD) BPF1IN2 DET IN1 1 IN2 2 BPF2IN1 4 BPF2IN2 5 18 BPF2OUT 15 BPF1IN1 19 BPF2OUT 20 BPF DET BPF3IN1 6 BPF3IN2 7 BPF3OUT 14 BPF DET BPF4IN1 8 BPF4IN2 9 BPF4OUT 13 BPF DET GND 10 NC 12 BUF1OUT 3 VCC 11 RECOUT 17 BPF1OUT 16 BPF DET LIN 1 RIN 2 V_ERF_1 3 V_ERF_2 4 VCC 5 AGND 6 PDWN 7 BTPASS 8 FSYNC 9 LRCK 10 MODE1 20 MODE0 19 FMT1 18 FMT0 17 OSR 16 SCKI 15 VDD 14 DGCD 13 DOUT 12 BCK 11 Single-End /Differential Converter 5 th Order Delta-Sigma Modulator 5 th Order Delta-Sigma Modulator Reference Single-End /Differential Converter × 1/64 (× 1/128) Decimation Filter with DC Cut Filter Power Supply Clock and Timing Control Serial Interface Mode/ Format Control www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 HCD-GN99D/GNV111D • IC Pin Function Description IC102 CXD9804R (CD/DVD RF AMP, FOCUS/TRACKING ERR AMP, DVD SYSTEM PROCESSOR, DIGGITAL SERVO PROCESSOR) (DMB10 BOARD) Pin No. Pin Name I/O Description 1 AGND – Ground 2 DVDA I AC coupled RF signal input A 3 DVDB I AC coupled RF signal input B 4 DVDC I AC coupled RF signal input C 5 DVDD I AC coupled Rf signal input D 6 DVDRFIP I AC coupled DVD RF signal input 7 DVDRFIN I AC coupled DVD RF signal input (Not used) 8 NA I RF signal input A 9 NB I RF signal input B 10 MC I RF signal input C 11 MD I RF signal input D 12 SA I Sub-beam RF signal input A (Not used) 13 SB I Sub-beam RF signal input B (Not used) 14 SC I Sub-beam RF signal input C (Not used) 15 SD I Sub-beam RF signal input D (Not used) 16 CDFON I CD focusing error negative input (Not used) 17 CDFOP I CD focusing error positive input (Not used) 18 TNI I RF signal input E 19 TPI I RF signal input F 20 MDI1 I Laser power PD monitor input 21 MDI2 I Laser power PD monitor input 22 LDO2 O Laser drive signal output 23 LDO1 O Laser drive signal output 24 SVDD3 – Power Supply (+3.3V) 25 CSD O Not used (Open) 26 RFLVL O Positive main beam summing output 27 SGND O Ground 28 V2REFO O Reference voltage output 29 V2O O Center voltage output 30 VREFO O Reference voltage output 31 FEO O Focus error signal output 32 TEO O Tracking error signal output 33 TEZISLY O TE Slicing Level (Not used) 34 OPOUT – Not used (Open) 35 OPIN – Not used (Open) 36 OPIN – Not used (Open) 37 DMO O Spindle motor control PWM signal output 38 FMO O Sled motor PWM signal output 39 TROPENPWM O Tray PWM output/Tray open output (Not used) 40 IOPMON O General PWM signal output 41 TRO O Tracking servo signal output 42 FOO O Focus servo signal output 43 USBVSS – Ground 44 USBP – Not used (Open) 45 USBM – Not used (Open) 46 USBVDD3 – Power Supply (+3.3V) 47 SPFG I Spindle FG signal input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 HCD-GNV99D/GNV111D Pin No. Pin Name I/O Description 48 AN0 – Not used (Pull up) 49 AN1 – Not used (Pull up) 50 AN2 – Not used (Pull up) 51 MAMUTE O MAMUTE signal output (Not used) 52 DVDD18 – Power Supply (+1.8V) 53 to 58 IOA 2 to 7 O Address bus 2 to 7 output to FLASH PROM 59 HIGHA0 O Address bus 8 output to FLASH PROM 60, 61 IOA18, 19 O Address bus 18, 19 output to FLASH PROM 62 DVSS – Ground 63 APLLCAP I APLL External Capacitance connection 64 APLLVSS – Ground 65 VDD3 – Power Supply (+3.3V) 66 I OWR O Write signal output to FLASH PROM 67 A16 O Address bus 16 output to FLASH PROM 68 to 72 HIGHA 7 to 3 O Address bus 15 to 11 output to FLASH PROM 73 DVDD3 – Power Supply (+3.3V) 74, 75 HIGHA 2, 1 O Address bus 10, 9 output to FLASH PROM 76 IOA20 O Address bus 20 output to FLASH PROM 77 IOCS O Chip select signal output to FLASH PROM 78 IOA1 O Address bus 1 output to FLASH PROM 79 IOOE O Out enable signal output to FLASH PROM 80 DVDD3 – Power Supply (+3.3V) 81 to 84 AD 0 to 3 I/O Data bus 0 to 3 input/output to FLASH PROM 85 DVSS – Ground 86 to 88 AD 4 to 6 I/O Data bus 4 to 6 input/output to FLASH PROM 89 IOA21 O Address bus 21 output to FLASH PROM 90 ALE O Not used (Open) 91 AD7 I/O Data bus 7 input/output to FLASH RAM 92 A17 O Address bus 17 output to FLASH PROM 93 IOA0 I/O Address bus 0 input/output to FLASH RAM 94 DVSS – Ground 95 UWA – Not used (Open) 96 URB – Not used (Open) 97 DVDD18 – Power Supply (+1.8V) 98 IFSDO O Serial data output to M30620MCP 99 IFCK O Serial clock data output to M30620MCP 100 XIFCS O XIFCS signal output to M30620MCP 101 IFSDI I Serial data input from M30620MCP 102 SCL O SCL signal output to EEPROM 103 SDA O SDA signal output to EEPROM 104 TRG-SW O Not used 105 IF-BSY I IFBSY signal input from M30620MCP 106 RXD I RD232 RXD signal input 107 TXD O RD232 TXD signal output 108 DVDD3 – Power Supply (+3.3V) 109 IEC – Not used (Open) 110 PRST I System reset signal input from M30620MCP 111 IR – Not used (Open) 112 INT0 – Not used (Open) 113 DQMO O DQM0 signal output to SDRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 HCD-GN99D/GNV111D Pin No. Pin Name I/O Description 114 MREQ I DQM signal input 115 RD7 I/O Data bus 7 input/output to SDRAM 116 DVSS – Ground 117, 118 RD 6, 5 I/O Data bus 6, 5 input/output to SDRAM 119 DVSS – Ground 120, 121 RD 4, 3 I/O Data bus 4, 3 input/output to SDRAM 122 DVDD18 – Power Supply (+1.8V) 123 to 125 RD 2 to 0 I/O Data bus 2 to 0 input/output to SDRAM 126 RD15 I/O Data bus 15 innput/output SDRAM 127 DVDD3 – Power Supply (+3.3V) 128 RD 14 I/O Data bus 14 input/output to SDRAM 129 to 133 RD 13 to 9 I/O Data bus 13 to 9 input/output to SDRAM 134 DVSS – Terminal Ground 135 RD8 I/O Data bus 8 input/output to SDRAM 136 GPI0 – Not used (Open) 137 DQM1 O DQM1 signal output to SDRAM 138 REW O Write signal output to SDRAM 139 CAS O CAS signal output to SDRAM 140 RAS O RAS signal output to SDRAM 141 DVDD3 – Power Supply (+3.3V) 142 RCS O Chip select signal output to SDRAM 143 BAO O BAO signal output to SDRAM 144 DVSS – Ground 145 BA1 O BA1 signal output to SDRAM 146 RA10 O Address bus 10 output to SDRAM 147 RA0 O Address bus 0 output to SDRAM 148 DVSS – Ground 149 to 151 RA 1 to 3 O Address bus 1 to 3 output to SDRAM 152 DVDD18 – Power Supply (+1.8V) 153 RVREF – Not used (Open) 154 RCLKB – Not used (Open) 155 DVDD3 – Power Supply (+3.3V) 156 RCLK O Clock output to SDRAM 157 CLE O Clock enable output to SDRAM 158 to 160 RA 11, 9, 8 O Address bus 11, 9, 8 output to SDRAM 161 DVSS – Ground 162 RA7 O Address bus 7 output to SDRAM 163 DVSS – Ground 164 to 166 RA 6 to 4 O Address bus 6 to 4 output to SDRAM 167 DVDD3 – Power Supply (+3.3V) 168 DISC/X – Not used (Open) 169 RGB – Not used (Open) 170 XSMRST – Not used (Open) 171 WODE O Wide signal output to MM1623BFBE 172 NT – Not used 173 DVDD18 – Power Supply (+1.8V) 174 EUR – Not used (Open) 175 DVSS – Ground 176 LIMSW I Optical pick-up limit switch signal input 177 OCSW – Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68 HCD-GNV99D/GNV111D Pin No. Pin Name I/O Description 178 VCLK – Not used 179 CKSW – Not used 180 IO3 – Not used 181 TSDM O TSDM signal output to FAN8036L 182 DVDD3 – Power Supply (+3.3V) 183 MUTE O MUTE signal output to FAN8036L 184 MUTE123 O MUTE signal output to FAM8036L 185 REV – Not used 186 FWD – Not used 187 MSW O Optical pick-up volume control signal output 188 DSEL O Not used 189 DAVCC – Power Supply (+3.3V) 190 VREF – Not used 191 FS I Full scale adjustment (pull down) 192 YUV0 – Not used 193 DAVSS – Ground 194 YUV1 O Y signal output to MM1623BFBE 195 DAVDD – Power Supply (+3.3V) 196 YUV2 O CHROMA signal output to MM1623BFBE 197 DAVSS – Ground 198 YUV3 O VIDEO signal output to MM1623BFBE 199 DAVDD – Power Supply (+3.3V) 200 YUV4 O G signal output to MM1623BFBE 201 DAVSS – Ground 202 YUV5 O B signal output to MM1623BFBE 203 YUV6 O R signal output to MM1623BFBE 204 DVDD3 – Power Supply (+3.3V) 205 MIC/VSYNC I Mic status signal input to M30620MCP 206 VOICE/YUV7 I Not used 207 KRMOD/HSYNC O KRMOD signal output to M30620MCP 208 SMSCK – Not used 209 SPDATA/SMSDI I Audio data of SPDIF input 210 SMSDO – Not used 211 XSMCS – Not used 212 DVDD3 – Power Supply (+3.3V) 213 ALRCK I Audio left/right channel clock input 214 ABCK O Audio bit clock output 215 ACLK I Audio DAC master clock input 216 DVSS – Ground 217 ASDATA0 O Auido serial data output to AK4358VQ 218 ASDATA1 O Auido serial data output to AK4358VQ 219 ASDATA2 O Auido serial data output to AK4358VQ 220 XRST I Reset signal input 221 DVDD18 – Power Supply (+1.8V) 222 ASDATA4 O Auido serial data output to AK4358VQ 223 DVSS – Ground 224 DWIDE – Not used (Open) 225 SDPIF I Serial data input from PCM1803DBR 226 RFGND18 – Ground 227 RFVDD18 – Power Supply (+1.8V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 HCD-GN99D/GNV111D Pin No. Pin Name I/O Description 228 ZTALO O Oscillator output terminal 229 ZTALI I Oscillator input terminal 230 JITFO O RF jitter meter output 231 JITFN I RF jigger meter input 232 PLLVSS – Ground 233 IDAC – Not used 234 PLLVDD3 – Power Supply (+3.3V) 235 LPFON O Negative output of loop filter amplifier 236 LPFIP I Positive input of loop filter amplifier 237 LPFIN I Negative input of loop filter amplifier 238 LPFOP O Positive output of loop filter amplifier 239 VDD3 – Power Supply (+3.3V) 240 VCM I SACD-Common mode Reference 241 VSS – Ground 242 VREEP I SACD-TOP Reference 243 VREEN I SACD-Bottom Reference 244 RFVDD3 – Power Supply (+3.3V) 245 RFRPDC I RFRP signal input 246 RFRPAC I RFRP signal input 247 HRFZC I High frequency RF ripple zero crossing 248 CRTPLP O Defect level filter capacitor connecting 249 RFGND – Ground 250 CEQP O EQ offset loop capacitance 251 CEQN I EQ offset loop capacitance 252 OSP O RF offset cancellation capacitor connecting 253 OSN I RF offset cancellation capacitor connecting 254 RFGC O RF offset loop capacitor connecting 255 IREF I Current reference input 256 AVDD3 – Power Supply (+3.3V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 70 HCD-GNV99D/GNV111D IC401 M30620MCP-A03FPU0 (SYSTEM CONTROL) (MAIN BOARD) Pin No. Pin Name I/O Description 1 TUNED I Tuner tuning detection signal input 2 MC-DOUT(ST) O Tuner tuning PLL serial data output 3 ST-CLK O Tuner tuning PLL serial data transfer clock signal output 4 SIRCS I Remote control signal input 5 MC-DIN(ST) I Tuner tuning PLL serial data input 6 ST-CE O Tuner tuning PLL chip enable signal output 7 STBY-RELAY O Main power on/off control signal output 8 BYTE – Not used (connected ground) 9 CNVss – Ground 10 XC-IN I Sub system clock input terminal (32.768kHz) 11 XC-OUT O Sub system clock output terminal (32.768kHz) 12 RESET I System reset signal input 13 X-OUT O Main system clock output terminal (16MHz) 14 VSS – Ground 15 X-IN I Main system clock input terminal (16MHz) 16 VCC – Power supply (+3.3V) 17 NMI I Non-maskable interrupt input (Not used) 18 KRMOD I KRMOD signal input from CXD9804R 19 VOICE I Not used (Open) 20 AC-CUT I AC off detection signal input from ICBD4828G 21 MIC SW O Mic status output to CXD9804R 22 MREQ I Muting request signal input from CXD9804R 23 IFBSY O IFBSY signal to CXD9804R 24 XIFCS I XIFCS signal from CXD9804R 25 SYSRST O System reset signal output to CXD9804R 26 OPEN SW I Eject detection signal input 27 TBL SENS I Disc tray position detection signal input 28 E3 I Disc tray status detection signal input 29 IIC-CLK I/O IIC serial clock signal input/output 30 IIC-DATA I/O IIC serial data signal input/output 31 SIO O Serial data output to CXD9804R 32 SOO I Serial data input from CXD9804R 33 SCO I Serial clock input from DVD Motherboard 34 E2 I Disc tray status detection signal input 35 E1 I Disc tray status detection signal input 36 TB-F O Disc tray turning motor control signal output 37 TM-R O Disc tray turning motor control signal output 38 LM-F O Disc tray loading motor control signal output 39 LM-R O Disc tray loading motor control signal output 40 GC-RESET O Reset signal output to MB90M407PF 41 STBY LED O LED drive signal output 42 FAN CTRL O Fan driving signal output 43 NO USE I Not used (connected ground) 44 NO USE I Not used (connected ground) 45 NO USE I Not used (connected ground) 46 A PLAY I Deck A playback detection signal input 47 A-HALF I Deck A cassette detection signal input 48 A-TRIG O Deck A side trigger plunger drive signal output 49 B-TRIG O Deck B side trigger plunger drive signal output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 71 HCD-GN99D/GNV111D Pin No. Pin Name I/O Description 50 CAPM O Capstan motor drive signal output 51 B-PLAY I Deck B playback detection signal input 52 REC BIAS O Recording bias on/off control signal output 53 TC RELAY O Recording/playback selection signal output 54 REC MUTE O Recording muting on/off control signal output 55 PB A/B O Deck A/B playback selection signal output 56 ALC O Automatic limiter control signal output 57 AMS IN I AMS signal input 58 FAN KICK O Fan kick off pulse output 59 CTR SPK SW O Center channel input source switching signal output 60 STK MUTE O Power amplifier and sub woofer amplifier on/off control signal output 61 SURR RELAY O surround speakers relay drive signal output 62 VCC – Power supply (+3.3V) 63 NO USE O Not used (connected ground) 64 VSS – Ground 65 CTR RELAY O center speaker relay drive signal output 66 FR SPK RELAY O Front speakers relay drive signal output 67 PROTECTOR I Speaker protect detection signal input 68 OVER VOLTAGE DET I Power amplifier over voltage protection detection input 69 UNDER VOLTAGE DET I Power amplifier under voltage protection detection input 70 THERMAL VACS I Thermal VACS detection input 71 TC-MUTE O Tape playback muting signal output 72 HP MUTE O Headphone muting signal output 73 DISPLAY-KEY I DISPLAY key press detection signal (Interrupt input) 74 POWER-KEY I POWER key press detection signal (Interrupt input) 75 SW-MUTE O Subwoofer muting signal output 76 LINE MUTE O Line muting signal output 77 DVD A MUTE O DVD analog muting signal output 78 ANALOG IN MUTE O Analog input muting signal output 79 AUDIO1 IC DATA O Serial data output to M61529FP 80 AUDIO1 IC CLK O Serial data transfer clock signal output to M61529FP 81 VOL IC DATA O Serial data output to M61530FP 82 VOL IC CLK O Serial data transfer clock signal output to M61530FP 83 LINE OUTMUTE O Line Out muting signal output 84 HP DETECT I Headphone connection detection signal input 85 MIC DETECT I Microphone connection detection signal input 86 MTK POWER O Power supply control signal to DVD Motherboard 87 VIDEO OUT SW O Composite video output switching signal output 88 V MUTE O Video muting signal output 89 A SHUT I Shut off detection signal input from deck A reel pulse (A/D input) 90 B SHUT I Shut off detection signal input from deck B reel pulse (A/D input) 91 B HALF I Deck B cassette detection, forward side recording tab detection and reverse side recording tab detection signal input (A/D input) 92 MODEL-IN I Model setting input 93 DEST-IN I Destination setting input 94 MIC LEVEL IN I Not used (Open) 95 3.3V MNT I Power supply +3.3V monitor input from DVD Motherboard 96 AVSS – Ground 97 BPM DET I Speana Low frequency output monitor input (A/D input) 98 VREF I A/D Converter reference voltage input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 72 HCD-GNV99D/GNV111D Pin No. Pin Name I/O Description 99 AVCC – Power supply (+3.3V) 100 SOFT TEST I Not used (Open) IC902 MB90M407PF-G-145E1 (DISPLAY CONTROL ) (PANEL Board) Pin No. Pin Name I/O Description 1 to 8 G8 to G1 O FLD grid output 9, 10 P1, P2 O FLD segment output 11 VSS-IO – Ground 12 to 22 P3 to P13 O FLD segment output 23 VDD-FIP – Power supply (+3.3V) 24 to 41 P14 to P31 O FLD segment output 42 VSS-IO – Ground 43 to 47 P32 to P36 O FLD segment output 48 VKK – Power supply (-35V) 49 MD0 I Setting terminal for system mode (pull up with resistor) 50 MD1/VDD-VFT I Setting terminal for system mode (pull up with resistor) 51 MD2 I Setting terminal for system mode (pull down with resistor) 52 LED CD/DVD O LED drive signal output 53 LED TUNER O LED drive signal output 54 LED TAPE O LED drive signal output 55 LED TV/SAT O LED drive signal output 56 LED STOP, PAUSE O LED drive signal output 57 LED VOLUME 2, 3 O LED drive signal output 58 LED VOLUME 4, 5 O LED drive signal output 59 LED VOLUME 6 O LED drive signal output 60 IIC-DATA I/O IIC serial data input/output 61 IIC-CLK I/O IIC clock signal input/output 62 AVCC – Power supply (+3.3V) 63 AVSS – Ground 64 to 66 KEY0 to KEY2 I Key input (A/D) 67 ALL BAND I Spectrum analyzer all band signal input 68 to 71 BPF3 to BPF0 I Spectrum analyzer BPF signal input 72 LED VIDEO/MD O LED group select signal output 73 JOG X-ROUND I X-ROUND encoder pulse input 74 VOLUME I VOLUME encoder pulse input 75 OPERATION DIAL I OPERATION DIAL encoder pulse input 76 AMS I AMS dial pulse input 77 RESET I Reset input 78 LED AMS+/-, FF/FW O LED drive signal output 79 LED PLAY O LED drive signal output 80 SELECTOR O LED drive select signal output 81 VSS-CPU – Ground 82 XOUT O Crystal oscillator output (4MHz) 83 XIN I Crystal oscillator input (4MHz) 84 VCC-CPU – Power supply (+3.3V) 85 to 100 G24 to G9 O FLD grid output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 73 HCD-GNV99D/GNV111D Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks SECTION 8 EXPLODED VIEWS 8-1. CASE, REAR PANEL SECTION NOTE: • The illustration depicts HCD-GNV111D. • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Hardware (# mark) list and accessories are given in the last of this parts list. • Abbreviation AUS: Australian model E2 : 120V AC Area in E model E3 : 240V AC Area in E model E12 : 220V-240V AC Area in E model E13 : 220V-230V AC Area in E model E15 : Iran model EA : Saudi Arabia model The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. 1 X-2050-304-1 LOADING PANEL ASSY (GNV99D) 1 X-2050-305-1 LOADING PANEL ASSY (E2, MX) 1 X-2055-737-1 LOADING PANEL ASSY (GNV111D: EXCEPT E2, MX) 2 2-342-137-11 CASE (GNV99D) 2 2-342-137-31 CASE (GNV111D) 3 3-363-099-02 SCREW (CASE 3 TP2) 4 3-363-099-32 SCREW (CASE 3 TP2) 5 1-693-671-11 TUNER (TM-10E) 6 A-1089-510-A PRIMARY BOARD, COMPLETE (EXCEPT TH, MX, AUS) 6 A-1089-525-A PRIMARY BOARD, COMPLETE (MX, AUS) 6 A-1114-764-A PRIMARY BOARD, COMPLETE (TH) 07 1-468-737-21 POWER, SWITCHING 8 1-828-622-11 WIRE (FLAT TYPE) (19 CORE) 9 1-828-332-11 WIRE (FLAT TYPE) (13 CORE) (250mm) 10 1-828-326-11 WIRE (FLAT TYPE) (13 CORE) (65mm) (GNV99D: EXCEPT E12, SP/GNV111D) 10 1-828-328-11 WIRE (FLAT TYPE) (13 CORE) (100mm) (GNV99D: E12, SP) 11 A-1099-272-A DMB10 BOARD, COMPLETE (E3, E12, E13, E15) 11 A-1099-344-A DMB10 BOARD, COMPLETE (E2, MX) 11 A-1115-290-A DMB10 BOARD, COMPLETE (TH) 11 A-1115-347-A DMB10 BOARD, COMPLETE (MY, SP, PH) 11 A-1124-409-A DMB10 BOARD, COMPLETE (EA, AUS) 12 A-1101-214-A VIDEO BOARD, COMPLETE (EXCEPT EA, TH, AUS) 12 A-1119-149-A VIDEO BOARD, COMPLETE (TH) 12 A-1124-694-A VIDEO BOARD, COMPLETE (EA, AUS) 13 1-828-252-11 WIRE (FLAT TYPE) (24 CORE) 14 3-077-331-21 +BV3 (3-CR) 15 1-500-657-11 CORE, FERRITE M891 1-763-372-11 FAN, DC #1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3 #2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 a a b b 1 2 4 3 4 3 M891 5 6 7 8 9 10 11 15 15 12 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 14 #1 #1 #1 not supplied not supplied not supplied not supplied not supplied CD mechanism deck section #1 #2 #1 #1 13 #1 #1 MY : Malaysia model MX : Mexican model PH : Philippines model SP : Singapore model TH : Thai model Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 74 HCD-GNV99D/GNV111D 8-2. FRONT PANEL SECTION not supplied not supplied not supplied not supplied not supplied not supplied not supplied 51 52 53 54 55 56 57 58 59 57 60 61 57 57 57 62 57 57 FL901 57 57 57 57 57 64 65 57 66 67 68 57 68 69 57 70 57 57 57 51 X-2050-302-1 FRONT PANEL ASSY (GNV99D) 51 X-2050-303-1 FRONT PANEL ASSY (GNV111D) 52 2-342-128-01 ESCUTHEON (LID) 53 2-342-108-01 LID (TC) 54 2-342-134-01 SPRING (LID) 55 2-342-111-01 HOLDER (TC-R) 56 2-342-110-01 HOLDER (TC-L) 57 3-087-053-01 +BVTP2.6 (3CR) 58 4-224-578-21 KNOB (MIC) 59 2-342-104-01 KNOB (AMS) 60 4-252-575-01 KNOB VOL 61 X-2025-430-1 KNOB JOG ASSY Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 62 2-320-994-01 KNOB (JOG-X) (GNV111D) 64 1-828-992-11 WIRE (FLAT TYPE) (17 CORE) 65 A-1103-601-A PANEL BOARD, COMPLETE (EXCEPT TH) 65 A-1114-730-A PANEL BOARD, COMPLETE (TH) 66 2-342-136-01 SPRING (R) 67 2-342-135-01 SPRING (L) 68 4-224-104-11 DAMPER 69 A-1099-294-A MIC BOARD, COMPLETE (EXCEPT EA, TH, AUS) 69 A-1114-733-A MIC BOARD, COMPLETE (TH) 69 A-1124-017-A MIC BOARD, COMPLETE (EA, AUS) 70 1-797-166-11 DECK, MECHANICAL (CMAT2E2) FL901 1-519-794-21 VACUUM FLUORESCENT DISPLAYS Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 75 HCD-GNV99D/GNV111D 8-3. CHASSIS SECTION not supplied not supplied not supplied not supplied #1 #1 117 117 117 117 #1 #1 #1 #1 #1 F1241 T1200 F1251 F1261 F1271 F1281 101 102 101 104 105 105 106 107 108 109 110 #1 F1291 #1 not supplied Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 101 4-900-386-01 SCREW 102 A-1089-532-A PA BOARD, COMPLETE (GNV99D: EXCEPT TH) 102 A-1089-591-A PA BOARD, COMPLETE (E2, MX) 102 A-1113-624-A PA BOARD, COMPLETE (GNV111D: TH) 102 A-1114-756-A PA BOARD, COMPLETE (GNV111D: EXCEPT TH) 102 A-1114-765-A PA BOARD, COMPLETE (GNV99D: TH) 104 A-1099-771-A DVD SURR BOARD, COMPLETE (E2, MX) 104 A-1099-850-A DVD SURR BOARD, COMPLETE (GNV99D: EXCEPT TH) 104 A-1114-979-A DVD SURR BOARD, COMPLETE (GNV111D: EXCEPT E2, MX, TH) 104 A-1124-096-A DVD SURR BOARD, COMPLETE (GNV111D: TH) 104 A-1124-108-A DVD SURR BOARD, COMPLETE (GNV99D: TH) 105 3-905-609-31 SCREW (TRANSISTOR) 106 1-828-956-11 WIRE (FLAT TYPE) (9 CORE) 0107 1-777-071-53 CORD, POWER (E12, E13, EA, MY, SP, PH) 0107 1-824-818-11 CORD, POWER (WITH CONNECTOR) (TH) 0107 1-827-295-22 CORD, POWER (AUS) 0107 1-829-627-31 POWER-SUPPLY CORD (E3, E15, E2, MX) * 108 3-703-244-00 BUSHING (2104), CORD (EXCEPT E3, E15, E2, MX) 108 3-703-571-11 BUSHING (S) (4516), CORD (E3, E15, E2, MX) 109 1-828-972-11 WIRE (FLAT TYPE) (13 CORE) (130mm) 110 A-1099-580-A MAIN BOARD, COMPLETE (E2) 110 A-1099-615-A MAIN BOARD, COMPLETE (GNV99D: E3) 110 A-1115-267-A MAIN BOARD, COMPLETE (GNV99D: EA) 110 A-1115-283-A MAIN BOARD, COMPLETE (GNV99D: E15) 110 A-1115-286-A MAIN BOARD, COMPLETE (GNV99D: SP, PH) 110 A-1115-291-A MAIN BOARD, COMPLETE (GNV99D: TH) 110 A-1115-312-A MAIN BOARD, COMPLETE (GNV111D: MY, SP) 110 A-1115-322-A MAIN BOARD, COMPLETE (GNV111D: E15) 110 A-1115-326-A MAIN BOARD, COMPLETE (GNV111D: EA) 110 A-1115-330-A MAIN BOARD, COMPLETE (GNV111D: PH) 110 A-1115-333-A MAIN BOARD, COMPLETE (AUS) 110 A-1115-336-A MAIN BOARD, COMPLETE (MX) 110 A-1115-339-A MAIN BOARD, COMPLETE (GNV111D: TH) 110 A-1117-691-A MAIN BOARD, COMPLETE (GNV111D: E3) 110 A-1119-698-A MAIN BOARD, COMPLETE (GNV111D: E12) 110 A-1119-735-A MAIN BOARD, COMPLETE (E13) 110 A-1119-775-A MAIN BOARD, COMPLETE (GNV99D: E12) 117 3-077-331-21 +BV3 (3-CR) 0F1241 1-576-655-12 FUSE, GLASS TUBE (DIA. 5) (T8AL/250V) 0F1251 1-576-655-12 FUSE, GLASS TUBE (DIA. 5) (T8AL/250V) 0F1261 1-576-655-12 FUSE, GLASS TUBE (DIA. 5) (T8AL/250V) 0F1271 1-576-655-12 FUSE, GLASS TUBE (DIA. 5) (T8AL/250V) 0F1281 1-533-470-12 FUSE, GLASS TUBE (DIA. 5) (T3.15AL/250V) 0F1291 1-533-470-12 FUSE, GLASS TUBE (DIA. 5) (T3.15AL/250V) 0T1200 1-443-585-11 POWER TRANSFORMER (GNV111D: EXCEPT EA, MX) 0T1200 1-443-586-11 POWER TRANSFORMER (GNV99D: EXCEPT EA) 0T1200 1-443-753-11 POWER TRANSFORMER (MX) 0T1200 1-443-754-11 POWER TRANSFORMER (GNV111D: EA) 0T1200 1-443-755-11 POWER TRANSFORMER (GNV99D: EA) #1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3 Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 76 HCD-GNV99D/GNV111D 8-4. DVD MECHANISM SECTION-1 (CDM74H-DVBU101) 152 155 155 156 156 157 157 158 158 159 151 156 162 163 164 165 160 161 164 DVD mechanism deck section-2 154 151 153 166 M741 151 4-218-253-42 SCREW (M2.6), +BTTP 152 1-776-182-11 WIRE (FLAT TYPE) (5 CORE) 153 1-687-134-12 MOTOR (TB) BOARD 154 4-243-815-01 TABLE (LOADING) 155 4-245-571-02 GEAR (STOPPER) 156 4-218-252-61 SCREW (+PTPWH M2.6), FLOATING 157 4-245-570-01 GEAR (JOINT) 158 4-245-572-01 BUSHING (GEAR) 159 1-687-132-12 SENSOR BOARD Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 160 4-243-820-01 GEAR (TABLE) 161 4-243-819-01 GEAR (GENEVA) 162 4-243-816-21 TRAY 163 4-243-823-01 BELT (TABLE) 164 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING 165 4-243-821-01 PULLEY (TABLE) 166 3-231-598-01 SHEET (BA) M741 A-1108-965-A MOTOR ASSY, TABLE Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 77 HCD-GNV99D/GNV111D 8-5. DVD MECHANISM SECTION-2 (CDM74H-DVBU101) 201 202 202 202 203 204 205 206 207 208 210 211 212 213 214 215 216 217 219 218 205 205 205 M751 RE701 222 222 222 222 225 225 225 225 205 229 not supplied not supplied not supplied Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 201 1-687-135-12 DRIVER BOARD 202 4-218-253-32 SCREW (M2.6), +BTTP 203 1-687-669-12 SW BOARD 204 4-244-034-01 BELT (LOADING) 205 4-218-252-52 SCREW (+PTPWH M2.6), FLOATING 206 4-225-844-01 GEAR (LOADING A) 207 4-224-613-01 GEAR (SHAFT) 208 1-687-133-12 MOTOR (LD) BOARD 210 4-244-108-01 GEAR, SWING 211 4-224-609-01 GEAR (LOADING C) 212 4-224-608-01 COLLAR, SWING 213 3-016-533-11 WASHER (FR), STOPPER 214 4-224-611-01 GEAR (LOADING B) 215 4-224-606-01 GEAR (RV) 216 4-243-818-01 GEAR (U/D) 217 2-541-918-01 LIFTER (H), LEVER 218 2-345-982-01 PULLEY A (310), CHUCKING 219 2-345-983-01 PULLEY B (310), CHUCKING 222 2-589-793-01 INSULATOR (EXCEPT TH) 222 3-088-372-01 INSULATOR (TH) 225 3-087-599-01 INSULATOR SCREW 0229 8-820-291-02 OPTICAL PICK-UP KHM-310CAB/C2RP M751 A-4737-553-A MOTOR ASSY, LOADING RE701 1-477-680-12 ENCODER, ROTARY Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 78 HCD-GNV99D/GNV111D SECTION 9 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • CAPACITORS: uF: µF • RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable • COILS uH: µH • SEMICONDUCTORS In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD... • Abbreviation AUS: Australian model E2 : 120V AC Area in E model E3 : 240V AC Area in E model E12 : 220V-240V AC Area in E model E13 : 220V-230V AC Area in E model E15 : Iran model EA : Saudi Arabia model The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. CD-SW BOARD ************ < CAPACITOR > C1146 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V (GNV111D) < RESISTOR > R1149 1-216-837-11 METAL CHIP 22K 5% 1/10W (GNV111D) R1150 1-216-835-11 METAL CHIP 15K 5% 1/10W (GNV111D) R1151 1-216-833-11 METAL CHIP 10K 5% 1/10W (GNV111D) R1152 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W (GNV111D) R1153 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (GNV111D) R1154 1-216-827-11 METAL CHIP 3.3K 5% 1/10W (GNV111D) R1155 1-216-825-11 METAL CHIP 2.2K 5% 1/10W (GNV111D) R1169 1-216-817-11 METAL CHIP 470 5% 1/10W R1170 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W (GNV111D) R1171 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1172 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1173 1-216-821-11 METAL CHIP 1K 5% 1/10W R1174 1-216-819-11 METAL CHIP 680 5% 1/10W R1193 1-216-821-11 METAL CHIP 1K 5% 1/10W (GNV111D) < SWITCH > S1148 1-478-133-11 ENCODER, ROTARY (X-ROUND JOG)(GNV111D) S1149 1-762-875-21 SWITCH, KEYBOARD (TWISTER) (GNV111D) S1150 1-762-875-21 SWITCH, KEYBOARD (RANDOM) (GNV111D) S1151 1-762-875-21 SWITCH, KEYBOARD (AUTO/MANUAL) (GNV111D) S1152 1-762-875-21 SWITCH, KEYBOARD (BALANCE) (GNV111D) S1153 1-762-875-21 SWITCH, KEYBOARD (FADER) (GNV111D) S1154 1-762-875-21 SWITCH, KEYBOARD (WAVE) (GNV111D) S1155 1-762-875-21 SWITCH, KEYBOARD (SPEAKERS/X-ROUND OFF) (GNV111D) S1156 1-762-875-21 SWITCH, KEYBOARD (DISC 1) S1157 1-762-875-21 SWITCH, KEYBOARD (DISC 2) S1158 1-762-875-21 SWITCH, KEYBOARD (DISC 3) S1159 1-762-875-21 SWITCH, KEYBOARD (EX-CHANGE/DISC SKIP) S1160 1-762-875-21 SWITCH, KEYBOARD (Z OPEN/CLOSE) ************************************************************* A-1099-272-A DMB10 BOARD, COMPLETE (E3, E12, E13, E15) A-1099-344-A DMB10 BOARD, COMPLETE (E2, MX) A-1115-290-A DMB10 BOARD, COMPLETE (TH) A-1115-347-A DMB10 BOARD, COMPLETE (MY, SP, PH) A-1124-409-A DMB10 BOARD, COMPLETE (EA, AUS) ********************** < CAPACITOR > C101 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C102 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C105 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C106 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C108 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C109 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C112 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C113 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C114 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C115 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C116 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C117 1-124-779-00 ELECT CHIP 10uF 20% 16V C118 1-124-779-00 ELECT CHIP 10uF 20% 16V C119 1-124-779-00 ELECT CHIP 10uF 20% 16V C120 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C121 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C122 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C123 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C124 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C125 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C126 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C127 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C128 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C129 1-124-779-00 ELECT CHIP 10uF 20% 16V C130 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C131 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V CD-SW DMB10 MY : Malaysia model MX : Mexican model PH : Philippines model SP : Singapore model TH : Thai model Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 79 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GNV99D/GNV111D C132 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C133 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C135 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C136 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C137 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C138 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C139 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C140 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C141 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C142 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C143 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C144 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C145 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C146 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C147 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C148 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C149 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C150 1-124-779-00 ELECT CHIP 10uF 20% 16V C151 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V C152 1-162-916-11 CERAMIC CHIP 12PF 5% 50V C153 1-162-916-11 CERAMIC CHIP 12PF 5% 50V C154 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C155 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C156 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C158 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C159 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C160 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C161 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C162 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C163 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C164 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C167 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C170 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C171 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C172 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C173 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C174 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C175 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C176 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C177 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C178 1-126-208-21 ELECT CHIP 47uF 20% 4V C179 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C180 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C181 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C182 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C184 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C187 1-126-208-21 ELECT CHIP 47uF 20% 4V C188 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C189 1-128-934-91 CERAMIC CHIP 0.33uF 20% 10V C190 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C191 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C192 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C193 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C195 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C196 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C203 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C205 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C206 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C208 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C209 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C210 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C211 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C212 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C213 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C214 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C215 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C217 1-126-204-11 ELECT CHIP 47uF 20% 16V C218 1-124-779-00 ELECT CHIP 10uF 20% 16V C219 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C220 1-124-779-00 ELECT CHIP 10uF 20% 16V C221 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C222 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C224 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C233 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C301 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C302 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C305 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C306 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C307 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C308 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C402 1-126-204-11 ELECT CHIP 47uF 20% 16V C403 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C3601 1-117-370-11 CERAMIC CHIP 10uF 10V C3602 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3603 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3605 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C3606 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3607 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3608 1-124-779-00 ELECT CHIP 10uF 20% 16V C3609 1-124-779-00 ELECT CHIP 10uF 20% 16V C3610 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3611 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C3621 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C3701 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3702 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3703 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3704 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3705 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3706 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3707 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3708 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3711 1-162-977-11 CERAMIC CHIP 0.0018uF 10% 50V C3712 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C3713 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3714 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3721 1-162-977-11 CERAMIC CHIP 0.0018uF 10% 50V C3722 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C3723 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3724 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3731 1-162-977-11 CERAMIC CHIP 0.0018uF 10% 50V C3732 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C3733 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3734 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3741 1-162-977-11 CERAMIC CHIP 0.0018uF 10% 50V C3742 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V DMB10 Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 80 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GNV99D/GNV111D C3743 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3744 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3751 1-162-977-11 CERAMIC CHIP 0.0018uF 10% 50V C3752 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C3753 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3754 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3761 1-162-977-11 CERAMIC CHIP 0.0018uF 10% 50V C3762 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C3763 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3764 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3771 1-162-977-11 CERAMIC CHIP 0.0018uF 10% 50V C3772 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C3773 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3774 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3781 1-162-977-11 CERAMIC CHIP 0.0018uF 10% 50V C3782 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C3783 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3784 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3801 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C3802 1-117-370-11 CERAMIC CHIP 10uF 10V C3803 1-124-779-00 ELECT CHIP 10uF 20% 16V(TH) C3803 1-126-209-11 ELECT CHIP 100uF 20% 4V (EXCEPT TH) C3804 1-124-779-00 ELECT CHIP 10uF 20% 16V(TH) C3804 1-126-205-11 ELECT CHIP 47uF 20% 6.3V (EXCEPT TH) C3805 1-126-208-21 ELECT CHIP 47uF 20% 4V (EXCEPT TH) < CONNECTOR > CN101 1-815-763-32 CONNECTOR, FFC/FPC 24P CN103 1-784-365-21 CONNECTOR, FFC/FPC 5P * CN105 1-770-470-21 PIN, CONNECTOR (PC BOARD) 6P CN106 1-793-989-21 FFC/CONNECTOR, FPC (LIF (NON-ZIF)) 13P * CN201 1-770-470-21 PIN, CONNECTOR (PC BOARD) 6P CN301 1-793-989-21 FFC/CONNECTOR, FPC (LIF (NON-ZIF)) 13P CN302 1-778-691-11 CONNECTOR, FFC/FPC 19P CN401 1-779-993-11 PIN, CONNECTOR (PWB) 5P < DIODE > D1001 8-719-058-24 DIODE RB501V-40TE-17 D3501 8-719-988-61 DIODE 1SS355TE-17 D3502 8-719-988-61 DIODE 1SS355TE-17 D3601 8-719-988-61 DIODE 1SS355TE-17 D3602 8-719-988-61 DIODE 1SS355TE-17 < FERRITE BEAD > FB111 1-414-226-21 INDUCTOR, FERRITE BEAD FB112 1-414-226-21 INDUCTOR, FERRITE BEAD FB113 1-414-226-21 INDUCTOR, FERRITE BEAD FB114 1-414-226-21 INDUCTOR, FERRITE BEAD FB115 1-414-226-21 INDUCTOR, FERRITE BEAD FB401 1-469-324-21 FERRITE, EMI (SMD) (2012) FB402 1-469-324-21 FERRITE, EMI (SMD) (2012) FB403 1-469-324-21 FERRITE, EMI (SMD) (2012) FB404 1-469-324-21 FERRITE, EMI (SMD) (2012) FB405 1-469-324-21 FERRITE, EMI (SMD) (2012) FB406 1-469-324-21 FERRITE, EMI (SMD) (2012) < FILTER > FL101 1-234-177-21 FILTER, CHIP EMI FL104 1-234-177-21 FILTER, CHIP EMI FL105 1-234-177-21 FILTER, CHIP EMI FL106 1-234-177-21 FILTER, CHIP EMI FL107 1-234-177-21 FILTER, CHIP EMI FL108 1-234-177-21 FILTER, CHIP EMI FL401 1-234-177-21 FILTER, CHIP EMI FL402 1-233-893-21 FILTER, CHIP EMI FL403 1-234-177-21 FILTER, CHIP EMI < IC > IC101 6-805-261-01 IC MBM29DL32TF70-CBA2-0501UC (E2, MX) IC101 6-805-262-01 IC MBM29DL32TF70-CBA2-0501CE (E3, E12, E13, E15, EA, AUS) IC101 6-805-263-01 IC MBM29DL32TF70-CBA2-0501GA (MY, SP, TH, PH) IC102 6-706-727-01 IC CXD9804R IC103 (Not Supplied) IC BR24L64F-WE2 IC104 6-705-929-01 IC K4S641632H-UC75T IC105 6-702-302-01 IC TK11133CSCL-G IC106 6-708-153-01 IC PQ018EN01ZPH IC107 6-702-302-01 IC TK11133CSCL-G IC201 6-704-524-01 IC FAN8036L IC301 6-704-222-01 IC AK4358VQ-L IC3601 6-707-608-01 IC PCM1803DBR IC3711 8-759-359-49 IC NJM3414AV (TE2) IC3731 8-759-359-49 IC NJM3414AV (TE2) IC3751 8-759-359-49 IC NJM3414AV (TE2) IC3771 8-759-359-49 IC NJM3414AV (TE2) < COIL > L3601 1-469-555-21 INDUCTOR 10uH L3602 1-469-555-21 INDUCTOR 10uH < TRANSISTOR > Q101 6-550-008-01 TRANSISTOR UM6K1N-TN Q102 6-550-653-01 TRANSISTOR QST8TR Q103 8-729-027-52 TRANSISTOR DTC124EKA-T146 Q3801 8-729-230-49 TRANSISTOR 2SC2712-YG < RESISTOR > R101 1-216-809-11 METAL CHIP 100 5% 1/10W R104 1-216-864-11 SHORT CHIP 0 R105 1-216-833-11 METAL CHIP 10K 5% 1/10W R106 1-216-833-11 METAL CHIP 10K 5% 1/10W R107 1-216-833-11 METAL CHIP 10K 5% 1/10W R108 1-216-857-11 METAL CHIP 1M 5% 1/10W R109 1-216-864-11 SHORT CHIP 0 R110 1-216-841-11 METAL CHIP 47K 5% 1/10W R111 1-216-809-11 METAL CHIP 100 5% 1/10W R112 1-211-977-11 METAL CHIP 22 0.5% 1/10W R113 1-211-977-11 METAL CHIP 22 0.5% 1/10W R114 1-216-845-11 METAL CHIP 100K 5% 1/10W R115 1-211-977-11 METAL CHIP 22 0.5% 1/10W R116 1-216-821-11 METAL CHIP 1K 5% 1/10W R117 1-216-841-11 METAL CHIP 47K 5% 1/10W DMB10 New part of EEPROM (IC103) on the DMB10 board can not be used. Therefore, if the mounted DMB10 board (A-1099-272-A or A-1099-344-A or A-1115-347-A) is replaced, exchange new EEPROM with that used before the replacement. Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 81 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GNV99D/GNV111D Ref. No. Part No. Description Remarks R118 1-216-801-11 METAL CHIP 22 5% 1/10W R120 1-216-801-11 METAL CHIP 22 5% 1/10W R121 1-216-801-11 METAL CHIP 22 5% 1/10W R123 1-216-864-11 SHORT CHIP 0 R124 1-216-841-11 METAL CHIP 47K 5% 1/10W R126 1-216-864-11 SHORT CHIP 0 R133 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R134 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R135 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R136 1-216-835-11 METAL CHIP 15K 5% 1/10W R138 1-216-845-11 METAL CHIP 100K 5% 1/10W R141 1-218-916-11 METAL CHIP 750K 0.5% 1/10W R142 1-216-845-11 METAL CHIP 100K 5% 1/10W R143 1-216-809-11 METAL CHIP 100 5% 1/10W R144 1-216-864-11 SHORT CHIP 0 R146 1-216-805-11 METAL CHIP 47 5% 1/10W R151 1-216-805-11 METAL CHIP 47 5% 1/10W R152 1-216-864-11 SHORT CHIP 0 R153 1-216-805-11 METAL CHIP 47 5% 1/10W R155 1-216-805-11 METAL CHIP 47 5% 1/10W R160 1-216-805-11 METAL CHIP 47 5% 1/10W R161 1-216-809-11 METAL CHIP 100 5% 1/10W R164 1-216-809-11 METAL CHIP 100 5% 1/10W R169 1-216-833-11 METAL CHIP 10K 5% 1/10W R187 1-216-864-11 SHORT CHIP 0 R189 1-218-827-11 METAL CHIP 150 0.5% 1/10W R190 1-218-827-11 METAL CHIP 150 0.5% 1/10W R191 1-216-821-11 METAL CHIP 1K 5% 1/10W R192 1-218-827-11 METAL CHIP 150 0.5% 1/10W R193 1-216-821-11 METAL CHIP 1K 5% 1/10W R195 1-218-827-11 METAL CHIP 150 0.5% 1/10W R196 1-216-864-11 SHORT CHIP 0 R197 1-218-827-11 METAL CHIP 150 0.5% 1/10W R204 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R205 1-216-833-11 METAL CHIP 10K 5% 1/10W R206 1-216-833-11 METAL CHIP 10K 5% 1/10W R207 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R208 1-216-839-11 METAL CHIP 33K 5% 1/10W R209 1-216-839-11 METAL CHIP 33K 5% 1/10W R210 1-216-841-11 METAL CHIP 47K 5% 1/10W R212 1-216-833-11 METAL CHIP 10K 5% 1/10W R213 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R214 1-216-835-11 METAL CHIP 15K 5% 1/10W R215 1-216-834-11 METAL CHIP 12K 5% 1/10W R216 1-216-834-11 METAL CHIP 12K 5% 1/10W R219 1-216-838-11 METAL CHIP 27K 5% 1/10W R220 1-216-833-11 METAL CHIP 10K 5% 1/10W R221 1-218-889-11 METAL CHIP 56K 0.5% 1/10W R223 1-218-895-11 METAL CHIP 100K 0.5% 1/10W R224 1-216-833-11 METAL CHIP 10K 5% 1/10W R225 1-218-895-11 METAL CHIP 100K 0.5% 1/10W R226 1-218-889-11 METAL CHIP 56K 0.5% 1/10W R230 1-218-893-11 METAL CHIP 82K 0.5% 1/10W R231 1-218-875-11 METAL CHIP 15K 0.5% 1/10W R232 1-218-877-11 METAL CHIP 18K 0.5% 1/10W R233 1-218-883-11 METAL CHIP 33K 0.5% 1/10W R234 1-216-833-11 METAL CHIP 10K 5% 1/10W R246 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R247 1-216-821-11 METAL CHIP 1K 5% 1/10W R308 1-216-864-11 SHORT CHIP 0 R314 1-216-809-11 METAL CHIP 100 5% 1/10W R319 1-216-864-11 SHORT CHIP 0 R1101 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1102 1-218-827-11 METAL CHIP 150 0.5% 1/10W R1103 1-216-833-11 METAL CHIP 10K 5% 1/10W R1104 1-216-833-11 METAL CHIP 10K 5% 1/10W R1105 1-216-833-11 METAL CHIP 10K 5% 1/10W R1107 1-216-864-11 SHORT CHIP 0 R1108 1-216-833-11 METAL CHIP 10K 5% 1/10W (EXCEPT TH) R1108 1-216-864-11 SHORT CHIP 0 (TH) R1109 1-216-864-11 SHORT CHIP 0 R1110 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R1111 1-216-864-11 SHORT CHIP 0 R1120 1-216-864-11 SHORT CHIP 0 R1121 1-216-864-11 SHORT CHIP 0 R1122 1-216-864-11 SHORT CHIP 0 R1123 1-216-864-11 SHORT CHIP 0 R1124 1-216-864-11 SHORT CHIP 0 R1125 1-216-864-11 SHORT CHIP 0 R1129 1-216-845-11 METAL CHIP 100K 5% 1/10W R1133 1-216-864-11 SHORT CHIP 0 R1134 1-216-864-11 SHORT CHIP 0 R1150 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1151 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1152 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1168 1-216-817-11 METAL CHIP 470 5% 1/10W R1502 1-216-864-11 SHORT CHIP 0 (EXCEPT EA, AUS) R1502 1-414-226-21 INDUCTOR, FERRITE BEAD (EA, AUS) R1504 1-216-864-11 SHORT CHIP 0 R1524 1-216-864-11 SHORT CHIP 0 (EXCEPT EA, AUS) R1524 1-414-226-21 INDUCTOR, FERRITE BEAD (EA, AUS) R1526 1-216-864-11 SHORT CHIP 0 (EXCEPT EA, AUS) R1526 1-414-226-21 INDUCTOR, FERRITE BEAD (EA, AUS) R1527 1-216-864-11 SHORT CHIP 0 R1530 1-216-864-11 SHORT CHIP 0 R1531 1-216-864-11 SHORT CHIP 0 R1540 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1542 1-216-833-11 METAL CHIP 10K 5% 1/10W R1543 1-216-833-11 METAL CHIP 10K 5% 1/10W R1544 1-216-864-11 SHORT CHIP 0 R1546 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1547 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1548 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1549 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1550 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1551 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1553 1-216-864-11 SHORT CHIP 0 R1554 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1555 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1557 1-216-809-11 METAL CHIP 100 5% 1/10W R2504 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3501 1-216-864-11 SHORT CHIP 0 R3601 1-216-809-11 METAL CHIP 100 5% 1/10W R3602 1-216-809-11 METAL CHIP 100 5% 1/10W R3603 1-216-833-11 METAL CHIP 10K 5% 1/10W DMB10 Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 82 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GNV99D/GNV111D R3605 1-216-864-11 SHORT CHIP 0 R3606 1-216-864-11 SHORT CHIP 0 R3607 1-216-864-11 SHORT CHIP 0 R3609 1-216-864-11 SHORT CHIP 0 R3611 1-216-809-11 METAL CHIP 100 5% 1/10W R3621 1-216-809-11 METAL CHIP 100 5% 1/10W R3651 1-216-864-11 SHORT CHIP 0 R3652 1-216-864-11 SHORT CHIP 0 R3653 1-216-864-11 SHORT CHIP 0 R3711 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3712 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3713 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3714 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3715 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3716 1-216-821-11 METAL CHIP 1K 5% 1/10W R3717 1-216-821-11 METAL CHIP 1K 5% 1/10W R3718 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3719 1-216-821-11 METAL CHIP 1K 5% 1/10W R3721 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3722 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3723 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3724 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3725 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3726 1-216-821-11 METAL CHIP 1K 5% 1/10W R3727 1-216-821-11 METAL CHIP 1K 5% 1/10W R3728 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3729 1-216-821-11 METAL CHIP 1K 5% 1/10W R3731 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3732 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3733 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3734 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3735 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3736 1-216-821-11 METAL CHIP 1K 5% 1/10W R3737 1-216-821-11 METAL CHIP 1K 5% 1/10W R3738 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3739 1-216-821-11 METAL CHIP 1K 5% 1/10W R3741 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3742 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3743 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3744 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3745 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3746 1-216-821-11 METAL CHIP 1K 5% 1/10W R3747 1-216-821-11 METAL CHIP 1K 5% 1/10W R3748 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3749 1-216-821-11 METAL CHIP 1K 5% 1/10W R3751 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3752 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3753 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3754 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3755 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3756 1-216-821-11 METAL CHIP 1K 5% 1/10W R3757 1-216-821-11 METAL CHIP 1K 5% 1/10W R3758 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3759 1-216-821-11 METAL CHIP 1K 5% 1/10W R3761 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3762 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3763 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3764 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3765 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3766 1-216-821-11 METAL CHIP 1K 5% 1/10W R3767 1-216-821-11 METAL CHIP 1K 5% 1/10W R3768 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3769 1-216-821-11 METAL CHIP 1K 5% 1/10W R3771 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3772 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3773 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3774 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3775 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3776 1-216-821-11 METAL CHIP 1K 5% 1/10W R3777 1-216-821-11 METAL CHIP 1K 5% 1/10W R3778 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3779 1-216-821-11 METAL CHIP 1K 5% 1/10W R3781 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3782 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3783 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3784 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3785 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3786 1-216-821-11 METAL CHIP 1K 5% 1/10W R3787 1-216-821-11 METAL CHIP 1K 5% 1/10W R3788 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3789 1-216-821-11 METAL CHIP 1K 5% 1/10W R3801 1-216-864-11 SHORT CHIP 0 R3802 1-216-864-11 SHORT CHIP 0 R3803 1-216-833-11 METAL CHIP 10K 5% 1/10W R3804 1-216-836-11 METAL CHIP 18K 5% 1/10W R3805 1-216-821-11 METAL CHIP 1K 5% 1/10W R4701 1-216-864-11 SHORT CHIP 0 R4702 1-216-864-11 SHORT CHIP 0 R4703 1-216-864-11 SHORT CHIP 0 R4704 1-216-864-11 SHORT CHIP 0 R4705 1-216-864-11 SHORT CHIP 0 R4706 1-216-864-11 SHORT CHIP 0 < COMPOSITION CIRCUIT BLOCK > RB103 1-234-795-21 RES, NETWORK 0X4 (2010) RB104 1-234-795-21 RES, NETWORK 0X4 (2010) RB105 1-234-371-21 RES, NETWORK 47 (1005X4) RB106 1-234-371-21 RES, NETWORK 47 (1005X4) RB107 1-234-370-21 RES, NETWORK 22 (1005X4) RB108 1-234-370-21 RES, NETWORK 22 (1005X4) RB111 1-234-795-21 RES, NETWORK 0X4 (2010) RB112 1-234-370-21 RES, NETWORK 22 (1005X4) RB113 1-234-370-21 RES, NETWORK 22 (1005X4) < VIBRATOR > X101 1-781-867-21 VIBRATOR, CRYSTAL (27MHz) ************************************************************* 1-687-135-12 DRIVER BOARD ************* < CAPACITOR > C715 1-126-933-11 ELECT 100uF 20% 16V C731 1-126-964-11 ELECT 10uF 20% 50V C735 1-164-159-11 CERAMIC 0.1uF 50V C736 1-164-159-11 CERAMIC 0.1uF 50V DRIVER DMB10 Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 83 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GNV99D/GNV111D C737 1-164-159-11 CERAMIC 0.1uF 50V C741 1-162-306-11 CERAMIC 0.01uF 20% 16V C751 1-162-306-11 CERAMIC 0.01uF 20% 16V C752 1-164-159-11 CERAMIC 0.1uF 50V < CONNECTOR > CN701 1-784-735-11 CONNECTOR, FFC 13P (TH) CN701 1-785-338-11 PIN, CONNECTOR (LIGHT ANGLE) 12P (EXCEPT TH) CN702 1-784-766-11 CONNECTOR, FFC 5P * CN703 1-564-720-11 PIN, CONNECTOR (SMALL TYPE) 4P CN704 1-785-328-11 PIN, CONNECTOR (LIGHT ANGRE) 2P < DIODE > D701 8-719-947-16 DIODE MTZJ-T-72-5.1A D711 8-719-983-66 DIODE MTZJ-T-72-3.6B < IC > IC701 8-759-598-69 IC BA6956AN IC712 8-759-598-69 IC BA6956AN < TRANSISTOR > Q731 8-729-029-66 TRANSISTOR DTC114ESA < RESISTOR > R701 1-249-413-11 CARBON 470 5% 1/4W R702 1-247-807-31 CARBON 100 5% 1/4W R711 1-247-831-91 CARBON 1K 5% 1/4W R712 1-247-847-91 CARBON 4.7K 5% 1/4W R713 1-247-863-91 CARBON 22K 5% 1/4W R721 1-247-847-91 CARBON 4.7K 5% 1/4W R722 1-247-847-91 CARBON 4.7K 5% 1/4W R723 1-247-847-91 CARBON 4.7K 5% 1/4W R731 1-247-807-31 CARBON 100 5% 1/4W R732 1-249-429-11 CARBON 10K 5% 1/4W R733 1-247-831-91 CARBON 1K 5% 1/4W R734 1-249-430-11 CARBON 12K 5% 1/4W R735 1-247-807-31 CARBON 100 5% 1/4W R751 1-247-847-91 CARBON 4.7K 5% 1/4W ************************************************************* A-1099-771-A DVD SURR BOARD, COMPLETE (E2, MX) A-1099-850-A DVD SURR BOARD, COMPLETE (GNV99D: EXCEPT TH) A-1114-979-A DVD SURR BOARD, COMPLETE (GNV111D: EXCEPT E2, MX, TH) A-1124-096-A DVD SURR BOARD, COMPLETE (GNV111D: TH) A-1124-108-A DVD SURR BOARD, COMPLETE (GNV99D: TH) *************** < CAPACITOR > C700 1-126-963-11 ELECT 4.7uF 20% 50V C701 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C702 1-126-923-91 ELECT 220uF 20% 10V C703 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C704 1-126-963-11 ELECT 4.7uF 20% 50V C710 1-162-916-11 CERAMIC CHIP 12PF 5% 50V (GNV111D) C710 1-162-918-11 CERAMIC CHIP 18PF 5% 50V (GNV99D) C711 1-162-916-11 CERAMIC CHIP 12PF 5% 50V (GNV111D) C711 1-162-918-11 CERAMIC CHIP 18PF 5% 50V (GNV99D) C712 1-162-916-11 CERAMIC CHIP 12PF 5% 50V (GNV111D) C712 1-162-918-11 CERAMIC CHIP 18PF 5% 50V (GNV99D) C721 1-126-965-91 ELECT 22uF 20% 50V (GNV111D) C730 1-136-495-11 FILM 0.068uF 5% 50V C731 1-136-495-11 FILM 0.068uF 5% 50V C732 1-131-992-91 CERAMIC CHIP 100000PF 35V C733 1-131-992-91 CERAMIC CHIP 100000PF 35V C740 1-126-963-11 ELECT 4.7uF 20% 50V C741 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C742 1-126-923-91 ELECT 220uF 20% 10V C743 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C744 1-126-963-11 ELECT 4.7uF 20% 50V C746 1-126-963-11 ELECT 4.7uF 20% 50V (GNV111D) C747 1-126-963-11 ELECT 4.7uF 20% 50V (GNV111D) C748 1-104-658-91 ELECT 100uF 20% 10V (GNV111D) C749 1-126-963-11 ELECT 4.7uF 20% 50V (GNV111D) C750 1-126-963-11 ELECT 4.7uF 20% 50V C751 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C752 1-126-923-91 ELECT 220uF 20% 10V C753 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C754 1-126-963-11 ELECT 4.7uF 20% 50V C755 1-162-919-11 CERAMIC CHIP 22PF 5% 50V (GNV111D) C756 1-162-919-11 CERAMIC CHIP 22PF 5% 50V (GNV111D) C757 1-131-992-91 CERAMIC CHIP 100000PF 35V (GNV111D) C758 1-126-963-11 ELECT 4.7uF 20% 50V (GNV111D) C759 1-126-964-11 ELECT 10uF 20% 50V (GNV111D) C770 1-136-495-11 FILM 0.068uF 5% 50V C771 1-136-495-11 FILM 0.068uF 5% 50V C772 1-131-992-91 CERAMIC CHIP 100000PF 35V C773 1-131-992-91 CERAMIC CHIP 100000PF 35V C780 1-136-495-11 FILM 0.068uF 5% 50V C781 1-136-495-11 FILM 0.068uF 5% 50V C782 1-131-992-91 CERAMIC CHIP 100000PF 35V C783 1-131-992-91 CERAMIC CHIP 100000PF 35V C791 1-162-974-11 CERAMIC CHIP 0.01uF 50V C792 1-162-974-11 CERAMIC CHIP 0.01uF 50V C793 1-128-563-11 ELECT 100uF 20% 100V C794 1-128-563-11 ELECT 100uF 20% 100V C795 1-128-560-11 ELECT 22uF 20% 100V C796 1-128-560-11 ELECT 22uF 20% 100V DRIVER DVD SURR Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 84 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GNV99D/GNV111D < CONNECTOR > CN700 1-784-041-41 CONNECTOR, BOARD TO BOARD 9P CN701 1-784-031-41 CONNECTOR, BOARD TO BOARD 8P < DIODE > D710 8-719-083-66 DIODE UDZSTE-1718B (GNV111D) D711 8-719-083-66 DIODE UDZSTE-1718B (GNV111D) D720 8-719-988-61 DIODE 1SS355TE-17 (GNV111D) D730 8-719-988-61 DIODE 1SS355TE-17 D761 8-719-988-61 DIODE 1SS355TE-17 D762 8-719-988-61 DIODE 1SS355TE-17 D763 8-719-988-61 DIODE 1SS355TE-17 (GNV111D) D764 8-719-988-61 DIODE 1SS355TE-17 (GNV111D) D765 8-719-988-61 DIODE 1SS355TE-17 (GNV111D) D770 8-719-988-61 DIODE 1SS355TE-17 D780 8-719-988-61 DIODE 1SS355TE-17 < IC > IC702 6-600-339-01 IC STK413-430 (GNV111D) IC702 8-749-017-20 IC STK443-070 (GNV99D) IC703 8-759-685-70 IC NJM2520M (TE2) (GNV111D) < JUMPER RESISTOR > JR700 1-216-296-11 SHORT CHIP 0 JR791 1-216-296-11 SHORT CHIP 0 < COIL > L730 1-420-872-52 COIL, AIR-CORE L770 1-420-872-52 COIL, AIR-CORE L780 1-420-872-52 COIL, AIR-CORE < TRANSISTOR > Q700 8-729-802-80 TRANSISTOR 2SC3661 Q720 8-729-901-81 TRANSISTOR 2SC2412K-T-146-R (GNV111D) Q721 8-729-821-00 TRANSISTOR 2SA1207 (GNV111D) Q722 8-729-924-99 TRANSISTOR 2SC3722K-E (GNV111D) Q730 8-729-924-99 TRANSISTOR 2SC3722K-E Q740 8-729-802-80 TRANSISTOR 2SC3661 Q750 8-729-802-80 TRANSISTOR 2SC3661 Q762 8-729-901-81 TRANSISTOR 2SC2412K-T-146-R Q763 8-729-901-81 TRANSISTOR 2SC2412K-T-146-R Q765 8-729-802-80 TRANSISTOR 2SC3661 Q770 8-729-924-99 TRANSISTOR 2SC3722K-E Q780 8-729-924-99 TRANSISTOR 2SC3722K-E < RESISTOR > R700 1-216-821-11 METAL CHIP 1K 5% 1/10W R701 1-216-841-11 METAL CHIP 47K 5% 1/10W R702 1-216-812-11 METAL CHIP 180 5% 1/10W (GNV111D) R702 1-216-815-11 METAL CHIP 330 5% 1/10W (GNV99D: TH) R702 1-216-816-11 METAL CHIP 390 5% 1/10W (GNV99D: EXCEPT TH) R703 1-216-821-11 METAL CHIP 1K 5% 1/10W R704 1-216-833-11 METAL CHIP 10K 5% 1/10W R705 1-216-841-11 METAL CHIP 47K 5% 1/10W R706 1-216-833-11 METAL CHIP 10K 5% 1/10W R710 1-216-841-11 METAL CHIP 47K 5% 1/10W R711 1-216-841-11 METAL CHIP 47K 5% 1/10W R712 1-216-841-11 METAL CHIP 47K 5% 1/10W R720 1-216-833-11 METAL CHIP 10K 5% 1/10W (GNV111D) R721 1-216-833-11 METAL CHIP 10K 5% 1/10W (GNV111D) R722 1-216-837-11 METAL CHIP 22K 5% 1/10W (GNV111D) R723 1-216-825-11 METAL CHIP 2.2K 5% 1/10W (GNV111D) R724 1-216-839-11 METAL CHIP 33K 5% 1/10W (GNV111D) R725 1-216-841-11 METAL CHIP 47K 5% 1/10W (GNV111D) R726 1-216-839-11 METAL CHIP 33K 5% 1/10W (GNV111D) R727 1-216-839-11 METAL CHIP 33K 5% 1/10W (GNV111D) 0R730 1-234-499-21 ENCAPSULATED COMPONENT R731 1-216-821-11 METAL CHIP 1K 5% 1/10W R732 1-216-838-11 METAL CHIP 27K 5% 1/10W R733 1-216-845-11 METAL CHIP 100K 5% 1/10W R734 1-216-842-11 METAL CHIP 56K 5% 1/10W R735 1-245-711-31 CARBON 10 5% 1/2W R736 1-245-711-31 CARBON 10 5% 1/2W R737 1-245-711-31 CARBON 10 5% 1/2W R740 1-216-821-11 METAL CHIP 1K 5% 1/10W R741 1-216-841-11 METAL CHIP 47K 5% 1/10W R742 1-216-813-11 METAL CHIP 220 5% 1/10W (GNV111D) R742 1-216-815-11 METAL CHIP 330 5% 1/10W (GNV99D: TH) R742 1-216-817-11 METAL CHIP 470 5% 1/10W (GNV99D: EXCEPT TH) R743 1-216-821-11 METAL CHIP 1K 5% 1/10W R744 1-216-833-11 METAL CHIP 10K 5% 1/10W R745 1-216-841-11 METAL CHIP 47K 5% 1/10W R746 1-216-833-11 METAL CHIP 10K 5% 1/10W R747 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W (GNV111D) R748 1-216-832-11 METAL CHIP 8.2K 5% 1/10W (GNV111D) R749 1-216-833-11 METAL CHIP 10K 5% 1/10W (GNV111D) R750 1-216-821-11 METAL CHIP 1K 5% 1/10W R751 1-216-841-11 METAL CHIP 47K 5% 1/10W R752 1-216-812-11 METAL CHIP 180 5% 1/10W (GNV111D) R752 1-216-815-11 METAL CHIP 330 5% 1/10W (GNV99D: TH) R752 1-216-816-11 METAL CHIP 390 5% 1/10W (GNV99D: EXCEPT TH) R753 1-216-821-11 METAL CHIP 1K 5% 1/10W R754 1-216-833-11 METAL CHIP 10K 5% 1/10W R755 1-216-841-11 METAL CHIP 47K 5% 1/10W R756 1-216-833-11 METAL CHIP 10K 5% 1/10W R757 1-216-825-11 METAL CHIP 2.2K 5% 1/10W (GNV111D) DVD SURR Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 85 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GNV99D/GNV111D R760 1-216-809-11 METAL CHIP 100 5% 1/10W (GNV111D) R761 1-216-839-11 METAL CHIP 33K 5% 1/10W (GNV99D) R761 1-216-845-11 METAL CHIP 100K 5% 1/10W (GNV111D) R762 1-216-839-11 METAL CHIP 33K 5% 1/10W (GNV99D) R762 1-216-845-11 METAL CHIP 100K 5% 1/10W (GNV111D) R764 1-260-087-11 CARBON 100 5% 1/2W R765 1-260-087-11 CARBON 100 5% 1/2W R766 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R767 1-216-837-11 METAL CHIP 22K 5% 1/10W R768 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R769 1-216-837-11 METAL CHIP 22K 5% 1/10W 0R770 1-234-499-21 ENCAPSULATED COMPONENT R771 1-216-821-11 METAL CHIP 1K 5% 1/10W R772 1-216-838-11 METAL CHIP 27K 5% 1/10W R773 1-216-845-11 METAL CHIP 100K 5% 1/10W R774 1-216-843-11 METAL CHIP 68K 5% 1/10W R775 1-245-711-31 CARBON 10 5% 1/2W R776 1-245-711-31 CARBON 10 5% 1/2W R777 1-245-711-31 CARBON 10 5% 1/2W R778 1-216-841-11 METAL CHIP 47K 5% 1/10W (GNV111D) R779 1-216-841-11 METAL CHIP 47K 5% 1/10W (GNV111D) 0R780 1-234-499-21 ENCAPSULATED COMPONENT R781 1-216-821-11 METAL CHIP 1K 5% 1/10W R782 1-216-838-11 METAL CHIP 27K 5% 1/10W R783 1-216-845-11 METAL CHIP 100K 5% 1/10W R784 1-216-841-11 METAL CHIP 47K 5% 1/10W R785 1-245-711-31 CARBON 10 5% 1/2W R786 1-245-711-31 CARBON 10 5% 1/2W R787 1-245-711-31 CARBON 10 5% 1/2W R788 1-216-841-11 METAL CHIP 47K 5% 1/10W (GNV111D) R792 1-216-839-11 METAL CHIP 33K 5% 1/10W (GNV99D) R792 1-216-845-11 METAL CHIP 100K 5% 1/10W (GNV111D) 0R793 1-217-637-00 FUSIBLE 1 5% 1/4W 0R794 1-245-605-51 FUSIBLE 100 5% 1/4W 0R795 1-245-605-51 FUSIBLE 100 5% 1/4W R796 1-215-872-11 METAL OXIDE 3.3K 5% 1W (GNV111D) R797 1-216-837-11 METAL CHIP 22K 5% 1/10W R798 1-216-821-11 METAL CHIP 1K 5% 1/10W R799 1-215-872-11 METAL OXIDE 3.3K 5% 1W (GNV111D) < RELAY > RY760 1-755-500-11 RELAY RY761 1-755-500-11 RELAY < TERMINAL > TM700 1-780-001-21 TERMINAL BOARD (SPEAKER) (CENTER SPEAKER) TM701 1-780-170-21 TERMINAL BOARD (SPEAKER) (SURR SPEAKER) ************************************************************* JOG BOARD ********** < CAPACITOR > C1150 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V < CONNECTOR > * CNS903 1-562-573-11 SOCKET, CONNECTOR 8P < DIODE > D919 8-719-071-44 DIODE SELS5223C-TP15 (VOL 2) D920 8-719-071-44 DIODE SELS5223C-TP15 (VOL 3) D921 8-719-071-44 DIODE SELS5223C-TP15 (VOL 4) D922 8-719-071-44 DIODE SELS5223C-TP15 (VOL 5) D923 8-719-071-44 DIODE SELS5223C-TP15 (VOL 6) D924 8-719-071-44 DIODE SELS5223C-TP15 (VOL 1) < JUMPER RESISTOR > JR904 1-216-296-11 SHORT CHIP 0 JR905 1-216-864-11 SHORT CHIP 0 < TRANSISTOR > Q911 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q912 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q913 8-729-027-43 TRANSISTOR DTC114EKA-T146 < RESISTOR > R1138 1-216-820-11 METAL CHIP 820 5% 1/10W R1139 1-216-820-11 METAL CHIP 820 5% 1/10W R1140 1-216-820-11 METAL CHIP 820 5% 1/10W R1144 1-216-820-11 METAL CHIP 820 5% 1/10W R1145 1-216-820-11 METAL CHIP 820 5% 1/10W R1146 1-216-820-11 METAL CHIP 820 5% 1/10W R1156 1-216-821-11 METAL CHIP 1K 5% 1/10W R1157 1-216-820-11 METAL CHIP 820 5% 1/10W R1158 1-216-820-11 METAL CHIP 820 5% 1/10W R1159 1-216-820-11 METAL CHIP 820 5% 1/10W R1190 1-216-809-11 METAL CHIP 100 5% 1/10W R1191 1-216-809-11 METAL CHIP 100 5% 1/10W R1192 1-216-809-11 METAL CHIP 100 5% 1/10W < SWITCH > S1161 1-479-203-11 ENCODER (ROTARY) (OPERATION DIAL) ************************************************************* DVD SURR JOG Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 86 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GNV99D/GNV111D A-1099-580-A MAIN BOARD, COMPLETE (E2) A-1099-615-A MAIN BOARD, COMPLETE (GNV99D: E3) A-1115-267-A MAIN BOARD, COMPLETE (GNV99D: EA) A-1115-283-A MAIN BOARD, COMPLETE (GNV99D: E15) A-1115-286-A MAIN BOARD, COMPLETE (GNV99D: SP, PH) A-1115-291-A MAIN BOARD, COMPLETE (GNV99D: TH) A-1115-312-A MAIN BOARD, COMPLETE (GNV111D: MY, SP) A-1115-322-A MAIN BOARD, COMPLETE (GNV111D: E15) A-1115-326-A MAIN BOARD, COMPLETE (GNV111D: EA) A-1115-330-A MAIN BOARD, COMPLETE (GNV111D: PH) A-1115-333-A MAIN BOARD, COMPLETE (AUS) A-1115-336-A MAIN BOARD, COMPLETE (MX) A-1115-339-A MAIN BOARD, COMPLETE (GNV111D: TH) A-1117-691-A MAIN BOARD, COMPLETE (GNV111D: E3) A-1119-698-A MAIN BOARD, COMPLETE (GNV111D: E12) A-1119-735-A MAIN BOARD, COMPLETE (E13) A-1119-775-A MAIN BOARD, COMPLETE (GNV99D: E12) *********** 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 < CAPACITOR > C101 1-104-658-91 ELECT 100uF 20% 10V C102 1-126-964-11 ELECT 10uF 20% 50V C103 1-126-964-11 ELECT 10uF 20% 50V C104 1-126-964-11 ELECT 10uF 20% 50V C105 1-126-964-11 ELECT 10uF 20% 50V C106 1-136-157-00 FILM 0.022uF 5% 50V C107 1-136-157-00 FILM 0.022uF 5% 50V C108 1-136-159-00 FILM 0.033uF 5% 50V C109 1-126-960-11 ELECT 1uF 20% 50V C110 1-137-150-11 FILM 0.01uF 5% 100V C111 1-126-964-11 ELECT 10uF 20% 50V C112 1-136-170-00 FILM 0.27uF 5% 50V C113 1-136-170-00 FILM 0.27uF 5% 50V C114 1-126-964-11 ELECT 10uF 20% 50V C115 1-164-156-11 CERAMIC CHIP 0.1uF 25V C116 1-126-176-11 ELECT 220uF 20% 10V C121 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C122 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C130 1-126-964-11 ELECT 10uF 20% 50V C131 1-126-959-11 ELECT 0.47uF 20% 50V C150 1-126-964-11 ELECT 10uF 20% 50V C152 1-126-964-11 ELECT 10uF 20% 50V C153 1-126-964-11 ELECT 10uF 20% 50V C154 1-126-964-11 ELECT 10uF 20% 50V C155 1-126-964-11 ELECT 10uF 20% 50V C156 1-136-157-00 FILM 0.022uF 5% 50V C157 1-136-157-00 FILM 0.022uF 5% 50V C158 1-136-159-00 FILM 0.033uF 5% 50V C159 1-126-960-11 ELECT 1uF 20% 50V C160 1-137-150-11 FILM 0.01uF 5% 100V C161 1-126-964-11 ELECT 10uF 20% 50V C162 1-136-170-00 FILM 0.27uF 5% 50V C163 1-136-170-00 FILM 0.27uF 5% 50V C164 1-126-964-11 ELECT 10uF 20% 50V C166 1-126-964-11 ELECT 10uF 20% 50V C167 1-126-964-11 ELECT 10uF 20% 50V C200 1-137-190-91 FILM 0.22uF 5% 50V C201 1-136-497-81 FILM 0.1uF 5% 50V C202 1-126-964-11 ELECT 10uF 20% 50V C203 1-136-170-00 FILM 0.27uF 5% 50V (GNV111D) C204 1-136-170-00 FILM 0.27uF 5% 50V (GNV111D) C205 1-104-658-91 ELECT 100uF 20% 10V C206 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C207 1-126-964-11 ELECT 10uF 20% 50V C209 1-126-964-11 ELECT 10uF 20% 50V C210 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C211 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C212 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C213 1-126-964-11 ELECT 10uF 20% 50V C214 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C215 1-126-964-11 ELECT 10uF 20% 50V C216 1-126-964-11 ELECT 10uF 20% 50V C217 1-126-964-11 ELECT 10uF 20% 50V C218 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C219 1-126-964-11 ELECT 10uF 20% 50V C220 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C221 1-126-960-11 ELECT 1uF 20% 50V C222 1-126-964-11 ELECT 10uF 20% 50V C223 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C224 1-126-964-11 ELECT 10uF 20% 50V C225 1-126-960-11 ELECT 1uF 20% 50V C226 1-126-960-11 ELECT 1uF 20% 50V C227 1-126-960-11 ELECT 1uF 20% 50V C228 1-126-960-11 ELECT 1uF 20% 50V C229 1-162-957-11 CERAMIC CHIP 220PF 5% 50V C231 1-126-961-11 ELECT 2.2uF 20% 50V C233 1-162-953-11 CERAMIC CHIP 100PF 5% 50V (GNV99D/GNV111D: EXCEPT TH) C234 1-126-964-11 ELECT 10uF 20% 50V C235 1-162-953-11 CERAMIC CHIP 100PF 5% 50V (GNV99D/GNV111D: EXCEPT TH) C242 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C251 1-126-960-11 ELECT 1uF 20% 50V C252 1-126-964-11 ELECT 10uF 20% 50V C253 1-136-170-00 FILM 0.27uF 5% 50V (GNV111D) C254 1-136-170-00 FILM 0.27uF 5% 50V (GNV111D) C255 1-104-658-91 ELECT 100uF 20% 10V C256 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C257 1-126-964-11 ELECT 10uF 20% 50V C258 1-126-964-11 ELECT 10uF 20% 50V C259 1-126-964-11 ELECT 10uF 20% 50V C260 1-164-156-11 CERAMIC CHIP 0.1uF 25V C261 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C262 1-126-964-11 ELECT 10uF 20% 50V C263 1-126-964-11 ELECT 10uF 20% 50V C264 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C265 1-126-964-11 ELECT 10uF 20% 50V C266 1-126-964-11 ELECT 10uF 20% 50V C267 1-126-964-11 ELECT 10uF 20% 50V C268 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C269 1-126-964-11 ELECT 10uF 20% 50V MAIN Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 87 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GNV99D/GNV111D C270 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C272 1-126-923-91 ELECT 220uF 20% 10V C273 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C274 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C276 1-126-960-11 ELECT 1uF 20% 50V C277 1-126-960-11 ELECT 1uF 20% 50V C278 1-126-960-11 ELECT 1uF 20% 50V C279 1-162-957-11 CERAMIC CHIP 220PF 5% 50V C281 1-126-961-11 ELECT 2.2uF 20% 50V C301 1-136-967-11 FILM 0.012uF 5% 100V C303 1-136-497-81 FILM 0.1uF 5% 50V C304 1-126-964-11 ELECT 10uF 20% 50V C305 1-126-960-11 ELECT 1uF 20% 50V C306 1-126-961-11 ELECT 2.2uF 20% 50V C307 1-126-964-11 ELECT 10uF 20% 50V C308 1-126-925-91 ELECT 470uF 20% 10V C309 1-126-947-11 ELECT 47uF 20% 35V C310 1-126-964-11 ELECT 10uF 20% 50V C311 1-126-964-11 ELECT 10uF 20% 50V C312 1-126-964-11 ELECT 10uF 20% 50V C314 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C325 1-126-964-11 ELECT 10uF 20% 50V C326 1-115-412-11 CERAMIC CHIP 680PF 5% 25V C328 1-137-427-11 MYLAR 120PF 5% 50V C332 1-164-670-11 CERAMIC CHIP 1200PF 5% 16V C333 1-162-959-11 CERAMIC CHIP 330PF 5% 50V C335 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C340 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C341 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C350 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C351 1-136-967-11 FILM 0.012uF 5% 100V C352 1-126-947-11 ELECT 47uF 20% 35V C353 1-136-497-81 FILM 0.1uF 5% 50V C354 1-126-964-11 ELECT 10uF 20% 50V C355 1-126-960-11 ELECT 1uF 20% 50V C356 1-126-961-11 ELECT 2.2uF 20% 50V C357 1-126-963-11 ELECT 4.7uF 20% 50V C358 1-126-963-11 ELECT 4.7uF 20% 50V C359 1-126-947-11 ELECT 47uF 20% 35V C360 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C361 1-126-964-11 ELECT 10uF 20% 50V C364 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C365 1-126-960-11 ELECT 1uF 20% 50V C370 1-137-150-11 FILM 0.01uF 5% 100V C371 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C372 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C373 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C374 1-126-947-11 ELECT 47uF 20% 35V C376 1-115-412-11 CERAMIC CHIP 680PF 5% 25V C377 1-162-974-11 CERAMIC CHIP 0.01uF 50V C378 1-137-427-11 MYLAR 120PF 5% 50V C379 1-130-481-00 MYLAR 0.0068uF 5% 50V C382 1-164-670-11 CERAMIC CHIP 1200PF 5% 16V C383 1-162-959-11 CERAMIC CHIP 330PF 5% 50V C385 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C410 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C411 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C412 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C416 1-104-656-11 ELECT 2200uF 20% 6.3V C429 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C430 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C462 1-104-658-91 ELECT 100uF 20% 10V C464 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C501 1-126-964-11 ELECT 10uF 20% 50V C502 1-136-497-81 FILM 0.1uF 5% 50V C503 1-136-497-81 FILM 0.1uF 5% 50V C504 1-126-964-11 ELECT 10uF 20% 50V C505 1-126-961-11 ELECT 2.2uF 20% 50V C506 1-126-961-11 ELECT 2.2uF 20% 50V C507 1-126-961-11 ELECT 2.2uF 20% 50V C508 1-126-961-11 ELECT 2.2uF 20% 50V C509 1-126-961-11 ELECT 2.2uF 20% 50V C510 1-126-961-11 ELECT 2.2uF 20% 50V C511 1-126-961-11 ELECT 2.2uF 20% 50V C512 1-126-157-11 ELECT 10uF 20% 16V C513 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C514 1-126-768-11 ELECT 2200uF 20% 16V C515 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C516 1-126-927-11 ELECT 2200uF 20% 10V C517 1-126-961-11 ELECT 2.2uF 20% 50V C518 1-126-926-11 ELECT 1000uF 20% 10V C519 1-104-656-11 ELECT 2200uF 20% 6.3V(TH) C519 1-126-927-11 ELECT 2200uF 20% 10V (EXCEPT TH) C520 1-126-964-11 ELECT 10uF 20% 50V C521 1-126-964-11 ELECT 10uF 20% 50V C522 1-216-864-11 SHORT CHIP 0 (EXCEPT EA, AUS) C523 1-126-961-11 ELECT 2.2uF 20% 50V C524 1-126-961-11 ELECT 2.2uF 20% 50V C525 1-126-926-11 ELECT 1000uF 20% 10V C530 1-162-953-11 CERAMIC CHIP 100PF 5% 50V (GNV99D/GNV111D: EXCEPT TH) C550 1-126-933-11 ELECT 100uF 20% 16V C551 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C552 1-126-961-11 ELECT 2.2uF 20% 50V C553 1-104-666-11 ELECT 220uF 20% 25V C554 1-126-964-11 ELECT 10uF 20% 50V C557 1-130-483-00 MYLAR 0.01uF 5% 50V C558 1-130-483-00 MYLAR 0.01uF 5% 50V C559 1-126-926-11 ELECT 1000uF 20% 10V C562 1-126-935-11 ELECT 470uF 20% 16V C563 1-126-935-11 ELECT 470uF 20% 16V C564 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C565 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C566 1-111-235-61 ELECT 10000uF 20% 25V C567 1-126-946-11 ELECT 6800uF 20% 25V C568 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C569 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C570 1-130-483-00 MYLAR 0.01uF 5% 50V C571 1-130-483-00 MYLAR 0.01uF 5% 50V C580 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C581 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V < CONNECTOR > * CN100 1-564-711-11 PIN, CONNECTOR (SMALL TYPE) 9P MAIN Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 88 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GNV99D/GNV111D CN402 1-785-336-11 PIN, CONNECTOR (LIGHT ANGLE) 10P CN501 1-573-845-11 CONNECTOR, BOARD TO BOARD 13P * CN502 1-774-876-21 CONNECTOR, BOARD TO BOARD 8P * CN503 1-564-710-11 PIN, CONNECTOR (SMALL TYPE) 8P * CN504 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P CN506 1-784-731-11 CONNECTOR, FFC 9P * CN508 1-569-934-11 SOCKET, CONNECTOR 17P * CN509 1-569-930-11 SOCKET, CONNECTOR 13P * CN510 1-568-449-11 HOUSING, CONNECTOR (PC BOARD) 3P * CN514 1-774-876-21 CONNECTOR, BOARD TO BOARD 8P CN515 1-784-038-21 CONNECTOR, BOARD TO BOARD 9P CN520 1-779-281-11 CONNECTOR, FFC (LIF (NON-ZIF)) 13P CN521 1-779-287-11 CONNECTOR, FFC (LIF (NON-ZIF)) 19P CN580 1-564-506-11 PLUG, CONNECTOR 3P < DIODE > D136 8-719-069-55 DIODE UDZSTE-175.6B D340 8-719-988-61 DIODE 1SS355TE-17 D341 8-719-988-61 DIODE 1SS355TE-17 D342 8-719-988-61 DIODE 1SS355TE-17 D401 8-719-988-61 DIODE 1SS355TE-17 D402 8-719-988-61 DIODE 1SS355TE-17 D403 8-719-988-61 DIODE 1SS355TE-17 D501 8-719-988-61 DIODE 1SS355TE-17 D502 8-719-988-61 DIODE 1SS355TE-17 D503 8-719-988-61 DIODE 1SS355TE-17 D504 8-719-988-61 DIODE 1SS355TE-17 D505 8-719-988-61 DIODE 1SS355TE-17 D506 8-719-988-61 DIODE 1SS355TE-17 D507 8-719-988-61 DIODE 1SS355TE-17 D550 8-719-988-61 DIODE 1SS355TE-17 D551 8-719-988-61 DIODE 1SS355TE-17 D560 8-719-500-60 DIODE D5SBA20 D561 8-719-500-60 DIODE D5SBA20 D581 1-216-295-91 SHORT CHIP 0 D582 8-719-069-56 DIODE UDZSTE-176.2B D583 8-719-069-56 DIODE UDZSTE-176.2B < FERRITE BEAD > FB204 1-216-864-11 SHORT CHIP 0 FB254 1-216-864-11 SHORT CHIP 0 FB260 1-216-864-11 SHORT CHIP 0 FB261 1-216-864-11 SHORT CHIP 0 < IC > IC101 6-703-650-11 IC M61529FP-D60G IC201 6-703-651-11 IC M61530FP-D60G IC301 6-702-130-01 IC HA12237F IC304 8-759-710-97 IC NJM4565M-D IC401 6-805-073-01 IC M30620MCP-A03FPU0 IC501 6-705-809-01 IC BD4929G-TR IC507 8-759-198-03 IC PQ09RF21 IC550 6-703-610-01 IC RT8H015C-T112-1 IC558 6-703-547-01 IC TA7805LS IC559 6-702-771-01 IC TA78033LS IC560 8-759-701-59 IC NJM78M09FA IC561 8-759-701-59 IC NJM78M09FA < JACK > J201 1-770-272-11 JACK, PIN 2P (TV/SAT AUDIO IN) J202 1-770-272-11 JACK, PIN 2P (AUDIO OUT) J203 1-770-377-31 JACK, PIN 1P (SUB WOOFER OUT) < JUMPER RESISTOR > JR100 1-216-296-11 SHORT CHIP 0 JR103 1-216-864-11 SHORT CHIP 0 JR104 1-216-864-11 SHORT CHIP 0 JR200 1-216-864-11 SHORT CHIP 0 JR201 1-216-296-11 SHORT CHIP 0 JR202 1-216-296-11 SHORT CHIP 0 JR203 1-216-296-11 SHORT CHIP 0 JR204 1-216-296-11 SHORT CHIP 0 JR205 1-216-296-11 SHORT CHIP 0 JR206 1-216-864-11 SHORT CHIP 0 JR207 1-216-296-11 SHORT CHIP 0 JR208 1-216-864-11 SHORT CHIP 0 JR218 1-216-864-11 SHORT CHIP 0 JR219 1-216-864-11 SHORT CHIP 0 JR221 1-216-864-11 SHORT CHIP 0 JR300 1-216-296-11 SHORT CHIP 0 JR301 1-216-864-11 SHORT CHIP 0 JR302 1-216-864-11 SHORT CHIP 0 JR303 1-216-864-11 SHORT CHIP 0 JR304 1-216-864-11 SHORT CHIP 0 JR305 1-216-296-11 SHORT CHIP 0 JR306 1-216-864-11 SHORT CHIP 0 JR359 1-216-864-11 SHORT CHIP 0 JR400 1-216-296-11 SHORT CHIP 0 JR401 1-216-864-11 SHORT CHIP 0 JR500 1-216-864-11 SHORT CHIP 0 JR501 1-216-296-11 SHORT CHIP 0 JR502 1-216-864-11 SHORT CHIP 0 JR503 1-216-864-11 SHORT CHIP 0 JR504 1-216-864-11 SHORT CHIP 0 JR505 1-216-864-11 SHORT CHIP 0 JR506 1-216-864-11 SHORT CHIP 0 JR507 1-216-296-11 SHORT CHIP 0 JR508 1-216-864-11 SHORT CHIP 0 JR509 1-216-864-11 SHORT CHIP 0 JR510 1-216-864-11 SHORT CHIP 0 JR511 1-216-864-11 SHORT CHIP 0 JR521 1-216-864-11 SHORT CHIP 0 (GNV111D: TH) < COIL > L302 1-414-189-31 INDUCTOR 100uH L320 1-410-780-11 INDUCTOR 27mH L370 1-410-780-11 INDUCTOR 27mH L372 1-414-189-31 INDUCTOR 100uH < TRANSISTOR > Q101 8-729-901-81 TRANSISTOR 2SC2412K-T-146-R Q103 8-729-056-46 TRANSISTOR 2SC5053T100Q Q104 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q105 8-729-056-46 TRANSISTOR 2SC5053T100Q Q106 8-729-802-80 TRANSISTOR 2SC3661 MAIN Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 89 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GNV99D/GNV111D Q117 8-729-802-80 TRANSISTOR 2SC3661 Q151 8-729-901-81 TRANSISTOR 2SC2412K-T-146-R Q156 8-729-802-80 TRANSISTOR 2SC3661 Q167 8-729-802-80 TRANSISTOR 2SC3661 Q200 8-729-802-80 TRANSISTOR 2SC3661 Q202 8-729-802-80 TRANSISTOR 2SC3661 Q203 8-729-802-80 TRANSISTOR 2SC3661 Q204 8-729-802-80 TRANSISTOR 2SC3661 Q205 8-729-901-81 TRANSISTOR 2SC2412K-T-146-R (GNV111D) Q206 8-729-802-80 TRANSISTOR 2SC3661 Q207 8-729-802-80 TRANSISTOR 2SC3661 Q208 8-729-802-80 TRANSISTOR 2SC3661 Q250 8-729-802-80 TRANSISTOR 2SC3661 Q252 8-729-802-80 TRANSISTOR 2SC3661 Q253 8-729-802-80 TRANSISTOR 2SC3661 Q254 8-729-802-80 TRANSISTOR 2SC3661 Q255 8-729-901-81 TRANSISTOR 2SC2412K-T-146-R (GNV111D) Q256 8-729-802-80 TRANSISTOR 2SC3661 Q321 8-729-802-80 TRANSISTOR 2SC3661 Q322 8-729-802-80 TRANSISTOR 2SC3661 Q325 8-729-802-80 TRANSISTOR 2SC3661 Q340 8-729-903-46 TRANSISTOR 2SB1132-P Q341 8-729-903-46 TRANSISTOR 2SB1132-P Q342 8-729-903-46 TRANSISTOR 2SB1132-P Q343 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q344 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q345 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q370 8-729-141-75 TRANSISTOR 2SD596DV345 Q372 8-729-802-80 TRANSISTOR 2SC3661 Q373 8-729-802-80 TRANSISTOR 2SC3661 Q375 8-729-802-80 TRANSISTOR 2SC3661 Q377 8-729-216-22 TRANSISTOR 2SA1162-G Q378 6-550-185-01 TRANSISTOR RT1P137P-TP-1 Q379 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q380 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q381 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q382 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q383 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q501 8-729-901-00 TRANSISTOR DTC124EK Q503 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q504 8-729-027-56 TRANSISTOR DTC143TKA-T146 Q505 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q506 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q507 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q508 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q509 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q510 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q511 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q512 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q513 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q514 8-729-802-80 TRANSISTOR 2SC3661 Q515 8-729-027-56 TRANSISTOR DTC143TKA-T146 Q516 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q517 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q518 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q519 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q520 8-729-024-94 TRANSISTOR 2SB1565F Q521 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q522 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q523 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q524 8-729-901-00 TRANSISTOR DTC124EK Q550 8-729-027-56 TRANSISTOR DTC143TKA-T146 Q564 8-729-802-80 TRANSISTOR 2SC3661 Q578 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q579 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q581 8-729-901-81 TRANSISTOR 2SC2412K-T-146-R Q582 8-729-901-81 TRANSISTOR 2SC2412K-T-146-R Q585 8-729-026-68 TRANSISTOR 2SD2525 (TP) < RESISTOR > R101 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R102 1-216-833-11 METAL CHIP 10K 5% 1/10W R103 1-216-818-11 METAL CHIP 560 5% 1/10W R104 1-216-821-11 METAL CHIP 1K 5% 1/10W R105 1-216-841-11 METAL CHIP 47K 5% 1/10W R106 1-216-833-11 METAL CHIP 10K 5% 1/10W R107 1-216-809-11 METAL CHIP 100 5% 1/10W R108 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R109 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R110 1-216-833-11 METAL CHIP 10K 5% 1/10W R111 1-216-833-11 METAL CHIP 10K 5% 1/10W R112 1-216-841-11 METAL CHIP 47K 5% 1/10W R113 1-216-833-11 METAL CHIP 10K 5% 1/10W R114 1-216-833-11 METAL CHIP 10K 5% 1/10W R115 1-216-821-11 METAL CHIP 1K 5% 1/10W R116 1-216-809-11 METAL CHIP 100 5% 1/10W R117 1-216-864-11 SHORT CHIP 0 R121 1-216-821-11 METAL CHIP 1K 5% 1/10W R122 1-216-821-11 METAL CHIP 1K 5% 1/10W R130 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R131 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R132 1-216-857-11 METAL CHIP 1M 5% 1/10W R133 1-216-845-11 METAL CHIP 100K 5% 1/10W R135 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R150 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R151 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R152 1-216-833-11 METAL CHIP 10K 5% 1/10W R153 1-216-818-11 METAL CHIP 560 5% 1/10W R154 1-216-821-11 METAL CHIP 1K 5% 1/10W R155 1-216-841-11 METAL CHIP 47K 5% 1/10W R156 1-216-833-11 METAL CHIP 10K 5% 1/10W R157 1-216-809-11 METAL CHIP 100 5% 1/10W R158 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R159 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R160 1-216-833-11 METAL CHIP 10K 5% 1/10W R161 1-216-833-11 METAL CHIP 10K 5% 1/10W R162 1-216-841-11 METAL CHIP 47K 5% 1/10W R163 1-216-833-11 METAL CHIP 10K 5% 1/10W R164 1-216-833-11 METAL CHIP 10K 5% 1/10W R165 1-216-821-11 METAL CHIP 1K 5% 1/10W R166 1-216-809-11 METAL CHIP 100 5% 1/10W R167 1-216-864-11 SHORT CHIP 0 R200 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R202 1-216-833-11 METAL CHIP 10K 5% 1/10W R203 1-216-833-11 METAL CHIP 10K 5% 1/10W MAIN Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 90 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GNV99D/GNV111D R204 1-216-821-11 METAL CHIP 1K 5% 1/10W R205 1-216-818-11 METAL CHIP 560 5% 1/10W (GNV111D) R206 1-216-841-11 METAL CHIP 47K 5% 1/10W R207 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R208 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R209 1-216-833-11 METAL CHIP 10K 5% 1/10W R210 1-216-817-11 METAL CHIP 470 5% 1/10W R211 1-216-841-11 METAL CHIP 47K 5% 1/10W R212 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R213 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R214 1-216-841-11 METAL CHIP 47K 5% 1/10W R215 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R216 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R217 1-216-833-11 METAL CHIP 10K 5% 1/10W R218 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R219 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R220 1-216-833-11 METAL CHIP 10K 5% 1/10W R221 1-216-841-11 METAL CHIP 47K 5% 1/10W R222 1-216-821-11 METAL CHIP 1K 5% 1/10W R223 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R224 1-216-821-11 METAL CHIP 1K 5% 1/10W R225 1-216-833-11 METAL CHIP 10K 5% 1/10W R226 1-216-837-11 METAL CHIP 22K 5% 1/10W R227 1-216-841-11 METAL CHIP 47K 5% 1/10W R228 1-216-821-11 METAL CHIP 1K 5% 1/10W R229 1-216-833-11 METAL CHIP 10K 5% 1/10W R230 1-216-821-11 METAL CHIP 1K 5% 1/10W R231 1-216-841-11 METAL CHIP 47K 5% 1/10W R232 1-216-833-11 METAL CHIP 10K 5% 1/10W R233 1-216-841-11 METAL CHIP 47K 5% 1/10W R234 1-216-821-11 METAL CHIP 1K 5% 1/10W R235 1-216-833-11 METAL CHIP 10K 5% 1/10W R236 1-216-833-11 METAL CHIP 10K 5% 1/10W (GNV111D) R237 1-216-841-11 METAL CHIP 47K 5% 1/10W (GNV111D) R238 1-216-864-11 SHORT CHIP 0 R239 1-216-833-11 METAL CHIP 10K 5% 1/10W R240 1-216-835-11 METAL CHIP 15K 5% 1/10W R241 1-216-839-11 METAL CHIP 33K 5% 1/10W R242 1-216-833-11 METAL CHIP 10K 5% 1/10W R243 1-216-821-11 METAL CHIP 1K 5% 1/10W R244 1-216-845-11 METAL CHIP 100K 5% 1/10W R245 1-216-833-11 METAL CHIP 10K 5% 1/10W R246 1-216-841-11 METAL CHIP 47K 5% 1/10W R247 1-216-821-11 METAL CHIP 1K 5% 1/10W R248 1-216-845-11 METAL CHIP 100K 5% 1/10W R249 1-216-833-11 METAL CHIP 10K 5% 1/10W R250 1-216-839-11 METAL CHIP 33K 5% 1/10W R251 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R252 1-216-833-11 METAL CHIP 10K 5% 1/10W R253 1-216-845-11 METAL CHIP 100K 5% 1/10W R254 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R255 1-216-818-11 METAL CHIP 560 5% 1/10W (GNV111D) R256 1-216-841-11 METAL CHIP 47K 5% 1/10W R257 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R258 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R259 1-216-833-11 METAL CHIP 10K 5% 1/10W R260 1-216-817-11 METAL CHIP 470 5% 1/10W R261 1-216-841-11 METAL CHIP 47K 5% 1/10W R262 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R263 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R264 1-216-841-11 METAL CHIP 47K 5% 1/10W R265 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R266 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R267 1-216-833-11 METAL CHIP 10K 5% 1/10W R268 1-216-821-11 METAL CHIP 1K 5% 1/10W R269 1-216-833-11 METAL CHIP 10K 5% 1/10W R270 1-216-841-11 METAL CHIP 47K 5% 1/10W R271 1-216-833-11 METAL CHIP 10K 5% 1/10W R272 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R273 1-216-833-11 METAL CHIP 10K 5% 1/10W R274 1-216-821-11 METAL CHIP 1K 5% 1/10W R275 1-216-833-11 METAL CHIP 10K 5% 1/10W R276 1-216-837-11 METAL CHIP 22K 5% 1/10W R277 1-216-841-11 METAL CHIP 47K 5% 1/10W R278 1-216-821-11 METAL CHIP 1K 5% 1/10W R279 1-216-833-11 METAL CHIP 10K 5% 1/10W R280 1-216-821-11 METAL CHIP 1K 5% 1/10W R281 1-216-841-11 METAL CHIP 47K 5% 1/10W R282 1-216-833-11 METAL CHIP 10K 5% 1/10W R283 1-216-841-11 METAL CHIP 47K 5% 1/10W R284 1-216-821-11 METAL CHIP 1K 5% 1/10W R285 1-216-833-11 METAL CHIP 10K 5% 1/10W R286 1-216-833-11 METAL CHIP 10K 5% 1/10W (GNV111D) R287 1-216-841-11 METAL CHIP 47K 5% 1/10W (GNV111D) R288 1-216-864-11 SHORT CHIP 0 R289 1-216-833-11 METAL CHIP 10K 5% 1/10W R290 1-216-835-11 METAL CHIP 15K 5% 1/10W R291 1-216-839-11 METAL CHIP 33K 5% 1/10W R292 1-216-833-11 METAL CHIP 10K 5% 1/10W R293 1-216-821-11 METAL CHIP 1K 5% 1/10W R294 1-216-845-11 METAL CHIP 100K 5% 1/10W R295 1-216-833-11 METAL CHIP 10K 5% 1/10W R296 1-216-841-11 METAL CHIP 47K 5% 1/10W R297 1-216-821-11 METAL CHIP 1K 5% 1/10W R298 1-216-833-11 METAL CHIP 10K 5% 1/10W R299 1-216-833-11 METAL CHIP 10K 5% 1/10W R300 1-216-841-11 METAL CHIP 47K 5% 1/10W R301 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R302 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R303 1-216-833-11 METAL CHIP 10K 5% 1/10W R304 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R305 1-216-841-11 METAL CHIP 47K 5% 1/10W R306 1-216-837-11 METAL CHIP 22K 5% 1/10W R307 1-216-857-11 METAL CHIP 1M 5% 1/10W R308 1-216-809-11 METAL CHIP 100 5% 1/10W R309 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R310 1-216-809-11 METAL CHIP 100 5% 1/10W R311 1-216-809-11 METAL CHIP 100 5% 1/10W R312 1-216-809-11 METAL CHIP 100 5% 1/10W R313 1-216-841-11 METAL CHIP 47K 5% 1/10W R314 1-216-825-11 METAL CHIP 2.2K 5% 1/10W MAIN Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 91 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GNV99D/GNV111D R315 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R316 1-216-837-11 METAL CHIP 22K 5% 1/10W R317 1-216-833-11 METAL CHIP 10K 5% 1/10W R318 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R319 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R335 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R336 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R337 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R338 1-216-833-11 METAL CHIP 10K 5% 1/10W R339 1-216-836-11 METAL CHIP 18K 5% 1/10W R340 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R341 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R342 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R343 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R344 1-216-819-11 METAL CHIP 680 5% 1/10W R345 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R346 1-216-819-11 METAL CHIP 680 5% 1/10W R347 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R348 1-216-819-11 METAL CHIP 680 5% 1/10W R349 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R350 1-216-841-11 METAL CHIP 47K 5% 1/10W R351 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R352 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R353 1-216-833-11 METAL CHIP 10K 5% 1/10W R354 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R355 1-216-841-11 METAL CHIP 47K 5% 1/10W R356 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R357 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R358 1-216-839-11 METAL CHIP 33K 5% 1/10W R359 1-216-839-11 METAL CHIP 33K 5% 1/10W R360 1-216-835-11 METAL CHIP 15K 5% 1/10W R361 1-216-835-11 METAL CHIP 15K 5% 1/10W R362 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R363 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R364 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R365 1-216-841-11 METAL CHIP 47K 5% 1/10W R366 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R367 1-216-841-11 METAL CHIP 47K 5% 1/10W R368 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R369 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R370 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R371 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R372 1-216-833-11 METAL CHIP 10K 5% 1/10W R373 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R374 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R375 1-216-833-11 METAL CHIP 10K 5% 1/10W R376 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R377 1-216-805-11 METAL CHIP 47 5% 1/10W R378 1-216-833-11 METAL CHIP 10K 5% 1/10W R379 1-216-797-11 METAL CHIP 10 5% 1/10W R380 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R381 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R382 1-216-841-11 METAL CHIP 47K 5% 1/10W R383 1-216-815-11 METAL CHIP 330 5% 1/10W R384 1-216-815-11 METAL CHIP 330 5% 1/10W R385 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R386 1-216-803-11 METAL CHIP 33 5% 1/10W R387 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R388 1-216-833-11 METAL CHIP 10K 5% 1/10W R389 1-216-836-11 METAL CHIP 18K 5% 1/10W R390 1-216-833-11 METAL CHIP 10K 5% 1/10W R391 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R392 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R394 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R395 1-216-841-11 METAL CHIP 47K 5% 1/10W R396 1-216-833-11 METAL CHIP 10K 5% 1/10W R399 1-216-833-11 METAL CHIP 10K 5% 1/10W R400 1-216-833-11 METAL CHIP 10K 5% 1/10W R401 1-216-809-11 METAL CHIP 100 5% 1/10W R402 1-216-809-11 METAL CHIP 100 5% 1/10W R403 1-216-833-11 METAL CHIP 10K 5% 1/10W R404 1-216-833-11 METAL CHIP 10K 5% 1/10W R405 1-216-809-11 METAL CHIP 100 5% 1/10W R406 1-216-809-11 METAL CHIP 100 5% 1/10W R407 1-216-809-11 METAL CHIP 100 5% 1/10W R408 1-216-809-11 METAL CHIP 100 5% 1/10W R409 1-216-809-11 METAL CHIP 100 5% 1/10W R410 1-216-833-11 METAL CHIP 10K 5% 1/10W R411 1-216-851-11 METAL CHIP 330K 5% 1/10W R412 1-216-845-11 METAL CHIP 100K 5% 1/10W R413 1-216-864-11 SHORT CHIP 0 R414 1-216-809-11 METAL CHIP 100 5% 1/10W R415 1-216-809-11 METAL CHIP 100 5% 1/10W R417 1-216-833-11 METAL CHIP 10K 5% 1/10W R418 1-216-809-11 METAL CHIP 100 5% 1/10W (EXCEPT EA, AUS) R418 1-469-147-21 FERRITE, EMI (SDM) (EA, AUS) R419 1-216-841-11 METAL CHIP 47K 5% 1/10W R420 1-216-821-11 METAL CHIP 1K 5% 1/10W R421 1-216-809-11 METAL CHIP 100 5% 1/10W (EXCEPT EA, AUS) R421 1-469-147-21 FERRITE, EMI (SDM) (EA, AUS) R422 1-216-809-11 METAL CHIP 100 5% 1/10W (EXCEPT EA, AUS) R422 1-469-147-21 FERRITE, EMI (SDM) (EA, AUS) R423 1-216-809-11 METAL CHIP 100 5% 1/10W R424 1-216-809-11 METAL CHIP 100 5% 1/10W R425 1-216-809-11 METAL CHIP 100 5% 1/10W R426 1-216-809-11 METAL CHIP 100 5% 1/10W R427 1-216-833-11 METAL CHIP 10K 5% 1/10W R428 1-216-833-11 METAL CHIP 10K 5% 1/10W R429 1-216-809-11 METAL CHIP 100 5% 1/10W R430 1-216-809-11 METAL CHIP 100 5% 1/10W R431 1-216-809-11 METAL CHIP 100 5% 1/10W R432 1-216-809-11 METAL CHIP 100 5% 1/10W R433 1-216-809-11 METAL CHIP 100 5% 1/10W R434 1-216-809-11 METAL CHIP 100 5% 1/10W R435 1-216-809-11 METAL CHIP 100 5% 1/10W R436 1-216-833-11 METAL CHIP 10K 5% 1/10W R437 1-216-833-11 METAL CHIP 10K 5% 1/10W R438 1-216-809-11 METAL CHIP 100 5% 1/10W R439 1-216-809-11 METAL CHIP 100 5% 1/10W R440 1-216-809-11 METAL CHIP 100 5% 1/10W R441 1-216-809-11 METAL CHIP 100 5% 1/10W R442 1-216-809-11 METAL CHIP 100 5% 1/10W R443 1-216-809-11 METAL CHIP 100 5% 1/10W MAIN Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 92 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GNV99D/GNV111D R444 1-216-821-11 METAL CHIP 1K 5% 1/10W R446 1-216-809-11 METAL CHIP 100 5% 1/10W R447 1-216-809-11 METAL CHIP 100 5% 1/10W R451 1-216-809-11 METAL CHIP 100 5% 1/10W R452 1-216-809-11 METAL CHIP 100 5% 1/10W R453 1-216-809-11 METAL CHIP 100 5% 1/10W R454 1-216-809-11 METAL CHIP 100 5% 1/10W R455 1-216-833-11 METAL CHIP 10K 5% 1/10W R456 1-216-833-11 METAL CHIP 10K 5% 1/10W R457 1-216-809-11 METAL CHIP 100 5% 1/10W R458 1-216-809-11 METAL CHIP 100 5% 1/10W R466 1-216-833-11 METAL CHIP 10K 5% 1/10W R467 1-216-809-11 METAL CHIP 100 5% 1/10W R468 1-216-809-11 METAL CHIP 100 5% 1/10W R469 1-216-809-11 METAL CHIP 100 5% 1/10W R470 1-216-809-11 METAL CHIP 100 5% 1/10W R471 1-216-833-11 METAL CHIP 10K 5% 1/10W R472 1-216-809-11 METAL CHIP 100 5% 1/10W R473 1-216-809-11 METAL CHIP 100 5% 1/10W R474 1-216-809-11 METAL CHIP 100 5% 1/10W R475 1-216-809-11 METAL CHIP 100 5% 1/10W R484 1-216-833-11 METAL CHIP 10K 5% 1/10W R485 1-216-809-11 METAL CHIP 100 5% 1/10W R486 1-216-809-11 METAL CHIP 100 5% 1/10W R487 1-216-833-11 METAL CHIP 10K 5% 1/10W R488 1-216-809-11 METAL CHIP 100 5% 1/10W R489 1-216-809-11 METAL CHIP 100 5% 1/10W R490 1-216-809-11 METAL CHIP 100 5% 1/10W R491 1-216-809-11 METAL CHIP 100 5% 1/10W R492 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R493 1-216-815-11 METAL CHIP 330 5% 1/10W (E3, E15) R493 1-216-819-11 METAL CHIP 680 5% 1/10W (E12) R493 1-216-821-11 METAL CHIP 1K 5% 1/10W (EA) R493 1-216-823-11 METAL CHIP 1.5K 5% 1/10W (AUS) R493 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (E2, E13, MX) R493 1-216-864-11 SHORT CHIP 0 (MY, SP, PH, TH) R495 1-216-809-11 METAL CHIP 100 5% 1/10W R497 1-216-809-11 METAL CHIP 100 5% 1/10W (GNV111D: EXCEPT TH) R500 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R501 1-216-813-11 METAL CHIP 220 5% 1/10W R502 1-216-821-11 METAL CHIP 1K 5% 1/10W R503 1-216-864-11 SHORT CHIP 0 R505 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R506 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R507 1-216-833-11 METAL CHIP 10K 5% 1/10W R508 1-216-853-11 METAL CHIP 470K 5% 1/10W R509 1-216-843-11 METAL CHIP 68K 5% 1/10W R510 1-216-835-11 METAL CHIP 15K 5% 1/10W R511 1-216-853-11 METAL CHIP 470K 5% 1/10W R512 1-216-843-11 METAL CHIP 68K 5% 1/10W R513 1-216-835-11 METAL CHIP 15K 5% 1/10W R514 1-216-853-11 METAL CHIP 470K 5% 1/10W R515 1-216-843-11 METAL CHIP 68K 5% 1/10W R516 1-216-835-11 METAL CHIP 15K 5% 1/10W R517 1-216-841-11 METAL CHIP 47K 5% 1/10W R518 1-216-833-11 METAL CHIP 10K 5% 1/10W R519 1-216-821-11 METAL CHIP 1K 5% 1/10W R520 1-216-833-11 METAL CHIP 10K 5% 1/10W R522 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R523 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R524 1-216-833-11 METAL CHIP 10K 5% 1/10W R525 1-216-833-11 METAL CHIP 10K 5% 1/10W R526 1-216-821-11 METAL CHIP 1K 5% 1/10W R527 1-216-841-11 METAL CHIP 47K 5% 1/10W R528 1-216-833-11 METAL CHIP 10K 5% 1/10W R529 1-216-835-11 METAL CHIP 15K 5% 1/10W R530 1-216-843-11 METAL CHIP 68K 5% 1/10W R531 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R532 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R533 1-216-833-11 METAL CHIP 10K 5% 1/10W R534 1-216-833-11 METAL CHIP 10K 5% 1/10W R535 1-216-833-11 METAL CHIP 10K 5% 1/10W R536 1-216-833-11 METAL CHIP 10K 5% 1/10W R537 1-216-853-11 METAL CHIP 470K 5% 1/10W R538 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R539 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R540 1-216-833-11 METAL CHIP 10K 5% 1/10W R549 1-216-824-11 METAL CHIP 1.8K 5% 1/10W R551 1-216-842-11 METAL CHIP 56K 5% 1/10W R552 1-216-843-11 METAL CHIP 68K 5% 1/10W R553 1-216-853-11 METAL CHIP 470K 5% 1/10W R554 1-216-835-11 METAL CHIP 15K 5% 1/10W R573 1-216-833-11 METAL CHIP 10K 5% 1/10W R574 1-216-833-11 METAL CHIP 10K 5% 1/10W R575 1-216-833-11 METAL CHIP 10K 5% 1/10W R576 1-216-821-11 METAL CHIP 1K 5% 1/10W R577 1-216-841-11 METAL CHIP 47K 5% 1/10W R578 1-216-833-11 METAL CHIP 10K 5% 1/10W R579 1-216-833-11 METAL CHIP 10K 5% 1/10W R580 1-216-833-11 METAL CHIP 10K 5% 1/10W R581 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R582 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R583 1-216-841-11 METAL CHIP 47K 5% 1/10W R584 1-216-845-11 METAL CHIP 100K 5% 1/10W R585 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R586 1-216-833-11 METAL CHIP 10K 5% 1/10W R592 1-216-815-11 METAL CHIP 330 5% 1/10W (GNV99D) R592 1-216-864-11 SHORT CHIP 0 (GNV111D) R593 1-216-811-11 METAL CHIP 150 5% 1/10W (E13) R593 1-216-821-11 METAL CHIP 1K 5% 1/10W (E2, MX) R593 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (EXCEPT E2, E13, MX) R601 1-216-821-11 METAL CHIP 1K 5% 1/10W R602 1-216-833-11 METAL CHIP 10K 5% 1/10W R612 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R623 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R662 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W MAIN Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 93 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GNV99D/GNV111D < TRANSFORMER > T301 1-433-372-11 TRANSFORMER, BIAS OSCILLATION < VIBRATOR > X401 1-760-252-12 VIBRATOR, CRYSTAL (32.768 kHz) X402 1-795-058-21 VIBRATOR, CERAMIC (5 MHz) ************************************************************* A-1099-294-A MIC BOARD, COMPLETE (EXCEPT EA, TH, AUS) A-1114-733-A MIC BOARD, COMPLETE (TH) A-1124-017-A MIC BOARD, COMPLETE (EA, AUS) ********** < CAPACITOR > C1100 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1101 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1102 1-124-257-00 ELECT 2.2uF 20% 50V C1103 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C1104 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V C1105 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C1106 1-124-257-00 ELECT 2.2uF 20% 50V C1108 1-124-257-00 ELECT 2.2uF 20% 50V C1109 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C1110 1-164-217-11 CERAMIC CHIP 150PF 5% 50V C1111 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C1112 1-124-261-00 ELECT 10uF 20% 50V C1113 1-124-261-00 ELECT 10uF 20% 50V C1114 1-124-464-11 ELECT 0.22uF 20% 50V C1115 1-126-961-11 ELECT 2.2uF 20% 50V C1116 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C1117 1-126-960-11 ELECT 1uF 20% 50V C1118 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V C1119 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C1120 1-136-495-11 FILM 0.068uF 5% 50V C1121 1-124-589-11 ELECT 47uF 20% 16V C1122 1-124-589-11 ELECT 47uF 20% 16V C1123 1-136-495-11 FILM 0.068uF 5% 50V C1124 1-126-960-11 ELECT 1uF 20% 50V C1125 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C1126 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V C1127 1-136-495-11 FILM 0.068uF 5% 50V C1128 1-126-957-11 ELECT 0.22uF 20% 50V C1129 1-126-957-11 ELECT 0.22uF 20% 50V C1130 1-136-155-00 FILM 0.015uF 5% 50V C1131 1-126-176-11 ELECT 220uF 20% 10V C1133 1-113-619-11 CERAMIC CHIP 0.47uF 10V C1134 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C1135 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C1136 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1139 1-126-160-11 ELECT 1uF 20% 50V C1142 1-216-864-11 SHORT CHIP 0 C1144 1-124-261-00 ELECT 10uF 20% 50V C1145 1-124-261-00 ELECT 10uF 20% 50V < CONNECTOR > CN1100 1-785-328-11 PIN, CONNECTOR (LIGHT ANGRE) 2P CN1102 1-785-329-11 PIN, CONNECTOR (LIGHT ANGLE) 3P < DIODE > D1100 8-719-988-61 DIODE 1SS355TE-17 D1101 8-719-988-61 DIODE 1SS355TE-17 D1102 8-719-976-99 DIODE DTZ5.1B D1103 8-719-988-61 DIODE 1SS355TE-17 D1104 8-719-988-61 DIODE 1SS355TE-17 < FERRITE BEAD > FB1100 1-216-864-11 SHORT CHIP 0 FB1101 1-216-864-11 SHORT CHIP 0 < IC > IC1100 8-759-710-97 IC NJM4565M-D IC1101 8-759-496-41 IC M65850FP-E1 < JACK > J1100 1-817-630-11 JACK (LARGE TYPE) (MIC 1) J1101 1-817-630-11 JACK (LARGE TYPE) (MIC 2) J1102 1-764-592-11 JACK 3P (VIDEO OUT) J1103 1-794-702-11 JACK, HEADPHONE (PHONES) < JUMPER RESISTOR > JR1100 1-216-864-11 SHORT CHIP 0 JR1101 1-216-864-11 SHORT CHIP 0 JR1102 1-216-864-11 SHORT CHIP 0 JR1103 1-216-296-11 SHORT CHIP 0 JR1104 1-216-296-11 SHORT CHIP 0 JR1105 1-216-296-11 SHORT CHIP 0 JR1106 1-216-864-11 SHORT CHIP 0 JR1108 1-216-864-11 SHORT CHIP 0 JR1113 1-216-296-11 SHORT CHIP 0 JR1114 1-216-296-11 SHORT CHIP 0 < RESISTOR > R1100 1-216-833-11 METAL CHIP 10K 5% 1/10W R1101 1-216-821-11 METAL CHIP 1K 5% 1/10W R1102 1-216-833-11 METAL CHIP 10K 5% 1/10W R1103 1-216-821-11 METAL CHIP 1K 5% 1/10W R1104 1-216-845-11 METAL CHIP 100K 5% 1/10W R1105 1-216-821-11 METAL CHIP 1K 5% 1/10W R1106 1-216-841-11 METAL CHIP 47K 5% 1/10W R1107 1-216-809-11 METAL CHIP 100 5% 1/10W R1108 1-216-833-11 METAL CHIP 10K 5% 1/10W R1109 1-216-847-11 METAL CHIP 150K 5% 1/10W R1110 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1111 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R1113 1-216-835-11 METAL CHIP 15K 5% 1/10W R1114 1-216-835-11 METAL CHIP 15K 5% 1/10W R1115 1-216-815-11 METAL CHIP 330 5% 1/10W R1116 1-216-815-11 METAL CHIP 330 5% 1/10W R1117 1-216-835-11 METAL CHIP 15K 5% 1/10W R1118 1-216-835-11 METAL CHIP 15K 5% 1/10W R1119 1-216-835-11 METAL CHIP 15K 5% 1/10W R1120 1-216-846-11 METAL CHIP 120K 5% 1/10W R1121 1-216-835-11 METAL CHIP 15K 5% 1/10W R1122 1-216-835-11 METAL CHIP 15K 5% 1/10W MIC MAIN Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 94 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GNV99D/GNV111D R1123 1-216-835-11 METAL CHIP 15K 5% 1/10W R1124 1-216-841-11 METAL CHIP 47K 5% 1/10W R1125 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1126 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1127 1-218-839-11 METAL CHIP 33K 0.5% 1/10W R1128 1-218-839-11 METAL CHIP 33K 0.5% 1/10W R1130 1-216-835-11 METAL CHIP 15K 5% 1/10W R1131 1-216-835-11 METAL CHIP 15K 5% 1/10W R1132 1-216-864-11 SHORT CHIP 0 < VARIABLE RESISTOR > RV1100 1-227-452-11 RES, VAR, CARBON 50K (MIC LEVEL) RV1101 1-227-452-11 RES, VAR, CARBON 50K (ECHO LEVEL) ************************************************************* 1-687-133-12 MOTOR (LD) BOARD ***************** ************************************************************* 1-687-134-12 MOTOR (TB) BOARD ***************** < CONNECTOR > CN742 1-784-727-11 CONNECTOR, FFC 5P ************************************************************* A-1089-532-A PA BOARD, COMPLETE (GNV99D: EXCEPT TH) A-1089-591-A PA BOARD, COMPLETE (E2, MX) A-1113-624-A PA BOARD, COMPLETE (GNV111D: TH) A-1114-756-A PA BOARD, COMPLETE (GNV111D: EXCEPT TH) A-1114-765-A PA BOARD, COMPLETE (GNV99D: TH) ********* < CAPACITOR > C600 1-126-963-11 ELECT 4.7uF 20% 50V C601 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C602 1-126-923-91 ELECT 220uF 20% 10V C604 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C605 1-131-992-91 CERAMIC CHIP 0.1uF 35V C606 1-131-992-91 CERAMIC CHIP 0.1uF 35V C608 1-126-965-91 ELECT 22uF 20% 50V C609 1-128-560-11 ELECT 22uF 20% 100V C610 1-128-560-11 ELECT 22uF 20% 100V C616 1-136-495-11 FILM 0.068uF 5% 50V C617 1-136-495-11 FILM 0.068uF 5% 50V C618 1-128-582-11 ELECT 10uF 20% 100V C619 1-128-582-11 ELECT 10uF 20% 100V C634 1-104-665-11 ELECT 100uF 20% 25V C635 1-104-665-11 ELECT 100uF 20% 25V C636 1-107-721-11 ELECT 4.7uF 20% 100V C637 1-107-721-11 ELECT 4.7uF 20% 100V C648 1-104-658-91 ELECT 100uF 20% 10V C649 1-126-964-11 ELECT 10uF 20% 50V C650 1-126-963-11 ELECT 4.7uF 20% 50V C651 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C652 1-126-923-91 ELECT 220uF 20% 10V C654 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C655 1-126-964-11 ELECT 10uF 20% 50V C656 1-127-815-11 ELECT 3300uF 20% 100V C657 1-130-777-00 MYLAR 0.1uF 5% 100V C658 1-112-032-11 ELECT 4700uF 20% 63V C659 1-130-777-00 MYLAR 0.1uF 5% 100V C660 1-131-992-91 CERAMIC CHIP 100000PF 35V C666 1-136-495-11 FILM 0.068uF 5% 50V C667 1-136-495-11 FILM 0.068uF 5% 50V C676 1-127-815-11 ELECT 3300uF 20% 100V C677 1-130-777-00 MYLAR 0.1uF 5% 100V C678 1-112-032-11 ELECT 4700uF 20% 63V C679 1-130-777-00 MYLAR 0.1uF 5% 100V C683 1-131-992-91 CERAMIC CHIP 0.1uF 35V C693 1-131-992-91 CERAMIC CHIP 0.1uF 35V < CONNECTOR > CN600 1-764-865-41 CONNECTOR, BOARD TO BOARD 13P CN601 1-784-031-41 CONNECTOR, BOARD TO BOARD 8P * CN602 1-564-512-11 PLUG, CONNECTOR 9P < DIODE > D609 8-719-988-61 DIODE 1SS355TE-17 D611 8-719-056-93 DIODE UDZ-TE-17-18B D612 8-719-056-93 DIODE UDZ-TE-17-18B D620 8-719-988-61 DIODE 1SS355TE-17 D624 8-719-988-61 DIODE 1SS355TE-17 D646 8-719-988-61 DIODE 1SS355TE-17 D654 8-719-988-61 DIODE 1SS355TE-17 D655 8-719-988-61 DIODE 1SS355TE-17 D660 8-719-988-61 DIODE 1SS355TE-17 D661 8-719-988-61 DIODE 1SS355TE-17 D670 8-719-988-61 DIODE 1SS355TE-17 D656 8-719-066-42 DIODE RBV1306 (GNV99D) D656 8-719-073-32 DIODE D25XB60 (GNV111D) D658 8-719-066-42 DIODE RBV1306 (GNV111D) D658 8-719-500-60 DIODE D5SBA20 (GNV99D) < IC > IC600 6-600-169-01 IC STK412-240 < JUMPER RESISTOR > JR600 1-216-296-11 SHORT CHIP 0 JR603 1-216-296-11 SHORT CHIP 0 < COIL > L680 1-420-872-52 COIL, AIR-CORE L690 1-420-872-52 COIL, AIR-CORE < TRANSISTOR > Q604 8-729-924-99 TRANSISTOR 2SC3722K-E Q606 8-729-821-00 TRANSISTOR 2SA1207 Q610 8-729-924-99 TRANSISTOR 2SC3722K-E Q618 8-729-924-99 TRANSISTOR 2SC3722K-E Q628 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q629 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q630 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q634 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q640 8-729-802-80 TRANSISTOR 2SC3661 Q641 8-729-802-80 TRANSISTOR 2SC3661 MOTOR (LD) MOTOR (TB) PA MIC Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 95 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GNV99D/GNV111D Q644 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q647 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q648 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q668 8-729-924-99 TRANSISTOR 2SC3722K-E Q682 8-729-120-28 TRANSISTOR 2SC1623-L5L6 < RESISTOR > R600 1-216-821-11 METAL CHIP 1K 5% 1/10W R601 1-216-841-11 METAL CHIP 47K 5% 1/10W R602 1-216-815-11 METAL CHIP 330 5% 1/10W R603 1-216-841-11 METAL CHIP 47K 5% 1/10W R604 1-216-833-11 METAL CHIP 10K 5% 1/10W R605 1-216-833-11 METAL CHIP 10K 5% 1/10W R606 1-216-841-11 METAL CHIP 47K 5% 1/10W R607 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R608 1-216-845-11 METAL CHIP 100K 5% 1/10W R609 1-216-843-11 METAL CHIP 68K 5% 1/10W R610 1-216-843-11 METAL CHIP 68K 5% 1/10W R611 1-216-839-11 METAL CHIP 33K 5% 1/10W 0R612 1-245-605-51 FUSIBLE 100 5% 1/4W R613 1-215-869-11 METAL OXIDE 1K 5% 1W R614 1-215-869-11 METAL OXIDE 1K 5% 1W 0R615 1-245-605-51 FUSIBLE 100 5% 1/4W 0R616 1-217-637-00 FUSIBLE 1 5% 1/4W R617 1-216-845-11 METAL CHIP 100K 5% 1/10W 0R618 1-234-499-21 ENCAPSULATED COMPONENT R619 1-216-821-11 METAL CHIP 1K 5% 1/10W R620 1-216-836-11 METAL CHIP 18K 5% 1/10W R621 1-216-847-11 METAL CHIP 150K 5% 1/10W R622 1-245-711-31 CARBON 10 5% 1/2W (EXCEPT TH) R622 1-249-625-31 CARBON 10 5% 1/2W (TH) R623 1-216-843-11 METAL CHIP 68K 5% 1/10W R624 1-216-837-11 METAL CHIP 22K 5% 1/10W R625 1-216-825-11 METAL CHIP 2.2K 5% 1/10W (GNV99D) R625 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (GNV111D) R626 1-216-842-11 METAL CHIP 56K 5% 1/10W R627 1-216-821-11 METAL CHIP 1K 5% 1/10W R628 1-216-837-11 METAL CHIP 22K 5% 1/10W R629 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R630 1-216-845-11 METAL CHIP 100K 5% 1/10W R631 1-216-845-11 METAL CHIP 100K 5% 1/10W R632 1-216-845-11 METAL CHIP 100K 5% 1/10W R633 1-216-842-11 METAL CHIP 56K 5% 1/10W R634 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R635 1-216-833-11 METAL CHIP 10K 5% 1/10W R636 1-216-456-00 METAL OXIDE 820 5% 2W R637 1-216-456-00 METAL OXIDE 820 5% 2W R638 1-216-845-11 METAL CHIP 100K 5% 1/10W R639 1-216-845-11 METAL CHIP 100K 5% 1/10W R640 1-216-821-11 METAL CHIP 1K 5% 1/10W R641 1-216-821-11 METAL CHIP 1K 5% 1/10W R642 1-216-811-11 METAL CHIP 150 5% 1/10W R643 1-216-811-11 METAL CHIP 150 5% 1/10W R644 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R645 1-216-833-11 METAL CHIP 10K 5% 1/10W 0R646 1-260-087-11 CARBON 100 5% 1/2W R647 1-216-821-11 METAL CHIP 1K 5% 1/10W R648 1-216-837-11 METAL CHIP 22K 5% 1/10W R649 1-216-837-11 METAL CHIP 22K 5% 1/10W R650 1-216-821-11 METAL CHIP 1K 5% 1/10W R651 1-216-841-11 METAL CHIP 47K 5% 1/10W R652 1-216-815-11 METAL CHIP 330 5% 1/10W R653 1-216-841-11 METAL CHIP 47K 5% 1/10W R654 1-216-841-11 METAL CHIP 47K 5% 1/10W R655 1-216-841-11 METAL CHIP 47K 5% 1/10W R656 1-216-849-11 METAL CHIP 220K 5% 1/10W R657 1-216-849-11 METAL CHIP 220K 5% 1/10W R658 1-216-845-11 METAL CHIP 100K 5% 1/10W R660 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R661 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R662 1-216-811-11 METAL CHIP 150 5% 1/10W R663 1-216-811-11 METAL CHIP 150 5% 1/10W 0R668 1-234-499-21 ENCAPSULATED COMPONENT R669 1-216-821-11 METAL CHIP 1K 5% 1/10W R670 1-216-836-11 METAL CHIP 18K 5% 1/10W R671 1-216-847-11 METAL CHIP 150K 5% 1/10W R672 1-245-711-31 CARBON 10 5% 1/2W (EXCEPT TH) R672 1-249-625-31 CARBON 10 5% 1/10W (TH) R673 1-216-842-11 METAL CHIP 56K 5% 1/10W R674 1-216-837-11 METAL CHIP 22K 5% 1/10W R676 1-216-849-11 METAL CHIP 220K 5% 1/10W R677 1-216-849-11 METAL CHIP 220K 5% 1/10W R678 1-216-845-11 METAL CHIP 100K 5% 1/10W R680 1-245-711-31 CARBON 10 5% 1/2W (GNV99D: EXCEPT TH/GNV111D: E2, MX) R680 1-249-625-31 CARBON 10 5% 1/2W (GNV99D: TH/GNV111D: EXCEPT E2, MX) R682 1-216-821-11 METAL CHIP 1K 5% 1/10W R683 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R685 1-216-833-11 METAL CHIP 10K 5% 1/10W R690 1-245-711-31 CARBON 10 5% 1/2W (GNV99D: EXCEPT TH/GNV111D: E2, MX) R690 1-249-625-31 CARBON 10 5% 1/2W (GNV99D: TH/GNV111D: EXCEPT E2, MX) R692 1-216-841-11 METAL CHIP 47K 5% 1/10W R693 1-216-845-11 METAL CHIP 100K 5% 1/10W R694 1-216-843-11 METAL CHIP 68K 5% 1/10W R695 1-216-845-11 METAL CHIP 100K 5% 1/10W R696 1-216-845-11 METAL CHIP 100K 5% 1/10W R697 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R698 1-216-845-11 METAL CHIP 100K 5% 1/10W < RELAY > RY646 1-755-500-11 RELAY < THERMISTOR > TH629 1-807-796-11 THERMISTOR TH630 1-807-796-11 THERMISTOR < TERMINAL > TM600 1-780-001-21 TERMINAL BOARD (SPEAKER) (FRONT SPEAKER) ************************************************************* PA Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 96 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GNV99D/GNV111D A-1103-601-A PANEL BOARD, COMPLETE (EXCEPT TH) A-1114-730-A PANEL BOARD, COMPLETE (TH) ************ < CAPACITOR > C900 1-126-163-11 ELECT 4.7uF 20% 50V C901 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C902 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C903 1-164-156-11 CERAMIC CHIP 0.1uF 25V C904 1-164-156-11 CERAMIC CHIP 0.1uF 25V C905 1-164-156-11 CERAMIC CHIP 0.1uF 25V C906 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C907 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C908 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C909 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C910 1-164-156-11 CERAMIC CHIP 0.1uF 25V C916 1-164-156-11 CERAMIC CHIP 0.1uF 25V C917 1-164-156-11 CERAMIC CHIP 0.1uF 25V C918 1-119-941-91 ELECT 470uF 20% 6.3V C919 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C922 1-124-261-00 ELECT 10uF 20% 50V C923 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C924 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C925 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C926 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C927 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C928 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C929 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C930 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C931 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C932 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C933 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C934 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C935 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C936 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C937 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C938 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C939 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C940 1-164-156-11 CERAMIC CHIP 0.1uF 25V C941 1-124-261-00 ELECT 10uF 20% 50V C942 1-124-261-00 ELECT 10uF 20% 50V C944 1-124-261-00 ELECT 10uF 20% 50V C945 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C946 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C947 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C948 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C949 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C950 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C951 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C952 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C953 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C954 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C955 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C956 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C957 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C958 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C959 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C961 1-164-156-11 CERAMIC CHIP 0.1uF 25V C966 1-164-156-11 CERAMIC CHIP 0.1uF 25V C970 1-119-941-91 ELECT 470uF 20% 6.3V C971 1-119-941-91 ELECT 470uF 20% 6.3V C972 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C973 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C977 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C978 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C979 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C980 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C981 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C982 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C983 1-162-927-11 CERAMIC CHIP 100PF 5% 50V < CONNECTOR > * CN902 1-569-934-11 SOCKET, CONNECTOR 17P CNS901 1-770-401-11 HOUSING, CONNECTOR (PC BOARD) 8P CNS902 1-819-074-11 BOARD TO BOARD HEADER (8P) < DIODE > D901 8-719-988-61 DIODE 1SS355TE-17 D902 6-501-228-01 DIODE SELU5420E-STP15 (`/1) D903 6-500-522-21 DIODE 10EDB40-TB3 D904 6-500-522-21 DIODE 10EDB40-TB3 D905 8-719-056-83 DIODE UDZ-TE-17-6.8B D906 6-501-227-01 DIODE SELU5620S-STP15 (DVD) D907 6-501-228-01 DIODE SELU5420E-STP15 (DVD) D908 6-501-227-01 DIODE SELU5620S-STP15 (TUNER/BAND) D909 6-501-228-01 DIODE SELU5420E-STP15 (TUNER/BAND) D910 6-501-227-01 DIODE SELU5620S-STP15 (TAPE A/B) D911 6-501-227-01 DIODE SELU5620S-STP15 (bB) D912 6-501-227-01 DIODE SELU5620S-STP15 (x) D913 6-501-227-01 DIODE SELU5620S-STP15 (PRESET/ >+) D914 6-501-227-01 DIODE SELU5620S-STP15 (TUNING/ M+) D915 6-501-228-01 DIODE SELU5420E-STP15 (bB) D916 6-501-228-01 DIODE SELU5420E-STP15 (TAPE A/B) D917 6-501-227-01 DIODE SELU5620S-STP15 (TV/SAT) D918 6-501-228-01 DIODE SELU5420E-STP15 (TV/SAT) D925 6-501-227-01 DIODE SELU5620S-STP15 (VIDEO) D926 6-501-228-01 DIODE SELU5420E-STP15 (VIDEO) D927 6-501-227-01 DIODE SELU5620S-STP15 (`/1) D928 6-501-227-01 DIODE SELU5620S-STP15 (X) D929 6-501-227-01 DIODE SELU5620S-STP15 (PRESET/ .-) D930 6-501-227-01 DIODE SELU5620S-STP15 (TUNING/ m-) < FERRITE BEAD > FB901 1-216-864-11 SHORT CHIP 0 < FLUORESCENT INDICATOR > FL901 1-519-794-21 VACUUM FLUORESCENT DISPLAYS < IC > IC902 6-805-079-01 IC MB90M407PF-G-145E1 IC903 6-600-210-01 IC RPM7240-H8 ( ) IC904 6-705-678-01 IC NJM2760V-TE2 < JUMPER RESISTOR/RESISTOR > JR909 1-216-864-11 SHORT CHIP 0 PANEL Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 97 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GNV99D/GNV111D JR910 1-216-864-11 SHORT CHIP 0 JR911 1-216-864-11 SHORT CHIP 0 JR912 1-216-296-11 SHORT CHIP 0 JR913 1-216-864-11 SHORT CHIP 0 JR914 1-216-864-11 SHORT CHIP 0 JR915 1-216-809-11 METAL CHIP 100 5% 1/10W JR916 1-216-864-11 SHORT CHIP 0 JR917 1-216-864-11 SHORT CHIP 0 JR918 1-216-864-11 SHORT CHIP 0 JR921 1-216-296-11 SHORT CHIP 0 JR922 1-216-296-11 SHORT CHIP 0 < TRANSISTOR > Q900 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q901 8-729-027-56 TRANSISTOR DTC143TKA-T146 Q902 8-729-027-56 TRANSISTOR DTC143TKA-T146 Q903 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q904 8-729-106-60 TRANSISTOR 2SB1115A-YQ Q905 8-729-106-60 TRANSISTOR 2SB1115A-YQ Q906 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q907 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q908 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q909 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q910 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q914 8-729-027-56 TRANSISTOR DTC143TKA-T146 Q915 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q916 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q917 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q918 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q919 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q920 8-729-027-43 TRANSISTOR DTC114EKA-T146 < RESISTOR > R900 1-216-833-11 METAL CHIP 10K 5% 1/10W R901 1-216-833-11 METAL CHIP 10K 5% 1/10W R902 1-216-833-11 METAL CHIP 10K 5% 1/10W R903 1-216-809-11 METAL CHIP 100 5% 1/10W R904 1-216-809-11 METAL CHIP 100 5% 1/10W R905 1-216-835-11 METAL CHIP 15K 5% 1/10W R906 1-216-835-11 METAL CHIP 15K 5% 1/10W R907 1-216-835-11 METAL CHIP 15K 5% 1/10W R908 1-216-809-11 METAL CHIP 100 5% 1/10W R909 1-216-833-11 METAL CHIP 10K 5% 1/10W R910 1-216-821-11 METAL CHIP 1K 5% 1/10W R911 1-216-821-11 METAL CHIP 1K 5% 1/10W R912 1-216-809-11 METAL CHIP 100 5% 1/10W R914 1-216-821-11 METAL CHIP 1K 5% 1/10W R915 1-216-821-11 METAL CHIP 1K 5% 1/10W R917 1-216-845-11 METAL CHIP 100K 5% 1/10W R918 1-216-845-11 METAL CHIP 100K 5% 1/10W R919 1-216-845-11 METAL CHIP 100K 5% 1/10W R920 1-216-833-11 METAL CHIP 10K 5% 1/10W R922 1-216-857-11 METAL CHIP 1M 5% 1/10W R933 1-216-821-11 METAL CHIP 1K 5% 1/10W R939 1-216-821-11 METAL CHIP 1K 5% 1/10W R940 1-216-833-11 METAL CHIP 10K 5% 1/10W R941 1-216-809-11 METAL CHIP 100 5% 1/10W R942 1-216-809-11 METAL CHIP 100 5% 1/10W R943 1-216-821-11 METAL CHIP 1K 5% 1/10W R944 1-216-805-11 METAL CHIP 47 5% 1/10W R945 1-216-839-11 METAL CHIP 33K 5% 1/10W R946 1-216-842-11 METAL CHIP 56K 5% 1/10W R947 1-216-821-11 METAL CHIP 1K 5% 1/10W R948 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R949 1-216-821-11 METAL CHIP 1K 5% 1/10W R950 1-216-821-11 METAL CHIP 1K 5% 1/10W R951 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R952 1-216-821-11 METAL CHIP 1K 5% 1/10W R953 1-216-821-11 METAL CHIP 1K 5% 1/10W R954 1-216-833-11 METAL CHIP 10K 5% 1/10W R956 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R957 1-216-821-11 METAL CHIP 1K 5% 1/10W R958 1-216-817-11 METAL CHIP 470 5% 1/10W R959 1-216-819-11 METAL CHIP 680 5% 1/10W R960 1-216-821-11 METAL CHIP 1K 5% 1/10W R961 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R962 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R963 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R964 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R965 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R966 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R967 1-216-833-11 METAL CHIP 10K 5% 1/10W R968 1-216-835-11 METAL CHIP 15K 5% 1/10W R969 1-216-819-11 METAL CHIP 680 5% 1/10W R970 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R971 1-216-821-11 METAL CHIP 1K 5% 1/10W R972 1-216-819-11 METAL CHIP 680 5% 1/10W R973 1-216-819-11 METAL CHIP 680 5% 1/10W R974 1-216-819-11 METAL CHIP 680 5% 1/10W R975 1-216-817-11 METAL CHIP 470 5% 1/10W R977 1-216-821-11 METAL CHIP 1K 5% 1/10W R978 1-216-817-11 METAL CHIP 470 5% 1/10W R980 1-216-821-11 METAL CHIP 1K 5% 1/10W R981 1-216-819-11 METAL CHIP 680 5% 1/10W R982 1-216-819-11 METAL CHIP 680 5% 1/10W R983 1-216-819-11 METAL CHIP 680 5% 1/10W R984 1-216-819-11 METAL CHIP 680 5% 1/10W R985 1-216-819-11 METAL CHIP 680 5% 1/10W R986 1-216-819-11 METAL CHIP 680 5% 1/10W R987 1-216-819-11 METAL CHIP 680 5% 1/10W R988 1-216-819-11 METAL CHIP 680 5% 1/10W R989 1-216-819-11 METAL CHIP 680 5% 1/10W R990 1-216-819-11 METAL CHIP 680 5% 1/10W R991 1-216-819-11 METAL CHIP 680 5% 1/10W R992 1-216-819-11 METAL CHIP 680 5% 1/10W R993 1-216-819-11 METAL CHIP 680 5% 1/10W R994 1-216-819-11 METAL CHIP 680 5% 1/10W R995 1-216-819-11 METAL CHIP 680 5% 1/10W R996 1-216-819-11 METAL CHIP 680 5% 1/10W R997 1-216-819-11 METAL CHIP 680 5% 1/10W R999 1-216-864-11 SHORT CHIP 0 R1135 1-216-819-11 METAL CHIP 680 5% 1/10W R1136 1-216-819-11 METAL CHIP 680 5% 1/10W R1137 1-216-819-11 METAL CHIP 680 5% 1/10W R1141 1-216-821-11 METAL CHIP 1K 5% 1/10W R1142 1-216-821-11 METAL CHIP 1K 5% 1/10W PANEL Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 98 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GNV99D/GNV111D R1147 1-216-821-11 METAL CHIP 1K 5% 1/10W R1148 1-216-821-11 METAL CHIP 1K 5% 1/10W R1160 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R1161 1-216-833-11 METAL CHIP 10K 5% 1/10W R1162 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R1163 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1164 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1165 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1166 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1167 1-216-814-11 METAL CHIP 270 5% 1/10W R1175 1-216-817-11 METAL CHIP 470 5% 1/10W R1176 1-216-819-11 METAL CHIP 680 5% 1/10W R1177 1-216-821-11 METAL CHIP 1K 5% 1/10W R1178 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1179 1-216-821-11 METAL CHIP 1K 5% 1/10W R1180 1-216-814-11 METAL CHIP 270 5% 1/10W R1183 1-216-808-11 METAL CHIP 82 5% 1/10W R1186 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1187 1-216-833-11 METAL CHIP 10K 5% 1/10W R1188 1-216-821-11 METAL CHIP 1K 5% 1/10W R1189 1-216-801-11 METAL CHIP 22 5% 1/10W R1194 1-216-821-11 METAL CHIP 1K 5% 1/10W R1195 1-216-821-11 METAL CHIP 1K 5% 1/10W R1197 1-216-821-11 METAL CHIP 1K 5% 1/10W R1198 1-216-821-11 METAL CHIP 1K 5% 1/10W < SWITCH > S900 1-762-875-21 SWITCH, KEYBOARD (DISPLAY) S901 1-762-875-21 SWITCH, KEYBOARD (PROGRESSIVE) S902 1-762-875-21 SWITCH, KEYBOARD (EQ BAND) S903 1-762-875-21 SWITCH, KEYBOARD (DIRECTION) S904 1-762-875-21 SWITCH, KEYBOARD (REC PAUSE/START) S910 1-762-875-21 SWITCH, KEYBOARD (VIDEO) S911 1-762-875-21 SWITCH, KEYBOARD (TV/SAT) S912 1-762-875-21 SWITCH, KEYBOARD (CD SYNC) S913 1-762-875-21 SWITCH, KEYBOARD (bB) S914 1-762-875-21 SWITCH, KEYBOARD (X) S915 1-762-875-21 SWITCH, KEYBOARD (x) S916 1-479-229-11 ROTARY ENCODER (PRESET) S917 1-771-963-11 SWITCH, ROTARY (TUNING) S918 1-762-875-21 SWITCH, KEYBOARD (TAPE A/B) S919 1-762-875-21 SWITCH, KEYBOARD (TUNER/BAND) S920 1-762-875-21 SWITCH, KEYBOARD (DVD) S925 1-762-875-21 SWITCH, KEYBOARD (`/1) S927 1-762-875-21 SWITCH, KEYBOARD (AMP MENU) S928 1-762-875-21 SWITCH, KEYBOARD (ILLUMINATION) S929 1-762-875-21 SWITCH, KEYBOARD (SOUND FIELD) S930 1-762-875-21 SWITCH, KEYBOARD (GROOVE) S931 1-762-875-21 SWITCH, KEYBOARD (SOUND FLASH) S932 1-762-875-21 SWITCH, KEYBOARD (ENTER) S970 1-418-725-51 ENCODER, ROTARY (12 TYPE) (MASTER VOLUME) < VIBRATOR > X901 1-781-282-51 VIBRATOR, CERAMIC (4 MHz) ************************************************************* A-1089-510-A PRIMARY BOARD, COMPLETE (EXCEPT TH, MX, AUS) A-1089-525-A PRIMARY BOARD, COMPLETE (MX, AUS) A-1114-764-A PRIMARY BOARD, COMPLETE (TH) ************** < CAPACITOR > C1201 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1202 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1204 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1206 1-126-916-11 ELECT 1000uF 20% 6.3V < CONNECTOR > CN1200 1-785-329-11 PIN, CONNECTOR (LIGHT ANGLE) 3P CN1202 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P CN1204 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P (TH, MX, AUS) CN1204 1-568-106-11 PIN, CONNECTOR (3.96mm PITCH) 4P (EXCEPT TH, MX, AUS) < DIODE > D1200 8-719-988-61 DIODE 1SS355TE-17 < JUMPER RESISTOR > JR1202 1-216-864-11 SHORT CHIP 0 < COIL > L1201 1-410-666-31 INDUCTOR 18uH < TRANSISTOR > Q1200 8-729-120-28 TRANSISTOR 2SC1623-L5L6 < RESISTOR > R1200 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1201 1-216-845-11 METAL CHIP 100K 5% 1/10W < RELAY > 0RY1200 1-755-299-11 RELAY < SWITCH > 0S1200 1-771-291-31 SWITCH, POWER (VOLTAGE SELECTOR) (EXCEPT TH, MX, AUS) ************************************************************* 1-687-132-12 SENSOR BOARD ************* < CONNECTOR > CN731 1-785-329-21 PIN, CONNECTOR (LIGHT ANGLE) 3P < IC > IC731 6-600-022-01 IC RPI-576 ************************************************************* PANEL PRIMARY Ver. 1.1 SENSOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 99 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GNV99D/GNV111D 1-687-669-12 SW BOARD ********* S751 1-786-514-11 SWITCH, LEVER (SLIDE) (OPEN) ************************************************************* TRANS BOARD ************ 1-533-217-41 HOLDER, FUSE < CAPACITOR > C1262 1-126-964-11 ELECT 10uF 20% 50V C1263 1-126-968-11 ELECT 100uF 20% 50V C1292 1-128-576-11 ELECT 100uF 20% 63V < CONNECTOR > * CN1212 1-564-522-11 PLUG, CONNECTOR 7P * CN1213 1-564-523-11 PLUG, CONNECTOR 8P < DIODE > D1264 8-719-071-83 DIODE HZU36BTRF D1292 6-500-522-21 DIODE 10EDB40-TB3 < TRANSISTOR > Q1264 8-729-024-93 TRANSISTOR 2SB1565E < RESISTOR > R1262 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R1263 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R1264 1-216-821-11 METAL CHIP 1K 5% 1/10W 0R1292 1-219-124-11 FUSIBLE 0.68 5% 1/4W ************************************************************* A-1101-214-A VIDEO BOARD, COMPLETE (EXCEPT EA, TH, AUS) A-1119-149-A VIDEO BOARD, COMPLETE (TH) A-1124-694-A VIDEO BOARD, COMPLETE (EA, AUS) ************ < CAPACITOR > C800 1-126-960-11 ELECT 1uF 20% 50V C801 1-126-960-11 ELECT 1uF 20% 50V C802 1-126-960-11 ELECT 1uF 20% 50V C803 1-126-965-91 ELECT 22uF 20% 50V C804 1-164-156-11 CERAMIC CHIP 0.1uF 25V C805 1-126-960-11 ELECT 1uF 20% 50V C806 1-126-960-11 ELECT 1uF 20% 50V C807 1-126-960-11 ELECT 1uF 20% 50V C808 1-104-658-91 ELECT 100uF 20% 10V C809 1-164-156-11 CERAMIC CHIP 0.1uF 25V C810 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C811 1-126-916-11 ELECT 1000uF 20% 6.3V C812 1-126-916-11 ELECT 1000uF 20% 6.3V C813 1-126-916-11 ELECT 1000uF 20% 6.3V C814 1-126-916-11 ELECT 1000uF 20% 6.3V C815 1-126-916-11 ELECT 1000uF 20% 6.3V C816 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C817 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C818 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C819 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C820 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C821 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C822 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C823 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C824 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C825 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C826 1-126-964-11 ELECT 10uF 20% 50V C827 1-126-964-11 ELECT 10uF 20% 50V C829 1-126-916-11 ELECT 1000uF 20% 6.3V C830 1-104-658-91 ELECT 100uF 20% 10V C831 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V < CONNECTOR > CN800 1-564-707-11 PIN, CONNECTOR (SMALL TYPE) 5P CN801 1-779-281-11 CONNECTOR, FFC (LIF (NON-ZIF)) 13P CN802 1-785-328-11 PIN, CONNECTOR (LIGHT ANGRE) 2P < FERRITE BEAD > FB800 1-216-864-11 SHORT CHIP 0 FB801 1-216-864-11 SHORT CHIP 0 FB802 1-216-864-11 SHORT CHIP 0 FB803 1-216-864-11 SHORT CHIP 0 FB804 1-216-864-11 SHORT CHIP 0 FB805 1-216-864-11 SHORT CHIP 0 FB806 1-216-864-11 SHORT CHIP 0 < IC > IC800 8-759-295-90 IC NJM2244M-TE2 IC801 6-705-602-01 IC MM1623BFBE < JACK > J800 1-817-449-11 JACK, PIN 3P (COMPONENT VIDEO OUT) J801 1-537-943-11 TERMINAL, S (S VIDEO OUT) J802 1-774-227-11 JACK, PIN 1P (VIDEO OUT) < JUMPER RESISTOR > JR800 1-216-864-11 SHORT CHIP 0 JR801 1-216-864-11 SHORT CHIP 0 JR802 1-216-864-11 SHORT CHIP 0 (EXCEPT EA, AUS) JR802 1-469-147-21 FERRITE, EMI (SMD) (EA, AUS) JR803 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V JR804 1-216-864-11 SHORT CHIP 0 < COIL > L801 1-414-183-41 INDUCTOR 10uH < TRANSISTOR > Q800 8-729-027-43 TRANSISTOR DTC114EKA-T146 < RESISTOR > R800 1-216-809-11 METAL CHIP 100 5% 1/10W R801 1-216-833-11 METAL CHIP 10K 5% 1/10W R802 1-218-285-11 METAL CHIP 75 5% 1/10W R803 1-218-285-11 METAL CHIP 75 5% 1/10W R804 1-218-285-11 METAL CHIP 75 5% 1/10W R805 1-218-285-11 METAL CHIP 75 5% 1/10W TRANS VIDEO SW Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 100 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GNV99D/GNV111D VIDEO R806 1-216-864-11 SHORT CHIP 0 R807 1-216-809-11 METAL CHIP 100 5% 1/10W R808 1-218-285-11 METAL CHIP 75 5% 1/10W R809 1-216-833-11 METAL CHIP 10K 5% 1/10W R810 1-218-285-11 METAL CHIP 75 5% 1/10W R812 1-216-857-11 METAL CHIP 1M 5% 1/10W R813 1-216-845-11 METAL CHIP 100K 5% 1/10W R814 1-216-833-11 METAL CHIP 10K 5% 1/10W ************************************************************* MISCELLANEOUS ************** 0 1-770-019-51 ADAPTOR, CONVERSION PLUG (EA) 0 1-785-504-11 ADAPTOR, CONVERSION (MY, SP, PH) 0 1-785-534-11 ADAPTOR, CONVERSION (E3, E15) 5 1-693-671-11 TUNER (TM-10E) 07 1-468-737-21 POWER, SWITCHING 8 1-828-622-11 WIRE (FLAT TYPE) (19 CORE) 9 1-828-332-11 WIRE (FLAT TYPE) (13 CORE) (250mm) 10 1-828-326-11 WIRE (FLAT TYPE) (13 CORE) (65mm) (GNV99D: EXCEPT E12, SP/GNV111D) 10 1-828-328-11 WIRE (FLAT TYPE) (13 CORE) (100mm) (GNV99D: E12, SP) 13 1-828-252-11 WIRE (FLAT TYPE) (24 CORE) 15 1-500-657-11 CORE, FERRITE 64 1-828-992-11 WIRE (FLAT TYPE) (17 CORE) 70 1-797-166-11 DECK, MECHANICAL (CMAT2E2) 106 1-828-956-11 WIRE (FLAT TYPE) (9 CORE) 0107 1-777-071-53 CORD, POWER (E12, E13, EA, MY, SP, PH) 0107 1-824-818-11 CORD, POWER (WITH CONNECTOR) (TH) 0107 1-827-295-22 CORD, POWER (AUS) 0107 1-829-627-31 POWER-SUPPLY CORD (E3, E15, E2, MX) 109 1-828-972-11 WIRE (FLAT TYPE) (13 CORE) (130mm) 152 1-776-182-11 WIRE (FLAT TYPE) (5 CORE) 0229 8-820-291-02 OPTICAL PICK-UP KHM-310CAB/C2RP 0F1241 1-576-655-12 FUSE, GLASS TUBE (DIA. 5) (T8AL/250V) 0F1251 1-576-655-12 FUSE, GLASS TUBE (DIA. 5) (T8AL/250V) 0F1261 1-576-655-12 FUSE, GLASS TUBE (DIA. 5) (T8AL/250V) 0F1271 1-576-655-12 FUSE, GLASS TUBE (DIA. 5) (T8AL/250V) 0F1281 1-533-470-12 FUSE, GLASS TUBE (DIA. 5) (T3.15AL/250V) 0F1291 1-533-470-12 FUSE, GLASS TUBE (DIA. 5) (T3.15AL/250V) M741 A-1108-965-A MOTOR ASSY, TABLE M751 A-4737-553-A MOTOR ASSY, LOADING M891 1-763-372-11 FAN, DC RE701 1-477-680-12 ENCODER, ROTARY 0T1200 1-443-585-11 POWER TRANSFORMER (GNV111D: EXCEPT EA, MX) 0T1200 1-443-586-11 POWER TRANSFORMER (GNV99D: EXCEPT EA) 0T1200 1-443-753-11 POWER TRANSFORMER (MX) 0T1200 1-443-754-11 POWER TRANSFORMER (GNV111D: EA) 0T1200 1-443-755-11 POWER TRANSFORMER (GNV99D: EA) Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 101 HCD-GNV99D/GNV111D MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GNV99D/GNV111D REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2005.04 New 1.1 2005.05 E12, SP and TH models addition for HCD-GNV99D E12, E13, TH and MX models addition for HCD-GNV111D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
