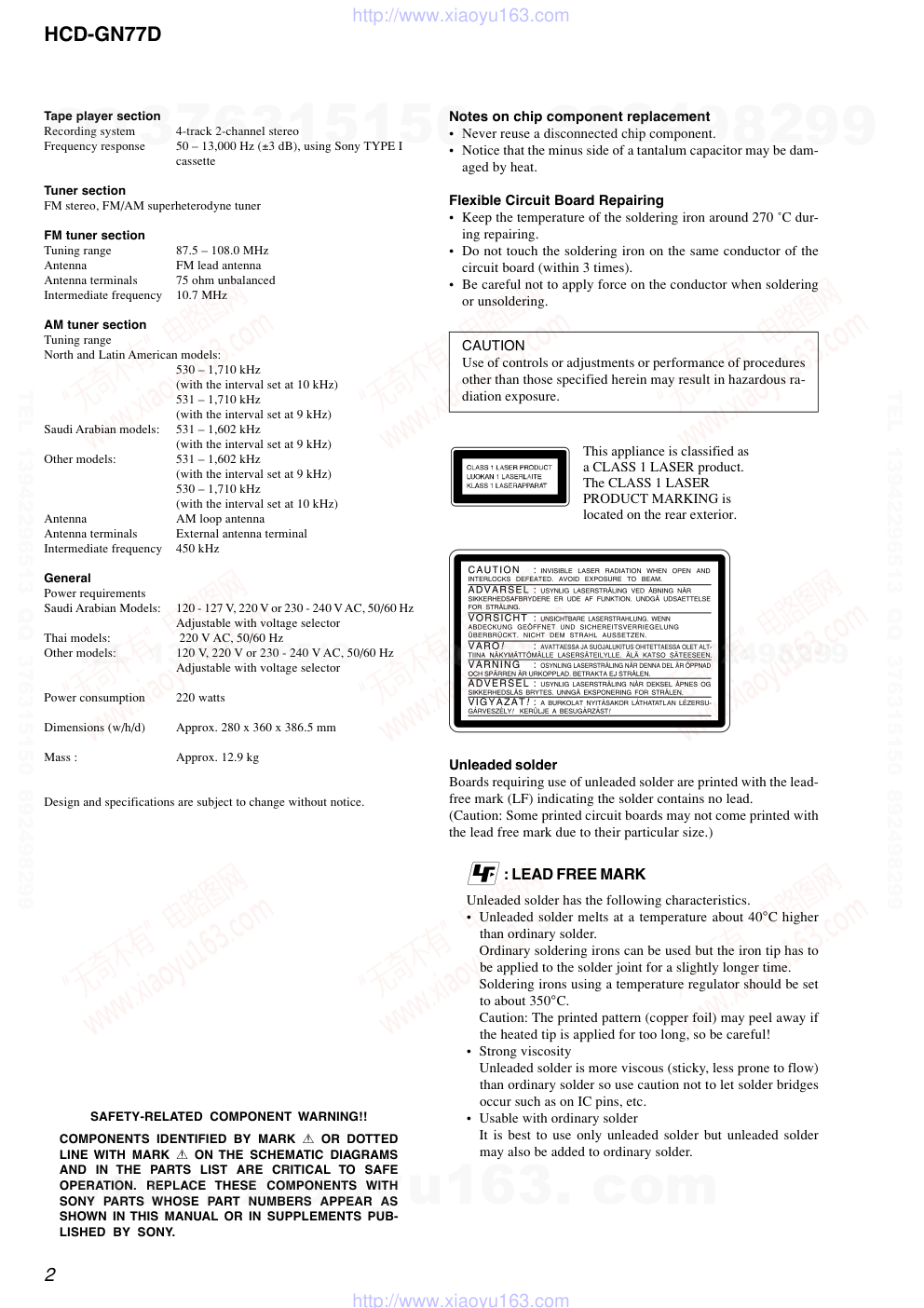

SERVICE MANUAL Model Name Using Similar Mechanism NEW DVD DVD Mechanism Type CDM74D-DVBU23 Section Base Unit Name DVBU23 Optical Pick-up Name TDP022W Tape Model Name Using Similar Mechanism HCD-GN800 Section Tape Transport Mechanism Type CWM43RR23 MiNi Hi-Fi COMPONENT SYSTEM E Model HCD-GN77D Ver 1.1 2003.08 9-877-454-02 Sony Corporation 2003H02-1 Home Audio Company C 2003.08 Published by Sony Engineering Corporation SPECIFICATIONS HCD-GN77D is the amplifier, DVD player, tape deck and tuner section in MHC-GN77D. – Continued on next page – Amplifier section The following are measured at AC 120, 127, 220, 240V 50/60 Hz DIN power output (rated) Front speaker: 110 + 110 watts (6 ohms at 1 kHz, DIN) Center speaker: 30 watts (8 ohms at 1 kHz, DIN) Surround speaker: 30 + 30 watts (8 ohms at 1 kHz, DIN) Continuous RMS power output (reference) Front speaker: 150 + 150 watts (6 ohms at 1 kHz, 10% THD) Center speaker: 40 watts (8 ohms at 1 kHz, 10% THD) Surround speaker: 40 + 40 watts (8 ohms at 1 kHz, 10% THD) Inputs GAME (VIDEO): 1 Vp-p, 75 ohms (phono jack) GAME (AUDIO): Voltage 250 mV, (phono jacks) impedance 47 kilohms MD/VIDEO (AUDIO) IN: voltage 450 mV/250 mV, (phono jacks) impedance 47 kilohms MIC: sensitivity 1 mV, (phone jack) impedance 10 kilohms Outputs AUDIO OUT: Voltage 250 mV (phono jacks) impedance 1 kilohms VIDEO OUT: max. output level 1 Vp-p, (phono jack) unbalanced, Sync. negative load impedance 75 ohms COMPONENT VIDEO OUT: Y: 1 Vp-p, 75 ohms PB/CB: 0.7 Vp-p, 75 ohms PB/CR: 0.7 Vp-p, 75 ohms S VIDEO OUT (4-pin/mini-DIN jack): Y: 1 Vp-p, unbalanced, Sync negative C: 0.286 Vp-p load impedance 75 ohms PHONES: accepts headphones of 8 ohms or more (stereo mini jack) FRONT SPEAKER: accepts impedance of 6 to 16 ohms SUBWOOFER OUT: Voltage 250 mV (phono jack) impedance 1 kilohms SURROUND SPEAKER: accepts impedance of 8 ohms to 16 ohms CENTER SPEAKER: accept impedance of 8 ohms to 16 ohms Disc player section Laser Semiconductor laser (DVD: λ = 650 nm, CD: λ = 780 nm) Emission duration: continuous Frequency response DVD (PCM 48 kHz): 2 Hz – 22 kHz = (±1dB) CD: 2 Hz – 20 kHz (±0.5 dB) Video color system format NTSC, PAL (except Latin American models) DVD DIGITAL OUT (OPTICAL) (Square optical connector jack, rear panel) Wave length 660 nm www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 2 Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270 ˚C dur- ing repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous ra- diation exposure. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. Unleaded solder Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.) : LEAD FREE MARK Unleaded solder has the following characteristics. • Unleaded solder melts at a temperature about 40°C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350°C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! • Strong viscosity Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. • Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. Tape player section Recording system 4-track 2-channel stereo Frequency response 50 – 13,000 Hz (±3 dB), using Sony TYPE I cassette Tuner section FM stereo, FM/AM superheterodyne tuner FM tuner section Tuning range 87.5 – 108.0 MHz Antenna FM lead antenna Antenna terminals 75 ohm unbalanced Intermediate frequency 10.7 MHz AM tuner section Tuning range North and Latin American models: 530 – 1,710 kHz (with the interval set at 10 kHz) 531 – 1,710 kHz (with the interval set at 9 kHz) Saudi Arabian models: 531 – 1,602 kHz (with the interval set at 9 kHz) Other models: 531 – 1,602 kHz (with the interval set at 9 kHz) 530 – 1,710 kHz (with the interval set at 10 kHz) Antenna AM loop antenna Antenna terminals External antenna terminal Intermediate frequency 450 kHz General Power requirements Saudi Arabian Models: 120 - 127 V, 220 V or 230 - 240 V AC, 50/60 Hz Adjustable with voltage selector Thai models: 220 V AC, 50/60 Hz Other models: 120 V, 220 V or 230 - 240 V AC, 50/60 Hz Adjustable with voltage selector Power consumption 220 watts Dimensions (w/h/d) Approx. 280 x 360 x 386.5 mm Mass : Approx. 12.9 kg Design and specifications are subject to change without notice. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 3 TABLE OF CONTENTS 1. SERVICING NOTES ................................................ 4 2. GENERAL Location of Controls ....................................................... 5 3. DISASSEMBLY 3-1. Case ................................................................................. 8 3-2. Loading (Panel) ............................................................... 8 3-3. Front Panel Assy ............................................................. 9 3-4. Tuner Pack, Sub Trans Board ......................................... 9 3-5. DVD Mechanism Deck ................................................... 10 3-6. Game In Board, Tape Mechanism Deck......................... 10 3-7. CD Switch Board, Display Board .................................. 11 3-8. Volume Board.................................................................. 11 3-9. Back Panel, Subwoofer Board ........................................ 12 3-10. Main Board...................................................................... 12 3-11. Power Amp Board ........................................................... 13 3-12. Video Board, DMB03 Board, Regulator Board ............. 13 3-13. SW Board, Driver Board ................................................ 14 3-14. RF Board, Pick-up Unit .................................................. 14 3-15. Sensor Board ................................................................... 15 3-16. Motor (TB) Board ........................................................... 15 3-17. Motor (LD) Board ........................................................... 16 4. TEST MODE .............................................................. 17 5. MECHANICAL ADJUSTMENTS ....................... 19 6. ELECTRICAL ADJUSTMENTS Deck section .................................................................... 19 Video Section .................................................................. 22 7. DIAGRAMS 7-1. Circuit Board Location ................................................... 24 7-2. Block Diagram – DVD DSP (1/2) Section –................ 26 Block Diagram – DVD DSP (2/2) Section –................ 27 Block Diagram – Tuner/Tape Deck Section –............... 28 Block Diagram – Main Section – .................................. 29 Block Diagram – Amp Section – ................................... 30 Block Diagram – Display Section – .............................. 31 7-3. Printed Wiring Board – RF Board – .............................. 32 7-4. Schematic Diagram – RF Board – ................................. 33 7-5. Printed Wiring Board – DVD Mechanism Board – ...... 34 7-6. Schematic Diagram – DVD Mechanism Board – ......... 35 7-7. Printed Wiring Board – DMB03 Board (Side A)– ........ 36 Printed Wiring Board – DMB03 Board (Side B)– ........ 37 7-8. Schematic Diagram – DMB03 Board (1/8) –................ 38 7-9. Schematic Diagram – DMB03 Board (2/8) –................ 39 7-10. Schematic Diagram – DMB03 Board (3/8) –................ 40 7-11. Schematic Diagram – DMB03 Board (4/8) –................ 41 7-12. Schematic Diagram – DMB03 Board (5/8) –................ 42 7-13. Schematic Diagram – DMB03 Board (6/8) –................ 43 7-14. Schematic Diagram – DMB03 Board (7/8) –................ 44 7-15. Schematic Diagram – DMB03 Board (8/8) –................ 45 7-16. Printed Wiring Board – Video, Regulator Board – ....... 46 7-17. Schematic Diagram – Video, Regulator Board – .......... 47 7-18. Printed Wiring Boards – Main Board – ......................... 48 7-19. Schematic Diagram – Main Board (1/4) – .................... 49 7-20. Schematic Diagram – Main Board (2/4) – .................... 50 7-21. Schematic Diagram – Main Board (3/4) – .................... 51 7-22. Schematic Diagram – Main Board (4/4) – .................... 52 7-23. Printed Wiring Boards – Game In, CD Switch Board – ...................................... 53 7-24. Schematic Diagram – Game In, CD Switch Board – ...................................... 54 7-25. Printed Wiring Board – Display Board – ...................... 55 7-26. Schematic Diagram – Display Board – ......................... 56 7-27. Printed Wiring Board – Power Amp Board –................ 57 7-28. Schematic Diagram – Power Amp Board – .................. 58 7-29. Printed Wiring Board – Surround Board – .................... 59 7-30. Schematic Diagram – Surround Board –....................... 60 7-31. Printed Wiring Boards – Trans Board – ........................ 61 7-32. Schematic Diagram – Trans Board – ............................. 62 7-33. IC Block Diagram ........................................................... 63 7-34. IC Pin Function Description ........................................... 68 8. EXPLODED VIEWS 8-1. Case, Back Panel DMB03 Board Section ...................... 79 8-2. Front Panel Section ......................................................... 80 8-3. Chassis Section ............................................................... 81 8-4. DVD Mechanism Deck Section-1 (CDM74D-DVBU43) ..................................................... 82 8-5. DVD Mechanism Deck Section-2 (CDM74D-DVBU43) ..................................................... 83 9. ELECTRICAL PARTS LIST .................................. 84 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 HCD-GN77D SECTION 1 SERVICING NOTES NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electro- static break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick-up block. Therefore, when checking the laser diode emis- sion, observe from more than 30 cm away from the objective lens. LASER DIODE AND FOCUS SEARCH OPERATION CHECK Carry out the “S curve check” in “CD section adjustment” and check that the S curve waveforms is output three times. • MODEL IDENTIFICATION – Back Panel – MODEL PART No. SP model 4-246-185-1[] MY model 4-246-185-2[] EA model 4-246-185-3[] TH model 4-246-185-4[] E3, E15 models 4-246-185-5[] • Abbreviation E3 : 240 V AC Area in E model EA : Saudi Arabia model E15 : Iran model SP : Singapore model MY : Malaysia model TH : Thai model PART No. DVD TRAY LOCK MODE • This mode let you lock the disc trays. When this mode is acti- vated, the disc tray will not open when Z OPEN/CLOSE but- ton or [DISC SKIP/EX-CHANGE] button is pressed. The mes- sage “LOCKED” will be displayed in the will be displayed on the fluorescent indicator tube. Procedure: 1. Press ?/1 button to turn the set ON. 2. Select DVD function. 3. Press x button and Z OPEN/CLOSE button simultaneously and hold down until “LOCKED” or “UNLOCKED” displayed on the fluorescent indicator tube (around 5 seconds). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 HCD-GN77D SECTION 2 GENERAL ALBUM +/– qg AMP MENU rh CD SYNC qk DECK A e; DECK B wf DIRECTION 9 DISC 1~3 3 DISC SKIP EX-CHANGE 4 Disc tray 6 DISPLAY rf Display 2 DVD rd DVD MENU qj DVD TOP MENU 9 ECHO LEVEL wh EFFECT ON/OFF rj FM MODE 8 GAME el GAME EQ ed GAME INPUT (jacks) wl GAME MIXING ej GROOVE eg ILLUMINATION ea IR (receptor) rg KARAOKE/MPX eh MD (VIDEO) r; MIC (jack) wk MIC LEVEL wj MOVIE EQ qh MULTI CHANNEL DECODING (indicator) rk MUSIC EQ ek ALPHABETICAL ORDER A - D wl r; e; ra ea es ed ej eh ef eg el ek rg rs rd rf rj rk rh wg wh wj wk qs qd qf qg qh qk qj w; ql wa ws wd wf 0 qa 4 5 6 1 2 3 7 8 9 Main unit O - R E - G OPEN/CLOSE Z 5 P FILE ws PHONES (jack) wg PLAY MODE 7 Power illuminator es PUSH ENTER q; REC PAUSE/START ql REPEAT 8 SOUND FIELD wa TAPE A/B ra TUNER/BAND rs TUNER MEMORY 7 VOLUME wd SYMBOLS @/1 (power) 1 hH (play) qa x (stop) qs X (pause) qd – . (go backward) qf > + (go forward) qf m (rewind) qg M (fast forward) qg V/v/B/b q; A A (Deck A) ef A B (Deck B) w; H - M S - Z This section is extracted from instruction manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 HCD-GN77D Remote Control 0 6 qs 9 qa 7 8 1 2 3 4 5 qd qg ql qf qh qk w; wf wg wh wk wl e; ea eg es ef ed ek eh el r; rf rd rs rg rh ej ra wd wj ws wa qj rj rl rk ALBUM +/– eg AMP MENU rd ANGLE wd AUDIO wf CLEAR qd CLOCK/TIMER SELECT 2 CLOCK/TIMER SET 3 D.SKIP qa DISPLAY rf DVD rk DVD DISPLAY rs DVD MENU ed DVD SETUP r; DVD TOP MENU ef EFFECT ON/OFF wa ENTER ea GAME rj GAME EQ e; GAME MIXING rh GROOVE ql KEY CONTROL #/2 wj MD (VIDEO) rg MUSIC EQ es MOVIE EQ wg NEXT ej Numeric button q; P FILE wk PLAY MODE qf PRESET + ej PRESET – ek PREV ek REPEAT qs RETURN O el SELECT qg SOUND FIELD w; SUBTITLE ws SLOW / qj SLEEP 1 A - D ALPHABETICAL ORDER SYMBOLS @/1 (power) 5 x (stop) qk X (pause) qh nN (play) qg > (go backward) ej . (go forward) ek M/m (fast forward/ rewind) eh M/m/10 ra TAPE A/B 6 TUNER BAND rl TUNING +/– eh TV CH +/– 8 TV VOL +/– 7 TV/VIDEO 9 TV :/1 4 VOL +/– wh E - N O - S T - Z This section is extracted from instruction manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 HCD-GN77D • This set can be disassembled in the order shown below. SECTION 3 DISASSEMBLY CASE LOADING (PANEL) SET FRONT PANEL ASSY CD SWITCH BOARD, DISPLAY BOARD RF BOARD, PICK-UP UNIT VOLUME BOARD SW BOARD, DRIVER BOARD DVD MECHANISM DECK GAME IN BOARD, TAPE MECHANISM DECK TUNER PACK, SUB TRANS BOARD BACK PANEL SURROUND BOARD MAIN BOARD POWER AMP BOARD VIDEO BOARD, DMB03 BOARD, REGULATOR BOARD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 HCD-GN77D Note: Follow the disassembly procedure in the numerical order given. 3-1. CASE 3-2. LOADING (PANEL) 1 Three screws (case 3 TP2) 2 Five screws (+BVTT3 x 6) 7 Case 6 4 1 Three screws (case 3 TP2) 3 Two screws (+BVTT3 x 6) 5 Slightly push down the edge of front panel not to break the catcher. Catcher CD mechanismdeck (CDM74-K6BD47S) 1 Turn the pulley to the arrow direction. Front side Pulley 4 Loading (panel) 3 2 Pull out disc tray www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 HCD-GN77D 3-3. FRONT PANEL ASSY 3-4. TUNER PACK, SUB TRANS BOARD 3 Screw (BVTP3 x 10) 2 Four screws (BVTP3 x 10) 8 Front panel ASSY 5 From CN606 on Game in board 4 From deck B head CN402 CN304 6 From deck A head 7 From CN607 on Game in board 1 Two wires (flat type) 3 Screw (BVTP3 x 10) MAIN board 8 Sub trans board 4 CN971 5 CN974 6 CN976 1 Wire (flat type) (11 core) 3 Tuner pack 2 Two screw (BVTP3 x 10) 7 Three screws (BVTP3 x 10) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 HCD-GN77D 3-5. DVD MECHANISM DECK 3-6. GAME IN BOARD, TAPE MECHANISM DECK qs DVD mechanism deck 4 Wire (flat type) (20 core) 5 Connector (CN711) 3 Two screws (BVTP3 x 10) 1 Three screws (BVTP3 x 10) 2 Three screws (BVTT3 x 6) 6 Connector (CN710) MAIN board CN206 CN202 CN203 CN201 qa Connector q; Connector 9 Connector (CN713) 8 Connector (CN714) 7 Wire (flat type) (7 core) 8 Tape mechanism deck 7 Three screws (+BVTP2.6 x 8) Shield plate (GHX) 2 Screw (+PTT2 x 4) 2 Screw (+PTT2 x 4) 4 Two screws (+BVTP2.6 x 8) 3 Two screws (+BVTP2.6 x 8) 5 Two screws (+BVTP2.6 x 8) 6 GAME IN board 1 Two knobs (MIC) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 HCD-GN77D 3-7. CD SWITCH BOARD, DISPLAY BOARD 3-8. VOLUME BOARD 1 Six screws (+BVTP2.6 x 8) 4 Five screws (+BVTP2.6 x 8) 3 Wire (flat type) (17 core) from CN604 5 DISPLAY board 4 Five screws (+BVTP2.6 x 8) 2 CD SWITCH board 1 Knob (VOL) 5 VOLUME board 3 Three screws (+BVTP2.6 x 8) 3 Three screws (+BVTP2.6 x 8) 4 Four claws 2 Hexagonal nut www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 HCD-GN77D 3-9. BACK PANEL, SUBWOOFER BOARD 3-10. MAIN BOARD 3 Four screws (+BVTP3 x 10) 2 Two screws (+BVTP3 x 10) 1 Two screws (+BVTT3 x 6) 4 Three screws (+BVTP3 x 10) 5 Connector CN851 MAIN board 6 Back panel with fan qa Screw (+BVTP3 x 10) 7 Connector 9 Connector CN303 CN304 8 Connector qd SURROUND board qs Bracket (IC) q; Two screws (+BVTP3 x 16) CN205 3 Two screws (+BVTP3 x 10) 2 Screw (+BVTP3 x 10) 1 Connector 6 MAIN board MAIN board (CN901, 902) POWER AMP board (CN503, 504) Lug 5 4 CN998 TRAN board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 HCD-GN77D 3-11. POWER AMP BOARD 2 Two screws (+BVTP3 x 10) 3 Bracket (HS) 6 Two screws (+BVTP3 x 10) 4 Two screws (+BVTP3 x 10) 5 Three screws (+BVTP3 x 10) 7 POWER AMP board 1 Connector from CN997 3-12. VIDEO BOARD, DMB03 BOARD, REGULATOR BOARD 1 Flat type wire (CN208) 6 Flat type wire (CN501) DVD mechanism deck (bottom view) 2 Flat type wire (CN712, CN105) 8 Two screws (BVTP 3 × 8) qs Two screws (BVTT 3 × 6) qd REGULATOR board 7 Flat type wire (CN107) 3 Three screws (BVTP 3 × 8) 4 VIDEO board 5 Connector (CN102) 0 Heat sink (DVD) qa DMB03 board 9 Two screws (BVTP 3 × 8) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 HCD-GN77D 3-13. SW BOARD, DRIVER BOARD 3-14. RF BOARD, PICK-UP UNIT 9DRIVER board 5SW board 6CN704 7CN703 0CN702 (flat type) 8Two screws (+BTTP (M2.6)) 4 Screw (+BTTP (M2.6)) 1 Screw (+BVTP 3x8) 3 Bracket DVD 2 Two screws (+BVTP 3x8) 1 Screw (+BVTP 3x8) qs Insulator 7 qd Insulator qa Insulator qgHolder (DBU) assy 3Flat type wire 4Flat type wire 2Two screws (+BTTP 2.6) 5RF board 1Flat type wire 9 Step screw (M) 0 Step screw (M) 6 Floating screw (PTPWH M2.6) 8 Step screw (M) qf Pick-up unit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 HCD-GN77D 3-15. SENSOR BOARD 3-16. MOTOR (TB) BOARD 2 Tray 3 Belt (table) 5 Pulley (table) 8 Screw (+BTTP (M2.6)) 9 SENSOR board 7 Gear (geneva) 0 CN731 1 Floating screw (+PTPWH M2.6) 6 Floating screw (+PTPWH M2.6) 4 Foating screw (+PTPWH M2.6) 5 Remove the two solderings of motor. 4 MOTOR (TB) board 2 CN742 (flat type) 6 Table motor ASSY (M741) 3 Two screws (+BTTP (M2.6)) 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 HCD-GN77D 3-17. MOTOR (LD) BOARD 4 Remove the two solderings of motor. 3 MOTOR (LD) board 1 Belt (loading) 5 Loading motor ASSY (M751) 2 Two screws (+BTTP (M2.6)) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 HCD-GN77D SECTION 4 TEST MODE [GC TEST MODE] • This mode is used to check the fluorescent indicator tube, LED, model, destination, software version, volume, key and VACS level. Procedure: 1. Press x button, [AMP MENU button and [DISC 2] button simultaneously. 2. All LEDs and segments in fluorescent indicator tube are lighted up. 3. When you want to enter the software version display mode, press [DISC 1] button. The model and destination are displayed. 4. Each time [DISC 1] button is pressed, the display changes from MC version, GC version, CD version, ST version, TA version, TM version and TC version in this order, and returns to the MC version display. 5. When [DISC 3] button is pressed while the version numbers are being displayed except model and destination, the date of the software creation appear. When [DISC 3] button is pressed again, the display returns to the software version display. When [DISC 1] button is pressed while the date of the software creation is being displayed, the date of the software creation is displayed in the same order of software version display. 6. Press [DISC 2] button, the key check mode is activated. 7. In the key check mode, the fluorescent indicator tube displays “K 0 V 0”. Each time a button is pressed, “K” value increases. However, once a button has been pressed, it is no longer taken into account. “V” value increases in the manner of 0,1, 2, 3 ... if [VOLUME] knob is turned clockwise, or it decreases in the manner of 0, 9, 8,7 ... if [VOLUME] knob is turned counter-clockwise. 8. When [DISC 3] button is pressed after all LEDs and segments in fluorescent indicator tube light up, the fluorescent indicator tube displays “VACS A + B”. A is VACS level which is trigger by signal level while B is VACS level which is trigger by thermal. Total VACS value would be the sum of A and B. 9. When [DISC SKIP/EX-CHANGE] button is pressed after all LEDs and segments in fluorescent indicator tube light up, alternate segments in fluorescent indicator tube would light up. If you press [DISC SKIP/EX-CHANGE] button again, another half of alternate segments in fluorescent indicator tube would light up. Pressing [DISC SKIP/EX-CHANGE] button again would case all segments lights up. 10. To release this mode, press three buttons in the same manner as step 1, or disconnect the power cord. [MC TEST MODE] • This mode is used to check operations of the respective sections of Amplifier, Tuner, and Tape. Procedure: * To enter MC Test Mode 1. Press x button, [AMP MENU] button and [DISC 3] button simultaneously. 2. The TAPE A and TAPE B segments flash on the fluorescent indicator tube. The function is changed to VIDEO. * Check of Amplifier 1. When V button is pressed, GEQ increases to its maximum and a message “GEQ MAX” appears on the fluorescent indicator tube. 2. When v button is pressed, GEQ decreases to its minimum and a message “GEQ MIN” appears on the fluorescent indicator tube. 3. When B button or b button is pressed, GEQ is set to flat and a message “GEQ FLAT” appears on the fluorescent indicator tube. 4. When the [VOLUME] knob is turned clockwise even slightly, the sound volume increases to its maximum and a message “VOLUME MAX” appears for two seconds, then the display returns to the original display. 5. When the [VOLUME] knob is turned counter-clockwise even slightly, the sound volume decreases to its minimum and a message “VOLUME MIN” appears for two seconds, then the display returns to the original display. * Check of clock frequency 1. To check the frequency of clock used to run the clock of the system, the clock output is available at IC501 pin el (CLOCK- OUT) on the MAIN board during MC test mode. 2. The frequency is 32.768 kHz. * Tape function 1. When a tape is inserted in Deck B and recording is started, the function is changed to VIDEO automatically. When [CD SYNC] button is pressed during recording in function, ALC (Automatic Logic Control) is turned on. 2. After recording is stopped by pressing x button, press m button will change the function to TAPE B and rewind Tape B until the recording start position and playback of Tape B is started. If the [REC PAUSE/ START] button is pressed for a pause and pressed again to resume recording during recording time, when tape deck B is rewind, tape deck B will be rewind until the position where the pause is applied. * AMS Test Mode 1. Select the function “TAPE A” or “TAPE B”. 2. Select Loop or Relay direction mode by pressing the [DIRECTION] button. Insert a test tape AMS-110A or AMS- 120 to selected tape deck. 3. Press the [AMP MENU] button to enter the AMS test mode. 4. After the test tape is rewind to the beginning of the tape, the AMS+ is checked, and the mechanism is shut off after detecting the AMS signal twice. 5. Then the AMS- is checked and the mechanism is shut off after detecting the AMS signal twice. 6. When the check is complete, a message of either OK or NG appears. * To release MC Test mode. 1. To release this mode, press ?/1 button. 2. The cold reset is enforced at the same time. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 HCD-GN77D [COLD RESET] • The cold reset clears all data including preset data stored in the RAM to initial conditions. Execute this mode when returning the set to the customer. Procedure: 1. Press x button, [AMP MENU] button, and ?/1 button simultaneously. 2. The fluorescent indicator tube becomes blank for a while, and the set is reset. [VACS ON/OFF] • This mode is used to switch ON and OFF the VACS (Variable Attenuation Control System). Procedure: 1. Press ?/1 button to turn the set ON. 2. Press [AMP MENU] button and [GAME MIXING] button simultaneously. The message “VACS OFF” or “VACS ON” appears. [TUNER STEP CHANGE] • The step interval of AM channels can be toggled between 9 kHz and 10 kHz. Procedure: 1. Press ?/1 button to turn the set ON. 2. Press [TUNER/BAND] button to select the “AM”. 3. Press ?/1 button to turn the set OFF. 4. Press [AMP MENU] button and ?/1 button simultaneously. The system will turn ON automatically. The message “AM 9k STEP” or AM 10k STEP” appears and thus the channel step is changed. [DVD REPEAT 5 LIMIT OFF MODE] • The number of repeat for DVD playback is 5 times when the repeat mode is “REPEAT ALL”. This mode enables DVD to repeat playback for limitless times. Procedure: 1. Press ?/1 button to turn the set ON. 2. Select DVD function. 3. Press x button, [REPEAT] button and [DVD] button simultaneously to enter the DVD repeat 5 limit off mode. 4. To release this mode, operate the cold reset. (Refer to the “MC COLD RESET”) [DVD SHIP MODE (WITH MEMORY CLEAR)] • This mode moves the optical pick-up to the position durable to vibration and clears all data including preset data stored in the RAM to initial conditions. Use this mode when returning the set to the customer after repair. Procedure: 1. Press ?/1 button to turn the set ON. 2. Select DVD function. 3. Press x button, [AMP MENU] button and [GAME] button simultaneously. The set will power off automatically. 4. After the “STANDBY” blinking display finish, a message “LOCK” is displayed on the fluorescent indicator tube and the DVD ship mode is set. [DVD SHIP MODE (WITHOUT MEMORY CLEAR)] • This mode moves the optical pick-up to the position durable to vibration. Use this mode when returning the set to the customer after repair. Procedure: 1. Press ?/1 button to turn the set ON. 2. Select DVD function. 3. Press [DVD] button and ?/1 button simultaneously. The set will power off automatically. 4. After the “STANDBY” blinking display finish, a message “LOCK” is displayed on the fluorescent indicator tube and the DVD ship mode is set. [DVD POWER MANAGE] • This mode let you switch on or off power supply to the BU during TUNER function. • When DVD POWER is set to OFF, the power supply to the BU is cut off during TUNER function. It will increase the time taken to access DVD when function change from TUNER to DVD but it will improve tuner reception. • When DVD POWER is set to ON, the power supply to the BU is not cut off during TUNER function. It will reduce the time taken to access DVD when function change from TUNER to DVD but it will decrease tuner reception performance. Procedure: 1. Press ?/1 button to turn the set ON. 2. Select DVD function. 3. Press ?/1 button to turn the set OFF. 4. Press x button and ?/1 button simultaneously. The set will power on automatically. 5. The message “DVD POWER ON” or “DVD POWER OFF” will be displayed on the fluorescent indicator tube. [DVD TRAY LOCK MODE] • This mode let you lock the disc trays. When this mode is acti- vated, the disc tray will not open when Z OPEN/CLOSE but- ton or [DISC SKIP/EX-CHANGE] button is pressed. The mes- sage “LOCKED” will be displayed in the will be displayed on the fluorescent indicator tube. Procedure: 1. Press ?/1 button to turn the set ON. 2. Select DVD function. 3. Press x button and Z OPEN/CLOSE button simultaneously and hold down until “LOCKED” or “UNLOCKED” displayed on the fluorescent indicator tube (around 5 seconds). [MD/VIDEO SWITCHING] • This mode let you switch from MD to VIDEO and vice-versa. Procedure: 1. Press ?/1 button to turn the set ON. 2. Select MD function. 3. Press [MD $VIDEO%] button and ?/1 button simultaneously. The function will change to VIDEO. Press the same buttons again to change from VIDEO to MD. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 HCD-GN77D SECTION 5 MECHANICAL ADJUSTMENTS SECTION 6 ELECTRICAL ADJUSTMENTS Precaution 1. Clean the following parts with a denatured alcohol-moistened swab: record/playback heads pinch rollers erase head rubber belts capstan idlers 2. Demagnetize the record/playback head with a head demagnetizer. 3. Do not use a magnetized screwdriver for the adjustments. 4. After the adjustments, apply suitable locking compound to the parts adjusted. 5. The adjustments should be performed with the rated power supply voltage unless otherwise noted. Torque Measurement 3.06 N • m to 6.96 N • m 31 to 71 g • cm (0.43 – 0.98 oz • inch) 0.19 N • m to 0.58 N • m 2 to 6 g • cm (0.02 – 0.08 oz • inch) 3.06 N • m to 6.96 N • m 31 to 71 g • cm (0.43 – 0.98 oz • inch) 0.19 N • m to 0.58 N • m 2 to 6 g • cm (0.02 – 0.08 oz • inch) 6.96 N • m to 14.02 N • m 71 to 143 g • cm (0.98 – 1.99 oz • inch) 9.80 N • m 100 g or more (3.53 oz or more) 9.80 N • m 100 g or more (3.53 oz or more) Mode Torque meter CQ-102C CQ-102C CQ-102RC CQ-102RC CQ-201B CQ-403A CQ-403R Meter reading FWD FWD back tension REV REV back tension FF/REW FWD tension REV tension 0 dB=0.775 V DECK SECTION 1. Demagnetize the record/playback head with a head demagnetizer. 2. Do not use a magnetized screwdriver for the adjustments. 3. After the adjustments, apply suitable locking compound to the parts adjust. 4. The adjustments should be performed with the rated power supply voltage unless otherwise noted. 5. The adjustments should be performed in the order given in this service manual. (As a general rule, playback circuit adjustment should be completed before performing recording circuit adjustment.) 6. The adjustments should be performed for both L-CH and R- CH. 7. Switches and controls should be set as follows unless otherwise specified. • Test Tape RECORD/PLAYBACK HEAD AZIMUTH ADJUST- MENT DECK A DECK B Note: Perform this adjustments for both decks Procedure: 1. Mode: Playback Tape Signal Used for P-4-A100 10 kHz, –10 dB Azimuth Adjustment WS-48B 3kHz, 0dB Tape Speed Adjustment set MAIN board CN301 Pin 1 (L-CH) Pin 3 (R-CH) MAIN board CN301 Pin 2 (GND) + – level meter test tape P-4-A100 (10 kHz, –10 dB) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 HCD-GN77D 2. Turn the adjustment screw and check output peaks. If the peaks do not match for L-CH and R-CH, turn the adjustment screw so that outputs match within 1dB of peak. 3. Mode: Playback 4. After the adjustments, apply suitable locking compound to the pats adjusted. Adjustment Location: Playback Head (Deck A). Record/Playback/Erase Head (Deck B). Screw position L-CH peak within 1dB Output level L-CH peak R-CH peak within 1dB Screw position R-CH peak MAIN board CN301 set test tape P-4-A100 (10 kHz, –10 dB) pin 3 oscilloscope L-CH R-CH V H waveform of oscilloscope in phase 45° 90° 135° 180° good wrong pin 2 pin 1 L R forward reverse set MAIN board AUDIO OUT jack (J730) L-CH, R-CH + – frequency counter test tape WS-48B (3 kHz, 0 dB) 1. Insert the WS-48B into the deck B. 2. Press the H button on the deck B. 3. Adjust the tape speed adjustment control inside motor so that frequency counter reads 3,000 ± 90Hz. Sample value of wow and flutter W.RMS (JIS) less than 0.3% WS-48B Adjustment Location: Tape speed Adjustment Tape speed adjustment control inside motor Tape Speed Adjustment DECK B Procedure: Mode: Playback www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 HCD-GN77D – MAIN BOARD (Component Side) – REC LEVEL ADJUSTMENT REC BIAS ADJUSTMENT CN301 IC301 3 1 (R-CH) (R-CH) (L-CH) (L-CH) RV301 RV351 RV304 RV354               6. Confirm the playback signal recorded in step 3 becomes adjustable level as follows. If these levels are not adjustable level, adjust the RV304 (L- CH) and RV354 (R-CH) on the MAIN board to repeat steps 4 and 5. Adjustable level: Playback output of 315 Hz to playback output of 10 kHz: ±1.0 dB Adjustment Location: MAIN board REC LEVEL ADJUSTMENT DECK B Procedure: In the MC test mode, the “REC memory mode” is convenient for this adjustment. In the “REC memory mode” , when the REC starts the input signal FUNCTION is switched to VIDEO automatically. When the REC stops, the tape returns near to the recording start position. 1. Press MD (VIDEO) button to select VIDEO. (This step is not necessary if the above test mode has already been set) 2. Insert a tape into deck B. 3. After press [REC PAUSE/START] button, press [REC PAUSE/ START] button, then recording start. set MAIN board MD/VIDEO (AUDIO) IN (J117) 315 Hz, 50 mV (–23.8 dB) blank tape CS-123 600 Ω attenuator AF OSC + – set recorded portion MAIN board CN301 Pin 2 (GND) MAIN board CN301 Pin 1 (L-CH) Pin 3 (R-CH) level meter 5. Mode: Playback + – set recorded portion MAIN board CN301 Pin 2 (GND) MAIN board CN301 Pin 1 (L-CH) Pin 3 (R-CH) level meter 4. Mode: Record 5. Mode: Playback 6. Confirm the play back signal recorded in step 3 becomes adjustable level as follows. If these levels are not adjustable level, adjust the RV301 (L- CH) and RV351 (R-CH) on the MAIN board to repeat steps 4 and 5. Adjustable level: CN301 PB level: 47.2 to 53.0 mV (–24.3 to –23.3 dB) Adjustment Location: MAIN board REC BIAS ADJUSTMENT DECK B Procedure: In the MC test mode, the “REC memory mode” is convenient for this adjustment. In the “REC memory mode” , when the REC starts the input signal FUNCTION is switched to VIDEO automatically. When the REC stops, the tape returns near to the recording start position. 1. Press MD (VIDEO) button to select VIDEO. (This step is not necessary if the above test mode has already been set) 2. Insert a tape into deck B. 3. After press [REC PAUSE/START] button, press [REC PAUSE/ START] button, then recording start. 4. Mode: Record attenuator set MAIN board MD/VIDEO (AUDIO) IN (J117) 1) 315 Hz 2) 10 kHz 50 mV (–23.8 dB)    600 Ω blank tape CN-123 AF OSC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 HCD-GN77D VIDEO SECTION Note : 1. VIDEO board is basically designed to operate without adjust- ment. Therefore, check each item in order given. 2. Use DVD reference disc unless othermise indicated. [DVD reference disc] • LUV-P01 (4-999-032-01) (CD) •TDV-540C (J-2501-235-A) (DVD-DL) • TDV-520CSO (J-2501-236-A) (DVD-SL) 3. Use an oscilloscope with more than 10MΩ impedance. 4. Clean the object lens by an applicator with neutral detergent when the signal level is low than specified value with the following checks. Video Level Check (VIDEO BOARD) Purpose This adjustment is made to satisfy the NTSC standard, and if not adjusted correctly, the brightness will be too large or small. Procedure: 1. Connect oscilloscope to VIDEO output. 2. Load a DVD reference disc playback. 3. Check the video signal level is 1.00±0.05Vp-p. J711 VIDEO OUTPUT 75 Ω Oscilloscope set 1.00 ± 0.05 Vp-p (WHITE 100%) Ver 1.1 2003.08 RE-ADJUSTMENT OF THE SERVO CIRUIT The re-adjustment of the servo circuit is necessary when the part which relates to the servo circuit is replaced. Referring to SUPPLEMENT-1 “1. DRIVE AUTO ADJUSTMENT” (see page 3). Choose ALL and do the re-adjustment of each item of DVD-SL, CD and DVD-DL. THE PART THAT THE RE-ADJUSTMENT OF THE SERVO CIRCUIT IS NECESSARY. 1. Optical pick-up 2. RF AMP (IC001) 3. DSP IC (IC509) 4. Motor driver IC (IC501) 5. EEPROM (IC204) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 HCD-GN77D Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • f : internal component. • 2 : nonflammable resistor. • 5 : fusible resistor. Note on Printed Wiring Boards: • X : parts extracted from the component side. • : Pattern from the side which enables seeing. (The other layers´ Patterns are not indicated.) Caution: Pattern face side: Parts on the pattern face side seen from the (Side B) pattern face are indicated. Parts face side: Parts on the parts face side seen from the (Side A) parts face are indicated. • Indication of transistor. • C : panel designation. • A : B+ Line. • B : B– Line. • H : adjustment for repair. • Voltages and waveforms are dc with respect to ground under no-signal conditions. RF, DMB03, VIDEO, REGULATOR boards section no mark: DVD PLAY Other board section no mark: TUNER (FM/AM) ( ): DVD PLAY < >: TAPE PLAY [ ]: TAPE REC • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. F : TUNER (FM/AM) E : TAPE PLAY (DECK A) d : TAPE PLAY (DECK B) G : RECORD J : DVD PLAY c : DVD PLAY (DIGITAL OUT) q : MD/VIDEO (AUDIO) IN j : GAME IN (AUDIO) k : GAME IN (VIDEO) N : MIC INPUT Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. C B These are omitted. E Q B These are omitted. C E Q B These are omitted. C E Q SECTION 7 DIAGRAMS • Abbreviation AUS : Australian model E3 : 240 V AC Area in E model EA : Saudi Arabia model E15 : Iran model E51 : Chilean and Peruvian model MX : Mexican model PH : Philippines model SP : Singapore model MY : Malaysia model TH : Thai model • Abbreviation E3 : 240 V AC Area in E model EA : Saudi Arabia model E15 : Iran model SP : Singapore model MY : Malaysia model TH : Thai model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 HCD-GN77D 7-1. CIRCUIT BOARD LOCATION TUNER PACK SUB TRANS board SURROUND board POWER AMP board TRANS board DISPLAY board VOLUME board GAME IN board MOTOR (LD) board SW board SENSOR board RF board MOTOR (TB) board DRIVER board MAIN board CD SWITCH board DMB03 board REGULATOR board VIDEO board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 25 25 IC207 VDAC_4 T301 5 r WAVEFORMS 1 IC501 qa XC-OUT 2 3 IC501 qd X-OUT T301 4 4 – MAIN BOARD – – DMB03 BOARD – IC906 8 XTO 2 IC901 r; XTAL 1 IC906 0 SO2 3 – DISPLAY BOARD – IC601 is X OUT 1 3.0Vp-p 32KHz VOL/DIV : 1V AC TIME/DIV : 10µsec VOL/DIV : 1V AC TIME/DIV : 50nsec 2.0Vp-p 16MHz 240Vp-p 13µsec VOL/DIV : 50V AC TIME/DIV : 10µsec TAPE REC only VOL/DIV : 50V AC TIME/DIV : 10µsec TAPE REC only 64Vp-p 13µsec 4MHz 2.4Vp-p VOL/DIV : 1V AC TIME/DIV : 0.2µsec VOL/DIV : 1V AC TIME/DIV : 20nsec VOL/DIV : 1V AC TIME/DIV : 20nsec VOL/DIV : 1V AC TIME/DIV : 20nsec 3.3 Vp-p 20 MHz 3.5 Vp-p 27 MHz 4 Vp-p 30nsec IC906 qd SO3 4 VOL/DIV : 1V AC TIME/DIV : 20nsec 4 Vp-p 30nsec IC207 VDAC_1 6 IC207 VDAC_0 5 IC207 VDAC_2 7 VOL/DIV : 0.5V AC TIME/DIV : 20 µsec VOL/DIV : 0.5V AC TIME/DIV : 20 µsec VOL/DIV : 0.5V AC TIME/DIV : 20 µsec 8 VOL/DIV : 0.5V AC TIME/DIV : 20 µsec 131 1Vp-p 1H 128 976 mVp-p 1H 125 1 Vp-p 1H IC207 VDAC_3 122 1H 750mVp-p 9 VOL/DIV : 0.5V AC TIME/DIV : 20 µsec 119 1H 750mVp-p – RF Board – IC001 1 DVD RFP 1 IC001 el TE 2 IC001 r; FE 3 IC001 tj RFAC 4 0.7Vp-p 0.2V/div 100nsec/div 1.8Vp-p 0.5V/div 1msec/div 0.1V/div 1msec/div 0.3Vp-p 1.2Vp-p 0.5V/div 100nsec/div w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 26 26 7-2. BLOCK DIAGRAM – DVD DSP (1/2) Section – OPTICAL PICK-UP BLOCK (TDP022W) A +5V Q001 IC001 DVD/CD RF AMP VC CD A 16 CD B 15 CD C SDEN PI/CE DATA RF CLK RF MIRR FFDR VC FRDR TFDR TRDR SPIN 14 13 17 18 20 1 21 CD D A 12 B 11 C 10 9 D CD F CD E DVD LD A2 3 B2 4 C2 5 6 D2 DVDLD PD FCS+ FCS- TRK+ TRK- SW DVDRFP INLIM IC501 MOTOR/COIL DRIVE 36 DO1- DO1+ DO2+ DO2- DO3+ DO3- DO4+ DO4- 37 34 35 32 19 20 21 22 30 DO5+ 27 IN6- 46 IN6+ 47 29 DO5- 28 31 48 1 40 3 4 10 7 13 31 32 44 SLED MOTOR SPINDLE MOTOR IN1+ IN1- IN2+ IN2- IN3- IN4- IN5- VC VC 45 OUT6 SPO SLED_B 62 FG 7 FCS_JMP_1 8 FCS_JMP_2 61 SLED 26 SCOR 6 MNT1 22 INIT0_DVD 23 INIT1_DVD 84 XWR 85 XRD 12 XCS_DVD 25 XRST_1882 14-21 D0-D7 89-96 A0-A7 52 SQSO 54 SQCK SLED_A TRDR TFDR 33 34 FRDR FFDR IC901(1/2) MECHANISM CONTROLLER 57 RFAC 40 FE VC VCC B A D C E F RF GND 39 TE 42 36 MNTR VI25 39 FE 41 TE 40 SE 43 42 38 RFDC CE VC RFIN 48 SDEN 47 SDATA 46 SCLK 2 SDEN 40 XTAL X901 20MHz 41 EXTAL 83 SDATA_RF 82 SDCLK_RF 27 MIRR 26 LDON LDON DOUT I/O0-I/O15 768FS-2 768FS-1 IC706 16M DRAM A0-A11 IC701 DVD DECODER IC509 CD DECODER SERVO DSP MD0-MD9, MDA-MDF MA0-MA9 XMWR WE XRAS RAS XOE OE XCAS MA11/MNT2 D0-D7 A0-A7 UCAS LCAS SLEDA+ SLEDA- SLEDB+ SLEDB- SPDL+ SPDL- 12 16 Q901 LD DRIVE 22 CD LD 23 DVDPD 24 CDPD CDLD LD GND M M 66 PI 50 RFAC 64 DOUT 65 LRCK 66 PCMD 67 BCK 71 XTAI 76 SQSO 77 SQCK 79 SBSO 80 EXCK 4 DATA 5 XLAT 6 CLOK 7 SENS 8 49 27 50 9 72 SCLK DATA_CD LAT_CD CLOK_CD SENS_CD SCLK_CD 71 GFS_CD 30 COUT_CD 74 FOK_CD 75 LOCK_CD 31 INLIM 10 WFCK 13 GFS 14 C2PO 15 SCOR 17 WDCK 19 COUT 22 FOK 24 LOCK 768FS 25 MDP 26 SSTP MUTE12 MUTE34 MUTE5 TSD-M 29 5 7 6 SFDR 30 SRDR 28 LDON 20 MIRR 76 LDSEL 73 TSD-M 63 SP_ON 60 MUTE_2D 43 135 164 MDIN2 137 117 LRCK 163 65 TE 67 FE 29 MIRR Q002 LD DRIVE IC503 AMP 5 SDA SCL WP SDA_EEP SCL_EEP WP_EEP 7 6 5 99 100 IC903 EEPROM IC703(2/2) AMP IC703(1/2) AMP MDAT 160 APE0 109 GFS 107 171 BCLK 158 SBIN 148 EXCK 147 3 MUTE 59 MUTE_CD 2 XRST 98 XDRST WFCK 151 C2PO 155 SCOR 150 GSCOR 146 46 HDRQ XSAK HDB-DATA 48 XHWR XSAK XDCK XSDCK 49 XHRD NC 53 XHAC XSRQ XSRQ XTL1 45 SCK_DSD 58 GFS_DVD 64 JIT 3 DOCTRL/ISBTEST 63 MD2 76 172-176 1,2,4 5,7, 9-14 17 18 78 33 94 34 35 95 XRD 17 XWR 18 XCS 19 XINT0 20 XINT1 21 HDB0-HDB8 MA10/MNT1 92 93 44,41,39,35 32,30,27,24,26 66-69,71, 73-75, 96,97,99, 101,102, 104-106 2-5, 7-10, 41-44, 46-49 79,80, 82-87, 89,91 21-24, 27-32, 20,19 8 8 XRST XRST B A DVD DSP (2/2) SECTION (Page 27) DRV DRV DRV DRV 42 43 DVD DSP (2/2) SECTION (Page 27) • Signal Path : DVD : DIGITAL OUT w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 27 27 – DVD DSP (2/2) Section– D-SENS 41 EJECTSW Q731 S751 (LEVER) D+3.3V M-REQ VMUTE VMUTE2 42 3 4 1 2 IC731 TABLE SENSOR IC901 (2/2) MECHANISM CONTROLLER IC501 (1/5) SYSTEM CONTROL 131 VDAC 0 V C Y CB/R CR/B I2C-DA D +3.3V I2C-CL IIC-DATA IIC-CLK SYS-RESET 156 IEC958 109 CDSEL 125 VDAC 2 128 VDAC 1 122 VDAC 3 34,33,31 29 56 119 HA1-22 HA4-22 HA1-3 HA1-3 HAD0-15 VDAC 4 WIDE 107 VS 190 ALE 195 HCS0 25 WEH.UDS 27 HEL.LDS IC207 DVD SYSTEM PROCESSOR IC216 ADDRESS LATCH 184 HIRQ1 DRVIRQ 36 191 RST_SPC RST 38 DRVRDY 37 161 I2C DA I2C_SIO 78 160 I2C CL I2C_SCL 79 202 RESET 185 DRVCLK SCK_ZIVA 35 186 DRVTX SO_ZIVA 34 187 DRVRX SI_ZIVA 33 162 CS (ZIVA_E2P) 165 WRITE_CTRL (ZIVA_E2P) 116 HIRQ2 188 DRVRDY D+3.3V AUDIO +5V CS_ZIVA 32 DVD-MUTE (DVD-A-MUTE) 25 VMUTE 33 M-REQ 34 VMUTE2 32 VIDEO OUT 81 SYS-RESET 40 3 MO1 MO2 MO3 27MM 768FS 768FS 768FS-2 768FS-1 13 10 IC906 CLOCK GENERATOR 6 CLR CK Q 3 1 2 1 4 IC904 FF IC902 GATE 5 DI 4 SK 3 CS 1 R/B DO WC 8 6 IC204 EEPROM HDB-DATA DOUT DOUT DOUT SDEN 179 X SAK SDCLK 183 X DCK X SRQ SDREQ 178 139 XIN IC203 SDRAM DQ0-DQ31 A0-A9,A10/AP,NC MD0-MD31 SDDATA0-SDDATA7, SDERROR MA0-MA11 HAD0-HAD15 MDQM0-MDQM3 DQM0-DQM3 MWE WE MCAS CAS MRAS RAS MCS0 CS 12 32 8 4 53 16,71,28,59 17 18 52 19 51 20 49 BA0 BS0 22 48 BA1 BS1 23 1 3 47 57-60 64-71 75-78 81-84 88-95 99-102 55,54,52,51, 49-47,45-40,38-36 2,3,5,6,8-10 12-17,19-21, 23,24,26 2,4,5,7, 8,10,11,13, 74,76,77,79, 80,82,83,85, 31,33,34,36, 37,39,40,42, 45,47,48,50, 51,53,54,56 42-33 45,46 22,19-14, 11-3 HA1-HA3 2,207,206 177-174 171-168,182 25-27 60-66 24,21 150 DATA0(DM) 151 DATA1(FLR) 154 DATA2(SLR) 155 DATA3(CSW) 149 BCK 148 LRCK 147 XCK CDSEL 110 MREQ MREQ BCK-ZIBA LRCK-ZIBA XCK 113 MDI 114 MC 115 ML MDI MC ML MDI RST AUDIO D +3.3V MC ML Q202 1LE,2LE IC302 D/A CONVERTER IC201 DATA3 DATA2 DATA1 DATA4 BCK VOUT7 OPTICAL DIGITAL OUT IC392 +3.3V REG. A3V-2 D +5V 1 3 IC907 +3.3V REG. ZIVA D +3.3V ZIVA D +1.8V 1 3 IC211 +1.8V REG. VOUT8 DOWNMIX-L DOWNMIX-R SURROUND-L SURROUND-R SW (LFE) FRONT-L FRONT-R CENTER MUTE Q215,216 MUTE Q217,218 MUTE Q219 MUTE Q220,221 MUTE Q222 VOUT1 VOUT2 VOUT5 VOUT3 VOUT4 VOUT6 LRCK SCKI 47 46 45 31 40 41 38 16 20 14 13 10 12 11 9 36 35 34 37 62,73,86,97 DATA1 DATA0 DATA2 DATA3 IEC958 26 CE DQ0-DQ15 A0-A21 HAD0-15 HAD0-15 11 WE 28 OE IC206 RAM 29-36, 38-45 25,24,23, 22-18, 8-1,48, 17,16,9, 10 7 XTI X902 27MHz 8 XTO M DISPLAY SECTION (Page 31) D DISPLAY SECTION (Page 31) B DVD DSP SECTION (Page 26) C MAIN SECTION (Page 29) A DVD DSP (1/2) SECTION (Page 26) Q903 Q904 30 V-OUT.A 4 V-IN V 6 Y-IN Y 2 C-IN C 14 16 CB-IN CB/R CR-IN 15 MUTE2 3 MUTE1 12 CY-IN CR/B WIDE V-OUT.B C-OUT 31 33 IC711 VIDEO AMP/BUFFER IC710 VIDEO SELECTOR 27 Y-OUT.A Y-OUT.B 28 24 CY-OUT.A CY-OUT.B 25 21 CB-OUT.A CB-OUT.B 22 18 CR-OUT.A CR-OUT.B 19 VIDEO OUT VIDEO J711 CD DIGITAL OUT OPTICAL COMPONENT VIDEO OUT J710 S VIDEO OUT J712 C Y 7 3 1 2 Y PB/CB PR/CR Q701,711 BUFFER Q223,224 IC252 DATA OUT SELECTOR 5 2 1 6 GAME INPUT VIDEO J601 (1/2) LMF 46 LMR 47 44 TM-R E-1 E-2 E-3 45 21 22 43 TM-F RIN FIN 9 7 MOTOR DRIVE 4 2 9 7 4 2 MOTOR DRIVE OUT1 OUT2 OUT1 OUT2 RIN FIN IC712 MOTOR DRIVER RE701 ROTARY ENCODER IC701 MOTOR DRIVER M751 (LOADING) M M M741 (TABLE) • Signal Path : DVD : DIGITAL OUT : VIDEO : GAME IN (VIDEO) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 28 28 TAPE L-CH TEST CONNECTOR CN301 R-CH R L E MAIN SECTION (Page 29) TUNER L – CH F MAIN SECTION (Page 29) REC L-CH G MAIN SECTION (Page 29) PB HEAD DECK-A DECK-B TC BLOCK 32 BIAS OSC Q302, 303 RIPPLE FILTER Q301 A TRIG DRIVE • SIGNAL PATH : PLAYBACK (DECK A) : PLAYBACK (DECK B) : RECORD : TUNER (FM/AM) R-CH FM/AM TUNER UNIT CN304 ANTENNA ST-L FM ANT AM ANT AM ANT ST-R ST-MUTE STEREO TUNED ST-DOUT/MC-DIN ST-DIN/MC-DOUT ST-CLK ST-CE FM 75Ω COAXIAL CAP M+ BTRGM+ ATRGM+ AHALF BHALF APLAY BPLAY BSHUT ASHUT REC(FWD) REC(REV) CAPM-CTRL B-TRIG A-TRIG TC-RELAY A-HALF B-HALF A-PLAY B-PLAY B-SHUT A-SHUT A REC, FWD B REC, REV REC BIAS PB-A/B ALC REC-MUTE TC-MUTE AMS-IN AM • R-ch is omitted due to same as L-ch. 93 EQ OUT1 A B 120 ST-MUTE STEREO TUNED ST-DIN ST-DOUT ST-CLK ST-CE BIAS TRAP REC BIAS(L) 34 1 2 3 4 28 27 26 24 21 56 53 54 EQ-H/N 65 51 52 63 60 66 90 89 61 69 91 67 55 59 B TRIG DRIVE 58 CAP MOTOR DRIVE 57 100 1 2 97 87 65 88 13 12 11 15 14 BUFFER Q304,305 HPF R-CH PB OUT1 TAI1 REC IN1 MUTE Q306,389 AMS DETECT Q390, 398, 399 R-CH R-CH L – CH R – CH R-CH R-CH SWP1 GND SWR1 AIN1 BIN1 RV304 REC(L) LEVEL RV301 C332, 333 TC A+9V REC/PB SWITCH IC302 REC/PB HEAD ERASE HEAD A/B NORM/HIGH SPEED ALC ON/OFF REC MUTE ON/OFF MUTE ON/OFF IC303 DECK A/B SELECT PB/REC EQUALIZER AMP IC301 Q307,310 T301 Q391, 392 Q395, 396 Q393,394 SYSTEM CONTROL (CD/TAPE MECHANISM CONTROL) IC501(2/5) REC-OUT1 + L – CH R – CH EQ – TUNER/TAPE DECK Section – w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 29 29 J117 J601 (2/2) E (Page 28) (Page 28) G (Page 28) F R-CH VOLUME CONTROL CPU INTERFACE INPUT SELECT SWITCH SURROUND OR DPL BUFFER MID/ BASS & TREBLE R-CH R-CH COMMAND F OUT2 OUT1 VL IN1 + Q101 R-CH R-CH SPEANA D130 DBFB F/B F-R F-L REAR-L CENTER-L REAR-R AC CUT DETECT + + + RV722 MIC AMP IC722 (2/2) INPUT SELECT SWITCH, GRAPHIC EQUALIZER CONTROL, ELECTRICAL VOLUME IC102 AUDIO OUT SWITCH IC730 SYSTEM CONTROL IC501 (3/5) SURROUND VOL CONTROL IC103 INA1 INEX1 SUR1 IND1 L+R DATA CLK BB-A1 BB-B1 SWOUT REC-L R-CH TAPE L-CH TUNER/TAPE SECTION TUNER/TAPE SECTION TUNER L-CH DOWNMIX-L DOWNMIX-R FRONT-L FRONT-R CENTER SURROUND-L SURROUND-R SW (LFE) DATA CLOCK VOLUME-DATA VOLUME-CLK LINE MUTE MIC DETECT SPEANA MUTE AUDIO-DATA AUDIO-CLK AUDIO OUT SW-RELAY R-CH R-CH Q730 R-CH J721 L R MD/VIDEO (AUDIO) IN L R AUDIO LPF I/F R-CH GAME INPUT J730 AUDIO OUT RY701 2 14 15 24 4 2 3 1 13 5 18 22 16 21 5 3 6 INB1 INC1 4 L R J716 SUBWOOFER 19 41 40 37 39 38 DVD DSP (2/2) SECTION MIC MIC AMP IC722(1/2) ECHO LEVEL RV721 MIC LEVEL VC (+5V) C (Page 27) 17 8 MIC RECB1 7 42 MIC OUT VC (+5V) A+9V C A B C A B SUR2 A+9V 41 34 2 33 32 + 1 8 DIGTAL ECHO IC721 LPF2 OUT LPF1 IN • R-ch is omitted due to same as L-ch. +5V REG. Q721 VC (+5V) 13 12 6 5 10 9 15 24 14 86 87 79 80 82 70 71 68 77 + AMP SECTION J K I H (Page 30) AMP SECTION (Page 30) DISPLAY SECTION TUNER/TAPE SECTION (Page 31) AMP SECTION (Page 30) 11 4 31 25 30 29 8 7 23 28 27 26 22 3 MUTE Q620, 670 MUTE Q799 Q802 Q803 Q105 MUTE MUTE Q800 Q650,651 BUFFER MUTE Q801 MUTE Q798 17 18 RELAY DRIVE Q701, 702 • SIGNAL PATH : TUNER (FM/AM) : DVD : TAPE PLAY : GAME IN (AUDIO) : RECORD : MIC INPUT : MD/VIDEO (AUDIO) IN – MAIN Section – w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 30 30 – AMP Section – IC501 POWER AMP IC301 POWER AMP IC502 OVER CURRENT PROTECTOR : TUNER (FM/AM) MUTING Q503, 504, 581 F-R DBFB F/B F-L REAR-R CENTER REAR-L 75 78 STK-MUTE 72 VACS IN PROTECTOR STK-MUTE 10 15 14 4 3 12 STK MUTE FAN DET FAN-ON FAN-K OVER LOAD DETECT Q501, 551 + + + + MUTING Q621, 671 MUTING CONTROL Q652 F-RELAY HP-DET HP-MUTE FAN-K 50 HP-DETECT 76 HP-MUTE 83 FRONT-RELAY 88 FAN KICK OVER LOAD DETECT Q301, 341, 351 RELAY DRIVE Q516, 517 H/P DET F-RELAY HP-MUTE + - - + FRONT SPEAKER IMPEDANCE USE 6-16Ω SURROUND SPEAKER IMPEDANCE USE 8Ω CENTER SPEAKER IMPEDANCE USE 8Ω L R PHONES J631 RY501 D+3.9V SYSTEM CONTROL IC501 (4/5) TM501(1/2) MAIN SECTION (Page 29) J MAIN SECTION (Page 29) M FAN MOTOR DRIVE Q851-854 DC FAN M891 AC CUT DETECT AC CUT DETECT TH502 TH501 Q518 THERMAL DETECT Q505, 506 THERMAL DETECT Q514 Q602 VACS CONTROL + + + 85 CENTER-RELAY 84 LINE-RELAY (REAR L/R SURR RLAY) RY381 RY382 TM501 (2/2) L R RELAY DRIVE Q383, 386 RELAY DRIVE Q381, 384 I MAIN SECTION (Page 29) K DISPLAY SECTION (Page 31) L 5 18 6 OVER LOAD DC DET VP OCP CT OUT D502 D391 2 1 D509 PROTECT SWITCH Q511 Q510 PROTECT SWITCH Q385 18 10 14 9 - - - • R-ch is omitted due to same as L-ch. • SIGNAL PATH w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 31 31 – DISPLAY Section – FL601 FLUORESCENT INDICATOR TUBE 8 – 10, 12 – 22, 24 – 41, 43 – 46 7 – 1, 100 – 95, 92 – 87 P1 – 36 G1 – 13, G16 – 21 64 – 66 SUPER LOW FREQUENCY (BPF0) 2 BPF, RECT IC101 BPF, RECT IC102 67 70 1 2 7 6 69 68 48 93 72 94 BPF3 BPF1 BPF2 VKK SELECTOR G15 G15 G14 G14 G1 – 13, 16 – 21 6 1 7 80 VOL 1A 79 VOL 1B ROTARY ENCODER S748 VOLUME X MAIN SECTION (Page 29) H DVD DSP(2/2) SECTION (Page 27) D AMP SECTION (Page 30) L SPEANA P1 – 36 VF1 VF2 D610 D101 D102 -VG (-32V) X601 4MHz 83 X1 82 X0 52 – 59, 73 LED DRIVE Q602 – 604, Q1001 – 1006 D603, 605, 601 D1002, 1004, 1006 D1008, 1010, 1012 D602, 606, 604 D1001, 1003, 1005, D1007, 1009, 1011 M+9V Q606 Q601 Q605 Q707 D748 KEY2 | KEY0 S781 – 787, 788 - 792 S765 – 772, 773 S751 – 758, 759 - 763 60 IIC DATA MCU VCC CN501 D+3.3V IIC-CLK IIC-CLK IIC PROGRAM IIC-DATA IIC-DATA 3 2 4 61 IIC CLK 77 RESET 30 IIC-DATA 29 IIC-CLK 41 31 9 GC-RESET TXD1 TXD1 CNVSS CNVSS MCU VCC CN502 CNVSS TXD1 TXD1 RTS1 ON BOARD PROGRAM CLK1 RXD1 RESET MCU VCC CN VSS VMUTE M-REQ SQ-DATA 74 POWER-KEY 73 DISPLAY-KEY S749 S750 DISPLAY 48 STBY-LED 4 SIRCS X502 16MHz 15 X-IN 13 X-OUT X501 32.768kHz 10 XC-IN 11 XC-OUT 23 DVD-POWER (SYS POWER) 95 DVD POWER CHK SYSTEM CONTROL IC501 (5/5) 27 STBY-RELAY 12 RESET 98 VREF VREF 20 AC-CUT B+ SWITCH Q904, 905 RECT D901 +5V REGULATOR IC905 +3.3V REGULATOR IC907 +5V REGULATOR IC906 M +9V A +9V TC +9V D502 D504 D501 D503 +3.9V REGULATOR IC904 +3.9V REGULATOR IC971 D +3.9V +9V REGULATOR IC903 +9V REGULATOR IC901 +12V REGULATOR IC902 M+12V LEVEL DETECT IC601 D505 RECT D902 RECT D972 – 975 LED DRIVE Q748 T972 SUB POWER TRANSFORMER RECT D541 RECT D543 +VL AC CUT DETECT F974 VL VL VH VH VP VF VF AC3 AC4 AC4 AC3 GND F975 F976 F977 F978 R941 –VL +VH –VH – 33V REGULATOR Q903 POWER ON/OFF RELAY DRIVE Q971 – VG (-32V) D977 RECT D508 D509 VF1 VF2 RY971 AC IN T910 MAIN POWER TRANSFORMER RESET SWITCH Q601 REMOTE CONTROL RECEIVER IC603 TO FLUORESCENT INDICATOR TUBE FL601 MCU VCC VREF EVER +3.9V S901 S901 E3, E15, EA, SP,MY TH 120V | 220V | 230 – 240V DISPLAY CONTROL KEY CONTROL IC601 BUFFER Q807, 808 Q903, 906 Q909, 910 D103 D104 BAFFER, RECT Q100, D105 71 ALL_BAND 3 2 6 9 7 5 8 R952 DVD DSP(2/2) SECTION (Page 27) M VOLTAGE SELECT ZIVA AUDIO+5V ZIVA D+3.3V ZIVA D+5V BUFFER B+ SWITCH 94 I-HOLD LED 1 3 • Abbreviation E3 : 240 V AC Area in E model EA : Saudi Arabia model E15 : Iran model SP : Singapore model MY : Malaysia model TH : Thai model w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 32 32 7-3. PRINTED WIRING BOARD – RF Board – • See page 24 for Circuit Boards Location. • Semiconductor Location D001 B-5 D002 B-5 IC001 A-5 Q001 B-3 Q002 C-3 Ref. No. Location IC001 (Page 36) A TO DMB03 BOARD (TDP022W) (TDP022W) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 33 33 7-4. SCHEMATIC DIAGRAM – RF Board – JL001 JL003 JL006 C002 C004 C005 C006 C008 C009 C010 C011 C012 C013 C014 C015 C016 C017 C018 C019 C024 C029 C030 C031 C033 C035 C040 C041 C001 C003 C027 JL002 JL004 C020 C021 C022 C023 C037 C042 IC001 L001 L002 Q001 Q002 R003 R005 R006 R007 R009 R010 R011 R012 R013 R014 R015 R016 R017 R018 R021 R024 R025 R026 R027 R028 R029 R033 R034 IOP1 IOP2 JL005 JL007 C036 R022 R023 D001 D002 R032 C049 C025 C026 R001 CN001 CN003 C039 C038 CN002 C032 C034 C028 R008 R004 R035 R041 R019 R020 16V 16V 10V 10V B B 1000p CH 1000p CH B B 2200p B 2200p B 2200p B 2200p B 5600p B 5600p B B B B 1000p CH B B B B 6.3V 6.3V B 22p CH 22p CH 22p CH 22p CH 330p CH 180p CH SP3723BDA0PM 2SB1132-T100-QR LD DRIVE LD DRIVE 2SB1132-T100-QR 33 47k 470 33 47k 470 0 0 0 0 0 0 0 0 0 0 100 12k E 0 0 0 0 10M B 220 820 1SS355TE-17 1SS355TE-17 100 B B B 100 E 24P 9P 29P B B B 33 33 0 1k 0 0 DVD/CD RF AMP A TO DMB03 BOARD (2/8) (Page 39) (TDP022W) (TDP022W) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 34 34 7-5. PRINTED WIRING BOARDS — DVD MECHANISM Board — • Refer to page 24 for Circuit Boards Location. 1 A B C D E F G H 2 3 4 5 6 7 8 9 10 11 12 13 14 15 CN751 S751 IC731 CN731 CN741 CN742 C715 C731 C735 C736 R701 R711 R731 R721 R722 R723 R735 R732 R733 R734 D701 D711 Q731 C751 IC712 IC701 CN704 C737 R713 R712 C741 R702 JW702 JW703 JW704 JW705 JW706 JW707 JW708 JW711 CN703 CN702 CN705 R751 C752 CN701 JW712 JW701 JW709 JW710 JW713 JW714 CN721 MAIN BOARD (Page 48) Ref. No. Location D701 D-6 D711 D-7 IC701 F-6 IC712 F-7 IC731 E-11 Q731 C-9 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 35 35 7-6. SCHEMATIC DIAGRAM – DVD MECHANISM Board – MAIN BOARD (4/4) (Page 52) R701 D701 R712 R711 R721 C735 C736 R722 C737 R723 R733 R734 R735 C741 CN731 CN741 CN742 CN702 CN703 CN751 M751 CN704 CN721 C751 R751 C752 CN705 CN751 R732 R731 M741 CN701 IC731 E-1 E-2 E-3 Q731 D711 R713 C731 C715 S751 R702 470 MTZJ-T-77-5.1B 4.7k 1k 4.7k 0.1 0.1 4.7k 0.1 4.7k 1k 12k 100 0.01 3P 3P 5P 5P 4P 4P (LD) 2P 2P 0.01 4.7k 0.1 2P 2P 10k 100 (TBL) 12P RPI-576 TABLE SENSOR DTC114ESA TBL ADDRES SENS SWITCH MTZJ-T-77-3.6B 22k 10 50V 100 16V (LEVER SW) 100 VREF OUT2 RNF OUT1 VM VCC FIN GND RIN IC701 BA6956AN LD MOTOR DRIVER VREF OUT2 RNF OUT1 VM VCC FIN GND RIN BA6956AN DRIVER IC712 TBL MOTOR RE701 ROTARY ENCODER w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 36 36 7-7. PRINTED WIRING BOARDS – DMB03 Board (SIDE A) – • See page 24 for Circuit Boards Location. : Uses unleaded solder. Ref. No. Location • Semiconductor Location D202 C-5 D901 D-2 D1301 A-2 D1302 A-2 D1303 B-1 D1304 B-1 D1305 C-1 D1306 C-1 D1307 A-2 D1308 A-2 D1801 D-5 D1802 D-5 D1805 D-3 D1806 D-3 IC207 B-6 IC211 C-4 IC216 D-7 IC302 B-1 IC503 C-4 IC509 D-4 IC701 D-6 IC901 C-2 IC902 C-6 IC904 C-6 IC906 C-5 Q903 A-2 Q904 A-2 IC701 IC207 IC509 IC901 IC906 IC904 IC902 IC211 IC503 IC216 VIDEO BOARD MAIN BOARD (Page 46) (Page 48) REGULATOR BOARD (Page 46) MAIN BOARD (Page 48) VIDEO BOARD (Page 46) RF BOARD (Page 32) IC302 1 2 3 1 7 C325 C321 C302 FL302 R314 FL303 R285 C304 C305 C303 C306 1 12 36 25 13 24 48 37 R574 JW801 JW802 JW803 JW804 JW805 JW806 R805 1 80 61 21 40 20 60 41 FOR CHECK E E RB202 RB203 RB204 C716 16 17 D1801 D1802 D1302 D1301 D1308 D1307 D1303 D1304 D1305 D1306 A V W S X P 6 7 24 25 1 2 1 9 10 13 1 3 2 NOT USE 4 D1806 D1805 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 37 37 PRINTED WIRING BOARDS – DMB03 Board (SIDE B) – • See page 24 for Circuit Boards Location. Ref. No. Location • Semiconductor Location D392 D-6 D393 D-7 D394 D-7 D1101 D-6 D1102 D-6 D1803 C-1 D1804 C-1 IC203 B-1 IC204 B-2 IC206 D-1 IC252 B-4 IC392 D-7 IC501 D-4 IC703 D-3 IC706 D-2 IC903 C-5 IC907 D-6 Q202 B-2 Q901 D-6 : Uses unleaded solder. IC392 IC907 IC903 IC204 IC501 IC252 IC703 IC706 IC206 IC203 D1804 D1803 R307 R306 R313 R303 R305 R304 R302 C307 C326 C324 C323 C322 D1102 D1101 1 2 3 1 2 3 1 4 5 8 R367 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 38 38 7-8. SCHEMATIC DIAGRAM – DMB03 Board (1/8) – C394 R1301 R1303 JW392 CN107 D1303 D1304 D1301 D1302 D1305 D1307 D1306 D1308 C321 C322 R302 R303 R304 R305 R306 R307 R308 R309 C302 C303 C304 C305 C306 C307 C308 C309 SL302 R310 R311 R312 R314 C325 FL302 D392 C393 SL392 R313 D394 D393 C326 C323 C324 R392 C392 R367 IC302 IC392 FL303 220 4V 0.1 0.1 0 13P 1SS355TE-17 1SS355TE-17 1SS355TE-17 1SS355TE-17 1SS355TE-17 1SS355TE-17 1SS355TE-17 1SS355TE-17 100 6.3V 0.1 220 220 220 220 220 220 220 220 0.01 0.01 0.01 0.01 0.01 0.01 100p 100p DAC_RST 100 100 100 22 100 4V 0UH 1SS355TE-17 0.01 10k 1SS355TE-17 1SS355TE-17 0.01 0.1 0.1 10 22 16V 0 PCM1609KPTR +3.3V REG 0UH PCM_5.1CH_BUS_B DAC_CTRL_BUS AUDIO_5V AUDIO_AGND AUDIO_DGND DOUT SG1 SG2 MDI MC ML MCK-B BCK-B LRCK-B FLR-B SLR-B CSW-B DMX-B D/A CONVERTER µPC2933T-E2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 39 39 7-9. SCHEMATIC DIAGRAM – DMB03 Board (2/8) – C516 C517 C518 C522 FL501 FL502 C592 R501 R502 R507 R508 R538 R539 R540 R541 R544 R555 R575 R576 R577 R578 R583 R585 R592 R695 R696 R698 C502 C501 C531 C533 C534 C535 C544 C543 C545 C590 C589 R550 R551 R552 R559 R563 R564 R587 C567 C568 R573 R694 R9988 R699 C569 C570 CL505 CL504 CL503 CL502 CL501 CL544 CL537 CL536 CL535 CL531 CL530 CL529 CL527 CL526 CL525 CL524 CL523 CL522 CL509 CL510 CL511 CL512 CL513 CL514 CL515 CL516 CL517 CL518 CL519 CL520 CL521 CL508 CL507 CL506 R536 R537 R503 R504 R506 R505 R558 SL502 R561 R562 C588 R588 R593 R584 C556 C558 R601 C548 C551 C561 C552 R572 R571 C565 R568 C563 C560 R567 C559 R565 R566 C547 C553 C573 R615 R629 CN501 IC503 SL501 R560 R599 IC509 R548 R545 0.0022 50V B 10 10V F 0.01 50V F 0.1 6.3V B 0UH 0UH 10 16V 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0.01 0.01 0.047 0.0022 0.022 0.0022 0.1 0.1 10 0.0022 0.0022 1k 1k 1k 1k 1k 1k 0 0.1 10 10k 10k 0 0 0.1 10 10k 68k 47k 47k 47k 47k 47k 1k 1k 0.0022 10k 100k 33k 10 100 4V 0 0.01 0.47 0.1 0 470k 1M 0.1 1M 100p 0.0015 3.3k 0.1 1k 10k 0.1 0.0033 100p 0 0 29P NJM3404AV( TE2) 1k 1k CXD3068Q 10k 10k DGND ANALOG BUS D3V CD OUT B22 20 21 25 29 30 18 19 B27 B28 24 23 B17 B11 7 5 4 3 2 1 B12 B6 PI TE FE FE TE RFAC RFAC MIRR DATA_RF EXCK SBSO WFCK GSCOR SQCK SQSO FOK LOCK XRST_CD DATA XLAT CLOK SENS SCLK COUT MIRR MD2 SCOR RF_AC MDP MUTE_CD C2PO LDON FE TE SDEN CLK_RF SLEDA- SLEDA+ SPDL+ SPDL- PI SLEDB+ SLEDB- TFDR TRDR FFDR FRDR PI INLIM RFMON SLEDCTRL GFS_CD SPIN FCS+ FCS- TRK+ TRK- CDSP2 MDAT LRCK BCLK 768FS w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 40 40 7-10.SCHEMATIC DIAGRAM – DMB03 (3/8) Boards – • See page 71 for Pin Function Description. C764 R746 R745 C762 C730 C740 C741 C743 C744 C745 C723 C722 C714 C713 C718 C716 C708 C717 C712 C709 C772 C770 C769 C767 C773 C771 R721 C720 R724 R726 R725 R720 C760 C763 C765 C768 C715 C706 R767 R765 C774 C775 R732 R737 R735 C776 C742 R758 C778 C777 C721 C726 C766 C725 C752 R780 R781 R728 R727 C728 C783 R799 C703 C729 C702 C780 C779 C727 C705 C701 R738 R736 R734 R733 R9986 R9987 C724 R716 R718 R717 R719 R713 R712 R711 R710 R709 R708 R707 R764 R763 R762 R769 R750 R714 R778 FL704 FL701 FL703 FL702 FL705 R741 R742 R743 R744 R757 R759 R755 R754 R753 R752 R766 R756 R731 R730 R777 R776 C782 FL706 R770 R748 R747 R784 R700 R788 R789 TP703 CL703 SL703 CL791 CL787 CL786 CL785 R715 TP701 CL701 C761 R785 R786 R787 C781 R751 IC703(1/2) IC706 C711 IC703(2/2) IC701 0.1 47k 47k 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.47 0.01 0.01 100p 0.1 0.1 0.1 0.1 0.1 0.47 0.047 33k 0.1 1k 100k 1.8k 1k 0.1 0.1 0.1 0.1 0.0015 0.1 47k 22k 0.0047 0.1 10k 10k 10k 0.1 0.1 0 0.1 0.1 0.1 0.1 100p 0.1 0.1 0 0 10k 3.3k 0.1 0.0015 50V B 0 0.1 10 10V F 10 10 10 10 0.01 16V B 100 4V 10k 10k 10k 10k 0 0 0.1 100 10k 100k 1k 10k 10k 2.2k 10k 150k 470k 100 1M 8.2k 22k 2.2k 10k 10k 100k 0UH 0UH 0UH 0UH 0UH 22 22 22 22 0 0 0 0 0 0 0 0 22 22 0 0 0.0015 50V B 0UH 0 33k 33k 0 8.2k 100k 100k 10k 0.1 10k 100k 100k 150 0 NJM3404AV( TE2) MSM51V1816 5F-60TSKR1 NJM3404AV( TE2) TMC5792GF-RDP ANALOG_BUS 1.65V DRAM_BUS ANALOG_BUS SIGNAL_BUS B11 B12 1 2 3 4 5 7 B6 B32 35 36 B37 B38 31 B34 B33 SD7 SDEF SD6 SD5 SD4 SD3 SD2 SD1 SD0 BD0 BD1 BD2 BD3 BD4 BD5 BD6 BD7 WE RAS MA0 MA1 MA2 MA3 MA8 XMOE XCAS BD8 BD9 BDA BDB BDC BDD BDE BDF LRCK XCAS XMOE MA4 MA5 MA6 MA7 XSAK XDCK D4 D3 D2 D1 D0 INIT1 XINIT0 XCS1882 XHWR XHRD A7 A6 A5 A4 A3 A2 A1 A0 D7 D6 D5 RF_AC JIT SPIN SCOR GSCOR EXCK SBSO WFCK C2PO GFS_DVD BCLK MDAT MA9 MDP MDIN MDIN JITOFF MNT1 XSRQ MA0 MA1 MA2 MA3 MA4 MA5 MA6 MA7 MA8 MA9 RAS WE BD0 BD1 BD2 BD3 BD4 BD5 BD6 BD7 BD8 BD9 BDF BDE BDD BDC BDB BDA *1 *1 C711 0.01 0.047 TH EXCEPT TH w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 41 41 7-11. SCHEMATIC DIAGRAM – DMB03 (4/8) Boards – CN102 C101 C151 D901 C927 C926 R535 R579 R534 R533 C514 R532 R530 R531 R529 C512 R528 R527 C510 R525 R524 R521 R523 R586 R519 R520 C508 R517 R522 C509 C506 R516 R512 C503 C504 R513 C525 C528 C529 R554 R553 R510 R511 C526 C527 JL521 R543 R547 R581 R589 C519 R580 C925 C928 D1101 D1102 R1101 IC501 IC907 µPC2933T-E2 +3.3V REGULATOR R597 13P 220 4V 100 6.3V 1SS355TE-17 0.01 50V F 220 4V 0 8.2k 56k 33k 0.01 0 56k 0 33k 0.01 0 2.2k 0.001 10k 10k 100k 10k 200k 100k 10k 0.001 2.2k 4.7k 330p 330p 4.7k 56k 33000p 33000p 56k 0.01 22 16V 0.01 0 0 150k 150k 22 16V 0.01 50V F 0 0 12k 10k 0.01 33k 22 16V 10 1SS355TE-17 1SS355TE-17 0.1 FAN8035L 0 M12V M5V MGND V5V VGND AUDIO_5V AUDIO_AGND AUDIO_DGND SG1 D3V DGND D5V A3V-2 54 55 56 B22 20 21 25 29 30 18 19 B27 B28 24 23 B17 MUTE_2D SPDL- SPDL+ SLEDB- SLEDB+ SLEDA- SLEDA+ TRK+ FCS+ FCS- TRK- TFDR TRDR SLED SP_ON SLEDB SLEDA FFDR FRDR SPFG TSD-M SLEDCTRL LDSEL DSAVE FJMP1 FJMP2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 42 42 7-12.SCHEMATIC DIAGRAM – DMB03 (5/8) Boards – • See page 74 for Pin Function Description. C918 R913 CL910 CL909 CL908 CL907 CL906 C924 R970 FL901 C902 C901 R958 R918 R919 R949 R948 R947 JL910 R962 R901 R902 C906 R978 R905 R906 R907 R911 R912 CL922 R991 R992 R974 R915 FL908 C909 C903 C904 JL967 JL966 JL965 R988 R916 C908 R917 R994 R995 CL934 JL957 JL956 R996 R997 R998 C913 R920 R990 R984 R935 R925 R904 R926 R930 C905 R971 C910 R940 R910 R921 R973 R976 R942 R943 X901 R931 R927 X902 C916 C917 L901 47µH FL903 CL913 FB903 R932 R933 CL904 FB902 CN901 CL954 CL959 CL955 CL950 CL951 CL952 CL953 R908 R975 Q904 Q903 Q901 IC901 CN101 C915 C914 R964 R923 IC902 IC904 C907 IC906 IC903 0.01 10k 0.01 0 0UH 0.01 100 4V 22 22 0 0 0 0 10k 22 22 0.01 10k 22 22 22 10k 10k 0 0 0 100 0UH 100p 100 4V 0.01 0 1k 100p 1k 0 0 0 0 0 33000p 100 0 10k 4.7k 100 10k 100 100 0.01 0 0.01 100 0 100 0 0 100 100 20MHz 22 1M 27MHz 100 4V 0.01 0UH 0UH 22 22 0UH 7P 10k 10k 2SK1828TE85L 2SK1828TE85L DTC114TE-TL CXP973064 -226R 7P 7p 7p 10k 220 TC7S32FU-T E85L TC7W74FK-T E85L 0.01 SM8707GV-G -E2 BR24C16F-E2 768FS ANALOG_BUS AGND DSP_BUS AGND A3V 3V-D I2C-SIO I2C-SCL SPC970_BUS 768FS DGND ZIVA_CTRL_BUS VMUTE VIDEO_SW 54 55 56 36 35 B32 B33 B34 B37 B38 31 A0 A1 A2 A3 A4 A5 A6 A7 XINIT0 XINIT1 D0 D1 D2 D3 D4 D5 D6 D7 XCS1882 XHRD XHWR CLK_RF DATA_RF SENS XLAT TXD RXD MD2 PI JIT FJMP1 FJMP2 SLEDA SLEDB LOCK FOK SCLK GFS_CD SP_ON SPFG SLED MUTE_2D MUTE_CD GFS_DVD TSD-M LDON RST_SPC I2C_SIO I2C_SCL SDEN SCOR DRVRX DRVTX DRVCLK DRVIRQ DATA CLOK SQSO SQCK XRST_CD 768FS COUT MIRR INLIM JITOFF DSAVE 27M DRVRDY DRVCLK CS_SPC CS_SPC LDSEL WP SCL SCL WP SDA SDA MNT1 RXD TXD CDSP2 FE TE RFMON RF_AC I2C_SIO I2C_SCL MREQ SYS_RST JIG_MOD w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 43 43 7-13. SCHEMATIC DIAGRAM – DMB03 (6/8) Boards – CL214 CL213 CL212 CL211 CL210 CL209 CL208 CL207 CL206 CL204 R201 R202 R281 R280 R279 R278 L412 L416 L415 L414 L413 R219 R220 R221 R217 R223 R224 R9994 R9981 R9998 R9999 R9980 R218 R222 C415 C414 C413 C412 L402 L403 L404 L405 L406 C416 R1201 R1801 D1802 D1801 D1803 D1804 D1805 D1806 R1202 R1802 R1803 R270 JW801 JW802 JW803 JW804 JW805 JW806 JW601 JW602 JW603 JW604 JW606 JW605 JW607 CN105 R9993 CN202 RB204 RB203 RB202 0 75 75 75 75 75 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0.1 25V F 0.1 1SS355TE-17 1SS355TE-17 1SS355TE-17 1SS355TE-17 1SS355TE-17 1SS355TE-17 0 0.1 0.1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 17P 0 4P 0 0 0 SIGNAL_BUS DGND SG2 VGND V5V PCM_5.1CH_BUS_B SG1 VMUTE VIDEO_SW B1 63 64 66 67 70 71 72 73 76 77 78 79 80 81 82 83 84 85 86 87 B68 SD7 SD6 SD5 SD4 SD3 SD2 SD1 SD0 XSAK SDEF XDCK AV7 AV6 AV5 AV4 AV3 AV2 AV1 AV0 XSAK# SDEF# XDCK# XSRQ XSRQ_ZIVA LRCK-ZIVA XCK2 DATA1(SEL) BCK-ZIVA2 DATA1(SEL) XCK2 BCK-ZIVA2 LRCK-ZIVA DATA3 DATA2 FLR-A SLR-A CSW-A LRCK-A BCK-A MCK-B BCK-B LRCK-B CSW-B SLR-B FLR-B DMX-B DMX-A MCK-A MCK-A BCK-A LRCK-A CSW-A SLR-A FLR-A DMX-A DATA0 (CHASSIS) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 44 44 7-14.SCHEMATIC DIAGRAM – DMB03 (7/8) Boards – • See page 68 for Pin Function Description. R207 R213 C213 C215 C214 C216 R273 R274 R275 R276 R277 R284 R269 R10 R11 R12 R13 R14 R15 R1000 C244 C260 C251 C257 C267 C268 C269 C270 C271 C263 C261 C253 C248 C242 C241 C238 C236 C262 C272 C252 C229 C247 C226 C256 FL205 C266 C230 C231 C232 C233 C234 C237 FL206 R232 R231 R230 R233 R234 C265 C204 R227 R245 R248 R255 R257 R254 R243 R244 R246 R247 R259 R261 R260 R251 R283 RB18 RB19 RB20 RB21 JL214 JL213 JL212 R258 JL211 JL210 JL209 JL208 JL207 R263 R264 R265 R266 R267 JL206 JL205 JL204 JL203 R253 JL217 JL216 JL218 JL202 CL251 CL252 CL253 CL254 CL255 CL256 CL257 R240 Q202 D202 IC207 R805 C288 R1001 R574 TP252 TP253 C289 R288 IC252 R268 R239 IC204 IC211 µPC2918T-E1 0 68 100 4V 0.01 0.01 0.01 0 0 0 0 0 180 0 22 22 22 22 22 22 4.7k 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.1 0.01 0UH 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0UH 33 33 33 0 10k 10 0.01 50V F 4.7k 4.7k 4.7k 0 4.7k 4.7k 0 1k 10k 1k 4.7k 4.7k 4.7k 0 1k 33 33 33 33 75 75 75 75 75 4.7k 47k DTC114TE-TL 1SS355TE-17 ZIVA5X-C1F 0 0.01 0 330 DOUT-MUTE DOUT-SELECT 0.01 0 TC7WH157FK (TE84R) 0 100 BR9040F-WE2 DAC_CTRL_BUS A3V-2 DGND D5V D3V CD OUT DOUT ZIVA_CTRL_BUS 42 41 43 40 44 45 46 50 47 48 B1 63 64 66 67 70 71 72 73 76 77 78 79 80 81 82 83 84 85 86 87 B68 MD0 MD1 MD2 MD3 MD4 MD5 MD6 MD7 MD8 MD9 MD10 MD11 MD12 MD13 MD14 MD15 MD16 MD17 MD18 MD19 MD20 MD21 MD22 MD23 MD24 MD25 MD26 MD27 MD28 MD29 MD30 MD31 MWE HAD0 HAD1 HAD2 HAD3 HAD4 HAD5 HAD6 HAD7 HAD8 HAD9 HAD10 HAD11 HAD12 HAD13 HAD14 HAD15 DRVCLK DRVTX DRVRX DRVRDY DRVIRQ RST_SPC MCLK I2C_SIO I2C_SCL HA1 HA2 HA3 MDQM0 MDQM1 MDQM2 MDQM3 SYS_RST CS_SPC SYS_RST AV7 AV6 AV5 AV4 AV3 AV2 AV1 AV0 XSRQ_ZIVA XSAK# SDEF# XDCK# ML MC MDI MREQ MREQ MREQ 27M MA0 MA1 MA2 MA3 MA4 MA5 MA6 MA7 MA8 MA9 MA10 MA11 MCAS MRAS MCSO BA0 BA1 DATA0 DATA2 DATA3 CDSEL CDSEL JIG_MOD IEC958 IEC958 SELECTOR DATA OUT w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 45 45 7-15. SCHEMATIC DIAGRAM – DMB03 (8/8) Boards – R214 R215 C254 C259 C258 C205 R250 C275 FL204 FL203 C250 C246 C243 C240 C235 C220 C218 C227 C239 C245 C249 C282 C281 C315 C316 CL390 CL389 CL388 CL387 CL386 CL385 CL384 CL383 CL382 CL381 CL380 CL379 CL378 CL377 CL376 CL375 CL374 CL373 CL372 CL371 CL350 CL351 CL352 CL353 CL354 CL355 CL356 CL357 CL358 CL359 CL360 CL361 CL362 CL363 CL364 CL365 CL366 CL367 CL368 CL369 CL370 R262 C255 RB10 RB11 RB14 RB15 RB17 RB16 RB13 RB12 R301 IC206 IC203 IC216 C264 0 0 0.01 0.01 10 0.01 0 0.01 0UH 0UH 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0 10 10V F 68 68 68 68 68 68 68 68 1k MBM29DL324 BE-90PFTN MT48LC4M32B2TG-6 SN74ALVCH1 6841DGGR 0.01 40 44 45 46 47 48 50 41 42 43 HA5 HA6 HA7 HA8 HA9 HA10 HA11 HA12 HA13 HA14 HA15 HA16 HA17 HA18 HA19 HA20 HA2 HA3 HAD0 HAD1 HAD2 HAD3 HAD4 HAD5 HAD6 HAD7 HAD8 HAD9 HAD10 HAD11 HAD12 HAD13 HAD14 HAD15 HA21 MA0 MA1 MA2 MA3 MA4 MA5 MA6 MA7 MA8 MA9 MA10 MDQM0 MDQM1 MDQM2 MDQM3 BA0 BA1 MWE MCLK HA3 HA4 HA4 HA5 HA6 HA7 HA8 HA9 HA10 HA11 HA12 HA13 HA14 HA15 HA16 HA17 HA18 HA19 HA20 HA21 MCAS MRAS MCSO MA11 HA22 HA22 MD0 MD1 MD2 MD3 MD4 MD5 MD6 MD7 MD8 MD9 MD10 MD11 MD12 MD13 MD14 MD15 MD16 MD17 MD18 MD19 MD20 MD21 MD22 MD23 MD24 MD25 MD26 MD27 MD28 MD29 MD30 MD31 HAD0 HAD1 HAD2 HAD3 HAD4 HAD5 HAD6 HAD7 HA2 HA1 HAD15 HAD14 HAD13 HAD12 HAD11 HAD10 HAD9 HAD8 SYS_RST w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 46 46 7-16.PRINTED WIRING BOARD – VIDEO, REGULATOR Boards – • See page 24 for Circuit Boards Location. D710 E-4 D711 E-3 IC710 E-4 IC711 D-3 IC901 B-7 IC902 B-7 IC903 B-8 IC904 B-8 IC905 B-9 IC906 B-9 Q215 B-4 Q216 B-3 Q217 B-4 Q218 A-4 Q219 B-3 Q220 A-3 Q221 B-3 Q222 A-3 Q710 F-5 Q711 E-5 Q903 C-8 Q904 C-10 Q905 B-10 Q906 C-8 • Semiconductor Location Ref. No. Location R227 R228 R218 R219 R239 R237 R235 R242 R220 R221 R222 Q218 C848 Q215 Q216 Q217 R225 Q219 Q220 Q221 Q222 R229 R230 R231 R232 R215 R216 R217 R236 R238 R241 R240 IC711 C738 JR716 R720 C739 FB715 R718 R717 JR717 R721 Q711 Q710 R719 C722 IC710 D710 C713 D711 JR720 C740 R711 R712 C723 R716 FB714 FB713 R715 R714 FB712 FB711 FB710 R713 C736 C735 C734 JR713 C737 C709 JR721 R710 C910 C923 C921 C915 C925 C912 Q904 R901 R902 R905 Q903 Q906 R906 C918 FB205 C919 FB798 R226 R903 JW713 JW718 JW716 JW710 JW711 JW714 JW717 JW720 JW730 JW731 JW732 JW700 JW706 JW707 JW708 JW709 JW702 JW704 JW705 JW715 JW721 JW722 JW723 JW724 CLP001 CLP003 JW725 JW726 JW701 JW703 JW736 JW737 JW738 JW739 JW740 JW741 JW742 JW727 JW750 CLP004 CLP005 JW751 JW752 CLP006 GN88D CLP007 JW754 CLP008 C849 CN208 JW799 JW798 C215 C216 C217 C218 C219 C220 C221 C222 CN712 C742 C721 C710 C711 C714 L710 C712 EPT702 C715 C716 C717 C718 C741 C720 C719 C733 C732 C726 C725 C728 C727 C729 C731 C730 L711 C724 CN711 JW719 IC903 Q905 IC904 IC906 IC901 C922 CN714 IC902 C926 C917 C924 CN713 C911 C913 IC905 JW904 JW728 JW729 JW743 JW744 JW745 JW746 JW733 CN715 CN710 CN207 1 2 1 2 1 20 21 2 25 24 16 17 17 1 18 34 11 (11) 1-688-164- 11 (11) 1-688-163- VIDEO BOARD REGULATOR BOARD 1 3 1 3 1 3 1 3 1 3 1 4 E C B 1 1 1 10 4 4 E E E E E E E E E E E 1 4 5 8 J712 S–VIDEO OUT C Y VIDEO OUT COMPONENT VIDEO OUT PR/CR J710 J711 PB/CB Y Q C MAIN BOARD (Page 48) GAME IN BOARD (Page 53) R MAIN BOARD (Page 48) S DMB03 BOARD (Page 36) P DMB03 BOARD (Page 36) T MAIN BOARD (Page 48) U MAIN BOARD (Page 48) V DMB03 BOARD (Page 36) 2 3 4 5 6 7 8 9 10 11 A 1 B C D E F G w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 47 47 7-17. SCHEMATIC DIAGRAM – VIDEO, REGULATOR Board – TP710 TP711 TP712 TP713 Q904 R901 C714 C717 C724 C726 C728 C730 C731 C732 C733 C737 C738 C739 C742 CN712 D710 D711 J711 L710 R710 R712 R713 R714 R715 R716 R718 R719 R721 J710 FB710 FB711 FB712 FB713 FB714 FB715 C713 CN713 JR716 JR717 C741 TP714 R720 R905 R906 C712 IC905 C709 C918 C919 C922 CN714 C926 C917 C924 C848 TP798 TP799 CN207 CN208 R225 R226 R227 R228 R229 R230 R231 R232 TP804 Q215 Q216 Q217 Q218 Q219 Q220 Q221 Q222 C215 R215 C216 R216 C217 R217 C218 R218 C219 R219 C220 R220 C221 R221 C222 R222 JW799 TP805 TP806 JW798 FB798 CN715 FB205 CN711 JR720 JR721 CN710 C913 R717 C735 C734 C736 C715 C716 C721 C722 R711 C723 C740 JW719 L711 R902 IC904 IC906 IC903 C911 C912 IC901 R903 C849 C711 C923 C910 C925 C915 C921 IC711 C729 C727 C725 Q710 Q711 J712 IC710 R235 R236 R237 R238 R239 R240 R241 R242 Q903 Q906 IC902 Q905 C718 C719 C720 C710 FA1A4M 2.7k 100 16V 1 50V 470 6.3V 470 6.3V 470 6.3V 100 16V 22 50V 100 16V 22 50V 220p 22p 50V 22p 50V 47 16V 17P 1MM 1SS355 1SS355 1P 10k 75 75 75 75 75 100k 10k 10k 0P JACK 3P (V) 0 0 0 0 0 0 0.01 10P 2.5MM 0 0 22 50V 75 10k 10k 1000 10V TA7805LS 100p 0.1 0.1 2200 6.3V 4P 2.5MM 470 10V 470 6.3V 470 6.3V 0.1 21P 1MM 25P 1MM 10k 10k 10k 10k 10k 10k 10k 10k 2SC3661 2SC3661 2SC3661 2SC3661 2SC3661 2SC3661 2SC3661 2SC3661 10 50V 1k 10 50V 1k 10 50V 1k 10 50V 1k 10 50V 1k 10 50V 1k 10 50V 1k 10 50V 1k MT MT 0 4P 2.0MM 0 2P AMP-L 0 0 4P AMP-L 2200 16V 68 22p 50V 22p 50V 22p 50V 1 50V 1 50V 100 16V 0.1 25V 10k 0.1 0.1 2.2k TA7804LS TA7805LS TA7809LS 470 10V 0.1 TA7809LS 2.2k 1000 6.3V 10 50V 0.1 0.1 0.1 0.1 0.1 MM1568AJ 22 25V 22 25V 22 25V FN1F4M FA1A4M NJM2244M 10k 10k 10k 10k 10k 10k 10k 10k FA1A4M FA1A4M PQ12RF21 2SB1375 1 50V 1 50V 1 50V 10 50V VIDEO OUT COMPONENT VIDEO-OUT 9V REGULATOR VIDEO AMP/BUFFER BUFFER BUFFER S VIDEO OUT VIDEO SELECTOR MUTE Q215-222 BUFFER BUFFER +9V REGULATOR +12V REGULATOR +3.9V REGULATOR +5V REGULATOR +5V REGULATOR +B SWITCH +B SWITCH w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 48 48 7-18.PRINTED WIRING BOARD – MAIN Board – • See page 24 for Circuit Boards Location. Q302 I-4 Q303 I-4 Q304 H-3 Q305 H-3 Q306 F-3 Q307 I-5 Q310 I-5 Q389 F-3 Q390 F-5 Q391 E-3 Q392 E-3 Q393 E-4 Q394 E-3 Q395 E-4 Q396 E-5 Q398 F-5 Q399 F-4 Q601 B-5 Q602 D-3 Q620 H-10 Q621 I-2 Q650 H-9 Q651 H-9 Q652 I-2 Q670 G-10 Q671 I-2 Q701 G-10 Q702 G-10 Q730 I-10 Q798 C-8 Q799 C-8 Q800 D-9 Q801 D-8 Q802 E-8 Q803 E-8 Q851 G-10 Q852 H-10 Q853 H-10 Q854 H-10 Q903 G-6 Q909 G-7 Q910 G-7 Ref. No. Location Ref. No. Location D130 H-9 D201 B-7 D202 B-7 D392 E-4 D393 E-4 D394 E-4 D501 B-2 D502 B-2 D503 B-2 D504 B-2 D505 B-2 D508 B-2 D509 B-2 D517 D-5 D601 B-5 D602 B-5 D603 B-5 D701 G-10 D851 G-10 D852 H-10 D901 I-7 D902 H-7 D917 G-6 D941 G-6 IC102 E-9 IC103 C-9 IC201 B-11 IC301 G-3 IC302 H-4 IC303 F-4 IC501 C-4 IC502 I-8 IC601 B-5 IC730 I-10 IC907 G-7 Q101 D-8 Q105 D-6 Q151 G-9 Q223 B-9 Q224 A-9 Q301 H-5 • Semiconductor Location JR138 Y8 Y9 JR002 JR003 JR006 JR009 31 30 80 81 1 100 50 51 Y2 Y4 Y6 Y5 JR005 JR004 C360 C398 R107 R401 R501 C502 R502 R402 C503 R503 R504 IC303 R505 R506 R507 R509 R511 C510 C511 C512 R513 C416 R517 R419 R519 R420 R522 R311 C498 R429 R430 R810 IC102 R808 D201 R365 Q389 R314 R334 R395 R315 R397 R307 Q399 R396 R355 C399 R302 R398 C805 R805 C802 C844 R809 R600 R540 R541 R442 R443 R444 R445 R446 R447 R448 IC601 R450 R549 R550 R542 R543 R544 R545 Q800 Q392 R394 Q394 Q395 R392 R330 D392 D393 D394 C807 C812 R591 R590 R529 R589 R581 R582 R583 R584 R585 R586 R587 R580 R579 R578 R477 R577 R576 R575 R574 R474 R473 R573 R572 R832 C843 R569 R567 R566 C564 R560 R561 R603 R114 R521 R604 D603 Q601 R601 R602 D505 D601 D602 R373 R399 R364 R360 R361 Q398 R378 R377 R376 R375 R374 R369 R368 R367 C334 R304 C810 R380 Q910 C200 FB117 IC301 R676 Q621 Q671 R656 R625 R675 FB167 C168 C118 R168 R118 R117 R167 R157 Q909 R921 Q224 C223 C213 R234 R235 R598 Q802 R812 R329 D851 D517 IC730 R772 R771 R721 R722 C772 C722 R305 C321 R303 C395 R312 JR390 R306 C364 R310 R308 R309 R387 R354 R352 C326 R351 C731 R720 R770 R730 R626 C376 Q730 R848 R917 R915 R233 R150 R104 R101 R102 Q803 R316 R166 R116 R857 R923 R922 R478 R121 C121 R122 C122 R154 R151 R152 R156 R155 Q151 R112 R488 R702 C847 R654 R655 Q652 R653 D941 R904 R313 R905 R906 C202 R588 R850 R814 C384 R530 C333 C383 R379 R388 R342 R345 R393 R328 Q305 Q310 R811 R843 R421 R422 R849 D501 D502 D503 D504 R362 D508 D509 R813 C814 R844 IC502 R825 R845 C855 R847 C816 R370 R106 R563 R105 Q101 R132 R818 R802 R131 R130 R133 R815 R390 Q670 R353 D130 R110 C836 C851 Q853 D852 Q854 R851 R852 R854 R327 R831 Q799 R838 R837 R841 R842 R833 R391 Q798 R834 R800 R801 C835 R828 Q602 R846 C596 R670 R671 R672 R620 R621 R622 Q620 R623 R673 R650 Q650 Q651 R652 IC103 D701 R333 Q306 R798 R799 R816 C801 Q223 R823 R827 R840 R821 JR731 R835 Q702 R822 R817 Q701 C840 R826 R836 C839 R861 Q390 R301 R332 C115 C211 R807 R803 R804 R829 R806 R347 R382 R366 R523 C314 R651 Q307 R346 R317 Q304 R830 Q801 R824 R839 C846 C371 Q301 R372 C387 R594 C386 R363 R320 R371 D202 C852 R863 R860 R862 Q852 R916 R856 R858 R859 FB516 R819 FB562 FB204 R103 R153 R820 R134 R593 R493 R492 R592 IC501 JR104 JR015 R853 R495 R595 C595 JR008 Y10 Y11 Q105 R149 JR10 R629 R630 JR011 FB716 JW399 JW018 JW001 JW002 JW007 JW008 JW012 JW013 JW014 JW032 JW034 JW035 JW036 JW037 JW041 JW043 JW045 JW057 JW058 JW059 JW060 JW073 JW074 JW075 JW076 JW077 JW078 JW079 JW081 JW096 JW097 JW098 JW105 JW106 JW107 JW108 JW112 JW117 JW118 JW119 JW120 JW121 JW122 JW123 JW124 JW125 JW126 JW127 JW128 JW129 JW130 JW131 JW132 JW135 JW136 JW137 JW138 JW141 JW142 JW143 JW144 JW145 JW146 JW147 JW176 JW194 JW196 JW199 JW203 JW204 JW205 JW206 JW207 JW208 JW213 JW233 JW234 JW235 JW373 JW362 JW352 JW353 JW038 JW039 JW033 JW031 JW030 JW025 JW027 JW022 JW023 JW028 JW029 JW015 JW019 JW010 JW009 JW006 JW005 JW004 JW052 JW053 JW054 JW055 JW056 JW062 JW071 JW068 JW067 JW069 JW158 JW159 JW110 JW109 JW150 JW296 JW298 JW299 JW300 JW301 JW302 JW304 JW309 JW290 JW286 JW336 JW095 JW169 JW168 JW167 JW280 JW166 JW165 JW161 JW151 JW171 JW172 JW173 JW174 JW175 JW177 JW178 JW179 JW180 JW181 JW212 JW214 JW215 JW236 JW232 JW231 JW230 JW268 JW269 JW267 JW270 JW258 JW257 JW255 JW249 JW250 JW211 JW139 JW140 JW134 JW133 JW388 JW387 JW082 JW083 JW080 JW072 JW051 JW011 JW003 JW325 JW326 JW274 JW273 JW272 JW375 JW376 JW365 JW024 JW225 JW289 JW374 JW367 JW369 JW187 JW366 JW218 JW380 JW224 JW288 JW228 JW226 JW282 JW281 JW310 JW293 JW061 JW102 JW182 JW276 JW198 JW295 JW229 JW264 JW085 JW086 JW087 JW088 JW089 JW090 JW091 JW093 JW094 JW111 JW338 JW339 JW340 JW070 JW047 JW048 JW341 JW348 JW347 JW330 JW335 JW368 JW219 JW364 JW382 JW355 JW287 JW305 JW303 JW320 JW319 JW316 JW311 JW370 JW389 JW385 JW275 JW271 JW244 JW383 JW156 JW157 JW294 JW251 JW261 JW285 JW284 JW283 JW164 JW162 JW149 JW160 JW152 JW153 JW099 JW050 JW104 JW103 JW044 JW371 JW372 JW260 JW259 JW190 JW191 JW317 JW356 JW401 JW403 IC201 J117 J730 CN502 C102 C307 CN501 X501 X502 C516 C621 C811 C809 C808 C390 C396 C397 C365 C603 C831 Q393 C315 C813 CN304 C562 C602 C601 Q851 C905 C904 C201 C671 R624 R674 C351 C903 C854 D917 C902 IC907 C909 R701 C651 C391 NO901 C316 EPT901 C309 C721 C306 C304 C771 C353 C305 C310 C359 C730 C308 C355 C354 C301 C385 C150 J716 C833 C167 C117 C101 C103 C104 C105 C106 C107 C108 C109 C111 C112 C113 C114 C335 D902 L201 OUT 3.3V GND CN702 C214 C331 FB203 C901 C152 C153 C155 C156 C157 C158 C159 C161 C162 C163 CN851 C920 C832 NO905 Q903 IC302 NO303 NO302 CN301 CN202 C822 C203 C336 C342 L302 T301 Q303 C341 R343 R344 C382 C340 C338 Q302 C337 C339 RV304 RV351 L351 C356 RV301 CN902 CN205 C303 CN901 C838 C824 Q396 C821 C827 C154 C212 C829 C800 C817 C908 C116 C130 C823 C819 C803 NO781 Q391 C842 C834 C670 RV354 C620 C650 C804 C818 CN402 C841 C845 C828 C837 C830 C825 C826 C815 C906 C311 C361 C806 C312 C921 C820 C140 NO904 NO204 C911 C110 C160 JW238 JW904 JW905 JW906 JW907 JW243 JW240 JW241 JW242 C131 JW901 JW359 JW343 JW342 JW345 JW334 JW332 JW247 JW246 JW248 JW337 JW357 JW405 JW049 JW402 CLP03 JW344 CLP04 CLP05 NO903 JW193 JW113 JW114 JW115 JW026 CLP02 CLP01 JW903 JW262 JW329 JW361 C381 JW195 L301 JW148 C332 JW333 JW322 RY701 JW046 JW021 JW017 JW016 JW020 JW346 JW404 JW101 JW040 JW185 JW084 JW263 JW186 JW188 JW256 JW381 JW799 JW386 JW315 JW358 JW331 JW308 JW254 JW239 JW902 C919 JW314 JW312 JW318 JW163 JW154 JW100 C598 C149 JW192 JW200 JW202 JW209 JW155 JW210 CN206 CN201 CLP06 L901 JW351 D901 CN203 JW360 JW116 C922 JW327 JW384 JW390 JW184 JW279 JW253 JW252 JW245 JW223 JW328 JW354 JW237 JW170 JW183 JW216 JW220 CLP07 JW217 CD DIGITAL OUT MD/VIDEO(AUDIO)IN L R SUBWOOFER AUDIO OUT L R M891 DC FAN 1 3 E E E E E E E E E E E E C B 1 7 14 8 E E E E E E E E E E E E E E E E E E E E E E E E E 1 3 E E E E E E 1 1 1 1 13 6 6 3 4 1 2 3 4 5 1 10 1 1 1 3 4 4 E 1 12 1 1 1 7 6 2 4 10 1 9 1 7 1 7 1 1 8 9 40 1 21 20 11 10 30 31 1 3 1 4 5 8 1 1 2 9 12 13 1 21 42 22 E E 1 2 10 11 1 21 2 20 1 21 42 22 R VIDEO BOARD (Page 46) G SURROUND BOARD (Page 59) W DMB03 BOARD (Page 36) B DRIVER BOARD (Page 34) X DMB03 BOARD (Page 36) (FOR CHECK) (FOR CHECK) I DISPLAY BOARD (Page 55) J GAME IN BOARD (Page 53) (FOR CHECK) TAPE A HEAD TAPE B HEAD TAPE MECHANISM DECK E POWER AMP BOARD (Page 57) D POWER AMP BOARD (Page 57) U REGURATOR BOARD (Page 46) Q VIDEO BOARD (Page 46) H TRANS BOARD (Page 61) F SUB TRANS BOARD (Page 61) T REGURATOR BOARD (Page 46) TUNER PACK 11 (11) 1-688-165- MAIN BOARD 4 E 2 3 4 5 6 7 8 9 10 11 12 A 1 B C D E F G H J I w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 49 49 7-19. SCHEMATIC DIAGRAM – MAIN (1/4) Board – C102 C103 C104 C105 C109 C111 C121 C122 C130 C131 C152 C153 C154 C155 C156 C157 C158 C159 C161 C162 C163 C620 C650 C670 C671 C901 CN402 CN851 CN901 CN902 D130 EPT901 Q101 Q151 Q621 Q650 Q670 Q671 R101 R102 R104 R106 R121 R122 R132 R150 R151 R152 R154 R156 R563 R620 R621 R622 R625 R650 R651 R652 R670 R671 R672 R673 R674 R675 R854 C150 R906 Q651 R904 R905 C140 NO781 NO903 NO904 D902 D917 Q909 Q910 NO905 R131 C922 C101 R157 R107 Q852 Q853 Q854 R851 R853 R852 R116 R166 D851 D852 D941 Q105 R115 FB203 C919 C116 C108 C106 C107 C112 C113 C115 R130 R155 R653 R655 R654 R624 C621 C651 R656 R626 R676 R105 R149 C149 C902 C906 R923 L901 R922 R921 C905 C904 C920 C921 C909 C908 R133 C851 R153 C160 R103 C110 C114 R114 Q602 Q652 IC907 D509 R623 Q620 C360 IC102 R134 R629 R630 Q851 C852 D901 Q903 IC502 10 50V 10 50V 10 50V 10 50V 1 50V 10 50V 47p 47p 10 50V 0.47 50V 10 50V 10 50V 10 50V 10 50V 0.022 50V MF 0.022 50V MF 0.033 50V MF 1 50V 10 50V 0.22 MF 0.33 MF 4.7 50V 1 50V BP 4.7 50V 4.7 100V BP 3300 25V 19P FFC-R 3P 6P B-TO-B 13P B-TO-B 1SS355 GND PLATE 2SC1623 2SC1623 2SC3661 FN1F4M 2SC3661 2SC3661 2.2k 10k 1k 10k 100 100 1M 2.2k 2.2k 10k 1k 10k 10k 10k 1k 47k 1k 15k 470k 68k 10k 1k 47k 10k 680 2W 1k 4.7k 10 50V 1k FA1A4M 8.2k 8.2k 0.068 9P 2MM WIRE MT 7P 2.5MM WIRE MT 10 2.5MM WIRE MT D5SBA20 RK36 FA1A4M FA1A4M 6P 2.5MM WIRE MT 2.2k 470 25V 100 10V 100 100 2SC1623 2SC1623 FA1A4M 22k 100k 22k 100 100 UDZ-6.2B UDZ-7.5B UDZ-TE-17-33B 2SC1623 5.6k JW 3300 6.3V 220 10V 0.033 0.022 0.022 0.22 0.33 0.1 2.2k 47k 1k 100k 100k 680 2W 4.7 100V 47 50V 10k 56 56 47k 4.7k 10 50V 2.2 50V 100 16V 10k 47 820 0.01 0.01 10 50V 100 50V 0.1 0.1 100k 0.1 620 0.0068 620 0.0068 10 50V 0 FA1L3Z VACS CONTROL FN1F4M SI-8033 3.3V REG 1SS355 10k 2SC3661 0 M61529FP-60G 470 470 2SD2525 0.1 D3SBA20-4101 2SB1375 RT8H015C-TH12-1 GC B1 M+9V TC+9V B3 3.3V EVER+3.9V D+3.9V ZIVA-D+3.3V ZIVA AUDIO 5V ZIVA V+5V A+9V B4 AC CUT DETECT FAN SUPPLY LINE MUTE DBFB F/B SW -B GND 75 77 79 83 50 78 REC-OUT-R REC-OUT-L MD-L MD-R TC-PB-R TC-PB-L DOWN-MIX-R DOWN-MIX-L SUR2 SUR1 SUR-SW SW-OUT LINK-R LINK-L ST-L MIC GAME-L GAME-R 72 88 MIC GAME-L GAME-R 49 4 73 74 48 29 30 72 ST-R 71 23 80 76 68 PROTECTER OVER CURRENT FAN MOTOR DRIVE Q851-854 MUTING MUTING MUTING CONTROL BUFFER BUFFER MUTE MUTE -33V REGULATOR MUTING SWITCH SWITCH B+ SWITCH Q909,910 ELECTRICAL VOLUME GRAPHIC EQUALIZER CONTROL, INPUT SELECT SWITCH, DC FAN M891 2.7k w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 50 50 7-20. SCHEMATIC DIAGRAM – MAIN (2/4) Board – L201 100µH IC201 R770 R720 R721 R771 R722 R772 C771 C721 Q730 C117 C167 R168 R118 R117 R167 R365 R315 Q399 R313 R314 C399 C398 C395 IC303(2/2) C391 Q398 Q390 Q306 Q389 R333 JR731 C315 C365 C316 C817 C845 C801 C802 R802 R801 R800 C800 C803 R803 C804 C805 C807 R807 R806 R805 R804 C806 C808 R808 C809 C810 C812 R812 R811 R810 R809 C811 C813 C814 C816 R815 R814 R813 C815 C818 R816 C819 C844 R832 R833 C843 R834 C842 C840 R829 R830 R831 C839 C841 C837 C836 R826 R827 C835 R828 C838 C834 R824 R825 C832 R823 R822 C830 R818 R817 R839 R837 R835 R840 C820 C823 R838 R836 R844 R845 R849 R850 R847 C824 C827 R846 R848 CN205 R798 R799 C846 C847 C213 C214 R857 R858 R860 R861 R862 Q803 J730 J117 CN203 RY701 D701 R701 Q701 Q223 Q224 C212 C722 C772 R730 FB117 FB167 C396 R395 R394 C390 R398 R397 R327 R396 R390 IC303(1/2) C200 R388 R387 R334 Q798 Q799 Q800 Q801 J716 C855 Q702 CN206 JR390 C397 R702 R841 R843 R842 R863 R362 C854 C821 C822 C825 C826 C828 C829 C831 C833 R821 R235 IC103 FB204 C223 R233 R234 R819 R820 JR008 Q802 IC730 NO204 C730 C731 C201 C211 TOX141 1k 1k 100k 100k 1k 1k 2.2 50V 2.2 50V FA1A4M 2.2 50V 2.2 50V 1k 1k 100k 100k 10k 10k 2SC3624A 1k 1k 0.01 0.01 22p NJM4565M(TE2) 100 16V FA1A4M FA1A4M FA1A4M FA1A4M 2.2k 0 1 50V 1 50V 1 50V 10 50V 10 50V 220p 220p 10k 470 47k 10 50V 10 50V 47k 10 50V 0.001 0.001 4.7k 2.2k 10k 47k 10 50V 10 50V 47k 10 50V 0.001 0.001 4.7k 2.2k 10k 47k 10 50V 10 50V 0.001 0.001 4.7k 2.2k 10k 10 50V 10 50V 47k 1 50V 220p 10k 470 220p 47k 10 50V 0.0022 2.2k 2.2k 47k 0.001 10 50V 10 50V 0.0022 2.2k 2.2k 0.001 47k 10 50V 100 10V 10k 1M 10 50V 1M 10k 10 50V 1k 2.2k 47k 47k 1k 1k 4.7 50V 4.7 25V 10k 10k 10k 47k 47k 1k 1k 4.7 25V 4.7 25V 10k 10k 7P 2.0MM PH 100 100 47p 47p 0.1 1000 6.3V 0 0 47k 10k 47k 2SC1623 2P 2P 9P 2MM PH SW RELAY 1SS355 220 1/4W FA1L3Z FA1A4M FN1F4M 1000 6.3V 220p 220p 10k 0 0 22 50V 4.7k 10k 470 10V 2.2M 15k 15k 10k 10k NJM4565M(TE2) 0.1 22k 10k 100k 2SC3661 2SC3661 2SC3661 2SC3661 1P 0.1 25V 2SC1623 21P 1MM 0 10 50V 3.3k 10k 10k 10k 10k 10k 220 10V 0.22 0.1 0.33 0.22 0.33 0.22 0.047 100 10V 1M 470k M61530FP-D60G 0 0.1 22k 22k 620 620 0 2SC1623 NJU4066BM 4P 2.0MM 10 50V 0.1 100 10V 0.1 B1 B2 B3 B4 63 3.3V TC+9V TC MUTE GND ZIVA-D+3.3V ZIVA V+5V ZIVA AUDIO 5V 25 AC CUT DETECT FAN SUPPLY LINE MUTE DBFB F/B SW A+9V -B 82 86 87 84 85 DOWN-MIX-L DOWN-MIX-R FRONT-L FRONT-R SURROUND-L CENTER SURROUND-R SW(LFE) REC-OUT-R REC-OUT-L MD-L MD-R AMS-L AMS-R DOWN-MIX-L DOWN-MIX-R SUR2 SUR1 SUR-SW DOWN-MIX-R DOWN-MIX-L SUR2 SUR1 SUR-SW DOWN-MIX-R DOWN-MIX-L SUR2 SUR1 SUR-SW DOWN-MIX-L DOWN-MIX-R FRONT-L FRONT-R CENTER SURROUND-L SW-OUT SUR-L SUR-L SUR-R SUR-R CENTER CENTER SW SW 81 SURROUND-R SW(LFE) 70 LINK-R LINK-L SUB WOOFER R L R L CD DIGITAL OUT AUDIO OUT MD/VIDEO(AUDIO) IN DRIVE RELAY Q701,702 CONTROL SURROUND VOL MUTE Q798-801 SWITCH SWITCH MUTE Q306,389 IC303 HPF BUFFER BUFFER AMS DETECT Q390,398,399 INVERTER SWITCH AUDIO OUT w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 51 51 7-21. SCHEMATIC DIAGRAM – MAIN (3/4) Board – CN301 Q302 R347 C342 RV354 RV304 C341 R393 R342 R392 L301 L351 C385 Q391 R360 Q396 R364 Q395 Q393 R367 R366 R368 R369 R378 R377 R376 R375 R374 R373 R351 R352 R301 R302 C304 C354 R304 R354 C306 C356 R307 C308 R303 C310 R308 R309 R310 R312 Q310 R380 R382 R332 R305 C355 C305 R317 R316 D392 D393 D394 R311 R372 CN304 NO302 C333 C383 NO303 R361 Q392 R399 Q394 R353 R328 C321 C371 C326 C376 C307 R320 R370 C364 C314 R391 R371 R329 C331 C381 R379 C336 R345 C338 R346 C339 C340 C386 R363 C337 R344 R343 C332 C382 C384 C335 T301 L302 100µH C309 R306 C312 C361 C301 C303 C311 C359 C334 C351 C353 C387 R330 RV301 Q303 Q305 IC302 µPC1330HA IC301 Q307 Q301 Q304 RV351 R355 3P MOLEX 2SC2001 3.3k 47 16V 220k 220k 10 50V 4.7k 2.2k 2.2k 27mH 27mH 10 50V 2SB1116 680 2SB1116 680 FA1A4M 2SB1068 10k 680 10k 10k 10k 10k 10k 10k 10k 2.2k 3.3k 4.7k 3.3k 4.7k 10 50V 10 50V 2.2k 2.2k 2.2 50V 2.2 50V 1M 470 10V 10k 10 50V 100 4.7k 100 100 FA1A4M 22k 8.2k 8.2k 47k 1 50V 1 50V 10k 10k 1SS355 1SS355 1SS355 100 2.2k 13P WIRE MT 330p 330p WIRE MT 2.2k FA1A4M 3.3k FA1A4M 10k 2.2k 390p 390p 390p 390p 10 50V 2.2k 2.2k 0.0022 0.0022 3.3k 3.3k 10k 0.01 0.01 10k 2.2 50V 18k 0.0068 18k 0.0068 0.018 0.0047 2.2k 0.015 5.6 1/4W 5.6 1/4W 120p 120p 27p 0.01 BIAS TRANS 47 16V 22k 10 50V 10 50V 0.01 0.1 10 50V 47 16V 27p 0.01 0.1 0.0047 22k 47k 2SC2001 FA1A4M HA12237 2SA1162-G 2SC3624A FN1F4M 47k 47k TC-PB-L TC-PB-R TC B1 B2 3.3V M+9V TC+9V TC MUTE GND 55 54 53 52 51 57 58 56 69 67 61 60 66 65 REC-OUT-R TC-PB-R TC-PB-R TC-PB-L TC-PB-L AMS-R AMS-L 91 90 89 59 REC-OUT-L (FOR CHECK) TAPE A HEAD HEAD TAPE B (R) REC LEVEL REC LEVEL (L) REC BIAS (L) REC BIAS (R) TAPE MECHANISM DECK OSC BIAS OSC BIAS BUFFER BUFFER REC/PB SWITCH REC/PB EQUALIZER AMP DECK A/B SELECT SWITCH SWITCH RIPPLE FILTER DRIVE DRIVE DRIVE Q395,396 B TRIG Q396,394 CAP MOTOR Q391,392 A TRIG w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 52 52 7-22. SCHEMATIC DIAGRAM – MAIN (4/4) Board – • See page 76 for Pin Function Description. R509 C511 C510 X502 R549 R543 R447 R544 R445 R444 R443 R540 R541 R589 R590 R591 D501 D502 D503 D504 C601 R602 D505 R603 R604 D603 R523 D508 R420 CN501 R504 CN502 R545 R446 R442 R550 R560 R561 R566 R567 R569 R450 R572 R581 R582 R583 R584 R473 R474 R448 R503 R505 R506 R507 R600 R501 R521 R522 R421 R422 R542 R594 R495 X501 R575 R519 R578 D602 R601 R579 R580 R585 R586 R587 R577 R588 R488 CN201 CN202 CN702 R915 R916 R917 C596 C498 C603 C602 D601 R430 R429 R530 R529 C416 C512 R513 R511 R502 R477 R478 R598 R595 R110 R112 R573 R574 C564 C562 C502 R419 NO901 D201 D202 C202 C203 R592 R492 FB516 FB562 R593 R493 C911 D517 C503 R402 R401 Q601 IC601 C598 R576 R517 C516 IC501 10k 15p 22p 16MHz 10k 10k 100 10k 100 100 100 100 100 100 100 100 1SS355 1SS355 1SS355 1SS355 10 50V 4.7k 1SS355 47k 47k 1SS355 10k 1SS355 4.7k 4P 100 10P 10k 100 100 10k 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 10k 10k 10k 100 33k 32.768K 100 10k 100 1SS355 220 100 100 100 100 100 100 100 100 7P 1MM 12P AMP-L 11P FFC-R 100k 100k 10k 0.1 0.1 0.1 0.1 1SS355 100 100 10k 10k 0.1 0.1 0 330k 100 10k 10k 100 1k 0 0 10k 10k 0.01 100 10V 0.022 100 4P 2MM WIRE MT 1SS355 1SS355 0.1 220 10V 150 4.7k 0UH 0UH 2.2 50V 1SS355 0.022 10k 10k 2SC1623 RESET SWITCH M62703ML LEVEL DETECT 1000 10V 220 10k 1000 10V GC TC 63 3.3V D+3.9V EVER+3.9V ZIVA-D+3.3V GND B4 25 M+9V B1 A+9V 53 58 52 51 54 55 56 47 45 34 33 32 29 30 4 31P 31P 34P 34P 33P 33P 32P 32P 9P 12P 9P 12P 43 44 46 23 40 41 49 50 59 57 60 61 69 67 66 85 86 81 82 83 84 73 48 65 29 30 29 30 21 22 87 74 42 88 89 90 91 3 5 6 7 100 1 2 100 1 7 6 5 3 2 42 43 44 45 32 33 40 34 29 30 42 41 43 22 21 44 45 46 47 ST-R ST-L 75 76 77 78 79 80 70 68 71 72 *2 *1 *2 R593 1k 4.7k 4.7k *1 R493 0 TUNER PACK (FOR CHECK) (FOR CHECK) SYSTEM CONTROL E15,E3,EA SP,MY,TH E15,E3,EA SP,MY,TH M30620MCN-A27FP:SP,MY,TH M30620MCN-A05FP:E15,E3,EA w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 53 53 V V V V CN606 R604 C604 EP703 CN607 JW607 CLP704 R742 J721 C741 R737 C748 C742 JW602 R721 R740 JW603 R743 Q721 C737 R744 R734 C744 R739 R738 C717 C718 C606 C635 R605 C749 CLP702 C716 JW609 J601 JW601 C747 R746 R722 R602 R603 C715 JW605 C719 C723 R736 C729 C736 C738 JW604 R745 C739 C731 C728 C721 C722 C724 C727 C735 C726 C725 C733 C732 C730 C734 R727 R729 R730 R731 R747 R723 R733 R726 R724 R725 R728 D705 C740 R735 RV722 RV721 C743 IC722 IC721 C630 C631 EP701 J631 JW764 JW613 C634 JW610 C720 R788 R789 NO603 S790 R790 S789 S788 D748 R748 S749 D748 R749 Q748 E S792 R792 S791 R791 S762 S750 S768 S767 R1001 S763 R762 R763 D1003 Q1001 Q1006 R1002 D1002 Q1002 R1003 R1004 JW1002 S760 S761 D1001 D1011 C751 C752 JW1001 C750 3 1 2 JW1003 JW1018 R765 C615 IC603 C614 3 2 1 S769 CN605 R625 R750 S771 D1012 JW1020 JW1007 JW1008 D1004 JW1009 JW1010 JW1019 D1005 R1005 JW1005 JW1004 R761 JW1014 E E E E E E R1011 R759 S748 JW1016 R760 D1010 D1009 S772 Q1005 R1009 R1010 JW1015 S759 S766 S765 R776 R777 R775 R774 S773 JW1011 C1000 R766 R1013 R768 R1012 R769 R767 R770 Q1003 R1006 D1006 D1013 R772 R773 R771 R1007 R1008 D1008 Q1004 S770 D1007 JW1017 JW1013 JW1022 CLP703 VOLUME BOARD GAME IN BOARD CD SWITCH BOARD 11 (11) 1-686-936- 11 (11) 1-686-937- 11 (11) 1-686-935- PUSH ENTER MOVIE EQ EFFECT ON/OFF MUSIC EQ SOUND FIELD DVD TOP MENU/ DIRECTION FM MODE REPEAT MULTI CHANNEL DECODING TUNER MEMORY PLAY MODE AMP MENU DISPLAY VOL 4 VOLUME GROOVE ILLUMINATION VOL 11 P.FILE GAME EQ VOL 5 VOL 6 VOL 7 VOL 8 VOL 9 DVD MENU VOL 10 VOL 3 VOL 1 VOL 2 EX-CHANGE DISK SKIP DISC 3 DISC 2 DISC 1 Z OPEN/CLOSE PHONES MIC GAME INPUT MIC LEVEL ECHO LEVEL AUDIO VIDEO L R 1 4 5 8 8 7 14 1 E C L REGULATOR BOARD (Page 46) DISPLAY BOARD (Page 55) J MAIN BOARD (Page 48) 1 9 M DISPLAY BOARD (Page 55) 2 3 4 5 6 7 8 9 10 11 12 13 A 1 B C D E F G H I 7-23.PRINTED WIRING BOARD – GAME IN, CD SWITCH Board – • See page 24 for Circuit Boards Location. D748 H-12 D1001 E-9 D1002 D-10 D1003 D-10 D1004 C-10 D1005 C-9 D1006 B-9 D1007 C-8 D1008 C-8 D1009 D-8 D1010 D-8 D1011 E-8 D1012 B-9 D1013 C-9 IC603 B-11 IC722 D-2 Q721 E-3 Q748 H-11 Q1001 D-9 Q1002 D-10 Q1003 C-9 Q1004 C-8 Q1005 D-8 Q1006 D-8 • Semiconductor Location Ref. No. Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 54 54 7-24. SCHEMATIC DIAGRAM – GAME IN, CD SWITCH Board – R742 R738 R737 R739 R743 C747 C741 C739 R735 IC722(1/2) IC722(2/2) C736 R736 R734 C737 C719 R745 C715 J631 R602 R603 C604 C606 EP703 EP701 CN607 CLP702 RV722 C738 R722 R721 C718 R746 R604 R605 C748 C744 C742 C740 C743 C749 C717 J721 C635 C634 C631 C630 Q721 J601 CN606 IC721 C722 R723 C721 R724 C724 R725 C723 C725 C726 C727 R726 D705 R731 C732 C731 C730 R728 C729 R730 R727 C728 R729 R747 C735 R733 RV721 C716 C734 C733 R740 R744 R792 R791 R789 R790 R788 D748 R748 Q748 R749 S791 S790 S792 S788 S789 S749 NO603 R773 R774 R775 R770 R766 R771 R761 R760 R759 R625 R762 R767 R768 R769 R750 R765 R776 R777 R763 D1005 R1005 Q1005 Q1004 R1004 D1004 D1003 Q1003 D1002 R1002 Q1002 Q1001 R1001 D1001 D1010 R1010 R1009 D1009 D1008 R1008 D1007 R1007 Q1006 R1006 D1006 D1011 R1011 CN605 CLP703 R1003 S771 S769 S765 S770 S759 S761 S760 C614 S762 S768 S767 S766 S750 S763 S748 C751 C752 IC603 S773 C750 R772 S772 R1012 C1000 JW1010 D1013 D1012 R1013 C615 1k 1k 22k 100k 10k 2.2 50V 0.15 50V 47p 50V 180k NJM4565D NJM4565D 10 50V 10k 100 10 50V 2.2 50V 100 47p 1k 1k 2.2 50V 2.2 50V 2P 50k 2.2 50V 18k 10k 100 10V 1k 100k 100k 0.022 0.001 47p 100p 470p 0.1 100 10V 0.001 0.001 0.001 0.001 2SC2785TP BIAS 3P 9P M65850P ECHO AMP 0.0068 15k 0.0015 15k 0.068 15k 1 50V 0.22 50V 0.22 50V 0.015 47k MTZJ-T-72-5.1B 120k 0.068 0.0068 0.022 15k 1 50V 15k 15k 0.0015 15k 150 2.2 50V 15k 50k 0.1 47 16V 16V 10V 2.2k 100k 33k 22k 10k 15k 6.8k SELS5223S RED 330 BA1A4M 270 5P AMP-L 6.8k 10k 15k 2.2k 680 3.3k 15k 10k 6.8k 47 22k 1k 1.5k 1.5k 270 470 22k 33k 33k SLI-325URT31WT RED 470 BA1A4M BA1A4M 470 SLI-325URT31WT RED SLI-325URT31WT RED BA1A4M SLI-325URT31WT RED 470 BA1A4M BA1A4M 470 SLI-325URT31WT RED SLI-325URT31WT RED 470 470 SLI-325URT31WT RED SLI-325URT31WT RED 470 SLI-325URT31WT RED 470 BA1A4M 470 SLI-325URT31WT RED SLI-325URT31WT RED 470 17P FFC-L WIRE 470 0.001 VOLUME ENCODER 0.1 0.1 ROTARY SWITCH 0.1 4.7k 470 0.1 1SS133T SEL5E20C-S-TP BLUE 10k 47 16V 55 54 53 52 56 57 52 53 54 55 56 57 R L AUDIO VIDEO 1 2 3 4 5 6 7 8 IC722 MIC AMP GAME INPUT I/ I/ OPEN/CLOSE EX-CHANGE DISC SKIP LED DRIVE VOLUME LED DRIVE Q1001-1006 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 55 55 7-25.PRINTED WIRING BOARD – DISPLAY Board – • See page 24 for Circuit Boards Location. IC601 Y1 Y2 Q601 Q707 S758 R634 R635 R632 R633 D601 CN601 R631 JW701 R636 R637 JW702 Q606 S779 JW756 JW757 S755 S754 S753 S756 JW754 S757 JW709 JW715 JW716 R779 R654 R656 R655 JW714 JW717 JW718 JW703 JW704 JW705 Q605 JW707 JW706 D106 JW713 JW724 JW719 JW721 JW722 JW720 JW723 D107 JW725 JW760 R758 JW712 JW710 JW708 C620 C619 C710 C618 C711 L602 JW749 CLP701 R753 R754 S751 S752 R657 JW752 R751 R752 NO602 JW751 L601 R755 R756 R757 C652 C651 R647 C653 R645 D610 R646 JW753 R821 FL601 X601 R660 C623 JW748 JW763 R817 R818 R819 R820 Q807 Q808 JW759 JW700 R670 JW755 JW750 R663 R658 JW727 JW726 C622 R662 R661 JW729 JW758 JW738 JW737 JW740 JW739 JW728 C105 JW733 JW734 JW735 JW736 JW732 C712 JW108 R137 JW109 R140 JW107 R127 D100 C115 R128 D105 C110 C121 JW730 D102 R110 C106 C107 R108 R109 R105 R107 C109 C624 C625 C626 C627 C628 R808 R807 JW741 JW745 JW747 JW762 R112 Q602 Q603 D605 R626 R627 D604 R628 D606 JW743 JW742 R130 S784 D603 Q604 R106 R629 S783 R630 C122 R111 R113 R785 S785 S787 S786 R786 R787 JW746 JW744 R117 R132 R133 R129 IC101 R104 C101 C102 C104 R102 R103 D101 R119 R123 R125 C120 S782 R783 C119 R781 R782 R784 R114 R115 R116 IC102 C112 C111 R121 C116 C117 R120 R122 JW761 R659 C123 R822 R823 R136 R138 R139 Q100 JW106 C125 C152 C153 C118 JW113 C154 CN604 D602 JW105 JW102 R118 R124 C114 D103 D104 JW112 JW103 R131 JW104 R134 C100 C124 JW101 C155 C156 C157 R653 R652 DVD TUNER/BAND TAPE A/B MD(VIDEO) GAME GAME MIXING S781 KARAOKE/MPX x h h X > M > M ,ALBUM+ –, ,ALBUM– CD SYNC REC PAUSE/START ,+ E E E E E E E 1 100 50 51 81 80 30 31 1 4 5 8 11 (11) 1-686-934- DISPLAY BOARD M VOLUME BOARD (Page 53) I MAIN BOARD (Page 48) L CD SWITCH BOARD (Page 53) E E E 8 5 1 4 JW731 2 3 4 5 6 7 8 9 10 A 1 B C D E F G D100 D-6 D101 D-8 D102 C-8 D103 E-8 D104 E-8 D105 D-6 D106 E-4 D107 E-4 D601 F-2 D602 E-9 D603 D-9 D604 B-9 D605 C-9 D606 C-9 D610 A-2 IC101 D-7 IC102 F-9 IC601 B-5 Q100 D-6 Q601 G-2 Q602 B-9 Q603 C-9 Q604 D-9 Q605 F-2 Q606 F-2 Q707 G-2 Q807 B-7 Q808 B-7 • Semiconductor Location Ref. No. Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 56 56 7-26.SCHEMATIC DIAGRAM – DISPLAY Board – • See page 78 for Pin Function Description. MAIN BOARD (1/4) (Page 49) CD SWITCH BOARD (Page 54) VOLUME BOARD (Page 54) FL601 CN601 D106 D107 S758 S756 S754 S753 S752 S751 S779 S782 S783 S784 S781 S785 S786 S787 CN604 Q602 Q603 Q604 R632 R636 R634 R633 R637 R635 R670 D604 D601 D605 D606 D603 D602 D101 D102 D103 D104 D100 R130 R129 C122 R137 C124 R136 R139 C123 R140 R138 C118 D105 R127 R128 C121 C120 R125 R124 C119 R123 C114 R118 R119 R117 C115 C110 C105 R107 R113 R111 R106 R112 C109 C104 C107 R110 IC101(2/2) C106 R109 R108 R133 R132 R104 C102 C101 R102 R103 IC101(1/2) C653 C651 C652 R808 R807 C622 C712 C628 C627 C626 C625 C624 C711 C710 L602 C618 C620 C619 C112 R116 C111 R114 R115 R131 R134 R120 R121 C116 IC102(2/2) R122 C117 NO602 R105 R628 R626 R627 R629 R630 R779 R782 R781 R783 R784 KARAOKE/MPX R785 R786 R787 R631 R756 R755 R757 R754 R753 R752 R758 R751 R662 R663 R655 R656 R661 R652 R658 R659 R657 R654 R822 R823 C623 IC601 R660 R818 R819 R820 R821 R817 R647 R646 D610 R645 C153 C154 C155 C156 C157 C152 C125 S755 S757 X601 L601 R653 Q100 IC102(1/2) Q807 Q808 Q707 Q601 Q605 Q606 C100 19P FFC-S 10EDB40 10EDB40 17P FFC-L BA1A4M BA1A4M BA1A4M 680 10k 10k 680 10k 10k JW SEL5923A AMBER SLR325VC RED SEL5923A AMBER SEL5923A AMBER SEL5923A AMBER SEL5923A AMBER 1SS133T-72 1SS133T-72 1SS133T-72 1SS133T-72 MTZJ-T-72-3.3B 4.7k 4.7k 100 6.3V 22k 10 50V 68k 330 100 10V 100 1.8k 10 50V 1SS133T-72 220 470k 4.7 50V 0.22 50V 100k 100k 10 50V 680 10 50V 100k 100k 680 0.22 50V 0.22 50V 0.22 50V 100k 100k 680 100k 100k 10 50V 10 50V 0.1 82k NJM4565D 0.1 1.5k 1.5k 100k 100k 82k 0.47 0.47 1.5k 1.5k NJM4565D 10 50V 0.1 10 50V 100k 100k 4.7 50V 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 JW 0.01 0.01 47 16V 0.022 82k 0.022 1.5k 1.5k 100k 100k 1.5k 1.5k 0.0022 NJM4565D 82k 0.0022 5P AMP-L 680 330 330 330 330 330 470 1k 680 1.5k 1.5k 2.2k 3.3k 4.7k 680 2.2k 1.5k 3.3k 1.5k 1k 680 4.7k 470 10k 10k 100 100 10k 10k 15k 15k 15k 100 1k 1k 0.001 MB90M407PF-G-130 -BND 1M 180 180 180 120 120 100 100 MTZJ-T-72-5.1B 10k 220p 220p 220p 220p 220p 220p 0.1 50V 4MHz JW 10k 2SC3623 BUFFER NJM4565D BA1L3Z BA1L3Z BA1A4M INV. BA1A4M INV. 2SB1116 SWITCH 2SB1116 SWITCH 10 50V 66 65 48 60 61 69 70 71 73 68 12 13 14 15 16 17 18 19 20 21 22 24 25 26 27 28 29 30 10 9 8 7 6 5 4 3 2 1 100 99 98 97 96 95 94 66 79 80 77 77 93 87 88 89 90 91 92 52 53 54 55 56 57 58 59 31 32 33 34 35 36 37 38 39 40 41 43 44 61 60 49 51 64 48 72 73 72 67 67 68 69 70 71 8 9 10 12 13 14 15 16 17 18 19 20 21 22 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 44 45 46 7 6 5 4 3 2 1 100 99 98 97 96 95 92 91 90 89 88 87 45 46 43 59 58 93 94 79 65 80 52 53 54 55 56 57 64 FLUORESCENT INDICATOR TUBE REC PAUSE/START REC PAUSE/START + - ALBUM + ALBUM - DISPLAY BUFFER BUFFER KEY CONTROL CONTROL, LED DRIVE Q602-604 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 57 57 7-27.PRINTED WIRING BOARDS – POWER AMP Board – • See page 24 for Circuit Boards Location. Q581 Q503 E E E Q504 C581 R561 R509 R559 C507 C508 C557 C558 TH501 Q514 R531 R522 Q506 Q505 D504 D503 R508 R558 Q501 Q551 R555 IC501 C516 Q510 C517 Q511 C546 C596 C542 C592 D541 R519 R581 CN503 C551 R551 R552 C553 R553 C554 R518 C552 C503 R503 C504 C509 R512 R511 R547 TM501 R548 D507 D511 C559 Q516 Q517 C526 R564 R565 D508 D509 R591 R541 R527 R521 D543 R542 R507 R505 C512 EP502 R513 D581 R517 R515 R514 R557 R592 CN504 R570 R569 R568 R572 R545 R546 R582 R516 R528 R506 R556 R554 D551 D501 R504 R529 R530 D502 JW780 JW781 JW783 JW785 JW786 JW787 JW788 JW790 JW791 JW792 JW793 JW794 JW795 JW796 JW797 JW798 JW799 JW800 JW801 JW802 JW803 JW804 JW805 JW806 JW807 JW809 JW810 JW811 JW812 JW813 JW814 JW816 JW817 JW818 JW820 JW821 JW822 JW823 JW824 JW828 JW829 JW830 JW831 JW832 JW833 JW834 JW835 JW836 JW837 JW838 JW840 JW841 JW842 JW843 JW844 JW847 JW848 JW849 JW850 JW851 JW852 JW853 JW854 JW855 JW856 JW857 JW858 JW859 JW860 JW861 JW862 JW863 JW864 JW865 JW866 JW867 JW868 JW869 JW870 JW872 JW874 JW878 JW879 JW880 JW881 JW882 JW815 PL005 PL006 PL007 R501 R502 C502 C501 JW819 RY501 D506 R539 C523 C524 C525 EP501 C527 1 NO501 3 C513 JW895 JW893 C528 JW894 PL003 JW891 JW890 JW887 JW886 JW826 JW827 JW876 JW875 R520 R524 C541 C544 C545 JW789 C591 JW897 JW846 JW845 JW839 PL010 JW782 JW873 JW896 JW877 JW899 JW900 TH502 NO505 JW898 NO502 JW808 R523 R532 R533 R577 Q518 R578 JW927 JW926 E E E E E E E E 11 (11) 1-686-932- POWER AMP BOARD FRONT SPEAKER (IMPEDANCE USE 6–16Ω) SURROUND SPEAKER (IMPEDANCE USE 8Ω) CENTER SPEAKER (IMPEDANCE USE 8Ω) + - + - L R + - + - + - L R + – + – N SURROUND BOARD (Page 59) 1 8 D E MAIN BOARD (Page 48) MAIN BOARD (Page 48) 1 6 O TRANS BOARD (Page 61) E E K SURROUND BOARD (Page 59) 2 3 4 5 6 7 8 A 1 B C D E F G H D501 E-3 D502 D-2 D503 D-4 D504 D-5 D506 C-7 D507 B-5 D508 H-2 D509 H-2 D511 B-5 D541 G-3 D543 H-4 D551 E-3 D581 F-2 IC501 D-4 Q501 E-4 Q503 G-2 Q504 F-2 Q505 B-2 Q506 B-2 Q510 F-6 Q511 F-6 Q514 B-2 Q516 H-5 Q517 H-5 Q518 B-2 Q551 E-4 Q581 F-2 • Semiconductor Location Ref. No. Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 58 58 7-28. SCHEMATIC DIAGRAM – POWER AMP Board – R501 R551 R504 D501 D551 R509 R559 R582 R581 C581 R561 Q506 Q505 C544 C545 R592 R533 R532 JW566 JW567 D506 Q510 R527 R528 R529 R530 C516 D507 CN503 CN504 D502 NO502 R578 C502 C552 C501 C551 C554 C504 R512 R517 R516 R513 R515 R514 D581 R519 C559 C509 R521 R522 Q514 C512 RY501 R545 R548 R547 D511 JW890 JW886 TH502 NO505 TH501 JW891 JW887 R577 JW927 C596 Q501 Q551 R511 D543 C546 R542 EP501 R541 R591 C591 C541 R523 R502 R552 R554 R518 JW926 R565 R564 D509 D508 C517 R546 R570 R569 Q581 Q504 Q503 Q517 Q516 R572 R568 Q518 C526 C507 C508 Q511 C558 C557 EP502 JW872 JW895 C524 C523 C525 C527 C528 NO501 C513 C542 C592 D541 R531 R539 R508 R505 R506 R507 IC501(1/2) IC501(2/2) D504 R520 R524 R557 R556 R558 D503 C553 R553 R503 C503 R555 1k 1k 47k 1SS133T -72 1SS133T -72 10 1/2W 10 1/2W 33k 33k 22 50V 100 1/4W FR 2SC2785 2SC2785 0.1 100V 0.1 100V 100k 47k 100k 1SS133T 2SC2785 56k 47k 22k 22k 100 10V 1SS133T 13P 6P 1SS133T 560k 1000p 1000p 4.7 50V 4.7 50V 100 10V 100 10V 1 1/4W FR 10k 10k 33k 22k 2.2k 1SS133T-72 68k 22 100V 22 100V 100k 100k 2SC2785 0.01 RELAY 24V 1k 47k 47k 1SS133T 8P 100 2200 100V 2SC1841 OVER LOAD DETECT 2SC1841 OVER LOAD DETECT 100 1/4W FR D5SBA20 2200 100V 100k TERMINAL, EARTH 100k 100k 0.1 0.1 100k 47k 47k 47k 33k 22k 22k 1SS133T 1SS133T 10 50V 22k 10k 47k 2SC1841 STANDBY SWITCH 2SC1841 STANDBY SWITCH 2SA1207 STANDBY SWITCH 2SA1175TP-HFE 2SC2785 100k 10k 2SC2785 FAN MOTOR ON SWITCH 10 50V 0.068 0.068 2SC2785 RELAY SWITCH 0.068 0.068 EARTH 0.01 0.01 0.01 0.01 0.01 3P 0.1 4700 50V 4700 50V 330 2W 0.22 5W 1k 22k 150k STK412-230 POWER AMP STK412-230 POWER AMP 150k 22k 0.22 5W 100p 270 270 100p 1k R CH L CH VH VH VL VL *3 *6 *1 *4 *5 *2 - + - + - + - + R L R L (IMPEDANCE FRONT SPEAKER (IMPEDANCE SURROUND SPEAKER RELAY DRIVE FRONT SPEAKER RELAY DRIVE FRONT SPEAKER SWITCH OVER LOAD DETECT SWITCH DETECT Q505,506,514 TEMPERATURE - + (IMPEDANCE CENTER SPEAKER 330k TH EXCEPT TH TM501 10P *6 R531 240k TH EXCEPT TH TH EXCEPT TH *3 D541 D5SBA20 D5SBA204101 *1 D504 MTZJ-T-72-18C MTZJ-T-72-15B TH EXCEPT TH *4 R520 1k/1W 1.5k/1W TH EXCEPT TH 1k/1W 1.5k/1W *5 R524 TH EXCEPT TH MTZJ-T-72-18C MTZJ-T-72-15C *2 D503 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 59 59 7-29.PRINTED WIRING BOARDS – SURROUND Board – • See page 24 for Circuit Boards Location. 11 (11) 1-686-938- SURROUND BOARD N POWER AMP BOARD (Page 57) K POWER BOARD (Page 57) G MAIN BOARD (Page 48) 1 8 (CHASSIS) RY381 RY382 JW310 JW311 JW312 JW323 JW382 C352 JW334 JW308 R401 R344 R343 R342 R341 R351 C343 C342 NO302 7 1 R352 C304 R303 JW338 JW305 R302 C302 JW306 R345 JW304 JW309 JW307 JW337 R309 R308 R307 R310 R331 R360 R349 R348 R350 D351 D341 R359 R357 R332 R396 R402 R395 R358 JW329 JW331 R388 JW383 D381 D382 JW316 D301 C306 C307 JW320 5 1 CN304 JW319 JW318 EP301 Q384 JW336 R397 JW324 JW381 JW322 JW321 R387 D391 R319 R320 R305 R356 R301 C301 JW302 JW301 R353 IC301 R361 R311 C308 C358 JW313 C354 C319 C344 C341 C351 C357 C356 Q381 R390 C347 C346 R304 R354 R347 E E E E E E E Q351 Q383 Q341 Q386 Q301 JW335 JW325 JW326 JW315 C353 1 18 C303 JW333 R399 Q385 JW314 CN303 CLP301 JW317 R333 CLP302 E 2 3 4 5 6 7 A 1 B C D E • Semiconductor Location Ref. No. Location D301 C-3 D341 C-5 D351 C-4 D381 C-5 D382 B-6 D391 C-2 IC301 E-4 Q301 C-3 Q341 C-6 Q351 C-4 Q381 B-2 Q383 B-5 Q384 C-5 Q385 C-2 Q386 D-6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 60 60 7-30. SCHEMATIC DIAGRAM – SURROUND Board – C301 D391 EP301 R301 R307 R311 R331 R332 R357 R361 R397 R399 Q384 R305 R356 Q385 CN304 D382 D381 R395 Q381 Q383 R401 Q386 R347 R348 R345 R349 D351 R358 R359 Q351 D301 R308 Q301 R309 C302 C354 R302 R352 R304 C352 C341 C342 C353 C343 R341 R342 R344 C344 R354 C304 R320 C303 C308 C358 D341 Q341 R350 C347 C346 R360 C357 C356 JW331 C306 C307 R310 R390 JW308 JW329 NO302 JW383 JW382 JW381 R396 R402 R351 C351 C319 R333 RY381 RY382 CN303 R353 R303 R319 R343 R388 R387 IC301 4.7 50V 1SS133T GROUND PLATE 1k 1k 100 1/4W FR 47k 56k 1k 100 1/4W FR 1k 1k BA1F4M-TP 0.22 5W 0.22 5W 2SC2785TP 5P 1SS133T 1SS133T 10k 2SA1175TP 2SA1175TP 1k BATF4M-TP 1k 27k 0.22 5W 100k 1SS133T 27k 100k 2SC2785TP 1SS133T 27k 2SC2785TP 100k 220p 47 10V 47k 47k 47k 220p 4.7 50V 220p 220p 220p 1k 47k 47k 47 10V 47k 47 10V 1 1/4W FR 220p 100 63V 100 63V 1SS133T 2SC2785 10 0.068 0.068 10 0.068 0.068 0.068 0.068 10 10k 7P 22k 22k 1k 4.7 50V 0.01 68k 6P 470 470 10k 470 330 2W 330 2W STK443-050 RELAY DRIVE OVER LOAD DETECT OVER LOAD DETECT OVER LOAD DETECT PROTECT SURROUND SPEAKER Q381,383 RELAY DRIVE PROTECT SURROUND SPEAKER Q384,386 OVER LOAD DETECT SWITCH SURROUND AMP w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 61 61 7-31.PRINTED WIRING BOARDS – TRANS Board – • See page 24 for Circuit Boards Location. F978 F979 F975 F977 JW906 JW907 JW908 JW909 F974 PL002 PL008 R941 D977 C941 CN997 CN998 F976 PL009 JW914 JW912 JW911 JW913 NO973 TH TH JW928 JW929 C971 T972 SUB POWER TRANSFORMER S901 IC971 D974 D975 C973 D971 Q971 RY971 CN974 C975 C976 C977 JW921 D972 D973 C978 R974 R975 PL001 PL004 JW920 JW924 JW923 JW925 TH EXCEPT TH EXCEPT TH EXCEPT TH EXCEPT TH TH B100 CN976 CN971 E TRANS BOARD SUB TRANS BOARD 11 (11) 1-686-930- 11 (11) 1-686-931- EXCEPT TH 1 2 3 4 TH 1 1 7 1 6 4 1 4 1 3 1 2 AC IN 120V 220V 230-240V t t VOLTAGE SELECTOR * * NOT REPLACEABLE: BUILT IN TRANSFORMER T910 POWER TRANSFORMER H O MAIN BOARD (Page 48) POWER AMP BOARD (Page 57) F MAIN BOARD (Page 48) 2 3 4 5 6 7 A 1 B C D E F • Semiconductor Location D971 B-4 D972 B-6 D973 B-6 D974 C-6 D975 C-6 D977 D-3 IC971 A-5 Q971 B-4 Ref. No. Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D 62 62 7-32. SCHEMATIC DIAGRAM – TRANS Board – CN974 D975 D973 D972 D974 CN998 CN976 RY971 D971 C975 R975 C973 R974 C978 C977 C976 C971 JW920 T972 SUB POWER TRANSFORMER CN997 POWER AMP BOARD (Page 58) MAIN BOARD (1/4) (Page 49) 6P 7P JW928 JW929 F976 F977 F974 F975 C941 F978 D977 JW924 JW923 JW925 S901 JW914 JW912 JW911 JW913 T910 IC971 Q971 CN971 NO973 R941 2P VH 11ES2 11ES2 11ES2 11ES2 1SS133T 2200 16V 10k 100 16V 100k 0.1 0.1 0.1 10000p T8.0AL/250V T8.0AL/250V T6.3AL/250V F979 3.15A/250V T6.3AL/250V 100 63V T4.0AL/250V 11ES2 TA7804LS +3.9V REG 2SC2785 1 *3 TH TH VOLTAGE SELECTOR 120V 220V 230-240V TH AUS,MX,TH TH EXCEPT TH EXCEPT TH TH EXCEPT TH TH EXCEPT TH TH EXCEPT TH EXCEPT TH POWER TRANSFORMER BUILT IN TRANSFORMER NOT REPLACEABLE: * * AC IN EXCEPT TH *2 NO973 4P 2P EXCEPT TH TH 4P EXCEPT TH MAIN BOARD (4/4) (Page 52) 2P *3 CN971 RELAY DRIVE POWER ON/OFF w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 HCD-GN77D 7-33. IC Block Diagrams IC252 TC7WH157FK (TE85R) (DMB03 BOARD) 1 1OE 56 1LE LE 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 LATCH LATCH 28 2OE 29 2LE OE LE OE 1D1 1D2 GND 1D3 1D4 VCC 1D5 1D6 GND 1D7 1D8 1D9 1D10 2D1 2D2 2D3 GND 2D4 2D5 2D6 VCC 2D7 2D8 GND 2D9 2D10 1Q1 1Q2 GND 1Q3 1Q4 VCC 1Q5 1Q6 GND 1Q7 1Q8 1Q9 1Q10 2Q1 2Q2 2Q3 GND 2Q4 2Q5 2Q6 VCC 2Q7 2Q8 GND 2Q9 2Q10 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 SELECT 116 ST 117 A 1 2 3 A B Y 5 Y B GND 4 VCC 8 Y EN G Y IC216 SN74ALVCH16841DGGR (DMB03 BOARD) IC302 PCM1609KPTR (DMB03 BOARD) SYSTEM CLOCK MANAGER FUNCTION CONTROL INTERFACE SERIAL INPUT INTERFACE 4X/8X OVER SAMPLING DIGITAL FILTER WITH FUNCTION CONTROLLER ENHANCED MULTI- LEVEL DELTA- SIGMA MOJULE ZERO DETECT DAC LPF DAC LPF DAC LPF DAC LPF DAC LPF DAC LPF DAC LPF DAC LPF RST SCKI SCKO BCK TEST VDD DGND DATA1 DATA2 DATA3 ZEROA LRCK 37 38 39 40 42 43 44 45 46 47 48 41 ZERO1/GPO1 ZERO2/GPO2 ZERO3/GPO3 ZERO4/GPO4 ZERO5/GPO5 ZERO6/GPO6 NC NC VOUT6 VOUT5 VOUT4 VOUT3 1 2 3 4 5 6 7 8 9 10 11 12 VOUT2 VOUT1 VCOM VOUT7 AGND5 VCC5 AGND6 VOUT8 AGND4 VCC4 AGND3 VCC3 13 14 15 16 17 18 19 20 21 22 23 24 ML MC MDI MDO ZERO8 DATA4 ZERO7 NC VCC1 AGND1 VCC2 AGND2 36 35 34 33 32 31 30 29 28 27 26 25 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 HCD-GN77D IC706 MSM51V18165F-60TSKR1 (DMB03 BOARD) NC A9 A8 A7 A6 A5 A4 VSS NC NC A0 A1 A2 A3 VDD VDD DQ1 DQ2 DQ3 DQ4 VCC DQ5 DQ6 DQ7 DQ8 WE RAS 31 32 29 30 26 27 28 20 19 22 21 24 25 23 2 VDD 1 4 3 6 5 8 7 10 9 VSS DQ16 DQ15 DQ14 DQ13 VSS DQ12 DQ11 DQ10 DQ9 49 50 47 48 45 46 43 44 41 42 35 I/O SELECTOR OUTPUT BUFFER INPUT BUFFER OUTPUT BUFFER INPUT BUFFER SENSE AMPLIFIER COLUMN DECODERS MEMORY CELLS WORD DRIVERS ROW DECODERS ON CHIP VBB GENERATOR ON CHIP IVCC GENERATOR COLUMN ADDRESS BUFFERS LCAS 34 UCAS 33 OE I/O CONTROLLER I/O CONTROLLER 17 18 11 – 16 NC 40 – 36 ROW ADDRESS BUFFERS INTERNAL ADDRESS COUNTER REFRESH CONTROL CLOCK TIMING GENERATOR VCC VDD VDD VDD IC509 CXD3068Q (DMB03 BOARD) DOUT LRCK PCMD BCK DVDD2 ASYE MD2 EMPH XTSL DVSS2 XTAI XTAO SQSO SQCK SCSY SBSO EXCK SOUT SOCK XOLT SE TE VC TES1 TEST1 DVSS1 FRDR FFDR TRDR TFDR SRDR SFDR DVDD1 FSTO SSTP MDP LOCK PWMI FOK DFCT DIGITAL CLV PROCESSOR OSC DIGITAL OUT EFM DEMODULATOR 32K RAM ERROR CORRECTOR D/A DIGITAL INTERFACE MIRR, DFCT, FOK DETECTOR CPU INTERFACE SUBCODE PROCESSOR SERVO AUTO SEQUENCER SERVO INTERFACE DVDD0 XRST MUTE DATA XLAT CLOK SENS SCLK ATSK WFCK XUGF XPCK GFS C2PO SCOR C4M WDCK DVSS0 COUT MIRR AVDD0 IGEN AVSS0 ADIO RFDC CE TE AVSS1 RFAC ASYI ASYO BIAS AVDD1 PCO FILI FILO CLTV V16M VCTL VPCO 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 OPERATIONAL AMPLIFIER & ANALOG SWITCH A/D CONVERTER FOCUS PWM GENERATOR TRACKING PWM GENERATOR SLED PWM GENERATOR FOCUS SERVO DSP TRACKING SERVO DSP SLED SERVO DSP ASYMMETRY CORRECTOR DIGITAL PLL CLOCK GENERATOR 60 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 HCD-GN77D IC903 BR24C16F-E2 (DMB03 BOARD) 8 VCC 7 TEST 6 SCL 5 SDA 1 A0 2 A1 3 A2 4 GND ADDRESS DECODER SLAVE WORD ADDRESS REGISTER DATA REGISTER 16 K bit EEPROM ARRAY CONTROL CIRCUIT POWER SUPPLY VOLTAGE DETECTION HIGHT VOLTAGE GENERATOR 11 bit 8 bit 11 bit STOP START ACK IC906 SM8707GV-G-E2 (DMB03 BOARD) VDD1 VSS1 MO1 NC REF Div.1 PHASE DETECTOR1 PHASE PUMP1 LPF LOOP Div.1 X'tal OSC CONTROL LOGIC NC 16 NC 15 NC 14 SO3 13 VDD3 12 VSS3 11 SO2 10 SO1 9 4 3 VDD2 VSS2 6 XTI 7 XTO 8 5 1 2 VCO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 HCD-GN77D MUX ATT INPUT BIAS AGC GCA PROGRAMMABLE EQUALIZER FILTER DIFFERENTIATOR 64 63 62 61 60 59 58 57 51 56 1 2 FULL WAVE RECTIFER AGC CHARGE PUMP + – + – + + + + + + + + + + – – + – + – INPUT SEL ATT 2 4 2 2 INPUT IMPEDANCE SEL OFFSET CANSEL MNTR CONTROL SERIAL PORT REGISTER 4 FROM S-PORT 4 FROM S-PORT INPUT IMPEDANCE SEL 3 FROM S-PORT CLAMP & ENVELOPE LEVEL DAC SIGDET AGCO BUFFER 55 54 53 52 50 49 OUTPUT INHIBIT FROM S-PORT 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 GCA CD/DVD 4 FROM S-PORT 3 FROM S-PORT MUX 3 FROM S-PORT GCA 3 FROM S-PORT 3 FROM S-PORT EQ VC COMPARATOR PHASE DETECTOR PHASE DETECTOR A+D B+D + + A+C B+C GCA W/LPF SUM AMP 18 19 20 21 22 24 25 23 26 27 28 29 31 32 30 GCA GCA VCI FOR SERVO INPUT VC = VPB/2 DUAL APC LD H/L FROM S-PORT APC SEL DVD/CD TOPHOLD GCA TOPHOLD GCA 41 48 47 46 45 GCA OFFSET CANSEL 5 FROM S-PORT GCA 40 GCA OFFSET CANSEL 6 FROM S-PORT 3 FROM S-PORT GCA GCA CEFDB CP/CN LOW IMPEDANCE CD/DVD SUB GCA MUX GCA LPF GCA LPF 39 38 37 36 OFFSET CANSEL PEAK/BOTTOM HOLD BOTTOM ENVELOPE INPUT BUFFER 5 FROM S-PORT GCA LPF V25/2 TE RST 35 34 33 FOR SERVO OUTPUT PH TOP HOLD GCA SEL LINKEN MUX HOLDEN + – + – COMPA- RATOR INTERNAL FDGHG HYSTERESISTER & OFFSET FROM S-PORT MIRR COMPARATOR INPUT GAIN FROM S-PORT SEL DAC SINK CURRENT FROM S-PORT 2 AGCO FAST ATTACK AGC HOLD BCA DET 2 FROM S-PORT PH 2 2 INPUT IMPEDANCE FROM S-PORT 44 43 42 V33 FOR OUTPUT BUFFER PI FE TE CE V25 V125 V25/3 LPF ATT POL SEL BUFFER CONTROL SIGNALS TO EACH BLOCK 3 CE ATT CEPOL D C B A CD F CD E VPB VC DVDLD CDLD CDPD DVDPD LDON VNB MIRR MP MB MIN MEVO MLPF CE SDEN SDATA SCLK V33 FE TE PI V25 V125 TPH DFT LINK LCP LCN MNTR DVDRFP DVDRFN A2 B2 C2 D2 CP CN D C B A CD D CD C CD B CD A RFDC RFSIN ATOP ATON AIN AIP VPA RFAC VNA BYP DIN DIP FNP FNN MEV RX IC001 SP3723BDA0PM (RF BOARD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 HCD-GN77D IC710 NJM2244M-TE2 (VIDEO BOARD) IC711 MM1568AJBE (VIDEO BOARD) 2 SW1 3 VIN2 4 SW2 1 VIN1 8 GND 7 VOUT 6 V+ 5 VIN3 (MUTE) BIAS 75 Ω DRIVER 4dB 4dB VCC2 75Ω DRIVER LPF LPF LPF 75Ω DRIVER 2dB 4dB 2dB 75Ω DRIVER 2dB 75Ω DRIVER 2dB 4dB 75Ω DRIVER 2dB 4dB 75Ω DRIVER 4dB 2dB CIN 2 VIN 4 MUTE1 3 YC MIX 5 YIN 6 BIAS 7 GND1 8 NC 9 GND1 10 NC 11 CYIN 12 CLP 13 CbIN 14 CrIN 16 GND2 17 MUTE2 15 VCC1 1 34 CrSAG 18 CrOUT 19 CbSAG 21 GND2 20 CbOUT 22 CYSAG 24 GND2 23 GND2 26 CYOUT 25 YSAG 27 YOUT 28 VSAG 30 GND2 29 GND2 32 VOUT 31 COUT 33 + BIAS BIAS BIAS BIAS BIAS CLAMP CLAMP CLAMP LPF LPF LPF IC701, 712 BA6956AN (DRIVER BOARD) 1 2 3 4 5 6 7 8 9 CONTROL LOGIC TSD VREF OUT2 OUT1 RNF VM VCC FIN GND RIN IC721 M65850P (GAME IN BOARD) OSCILLATOR 1/2 VCC AUTO RESET LPF1 MAIN CONTROL A/D 20KBIT SRAM LPF2 D/A 1 2 3 4 5 6 7 8 9 10 14 13 12 11 CLOCK RESET MO MI D1 DO0 DO1 VCC CLOCK REF OP2IN OP2OUT LPF2IN LPF2OUT LPF1IN LPF1OUT OP1OUT OP1IN CC1 CC2 GND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68 HCD-GN77D 7-34. IC Pin Function Description • IC207 ZIVA5X-C1F (DVD SYSTEM PROCESSOR)(DMB03 BOARD) . 1 VDDP — Power supply terminal (+3.3V) (I/O signal) 2 HA1 I/O Address bus 3 to 11 HD15 to HD7 I/O Data bus (address signal multiplexed) 12 VDDP — Power supply terminal (+3.3V) (I/O signal) 13 GNDP — Ground terminal (I/O signal) 14 to 19 HD6 to HD1 I/O Data bus (address signal multiplexed) 20 VDDP — Power supply terminal (+3.3V) (I/O signal) 21 GNDP — Ground terminal (I/O signal) 22 HD0 I/O Data bus (address signal multiplexed) 23 HDTACK I/O Acknowledge signal input/output for host data transfer (not used) 24 HIRQ0 I Interrupt signal input for Medusa (not used) 25 WEH.UDS I/O Host upper data strobe signal output (not used) 26 WEL.LDS I/O Host lower data strobe signal output (not used) 27 HREAD I/O Read/write strobe signal output 28 GPIO0 I/O Jig detection port (pull-up) 29 GND — Ground terminal (inside core) 30 VDD — Power supply terminal (+1.8V) (inside core) 31 GND25 — Ground terminal (SDRAM I/O signal) 32 VDD25 — Power supply terminal (+3.3V) (SDRAM I/O signal) 33 to 42 MA9 to MA0 O SDRAM address bus 43 GND25 — Ground terminal (SDRAM I/O signal) 44 VDD25 — Power supply terminal (+3.3V) (SDRAM I/O signal) 45, 46 MA10,MA11 O SDRAM address bus 47 BA1 O SDRAM bank select 1 signal output 48 BA0 O SDRAM bank select 0 signal output 49 MCS0 O SDRAM chip select 0 signal output 50 MCS1 O Not used 51 MRAS O SDRAM row address strobe signal output 52 MCAS O SDRAM column address strobe signal output 53 MWE O SDRAM write enable signal output (“H” : read, “L” : write) 54 GND25 — Ground terminal (SDRAM I/O signal) 55 VDD25 — Power supply terminal (+3.3V) (SDRAM I/O signal) 56 MCLK O SDRAM Clock output 57 to 60 MD0 to MD3 I/O SDRAM data 61 GND25 — Ground terminal (SDRAM I/O signal) 62 MDQM0 O Byte read /write mask signal 0 output 63 VDD25 — Power supply terminal (+3.3V) (SDRAM I/O signal) 64 to 71 MD6 to MD11 I/O SDRAM data 72 GND25 — Ground terminal (SDRAM I/O signal) 73 MDQM1 O Byte read /write mask signal 1 output 74 VDD25 — Power supply terminal (+3.3V) (SDRAM I/O signal) 75 to 78 MD12 to MD15 I/O SDRAM data 79 GND — Ground terminal (inside core) 80 VDD — Power supply terminal (+1.8V) (inside core) 81 to 84 MD16 to MD19 I/O SDRAM data 85 GND25 — Ground terminal (SDRAM I/O signal) 86 MDQM2 O Byte read /write mask signal 2 output 87 VDD25 — Power supply terminal (+3.3V) (SDRAM I/O signal) 88 to 95 MD20 to MD27 I/O SDRAM data 96 GND25 — Ground terminal (SDRAM I/O signal) 97 MDQM3 O Byte read /write mask signal 3 output 98 VDD25 — Power supply terminal (+3.3V) (SDRAM I/O signal) 99 to 102 MD28 to MD31 I/O SDRAM data Description Pin Name Pin No. I/O www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 HCD-GN77D Pin Name Pin No. I/O Discription 103 GND25 — Ground terminal (SDRAM I/O signal) 104 VDD25 — Power supply terminal (+3.3V) (SDRAM I/O signal) 105 VCLK I/O System clock (not used) 106 XCK_I/O_SEL I/O 5.1ch/downmix switch signal output 107 VS O S1 signal output 108 I/P SW O Progressive/interlace switch signal output 109 CDSEL O CD-DA selection signal output 110 MREQ O Audio muting request signal output 111 VDDP — Power supply terminal (+3.3V) (I/O signal) 112 GNDP — Ground terminal (I/O signal) 113 MDI O Serial data output to the D/A converter 114 MC O Serial data clock output to the D/A converter 115 ML O Latch enable signal output to the D/A converter 116 HIRQ2_ I Busy signal input from the EEPROM 117 VDAC_4B — Video DAC bias bit 4 (connected to the ground) 118 VDAC_VDD4 — Power supply terminal (+3.3V) (Video DAC 4) 119 VDAC_4 O VDAC output 4 120 VDAC_3B — Video DAC bias bit 3 (connected to the ground) 121 VDAC_VDD3 — Power supply terminal (+3.3V) (Video DAC 3) 122 VDAC_3 O VDAC output 3 123 VDAC_2B — Video DAC bias bit 2 (connected to the ground) 124 VDAC_VDD2 — Power supply terminal (+3.3V) (Video DAC 2) 125 VDAC_2 O VDAC output 2 126 VDAC_1B — Video DAC bias bit 1 (connected to the ground) 127 VDAC_VDD1 — Power supply terminal (+3.3V) (Video DAC 1) 128 VDAC_1 O VDAC output 1 129 VDAC_0B — Video DAC bias bit 0 (connected to the ground) 130 VDAC_VDD0 — Power supply terminal (+3.3V) (Video DAC 0) 131 VDAC_0 O VDAC output 0 132 VDAC_DVSS — Ground terminal (Video DAC digital system) 133 VDAC_DVDD — Power supply terminal (+3.3V) (Video DAC digital system) 134 VDAC_REFVDD — Power supply terminal (Video DAC reference) 135 VDAC_REF I Reference voltage input terminal(for Video DAC) 136 VDAC_REFVSS — Ground terminal (Video DAC reference) 137 XVSS — Ground terminal (crystal oscillator) 138 XOUT O Crystal oscillation signal output 139 XIN I Crystal oscillation signal input 140 XVDD — Power supply terminal (crystal oscillator) 141 AVSS2 — Ground terminal (analog PLL) 142 AVDD2 — Power supply terminal (+3.3V) (analog PLL) 143 AVDD1 — Power supply terminal (+3.3V) (analog PLL) 144 AVSS1 — Ground terminal (analog PLL) 145 VDD — Power supply terminal (+1.8V) (inside core) 146 GND — Ground terminal (inside core) 147 XCK O Audio system clock output 148 LRCK O LRCK signal output for audio 149 BCK O BCK signal output for audio 150 DATA0(DM) O Audio data(Down Mix signal) output 151 DATA1(FLR) O Audio data(Front L/R signal) output 152 VDDP — Power supply terminal (+3.3V) (I/O signal) 153 GNDP — Ground terminal (I/O signal) 154 DATA2(SLR) O Audio data(Rear L/R signal) output 155 DATA3(CSW) O Audio data(Center/Subwoofer signal) output 156 IEC958 O S/PDIF signal (not used) 157 DAI_DATA I Data input from ADC (not used) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 70 HCD-GN77D Description Pin Name Pin No. I/O 158 DAI_BCK I BCK signal input from ADC (not used) 159 DAI_LRCK I LRCK signal input from ADC (not used) 160 I2C_CL I/O I2C clock bus 161 I2C_DA I/O I2C data bus 162 CS(ZIVA_E2P) O Chip select signal output to the EEPROM (IC204) 163 RXD1 I Serial data input for check jig 164 TXD1 O Serial data output for check jig 165 WRITE_CTRL(ZIVA_E2P) O Write control signal output to the EEPROM (IC204) 166 GNDP — Ground terminal (I/O signal) 167 VDDP — Power supply terminal (+3.3V) (I/O signal) 168 SDDATA7 I SDBus data7 input 169 SDDATA6 I SDBus data6 input 170 SDDATA5 I SDBus data5 input 171 SDDATA4 I SDBus data4 input 172 GND — Ground terminal (inside core) 173 VDD — Power supply terminal (+1.8V) (inside core) 174 SDDATA3 I SDBus data3 input 175 SDDATA2 I SDBus data2 input 176 SDDATA1 I SDBus data1 input 177 SDDATA0 I SDBus data0 input 178 SDREQ O SDBus data request signal output 179 SDEN I SDBus data enable signal input 180 GNDP — Ground terminal (I/O signal) 181 VDDP — Power supply terminal (+3.3V) (I/O signal) 182 SDERROR I SDBus data error signal input 183 SDCLK I SDBus data clock input 184 HIRQ1 I Interrupt signal input from the mechanism controller (IC901) 185 DRVCLK I Serial data clock input from the mechanism controller (IC901) 186 DRVTX I Serial data input from the mechanism controller (IC901) and the EEPROM (IC204) 187 DRVRX I Serial data output to the mechanism controller (IC901) and the EEPROM (IC204) 188 DRVRDY O Ready signal input from the mechanism controller (IC901) 189 VNW — Power supply for 5V tolerance voltage input 190 ALE O Latch enable signal output for address data demux 191 RST_SPC O Reset signal output to the mechanism controller (IC901) 192 INT/EXT O Input selection signal output for SDBus or ADC (not used) 193 HCS2 O Chip select signal output for Medusa (not used) 194 HCS1 I/O Not used 195 HCS0 O Chip select signal output to the external ROM (IC206) 196 VDDP — Power supply terminal (+3.3V) (I/O signal) 197 TRST I Reset signal input 198 TDO O Data output 199 TDI I Data input 200 TMS I TMS signal input 201 TCK I TCK signal input 202 RESET I ZIVA reset input 203 BUS CLK I/O Not used 204 GND — Ground terminal (inside core) 205 VDD — Power supply terminal (+1.8V) (inside core) 206 HA3 I/O Address bus 3 207 HA2 I/O Address bus 2 208 GNDP — Ground terminal (I/O signal) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 71 HCD-GN77D • IC701 TMC57929PGF-RDP (DVD DECODER) (DBM03 Board) Pin No. 1, 2 3 4 5 6 7 8 9 to 14 15 16 17 18 19 20, 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 I/O I/O — I/O I — I — I — O I I I O — I O — O O — O O O O — O O — O — O O O — O O O O — O O — O — I O O I Pin Name D5, D6 VSS D7 A0 VDD A1 VDD5V A2 to A7 VSS XWAIT XRD XWR XCS XINT0, XINT1 VDD XHRS HDB7 VSS HDB8 HDB6 VDDS HDB9 HDB5 HDBA HDB4 VSS HDBB HDB3 VDD HDBC VDDS HDB2 HDBD HDB1 VSS HDBE HDB0 HDBF XSAK VDDS XDCK XSHD VDD REDY VSS XHAC HINT XS16 HA1 Description Two-way data bus with CXP973064-226R Ground Two-way data bus with CXP973064-226R Address signal input from CXP973064-226R Power supply (+3.3V) Address signal input from CXP973064-226R Power supply (+5V) Address signal input from CXP973064-226R Ground Not used Read strobe signal input from CXP973064-226R Write strobe signal input from CXP973064-226R Chip select signal input from CXP973064-226R Interrupt signal output to CXP973064-226R Power supply (+3.3V) Not used Stream data signal output to ZIVA5X-C1F Ground Error flag signal output to ZIVA5X-C1F Stream data signal output to ZIVA5X-C1F Power supply (+5V) Not used Stream data signal output to ZIVA5X-C1F Not used Stream data signal output to ZIVA5X-C1F Ground Not used Stream data signal output to ZIVA5X-C1F Power supply (+3.3V) Not used Power supply (+5V) Stream data signal output to ZIVA5X-C1F Not used Stream data signal output to ZIVA5X-C1F Ground Not used Stream data signal output to ZIVA5X-C1F Not used Serial data effect flag signal output to ZIVA5X-C1F Power supply terminal (+5V) (digital system) Serial data transfer clock signal output to ZIVA5X-C1F Header flag signal (Not used) Power supply (+3.3V) Not used Ground DVD mode: Serial data request signal input from ZIVA5X-C1F Not used (Pull up) Not used (Pull up) Not used (Pull up) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 72 HCD-GN77D Pin No. 57 58 59, 60 61 62, 63 64 65 66 to 69 70 71 72 73 to 75 76 77 78 79, 80 81 82 to 87 88 89 90 91 92 93 94 95 96, 97 98 99 100 101, 102 103 104 to 106 107 108 109 110 111 112 113, 114 115 116 117 118, 119 120 121 122, 123 124 125 126, 127 I/O I/O — I — I — I/O I/O — I/O — I/O O — O O — O — O — O O O O O I/O — I/O — I/O — I/O O — O — O — — I I I — — I — O I I Pin Name XPDI VDDS HA0, HA2 VSS HCS0, HCS1 VDD DASP MDB0 to MDB3 VSS MDB4 VDD5V MDB5 to MDB7 XMWR VDD XRAS MA0, MA1 VSS MA2 to MA7 VDD MA8 VSS MA9/MNT0 MNT1/MNT1 MNT2/MNT2 XMOE XCAS MDB8, MDB9 VSS MDBA VDD MDBB, MDBC VDD5V MDBD to MDBF GFS VSS APEO VDD DASYO GNDA5 ASF1, AFS2 DASYI RFDCC RFIN VCCA5, VCCA4 VCOR1 VCOIN GNDA4, GNDA3 LPF5 VC1 LPF2, LPF1 Description Not used (Pull up) Power supply (+5V) Not used (Pull up) Ground (open) Not used Power supply (+3.3V) Not used Two-way data bus with the D-RAM Ground Two-way data bus with the D-RAM Power supply (+5V) Two-way data bus with the D-RAM Write enable signal output to the D-RAM Power supply (+3.3V) Row address strobe signal output to the D-RAM Address signal output to the D-RAM Ground Address signal output to the D-RAM Power supply (+3.3V) Address signal output to the D-RAM Ground Address signal output to the D-RAM EEPROM ready signal output to CXP973064 Address signal output to the D-RAM Output enable signal output to the D-RAM Column address strobe signal output to the D-RAM Two-way data bus with the D-RAM Ground Two-way data bus with the D-RAM Power supply (+3.3V) Two-way data bus with the D-RAM Power supply (+5V) Two-way data bus with the D-RAM Guard frame sync signal output to CXP973064-226R Ground Absolute phase error signal output Power supply (+3.3V) RF binary signal output Ground Filter connected terminal for selection the constant asymmetry compensation Analog signal input after integrated from the RF binary signal Input terminal for adjusting DC cut high-pass filter for RF signal RF signal input from the DVD/CD RF amplifier Power supply (+3.3V) VCO oscillating range setting resistor connected VCO input Ground Signal output from the operation amplifier from PLL loop filter Middle point voltage (+1.65V) input Inverted signal input to the operation amplifier from PLL loop filter www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 73 HCD-GN77D Pin No. 128, 129 130 131 132 133, 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 to 176 I/O — O I O — O I I I — O — O — O I I O I — I I — I — I — O I O I — O I I I I I — O I — I/O Pin Name VCCA3, VCCA2 PDO PDHVCC FDO GNDA2, GNDA1 SPO VC2 MDIN2 MDIN1 VCCA1 CLVS VSS MDSOUT VDD MDPOUT DEFECT GSCOR EXCK SBIN VSS SCOR WFCK VDD5V XRCI VDDS C2PO VDD DBCK BCLK DDAT MDAT VSS DLRC LRCK XRST IFS0 IFS1 XTAL VSS XTA2 XTA1 VDD D0 to D4 Description Power supply (+3.3V) Signal output from the charge pump for phase comparator Middle point voltage input terminal for RF PLL Signal output from the charge pump for frequency comparator Ground Spindle motor control signal output to FAN8035L Middle point voltage (+1.65V) input Spindle motor servo drive signal input MDP input Power supply (+3.3V) Control signal output for selection the spindle control filter constant at CLVS Ground Frequency error output terminal of internal CLV circuit Power supply (+3.3V) Phase error output of internal CLV circuit Defect signal input (Not used) Guard subcode sync (S0+S1) detection signal input from CXD3068Q Subcode serial data reading clock signal output to CXD3068Q Subcode serial data input from CXD3068Q Ground Subcode sync (S0+S1) detection signal input from CXD3068Q Write frame clock signal input from CXD3068Q Power supply (+5V) Not used (Pull down) Power supply (+5V) C2 pointer signal input from CXD3068Q Power supply (+3.3V) Bit clock signal (2.8224 MHz) output (Not used) Bit clock signal (2.8224 MHz) input from CXD3068Q PCM data (Not used) Serial data input from CXD3068Q Ground L/R sampling clock signal (Not used) L/R sampling clock signal (44.1 kHz) input from CXD3068Q Reset signal input from CXP973064-226R “L”: reset Not used (connected to ground) Not used (connected to VDD) 33.8688 MHz clock signal input from SM8707GV Ground System clock output (33.8688 MHz) System clock input (33.8688 MHz) Power supply (+3.3V) Two-way data bus with the CXP973064-226R www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 74 HCD-GN77D • IC901 CXP973064-226R (MECHANISM CONTROLLER) (DBM03 Board) Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 to 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43, 44 45 46 47 48 49 50 51 52 53 54 55 56 I/O O O O O I/O I O O I O O O — I/O I I O O I O O I I I O I O O O O I — I O — O O O I I O O O I O O — I Pin Name NO_USE SDEN DOCTRL/ ISBTEST XRST_2753 SDA_EEP MNT1 FCS_JMP_1 FCS_JMP_2 SENS_CD CDSP2 CDSP4 XCS_DVD VSS D0 to D7 INIT0_DVD INIT1_DVD MSCK_SAMBA XRST_1882 SCOR LAT_CD LD ON MIRR COUT_CD INLIM CS_ZIVA SI_ZIVA SO_ZIVA SCK_ZIVA DRVIRQ DRVRDY RST VSS XTAL EXTAL VDD SLED_A, SLED_B SCK_DSD SDOUT_DSD SDIN_DSD READY_DSD DATA_CD CLOK_CD XMSLAT SQSO MUTE_DSD SQCK VSS CONTROL_2 Description Not used (open) Serial data enable signal output to CXD1881AR Digital out on/off control signal output to CXD3068Q Not used Data bus with the EEPROM EEPROM ready signal input from CXD1882R Focus jump 1 signal output to the FAN8035L Focus jump 2 signal output to the FAN8035L Internal status (SENSE) signal input from CXD3068Q Not used Not used Chip select signal output to CXD1882R Ground Two-way data bus with CXD1882R Interrupt signal input from CXD1882R Interrupt signal input from CXD1882R Not used Reset signal output to CXD1882R Subcode sync (S0+S1) detection signal input from CXD3068Q Serial data latch pulse signal output to CXD3068Q Laser diode on/off control signal output to CXD1881AR Mirror signal input from CXD1881AR Numbers of track counted signal input from CXD1881AR Detection signal input from limit in switch The optical pick-up is inner position when “H” Chip select signal output to ZIVA5X-C1F Serial data input from ZIVA5X-C1F Serial data output to ZIVA5X-C1F Serial data transfer clock signal output to ZIVA5X-C1F Interrupt request signal output to ZIVA5X-C1F Ready signal output to ZIVA5X-C1F System reset signal input from ZIVA5X-C1F Ground System clock input terminal (20 MHz) System clock output terminal (20 MHz) Power supply (+3.3V) Sled motor drive signal output to FAN8035L Clock output to CXD1882R Serial data output (Not used) Serial data input (Not used) Ready signal input (Not used) Serial data output to CXD3068Q Serial data transfer clock signal output to CXD3068Q Serial data latch pulse signal (Not used) Subcode Q data input from CXD1882R Muting on/off control signal (Not used) Subcode Q data reading clock signal output to CXD1882R Ground Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 75 HCD-GN77D Pin No. 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 to 96 97 98 99 100 I/O I I O O I I O I I I I — I — I O O I I O O I/O I/O I O O I/O O O — — — O O O O O Pin Name CONTROL_1 GFS_DVD MUTE_CD MUTE_2D SLED FG SP_ON JIT TE PI FE AVSS AVREF AVDD GFS_CD SCLK_CD TSD-M FOK_CD LOCK_CD LDSEL SACD/DVD I2C_SIO I2C-SCL RXD TXD SDCLK_RF SDATA_RF XWR XRD (PWE) VDD VSS A0 to A7 A8 XDRST WP_EEP CLK_EEP Description Not used (open) Guard frame sync signal input from CXD1882R Muting on/off control signal output to CXD3068Q Muting on/off control signal output to FAN8035L Sled motor servo drive PWM signal input from CXD3068Q Spindle motor control signal input from CXD1881AR Muting on/off control signal output to FAN 8035L Jitter signal input Tracking error signal input from CXD1881AR Pull in signal input from CXD1881AR Focus error signal input from CXD1881AR Ground Reference voltage input (for A/D converter) Power supply (+3.3V) (for A/D converter) Guard frame sync signal input from CXD3068Q SENSE serial data reading clock signal output to CXD3068Q Thermal shut down signal output to FAN8035L Focus OK signal input from CXD3068Q GFS is sampled by 460 Hz “H” input when GFS is “H” Laser diode selection signal output SACD/DVD selection signal output Communication data bus input/output Communication data reading clock signal input/output Serial data input from the RS-232C (for check) Serial data output to the RS-232C (for check) Serial data transfer clock signal output to CXD1881AR Two-way data bus with CXD1881AR Write strobe signal output to CXD1882R Read strobe signal output to CXD1882R Not used Power supply (+3.3V) Ground Address signal output to CXD1882R Motor/coil driver power save control signal (Not used) Reset signal output Write protect signal output to the EEPROM Clock signal output to the EEPROM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 76 HCD-GN77D Description Pin Name Pin No. I/O 1 STEREO I Stereo signal input from tuner ––––––––––––––––– 2 TUNED I Tuned signal input from tuner 3 ST-CE O Tuner chip enable signal output 4 SIRCS I SIRCS input 5 ST-DOUT O Tuner data output 6 ST-DIN I Tuner data input 7 ST-CLK O Tuner clock signal output 8 BYTE — Not used (connected to ground) 9 CNVSS — Not used (Connected to ground with resistor) 10 XC-IN I Sub clock input (32.768KHz) 11 XC-OUT O Sub clock output (32.768KHz) 12 RESET I System reset input 13 X-OUT O Main system clock output (16MHz) 14 VSS — Ground 15 X-IN I Main system clock input (16MHz) 16 VCC — Power supply (+3.3V) 17 NMI I Not used (Pull up with resistor) 18 SOFT-TEST O Not used (open) 19 NO USE — Not used (open) 20 AC-CUT I AC cut check signal input 21 E-1 I DVD/CD turn table encoder signal input 22 E-2 I DVD/CD turn table encorder signal input 23 DVD-POWER (SYSPWR) O DVD power ON signal 24 NO USE — Not used (open) 25 DVD-MUTE (SYSPWR) O DVD mute signal output 26 NO USE — Not used (open) 27 STBY-RELAY O Standby relay driver signal output 28 NO USE I Not used (Connected to ground) 29 IIC-CLK I IIC serial clock input 30 IIC-DATA I IIC serial data input 31 TXD1 O Test TX data signal output (Not used) 32 VMUTE2 O Video mute 2 signal output 33 VMUTE O Video mute signal output 34 M-REQ I M request signal input 35 NO USE O Not used (open) 36 NO USE O Not used (open) 37 NO USE I Not used (Connected to ground) 38 NO USE I Not used (Connected to ground) 39 CLOCK-OUT O Not used (open) 40 SYS-RESET O DVD system reset signal 41 TBL-SENS I Table sensor signal input 42 OPEN SW I CDM eject switch signal input 43 E-3 I DVD/CD turn table encoder signal input 44 TM-F O DVD/CD turn table motor-F signal output 45 MT-R O DVD/CD turn table motor-R signal output 46 LMF O LD motor-F signal output 47 LMR O LD motor-R signal output 48 STBY-LED O Standby LED driver signal output 49 GC-RESET O Display control system reset signal output 50 HP DETECT I Headphone detect input • IC501 M30620MCN-A05FP (SYSTEM CONTOL) (MAIN Board) (E3, E15, EA) • IC501 M30620MCN-A27FP (SYSTEM CONTOL) (MAIN Board) (SP, MY, TH) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 77 HCD-GN77D Pin Name Pin No. I/O Discription 51 REC-MUTE O REC mute signal output 52 TC-MUTE O TC line mute signal output 53 PB-A/B O TC A/B select signal output ––––––––––– 54 ALC O ALC signal output 55 TC-RELAY O TC relay control signal output 56 REC BIAS O TC REC bias on/off signal output 57 CAPM-CONT O Capstan motor REV/FWD/STOP control signal output 58 B-TRG O TCM-B Trigger output 59 A-TRG O TCM-A trigger output 60 B-REC-REV I Record tab switch for SIDE-B signal input 61 B-PLAY I TCM-B play switch input 62 VCC — Power supply (+3.3V) ––––––––––––––––– 63 AMS-IN I AMS signal input 64 VSS — Ground ––– 65 EQ-H/N O EQ high/Normal signal output 66 A-REC-FWD I Record tab switch for SIDE-A signal input 67 A-HALF I A deck half detection signal input 68 SPEANA ATTN O Speana audio level control signal output 69 A-PLAY I TCM-A play switch input 70 SW RELAY O SW relay drive signal output 71 MIC DETECT I MIC detect signal input ––––––––––––––––– 72 VACE IN I VACE control signal input 73 DISPLAY-KEY I Display key signal input 74 POWER-KEY I Power key signal input 75 STK-MUTE O Mute signal output to power IC –––––––––––––––––––– 76 HP-MUTE O Headphone mute signal output 77 LINE-MUTE O TA LINE mute signal output –––––––––––––––––––––––––––– 78 PROTECTOR I Speaker protection signal input 79 AUDIO-DATA O Audio input select data output 80 AUDIO-CLK O Audio input select clock output 81 VIDEO OUT O Video out select signal output 82 AUDIO-OUT O Audio out select signal output 83 FRONT-RELAY O Front speaker relay driver signal output 84 LINK-RELAY O Rear speaker relay driver signal output (REAR L/R SURR RLY) 85 CENTER-RELAY O Center speaker relay driver signal output 86 VOLUME-DATA O Volume level control data output 87 VOLUME-CLK O Volume level control clock output 88 FAN KICK O Fan motor control signal output 89 A-SHUT I TCM-A reel pulse input 90 B-SHUT I TCM-B reel pulse input 91 B-HALF I B deck half detection input 92 MODEL-IN I Model input 93 DEST-IN I Destination input 94 I-HOLD I Sub trans over valtage detect 95 DVD-POWER-CHK I DVD power D+3.3V voltage detect signal input 96 AVSS — Ground 97 NO USE — Not used (open) 98 VREF I Reference voltage input 99 AVCC — Power supply (+3.3V) 100 ST-MUTE O Tuner mute signal output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 78 HCD-GN77D • IC601 MB90M407PF-G-130-BND (DISPLAY CONTROL) (DISPLAY Board) Description Pin Name Pin No. I/O 1 to 7 G7 to G1 O FLD grid output 8 to 10 P1 to P3 O FLD segment output 11 VSS-IO — Ground 12 to 22 P4 to P14 O FLD segment output 23 VDD-FIP — Power supply (+3.3V) 24 to 41 P15 to P32 O FLD segment output 42 VSS-IO — Ground 43 to 46 P33 to P36 O FLD segment output 47 NO USED O Not used (connected to ground) 48 VKK — Power supply (-35V) 49 MD0 I Not used (pull up with resistor) 50 MD1/VDD-VFT I Not used (pull up with resistor) 51 MD2 I Not used (pull down with resistor) 52 VOLUME 5,6 LED O Volume level indicatior LED drive signal output 53 VOLUME 7,8 LED O Volume level indicatior LED drive signal output 54 VOLUME 9,10 LED O Volume level indicatior LED drive signal output 55 VOLUME 11,MULT1 I Volume level indicatior LED drive signal output CH LED 56 VOLUME 3,4 LED I Volume level indicatior LED drive signal output 57 VOLUME 1,2 LED O Volume level indicatior LED drive signal output 58 TAPE A/B, TUNER LED O TAPE A/B indicatier LED drive signal output 59 GAME, MD/VIDEO LED O GAME, MD/VIDEO indicator LED drive signal output 60 I2C-DATA O IIC serial data output 61 I2C-CLOCK O IIC clock signal output 62 AVCC — Power supply (+3.3V) 63 AVSS — Ground 64 to 66 KEY0 to KEY2 I Key input (A/D port) 67 BPF3 I Spectrum analyzer BPF signal input 68 BPF2 I Spectrum analyzer BPF signal input 69 BPF1 I Spectrum analyzer BPF signal input 70 SUPER LOW FQUENCY I Spectrum analyzer BPF signal input (BPF0) 71 ALL BAND I L+R signal input 72 SELECTOR O LED group A/B select signal output 73 CD/DVD, REC/PAUSE O CD/DVD, REC/PAUSE indicator LED drive signal output LED 74 to 76 NO USE O Not used (connected to ground) 77 RESET I Reset input 78 SOFT TEST O Not used (open) 79 VOL 1B I Volume encoder signal B input 80 VOL 1A I Volume encoder signal A input 81 VSS-CPU — Ground 82 XOUT O Crystal oscillator output (4MHz) 83 XIN I Crystal oscillator input (4MHz) 84 VCC-CPU — Power supply (+3.3V) 85 to 86 NO USED O Not used (open) 87 to 100 G21 to G8 O FLD grid output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 79 HCD-GN77D 8-1. CASE, BACK PANEL, DMB03 BOARD SECTION SECTION 8 EXPLODED VIEWS The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. NOTE: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • Accessories are given in the last of the elec- trical parts list. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 M891 not supplied not supplied not supplied 7 2 3 4 10 9 8 11 6 #1 #1 #1 #1 #1 #1 #1 #1 #2 #1 #1 #1 #1 #1 #1 #1 #1 #1 #2 #2 #2 #2 #2 #2 #2 #1 #1 2 not supplied not supplied not supplied • Abbreviation E3 : 240 V AC Area in E model EA : Saudi Arabia model E15 : Iran model SP : Singapore model MY : Malaysia model TH : Thai model 1 4-244-102-51 LOADING PANEL 2 3-363-099-41 SCREW (CASE 3 TP2) 3 4-231-828-51 CASE 4 A-4731-346-A SUB TRANS BOARD, COMPLETE (E15,E3,SP,MY) 4 A-4734-387-A SUB TRANS BOARD, COMPLETE (TH) 4 A-4747-641-A SUB TRANS BOARD, COMPLETE (EA) 6 1-693-603-31 TUNER (FM/AM) 7 3-067-237-11 EMBLEM (V), DVD 8 A-4732-884-A REGULATOR BOARD, COMPLETE(EXCEPT TH) 8 A-4734-506-A REGULATOR BOARD, COMPLETE (TH) 9 A-4732-903-A DMB03 BOARD, COMPLETE 10 A-4732-883-A VIDEO BOARD, COMPLETE (EXCEPT TH) 10 A-4734-505-A VIDEO BOARD, COMPLETE (TH) 11 1-775-165-11 WIRE (FLAT TYPE) (17 CORE) (220mm) M891 1-763-072-11 FAN, DC #1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S #2 7-685-871-01 SCREW +BVTT 3X6 (S) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 80 HCD-GN77D 8-2. FRONT PANEL SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 57 56 55 54 53 52 77 76 79 78 75 62 62 62 74 62 71 62 62 62 70 68 67 69 62 51 73 72 64 66 65 80 80 80 64 63 62 61 58 59 60 supplied with S748 not supplied not supplied not supplied FL601 #4 #4 62 51 X-4955-539-1 FRONT PANEL ASSY 52 4-225-252-01 CUSHION (FOOT) 53 4-244-075-01 HOLDER (TC-R) 54 4-244-093-01 SPRING LID 55 4-244-072-01 LID TC 56 4-244-073-01 WINDOW TC 57 4-244-090-01 COVER (AL-TC) 58 4-244-074-01 HOLDER (TC-L) 59 4-224-578-21 KNOB (MIC) 60 4-244-097-01 KNOB (VOLUME) 61 4-244-089-21 COVER (AL-STR) 62 4-951-620-01 SCREW (2.6X8), +BVTP 63 4-963-404-21 EMBLEM (5-A), SONY 64 4-224-104-11 DAMPER 65 4-244-094-01 SPRING (L) 66 4-244-095-01 SPRING R 67 1-686-936-11 CD SWITCH BOARD 68 A-4732-868-A VOLUME BOARD, COMPLETE(EXCEPT TH) 68 A-4734-534-A VOLUME BOARD, COMPLETE(TH) 69 4-244-096-01 KNOB CURSOR 70 1-773-040-11 WIRE (FLAT TYPE) (17 CORE) (120mm) 71 A-4732-870-A DISPLAY BOARD, COMPLETE(EXCEPT TH) 71 A-4734-535-A DISPLAY BOARD, COMPLETE(TH) 72 4-231-581-01 HOLDER (FL) 73 1-773-110-11 WIRE (FLAT TYPE) (19 CORE) 74 A-4732-871-A GAME IN BOARD, COMPLETE(EXCEPT TH) 74 A-4734-533-A GAME IN BOARD, COMPLETE(TH) 75 1-796-487-31 DECK, MECHANICAL (CDM43RR23) 76 4-243-609-01 BELT (AF) 77 4-243-610-01 BELT (AL) 78 4-243-608-01 BELT (BR) 79 1-751-688-11 WIRE (FLAT TYPE) (13 CORE) 80 3-378-434-01 CUSHION, SARANET FL601 1-518-862-11 INDICATOR TUBE, FLUORESCENT #4 7-685-781-09 SCREW +PTT 2X4 (S) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 81 HCD-GN77D 8-3. CHASSIS SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. 102 107 108 103 104 105 109 106 101 not supplied not supplied not supplied not supplied F976 T910 F977 F975 F978 F979 not supplied #5 #5 #1 #1 #3 #1 #1 #1 #3 #1 #1 F974 101 1-686-930-11 TRANS BOARD 102 A-4732-880-A SURROUND BOARD, COMPLETE (EXCEPT TH) 102 A-4734-255-A SURROUND BOARD, COMPLETE (TH) 0103 1-777-071-53 CORD, POWER (EA,SP,MY) 0103 1-824-818-11 CORD, POWER (TH) 0103 1-827-226-11 CORD, POWER (E15,E3) * 104 3-703-244-00 BUSHING (2104), CORD (EA,SP,MY,TH) 104 3-703-571-11 BUSHING (S) (4516), CORD (E15,E3) 105 A-4732-874-A MAIN BOARD, COMPLETE (E15,E3,EA) 105 A-4733-140-A MAIN BOARD, COMPLETE (SP,MY) 105 A-4734-500-A MAIN BOARD, COMPLETE (TH) 106 4-225-252-01 CUSHION (FOOT) 107 A-4732-894-A POWER BOARD, COMPLETE (EXCEPT TH) 107 A-4734-595-A POWER BOARD, COMPLETE (TH) 108 4-943-687-01 HOLDER, PC BOARD * 109 4-988-533-01 HOLDER, PWB 0F974 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) (T6.3AL 250V) 0F975 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) (T6.3AL 250V) 0F976 1-576-655-11 FUSE, GLASS TUBE (DIA. 5) (T8AL 250V) 0F977 1-576-655-11 FUSE, GLASS TUBE (DIA. 5) (T8AL 250V) 0F978 1-533-471-11 FUSE, GLASS TUBE (DIA. 5) (T4AL 250V) 0F979 1-533-470-11 FUSE, GLASS TUBE (DIA. 5) (T3.15AL 250V) 0T910 1-439-742-11 TRANSFORMER, POWER (E15,E3,SP,MY,TH) 0T910 1-439-841-11 POWER TRANSFORMER (EA) #1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S #3 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3 #5 7-685-881-09 SCREW +BVTT 4X8 (S) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 82 HCD-GN77D Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 8-4. DVD MECHANISM DECK SECTION-1 (CDM74D-DVBU23) 151 152 153 154 155 155 156 156 157 157 158 158 159 151 156 162 163 164 165 160 161 164 M741 chassis assy 151 4-218-253-21 SCREW (M2.6), +BTTP 152 1-776-182-11 WIRE (FLAT TYPE) (5 CORE) 153 1-687-134-11 MOTOR (TB) BOARD 154 4-243-815-01 TABLE (LOADING) 155 4-245-571-01 GEAR (STOPPER) 156 4-218-252-61 SCREW (+PTPWH M2.6), FLOATING 157 4-245-570-01 GEAR (JOINT) 158 4-245-572-01 BUSHING (GEAR) 159 1-687-132-11 SENSOR BOARD 160 4-243-820-01 GEAR (TABLE) 161 4-243-819-01 GEAR (GENEVA) 162 4-243-816-01 TRAY 163 4-243-823-01 BELT (TABLE) 164 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING 165 4-243-821-01 PULLEY (TABLE) M741 A-4723-963-A MOTOR ASSY, TABLE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 83 HCD-GN77D Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 8-5. DVD MECHANISM DECK SECTION-2 (CDM74D-DVBU23) 201 202 202 202 203 204 205 206 207 208 210 211 212 213 214 215 216 217 219 222 222 224 227 225 228 226 223 223 222 223 229 209 220 230 218 205 205 205 M751 RE701 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. 201 1-687-135-11 DRIVER BOARD 202 4-218-253-31 SCREW (M2.6), +BTTP 203 1-687-669-11 SW BOARD 204 4-244-034-01 BELT (LOADING) 205 4-218-252-61 SCREW (+PTPWH M2.6), FLOATING 206 4-225-844-01 GEAR (LOADING A) 207 4-224-613-01 GEAR (SHAFT) 208 1-687-133-11 MOTOR (LD) BOARD 209 4-243-817-11 CHASSIS 210 4-244-108-01 GEAR, SWING 211 4-224-609-01 GEAR (LOADING C) 212 4-224-608-01 COLLAR, SWING 213 3-016-533-01 WASHER (FR), STOPPER 214 4-224-611-01 GEAR (LOADING B) 215 4-224-606-01 GEAR (RV) 216 4-243-818-01 GEAR (U/D) 217 4-243-822-01 LEVER (LIFTER) 218 X-4954-450-1 PULLEY (240) ASSY 219 4-233-594-01 PULLEY (B) (DVD), CHUCKING 220 X-4955-538-1 HOLDER (DBU) ASSY 222 3-053-847-31 INSULATOR 223 4-981-923-01 SCREW (M), STEP 224 4-218-252-51 SCREW (+PTPWH M2.6), FLOATING 225 4-218-253-11 SCREW (M2.6), +BTTP 226 1-775-265-11 WIRE (FLAT TYPE) (29 CORE) 227 1-824-106-12 CABLE, FLEXIBLE FLAT (24 CORE) 228 A-4728-690-A RF BOARD, COMPLETE 0229 1-477-263-11 OPTICAL PICK-UP (TDP022W) 230 3-053-844-01 YOKE M751 A-4737-553-A MOTOR ASSY, LOADING RE701 1-477-680-11 ENCODER, ROTARY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 84 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN77D SECTION 9 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks NOTE: • Due to standardization, replacements in the parts list may be different from the parts speci- fied in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when order- ing these items. • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. . • CAPACITORS uF: µF • COILS uH: µH The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. CD SWITCH DISPLAY • Abbreviation E3 : 240 V AC Area in E model EA : Saudi Arabia model E15 : Iran model SP : Singapore model MY : Malaysia model TH : Thai model 1-686-936-11 CD SWITCH BOARD *************** < DIODE > D748 8-719-058-04 DIODE SEL5223S-TP15 (=/1) < TRANSISTOR > Q748 8-729-116-02 TRANSISTOR BA1A4M-TP < RESISTOR > R748 1-249-411-11 CARBON 330 5% 1/4W R749 1-249-410-11 CARBON 270 5% 1/4W F R788 1-249-427-11 CARBON 6.8K 5% 1/4W F R789 1-249-429-11 CARBON 10K 5% 1/4W R790 1-249-431-11 CARBON 15K 5% 1/4W R791 1-249-433-11 CARBON 22K 5% 1/4W R792 1-249-435-11 CARBON 33K 5% 1/4W < SWITCH > S749 1-762-875-21 SWITCH, KEYBOARD (=/1) S788 1-762-875-21 SWITCH, KEYBOARD (ZOPEN/CLOSE) S789 1-762-875-21 SWITCH, KEYBOARD (EX-CHANGE/DISK SKIP) S790 1-762-875-21 SWITCH, KEYBOARD (DISC 3) S791 1-762-875-21 SWITCH, KEYBOARD (DISC 2) S792 1-762-875-21 SWITCH, KEYBOARD (DISC 1) ****************************************************** A-4732-870-A DISPLAY BOARD, COMPLETE (EXCEPT TH) A-4734-535-A DISPLAY BOARD, COMPLETE (TH) ********************* 4-231-581-01 HOLDER (FL) < CAPACITOR > C100 1-126-964-11 ELECT 10uF 20% 50V C101 1-137-194-81 FILM 0.47uF 5% 50V C102 1-137-194-81 FILM 0.47uF 5% 50V C104 1-126-964-11 ELECT 10uF 20% 50V C105 1-126-957-11 ELECT 0.22uF 20% 50V C106 1-136-165-00 FILM 0.1uF 5% 50V C107 1-136-165-00 FILM 0.1uF 5% 50V C109 1-124-261-00 ELECT 10uF 20% 50V C110 1-126-957-11 ELECT 0.22uF 20% 50V C111 1-136-157-00 FILM 0.022uF 5% 50V C112 1-136-157-00 FILM 0.022uF 5% 50V C114 1-126-964-11 ELECT 10uF 20% 50V C115 1-126-957-11 ELECT 0.22uF 20% 50V C116 1-130-475-00 MYLAR 0.0022uF 5% 50V C117 1-130-475-00 MYLAR 0.0022uF 5% 50V C118 1-126-964-11 ELECT 10uF 20% 50V C119 1-124-261-00 ELECT 10uF 20% 50V C120 1-126-957-11 ELECT 0.22uF 20% 50V C121 1-126-963-11 ELECT 4.7uF 20% 50V C122 1-124-584-00 ELECT 100uF 20% 10V C123 1-104-665-11 ELECT 100uF 20% 10V C124 1-126-964-11 ELECT 10uF 20% 50V C125 1-164-159-21 CERAMIC 0.1uF 50V(TH) C125 1-164-159-11 CERAMIC 0.1uF 50V (EXCEPT TH) C152 1-162-286-21 CERAMIC 220PF 10% 50V(TH) C152 1-162-286-31 CERAMIC 220PF 10% 50V (EXCEPT TH) C153 1-162-286-21 CERAMIC 220PF 10% 50V(TH) C153 1-162-286-31 CERAMIC 220PF 10% 50V (EXCEPT TH) C154 1-162-286-21 CERAMIC 220PF 10% 50V(TH) C154 1-162-286-31 CERAMIC 220PF 10% 50V (EXCEPT TH) C155 1-162-286-21 CERAMIC 220PF 10% 50V(TH) C155 1-162-286-31 CERAMIC 220PF 10% 50V (EXCEPT TH) C156 1-162-286-21 CERAMIC 220PF 10% 50V(TH) C156 1-162-286-31 CERAMIC 220PF 10% 50V (EXCEPT TH) C157 1-162-286-21 CERAMIC 220PF 10% 50V(TH) C157 1-162-286-31 CERAMIC 220PF 10% 50V (EXCEPT TH) C618 1-162-306-11 CERAMIC 0.01uF 30% 16V C619 1-124-589-11 ELECT 47uF 20% 16V C620 1-162-306-11 CERAMIC 0.01uF 30% 16V C622 1-126-163-11 ELECT 4.7uF 20% 50V C623 1-162-294-31 CERAMIC 0.001uF 10% 50V C624 1-162-306-11 CERAMIC 0.01uF 30% 16V C625 1-162-306-11 CERAMIC 0.01uF 30% 16V C626 1-162-306-11 CERAMIC 0.01uF 30% 16V C627 1-162-306-11 CERAMIC 0.01uF 30% 16V C628 1-162-306-11 CERAMIC 0.01uF 30% 16V C651 1-164-159-21 CERAMIC 0.1uF 50V(TH) C651 1-164-159-11 CERAMIC 0.1uF 50V (EXCEPT TH) C652 1-124-261-00 ELECT 10uF 20% 50V C653 1-124-261-00 ELECT 10uF 20% 50V C710 1-162-306-11 CERAMIC 0.01uF 30% 16V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 85 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN77D DISPLAY C711 1-162-306-11 CERAMIC 0.01uF 30% 16V C712 1-162-306-11 CERAMIC 0.01uF 30% 16V < CONNECTOR > * CN601 1-569-935-11 SOCKET, CONNECTOR 19P CN604 1-568-860-11 SOCKET, CONNECTOR 17P < DIODE > D100 8-719-109-66 DIODE MTZJ-T-77-3.3B (TH) D100 8-719-983-63 DIODE MTZJ-T-72-3.3B (EXCEPT TH) D101 8-719-991-33 DIODE 1SS133T-72 D102 8-719-991-33 DIODE 1SS133T-72 D103 8-719-991-33 DIODE 1SS133T-72 D104 8-719-991-33 DIODE 1SS133T-72 D105 8-719-991-33 DIODE 1SS133T-72 D106 6-500-522-01 DIODE 10EDB40-TA1B2 (TH) D106 6-500-522-11 DIODE 10EDB40-TA2B5 (EXCEPT TH) D107 6-500-522-01 DIODE 10EDB40-TA1B2 (TH) D107 6-500-522-11 DIODE 10EDB40-TA2B5 (EXCEPT TH) D601 8-719-063-93 DIODE SLR325VC-N-T32 (REC PAUSE/START) D602 8-719-057-97 DIODE SEL5923A-TP15 (GAME) D603 8-719-057-97 DIODE SEL5923A-TP15 (MD(VIDEO)) D604 8-719-057-97 DIODE SEL5923A-TP15 (DVD) D605 8-719-057-97 DIODE SEL5923A-TP15 (TUNER/BAND) D606 8-719-057-97 DIODE SEL5923A-TP15 (TAPE A/B) D610 8-719-109-85 DIODE MTZJ-T-72-5.1B < FLUORESCENT INDICATOR TUBE > FL601 1-518-862-11 INDICATOR TUBE, FLUORESCENT < IC > IC101 8-759-167-88 IC NJM4565D IC102 8-759-167-88 IC NJM4565D IC601 6-802-903-01 IC MB90M407PF-G-130-BND < TRANSISTOR > Q100 8-729-141-30 TRANSISTOR 2SC3623ATP-LK Q601 8-729-116-02 TRANSISTOR BA1A4M-TP Q602 8-729-116-02 TRANSISTOR BA1A4M-TP Q603 8-729-116-02 TRANSISTOR BA1A4M-TP Q604 8-729-116-02 TRANSISTOR BA1A4M-TP Q605 8-729-140-04 TRANSISTOR 2SB1116-TP-LK Q606 8-729-140-04 TRANSISTOR 2SB1116-TP-LK Q707 8-729-116-02 TRANSISTOR BA1A4M-TP Q807 8-729-029-94 TRANSISTOR BA1L3Z-TP Q808 8-729-029-94 TRANSISTOR BA1L3Z-TP < RESISTOR > R102 1-249-419-11 CARBON 1.5K 5% 1/4W F R103 1-249-419-11 CARBON 1.5K 5% 1/4W F R104 1-249-440-11 CARBON 82K 5% 1/4W R105 1-249-415-11 CARBON 680 5% 1/4W F R106 1-249-441-11 CARBON 100K 5% 1/4W R107 1-249-441-11 CARBON 100K 5% 1/4W R108 1-249-419-11 CARBON 1.5K 5% 1/4W F R109 1-249-419-11 CARBON 1.5K 5% 1/4W F R110 1-249-440-11 CARBON 82K 5% 1/4W R111 1-249-415-11 CARBON 680 5% 1/4W F R112 1-249-441-11 CARBON 100K 5% 1/4W R113 1-249-441-11 CARBON 100K 5% 1/4W R114 1-249-419-11 CARBON 1.5K 5% 1/4W F R115 1-249-419-11 CARBON 1.5K 5% 1/4W F R116 1-249-440-11 CARBON 82K 5% 1/4W R117 1-249-415-11 CARBON 680 5% 1/4W F R118 1-249-441-11 CARBON 100K 5% 1/4W R119 1-249-441-11 CARBON 100K 5% 1/4W R120 1-249-419-11 CARBON 1.5K 5% 1/4W F R121 1-249-419-11 CARBON 1.5K 5% 1/4W F R122 1-249-440-11 CARBON 82K 5% 1/4W R123 1-249-415-11 CARBON 680 5% 1/4W F R124 1-249-441-11 CARBON 100K 5% 1/4W R125 1-249-441-11 CARBON 100K 5% 1/4W R127 1-249-409-11 CARBON 220 5% 1/4W F R128 1-247-895-91 CARBON 470K 5% 1/4W (TH) R128 1-247-895-00 CARBON 470K 5% 1/4W (EXCEPT TH) R129 1-249-425-11 CARBON 4.7K 5% 1/4W F R130 1-249-425-11 CARBON 4.7K 5% 1/4W F R131 1-249-441-11 CARBON 100K 5% 1/4W R132 1-249-441-11 CARBON 100K 5% 1/4W R133 1-249-441-11 CARBON 100K 5% 1/4W R134 1-249-441-11 CARBON 100K 5% 1/4W R136 1-249-439-11 CARBON 68K 5% 1/4W R137 1-249-433-11 CARBON 22K 5% 1/4W R138 1-249-420-11 CARBON 1.8K 5% 1/4W F R139 1-249-411-11 CARBON 330 5% 1/4W R140 1-247-807-31 CARBON 100 5% 1/4W R626 1-249-411-11 CARBON 330 5% 1/4W R627 1-249-411-11 CARBON 330 5% 1/4W R628 1-249-411-11 CARBON 330 5% 1/4W R629 1-249-411-11 CARBON 330 5% 1/4W R630 1-249-411-11 CARBON 330 5% 1/4W R631 1-249-415-11 CARBON 680 5% 1/4W F R632 1-249-415-11 CARBON 680 5% 1/4W F R633 1-249-415-11 CARBON 680 5% 1/4W F R634 1-249-429-11 CARBON 10K 5% 1/4W R635 1-249-429-11 CARBON 10K 5% 1/4W R636 1-249-429-11 CARBON 10K 5% 1/4W R637 1-249-429-11 CARBON 10K 5% 1/4W R645 1-249-429-11 CARBON 10K 5% 1/4W R646 1-247-807-31 CARBON 100 5% 1/4W R647 1-247-807-31 CARBON 100 5% 1/4W R652 1-249-429-11 CARBON 10K 5% 1/4W R653 1-249-429-11 CARBON 10K 5% 1/4W R654 1-247-807-31 CARBON 100 5% 1/4W R655 1-247-807-31 CARBON 100 5% 1/4W R656 1-247-807-31 CARBON 100 5% 1/4W R657 1-249-431-11 CARBON 15K 5% 1/4W R658 1-249-431-11 CARBON 15K 5% 1/4W R659 1-249-431-11 CARBON 15K 5% 1/4W R660 1-247-903-00 CARBON 1M 5% 1/4W R661 1-249-429-11 CARBON 10K 5% 1/4W R662 1-249-429-11 CARBON 10K 5% 1/4W R663 1-249-429-11 CARBON 10K 5% 1/4W R751 1-249-413-11 CARBON 470 5% 1/4W F R752 1-249-415-11 CARBON 680 5% 1/4W F R753 1-249-417-11 CARBON 1K 5% 1/4W F R754 1-249-419-11 CARBON 1.5K 5% 1/4W F R755 1-249-419-11 CARBON 1.5K 5% 1/4W F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 86 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN77D DISPLAY DMB03 R756 1-249-421-11 CARBON 2.2K 5% 1/4W F R757 1-247-843-11 CARBON 3.3K 5% 1/4W R758 1-249-425-11 CARBON 4.7K 5% 1/4W F R779 1-249-413-11 CARBON 470 5% 1/4W F R781 1-249-415-11 CARBON 680 5% 1/4W F R782 1-249-417-11 CARBON 1K 5% 1/4W F R783 1-249-419-11 CARBON 1.5K 5% 1/4W F R784 1-249-419-11 CARBON 1.5K 5% 1/4W F R785 1-249-421-11 CARBON 2.2K 5% 1/4W F R786 1-247-843-11 CARBON 3.3K 5% 1/4W R787 1-249-425-11 CARBON 4.7K 5% 1/4W F R807 1-249-441-11 CARBON 100K 5% 1/4W R808 1-249-441-11 CARBON 100K 5% 1/4W R817 1-249-406-11 CARBON 120 5% 1/4W F R818 1-249-408-11 CARBON 180 5% 1/4W F R819 1-249-408-11 CARBON 180 5% 1/4W F R820 1-249-408-11 CARBON 180 5% 1/4W F R821 1-249-406-11 CARBON 120 5% 1/4W F R822 1-249-417-11 CARBON 1K 5% 1/4W F R823 1-249-417-11 CARBON 1K 5% 1/4W F < SWITCH > S751 1-762-875-21 SWITCH, KEYBOARD (gG) S752 1-762-875-21 SWITCH, KEYBOARD (x) S753 1-762-875-21 SWITCH, KEYBOARD (X) S754 1-762-875-21 SWITCH, KEYBOARD (-,.) S755 1-762-875-21 SWITCH, KEYBOARD (>,+) S756 1-762-875-21 SWITCH, KEYBOARD (M,ALBUM +) S757 1-762-875-21 SWITCH, KEYBOARD (m,ALBUM -) S758 1-762-875-21 SWITCH, KEYBOARD (REC PAUSE/START) S779 1-762-875-21 SWITCH, KEYBOARD (CD SYNC) S781 1-762-875-21 SWITCH, KEYBOARD (KARAOKE/MPX) S782 1-762-875-21 SWITCH, KEYBOARD (GAME MIXING) S783 1-762-875-21 SWITCH, KEYBOARD (GAME) S784 1-762-875-21 SWITCH, KEYBOARD (MD(VIDEO)) S785 1-762-875-21 SWITCH, KEYBOARD (TAPE A/B) S786 1-762-875-21 SWITCH, KEYBOARD (TUNER/BAND) S787 1-762-875-21 SWITCH, KEYBOARD (DVD) < VIBRATOR > X601 1-577-358-21 VIBRATOR, CERAMIC (4MHz) ****************************************************** A-4732-903-A DMB03 BOARD, COMPLETE (EXCEPT TH) A-4734-638-A DMB03 BOARD, COMPLETE (TH) ******************** < CAPACITOR > C101 1-126-246-11 ELECT CHIP 220uF 20% 4V C151 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C204 1-164-947-11 CERAMIC CHIP 0.01uF 50V C205 1-164-947-11 CERAMIC CHIP 0.01uF 50V C213 1-126-209-11 ELECT CHIP 100uF 20% 4V C214 1-164-947-11 CERAMIC CHIP 0.01uF 50V C215 1-164-947-11 CERAMIC CHIP 0.01uF 50V C216 1-164-947-11 CERAMIC CHIP 0.01uF 50V C218 1-164-947-11 CERAMIC CHIP 0.01uF 50V C220 1-164-947-11 CERAMIC CHIP 0.01uF 50V C226 1-107-820-11 CERAMIC CHIP 0.1uF 16V C227 1-164-947-11 CERAMIC CHIP 0.01uF 50V C229 1-164-947-11 CERAMIC CHIP 0.01uF 50V C230 1-164-947-11 CERAMIC CHIP 0.01uF 50V C231 1-164-947-11 CERAMIC CHIP 0.01uF 50V C232 1-164-947-11 CERAMIC CHIP 0.01uF 50V C233 1-164-947-11 CERAMIC CHIP 0.01uF 50V C234 1-164-947-11 CERAMIC CHIP 0.01uF 50V C235 1-164-947-11 CERAMIC CHIP 0.01uF 50V C236 1-164-947-11 CERAMIC CHIP 0.01uF 50V C237 1-164-947-11 CERAMIC CHIP 0.01uF 50V C238 1-164-947-11 CERAMIC CHIP 0.01uF 50V C239 1-164-947-11 CERAMIC CHIP 0.01uF 50V C240 1-164-947-11 CERAMIC CHIP 0.01uF 50V C241 1-164-947-11 CERAMIC CHIP 0.01uF 50V C242 1-164-947-11 CERAMIC CHIP 0.01uF 50V C243 1-164-947-11 CERAMIC CHIP 0.01uF 50V C244 1-164-947-11 CERAMIC CHIP 0.01uF 50V C245 1-164-947-11 CERAMIC CHIP 0.01uF 50V C246 1-164-947-11 CERAMIC CHIP 0.01uF 50V C247 1-164-947-11 CERAMIC CHIP 0.01uF 50V C248 1-164-947-11 CERAMIC CHIP 0.01uF 50V C249 1-164-947-11 CERAMIC CHIP 0.01uF 50V C250 1-164-947-11 CERAMIC CHIP 0.01uF 50V C251 1-164-947-11 CERAMIC CHIP 0.01uF 50V C252 1-164-947-11 CERAMIC CHIP 0.01uF 50V C253 1-164-947-11 CERAMIC CHIP 0.01uF 50V C254 1-164-947-11 CERAMIC CHIP 0.01uF 50V C255 1-117-370-11 CERAMIC CHIP 10uF 10V C256 1-164-947-11 CERAMIC CHIP 0.01uF 50V C257 1-164-947-11 CERAMIC CHIP 0.01uF 50V C258 1-117-370-11 CERAMIC CHIP 10uF 10V C259 1-164-947-11 CERAMIC CHIP 0.01uF 50V C260 1-164-947-11 CERAMIC CHIP 0.01uF 50V C261 1-164-947-11 CERAMIC CHIP 0.01uF 50V C262 1-164-947-11 CERAMIC CHIP 0.01uF 50V C263 1-164-947-11 CERAMIC CHIP 0.01uF 50V C264 1-164-947-11 CERAMIC CHIP 0.01uF 50V C265 1-117-370-11 CERAMIC CHIP 10uF 10V C266 1-164-947-11 CERAMIC CHIP 0.01uF 50V C267 1-164-947-11 CERAMIC CHIP 0.01uF 50V C268 1-164-947-11 CERAMIC CHIP 0.01uF 50V C269 1-164-947-11 CERAMIC CHIP 0.01uF 50V C270 1-164-947-11 CERAMIC CHIP 0.01uF 50V C271 1-164-947-11 CERAMIC CHIP 0.01uF 50V C272 1-164-947-11 CERAMIC CHIP 0.01uF 50V C275 1-164-947-11 CERAMIC CHIP 0.01uF 50V C281 1-164-947-11 CERAMIC CHIP 0.01uF 50V C282 1-164-947-11 CERAMIC CHIP 0.01uF 50V C288 1-164-947-11 CERAMIC CHIP 0.01uF 50V C289 1-164-947-11 CERAMIC CHIP 0.01uF 50V C302 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C303 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C304 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C305 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C306 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C307 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C308 1-164-874-11 CERAMIC CHIP 100PF 5% 50V C309 1-164-874-11 CERAMIC CHIP 100PF 5% 50V C315 1-164-947-11 CERAMIC CHIP 0.01uF 50V C316 1-164-947-11 CERAMIC CHIP 0.01uF 50V C321 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C322 1-107-820-11 CERAMIC CHIP 0.1uF 16V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 87 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN77D DMB03 C323 1-107-820-11 CERAMIC CHIP 0.1uF 16V C324 1-107-820-11 CERAMIC CHIP 0.1uF 16V C325 1-126-209-11 ELECT CHIP 100uF 20% 4V C326 1-164-947-11 CERAMIC CHIP 0.01uF 50V C392 1-126-395-11 ELECT 22uF 20% 16V C393 1-164-947-11 CERAMIC CHIP 0.01uF 50V C394 1-126-246-11 ELECT CHIP 220uF 20% 4V C412 1-216-864-11 METAL CHIP 0 5% 1/10W C413 1-216-864-11 METAL CHIP 0 5% 1/10W C414 1-216-864-11 METAL CHIP 0 5% 1/10W C415 1-216-864-11 METAL CHIP 0 5% 1/10W C416 1-216-864-11 METAL CHIP 0 5% 1/10W C501 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C502 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C503 1-127-772-81 CERAMIC CHIP 33000PF 10% 10V C504 1-127-772-81 CERAMIC CHIP 33000PF 10% 10V C506 1-164-934-11 CERAMIC CHIP 330PF 10% 50V C508 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V C509 1-164-934-11 CERAMIC CHIP 330PF 10% 50V C510 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V C512 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C514 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C516 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V C517 1-117-370-11 CERAMIC CHIP 10uF 10V C518 1-164-947-11 CERAMIC CHIP 0.01uF 50V C519 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C522 1-125-777-11 CERAMIC CHIP 0.1uF 10% 6.3V C525 1-164-947-11 CERAMIC CHIP 0.01uF 50V C526 1-126-395-11 ELECT 22uF 20% 16V C527 1-164-947-11 CERAMIC CHIP 0.01uF 50V C528 1-126-395-11 ELECT 22uF 20% 16V C529 1-164-947-11 CERAMIC CHIP 0.01uF 50V C531 1-119-923-11 CERAMIC CHIP 0.047uF 10% 10V C533 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V C534 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V C535 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V C543 1-107-820-11 CERAMIC CHIP 0.1uF 16V C544 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C545 1-117-370-11 CERAMIC CHIP 10uF 10V C547 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V C548 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C551 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C552 1-216-295-91 SHORT CHIP 0 C553 1-164-940-11 CERAMIC CHIP 0.0033uF 10% 16V C556 1-117-370-11 CERAMIC CHIP 10uF 10V C558 1-126-209-11 ELECT CHIP 100uF 20% 4V C559 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C560 1-164-938-11 CERAMIC CHIP 0.0015uF 10% 50V C561 1-107-820-11 CERAMIC CHIP 0.1uF 16V C563 1-164-874-11 CERAMIC CHIP 100PF 5% 50V C565 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C567 1-107-820-11 CERAMIC CHIP 0.1uF 16V C568 1-117-370-11 CERAMIC CHIP 10uF 10V C569 1-107-820-11 CERAMIC CHIP 0.1uF 16V C570 1-117-370-11 CERAMIC CHIP 10uF 10V C573 1-164-874-11 CERAMIC CHIP 100PF 5% 50V C588 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V C589 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V C590 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V C592 1-124-779-00 ELECT CHIP 10uF 20% 16V C701 1-126-209-11 ELECT CHIP 100uF 20% 4V C702 1-117-370-11 CERAMIC CHIP 10uF 10V C703 1-125-777-11 CERAMIC CHIP 0.1uF 10% 6.3V C705 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C706 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C708 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C709 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C711 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V(TH) C711 1-119-923-11 CERAMIC CHIP 0.047uF 10% 10V (EXCEPT TH) C712 1-164-874-11 CERAMIC CHIP 100PF 5% 50V C713 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C714 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C715 1-164-938-11 CERAMIC CHIP 0.0015uF 10% 50V C716 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C717 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C718 1-107-820-11 CERAMIC CHIP 0.1uF 16V C720 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C721 1-107-820-11 CERAMIC CHIP 0.1uF 16V C722 1-107-820-11 CERAMIC CHIP 0.1uF 16V C723 1-107-820-11 CERAMIC CHIP 0.1uF 16V C724 1-107-820-11 CERAMIC CHIP 0.1uF 16V C725 1-107-820-11 CERAMIC CHIP 0.1uF 16V C726 1-107-820-11 CERAMIC CHIP 0.1uF 16V C727 1-117-370-11 CERAMIC CHIP 10uF 10V C728 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C729 1-117-370-11 CERAMIC CHIP 10uF 10V C730 1-107-820-11 CERAMIC CHIP 0.1uF 16V C740 1-107-820-11 CERAMIC CHIP 0.1uF 16V C741 1-107-820-11 CERAMIC CHIP 0.1uF 16V C742 1-107-820-11 CERAMIC CHIP 0.1uF 16V C743 1-107-820-11 CERAMIC CHIP 0.1uF 16V C744 1-107-820-11 CERAMIC CHIP 0.1uF 16V C745 1-107-820-11 CERAMIC CHIP 0.1uF 16V C752 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C760 1-107-820-11 CERAMIC CHIP 0.1uF 16V C761 1-107-820-11 CERAMIC CHIP 0.1uF 16V C762 1-107-820-11 CERAMIC CHIP 0.1uF 16V C763 1-107-820-11 CERAMIC CHIP 0.1uF 16V C764 1-107-820-11 CERAMIC CHIP 0.1uF 16V C765 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C766 1-164-874-11 CERAMIC CHIP 100PF 5% 50V C767 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C768 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C769 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C770 1-107-820-11 CERAMIC CHIP 0.1uF 16V C771 1-119-923-11 CERAMIC CHIP 0.047uF 10% 10V C772 1-107-820-11 CERAMIC CHIP 0.1uF 16V C773 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C774 1-164-941-11 CERAMIC CHIP 0.0047uF 10% 16V C775 1-107-820-11 CERAMIC CHIP 0.1uF 16V C776 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C777 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C778 1-107-820-11 CERAMIC CHIP 0.1uF 16V C779 1-117-370-11 CERAMIC CHIP 10uF 10V C780 1-117-370-11 CERAMIC CHIP 10uF 10V C781 1-165-643-21 ELECT CHIP 150uF 20% 4V C782 1-164-938-11 CERAMIC CHIP 0.0015uF 10% 50V C783 1-164-938-11 CERAMIC CHIP 0.0015uF 10% 50V C901 1-126-209-11 ELECT CHIP 100uF 20% 4V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 88 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN77D DMB03 C902 1-164-947-11 CERAMIC CHIP 0.01uF 50V C903 1-126-209-11 ELECT CHIP 100uF 20% 4V C904 1-164-947-11 CERAMIC CHIP 0.01uF 50V C905 1-164-947-11 CERAMIC CHIP 0.01uF 50V C906 1-164-947-11 CERAMIC CHIP 0.01uF 50V C907 1-164-947-11 CERAMIC CHIP 0.01uF 50V C908 1-164-874-11 CERAMIC CHIP 100PF 5% 50V C909 1-164-874-11 CERAMIC CHIP 100PF 5% 50V C910 1-164-947-11 CERAMIC CHIP 0.01uF 50V C913 1-127-772-81 CERAMIC CHIP 33000PF 10% 10V C914 1-164-847-11 CERAMIC CHIP 7PF 0.50PF 50V C915 1-164-847-11 CERAMIC CHIP 7PF 0.50PF 50V C916 1-126-209-11 ELECT CHIP 100uF 20% 4V C917 1-164-947-11 CERAMIC CHIP 0.01uF 50V C918 1-164-947-11 CERAMIC CHIP 0.01uF 50V C924 1-164-947-11 CERAMIC CHIP 0.01uF 50V C925 1-126-395-11 ELECT 22uF 20% 16V C926 1-126-246-11 ELECT CHIP 220uF 20% 4V C927 1-164-947-11 CERAMIC CHIP 0.01uF 50V C928 1-117-370-11 CERAMIC CHIP 10uF 10V < CONNECTOR > CN101 1-784-366-21 CONNECTOR, FFC/FPC 7P CN102 1-815-954-21 PIN, CONNECTOR (PC BOARD) 13P CN105 1-784-376-11 CONNECTOR, FFC/FPC 17P CN107 1-784-382-21 CONNECTOR, FFC/FPC 25P CN202 1-784-364-21 CONNECTOR, FFC/FPC 4P CN501 1-778-957-11 CONNECTOR, FFC/FPC 29P CN901 1-764-177-11 PIN, CONNECTOR (SMD)(1.5mm) 7P < DIODE > D202 8-719-988-61 DIODE 1SS355TE-17 D392 8-719-988-61 DIODE 1SS355TE-17 D393 8-719-988-61 DIODE 1SS355TE-17 D394 8-719-988-61 DIODE 1SS355TE-17 D901 8-719-988-61 DIODE 1SS355TE-17 D1101 8-719-988-61 DIODE 1SS355TE-17 D1102 8-719-988-61 DIODE 1SS355TE-17 D1301 8-719-988-61 DIODE 1SS355TE-17 D1302 8-719-988-61 DIODE 1SS355TE-17 D1303 8-719-988-61 DIODE 1SS355TE-17 D1304 8-719-988-61 DIODE 1SS355TE-17 D1305 8-719-988-61 DIODE 1SS355TE-17 D1306 8-719-988-61 DIODE 1SS355TE-17 D1307 8-719-988-61 DIODE 1SS355TE-17 D1308 8-719-988-61 DIODE 1SS355TE-17 D1801 8-719-988-61 DIODE 1SS355TE-17 D1802 8-719-988-61 DIODE 1SS355TE-17 D1803 8-719-988-61 DIODE 1SS355TE-17 D1804 8-719-988-61 DIODE 1SS355TE-17 D1805 8-719-988-61 DIODE 1SS355TE-17 D1806 8-719-988-61 DIODE 1SS355TE-17 < FERRITE BEAD > FB902 1-500-284-21 FERRITE 0uH FB903 1-500-284-21 FERRITE 0uH < FILTER > FL203 1-234-177-21 FERRITE 0uH FL204 1-234-177-21 FERRITE 0uH FL205 1-234-177-21 FERRITE 0uH FL206 1-234-177-21 FERRITE 0uH FL302 1-234-177-21 FERRITE 0uH FL303 1-234-177-21 FERRITE 0uH FL501 1-234-177-21 FERRITE 0uH FL502 1-234-177-21 FERRITE 0uH FL701 1-234-177-21 FERRITE 0uH FL702 1-234-177-21 FERRITE 0uH FL703 1-234-177-21 FERRITE 0uH FL704 1-234-177-21 FERRITE 0uH FL705 1-234-177-21 FERRITE 0uH FL706 1-234-177-21 FERRITE 0uH FL901 1-234-177-21 FERRITE 0uH FL903 1-234-177-21 FERRITE 0uH FL908 1-234-177-21 FERRITE 0uH < IC > IC203 6-704-069-01 IC MT48LC4M32B2TG-6 IC204 8-759-668-01 IC BR9040F-D-E2 IC206 8-759-826-41 IC MBM29DL324BE-90PFTN IC207 6-703-540-01 IC ZIVA5X-C1F IC211 6-700-398-01 IC uPC2918T-E1 IC216 6-700-437-01 IC SN74ALVCH16841DGGR IC252 8-759-680-48 IC TC7WH157FK(TE85R) IC302 6-703-787-01 IC PCM1609KPTR IC392 8-759-583-47 IC uPC2933T-E2 IC501 6-702-157-01 IC FAN8035L IC503 8-759-058-43 IC NJM3404AV(TE2) IC509 8-752-408-73 IC CXD3068Q IC701 6-703-552-01 IC TMC57929PGF-RDP IC703 8-759-058-43 IC NJM3404AV(TE2) IC706 8-759-564-30 IC MSM51V18165F-60TSKR1 IC901 8-752-937-30 IC CXP973064-226R IC902 8-759-058-64 IC TC7S32FU-TE85L IC903 8-759-641-86 IC BR24C16F-E2 IC904 6-702-563-01 IC TC7W74FK-TE85L IC906 6-700-407-01 IC SM8707GV-G-E2 IC907 8-759-583-47 IC uPC2933T-E2 < WIRE JUMPER > JW392 1-216-864-11 METAL CHIP 0 5% 1/10W JW601 1-218-990-11 SHORT CHIP 0 JW602 1-218-990-11 SHORT CHIP 0 JW603 1-218-990-11 SHORT CHIP 0 JW604 1-218-990-11 SHORT CHIP 0 JW605 1-218-990-11 SHORT CHIP 0 JW606 1-218-990-11 SHORT CHIP 0 JW607 1-218-990-11 SHORT CHIP 0 JW801 1-218-990-11 SHORT CHIP 0 JW802 1-218-990-11 SHORT CHIP 0 JW803 1-218-990-11 SHORT CHIP 0 JW804 1-218-990-11 SHORT CHIP 0 JW805 1-218-990-11 SHORT CHIP 0 JW806 1-218-990-11 SHORT CHIP 0 < COIL > L402 1-216-296-11 SHORT CHIP 0 L403 1-216-296-11 SHORT CHIP 0 L404 1-216-296-11 SHORT CHIP 0 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 89 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN77D DMB03 L405 1-216-296-11 SHORT CHIP 0 L406 1-216-296-11 SHORT CHIP 0 L412 1-216-296-11 SHORT CHIP 0 L413 1-216-296-11 SHORT CHIP 0 L414 1-216-296-11 SHORT CHIP 0 L415 1-216-296-11 SHORT CHIP 0 L416 1-216-296-11 SHORT CHIP 0 L901 1-412-031-11 INDUCTOR CHIP 47uH < TRANSISTOR > Q202 8-729-929-26 TRANSISTOR DTC114TE-TL Q901 8-729-929-26 TRANSISTOR DTC114TE-TL Q903 8-729-025-28 TRANSISTOR 2SK1828TE85L Q904 8-729-025-28 TRANSISTOR 2SK1828TE85L < RESISTOR > R10 1-216-801-11 METAL CHIP 22 5% 1/10W R11 1-216-801-11 METAL CHIP 22 5% 1/10W R12 1-216-801-11 METAL CHIP 22 5% 1/10W R13 1-216-801-11 METAL CHIP 22 5% 1/10W R14 1-216-801-11 METAL CHIP 22 5% 1/10W R15 1-216-801-11 METAL CHIP 22 5% 1/10W R201 1-216-833-11 METAL CHIP 10K 5% 1/10W R207 1-216-864-11 METAL CHIP 0 5% 1/10W R213 1-216-807-11 METAL CHIP 68 5% 1/10W R214 1-216-864-11 METAL CHIP 0 5% 1/10W R215 1-216-864-11 METAL CHIP 0 5% 1/10W R217 1-216-864-11 METAL CHIP 0 5% 1/10W R218 1-216-864-11 METAL CHIP 0 5% 1/10W R219 1-216-864-11 METAL CHIP 0 5% 1/10W R220 1-216-864-11 METAL CHIP 0 5% 1/10W R221 1-216-864-11 METAL CHIP 0 5% 1/10W R222 1-216-864-11 METAL CHIP 0 5% 1/10W R223 1-216-864-11 METAL CHIP 0 5% 1/10W R224 1-216-864-11 METAL CHIP 0 5% 1/10W R227 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R230 1-216-803-11 METAL CHIP 33 5% 1/10W R231 1-216-803-11 METAL CHIP 33 5% 1/10W R232 1-216-803-11 METAL CHIP 33 5% 1/10W R233 1-216-864-11 METAL CHIP 0 5% 1/10W R234 1-216-833-11 METAL CHIP 10K 5% 1/10W R239 1-216-809-11 METAL CHIP 100 5% 1/10W R240 1-216-841-11 METAL CHIP 47K 5% 1/10W R243 1-216-864-11 METAL CHIP 0 5% 1/10W R244 1-216-821-11 METAL CHIP 1K 5% 1/10W R245 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R246 1-216-833-11 METAL CHIP 10K 5% 1/10W R247 1-216-821-11 METAL CHIP 1K 5% 1/10W R248 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R250 1-216-864-11 METAL CHIP 0 5% 1/10W R251 1-216-864-11 METAL CHIP 0 5% 1/10W R253 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R254 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R255 1-216-864-11 METAL CHIP 0 5% 1/10W R257 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R259 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R260 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R261 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R262 1-216-864-11 METAL CHIP 0 5% 1/10W R263 1-218-285-11 METAL CHIP 75 5% 1/10W R264 1-218-285-11 METAL CHIP 75 5% 1/10W R265 1-218-285-11 METAL CHIP 75 5% 1/10W R266 1-218-285-11 METAL CHIP 75 5% 1/10W R267 1-218-285-11 METAL CHIP 75 5% 1/10W R268 1-216-864-11 METAL CHIP 0 5% 1/10W R269 1-216-864-11 METAL CHIP 0 5% 1/10W R270 1-216-864-11 METAL CHIP 0 5% 1/10W R273 1-216-864-11 METAL CHIP 0 5% 1/10W R274 1-216-864-11 METAL CHIP 0 5% 1/10W R275 1-216-864-11 METAL CHIP 0 5% 1/10W R276 1-216-864-11 METAL CHIP 0 5% 1/10W R277 1-216-864-11 METAL CHIP 0 5% 1/10W R278 1-218-285-11 METAL CHIP 75 5% 1/10W R279 1-218-285-11 METAL CHIP 75 5% 1/10W R280 1-218-285-11 METAL CHIP 75 5% 1/10W R281 1-218-285-11 METAL CHIP 75 5% 1/10W R282 1-218-285-11 METAL CHIP 75 5% 1/10W R283 1-218-847-11 METAL CHIP 1K 0.5% 1/10W R284 1-218-829-11 METAL CHIP 180 0.5% 1/10W R288 1-216-864-11 METAL CHIP 0 5% 1/10W R301 1-216-821-11 METAL CHIP 1K 5% 1/10W R302 1-216-813-11 METAL CHIP 220 5% 1/10W R303 1-216-813-11 METAL CHIP 220 5% 1/10W R304 1-216-813-11 METAL CHIP 220 5% 1/10W R305 1-216-813-11 METAL CHIP 220 5% 1/10W R306 1-216-813-11 METAL CHIP 220 5% 1/10W R307 1-216-813-11 METAL CHIP 220 5% 1/10W R308 1-216-813-11 METAL CHIP 220 5% 1/10W R309 1-216-813-11 METAL CHIP 220 5% 1/10W R310 1-216-809-11 METAL CHIP 100 5% 1/10W R311 1-216-809-11 METAL CHIP 100 5% 1/10W R312 1-216-809-11 METAL CHIP 100 5% 1/10W R313 1-216-833-11 METAL CHIP 10K 5% 1/10W R314 1-216-801-11 METAL CHIP 22 5% 1/10W R392 1-216-797-11 METAL CHIP 10 5% 1/10W R501 1-216-864-11 METAL CHIP 0 5% 1/10W R502 1-216-864-11 METAL CHIP 0 5% 1/10W R503 1-216-841-11 METAL CHIP 47K 5% 1/10W R504 1-216-841-11 METAL CHIP 47K 5% 1/10W R505 1-216-841-11 METAL CHIP 47K 5% 1/10W R506 1-216-841-11 METAL CHIP 47K 5% 1/10W R507 1-216-864-11 METAL CHIP 0 5% 1/10W R508 1-216-864-11 METAL CHIP 0 5% 1/10W R510 1-216-847-11 METAL CHIP 150K 5% 1/10W R511 1-216-847-11 METAL CHIP 150K 5% 1/10W R512 1-216-842-11 METAL CHIP 56K 5% 1/10W R513 1-216-842-11 METAL CHIP 56K 5% 1/10W R516 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R517 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R519 1-216-845-11 METAL CHIP 100K 5% 1/10W R520 1-216-833-11 METAL CHIP 10K 5% 1/10W R521 1-216-845-11 METAL CHIP 100K 5% 1/10W R522 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R523 1-216-833-11 METAL CHIP 10K 5% 1/10W R524 1-216-833-11 METAL CHIP 10K 5% 1/10W R525 1-216-833-11 METAL CHIP 10K 5% 1/10W R527 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R528 1-216-864-11 METAL CHIP 0 5% 1/10W R529 1-216-839-11 METAL CHIP 33K 5% 1/10W R530 1-216-842-11 METAL CHIP 56K 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 90 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN77D DMB03 R531 1-216-864-11 METAL CHIP 0 5% 1/10W R532 1-216-864-11 METAL CHIP 0 5% 1/10W R533 1-216-839-11 METAL CHIP 33K 5% 1/10W R534 1-216-842-11 METAL CHIP 56K 5% 1/10W R535 1-216-864-11 METAL CHIP 0 5% 1/10W R536 1-216-833-11 METAL CHIP 10K 5% 1/10W R537 1-216-843-11 METAL CHIP 68K 5% 1/10W R538 1-216-864-11 METAL CHIP 0 5% 1/10W R539 1-216-864-11 METAL CHIP 0 5% 1/10W R540 1-216-864-11 METAL CHIP 0 5% 1/10W R541 1-216-864-11 METAL CHIP 0 5% 1/10W R543 1-216-864-11 METAL CHIP 0 5% 1/10W R544 1-216-864-11 METAL CHIP 0 5% 1/10W R545 1-216-833-11 METAL CHIP 10K 5% 1/10W R547 1-216-864-11 METAL CHIP 0 5% 1/10W R548 1-216-833-11 METAL CHIP 10K 5% 1/10W R550 1-216-821-11 METAL CHIP 1K 5% 1/10W R551 1-216-821-11 METAL CHIP 1K 5% 1/10W R552 1-216-821-11 METAL CHIP 1K 5% 1/10W R553 1-216-864-11 METAL CHIP 0 5% 1/10W R554 1-216-864-11 METAL CHIP 0 5% 1/10W R555 1-216-864-11 METAL CHIP 0 5% 1/10W R558 1-216-841-11 METAL CHIP 47K 5% 1/10W R559 1-216-821-11 METAL CHIP 1K 5% 1/10W R560 1-216-821-11 METAL CHIP 1K 5% 1/10W R561 1-216-821-11 METAL CHIP 1K 5% 1/10W R562 1-216-821-11 METAL CHIP 1K 5% 1/10W R563 1-216-821-11 METAL CHIP 1K 5% 1/10W R564 1-216-821-11 METAL CHIP 1K 5% 1/10W R565 1-216-821-11 METAL CHIP 1K 5% 1/10W R566 1-216-833-11 METAL CHIP 10K 5% 1/10W R567 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R568 1-216-857-11 METAL CHIP 1M 5% 1/10W R571 1-216-857-11 METAL CHIP 1M 5% 1/10W R572 1-216-853-11 METAL CHIP 470K 5% 1/10W R573 1-216-833-11 METAL CHIP 10K 5% 1/10W R574 1-216-815-11 METAL CHIP 330 5% 1/10W R575 1-216-864-11 METAL CHIP 0 5% 1/10W R576 1-216-864-11 METAL CHIP 0 5% 1/10W R577 1-216-864-11 METAL CHIP 0 5% 1/10W R578 1-216-864-11 METAL CHIP 0 5% 1/10W R579 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R580 1-216-839-11 METAL CHIP 33K 5% 1/10W R581 1-216-834-11 METAL CHIP 12K 5% 1/10W R583 1-216-864-11 METAL CHIP 0 5% 1/10W R584 1-216-839-11 METAL CHIP 33K 5% 1/10W R585 1-216-864-11 METAL CHIP 0 5% 1/10W R586 1-218-747-11 METAL CHIP 200K 5% 1/10W R587 1-216-864-11 METAL CHIP 0 5% 1/10W R588 1-216-833-11 METAL CHIP 10K 5% 1/10W R589 1-216-833-11 METAL CHIP 10K 5% 1/10W R592 1-216-864-11 METAL CHIP 0 5% 1/10W R593 1-216-845-11 METAL CHIP 100K 5% 1/10W R597 1-216-864-11 METAL CHIP 0 5% 1/10W R599 1-216-821-11 METAL CHIP 1K 5% 1/10W R601 1-216-864-11 METAL CHIP 0 5% 1/10W R615 1-216-864-11 METAL CHIP 0 5% 1/10W R629 1-216-864-11 METAL CHIP 0 5% 1/10W R694 1-216-833-11 METAL CHIP 10K 5% 1/10W R695 1-216-864-11 METAL CHIP 0 5% 1/10W R696 1-216-864-11 METAL CHIP 0 5% 1/10W R698 1-216-864-11 METAL CHIP 0 5% 1/10W R699 1-216-864-11 METAL CHIP 0 5% 1/10W R700 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R707 1-216-809-11 METAL CHIP 100 5% 1/10W R708 1-216-853-11 METAL CHIP 470K 5% 1/10W R709 1-216-847-11 METAL CHIP 150K 5% 1/10W R710 1-216-833-11 METAL CHIP 10K 5% 1/10W R711 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R712 1-216-833-11 METAL CHIP 10K 5% 1/10W R713 1-216-833-11 METAL CHIP 10K 5% 1/10W R714 1-216-833-11 METAL CHIP 10K 5% 1/10W R715 1-216-833-11 METAL CHIP 10K 5% 1/10W R716 1-216-809-11 METAL CHIP 100 5% 1/10W R717 1-216-845-11 METAL CHIP 100K 5% 1/10W R718 1-216-833-11 METAL CHIP 10K 5% 1/10W R719 1-216-821-11 METAL CHIP 1K 5% 1/10W R720 1-216-821-11 METAL CHIP 1K 5% 1/10W R721 1-216-839-11 METAL CHIP 33K 5% 1/10W R724 1-216-821-11 METAL CHIP 1K 5% 1/10W R725 1-216-824-11 METAL CHIP 1.8K 5% 1/10W R726 1-216-845-11 METAL CHIP 100K 5% 1/10W R727 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R728 1-216-833-11 METAL CHIP 10K 5% 1/10W R730 1-216-801-11 METAL CHIP 22 5% 1/10W R731 1-216-801-11 METAL CHIP 22 5% 1/10W R732 1-216-833-11 METAL CHIP 10K 5% 1/10W R733 1-216-833-11 METAL CHIP 10K 5% 1/10W R734 1-216-833-11 METAL CHIP 10K 5% 1/10W R735 1-216-833-11 METAL CHIP 10K 5% 1/10W R736 1-216-833-11 METAL CHIP 10K 5% 1/10W R737 1-216-833-11 METAL CHIP 10K 5% 1/10W R738 1-216-833-11 METAL CHIP 10K 5% 1/10W R742 1-216-801-11 METAL CHIP 22 5% 1/10W R743 1-216-801-11 METAL CHIP 22 5% 1/10W R744 1-216-801-11 METAL CHIP 22 5% 1/10W R745 1-216-841-11 METAL CHIP 47K 5% 1/10W R746 1-216-841-11 METAL CHIP 47K 5% 1/10W R747 1-216-839-11 METAL CHIP 33K 5% 1/10W R748 1-216-839-11 METAL CHIP 33K 5% 1/10W R750 1-216-833-11 METAL CHIP 10K 5% 1/10W R751 1-216-864-11 METAL CHIP 0 5% 1/10W R752 1-216-864-11 METAL CHIP 0 5% 1/10W R753 1-216-864-11 METAL CHIP 0 5% 1/10W R754 1-216-864-11 METAL CHIP 0 5% 1/10W R755 1-216-864-11 METAL CHIP 0 5% 1/10W R756 1-216-864-11 METAL CHIP 0 5% 1/10W R757 1-216-864-11 METAL CHIP 0 5% 1/10W R758 1-216-864-11 METAL CHIP 0 5% 1/10W R759 1-216-864-11 METAL CHIP 0 5% 1/10W R762 1-216-837-11 METAL CHIP 22K 5% 1/10W R763 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R764 1-216-857-11 METAL CHIP 1M 5% 1/10W R765 1-216-837-11 METAL CHIP 22K 5% 1/10W R766 1-216-864-11 METAL CHIP 0 5% 1/10W R767 1-216-841-11 METAL CHIP 47K 5% 1/10W R769 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R770 1-216-864-11 METAL CHIP 0 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 91 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN77D DMB03 R776 1-216-864-11 METAL CHIP 0 5% 1/10W R777 1-216-864-11 METAL CHIP 0 5% 1/10W R778 1-216-845-11 METAL CHIP 100K 5% 1/10W R780 1-216-864-11 METAL CHIP 0 5% 1/10W R781 1-216-864-11 METAL CHIP 0 5% 1/10W R784 1-216-864-11 METAL CHIP 0 5% 1/10W R785 1-216-833-11 METAL CHIP 10K 5% 1/10W R786 1-216-845-11 METAL CHIP 100K 5% 1/10W R787 1-216-845-11 METAL CHIP 100K 5% 1/10W R788 1-216-845-11 METAL CHIP 100K 5% 1/10W R789 1-216-845-11 METAL CHIP 100K 5% 1/10W R799 1-216-864-11 METAL CHIP 0 5% 1/10W R805 1-216-864-11 METAL CHIP 0 5% 1/10W R901 1-216-801-11 METAL CHIP 22 5% 1/10W R902 1-216-801-11 METAL CHIP 22 5% 1/10W R904 1-216-833-11 METAL CHIP 10K 5% 1/10W R905 1-216-801-11 METAL CHIP 22 5% 1/10W R906 1-216-801-11 METAL CHIP 22 5% 1/10W R907 1-216-801-11 METAL CHIP 22 5% 1/10W R908 1-216-833-11 METAL CHIP 10K 5% 1/10W R910 1-216-864-11 METAL CHIP 0 5% 1/10W R911 1-216-833-11 METAL CHIP 10K 5% 1/10W R912 1-216-833-11 METAL CHIP 10K 5% 1/10W R913 1-216-833-11 METAL CHIP 10K 5% 1/10W R915 1-216-809-11 METAL CHIP 100 5% 1/10W R916 1-216-821-11 METAL CHIP 1K 5% 1/10W R917 1-216-821-11 METAL CHIP 1K 5% 1/10W R918 1-216-801-11 METAL CHIP 22 5% 1/10W R919 1-216-864-11 METAL CHIP 0 5% 1/10W R920 1-216-809-11 METAL CHIP 100 5% 1/10W R921 1-216-809-11 METAL CHIP 100 5% 1/10W R923 1-216-813-11 METAL CHIP 220 5% 1/10W R925 1-216-809-11 METAL CHIP 100 5% 1/10W R926 1-216-809-11 METAL CHIP 100 5% 1/10W R927 1-216-857-11 METAL CHIP 1M 5% 1/10W R930 1-216-809-11 METAL CHIP 100 5% 1/10W R931 1-216-801-11 METAL CHIP 22 5% 1/10W R932 1-216-801-11 METAL CHIP 22 5% 1/10W R933 1-216-801-11 METAL CHIP 22 5% 1/10W R935 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R940 1-216-809-11 METAL CHIP 100 5% 1/10W R942 1-216-809-11 METAL CHIP 100 5% 1/10W R943 1-216-809-11 METAL CHIP 100 5% 1/10W R947 1-216-864-11 METAL CHIP 0 5% 1/10W R948 1-216-864-11 METAL CHIP 0 5% 1/10W R949 1-216-864-11 METAL CHIP 0 5% 1/10W R958 1-216-801-11 METAL CHIP 22 5% 1/10W R962 1-216-833-11 METAL CHIP 10K 5% 1/10W R964 1-216-833-11 METAL CHIP 10K 5% 1/10W R970 1-216-864-11 METAL CHIP 0 5% 1/10W R971 1-216-864-11 METAL CHIP 0 5% 1/10W R973 1-216-864-11 METAL CHIP 0 5% 1/10W R974 1-216-864-11 METAL CHIP 0 5% 1/10W R975 1-216-833-11 METAL CHIP 10K 5% 1/10W R976 1-216-864-11 METAL CHIP 0 5% 1/10W R978 1-216-833-11 METAL CHIP 10K 5% 1/10W R984 1-216-833-11 METAL CHIP 10K 5% 1/10W R988 1-216-864-11 METAL CHIP 0 5% 1/10W R990 1-216-864-11 METAL CHIP 0 5% 1/10W R991 1-216-864-11 METAL CHIP 0 5% 1/10W R992 1-216-864-11 METAL CHIP 0 5% 1/10W R994 1-216-864-11 METAL CHIP 0 5% 1/10W R995 1-216-864-11 METAL CHIP 0 5% 1/10W R996 1-216-864-11 METAL CHIP 0 5% 1/10W R997 1-216-864-11 METAL CHIP 0 5% 1/10W R998 1-216-864-11 METAL CHIP 0 5% 1/10W R1000 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1001 1-216-864-11 METAL CHIP 0 5% 1/10W R1101 1-164-156-11 CERAMIC CHIP 0.1uF 25V R1201 1-216-864-11 METAL CHIP 0 R1202 1-216-864-11 METAL CHIP 0 R1301 1-164-156-11 CERAMIC CHIP 0.1uF 25V R1303 1-164-156-11 CERAMIC CHIP 0.1uF 25V R1801 1-164-156-11 CERAMIC CHIP 0.1uF 25V R1802 1-164-156-11 CERAMIC CHIP 0.1uF 25V R1803 1-164-156-11 CERAMIC CHIP 0.1uF 25V R9980 1-216-864-11 METAL CHIP 0 5% 1/10W R9981 1-216-864-11 METAL CHIP 0 5% 1/10W R9986 1-216-864-11 METAL CHIP 0 5% 1/10W R9987 1-216-864-11 METAL CHIP 0 5% 1/10W R9988 1-216-864-11 METAL CHIP 0 5% 1/10W R9993 1-216-864-11 METAL CHIP 0 5% 1/10W R9994 1-216-864-11 METAL CHIP 0 5% 1/10W R9998 1-216-864-11 METAL CHIP 0 5% 1/10W R9999 1-216-864-11 METAL CHIP 0 5% 1/10W < NETWORK RESISTOR > RB10 1-233-388-11 RES, NETWORK 68 (3216) RB11 1-233-388-11 RES, NETWORK 68 (3216) RB12 1-233-388-11 RES, NETWORK 68 (3216) RB13 1-233-388-11 RES, NETWORK 68 (3216) RB14 1-233-388-11 RES, NETWORK 68 (3216) RB15 1-233-388-11 RES, NETWORK 68 (3216) RB16 1-233-388-11 RES, NETWORK 68 (3216) RB17 1-233-388-11 RES, NETWORK 68 (3216) RB18 1-234-524-21 RES, CHIP NETWORK 33 RB19 1-234-524-21 RES, CHIP NETWORK 33 RB20 1-234-524-21 RES, CHIP NETWORK 33 RB21 1-234-524-21 RES, CHIP NETWORK 33 RB202 1-234-523-21 RES, CHIP NETWORK 0 (3216) RB203 1-234-523-21 RES, CHIP NETWORK 0 (3216) RB204 1-234-523-21 RES, CHIP NETWORK 0 (3216) < VIBRATOR > X901 1-781-945-21 VIBRATOR, CERAMIC (20MHz) X902 1-795-630-11 VIBRATOR, CRYSTAL (27MHz) ****************************************************** 1-687-135-11 DRIVER BOARD *********** < CAPACITOR > C715 1-126-933-11 ELECT 100uF 20% 16V C731 1-126-964-11 ELECT 10uF 20% 50V C735 1-164-159-11 CERAMIC 0.1uF 50V C736 1-164-159-11 CERAMIC 0.1uF 50V C737 1-164-159-11 CERAMIC 0.1uF 50V C741 1-162-306-11 CERAMIC 0.01uF 30% 16V C751 1-162-306-11 CERAMIC 0.01uF 30% 16V C752 1-164-159-11 CERAMIC 0.1uF 50V DRIVER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 92 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN77D GAME IN DRIVER < CONNECTOR > CN701 1-785-338-11 PIN, CONNECTOR(LIGHT ANGLE)12P CN702 1-784-766-11 CONNECTOR, FFC 5P * CN703 1-564-720-11 PIN, CONNECTOR (SMALL TYPE) 4P CN704 1-785-328-11 PIN, CONNECTOR (LIGHT ANGRE)2P < DIODE > D701 8-719-947-16 DIODE MTZJ-T-72-5.1A D711 8-719-983-66 DIODE MTZJ-T-72-3.6B < IC > IC701 8-759-598-69 IC BA6956AN IC712 8-759-598-69 IC BA6956AN < TRNSISTOR > Q731 8-729-029-66 TRANSISTOR DTC114ESA < RESISTOR > R701 1-249-413-11 CARBON 470 5% 1/4W F R702 1-247-807-31 CARBON 100 5% 1/4W R711 1-249-417-11 CARBON 1K 5% 1/4W F R712 1-249-425-11 CARBON 4.7K 5% 1/4W F R713 1-249-433-11 CARBON 22K 5% 1/4W R721 1-249-425-11 CARBON 4.7K 5% 1/4W F R722 1-249-425-11 CARBON 4.7K 5% 1/4W F R723 1-249-425-11 CARBON 4.7K 5% 1/4W F R731 1-247-807-31 CARBON 100 5% 1/4W R732 1-249-429-11 CARBON 10K 5% 1/4W R733 1-249-417-11 CARBON 1K 5% 1/4W F R734 1-249-430-11 CARBON 12K 5% 1/4W R735 1-247-807-31 CARBON 100 5% 1/4W R751 1-249-425-11 CARBON 4.7K 5% 1/4W F ****************************************************** A-4732-871-A GAME IN BOARD, COMPLETE (EXCEPT TH) A-4734-533-A GAME IN BOARD, COMPLETE (TH) ********************* < CAPACITOR > C604 1-124-257-00 ELECT 2.2uF 20% 50V C606 1-124-257-00 ELECT 2.2uF 20% 50V C630 1-162-294-31 CERAMIC 0.001uF 10% 50V C631 1-162-294-31 CERAMIC 0.001uF 10% 50V C634 1-162-294-31 CERAMIC 0.001uF 10% 50V C635 1-162-294-31 CERAMIC 0.001uF 10% 50V C715 1-162-215-31 CERAMIC 47PF 5% 50V C716 1-164-159-21 CERAMIC 0.1uF 50V(TH) C716 1-164-159-11 CERAMIC 0.1uF 50V (EXCEPT TH) C717 1-124-584-00 ELECT 100uF 20% 10V C718 1-124-584-00 ELECT 100uF 20% 10V C719 1-124-257-00 ELECT 2.2uF 20% 50V C721 1-162-301-11 CERAMIC 0.0015uF 20% 16V C722 1-162-305-11 CERAMIC 0.0068uF 30% 16V C723 1-126-160-11 ELECT 1uF 20% 50V C724 1-136-495-11 FILM 0.068uF 5% 50V C725 1-124-464-11 ELECT 0.22uF 20% 50V C726 1-124-464-11 ELECT 0.22uF 20% 50V C727 1-136-155-00 FILM 0.015uF 5% 50V C728 1-162-301-11 CERAMIC 0.0015uF 20% 16V C729 1-126-160-11 ELECT 1uF 20% 50V C730 1-161-494-00 CERAMIC 0.022uF 25V C731 1-162-305-11 CERAMIC 0.0068uF 30% 16V C732 1-136-495-11 FILM 0.068uF 5% 50V C733 1-124-589-11 ELECT 47uF 20% 16V C734 1-124-589-11 ELECT 47uF 20% 16V C735 1-124-257-00 ELECT 2.2uF 20% 50V C736 1-124-261-00 ELECT 10uF 20% 50V C737 1-124-261-00 ELECT 10uF 20% 50V C738 1-124-257-00 ELECT 2.2uF 20% 50V C739 1-162-215-31 CERAMIC 47PF 5% 50V C740 1-162-282-31 CERAMIC 100PF 10% 50V C741 1-124-250-11 ELECT 0.15uF 20% 50V C742 1-162-215-31 CERAMIC 47PF 5% 50V C743 1-162-290-31 CERAMIC 470PF 10% 50V C744 1-162-294-31 CERAMIC 0.001uF 10% 50V C747 1-124-257-00 ELECT 2.2uF 20% 50V C748 1-161-494-00 CERAMIC 0.022uF 25V C749 1-164-159-21 CERAMIC 0.1uF 50V(TH) C749 1-164-159-11 CERAMIC 0.1uF 50V (EXCEPT TH) < CONNECTOR > * CN606 1-564-725-11 PIN, CONNECTOR (SMALL TYPE) 9P < DIODE > D705 8-719-109-85 DIODE MTZJ-T-72-5.1B < GROUND TERMINAL > EP701 1-537-738-21 TERMINAL, GROUND EP703 1-537-738-21 TERMINAL, GROUND < IC > IC721 8-759-450-96 IC M65850P IC722 8-759-167-88 IC NJM4565D < JACK > J601 1-764-592-11 JACK 3P (GAME INPUT) J631 1-794-702-11 JACK, HEADPHONE (PHONES) J721 1-817-630-11 JACK (LARGE TYPE) (MIC) < TRANSISTOR > Q721 8-729-119-79 TRANSISTOR 2SC2785TP-FEK < RESISTOR > R602 1-249-417-11 CARBON 1K 5% 1/4W F R603 1-249-417-11 CARBON 1K 5% 1/4W F R604 1-249-441-11 CARBON 100K 5% 1/4W R605 1-249-441-11 CARBON 100K 5% 1/4W R721 1-249-429-11 CARBON 10K 5% 1/4W R722 1-249-432-11 CARBON 18K 5% 1/4W R723 1-249-431-11 CARBON 15K 5% 1/4W R724 1-249-431-11 CARBON 15K 5% 1/4W R725 1-249-431-11 CARBON 15K 5% 1/4W R726 1-249-437-11 CARBON 47K 5% 1/4W R727 1-249-431-11 CARBON 15K 5% 1/4W R728 1-249-431-11 CARBON 15K 5% 1/4W R729 1-249-431-11 CARBON 15K 5% 1/4W R730 1-249-431-11 CARBON 15K 5% 1/4W R731 1-247-881-00 CARBON 120K 5% 1/4W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 93 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN77D MAIN GAME IN R733 1-249-431-11 CARBON 15K 5% 1/4W R734 1-247-807-31 CARBON 100 5% 1/4W R735 1-247-885-00 CARBON 180K 5% 1/4W R736 1-249-429-11 CARBON 10K 5% 1/4W R737 1-249-433-11 CARBON 22K 5% 1/4W R738 1-249-417-11 CARBON 1K 5% 1/4W F R739 1-249-441-11 CARBON 100K 5% 1/4W R740 1-249-421-11 CARBON 2.2K 5% 1/4W F R742 1-249-417-11 CARBON 1K 5% 1/4W F R743 1-249-429-11 CARBON 10K 5% 1/4W R744 1-249-441-11 CARBON 100K 5% 1/4W R745 1-247-807-31 CARBON 100 5% 1/4W R746 1-249-417-11 CARBON 1K 5% 1/4W F R747 1-249-407-11 CARBON 150 5% 1/4W F < VARIABLE RESISTOR > RV721 1-227-452-11 RES, VAR, CARBON 50K (ECHO LEVEL) RV722 1-227-452-11 RES, VAR, CARBON 50K (MIC LEVEL) ****************************************************** A-4732-874-A MAIN BOARD, COMPLETE (E3,E15,EA) A-4733-140-A MAIN BOARD, COMPLETE (SP,MY) A-4734-500-A MAIN BOARD, COMPLETE (TH) ******************* < CAPACITOR > C101 1-104-665-11 ELECT 100uF 20% 10V C102 1-126-964-11 ELECT 10uF 20% 50V C103 1-126-964-11 ELECT 10uF 20% 50V C104 1-126-964-11 ELECT 10uF 20% 50V C105 1-126-964-11 ELECT 10uF 20% 50V C106 1-136-157-00 FILM 0.022uF 5% 50V C107 1-136-157-00 FILM 0.022uF 5% 50V C108 1-136-159-00 FILM 0.033uF 5% 50V C109 1-126-960-11 ELECT 1uF 20% 50V C110 1-130-481-00 MYLAR 0.0068uF 5% 50V C111 1-126-964-11 ELECT 10uF 20% 50V C112 1-136-169-00 FILM 0.22uF 5% 50V C113 1-136-171-00 FILM 0.33uF 5% 50V C114 1-126-791-11 ELECT 10uF 20% 16V C115 1-164-156-11 CERAMIC CHIP 0.1uF 25V C116 1-126-934-11 ELECT 220uF 20% 10V C117 1-126-961-11 ELECT 2.2uF 20% 50V C121 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C122 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C130 1-126-964-11 ELECT 10uF 20% 50V C131 1-126-959-11 ELECT 0.47uF 20% 50V C140 1-136-495-11 FILM 0.068uF 5% 50V C149 1-126-964-11 ELECT 10uF 20% 50V C150 1-126-964-11 ELECT 10uF 20% 50V C152 1-126-964-11 ELECT 10uF 20% 50V C153 1-126-964-11 ELECT 10uF 20% 50V C154 1-126-964-11 ELECT 10uF 20% 50V C155 1-126-964-11 ELECT 10uF 20% 50V C156 1-136-157-00 FILM 0.022uF 5% 50V C157 1-136-157-00 FILM 0.022uF 5% 50V C158 1-136-159-00 FILM 0.033uF 5% 50V C159 1-126-960-11 ELECT 1uF 20% 50V C160 1-130-481-00 MYLAR 0.0068uF 5% 50V C161 1-126-964-11 ELECT 10uF 20% 50V C162 1-136-169-00 FILM 0.22uF 5% 50V C163 1-136-171-00 FILM 0.33uF 5% 50V C167 1-126-961-11 ELECT 2.2uF 20% 50V C200 1-164-156-11 CERAMIC CHIP 0.1uF 25V C201 1-104-665-11 ELECT 100uF 20% 10V C202 1-164-156-11 CERAMIC CHIP 0.1uF 25V C203 1-126-934-11 ELECT 220uF 20% 10V C211 1-164-156-11 CERAMIC CHIP 0.1uF 25V C212 1-126-916-11 ELECT 1000uF 20% 6.3V C213 1-164-156-11 CERAMIC CHIP 0.1uF 25V C214 1-126-916-11 ELECT 1000uF 20% 6.3V C223 1-164-156-11 CERAMIC CHIP 0.1uF 25V C301 1-130-483-00 MYLAR 0.01uF 5% 50V C303 1-136-165-00 FILM 0.1uF 5% 50V C304 1-126-964-11 ELECT 10uF 20% 50V C305 1-126-960-11 ELECT 1uF 20% 50V C306 1-126-961-11 ELECT 2.2uF 20% 50V C307 1-126-964-11 ELECT 10uF 20% 50V C308 1-126-935-11 ELECT 470uF 20% 10V C309 1-126-947-11 ELECT 47uF 20% 16V C310 1-126-964-11 ELECT 10uF 20% 50V C311 1-126-964-11 ELECT 10uF 20% 50V C312 1-126-964-11 ELECT 10uF 20% 50V C314 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C315 1-126-960-11 ELECT 1uF 20% 50V C316 1-126-960-11 ELECT 1uF 20% 50V C321 1-164-392-11 CERAMIC CHIP 390PF 10% 50V C326 1-164-392-11 CERAMIC CHIP 390PF 10% 50V C331 1-130-483-00 MYLAR 0.01uF 5% 50V C332 1-137-427-11 MYLAR 120PF 5% 50V C333 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C334 1-162-946-11 CERAMIC CHIP 27PF 5% 50V C335 1-137-150-11 MYLAR 0.01uF 5% 100V C336 1-126-961-11 ELECT 2.2uF 20% 50V C337 1-130-485-00 MYLAR 0.015uF 5% 50V C338 1-130-481-00 MYLAR 0.0068uF 5% 50V C339 1-130-481-00 MYLAR 0.0068uF 5% 50V C340 1-130-486-00 MYLAR 0.018uF 10% 50V C341 1-126-964-11 ELECT 10uF 20% 50V C342 1-126-947-11 ELECT 47uF 20% 16V C351 1-130-483-00 MYLAR 0.01uF 5% 50V C353 1-136-165-00 FILM 0.1uF 5% 50V C354 1-126-964-11 ELECT 10uF 20% 50V C355 1-126-960-11 ELECT 1uF 20% 50V C356 1-126-961-11 ELECT 2.2uF 20% 50V C359 1-126-947-11 ELECT 47uF 20% 16V C360 1-216-864-11 METAL CHIP 0 5% 1/10W C361 1-126-964-11 ELECT 10uF 20% 50V C364 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C365 1-126-960-11 ELECT 1uF 20% 50V C371 1-164-392-11 CERAMIC CHIP 390PF 10% 50V C376 1-164-392-11 CERAMIC CHIP 390PF 10% 50V C381 1-130-483-00 MYLAR 0.01uF 5% 50V C382 1-137-427-11 MYLAR 120PF 5% 50V C383 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C384 1-162-946-11 CERAMIC CHIP 27PF 5% 50V C385 1-126-964-11 ELECT 10uF 20% 50V C386 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C387 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C390 1-126-935-11 ELECT 470uF 20% 10V C391 1-126-933-11 ELECT 100uF 20% 16V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 94 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN77D MAIN C395 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C396 1-126-965-91 ELECT 22uF 20% 50V C397 1-126-964-11 ELECT 10uF 20% 50V C398 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C399 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C416 1-164-156-11 CERAMIC CHIP 0.1uF 25V C498 1-164-156-11 CERAMIC CHIP 0.1uF 25V C502 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C503 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C510 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C511 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C512 1-164-156-11 CERAMIC CHIP 0.1uF 25V C516 1-126-926-11 ELECT 1000uF 20% 10V C562 1-104-665-11 ELECT 100uF 20% 10V C564 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C596 1-164-156-11 CERAMIC CHIP 0.1uF 25V C598 1-126-926-11 ELECT 1000uF 20% 10V C601 1-126-964-11 ELECT 10uF 20% 50V C602 1-136-165-00 FILM 0.1uF 5% 50V C603 1-136-165-00 FILM 0.1uF 5% 50V C620 1-126-963-11 ELECT 4.7uF 20% 50V C621 1-107-721-11 ELECT 4.7uF 20% 100V C650 1-109-889-11 ELECT 1uF 20% 50V C651 1-107-717-11 ELECT 47uF 20% 50V C670 1-126-963-11 ELECT 4.7uF 20% 50V C671 1-107-721-11 ELECT 4.7uF 20% 100V C721 1-126-961-11 ELECT 2.2uF 20% 50V C722 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C730 1-126-964-11 ELECT 10uF 20% 50V C731 1-164-156-11 CERAMIC CHIP 0.1uF 25V C771 1-126-961-11 ELECT 2.2uF 20% 50V C772 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C800 1-126-964-11 ELECT 10uF 20% 50V C801 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C802 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C803 1-126-964-11 ELECT 10uF 20% 50V C804 1-126-964-11 ELECT 10uF 20% 50V C805 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C806 1-126-964-11 ELECT 10uF 20% 50V C807 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C808 1-126-964-11 ELECT 10uF 20% 50V C809 1-126-964-11 ELECT 10uF 20% 50V C810 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C811 1-126-964-11 ELECT 10uF 20% 50V C812 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C813 1-126-964-11 ELECT 10uF 20% 50V C814 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C815 1-126-964-11 ELECT 10uF 20% 50V C816 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C817 1-126-964-11 ELECT 10uF 20% 50V C818 1-126-964-11 ELECT 10uF 20% 50V C819 1-126-960-11 ELECT 1uF 20% 50V C820 1-126-963-11 ELECT 4.7uF 20% 50V C821 1-136-169-00 FILM 0.22uF 5% 50V C822 1-136-165-00 FILM 0.1uF 5% 50V C823 1-126-963-11 ELECT 4.7uF 20% 50V C824 1-126-963-11 ELECT 4.7uF 20% 50V C825 1-136-171-00 FILM 0.33uF 5% 50V C826 1-136-169-00 FILM 0.22uF 5% 50V C827 1-126-963-11 ELECT 4.7uF 20% 50V C828 1-136-171-00 FILM 0.33uF 5% 50V C829 1-136-169-00 FILM 0.22uF 5% 50V C830 1-126-964-11 ELECT 10uF 20% 50V C831 1-136-161-00 FILM 0.047uF 5% 50V C832 1-126-964-11 ELECT 10uF 20% 50V C833 1-104-665-11 ELECT 100uF 20% 10V C834 1-104-665-11 ELECT 100uF 20% 10V C835 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C836 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C837 1-126-964-11 ELECT 10uF 20% 50V C838 1-126-964-11 ELECT 10uF 20% 50V C839 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C840 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C841 1-126-964-11 ELECT 10uF 20% 50V C842 1-126-964-11 ELECT 10uF 20% 50V C843 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C844 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C845 1-126-964-11 ELECT 10uF 20% 50V C846 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C847 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C851 1-164-156-11 CERAMIC CHIP 0.1uF 25V C852 1-164-156-11 CERAMIC CHIP 0.1uF 25V C854 1-126-934-11 ELECT 220uF 20% 10V C855 1-164-156-11 CERAMIC CHIP 0.1uF 25V C901 1-126-944-11 ELECT 3300uF 20% 25V C902 1-126-961-11 ELECT 2.2uF 20% 50V C904 1-130-483-00 MYLAR 0.01uF 5% 50V C905 1-130-483-00 MYLAR 0.01uF 5% 50V C906 1-126-933-11 ELECT 100uF 20% 16V C908 1-136-165-00 FILM 0.1uF 5% 50V C909 1-136-165-00 FILM 0.1uF 5% 50V C911 1-126-961-11 ELECT 2.2uF 20% 50V C919 1-117-251-51 ELECT 3300uF 20% 6.3V C920 1-126-964-11 ELECT 10uF 20% 50V C921 1-126-968-11 ELECT 100uF 20% 50V C922 1-126-941-11 ELECT 470uF 20% 25V < CONNECTOR > CN201 1-779-544-21 CONNECTOR, FFC(LIF(NON-ZIF))7P CN202 1-785-338-11 PIN, CONNECTOR(LIGHT ANGLE)12P * CN203 1-564-711-11 PIN, CONNECTOR (SMALL TYPE) 9P * CN205 1-564-709-11 PIN, CONNECTOR (SMALL TYPE) 7P CN206 1-779-558-21 CONNECTOR,FFC(LIF(NON-ZIF))21P * CN301 1-568-449-11 HOUSING, CONNECTOR(PC BOARD)3P * CN304 1-569-930-11 SOCKET, CONNECTOR 13P * CN402 1-569-935-11 SOCKET, CONNECTOR 19P CN501 1-785-330-11 PIN, CONNECTOR (LIGHT ANGLE)4P CN502 1-785-336-11 PIN, CONNECTOR(LIGHT ANGLE)10P CN702 1-569-906-11 SOCKET, CONNECTOR 11P CN851 1-564-506-11 PLUG, CONNECTOR 3P CN901 1-770-726-11 CONNECTOR, BOARD TO BOARD 6P CN902 1-778-982-11 CONNECTOR, BOARD TO BOARD 13P < DIODE > D130 8-719-988-61 DIODE 1SS355TE-17 D201 8-719-988-61 DIODE 1SS355TE-17 D202 8-719-988-61 DIODE 1SS355TE-17 D392 8-719-988-61 DIODE 1SS355TE-17 D393 8-719-988-61 DIODE 1SS355TE-17 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 95 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN77D MAIN D394 8-719-988-61 DIODE 1SS355TE-17 D501 8-719-988-61 DIODE 1SS355TE-17 D502 8-719-988-61 DIODE 1SS355TE-17 D503 8-719-988-61 DIODE 1SS355TE-17 D504 8-719-988-61 DIODE 1SS355TE-17 D505 8-719-988-61 DIODE 1SS355TE-17 D508 8-719-988-61 DIODE 1SS355TE-17 D509 8-719-988-61 DIODE 1SS355TE-17 D517 8-719-988-61 DIODE 1SS355TE-17 D601 8-719-988-61 DIODE 1SS355TE-17 D602 8-719-988-61 DIODE 1SS355TE-17 D603 8-719-988-61 DIODE 1SS355TE-17 D701 8-719-988-61 DIODE 1SS355TE-17 D851 8-719-056-82 DIODE UDZ-TE-17-6.2B D852 8-719-056-84 DIODE UDZ-TE-17-7.5B D901 8-719-028-23 DIODE D3SBA20-4101 D902 8-719-500-60 DIODE D5SBA20 D917 8-719-080-53 DIODE RK36LF-B3 D941 8-719-977-81 DIODE UDZ-TE-17-33B < FERRITE BEAD > FB117 1-216-864-11 METAL CHIP 0 5% 1/10W FB167 1-216-864-11 METAL CHIP 0 5% 1/10W FB204 1-216-864-11 METAL CHIP 0 5% 1/10W FB516 1-414-772-11 FERRITE 0uH FB562 1-414-772-11 FERRITE 0uH < IC > IC102 6-703-650-11 IC M61529FP-D60G IC103 6-703-651-11 IC M61530FP-D60G IC201 8-749-019-25 IC TOTX141 (CD DIGITAL OUT) IC301 6-702-130-01 IC HA12237F IC302 8-759-143-54 IC uPC1330HA IC303 8-759-710-97 IC NJM4565M(TE2) IC501 6-801-542-01 IC M30620MCN-A05FP (E3,E15,EA) IC501 6-802-866-01 IC M30620MCN-A27FP (SP,MY,TH) IC502 6-703-610-01 IC RT8H015C-T112-1 IC601 8-759-533-04 IC M62703ML-E1 IC730 8-759-711-10 IC NJU4066BM-T2 IC907 6-700-813-01 IC SI-8033JF < JACK) J117 1-764-593-21 JACK 2P (MD/VIDEO(AUDIO) IN) J716 1-770-377-31 JACK, PIN 1P (SUBWOOFER) J730 1-764-593-21 JACK 2P (AUDIO OUT) < JUMPER RESISTOR > JR10 1-216-864-11 METAL CHIP 0 5% 1/10W JR002 1-216-864-11 METAL CHIP 0 5% 1/10W JR003 1-216-864-11 METAL CHIP 0 5% 1/10W JR004 1-216-296-11 SHORT CHIP 0 JR005 1-216-864-11 METAL CHIP 0 5% 1/10W JR006 1-216-864-11 METAL CHIP 0 5% 1/10W JR008 1-216-864-11 METAL CHIP 0 5% 1/10W JR009 1-216-864-11 METAL CHIP 0 5% 1/10W JR015 1-216-864-11 METAL CHIP 0 5% 1/10W JR104 1-216-296-11 SHORT CHIP 0 JR138 1-216-864-11 METAL CHIP 0 5% 1/10W JR390 1-216-864-11 METAL CHIP 0 5% 1/10W < COIL > L201 1-414-189-31 INDUCTOR 100uH L301 1-410-780-11 INDUCTOR 27mH L302 1-414-189-31 INDUCTOR 100uH L351 1-410-780-11 INDUCTOR 27mH L901 1-456-468-11 INDUCTOR 100uH < TRANSISTOR > Q101 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q105 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q151 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q223 8-729-113-13 TRANSISTOR FA1A4M-T1L33 Q224 8-729-113-69 TRANSISTOR FN1F4M-T1M32 Q301 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 Q302 8-729-142-46 TRANSISTOR 2SC2001TP-LK Q303 8-729-142-46 TRANSISTOR 2SC2001TP-LK Q304 8-729-113-69 TRANSISTOR FN1F4M-T1M32 Q305 8-729-113-13 TRANSISTOR FA1A4M-T1L33 Q306 8-729-113-13 TRANSISTOR FA1A4M-T1L33 Q307 8-729-216-22 TRANSISTOR 2SA812-T1-M5M6 Q310 8-729-113-13 TRANSISTOR FA1A4M-T1L33 Q389 8-729-113-13 TRANSISTOR FA1A4M-T1L33 Q390 8-729-113-13 TRANSISTOR FA1A4M-T1L33 Q391 8-729-140-04 TRANSISTOR 2SB1116-TP-LK Q392 8-729-113-13 TRANSISTOR FA1A4M-T1L33 Q393 8-729-116-57 TRANSISTOR 2SB1068TP-K Q394 8-729-113-13 TRANSISTOR FA1A4M-T1L33 Q395 8-729-113-13 TRANSISTOR FA1A4M-T1L33 Q396 8-729-140-04 TRANSISTOR 2SB1116-TP-LK Q398 8-729-113-13 TRANSISTOR FA1A4M-T1L33 Q399 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 Q601 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q602 8-729-014-97 TRANSISTOR FA1L3Z-T1B Q620 8-729-802-80 TRANSISTOR 2SC3661-TB Q621 8-729-802-80 TRANSISTOR 2SC3661-TB Q650 8-729-113-69 TRANSISTOR FN1F4M-T1M32 Q651 8-729-113-13 TRANSISTOR FA1A4M-T1L33 Q652 8-729-113-69 TRANSISTOR FN1F4M-T1M32 Q670 8-729-802-80 TRANSISTOR 2SC3661-TB Q671 8-729-802-80 TRANSISTOR 2SC3661-TB Q701 8-729-014-97 TRANSISTOR FA1L3Z-T1B Q702 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q730 8-729-113-13 TRANSISTOR FA1A4M-T1L33 Q798 8-729-802-80 TRANSISTOR 2SC3661-TB Q799 8-729-802-80 TRANSISTOR 2SC3661-TB Q800 8-729-802-80 TRANSISTOR 2SC3661-TB Q801 8-729-802-80 TRANSISTOR 2SC3661-TB Q802 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q803 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q851 8-729-026-68 TRANSISTOR 2SD2525(TP) Q852 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q853 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q854 8-729-113-13 TRANSISTOR FA1A4M-T1L33 Q903 8-729-209-60 TRANSISTOR 2SB1375 Q909 8-729-113-13 TRANSISTOR FA1A4M-T1L33 Q910 8-729-113-13 TRANSISTOR FA1A4M-T1L33 < RESISTOR > R101 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R102 1-216-833-11 METAL CHIP 10K 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 96 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN77D The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. MAIN R103 1-220-373-11 METAL CHIP 620 5% 1/10W R104 1-216-821-11 METAL CHIP 1K 5% 1/10W R105 1-216-841-11 METAL CHIP 47K 5% 1/10W R106 1-216-833-11 METAL CHIP 10K 5% 1/10W R107 1-216-809-11 METAL CHIP 100 5% 1/10W R110 1-216-864-11 METAL CHIP 0 5% 1/10W R112 1-216-864-11 METAL CHIP 0 5% 1/10W R114 1-216-864-11 METAL CHIP 0 5% 1/10W R116 1-216-809-11 METAL CHIP 100 5% 1/10W R117 1-216-845-11 METAL CHIP 100K 5% 1/10W R118 1-216-821-11 METAL CHIP 1K 5% 1/10W R121 1-216-809-11 METAL CHIP 100 5% 1/10W R122 1-216-809-11 METAL CHIP 100 5% 1/10W R130 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R131 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R132 1-216-857-11 METAL CHIP 1M 5% 1/10W R133 1-216-845-11 METAL CHIP 100K 5% 1/10W R134 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R149 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R150 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R151 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R152 1-216-833-11 METAL CHIP 10K 5% 1/10W R153 1-220-373-11 METAL CHIP 620 5% 1/10W R154 1-216-821-11 METAL CHIP 1K 5% 1/10W R155 1-216-841-11 METAL CHIP 47K 5% 1/10W R156 1-216-833-11 METAL CHIP 10K 5% 1/10W R157 1-216-809-11 METAL CHIP 100 5% 1/10W R166 1-216-809-11 METAL CHIP 100 5% 1/10W R167 1-216-845-11 METAL CHIP 100K 5% 1/10W R168 1-216-821-11 METAL CHIP 1K 5% 1/10W R233 1-216-837-11 METAL CHIP 22K 5% 1/10W R234 1-216-837-11 METAL CHIP 22K 5% 1/10W R235 1-216-853-11 METAL CHIP 470K 5% 1/10W R301 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R302 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R303 1-216-833-11 METAL CHIP 10K 5% 1/10W R304 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R305 1-216-841-11 METAL CHIP 47K 5% 1/10W R306 1-216-837-11 METAL CHIP 22K 5% 1/10W R307 1-216-857-11 METAL CHIP 1M 5% 1/10W R308 1-216-809-11 METAL CHIP 100 5% 1/10W R309 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R310 1-216-809-11 METAL CHIP 100 5% 1/10W R311 1-216-809-11 METAL CHIP 100 5% 1/10W R312 1-216-809-11 METAL CHIP 100 5% 1/10W R313 1-216-821-11 METAL CHIP 1K 5% 1/10W R314 1-216-821-11 METAL CHIP 1K 5% 1/10W R315 1-216-833-11 METAL CHIP 10K 5% 1/10W R316 1-216-833-11 METAL CHIP 10K 5% 1/10W R317 1-216-833-11 METAL CHIP 10K 5% 1/10W R320 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R327 1-216-835-11 METAL CHIP 15K 5% 1/10W R328 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R329 1-216-833-11 METAL CHIP 10K 5% 1/10W R330 1-216-837-11 METAL CHIP 22K 5% 1/10W R332 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R333 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R334 1-216-845-11 METAL CHIP 100K 5% 1/10W R342 1-216-825-11 METAL CHIP 2.2K 5% 1/10W 0R343 1-219-787-17 FUSIBLE 5.6 5% 1/4W 0R344 1-219-787-17 FUSIBLE 5.6 5% 1/4W R345 1-216-836-11 METAL CHIP 18K 5% 1/10W R346 1-216-836-11 METAL CHIP 18K 5% 1/10W R347 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R351 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R352 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R353 1-216-833-11 METAL CHIP 10K 5% 1/10W R354 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R355 1-216-841-11 METAL CHIP 47K 5% 1/10W R360 1-216-819-11 METAL CHIP 680 5% 1/10W R361 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R362 1-216-833-11 METAL CHIP 10K 5% 1/10W R363 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R364 1-216-819-11 METAL CHIP 680 5% 1/10W R365 1-216-833-11 METAL CHIP 10K 5% 1/10W R366 1-216-819-11 METAL CHIP 680 5% 1/10W R367 1-216-833-11 METAL CHIP 10K 5% 1/10W R368 1-216-833-11 METAL CHIP 10K 5% 1/10W R369 1-216-833-11 METAL CHIP 10K 5% 1/10W R370 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R371 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R372 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R373 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R374 1-216-833-11 METAL CHIP 10K 5% 1/10W R375 1-216-833-11 METAL CHIP 10K 5% 1/10W R376 1-216-833-11 METAL CHIP 10K 5% 1/10W R377 1-216-833-11 METAL CHIP 10K 5% 1/10W R378 1-216-833-11 METAL CHIP 10K 5% 1/10W R379 1-216-833-11 METAL CHIP 10K 5% 1/10W R380 1-216-837-11 METAL CHIP 22K 5% 1/10W R382 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R387 1-216-833-11 METAL CHIP 10K 5% 1/10W R388 1-216-837-11 METAL CHIP 22K 5% 1/10W R390 1-216-833-11 METAL CHIP 10K 5% 1/10W R391 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R392 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R393 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R394 1-216-833-11 METAL CHIP 10K 5% 1/10W R395 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R396 1-216-833-11 METAL CHIP 10K 5% 1/10W R397 1-216-835-11 METAL CHIP 15K 5% 1/10W R398 1-216-861-11 METAL CHIP 2.2M 5% 1/10W R399 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R401 1-216-833-11 METAL CHIP 10K 5% 1/10W R402 1-216-833-11 METAL CHIP 10K 5% 1/10W R419 1-216-809-11 METAL CHIP 100 5% 1/10W R420 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R421 1-216-833-11 METAL CHIP 10K 5% 1/10W R422 1-216-833-11 METAL CHIP 10K 5% 1/10W R429 1-216-809-11 METAL CHIP 100 5% 1/10W R430 1-216-809-11 METAL CHIP 100 5% 1/10W R442 1-216-809-11 METAL CHIP 100 5% 1/10W R443 1-216-809-11 METAL CHIP 100 5% 1/10W R444 1-216-809-11 METAL CHIP 100 5% 1/10W R445 1-216-809-11 METAL CHIP 100 5% 1/10W R446 1-216-809-11 METAL CHIP 100 5% 1/10W R447 1-216-809-11 METAL CHIP 100 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 97 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN77D MAIN R448 1-216-809-11 METAL CHIP 100 5% 1/10W R450 1-216-809-11 METAL CHIP 100 5% 1/10W R473 1-216-809-11 METAL CHIP 100 5% 1/10W R474 1-216-809-11 METAL CHIP 100 5% 1/10W R477 1-216-833-11 METAL CHIP 10K 5% 1/10W R478 1-216-833-11 METAL CHIP 10K 5% 1/10W R488 1-216-809-11 METAL CHIP 100 5% 1/10W R492 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R493 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (E3,E15,EA) R493 1-216-864-11 METAL CHIP 0 5% 1/10W (SP,MY,TH) R495 1-216-839-11 METAL CHIP 33K 5% 1/10W R501 1-216-809-11 METAL CHIP 100 5% 1/10W R502 1-216-809-11 METAL CHIP 100 5% 1/10W R503 1-216-809-11 METAL CHIP 100 5% 1/10W R504 1-216-809-11 METAL CHIP 100 5% 1/10W R505 1-216-809-11 METAL CHIP 100 5% 1/10W R506 1-216-809-11 METAL CHIP 100 5% 1/10W R507 1-216-809-11 METAL CHIP 100 5% 1/10W R509 1-216-833-11 METAL CHIP 10K 5% 1/10W R511 1-216-851-11 METAL CHIP 330K 5% 1/10W R513 1-216-864-11 METAL CHIP 0 5% 1/10W R517 1-216-833-11 METAL CHIP 10K 5% 1/10W R519 1-216-833-11 METAL CHIP 10K 5% 1/10W R521 1-216-809-11 METAL CHIP 100 5% 1/10W R522 1-216-809-11 METAL CHIP 100 5% 1/10W R523 1-216-833-11 METAL CHIP 10K 5% 1/10W R529 1-216-833-11 METAL CHIP 10K 5% 1/10W R530 1-216-833-11 METAL CHIP 10K 5% 1/10W R540 1-216-809-11 METAL CHIP 100 5% 1/10W R541 1-216-809-11 METAL CHIP 100 5% 1/10W R542 1-216-833-11 METAL CHIP 10K 5% 1/10W R543 1-216-833-11 METAL CHIP 10K 5% 1/10W R544 1-216-833-11 METAL CHIP 10K 5% 1/10W R545 1-216-833-11 METAL CHIP 10K 5% 1/10W R549 1-216-833-11 METAL CHIP 10K 5% 1/10W R550 1-216-833-11 METAL CHIP 10K 5% 1/10W R560 1-216-809-11 METAL CHIP 100 5% 1/10W R561 1-216-809-11 METAL CHIP 100 5% 1/10W R563 1-216-833-11 METAL CHIP 10K 5% 1/10W R566 1-216-809-11 METAL CHIP 100 5% 1/10W R567 1-216-809-11 METAL CHIP 100 5% 1/10W R569 1-216-809-11 METAL CHIP 100 5% 1/10W R572 1-216-809-11 METAL CHIP 100 5% 1/10W R573 1-216-833-11 METAL CHIP 10K 5% 1/10W R574 1-216-833-11 METAL CHIP 10K 5% 1/10W R575 1-216-809-11 METAL CHIP 100 5% 1/10W R576 1-216-813-11 METAL CHIP 220 5% 1/10W R577 1-216-809-11 METAL CHIP 100 5% 1/10W R578 1-216-809-11 METAL CHIP 100 5% 1/10W R579 1-216-809-11 METAL CHIP 100 5% 1/10W R580 1-216-809-11 METAL CHIP 100 5% 1/10W R581 1-216-809-11 METAL CHIP 100 5% 1/10W R582 1-216-809-11 METAL CHIP 100 5% 1/10W R583 1-216-809-11 METAL CHIP 100 5% 1/10W R584 1-216-809-11 METAL CHIP 100 5% 1/10W R585 1-216-809-11 METAL CHIP 100 5% 1/10W R586 1-216-809-11 METAL CHIP 100 5% 1/10W R587 1-216-809-11 METAL CHIP 100 5% 1/10W R588 1-216-809-11 METAL CHIP 100 5% 1/10W R589 1-216-809-11 METAL CHIP 100 5% 1/10W R590 1-216-809-11 METAL CHIP 100 5% 1/10W R591 1-216-809-11 METAL CHIP 100 5% 1/10W R592 1-216-819-11 METAL CHIP 680 5% 1/10W R593 1-216-821-11 METAL CHIP 1K 5% 1/10W (E3,E15,EA) R593 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (SP,MY) R594 1-216-809-11 METAL CHIP 100 5% 1/10W R595 1-216-821-11 METAL CHIP 1K 5% 1/10W R597 1-216-864-11 METAL CHIP 0 5% 1/10W R598 1-216-809-11 METAL CHIP 100 5% 1/10W R600 1-216-809-11 METAL CHIP 100 5% 1/10W R601 1-216-813-11 METAL CHIP 220 5% 1/10W R602 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R603 1-216-841-11 METAL CHIP 47K 5% 1/10W R604 1-216-841-11 METAL CHIP 47K 5% 1/10W R620 1-216-833-11 METAL CHIP 10K 5% 1/10W R621 1-216-821-11 METAL CHIP 1K 5% 1/10W R622 1-216-841-11 METAL CHIP 47K 5% 1/10W R623 1-216-833-11 METAL CHIP 10K 5% 1/10W R624 1-215-891-11 METAL OXIDE 680 5% 2W R625 1-216-821-11 METAL CHIP 1K 5% 1/10W R626 1-216-806-11 METAL CHIP 56 5% 1/10W R629 1-216-817-11 METAL CHIP 470 5% 1/10W R630 1-216-817-11 METAL CHIP 470 5% 1/10W R650 1-216-835-11 METAL CHIP 15K 5% 1/10W R651 1-216-853-11 METAL CHIP 470K 5% 1/10W R652 1-216-843-11 METAL CHIP 68K 5% 1/10W R653 1-216-821-11 METAL CHIP 1K 5% 1/10W R654 1-216-845-11 METAL CHIP 100K 5% 1/10W R655 1-216-845-11 METAL CHIP 100K 5% 1/10W R656 1-216-833-11 METAL CHIP 10K 5% 1/10W R670 1-216-833-11 METAL CHIP 10K 5% 1/10W R671 1-216-821-11 METAL CHIP 1K 5% 1/10W R672 1-216-841-11 METAL CHIP 47K 5% 1/10W R673 1-216-833-11 METAL CHIP 10K 5% 1/10W R674 1-215-891-11 METAL OXIDE 680 5% 2W R675 1-216-821-11 METAL CHIP 1K 5% 1/10W R676 1-216-806-11 METAL CHIP 56 5% 1/10W 0R701 1-249-409-11 CARBON 220 5% 1/4W F R702 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R720 1-216-821-11 METAL CHIP 1K 5% 1/10W R721 1-216-845-11 METAL CHIP 100K 5% 1/10W R722 1-216-821-11 METAL CHIP 1K 5% 1/10W R730 1-216-833-11 METAL CHIP 10K 5% 1/10W R770 1-216-821-11 METAL CHIP 1K 5% 1/10W R771 1-216-845-11 METAL CHIP 100K 5% 1/10W R772 1-216-821-11 METAL CHIP 1K 5% 1/10W R798 1-216-809-11 METAL CHIP 100 5% 1/10W R799 1-216-809-11 METAL CHIP 100 5% 1/10W R800 1-216-841-11 METAL CHIP 47K 5% 1/10W R801 1-216-817-11 METAL CHIP 470 5% 1/10W R802 1-216-833-11 METAL CHIP 10K 5% 1/10W R803 1-216-841-11 METAL CHIP 47K 5% 1/10W R804 1-216-841-11 METAL CHIP 47K 5% 1/10W The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 98 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN77D MAIN MOTOR (LD) R805 1-216-833-11 METAL CHIP 10K 5% 1/10W R806 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R807 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R808 1-216-841-11 METAL CHIP 47K 5% 1/10W R809 1-216-841-11 METAL CHIP 47K 5% 1/10W R810 1-216-833-11 METAL CHIP 10K 5% 1/10W R811 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R812 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R813 1-216-833-11 METAL CHIP 10K 5% 1/10W R814 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R815 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R816 1-216-841-11 METAL CHIP 47K 5% 1/10W R817 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R818 1-216-821-11 METAL CHIP 1K 5% 1/10W R819 1-220-373-11 METAL CHIP 620 5% 1/10W R820 1-220-373-11 METAL CHIP 620 5% 1/10W R821 1-216-857-11 METAL CHIP 1M 5% 1/10W R822 1-216-833-11 METAL CHIP 10K 5% 1/10W R823 1-216-857-11 METAL CHIP 1M 5% 1/10W R824 1-216-833-11 METAL CHIP 10K 5% 1/10W R825 1-216-857-11 METAL CHIP 1M 5% 1/10W R826 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R827 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R828 1-216-841-11 METAL CHIP 47K 5% 1/10W R829 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R830 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R831 1-216-841-11 METAL CHIP 47K 5% 1/10W R832 1-216-833-11 METAL CHIP 10K 5% 1/10W R833 1-216-817-11 METAL CHIP 470 5% 1/10W R834 1-216-841-11 METAL CHIP 47K 5% 1/10W R835 1-216-821-11 METAL CHIP 1K 5% 1/10W R836 1-216-833-11 METAL CHIP 10K 5% 1/10W R837 1-216-841-11 METAL CHIP 47K 5% 1/10W R838 1-216-833-11 METAL CHIP 10K 5% 1/10W R839 1-216-841-11 METAL CHIP 47K 5% 1/10W R840 1-216-821-11 METAL CHIP 1K 5% 1/10W R841 1-216-833-11 METAL CHIP 10K 5% 1/10W R842 1-216-833-11 METAL CHIP 10K 5% 1/10W R843 1-216-833-11 METAL CHIP 10K 5% 1/10W R844 1-216-833-11 METAL CHIP 10K 5% 1/10W R845 1-216-841-11 METAL CHIP 47K 5% 1/10W R846 1-216-833-11 METAL CHIP 10K 5% 1/10W R847 1-216-821-11 METAL CHIP 1K 5% 1/10W R848 1-216-833-11 METAL CHIP 10K 5% 1/10W R849 1-216-841-11 METAL CHIP 47K 5% 1/10W R850 1-216-821-11 METAL CHIP 1K 5% 1/10W R851 1-216-837-11 METAL CHIP 22K 5% 1/10W R852 1-216-837-11 METAL CHIP 22K 5% 1/10W R853 1-216-845-11 METAL CHIP 100K 5% 1/10W R854 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R857 1-216-864-11 METAL CHIP 0 5% 1/10W R858 1-216-864-11 METAL CHIP 0 5% 1/10W R860 1-216-841-11 METAL CHIP 47K 5% 1/10W R861 1-216-833-11 METAL CHIP 10K 5% 1/10W R862 1-216-841-11 METAL CHIP 47K 5% 1/10W R863 1-216-833-11 METAL CHIP 10K 5% 1/10W R904 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R905 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R906 1-216-821-11 METAL CHIP 1K 5% 1/10W R915 1-216-845-11 METAL CHIP 100K 5% 1/10W R916 1-216-845-11 METAL CHIP 100K 5% 1/10W R917 1-216-833-11 METAL CHIP 10K 5% 1/10W R921 1-216-820-11 METAL CHIP 820 5% 1/10W R922 1-216-805-11 METAL CHIP 47 5% 1/10W R923 1-216-833-11 METAL CHIP 10K 5% 1/10W < VARIABLE RESISTOR > RV301 1-238-019-11 RES, ADJ, CARBON 47K (REC LEVEL(L)) RV304 1-241-768-11 RES, ADJ, CARBON 220K (REC BIAS(L)) RV351 1-238-019-11 RES, ADJ, CARBON 47K (REC LEVEL(R)) RV354 1-241-768-11 RES, ADJ, CARBON 220K (REC BIAS(R)) < RELAY > RY701 1-755-267-11 RELAY < TRANSFORMER > T301 1-423-980-11 TRANSFORMER, BIAS OSCILLATION < VIBRATOR > X501 1-567-098-41 VIBRATOR, CRYSTAL (32.768kHz) X502 1-781-107-21 VIBRATOR, SERAMIC (16MHz) ****************************************************** 1-687-133-11 MOTOR (LD) BOARD **************** ****************************************************** 1-687-134-11 MOTOR (TB) BOARD **************** < CONNECTOR > CN742 1-784-727-11 CONNECTOR, FFC 5P ****************************************************** A-4732-894-A POWER AMP BOARD, COMPLETE (EXCEPT TH) A-4734-595-A POWER AMP BOARD, COMPLETE (TH) ************************ 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S < CAPACITOR > C501 1-126-963-11 ELECT 4.7uF 20% 50V C502 1-162-294-31 CERAMIC 0.001uF 10% 50V C503 1-162-282-31 CERAMIC 100PF 10% 50V C504 1-104-665-11 ELECT 100uF 20% 10V C507 1-136-495-11 FILM 0.068uF 5% 50V C508 1-136-495-11 FILM 0.068uF 5% 50V C509 1-128-560-11 ELECT 22uF 20% 100V C512 1-162-306-11 CERAMIC 0.01uF 20% 16V C513 1-164-159-11 CERAMIC 0.1uF 50V C516 1-104-665-11 ELECT 100uF 20% 10V C517 1-126-964-11 ELECT 10uF 20% 50V C523 1-162-306-11 CERAMIC 0.01uF 30% 16V C524 1-162-306-11 CERAMIC 0.01uF 30% 16V C525 1-162-306-11 CERAMIC 0.01uF 20% 16V C526 1-126-964-11 ELECT 10uF 20% 50V C527 1-162-306-11 CERAMIC 0.01uF 20% 16V C528 1-162-306-11 CERAMIC 0.01uF 20% 16V C541 1-136-165-00 FILM 0.1uF 5% 50V C542 1-100-619-11 ELECT 4700uF 20% 50V C544 1-130-777-00 MYLAR 0.1uF 5% 100V MOTOR (TB) POWER AMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 99 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN77D The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. POWER AMP C545 1-130-777-00 MYLAR 0.1uF 5% 100V C546 1-137-843-11 ELECT 2200uF 20% 100V C551 1-126-963-11 ELECT 4.7uF 20% 50V C552 1-162-294-31 CERAMIC 0.001uF 10% 50V C553 1-162-282-31 CERAMIC 100PF 10% 50V C554 1-104-665-11 ELECT 100uF 20% 10V C557 1-136-495-11 FILM 0.068uF 5% 50V C558 1-136-495-11 FILM 0.068uF 5% 50V C559 1-128-560-11 ELECT 22uF 20% 100V C581 1-126-965-91 ELECT 22uF 20% 50V C591 1-136-165-00 FILM 0.1uF 5% 50V C592 1-100-619-11 ELECT 4700uF 20% 50V C596 1-137-843-11 ELECT 2200uF 20% 100V < CONNECTOR > CN503 1-778-981-21 CONNECTOR, BOARD TO BOARD 13P CN504 1-770-722-11 CONNECTOR, BOARD TO BOARD 6P < DIODE > D501 8-719-991-33 DIODE 1SS133T-72 D502 8-719-991-33 DIODE 1SS133T-72 D503 8-719-947-61 DIODE MTZJ-T-72-15B (TH) D503 8-719-947-70 DIODE MTZJ-T-72-18C (EXCEPT TH) D504 8-719-947-61 DIODE MTZJ-T-72-15B (TH) D504 8-719-947-70 DIODE MTZJ-T-72-18C (EXCEPT TH) D506 8-719-991-33 DIODE 1SS133T-72 D507 8-719-991-33 DIODE 1SS133T-72 D508 8-719-991-33 DIODE 1SS133T-72 D509 8-719-991-33 DIODE 1SS133T-72 D511 8-719-991-33 DIODE 1SS133T-72 D541 8-719-510-68 DIODE D5SBA204101 (TH) D541 8-719-500-60 DIODE D5SBA20 (EXCEPT TH) D543 8-719-500-60 DIODE D5SBA20 D551 8-719-991-33 DIODE 1SS133T-72 D581 8-719-991-33 DIODE 1SS133T-72 < EARTH TERMINAL > * EP501 1-537-738-21 TERMINAL, EARTH * EP502 1-537-738-21 TERMINAL, EARTH < IC > IC501 6-600-171-01 IC STK412-230 < TRANSISTOR > Q501 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA Q503 8-729-821-00 TRANSISTOR 2SA1207-AA Q504 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA Q505 8-729-119-79 TRANSISTOR 2SC2785TP-FEK Q506 8-729-119-79 TRANSISTOR 2SC2785TP-FEK Q510 8-729-119-79 TRANSISTOR 2SC2785TP-FEK Q511 8-729-119-79 TRANSISTOR 2SC2785TP-FEK Q514 8-729-119-79 TRANSISTOR 2SC2785TP-FEK Q516 8-729-119-79 TRANSISTOR 2SC2785TP-FEK Q517 8-729-119-76 TRANSISTOR 2SA1175TP-HFE Q518 8-729-119-79 TRANSISTOR 2SC2785TP-FEK Q551 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA Q581 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA < RESISTOR > R501 1-249-417-11 CARBON 1K 5% 1/4W F R502 1-249-437-11 CARBON 47K 5% 1/4W R503 1-249-410-11 CARBON 270 5% 1/4W F R504 1-249-437-11 CARBON 47K 5% 1/4W R505 1-249-417-11 CARBON 1K 5% 1/4W F R506 1-249-433-11 CARBON 22K 5% 1/4W R507 1-247-883-00 CARBON 150K 5% 1/4W 0R508 1-234-499-21 ENCAPSULATED COMPONENT R509 1-260-076-11 CARBON 10 5% 1/2W 0R511 1-212-881-11 FUSIBLE 100 5% 1/4W 0R512 1-202-972-61 FUSIBLE 1 5% 1/4W R513 1-249-435-11 CARBON 33K 5% 1/4W R514 1-249-421-11 CARBON 2.2K 5% 1/4W F R515 1-249-433-11 CARBON 22K 5% 1/4W R516 1-249-429-11 CARBON 10K 5% 1/4W R517 1-249-429-11 CARBON 10K 5% 1/4W R518 1-249-435-11 CARBON 33K 5% 1/4W R519 1-249-439-11 CARBON 68K 5% 1/4W 0R520 1-215-869-11 METAL OXIDE 1K 5% 1W (EXCEPT TH) 0R520 1-215-870-11 METAL OXIDE 1.5K 5% 1W(TH) R521 1-249-441-11 CARBON 100K 5% 1/4W R522 1-249-441-11 CARBON 100K 5% 1/4W R523 1-249-441-11 CARBON 100K 5% 1/4W 0R524 1-215-869-11 METAL OXIDE 1K 5% 1W (EXCEPT TH) 0R524 1-215-870-11 METAL OXIDE 1.5K 5% 1W(TH) R527 1-249-438-11 CARBON 56K 5% 1/4W R528 1-249-437-11 CARBON 47K 5% 1/4W R529 1-249-433-11 CARBON 22K 5% 1/4W R530 1-249-433-11 CARBON 22K 5% 1/4W R531 1-247-888-11 CARBON 240K 5% 1/4W (TH) R531 1-247-891-00 CARBON 330K 5% 1/4W (EXCEPT TH) R532 1-249-441-11 CARBON 100K 5% 1/4W R533 1-249-437-11 CARBON 47K 5% 1/4W 0R539 1-215-889-11 METAL OXIDE 330 5% 2W R541 1-249-441-11 CARBON 100K 5% 1/4W R542 1-249-441-11 CARBON 100K 5% 1/4W R545 1-249-417-11 CARBON 1K 5% 1/4W F R546 1-249-433-11 CARBON 22K 5% 1/4W R547 1-249-437-11 CARBON 47K 5% 1/4W R548 1-249-437-11 CARBON 47K 5% 1/4W R551 1-249-417-11 CARBON 1K 5% 1/4W F R552 1-249-437-11 CARBON 47K 5% 1/4W R553 1-249-410-11 CARBON 270 5% 1/4W F R554 1-249-437-11 CARBON 47K 5% 1/4W R555 1-249-417-11 CARBON 1K 5% 1/4W F R556 1-249-433-11 CARBON 22K 5% 1/4W R557 1-247-883-00 CARBON 150K 5% 1/4W 0R558 1-234-499-21 ENCAPSULATED COMPONENT R559 1-260-076-11 CARBON 10 5% 1/2W 0R561 1-212-881-11 FUSIBLE 100 5% 1/4W R564 1-249-433-11 CARBON 22K 5% 1/4W R565 1-249-433-11 CARBON 22K 5% 1/4W R568 1-249-429-11 CARBON 10K 5% 1/4W R569 1-249-437-11 CARBON 47K 5% 1/4W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 100 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN77D POWER AMP REGULATOR RF R570 1-249-429-11 CARBON 10K 5% 1/4W R572 1-249-441-11 CARBON 100K 5% 1/4W R577 1-247-807-31 CARBON 100 5% 1/4W R578 1-247-897-11 CARBON 560K 5% 1/4W R581 1-249-435-11 CARBON 33K 5% 1/4W R582 1-249-435-11 CARBON 33K 5% 1/4W R591 1-249-441-11 CARBON 100K 5% 1/4W R592 1-249-441-11 CARBON 100K 5% 1/4W < RELAY > RY501 1-515-920-11 RELAY < THERMISTOR > TH501 1-807-796-11 THERMISTOR TH502 1-807-796-11 THERMISTOR < TERMINAL > TM501 1-694-991-11 PUSH TERMINAL (10P) (FRONT/SURROUND/CENTER SPEAKER) ****************************************************** A-4732-884-A REGULATOR BOARD, COMPLETE (EXCEPT TH) A-4734-506-A REGULATOR BOARD, COMPLETE (TH) ************************ < CAPACITOR > C910 1-164-156-11 CERAMIC CHIP 0.1uF 25V C911 1-126-935-11 ELECT 470uF 20% 10V C912 1-164-156-11 CERAMIC CHIP 0.1uF 25V C913 1-126-768-11 ELECT 2200uF 20% 16V C915 1-164-156-11 CERAMIC CHIP 0.1uF 25V C917 1-126-935-11 ELECT 470uF 20% 6.3V C918 1-164-156-11 CERAMIC CHIP 0.1uF 25V C919 1-164-156-11 CERAMIC CHIP 0.1uF 25V C921 1-164-156-11 CERAMIC CHIP 0.1uF 25V C922 1-104-656-11 ELECT 2200uF 20% 6.3V C923 1-164-156-11 CERAMIC CHIP 0.1uF 25V C924 1-126-935-11 ELECT 470uF 20% 6.3V C925 1-164-156-11 CERAMIC CHIP 0.1uF 25V C926 1-126-935-11 ELECT 470uF 20% 10V < CONNECTOR > * CN713 1-564-525-11 PLUG, CONNECTOR 10P * CN714 1-564-519-11 PLUG, CONNECTOR 4P < FERRITE BEAD > FB205 1-216-864-11 METAL CHIP 0 5% 1/10W < IC > IC901 6-703-550-01 IC TA7809LS IC902 8-759-518-68 IC PQ12RF21 IC903 6-703-550-01 IC TA7809LS IC904 6-703-546-01 IC TA7804LS IC905 6-703-547-01 IC TA7805LS IC906 6-703-547-01 IC TA7805LS < TRANSISTOR > Q903 8-729-113-13 TRANSISTOR FA1A4M-T1L33 Q904 8-729-113-13 TRANSISTOR FA1A4M-T1L33 Q905 8-729-209-60 TRANSISTOR 2SB1375 Q906 8-729-113-13 TRANSISTOR FA1A4M-T1L33 < RESISTOR > R901 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R902 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R903 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R905 1-216-833-11 METAL CHIP 10K 5% 1/10W R906 1-216-833-11 METAL CHIP 10K 5% 1/10W ****************************************************** A-4728-690-A RF BOARD, COMPLETE ***************** < CAPACITOR > C001 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C002 1-124-779-00 ELECT CHIP 10uF 20% 16V C003 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C004 1-124-779-00 ELECT CHIP 10uF 20% 16V C005 1-128-993-21 ELECT CHIP 22uF 20% 10V C006 1-128-993-21 ELECT CHIP 22uF 20% 10V C008 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C009 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C010 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V C011 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V C012 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C013 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C014 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C015 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C016 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C017 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C018 1-164-172-11 CERAMIC CHIP 0.0056uF 10% 25V C019 1-164-172-11 CERAMIC CHIP 0.0056uF 10% 25V C020 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C021 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C022 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C023 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C024 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C025 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C026 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C027 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C028 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C029 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C030 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C031 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V C032 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C033 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C034 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C035 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C036 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C037 1-162-959-11 CERAMIC CHIP 330PF 5% 50V C038 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C039 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C040 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C041 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C042 1-164-218-11 CERAMIC CHIP 180PF 0.25PF 50V C049 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V < CONNECTOR > CN001 1-815-031-11 CONNECTOR, FFC/FPC (ZIF) 24P CN002 1-784-836-21 CONNECTOR,FFC(LIF(NON-ZIF))29P www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 101 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN77D The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. RF SENSOR SUB TRANS CN003 1-784-861-21 CONNECTOR, FFC(LIF(NON-ZIF))9P < DIODE > D001 8-719-988-61 DIODE 1SS355TE-17 D002 8-719-988-61 DIODE 1SS355TE-17 < IC > IC001 6-703-551-01 IC SP3723BDAOPM < COIL > L001 1-412-031-11 INDUCTOR CHIP 47uH L002 1-412-031-11 INDUCTOR CHIP 47uH < TRANSISTOR > Q001 8-729-903-46 TRANSISTOR 2SB1132-P Q002 8-729-903-46 TRANSISTOR 2SB1132-P < RESISTOR > R001 1-218-668-11 METAL CHIP 100 0.5% 1/10W R003 1-216-803-11 METAL CHIP 33 5% 1/10W R004 1-216-803-11 METAL CHIP 33 5% 1/10W R005 1-216-841-11 METAL CHIP 47K 5% 1/10W R006 1-216-817-11 METAL CHIP 470 5% 1/10W R007 1-216-803-11 METAL CHIP 33 5% 1/10W R008 1-216-803-11 METAL CHIP 33 5% 1/10W R009 1-216-841-11 METAL CHIP 47K 5% 1/10W R010 1-216-817-11 METAL CHIP 470 5% 1/10W R011 1-216-864-11 METAL CHIP 0 5% 1/10W R012 1-216-864-11 METAL CHIP 0 5% 1/10W R013 1-216-864-11 METAL CHIP 0 5% 1/10W R014 1-216-864-11 METAL CHIP 0 5% 1/10W R015 1-216-864-11 METAL CHIP 0 5% 1/10W R016 1-216-864-11 METAL CHIP 0 5% 1/10W R017 1-216-864-11 METAL CHIP 0 5% 1/10W R018 1-216-864-11 METAL CHIP 0 5% 1/10W R019 1-216-864-11 METAL CHIP 0 5% 1/10W R020 1-216-864-11 METAL CHIP 0 5% 1/10W R021 1-216-864-11 METAL CHIP 0 5% 1/10W R022 1-216-813-11 METAL CHIP 220 5% 1/10W R023 1-216-820-11 METAL CHIP 820 5% 1/10W R024 1-216-864-11 METAL CHIP 0 5% 1/10W R025 1-216-809-11 METAL CHIP 100 5% 1/10W R026 1-218-718-11 METAL CHIP 12K 0.5% 1/10W R027 1-216-864-11 METAL CHIP 0 5% 1/10W R028 1-216-864-11 METAL CHIP 0 5% 1/10W R029 1-216-864-11 METAL CHIP 0 5% 1/10W R032 1-216-809-11 METAL CHIP 100 5% 1/10W R033 1-216-864-11 METAL CHIP 0 5% 1/10W R034 1-219-570-11 METAL CHIP 10M 5% 1/10W R035 1-216-864-11 METAL CHIP 0 5% 1/10W R041 1-216-821-11 METAL CHIP 1K 5% 1/10W ****************************************************** 1-687-132-11 SENSOR BOARD ************ < CONNECTOR > CN731 1-785-329-21 PIN, CONNECTOR (LIGHT ANGLE)3P ****************************************************** A-4749-088-A SUB TRANS BOARD, COMPLETE(E3,E15,SP,MY) A-4747-641-A SUB TRANS BOARD, COMPLETE (EA) A-4749-091-A SUB TRANS BOARD, COMPLETE (TH) *********************** < CAPACITOR > 0C971 1-113-925-11 CERAMIC 0.01uF 20% 250V C973 1-126-933-11 ELECT 100uF 20% 16V C975 1-126-767-11 ELECT 1000uF 20% 16V C976 1-164-159-21 CERAMIC 0.1uF 50V(TH) C976 1-164-159-11 CERAMIC 0.1uF 50V (EXCEPT TH) C977 1-164-159-21 CERAMIC 0.1uF 50V(TH) C977 1-164-159-11 CERAMIC 0.1uF 50V (EXCEPT TH) C978 1-164-159-21 CERAMIC 0.1uF 50V(TH) C978 1-164-159-11 CERAMIC 0.1uF 50V (EXCEPT TH) < CONNECTOR > CN971 1-568-106-11 PIN, CONNECTOR(3.96mm PITCH)4P (EXCEPT TH) CN971 1-564-321-00 PIN, CONNECTOR(3.96mm PITCH)2P(TH) CN974 1-564-321-00 PIN, CONNECTOR(3.96mm PITCH)2P CN976 1-785-330-11 PIN, CONNECTOR (LIGHT ANGLE)4P < DIODE > D971 8-719-991-33 DIODE 1SS133T-72 D972 8-719-200-82 DIODE 11ES2-NTA1B (TH) D972 8-719-024-99 DIODE 11ES2-NTA2B (EXCEPT TH) D973 8-719-200-82 DIODE 11ES2-NTA1B (TH) D973 8-719-024-99 DIODE 11ES2-NTA2B (EXCEPT TH) D974 8-719-200-82 DIODE 11ES2-NTA1B (TH) D974 8-719-024-99 DIODE 11ES2-NTA2B (EXCEPT TH) D975 8-719-200-82 DIODE 11ES2-NTA1B (TH) D975 8-719-024-99 DIODE 11ES2-NTA2B (EXCEPT TH) < IC > IC971 6-703-546-01 IC TA7804LS < TRANSISTOR > Q971 8-729-119-79 TRANSISTOR 2SC2785TP-FEK < RESISTOR > R974 1-249-441-11 CARBON 100K 5% 1/4W R975 1-249-429-11 CARBON 10K 5% 1/4W < RELAY > 0RY971 1-755-276-11 RELAY, POWER < SWITCH > 0S901 1-786-055-21 SELECTOR, VOLTAGE (VOLTAGE SELECTOR) (EXCEPT TH) < TRANSFORMER > 0T972 1-437-775-21 TRANSFORMER, POWER (EA) 0T972 1-437-751-12 TRANSFORMER, POWER (EXCEPT EA) ****************************************************** www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 102 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN77D The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. SURROUND A-4732-880-A SURROUND BOARD, COMPLETE (EXCEPT TH) A-4734-255-A SURROUND BOARD, COMPLETE (TH) *********************** < CAPACITOR > C301 1-126-963-11 ELECT 4.7uF 20% 50V C302 1-162-286-21 CERAMIC 220PF 10% 50V(TH) C302 1-162-286-31 CERAMIC 220PF 10% 50V (EXCEPT TH) C303 1-107-473-11 CERAMIC 220PF 5% 50V C304 1-126-947-11 ELECT 47uF 20% 10V C306 1-136-495-11 FILM 0.068uF 5% 50V C307 1-136-495-11 FILM 0.068uF 5% 50V C308 1-128-576-11 ELECT 100uF 20% 63V C319 1-162-306-11 CERAMIC 0.01uF 30% 16V C341 1-126-963-11 ELECT 4.7uF 20% 50V C342 1-162-286-21 CERAMIC 220PF 10% 50V(TH) C342 1-162-286-31 CERAMIC 220PF 10% 50V (EXCEPT TH) C343 1-107-473-11 CERAMIC 220PF 5% 50V C344 1-126-947-11 ELECT 47uF 20% 10V C346 1-136-495-11 FILM 0.068uF 5% 50V C347 1-136-495-11 FILM 0.068uF 5% 50V C351 1-126-963-11 ELECT 4.7uF 20% 50V C352 1-162-286-21 CERAMIC 220PF 10% 50V(TH) C352 1-162-286-31 CERAMIC 220PF 10% 50V (EXCEPT TH) C353 1-107-473-11 CERAMIC 220PF 5% 50V C354 1-126-947-11 ELECT 47uF 20% 10V C356 1-136-495-11 FILM 0.068uF 5% 50V C357 1-136-495-11 FILM 0.068uF 5% 50V C358 1-128-576-11 ELECT 100uF 20% 63V < CONNECTOR > CN303 1-564-509-11 PLUG, CONNECTOR 6P * CN304 1-564-520-11 PLUG, CONNECTOR 5P < DIODE > D301 8-719-991-33 DIODE 1SS133T-72 D341 8-719-991-33 DIODE 1SS133T-72 D351 8-719-991-33 DIODE 1SS133T-72 D381 8-719-991-33 DIODE 1SS133T-72 D382 8-719-991-33 DIODE 1SS133T-72 D391 8-719-991-33 DIODE 1SS133T-72 < GROUND TERMINAL > EP301 1-537-738-21 TERMINAL, GROUND < IC > IC301 8-749-017-19 IC STK443-050 < TRANSISTOR > Q301 8-729-119-79 TRANSISTOR 2SC2785TP-FEK Q341 8-729-119-79 TRANSISTOR 2SC2785TP-FEK Q351 8-729-119-79 TRANSISTOR 2SC2785TP-FEK Q381 8-729-119-76 TRANSISTOR 2SA1175TP-HFE Q383 8-729-119-76 TRANSISTOR 2SA1175TP-HFE Q384 8-729-900-36 TRANSISTOR BA1F4M-TP Q385 8-729-119-79 TRANSISTOR 2SC2785TP-FEK Q386 8-729-900-36 TRANSISTOR BA1F4M-TP < RESISTOR > R301 1-249-417-11 CARBON 1K 5% 1/4W F R302 1-249-437-11 CARBON 47K 5% 1/4W R303 1-249-413-11 CARBON 470 5% 1/4W R304 1-249-437-11 CARBON 47K 5% 1/4W 0R305 1-234-499-21 ENCAPSULATED COMPONENT R307 1-249-417-11 CARBON 1K 5% 1/4W F R308 1-249-434-11 CARBON 27K 5% 1/4W R309 1-249-441-11 CARBON 100K 5% 1/4W R310 1-260-076-11 CARBON 10 5% 1/2W 0R311 1-212-881-11 FUSIBLE 100 5% 1/4W R319 1-249-429-11 CARBON 10K 5% 1/4W 0R320 1-202-972-61 FUSIBLE 1 5% 1/4W R331 1-249-437-11 CARBON 47K 5% 1/4W R332 1-249-438-11 CARBON 56K 5% 1/4W R333 1-249-439-11 CARBON 68K 5% 1/4W R341 1-249-417-11 CARBON 1K 5% 1/4W F R342 1-249-437-11 CARBON 47K 5% 1/4W R343 1-249-413-11 CARBON 470 5% 1/4W R344 1-249-437-11 CARBON 47K 5% 1/4W 0R345 1-234-499-21 ENCAPSULATED COMPONENT R347 1-249-417-11 CARBON 1K 5% 1/4W F R348 1-249-434-11 CARBON 27K 5% 1/4W R349 1-249-441-11 CARBON 100K 5% 1/4W R350 1-260-076-11 CARBON 10 5% 1/2W R351 1-249-417-11 CARBON 1K 5% 1/4W F R352 1-249-437-11 CARBON 47K 5% 1/4W R353 1-249-413-11 CARBON 470 5% 1/4W R354 1-249-437-11 CARBON 47K 5% 1/4W 0R356 1-234-499-21 ENCAPSULATED COMPONENT R357 1-249-417-11 CARBON 1K 5% 1/4W F R358 1-249-434-11 CARBON 27K 5% 1/4W R359 1-249-441-11 CARBON 100K 5% 1/4W R360 1-260-076-11 CARBON 10 5% 1/2W 0R361 1-212-881-11 FUSIBLE 100 5% 1/4W 0R387 1-215-889-11 METAL OXIDE 330 5% 2W 0R388 1-215-889-11 METAL OXIDE 330 5% 2W R390 1-249-429-11 CARBON 10K 5% 1/4W R395 1-249-429-11 CARBON 10K 5% 1/4W R396 1-249-433-11 CARBON 22K 5% 1/4W R397 1-249-417-11 CARBON 1K 5% 1/4W F R399 1-249-417-11 CARBON 1K 5% 1/4W F R401 1-249-417-11 CARBON 1K 5% 1/4W F R402 1-249-433-11 CARBON 22K 5% 1/4W < RELAY > RY381 1-755-417-12 RELAY RY382 1-755-417-12 RELAY ****************************************************** 1-687-669-11 SW BOARD ******** S751 1-786-514-11 SWITCH, LEVER (SLIDE) (LEVER) ****************************************************** SW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 103 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN77D TRANS VIDEO 1-686-930-11 TRANS BOARD *********** < CAPACITOR > C941 1-128-576-11 ELECT 100uF 20% 63V < CONNECTOR > CN997 1-564-509-11 PLUG, CONNECTOR 6P * CN998 1-564-510-11 PLUG, CONNECTOR 7P < DIODE > D977 8-719-024-99 DIODE 11ES2-NTA2B < FUSE HOLDER > FH9741 1-533-233-11 FUSE HOLDER FH9742 1-533-233-11 FUSE HOLDER FH9751 1-533-233-11 FUSE HOLDER FH9752 1-533-233-11 FUSE HOLDER FH9761 1-533-233-11 FUSE HOLDER FH9762 1-533-233-11 FUSE HOLDER FH9771 1-533-233-11 FUSE HOLDER FH9772 1-533-233-11 FUSE HOLDER FH9781 1-533-233-11 FUSE HOLDER FH9782 1-533-233-11 FUSE HOLDER FH9791 1-533-233-11 FUSE HOLDER FH9792 1-533-233-11 FUSE HOLDER < RESISTOR > 0R941 1-217-637-00 FUSIBLE 1 5% 1/4W ****************************************************** A-4732-883-A VIDEO BOARD, COMPLETE (EXCEPT TH) A-4734-505-A VIDEO BOARD, COMPLETE (TH) ******************* < CAPACITOR > C215 1-126-964-11 ELECT 10uF 20% 50V C216 1-126-964-11 ELECT 10uF 20% 50V C217 1-126-964-11 ELECT 10uF 20% 50V C218 1-126-964-11 ELECT 10uF 20% 50V C219 1-126-964-11 ELECT 10uF 20% 50V C220 1-126-964-11 ELECT 10uF 20% 50V C221 1-126-964-11 ELECT 10uF 20% 50V C222 1-126-964-11 ELECT 10uF 20% 50V C709 1-162-953-11 CERAMIC CHIP 100PF 5% 50V C710 1-126-964-11 ELECT 10uF 20% 50V C711 1-126-964-11 ELECT 10uF 20% 50V C712 1-126-926-11 ELECT 1000uF 20% 10V C713 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C714 1-126-933-11 ELECT 100uF 20% 16V C715 1-126-960-11 ELECT 1uF 20% 50V C716 1-126-960-11 ELECT 1uF 20% 50V C717 1-126-960-11 ELECT 1uF 20% 50V C718 1-126-960-11 ELECT 1uF 20% 50V C719 1-126-960-11 ELECT 1uF 20% 50V C720 1-126-960-11 ELECT 1uF 20% 50V C721 1-126-933-11 ELECT 100uF 20% 16V C722 1-164-156-11 CERAMIC CHIP 0.1uF 25V C723 1-164-156-11 CERAMIC CHIP 0.1uF 25V C724 1-126-935-11 ELECT 470uF 20% 6.3V C725 1-128-551-11 ELECT 22uF 20% 25V C726 1-126-935-11 ELECT 470uF 20% 6.3V C727 1-128-551-11 ELECT 22uF 20% 25V C728 1-126-935-11 ELECT 470uF 20% 6.3V C729 1-128-551-11 ELECT 22uF 20% 25V C730 1-126-933-11 ELECT 100uF 20% 16V C731 1-126-965-91 ELECT 22uF 20% 50V C732 1-126-933-11 ELECT 100uF 20% 16V C733 1-126-965-91 ELECT 22uF 20% 50V C734 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C735 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C736 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C737 1-162-957-11 CERAMIC CHIP 220PF 5% 50V C738 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C739 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C740 1-164-156-11 CERAMIC CHIP 0.1uF 25V C741 1-126-965-91 ELECT 22uF 20% 50V C742 1-126-947-11 ELECT 47uF 20% 16V C848 1-164-156-11 CERAMIC CHIP 0.1uF 25V C849 1-126-916-11 ELECT 1000uF 20% 6.3V < CONNECTOR > CN207 1-779-289-11 CONNECTOR,FFC(LIF(NON-ZIF))21P CN208 1-779-293-11 CONNECTOR,FFC(LIF(NON-ZIF))25P * CN710 1-564-720-11 PIN, CONNECTOR (SMALL TYPE) 4P CN711 1-785-328-11 PIN, CONNECTOR (LIGHT ANGRE)2P CN712 1-779-285-11 CONNECTOR,FFC(LIF(NON-ZIF))17P < DIODE > D710 8-719-988-61 DIODE 1SS355TE-17 D711 8-719-988-61 DIODE 1SS355TE-17 < FERRITE BEAD > FB710 1-216-864-11 METAL CHIP 0 5% 1/10W FB711 1-216-864-11 METAL CHIP 0 5% 1/10W FB712 1-216-864-11 METAL CHIP 0 5% 1/10W FB713 1-216-864-11 METAL CHIP 0 5% 1/10W FB714 1-216-864-11 METAL CHIP 0 5% 1/10W FB715 1-216-864-11 METAL CHIP 0 5% 1/10W FB798 1-216-864-11 METAL CHIP 0 5% 1/10W < IC > IC710 8-759-295-90 IC NJM2244M-TE2 IC711 6-702-335-01 IC MM1568AJBE < JACK > J710 1-793-483-11 JACK, PIN 3P (COMPONENT VIDEO OUT) J711 1-774-227-11 JACK, PIN 1P (VIDEO OUT) J712 1-537-943-11 TERMINAL, S (S-VIDEO OUT) < JUMPER RESISTOR > JR713 1-216-864-11 METAL CHIP 0 5% 1/10W JR716 1-216-864-11 METAL CHIP 0 5% 1/10W JR717 1-216-864-11 METAL CHIP 0 5% 1/10W JR720 1-216-864-11 METAL CHIP 0 5% 1/10W JR721 1-216-864-11 METAL CHIP 0 5% 1/10W < COIL > L710 1-414-189-31 INDUCTOR 100uH L711 1-414-183-41 INDUCTOR 10uH www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 104 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN77D VOLUME VIDEO < TRANSISTOR > Q215 8-729-802-80 TRANSISTOR 2SC3661-TB Q216 8-729-802-80 TRANSISTOR 2SC3661-TB Q217 8-729-802-80 TRANSISTOR 2SC3661-TB Q218 8-729-802-80 TRANSISTOR 2SC3661-TB Q219 8-729-802-80 TRANSISTOR 2SC3661-TB Q220 8-729-802-80 TRANSISTOR 2SC3661-TB Q221 8-729-802-80 TRANSISTOR 2SC3661-TB Q222 8-729-802-80 TRANSISTOR 2SC3661-TB Q710 8-729-113-69 TRANSISTOR FN1F4M-T1M32 Q711 8-729-113-13 TRANSISTOR FA1A4M-T1L33 < RESISTOR > R215 1-216-821-11 METAL CHIP 1K 5% 1/10W R216 1-216-821-11 METAL CHIP 1K 5% 1/10W R217 1-216-821-11 METAL CHIP 1K 5% 1/10W R218 1-216-821-11 METAL CHIP 1K 5% 1/10W R219 1-216-821-11 METAL CHIP 1K 5% 1/10W R220 1-216-821-11 METAL CHIP 1K 5% 1/10W R221 1-216-821-11 METAL CHIP 1K 5% 1/10W R222 1-216-821-11 METAL CHIP 1K 5% 1/10W R225 1-216-833-11 METAL CHIP 10K 5% 1/10W R226 1-216-833-11 METAL CHIP 10K 5% 1/10W R227 1-216-833-11 METAL CHIP 10K 5% 1/10W R228 1-216-833-11 METAL CHIP 10K 5% 1/10W R229 1-216-833-11 METAL CHIP 10K 5% 1/10W R230 1-216-833-11 METAL CHIP 10K 5% 1/10W R231 1-216-833-11 METAL CHIP 10K 5% 1/10W R232 1-216-833-11 METAL CHIP 10K 5% 1/10W R235 1-216-833-11 METAL CHIP 10K 5% 1/10W R236 1-216-833-11 METAL CHIP 10K 5% 1/10W R237 1-216-833-11 METAL CHIP 10K 5% 1/10W R238 1-216-833-11 METAL CHIP 10K 5% 1/10W R239 1-216-833-11 METAL CHIP 10K 5% 1/10W R240 1-216-833-11 METAL CHIP 10K 5% 1/10W R241 1-216-833-11 METAL CHIP 10K 5% 1/10W R242 1-216-833-11 METAL CHIP 10K 5% 1/10W R710 1-216-833-11 METAL CHIP 10K 5% 1/10W R711 1-216-833-11 METAL CHIP 10K 5% 1/10W R712 1-218-285-11 METAL CHIP 75 5% 1/10W R713 1-218-285-11 METAL CHIP 75 5% 1/10W R714 1-218-285-11 METAL CHIP 75 5% 1/10W R715 1-218-285-11 METAL CHIP 75 5% 1/10W R716 1-218-285-11 METAL CHIP 75 5% 1/10W R717 1-218-285-11 METAL CHIP 75 5% 1/10W R718 1-216-845-11 METAL CHIP 100K 5% 1/10W R719 1-216-833-11 METAL CHIP 10K 5% 1/10W R720 1-218-285-11 METAL CHIP 75 5% 1/10W R721 1-216-833-11 METAL CHIP 10K 5% 1/10W ****************************************************** A-4732-868-A VOLUME BOARD, COMPLETE (EXCEPT TH) A-4734-534-A VOLUME BOARD, COMPLETE (TH) ********************* < CAPACITOR > C614 1-162-294-31 CERAMIC 0.001uF 10% 50V C615 1-124-589-11 ELECT 47uF 20% 16V C750 1-164-159-21 CERAMIC 0.1uF 50V(TH) C750 1-164-159-11 CERAMIC 0.1uF 50V (EXCEPT TH) C751 1-164-159-21 CERAMIC 0.1uF 50V(TH) C751 1-164-159-11 CERAMIC 0.1uF 50V (EXCEPT TH) C752 1-164-159-21 CERAMIC 0.1uF 50V(TH) C752 1-164-159-11 CERAMIC 0.1uF 50V (EXCEPT TH) C1000 1-164-159-21 CERAMIC 0.1uF 50V(TH) C1000 1-164-159-11 CERAMIC 0.1uF 50V (EXCEPT TH) < CONNECTOR > CN605 1-568-860-11 SOCKET, CONNECTOR 17P < DIODE > D1001 6-500-529-01 DIODE SLI-325URT31W (VOL 1) D1002 6-500-529-01 DIODE SLI-325URT31W (VOL 2) D1003 6-500-529-01 DIODE SLI-325URT31W (VOL 3) D1004 6-500-529-01 DIODE SLI-325URT31W (VOL 4) D1005 6-500-529-01 DIODE SLI-325URT31W (VOL 5) D1006 6-500-529-01 DIODE SLI-325URT31W (VOL 6) D1007 6-500-529-01 DIODE SLI-325URT31W (VOL 7) D1008 6-500-529-01 DIODE SLI-325URT31W (VOL 8) D1009 6-500-529-01 DIODE SLI-325URT31W (VOL 9) D1010 6-500-529-01 DIODE SLI-325URT31W (VOL 10) D1011 6-500-529-01 DIODE SLI-325URT31W (VOL 11) D1012 6-500-647-01 DIODE SEL5E20C-S-TP (MULTI CHANNEL DECODING) D1013 8-719-991-33 DIODE 1SS133T-72 < IC > IC603 6-600-174-01 IC RPM7240-H4 < TRANSISTOR > Q1001 8-729-116-02 TRANSISTOR BA1A4M-TP Q1002 8-729-116-02 TRANSISTOR BA1A4M-TP Q1003 8-729-116-02 TRANSISTOR BA1A4M-TP Q1004 8-729-116-02 TRANSISTOR BA1A4M-TP Q1005 8-729-116-02 TRANSISTOR BA1A4M-TP Q1006 8-729-116-02 TRANSISTOR BA1A4M-TP < RESISTOR > R625 1-249-401-11 CARBON 47 5% 1/4W F R750 1-249-410-11 CARBON 270 5% 1/4W F R759 1-249-427-11 CARBON 6.8K 5% 1/4W F R760 1-249-429-11 CARBON 10K 5% 1/4W R761 1-249-431-11 CARBON 15K 5% 1/4W R762 1-249-433-11 CARBON 22K 5% 1/4W R763 1-249-435-11 CARBON 33K 5% 1/4W R765 1-249-413-11 CARBON 470 5% 1/4W F R766 1-249-415-11 CARBON 680 5% 1/4W F R767 1-249-417-11 CARBON 1K 5% 1/4W F R768 1-249-419-11 CARBON 1.5K 5% 1/4W F R769 1-249-419-11 CARBON 1.5K 5% 1/4W F R770 1-249-421-11 CARBON 2.2K 5% 1/4W F R771 1-247-843-11 CARBON 3.3K 5% 1/4W R772 1-249-425-11 CARBON 4.7K 5% 1/4W F R773 1-249-427-11 CARBON 6.8K 5% 1/4W F R774 1-249-429-11 CARBON 10K 5% 1/4W R775 1-249-431-11 CARBON 15K 5% 1/4W R776 1-249-433-11 CARBON 22K 5% 1/4W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 105 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN77D VOLUME The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. R777 1-249-435-11 CARBON 33K 5% 1/4W R1001 1-249-413-11 CARBON 470 5% 1/4W F R1002 1-249-413-11 CARBON 470 5% 1/4W F R1003 1-249-413-11 CARBON 470 5% 1/4W F R1004 1-249-413-11 CARBON 470 5% 1/4W F R1005 1-249-413-11 CARBON 470 5% 1/4W F R1006 1-249-413-11 CARBON 470 5% 1/4W F R1007 1-249-413-11 CARBON 470 5% 1/4W F R1008 1-249-413-11 CARBON 470 5% 1/4W F R1009 1-249-413-11 CARBON 470 5% 1/4W F R1010 1-249-413-11 CARBON 470 5% 1/4W F R1011 1-249-413-11 CARBON 470 5% 1/4W F R1012 1-249-407-11 CARBON 150 5% 1/4W F R1013 1-249-429-11 CARBON 10K 5% 1/4W < SWITCH > S748 1-476-504-11 ENCODER, ROTARY (VOLUME) S750 1-771-410-21 SWITCH, TACTILE (DISPLAY) S759 1-771-410-21 SWITCH, TACTILE (SOUND FIELD) S760 1-771-410-21 SWITCH, TACTILE (P.FILE) S761 1-771-410-21 SWITCH, TACTILE (ILLUMINATION) S762 1-771-410-21 SWITCH, TACTILE (GAME EQ) S763 1-771-410-21 SWITCH, TACTILE (GROOVE) S765 1-771-410-21 SWITCH, TACTILE (DVD TOP MENU/DIRECTION) S766 1-771-410-21 SWITCH, TACTILE (FM MODE/REPEAT) S767 1-771-410-21 SWITCH, TACTILE (TUNER MEMORY/PLAY MODE) S768 1-771-410-21 SWITCH, TACTILE (AMP MENU) S769 1-771-410-21 SWITCH, TACTILE (MUSIC EQ) S770 1-771-410-21 SWITCH, TACTILE (MOVIE EQ) S771 1-771-410-21 SWITCH, TACTILE (EFFECT ON/OFF) S772 1-771-410-21 SWITCH, TACTILE (DVD MENU) S773 1-786-528-11 SWITCH, ROTARY (<,,,M,m,PUSH ENTER) ****************************************************** MISCELLANEOUS ************* 0 1-569-007-11 ADAPTOR, CONVERSION (E15) 0 1-569-008-21 ADAPTOR, CONVERSION (EA,SP,MY) 0 1-770-019-51 ADAPTOR, CONVERSION PLUG (TH) 6 1-693-603-31 TUNER (FM/AM) 11 1-775-165-11 WIRE (FLAT TYPE) (17 CORE) (220mm) 70 1-773-040-11 WIRE (FLAT TYPE) (17 CORE) (120mm) 73 1-773-110-11 WIRE (FLAT TYPE) (19 CORE) 75 1-796-487-31 DECK, MECHANICAL (CDM43RR23) 79 1-751-688-11 WIRE (FLAT TYPE) (13 CORE) 0103 1-777-071-53 CORD, POWER (EA,SP,MY) 0103 1-824-818-11 CORD, POWER (TH) 0103 1-827-226-11 CORD, POWER (E15,E3) 152 1-776-182-11 WIRE (FLAT TYPE) (5 CORE) 226 1-775-265-11 WIRE (FLAT TYPE) (29 CORE) 227 1-824-106-12 CABLE, FLEXIBLE FLAT (24 CORE) 0229 1-477-263-11 OPTICAL PICK-UP (TDP022W) 0F974 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) (T6.3AL 250V) 0F975 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) (T6.3AL 250V) 0F976 1-576-655-11 FUSE, GLASS TUBE (DIA. 5) (8A 250V) 0F977 1-576-655-11 FUSE, GLASS TUBE (DIA. 5) (8A 250V) 0F978 1-533-471-11 FUSE, GLASS TUBE (DIA. 5) (4A 250V) 0F979 1-533-470-11 FUSE, GLASS TUBE (DIA. 5) (3.15A 250V) M741 A-4723-963-A MOTOR ASSY, TABLE M751 A-4737-553-A MOTOR ASSY, LOADING M891 1-763-072-11 FAN, DC RE701 1-477-680-11 ENCODER, ROTARY 0T910 1-439-742-11 TRANSFORMER, POWER(E15,E3,SP,MY,TH) 0T910 1-439-841-11 POWER TRANSFORMER (EA) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D SUPPLEMENT-1 File this supplement with the service manual. Subject: DVD OSD Test Mode Ver 1.1 2003.08 E Model 9-877-454-81 SERVICE MANUAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 HCD-GN77D [GENERAL DESCRIPTION] The Test Mode allows you to make diagnosis and adjustment eas- ily using the remote commander and monitor TV. The instructions, diagnostic results, etc. are given on the on-screen display (OSD). [STARTING TEST MODE] 1. Press the +/1 button to turn the power on, and set the function to DVD. 2. While pressing the x and Z button, turn the [VOLUME] knob clockwise to enter the test mode. 3. It displays “SERVICE IN” on the liquid crystal display, and displays the Test Mode Menu on the monitor screen as follows. (At the bottom of the menu screen, the model name and revision number are displayed) Test Mode Menu 0. Syscon Diagnosis 1. Drive Auto Adjustment 2. Drive Manual Operation 3. Mecha Aging 4. Emergency History 5. Mecha Error History 6. Version Information 7. Video Level Adjustment Exit: POWER Key Model :MHC-GN77D xx Revision :x.xx 4. To execute each function, select the desired menu and press its number on the remote commander RM-SR246D. 5. To release from test mode, press the +/1 button and turn the power off. [OPERATING TEST MODE] 0. SYSCON DIAGNOSIS The same contents as board detail check by serial interface can be checked from the remote commander operation. On the Test Mode Menu screen, press [10/0] key on the remote commander, and the following Check Menu will be displayed. ### Syscon Diagnosis ### Check Menu 0. Quit 1. All 2. Version 3. EEPROM 4. GPIO 5. SD Bus 6. Video 0-0. Quit Quit the Syscon Diagnosis and return to the Test Mode Menu. 0-1. All (All items continuous check) This menu checks all diagnostic items continuously. Normally, all items are checked successively one after another automatically unless an error is found, but at a certain item that requires judg- ment through a visual check to the result, the following screen is displayed for the key entry. DVD OSD Test Mode • Example display ### Syscon Diagnosis ### Diag All Check No.2 Version 2-3. ROM Check Sum Check Sum = xxxx Press NEXT Key to Continue Press PREV Key to Repeat For the ROM Check, the check sum calculated by the Syscon is output, and therefore you must compare it with the specified value for confirmation. Following the message, press the [NEXT ] button to go to the next item, or press the [ PREV] button to repeat the same operation again. To quit the diagnosis and return to Check Menu screen, press the [RETURN] key on the remote commander to display Check Menu. • Error occurred If an error occurred, the diagnosis is suspended and error is dis- played. Press the [RETURN] key on the remote commander to quit the diagnosis, or press the [ PREV] button to repeat the same check where an error occurred, or press the [NEXT ] button to continue the check from the item next to faulty item. General Description of Checking Method Selecting 2 and subsequent items calls the submenu screen of each item. And selecting 2 and subsequent items executes respective menus and outputs the results. For the contents of each submenu, see “Check Items List” as be- low. Check Items List: 0-2. Version 0-2-1. All 0-2-2. Revision 0-2-3. ROM Check Sum 0-2-4. Model Type 0-2-5. Region 0-3. EEPROM Check 0-3-1. Sampling Check 0-3-2. Detail Check 0-4. GP I/O Check 0-5. SD Bus Check 0-6. Video Check 0-2. Version 0-2-2. Revision The revision number of ROM (IC206) that the program for the DVD system processor (IC207) is stored. 0-2-3. ROM Check Sum Check sum is calculated. (4 digits hexadecimal number) 0-2-4. Model Type Model name is displayed. (MHC-GN77D) > . > . www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 HCD-GN77D 0-2-5. Region Model destination code is displayed. (2 digits number) 0-3. EEPROM Check 0-3-1. Sampling Check EEPROM check at every 64 words. It compares read data with write data of each address. When there are discrepancies between two data, it displays error. 0-3-2. Detail Check EEPROM check at every 1 word. It compares read data with write data of each address. When there are discrepancies between two data, it displays error. 0-4. GP I/O Check Pull up/down setting check of the DVD system processor (IC207) pin 150, 151 and 154 (for clock setting port). 0-5. SD Bus Check SD bus data check between DVD decoder (IC701) and D-RAM (IC706). 0-6. Video Check Output the color bars for video level adjustment. 1. DRIVE AUTO ADJUSTMENT On the Test Mode Menu screen, press the [1] key on the remote commander, and the Adjustment Menu will be displayed. •Use DVD reference disc unless othermise indicated. [DVD reference disc] • LUV-P01 (4-999-032-01) (CD) •TDV-540C (J-2501-235-A) (DVD-DL) • TDV-520CSO (J-2501-236-A) (DVD-SL) ## Drive Auto Adjustment ## Adjustment Menu 0. ALL 1. DVD-SL 2. CD 3. DVD-DL Exit: RETURN Normally, [10/0] is selected to adjust DVD (single layer), CD and DVD (dual layer) in this order. But, individual items can be ad- justed for the case where adjustment is suspended due to an error. In this mode, the adjustment can be made easily through the op- eration following the message displayed on the screen. The disc used for adjustment must be the one specified for adjust- ment. 1-0. ALL Press the [10/0] key on the remote commander, and the servo set data in EEPROM will be initialized. Then, 1. DVD-SL disc, 2. CD disc and 3. DVD-DL disc are adjusted in this order. Each time one disc was adjusted, it is ejected. Replace it with the specified disc following the message. You can finish the adjust- ment by pressing the [RETURN] button on the remote commander. Note: During adjustment of each disc, the measurement for disc type judg- ment is made. As automatic adjustment does not judge the disc type unlike conventional models, take care not to insert wrong type discs. Also, do not give a shock during adjustment. 1-1. DVD-SL (single layer) Press the [1] key on the remote commander and insert a DVD single layer disc following the message. Then the adjustment will be made through the steps below, then adjusted values will be written to the EEPROM. DVD Single Layer Disc Adjustment Steps: 1. Sled reset 2. Disc check memory SL 3. Wait 300 msec 4. Set disc type SL 5. LD on 6. Spindle start 7. Wait 1 sec 8. Focus servo on 0 9. Auto track offset adjust 10. CLVA on 11. Wait 500 msec 12. Tracking on 13. Wait 1 sec 14. Sled on 15. Check CLV on 16. Auto focus offset adjust 17. Auto focus gain adjust 18. Auto focus offset adjust 19. EQ boost adjust 20. Auto track gain adjust 21. All servo stop 22. EEP copy loop filter offset 1-2. CD Press the [2] key on the remote commander and insert a CD disc following the message. Then the adjustment will be made through the steps below, then adjusted values will be written to the EEPROM. CD Adjustment Steps 1. Sled tilt rest 2. Disc check memory CD 3. Wait 500 msec 4. Set disc type CD 5. LD on 6. Spindle start 7. Wait 500 msec 8. Focus servo on 0 9. Auto track offset adjust 10. CLVA on 11. Wait 500 msec 12. Tracking on 13. (TC display start) 14. Wait 1 sec 15. Sled ON 16. Check CLV on 17. Auto focus offset adjust 18. Auto focus gain adjust 19. Auto focus offset adjust 20. EQ boost adjust 21. Auto track gain adjust 22. All servo stop www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 HCD-GN77D 1-3. DVD-DL (dual layer) Press the [3] key on the remote commander and insert a DVD dual layer disc following the message. Then the adjustment will be made through the steps below, then adjusted values will be written to the EEPROM. DVD Dual Layer Disc Adjustment Steps: 1. Sled tilt reset 2. Disc check memory DL 3. Wait 500 msec 4. Set disc type DL 5. LD on 6. Spindle start 7. Wait 1 sec Layer 1 Adjust 8. Focus servo on 0 9. Auto track offset adjust 10. CLVA on 11. Wait 500 msec 12. Tracking on 13. Wait 500 msec 14. Sled on 15. Check CLV lock 16. Auto loop filter offset adjust, Auto focus adjust 17. Auto focus gain adjust 18. Auto focus offset adjust 19. EQ boost adjust 20. Auto loop filter offset adjust 21. Auto Track Gain Adjust Layer 0 Adjust 22. Focus jump (L1 t L0) 23. Auto track offset adjust L0 24. CLVA on 25. Wait 500 msec 26. Tracking on 27. Wait 500 msec 28. Sled on 29. Check CLV lock 30. Auto Focus Adjust 31. Auto focus gain adjust 32. Auto focus offset adjust 33. EQ boost adjust 34. Auto track gain adjust 35. All servo stop 2. DRIVE MANUAL OPERATION Note: This mode is used for design, and not used in service fundamen- tally. On the Test Mode Menu screen, press the [2] key on the remote commander, and the Operation Menu will be displayed. For the manual operation, each servo on/off control and adjustment can be executed manually. ## Drive Manual Operation ## Operation Menu 1. Disc Type 2. Servo Control 3. Track/Layer Jump 4. Non EEPROM Write Adjust 5. EEPROM Write Adjust 6. Memory Check 7. Disc Check Memory 8. Error Rate Display 9. SACD Water Mark Exit: RETURN > . In using the manual operation menu, take care of the following points. These commands do not provide protection, thus requiring correct operation. The sector address or time code field is dis- played when a disc is loaded. Note: 1. Set correctly the disc type to be used on the Disc Type screen. 2. In case of an alarm, immediately press the x button to stop the servo operation, and press the +/1 button to turn the power off. Basic operation: (controllable from front panel or remote commander) +/1 : Power OFF (release the Test Mode) x : Servo stop Z : Stop and eject/Loading [RETURN] : Return to Operation Menu or Test Mode Menu [ PREV], [NEXT ]: Transition between sub modes of menu [1] to [9], [10/0] : Selection of menu items Cursor o / O : Increase/Decrease in manually ad- justed value 2-1. Disc Type Disc Type Disc Type Select 1. Disc Type Auto Check 2. Set Disc Type DVD 3. Set Disc Type CD 4. Set Disc Type Hybrid Exit: RETURN 2-1-1. Disc Type Auto Check 1) Press the [1] key on the remote commander to display the Disc Type Auto Check screen. 2) Insert a disc and press the [ENTER] key on the remote commander. 3) It judges the type of inserted disc automatically and displays the disc type and so on as below. Disc Type Auto Check Disc Type xx Layer xx Mirr Time xx Mirr Count xx FZC Count xx PI Reference xx PI Peak xx ENTER.Execute Exit: RETURN Disc Type : CD, DVD or Hybrid (SACD) Layer : SINGLE, DUAL or HYBRID Mirr Time : Mirror time of between disc surface and record sur- face when disc type judgment. (hexadecimal num- ber) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 HCD-GN77D Mirr Count : The number of times which mirror counts between disc surface and record surface when disc type judg- ing. FZC Count : The number of times which focus zero cross points of each layer when lens down. PI Reference: The average of PI reference voltage. (hexadecimal number) PI Peak : PI peak level voltage. It performs only when disc type judgment is successful. (hexadecimal number) 2-1-2. Disc Type DVD It sets up so that it may judge as a disc type of specification of the disc with which the set was inserted. [1]: DVD single layer disc (12 cm) [2]: DVD dual layer disc (0 layer, 12 cm) [3]: DVD dual layer disc (1 layer, 12 cm) [4]: DVD-RW disc (12 cm) [5]: DVD single layer disc (8 cm) [6]: DVD dual layer disc (0 layer, 8 cm) [7]: DVD dual layer disc (1 layer, 8 cm) [8]: DVD-RW disc (8 cm) 2-1-3. Disc Type CD It sets up so that it may judge as a disc type of specification of the disc with which the set was inserted. [1]: CD disc (normal speed, 12 cm) [2]: CD disc (double speed, 12 cm) [3]: CD disc (normal speed, 8 cm) [4]: CD disc (double speed, 8 cm) [5]: CD-RW disc (normal speed, 12 cm) [6]: CD-RW disc (double speed, 12 cm) [7]: CD-RW disc (normal speed, 8 cm) [8]: CD-RW disc (double speed, 8 cm) 2-1-4. Disc Type Hybrid It sets up so that it may judge as a disc type of specification of the disc with which the set was inserted. [1]: SACD Hybrid disc (SACD layer, 12 cm) [2]: SACD Hybrid disc (CD layer, normal speed, 12 cm) [3]: SACD Hybrid disc (CD layer, double speed, 12 cm) [4]: SACD Hybrid disc (SACD layer, 8 cm) [5]: SACD Hybrid disc (CD layer, normal speed, 8 cm) [6]: SACD Hybrid disc (CD layer, double speed, 8 cm) 2-2. Servo Control Note: Be sure to perform the disc type setup before performing this item. Servo Control 1.LD off R.Sled FWD 2.Focus off L.Sled REV 3.SPDL off U.Sled Reset 4.CLVA off D.Sled Limit 5.Trk. off 6.Sled off 7.Fcs.Srch off 0.All Servo Off Exit: RETURN On this screen, the servo on/off control necessary for replay is executed. Normally, turn on each servo from 1 sequentially and when CLVA is turned on, the usual trace mode becomes active. In the trace mode, DVD sector address or CD time code is displayed. This is not displayed where the spindle is not locked. The spindle could run overriding the control if the spindle system is faulty or RF is not present. In such a case, do not operate CLVA. [1] LD : Turn on/off the laser. [2] Focus : Search the focus and turn on the focus. [3] SPDL : Turn on/off the spindle. [4] CLVA : Turn on/off normal servo of spindle servo. [5] Trk. : Turn on/off the tracking servo. [6] Sled : Turn on/off the sled servo. [7] FCS. Srch : Turn on/off the focus search. [10/0] : All servo off. [R] Sled FWD (right cursor) : Move the sled forward. [L] Sled REV (left cursor) : Move the sled reverse. [U] Sled FWD (up cursor) : Reset the sled. [D] Sled REV (down cursor) : Limit in the sled. 2-3. Track/Layer Jump Track/Layer Jump 1. 1Tj FWD 2. 1Tj REV 3.500Tj Fine FWD 4.500Tj Fine REV 5.10kTj Dirc FWD 6.10kTj Dirc REV 7.20kTj Dirc FWD 8.20kTj Dirc REV 0. All Servo Off Exit: RETURN On this screen, track jump, etc. can be performed. Only for the DVD dual layer disc, the focus jump and layer jump are displayed in the right field [1] 1Tj FWD : 1 track jump forward. [2] 1Tj REV : 1 track jump reverse. [3] 500Tj FWD: 500 track jump (fine search)forward. [4] 500Tj REV : 500 track jump (fine search) reverse. [5] 10kTj FWD: 10k track jump (direct search) forward. [6] 10kTj REV : 10k track jump (direct search) reverse. [7] 20kTj FWD: 20k track jump (direct search) forward. [8] 20kTj REV : 20k track jump (direct search) reverse. [10/0] : All servo off. 2-4. Non EEPROM Write Adjust Non EEPROM Write Adjust 1. Focus Offset 2. Focus Gain 3. Trk. Offset Coarse 4. Trk. Offset Fine 5. Trk. Gain 6. EQ Boost 0.All Servo Off Exit: RETURN On this screen, each item can be adjusted manually. Select the desired number [1] to [10/0] from the remote commander, and current setting for the selected item will be displayed, then in- crease or decrease numeric value with the O key or o key. If CLV has been applied, the jitter is displayed for reference for the adjustment. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 HCD-GN77D [1] Focus Offset: Adjusts focus offset. [2] Focus Gain : Adjusts focus gain. [3] TRK. Offset coares : Adjusts tracking offset of the RF amp (IC001) side. [4] TRK. Offset fine : Adjusts tracking offset of the DSP (IC401) side. [5] TRK. Gain : Adjusts track gain. [6] EQ Boost : Adjusts amount of boost of equalizer. [10/0] : All servo off. 2-5. EEPROM Write Adjust EEPROM Write Adjust 1. Focus Offset 2. Focus Gain 3. Trk. Offset Coarse 4. —————— 5. Trk. Gain 6. EQ Boost 0.All Servo Off Exit: RETURN On this screen, each item can be adjusted automatically. Select the desired number [1] to [10/0] from the remote commander, and selected item is adjusted automatically. [1] Focus Offset: Adjusts focus offset. [2] Focus Gain : Adjusts focus gain. [3] TRK. Offset coarse : Adjusts tracking offset of the RF amp (IC001) side. [5] TRK. Gain : Adjusts track gain. [6] EQ Boost : Adjusts amount of boost of equalizer. [10/0] : All servo off. 2-6. Memory Check Display images are shown as follows, and all two screens are able to switch by the O key (UP) or o key (DW). EEPROM Data 1/2 CD SL L0 L1 Focus Gain xx xx xx xx Trk. Gain xx xx xx xx Focus Offset xx xx xx xx Trk. Offset xx xx xx xx EQ. Boost xx xx xx xx PI Level xx xx -- -- Fcs. Balance -- xx -- -- Jitter xx xx xx xx Mirror Time xx xx xx -- FE Level -- xx -- -- Traverse Lv1. -- xx -- -- Next:DW Default:CLR Exit:RET EEPROM Data 2/2 CDRW DVDRW Focus Gain xx xx Trk. Gain xx xx Focus Offset xx xx Trk. Offset xx xx EQ. Boost xx xx Prev:UP Default:CLR Exit:RET On this screen, current servo adjusted data stored in the EEPROM are displayed. The adjusted data are initialized by pressing the [CLEAR] key, but be careful that they are not recoverable after initialization. Before clearing the adjusted data, make a note of the set data. This screen will also appear if [0]-All is selected in the Drive Auto Adjustment. In this case, default setting cannot be made. 2-7. Disc Check Memory Disc Check Memory 1. SL Disc check 2. CD Disc check 3. DL Disc check Exit: RETURN On this screen, measure the mirror time of chucked disc, and write to the EEPROM. 2-8. Error Rate Display Error Rate Display UC CR Address PI1 Err Now xx xxxx xxxxxxxx Max xx xxxx xxxxxxxx Avg xx xxxx PI2 Err Now xx xxxx xxxxxxxx Max xx xxxx xxxxxxxx Avg xx xxxx PO Err Now xx xxxx xxxxxxxx Max xx xxxx xxxxxxxx Avg xx xxxx Exit: RETURN On this screen, measure and display the error rate. UC : Incorrect value CR : Correct value Add : Address www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 HCD-GN77D 2-9. SACD Water Mark Check (Not used) SACD Water Mark Check PSP AMP PSN Start: ENTER Stop: RETURN On this screen, measure the PSP AMP value and PSN value of SACD water mark. 3. MECHA AGING On the Test Mode Menu screen, selecting [3] executes the aging of the mechanism deck. ### Aging Test MENU ### ** Pls use over 40min. CD ** Operation Menu 1. Open/Close Test Exit: RETURN 1) On the Aging Test MENU screen, press the [1] key on the remote commander to display the Open/Close Test screen. 2) Insert discs and press the [ENTER] key on the remote commander. 3) Is starts the aging. During aging, the disc number, operating status and repeat cycle are displayed. Aging can be aborted at any time by pressing the [RETURN] key. After the operation is stopped, press the [RETURN] key to return to the Aging Test MENU. 4. EMERGENCY HISTORY On the Test Mode Menu screen, selecting [4] displays the infor- mation such as servo emergency history. The history information from last 1 up to 10 can be scrolled with the O key or o key. Also, specific information can be displayed by directly entering that number with ten keys. ### EMG. History ### Laser Hours CD xxxxhxxm DVD xxxxhxxm a. bb xx xx xx xx xx xx xx xx xx xx xx xx xx xx xx a. bb xx xx xx xx xx xx xx xx xx xx xx xx xx xx xx Select:1-9 Scroll:UP/DOWN (1.Latest EMG.) Exit: RETURN xxxxhxxm: The laser on total hours. Data below minutes are omitted. a. : Error number. bb : Error code. xx : Not used. • Clearing History Information Clearing laser hours: Press the [DVD DISPLAY] and [CLEAR] keys in this order. Then both CD and DVD data are cleared. Clearing emergency history: Press the [DVD TOP MENU] and [CLEAR] keys in this order. Initializing set up data: Press [DVD MENU] and [CLEAR] keys in this order. The data have been initialized when “EEPROM Initialize Fin- ished” message is displayed. • Code list of Emergency History 10: Communication to RF AMP (IC001) failed. 11: Each servo for focus, tracking, and spindle is unlocked. 12: Check sum error of EEPROM (IC204). 14: Communication to servo DSP (IC509) failed, or servo DSP (IC509) is faulty. 15: Communication to DVD decoder (IC701) failed, or DVD decoder (IC701) is faulty. 16: Communication to DSD decoder (IC801) failed, or DSD decoder (IC801) is faulty. (Not used) 20: Initialization of sled servo failed. It is not placed in the ini- tial position. 23: Sled servo operation error. 24: Made a request to move the sled servo to wrong position. 30: Tracking balance adjustment error. 31: Tracking gain adjustment error. 33: Focus bias adjustment error. 34: Focus gain adjustment error. 35: Equalizer adjustment error. 40: Focus servo does not operate. 41: With a DVD dual layer disc, focus jump failed. 50: CLV (spindle) servo does not operate. 51: Spindle does not stop. 60: Made a request to seek nonexistent address. 61: Seek error of retry more than regulated times. 70: Control data could not be read. 80: Disc reading failed. 5. MECHA ERROR HISTORY On the Test Mode Menu screen, selecting [5] displays the infor- mation of mechanism deck error history. The history information from last 1 up to 8 can be scrolled with the O key or o key. ### Mecha Error History ### 1. aa bb cc dd ee xx xx xx 2. aa bb cc dd ee xx xx xx 3. aa bb cc dd ee xx xx xx 4. aa bb cc dd ee xx xx xx 5. aa bb cc dd ee xx xx xx 6. aa bb cc dd ee xx xx xx 7. aa bb cc dd ee xx xx xx 8. aa bb cc dd ee xx xx xx Scroll:UP/DOWN (1.Latest Err.) Exit: RETURN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 HCD-GN77D aa: Initialization is completed or not. FF : Complete. other number: Not complete. bb:Operating status of mechanism deck at an error occurred. (lod sq jcp) 00 : Initializing. 10 to 15 : Open operating. 16 to 19 : Kicking cause open failed. 1A to 1F : Open operating. 20 to 27 : Complete the open operation. 28 : No disc and complete the open operation. 29 to 2F : Complete the open operation. 30 to 3F : Close requesting. 40 to 4F : Open requesting. 50 to 5F : Close operating. 60 to 6F : Complete the chucking operation. 80 to 8F : Complete the release operation. (BU is home position) 90 to 9F : BU down operating. A0 to AF : Opening/closing the shutter. Or stationary state in open/close the shutter is enablement. B0 to BF : BU up requesting. C0 to CF : BU down requesting. D0 to DF: BU upping. E0 to EF : No disc checking in disc loading. cc : Operating status of table at an error occurred. (tbl sq jcp) 13 : The rotation stop position determination error of a table 11 to 12 : The loading position determination error of a table dd: Operating status of mechanism deck at an error occurred. (lod OP jcp) 00 : Complete the operation. 10 to 1F : Open operating. 20 to 2F : Close operating. 30 to 3F : Release operating. 60 to 6F : Chucking operating. 70 to 7F : Kicking operating. 80 to 8F : Returning the BU to home position. (after kicking) ee : The status of table operation. (“n” is unfixed) (tbl op jcp) 1n : Rotating in the direction of a forward. 2n : Rotating in the direction of a reverse. 6. VERSION INFORMATION On the Test Mode Menu screen, selecting [6] displays the ROM version and region code. The parenthesized hexadecimal number in version field is checksum value of ROM. ## Version Information ## IF con. Ver.x. xx SYScon. Ver.x. xx (xxxx) Model MHC-GN77D Region 0x Config xxxxxxxx Front End Ver.x.xx Exit: RETURN IF con. : The version of system controller (IC501). SYScon. : The version of DVD system processor (IC207). Front End : The version of mechanism controller (IC901). 7. VIDEO LEVEL ADJUSTMENT On the Test Mode Menu screen, selecting [7] displays color bars for video level adjustment. During display of color bars, OSD dis- appears but the menu screen will be restored if pressing the [RE- TURN] key. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN77D REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2003.06 New 1.1 2003.08 SUPPLEMENT-1 : DVD OSD test mode. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
