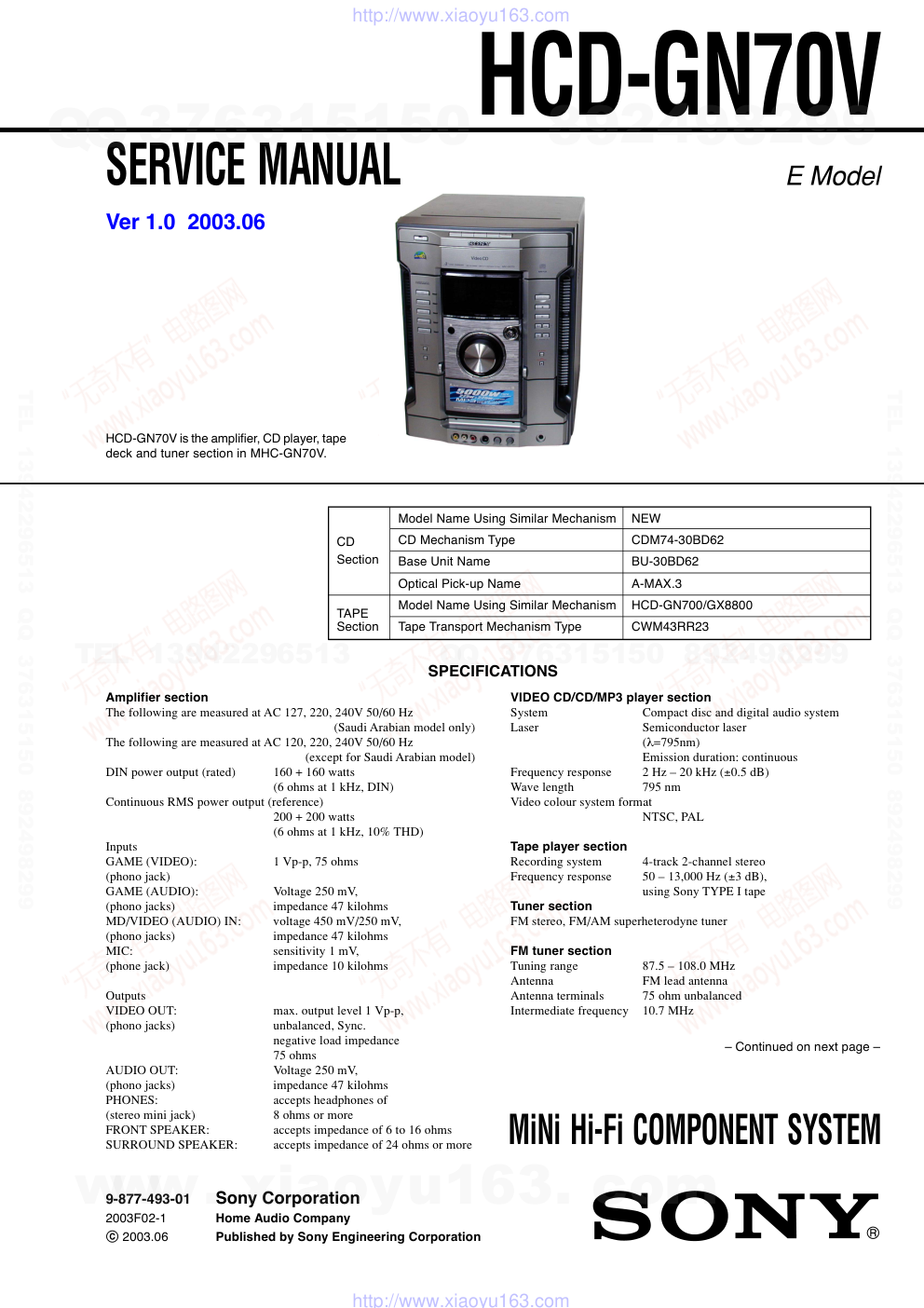

Model Name Using Similar Mechanism NEW CD CD Mechanism Type CDM74-30BD62 Section Base Unit Name BU-30BD62 Optical Pick-up Name A-MAX.3 TAPE Model Name Using Similar Mechanism HCD-GN700/GX8800 Section Tape Transport Mechanism Type CWM43RR23 MiNi Hi-Fi COMPONENT SYSTEM E Model HCD-GN70V Ver 1.0 2003.06 9-877-493-01 Sony Corporation 2003F02-1 Home Audio Company C 2003.06 Published by Sony Engineering Corporation SPECIFICATIONS HCD-GN70V is the amplifier, CD player, tape deck and tuner section in MHC-GN70V. – Continued on next page – SERVICE MANUAL Amplifier section The following are measured at AC 127, 220, 240V 50/60 Hz (Saudi Arabian model only) The following are measured at AC 120, 220, 240V 50/60 Hz (except for Saudi Arabian model) DIN power output (rated) 160 + 160 watts (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference) 200 + 200 watts (6 ohms at 1 kHz, 10% THD) Inputs GAME (VIDEO): 1 Vp-p, 75 ohms (phono jack) GAME (AUDIO): Voltage 250 mV, (phono jacks) impedance 47 kilohms MD/VIDEO (AUDIO) IN: voltage 450 mV/250 mV, (phono jacks) impedance 47 kilohms MIC: sensitivity 1 mV, (phone jack) impedance 10 kilohms Outputs VIDEO OUT: max. output level 1 Vp-p, (phono jacks) unbalanced, Sync. negative load impedance 75 ohms AUDIO OUT: Voltage 250 mV, (phono jacks) impedance 47 kilohms PHONES: accepts headphones of (stereo mini jack) 8 ohms or more FRONT SPEAKER: accepts impedance of 6 to 16 ohms SURROUND SPEAKER: accepts impedance of 24 ohms or more VIDEO CD/CD/MP3 player section System Compact disc and digital audio system Laser Semiconductor laser (λ=795nm) Emission duration: continuous Frequency response 2 Hz – 20 kHz (±0.5 dB) Wave length 795 nm Video colour system format NTSC, PAL Tape player section Recording system 4-track 2-channel stereo Frequency response 50 – 13,000 Hz (±3 dB), using Sony TYPE I tape Tuner section FM stereo, FM/AM superheterodyne tuner FM tuner section Tuning range 87.5 – 108.0 MHz Antenna FM lead antenna Antenna terminals 75 ohm unbalanced Intermediate frequency 10.7 MHz www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN70V 2 Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270 ˚C dur- ing repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous ra- diation exposure. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. AM tuner section Saudi Arabian models: 531 – 1,602 kHz (with the interval set at 9 kHz) Other models: 531 – 1,602 kHz (with the interval set at 9 kHz) 530 – 1,710 kHz (with the interval set at 10 kHz) Antenna AM loop antenna Antenna terminals External antenna terminal Intermediate frequency 450 kHz General Power requirements Thai models: 220 V AC, 50/60 Hz Saudi Arabian models: 120 - 127 V, 220 V or 230 - 240 V AC, 50/60 Hz Adjustable with voltage selector Other models: 120 V, 220 V or 230 - 240 V AC, 50/60 Hz Adjustable with voltage selector Power consumption 210 watts Dimensions (w/h/d) Approx. 280 x 360 x 386.5 mm Mass : Approx. 11.1 kg Design and specifications are subject to change without notice. The following caution label located inside th eapparatus. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN70V 3 TABLE OF CONTENTS 1. SERVICING NOTES ................................................ 4 2. GENERAL Location of Controls ....................................................... 5 3. DISASSEMBLY 3-1. Case ................................................................................. 8 3-2. Loading (Panel) ............................................................... 8 3-3. Front Panel Assy ............................................................. 9 3-4. Tuner Pack, Sub Trans Board ......................................... 9 3-5. CD Mechanism Deck ...................................................... 10 3-6. Game In Board, Tape Mechanism Deck......................... 10 3-7. CD Switch Board, Display Board .................................. 11 3-8. Volume Board.................................................................. 11 3-9. Rear Panel ....................................................................... 12 3-10. Main Board...................................................................... 12 3-11. Power Amp Board ........................................................... 13 3-12. Video board, SW Board, Driver Board .......................... 13 3-13. Base Unit ......................................................................... 14 3-14. Sensor Board ................................................................... 14 3-15. Motor (TB) Board ........................................................... 15 3-16. Motor (LD) Board ........................................................... 15 3-17. BD Board......................................................................... 16 4. TEST MODE .............................................................. 17 5. MECHANICAL ADJUSTMENTS ....................... 21 6. ELECTRICAL ADJUSTMENTS Deck section .................................................................... 21 CD Section ...................................................................... 23 Video Section .................................................................. 24 7. DIAGRAMS 7-1. Circuit Board Location ................................................... 26 7-2. Block Diagram – CD Servo Section –........................... 28 Block Diagram – Tuner/Tape Deck Section –............... 29 Block Diagram – Main Section – .................................. 30 Block Diagram – Display/Power Supply Section – ...... 31 7-3. Printed Wiring Board – BD Board – ............................. 32 7-4. Schematic Diagram – BD Board – ................................ 33 7-5. Printed Wiring Board – Video Board – ......................... 34 7-6. Schematic Diagram – Video Board – ............................ 35 7-7. Printed Wiring Board – CD Mechanism Board – ......... 36 7-8. Schematic Diagram – CD Mechanism Board – ............ 37 7-9. Printed Wiring Boards – Main Board – ......................... 38 7-10. Schematic Diagram – Main Board (1/3) – .................... 39 7-11. Schematic Diagram – Main Board (2/3) – .................... 40 7-12. Schematic Diagram – Main Board (3/3) – .................... 41 7-13. Printed Wiring Boards – Game In, CD Switch Board – ...................................... 42 7-14. Schematic Diagram – Game In, CD Switch Board – ...................................... 43 7-15. Printed Wiring Board – Display Board – ...................... 44 7-16. Schematic Diagram – Display Board – ......................... 45 7-17. Printed Wiring Board – Power Amp Board –................ 46 7-18. Schematic Diagram – Power Amp Board – .................. 47 7-19. Printed Wiring Boards – Trans Board – ........................ 48 7-20. Schematic Diagram – Trans Board – ............................. 49 7-21. IC Block Diagram ........................................................... 50 7-22. IC Pin Function Description ........................................... 52 8. EXPLODED VIEWS 8-1. Case, Rear Panel Section ................................................ 59 8-2. Front Panel Section ......................................................... 60 8-3. Chassis Section ............................................................... 61 8-4. CD Mechanism Deck Section-1 (CDM74-30BD62) .......................................................... 62 8-5. CD Mechanism Deck Section-2 (CDM74-30BD62) .......................................................... 63 8-6. Base Unit Section (BU-30BD62) ................................... 64 9. ELECTRICAL PARTS LIST ............................... 65 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 HCD-GN70V SECTION 1 SERVICING NOTES NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electro- static break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick-up block. Therefore, when checking the laser diode emis- sion, observe from more than 30 cm away from the objective lens. LASER DIODE AND FOCUS SEARCH OPERATION CHECK Carry out the “S curve check” in “CD section adjustment” and check that the S curve waveforms is output three times. • MODEL IDENTIFICATION – Back Panel – MODEL PART No. SP model 4-246-198-0[] E3, E15 models 4-246-198-4[] TH model 4-246-198-5[] MY model 4-246-198-6[] EA model 4-246-198-7[] PH model 4-246-198-8[] • Abbreviation E3 : 240 V AC Area in E model E15 : Iran model EA : Saudi Arabia model SP : Singapore model MY : Malaysia model TH : Thai model PH : Philippines model PART No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 HCD-GN70V SECTION 2 GENERAL This section is extracted from instruction manual. ALBUM +/– qg AMP MENU rg CD rs CD SYNC qj DECK A wl DECK B wd DIRECTION 9 DISC 1~3 3 DISC SKIP EX-CHANGE 4 Disc tray 6 DISPLAY rd Display 2 ECHO LEVEL wg EDIT 9 EFFECT ON/OFF rh FM MODE 8 GAME ek GAME EQ es GAME INPUT (jacks) wk GAME MIXING eh GROOVE eg IR (receptor) rf ILLUMINATION e; KARAOKE/MPX ef MD (VIDEO) el MIC (jack) wj MIC LEVEL wh MOVIE EQ qh MUSIC EQ ej OPEN/CLOSE Z 5 P FILE wa PHONES (jack) wf PLAY MODE 7 Power illuminator ea PUSH ENTER q; REC PAUSE/START qk REPEAT 8 SURROUND SPEAKER MODE w; TAPE A/B r; TUNER/BAND ra TUNER MEMORY 7 VOLUME ws SYMBOLS @/1 (power) 1 hH (play) qa x (stop) qs X (pause) qd – . (go backward) qf > + (go forward) qf m (rewind) qg M (fast forward) qg V/v/B/b q; A A (Eject A) ed A B (Eject B) ql ALPHABETICAL ORDER A - D M - Q wl r; e; ra ea es ed ej eg ef eh el ek rg rs rd rf rh wf wh wj wk qs qd qf qg qh qj ql qk w; wa ws wd 0 qa 4 5 6 1 2 3 7 8 9 wg Main unit E - L R - Z www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 HCD-GN70V This section is extracted from instruction manual. Remote Control ALBUM +/– es CD rf CINEMA SPACE ws CLEAR qf CLOCK/TIMER SELECT 2 CLOCK/TIMER SET 3 D.SKIP qa DIMMER ek DISPLAY r; EFFECT ON/OFF wa ENTER wk GAME ra GAME EQ wj GAME MIXING rs KARAOKE/MPX ql KEY CONTROL #/2 w; MD (VIDEO) rd MOVIE EQ wf MUSIC EQ wl NEXT eh Numeric buttons q; ON SCREEN qd P FILE wg PLAY MODE ea PRESET +/– ed PREV eg REPEAT qs RETURN O ef SELECT qg SLEEP 1 SPECIAL MENU ej SPECTRUM el SURROUND SPEAKER MODE e; TAPE A/B 6 TUNER/BAND rg TUNING +/– qj TV CH +/– 8 TV @/1 4 TV VOL +/– 7 TV/VIDEO 9 VOL +/– wd A - D N - R ALPHABETICAL ORDER E - M S - Z 1 2 3 4 5 6 7 8 9 . . m m v v + – 2 3 + – + – SYMBOLS @/1 5 nN qg X qh x qk ./> ed m/M qj M/m/ button or . button to display next error) $$: Not used %%: Loading related error (Second figure is not used) D: Stop by the problem other than mechanical problem while closing. E: Stop by the problem other than mechanical problem while opening. C: Stop by the problem other than mechanical problem while chucking up. F: Stop by the problem other than mechanical problem while chucking down. &&: Emerging error 01: Stop while chucking up. 02: Stop while chucking up. 03: Time-out of EX-CHANGE open. 05: Time-out of EX-CHANGE close. ##: Not used 3) Display of no disc errors D*: The number of mechanical error (“00” is latest one) (Press > button or . button to display next error) $$: Error type 01: Focus error 02: GFS error 03: Setup error %%: Not used &&: 00: No disc judgment without chucking retry. 01: No disc judgment after chucking retry. ##: The state when judged as no disc 01: Stop 02: Setup 03: TOC reading 04: Access 05: Playback 06: Pause 07: Manual search (Play) 08: Manual search (Pause) [CD REPEAT 5 LIMIT OFF MODE] • The number of repeat for CD playback is 5 times when the repeat mode is “REPEAT ALL”. This mode enables CD to repeat playback for limitless times. Procedure: 1. Press ?/1 button to turn the set ON. 2. Select CD function. 3. Press x button, [REPEAT] button and [CD] button simultaneously to enter the CD repeat 5 limit off mode . 3. To release this mode, operate the cold reset. (Refer to the “MC COLD RESET”) [CD SHIP MODE (WITH MEMORY CLEAR)] • This mode moves the optical pick-up to the position durable to vibration and clears all data including preset data stored in the RAM to initial conditions. Use this mode when returning the set to the customer after repair. Procedure: 1. Press ?/1 button to turn the set ON. 2. Select CD function. 3. Press x button, [AMP MENU] button and [GAME] button simultaneously. The set will power off automatically. 4. After the “STANDBY” blinking display finish, a message “LOCK” is displayed on the fluorescent indicator tube and the CD ship mode is set. Display Emc**Edc** Display M*$$%%&&##00 Display D*$$%%&&##00 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 HCD-GN70V [CD SHIP MODE (WITHOUT MEMORY CLEAR)] • This mode moves the optical pick-up to the position durable to vibration. Use this mode when returning the set to the customer after repair. Procedure: 1. Press ?/1 button to turn the set ON. 2. Select CD function. 3. Press [CD] button and ?/1 button simultaneously. The set will power off automatically. 4. After the “STANDBY” blinking display finish, a message “LOCK” is displayed on the fluorescent indicator tube and the CD ship mode is set. [CD POWER MANAGE] • This mode let you switch on or off power supply to the BU during TUNER function. • When CD POWER is set to OFF, the power supply to the BU is cut off during TUNER function. It will increase the time taken to access CD when function change from TUNER to CD but it will improve tuner reception. • When CD POWER is set to ON, the power supply to the BU is not cut off during TUNER function. It will reduce the time taken to access CD when function change from TUNER to CD but it will decrease tuner reception performance. Procedure: 1. Press ?/1 button to turn the set ON. 2. Select CD function. 3. Press ?/1 button to turn the set OFF. 4. Press x button and ?/1 button simultaneously. The set will power on automatically. 5. The message “CD POWER ON” or “CD POWER OFF” will be displayed on the fluorescent indicator tube. [CD TRAY LOCK MODE] • This mode let you lock the disc trays. When this mode is acti- vated, the disc tray will not open when Z OPEN/CLOSE but- ton or [DISC SKIP/EX-CHANGE] button is pressed. The mes- sage “LOCKED” will be displayed in the will be displayed on the fluorescent indicator tube. Procedure: 1. Press ?/1 button to turn the set ON. 2. Select CD function. 3. Press x button and Z OPEN/CLOSE button simultaneously and hold down until “LOCKED” or “UNLOCKED” displayed on the fluorescent indicator tube (around 5 seconds). [MD/VIDEO SWITCHING] • This mode let you switch from MD to VIDEO and vice-versa. Procedure: 1. Press ?/1 button to turn the set ON. 2. Select MD function. 3. Press [MD $VIDEO%] button and ?/1 button simultaneously. The function will change to VIDEO. Press the same buttons again to change from VIDEO to MD. [Changeover the color system] The color system can be changed over PAL, NTSC or AUTO. Procedure: The color system can be changed over PAL, NTSC or AUTO by pressing \/1 button while pressing followings and indication on display changes to “COLOR PAL”, “COLOR NTSC” or “COLOR AUTO”. PAL : MUSIC EQ + \/1 NTSC : GAME EQ + \/1 AUTO : MOVIE EQ + \/1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 HCD-GN70V SECTION 5 MECHANICAL ADJUSTMENTS SECTION 6 ELECTRICAL ADJUSTMENTS Precaution 1. Clean the following parts with a denatured alcohol-moistened swab: record/playback heads pinch rollers erase head rubber belts capstan idlers 2. Demagnetize the record/playback head with a head demagnetizer. 3. Do not use a magnetized screwdriver for the adjustments. 4. After the adjustments, apply suitable locking compound to the parts adjusted. 5. The adjustments should be performed with the rated power supply voltage unless otherwise noted. Torque Measurement 3.06 N • m to 6.96 N • m 31 to 71 g • cm (0.43 – 0.98 oz • inch) 0.19 N • m to 0.58 N • m 2 to 6 g • cm (0.02 – 0.08 oz • inch) 3.06 N • m to 6.96 N • m 31 to 71 g • cm (0.43 – 0.98 oz • inch) 0.19 N • m to 0.58 N • m 2 to 6 g • cm (0.02 – 0.08 oz • inch) 6.96 N • m to 14.02 N • m 71 to 143 g • cm (0.98 – 1.99 oz • inch) 9.80 N • m 100 g or more (3.53 oz or more) 9.80 N • m 100 g or more (3.53 oz or more) Mode Torque meter CQ-102C CQ-102C CQ-102RC CQ-102RC CQ-201B CQ-403A CQ-403R Meter reading FWD FWD back tension REV REV back tension FF/REW FWD tension REV tension 0 dB=0.775 V DECK SECTION 1. Demagnetize the record/playback head with a head demagnetizer. 2. Do not use a magnetized screwdriver for the adjustments. 3. After the adjustments, apply suitable locking compound to the parts adjust. 4. The adjustments should be performed with the rated power supply voltage unless otherwise noted. 5. The adjustments should be performed in the order given in this service manual. (As a general rule, playback circuit adjustment should be completed before performing recording circuit adjustment.) 6. The adjustments should be performed for both L-CH and R- CH. 7. Switches and controls should be set as follows unless otherwise specified. • Test Tape RECORD/PLAYBACK HEAD AZIMUTH ADJUST- MENT DECK A DECK B Note: Perform this adjustments for both decks Procedure: 1. Mode: Playback Tape Signal Used for P-4-A100 10 kHz, –10 dB Azimuth Adjustment WS-48B 3kHz, 0 dB Tape Speed Adjustment set MAIN board CN301 Pin 1 (L-CH) Pin 3 (R-CH) MAIN board CN301 Pin 2 (GND) + – level meter test tape P-4-A100 (10 kHz, –10 dB) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 HCD-GN70V 2. Turn the adjustment screw and check output peaks. If the peaks do not match for L-CH and R-CH, turn the adjustment screw so that outputs match within 1dB of peak. 3. Mode: Playback 4. After the adjustments, apply suitable locking compound to the pats adjusted. Adjustment Location: Playback Head (Deck A). Record/Playback/Erase Head (Deck B). Screw position L-CH peak within 1dB Output level L-CH peak R-CH peak within 1dB Screw position R-CH peak MAIN board CN301 set test tape P-4-A100 (10 kHz, –10 dB) pin 3 oscilloscope L-CH R-CH V H waveform of oscilloscope in phase 45° 90° 135° 180° good wrong pin 2 pin 1 L R forward reverse Tape Speed Adjustment DECK B Procedure: Mode: Playback set MAIN board AUDIO OUT jack (J730) L-CH, R-CH + – frequency counter test tape WS-48B (3 kHz, 0 dB) 1. Insert the WS-48B into the deck B. 2. Press the H button on the deck B. 3. Adjust the tape speed adjustment control inside motor so that frequency counter reads 3,000 ± 90Hz. Sample value of wow and flutter W.RMS (JIS) less than 0.3% WS-48B Adjustment Location: Tape speed Adjustment Tape speed adjustment control inside motor – MAIN BOARD (Component Side) – CN301 IC301 3 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 HCD-GN70V CD SECTION Note : 1. CD Block is basically designed to operate without adjustment. Therefore, check each item in order given. 2. Use LUV-P01 (4-999-032-01) unless otherwise indicated. 3. Use an oscilloscope with more than 10MΩ impedance. 4. Clean the object lens by an applicator with neutral detergent when the signal level is low than specified value with the following checks. S-Curve Check BD board Oscilloscope TP(FE) TP(DVC) Procedure : 1. Connect oscilloscope to TP (FE). 2. Connect between TP (FE) and TP (DVC ( 1.65 V)) by lead wire. 3. Press the \/1 button to turn the power ON. 4. Load a disc (LUV-P01) and actuate the focus search. (In conse- quence of open and close the disc tray, actuate the focus search) 5. Confirm that the oscilloscope waveform (S-curve) is symmetri- cal between A and B. And confirm peak to peak level within 2 ±0.5 Vp-p. symmetry S-curve waveform within 4 ±1Vp-p A B 6. After check, remove the lead wire connected in step 2. Note : • Try to measure several times to make sure than the ratio of A : B or B : A is more than 10 : 7. • Take sweep time as long as possible and light up the brightness to obtain best waveform. RF Level Check Procedure : 1. Connect oscilloscope to TP (RFDC) and TP (RFAC). 2. Press the \/1 button to turn the power ON. 3. Load a disc (LUV-P01) and playback. 4. Confirm that oscilloscope waveform is clear and check RF signal level is correct or not. Note: Clear RF signal waveform means that the shape “◊” can be clearly distinguished at the center of the waveform. VOLT/DIV : 200mV TIME/DIV : 500ns level : 1.45 ± 0.3Vp-p E-F Balance (1 Track jump) Check TP(TE) TP(DVC) BD board oscilloscope Procedure: 1. Connect oscilloscope to TP (TE) and TP (DVC) on BD board. 2. Press the \/1 button to turn the power ON. 3. Load a disc (LUV-P01) and playback the number nine track. 4. Press the bB button. (Becomes the 1track jump mode.) 5. Confirm that the level B and A (DC voltage) on the oscillo- scope waveform. B=1.3 ± 0.6Vp-p symmetry A (DC voltage) center of waveform B 0V Specified level: × 100=less than – 22% B A Checking Location: [BD BOARD] (SIDE B) DVC RFDC RFAC TE FE SE DVC TP(RFDC) TP(RFAC) BD board oscilloscope www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 HCD-GN70V VIDEO SECTION Note : 1. VIDEO board is basically designed to operate without adjust- ment. Therefore, check each item in order given. 2. Use HLV-402 (8-909-870-00) unless otherwise indicated. 3. Use an oscilloscope with more than 10MΩ impedance. 4. Clean the object lens by an applicator with neutral detergent when the signal level is low than specified value with the following checks. Video Level Check (VIDEO BOARD) Purpose This adjustment is made to satisfy the NTSC standard, and if not adjusted correctly, the brightness will be too large or small. Procedure: 1. Connect oscilloscope to VIDEO output. 2. Load a disc HLV-402 (8-909-870-00) playback. 3. Check that the video level is 1.0 ± 0.1 Vp-p. J721 VIDEO OUTPUT 75 Ω Oscilloscope set 1.0 ± 0.1 Vp-p (WHITE 100%) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 HCD-GN70V SECTION 7 DIAGRAMS Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • f : internal component. • 2 : nonflammable resistor. • 5 : fusible resistor. Note on Printed Wiring Boards: • X : parts extracted from the component side. • : Pattern from the side which enables seeing. (The other layers´ Patterns are not indicated.) Caution: Pattern face side: Parts on the pattern face side seen from the (Side B) pattern face are indicated. Parts face side: Parts on the parts face side seen from the (Side A) parts face are indicated. • Indication of transistor. • C : panel designation. • A : B+ Line. • B : B– Line. • H : adjustment for repair. • Voltages and waveforms are dc with respect to ground under no-signal conditions. BD board and VIDEO board section no mark: CD PLAY Other board section no mark: TUNER (FM/AM) ( ): CD PLAY < >: TAPE PLAY [ ]: TAPE REC • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. F : TUNER (FM/AM) E : TAPE PALY (DECK A) d : TAPE PALY (DECK B) G : RECORD J : CD PALY (ANALOG OUT) q : MD/VIDEO (AUDIO) IN j : GAME IN (AUDIO) k : GAME IN (VIDEO) N : MIC INPUT g : VIDEO Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. • Abbreviation E3 : 240 V AC Area in E model E15 : Iran model EA : Saudi Arabia model SP : Singapore model MY : Malaysia model TH : Thai model PH : Philippines model • Abbreviation E3 : 240 V AC Area in E model E15 : Iran model EA : Saudi Arabia model SP : Singapore model MY : Malaysia model TH : Thai model PH : Philippines model C B These are omitted. E Q B These are omitted. C E Q B These are omitted. C E Q www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 HCD-GN70V 7-1. CIRCUIT BOARD LOCATION TUNER PACK SUB TRANS board POWER AMP board TRANS board DISPLAY board VOLUME board GAME IN board MOTOR (LD) board SW board SENSOR board BD board MOTOR (TB) board DRIVER board MAIN board CD SWITCH board VIDEO board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN70V 27 27 r WAVEFORMS – MAIN BOARD – – BD BOARD – – DISPLAY BOARD – 1 IC501 qa (XC-OUT) 2 IC501 qd (X-OUT) 3 Q303 C TAPE REC only 1.2Vp-p 32.768KHz VOL/DIV : 0.5V AC TIME/DIV : 10 µsec VOL/DIV : 0.5V AC TIME/DIV : 20nsec VOL/DIV : 2V AC TIME/DIV : 5 µsec 1.8Vp-p 16MHz 10Vp-p 76KHz 1 IC601 is (X OUT) VOL/DIV : 1V AC TIME/DIV : 0.2 µsec 4MHz 3.0Vp-p – VIDEO BOARD – 1 IC103 qg (RFAC) 2 IC103 qh (FE) 3 IC103 qk (TE) VOL/DIV : 0.2V AC TIME/DIV : 0.5µsec VOL/DIV : 0.2V AC TIME/DIV : 0.2msec VOL/DIV : 1V AC TIME/DIV : 0.2msec 0.8 Vp-p 0.15 Vp-p 0.7 Vp-p 5 Q301 E 6 IC307 6 (VOUT) 1.0 Vp-p H 0.8 Vp-p H 0.8 Vp-p H 1 IC505 (XTAO) 150 2 IC505 (CLKB) 207 3 IC505 (RFAC) 173 2.5 Vp-p 33.8688 MHz 2.8 Vp-p 27 MHz VOL/DIV : 1V AC TIME/DIV : 20nsec VOL/DIV : 1V AC TIME/DIV : 20nsec VOL/DIV : 0.5V AC TIME/DIV : 20 µsec VOL/DIV : 0.5V AC TIME/DIV : 20 µsec 4 IC505 6 (CPSIG) VOL/DIV : 0.5V AC TIME/DIV : 20 µsec VOL/DIV : 0.2V AC TIME/DIV : 0.5 µsec 0.8 Vp-p w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN70V 28 28 7-2. BLOCK DIAGRAM – CD SERVO SECTION – VO1- VO1+ 4 3 11 10 1 27 26 32 31 35 34 1 2 5 10 E B C D A PD1 PD2 I1-6 I5-10 LD PD +4.5V F A VCC VCC VCC VCC B C D RF SUMMING AMP A-D FOCUS ERROR AMP RF EQ AMP DC AMP VDC BUFFER TRACKING ERROR AMP RFAC AC_SUM EQ_IN RFDCO RFDCI FE FEI RF AMP, FOCUS/TRACKING ERROR AMP IC103 TE VDC E F F I-V AMP E I-V AMP LD DRIVE Q101 APC LD AMP APC PD AMP LD LD PD LASER DIODE IN3+ IN4 VREF IN3- VO3+ VO3- IN2+ T+ T- F+ F- IN2- IN1+ IN1- 8 STBY DATA DECODERR, D/A CONVERTOR IC506 VIDEO AMP IC307 LPF IC102 D/A CONVERTOR IC504 SDRAM IC507 ROM IC508 VO4+ VO4- M101 SPINDLE MOTOR MOTOR DRIVE MOTOR DRIVE COIL DRIVE VO2- VO2+ COIL DRIVE M M M102 SLED MOTOR FOCUS/TRACKING COIL DRIVE, SPINDLE/SLED MOTOR DRIVE IC102 TRACKING COIL S101 (LIMIT) ON: when the optical pick-up is inner position. FOCUS COIL OPTICAL PICK-UP BLOCK (A-MAX.3) SW PD TE LD-ON FE RFDC I-V AMP 56 55 47 52 Q102 RFC DI CLK GPIO0 GPIO1 GPIO2 GPIO3 GPIO4 GPIO5 WE CAS RAS BA0 CLK LDQM UDQM SI SO SCK SRQ SOK SCS RST SYS RST NVOEL Y CPSIG AUDXCLKO MCLK LAT CLK BLK LRCK LOUT VCD L-CH R-CH VCD-VIDEO VCC A+5V (SW) VDD ROUT DATA DATA AUDDTO0 AUDLRCK AUDBCK GPIO11 DRDQM1 DRDQM0 DRCK DRBS DRRAS DRCAS DRWEL 8-15 0-7 0-15 RST RST DATA CLK GPIO14 SSTP FRDR FFDR TRDR TFDR SRDR SFDR VC CE DE SE TE FE RFDC RFAC XTSL MDP GPIO9 XTAO XTAI CLKB CLKA GPIO13 GPIO12 LD X501 33.8688MHz X502 27MHz A0-A9 DRDAT0 I DRDAT15 DRADR0 I DRADR10 DQ0-DQ15 A0-A16 DQ0-DQ7 CONTROL I/F STB IN OUT +4.5V (IC103) +2.5V D+5V (SW) +3.3V +3.3V REG Q581 SYSOK SQ-CLK V-MUTE SYSOUT SYSIN SYSCLK SCOR SYSRQ SYSRST RST SRQ SCS SOK SCK SO SI SYSTEM CONTROLLER (CD MECHANISM CONTROL) IC501 (1/4) CD-DSP, DIGITAL SERVO, MPEG DECODER, DAC IC505 Q370 DAC DAC To MAIN SECTION (Page 30) To MAIN SECTION (Page 30) A B RIPPLE FILTER Q201 +2.5V REG IC201 +3.3V REG IC202 +2.5V ( ( LPF Q301 6 13 22 7 8 9 15 26 16 18 12 14 2 28 29 17 23 22 5 9 3 4 6 12 11 135 143 142 141 140 138 137 165 161 133 189 24 150 149 207 206 164 160 173 16 15 14 13 2 3 1 7 8 5 6 5 3 7 1 201 204 203 26 205 162 163 10 30 29 28 13 14 15 16 18 19 16 73 68 72 76 70 77 78 74 6 2 3 6 5 33 24 17 18 20 38 15 39 81 AO4 AO6 AO3 AO5 RST 2,4,5,7,8,10,11,13, 42,44,45,47,48,50,51,53 2-12,23, 25-31 13-15, 7-21 23-26, 29-34 34-37, 39-45 49-56, 59-66 35 40 36 37 19 32 40 1 3 : CD PLAY (ANALOG) : VIDEO TBL-SENS 41 OPEN SW Q731 S751 (LEVER) D+3.3V 42 LMF 46 LMR 47 44 TM-R E-1 E-2 E-3 45 21 22 43 TM-F 9 7 3 4 1 2 RIN FIN 9 7 MOTOR DRIVE 4 2 4 2 MOTOR DRIVE OUT OUT OUT OUT RIN FIN MOTOR DRIVER IC712 RE701 ROTARY ENCODER MOTOR DRIVER IC701 TABL SENSOR IC731 M751 (LOADING) M M M741 (TABLE) • SIGNAL PATH • R-ch is omitted due to same as L-ch. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN70V 29 29 – TUNER/TAPE DECK SECTION – TAPE L-CH TEST CONNECTOR CN301 R-CH R L C MAIN SECTION (Page 30) TUNER L – CH E MAIN SECTION (Page 30) REC L-CH D MAIN SECTION (Page 30) PB HEAD DECK-A DECK-B TC BLOCK 32 BIAS OSC Q302, 303 RIPPLE FILTER Q301 A TRIG DRIVE • SIGNAL PATH : PLAYBACK (DECK A) : PLAYBACK (DECK B) : RECORD : TUNER (FM/AM) R-CH FM/AM TUNER UNIT CN304 ANTENNA ST-L ST-R ST-MUTE STEREO TUNED ST-DOUT/MC-DIN ST-DIN/MC-DOUT ST-CLK ST-CE FM 75Ω COAXIAL CAP M+ BTRGM+ ATRGM+ AHALF BHALF APLAY BPLAY BSHUT ASHUT REC(FWD) REC(REV) CAPM-CTRL B-TRIG A-TRIG TC-RELAY A-HALF B-HALF A-PLAY B-PLAY B-SHUT A-SHUT A-REC, FWD B-REC, REV REC BIAS PB-A/B ALC REC-MUTE TC-MUTE AMS-IN AM • R-ch is omitted due to same as L-ch. 93 EQ OUT1 A B 120 ST-MUTE STEREO TUNED ST-DIN ST-DOUT ST-CLK ST-CE BIAS TRAP REC BIAS(L) 34 1 2 3 4 28 27 26 24 21 56 53 54 51 52 63 60 66 90 89 61 68 91 67 55 59 B TRIG DRIVE 58 CAP MOTOR DRIVE 57 100 1 2 7 3 6 5 13 12 11 15 14 BUFFER Q304,305 HPF R-CH PB OUT1 TAI1 REC IN1 MUTE Q306,389 AMS DETECT Q390, 398, 399 R-CH R-CH L – CH R – CH R-CH R-CH SW.P1 GND SW.R1 AIN1 BIN1 RV304 REC(L) LEVEL RV301 C333, L301 TC +9V REC/PB SWITCH IC302 REC/PB HEAD ERASE HEAD A/B NORM/HIGH SPEED ALC ON/OFF REC MUTE ON/OFF MUTE ON/OFF IC303 DECK A/B SELECT PB/REC EQUALIZER AMP IC301 Q307,310 T301 Q391, 392 Q395, 396 Q393,394 SYSTEM CONTROL (CD/TAPE MECHANISM CONTROL) IC501(2/4) REC-OUT1 + L – CH R – CH EQ 1 3 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN70V 30 30 – MAIN SECTION – VCD L-CH J117 A To TUNER/TAPE DECK SECTION (Page 29) To TUNER/TAPE DECK SECTION (Page 29) To CD SERVO SECTION (Page 28) To DISPLAY/POWER SUPPLY SECTION (Page 31) D TAPE L-CH C R-CH VOLUME CONTROL CPU INTERFACE INPUT SELECT SWITCH SURROUND OR DPL BUFFER MID/ BASS & TREBLE R-CH R-CH COMMAND F OUT2 OUT1 VL IN1 + D130 Q101 R-CH + + + RV722 MIC AMP IC722(2/2) MUTE Q201 INPUT SELECT SWITCH, GRAPHIC EQUALIZER CONTROL, ELECTRICAL VOLUME IC102 INC1 INEX1 IND1 L+R SPEANA DATA CLK EQIC-DAT EQIC-CLK BB-A1 BB-B1 SWOUT NC REC-L R-CH R-CH R-CH J721 L R MD/VIDEO (AUDIO) IN AUDIO J730 AUDIO OUT SYSTEM CONTROLLER (CD MECHANISM CONTROL) IC501 (3/4) VIDEO SELECT IC710 81 25 82 80 81 2 14 15 24 18 22 16 21 4 5 6 INA1 INB1 3 L R 19 SURR EFFECT SURR ON/OFF VIDEO OUT VCD-A-MUTE AUDIO OUT 71 2 5 1 3 7 4 J601 VIN2 VIN1 VIN3 SW1 SW2 VOUT VCD-VIDEO L R NC 70 MIC F GUITAR AMP IC722(1/2) ECHO LEVEL RV721 MIC LEVEL TUNER L-CH E B VIDEO GAME INPUT 17 8 MIC RECB1 7 MIC OUT VC (+5V) A+9V C A B C A B + 1 8 DIGTAL ECHO IC721 LPF2 OUT LPF1 IN +5V REG. Q721 VC(+5V) VC(+5V) Q206,207 To TUNER/TAPE DECK SECTION (Page 29) To CD SERVO SECTION (Page 28) AUDIO OUT ON/OFF IC730 4 13 3 Q730 12 3 14 13 9 LOUT R-CH RIN LIN 42 41 + + 3D FILTER 11 Q119 ROUT BYPASS/ SURROUND J716 VIDEO OUT VOL S(2) S(1) EFFECT SWITCH 3D SURROUND AUDIO PROCESSOR IC191 M891 (FAN) + - - - - + + + FRONT SPEAKER IMPEDANCE USE 6–16 L R SURROUND SPEAKER IMPEDANCE USE 24 L R PHONES J631 RY501 D508 D509 VL (AC) VL (AC) R-ch is omitted due to same as L-ch. TM501 D507 D511 FAN MOTOR DRIVE Q851, 852 FAN MOTOR ON SWITCH Q518 OVER LOAD DETECT SWITCH Q510 OVER LOAD DETECT Q501, 551 M HEADPHONE MUTING Q671, 624 MUTING CONTROL SWITCH Q652 RY502 + + TH502 Q602 TH501 + D502 MUTING Q620 MUTING CONTROL SWITCH Q650, 651 STANDBY SWITCH Q503, 504, 581 R-CH R-CH SIGNAL PATH : TUNER (FM/AM) : CD PLAY : TAPE PLAY : VIDEO/MD : REC : MIC INPUT SURROUND SPEAKER PROTECT RELAY DRIVE Q513, 515 FRONT SPEAKER RELAY DRIVE Q516, 517 POWER AMP IC501 OVER CURRENT PROTECTOR IC502 RELAY SWITCH Q511 83 FRONT-RELAY 77 LINE-MUTE 84 LINK-RELAY 76 HP MUTE 50 HP DETECT 78 PROTECTOR 72 VACS IN 75 STK-MUTE TEMPERATURE DETECT SWITCH Q505, 506 14 18 11 10 8 9 12 4 3 + CT OUT 1 OCP 2 VP TEMPERATURE DETECT SWITCH Q514 (DC DETECT) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN70V 31 31 FL601 FLUORESCENT INDICATOR TUBE 8 – 10, 12 – 22, 24 – 41, 43 – 46 7 – 1, 100 – 95, 92 – 87 P1 – 36 1G – 13, G16 – 21 64 – 66 SUPER LOW FREQUENCY (BPF0) 2 BPF, RECT IC101 BPF, RECT IC102 67 70 1 2 7 6 69 68 48 93 72 94 BPF3 BPF1 BPF2 VKK SELECTOR G15 G15 G14 G14 G1 – 13, 16 – 21 6 1 7 80 VOL 1A 79 VOL 1B ROTARY ENCODER S748 VOLUME X MAIN SECTION (Page 30) F SPEANA P1 – 36 VF1 VF2 D610 D101 D102 -VG (-32V) X601 4MHz 83 X1 82 X0 52 – 59, 73 LED DRIVE Q602 – 604, Q1001 – 1006 D603, 605, 601 D1002, 1004, 1006 D1008, 1010, 1012 D602, 606, 604 D1001, 1003, 1005, D1007, 1009, 1011 M+9V Q606 Q601 Q605 Q707 D748 KEY2 | KEY0 S781 – 792 S765 – 772, 773 S751 – 763 60 IIC DATA MCU VCC CN501 D+3.3V IIC-CLK IIC PROGRAM IIC-DATA 3 2 4 61 IIC CLK 77 RESET 30 IIC-DATA 29 IIC-CLK 49 GC-RESET 74 POWER-KEY 73 DISPLAY-KEY S749 S750 DISPLAY 48 STBY-LED 4 SIRCS X502 16MHz 15 X-IN 13 X-OUT X501 32.768kHz 10 XC-IN 11 XC-OUT 23 VCD-POWER SYSTEM CONTROLLER IC501 (4/4) 27 STBY-RELAY 12 RESET 20 AC-CUT B+ SWITCH Q901, 902 RECT D901 +5V REGULATOR IC904 M +9V M +7V A +9V TC +9V D913 – 915 D502 D504 D501 D503 +3.9V REGULATOR IC903 +3.9V REGULATOR IC971 D +3.9V +9V REGULATOR IC902 -33V REGULATOR Q903 +9V REGULATOR IC901 CD D+5V CD A+5V LEVEL DETECT IC601 D505 RECT D909 – 912 RECT D972 – 975 LED DRIVE Q748 T972 SUB POWER TRANSFORMER RECT D541 RECT D543 +VL VL(AC) VL(AC) F974 VL VL VH VH VP VF VF AC3 AC4 AC4 AC3 GND F975 F976 F977 F978 R941 +VH -VG (-32V) POWER ON/OFF RELAY DRIVE Q971 D977 RECT VF1 VF2 RY971 AC IN T910 MAIN POWER TRANSFORMER RESET SWITCH Q601 REMOTE CONTROL RECEIVER IC603 TO FLUORESCENT INDICATOR TUBE FL601 MCU VCC VREF EVER +3.9V S901 S901 EXCEPT TH TH 120V | 220V | 230 – 240V DISPLAY CONTROL KEY CONTROL IC601 BUFFER Q807, 808 D103 D104 BAFFER, RECT Q100, D105 71 ALL_BAND R952 VOLTAGE SELECT – DISPLAY/POWER SUPPLY SECTION – w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN70V 32 32 7-3. PRINTED WIRING BOARD – BD SECTION – • See page 26 for Circuit Boards Location. (SIDE A) BD BOARD 12 (12) 1-684-174- R234 R235 C151 IC103 CN102 Q101 R176 R111 C110 R109 R113 Q102 R102 R179 R123 R118 C213 R151 R236 IC102 R105 R103 R120 C107 DVC TE FE R104 R124 R231 C118 R114 R152 R112 CN101 D101 SE 12 (12) 1-684-174- (SIDE B) BD BOARD M101 SPINDLE MOTOR M M102 SLED MOTOR M 30 16 15 1 OPTICAL PICK-UP BLOCK (A-MAX.3) V VIDEO BOARD (Page 34) E C165 C113 R227 C108 C115 R122 C114 C111 C101 R228 C120 C102 C166 C163 C182 C164 C117 C103 C153 R126 R229 R117 C109 C119 C104 C112 R125 RFAC RFDC DVC E 1 28 + – 56 29 + – 2 3 4 5 6 7 8 A 1 B C D E Ref. No. Location D101 C-6 IC102 B-7 IC103 C-6 Q101 D-5 Q102 B-5 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN70V 33 33 7-4. SCHEMATIC DIAGRAM – BD SECTION – CN101 R236 R234 R152 C151 R151 R176 C153 C165 M102 M101 C108 C111 C110 R228 R122 C113 R124 R123 C118 CN102 R126 R125 C109 C112 C120 R231 C115 R120 C107 R102 C101 C104 VIDEO BOARD (Page 35) R105 R103 R109 R114 R117 R113 R112 C103 R104 R227 R118 C213 C114 R235 C163 C164 C117 C119 C102 R229 R111 C166 C182 Q102 Q101 IC103 R179 D101 IC102 28P 1k 0 4.7k 0.022 100k 0 0.1 10 16V 0.1 47 4V 0.1 470k 100k 100 4V 10 10 1 16P 33k 33k 0.1 47 4V 47 4V 1k 47 6.3V 120k 33p 15k 470p 0.0033 1k 100k 100k 47k 47k 2.7k 0 470p 15k 100k 0 0 0.001 1k 100 10V 0.1 0.1 1 0.1 2.2k 120k 0.1 100 10V UN2111-TX 2SB710A-RT CXA2581N-T4 RF AMP 10k 1SS355TE-1 AN41020A SWITCH LD DRIVE FOCUS/TRACKING COIL DRIVE, SPINDLE/SLED MOTOR DRIVE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN70V 34 34 7-5. PRINTED WIRING BOARDS — VIDEO SECTION — • Refer to page 26 for Circuit Boards Location. (SIDE A) VIDEO BOARD 11 (11) 1-687-869- (SIDE B) VIDEO BOARD 11 (11) 1-687-869- A1 CN101 EP200 C573 EP202 C209 C366 IC505 C365 R102 JW203 C597 FL201 FB252 L102 C114 C582 C596 IC102 C544 C543 EP201 R558 R557 R556 R555 R554 R552 R551 C540 C570 C538 C524 C525 R517 R152 R516 C503 C502 C551 R502 IC202 R533 C501 CN201 FB501 C567 R202 C552 C561 C584 C212 C210 C214 C258 C115 IC508 R115 R114 C211 CN301 1 4 5 8 1 19 1 3 1 1 5 15 10 20 2827 25 2 218 163 162 55 1 32 16 17 54 108 109 A MAIN BOARD (Page 38) V BD BOARD (Page 32) W MAIN BOARD (Page 38) B1 C223 FB504 R559 C338 FL501 C201 C572 C360 C364 R375 R376 FB561 C571 FB502 IC307 C207 C204 C206 C255 C116 C104 C208 1 2 3 C154 FL503 R513 C550 C549 C548 C547 C546 C545 R550 R549 C542 C541 C539 C361 R544 R321 R322 C253 R543 R542 R541 C533 R538 R537 Q370 E C522 C523 R532 C510 C511 C521 R512 R511 R510 R509 C505 C504 C322 C321 C323 L321 C566 C513 R548 C537 R547 R546 R545 C534 C536 C535 FB360 R531 FB503 C205 R534 C574 C576 R561 R504 Q201 C213 FL504 C106 C156 R109 R506 FB251 R108 C224 R201 R107 R157 R159 R158 C581 R505 Q581 R508 R507 R582 FL502 C222 R581 R503 C221 C583 IC506 C105 C257 C203 C202 C259 FB201 C155 C575 IC504 C254 R522 X502 X501 Q301 R323 IC507 IC201 1 8 16 9 8 14 1 7 E E E 2 3 4 5 6 7 8 A 1 B C D E F Ref. No. Location IC102 F-4 IC201 F-8 IC202 F-2 IC307 B-6 IC504 E-6 IC505 D-3 IC506 B-8 IC507 C-7 IC508 C-3 Q201 E-8 Q301 D-6 Q370 A-6 Q581 E-5 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN70V 35 35 7-6. SCHEMATIC DIAGRAM – VIDEO SECTION – • See page 52 for Pin Function Description. C114 C115 C209 C210 C211 C212 C214 C258 C501 C503 C570 C584 C597 CN101 CN301 FB252 FL201 IC202 IC505 L102 2.2µH R102 R115 R152 R202 R323 R533 R554 R555 R556 R557 R558 C104 C106 C116 C154 C155 C156 C201 C202 C203 C204 C205 C206 C207 C208 C213 C221 C222 C223 C253 C257 C321 C322 C323 C338 C504 C511 C513 C521 C547 C566 C571 C576 C583 FB502 FB503 FB504 FL501 FL502 FL503 FL504 IC201 R107 R108 R109 R157 R158 R159 R322 R513 R522 R531 R532 R534 R541 R542 R545 R546 R550 R581 R582 R503 R504 R505 R506 R507 R508 L321 10µH Q201 IC506 IC102(1/2) IC507 C572 C561 C574 C567 IC504 C596 Q581 C224 C364 C522 C524 C525 R537 R538 C549 C550 R559 C548 C545 C546 R551 R552 C544 C543 C552 C551 R516 R517 R502 C502 C505 C255 C539 C541 R549 R544 C533 R547 C536 C535 R543 C537 R548 C542 FB501 C573 C510 FB251 C581 IC102(2/2) C105 C259 X501 C523 X502 CN201 IC508 R509 R512 R511 R510 FB561 R561 FB201 C582 R114 C575 R321 R376 IC307 Q301 R375 C366 C365 C361 C360 Q370 C540 C538 C534 JW203 C254 R201 FB360 22 6.3V 0.1 22 6.3V 0.1 25V F 100 6.3V 0.1 22 6.3V 0.1 25V F 10 16V 0.1 0.0033 0.1 10 16V 28P 3P 0UH 0UH BA033FP-E2 CXD1887R 100 2.2k 100 100 470 33k 10 10 10 10 1M 22 6.3V 1200p 100 6.3V 22 6.3V 0.0047 1200p 22 6.3V 0.1 25V F 100 6.3V 0.1 0.1 0.1 0.1 0.1 22 6.3V 10 16V 10 16V 100 6.3V 0 68 10V 22p CH 15p CH 10p CH 0.1 0.1 25V 0.1 0.001 0.1 1 50V 100 6.3V 0.1 100 6.3V 0.1 0UH 0UH 0UH 0UH 0UH 0UH 0UH 1 10k 1.5k 1.5k 10k 1.5k 1.5k 0 10k 10k 100k 4.7k 0 0 0 1k 180k 10k 100 470 100 100 100 100 100 100 2SD999-T1- CLCK BU2507FV-E 2 NJM2100M(TE2) VG3612816B T-7L SDRAM 0.1 0.1 0.1 0.1 PCM1748E/2 K 10 16V 2SC4154TP- 1EF 0.1 10 16V 7p CH 0.1 F 1 50V 0 10k 1/10W 8p CH 8p CH 470 0.1 1 50V 0.1 1.6k 820 0.47 470p CH 1 50V 0.1 4.7k 2.7k 3.3k 0.1 0.1 0.1 0.47 0.01 100k 1M 0.1 10k 150p CH 0.068 470k 100p CH 680k 0.1 0UH 0.1 0.1 0UH 0.1 NJM2100M(TE2) 0.0047 100 6.3V 33.8688MHz 7p CH 27MHz 19P MR27V401E-0B1MAZ060 ROM 100 100 100 100 0UH 1k 0UH 10 16V 2.2k 100 6.3V 220 10k BD7600FV-E2 2SA1602TP- 1EF 75 100 6.3V 100 6.3V 0.1 100 6.3V RT1N141M-TP-1 0.1 100 6.3V 470p CH 0 0.1 100 0UH COUT 143 142 141 140 137 138 135 133 160 173 163 164 34 35 36 37 39 40 41 42 43 44 45 49 50 51 52 53 54 66 165 37 36 35 34 45 76 72 68 73 77 56 55 54 53 52 51 50 49 65 64 63 62 61 60 59 78 70 44 43 42 41 40 39 201 203 204 205 28 29 30 26 30 29 28 3 5 6 9 3 5 6 9 162 133 137 138 140 141 142 143 135 162 163 164 165 160 173 70 55 56 59 60 61 62 63 64 65 66 68 72 73 74 76 77 78 SCK SRQ SOK SCS SCK SRQ SOK SCS 205 204 201 203 1887SI 1887SO 1887SO 1887SI 34 35 36 37 39 40 41 42 43 44 60 62 63 49 56 59 74 61 64 65 50 51 52 53 54 55 66 45 30 29 26 +3.3V REG LPF LPF RIPPLE FILTER +2.5V REG µPC2925T-E +3.3V REG D/A CONVERTER DATA DECODER, CD-DSP, DIGITAL SERVO, MPEG DECODER,DAC D/A CONVERTER VIDEO AMP INVERTER 1 2 3 4 5 6 7 8 LPF BD BOARD (Page 33) MAIN BOARD (2/3) (Page 40) MAIN BOARD (3/3) (Page 41) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN70V 36 36 Ref. No. Location D701 D-6 D711 D-7 IC701 F-6 IC712 F-7 IC731 E-11 Q731 C-9 • Semiconductor Location 7-7. PRINTED WIRING BOARDS — CD MECHANISM SECTION — • Refer to page 26 for Circuit Boards Location. 1 A B C D E F G H 2 3 4 5 6 7 8 9 10 11 12 13 14 15 CN751 S751 IC731 CN731 CN741 CN742 C715 C731 C735 C736 R701 R711 R731 R721 R722 R723 R735 R732 R733 R734 D701 D711 Q731 C751 IC712 IC701 CN704 C737 R713 R712 C741 R702 JW702 JW703 JW704 JW705 JW706 JW707 JW708 JW711 CN703 CN702 CN705 R751 C752 CN701 JW712 JW701 JW709 JW710 JW713 JW714 CN721 MAIN BOARD (Page 38) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN70V 37 37 7-8. SCHEMATIC DIAGRAM – CD MECHANISM SECTION – MAIN BOARD (3/3) (Page 41) R701 D701 R712 R711 R721 C735 C736 R722 C737 R723 R733 R734 R735 C741 CN731 CN741 CN742 CN702 CN703 CN751 M751 CN704 CN721 C751 R751 C752 CN705 CN751 R732 R731 M741 CN701 IC731 E-1 E-2 E-3 Q731 D711 R713 C731 C715 S751 R702 470 *1 MTZJ-T-77-5.1A TH MTZJ-T-72-5.1A EXCEPT TH *1 D701 4.7k 1k 4.7k 0.1 0.1 4.7k 0.1 4.7k 1k 12k 100 0.01 3P 3P 5P 5P 4P 4P (LD) 2P 2P 0.01 4.7k 0.1 2P 2P 10k 100 (TBL) 12P RPI-576 TABLE SENSOR DTC114ESA TBL ADDRES SENS SWITCH *2 MTZJ-T-77-3.6B TH MTZJ-T-72-3.6B EXCEPT TH 22k 10 50V 100 16V (LEVER SW) 100 VREF OUT2 RNF OUT1 VM VCC FIN GND RIN IC701 BA6956AN LD MOTOR DRIVER VREF OUT2 RNF OUT1 VM VCC FIN GND RIN BA6956AN DRIVER IC712 TBL MOTOR RE701 ROTARY ENCODER *2 D711 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN70V 38 38 7-9. PRINTED WIRING BOARDS – MAIN SECTION – • See page 26 for Circuit Boards Location. Ref. No. Location Ref. No. Location • Semiconductor Location D130 D-7 D392 D-4 D393 D-4 D394 D-4 D501 B-2 D502 B-2 D503 B-2 D504 B-2 D505 B-4 D508 B-2 D509 B-2 D601 B-4 D602 B-4 D603 B-4 D710 G-8 D711 G-8 D901 G-6 D909 F-6 D910 F-6 D911 F-6 D912 F-6 D913 F-5 D914 F-5 D915 E-5 D917 C-5 D941 F-5 IC102 D-7 IC191 C-9 IC301 F-3 IC302 G-3 IC303 E-3 IC501 C-4 IC502 G-7 IC601 B-4 IC710 G-9 IC730 F-8 IC901 F-7 IC902 F-6 IC903 F-6 IC904 C-7 Q101 C-7 Q151 D-7 Q191 C-8 Q201 C-6 Q206 C-6 Q207 C-6 Q251 C-6 Q301 G-4 Q302 G-4 Q303 G-4 Q304 F-3 Q305 F-3 Q306 E-3 Q307 G-4 Q310 G-4 Q389 E-3 Q390 E-4 Q391 D-3 Q392 D-3 Q393 D-4 Q394 D-4 Q395 D-4 Q396 D-4 Q398 E-4 Q399 E-4 Q601 B-4 Q602 C-3 Q620 D-9 Q621 G-2 Q650 E-9 Q651 E-9 Q652 G-2 Q670 E-9 Q671 G-2 Q730 G-9 Q851 F-8 Q852 F-8 Q901 C-7 Q902 C-6 Q903 F-5 IC710 C398 R401 R501 C502 R502 R402 C503 R503 R504 IC303 R505 R506 R507 R509 R511 C510 C511 C512 R513 C416 FB516 R517 R419 R519 R420 R522 C498 R427 R429 R430 R532 R432 IC102 C432 C433 R433 R365 Q389 R314 R334 R395 R315 R397 R307 Q399 R396 R355 C399 R302 R398 R434 R535 R536 R537 R538 C434 R600 R540 R541 R442 R443 R444 R445 R446 R447 R448 R450 R549 R550 R542 R543 R544 R545 Q392 R394 Q394Q395 R392 R330 D392 D393 D394 R597 R595 R594 R593 R493 R492 R592 EA R591 R590 R529 R589 R581 R582 R583 R584 R580 R579 R578 R477 R577 R576 R575 R574 R474 R473 R573 R572 R571 R570 R569 R567 R566 C564 R560 R561 R603 C427 R521 R604 D603 Q601 R601 R602 D505 D601 D602 R373 R399 R364 R360 R361 Q398 R378 R377 R376 R375 R374 R369 R368 R367 JR006 C334 C210 R304 FB286 C206 FB117 IC301 R676 Q621 Q671 R656 R625 R675 FB167 R168 R118 R117 R187 R137 R167 R136 R255 R256 FB206 FB205 R716 FB284 R205 R206 Q201 Q251 R204 R254 C205 Q206 Q207 R286 R284 R285 R185 C203 R135 R186 R717 C716 R329 D711 D710 C713 IC730 R772 R771 R721 R722 R305 C321 R303 C395 R312 R306 C364 R310 R308 R309 R387 R354 R352 C326 R351 C731 R720 R770 R730 R626 C376 Q730 IC191 R150 R104 R101 R102 R103 R316 R322 R121 C121 R122 C122 R154 R151 R152 R153 R156 R155 Q151 C912 C910 C915 Q902 R901 R902 R903 C918 R654 R655 Q652 R653 R904 R313 R905 R906 C384 R530 C333 C383 R379 R388 R342 R345 R393 R328 Q305 JR104 Q310 R421 R422 D501 D502 D503 D504 R362 D508 D509 IC502 R370 R106 R105 Q101 R132 R131 R130 R133 R390 Q670 R353 R134 D130 C851 R851 R852 R854 R327 R855 R191 R192 Q191 Q602 C596 R670 R671 R672 R620 R621 R622 Q620 R623 R673 R650 Q650 Q651 R652 JR005 R333 Q306 JR013 JR001 Q390 JR007 R301 R332 IC501 C115 R347 R382 R366 R523 C314 R651 Q307 R346 R317 Q304 JR004 C371 Q301 R320 FB562 JR011 R391 R371 R478 R563 IC601 R372 C387 C386 JR017 JR018 JR008 R363 JR016 JR024 R112 R110 R908 R380 R913 C924 JR015 D917 JR119 JR731 D941 R139 C656 C132 FB601 FB602 FB604 FB607 FB606 FB605 FB701 JR26 JR138 R856 R138 11 (11) 1-687-844- MAIN BOARD (FOR CHECK) (FOR CHECK) 31 30 50 51 80 81 1 100 1 3 1 3 1 1 1 2 3 3 8 5 1 4 3 1 6 4 14 8 1 7 1 3 6 1 13 1 7 1 1 4 4 1 (FOR CHECK) 21 20 40 1 1 3 1 1 9 8 11 10 30 31 8 1 4 1 5 8 1 2 18 19 21 1 1 3 E E E E E E 1 7 8 14 22 42 A VIDEO BOARD (Page 34) B DRIVE BOARD (Page 36) I DISPLAY BOARD (Page 44) J GAME IN BOARD (Page 42) TAPE A HEAD TAPE B HEAD TAPE MECHANISM DECK E D H F TRANS BOARD (Page 48) POWER AMP BOARD (Page 46) POWER AMP BOARD (Page 46) SUB TRSNS BOARD (Page 48) C GAME IN BOARD (Page 42) W VIDEO BOARD (Page 34) M891 FAN DC VIDEO OUT AUDIO OUT MD/VIDEO (AUDIO)IN L R L R 1 1 3 12 E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E J730 CN502 IC901 IC902 IC903 C102 C307 JW197 CN501 X501 X502 C516 JW127 C621 C598 JW212 CN201 JW198 JW154 JW296 C390 C396 C397 C365 JW086 JW082 C603 JW013 JW083 JW084 JW448 C315 JW136 C192 JW075 JW222 C562 JW010 JW099 JW104 JW090 C602 C601 JW011 JW142 JW048 C191 C185 JW132 JW080 C905 C269 C904 C671 R624 R674 C351 C219 JW206 C135 JW130 JW133 C651 C193 JW414 JW131 C202 JW272 JW129 C391 JW201 J716 JW200 JW275 C316 L710 C710 C711 C714 C712 JW213 C332 JW203 JW209 JW204 C309 C721 C306 C304 C771 C353 C305 C310 C359 C730 C308 C355 C354 C301 JW199 JW151 JW415 JW145 C385 C150 C167 C117 JW124 JW134 C101 C103 C104 C105 C106 C107 C108 JW095 C109 C111 C112 C113 C114 C335 CN702 C331 JW146 JW202 C902 C901 C152 C153 C155 C156 C157 C158 C159 C161 C162 C163 C195 JW139 C186 C136 JW331 JW326 CN851 JW312 C911 C917 C908 C909 C903 C913 C914 C919 Q901 C920 JW334 Q903 JW066 JW020 JW065 IC302 NO303 NO302 CN301 JW096 JW089 JW088 JW116 JW002 JW001 JW026 JW118 JW078 JW108 C336 C342 L302 T301 C381 JW399 Q303 JW214 C341 JW380 R343 JW160 R344 C382 C340 C338 Q302 C337 C339 JW210 RV304 RV351 L301 L351 C356 RV301 CN902 JW031 JW034 JW057 JW226 JW117 JW094 JW056 JW061 JW038 JW092 JW093 JW012 JW079 JW085 C303 JW087 JW208 JW023 JW021 JW187 JW076 CN901 JW298 JW103 JW098 JW097 JW105 JW196 JW220 JW193 JW221 JW109 JW194 JW280 JW140 JW195 C154 JW059 JW169 JW314 JW128 JW125 JW126 JW162 JW188 JW189 JW184 JW185 JW091 C116 C130 JW177 JW110 JW329 JW190 JW191 C131 JW225 JW309 Q852 JW173 JW295 JW058 JW294 JW211 JW172 JW112 JW273 JW256 C670 RV354 C620 JW051 JW274 JW310 JW315 CN402 C110 JW022 JW106 C160 JW328 JW332 JW327 JW175 JW325 JW068 JW102 JW107 JW019 JW231 JW254 C906 JW114 JW259 JW258 JW297 JW292 JW060 JW062 JW291 JW293 JW161 JW003 C311 C361 JW101 JW138 JW149 JW006 JW005 JW004 C312 JW081 JW148 JW316 JW077 JW257 JW255 D901 IC904 JW163 J117 JW176 C196 Q393 Q396 JW052 JW410 JW409 JW008 JW009 JW018 JW027 JW028 JW029 JW030 JW032 JW017 JW050 JW037 JW282 JW263 JW035 JW302 EPT901 NO711 JW260 JW261 JW268 JW301 JW300 JW303 JW304 JW305 JW306 JW215 JW216 JW217 JW276 R853 JW330 CLP303 CLP301 CLP302 JW338 JW901 Q391 JW063 JW054 JW335 JW336 JW036 JW045 JW046 JW047 JW053 JW043 JW044 JW042 JW041 JW040 JW365 JW033 JW025 JW339 JW340 C650 D909 D910 D912 D911 D913 D914 D915 JW851 JW049 CN304 NO901 JW267 JW270 JW271 JW264 JWH001 JW248 JW244 JW243 JW242 JW241 JW240 JW239 JW238 JW237 JW236 JW234 JW250 JW251 JW252 JW253 JW249 JW230 JW229 JW227 JW228 JW235 JW307 JW308 JW233 JW278 JW287 JW115 JW164 NO781 JW416 JW366 JW122 JW039 JW123 JW364 JW265 JW321 C923 JW359 JW363 JW343 JW344 JW430 JW436 JW281 JW347 JW342 JW341 JW262 JW288 JW289 JW285 JW284 JW283 JW348 JW352 JW353 Q851 JW311 JW232 JW279 JW323 JW322 JW015 JW166 JW167 JW438 JW277 JW368 JW369 JW186 JW192 JW286 JW245 JW247 JW246 JW120 JW119 C209 CLP305 JW171 JW135 NO777 JW170 JW141 JW150 JW144 JW902 JW362 C922 JW354 JW355 JW381 JW007 JW168 CLP304 JW113 JW111 JW155 JW156 JW337 JW055 C207 JW333 JW313 C921 NO903 NO710 NO202 JW178 JW179 JW180 2 3 4 5 6 7 8 9 10 A 1 B C D E F G H w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN70V 39 39 7-10. SCHEMATIC DIAGRAM – MAIN SECTION (1/3) – • See page 56 for Pin Function Description. C511 C510 R517 R430 R429 R549 R543 R447 R544 R445 R444 R443 R540 R541 R538 R574 R573 R589 R590 R591 C601 R602 D505 R603 R604 D603 R523 CN301 R345 R346 R347 C342 T301 C341 R393 L301 L351 C385 R360 Q396 R364 R367 R366 R368 R369 R378 R377 R376 R375 R374 R373 R351 R352 R301 R302 C354 RV301 RV351 R304 R354 C306 R355 R307 R303 R308 R309 R312 R420 R401 R402 R427 R529 R530 L302 100µH C562 R380 R330 C311 CN501 R305 R536 C355 R317 R316 C502 C503 R504 CN502 R545 R446 D393 D394 R550 R560 R561 R566 R567 R569 R597 R450 R572 R581 R582 R583 R584 R448 R503 R505 R506 R507 R501 R502 R521 R522 R421 R422 R535 R537 C564 R575 R419 R519 R578 D602 R601 D601 NO302 C333 C383 NO303 R361 R399 R353 TP320 C321 C371 C326 C376 C307 R579 C312 R320 R370 R580 R577 R576 C427 R363 R391 R371 R542 R442 CN304 R328 Q395 C314 C364 C386 R594 R595 X501 C516 FB562 0µH R570 R571 FB516 0µH IC501 C416 R432 R433 R434 C434 C433 C432 R532 R492 R477 JR015 R478 R513 R509 R511 C512 Q302 RV304 RV354 C336 C335 C337 C339 C340 C338 R344 R343 Q304 C359 C309 C310 C353 C351 R310 R306 C308 Q305 C301 C602 C603 C384 C334 IC601 Q601 R593 R592 C596 R563 Q301 Q310 Q307 Q393 Q391 Q394 Q392 C387 JR018 C356 IC301 JR008 JR017 C315 R315 R365 C365 C304 C305 C303 C498 C598 D392 R473 R474 R372 Q602 D502 D504 D501 D508 D503 Q303 C361 IC302 R493 R600 R342 R329 C331 R332 R382 C381 R379 R392 C382 C332 X502 15p 22p 10k 100 100 10k 10k 100 10k 100 100 100 100 100 100 10k 10k 100 100 100 10 50V 4.7k 1SS355 47k 47k 1SS355 10k 3P MOLEX 18k 18k 5.6k 47 16V BIAS TRANS 10 50V 4.7k 27mH 27mH 10 50V 680 2SB1116 680 10k 680 10k 10k 10k 10k 10k 10k 10k 2.2k 3.3k 4.7k 3.3k 4.7k 10 50V 47k 47k 2.2k 2.2k 2.2 50V 47k 1M 10k 100 4.7k 100 4.7k 10k 10k 100 10k 10k 100 10V 22k 22k 10 50V 4P 47k 100 1 50V 10k 10k 0.022 0.022 100 10P 10k 100 1SS355 1SS355 10k 100 100 100 100 100 0 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 10k 10k 470 470 0.01 100 100 10k 100 1SS355 220 1SS355 WIRE MT 330p 330p WIRE MT 2.2k 3.3k 10k 390p 390p 390p 390p 10 50V 100 10 50V 2.2k 2.2k 100 100 100 47p 2.2k 3.3k 3.3k 10k 100 13P 3.3k DTC114EKA 0.0022 0.0022 0.0047 1k 0 32.768kHz 1000 6.3V 100 100 M30620MCN-A26FP 0.1 100 100 470 47p 47p 47p 47k 4.7k 10k 0 10k 0 10k 330k 0.1 2SC2001 220k 220k 2.2 50V 0.01 100V 0.015 0.0068 0.018 0.0068 5.6 1/4W 5.6 1/4W DTA124EKA 47 16V 47 16V 10 50V 0.1 0.01 100 22k 470 16V DTC114EKA 0.01 0.1 0.1 27p 27p M62703ML LEVEL DETECT 2SC1623 RESET SWITCH 4.7k 3.3k 0.1 10k 2SC3624 RIPPLE FILTER DTC114EKA SWITCH 2SA812 SWITCH 2SB1068 2SB1116 DTC114EKA DTC114EKA 0.0047 0 2.2 50V HA12237 0 0 1 50V 10k 10k 1 50V 10 50V 1 50V 0.1 0.1 10 50V 1SS355 100 100 2.2k FA1L3Z 1SS355 1SS355 1SS355 1SS355 1SS355 2SC2001 10 50V BA3126N 100 2.2k 10k 0.01 8.2k 8.2k 0.01 10k 2.2k 120p 120p 16MHz GC VCD-POWER CD ST TC PB R TC PB L DSC RECOUT L DSC RECOUT R MUTE M+9V TC MUTE B2 D3.3V AMS IN D+4V STBY RLY VACS CTRL TC +9V EVER+4V EVER+3.3V GND B1 55 59 90 89 91 89 47 45 37 35 34 33 32 54 53 52 51 57 58 56 29 30 94 4 36 31P 31P 34P 34P 33P 33P 32P 32P 9P 12P 9P 12P 43 44 46 69 67 90 91 61 60 25 38 40 41 42 49 50 66 72 75 78 79 80 81 82 83 84 73 74 48 77 76 22 21 27 70 71 72 52 51 54 55 58 53 56 59 57 60 61 69 67 66 100 3 5 6 7 1 2 *4 SYSTEM CONTROL DRIVE B TRIG DRIVE DRIVE Q391,392 A TRIG Q393,394 CAP MOTOR Q395,396 REC BIAS (L) REC BIAS (R) BUFFER BUFFER REC LEVEL (L) DECK A/B SELECT PB/REC EQUALIZER AMP REC LEVEL (R) HEAD TAPE B TAPE A HEAD (FOR ADJUSTMENT) TAPE MECHANISM DECK (FOR CHECK) (FOR CHECK) EA EXCEPT EA EA 0 1k *4 R493 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN70V 40 40 7-11. SCHEMATIC DIAGRAM – MAIN SECTION (2/3) – C104 C154 C155 R101 R105 R155 C117 C167 R168 R118 R117 R167 R852 CN851 R623 C620 C670 C650 R654 R653 Q399 R102 R152 R313 C398 C397 C395 C153 C391 C114 R655 R104 R154 C116 R132 Q852 R650 R651 R652 C396 R395 R394 C390 R398 R397 R327 R396 R390 R388 R387 R334 CN702 R112 NO711 J117 R853 R121 R122 Q398 Q390 Q651 Q650 Q652 C122 C121 FB701 C656 C105 C109 C111 C159 C161 JR26 R717 C716 R716 R730 R770 R720 L710 100µH C193 C195 NO710 C191 C192 C196 R192 R851 R856 JR119 JR732 FB605 FB607 FB606 IC730 R153 R103 IC303(2/2) IC303(1/2) R624 C621 C671 R674 C851 R673 R106 Q101 Q151 R156 C157 C156 C162 C163 C158 C106 C107 C108 C112 C113 D711 C713 C714 D710 C711 C721 R722 R772 R771 R721 C771 D509 Q306 Q389 FB167 FB117 JW282 JW283 R110 C712 IC710 Q730 C185 C135 R135 R185 C110 Q670 Q620 R151 C160 FB604 FB602 FB601 JR016 JR024 JW851 R314 R333 C316 C152 R620 R621 R622 R670 R671 R672 R362 R138 R130 R134 D130 R133 C131 R676 R626 Q671 Q851 NO781 C710 J716 C731 C730 C399 C115 Q191 IC191 C651 R656 R675 R625 R137 R187 C130 R131 C103 C102 C150 C101 R150 C186 C136 R136 R186 IC102 R191 J730 Q621 10 50V 10 50V 10 50V 2.2k 47k 47k 2.2 50V 2.2 50V 1k 1k 100k 100k 10k 3P 10k 4.7 50V 4.7 50V 1 50V BP 100k 1k 2SC3624A 10k 10k 1k 0.01 10 50V 22p 10 50V 100 16V 10 50V 100k 1k 1k 100 16V 1M 2SC2603 15k 470k 68k 22 50V 4.7k 10k 470 10V 2.2M 15k 15k 10k 10k 22k 10k 100k 11P FFC-R 0 2P 2P 18 1W 1k 1k DTC114EKA DTC114EKA DTC114EKA DTA124EKA DTA124EKA 220p 220p 0 0.47 10 50V 1 50V 10 50V 1 50V 10 50V 0UH 75 220p 100k 10k 1k 1k 1 50V 100 16V WIRE 10 50V 10 50V 0.0047 47k 4.7k 4.7k 0 0 0 NJU4066BM -T2 620 620 NJM4565M(TE2) NJM4565M(TE2) 680 2W 4.7 100V BP 4.7 100V BP 680 2W 0.1 10k 10k 2SC1623 FEED BACK SWITCH 2SC1623 FEED BACK SWITCH 10k 0.022 0.022 0.22 0.33 0.033 0.022 0.022 0.033 0.22 0.33 1SS355 0.01 100 16V 1SS355 10 50V 4.7 50V 1k 1k 100k 100k 4.7 50V 1SS355 DTC114EKA MUTE DTC114EKA MUTE 0 1000 6.3V NJM2244 VIDEO SELECTOR DTC114EKA INV. 1 50V 1 50V 10k 10k 0.01 100V 2SC3661 MUTE 2SC3661 MUTE 2.2k 0.01 100V 0 0 1k 2.2k 1 50V 10 50V 10k 1k 47k 10k 1k 47k 10k 0 2.2k 2.4k 1SS355 100k 0.47 50V 56 56 2SC3661 HEADPHONE MUTE 2SB1116 8P 10 50V 0.1 10 50V 0.01 0.1 DTC114EKA EFFECT SWITCH NJM2702 47 50V BP 10k 1k 1k 18k 18k 10 50V 2.2k 10 50V 10 50V 10 50V 100 16V 2.2k 0.1 50V 0.1 50V 0 0 M61529FP 15k 2P 2SC3661 HEADPHONE MUTE B1 ST TC PB R TC PB L DSC RECOUT R DSC RECOUT L MUTE TC MUTE TC +9V B2 -B AMS IN GND B4 CD R CD L D3.3V +13.3V SPEANA A+9V D+4V 77 80 79 70 71 82 81 50 76 100 1 7 6 5 3 2 5 6 3 7 2 1 *2 *2 *3 *3 *3 R L R L CONTROL SWITCH Q650-652 HPF IC303 AMS DETECT Q390,398,399 EA EXCEPT EA 0 *2 FB117,167 0uH MUTE INPUT SELECT SWITCH TONE CONTROL ELECTRICAL VOLUME DRIVE Q851,852 FAN MOTOR FAN DC M891 EA EXCEPT EA 0 0uH *3 FB601,602,604 3D SURROUND AUDIO PROCESSOR w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN70V 41 41 7-12. SCHEMATIC DIAGRAM – MAIN SECTION (3/3) – C206 C210 C914 C901 C911 C913 EPT901 R901 R902 C269 C219 C902 R904 R906 R905 C921 CN402 C917 R903 CN202 NO903 C903 C207 D909 D910 D911 D912 D913 D914 D915 R205 R255 R206 R256 FB286 CN201 Q206 C904 R254 R204 C205 R286 R285 Q251 Q201 Q901 Q902 R854 R913 R908 IC903 C906 C924 C923 D917 C910 C912 C915 IC901 IC902 C918 C919 R284 C202 C203 FB206 C922 CN901 CN902 NO901 IC502 D941 C920 Q903 FB284 FB205 JR006 Q207 JW901 C908 C909 D901 C905 IC904 µPC2905HF C209 0.1 0.1 470 16V 3300 25V 470 16V 470 16V GND PLATE 2.7k 2.2k 10 50V 10 50V 1000 25V 8.2k 1k 8.2k 100 50V 19P FFC-R 470 10V 2.2k 12P AMP-L 7P 2200 16V 1000 16V 10EDB40 10EDB40 10EDB40 10EDB40 10EDB40 10EDB40 10EDB40 2.2k 2.2k 4.7k 4.7k 0 19P FFC-L DTC114EKA 0.01 10k 10k 0.1 22k 22k 2SC3661 CD MUTE 2SC3661 CD MUTE 2SB1375 B+ SWITCH DTC114EKA B+ SWITCH 4.7k 47k 10k TA7804LS +3.9V REG 100 16V 0.1 2.2 50V 1SS355 0.1 0.1 0.1 TA7809LS +9V REG TA7809LS +9V REG 0.1 3300 6.3V 470k 1000 6.3V 0.022 0 2.2 50V 6P B-TO-B 13P B-TO-B 3P RT8H015C-T112-1 UDZ-TE-17-33B 10 50V 2SB1375 -33N REG 0 DTA124EKA 0.1 0.1 D3SBA20-4101 0.01 +5V REG 3300 10V GC VCD-POWER CD M+9V -B D3.3V D+4V GND B4 TC +9V CD R CD L STBY RLY VACS CTRL EVER+4V EVER+3.3V +13.3V A+9V SPEANA B1 40 35 36 37 38 32 34 33 27 46 47 49 29 30 4 73 74 48 25 43 22 21 44 45 41 42 84 83 94 78 7 5 6 1 2 3 75 *2 *2 BUFFER BUFFER EA EXCEPT EA 0 0uH *2 FB205,284 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN70V 42 42 V V V V C J C719 R788 R789 NO603 S790 R790 S789 S788 D748 R748 S749 D748 R749 Q748 E S792 R792 S791 R791 S762 S750 S768 S767 R1001 S763 R762 R763 D1003 Q1001 Q1006 R1002 D1002 Q1002 R1003 R1004 JW1002 S760 S761 D1001 D1011 C751 C752 JW1001 C750 3 1 2 JW1003 JW1018 R765 C615 IC603 C614 3 2 1 S769 CN605 R625 R750 S771 JW1020 JW1007 JW1008 D1004 JW1009 JW1010 JW1019 D1005 R1005 JW1005 JW1004 R761 JW1014 E E E E E E R1011 R759 S748 JW1016 R760 D1010 D1009 Q1005 R1009 R1010 JW1015 S759 S766 S765 R776 R777 R775 R774 S773 JW1011 R766 R768 R769 R767 R770 Q1003 R1006 D1006 R772 R773 R771 R1007 R1008 D1008 Q1004 S770 D1007 JW1017 JW1013 JW1022 CLP703 VOLUME BOARD CD SWITCH BOARD 11 (11) 1-686-936- 11 (11) 1-686-937- PUSH ENTER MOVIE EQ EFFECT ON/OFF MUSIC EQ SURROUND SPRAKER MODE EDIT/ DIRECTION FM MODE REPEAT TUNER MEMORY PLAY MODE AMP MENU DISPLAY VOL 4 VOLUME GROOVE ILLUMINATION VOL 11 P.FILE GAME EQ VOL 5 VOL 6 VOL 7 VOL 8 VOL 9 VOL 10 VOL 3 VOL 1 VOL 2 EX-CHANGE DISK SKIP DISC 3 DISC 2 DISC 1 Z OPEN/CLOSE L DISPLAY BOARD (Page 44) M DISPLAY BOARD (Page 44) 11 (11) MAIN BOARD (Page 38) MAIN BOARD (Page 38) GAME IN BOARD C630 C631 EP701 J631 PHONES C731 C728 R727 R729 R730 C733 C732 C734 R731 R747 D705 IC721 8 7 14 1 C721 C722 R723 R724 R725 RV721 ECHO LEVEL IC722 C729 C726 C725 C730 R726 R728 JW605 C724 C727 C735 R733 C741 C737 C715 C723 C736 C738 JW604 C739 R735 C743 1 4 5 8 R742 R736 R745 C740 RV722 MIC LEVEL R737 C742 R744 R734 C744 R739 R738 C748 JW602 R721 R740 JW603 R743 Q721 C747 R746 JW764 E J721 MIC 1-686-935- EP703 CN607 JW607 CLP704 GAME INPUT AUDIO VIDEO L R CN606 1 R604 R602 R605 C749 CLP702 C716 R603 C604 C606 JW609 C717 C718 C635 JW613 R722 C634 JW610 8 JW601 J601 2 3 4 5 6 7 8 9 10 11 12 13 A 1 B C D E F G H I 7-13. PRINTED WIRING BOARD – GAME IN, CD SWITCH SECTION – • See page 26 for Circuit Boards Location. D748 H-12 D1001 E-9 D1002 D-10 D1003 D-10 D1004 C-10 D1005 C-9 D1006 B-9 D1007 C-8 D1008 C-8 D1009 D-8 D1010 D-8 D1011 E-8 IC603 B-11 IC722 D-2 IC721 B-3 Q721 E-3 Q748 H-11 Q1001 D-9 Q1002 D-10 Q1003 C-9 Q1004 C-8 Q1005 D-8 Q1006 D-8 • Semiconductor Location Ref. No. Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN70V 43 43 7-14. SCHEMATIC DIAGRAM – GAME IN, CD SWITCH SECTION – J631 J601 3P RV722 100 50k R736 10k 5 6 7 8 R773 R774 R775 R772 R770 R766 R771 R761 R760 R759 C615 R762 R767 R768 R769 R750 R765 R776 R777 R763 D1005 R1005 Q1005 Q1004 R1004 D1004 D1003 Q1003 D1002 R1002 Q1002 Q1001 R1001 D1001 D1010 R1010 R1009 D1009 D1008 R1008 D1007 R1007 Q1006 R1006 D1006 D1011 R1011 CN605 CLP703 S769 S770 S759 S761 C614 S762 S768 S763 C751 C752 R1003 R792 R791 R789 R790 R788 D748 R748 Q748 R749 S791 S790 S792 S788 S789 S749 NO603 S773 S771 S767 S766 S765 S760 C750 IC603 S748 R625 S750 6.8k 10k 15k 4.7k 2.2k 680 3.3k 15k 10k 6.8k 47 10V 22k 1k 1.5k 1.5k 270 470 22k 33k 33k SLI-325URT31WT RED 470 BA1A4M BA1A4M 470 SLI-325URT31WT RED SLI-325URT31WT RED BA1A4M SLI-325URT31WT RED 470 BA1A4M BA1A4M 470 SLI-325URT31WT RED SLI-325URT31WT RED 470 470 SLI-325URT31WT RED SLI-325URT31WT RED 470 SLI-325URT31WT RED 470 BA1A4M 470 SLI-325URT31WT RED SLI-325URT31WT RED 470 17P FFC-L WIRE 0.001 0.1 0.1 470 33k 22k 10k 15k 6.8k SELS5223S RED 330 BA1A4M 270 5P AMP-L ROTARY SWITCH 0.1 VOLUME ENCODER 47 55 54 53 52 56 57 52 53 54 55 56 57 VOLUME I/ I/ OPEN/CLOSE EX-CHANGE DISC SKIP LED DRIVE Q1001-1006 LED DRIVE CN607 2P EP703 CLP702 C716 0.1 R L AUDIO VIDEO GAME INPUT R602 R603 C604 C606 R604 R605 1k 1k 2.2 50V 2.2 50V 100k 100k R743 C748 C749 10k 0.022 0.1 R739 C744 100k 0.001 J721 R742 C747 IC722(1/2) C742 1k 2.2 50V NJM4565D 47p 1 2 3 4 C719 R745 2.2 50V IC722 MIC AMP R738 R737 C741 C743 1k 22k 0.15 50V 470p C635 C634 0.001 0.001 IC721 C722 R723 C721 R724 C724 R725 C723 C725 C727 R726 D705 C730 R728 C729 R727 C728 RV721 M65850P ECHO AMP 0.0068 15k 0.0015 15k 0.068 15k 50V 0.22 50V 0.015 47k MTZJ-T-72-5.1B 0.022 15k 1 50V 15k 0.0015 50k C726 C734 C733 0.22 50V 47 16V 16V 10V C732 C731 R730 R729 0.068 0.0068 15k 15k C739 R735 IC722(2/2) C736 R734 C737 C715 C738 C740 Q721 R747 C735 R733 R744 47p 50V 180k NJM4565D 10 50V 100 10 50V 47p 2.2 50V 100p 2SC2785TP BIAS 150 2.2 50V 15k 100k R722 R721 C718 R746 C717 R740 18k 10k 100 10V 1k 100 10V 2.2k EP701 C631 C630 CN606 0.001 0.001 8P R731 120k 1 DISPLAY BOARD (Page 45) DISPLAY BOARD (Page 45) MAIN BOARD (2/3) (Page 40) MAIN BOARD (2/3) (Page 40) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN70V 44 44 7-15. PRINTED WIRING BOARD – DISPLAY SECTION – • See page 26 for Circuit Boards Location. D100 D-6 D101 D-8 D102 C-8 D103 E-8 D104 E-8 D105 D-6 D106 E-4 D107 E-4 D601 F-2 D602 E-9 D603 D-9 D604 B-9 D605 C-9 D606 C-9 D610 A-2 IC101 D-7 IC102 F-9 IC601 B-5 Q100 D-6 Q601 G-2 Q602 B-9 Q603 C-9 Q604 D-9 Q605 F-2 Q606 F-2 Q707 G-2 Q807 B-7 Q808 B-7 • Semiconductor Location Ref. No. Location IC601 Y1 Y2 Q601 Q707 S758 R634 R635 R632 R633 D601 CN601 R631 JW701 R636 R637 JW702 Q606 S779 JW756 JW757 S755 S754 S753 S756 JW754 S757 JW709 JW715 JW716 R779 R654 R656 R655 JW714 JW717 JW718 JW703 JW704 JW705 Q605 JW707 JW706 D106 JW713 JW724 JW719 JW721 JW722 JW720 JW723 D107 JW725 JW760 R758 JW712 JW710 JW708 C620 C619 C710 C618 C711 L602 JW749 CLP701 R753 R754 S751 S752 R657 JW752 R751 R752 NO602 JW751 L601 R755 R756 R757 C652 C651 R647 C653 R645 D610 R646 JW753 R821 FL601 X601 R660 C623 JW748 JW763 R817 R818 R819 R820 Q807 Q808 JW759 JW700 R670 JW755 JW750 R663 R658 JW727 JW726 C622 R662 R661 JW729 JW758 JW738 JW737 JW740 JW739 JW728 C105 JW733 JW734 JW735 JW736 JW732 C712 JW108 R137 JW109 R140 JW107 R127 D100 C115 R128 D105 C110 C121 JW730 JW731 D102 R110 C106 C107 R108 R109 R105 R107 C109 C624 C625 C626 C627 C628 R808 R807 JW741 JW745 JW747 JW762 R112 Q602 Q603 D605 R626 R627 D604 R628 D606 JW743 JW742 R130 S784 D603 Q604 R106 R629 S783 R630 C122 R111 R113 R785 S785 S787 S786 R786 R787 JW746 JW744 R117 R132 R133 R129 IC101 R104 C101 C102 C104 R102 R103 D101 R119 R123 R125 C120 S782 S781 R783 C119 R781 R782 R784 R114 R115 R116 IC102 C112 C111 R121 C116 C117 R120 R122 JW761 R659 C123 R822 R823 R136 R138 R139 Q100 JW106 C125 C152 C153 C118 JW113 C154 CN604 D602 JW105 JW102 R118 R124 C114 D103 D104 JW112 JW103 R131 JW104 R134 C100 C124 JW101 C155 C156 C157 R653 R652 CD TUNER/BAND TAPE A/B MD(VIDEO) GAME GAME MIXING KARAOKE/MPX x h h X > M > M ,ALBUM+ –, ,ALBUM– CD SYNC REC PAUSE/START ,+ E E E E E E E 1 100 50 51 81 80 30 31 1 4 5 8 11 (11) 1-686-934- DISPLAY BOARD M VOLUME BOARD (Page 42) I MAIN BOARD (Page 38) L CD SWITCH BOARD (Page 42) E E E 8 5 1 4 2 3 4 5 6 7 8 9 10 A 1 B C D E F G w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN70V 45 45 7-16. SCHEMATIC DIAGRAM – DISPLAY SECTION – • See page 58 for Pin Function Description. KARAOKE/MPX FL601 CN601 D106 D107 S758 S756 S754 S753 S752 S751 S779 S781 S782 S783 S784 S785 S786 S787 CN604 Q602 Q603 Q604 R632 R636 R634 R633 R637 R635 R670 D604 D601 D605 D606 D603 D602 D101 D102 D103 D104 D100 R130 R129 C122 R137 C124 R136 R139 C123 R140 R138 C118 D105 R127 R128 C121 C120 R125 R124 C119 R123 C114 R118 R119 R117 C115 C110 C105 R107 R113 R111 R106 R112 C109 C104 C107 R110 IC101(2/2) C106 R109 R108 R133 R132 R104 C102 C101 R102 R103 IC101(1/2) C653 C651 C652 R808 R807 C622 C712 C628 C627 C626 C625 C624 C711 C710 L602 C618 C620 C619 C112 R116 C111 R114 R115 R131 R134 R120 R121 C116 IC102(2/2) R122 C117 NO602 R105 R628 R626 R627 R629 R630 R779 R782 R781 R783 R784 R785 R786 R787 R631 R756 R755 R757 R754 R753 R752 R758 R751 R662 R663 R655 R656 R661 R652 R658 R659 R657 R654 R822 R823 C623 IC601 R660 R818 R819 R820 R821 R817 R647 R646 D610 R645 C153 C154 C155 C156 C157 C152 C125 S755 S757 X601 L601 R653 Q100 IC102(1/2) Q807 Q808 Q707 Q601 Q605 Q606 C100 19P FFC-S 10EDB40 10EDB40 17P FFC-L BA1A4M BA1A4M BA1A4M 680 10k 10k 680 10k 10k JW SEL5923A AMBER SLR325VC RED SEL5923A AMBER SEL5923A AMBER SEL5923A AMBER SEL5923A AMBER 1SS133T-72 1SS133T-72 1SS133T-72 1SS133T-72 *1 *1 D100 MTZJ-T-77-3.3B : TH MTZJ-T-72-3.3B : EXCEPT TH 4.7k 4.7k 100 10V 22k 10 50V 68k 330 100 10V 100 1k 10 50V 1SS133T-72 220 470k 4.7 50V 0.22 50V 100k 100k 10 50V 680 10 50V 100k 100k 680 0.22 50V 0.22 50V 0.22 50V 100k 100k 680 100k 100k 10 50V 10 50V 0.1 47k NJM4565D 0.1 1.5k 1.5k 100k 100k 47k 0.47 0.47 1.5k 1.5k NJM4565D 10 50V 0.1 10 50V 100k 100k 4.7 50V 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 JW 0.01 0.01 47 10V 0.022 47k 0.022 1.5k 1.5k 100k 100k 1.5k 1.5k 0.0033 NJM4565D 47k 0.0033 5P AMP-L 680 330 330 330 330 330 470 1k 680 1.5k 1.5k 2.2k 3.3k 4.7k 680 2.2k 1.5k 3.3k 1.5k 1k 680 4.7k 470 10k 10k 100 100 10k 10k 15k 15k 15k 100 1k 1k 0.001 MB90M407PF-G-129 -BND 1M 180 180 180 120 120 100 100 MTZJ-T-72-5.1B 10k 220p 220p 220p 220p 220p 220p 0.1 50V 4MHz JW 10k 2SC3623 BUFFER NJM4565D BA1L3Z BA1L3Z BA1A4M INV. BA1A4M INV. 2SB1116 SWITCH 2SB1116 SWITCH 10 50V 66 65 48 60 61 69 70 71 73 68 12 13 14 15 16 17 18 19 20 21 22 24 25 26 27 28 29 30 10 9 8 7 6 5 4 3 2 1 100 99 98 97 96 95 94 66 79 80 77 77 93 87 88 89 90 91 92 52 53 54 55 56 57 58 59 31 32 33 34 35 36 37 38 39 40 41 43 44 61 60 49 51 64 48 72 73 72 67 67 68 69 70 71 8 9 10 12 13 14 15 16 17 18 19 20 21 22 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 44 45 46 7 6 5 4 3 2 1 100 99 98 97 96 95 92 91 90 89 88 87 45 46 43 59 58 93 94 79 65 80 52 53 54 55 56 57 64 FLUORESCENT INDICATOR TUBE REC PAUSE/START REC PAUSE/START + - ALBUM + ALBUM - DISPLAY BUFFER BUFFER KEY CONTROL CONTROL, LED DRIVE Q602-604 CD SWITCH BOARD (Page 43) VOLUME BOARD (Page 43) MAIN BOARD (3/3) (Page 41) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN70V 46 46 7-17. PRINTED WIRING BOARDS – POWER AMP SECTION – • See page 26 for Circuit Boards Location. D501 E-3 D502 D-2 D503 D-4 D504 D-5 D506 C-7 D507 B-5 D508 H-2 D509 H-2 D510 C-8 D511 B-5 D541 G-3 D543 H-4 D551 E-3 D581 F-2 IC501 D-4 Q501 E-4 Q503 G-2 Q504 F-2 Q505 B-2 Q506 B-2 Q510 F-6 Q511 F-6 Q513 H-6 Q514 B-2 Q515 H-6 Q516 H-5 Q517 H-5 Q518 B-2 Q551 E-4 Q581 F-2 • Semiconductor Location Ref. No. Location Q581 Q503 E E E Q504 C581 R561 R509 R559 C507 C508 C519 C520 C522 C521 C557 C558 TH501 Q514 R531 R522 Q506 Q505 D504 D503 R508 R558 Q501 Q551 R555 IC501 C516 Q510 C517 Q511 C546 C596 C542 C592 D541 R519 R581 CN503 C551 R551 R552 C553 R553 C554 R518 C552 C503 R503 C504 C509 R512 R511 R540 R547 R562 R563 R548 D507 D511 TM501 C559 Q516 Q517 Q513 Q515 C526 R564 R565 D508 D509 R591 R541 R527 R521 D543 R542 R507 R505 C512 EP502 R513 D581 R517 R515 R514 R557 R592 CN504 R573 R566 R571 R567 R570 R569 R568 R572 R545 R546 R582 R516 R528 R506 R556 R554 D551 D501 R504 R529 R530 D502 JW780 JW781 JW783 JW785 JW786 JW787 JW788 JW790 JW791 JW792 JW793 JW794 JW795 JW796 JW797 JW798 JW799 JW800 JW801 JW802 JW803 JW804 JW805 JW806 JW807 JW809 JW810 JW811 JW812 JW813 JW814 JW816 JW817 JW818 JW820 JW821 JW822 JW823 JW824 JW828 JW829 JW830 JW831 JW832 JW833 JW834 JW835 JW836 JW837 JW838 JW840 JW841 JW842 JW843 JW844 JW847 JW848 JW849 JW850 JW851 JW852 JW853 JW854 JW855 JW856 JW857 JW858 JW859 JW860 JW861 JW862 JW863 JW864 JW865 JW866 JW867 JW868 JW869 JW870 JW874 JW878 JW879 JW880 JW881 JW882 JW815 PL005 PL006 PL007 R501 R502 C502 C501 JW819 RY501 RY502 D506 D510 R539 C523 C524 EP501 C527 C513 JW893 JW894 PL003 JW891 JW890 JW887 JW886 JW885 JW884 JW871 JW826 JW827 JW876 JW875 R520 R524 C541 C544 C545 JW789 C591 JW897 JW846 JW845 JW839 PL010 JW782 JW873 JW896 JW877 JW899 JW900 TH502 JW898 CN502 JW808 R523 R532 R533 R577 Q518 R578 JW927 JW926 E E E E E E E E E 11 (11) 1-686-932- POWER AMP BOARD FRONT SPEAKER (IMPEDANCE USE 6–16Ω) SURROUND SPEAKER (IMPEDANCE USE 24Ω) + - + - L R + - + - L R + – + – D E MAIN BOARD (Page 38) MAIN BOARD (Page 38) 1 6 O TRANS BOARD (Page 48) E E 2 3 4 5 6 7 8 A 1 B C D E F G H w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN70V 47 47 7-18. SCHEMATIC DIAGRAM – POWER AMP SECTION – R501 R551 R504 D501 D551 R509 R559 R582 R581 C581 R561 Q506 Q505 R524 R520 C544 C545 R592 R533 R532 JW566 JW567 D506 Q510 R527 R528 R529 R530 C516 D510 D507 JW885 CN503 CN504 D502 R508 R558 NO502 6P R578 C502 C552 C501 C551 C554 C504 R512 R517 R516 R513 R515 R514 D581 R519 C559 C509 R521 R522 Q514 C512 RY501 R545 C524 C523 C520 0.01 R563 10 C522 0.01 C519 0.01 R562 10 C521 0.01 RY502 R548 R547 D511 JW884 JW890 JW886 TH502 R571 TH501 JW891 JW887 R577 JW927 JW871 C596 R531 R555 R556 R557 R507 Q501 Q551 D503 D504 C503 R503 R553 C553 R511 D543 C546 R542 EP501 C513 C542 R541 C592 R591 C591 C541 R523 R502 R552 R554 R518 R506 JW926 C527 R565 R564 D509 D508 C517 R546 R573 R566 R567 R570 R569 Q581 Q504 Q517 Q516 R572 R568 Q518 Q513 Q515 C526 C507 C508 Q511 C558 C557 EP502 R505 D541 R540 R539 IC501(1/2) IC501(2/2) Q503 1k 1k 56k 1SS133T -72 1SS133T-72 10 1/2W 10 1/2W 33k 33k 22 50V 100 1/4W FR 2SC2785 2SC2785 3.3k 1W 3.3k 1W 0.1 100V 0.1 100V 100k 47k 100k 1SS133T 2SC2785 56k 47k 22k 22k 100 10V 1SS133T 1SS133T 13P 6P 1SS133T 0.1 5W 0.1 5W 560k 1000p 1000p 4.7 50V 4.7 50V 100 10V 100 10V 1 1/4W FR 10k 10k 33k 22k 2.2k 1SS133T-72 68k 22 100V 22 100V 100k 100k 2SC2785 0.01 RELAY 24V 1k 0.01 25V 0.01 25V 47k 47k 1SS133T 47k 100 2200 100V 270k 820 *3 100k 100k 2SC1841 OVER LOAD DETECT 2SC1841 OVER LOAD DETECT *1 MTZJ-T-77-18C MTZJ-T-72-18C *2 MTZJ-T-77-18C MTZJ-T-72-18C 220p 330 330 220p 100 1/4W FR D5SBA20 2200 100V 100k TERMINAL, EARTH 0.01 4700 50V 100k 4700 50V 100k 0.1 0.1 *4 56k 56k 56k 33k *3 0.01 25V 22k 22k 1SS133T 1SS133T 10 50V 22k 100k 10k 10k 10k 47k 2SC1841 STANDBY SWITCH 2SC1841 STANDBY SWITCH 2SA1175TP-HFE 2SC2785 100k 10k 2SC2785 FAN MOTOR ON SWITCH 2SC2785 2SA1175TP-HFE 10 50V 0.068 0.068 2SC2785 RELAY SWITCH 0.068 0.068 EARTH 820 D5SBA204101 STK412-150 POWER AMP POWER AMP 2SA1207-AA STANDBY SWITCH R CH L CH R CH R GND L CH L GND REAR R-CH REAR L-CH VH VH VL VL REAR R GND 560 2W + + + – – – – + R L R L (IMPEDANCE USE 6-16Ω) FRONT SPEAKER (IMPEDANCE USE 24Ω) SURROUND SPEAKER TM501 8P RELAY DRIVE FRONT SPEAKER RELAY DRIVE FRONT SPEAKER SWITCH OVER LOAD DETECT SWITCH DETECT Q505,506,514 TEMPERATURE RELAY DRIVE SURROUND SPEAKER PROTECT RELAY DRIVE SURROUND SPEAKER PROTECT EXCEPT TH TH *1 D504 33k 15k EXCEPT TH TH *3 R506,D556 EXCEPT TH TH *1 D503 100k 150k EXCEPT TH TH *4 R523 STK412-150 560 2W (Page 49) MAIN BOARD (3/3) (page 41) MAIN BOARD (3/3) (page 41) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN70V 48 48 7-19. PRINTED WIRING BOARDS – TRANS SECTION – • See page 26 for Circuit Boards Location. • Semiconductor Location Ref. No. Location D971 B-4 D972 B-6 D973 B-6 D974 C-6 D975 C-6 D977 D-3 IC971 A-5 Q971 B-4 F978 F975 F977 R952 JW906 JW907 JW908 JW909 F974 PL002 PL008 R941 D977 C941 CN997 CN998 F976 PL009 JW912 JW914 JW911 JW913 NO973 JW928 JW929 C971 T972 S901 IC971 D974 D975 C973 D971 Q971 RY971 CN974 C975 C976 C977 JW921 D972 D973 C978 R974 R975 PL001 PL004 JW920 JW924 JW923 JW925 TH TH TH B100 CN976 CN971 E TRANS BOARD SUB TRANS BOARD 11 (11) 1-686-930- 11 (11) 1-686-931- 1 2 3 4 1 1 7 1 6 4 1 4 1 3 1 2 EXCEPT TH EXCEPT TH AC IN 120V 220V 230-240V t t VOLTAGE SELECTOR * * NOT REPLACEABLE: BUILT IN TRANSFORMER T910 POWER TRANSFORMER H O MAIN BOARD (Page 38) POWER AMP BOARD (Page 46) F MAIN BOARD (Page 38) TH TH EXCEPT TH EXCEPT TH EXCEPT TH 2 3 4 5 6 7 A 1 B C D E F w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN70V 49 49 7-20. SCHEMATIC DIAGRAM – TRANS Board – CN974 D975 D973 D972 D974 CN998 7P CN976 4P RY971 D971 C975 R975 C973 R974 C978 C977 C976 C971 JW920 T972 CN997 6P JW928 JW929 R952 C941 D977 JW924 JW923 JW925 S901 JW912 JW911 JW913 JW914 T910 IC971 Q971 CN971 NO973 F976 F977 F974 F975 F978 R941 2P VH 11ES2 11ES2 11ES2 11ES2 1SS133T 2200 16V 10k 100 16V 100k 0.1 0.1 0.1 10000p 0.15 100 63V 11ES2 TA7804LS +3.9V REG 2SC2785 1 *3 T8AL/250V T8AL/250V T6.3AL/250V T6.3AL/250V VOLTAGE SELECTOR 120V 220V 230-240V POWER TRANSFORMER BUILT IN TRANSFORMER NOT REPLACEABLE: * * AC IN *2 NO973 4P 2P 4P 2P *3 CN971 RELAY DRIVE POWER ON/OFF EXCEPT TH TH EXCEPT TH TH TH TH EXCEPT TH EXCEPT TH TH EXCEPT TH EXCEPT TH T4AL 250V TH POWER AMP BOARD (Page 47) MAIN BOARD (3/3) (Page 41) MAIN BOARD (3/3) (Page 41) TH EXCEPT TH EXCEPT TH EXCEPT TH TH TH w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN70V 50 50 7-21. IC Block Diagrams IC103 CXA2581N-T4 (BD BOARD) 27 29 30 4 3 EQ_IN 9 D 10 F E 8 C 7 B 6 A AC_SUM DC_OFST RFDCI 28 RFDCO VC 24 BST 25 VFC CEI EQ APC 5 GND AC SUM 26 RFC AC VCA 23 RFG 22 VCC 20 21 CE 19 TE_BAL 18 TE 17 FEI 16 FE 1 LD 2 PD 11 SW 12 13 DVCC 14 DVC 15 RFAC VC EQ ON/OFF VC VC VC VC DVC DVC APC-OFF(Hi-Z) RW/ROM (H/L) DVC DVC AVC DVCC VC DVC RW/ROM RW/ROM RW/ROM RW/ROM RW/ROM RW/ROM DVCC VCC VCC VCC VOFST VOFST VOFST B C A D gm gm DVCC IC102 AN41020A (BD BOARD) PGND2 PGND2 NC NC STBY NC NC PVCC2 NC NC PVCC2 IN3- IN3+ SVCC SGND IN2- IN2+ IN1- IN1+ PVCC1 PVCC1 NC VO1+ NC NC NC VO1- PGND1 PGND1 NC(VDD) IN4R IN4 VREF OP- OP+ OP.O VO3+ VO3- VO4- VO4+ VO2+ VO2- NC(BC1) NC NC(SW) NC(CT) NC(VPUMP2) NC(BC2) NC(VPUMP1) NC(BC4) NC(BC3) NC(FB) OPO3(NC) OPO2(NC) OPO1(NC) PVCC/2(NC) DIRECTION DET DIRECTION DET DIRECTION DET PVCC/2 PVCC/2 DIRECTION DET RESET CIRCUIT IC504 PCM1748E/2K (VIDEO BOARD) 1 3 2 15 14 13 12 11 5 4 6 9 8 10 7 16 ROUT LOUT VCC VDD DGND LRCK DATA BCK Serial Input Power System Clock System Clock I/F Zero Detect DAC DAC Output Amp and Low-Pass Filter Output Amp and Low-Pass Filter Control Function Manager 8x Oversampling Digital Filter with Function Controller Enhanced Multi-Level Deita-Sigma Modurator Supply I/F MCLK LAT CLK DATA DZFL DZFR VCOM AGND w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 HCD-GN70V IC701 BA6956AN (DRIVER BOARD) IC712 BA6956AN (DRIVER BOARD) 1 2 3 4 5 6 7 8 9 CONTROL LOGIC TSD VREF OUT2 OUT1 RNF VM VCC FIN GND RIN IC721 M65850P (MIC/GUITAR BOARD) OSCILLATOR 1/2 VCC AUTO RESET LPF1 MAIN CONTROL A/D 20KBIT SRAM LPF2 D/A 1 2 3 4 5 6 7 8 9 10 14 13 12 11 CLOCK RESET MO MI D1 DO0 DO1 VCC CLOCK REF OP2IN OP2OUT LPF2IN LPF2OUT LPF1IN LPF1OUT OP1OUT OP1IN CC1 CC2 GND IC191 NJM2702 (MAIN BOARD) 4 3 VOL 9 10 8 7 GND 6 VCC NC L-IN R-IN L-OUT R-OUT BYPASS/SURROUND NC 5 VREF 3D FILTER NC 1 FIL 2 NC 11 12 13 14 REF VOL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 HCD-GN70V 7-22. IC Pin Function Description 1 VB O Not used (Connected to ground with capacitor) 2 IREF O Reference current output of DAC 3 VRF I Reference voltage input of DAC 4 VG O Not used (Connected to VDD with capacitor) 5 XCPSIG O Not used (Connected to ground) 6 CPSIG O Video composite/component (Y) signal output 7 NC O Video chroma (C) signal output (Not used ) 8 NC — Connected to +2.5 V 9 V_AVS — Ground 10 IVD1 — Power supply (+3.3V) 11 I2C_CLK I/O Not used (open) 12 I2C_DATA I/O Not used (open) 13 GPIO0 I Serial data input from M30620 14 GPIO1 O Serial data output to M30620 15 GPIO2 I Serial clock input from M30620 16 GPIO3 I Data request signal input from M30620 17 LVD1 — Power supply (+2.5V) 18 GPIO4 O Ok signal output to M30620 19 GPIO5 I Chip select signal input from M30620 20 GPIO6 I Not used (open) 21 GPIO7 O Not used (open) 22 LVS1 — Ground 23 GPIO8 O Not used (open) 24 GPIO9 O Clock select signal output 25 GPIO10 O Not used (open) 26 GPIO11 O Latch signal output to PCM1748 27 LVD2 — Power supply (+2.5V) 28 GPIO12 O Data load signal output to BU2507FV 29 GPIO13 O Serial data output to BU2507FV 30 GPIO14 O Serial data clock output from BU2507FV 31 IVS1 — Ground 32 LVS2 — Ground 33 IVD2 — Power supply (+3.3V) 34 to 37 DRADR0 to 3 O Address output to memory 38 LVD3 — Power supply (+2.5V) 39 to 45 DRADR4 to 10 O Address output to memory 46 LVS3 — Ground 47 IVS3 — Ground 48 IVD3 — Power supply (+3.3V) 49 to 56 DRDAT0 to 7 I/O Data input/output to memory 57 IVS3 — Ground 58 IVD4 — Power supply (+3.3V) 59 to 66 GRDAT8 to 15 I/O Data and input/output to memory 67 IVS4 — Ground 68 DRCAS O CAS signal output to memory 69 LVD4 — Power supply (+2.5V) 70 DRCK O Clock output to memory 71 IVD5 — Power supply (+3.3V) 72 DRRAS O RAS signal output 73 DRWEL O Write enable signal output to memory Description Pin Name Pin No. I/O • IC505 CXD1887R CD-DSP, DIGITAL SERVO, MPEG DECODER, DAC (VIDEO board) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 HCD-GN70V Description Pin Name Pin No. I/O 74 NVOEL O Out enable signal output to memory 75 LVS4 — Ground 76 DRBS O Bank select address output to memory 77 DRDQM0 O Lower byte mask of memory 78 DRDQM1 O Upper byte mask of memory 79 IV55 — Ground 80 NC — Not used (open) 81 SYSRST I System reset signal input 82 IRDIN I Not used (Connected to ground) 83 NC — Not used (open) 84 VDD1 — Power supply (+2.5V) 85 V16M I/O Not used (open) 86 DOUT O Digital audio data output (Not used) 87 L_CDLRCK I D/A interface, L/R clock input 88 LRCK O D/A interface, L/R clock output 89 VSS1 — Ground 90 L_CDDATA I Serial data input from D/A interface 91 PCMD O Serial data output to D/A interface 92 L_CDBCK I Bit clock input (2’s COMP) from D/A interface 93 BCK O Bit clock output (2’s COMP) to D/A interface 94 EMPH O Not used (open) 95 L_SQSO I SubQ 80bit and PCM peak level data input 96 SQSO O SubQ 80bit and PCM peak level data output 97 VDD2 — Power supply (+2.5V) 98 L_SQCK O SQSO read out clock output 99 SQCK I SQSO read out clock input 100 SBSO O Not used (open) 101 EXCK I Not used (Connected to ground) 102 DATA I Serial data input from CPU 103 L_DATA O Serial data output to CPU 104 VSS2 — Ground 105 L_CDXRST I System reset signal input (L:reset) 106 XRST O System reset signal output (L:reset) 107 MUTE I Not used (Connected to ground) 108 L_XLAT O Latch signal output to CPU 109 XLAT I Latch signal input from CPU 110 L_DCLK O Serial data clock output 111 CLOK I Serial data clock input 112 L_SENS I SENS signal input 113 SENS O SENS signal output 114 L_SCLK O SENS serial data read clock output 115 SCLK I SENS serial data read clock input 116 VDD3 — Power supply (+2.5V) 117 ATSK I/O Not used (Connected to ground) 118 XUGF O Not used (open) 119 XPCK O Not used (open) 120 L_GFS I GPS signal input 121 GFS O GPS signal output 122 VSS3 — Ground www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 HCD-GN70V Description Pin Name Pin No. I/O 123 L_CDC2PO I C2PO signal input 124 C2PO O C2PO signal output 125 L_SCOR I Sub code sink (S0 or S1) detect signal input 126 SCOR O Sub code sink (S0 or S1) detect signal output 127 COUT I/O Not used (open) 128 VDD4 — Power supply (+2.5V) 129 MIRR I/O Not used (open) 130 DFCT I/O Not used (open) 131 L_FOK I/O Focus OK signal input/output 132 FOK I/O Focus OK signal input/output 133 MDP O Servo control signal output of spindle motor 134 VSS4 — Ground 135 SSTOP I Inner position of optical pick-up signal input 136 FSTO O Not used (open) 137 SFDR O Sled motor control signal output 138 SRDR O Sled motor control signal output 139 VDD5 — Power supply (+2.5V) 140 TFDR O Tracking coil control signal output 141 TRDR O Tracking coil control signal output 142 FFDR O Focus coil control signal output 143 FRDR O Focus coil control signal output 144 VSS5 — Ground 145 WFCK O Not used (open) 146 WDCK O Not used (open) 147 ASYE I Not used (Connected to +2.5V) 148 VDD6 — Power supply (+2.5V) 149 XTAI I Crystal oscillator input (33.8688MHz) 150 XTAO O Crystal oscillator output (33.8688MHz) 151 VSS6 — Ground 152 TES1 I Not used (Connected to ground) 153 TEST I Not used (Connected to ground) 154 NC — Not used (open) 155 NC — Not used (Connected to ground) 156 AVD0 — Power supply (+2.5V) 157 IGEN I OP AMP current constant setting input 158 AVS0 — Ground 159 ADIO O Not used (open) 160 RFDC I RF signal input 161 CE I center servo analog signal input 162 TE I Tracking error signal input 163 SE I Sled error signal input 164 FE I Focus error sigunal input 165 VC I Center voltage signal input 166 VPCO O EFM PLL charge pump output 167 VCTL I EFM PLL charge pump input 168 FILO O Master PLL filter output 169 FILI I Master PLL filter input 170 PCO O Master PLL change pump output 171 CLTV I VCO1 control signal input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 HCD-GN70V Pin Name Pin No. I/O Discription 172 AVS1 — Ground 173 RFAC I EFM (RF) signal input 174 BIAS I Current source input 175 ASYI I Comparator voltage input 176 ASYO O EFM full swing signal output (L:VSS, H:VDD) 177 AVD1 — Power supply (+2.5V) 178 VDD7 — Power supply (+2.5V) 179 SOUT O Not used (open) 180 SOCK O Not used (open) 181 XOLT O Not used (open) 182 C4M O Not used (open) 183 LOCK I/O Not used (open) 184 VSS7 — Ground 185 MD2 I Not used (Connected to ground) 186 SCSY I Not used (Connected to ground) 187 PWMI I Not used (Connected to ground) 188 VDD8 — Power supply (+2.5V) 189 XTSL I X’tal frequency select input (L:16.9344MHz, H:33.8688MHz) 190 VSS8 — Ground 191 PVS2 — Ground 192 LPFI I PLL2 filter terminal 193 LPFO I PLL2 filter terminal 194 PVD2 — Power supply (+2.5V) 195 NC — Not used (open) 196 NC — Not used (open) 197 PVD1 — Power supply (+2.5V) 198 PVS1 — Ground 199 TRODE0 I Not used (Connected to ground) 200 AUDDTI I Not used (Connected to ground) 201 AUDDTO0 O Audio serial data output to PCM1748 202 AUDDTO1 O Digital audio data output (Not used) 203 AUDBCK O Audio serial data bit clock output to PCM1748 204 AUDLRCK O Audio serial data L/R clock output to PCM1748 205 AUDXCLKO O Audio serial clock output to PCM1748 206 CLKA I Crystal oscillator input (27MHz) 207 CLKB O Crystal oscillator output (27MHz) 208 VDD9 — Power supply (+2.5V) 209 THRCLK I Not used (open) 210 TESTEN I Not used (Connected to ground) 211 TCLK I Not used (Connected to ground) 212 TMODE1 I Not used (Connected to ground) 213 TRST I Not used (open) 214 VSS9 — Ground 215 NC — Ground 216 V_AVD — Power supply (+2.5V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 HCD-GN70V Description Pin Name Pin No. I/O ––––––––––––––– 1 STEREO I Stereo signal input –––––––––––––– 2 TUNED I Tuned signal input 3 ST-CE O Tuner chip enable signal output 4 SIRCS I SIRCS input 5 ST-DOUT O Tuner data output 6 ST-DIN I Tuner data input 7 ST-CLK O Tuner clock signal output 8 BYTE I Not used (Connected to ground) 9 CNVSS — Not used (Connected to ground with resistor) 10 XC-IN I Sub clock input 11 XC-OUT O Sub clock output 12 RESET I System reset input 13 X-OUT O Main system clock output (16MHz) 14 VSS — Ground 15 X-IN I Main system clock input (16MHz) 16 VCC — Power supply (+5V) 17 NMI I Not used (Pull up with resistor) 18 NO-USE — Not used (Connected to ground) 19 SCOR I Subcode sync (S0+S1) detection signal input 20 AC-CUT I AC cut check signal input 21 E-1 I Disc tray status detection signal input 22 E-2 I Disc tray status detection signal input 23 VCD-POWER O CD power on/off signal output 24 NO-USE — Not used (Connected to ground) 25 VCD-A-MUTE O CD mute signal output 26 NO-USE O Not used (Connected to ground) 27 STBY-RELEY O Reley drive signal output 28 NO-USE O Not used (Connected to ground) 29 IIC-CLK I IIC serial data clock input 30 IIC-DATA I IIC serial data input 31 TXD1 — Not used 32 SYSOK I OK signal input from CXD1887R 33 VIDEO MUTE O Video mute signal output to BD7600FV 34 NO-USE I Not used (open) 35 SYSOUT O Serial data output to CXD1887R 36 SYSIN I Serial data input from CXD1887R 37 SYSCLK O Serial clock output to CXD1887R 38 SYSRQ O Data request signal output to CXD1887R 39 CLOCK-OUT — Not used (open) 40 SYSRST O CD reset signal output 41 TBL-SENS I Table sensor signal input 42 OPEN SW I Eject switch signal input 43 E-3 I Disc tray status detection signal input 44 TM-F O Table motor control signal output 45 TM-R O Table motor control signal output 46 LMF O Loading motor control signal output 47 LMR O Loading motor control signal output 48 STBY-LED O Standby LED drive signal output 49 GC-RESET O GC reset signal output 50 HP DETECT I Headphone detect input ––––––––––––––––––––– 51 REC-MUTE O REC mute signal output 52 TC-MUTE O TC line mute signal output 53 PB-A/B O TC A/B select signal output • IC501 M30620MCN-A26FP SYSTEM CONTOL (MAIN Board) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 HCD-GN70V Pin Name Pin No. I/O Discription 54 ALC O ALC signal output 55 TC-RELAY O REC/PB selection signal output 56 REC BIAS O Bias on/off signal output 57 CAPM-CONT O Capstan motor REV/FWD/STOP control signal output 58 B-TRIG O TCM-B Trigger output 59 A-TRIG O TCM-A trigger output 60 B-REC, REV O Record tab switch for SIDE B signal output 61 B-PLAY I TCM-B play switch input 62 VCC — Power supply (+3.3V) –––––––––––––– 63 AMS-IN I AMS signal input 64 VSS — Ground ––– 65 EQ H/N I Not used (Connected to ground) 66 A-REC, FWD O Record tab switch for SIDE A signal output 67 A-HALF I A deck half detection signal input ––– 68 CAMP-H/L — Not used (Connected to ground) 69 A-PLAY I TCM-A play switch input ––––––– 70 SURR ON/OFF O Surround on/off signal output 71 SURR EFFECT O Surround effect control signal output –––––––––––––––– 72 VACS IN I VACS signal input 73 KEY-DISPLAY I DISPLAY key signal input 74 POWER-KEY I Power key signal input 75 STK-MUTE O Mute signal output to power IC –––––––––––––––––– 76 HP-MUTE O Headphone mute signal output 77 LINE-MUTE O TA LINE mute signal output –––––––––––––––––– 78 PROTECT I Speaker protection signal input 79 AUDIO-DATA O Serial data output to Audio EQIC 80 AUDIO-CLK O Serial data clock output to Audio EQIC 81 VIDEO OUT O Video out select signal output 82 AUDIO OUT O Audio out on/off signal output 83 FRONT-RELAY O Front speaker relay driver signal output 84 LINK-RELAY O Surround speaker relay driver signal output 85 LED-SW-ON O Subwoofer LED drive signal output (Connected to ground) 86 LED-MATRIX-SURR-2 O Subwoofer LED drive signal output (Connected to ground) 87 LED-MATRIX-SURR-1 O Subwoofer LED drive signal output (Connected to ground) 88 LED-SW-LINK O Subwoofer LED drive signal output (Connected to ground) 89 A-SHUT I TCM-A reel pulse input 90 B-SHUT I TCM-B reel pulse input 91 B-HALF I B deck half detection input 92 MODEL-IN I Model input 93 DEST-IN I Destination input 94 I-HOLD I Over-voltage protection detection input termnal 95 RELAY I Not used 96 AVSS — Ground 97 SOFT TEST O Soft check terminal 98 VREF I Reference voltage input 99 AVCC — Power supply (+3.3V) 100 ST-MUTE O Tuner mute signal output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 HCD-GN70V • IC601 MB90M407PF-G-129-BND DISPLAY CONTROL (DISPLAY Board) Description Pin Name Pin No. I/O 1 to 7 G7 to G1 O FLD grid output 8 to 10 P1 to P3 O FLD segment output 11 VSS-IO — Ground 12 to 22 P4 to P14 O FLD segment output 23 VDD-FIP — Power supply (+3.3V) 24 to 41 P15 to P32 O FLD segment output 42 VSS-IO — Ground 43 to 46 P32 to P36 O FLD segment output 47 NO USED O Not used (Connected to ground) 48 VKK — Power supply (-35V) 49 MD0 I Not used (pull up with resistor) 50 MD1/VDD-VFT I Not used (pull up with resistor) 51 MD2 I Not used (pull down with resistor) 52 VOLUME5,6 LED O LED drive signal output 53 VOLUME7,8 LED O LED drive signal output 54 VOLUME9,10 LED O LED drive signal output 55 VOLUME11,MULTI CH LED O LED drive signal output 56 VOLUME3,4 LED O LED drive signal output 57 VOLUME1,2 LED O LED drive signal output 58 TAPE A/B,TUNER LED O LED drive signal output 59 GAME,MD/VIDEO LED O LED drive signal output 60 I2C-DATA O IIC serial data output 61 I2C-CLOCK O IIC clock signal output 62 AVCC — Power supply (+3.3V) 63 AVSS — Ground 64 to 66 KEY0 to KEY2 I Key input (A/D port) 67 to 70 BPF3 to BPF0 I Spectrum analyzer BPF signal input 71 ALL BAND I L+R signal input 72 SELECTOR O LED group select signal output 73 CD/DVD, REC/PAUSE LED O LED drive signal output 74 to 76 NO USE O Not used 77 RESET I Reset input 78 SOFT TEST O Not used (open) 79 VOL 1B I Volume encoder signal B input 80 VOL 1A I Volume encoder signal A input 81 VSS-CPU — Ground 82 XOUT O Crystal oscillator output (4MHz) 83 XIN I Crystal oscillator input (4MHz) 84 VCC-CPU — Power supply (+3.3V) 85, 86 NO USE — Not used 87 to 100 G21 to G8 O FLD grid output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 HCD-GN70V 8-1. CASE, REAR PANEL SECTION SECTION 8 EXPLODED VIEWS The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. NOTE: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • Accessories are given in the last of the elec- trical parts list. • Abbreviation E3 : 240 V AC Area in E model E15 : Iran model EA : Saudi Arabia model SP : Singapore model MY : Malaysia model TH : Thai model PH : Philippines model Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 M891 not supplied not supplied not supplied 7 8 2 3 4 6 #1 #1 #1 #1 #1 #1 #1 #1 #2 #2 #2 #2 #2 #2 #2 #1 #1 2 1 4-244-102-41 LOADING (PANEL) 2 3-363-099-41 SCREW (CASE 3 TP2) 3 4-231-828-31 CASE 4 A-4731-346-A SUB-TRANS BOARD, COMPLETE (EXCEPT EA,TH) 4 A-4734-387-A SUB-TRANS BOARD, COMPLETE (TH) 4 A-4749-093-A SUB TRANS BOARD, COMPLETE (EA) 6 1-693-603-11 TUNER (FM/AM) 7 A-4732-860-A VIDEO BOARD, COMPLETE (EXCEPT TH) 7 A-4734-555-A VIDEO BOARD, COMPLETE (TH) 8 1-823-899-11 WIRE (FLAT TYPE) (28 CORE) M891 1-763-072-11 FAN, DC #1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S #2 7-685-871-09 SCREW +BVTT 3X6 (S) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 HCD-GN70V 8-2. FRONT PANEL SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 57 56 55 54 53 52 77 76 79 78 75 62 62 62 74 62 71 62 62 62 70 68 67 69 62 51 73 72 64 66 65 64 63 62 61 58 59 60 supplied with S748 not supplied not supplied not supplied FL601 #4 #4 62 80 80 80 51 X-4955-542-1 FRONT PANEL ASSY 52 4-225-252-01 CUSHION (FOOT) 53 4-244-075-01 HOLDER (TC-R) 54 4-244-093-01 SPRING (LID) 55 4-244-072-01 LID (TC) 56 4-244-073-01 WINDOW (TC) 57 4-244-090-01 COVER (AL-TC) 58 4-244-074-01 HOLDER (TC-L) 59 4-224-578-21 KNOB (MIC) 60 4-244-097-01 KNOB (VOL) 61 4-244-089-11 COVER (AL-STR) 62 4-951-620-01 SCREW (2.6X8), +BVTP 63 4-963-404-21 EMBLEM (5-A), SONY 64 4-224-104-11 DAMPER 65 4-244-094-01 SPRING (L) 66 4-244-095-01 SPRING (R) 67 1-686-936-11 CD SWITCH BOARD 68 A-4731-329-A VOLUME BOARD, COMPLETE(EXCEPT TH) 68 A-4734-274-A VOLUME BOARD, COMPLETE(TH) 69 4-244-096-01 KNOB (CURSOR) 70 1-773-040-11 WIRE (FLAT TYPE) (17 CORE) 71 A-4732-863-A DISPLAY BOARD, COMPLETE(EXCEPT TH) 71 A-4734-273-A DISPLAY BOARD, COMPLETE(TH) 72 4-231-581-01 HOLDER (FL) 73 1-773-110-11 WIRE (FLAT TYPE) (19 CORE) 74 A-4732-864-A GAME IN BOARD, COMPLETE(EXCEPT TH) 74 A-4734-275-A GAME IN BOARD, COMPLETE(TH) 75 1-796-487-31 DECK, MECHANICAL (CWM43RR23) 76 4-243-609-01 BELT (AF) 77 4-243-610-01 BELT (AL) 78 4-243-608-01 BELT (BR) 79 1-751-688-11 WIRE (FLAT TYPE) (13 CORE) 80 3-378-434-01 CUSHION, SARANET FL601 1-518-862-11 INDICATOR TUBE, FLUORESCENT #4 7-685-781-09 SCREW +PTT 2X4 (S) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 HCD-GN70V 107 108 103 104 105 109 106 101 not supplied not supplied not supplied F976 T910 F977 F975 F978 F974 not supplied #5 #5 #1 #1 #3 #1 #1 #1 #1 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. 8-3. CHASSIS SECTION 101 1-686-930-11 TRANS BOARD 0103 1-777-071-53 CORD, POWER (EA,SP,MY,PH) 0103 1-824-818-11 CORD, POWER (TH) 0103 1-827-226-11 CORD, POWER (E3,E15) * 104 3-703-244-00 BUSHING (2104), CORD (EA,SP,MY,PH,TH) 104 3-703-571-11 BUSHING (S) (4516), CORD (E3,E15) 105 A-4732-856-A MAIN BOARD, COMPLETE (EXCEPT EA,TH) 105 A-4734-379-A MAIN BOARD, COMPLETE (TH) 105 A-4747-684-A MAIN BOARD, COMPLETE (EA) 106 4-225-252-01 CUSHION (FOOT) 107 A-4733-006-A POWER AMP BOARD, COMPLETE (EXCEPT TH) 107 A-4734-385-A POWER AMP BOARD, COMPLETE (TH) 108 4-943-687-01 HOLDER, PC BOARD * 109 4-988-533-01 HOLDER, PWB 0F974 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) (T6.3AL 250V) 0F975 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) (T6.3AL 250V) 0F976 1-576-655-11 FUSE, GLASS TUBE (DIA. 5) (T8AL 250V) 0F977 1-576-655-11 FUSE, GLASS TUBE (DIA. 5) (T8AL 250V) 0F978 1-533-471-11 FUSE, GLASS TUBE (DIA. 5) (T4AL 250V) 0T910 1-439-891-11 POWER TRANSFORMER (EA) 0T910 1-439-897-11 POWER TRANSFORMER (EXCEPT EA) #1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S #3 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3 #5 7-685-881-09 SCREW +BVTT 4X8 (S) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 HCD-GN70V Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 8-4. CD MECHANISM DECK SECTION-1 (CDM74-30BD62) 151 152 153 154 155 155 156 156 157 157 158 158 159 151 156 162 163 164 165 160 161 164 M741 chassis assy 151 4-218-253-21 SCREW (M2.6), +BTTP 152 1-776-182-11 WIRE (FLAT TYPE) (5 CORE) 153 1-687-134-11 MOTOR (TB) BOARD 154 4-243-815-01 TABLE (LOADING) 155 4-245-571-02 GEAR (STOPPER) 156 4-218-252-61 SCREW (+PTPWH M2.6), FLOATING 157 4-245-570-01 GEAR (JOINT) 158 4-245-572-01 BUSHING (GEAR) 159 1-687-132-11 SENSOR BOARD 160 4-243-820-01 GEAR (TABLE) 161 4-243-819-01 GEAR (GENEVA) 162 4-243-816-01 TRAY 163 4-243-823-01 BELT (TABLE) 164 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING 165 4-243-821-01 PULLEY (TABLE) M741 A-4723-963-A MOTOR ASSY, TABLE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 HCD-GN70V Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 8-5. CD MECHANISM DECK SECTION-2 (CDM74-30BD62) 201 202 202 202 203 204 205 206 207 208 210 211 212 213 214 215 216 217 219 227 220 205 205 222 223 223 224 224 225 226 218 223 223 222 222 222 205 205 205 205 M751 RE701 Base unit section 201 1-687-135-11 DRIVER BOARD 202 4-218-253-31 SCREW (M2.6), +BTTP 203 1-687-669-11 SW BOARD 204 4-244-034-01 BELT (LOADING) 205 4-218-252-61 SCREW (+PTPWH M2.6), FLOATING 206 4-225-844-01 GEAR (LOADING A) 207 4-224-613-01 GEAR (SHAFT) 208 1-687-133-11 MOTOR (LD) BOARD 210 4-244-108-01 GEAR, SWING 211 4-224-609-01 GEAR (LOADING C) 212 4-224-608-01 COLLAR, SWING 213 3-016-533-01 WASHER (FR), STOPPER 214 4-224-611-01 GEAR (LOADING B) 215 4-224-606-01 GEAR (RV) 216 4-243-818-01 GEAR (U/D) 217 4-243-822-01 LEVER (LIFTER) 218 X-4955-756-1 PULLEY (A) ASSY, CHUCKING 219 4-231-513-01 PULLEY (B) (BU-30), CHUCKING 220 X-4955-537-1 HOLDER (30) ASSY 222 4-231-451-01 INSULATOR (BU-30) 223 4-227-045-11 SPRING (INSULATOR), COIL 224 4-231-151-01 STOPPER (BU) 225 4-218-253-31 SCREW (M2.6), +BTTP 226 4-228-414-01 BRACKET (YOKE) 227 4-243-817-01 CHASSIS (TH) 227 4-243-817-11 CHASSIS (EXCEPT TH) M751 A-4737-553-A MOTOR ASSY, LOADING RE701 1-477-680-11 ENCODER, ROTARY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 HCD-GN70V 8-6. BASE UNIT SECTION (BU-30BD62) 555 552 554 553 551 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 0551 A-4735-189-A OPTICAL PICK-UP ASSY (A-MAX.3) 552 A-4728-371-A BD BOARD, COMPLETE 553 4-233-832-01 GEAR (LB) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. 554 4-233-831-01 GEAR (LA) 555 1-782-817-11 WIRE (FLAT TYPE) (16 CORE) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN70V SECTION 9 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks NOTE: • Due to standardization, replacements in the parts list may be different from the parts speci- fied in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when order- ing these items. • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. . • CAPACITORS uF: µF • COILS uH: µH The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. • Abbreviation E3 : 240 V AC Area in E model E15 : Iran model EA : Saudi Arabia model SP : Singapore model MY : Malaysia model TH : Thai model PH : Philippines model A-4728-371-A BD BOARD, COMPLETE ***************** < CAPACITOR > C101 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C102 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C103 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C104 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C107 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C108 1-164-360-11 CERAMIC CHIP 0.1uF 16V C109 1-164-360-11 CERAMIC CHIP 0.1uF 16V C110 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C111 1-126-607-11 ELECT CHIP 47uF 20% 4V C112 1-126-607-11 ELECT CHIP 47uF 20% 4V C113 1-126-209-11 ELECT CHIP 100uF 20% 4V C114 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C115 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C117 1-164-360-11 CERAMIC CHIP 0.1uF 16V C118 1-115-156-11 CERAMIC CHIP 1uF 10V C119 1-115-156-11 CERAMIC CHIP 1uF 10V C120 1-126-607-11 ELECT CHIP 47uF 20% 4V C151 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C153 1-164-360-11 CERAMIC CHIP 0.1uF 16V C163 1-128-995-21 ELECT CHIP 100uF 20% 10V C164 1-164-360-11 CERAMIC CHIP 0.1uF 16V C165 1-124-779-00 ELECT CHIP 10uF 20% 16V C166 1-164-360-11 CERAMIC CHIP 0.1uF 16V C182 1-128-995-21 ELECT CHIP 100uF 20% 10V C213 1-216-864-11 METAL CHIP 0 5% 1/10W < CONNECTOR > CN101 1-784-877-21 CONNECTOR,FFC(LIF(NON-ZIF))28P CN102 1-794-424-11 CONNECTOR, FCC/FPC 16P < DIODE > D101 8-719-988-61 DIODE 1SS355TE-17 < IC > IC102 8-759-713-70 IC AN41020A IC103 8-752-089-74 IC CXA2581N-T4 < TRANSISTOR > Q101 8-729-049-31 TRANSISTOR 2SB710A-RTX Q102 8-729-424-08 TRANSISTOR UN2111-TX < RESISTOR > R102 1-216-835-11 METAL CHIP 15K 5% 1/10W R103 1-216-845-11 METAL CHIP 100K 5% 1/10W R104 1-216-835-11 METAL CHIP 15K 5% 1/10W R105 1-216-821-11 METAL CHIP 1K 5% 1/10W R109 1-216-845-11 METAL CHIP 100K 5% 1/10W R111 1-216-846-11 METAL CHIP 120K 5% 1/10W R112 1-216-864-11 METAL CHIP 0 5% 1/10W R113 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R114 1-216-841-11 METAL CHIP 47K 5% 1/10W R117 1-216-841-11 METAL CHIP 47K 5% 1/10W R118 1-216-864-11 METAL CHIP 0 5% 1/10W R120 1-216-846-11 METAL CHIP 120K 5% 1/10W R122 1-216-845-11 METAL CHIP 100K 5% 1/10W R123 1-216-797-11 METAL CHIP 10 5% 1/10W R124 1-216-797-11 METAL CHIP 10 5% 1/10W R125 1-216-839-11 METAL CHIP 33K 5% 1/10W R126 1-216-839-11 METAL CHIP 33K 5% 1/10W R151 1-216-845-11 METAL CHIP 100K 5% 1/10W R152 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R176 1-216-864-11 METAL CHIP 0 5% 1/10W R179 1-216-833-11 METAL CHIP 10K 5% 1/10W R227 1-216-845-11 METAL CHIP 100K 5% 1/10W R228 1-216-853-11 METAL CHIP 470K 5% 1/10W R229 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R231 1-216-821-11 METAL CHIP 1K 5% 1/10W R234 1-216-864-11 METAL CHIP 0 5% 1/10W R235 1-216-821-11 METAL CHIP 1K 5% 1/10W R236 1-216-821-11 METAL CHIP 1K 5% 1/10W ****************************************************** 1-686-936-11 CD SWITCH BOARD ************** < DIODE > D748 8-719-058-04 DIODE SEL5223S-TP15 (=/1) < TRANSISTOR > Q748 8-729-116-02 TRANSISTOR BA1A4M-TP < RESISTOR > R748 1-249-411-11 CARBON 330 5% 1/4W R749 1-249-410-11 CARBON 270 5% 1/4W F R788 1-249-427-11 CARBON 6.8K 5% 1/4W F R789 1-249-429-11 CARBON 10K 5% 1/4W R790 1-249-431-11 CARBON 15K 5% 1/4W BD CD SWITCH www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN70V DISPLAY R791 1-249-433-11 CARBON 22K 5% 1/4W R792 1-249-435-11 CARBON 33K 5% 1/4W < SWITCH > S749 1-762-875-21 SWITCH, KEYBOARD (=/1) S788 1-762-875-21 SWITCH, KEYBOARD (Z,OPEN/CLOSE) S789 1-762-875-21 SWITCH, KEYBOARD (EX-CHANGE/DISK SKIP) S790 1-762-875-21 SWITCH, KEYBOARD (DISC 3) S791 1-762-875-21 SWITCH, KEYBOARD (DISC 2) S792 1-762-875-21 SWITCH, KEYBOARD (DISC 1) ****************************************************** A-4732-863-A DISPLAY BOARD, COMPLETE (EXCEPT TH) A-4734-273-A DISPLAY BOARD, COMPLETE (TH) ********************* 4-231-581-01 HOLDER (FL) < CAPACITOR > C100 1-126-964-11 ELECT 10uF 20% 50V C101 1-137-194-81 FILM 0.47uF 5% 50V C102 1-137-194-81 FILM 0.47uF 5% 50V C104 1-126-964-11 ELECT 10uF 20% 50V C105 1-126-957-11 ELECT 0.22uF 20% 50V C106 1-136-165-00 FILM 0.1uF 5% 50V C107 1-136-165-00 FILM 0.1uF 5% 50V C109 1-124-261-00 ELECT 10uF 20% 50V C110 1-126-957-11 ELECT 0.22uF 20% 50V C111 1-136-157-00 FILM 0.022uF 5% 50V C112 1-136-157-00 FILM 0.022uF 5% 50V C114 1-126-964-11 ELECT 10uF 20% 50V C115 1-126-957-11 ELECT 0.22uF 20% 50V C116 1-137-367-11 MYLAR 0.0033uF 5% 50V C117 1-137-367-11 MYLAR 0.0033uF 5% 50V C118 1-126-964-11 ELECT 10uF 20% 50V C119 1-124-261-00 ELECT 10uF 20% 50V C120 1-126-957-11 ELECT 0.22uF 20% 50V C121 1-126-963-11 ELECT 4.7uF 20% 50V C122 1-124-584-00 ELECT 100uF 20% 10V C123 1-104-665-11 ELECT 100uF 20% 10V C124 1-126-964-11 ELECT 10uF 20% 50V C125 1-164-159-21 CERAMIC 0.1uF 50V(TH) C125 1-164-159-11 CERAMIC 0.1uF 50V (EXCEPT TH) C152 1-162-286-21 CERAMIC 220PF 10% 50V(TH) C152 1-162-286-31 CERAMIC 220PF 10% 50V (EXCEPT TH) C153 1-162-286-21 CERAMIC 220PF 10% 50V(TH) C153 1-162-286-31 CERAMIC 220PF 10% 50V (EXCEPT TH) C154 1-162-286-21 CERAMIC 220PF 10% 50V(TH) C154 1-162-286-31 CERAMIC 220PF 10% 50V (EXCEPT TH) C155 1-162-286-21 CERAMIC 220PF 10% 50V(TH) C155 1-162-286-31 CERAMIC 220PF 10% 50V (EXCEPT TH) C156 1-162-286-21 CERAMIC 220PF 10% 50V(TH) C156 1-162-286-31 CERAMIC 220PF 10% 50V (EXCEPT TH) C157 1-162-286-21 CERAMIC 220PF 10% 50V(TH) C157 1-162-286-31 CERAMIC 220PF 10% 50V (EXCEPT TH) C618 1-162-306-11 CERAMIC 0.01uF 30% 16V C619 1-124-589-11 ELECT 47uF 20% 16V C620 1-162-306-11 CERAMIC 0.01uF 30% 16V C622 1-126-163-11 ELECT 4.7uF 20% 50V C623 1-162-294-31 CERAMIC 0.001uF 10% 50V C624 1-162-306-11 CERAMIC 0.01uF 30% 16V C625 1-162-306-11 CERAMIC 0.01uF 30% 16V C626 1-162-306-11 CERAMIC 0.01uF 30% 16V C627 1-162-306-11 CERAMIC 0.01uF 30% 16V C628 1-162-306-11 CERAMIC 0.01uF 30% 16V C651 1-164-159-21 CERAMIC 0.1uF 50V(TH) C651 1-164-159-11 CERAMIC 0.1uF 50V (EXCEPT TH) C652 1-124-261-00 ELECT 10uF 20% 50V C653 1-124-261-00 ELECT 10uF 20% 50V C710 1-162-306-11 CERAMIC 0.01uF 30% 16V C711 1-162-306-11 CERAMIC 0.01uF 30% 16V C712 1-162-306-11 CERAMIC 0.01uF 30% 16V < CONNECTOR > * CN601 1-569-935-11 SOCKET, CONNECTOR 19P CN604 1-568-860-11 SOCKET, CONNECTOR 17P < DIODE > D100 8-719-109-66 DIODE MTZJ-T-77-3.3B (TH) D100 8-719-983-63 DIODE MTZJ-T-72-3.3B (EXCEPT TH) D101 8-719-991-33 DIODE 1SS133T-72 D102 8-719-991-33 DIODE 1SS133T-72 D103 8-719-991-33 DIODE 1SS133T-72 D104 8-719-991-33 DIODE 1SS133T-72 D105 8-719-991-33 DIODE 1SS133T-72 D106 6-500-522-01 DIODE 10EDB40-TA1B2 (TH) D106 6-500-522-11 DIODE 10EDB40-TA2B5 (EXCEPT TH) D107 6-500-522-01 DIODE 10EDB40-TA1B2 (TH) D107 6-500-522-11 DIODE 10EDB40-TA2B5 (EXCEPT TH) D601 8-719-063-93 DIODE SLR325VC-N-T32 (REC PAUSE/START) D602 8-719-057-97 DIODE SEL5923A-TP15 (GAME) D603 8-719-057-97 DIODE SEL5923A-TP15 (MD(VIDEO)) D604 8-719-057-97 DIODE SEL5923A-TP15 (CD) D605 8-719-057-97 DIODE SEL5923A-TP15 (TUNER/BAND) D606 8-719-057-97 DIODE SEL5923A-TP15 (TAPE A/B) D610 8-719-109-85 DIODE MTZJ-T-72-5.1B < FLUORESCENT INDICATOR TUBE > FL601 1-518-862-11 INDICATOR TUBE, FLUORESCENT < IC > IC101 8-759-167-88 IC NJM4565D IC102 8-759-167-88 IC NJM4565D IC601 6-802-902-01 IC MB90M407PF-G-129-BND < TRANSISTOR > Q100 8-729-141-30 TRANSISTOR 2SC3623ATP-LK Q601 8-729-116-02 TRANSISTOR BA1A4M-TP Q602 8-729-116-02 TRANSISTOR BA1A4M-TP Q603 8-729-116-02 TRANSISTOR BA1A4M-TP Q604 8-729-116-02 TRANSISTOR BA1A4M-TP Q605 8-729-140-04 TRANSISTOR 2SB1116-TP-LK Q606 8-729-140-04 TRANSISTOR 2SB1116-TP-LK Q707 8-729-116-02 TRANSISTOR BA1A4M-TP CD SWITCH www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN70V DISPLAY Q807 8-729-029-94 TRANSISTOR BA1L3Z-TP Q808 8-729-029-94 TRANSISTOR BA1L3Z-TP < RESISTOR > R102 1-249-419-11 CARBON 1.5K 5% 1/4W F R103 1-249-419-11 CARBON 1.5K 5% 1/4W F R104 1-249-437-11 CARBON 47K 5% 1/4W R105 1-249-415-11 CARBON 680 5% 1/4W F R106 1-249-441-11 CARBON 100K 5% 1/4W R107 1-249-441-11 CARBON 100K 5% 1/4W R108 1-249-419-11 CARBON 1.5K 5% 1/4W F R109 1-249-419-11 CARBON 1.5K 5% 1/4W F R110 1-249-437-11 CARBON 47K 5% 1/4W R111 1-249-415-11 CARBON 680 5% 1/4W F R112 1-249-441-11 CARBON 100K 5% 1/4W R113 1-249-441-11 CARBON 100K 5% 1/4W R114 1-249-419-11 CARBON 1.5K 5% 1/4W F R115 1-249-419-11 CARBON 1.5K 5% 1/4W F R116 1-249-437-11 CARBON 47K 5% 1/4W R117 1-249-415-11 CARBON 680 5% 1/4W F R118 1-249-441-11 CARBON 100K 5% 1/4W R119 1-249-441-11 CARBON 100K 5% 1/4W R120 1-249-419-11 CARBON 1.5K 5% 1/4W F R121 1-249-419-11 CARBON 1.5K 5% 1/4W F R122 1-249-437-11 CARBON 47K 5% 1/4W (TH) R122 1-249-437-11 CARBON 47K 5% 1/4W (EXCEPT TH) R123 1-249-415-11 CARBON 680 5% 1/4W F R124 1-249-441-11 CARBON 100K 5% 1/4W R125 1-249-441-11 CARBON 100K 5% 1/4W R127 1-249-409-11 CARBON 220 5% 1/4W F R128 1-247-895-91 CARBON 470K 5% 1/4W (TH) R128 1-247-895-00 CARBON 470K 5% 1/4W (EXCEPT TH) R129 1-249-425-11 CARBON 4.7K 5% 1/4W F R130 1-249-425-11 CARBON 4.7K 5% 1/4W F R131 1-249-441-11 CARBON 100K 5% 1/4W R132 1-249-441-11 CARBON 100K 5% 1/4W R133 1-249-441-11 CARBON 100K 5% 1/4W R134 1-249-441-11 CARBON 100K 5% 1/4W R136 1-249-439-11 CARBON 68K 5% 1/4W R137 1-249-433-11 CARBON 22K 5% 1/4W R138 1-249-417-11 CARBON 1K 5% 1/4W F R139 1-249-411-11 CARBON 330 5% 1/4W R140 1-247-807-31 CARBON 100 5% 1/4W R626 1-249-411-11 CARBON 330 5% 1/4W R627 1-249-411-11 CARBON 330 5% 1/4W R628 1-249-411-11 CARBON 330 5% 1/4W R629 1-249-411-11 CARBON 330 5% 1/4W R630 1-249-411-11 CARBON 330 5% 1/4W R631 1-249-415-11 CARBON 680 5% 1/4W F R632 1-249-415-11 CARBON 680 5% 1/4W F R633 1-249-415-11 CARBON 680 5% 1/4W F R634 1-249-429-11 CARBON 10K 5% 1/4W R635 1-249-429-11 CARBON 10K 5% 1/4W R636 1-249-429-11 CARBON 10K 5% 1/4W R637 1-249-429-11 CARBON 10K 5% 1/4W R645 1-249-429-11 CARBON 10K 5% 1/4W R646 1-247-807-31 CARBON 100 5% 1/4W R647 1-247-807-31 CARBON 100 5% 1/4W R652 1-249-429-11 CARBON 10K 5% 1/4W R653 1-249-429-11 CARBON 10K 5% 1/4W R654 1-247-807-31 CARBON 100 5% 1/4W R655 1-247-807-31 CARBON 100 5% 1/4W R656 1-247-807-31 CARBON 100 5% 1/4W R657 1-249-431-11 CARBON 15K 5% 1/4W R658 1-249-431-11 CARBON 15K 5% 1/4W R659 1-249-431-11 CARBON 15K 5% 1/4W R660 1-247-903-00 CARBON 1M 5% 1/4W R661 1-249-429-11 CARBON 10K 5% 1/4W R662 1-249-429-11 CARBON 10K 5% 1/4W R663 1-249-429-11 CARBON 10K 5% 1/4W R751 1-249-413-11 CARBON 470 5% 1/4W F R752 1-249-415-11 CARBON 680 5% 1/4W F R753 1-249-417-11 CARBON 1K 5% 1/4W F R754 1-249-419-11 CARBON 1.5K 5% 1/4W F R755 1-249-419-11 CARBON 1.5K 5% 1/4W F R756 1-249-421-11 CARBON 2.2K 5% 1/4W F R757 1-247-843-11 CARBON 3.3K 5% 1/4W R758 1-249-425-11 CARBON 4.7K 5% 1/4W F R779 1-249-413-11 CARBON 470 5% 1/4W F R781 1-249-415-11 CARBON 680 5% 1/4W F R782 1-249-417-11 CARBON 1K 5% 1/4W F R783 1-249-419-11 CARBON 1.5K 5% 1/4W F R784 1-249-419-11 CARBON 1.5K 5% 1/4W F R785 1-249-421-11 CARBON 2.2K 5% 1/4W F R786 1-247-843-11 CARBON 3.3K 5% 1/4W R787 1-249-425-11 CARBON 4.7K 5% 1/4W F R807 1-249-441-11 CARBON 100K 5% 1/4W R808 1-249-441-11 CARBON 100K 5% 1/4W R817 1-249-406-11 CARBON 120 5% 1/4W F R818 1-249-408-11 CARBON 180 5% 1/4W F R819 1-249-408-11 CARBON 180 5% 1/4W F R820 1-249-408-11 CARBON 180 5% 1/4W F R821 1-249-406-11 CARBON 120 5% 1/4W F R822 1-249-417-11 CARBON 1K 5% 1/4W F R823 1-249-417-11 CARBON 1K 5% 1/4W F < SWITCH > S751 1-762-875-21 SWITCH, KEYBOARD (gG) S752 1-762-875-21 SWITCH, KEYBOARD (x) S753 1-762-875-21 SWITCH, KEYBOARD (X) S754 1-762-875-21 SWITCH, KEYBOARD (-,.) S755 1-762-875-21 SWITCH, KEYBOARD (>,+) S756 1-762-875-21 SWITCH, KEYBOARD (M,ALBUM +) S757 1-762-875-21 SWITCH, KEYBOARD (m,ALBUM -) S758 1-762-875-21 SWITCH, KEYBOARD (REC PAUSE/START) S779 1-762-875-21 SWITCH, KEYBOARD (CD SYNC) S781 1-762-875-21 SWITCH, KEYBOARD (KARAOKE/MPX) S782 1-762-875-21 SWITCH, KEYBOARD (GAME MIXING) S783 1-762-875-21 SWITCH, KEYBOARD (GAME) S784 1-762-875-21 SWITCH, KEYBOARD (MD(VIDEO)) S785 1-762-875-21 SWITCH, KEYBOARD (TAPE A/B) S786 1-762-875-21 SWITCH, KEYBOARD (TUNER BAND) S787 1-762-875-21 SWITCH, KEYBOARD (CD) < VIBRATOR > X601 1-781-282-51 VIBRATOR, CERAMIC (4MHz) ****************************************************** www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN70V DRIVER 1-687-135-11 DRIVER BOARD *********** < CAPACITOR > C715 1-126-933-11 ELECT 100uF 20% 16V C731 1-126-964-11 ELECT 10uF 20% 50V C735 1-164-159-21 CERAMIC 0.1uF 50V(TH) C735 1-164-159-11 CERAMIC 0.1uF 50V (EXCEPT TH) C736 1-164-159-21 CERAMIC 0.1uF 50V(TH) C736 1-164-159-11 CERAMIC 0.1uF 50V (EXCEPT TH) C737 1-164-159-21 CERAMIC 0.1uF 50V(TH) C737 1-164-159-11 CERAMIC 0.1uF 50V (EXCEPT TH) C741 1-162-306-11 CERAMIC 0.01uF 30% 16V C751 1-162-306-11 CERAMIC 0.01uF 30% 16V C752 1-164-159-21 CERAMIC 0.1uF 50V(TH) C752 1-164-159-11 CERAMIC 0.1uF 50V (EXCEPT TH) < CONNECTOR > CN701 1-785-338-11 PIN, CONNECTOR(LIGHT ANGLE)12P CN702 1-784-766-11 CONNECTOR, FFC 5P * CN703 1-564-720-11 PIN, CONNECTOR (SMALL TYPE) 4P CN704 1-785-328-11 PIN, CONNECTOR (LIGHT ANGRE)2P < DIODE > D701 8-719-921-42 DIODE MTZJ-T-77-5.1A (TH) D701 8-719-947-16 DIODE MTZJ-T-72-5.1A (EXCEPT TH) D711 8-719-109-69 DIODE MTZJ-T-77-3.6B (TH) D711 8-719-983-66 DIODE MTZJ-T-72-3.6B (EXCEPT TH) < IC > IC701 8-759-598-69 IC BA6956AN IC712 8-759-598-69 IC BA6956AN < TRANSISTOR > Q731 8-729-029-66 TRANSISTOR DTC114ESA-TP < RESISTOR > R701 1-249-413-11 CARBON 470 5% 1/4W F R702 1-247-807-31 CARBON 100 5% 1/4W R711 1-249-417-11 CARBON 1K 5% 1/4W F R712 1-249-425-11 CARBON 4.7K 5% 1/4W F R713 1-249-433-11 CARBON 22K 5% 1/4W R721 1-249-425-11 CARBON 4.7K 5% 1/4W F R722 1-249-425-11 CARBON 4.7K 5% 1/4W F R723 1-249-425-11 CARBON 4.7K 5% 1/4W F R731 1-247-807-31 CARBON 100 5% 1/4W R732 1-249-429-11 CARBON 10K 5% 1/4W R733 1-249-417-11 CARBON 1K 5% 1/4W F R734 1-249-430-11 CARBON 12K 5% 1/4W R735 1-247-807-31 CARBON 100 5% 1/4W R751 1-249-425-11 CARBON 4.7K 5% 1/4W F ****************************************************** A-4732-864-A GAME IN BOARD, COMPLETE (EXCEPT TH) A-4734-275-A GAME IN BOARD, COMPLETE (TH) ********************* < CAPACITOR > C604 1-124-257-00 ELECT 2.2uF 20% 50V C606 1-124-257-00 ELECT 2.2uF 20% 50V C630 1-162-294-31 CERAMIC 0.001uF 10% 50V C631 1-162-294-31 CERAMIC 0.001uF 10% 50V C634 1-162-294-31 CERAMIC 0.001uF 10% 50V C635 1-162-294-31 CERAMIC 0.001uF 10% 50V C715 1-162-215-31 CERAMIC 47PF 5% 50V C716 1-164-159-21 CERAMIC 0.1uF 50V(TH) C716 1-164-159-11 CERAMIC 0.1uF 50V (EXCEPT TH) C717 1-124-584-00 ELECT 100uF 20% 10V C718 1-124-584-00 ELECT 100uF 20% 10V C719 1-124-257-00 ELECT 2.2uF 20% 50V C721 1-162-301-11 CERAMIC 0.0015uF 20% 16V C722 1-162-305-11 CERAMIC 0.0068uF 30% 16V C723 1-126-160-11 ELECT 1uF 20% 50V C724 1-136-495-11 FILM 0.068uF 5% 50V C725 1-124-464-11 ELECT 0.22uF 20% 50V C726 1-124-464-11 ELECT 0.22uF 20% 50V C727 1-136-155-00 FILM 0.015uF 5% 50V C728 1-162-301-11 CERAMIC 0.0015uF 20% 16V C729 1-126-160-11 ELECT 1uF 20% 50V C730 1-161-494-00 CERAMIC 0.022uF 25V C731 1-162-305-11 CERAMIC 0.0068uF 30% 16V C732 1-136-495-11 FILM 0.068uF 5% 50V C733 1-124-589-11 ELECT 47uF 20% 16V C734 1-124-589-11 ELECT 47uF 20% 16V C735 1-124-257-00 ELECT 2.2uF 20% 50V C736 1-124-261-00 ELECT 10uF 20% 50V C737 1-124-261-00 ELECT 10uF 20% 50V C738 1-124-257-00 ELECT 2.2uF 20% 50V C739 1-162-215-31 CERAMIC 47PF 5% 50V C740 1-162-282-31 CERAMIC 100PF 10% 50V C741 1-124-250-11 ELECT 0.15uF 20% 50V C742 1-162-215-31 CERAMIC 47PF 5% 50V C743 1-162-290-31 CERAMIC 470PF 10% 50V C744 1-162-294-31 CERAMIC 0.001uF 10% 50V C747 1-124-257-00 ELECT 2.2uF 20% 50V C748 1-161-494-00 CERAMIC 0.022uF 25V C749 1-164-159-21 CERAMIC 0.1uF 50V(TH) C749 1-164-159-11 CERAMIC 0.1uF 50V (EXCEPT TH) < CONNECTOR > * CN606 1-564-724-11 PIN, CONNECTOR (SMALL TYPE) 8P CN607 1-785-328-11 PIN, CONNECTOR (LIGHT ANGRE)2P < DIODE > D705 8-719-109-85 DIODE MTZJ-T-72-5.1B < GROUND TERMINAL > EP701 1-537-738-21 TERMINAL, GROUND EP703 1-537-738-21 TERMINAL, GROUND GAME IN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN70V MAIN GAME IN < IC > IC721 8-759-450-96 IC M65850P IC722 8-759-167-88 IC NJM4565D < JACK > J601 1-764-592-11 JACK 3P (GAME INPUT) J631 1-794-702-11 JACK, HEADPHONE (PHONES) J721 1-817-629-11 JACK (LARGE TYPE) (MIC) < TRANSISTOR > Q721 8-729-119-79 TRANSISTOR 2SC2785TP-FEK < RESISTOR > R602 1-249-417-11 CARBON 1K 5% 1/4W F R603 1-249-417-11 CARBON 1K 5% 1/4W F R604 1-249-441-11 CARBON 100K 5% 1/4W R605 1-249-441-11 CARBON 100K 5% 1/4W R721 1-249-429-11 CARBON 10K 5% 1/4W R722 1-249-432-11 CARBON 18K 5% 1/4W R723 1-249-431-11 CARBON 15K 5% 1/4W R724 1-249-431-11 CARBON 15K 5% 1/4W R725 1-249-431-11 CARBON 15K 5% 1/4W R726 1-249-437-11 CARBON 47K 5% 1/4W R727 1-249-431-11 CARBON 15K 5% 1/4W R728 1-249-431-11 CARBON 15K 5% 1/4W R729 1-249-431-11 CARBON 15K 5% 1/4W R730 1-249-431-11 CARBON 15K 5% 1/4W R731 1-247-881-00 CARBON 120K 5% 1/4W R733 1-249-431-11 CARBON 15K 5% 1/4W R734 1-247-807-31 CARBON 100 5% 1/4W R735 1-247-885-00 CARBON 180K 5% 1/4W R736 1-249-429-11 CARBON 10K 5% 1/4W R737 1-249-433-11 CARBON 22K 5% 1/4W R738 1-249-417-11 CARBON 1K 5% 1/4W F R739 1-249-441-11 CARBON 100K 5% 1/4W R740 1-249-421-11 CARBON 2.2K 5% 1/4W F R742 1-249-417-11 CARBON 1K 5% 1/4W F R743 1-249-429-11 CARBON 10K 5% 1/4W R744 1-249-441-11 CARBON 100K 5% 1/4W R745 1-247-807-31 CARBON 100 5% 1/4W R746 1-249-417-11 CARBON 1K 5% 1/4W F R747 1-249-407-11 CARBON 150 5% 1/4W F < VARIABLE RESISTOR > RV721 1-227-452-11 RES, VAR, CARBON 50K (ECHO LEVEL) RV722 1-227-452-11 RES, VAR, CARBON 50K (MIC LEVEL) ****************************************************** A-4732-856-A MAIN BOARD, COMPLETE (EXCEPT EA,TH) A-4734-379-A MAIN BOARD, COMPLETE (TH) A-4747-684-A MAIN BOARD, COMPLETE (EA) ******************* 4-229-123-01 HEAT SINK, V.OUT 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S < CAPACITOR > C101 1-126-933-11 ELECT 100uF 20% 16V C102 1-126-964-11 ELECT 10uF 20% 50V C103 1-126-964-11 ELECT 10uF 20% 50V C104 1-126-964-11 ELECT 10uF 20% 50V C105 1-126-795-11 ELECT 10uF 20% 50V C106 1-136-157-00 FILM 0.022uF 5% 50V C107 1-136-157-00 FILM 0.022uF 5% 50V C108 1-136-159-00 FILM 0.033uF 5% 50V C109 1-115-871-11 ELECT 1uF 20% 50V C110 1-137-150-11 MYLAR 0.01uF 5% 100V C111 1-126-795-11 ELECT 10uF 20% 50V C112 1-136-169-00 FILM 0.22uF 5% 50V C113 1-136-171-00 FILM 0.33uF 5% 50V C114 1-126-964-11 ELECT 10uF 20% 50V C115 1-164-156-11 CERAMIC CHIP 0.1uF 25V C116 1-126-933-11 ELECT 100uF 20% 16V C117 1-126-961-11 ELECT 2.2uF 20% 50V C121 1-162-957-11 CERAMIC CHIP 220PF 5% 50V C122 1-162-957-11 CERAMIC CHIP 220PF 5% 50V C130 1-126-964-11 ELECT 10uF 20% 50V C131 1-126-959-11 ELECT 0.47uF 20% 50V C132 1-164-156-11 CERAMIC CHIP 0.1uF 25V C135 1-126-160-11 ELECT 1uF 20% 50V C136 1-128-056-11 ELECT 0.1uF 20% 50V C150 1-126-964-11 ELECT 10uF 20% 50V C152 1-126-964-11 ELECT 10uF 20% 50V C153 1-126-964-11 ELECT 10uF 20% 50V C154 1-126-964-11 ELECT 10uF 20% 50V C155 1-126-964-11 ELECT 10uF 20% 50V C156 1-136-157-00 FILM 0.022uF 5% 50V C157 1-136-157-00 FILM 0.022uF 5% 50V C158 1-136-159-00 FILM 0.033uF 5% 50V C159 1-115-871-11 ELECT 1uF 20% 50V C160 1-137-150-11 MYLAR 0.01uF 5% 100V C161 1-126-795-11 ELECT 10uF 20% 50V C162 1-136-169-00 FILM 0.22uF 5% 50V C163 1-136-171-00 FILM 0.33uF 5% 50V C167 1-126-961-11 ELECT 2.2uF 20% 50V C185 1-126-160-11 ELECT 1uF 20% 50V C186 1-126-056-11 ELECT 0.1uF 20% 50V C191 1-126-964-11 ELECT 10uF 20% 50V C192 1-126-964-11 ELECT 10uF 20% 50V C193 1-126-160-11 ELECT 1uF 20% 50V C195 1-125-972-91 ELECT 100uF 20% 16V C196 1-136-287-11 MYLAR 0.0047uF 5% 50V C202 1-126-916-11 ELECT 1000uF 20% 6.3V C203 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C205 1-164-156-11 CERAMIC CHIP 0.1uF 25V C206 1-164-156-11 CERAMIC CHIP 0.1uF 25V C207 1-126-767-11 ELECT 1000uF 20% 16V C209 1-126-928-11 ELECT 3300uF 20% 10V C210 1-164-156-11 CERAMIC CHIP 0.1uF 25V C219 1-126-964-11 ELECT 10uF 20% 50V C269 1-126-964-11 ELECT 10uF 20% 50V C301 1-130-483-00 MYLAR 0.01uF 5% 50V C303 1-136-165-00 FILM 0.1uF 5% 50V C304 1-126-964-11 ELECT 10uF 20% 50V C305 1-126-960-11 ELECT 1uF 20% 50V C306 1-126-961-11 ELECT 2.2uF 20% 50V C307 1-126-964-11 ELECT 10uF 20% 50V C308 1-126-935-11 ELECT 470uF 20% 16V C309 1-126-947-11 ELECT 47uF 20% 16V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 70 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN70V MAIN C310 1-126-964-11 ELECT 10uF 20% 50V C311 1-126-964-11 ELECT 10uF 20% 50V C312 1-126-964-11 ELECT 10uF 20% 50V C314 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C315 1-126-960-11 ELECT 1uF 20% 50V C316 1-126-960-11 ELECT 1uF 20% 50V C321 1-164-392-11 CERAMIC CHIP 390PF 10% 50V C326 1-164-392-11 CERAMIC CHIP 390PF 10% 50V C331 1-130-483-00 MYLAR 0.01uF 5% 50V C332 1-137-427-11 MYLAR 120PF 5% 50V C333 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C334 1-162-946-11 CERAMIC CHIP 27PF 5% 50V C335 1-137-150-11 MYLAR 0.01uF 5% 100V C336 1-126-961-11 ELECT 2.2uF 20% 50V C337 1-130-485-00 MYLAR 0.015uF 5% 50V C338 1-130-481-00 MYLAR 0.0068uF 5% 50V C339 1-130-481-00 MYLAR 0.0068uF 5% 50V C340 1-130-486-00 MYLAR 0.018uF 10% 50V C341 1-126-964-11 ELECT 10uF 20% 50V C342 1-126-947-11 ELECT 47uF 20% 16V C351 1-130-483-00 MYLAR 0.01uF 5% 50V C353 1-136-165-00 FILM 0.1uF 5% 50V C354 1-126-964-11 ELECT 10uF 20% 50V C355 1-126-960-11 ELECT 1uF 20% 50V C356 1-126-961-11 ELECT 2.2uF 20% 50V C359 1-126-947-11 ELECT 47uF 20% 16V C361 1-126-964-11 ELECT 10uF 20% 50V C364 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C365 1-126-960-11 ELECT 1uF 20% 50V C371 1-164-392-11 CERAMIC CHIP 390PF 10% 50V C376 1-164-392-11 CERAMIC CHIP 390PF 10% 50V C381 1-130-483-00 MYLAR 0.01uF 5% 50V C382 1-137-427-11 MYLAR 120PF 5% 50V C383 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C384 1-162-946-11 CERAMIC CHIP 27PF 5% 50V C385 1-126-964-11 ELECT 10uF 20% 50V C386 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C387 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C390 1-126-935-11 ELECT 470uF 20% 10V C391 1-126-933-11 ELECT 100uF 20% 16V C395 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C396 1-126-965-91 ELECT 22uF 20% 50V C397 1-126-964-11 ELECT 10uF 20% 50V C398 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C399 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C416 1-164-156-11 CERAMIC CHIP 0.1uF 25V C427 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C432 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C433 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C434 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C498 1-164-156-11 CERAMIC CHIP 0.1uF 25V C502 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C503 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C510 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C511 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C512 1-164-156-11 CERAMIC CHIP 0.1uF 25V C516 1-126-916-11 ELECT 1000uF 20% 6.3V C562 1-104-665-11 ELECT 100uF 20% 10V C564 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C596 1-164-156-11 CERAMIC CHIP 0.1uF 25V C598 1-126-964-11 ELECT 10uF 20% 50V C601 1-126-964-11 ELECT 10uF 20% 50V C602 1-136-165-00 FILM 0.1uF 5% 50V C603 1-136-165-00 FILM 0.1uF 5% 50V C620 1-126-963-11 ELECT 4.7uF 20% 50V C621 1-107-721-11 ELECT 4.7uF 20% 100V C650 1-109-889-11 ELECT 1uF 20% 50V C651 1-107-717-11 ELECT 47uF 20% 50V C656 1-113-619-11 CERAMIC CHIP 0.47uF 10V C670 1-126-963-11 ELECT 4.7uF 20% 50V C671 1-107-721-11 ELECT 4.7uF 20% 100V C710 1-126-964-11 ELECT 10uF 20% 50V C711 1-126-964-11 ELECT 10uF 20% 50V C712 1-126-916-11 ELECT 1000uF 20% 6.3V C713 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C714 1-126-933-11 ELECT 100uF 20% 16V C716 1-162-957-11 CERAMIC CHIP 220PF 5% 50V C721 1-126-963-11 ELECT 4.7uF 20% 50V C730 1-126-964-11 ELECT 10uF 20% 50V C731 1-164-156-11 CERAMIC CHIP 0.1uF 25V C771 1-126-963-11 ELECT 4.7uF 20% 50V C851 1-164-156-11 CERAMIC CHIP 0.1uF 25V C901 1-126-944-11 ELECT 3300uF 20% 25V C902 1-126-942-61 ELECT 1000uF 20% 25V C903 1-126-768-11 ELECT 2200uF 20% 16V C904 1-130-483-00 MYLAR 0.01uF 5% 50V C905 1-130-483-00 MYLAR 0.01uF 5% 50V C906 1-126-933-11 ELECT 100uF 20% 16V C908 1-136-165-00 FILM 0.1uF 5% 50V C909 1-136-165-00 FILM 0.1uF 5% 50V C910 1-164-156-11 CERAMIC CHIP 0.1uF 25V C911 1-126-935-11 ELECT 470uF 20% 16V C912 1-164-156-11 CERAMIC CHIP 0.1uF 25V C913 1-126-935-11 ELECT 470uF 20% 16V C914 1-126-935-11 ELECT 470uF 20% 16V C915 1-164-156-11 CERAMIC CHIP 0.1uF 25V C917 1-126-935-11 ELECT 470uF 20% 10V C918 1-164-156-11 CERAMIC CHIP 0.1uF 25V C919 1-126-917-11 ELECT 3300uF 20% 6.3V C920 1-126-964-11 ELECT 10uF 20% 50V C921 1-126-968-11 ELECT 100uF 20% 50V C922 1-126-961-11 ELECT 2.2uF 20% 50V C923 1-126-961-11 ELECT 2.2uF 20% 50V C924 1-164-156-11 CERAMIC CHIP 0.1uF 25V < CONNECTOR > * CN201 1-568-862-11 S0CKET, CONNECTOR 19P CN202 1-785-338-11 PIN, CONNECTOR(LIGHT ANGLE)12P * CN301 1-568-449-11 HOUSING, CONNECTOR(PC BOARD)3P * CN304 1-569-930-11 SOCKET, CONNECTOR 13P * CN402 1-569-935-11 SOCKET, CONNECTOR 19P CN501 1-785-330-11 PIN, CONNECTOR (LIGHT ANGLE)4P CN502 1-785-336-11 PIN, CONNECTOR(LIGHT ANGLE)10P CN702 1-569-906-11 SOCKET, CONNECTOR 11P CN851 1-564-506-11 PLUG, CONNECTOR 3P CN901 1-770-726-11 CONNECTOR, BOARD TO BOARD 6P CN902 1-778-982-11 CONNECTOR, BOARD TO BOARD 13P www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 71 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN70V MAIN < DIODE > D130 8-719-988-61 DIODE 1SS355TE-17 D392 8-719-988-61 DIODE 1SS355TE-17 D393 8-719-988-61 DIODE 1SS355TE-17 D394 8-719-988-61 DIODE 1SS355TE-17 D501 8-719-988-61 DIODE 1SS355TE-17 D502 8-719-988-61 DIODE 1SS355TE-17 D503 8-719-988-61 DIODE 1SS355TE-17 D504 8-719-988-61 DIODE 1SS355TE-17 D505 8-719-988-61 DIODE 1SS355TE-17 D508 8-719-988-61 DIODE 1SS355TE-17 D509 8-719-988-61 DIODE 1SS355TE-17 D601 8-719-988-61 DIODE 1SS355TE-17 D602 8-719-988-61 DIODE 1SS355TE-17 D603 8-719-988-61 DIODE 1SS355TE-17 D710 8-719-988-61 DIODE 1SS355TE-17 D711 8-719-988-61 DIODE 1SS355TE-17 D901 8-719-028-23 DIODE D3SBA20-4101 D909 6-500-522-21 DIODE 10EDB40-TB3 D910 6-500-522-21 DIODE 10EDB40-TB3 D911 6-500-522-21 DIODE 10EDB40-TB3 D912 6-500-522-21 DIODE 10EDB40-TB3 D913 6-500-522-21 DIODE 10EDB40-TB3 D914 6-500-522-21 DIODE 10EDB40-TB3 D915 6-500-522-21 DIODE 10EDB40-TB3 D917 8-719-988-61 DIODE 1SS355TE-17 D941 8-719-977-81 DIODE UDZ-TE-17-33B < FERRITE BEAD > FB117 1-216-864-11 METAL CHIP 0 5% 1/10W (EXCEPT EA) FB117 1-469-152-11 FERRITE 0uH (EA) FB167 1-216-864-11 METAL CHIP 0 5% 1/10W (EXCEPT EA) FB167 1-469-152-11 FERRITE 0uH (EA) FB205 1-216-864-11 METAL CHIP 0 5% 1/10W (EXCEPT EA) FB205 1-469-152-11 FERRITE 0uH (EA) FB206 1-216-864-11 METAL CHIP 0 5% 1/10W FB284 1-216-864-11 METAL CHIP 0 5% 1/10W (EXCEPT EA) FB284 1-469-152-11 FERRITE 0uH (EA) FB286 1-216-864-11 METAL CHIP 0 5% 1/10W FB516 1-414-772-11 FERRITE 0uH FB562 1-414-772-11 FERRITE 0uH FB601 1-216-864-11 METAL CHIP 0 5% 1/10W (EXCEPT EA) FB601 1-469-152-11 FERRITE 0uH (EA) FB602 1-216-864-11 METAL CHIP 0 5% 1/10W (EXCEPT EA) FB602 1-469-152-11 FERRITE 0uH (EA) FB604 1-216-864-11 METAL CHIP 0 5% 1/10W (EXCEPT EA) FB604 1-469-152-11 FERRITE 0uH (EA) FB605 1-216-864-11 METAL CHIP 0 5% 1/10W FB606 1-216-864-11 METAL CHIP 0 5% 1/10W FB607 1-216-864-11 METAL CHIP 0 5% 1/10W FB701 1-216-864-11 METAL CHIP 0 5% 1/10W < IC > IC102 6-703-650-11 IC M61529FP-D60G IC191 6-703-413-01 IC NJM2702 IC301 6-702-130-01 IC HA12237F IC302 8-759-508-69 IC BA3126N IC303 8-759-710-97 IC NJM4565M(TE2) IC501 6-802-867-01 IC M30620MCN-A26FP IC502 6-703-610-01 IC RT8H015C-T112-1 IC601 8-759-533-04 IC M62703ML-E1 IC710 8-759-295-90 IC NJM2244M-TE2 IC730 8-759-711-10 IC NJU4066BM-T2 IC901 6-703-550-01 IC TA7809LS IC902 6-703-550-01 IC TA7809LS IC903 6-703-546-01 IC TA7804LS IC904 8-759-647-11 IC uPC2905HF < JACK > J117 1-764-767-21 JACK, PIN 2P (MD/VIDEO(AUDIO)) J716 1-774-227-11 JACK, PIN 1P (VIDEOB OUT) J730 1-764-767-21 JACK, PIN 2P (AUDIO OUT) < JUMPER RESISTOR > JR26 1-469-152-11 FERRITE 0uH JR001 1-216-296-11 SHORT CHIP 0 JR004 1-216-864-11 METAL CHIP 0 5% 1/10W JR005 1-216-864-11 METAL CHIP 0 5% 1/10W JR006 1-216-296-11 SHORT CHIP 0 JR007 1-216-296-11 SHORT CHIP 0 JR008 1-216-864-11 METAL CHIP 0 5% 1/10W JR011 1-216-296-11 SHORT CHIP 0 JR013 1-216-864-11 METAL CHIP 0 5% 1/10W JR015 1-216-864-11 METAL CHIP 0 5% 1/10W JR016 1-216-864-11 METAL CHIP 0 5% 1/10W JR017 1-216-864-11 METAL CHIP 0 5% 1/10W JR018 1-216-864-11 METAL CHIP 0 5% 1/10W JR024 1-216-864-11 METAL CHIP 0 5% 1/10W JR104 1-216-296-11 SHORT CHIP 0 JR119 1-216-296-11 SHORT CHIP 0 JR138 1-216-296-11 SHORT CHIP 0 JR731 1-216-296-11 SHORT CHIP 0 < COIL > L301 1-410-780-11 INDUCTOR 27mH L302 1-414-189-31 INDUCTOR 100uH L351 1-410-780-11 INDUCTOR 27mH L710 1-414-189-31 INDUCTOR 100uH < TRANSISTOR > Q101 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q151 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q191 8-729-900-53 TRANSISTOR DTC114EKA-T146 Q201 8-729-802-80 TRANSISTOR 2SC3661-TB Q206 8-729-900-53 TRANSISTOR DTC114EKA-T146 Q207 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q251 8-729-802-80 TRANSISTOR 2SC3661-TB Q301 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 Q302 8-729-142-46 TRANSISTOR 2SC2001TP-LK Q303 8-729-142-46 TRANSISTOR 2SC2001TP-LK Q304 8-729-027-31 TRANSISTOR DTA124EKA-T146 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 72 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN70V MAIN The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Q305 8-729-900-53 TRANSISTOR DTC114EKA-T146 Q306 8-729-900-53 TRANSISTOR DTC114EKA-T146 Q307 8-729-216-22 TRANSISTOR 2SA812-T1-M5M6 Q310 8-729-900-53 TRANSISTOR DTC114EKA-T146 Q389 8-729-900-53 TRANSISTOR DTC114EKA-T146 Q390 8-729-900-53 TRANSISTOR DTC114EKA-T146 Q391 8-729-140-04 TRANSISTOR 2SB1116-TP-LK Q392 8-729-900-53 TRANSISTOR DTC114EKA-T146 Q393 8-729-116-57 TRANSISTOR 2SB1068TP-K Q394 8-729-900-53 TRANSISTOR DTC114EKA-T146 Q395 8-729-900-53 TRANSISTOR DTC114EKA-T146 Q396 8-729-140-04 TRANSISTOR 2SB1116-TP-LK Q398 8-729-900-53 TRANSISTOR DTC114EKA-T146 Q399 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 Q601 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q602 8-729-014-97 TRANSISTOR FA1L3Z-T1B Q620 8-729-802-80 TRANSISTOR 2SC3661-TB Q621 8-729-802-80 TRANSISTOR 2SC3661-TB Q650 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q651 8-729-900-53 TRANSISTOR DTC114EKA-T146 Q652 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q670 8-729-802-80 TRANSISTOR 2SC3661-TB Q671 8-729-802-80 TRANSISTOR 2SC3661-TB Q730 8-729-900-53 TRANSISTOR DTC114EKA-T146 Q851 8-729-140-04 TRANSISTOR 2SB1116-TP-LK Q852 8-729-620-05 TRANSISTOR 2SC2603TP-EF Q901 8-729-209-60 TRANSISTOR 2SB1375 Q902 8-729-900-53 TRANSISTOR DTC114EKA-T146 Q903 8-729-209-60 TRANSISTOR 2SB1375 < RESISTOR > R101 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R102 1-216-833-11 METAL CHIP 10K 5% 1/10W R103 1-220-373-11 METAL CHIP 620 5% 1/10W R104 1-216-821-11 METAL CHIP 1K 5% 1/10W R105 1-216-841-11 METAL CHIP 47K 5% 1/10W R106 1-216-833-11 METAL CHIP 10K 5% 1/10W R110 1-216-864-11 METAL CHIP 0 5% 1/10W R112 1-216-864-11 METAL CHIP 0 5% 1/10W R117 1-216-845-11 METAL CHIP 100K 5% 1/10W R118 1-216-821-11 METAL CHIP 1K 5% 1/10W R121 1-216-821-11 METAL CHIP 1K 5% 1/10W R122 1-216-821-11 METAL CHIP 1K 5% 1/10W R130 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R131 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R132 1-216-857-11 METAL CHIP 1M 5% 1/10W R133 1-216-845-11 METAL CHIP 100K 5% 1/10W R134 1-218-701-11 METAL CHIP 2.4K 5% 1/10W R135 1-216-833-11 METAL CHIP 10K 5% 1/10W R136 1-216-864-11 METAL CHIP 0 5% 1/10W R137 1-216-836-11 METAL CHIP 18K 5% 1/10W R138 1-216-864-11 METAL CHIP 0 5% 1/10W R150 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R151 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R152 1-216-833-11 METAL CHIP 10K 5% 1/10W R153 1-220-373-11 METAL CHIP 620 5% 1/10W R154 1-216-821-11 METAL CHIP 1K 5% 1/10W R155 1-216-841-11 METAL CHIP 47K 5% 1/10W R156 1-216-833-11 METAL CHIP 10K 5% 1/10W R167 1-216-845-11 METAL CHIP 100K 5% 1/10W R168 1-216-821-11 METAL CHIP 1K 5% 1/10W R185 1-216-833-11 METAL CHIP 10K 5% 1/10W R186 1-216-864-11 METAL CHIP 0 5% 1/10W R187 1-216-836-11 METAL CHIP 18K 5% 1/10W R191 1-216-835-11 METAL CHIP 15K 5% 1/10W R192 1-216-841-11 METAL CHIP 47K 5% 1/10W R204 1-216-833-11 METAL CHIP 10K 5% 1/10W R205 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R206 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R254 1-216-833-11 METAL CHIP 10K 5% 1/10W R255 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R256 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R284 1-216-853-11 METAL CHIP 470K 5% 1/10W R285 1-216-837-11 METAL CHIP 22K 5% 1/10W R286 1-216-837-11 METAL CHIP 22K 5% 1/10W R301 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R302 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R303 1-216-833-11 METAL CHIP 10K 5% 1/10W R304 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R305 1-216-841-11 METAL CHIP 47K 5% 1/10W R306 1-216-837-11 METAL CHIP 22K 5% 1/10W R307 1-216-857-11 METAL CHIP 1M 5% 1/10W R308 1-216-809-11 METAL CHIP 100 5% 1/10W R309 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R310 1-216-809-11 METAL CHIP 100 5% 1/10W R312 1-216-809-11 METAL CHIP 100 5% 1/10W R313 1-216-821-11 METAL CHIP 1K 5% 1/10W R314 1-216-821-11 METAL CHIP 1K 5% 1/10W R315 1-216-833-11 METAL CHIP 10K 5% 1/10W R316 1-216-833-11 METAL CHIP 10K 5% 1/10W R317 1-216-833-11 METAL CHIP 10K 5% 1/10W R320 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R327 1-216-835-11 METAL CHIP 15K 5% 1/10W R328 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R329 1-216-833-11 METAL CHIP 10K 5% 1/10W R330 1-216-837-11 METAL CHIP 22K 5% 1/10W R332 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R333 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R334 1-216-845-11 METAL CHIP 100K 5% 1/10W R342 1-216-825-11 METAL CHIP 2.2K 5% 1/10W 0R343 1-219-787-17 FUSIBLE 5.6 5% 1/4W 0R344 1-219-787-17 FUSIBLE 5.6 5% 1/4W R345 1-216-836-11 METAL CHIP 18K 5% 1/10W R346 1-216-836-11 METAL CHIP 18K 5% 1/10W R347 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R351 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R352 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R353 1-216-833-11 METAL CHIP 10K 5% 1/10W R354 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R355 1-216-841-11 METAL CHIP 47K 5% 1/10W R360 1-216-819-11 METAL CHIP 680 5% 1/10W R361 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R362 1-216-833-11 METAL CHIP 10K 5% 1/10W R363 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R364 1-216-819-11 METAL CHIP 680 5% 1/10W R365 1-216-833-11 METAL CHIP 10K 5% 1/10W R366 1-216-819-11 METAL CHIP 680 5% 1/10W R367 1-216-833-11 METAL CHIP 10K 5% 1/10W R368 1-216-833-11 METAL CHIP 10K 5% 1/10W R369 1-216-833-11 METAL CHIP 10K 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 73 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN70V MAIN R370 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R371 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R372 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R373 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R374 1-216-833-11 METAL CHIP 10K 5% 1/10W R375 1-216-833-11 METAL CHIP 10K 5% 1/10W R376 1-216-833-11 METAL CHIP 10K 5% 1/10W R377 1-216-833-11 METAL CHIP 10K 5% 1/10W R378 1-216-833-11 METAL CHIP 10K 5% 1/10W R379 1-216-833-11 METAL CHIP 10K 5% 1/10W R380 1-216-837-11 METAL CHIP 22K 5% 1/10W R382 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R387 1-216-833-11 METAL CHIP 10K 5% 1/10W R388 1-216-837-11 METAL CHIP 22K 5% 1/10W R390 1-216-833-11 METAL CHIP 10K 5% 1/10W R391 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R392 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R393 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R394 1-216-833-11 METAL CHIP 10K 5% 1/10W R395 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R396 1-216-833-11 METAL CHIP 10K 5% 1/10W R397 1-216-835-11 METAL CHIP 15K 5% 1/10W R398 1-216-861-11 METAL CHIP 2.2M 5% 1/10W R399 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R401 1-216-833-11 METAL CHIP 10K 5% 1/10W R402 1-216-833-11 METAL CHIP 10K 5% 1/10W R419 1-216-809-11 METAL CHIP 100 5% 1/10W R420 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R421 1-216-833-11 METAL CHIP 10K 5% 1/10W R422 1-216-833-11 METAL CHIP 10K 5% 1/10W R427 1-216-809-11 METAL CHIP 100 5% 1/10W R429 1-216-809-11 METAL CHIP 100 5% 1/10W R430 1-216-809-11 METAL CHIP 100 5% 1/10W R432 1-216-809-11 METAL CHIP 100 5% 1/10W R433 1-216-809-11 METAL CHIP 100 5% 1/10W R434 1-216-817-11 METAL CHIP 470 5% 1/10W R442 1-216-809-11 METAL CHIP 100 5% 1/10W R443 1-216-809-11 METAL CHIP 100 5% 1/10W R444 1-216-809-11 METAL CHIP 100 5% 1/10W R445 1-216-809-11 METAL CHIP 100 5% 1/10W R446 1-216-809-11 METAL CHIP 100 5% 1/10W R447 1-216-809-11 METAL CHIP 100 5% 1/10W R448 1-216-809-11 METAL CHIP 100 5% 1/10W R450 1-216-809-11 METAL CHIP 100 5% 1/10W R473 1-216-809-11 METAL CHIP 100 5% 1/10W R474 1-216-809-11 METAL CHIP 100 5% 1/10W R477 1-216-833-11 METAL CHIP 10K 5% 1/10W R478 1-216-833-11 METAL CHIP 10K 5% 1/10W R492 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R493 1-216-864-11 METAL CHIP 0 5% 1/10W (EXCEPT EA) R493 1-216-821-11 METAL CHIP 1K 5% 1/10W (EA) R501 1-216-809-11 METAL CHIP 100 5% 1/10W R502 1-216-809-11 METAL CHIP 100 5% 1/10W R503 1-216-809-11 METAL CHIP 100 5% 1/10W R504 1-216-809-11 METAL CHIP 100 5% 1/10W R505 1-216-809-11 METAL CHIP 100 5% 1/10W R506 1-216-809-11 METAL CHIP 100 5% 1/10W R507 1-216-809-11 METAL CHIP 100 5% 1/10W R509 1-216-833-11 METAL CHIP 10K 5% 1/10W R511 1-216-851-11 METAL CHIP 330K 5% 1/10W R513 1-216-864-11 METAL CHIP 0 5% 1/10W R517 1-216-833-11 METAL CHIP 10K 5% 1/10W R519 1-216-833-11 METAL CHIP 10K 5% 1/10W R521 1-216-809-11 METAL CHIP 100 5% 1/10W R522 1-216-809-11 METAL CHIP 100 5% 1/10W R523 1-216-833-11 METAL CHIP 10K 5% 1/10W R529 1-216-833-11 METAL CHIP 10K 5% 1/10W R530 1-216-833-11 METAL CHIP 10K 5% 1/10W R532 1-216-841-11 METAL CHIP 47K 5% 1/10W R535 1-216-817-11 METAL CHIP 470 5% 1/10W R536 1-216-809-11 METAL CHIP 100 5% 1/10W R537 1-216-817-11 METAL CHIP 470 5% 1/10W R538 1-216-809-11 METAL CHIP 100 5% 1/10W R540 1-216-809-11 METAL CHIP 100 5% 1/10W R541 1-216-809-11 METAL CHIP 100 5% 1/10W R542 1-216-833-11 METAL CHIP 10K 5% 1/10W R543 1-216-833-11 METAL CHIP 10K 5% 1/10W R544 1-216-833-11 METAL CHIP 10K 5% 1/10W R545 1-216-833-11 METAL CHIP 10K 5% 1/10W R549 1-216-833-11 METAL CHIP 10K 5% 1/10W R550 1-216-833-11 METAL CHIP 10K 5% 1/10W R560 1-216-809-11 METAL CHIP 100 5% 1/10W R561 1-216-809-11 METAL CHIP 100 5% 1/10W R563 1-216-833-11 METAL CHIP 10K 5% 1/10W R566 1-216-809-11 METAL CHIP 100 5% 1/10W R567 1-216-809-11 METAL CHIP 100 5% 1/10W R569 1-216-809-11 METAL CHIP 100 5% 1/10W R570 1-216-809-11 METAL CHIP 100 5% 1/10W R571 1-216-809-11 METAL CHIP 100 5% 1/10W R572 1-216-809-11 METAL CHIP 100 5% 1/10W R573 1-216-833-11 METAL CHIP 10K 5% 1/10W R574 1-216-833-11 METAL CHIP 10K 5% 1/10W R575 1-216-809-11 METAL CHIP 100 5% 1/10W R576 1-216-809-11 METAL CHIP 100 5% 1/10W R577 1-216-809-11 METAL CHIP 100 5% 1/10W R578 1-216-809-11 METAL CHIP 100 5% 1/10W R579 1-216-809-11 METAL CHIP 100 5% 1/10W R580 1-216-809-11 METAL CHIP 100 5% 1/10W R581 1-216-809-11 METAL CHIP 100 5% 1/10W R582 1-216-809-11 METAL CHIP 100 5% 1/10W R583 1-216-809-11 METAL CHIP 100 5% 1/10W R584 1-216-809-11 METAL CHIP 100 5% 1/10W R589 1-216-809-11 METAL CHIP 100 5% 1/10W R590 1-216-809-11 METAL CHIP 100 5% 1/10W R591 1-216-809-11 METAL CHIP 100 5% 1/10W R592 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R593 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (EA) R594 1-216-821-11 METAL CHIP 1K 5% 1/10W R595 1-216-864-11 METAL CHIP 0 5% 1/10W R597 1-216-864-11 METAL CHIP 0 5% 1/10W R600 1-216-809-11 METAL CHIP 100 5% 1/10W R601 1-216-813-11 METAL CHIP 220 5% 1/10W R602 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R603 1-216-841-11 METAL CHIP 47K 5% 1/10W R604 1-216-841-11 METAL CHIP 47K 5% 1/10W R620 1-216-833-11 METAL CHIP 10K 5% 1/10W R621 1-216-821-11 METAL CHIP 1K 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 74 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN70V MAIN MOTOR (LD) MOTOR (TB) POWER AMP R622 1-216-841-11 METAL CHIP 47K 5% 1/10W R623 1-216-833-11 METAL CHIP 10K 5% 1/10W R624 1-215-891-11 METAL OXIDE 680 5% 2W R625 1-216-821-11 METAL CHIP 1K 5% 1/10W R626 1-216-806-11 METAL CHIP 56 5% 1/10W R650 1-216-835-11 METAL CHIP 15K 5% 1/10W R651 1-216-853-11 METAL CHIP 470K 5% 1/10W R652 1-216-843-11 METAL CHIP 68K 5% 1/10W R653 1-216-821-11 METAL CHIP 1K 5% 1/10W R654 1-216-845-11 METAL CHIP 100K 5% 1/10W R655 1-216-845-11 METAL CHIP 100K 5% 1/10W R656 1-216-833-11 METAL CHIP 10K 5% 1/10W R670 1-216-833-11 METAL CHIP 10K 5% 1/10W R671 1-216-821-11 METAL CHIP 1K 5% 1/10W R672 1-216-841-11 METAL CHIP 47K 5% 1/10W R673 1-216-833-11 METAL CHIP 10K 5% 1/10W R674 1-215-891-11 METAL OXIDE 680 5% 2W R675 1-216-821-11 METAL CHIP 1K 5% 1/10W R676 1-216-806-11 METAL CHIP 56 5% 1/10W R716 1-216-845-11 METAL CHIP 100K 5% 1/10W R717 1-218-285-11 METAL CHIP 75 5% 1/10W R720 1-216-821-11 METAL CHIP 1K 5% 1/10W R721 1-216-845-11 METAL CHIP 100K 5% 1/10W R722 1-216-821-11 METAL CHIP 1K 5% 1/10W R730 1-216-833-11 METAL CHIP 10K 5% 1/10W R770 1-216-821-11 METAL CHIP 1K 5% 1/10W R771 1-216-845-11 METAL CHIP 100K 5% 1/10W R772 1-216-821-11 METAL CHIP 1K 5% 1/10W R851 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R852 1-216-833-11 METAL CHIP 10K 5% 1/10W R853 1-216-422-11 METAL OXIDE 18 5% 1W R854 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R901 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R902 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R903 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R904 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R905 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R906 1-216-821-11 METAL CHIP 1K 5% 1/10W R908 1-216-833-11 METAL CHIP 10K 5% 1/10W R913 1-216-841-11 METAL CHIP 47K 5% 1/10W < VARIABLE RESISTOR > RV301 1-238-019-11 RES, ADJ, CARBON 47K (REC LEVEL (L)) RV304 1-241-768-11 RES, ADJ, CARBON 220K (REC BIAS (L)) RV351 1-238-019-11 RES, ADJ, CARBON 47K (REC LEVEL (R)) RV354 1-241-768-11 RES, ADJ, CARBON 220K (REC BIAS (R)) < TRANSFORMER > T301 1-423-980-11 TRANSFORMER, BIAS OSCILLATION < VIBRATOR ) X501 1-567-098-41 VIBRATOR, CRYSTAL (32.768kHz) X502 1-781-107-21 VIBRATOR, SERAMIC (16MHz) ****************************************************** 1-687-133-11 MOTOR (LD) BOARD *************** ****************************************************** 1-687-134-11 MOTOR (TB) BOARD *************** < CONNECTOR > CN742 1-784-727-11 CONNECTOR, FFC 5P ****************************************************** A-4734-385-A POWER AMP BOARD, COMPLETE (TH) A-4733-006-A POWER AMP BOARD, COMPLETE (EXCEPT TH) ************************ 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S < CAPACITOR > C501 1-126-963-11 ELECT 4.7uF 20% 50V C502 1-162-294-31 CERAMIC 0.001uF 10% 50V C503 1-162-286-21 CERAMIC 220PF 10% 50V(TH) C503 1-162-286-31 CERAMIC 220PF 10% 50V (EXCEPT TH) C504 1-104-665-11 ELECT 100uF 20% 10V C507 1-136-495-11 FILM 0.068uF 5% 50V C508 1-136-495-11 FILM 0.068uF 5% 50V C509 1-128-560-11 ELECT 22uF 20% 100V C512 1-162-306-11 CERAMIC 0.01uF 20% 16V C513 1-162-306-11 CERAMIC 0.01uF 20% 16V C516 1-104-665-11 ELECT 100uF 20% 10V C517 1-126-964-11 ELECT 10uF 20% 50V C519 1-136-153-00 FILM 0.01uF 5% 50V C520 1-136-153-00 FILM 0.01uF 5% 50V C521 1-136-153-00 FILM 0.01uF 5% 50V C522 1-136-153-00 FILM 0.01uF 5% 50V C523 1-162-306-11 CERAMIC 0.01uF 30% 16V C524 1-162-306-11 CERAMIC 0.01uF 30% 16V C526 1-126-964-11 ELECT 10uF 20% 50V C527 1-162-306-11 CERAMIC 0.01uF 20% 16V C541 1-136-165-00 FILM 0.1uF 5% 50V C542 1-100-619-11 ELECT 4700uF 20% 50V C544 1-130-777-00 MYLAR 0.1uF 5% 100V C545 1-130-777-00 MYLAR 0.1uF 5% 100V C546 1-137-843-11 ELECT 2200uF 20% 100V C551 1-126-963-11 ELECT 4.7uF 20% 50V C552 1-162-294-31 CERAMIC 0.001uF 10% 50V C553 1-162-286-21 CERAMIC 220PF 10% 50V(TH) C553 1-162-286-31 CERAMIC 220PF 10% 50V (EXCEPT TH) C554 1-104-665-11 ELECT 100uF 20% 10V C557 1-136-495-11 FILM 0.068uF 5% 50V C558 1-136-495-11 FILM 0.068uF 5% 50V C559 1-128-560-11 ELECT 22uF 20% 100V C581 1-126-965-91 ELECT 22uF 20% 50V C591 1-136-165-00 FILM 0.1uF 5% 50V C592 1-100-619-11 ELECT 4700uF 20% 50V C596 1-137-843-11 ELECT 2200uF 20% 100V < CONNECTOR > CN502 1-564-509-11 PLUG, CONNECTOR 6P (TH) CN503 1-778-981-21 CONNECTOR, BOARD TO BOARD 13P CN504 1-770-722-11 CONNECTOR, BOARD TO BOARD 6P < DIODE > D501 8-719-991-33 DIODE 1SS133T-72 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 75 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN70V The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. POWER AMP D502 8-719-991-33 DIODE 1SS133T-72 D503 8-719-922-03 DIODE MTZJ-T-77-18C (TH) D503 8-719-947-70 DIODE MTZJ-T-72-18C (EXCEPT TH) D504 8-719-922-03 DIODE MTZJ-T-77-18C (TH) D504 8-719-947-70 DIODE MTZJ-T-72-18C (EXCEPT TH) D506 8-719-991-33 DIODE 1SS133T-72 D507 8-719-991-33 DIODE 1SS133T-72 D508 8-719-991-33 DIODE 1SS133T-72 D509 8-719-991-33 DIODE 1SS133T-72 D510 8-719-991-33 DIODE 1SS133T-72 D511 8-719-991-33 DIODE 1SS133T-72 D541 8-719-510-68 DIODE D5SBA204101 D543 8-719-500-60 DIODE D5SBA20 D551 8-719-991-33 DIODE 1SS133T-72 D581 8-719-991-33 DIODE 1SS133T-72 < EARTH TERMINAL > * EP501 1-537-738-21 TERMINAL, EARTH * EP502 1-537-738-21 TERMINAL, EARTH < IC > IC501 8-749-017-06 IC STK412-150 < TRANSISTOR > Q501 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA Q503 8-729-821-00 TRANSISTOR 2SA1207-AA Q504 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA Q505 8-729-119-79 TRANSISTOR 2SC2785TP-FEK Q506 8-729-119-79 TRANSISTOR 2SC2785TP-FEK Q510 8-729-119-79 TRANSISTOR 2SC2785TP-FEK Q511 8-729-119-79 TRANSISTOR 2SC2785TP-FEK Q513 8-729-119-79 TRANSISTOR 2SC2785TP-FEK Q514 8-729-119-79 TRANSISTOR 2SC2785TP-FEK Q515 8-729-119-76 TRANSISTOR 2SA1175TP-HFE Q516 8-729-119-79 TRANSISTOR 2SC2785TP-FEK Q517 8-729-119-76 TRANSISTOR 2SA1175TP-HFE Q518 8-729-119-79 TRANSISTOR 2SC2785TP-FEK Q551 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA Q581 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA < RESISTOR > R501 1-249-417-11 CARBON 1K 5% 1/4W F R502 1-249-438-11 CARBON 56K 5% 1/4W R503 1-249-411-11 CARBON 330 5% 1/4W F R504 1-249-438-11 CARBON 56K 5% 1/4W R505 1-249-416-11 CARBON 820 5% 1/4W F R506 1-249-435-11 CARBON 33K 5% 1/4W (TH) R506 1-249-431-11 CARBON 15K 5% 1/4W (EXCEPT TH) R507 1-249-441-11 CARBON 100K 5% 1/4W 0R508 1-234-798-11 ENCAPSULATED COMPONENT R509 1-260-076-11 CARBON 10 5% 1/2W 0R511 1-212-881-11 FUSIBLE 100 5% 1/4W 0R512 1-202-972-61 FUSIBLE 1 5% 1/4W R513 1-249-435-11 CARBON 33K 5% 1/4W R514 1-249-421-11 CARBON 2.2K 5% 1/4W F R515 1-249-433-11 CARBON 22K 5% 1/4W R516 1-249-429-11 CARBON 10K 5% 1/4W R517 1-249-429-11 CARBON 10K 5% 1/4W R518 1-249-435-11 CARBON 33K 5% 1/4W R519 1-249-439-11 CARBON 68K 5% 1/4W 0R520 1-215-872-11 METAL OXIDE 3.3K 5% 1W R521 1-249-441-11 CARBON 100K 5% 1/4W R522 1-249-441-11 CARBON 100K 5% 1/4W R523 1-249-441-11 CARBON 100K 5% 1/4W (TH) R523 1-247-883-00 CARBON 150K 5% 1/4W (EXCEPT TH) 0R524 1-215-872-11 METAL OXIDE 3.3K 5% 1W R527 1-249-438-11 CARBON 56K 5% 1/4W R528 1-249-437-11 CARBON 47K 5% 1/4W R529 1-249-433-11 CARBON 22K 5% 1/4W R530 1-249-433-11 CARBON 22K 5% 1/4W R531 1-247-889-00 CARBON 270K 5% 1/4W R532 1-249-441-11 CARBON 100K 5% 1/4W R533 1-249-437-11 CARBON 47K 5% 1/4W 0R539 1-216-455-11 METAL OXIDE 560 5% 2W 0R540 1-216-455-11 METAL OXIDE 560 5% 2W R541 1-249-441-11 CARBON 100K 5% 1/4W R542 1-249-441-11 CARBON 100K 5% 1/4W R545 1-249-417-11 CARBON 1K 5% 1/4W F R546 1-249-433-11 CARBON 22K 5% 1/4W R547 1-249-437-11 CARBON 47K 5% 1/4W R548 1-249-437-11 CARBON 47K 5% 1/4W R551 1-249-417-11 CARBON 1K 5% 1/4W F R552 1-249-438-11 CARBON 56K 5% 1/4W R553 1-249-411-11 CARBON 330 5% 1/4W F R554 1-249-438-11 CARBON 56K 5% 1/4W R555 1-249-416-11 CARBON 820 5% 1/4W F R556 1-249-435-11 CARBON 33K 5% 1/4W (TH) R556 1-249-431-11 CARBON 15K 5% 1/4W (EXCEPT TH) R557 1-249-441-11 CARBON 100K 5% 1/4W 0R558 1-234-798-11 ENCAPSULATED COMPONENT R559 1-260-076-11 CARBON 10 5% 1/2W 0R561 1-212-881-11 FUSIBLE 100 5% 1/4W R562 1-260-076-11 CARBON 10 5% 1/2W R563 1-260-076-11 CARBON 10 5% 1/2W R564 1-249-433-11 CARBON 22K 5% 1/4W R565 1-249-433-11 CARBON 22K 5% 1/4W R566 1-249-429-11 CARBON 10K 5% 1/4W R567 1-249-429-11 CARBON 10K 5% 1/4W R568 1-249-429-11 CARBON 10K 5% 1/4W R569 1-249-437-11 CARBON 47K 5% 1/4W R570 1-249-429-11 CARBON 10K 5% 1/4W R571 1-249-437-11 CARBON 47K 5% 1/4W R572 1-249-441-11 CARBON 100K 5% 1/4W R573 1-249-441-11 CARBON 100K 5% 1/4W R577 1-247-807-31 CARBON 100 5% 1/4W R578 1-247-897-11 CARBON 560K 5% 1/4W R581 1-249-435-11 CARBON 33K 5% 1/4W R582 1-249-435-11 CARBON 33K 5% 1/4W R591 1-249-441-11 CARBON 100K 5% 1/4W R592 1-249-441-11 CARBON 100K 5% 1/4W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 76 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN70V SUB TRANS The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. SW TRANS SENSOR POWER AMP < RELAY > RY501 1-515-920-11 RELAY RY502 1-515-920-11 RELAY < THERMISTOR > TH501 1-807-796-11 THERMISTOR TH502 1-807-796-11 THERMISTOR < TERMINAL > TM501 1-694-877-11 TERMINAL BOARD (8P) ****************************************************** 1-687-132-11 SENSOR BOARD ************ < CONNECTOR > CN731 1-785-329-21 PIN, CONNECTOR (LIGHT ANGLE)3P ****************************************************** A-4731-346-A SUB TRANS BOARD, COMPLETE(EXCEPT EA,TH) A-4734-387-A SUB TRANS BOARD, COMPLETE (TH) A-4749-093-A SUB TRANS BOARD, COMPLETE (EA) *********************** < CAPACITOR > 0C971 1-113-925-11 CERAMIC 0.01uF 20% 250V C973 1-126-933-11 ELECT 100uF 20% 16V C975 1-126-768-11 ELECT 2200uF 20% 16V C976 1-164-159-21 CERAMIC 0.1uF 50V(TH) C976 1-164-159-11 CERAMIC 0.1uF 50V (EXCEPT TH) C977 1-164-159-21 CERAMIC 0.1uF 50V(TH) C977 1-164-159-11 CERAMIC 0.1uF 50V (EXCEPT TH) C978 1-164-159-21 CERAMIC 0.1uF 50V(TH) C978 1-164-159-11 CERAMIC 0.1uF 50V (EXCEPT TH) < CONNECTOR > CN971 1-564-321-00 PIN, CONNECTOR(3.96MM PITCH)2P (TH) CN971 1-568-106-11 PIN, CONNECTOR(3.96MM PITCH)4P (EXCEPT TH) CN974 1-564-321-00 PIN, CONNECTOR(3.96MM PITCH)2P CN976 1-785-330-11 PIN, CONNECTOR (LIGHT ANGLE)4P < DIODE > D971 8-719-991-33 DIODE 1SS133T-72 D972 8-719-200-82 DIODE 11ES2-NTA1B (TH) D972 8-719-024-99 DIODE 11ES2-NTA2B (EXCEPT TH) D973 8-719-200-82 DIODE 11ES2-NTA1B (TH) D973 8-719-024-99 DIODE 11ES2-NTA2B (EXCEPT TH) D974 8-719-200-82 DIODE 11ES2-NTA1B (TH) D974 8-719-024-99 DIODE 11ES2-NTA2B (EXCEPT TH) D975 8-719-200-82 DIODE 11ES2-NTA1B (TH) D975 8-719-024-99 DIODE 11ES2-NTA2B (EXCEPT TH) < IC > IC971 6-703-546-01 IC TA7804LS < TRANSISTOR > Q971 8-729-119-79 TRANSISTOR 2SC2785TP-FEK < RESISTOR > R974 1-249-441-11 CARBON 100K 5% 1/4W R975 1-249-429-11 CARBON 10K 5% 1/4W < RELAY > 0RY971 1-755-276-11 RELAY, POWER < SWITCH > 0S901 1-786-055-21 SELECTOR, VOLTAGE (VOLTAGE SELECTOR) (EXCEPT TH) < TRANSFORMER > 0T972 1-437-751-12 TRANSFORMER, POWER (EXCEPT EA) 0T972 1-437-775-22 TRANSFORMER, POWER (EA) ****************************************************** 1-687-669-11 SW BOARD ******** < SWITCH > S751 1-786-514-11 SWITCH, LEVER (SLIDE) (LEVER SW) ****************************************************** 1-686-930-11 TRANS BOARD *********** < CAPACITOR > C941 1-128-576-11 ELECT 100uF 20% 63V < CONNECTOR > CN997 1-564-509-11 PLUG, CONNECTOR 6P * CN998 1-564-510-11 PLUG, CONNECTOR 7P < DIODE > D977 8-719-200-82 DIODE 11ES2-NTA1B (TH) D977 8-719-024-99 DIODE 11ES2-NTA2B (EXCEPT TH) < FUSE HOLDER > FH9741 1-533-233-11 FUSE HOLDER FH9742 1-533-233-11 FUSE HOLDER FH9751 1-533-233-11 FUSE HOLDER FH9752 1-533-233-11 FUSE HOLDER FH9761 1-533-233-11 FUSE HOLDER FH9762 1-533-233-11 FUSE HOLDER FH9771 1-533-233-11 FUSE HOLDER FH9772 1-533-233-11 FUSE HOLDER FH9781 1-533-233-11 FUSE HOLDER FH9782 1-533-233-11 FUSE HOLDER < RESISTOR > 0R941 1-217-637-00 FUSIBLE 1 5% 1/4W 0R952 1-219-120-11 FUSIBLE 0.15 5% 1/4W ****************************************************** www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 77 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN70V VIDEO A-4732-860-A VIDEO BOARD, COMPLETE (EXCEPT TH) A-4734-555-A VIDEO BOARD, COMPLETE (TH) ******************* < CAPACITOR > C104 1-124-778-00 ELECT CHIP 22uF 20% 6.3V C105 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C106 1-164-670-11 CERAMIC CHIP 1200PF 5% 16V C114 1-124-778-00 ELECT CHIP 22uF 20% 6.3V C115 1-164-156-11 CERAMIC CHIP 0.1uF 25V C116 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C154 1-124-778-00 ELECT CHIP 22uF 20% 6.3V C155 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C156 1-164-670-11 CERAMIC CHIP 1200PF 5% 16V C201 1-124-778-00 ELECT CHIP 22uF 20% 6.3V C202 1-164-156-11 CERAMIC CHIP 0.1uF 25V C203 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C204 1-164-156-11 CERAMIC CHIP 0.1uF 25V C205 1-164-156-11 CERAMIC CHIP 0.1uF 25V C206 1-164-156-11 CERAMIC CHIP 0.1uF 25V C207 1-164-156-11 CERAMIC CHIP 0.1uF 25V C208 1-164-156-11 CERAMIC CHIP 0.1uF 25V C209 1-124-778-00 ELECT CHIP 22uF 20% 6.3V C210 1-164-156-11 CERAMIC CHIP 0.1uF 25V C211 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C212 1-164-156-11 CERAMIC CHIP 0.1uF 25V C213 1-124-778-00 ELECT CHIP 22uF 20% 6.3V C214 1-124-778-00 ELECT CHIP 22uF 20% 6.3V C221 1-124-779-00 ELECT CHIP 10uF 20% 16V C222 1-124-779-00 ELECT CHIP 10uF 20% 16V C223 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C224 1-164-156-11 CERAMIC CHIP 0.1uF 25V C253 1-216-864-11 METAL CHIP 0 5% 1/10W C254 1-164-156-11 CERAMIC CHIP 0.1uF 25V C255 1-164-156-11 CERAMIC CHIP 0.1uF 25V C257 1-128-065-11 ELECT CHIP 68uF 20% 10V C258 1-164-156-11 CERAMIC CHIP 0.1uF 25V C259 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C321 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C322 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C323 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C338 1-164-156-11 CERAMIC CHIP 0.1uF 25V C360 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C361 1-164-156-11 CERAMIC CHIP 0.1uF 25V C364 1-124-779-00 ELECT CHIP 10uF 20% 16V C365 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C366 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C501 1-124-779-00 ELECT CHIP 10uF 20% 16V C502 1-164-156-11 CERAMIC CHIP 0.1uF 25V C503 1-164-156-11 CERAMIC CHIP 0.1uF 25V C504 1-164-156-11 CERAMIC CHIP 0.1uF 25V C505 1-164-156-11 CERAMIC CHIP 0.1uF 25V C510 1-164-156-11 CERAMIC CHIP 0.1uF 25V C511 1-164-156-11 CERAMIC CHIP 0.1uF 25V C513 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C521 1-164-156-11 CERAMIC CHIP 0.1uF 25V C522 1-162-912-11 CERAMIC CHIP 7PF 0.5PF 50V C523 1-162-912-11 CERAMIC CHIP 7PF 0.5PF 50V C524 1-164-156-11 CERAMIC CHIP 0.1uF 25V C525 1-126-193-11 ELECT 1uF 20% 50V C533 1-164-156-11 CERAMIC CHIP 0.1uF 25V C534 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C535 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V C536 1-164-217-11 CERAMIC CHIP 150PF 5% 50V C537 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C538 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C539 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C540 1-164-156-11 CERAMIC CHIP 0.1uF 25V C541 1-162-974-11 CERAMIC CHIP 0.01uF 50V C542 1-164-156-11 CERAMIC CHIP 0.1uF 25V C543 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C544 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C545 1-126-193-11 ELECT 1uF 20% 50V C546 1-164-156-11 CERAMIC CHIP 0.1uF 25V C547 1-126-193-11 ELECT 1uF 20% 50V C548 1-164-156-11 CERAMIC CHIP 0.1uF 25V C549 1-162-913-11 CERAMIC CHIP 8PF 0.50PF 50V C550 1-162-913-11 CERAMIC CHIP 8PF 0.50PF 50V C551 1-164-156-11 CERAMIC CHIP 0.1uF 25V C552 1-126-193-11 ELECT 1uF 20% 50V C561 1-164-156-11 CERAMIC CHIP 0.1uF 25V C566 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C567 1-164-156-11 CERAMIC CHIP 0.1uF 25V C570 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C571 1-164-156-11 CERAMIC CHIP 0.1uF 25V C572 1-164-156-11 CERAMIC CHIP 0.1uF 25V C573 1-164-156-11 CERAMIC CHIP 0.1uF 25V C574 1-164-156-11 CERAMIC CHIP 0.1uF 25V C575 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C576 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C581 1-164-156-11 CERAMIC CHIP 0.1uF 25V C582 1-124-779-00 ELECT CHIP 10uF 20% 16V C583 1-164-156-11 CERAMIC CHIP 0.1uF 25V C584 1-164-156-11 CERAMIC CHIP 0.1uF 25V C596 1-124-779-00 ELECT CHIP 10uF 20% 16V C597 1-124-779-00 ELECT CHIP 10uF 20% 16V < CONNECTOR > CN101 1-784-327-21 CONNECTOR, FFC/FPC 28P CN201 1-778-874-11 CONNECTOR,FFC(LIF(NON-ZIF))19P CN301 1-794-509-11 PIN, CONNECTOR (PC BOARD) (3P) < FERRITE BEAD > FB201 1-469-869-21 FERRITE 0uH FB251 1-469-869-21 FERRITE 0uH FB252 1-469-869-21 FERRITE 0uH FB360 1-469-869-21 FERRITE 0uH FB501 1-469-869-21 FERRITE 0uH FB502 1-469-869-21 FERRITE 0uH FB503 1-469-869-21 FERRITE 0uH FB504 1-469-869-21 FERRITE 0uH FB561 1-469-869-21 FERRITE 0uH < FILTER > FL201 1-234-177-21 FERRITE 0uH FL501 1-234-177-21 FERRITE 0uH FL502 1-234-177-21 FERRITE 0uH FL503 1-234-177-21 FERRITE 0uH FL504 1-234-177-21 FERRITE 0uH www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 78 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN70V < IC > IC102 8-759-701-40 IC NJM2100M(TE2) IC201 6-700-399-01 IC uPC2925T-E1 IC202 8-759-460-72 IC BA033FP-E2 IC307 6-702-001-01 IC BD7600FV-E2 IC504 8-759-825-13 IC PCM1748E/2K IC505 8-752-417-93 IC CXD1887R IC506 6-702-000-01 IC BU2507FV-E2 IC507 6-702-571-01 IC VG3612816BT-7L IC508 6-802-823-01 IC MR27V401E-0B1MAZ060 < WIRE JUMPER > JW203 1-216-864-11 METAL CHIP 0 5% 1/10W < COIL > L102 1-410-373-31 INDUCTOR 2.2uH L321 1-410-381-11 INDUCTOR CHIP 10uH < TRANSISTOR > Q201 8-729-140-75 TRANSISTOR 2SD999-T1-CLCK Q301 8-729-602-36 TRANSISTOR 2SA1602TP-1EF Q370 8-729-028-96 TRANSISTOR RT1N141M-TP-1 Q581 8-729-602-21 TRANSISTOR 2SC4154TP-1EF < RESISTOR > R102 1-216-809-11 METAL CHIP 100 5% 1/10W R107 1-216-833-11 METAL CHIP 10K 5% 1/10W R108 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R109 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R114 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R115 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R152 1-216-809-11 METAL CHIP 100 5% 1/10W R157 1-216-833-11 METAL CHIP 10K 5% 1/10W R158 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R159 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R201 1-216-809-11 METAL CHIP 100 5% 1/10W R202 1-216-809-11 METAL CHIP 100 5% 1/10W R321 1-216-813-11 METAL CHIP 220 5% 1/10W R322 1-216-864-11 METAL CHIP 0 5% 1/10W R323 1-216-817-11 METAL CHIP 470 5% 1/10W R375 1-211-990-11 METAL CHIP 75 0.5% 1/10W R376 1-216-833-11 METAL CHIP 10K 5% 1/10W R502 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R503 1-216-809-11 METAL CHIP 100 5% 1/10W R504 1-216-809-11 METAL CHIP 100 5% 1/10W R505 1-216-809-11 METAL CHIP 100 5% 1/10W R506 1-216-809-11 METAL CHIP 100 5% 1/10W R507 1-216-809-11 METAL CHIP 100 5% 1/10W R508 1-216-809-11 METAL CHIP 100 5% 1/10W R509 1-216-809-11 METAL CHIP 100 5% 1/10W R510 1-216-809-11 METAL CHIP 100 5% 1/10W R511 1-216-809-11 METAL CHIP 100 5% 1/10W R512 1-216-809-11 METAL CHIP 100 5% 1/10W R513 1-216-833-11 METAL CHIP 10K 5% 1/10W R516 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R517 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R522 1-216-833-11 METAL CHIP 10K 5% 1/10W R531 1-216-845-11 METAL CHIP 100K 5% 1/10W R532 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R533 1-216-839-11 METAL CHIP 33K 5% 1/10W R534 1-216-864-11 METAL CHIP 0 5% 1/10W R537 1-216-864-11 METAL CHIP 0 5% 1/10W R538 1-216-833-11 METAL CHIP 10K 5% 1/10W R541 1-216-864-11 METAL CHIP 0 5% 1/10W R542 1-216-864-11 METAL CHIP 0 5% 1/10W R543 1-216-853-11 METAL CHIP 470K 5% 1/10W R544 1-216-857-11 METAL CHIP 1M 5% 1/10W R545 1-216-821-11 METAL CHIP 1K 5% 1/10W R546 1-216-848-11 METAL CHIP 180K 5% 1/10W R547 1-216-833-11 METAL CHIP 10K 5% 1/10W R548 1-216-855-11 METAL CHIP 680K 5% 1/10W R549 1-216-845-11 METAL CHIP 100K 5% 1/10W R550 1-216-833-11 METAL CHIP 10K 5% 1/10W R551 1-218-852-11 METAL CHIP 1.6K 5% 1/10W R552 1-216-820-11 METAL CHIP 820 5% 1/10W R554 1-216-797-11 METAL CHIP 10 5% 1/10W R555 1-216-797-11 METAL CHIP 10 5% 1/10W R556 1-216-797-11 METAL CHIP 10 5% 1/10W R557 1-216-797-11 METAL CHIP 10 5% 1/10W R558 1-216-857-11 METAL CHIP 1M 5% 1/10W R559 1-216-817-11 METAL CHIP 470 5% 1/10W R561 1-216-821-11 METAL CHIP 1K 5% 1/10W R581 1-216-809-11 METAL CHIP 100 5% 1/10W R582 1-216-817-11 METAL CHIP 470 5% 1/10W < VIBRATOR > X501 1-767-518-11 VIBRATOR, CRYSTAL (33.8688MHz) X502 1-767-519-11 VIBRATOR, CRYSTAL (27MHz) ****************************************************** A-4731-329-A VOLUME BOARD, COMPLETE (EXCEPT TH) A-4734-274-A VOLUME BOARD, COMPLETE (TH) ********************* < CAPACITOR > C614 1-162-294-31 CERAMIC 0.001uF 10% 50V C615 1-124-589-11 ELECT 47uF 20% 16V C750 1-164-159-21 CERAMIC 0.1uF 50V(TH) C750 1-164-159-11 CERAMIC 0.1UF 50V (EXCEPT TH) C751 1-164-159-21 CERAMIC 0.1uF 50V(TH) C751 1-164-159-11 CERAMIC 0.1uF 50V (EXCEPT TH) C752 1-164-159-21 CERAMIC 0.1uF 50V(TH) C752 1-164-159-11 CERAMIC 0.1uF 50V (EXCEPT TH) < CONNECTOR > CN605 1-568-860-11 SOCKET, CONNECTOR 17P < DIODE > D1001 6-500-529-01 DIODE SLI-325URT31W (VOL 1) D1002 6-500-529-01 DIODE SLI-325URT31W (VOL 2) D1003 6-500-529-01 DIODE SLI-325URT31W (VOL 3) D1004 6-500-529-01 DIODE SLI-325URT31W (VOL 4) D1005 6-500-529-01 DIODE SLI-325URT31W (VOL 5) D1006 6-500-529-01 DIODE SLI-325URT31W (VOL 6) D1007 6-500-529-01 DIODE SLI-325URT31W (VOL 7) D1008 6-500-529-01 DIODE SLI-325URT31W (VOL 8) VIDEO VOLUME www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 79 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN70V D1009 6-500-529-01 DIODE SLI-325URT31W (VOL 9) D1010 6-500-529-01 DIODE SLI-325URT31W (VOL 10) D1011 6-500-529-01 DIODE SLI-325URT31W (VOL 11) < IC > IC603 6-600-174-01 IC RPM7240-H4 < TRANSISTOR > Q1001 8-729-116-02 TRANSISTOR BA1A4M-TP Q1002 8-729-116-02 TRANSISTOR BA1A4M-TP Q1003 8-729-116-02 TRANSISTOR BA1A4M-TP Q1004 8-729-116-02 TRANSISTOR BA1A4M-TP Q1005 8-729-116-02 TRANSISTOR BA1A4M-TP Q1006 8-729-116-02 TRANSISTOR BA1A4M-TP < RESISTOR > R625 1-249-401-11 CARBON 47 5% 1/4W F R750 1-249-410-11 CARBON 270 5% 1/4W F R759 1-249-427-11 CARBON 6.8K 5% 1/4W F R760 1-249-429-11 CARBON 10K 5% 1/4W R761 1-249-431-11 CARBON 15K 5% 1/4W R762 1-249-433-11 CARBON 22K 5% 1/4W R763 1-249-435-11 CARBON 33K 5% 1/4W R765 1-249-413-11 CARBON 470 5% 1/4W F R766 1-249-415-11 CARBON 680 5% 1/4W F R767 1-249-417-11 CARBON 1K 5% 1/4W F R768 1-249-419-11 CARBON 1.5K 5% 1/4W F R769 1-249-419-11 CARBON 1.5K 5% 1/4W F R770 1-249-421-11 CARBON 2.2K 5% 1/4W F R771 1-247-843-11 CARBON 3.3K 5% 1/4W R772 1-249-425-11 CARBON 4.7K 5% 1/4W F R773 1-249-427-11 CARBON 6.8K 5% 1/4W F R774 1-249-429-11 CARBON 10K 5% 1/4W R775 1-249-431-11 CARBON 15K 5% 1/4W R776 1-249-433-11 CARBON 22K 5% 1/4W R777 1-249-435-11 CARBON 33K 5% 1/4W R1001 1-249-413-11 CARBON 470 5% 1/4W F R1002 1-249-413-11 CARBON 470 5% 1/4W F R1003 1-249-413-11 CARBON 470 5% 1/4W F R1004 1-249-413-11 CARBON 470 5% 1/4W F R1005 1-249-413-11 CARBON 470 5% 1/4W F R1006 1-249-413-11 CARBON 470 5% 1/4W F R1007 1-249-413-11 CARBON 470 5% 1/4W F R1008 1-249-413-11 CARBON 470 5% 1/4W F R1009 1-249-413-11 CARBON 470 5% 1/4W F R1010 1-249-413-11 CARBON 470 5% 1/4W F R1011 1-249-413-11 CARBON 470 5% 1/4W F < SWITCH > S748 1-476-504-11 ENCODER, ROTARY (VOLUME) S750 1-771-410-21 SWITCH, TACTILE (DISPLAY) S759 1-771-410-21 SWITCH, TACTILE (SURROUND SPEAKER MODE) S760 1-771-410-21 SWITCH, TACTILE (P.FILE) S761 1-771-410-21 SWITCH, TACTILE (ILLUMINATION) S762 1-771-410-21 SWITCH, TACTILE (GAME EQ) S763 1-771-410-21 SWITCH, TACTILE (GROOVE) S765 1-771-410-21 SWITCH, TACTILE (EDIT/DIRECTION) S766 1-771-410-21 SWITCH, TACTILE (FM MODE/REPEAT) S767 1-771-410-21 SWITCH, TACTILE (TUNER MEMORY/PLAY MODE) S768 1-771-410-21 SWITCH, TACTILE (AMP MENU) S769 1-771-410-21 SWITCH, TACTILE (MUSIC EQ) S770 1-771-410-21 SWITCH, TACTILE (MOVIE EQ) S771 1-771-410-21 SWITCH, TACTILE (EFFECT ON/OFF) S773 1-786-528-11 SWITCH, ROTARY (<,,,M,m,PUSH ENTER) ****************************************************** MISCELLANEOUS ************* 6 1-693-603-11 TUNER (FM/AM) 8 1-823-899-11 WIRE (FLAT TYPE) (28 CORE) 70 1-773-040-11 WIRE (FLAT TYPE) (17 CORE) 73 1-773-110-11 WIRE (FLAT TYPE) (19 CORE) 75 1-796-487-31 DECK, MECHANICAL 79 1-751-688-11 WIRE (FLAT TYPE) (13 CORE) 0103 1-777-071-53 CORD, POWER (EA,SP,MY,PH) 0103 1-824-818-11 CORD, POWER (TH) 0103 1-827-226-11 CORD, POWER (E3,E15) 152 1-776-182-11 WIRE (FLAT TYPE) (5 CORE) 0551 A-4735-189-A OPTICAL PICK-UP ASSY (A-MAX.3) 555 1-782-817-11 WIRE (FLAT TYPE) (16 CORE) 0F974 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) (T6.3AL 250V) 0F975 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) (T6.3AL 250V) 0F976 1-576-655-11 FUSE, GLASS TUBE (DIA. 5) (T8AL 250V) 0F977 1-576-655-11 FUSE, GLASS TUBE (DIA. 5) (T8AL 250V) 0F978 1-533-471-11 FUSE, GLASS TUBE (DIA. 5) (T4AL 250V) M741 A-4723-963-A MOTOR ASSY, TABLE M751 A-4737-553-A MOTOR ASSY, LOADING M891 1-763-072-11 FAN, DC RE701 1-477-680-11 ENCODER, ROTARY 0T910 1-439-891-11 POWER TRANSFORMER (EA) 0T910 1-439-897-11 POWER TRANSFORMER (EXCEPT EA) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. VOLUME www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN70V REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2003.06 New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
