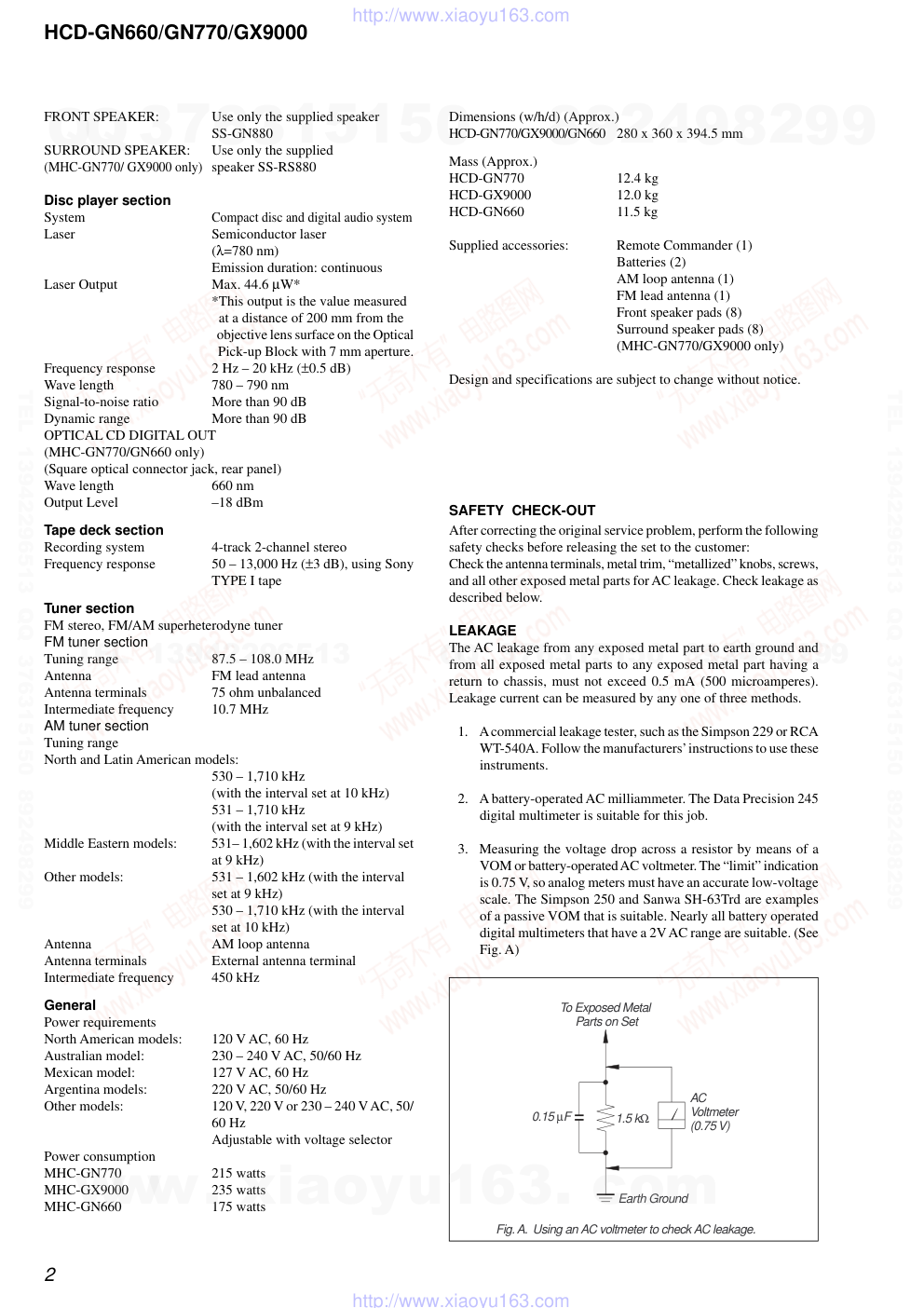

HCD-GN660/GN770/ GX9000 US Model HCD-GX9000 E Model HCD-GN660/GN770 Australian Model HCD-GN770 SERVICE MANUAL MiNi Hi-Fi COMPONENT SYSTEM Sony Corporation Home Audio Company Published by Sony Engineering Corporation 9-877-800-01 2004D02-1 © 2004.04 SPECIFICATIONS Ver 1.0 2004. 04 – Continued on next page – • HCD-GN660/GN770/GX9000 are the Amplifier, CD player, tape deck and tuner section in MHC-GN660/GN770/GX9000. Model Name Using Similar Mechanism HCD-GX450 CD CD Mechanism Type CDM74-F1BD81 Section Base Unit Name BU-F1BD81A Optical Pick-up Name KSM-215DCP/C2NP TAPE Model Name Using Similar Mechanism NEW Section Tape Transport Mechanism Type CWM43RR35 AUDIO POWER SPECIFICATION (MHC-GX9000 USA model only) POWER OUTPUT AND TOTAL HARMONIC DISTORTION: With 6-ohm loads, both channels driven, from 120 Hz – 10 kHz; rates 225 watts per channel minimum RMS power, with no more than 10% total harmonic distortion from 250 miliwatts to rated output. Amplifier section MHC-GX9000 Total harmonic distortion Less than 0.1% (6 ohms at 1 kHz, 100 W) MHC-GN770 The following are measured at Mexican model: AC 127 V, 60 Hz Other models: AC 120, 220, 240 V, 50/60 Hz DIN power output (rated) 170 + 170 watts (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference) 220 + 220 watts (6 ohms at 1 kHz, 10% THD) MHC-GN660 The following are measured at Mexican model: AC 127 V, 60 Hz Other models: AC 120, 220, 240 V, 50/60 Hz Photo : GN770 DIN power output (rated) 150 + 150 watts (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference) 190 + 190 watts (6 ohms at 1 kHz, 10% THD) Inputs VIDEO/MD (AUDIO) IN (phono jacks): voltage 250/450 mV, impedance 47 kiloohms GAME (VIDEO) IN (phono jack): 1 Vp-p, 75 ohms GAME (AUDIO) IN (phono jack): voltage 250 mV, impedance 47 kiloohms MIC (phone jack): sensitivity 1 mV, impedance 10 kiloohms Outputs VIDEO OUT (phono jack): max. output level 1 Vp-p, unbalanced, Sync negative, load impedance 75 ohms PHONES (stereo mini jack): accepts headphones of 8 ohms or more www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 HCD-GN660/GN770/GX9000 FRONT SPEAKER: Use only the supplied speaker SS-GN880 SURROUND SPEAKER: Use only the supplied (MHC-GN770/ GX9000 only) speaker SS-RS880 Disc player section System Compact disc and digital audio system Laser Semiconductor laser (λ=780 nm) Emission duration: continuous Laser Output Max. 44.6 µW* *This output is the value measured at a distance of 200 mm from the objective lens surface on the Optical Pick-up Block with 7 mm aperture. Frequency response 2 Hz – 20 kHz (±0.5 dB) Wave length 780 – 790 nm Signal-to-noise ratio More than 90 dB Dynamic range More than 90 dB OPTICAL CD DIGITAL OUT (MHC-GN770/GN660 only) (Square optical connector jack, rear panel) Wave length 660 nm Output Level –18 dBm Tape deck section Recording system 4-track 2-channel stereo Frequency response 50 – 13,000 Hz (±3 dB), using Sony TYPE I tape Tuner section FM stereo, FM/AM superheterodyne tuner FM tuner section Tuning range 87.5 – 108.0 MHz Antenna FM lead antenna Antenna terminals 75 ohm unbalanced Intermediate frequency 10.7 MHz AM tuner section Tuning range North and Latin American models: 530 – 1,710 kHz (with the interval set at 10 kHz) 531 – 1,710 kHz (with the interval set at 9 kHz) Middle Eastern models: 531– 1,602 kHz (with the interval set at 9 kHz) Other models: 531 – 1,602 kHz (with the interval set at 9 kHz) 530 – 1,710 kHz (with the interval set at 10 kHz) Antenna AM loop antenna Antenna terminals External antenna terminal Intermediate frequency 450 kHz General Power requirements North American models: 120 V AC, 60 Hz Australian model: 230 – 240 V AC, 50/60 Hz Mexican model: 127 V AC, 60 Hz Argentina models: 220 V AC, 50/60 Hz Other models: 120 V, 220 V or 230 – 240 V AC, 50/ 60 Hz Adjustable with voltage selector Power consumption MHC-GN770 215 watts MHC-GX9000 235 watts MHC-GN660 175 watts Dimensions (w/h/d) (Approx.) HCD-GN770/GX9000/GN660 280 x 360 x 394.5 mm Mass (Approx.) HCD-GN770 12.4 kg HCD-GX9000 12.0 kg HCD-GN660 11.5 kg Supplied accessories: Remote Commander (1) Batteries (2) AM loop antenna (1) FM lead antenna (1) Front speaker pads (8) Surround speaker pads (8) (MHC-GN770/GX9000 only) Design and specifications are subject to change without notice. After correcting the original service problem, perform the following safety checks before releasing the set to the customer: Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) SAFETY CHECK-OUT To Exposed Metal Parts on Set 0.15 µF 1.5 kΩ AC Voltmeter (0.75 V) Earth Ground Fig. A. Using an AC voltmeter to check AC leakage. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 HCD-GN660/GN770/GX9000 TABLE OF CONTENTS 1. SERVICING NOTES ................................................ 4 2. GENERAL Location of Controls........................................................ 5 3. DISASSEMBLY 3-1. Disassembly Flow ........................................................... 7 3-2. Case ................................................................................. 8 3-3. Loading Panel Assy ......................................................... 8 3-4. Front Panel Assy.............................................................. 9 3-5. CD Mechanism Deck (CDM74-F1BD81) ...................... 9 3-6. Tape Mechanism Deck, Game Board .............................. 10 3-7. CD Switch Board, Panel Board ....................................... 10 3-8. Switch Board ................................................................... 11 3-9. Tuner Pack ....................................................................... 11 3-10. Primary Board ................................................................. 12 3-11. Rear Panel........................................................................ 12 3-12. Main Board ...................................................................... 13 3-13. Surround Board, PA Board .............................................. 13 3-14. Power Transformer .......................................................... 14 3-15. Driver Board, SW Board ................................................. 14 3-16. BD Board, Optical Pick-Up (KSM-215DCP/C2NP) ...... 15 3-17. Sensor Board ................................................................... 15 3-18. Motor (TB) Board ........................................................... 16 3-19. Motor (LD) Board ........................................................... 16 4. TEST MODE .............................................................. 17 5. MECHANICAL ADJUSTMENTS ....................... 21 6. ELECTRICAL ADJUSTMENTS Deck section .................................................................... 21 CD Section ...................................................................... 22 Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing • Keep the temperature of soldering iron around 270˚C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. This appliance is classified as a CLASS 1 LASER product. This label is located on the rear exterior. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. 7. DIAGRAMS 7-1. Circuit Board Location .................................................... 26 7-2. Block Diagram – CD Section – ...................................... 28 7-3. Block Diagram – Tuner/Tape Deck Section – ................ 29 7-4. Block Diagram – Main Section – ................................... 30 7-5. Block Diagram – Display/Power Section –.................... 31 7-6. Printed Wiring Board – BD Board – .............................. 32 7-7. Schematic Diagram – BD Board – ................................. 33 7-8. Printed Wiring Board – CD Mechanism Board –........... 34 7-9. Schematic Diagram – CD Mechanism Board – ............. 35 7-10. Printed Wiring Boards – Main Board – .......................... 36 7-11. Schematic Diagram – Main Board (1/3) – ..................... 37 7-12. Schematic Diagram – Main Board (2/3) – ..................... 38 7-13. Schematic Diagram – Main Board (3/3) – ..................... 39 7-14. Printed Wiring Boards – Game, CD Switch Board – ........................................... 40 7-15. Schematic Diagram – Game, CD Switch Board – ........................................... 41 7-16. Printed Wiring Board – PA Board – ............................... 42 7-17. Schematic Diagram – PA Board – .................................. 43 7-18. Schematic Diagram –Panel Board (1/2) – ...................... 44 7-19. Schematic Diagram –Panel Board (2/2) – ...................... 45 7-20. Printed Wiring Board – Panel Board – ........................... 46 7-21. Printed Wiring Boards – Primary Board – ..................... 47 7-22. Schematic Diagram – Primary Board –.......................... 48 7-23. Schematic Diagram – Surround Board – ........................ 48 7-24. Printed Wiring Board – Surround Board – ..................... 49 7-25. IC Block Diagram ........................................................... 50 7-26. IC Pin Function Description ............................................ 51 8. EXPLODED VIEWS 8-1. Case, Rear Panel Section ................................................. 57 8-2. Front Panel Section ......................................................... 58 8-3. Chassis Section ................................................................ 59 8-4. CD Mechanism Deck Section-1 (CDM74-F1BD81) .......................................................... 60 8-5. CD Mechanism Deck Section-2 (CDM74-F1BD81) .......................................................... 61 9. ELECTRICAL PARTS LIST ................................ 62 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 HCD-GN660/GN770/GX9000 SECTION 1 SERVICING NOTES NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. LASER DIODE AND FOCUS SEARCH OPERATION CHECK Carry out the “S curve check” in “CD section adjustment” and check that the S curve waveform is output several times. • MODEL IDENTIFICATION – Back Panel – MODEL PART No. GN770: E2, E3models 4-252-722-0[] GX9000 4-252-722-1[] GN770: AUS model 4-252-722-2[] GN770: E51 model 4-252-722-3[] GN770: Mexican model 4-252-722-4[] GN660: E2, E3models 4-252-555-0[] GN770: E51 model 4-252-555-1[] GN770: Mexican model 4-252-555-2[] GN660: AR model 4-252-555-3[] • Abbreviation E2 : 120 V AC Area in E model E3 : 240 V AC Area in E model E51 : Chilean and Peruvian model AUS : Australian model AR : Argentine model PART No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 HCD-GN660/GN770/GX9000 SECTION 2 GENERAL This section is extracted from instruction manual. LOCATING THE CONTROLS Main unit ALBUM qh AMP MENU ek CD eh CD SYNC qf Deck A wj Deck B w; DIRECTION qa DISC 1 ~ 3 3 Disc tray rs DISPLAY r; Display 5 EFFECT ON/OFF ej ENTER wa EQ EDIT 8 EX-CHANGE/DISC SKIP 4 FM MODE q; GAME e; GAME INPUT (jacks) wh GAME MIXING ef GROOVE wl ILLUMINATION wk MIC (jack) wg MIC LEVEL wf MULTI JOG ws P FILE MEMORY 7 PHONES (jack) wd PLAY MODE 9 Power illuminator 2 REC PAUSE/START qg REPEAT q; SLEEP el SURROUND (MHC-GN660 only) ra SURROUND SPEAKER MODE (except for MHC-GN660 only) ra TAPE A/B ed TUNER/BAND eg TUNER MEMORY qa TUNING MODE 9 VIDEO/MD es VOLUME rd ?/1 (power) 1 Z OPEN/CLOSE 6 n N (play) qs . > (go backward/forward) qd m M (rewind/fast forward) qh X (pause) ql x (stop) qk Z A (Eject A) ea Z B (Eject B) qj List of button locations and reference pages ALPHABETICAL ORDER A – D E – L M – R S – Z SYMBOLS hH A A wgwf wd wh qh qk qg qf qj w; ws ql wa 9 qa qd q; qs 7 8 2 eg rs r; el ra rd eh ek ej ef ea wj 4 1 3 6 5 ed es e; wl wk www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 HCD-GN660/GN770/GX9000 This section is extracted from instruction manual. Remote c ontrol ALBUM + qf ALBUM – qh CD wf CLEAR qk CLOCK/TIMER SELECT 2 CLOCK/TIMER SET 4 DISC SKIP qd DISPLAY wh ENTER qs EQ qj FM MODE 6 FUNCTION 8 PLAY MODE 5 REPEAT 6 SLEEP 1 TAPE wd TUNER/BAND 7 TUNER MEMORY wg TUNING MODE 5 VOLUME +/– qg ?/1 (power) 3 x (stop) qa X (pause) ql N (play) w; –. (go backward) ws >+ (go forward) wa m (rewind) q; M (fast forward) 9 ALPHABETICAL ORDER A – E F – Z SYMBOLS 7 5 q; qg qh qj qk w; ws wd wg wh qf qd qs qa 9 8 6 4 3 1 2 ql wa wf www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 HCD-GN660/GN770/GX9000 SECTION 3 DISASSEMBLY • This set can be disassembled in the order shown below. 3-1. DISASSEMBLY FLOW 3-2.CASE (Page 8) 3-3.LOADING PANEL ASSY (Page 8) 3-4.FRONT PANEL ASSY (Page 9) 3-14.POWER TRANSFORMER (Page 14) 3-11.REAR PANEL (Page 12) 3-5.CD MECHANISM DECK (CDM74-F1BD81) (Page 9) 3-16. BD BOARD, OPTICAL PICK-UP (KSM-215DCP/C2NP) (Page 15) 3-6.TAPE MECHANISM DECK, GAME BOARD (Page 10) 3-15.DRIVER BOARD, SW BOARD (Page 14) 3-10.PRIMARY BOARD (Page 12) 3-18.MOTOR (TB) BOARD (Page 16) 3-19.MOTOR (LD) BOARD (Page 16) 3-17.SENSOR BOARD (Page 15) 3-7.CD SWITCH BOARD, PANEL BOARD (Page 10) 3-12.MAIN BOARD (Page 13) 3-13.SURROUND BOARD, PA BOARD (Page 13) 3-8.SWITCH BOARD (Page 11) 3-9.TUNER PACK (Page 11) SET www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 HCD-GN660/GN770/GX9000 Note: Follow the disassembly procedure in the numerical order given. 3-2. CASE 3-3. LOADING PANEL ASSY 1 two screws (case 3 TP2) (M3 x 8) 2 screw (case 3 TP2) (M3 x 12) 3 five screws (+BVTT3 x 6) 7 case 6 5 1 two screws (case 3 TP2) (M3 x 8) 2 screw (case 3 TP2) (M3 x 12) 4 two screws (+BVTT3 x 6) CD mechanismdeck (CDM74-F1BD81) 1 Turn the pulley to the arrow direction. Front side Pulley 4 loading panel assy 3 2 Pull out disc tray www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 HCD-GN660/GN770/GX9000 3-4. FRONT PANEL ASSY 3-5. CD MECHANISM DECK (CDM74-F1BD81) 3 screw (BVTP3 x 10) 2 five screws (BVTP3 x 10) 9 front panel ASSY 6 from CN801 on GAME board 5 from deck B head CN508 CN509 7 from deck A head 8 from CN802 on GAME board 1 two wires (flat type) 3 screw (BVTP3 x 10) 4 fcrew (BVTP3 x 10) MAIN board 4 CD mechanism deck 2 wire (flat type) (27 core) 1 two screws (BVTP3 x 10) 3 CN701 MAIN board CN201 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 HCD-GN660/GN770/GX9000 3-6. TAPE MECHANISM DECK, GAME BOARD 3-7. CD SWITCH BOARD, PANEL BOARD 2 tape mechanism deck 3 three screws (+BVTP2.6 x 8) 1 five screws (+BVTP2.6 x 8) 6 GAME board 5 knob (MIC) 4 bracket (MIC) 1 five screws (+BVTP2.6 x 8) 9 wire (flat type) (19 core) from CN902 7 PANEL board 5 nineteen screws (+BVTP2.6 x 8) 2 CD SWITCH board 3 knob (VOL) 6 claw 4 CN903 8 CN907 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 HCD-GN660/GN770/GX9000 3-8. SWITCH BOARD 3-9. TUNER PACK 2 two screws (+BVTT3 x 6) 1 wire (flat type) (11 core) 3 tuner pack 1 two knobs (AMS) 3 SWITCH board 2 two screws (+BVTP2.6 x 8) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 HCD-GN660/GN770/GX9000 3-10. PRIMARY BOARD 3-11. REAR PANEL 6 bracket, sub 4 bracket, top qa CN201 qs PRIMARY board 9 connector 0 CN101 7 CN1002 1 two screws (BVTP3 x 10) 5 two screwss (BVTP3 x 6) 2 four screws (BVTP3 x 6) 8 connector 3 two screws (+BVTT3 x 6) 1 nine screws (+BVTP3 x 10) 2 screw (+BVTT3 x 6) 4 Connector CN503 MAIN board 3 rear panel with fan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 HCD-GN660/GN770/GX9000 3-13. SURROUND BOARD, PA BOARD 3-12. MAIN BOARD 3 two screws (+BVTP3 x 6) 4 two screws (+BVTP3 x 6) 6 screw (+BVTP3 x 10) 5 screw (+BVTP3 x 6) 1 connector 6p (CN604) 2 connector 4p (CN703) 8 two screws (+BVTP3 x 10) 9 MAIN board 7 POWER board assy 6 screw (+BVTP3 x 10) qs heat sink 7 screw (+BVTP3 x 10) 8 two screws (+BVTP3 x 16) 9 two screws (+BVTP3 x 10) 0 two screws (+BVTP3 x 6) 3 three screws (+BVTP3 x 16) 4 screw (+BVTP3 x 10) qa screw (+BVTP3 x 10) qd PA board 5 SURROUND board 1 connector 6p (CN604) 2 connector 4p (CN703) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 HCD-GN660/GN770/GX9000 3-14. POWER TRANSFORMER 3-15. DRIVER BOARD, SW BOARD 1 connector 6p (CN604) 2 connector 4p (CN703) 3 six screws (+BVTT 4 × 8) 4 power transformer 3 connector 4p (CN703) 4 DRIVER board 6 SW board 2 wire (flat type) 5p (CN702) 1 two screws (+BTTP (M2.6)) 5 screw (+BTTP (M2.6)) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 HCD-GN660/GN770/GX9000 3-16. BD BAORD, OPTICAL PICK-UP (KSM-215DCP/C2NP) 3-17. SENSOR BOARD 5 two coil springs (insulator) 9 two coil springs (insulator) 6 two insulators 0 two insulators qs screw (+BVTP 2.6x 8) 7 two screws (BVTT M2.6) 3 screw (BVTT M2.6) 2 holder (213) ASSY 8 two stoppers (BU) qd Remove the four solderings of motor. qf CN101 (flat type) qg BD board qh optical pick-up (KSM-215DCP/C2NP) 1 floating screw (+PTPWH M2.6) 4 floating screw (+PTPWH M2.6) qa 2 tray 3 belt (table) 5 pulley (table) 8 screw (+BTTP (M2.6)) 0 SENSOR board 7 gear (geneva) 9 connector (CN731) 1 floating screw (+PTPWH M2.6) 6 floating screw (+PTPWH M2.6) 4 floating screw (+PTPWH M2.6) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 HCD-GN660/GN770/GX9000 3-18. MOTOR (TB) BOARD 3-19. MOTOR (LD) BOARD 6 Remove the two solderings of motor. 8 MOTOR (TB) board 7 table motor assy (M741) 5 two screws (+BTTP (M2.6)) 4 3 wire (flat type) 5 core (CN742) 1 stopper 2 stopper 4 Remove the two solderings of motor. 3 MOTOR (LD) board 1 belt (loading) 5 loading motor assy (M751) 2 two screws (+BTTP (M2.6)) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 HCD-GN660/GN770/GX9000 * Check of Amplifier 1. Press [EQ EDIT] button repeatedly until a message “GEQ MAX” appears on the fluorescent indicator tube. GEQ increases to its maximum. 2. Press [EQ EDIT] button repeatedly until a message “GEQ MIN” appears on the fluorescent indicator tube. GEQ increases to its minimum. 3. Press [EQ EDIT] button repeatedly until a message “GEQ FLAT” appears on the fluorescent indicator tube. GEQ set to flat. 4. When the [VOLUME] knob is turned clockwise even slightly, the sound volume increases to its maximum and a message “VOLUME MAX” appears. 5. When the [VOLUME] knob is turned counter-clockwise even slightly, the sound volume decreases to its minimum and a message “VOLUME MIN” appears. * Tape function 1. When a tape is inserted in Deck B and recording is started, the function is changed to VIDEO automatically. When [CD SYNC] button is pressed during recording in function, ALC (Automatic Logic Control) is turned on. 2. During recording, turn M m knob to counter clockwise rotation will change the function to TAPE B and rewind Tape B until the recording start position and playback of Tape B is started. If the [REC PAUSE/ START] button is pressed for a pause and pressed again to resume recording during recording time, when tape deck B is rewind, tape deck B will be rewind until the position where the pause is applied. * AMS Test Mode 1. Select the function “TAPE A” or “TAPE B”. 2. Select Loop or Relay direction mode by pressing the [DIRECTION TUNER MEMORY] button. Insert a test tape AMS- 110A or AMS-120 to selected tape deck. 3. Press the [AMP MENU] button to enter the AMS test mode. 4. After the test tape is rewind to the beginning of the tape, the AMS+ is checked, and the mechanism is shut off after detecting the AMS signal twice. 5. Then the AMS- is checked and the mechanism is shut off after detecting the AMS signal twice. 6. When the check is complete, a message of either OK or NG appears. * To release MC Test mode. 1. To release this mode, press ?/1 button. 2. The cold reset is enforced at the same time. [COLD RESET] • The cold reset clears all data including preset data stored in the RAM to initial conditions. Execute this mode when returning the set to the customer. Procedure: 1. Press x button, [ENTER] button, and ?/1 button simultaneously. 2. The fluorescent indicator tube becomes blank for a while, and the set is reset. [GC TEST MODE] • This mode is used to check the fluorescent indicator tube, LED, model, destination, software version, volume, key jog, encoder and VACS level. Procedure: 1. Press x button, [ENTER] button and [DISC 2] button simultaneously. 2. All LEDs and segments in fluorescent indicator tube are lighted up. 3. When you want to enter the software version display mode, press [DISC 1] button. The model and destination are displayed. 4. Each time [DISC 1] button is pressed, the display changes from MC version, GC version, CD version, CDDM version, CDMA version, CDMB version, BDA version, BDB version, ST version, TA version, TM version and TC version in this order, and returns to the MC version display. 5. When [DISC 3] button is pressed while the version numbers are being displayed except model and destination, the date of the software creation appear. When [DISC 3] button is pressed again, the display returns to the software version display. When [DISC 1] button is pressed while the date of the software creation is being displayed, the date of the software creation is displayed in the same order of software version display. 6. Press [DISC 2] button, the key check mode is activated. 7. In the key check mode, the fluorescent indicator tube displays “K 0 J 0 V 0 E 0”. Each time a button is pressed, “K” value increases. However, once a button has been pressed, it is no longer taken into account. “J” value increases in the manner of 0,1, 2, 3 ... if [MULTI JOG] knob is turned clockwise, or it decreases in the manner of 0, 9, 8, 7 ... if [MULTI JOG] knob is turned counter-clockwise. “V” value increases in the manner of 0,1, 2, 3 ... if [VOLUME] knob is turned clockwise, or it decreases in the manner of 0, 9, 8, 7 ... if [VOLUME] knob is turned counter-clockwise. “E” value increases in the manner of 0,1, 2, 3 ... if > . knob is turned clockwise, or it decreases in the manner of 0, 9, 8, 7 ... if > . knob is turned counter-clockwise. 8. When [DISC 3] button is pressed after all LEDs and segments in fluorescent indicator tube light up, the fluorescent indicator tube displays “VACS A+B APCC”. A is VACS level which is trigger by signal level, B is VACS level which is trigger by temperature and CC is VACS level which is trigger by APVACS (Abuse Protection VACS). 9. When [EX-CHANGE/DISC SKIP] button is pressed after all LEDs and segments in fluorescent indicator tube light up, alternate segments in fluorescent indicator tube would light up. If you press [EX-CHANGE/DISC SKIP] button again, another half of alternate segments in fluorescent indicator tube would light up. Pressing [EX-CHANGE/DISC SKIP] button again would case all segments lights up. 10. To release this mode, press three buttons in the same manner as step 1, or disconnect the power cord. [MC TEST MODE] • This mode is used to check operations of the respective sections of Amplifier, Tuner, and Tape. Procedure: * To enter MC Test Mode 1. Press x button, [ENTER] button and [DISC 3] button simultaneously. 2. The CD ring indicators TAPE A and TAPE B indicators flash on the fluorescent indicator tube. The function is changed to VIDEO. SECTION 4 TEST MODE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 HCD-GN660/GN770/GX9000 [VACS ON/OFF] • This mode is used to switch ON and OFF the VACS (Variable Attenuation Control System). Procedure: 1. Press ?/1 button to turn the set ON. 2. Press [ENTER] button and [GAME MIXING] button simultaneously. The message “VACS OFF” or “VACS ON” appears. [TUNER STEP CHANGE] • The step interval of AM channels can be toggled between 9 kHz and 10 kHz. Procedure: 1. Press ?/1 button to turn the set ON. 2. Press [TUNER/BAND] button to select the “AM”. 3. Press ?/1 button to turn the set OFF. 4. Press [ENTER] button and ?/1 button simultaneously. The system will turn ON automatically. The message “AM 9k STEP” or AM 10k STEP” appears and thus the channel step is changed. [CD SERVICE MODE] • This mode let you move the CD sled motor freely. Use this mode when you want to clean the optical pick-up. Procedure: 1. Press ?/1 button to turn the set ON. 2. Select CD function. 3. Press x , [ENTER] button, and Z OPEN/CLOSE button simultaneously. 4. The CD service mode is activated. The message “SERVICE MODE” appears. 5. With the CD in stop status, turn M m knob to clockwise rotation to move the optical pick-up to outside track, or turn M m knob to counterclockwise rotation to move to inside track. The message “SLED OUT” or “SLED IN” appears. 6. To turn on or off the laser, press [PLAY MODE] button. The message “LASER ON” or “LASER OFF” appears on the fluorescent indicator tube. 7. To release this mode, press ?/1 button. [AGING MODE] This mode can be used for operation check of CD section. • If an error occurs, the aging operation would stops and the status is displayed. • If there are no error occurs, the aging operation would continues repeatedly. Procedure: 1. Press ?/1 button to turn the set ON 2. Select CD function. 3. Load three discs on the disc tray. 4. Press [PLAY MODE] button to select the “ALL DISCS” mode, and press the [REPEAT] button to select “REPEAT OFF” mode. 5. Press x button, [ENTER] button, and [EX-CHANGE/DISC SKIP] button simultaneously. 6. Aging operation is started. 7. To release this mode, press ?/1 button or disconnect the power cord to turn the power OFF. Aging mode sequence: Start (from disc 1) Disc chucking TOC reading Play first track for 2 seconds Play last track for 2 seconds EX-CHANGE open/close Open the disc tray Disc skip Close the disk tray Change the next disc. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 HCD-GN660/GN770/GX9000 Display M*$$%%&&##00 3) Display of no disc errors D*: The number of mechanical error (“00” is latest one) (Rotate > . knob in the direction of either to display next error) $$: Error type 01: Focus error 02: GFS error 03: Setup error %%: Not used &&: 00: No disc judgment without chucking retry. 01: No disc judgment after chucking retry. ##: The state when judged as no disc 01: Stop 02: Setup 03: TOC reading 04: Access 05: Playback 06: Pause 07: Manual search (Play) 08: Manual search (Pause) [CD REPEAT 5 LIMIT OFF MODE] • The number of repeat for CD playback is 5 times when the repeat mode is “REPEAT ALL”. This mode enables CD to repeat playback for limitless times. Procedure: 1. Press ?/1 button to turn the set ON. 2. Select CD function. 3. Press x button, [EQ EDIT] button and [CD] button simultaneously to enter the CD repeat 5 limit off mode and the fluorescent indicator tube displays “LIMIT OFF”. 4. To release this mode, operate the cold reset. (Refer to the “MC COLD RESET”) [CD SHIP MODE (WITH MEMORY CLEAR)] • This mode moves the optical pick-up to the position durable to vibration and clears all data including preset data stored in the RAM to initial conditions. Use this mode when returning the set to the customer after repair. Procedure: 1. Press ?/1 button to turn the set ON. 2. Select CD function. 3. Press x button, [ENTER] button and [GAME] button simultaneously. The set will power off automatically. 4. After the “STANDBY” blinking display finish, a message “LOCK” is displayed on the fluorescent indicator tube and the CD ship mode is set. Display D*$$%%&&##00 • Display when an error occurred (CD Error Code Mode) Procedure: 1. Press x button, [ENTER] button and [DISC 1] button simultaneously to enter the error code display mode. 2. The fluorescent indicator tube displays the number of total error. 3. Each time M m knob is rotated, display change as below. Display of total error > + direction – . direction Display of Mechanical errors > + direction – . direction Display of no disc errors 4. To clear the error record, operate the cold reset. (Refer to the “MC COLD RESET”) 5. To release this mode, press the ?/1 button or disconnect the power plug to turn the power OFF. 1) Display of total error EM**: The number of mechanical errors. ED**: The number of no disc errors after chucking the disc. 2) Display of mechanical errors M*: The number of mechanical error (“00” is latest one) (Rotate > . knob in the direction of either to display next error) $$: Not used %%: Loading related error (Second figure is not used) D: Stop by the problem other than mechanical problem while closing. E: Stop by the problem other than mechanical problem while opening. C: Stop by the problem other than mechanical problem while chucking up. F: Stop by the problem other than mechanical problem while chucking down. &&: Emerging error 01: Stop while chucking up. 02: Stop while chucking up. 03: Time-out of EX-CHANGE open. 05: Time-out of EX-CHANGE close. ##: Not used Display EM**ED** www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 HCD-GN660/GN770/GX9000 [CD SHIP MODE (WITHOUT MEMORY CLEAR)] • This mode moves the optical pick-up to the position durable to vibration. Use this mode when returning the set to the customer after repair. Procedure: 1. Press ?/1 button to turn the set ON. 2. Select CD function. 3. Press [CD] button and ?/1 button simultaneously. The set will power off automatically. 4. After the “STANDBY” blinking display finish, a message “LOCK” is displayed on the fluorescent indicator tube and the CD ship mode is set. [CD POWER MANAGE] • This mode let you switch on or off power supply to the BU during TUNER function. • When CD POWER is set to OFF, the power supply to the BU is cut off during TUNER function. It will increase the time taken to access CD when function change from TUNER to CD but it will improve tuner reception. • When CD POWER is set to ON, the power supply to the BU is not cut off during TUNER function. It will reduce the time taken to access CD when function change from TUNER to CD but it will decrease tuner reception performance. Procedure: 1. Press ?/1 button to turn the set ON. 2. Select CD function. 3. Press ?/1 button to turn the set OFF. 4. Press x button and ?/1 button simultaneously. The set will power on automatically. 5. The message “CD POWER ON” or “CD POWER OFF” will be displayed on the fluorescent indicator tube. [CD TRAY LOCK MODE] • This mode let you lock the disc trays. When this mode is activated, the disc tray will not open when Z OPEN/CLOSE button or [EX-CHANGE/DISC SKIP] button is pressed. The message “LOCKED” will be displayed in the will be displayed on the fluorescent indicator tube. Procedure: 1. Press ?/1 button to turn the set ON. 2. Select CD function. 3. Press x button and Z OPEN/CLOSE button simultaneously and hold down until “LOCKED” or “UNLOCKED” displayed on the fluorescent indicator tube (around 5 seconds). [VIDEO/MD SWITCHING] • This mode let you switch from VIDEO to MD and vice-versa. Procedure: 1. Press ?/1 button to turn the set ON. 2. Select VIDEO function. 3. Press [VIDEO/MD] button and ?/1 button simultaneously. The function will change to MD. Press the same buttons again to change from MD to VIDEO. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 HCD-GN660/GN770/GX9000 SECTION 5 MECHANICAL ADJUSTMENTS SECTION 6 ELECTRICAL ADJUSTMENTS Precaution 1. Clean the following parts with a denatured alcohol-moistened swab: record/playback heads pinch rollers erase head rubber belts capstan idlers 2. Demagnetize the record/playback head with a head demagnetizer. 3. Do not use a magnetized screwdriver for the adjustments. 4. After the adjustments, apply suitable locking compound to the parts adjusted. 5. The adjustments should be performed with the rated power supply voltage unless otherwise noted. Torque Measurement 3.06 N • m to 6.96 N • m FWD CQ-102C 31 to 71 g • cm (0.43 – 0.98 oz • inch) FWD 0.19 N • m to 0.58 N • m back tension CQ-102C 2 to 6 g • cm (0.02 – 0.08 oz • inch) 3.06 N • m to 6.96 N • m REV CQ-102RC 31 to 71 g • cm (0.43 – 0.98 oz • inch) 0.19 N • m to 0.58 N • m REV CQ-102RC 2 to 6 g • cm back tension (0.02 – 0.08 oz • inch) 6.96 N • m to 14.02 N • m FF/REW CQ-201B 71 to 143 g • cm (0.98 – 1.99 oz • inch) 9.80 N • m FWD tension CQ-403A 100 g or more (3.53 oz or more) 9.80 N • m REV tension CQ-403R 100 g or more (3.53 oz or more) Mode Torque meter Meter reading 0 dB=0.775 V DECK SECTION 1. Demagnetize the record/playback head with a head demagnetizer. 2. Do not use a magnetized screwdriver for the adjustments. 3. After the adjustments, apply suitable locking compound to the parts adjust. 4. The adjustments should be performed with the rated power supply voltage unless otherwise noted. 5. The adjustments should be performed in the order given in this service manual. (As a general rule, playback circuit adjustment should be completed before performing recording circuit adjustment.) 6. The adjustments should be performed for both L-CH and R- CH. 7. Switches and controls should be set as follows unless otherwise specified. • Test Tape RECORD/PLAYBACK HEAD AZIMUTH ADJUST-MENT DECK A DECK B Note: Perform this adjustments for both decks Procedure: 1. Mode: Playback Tape Signal Used for P-4-A100 10 kHz, –10 dB Azimuth Adjustment set MAIN board CN510 Pin 1 (L-CH) Pin 3 (R-CH) MAIN board CN510 Pin 2 (GND) + – level meter test tape P-4-A100 (10 kHz, –10 dB) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 HCD-GN660/GN770/GX9000 2. Turn the adjustment screw and check output peaks. If the peaks do not match for L-CH and R-CH, turn the adjustment screw so that outputs match within 1dB of peak. 3. Mode: Playback 4. After the adjustments, apply suitable locking compound to the pats adjusted. Adjustment Location: Playback Head (Deck A). Record/Playback/Erase Head (Deck B). Screw position L-CH peak within 1dB Output level L-CH peak R-CH peak within 1dB Screw position R-CH peak MAIN board CN301 set test tape P-4-A100 (10 kHz, –10 dB) pin 3 oscilloscope L-CH R-CH V H waveform of oscilloscope in phase 45° 90° 135° 180° good wrong pin 2 pin 1 L R CD SECTION Note: 1. CD Block is basically designed to operate without adjustment. Therefore, check each item in order given. 2. Use YEDS-18 disc (3-702-101-01) unless otherwise indicated. 3. Use an oscilloscope with more than 10MW impedance. 4. Clean the object lens by an applicator with neutral detergent when the signal level is low than specified value with the following checks. S-curve Check Connection: Procedure: 1. Connect an oscilloscope to test point TPO102 (FE1) and TP 117(VC) on the CD board. 2. Turn the power on. 3. Put the disc (YEDS-18) in and turned power switch on again and actuate the focus search. (actuate the focus search when disc table is moving in and out) 4. Check the oscilloscope waveform (S-curve) is symmetrical between A and B. And confirm peak to peak level within 2.4 ± 1 Vp-p. S-curve waveform Note: • Try to measure several times to make sure than the ratio of A : B or B : A is more than 10 : 7. • Take sweep time as long as possible and light up the brightness to obtain best waveform. Checking Location: CD board (SIDE B) (See page 24.) + – CD board TPO102 (FE1) TP117 (VC) oscilloscope A B symmetry within 2.4 ± 1 Vp-p hH A A forward reverse www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 HCD-GN660/GN770/GX9000 RFAC Level Check Connection: Procedure: 1. Connect an oscilloscope to test point TP124 (RFAC) and TP 117(VC) on the CD board. 2. Turn the power on. 3. Put the disc (YEDS-18) in to playback the number five track. 4. Confirm that oscilloscope waveform is clear and check RFAC signal level is correct or not. Note: A clear RFAC signal waveform means that the shape “◊” can be clearly distinguished at the center of the waveform. RFAC signal waveform Checking Location: CD board (SIDE B) (See page 24.) E-F Balance Check Connection: Procedure: 1. Connect an oscilloscpe to test point TPO103 (TE1) and TP117 (VC) on the CD board. 2. Turn the power on. 3. Select the function “CD”. 4. Press three buttons of [ENTER], M , and [SURRUUND MODE] simultaneously to set the CD service mode. 5. Put the disc (YEDS-18) in to playback the number five track. 6. Press the . button. The message “TRAVERSE” is displayed. (The tracking servo and the sledding servo are turned OFF) 7. Check the level B of the oscilliscope's waveform and the A (DC voltage) of the center of the Traverse waveform. Confirm the following : A/B x 100 = less than ± 22% Traverse Waveform 8. Press the . button. The message “TRAVERSE” is displayed. (The tracking servo and sledding servo are turned ON) Confirm the C (DC voltage) is almost equal to the A (DC voltage) is step 5. 9. To exit from this mode, perform as follows. 1) Move the optical pick-up to the most inside track. 2) Press three buttons of x , [CLEAR], and [DISPLAY] simultaneously. (cold reset) Notes: • Always move the optical pick-up to most inside track when exiting from this mode. Otherwise, a disc will not be unloaded. • Do not run the sled motor excessively, otherwise the gear can be chipped. Traverse Waveform Checking Location: CD board (SIDE B) (See page 24.) + – CD board TP124 (RFAC) TP117 (VC) oscilloscope VOLT/DIV: 200 mV TIME/DIV: 500 ns level: 0.9 ± 0.4 Vp-p + – CD board TPO103 (TE1) TP117 (VC) oscilloscope 0V B level: 1.0 ± 0.5 Vp-p Center of the waveform A (DC voltage) 0V Tracking servo Sled servo ON C (DC voltage) Tracking servo Sled servo OFF www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 HCD-GN660/GN770/GX9000 Checking Location: – CD BOARD (SIDE B) – TP117 (VC) TP124 (RFAC) JPO103 (TE1) JPO102 (FE1) IC101 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 HCD-GN660/GN770/GX9000 SECTION 7 DIAGRAMS For schematic diagrams. Note: • All capacitors are in µF unless otherwise noted. (p: pF) 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • % : indicates tolerance. • f : internal component. • 2 : nonflammable resistor. • 5 : fusible resistor. • C : panel designation. • A : B+ Line. • B : B– Line. • H : adjustment for repair. • Voltages and waveforms are dc with respect to ground under no-signal conditions. no mark: TUNER (FM/AM) ( ): CD PLAY < >: TAPE PLAY [ ]: TAPE REC * : Impossible to measure • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Signal path. F : TUNER (FM/AM) E : TAPE PLAY (DECK A) d : TAPE PLAY (DECK B) G : RECORD J : CD PLAY (ANALOG OUT) c : CD PLAY (DIGITAL OUT) j : GAME IN (AUDIO) k : GAME IN (VIDEO) N : MIC INPUT • Abbreviation AUS : Australian model E2 : 120V AC Area in E model E3 : 240V AC Area in E model E51 : Chilean and Peruvian model MX : Mexican model AR : Argentine model Note: The components identified by mark 0 or dotted line with mark ! are critical for safety. Replace only with part number specified. (The other layers' patterns are not indicated.) • Indication of transistor. • Abbreviation AUS : Australian model E2 : 120V AC Area in E model E3 : 240V AC Area in E model E51 : Chilean and Peruvian model MX : Mexican model AR : Argentine model Caution: Parts face side: Parts on the parts face side seen from (Side A) the parts face are indicated. Pattern face side: Parts on the pattern face side seen from (Side B) the pattern face are indicated. C B These are omitted. E Q B These are omitted. C E Q B These are omitted. C E Q Note on Printed Wiring Boards: Note: • X : parts extracted from the component side. • : Pattern from the side which enables seeing. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 HCD-GN660/GN770/GX9000 7-1. CIRCUIT BOARD LOCATION TUNER PACK PRIMARY board SURROUND board PA board SWITCHING POWER PANEL board SWITCH board GAME board MOTOR (LD) board SW board SENSOR board JOG board BD board MOTOR (TB) board DRIVER board MAIN board CD SW board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN660/GN770/GX9000 27 27 HCD-GN660/GN770/GX9000 • WAVEFORMS – MAIN BOARD – IC401 qa XC-OUT VOL/DIV : 1 V AC TIME/DIV : 10 µsec 2 IC401 qd X-OUT VOL/DIV : 1 V AC TIME/DIV : 50 nsec 3 T101 5 TAPE REC only VOL/DIV : 50 V AC TIME/DIV : 10 µsec 4 T101 4 TAPE REC only VOL/DIV : 50 V AC TIME/DIV : 10 µsec 1 3.0Vp-p 32KHz 2.0Vp-p 16MHz 240Vp-p 13 µsec 64Vp-p 13 µsec – BD BOARD – IC101 wa TEI VOL/DIV : 0.2 V AC TIME/DIV : 0.2 msec 2 IC101 wd FEI VOL/DIV : 0.1 V AC TIME/DIV : 1 msec 3 IC101 ra RFAC VOL/DIV : 0.2 V AC TIME/DIV : 0.5 µsec 1 4MHz 2.4Vp-p – PANEL BOARD – IC901 is X OUT VOL/DIV : 1 V AC TIME/DIV : 0.2 µsec 1 0.15Vp-p 0.4Vp-p 0.96Vp-p w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN660/GN770/GX9000 28 28 HCD-GN660/GN770/GX9000 7-2. BLOCK DIAGRAM – CD SECTION – MP3 STB MP3 REQ XTCN XTACN STB MP3 REQ MP3 CLK MP3 CLK MP3 ACK MP3 ACK MP3 DATA OUT MP3 DATA MP3 LP MP3 LP MP3 CS MP3 RST MP3 CS MP3 RST MP3 DATA IN SCOR SENS CD-CLK XLT CD-DATA XRST SCOR SENS CLOCK XLT DATA XRST R-CH CD L-CH LINE MUTE A MAIN SECTION (Page 30) B MAIN SECTION (Page 30) IC731 (TABLE SENSOR) IC701 (LD)MOTOR DRIVER 4 2 9 11 RIN FIN OUT1 OUT2 IC712 TBL MOTOR DRIVER 4 2 9 7 RIN FIN OUT1 OUT2 LMR LMF TM-R TM-F TBL_SENS E-1 E-2 E-3 OPEN SW Q731 M751(LOADING) M741(TBL) RE701 S751 (LEVER SW) ROTARY ENCODER E-3 E-2 E-1 INVERTER M M D+3.3V OPTICAL PICK-UP BLOCK (KSM-215DCP/C2NP) GN770,GN660 LD DRIVER Q10 CD DIGITAL OUT OPTICAL MUTE Q102,152 +3.3V LD GND FOCUS COIL F+ F T+ T TRACKING COIL IC251 X171 16.9MHz SL/SP MOTOR DRIVER IC101 RF AMP 16 7 15 17 18 VR PD 19 20 21 22 5 33 30 3 24 MUTE CH2OUT-F CH1FIN OUT VREF CH1RIN CH2FIN SFDR OPIN+ CH2OUT-R CH1OUT-R CH1OUT-F CH4OUT-R CH4OUT-F CH3OUT-F CH3OUT-R M M M101 (SPINDLE) M102 (SLED) S101 (LIMIT) VCC VC A B C D E F DETECTOR A B E 19 F 20 LD 36 PD 37 TFDR 11 FFDR 13 CH3FIN 9 OPTICAL OUT 3 SSTP 7 MPD 6 95 XTACN 100 XRST 102 DATA 104 XLAT 105 CLOCK 86 AOUT2 81 AOUT1 71 DOUT 61 PCMD1 62 LRCK1 63 LRCK 65 PCMD DIGITAL SIGNAL IC301 PROCESSOR SYSTEM IC401 (1/4) CONTROL IC508 21 40 SDO0 11 LRCKIA 16 SFSY/LRCK1B 19 SDIO 14 77 XTAO 78 XTAI 55 VDD VDD VDDM 26 25 VC 27 C 28 D 29 107 SENS XTACN XRST DATA XLAT CLOCK SENS 113 GFS 114 C2PO TRDR NC NC 12 29 SRDR CH3RIN 10 CH2RIN FRDR 14 XRST 100 66 BCK 60 BCK1 BCKIA 15 SBSY/BCK1B 18 6 +3.3V IC303 8 5 1 3 26 25 7 5 24 23 22 50 49 48 47 43 46 45 6 19 21 44 42 18 3 2 1 34 STANBY 36 PO11/BUCK/AD1 8 MIACK 7 MICK 6 MIDIO 4 MICS 5 MILP 2 RESET 41 SRMSTB 115 SCOR SCOR REG MUTE DRIVE Q507, 508 • R-ch is omitted due to same as L-ch. • Signal path J : CD w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN660/GN770/GX9000 29 29 HCD-GN660/GN770/GX9000 7-3. BLOCK DIAGRAM – TUNER/TAPE SECTION – TAPE L-CH TEST CONNECTOR CN510 R-CH R L C MAIN SECTION (Page 30) TUNER L – CH F MAIN SECTION (Page 30) D MAIN SECTION (Page 30) E MAIN SECTION (Page 30) PB HEAD DECK-A DECK-B TC BLOCK 75 BIAS OSC Q112 A TRIG DRIVE R-CH FM/AM TUNER UNIT CN509 ANTENNA ST-L FM ANT FM ANT AM ANT AM ANT ST-R ST-MUTE STEREO TUNED ST-DOUT/MC-DIN ST-DIN/MC-DOUT ST-CLK ST-CE FM 75 COAXIAL CAP M+ BTRGM+ ATRGM+ AHALF BHALF APLAY BPLAY B PHOTO OUT A PHOTO OUT REC(FWD) REC(REV) CAPM-CTRL B-TRIG A-TRIG TC-RELAY A-HALF B-HALF A-PLAY B-PLAY B PHOTO OUT A PHOTO OUT REC (FWD) REC (REV) REC-MUTE TC-MUTE REC MUTE AM A B ST-MUTE STEREO TUNED ST-DIN ST-DOUT ST-CLK ST-CE BIAS TRAP SWITCH DRIVE Q107, 108 SWITCH DRIVE Q110, 111 76 78 79 80 32 63 58 REC BIAS 60 55 90 89 56 51 91 53 59 52 B TRIG DRIVE 57 CAP MOTOR DRIVE 54 88 87 86 82 85 83 84 PB OUT1 TAI1 R-CH R-CH Q166 Q154, 155 Q109 L – CH R – CH R-CH C174, L104 TC +9V REC/PB HEAD ERASE HEAD DECK A/B SELECT PB/REC EQUALIZER AMP IC101 (1/2) Q113,114 T101 Q122, 123 Q118, 119 Q120,121 SYSTEM CONTROL (CD/TAPE MECHANISM CONTROL) IC401(2/4) L – CH R – CH MUTE Q103 MUTE Q175 MUTE DRIVE Q509, 510 MUTE DRIVE Q514, 515 • R-ch is omitted due to same as L-ch. • Signal path K : TUNER (FM/AM) E : PLAYBACK (DECK A) d : PLAYBACK (DECK B) G : RECORD w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN660/GN770/GX9000 30 30 HCD-GN660/GN770/GX9000 7-4. BLOCK DIAGRAM – MAIN SECTION – AUDIO1–DATA AUDIO1–CLK 65 61 39 66 M891 (FAN) + – + – + – – + FRONT SPEAKER L R L R PHONES J851 RY646 VL (AC) SYSTEM CONTROL IC401 (3/4) CD L-CH A CD SECTION (Page 28) TAPE L-CH C TUNER L-CH F TUNER/TAPE DECK SECTION (Page 29) TUNER/TAPE DECK SECTION (Page 29) E TUNER/TAPE DECK SECTION (Page 29) TM602 (1/2) + + – TM600 TM601 (1/2) TM602 (2/2) TM601 (2/2) D654 D655 FAN MOTOR DRIVE Q851, 852 FAN MOTOR ON SWITCH Q629 OVER LOAD DETECT SWITCH Q648 OVER LOAD DETECT Q668, 618 M HEADPHONE MUTING Q640, 641 MUTING CONTROL SWITCH Q634, 682 – RY665 JW691 + + TH629 TH630 + D627 MUTING Q570 MUTING CONTROL SWITCH Q505, 506 STANDBY SWITCH Q604, 606, 610 R-CH D624 R-CH R-CH 28 27 34 35 TONE/ VOLUME CONTROL SOUND CONTROL CIRCUIT INPUT SELECT SWITCH R-CH INPUT SELECT SWITCH, TONE CONTROL, ELECTRICAL VOLUME IC101 (2/2) 4 3 1 59 DATA AMS CLOCK 6 2 10 8 CPU INTERFACE R-CH J501 L R VIDEO/MD (AUDIO) IN R-CH RV801 J850 J504 L R GAME INPUT REC L-CH SPEANA D TUNER/TAPE DECK SECTION (Page 29) H DISPLAY SECTION (Page 31) MIC AUDIO VIDEO OUT VIDEO J801 MIC AMP IC850 (1/2) FEED BACK SWITCH Q101 SURROUND SPEAKER PROTECT RELAY DRIVE Q666 FRONT SPEAKER RELAY DRIVE Q644, 647 POWER AMP IC600 OVER CURRENT PROTECTOR IC627 MIC LEVEL MIC AMP IC850 (2/2) 78 FR RELAY 34 LINE MUTE 77 LINK-RELAY 79 HP MUTE 33 HP DET 81 PROT 69 AC CUT MAIN 94 THERMAL VACS 80 STK-MUTE TEMPERATURE DETECT SWITCH Q628, 630 2 TXD1 REC MUTE STB XTCN RESET 3 RTS1 6 CLK1 31 100 SW MUTE EVER +4V CNVSS TCN/ MICDET AMS-IN AMS MUTE CNVCC 9 7 RXD1 9 RESET ON BOARD PROGRAM MCU VCC CN VSS 5 8 CN512 53 25 14 18 11 10 8 9 12 4 3 + CT OUT 1 OCP 2 VP BIAS Q721 Q402 15 17 14 EQ B CD SECTION (Page 28) G DISPLAY SECTION (Page 31) D501 AMS AMP Q115-117 DRIVE Q124, 526, 527 JW681 SPEAKER L R SURROUND SPEAKER GN660 GN770/GX9000 • R-ch is omitted due to same as L-ch. • Signal path F : TUNER (FM/AM) E : TAPE PLAY G : REC J : CD PLAY q : VIDEO/MD (AUDIO) IN j : GAME INPUT (AUDIO) k : GAME INPUT (VIDEO) N : MIC INPUT w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN660/GN770/GX9000 31 31 HCD-GN660/GN770/GX9000 7-5. BLOCK DIAGRAM – DISPLAY/POWER SECTION – FL901 FLUORESCENT INDICATOR TUBE 6 – 10, 12 – 22, 24 – 41, 43 – 47 6 – 1, 100 – 87, 85 P1 – 39 G1 – 19, G21 64 – 66 SUPER LOW FREQUENCY (BPF0) 1 BPF, RECT IC903 67 68 16 2 15 69 71 48 86 72 ALL BAND BPF1 BPF3 IN2 IN1 VKK SELECTOR G20 G20 G1 – 19, 21 13 17 80 VOL 1A 79 VOL 1B ROTARY ENCODER S970 VOLUME 74 JOG B 75 JOG A ROTARY ENCODER S957 MULTI JOG 76 AMS ROTARY ENCODER S916 . > X MAIN SECTION (Page 30) H MAIN SECTION (Page 30) G SPEANA P1 – 39 VF1 VF2 D905 -VG (-32V) X901 4MHz 83 XIN 82 XOUT 52 – 57 LED DRIVE Q911 – 916 D907, 909, 911 D914, 916, 918 D920, 922, 924 D906, 908 – 910 D912, 915, 917, D919, 921, 923 M+9V Q905 Q907 Q904 Q906 D925 KEY2 | KEY0 S924 – 932, 918 – 922 S905 – 911, 917 S901 – 904, 912 – 915 60 IIC DATA 61 IIC CLK 77 RESET 30 IIC-DATA 29 IIC-CLK 75 GC-RESET 74 POWER-KEY 73 DISPLAY-KEY S932 S900 DISPLAY 76 STBY-LED 4 SIRCS RESET X502 16MHz 15 X-IN 13 X-OUT X501 32.768kHz 10 XC-IN 11 XC-OUT 40 CD/DVD-POWER SYSTEM CONTROL IC401 (4/4) 70 STBY-RELAY 12 RESET 20 AC-CUT B+ SWITCH Q501, 502 RECT D763 M +9V MT +7V A +9V TC +9V D907 – 908 D660, 661 +9V REGULATOR IC503 +9V REGULATOR IC502 +3.3V REGULATOR IC504 +3.3V LEVEL DETECT IC301 D504 SWITCHING REGULATOR LED DRIVE Q917 RECT D658 RECT D656 +VL VL(AC) F699 VL VL VH VH VP VF VF AC3 AC4 NC NC AC4 AC3 GND F698 F697 F696 F760 R699 –VL +VH –VH – 33V REGULATOR Q664 POWER ON/OFF RELAY DRIVE Q1000 – VG (-32V) D699 RECT VF1 VF2 RY1000 AC IN T601 POWER TRANSFORMER RESET SWITCH Q301 REMOTE CONTROL RECEIVER IC902 TO FLUORESCENT INDICATOR TUBE FL901 EVER +4V E2, E3, E51 US,AUS, MX, AR DISPLAY CONTROL KEY CONTROL IC901 BUFFER Q901 70 BPF2 14 1 2 S1000 S1000 230 – 240V | 220V | 120V VOLTAGE SELECT • Abbreviation E2 : 120 V AC Area in E model E3 : 240 V AC Area in E model E51 : Chiri and Peru model MX : Mexican model AUS : Australian model AR : Argentine model w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN660/GN770/GX9000 32 32 HCD-GN660/GN770/GX9000 7-6. PRINTED WIRING BOARD – BD SECTION – • See page 26 for Circuit Boards Location. C10 C260 C14 C15 C16 C18 C11 R405 C316 R354 R353 R352 R351 R302 R253 C315 R191 R172 R171 R162 R313 X171 R121 R12 R11 R10 Q10 C116 C312 C184 C183 C303 C302 C305 C259 C258 C257 C255 C203 C196 C195 C201 C182 C171 C172 C308 C151 C134 C125 C314 C123 R165 R13 C17 FB301 C318 R201 C174 R173 R205 C209 C210 12 (12) 1-860-502- BD BOARD (SIDE A) E R419 R412 R411 R410 R409 R408 R407 R406 R404 R403 R402 1 R401 R305 R303 R301 R252 JPO103 (TE1) JPO102 (FE1) TP117 (VC) TP124 (RFAC) R251 R182 R181 R163 R151 R143 R142 R141 R133 R132 R131 R114 R113 R112 R111 R307 C313 C311 C310 C309 C307 C306 IC251 C252 C251 C194 C181 C320 S101 (LIMIT) IC101 C163 C162 C143 C142 C141 C133 C132 C131 C124 C111 C122 C115 C114 C113 C112 IC301 C185 C186 R306 CN101 IC303 CN201 C206 36 28 27 19 1 9 10 18 C317 R203 R161 C161 C211 C212 R204 C213 1 3 4 5 M101 SPINDLE MOTOR M102 SLED MOTOR M M BD BOARD (SIDE B) 12 (12) 1-860-502- OPTICAL PICK-UP BLOCK (KSM-215DCP) A MAIN BOARD (Page 36) 16 17 32 49 48 64 1 33 27 2 3 4 5 6 7 8 9 10 A 1 B C D E F Ref. No. Location IC101 D-8 IC251 C-6 IC301 C-8 IC303 B-8 Q10 E-4 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN660/GN770/GX9000 33 33 HCD-GN660/GN770/GX9000 7-7. SCHEMATIC DIAGRAM – BD BOARD – TP165 TP166 TP178 TP144 TP147 TP153 TP186 TP187 TP167 TP160 TP162 TP177 TP145 TP148 TP121 TP122 TP123 C305 JPO004 JPO10 TP250 TP301 TP302 TP303 TP304 TP103 TP104 TP105 TP146 R161 R163 R351 R352 R353 R354 R401 R402 R403 R404 R405 R406 R407 R408 R409 R411 R412 R419 R11 R191 R132 R251 R253 R12 R142 R143 R10 JPO102 JPO103 M101 S101 C15 C17 C115 C116 C122 C125 C132 C133 C134 C141 C142 C143 C151 C161 C181 C194 C201 C203 C252 C255 C257 C303 C306 C308 C309 C310 C311 C312 CN101 R121 R171 C171 C313 C314 C183 C184 TP420 TP421 TP422 TP423 TP424 R252 TP425 TP426 C259 TP427 TP428 TP429 TP430 TP431 TP432 R13 Q10 C16 C123 C260 R172 C124 R133 R313 TP433 TP436 C316 C10 C11 C162 C317 C315 C307 TP401 TP407 TP406 TP405 TP404 TP403 TP402 TP408 TP410 TP434 TP417 TP416 TP415 TP414 MAIN BOARD(3/3) CN251 (Page 39) TP413 TP412 TP419 TP411 TP435 TP409 TP19 TP18 TP17 TP16 TP15 TP102 TP14 TP13 TP12 TP11 TP10 C195 C182 C174 R131 C131 C18 R301 FB301 R303 R182 R181 X171 C172 R173 R203 IC303 R302 R162 R165 C211 C210 C212 R151 R205 R410 C320 C213 C14 CN201 C185 C186 C163 C196 C152 C318 R306 IC251 C258 C251 C302 M102 TP253 TP252 TP251 C111 R112 R114 R111 R113 C112 C113 C114 R193 C209 R305 IC301 R141 IC101 R307 TP125 TP124 TP142 TP149 R204 R201 MIRR DFCT FOK XUGF XPCK GFS MVDD MGND LOCK WDCK COUT VC WFCK SBSO RFDCO 220 4V MDP APC SP- LRCK PCMD BCK C2PO 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 0 0 10k 10k 10k 100k 1k 3.3k 3.3 FEI TEI SW 0.1 F 220 4V 0.1 F 100 10V 0.1 B 0.1 F 0.47 B 0.01 B 0.1 F 0.1 B 0.0015 B 0.1 F 100 10V 0.1 F 0.1 F 0.1 F 100 10V 100 10V 0.1 F 0.1 F 0.1 F 0.1 F 0.1 F 47 4V 0.1 F 0.1 F 0.1 F 0.1 F 16P 15k 0.1 F 47 4V 22 6.3V 22 6.3V AGND DGND MP3GND IOP1 IOP2 22k SW+ SW- PCMDI FRDR FFDR TRDR TFDR MDP 1 2SB1690K 1 F 0.1 B 220 10V 330p CH 180k 220 MP3VDD AVDD 0.0022 B 10 6.3 B 10 6.3 B 0.1 F 0.01 B 0.1 B 0.1 F MP3STB MICS MILP MIDIO MICK MIACK MP3REQ MP3RST ROUT AVDD SCOR SENS CLK XLT DATA XRST XTCN LOUT DVDD DOUT F- T- F- F+ PD F C B A D E 0.1 F 0.1 F 0.1 F 1M 100p CH 0.001 B 100k BLM21B272S 100k 100 100 0 0 BH15FB1WG 10k 47k 220p CH 0.1 B 22p CH 0 0 100 0 22p CH 0.1 2200p CH 2200p CH 0.1 0.1 1 0.01 B 0 0.0068 B 0.1 F SL- SL+ SP+ 0.0033 B 15k 15k 1k 1k 470p 0.0033 470p B NM 0.01 B 100k TC94A34FG-002 4.7k CXD3059AR 10k RFACI RFACO EXCK 0 0 470 22p CH 0.1 F 1M 16.9MHz 27p CH 0 27P BA5947FM (HSOP28) 0.1 • See page 52 for IC Pin Function Description. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN660/GN770/GX9000 34 34 HCD-GN660/GN770/GX9000 7-8. PRINTED WIRING BOARD – CD MECHANISM BOARD – • See page 26 for Circuit Boards Location. 1 A B C D E F G H 2 3 4 5 6 7 8 9 10 11 12 13 14 (LEVER SW) CN751 S751 IC731 CN731 CN741 CN742 C715 C731 C735 C736 R701 R711 R731 R721 R722 R723 R735 R732 R733 R734 D701 D711 Q731 C751 IC712 IC701 CN704 C737 R713 R712 C741 R702 JW702 JW703 JW704 JW705 JW706 JW707 JW708 JW711 CN703 CN702 CN705 R751 C752 CN701 JW712 JW701 JW709 JW710 JW713 JW714 CN721 MAIN BOARD CN301 (Page 36) Ref. No. Location D701 D-6 D711 D-7 IC701 F-6 IC712 F-7 IC731 E-11 Q731 C-9 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN660/GN770/GX9000 35 35 HCD-GN660/GN770/GX9000 7-9. SCHEMATIC DIAGRAM – CD MECHANISM BOARD – CN301 37 no mark : FM R701 D701 R712 R711 R721 C735 C736 R722 C737 R723 R733 R734 R735 C741 CN731 CN741 CN742 CN702 CN703 CN751 CN704 CN721 C751 R751 C752 CN705 CN751 R732 R731 M741 CN701 IC731 E-1 E-2 E-3 Q731 D711 R713 C731 C715 S751 R702 470 MTZJ-T-77-5.1A 4.7k 1k 4.7k 0.1 0.1 4.7k 0.1 4.7k 1k 12k 100 0.01 3P 3P 5P 5P 4P 4P 2P 2P 0.01 4.7k 0.1 2P 2P 10k 100 (TBL) 12P RPI-576 TABLE SENSOR DTC114ESA TBL ADDRES SENS SWITCH MTZJ-T-77-3.6B 22k 10 50V 100 16V (LEVER SW) 100 VREF OUT2 RNF OUT1 VM VCC FIN GND RIN IC701 BA6956AN LD MOTOR DRIVER VREF OUT2 RNF OUT1 VM VCC FIN GND RIN BA6956AN DRIVER IC712 TBL MOTOR RE701 ROTARY ENCODER M751 (LOADING) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN660/GN770/GX9000 36 36 HCD-GN660/GN770/GX9000 7-10. PRINTED WIRING BOARD – MAIN BOARD – CD DIGITAL OUT L R VIDEO/MD(AUDIO)IN VIDEO OUT A BD BOARD (Page 32) I GAME BOARD (Page 40) E SURROUND BOARD (Page 49) 11 H PA BOARD (Page 42) G PA BOARD (Page 42) M891 DC FAN 31 50 51 30 1 100 81 80 65 64 24 25 41 40 80 1 1 2 18 19 IC401 R550 R551 R392 R393 R492 FB462 E E2,E3,E51 US,MX,AR,AUS E2,E3,E51 C536 JR500 JR110 JR111 JR112 JR113 JR114 JR115 JR503 JR101 X6 JR233 JR236 JR237 IC101 R450 R449 R451 R452 R453 R455 R456 R458 R361 R465 R466 R448 R442 R443 R444 R445 R446 R447 R342 R430 R402 R403 R433 C464 R435 R436 R437 R438 R429 R329 R330 C430 FB508 R428 FB507 C429 R417 R418 R419 R420 R421 R422 R423 R424 FB506 R404 R405 R406 R407 R409 R411 C411 C412 R412 R413 C410 R369 Q402 R381 R481 R482 R483 R484 R485 R486 R487 R488 R489 R490 R387 R386 FB416 C419 C421 C316 IC627 R302 R301 D301 D302 D303 D504 R304 R303 Q301 R491 Q121 C144 R179 R180 Q119 R358 D104 E E E E E E D101 D102 Q123 C145 R185 R186 R187 R181 R182 R183 R184 R356 R390 R391 R355R353 R389 R351 FB505 R525 R575 R574 FB555 C521 C524 C571 FB511 R129 R128 C128 R130 C129 R131 R134 R135 C133 C112 C111 R116 C108 C109 R108 C147 R115 R117 R195 R111 R112 Q103 R110 R119 R106 R105 Q101 C193 C191 R156 R169 Q151 R155 C188 C190 R191 R192 C189 Q116 Q117 R137 R138 R144 R145 R146 R147 R148 R149 Q114 C141 R143 C138 C126 C176 R126 R176 Q102 R154 R139 R136 R102 R113 R151 C170 R160 R152 R153 C534 R190 C186 R165 R167 C158 C159 R158 R166 D503 C161 C162 D501 R161 R163 R162 R127 Q153 R177 C175 C125 C124 C174 Q166 C173 C123 Q106 Q154 Q155 Q104 Q105 Q107 Q108 Q109 Q110 Q111 R172 R173 R122 R123 R140 R141 R142 R124 R174 R175 R125 R374 R132 R133 C499 C497 FB512 C537 FB510 R578 R579 R529 R528 FB509 Q502 3 1 C507 C539 R530 R580 R523 Q520 R522 R521 R520 R573 Q570 E E R570 R571 R572 R508 R509 R510 Q505 Q506 Q507 Q508 R511 R512 R513 R514 R515 R516 Q509 Q510 C526 C525 D511 R538 R539 Q523 Q521 R535 C505 C503 R107 C532 C531 R157 Q152 R104 C120 C629 D627 JR118 R101 C146 C196 C197 JR102 R103 R178 R333 R373 R537 JR231 Q525 E C301 Q115 R426 R401 R200 R150 R494 R394 R493 JR116 R300 JR207 JR872 JR882 JR119 JR330 JR238 JR240 JR243 JR244 JR245 JR246 JR247 D507 D508 D509 JR248 JR249 JR250 JR251 JR254JR252 JR253 JR331 R582 R583 Q175 R585 R584 Q125 R586 R587 Q124 Q112 Q514 R588 R589 R164 R114 JR732 JR108 JR241 Q501 Q122 Q120 Q118 Q113 R188 R590 R591 C178 C179 R375 JR109 JR260 D502 R168 C575 Q515 JR884 JR883 R189 R118 JR120 JR332 JR117 JR257 C518 C517 R592 R593 R594 C581 C579 C580 Q527 E Q526 C578 R502 JR333 R469 R569 C538 C576 JR121 JR256 C199 C200 JR234 JR258 JR259 C546 JR122 C550 JR336 CN508 J504 NO501 E 1 1 3 2 1 3 E E 1 3 4 6 1 3 JW001 JW002 JW003 JW006 JW009 JW011 JW012 JW013 JW015 JW016 JW017 JW018 JW019 JW020 JW021 JW022 JW023 JW024 JW025 JW026 JW027 JW028 JW029 JW030 JW031 JW032 JW033 JW034 JW035 JW036 JW037 JW038 JW041 JW042 JW043 JW044 JW046 JW047 JW049 JW050 JW051 JW052 JW053 JW054 JW055 JW056 JW057 JW058 JW059 JW060 JW061 JW062 JW063 JW064 JW065 JW067 JW068 JW070 JW071 JW072 JW073 JW075 JW076 JW077 JW078 JW079 JW081 JW082 JW083 JW084 JW085 JW086 JW087 JW088 JW089 JW093 JW094 JW095 JW099 JW104 JW105 JW109 JW110 JW114 JW115 JW116 JW117 JW118 JW122 JW123 JW125 JW126 JW128 JW129 JW130 JW131 JW132 JW133 JW134 JW135 JW141 JW142 JW143 JW144 JW145 JW158 JW162 JW182 JW183 JW186 JW187 JW188 JW205 JW206 JW211 JW218 JW219 JW220 JW222 JW224 JW227 JW228 JW229 JW236 JW237 JW241 JW243 JW247 JW249 JW250 JW253 JW254 JW255 JW256 JW257 JW261 JW262 JW263 JW264 JW265 JW266 JW271 JW272 JW273 JW274 JW275 JW276 JW277 JW278 JW280 JW282 JW283 JW285 JW286 JW287 JW288 JW300 JW301 JW302 JW303 JW304 JW305 JW306 JW307 JW310 JW311 JW312 JW313 JW317 JW318 JW319 JW320 JW321 JW322 JW323 JW324 JW325 JW326 JW334 JW336 JW338 JW348 JW350 JW353 JW354 JW355 JW356 JW357 JW358 JW359 JW363 JW364 JW365 JW366 JW367 JW368 JW369 JW378 JW392 JW393 JW396 JW397 JW407 JW414 JW416 JW417 JW418 JW419 JW420 JW421 JW422 JW423 JW424 JW425 JW437 JW438 JW439 JW383 JW441 CN506 1 11 10 2 IC508 CN501 13 E E E E E E 1 J501 CN513 1 13 CN512 1 10 CN511 CN509 EPT901 CN507 1 12 C540 X401 X402 IC301 IC502 C416 C302 C303 C101 CN510 L103 T101 C122 C520 C570 C533 C103 C104 C498 C127 C134 C113 C110 C195 C116 C192 C166 C187 C143 C140 C142 L105 L104 C136 C135 C169 C172 C151 C153 C150 C154 CN505 1 2 27 26 C163 C130 C131 C462 C573 C523 C535 C508 E C501 IC503 CN503 Q524 CN515 C119 C627 JW871 C628 JW217 JW213 JW214 JW215 JW240 JW251 JW239 JW238 JW225 JW252 IC504 JW040 C121 JW347 C198 C148 JW199 JW195 JW194 JW203 JW191 CN502 JW248 JW045 JW108 JW107 JW361 JW106 JW096 JW097 JW259 JW281 C137 JW156 JW157 JW155 JW159 JW153 JW154 JW151 JW152 JW080 JW147 JW148 JW149 JW150 JW442 JW443 JW201 JW202 JW445 JW447 JW451 JW453 JW454 JWH901 JW459 C171 JW279 JW284 JW048 JW223 JWH300 JW444 JW462 JW463 JW466 JW468 JW469 JW472 JW477 JW478 JW479 JW404 JW405 JW406 JW315 JW470 JW413 JW412 JW411 JW410 JW409 JW401 JW399 JW400 JW403 JW402 JW434 JW435 JW381 JW382 JW294 JW296 JW297 JW298 JW408 JW292 JW293 JW289 JW127 JW379 JW377 JW376 JW374 JW373 JW372 JW371 JW375 JW210 JW209 JW208 JW258 JW007 JW008 JW014 JW004 JW349 JW342 JW344 JW345 JW268 JW380 JW333 JW480 JW440 JW483 JW484 JW485 JW487 JW488 JW489 CLP01 CLP02 JW492 JW493 JW944 JW328 JW491 JW460 JW299 JW436 JW370 JW309 C157 C107 C177 C139 JW473 JW290 JW335 C504 C506 JW329 JW330 JW331 JW332 NO505 JW446 JW482 JW270 JW269 JW448 JW190 JW314 JW452 JW464 JW091 JW316 JW005 JW198 JW197 JW467 JW189 JW235 JW398 JW391 JW339 1 1 E E E E E E E E E E E E E E E E E E E E E E E E E E 3 8 JW204 JW212 JW216 JW308 JW341 JW415 JW455 JW119 JW120 JW121 JW458 JW112 JW111 JW124 JW098 JW092 JW230 JW231 JW221 JW233 JW232 JW360 JW291 JW471 JW246 JW245 JW244 JW242 JW196 JW180 JW200 JW481 JW502 JW497 JW498 JW499 JW500 JW503 JW504 JW506 JW507 JW508 C165 C164 C115 C114 NO504 C577 JW340 JW461 JW327 L525 C582 JW140 JW879 JW465 C516 JW207 C551 JW490 JW166 JW476 JW074 JW069 JW113 C469 JW039 C181 C182 C183 C184 JW337 JW103 L503 GN660/GN770 JW267 CLP3 NO503 9 1 C626 NO502 JWH301 C160 JW449 JW450 CLP04 BOARD MAIN (FOR CHECK ) 1 4 F PANEL BOARD (Page 46) (FOR CHECK ) B DRIVER BOARD (Page 34) TUNER PACK E 1-861-399- (CHASSIS) 1 4 E 3 5 TAPE MECHANISM DECK C GAME BOARD (Page 40) TAPE A HEAD TAPE B HEAD E 1 3 (FOR CHECK) E E 2 3 4 5 6 7 8 9 10 11 12 13 14 A 1 B C D E F G H J I • See page 26 for Circuit Boards Location. Ref. No. Location D101 E-2 D102 E-2 D104 E-3 D301 C-5 D302 C-5 D303 C-5 D501 C-5 D502 C-7 D503 C-6 D504 C-5 D507 H-11 D508 H-11 D509 F-11 D511 I-12 D627 I-12 IC101 H-4 IC301 C-6 IC401 C-4 IC502 I-11 IC503 I-11 IC504 C-8 IC508 A-12 IC627 I-12 Q101 I-5 Q102 G-3 Q103 G-3 Q104 H-2 Q105 I-2 Q106 G-2 Q107 I-2 Q108 J-2 Q109 J-2 Q110 I-2 Q111 I-2 Q112 I-3 Q113 I-3 Q114 J-3 • Semiconductor Location Ref. No. Location Q115 I-4 Q116 I-3 Q117 I-4 Q118 E-3 Q119 D-3 Q120 E-3 Q121 D-2 Q122 E-2 Q123 D-2 Q124 H-3 Q125 H-3 Q151 I-6 Q152 G-5 Q153 F-5 Q154 H-2 Q155 I-2 Q166 G-2 Q175 H-3 Q301 C-5 Q402 D-4 Q501 C-8 Q502 C-7 Q505 J-8 Q506 J-8 Q507 J-8 Q508 J-8 Q509 J-8 Q510 J-8 Q514 I-5 Q515 I-4 Q520 J-10 Q521 I-12 Q523 I-12 Q524 I-12 Q525 C-7 Q526 H-3 Q527 F-3 Q570 J-10 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN660/GN770/GX9000 37 37 HCD-GN660/GN770/GX9000 7-11. SCHEMATIC DIAGRAM – MAIN BOARD (1/3) – R351 R389 R353 R358 R356 R391 R390 R355 Q122 R185 Q118 R181 Q119 Q120 R178 R179 D101 D102 D104 C145 R180 C144 D504 C301 R303 D303 X402 R409 R417 R404 R419 R420 R421 R403 R401 R430 R330 R329 R442 R443 R444 R445 R446 R447 R448 R449 R450 R465 R466 R373 R433 R342 R482 R484 R485 R486 R489 R490 R483 R488 R487 R451 R452 R455 R458 R381 JR330 JW440 JR331 R407 R406 R405 R424 R423 R422 R426 C469 R186 Q123 R182 Q121 R187 R183 R184 D301 R301 X401 FB416 C416 C419 C421 R418 R402 C430 C429 R494 R456 R453 R361 R411 R413 C412 R412 C410 C411 IC301 C498 C497 R387 R386 IC401 CN507 CN511 CN512 CN509 C464 C462 R374 FB462 R569 R369 R394 Q402 Q301 C316 R333 R429 C499 C302 C303 R302 D302 R304 R481 R375 D503 D501 R493 R393 R491 R492 R392 10k 10k 10k 10k 10k 10k 10k 10k 2SB1132-T100-QR 680 2SB1132-T100-QR 680 FA1A4M 2SB1132-T100-QR 680 2.2k 1SS355 1SS355 1SS355 0.0047 50V B 2.2k 0.0047 50V B 1SS355 10 50V 22k 1SS355 16M 10k 10k 100 100 4.7k 100 100 100 100 10k 10k 100 100 100 100 100 100 100 100 100 100 100 10k 100 10k 100 100 100 100 100 100 100 100 100 100 100 100 100 10k 0 0 0 0 0 0 0 0 0 0 10 6.3V 2.2k FA1A4M 3.3k FA1A4M 2.2k 3.3k 3.3k 1SS355 220 32.768K 0 2200 6.3V 47p 47p 220 220 47p 47p 100 100 100 10k 330k 0 0.1 100k 22p 15p ICBD4828G 10 50V 0.1 25V F 10k 10k M3062CMEN -A03FPUO 12P AMP-L 4P 10P 13P 0.01 B 100 10V MF 10k 0UH 10k 10k 1k DTC114EKA BUFFER 2SC1623 RESET SWITCH 0.1 10k 100 0.1 0.1 0.1 4.7k 1SS355 22k 100 10k 1SS355 1SS355 100 4.7k B1 B8 B9 B13 B14 M+9V EVER+4V MP3GND GND 63 HP-DET B7 D+3.3V 40D B21 57 54 52 58 56 91 90 55 53 89 51 29P 30P 31P 34P 33P 32P 9P 12P 51 52 53 54 55 56 57 58 89 90 91 42 43 44 45 46 47 48 49 50 2C 3C 5C 7C 18C 19C 21C 22C 23C 24C 25C 26C 4 29 30 100C 77 78 79 80 81 31P 32P 29P 30P 9P 12P 70 71 72 69 33P 34P 1C 94 31D 97 76 75 74 73 59 60 61 65 66 88 87 86 85 84 83 82 44 45 46 47 48 49 50 43 42 34 41 32D 39 * * * E2,E3,E51 DRIVE Q122,123 A TRIG DRIVE DRIVE Q118,119 B TRIG Q120,121 CAP MOTOR LEVEL DETECT (FOR CHECK) (FOR CHECK) TAPE MECHANISM DECK US,MX,AR,AUS *R393 1K 4.7K AUS E3 4.7K 1.5K 330 E3,AUS *R493 US 2.2K E2,E51,MX,AR US,E2,E51,MX,AR *R492 150 1K 0 GN660 GX9000 GN770 GN770/GX9000 • See page 56 for IC Pin Function Description. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN660/GN770/GX9000 38 38 HCD-GN660/GN770/GX9000 7-12. SCHEMATIC DIAGRAM – MAIN BOARD (2/3) – Q107 Q108 Q109 Q110 Q111 Q116 Q117 C140 T101 L103 CN510 NO505 C172 C135 C136 C130 C126 C141 C176 C196 C142 C173 Q115 JR116 C160 C150 C166 C192 C110 R105 R110 R111 R126 R132 R133 R136 R137 R143 R144 R146 R147 R148 R149 R155 R158 R161 R176 R195 R589 C119 C122 C143 C195 Q112 R114 R164 R104 R107 R112 R135 R138 R139 R140 R141 R142 R145 R154 R163 R166 R190 C132 R584 R586 R591 R189 R592 R593 R594 C123 C577 R588 C582 R585 R127 R119 R169 C125 C175 C178 C179 C199 C200 C124 C174 R106 R125 R156 R175 R587 C184 NO504 JR105 R122 R123 R173 R172 R124 R174 R157 R177 L104 R590 C101 R130 C129 C147 C112 C111 C109 C108 C107 R115 R118 C148 R108 C127 R131 R134 R117 R116 C113 C133 R188 R128 R129 C128 C103 C104 C134 R150 C162 C161 C159 C158 C157 C186 C177 C163 C197 R200 R167 C198 C153 C154 JR102 C114 C581 C121 R103 R102 C120 R101 C579 C137 R162 C580 C151 C171 R152 C170 R151 C169 C578 R160 R153 C115 C190 C189 C164 C165 R191 R192 C188 C187 C193 C191 C116 C131 JWH301 IC101 Q151 Q101 Q166 Q106 Q154 Q155 Q105 Q104 Q114 Q113 Q175 Q125 Q515 Q514 Q103 Q153 JR874 Q102 Q152 Q124 Q526 Q527 NO503 C182 C183 C181 C146 R113 C139 C138 L105 R165 R168 2SA812 DTC114EKA DTC114EKA DTA114EKA DTC114EKA FA1A4M FA1A4M 47 10V 27mH 3P MOLEX WIRE MT 10 50V 100 16V MF 100 16V MF 100 10V MF 0.001 50V B 0.01 50V F 0.001 50V B 680p 25V CH 0.0068 50V MF 680p 25V CH 2SC3624A 0 10 50V 10 50V 4.7 50V 1 50V 10 50V 47k 330k 1k 4.7k 1M 100k 4.7k 22k 3.3k 47 10 33 47k 4.7k 47k 2.2k 1k 4.7k 1M 100k 47 16V 10 50V 22 50V 1 50V 2SD596 0 0 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 2.2k 2.2k 10k 100 1/10W 100k 100k 10k 680p 25V CH 10 50V 22k 10 50V 10k 5.6k 390 390 330p 50V CH 330p 50V CH 0.01 16V B 0.01 16V B 0.0022 50V 0.0022 50V 120p 50V CH 120p 50V CH 22k 27k 22k 27k 10k JW WIRE MT 0 2.2k 2.2k 2.2k 2.2k 2.2k 2.2k 10k 5.6k 1/10W 27mH 10k 10 50V 15k 0.01 0.0047 0.0068 0.033 0.022 0.022 0.1 50V 6.8k 10k 2.2 50V 2.2k 47 16V 15k 0 1k 10k 10 50V 0.01 1.2k 1k 27k 220p 10 50V 10 50V 10 50V 47k 0.0068 0.033 0.022 0.022 0.1 50V 0.068 0.47 10 50V 0.0047 47k 1k 2.2 10 50V 10 50V 0 0.27 0.0056 1 50V 10k 2.2k 0.01 180 22p 470 16V 10k 0.0056 10 50V 1 50V 2.2k 0.01 180 47 16V 22p 330k 10k 0.56 220p 220p 0.27 0.56 470 470 0.1 100 10V MF 0.22 0.1 4.7 50V 0.47 50V M61537FP-RFOG 2SC1623 FEED BACK SWITCH 2SC1623 FEED BACK SWITCH 2SC3661 SWITCH 2SC3661 SWITCH 2SC3661 SWITCH 2SC3661 SWITCH 2SC3661 SWITCH 2SC3661 SWITCH DTC114EKA SWITCH RT1P137P-TP-1 SWITCH 2SC3624A MUTE 2SC3624A MUTE DTC114EKA MUTE DRIVE DTA114EKA MUTE DRIVE 2SC3661 MUTE 2SC3661 MUTE 0 2SC3661 MUTE 2SC3661 MUTE DTC114EKA DRIVE DTA114EKA DRIVE DTC114EKA DRIVE 9P JW JW JW 680p 25V CH 10k 0.01 100V MF 0.0047 50V B 6.8k 10k TC-PB-L TC-PB-R ST+9V B11 GND 2 B13 SPEANA DBFB B15 B16 -VL GND HP-DET B2 B7 61 60 59 TC MUTE TC MUTE CD MUTE R-OUT L-OUT CD-R CD-L GAME-R MIC GAME-L 32D MD-R ST-R ST-L MD-L 39 GAME-R GAME-L MIC 65 66 HP-R HP-L CD MUTE INPUT SELECT SWITCH, PB/REC EQUALIXER AMP, DECK A/B SELECT, TONE CONTROL, ELECTRICAL VOLUME Q108-111 SWITCH DRIVE Q115-117 AMS AMP (FOR CHECK) HEAD TAPE A HEAD TAPE B w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN660/GN770/GX9000 39 39 HCD-GN660/GN770/GX9000 7-13. SCHEMATIC DIAGRAM – MAIN BOARD (3/3)– C503 C506 C505 CN508 NO501 D627 C504 C501 R508 R509 R510 R511 R512 R514 R515 R516 R520 R522 R570 R572 CN502 R521 R571 C551 C517 C518 R573 R523 C523 R528 R529 R579 R578 C573 C537 L503 D507 D508 D509 C533 FB506 FB507 FB510 FB511 FB512 FB509 C535 FB508 C576 CN505 R575 R525 R524 C520 C570 JR732 C571 C521 FB505 FB555 J501 R535 CN503 Q521 R537 Q523 R538 R539 JR882 C508 C507 R502 JW879 JR207 R583 R582 L525 C516 IC504 R580 R530 JWH300 C536 C575 JWH901 C550 IC503 IC502 IC627 Q510 Q509 Q570 Q520 Q506 Q505 Q508 Q507 R513 D502 Q501 Q502 CN513 C628 C627 IC508 R574 C531 C532 C538 C629 CN501 CN506 C534 Q525 J504 C525 C526 Q524 R469 C546 R550 R551 EPT901 C626 D511 0.1 25V F 470 10V 0.1 25V F 19P FFC-R 1SS355 470 10V 4700 25V 470k 68k 15k 470k 68k 470k 68k 15k 1k 1/10W 47k 1k 1/10W 47k 11P B-TO-B 10k 10k 10 50V BP 1 25V 1 25V 10k 10k 10 50V 1k 33k 33k 1k 10 50V 0.1 25V F RR263M-400FTR RR263M-400FTR RR263M-400FTR 100 10V 0UH 0UH 0UH FB 0UH 0UH 3300 10V 0UH 220p 50V B 27P 100k 100k 1k 1/10W 2.2 50V 2.2 50V 0 220p 50V B 220p 50V B 0 0 4.7k 3P 2SC1623 100k 2SC1623 22k 22k 2200 6.3V 0.1 25V F 1k 0 0 1k 2.2k 1000 6.3V TA78033LS 0 0 0.1 25V F 0.1 0.1 TA7809LS TA7809LS RT8H015C-TH12-1 FA1A4M MUTE DRIVE FN1F4M MUTE DRIVE 2SC3661 MUTE 2SC3661 MUTE FA1A4M MUTE SWITCH FN1F4M MUTE SWITCH FA1A4M MUTE DRIVE FN1F4M MUTE DRIVE 15k RR263M-400FTR RT1P137P-TP-1 B+ SWITCH DTC114EKA B+ SWITCH 13P B-TO-B 100 16V 2.2 50V TOX141 1k 1/10W 0.1 0.1 0.1 0.1 13P B-TO-B 11P FFC-R 0.1 2SB1197 0.1 25V F 0.1 25V F 2SD2525 0.1 0 0 220 50V DTZ13B Q521, 523, 524 FAN DRIVE B7 B8 ST+9V B9 B11 EVER+4V SPEANA B14 M+9V DBFB B15 B16 -VL 63 MP3GND B1 GND 2 B2 GND 40D D+3.3V B21 80 79 78 77 FAN ON 71 72 FAN DET 70 L-OUT R-OUT 81 DC DETECT DC DETECT OVERLOAD OVERLOAD 94 97 76 75 4 73 74 29 30 69 26C 5C 24C 19C 21C 18C 3C 2C 1C 100C 25C 7C 23C 22C 31D MD-L MD-R FAN ON FAN DET HP-R HP-L 34 41 CD-L CD-R 88 87 86 85 84 83 82 CD MUTE TC MUTE ST-L ST-R * PROTECTOR OVER CURRENT +3.3V REG. +9V REG. +9V REG. *R469 GN660:E2,E3,E51 GN770:E2,E3,E51 15K 18K US,AUS GN660/GN770 41 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN660/GN770/GX9000 40 40 HCD-GN660/GN770/GX9000 7-14. PRINTED WIRING BOARD – GAME, CD SWITCH BOARD – • See page 26 for Circuit Boards Location. (CHASSIS) (CHASSIS) CHASSIS C818 C843 JR812 JR813 JR811 C803 C804 C806 C810 C811 4 5 8 1 19 1 C813 C816 C817 C838 C839 C840 C841 D807 D806 R801 R802 R803 R804 R805 R806 R807 R808 R809 R810 R811 R813 R814 R827 R828 R829 R830 IC850 D803 D802 JR803 JR810 C964 C965 1 3 1 3 2 Q917 E R967 Z OPEN/CLOSE EX-CHANGE/ DISC SKIP DISC 3 DISC 2 DISC 1 MULTI JOG S957 VIDEO L R MIC LEVEL I / I R968 R969 R970 R971 R972 R973 R974 R847 R848 R849 C842 JR815 JR816 JW805 JW806 JW807 JW808 JW814 JW815 JW817 CLP906 CLP907 JW809 CN802 2 1 RV801 TP801 TP802 J851 J850 C814 C807 C809 C802 C805 EPT802 EPT803 C801 JW813 JW816 C812 D925 S918 S919 S920 S921 S922 S923 NO904 C845 C846 S916 .> S917 ALBUM mM EPT804 JW1335 JW1336 JW1338 1 2 1 3 3 JW1448 S957 NO907 CN903 JW804 CLP910 JW1358 5 1 CN801 JW801 JW802 JW860 CD SW BOARD JOG BOARD GAME BOARD SWITCH BOARD 11 (11) 1-861-405- 11 (11) 1-861-406- 11 (11) 1-861-404- 11 (11) 1-861-407- PANEL BOARD (Page 46) P PANEL BOARD (Page 46) N MAIN BOARD (Page 36) C MAIN BOARD (Page 36) I PANEL BOARD (Page 46) O PHONES J801 MIC AUDIO GAME INPUT 2 3 4 5 6 7 8 9 10 11 A 1 B C D E F G Ref. No. Location D802 E-3 D803 F-3 D806 F-5 D807 F-7 D925 A-10 IC850 F-7 Q917 A-10 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN660/GN770/GX9000 41 41 HCD-GN660/GN770/GX9000 7-15. SCHEMATIC DIAGRAM – GAME, CD SWITCH BOARD – R971 R970 R968 R969 R967 R972 R847 R848 R849 CN903 S921 S920 S922 S918 S919 NO904 S917 CN802 JR803 JR812 JW813 JR813 IC850(2/2) R808 C809 R806 R805 IC850(1/2) EPT804 R807 RV801 D925 R973 R974 C801 R802 C812 C810 C811 R809 R810 C813 C814 R813 R814 C817 D806 D807 C816 C839 C838 C845 C846 C841 C840 JW817 R830 R829 JW814 D802 D803 C842 R803 R811 R801 R804 C802 JW816 C803 C805 C806 Q917 S957 S916 S923 EPT803 JW815 C804 R827 R828 J801 J851 EPT802 CN801 C807 J850 C965 C964 68k 33k 15k 22k 10k 270 6.8k 10k 10k 5P AMP-L 0 0 JW 0 NJM4565M 22k 0.15 50V 10k 180k NJM4565M 100 50k SELS5223S RED 680 680 220 10V 2.2k 10 50V 470p 47p 1k 100k 8200 25V 10 50V 1k 10k 22000p 1SS355TE-17 1SS355TE-17 0.1 0.001 50V 0.001 50V 10 50V 10 50V 0.001 50V 0.001 50V JW 1k 1k JW 1SS355 1SS355 0.1 25V 2.2k 2.2k 100k 100 0.22 50V JW 47p 10 50V 47p DTC114EKA LED DRIVE JW 100p 100k 100k 9P 2.2 50V 0.01 0.01 MIC AMP ALBUM I/ I/ (CHASSIS) (CHASSIS) R L GAME INPUT AUDIO VIDEO (CHASSIS) 1 9 45 45 44 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN660/GN770/GX9000 42 42 HCD-GN660/GN770/GX9000 7-16. PRINTED WIRING BOARD – PA BOARD – • See page 26 for Circuit Boards Location. POWER TRANSFORMER (Page 47) JR600 JR601 JR602 JR603 C605 C683 C693 D609 D664 D611 D620 D624 D646 D654 D655 D660 D661 D670 Q604 Q668 Q628 Q629 Q630 Q634 Q640 Q641 Q644 Q647 Q648 Q610 R604 R605 R606 R607 R608 R609 R610 R611 R623 R624 R625 R629 R630 R631 R632 R633 R634 R635 R638 R639 R640 R641 R642 R643 R644 R645 R647 R648 R649 R654 R655 R658 R656 R660 R661 R662 R663 R664 R673 R674 R678 R676 D612 R617 Q618 C604 C654 C684 C694 Q666 R666 R667 R628 R652 R603 R653 R619 R669 R620 R670 R621 R671 C601 C651 R600 R650 R601 D665 R651 R602 R657 R677 R682 R683 Q682 C660 R692 R693 R694 R695 R696 R697 JW680 JW682 JW683 JW684 JW685 JW686 FH691 F696 F967 F968 F699 FH693 FH695 FH697 B790 JW740 CN604 6 1 C662 JW687 JW688 JW689 JW690 JW692 JW693 JW694 JW695 C648 C649 C655 C659 C657 C679 C677 FH692 FH694 FH696 FH698 JW600 JW601 JW602 22 JW603 JW604 JW605 JW606 JW607 JW608 JW610 JW611 JW612 JW613 JW619 JW620 JW621 JW622 JW623 JW624 JW625 JW626 JW627 JW628 JW629 JW630 JW631 JW632 JW633 JW634 JW637 JW638 JW639 JW640 JW641 JW642 JW643 JW644 JW645 JW646 JW647 JW648 JW649 JW650 JW651 JW652 JW653 JW654 JW656 JW657 JW658 JW659 JW660 JW661 JW662 JW663 JW664 JW665 JW666 JW673 JW674 JW675 JW676 JW677 JWH750 JWH751 JWH752 JWH753 JW609 C600 C602 C609 C610 C616 C617 C634 C635 C637 C650 C652 C666 C667 CN600 Q606 R616 R618 R622 R636 R637 R672 TH629 C676 C636 C656 C618 C619 C678 IC600 R612 R615 RY665 D656 JW681 R613 R668 R614 RY646 JW742 R665 R646 TH630 CN601 JW615 JW616 JW636 JW744 JW617 JW618 JW635 JW748 JW743 JW614 EP690 JW691 JW753 TM602 TM601 TM600 GN660 FRONT SPEAKER SURROUND SPEAKER FRONT SPEAKER SURROUND SPEAKER SPEAKER JW668 JW669 JW670 JW671 JW672 GN770/GX9000 JW678 JW679 D658 C658 JW746 JW747 Q664 R699 D699 C698 EP660 JW745 C663 JW655 CLP600 CLP601 JW667 CLP602 JW750 JW749 JW741 PA BOARD MAIN BOARD (Page 36) MAIN BOARD (Page 36) - + - - + - + - - - + + - + L L R R (CHASSIS) E E E E E 1 13 E E E E E E E E E E E E G H 1-861-400- 11 (11) J GN770/GX9000 GN770/GX9000 GN770/GX9000 GN770/GX9000 + + 2 3 4 5 6 7 8 9 10 11 A 1 B C D E F G H J I Ref. No. Location D609 C-5 D611 D-7 D612 D-7 D620 B-6 D624 E-9 D646 B-8 D654 D-10 D655 D-10 D656 E-5 D658 E-4 D660 F-2 D661 F-2 D664 J-2 D665 D-9 D670 C-6 D699 J-3 IC600 E-8 • Semiconductor Location Ref. No. Location Q604 B-7 Q606 C-6 Q610 C-5 Q618 B-6 Q628 E-9 Q629 E-9 Q630 D-9 Q634 B-6 Q640 B-5 Q641 B-5 Q644 D-2 Q647 D-2 Q648 E-2 Q664 J-2 Q666 D-2 Q668 B-6 Q682 A-6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN660/GN770/GX9000 43 43 HCD-GN660/GN770/GX9000 7-17. SCHEMATIC DIAGRAM – PA BOARD – C662 R604 R605 R607 R609 R611 R624 R630 R633 R635 R654 R655 R662 R663 R664 C608 C648 C655 C663 C636 C634 C635 D609 D624 D646 D654 D655 Q606 -70 36.3 R636 TH629 C618 CN604 R632 D664 Q628 Q630 TH630 RY646 CN601 Q610 Q604 R641 Q682 R683 R692 R606 R693 R608 R694 R610 R697 R634 R629 C605 R640 C637 R637 C651 C601 R673 R682 R639 R638 R647 R648 RY665 D665 C683 C693 C684 C694 JW681 JW691 TM601 TM602 R621 Q668 R669 R670 R619 Q618 R613 R617 R622 R672 R603 R653 C619 C609 C616 C617 C667 C666 R668 R618 R695 R696 D656 C656 C676 R656 R676 C657 C677 D658 C658 R658 R678 C659 C679 R699 C698 R657 R677 R660 D699 EP660 JW753 JW743 R628 FH698 FH697 FH695 FH696 FH693 FH694 FH691 FH692 C610 R616 R615 R614 R646 C654 C604 D660 D661 R661 C678 C660 R674 C600 R600 R650 C650 R601 R651 D620 D670 R671 R620 R612 Q666 R644 R623 CN600 IC600 EP690 Q664 Q629 Q641 Q640 Q634 R642 R643 F696 F697 F698 F699 D611 D612 R631 R625 C652 C602 R652 R602 Q644 Q647 R645 C649 R649 Q648 R665 R667 R666 TM600 10 50V 10k 10k 2.2k 68k 33k 22k 100k 47k 10k 47k 47k 8.2k 8.2k 1k 22 50V 100 10V 10 50V 100 50V 4.7 100V 100 25V 100 25V 1SS355 1SS355 1SS355 1SS355 1SS355 2SA1207 680 2W 10 100V 6P 560k UDZ-TE-17-33B 2SC2412K T-146-R 2SC2412K T-146-R RELAY 12V 11P B-B 2SC3906K T146E 2SC2412K T-146-R 1k 2SC2412K T-146-R 4.7k 47k 47k 68k 68k 68k 68k 2.2k 2.2k 1.2k 0.01 1k 4.7 100V 680 2W 0.0022 50V B 0.0022 50V B 56k 1k 100k 100k 1k 22k RELAY 12V 1SS355 0.01 25V B 0.01 25V B 0.01 0.01 100k 2SC3906K T146E 1k 33k 1k 2SC3906K T146E 3.3k 1W 100k 10 1/2W 10 1/2W 47k 47k 10 100V 22 100V 0.068 50V MF 0.068 50V MF 0.068 50V MF 0.068 50V MF 0.1 5W 0.1 5W 100k 100k RBV1306 3300 100V 3300 100V 220k 220k 0.1 100V 0.1 100V D25XB60F01 3300 63V 100k 100k 0.1 50V 0.1 50V 0.68 1/4W 100 63V 220k 220k 10k 10EDB40 MT 47k 22 100V 1 1/4W 100 1/4W 3.3k 1W 100 1W 220p 220p 1SS355 1SS355 10k 3300 63V 100000p 22k 4.7 50V 1k 1k 4.7 50V 47k 47k 1SS355 1SS355 100k 33k 100 1/4W 2SC2412K T-146-R 2.2k 68k 13P B-B STK412-150 GND PLATE 2SB1565 -33V REG. 2SC2412K T-146-R 2SC3661 HEADPHONE MUTING 2SC3661 HEADPHONE MUTING FN1F4M MUTING CONTROL SWITCH 56 56 T8.0AL 250V T8.0AL 250V 6.3A 250V 6.3A 250V UDZSTE-1718B UDZSTE-1718B 100k 100 10V 100 10V 2SC2412K T-146-R 2SC2412K T-146-R 10k 10 50V 22k 2SC2412K T-146-R 100 1W 10k 4.7k * * * (CHASSIS) FRONT SPRAKER SPRAKER SURROUND L+ L- R+ R- R+ R- L+ L- Q644,647 RELAY DRIVE SURROUND SPEAKER PROTECT OVER LOAD DETECT SWITCH DETECT SWITCH Q628,630 TEMPERAYURE FAM MOTOR ON SWITCH OVER LOAD Q6118,668 DETECT SWITCH MUTING CONTROL Q604,606,610 STANDBY SWITCH POWER AMP RELAY DRIVE FRONT SPEAKER *R602,652 *R625 2.4k 2.7k GN770/GX9000 GN660 470 560 620 820 GN660:E2,E51,MX,AR GN770:E2,E51,MX GN660:E3 GN770:E3,AUS/GX9000 GN770/GX9000 L+ L- R+ R- SPRAKER GN770/GX9000 GN660 POWER TRANSFORMER w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN660/GN770/GX9000 44 44 HCD-GN660/GN770/GX9000 7-18. SCHEMATIC DIAGRAM – PANEL BOARD (1/2) – R902 R903 R904 R905 R906 R907 R909 R911 R916 R922 R940 R944 R958 R959 R960 R961 R962 R963 R964 R965 R966 R977 R980 R981 R982 R983 R987 R988 R989 R993 R994 R995 C905 C911 C912 C913 C914 C915 C917 C919 C940 D906 D907 D908 D910 S924 S925 S927 S928 S929 S930 S931 S932 R941 JW906 C901 C902 C906 C907 C908 C909 CNS901 JR906 R908 R910 R917 R920 Q910 D905 R912 R915 C966 C916 C910 R918 C961 CLP912 C922 R957 C904 R900 FB901 C972 C971 C918 C923 JR914 C944 JR904 D909 JR905 D911 FL901 X901 C924 C925 C926 C927 C928 C929 C930 C931 C932 C933 C934 C935 C937 C936 C981 C982 C983 C985 C984 JW908 C980 IC901 *R924 R943 Q906 Q907 Q904 Q905 Q901 Q909 Q908 C938 JR901 R914 *R924 0 1K C920 C939 CN902 D903 JR913 R942 D904 JW902 JR912 C903 R901 C900 C969 C941 R999 R975 R978 IC902 NO903 10k 100 100 15k 15k 15k 10k 10k 1k 1M 10k 47 470 680 1k 1.5k 1.5k 2.2k 3.3k 4.7k 6.8k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 0.1 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 SEL5923A AMBER SEL5923A AMBER SEL5923A AMBER SEL5923A AMBER 100 JW 220p 220p 220p 220p 220p 220p 0 1k 1k 10k 10k DTC114EKA UDZS-TE-17-5.1B 100 1k 0.1 0.1 0.1 100k 10 50V 100k 0.1 10k 0 470 6.3V 470 6.3V 470 6.3V 0.01 0 10 50V 0 SEL5923A AMBER 0 SLR325VC RED 4MHz 100p 100p 100p 100p 100p 100p 100p 100p 100p 100p 100p 100p 100p 100p 100p 100p 100p 100p 100p JW 100p MB90M407PF-G-139 -BNDZ1 4.7k DTC114EKA BUFFER DTC114EKA BUFFER 2SB1132 SWITCH 2SB1132 SWITCH DTC143TKA BUFFER DTC114EKA LED DRIVE DTC114EKA LED DRIVE 100p 0 10k 47 10V 0.001 50V 19P DIODE 0 100 DIODE JW 0 0.1 10k 4.7 50V 100 50V 10 50V 0 470 470 RPM7240-H4 5P GND GND2 SPEANA VCC SEL A SEL B GND3 GND4 B DISP 24 25 26 27 28 29 30 1 2 3 4 5 6 7 8 9 10 12 13 15 16 17 18 19 20 21 22 14 31 32 33 34 35 36 37 38 39 40 41 43 87 88 89 90 91 92 93 94 95 96 97 98 99 100 49 51 52 53 54 55 56 57 58 59 65 66 67 68 69 70 71 72 73 49 51 52 53 54 56 73 72 77 61 60 48 60 61 79 80 74 75 64 66 86 85 87 88 89 90 91 92 93 94 95 96 97 98 99 100 1 2 3 4 5 86 6 7 8 9 10 12 13 14 15 16 17 18 19 20 21 22 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 43 44 45 46 47 44 45 46 47 58 59 85 76 77 48 DISPLAY CONTROL KEY CONTROL REMOTE CONTROL RECEIVER EXCEPT MX MX (Page 45) • See page 52 for IC Pin Function Description. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN660/GN770/GX9000 45 45 HCD-GN660/GN770/GX9000 7-19. SCHEMATIC DIAGRAM – PANEL BOARD (2/2) – R841 R837 R842 R845 R844 R843 R846 R838 R839 R840 R835 R836 D920 Q915 Q914 R1324 D921 D922 Q913 D923 R1330 Q912 Q911 D924 D915 R1306 D916 D917 R1312 D918 Q916 R1318 D919 D914 R1303 R1331 R1332 R1325 R1326 R1319 R1320 R1313 R1314 R1307 R1308 R1304 R1305 R834 R833 R832 R831 CN907 S911 S909 S905 S910 S912 S914 S913 S915 S908 S907 S906 S900 C968 S901 S903 S902 JR911 S904 JR907 JR910 R952 R950 R949 R947 R953 R945 R946 C960 R956 C948 C946 C949 C951 C953 C955 C958 C959 C954 C956 C950 C952 C945 C947 IC903 C957 C942 C963 S970 R939 R954 R951 R948 NO906 JR908 JW907 C967 2.2k 680 3.3k 3.3k 2.2k 1.5k 4.7k 1k 1.5k 1.5k 270 470 SLI-325URT31WT RED DTC114EKA DTC114EKA 1.5k SLI-325URT31WT RED SLI-325URT31WT RED DTC114EKA SLI-325URT31WT RED 1.5k DTC114EKA DTC114EKA SLI-325URT31WT RED SLI-325URT31WT RED 1.5k SLI-325URT31WT RED SLI-325URT31WT RED 1.5k SLI-325URT31WT RED DTC114EKA 1.5k SLI-325URT31WT RED SLI-325URT31WT RED 1.5k 1.5k 1.5k 1.5k 1.5k 1.5k 1.5k 1.5k 1.5k 1.5k 1.5k 1.5k 1.5k 1.5k 1k 680 470 0.1 0 0 0 1k 1k 1k 1k 1k 47k 82k 10 50V 10k 470p 470p 1 6.3V 1 6.3V 1 6.3V 1 6.3V 0.047 16V B 0.047 16V B 0.022 25V B 0.022 25V B 0.0047 50V B 0.0047 50V B 1 6.3V B 1 6.3V B NJM2760 1 6.3V 10 50V 0.1 1k 5.6k 5.6k 6.8k 4P PH 0 JW 0.1 SEL B SEL A GND3 GND4 DISP B GND GND2 SPEANA VCC 65 67 68 69 71 70 76 74 75 57 56 80 79 55 64 54 53 52 Q911-916 LED DRIVE PRF,RECT GN660 GN770/GX9000 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN660/GN770/GX9000 46 46 HCD-GN660/GN770/GX9000 7-20. PRINTED WIRING BOARD – PANEL BOARD – • See page 26 for Circuit Boards Location. 2 3 4 5 6 7 8 9 10 11 A 1 B C D E F G IC901 5 1 C980 C981 C982 C983 C984 C985 C924 C925 C926 C927 C928 C929 C930 C931 C932 C933 C934 C935 C936 C937 C938 Q905 C901 C902 C903 C904 C905 C906 C907 C908 C909 C911 C912 C913 C914 C915 C916 C917 C919 C923 C939 C920 C940 C963 C967 C968 Q906 E E E E E E Q907 Q908 Q909 Q910 Q911 (VOL 9) (VOL 8) (VOL 10) (VOL 11) (VOL 1) Q912 Q913 Q914 Q915 Q916 E E E E 8 1 R831 R832 R833 R834 R835 R836 R837 R838 R839 R840 R841 R842 R843 R844 R845 X nN x R846 R900 R901 R902 R903 R904 R905 R906 R907 R908 R909 R910 R911 R912 R914 R915 R916 R917 R922 R940 R941 R942 R944 R958 R959 R960 R961 R962 R963 R964 R965 R966 R975 R977 R978 R980 R981 R982 R983 R987 R988 R989 R993 R994 R995 R999 R1303 R1304 R1305 R1306 R1307 R1308 R1312 R1313 R1314 R1318 R1319 R1320 R1324 R1325 R1326 R1330 R1331 R1332 JR904 JR905 JR907 JR908 JR910 JR911 Q901 JR906 FB901 JR913 D905 Q904 C945 C946 C947 C948 C949 C950 C951 C952 C953 C954 C955 C956 C957 C958 C960 C959 1 10 20 11 R945 R946 R947 R948 R949 R950 R951 R952 R953 R954 R956 IC903 JR912 JR901 R918 C910 R939 R920 R924 R943 C961 C966 JR914 R957 100 1 30 31 50 51 80 81 D904 CD SYNC PLAY MODE TUNING MODE DIRECTION TUNER MEMORY REPEAT FM MODE GROOVE DISPLAY SLEEP AMP MENU ILLUMINATION VIDEO/MD TAPE A/B CD TUNER/BAND SURR SPEAKER MODE GAME MIXING GAME E E E E EFFECT ON/OFF EQ EDIT P FILE MEMORY ENTER VOLUME S970 REC PAUSE/START D903 JW921 JW923 JW926 JW927 JW929 JW931 JW932 JW933 JW939 JW943 JW944 JW947 JW955 JW957 JW958 JW959 JW960 JW962 JW963 2 1 1 3 3 JW966 JW972 JW978 JW979 JW980 JW981 JW982 JW983 JW985 JW986 (VOL 2) (VOL 3) JW995 JW997 JW998 JW999 JW1300 JW1302 JW1303 JW1304 JW1310 JW1311 JW1312 JW1313 JW1314 JW1315 JW1316 JW1317 JW1320 JW1321 JW1322 JW1323 JW1324 JW1325 JW1326 JW1327 JW1328 JW1329 JW1330 JW1331 JW1332 CLP905 D906 D907 D908 D909 D910 D911 D914 D915 D916 D917 D918 D919 D920 D921 D922 D923 D924 S900 S901 S902 S903 S904 S905 S906 S907 S908 S909 S910 S911 S912 S913 S914 S915 S924 S925 CN902 S927 S928 S929 S930 S931 S932 X901 CNS901 (NOT USE) NO903 IC902 JW907 CN907 C922 C918 C944 C900 JW902 JW1334 C942 C941 JW969 JW970 JW937 JW935 JW936 JW975 JW974 JW973 JW1319 FL901 JW989 JW993 JW988 JW987 JW996 JW1340 JW1341 JW1342 JW1344 1 3 JW1347 JW1348 JW1349 JW1350 JW1351 JW1352 JW1353 JW1354 JW1355 (VOL 4) (VOL 5) (VOL 6) JW1445 JW1446 JW1447 JW951 JW1343 JW956 NO906 JW964 JW992 JW1309 JW977 JW976 JW1318 JW1307 JW1306 JW1305 JW1308 JW1356 JW984 JW961 JW908 JW938 JW965 CLP911 CLP912 JW1357 JW1359 JW967 JW930 JW922 C969 JW1333 1 70 JW1346 JW924 JW925 JW934 JW1345 JW928 JW968 JW945 C972 C971 JW946 JW940 JW950 JW948 JW1337 JW954 JW906 PANEL BOARD 1-861-403- 11 (11) CD SW BOARD (Page 40) P JOG BOARD (Page 40) N MAIN BOARD (Page 36) F SWITCH BOARD (Page 40) O (VOL 7) Ref. No. Location D903 C-4 D904 D-2 D905 A-4 D906 D-8 D907 E-8 D908 E-8 D909 F-8 D910 F-8 D911 E-2 D914 F-6 D915 F-5 D916 E-5 D917 E-5 D918 D-6 D919 D-6 D920 D-7 D921 E-7 D922 E-7 D923 F-7 D924 F-6 • Semiconductor Location Ref. No. Location IC901 B-6 IC902 C-9 IC903 C-8 Q901 B-9 Q904 D-9 Q905 D-9 Q906 D-9 Q907 D-9 Q908 D-8 Q909 F-8 Q910 G-8 Q911 F-7 Q912 E-7 Q913 E-6 Q914 E-5 Q915 E-5 Q916 E-5 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN660/GN770/GX9000 47 47 HCD-GN660/GN770/GX9000 R1003 C1001 C1002 C1003 D1000 Q1000 E R1000 R1001 C1005 B1000 L1001 RY1000 NO1001 CLP1001 CLP1002 CLP1000 B1001 CN1001 6 5 4 3 2 1 6 5 8 7 4 3 2 1 * JW1002 C1000 JW1000 T601 POWER TRANSFORMER * NOT REPLACEABLE: BUILT IN TRANSFORMER NO1000 JW1001 JW1007 120V r 220V r 230-240V S1000 AUS, AR MX MX E2, E3, E51 E2, E3, E15 CN1000 AC IN SWITCHING REGULATOR JW1011 JW1009 CN1002 3 1 1 1 1 4 2 2 JW1012 JW1005 JW1008 JW1010 VOLTAGE SELECT L SURROUND BOARD (Page 49) J PA BOARD (Page 42) M SURROUND BOARD (Page 49) 11 (11) 1-816-402- PRIMARY BOARD 2 3 4 5 6 7 8 A 1 B C D E 7-21. PRINTED WIRING BOARD – PRIMARY BOARD – • See page 26 for Circuit Boards Location. Ref. No. Location D1000 D-3 Q1000 D-3 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN660/GN770/GX9000 48 48 HCD-GN660/GN770/GX9000 7-22. SCHEMATIC DIAGRAM – PRIMARY BOARD – CN1000 D1000 Q1000 C1003 NO1001 R1000 R1001 L1001 C1001 C1000 C1005 CN1002 RY1000 NO1000 S1000 CN1001 C1002 R1003 JW1006 JW1008 JW1001 JW1002 JW1009 JW1007 JW1005 JW1000 B1000 R1004 2P 1SS355 2SC2412K T-146-R 0.01 2P 4.7k 100k 0.1 0.01 1000 6.3V 3P RELAY 5V WIRE 0.1 0 3.3M SWITCHING REGULATOR POWER TRANSFORMER AC IN 220-240V 220V VOLTAGE SELECTOR 120V Q1000 POWER ON/OFF RELAY DRIVE T601 US,MX US,MX EXCEPT US,MX EXCEPT US,MX US,MX EXCEPT US,MX E2,E3,E51 E2,E3,E51 GX9000 AUS,AR 43 7-23. SCHEMATIC DIAGRAM – SURROUND BOARD – C761 C760 CN701 FH760 FH761 D701 R707 R708 D702 R709 JW754 JW764 D763 F760 NO704 Q701 CN703 0.01 50V 0.01 50V 13P B-TO-B F.HOLD F.HOLD 1SS355 1.8k 56k 1SS355 10k D3SBA20 T3.15AL 250V 3P FA1L3Z OVER VOLTAGE DET 5P E2,E3,E51 POWER TRANSFORMER w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN660/GN770/GX9000 49 49 HCD-GN660/GN770/GX9000 7-24. PRINTED WIRING BOARD – SURROUND BOARD – • See page 26 for Circuit Boards Location. Ref. No. Location D701 B-8 D702 D-9 D763 E-8 Q701 B-8 • Semiconductor Location 2 3 4 5 6 7 8 9 10 A 1 B C D E F G 1 13 R709 D702 Q701 E2,E3,E51 R707 R708 D701 E CN701 FH760 F760 FH761 D763 CN703 CLP702 1 5 CLP701 JW764 CLP703 CLP700 NO704 3 1 JW795 JW766 JW765 JW767 JW768 JW769 JW796 C760 C761 B792 JW754 11 (11) 1-861-401- MAIN BOARD (Page 36) E PRIMARY BOARD (Page 47) L POWER TRANSFORMER (Page 47) M SURROUND BOARD w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN660/GN770/GX9000 50 50 HCD-GN660/GN770/GX9000 7-25. IC Block Diagram – BD Board – IC251 BA5947FM – DRIVER Board – IC701, 712 BA6956AN 15 16 17 18 19 20 21 22 23 24 25 26 27 36 28 29 30 31 32 33 34 35 1 2 3 4 5 6 7 8 9 10 11 12 13 14 LEVEL SHIFT F R R F R F F 19k 6.5k 50k 50k 100k 50k PIN3 10k Vref 50k 50k PIN26 (ch1, 2) POW VCC (ch3, 4) SW Pre Vcc INTER FACE INTER FACE INTER FACE R F 50k 50k POW VCC MUTE Vref POW VCC R F 10k CH1PUTF CH1OUTR CH2OUTF CH2OUTR POWVCC CNF4 GND C-M C-P VG CH2RIN CH2FIN CH1RIN CH1FIN SW OPIN+ OPIN- NC CH4OUTR CH4OUTF CH3OUTF CH3OUTR POWVCC MUTE GND GND PREGND CT CH3RIN CH3FIN CH4IN CH4CAPA OUTVREF DPOUT TREVCC NC D D D D D D D D 1 2 3 4 5 6 7 8 9 CONTROL LOGIC TSD VREF OUT2 OUT1 RNF VM VCC FIN GND RIN – BD Board – IC301 TC94A34FG-002 33 34 35 36 37 38 39 40 41 42 1 8 43 61 62 63 64 60 59 56 52 50 47 46 45 44 48 49 25 26 27 28 29 30 31 32 17 18 19 20 21 22 23 24 9 10 11 2 3 4 5 6 7 58 57 55 53 51 12 13 14 15 16 54 CS/RAS/ADO2 AD15/CAS/PD12 SDO3/OE WE/SDO1 PIO7/BUS3/IO7 PIO6/FI3/BUS2/IO7 PIO5/FI2/BUS1/IO5 PIO4/FI1/BUS0/IO4 Bus Switch PO11/BUCK/AD14 PO10/CCE/AD13 PO9/AD12 PO08/AD11 General In/Output Port Address Calc. 2sets Y-Pointer register C-Pointer register X-Pointer register VDDM SRMSTB VDDT AD10 AD9 ERAM 2k word CRAM 4k word CROM 4k word YRAM 4k word XRAM 4k word SRAM/ DRAM I/F SRAM I/F 1Mbit SRAM X-Bus Y-Bus PO07/AD7 PO06/AD6 PO05/AD5 AD8 VC0 Timing Generator PRAM Instruction Decoder Program Control MCU. I/F register XO • X1 • X2 Y0 • Y1 • Y2 MX MY MZ MAC A0 A1 AX AY ALU A2 A3 DIT round & limit round & limit Audio I/F LRCKIA BCKIA SDI0 LRCKO BCKO SDO0 VSS VDDT MIACK MICK MIDIO MILP MICS STANBY RESET VDDP AD4/PO04 AD3/PO03 AD2/PO02 AD1/PO01 AD0/PO00 VSS VDD CKO/PO13/AD16 VDDX XO TEST VCOI VSSX XI MIMD VSSP PIO3/IO3 PIO2/IO2 PIO1/SDI3/IO1 PIO0/SDI2/IO0 VSS CKI/CLOCK/IRQ/FIO VDD TXO SFSY/LRCKIB SBSY/BCKIB SDI1/DATA POM Sub code I/F CDP Cont I/F w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 HCD-GN660/GN770/GX9000 7-26. IC Pin Function Descriptions • IC101 CXD3059AR (RF AMP) (BD BOARD) Pin No. Pin Name I/O Description 1 MIRR I/O Mirror signal input/output(Not used) 2 DFCT I/O Defect signal input/output (Not used) 3 FOK I/O Focus OK signal input/output (Not used) 4 VSS — Internal digital ground 5 LOCK I/O Not used 6 MDP O Spindle motor servo control output 7 SSTP I Disk innermost detection signal input 8 IOVSS1 — I/O digital ground 9 SFDR O Sled drive output 10 SFDR O Sled drive output 11 TFDR O Tracking drive output 12 TRDR O Tracking drive output 13 FFDR O Focus drive output 14 FFDR O Focus drive output 15 IOVDD1 — I/O digital power supply 16 AVDD0 — Analog power supply 17 AVSS0 — Analog ground 18 NC — Not used 19 E I E signal input 20 F I F signal input 21 TEI I Tracking error signal input 22 TEO O Tracking error signal output 23 FEI I Focus error signal input 24 FEO O Focus error signal output 25 VC I/O Center voltage output from RF amplifier block 26 A I A signal input 27 B I B signal input 28 C I C signal input 29 D I D signal input A 30 NC — Not used 31 AVDD4 — Analog power supply 32 RFDCO O RFDC signal output (Not used) 33 PDSENS I Reference voltage pin 34 AC_SUM O RFAC summing amplifier output 35 EQ_IN I Equalizer circuit input 36 LD O APC output 37 PD I APC input 38 NC — Not used 39 RFC I Equalizer cut-off frequency adjustment pin 40 AVSS4 — Analog ground 41 RFACO O RFAC signal output 42 RFACI I RFAC signal input or EFM signal input 43 AVDD3 — Analog power supply 44 BIAS I Asymmetry circuit constant current input 45 ASYI I Asymmetry comparator voltage input 46 ASYO O EFM full-swing output 47 VPCO O Not used 48 VCTL I Wide-band EFM PLL VCO2 control voltage input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 HCD-GN660/GN770/GX9000 Pin No. Pin Name I/O Description 49 AVSS3 — Analog ground 50 CLTV I Multiplier VCO1 control voltage input 51 FILO O Master PLL (slave = digital PLL) filter output 52 FILI I Master PLL filter input 53 PCO O Master PLL charge pump output 54 AVDD5 — Analog power supply 55 DDVROUT O DC/DC converter output 56 DDVRSEN I DC/DC converter output voltage monitor input 57 AVSS5 — Analog ground 58 DDCR I DC/DC converter reset input 59 NC — Not used 60 BCKI I D/A interface bit clock input 61 PCMDI I D/A interface serial data input (2’s COMP, MSB first) 62 LRCKl I D/A interface LR clock input 63 LRCK O D/A interface LR clock output f = Fs 64 VSS — Internal digital ground 65 PCMD O D/A interface serial data output (2’s COMP, MSB first) 66 BCK O D/A interface bit clock output 67 VDD — Internal digital power supply 68 EMPH O High when the playback disc has emphasis, low it has not 69 EMPHI I High when de-emphasis is ON, low when input OFF 70 IOVDD2 — I/O digital power supply 71 DOUT O Digital Out output 72 TEST I Test pin Normally ground 73 TES1 I Test pin Normally ground 74 IOVss2 — I/O digital ground 75 NC — Not used 76 XVSS — Master clock ground 77 XTAO O Crystal oscillation circuit output 78 XTAI I Crystal oscillation circuit input 79 XVDD — Master clock power supply 80 AVDD1 — Analog power supply 81 AOUT1 O Lch analog output 82 VREFL O Lch reference voltage 83 AVSS1 — Analog ground 84 AVSS2 — Analog ground 85 VREFR O Rch reference voltage 86 AOUT2 O Rch analog output 87 AVDD2 — Analog power supply 88 NC — Not used 89 IOVDD0 — I/O digital power supply 90 RMUT O Rch “0” detection flag (Not used) 91 LMUT O Lch “0” detection flag (Not used) 92 NC — Not used 93 XTSL I Crystal selection input (Not used) 94 IOVSS0 — I/O digital ground 95 XTACN I Oscillation circuit control Self-oscillation when high, oscillation stop when low 96 SQSO O Subcode Q 80-bit and PCM peak and level data output (Not used) 97 SQCK I SQSO readout clock input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 HCD-GN660/GN770/GX9000 Pin No Pin Name I/O Description 98 SBSO O Subcode P to W serial output (Not used) 99 EXCK I SBSO readout clock input (Not used) 100 XRST I System reset input 101 SYSM I Mute input 102 D ATA I Serial data input from CPU 103 VSS — Internal digital ground 104 XLAT I Latch input from CPU 105 CLOCK I Serial data transfer clock input from CPU 106 VDD — Sled drive output Internal digital power supply Tracking drive output 107 SENS O SENS output to CPU 108 SCLK I SENS serial data readout clock input 109 ATSK I/O Anti-shock input/output (Not used) 110 WFCK O WFCK output (Not used) 111 XUGF O XUGF output (Not used) 112 XPCK O XPCK output (Not used) 113 GFS O GFS output (Not used) 114 C2PO O C2PO output (Not used) 115 SCOR O High output when the subcode sync, S0 or S1, is detected 116 VDD — Internal digital power supply 117 C4M O 4 2336MHz output (Not used) 118 WDCK O Word clock output f = 2Fs (Not used) 119 COUT I/O Track number count signal input/output (Not used) 120 NC — Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 HCD-GN660/GN770/GX9000 • IC901 MB90M407PF-G-139-BNDE1 DISPLAY CONTROL (PANEL Board) Pin No. Pin Name I/O Description 1 to 5 G5 to G1 O FLD grid output 6 to 10 P1 to P5 O FLD segment output 11 VSS-IO — Ground 12 to 22 P6 to P16 O FLD segment output 23 VDD-FIP — Power supply (+3.3V) 24 to 41 P17 to P34 O FLD segment output 42 VSS-IO — Ground 43 to 47 P35 to P39 O FLD segment output 48 VKK — Power supply (-35V) 49 MD0 I Not used (pull up with resistor) 50 MD1/VDD-VFT I Not used (pull up with resistor) 51 MD2 I Not used (pull down with resistor) 52 VOLUME11,MULTI CH LED O LED drive signal output 53 VOLUME7,8 LED O LED drive signal output 54 VOLUME9,10 LED O LED drive signal output 55 VOLUME5,6 LED O LED drive signal output 56 VOLUME3,4 LED O LED drive signal output 57 VOLUME1,2 LED O LED drive signal output 58 CD/DVD,TUNER LED O LED drive signal output 59 TAPE A/B,MD/VIDEO LED O LED drive signal output 60 IIC-DATA O IIC serial data output 61 IIC-CLOCK O IIC clock signal output 62 AVCC — Power supply (+3.3V) 63 AVSS — Ground 64 to 66 KEY0 to KEY2 I Key input (A/D) 67 ALL BAND I L+R signal input 68 SUPER LOW FREQUENCY (BPF 0) I Spectrum analyzer BPF signal input 69 to 71 BPF3 to BPF1 I Spectrum analyzer BPF signal input 72 SELECTOR O LED group select signal output 73 GAME IN, REC/PAUSE LED O LED drive signal output 74, 75 JOG B, JOG A I JOG dial encoder signal B/A input 76 AMS I AMS dial signal input 77 RESET I Reset input 78 SOFT TEST O Not used (open) 79 VOL 1B I Volume encoder signal B input 80 VOL 1A I Volume encoder signal A input 81 VSS-CPU — Ground 82 XOUT O Crystal oscillator output (4MHz) 83 XIN I Crystal oscillator input (4MHz) 84 VCC-CPU — Power supply (+3.3V) 85 to 100 G21 to G6 O FLD grid output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 HCD-GN660/GN770/GX9000 Pin No. Pin Name I/O Description 1 XRST O CD reset signal output 2 CD-DATA O CD data output 3 XLAT O CD latch signal output 4 SIRCS I SIRCS input 5 MP3 DATA OUT O Serial data output 6 MP3 DATA IN I Serial data input 7 MP3 CLK O Serial clock output 8 BYTE I Not used (connected to ground) 9 CNVSS — Not used (Connected to ground with resistor) 10 XC-IN I Sub clock input (32.768KHz) 11 XC-OUT O Sub clock output (32.768KHz) 12 RESET I System reset input 13 X-OUT O Main system clock output (16MHz) 14 VSS — Ground 15 X-IN I Main system clock input (16MHz) 16 VCC — Power supply (+5V) 17 NMI I Not used (Pull up with resistor) 18 CD-CLK O CD data clock output 19 SCOR I Subcode sync (S0+S1) detection signal input 20 AC-CUT I AC cut check signal input 21 SENS I SENS signal input from CXD3059AR 22 MP3 RST O MP3 reset signal output 23 MP3 CS O MP3 chip select signal output 24 MP3 LP O MP3 latch pules output 25 MP3 ACK I MP3 acknowledge signal input 26 MP3 REQ I Interrupt request signal input 27 FAN CTL O FAN moter control signal output 28 VIDEO OUT O Not used 29 IIC-CLK I IIC serial data clock input 30 IIC-DATA I IIC serial data input 31 SW-MUTE O Subwoofer mute signal output 32 REC MUTE O REC mute signal output 33 HP DETECT I Headphone detect input 34 LINE-MUTE O TA LINE mute signal output 35 MATRIX-SURR-1-LED O Subwoofer LED drive signal output (not used) 36 SW-LINE-LED O Subwoofer LED drive signal output (not used) 37 MATRIX-SURR-2-LED O Subwoofer LED drive signal output (not used) 38 SW-ON-LED/VIDEO MUTE O Subwoofer LED drive signal output (not used) 39 AMS MUTE O AMS mute signal output 40 CD/DVD-POWER O CD power on/off signal output 41 CD/DVD-MUTE O CD mute signal output 42 OPEN SW I Lever switch signal input 43 TBL-SENS I Table sensor signal input 44 E-3 I Disc tray status detection signal input 45 E-2 I Disc tray status detection signal input 46 E-1 I Disc tray status detection signal input 47 TM-F O Table motor control signal output 48 TM-R O Table motor control signal output 49 LMF O Loading motor control signal output 50 LMR O Loading motor control signal output • IC401 M3062CMEN-A03FPUO SYSTEM CONTOL (MAIN Board) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 HCD-GN660/GN770/GX9000 Pin No. Pin Name I/O Description 51 A-PLAY I TCM-A play switch input 52 A-TRIG O TCM-A trigger output 53 A-HALF I A deck half detection signal input 54 CAPM-CONT O Capstan motor REV/FWD/STOP control signal output 55 REC (FWD) O Record tab switch for SIDE A signal output 56 B-PLAY I TCM-B play switch input 57 B-TRIG O TCM-B Trigger output 58 REC (REV) O Record tab switch for SIDE B signal output 59 TC-RELAY O REC/PB selection signal output 60 REC BIAS O Bias on/off signal output 61 AMS-IN I AMS signal input 62 VCC — Power supply (+3.3V) 63 TC-MUTE O TC line mute signal output 64 VSS — Ground 65 AUDIO1-DATA O Serial data output to Audio EQIC 66 AUDIO1-CLK O Serial data clock output to Audio EQIC 67 AUDIO2-DATA O Serial data output to Audio EQIC (not used) 68 AUDIO2-CLK O Serial data clock output to Audio EQIC (not used) 69 AC-CUT-MAIN I AC cut check signal input 70 STBY-RELEY O Reley drive signal output 71 CTR-RLY O Not used 72 REAR SW-RELAY O Subwoofer relay control signal output 73 DISPLAY-KEY I DISPLAY key signal input 74 POWER-KEY I Power key signal input 75 GC-RESET O GC reset signal output 76 STBY-LED O Standby LED drive signal output 77 LINK-RLY O Surround speaker relay driver signal output 78 FR-RELAY O Front speaker relay driver signal output –––––––––––––––––– 79 HP-MUTE O Headphone mute signal output 80 STK-MUTE O Mute signal output to power IC –––––––––– 81 PROT I Speaker protection signal input 82 ST-CLK O Tuner clock signal output 83 ST-DIN I Tuner data input 84 ST-DOUT O Tuner data output 85 ST-CE O Tuner chip enable signal output –––––––––––––– 86 TUNED I Tuned signal input ––––––––––––––– 87 STEREO I Stereo signal input 88 ST-MUTE O Tuner mute signal output 89 A-PHOTO OUT I TCM-A reel pulse input 90 B-PHOTO OUT I TCM-B reel pulse input 91 B-HALF I B deck half detection input 92 MODEL-IN I Model input 93 DEST-IN I Destination input –––––––––––––––––––––––––– 94 THER MAL VACS IN I VACS signal input 95 DVD-PWR-CHK/SW AO KEY I Subwoofer ON/OFF and SURROUND SPEAKER MODE key input (not used) 96 AVSS — Ground 97 FUSELESS SW I Over-voltage protection detection input termnal 98 VREF I Reference voltage input 99 AVCC — Power supply (+3.3V) 100 XTCN/MIC DET O Oscillation circuit control signal output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 HCD-GN660/GN770/GX9000 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks SECTION 8 EXPLODED VIEWS 8-1. CASE, REAR PANEL SECTION NOTE: • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Hardware (# mark) list and accessories are given in the last of this parts list. • Abbreviation AUS : Australian model E2 : 120V AC Area in E model E3 : 240V AC Area in E model E51 : Chilean and Peruvian model MX : Mexican model AR : Argentine model The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. 1 not supplied not supplied not supplied 2 3 3 9 9 4 5 6 7 8 #1 #1 #1 #1 #2 #1 #1 #2 #2 #2 #2 #2 M891 #2 #2 #2 #1 #1 1 X-4956-202-1 LOADING PANEL ASSY (GN660) 1 X-4956-226-1 LOADING PANEL ASSY (GN770) 1 X-4956-229-1 LOADING PANEL ASSY (GX9000) 2 4-963-404-21 EMBLEM (5-A), SONY 3 3-363-099-02 SCREW (CASE 3 TP2)(M3X8) 4 4-231-828-71 CASE 5 A-4750-964-A PRIMARY BOARD, COMPLETE (E2, E3, E51) 5 A-4750-997-A PRIMARY BOARD, COMPLETE (GX9000) 5 A-4753-137-A PRIMARY BOARD, COMPLETE (MX) 5 A-4753-146-A PRIMARY BOARD, COMPLETE (AR, AUS) 6 1-500-497-11 FILTER, CLAMP (FERRITE CORE) 7 1-693-603-11 TUNER (FM/AM) (GN660/GN770) 7 1-693-623-11 TUNER (FM/AM) (GX9000) 08 1-468-737-21 POWER, SWITCHING 9 3-363-099-32 SCREW (CASE 3 TP2)(M3X12) M891 1-787-099-21 FAN, DC #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 #2 7-685-871-01 SCREW +BVTT 3X6 (S) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 HCD-GN660/GN770/GX9000 8-2. FRONT PANEL SECTION Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 57 56 55 54 53 52 74 not supplied 71 70 68 67 67 69 51 73 72 66 65 64 63 63 63 63 63 63 63 63 62 62 61 58 59 60 not supplied not supplied not supplied not supplied FL901 51 X-4956-201-1 FRONT PANEL ASSY (GN660) 51 X-4956-225-1 FRONT PANEL ASSY (GN770) 51 X-4956-228-1 FRONT PANEL ASSY (GX9000) 52 4-252-592-01 COVER AL-TC 53 4-252-577-01 LID TC 54 4-252-595-01 SPRING LID 55 4-252-578-01 HOLDER TC-L 56 4-252-579-01 HOLDER TC-R 57 4-959-229-11 DETENT, CASSETTE 58 4-224-578-21 KNOB (MIC) 59 4-252-571-01 KNOB AMS (GN660/GN770) 59 4-252-571-11 KNOB AMS (GX9000) 60 4-252-575-01 KNOB VOL 61 4-252-590-01 COVER AL-STR (GN660) 61 4-252-590-11 COVER AL-STR (GN770/GX9000) 62 4-244-092-01 SPRING (EJECT) 63 4-951-620-01 SCREW (2.6X8), +BVTP 64 A-1056-930-A PANEL BOARD, COMPLETE (MX) 64 A-4750-973-A PANEL BOARD, COMPLETE (EXCEPT MX) 65 1-773-109-11 WIRE (FLAT TYPE) (19 CORE) (GN660) 65 1-773-109-11 WIRE (FLAT TYPE) (19 CORE) (GN770/GX9000) 66 4-231-581-01 HOLDER (FL) 67 4-224-104-11 DAMPER 68 4-252-597-01 SPRING L 69 4-252-598-01 SPRING R 70 A-4750-976-A GAME BOARD, COMPLETE (GN660/GN770) 70 A-4751-304-A GAME BOARD, COMPLETE (GX9000) 71 1-796-486-61 DECK, MECHANICAL (GN660/GX9000) 71 1-796-487-51 DECK, MECHANICAL (GN770) 72 4-243-608-01 BELT (BR) (GN770) 73 4-243-609-01 BELT (AF) (GN770) 74 4-243-610-01 BELT (AL) (GN770) FL901 1-518-981-11 VACUUM FLUORESCENT DISPLAYS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 HCD-GN660/GN770/GX9000 8-3. CHASSIS SECTION Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 102 102 107 107 #1 #1 103 104 105 106 101 not supplied not supplied not supplied not supplied not supplied not supplied not supplied F698 T601 F699 F697 F760 F696 #1 #1 #1 #3 #1 #2 #1 #2 #2 #3 #1 #1 not supplied #1 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. 101 A-1053-545-A SURROUND BOARD, COMPLETE (MX, AR, AUS, US) 101 A-4750-965-A SURROUND BOARD, COMPLETE (E2, E3, E51) 102 3-905-609-31 SCREW (TRANSISTOR) 103 A-1055-241-A PA BOARD, COMPLETE (GN660: E3) 103 A-1055-312-A PA BOARD, COMPLETE (GN770: E3/GX9000) 103 A-4750-963-A PA BOARD, COMPLETE (GN660: E2, E51, MX, AR) 103 A-4750-994-A PA BOARD, COMPLETE (GN770: E2, E51, MX) 103 A-4753-166-A PA BOARD, COMPLETE (AUS) 0104 1-777-071-53 CORD, POWER (E51) 0104 1-783-820-11 CORD, POWER (GX9000) 0104 1-783-941-12 CORD, POWER (AR) 0104 1-827-226-11 CORD, POWER (E2, E3, MX) 0104 1-827-295-22 CORD, POWER (AUS) * 105 3-703-244-00 BUSHING (2104), CORD (E51, AR, AUS, US) 105 3-703-571-11 BUSHING (S) (4516), CORD (E2, E3, MX) 106 A-4750-981-A MAIN BOARD, COMPLETE (GN660: E2) 106 A-4750-989-A MAIN BOARD, COMPLETE (GN770: E2) 106 A-4750-999-A MAIN BOARD, COMPLETE (GX9000) 106 A-4753-110-A MAIN BOARD, COMPLETE (GN660: E3) 106 A-4753-116-A MAIN BOARD, COMPLETE (GN660: E51) 106 A-4753-120-A MAIN BOARD, COMPLETE (GN660: MX) 106 A-4753-123-A MAIN BOARD, COMPLETE (GN660: AR) 106 A-4753-126-A MAIN BOARD, COMPLETE (GN770: E3) 106 A-4753-129-A MAIN BOARD, COMPLETE (GN770: AUS) 106 A-4753-133-A MAIN BOARD, COMPLETE (GN770: E51) 106 A-4753-139-A MAIN BOARD, COMPLETE (GN770: MX) 107 4-924-098-01 HOLDER, PC BOARD 0F696 1-576-537-12 FUSE, GLASS TUBE (DIA.5) (8A/125V)(GX9000) 0F696 1-576-655-12 FUSE, GLASS TUBE (DIA. 5) (T8.0AL/250V) (GN660/GN770) 0F697 1-576-537-12 FUSE, GLASS TUBE (DIA.5) (8A/125V)(GX9000) 0F697 1-576-655-12 FUSE, GLASS TUBE (DIA. 5) (T8.0AL/250V) (GN660/GN770) 0F698 1-533-454-12 FUSE, GLASS TUBE (DIA. 5) (6.3A/125V) (GX9000) 0F698 1-533-473-12 FUSE, GLASS TUBE (DIA. 5) (T6.3AL/250V) (GN660/GN770) 0F699 1-533-454-12 FUSE, GLASS TUBE (DIA. 5) (6.3A/125V) (GX9000) 0F699 1-533-473-12 FUSE, GLASS TUBE (DIA. 5) (T6.3AL/250V) (GN660/GN770) 0F760 1-533-451-12 FUSE, GLASS TUBE (DIA. 5) (3.15A/125V) (GX9000) 0F760 1-533-470-12 FUSE, GLASS TUBE (DIA. 5) (T3.15AL/250V) (GN660/GN770) 0T601 1-443-200-11 POWER TRANSFORMER (GN660: E2, E3, E51, AR) 0T601 1-443-200-21 POWER TRANSFORMER (GN660: MX) 0T601 1-443-201-11 POWER TRANSFORMER (GN770: E2, E3, E51, AUS) 0T601 1-443-201-21 POWER TRANSFORMER (GN770: MX) 0T601 1-443-301-11 POWER TRANSFORMER (GX9000) #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 #2 7-685-871-01 SCREW +BVTT 3X6 (S) #3 7-685-881-09 SCREW +BVTT 4X8 (S) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 HCD-GN660/GN770/GX9000 8-4. CD MECHANISM DECK SECTION-1 (CDM74-F1BD81) Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 152 154 155 155 156 156 157 157 158 158 159 151 156 162 163 164 165 160 161 164 CD mechanism deck section-2 151 153 166 M741 151 4-218-253-32 SCREW (M2.6), +BTTP 152 1-776-182-11 WIRE (FLAT TYPE) (5 CORE) 153 1-687-134-12 MOTOR (TB) BOARD 154 4-243-815-01 TABLE (LOADING) 155 4-245-571-02 GEAR (STOPPER) 156 4-218-252-61 SCREW (+PTPWH M2.6), FLOATING 157 4-245-570-01 GEAR (JOINT) 158 4-245-572-01 BUSHING (GEAR) 159 1-687-132-12 SENSOR BOARD 160 4-243-820-01 GEAR (TABLE) 161 4-243-819-01 GEAR (GENEVA) 162 4-243-816-01 TRAY 163 4-243-823-01 BELT (TABLE) 164 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING 165 4-243-821-01 PULLEY (TABLE) 166 3-231-598-01 SHEET (BA) M741 A-4723-963-A MOTOR ASSY, TABLE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 HCD-GN660/GN770/GX9000 8-5. CD MECHANISM DECK SECTION-2 (CDM74-F1BD81) Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 201 202 202 202 203 204 205 206 207 208 210 211 212 213 214 215 216 217 219 231 220 205 205 222 223 223 224 224 225 225 226 232 230 218 223 223 222 229 222 222 205 205 205 205 M751 RE701 227 228 not supplied The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. 201 1-687-135-12 DRIVER BOARD 202 4-218-253-32 SCREW (M2.6), +BTTP 203 1-687-669-12 SW BOARD 204 4-244-034-01 BELT (LOADING) 205 4-218-252-61 SCREW (+PTPWH M2.6), FLOATING 206 4-225-844-01 GEAR (LOADING A) 207 4-224-613-01 GEAR (SHAFT) 208 1-687-133-12 MOTOR (LD) BOARD 210 4-244-108-01 GEAR, SWING 211 4-224-609-01 GEAR (LOADING C) 212 4-224-608-01 COLLAR, SWING 213 3-016-533-01 WASHER (FR), STOPPER 214 4-224-611-01 GEAR (LOADING B) 215 4-224-606-01 GEAR (RV) 216 4-243-818-01 GEAR (U/D) 217 4-243-822-02 LEVER (LIFTER) 218 X-4955-774-1 PULLEY (SM) ASSY, CHUCKING 219 4-221-688-01 PULLEY (B), CHUCKING 220 X-4955-536-1 HOLDER (213) ASSY 222 4-227-549-11 INSULATOR 223 4-227-045-11 SPRING (INSULATOR), COIL 224 4-231-151-01 STOPPER (BU) 225 4-218-253-22 SCREW (M2.6), +BTTP 226 1-827-992-11 WIRE (FLAT TYPE) (16 CORE) 227 1-775-248-11 WIRE (FLAT TYPE) (27 CORE) 228 A-4751-045-A BD BOARD, COMPLETE 0229 8-820-244-01 OPTICAL PICK-UP (KSM-215DCP/C2NP) 230 1-471-035-11 MAGNET ASSY 231 4-243-817-01 CHASSIS 232 4-951-620-01 SCREW (2.6X8), +BVTP M751 A-4737-553-A MOTOR ASSY, LOADING RE701 1-477-680-12 ENCODER, ROTARY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 HCD-GN660/GN770/GX9000 SECTION 9 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • CAPACITORS: uF: µF • RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable • COILS uH: µH • SEMICONDUCTORS In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD... • Abbreviation AUS : Australian model E2 : 120V AC Area in E model E3 : 240V AC Area in E model E51 : Chilean and Peruvian model MX : Mexican model AR : Argentine model BD The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. A-4751-045-A BD BOARD, COMPLETE ***************** < CAPACITOR > C10 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V C11 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V C14 1-164-360-11 CERAMIC CHIP 0.1uF 16V C15 1-164-360-11 CERAMIC CHIP 0.1uF 16V C16 1-115-156-11 CERAMIC CHIP 1uF 10V C17 1-126-246-11 ELECT CHIP 220uF 20% 4V C18 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C111 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C112 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C113 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C114 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C115 1-164-360-11 CERAMIC CHIP 0.1uF 16V C116 1-128-995-21 ELECT CHIP 100uF 20% 10V C122 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C123 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C124 1-162-959-11 CERAMIC CHIP 330PF 5% 50V C125 1-164-360-11 CERAMIC CHIP 0.1uF 16V C131 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C132 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C133 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C134 1-164-360-11 CERAMIC CHIP 0.1uF 16V C141 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C142 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C143 1-164-360-11 CERAMIC CHIP 0.1uF 16V C151 1-128-995-21 ELECT CHIP 100uF 20% 10V C161 1-164-360-11 CERAMIC CHIP 0.1uF 16V C162 1-164-360-11 CERAMIC CHIP 0.1uF 16V C163 1-164-360-11 CERAMIC CHIP 0.1uF 16V C171 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C172 1-162-920-11 CERAMIC CHIP 27PF 5% 50V C174 1-164-360-11 CERAMIC CHIP 0.1uF 16V C181 1-164-360-11 CERAMIC CHIP 0.1uF 16V C182 1-164-360-11 CERAMIC CHIP 0.1uF 16V C183 1-124-778-00 ELECT CHIP 22uF 20% 6.3V C184 1-124-778-00 ELECT CHIP 22uF 20% 6.3V R185 1-164-315-11 CERAMIC CHIP 470PF 5% 50V R186 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C194 1-164-360-11 CERAMIC CHIP 0.1uF 16V C195 1-164-360-11 CERAMIC CHIP 0.1uF 16V C196 1-164-360-11 CERAMIC CHIP 0.1uF 16V C201 1-128-995-21 ELECT CHIP 100uF 20% 10V C203 1-128-995-21 ELECT CHIP 100uF 20% 10V C209 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C210 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C211 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C212 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C213 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C251 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V C252 1-164-360-11 CERAMIC CHIP 0.1uF 16V C255 1-164-360-11 CERAMIC CHIP 0.1uF 16V C257 1-164-360-11 CERAMIC CHIP 0.1uF 16V C258 1-164-360-11 CERAMIC CHIP 0.1uF 16V C259 1-164-360-11 CERAMIC CHIP 0.1uF 16V C260 1-128-394-11 ELECT CHIP 220uF 20% 10V C302 1-164-360-11 CERAMIC CHIP 0.1uF 16V C303 1-164-360-11 CERAMIC CHIP 0.1uF 16V C305 1-126-246-11 ELECT CHIP 220uF 20% 4V C306 1-164-360-11 CERAMIC CHIP 0.1uF 16V C307 1-164-360-11 CERAMIC CHIP 0.1uF 16V C308 1-126-208-21 ELECT CHIP 47uF 20% 4V C309 1-164-360-11 CERAMIC CHIP 0.1uF 16V C310 1-164-360-11 CERAMIC CHIP 0.1uF 16V C311 1-164-360-11 CERAMIC CHIP 0.1uF 16V C312 1-164-360-11 CERAMIC CHIP 0.1uF 16V C313 1-164-360-11 CERAMIC CHIP 0.1uF 16V C314 1-126-208-21 ELECT CHIP 47uF 20% 4V C315 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C316 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C317 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C318 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C320 1-216-864-11 SHORT CHIP 0 < CONNECTOR > CN101 1-770-425-11 CONNECTOR, FFC/FPC 16P CN201 1-818-350-11 CONNECTOR (FFC) 27P < FERRITE BEAD > FB301 1-500-445-21 FERRITE, EMI (SMD) (2012) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 HCD-GN660/GN770/GX9000 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks CD SW DRIVER BD < IC > IC101 8-752-425-12 IC CXD3059AR IC251 6-705-808-01 IC BA5947FM IC301 6-705-365-01 IC TC94A34FG-002 IC303 6-705-807-01 IC BH15FB1WG < TRANSISTOR > Q10 6-550-363-01 TRANSISTOR 2SB1690KT146 < RESISTOR > R10 1-216-791-11 METAL CHIP 3.3 5% 1/10W R11 1-216-864-11 SHORT CHIP 0 R12 1-216-845-11 METAL CHIP 100K 5% 1/10W R13 1-218-446-11 METAL CHIP 1 5% 1/10W R111 1-216-821-11 METAL CHIP 1K 5% 1/10W R112 1-216-835-11 METAL CHIP 15K 5% 1/10W R113 1-216-821-11 METAL CHIP 1K 5% 1/10W R114 1-216-835-11 METAL CHIP 15K 5% 1/10W R121 1-216-835-11 METAL CHIP 15K 5% 1/10W R131 1-216-857-11 METAL CHIP 1M 5% 1/10W R132 1-216-833-11 METAL CHIP 10K 5% 1/10W R133 1-216-848-11 METAL CHIP 180K 5% 1/10W R141 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R142 1-216-821-11 METAL CHIP 1K 5% 1/10W R143 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R151 1-216-864-11 SHORT CHIP 0 R161 1-216-809-11 METAL CHIP 100 5% 1/10W R162 1-216-841-11 METAL CHIP 47K 5% 1/10W R163 1-216-809-11 METAL CHIP 100 5% 1/10W R165 1-216-864-11 SHORT CHIP 0 R171 1-216-817-11 METAL CHIP 470 5% 1/10W R172 1-216-857-11 METAL CHIP 1M 5% 1/10W R173 1-216-295-91 SHORT CHIP 0 R181 1-216-809-11 METAL CHIP 100 5% 1/10W R182 1-216-809-11 METAL CHIP 100 5% 1/10W R191 1-216-864-11 SHORT CHIP 0 R201 1-500-445-21 FERRITE, EMI (SMD) (2012) R203 1-216-864-11 SHORT CHIP 0 R204 1-500-445-21 FERRITE, EMI (SMD) (2012) R205 1-216-864-11 SHORT CHIP 0 R251 1-216-833-11 METAL CHIP 10K 5% 1/10W R252 1-216-837-11 METAL CHIP 22K 5% 1/10W R253 1-216-833-11 METAL CHIP 10K 5% 1/10W R301 1-216-845-11 METAL CHIP 100K 5% 1/10W R302 1-216-833-11 METAL CHIP 10K 5% 1/10W R303 1-216-845-11 METAL CHIP 100K 5% 1/10W R305 1-216-845-11 METAL CHIP 100K 5% 1/10W R306 1-216-864-11 SHORT CHIP 0 R307 1-216-833-11 METAL CHIP 10K 5% 1/10W R313 1-216-813-11 METAL CHIP 220 5% 1/10W R351 1-216-809-11 METAL CHIP 100 5% 1/10W R352 1-216-809-11 METAL CHIP 100 5% 1/10W R353 1-216-809-11 METAL CHIP 100 5% 1/10W R354 1-216-809-11 METAL CHIP 100 5% 1/10W R401 1-216-809-11 METAL CHIP 100 5% 1/10W R402 1-216-809-11 METAL CHIP 100 5% 1/10W R403 1-216-809-11 METAL CHIP 100 5% 1/10W R404 1-216-809-11 METAL CHIP 100 5% 1/10W R405 1-216-809-11 METAL CHIP 100 5% 1/10W R406 1-216-809-11 METAL CHIP 100 5% 1/10W R407 1-216-809-11 METAL CHIP 100 5% 1/10W R408 1-216-809-11 METAL CHIP 100 5% 1/10W R409 1-216-809-11 METAL CHIP 100 5% 1/10W R410 1-216-809-11 METAL CHIP 100 5% 1/10W R411 1-216-809-11 METAL CHIP 100 5% 1/10W R412 1-216-809-11 METAL CHIP 100 5% 1/10W R419 1-216-809-11 METAL CHIP 100 5% 1/10W < SWITCH > S101 1-771-853-11 SWITCH, DETECTION (LIMIT) < VIBRATOR > X171 1-767-408-21 VIBRATOR, CRYSTAL (16.9MHz) ************************************************************ CD SW BOARD *********** < DIODE > D925 8-719-058-04 DIODE SEL5223S-TP15 (^/1) < TRANSISTOR > Q917 8-729-027-43 TRANSISTOR DTC114EKA-T146 < RESISTOR > R967 1-216-833-11 METAL CHIP 10K 5% 1/10W R968 1-216-835-11 METAL CHIP 15K 5% 1/10W R969 1-216-837-11 METAL CHIP 22K 5% 1/10W R970 1-216-839-11 METAL CHIP 33K 5% 1/10W R971 1-216-843-11 METAL CHIP 68K 5% 1/10W R972 1-216-814-11 METAL CHIP 270 5% 1/10W R973 1-216-819-11 METAL CHIP 680 5% 1/10W R974 1-216-819-11 METAL CHIP 680 5% 1/10W < SWITCH > S918 1-762-875-21 SWITCH, KEYBOARD (Z OPEN/CLOSE) S919 1-762-875-21 SWITCH, KEYBOARD (EX-CHANGE/DISC SKIP) S920 1-762-875-21 SWITCH, KEYBOARD (DISC 3) S921 1-762-875-21 SWITCH, KEYBOARD (DISC 2) S922 1-762-875-21 SWITCH, KEYBOARD (DISC 1) S923 1-762-875-21 SWITCH, KEYBOARD (^/1) ************************************************************ 1-687-135-12 DRIVER BOARD ************ < CAPACITOR > C715 1-126-933-11 ELECT 100uF 20% 16V C731 1-126-964-11 ELECT 10uF 20% 50V C735 1-164-159-11 CERAMIC 0.1uF 50V C736 1-164-159-11 CERAMIC 0.1uF 50V C737 1-164-159-11 CERAMIC 0.1uF 50V C741 1-162-306-11 CERAMIC 0.01uF 20% 16V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 HCD-GN660/GN770/GX9000 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks GAME DRIVER C751 1-162-306-11 CERAMIC 0.01uF 20% 16V C752 1-164-159-11 CERAMIC 0.1uF 50V < CONNECTOR > CN701 1-785-338-11 PIN, CONNECTOR (LIGHT ANGLE) 12P CN702 1-784-766-11 CONNECTOR, FFC 5P * CN703 1-564-720-11 PIN, CONNECTOR (SMALL TYPE) 4P CN704 1-785-328-11 PIN, CONNECTOR (LIGHT ANGRE) 2P < DIODE > D701 8-719-947-16 DIODE MTZJ-T-72-5.1A D711 8-719-983-66 DIODE MTZJ-T-72-3.6B < IC > IC701 8-759-598-69 IC BA6956AN IC712 8-759-598-69 IC BA6956AN < TRANSISTOR > Q731 8-729-029-66 TRANSISTOR DTC114ESA < RESISTOR > R701 1-249-413-11 CARBON 470 5% 1/4W R702 1-247-807-31 CARBON 100 5% 1/4W R711 1-247-831-91 CARBON 1K 5% 1/4W R712 1-247-847-91 CARBON 4.7K 5% 1/4W R713 1-247-863-91 CARBON 22K 5% 1/4W R721 1-247-847-91 CARBON 4.7K 5% 1/4W R722 1-247-847-91 CARBON 4.7K 5% 1/4W R723 1-247-847-91 CARBON 4.7K 5% 1/4W R731 1-247-807-31 CARBON 100 5% 1/4W R732 1-249-429-11 CARBON 10K 5% 1/4W R733 1-247-831-91 CARBON 1K 5% 1/4W R734 1-249-430-11 CARBON 12K 5% 1/4W R735 1-247-807-31 CARBON 100 5% 1/4W R751 1-247-847-91 CARBON 4.7K 5% 1/4W ************************************************************ A-4750-976-A GAME BOARD, COMPLETE (GN660/GN770) A-4751-304-A GAME BOARD, COMPLETE (GX9000) ******************* < CAPACITOR > C801 1-126-923-91 ELECT 220uF 20% 10V C802 1-126-957-11 ELECT 0.22uF 20% 50V C803 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C804 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C805 1-126-964-11 ELECT 10uF 20% 50V C806 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C807 1-126-961-11 ELECT 2.2uF 20% 50V C809 1-124-250-11 ELECT 0.15uF 20% 50V C810 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C811 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C812 1-126-964-11 ELECT 10uF 20% 50V C813 1-164-174-11 CERAMIC CHIP 0.0082uF 10% 25V C814 1-124-261-00 ELECT 10uF 20% 50V C816 1-164-156-11 CERAMIC CHIP 0.1uF 25V C817 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C838 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C839 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C840 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C841 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C845 1-126-964-11 ELECT 10uF 20% 50V C846 1-126-964-11 ELECT 10uF 20% 50V < CONNECTOR > * CN801 1-564-725-11 PIN, CONNECTOR (SMALL TYPE) 9P CN802 1-785-328-11 PIN, CONNECTOR (LIGHT ANGRE) 2P < DIODE > D802 8-719-988-61 DIODE 1SS355TE-17 D803 8-719-988-61 DIODE 1SS355TE-17 D806 8-719-988-61 DIODE 1SS355TE-17 D807 8-719-988-61 DIODE 1SS355TE-17 < EARTH TERMINAL > EPT802 1-537-738-21 TERMINAL, GROUND EPT803 1-537-738-21 TERMINAL, GROUND EPT804 1-537-738-21 TERMINAL, GROUND < IC > IC850 8-759-710-97 IC NJM4565M-D < JACK > J801 1-817-629-11 JACK (LARGE TYPE) (MIC) J850 1-764-592-11 JACK 3P (GAME INPUT) J851 1-794-702-11 JACK, HEADPHONE (PHONES) < SHORT > JR810 1-216-864-11 SHORT CHIP 0 JR811 1-216-864-11 SHORT CHIP 0 JR812 1-216-864-11 SHORT CHIP 0 JR813 1-216-864-11 SHORT CHIP 0 JR815 1-216-864-11 SHORT CHIP 0 JR816 1-216-864-11 SHORT CHIP 0 < RESISTOR > R801 1-216-845-11 METAL CHIP 100K 5% 1/10W R802 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R803 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R804 1-216-809-11 METAL CHIP 100 5% 1/10W R805 1-216-848-11 METAL CHIP 180K 5% 1/10W R806 1-216-833-11 METAL CHIP 10K 5% 1/10W R807 1-216-809-11 METAL CHIP 100 5% 1/10W R808 1-216-837-11 METAL CHIP 22K 5% 1/10W R809 1-216-821-11 METAL CHIP 1K 5% 1/10W R810 1-216-845-11 METAL CHIP 100K 5% 1/10W R811 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R813 1-216-821-11 METAL CHIP 1K 5% 1/10W R814 1-216-833-11 METAL CHIP 10K 5% 1/10W R827 1-216-845-11 METAL CHIP 100K 5% 1/10W R828 1-216-845-11 METAL CHIP 100K 5% 1/10W R829 1-216-821-11 METAL CHIP 1K 5% 1/10W R830 1-216-821-11 METAL CHIP 1K 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 HCD-GN660/GN770/GX9000 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks MAIN JOG < VARIABLE RESISTOR > RV801 1-227-452-11 RES, VAR, CARBON 50K (MIC LEVEL) ************************************************************ JOG BOARD ********* < CAPACITOR > C964 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C965 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V < SWITCH > S957 1-478-662-11 ENCODER, ROTARY (MULTI JOG) ************************************************************ A-4750-981-A MAIN PC BOARD ASSY (GN660: E2) A-4750-989-A MAIN PC BOARD ASSY (GN770: E2) A-4750-999-A MAIN PC BOARD ASSY (GX9000) A-4753-110-A MAIN PC BOARD ASSY (GN660: E3) A-4753-116-A MAIN PC BOARD ASSY (GN660: E51) A-4753-120-A MAIN PC BOARD ASSY (GN660: MX) A-4753-123-A MAIN PC BOARD ASSY (GN660:AR) A-4753-126-A MAIN PC BOARD ASSY (GN770: E3) A-4753-129-A MAIN PC BOARD ASSY (GN770:AUS) A-4753-133-A MAIN PC BOARD ASSY (GN770: E51) A-4753-139-A MAIN PC BOARD ASSY (GN770: MX) **************** 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 < CAPACITOR > C101 1-124-261-00 ELECT 10uF 20% 50V C103 1-124-261-00 ELECT 10uF 20% 50V C104 1-124-261-00 ELECT 10uF 20% 50V C105 1-126-964-11 ELECT 10uF 20% 50V C106 1-126-964-11 ELECT 10uF 20% 50V C107 1-136-497-81 FILM 0.1uF 5% 50V C108 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C109 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C110 1-126-964-11 ELECT 10uF 20% 50V C111 1-100-436-91 CERAMIC CHIP 0.033uF 10% 25V C112 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V C113 1-126-964-11 ELECT 10uF 20% 50V C114 1-136-170-00 FILM 0.27uF 5% 50V C115 1-137-195-11 FILM 0.56uF 5% 50V C116 1-126-963-11 ELECT 4.7uF 20% 50V C119 1-126-157-11 ELECT 10uF 20% 16V C120 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C121 1-126-160-11 ELECT 1uF 20% 50V C122 1-124-261-00 ELECT 10uF 20% 50V C123 1-115-412-11 CERAMIC CHIP 680PF 5% 25V C124 1-162-928-11 CERAMIC CHIP 120PF 5% 50V C125 1-162-959-11 CERAMIC CHIP 330PF 5% 50V C126 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C127 1-126-947-11 ELECT 47uF 20% 35V C128 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C129 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C130 1-104-658-91 ELECT 100uF 20% 10V C131 1-126-959-11 ELECT 0.47uF 20% 50V C133 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C134 1-124-261-00 ELECT 10uF 20% 50V C135 1-126-933-11 ELECT 100uF 20% 16V C136 1-126-933-11 ELECT 100uF 20% 16V C137 1-126-935-11 ELECT 470uF 20% 16V C138 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C139 1-137-150-11 FILM 0.01uF 5% 100V C140 1-126-947-11 ELECT 47uF 20% 35V C141 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C142 1-130-481-00 MYLAR 0.0068uF 5% 50V C143 1-128-131-11 ELECT 22uF 20% 50V C144 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C145 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C146 1-115-412-11 CERAMIC CHIP 680PF 5% 25V C147 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C148 1-124-257-00 ELECT 2.2uF 20% 50V C150 1-126-964-11 ELECT 10uF 20% 50V C151 1-126-964-11 ELECT 10uF 20% 50V C153 1-126-964-11 ELECT 10uF 20% 50V C154 1-126-964-11 ELECT 10uF 20% 50V C155 1-126-964-11 ELECT 10uF 20% 50V C156 1-126-964-11 ELECT 10uF 20% 50V C157 1-136-497-81 FILM 0.1uF 5% 50V C158 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C159 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C160 1-126-964-11 ELECT 10uF 20% 50V C161 1-100-436-91 CERAMIC CHIP 0.033uF 10% 25V C162 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V C163 1-126-964-11 ELECT 10uF 20% 50V C164 1-136-170-00 FILM 0.27uF 5% 50V C165 1-137-195-11 FILM 0.56uF 5% 50V C166 1-126-963-11 ELECT 4.7uF 20% 50V C169 1-126-157-11 ELECT 10uF 20% 16V C170 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C171 1-126-960-11 ELECT 1uF 20% 50V C172 1-126-964-11 ELECT 10uF 20% 50V C173 1-115-412-11 CERAMIC CHIP 680PF 5% 25V C174 1-162-928-11 CERAMIC CHIP 120PF 5% 50V C175 1-162-959-11 CERAMIC CHIP 330PF 5% 50V C176 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C177 1-137-194-81 FILM 0.47uF 5% 50V C178 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C179 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C186 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V C187 1-104-658-91 ELECT 100uF 20% 10V C188 1-164-156-11 CERAMIC CHIP 0.1uF 25V C189 1-162-957-11 CERAMIC CHIP 220PF 5% 50V C190 1-162-957-11 CERAMIC CHIP 220PF 5% 50V C192 1-126-960-11 ELECT 1uF 20% 50V C194 1-126-964-11 ELECT 10uF 20% 50V C195 1-126-160-11 ELECT 1uF 20% 50V C196 1-115-412-11 CERAMIC CHIP 680PF 5% 25V C197 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C198 1-126-961-11 ELECT 2.2uF 20% 50V C199 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C200 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C301 1-126-964-11 ELECT 10uF 20% 50V C302 1-136-497-81 FILM 0.1uF 5% 50V GAME www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 HCD-GN660/GN770/GX9000 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks MAIN C303 1-136-497-81 FILM 0.1uF 5% 50V C316 1-164-156-11 CERAMIC CHIP 0.1uF 25V C410 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C411 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C412 1-164-156-11 CERAMIC CHIP 0.1uF 25V C416 1-104-656-11 ELECT 2200uF 20% 6.3V C419 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C421 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C429 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C430 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C462 1-104-658-91 ELECT 100uF 20% 10V C464 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C469 1-126-157-11 ELECT 10uF 20% 16V (E2, E3, E51) C497 1-164-156-11 CERAMIC CHIP 0.1uF 25V C498 1-126-964-11 ELECT 10uF 20% 50V C499 1-164-156-11 CERAMIC CHIP 0.1uF 25V C501 1-128-548-11 ELECT 4700uF 20% 25V C503 1-164-156-11 CERAMIC CHIP 0.1uF 25V C504 1-126-926-11 ELECT 1000uF 20% 10V C505 1-164-156-11 CERAMIC CHIP 0.1uF 25V C506 1-126-925-91 ELECT 470uF 20% 10V C507 1-164-156-11 CERAMIC CHIP 0.1uF 25V C508 1-104-656-11 ELECT 2200uF 20% 6.3V C517 1-125-827-91 CERAMIC CHIP 1uF 10% 25V C518 1-125-827-91 CERAMIC CHIP 1uF 10% 25V C520 1-126-961-11 ELECT 2.2uF 20% 50V C521 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C523 1-126-964-11 ELECT 10uF 20% 50V C525 1-164-156-11 CERAMIC CHIP 0.1uF 25V C526 1-164-156-11 CERAMIC CHIP 0.1uF 25V C531 1-164-156-11 CERAMIC CHIP 0.1uF 25V C532 1-164-156-11 CERAMIC CHIP 0.1uF 25V C533 1-104-658-91 ELECT 100uF 20% 10V (GN660/GN770) C534 1-164-156-11 CERAMIC CHIP 0.1uF 25V C535 1-126-928-11 ELECT 3300uF 20% 10V C536 1-164-156-11 CERAMIC CHIP 0.1uF 25V C537 1-164-156-11 CERAMIC CHIP 0.1uF 25V C538 1-164-156-11 CERAMIC CHIP 0.1uF 25V C546 1-164-156-11 CERAMIC CHIP 0.1uF 25V (AUS, US) C550 1-164-156-11 CERAMIC CHIP 0.1uF 25V C551 1-107-714-11 ELECT 10uF 20% 50V C570 1-126-961-11 ELECT 2.2uF 20% 50V C571 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C573 1-126-964-11 ELECT 10uF 20% 50V C575 1-164-156-11 CERAMIC CHIP 0.1uF 25V C576 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C577 1-126-157-11 ELECT 10uF 20% 16V C578 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C579 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C580 1-164-172-11 CERAMIC CHIP 0.0056uF 10% 25V C581 1-164-172-11 CERAMIC CHIP 0.0056uF 10% 25V C582 1-126-157-11 ELECT 10uF 20% 16V C626 1-126-969-11 ELECT 220uF 20% 50V C627 1-126-961-11 ELECT 2.2uF 20% 50V C628 1-126-933-11 ELECT 100uF 20% 16V C629 1-164-156-11 CERAMIC CHIP 0.1uF 25V < CONNECTOR > CN501 1-778-981-21 CONNECTOR, BOARD TO BOARD 13P CN502 1-573-843-11 CONNECTOR, BOARD TO BOARD 11P CN503 1-564-506-11 PLUG, CONNECTOR 3P CN505 1-779-564-21 CONNECTOR, FFC (LIF (NON-ZIF)) 27P CN506 1-569-906-11 SOCKET, CONNECTOR 11P CN507 1-785-338-11 PIN, CONNECTOR (LIGHT ANGLE) 12P * CN508 1-569-935-11 SOCKET, CONNECTOR 19P * CN509 1-569-930-11 SOCKET, CONNECTOR 13P * CN510 1-568-449-11 HOUSING, CONNECTOR (PC BOARD) 3P CN513 1-778-981-21 CONNECTOR, BOARD TO BOARD 13P < DIODE > D101 8-719-988-61 DIODE 1SS355TE-17 D102 8-719-988-61 DIODE 1SS355TE-17 D104 8-719-988-61 DIODE 1SS355TE-17 D105 8-719-988-61 DIODE 1SS355TE-17 D301 8-719-988-61 DIODE 1SS355TE-17 D302 8-719-988-61 DIODE 1SS355TE-17 D303 8-719-988-61 DIODE 1SS355TE-17 D501 8-719-988-61 DIODE 1SS355TE-17 D502 6-500-508-01 DIODE RR263M-400FTR D503 8-719-988-61 DIODE 1SS355TE-17 D504 8-719-988-61 DIODE 1SS355TE-17 D507 6-500-508-01 DIODE RR263M-400FTR D508 6-500-508-01 DIODE RR263M-400FTR D509 6-500-508-01 DIODE RR263M-400FTR D511 8-719-977-40 DIODE DTZ13B D627 8-719-988-61 DIODE 1SS355TE-17 < FERRITE BEAD > FB416 1-216-864-11 SHORT CHIP 0 FB462 1-414-864-11 FERRITE, EMI (SMD) (1608) FB505 1-216-864-11 SHORT CHIP 0 FB506 1-414-235-22 INDUCTOR, FERRITE BEAD FB507 1-414-235-22 INDUCTOR, FERRITE BEAD FB508 1-414-235-22 INDUCTOR, FERRITE BEAD FB509 1-414-235-22 INDUCTOR, FERRITE BEAD FB510 1-414-235-22 INDUCTOR, FERRITE BEAD FB511 1-414-235-22 INDUCTOR, FERRITE BEAD (EXCEPT AUS, US) FB511 1-500-284-21 INDUCTOR, FERRITE BEAD (AUS, US) FB512 1-414-235-22 INDUCTOR, FERRITE BEAD (EXCEPT AUS, US) FB512 1-500-284-21 INDUCTOR, FERRITE BEAD (AUS, US) FB555 1-216-864-11 SHORT CHIP 0 < IC > IC101 6-705-667-01 IC M61537FP-RF0G IC301 6-705-809-01 IC BD4929G-TR IC401 6-804-484-01 IC M3062CMEN-A13FPU0 IC502 8-759-394-36 IC BA09T IC503 6-703-550-01 IC TA7809LS IC504 6-702-771-01 IC TA78033LS IC508 6-600-012-01 IC TOTX141L (CD DIGITAL OUT) (GN660/GN770) IC627 6-703-610-01 IC RT8H015C-T112-1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 HCD-GN660/GN770/GX9000 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks MAIN < JACK > J501 1-770-272-11 JACK, PIN 2P (VIDEO/MD (AUDIO)) J504 1-774-227-11 JACK, PIN 1P (VIDEO OUT) < SHORT > JR102 1-216-864-11 SHORT CHIP 0 JR108 1-216-864-11 SHORT CHIP 0 JR109 1-216-864-11 SHORT CHIP 0 JR110 1-216-864-11 SHORT CHIP 0 JR111 1-216-864-11 SHORT CHIP 0 JR112 1-216-864-11 SHORT CHIP 0 JR113 1-216-864-11 SHORT CHIP 0 JR114 1-216-864-11 SHORT CHIP 0 JR115 1-216-864-11 SHORT CHIP 0 JR116 1-216-296-11 SHORT CHIP 0 JR117 1-216-864-11 SHORT CHIP 0 JR118 1-216-864-11 SHORT CHIP 0 JR119 1-216-864-11 SHORT CHIP 0 JR120 1-216-864-11 SHORT CHIP 0 JR121 1-216-864-11 SHORT CHIP 0 JR122 1-216-864-11 SHORT CHIP 0 JR207 1-216-296-11 SHORT CHIP 0 JR231 1-216-864-11 SHORT CHIP 0 JR233 1-216-864-11 SHORT CHIP 0 JR234 1-216-864-11 SHORT CHIP 0 JR236 1-216-864-11 SHORT CHIP 0 JR237 1-216-864-11 SHORT CHIP 0 JR238 1-216-864-11 SHORT CHIP 0 JR240 1-216-864-11 SHORT CHIP 0 JR241 1-216-864-11 SHORT CHIP 0 JR243 1-216-864-11 SHORT CHIP 0 JR244 1-216-296-11 SHORT CHIP 0 JR245 1-216-864-11 SHORT CHIP 0 JR246 1-216-864-11 SHORT CHIP 0 JR247 1-216-864-11 SHORT CHIP 0 JR248 1-216-864-11 SHORT CHIP 0 JR249 1-216-864-11 SHORT CHIP 0 JR251 1-216-864-11 SHORT CHIP 0 JR252 1-216-864-11 SHORT CHIP 0 JR253 1-216-864-11 SHORT CHIP 0 JR254 1-216-864-11 SHORT CHIP 0 JR256 1-216-296-11 SHORT CHIP 0 JR257 1-216-864-11 SHORT CHIP 0 JR258 1-216-296-11 SHORT CHIP 0 JR259 1-216-864-11 SHORT CHIP 0 JR260 1-216-296-11 SHORT CHIP 0 JR330 1-216-296-11 SHORT CHIP 0 JR331 1-216-864-11 SHORT CHIP 0 JR333 1-216-864-11 SHORT CHIP 0 (GN660/GN770) JR503 1-216-864-11 SHORT CHIP 0 JR732 1-216-864-11 SHORT CHIP 0 JR874 1-216-864-11 SHORT CHIP 0 JR879 1-216-864-11 SHORT CHIP 0 JR882 1-216-864-11 SHORT CHIP 0 < COIL > L103 1-410-780-11 INDUCTOR 27mH L104 1-410-780-11 INDUCTOR 27mH L105 1-414-189-31 INDUCTOR 100uH < CONNECTOR > * NO504 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P (GN660/GX9000) < TRANSISTOR > Q101 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q102 8-729-802-80 TRANSISTOR 2SC3661 Q103 8-729-802-80 TRANSISTOR 2SC3661 Q104 8-729-802-80 TRANSISTOR 2SC3661 Q105 8-729-802-80 TRANSISTOR 2SC3661 Q106 8-729-802-80 TRANSISTOR 2SC3661 Q107 8-729-216-22 TRANSISTOR 2SA1162-G Q108 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q109 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q110 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q111 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q112 8-729-141-75 TRANSISTOR 2SD596DV345 Q113 6-550-185-01 TRANSISTOR RT1P137P-TP-1 Q114 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q115 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 Q116 8-729-421-22 TRANSISTOR UN2211 Q117 8-729-421-22 TRANSISTOR UN2211 Q118 8-729-903-46 TRANSISTOR 2SB1132-P Q119 8-729-421-22 TRANSISTOR UN2211 Q120 8-729-903-46 TRANSISTOR 2SB1132-P Q121 8-729-421-22 TRANSISTOR UN2211 Q122 8-729-903-46 TRANSISTOR 2SB1132-P Q123 8-729-421-22 TRANSISTOR UN2211 Q124 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q125 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 Q151 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q152 8-729-802-80 TRANSISTOR 2SC3661 Q153 8-729-802-80 TRANSISTOR 2SC3661 Q154 8-729-802-80 TRANSISTOR 2SC3661 Q155 8-729-802-80 TRANSISTOR 2SC3661 Q166 8-729-802-80 TRANSISTOR 2SC3661 Q175 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 Q301 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q402 8-729-027-43 TRANSISTOR DTC114EKA-T146 (E2, E3, E51) Q501 6-550-185-01 TRANSISTOR RT1P137P-TP-1 Q502 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q505 8-729-424-12 TRANSISTOR UN2112 Q506 8-729-421-22 TRANSISTOR UN2211 Q507 8-729-424-12 TRANSISTOR UN2112 Q508 8-729-421-22 TRANSISTOR UN2211 Q509 8-729-424-12 TRANSISTOR UN2112 Q510 8-729-421-22 TRANSISTOR UN2211 Q514 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q515 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q520 8-729-802-80 TRANSISTOR 2SC3661 Q521 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q523 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q524 8-729-026-68 TRANSISTOR 2SD2525 (TP) Q526 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q527 8-729-027-43 TRANSISTOR DTC114EKA-T146 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68 HCD-GN660/GN770/GX9000 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks MAIN Q570 8-729-802-80 TRANSISTOR 2SC3661 < RESISTOR > R101 1-216-812-11 METAL CHIP 180 5% 1/10W R102 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R103 1-216-833-11 METAL CHIP 10K 5% 1/10W R104 1-216-833-11 METAL CHIP 10K 5% 1/10W R105 1-216-841-11 METAL CHIP 47K 5% 1/10W R106 1-216-837-11 METAL CHIP 22K 5% 1/10W R107 1-216-833-11 METAL CHIP 10K 5% 1/10W R108 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R109 1-216-821-11 METAL CHIP 1K 5% 1/10W R110 1-216-851-11 METAL CHIP 330K 5% 1/10W R111 1-216-821-11 METAL CHIP 1K 5% 1/10W R112 1-216-833-11 METAL CHIP 10K 5% 1/10W R113 1-216-833-11 METAL CHIP 10K 5% 1/10W R114 1-216-864-11 SHORT CHIP 0 R115 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R116 1-216-833-11 METAL CHIP 10K 5% 1/10W R117 1-216-821-11 METAL CHIP 1K 5% 1/10W R118 1-216-833-11 METAL CHIP 10K 5% 1/10W R119 1-216-816-11 METAL CHIP 390 5% 1/10W R122 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R123 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R124 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R125 1-216-838-11 METAL CHIP 27K 5% 1/10W R126 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R127 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R128 1-216-821-11 METAL CHIP 1K 5% 1/10W R129 1-216-838-11 METAL CHIP 27K 5% 1/10W R130 1-216-835-11 METAL CHIP 15K 5% 1/10W R131 1-216-835-11 METAL CHIP 15K 5% 1/10W R132 1-216-857-11 METAL CHIP 1M 5% 1/10W R133 1-216-845-11 METAL CHIP 100K 5% 1/10W R134 1-216-864-11 SHORT CHIP 0 R135 1-216-833-11 METAL CHIP 10K 5% 1/10W R136 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R137 1-216-837-11 METAL CHIP 22K 5% 1/10W R138 1-216-833-11 METAL CHIP 10K 5% 1/10W R139 1-216-833-11 METAL CHIP 10K 5% 1/10W R140 1-216-833-11 METAL CHIP 10K 5% 1/10W R141 1-216-833-11 METAL CHIP 10K 5% 1/10W R142 1-216-833-11 METAL CHIP 10K 5% 1/10W R143 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R144 1-216-805-11 METAL CHIP 47 5% 1/10W R145 1-216-833-11 METAL CHIP 10K 5% 1/10W R146 1-216-797-11 METAL CHIP 10 5% 1/10W R147 1-216-803-11 METAL CHIP 33 5% 1/10W R148 1-216-841-11 METAL CHIP 47K 5% 1/10W R149 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R150 1-216-841-11 METAL CHIP 47K 5% 1/10W R151 1-216-812-11 METAL CHIP 180 5% 1/10W R152 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R153 1-216-833-11 METAL CHIP 10K 5% 1/10W R154 1-216-833-11 METAL CHIP 10K 5% 1/10W R155 1-216-841-11 METAL CHIP 47K 5% 1/10W R156 1-216-837-11 METAL CHIP 22K 5% 1/10W R157 1-216-833-11 METAL CHIP 10K 5% 1/10W R158 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R159 1-216-821-11 METAL CHIP 1K 5% 1/10W R160 1-216-851-11 METAL CHIP 330K 5% 1/10W R161 1-216-821-11 METAL CHIP 1K 5% 1/10W R162 1-216-833-11 METAL CHIP 10K 5% 1/10W R163 1-216-833-11 METAL CHIP 10K 5% 1/10W R164 1-216-864-11 SHORT CHIP 0 R165 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R166 1-216-833-11 METAL CHIP 10K 5% 1/10W R167 1-216-821-11 METAL CHIP 1K 5% 1/10W R168 1-216-833-11 METAL CHIP 10K 5% 1/10W R169 1-216-816-11 METAL CHIP 390 5% 1/10W R172 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R173 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R174 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R175 1-216-838-11 METAL CHIP 27K 5% 1/10W R176 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R177 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R178 1-216-819-11 METAL CHIP 680 5% 1/10W R179 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R180 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R181 1-216-819-11 METAL CHIP 680 5% 1/10W R182 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R183 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R184 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R185 1-216-819-11 METAL CHIP 680 5% 1/10W R186 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R187 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R188 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R189 1-216-817-11 METAL CHIP 470 5% 1/10W R190 1-216-833-11 METAL CHIP 10K 5% 1/10W R191 1-216-817-11 METAL CHIP 470 5% 1/10W R192 1-216-817-11 METAL CHIP 470 5% 1/10W R195 1-216-857-11 METAL CHIP 1M 5% 1/10W R200 1-216-841-11 METAL CHIP 47K 5% 1/10W R301 1-216-813-11 METAL CHIP 220 5% 1/10W R302 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R303 1-216-837-11 METAL CHIP 22K 5% 1/10W R304 1-216-837-11 METAL CHIP 22K 5% 1/10W R329 1-216-833-11 METAL CHIP 10K 5% 1/10W R330 1-216-833-11 METAL CHIP 10K 5% 1/10W R333 1-216-833-11 METAL CHIP 10K 5% 1/10W R342 1-216-833-11 METAL CHIP 10K 5% 1/10W R351 1-216-833-11 METAL CHIP 10K 5% 1/10W R353 1-216-833-11 METAL CHIP 10K 5% 1/10W R355 1-216-833-11 METAL CHIP 10K 5% 1/10W R356 1-216-833-11 METAL CHIP 10K 5% 1/10W R358 1-216-833-11 METAL CHIP 10K 5% 1/10W R361 1-216-833-11 METAL CHIP 10K 5% 1/10W R369 1-216-833-11 METAL CHIP 10K 5% 1/10W (E2, E3, E51) R373 1-216-833-11 METAL CHIP 10K 5% 1/10W R374 1-216-833-11 METAL CHIP 10K 5% 1/10W R375 1-216-833-11 METAL CHIP 10K 5% 1/10W R381 1-216-833-11 METAL CHIP 10K 5% 1/10W R386 1-216-833-11 METAL CHIP 10K 5% 1/10W R387 1-216-833-11 METAL CHIP 10K 5% 1/10W R389 1-216-833-11 METAL CHIP 10K 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 HCD-GN660/GN770/GX9000 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks MAIN R390 1-216-833-11 METAL CHIP 10K 5% 1/10W R391 1-216-833-11 METAL CHIP 10K 5% 1/10W R392 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (GN770/GX9000) R393 1-216-821-11 METAL CHIP 1K 5% 1/10W (E2, E51, MX, AR) R393 1-216-825-11 METAL CHIP 2.2K 5% 1/10W (GX9000) R393 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (E3, AUS) R394 1-216-821-11 METAL CHIP 1K 5% 1/10W R401 1-216-809-11 METAL CHIP 100 5% 1/10W R402 1-216-813-11 METAL CHIP 220 5% 1/10W R403 1-216-809-11 METAL CHIP 100 5% 1/10W R404 1-216-809-11 METAL CHIP 100 5% 1/10W R405 1-216-864-11 SHORT CHIP 0 R406 1-216-864-11 SHORT CHIP 0 R407 1-216-864-11 SHORT CHIP 0 R409 1-216-833-11 METAL CHIP 10K 5% 1/10W R411 1-216-851-11 METAL CHIP 330K 5% 1/10W R412 1-216-845-11 METAL CHIP 100K 5% 1/10W R413 1-216-864-11 SHORT CHIP 0 R417 1-216-833-11 METAL CHIP 10K 5% 1/10W R418 1-216-813-11 METAL CHIP 220 5% 1/10W R419 1-216-809-11 METAL CHIP 100 5% 1/10W R420 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R421 1-216-809-11 METAL CHIP 100 5% 1/10W R422 1-216-864-11 SHORT CHIP 0 R423 1-216-864-11 SHORT CHIP 0 R424 1-216-864-11 SHORT CHIP 0 R426 1-216-864-11 SHORT CHIP 0 R428 1-216-809-11 METAL CHIP 100 5% 1/10W R429 1-216-809-11 METAL CHIP 100 5% 1/10W R430 1-216-809-11 METAL CHIP 100 5% 1/10W R433 1-216-809-11 METAL CHIP 100 5% 1/10W R435 1-216-809-11 METAL CHIP 100 5% 1/10W R436 1-216-809-11 METAL CHIP 100 5% 1/10W R437 1-216-809-11 METAL CHIP 100 5% 1/10W R438 1-216-809-11 METAL CHIP 100 5% 1/10W R442 1-216-809-11 METAL CHIP 100 5% 1/10W R443 1-216-809-11 METAL CHIP 100 5% 1/10W R444 1-216-809-11 METAL CHIP 100 5% 1/10W R445 1-216-809-11 METAL CHIP 100 5% 1/10W R446 1-216-809-11 METAL CHIP 100 5% 1/10W R447 1-216-809-11 METAL CHIP 100 5% 1/10W R448 1-216-809-11 METAL CHIP 100 5% 1/10W R449 1-216-809-11 METAL CHIP 100 5% 1/10W R450 1-216-809-11 METAL CHIP 100 5% 1/10W R451 1-216-809-11 METAL CHIP 100 5% 1/10W R452 1-216-809-11 METAL CHIP 100 5% 1/10W R453 1-216-809-11 METAL CHIP 100 5% 1/10W R455 1-216-809-11 METAL CHIP 100 5% 1/10W R456 1-216-809-11 METAL CHIP 100 5% 1/10W R458 1-216-809-11 METAL CHIP 100 5% 1/10W R465 1-216-809-11 METAL CHIP 100 5% 1/10W R466 1-216-809-11 METAL CHIP 100 5% 1/10W R467 1-216-809-11 METAL CHIP 100 5% 1/10W R468 1-216-809-11 METAL CHIP 100 5% 1/10W R469 1-216-835-11 METAL CHIP 15K 5% 1/10W (GN660: E2, E3, E51) R469 1-216-836-11 METAL CHIP 18K 5% 1/10W (GN770: E2, E3, E51) R481 1-216-809-11 METAL CHIP 100 5% 1/10W R482 1-216-809-11 METAL CHIP 100 5% 1/10W R483 1-216-809-11 METAL CHIP 100 5% 1/10W R484 1-216-809-11 METAL CHIP 100 5% 1/10W R485 1-216-809-11 METAL CHIP 100 5% 1/10W R486 1-216-809-11 METAL CHIP 100 5% 1/10W R487 1-216-809-11 METAL CHIP 100 5% 1/10W R488 1-216-809-11 METAL CHIP 100 5% 1/10W R489 1-216-809-11 METAL CHIP 100 5% 1/10W R490 1-216-809-11 METAL CHIP 100 5% 1/10W R491 1-216-809-11 METAL CHIP 100 5% 1/10W R492 1-216-811-11 METAL CHIP 150 5% 1/10W (GN770) R492 1-216-821-11 METAL CHIP 1K 5% 1/10W (GX9000) R492 1-216-864-11 SHORT CHIP 0 (GN660) R493 1-216-815-11 METAL CHIP 330 5% 1/10W (E3) R493 1-216-823-11 METAL CHIP 1.5K 5% 1/10W (AUS) R493 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (EXCEPT E3, AUS) R494 1-216-809-11 METAL CHIP 100 5% 1/10W R502 1-216-821-11 METAL CHIP 1K 5% 1/10W R508 1-216-853-11 METAL CHIP 470K 5% 1/10W R509 1-216-843-11 METAL CHIP 68K 5% 1/10W R510 1-216-835-11 METAL CHIP 15K 5% 1/10W R511 1-216-853-11 METAL CHIP 470K 5% 1/10W R512 1-216-843-11 METAL CHIP 68K 5% 1/10W R513 1-216-835-11 METAL CHIP 15K 5% 1/10W R514 1-216-853-11 METAL CHIP 470K 5% 1/10W R515 1-216-843-11 METAL CHIP 68K 5% 1/10W R516 1-216-835-11 METAL CHIP 15K 5% 1/10W R520 1-216-821-11 METAL CHIP 1K 5% 1/10W R521 1-216-833-11 METAL CHIP 10K 5% 1/10W R522 1-216-841-11 METAL CHIP 47K 5% 1/10W R523 1-216-833-11 METAL CHIP 10K 5% 1/10W R524 1-216-821-11 METAL CHIP 1K 5% 1/10W R525 1-216-845-11 METAL CHIP 100K 5% 1/10W R528 1-216-821-11 METAL CHIP 1K 5% 1/10W R529 1-216-839-11 METAL CHIP 33K 5% 1/10W R530 1-216-864-11 SHORT CHIP 0 R535 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R537 1-216-845-11 METAL CHIP 100K 5% 1/10W R538 1-216-837-11 METAL CHIP 22K 5% 1/10W R539 1-216-837-11 METAL CHIP 22K 5% 1/10W R550 1-216-864-11 SHORT CHIP 0 R551 1-216-864-11 SHORT CHIP 0 R569 1-216-833-11 METAL CHIP 10K 5% 1/10W (MX, AR, AUS, US) R570 1-216-821-11 METAL CHIP 1K 5% 1/10W R571 1-216-833-11 METAL CHIP 10K 5% 1/10W R572 1-216-841-11 METAL CHIP 47K 5% 1/10W R573 1-216-833-11 METAL CHIP 10K 5% 1/10W R574 1-216-821-11 METAL CHIP 1K 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 70 HCD-GN660/GN770/GX9000 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks MAIN PA MOTOR (TB) MOTOR (LD) R575 1-216-845-11 METAL CHIP 100K 5% 1/10W R578 1-216-821-11 METAL CHIP 1K 5% 1/10W R579 1-216-839-11 METAL CHIP 33K 5% 1/10W R580 1-216-864-11 SHORT CHIP 0 R584 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R585 1-216-833-11 METAL CHIP 10K 5% 1/10W R586 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R587 1-216-833-11 METAL CHIP 10K 5% 1/10W R588 1-216-837-11 METAL CHIP 22K 5% 1/10W R589 1-216-845-11 METAL CHIP 100K 5% 1/10W R590 1-216-833-11 METAL CHIP 10K 5% 1/10W R591 1-216-833-11 METAL CHIP 10K 5% 1/10W R592 1-216-845-11 METAL CHIP 100K 5% 1/10W R593 1-216-845-11 METAL CHIP 100K 5% 1/10W R594 1-216-833-11 METAL CHIP 10K 5% 1/10W < TRANSFORMER > T101 1-433-372-11 TRANSFORMER, BIAS OSCILLATION < VIBRATOR > X401 1-760-252-12 VIBRATOR, CRYSTAL (32.768kHz) X402 1-781-107-21 VIBRATOR, CERAMIC (16MHz) ****************************************************** 1-687-133-12 MOTOR (LD) BOARD ****************************************************** 1-687-134-12 MOTOR (TB) BOARD **************** < CONNECTOR > CN742 1-784-727-11 CONNECTOR, FFC 5P ****************************************************** A-1055-241-A PA BOARD, COMPLETE (GN660: E3) A-1055-312-A PA BOARD, COMPLETE (GN770: E3/GX9000) A-4750-963-A PA BOARD, COMPLETE (GN660: E2, E51, MX, AR) A-4750-994-A PA BOARD, COMPLETE (GN770: E2, E51, MX) A-4753-166-A PA BOARD, COMPLETE (GN770:AUS) ****************** 1-533-217-41 HOLDER, FUSE < CAPACITOR > C600 1-126-963-11 ELECT 4.7uF 20% 50V C601 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C602 1-104-658-91 ELECT 100uF 20% 10V C604 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C605 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C608 1-126-965-91 ELECT 22uF 20% 50V C609 1-128-560-11 ELECT 22uF 20% 100V C610 1-128-560-11 ELECT 22uF 20% 100V C616 1-136-495-11 FILM 0.068uF 5% 50V C617 1-136-495-11 FILM 0.068uF 5% 50V C618 1-128-582-11 ELECT 10uF 20% 100V C619 1-128-582-11 ELECT 10uF 20% 100V C634 1-104-665-11 ELECT 100uF 20% 25V C635 1-104-665-11 ELECT 100uF 20% 25V C636 1-107-721-11 ELECT 4.7uF 20% 100V C637 1-107-721-11 ELECT 4.7uF 20% 100V C648 1-104-658-91 ELECT 100uF 20% 10V C649 1-126-964-11 ELECT 10uF 20% 50V C650 1-126-963-11 ELECT 4.7uF 20% 50V C651 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C652 1-104-658-91 ELECT 100uF 20% 10V C654 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C655 1-126-964-11 ELECT 10uF 20% 50V C656 1-127-815-11 ELECT 3300uF 20% 100V C657 1-130-777-00 MYLAR 0.1uF 5% 100V C658 1-127-811-11 ELECT 3300uF 20% 50V C659 1-136-497-81 FILM 0.1uF 5% 50V C660 1-131-992-91 CERAMIC CHIP 100000PF 35V C662 1-126-964-11 ELECT 10uF 20% 50V C663 1-126-968-11 ELECT 100uF 20% 50V C666 1-136-495-11 FILM 0.068uF 5% 50V C667 1-136-495-11 FILM 0.068uF 5% 50V C676 1-127-815-11 ELECT 3300uF 20% 100V C677 1-130-777-00 MYLAR 0.1uF 5% 100V C678 1-127-811-11 ELECT 3300uF 20% 50V C679 1-136-497-81 FILM 0.1uF 5% 50V C683 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C684 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V (GN770/GX9000) C693 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C694 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V (GN770/GX9000) C698 1-128-576-11 ELECT 100uF 20% 63V < CONNECTOR > CN600 1-778-982-11 CONNECTOR, BOARD TO BOARD 13P CN601 1-573-825-11 CONNECTOR, BOARD TO BOARD 11P * CN604 1-564-243-11 PIN, CONNECTOR (3.96mm PITCH) 6P < DIODE > D609 8-719-988-61 DIODE 1SS355TE-17 D611 8-719-083-66 DIODE UDZSTE-1718B D612 8-719-083-66 DIODE UDZSTE-1718B D620 8-719-988-61 DIODE 1SS355TE-17 D624 8-719-988-61 DIODE 1SS355TE-17 D646 8-719-988-61 DIODE 1SS355TE-17 D654 8-719-988-61 DIODE 1SS355TE-17 D655 8-719-988-61 DIODE 1SS355TE-17 D656 8-719-066-42 DIODE RBV1306 D658 8-719-510-68 DIODE D5SBA204101 D660 8-719-988-61 DIODE 1SS355TE-17 D661 8-719-988-61 DIODE 1SS355TE-17 D664 8-719-083-87 DIODE UDZSTE-1733B D665 8-719-988-61 DIODE 1SS355TE-17 (GN770/GX9000) D670 8-719-988-61 DIODE 1SS355TE-17 D699 6-500-522-21 DIODE 10EDB40-TB3 < EARTH TERMINAL > EP660 1-537-738-21 TERMINAL, GROUND EP690 1-537-738-21 TERMINAL, GROUND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 71 HCD-GN660/GN770/GX9000 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. PA < IC > IC600 8-749-017-06 IC STK412-150 < SHORT > JR600 1-216-296-11 SHORT CHIP 0 JR601 1-216-296-11 SHORT CHIP 0 JR602 1-216-296-11 SHORT CHIP 0 JR603 1-216-296-11 SHORT CHIP 0 < TRANSISTOR > Q604 8-729-901-81 TRANSISTOR 2SC2412K-T-146-R Q606 8-729-821-00 TRANSISTOR 2SA1207 Q610 8-729-924-99 TRANSISTOR 2SC3722K-E Q618 8-729-924-99 TRANSISTOR 2SC3722K-E Q628 8-729-901-81 TRANSISTOR 2SC2412K-T-146-R Q629 8-729-901-81 TRANSISTOR 2SC2412K-T-146-R Q630 8-729-901-81 TRANSISTOR 2SC2412K-T-146-R Q634 8-729-424-12 TRANSISTOR UN2112 Q640 8-729-802-80 TRANSISTOR 2SC3661 Q641 8-729-802-80 TRANSISTOR 2SC3661 Q644 8-729-901-81 TRANSISTOR 2SC2412K-T-146-R Q647 8-729-901-81 TRANSISTOR 2SC2412K-T-146-R Q648 8-729-901-81 TRANSISTOR 2SC2412K-T-146-R Q664 8-729-024-93 TRANSISTOR 2SB1565E Q666 8-729-901-81 TRANSISTOR 2SC2412K-T-146-R (GN770/GX9000) Q668 8-729-924-99 TRANSISTOR 2SC3722K-E Q682 8-729-901-81 TRANSISTOR 2SC2412K-T-146-R < RESISTOR > R600 1-216-821-11 METAL CHIP 1K 5% 1/10W R601 1-216-841-11 METAL CHIP 47K 5% 1/10W R602 1-216-817-11 METAL CHIP 470 5% 1/10W (GN770: E3, AUS/GX9000) R602 1-216-818-11 METAL CHIP 560 5% 1/10W (GN660: E3) R602 1-216-820-11 METAL CHIP 820 5% 1/10W (GN660: E2, E51, MX, AR) R602 1-220-373-11 METAL CHIP 620 5% 1/10W (GN770: E2, E51, MX) R603 1-216-841-11 METAL CHIP 47K 5% 1/10W R604 1-216-833-11 METAL CHIP 10K 5% 1/10W R605 1-216-833-11 METAL CHIP 10K 5% 1/10W R606 1-216-841-11 METAL CHIP 47K 5% 1/10W R607 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R608 1-216-843-11 METAL CHIP 68K 5% 1/10W R609 1-216-843-11 METAL CHIP 68K 5% 1/10W R610 1-216-843-11 METAL CHIP 68K 5% 1/10W R611 1-216-839-11 METAL CHIP 33K 5% 1/10W 0R612 1-245-605-51 FUSIBLE 100 5% 1/4W R613 1-215-872-11 METAL OXIDE 3.3K 5% 1W R614 1-215-872-11 METAL OXIDE 3.3K 5% 1W 0R615 1-245-605-51 FUSIBLE 100 5% 1/4W 0R616 1-217-637-00 FUSIBLE 1 5% 1/4W R617 1-216-845-11 METAL CHIP 100K 5% 1/10W 0R618 1-234-798-11 ENCAPSULATED COMPONENT R619 1-216-821-11 METAL CHIP 1K 5% 1/10W R620 1-216-839-11 METAL CHIP 33K 5% 1/10W R621 1-216-845-11 METAL CHIP 100K 5% 1/10W R622 1-249-625-31 CARBON 10 5% 1/2W R623 1-216-843-11 METAL CHIP 68K 5% 1/10W R624 1-216-837-11 METAL CHIP 22K 5% 1/10W R625 1-216-826-11 METAL CHIP 2.7K 5% 1/10W (GN770/GX9000) R625 1-218-701-11 METAL CHIP 2.4K 0.5% 1/10W (GN660) R628 1-216-839-11 METAL CHIP 33K 5% 1/10W R629 1-216-820-11 METAL CHIP 820 5% 1/10W R630 1-216-845-11 METAL CHIP 100K 5% 1/10W R631 1-216-845-11 METAL CHIP 100K 5% 1/10W R632 1-216-854-11 METAL CHIP 560K 5% 1/10W R633 1-216-841-11 METAL CHIP 47K 5% 1/10W R634 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R635 1-216-833-11 METAL CHIP 10K 5% 1/10W R636 1-215-891-11 METAL OXIDE 680 5% 2W R637 1-215-891-11 METAL OXIDE 680 5% 2W R638 1-216-845-11 METAL CHIP 100K 5% 1/10W R639 1-216-845-11 METAL CHIP 100K 5% 1/10W R640 1-216-821-11 METAL CHIP 1K 5% 1/10W R641 1-216-821-11 METAL CHIP 1K 5% 1/10W R642 1-216-806-11 METAL CHIP 56 5% 1/10W R643 1-216-806-11 METAL CHIP 56 5% 1/10W R644 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R645 1-216-833-11 METAL CHIP 10K 5% 1/10W R646 1-215-863-11 METAL OXIDE 100 5% 1W R647 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R648 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R649 1-216-837-11 METAL CHIP 22K 5% 1/10W R650 1-216-821-11 METAL CHIP 1K 5% 1/10W R651 1-216-841-11 METAL CHIP 47K 5% 1/10W R652 1-216-817-11 METAL CHIP 470 5% 1/10W (GN770: E3, AUS/GX9000) R652 1-216-818-11 METAL CHIP 560 5% 1/10W (GN660: E3) R652 1-216-820-11 METAL CHIP 820 5% 1/10W (GN660: E2, E51, MX, AR) R652 1-220-373-11 METAL CHIP 620 5% 1/10W (GN770: E2, E51, MX) R653 1-216-841-11 METAL CHIP 47K 5% 1/10W R654 1-216-841-11 METAL CHIP 47K 5% 1/10W R655 1-216-841-11 METAL CHIP 47K 5% 1/10W R656 1-216-849-11 METAL CHIP 220K 5% 1/10W R657 1-216-849-11 METAL CHIP 220K 5% 1/10W R658 1-216-845-11 METAL CHIP 100K 5% 1/10W R660 1-216-837-11 METAL CHIP 22K 5% 1/10W R661 1-216-837-11 METAL CHIP 22K 5% 1/10W R662 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R663 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R664 1-216-821-11 METAL CHIP 1K 5% 1/10W 0R665 1-215-863-11 METAL OXIDE 100 5% 1W (GN770/GX9000) R666 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (GN770/GX9000) R667 1-216-833-11 METAL CHIP 10K 5% 1/10W (GN770/GX9000) 0R668 1-234-798-11 ENCAPSULATED COMPONENT R669 1-216-821-11 METAL CHIP 1K 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 72 HCD-GN660/GN770/GX9000 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. PA PANEL R670 1-216-839-11 METAL CHIP 33K 5% 1/10W R671 1-216-845-11 METAL CHIP 100K 5% 1/10W R672 1-249-625-31 CARBON 10 5% 1/2W R673 1-216-842-11 METAL CHIP 56K 5% 1/10W R674 1-216-837-11 METAL CHIP 22K 5% 1/10W R676 1-216-849-11 METAL CHIP 220K 5% 1/10W R677 1-216-849-11 METAL CHIP 220K 5% 1/10W R678 1-216-845-11 METAL CHIP 100K 5% 1/10W R682 1-216-821-11 METAL CHIP 1K 5% 1/10W R683 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R692 1-216-841-11 METAL CHIP 47K 5% 1/10W R693 1-216-843-11 METAL CHIP 68K 5% 1/10W R694 1-216-843-11 METAL CHIP 68K 5% 1/10W R695 1-216-845-11 METAL CHIP 100K 5% 1/10W R696 1-216-845-11 METAL CHIP 100K 5% 1/10W R697 1-216-825-11 METAL CHIP 2.2K 5% 1/10W 0R699 1-219-124-11 FUSIBLE 0.68 5% 1/4W < RELAY > RY646 1-755-372-11 RELAY RY665 1-755-372-11 RELAY (GN770/GX9000) < THERMISTOR > TH629 1-807-796-11 THERMISTOR TH630 1-807-796-11 THERMISTOR < TERMINAL > TM600 1-537-114-21 TERMINAL BOARD (SPEAKER) (GN660) TM601 1-816-048-11 TERMINAL BOARD (FRONT/SURROUND SPEAKER L) (GN770/GX9000) TM602 1-816-048-11 TERMINAL BOARD (FRONT/SURROUND SPEAKER R) (GN770/GX9000) ************************************************************ A-1056-930-A PANEL BOARD, COMPLETE (MX) A-4750-973-A PANEL BOARD, COMPLETE (EXCEPT MX) ******************* 4-231-581-01 HOLDER (FL) < CAPACITOR > C900 1-126-163-11 ELECT 4.7uF 20% 50V C901 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C902 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C903 1-164-156-11 CERAMIC CHIP 0.1uF 25V C904 1-164-156-11 CERAMIC CHIP 0.1uF 25V C905 1-164-156-11 CERAMIC CHIP 0.1uF 25V C906 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C907 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C908 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C909 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C910 1-164-156-11 CERAMIC CHIP 0.1uF 25V C911 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C912 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C913 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C914 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C915 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C916 1-164-156-11 CERAMIC CHIP 0.1uF 25V C917 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C918 1-119-941-91 ELECT 470uF 20% 6.3V C919 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C920 1-124-589-11 ELECT 47uF 20% 16V C922 1-124-261-00 ELECT 10uF 20% 50V C923 1-164-156-11 CERAMIC CHIP 0.1uF 25V C924 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C925 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C926 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C927 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C928 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C929 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C930 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C931 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C932 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C933 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C934 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C935 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C936 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C937 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C938 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C939 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C940 1-164-156-11 CERAMIC CHIP 0.1uF 25V C941 1-124-261-00 ELECT 10uF 20% 50V C942 1-124-261-00 ELECT 10uF 20% 50V C944 1-124-261-00 ELECT 10uF 20% 50V C945 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C946 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C947 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C948 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C949 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C950 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C951 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C952 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C953 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C954 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C955 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C956 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C957 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C958 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C959 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C960 1-124-261-00 ELECT 10uF 20% 50V C961 1-164-156-11 CERAMIC CHIP 0.1uF 25V C963 1-164-156-11 CERAMIC CHIP 0.1uF 25V C966 1-164-156-11 CERAMIC CHIP 0.1uF 25V C967 1-164-156-11 CERAMIC CHIP 0.1uF 25V C968 1-164-156-11 CERAMIC CHIP 0.1uF 25V C969 1-126-968-11 ELECT 100uF 20% 50V C971 1-119-941-91 ELECT 470uF 20% 6.3V C972 1-119-941-11 ELECT 470uF 20% 6.3V C980 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C981 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C982 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C983 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C984 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C985 1-162-927-11 CERAMIC CHIP 100PF 5% 50V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 73 HCD-GN660/GN770/GX9000 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks PANEL < CONNECTOR > * CN902 1-568-862-11 S0CKET, CONNECTOR 19P CN907 1-785-329-11 PIN, CONNECTOR (LIGHT ANGLE) 3P < DIODE > D903 6-500-508-01 DIODE RR263M-400FTR D904 6-500-508-01 DIODE RR263M-400FTR D905 8-719-069-54 DIODE UDZSTE-175.1B D906 8-719-057-97 DIODE SEL5923A-TP15 (CD) D907 8-719-057-97 DIODE SEL5923A-TP15 (TUNER/BAND) D908 8-719-057-97 DIODE SEL5923A-TP15 (TAPE A/B) D909 8-719-057-97 DIODE SEL5923A-TP15 (VIDEO/MD) D910 8-719-057-97 DIODE SEL5923A-TP15 (GAME) D911 8-719-063-93 DIODE SLR325VC-N-T32 (REC PAUSE/START) D914 6-500-529-01 DIODE SLI-325URT31W (VOL 11) D915 6-500-529-01 DIODE SLI-325URT31W (VOL 10) D916 6-500-529-01 DIODE SLI-325URT31W (VOL 9) D917 6-500-529-01 DIODE SLI-325URT31W (VOL 8) D918 6-500-529-01 DIODE SLI-325URT31W (VOL 7) D919 6-500-529-01 DIODE SLI-325URT31W (VOL 6) D920 6-500-529-01 DIODE SLI-325URT31W (VOL 5) D921 6-500-529-01 DIODE SLI-325URT31W (VOL 4) D922 6-500-529-01 DIODE SLI-325URT31W (VOL 3) D923 6-500-529-01 DIODE SLI-325URT31W (VOL 2) D924 6-500-529-01 DIODE SLI-325URT31W (VOL 1) < FERRITE BEAD > FB901 1-216-864-11 SHORT CHIP 0 < FILTER > FL901 1-518-981-11 VACUUM FLUORESCENT DISPLAYS < IC > IC901 6-803-971-01 IC MB90M407PF-G-139-BNDE1 IC902 6-600-174-01 IC RPM7240-H4 IC903 6-705-678-01 IC NJM2760V-TE2 < SHORT > JR901 1-216-864-11 SHORT CHIP 0 JR904 1-216-864-11 SHORT CHIP 0 JR905 1-216-864-11 SHORT CHIP 0 JR906 1-216-864-11 SHORT CHIP 0 JR907 1-216-864-11 SHORT CHIP 0 JR908 1-216-864-11 SHORT CHIP 0 JR910 1-216-864-11 SHORT CHIP 0 JR911 1-216-864-11 SHORT CHIP 0 JR913 1-216-864-11 SHORT CHIP 0 JR914 1-216-864-11 SHORT CHIP 0 < TRANSISTOR > Q901 8-729-027-56 TRANSISTOR DTC143TKA-T146 Q904 8-729-106-60 TRANSISTOR 2SB1115A-YQ Q905 8-729-106-60 TRANSISTOR 2SB1115A-YQ Q906 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q907 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q908 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q909 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q910 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q911 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q912 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q913 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q914 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q915 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q916 8-729-027-43 TRANSISTOR DTC114EKA-T146 < RESISTOR > R831 1-216-817-11 METAL CHIP 470 5% 1/10W R832 1-216-819-11 METAL CHIP 680 5% 1/10W R833 1-216-821-11 METAL CHIP 1K 5% 1/10W R834 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R835 1-216-814-11 METAL CHIP 270 5% 1/10W R836 1-216-817-11 METAL CHIP 470 5% 1/10W R837 1-216-819-11 METAL CHIP 680 5% 1/10W R838 1-216-821-11 METAL CHIP 1K 5% 1/10W R839 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R840 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R841 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R842 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R843 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R844 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R845 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R846 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R900 1-216-833-11 METAL CHIP 10K 5% 1/10W R901 1-216-833-11 METAL CHIP 10K 5% 1/10W R902 1-216-833-11 METAL CHIP 10K 5% 1/10W R903 1-216-809-11 METAL CHIP 100 5% 1/10W R904 1-216-809-11 METAL CHIP 100 5% 1/10W R905 1-216-835-11 METAL CHIP 15K 5% 1/10W R906 1-216-835-11 METAL CHIP 15K 5% 1/10W R907 1-216-835-11 METAL CHIP 15K 5% 1/10W R908 1-216-821-11 METAL CHIP 1K 5% 1/10W R909 1-216-833-11 METAL CHIP 10K 5% 1/10W R910 1-216-821-11 METAL CHIP 1K 5% 1/10W R911 1-216-833-11 METAL CHIP 10K 5% 1/10W R912 1-216-809-11 METAL CHIP 100 5% 1/10W R914 1-216-833-11 METAL CHIP 10K 5% 1/10W R915 1-216-821-11 METAL CHIP 1K 5% 1/10W R916 1-216-821-11 METAL CHIP 1K 5% 1/10W R917 1-216-833-11 METAL CHIP 10K 5% 1/10W R918 1-216-845-11 METAL CHIP 100K 5% 1/10W R920 1-216-833-11 METAL CHIP 10K 5% 1/10W R922 1-216-857-11 METAL CHIP 1M 5% 1/10W R924 1-216-821-11 METAL CHIP 1K 5% 1/10W (MX) R924 1-216-864-11 SHORT CHIP 0 (EXCEPT MX) R939 1-216-821-11 METAL CHIP 1K 5% 1/10W R940 1-216-833-11 METAL CHIP 10K 5% 1/10W R941 1-216-809-11 METAL CHIP 100 5% 1/10W R942 1-216-809-11 METAL CHIP 100 5% 1/10W R943 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R944 1-216-805-11 METAL CHIP 47 5% 1/10W R945 1-216-841-11 METAL CHIP 47K 5% 1/10W R946 1-216-844-11 METAL CHIP 82K 5% 1/10W R947 1-216-821-11 METAL CHIP 1K 5% 1/10W R948 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 74 HCD-GN660/GN770/GX9000 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks PANEL PRIMARY The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. R949 1-216-821-11 METAL CHIP 1K 5% 1/10W R950 1-216-821-11 METAL CHIP 1K 5% 1/10W R951 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R952 1-216-821-11 METAL CHIP 1K 5% 1/10W R953 1-216-821-11 METAL CHIP 1K 5% 1/10W R954 1-216-833-11 METAL CHIP 10K 5% 1/10W R956 1-216-833-11 METAL CHIP 10K 5% 1/10W R957 1-216-845-11 METAL CHIP 100K 5% 1/10W R958 1-216-817-11 METAL CHIP 470 5% 1/10W R959 1-216-819-11 METAL CHIP 680 5% 1/10W R960 1-216-821-11 METAL CHIP 1K 5% 1/10W R961 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R962 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R963 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R964 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R965 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R966 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R975 1-216-817-11 METAL CHIP 470 5% 1/10W R977 1-216-821-11 METAL CHIP 1K 5% 1/10W R978 1-216-817-11 METAL CHIP 470 5% 1/10W R980 1-216-821-11 METAL CHIP 1K 5% 1/10W R981 1-216-821-11 METAL CHIP 1K 5% 1/10W R982 1-216-821-11 METAL CHIP 1K 5% 1/10W R983 1-216-821-11 METAL CHIP 1K 5% 1/10W R987 1-216-821-11 METAL CHIP 1K 5% 1/10W R988 1-216-821-11 METAL CHIP 1K 5% 1/10W R989 1-216-821-11 METAL CHIP 1K 5% 1/10W R993 1-216-821-11 METAL CHIP 1K 5% 1/10W R994 1-216-821-11 METAL CHIP 1K 5% 1/10W R995 1-216-821-11 METAL CHIP 1K 5% 1/10W R999 1-216-864-11 SHORT CHIP 0 R1303 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1304 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1305 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1306 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1307 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1308 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1312 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1313 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1314 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1318 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1319 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1320 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1324 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1325 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1326 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1330 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1331 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1332 1-216-823-11 METAL CHIP 1.5K 5% 1/10W < SWITCH > S900 1-762-875-21 SWITCH, KEYBOARD (DISPLAY) S901 1-762-875-21 SWITCH, KEYBOARD (PLAY MODE, TUNING MODE) S902 1-762-875-21 SWITCH, KEYBOARD (REPEAT, FM MODE) S903 1-762-875-21 SWITCH, KEYBOARD (DIRECTION, TUNER MEMORY) S904 1-762-875-21 SWITCH, KEYBOARD (n N) S905 1-762-875-21 SWITCH, KEYBOARD (SURR SPEAKER MODE) S906 1-762-875-21 SWITCH, KEYBOARD (EFFECT ON/OFF) S907 1-762-875-21 SWITCH, KEYBOARD (GROOVE) S908 1-762-875-21 SWITCH, KEYBOARD (ILLUMINATION) S909 1-762-875-21 SWITCH, KEYBOARD (ENTER) S910 1-762-875-21 SWITCH, KEYBOARD (EQ EDIT) S911 1-762-875-21 SWITCH, KEYBOARD (P FILE MEMORY) S912 1-762-875-21 SWITCH, KEYBOARD (X) S913 1-762-875-21 SWITCH, KEYBOARD (x) S914 1-762-875-21 SWITCH, KEYBOARD (REC PAUSE/START) S915 1-762-875-21 SWITCH, KEYBOARD (CD SYNC) S924 1-762-875-21 SWITCH, KEYBOARD (SLEEP) S925 1-762-875-21 SWITCH, KEYBOARD (AMP MENU) S927 1-762-875-21 SWITCH, KEYBOARD (GAME MIXING) S928 1-762-875-21 SWITCH, KEYBOARD (GAME) S929 1-762-875-21 SWITCH, KEYBOARD (VIDEO/MD) S930 1-762-875-21 SWITCH, KEYBOARD (TAPE A/B) S931 1-762-875-21 SWITCH, KEYBOARD (TUNER/BAND) S932 1-762-875-21 SWITCH, KEYBOARD (CD) S970 1-418-725-51 ENCODER, ROTARY (12 TYPE) (VOLUME) < VIBRATOR > X901 1-781-282-51 VIBRATOR, CERAMIC (4MHz) ************************************************************ A-4750-964-A PRIMARY BOARD, COMPLETE (E2, E3, E51) A-4750-997-A PRIMARY BOARD, COMPLETE (GX9000) A-4753-137-A PRIMARY BOARD, COMPLETE (MX) A-4753-146-A PRIMARY BOARD, COMPLETE (AR, AUS) ********************** < CAPACITOR > 0C1000 1-113-925-11 CERAMIC 0.01uF 20% 250V C1001 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1002 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1003 1-162-974-11 CERAMIC CHIP 0.01uF 50V C1005 1-126-916-11 ELECT 1000uF 20% 6.3V < CONNECTOR > CN1000 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P * CN1001 1-566-664-11 PIN, CONNECTOR (3.96mm PITCH) 4P (EXCEPT MX, US) * CN1001 1-568-226-11 PIN, CONNECTOR (3.96mm PITCH) 2P (MX, US) CN1002 1-785-329-11 PIN, CONNECTOR (LIGHT ANGLE) 3P < DIODE > D1000 8-719-988-61 DIODE 1SS355TE-17 < COIL > L1001 1-410-666-31 INDUCTOR 18uH < TRANSISTOR > Q1000 8-729-901-81 TRANSISTOR 2SC2412K-T-146-R < RESISTOR > R1000 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1001 1-216-845-11 METAL CHIP 100K 5% 1/10W R1003 1-216-864-11 SHORT CHIP 0 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 75 HCD-GN660/GN770/GX9000 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks SENSOR SURROUND The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. 0R1004 1-219-237-11 SOLID 3.3M 20% 1/2W (GX9000) < RELAY > 0RY1000 1-755-299-11 RELAY < SWITCH > 0S1000 1-771-291-31 SWITCH, POWER (VOLTAGE SELECTOR) (E2, E3, E51) ************************************************************ 1-687-132-12 SENSOR BOARD ************ < CONNECTOR > CN731 1-785-329-21 PIN, CONNECTOR (LIGHT ANGLE) 3P < IC > IC731 6-600-022-01 IC RPI-576 ************************************************************ A-1053-545-A SURROUND BOARD, COMPLETE (MX, AR, AUS, US) A-4750-965-A SURROUND BOARD, COMPLETE (E2, E3, E51) ************************ 1-533-217-41 HOLDER, FUSE < CAPACITOR > C760 1-130-483-00 MYLAR 0.01uF 5% 50V C761 1-130-483-00 MYLAR 0.01uF 5% 50V < CONNECTOR > CN701 1-778-982-11 CONNECTOR, BOARD TO BOARD 13P * CN703 1-564-508-11 PLUG, CONNECTOR 5P (E2, E3, E51) < DIODE > D701 8-719-988-61 DIODE 1SS355TE-17 (E2, E3, E51) D702 8-719-988-61 DIODE 1SS355TE-17 D763 8-719-500-56 DIODE D3SBA20 < TRANSISTOR > Q701 8-729-014-97 TRANSISTOR FA1L3Z-T1B (E2, E3, E51) < RESISTOR > R707 1-216-824-11 METAL CHIP 1.8K 5% 1/10W (E2, E3, E51) R708 1-216-842-11 METAL CHIP 56K 5% 1/10W (E2, E3, E51) R709 1-216-833-11 METAL CHIP 10K 5% 1/10W ****************************************************** 1-687-669-12 SW BOARD ******** S751 1-786-514-11 SWITCH, LEVER (SLIDE) (LEVER SW) ****************************************************** SWITCH BOARD ************ < CONNECTOR > CN903 1-779-978-11 PIN, CONNECTOR 3P < RESISTOR > R847 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R848 1-216-833-11 METAL CHIP 10K 5% 1/10W R849 1-216-833-11 METAL CHIP 10K 5% 1/10W < SWITCH > S916 1-478-547-11 ENCODER, ROTARY (. >) S917 1-771-963-11 SWITCH, ROTARY (m M ALBUM) ****************************************************** MISCELLANEOUS ************* 0 1-569-008-21 ADAPTOR, CONVERSION 2P (E51) 0 1-569-007-11 ADAPTOR, CONVERSION 2P (E3) 6 1-500-497-11 FILTER, CLAMP (FERRITE CORE) 7 1-693-603-11 TUNER (FM/AM) (GN660/GN770) 7 1-693-623-11 TUNER (FM/AM) (GX9000) 08 1-468-737-21 POWER, SWITCHING 65 1-773-109-11 WIRE (FLAT TYPE) (19 CORE) (GN660) 65 1-773-109-11 WIRE (FLAT TYPE) (19 CORE) (GN770/GX9000) 71 1-796-486-61 DECK, MECHANICAL (GN660/GX9000) 71 1-796-487-51 DECK, MECHANICAL (GN770) 0104 1-696-847-22 CORD, POWER (AUS) 0104 1-777-071-53 CORD, POWER (E51) 0104 1-783-820-11 CORD, POWER (GX9000) 0104 1-783-941-12 CORD, POWER (AR) 0104 1-827-226-11 CORD, POWER (E2, E3, MX) 152 1-776-182-11 WIRE (FLAT TYPE) (5 CORE) 226 1-827-992-11 WIRE (FLAT TYPE) (16 CORE) 227 1-775-248-11 WIRE (FLAT TYPE) (27 CORE) (GN660/GN770) 227 1-775-248-11 WIRE (FLAT TYPE) (27 CORE) (GX9000) 0229 8-820-244-01 OPTICAL PICK-UP (KSM-215DCP/C2NP) 230 1-471-035-11 MAGNET ASSY 0F696 1-576-537-12 FUSE, GLASS TUBE (DIA.5) (8A/125V)(GX9000) 0F696 1-576-655-12 FUSE, GLASS TUBE (DIA. 5) (T8.0AL/250V) (GN660/GN770) 0F697 1-576-537-12 FUSE, GLASS TUBE (DIA.5) (8A/125V)(GX9000) 0F697 1-576-655-12 FUSE, GLASS TUBE (DIA. 5) (T8.0AL/250V) (GN660/GN770) 0F698 1-533-454-12 FUSE, GLASS TUBE (DIA. 5) (6.3A/125V) (GX9000) 0F698 1-533-473-12 FUSE, GLASS TUBE (DIA. 5) (T6.3AL/250V) (GN660/GN770) 0F699 1-533-454-12 FUSE, GLASS TUBE (DIA. 5) (6.3A/125V) (GX9000) 0F699 1-533-473-12 FUSE, GLASS TUBE (DIA. 5) (T6.3AL/250V) (GN660/GN770) 0F760 1-533-451-12 FUSE, GLASS TUBE (DIA. 5) (3.15A/125V) (GX9000) 0F760 1-533-470-12 FUSE, GLASS TUBE (DIA. 5) (T3.15AL/250V) (GN660/GN770) FL901 1-518-981-11 VACUUM FLUORESCENT DISPLAYS PRIMARY SW SWITCH www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 76 HCD-GN660/GN770/GX9000 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. M741 A-4723-963-A MOTOR ASSY, TABLE M751 A-4737-553-A MOTOR ASSY, LOADING M891 1-787-099-21 FAN, DC RE701 1-477-680-12 ENCODER, ROTARY 0T601 1-443-200-11 POWER TRANSFORMER (GN660: E2, E3, E51, AR) 0T601 1-443-200-21 POWER TRANSFORMER (GN660: MX) 0T601 1-443-201-11 POWER TRANSFORMER (GN770: E2, E3, E51, AUS) 0T601 1-443-201-21 POWER TRANSFORMER (GN770: MX) 0T601 1-443-301-11 POWER TRANSFORMER (GX9000) Ref. No. Part No. Description Remarks www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 77 HCD-GN660/GN770/GX9000 MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN660/GN770/GX9000 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2004.04 New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
