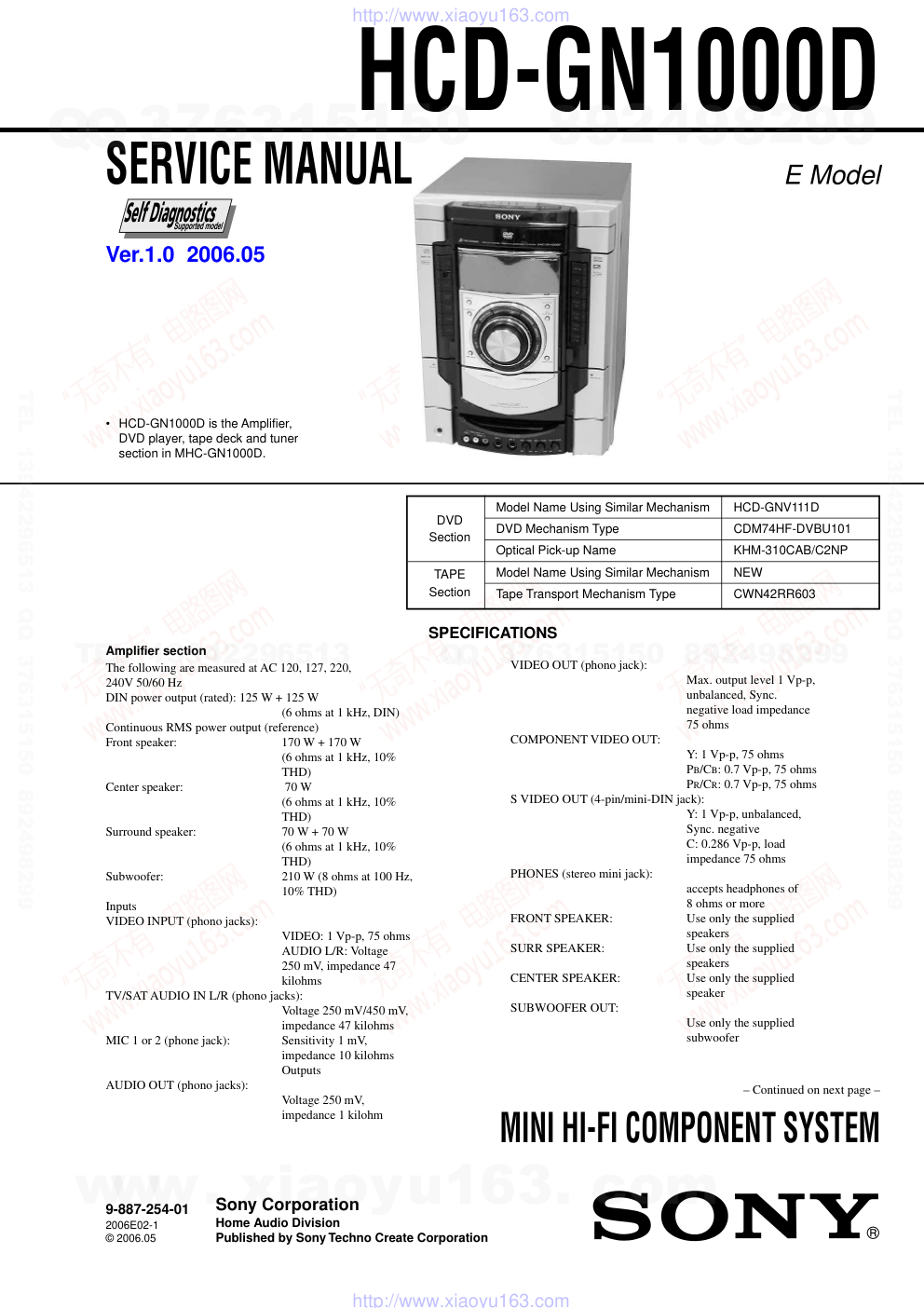

HCD-GN1000D E Model SERVICE MANUAL MINI HI-FI COMPONENT SYSTEM Sony Corporation Home Audio Division Published by Sony Techno Create Corporation 9-887-254-01 2006E02-1 © 2006.05 SPECIFICATIONS Ver.1.0 2006.05 – Continued on next page – • HCD-GN1000D is the Amplifier, DVD player, tape deck and tuner section in MHC-GN1000D. DVD Model Name Using Similar Mechanism HCD-GNV111D DVD Mechanism Type CDM74HF-DVBU101 Section Optical Pick-up Name KHM-310CAB/C2NP TAPE Model Name Using Similar Mechanism NEW Section Tape Transport Mechanism Type CWN42RR603 Amplifier section The following are measured at AC 120, 127, 220, 240V 50/60 Hz DIN power output (rated): 125 W + 125 W (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference) Front speaker: 170 W + 170 W (6 ohms at 1 kHz, 10% THD) Center speaker: 70 W (6 ohms at 1 kHz, 10% THD) Surround speaker: 70 W + 70 W (6 ohms at 1 kHz, 10% THD) Subwoofer: 210 W (8 ohms at 100 Hz, 10% THD) Inputs VIDEO INPUT (phono jacks): VIDEO: 1 Vp-p, 75 ohms AUDIO L/R: Voltage 250 mV, impedance 47 kilohms TV/SAT AUDIO IN L/R (phono jacks): Voltage 250 mV/450 mV, impedance 47 kilohms MIC 1 or 2 (phone jack): Sensitivity 1 mV, impedance 10 kilohms Outputs AUDIO OUT (phono jacks): Voltage 250 mV, impedance 1 kilohm VIDEO OUT (phono jack): Max. output level 1 Vp-p, unbalanced, Sync. negative load impedance 75 ohms COMPONENT VIDEO OUT: Y: 1 Vp-p, 75 ohms PB/CB: 0.7 Vp-p, 75 ohms PR/CR: 0.7 Vp-p, 75 ohms S VIDEO OUT (4-pin/mini-DIN jack): Y: 1 Vp-p, unbalanced, Sync. negative C: 0.286 Vp-p, load impedance 75 ohms PHONES (stereo mini jack): accepts headphones of 8 ohms or more FRONT SPEAKER: Use only the supplied speakers SURR SPEAKER: Use only the supplied speakers CENTER SPEAKER: Use only the supplied speaker SUBWOOFER OUT: Use only the supplied subwoofer www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 HCD-GN1000D Disc player section System Compact disc and digital audio and video system Laser Semiconductor laser (DVD: λ = 650 nm, CD: λ = 790 nm) Emission duration: continuous Frequency response DVD (PCM 48 kHz): 2 Hz – 22 kHz (±1dB) CD: 2 Hz – 20 kHz (±0.5 dB) Video color system format NTSC and PAL Tape deck section Recording system 4-track 2-channel stereo Frequency response 50 – 13,000 Hz (±3 dB), using Sony TYPE I tape Tuner section FM stereo, FM/AM superheterodyne tuner FM tuner section Tuning range 87.5 – 108.0 MHz (50 kHz step) Antenna FM lead antenna Antenna terminals 75 ohms unbalanced Intermediate frequency 10.7 MHz AM tuner section Tuning range Saudi Arabian model: 531– 1,602 kHz (with the interval set at 9 kHz) Other models: 531 – 1,602 kHz (with the interval set at 9 kHz) 530 – 1,710 kHz (with the interval set at 10 kHz) Antenna AM loop antenna Antenna terminals External antenna terminal Intermediate frequency 450 kHz General Power requirements Saudi Arabian model: 120 – 127 V, 220 V or 230 – 240 V AC, 50/60 Hz Adjustable with voltage selector Thai model: 220 V AC, 50/60 Hz Other models: 120 V, 220 V or 230 – 240 V AC, 50/60 Hz Adjustable with voltage selector Power consumption 345 W Dimensions (w/h/d) (Approx.) 281 × 362 × 404.5 mm Mass (Approx.) 16.0 kg Design and specifications are subject to change without notice. (When letters/numbers appear in the display) When the self-diagnosis function is activated to prevent the system from malfunctioning, a 5-character service number (e.g. C 13 50) with a combination of a letter and 4 digits appears on the TV screen and the front panel display. In this case, check the following table. When displaying the version number on the TV screen When you turn on the system, the version number [VER.X.XX] (X is a number) may appear on the TV screen. Although this is not a malfunction and for Sony service use only, normal system operation will not be possible. Turn off the system, and then turn on the system again to operate. Self-diagnosis Function First 3 characters of the service number Cause and corrective action C 13 This disc is dirty. Clean the disc with a soft cloth (page 87). C 31 The disc is not inserted correctly. Restart the system, then re-insert the disc correctly. E XX (XX is a number) To prevent a malfunction, the system has performed the self-diagnosis function. Contact your nearest Sony dealer or local authorized Sony service facility and give the 5-character service number. Example: E 61 10 VER.X.XX www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 HCD-GN1000D 1. SERVICING NOTES ................................................ 4 2. GENERAL ................................................................... 5 3. DISASSEMBLY 3-1. Disassembly Flow ........................................................... 7 3-2. Case ................................................................................. 8 3-3. Loading Panel .................................................................. 8 3-4. Tuner Pack ....................................................................... 9 3-5. DVD Mechanism Deck ................................................... 9 3-6. Front Panel Assy.............................................................. 10 3-7. Tape Mechanism Deck, MIC Board ................................ 10 3-8. CD-SW Board, Panel Board ............................................ 11 3-9. FUNCTION Board, JOG Board ...................................... 11 3-10. KARAOKE Board, VIDEO Board, DMB15 Board........ 12 3-11. Back Panel ....................................................................... 12 3-12. PRIMARY Board, EFFECTOR Board............................ 13 3-13. Power AMP PC Board Assy, MAIN Board ..................... 13 3-14. SURROUND Board, PA Board ....................................... 14 3-15. Power Transformer (T1200) ........................................... 14 3-16. DRIVER Board, SW Board............................................. 15 3-17. DVD Assy........................................................................ 15 3-18. Optical Pick-up ................................................................ 16 3-19. SENSOR Board ............................................................... 16 3-20. MOTOR (TB) Board ....................................................... 17 3-21. MOTOR (LD) Board ....................................................... 17 4. TEST MODE ............................................................... 18 5. MECHANICAL ADJUSTMENTS......................... 23 6. ELECTRICAL ADJUSTMENTS .......................... 23 TABLE OF CONTENTS 7. DIAGRAMS .......................................................... 25 7-1. Block Diagram – RF Section –....................................... 27 7-2. Block Diagram – Video Section – ................................... 28 7-3. Block Diagram – Tape/Tuner Section – .......................... 29 7-4. Block Diagram – Main Section – .................................... 30 7-5. Block Diagram – AMP Section – .................................... 31 7-6. Block Diagram – Display/Power Section –..................... 32 7-7. Printed Wiring Board – DMB15 Board (Side A) – ......... 33 7-8. Printed Wiring Board – DMB15 Board (Side B) – ........ 34 7-9. Schematic Diagram – DMB15 Board (1/4) –................ 35 7-10. Schematic Diagram – DMB15 Board (2/4) –................ 36 7-11. Schematic Diagram – DMB15 Board (3/4) –................ 37 7-12. Schematic Diagram – DMB15 Board (4/4) –................ 38 7-13. Printed Wiring Boards – CD Mechanism Boards – ....... 39 7-14. Schematic Diagram – CD Mechanism Boards – ........... 40 7-15. Printed Wiring Board – MAIN Board – .......................... 41 7-16. Schematic Diagram – MAIN Board (1/5) – ................... 42 7-17. Schematic Diagram – MAIN Board (2/5) – ................... 43 7-18. Schematic Diagram – MAIN Board (3/5) – ................... 44 7-19. Schematic Diagram – MAIN Board (4/5) – ................... 45 7-20. Schematic Diagram – MAIN Board (5/5) – ................... 46 7-21. Printed Wiring Board – PANEL Board – ........................ 47 7-22. Schematic Diagram – PANEL Board – .......................... 48 7-23. Printed Wiring Boards – CD-SW, JOG, FUNCTION And MIC Boards – .......................................................... 49 7-24. Schematic Diagram – CD-SW, JOG, FUNCTION And MIC Boards – .......................................................... 50 7-25. Printed Wiring Board – PA Board – ................................ 51 7-26. Schematic Diagram – PA Board – .................................. 52 7-27. Printed Wiring Board – SURROUND Board – ............... 53 7-28. Schematic Diagram – SURROUND Board (1/2) – ........ 54 7-29. Schematic Diagram – SURROUND Board (2/2) – ....... 55 7-30. Printed Wiring Board – EFFECTOR Board – ................. 56 7-31. Schematic Diagram – EFFECTOR Board –................... 57 7-32. Printed Wiring Board – VIDEO Board – ........................ 58 7-33. Schematic Diagram – VIDEO Board – .......................... 59 7-34. Printed Wiring Boards – Power Section – ....................... 60 7-35. Schematic Diagram – Power Section – .......................... 61 7-36. Printed Wiring Board – KARAOKE Board – ................. 62 7-37. Schematic Diagram – KARAOKE Board – ................... 62 7-38. IC Pin Function Description ............................................ 65 8. EXPLODED VIEWS 8-1. Case, Back Panel Section ................................................ 75 8-2. Front Panel Section-1 ...................................................... 76 8-3. Front Panel Section-2 ...................................................... 77 8-4. Chassis Section ................................................................ 78 8-5. DVD Mechanism Section-1 (CDM74HF-DVBU101) .... 79 8-6. DVD Mechanism Section-2 (CDM74HF-DVBU101) .... 80 9. ELECTRICAL PARTS LIST .................................. 81 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 HCD-GN1000D SECTION 1 SERVICING NOTES NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. LASER DIODE AND FOCUS SEARCH OPERATION CHECK Carry out the “S curve check” in “CD section adjustment” and check that the S curve waveform is output several times. UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size) • MODEL IDENTIFICATION – Back Panel – MODEL PART No. E2 model 2-661-760-4[] E3,E15 models 2-672-142-2[] EA model 2-686-972-0[] E12 model 2-686-973-0[] MY,SP models 2-686-974-0[] TH model 2-686-975-0[] PH model 2-686-976-0[] Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing • Keep the temperature of soldering iron around 270˚C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. PART No. • Abbreviation E2 : 120V AC Area in E model E3 : 240V AC Area in E model E12 : 220V-240V AC Area in E model E15 : Iran model EA : Saudi Arabia model MY : Malaysia model PH : Philippines model SP : Singapore model TH : Thai model : LEAD FREE MARK Unleaded solder has the following characteristics. • Unleaded solder melts at a temperature about 40 °C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 °C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! • Strong viscosity Unleaded solder is more viscou-s (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. • Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. This appliance is classified as a CLASS 1 LASER product. This label is located on the rear exterior. NOTE ON REPLACEMENT OF DMB15 BOARD New part of EEPROM (IC103) on the DMB15 board can not be used. Therefore, if the mounted DMB15 board (A-1174-274-A or A-1193-178-A or A-1193-183-A or A-1193-188-A) is replaced, exchange new EEPROM with that used before the replacement. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 HCD-GN1000D SECTION 2 GENERAL This section is extracted from instruction manual. LOCATING THE CONTROLS Unit AMP MENU e; CD SYNC q; Deck A ea Deck B qk DELAY wl DIRECTION ql DISC 1 ~ 3 ts Disc tray 8 DISPLAY 2 Display 6 DVD ej ECHO LEVEL ws ENTER wa EQ BAND w; EX-CHANGE/DISC SKIP t; FLANGER 3 GROOVE qh ILLUMINATION 1 IR Receptor ek MASTER VOLUME wf MIC 1/2 (jack) wg MIC 1/2 LEVEL wd OPERATION DIAL ta PHONES (jack) wj Power illuminator 5 PRESET +/- qf PROGRESSIVE 7 REC PAUSE/START 9 SOUND FIELD 4 SOUND FLASH wk TAPE A/B eg TUNER/BAND eh TUNING +/- qg ?/1 (on/standby) el Z OPEN/CLOSE rl nN (play) qa .> (go backward/forward) qf mM (rewind/fast forward) qg X (pause) qs x (stop) qd A Z (Eject A) es B Z (Eject B) qj ALPHABETICAL ORDER A - D E - L M - R S - Z SYMBOLS TV/SAT ef VIDEO INPUT (jacks) wh VIDEO ed Top Panel Front Panel 1 2 3 4 567 8 9 q; qa qs qd qf qg qh qj qk wa w; ql ws wd wf wg wh wj e; wl wk ea es ed ef eg eh ej ek el tsta t;rl www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 HCD-GN1000D 1 Press ?/1 to turn on the system. 2 Press TIMER MENU. The hour indication flashes in the display. 3 Press V or v repeatedly to set the hour. 4 Press ENTER. The minute indication flashes in the display. 5 Press V or v repeatedly to set the minute. 6 Press ENTER. The clock starts functioning. To adjust the clock 1 Press TIMER MENU. “PLAY SET?” flashes in the display. 2 Press V or v repeatedly to select “CLOCK SET?”, then press ENTER. The hour indication flashes in the display. 3 Do the same procedures as step 3 to 6 above. Notes The clock settings are canceled when you disconnect the power cord or if a power failure occurs. You cannot set the clock in Power Saving Mode Setting the clock Remote control ADVANCE wf ALBUM +/- qa ANGLE q; AUDIO 8 CLEAR wk DISC SKIP 3 DISPLAY ed ENTER wh FM MODE 7 FUNCTION +/- 4 KARAOKE MODE ea KARAOKE PON e; KEY CONTROL #/2 es MENU qs Numeric Buttons1) wl PICTURE NAVI 6 PRESET + qh PRESET - wd REPEAT 7 REPLAY wf SCORE 5 SLEEP eg SLOW qj SLOW ws SOUND FIELD qd STEP C wf SUBTITLE 9 THEATRE SYNC 1 TIMER MENU eh TIME/TEXT ef TOP MENU wj TUNING + qj TUNING - ws TV w; TV CH + qh TV CH - wd TV/VIDEO eg TV VOL +/- 1) qf TV &/1 (on/standby) 2 VOLUME +/- 1) qf ?/1 (on/standby) 2 x (stop) qk X (pause) ql H1) (play) wa > (go forward) qh . (go backward) wd M (fast forward) qj m (rewind) ws V/v/B/b wh 10/0 wl -/-- wk O RETURN wg DISPLAY qg c STEP wf 1) The numeric button 5, TV VOL +, VOLUME + and H buttons have a tactile dot. Use the tactile dot as a reference when operating the system. ALPHABETICAL ORDER A - L M - S T - Z NUMBERS AND SYMBOLS 7 5 q; qh qj qk ql wa wd wf wh wj wk wl ea es ed ef eg eh e; qg qf qs qa 9 8 6 4 3 1 2 w; ws wg qd www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 HCD-GN1000D SECTION 3 DISASSEMBLY Note: • This set can be disassembled in the order shown below. 3-1. DISASSEMBLY FLOW 3-2. CASE (Page 8) 3-3. LOADING PANEL (Page 8) 3-4. TUNER PACK (Page 9) 3-15. POWER TRANSFORMER (T1200) (Page 14) 3-13. POWER AMP PC BOARD ASSY, MAIN BOARD (Page 13) 3-5. DVD MECHANISM DECK (Page 9) 3-16. DRIVER BOARD, SW BOARD (Page 15) 3-12. PRIMARY BOARD EFFECTOR BOARD (Page 13) 3-20. MOTOR (TB) BOARD (Page 17) 3-21. MOTOR (LD) BOARD (Page 17) 3-19. SENSOR BOARD (Page 16) 3-14. SURROUND BOARD, PA BOARD (Page 14) 3-9. FUNCTION BOARD, JOG BOARD (Page 11) 3-6. FRONT PANEL ASSY (Page 10) 3-8. CD-SW BOARD, PANEL BOARD (Page 11) 3-7. TAPE MECHANISM DECK, MIC BOARD (Page 10) 3-11. BACK PANEL (Page 12) 3-10. KARAOKE BOARD, VIDEO BOARD, DMB15 BOARD, (Page 12) 3-17. DVD ASSY (Page 15) 3-18. OPTICAL PICK-UP (Page 16) SET www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 HCD-GN1000D 3-2. CASE 3-3. LOADING PANEL 1 two screws (case 3 TP2) (3×8) 2 screw (case 3 TP2) (3×12) 5 two screws (+BVTP 3×12) 8 3 two screws (case 3 TP2) (3×8) 4 screw (case 3 TP2) (3×12) 7 three screws (+BVTP 3×8) 6 two screws (+BVTP 3×12) 9 CASE DVD mechanism deck (CDM74HF-DVBU101) 1 Turn the pulley to the arrow direction. Front side Pulley 2 Pull out disc tray. 3 4 loading panel www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 HCD-GN1000D 3-4. TUNER PACK 3-5. DVD MECHANISM DECK 1 two screws (+BVTP 3×8) 2 wire (flat type) (CN1) 3 tuner pack 6 DVD mechanism deck 7 wire (flat type) (CN701) 8 wire (flat type) (CN521) 3 three screws (+BVTP 3×10) 1 three screws (+BVTP 3×10) 2 screw (+BVTP 3×10) 0 wire (flat type) (CN520) qa connector (CN401) 9 connector (CN505) qs connector (CN800) 4 screw (+BVTP 3×10) 5 screw (+BVTP 3×10) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 HCD-GN1000D 3-6. FRONT PANEL ASSY 3-7. TAPE MECHANISM DECK, MIC BOARD 3 three screws (+BVTP 3×10) 2 three screws (+BVTP 3×10) 1 screw (+BV3 (3-CR)) lug 4 front panel assy 5 connector (CN100) 6 wire (flat type) (CN508) 7 wire (flat type) (CN509) 8 connector (CN504) 9 connector (CN1102) 0 connector (CN503) qa connector (CN1100) 1 three screws (+BVTP2.6 (3CR)) 2 two screws (+BVTP2.6 (3CR)) 3 tape mechanism deck 4 three screws (+BVTP2.6 (3CR)) 5 bracket (MIC) 7 MIC board 6 knob (MIC) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 HCD-GN1000D 3-9. FUNCTION BOARD, JOG BOARD 3-8. CD-SW BOARD, PANEL BOARD 5 three screws (+BVTP2.6 (3CR)) 1 two screws (+BVTP2.6 (3CR)) 6 wire (flat type) (CN900) 7 wire (flat type) (CN902) 4 three screws (+BVTP2.6 (3CR)) 3 CD-SW board 8 PANEL board CD-SW board CD-SW board bracket portion button (DISC) button (DISC) button (DISC) (side view) bracket portion A A B B 2 Pull up the bracket portion of button (DISC) in the arrow A direction and pull out CD-SW board in the arrow B direction. 3 FUNCTION board 2 seven screws (+BVTP2.6 (3CR)) 5 two screws (+BVTP2.6 (3CR)) 6 two screws (+BVTP2.6 (3CR)) 1 knob vol 4 knob jog assy 7 JOG board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 HCD-GN1000D 3-11. BACK PANEL 3-10. KARAOKE BOARD, VIDEO BOARD, DMB15 BOARD 3 wire (flat type) (CN801) 4 two screws (+BVTP 3×10) 1 two screws (+BVTP 3×10) 5 VIDEO board 2 KARAOKE board 7 two screws (+BVTP 3×10) 6 screw (+BVTP 3×10) 8 CDM cover qa two screws (+BVTP 3×10) 9 connector (CN201) 0 wire (flat type) (CN101) qs two screws (+BVTP 3×10) qd DMB15 board qf bracket (mediatec) 1 connector (CN1200) 2 connector (CN1204) 3 connector (CN1202) 4 wire (flat type) (CN1501) 7 screw (+BVTP 3×10) 5 seven screws (+BVTP 3×10) 6 two screws (+BVTP 3×10) 8 two screws (+BVTP 3×10) 0 connector (CN580) 9 back panel www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 HCD-GN1000D 3-13. POWER AMP PC BOARD ASSY, MAIN BOARD 3-12. PRIMARY BOARD ,EFFECTOR BOARD 1 connector (CN101) 2 connector (CN201) 3 screw (+BVTP 3×8) 5 two screws (+BVTP 3×10) 4 PRIMARY board 6 EFFECTOR board 4 connector (CN1213) 5 connector (CN1212) 6 connector (CN1215) 1 connector (CN582) qs connector (CN105) 7 screw (+BV3 (3-CR)) 2 two screws (+BV3 (3-CR)) 8 two screws (+BV3 (3-CR)) 9 screw (+BV3 (3-CR)) 0 screw (+BVTP 3×10) qa power AMP PC board assy qf two screws (+BVTP 3×8) qg screw (+BVTP 3×8) qd screw (+BVTP 3×8) lug qh MAIN board 3 DC fan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 HCD-GN1000D 3-15. POWER TRANSFORMER (T1200) 3-14. SURROUND BOARD, PA BOARD 6 connector (CN607) 5 connector (CN602) 2 two screws (+BVTP 3×10) 1 four screws (transistor) 4 SURROUND board 7 two screws (+BVTP 3×10) 8 holder 9 two screws (+BVTP 3×10) 0 two screws (transistor) qa two screws (+BVTP 3×10) qd screw (+BVTP 3×10) 3 screw (+BV3 (3-CR)) qs heat sink qf bracket qg PA board 4 connector (CN1213) 5 connector (CN1212) 7 three screws 3 DC fan (M892) 2 two screws (+BV3 (3-CR)) 8 three screws 9 power transfomer (T1200) TRANS board 1 connector (CN582) 6 connector (CN1215) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 HCD-GN1000D 3-16. DRIVER BOARD, SW BOARD 3-17. DVD ASSY 3 connector (CN703) 4 DRIVER board 6 SW board 2 wire (flat type) (CN702) 1 two screws (+BTTP (M2.6)) 5 screw (+BTTP (M2.6)) 1 floating screw (+PTPWH M2.6) 2 DVD assy www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 HCD-GN1000D 3-18. OPTICAL PICK-UP 3-19. SENSOR BOARD 1 insulator screw 6 insulator 2 insulator screw 3 insulator screw 4 insulator screw 7 insulator 5 optical pick-up (KHM-310CAB/C2NP) 8 insulator 9 insulator 2 tray 3 belt (table) 5 pulley (table) 8 screw (+BTTP (M2.6)) 0 SENSOR board 7 gear (geneva) 9 connector (CN731) 1 floating screw (+PTPWH M2.6) 6 floating screw (+PTPWH M2.6) 4 floating screw (+PTPWH M2.6) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 HCD-GN1000D 3-21. MOTOR (LD) BOARD 3-20. MOTOR (TB) BOARD 6 Remove the two solderings of motor. 8 MOTOR (TB) board 7 table motor assy (M741) 5 two screws (+BTTP (M2.6)) 4 3 wire (flat type) (CN742) 1 stopper 2 stopper table 2 Remove the two solderings of motor. 4 MOTOR (LD) board 1 belt (loading) 5 loading motor assy (M751) 3 two screws (+BTTP (M2.6)) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 HCD-GN1000D SECTION 4 TEST MODE 2. The DVD ring indicators, the line below DVD ring indicators and TAPE A and B indicators flash synchronously on the fluorescent indicator tube. The function is changed to TV. * Check of Amplifier 1. Press [EQ BAND] button repeatedly until a message “GEQ MAX” appears on the fluorescent indicator tube. GEQ increases to its maximum. 2. Press [EQ BAND] button repeatedly until a message “GEQ MIN” appears on the fluorescent indicator tube. GEQ decreases to its minimum. 3. Press [EQ BAND] button repeatedly until a message “GEQ FLAT” appears on the fluorescent indicator tube. GEQ set to flat. 4. When the [MASTER VOLUME] knob is turned clockwise even slightly, the sound volume increases to its maximum and a message “VOLUME MAX” appears on the fluorescent indicator tube. 5. When the [MASTER VOLUME] knob is turned counter-clockwise even slightly, the sound volume decreases to its minimum and a message “VOLUME MIN” appears on the fluorescent indicator tube. * Tape function 1. When a tape is inserted in Deck B and recording is started, the function is changed to TV automatically. When [CD SYNC] button is pressed during recording in function, ALC (Automatic Logic Control) is turned on. 2. During recording, press m button will stop the recording and the function is changed to TAPE B and rewind the tape in Deck B until the recording start position and playback of the tape in Deck B is started. If [REC PAUSE/ START] button is pressed for a pause and pressed again to resume recording during recording time, when the tape is rewind, the tape will be rewind until the position where the pause is applied. * To release from Common Test mode 1. To release from this mode, press ?/1 button. 2. The cold reset is enforced at the same time. [COLD RESET] • The cold reset clears all data including preset data stored in the RAM to initial conditions. Procedure: 1. Press ?/1 button to turn on the system. 2. Press x button, [ENTER] button and ?/1 button simultaneously. 3. The message “COLD RESET” appears on the fluorescent indicator tube. Then, the fluorescent indicator tube becomes blank for while, and the set is reset. [VACS ON/OFF] • This mode is used to switch ON and OFF the VACS (Variable Attenuation Control System). Procedure: 1. Press ?/1 button to turn on the system. 2. Press x button and [ILLUMINATION] button simultaneously. The message “VACS OFF” or “VACS ON” appears on the fluorescent indicator tube. [TUNER STEP CHANGE] • The step interval of AM channels can be toggled between 9 kHz and 10 kHz. This mode is not available for Saudi Arabia model. [PANEL TEST MODE] • This mode is used to check the fluorescent indicator tube, LEDs, buttons, MASTER VOLUME knob, OPERATION DIAL knob, model, destination, software version and VACS level. Procedure: 1. Press x button, [ENTER] button and [DISC 2] button simultaneously. 2. All LEDs and segments in fluorescent indicator tube are lighted up. 3. When you want to enter to the software version display mode, press [DISC 1] button. The model information appears on the fluorescent indicator tube. Press [DISC 1] button again to view the destination information. 4. Each time [DISC 1] button is pressed, the display changes from MC version, GC version, SYS version, DVD version, ST version, TC version, TA version, TM version in this order, and returns to the model information display. 5. When [DISC 3] button is pressed while the version numbers are being displayed except model and destination, the date of the software creation appears. When [DISC 3] button is pressed again, the display returns to the software version display. When [DISC 1] button is pressed while the date of the software creation is being displayed, the date of the software creation is displayed in the same order of software version display. 6. Press [DISC 2] button, the key check mode is activated. 7. In the key check mode, the fluorescent indicator tube displays “K0 V0 J0”. Each time a button is pressed, “K” value increases. However, once a button has been pressed, it is no longer taken into account. “J” value increaes in the manner of 0,1,2,3... if [OPERATION DIAL] knob is turned clockwise, or it decreases in the manner of 0,9,8,7... if [OPERATION DIAL] knob is turned counter- clockwise. “V” value increases in the manner of 0, 1, 2, 3 ... if [MASTER VOLUME] knob is turned clockwise, or it decreases in the manner of 0, 9, 8,7 ... if [MASTER VOLUME] knob is turned counter-clockwise. 8. When [DISC 3] button is pressed after all LEDs and segments in fluorescent indicator tube light up, the fluorescent indicator tube displays “VACS A+B F APC”. A is conventional VACS level which is triggered by signal level. B is Thermal VACS level which is triggered by the temperature F is shown if the fan is turned in high speed and vice-versa. C is VACS level which is trigger by APVACS (Abuse Protection VACS). The signal level, which will trigger VACS A is shown in the center area of the fluorescent indicator tube. 9. When [EX-CHANGE/DISC SKIP] button is pressed after all LEDs and segments in fluorescent indicator tube light up, alternate segments in fluorescent indicator tube and LED would light up. If you press [EX-CHANGE/DISC SKIP] button again, another half of alternate segments in fluorescent indicator tube and LEDs would light up. Pressing [EX-CHANGE/DISC SKIP] button again would cause all LED and segments lights up. 10. To release from this mode, press three buttons in the same manner as step 1, or disconnect the power cord. [COMMON TEST MODE] • This mode is used to check operations of the respective sections of Amplifier and Tape. Procedure: • To enter Common Test Mode 1. Press x button, [ENTER] button and [DISC 3] button simultaneously. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 HCD-GN1000D Procedure: 1. Press ?/1 button to turn on the system. 2. Press [TUNER/BAND] button repeatedly to select the “AM”. 3. Press ?/1 button to turn off the system. 4. Press [ENTER] button and ?/1 button simultaneously. The system will turn on automatically. The message “AM 9k STEP” or “AM 10k STEP” appears on the fluorescent indicator tube and thus the channel step is changed. [DVD SHIP MODE (WITH MEMORY CLEAR)] • This mode moves the optical pick-up to the position durable to vibration and clears all data including preset data stored in the RAM to initial conditions. Use this mode when returning the set to the customer after repair. Procedure: 1. Press ?/1 button to turn on the system. 2. Select DVD function. 3. Press x button, [SOUND FLASH] button and ?/1 button simultaneously during “DVD NO DISC” condition. The system will turn off automatically. 4. After the “STANDBY” blinking display finishes, a message “MECHA LOCK” appears on the fluorescent indicator tube and the DVD ship mode is set. [DVD SHIP MODE (WITHOUT MEMORY CLEAR)] • This mode moves the optical pick-up to the position durable to vibration. Use this mode when returning the set to the customer after repair. Procedure: 1. Press ?/1 button to turn on the system. 2. Select DVD function. 3. Press [DVD] button and ?/1 button simultaneously during “DVD NO DISC” condition. The system will turn off automatically. 4. After the “STANDBY” blinking display finishes, a message “MECHA LOCK” appears on the fluorescent indicator tube and the DVD ship mode is set. [DVD TRAY LOCK MODE] • This mode is used to lock the disc tray. When this mode is activated, the disc tray will not open when [OPEN/CLOSE] button or [EX-CHANGE/DISC SKIP] button is pressed. The message “LOCKED” appears on the fluorescent indicator tube. Procedure: 1. Press ?/1 button to turn on the system. 2. Select DVD function. 3. Press x button and [OPEN/CLOSE] button simultaneously and hold down until “LOCKED” or “UNLOCKED” appears on the fluorescent indicator tube (around 5 seconds). [TV/SAT SWITCHING] • This mode let you switch from TV to SAT and vice-versa. Procedure: 1. Press ?/1 button to turn on the system. 2. Select TV function. 3. Press [TV/SAT] button and ?/1 button simultaneously. The function will change to SAT. Press the same buttons again to change from SAT to TV. [DVD COLOR SYSTEM] • This mode let you change the color system of the video output from PAL to NTSC or vice-versa. Procedure: 1. Press ?/1 button to turn on the system. 2. Select DVD function. 3. Press ?/1 button again to turn off the system. 4. Press X button and ?/1 button simultaneously. The system will turn on automatically. 5. The message “COLOR PAL” or “COLOR NTSC” appears on the fluorescent indicator tube. [REMOTE COMMANDER DISABLE MODE] • This mode let you disable the remote commander reception. When this mode is activated, the system will not response if the button on the remote commander is pressed. The message “RemoteDisable” appears on the fluorescent indicator tube.This mode is essential for conducting test and repairing when no interruption from the other remote commander is expected. This mode is cancelled automatically when the AC power supply is cutoff. Procedure: 1. Press ?/1 button to turn on the system. 2. Press x button, [FLANGER] button and [DISC 2] button simultaneousl untill“RemoteDisable” or “RemoteEnable” appears on the fluorescent indicator tube. [TCM OFFLINE MODE] • This mode is used to prevent the system from turning off automatically when TCM is not connected. Therefore, measurements can be done even when TCM is not connected during production. • Procedure: 1. When the system is turned off, press [EQ BAND] button, [TAPE A/B] button and ?/1 button simultaneously. The system will turn on automatically. 2. The message “TCM OFFLINE” will appears on the fluorescent indicator tube. • To release from TCM Offline Mode, perform “COLD RESET” or turn off the power supply. [MTK FIRMWARE DISPLAY] • This mode is used to display the MTK firmware version. • Procedure: 1. Press ?/1 button to turn on the system. 2. Press [DVD] button to switch to DVD function. 3. Press ?/1 button again to turn off the system. 4. Press x button and ?/1 button. The system turns on automatically. 5. The version of MTK firmware appears on the TV screen. [MTK OFFLINE] • This mode is used to enable audio output from the function other than DVD function in order to check the audio output from the system without connecting MTK. • Procedure: 1. Press ?/1 button to turn on the system. 2. Press x button, [FLANGER] button and [DISC 1] button simultaneously and the message “MTK OFFLINE” appears on the fluorescent indicator tube. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 HCD-GN1000D [DVD SERVICE MODE] • This mode let you make diagnosis and adjustment easily by us- ing the remote commander and TV. The instructions, diagnostic results, etc. are given on the on-screen display (OSD). Procedure: 1. Press ?/1 button to turn on the system. 2. Select DVD function. 3. Press x button and [OPEN/CLOSE] button simultaneously and then turn [MASTER VOLUME] knob clockwise. 4. The message “SERVICE IN” appears on the fluorescent indicator tube and the Top Menu of Remocon Diagnosis Menu appears on the on-screen display on the TV. The model name and revision number is displayed at the bottom of the on-screen display. Remocon Diagnosis Menu 0. External Chip Check 1. Servo Parameter Check 2. Drive Manual Operation 3. Emergency History Check 4. Version information Model name : XXXXX-XX IF-con : Ver.XX.XX(XXXX) Syscon : Ver.X.XXX 5. To execute each function, press its number by using numeric button on the remote commander. 6. To release from this mode, press ?/1 button to turn off the system. [EXECUTE IOP MEASUREMENT] In order to execute mirror time adjustment, the following standard procedures must be followed. 1. Enter DVD Service Mode. Remocon Diagnosis Menu 0. External Chip Check 1. Servo Parameter Check 2. Drive Manual Operation 3. Emergency History Check 4. Version information Model name : XXXXX-XX IF-con : Ver.XX.XX(XXXX) Syscon : Ver.X.XXX 2. Select “2. Drive Manual Operation” by pressing [2] button on the remote commander. The screen will appear as follows. Drive Manual Operation 1. Servo Control 2. Track/Layer Jump 3. Manual Adjustment 4. Tray Aging Mode 5. MIRR time adjust 0. Return to top Menu 3. Select “3. Manual Adjustment” by pressing [3] button on the remote commander. The screen will appear as follows. Manual Adjust 1. Track Balance Adjust: 2. Track Gain Adjust: 3. Focus Balance Adjust: 4. Focus Gain Adjust: 5. Eq boost Adjust: 6. Iop: 7. TRV. Level: 8. S curve(FE) Level: 9. RFL(PI) Level: 0. MIRR Time: $ 4 Change Value [RETURN] Return to previous menu 4. Select “6.Iop” by pressing [6] button on the remote commander 5. Wait until a hexadecimal number appear as follows. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 HCD-GN1000D emergency history, press . or > on the remote commander. “Error code” consists of the following (a), (b) and (c). (a) Error code Example of Error code 1. 01 05 04 04 00 92 46 00 00 00 00 00 00 00 23 45 The meaning off error code is as follows. 01: Communication error (No reply from syscon) 02: Syscon hung up 03: Power OFF request when syscon hung up 19: Thermal shutdown 24: MoveSledHome error 25: Mechanical move error (5 Changer) 26: Mechanical move stack error 30: DC motor adjustment error 31: DPD offset adjustment error 32: TE balance adjustment error 33. TE sensor adjustment error 34. TE loop gain adjustment error 35. FE loop gain adjustment error 36. Bad jitter after adjustment 40. Focus NG 42. Focus layer Jump NG 52. Open kick spindle error 51: Spindle stop error 60: Focus on error 61: Seek fail error 62: Read Qdata/ID error 70: Lead in data read fail 71: TOC read time out (CD) 80: Can’t buffering 81: Unknown media type (b) Parameter of error code Example of Error code 1. 01 05 04 04 00 92 46 00 00 00 00 00 00 00 23 45 This is the detailed contents of error information (c) Time of error code Example of Error code 1. 01 05 04 04 00 92 46 00 00 00 00 00 00 00 23 45 This is the laser hours when an error occured. 5. How to clean laser hours Press DISPLAY button and then press [CLEAR] button. Both CD and DVD data are cleared. Manual Adjust 1. Track Balance Adjust: 2. Track Gain Adjust: 3. Focus Balance Adjust: 4. Focus Gain Adjust: 5. Eq Boost Adjust: 6. Iop. ED: 7. TRV. Level: 8. S curve(FE) Level: 9. RFL(PI) Level: 0. MIRR Time: $ 4 Change Value [RETURN] Return to previous menu 6. Convert data from hexadecimal to decimal using conversion table. 7. If the remainder is smaller than 93 (decimal), then it is OK. However, if the value is bigger than 93, then the BU (base unit) is defective and need to be change. 8. Press O RETURN button on the remote commander to return to previous menu. 9. Press [0] button on the remote commander to return to the Top Menu of Remocon Diagnosis Menu. 10. Press ?/1 button to turn off the set. [EMERGENCY HISTORY CHECK] Information of Emergency History. 1. Enter DVD Service Mode. 2. Select “3. Emergency History” by pressing [3] button on the remote commander. The screen will appear as follows. Emg. History Check Laser Hours CD 999h 59min DVD 999h 59min 1. 01 05 04 04 00 92 46 00 00 00 00 00 00 00 23 45 2. 02 02 01 01 00 A9 4B 00 00 00 00 00 00 00 23 45 [Next] Next Page [Prev] Prev Page [0] Return to Top Menu 3. You can check the total time when the laser is turned on during playback of DVD and CD from the above menu. The maximum time, which can be displayed are 999h 59min. 4. You can check the error code of latest 10 emergency history from the above menu. To view the previous or next page of www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 HCD-GN1000D Emg. History Check Laser Hours CD 0h 0min DVD 0h 0min 1. 01 05 04 04 00 92 46 00 00 00 00 00 00 00 23 45 2. 02 02 01 01 00 A9 4B 00 00 00 00 00 00 00 23 45 [Next] Next Page [Prev] Prev Page [0] Return to Top Menu 6. How to clean Emergency History Press [MENU] button and then press [CLEAR] button. All emergency history are cleared. Emg. History Check Laser Hours CD 999h 59min DVD 999h 59min 1. 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 2. 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 [Next] Next Page [Prev] Prev Page [0]Return to top Menu 7. To return to the Top Menu of Remocon Diagnosis Menu, press [0] button on the remote commander. [VERSION INFORMATION CHECK] Information of firmware version. 1. Enter DVD service Mode. 2. Select “4. Version Information” by pressing [4] button on the remote commander. The screen will appears follows. Version information Firm (Main) : Ver. xxxxx Firm (Sub) : xxxxx RISC : xxxxx 8032 : xxxxx Audio DSP : xxxxx Servo DSP : xxxxx [0] Return to Top Menu 3. To return to the Top Menu of Remocon Diagnosis Menu, press [0] button on the remote commander. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 HCD-GN1000D SECTION 5 MECHANICAL ADJUSTMENTS SECTION 6 ELECTRICAL ADJUSTMENTS Precaution 1. Clean the following parts with a denatured alcohol-moistened swab: record/playback heads pinch rollers erase head rubber belts capstan idlers 2. Demagnetize the record/playback head with a head demagnetizer. 3. Do not use a magnetized screwdriver for the adjustments. 4. After the adjustments, apply suitable locking compound to the parts adjusted. 5. The adjustments should be performed with the rated power supply voltage unless otherwise noted. Torque Measurement 2.9m N • m to 6.9m N • m FWD CQ-102C 30 to 70 g • cm (0.42 – 0.97 oz • inch) FWD 0.15m N • m to 0.59m N • m back tension CQ-102C 2 to 6 g • cm (0.03 – 0.08 oz • inch) 2.9m N • m to 6.9m N • m REV CQ-102RC 30 to 70 g • cm (0.42 – 0.97 oz • inch) 0.15m N • m to 0.59m N • m REV CQ-102RC 2 to 6 g • cm back tension (0.03 – 0.08 oz • inch) 4.8m N • m to 16.7m N • m FF/REW CQ-201B 49 to 170 g • cm (0.68 – 2.36 oz • inch) Mode Torque meter Meter reading 0 dB=0.775 V DECK SECTION 1. Demagnetize the record/playback head with a head demagnetizer. 2. Do not use a magnetized screwdriver for the adjustments. 3. After the adjustments, apply suitable locking compound to the parts adjust. 4. The adjustments should be performed with the rated power supply voltage unless otherwise noted. 5. The adjustments should be performed in the order given in this service manual. (As a general rule, playback circuit adjustment should be completed before performing recording circuit adjustment.) 6. The adjustments should be performed for both L-CH and R- CH. 7. Switches and controls should be set as follows unless otherwise specified. • Test Tape RECORD/PLAYBACK HEAD AZIMUTH ADJUST-MENT DECK A DECK B Note: Perform this adjustments for both decks Procedure: 1. Mode: Playback Tape Signal Used for P-4-A100 10 kHz, –10 dB Azimuth Adjustment set MAIN board CN510 Pin 1 (L-CH) Pin 3 (R-CH) MAIN board CN510 Pin 2 (GND) + – level meter test tape P-4-A100 (10 kHz, –10 dB) 2. Turn the adjustment screw and check output peaks. If the peaks do not match for L-CH and R-CH, turn the adjustment screw so that outputs match within 1dB of peak. Screw position L-CH peak within 1dB Output level L-CH peak R-CH peak within 1dB Screw position R-CH peak www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 HCD-GN1000D DVD SECTION [TEST DISC LIST] Use the following test disc on test mode. • CD: YEDS-18 (PART No. 3-702-101-01) or PATD-012 (PART No. 4-225-203-01) • DVD (SL) NTSC HLX-503 (PART No. J-6090-069-A) or HLX-504 (PART No. J-6090-088-A) PAL HLX-506 (PART No. J-6090-077-A) • DVD (DL) NTSC HLX-501 (PART No. J-6090-071-A) or HLX-505 (PART No. J-6090-089-A) PAL HLX-507 (PART No. J-6090-078-A) Procedure: 1. Connect an oscilloscope to CN105 pin 6 (RFMON) and CN105 pin 3 (GND) on the DMB15 board. 2. Turn the power on. 3. Set the test disc (DVD: HLX-503 (NTSC) or HLX-504 (PAL), CD: YEDS-18) on the tray and press Y button to playback. 4. Confirm that oscilloscope waveform is clear and check RFMON signal level is correct or not. Note: A clear RFMON signal waveform means that the shape “◊” can be clearly distinguished at the center of the waveform. Checking Location: DMB15 board (Side A) + – CN105 pin 6 (RFMON) CN105 pin 3 (GND) oscilloscope DMB15 board VOLT/DIV: 200 mV TIME/DIV: 500 ns RFMON signal waveform level: 0.58 to 1.23 Vp-p (DVDSL) 0.57 to 1.1 Vp-p (CD) IC102 IC101 IC104 IC201 CN105 CN106 DMB15 BOARD CN105 pin 3 (GND) CN105 pin 6 (RFMON) 1 6 3. Mode: Playback 4. After the adjustments, apply suitable locking compound to the pats adjusted. Adjustment Location: Playback Head (Deck A). Record/Playback/Erase Head (Deck B). set MAIN board CN510 test tape P-4-A100 (10 kHz, –10 dB) pin 3 oscilloscope L-CH R-CH V H waveform of oscilloscope in phase 45° 90° 135° 180° good wrong pin 2 pin 1 L R Note: When the BASE UNIT is replaced, perform the mirror time adjustment and IOP measurement (Refer to page 20 of the TEST MODE). [RFMON Level Check] Connection: forward reverse www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 25 HCD-GN1000D HCD-GN1000D SECTION 7 DIAGRAMS • Circuit Boards Location For Schematic Diagrams. Note: • All capacitors are in µF unless otherwise noted. (p: pF) 50 V or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • % : indicates tolerance. • f : internal component. • 2 : nonflammable resistor. • 5 : fusible resistor. • C : panel designation. • A : B+ Line. • B : B– Line. • Voltages and waveforms are dc with respect to ground un- der no-signal (detuned) conditions. DMB15 and VIDEO boards no mark : DVD PLAY Other board no mark : TUNER (FM/AM) ( ) : DVD PLAY < > : TAPE PLAY [ ] : TAPE REC * : Impossible to measure • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal production tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal production tolerances. • Circled numbers refer to waveforms. • Signal path. F : AUDIO e : TUNER k : TAPE PLAY (DECK A) d : TAPE PLAY (DECK B) G : REC (DECK B) J : CD PLAY N : MIC c : DVD PLAY L : VIDEO E : Y a : CHROMA r : COMPONENT VIDEO q : R, G, B Note on Printed Wiring Boards. Note: • X : parts extracted from the component side. • : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) • Indication of transistor. Caution: Pattern face side: Parts on the pattern face side seen from (SIDE A) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (SIDE B) the parts face are indicated. Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. C B These are omitted. E Q B These are omitted. C E Q B These are omitted. C E Q • Abbreviation E2 : 120V AC Area in E model E3 : 240V AC Area in E model E12 : 220V-240V AC Area in E model E15 : Iran model EA : Saudi Arabia model MY : Malaysia model PH : Philippines model SP : Singapore model TH : Thai model NOTE ON REPLACEMENT OF DMB15 BOARD New part of EEPROM (IC103) on the DMB15 board cannot be used. Therefore, if the mounted DMB15 board (A-1174-274-A or A-1193-178-A or A-1193-183-A or A-1193-188-A) is replaced, exchange new EEPROM with that used before the replacement. CD-SW board TRANS board PA board SURROUND board EFFECTOR board SWITCHING POWER TUNER PACK PRIMARY board VIDEO board KARAOKE board DMB15 board MAIN board MIC board JOG board PANEL board FUNCTION board MOTOR (LD) board SW board SENSOR board DRIVER board MOTOR (TB) board w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 26 HCD-GN1000D HCD-GN1000D • Waveforms – DMB15 Board – – MAIN Board – – VIDEO Board – 1 IC301 9 BICK 2 IC301 0 MCLK 3 IC102 6 DVDRFIP 4 IC102 ea FED 5 IC102 es TEO 6 IC102 XTALO 228 3.3 Vp-p 4.0 Vp-p 41 nsec 0.33 �sec 2V/DIV, 0.1 �sec/DIV 2V/DIV, 20 nsec/DIV 0.6 Vp-p 0.2V/DIV, 50 nsec/DIV 40 nsec 0.1V/DIV, 0.5 msec/DIV 0.1 V/DIV, 0.5 msec/DIV 1.1 Vp-p 0.5V/DIV, 20 nsec/DIV 0.1 Vp-p 0.1 Vp-p 1.7 Vp-p 3.3 Vp-p 0.5 V/DIV, 10 µsec/DIV 1V/DIV, 50 nsec/DIV 11 µsec 200 nsec 20V/DIV, 5 µsec/DIV 60 Vp-p 32 µsec 1 IC401 qa XC OUT 2 IC401 qd X-OUT 3 CN503 2 E-HOT 3.1 Vp-p 250nsec 1V/DIV, 0.2 µsec/DIV 1 IC902 is X OUT – PANEL Board – 1.0 Vp-p H 0.5 V/DIV, 20 µsec/DIV 1.3 Vp-p H 0.5 V/DIV, 20 µsec/DIV 1.6 Vp-p H 0.5 V/DIV, 20 µsec/DIV 1.6 Vp-p H 0.5 V/DIV, 20 µsec/DIV 0.8 Vp-p H 0.5 V/DIV, 20 µsec/DIV 2.0 Vp-p H 1 V/DIV, 20 µsec/DIV 2.6 Vp-p H 1 V/DIV, 20 µsec/DIV 1 V/DIV, 20 µsec/DIV 0.8 Vp-p H 0.5 V/DIV, 20 µsec/DIV 1.5 Vp-p H 1 V/DIV, 20 µsec/DIV 1 V/DIV, 20 µsec/DIV 2.0 Vp-p H 1 V/DIV, 20 µsec/DIV 1 V/DIV, 20 µsec/DIV 2.0 Vp-p H 1.5 Vp-p H 2.6 Vp-p H 1 IC801 2 CIN 2 IC801 4 CVBSIN 3 IC801 6 YIN qa IC801 wd CVBSOUT qs IC801 wh C OUT qd IC800 7 VOUT 4 IC801 0 CYIN 5 IC801 qs CBIN 6 IC801 qf CRIN 7 IC801 qh CROUT 8 IC801 qk CBOUT 9 IC801 w; CYOUT 0 IC801 wa YOUT w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 27 HCD-GN1000D HCD-GN1000D 7-1. BLOCK DIAGRAM – RF SECTION – DETECTOR 6 2 3 4 5 10 19 18 252 253 DVDRFIP DVDA DVDB DVDC DVDD TPI TNI MD MC LD01 MDI2 LD02 MSW MDI1 OSP OSN IC102 (1/2) CD/DVD RF AMP, FOCUS/TRACKING ERROR AMP DVD SYSTEM PROCESSOR DIGITAL SERVO PROCESSOR OPTICAL PICK-UP BLOCK (KHM-310CAB) 2AXIS DEVICE FOCUS/ TRACKING COIL 23 20 22 21 36 48 43 12 9 37 1 Q102 (2/2) AUTOMATIC POWER CONTROL (FOR DVD) Q102 (1/2) AUTOMATIC POWER CONTROL (FOR CD) LASER DIODE (FOR CD) LASER DIODE (FOR DVD) FOCUS COIL DRIVE 42 41 BUFFER 35 3 34 4 TRACKING COIL DRIVE 32 31 38 42 37 41 30 SLED MOTOR DRIVE IC201 FOCUS/TRACKING COIL DRIVER, SPINDLE, SLED MOTOR DRIVER 27 28 SPINDLE MOTOR DRIVE M M1 (SPINDLE) S1 (LIMIT) 46 47 FMO FOO DND TRO VREFO 40 IOPMON FOO RF A B C D F E CD LD VC PD WR650 VR780 DVD LD FCS+ MSW FCS– TRK+ REG02 REG01 TRK– SP+ SP– SL+ SL– NC NC VREFO VREFO 9 NB 8 NA V2O 29 30 29 SLED MOTOR DRIVE M M2 (SLED) 50 BUFFER 19 20 22 45 21 42 40 IC401 (1/6) SYSTEM CONTROLLER 99 IFCK 107 TXD 28 V2 REF0 MTK-CLK 33 100 XIFCS MTK-XIFCS 24 110 PRST TXD CN105 RXD V2REF0 TXD1 RXD1 CLK1 RFMON 106 RXD MTK-RESET 25 98 IFSDO MTK-SOD 32 101 IFSDI 205 MIC/VSYNC MIC SSTATUS 21 105 IFBSY MTK-BUSY 23 207 KRMOD/HSYNC KRMOD 22 MTK-SIO 31 TRO FMO FOO DMO TRO 10 13 FMO IOP IOPMON DMO IC301 D/A CONVERTER IC3601 D/A CONVERTER IC3771 AMP IC3711 AMP IC3751 AMP IC3731 AMP 219 ASDATA2 SDTI3 16 222 ASDATQ3 SDTI4 13 218 ASDATA1 SDTI2 15 32 ROUT4- 6 1 7 38 LOUT4+ 3 217 ASDATA0 SDTI1 14 37 LOUT4- 2 33 ROUT4+ 103 SDA SCKI LIN RIN 15 102 SCL BCK 11 LRCK 10 209 SPDATA/SMSDI DOUT 12 206 VOICE/YUV7 208 SMSCK 5 47 ROUT1- 6 2 LOUT1+ 3 1 LOUT1- 2 48 DM_L DM_R MB_FL MB_FR FC SW(LEE) MB_SL MB_SR Q3801 BIAS BIAS (IC3711,3731,3751,3771) AU+5V ROUT1+ 5 39 ROUT3- 6 42 LOUT3+ 3 41 LOUT3- 2 40 ROUT3+ 5 43 ROUT2- 6 46 LOUT2+ 3 45 LOUT2- 2 44 ROUT2+ 5 213 ALRCK LRCK 17 220 XRST PDN 8 214 ABCK BICK 9 215 ACLK MCLK 10 CSL 19 SDA 20 211 MUTE123 246 RFRPAC 245 RFRPDC 210 MUTE 170 TSD M 47 SPFG 176 LIMSW IC103 EEPROM SCL SDA Q101 Q103 1 7 1 7 1 7 LIN XVOICE SCORE RIN 1 2 5 6 CN402 (1/3) (FOR CHECK) (FOR CHECK) 1 2 5 6 11 MAIN SECTION (Page 30) A MAIN SECTION (Page 30) F MAIN SECTION (Page 30) B • Signal Path : CD PLAY : DVD PLAY w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 28 HCD-GN1000D HCD-GN1000D 7-2. BLOCK DIAGRAM – VIDEO SECTION – • Signal Path : VIDEO : Y : CHROMA : COMPONENT VIDEO : R, G, B IC102(2/2) DVD SYSTEM PROCESSOR YUV1 YUV6 YUV2 DISC/X YUY3 YUY4 YUY5 WODE IC801 VIDEO AMP, 75 DRIVER IC401(2/6) SYSTEM CONTROL J801 J802 J800 12 CBIN 10 CYIN 4 9 CVBSIN I/P 18 3 13 CBOUT MUTE1 14 25 CRIN SI 20 CYOUT 23 VOUT 2 CIN 6 194 196 168 198 200 202 203 YIN 26 COUT 21 YOUT 16 CROUT CBOUT CYOUT Q800 VOUT CROUT AV SEL1 88 87 MUTE2 4 3 2 1 IC101 FLASH ROM 125-123, 121, 120, 118, 117, 115, 135, 133-128, 126 146, 147, 149-151, 158-160, 162, 164-166 22-26, 29-35 HIGHA0-7 IOA0-7, IOA18-IOA20 A16, A17 AB0 – AB7 A1-A21 81-84,86-88,91 53-61, 67-72, 74-76, 78, 89, 92, 93 HD0 – HD7 A0 – A21 A0 26 45 CE WE 28 OE 11 A0 – A21 DQ15/A-1 77 IOCS IOWA 79 IOUE 66 DQ0 – DQ7 RCLK IC104 SDRAM 38 DRCLK RD0 – RD15 RA0 – RA11 RA0 – RA11 RD0 – RD15 142 RCS 19 RCS 138 RWE 16 RWE 140 RAS 18 RAS 139 CAS 17 CAS KDQM0 15 DQM0 KDQM1 39 DQM1 CLE 37 DRCKLE 143 BA0 20 BS0 BA1 21 BS1 COMPONENT VIDEO OUT S VIDEO OUT VIDEO OUT Y Y C PB/CB PR/CR VMUTE VIDEO-OUT-SW V MUTE VIDEO OUT SW 29,31,33,35,38,40,42,44 25-16, 10-1, 40,12,48 145 156 113 137 157 2,4,5,7,8,10,11,13,42,44,45,47,48,50,51,53 TSENS 27 EJECTSW Q731 S751 (OPEN) D+3.3V RTS1 26 3 4 1 2 IC731 TABLE SENSOR LOG-POS 38 LOG-NEG 39 36 TBL-NEG E-1 E-2 E-3 37 35 34 28 TBL-POS RIN FIN 9 7 MOTOR DRIVE 4 2 9 7 4 2 MOTOR DRIVE OUT1 OUT2 OUT1 OUT2 RIN FIN IC712 TBL MOTOR DRIVER S711 ROTARY ENCODER IC701 LD MOTOR DRIVER M751 (TABLE LOADING) M M M741 (TABLE) EVER 4V M+9V Q523,524 +3.3V REG. IC800 VIDEO SELECT 7 3 1 2 VIDEO INPUT VIDEO J1102(1/2) RF+3.3V SW+5V 5 4 IC107 +3.3V REG. +3.3V VDD 5 4 IC105 +3.3V REG. SW+3.3V RF1.8V DVDD18 1 3 IC106 +1.8V REG. D505 49 CN402 (2/3) (FOR CHECK) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 29 HCD-GN1000D HCD-GN1000D 7-3. BLOCK DIAGRAM – TAPE/TUNER SECTION – : TAPE PLAY (DECK B) : TAPE PLAY (DECK A) : TUNER : RECORD (DECK B) • Signal Path ST-L E MAIN SECTION (Page 30) REC-OUT-L D MAIN SECTION (Page 30) TAPE MECHANISM BLOCK 32 A TRIG DRIVE R-CH FM/AM TUNER UNIT CN509 ANTENNA ST-L FM ANT AM ANT AM ANT ST-R TUNED ST-DIN/MC-DOUT ST-DOUT ST-CLK ST-CE FM 75 COAXIAL CAP M+ BTRGM+ ATRGM+ AHALF BHALF B PULSE A PULSE REC(FWD) REC(REV) CAPM-CONT B-TRIG A-TRIG TC-RELAY A-HALF B-HALF B-SHUT A-SHUT REC BIAS PB-A/B ALC REC-MUTE TC-MUTE AM EQ OUT1 A B TUNED ST-DOUT ST-DIN ST-CLK ST-CE 34 28 27 26 24 21 52 55 56 54 71 90 89 91 47 53 48 B TRIG DRIVE 49 CAP MOTOR DRIVE 50 1 3 6 2 5 13 11 15 14 PB OUT1 TAI1 REC IN1 AIN1 BIN1 A/B ALC ON/OFF REC MUTE ON/OFF MUTE ON/OFF DECK A/B SELECT PB/REC EQUALIZER AMP IC301 Q340, 343 Q342, 345 Q341,344 SYSTEM CONTROL (DVD/TAPE MECHANISM CONTROL) IC401(3/6) REC-OUT1 EQ TC-PB-L TEST CONNECTOR CN510 R-CH R-CH R L C MAIN SECTION (Page 30) MUTE Q106 MUTE DRIVE Q509, 510 PB HEAD DECK-A DECK-B BIAS OSC Q370 BIAS TRAP SWITCH DRIVE Q377, 379 SWITCH DRIVE Q382, 383 R-CH R-CH Q325 Q321, 322 Q381 L – CH R – CH R-CH BIAS+9V REC/PB HEAD ERASE HEAD Q378,380 T301 L – CH R – CH • R-CH is omitted due to same as L-CH. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 30 HCD-GN1000D HCD-GN1000D 7-4. BLOCK DIAGRAM – MAIN SECTION – J201 J1102(2/2) C D E R-CH VOLUME CONTROL CPU INTERFACE INPUT SELECT SWITCH SURROUND OR DPL BUFFER MID/ BASS & TREBLE R-CH R-CH COMMAND TOUT1 LINK-L OUT1 VOLIN1 + Q101 R-CH R-CH SPEANA D +4V L+R (SPEANA) A +9V LIN RIN DBFB F/B F-R F-L CENTER SL SR SW OUT + + + IC101 INPUT SELECT SWITCH, GRAPHIC EQUALIZER CONTROL, ELECTRICAL VOLUME IC401(4/6) SYSTEM CONTROL TC-L VIDEO-L ST-L SAOUT DATA CLK BB-A1 BB-B1 SWOUT REC-OUT-L R-CH TC-PB-L TAPE/TUNER SECTION (Page 29) TAPE/TUNER SECTION (Page 29) ST-L VOL IC DATA VOL IC CLK LINE MUTE AUDIO IC DATA AUDIO IC CLK R-CH LINE-MUTE L R VIDEO INPUT AUDIO L R TV/SAT AUDIO IN 2 14 15 24 18 22 16 21 4 3 6 DVD1 SAT-L 5 19 17 8 MIC RECB1 7 SUR-L C A B C A B A+9V 81 82 DVD A MUTE MIC DETECT 77 85 79 80 SW MUTE 75 ANALOG IN MUTE 46 AUDIO-OUT-SW 83 76 AMP SECTION (Page 31) H I F AMP SECTION (Page 31) RF SECTION (Page 27) TAPE/TUNER SECTION (Page 29) G DISPLAY/POWER SECTION (Page 32) RF SECTION (Page 27) MUTE Q514, 564 MUTE Q117 MUTE DRIVE Q516, 517 MUTE Q206 4V REG. Q323 MUTE DRIVE Q521, 522 AC DETECT J DISPLAY/POWER SECTION (Page 32) MUTE DRIVE Q511 MUTE DRIVE Q519,512,515 MUTE DRIVE Q505,506 MUTE Q200,202-204, 250,252-254 MUTE DRIVE Q507,508 R-CH R-CH J202 AUDIO OUT L R J103 D-LIGHT SYNC OUT R-CH 6 7 42 IC304 (2/2) SPEANA IN AMP IC201 SURROUND VOL CONTROL DM_L DM_R MB_FL MB_FR FC MB_SL MB_SR SW (LFE) DATA CLOCK R-CH R-CH R-CH R-CH LPF I/F 41 40 37 39 38 RF SECTION (Page 27) A 34 2 32 13 12 6 5 10 9 15 24 14 + 11 4 31 25 30 29 8 7 23 28 27 26 22 3 17 18 MB_FL MB_FR FC MB_SL MB_SR SW (LFE) + 2 1 IC304 (1/2) MUSIC L+R AMP 3 1 5 7 IC2000 3 1 6 7 IC2002 3 2 6 1 5 7 IC2001 D2004 -2008 SCORE XVOICE IC1506 SELECTOR CCT DM-L EFFECTOR SELECT 18 EFFECTOR-FLANGER SELECT 86 Y COM 3Y 0Y 3 4 1 X COM 3X OX B A 13 11 12 9 10 EFFECTOR S1 43 EFFECTOR S2 44 EFFECTOR S0 19 A IC1505 MIXER L/R 7 13 5 3 IC1500 MIXER 1 3 DM-R IC1501 DIGITAL DELAY IC1503 MULTIPLEXER 9 12 11 10 2 3 Q1508 Q1506 Q1502 LPF2OUT LPF1IN LPF1OUT LPF2IN OP2OUT OP2IN CLOCK A B COM C + + 14 3 10 9 11 BUFFER Q1509, 1510 RV1100 IC1101 MIC AMP J1100(1/3) J1101(2/3) MIC 1 ECHO LEVEL RV1102 MIC 1 LEVEL RV1101 MIC 2 LEVEL MIC OUT IC1100 DIGTAL ECHO MC1P MC2P J1101(1/3) J1100(2/3) J1101(3/3) J1100(3/3) MIC 2 15 16 + + + PRE LPF POST LPF ADPCM ENCODE ADPCM DECODE ADC DAC S/H DELAY 25 29 29 23 5 6 7 MCO POOUT AD IN ALC ALC MIC VOL ECHO VOL MIC VOL VOLUME CONTROL VOL1 VOL2 VOL3 2 7 B : AUDIO : DVD PLAY : TAPE PLAY : REC (DECK B) : MIC : TUNER • Signal Path • R-CH is omitted due to same as L-CH. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 31 HCD-GN1000D HCD-GN1000D 7-5. BLOCK DIAGRAM – AMP SECTION – H MAIN SECTION (Page 30) MAIN SECTION (Page 30) I DISPLAY/POWER SECTION (Page 32) K IC702 POWER AMP MUTING Q604, 606, 610 F-R DBFB F/B F-L SW OUT 60 67 STK-MUTE PROTECTOR STK MUTE 14 13 11 4 3 12 STK MUTE FAN DET FAN CONTROL HI SPEED OVER LOAD DETECT Q668, 618 + + + + MUTING Q640, 641 MUTING CONTROL Q634,682 F-RELAY HP-DET HP-MUTE HP-DETECT 72 HP-MUTE 58 FAN HI SPEED 66 84 FRONT-RELAY 42 FAN-CONTROL OVER LOAD DETECT Q730, 770. 780 RELAY DRIVE Q644, 647 H/P DET F-RELAY HP-MUTE + - - + FRONT SPEAKER SUB WOOFER OUT L R PHONES J1103 RY646 IC401 (5/6) SYSTEM CONTROLLER TM600 M FAN MOTOR DRIVE Q578-582, 585 DC FAN M891 M FAN MOTOR DRIVE Q587 - 589 DC FAN M892 VL(AC) TH629 THERMAL DETECT Q628, 630 SW MUTE Q812 MUTE Q810 + 51 SW-SPK RELAY RY862 TM101 RELAY DRIVE Q814, 815 6 4 OVER LOAD DC DET VP OCP CT OUT D624 D812 D550 2 1 Q648 18 11 10 9 14 8 - HI SPEED SWITCH Q581 7 5 • SIGNAL PATH IC600 POWER AMP IC550 OVER CURRENT PROTECTOR IC800 POWER AMP FAN CONTROL SWITCH Q578 SR CENTER SL 14 19 18 + REAR SPEAKER CENTER SPEAKER + + + 65 CEMTER-RELAY 61 SURR-RELAY RY760 RY761 L R LINEMUTE RELAY DRIVE Q762 RELAY DRIVE Q763 8 21 11 MUTE Q750 MUTE Q700 MUTE Q740 - - - TM701 TM700 10 9 22 D764 D763 D765 : AUDIO w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 32 HCD-GN1000D HCD-GN1000D 7-6. BLOCK DIAGRAM – DISPLAY/POWER SECTION – X MAIN SECTION (Page 30) G X AMP SECTION (Page 31) K IC501 LEVEL DETECT FL901 FLUORESCENT INDICATOR TUBE 9,10, 12 – 22, 24 – 41, 43 – 47 8 – 1, 100 – 96, 92-85 P1 – 36 G1 – 13 G17-24 64 – 66 93–95 BF4 1 IC904 BPF, RECT 67 68 16 2 15 69 71 48 80 ALL BAND BF3 BF1 IN2 IN1 VKK LED SELECTOR G14-16 G14-16 G1-13,G17-24 13 17 74 VOLUME ROTARY ENCODER S970 MASTER VOLUME SPEANA P1 – 36 VF1 VF2 D905 -VG (-32V) X901 4MHz 83 XIN 82 XOUT 52– 59, 72,78,79 LED DRIVE Q908-913,915, 918,919,921 D909, 915, 916, 920, 922, 924, 926, 929, 930, 1017, 1145, 1153 D908, 910, 911, 913, 914, 917, 919, 921, 923, 925, 1020 LED+9V Q905 Q907 Q904 Q906 D927 (R) D928 (G) KEY2 | KEY0 S901 – 906, 914 - 925, 1166 - 1170 60 I2C DATA 61 I2C CLK 77 RESET 30 IIC-DATA 29 IIC-CLK IIC-DATA IIC-CLK 40 GC-RESET 74 POWER-KEY 73 DISPLAY-KEY S927 S928 DISPLAY 41 STBY-LED 4 SIRCS RESET X402 5MHz 15 X-IN 13 X-OUT X401 32.768kHz 10 XC-IN 11 XC-OUT IC401 (6/6) SYSTEM CONTROL 7 STBY-RELAY 12 RESET 20 AC-CUT B+ SWITCH Q504, 505 D660, 661 D505 D504 POWER SWITCHING LED DRIVE Q903,917 RECT D658 RECT D656 +VL VL(AC) F1261 VL VL VH VH VP VF VF GND F1271 F1241 F1251 R1292 –VL +VH –VH – 33V REGULATOR Q1264 POWER ON/OFF RELAY DRIVE Q1200 – VG (-32V) D1292 RECT VF1 VF2 RY1200 AC IN T1200 POWER TRANSFORMER RESET SWITCH Q501 IC903 REMOTE CONTROL RECEIVER TO FLUORESCENT INDICATOR TUBE FL901 EVER +4V M+9V D3.3V IC902 DISPLAY CONTROL, KEY CONTROL BUFFER Q901,902,914 70 BF2 14 R480 72 OPERATION DIAL ROTARY ENCODER S1161 OPERATION DIAL 1 2 NO.402 (FOR CHECK) CN402 (3/3) (FOR CHECK) 78 MTK-POWER 68 OVER VOLTAGE DET REG. SWITCH Q518, 503 REG. SWITCH Q104 +5V REG. Q103 RECT D560 M +9V SW +9V +9V REG LED +9V A +9V ST +9V MB +9V +9V REG +9V REG VOLTAGE CHECK Q550 AU +5V V +5V AC3 AC4 AC4 AC3 F1281 AUDIO +9V BIAS +9V RECT D561 +SW3.3V +3.3V REG +B SWITCH Q513,520 AU+5V +SW5V (ZIVA) +5V REG F1291 X MAIN SECTION (Page 30) J AC CUT DETECT D660, 661 UNREG S1200 S1200 230 – 240V | 220V | 120V VOLTAGE SELECTOR TH EXCEPT TH IC558 IC559 IC561 IC560 IC507 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 33 HCD-GN1000D HCD-GN1000D CN103 R3607 IC102 L3602 FB115 FB114 FB113 FB112 CN302 R3653 R3805 IC201 R319 Q103 R116 R117 C224 R136 R142 IC104 IC103 FL101 C222 C221 R153 R155 C220 C219 FL107 FL403 C218 RB107 RB108 RB113 CN101 RB112 C3804 Q3801 C215 R3804 C3802 E R3803 FL401 IC101 C3803 C3805 C210 X101 R208 C208 CN105 CN106 CN201 CN401 1 5 R209 C206 C205 R210 R214 FB401 FB402 FB403 FB404 D1001 FB405 FB406 R215 R216 R219 R224 FL402 C190 R233 R234 C180 C179 R161 R107 R101 R1527 C306 C102 C105 C402 C108 R189 C307 C305 R190 R191 C302 R192 R193 C153 C152 R1101 C117 E R1102 R1105 R1108 R3651 R1553 C138 C137 C135 R1129 C133 C132 R1168 C119 C118 C116 R195 C112 C101 R197 C167 C170 C181 C217 C189 C177 R1544 C403 C129 R152 C3783 R1550 R1549 C3782 C3781 C3774 C3773 C3772 C3771 C3707 R3782 R3781 R4706 R4705 R1543 C3784 R3773 R3774 R3775 R3776 R3777 R3772 R3771 R3768 R3767 R3766 R3765 R3764 R3763 R3758 R3757 R3778 R3783 R3756 R3784 R3785 R3786 R3755 R3754 R3753 C3764 R3787 C3763 C3762 C3761 C3754 C3801 R3788 C3753 C3752 C3751 C3705 R3762 R3761 R3802 R3801 C178 R3716 R3752 R3717 R3715 R3751 R3748 R3747 R3746 R3714 R3745 R3744 R3743 R3738 R3713 R3737 R3736 R3735 R3734 R3733 C3744 R3718 R3721 R3722 R3723 C3743 C3742 C3741 C3734 R3712 R3711 R3724 R3725 C3733 C3732 C3731 C3703 D3502 D3501 C3724 C3723 C3722 C3721 C3714 R3742 CN301 R3741 C3713 C3712 C3711 R3732 R3731 C3701 C187 C3606 C3605 C3603 R3728 R3727 R3726 R3603 R1557 R1559 IC106 C3608 C3609 DMB15 BOARD (SIDE A) 11 1-869-463- (FOR TEST) A MAIN BOARD CN520 (Page 41 ) (FOR TEST) OPTICAL PICK-UP BLOCK (KHM–310CAB) C MAIN BOARD CN521 (Page 41 ) B VIDEO BOARD CN801 (Page 58 ) D MAIN BOARD NO523 (Page 41 ) * 2 3 4 5 6 7 8 9 10 A 1 B C D E F G H 7-7. PRINTED WIRING BOARD – DMB15 BOARD (SIDE A) – • Semiconductor Location Ref. No. Location D1001 D-7 D3501 A-6 D3502 A-6 IC101 F-4 IC102 D-4 IC103 D-6 IC104 E-6 IC106 E-8 IC201 F-7 Q103 D-2 Q3801 B-6 NOTE ON REPLACEMENT OF DMB15 BOARD New part of EEPROM (IC103) on the DMB15 board cannot be used. Therefore, if the mounted DMB15 board (A-1174-274-A or A-1193-178-A or A-1193-183-A or A-1193-188-A) is replaced, exchange new EEPROM with that used before the replacement. • See page 25 for Circuit Boards Location. :Uses unleaded solder. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 34 HCD-GN1000D HCD-GN1000D 7-8. PRINTED WIRING BOARD – DMB15 BOARD (SIDE B) – • Semiconductor Location Ref. No. Location D3601 B-2 D3602 B-2 IC105 F-7 IC107 C-7 IC301 D-3 IC3601 B-2 IC3711 B-2 IC3731 C-2 IC3751 C-3 IC3771 B-3 Q101 D-7 Q102 E-7 L3601 C114 C115 C120 C121 C122 C123 C124 C125 C126 FB111 C130 R109 C139 C140 C146 C147 C148 C149 C151 C154 C156 C159 C161 C163 R3652 R105 R106 R123 R3605 C171 C172 C173 R110 R118 R120 R121 R187 R127 C193 C195 C301 R164 R169 R1133 1 3 4 6 FL104 R204 R205 FL106 R146 R151 R206 R207 R212 R213 RB104 RB111 R220 R221 RB105 RB106 IC301 R223 FL105 RB103 R225 IC105 R226 R230 R231 R232 FL108 R1109 Q102 R246 R247 R1110 R196 R1150 IC107 R1151 R1152 R1530 R1531 Q101 C214 C213 C212 R108 C211 R1540 R111 R112 R113 R114 R115 C209 R126 1 3 4 6 R124 C203 R1554 C191 R141 C188 R160 C184 C182 R1134 R1126 R1125 R1124 R1123 R1122 R1121 C176 C175 C174 R314 R1104 R1120 R1103 C164 R1551 R2504 R1504 C106 C109 R1502 C113 C127 C128 C131 C136 R104 C144 C155 C158 C160 C162 C3708 R1548 R4704 R4703 R4702 R4701 R1542 C192 R1547 C233 IC3751 D3602 D3601 C196 R1546 R3719 R3729 R3739 R3749 R3759 R3769 R3779 R3789 R3609 R1524 C3706 R1526 IC3731 R3606 R3611 IC3771 R3621 C3704 IC3601 R321 C3601 R138 C3621 C3702 C3611 C3610 C3607 1 10 11 20 C3602 R3601 R3602 R1161 R3505 R3504 DMB15 BOARD (SIDE B) 11 1-869-463- IC3711 C B E C B E D S G D S G 2 3 4 5 6 7 8 A 1 B C D E F G H • See page 25 for Circuit Boards Location. :Uses unleaded solder. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 35 HCD-GN1000D HCD-GN1000D 7-9. SCHEMATIC DIAGRAM – DMB15 BOARD (1/4) – • See page 26 for Waveforms. • See page 64 for IC Block Diagrams. • See page 72 for IC Pin Function Description. D3501 1SS355TE-17 SCORE XVOICE R3505 100 R3504 100 (2/4) BOARD DMB15 (Page 36) 15 C3610 C3609 C3608 C3607 C3611 C3621 C3606 C3605 C3603 R3607 C3602 C3601 L3601 10µH R3609 R3605 R3606 C301 R3653 R3652 R3651 IC301 C302 R319 C3801 C3805 C3804 47 6.3V C3803 100 4V C3802 C306 C305 R3802 R3801 C3781 IC3771 C3783 C3784 C3708 C3707 C3773 C3774 C3772 C3771 C3761 IC3751 C3764 C3763 R3782 R3784 R3785 R3789 R3779 R3778 R3776 R3777 R3767 R3768 R3766 R3775 R3771 R3773 R3762 R3764 R3765 R3621 R3603 R3602 R3803 R3804 R3805 R3601 R314 R3761 R3763 C3762 R3774 R3772 R3769 R3759 C3753 R3756 R3755 C3705 C3754 R3758 R3752 R3754 R3751 R3753 C3752 C3751 R3741 R3743 R3742 R3744 C3741 C3742 R3745 C3743 R3746 R3747 R3748 C3744 IC3731 C3733 R3735 C3703 R3736 C3734 R3738 R3737 R3732 R3734 R3731 R3733 C3732 C3731 R3721 R3722 R3724 R3723 C3721 C3722 C3723 R3725 R3728 C3724 R3727 R3726 IC3711 R3719 R3718 C3714 R3717 R3716 C3713 R3715 C3701 R3712 R3714 C3712 C3711 R3711 R3713 R3739 C3782 R3781 R3783 R3788 C307 R3757 D3602 D3601 C3706 R3749 C3704 R3729 C3702 R3611 IC3601 L3602 Q3801 R3786 R3787 0.1 10 16V 10 16V 0.1 0.001 0.001 0.1 47 6.3V 0.1 0 0.1 10 0 0 0 0.01 0 0 0 AK4358VQ-L 0.47 0 100 6.3V 47 4V 10 100 6.3V 0.47 0 0 0.0018 NJM3414AV 330p 330p 0.1 0.1 330p 330p 0.0022 0.0018 0.0018 NJM3414AV 330p 330p 1.5k 3.9k 4.7k 1k 1k 4.7k 1k 1k 1k 4.7k 1k 4.7k 1.5k 3.9k 1.5k 3.9k 4.7k 100 10k 100 10k 18k 1k 100 100 1.5k 3.9k 0.0022 3.9k 1.5k 1k 1k 330p 1k 4.7k 0.1 330p 4.7k 1.5k 3.9k 1.5k 3.9k 0.0022 0.0018 1.5k 3.9k 1.5k 3.9k 0.0018 0.0022 4.7k 330p 1k 1k 4.7k 330p NJM3414AV 330p 4.7k 0.1 1k 330p 4.7k 1k 1.5k 3.9k 1.5k 3.9k 0.0022 0.0018 1.5k 1.5k 3.9k 3.9k 0.0018 0.0022 330p 4.7k 4.7k 330p 1k 1k NJM3414AV 1k 4.7k 330p 1k 1k 330p 4.7k 0.1 1.5k 3.9k 0.0022 0.0018 1.5k 3.9k 1k 0.0022 1.5k 3.9k 4.7k 100 6.3V 1k 1SS355TE-17 1SS355TE-17 0.1 1k 0.1 1k 0.1 100 PCM1803DBR 2SC2712-YG BIAS 1k 1k XRST ASDATA4 ALRCK ASDATA2 ASDATA1 ASDATA0 SDA SCL SW+5V ABCK ACLK SW+3.3V GND SPDATA LOUT1+ LOUT1- ART+ ART- ALT- ALT+ ROUT3- ROUT3+ LOUT3- LOUT3+ ROUT2- ROUT2+ LOUT2- LOUT2+ ROUT1- ROUT1+ ART- ART+ ALT+ ALT- ROUT3- ROUT3+ LOUT3+ LOUT3- LOUT2+ LOUT2- ROUT1- ROUT1+ LOUT1+ LOUT1- RT LT SW FR FL SR SL RT LT SW FC SR SL FR FL FC ROUT2- ROUT2+ A/D CONVERTER (2/4) BOARD DMB15 (3/4) (4/4) (2/4) BOARD DMB15 (2/4) BOARD DMB15 (2/4) BOARD DMB15 (3/4) BOARD DMB15 DM L/R AMP C/SB AMP SURR L/R AMP FRONT L/R AMP (Page 36) (Page 37) (Page 38) (Page 36) (2/4) BOARD DMB15 (3/4) (4/4) (Page 37) (Page 38) (Page 36) (Page 36) (Page 37) (Page 36) 10µH CN302 21P RT LT (LFE) 1 2 BOARD MAIN (3/5) CN521 (Page 44) XVOICE SCORE D3502 1SS355TE-17 15 19 20 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 36 HCD-GN1000D HCD-GN1000D 7-10. SCHEMATIC DIAGRAM – DMB15 BOARD (2/4) – DMB15 BOARD (Page 37) (3/4) 16 DMB15 BOARD (Page 37) (3/4) 17 DMB15 BOARD (Page 38) (4/4) 11 DMB15 BOARD (Page 38) (4/4) 12 15 B DMB15 BOARD VIDEO BOARD CN801 (Page 59) (Page 35) (Page 37) (Page 38) (1/4) (3/4) (4/4) DMB15 BOARD DMB15 BOARD (Page 35) (Page 37) (Pagge 38) (Page 38) (1/4) (3/4) (4/4) (4/4) DMB15 BOARD (Page 38) (4/4) 4 DMB15 BOARD (Page 35) (1/4) DMB15 BOARD (Page 35) (1/4) DMB15 BOARD (Page 37) (3/4) DMB15 BOARD (Page 37) (3/4) DMB15 BOARD (1/4) (Page 35) 2 18 3 10 14 13 5 DMB15 BOARD (Page 38) (4/4) DMB15 BOARD (Page 38) (4/4) DMB15 BOARD (Page 38) (4/4) DMB15 BOARD (Page 38) (4/4) DMB15 BOARD (Page 37) (3/4) 1 7 6 8 9 (1/4) BOARD DMB15 (Page 35) 20 ASDATA4 XRST KRMOD MIC SCORE XVOICE 15 R109 R123 R126 R152 R196 R1530 R1531 C105 C112 C119 C129 C150 C177 IC102 R1542 R1553 R1120 R1121 R1122 R1123 R1124 R1125 FL101 FL105 FL106 R1527 R4701 R4702 R4703 R4704 R4705 R4706 CN301 C147 C148 R141 C151 R142 C154 C138 C133 R136 C132 C130 C137 C135 R1168 X101 C159 R189 R190 R192 R195 R197 R1102 R160 R153 R151 C156 R1547 R1549 R1551 R1550 R155 R1548 C149 C152 C153 C139 C140 C146 R138 C127 C128 R1126 R1554 SPFG DSEL WIDE MSW C196 C126 C125 C120 C121 C122 C123 C124 C193 C195 C192 IC107 C114 C117 C118 C163 C161 C101 Q101 Q103 R124 R113 R112 C113 C106 Q102 R117 R116 R121 R120 R111 R108 R118 R115 R110 R1129 R114 R101 R107 C131 C136 C144 C155 C162 C164 RB113 RB112 R1557 R161 R164 C160 C158 R1101 R1103 C170 R1104 C171 C172 R1108 0 R1109 C173 C174 C175 C176 RB108 RB107 RB103 RB104 RB111 R1540 C116 C115 CN101 R1504 0 0 0 0 0 0 0 47 6.3V 47 6.3V 10 16V 10 16V 10 16V 47 6.3V CXD9849R 0UH 0UH 0UH 0.047 0.047 750k 0.5% 0.001 100k 0.1 0.001 0.1 15k 0.1 0.1 0.1 0.033 470 27MHz 0.01 47 47 47 0.01 4.7k R146 10 4.7k 4.7k 4.7k 47 4.7k 0.1 12p 12p 22p 0.1 0.1 100k 0.01 0.0015 10k 4.7k NC NC R127 100 0.0047 0.1 0.1 1 1 1 1 1 0.22 0.22 0.01 TK11133CSCL-G 0.1 10 16V 10 16V 0.01 0.01 0.01 UM6K1N-TN DTC124EKA-T146 47k 22 22 0.01 0.01 QST8TR 47k 1k 22 22 100 1M 22 22 47k 100k 100k 100 10k 2.2 0.01 0.01 0.01 0.01 0.01 22 22 100 100 100 0.01 0.01 10k R1105 10k 0.01 R1161 0 R321 0 10k 0.01 0.01 0 0.01 0.01 0.01 0.01 22 22 0 0 0 4.7k 0.1 0.1 24P 0uH 10k 0 0 0 0 0 0 0 0 0 0 0 0 0 0 13P R1526 0 R1524 0 150 150 150 150 150 150 2.2k R1559 10k R1543 10k 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% NC NC NC NC NC NC NC NC REW NC NC NC NC NC TSD M FWD NC NC NC NC NC MUTE123 MUTE 0.5% 0.5% 0.5% 3.3 4.9 3.3 1.3 3.3 3.2 3.2 2.6 2.6 2.3 2.3 0.7 0.1 0 0.1 0.1 0 2.1 2.1 2.1 2.1 0.1 0.1 2.6 1.4 1.3 0 1.4 0.2 1.8 1.8 0.8 1 1.3 0.9 3.3 1.2 1.6 1.3 1.5 1.2 1.2 3.3 2.5 1.4 3.3 1.8 1.2 3.3 0 0 1.3 0 0 0 0 0 3.3 1.8 0.6 0.7 0.7 1.2 0.1 3.3 0 0 1.6 0 3.3 0 0 0 3.3 0 0 0 0 1.2 3.3 3.3 3.3 0 1.6 1.6 1.3 1.2 0.6 3.2 3.3 1.3 0 3.3 0.7 0 3.3 0.4 1.4 1.5 1.5 1.6 3.3 3.3 NC NC NC NC NC NC NC NC 1.8 3.3 1.6 0 0.7 1.9 2 1.6 1.8 3.3 1.6 1.9 0 0 0 3.3 3.3 2.6 2.7 3.3 3.3 3.2 1.7 3.3 1 1.3 1.8 3.1 2.7 3.1 1.4 1.5 2.4 1.7 0.9 1 1.2 1.5 0 0 1.2 3.3 3.3 0.6 1 0.5 2.7 1.3 1.3 3.1 2.1 2 3.3 2.5 2 0 0 1.8 0 3.3 3.3 2.1 0 3.3 3.3 0 3.3 1.4 3.3 3.3 3.3 1.8 2 2 2 2 1.7 1.6 2.1 2.3 1.5 2.2 2.8 1.7 1.7 1.7 1.7 1.7 0.2 1.4 2.1 1.3 1.4 • See page 26 for Waveforms. • See page 65 for IC Pin Function Description. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 37 HCD-GN1000D HCD-GN1000D 7-11. SCHEMATIC DIAGRAM – DMB15 BOARD (3/4) – 16 DMB15 BOARD (2/4) (Page 36) 17 DMB15 BOARD (2/4) (Page 36) 13 DMB15 BOARD (Page 35) (Page 36) (Page 38) (1/4) (2/4) (4/4) 10 DMB15 BOARD (Page 36) (2/4) 7 DMB15 BOARD (Page 36) (2/4) 15 DMB15 BOARD (Page 35) (Page 36) (Page 38) (1/4) (2/4) (4/4) 18 A DMB15 BOARD (Page 36) (2/4) MAIN BOARD CN520 (Page 42) (1/5) 19 DMB15 BOARD (Page 35) (1/4) MIC DGND NC M-REQ KRMOD FOR TEST MIC SDA SCL KRMOD 15 R187 R1133 R1134 CN105 IC104 FL104 FL107 FL108 C190 C187 C178 R104 FB115 FB114 FB113 FB112 FB111 RB106 RB105 C180 C179 C181 C191 R169 C184 C182 C188 IC106 D1001 C189 R191 R193 C167 IC103 R1150 R1546 R1151 R1152 C108 C109 R1110 C102 R106 R105 IC105 CN106 IC101 R1544 R1502 0 0 0 6P A2V64S40CTP-G75 0UH 0UH 0UH 47 6.3V 47 4V 47 4V 0 0UH 0UH 0UH 0UH 0UH 47 47 0.1 0.1 0.1 0.1 10k 0.01 0.22 0.22 PQ018EN01ZPH RB501V-40TE-17 0.33 1k 1k 0.01 BR24L64F-WE2 3.3k 3.3k 3.3k 3.3k 0.001 0.001 2.7k 1 10k 10k TK11133CSCL-G 13P MX29LV320CBTC70-CBA3-0601UC MX29LV320CBTC70-CBA3-0601CE MX29LV320CBTC70-CBA3-0601GA 0 0 * 0 1.8 2 1.6 2.9 0.6 0.5 0.9 0 2 1.3 1.2 1.6 1.2 3.3 1 0.9 1.6 0 0 0 0 2.8 3.3 1.6 2.4 2.5 0.6 0 1.6 1.3 2.5 3.1 2.7 0 0 3.3 1.8 0.9 1 3.3 1 1.5 1.3 1.5 3.3 1.2 3.3 4.9 0 3.3 3.3 3.3 3.3 0 0 1.3 2.3 2.1 1.6 1.6 0 1.7 1.4 0 0 0 1.9 1.6 1.2 0.9 3.3 0 0 0.9 1.4 3.3 0.9 1.3 1.5 1.7 2 2 (E2) (E3,E12,E15,EA) (PH,MY,SP,TH) NOTE ON REPLACEMENT OF DMB15 BOARD New part of EEPROM (IC103) on the DMB15 board cannot be used. Therefore, if the mounted DMB15 board (A-1174-274-A or A-1193-178-A or A-1193-183-A or A-1193-188-A) is replaced, exchange new EEPROM with that used before the replacement. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 38 HCD-GN1000D HCD-GN1000D 7-12. SCHEMATIC DIAGRAM – DMB15 BOARD (4/4) – 1 DMB15 BOARD (Page 36) (2/4) 11 DMB15 BOARD (Page 36) (2/4) 13 15 DMB15 BOARD (Page 35) (Page 36) (Page 37) (2/4) (1/4) (3/4) DMB15 BOARD (Page 35) (Page 36) (Page 37) (2/4) (1/4) (3/4) 8 15 DMB15 BOARD (Page 36) (2/4) 9 DMB15 BOARD (Page 36) (2/4) 6 D 5 DMB15 BOARD (2/4) (Page 36) DMB15 BOARD (2/4) (Page 36) DMB15 BOARD (2/4) (Page 36) 14 DMB15 BOARD (Page 36) (2/4) 12 MAIN BOARD NO523 (Page 46) (5/5) JL205 C217 C218 C220 CN201 R247 R246 R204 R207 C203 R205 R210 C208 R216 R213 R206 R209 C206 R215 R212 R208 C205 R214 R220 C233 C209 R221 R223 R225 C211 R226 C214 C212 R230 R231 R232 R234 C215 R233 C219 C224 C221 C222 R219 R224 C210 R2504 C213 IC201 47 16V 10 16V 10 16V 6P 1k 4.7k 1.2k 2.7k 0.01 10k 47k 0.01 12k 6.8k 10k 33k 220p 12k 10k 33k 220p 15k 10k 0.0047 0.033 56k 100k 100k 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.033 56k 0.001 0.01 82k 15k 18k 10k 0.01 33k 0.01 0.01 0.1 0.1 27k 10k 0.01 0.01 FAN8036L 4.7k C402 C403 FL402 FB401 FB402 FL401 FB403 FB404 FB405 FB406 FL403 CN401 47 16V 47 6.3V 0UH EMI 0UH 0UH 0UH 0UH 0UH 0UH 0UH 5P 0.5% 4.3 1.4 2.1 2.1 0.3 4.9 1.4 2.9 2.9 1.7 9 9 4.3 1.4 1.1 0 3.3 3.3 3.3 3 9 4.3 4.3 4.8 3.5 1.4 1.4 1.4 1.4 3.3 3.3 2.2 1.4 1.4 1.4 1.4 4.4 4.2 3.3 5.3 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 39 HCD-GN1000D HCD-GN1000D M741 (TABLE) M751 (TABLE LOADING) 1 3 CN721 IC731 CN731 CN741 CN742 C715 C731 C735 C736 R701 R711 R731 R721 R722 R723 R732 R733 R734 D701 D711 Q731 C751 IC712 IC701 CN704 C737 R713 R712 C741 R702 JW702 JW703 JW704 JW705 JW706 JW707 JW708 JW711 CN703 S711 ROTARY ENCODER CN702 CN751 CN705 R751 C752 JW712 JW701 JW709 JW713 JW714 S751 (OPEN) CN701 JW710 R735 R736 BOARD MOTOR(LD) 12 (12) 1-687-133- BOARD MOTOR(TB) 12 (12) 1-687-134- BOARD SW 12 (12) 1-687-669- BOARD SENSOR 12 (12) 1-687-132- BOARD DRIVER 12 (12) 1-866-201- M M 1 4 1 2 1 2 E 1 1 9 9 E MAIN BOARD CN511 (Page 41) 1 2 1 2 2 3 4 5 6 7 A 1 B C D E 7-13. PRINTED WIRING BOARDS – CD MECHANISM BOARDS – • See page 25 for Circuit Boards Location. :Uses unleaded solder. • Semiconductor Location Ref. No. Location D701 C-5 D711 C-5 IC701 C-5 IC712 B-5 IC731 B-2 Q731 B-4 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 40 HCD-GN1000D HCD-GN1000D 7-14. SCHEMATIC DIAGRAM – CD MECHANISM BOARDS – • See page 63 for IC Block Diagrams. CN721 CN711 E1 E2 E3 CN742 CN741 CN731 C751 CN704 CN703 IC731 IC701 R702 R701 IC712 R713 R712 R711 C741 C715 CN701 C731 R751 R731 R732 R733 R734 R736 CN702 CN705 CN751 R723 R722 R721 C736 C737 C735 D711 D701 C752 M741 M751 Q731 S751 2P 4P 5P 3P 3P 0.01 2P 4P RPI-576 BA6956AN 100 470 BA6956AN 22k 4.7k 1k 0.01 100 16V 13P 10 50V 4.7k 100 10k 1k 12k 390 5P 2P 2P 4.7k 4.7k 4.7k 0.1 0.1 0.1 MTZJ-T-72-3.6B MTZJ-T-72-5.1A 0.1 (TABLE) (TABLE LOADING) DTC114ESA INVERTER (OPEN) (Page 42) (1/5) BOARD MAIN CN511 E w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 41 HCD-GN1000D HCD-GN1000D Ref. No. Location D101 J-13 D102 J-13 D136 F-13 D325 J-14 D340 E-3 D341 E-3 D342 E-3 D401 D-5 D402 D-5 D403 D-6 D411 C-4 D412 C-4 D501 C-5 D502 C-5 D503 B-5 D504 C-6 D505 B-6 D506 J-6 D507 J-6 D550 I-12 D551 J-12 D560 I-9 D561 H-9 D581 J-12 D582 I-12 D583 J-13 D584 D-5 D585 E-14 D586 F-14 IC101 C-8 IC201 D-12 IC301 H-4 IC304 E-5 IC401 C-3 IC501 C-5 IC507 I-12 IC550 J-12 IC558 G-8 IC559 G-8 IC560 G-12 IC561 G-12 Q101 C-7 Q103 F-13 Q104 F-13 Q106 C-9 Q117 C-11 Q151 C-7 Q156 D-9 Q167 C-11 Q200 B-12 Q202 B-13 Q203 B-13 Q204 C-13 Q206 H-13 Q250 C-12 (FOR CHECK) (FOR CHECK) J SURROUND BOARD CN701 (Page 53) O SURROUND BOARD NO801 (Page 53) A V EFFECTOR BOARD CN1501 (Page 56) M VIDEO BOARD CN800 (Page 58) C DMB15 BOARD CN302 (Page 33) K SURROUND BOARD CN700 (Page 53) F MIC BOARD NO1101 (Page 49) W KARAOKE BOARD CN2000 (Page 62) E DRIVER BOARD CN701 (Page 39) L PRIMARY BOARD CN1200 (Page 60) DMB15 BOARD CN106 (Page 33) TUNER PACK C530 C230 C280 R521 C235 JR510 D551 E D583 JR218 Q550 Q579 E R551 R549 R520 R103 R153 JR509 JR502 JR104 R540 R538 D325 C410 C411 C412 C464 JR400 D502 IC401 R494 IC501 JR404 Q504 E R300 R406 R410 R411 R412 R413 R414 R415 R417 R421 R420 R419 R423 R424 R425 R426 R427 R428 R429 R430 R431 R623 JR430 C340 C360 JR500 JR505 C513 C515 C551 C564 C565 D403 C568 C569 C580 C581 R432 R433 R434 R435 D340 D342 D341 D401 D402 D501 D503 E D504 D505 D506 D507 D550 D581 D582 FB204 FB254 R436 R437 R438 R439 JR506 JR504 IC304 R335 JR520 R440 R441 R442 JR503 JR501 R443 R444 R445 R447 R451 R453 R454 Q206 R457 Q256 E E Q340 Q342 Q341 Q343 E E E E E E Q345 Q344 Q514 Q564 R525 R526 R527 R528 R575 R576 R577 Q501 Q503 Q505 Q506 Q507 Q508 Q509 Q510 Q511 Q512 Q513 E 1 5 E Q515 Q516 Q517 Q518 Q519 Q521 Q522 Q578 Q581 Q582 E R458 R466 R467 R468 R469 R378 C382 R337 Q321 R368 R303 R305 10 1 11 20 21 30 31 40 R339 R301 R355 R594 R314 R312 Q375 R595 R448 R590 JR305 R589 Q587 Q589 C335 R306 R380 C364 R311 R354 R318 R389 JR301 Q370 JR302 R392 R352 R338 R238 R239 Q372 R243 R244 R245 R246 R247 Q382 JR359 R418 R370 Q379 C333 R394 C377 C376 JR304 C326 R288 R289 R293 R294 R295 R296 R297 R578 JR507 R315 R316 R317 D101 IC550 R422 R585 R584 R340 R342 R345 R343 R344 R341 R348 R349 R346 R347 R350 R369 R356 R357 R358 R359 R360 R361 R365 R366 R554 R553 R552 R539 R537 R536 R535 R534 R533 R381 R382 R530 R529 R524 R523 R522 R400 R401 R402 R403 R404 R405 R407 R408 R409 JR544 JR100 JR508 C341 R593 R592 R574 R573 R502 R483 R493 R491 R490 R489 R488 R487 R486 R485 R484 R475 R474 R473 R472 R471 R501 R503 R505 R506 R507 R508 R509 R510 R511 R512 R513 R514 R515 R516 R517 R518 R519 JR435 R387 Q373 Q322 Q325 R336 R373 R388 R385 C332 Q383 R375 R325 E R371 R374 C314 R319 R310 R307 R309 R351 R395 R396 D584 Q380 R386 R304 R353 R390 R308 R372 Q378 C385 R399 C372 JR300 IC301 R376 C371 R364 R379 Q377 JR303 R120 R377 Q381 C383 R302 C373 R101 R102 R104 R105 R106 R107 R108 R109 R110 R111 R112 R113 R114 R115 R116 R117 R121 R122 R130 R131 R132 R133 R150 R151 R152 R154 R155 R156 R157 R158 R159 R160 R161 R162 R163 R164 R165 R166 R167 R200 Q254 Q253 Q252 Q250 Q204 Q203 Q202 Q200 Q167 Q156 Q151 Q117 Q106 Q101 E E E E E D136 R206 R207 R208 R209 R210 R211 R212 R213 R214 R215 R216 R217 R218 R219 R220 R221 JR208 JR200 R586 C279 C274 C273 C270 C268 C264 C261 C260 C256 C242 C229 C223 C220 C218 C214 C212 C211 C210 C206 C122 C121 C115 R229 R222 R223 R224 JR204 R225 IC201 IC101 FB261 JR205 JR407 R299 R298 R292 R273 FB260 R R249 R242 R203 R202 R226 R582 R227 R581 JR202 R532 R531 R291 R290 R285 R284 R228 R230 R231 R232 R233 R234 R235 R283 R282 R240 R241 R281 R280 R279 R278 R277 R276 R275 R274 R272 R271 R270 R269 R268 R267 R266 R265 R264 R263 R262 R261 R260 R259 R258 R257 R256 R254 R500 JR542 R383 R384 R391 Q523 Q524 E 1 6 E 1 3 4 5 R662 Q104 R135 Q103 E E C584 C583 D102 JR545 JR340 JR543 JR406 R499 R481 R482 R496 R329 R330 JR531 JR431 JR432 JR541 JR433 R322 JR102 JR222 R479 JR532 Q323 JR310 R495 D412 D411 C414 JR513 R612 R204 JR101 JR361 C413 C415 R321 R320 JR105 JR201 JR401 R478 NO401 1 1 3 3 NO603 NO402 NO503 JW502 JW503 JW504 JW505 JW506 JW508 JW509 JW510 JW511 JW512 JW513 JW514 JW515 JW517 JW518 JW519 JW520 JW521 JW522 JW523 JW524 JW532 JW535 JW536 JW537 JW543 JW544 JW545 JW546 JW547 JW548 JW549 JW551 JW554 JW555 JW556 JW558 JW560 JW562 JW579 JW580 JW581 JW584 JW302 JW303 JW304 JW306 JW310 JW311 JW312 JW313 JW314 JW315 JW316 JW317 JW320 JW322 JW323 JW325 JW326 JW331 JW335 JW336 JW337 JW346 JW347 JW350 JW351 JW352 JW353 JW355 JW357 JW358 JW359 JW360 JW363 JW600 JW601 JW602 JW603 JW605 JW606 JW587 JW588 JW591 JW596 JW597 JW598 JW585 JW401 JW402 JW403 JW404 JW405 JW406 JW407 JW408 JW409 JW411 JW413 JW416 JW421 JW422 JW423 JW424 JW429 JW431 JW432 JW433 JW434 JW438 JW440 JW441 JW442 JW447 JW452 JW454 JW455 JW463 JW467 JW468 JW469 JW471 JW483 JW201 JW203 JW204 JW208 JW210 JW216 JW220 JW228 JW229 JW230 E E E 1 21 22 42 E E E E E E E JW231 JW232 JW235 JW236 JW239 JW242 JW244 JW245 JW246 JW247 JW248 JW249 JW250 JW252 JW104 JW105 JW106 JW107 JW108 JW109 JW110 JW111 JW112 JW115 JW118 JW120 JW121 JW122 JW123 JW126 JW127 JW129 JW130 JW131 JW135 JW466 JW254 JW255 JW256 JW410 JW305 JW138 JW436 JW257 JW526 JW527 JW528 JW139 JW486 JW368 JW258 JW241 JW259 C160 C110 JW400 JW539 JW541 JW557 JW224 NO523 C512 JW136 JW540 JW140 JW240 JW370 JW371 JW552 CLP101 CLP102 CLP104 CLP103 JW609 JW613 JW531 CLP107 JW559 CLP106 JW200 JW344 JW470 JW464 JW425 JW426 JW427 JW420 JW428 JW418 JW449 JW217 JW332 JW333 JW349 JW365 JW366 JW362 JW128 CN102 CN102 JW238 JW234 JW233 JW448 JW445 JW444 JW443 JW475 JW450 JW132 JW484 JW134 JW482 JW361 JW356 JW478 JW477 JW476 JW474 JW529 L101 L102 R598 R599 JW481 JW578 JW577 JW215 JW214 JW209 JW205 JW212 JW561 JW576 JW614 JW574 JW573 JW572 JW219 JW566 JW253 JW565 JW564 JW225 JW207 JW595 JW567 JW570 JW507 JW604 JW321 JW338 JW340 JW343 JW586 JW592 JW568 JW569 JW348 JW345 JW611 JW534 JW227 JW226 JW451 JW485 JW124 JW459 JW575 JW563 JW615 JW525 JW341 JW446 JW137 JW380 JW382 JW383 JW384 JW385 JW386 JW387 JW388 JW389 JW393 JW394 JW395 JW396 JW397 JW398 JW342 JW324 JW328 JW339 JW430 JW616 JW617 JW618 JW619 JW369 JW367 JW465 JW419 JW415 JW472 JW589 JW583 JW625 JW626 JW627 JW628 JW629 JW630 JW631 JW632 JW222 JW223 JW213 JW218 JW533 JW538 JW488 JW590 JW635 JW636 JW637 JW638 JW639 JW640 JW641 JW642 JW643 JW644 JW645 JW646 JW647 JW648 JW649 JW653 JW660 JW661 JW662 JW663 JW665 JW666 JW667 JW668 JW669 JW670 JW671 JW672 JW673 JW674 JW571 JW243 JW651 JW309 JW650 JW664 JW610 JW680 JW681 JW682 JW683 JW685 JW686 JW687 JW688 JW689 JW690 JW691 JW692 JW694 JW696 JW697 JW698 JW593 J103 D-LIGHT SYNC OUT J103 1 2 3 4 5 JW456 JW699 C416 C502 C503 CN402 C202 CN508 CN520 C252 C352 D561 C357 C358 C374 D560 CN582 C501 C524 C511 C507 C365 C509 C517 C514 C516 C510 C519 C508 C523 C557 C558 C562 C563 C566 C571 C570 CN501 CN580 EPT560 IC558 IC559 IC560 IC561 J202 C554 E E E E E E E E E E E E E E E E E E E E E E E E E E E E 1 8 E C506 C505 CN502 Q520 Q585 E E 1 4 E E E C306 C301 Q588 C309 C361 L372 L370 CN504 1 1 8 3 TM101 C370 L320 T301 C355 C553 IC507 C213 C356 C359 X402 C552 CN510 1 3 C328 C310 C311 C305 C307 L302 C303 C379 C354 C304 C378 C308 C351 C353 C312 J201 TV/SAT AUDIO IN C521 C226 C228 C164 C276 C222 C215 C267 C520 C114 C209 C259 C216 C207 C221 C277 C278 C227 C258 C262 C251 C154 C266 C224 C265 C217 C269 C205 C257 C255 C201 C200 C225 C163 C162 C116 C161 C158 C157 C156 C153 C155 C159 C504 C109 C150 C131 C111 C272 C113 C112 C130 C105 C108 1 E 1 1 5 9 E 21 22 42 C107 C104 C103 C102 C101 C152 CN514 CN511 R480 C219 C263 CN100 CN506 C462 C567 C525 C325 C166 C167 C559 CN503 X401 C518 CN509 D585 D586 CN513 1 13 CN105 JW391 CN512 JW221 CN521 JW202 JW607 JW516 JW414 JW417 JW133 JW624 JW390 JW392 JW307 JW612 JW119 JW695 JW364 JW480 JW693 JW487 JW103 JW146 JW147 JW149 JW150 JW152 JW621 JW620 JW623 JW622 C431 JW330 JW145 JW684 CLP105 CN505 JW461 JW462 C362 JW237 JW437 JW458 JW457 JW460 JW381 JW633 JW113 JW117 JW116 JW473 JW675 JW542 JW676 JW550 JW500 JW553 JW582 JW354 JW652 R579 C550 1 3 4 6 CLP108 JW143 JW453 JW148 JW144 JW530 C106 JW141 JW142 C363 1 3 1 1 3 3 1 3 1 3 11 1-868-862- BOARD MAIN H G PA BOARD CN600 (Page 51) N TRANS BOARD CN1213 (Page 60) PA BOARD CN601 (Page 51) M891 DC FAN D DMB15 BOARD CN401 (Page 33) I PANEL BOARD CN902 (Page 47) (FOR CHECK) TAPE A HEAD TAPE B HEAD M892 DC FAN TAPE MECHANISM DECK SYSTEM CONTROL L SUBWOOFER OUT R AUDIO OUT L (EXCEPT TH) (EXCEPT TH) (EXCEPT TH) (TH) (EXCEPT TH) (EXCEPT TH) 2 3 4 5 6 7 8 9 10 11 12 13 14 A 1 B C D E F G H J I K 7-15. PRINTED WIRING BOARD – MAIN BOARD – • See page 25 for Circuit Boards Location. :Uses unleaded solder. • Semiconductor Location Ref. No. Location Q252 C-13 Q253 B-13 Q254 B-14 Q256 H-13 Q321 I-4 Q322 I-4 Q323 J-14 Q325 I-4 Q340 E-4 Q341 E-3 Q342 E-3 Q343 E-4 Q344 E-3 Q345 E-3 Q370 J-4 Q372 I-4 Q373 I-3 Q375 I-4 Q377 I-4 Q378 J-4 Q379 I-5 Q380 J-5 Q381 I-5 Q382 I-4 Q383 I-5 Q501 B-5 Q503 H-12 Q504 E-2 Q505 J-9 Q506 J-9 Q507 J-8 Q508 J-8 Q509 J-8 Q510 J-8 Q511 J-7 Q512 J-7 Q513 G-9 Q514 J-10 Q515 J-7 Q516 J-8 Q517 J-9 Q518 H-12 Q519 J-7 Q520 G-9 Q521 J-9 Q522 K-8 Q523 B-6 Q524 B-6 Q550 J-11 Q564 J-10 Q578 I-13 Q579 J-13 Q581 I-13 Q582 I-12 Q585 I-12 Q587 E-5 Q588 E-5 Q589 E-4 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 42 HCD-GN1000D HCD-GN1000D 7-16. SCHEMATIC DIAGRAM – MAIN BOARD (1/5) – • See page 70 for IC Pin Function Description. • See page 26 for Waveform. M - - - SW-ON LED TUNED NO USE GND KRMOD MTK-BUSY MTK-XIFCS MTK-RESET TSENS IIC-CLK IIC-DATA GND MTK-SIO MTK-SOD MTK-CLK TBL-POS TBL-NEG LOG-POS LOG-NEG CAPM- CONT A-HALF A-TRIG B-TRIG SW-SPK-RELAY NO USE SURR-RELAY CENTER-RELAY FRONT-RELAY PROTECTOR OVER VOLTAGE DET UNDER VOLTAGE DET DVD-A-MUTE MTK-POWER AUDIO- IC-DATA VOLUME-IC-CLK AUDIO-OUT-MUTE EFFECTOR-FLANGER SELECT AUDIO- IC-CLK VOLUME-IC-DATA VREF R430 R429 R426 R425 R415 R423 R414 R421 R420 R418 R417 R422 R424 R322 C411 C410 R410 R412 R411 X401 R413 C416 C412 R408 R407 R405 R402 R401 R400 R404 R403 R406 R432 R433 R434 R435 R438 R439 R440 R442 R436 R443 R441 R447 R427 R428 R437 R488 R491 R487 R484 R486 R485 R453 R454 R457 R458 R473 R472 R474 R475 R467 R574 R573 C464 R466 R471 C462 R469 R451 R538 R540 C512 R520 CN508 CN402 NO402 TBL ADDRESS SENS CN520 NC R409 R499 C501 R503 C503 C502 C360 R359 R384 R360 C325 R357 R356 C357 R358 NO401 CN100 MIC SCORE MIC ECHO NC NO503 JR222 R483 R494 R490 R489 R502 R501 IC401 Q504 Q523 Q524 Q501 D505 D504 D501 D502 IC501 C518 R431 D503 R592 R593 R493 D401 D402 D403 X402 IC304(1/2) IC304(2/2) R361 R383 C431 C352 R468 100 100 100 100 100 100 100 1k 100 R419 100 100 10k 100 100 47k 22p 22p 10k 100k 330k 32.768kHz 0 2200 6.3V 0.1 C415 0.1 100 100 100 100 100 10k 10k 10k 100 100 100 100 100 100 100 100 100 R448 100 R444 100 R445 100 10k 100 100 100 10k 10k 10k 100 R495 100 100 10k 10k 100 100 100 100 100 100 100 100 100 100 100 10k 10k 0.01 10k 10k 100 10V 100 100 5.6k 10k 10 16V 10k 17P 10P 4P 13P CN511 13P +9V DGND SW-VOL SW-LED GND/OCSW1 SYSTEM COMTROL CN102 4P 100 100 R496 100 R478 1k R479 10k 10 50V 0 0.1 0.1 33p 33k 4.7k 27k 10 50V 4.7k 4.7k 4.7 50V 33k R320 33k R321 33k 3P 9P 5P 0 100 100 100 100 1k 220 M30620MCP -A03FPUO DTC143TKA BUFFER DTA114EKA-T146 B+ SWITCH DTC124EK B+ SWITCH DTC124EK RESET SWITCH 1SS355WTE-17 1SS355WTE-17 1SS355WTE-17 1SS355WTE-17 BD4929G-TR 100 10V 100 1SS355WTE-17 1SS355WTE-17 1SS355WTE-17 1SS355WTE-17 5MHz NJM4565M-D NJM4565M-D 27k 4.7k 10 50V C358 4.7 50V C363 4.7 50V C362 4.7 50V 47 35V 100 BUS1 V +5V +9V VIDEO R VIDEO L MIC ECHO M+9V -VG -VG NO USE VF 2 VF 1 BUS7 AC CUT DETECT BUS8 3.3V D403 OVER VOLTAGE TC MUTE REC-OUT-R L+R REC-OUT-L BUS4 BUS9 BUS6 GND 9 9 12 12 4 31 32 33 73 74 74 79 80 53 54 51 4 73 32 33 47 56 55 34 31 32 33 38 39 89 100 95 94 90 91 1 2 3 5 6 19 18 22 23 24 25 35 36 37 40 40 46 48 49 50 52 21 41 41 42 43 44 45 26 27 28 24 23 25 22 31 32 21 33 29 30 31 34 26 27 28 34 35 36 37 38 39 86 83 75 78 76 77 71 67 65 66 72 61 60 58 30 29 * * 1 *1 0 2 *2 MASTER CONTROL 1k 4.7k 0 330 680 1k 4.7k R593 R493 AMP SPEANA RESET D412 1SS355WTE-17 D411 1SS355WTE-17 C413 0.1 C414 0.1 MIC SCORE MUSIC L+R XVOICE SCORE CN505 6P 6 1 A+9V AGND R521 0 DGND SCORE XVOICE 81 82 100 95 R482 100 ! R480 1 R481 100 DOWNMIX-L DOWNMIX-R _ 14 BOARD MAIN 17 (4/5) (Page 45) BOARD MAIN BOARD MAIN 18 15 (3/5) (4/5) (Page 44) BOARD MAIN (3/5) (Page 44) (Page 45) BOARD KARAOKE W CN2000 (Page 62) BOARD MAIN 16 (3/5) (Page 44) BOARD MAIN (2/5) (3/5) (4/5) (5/5) (Page 43) (Page 44) (Page 45) (Page 46) BOARD MAIN (3/5) (Page 44) BOARD CN800 BOARD NO1101 MIC VIDEO BOARD MAIN (5/5) (Page 50) (Page 46) (Page 59) BOARD DMB15 (3/4) CN106 (Page 37) BOARD CN1200 PRIMARY (Page 61) BOARD MAIN (2/5) (5/5) (Page 43) (Page 46) BOARD CN701 DRIVER (Page 40) BOARD CN902 PANEL (Page 48) BOARD MAIN (5/5) (Page 46) BOARD MAIN (2/5) (Page 43) EXCEPT TH E2 E3,E12,E15,EA MY,SP,PH,TH E3,E15 E12 EA E2 TH 3.4 <0.2-3.1> [0.2-3.1] 3.4 <0.2-3.1> [0.2-3.1] 3.4 <3.4> [0] w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 43 HCD-GN1000D HCD-GN1000D 7-17. SCHEMATIC DIAGRAM – MAIN BOARD (2/5) – 55 BUS5 TC R TC L MUTE 3 REC-OUT-L REC-OUT-R TAPE A HEAD HEAD TAPE B TCM MGND B SHUT CAPM+ BTRG M+ ATRG M+ REC(FWD) A SHUT BHALF AHALF TC DGND REC(REV) R319 C305 R304 R335 R303 C314 R339 C311 R305 R109 R111 CN510 R351 C353 R352 C351 C354 R353 R354 C355 C356 R355 C364 R369 R391 R389 C361 C310 C304 C303 R302 R301 C301 C306 C308 R306 C307 R307 R308 R310 R311 R312 C312 R309 L302 100µH C371 R370 R371 C372 R374 C373 R372 R375 R376 R373 T301 R388 C333 C335 R338 R314 R364 C383 C385 R385 L320 C328 L370 C378 R387 R337 R336 R368 C376 C326 R318 R390 R396 R386 R395 R394 L372 100uH R379 R377 R378 C377 C379 CN503 CN504 C382 C332 R344 R346 R348 R347 C340 R342 C341 R343 R349 R340 R345 R341 Q325 Q375 Q322 Q378 IC301 Q373 Q372 Q321 Q156 Q106 R399 R110 R160 R159 D342 D340 Q343 Q345 Q344 Q382 Q379 Q381 Q383 Q380 Q377 Q370 C370 C374 R392 R380 R158 R108 C309 C359 Q340 Q342 Q341 D341 R161 2.2k 1 50V 2.2k 1k 10k 0.0022 15k 10 50V 47k 3.3k 10k 3P 1.5k 0.1 4.7k 0.012 10 50V 10k 2.2k 1 50V 2.2 50V 47k 0.0022 2.2k 1k 15k 10 50V 10 50V 10 50V 0.1 4.7k 1.5k 0.012 2.2 50V 470 10V 22k 10 50V 1M 100 100 100 100 10 50V 4.7k 0.0047 3.3k 4.7k 0.001 4.7k 0.001 0 0 4.7k 4.7k 10k 330p 0.022 10k 2.2k 2.2k 330p 0.022 2.2k 27mH 120p 27mH 120p 2.2k 2.2k 2.2k 2.2k 680p 680p 2.2k 10k 10k 33 47k 4.7k 10 47 10k 0.01 0.0068 8P 3P 1200p 1200p 680 680 680 2.2k 0.0047 2.2k 0.0047 2.2k 3.3k 2.2k 3.3k 3.3k 2SD2704K SWITCH 2SD2704K SWITCH 2SD2704K SWITCH RT1P137P-TP-1 SWITCH HA12237F 2SD2704K SWITCH 2SD2704K SWITCH 2SD2704K SWITCH 2SD2114K MUTE 2SD2114K MUTE 10k 10k 10k 3.3k 1SS355WTE-17 1SS355WTE-17 DTC114EKA-T146 A TRIG DRIVE DTC114EKA-T146 B TRIG DRIVE DTC114EKA-T146 CAP MOTOR DRIVE DTA114EKA-T146 SWITCH DRIVE DTC114EKA-T146 SWITCH DRIVE DTC114EKA-T146 BUFFER DTC114EKA-T146 SWITCH DRIVE DTC114EKA-T146 SWITCH 2SA1162-G SWITCH DRIVE 2SD596DV345 BIAS OSC 0.01 100V 47 35V 6.8k 0.5% 6.8k 0.5% 6.8k 0.5% 6.8k 0.5% 47 35V 47 35V 2SB1132-P A TRIG DRIVE 2SB1132-P B TRIG DRIVE 2SB1132-P CAP MOTOR DRIVE 1SS355WTE-17 10k +9V TC MUTE BUS8 M+9V 3.3V GND 56 54 53 52 50 49 48 PB/REC EQUALIZER AMP DECK A/B SELECT, R381 R382 R315 R365 R366 R316 R317 R350 R300 CN509 4.7k 47k 3.3k 3.3k 10k 47k 22k 4.7k 4.7k 11P 89 47 90 91 BOARD MAIN (1/5) BOARD MAIN (1/5) (5/5) BOARD MAIN (1/5) (3/5) (4/5) (5/5) (Page 42) (Page 44) (Page 45) (Page 46) (Page 42) (Page 42) (Page 46) BOARD MAIN (3/5) BOARD MAIN (5/5) BOARD MAIN (3/5) (Page 44) (Page 46) (Page 44) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 44 HCD-GN1000D HCD-GN1000D 7-18. SCHEMATIC DIAGRAM – MAIN BOARD (3/5) – BUS10 J K DGND BUS6 18 19 43 44 45 36 EFFECTOR R EFFECTOR L A+9V INPUT R INPUT L S0 S1 S2 OUTPUT R OUTPUT L AGND AGND AGND AGND SELECTOR AGND DGND S3 CTRL1 D-LIGHT SYNC OUT IIC CLK IIC DATA DGND D+4V L+R(SPEANA) CN506 R532 C150 R150 C104 R104 R116 C105 C102 C101 C103 R107 R101 C109 C111 R102 C108 R103 C115 C116 R130 R106 R121 C121 R105 C164 R167 R117 C114 R164 R114 R162 R112 R165 R115 R163 R113 C167 C166 C559 JR502 JR509 CN521 R122 C122 R155 R156 C161 R152 C159 R151 C156 C158 R157 C152 C106 C107 JR104 C157 C153 IC101 Q167 Q117 C154 C155 R166 Q101 Q151 C112 C113 C163 C162 R531 R531,581 R581 R582 R154 C110 R153 R131 R133 R132 C131 C130 C160 9P 3.3k 10 50V 2.2k 10 50V 1k 100 10 50V 10 50V 100 10V 10 50V 100 2.2k 1 50V 10 50V 10k 0.033 560 0.1 330 10V 2.2k 10k 1k 220p 47k 10 50V 0 0 10 50V 10k 10k 47k 47k 1k 1k 10k 10k 10 50V 10 50V 1000 10V 0 0 21P 1 1k 220p 47k 10k 10 50V 10k 1 50V 2.2k 0.022 0.033 100 10 50V 0.022 0.022 0 0.022 10 50V M61529FP-D60G 2SD2114K MUTE 2SD2114K MUTE 10 50V 10 50V 100 2SC2712-YG SWITCH 2SC2712-YG SWITCH 0.27 0.27 0.27 0.27 * * * 3.3k 1k 0.0068 680 2.2k 100k 1M 0.47 50V 10 50V 0.0068 BUS1 BUS2 BUS3 BUS4 BUS5 AU+5V 21 +9V XVOICE XVOICE SCORE SCORE DBFB VIDEO L VIDEO R MIC ECHO TC L TC R GND MUTE 4 REC-OUT-R REC-OUT-L L+R FL FR SW SAT-R DOWNMIX-R L-OUT LINK-R 80 79 LFE FC DM_L DM_R MB_SL MB_SR MB_FR MB_FL 1 2 3 5 6 REC-OUT-L REC-OUT-L REC-OUT-R REC-OUT-R R-OUT LINK-L SAT-L DOWNMIX-L ELECTRICAL VOLUME GRAPHIC EQUALIZER CONTROL, INPUT SELECT SWITCH, TUNER PACK BOARD MAIN (1/5) MAIN (1/5) (2/5) (4/5) (5/5) (Page 46) (Page 45) (Page 43) (Page 42) 4.7k 6.8k 0.5% E2 EXCEPT E2 CN512 17P R325 D325 D101 D102 Q323 R330 R120 R329 680 UDZSTE-174.7B 1SS355WTE-17 J103 1SS355WTE-17 2SC5053 +4V SWITCH 1k 0 100k BOARD MAIN (2/5) (Page 43) BOARD MAIN (1/5) (Page 42) BOARD MAIN (2/5) (Page 43) BOARD MAIN (4/5) (Page 45) BOARD MAIN (1/5) (Page 42) 16 BOARD (1/4) CN302 DMB15 (Page 35) BOARD BOARD MAIN (5/5) BOARD MAIN (5/5) (Page 42) (Page 46) (Page 46) BOARD MAIN (Page 42) (1/5) BOARD EFFECTOR CN1501 (Page 57) (Page 46) BOARD MAIN (5/5) 7.8 4.7 4.7 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 45 HCD-GN1000D HCD-GN1000D 7-19. SCHEMATIC DIAGRAM – MAIN BOARD (4/5) – C270 C242 C274 R274 R223 R623 C258 R218 C223 C222 R220 R265 C267 R264 R267 R262 C265 R266 C269 C268 R662 R215 C218 R217 R214 R216 C219 C215 C266 R261 R260 C264 R259 R612 C251 C221 C276 C226 C277 R271 R269 R279 R229 R282 R278 R277 R273 R249 R242 R268 R222 R221 R270 C224 R219 C225 C217 R212 R280 C201 R204 R200 C200 R276 R275 R225 R226 C259 C213 R233 R234 C209 R235 R299 C228 C278 C263 R231 R283 R284 R230 R298 R232 R285 R292 C227 C205 C214 R209 R210 C211 R257 C256 R258 R256 R211 C255 C212 C210 R208 C206 R207 R206 C216 R272 R254 C257 C207 CN514 R238 R288 C252 C202 R239 R289 R297 R247 R246 R296 R295 R245 R294 R244 R293 R243 FB204 FB254 FB260 FB261 R240 C229 R290 C279 C521 C520 J201 Q253 Q202 Q252 Q200 Q250 Q203 Q204 Q254 Q256 Q206 J202 R202 R203 C220 C261 R281 R227 R228 JR218 R224 C273 C262 R241 JW258 C272 C260 R291 R263 R213 C530 C235 IC201 0.001 0.001 220p 1k 8.2k 6.8k 10 50V 4.7k 0.001 10 50V 10k 4.7k 10 50V 47k 10k 8.2k 10 50V 2.2k 10 50V 0.001 0 4.7k 0.001 10k 47k 2.2k 10 50V 10 50V 10 50V 47k 470 220p 10k 0 1 50V 1 50V 1 50V 1 50V 1 50V 10k 10k 10k 10k 10k 1k 47k 10k 10k 10k 1k 1k 47k 47k 10 50V 2.2k 1 50V 10 50V 8.2k 1k 0.1 10k 10k 0.1 22k 10k 10k 22k 10 50V 10 50V 47k 1k 10 50V 10k 10k 1 50V 1 50V 10 50V 47k 47k 1k 1k 10k 10k 10k 10k 1 50V 100 10V 220p 10k 470 220p 2.2k 0.0022 2.2k 47k 47k 100 10V 0.001 0.001 2.2k 0.0022 2.2k 47k 10 50V 3.3k 3.3k 10 50V 10 50V 8P 0 0 10 50V 10 50V 10k 10k 1k 1k 47k 47k 10k 10k 100k 100k 1k 1k 0 0 0 0 15k 220p 15k 220p 10 50V 10 50V 2SD2114K MUTE 2SD2114K MUTE 2SD2114K MUTE 2SD2114K MUTE 2SD2114K MUTE 2SD2114K MUTE 2SD2114K MUTE 2SD2114K MUTE 2SD2114K MUTE 2SD2114K MUTE 10k 10k 0.001 220p 47k 47k 1k 0 1k 220p 10 50V 33k 220 10V 0.1 33k 6.8k 0.5% 6.8k 0.5% M61530FP-D60G BUS3 BUS9 BUS2 +9V GND LINK-L LINK-R SW DOWNMIX-L DOWNMIX-R DOWNMIX-L DOWNMIX-R SAT-R SAT-L 81 82 REC-OUT-L REC-OUT-R EFFECTOR_R EFFECTOR_L MB_FL MB_FR MB_SL MB_SR FC LFE FL FR 100p 100p R L SURROUND VOL CONTROL R L SW OUT DVD MUTE MUTE R598 L101 R599 L102 TM101 CN105 10 1/2W 10 1/2W 3P + – SW- SW+ BOARD MAIN (1/5) (2/5) (3/5) (5/5) BOARD MAIN (1/5) (Page 42) BOARD MAIN (5/5) (Page 46) (Page 42) (Page 43) (Page 44) (Page 46) BOARD MAIN (5/5) (Page 46) BOARD (Page 54) SURROUND (1/2) NO801 BOARD BOARD MAIN (3/5) (2/2) CN701 (Page 55) (Page 44) SURROUND BOARD MAIN (1/5) (Page 42) 17 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 46 HCD-GN1000D HCD-GN1000D 7-20. SCHEMATIC DIAGRAM – MAIN BOARD (5/5) – Q579 R586 2SC2712-YG HI SPEED SWITCH 1k FAN+ FAN- DC FAN DC FAN M891 FAN MOTOR DRIVE Q587-589 CN513 13P JR513 0 60 61 65 51 SW OUT SW A-GND SW LINE MUTE SW SPK RY STK MUTE UNREG UNREG OVELOAD DC DETECT DVD LINE MUTE CENTER-SPK-SW (NC) REAR RELAY CENTER RELAY SW OUT / IC559 R578 R528 R527 R577 R575 R525 R526 R576 C554 C504 CN502 C550 C551 C552 R549 R551 C553 R585 R584 D581 C580 Q585 R579 C581 CN580 R500 R506 R523 R539 C569 R505 C519 2200 10V C567 D561 C570 C571 R524 R507 C514 C513 C515 C566 C564 C563 C565 C562 C568 C516 C557 C558 D560 NO603 R536 R535 R522 C365 R534 R517 R519 R533 C525 R518 C517 C511 R552 R553 R554 R516 R515 C510 C509 R514 R513 R512 C507 C508 R511 R529 R530 C524 C523 R537 R510 R509 C506 C505 CN501 Q514 Q564 NO523 R508 D550 D506 D507 D551 EPT560 Q550 IC558 IC507 Q578 IC561 IC560 D582 D583 Q582 Q581 Q505 Q506 Q522 Q521 Q507 Q508 Q509 Q510 Q515 Q512 Q519 Q511 Q516 Q517 Q520 Q513 Q518 Q503 IC550 TA78033LS 10k 10k 47k 47k 10k 10k 1k 1k 10 50V 10 50V 8P 100 16V 0.1 2.2 50V 1.8k 56k 220 25V 1k 10k DTZ-TT11-6.8B 0.1 2SD2525 330 2W 0.1 3P 4.7k 4.7k 4.7k 4.7k 0.1 2.7k R135 1.5k 6800 25V D5SBA20 0.01 0.01 10k 10k 2200 16V 0.1 0.1 10000 25V 0.1 470 16V 0.1 470 16V 0.1 2200 10V 0.01 0.01 D5SBA20 10k 10k 4.7k 1 50V 10k 47k 1k 10k 1000 10V 10k 2.2 50V 2.2 50V 68k 470k 15k 15k 68k 2.2 50V 2.2 50V 470k 15k 68k 2.2 50V 2.2 50V 470k 15k 68k 2.2 50V 2.2 50V 470k 8.2k 68k 2.2 50V 2.2 50V 13P 2SD2114K MUTE 2SD2114K MUTE 470k 1SS355WTE-17 1SS355WTE-17 1SS355WTE-17 1SS355WTE-17 DTC143TKA-T146 TA7805LS PQ09RF21J00H DTC114EKA-T146 BA09T BA09T UDZSTE-176.2B MZU2.0BTRF D136 UDZSTE-175.6B 2SC2712-YG 2SC2712YG DTA124EKA-T146 MUTE DRIVE DTC114EKA-T146 MUTE DRIVE DTA124EKA-T146 MUTE DRIVE DTC114EKA-T146 MUTE DRIVE DTA124EKA-T146 MUTE DRIVE DTC114EKA-T146 MUTE DRIVE DTA124EKA-T146 MUTE DRIVE DTC114EKA-T146 MUTE DRIVE DTC143TKA-T146 MUTE DRIVE DTC114EKA-T146 MUTE DRIVE DTA124EKA-T146 MUTE DRIVE DTA124EKA-T146 MUTE DRIVE DTA124EKA-T146 MUTE DRIVE DTC114EKA-T146 MUTE DRIVE 2SB1565F B+ SWITCH Q103 2SC5053T100Q AU +5V REG DTC114EKA-T146 EXCEPT TH B+ SWITCH DTC114EKA-T146 REG SWITCH Q104 DTC114EKA-T146 REG SWITCH DTC114EKA-T146 REG SWITCH RT8H015C-T112-1 BUS10 BUS7 AU +5V +9V MUTE DBFB MUTE 3 M+9V MUTE 4 GND VF 2 VF 1 VG AC CUT DETECT D403 OVER VOLTAGE DVD MUTE 72 60 94 67 78 58 42 66 76 77 71 46 75 83 R-OUT L-OUT M+9V REG. A+9V REG. MB+9V REG. OVER VOLTAGE DETECT FAN MOTOR DRIVE Q578,581,582,585 SW +3.3V REG. SW +5V REG. V +5V OVER CURRENT PROTECTOR D586 10EDB40 D585 10EDB40 JR514 0 Q588 2SD2525 C583 0.1 R594 4.7k Q587 2SC2712-YG C584 CN582 0.1 3P M892 D584 UDZSTE-1713B Q589 2SC2712-YG R595 4.7k R590 100k R589 1k BOARD BOARD (1/2) BOARD BOARD PA TRANS SURROUND PA BOARD MAIN (1/5) BOARD MAIN (1/5) (2/5) CN600 (Page 52) (Page 42) (Page 43) CN1213 (Page 61) (Page 42) CN700 (Page 54) CN601 (Page 52) BOARD MAIN (4/5) (Page 45) BOARD MAIN (3/5) (Page 44) BOARD MAIN (2/5) BOARD MAIN (4/5) (Page 43) (Page 45) BOARD DMB15 (4/4) (3/5) BOARD MAIN BOARD MAIN (1/5) (2/5) (3/5) (4/5) (Page 42) (Page 43) (Page 44) (Page 45) CN401 (Page 38) (Page 44) (1/5) BOARD MAIN (Page 42) BOARD MAIN (3/5) (Page 44) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 47 HCD-GN1000D HCD-GN1000D 11 (12) 1-868-670- BOARD PANEL P CD-SW BOARD NO1151 (Page 49) 1 7 B B B B X X x PRESET + > PRESET - > TUNING - TUNING + M M 31 30 80 81 50 51 1 100 65 70 64 1 6 7 TUNER/ BAND TAPE A/B TV/SAT VIDEO X FUNCTION BOARD CN901 (Page 49) I MAIN BOARD CN508 (Page 41) JR918 JR919 R1143 R925 R1179 R1112 R1021 C974 C977 C978 C979 C980 C926 C927 JR914 C928 C929 C930 C931 C932 C933 C934 C935 C936 C937 C938 C939 C981 C982 C983 C972 R942 R943 R941 D905 C920 R922 FB901 C904 R901 R900 C940 C909 C903 C945 C947 R956 C946 C948 R947 R949 R950 R952 R953 C949 C951 C953 C955 C957 C950 C975 R902 C901 C902 C1180 R905 R903 R904 R906 R907 C910 D932 C954 R948 C952 C958 C956 R951 C959 R954 R1022 R1023 R1024 R1025 R1026 R909 R1027 R1028 R1187 C906 C925 C905 R912 C916 C908 D931 R1180 Q903 Q917 E E E E E E E E E E E E R908 R1178 C962 R944 R968 R964 R965 R966 R967 R910 R911 R987 R988 Q908 E R914 R915 R990 E R991 Q909 R916 R917 R974 R975 Q907 Q910 R957 R997 R1135 R1136 Q918 Q919 R1141 R1142 R923 R924 R1007 R1008 R1009 R1010 R1011 R1012 R1013 Q904 R979 R982 R980 R981 Q905 Q906 Q901 Q902 Q914 R919 R920 R918 C961 IC904 D901 IC902 C973 JR925 R984 R983 R1181 C917 R1098 R1171 R926 C964 JW930 JW904 CLP912 JW903 NO904 JW1103 D927 D928 D908 D909 D910 D916 D917 D911 D915 D1145 D1153 D913 D914 D929 D930 S927 S925 S924 S923 S922 S921 S908 S909 S910 S911 S912 S913 CN902 C943 X901 C922 C923 C924 C900 C941 C942 CN900 C967 IC903 FL901 FLUORESCENT INDICATOR TUBE JW1105 JW900 JW906 JW907 JW908 JW909 JW911 JW912 JW913 JW914 JW915 JW916 JW917 JW918 JW919 JW920 JW921 JW922 JW923 JW924 JW925 JW926 JW927 JW928 JW929 JW931 JW932 JW933 JW934 JW935 JW936 JW937 JW941 JW942 JW943 JW944 JW945 JW946 JW947 JW948 JW949 JW950 JW951 JW952 JW953 JW954 JW955 JW956 JW957 JW958 JW959 JW960 JW961 JW962 JW963 JW964 JW965 JW966 JW967 JW968 JW969 JW970 JW971 JW972 JW973 JW974 JW975 JW976 JW977 JW978 JW979 JW980 JW981 JW982 JW983 JW984 JW985 JW986 JW987 JW988 JW989 JW990 JW991 JW992 JW993 JW994 JW995 JW996 JW997 JW998 JW1000 JW1001 JW1002 JW1003 JW1005 JW1006 JW1007 JW1008 JW1009 JW1010 JW1011 JW1012 JW1013 JW1014 JW1015 JW1016 JW1017 JW1019 JW1020 JW1021 JW1022 JW1023 JW1026 JW1027 JW1029 JW1030 JW1031 JW1032 JW1033 JW1034 JW1035 JW1036 JW1037 JW1038 JW1039 JW1042 JW1043 JW1044 JW1046 JW1047 JW1049 JW1050 JW901 JW902 JW1051 JW1052 JW1053 JW1054 JW1055 JW1056 JW1057 JW1058 JW1059 JW1090 JW1004 JW1018 JW1028 JW1024 JW1045 JW1040 JW1041 S907 JW940 JW939 JW938 DVD 1 2 3 2 3 4 5 6 7 8 9 10 A 1 B C D E F 7-21. PRINTED WIRING BOARD – PANEL BOARD – • See page 25 for Circuit Boards Location. :Uses unleaded solder. Ref. No. Location D901 A-9 D905 A-8 D908 C-9 D909 C-9 D910 D-9 D911 A-2 D913 C-2 D914 D-2 D915 A-2 D916 E-9 D917 E-9 D927 B-9 D928 B-9 D929 E-2 D930 E-2 D931 C-3 D932 C-3 D1145 B-2 D1153 C-2 IC902 B-5 IC903 B-9 IC904 B-3 Q901 B-8 Q902 B-8 Q903 A-9 Q904 E-3 Q905 E-3 Q906 D-3 Q907 F-3 Q908 D-9 Q909 E-9 Q910 B-2 Q914 B-8 Q917 A-9 Q918 D-3 Q919 D-3 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 48 HCD-GN1000D HCD-GN1000D 7-22. SCHEMATIC DIAGRAM – PANEL BOARD – • See page 73 for IC Pin Function Description. • See page 62 for IC Block Diagrams. I / I / I / DISPLAY CONTROL, KEY CONTROL R957 R1098 R997 R1136 R1141 R1171 R1143 R1142 R1135 R1112 R1179 R923 R926 R925 R924 C957 C949 C942 C951 C953 C955 R953 R952 R950 R949 R947 C948 C946 C959 C958 C956 C954 C952 C950 C947 C945 R984 R983 R954 R951 C905 R902 C909 C901 C902 C1180 C906 C916 C908 R912 R903 R904 C910 R1021 R1022 R1023 R1024 R1025 R1026 R1027 R1028 R905 R906 R907 R909 R1187 C961 C940 C941 R956 S907 S908 S909 S910 TUNING TUNING PRESET PRESET TUNING TUNING PRESET PRESET S911 S912 S913 R1007 R1008 R1009 R1010 R1011 R1012 R1013 C922 C923 C924 C925 FB901 D931 D932 R942 R941 R943 C900 C904 R901 R900 C903 JR914 C974 R974 R975 R917 R916 R990 R991 R915 R914 R987 R988 R910 R911 R981 R980 R982 S921 S922 S923 S924 S925 S927 R968 R967 R966 R964 CN900 R944 CN902 R1181 R908 R919 R918 R920 FL901 C943 CLP912 R922 JW904 JW1105 D901 R1180 R1178 D927 D908 D909 D910 D916 D917 D1145 D1153 D911 D913 D929 D930 D914 CNS901 C977 C978 C979 C980 C926 C927 C928 C929 C930 C931 C932 C933 C934 C935 C936 C937 C938 C939 C981 C982 C983 C972 C973 C975 IC904 D905 NO904 Q917 Q903 Q902 Q901 Q914 Q904 Q905 Q906 Q907 Q908 Q909 Q910 Q919 Q918 C967 JW903 D915 D928 C920 C962 C964 IC902 X901 R979 IC903 R965 R948 680 680 680 680 680 680 680 680 680 680 680 680 680 680 680 1 1 10 50V 1 1 1 1k 1k 1k 1k 1k 470p 470p 0.047 0.047 0.022 0.022 0.0047 0.0047 1 1 33k 56k 10k 5.6k 0.1 10k 220p 220p 220p 220p 220p 0.1 220p 100 100 100 0.1 100 100 100 100 100 100 100 100 15k 15k 15k 4.7k 10k 0.1 0.1 10 50V 2.7k 3.3k 4.7k 6.8k 0.5% 10k 15k 22k 33k 470 6.3V 470 6.3V 470 6.3V 0.01 0 1SS355WTE-17 1SS355WTE-17 100 100 10k 4.7 50V 0.1 10k 10k 0.1 0 0.01 680 JR925 0 680 680 680 680 680 TV/SAT TV/SAT 680 680 680 680 680 680 DVD DVD JR918 0 JR919 0 1k 1k 470 22k 15k 10k 4.7k C917 0.1 17P 47 17P 270 100 100k 100k 100k 10 50V 1M 1SS355WTE-17 82 22 SEL5223S-TP15 SEL5223S-TP15 SEL5223S-TP15 SEL5223S-TP15 SEL5223S-TP15 SEL5223S-TP15 SEL5223S-TP15 SEL5223S-TP15 SEL5223S-TP15 SEL5223S-TP15 SEL5223S-TP15 SEL5223S-TP15 SEL5223S-TP15 8P 100p 100p 100p 100p 100p 100p 100p 100p 100p 100p 100p 470p 100p 100p 100p 100p 100p 100p 100p 100p 100p 100p 100p 100p NJM2760V-TE2 UDZSTE-176.8B 2P DTC123JKA LED DRIVE DTA123JKA LED DRIVE DTC143TKA BUFFER DTC143TKA BUFFER DTC143TKA BUFFER 2SB1132 SWITCH 2SB1132 SWITCH DTC123JKA BUFFER DTC123JKA BUFFER DTC123JKA LED DRIVE DTC123JKA LED DRIVE DTC123JKA LED DRIVE DTC123JKA LED DRIVE DTC123JKA LED DRIVE 10 50V SELU5420E-STP15 SELU5420E-STP15 0.1 0.001 47 16V MB90M407PF-G-149E1 4MHz 47 RPM7240-H9 6.8k 0.5% 6.8k 0.5% 1 2 3 4 5 6 7 8 9 12 13 14 15 16 17 18 19 20 21 22 24 25 26 27 28 29 30 10 31 32 33 34 35 36 37 38 39 40 41 43 44 45 46 47 85 86 87 88 89 90 91 93 94 96 97 98 99 100 95 92 64 65 66 67 68 70 71 72 77 78 80 79 76 69 61 60 59 58 57 56 55 54 53 52 51 79 77 61 60 52 53 54 95 94 93 86 87 88 89 90 91 85 92 97 100 1 2 3 4 5 6 7 8 99 98 9 10 12 13 14 15 16 17 18 19 22 20 24 21 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 47 46 45 44 43 80 49 74 55 96 67 70 68 69 71 56 57 58 59 72 74 64 65 76 78 66 49 51 52 53 54 56 FLUORESCENT INDICATOR TUBE (NOT USE) REMOTE CONTROL RECEIVER BOARD CD-SW (Page 50) NO1151 BOARD MAIN (1/5) (Page 42) CN508 BOARD FUNCTION (Page 50) CN901 I X P w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 49 HCD-GN1000D HCD-GN1000D BOARD JOG 11 (12) 1-868-675- 8 1 1 2 3 E E K 1 2 3 OPERATION DIAL P PANEL BOARD NO904 (Page 47) 1 7 BOARD CD-SW 11 (12) OPEN/CLOSE Z EX-CHANGE/ DISC SKIP DISC 3 DISC 2 DISC 1 X PANEL BOARD CN900 (Page 47) 11 (12) 1-868-671- BOARD FUNCTION 1 8 DISPLAY ILLUMINATION SOUND FIELD E FLANGER SOUND FLASH AMP MENU DELAY MASTER VOLUME ENTER DIRECTION EQ BAND GROOVE REC PAUSE/START CD SYNC PROGRESSIVE 11 (12) 1-868-673- PHONES MIC1 MIC2 MIC 1 LEVEL VIDEO L AUDIO R MIC 2 LEVEL ECHO LEVEL VIDEO INPUT 1 1 2 3 R PA BOARD NO601 (Page 51) F MAIN BOARD CN100 (Page 41) Q VIDEO BOARD CN802 (Page 58) JR1 JR922 R1161 C1150 R1040 R1162 R1146 R1165 R1164 Q913 JR2 JR4 R1163 JR5 JR3 R1157 R1158 R1159 JR1096 CNS903 S1161 JW1088 D925 (VOL 7) Q915 E D924 (VOL 6) D922 (VOL 4) R1153 R1154 R1155 D923 (VOL 5) S1161 Q912 D921 (VOL 3) R1149 R1150 R1151 D920 (VOL 2) R1144 R1145 D919 (VOL 1) Q911 E D926 (VOL 8) S1161 R1166 R1167 R1168 R1169 R1170 S1166 JW1086 NO1151 1-868-672- S1167 S1168 S1169 S1170 JR921 JR923 R1003 R1004 R1005 R1006 R963 R1001 R1002 R962 R961 R960 R959 R958 R1014 R973 C907 R972 R1186 C976 C971 C970 C969 C966 C965 C984 CNS902 JW1150 S970 CN901 D1020 JW1060 JW1061 JW1062 JW1064 JW1065 JW1066 JW1067 JW1068 JW1069 JW1070 JW1072 JW1073 JW1075 JW1063 JW1080 JW1078 JW1074 JW1071 S918 S928 S919 Q921 R1018 S917 S915 S920 S916 D1017 S914 S904 S903 S902 S905 S906 S901 R1152 R1156 R1139 C1128 R1113 R1119 C1125 R1138 R1108 R1102 R1110 C1100 R1126 R1103 R1109 C1101 R1132 R1107 R1106 R1105 R1104 C1113 D1102 C1122 IC1101 C1104 R1115 R1116 C1103 R1121 C1110 C1109 R1122 R1123 C1124 R1120 FB902 R1137 D1100 C1134 R1127 C1135 R1128 R1130 R1131 R1118 JR1100 R1124 R1114 D1103 D1104 FB1100 FB1101 C1142 IC1100 R1147 C1133 D1101 C1139 R1140 R1111 C1102 R1100 C1119 JW1100 RV1101 RV1102 J1101 J1102 J1103 CN1102 RV1100 C1114 C1115 C1123 C1127 C1106 C1116 C1117 C1107 C1145 C1144 JW1102 JW1104 JW1106 JW1108 JW1109 JW1110 JW1111 JW1112 JW1113 JW1114 JW1115 JW1116 JW1117 JW1118 JW1119 JW1120 JW1121 JW1122 JW1123 JW1124 JW1125 JW1126 JW1127 JW1128 1 9 EPT1103 EPT1104 JW1107 JW1132 JW1134 NO1101 C1112 C1108 C1111 C1121 C1105 C1126 JW1133 CN1100 BOARD MIC J1100 J1101 RV1102 RV1101 RV1100 2 3 4 5 6 7 8 9 10 11 12 A 1 B C D E F G H 7-23. PRINTED WIRING BOARDS – CD-SW, JOG,FUNCTION AND MIC BOARDS – • See page 25 for Circuit Boards Location. :Uses unleaded solder. Ref. No. Location D919 C-3 D920 C-3 D921 C-2 D922 C-2 D923 D-2 D924 D-3 D925 D-4 D926 C-3 D1100 G-5 D1101 G-5 D1102 G-8 D1103 H-4 D1104 H-4 D1017 C-11 D1020 C-11 IC1100 G-6 IC1101 G-8 Q911 C-3 Q912 C-2 Q913 D-3 Q915 D-3 Q921 C-11 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 50 HCD-GN1000D HCD-GN1000D 7-24. SCHEMATIC DIAGRAM – CD-SW, JOG, FUNCTION AND MIC BOARDS – J1102 NO1100 R1128 R1127 R1130 R1131 JR1100 D1103 D1104 C1135 C1134 C1145 C1144 NO1101 2P 33k 33k 15k 15k 0 1SS355TE-17 1SS355TE-17 220p 220p 10 50V 10 50V 9P VIDEO-SIG VIDEO-GND MIC GND HP DET VIDEO (A) - L VIDEO (A) - GND VIDEO (A) - R MIC DETECT MIC SCORE A+9V MIC ECHO FB902 0uH AUDIO L R VIDEO INPUT VIDEO CNS903 C1142 R1116 R1115 R1104 R1106 R1105 R1107 R1108 RV1102 D1100 D1101 EPT1103 R1103 R1102 R1109 R1110 R1152 R1147 R1140 J1100 J1101 CN1102 C1122 C1115 C1114 C1108 C1103 C1106 C1112 C1101 C1100 C1104 C1113 JW1104 C1124 C1109 R1118 C1121 C1105 R1113 R1123 C1110 R1122 R1120 C1127 R1124 R1114 C1128 R1111 C1111 R1119 C1125 C1119 C1102 R1100 EPT1104 R1144 R1145 R1146 R1149 R1150 R1151 R1153 R1154 R1155 R1157 R1158 R1159 R1162 R1163 R1164 R1165 D920 D922 D926 D925 D923 D921 D919 D924 NO1151 C1123 D1102 R1126 R1156 C1107 R1121 C1117 RV1100 RV1101 IC1100 IC1101(2/2) IC1101(1/2) S1161 R1161 C1150 R1040 Q911 Q912 (VOL 7) (VOL 8) (VOL 5) (VOL 6) (VOL 3) (VOL 4) (VOL 1) (VOL 2) Q913 Q915 R972 R973 R962 R961 R960 R963 R1186 R1014 R958 R959 R1001 R1002 R1003 R1004 R1005 R1006 CN901 Q921 R1018 D1017 D1020 S970 C907 S920 S919 S918 SOUND FIELD PROGRESSIVE S917 S916 S915 S928 S914 S901 S902 S903 S904 S905 S906 JW1150 CNS902 FB1101 FB1100 S1170 S1169 S1168 S1167 S1166 R1170 R1169 R1168 R1167 R1166 R1132 C1133 J1103 C1116 R1137 R1139 R1138 8P 0 330 330 5.6k 100 100 100 10k 50k 1SS355WTE-17 1SS355WTE-17 1k 1k 10k 10k 1.5k 15k 10k 3P 0.068 4.7 50V 4.7 50V 1 50V 0.1 4.7 50V 1 50V 0.01 0.01 0.1 68p 1200p 4700p 1k 1 50V 0.1 50V 12k 15k 1 12k 3.9k 10 50V C1126 220 10V 10k 10k 47p 10k 0.22 50V 47k 470p 47p 1500p 15k 820 820 820 820 820 820 820 820 820 820 820 820 100 100 100 100 SELU5223C-STP15 SELU5223C-STP15 SELU5223C-STP15 SELU5223C-STP15 SELU5223C-STP15 SELU5223C-STP15 SELU5223C-STP15 SELU5223C-STP15 2P 47 35V UDZSTE-175.1B 10k 1.5k 4.7 50V 6.8k 0.5% 47 35V 50k 50k TC9488FG NJM4565M-D NJM4565M-D 1k 0.001 1k DTC114EKA LED DRIVE DTC114EKA LED DRIVE DTC114EKA LED DRIVE DTC114EKA LED DRIVE 1k 6.8k 0.5% 2.2k 1.5k 1.5k 3.3k 270 C984 100p C965 0.1 C966 0.1 C969 0.1 C970 0.1 C971 0.1 C976 0.1 470 680 1k 470 680 1k 1.5k 1.5k 2.2k 17P DTC123JKA-T146 LED DRIVE 680 SLR-343VCT32 SLR-343VCT32 0.001 8P 0 0 1.5k 1.5k 1k 680 470 0 0.1 C1139 0.1 47 35V 10k 10k 10k MIC 1 LEVEL ECHO LEVEL MIC 2 LEVEL JR1096 0 BOARD PANEL (Page 48) NO904 BOARD PANEL (Page 48) CN900 MAIN BOARD(1/5) PA BOARD (Page 52) (Page 42) NO601 CN100 VIDEO BOARD (Page 59) CN802 R F X P w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 51 HCD-GN1000D HCD-GN1000D 7-25. PRINTED WIRING BOARD – PA BOARD – • See page 25 for Circuit Boards Location. :Uses unleaded solder. BOARD 11 (22) 1-864-930- PA L FRONT SPEAKER R G MAIN BOARD CN501 (Page 41) H MAIN BOARD CN502 (Page 41) T SURROUND BOARD NO700 (Page 53) R MIC BOARD CN1102 (Page 49) 1 3 U SURROUND BOARD NO800 (Page 53) 1 1 5 9 S TRANS BOARD CN1212 (Page 60) Y TRANS BOARD CN1215 (Page 60) 1 1 2 7 C603 C653 C673 JR603 R694 D611 R611 R610 R620 C654 C604 D612 R603 R653 R602 R652 C601 C651 R601 R651 R600 R650 R617 R695 R696 R625 R624 R674 C606 R628 R629 R630 R631 Q628 1 E E 22 Q630 C605 C683 C693 C682 C681 C691 C692 R676 R656 R657 R658 R660 R661 R677 R678 C660 D620 R621 D646 R609 R698 R608 R693 R606 R692 R607 Q634 R604 R605 Q610 R642 R662 R640 R635 R641 Q682 R643 R663 R639 R638 R697 R634 Q641 E E E E E E E E E Q640 R683 R619 Q604 Q618 Q618 D609 R682 Q644 E E D661 D660 R649 Q648 E R685 Q647 R645 R644 R648 R673 R623 R671 Q668 R669 R670 D670 D655 D654 R655 R654 R633 JR602 JR601 JR600 1 8 R647 D624 JR612 L680 L690 JW626 R690 R680 JW627 JW600 JW602 JW604 JW605 JW606 JW608 JW614 JW617 JW618 JW619 JW620 JW621 JW622 JW623 JW628 JW629 JW630 JW633 JW634 JW635 JW638 JW639 JW645 JW646 JW649 JW616 JW607 JW613 JW603 JW631 JW688 JW692 JW693 JW694 JW695 JW650 JW647 JW648 JW696 JW632 JW636 JW624 JW625 IC600 R668 RY646 EP690 CN601 TM600 R618 JWH603 JWH602 C602 C600 C650 C652 TH629 C617 C666 R672 R622 C609 C619 C610 C635 C634 C636 C608 C655 R613 R614 R612 R615 R616 R691 R681 JWH601 Q606 C667 C637 C616 JWH600 TH630 R646 D658 D656 NO601 JW601 NO600 JW637 JW640 JW641 JW642 JW643 JW644 JW651 JW652 JW653 JW654 JW655 JW656 JW657 JW658 JW659 JW664 JW665 JW668 JW678 JW679 JW698 JW699 JW700 JW667 JW669 JW682 JW683 JW674 JW675 JW670 JW671 JW672 JW673 JW680 JW684 NO604 C676 C656 C678 C658 CN600 CN607 C618 C648 C649 R636 R637 JW660 JW662 JW663 JW1285 JW1283 CN602 EP660 LP600 LP601 LP602 2 3 4 5 6 7 8 9 10 11 12 A 1 B C D E F G • Semiconductor Location Ref. No. Location D609 A-6 D611 E-7 D612 E-7 D620 B-7 D624 E-9 D646 B-10 D654 B-9 D655 B-10 D656 D-3 D658 D-5 D660 E-1 D661 E-1 D670 B-7 IC600 D-7 Q604 B-6 Q606 B-6 Q610 B-6 Q618 B-7 Q628 E-9 Q630 E-9 Q634 B-5 Q640 B-6 Q641 B-5 Q644 F-1 Q647 F-1 Q648 E-1 Q668 B-7 Q682 A-6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 52 HCD-GN1000D HCD-GN1000D 7-26. SCHEMATIC DIAGRAM – PA BOARD – POWER GND POWER GND CN602 9P NO604 2P +VH +VL -VL -VH SURR POWER GND REAR L GND REAR R GND FAN DETECT VIRTUAL GND CENTER GND - + - + NO600 CN601 CN600 C656 R657 R656 R676 R677 C676 C660 C608 R609 R694 R610 R698 R608 R693 R696 R695 R617 R603 R653 C666 C667 R672 R622 C617 C616 TH629 R631 R630 R611 R606 R607 R692 R605 R604 C651 C601 R651 R601 R650 R600 C600 C650 R682 R683 R697 R634 C634 C635 R635 R640 R641 R642 R662 R643 R663 R638 R639 R673 R623 R674 R624 C606 C609 C619 C618 C610 C649 C648 R685 R649 R645 R644 C683 C693 EP690 R654 R655 C655 RY646 NO601 R691 R690 R646 R637 R636 R671 R670 R620 R621 R628 R629 R614 R613 C658 C678 R658 R678 C681 C682 C692 C691 L680 L690 D620 D670 D660 D661 D646 D609 D624 D611 D612 C604 C654 C602 C652 R602 390 R652 390 R647 R648 22k R661 R660 R680 R681 D655 D654 R625 3.3k EP660 TH630 JR612 R633 C605 CN607 Q606 TM600 R669 R619 Q604 Q610 Q634 Q682 Q640 Q641 Q644 Q647 Q648 D656 D658 R615 R616 R612 Q618 Q668 R618 R668 IC600 C636 C637 Q628 Q630 7P 8P 13P 3300 100V 220k 220k 220k 220k 3300 100V 0.1 22 50V 68k 68k 68k 100k 100k 100k 100k 100k 100k 47k 47k 0.068 0.068 10 1/2W 10 1/2W 0.068 0.068 100k 100k 33k 47k 2.2k 47k 10k 10k 0.0022 0.0022 47k 47k 1k 1k 4.7 50V 4.7 50V 1k 4.7k 2.2k 2.2k 100 25V 100 25V 10k 1k 1k 150 150 150 150 100k 100k 56k 68k 22k 22k 0.1 10 100V 22 100V 22 100V 10 100V 10 50V 100 10V 10k 22k 10k 2.2k 0.1 0.1 47k 47k 10 50V 3P 10 1/2W 10 1/2W 100 1/2W 820 2W 820 2W 150k 18k 18k 150k 22k 5.6k 1k 1W 1k 1W 100k 100k 1SS355WTE-17 1SS355WTE-17 1SS355WTE-17 1SS355WTE-17 1SS355WTE-17 1SS355WTE-17 1SS355WTE-17 UDZ-TE-17-18B UDZ-TE-17-18B 100p 100p C603 10p 220 10V 220 10V 10 1/2W 10 1/2W 1SS355WTE-17 1SS355WTE-17 0 0 0.1 5P 2SA1207 2P 1k 1k 2SC3906K-T146 2SC3906K-T146 DTA124EKA MUTING CONTROL SWITCH 2SC2712-YG MUTING CONTROL SWITCH 2SD2114K HEADPHONE MUTING 2SD2114K HEADPHONE MUTING 2SC2712-YG FRONT SPEAKER RELAY DRIVE 2SC2712-YG FRONT SPEAKER RELAY DRIVE 2SC2712-YG OVER LOAD DETECT SWITCH D15XB60 D15XB60 100 1 100 2SC3906K-T146 OVER LOAD DET 2SC3906K-T146 OVER LOAD DET 0.22 5W 0.22 5W STK412-240M-E 4.7 100V 4.7 100V 2SC2712-YG THERMAL DETECT 2SC2712-YG THERMAL DETECT -PRE 4.7k 4.7k 1k MAIN BOARD(5/5) MAIN BOARD(5/5) POWER AMP Q604,606,610 MUTING (Page 46) (Page 46) CN501 CN502 0.1 0.1 0.1 0.1 4700 71V 4700 71V C653 10p BOARD TRANS (Page 61) CN1212 (Page 55) BOARD MIC (Page 50) CN1102 BOARD (1/2) SURROUND (Page 54) NO800 BOARD SURROUND NO700 (2/2) S BOARD TRANS (Page 61) CN1215 Y w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 53 HCD-GN1000D HCD-GN1000D 7-27. PRINTED WIRING BOARD – SURROUND BOARD – • See page 25 for Circuit Boards Location. :Uses unleaded solder. • Semiconductor Location Ref. No. Location D730 C-7 D761 D-9 D762 E-9 D763 E-9 D764 E-9 D765 C-9 D770 C-6 D780 C-7 D800 D-4 D810 C-2 D811 E-3 D812 D-4 D850 D-4 IC702 B-7 IC800 B-3 Q700 D-5 Q730 D-7 Q740 C-5 Q750 C-5 Q762 C-9 Q763 E-9 Q765 E-8 Q770 D-6 Q780 C-7 Q800 D-4 Q810 C-1 Q812 C-2 Q814 D-3 Q815 D-3 Q850 D-3 BOARD SURROUND 11 (12) 1-868-667- 1 5 E E E E E E E E E E E E E E E 1 15 C743 C703 C753 R711 R712 R778 C710 C712 C711 R710 C733 C772 C773 C782 C783 C732 D761 R756 Q700 R753 Q730 Q740 Q750 R703 R704 R705 R700 R701 R702 R706 R750 R751 R752 R788 R754 R755 R740 R741 R742 R743 R744 R745 R746 C741 C751 C701 D762 Q763 Q765 Q762 R792 R797 R798 R768 R769 R766 R767 R762 R761 R774 Q780 Q770 D730 D780 D770 R771 R772 R773 R731 R732 R733 R781 R782 R783 R784 R734 C791 C792 R779 D763 D764 D765 JR791 C803 C805 R860 C853 R800 C807 R807 R806 R801 C801 R803 Q810 R851 R850 R802 Q800 Q850 R841 R891 R890 R840 D800 D850 R839 D810 R817 R812 Q812 D812 R889 R843 R861 Q814 Q815 R863 R864 R866 C804 R865 D811 C808 C858 R852 R808R858 C851 R814 JR797 JR700 22 1 JR792 NO800 JW801 JW803 JW828 C888 C889 JW806 JW802 NO801 JW804 JW811 JW807 JW805 JW810 JW816 JW800 JW730 JW798 JW780 JW770 TM701 TM700 L IC702 R780 R795 RY760 R793 R785 C780 C781 C730 C731 L770 L730 L780 R737 R787 R777 R786 R736 R776 C794 C793 R764 R730 R765 EP700 JW809 CN701 CN700 JW732 JW796 JW792 JW799 JW813 JW701 JW709 JW715 JW716 JW717 JW725 JW734 JW741 JW742 JW743 JW744 JW745 JW747 JW751 JW752 JW753 JW754 JW702 JW727 JW736 JW735 JW710 JW814 JW819 JW818 JW812 JW793 JW722 JW720 JW718 JW723 JW756 JW755 JW757 JW733 JW737 JW728 JW729 JW731 IC800 RY862 R888 R862 C800 C806 C850 C852 C802 R827 R828 R804 R892 R842 C820 R805 C843 JW740 C839 C838 JW826 JW815 R794 R735 R775 C771 C770 C796 C742 R770 C795 C704 C754 C744 C700 C740 C750 C752 C702 JW808 JW738 JW749 JW750 JW748 JW726 JW739 R838 C825 C826 NO700 RY761 JW704 JW700 JW721 JW705 JW719 JW703 JW724 JW706 JW707 JW708 JW712 B791 B792 B790 LP700 LP701 JW797 JW759 LP702 LP703 JW772 JW791 JW746 CENTER SPEAKER JW773 J MAIN BOARD CN514 (Page 41) K MAIN BOARD CN513 (Page 41) T PA BOARD CN602 (Page 51) U PA BOARD CN607 (Page 51) O MAIN BOARD CN105 (Page 41) 1 3 1 9 SURR SPEAKER R 2 3 4 5 6 7 8 9 10 A 1 B C D E F w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 54 HCD-GN1000D HCD-GN1000D 7-28. SCHEMATIC DIAGRAM – SURROUND BOARD (1/2) – NO801 D811 R860 R861 D812 D800 C843 C826 D850 C820 C825 C850 C851 R807 R806 C806 C853 C803 C805 C858 C808 C802 C852 C807 R803 C800 C801 B791 RY862 R865 R863 R841 R839 R840 R843 R891 R889 D810 R850 R851 R801 R888 R838 R890 R864 R866 C838 C839 R842 C889 R892 C888 R862 R814 C804 R808 R858 R800 CN700 SW SPK RY CENTER SPK SW(NC) NO800 R852 R802 R827 R828 R804 R805 IC800 R817 R812 Q800 Q850 Q812 Q810 B790 Q814 Q815 5P 1SS355WTE-17 56k 47k 1SS355WTE-17 1SS355WTE-17 4.7 50V 100 50V 1SS355WTE-17 10 50V 100 50V 4.7 50V 0.01 47k 1k 2.2 50V 100p 100p 0.1 8.2p 8.2p 100 10V 100 10V 1 2.2k 4.7 50V 1 1k 2.2k 100k 1k 22k 47k 100k 1k 1SS355WTE-17 1k 47k 47k 0.22 5W 0.22 5W 22k 22k 22k 0.068 0.068 10 1/2W 0.068 10 1/2W 0.068 100 1/2W 10k 0.1 47k 47k 1k 13P 5P 270 220 100 100 1 1 STK403-100-E 10k 2.2k 2SC3906K OVERLOAD DETECT 2SC3906K OVERLOAD DETECT 2SC3906K MUTING 2SD2114 MUTING 2SC2712-YG RELAY DRIVE 2SC2712-YG RELAY DRIVE AC CUT DETECT UNREG OVERLOAD DETECT DC DETECT REAR RELAY CENTER RELAY DVD LINE MUTE POWER AMP MAIN MAIN BOARD PA CN607 CN105 CN513 (2/2) BOARD SURROUND (Page 52) (Page 45) BOARD(4/5) BOARD(5/5) (Page 46) (Page 55) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 55 HCD-GN1000D HCD-GN1000D 7-29. SCHEMATIC DIAGRAM – SURROUND BOARD (2/2) – R731 R732 R782 R781 R783 R733 C731 C730 R730 R735 R785 C781 C780 R734 R764 R768 R766 R767 JR791 R769 R797 R798 R776 R786 R788 RY761 R765 R779 R778 R736 JW791 R777 C773 C772 JW746 NO700 R737 C732 C733 C782 C783 R787 C743 C753 R710 C710 C742 R742 R761 R792 R762 C796 C795 C702 C711 R711 R780 R772 R771 R770 JW732 R773 R775 C771 C770 R784 R774 CN701 C792 C791 C754 C704 C752 C712 R712 R703 R704 R754 R753 R705 R755 R756 R706 C700 R700 C750 R750 C751 R751 R701 C701 JR700 R741 C741 R740 C740 R746 R745 R744 R743 C744 JW792 C794 C793 JW789 JW799 JW794 JR792 L780 L770 L730 R702 R752 IC702 JW710 B792 JW798 R794 R793 R795 D765 D764 D763 D761 D770 D762 D780 D730 RY760 Q770 Q780 Q730 Q740 Q750 Q700 Q763 Q762 Q765 EP700 C703 1k 27k 27k 1k 100k 100k 0.068 0.068 0.22 5W 10 1/2W 10 1/2W 0.068 0.068 56k 100 1/2W 2.2k 2.2k 22k 0 22k 22k 1k 10 1/2W 10 1/2W 47k 100 1/2W 47k 47k 10 1/2W 10 1/2W 100000p 100000p 9P 10 1/2W 100000p 100000p 100000p 100000p 10 1/2W 100p 100p 47k 18p 220 10V 220 33k 33k 33k 22 100V 22 100V 220 10V 18p 47k 0.22 5W 27k 1k 0.22 5W 100k 10 1/2W 0.068 0.068 47k 68k 8P 0.01 0.01 4.7 50V 4.7 50V 220 10V 18p 47k 1k 10k 10k 1k 47k 47k 10k 10k 4.7 50V 1k 4.7 50V 1k 220p 47k 47k 220p 0 47k 220p 1k 4.7 50V 10k 47k 10k 1k 4.7 50V 100 100V 100 100V 0 390 390 STK443-090-E 100 1 100 1SS355WTE-17 1SS355WTE-17 1SS355WTE-17 1SS355WTE-17 1SS355WTE-17 ISS355WTE-17 ISS355WTE-17 ISS355WTE-17 2SC3906K OVERLOAD DETECT 2SC3906K OVERLOAD DETECT 2SC3906K OVERLOAD DETECT 2SD2114K MUTING 2SD2114K MUTING 2SD2114K MUTING 2SC2712-YG RELAY DRIVE 2SC2712-YG RELAY DRIVE 2SD2114K RELAY DRIVE CONTROL 100p OVERLOAD DETECT UNREG AC CUT DETECT DC DETECT REAR RELAY CENTER RELAY DVD LINE MUTE SPEAKER CENTER SPEAKER SURR R L POWER AMP TM700 TM701 - + - + - + BOARD PA CN602 (Page 52) BOARD MAIN (4/5) CN514 (Page 45) BOARD (1/2) SURROUND (Page 54) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 56 HCD-GN1000D HCD-GN1000D V MAIN BOARD CN512 (Page 41) Q1508 Q1509 Q1510 R1516 R1517 E E R1585 R1586 R1584 C1529 IC1503 R1535 R1537 R1534 Q1502 E R1592 R1538 R1522 R1520 R1519 R1532 R1531 C1520 R1511 R1546 R1512 C1517 IC1500 IC1501 C1513 R1508 R1529 C1509 R1528 R1526 C1508 R1513 C1521 R1510 C1522 R1514 R1515 R1533 R1530 R1505 R1552 C1514 Q1506 E R1594 R1589 R1570 R1590 R1566 R1557 R1560 IC1506 R1567 R1569 R1573 C1548 R1572 R1571 IC1505 R1559 R1558 R1549 R1582 R1581 R1591 R1580 R1595 R1579 R1574 R1575 C1555 R1576 R1565 R1568 C1568 D1502 Q1507 E 1 17 16 2 R1547 R1504 C1572 R1500 R1550 R1525 R1501 R1527 R1502 R1536 C1571 R1602 R1603 R1600 R1601 JW1500 JW1507 JW1520 JW1524 JW1525 JW1526 JW1528 JW1529 JW1533 JW1537 JW1542 JW1544 JW1545 JW1547 JW1548 JW1549 JW1550 JW1551 JW1557 JW1558 JW1508 JW1560 JW1527 JW1555 JW1552 JW1561 JW1531 JW1532 JW1511 JW1510 JW1538 JW1539 JW1505 JW1553 JW1540 JW1541 JW1514 JW1513 JW1517 JW1512 JW1503 JW1502 JW1504 CN1501 JW1530 C1570 C1578 C1569 C1576 C1554 C1584 C1524 C1562 C1546 C1559 C1545 C1512 C1516 C1523 C1525 C1519 C1515 C1528 C1561 C1560 C1542 C1526 C1544 C1552 EP1500 C1530 EP1501 JW1522 JW1534 JW1535 JW1515 JW1546 C1506 C1507 JW1521 JW1559 JW1523 JW1536 JW1519 JW1556 JW1570 JW1571 JW1518 JW1599 BOARD EFFECTOR 11 (11) 1-868-596- 2 3 4 5 6 7 8 A 1 B C D E F 7-30. PRINTED WIRING BOARD – EFFECTOR BOARD – • See page 25 for Circuit Boards Location. :Uses unleaded solder. Ref. No. Location D1502 B-6 IC1500 D-3 IC1501 E-3 IC1503 D-2 IC1505 E-5 IC1506 C-6 Q1502 E-2 Q1506 F-5 Q1507 B-6 Q1508 C-5 Q1509 A-1 Q1510 A-1 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 57 HCD-GN1000D HCD-GN1000D 7-31. SCHEMATIC DIAGRAM – EFFECTOR BOARD – IC1505(2/2) IC1501 C1513 C1517 R1512 R1511 C1520 R1546 C1516 C1521 R1514 R1515 C1523 R1510 C1522 C1519 C1529 R1565 R1566 C1554 R1567 R1568 R1570 C1546 R1569 C1545 C1548 R1571 R1572 C1552 R1589 C1555 C1559 C1560 R1500 R1504 R1525 R1502 R1501 C1572 C1568 R1547 C1584 C1571 R1549 R1557 R1558 C1576 R1559 R1560 R1550 R1582 R1579 C1561 R1580 R1581 C1562 R1532 R1531 R1530 R1533 R1584 R1585 R1586 R1529 C1509 R1505 C1507 C1506 R1526 C1512 R1590 C1542 R1520 R1519 R1522 R1538 R1592 C1526 C1530 C1515 C1524 C1525 R1576 R1574 R1575 R1573 D1502 R1527 CN1501 JW1513 IC1506 R1508 JW1510 JW1511 IC1503 R1534 R1536 R1537 R1535 C1569 C1570 C1544 R1591 Q1506 Q1502 Q1508 Q1507 C1578 IC1505(1/2) R1528 NJM4565M-D M65850FP-E1 0.1 0.0015 18k 18k 330p 18k 0.068 330p 18k 18k 0.068 18k 0.0015 1 50V 0.01 2.2k 2.2k 10 50V 22k 22k R1594 18k R1595 18k 100k 10 50V 100k 10 50V 47p 100k 1k 10 50V 33 47p 10 50V 10 50V 100 100 100 100 100 0.1 0.1 10k 100 0.1 R1517 10k L1500 10uH R1516 10k 10k 100k 100k 10 50V 100k 100k 10k 100k 100k 10 50V 22k 22k 10 50V 820 470 330 1.2k 0 0 0 100k 1p 10k 0.068 0.068 10k 10 50V 47k 0.0047 0 0 0 27k 0 0.1 0.033 47 35V C1528 47 50V 0.22 50V 0.22 50V 3.3k 100k 1k 3.3k UDZSTE-176.2B 100 17P TC74LVX4052FT Q1510 DTC114EKA-T146 BUFFER Q1509 DTC114EKA-T146 BUFFER 10k TC74LVX4051FT 1.8k 3.9k 47k 2.7k 10 50V 10V 10 50V 0.0047 47k 2SK3378ENTL SWITCH 2SK3378ENTL SWITCH 2SK3378ENTL SWITCH 2SC5053T100Q B+ SWITCH 10 50V NJM4565M-D 100k S0 S1 S2 S2 S1 S0 MIXER DIGITAL DELAY IC1500 NJM4565M-D MIXER R MIXER L SELECTOR CCT MULTIPLEXER BOARD MAIN (3/5) CN512 (Page 44) V • See page 26 for Waveforms. • See page 63 for IC Block Diagrams. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 58 HCD-GN1000D HCD-GN1000D J802 VIDEO OUT J801 S VIDEO OUT C Y G G J800 COMPONENT VIDEO OUT PB/CB PR/CR Y 1 2 JR802 IC801 IC800 R800 R802 R803 R804 R805 R806 R807 R808 R809 R810 R812 R813 R814 FB800 FB801 FB802 FB803 FB804 FB805 FB806 JR800 JR803 JR804 C818 C817 C816 C819 C820 C821 C822 C823 C824 C825 C831 C809 C804 C810 JW801 JW802 JW804 JW805 JW807 JW811 JW806 JW800 CN800 C811 C812 C813 C814 C815 C800 C801 C802 C803 C805 C806 C807 C808 C829 CN802 L801 C830 CN801 C826 C827 JW803 EPT800 JW808 JW809 JW810 11 (13) 1-865-440- BOARD VIDEO B Q DMB15 BOARD CN301 (Page 33) M MAIN BOARD NO503 (Page 41) MIC BOARD CN1100 (Page 49 ) 5 1 1 4 8 5 2 3 4 5 A 1 B C D 7-32. PRINTED WIRING BOARD – VIDEO BOARD – • See page 25 for Circuit Boards Location. :Uses unleaded solder. • Semiconductor Location Ref. No. Location IC800 C-3 IC801 B-3 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 59 HCD-GN1000D HCD-GN1000D 7-33. SCHEMATIC DIAGRAM – VIDEO BOARD – C815 C814 C813 C811 C812 R802 R803 R804 R805 R808 R806 FB800 FB801 FB802 FB803 FB804 FB805 C822 C823 C820 C816 J800 C817 C818 C809 R809 C810 C800 C801 C802 C803 C804 C806 C808 FB806 TP803 R807 CN801 CN802 CN800 L801 10uH JR800 JR802 C826 R812 C827 C831 C830 C829 R813 R810 R814 TP800 JW800 EPT800 C825 JR803 C824 JR804 C821 C819 C805 C807 IC800 Q800 J802 R800 IC801 J801 1000 6.3V 1000 6.3V 1000 6.3V 1000 6.3V 1000 6.3V 75 75 75 75 75 0 0 0 0 0 0 0 22p 22p 22p 22p 22p 22p 0.1 10k 0.1 1 50V 1 50V 1 50V 22 50V 0.1 1 50V 100 10V 0 100 13P 2P 5P 0 0 10 50V 1M 10 50V 0.01 100 10V 1000 6.3V 100k 68 10k 0.01 0.01 0.01 0 0.01 0.01 1 50V 1 50V NJM2244M-TE2 DTC114EKA-T146 BUFFER 100 MM1623BFBE VIDEO SELECTOR BOARD BOARD MAIN BOARD DMB15 MIC (2/4) (1/5) CN301 (Page 36) NO503 (Page 42) CN1100 (Page 50) • See page 26 for Waveforms. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 60 HCD-GN1000D HCD-GN1000D 7-34. PRINTED WIRING BOARDS – POWER SECTION – • See page 25 for Circuit Boards Location. :Uses unleaded solder. • Semiconductor Location Ref. No. Location D1200 B-3 D1264 I-8 D1292 H-6 Q1200 B-3 Q1264 H-8 11 (22) 1-864-931- BOARD TRANS 11 (22) 1-864-932- BOARD PRIMARY 1 3 L MAIN BOARD NO401 (Page 41) AC IN 1 2 1 2 POWER SWITCHING 230-240V 220V 120V t t VOLTAGE SELECTOR 1 4 1 1 2 7 1 8 N MAIN BOARD NO503 (Page 41) S PA BOARD NO600 (Page 51) Y PA BOARD NO604 (Page 51) * * Q1200 C1204 R1200 R1201 C1202 C1201 D1200 JR1202 JW1204 NO1201 NO1203 (TH) (EXCEPT TH) (EXCEPT TH) (TH) JW1214 JW1212 JW1213 JW1215 CN1204 CN1202 C1206 E EP1203 CN1200 L1201 LP1200 LP1201 LP1202 R1262 R1263 R1264 D1264 NO1211 FH1291 FH1292 JW1202 JW1201 JW1206 JW1207 GND1200 JW1216 JW1231 CN1215 JW1235 JW1234 CN1212 R1292 C1263 Q1264 E C1262 FH1241 F1241 F1251 F1261 F1271 F1291 F1281 FH1242 FH1251 FH1261 FH1271 FH1252 FH1262 FH1272 FH1282 FH1281 CN1213 C1292 D1292 NOT REPLACEABLE: BUILT IN TRANSFORMER LP1211 LP1212 LP1213 JW1208 JW1209 JW1220 JW1221 JW1211 RY1200 1 2 1 1 3 5 8 19 T1200 7 4 (TH) (EXCEPT TH) (TH) S1200 2 3 4 5 6 7 8 9 10 A 1 B C D E F G H I w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 61 HCD-GN1000D HCD-GN1000D 7-35. SCHEMATIC DIAGRAM – POWER SECTION – (1/5) MAIN BOARD NO401 (Page 42) L BOARD PA NO600 (Page 52) S BOARD PA NO604 (Page 52) Y CN1212 C1292 R1292 C1262 R1262 R1263 R1264 C1263 CN1200 C1206 R1201 C1201 R1200 L1201 18uH C1202 JR1202 C1204 EP1203 NO1203 CN1202 NO1201 JW1204 RY1200 T1200 F1241 F1251 F1261 F1271 F1281 JW1211 JW1235 JW1234 D1200 D1264 Q1264 CN1204 NO1211 S1200 Q1200 7P CN1215 2P 100 63V D1292 10EDB40-TB3 0.68 10 50V 8.2k 8.2k 1k 100 50V 3P 1000 6.3V 100k 0.1 4.7k 0.1 0 0.1 2P 2P 2P POWER TRANSFORMER T8AL 250V T8AL 250V T8AL 250V T8AL 250V F1291 T3.15AL 250V T3.15AL 250V 1SS355WTE-17 MAIN BOARD (5/5) (Page 46) NO603 N 1 8 AC4 AC4 AC3 AC3 VF VF -VG DGND CN1213 8P HZU36BTRF 2SB1565E -33V REGURATOR 2SC2712-YG POWER ON/OFF RELAY DRIVE AC IN BUILT IN TRANSFORMER NOT REPLACEABLE: * * VOLTAGE SELECTOR EXCEPT TH EXCEPT TH EXCEPT TH TH TH TH w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 62 HCD-GN1000D HCD-GN1000D 7-36. PRINTED WIRING BOARD – KARAOKE BOARD – • See page 25 for Circuit Boards Location. :Uses unleaded solder. • IC Block Diagrams IC1100 TC9488FG - MIC Board - 2 OSC ADPCM DECODE DELAY DRAM ADPCM ENCODE ADC DAC S/H POST LPF ALC VOLUME CONTROL OSCC 1 VDD 3 OSCR 4 NC 5 VOL1 (CS) 6 VOL2 (SCL) 7 VOL3 (SDA) 8 NC 9 VRO VREF VDA NC ALC1 MC1N MC1P 15 16 14 13 12 11 10 VREF VREF VREF VREF ALC VREF MC2P 17 MC2N 18 ALC1 19 NC 20 VSA 21 MCO 22 PRIN 23 ADIN 24 NC 25 DA OUT 26 VOLST 27 NC 28 TEST 29 POOUT 30 VSS IC904 NJM2760V-TE2 - PANEL Board - BPF1IN2 DET IN1 1 IN2 2 BPF2IN1 4 BPF2IN2 5 18 BPF3OUT 15 BPF1IN1 19 BPF2OUT 20 BPF DET BPF3IN1 6 BPF3IN2 7 BPF2OUT 14 BPF DET BPF4IN1 8 BPF4IN2 9 BPF1OUT 13 BPF DET GND 10 NC 12 BUF1OUT 3 VCC 11 RECOUT 17 BPF4OUT 16 BPF DET W MAIN BOARD CN505 (Page 41) IC2000 IC2001 IC2002 R2002 R2000 R2001 R2005 R2004 R2037 R2007 R2010 R2009 R2012 C2008 R2014 D2000 D2001 R2008 R2011 C2007 R2015 D2002 D2003 R2016 C2016 R2017 R2019 R2022 R2021 D2006 D2008 R2020 R2025 R2024 C2013 R2026 R2031 R2028 R2029 R2030 R2036 R2034 R2032 R2035 C2015 R2038 D2007 C2001 C2000 C2002 C2004 C2006 C2009 C2005 C2010 C2011 JW2008 JW2001 1 6 JW2002 JW2003 JW2004 JW2005 JW2006 JW2007 JW2009 JW2010 JW2011 JW2012 NO2000 BOARD KARAOKE 21 (21) 1-869-677- 2 3 4 5 A 1 B C D 7-37. SCHEMATIC DIAGRAM – KARAOKE BOARD – • Semiconductor Location Ref. No. Location D2000 C-3 D2001 B-3 D2002 D-3 D2003 D-3 D2006 B-4 D2007 C-4 D2008 B-4 IC2000 C-3 IC2001 A-4 IC2002 A-3 C2002 R2005 C2006 R2009 C2016 R2002 R2010 C2001 R2000 R2001 C2000 C2004 R2007 D2001 D2000 R2011 C2005 R2008 C2009 C2008 R2012 C2007 MUSIC L+R C2010 R2015 D2003 D2002 C2011 R2016 R2022 R2017 R2019 R2024 R2025 R2026 R2020 C2013 R2034 R2030 R2036 C2015 R2035 R2031 R2029 R2028 IC2001(1/2) IC2001(2/2) IC2000(1/2) IC2000(2/2) R2014 R2004 R2021 R2037 D2007 D2006 D2008 R2032 IC2002(1/2) IC2002(2/2) CN2000 47 16V 47k MIC 1 50V 1k 0.01 22k 100k 47 16V 4.7k 4.7k 100 6.3V 2.2 50V 4.7k ISS355W ISS355W 0 47 16V 47k 47 16V 470p 100k 0.1 2.2 50V 2.2k ISS355W ISS355W 47 16V 47k 10k 4.7k 4.7k 4.7k 4.7k 0 0 0.1 2.2k 0 0 0.1 2.2k 22k 22k 1.5k NJM2903M NJM2903M NJM3414AMP(TE2) NJM3414AMP(TE2) 8.2k 2.2k 0 0 ISS355W ISS355W ISS355W 1.2k NJM2903M HI LIMIT VOICE NJM2903M LO LIMIT VOECE 6P AGND AC/DC CONVERTER COMPARATOR UPPER DETECT LOWER DETECT COMPARATOR BOARD MAIN CN505 (Page 42) (1/5) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 HCD-GN1000D 1 2 3 4 5 6 7 8 9 CONTROL LOGIC TSD VREF OUT2 OUT1 RNF VM VCC FIN GND RIN - DRIVER Board - IC701,712 BA6956AN IC1503 TC74LVX4051FT - EFFECTOR Board 1 D4 2 D6 3 COM 4 D7 5 D5 6 INH 7 VEE 8 GND 9 C 10 B 11 A 12 D3 13 D0 14 D1 15 D2 16 VCC OUT C IN OUT C IN OUT C IN OUT C IN OUT C IN OUT C IN OUT C IN OUT C IN LOGIC LEVEL CONVERTER 1 0Y 2 3Y 3 Y COM 4 3Y 5 1Y 6 INH 7 VEE 8 GND 13 X COM 9 B 10 A 11 3X 12 0X 14 1X 15 2X 16 VCC OUT C IN OUT C IN OUT C IN OUT C IN OUT C IN OUT C IN OUT C IN OUT C IN LOGIC LEVEL CONVERTER OSCILLATOR 1/2 VCC AUTO RESET LPF1 MAIN CONTROL A/D 20KBIT SRAM LPF2 D/A 2 3 4 5 6 7 8 9 10 11 15 14 13 12 CLOCK RESET MO MI D1 D0 DO1 VCC 16 NC CLOCK REF OP2IN OP2OUT LPF2IN LPF2OUT LPF1IN 1 NC LPF1OUT OP1OUT OP1IN CC1 CC2 GND IC1506 TC74LVX4052FT IC1501 M65850FP-E1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 HCD-GN1000D IC3601 PCM1803DBR - DMB15 Board - LIN 1 RIN 2 V_ERF_1 3 V_ERF_2 4 VCC 5 AGND 6 PDWN 7 BTPASS 8 FSYNC 9 LRCK 10 MODE1 20 MODE0 19 FMT1 18 FMT0 17 OSR 16 SCKI 15 VDD 14 DGCD 13 DOUT 12 BCK 11 Single-End /Differential Converter 5 th Order Delta-Sigma Modulator 5 th Order Delta-Sigma Modulator Reference Single-End /Differential Converter × 1/64 (× 1/128) Decimation Filter with DC Cut Filter Power Supply Clock and Timing Control Serial Interface Mode/ Format Control www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 HCD-GN1000D 7-38. IC PIN FUNCTION DESCRIPTION IC102 CXD9849R (CD/DVD RF AMP, FOCUS/TRACKING ERROR AMP, DVD SYSTEM PROCESSOR, DIGGITAL SERVO PROCESSOR) (DMB15 BOARD) Pin No. Pin Name I/O Description 1 AGND – Ground terminal 2 DVDA I AC coupled RF signal input A 3 DVDB I AC coupled RF signal input B 4 DVDC I AC coupled RF signal input C 5 DVDD I AC coupled Rf signal input D 6 DVDRFIP I AC coupled DVD RF signal input 7 DVDRFIN I AC coupled DVD RF signal input (Not used) 8 NA I RF signal input A 9 NB I RF signal input B 10 MC I RF signal input C 11 MD I RF signal input D 12 SA I Sub-beam RF signal input A (Not used) 13 SB I Sub-beam RF signal input B (Not used) 14 SC I Sub-beam RF signal input C (Not used) 15 SD I Sub-beam RF signal input D (Not used) 16 CDFON I CD focusing error negative input (Not used) 17 CDFOP I CD focusing error positive input (Not used) 18 TNI I RF signal input E 19 TPI I RF signal input F 20 MDI1 I Laser power PD monitor input 21 MDI2 I Laser power PD monitor input 22 LDO2 O Laser drive signal output 23 LDO1 O Laser drive signal output 24 SVDD3 – Power Supply terminal (+3.3V) 25 CSD O Not used (Open) 26 RFLVL O Positive main beam summing output 27 SGND O Ground terminal 28 V2REFO O Reference voltage output 29 V2O O Center voltage output 30 VREFO O Reference voltage output 31 FEO O Focus error signal output 32 TEO O Tracking error signal output 33 TEZISLV O TE Slicing Level (Not used) 34 OPOUT – Not used (Open) 35 OPIN – Not used (Open) 36 OPIN – Not used (Open) 37 DMO O Spindle motor control PWM signal output 38 FMO O Sled motor PWM signal output 39 TROPENPWM O Tray PWM output/Tray open output (Not used) 40 IOPMON O General PWM signal output 41 TRO O Tracking servo signal output 42 FOO O Focus servo signal output 43 DVSS – Ground terminal 44 NO USE – Not used (Open) 45 NO USE – Not used (Open) 46 DVDD3 – Power Supply terminal (+3.3V) 47 SPFG I Spindle FG signal input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 HCD-GN1000D Pin No. Pin Name I/O Description 48 DSEL O DSEL signal output to MM1623BFBE 49 WIDE O WIDE signal output to MM1623BFBE 50 MSW O Optical pick-up volume control signal output to MM1623BFBE 51 MAMUTE O MAMUTE signal output (Not used) 52 DVDD18 – Power Supply terminal (+1.8V) 53 to 58 IOA 2 to 7 O Address bus 2 to 7 output to FLASH PROM 59 HIGHA0 O Address bus 8 output to FLASH PROM 60, 61 IOA18, 19 O Address bus 18, 19 output to FLASH PROM 62 DVSS – Ground terminal 63 APLLCAP I APLL External Capacitance connection 64 APLLVSS – Ground terminal 65 VDD3 – Power Supply terminal (+3.3V) 66 I OWR O Write signal output to FLASH PROM 67 A16 O Address bus 16 output to FLASH PROM 68 to 72 HIGHA 7 to 3 O Address bus 15 to 11 output to FLASH PROM 73 DVDD3 – Power Supply terminal (+3.3V) 74, 75 HIGHA 2, 1 O Address bus 10, 9 output to FLASH PROM 76 IOA20 O Address bus 20 output to FLASH PROM 77 IOCS O Chip select signal output to FLASH PROM 78 IOA1 O Address bus 1 output to FLASH PROM 79 IOOE O Out enable signal output to FLASH PROM 80 DVDD3 – Power Supply terminal (+3.3V) 81 to 84 AD 0 to 3 I/O Data bus 0 to 3 input/output to FLASH PROM 85 DVSS – Ground terminal 86 to 88 AD 4 to 6 I/O Data bus 4 to 6 input/output to FLASH PROM 89 IOA21 O Address bus 21 output to FLASH PROM 90 ALE O Not used (Open) 91 AD7 I/O Data bus 7 input/output to FLASH RAM 92 A17 O Address bus 17 output to FLASH PROM 93 IOA0 I/O Address bus 0 input/output to FLASH RAM 94 DVSS – Ground terminal 95 UWA – Not used (Open) 96 URB – Not used (Open) 97 DVDD18 – Power Supply terminal (+1.8V) 98 IFSDO O Serial data output to M30620MCP 99 IFCK O Serial clock data output to M30620MCP 100 XIFCS O XIFCS signal output to M30620MCP 101 IFSDI I Serial data input from M30620MCP 102 SCL O SCL signal output to EEPROM 103 SDA O SDA signal output to EEPROM 104 TRG-SW O Not used (Open) 105 IFBSY I IFBSY signal input from M30620MCP 106 RXD I RD232 RXD signal input 107 TXD O RD232 TXD signal output 108 DVDD3 – Power Supply terminal (+3.3V) 109 IEC – Not used (Open) 110 PRST I System reset signal input from M30620MCP 111 IR – Not used (Open) 112 INT0 – Not used (Open) 113 DQMO O DQM0 signal output to SDRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 HCD-GN1000D Pin No. Pin Name I/O Description 114 MREQ I DQM signal input 115 RD7 I/O Data bus 7 input/output to SDRAM 116 DVSS – Ground terminal 117, 118 RD 6, 5 I/O Data bus 6, 5 input/output to SDRAM 119 DVSS – Ground terminal 120, 121 RD 4, 3 I/O Data bus 4, 3 input/output to SDRAM 122 DVDD18 – Power Supply terminal (+1.8V) 123 to 125 RD 2 to 0 I/O Data bus 2 to 0 input/output to SDRAM 126 RD15 I/O Data bus 15 innput/output to SDRAM 127 DVDD3 – Power Supply terminal (+3.3V) 128 RD 14 I/O Data bus 14 input/output to SDRAM 129 to 133 RD 13 to 9 I/O Data bus 13 to 9 input/output to SDRAM 134 DVSS – Ground terminal 135 RD8 I/O Data bus 8 input/output to SDRAM 136 GPI0 – Not used (Open) 137 DQM1 O DQM1 signal output to SDRAM 138 RWE O Write signal output to SDRAM 139 CAS O CAS signal output to SDRAM 140 RAS O RAS signal output to SDRAM 141 DVDD3 – Power Supply terminal (+3.3V) 142 RCS O Chip select signal output to SDRAM 143 BAO O BAO signal output to SDRAM 144 DVSS – Ground terminal 145 BA1 O BA1 signal output to SDRAM 146 RA10 O Address bus 10 output to SDRAM 147 RA0 O Address bus 0 output to SDRAM 148 DVSS – Ground terminal 149 to 151 RA 1 to 3 O Address bus 1 to 3 output to SDRAM 152 DVDD18 – Power Supply terminal (+1.8V) 153 NO USE – Not used (Open) 154 NO USE – Not used (Open) 155 DVDD3 – Power Supply terminal (+3.3V) 156 RCLK O Clock output to SDRAM 157 CKE O Clock enable output to SDRAM 158 to 160 RA 11, 9, 8 O Address bus 11, 9, 8 output to SDRAM 161 DVSS – Ground terminal 162 RA7 O Address bus 7 output to SDRAM 163 DVSS – Ground terminal 164 to 166 RA 6 to 4 O Address bus 6 to 4 output to SDRAM 167 DVDD3 – Power Supply terminal (+3.3V) 168 DISC/X – Not used (Open) 169 RGB – Not used (Open) 170 TSD_M O TSDM signal output to FAN8036M 171 NO USE – Not used (Open) 172 NO USE – Not used 173 DVDD18 – Power Supply terminal (+1.8V) 174 FWD – Not used (Open) 175 NO USE – Not used (Open) 176 LIMSW I Optical pick-up limit switch signal input 177 OCSW – Not used (Open) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68 HCD-GN1000D Pin No. Pin Name I/O Description 178 REW – Not used (Open) 179 CKSW – Not used (Open) 180 NO USE – Not used (Open) 181 NO USE – Not used (Open) 182 DVDD3 – Power Supply terminal (+3.3V) 183 NO USE O Not used (Open) 184 NO USE O Not used (Open) 185 NO USE – Not used (Open) 186 NO USE – Not used (Open) 187 NO USE – Not used (Open) 188 NO USE – Not used (Open) 189 DAVCC – Power Supply terminal (+3.3V) 190 VREF – Not used (Open) 191 FS I Full scale adjustment (pull down) 192 YUV0 – Not used (Open) 193 DAVSS – Ground terminal 194 YUV1 O Y signal output to MM1623BFBE 195 DAVDD – Power Supply terminal (+3.3V) 196 YUV2 O CHROMA signal output to MM1623BFBE 197 DAVSS – Ground terminal 198 YUV3 O VIDEO signal output to MM1623BFBE 199 DAVDD – Power Supply terminal (+3.3V) 200 YUV4 O G signal output to MM1623BFBE 201 DAVSS – Ground terminal 202 YUV5 O B signal output to MM1623BFBE 203 YUV6 O R signal output to MM1623BFBE 204 DVDD3 – Power Supply terminal (+3.3V) 205 MIC/VSYNC I Mic status signal input from M30620MCP 206 VOICE/YUV7 I VOICE signal input 207 KRMOD/HSYNC O KRMOD signal output to M30620MCP 208 SMSCK I SCORE signal input 209 SPDATA/SMSDI I Audio data of SPDIF input 210 MUTE O MUTE signal output to FAM8036L 211 MUTE123 O MUTE signal output to FAM8036L 212 DVDD3 – Power Supply terminal (+3.3V) 213 ALRCK I Audio left/right channel clock input 214 ABCK O Audio bit clock output 215 ACLK I Audio DAC master clock input 216 DVSS – Ground terminal 217 ASDATA0 O Auido serial data output to AK4358VQ 218 ASDATA1 O Auido serial data output to AK4358VQ 219 ASDATA2 O Auido serial data output to AK4358VQ 220 XRST I Reset signal input 221 DVDD18 – Power Supply terminal (+1.8V) 222 ASDATA4 O Auido serial data output to AK4358VQ 223 DVSS – Ground terminal 224 DWIDE – Not used (Open) 225 SDPIF – Not used (Open) 226 RFGND18 – Ground terminal 227 RFVDD18 – Power Supply terminal (+1.8V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 HCD-GN1000D Pin No. Pin Name I/O Description 228 XTALO O Oscillator output terminal 229 XTALI I Oscillator input terminal 230 JITFO O RF jitter meter output 231 JITFN I RF jigger meter input 232 PLLVSS – Ground terminal 233 IDAC – Not used 234 PLLVDD3 – Power Supply terminal (+3.3V) 235 LPFON O Negative output of loop filter amplifier 236 LPFIP I Positive input of loop filter amplifier 237 LPFIN I Negative input of loop filter amplifier 238 LPFOP O Positive output of loop filter amplifier 239 VDD3 – Power Supply terminal (+3.3V) 240 NO USE – Not used (Open) 241 VSS – Ground terminal 242 NO USE – Not used (Open) 243 NO USE – Not used (Open) 244 RFVDD3 – Power Supply terminal (+3.3V) 245 RFRPDC I RFRP signal input 246 RFRPAC I RFRP signal input 247 HRFZC I High frequency RF ripple zero crossing 248 CRTPLP O Defect level filter capacitor connecting 249 RFGND – Ground terminal 250 NO USE O Not used (Open) 251 NO USE I Not used (Open) 252 OSP O RF offset cancellation capacitor connecting 253 OSN I RF offset cancellation capacitor connecting 254 RFGC O RF offset loop capacitor connecting 255 IREF I Current reference input 256 AVDD3 – Power Supply terminal (+3.3V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 70 HCD-GN1000D IC401 M30620MCP-A17FPU0 (SYSTEM CONTROL) (MAIN BOARD) Pin No. Pin Name I/O Desciption 1 TUNED I Tuning detection signal input from the TUNER unit ( "L": tuned) 2 ST-DOUT O PLL serial data output to the TUNER unit 3 ST-CLK O PLL serial data transfer clock signal output to the TUNER unit 4 SIRCS I Remote control signal input 5 ST-DIN I PLL serial data input from the TUNER unit 6 ST-CE O PLL chip enable signal output to the TUNER unit 7 STBY-RELAY O Main power on/off control signal output ( "H": power on) 8 GND - Ground terminal 9 GND - Ground terminal 10 XC-IN I Sub system clock input (32.768kHz) 11 XC-OUT O Sub system clock output (32.768kHz) 12 RESET I System reset signal input from the reset signal IC ("L": reset) After the power supply rises, "L" is input for several hundreds msec and then change to "H". 13 X-OUT O Main system clock output (16MHz) 14 VSS - Ground terminal 15 X-IN I Main system clock input (16MHz) 16 VCC - Power supply terminal (+3.3V) 17 NMI I Non-maskable interrupt input 18 EFFECTOR - SELEC O Effector circuity bypass control signal output ("L":bypass) 19 EFFECTOR - S0 O Effector circuitry delay time selection bit 0 output 20 AC-CUT I AC off detection signal input from the reset signal IC ("L": AC cut detected) 21 MIC STATUS O Mic status output to DVD motherboard 22 KRMOD I Karaoke mode detection input 23 MTK-BUSY O Communication initialization request signal to DVD motherboard 24 MTK-XIFCS I Communication initialization request acknowledgement signal from DVD motherboard 25 MTK-RESET O Reset signal output to DVD motherboard ("L": reset) 26 EJECTSW I Eject detection signal input from CDM 27 TSENS I Disc tray position detection signal input from CDM 28 E3 I Disc tray status detection signal input from CDM 29 IIC-CLK I/O Clock signal for IIC communcation between master control controller and display control controller 30 IIC-DATA I/O Data signal for IIC communcation between master control controller and display control controller 31 MTK-SIO O Serial data output signal to DVD motherboard 32 MTK-SOD I Serial data input signal from DVD motherboard 33 MTK-CLK I Serial data clock signal to DVD motherboard 34 E2 I Disc tray status detection signal input from CDM 35 E1 I Disc tray status detection signal input from CDM 36 TBL-POS O CDM turning motor control signal output 37 TBL-NEG O CDM turning motor control signal output 38 LOG-POS O CDM loading motor control signal output 39 LOG-NEG O CDM loading motor control signal output 40 GC-RESET O Reset signal output to display control IC ("L": reset) 41 STBY-LED O LED drive signal output of POWER indicator ("H": green color "L": red color) 42 FAN-CONTROL O Fan driving signal output ("L": fan on) 43 EFFECTOR - S1 O Effector circuitry delay time selection bit 1 output 44 EFFECTOR - S2 O Effector circuitry delay time selection bit 2 output 45 EFFECTOR - S3 O Effector circuitry delay time selection bit 3 output 46 ANALOG-IN-MUTE O DVD Motherboard analog input signal muting on/off control signal output ("H": muting on) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 71 HCD-GN1000D 47 A-HALF I Deck A cassette detection signal input terminal ("H": cassette detected) 48 A-TRIG O Deck A side trigger plunger drive signal output ("H": plunger on) 49 B-TRIG O Deck B side trigger plunger drive signal output ("H": plunger on) 50 CAPM-CONT O Capstan motor drive signal output 51 SW-SPK RELAY O Relay drive signal output for the passive sub woofer ("H": relay on) 52 REC BIAS O Recording bias on/off control signal output ("H": bias on) 53 TC-RELAY O Recording/playback selection signal output ("H": recording "L": playback) 54 REC-MUTE O Recording muting on/off control signal output ("L":muting on) 55 PB-A/B O Deck A/B playback selection signal output ("H": deck A "L": deck B) 56 ALC O Automatic limiter control signal output ("H": limiter on) 57 EFFECTOR - CTR 1 O Effector circuity mode control 1 output ("L": Delay 1, Delay 2, Effector Off "H": Flanger 1, Flanger 2, Chorus 1, Chorus 2) 59 FAN HI SPEED O Fan speed control signal use in Thermal VACS output ("L": high speed) 59 NO USE I Not used 60 STK-MUTE O Power amplifier and sub woofer amplifier on/off control signal output ("H": amplifier on) 61 SURR-RELAY O Relay drive signal output for the surround speakers ("H": relay on) 62 VCC - Power supply terminal (+3.3V) 63 EFFECTOR - CTR 2 O Effector circuity mode control 2 output ("L": Delay 2 , Effector Off "H": Flanger 1, Flanger 2, Chorus 1, Chorus 2, Delay 1) 64 VSS - Ground terminal 65 CENTER-RELAY O Relay drive signal output for the center speaker ("H": relay on) 66 FRONT-RELAY O Relay drive signal output for the front speakers ("H": relay on) 67 PROTECTOR I Speaker protect detection signal input from speaker protect circuit ("L": protector on) 68 OVER VOLTAGE DET I Over-voltage protection detection input ("L": over-voltage detected) 69 UNDER VOLTAGE DET I "Under-voltage protection detection input ("L": under-voltage detected) 70 EFFECTOR - CTR 3 O Effector circuity mode control 3 output ("L": Chorus 1, Chorus 2, Effector Off "H": Flanger 1, Flanger 2, Delay 1, Delay 2) 71 TC-MUTE O Tape playback muting on/off control signal output ("H": muting on) 72 HP-MUTE O Headphone muting on/off control signal ("H": muting on) 73 DISPLAY-KEY I DISPLAY key press detection signal (Interrupt input) 74 POWER-KEY I POWER key press detection signal (Interrupt input) 75 SW-MUTE O Subwoofer muting on/off control signal output ("L": muting on) 76 LINE-MUTE O Line muting on/off control signal ("H": muting on) 77 DVD-A-MUTE O DVD motherboard analog output signal muting on/off control signal output ("H": muting on) 78 MTK-POWER O Power supply control signal to DVD motherboard ("H": power supply on) 79 AUDIO-IC-DATA O Serial data output to audio signal processor, M61529FP 80 AUDIO-IC-CLK O Serial data transfer clock signal output to audio signal processor, M61529FP 81 VOLUME-IC-DATA O Serial data output to 4-ch volume IC, M61530FP 82 VOLUME-IC-CLK O Serial data transfer clock signal output to 4-ch volume IC, M61530FP 83 AUDIO-OUT-MUTE O Audio out muting on/off control signal ("H": muting on) 84 HP-DETECT I Headphone connection detection signal input ("H": headphone connected) 85 MIC-DETECT I Microphone connection detection signal input ("L": headphone connected) 86 EFFECTOR - FLANGER SELECT O Flanger on/off output signal ("H":on) 87 VIDEO-OUT-SW O Composite video output switching output control ("L": DVD VIDEO output "H": VIDEO VIDEO input) 88 VMUTE O Video muting on/off control signal output ("L": muting on) 89 A-SHUT I Shut off detection signal input from deck A side reeel pulse detector (A/D input) 90 B-SHUT I Shut off detection signal input from deck A side reeel pulse detector (A/D input) Pin No. Pin Name I/O Description www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 72 HCD-GN1000D IC301 AK4358VQ-L (D/A CONVERTER) (DMB15 BOARD) Pin No. Pin Name I/O Desciption 1 LOUT1- O DAC1 Lch negative analog output 2 LOUT1+ O DAC1 Lch positive analog output 3 DZF3 (L) O Zero input detect 3 terminal (Connected to ground) 4 DZF2 (R) O Zero input detect 2 terminal (Connected to ground) 5 DZF1 (SUR) O Zero input detect 1 terminal (Connected to ground) 6 CAD0 I Chip address 0 input (Connected to ground) 7 ACKSN I Auto setting mode disable terminal (Pull-down terminal) ("L":auto settingmode"H": manual setting mode ) (Connected to ground) 8 PDN I Power-down mode terminal When at "L", the AK4358 is in the power-down mode and is held in reset.The AK4358 should always be reset upon power-up. 9 BICK I Audio serial data clock input 10 MCLK I Master clock input 11 DVDD - Digital power supply terminal (+4.75 to +5.25V) 12 DVSS - Digital ground terminal 13 SDTI4 I DAC4 audio serial data input 14 SDTI1 I DAC1 audio serial data input 15 SDTI2 I DAC2 audio serial data input 16 SDTI3 I DAC3 audio serial data input 17 LRCK I L/R clock input 18 I2C I Control mode select input ("L": 3-wire serial "H": IIC bus) 19 SCL I Control data clock input (IIC="L": CCLK (3-wire serial), IIC="H": SCL (IIC bus)) 20 SDA I Control data input (IIC="L": CDTI (3-wire serial), IIC="H": SDA (IIC bus)) 21 CAD1 I Chip select input (IIC="L": CSN (3-wire serial), IIC="H": CAD1 (IIC bus)) (Connected toground) 22 DCLK I DSD clock input (Connected to ground) 23 DSDL4 I DAC4 DSD Lch data input (Connected to ground) 24 DSDR4 I DAC4 DSD Rch data input (Connected to ground) 25 DSDL1 I DAC1 DSD Lch data input (Connected to ground) 26 DSDR1 I DAC1 DSD Rch data input (Connected to ground) 27 DSDL2 I DAC2DSD Lch data input (Connected to ground) 28 DSDR2 I DAC2 DSD Rch data input (Connected to ground) 29 DSDL3 I DAC3 DSD Lch data input (Connected to ground) 30 DSDR3 I DAC3 DSD Rch data input (Connected to ground) 31 DIF0 I Audio data interface format 0 terminal (Connected to ground) 32 ROUT4- O DAC4 Rch negative analog output 91 B-HALF I Deck B cassette detection, forward side recording tab detection and reverse side recording tab detection signal input (A/D input) 92 MODEL-IN I Model setting terminal (A/D input) 93 DEST-IN I Destination setting terminal (A/D input) 94 THERMAL VACS I Thermal VACS detection input from thermal sensor (A/D input) 95 SW-LEVEL-IN I Subwoofer volume level detection signal input from subwoofer volume rotary switch (A/D input) 96 AVSS - Ground terminal (for A/D conversion) 97 NO USE I Not used 98 VREF I A/D Converter reference voltage input terminal (+3.3V) 99 AVCC - Power supply terminal (+3.3V) (for A/D conversion) 100 SW-ON LED O LED drive signal output of SUB WOOFER ON indicator on sub woofer ("H": LED on) Pin No. Pin Name I/O Description www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 73 HCD-GN1000D Pin No. Pin Name I/O Desciption 33 ROUT4+ O DAC4 Rch positive analog output 34 VREFH I Positive voltage reference input 35 AVDD - Analog power supply terminal (+4.75 to +5.25V) 36 AVSS - Analog ground terminal 37 LOUT4- O DAC4 Lch negative analog output 38 LOUT4+ O DAC4 Lch positive analog output 39 ROUT3- O DAC3 Rch negative analog output 40 ROUT3+ O DAC3 Rch positive analog output 41 LOUT3- O DAC3 Lch negative analog output 42 LOUT3+ O DAC3 Lch positive analog output 43 ROUT2- O DAC2 Rch negative analog output 44 ROUT2+ O DAC2 Rch positive analog output 45 LOUT2- O DAC2 Lch negative analog output 46 LOUT2+ O DAC2 Lch positive analog output 47 ROUT1- O DAC1 Rch negative analog output 48 ROUT1+ O DAC1 Rch positive analog output IC902 MB90M407PF-G-149E1 (DISPLAY CONTROL) (PANEL BOARD) Pin No. Pin Name I/O Desciption 1 to 8 G8 to G1 O Grid drive signal output to the fluorescent indicator tube 9,10 P1,P2 O Segment drive signal output to the fluorescent indicator tube 11 VSS-IO - Ground terminal (for I/O port) 12 to 22 P3 to P13 O Segment drive signal output to the fluorescent indicator tube 23 VDD-FIP - Power supply terminal (+3.3V) (for fluorescent indicator tube) 24 to 41 P14 to P31 O Segment drive signal output to the fluorescent indicator tube 42 VSS-IO - Ground terminal (for I/O port) 43 to 47 P32 to P36 O Segment drive signal output to the fluorescent indicator tube 48 VKK - Power supply terminal (+33V) (for fluorescent indicator tube) 49 to 51 M0 to M2 I Setting terminal for the CPU operational mode 52 LED-CD/DVD, TUNER O Dynamic LED drive signal output of the CD/DVD and TUNER indicator (“H”: LED on) 53 LED-TAPE, TV/SAT O Dynamic LED drive signal output of the TAPE and TV/SAT indicator (“H”: LED on) 54 LED-VIDEO, (PAUSE,STOP) O Dynamic LED drive signal output of the VIDEO, PAUSE and STOP indicator (“H”: LED on) 55 LED-(AMS+/-), ( FF, FR) O Dynamic LED drive signal output of the (AMS+/-) and (FF, FR) indicator (“H”: LED on) 56 LED-ILLUMINATION 1, 2 O Dynamic LED drive signal output of the ILLUMINATION 1st and 2nd indicator (“H”: LED on) 57 LED-ILLUMINATION 3, 4 O Dynamic LED drive signal output of the ILLUMINATION 3rd and 4th indicator (“H”: LED on) 58 LED-ILLUMINATION 5, 6 O Dynamic LED drive signal output of the ILLUMINATION 5th and 6th indicator (“H”: LED on) 59 LED-ILLUMINATION 7, 8 O Dynamic LED drive signal output of the ILLUMINATION 7th and 8th indicator (“H”: LED on) 60 I2C-DATA I/O Clock signal for IIC communcation between Master Control controller and Display Control controller 61 I2C-CLOCK I/O Data signal for IIC communcation between Master Control controller and Display Control controller 62 AVCC - Power supply terminal (+3.3V) (for A/D conversion) 63 AVSS - Ground terminal (for A/D conversion) 64 to 66 KEY0 to KEY2 I Key input terminal (A/D input) 67 ALL-BAND I Spectrum analyzer drive signal input from the spectrum analyzer band-pass filter (A/D input) 68 to 71 BPF4 to BPF1 I Spectrum analyzer drive signal input from the spectrum analyzer band-pass filter (A/D input) 72 OPERATION DIAL I Jog dial pulse input from OPERATION DIAL encoder 73 X-ROUND JOG I Jog dial pulse input from X-ROUND encoder 74 VOLUME I Jog dial pulse input from the VOLUME encoder www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 74 HCD-GN1000D 75 LED-BEAT JUMP, BEAT MAX O Dynamic LED drive signal output of the BEAT JUMP and BEAT MAX indicator (“H”: LED on) 76 LED-X-ROUND, DELAY O Dynamic LED drive signal output of the X-ROUND and DELAY indicator (“H”: LED on) 77 RESET I System reset signal input from the Master Control controller (“L”: reset) 78 LED-FLANGER, CHORUS O Dynamic LED drive signal output of FLANGER and CHORUS indicator (“H”: LED on) 79 LED - PLAY O Dynamic LED drive signal output of PLAY indicator (“H”: LED on) 80 LED Selector O Dynamic LED drive select signal output 81 VSS-CPU - Ground terminal (for CPU) 82 XO O System clock output (4 MHz) 83 XI I System clock input (4 MHz) 84 VCC-CPU - Power supply terminal (+3.3V) (for CPU) 85 to 100 G24 to G9 O Grid drive signal output to the fluorescent indicator tube Pin No. Pin Name I/O Desciption www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 75 HCD-GN1000D Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks SECTION 8 EXPLODED VIEWS 8-1. CASE, BACK PANEL SECTION NOTE: • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Hardware (# mark) list and accessories are given in the last of this parts list. • Abbreviation E2 : 120V AC Area in E model E3 : 240V AC Area in E model E12 : 220V-240V AC Area in E model E15 : Iran model EA : Saudi Arabia model MY : Malaysia model PH : Philippines model SP : Singapore model The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. 1 2-655-708-41 PANEL, LOADING (EXCEPT E2) 1 2-685-144-01 PANEL, LOADING (E2) 2 2-342-137-11 CASE 3 3-363-099-02 SCREW (CASE 3 TP2) 4 3-363-099-32 SCREW (CASE 3 TP2) 5 1-693-702-11 TUNER (FM/AM) (TM10SE) 6 A-1193-302-A EFFECTOR BOARD, COMPLETE 07 1-468-737-51 POWER SWITCHING 8 1-828-326-11 WIRE (FLAT TYPE) (13 CORE) (65mm) 9 A-1193-305-A KARAOKE BOARD, COMPLETE 10 1-823-718-11 WIRE (FLAT TYPE) (17 CORE) (100mm) 11 3-378-109-12 CUSHION, SARANET 12 A-1174-061-A VIDEO BOARD, COMPLETE 13 A-1174-274-A DMB15 BOARD, COMPLETE (E3, E12, E15) 13 A-1193-178-A DMB15 BOARD, COMPLETE (EA) 13 A-1193-183-A DMB15 BOARD, COMPLETE (PH, SP, MY, TH) 13 A-1193-188-A DMB15 BOARD, COMPLETE (E2) M891 1-763-372-11 FAN, DC #1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3 #2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 #3 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3 #4 7-685-651-79 SCREW +BVTP 3X20 TYPE2 N-S TH : Thai model 1 #3 #2 #1 #1 #1 #1 #1 #1 #1 #1 5 7 6 10 #2 #2 #4 #3 8 #2 #2 #1 #1 #1 not supplied not supplied not supplied #3 M891 not supplied not supplied not supplied not supplied not supplied not supplied not supplied #1 #1 #1 #1 #1 12 13 9 11 b b a a 2 4 3 4 3 #2 #3 #3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 76 HCD-GN1000D 8-2. FRONT PANEL SECTION-1 51 2-655-724-11 LID (TC) 52 2-655-732-01 SPRING (LID) 53 4-252-579-11 HOLDER TC-R 54 4-252-578-11 HOLDER TC-L 55 4-959-229-11 DETENT, CASSETTE 56 4-224-578-31 KNOB (MIC) 57 4-252-575-01 KNOB VOL 58 X-2103-230-1 KNOB JOG ASSY 59 3-087-053-01 +BVTP2.6 (3CR) 60 A-1156-244-A JOG BOARD, COMPLETE Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 61 2-655-717-01 WINDOW (FL) 62 4-224-104-11 DAMPER 63 A-1156-227-A FUNCTION BOARD, COMPLETE 64 A-1178-730-A PANEL BOARD, COMPLETE 65 1-828-991-11 WIRE (FLAT TYPE) (17 CORE) (100mm) 66 3-077-331-21 +BV3 (3-CR) 67 1-417-658-11 MECHA DECK (CWN42RR603) 68 2-655-734-01 SPRING (R) 69 2-655-733-01 SPRING (L) 70 A-1174-047-A MIC BOARD, COMPLETE #5 7-685-853-01 SCREW +BVTT 2X6 (S) not supplied not supplied not supplied #5 not supplied not supplied 58 59 59 51 52 53 54 55 56 62 63 59 59 59 59 59 59 59 70 59 67 68 69 64 65 66 60 61 62 57 55 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 77 HCD-GN1000D 8-3. FRONT PANEL SECTION-2 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 101 2-655-711-11 BUTTON (PLAY) 102 2-655-713-01 ESCUTCHEON (R) 103 2-655-730-11 ESCUTCHEON (MIC) 104 2-655-718-01 RING (VOL) 105 2-655-722-01 BASE (VOL) 106 2-655-723-21 BUTTON (EQ) 107 2-655-712-01 ESCUTCHEON (L) 108 2-655-710-11 BUTTON (POWER) 109 2-655-716-01 INDICATOR (REMOTE) 110 2-655-707-01 ESCUTCHEON (CD) 111 2-655-709-01 BUTTON (DISC) 112 3-087-053-01 +BVTP2.6 (3CR) 113 2-655-705-21 PANEL, FRONT (EXCEPT E2) 113 2-655-705-41 PANEL, FRONT (E2) 114 4-244-092-01 SPRING (EJECT) 115 2-655-728-01 BUTTON (EJECT A) 116 2-655-729-01 BUTTON (EJECT B) 117 2-655-715-01 BUTTON (DISPLAY) 118 2-655-714-01 BUTTON (MODE) 119 2-655-731-01 INDICATOR (EQ) 120 4-225-252-21 CUSHION (FOOT) 121 2-342-114-01 LEVER (LOCK-GVZ) 122 4-253-037-01 FILTER FL-GNZ not supplied 101 120 102 103 104 105 106 107 108 109 119 110 111 112 122 113 114 114 121 115 116 117 118 112 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 78 HCD-GN1000D 8-4. CHASSIS SECTION Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 151 4-900-386-01 SCREW 152 A-1174-056-A PA BOARD, COMPLETE (EXCEPT E2, EA) 152 A-1193-194-A PA BOARD, COMPLETE (EA) 152 A-1193-198-A PA BOARD, COMPLETE (E2) 153 3-077-331-21 +BV3 (3-CR) 154 A-1174-050-A SURROUND BOARD, COMPLETE 155 3-905-609-31 SCREW (TRANSISTOR) 156 A-1174-058-A TRANS BOARD, COMPLETE (EXCEPT TH) 156 A-1193-948-A TRANS BOARD, COMPLETE (TH) 0157 1-777-071-53 CORD, POWER (EXCEPT TH) 0157 1-824-818-11 CORD, POWER (WITH CONNECTOR) (TH) * 158 3-703-244-00 BUSHING (2104), CORD 159 A-1174-038-A MAIN BOARD, COMPLETE (E3, E15) 159 A-1193-146-A MAIN BOARD, COMPLETE (E12) 159 A-1193-149-A MAIN BOARD, COMPLETE (EA) 159 A-1193-153-A MAIN BOARD, COMPLETE (PH, SP, MY) 159 A-1193-156-A MAIN BOARD, COMPLETE (TH) 159 A-1193-159-A MAIN BOARD, COMPLETE (E2) 160 4-225-252-01 CUSHION (FOOT) 161 4-225-252-21 CUSHION (FOOT) 0F1241 1-533-949-33 FUSE, CYLINDRICAL (TIME LUG) (T8AL/250V) 0F1251 1-533-949-33 FUSE, CYLINDRICAL (TIME LUG) (T8AL/250V) 0F1261 1-533-949-33 FUSE, CYLINDRICAL (TIME LUG) (T8AL/250V) 0F1271 1-533-949-33 FUSE, CYLINDRICAL (TIME LUG) (T8AL/250V) 0F1281 1-532-465-33 FUSE (T3.15AL/250V) 0F1291 1-532-465-33 FUSE (T3.15AL/250V) M892 1-763-372-11 FAN, DC 0T1200 1-443-974-11 POWER TRANSFORMER (EXCEPT EA) 0T1200 1-443-975-11 POWER TRANSFORMER (EA) #1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3 #2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 not supplied not supplied M892 not supplied not supplied not supplied not supplied not supplied not supplied #1 #1 #1 #1 #1 #1 #2 #2 #2 #1 F1241 T1200 F1251 F1261 F1271 F1281 F1291 152 151 151 153 153 153 153 153 153 154 153 156 155 155 157 158 159 160 161 160 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 79 HCD-GN1000D 8-5. DVD MECHANISM SECTION-1 (CDM74HF-DVBU101) 201 4-218-253-42 SCREW (M2.6), +BTTP 202 1-776-182-11 WIRE (FLAT TYPE) (5 CORE) 203 1-687-134-12 MOTOR (TB) BOARD 204 4-243-815-11 TABLE (LOADING) 205 4-245-571-02 GEAR (STOPPER) 206 4-218-252-61 SCREW (+PTPWH M2.6), FLOATING 207 4-245-570-01 GEAR (JOINT) 208 4-245-572-01 BUSHING (GEAR) 209 1-687-132-12 SENSOR BOARD Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 210 4-243-820-01 GEAR (TABLE) 211 4-243-819-01 GEAR (GENEVA) 212 4-243-816-21 TRAY 213 4-243-823-01 BELT (TABLE) 214 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING 215 4-243-821-01 PULLEY (TABLE) 216 3-231-598-01 SHEET (BA) M741 A-1108-965-A MOTOR ASSY, TABLE 202 205 205 206 206 207 207 208 208 209 201 206 212 213 214 215 210 211 214 DVD mechanism section-2 204 201 203 216 M741 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 80 HCD-GN1000D 8-6. DVD MECHANISM SECTION-2 (CDM74HF-DVBU101) Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 251 4-251-923-01 YOKE (310) 252 4-218-253-32 SCREW (M2.6), +BTTP 253 1-687-669-12 SW BOARD 254 4-244-034-01 BELT (LOADING) 255 4-218-252-52 SCREW (+PTPWH M2.6), FLOATING 256 4-225-844-01 GEAR (LOADING A) 257 4-224-613-01 GEAR (SHAFT) 258 1-687-133-12 MOTOR (LD) BOARD 260 4-244-108-01 GEAR, SWING 261 4-224-609-01 GEAR (LOADING C) 262 4-224-608-01 COLLAR, SWING 263 3-016-533-11 WASHER (FR), STOPPER 264 4-224-611-01 GEAR (LOADING B) 265 4-224-606-01 GEAR (RV) 266 4-243-818-01 GEAR (U/D) 267 2-541-918-01 LEVER (LIFTER (H)) 268 2-345-982-01 PULLEY A (310), CHUCKING 269 2-345-983-01 PULLEY B (310), CHUCKING 272 2-634-618-01 INSULATOR 275 3-087-599-01 INSULATOR SCREW 0279 8-820-291-02 OPTICAL PICK-UP KHM-310CAB/C2RP M751 A-4737-553-A MOTOR ASSY, LOADING S711 1-477-680-12 ENCODER, ROTARY 251 252 252 252 253 254 255 256 257 258 260 261 262 263 264 265 266 267 269 268 255 255 255 M751 S711 272 272 272 272 275 275 275 275 255 279 not supplied not supplied not supplied www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 81 HCD-GN1000D SECTION 9 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • CAPACITORS: uF: µF • RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable • COILS uH: µH • SEMICONDUCTORS In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD... • Abbreviation E2 : 120V AC Area in E model E3 : 240V AC Area in E model E12 : 220V-240V AC Area in E model E15 : Iran model EA : Saudi Arabia model MY : Malaysia model PH : Philippines model The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. CD-SW SP : Singapore model TH : Thai model CD-SW BOARD *********** < RESISTOR > R1166 1-216-817-11 METAL CHIP 470 5% 1/10W R1167 1-216-819-11 METAL CHIP 680 5% 1/10W R1168 1-216-821-11 METAL CHIP 1K 5% 1/10W R1169 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1170 1-216-823-11 METAL CHIP 1.5K 5% 1/10W < SWITCH > S1166 1-762-875-21 SWITCH, KEYBOARD ( Z OPEN/CLOSE) S1167 1-762-875-21 SWITCH, KEYBOARD (EX-CHANGE/DISC SKIP) S1168 1-762-875-21 SWITCH, KEYBOARD (DISC 3) S1169 1-762-875-21 SWITCH, KEYBOARD (DISC 2) S1170 1-762-875-21 SWITCH, KEYBOARD (DISC 1) ************************************************************ A-1174-274-A DMB15 BOARD, COMPLETE (E3, E12, E15) A-1193-178-A DMB15 BOARD, COMPLETE (EA) A-1193-183-A DMB15 BOARD, COMPLETE (PH, SP, MY, TH) A-1193-188-A DMB15 BOARD, COMPLETE (E2) ********************* < CAPACITOR > C101 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C102 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C105 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C106 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C108 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C109 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C112 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C113 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C114 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C115 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C116 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C117 1-124-779-00 ELECT CHIP 10uF 20% 16V C118 1-124-779-00 ELECT CHIP 10uF 20% 16V C119 1-124-779-00 ELECT CHIP 10uF 20% 16V C120 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C121 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C122 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C123 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C124 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C125 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C126 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C127 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C128 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C129 1-124-779-00 ELECT CHIP 10uF 20% 16V C130 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C131 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V C132 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C133 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C135 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C136 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C137 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C138 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C139 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C140 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C144 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C146 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C147 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C148 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C149 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C150 1-124-779-00 ELECT CHIP 10uF 20% 16V C151 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V C152 1-162-916-11 CERAMIC CHIP 12PF 5% 50V C153 1-162-916-11 CERAMIC CHIP 12PF 5% 50V C154 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C155 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C156 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C158 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C159 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C160 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C161 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C162 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C163 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C164 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C167 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C170 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C171 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C172 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C173 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C174 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V NOTE ON REPLACEMENT OF DMB15 BOARD New part of EEPROM (IC103) on the DMB15 board cannot be used. Therefore, if the mounted DMB15 board (A-1174-274-A or A- 1193-178-A or A-1193-183-A or A-1193-188-A) is replaced, exchange new EEPROM with that used before the replacement. DMB15 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 82 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN1000D DMB15 C175 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C176 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C177 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C178 1-126-208-21 ELECT CHIP 47uF 20% 4V C179 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C180 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C181 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C182 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C184 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C187 1-126-208-21 ELECT CHIP 47uF 20% 4V C188 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C189 1-128-934-91 CERAMIC CHIP 0.33uF 20% 10V C190 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C191 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C192 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C193 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C195 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C196 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C203 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C205 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C206 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C208 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C209 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C210 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C211 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C212 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C213 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C214 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C215 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C217 1-126-204-11 ELECT CHIP 47uF 20% 16V C218 1-124-779-00 ELECT CHIP 10uF 20% 16V C219 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C220 1-124-779-00 ELECT CHIP 10uF 20% 16V C221 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C222 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C224 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C233 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C301 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C302 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C305 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C306 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C307 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C402 1-126-204-11 ELECT CHIP 47uF 20% 16V C403 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C3601 1-117-370-11 CERAMIC CHIP 10uF 10V C3602 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3603 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3605 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C3606 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3607 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3608 1-124-779-00 ELECT CHIP 10uF 20% 16V C3609 1-124-779-00 ELECT CHIP 10uF 20% 16V C3610 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3611 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C3621 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C3701 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3702 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3703 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3704 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3705 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3706 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3707 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3708 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3711 1-162-977-11 CERAMIC CHIP 0.0018uF 10% 50V C3712 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C3713 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3714 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3721 1-162-977-11 CERAMIC CHIP 0.0018uF 10% 50V C3722 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C3723 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3724 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3731 1-162-977-11 CERAMIC CHIP 0.0018uF 10% 50V C3732 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C3733 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3734 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3741 1-162-977-11 CERAMIC CHIP 0.0018uF 10% 50V C3742 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C3743 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3744 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3751 1-162-977-11 CERAMIC CHIP 0.0018uF 10% 50V C3752 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C3753 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3754 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3761 1-162-977-11 CERAMIC CHIP 0.0018uF 10% 50V C3762 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C3763 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3764 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3771 1-162-977-11 CERAMIC CHIP 0.0018uF 10% 50V C3772 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C3773 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3774 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3781 1-162-977-11 CERAMIC CHIP 0.0018uF 10% 50V C3782 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C3783 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3784 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3801 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C3802 1-117-370-11 CERAMIC CHIP 10uF 10V C3803 1-126-209-11 ELECT CHIP 100uF 20% 4V C3804 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C3805 1-126-208-21 ELECT CHIP 47uF 20% 4V < CONNECTOR > CN101 1-815-763-32 CONNECTOR, FFC/FPC 24P * CN105 1-770-470-21 PIN, CONNECTOR (PC BOARD) 6P CN106 1-793-989-21 FFC/CONNECTOR, FPC (LIF (NON-ZIF)) 13P * CN201 1-770-470-21 PIN, CONNECTOR (PC BOARD) 6P CN301 1-793-989-21 FFC/CONNECTOR, FPC (LIF (NON-ZIF)) 13P CN302 1-778-692-11 CONNECTOR, FFC/FPC 21P CN401 1-779-993-11 PIN, CONNECTOR (PWB) 5P < DIODE > D1001 8-719-058-24 DIODE RB501V-40TE-17 D3501 8-719-988-61 DIODE 1SS355TE-17 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 83 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN1000D DMB15 @ NOTE ON REPLACEMENT OF DMB15 BOARD New part of EEPROM (IC103) on the DMB15 board cannot be used. Therefore, if the mounted DMB15 board (A-1174-274-A or A- 1193-178-A or A-1193-183-A or A-1193-188-A) is replaced, exchange new EEPROM with that used before the replacement. D3502 8-719-988-61 DIODE 1SS355TE-17 D3601 8-719-988-61 DIODE 1SS355TE-17 D3602 8-719-988-61 DIODE 1SS355TE-17 < FERRITE BEAD > FB111 1-414-226-21 INDUCTOR, FERRITE BEAD FB112 1-414-226-21 INDUCTOR, FERRITE BEAD FB113 1-414-226-21 INDUCTOR, FERRITE BEAD FB114 1-414-226-21 INDUCTOR, FERRITE BEAD FB115 1-414-226-21 INDUCTOR, FERRITE BEAD FB401 1-469-324-21 FERRITE, EMI (SMD) (2012) FB402 1-469-324-21 FERRITE, EMI (SMD) (2012) FB403 1-469-324-21 FERRITE, EMI (SMD) (2012) FB404 1-469-324-21 FERRITE, EMI (SMD) (2012) FB405 1-469-324-21 FERRITE, EMI (SMD) (2012) FB406 1-469-324-21 FERRITE, EMI (SMD) (2012) < FILTER > FL101 1-234-177-21 FILTER, CHIP EMI FL104 1-234-177-21 FILTER, CHIP EMI FL105 1-234-177-21 FILTER, CHIP EMI FL106 1-234-177-21 FILTER, CHIP EMI FL107 1-234-177-21 FILTER, CHIP EMI FL108 1-234-177-21 FILTER, CHIP EMI FL401 1-234-177-21 FILTER, CHIP EMI FL402 1-233-893-21 FILTER, CHIP EMI FL403 1-234-177-21 FILTER, CHIP EMI < IC > IC101 6-806-337-01 IC MX29LV320CBTC70-CBA3-0601UC (E2) IC101 6-806-338-01 IC MX29LV320CBTC70-CBA3-0601CE (E3, E12, E15, EA) IC101 6-806-339-01 IC MX29LV320CBTC70-CBA3-0601GA (PH, SP, MY, TH) IC102 6-707-535-01 IC CXD9849R @ IC103 (Not Supplied) IC BR24L64F-WE2 IC104 6-709-370-01 IC A2V64S40CTP-G75 IC105 6-702-302-01 IC TK11133CSCL-G IC106 6-708-153-01 IC PQ018EN01ZPH IC107 6-702-302-01 IC TK11133CSCL-G IC201 6-704-524-01 IC FAN8036L IC301 6-704-222-01 IC AK4358VQ-L IC3601 6-707-608-01 IC PCM1803DBR IC3711 8-759-359-49 IC NJM3414AV (TE2) IC3731 8-759-359-49 IC NJM3414AV (TE2) IC3751 8-759-359-49 IC NJM3414AV (TE2) IC3771 8-759-359-49 IC NJM3414AV (TE2) < COIL > L3601 1-469-555-21 INDUCTOR 10uH L3602 1-469-555-21 INDUCTOR 10uH < TRANSISTOR > Q101 6-550-008-01 TRANSISTOR UM6K1N-TN Q102 6-550-653-01 TRANSISTOR QST8TR Q103 8-729-027-52 TRANSISTOR DTC124EKA-T146 Q3801 8-729-230-49 TRANSISTOR 2SC2712-YG < RESISTOR > R101 1-216-809-11 METAL CHIP 100 5% 1/10W R104 1-216-864-11 SHORT CHIP 0 R105 1-216-833-11 METAL CHIP 10K 5% 1/10W R106 1-216-833-11 METAL CHIP 10K 5% 1/10W R107 1-216-833-11 METAL CHIP 10K 5% 1/10W R108 1-216-857-11 METAL CHIP 1M 5% 1/10W R109 1-216-864-11 SHORT CHIP 0 R110 1-216-841-11 METAL CHIP 47K 5% 1/10W R111 1-216-809-11 METAL CHIP 100 5% 1/10W R112 1-211-977-11 METAL CHIP 22 0.5% 1/10W R113 1-211-977-11 METAL CHIP 22 0.5% 1/10W R114 1-216-845-11 METAL CHIP 100K 5% 1/10W R115 1-211-977-11 METAL CHIP 22 0.5% 1/10W R116 1-216-821-11 METAL CHIP 1K 5% 1/10W R117 1-216-841-11 METAL CHIP 47K 5% 1/10W R118 1-216-801-11 METAL CHIP 22 5% 1/10W R120 1-216-801-11 METAL CHIP 22 5% 1/10W R121 1-216-801-11 METAL CHIP 22 5% 1/10W R123 1-216-864-11 SHORT CHIP 0 R124 1-216-841-11 METAL CHIP 47K 5% 1/10W R126 1-216-864-11 SHORT CHIP 0 R127 1-216-809-11 METAL CHIP 100 5% 1/10W R136 1-216-835-11 METAL CHIP 15K 5% 1/10W R138 1-216-845-11 METAL CHIP 100K 5% 1/10W R141 1-218-916-11 METAL CHIP 750K 0.5% 1/10W R142 1-216-845-11 METAL CHIP 100K 5% 1/10W R146 1-216-805-11 METAL CHIP 47 5% 1/10W R151 1-216-805-11 METAL CHIP 47 5% 1/10W R152 1-216-864-11 SHORT CHIP 0 R153 1-216-805-11 METAL CHIP 47 5% 1/10W R155 1-216-805-11 METAL CHIP 47 5% 1/10W R160 1-216-805-11 METAL CHIP 47 5% 1/10W R161 1-216-809-11 METAL CHIP 100 5% 1/10W R164 1-216-809-11 METAL CHIP 100 5% 1/10W R169 1-216-833-11 METAL CHIP 10K 5% 1/10W R187 1-216-864-11 SHORT CHIP 0 R189 1-218-827-11 METAL CHIP 150 0.5% 1/10W R190 1-218-827-11 METAL CHIP 150 0.5% 1/10W R191 1-216-821-11 METAL CHIP 1K 5% 1/10W R192 1-218-827-11 METAL CHIP 150 0.5% 1/10W R193 1-216-821-11 METAL CHIP 1K 5% 1/10W R195 1-218-827-11 METAL CHIP 150 0.5% 1/10W R196 1-216-864-11 SHORT CHIP 0 R197 1-218-827-11 METAL CHIP 150 0.5% 1/10W R204 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R205 1-216-833-11 METAL CHIP 10K 5% 1/10W R206 1-216-833-11 METAL CHIP 10K 5% 1/10W R207 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R208 1-216-839-11 METAL CHIP 33K 5% 1/10W R209 1-216-839-11 METAL CHIP 33K 5% 1/10W R210 1-216-841-11 METAL CHIP 47K 5% 1/10W R212 1-216-833-11 METAL CHIP 10K 5% 1/10W R213 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R214 1-216-835-11 METAL CHIP 15K 5% 1/10W R215 1-216-834-11 METAL CHIP 12K 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 84 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN1000D Ref. No. Part No. Description Remarks DMB15 R216 1-216-834-11 METAL CHIP 12K 5% 1/10W R219 1-216-838-11 METAL CHIP 27K 5% 1/10W R220 1-216-833-11 METAL CHIP 10K 5% 1/10W R221 1-218-889-11 METAL CHIP 56K 0.5% 1/10W R223 1-218-895-11 METAL CHIP 100K 0.5% 1/10W R224 1-216-833-11 METAL CHIP 10K 5% 1/10W R225 1-218-895-11 METAL CHIP 100K 0.5% 1/10W R226 1-218-889-11 METAL CHIP 56K 0.5% 1/10W R230 1-218-893-11 METAL CHIP 82K 0.5% 1/10W R231 1-218-875-11 METAL CHIP 15K 0.5% 1/10W R232 1-218-877-11 METAL CHIP 18K 0.5% 1/10W R233 1-218-883-11 METAL CHIP 33K 0.5% 1/10W R234 1-216-833-11 METAL CHIP 10K 5% 1/10W R246 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R247 1-216-821-11 METAL CHIP 1K 5% 1/10W R314 1-216-809-11 METAL CHIP 100 5% 1/10W R319 1-216-864-11 SHORT CHIP 0 R321 1-216-864-11 SHORT CHIP 0 R1101 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1102 1-218-827-11 METAL CHIP 150 0.5% 1/10W R1103 1-216-833-11 METAL CHIP 10K 5% 1/10W R1104 1-216-833-11 METAL CHIP 10K 5% 1/10W R1105 1-216-833-11 METAL CHIP 10K 5% 1/10W R1108 1-216-864-11 SHORT CHIP 0 R1109 1-216-864-11 SHORT CHIP 0 R1110 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R1120 1-216-864-11 SHORT CHIP 0 R1121 1-216-864-11 SHORT CHIP 0 R1122 1-216-864-11 SHORT CHIP 0 R1123 1-216-864-11 SHORT CHIP 0 R1124 1-216-864-11 SHORT CHIP 0 R1125 1-216-864-11 SHORT CHIP 0 R1126 1-216-833-11 METAL CHIP 10K 5% 1/10W R1129 1-216-845-11 METAL CHIP 100K 5% 1/10W R1133 1-216-864-11 SHORT CHIP 0 R1134 1-216-864-11 SHORT CHIP 0 R1150 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1151 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1152 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1161 1-216-864-11 SHORT CHIP 0 R1168 1-216-817-11 METAL CHIP 470 5% 1/10W R1502 1-216-864-11 SHORT CHIP 0 R1504 1-400-244-11 BEAD, FERRITE (CHIP) (1608) R1524 1-216-864-11 SHORT CHIP 0 R1526 1-216-864-11 SHORT CHIP 0 R1527 1-216-864-11 SHORT CHIP 0 R1530 1-216-864-11 SHORT CHIP 0 R1531 1-216-864-11 SHORT CHIP 0 R1540 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1542 1-216-833-11 METAL CHIP 10K 5% 1/10W R1543 1-216-833-11 METAL CHIP 10K 5% 1/10W R1544 1-216-864-11 SHORT CHIP 0 R1546 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1547 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1548 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1549 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1550 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1551 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1553 1-216-864-11 SHORT CHIP 0 R1554 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1557 1-216-809-11 METAL CHIP 100 5% 1/10W R1559 1-216-833-11 METAL CHIP 10K 5% 1/10W R2504 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3504 1-216-809-11 METAL CHIP 100 5% 1/10W R3505 1-216-809-11 METAL CHIP 100 5% 1/10W R3601 1-216-809-11 METAL CHIP 100 5% 1/10W R3602 1-216-809-11 METAL CHIP 100 5% 1/10W R3603 1-216-833-11 METAL CHIP 10K 5% 1/10W R3605 1-216-864-11 SHORT CHIP 0 R3606 1-216-864-11 SHORT CHIP 0 R3607 1-216-864-11 SHORT CHIP 0 R3609 1-216-864-11 SHORT CHIP 0 R3611 1-216-809-11 METAL CHIP 100 5% 1/10W R3621 1-216-809-11 METAL CHIP 100 5% 1/10W R3651 1-216-864-11 SHORT CHIP 0 R3652 1-216-864-11 SHORT CHIP 0 R3653 1-216-864-11 SHORT CHIP 0 R3711 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3712 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3713 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3714 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3715 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3716 1-216-821-11 METAL CHIP 1K 5% 1/10W R3717 1-216-821-11 METAL CHIP 1K 5% 1/10W R3718 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3719 1-216-821-11 METAL CHIP 1K 5% 1/10W R3721 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3722 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3723 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3724 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3725 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3726 1-216-821-11 METAL CHIP 1K 5% 1/10W R3727 1-216-821-11 METAL CHIP 1K 5% 1/10W R3728 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3729 1-216-821-11 METAL CHIP 1K 5% 1/10W R3731 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3732 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3733 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3734 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3735 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3736 1-216-821-11 METAL CHIP 1K 5% 1/10W R3737 1-216-821-11 METAL CHIP 1K 5% 1/10W R3738 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3739 1-216-821-11 METAL CHIP 1K 5% 1/10W R3741 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3742 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3743 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3744 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3745 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3746 1-216-821-11 METAL CHIP 1K 5% 1/10W R3747 1-216-821-11 METAL CHIP 1K 5% 1/10W R3748 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3749 1-216-821-11 METAL CHIP 1K 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 85 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN1000D DRIVER DMB15 R3751 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3752 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3753 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3754 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3755 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3756 1-216-821-11 METAL CHIP 1K 5% 1/10W R3757 1-216-821-11 METAL CHIP 1K 5% 1/10W R3758 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3759 1-216-821-11 METAL CHIP 1K 5% 1/10W R3761 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3762 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3763 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3764 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3765 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3766 1-216-821-11 METAL CHIP 1K 5% 1/10W R3767 1-216-821-11 METAL CHIP 1K 5% 1/10W R3768 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3769 1-216-821-11 METAL CHIP 1K 5% 1/10W R3771 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3772 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3773 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3774 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3775 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3776 1-216-821-11 METAL CHIP 1K 5% 1/10W R3777 1-216-821-11 METAL CHIP 1K 5% 1/10W R3778 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3779 1-216-821-11 METAL CHIP 1K 5% 1/10W R3781 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3782 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3783 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3784 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3785 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3786 1-216-821-11 METAL CHIP 1K 5% 1/10W R3787 1-216-821-11 METAL CHIP 1K 5% 1/10W R3788 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3789 1-216-821-11 METAL CHIP 1K 5% 1/10W R3801 1-216-864-11 SHORT CHIP 0 R3802 1-216-864-11 SHORT CHIP 0 R3803 1-216-833-11 METAL CHIP 10K 5% 1/10W R3804 1-216-836-11 METAL CHIP 18K 5% 1/10W R3805 1-216-821-11 METAL CHIP 1K 5% 1/10W R4701 1-216-864-11 SHORT CHIP 0 R4702 1-216-864-11 SHORT CHIP 0 R4703 1-216-864-11 SHORT CHIP 0 R4704 1-216-864-11 SHORT CHIP 0 R4705 1-216-864-11 SHORT CHIP 0 R4706 1-216-864-11 SHORT CHIP 0 < COMPOSITION CIRCUIT BLOCK > RB103 1-234-795-21 RES, NETWORK 0X4 (2010) RB104 1-234-795-21 RES, NETWORK 0X4 (2010) RB105 1-234-371-21 RES, NETWORK 47 (1005X4) RB106 1-234-371-21 RES, NETWORK 47 (1005X4) RB107 1-234-370-21 RES, NETWORK 22 (1005X4) RB108 1-234-370-21 RES, NETWORK 22 (1005X4) RB111 1-234-795-21 RES, NETWORK 0X4 (2010) RB112 1-234-370-21 RES, NETWORK 22 (1005X4) RB113 1-234-370-21 RES, NETWORK 22 (1005X4) < VIBRATOR > X101 1-781-867-21 VIBRATOR, CRYSTAL (27 MHz) ************************************************************ DRIVER BOARD ************ < CAPACITOR > C715 1-126-933-11 ELECT 100uF 20% 16V C731 1-126-964-11 ELECT 10uF 20% 50V C735 1-164-159-11 CERAMIC 0.1uF 50V C736 1-164-159-11 CERAMIC 0.1uF 50V C737 1-164-159-11 CERAMIC 0.1uF 50V C741 1-162-306-11 CERAMIC 0.01uF 20% 16V C751 1-162-306-11 CERAMIC 0.01uF 20% 16V C752 1-164-159-11 CERAMIC 0.1uF 50V < CONNECTOR > CN701 1-784-735-11 CONNECTOR, FFC 13P CN702 1-784-766-11 CONNECTOR, FFC 5P * CN703 1-564-720-11 PIN, CONNECTOR (SMALL TYPE) 4P CN704 1-785-328-11 PIN, CONNECTOR (LIGHT ANGRE) 2P < DIODE > D701 8-719-947-16 DIODE MTZJ-T-72-5.1A D711 8-719-983-66 DIODE MTZJ-T-72-3.6B < IC > IC701 8-759-598-69 IC BA6956AN IC712 8-759-598-69 IC BA6956AN < TRANSISTOR > Q731 8-729-029-66 TRANSISTOR DTC114ESA < RESISTOR > R701 1-249-413-11 CARBON 470 5% 1/4W R702 1-247-807-31 CARBON 100 5% 1/4W R711 1-247-831-91 CARBON 1K 5% 1/4W R712 1-247-847-91 CARBON 4.7K 5% 1/4W R713 1-247-863-91 CARBON 22K 5% 1/4W R721 1-247-847-91 CARBON 4.7K 5% 1/4W R722 1-247-847-91 CARBON 4.7K 5% 1/4W R723 1-247-847-91 CARBON 4.7K 5% 1/4W R731 1-247-807-31 CARBON 100 5% 1/4W R732 1-249-429-11 CARBON 10K 5% 1/4W R733 1-247-831-91 CARBON 1K 5% 1/4W R734 1-249-430-11 CARBON 12K 5% 1/4W R736 1-249-412-11 CARBON 390 5% 1/4W R751 1-247-847-91 CARBON 4.7K 5% 1/4W ************************************************************ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 86 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN1000D EFFECTOR A-1193-302-A EFFECTOR BOARD, COMPLETE ************************ < CAPACITOR > C1506 1-136-495-11 FILM 0.068uF 5% 50V C1507 1-136-495-11 FILM 0.068uF 5% 50V C1509 1-162-905-11 CERAMIC CHIP 1PF 0.25PF 50V C1512 1-126-964-11 ELECT 10uF 20% 50V C1513 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1515 1-126-947-11 ELECT 47uF 20% 35V C1516 1-136-495-11 FILM 0.068uF 5% 50V C1517 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C1519 1-126-960-11 ELECT 1uF 20% 50V C1520 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C1521 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C1522 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C1523 1-136-495-11 FILM 0.068uF 5% 50V C1524 1-126-957-11 ELECT 0.22uF 20% 50V C1525 1-126-957-11 ELECT 0.22uF 20% 50V C1526 1-136-497-81 FILM 0.1uF 5% 50V C1528 1-126-967-11 ELECT 47uF 20% 50V C1529 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C1530 1-136-159-00 FILM 0.033uF 5% 50V C1542 1-130-479-00 MYLAR 0.0047uF 5% 50V C1544 1-130-479-00 MYLAR 0.0047uF 5% 50V C1545 1-126-964-11 ELECT 10uF 20% 50V C1546 1-126-964-11 ELECT 10uF 20% 50V C1548 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C1552 1-126-964-11 ELECT 10uF 20% 50V C1554 1-126-964-11 ELECT 10uF 20% 50V C1555 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C1559 1-126-964-11 ELECT 10uF 20% 50V C1560 1-126-964-11 ELECT 10uF 20% 50V C1561 1-126-964-11 ELECT 10uF 20% 50V C1562 1-126-964-11 ELECT 10uF 20% 50V C1568 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1569 1-126-964-11 ELECT 10uF 20% 50V C1570 1-126-964-11 ELECT 10uF 20% 50V C1571 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1572 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1576 1-126-964-11 ELECT 10uF 20% 50V C1578 1-126-964-11 ELECT 10uF 20% 50V C1584 1-104-658-91 ELECT 100uF 20% 10V < CONNECTOR > CN1501 1-779-285-11 CONNECTOR, FFC (LIF (NON-ZIF)) 17P < DIODE > D1502 8-719-069-56 DIODE UDZSTE-176.2B < IC > IC1500 8-759-710-97 IC NJM4565M-D IC1501 8-759-496-41 IC M65850FP-E1 IC1503 6-709-217-01 IC TC74LVX4051FT IC1505 8-759-710-97 IC NJM4565M-D IC1506 6-709-218-01 IC TC74LVX4052FT < COIL > L1500 1-414-183-41 INDUCTOR 10uH < TRANSISTOR > Q1502 8-729-055-10 TRANSISTOR 2SK3378ENTL Q1506 8-729-055-10 TRANSISTOR 2SK3378ENTL Q1507 8-729-056-46 TRANSISTOR 2SC5053T100Q Q1508 8-729-055-10 TRANSISTOR 2SK3378ENTL Q1509 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q1510 8-729-027-43 TRANSISTOR DTC114EKA-T146 < RESISTOR > R1500 1-216-809-11 METAL CHIP 100 5% 1/10W R1501 1-216-809-11 METAL CHIP 100 5% 1/10W R1502 1-216-809-11 METAL CHIP 100 5% 1/10W R1504 1-216-809-11 METAL CHIP 100 5% 1/10W R1505 1-216-833-11 METAL CHIP 10K 5% 1/10W R1508 1-216-833-11 METAL CHIP 10K 5% 1/10W R1510 1-216-836-11 METAL CHIP 18K 5% 1/10W R1511 1-216-836-11 METAL CHIP 18K 5% 1/10W R1512 1-216-836-11 METAL CHIP 18K 5% 1/10W R1514 1-216-836-11 METAL CHIP 18K 5% 1/10W R1515 1-216-836-11 METAL CHIP 18K 5% 1/10W R1516 1-216-833-11 METAL CHIP 10K 5% 1/10W R1517 1-216-833-11 METAL CHIP 10K 5% 1/10W R1519 1-216-864-11 SHORT CHIP 0 R1520 1-216-864-11 SHORT CHIP 0 R1522 1-216-864-11 SHORT CHIP 0 R1525 1-216-809-11 METAL CHIP 100 5% 1/10W R1526 1-216-833-11 METAL CHIP 10K 5% 1/10W R1527 1-216-809-11 METAL CHIP 100 5% 1/10W R1528 1-216-845-11 METAL CHIP 100K 5% 1/10W R1529 1-216-845-11 METAL CHIP 100K 5% 1/10W R1530 1-216-815-11 METAL CHIP 330 5% 1/10W R1531 1-216-817-11 METAL CHIP 470 5% 1/10W R1532 1-216-820-11 METAL CHIP 820 5% 1/10W R1533 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R1534 1-216-824-11 METAL CHIP 1.8K 5% 1/10W R1535 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R1536 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R1537 1-216-841-11 METAL CHIP 47K 5% 1/10W R1538 1-216-838-11 METAL CHIP 27K 5% 1/10W R1546 1-216-836-11 METAL CHIP 18K 5% 1/10W R1547 1-216-833-11 METAL CHIP 10K 5% 1/10W R1549 1-216-833-11 METAL CHIP 10K 5% 1/10W R1550 1-216-833-11 METAL CHIP 10K 5% 1/10W R1557 1-216-845-11 METAL CHIP 100K 5% 1/10W R1558 1-216-845-11 METAL CHIP 100K 5% 1/10W R1559 1-216-845-11 METAL CHIP 100K 5% 1/10W R1560 1-216-845-11 METAL CHIP 100K 5% 1/10W R1565 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1566 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1567 1-216-837-11 METAL CHIP 22K 5% 1/10W R1568 1-216-837-11 METAL CHIP 22K 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 87 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN1000D R1569 1-216-845-11 METAL CHIP 100K 5% 1/10W R1570 1-216-845-11 METAL CHIP 100K 5% 1/10W R1571 1-216-845-11 METAL CHIP 100K 5% 1/10W R1572 1-216-821-11 METAL CHIP 1K 5% 1/10W R1573 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1574 1-216-845-11 METAL CHIP 100K 5% 1/10W R1575 1-216-821-11 METAL CHIP 1K 5% 1/10W R1576 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1579 1-216-845-11 METAL CHIP 100K 5% 1/10W R1580 1-216-837-11 METAL CHIP 22K 5% 1/10W R1581 1-216-837-11 METAL CHIP 22K 5% 1/10W R1582 1-216-845-11 METAL CHIP 100K 5% 1/10W R1584 1-216-864-11 SHORT CHIP 0 R1585 1-216-864-11 SHORT CHIP 0 R1586 1-216-864-11 SHORT CHIP 0 R1589 1-216-803-11 METAL CHIP 33 5% 1/10W R1590 1-216-841-11 METAL CHIP 47K 5% 1/10W R1591 1-216-841-11 METAL CHIP 47K 5% 1/10W R1592 1-216-864-11 SHORT CHIP 0 R1594 1-216-836-11 METAL CHIP 18K 5% 1/10W R1595 1-216-836-11 METAL CHIP 18K 5% 1/10W R1600 1-216-838-11 METAL CHIP 27K 5% 1/10W R1601 1-216-845-11 METAL CHIP 100K 5% 1/10W R1602 1-216-838-11 METAL CHIP 27K 5% 1/10W R1603 1-216-845-11 METAL CHIP 100K 5% 1/10W ************************************************************ A-1156-227-A FUNCTION BOARD, COMPLETE ************************ < CAPACITOR > C907 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C965 1-164-156-11 CERAMIC CHIP 0.1uF 25V C966 1-164-156-11 CERAMIC CHIP 0.1uF 25V C969 1-164-156-11 CERAMIC CHIP 0.1uF 25V C970 1-164-156-11 CERAMIC CHIP 0.1uF 25V C971 1-164-156-11 CERAMIC CHIP 0.1uF 25V C976 1-164-156-11 CERAMIC CHIP 0.1uF 25V C984 1-162-953-11 CERAMIC CHIP 100PF 5% 50V < CONNECTOR > * CN901 1-569-934-11 SOCKET, CONNECTOR 17P CNS902 1-820-050-11 BOARD TO BOARD HEADER (8P) < DIODE > D1017 6-500-725-01 DIODE SLR-343VCT32 (DELAY) D1020 6-500-725-01 DIODE SLR-343VCT32 (FLANGER) < JUMPER RESISTOR > JR921 1-216-864-11 SHORT CHIP 0 JR923 1-216-864-11 SHORT CHIP 0 < TRANSISTOR > Q921 8-729-027-50 TRANSISTOR DTC123JKA-T146 < RESISTOR > R958 1-216-819-11 METAL CHIP 680 5% 1/10W R959 1-216-821-11 METAL CHIP 1K 5% 1/10W R960 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R961 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R962 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R963 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R972 1-216-821-11 METAL CHIP 1K 5% 1/10W R973 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R1001 1-216-817-11 METAL CHIP 470 5% 1/10W R1002 1-216-819-11 METAL CHIP 680 5% 1/10W R1003 1-216-821-11 METAL CHIP 1K 5% 1/10W R1004 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1005 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1006 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1014 1-216-817-11 METAL CHIP 470 5% 1/10W R1018 1-216-819-11 METAL CHIP 680 5% 1/10W R1186 1-216-814-11 METAL CHIP 270 5% 1/10W < SWITCH > S901 1-762-875-21 SWITCH, KEYBOARD (PROGRESSIVE) S902 1-762-875-21 SWITCH, KEYBOARD (GROOVE) S903 1-762-875-21 SWITCH, KEYBOARD (EQ BAND) S904 1-762-875-21 SWITCH, KEYBOARD (DIRECTION) S905 1-762-875-21 SWITCH, KEYBOARD (REC PAUSE/START) S906 1-762-875-21 SWITCH, KEYBOARD (CD SYNC) S914 1-762-875-21 SWITCH, KEYBOARD (ENTER) S915 1-762-875-21 SWITCH, KEYBOARD (SOUND FLASH) S916 1-762-875-21 SWITCH, KEYBOARD (DELAY) S917 1-762-875-21 SWITCH, KEYBOARD (FLANGER) S918 1-762-875-21 SWITCH, KEYBOARD (SOUND FIELD) S919 1-762-875-21 SWITCH, KEYBOARD (ILLUMINATION) S920 1-762-875-21 SWITCH, KEYBOARD (AMP MENU) S928 1-762-875-21 SWITCH, KEYBOARD (DISPLAY) S970 1-418-725-61 ENCODER, ROTARY (12 TYPE) (MASTER VOLUME) ************************************************************ A-1156-244-A JOG BOARD, COMPLETE ******************* < CAPACITOR > C1150 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V < CONNECTOR > CNS903 1-562-573-31 SOCKET, CONNECTOR 8P < DIODE > D919 6-500-809-01 DIODE SELU5223C-STP15 (VOL 1) D920 6-500-809-01 DIODE SELU5223C-STP15 (VOL 2) D921 6-500-809-01 DIODE SELU5223C-STP15 (VOL 3) D922 6-500-809-01 DIODE SELU5223C-STP15 (VOL 4) D923 6-500-809-01 DIODE SELU5223C-STP15 (VOL 5) D924 6-500-809-01 DIODE SELU5223C-STP15 (VOL 6) D925 6-500-809-01 DIODE SELU5223C-STP15 (VOL 7) D926 6-500-809-01 DIODE SELU5223C-STP15 (VOL 8) < JUMPER RESISTOR > JR1 1-216-864-11 SHORT CHIP 0 JR2 1-216-864-11 SHORT CHIP 0 FUNCTION JOG EFFECTOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 88 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN1000D MAIN JOG JR3 1-216-864-11 SHORT CHIP 0 JR4 1-216-864-11 SHORT CHIP 0 JR5 1-216-864-11 SHORT CHIP 0 JR922 1-216-864-11 SHORT CHIP 0 JR1096 1-216-864-11 SHORT CHIP 0 < TRANSISTOR > Q911 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q912 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q913 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q915 8-729-027-43 TRANSISTOR DTC114EKA-T146 < RESISTOR > R1040 1-216-821-11 METAL CHIP 1K 5% 1/10W R1144 1-216-820-11 METAL CHIP 820 5% 1/10W R1145 1-216-820-11 METAL CHIP 820 5% 1/10W R1146 1-216-820-11 METAL CHIP 820 5% 1/10W R1149 1-216-820-11 METAL CHIP 820 5% 1/10W R1150 1-216-820-11 METAL CHIP 820 5% 1/10W R1151 1-216-820-11 METAL CHIP 820 5% 1/10W R1153 1-216-820-11 METAL CHIP 820 5% 1/10W R1154 1-216-820-11 METAL CHIP 820 5% 1/10W R1155 1-216-820-11 METAL CHIP 820 5% 1/10W R1157 1-216-820-11 METAL CHIP 820 5% 1/10W R1158 1-216-820-11 METAL CHIP 820 5% 1/10W R1159 1-216-820-11 METAL CHIP 820 5% 1/10W R1161 1-216-821-11 METAL CHIP 1K 5% 1/10W R1162 1-216-809-11 METAL CHIP 100 5% 1/10W R1163 1-216-809-11 METAL CHIP 100 5% 1/10W R1164 1-216-809-11 METAL CHIP 100 5% 1/10W R1165 1-216-809-11 METAL CHIP 100 5% 1/10W < SWITCH > S1161 1-479-203-11 ENCODER (ROTARY) (OPERATION DIAL) ************************************************************ A-1193-305-A KARAOKE BOARD, COMPLETE *********************** < CAPACITOR > C2000 1-124-584-00 ELECT 100uF 20% 6.3V C2001 1-124-589-11 ELECT 47uF 20% 16V C2002 1-124-589-11 ELECT 47uF 20% 16V C2004 1-124-257-00 ELECT 2.2uF 20% 50V C2005 1-124-589-11 ELECT 47uF 20% 16V C2006 1-126-160-11 ELECT 1uF 20% 50V C2007 1-164-156-11 CERAMIC CHIP 0.1uF 25V C2008 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C2009 1-124-589-11 ELECT 47uF 20% 16V C2010 1-124-257-00 ELECT 2.2uF 20% 50V C2011 1-124-589-11 ELECT 47uF 20% 16V C2013 1-164-156-11 CERAMIC CHIP 0.1uF 25V C2015 1-164-156-11 CERAMIC CHIP 0.1uF 25V C2016 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V < DIODE > D2000 6-501-193-01 DIODE 1SS355WTE-17 D2001 6-501-193-01 DIODE 1SS355WTE-17 D2002 6-501-193-01 DIODE 1SS355WTE-17 D2003 6-501-193-01 DIODE 1SS355WTE-17 D2006 6-501-193-01 DIODE 1SS355WTE-17 D2007 6-501-193-01 DIODE 1SS355WTE-17 D2008 6-501-193-01 DIODE 1SS355WTE-17 < IC > IC2000 8-759-545-66 IC NJM3414AMP (TE2) IC2001 8-759-700-07 IC NJM2903M IC2002 8-759-700-07 IC NJM2903M < RESISTOR > R2000 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R2001 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R2002 1-216-837-11 METAL CHIP 22K 5% 1/10W R2004 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R2005 1-216-841-11 METAL CHIP 47K 5% 1/10W R2007 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R2008 1-216-841-11 METAL CHIP 47K 5% 1/10W R2009 1-216-821-11 METAL CHIP 1K 5% 1/10W R2010 1-216-845-11 METAL CHIP 100K 5% 1/10W R2011 1-216-864-11 SHORT CHIP 0 R2012 1-216-845-11 METAL CHIP 100K 5% 1/10W R2014 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R2015 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R2016 1-216-841-11 METAL CHIP 47K 5% 1/10W R2017 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R2019 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R2020 1-216-864-11 SHORT CHIP 0 R2021 1-216-864-11 SHORT CHIP 0 R2022 1-216-833-11 METAL CHIP 10K 5% 1/10W R2024 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R2025 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R2026 1-216-864-11 SHORT CHIP 0 R2028 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R2029 1-216-837-11 METAL CHIP 22K 5% 1/10W R2030 1-216-864-11 SHORT CHIP 0 R2031 1-216-837-11 METAL CHIP 22K 5% 1/10W R2032 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R2034 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R2035 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R2036 1-216-864-11 SHORT CHIP 0 R2037 1-216-864-11 SHORT CHIP 0 ************************************************************ A-1174-038-A MAIN BOARD, COMPLETE (E3, E15) A-1193-146-A MAIN BOARD, COMPLETE (E12) A-1193-149-A MAIN BOARD, COMPLETE (EA) A-1193-153-A MAIN BOARD, COMPLETE (PH, SP, MY) A-1193-156-A MAIN BOARD, COMPLETE (TH) A-1193-159-A MAIN BOARD, COMPLETE (E2) ******************** < CAPACITOR > C101 1-104-658-91 ELECT 100uF 20% 10V C102 1-126-964-11 ELECT 10uF 20% 50V C103 1-126-964-11 ELECT 10uF 20% 50V KARAOKE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 89 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN1000D MAIN C104 1-126-964-11 ELECT 10uF 20% 50V C105 1-126-964-11 ELECT 10uF 20% 50V C106 1-130-487-00 MYLAR 0.022uF 5% 50V C107 1-130-487-00 MYLAR 0.022uF 5% 50V C108 1-130-489-00 MYLAR 0.033uF 5% 50V C109 1-126-960-11 ELECT 1uF 20% 50V C110 1-130-481-00 MYLAR 0.0068uF 5% 50V C111 1-126-964-11 ELECT 10uF 20% 50V C112 1-136-170-00 FILM 0.27uF 5% 50V C113 1-136-170-00 FILM 0.27uF 5% 50V C114 1-126-964-11 ELECT 10uF 20% 50V C115 1-164-156-11 CERAMIC CHIP 0.1uF 25V C116 1-126-924-11 ELECT 330uF 20% 10V C121 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C122 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C130 1-126-964-11 ELECT 10uF 20% 50V C131 1-126-959-11 ELECT 0.47uF 20% 50V C150 1-126-964-11 ELECT 10uF 20% 50V C152 1-126-964-11 ELECT 10uF 20% 50V C153 1-126-964-11 ELECT 10uF 20% 50V C154 1-126-964-11 ELECT 10uF 20% 50V C155 1-126-964-11 ELECT 10uF 20% 50V C156 1-130-487-00 MYLAR 0.022uF 5% 50V C157 1-130-487-00 MYLAR 0.022uF 5% 50V C158 1-130-489-00 MYLAR 0.033uF 5% 50V C159 1-126-960-11 ELECT 1uF 20% 50V C160 1-130-481-00 MYLAR 0.0068uF 5% 50V C161 1-126-964-11 ELECT 10uF 20% 50V C162 1-136-170-00 FILM 0.27uF 5% 50V C163 1-136-170-00 FILM 0.27uF 5% 50V C164 1-126-964-11 ELECT 10uF 20% 50V C166 1-126-964-11 ELECT 10uF 20% 50V C167 1-126-964-11 ELECT 10uF 20% 50V C200 1-136-497-81 FILM 0.1uF 5% 50V C201 1-136-497-81 FILM 0.1uF 5% 50V C202 1-126-964-11 ELECT 10uF 20% 50V C205 1-104-658-91 ELECT 100uF 20% 10V C206 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C207 1-124-261-00 ELECT 10uF 20% 50V C209 1-124-261-00 ELECT 10uF 20% 50V C210 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C211 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C212 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C213 1-126-964-11 ELECT 10uF 20% 50V C214 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C215 1-126-964-11 ELECT 10uF 20% 50V C216 1-126-964-11 ELECT 10uF 20% 50V C217 1-126-964-11 ELECT 10uF 20% 50V C218 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C219 1-126-964-11 ELECT 10uF 20% 50V C220 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C221 1-126-960-11 ELECT 1uF 20% 50V C222 1-126-964-11 ELECT 10uF 20% 50V C223 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C224 1-126-964-11 ELECT 10uF 20% 50V C225 1-126-960-11 ELECT 1uF 20% 50V C226 1-126-960-11 ELECT 1uF 20% 50V C227 1-126-960-11 ELECT 1uF 20% 50V C228 1-126-960-11 ELECT 1uF 20% 50V C229 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C235 1-162-953-11 CERAMIC CHIP 100PF 5% 50V C242 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C251 1-126-960-11 ELECT 1uF 20% 50V C252 1-126-964-11 ELECT 10uF 20% 50V C255 1-104-658-91 ELECT 100uF 20% 10V C256 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C257 1-126-964-11 ELECT 10uF 20% 50V C258 1-126-964-11 ELECT 10uF 20% 50V C259 1-124-261-00 ELECT 10uF 20% 50V C260 1-164-156-11 CERAMIC CHIP 0.1uF 25V C261 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C262 1-126-964-11 ELECT 10uF 20% 50V C263 1-126-964-11 ELECT 10uF 20% 50V C264 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C265 1-126-964-11 ELECT 10uF 20% 50V C266 1-126-964-11 ELECT 10uF 20% 50V C267 1-126-964-11 ELECT 10uF 20% 50V C268 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C269 1-126-964-11 ELECT 10uF 20% 50V C270 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C272 1-126-923-91 ELECT 220uF 20% 10V C273 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C274 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C276 1-126-960-11 ELECT 1uF 20% 50V C277 1-126-960-11 ELECT 1uF 20% 50V C278 1-126-960-11 ELECT 1uF 20% 50V C279 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C301 1-136-967-11 FILM 0.012uF 5% 100V C303 1-136-497-81 FILM 0.1uF 5% 50V C304 1-126-964-11 ELECT 10uF 20% 50V C305 1-126-960-11 ELECT 1uF 20% 50V C306 1-126-961-11 ELECT 2.2uF 20% 50V C307 1-126-964-11 ELECT 10uF 20% 50V C308 1-126-925-91 ELECT 470uF 20% 10V C309 1-126-947-11 ELECT 47uF 20% 35V C310 1-126-964-11 ELECT 10uF 20% 50V C311 1-126-964-11 ELECT 10uF 20% 50V C312 1-126-964-11 ELECT 10uF 20% 50V C314 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C325 1-126-964-11 ELECT 10uF 20% 50V C326 1-115-412-11 CERAMIC CHIP 680PF 5% 25V C328 1-137-427-11 MYLAR 120PF 5% 50V C332 1-164-670-11 CERAMIC CHIP 1200PF 5% 16V C333 1-162-959-11 CERAMIC CHIP 330PF 5% 50V C335 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C340 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C341 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C351 1-136-967-11 FILM 0.012uF 5% 100V C352 1-126-947-11 ELECT 47uF 20% 35V C353 1-136-497-81 FILM 0.1uF 5% 50V C354 1-126-964-11 ELECT 10uF 20% 50V C355 1-126-960-11 ELECT 1uF 20% 50V C356 1-126-961-11 ELECT 2.2uF 20% 50V C357 1-126-963-11 ELECT 4.7uF 20% 50V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 90 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN1000D MAIN C358 1-126-963-11 ELECT 4.7uF 20% 50V C359 1-126-947-11 ELECT 47uF 20% 35V C360 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C361 1-126-964-11 ELECT 10uF 20% 50V C362 1-126-963-11 ELECT 4.7uF 20% 50V C363 1-126-963-11 ELECT 4.7uF 20% 50V C364 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C365 1-126-960-11 ELECT 1uF 20% 50V C370 1-137-150-11 FILM 0.01uF 5% 100V 371 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C372 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C373 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C374 1-126-947-11 ELECT 47uF 20% 35V C376 1-115-412-11 CERAMIC CHIP 680PF 5% 25V C377 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C378 1-137-427-11 MYLAR 120PF 5% 50V C379 1-130-481-00 MYLAR 0.0068uF 5% 50V C382 1-164-670-11 CERAMIC CHIP 1200PF 5% 16V C383 1-162-959-11 CERAMIC CHIP 330PF 5% 50V C385 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C410 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C411 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C412 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C413 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C414 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C415 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C416 1-104-656-11 ELECT 2200uF 20% 6.3V C431 1-126-964-11 ELECT 10uF 20% 50V C462 1-104-658-91 ELECT 100uF 20% 10V C464 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C501 1-126-964-11 ELECT 10uF 20% 50V C502 1-136-497-81 FILM 0.1uF 5% 50V C503 1-136-497-81 FILM 0.1uF 5% 50V C504 1-126-964-11 ELECT 10uF 20% 50V C505 1-126-961-11 ELECT 2.2uF 20% 50V C506 1-126-961-11 ELECT 2.2uF 20% 50V C507 1-126-961-11 ELECT 2.2uF 20% 50V C508 1-126-961-11 ELECT 2.2uF 20% 50V C509 1-126-961-11 ELECT 2.2uF 20% 50V C510 1-126-961-11 ELECT 2.2uF 20% 50V C511 1-126-961-11 ELECT 2.2uF 20% 50V C512 1-126-157-11 ELECT 10uF 20% 16V (EXCEPT TH) C513 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C514 1-126-768-11 ELECT 2200uF 20% 16V C515 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C516 1-126-927-11 ELECT 2200uF 20% 10V C517 1-126-961-11 ELECT 2.2uF 20% 50V C518 1-126-926-11 ELECT 1000uF 20% 10V C519 1-126-927-11 ELECT 2200uF 20% 10V C520 1-126-964-11 ELECT 10uF 20% 50V C521 1-126-964-11 ELECT 10uF 20% 50V C523 1-126-961-11 ELECT 2.2uF 20% 50V C524 1-126-961-11 ELECT 2.2uF 20% 50V C525 1-126-926-11 ELECT 1000uF 20% 10V C530 1-162-953-11 CERAMIC CHIP 100PF 5% 50V C550 1-119-774-11 ELECT 100uF 20% 16V C551 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C552 1-126-961-11 ELECT 2.2uF 20% 50V C553 1-104-666-11 ELECT 220uF 20% 25V C554 1-126-964-11 ELECT 10uF 20% 50V C557 1-130-483-00 MYLAR 0.01uF 5% 50V C558 1-130-483-00 MYLAR 0.01uF 5% 50V C559 1-126-926-11 ELECT 1000uF 20% 10V C562 1-126-935-11 ELECT 470uF 20% 16V C563 1-126-935-11 ELECT 470uF 20% 16V C564 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C565 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C566 1-111-235-61 ELECT 10000uF 20% 25V C567 1-126-946-11 ELECT 6800uF 20% 25V C568 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C569 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C570 1-130-483-00 MYLAR 0.01uF 5% 50V C571 1-130-483-00 MYLAR 0.01uF 5% 50V C580 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C581 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C583 1-164-156-11 CERAMIC CHIP 0.1uF 25V C584 1-164-156-11 CERAMIC CHIP 0.1uF 25V < CONNECTOR > * CN100 1-564-711-11 PIN, CONNECTOR (SMALL TYPE) 9P CN102 1-820-049-11 CONNECTOR (SUBWOOFER) (SYSTEM CONTROL) CN105 1-691-765-11 PLUG (MICRO CONNECTOR) 3P CN402 1-785-336-11 PIN, CONNECTOR (LIGHT ANGLE) 10P CN501 1-573-845-11 CONNECTOR, BOARD TO BOARD 13P * CN502 1-774-876-21 CONNECTOR, BOARD TO BOARD 8P * CN503 1-564-710-11 PIN, CONNECTOR (SMALL TYPE) 8P CN504 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P * CN505 1-564-708-11 PIN, CONNECTOR (SMALL TYPE) 6P CN506 1-784-731-11 CONNECTOR, FFC 9P * CN508 1-569-934-11 SOCKET, CONNECTOR 17P CN509 1-569-928-11 SOCKET, CONNECTOR 11P * CN510 1-568-449-11 HOUSING, CONNECTOR (PC BOARD) 3P CN511 1-784-735-11 CONNECTOR, FFC 13P CN512 1-779-285-11 CONNECTOR, FFC (LIF (NON-ZIF)) 17P CN513 1-573-845-11 CONNECTOR, BOARD TO BOARD 13P * CN514 1-774-876-21 CONNECTOR, BOARD TO BOARD 8P CN520 1-779-281-11 CONNECTOR, FFC (LIF (NON-ZIF)) 13P CN521 1-779-289-11 CONNECTOR, FFC (LIF (NON-ZIF)) 21P CN580 1-564-506-11 PLUG, CONNECTOR 3P CN582 1-564-506-11 PLUG, CONNECTOR 3P < DIODE > D101 6-501-193-01 DIODE 1SS355WTE-17 D102 6-501-193-01 DIODE 1SS355WTE-17 D136 8-719-069-55 DIODE UDZSTE-175.6B D325 8-719-083-60 DIODE UDZSTE-174.7B D340 6-501-193-01 DIODE 1SS355WTE-17 D341 6-501-193-01 DIODE 1SS355WTE-17 D342 6-501-193-01 DIODE 1SS355WTE-17 D401 6-501-193-01 DIODE 1SS355WTE-17 D402 6-501-193-01 DIODE 1SS355WTE-17 D403 6-501-193-01 DIODE 1SS355WTE-17 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 91 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN1000D MAIN D411 6-501-193-01 DIODE 1SS355WTE-17 D412 6-501-193-01 DIODE 1SS355WTE-17 D501 6-501-193-01 DIODE 1SS355WTE-17 D502 6-501-193-01 DIODE 1SS355WTE-17 D503 6-501-193-01 DIODE 1SS355WTE-17 D504 6-501-193-01 DIODE 1SS355WTE-17 D505 6-501-193-01 DIODE 1SS355WTE-17 D506 6-501-193-01 DIODE 1SS355WTE-17 D507 6-501-193-01 DIODE 1SS355WTE-17 D550 6-501-193-01 DIODE 1SS355WTE-17 D551 6-501-193-01 DIODE 1SS355WTE-17 (EXCEPT TH) D560 8-719-500-60 DIODE D5SBA20 D561 8-719-500-60 DIODE D5SBA20 D581 8-719-978-33 DIODE DTZ-TT11-6.8B D582 8-719-069-56 DIODE UDZSTE-176.2B D583 8-719-071-54 DIODE HZU2.0BTRF D584 8-719-083-63 DIODE UDZSTE-1713B D585 6-500-522-21 DIODE 10EDB40-TB3 D586 6-500-522-21 DIODE 10EDB40-TB3 < FERRITE BEAD > FB204 1-216-864-11 SHORT CHIP 0 FB254 1-216-864-11 SHORT CHIP 0 FB260 1-216-864-11 SHORT CHIP 0 FB261 1-216-864-11 SHORT CHIP 0 < IC > IC101 6-703-650-11 IC M61529FP-D60G IC201 6-703-651-11 IC M61530FP-D60G IC301 6-702-130-01 IC HA12237F IC304 8-759-710-97 IC NJM4565M-D IC401 6-806-203-01 IC M30620MCP-A17FPU0 IC501 6-705-809-01 IC BD4929G-TR IC507 8-759-653-07 IC PQ09RD21J00H IC550 6-703-610-01 IC RT8H015C-T112-1 IC558 6-703-547-01 IC TA7805LS IC559 6-702-771-01 IC TA78033LS IC560 8-759-394-36 IC BA09T IC561 8-759-394-36 IC BA09T < JACK > J103 1-820-048-11 CONNECTOR (LIGHTING) (D-LIGHT SYNC OUT) J201 1-770-272-11 JACK, PIN 2P (TV/SAT AUDIO IN) J202 1-770-272-11 JACK, PIN 2P (AUDIO OUT) < JUMPER RESISTOR > JR100 1-216-296-11 SHORT CHIP 0 JR101 1-216-864-11 SHORT CHIP 0 JR102 1-216-864-11 SHORT CHIP 0 JR104 1-216-864-11 SHORT CHIP 0 JR105 1-216-864-11 SHORT CHIP 0 JR200 1-216-864-11 SHORT CHIP 0 JR201 1-216-864-11 SHORT CHIP 0 JR202 1-216-864-11 SHORT CHIP 0 JR204 1-216-296-11 SHORT CHIP 0 JR205 1-216-296-11 SHORT CHIP 0 JR208 1-216-864-11 SHORT CHIP 0 JR218 1-216-864-11 SHORT CHIP 0 JR222 1-216-864-11 SHORT CHIP 0 JR300 1-216-296-11 SHORT CHIP 0 JR301 1-216-864-11 SHORT CHIP 0 JR302 1-216-864-11 SHORT CHIP 0 JR303 1-216-864-11 SHORT CHIP 0 JR304 1-216-864-11 SHORT CHIP 0 JR305 1-216-296-11 SHORT CHIP 0 JR310 1-216-296-11 SHORT CHIP 0 JR340 1-216-864-11 SHORT CHIP 0 JR359 1-216-864-11 SHORT CHIP 0 JR361 1-216-864-11 SHORT CHIP 0 JR400 1-216-296-11 SHORT CHIP 0 JR401 1-216-864-11 SHORT CHIP 0 JR404 1-216-864-11 SHORT CHIP 0 JR406 1-216-864-11 SHORT CHIP 0 JR407 1-216-864-11 SHORT CHIP 0 JR430 1-216-864-11 SHORT CHIP 0 JR431 1-216-296-11 SHORT CHIP 0 JR432 1-216-296-11 SHORT CHIP 0 JR433 1-216-864-11 SHORT CHIP 0 JR435 1-216-864-11 SHORT CHIP 0 JR500 1-216-864-11 SHORT CHIP 0 JR501 1-216-296-11 SHORT CHIP 0 JR502 1-216-864-11 SHORT CHIP 0 JR503 1-216-864-11 SHORT CHIP 0 JR504 1-216-864-11 SHORT CHIP 0 JR505 1-216-864-11 SHORT CHIP 0 JR506 1-216-864-11 SHORT CHIP 0 JR507 1-216-296-11 SHORT CHIP 0 JR508 1-216-864-11 SHORT CHIP 0 JR509 1-216-864-11 SHORT CHIP 0 JR510 1-216-864-11 SHORT CHIP 0 JR513 1-216-864-11 SHORT CHIP 0 JR514 1-216-864-11 SHORT CHIP 0 JR520 1-216-864-11 SHORT CHIP 0 JR531 1-216-296-11 SHORT CHIP 0 JR532 1-216-296-11 SHORT CHIP 0 JR541 1-216-296-11 SHORT CHIP 0 JR542 1-216-864-11 SHORT CHIP 0 JR543 1-216-296-11 SHORT CHIP 0 JR544 1-216-296-11 SHORT CHIP 0 JR545 1-216-864-11 SHORT CHIP 0 < COIL > L101 1-420-872-52 COIL, AIR-CORE L102 1-420-872-52 COIL, AIR-CORE L302 1-414-189-31 INDUCTOR 100uH L320 1-410-780-11 INDUCTOR 27mH L370 1-410-780-11 INDUCTOR 27mH L372 1-414-189-31 INDUCTOR 100uH < TRANSISTOR > Q101 8-729-230-49 TRANSISTOR 2SC2712-YG Q103 8-729-056-46 TRANSISTOR 2SC5053T100Q Q104 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q106 8-729-023-22 TRANSISTOR 2SD2114K Q117 8-729-023-22 TRANSISTOR 2SD2114K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 92 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN1000D MAIN Q151 8-729-230-49 TRANSISTOR 2SC2712-YG Q156 8-729-023-22 TRANSISTOR 2SD2114K Q167 8-729-023-22 TRANSISTOR 2SD2114K Q200 8-729-023-22 TRANSISTOR 2SD2114K Q202 8-729-023-22 TRANSISTOR 2SD2114K Q203 8-729-023-22 TRANSISTOR 2SD2114K Q204 8-729-023-22 TRANSISTOR 2SD2114K Q206 8-729-023-22 TRANSISTOR 2SD2114K Q250 8-729-023-22 TRANSISTOR 2SD2114K Q252 8-729-023-22 TRANSISTOR 2SD2114K Q253 8-729-023-22 TRANSISTOR 2SD2114K Q254 8-729-023-22 TRANSISTOR 2SD2114K Q256 8-729-023-22 TRANSISTOR 2SD2114K Q321 6-551-287-01 TRANSISTOR 2SD2704K-T146 Q322 6-551-287-01 TRANSISTOR 2SD2704K-T146 Q323 8-729-056-46 TRANSISTOR 2SC5053T100Q Q325 6-551-287-01 TRANSISTOR 2SD2704K-T146 Q340 8-729-903-46 TRANSISTOR 2SB1132-P Q341 8-729-903-46 TRANSISTOR 2SB1132-P Q342 8-729-903-46 TRANSISTOR 2SB1132-P Q343 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q344 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q345 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q370 8-729-141-75 TRANSISTOR 2SD596DV345 Q372 6-551-287-01 TRANSISTOR 2SD2704K-T146 Q373 6-551-287-01 TRANSISTOR 2SD2704K-T146 Q375 6-551-287-01 TRANSISTOR 2SD2704K-T146 Q377 8-729-216-22 TRANSISTOR 2SA1162-G Q378 6-550-185-01 TRANSISTOR RT1P137P-TP-1 Q379 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q380 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q381 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q382 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q383 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q501 8-729-901-00 TRANSISTOR DTC124EK Q503 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q504 8-729-027-56 TRANSISTOR DTC143TKA-T146 (EXCEPT TH) Q505 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q506 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q507 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q508 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q509 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q510 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q511 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q512 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q513 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q514 8-729-023-22 TRANSISTOR 2SD2114K Q515 8-729-027-56 TRANSISTOR DTC143TKA-T146 Q516 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q517 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q518 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q519 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q520 8-729-024-94 TRANSISTOR 2SB1565F Q521 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q522 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q523 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q524 8-729-901-00 TRANSISTOR DTC124EK Q550 8-729-027-56 TRANSISTOR DTC143TKA-T146 (EXCEPT TH) Q564 8-729-023-22 TRANSISTOR 2SD2114K Q578 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q579 8-729-230-49 TRANSISTOR 2SC2712-YG Q581 8-729-230-49 TRANSISTOR 2SC2712-YG Q582 8-729-230-49 TRANSISTOR 2SC2712-YG Q585 8-729-026-68 TRANSISTOR 2SD2525 (TP) Q587 8-729-230-49 TRANSISTOR 2SC2712-YG Q588 8-729-026-68 TRANSISTOR 2SD2525 (TP) Q589 8-729-230-49 TRANSISTOR 2SC2712-YG < RESISTOR > R101 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R102 1-216-833-11 METAL CHIP 10K 5% 1/10W R103 1-216-819-11 METAL CHIP 680 5% 1/10W R104 1-216-821-11 METAL CHIP 1K 5% 1/10W R105 1-216-841-11 METAL CHIP 47K 5% 1/10W R106 1-216-833-11 METAL CHIP 10K 5% 1/10W R107 1-216-809-11 METAL CHIP 100 5% 1/10W R108 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R109 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R110 1-216-833-11 METAL CHIP 10K 5% 1/10W R111 1-216-833-11 METAL CHIP 10K 5% 1/10W R112 1-216-841-11 METAL CHIP 47K 5% 1/10W R113 1-216-833-11 METAL CHIP 10K 5% 1/10W R114 1-216-833-11 METAL CHIP 10K 5% 1/10W R115 1-216-821-11 METAL CHIP 1K 5% 1/10W R116 1-216-809-11 METAL CHIP 100 5% 1/10W R117 1-216-864-11 SHORT CHIP 0 R120 1-216-864-11 SHORT CHIP 0 R121 1-216-821-11 METAL CHIP 1K 5% 1/10W R122 1-216-821-11 METAL CHIP 1K 5% 1/10W R130 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R131 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R132 1-216-857-11 METAL CHIP 1M 5% 1/10W R133 1-216-845-11 METAL CHIP 100K 5% 1/10W R135 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R150 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R151 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R152 1-216-833-11 METAL CHIP 10K 5% 1/10W R153 1-216-819-11 METAL CHIP 680 5% 1/10W R154 1-216-821-11 METAL CHIP 1K 5% 1/10W R155 1-216-841-11 METAL CHIP 47K 5% 1/10W R156 1-216-833-11 METAL CHIP 10K 5% 1/10W R157 1-216-809-11 METAL CHIP 100 5% 1/10W R158 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R159 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R160 1-216-833-11 METAL CHIP 10K 5% 1/10W R161 1-216-833-11 METAL CHIP 10K 5% 1/10W R162 1-216-841-11 METAL CHIP 47K 5% 1/10W R163 1-216-833-11 METAL CHIP 10K 5% 1/10W R164 1-216-833-11 METAL CHIP 10K 5% 1/10W R165 1-216-821-11 METAL CHIP 1K 5% 1/10W R166 1-216-809-11 METAL CHIP 100 5% 1/10W R167 1-216-864-11 SHORT CHIP 0 R200 1-216-833-11 METAL CHIP 10K 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 93 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN1000D MAIN R202 1-216-833-11 METAL CHIP 10K 5% 1/10W R203 1-216-833-11 METAL CHIP 10K 5% 1/10W R204 1-216-833-11 METAL CHIP 10K 5% 1/10W R206 1-216-841-11 METAL CHIP 47K 5% 1/10W R207 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R208 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R209 1-216-833-11 METAL CHIP 10K 5% 1/10W R210 1-216-817-11 METAL CHIP 470 5% 1/10W R211 1-216-841-11 METAL CHIP 47K 5% 1/10W R212 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R213 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R214 1-216-841-11 METAL CHIP 47K 5% 1/10W R215 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R216 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R217 1-216-833-11 METAL CHIP 10K 5% 1/10W R218 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R219 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R220 1-216-833-11 METAL CHIP 10K 5% 1/10W R221 1-216-841-11 METAL CHIP 47K 5% 1/10W R222 1-216-821-11 METAL CHIP 1K 5% 1/10W R223 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R224 1-216-821-11 METAL CHIP 1K 5% 1/10W R225 1-216-833-11 METAL CHIP 10K 5% 1/10W R226 1-216-837-11 METAL CHIP 22K 5% 1/10W R227 1-216-841-11 METAL CHIP 47K 5% 1/10W R228 1-216-821-11 METAL CHIP 1K 5% 1/10W R229 1-216-833-11 METAL CHIP 10K 5% 1/10W R230 1-216-821-11 METAL CHIP 1K 5% 1/10W R231 1-216-841-11 METAL CHIP 47K 5% 1/10W R232 1-216-833-11 METAL CHIP 10K 5% 1/10W R233 1-216-841-11 METAL CHIP 47K 5% 1/10W R234 1-216-821-11 METAL CHIP 1K 5% 1/10W R235 1-216-833-11 METAL CHIP 10K 5% 1/10W R238 1-216-864-11 SHORT CHIP 0 R239 1-216-833-11 METAL CHIP 10K 5% 1/10W R240 1-216-835-11 METAL CHIP 15K 5% 1/10W R241 1-216-839-11 METAL CHIP 33K 5% 1/10W R242 1-216-833-11 METAL CHIP 10K 5% 1/10W R243 1-216-821-11 METAL CHIP 1K 5% 1/10W R244 1-216-845-11 METAL CHIP 100K 5% 1/10W R245 1-216-833-11 METAL CHIP 10K 5% 1/10W R246 1-216-841-11 METAL CHIP 47K 5% 1/10W R247 1-216-821-11 METAL CHIP 1K 5% 1/10W R249 1-216-833-11 METAL CHIP 10K 5% 1/10W R254 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R256 1-216-841-11 METAL CHIP 47K 5% 1/10W R257 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R258 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R259 1-216-833-11 METAL CHIP 10K 5% 1/10W R260 1-216-817-11 METAL CHIP 470 5% 1/10W R261 1-216-841-11 METAL CHIP 47K 5% 1/10W R262 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R263 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R264 1-216-841-11 METAL CHIP 47K 5% 1/10W R265 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R266 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R267 1-216-833-11 METAL CHIP 10K 5% 1/10W R268 1-216-821-11 METAL CHIP 1K 5% 1/10W R269 1-216-833-11 METAL CHIP 10K 5% 1/10W R270 1-216-841-11 METAL CHIP 47K 5% 1/10W R271 1-216-833-11 METAL CHIP 10K 5% 1/10W R272 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R273 1-216-833-11 METAL CHIP 10K 5% 1/10W R274 1-216-821-11 METAL CHIP 1K 5% 1/10W R275 1-216-833-11 METAL CHIP 10K 5% 1/10W R276 1-216-837-11 METAL CHIP 22K 5% 1/10W R277 1-216-841-11 METAL CHIP 47K 5% 1/10W R278 1-216-821-11 METAL CHIP 1K 5% 1/10W R279 1-216-833-11 METAL CHIP 10K 5% 1/10W R280 1-216-821-11 METAL CHIP 1K 5% 1/10W R281 1-216-841-11 METAL CHIP 47K 5% 1/10W R282 1-216-833-11 METAL CHIP 10K 5% 1/10W R283 1-216-841-11 METAL CHIP 47K 5% 1/10W R284 1-216-821-11 METAL CHIP 1K 5% 1/10W R285 1-216-833-11 METAL CHIP 10K 5% 1/10W R288 1-216-864-11 SHORT CHIP 0 R289 1-216-833-11 METAL CHIP 10K 5% 1/10W R290 1-216-835-11 METAL CHIP 15K 5% 1/10W R291 1-216-839-11 METAL CHIP 33K 5% 1/10W R292 1-216-833-11 METAL CHIP 10K 5% 1/10W R293 1-216-821-11 METAL CHIP 1K 5% 1/10W R294 1-216-845-11 METAL CHIP 100K 5% 1/10W R295 1-216-833-11 METAL CHIP 10K 5% 1/10W R296 1-216-841-11 METAL CHIP 47K 5% 1/10W R297 1-216-821-11 METAL CHIP 1K 5% 1/10W R298 1-216-833-11 METAL CHIP 10K 5% 1/10W R299 1-216-833-11 METAL CHIP 10K 5% 1/10W R300 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R301 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R302 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R303 1-216-833-11 METAL CHIP 10K 5% 1/10W R304 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R305 1-216-841-11 METAL CHIP 47K 5% 1/10W R306 1-216-837-11 METAL CHIP 22K 5% 1/10W R307 1-216-857-11 METAL CHIP 1M 5% 1/10W R308 1-216-809-11 METAL CHIP 100 5% 1/10W R309 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R310 1-216-809-11 METAL CHIP 100 5% 1/10W R311 1-216-809-11 METAL CHIP 100 5% 1/10W R312 1-216-809-11 METAL CHIP 100 5% 1/10W R314 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R315 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R316 1-216-841-11 METAL CHIP 47K 5% 1/10W R317 1-216-837-11 METAL CHIP 22K 5% 1/10W R318 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R319 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R320 1-216-839-11 METAL CHIP 33K 5% 1/10W R321 1-216-839-11 METAL CHIP 33K 5% 1/10W R322 1-216-841-11 METAL CHIP 47K 5% 1/10W R325 1-216-819-11 METAL CHIP 680 5% 1/10W R329 1-216-845-11 METAL CHIP 100K 5% 1/10W R330 1-216-821-11 METAL CHIP 1K 5% 1/10W R335 1-216-821-11 METAL CHIP 1K 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 94 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN1000D MAIN R336 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R337 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R338 1-216-833-11 METAL CHIP 10K 5% 1/10W R339 1-216-835-11 METAL CHIP 15K 5% 1/10W R340 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R341 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R342 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R343 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R344 1-216-819-11 METAL CHIP 680 5% 1/10W R345 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R346 1-216-819-11 METAL CHIP 680 5% 1/10W R347 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R348 1-216-819-11 METAL CHIP 680 5% 1/10W R349 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R350 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R351 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R352 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R353 1-216-833-11 METAL CHIP 10K 5% 1/10W R354 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R355 1-216-841-11 METAL CHIP 47K 5% 1/10W R356 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R357 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R358 1-216-839-11 METAL CHIP 33K 5% 1/10W R359 1-216-839-11 METAL CHIP 33K 5% 1/10W R360 1-216-838-11 METAL CHIP 27K 5% 1/10W R361 1-216-838-11 METAL CHIP 27K 5% 1/10W R364 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R365 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R366 1-216-833-11 METAL CHIP 10K 5% 1/10W R368 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R369 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R370 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R371 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R372 1-216-864-11 SHORT CHIP 0 R373 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R374 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R375 1-216-864-11 SHORT CHIP 0 R376 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R377 1-216-805-11 METAL CHIP 47 5% 1/10W R378 1-216-833-11 METAL CHIP 10K 5% 1/10W R379 1-216-797-11 METAL CHIP 10 5% 1/10W R380 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R381 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R382 1-216-841-11 METAL CHIP 47K 5% 1/10W R383 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R384 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R385 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R386 1-216-803-11 METAL CHIP 33 5% 1/10W R387 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R388 1-216-833-11 METAL CHIP 10K 5% 1/10W R389 1-216-835-11 METAL CHIP 15K 5% 1/10W R390 1-216-833-11 METAL CHIP 10K 5% 1/10W R391 1-216-821-11 METAL CHIP 1K 5% 1/10W R392 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R394 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R395 1-216-841-11 METAL CHIP 47K 5% 1/10W R396 1-216-833-11 METAL CHIP 10K 5% 1/10W R399 1-216-833-11 METAL CHIP 10K 5% 1/10W R400 1-216-833-11 METAL CHIP 10K 5% 1/10W R401 1-216-809-11 METAL CHIP 100 5% 1/10W R402 1-216-809-11 METAL CHIP 100 5% 1/10W R403 1-216-833-11 METAL CHIP 10K 5% 1/10W R404 1-216-833-11 METAL CHIP 10K 5% 1/10W R405 1-216-809-11 METAL CHIP 100 5% 1/10W R406 1-216-809-11 METAL CHIP 100 5% 1/10W R407 1-216-809-11 METAL CHIP 100 5% 1/10W R408 1-216-809-11 METAL CHIP 100 5% 1/10W R409 1-216-809-11 METAL CHIP 100 5% 1/10W R410 1-216-833-11 METAL CHIP 10K 5% 1/10W R411 1-216-851-11 METAL CHIP 330K 5% 1/10W R412 1-216-845-11 METAL CHIP 100K 5% 1/10W R413 1-216-864-11 SHORT CHIP 0 R414 1-216-809-11 METAL CHIP 100 5% 1/10W R415 1-216-809-11 METAL CHIP 100 5% 1/10W R417 1-216-833-11 METAL CHIP 10K 5% 1/10W R418 1-216-809-11 METAL CHIP 100 5% 1/10W R419 1-216-809-11 METAL CHIP 100 5% 1/10W R420 1-216-821-11 METAL CHIP 1K 5% 1/10W R421 1-216-809-11 METAL CHIP 100 5% 1/10W R422 1-216-809-11 METAL CHIP 100 5% 1/10W R423 1-216-809-11 METAL CHIP 100 5% 1/10W R424 1-216-809-11 METAL CHIP 100 5% 1/10W R425 1-216-809-11 METAL CHIP 100 5% 1/10W R426 1-216-809-11 METAL CHIP 100 5% 1/10W R427 1-216-833-11 METAL CHIP 10K 5% 1/10W R428 1-216-833-11 METAL CHIP 10K 5% 1/10W R429 1-216-809-11 METAL CHIP 100 5% 1/10W R430 1-216-809-11 METAL CHIP 100 5% 1/10W R431 1-216-809-11 METAL CHIP 100 5% 1/10W R432 1-216-809-11 METAL CHIP 100 5% 1/10W R433 1-216-809-11 METAL CHIP 100 5% 1/10W R434 1-216-809-11 METAL CHIP 100 5% 1/10W R435 1-216-809-11 METAL CHIP 100 5% 1/10W R436 1-216-833-11 METAL CHIP 10K 5% 1/10W R437 1-216-833-11 METAL CHIP 10K 5% 1/10W R438 1-216-809-11 METAL CHIP 100 5% 1/10W R439 1-216-809-11 METAL CHIP 100 5% 1/10W R440 1-216-809-11 METAL CHIP 100 5% 1/10W R441 1-216-809-11 METAL CHIP 100 5% 1/10W R442 1-216-809-11 METAL CHIP 100 5% 1/10W R443 1-216-809-11 METAL CHIP 100 5% 1/10W R444 1-216-809-11 METAL CHIP 100 5% 1/10W R445 1-216-809-11 METAL CHIP 100 5% 1/10W R447 1-216-809-11 METAL CHIP 100 5% 1/10W R448 1-216-809-11 METAL CHIP 100 5% 1/10W R451 1-216-809-11 METAL CHIP 100 5% 1/10W R453 1-216-809-11 METAL CHIP 100 5% 1/10W R454 1-216-809-11 METAL CHIP 100 5% 1/10W R457 1-216-809-11 METAL CHIP 100 5% 1/10W R458 1-216-809-11 METAL CHIP 100 5% 1/10W R466 1-216-833-11 METAL CHIP 10K 5% 1/10W R467 1-216-809-11 METAL CHIP 100 5% 1/10W R468 1-216-809-11 METAL CHIP 100 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 95 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN1000D MAIN R469 1-216-809-11 METAL CHIP 100 5% 1/10W R471 1-216-833-11 METAL CHIP 10K 5% 1/10W R472 1-216-809-11 METAL CHIP 100 5% 1/10W R473 1-216-809-11 METAL CHIP 100 5% 1/10W R474 1-216-809-11 METAL CHIP 100 5% 1/10W R475 1-216-809-11 METAL CHIP 100 5% 1/10W R478 1-216-821-11 METAL CHIP 1K 5% 1/10W R479 1-216-833-11 METAL CHIP 10K 5% 1/10W 0R480 1-217-637-00 FUSIBLE 1 5% 1/4W R481 1-216-809-11 METAL CHIP 100 5% 1/10W R482 1-216-809-11 METAL CHIP 100 5% 1/10W R483 1-216-809-11 METAL CHIP 100 5% 1/10W R484 1-216-833-11 METAL CHIP 10K 5% 1/10W R485 1-216-809-11 METAL CHIP 100 5% 1/10W R486 1-216-809-11 METAL CHIP 100 5% 1/10W R487 1-216-833-11 METAL CHIP 10K 5% 1/10W R488 1-216-809-11 METAL CHIP 100 5% 1/10W R489 1-216-809-11 METAL CHIP 100 5% 1/10W R490 1-216-809-11 METAL CHIP 100 5% 1/10W R491 1-216-809-11 METAL CHIP 100 5% 1/10W R493 1-216-815-11 METAL CHIP 330 5% 1/10W (E3, E15) R493 1-216-819-11 METAL CHIP 680 5% 1/10W (E12) R493 1-216-821-11 METAL CHIP 1K 5% 1/10W (EA) R493 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (E2) R493 1-216-864-11 SHORT CHIP 0 (PH, SP, MY, TH) R494 1-216-809-11 METAL CHIP 100 5% 1/10W R495 1-216-809-11 METAL CHIP 100 5% 1/10W R496 1-216-809-11 METAL CHIP 100 5% 1/10W R499 1-216-809-11 METAL CHIP 100 5% 1/10W R500 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R501 1-216-813-11 METAL CHIP 220 5% 1/10W R502 1-216-821-11 METAL CHIP 1K 5% 1/10W R503 1-216-864-11 SHORT CHIP 0 R505 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R506 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R507 1-216-833-11 METAL CHIP 10K 5% 1/10W R508 1-216-853-11 METAL CHIP 470K 5% 1/10W R509 1-216-843-11 METAL CHIP 68K 5% 1/10W R510 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R511 1-216-853-11 METAL CHIP 470K 5% 1/10W R512 1-216-843-11 METAL CHIP 68K 5% 1/10W R513 1-216-835-11 METAL CHIP 15K 5% 1/10W R514 1-216-853-11 METAL CHIP 470K 5% 1/10W R515 1-216-843-11 METAL CHIP 68K 5% 1/10W R516 1-216-835-11 METAL CHIP 15K 5% 1/10W R517 1-216-841-11 METAL CHIP 47K 5% 1/10W R518 1-216-833-11 METAL CHIP 10K 5% 1/10W R519 1-216-821-11 METAL CHIP 1K 5% 1/10W R520 1-216-833-11 METAL CHIP 10K 5% 1/10W (EXCEPT TH) R521 1-216-864-11 SHORT CHIP 0 (TH) R522 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R523 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R524 1-216-833-11 METAL CHIP 10K 5% 1/10W R525 1-216-833-11 METAL CHIP 10K 5% 1/10W R526 1-216-821-11 METAL CHIP 1K 5% 1/10W R527 1-216-841-11 METAL CHIP 47K 5% 1/10W R528 1-216-833-11 METAL CHIP 10K 5% 1/10W R529 1-216-835-11 METAL CHIP 15K 5% 1/10W R530 1-216-843-11 METAL CHIP 68K 5% 1/10W R531 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (E2) R531 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W (EXCEPT E2) R532 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R533 1-216-833-11 METAL CHIP 10K 5% 1/10W R534 1-216-833-11 METAL CHIP 10K 5% 1/10W R535 1-216-833-11 METAL CHIP 10K 5% 1/10W R536 1-216-833-11 METAL CHIP 10K 5% 1/10W R537 1-216-853-11 METAL CHIP 470K 5% 1/10W R538 1-216-830-11 METAL CHIP 5.6K 5% 1/10W (EXCEPT TH) R539 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R540 1-216-833-11 METAL CHIP 10K 5% 1/10W (EXCEPT TH) R549 1-216-824-11 METAL CHIP 1.8K 5% 1/10W (EXCEPT TH) R551 1-216-842-11 METAL CHIP 56K 5% 1/10W (EXCEPT TH) R552 1-216-843-11 METAL CHIP 68K 5% 1/10W R553 1-216-853-11 METAL CHIP 470K 5% 1/10W R554 1-216-835-11 METAL CHIP 15K 5% 1/10W R573 1-216-833-11 METAL CHIP 10K 5% 1/10W R574 1-216-833-11 METAL CHIP 10K 5% 1/10W R575 1-216-833-11 METAL CHIP 10K 5% 1/10W R576 1-216-821-11 METAL CHIP 1K 5% 1/10W R577 1-216-841-11 METAL CHIP 47K 5% 1/10W R578 1-216-833-11 METAL CHIP 10K 5% 1/10W R579 1-215-889-00 METAL OXIDE 330 5% 2W R581 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (E2) R581 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W (EXCEPT E2) R582 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R584 1-216-833-11 METAL CHIP 10K 5% 1/10W R585 1-216-821-11 METAL CHIP 1K 5% 1/10W R586 1-216-821-11 METAL CHIP 1K 5% 1/10W R589 1-216-821-11 METAL CHIP 1K 5% 1/10W R590 1-216-845-11 METAL CHIP 100K 5% 1/10W R592 1-216-864-11 SHORT CHIP 0 R593 1-216-821-11 METAL CHIP 1K 5% 1/10W (E2) R593 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (E3, E12, E15, EA) R594 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R595 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R598 1-245-711-31 CARBON 10 5% 1/2W R599 1-245-711-31 CARBON 10 5% 1/2W R612 1-216-864-11 SHORT CHIP 0 R623 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R662 1-216-864-11 SHORT CHIP 0 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 96 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN1000D MIC MAIN < TRANSFORMER > T301 1-433-372-11 TRANSFORMER, BIAS OSCILLATION < TERMINAL > TM101 1-780-170-21 TERMINAL BOARD (SPEAKER) (SUBWOOFER OUT) < VIBRATOR > X401 1-760-252-12 VIBRATOR, CRYSTAL (32.768 kHz) X402 1-795-058-21 VIBRATOR, CERAMIC (5 MHz) ************************************************************ A-1174-047-A MIC BOARD, COMPLETE ******************* < CAPACITOR > C1100 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1101 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1102 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C1103 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1104 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1105 1-126-956-91 ELECT 0.1uF 20% 50V C1106 1-126-163-11 ELECT 4.7uF 20% 50V C1107 1-126-163-11 ELECT 4.7uF 20% 50V C1108 1-126-160-11 ELECT 1uF 20% 50V C1109 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C1110 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C1111 1-126-957-11 ELECT 0.22uF 20% 50V C1112 1-126-160-11 ELECT 1uF 20% 50V C1113 1-162-925-11 CERAMIC CHIP 68PF 5% 50V C1114 1-126-163-11 ELECT 4.7uF 20% 50V C1115 1-126-963-11 ELECT 4.7uF 20% 50V C1116 1-126-947-11 ELECT 47uF 20% 35V C1117 1-126-947-11 ELECT 47uF 20% 35V C1119 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C1121 1-126-960-11 ELECT 1uF 20% 50V C1122 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V C1123 1-126-947-11 ELECT 47uF 20% 35V C1124 1-164-730-11 CERAMIC CHIP 0.0012uF 10% 50V C1125 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C1126 1-126-176-11 ELECT 220uF 20% 10V C1127 1-126-964-11 ELECT 10uF 20% 50V C1128 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C1133 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1134 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C1135 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C1139 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1142 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1144 1-124-261-00 ELECT 10uF 20% 50V C1145 1-124-261-00 ELECT 10uF 20% 50V < CONNECTOR > CN1100 1-785-328-11 PIN, CONNECTOR (LIGHT ANGRE) 2P CN1102 1-785-329-11 PIN, CONNECTOR (LIGHT ANGLE) 3P < DIODE > D1100 6-501-193-01 DIODE 1SS355WTE-17 D1101 6-501-193-01 DIODE 1SS355WTE-17 D1102 8-719-069-54 DIODE UDZSTE-175.1B D1103 8-719-988-61 DIODE 1SS355TE-17 D1104 8-719-988-61 DIODE 1SS355TE-17 < FERRITE BEAD > FB902 1-469-147-21 FERRITE, EMI (SMD) (2012) FB1100 1-216-864-11 SHORT CHIP 0 FB1101 1-216-864-11 SHORT CHIP 0 < IC > IC1100 6-709-116-01 IC TC9488FG IC1101 8-759-710-97 IC NJM4565M-D < JACK > J1100 1-817-630-11 JACK (LARGE TYPE) (MIC 1) J1101 1-817-630-11 JACK (LARGE TYPE) (MIC 2) J1102 1-764-592-11 JACK 3P (VIDEO INPUT) J1103 1-794-702-11 JACK, HEADPHONE (PHONES) < JUMPER RESISTOR > JR1100 1-216-864-11 SHORT CHIP 0 < RESISTOR > R1100 1-216-835-11 METAL CHIP 15K 5% 1/10W R1102 1-216-821-11 METAL CHIP 1K 5% 1/10W R1103 1-216-821-11 METAL CHIP 1K 5% 1/10W R1104 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R1105 1-216-809-11 METAL CHIP 100 5% 1/10W R1106 1-216-809-11 METAL CHIP 100 5% 1/10W R1107 1-216-809-11 METAL CHIP 100 5% 1/10W R1108 1-216-833-11 METAL CHIP 10K 5% 1/10W R1109 1-216-833-11 METAL CHIP 10K 5% 1/10W R1110 1-216-833-11 METAL CHIP 10K 5% 1/10W R1111 1-216-833-11 METAL CHIP 10K 5% 1/10W R1113 1-216-834-11 METAL CHIP 12K 5% 1/10W R1114 1-216-833-11 METAL CHIP 10K 5% 1/10W R1115 1-216-815-11 METAL CHIP 330 5% 1/10W R1116 1-216-815-11 METAL CHIP 330 5% 1/10W R1118 1-216-821-11 METAL CHIP 1K 5% 1/10W R1119 1-216-841-11 METAL CHIP 47K 5% 1/10W R1120 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R1121 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R1122 1-216-834-11 METAL CHIP 12K 5% 1/10W R1123 1-216-835-11 METAL CHIP 15K 5% 1/10W R1124 1-216-833-11 METAL CHIP 10K 5% 1/10W R1126 1-216-833-11 METAL CHIP 10K 5% 1/10W R1127 1-216-839-11 METAL CHIP 33K 5% 1/10W R1128 1-216-839-11 METAL CHIP 33K 5% 1/10W R1130 1-216-835-11 METAL CHIP 15K 5% 1/10W R1131 1-216-835-11 METAL CHIP 15K 5% 1/10W R1132 1-216-864-11 SHORT CHIP 0 R1137 1-216-833-11 METAL CHIP 10K 5% 1/10W R1138 1-216-833-11 METAL CHIP 10K 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 97 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN1000D MOTOR (LD) MOTOR (TB) PA MIC R1139 1-216-833-11 METAL CHIP 10K 5% 1/10W R1140 1-216-833-11 METAL CHIP 10K 5% 1/10W R1147 1-216-835-11 METAL CHIP 15K 5% 1/10W R1152 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1156 1-216-823-11 METAL CHIP 1.5K 5% 1/10W < VARIABLE RESISTOR > RV1100 1-227-452-11 RES, VAR, CARBON 50K (ECHO LEVEL) RV1101 1-227-452-11 RES, VAR, CARBON 50K (MIC 2 LEVEL) RV1102 1-227-452-11 RES, VAR, CARBON 50K (MIC 1 LEVEL) ************************************************************ 1-687-133-12 MOTOR (LD) ********** ************************************************************ 1-687-134-12 MOTOR (TB) BOARD **************** < CONNECTOR > CN742 1-784-727-11 CONNECTOR, FFC 15P ************************************************************ A-1174-056-A PA BOARD, COMPLETE (EXCEPT E2, EA) A-1193-194-A PA BOARD, COMPLETE (EA) A-1193-198-A PA BOARD, COMPLETE (E2) ****************** < CAPACITOR > C600 1-126-963-11 ELECT 4.7uF 20% 50V C601 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C602 1-126-923-91 ELECT 220uF 20% 10V C603 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C604 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C605 1-164-156-11 CERAMIC CHIP 0.1uF 25V C606 1-164-156-11 CERAMIC CHIP 0.1uF 25V C608 1-126-965-91 ELECT 22uF 20% 50V C609 1-128-582-11 ELECT 10uF 20% 100V C610 1-128-582-11 ELECT 10uF 20% 100V C616 1-136-495-11 FILM 0.068uF 5% 50V C617 1-136-495-11 FILM 0.068uF 5% 50V C618 1-128-560-11 ELECT 22uF 20% 100V C619 1-128-560-11 ELECT 22uF 20% 100V C634 1-104-665-11 ELECT 100uF 20% 25V C635 1-104-665-11 ELECT 100uF 20% 25V C636 1-107-721-11 ELECT 4.7uF 20% 100V C637 1-107-721-11 ELECT 4.7uF 20% 100V C648 1-104-658-91 ELECT 100uF 20% 10V C649 1-126-964-11 ELECT 10uF 20% 50V C650 1-126-963-11 ELECT 4.7uF 20% 50V C651 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C652 1-126-923-91 ELECT 220uF 20% 10V C653 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C654 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C655 1-126-964-11 ELECT 10uF 20% 50V C656 1-127-815-11 ELECT 3300uF 20% 100V C658 1-127-816-11 ELECT 4700uF 20% 71V C660 1-164-156-11 CERAMIC CHIP 0.1uF 25V C666 1-136-495-11 FILM 0.068uF 5% 50V C667 1-136-495-11 FILM 0.068uF 5% 50V C676 1-127-815-11 ELECT 3300uF 20% 100V C678 1-127-816-11 ELECT 4700uF 20% 71V C681 1-131-992-91 CERAMIC CHIP 100000PF 35V C682 1-131-992-91 CERAMIC CHIP 100000PF 35V C683 1-164-156-11 CERAMIC CHIP 0.1uF 25V C691 1-131-992-91 CERAMIC CHIP 100000PF 35V C692 1-131-992-91 CERAMIC CHIP 100000PF 35V C693 1-164-156-11 CERAMIC CHIP 0.1uF 25V < CONNECTOR > CN600 1-764-865-41 CONNECTOR, BOARD TO BOARD 13P CN601 1-784-031-41 CONNECTOR, BOARD TO BOARD 8P * CN602 1-564-512-11 PLUG, CONNECTOR 9P * CN607 1-564-508-11 PLUG, CONNECTOR 5P < DIODE > D609 6-501-193-01 DIODE 1SS355WTE-17 D611 8-719-056-93 DIODE UDZ-TE-17-18B D612 8-719-056-93 DIODE UDZ-TE-17-18B D620 6-501-193-01 DIODE 1SS355WTE-17 D624 6-501-193-01 DIODE 1SS355WTE-17 D646 6-501-193-01 DIODE 1SS355WTE-17 D654 6-501-193-01 DIODE 1SS355WTE-17 D655 6-501-193-01 DIODE 1SS355WTE-17 D656 8-719-073-32 DIODE D25XB60 D658 8-719-073-32 DIODE D25XB60 D660 6-501-193-01 DIODE 1SS355WTE-17 D661 6-501-193-01 DIODE 1SS355WTE-17 D670 6-501-193-01 DIODE 1SS355WTE-17 < IC > IC600 6-600-169-01 IC STK412-240M-E < JUMPER RESISTOR > JR600 1-216-296-11 SHORT CHIP 0 JR601 1-216-296-11 SHORT CHIP 0 JR602 1-216-296-11 SHORT CHIP 0 JR603 1-216-296-11 SHORT CHIP 0 JR612 1-216-864-11 SHORT CHIP 0 < COIL > L680 1-420-872-52 COIL, AIR-CORE L690 1-420-872-52 COIL, AIR-CORE < TRANSISTOR > Q604 8-729-924-99 TRANSISTOR 2SC3722K-E Q606 8-729-821-00 TRANSISTOR 2SA1207 Q610 8-729-924-99 TRANSISTOR 2SC3722K-E Q618 8-729-924-99 TRANSISTOR 2SC3722K-E Q628 8-729-230-49 TRANSISTOR 2SC2712-YG Q630 8-729-230-49 TRANSISTOR 2SC2712-YG Q634 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q640 8-729-023-22 TRANSISTOR 2SD2114K Q641 8-729-023-22 TRANSISTOR 2SD2114K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 98 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN1000D PA Q644 8-729-230-49 TRANSISTOR 2SC2712-YG Q647 8-729-230-49 TRANSISTOR 2SC2712-YG Q648 8-729-230-49 TRANSISTOR 2SC2712-YG Q668 8-729-924-99 TRANSISTOR 2SC3722K-E Q682 8-729-230-49 TRANSISTOR 2SC2712-YG < RESISTOR > R600 1-216-821-11 METAL CHIP 1K 5% 1/10W R601 1-216-841-11 METAL CHIP 47K 5% 1/10W R602 1-216-816-11 METAL CHIP 390 5% 1/10W R603 1-216-841-11 METAL CHIP 47K 5% 1/10W R604 1-216-833-11 METAL CHIP 10K 5% 1/10W R605 1-216-833-11 METAL CHIP 10K 5% 1/10W R606 1-216-841-11 METAL CHIP 47K 5% 1/10W R607 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R608 1-216-845-11 METAL CHIP 100K 5% 1/10W R609 1-216-843-11 METAL CHIP 68K 5% 1/10W R610 1-216-843-11 METAL CHIP 68K 5% 1/10W R611 1-216-839-11 METAL CHIP 33K 5% 1/10W 0R612 1-245-605-51 FUSIBLE 100 5% 1/4W R613 1-215-869-11 METAL OXIDE 1K 5% 1W R614 1-215-869-11 METAL OXIDE 1K 5% 1W 0R615 1-245-605-51 FUSIBLE 100 5% 1/4W 0R616 1-217-637-00 FUSIBLE 1 5% 1/4W R617 1-216-845-11 METAL CHIP 100K 5% 1/10W 0R618 1-234-499-21 ENCAPSULATED COMPONENT R619 1-216-821-11 METAL CHIP 1K 5% 1/10W R620 1-216-836-11 METAL CHIP 18K 5% 1/10W R621 1-216-847-11 METAL CHIP 150K 5% 1/10W R622 1-245-711-31 CARBON 10 5% 1/2W R623 1-216-843-11 METAL CHIP 68K 5% 1/10W R624 1-216-837-11 METAL CHIP 22K 5% 1/10W R625 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R628 1-216-837-11 METAL CHIP 22K 5% 1/10W R629 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R630 1-216-845-11 METAL CHIP 100K 5% 1/10W R631 1-216-845-11 METAL CHIP 100K 5% 1/10W R633 1-216-864-11 SHORT CHIP 0 R634 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R635 1-216-833-11 METAL CHIP 10K 5% 1/10W R636 1-216-456-00 METAL OXIDE 820 5% 2W R637 1-216-456-00 METAL OXIDE 820 5% 2W R638 1-216-845-11 METAL CHIP 100K 5% 1/10W R639 1-216-845-11 METAL CHIP 100K 5% 1/10W R640 1-216-821-11 METAL CHIP 1K 5% 1/10W R641 1-216-821-11 METAL CHIP 1K 5% 1/10W R642 1-216-811-11 METAL CHIP 150 5% 1/10W R643 1-216-811-11 METAL CHIP 150 5% 1/10W R644 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R645 1-216-833-11 METAL CHIP 10K 5% 1/10W R646 1-260-087-11 CARBON 100 5% 1/2W R647 1-216-821-11 METAL CHIP 1K 5% 1/10W R648 1-216-837-11 METAL CHIP 22K 5% 1/10W R649 1-216-837-11 METAL CHIP 22K 5% 1/10W R650 1-216-821-11 METAL CHIP 1K 5% 1/10W R651 1-216-841-11 METAL CHIP 47K 5% 1/10W R652 1-216-816-11 METAL CHIP 390 5% 1/10W R653 1-216-841-11 METAL CHIP 47K 5% 1/10W R654 1-216-841-11 METAL CHIP 47K 5% 1/10W R655 1-216-841-11 METAL CHIP 47K 5% 1/10W R656 1-216-849-11 METAL CHIP 220K 5% 1/10W R657 1-216-849-11 METAL CHIP 220K 5% 1/10W R658 1-216-845-11 METAL CHIP 100K 5% 1/10W R660 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R661 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R662 1-216-811-11 METAL CHIP 150 5% 1/10W R663 1-216-811-11 METAL CHIP 150 5% 1/10W 0R668 1-234-499-21 ENCAPSULATED COMPONENT R669 1-216-821-11 METAL CHIP 1K 5% 1/10W R670 1-216-836-11 METAL CHIP 18K 5% 1/10W R671 1-216-847-11 METAL CHIP 150K 5% 1/10W R672 1-245-711-31 CARBON 10 5% 1/2W R673 1-216-842-11 METAL CHIP 56K 5% 1/10W R674 1-216-837-11 METAL CHIP 22K 5% 1/10W R676 1-216-849-11 METAL CHIP 220K 5% 1/10W R677 1-216-849-11 METAL CHIP 220K 5% 1/10W R678 1-216-845-11 METAL CHIP 100K 5% 1/10W R680 1-245-711-31 CARBON 10 5% 1/2W R681 1-245-711-31 CARBON 10 5% 1/2W R682 1-216-821-11 METAL CHIP 1K 5% 1/10W R683 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R685 1-216-833-11 METAL CHIP 10K 5% 1/10W R690 1-245-711-31 CARBON 10 5% 1/2W R691 1-245-711-31 CARBON 10 5% 1/2W R692 1-216-841-11 METAL CHIP 47K 5% 1/10W R693 1-216-845-11 METAL CHIP 100K 5% 1/10W R694 1-216-843-11 METAL CHIP 68K 5% 1/10W R695 1-216-845-11 METAL CHIP 100K 5% 1/10W R696 1-216-845-11 METAL CHIP 100K 5% 1/10W R697 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R698 1-216-845-11 METAL CHIP 100K 5% 1/10W < RELAY > RY646 1-755-500-11 RELAY < THERMISTOR > TH629 1-807-796-11 THERMISTOR TH630 1-807-796-11 THERMISTOR < TERMINAL > TM600 1-780-001-21 TERMINAL BOARD (SPEAKER) (FRONT SPEAKER) ************************************************************ A-1178-730-A PANEL BOARD, COMPLETE ********************* < CAPACITOR > C900 1-126-163-11 ELECT 4.7uF 20% 50V C901 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C902 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C903 1-164-156-11 CERAMIC CHIP 0.1uF 25V C904 1-164-156-11 CERAMIC CHIP 0.1uF 25V C905 1-164-156-11 CERAMIC CHIP 0.1uF 25V PANEL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 99 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN1000D PANEL C906 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C908 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C909 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C910 1-164-156-11 CERAMIC CHIP 0.1uF 25V C916 1-164-156-11 CERAMIC CHIP 0.1uF 25V C917 1-164-156-11 CERAMIC CHIP 0.1uF 25V C920 1-164-156-11 CERAMIC CHIP 0.1uF 25V C922 1-119-941-91 ELECT 470uF 20% 6.3V C923 1-119-941-91 ELECT 470uF 20% 6.3V C924 1-119-941-91 ELECT 470uF 20% 6.3V C925 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C926 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C927 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C928 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C929 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C930 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C931 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C932 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C933 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C934 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C935 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C936 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C937 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C938 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C939 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C940 1-164-156-11 CERAMIC CHIP 0.1uF 25V C941 1-124-261-00 ELECT 10uF 20% 50V C942 1-124-261-00 ELECT 10uF 20% 50V C943 1-124-261-00 ELECT 10uF 20% 50V C945 1-115-156-11 CERAMIC CHIP 1uF 10V C946 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C947 1-115-156-11 CERAMIC CHIP 1uF 10V C948 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C949 1-115-156-11 CERAMIC CHIP 1uF 10V C950 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C951 1-115-156-11 CERAMIC CHIP 1uF 10V C952 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C953 1-115-156-11 CERAMIC CHIP 1uF 10V C954 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C955 1-115-156-11 CERAMIC CHIP 1uF 10V C956 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C957 1-115-156-11 CERAMIC CHIP 1uF 10V C958 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C959 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C961 1-164-156-11 CERAMIC CHIP 0.1uF 25V C962 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C964 1-124-589-11 ELECT 47uF 20% 16V C967 1-124-261-00 ELECT 10uF 20% 50V C972 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C973 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C974 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C975 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C977 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C978 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C979 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C980 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C981 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C982 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C983 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C1180 1-162-960-11 CERAMIC CHIP 220PF 10% 50V < CONNECTOR > CN900 1-784-739-11 CONNECTOR, FFC 17P CN902 1-784-739-11 CONNECTOR, FFC 17P < DIODE > D901 6-501-193-01 DIODE 1SS355WTE-17 D905 8-719-978-33 DIODE DTZ-TT11-6.8B D908 8-719-058-04 DIODE SEL5223S-TP15 (DVD) D909 8-719-058-04 DIODE SEL5223S-TP15 (TUNER/BAND) D910 8-719-058-04 DIODE SEL5223S-TP15 (TAPE A/B) D911 8-719-058-04 DIODE SEL5223S-TP15 ( Y ) D913 8-719-058-04 DIODE SEL5223S-TP15 (PRESET + > ) D914 8-719-058-04 DIODE SEL5223S-TP15 (PRESET - . ) D915 6-501-228-01 DIODE SELU5420E-STP15 ( Y ) D916 8-719-058-04 DIODE SEL5223S-TP15 (TV/SAT) D917 8-719-058-04 DIODE SEL5223S-TP15 (VIDEO) D927 8-719-058-04 DIODE SEL5223S-TP15 (^/1) D928 6-501-228-01 DIODE SELU5420E-STP15 (^/1) D929 8-719-058-04 DIODE SEL5223S-TP15 (TUNING + M T ) D930 8-719-058-04 DIODE SEL5223S-TP15 (TUNING - t m ) D931 6-501-193-01 DIODE 1SS355WTE-17 D932 6-501-193-01 DIODE 1SS355WTE-17 D1145 8-719-058-04 DIODE SEL5223S-TP15 ( X ) D1153 8-719-058-04 DIODE SEL5223S-TP15 ( x ) < FERRITE BEAD > FB901 1-216-864-11 SHORT CHIP 0 < FLUORESCENT INDICATOR > FL901 1-519-794-21 VACUUM FLUORESCENT DISPLAYS < IC > IC902 6-806-206-01 IC MB90M407PF-G-149E1 IC903 6-600-309-01 IC RPM7240-H9 ( g ) IC904 6-705-678-01 IC NJM2760V-TE2 < JUMPER RESISTOR > JR914 1-216-864-11 SHORT CHIP 0 JR918 1-216-864-11 SHORT CHIP 0 JR919 1-216-864-11 SHORT CHIP 0 JR925 1-216-296-11 SHORT CHIP 0 < TRANSISTOR > Q901 8-729-027-56 TRANSISTOR DTC143TKA-T146 Q902 8-729-027-56 TRANSISTOR DTC143TKA-T146 Q903 8-729-027-29 TRANSISTOR DTA123JKA-T146 Q904 8-729-106-60 TRANSISTOR 2SB1115A-YQ Q905 8-729-106-60 TRANSISTOR 2SB1115A-YQ Q906 8-729-027-50 TRANSISTOR DTC123JKA-T146 Q907 8-729-027-50 TRANSISTOR DTC123JKA-T146 Q908 8-729-027-50 TRANSISTOR DTC123JKA-T146 Q909 8-729-027-50 TRANSISTOR DTC123JKA-T146 Q910 8-729-027-50 TRANSISTOR DTC123JKA-T146 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 100 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN1000D PANEL Q914 8-729-027-56 TRANSISTOR DTC143TKA-T146 Q917 8-729-027-50 TRANSISTOR DTC123JKA-T146 Q918 8-729-027-50 TRANSISTOR DTC123JKA-T146 Q919 8-729-027-50 TRANSISTOR DTC123JKA-T146 < RESISTOR > R900 1-216-833-11 METAL CHIP 10K 5% 1/10W R901 1-216-833-11 METAL CHIP 10K 5% 1/10W R902 1-216-833-11 METAL CHIP 10K 5% 1/10W R903 1-216-809-11 METAL CHIP 100 5% 1/10W R904 1-216-809-11 METAL CHIP 100 5% 1/10W R905 1-216-835-11 METAL CHIP 15K 5% 1/10W R906 1-216-835-11 METAL CHIP 15K 5% 1/10W R907 1-216-835-11 METAL CHIP 15K 5% 1/10W R908 1-216-809-11 METAL CHIP 100 5% 1/10W R909 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R910 1-216-819-11 METAL CHIP 680 5% 1/10W R911 1-216-819-11 METAL CHIP 680 5% 1/10W R912 1-216-809-11 METAL CHIP 100 5% 1/10W R914 1-216-819-11 METAL CHIP 680 5% 1/10W R915 1-216-819-11 METAL CHIP 680 5% 1/10W R916 1-216-819-11 METAL CHIP 680 5% 1/10W R917 1-216-819-11 METAL CHIP 680 5% 1/10W R918 1-216-845-11 METAL CHIP 100K 5% 1/10W R919 1-216-845-11 METAL CHIP 100K 5% 1/10W R920 1-216-845-11 METAL CHIP 100K 5% 1/10W R922 1-216-857-11 METAL CHIP 1M 5% 1/10W R923 1-216-819-11 METAL CHIP 680 5% 1/10W R924 1-216-819-11 METAL CHIP 680 5% 1/10W R925 1-216-819-11 METAL CHIP 680 5% 1/10W R926 1-216-819-11 METAL CHIP 680 5% 1/10W R941 1-216-809-11 METAL CHIP 100 5% 1/10W R942 1-216-809-11 METAL CHIP 100 5% 1/10W R943 1-216-833-11 METAL CHIP 10K 5% 1/10W R944 1-216-805-11 METAL CHIP 47 5% 1/10W R947 1-216-821-11 METAL CHIP 1K 5% 1/10W R948 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R949 1-216-821-11 METAL CHIP 1K 5% 1/10W R950 1-216-821-11 METAL CHIP 1K 5% 1/10W R951 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R952 1-216-821-11 METAL CHIP 1K 5% 1/10W R953 1-216-821-11 METAL CHIP 1K 5% 1/10W R954 1-216-833-11 METAL CHIP 10K 5% 1/10W R956 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R957 1-216-819-11 METAL CHIP 680 5% 1/10W R964 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R965 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R966 1-216-833-11 METAL CHIP 10K 5% 1/10W R967 1-216-835-11 METAL CHIP 15K 5% 1/10W R968 1-216-837-11 METAL CHIP 22K 5% 1/10W R974 1-216-819-11 METAL CHIP 680 5% 1/10W R975 1-216-819-11 METAL CHIP 680 5% 1/10W R979 1-216-805-11 METAL CHIP 47 5% 1/10W R980 1-216-821-11 METAL CHIP 1K 5% 1/10W R981 1-216-809-11 METAL CHIP 100 5% 1/10W R982 1-216-817-11 METAL CHIP 470 5% 1/10W R983 1-216-842-11 METAL CHIP 56K 5% 1/10W R984 1-216-839-11 METAL CHIP 33K 5% 1/10W R987 1-216-819-11 METAL CHIP 680 5% 1/10W R988 1-216-819-11 METAL CHIP 680 5% 1/10W R990 1-216-819-11 METAL CHIP 680 5% 1/10W R991 1-216-819-11 METAL CHIP 680 5% 1/10W R997 1-216-819-11 METAL CHIP 680 5% 1/10W R1007 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1008 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1009 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R1010 1-216-833-11 METAL CHIP 10K 5% 1/10W R1011 1-216-835-11 METAL CHIP 15K 5% 1/10W R1012 1-216-837-11 METAL CHIP 22K 5% 1/10W R1013 1-216-839-11 METAL CHIP 33K 5% 1/10W R1021 1-216-809-11 METAL CHIP 100 5% 1/10W R1022 1-216-809-11 METAL CHIP 100 5% 1/10W R1023 1-216-809-11 METAL CHIP 100 5% 1/10W R1024 1-216-809-11 METAL CHIP 100 5% 1/10W R1025 1-216-809-11 METAL CHIP 100 5% 1/10W R1026 1-216-809-11 METAL CHIP 100 5% 1/10W R1027 1-216-809-11 METAL CHIP 100 5% 1/10W R1028 1-216-809-11 METAL CHIP 100 5% 1/10W R1098 1-216-819-11 METAL CHIP 680 5% 1/10W R1112 1-216-819-11 METAL CHIP 680 5% 1/10W R1135 1-216-819-11 METAL CHIP 680 5% 1/10W R1136 1-216-819-11 METAL CHIP 680 5% 1/10W R1141 1-216-819-11 METAL CHIP 680 5% 1/10W R1142 1-216-819-11 METAL CHIP 680 5% 1/10W R1143 1-216-819-11 METAL CHIP 680 5% 1/10W R1171 1-216-819-11 METAL CHIP 680 5% 1/10W R1178 1-216-801-11 METAL CHIP 22 5% 1/10W R1179 1-216-819-11 METAL CHIP 680 5% 1/10W R1180 1-216-808-11 METAL CHIP 82 5% 1/10W R1181 1-216-814-11 METAL CHIP 270 5% 1/10W R1187 1-216-833-11 METAL CHIP 10K 5% 1/10W < SWITCH > S907 1-762-875-21 SWITCH, KEYBOARD ( Y ) S908 1-762-875-21 SWITCH, KEYBOARD ( X ) S909 1-762-875-21 SWITCH, KEYBOARD ( x ) S910 1-762-875-21 SWITCH, KEYBOARD (PRESET + > ) S911 1-762-875-21 SWITCH, KEYBOARD (PRESET - . ) S912 1-762-875-21 SWITCH, KEYBOARD (TUNING + M T ) S913 1-762-875-21 SWITCH, KEYBOARD (TUNING - t m ) S921 1-762-875-21 SWITCH, KEYBOARD (VIDEO) S922 1-762-875-21 SWITCH, KEYBOARD (TV/SAT) S923 1-762-875-21 SWITCH, KEYBOARD (TAPE A/B) S924 1-762-875-21 SWITCH, KEYBOARD (TUNER/BAND) S925 1-762-875-21 SWITCH, KEYBOARD (DVD) S927 1-762-875-21 SWITCH, KEYBOARD ( ^/1 ) < VIBRATOR > X901 1-781-282-51 VIBRATOR, CERAMIC (4 MHz) ************************************************************ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 101 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN1000D PRIMARY SENSOR PRIMARY BOARD ************** < CAPACITOR > C1201 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1202 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1204 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1206 1-126-916-11 ELECT 1000uF 20% 6.3V < CONNECTOR > CN1200 1-785-329-11 PIN, CONNECTOR (LIGHT ANGLE) 3P CN1202 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P CN1204 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P (TH) CN1204 1-568-106-11 PIN, CONNECTOR (3.96mm PITCH) 4P (EXCEPT TH) < DIODE > D1200 6-501-193-01 DIODE 1SS355WTE-17 < JUMPER RESISTOR > JR1202 1-216-864-11 SHORT CHIP 0 < COIL > L1201 1-410-666-31 INDUCTOR 18uH < TRANSISTOR > Q1200 8-729-230-49 TRANSISTOR 2SC2712-YG < RESISTOR > R1200 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1201 1-216-845-11 METAL CHIP 100K 5% 1/10W < RELAY > 0RY1200 1-755-299-11 RELAY < SWITCH > 0S1200 1-771-291-31 SWITCH, POWER (VOLTAGE SELECTOR) (EXCEPT TH) ************************************************************ 1-687-132-12 SENSOR BOARD ************* < CONNECTOR > CN731 1-785-329-21 PIN, CONNECTOR (LIGHT ANGLE) 3P < IC > IC731 6-600-022-01 IC RPI-576 ************************************************************ A-1174-050-A SURROUND BOARD, COMPLETE ************************** < CAPACITOR > C700 1-126-963-11 ELECT 4.7uF 20% 50V C701 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C702 1-126-923-91 ELECT 220uF 20% 10V C703 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C704 1-126-963-11 ELECT 4.7uF 20% 50V C710 1-162-918-11 CERAMIC CHIP 18PF 5% 50V C711 1-162-918-11 CERAMIC CHIP 18PF 5% 50V C712 1-162-918-11 CERAMIC CHIP 18PF 5% 50V C730 1-136-495-11 FILM 0.068uF 5% 50V C731 1-136-495-11 FILM 0.068uF 5% 50V C732 1-131-992-91 CERAMIC CHIP 100000PF 35V C733 1-131-992-91 CERAMIC CHIP 100000PF 35V C740 1-126-963-11 ELECT 4.7uF 20% 50V C741 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C742 1-126-923-91 ELECT 220uF 20% 10V C743 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C744 1-126-963-11 ELECT 4.7uF 20% 50V C750 1-126-963-11 ELECT 4.7uF 20% 50V C751 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C752 1-126-923-91 ELECT 220uF 20% 10V C753 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C754 1-126-963-11 ELECT 4.7uF 20% 50V C770 1-136-495-11 FILM 0.068uF 5% 50V C771 1-136-495-11 FILM 0.068uF 5% 50V C772 1-131-992-91 CERAMIC CHIP 100000PF 35V C773 1-131-992-91 CERAMIC CHIP 100000PF 35V C780 1-136-495-11 FILM 0.068uF 5% 50V C781 1-136-495-11 FILM 0.068uF 5% 50V C782 1-131-992-91 CERAMIC CHIP 100000PF 35V C783 1-131-992-91 CERAMIC CHIP 100000PF 35V C791 1-162-974-11 CERAMIC CHIP 0.01uF 50V C792 1-162-974-11 CERAMIC CHIP 0.01uF 50V C793 1-128-563-11 ELECT 100uF 20% 100V C794 1-128-563-11 ELECT 100uF 20% 100V C795 1-128-560-11 ELECT 22uF 20% 100V C796 1-128-560-11 ELECT 22uF 20% 100V C800 1-126-963-11 ELECT 4.7uF 20% 50V C801 1-100-717-91 CERAMIC CHIP 1uF 16V C802 1-104-658-91 ELECT 100uF 20% 10V C803 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C804 1-164-156-11 CERAMIC CHIP 0.1uF 25V C805 1-164-156-11 CERAMIC CHIP 0.1uF 25V C806 1-126-961-11 ELECT 2.2uF 20% 50V C807 1-100-717-91 CERAMIC CHIP 1uF 16V C808 1-131-749-11 CERAMIC CHIP 8.2PF 50V C820 1-126-964-11 ELECT 10uF 20% 50V C825 1-126-968-11 ELECT 100uF 20% 50V C826 1-126-968-11 ELECT 100uF 20% 50V C838 1-136-495-11 FILM 0.068uF 5% 50V C839 1-136-495-11 FILM 0.068uF 5% 50V C843 1-126-963-11 ELECT 4.7uF 20% 50V C850 1-126-963-11 ELECT 4.7uF 20% 50V C851 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C852 1-104-658-91 ELECT 100uF 20% 10V C853 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C858 1-131-749-11 CERAMIC CHIP 8.2PF 50V C888 1-136-495-11 FILM 0.068uF 5% 50V C889 1-136-495-11 FILM 0.068uF 5% 50V SURROUND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 102 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN1000D < CONNECTOR > CN700 1-764-865-41 CONNECTOR, BOARD TO BOARD 13P CN701 1-784-031-41 CONNECTOR, BOARD TO BOARD 8P < DIODE > D730 8-719-988-61 DIODE 1SS355TE-17 D761 8-719-988-61 DIODE 1SS355TE-17 D762 8-719-988-61 DIODE 1SS355TE-17 D763 8-719-988-61 DIODE 1SS355TE-17 D764 8-719-988-61 DIODE 1SS355TE-17 D765 8-719-988-61 DIODE 1SS355TE-17 D770 8-719-988-61 DIODE 1SS355TE-17 D780 8-719-988-61 DIODE 1SS355TE-17 D800 6-501-193-01 DIODE 1SS355WTE-17 D810 6-501-193-01 DIODE 1SS355WTE-17 D811 6-501-193-01 DIODE 1SS355WTE-17 D812 6-501-193-01 DIODE 1SS355WTE-17 D850 6-501-193-01 DIODE 1SS355WTE-17 < IC > IC702 6-600-168-01 IC STK443-090-E IC800 6-704-107-01 IC STK403-100-E < JUMPER RESISTOR > JR700 1-216-296-11 SHORT CHIP 0 JR791 1-216-864-11 SHORT CHIP 0 JR792 1-216-296-11 SHORT CHIP 0 < COIL > L730 1-420-872-52 COIL, AIR-CORE L770 1-420-872-52 COIL, AIR-CORE L780 1-420-872-52 COIL, AIR-CORE < TRANSISTOR > Q700 8-729-023-22 TRANSISTOR 2SD2114K Q730 8-729-924-99 TRANSISTOR 2SC3722K-E Q740 8-729-023-22 TRANSISTOR 2SD2114K Q750 8-729-023-22 TRANSISTOR 2SD2114K Q762 8-729-230-49 TRANSISTOR 2SC2712-YG Q763 8-729-230-49 TRANSISTOR 2SC2712-YG Q765 8-729-023-22 TRANSISTOR 2SD2114K Q770 8-729-924-99 TRANSISTOR 2SC3722K-E Q780 8-729-924-99 TRANSISTOR 2SC3722K-E Q800 8-729-924-99 TRANSISTOR 2SC3722K-E Q810 8-729-023-22 TRANSISTOR 2SD2114K Q812 8-729-924-99 TRANSISTOR 2SC3722K-E Q814 8-729-230-49 TRANSISTOR 2SC2712-YG Q815 8-729-230-49 TRANSISTOR 2SC2712-YG Q850 8-729-924-99 TRANSISTOR 2SC3722K-E < RESISTOR > R700 1-216-821-11 METAL CHIP 1K 5% 1/10W R701 1-216-841-11 METAL CHIP 47K 5% 1/10W R702 1-216-816-11 METAL CHIP 390 5% 1/10W R703 1-216-821-11 METAL CHIP 1K 5% 1/10W R704 1-216-833-11 METAL CHIP 10K 5% 1/10W R705 1-216-841-11 METAL CHIP 47K 5% 1/10W R706 1-216-833-11 METAL CHIP 10K 5% 1/10W R710 1-216-841-11 METAL CHIP 47K 5% 1/10W R711 1-216-841-11 METAL CHIP 47K 5% 1/10W R712 1-216-841-11 METAL CHIP 47K 5% 1/10W 0R730 1-234-499-21 ENCAPSULATED COMPONENT R731 1-216-821-11 METAL CHIP 1K 5% 1/10W R732 1-216-838-11 METAL CHIP 27K 5% 1/10W R733 1-216-845-11 METAL CHIP 100K 5% 1/10W R734 1-216-842-11 METAL CHIP 56K 5% 1/10W R735 1-245-711-31 CARBON 10 5% 1/2W R736 1-245-711-31 CARBON 10 5% 1/2W R737 1-245-711-31 CARBON 10 5% 1/2W R740 1-216-821-11 METAL CHIP 1K 5% 1/10W R741 1-216-841-11 METAL CHIP 47K 5% 1/10W R742 1-216-813-11 METAL CHIP 220 5% 1/10W R743 1-216-821-11 METAL CHIP 1K 5% 1/10W R744 1-216-833-11 METAL CHIP 10K 5% 1/10W R745 1-216-841-11 METAL CHIP 47K 5% 1/10W R746 1-216-833-11 METAL CHIP 10K 5% 1/10W R750 1-216-821-11 METAL CHIP 1K 5% 1/10W R751 1-216-841-11 METAL CHIP 47K 5% 1/10W R752 1-216-816-11 METAL CHIP 390 5% 1/10W R753 1-216-821-11 METAL CHIP 1K 5% 1/10W R754 1-216-833-11 METAL CHIP 10K 5% 1/10W R755 1-216-841-11 METAL CHIP 47K 5% 1/10W R756 1-216-833-11 METAL CHIP 10K 5% 1/10W R761 1-216-839-11 METAL CHIP 33K 5% 1/10W R762 1-216-839-11 METAL CHIP 33K 5% 1/10W 0R764 1-260-087-11 CARBON 100 5% 1/2W 0R765 1-260-087-11 CARBON 100 5% 1/2W R766 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R767 1-216-837-11 METAL CHIP 22K 5% 1/10W R768 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R769 1-216-837-11 METAL CHIP 22K 5% 1/10W 0R770 1-234-499-21 ENCAPSULATED COMPONENT R771 1-216-821-11 METAL CHIP 1K 5% 1/10W R772 1-216-838-11 METAL CHIP 27K 5% 1/10W R773 1-216-845-11 METAL CHIP 100K 5% 1/10W R774 1-216-843-11 METAL CHIP 68K 5% 1/10W R775 1-245-711-31 CARBON 10 5% 1/2W R776 1-245-711-31 CARBON 10 5% 1/2W R777 1-245-711-31 CARBON 10 5% 1/2W R778 1-216-841-11 METAL CHIP 47K 5% 1/10W R779 1-216-841-11 METAL CHIP 47K 5% 1/10W 0R780 1-234-499-21 ENCAPSULATED COMPONENT R781 1-216-821-11 METAL CHIP 1K 5% 1/10W R782 1-216-838-11 METAL CHIP 27K 5% 1/10W R783 1-216-845-11 METAL CHIP 100K 5% 1/10W R784 1-216-841-11 METAL CHIP 47K 5% 1/10W R785 1-245-711-31 CARBON 10 5% 1/2W R786 1-245-711-31 CARBON 10 5% 1/2W R787 1-245-711-31 CARBON 10 5% 1/2W R788 1-216-841-11 METAL CHIP 47K 5% 1/10W R792 1-216-839-11 METAL CHIP 33K 5% 1/10W 0R793 1-217-637-00 FUSIBLE 1 5% 1/4W SURROUND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 103 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN1000D 0R794 1-245-605-51 FUSIBLE 100 5% 1/4W 0R795 1-245-605-51 FUSIBLE 100 5% 1/4W R797 1-216-837-11 METAL CHIP 22K 5% 1/10W R798 1-216-821-11 METAL CHIP 1K 5% 1/10W R800 1-216-821-11 METAL CHIP 1K 5% 1/10W R801 1-216-841-11 METAL CHIP 47K 5% 1/10W R802 1-216-813-11 METAL CHIP 220 5% 1/10W R803 1-216-825-11 METAL CHIP 2.2K 5% 1/10W 0R804 1-217-637-00 FUSIBLE 1 5% 1/4W 0R805 1-217-637-00 FUSIBLE 1 5% 1/4W R806 1-216-821-11 METAL CHIP 1K 5% 1/10W R807 1-216-841-11 METAL CHIP 47K 5% 1/10W R808 1-216-841-11 METAL CHIP 47K 5% 1/10W R812 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R814 1-216-833-11 METAL CHIP 10K 5% 1/10W R817 1-216-833-11 METAL CHIP 10K 5% 1/10W 0R827 1-245-605-51 FUSIBLE 100 5% 1/4W 0R828 1-245-605-51 FUSIBLE 100 5% 1/4W 0R838 1-220-893-11 METAL 0.22 10% 5W R839 1-216-821-11 METAL CHIP 1K 5% 1/10W R840 1-216-837-11 METAL CHIP 22K 5% 1/10W R841 1-216-845-11 METAL CHIP 100K 5% 1/10W R842 1-245-711-31 CARBON 10 5% 1/2W R843 1-216-841-11 METAL CHIP 47K 5% 1/10W R850 1-216-821-11 METAL CHIP 1K 5% 1/10W R851 1-216-841-11 METAL CHIP 47K 5% 1/10W R852 1-216-814-11 METAL CHIP 270 5% 1/10W R858 1-216-841-11 METAL CHIP 47K 5% 1/10W R860 1-216-842-11 METAL CHIP 56K 5% 1/10W R861 1-216-841-11 METAL CHIP 47K 5% 1/10W 0R862 1-260-087-11 CARBON 100 5% 1/2W R863 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R864 1-216-837-11 METAL CHIP 22K 5% 1/10W R865 1-216-821-11 METAL CHIP 1K 5% 1/10W R866 1-216-837-11 METAL CHIP 22K 5% 1/10W 0R888 1-220-893-11 METAL 0.22 10% 5W R889 1-216-821-11 METAL CHIP 1K 5% 1/10W R890 1-216-837-11 METAL CHIP 22K 5% 1/10W R891 1-216-845-11 METAL CHIP 100K 5% 1/10W R892 1-245-711-31 CARBON 10 5% 1/2W < RELAY > RY760 1-755-170-11 RELAY (12V) RY761 1-755-170-11 RELAY (12V) RY862 1-755-500-11 RELAY < TERMINAL > TM700 1-780-001-21 TERMINAL BOARD (SPEAKER) (SURR SPEAKER) TM701 1-780-170-21 TERMINAL BOARD (SPEAKER) (CENTER SPEAKER) ************************************************************ 1-687-669-12 SW BOARD ********* < SWITCH > S751 1-786-514-11 SWITCH, LEVER (SLIDE) (OPEN) ************************************************************ A-1174-058-A TRANS BOARD, COMPLETE (EXCEPT TH) A-1193-948-A TRANS BOARD, COMPLETE (TH) ********************* 1-533-217-41 HOLDER, FUSE < CAPACITOR > C1262 1-126-964-11 ELECT 10uF 20% 50V C1263 1-126-968-11 ELECT 100uF 20% 50V C1292 1-128-576-11 ELECT 100uF 20% 63V < CONNECTOR > * CN1212 1-564-522-11 PLUG, CONNECTOR 7P * CN1213 1-564-523-11 PLUG, CONNECTOR 8P CN1215 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P < DIODE > D1264 8-719-071-83 DIODE HZU36BTRF D1292 6-500-522-21 DIODE 10EDB40-TB3 < TRANSISTOR > Q1264 8-729-024-93 TRANSISTOR 2SB1565E < RESISTOR > R1262 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R1263 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R1264 1-216-821-11 METAL CHIP 1K 5% 1/10W 0R1292 1-219-124-11 FUSIBLE 0.68 5% 1/4W ************************************************************ A-1174-061-A VIDEO BOARD, COMPLETE ********************* < CAPACITOR > C800 1-126-960-11 ELECT 1uF 20% 50V C801 1-126-960-11 ELECT 1uF 20% 50V C802 1-126-960-11 ELECT 1uF 20% 50V C803 1-126-965-91 ELECT 22uF 20% 50V C804 1-164-156-11 CERAMIC CHIP 0.1uF 25V C805 1-126-960-11 ELECT 1uF 20% 50V C806 1-126-960-11 ELECT 1uF 20% 50V C807 1-126-960-11 ELECT 1uF 20% 50V C808 1-104-658-91 ELECT 100uF 20% 10V C809 1-164-156-11 CERAMIC CHIP 0.1uF 25V C810 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C811 1-126-916-11 ELECT 1000uF 20% 6.3V C812 1-126-916-11 ELECT 1000uF 20% 6.3V C813 1-126-916-11 ELECT 1000uF 20% 6.3V C814 1-126-916-11 ELECT 1000uF 20% 6.3V C815 1-126-916-11 ELECT 1000uF 20% 6.3V TRANS VIDEO SW SURROUND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 104 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HCD-GN1000D C816 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C817 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C818 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C819 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C820 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C821 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C822 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C823 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C824 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C825 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C826 1-126-964-11 ELECT 10uF 20% 50V C827 1-126-964-11 ELECT 10uF 20% 50V C829 1-126-916-11 ELECT 1000uF 20% 6.3V C830 1-104-658-91 ELECT 100uF 20% 10V C831 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V < CONNECTOR > CN800 1-564-707-11 PIN, CONNECTOR (SMALL TYPE) 5P CN801 1-779-281-11 FFC CONNECTOR (LIF (NON-ZIF)) 13P CN802 1-785-328-11 PIN, CONNECTOR (LIGHT ANGRE) 2P < FERRITE BEAD > FB800 1-216-864-11 SHORT CHIP 0 FB801 1-216-864-11 SHORT CHIP 0 FB802 1-216-864-11 SHORT CHIP 0 FB803 1-216-864-11 SHORT CHIP 0 FB804 1-216-864-11 SHORT CHIP 0 FB805 1-216-864-11 SHORT CHIP 0 FB806 1-216-864-11 SHORT CHIP 0 < IC > IC800 8-759-295-90 IC NJM2244M-TE2 IC801 6-705-602-01 IC MM1623BFBE < JACK > J800 1-817-449-11 JACK, PIN 3P (COMPONENT VIDEO OUT) J801 1-537-943-11 TERMINAL, S (S VIDEO OUT) J802 1-794-970-11 JACK, PIN 1P (VIDEO OUT) < JUMPER RESISTOR > JR800 1-216-864-11 SHORT CHIP 0 JR802 1-216-864-11 SHORT CHIP 0 JR803 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V JR804 1-216-864-11 SHORT CHIP 0 < COIL > L801 1-414-183-41 INDUCTOR 10uH < RESISTOR > R800 1-216-809-11 METAL CHIP 100 5% 1/10W R802 1-218-285-11 METAL CHIP 75 5% 1/10W R803 1-218-285-11 METAL CHIP 75 5% 1/10W R804 1-218-285-11 METAL CHIP 75 5% 1/10W R805 1-218-285-11 METAL CHIP 75 5% 1/10W R806 1-216-864-11 SHORT CHIP 0 R807 1-216-809-11 METAL CHIP 100 5% 1/10W R808 1-218-285-11 METAL CHIP 75 5% 1/10W R809 1-216-833-11 METAL CHIP 10K 5% 1/10W R810 1-216-807-11 METAL CHIP 68 5% 1/10W R812 1-216-857-11 METAL CHIP 1M 5% 1/10W R813 1-216-845-11 METAL CHIP 100K 5% 1/10W R814 1-216-833-11 METAL CHIP 10K 5% 1/10W ************************************************************ MISCELLANEOUS ************* 0 1-770-019-61 ADAPTOR, CONVERSION PLUG (EA) 0 1-569-008-21 ADAPTOR, CONVERSION 2P (EXCEPT E12, TH) 5 1-693-702-11 TUNER (FM/AM) (TM10SE) 07 1-468-737-51 POWER SWITCHING 8 1-828-326-11 WIRE (FLAT TYPE) (13 CORE) (65mm) 10 1-823-718-11 WIRE (FLAT TYPE) (17 CORE) (100mm) 65 1-828-991-11 WIRE (FLAT TYPE) (17 CORE) (100mm) 67 1-417-658-11 MECHA DECK (CWN42RR603) 0157 1-777-071-53 CORD, POWER (EXCEPT TH) 0157 1-824-818-11 CORD, POWER (WITH CONNECTOR) (TH) 202 1-776-182-11 WIRE (FLAT TYPE) (5 CORE) 0279 8-820-291-02 OPTICAL PICK-UP KHM-310CAB/C2RP 0F1241 1-533-949-33 FUSE, CYLINDRICAL (TIME LUG) (T8AL/250V) 0F1251 1-533-949-33 FUSE, CYLINDRICAL (TIME LUG) (T8AL/250V) 0F1261 1-533-949-33 FUSE, CYLINDRICAL (TIME LUG) (T8AL/250V) 0F1271 1-533-949-33 FUSE, CYLINDRICAL (TIME LUG) (T8AL/250V) 0F1281 1-532-465-33 FUSE (T3.15AL/250V) 0F1291 1-532-465-33 FUSE (T3.15AL/250V) M741 A-1108-965-A MOTOR ASSY, TABLE M751 A-4737-553-A MOTOR ASSY, LOADING M891 1-763-372-11 FAN, DC M892 1-763-372-11 FAN, DC S711 1-477-680-12 ENCODER, ROTARY 0T1200 1-443-974-11 POWER TRANSFORMER (EXCEPT EA) 0T1200 1-443-975-11 POWER TRANSFORMER (EA) VIDEO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 105 HCD-GN1000D MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GN1000D REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2006.05 New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
