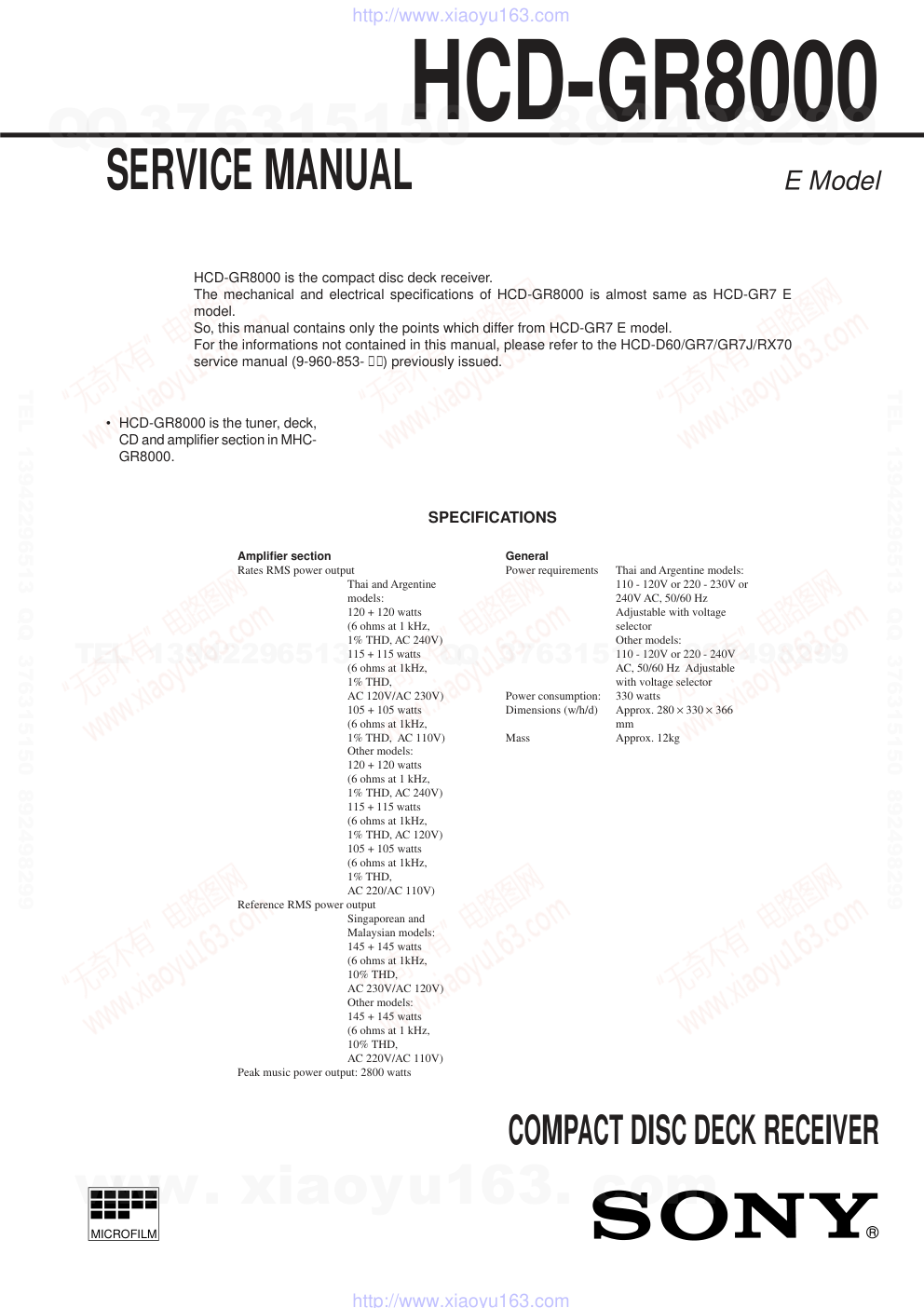

HCD-GR8000 E Model SERVICE MANUAL COMPACT DISC DECK RECEIVER MICROFILM SPECIFICATIONS • HCD-GR8000 is the tuner, deck, CD and amplifier section in MHC- GR8000. HCD-GR8000 is the compact disc deck receiver. The mechanical and electrical specifications of HCD-GR8000 is almost same as HCD-GR7 E model. So, this manual contains only the points which differ from HCD-GR7 E model. For the informations not contained in this manual, please refer to the HCD-D60/GR7/GR7J/RX70 service manual (9-960-853- π π) previously issued. Amplifier section Rates RMS power output Thai and Argentine models: 120 + 120 watts (6 ohms at 1 kHz, 1% THD, AC 240V) 115 + 115 watts (6 ohms at 1kHz, 1% THD, AC 120V/AC 230V) 105 + 105 watts (6 ohms at 1kHz, 1% THD, AC 110V) Other models: 120 + 120 watts (6 ohms at 1 kHz, 1% THD, AC 240V) 115 + 115 watts (6 ohms at 1kHz, 1% THD, AC 120V) 105 + 105 watts (6 ohms at 1kHz, 1% THD, AC 220/AC 110V) Reference RMS power output Singaporean and Malaysian models: 145 + 145 watts (6 ohms at 1kHz, 10% THD, AC 230V/AC 120V) Other models: 145 + 145 watts (6 ohms at 1 kHz, 10% THD, AC 220V/AC 110V) Peak music power output: 2800 watts General Power requirements Thai and Argentine models: 110 - 120V or 220 - 230V or 240V AC, 50/60 Hz Adjustable with voltage selector Other models: 110 - 120V or 220 - 240V AC, 50/60 Hz Adjustable with voltage selector Power consumption: 330 watts Dimensions (w/h/d) Approx. 280 × 330 × 366 mm Mass Approx. 12kg www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 2 — SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. CAUTION Use of control or adjustments or performance of procedures other than those specified hereinmay result in hazardous radiation exposure. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. Laser component in this product is capable of emitting radiation exceeding th elimit for Class 1. The following caution label is located inside the unit. MODEL IDENTIFICATION — BACK PANEL — MODEL PART NO. E 4-993-650-01 SP, MY, TH, AR 4-993-650-21 EA 4-993-650-31 • Abbreviation EA : Saudi Arabia MY : Malaysia SP : Singapore TH : Thailand AR : Argentine 6. DIAGRAMS Circuit Boards Location ····················································· 3 6-8. Schematic Diagram — Main (2/2) Section — ··················· 4 6-9. Schematic Diagram — Main/Trans Section — ·················· 7 6-10. Printed Wiring Board —Main/Trans Section — ·············· 11 6-13. Printed Wiring Board — Power AMP Section — ············ 15 6-14. Schematic Diagram — Power AMP Section — ··············· 17 7. EXPLODED VIEWS (1) Case, MD Assy Section ···················································· 19 (2) Front Panel Section ·························································· 20 (3) Chassis Section ································································· 21 8. ELECTRICAL PARTS LIST ··································· 22 TABLE OF CONTENTS SERVICING NOTES NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefor , when checking the laser diode emission, observe from more than 30 cm away from the objective lens. Note on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing • Keep the temperature of the soldering iro around 270 ˚C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor whe soldering or unsoldering. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-GR8000 SECTION 6 DIAGRAMS • Circuit Boarts Location 6-8. SCHEMATIC DIAGRAM — MAIN (2/2) SECTION — (Refer to the HCD-D60/GR7/GR7J/RX70 service manual page 51.) Note: • All capacitors are in µF unless otherwise noted. pF: µµF 50WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4W or less unless otherwise specified. • B+ : B+ Line. • B– : B– Line. • : adjustment for repair. • Voltages are dc with respect to ground under no-signal conditions. no mark : FM TUNER • Voltages are taken with a VOM (Input impedance 10MΩ). Voltage variations may be noted due to normal production tolerances. • Signal path : PB (DECK A) : PB (DECK B) : PB (DECK B) — 3 — — 4 — — 5 — — 6 — • Refer to page 11 for Printed Wiring Board (MAIN BOARD) PANEL board HP/MIC board TC SW board CD SW board DECO board TRANSFORMER board TRANSFORMER SW board ENCAPSULATED COMPONENT MAIN board POWER (R) board POWER (L) board MOTOR (TURN) board MOTOR (SLIDE) board CONNECTOR board BD board AUDIO board LEAF SWITCH board SENSOR board MOTOR board w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SECTION 7 EXPLODED VIEWS Note: • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • Hardware (# mark) list and accessories and packing materials are given in the last of this parts list. • The mechanical parts with no reference number in the exploded views are not supplied. • Abbreviation E2 : 120V AC Area in E model E3 : 220V AC Area in E model EA : Saudi Arabia TH : Thai MY : Malaysia AR : Angentine SP : Singapore The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. — 19 — (1) CASE, MD ASSY SECTION (Refer to the HCD-D60/GR7/GR7J/RX70 service manual page 83) Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 1 4-989-904-01 SPRING (B DECK) 2 X-4948-117-1 LID (B) ASSY, CASSETTE 3 X-4948-116-1 LID (A) ASSY, CASSETTE 4 4-989-903-01 SPRING (A DECK) 5 4-991-701-51 PANEL, LOADING 6 4-986-859-31 WINDOW (CD) 8 4-986-843-21 BUTTON (EJECT) 9 4-990-129-01 SPRING (OPEN A) 10 4-951-620-01 SCREW (2.6X8), +BVTP 11 3-363-099-01 SCREW (CASE 3 TP2) 12 3-363-099-41 SCREW (CASE 3 TP2) * 13 4-988-767-11 CASE 14 1-773-160-11 WIRE (FLAT TYPE) (21 CORE) 15 1-769-947-11 WIRE (FLAT TYPE) (11 CORE) 16 4-990-130-01 SPRING (OPEN B) 17 3-354-957-01 JOINT (LOCK LEVER) * 18 3-354-954-01 LEVER (LOCK LEVER R) * 19 3-354-953-01 LEVER (LOCK LEVER L) 1 2 3 4 5 6 8 9 10 11 12 13 12 11 14 15 16 17 18 19 17 #1 #1 #1 #2 #2 TCM-220WR2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 20 — (2) FRONT PANEL SECTION (Refer to the HCD-D60/GR7/GR7J/RX70 service manual page 84,85) 51 4-986-877-21 KNOB (VOL) 52 4-986-869-61 WINDOW (STR) 53 4-986-866-21 PANEL, SUB 54 X-4948-111-1 BUTTON (DJ) ASSY 55 4-986-893-21 KNOB (MICROPHONE) * 56 A-4392-351-A HP/MIC BOARD, COMPLETE (EXCEPT EA) * 56 A-4392-857-A HP/MIC BOARD, COMPLETE (EA) 57 4-951-620-01 SCREW (2.6X8), +BVTP 58 4-986-863-01 INDICATOR (CD) * 59 4-986-865-01 HOLDER (LED) * 60 1-664-007-11 DECO BOARD 61 4-986-860-21 BUTTON (POWER) 62 4-986-901-21 BUTTON (A DECK) 63 4-986-862-01 BUTTON (CD) 64 1-777-869-11 WIRE (FLAT TYPE) (10 CORE) 65 1-777-936-11 WIRE (FLAT TYPE) (5 CORE) 66 1-773-051-11 WIRE (FLAT TYPE) (17 CORE) Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks * 67 A-4392-348-A CD SW BOARD, COMPLETE * 68 A-4392-341-A PANEL BOARD, COMPLETE * 69 A-4392-350-A TC SW BOARD, COMPLETE 70 4-986-880-01 HOLDER (JOG) 71 4-986-881-01 JOG (PLATE) 72 X-4948-114-1 KNOB (JOG-T5) ASSY 73 4-986-861-21 BUTTON (PLAY) 74 1-769-909-11 WIRE (FLAT TYPE) (9 CORE) 75 4-986-902-21 BUTTON (B DECK) 76 X-4948-104-1 PANEL ASSY, FRONT (E2,E3,SP,MY,TH,AR) 77 4-930-336-61 FOOT (FELT) 78 X-4948-107-1 BUTTON (T/B) ASSY 79 4-986-883-01 INDICATOR (JOG) 80 4-986-894-01 BUTTON (GROOVE) 81 X-4948-110-1 BUTTON (E/S) ASSY 82 4-986-872-31 BUTTON (TIMER) 83 4-962-708-11 EMBLEM (4-A), SONY 51 52 53 54 55 56 57 57 57 57 57 57 58 59 60 61 62 63 64 78 79 80 81 82 65 66 67 68 69 74 73 70 71 72 57 55 not supplied 76 75 77 not supplied with S602 EA MODEL 83 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 21 — (3) CHASSIS SECTION (Refer to the HCD-D60/GR7/GR7J/RX70 service manual page 86,87) Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks * 101 A-4403-329-A POWER (L) BOARD, COMPLETE * 102 1-667-126-12 TRANSFORMER BOARD 104 1-777-870-11 WIRE (FLAT TYPE) (19 CORE) * 105 4-993-650-01 PANEL (T5 HI-POWER), BACK (E) * 105 4-993-650-21 PANEL (T5 HI-POWER), BACK (SP,MY,TH,AR) * 105 4-993-650-31 PANEL (T5 HI-POWER), BACK (EA) 106 1-233-545-11 ENCAPSULATED COMPONENT (E2) 106 1-233-546-11 ENCAPSULATED COMPONENT (EXCEPT E2) * 107 3-703-244-00 BUSHING (2104), CORD (EA,SP,MY,TH,AR) 107 3-703-571-11 BUSHING (S) (4516), CORD (E) 108 1-751-086-11 WIRE (FLAT TYPE) (13 CORE) (E2) 108 1-773-012-11 WIRE (FLAT TYPE) (15 CORE) (EXCEPT E2) * 109 4-988-533-01 HOLDER, PCB 110 4-965-822-01 FOOT * 111 A-4403-335-A MAIN BOARD,COMPLETE (EXCEPT E2) * 111 A-4403-344-A MAIN BOARD, COMPLETE (E2) * 112 A-4403-334-A POWER (R) BOARD, COMPLETE * 113 1-667-247-12 TRANSFORMER SW BOARD !115 1-575-653-11 CORD, POWER (E) !116 1-569-007-11 ADAPTOR, CONVERSION 2P (E3) !117 1-569-008-11 ADAPTOR, CONVERSION 2P (EA,SP,MY,TH,AR) !118 1-575-651-11 CORD, POWER (EA,SP,MY,TH,AR) M901 1-698-792-11 FAN, DC !T901 1-431-504-11 TRANSFORMER, POWER (E,EA) !T901 1-431-619-11 TRANSFORMER, POWER (SP,MY,TH,AR) 101 112 102 104 105 106 113 107 108 109 110 111 #4 M901 T901 #4 #4 #4 #5 #4 #4 #4 #4 #1 #1 not supplied CDM38L-5BD29AL not supplied #4 #3 #3 115 116 117 118 E, E2, E3 E3 EA, SP, MY, TH, AR #4 #4 The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Note: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • CAPACITORS: uF: µF The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. • RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable • COILS uH: µH • SEMICONDUCTORS In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD... When indicating parts by reference number, please include the board name. Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 22 — SECTION 8 ELECTRICAL PARTS LIST • Abbreviation E2 : 120V AC Area in E model E3 : 220V AC Area in E model EA : Saudi Arabia MY : Malaysia SP : Singapore TH : Thai AR : Angentine * A-4403-344-A MAIN BOARD,COMPLETE (E2) ******************** * A-4403-335-A MAIN BOARD, COMPLETE (EXCEPT E2) ********************* 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S < CAPACITOR > C109 1-164-159-11 CERAMIC 0.1uF 50V C121 1-162-286-31 CERAMIC 220PF 10% 50V C122 1-162-286-31 CERAMIC 220PF 10% 50V C123 1-162-306-11 CERAMIC 0.01uF 20% 16V C171 1-162-286-31 CERAMIC 220PF 10% 50V C172 1-162-286-31 CERAMIC 220PF 10% 50V C173 1-162-306-11 CERAMIC 0.01uF 20% 16V C191 1-126-963-11 ELECT 4.7uF 20% 50V C192 1-164-159-11 CERAMIC 0.1uF 50V C201 1-136-169-00 FILM 0.22uF 5% 50V C202 1-136-169-00 FILM 0.22uF 5% 50V C203 1-130-493-00 MYLAR 0.068uF 5% 50V C204 1-130-493-00 MYLAR 0.068uF 5% 50V C205 1-130-486-00 MYLAR 0.018uF 10% 50V C206 1-130-486-00 MYLAR 0.018uF 10% 50V C207 1-130-480-00 MYLAR 0.0056uF 5% 50V C208 1-130-479-00 MYLAR 0.0047uF 5% 50V C209 1-130-474-00 MYLAR 0.0018uF 5% 50V C210 1-126-964-11 ELECT 10uF 20% 50V C211 1-126-964-11 ELECT 10uF 20% 50V C212 1-130-477-00 MYLAR 0.0033uF 5% 50V C213 1-136-165-00 FILM 0.1uF 5% 50V C214 1-136-165-00 FILM 0.1uF 5% 50V C215 1-162-294-31 CERAMIC 0.001uF 10% 50V C216 1-136-167-00 FILM 0.15uF 5% 50V C221 1-126-967-11 ELECT 47uF 20% 10V C222 1-126-967-11 ELECT 47uF 20% 10V C223 1-126-964-11 ELECT 10uF 20% 50V C224 1-162-290-31 CERAMIC 470PF 10% 50V C226 1-126-964-11 ELECT 10uF 20% 50V C231 1-109-889-11 ELECT 1uF 20% 50V C251 1-136-169-00 FILM 0.22uF 5% 50V C252 1-136-169-00 FILM 0.22uF 5% 50V C253 1-130-493-00 MYLAR 0.068uF 5% 50V C254 1-130-493-00 MYLAR 0.068uF 5% 50V C255 1-130-486-00 MYLAR 0.018uF 10% 50V C256 1-130-486-00 MYLAR 0.018uF 10% 50V C257 1-130-480-00 MYLAR 0.0056uF 5% 50V C258 1-130-479-00 MYLAR 0.0047uF 5% 50V C259 1-130-474-00 MYLAR 0.0018uF 5% 50V C260 1-126-964-11 ELECT 10uF 20% 50V C261 1-126-964-11 ELECT 10uF 20% 50V C262 1-130-477-00 MYLAR 0.0033uF 5% 50V C263 1-136-165-00 FILM 0.1uF 5% 50V C264 1-136-165-00 FILM 0.1uF 5% 50V C265 1-130-475-00 MYLAR 0.0022uF 5% 50V C266 1-130-475-00 MYLAR 0.0022uF 5% 50V C276 1-126-964-11 ELECT 10uF 20% 50V C281 1-126-933-11 ELECT 100uF 20% 10V C282 1-126-961-11 ELECT 2.2uF 20% 50V C283 1-126-933-11 ELECT 100uF 20% 10V C284 1-126-923-11 ELECT 220uF 20% 10V C291 1-126-959-11 ELECT 0.47uF 20% 50V C301 1-126-967-11 ELECT 47uF 20% 10V C302 1-164-159-11 CERAMIC 0.1uF 50V C303 1-136-173-00 FILM 0.47uF 5% 50V C304 1-126-926-11 ELECT 1000uF 20% 10V C305 1-162-306-11 CERAMIC 0.01uF 20% 16V C309 1-102-518-11 CERAMIC 33PF 5% 50V C310 1-102-516-11 CERAMIC 27PF 5% 50V C311 1-164-159-11 CERAMIC 0.1uF 50V C315 1-126-933-11 ELECT 100uF 20% 10V C316 1-136-165-00 FILM 0.1uF 5% 50V C390 1-126-933-11 ELECT 100uF 20% 10V C391 1-162-306-11 CERAMIC 0.01uF 20% 16V C392 1-126-933-11 ELECT 100uF 20% 10V C393 1-126-925-11 ELECT 470uF 20% 10V C394 1-164-159-11 CERAMIC 0.1uF 50V C395 1-162-282-31 CERAMIC 100PF 10% 50V C396 1-126-961-11 ELECT 2.2uF 20% 50V C398 1-126-961-11 ELECT 2.2uF 20% 50V C903 1-136-165-00 FILM 0.1uF 5% 50V C904 1-126-937-11 ELECT 4700uF 20% 16V C906 1-126-933-11 ELECT 100uF 20% 10V C909 1-126-964-11 ELECT 10uF 20% 50V C910 1-126-933-11 ELECT 100uF 20% 10V C911 1-126-964-11 ELECT 10uF 20% 50V C912 1-126-916-11 ELECT 1000uF 20% 6.3V C913 1-126-943-11 ELECT 2200uF 20% 25V C914 1-126-767-11 ELECT 1000uF 20% 16V C915 1-126-967-11 ELECT 47uF 20% 16V C916 1-164-159-11 CERAMIC 0.1uF 50V C917 1-126-968-11 ELECT 100uF 20% 50V C918 1-126-968-11 ELECT 100uF 20% 50V C919 1-126-964-11 ELECT 10uF 20% 50V MAIN (Refer to the HCD-D60/GR7/GR7J/RX70 service manual page 93) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 23 — C920 1-126-947-11 ELECT 47uF 20% 35V C953 1-136-165-00 FILM 0.1uF 5% 50V C954 1-126-768-11 ELECT 2200uF 20% 16V C956 1-126-933-11 ELECT 100uF 20% 10V C1501 1-130-479-00 MYLAR 0.0047uF 5% 50V C1502 1-162-290-31 CERAMIC 470PF 10% 50V C1503 1-164-159-11 CERAMIC 0.1uF 50V C1504 1-126-160-11 ELECT 1uF 20% 50V C1505 1-126-964-11 ELECT 10uF 20% 50V C1506 1-126-157-11 ELECT 10uF 20% 16V C1507 1-126-160-11 ELECT 1uF 20% 50V C1508 1-126-933-11 ELECT 100uF 20% 10V C1523 1-126-933-11 ELECT 100uF 20% 16V C1531 1-164-159-11 CERAMIC 0.1uF 50V C1532 1-164-159-11 CERAMIC 0.1uF 50V C1533 1-164-159-11 CERAMIC 0.1uF 50V C1534 1-126-935-11 ELECT 470uF 20% 16V C1551 1-130-479-00 MYLAR 0.0047uF 5% 50V C1552 1-162-290-31 CERAMIC 470PF 10% 50V C1553 1-164-159-11 CERAMIC 0.1uF 50V C1554 1-126-960-11 ELECT 1uF 20% 50V C1555 1-126-964-11 ELECT 10uF 20% 50V C1556 1-126-964-11 ELECT 10uF 20% 50V C1557 1-126-960-11 ELECT 1uF 20% 50V C1558 1-126-933-11 ELECT 100uF 20% 10V < CONNECTOR > CN101 1-778-982-11 CONNECTOR, BOARD TO BOARD 13P * CN102 1-568-836-11 SOCKET, CONNECTOR 17P CN105 1-564-506-11 PLUG, CONNECTOR 3P * CN201 1-568-832-11 SOCKET, CONNECTOR 13P (E2) * CN201 1-568-834-11 SOCKET, CONNECTOR 15P (EXCEPT E2) * CN202 1-568-862-11 SOCKET, CONNECTOR 19P * CN203 1-568-946-11 PIN, CONNECTOR 8P * CN204 1-568-947-11 PIN, CONNECTOR 9P CN205 1-568-838-11 SOCKET, CONNECTOR 21P * CN206 1-568-830-11 SOCKET, CONNECTOR 11P * CN207 1-568-449-11 HOUSING, CONNECTOR(PC BOARD)3P < DIODE > D141 8-719-987-63 DIODE 1N4148M D142 8-719-987-63 DIODE 1N4148M D191 8-719-987-63 DIODE 1N4148M D192 8-719-987-63 DIODE 1N4148M D193 8-719-987-63 DIODE 1N4148M D194 8-719-987-63 DIODE 1N4148M D291 8-719-987-63 DIODE 1N4148M D301 8-719-024-99 DIODE 11ES2-NTA2B D302 8-719-024-99 DIODE 11ES2-NTA2B D303 8-719-987-63 DIODE 1N4148M D304 8-719-987-63 DIODE 1N4148M D305 8-719-987-63 DIODE 1N4148M D306 8-719-987-63 DIODE 1N4148M D307 8-719-987-63 DIODE 1N4148M D902 8-719-024-99 DIODE 11ES2-NTA2B D903 8-719-024-99 DIODE 11ES2-NTA2B D904 8-719-024-99 DIODE 11ES2-NTA2B D905 8-719-024-99 DIODE 11ES2-NTA2B D906 8-719-024-99 DIODE 11ES2-NTA2B D907 8-719-024-99 DIODE 11ES2-NTA2B D908 8-719-024-99 DIODE 11ES2-NTA2B D909 8-719-024-99 DIODE 11ES2-NTA2B D910 8-719-011-18 DIODE UZ-33BSC-TP D911 8-719-010-43 DIODE UZ-5.6BSC D912 8-719-987-63 DIODE 1N4148M D913 8-719-024-99 DIODE 11ES2-NTA2B D914 8-719-024-99 DIODE 11ES2-NTA2B D915 8-719-001-42 DIODE UZL-11M1 D951 8-719-987-63 DIODE 1N4148M D952 8-719-987-63 DIODE 1N4148M < PLATE > * EPT101 4-870-539-11 PLATE, GROUND < FERRITE BEAD > FB302 1-412-473-21 INDUCTOR 0UH < IC > IC102 8-759-000-48 IC MC14052BCP IC201 8-759-460-02 IC M62427FP-A IC231 8-759-634-50 IC M5218AL IC281 8-759-111-68 IC uPC1237HA IC301 8-759-481-99 IC uPD780018YGF-021-3BA IC302 8-759-635-63 IC M51943BSL IC391 8-749-923-04 IC TOTX178 (CD OPTICAL DIGITAL OUT) IC901 8-759-288-53 IC LA5617 IC902 8-759-604-86 IC M5F7807L IC903 8-759-231-53 IC TA7805S IC904 8-759-231-58 IC TA7812S IC1501 8-759-363-21 IC HA12203NT IC1502 8-759-822-09 IC LB1641 < COIL > L301 1-410-509-11 INDUCTOR 10uH L392 1-410-521-11 INDUCTOR 100uH L393 1-410-515-11 INDUCTOR 33uH < JACK > PJ101 1-695-188-31 JACK, PIN 4P (VIDEO/MD) < TRANSISTOR > Q101 8-729-141-30 TRANSISTOR 2SC3623A-LK Q102 8-729-900-63 TRANSISTOR DTA124ES Q103 8-729-900-36 TRANSISTOR DTC124ES Q141 8-729-119-76 TRANSISTOR 2SA1175-HFE Q143 8-729-119-76 TRANSISTOR 2SA1175-HFE Q144 8-729-119-78 TRANSISTOR 2SC403SP-51 Q151 8-729-141-30 TRANSISTOR 2SC3623A-LK Q191 8-729-119-76 TRANSISTOR 2SA1175-HFE Q192 8-729-111-29 TRANSISTOR 2SD1616A-K Q202 8-729-119-78 TRANSISTOR 2SC403SP-51 Q203 8-729-119-78 TRANSISTOR 2SC403SP-51 Q204 8-729-141-30 TRANSISTOR 2SC3623A-LK Q231 8-729-900-63 TRANSISTOR DTA124ES Q232 8-729-900-63 TRANSISTOR DTA124ES Q252 8-729-119-78 TRANSISTOR 2SC403SP-51 MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 24 — Q253 8-729-119-78 TRANSISTOR 2SC403SP-51 Q254 8-729-141-30 TRANSISTOR 2SC3623A-LK Q281 8-729-900-36 TRANSISTOR DTC124ES Q282 8-729-900-63 TRANSISTOR DTA124ES Q283 8-729-900-36 TRANSISTOR DTC124ES Q301 8-729-119-78 TRANSISTOR 2SC403SP-51 Q901 8-729-040-20 TRANSISTOR RT1P137L-TP Q902 8-729-900-36 TRANSISTOR DTC124ES Q903 8-729-030-18 TRANSISTOR 2SD2525 Q904 8-729-030-19 TRANSISTOR 2SB1640 Q905 8-729-040-20 TRANSISTOR RT1P137L-TP Q906 8-729-900-63 TRANSISTOR DTA124ES Q907 8-729-119-78 TRANSISTOR 2SC403SP-51 Q1531 8-729-801-93 TRANSISTOR 2SD1387 Q1532 8-729-900-80 TRANSISTOR DTC114ES Q1533 8-729-900-80 TRANSISTOR DTC114ES Q1534 8-729-119-77 TRANSISTOR 2SA1175-FEK Q1535 8-729-900-80 TRANSISTOR DTC114ES < RESISTOR > R121 1-249-424-11 CARBON 3.9K 5% 1/4W F R122 1-247-887-00 CARBON 220K 5% 1/4W R123 1-249-426-11 CARBON 5.6K 5% 1/4W R124 1-249-429-11 CARBON 10K 5% 1/4W R125 1-249-441-11 CARBON 100K 5% 1/4W R126 1-249-417-11 CARBON 1K 5% 1/4W F R127 1-249-441-11 CARBON 100K 5% 1/4W R133 1-260-091-11 CARBON 220 5% 1/2W R134 1-260-091-11 CARBON 220 5% 1/2W R140 1-249-429-11 CARBON 10K 5% 1/4W R141 1-249-437-11 CARBON 47K 5% 1/4W R142 1-249-429-11 CARBON 10K 5% 1/4W R143 1-249-429-11 CARBON 10K 5% 1/4W R144 1-249-437-11 CARBON 47K 5% 1/4W !R147 1-216-456-00 METAL OXIDE 820 5% 2W F !R148 1-216-456-00 METAL OXIDE 820 5% 2W F R171 1-249-424-11 CARBON 3.9K 5% 1/4W F R172 1-247-887-00 CARBON 220K 5% 1/4W R173 1-249-426-11 CARBON 5.6K 5% 1/4W R174 1-249-429-11 CARBON 10K 5% 1/4W R176 1-249-417-11 CARBON 1K 5% 1/4W F R177 1-249-441-11 CARBON 100K 5% 1/4W R183 1-260-091-11 CARBON 220 5% 1/2W R184 1-260-091-11 CARBON 220 5% 1/2W R191 1-249-425-11 CARBON 4.7K 5% 1/4W F R192 1-249-441-11 CARBON 100K 5% 1/4W R193 1-249-421-11 CARBON 2.2K 5% 1/4W F R194 1-249-437-11 CARBON 47K 5% 1/4W R195 1-249-437-11 CARBON 47K 5% 1/4W R196 1-249-437-11 CARBON 47K 5% 1/4W R197 1-249-437-11 CARBON 47K 5% 1/4W R201 1-249-429-11 CARBON 10K 5% 1/4W R202 1-249-433-11 CARBON 22K 5% 1/4W R203 1-249-441-11 CARBON 100K 5% 1/4W R205 1-249-433-11 CARBON 22K 5% 1/4W R206 1-249-421-11 CARBON 2.2K 5% 1/4W F R207 1-249-431-11 CARBON 15K 5% 1/4W R208 1-249-437-11 CARBON 47K 5% 1/4W R209 1-249-441-11 CARBON 100K 5% 1/4W R210 1-247-903-00 CARBON 1M 5% 1/4W R212 1-249-419-11 CARBON 1.5K 5% 1/4W F R213 1-249-433-11 CARBON 22K 5% 1/4W R214 1-247-887-00 CARBON 220K 5% 1/4W R215 1-247-903-00 CARBON 1M 5% 1/4W R216 1-249-429-11 CARBON 10K 5% 1/4W R217 1-249-437-11 CARBON 47K 5% 1/4W R220 1-249-425-11 CARBON 4.7K 5% 1/4W F R221 1-249-425-11 CARBON 4.7K 5% 1/4W F R222 1-249-425-11 CARBON 4.7K 5% 1/4W F R224 1-249-425-11 CARBON 4.7K 5% 1/4W F R226 1-249-421-11 CARBON 2.2K 5% 1/4W F R227 1-249-441-11 CARBON 100K 5% 1/4W R228 1-249-429-11 CARBON 10K 5% 1/4W R231 1-249-437-11 CARBON 47K 5% 1/4W R232 1-249-437-11 CARBON 47K 5% 1/4W R234 1-247-886-11 CARBON 200K 5% 1/4W R235 1-249-421-11 CARBON 2.2K 5% 1/4W F R236 1-249-441-11 CARBON 100K 5% 1/4W R253 1-249-441-11 CARBON 100K 5% 1/4W R257 1-249-431-11 CARBON 15K 5% 1/4W R258 1-249-437-11 CARBON 47K 5% 1/4W R259 1-249-441-11 CARBON 100K 5% 1/4W R260 1-247-903-00 CARBON 1M 5% 1/4W R262 1-249-419-11 CARBON 1.5K 5% 1/4W F R263 1-249-433-11 CARBON 22K 5% 1/4W R264 1-247-887-00 CARBON 220K 5% 1/4W R265 1-247-903-00 CARBON 1M 5% 1/4W R266 1-249-429-11 CARBON 10K 5% 1/4W R267 1-249-437-11 CARBON 47K 5% 1/4W R271 1-249-425-11 CARBON 4.7K 5% 1/4W F R272 1-249-425-11 CARBON 4.7K 5% 1/4W F R276 1-249-421-11 CARBON 2.2K 5% 1/4W F R277 1-249-441-11 CARBON 100K 5% 1/4W R278 1-249-429-11 CARBON 10K 5% 1/4W R281 1-249-425-11 CARBON 4.7K 5% 1/4W F R282 1-249-425-11 CARBON 4.7K 5% 1/4W F R283 1-249-435-11 CARBON 33K 5% 1/4W R284 1-249-397-11 CARBON 22 5% 1/4W F R285 1-249-441-11 CARBON 100K 5% 1/4W R286 1-249-429-11 CARBON 10K 5% 1/4W R287 1-249-427-11 CARBON 6.8K 5% 1/4W F R288 1-249-438-11 CARBON 56K 5% 1/4W R289 1-249-437-11 CARBON 47K 5% 1/4W R290 1-249-438-11 CARBON 56K 5% 1/4W R291 1-249-433-11 CARBON 22K 5% 1/4W R292 1-249-433-11 CARBON 22K 5% 1/4W R293 1-249-417-11 CARBON 1K 5% 1/4W F R294 1-249-441-11 CARBON 100K 5% 1/4W R295 1-247-903-00 CARBON 1M 5% 1/4W R296 1-249-438-11 CARBON 56K 5% 1/4W R301 1-249-413-11 CARBON 470 5% 1/4W F R302 1-249-425-11 CARBON 4.7K 5% 1/4W F R303 1-249-437-11 CARBON 47K 5% 1/4W R304 1-249-437-11 CARBON 47K 5% 1/4W R305 1-249-429-11 CARBON 10K 5% 1/4W The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 25 — R313 1-247-807-31 CARBON 100 5% 1/4W R316 1-249-429-11 CARBON 10K 5% 1/4W R318 1-249-429-11 CARBON 10K 5% 1/4W R319 1-249-429-11 CARBON 10K 5% 1/4W R320 1-249-429-11 CARBON 10K 5% 1/4W R322 1-249-425-11 CARBON 4.7K 5% 1/4W F R323 1-247-807-31 CARBON 100 5% 1/4W R325 1-249-427-11 CARBON 6.8K 5% 1/4W F (E2) R326 1-249-425-11 CARBON 4.7K 5% 1/4W F (E2) R327 1-247-807-31 CARBON 100 5% 1/4W R328 1-247-807-31 CARBON 100 5% 1/4W R330 1-247-807-31 CARBON 100 5% 1/4W R331 1-247-807-31 CARBON 100 5% 1/4W R332 1-247-807-31 CARBON 100 5% 1/4W R333 1-247-807-31 CARBON 100 5% 1/4W R339 1-247-807-31 CARBON 100 5% 1/4W R340 1-247-807-31 CARBON 100 5% 1/4W R341 1-247-807-31 CARBON 100 5% 1/4W R342 1-247-807-31 CARBON 100 5% 1/4W R344 1-247-807-31 CARBON 100 5% 1/4W R345 1-247-807-31 CARBON 100 5% 1/4W R347 1-247-807-31 CARBON 100 5% 1/4W R348 1-247-807-31 CARBON 100 5% 1/4W R349 1-247-807-31 CARBON 100 5% 1/4W R350 1-247-807-31 CARBON 100 5% 1/4W R351 1-247-807-31 CARBON 100 5% 1/4W R352 1-247-807-31 CARBON 100 5% 1/4W R353 1-247-807-31 CARBON 100 5% 1/4W R354 1-247-807-31 CARBON 100 5% 1/4W R355 1-247-807-31 CARBON 100 5% 1/4W R356 1-247-807-31 CARBON 100 5% 1/4W R357 1-247-807-31 CARBON 100 5% 1/4W R358 1-247-807-31 CARBON 100 5% 1/4W R359 1-247-807-31 CARBON 100 5% 1/4W R361 1-247-807-31 CARBON 100 5% 1/4W R362 1-247-807-31 CARBON 100 5% 1/4W R363 1-247-807-31 CARBON 100 5% 1/4W R364 1-247-807-31 CARBON 100 5% 1/4W R366 1-247-807-31 CARBON 100 5% 1/4W R367 1-249-429-11 CARBON 10K 5% 1/4W R368 1-247-843-11 CARBON 3.3K 5% 1/4W R370 1-249-429-11 CARBON 10K 5% 1/4W R371 1-249-429-11 CARBON 10K 5% 1/4W R372 1-249-429-11 CARBON 10K 5% 1/4W R373 1-249-429-11 CARBON 10K 5% 1/4W R374 1-249-393-11 CARBON 10 5% 1/4W F R381 1-247-807-31 CARBON 100 5% 1/4W R384 1-249-429-11 CARBON 10K 5% 1/4W R395 1-247-807-31 CARBON 100 5% 1/4W R396 1-249-435-11 CARBON 33K 5% 1/4W R397 1-247-807-31 CARBON 100 5% 1/4W R398 1-249-435-11 CARBON 33K 5% 1/4W R417 1-249-441-11 CARBON 100K 5% 1/4W R913 1-249-409-11 CARBON 220 5% 1/4W F R914 1-249-417-11 CARBON 1K 5% 1/4W F R915 1-249-425-11 CARBON 4.7K 5% 1/4W F R916 1-249-409-11 CARBON 220 5% 1/4W F R917 1-249-409-11 CARBON 220 5% 1/4W F R918 1-249-425-11 CARBON 4.7K 5% 1/4W F R920 1-249-417-11 CARBON 1K 5% 1/4W F R921 1-247-895-00 CARBON 470K 5% 1/4W R951 1-249-425-11 CARBON 4.7K 5% 1/4W F R952 1-249-425-11 CARBON 4.7K 5% 1/4W F R1501 1-249-435-11 CARBON 33K 5% 1/4W R1502 1-249-417-11 CARBON 1K 5% 1/4W F R1503 1-249-426-11 CARBON 5.6K 5% 1/4W R1504 1-247-840-00 CARBON 2.4K 5% 1/4W R1505 1-249-433-11 CARBON 22K 5% 1/4W R1506 1-249-421-11 CARBON 2.2K 5% 1/4W F R1507 1-249-428-11 CARBON 8.2K 5% 1/4W F R1521 1-249-430-11 CARBON 12K 5% 1/4W R1522 1-249-426-11 CARBON 5.6K 5% 1/4W R1524 1-249-429-11 CARBON 10K 5% 1/4W R1525 1-249-432-11 CARBON 18K 5% 1/4W R1526 1-249-429-11 CARBON 10K 5% 1/4W R1527 1-249-429-11 CARBON 10K 5% 1/4W R1531 1-247-843-11 CARBON 3.3K 5% 1/4W R1532 1-249-411-11 CARBON 330 5% 1/4W R1533 1-249-427-11 CARBON 6.8K 5% 1/4W F R1534 1-249-429-11 CARBON 10K 5% 1/4W R1535 1-249-425-11 CARBON 4.7K 5% 1/4W F R1536 1-249-425-11 CARBON 4.7K 5% 1/4W F R1541 1-249-425-11 CARBON 4.7K 5% 1/4W F R1542 1-249-425-11 CARBON 4.7K 5% 1/4W F R1543 1-249-425-11 CARBON 4.7K 5% 1/4W F R1544 1-249-417-11 CARBON 1K 5% 1/4W F R1545 1-249-437-11 CARBON 47K 5% 1/4W R1546 1-249-437-11 CARBON 47K 5% 1/4W R1547 1-249-437-11 CARBON 47K 5% 1/4W R1548 1-249-437-11 CARBON 47K 5% 1/4W R1551 1-249-433-11 CARBON 22K 5% 1/4W R1552 1-249-417-11 CARBON 1K 5% 1/4W F R1553 1-249-426-11 CARBON 5.6K 5% 1/4W R1554 1-247-840-00 CARBON 2.4K 5% 1/4W R1555 1-249-433-11 CARBON 22K 5% 1/4W R1556 1-249-421-11 CARBON 2.2K 5% 1/4W F R1557 1-249-428-11 CARBON 8.2K 5% 1/4W F < VARIABLE RESISTOR > RV1501 1-238-598-11 RES, ADJ, CARBON 2.2K RV1551 1-238-598-11 RES, ADJ, CARBON 2.2K < RELAY > RY141 1-515-920-11 RELAY (24V) RY142 1-515-920-11 RELAY (24V) < TERMINAL > TM131 1-537-240-31 TERMINAL BOARD (CHECKER PIN) (SPEAKER) < VIBRATOR > X301 1-760-489-11 VIBRATOR, CERAMIC (5MHz) X302 1-567-098-41 VIBRATOR, CRYSTAL (32.768kHz) ************************************************************ MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 26 — * A-4403-329-A POWER (L) BOARD, COMPLETE ************************* 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S < CAPACITOR > C1801 1-126-963-11 ELECT 4.7uF 20% 50V C1802 1-162-286-31 CERAMIC 220PF 10% 50V C1803 1-162-282-31 CERAMIC 100PF 10% 50V C1804 1-126-967-11 ELECT 47uF 20% 10V C1806 1-126-967-11 ELECT 47uF 20% 50V C1807 1-126-965-11 ELECT 22uF 20% 50V C1809 1-126-965-11 ELECT 22uF 20% 50V C1810 1-164-159-11 CERAMIC 0.1uF 50V C1811 1-130-493-00 MYLAR 0.068uF 5% 50V C1812 1-130-493-00 MYLAR 0.068uF 5% 50V C1814 1-162-306-11 CERAMIC 0.01uF 20% 16V C1841 1-126-925-11 ELECT 470uF 20% 10V C1851 1-126-963-11 ELECT 4.7uF 20% 50V C1852 1-162-286-31 CERAMIC 220PF 10% 50V C1853 1-162-282-31 CERAMIC 100PF 10% 50V C1854 1-126-967-11 ELECT 47uF 20% 10V C1856 1-126-967-11 ELECT 47uF 20% 50V C1857 1-126-965-11 ELECT 22uF 20% 50V C1861 1-130-493-00 MYLAR 0.068uF 5% 50V C1862 1-130-493-00 MYLAR 0.068uF 5% 50V C2001 1-117-691-11 ELECT 8200uF 20% 50V C2002 1-117-691-11 ELECT 8200uF 20% 50V C2003 1-136-165-00 FILM 0.1uF 5% 50V C2004 1-136-165-00 FILM 0.1uF 5% 50V C2005 1-126-963-11 ELECT 4.7uF 20% 50V < CONNECTOR > CN1801 1-778-981-11 CONNECTOR, BOARD TO BOARD 13P * CN1803 1-564-508-11 PLUG, CONNECTOR 5P CN1804 1-564-506-11 PLUG, CONNECTOR 3P CN1805 1-564-505-11 PLUG, CONNECTOR 2P < DIODE > D1801 8-719-987-63 DIODE 1N4148M D1811 8-719-987-63 DIODE 1N4148M D1841 8-719-987-63 DIODE 1N4148M D1842 8-719-987-63 DIODE 1N4148M D1851 8-719-987-63 DIODE 1N4148M D2001 8-719-060-53 DIODE RBV-2506 < IC > IC1801 8-749-921-04 IC STK-4211MK-2 < TRANSISTOR > Q1801 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA Q1851 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA < RESISTOR > R1801 1-249-417-11 CARBON 1K 5% 1/4W F R1802 1-249-438-11 CARBON 56K 5% 1/4W R1803 1-249-415-11 CARBON 680 5% 1/4W F R1804 1-249-438-11 CARBON 56K 5% 1/4W R1805 1-260-107-11 CARBON 4.7K 5% 1/2W R1806 1-260-107-11 CARBON 4.7K 5% 1/2W !R1807 1-212-881-11 FUSIBLE 100 5% 1/4W F !R1808 1-217-156-00 WIREWOUND 0.22 10% 5W F R1809 1-260-076-11 CARBON 10 5% 1/2W R1811 1-249-417-11 CARBON 1K 5% 1/4W F R1812 1-249-431-11 CARBON 15K 5% 1/4W R1813 1-249-441-11 CARBON 100K 5% 1/4W R1814 1-260-105-11 CARBON 3.3K 5% 1/2W R1816 1-260-105-11 CARBON 3.3K 5% 1/2W !R1820 1-202-972-61 FUSIBLE 1 5% 1/4W F R1841 1-249-429-11 CARBON 10K 5% 1/4W R1842 1-247-887-00 CARBON 220K 5% 1/4W R1843 1-249-421-11 CARBON 2.2K 5% 1/4W F R1844 1-249-429-11 CARBON 10K 5% 1/4W R1851 1-249-417-11 CARBON 1K 5% 1/4W F R1852 1-249-438-11 CARBON 56K 5% 1/4W R1853 1-249-415-11 CARBON 680 5% 1/4W F R1854 1-249-438-11 CARBON 56K 5% 1/4W R1855 1-260-107-11 CARBON 4.7K 5% 1/2W R1856 1-260-107-11 CARBON 4.7K 5% 1/2W !R1857 1-212-881-11 FUSIBLE 100 5% 1/4W F !R1858 1-217-156-00 WIREWOUND 0.22 10% 5W F R1859 1-260-076-11 CARBON 10 5% 1/2W R1861 1-249-417-11 CARBON 1K 5% 1/4W F R1862 1-249-431-11 CARBON 15K 5% 1/4W R1863 1-249-441-11 CARBON 100K 5% 1/4W R2001 1-249-438-11 CARBON 56K 5% 1/4W ************************************************************ * A-4403-334-A POWER (R) BOARD, COMPLETE ************************* < CAPACITOR > C1901 1-126-963-11 ELECT 4.7uF 20% 50V C1902 1-162-286-31 CERAMIC 220PF 10% 50V C1903 1-162-282-31 CERAMIC 100PF 10% 50V C1904 1-126-967-11 ELECT 47uF 20% 10V C1905 1-126-965-11 ELECT 22uF 20% 50V C1906 1-126-967-11 ELECT 47uF 20% 50V C1908 1-126-965-11 ELECT 22uF 20% 50V C1909 1-130-493-00 MYLAR 0.068uF 5% 50V C1910 1-130-493-00 MYLAR 0.068uF 5% 50V C1911 1-130-493-00 MYLAR 0.068uF 5% 50V C1912 1-130-493-00 MYLAR 0.068uF 5% 50V C1913 1-164-159-11 CERAMIC 0.1uF 50V C1914 1-162-282-31 CERAMIC 100PF 10% 50V C1915 1-126-963-11 ELECT 4.7uF 20% 50V C1916 1-126-967-11 ELECT 47uF 20% 50V C1917 1-162-286-31 CERAMIC 220PF 10% 50V C1918 1-126-925-11 ELECT 470uF 20% 10V C1919 1-126-965-11 ELECT 22uF 20% 50V C1921 1-126-967-11 ELECT 47uF 20% 10V C1934 1-126-963-11 ELECT 4.7uF 20% 50V < DIODE > D1901 8-719-987-63 DIODE 1N4148M D1902 8-719-987-63 DIODE 1N4148M D1903 8-719-987-63 DIODE 1N4148M D1904 8-719-987-63 DIODE 1N4148M D1905 8-719-987-63 DIODE 1N4148M POWER (L) POWER (R) The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 27 — < IC > IC1901 8-749-921-04 IC STK-4211MK-2 < TRANSISTOR > Q1901 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA Q1902 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA Q1903 8-729-119-78 TRANSISTOR 2SC403SP-51 Q1904 8-729-900-36 TRANSISTOR DTC124ES < RESISTOR > R1901 1-249-417-11 CARBON 1K 5% 1/4W F R1902 1-249-438-11 CARBON 56K 5% 1/4W R1903 1-249-438-11 CARBON 56K 5% 1/4W R1904 1-249-415-11 CARBON 680 5% 1/4W F !R1905 1-212-881-11 FUSIBLE 100 5% 1/4W F R1906 1-260-107-11 CARBON 4.7K 5% 1/2W R1907 1-260-107-11 CARBON 4.7K 5% 1/2W !R1908 1-212-881-11 FUSIBLE 100 5% 1/4W F R1909 1-260-105-11 CARBON 3.3K 5% 1/2W R1910 1-260-105-11 CARBON 3.3K 5% 1/2W R1911 1-247-887-00 CARBON 220K 5% 1/4W R1912 1-249-429-11 CARBON 10K 5% 1/4W R1913 1-249-429-11 CARBON 10K 5% 1/4W R1914 1-249-421-11 CARBON 2.2K 5% 1/4W F R1915 1-249-441-11 CARBON 100K 5% 1/4W R1916 1-249-417-11 CARBON 1K 5% 1/4W F R1917 1-249-431-11 CARBON 15K 5% 1/4W R1918 1-249-431-11 CARBON 15K 5% 1/4W R1919 1-249-417-11 CARBON 1K 5% 1/4W F R1920 1-260-076-11 CARBON 10 5% 1/2W R1921 1-260-076-11 CARBON 10 5% 1/2W R1922 1-249-438-11 CARBON 56K 5% 1/4W R1923 1-249-415-11 CARBON 680 5% 1/4W F R1924 1-249-438-11 CARBON 56K 5% 1/4W R1925 1-249-417-11 CARBON 1K 5% 1/4W F R1926 1-260-107-11 CARBON 4.7K 5% 1/2W R1927 1-260-107-11 CARBON 4.7K 5% 1/2W !R1928 1-202-972-61 FUSIBLE 1 5% 1/4W F R1929 1-249-441-11 CARBON 100K 5% 1/4W R1930 1-249-441-11 CARBON 100K 5% 1/4W R1931 1-249-441-11 CARBON 100K 5% 1/4W !R1932 1-217-156-00 WIREWOUND 0.22 10% 5W F !R1933 1-217-156-00 WIREWOUND 0.22 10% 5W F R1934 1-249-438-11 CARBON 56K 5% 1/4W R1935 1-249-441-11 CARBON 100K 5% 1/4W < THERMISTOR > TH1901 1-807-796-11 THERMISTOR ************************************************************ * 1-667-126-12 TRANSFORMER BOARD ******************* < CONNECTOR > CN901 1-564-321-00 PIN, CONNECTOR 2P * CN2901 1-564-522-11 PLUG, CONNECTOR 7P * CN2902 1-564-518-11 PLUG, CONNECTOR 3P < RESISTOR > !R901 1-219-120-11 FUSIBLE 0.15 5% 1/4W F !R902 1-219-120-11 FUSIBLE 0.15 5% 1/4W F !R903 1-219-120-11 FUSIBLE 0.15 5% 1/4W F !R904 1-219-120-11 FUSIBLE 0.15 5% 1/4W F < TRANSFORMER > !T901 1-431-504-11 TRANSFORMER,POWER (E,EA) !T901 1-431-619-11 TRANSFORMER,POWER (SP,MY,TH,AR) < FUSE > !F901 1-532-506-31 FUSE,TIME LAG (6.3A,250V) !F903 1-533-919-11 FUSE,TIME LAG (12A,250V) !F905 1-533-919-11 FUSE,TIME LAG (12A,250V) ************************************************************ * 1-667-247-12 TRANSFORMER SW BOARD ********************** < CONNECTOR > * CN2905 1-564-687-11 PIN, CONNECTOR 3P (E,EA) * CN2905 1-568-106-11 PIN, CONNECTOR 4P (SP,MY,TH,AR) < SWITCH > !S901 1-571-309-11 SWITCH (VOLTAGE SELECTOR) (E,EA) !S901 1-692-328-11 SWITCH (VOLTAGE SELECTOR) (SP,MY,TH,AR) ************************************************************ MISCELLANEOUS ************** 14 1-773-160-11 WIRE (FLAT TYPE) (21 CORE) 15 1-769-947-11 WIRE (FLAT TYPE) (11 CORE) 64 1-777-869-11 WIRE (FLAT TYPE) (10 CORE) 65 1-777-936-11 WIRE (FLAT TYPE) (5 CORE) 66 1-773-051-11 WIRE (FLAT TYPE) (17 CORE) 74 1-769-909-11 WIRE (FLAT TYPE) (9 CORE) 104 1-777-870-11 WIRE (FLAT TYPE) (19 CORE) 106 1-233-545-11 ENCAPSULATED COMPONENT (E2) 106 1-233-546-11 ENCAPSULATED COMPONENT (EXCEPT E2) 108 1-751-086-11 WIRE (FLAT TYPE) (13 CORE) (E2) !115 1-575-653-11 CORD, POWER (E) !116 1-569-007-11 ADAPTOR, CONVERSION 2P (E3) !117 1-569-008-11 ADAPTOR, CONVERSION 2P (EA,SP,MY,TH,AR) !118 1-575-651-11 CORD, POWER (EA,SP,MY,TH,AR) M901 1-698-792-11 FAN, DC ************************************************************ ************* HARDWARE LIST ************* #1 7-685-871-01 SCREW +BVTT 3X6 (S) #2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S #3 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3 #4 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S #5 7-685-872-09 SCREW +BVTT 3X8 (S) POWER (R) TRANSFORMER The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. TRANSFORMER SW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 28 — HCD-GR8000 Sony Corporation Home A&V Products Company 9-920-984-11 97I167024-1 Printed in Singapore © 1997.9 Published by General Engineering Dept. (Shibaura) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
