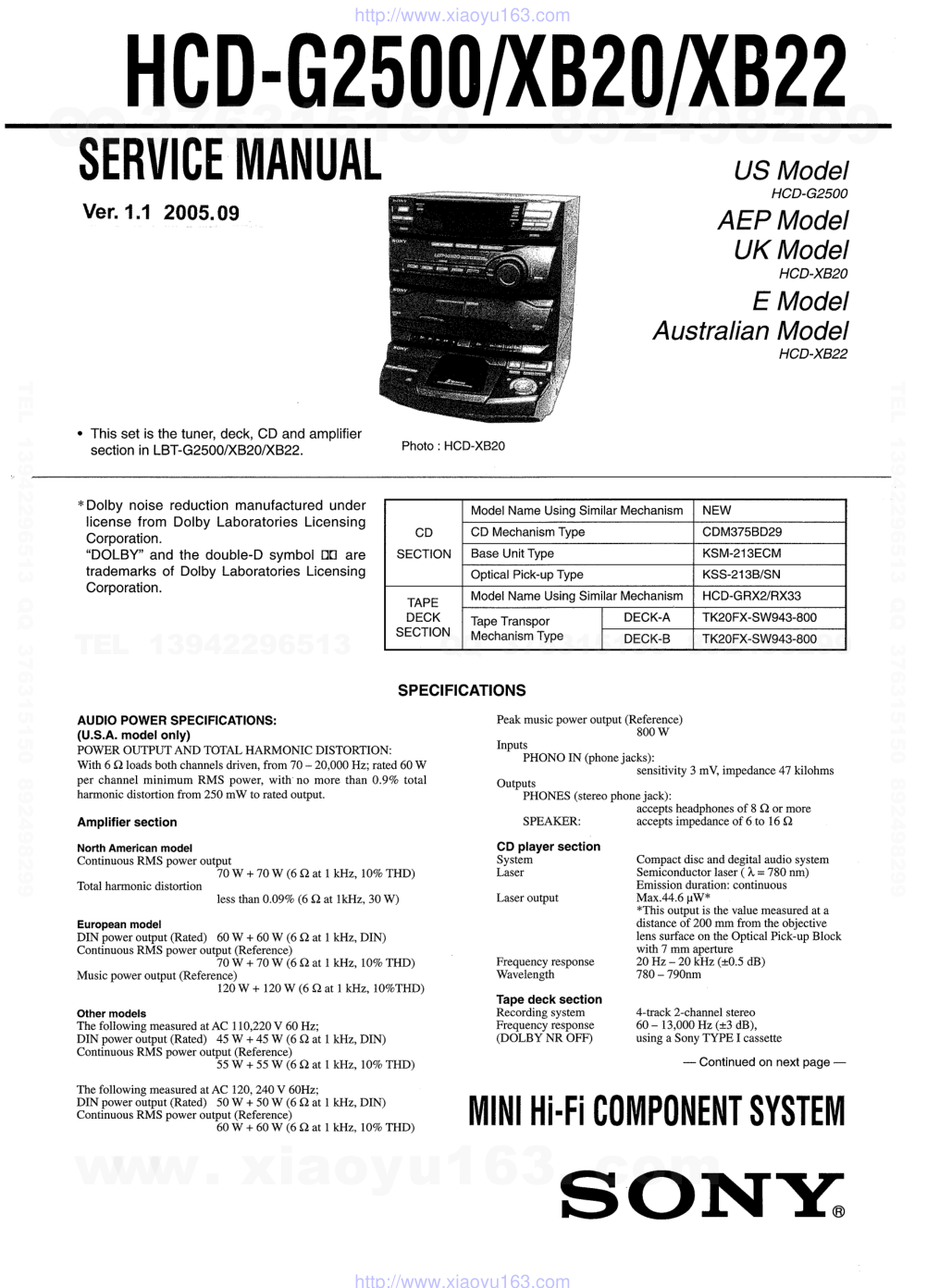

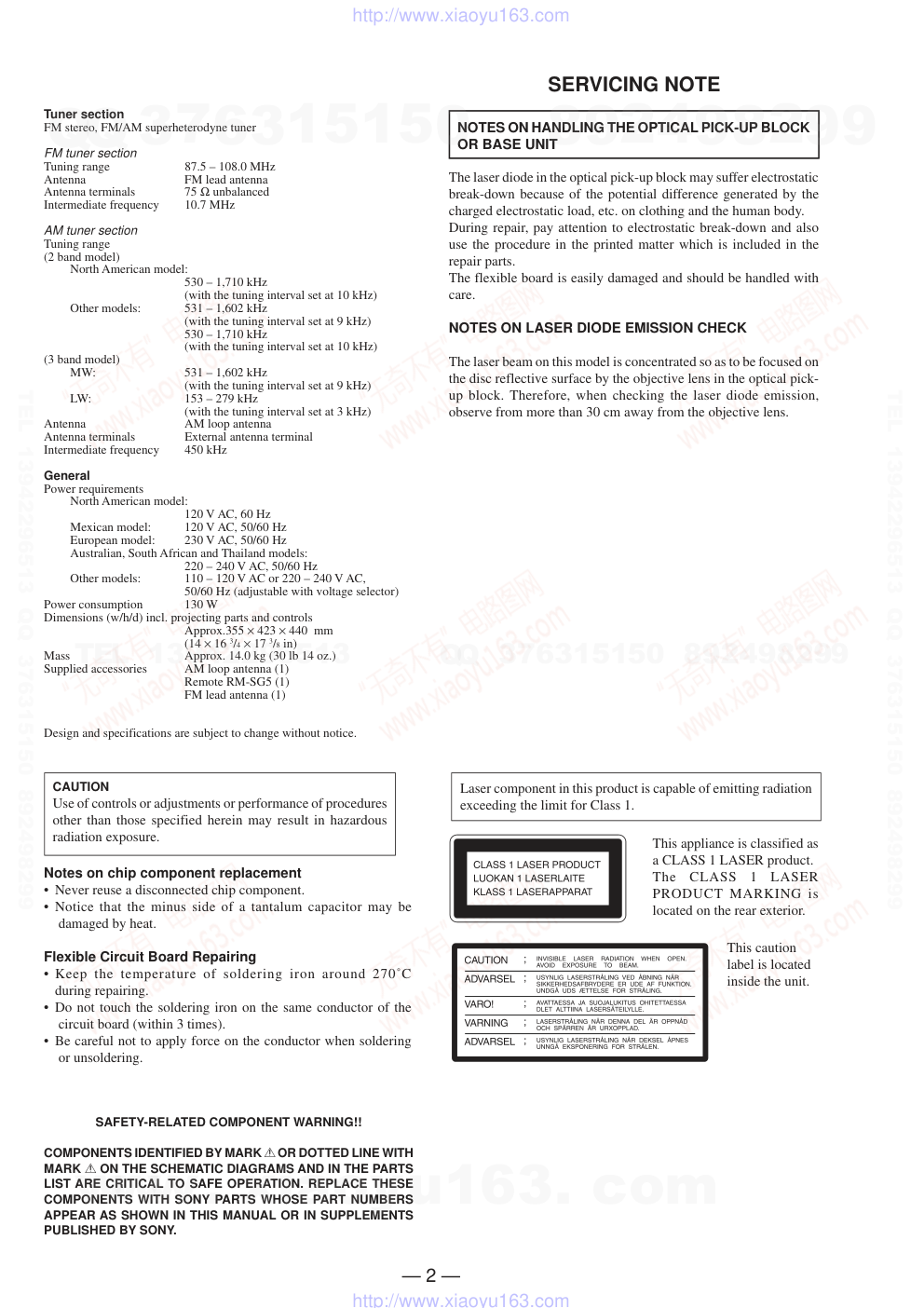

www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 2 — Tuner section FM stereo, FM/AM superheterodyne tuner FM tuner section Tuning range 87.5 – 108.0 MHz Antenna FM lead antenna Antenna terminals 75 Ω unbalanced Intermediate frequency 10.7 MHz AM tuner section Tuning range (2 band model) North American model: 530 – 1,710 kHz (with the tuning interval set at 10 kHz) Other models: 531 – 1,602 kHz (with the tuning interval set at 9 kHz) 530 – 1,710 kHz (with the tuning interval set at 10 kHz) (3 band model) MW: 531 – 1,602 kHz (with the tuning interval set at 9 kHz) LW: 153 – 279 kHz (with the tuning interval set at 3 kHz) Antenna AM loop antenna Antenna terminals External antenna terminal Intermediate frequency 450 kHz General Power requirements North American model: 120 V AC, 60 Hz Mexican model: 120 V AC, 50/60 Hz European model: 230 V AC, 50/60 Hz Australian, South African and Thailand models: 220 – 240 V AC, 50/60 Hz Other models: 110 – 120 V AC or 220 – 240 V AC, 50/60 Hz (adjustable with voltage selector) Power consumption 130 W Dimensions (w/h/d) incl. projecting parts and controls Approx.355 × 423 × 440 mm (14 × 16 3/4 × 17 3/8 in) Mass Approx. 14.0 kg (30 lb 14 oz.) Supplied accessories AM loop antenna (1) Remote RM-SG5 (1) FM lead antenna (1) Design and specifications are subject to change without notice. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing • Keep the temperature of soldering iron around 270˚C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. This caution label is located inside the unit. SERVICING NOTE NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 3 — SAFETY CHECK-OUT After correcting the original service problem, perform the following safety checks before releasing the set to the customer: Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE The AC leakage from any exposed metal part to earth Ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microampers). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) To Exposed Metal Parts on Set 0.15 µF 1.5 kΩ AC Voltmeter (0.75 V) Earth Ground Fig. A. Using an AC voltmeter to check AC leakage. TABLE OF CONTENTS 1. GENERAL ········································································· 4 —FRONT PANEL— ························································· 4 —BACK PANEL—···························································· 5 2. DISASSEMBLY 2-1. Top Cover ··········································································· 6 2-2. Front Panel Assy ································································· 6 2-3. Main Board ········································································· 7 2-4. Main Section······································································· 7 2-5. CD Mechanism Deck Section ············································ 8 2-6. Tape Mechanism Deck ······················································· 8 2-7. Cassette Door ····································································· 9 2-8. CD Door Assy ···································································· 9 2-9. Base Unit ·········································································· 10 2-10. Disc Table ········································································· 10 3. MECHANICAL ADJUSTMENTS ····························· 11 4. ELECTRICAL ADJUSTMENTS ······························· 11 5. DIAGRAMS 5-1. Circuit Boards Location ··················································· 16 5-2. Block Diagram —Deck Section— ··································· 17 5-3. Block Diagram —Tuner/CD Section— ··························· 19 5-4. Schematic Diagram —Main Section (1/2)— ··················· 21 5-5. Schematic Diagram —Main Section (2/2)— (US, AUS, MX model) ····················································· 25 5-6. Printed Wiring Board —Main Section— (US, AUS, MX model) ····················································· 29 5-7. Printed Wiring Board —Main Section— (AEP, UK, E, SP, MY, AR model) ···································· 34 5-8. Schematic Diagram —Main Section (2/2)— (AEP, UK, E, SP, MY, AR model) ···································· 39 5-9. Schematic Diagram —Display Section— ························ 43 5-10. Printed Wiring Board —Display Section— ····················· 47 5-11. Printed Wiring Board —CD Section— ···························· 52 5-12. Schematic Diagram —CD Section— ······························· 57 5-13. Schematic Diagram —Power Section— ·························· 60 5-14. Printed Wiring Board —Power Section— ······················· 63 5-15. IC Block Diagrams ··························································· 68 5-16. IC Pin Function Description ············································· 71 6. EXPLODED VIEWS 6-1. Top Cover Section ···························································· 73 6-2. CD Door Section ······························································ 74 6-3. Panel Section ···································································· 75 6-4. Main Section····································································· 76 6-5. Cassette Button Section ···················································· 77 6-6. Cassette Mechanism Deck Section··································· 78 6-7. CD Mechanism Deck Section ·········································· 79 6-8. Base Unit Section ····························································· 80 7. ELECTRICAL PARTS LIST ······································ 81 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 4 — SECTION 1 GENERAL 1 I/u (POWER) button 2 DISPLAY/DEMO button 3 SPECTRUM ANALYZER button 4 ENTER/NEXT button 5 TUNER MEMORY button 6 TUNING MODE button 7 TUNER/BAND button 8 TUNING – button 9 TUNING + button 0 STEREO/MONO button !¡ TAPE button !™ CD button !£ PHONO button !¢ DBFB button !∞ VOLUME knob !§ DOLBY NR button !¶ SURROUND button !• · button !ª 0 button @º ) button @¡ 6p button @™ P button @£ 6 button @¢ · button @∞ DISC SKIP button @§ P button @¶ p button @• ) button @ª ≠ AMS ± button #º 0 button #¡ DISC1 button #™ DISC2 button #£ DISC3 button #¢ DISC4 button #∞ DISC5 button #§ r button #¶ · button #• 0 button #ª ) button $º 6p button $¡ P button $™ PHONES jack $£ ROCK button $¢ POP button $∞ JAZZ button $§ SALSA button $¶ FLAT button $• SLEEP button $ª t/CLOCK SET button %º DAILY1 button %¡ PLAY MODE button %™ REPEAT button %£ EDIT button %¢ 1/ALL DISC button 1 2 3 4 6 7 8 9 5 !º� !™� !¡� !∞� !•� !£� !¢� @¡� @™� @£� #¡� #™� #£� #¢� %¢� %¡� %™� %£� #∞� #§� #•� #¶� #ª� A A !ª� @º� @¢� @∞� !§� $™� !¶� @•� @§� @¶� @ª� #º� see $§� $£� $¢� $º� $¶� $∞� $¡� $ª� $•� %º� – FRONT PANEL – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 5 — 1 ANTENNA terminal 2 PHONO jack 3 SPEAKER terminal 3 2 1 – BACK PANEL – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 6 — SECTION 2 DISASSEMBLY Note : Follow the disassembly procedure in the numerical order given. 2-1. TOP COVER 2-2. FRONT PANEL ASSY 2 Seven screws 1 Three screws 1 Three screws 3 Top cover 3 Front panel assy 2 Four screws 1 Screw www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 7 — 2-3. MAIN BOARD 2-4. MAIN SECTION 1 Two screws 2 Three screws 2 Three screws 2 Two screws 1 Three screws 3 Rear panel 7 MAIN board 6 Two screws 5 Two flat wires 4 Connector 1 Two screws 1 Two screws 2 Main section www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 8 — 2-5. CD MECHANISM DECK SECTION 2-6. TAPE MECHANISM DECK 3 Five screws (BVTP 3 × 8) 4 CD mechanism deck section 2 Flat wire and lead wire 1 Open the clamp. 1 Six screws 2 Tape mechanism deck www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 9 — 2-7. CASSETTE DOOR 2-8. CD DOOR ASSY 3 Door spring 1 Cassette door (R) 3 Door spring 2 Cassette door (L) 8 CD door assy 1 Three screws 6 Four screws 7 Connector 4 Screw 2 PLAY SW board 3 Three flat wires 5 DOOR SW board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 10 — 2-9. BASE UNIT 2-10. DISC TABLE Note: When the disc table is installed, adjust the positions of roller cam and mark z as shown in the figure, then set to the groove of disc table. 1 Screw (BVTP 3 × 8) 1 Screw (BVTP 3 × 8) 4 Disc table 3 Step screw 2 Bracket (BU) A A 3 Base unit 1 Yoke bracket 2 Boss www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 11 — Precaution 1. Clean the following parts with a denatured alcohol-moistened swab: record/playback head pinch rollers erase head rubber belts capstan idlers 2. Demagnetize the record/playback head with a head demagnetizer. 3. Do not use a magnetized screwdriver for the adjustments. 4. After the adjustments, apply suitable locking compound to the parts adjusted. 5. The adjustments should be performed with the rated power supply voltage unless otherwise noted. Torque Measurement SECTION 3 MECHANICAL ADJUSTMENTS Meter reading 40 to 70 g • cm (0.56 - 0.97 oz • inch) 1 to 5 g • cm (0.01 - 0.07 oz • inch) 55 to 140 g • cm (0.76 - 1.94 oz • inch) Torque FWD FWD back tension FF/REW Torque meter CQ-102C CQ-102C CQ-201B SECTION 4 ELECTRICAL ADJUSTMENTS 1. Demagnetize the record/playback head with a head damagnetizer. 2. Do not use a magnetized screwdriver for the adjustments. 3. After the adjustments, apply suitable locking compound to the parts adjusted. 4. The adjustments should be performed with the rated power supply voltage unless otherwise noted. 5. The adjustments should be performed in the order given in this service manual. (As a general rule, playback circuit adjustment should be completed before performing recording circuit adjustment.) 6. The adjustments should be performed for both L-CH and R- CH. Record/Playback Head Azimuth Adjustment (Deck A, Deck B) Note: Perform this adjustments for both decks. Procedure: 1. Mode : Playback DECK SECTION 0 dB=0.775V Tape P-4-A100 WS-48B Signal 10 kHz, –10 dB 3 kHz, 0 dB Used for Azimuth Adjustment Tape Speed Adjustment test tape P-4-A100 (10kHz, –10dB) SPEAKER terminal (JK703) level meter + – set www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 12 — 2. Turn the adjustment screw and check output peaks. If the peaks do not match for L-CH and R-CH, turn the adjustment screw so that outputs match within 2 dB of peak. 3. Mode: Playback 4. After the adjustments, apply suitable locking compound to the parts adjusted. Adjustment Location: Remove the cassette lid before adjustment (See page 9) test tape WS-48B (3kHz, 0dB) Tape Speed Adjustment (Deck A) Procedure: 1. Mode: Playback 2. Adjust the SFR809 so that the frequency counter reads 3,000 Hz ± 90Hz. Adjustment Location: MAIN board (See page 14) Sample Value of Wow and flutter W. RMS (JIS) within 0.3% (test tape: WS-48B) L-CH peak R-CH peak screw position output level within 2dB within 2dB L-CH peak screw position R-CH peak test tape P-4-A100 (10kHz, –10dB) SPEAKER terminal (JK703) (L-CH) set L R SPEAKER terminal (JK703) (R-CH) Waveform of oscilloscope in phase 45˚ 90˚ 135˚ 180˚ good wrong SPEAKER terminal (JK703) set frequency counter + – Adjustment screws REC/PB head (deck A) or PB head (deck B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 13 — TUNER SECTION 0 dB=1µV AM Tuning Voltage Adjustment Procedure: 1. Set the reception frequency of the unit to 530 kHz. 2. Adjust L105 for 1.2 ± 0.05 V reading on the DC voltmeter. 3. Set the reception frequency of the unit to 1,710 kHz. 4. Confirm that the voltage reading on the DC voltmeter is within 8.0 ± 0.5 V. Adjustment Location: MAIN board (See page 14) AM Tracking Adjustment Procedure: 1. Tune the set to 600 kHz. 2. Set the output of AM RF SSG so that the input level of the set will become 60 dB (µV/m). 3. Adjust L104 so that when the waveform on the oscilloscope is maximum, no noise appears. 4. Tune the set to 1,400 kHz. 5. Adjust TC102 so that when the waveform on the oscilloscope is maximum, no noise appears. • Repeat the procedures in each adjustment several times, and the tracking adjustment should be finally done by the trimmer capacitors. Adjustment Location: MAIN board (See page 14) FM Tuning Voltage Adjustment (US, Australian, Mexican model) DC voltmeter Procedure : 1. Set the reception frequency of the unit to 87.5 MHz. 2. Adjust L103 for 1.2 ± 0.05V reading on the DC voltmeter. 3. Set the reception frequency of the unit to 108 MHz. 4. Confirm that the voltage reading on the DC voltmeter is within 7.8 ± 0.5V. Adjustment Location: MAIN board (See page 14) TP1 + IF G VT Main board DC voltmeter Main board – F G VT TP1 + – AM RF SSG loop antenna set loop antenna (Supplied accessories) 60 cm AM ANTENNA terminal (TM1) 30% amplitude modulation by 400 Hz signal Field strength dB (µV/m) =SSG output level dB (µV/m) –26 dB. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 14 — FM Tuned Level Adjustment set Procedure: 1. Supply a 28 dB 98 MHz signal from the ANTENNA terminal. 2. Tune the set to 98 MHz. 3. Adjust SFR101 to the point (moment) when the TUNED indicator will change from going off to going on. Adjustment Location: MAIN board FM Tracking Adjustment (US, Australian, Mexican model) Procedure: 1. Tune the set to 90 MHz. 2. Adjust L102 so that when the waveform on the oscilloscope is maximum, no noise appears. 3. Tune the set to 106 MHz. 4. Adjust TC101 so that when the waveform on the oscilloscope is maximum, no noise appears. • Repeat the procedures in each adjustment several times, and the tracking adjustment should be finally done by the trimmer capacitors. Adjustment Location: MAIN board Adjustment Location [MAIN BOARD] — Component side — Carrier frequency : 90 MHz, 106 MHz Modulation : AUDIO 1kHz, 75kHz deviation (100%) Output level : 20 dB (at 75 Ω open) FM RF SSG Carrier frequency : 98 MHz Modulation : AUDIO 1 kHz, 75 kHz deviation (100%) Output level : 28 dB (at 75 Ω open) FM ANTENNA terminal (JK101) 75 Ω coaxial FM ANTENNA terminal (JK101) SPEAKER terminal (JK703) FM RF SSG set oscilloscope JK101 L105 TC102 L104 IC301 L102 L103 TC101 SFR101 IC103 (AM Tracking) (AM Tuning Voltage) (FM Tuning Voltage) (FM Tracking) (FM Tuned Level) SFR809 (Tape speed) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 15 — CD SECTION Note: 1. CD Block is basically constructed to operate without adjustment. Therefore, check each item in order given. 2. Use YEDS-18 disc (3-702-101-01) unless otherwise indicated. 3. Use an oscilloscope with more than 10MΩ impedance. 4. Clean the object lens by an applicator with neutral detergent when the signal level is low than specified value with the following checks. 5. Adjust the focus bias adjustment when optical block is replaced. Focus Bias Adjustment RF Level Check Procedure : 1. Connect oscilloscope to test point TP01 on CD DECODER board. 2. Turned Power switch on. 3. Put disc (YEDS-18) in and playback. 4. Confirm that oscilloscope waveform is clear and check RF signal level is correct or not. Note: Clear RF signal waveform means that the shape “◊” can be clearly distinguished at the center of the waveform. oscilloscope level: 1.0 Vp-p VOLT/DIV: 200 mV TIME/DIV: 500 nS +0.3 –0.2 Adjustment Location: CD DECODER board Procedure: 1. Connect DC voltmeter to test point TP02 on CD DECODER board. 2. Turned Power switch on. 3. Put disc (YEDS-18) in and stop. 4. Adjust VR01 so that the DC voltmeter reading is 0 ± 20 mV. Adjustment Location: CD DECODER board Focus Gain Adjustment (VR02) This gain has a margin, so even if it is slightly off. There is no problem. Therefore, do not perform this adjustment. Please note that it should be fixed to mechanical center position when you moved and do not know original position. Adjustment Location [CD DECODER BOARD] — Component side — CD DECODER board TP02 FEO VC DC voltmeter + – CD DECODER board RF VC TP01 VR01 (Focus Bias) VR02 (Focus Gain) IC01 TP01 TP02 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 16 — SECTION 5 DIAGRAMS 5-1. CIRCUIT BOARDS LOCATION MAIN board LED board DISC board DOOR SW board AMP board POWER SELECT board POWER SUPPLY board JOG board PLAY SW board VR board FRONT board MOTOR board CONNECTOR board CD DECODER board MOTOR (6P)(C) board DISC NO LED board TABLE SENSOR board R/P SWITCH board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-G2500/XB20/XB22 — 17 — — 18 — 5-2. BLOCK DIAGRAM — DECK SECTION — HP901 PB HEAD TAPE B HRP901 REC/PB HEAD TAPE A R CH R CH R CH PLAY/REC CONTROL Q803,805 PLAY/REC CONTROL DRIVE Q823 PLAY/REC CONTROL D802 L809 BIAS OSC BIAS OSC HE901 ERASE HEAD 5 7 6 PB OUT A/B 2 3 EQ AMP IC801 Q816,817 D803 : FM : CD • Signal Path • RCH is omitted B CD SECTION TU L 11 9 10 ST IND TU MUTE DO CD L 12 CONTROL 3 2 1 CLK 14 DI 15 CE 16 SELECTOR IC301 CLK DI CE LINE AMP IC303 1 3 Q709 MUTE 3 11 4 POWER AMP IC701 SP RELAY DRIVE Q706 Q708 1 2 6 IC702 RL701 R CH SPEAKER PHONES JK703 JK401 SCOR SENS SQSO XLAT SQCK DATA DI CLK CE STB 91 STB 93 CE 97 CLK 98 SO 95 DATA 97 SQCK 34 XLAT 96 SQSO 75 SENS 27 SCOR 89 SI MUTE DRIVE Q410 Q604 MUTE MUTE SWITCH Q603 3 TU MUTE 73 FM ST IND 2 SYSTEM MUTE 1 POWER 98 ALATCH DI CLK RESET SWITCH POWER DOWN DET Q601 12 RESET 13 POWER DOWN Q602 LED601-609 Q602 D602 X2 17 X1 12 VR UP 81 X601 6MHz VR DOWN 82 VR601 VOLUME A B S641 DOOR 3 2 Q601 RM601 REMOTE CONTROL RECEIVER 29 REMOTE 47 50 KEY MATRIX S601-624 P1 P21 30 44 G1 G15 . 52 67 22 19 K1 K4 FLD601 FLD DISPLAY SYSTEM CONTROLLER/ FLD DRIVER IC601 +5.6V REG Q409 SITCHING Q405,406 M +12V +12V FILTER Q403 +7.5V REG Q702 CD +7.5V +12V REG Q701 RECT D705-708 P MUTE CONT Q712 AC OFF DET Q711 D719 D714 RECT D701 -12V -30V +30V -27V REG Q703 -27V VOLTAGE DOUBLER D731,732 AC IN PT301 AC3.4V AC3.4V 16 16 A TUNER SECTION : PB (DECK A) : PB (DECK B) : REC (DECK A) Q801 BIAS SWITCH Q818 +12V REC MUTE Q807 PHONO JK301 10 FUNCTION TAPE 74 CD SYNC MECHANISM BLOCK CE CLK DO LED DRIVE IC602 2 3 4 Q605,606 SW MODE 68 +5.6V SW101 10k 9k CD ENCODER A 83 CD ENCODER B 84 VR602 CD A B 4 LT COM SURROUND CONTROL Q307 Q310 4 3 2 Q305 HIGH Q308 NORMAL 5 DBFB NORMAL 6 DBFB HIGH HP AMP IC401 Q407 MUTE SP DET Q404 +12V -12V REG Q401 : PHONO 76 FOK 28 COUNT COUNT FOK R L IC402 R CH BIAS TRAP L805 SFR807 MUTE CONT Q809 9 SFR807 SFR801 SFR803 14 10 13 11 12 15 1 MUTE MUTE REC AMP PB/REC AMP IC802 MPX Q803 Q811 BUFFER D804 D801 D806 D805 D807 Q813 MUTE MUTE CONT REC +B B PLAY +B A MOTOR +B Q825,826 Q819 16 14 DOLBY AMP IC803 12 9 11 5 D808 D810 SFR805 6 8 9 IC803 IC302 Q301 Q822 PB MUTE Q815 MUTE Q820 D809 Q303 8 ROCK Q311 MUTE D303 S804 S803 S802 S801 S804 SW201 REC +B A MOTOR +B B PLAY +B MOTOR +12V M TAPE SPEED SFR809 16 26 SPANA 3 1 SPANA IC603 5 14 8 25 SPANA 2 78 TABLE SENSOR 24 SPANA 1 8 FLAT 7 SURROUND D302 +12V 77 UP SW UP SW TABLE SENSOR ENCODER K 0 23 S601-624 S626-640 45 . SW401 E, SP, MY, AR MODEL F702 F703 POWER MUTE Q402 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-G2500/XB20/XB22 — 19 — — 20 — 5-3. BLOCK DIAGRAM — TUNER/CD SECTION — CE 19 12 5 3 4 2 24 1 PLL IC103 FM XO XI CLK DI DO CE CLK DI DO1 OPTICAL PICK-UP BLOCK APC Q01 38 +5V VC LD GND A C B E F FOCUS COIL F+ F T+ T TRACKING COIL 33 34 39 36 35 48 APC FOCUS PHASE COMPENSATION DECODER SERIAL/ PARALLEL CONVERTER FE AMP RF AMP IIL TTL TTL IIL COMAND VC TRACKING PHASE COMPENSATION LD PD E F PD1 PD2 6 24 23 20 19 22 21 31 25 SENS RFO FOK C OUT DATA XLT CLK XRST 13 FEO TAO IC03 DRIVER CD RF/SERVO PROSSESOR IC01 15 25 T IN 16 17 18 VR PD PD 12 11 14 13 27 F IN 6 SL IN 9 IN1 F+ F T+ T SL+ SL SP+ SP M M MOTOR SLED MOTOR SPINDOL EFM DEMO. XRST CLV SERVO DIGITAL CLV D/A I/F SUB CODE PROSSESOR CPU I/F 9 11 5 4 7 6 1 MDP SENS SCOR SQSO SQCK CLOCK DATA CLK XLT DAT SE CN FOK RF SERIAL I/F PWM PWM 70 69 73 74 NL L XTA1 XTA0 MUTE R-CH CD DIGITAL SIGNAL PROCESSOR IC02 16 :FM :CD • SIGNAL PATH 7 8 4 2 1 6 10 DETECTOR OSC (FE101 model) (FE101 model) (FE101 model) FM 75Ω AM ANTENNA JK101 D105 L101 FM ANT L102 FM RF 3 1 RF MIX 6 8 FM FRONT END IC101 (FE101) RF IF AMP Q101 CF101 10.7MHz T101 CF102 10.7MHz FM OSC AMP Q102 D106 L103 L105 MW OSC IF G VT AM/FM TUNING VOLTAGE TP1 L104 AM ANT FM FRONT END IC101 : US, AUS, MX MODEL (FE101) : AEP, UK, E, SP, MY, AR MODEL AM RF AMP Q108 MPX 16 FM IF 1 OSC 23 AFC 22 AM RF 21 FM IF AF DET 18 FM DET AM/FM IF BUFF AM OSC AM MIX AM DET SMET 20 CF103 450kHz MUTE AGC AM IF DECODER 14 L 15 R 4 2 T102 AM IFT 8 FM DET 17 MPX VCO CF104 10.7MHz CF105 19kHz R CH FM/AM MPX IC102 L.P.F Q112,113 FM TUNED LEVEL PD1 21 X101 7.2MHz FM B+ 17 TUB+ B+ Q114 PL DET 13 18 AM OSC/FMSD 24 B+ 7 SD PH DET 11 PH DET 12 14 ST/MONO TU LED 6 13 AM/FM SD 15 L CTR 16 R CTR 7 ST IND 10 AM/FM MUTE Q117 TU L ST IND TU MUTE DO1 A MAIN SECTION D 5 LD ON SWITCH Q02 LD PD FCS/TRK COIL SL/SP MOTOR FOCUS TRACKING 37 40 FE BIAS EI RV01 FOCUS GAIN RV02 7 3 OUT1 OUT2 M MOTOR TABLE 23 SP IN 1 IN2 XRST 6 CD CONT 5 REG Q05,06 13 12 M1 M2 4 MUTE 2 DATA 3 CLOK 1 STB IC04 MOTOR DRIVE REG CONTROL 36 23 14 13 15 16 17 8 25 18 SPOA LIMIT SWITCH S05 10 XLAT CLOCK GEN. PWM PWM 77 78 NR R 22 XLON 1 2 3 IC07 MIX AMP MUTE Q09 CD L SCOR SENS SQSO XLAT SQCK DATA CE STB CLK DO B MAIN SECTION :AM • R CH is omitted SFR101 COUNT FOK IC05 TABLE MOTOR DRIVE SENSOR TABLE UP SW S06 SENS 01 18 SLD DRIVE LED Q07 +5V +B LED CONT 11 REG Q04 +B 16 VDD DISC ND D06 UP SW TABLE SENSOR XTL01 33.8688M (8) (1) (3) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-G2500/XB20/XB22 — 68 — — 69 — — 70 — — 71 — — 72 — 5-15. IC BLOCK DIAGRAMS 5-16. IC PIN FUNCTION DESCRIPTION IC03 (MAIN BOARD) BA5941FP Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 I/O O O O O O O O O — O — I I — — I I — I I I I I I I I I I I O O O O O O O O O O O O O O O O — O O O O Pin Name POWER OUT S. MUTE TU. MUTE OUT TUNED OUT DBDF NORMAL DBDF HIGH SURROUND OUT FLAT — FUNCTION TAPE OUT — RESET POWER DOWN IN — VSS X'1 X'2 VDD1 K4 K3 K2 K1 K0 SPEANA IN 1 SPEANA IN 2 SPEANA IN 3 CXD 2508A SCOR COUNT REMOTE IN 1G 2G 3G 4G 5G 6G 7G 8G 9G 10G 11G 12G 13G 14G 15G P1 VDD P2 P3 P4 P5 IC601 LC866528A-5G83 (FRONT BOARD) Description Power on/off output System mute output (ON at H) Tuner mute output (ON at H) Tuned output (ON at H) DBDF normal output (ON at H) DBDF high output (ON at H) Surround output (ON at H) Preset EQ flat output (ON at H) Not used Function tape selector output Not used Reset input Power down in (AC on at H, AC off at L) Not used System Vss X'tal oscillator 6.0 MHz X'tal oscillator 6.0 MHz System VDD 1 Key input 4 Key input 3 Key input 2 Key input 1 Key input 0 Spectrum analyzer 1 Spectrum analyzer 2 Spectrum analyzer 3 CXD 2508A SCOR input CXD 2508A COUNT input Remote in FLD digital output 1 FLD digital output 2 FLD digital output 3 FLD digital output 4 FLD digital output 5 FLD digital output 6 FLD digital output 7 FLD digital output 8 FLD digital output 9 FLD digital output 10 FLD digital output 11 FLD digital output 12 FLD digital output 13 FLD digital output 14 FLD digital output 15 FLD segment output 1 FLD VDD FLD segment output 2 FLD segment output 3 FLD segment output 4 FLD segment output 5 Pin No. 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 I/O — O O O O O O O O O O O O O O O O I — — — — I I I I I I I — I I I I — — O O — — O — O O O O O O I O Description FLD VDD FLD segment output 6 FLD segment output 7 FLD segment output 8 FLD segment output 9 FLD segment output 10 FLD segment output 11 FLD segment output 12 FLD segment output 13 FLD segment output 14 FLD segment output 15 FLD segment output 16 FLD segment output 17 FLD segment output 18 FLD segment output 19 FLD segment output 20 FLD segment output 21 Destination selector switch input Not used Not used Not used FLD VDD FM stereo indicator input CD Synchro start input CXD 2508A SENS input CXD 2508A FOK input Changer mechanism UP switch input Table sensor switch input CD door switch input Not used VR encorder (+) input VR encorder (–) input CD encorder input A CD encorder input B Not used Not used BU2114 LATCH output BU2092 LATCH output System Vss 2 System VDD 2 SN74HC4094 STB output LV1030 enable LC7218, LC75392 STB output CXD 2508 A XLAT output CXD 2508 A out A output SQSO output SQCK clock output Serial data output Serial data input Serial clock output Pin Name –VPP P6 P7 P8 P9 P10 P11 P12 P13 P14 P15 P16 P17 P18 P19 P20 P21 MODE SW IN — — — VDD FM ST IN CD SYNCHRO IN CXD2580A SENS FOK UP SWITCH TABLE SENSOR CD DOOR SWITCH — VR + VR – CD ENCORDER IN A CD ENCORDER IN B — — BU2114 LATCH BU2092 LOCK LATCH VSS2 VDD2 HC4094 STB LV1030 ENABLE 7218, 75392 STB CXD2508A XLAT CXD2508A DATA SQSO SQCK,CLOK SQ SI SCK + – LEVEL SHIFT + – + – 1 2 3 4 5 6 7 8 9 10 11 12 13 14 28 27 LEVEL SHIFT + – + – MUTE + – + – LEVEL SHIFT + – + – LEVEL SHIFT + – + – + – 15 16 17 18 19 21 20 22 26 25 24 23 + – NC Vcc Vcc Vcc VCC BIAS IN IN1B IN1A IN2B IN2A GND GND MUTE VCC OUT2A OUT2B OUT1A OUT1B IN4B IN4A IN3B IN3A OP OUT OP IN (–) OP IN (+) GND NC VCC OUT3A OUT3B OUT4A OUT4B IC01 (CD DECODER BOARD) CXA1782BQ 36 PHD2 PHD1 PHD 33 LD 32 RF M 31 RF O 30 RF I 29 CP 28 CB 27 CC1 26 CC2 25 FOK 24 SENS 23 C. OUT 22 XRST 21 DATA 20 XLT 19 CLK 18 VCC 17 ISET 16 SL 0 15 SL M 14 SL P 13 12 TA O TA M 11 FSET 10 TG2 9 TGU 8 SRCH 7 FE M 6 FE O 5 FLB 4 FGD 3 FDFCT 2 FEI 1 FEO 48 VC 47 TDFCT 46 TZC 45 ATSC 44 TEI 43 LPFI 42 TEO 41 VEE 40 EI 39 E 38 F 37 FE BIAS + + – + + – + – + – + – + – + – + + + – + – + – + – + – + – + – + – – + + – – + + – + – + – + – + – APC – – – – LEVELS FOK MIRR DFCT RF IV AMP2 RF IV AMP1 FE AMP F IV AMP E IV AMP TE AMP FZC COMP BAL1 BAL2 BAL3 TOG1 TOG2 TOG3 TTL IIL IIL TTL TTL IIL • IIL DATA RESISTOR • INPUT SHIFT RESISTOR • ADDRESS DECODER • OUTPUT DECODER HPF COMP LPF COMP TZC COMP DFCT DFCT TM1 FS4 ATSC • WINDOW COMP • FCS PHASE COMPENSATION • TRACKING • PHASE COMPENSATION • ISET FS1 FS2 TM4 TM5 TM6 TM3 TM7 TG2 • F SET TG1 TM2 + – TOG1-3 FS1-4 TG1-2 TM1-7 PS1-4 BAL1-3 35 34 1 2 3 4 5 6 7 8 9 10 16 15 14 13 12 11 CONTROL CIRCUIT 12 BIT SHIFT REGISTER 12 BIT STORAGE REGISTER OUTPUT BUFFER (OPEN DRAIN) 17 18 VDD OE Q11 Q10 Q9 Q8 Q7 Q6 Q5 Q4 Q3 Q2 Q1 Q0 LCK CLOCK DATA VSS IC602 (FRONT BOARD) BU2092 RF IN 1 2 3 4 5 6 7 8 9 BYPAS GND GND MIX IN IF OSC VCC AFC RF VREF MIX REG OSC BUF IC101 (MAIN BOARD) LA1186 IC102 (MAIN BOARD) LA1831 FM IF REG GND VCC FM DET S-CURVE TUNING DRIVE LEVEL DET AM/FM IF BUFE ALC BUFFER AM OSC AM MIX AM RF AMP AGC AM DET AM IF COMP FM AM MUTE DECORDER STEREO DRIVE FF TRIG PHASE DET VCO AM/FM SW PILOT DET STEREO SW 3 6 9 12 2 5 8 11 1 4 7 10 22 19 16 13 23 20 17 14 24 21 18 15 OSC/FMSD OSC AFC AM RF SMET AM HPF AF DET MPX VCO MPX IN R OUT L OUT PL DET FM IF AM MIX REG AM IF GND TU LED ST IND FM DET VCC AM/FM PH DET PH DET IC103 (MAIN BOARD) LC7218-ST XIN CE DI CL DO SYC IN0 IN1 OUT0 OUT1 OUT2 OUT3 SHIFT REGISTER LATCH 12 BIT PROGRAMMABLE DIVIDER SWALLOW COUNTER 1/16 . 1/17 BIT REFERENCE DIVIDER PHASE DETECTOR CHARGE PUMP 1 / 2 X OUT VSS PD2 PD1 VDD FM IN AM IN OUT 6 HCTR LCTR OUT 5 OUT 4 UNIVERSAL COUNTER 7 10 11 12 9 8 6 5 4 3 2 1 13 14 24 23 22 21 20 19 18 17 16 15 IC301 (CD DECODER BOARD) LC75392 + – 3 6 9 12 15 2 5 8 11 14 1 4 7 10 13 28 25 22 19 16 29 26 23 20 17 30 27 24 21 18 + – + – + – LATCH DECODER CONTROL SHIFT REGISTER – + LVROUT LVRIN LTOUT LTCOM LT4 LT3 LT2 LT1 L4 L3 L2 L1 VDD CL DI RVROUT RVRIN RTOUT RTCOM RT4 RT3 RT2 RT1 R4 R3 R2 R1 VREF VSS CE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SECTION 6 EXPLODED VIEWS NOTE: • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Hardware (# mark) list and accessories and packing materials are given in the last of this parts list. • Abbreviation AUS : Australian SP : Singapore MX : Mexican MY : Malaysia AR : Argentine The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. — 73 — 6-1. TOP COVER SECTION Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 1 4-211-479-01 COVER, TOP (G2500) 1 4-211-556-01 COVER, TOP (XB22,XB20) * 2 4-211-482-01 PANEL, REAR (G2500) * 2 4-211-559-01 PANEL, REAR (XB20) * 2 4-211-574-01 PANEL, REAR (XB22:E,SP,MY,AR) * 2 4-211-575-01 PANEL, REAR (XB22:MX) * 2 4-211-577-01 PANEL, REAR (XB22:AUS) 1 2 #2 #2 #2 #3 #3 #4 #4 #4 #1 #1 #1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 74 — 6-2. CD DOOR SECTION Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks * 51 1-670-947-11 JOG BOARD 52 4-211-523-01 BUTTON, EDIT (G2500) 52 4-211-570-01 BUTTON, EDIT (XB22,XB20) 53 4-211-522-01 PANEL, AMS (G2500) 53 4-211-569-01 PANEL, AMS (XB22,XB20) 54 4-211-481-01 KNOB, AMS (G2500) 54 4-211-558-01 KNOB, AMS (XB22,XB20) * 55 1-670-945-11 DISC BOARD 56 4-211-525-01 BUTTON, DISC SELECT (G2500) 56 4-211-572-01 BUTTON, DISC SELECT (XB22,XB20) 57 4-211-524-01 PANEL, DISC (G2500) 57 4-211-571-01 PANEL, DISC (XB22,XB20) 58 4-211-527-01 WINDOW, CD 59 4-211-526-01 DOOR, CD (G2500) 59 4-211-573-01 DOOR, CD (XB22,XB20) 60 4-211-917-01 SPRING, CD EJECT * 61 4-211-921-01 CHASSIS, CD DOOR 62 4-211-919-01 SHAFT, STOPPER 63 4-211-914-01 LENS, CD DOOR * 64 1-670-950-11 LED BOARD (XB22:AUS,MX,G2500) * 64 1-671-475-11 LED BOARD (XB22:E,SP,MY,AR,XB20) * 65 1-670-946-11 PLAY SW BOARD * 66 1-670-948-11 DOOR SW BOARD 68 4-211-915-01 STOPPER (R), CD DOOR 69 4-211-916-01 STOPPER (L), CD DOOR 70 4-211-920-01 DAMPER (PG-5), GEAR #3 #3 #3 #3 #3 #3 #3 #3 #5 #5 not supplied #5 #3 55 53 54 66 61 70 62 63 64 68 69 59 65 60 58 52 51 56 57 #3 #3 #6 #6 #6 #5 #6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 75 — Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 6-3. PANEL SECTION 101 4-211-480-01 KNOB, VOLUME (G2500) 101 4-211-557-01 KNOB, VOLUME (XB22,XB20) 102 4-211-475-01 DOOR (R), CASSETTE (G2500) 102 4-211-554-01 DOOR (R), CASSETTE (XB22,XB20) 103 4-211-477-01 WINDOW (R), CASSETTE 104 4-211-510-01 SPRING, DOOR 105 4-211-478-01 WINDOW (L), CASSETTE 106 4-211-476-01 DOOR (L), CASSETTE (G2500) 106 4-211-555-01 DOOR (L), CASSETTE (XB22,XB20) 107 4-211-474-01 WINDOW, TUNING 108 4-211-491-01 PANEL, FRONT (G2500) 108 4-211-561-01 PANEL, FRONT (XB22,XB20) 109 4-211-505-01 BUTTON, POWER (G2500) 109 4-211-566-01 BUTTON, POWER (XB22,XB20) 110 4-211-507-01 BUTTON, FUNCTION (G2500) 110 4-211-568-01 BUTTON, FUNCTION (XB22,XB20) * 111 A-4414-964-A FRONT BOARD,COMPLETE(G2500) * 111 A-4414-976-A FRONT BOARD,COMPLETE(XB20) * 111 A-4414-980-A FRONT BOARD,COMPLETE(XB22:MX,AR) * 111 A-4414-984-A FRONT BOARD,COMPLETE(XB22:E,AUS,SP,MY) * 112 1-670-944-11 SENSOR BOARD * 113 1-671-028-11 VR BOARD 114 4-211-508-01 HOLDER, ROCK BUTTON 115 4-211-498-01 KNOB, ROCK 116 4-211-499-01 KNOB, POP 117 4-211-501-01 KNOB, JAZZ 118 4-211-500-01 KNOB, SALSA 119 4-992-131-01 DAMPER (GRY), GEAR 120 4-211-494-01 BUTTON, DBFB (G2500) 120 4-211-562-01 BUTTON, DBFB (XB22,XB20) 121 4-211-495-01 BUTTON, DOLBY (G2500) 121 4-211-563-01 BUTTON, DOLBY (XB22,XB20) 122 4-211-506-01 BUTTON, TUNNIG (G2500) 122 4-211-567-01 BUTTON, TUNING (XB22,XB20) 123 4-211-502-01 LENS, ENTER 124 4-211-504-01 LENS, CD PAUSE 125 4-211-503-01 LENS, CD PLAY 126 4-211-496-01 BUTTON, CD PLAY (G2500) 126 4-211-564-01 BUTTON, CD PLAY (XB22,XB20) 127 4-211-492-01 HOLDER (R), DOOR 128 4-211-493-01 HOLDER (L), DOOR 129 4-211-490-01 WASHER (9Q), VOLUME 130 4-211-497-01 BUTTON, OPEN (G2500) 130 4-211-565-01 BUTTON, OPEN (XB22,XB20) #3 not supplied #3 #3 #3 #3 #3 #3 113 111 112 114 110 109 108 107 128 127 105 106 102 103 104 104 101 129 119 121 120 123 122 124 125 126 130 115 119 118 116117 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 76 — Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 6-4. MAIN SECTION * 151 A-4414-973-A MAIN BOARD, COMPLETE(XB22:MX,G2500) * 151 A-4414-978-A MAIN BOARD, COMPLETE(XB20) * 151 A-4414-982-A MAIN BOARD, COMPLETE(XB22:E,SP,MY,AR) * 151 A-4414-986-A MAIN BOARD, COMPLETE(XB22:AUS) * 152 A-4414-989-A AMP BOARD, COMPLETE (XB22,G2500) * 152 A-4414-996-A AMP BOARD, COMPLETE (XB20) * 153 1-670-951-11 POWER SUPPLY BOARD 155 4-211-483-01 FOOT, PLASTIC * 156 3-703-244-00 BUSHING (2104), CORD !157 1-551-188-99 CORD, POWER (E,MX) !157 1-555-795-00 CORD, POWER, EULO PLUG (SP,MY,AR,AEP) !157 1-556-035-00 CORD, POWER (UK) !157 1-559-583-11 CORD, POWER (US) * 158 1-670-952-11 POWER SELECT BOARD (XB22:E,SP,MY,AR) !PT301 1-431-992-11 TRANSFORMER, POWER (US) !PT301 1-431-993-11 TRANSFORMER, POWER (AEP,UK) !PT301 1-431-994-11 TRANSFORMER, POWER (E,SP,MY,AR) !PT301 1-431-995-11 TRANSFORMER, POWER (MX) !PT301 1-431-996-11 TRANSFORMER, POWER (AUS) The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. 151 152 153 158 156 155 not supplied not supplied not supplied not supplied not supplied #4 #4 #4 #4 #4 #4 #7 #4 #4 #4 #4 #8 #8 #8 #1 #9 PT301 157 157 157 E, MX SP, MY, AR, AEP, UK US www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 77 — 6-5. CASSETTE BUTTON SECTION Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 201 4-211-511-01 BUTTON, REC 202 4-211-512-01 BUTTON (A), PLAY 203 4-211-513-01 BUTTON (A), REW 204 4-211-514-01 BUTTON (A), FF 205 4-211-515-01 BUTTON (A), STOP 206 4-211-516-01 BUTTON (A), PAUSE 207 4-211-517-01 BUTTON (B), PLAY 208 4-211-518-01 BUTTON (B), REW 209 4-211-519-01 BUTTON (B), FF 210 4-211-520-01 BUTTON (B), STOP 211 4-211-521-01 BUTTON (B), PAUSE 201 202 203 204 205 206 207 208 209 210 211 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 78 — 6-6. CASSETTE MECHANISM DECK SECTION (TCK20FX-SW943-800) Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 251 9-980-286-01 CAP SCREW 2 × 7.5 252 9-980-288-01 A SCREW 2 × 7 (AZIMUTH) 253 9-980-287-01 B SCREW 2 × 3 254 9-980-276-01 PINCH ROLLER ARM ASSY 257 9-980-279-01 SCREW M COLLAR 258 9-980-278-01 MOTOR RUBBER 260 9-980-277-01 BELT (W) F 261 9-980-281-01 BELT M * 263 1-759-417-11 DECK, MECHANICAL HE901 9-980-284-01 E HEAD (ERASE) HP901 9-980-282-01 P HEAD (PLAY) HRP901 9-980-283-01 RP HEAD (REC/PLAY) M901 9-980-285-01 MOTOR (CAPSTAN/REEL) SW202 9-980-274-01 LEAF SWITCH (A DECK) SW203 9-980-274-01 LEAF SWITCH (B DECK) SW204 9-980-275-01 LEAF SWITCH (PLAY) 260 261 260 258 257 261 254 263 253 254 252 253 252 251 SW202 HE901 HRP901 not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied HP901 SW203 SW204 M901 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 79 — 6-7. CD MECHANISM DECK SECTION Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 351 4-987-976-01 SCREW, STEP 352 4-944-490-01 BELT (TIMING) 354 4-978-421-01 GEAR (MID) 355 4-978-425-01 ROLLER (CAM) 356 4-978-420-01 CAM (HOLDER) 358 4-978-417-01 TABLE, DISC 359 4-934-376-01 SHAFT (ROLLER) * 360 X-4924-457-1 ROLLER ASSY * 361 4-978-583-01 BRACKET (BU) * 364 1-670-849-11 MOTOR BOARD 365 4-978-426-01 INDICATOR (NO.) * 366 1-670-847-11 DISC NO LED BOARD * 367 1-670-846-11 TABLE SENSOR BOARD M01 1-541-632-11 MOTOR, DC not supplied M01 351 351 not supplied not supplied not supplied 354 359 359 360 360 352 352 355 356 361 358 351 359 360 367 365 366 364 #10 #13 #10 #10 #10 #10 Base unit block www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 80 — 6-8. BASE UNIT SECTION (KSM-213ECM) Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 401 4-992-164-01 BASE, KSM MECHANICAL 402 4-992-165-01 DAMPER (GREEN) 403 4-992-166-01 DAMPER (RED) 404 4-985-672-21 SCREW (+PTPWHM2.6), FLOATING 405 4-917-565-01 SHAFT, SLED 406 2-626-908-01 SHAFT, SLED !408 8-848-379-31 OPTICAL PICK-UP KSS-213B/SN * 409 1-639-678-12 MOTOR (6P) (C) BOARD 410 1-783-740-11 WIRE (FLAT TYPE)(16 CORE) M101 X-2625-877-1 MOTOR ASSY (SPINDLE) M102 X-2625-769-1 MOTOR ASSY (SLED) The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. 402 404 404 404 403 402 406 408 403 405 404 410 409 401 M101 M102 #14 not supplied not supplied www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • CAPACITORS: uF: µF The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. • RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable • COILS uH: µH • SEMICONDUCTORS In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD... When indicating parts by reference number, please include the board name. Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 81 — SECTION 7 ELECTRICAL PARTS LIST • Abbreviation AUS : Australian SP : Singapore MX : Mexican MY : Malaysia AR : Argentine * A-4414-989-A AMP BOARD, COMPLETE (XB22,G2500) ******************************** * A-4414-996-A AMP BOARD, COMPLETE (XB20) ************************** * 1-533-213-31 HOLDER, FUSE < CAPACITOR > C703 1-162-294-31 CERAMIC 0.001uF 10% 50V C704 1-162-294-31 CERAMIC 0.001uF 10% 50V C705 1-126-961-11 ELECT 2.2uF 20% 50V C706 1-126-961-11 ELECT 2.2uF 20% 50V C707 1-162-286-31 CERAMIC 220PF 10% 50V C708 1-162-286-31 CERAMIC 220PF 10% 50V C709 1-126-967-11 ELECT 47uF 20% 16V C710 1-126-967-11 ELECT 47uF 20% 16V C713 1-126-967-11 ELECT 47uF 20% 50V C714 1-126-967-11 ELECT 47uF 20% 50V C715 1-126-964-11 ELECT 10uF 20% 50V C717 1-128-576-11 ELECT 100uF 20% 63V C719 1-137-393-11 FILM 0.01uF 5% 100V C720 1-137-393-11 FILM 0.01uF 5% 100V C721 1-137-399-11 FILM 0.1uF 5% 100V C722 1-137-399-11 FILM 0.1uF 5% 100V C723 1-126-961-11 ELECT 2.2uF 20% 50V C724 1-137-393-11 FILM 0.01uF 5% 100V C725 1-126-235-11 ELECT 100uF 20% 16V C726 1-126-933-11 ELECT 100uF 20% 16V C730 1-126-963-11 ELECT 4.7uF 20% 50V C733 1-161-494-00 CERAMIC 0.022uF 25V (XB20) C734 1-161-494-00 CERAMIC 0.022uF 25V (XB20) C735 1-162-199-31 CERAMIC 10PF 5% 50V C736 1-162-199-31 CERAMIC 10PF 5% 50V C741 1-104-482-11 ELECT 4700uF 20% 63V C742 1-104-482-11 ELECT 4700uF 20% 63V C743 1-136-601-11 FILM 0.01uF 5% 630V C744 1-136-601-11 FILM 0.01uF 5% 630V C745 1-136-601-11 FILM 0.01uF 5% 630V C746 1-136-601-11 FILM 0.01uF 5% 630V C747 1-161-494-00 CERAMIC 0.022uF 25V C748 1-161-494-00 CERAMIC 0.022uF 25V C749 1-161-494-00 CERAMIC 0.022uF 25V C750 1-161-494-00 CERAMIC 0.022uF 25V C751 1-126-943-11 ELECT 2200uF 20% 25V C752 1-126-933-11 ELECT 100uF 20% 16V C753 1-161-494-00 CERAMIC 0.022uF 25V C754 1-161-494-00 CERAMIC 0.022uF 25V C755 1-161-494-00 CERAMIC 0.022uF 25V C756 1-126-948-11 ELECT 100uF 20% 35V C757 1-161-494-00 CERAMIC 0.022uF 25V C758 1-126-949-11 ELECT 220uF 20% 35V C759 1-161-494-00 CERAMIC 0.022uF 25V C760 1-126-933-11 ELECT 100uF 20% 16V C761 1-161-494-00 CERAMIC 0.022uF 25V C762 1-126-935-11 ELECT 470uF 20% 16V C763 1-161-494-00 CERAMIC 0.022uF 25V C768 1-161-494-00 CERAMIC 0.022uF 25V C770 1-126-961-11 ELECT 2.2uF 20% 50V C771 1-126-962-11 ELECT 3.3uF 20% 50V C780 1-126-934-11 ELECT 220uF 20% 16V C785 1-161-494-00 CERAMIC 0.022uF 25V < CONNECTOR > CN703 1-564-510-11 PLUG, CONNECTOR 7P < DIODE > D701 8-719-027-23 DIODE GBU6D D705 8-719-031-85 DIODE 1N4002L D706 8-719-031-85 DIODE 1N4002L D707 8-719-031-85 DIODE 1N4002L D708 8-719-031-85 DIODE 1N4002L D711 8-719-921-40 DIODE MTZJ-4.7C D712 8-719-110-88 DIODE RD39ES-B2 D713 8-719-982-26 DIODE MTZJ-33B D714 8-719-031-85 DIODE 1N4002L D715 8-719-991-33 DIODE 1SS133T-77 D716 8-719-991-33 DIODE 1SS133T-77 D717 8-719-991-33 DIODE 1SS133T-77 D718 8-719-991-33 DIODE 1SS133T-77 D719 8-719-991-33 DIODE 1SS133T-77 < FUSE > !F701 1-532-388-31 FUSE TIME LAG 2A/250V (XB22:AUS,XB20) !F701 1-576-104-11 FUSE TIME LAG 2A/250V (XB22:MX,G2500) < IC > IC701 8-749-920-90 IC STK-4201MK2 IC702 8-759-111-68 IC UPC1237HA < JACK > JK703 1-694-443-11 TERMINAL BOARD (SPEAKER) < COIL > L703 1-420-872-00 COIL, AIR-CORE (XB20) L704 1-420-872-00 COIL, AIR-CORE (XB20) AMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 82 — < TRANSISTOR > Q701 8-729-188-23 TRANSISTOR 2SD882-P Q702 8-729-188-23 TRANSISTOR 2SD882-P Q703 8-729-232-32 TRANSISTOR 2SA965 Q706 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q707 8-729-184-53 TRANSISTOR 2SC1845-EA Q708 8-729-184-53 TRANSISTOR 2SC1845-EA Q709 8-729-231-55 TRANSISTOR 2SC2878-AB Q710 8-729-231-55 TRANSISTOR 2SC2878-AB Q711 8-729-029-86 TRANSISTOR DTC124ESA Q712 8-729-029-86 TRANSISTOR DTC124ESA < RESISTOR > R703 1-247-839-11 CARBON 2.2K 5% 1/4W R704 1-247-839-11 CARBON 2.2K 5% 1/4W R705 1-249-438-11 CARBON 56K 5% 1/4W R706 1-249-438-11 CARBON 56K 5% 1/4W R707 1-249-466-11 CARBON 56K 5% 1/4W R708 1-249-466-11 CARBON 56K 5% 1/4W R709 1-247-711-11 CARBON 680 5% 1/4W F R710 1-247-711-11 CARBON 680 5% 1/4W F R711 1-247-721-11 CARBON 4.7K 5% 1/4W F R712 1-247-721-11 CARBON 4.7K 5% 1/4W F R713 1-249-405-11 CARBON 100 5% 1/4W F R714 1-249-405-11 CARBON 100 5% 1/4W F R715 1-247-721-11 CARBON 4.7K 5% 1/4W F R716 1-247-721-11 CARBON 4.7K 5% 1/4W F R717 1-247-713-11 CARBON 1K 5% 1/4W F R718 1-247-713-11 CARBON 1K 5% 1/4W F R719 1-247-887-00 CARBON 220K 5% 1/4W R720 1-247-887-00 CARBON 220K 5% 1/4W R721 1-247-713-11 CARBON 1K 5% 1/4W F R722 1-249-417-11 CARBON 1K 5% 1/4W F R723 1-220-755-11 METAL 0.22 10% 2W R724 1-220-755-11 METAL 0.22 10% 2W R725 1-249-431-11 CARBON 15K 5% 1/4W R726 1-249-431-11 CARBON 15K 5% 1/4W R727 1-249-459-11 CARBON 12K 5% 1/4W R728 1-249-459-11 CARBON 12K 5% 1/4W R729 1-247-717-11 CARBON 2.2K 5% 1/4W F R730 1-247-871-11 CARBON 47K 5% 1/4W R731 1-247-887-00 CARBON 220K 5% 1/4W R732 1-247-713-11 CARBON 1K 5% 1/4W F R733 1-249-438-11 CARBON 56K 5% 1/4W R734 1-247-721-11 CARBON 4.7K 5% 1/4W F R735 1-212-958-00 FUSIBLE 10 5% 1/2W F R736 1-212-958-00 FUSIBLE 10 5% 1/2W F R737 1-260-064-11 CARBON 1 5% 1/2W (XB20) R738 1-260-064-11 CARBON 1 5% 1/2W (XB20) R739 1-247-839-11 CARBON 2.2K 5% 1/4W R741 1-213-036-11 FUSIBLE 1 5% 1W F R742 1-247-708-11 CARBON 470 5% 1/4W F R743 1-247-714-11 CARBON 1.2K 5% 1/4W F R744 1-247-708-11 CARBON 470 5% 1/4W F R747 1-247-725-11 CARBON 10K 5% 1/4W F R748 1-247-855-11 CARBON 10K 5% 1/4W R751 1-213-076-11 FUSIBLE 47 5% 1W F R755 1-247-843-11 CARBON 3.3K 5% 1/4W < RELAY > RL701 1-515-921-11 RELAY (12V) ************************************************************ * A-4414-990-A CD DECODER BOARD, COMPLETE ************************** < CAPACITOR > C3 1-164-159-11 CERAMIC 0.1uF 50V C4 1-136-153-00 FILM 0.01uF 5% 50V C01 1-104-665-11 ELECT 100uF 20% 10V C02 1-162-201-31 CERAMIC 12PF 5% 50V C05 1-136-159-00 FILM 0.033uF 5% 50V C06 1-162-306-11 CERAMIC 0.01uF 20% 16V C07 1-136-159-00 FILM 0.033uF 5% 50V C08 1-161-494-00 CERAMIC 0.022uF 25V C09 1-126-959-11 ELECT 0.47uF 20% 50V C10 1-162-306-11 CERAMIC 0.01uF 20% 16V C11 1-162-306-11 CERAMIC 0.01uF 20% 16V C12 1-164-159-11 CERAMIC 0.1uF 50V C13 1-104-665-11 ELECT 100uF 20% 10V C14 1-162-302-11 CERAMIC 0.0022uF 30% 16V C15 1-164-159-11 CERAMIC 0.1uF 50V C16 1-136-159-00 FILM 0.033uF 5% 50V C17 1-164-159-11 CERAMIC 0.1uF 50V C18 1-164-159-11 CERAMIC 0.1uF 50V C19 1-126-963-11 ELECT 4.7uF 20% 50V C20 1-136-153-00 FILM 0.01uF 5% 50V C21 1-162-199-31 CERAMIC 10PF 5% 50V C22 1-104-665-11 ELECT 100uF 20% 10V C23 1-164-159-11 CERAMIC 0.1uF 50V C24 1-126-965-11 ELECT 22uF 20% 50V C25 1-161-494-00 CERAMIC 0.022uF 25V C26 1-161-494-00 CERAMIC 0.022uF 25V C31 1-162-600-11 CERAMIC 0.0047uF 30% 16V C32 1-162-301-11 CERAMIC 0.0015uF 30% 16V C33 1-162-286-31 CERAMIC 220PF 10% 50V C34 1-126-963-11 ELECT 4.7uF 20% 50V C35 1-162-306-11 CERAMIC 0.01uF 20% 16V C36 1-164-159-11 CERAMIC 0.1uF 50V C37 1-104-665-11 ELECT 100uF 20% 10V C38 1-164-159-11 CERAMIC 0.1uF 50V C39 1-126-964-11 ELECT 10uF 20% 50V C40 1-162-215-31 CERAMIC 47PF 5% 50V C41 1-162-306-11 CERAMIC 0.01uF 20% 16V C42 1-164-159-11 CERAMIC 0.1uF 50V C43 1-162-294-31 CERAMIC 0.001uF 10% 50V C44 1-162-294-31 CERAMIC 0.001uF 10% 50V C45 1-162-294-31 CERAMIC 0.001uF 10% 50V C46 1-162-294-31 CERAMIC 0.001uF 10% 50V C47 1-162-294-31 CERAMIC 0.001uF 10% 50V C51 1-102-947-00 CERAMIC 10PF 5% 50V C52 1-102-947-00 CERAMIC 10PF 5% 50V C53 1-126-934-11 ELECT 220uF 20% 10V C54 1-126-934-11 ELECT 220uF 20% 10V C57 1-136-153-00 FILM 0.01uF 5% 50V C58 1-164-159-11 CERAMIC 0.1uF 50V C59 1-126-926-11 ELECT 1000uF 20% 10V AMP CD DECODER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 83 — C60 1-136-154-00 FILM 0.012uF 5% 50V C61 1-162-284-31 CERAMIC 150PF 10% 50V C62 1-162-284-31 CERAMIC 150PF 10% 50V C63 1-162-288-31 CERAMIC 330PF 10% 50V C64 1-162-288-31 CERAMIC 330PF 10% 50V C65 1-162-288-31 CERAMIC 330PF 10% 50V C66 1-162-288-31 CERAMIC 330PF 10% 50V C67 1-126-959-11 ELECT 0.47uF 20% 50V C68 1-126-963-11 ELECT 4.7uF 20% 50V C73 1-162-294-31 CERAMIC 0.001uF 10% 50V C74 1-162-294-31 CERAMIC 0.001uF 10% 50V C85 1-126-964-11 ELECT 10uF 20% 50V C86 1-126-964-11 ELECT 10uF 20% 50V C90 1-126-934-11 ELECT 220uF 20% 10V C91 1-126-934-11 ELECT 220uF 20% 10V C92 1-126-934-11 ELECT 220uF 20% 10V C93 1-126-934-11 ELECT 220uF 20% 10V C94 1-126-934-11 ELECT 220uF 20% 10V C95 1-162-294-31 CERAMIC 0.001uF 10% 50V C96 1-162-294-31 CERAMIC 0.001uF 10% 50V C97 1-162-294-31 CERAMIC 0.001uF 10% 50V C99 1-164-159-11 CERAMIC 0.1uF 50V < CONNECTOR > CN01 1-580-475-11 SOCKET, CONNECTOR 16P * CN03 1-564-708-11 PIN, CONNECTOR (SMALL TYPE) 6P < DIODE > D01 8-719-911-19 DIODE 1SS119 D04 8-719-109-89 DIODE RD5.6ESB2 D05 8-719-109-89 DIODE RD5.6ESB2 D09 8-719-109-93 DIODE RD6.2ESB2 D35 8-719-982-11 DIODE MTZJ-4.3B D36 8-719-031-85 DIODE 1N4002L < IC > IC01 8-752-069-56 IC CXA1782BQ IC02 8-752-373-06 IC CXD2508AQ IC03 8-759-429-31 IC BA5941FP IC04 8-759-234-75 IC TC74HC4094AP IC05 8-759-365-94 IC TA8409S IC07 8-759-505-55 IC NJM4558L < COIL > L01 1-410-509-11 INDUCTOR 10uH L02 1-410-509-11 INDUCTOR 10uH < TRANSISTOR > Q01 8-729-195-23 TRANSISTOR 2SA952 Q02 8-729-195-23 TRANSISTOR 2SA952 Q04 8-729-142-46 TRANSISTOR 2SC2001-LK Q05 8-729-142-46 TRANSISTOR 2SC2001-LK Q06 8-729-194-57 TRANSISTOR 2SC945-P Q07 8-729-194-57 TRANSISTOR 2SC945-P Q09 8-729-194-57 TRANSISTOR 2SC945-P Q10 8-729-194-57 TRANSISTOR 2SC945-P < RESISTOR > R01 1-249-393-11 CARBON 10 5% 1/4W F R02 1-247-847-11 CARBON 4.7K 5% 1/4W R03 1-247-863-11 CARBON 22K 5% 1/4W R04 1-249-430-11 CARBON 12K 5% 1/4W R05 1-249-430-11 CARBON 12K 5% 1/4W R06 1-249-430-11 CARBON 12K 5% 1/4W R07 1-249-430-11 CARBON 12K 5% 1/4W R08 1-249-430-11 CARBON 12K 5% 1/4W R09 1-249-430-11 CARBON 12K 5% 1/4W R10 1-247-879-11 CARBON 100K 5% 1/4W R11 1-247-883-00 CARBON 150K 5% 1/4W R13 1-247-879-11 CARBON 100K 5% 1/4W R14 1-247-871-11 CARBON 47K 5% 1/4W R15 1-247-871-11 CARBON 47K 5% 1/4W R16 1-247-871-11 CARBON 47K 5% 1/4W R17 1-247-871-11 CARBON 47K 5% 1/4W R18 1-247-879-11 CARBON 100K 5% 1/4W R19 1-249-431-11 CARBON 15K 5% 1/4W R20 1-249-431-11 CARBON 15K 5% 1/4W R21 1-247-841-11 CARBON 2.7K 5% 1/4W R22 1-249-438-11 CARBON 56K 5% 1/4W R23 1-247-879-11 CARBON 100K 5% 1/4W R24 1-247-896-11 CARBON 510K 5% 1/4W R25 1-247-879-11 CARBON 100K 5% 1/4W R26 1-247-879-11 CARBON 100K 5% 1/4W R27 1-247-881-00 CARBON 120K 5% 1/4W R28 1-247-879-11 CARBON 100K 5% 1/4W R29 1-249-428-11 CARBON 8.2K 5% 1/4W F R30 1-247-863-11 CARBON 22K 5% 1/4W R31 1-249-431-11 CARBON 15K 5% 1/4W R32 1-247-887-00 CARBON 220K 5% 1/4W R36 1-247-807-11 CARBON 100 5% 1/4W R37 1-249-411-11 CARBON 330 5% 1/4W R38 1-247-807-11 CARBON 100 5% 1/4W R39 1-247-807-11 CARBON 100 5% 1/4W R40 1-247-847-11 CARBON 4.7K 5% 1/4W R41 1-247-883-00 CARBON 150K 5% 1/4W R42 1-247-807-11 CARBON 100 5% 1/4W R43 1-247-807-11 CARBON 100 5% 1/4W R44 1-247-847-11 CARBON 4.7K 5% 1/4W R45 1-247-843-11 CARBON 3.3K 5% 1/4W R46 1-247-843-11 CARBON 3.3K 5% 1/4W R47 1-247-855-11 CARBON 10K 5% 1/4W R48 1-247-903-00 CARBON 1M 5% 1/4W R49 1-247-855-11 CARBON 10K 5% 1/4W R50 1-247-879-11 CARBON 100K 5% 1/4W R52 1-249-409-11 CARBON 220 5% 1/4W F R51 1-247-903-00 CARBON 1M 5% 1/4W R53 1-247-847-11 CARBON 4.7K 5% 1/4W R54 1-249-427-11 CARBON 6.8K 5% 1/4W F R55 1-247-855-11 CARBON 10K 5% 1/4W R56 1-247-863-11 CARBON 22K 5% 1/4W R57 1-247-847-11 CARBON 4.7K 5% 1/4W R58 1-247-871-11 CARBON 47K 5% 1/4W R59 1-247-867-11 CARBON 33K 5% 1/4W CD DECODER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 84 — R60 1-249-442-11 CARBON 510 5% 1/4W R61 1-247-855-11 CARBON 10K 5% 1/4W R62 1-247-855-11 CARBON 10K 5% 1/4W R63 1-247-855-11 CARBON 10K 5% 1/4W R64 1-247-855-11 CARBON 10K 5% 1/4W R65 1-247-867-11 CARBON 33K 5% 1/4W R66 1-247-867-11 CARBON 33K 5% 1/4W R67 1-247-867-11 CARBON 33K 5% 1/4W R68 1-247-867-11 CARBON 33K 5% 1/4W R69 1-249-430-11 CARBON 12K 5% 1/4W R70 1-249-430-11 CARBON 12K 5% 1/4W R71 1-249-430-11 CARBON 12K 5% 1/4W R72 1-249-430-11 CARBON 12K 5% 1/4W R73 1-247-839-11 CARBON 2.2K 5% 1/4W R74 1-247-839-11 CARBON 2.2K 5% 1/4W R75 1-247-839-11 CARBON 2.2K 5% 1/4W R76 1-247-839-11 CARBON 2.2K 5% 1/4W R81 1-247-847-11 CARBON 4.7K 5% 1/4W R82 1-247-847-11 CARBON 4.7K 5% 1/4W R84 1-247-855-11 CARBON 10K 5% 1/4W R85 1-247-847-11 CARBON 4.7K 5% 1/4W R86 1-249-427-11 CARBON 6.8K 5% 1/4W F R87 1-247-863-11 CARBON 22K 5% 1/4W R88 1-247-871-11 CARBON 47K 5% 1/4W R89 1-249-413-11 CARBON 470 5% 1/4W F R91 1-247-839-11 CARBON 2.2K 5% 1/4W R92 1-249-412-11 CARBON 390 5% 1/4W F R93 1-249-412-11 CARBON 390 5% 1/4W F R94 1-247-847-11 CARBON 4.7K 5% 1/4W R95 1-249-417-11 CARBON 1K 5% 1/4W F R96 1-249-417-11 CARBON 1K 5% 1/4W F R97 1-249-417-11 CARBON 1K 5% 1/4W F < VARIABLE RESISTOR > VR01 1-228-996-00 RES, ADJ, METAL 47K VR02 1-228-998-00 RES, ADJ, METAL 220K < VIBRATOR > XTL01 1-760-123-11 VIBRATOR, CRYSTAL 33.86MHz ************************************************************ * 1-670-848-11 CONNECTOR BOARD *************** < CONNECTOR > CN04 1-784-807-11 CONNECTOR, BOARD TO BOARD 13P ************************************************************ * 1-670-945-11 DISC BOARD ********** < RESISTOR > R647 1-247-827-11 CARBON 680 5% 1/4W R648 1-249-416-11 CARBON 820 5% 1/4W F R649 1-249-418-11 CARBON 1.2K 5% 1/4W F R650 1-247-835-11 CARBON 1.5K 5% 1/4W < SWITCH > S636 1-771-478-11 SWITCH (DISC 1) S637 1-771-478-11 SWITCH (DISC 2) S638 1-771-478-11 SWITCH (DISC 3) S639 1-771-478-11 SWITCH (DISC 4) S640 1-771-478-11 SWITCH (DISC 5) ************************************************************ * 1-670-847-11 DISC NO LED BOARD ***************** < DIODE > D06 8-719-301-60 DIODE SEL2910A-C ************************************************************ * 1-670-948-11 DOOR SW BOARD ************* < SWITCH > S641 1-771-169-11 SWITCH (DOOR) ************************************************************ * A-4414-964-A FRONT BOARD, COMPLETE(G2500) **************************** * A-4414-976-A FRONT BOARD, COMPLETE(XB20) *************************** * A-4414-980-A FRONT BOARD, COMPLETE(XB22:MX,AR) ************************************ * A-4414-984-A FRONT BOARD,COMPLETE(XB22:E,AUS,SP,MY) ************************************ * 4-211-528-01 HOLDER, DISPLAY * 4-211-529-01 HOLDER (LED3-6), LED * 4-211-530-01 HOLDER (LED3-16), LED < CAPACITOR > C601 1-164-159-11 CERAMIC 0.1uF 50V C602 1-126-933-11 ELECT 100uF 20% 16V C603 1-126-916-11 ELECT 1000uF 20% 6.3V C604 1-130-487-00 MYLAR 0.022uF 5% 50V C605 1-126-967-11 ELECT 47uF 20% 16V C606 1-164-159-11 CERAMIC 0.1uF 50V C607 1-126-961-11 ELECT 2.2uF 20% 50V C608 1-126-960-11 ELECT 1uF 20% 50V C609 1-164-159-11 CERAMIC 0.1uF 50V C610 1-126-964-11 ELECT 10uF 20% 50V C611 1-130-487-00 MYLAR 0.022uF 5% 50V C612 1-102-960-00 CERAMIC 24PF 5% 50V C613 1-102-960-00 CERAMIC 24PF 5% 50V C614 1-130-491-00 MYLAR 0.047uF 5% 50V C615 1-130-491-00 MYLAR 0.047uF 5% 50V C616 1-126-933-11 ELECT 100uF 20% 16V C617 1-162-282-31 CERAMIC 100PF 10% 50V C618 1-126-964-11 ELECT 10uF 20% 50V C620 1-126-964-11 ELECT 10uF 20% 50V C621 1-130-487-00 MYLAR 0.022uF 5% 50V C622 1-126-960-11 ELECT 1uF 20% 50V C623 1-126-964-11 ELECT 10uF 20% 50V C625 1-162-282-31 CERAMIC 100PF 10% 50V C626 1-162-282-31 CERAMIC 100PF 10% 50V C627 1-162-282-31 CERAMIC 100PF 10% 50V CD DECODER DISC CONNECTOR DISC NO LED DOOR SW FRONT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 85 — C628 1-126-964-11 ELECT 10uF 20% 50V C629 1-126-960-11 ELECT 1uF 20% 50V C630 1-162-294-31 CERAMIC 0.001uF 10% 50V C631 1-136-156-00 FILM 0.018uF 5% 50V C632 1-136-156-00 FILM 0.018uF 5% 50V C634 1-164-159-11 CERAMIC 0.1uF 50V C636 1-130-487-00 MYLAR 0.022uF 5% 50V C637 1-130-474-00 MYLAR 0.0018uF 5% 50V C638 1-130-474-00 MYLAR 0.0018uF 5% 50V C639 1-126-962-11 ELECT 3.3uF 20% 50V C640 1-126-957-11 ELECT 0.22uF 20% 50V C641 1-162-286-31 CERAMIC 220PF 10% 50V C642 1-126-957-11 ELECT 0.22uF 20% 50V C643 1-126-963-11 ELECT 4.7uF 20% 50V C644 1-126-963-11 ELECT 4.7uF 20% 50V C645 1-126-963-11 ELECT 4.7uF 20% 50V C648 1-162-286-31 CERAMIC 220PF 10% 50V C649 1-162-286-31 CERAMIC 220PF 10% 50V C650 1-162-286-31 CERAMIC 220PF 10% 50V C651 1-162-286-31 CERAMIC 220PF 10% 50V C652 1-162-286-31 CERAMIC 220PF 10% 50V C653 1-162-286-31 CERAMIC 220PF 10% 50V C654 1-164-159-11 CERAMIC 0.1uF 50V C655 1-164-159-11 CERAMIC 0.1uF 50V C656 1-162-286-31 CERAMIC 220PF 10% 50V C657 1-162-286-31 CERAMIC 220PF 10% 50V C658 1-162-286-31 CERAMIC 220PF 10% 50V C659 1-162-286-31 CERAMIC 220PF 10% 50V C660 1-130-487-00 MYLAR 0.022uF 5% 50V C661 1-162-294-31 CERAMIC 0.001uF 10% 50V C662 1-162-294-31 CERAMIC 0.001uF 10% 50V C663 1-162-294-31 CERAMIC 0.001uF 10% 50V < CONNECTOR > CN601 1-785-178-11 HOUSING, CONNECTOR 14P CN602 1-770-403-11 HOUSING,CONNECTOR(PC BOARD)10P CN603 1-784-806-11 HOUSING,CONNECTOR(PC BOARD)13P < DIODE > D601 8-719-911-19 DIODE 1SS119 D602 8-719-911-19 DIODE 1SS119 D603 8-719-911-19 DIODE 1SS119 D604 8-719-911-19 DIODE 1SS119 D605 8-719-010-34 DIODE UZ-4.7BSC D606 8-719-911-19 DIODE 1SS119 (XB20,G2500) D607 8-719-911-19 DIODE 1SS119 (XB22:E,MX,AR) D608 8-719-911-19 DIODE 1SS119 (XB22:E,MX,AR,G2500) D609 8-719-911-19 DIODE 1SS119 (XB20,G2500) D610 8-719-911-19 DIODE 1SS119 (XB20) D611 8-719-911-19 DIODE 1SS119 (XB22,G2500) D612 8-719-911-19 DIODE 1SS119 (XB20) D613 8-719-911-19 DIODE 1SS119 D614 8-719-911-19 DIODE 1SS119 D615 8-719-911-19 DIODE 1SS119 D616 8-719-911-19 DIODE 1SS119 D617 8-719-911-19 DIODE 1SS119 D618 8-719-911-19 DIODE 1SS119 < FLUORECENT INDICATOR > FLD601 1-517-619-11 INDICATOR TUBE, FLUORESCENT < IC > IC601 8-759-545-53 IC LC866528A-5G83 IC602 8-759-275-23 IC BU2092 IC603 1-807-137-11 IC LA6324 < COIL > L601 1-408-096-00 INDUCTOR 470uH L602 1-408-611-31 INDUCTOR 47mH < LED > LED601 8-719-812-44 DIODE TLO124 LED602 8-719-312-70 DIODE SEL1410G LED603 8-719-312-70 DIODE SEL1410G LED604 8-719-312-70 DIODE SEL1410G LED605 8-719-312-70 DIODE SEL1410G < TRANSISTOR > Q601 8-729-030-10 TRANSISTOR DTC144WS Q603 8-729-194-57 TRANSISTOR 2SC945-P Q604 8-729-119-76 TRANSISTOR 2SA1175-HFE Q605 8-729-194-57 TRANSISTOR 2SA1175-HFE Q606 8-729-900-66 TRANSISTOR DTA144ES < RESISTOR > R601 1-247-871-11 CARBON 47K 5% 1/4W R602 1-249-417-11 CARBON 1K 5% 1/4W F R603 1-249-417-11 CARBON 1K 5% 1/4W F R604 1-247-871-11 CARBON 47K 5% 1/4W R605 1-247-871-11 CARBON 47K 5% 1/4W R606 1-249-417-11 CARBON 1K 5% 1/4W F R607 1-249-431-11 CARBON 15K 5% 1/4W R608 1-247-871-11 CARBON 47K 5% 1/4W R609 1-247-855-11 CARBON 10K 5% 1/4W R610 1-247-855-11 CARBON 10K 5% 1/4W R611 1-247-855-11 CARBON 10K 5% 1/4W R612 1-247-855-11 CARBON 10K 5% 1/4W R613 1-247-855-11 CARBON 10K 5% 1/4W R614 1-247-827-11 CARBON 680 5% 1/4W R615 1-249-416-11 CARBON 820 5% 1/4W F R616 1-249-418-11 CARBON 1.2K 5% 1/4W F R617 1-247-835-11 CARBON 1.5K 5% 1/4W R618 1-247-839-11 CARBON 2.2K 5% 1/4W R619 1-247-843-11 CARBON 3.3K 5% 1/4W R620 1-247-847-11 CARBON 4.7K 5% 1/4W R621 1-249-428-11 CARBON 8.2K 5% 1/4W F R622 1-247-827-11 CARBON 680 5% 1/4W R623 1-249-416-11 CARBON 820 5% 1/4W F R624 1-249-418-11 CARBON 1.2K 5% 1/4W F R625 1-247-835-11 CARBON 1.5K 5% 1/4W R626 1-247-839-11 CARBON 2.2K 5% 1/4W R627 1-247-843-11 CARBON 3.3K 5% 1/4W R628 1-247-847-11 CARBON 4.7K 5% 1/4W R629 1-249-428-11 CARBON 8.2K 5% 1/4W F R630 1-247-827-11 CARBON 680 5% 1/4W R631 1-249-416-11 CARBON 820 5% 1/4W F R632 1-249-418-11 CARBON 1.2K 5% 1/4W F R633 1-247-835-11 CARBON 1.5K 5% 1/4W R634 1-247-839-11 CARBON 2.2K 5% 1/4W R635 1-247-855-11 CARBON 10K 5% 1/4W FRONT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 86 — R651 1-247-807-11 CARBON 100 5% 1/4W R652 1-247-807-11 CARBON 100 5% 1/4W R653 1-247-871-11 CARBON 47K 5% 1/4W R654 1-247-855-11 CARBON 10K 5% 1/4W R656 1-247-855-11 CARBON 10K 5% 1/4W R657 1-247-855-11 CARBON 10K 5% 1/4W R658 1-247-855-11 CARBON 10K 5% 1/4W R659 1-247-855-11 CARBON 10K 5% 1/4W R660 1-247-855-11 CARBON 10K 5% 1/4W R661 1-249-417-11 CARBON 1K 5% 1/4W F R662 1-249-410-11 CARBON 270 5% 1/4W F R663 1-249-410-11 CARBON 270 5% 1/4W F R664 1-249-410-11 CARBON 270 5% 1/4W F R665 1-249-410-11 CARBON 270 5% 1/4W F R666 1-249-410-11 CARBON 270 5% 1/4W F R667 1-249-417-11 CARBON 1K 5% 1/4W F R668 1-249-417-11 CARBON 1K 5% 1/4W F R669 1-249-417-11 CARBON 1K 5% 1/4W F R670 1-247-855-11 CARBON 10K 5% 1/4W R672 1-249-410-11 CARBON 270 5% 1/4W F R673 1-249-407-11 CARBON 150 5% 1/4W F R674 1-249-407-11 CARBON 150 5% 1/4W F R675 1-249-407-11 CARBON 150 5% 1/4W F R676 1-249-407-11 CARBON 150 5% 1/4W F R677 1-249-417-11 CARBON 1K 5% 1/4W F R678 1-249-410-11 CARBON 270 5% 1/4W F R679 1-249-417-11 CARBON 1K 5% 1/4W F R680 1-249-417-11 CARBON 1K 5% 1/4W F R681 1-249-417-11 CARBON 1K 5% 1/4W F R682 1-247-879-11 CARBON 100K 5% 1/4W R684 1-249-417-11 CARBON 1K 5% 1/4W F R685 1-247-881-00 CARBON 120K 5% 1/4W R686 1-247-855-11 CARBON 10K 5% 1/4W R687 1-247-897-11 CARBON 560K 5% 1/4W R688 1-247-871-11 CARBON 47K 5% 1/4W R689 1-249-417-11 CARBON 1K 5% 1/4W F R690 1-247-885-00 CARBON 180K 5% 1/4W R691 1-247-887-00 CARBON 220K 5% 1/4W R692 1-247-901-11 CARBON 820K 5% 1/4W R693 1-249-434-11 CARBON 27K 5% 1/4W R694 1-247-879-11 CARBON 100K 5% 1/4W R695 1-247-855-11 CARBON 10K 5% 1/4W R696 1-247-855-11 CARBON 10K 5% 1/4W R697 1-247-855-11 CARBON 10K 5% 1/4W R698 1-247-897-11 CARBON 560K 5% 1/4W R699 1-247-889-00 CARBON 270K 5% 1/4W R700 1-249-410-11 CARBON 270 5% 1/4W F R701 1-249-410-11 CARBON 270 5% 1/4W F R705 1-249-439-11 CARBON 68K 5% 1/4W R706 1-249-439-11 CARBON 68K 5% 1/4W R707 1-249-439-11 CARBON 68K 5% 1/4W R708 1-249-439-11 CARBON 68K 5% 1/4W R709 1-249-410-11 CARBON 270 5% 1/4W F < SWITCH > S601 1-771-478-11 SWITCH, TACTILE (POWER) S602 1-771-478-11 SWITCH, TACTILE (TIME CLOCK SET) S603 1-771-478-11 SWITCH, TACTILE (DAILY 1) S604 1-771-478-11 SWITCH, TACTILE (SLEEP) S605 1-771-478-11 SWITCH, TACTILE (DISPLAY) S606 1-771-478-11 SWITCH, TACTILE (SPEANA) S607 1-771-478-11 SWITCH, TACTILE (TUNING MODE) S608 1-771-478-11 SWITCH, TACTILE (TUNING MEMORY) S609 1-771-478-11 SWITCH, TACTILE (ENTER NEXT) S610 1-771-478-11 SWITCH, TACTILE (TAPE) S611 1-771-478-11 SWITCH, TACTILE (CD) S612 1-771-478-11 SWITCH, TACTILE (TUNER BAND) S613 1-771-478-11 SWITCH, TACTILE (PHONO) S614 1-771-478-11 SWITCH, TACTILE (ROCK) S615 1-771-478-11 SWITCH, TACTILE (POP) S616 1-771-478-11 SWITCH, TACTILE (JAZZ) S617 1-771-478-11 SWITCH, TACTILE (SALSA) S618 1-771-478-11 SWITCH, TACTILE (FLAT) S619 1-771-478-11 SWITCH, TACTILE (TUNING UP) S620 1-771-478-11 SWITCH, TACTILE (TUNING DOWN) S621 1-771-478-11 SWITCH, TACTILE (STEREO/MONO) S622 1-771-478-11 SWITCH, TACTILE (DBFB) S623 1-771-478-11 SWITCH, TACTILE (DOLBY NR) S624 1-771-478-11 SWITCH, TACTILE (SURROUND) < VIBRATOR > X601 1-579-743-11 VIBRATOR, CRYSTAL 6MHz ************************************************************ * 1-670-947-11 JOG BOARD ********* < RESISTOR > R641 1-247-835-11 CARBON 1.5K 5% 1/4W R642 1-247-839-11 CARBON 2.2K 5% 1/4W R643 1-247-843-11 CARBON 3.3K 5% 1/4W R644 1-247-847-11 CARBON 4.7K 5% 1/4W R645 1-249-428-11 CARBON 8.2K 5% 1/4W F R646 1-249-431-11 CARBON 15K 5% 1/4W < SWITCH > S630 1-771-478-11 SWITCH (FF) S631 1-771-478-11 SWITCH (REW) S632 1-771-478-11 SWITCH (PLAY MODE) S633 1-771-478-11 SWITCH (REPEAT) S634 1-771-478-11 SWITCH (1/ALL DISCS) S635 1-771-478-11 SWITCH (EDIT) < VARIABLE RESISTOR > VR602 1-475-841-11 ENCODER (JOG) ************************************************************ * 1-670-950-11 LED BOARD (XB22:AUS,MX,G2500) ********* * 1-671-475-11 LED BOARD (XB22:E,SP,MY,AR,XB20) ********* < DIODE > D07 8-719-304-83 DIODE SEL2410G D08 8-719-304-83 DIODE SEL2410G D09 8-719-304-83 DIODE SEL2410G D10 8-719-304-83 DIODE SEL2410G < RESISTOR > R448 1-249-412-11 CARBON 390 5% 1/4W F ************************************************************ FRONT JOG LED www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 87 — MAIN * A-4414-973-A MAIN BOARD, COMPLETE (XB22:MX,G2500) ************************************ * A-4414-978-A MAIN BOARD, COMPLETE (XB20) *************************** * A-4414-982-A MAIN BOARD, COMPLETE (XB22:E,SP,MY,AR) ************************************** * A-4414-986-A MAIN BOARD, COMPLETE (XB22:AUS) ******************************* < CAPACITOR > C101 1-162-294-31 CERAMIC 0.001uF 10% 50V (XB22:AUS,MX,G2500) C102 1-162-294-31 CERAMIC 0.001uF 10% 50V (XB22:AUS,MX,G2500) C103 1-162-193-31 CERAMIC 3.3PF 10% 50V (XB22:AUS,MX,G2500) C104 1-161-494-00 CERAMIC 0.022uF 25V (XB22:AUS,MX,G2500) C105 1-162-206-31 CERAMIC 20PF 5% 50V (XB22:AUS,MX,G2500) C106 1-161-494-00 CERAMIC 0.022uF 25V C107 1-162-306-11 CERAMIC 0.01uF 20% 16V C108 1-104-665-11 ELECT 100uF 20% 10V C110 1-162-191-31 CERAMIC 2.2PF 10% 50V (XB22:AUS,MX,G2500) C111 1-162-217-31 CERAMIC 56PF 5% 50V (XB22:AUS,MX,G2500) C112 1-162-282-31 CERAMIC 100PF 10% 50V (XB22:AUS,MX,G2500) C113 1-164-159-11 CERAMIC 0.1uF 50V (XB22:E,SP,MY,AR,XB20) C114 1-164-159-11 CERAMIC 0.1uF 50V C115 1-161-494-00 CERAMIC 0.022uF 25V C116 1-130-467-00 MYLAR 470PF 5% 50V C117 1-162-206-31 CERAMIC 20PF 5% 50V C118 1-104-665-11 ELECT 100uF 20% 10V C119 1-162-206-31 CERAMIC 20PF 5% 50V (XB22:E,SP,MY,AR,XB20) C120 1-161-494-00 CERAMIC 0.022uF 25V C121 1-162-203-31 CERAMIC 15PF 5% 50V (XB22:AUS,MX,G2500) C121 1-162-215-31 CERAMIC 47PF 5% 50V (XB22:E,SP,MY,AR,XB20) C122 1-126-961-11 ELECT 2.2uF 20% 50V C123 1-126-960-11 ELECT 1uF 20% 50V C124 1-162-206-31 CERAMIC 20PF 5% 50V C125 1-126-960-11 ELECT 1uF 20% 50V C126 1-130-491-00 MYLAR 0.047uF 5% 50V C127 1-126-964-11 ELECT 10uF 20% 50V C128 1-161-494-00 CERAMIC 0.022uF 25V C129 1-126-960-11 ELECT 1uF 20% 50V C130 1-137-366-11 FILM 0.0022uF 5% 50V C131 1-137-366-11 FILM 0.0022uF 5% 50V C132 1-162-306-11 CERAMIC 0.01uF 20% 16V C133 1-162-306-11 CERAMIC 0.01uF 20% 16V C134 1-164-736-31 CERAMIC 0.0012uF 10% 50V (XB22:E,SP,MY,AR,XB20) C135 1-162-294-31 CERAMIC 0.001uF 10% 50V (XB22:AUS,MX,G2500) C135 1-162-285-31 CERAMIC 180PF 10% 50V (XB22:E,SP,MY,AR,XB20) C137 1-126-959-11 ELECT 0.47uF 20% 50V C138 1-162-306-11 CERAMIC 0.01uF 20% 16V C139 1-161-494-00 CERAMIC 0.022uF 25V C140 1-104-665-11 ELECT 100uF 20% 10V C141 1-161-494-00 CERAMIC 0.022uF 25V C142 1-104-665-11 ELECT 100uF 20% 10V C143 1-126-959-11 ELECT 0.47uF 20% 50V C144 1-161-494-00 CERAMIC 0.022uF 25V C145 1-162-217-31 CERAMIC 56PF 5% 50V C146 1-162-294-31 CERAMIC 0.001uF 10% 50V C148 1-161-494-00 CERAMIC 0.022uF 25V C149 1-162-294-31 CERAMIC 0.001uF 10% 50V C150 1-164-159-11 CERAMIC 0.1uF 50V (XB22:E,SP,MY,AR,XB20) C151 1-128-551-11 ELECT 22uF 20% 25V C152 1-162-282-31 CERAMIC 100PF 10% 50V C154 1-162-282-31 CERAMIC 100PF 10% 50V C155 1-162-282-31 CERAMIC 100PF 10% 50V C156 1-162-209-31 CERAMIC 27PF 5% 50V C157 1-162-209-31 CERAMIC 27PF 5% 50V C158 1-104-664-11 ELECT 47uF 20% 25V C159 1-162-306-11 CERAMIC 0.01uF 20% 16V C160 1-126-963-11 ELECT 4.7uF 20% 50V C161 1-126-963-11 ELECT 4.7uF 20% 50V C162 1-161-494-00 CERAMIC 0.022uF 25V C163 1-161-494-00 CERAMIC 0.022uF 25V C164 1-126-962-11 ELECT 3.3uF 20% 50V C165 1-162-294-31 CERAMIC 0.001uF 10% 50V C166 1-162-294-31 CERAMIC 0.001uF 10% 50V (XB22:AUS,MX,G2500) C167 1-162-199-31 CERAMIC 10PF 5% 50V (XB22:E,SP,MY,AR,XB20) C169 1-130-491-00 MYLAR 0.047uF 5% 50V (XB22:E,SP,MY,AR,XB20) C171 1-162-206-31 CERAMIC 20PF 5% 50V (XB22:E,SP,MY,AR,XB20) C172 1-161-494-00 CERAMIC 0.022uF 25V (XB22:E,SP,MY,AR,XB20) C173 1-161-494-00 CERAMIC 0.022uF 25V (XB22:E,SP,MY,AR,XB20) C174 1-162-206-31 CERAMIC 20PF 5% 50V (XB22:E,SP,MY,AR,XB20) C175 1-162-301-11 CERAMIC 0.0015uF 30% 16V C176 1-162-301-11 CERAMIC 0.0015uF 30% 16V C177 1-161-494-00 CERAMIC 0.022uF 25V C178 1-162-285-31 CERAMIC 180PF 10% 50V (XB22:E,SP,MY,AR,XB20) C179 1-130-491-00 MYLAR 0.047uF 5% 50V (XB22:E,SP,MY,AR,XB20) C181 1-164-159-11 CERAMIC 0.1uF 50V (XB22:E,SP,MY,AR,XB20) C185 1-162-294-31 CERAMIC 0.001uF 10% 50V (XB22:E,SP,MY,AR,XB20) C187 1-161-494-00 CERAMIC 0.022uF 25V C188 1-164-159-11 CERAMIC 0.1uF 50V (XB22:AUS,MX,G2500) C189 1-162-294-31 CERAMIC 0.001uF 10% 50V (XB22:AUS,MX,G2500) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 88 — MAIN C190 1-164-159-11 CERAMIC 0.1uF 50V C192 1-161-494-00 CERAMIC 0.022uF 25V C193 1-162-294-31 CERAMIC 0.001uF 10% 50V (XB22:E,SP,MY,AR,XB20) C194 1-162-294-31 CERAMIC 0.001uF 10% 50V (XB22:E,SP,MY,AR,XB20) C195 1-162-294-31 CERAMIC 0.001uF 10% 50V (XB22:E,SP,MY,AR,XB20) C302 1-137-437-11 FILM 0.0056uF 5% 50V C303 1-137-437-11 FILM 0.0056uF 5% 50V C305 1-126-959-11 ELECT 0.47uF 20% 50V C306 1-126-959-11 ELECT 0.47uF 20% 50V C307 1-126-959-11 ELECT 0.47uF 20% 50V C308 1-126-959-11 ELECT 0.47uF 20% 50V C309 1-162-199-31 CERAMIC 10PF 5% 50V C310 1-162-199-31 CERAMIC 10PF 5% 50V C311 1-126-959-11 ELECT 0.47uF 20% 50V C312 1-126-959-11 ELECT 0.47uF 20% 50V C313 1-162-292-31 CERAMIC 680PF 10% 50V C314 1-162-292-31 CERAMIC 680PF 10% 50V C315 1-137-366-11 FILM 0.0022uF 5% 50V C316 1-137-366-11 FILM 0.0022uF 5% 50V C317 1-162-294-31 CERAMIC 0.001uF 10% 50V C318 1-162-294-31 CERAMIC 0.001uF 10% 50V C319 1-162-301-11 CERAMIC 0.0015uF 30% 16V C320 1-162-301-11 CERAMIC 0.0015uF 30% 16V C321 1-162-290-31 CERAMIC 470PF 10% 50V C322 1-162-290-31 CERAMIC 470PF 10% 50V C325 1-137-371-11 FILM 0.015uF 5% 50V C326 1-137-371-11 FILM 0.015uF 5% 50V C327 1-126-934-11 ELECT 220uF 20% 16V C328 1-126-934-11 ELECT 220uF 20% 16V C329 1-162-199-31 CERAMIC 10PF 5% 50V C330 1-162-199-31 CERAMIC 10PF 5% 50V C331 1-126-960-11 ELECT 1uF 20% 50V C332 1-126-960-11 ELECT 1uF 20% 50V C333 1-126-933-11 ELECT 100uF 20% 16V C334 1-126-960-11 ELECT 1uF 20% 50V C335 1-126-960-11 ELECT 1uF 20% 50V C336 1-126-962-11 ELECT 3.3uF 20% 50V C337 1-126-962-11 ELECT 3.3uF 20% 50V C338 1-126-964-11 ELECT 10uF 20% 50V C338A 1-164-159-11 CERAMIC 0.1uF 50V C339 1-126-959-11 ELECT 0.47uF 20% 50V C340 1-126-959-11 ELECT 0.47uF 20% 50V C341 1-137-457-11 FILM 0.0027uF 5% 50V C342 1-137-457-11 FILM 0.0027uF 5% 50V C343 1-126-962-11 ELECT 3.3uF 20% 50V C344 1-126-962-11 ELECT 3.3uF 20% 50V C345 1-109-953-11 ELECT 2.2uF 20% 50V C346 1-164-159-11 CERAMIC 0.1uF 50V C347 1-162-288-31 CERAMIC 330PF 10% 50V C348 1-162-288-31 CERAMIC 330PF 10% 50V C349 1-162-282-31 CERAMIC 100PF 10% 50V C350 1-162-282-31 CERAMIC 100PF 10% 50V C351 1-137-457-11 FILM 0.0027uF 5% 50V C352 1-137-457-11 FILM 0.0027uF 5% 50V C353 1-126-960-11 ELECT 1uF 20% 50V C354 1-126-960-11 ELECT 1uF 20% 50V C355 1-126-933-11 ELECT 100uF 20% 16V C356 1-126-933-11 ELECT 100uF 20% 16V C368 1-109-889-11 ELECT 1uF 20% 50V C371 1-126-961-11 ELECT 2.2uF 20% 50V C374 1-162-305-11 CERAMIC 0.0068uF 20% 16V C375 1-162-305-11 CERAMIC 0.0068uF 20% 16V C376 1-137-371-11 FILM 0.015uF 5% 50V C377 1-137-371-11 FILM 0.015uF 5% 50V C378 1-126-959-11 ELECT 0.47uF 20% 50V C379 1-126-959-11 ELECT 0.47uF 20% 50V C380 1-162-286-31 CERAMIC 220PF 10% 50V C381 1-162-286-31 CERAMIC 220PF 10% 50V C382 1-162-286-31 CERAMIC 220PF 10% 50V C383 1-162-305-11 CERAMIC 0.0068uF 20% 16V C384 1-162-305-11 CERAMIC 0.0068uF 20% 16V C386 1-164-159-11 CERAMIC 0.1uF 50V (XB22:E,SP,MY,AR,XB20) C387 1-164-159-11 CERAMIC 0.1uF 50V (XB22:E,SP,MY,AR,XB20) C388 1-164-159-11 CERAMIC 0.1uF 50V (XB22:E,SP,MY,AR,XB20) C401 1-161-494-00 CERAMIC 0.022uF 25V C402 1-126-933-11 ELECT 100uF 20% 16V C403 1-126-934-11 ELECT 220uF 20% 16V C404 1-161-494-00 CERAMIC 0.022uF 25V C405 1-126-933-11 ELECT 100uF 20% 16V C406 1-126-960-11 ELECT 1uF 20% 50V C407 1-126-960-11 ELECT 1uF 20% 50V C408 1-162-282-31 CERAMIC 100PF 10% 50V C409 1-162-282-31 CERAMIC 100PF 10% 50V C410 1-126-933-11 ELECT 100uF 20% 16V C411 1-126-933-11 ELECT 100uF 20% 16V C413 1-126-964-11 ELECT 10uF 20% 50V C414 1-126-964-11 ELECT 10uF 20% 50V C415 1-162-302-11 CERAMIC 0.0022uF 30% 16V C416 1-162-302-11 CERAMIC 0.0022uF 30% 16V C418 1-126-933-11 ELECT 100uF 20% 16V C419 1-161-494-00 CERAMIC 0.022uF 25V C420 1-161-494-00 CERAMIC 0.022uF 25V C421 1-164-159-11 CERAMIC 0.1uF 50V C426 1-126-963-11 ELECT 4.7uF 20% 50V C427 1-126-961-11 ELECT 2.2uF 20% 50V C429 1-164-159-11 CERAMIC 0.1uF 50V C430 1-126-933-11 ELECT 100uF 20% 16V C431 1-126-933-11 ELECT 100uF 20% 16V C432 1-162-294-31 CERAMIC 0.001uF 10% 50V C433 1-162-294-31 CERAMIC 0.001uF 10% 50V C434 1-162-302-11 CERAMIC 0.0022uF 30% 16V C435 1-162-302-11 CERAMIC 0.0022uF 30% 16V C436 1-130-482-00 MYLAR 0.0082uF 5% 50V C437 1-130-482-00 MYLAR 0.0082uF 5% 50V C438 1-126-963-11 ELECT 4.7uF 20% 50V C439 1-126-963-11 ELECT 4.7uF 20% 50V C440 1-162-290-31 CERAMIC 470PF 10% 50V C441 1-162-290-31 CERAMIC 470PF 10% 50V C442 1-162-282-31 CERAMIC 100PF 10% 50V C443 1-162-282-31 CERAMIC 100PF 10% 50V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 89 — C444 1-162-302-11 CERAMIC 0.0022uF 30% 16V C445 1-162-302-11 CERAMIC 0.0022uF 30% 16V C446 1-126-962-11 ELECT 3.3uF 20% 50V C447 1-126-962-11 ELECT 3.3uF 20% 50V C471 1-126-933-11 ELECT 100uF 20% 16V C801 1-162-294-31 CERAMIC 0.001uF 10% 50V C802 1-162-294-31 CERAMIC 0.001uF 10% 50V C803 1-162-294-31 CERAMIC 0.001uF 10% 50V C804 1-162-294-31 CERAMIC 0.001uF 10% 50V C805 1-164-159-11 CERAMIC 0.1uF 50V C806 1-126-933-11 ELECT 100uF 20% 16V C807 1-126-963-11 ELECT 4.7uF 20% 50V C808 1-126-963-11 ELECT 4.7uF 20% 50V C809 1-126-963-11 ELECT 4.7uF 20% 50V C811 1-104-663-11 ELECT 33uF 20% 25V C812 1-104-663-11 ELECT 33uF 20% 25V C813 1-162-284-31 CERAMIC 150PF 10% 50V C814 1-162-284-31 CERAMIC 150PF 10% 50V C815 1-162-282-31 CERAMIC 100PF 10% 50V C816 1-162-282-31 CERAMIC 100PF 10% 50V C817 1-162-306-11 CERAMIC 0.01uF 20% 16V C818 1-162-306-11 CERAMIC 0.01uF 20% 16V C819 1-126-963-11 ELECT 4.7uF 20% 50V C820 1-126-963-11 ELECT 4.7uF 20% 50V C821 1-162-293-31 CERAMIC 820PF 10% 50V C822 1-162-293-31 CERAMIC 820PF 10% 50V C823 1-162-282-31 CERAMIC 100PF 10% 50V C824 1-162-282-31 CERAMIC 100PF 10% 50V C825 1-164-159-11 CERAMIC 0.1uF 50V C826 1-126-933-11 ELECT 100uF 20% 16V C827 1-128-551-11 ELECT 22uF 20% 25V C828 1-104-664-11 ELECT 47uF 20% 25V C829 1-126-934-11 ELECT 220uF 20% 16V C830 1-126-933-11 ELECT 100uF 20% 16V C831 1-126-960-11 ELECT 1uF 20% 50V C832 1-126-960-11 ELECT 1uF 20% 50V C833 1-162-282-31 CERAMIC 100PF 10% 50V C834 1-162-282-31 CERAMIC 100PF 10% 50V C835 1-162-287-31 CERAMIC 270PF 10% 50V C836 1-162-287-31 CERAMIC 270PF 10% 50V C837 1-162-287-31 CERAMIC 270PF 10% 50V C838 1-162-287-31 CERAMIC 270PF 10% 50V C839 1-126-960-11 ELECT 1uF 20% 50V C840 1-126-960-11 ELECT 1uF 20% 50V C841 1-164-736-31 CERAMIC 0.0012uF 10% 50V C842 1-164-736-31 CERAMIC 0.0012uF 10% 50V C845 1-162-285-31 CERAMIC 180PF 10% 50V C846 1-162-285-31 CERAMIC 180PF 10% 50V C847 1-126-960-11 ELECT 1uF 20% 50V C848 1-126-960-11 ELECT 1uF 20% 50V C849 1-128-551-11 ELECT 22uF 20% 25V C850 1-161-494-00 CERAMIC 0.022uF 25V C851 1-109-889-11 ELECT 1uF 20% 50V C852 1-109-889-11 ELECT 1uF 20% 50V C853 1-130-474-00 MYLAR 0.0018uF 5% 50V C854 1-130-474-00 MYLAR 0.0018uF 5% 50V C855 1-126-964-11 ELECT 10uF 20% 50V C856 1-126-964-11 ELECT 10uF 20% 50V C857 1-126-933-11 ELECT 100uF 20% 16V C858 1-126-933-11 ELECT 100uF 20% 16V C859 1-124-254-00 ELECT 0.68uF 20% 50V C860 1-124-254-00 ELECT 0.68uF 20% 50V C861 1-126-964-11 ELECT 10uF 20% 50V C862 1-126-964-11 ELECT 10uF 20% 50V C863 1-126-964-11 ELECT 10uF 20% 50V C864 1-126-964-11 ELECT 10uF 20% 50V C865 1-162-293-31 CERAMIC 820PF 10% 50V C866 1-162-293-31 CERAMIC 820PF 10% 50V C867 1-128-551-11 ELECT 22uF 20% 25V C868 1-126-964-11 ELECT 10uF 20% 50V C869 1-126-956-11 ELECT 0.1uF 20% 50V C870 1-126-956-11 ELECT 0.1uF 20% 50V C871 1-162-302-11 CERAMIC 0.0022uF 30% 16V C872 1-162-302-11 CERAMIC 0.0022uF 30% 16V C874 1-126-963-11 ELECT 4.7uF 20% 50V C875 1-137-367-11 FILM 0.0033uF 5% 50V C876 1-161-494-00 CERAMIC 0.022uF 25V C877 1-126-961-11 ELECT 2.2uF 20% 50V C880 1-137-368-11 FILM 0.0047uF 5% 50V C881 1-137-367-11 FILM 0.0033uF 5% 50V C882 1-137-371-11 FILM 0.015uF 5% 50V C883 1-162-292-31 CERAMIC 680PF 10% 50V C884 1-162-292-31 CERAMIC 680PF 10% 50V C885 1-162-286-31 CERAMIC 220PF 10% 50V C886 1-162-286-31 CERAMIC 220PF 10% 50V C887 1-130-481-00 MYLAR 0.0068uF 5% 50V C888 1-126-934-11 ELECT 220uF 20% 16V C891 1-126-960-11 ELECT 1uF 20% 50V C892 1-162-219-31 CERAMIC 68PF 5% 50V C893 1-162-219-31 CERAMIC 68PF 5% 50V C894 1-126-963-11 ELECT 4.7uF 20% 50V C895 1-126-963-11 ELECT 4.7uF 20% 50V C896 1-104-664-11 ELECT 47uF 20% 25V C897 1-126-925-11 ELECT 470uF 20% 10V C901 1-161-494-00 CERAMIC 0.022uF 25V C902 1-161-494-00 CERAMIC 0.022uF 25V < FILTER > CF101 1-567-390-11 FILTER,CERAMIC 10.7M CF102 1-567-390-11 FILTER,CERAMIC 10.7M CF103 1-527-996-11 FILTER, CERAMIC CF104 1-579-856-31 DISCRIMINATOR, CERAMIC CF105 1-577-091-11 OSCILLATOR, CERAMIC < CONNECTOR > * CN301 1-564-708-11 PIN, CONNECTOR (SMALL TYPE) 6P CN601 1-784-176-11 SOCKET, CONNECTOR 4P * CN602 1-770-394-11 PIN, CONNECTOR (PC BOARD) 10P * CN801 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P CN802 1-564-707-11 PIN, CONNECTOR (SMALL TYPE) 5P * CN803 1-564-704-11 PIN, CONNECTOR (SMALL TYPE) 2P MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 90 — < DIODE > D101 8-719-991-33 DIODE 1SS133T-77 D102 8-719-991-33 DIODE 1SS133T-77 D103 8-719-991-33 DIODE 1SS133T-77 D104 8-719-991-33 DIODE 1SS133T-77 D105 8-719-057-68 DIODE KV1340A (XB22:AUS,MX,G2500) D106 8-719-057-68 DIODE SBS001C-TB (XB22:AUS,MX,G2500) D107 8-719-800-72 DIODE 1SV149-B D108 8-719-991-33 DIODE 1SS133T-77 (XB22:E,SP,MY,AR,XB20) D109 8-719-991-33 DIODE 1SS133T-77 D110 8-719-109-89 DIODE RD5.6ESB2 D111 8-719-991-33 DIODE 1SS133T-77 D113 8-719-991-33 DIODE 1SS133T-77 (XB22:AUS,MX,G2500) D301 8-719-991-33 DIODE 1SS133T-77 D302 8-719-991-33 DIODE 1SS133T-77 D303 8-719-991-33 DIODE 1SS133T-77 D401 8-719-110-31 DIODE RD12ES-B2 D402 8-719-109-93 DIODE RD6.2ESB2 D801 8-719-991-33 DIODE 1SS133T-77 D802 8-719-991-33 DIODE 1SS133T-77 D803 8-719-991-33 DIODE 1SS133T-77 D804 8-719-991-33 DIODE 1SS133T-77 D805 8-719-991-33 DIODE 1SS133T-77 D806 8-719-991-33 DIODE 1SS133T-77 D807 8-719-991-33 DIODE 1SS133T-77 D808 8-719-991-33 DIODE 1SS133T-77 D809 8-719-991-33 DIODE 1SS133T-77 D810 8-719-991-33 DIODE 1SS133T-77 < FRONTEND > FE101 1-693-422-11 FRONT END (XB22:E,SP,MY,AR,XB20) < IC > IC101 8-759-801-96 IC LA1186 (XB22:AUS,MX,G2500) IC102 8-759-090-40 IC LA1831 IC103 8-759-175-87 IC LC7218-ST IC301 8-759-473-59 IC LC75392 IC302 8-759-000-49 IC MC14066BCP IC303 8-759-112-93 IC UPC4570HA-1 IC401 8-759-505-55 IC NJM4558L IC402 8-759-634-51 IC M5218AP IC801 8-759-206-23 IC TA7784P IC802 8-759-545-67 IC TA8135P IC803 8-752-057-19 IC CXA1101P < JACK > JK101 1-694-092-21 TERMINAL BOARD (ANTENNA) (XB22:AUS,MX,G2500) JK102 1-694-126-11 TERMINAL BOARD (ANTENNA) (XB22:E,SP,MY,AR,XB20) JK301 1-770-771-11 JACK, PIN 2P (PHONO) JK401 1-785-081-11 JACK (LARGE TYPE) (PHONES) < COIL > L101 1-429-550-11 TRANSFORMER, FM ANT L102 1-429-551-11 TRANSFORMER, FM RF (XB22:AUS,MX,G2500) L103 1-411-798-11 COIL, FM OSC (XB22:AUS,MX,G2500) L104 1-411-901-11 COIL, ANTENNA L105 1-429-555-11 TRANSFORMER, MW OSC L106 1-412-507-11 INDUCTOR 47uH L107 1-416-741-11 COIL (LW ANT) (XB22:E,SP,MY,AR,XB20) L108 1-412-503-11 INDUCTOR 22uH (XB22:E,SP,MY,AR,XB20) L109 1-410-527-11 INDUCTOR 100uH (XB22:E,SP,MY,AR,XB20) L110 1-416-742-11 COIL (LW.OSC) (XB22:E,SP,MY,AR,XB20) L111 1-410-783-11 INDUCTOR 47mH L112 1-410-783-11 INDUCTOR 47mH L113 1-412-503-11 INDUCTOR 22uH L114 1-412-503-11 INDUCTOR 22uH (XB22:E,SP,MY,AR,XB20) L401 1-408-096-00 INDUCTOR 470uH L801 1-410-775-11 INDUCTOR 10mH L802 1-410-775-11 INDUCTOR 10mH L803 1-236-147-11 FILTER, LOW PASS L804 1-236-147-11 FILTER, LOW PASS L805 1-416-746-11 INDUCTOR, VARIABLE L806 1-416-746-11 INDUCTOR, VARIABLE L808 1-408-096-00 INDUCTOR 470uH L809 1-433-412-11 TRANSFORMER, BIAS OSCILLATION < TRANSISTOR > Q101 1-807-810-21 TRANSISTOR 2SC1675TP-L Q102 1-807-810-21 TRANSISTOR 2SC1675TP-L (XB22:AUS,MX,G2500) Q103 8-729-142-46 TRANSISTOR 2SC2001-LK (XB22:E,SP,MY,AR,XB20) Q104 8-729-194-57 TRANSISTOR 2SC945-P (XB22:E,SP,MY,AR,XB20) Q105 8-729-142-46 TRANSISTOR 2SC2001-LK (XB22:E,SP,MY,AR,XB20) Q106 8-729-119-76 TRANSISTOR 2SA1175-HFE (XB22:E,SP,MY,AR,XB20) Q107 8-729-142-46 TRANSISTOR 2SC2001-LK Q108 8-729-041-83 TRANSISTOR 2SK544E (XB22:E,SP,MY,AR,XB20) Q112 8-729-194-57 TRANSISTOR 2SC945-P Q113 8-729-194-57 TRANSISTOR 2SC945-P Q114 8-729-902-80 TRANSISTOR DTA114YS Q116 8-729-194-57 TRANSISTOR 2SC945-P Q117 8-729-194-57 TRANSISTOR 2SC945-P Q301 8-729-194-57 TRANSISTOR 2SC945-P Q302 8-729-194-57 TRANSISTOR 2SC945-P Q303 8-729-194-57 TRANSISTOR 2SC945-P Q304 8-729-194-57 TRANSISTOR 2SC945-P Q305 8-729-194-57 TRANSISTOR 2SC945-P Q306 8-729-194-57 TRANSISTOR 2SC945-P Q307 8-729-204-90 TRANSISTOR 2SK246-GR1 Q308 8-729-194-57 TRANSISTOR 2SC945-P Q309 8-729-194-57 TRANSISTOR 2SC945-P Q310 8-729-422-57 TRANSISTOR UN4111 Q311 8-729-194-57 TRANSISTOR 2SC945-P Q312 8-729-194-57 TRANSISTOR 2SC945-P Q401 8-729-993-43 TRANSISTOR 2SA934R Q402 8-729-194-57 TRANSISTOR 2SC945-P Q403 8-729-142-46 TRANSISTOR 2SC2001-LK Q404 8-729-119-76 TRANSISTOR 2SA1175-HFE Q405 8-729-232-32 TRANSISTOR 2SA965 Q406 8-729-194-57 TRANSISTOR 2SC945-P Q407 8-729-231-55 TRANSISTOR 2SC2878-AB Q408 8-729-231-55 TRANSISTOR 2SC2878-AB Q409 8-729-140-96 TRANSISTOR 2SD774-34 Q410 8-729-422-57 TRANSISTOR UN4111 MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 91 — Q411 8-729-194-57 TRANSISTOR 2SC945-P Q801 8-729-194-57 TRANSISTOR 2SC945-P Q802 8-729-194-57 TRANSISTOR 2SC945-P Q803 8-729-194-57 TRANSISTOR 2SC945-P Q804 8-729-194-57 TRANSISTOR 2SC945-P Q805 8-729-194-57 TRANSISTOR 2SC945-P Q806 8-729-194-57 TRANSISTOR 2SC945-P Q807 8-729-194-57 TRANSISTOR 2SC945-P Q808 8-729-194-57 TRANSISTOR 2SC945-P Q809 8-729-194-57 TRANSISTOR 2SC945-P Q810 8-729-194-57 TRANSISTOR 2SC945-P Q811 8-729-194-57 TRANSISTOR 2SC945-P Q812 8-729-194-57 TRANSISTOR 2SC945-P Q813 8-729-194-57 TRANSISTOR 2SC945-P Q814 8-729-194-57 TRANSISTOR 2SC945-P Q815 8-729-194-57 TRANSISTOR 2SC945-P Q816 8-729-142-46 TRANSISTOR 2SC2001-LK Q817 8-729-142-46 TRANSISTOR 2SC2001-LK Q818 8-729-194-57 TRANSISTOR 2SC945-P Q819 8-729-194-57 TRANSISTOR 2SC945-P Q820 8-729-194-57 TRANSISTOR 2SC945-P Q822 8-729-194-57 TRANSISTOR 2SC945-P Q823 8-729-119-76 TRANSISTOR 2SA1175-HFE Q824 8-729-194-57 TRANSISTOR 2SC945-P Q825 8-729-194-57 TRANSISTOR 2SC945-P Q826 8-729-119-76 TRANSISTOR 2SA1175-HFE < RESISTOR > R101 1-247-879-11 CARBON 100K 5% 1/4W R102 1-249-417-11 CARBON 1K 5% 1/4W F (XB22:AUS,MX,G2500) R103 1-249-397-11 CARBON 22 5% 1/4W F (XB22:AUS,MX,G2500) R104 1-247-807-11 CARBON 100 5% 1/4W (XB22:AUS,MX,G2500) R104 1-249-409-11 CARBON 220 5% 1/4W F (XB22:E,SP,MY,AR,XB20) R105 1-249-411-11 CARBON 330 5% 1/4W R106 1-247-849-11 CARBON 5.6K 5% 1/4W R107 1-249-427-11 CARBON 6.8K 5% 1/4W F R109 1-247-871-11 CARBON 47K 5% 1/4W (XB22:AUS,MX,G2500) R110 1-247-867-11 CARBON 33K 5% 1/4W (XB22:AUS,MX,G2500) R111 1-249-417-11 CARBON 1K 5% 1/4W F (XB22:AUS,MX,G2500) R112 1-247-807-11 CARBON 100 5% 1/4W (XB22:AUS,MX,G2500) R112 1-249-407-11 CARBON 150 5% 1/4W F (XB22:E,SP,MY,AR,XB20) R113 1-247-879-11 CARBON 100K 5% 1/4W R114 1-247-879-11 CARBON 100K 5% 1/4W R115 1-249-417-11 CARBON 1K 5% 1/4W F R116 1-249-883-11 CARBON 22 5% 1/4W R117 1-247-855-11 CARBON 10K 5% 1/4W R118 1-247-807-11 CARBON 100 5% 1/4W R119 1-249-413-11 CARBON 470 5% 1/4W F R120 1-247-843-11 CARBON 3.3K 5% 1/4W R121 1-247-843-11 CARBON 3.3K 5% 1/4W R123 1-249-428-11 CARBON 8.2K 5% 1/4W F R124 1-247-843-11 CARBON 3.3K 5% 1/4W R126 1-249-417-11 CARBON 1K 5% 1/4W F R127 1-249-417-11 CARBON 1K 5% 1/4W F R128 1-249-431-11 CARBON 15K 5% 1/4W R129 1-249-431-11 CARBON 15K 5% 1/4W R130 1-259-531-11 CARBON 100 1% 1/2W R131 1-249-923-11 CARBON 1K 5% 1/4W R132 1-247-855-11 CARBON 10K 5% 1/4W R133 1-247-843-11 CARBON 3.3K 5% 1/4W R134 1-249-427-11 CARBON 6.8K 5% 1/4W F R135 1-247-847-11 CARBON 4.7K 5% 1/4W R136 1-247-847-11 CARBON 4.7K 5% 1/4W R137 1-247-855-11 CARBON 10K 5% 1/4W R138 1-247-807-11 CARBON 100 5% 1/4W R139 1-247-855-11 CARBON 10K 5% 1/4W R140 1-247-855-11 CARBON 10K 5% 1/4W R141 1-249-417-11 CARBON 1K 5% 1/4W F R142 1-249-417-11 CARBON 1K 5% 1/4W F R143 1-249-417-11 CARBON 1K 5% 1/4W F R144 1-249-411-11 CARBON 330 5% 1/4W R147 1-247-843-11 CARBON 3.3K 5% 1/4W R150 1-247-863-11 CARBON 22K 5% 1/4W (XB22:E,SP,MY,AR,XB20) R151 1-247-843-11 CARBON 3.3K 5% 1/4W R155 1-247-843-11 CARBON 3.3K 5% 1/4W R156 1-247-863-11 CARBON 22K 5% 1/4W R157 1-247-863-11 CARBON 22K 5% 1/4W R158 1-247-863-11 CARBON 22K 5% 1/4W (XB22:E,SP,MY,AR,XB20) R159 1-247-863-11 CARBON 22K 5% 1/4W (XB22:E,SP,MY,AR,XB20) R160 1-247-879-11 CARBON 100K 5% 1/4W (XB22:E,SP,MY,AR,XB20) R161 1-247-871-11 CARBON 47K 5% 1/4W (XB22:E,SP,MY,AR,XB20) R162 1-247-855-11 CARBON 10K 5% 1/4W (XB22:E,SP,MY,AR,XB20) R163 1-247-855-11 CARBON 10K 5% 1/4W (XB22:E,SP,MY,AR,XB20) R164 1-247-863-11 CARBON 22K 5% 1/4W (XB22:E,SP,MY,AR,XB20) R165 1-247-855-11 CARBON 10K 5% 1/4W (XB22:E,SP,MY,AR,XB20) R167 1-249-417-11 CARBON 1K 5% 1/4W F R301 1-247-839-11 CARBON 2.2K 5% 1/4W R302 1-247-839-11 CARBON 2.2K 5% 1/4W R303 1-249-417-11 CARBON 1K 5% 1/4W F R304 1-249-417-11 CARBON 1K 5% 1/4W F R305 1-247-835-11 CARBON 1.5K 5% 1/4W R306 1-247-835-11 CARBON 1.5K 5% 1/4W R307 1-247-847-11 CARBON 4.7K 5% 1/4W R308 1-247-847-11 CARBON 4.7K 5% 1/4W R309 1-249-440-11 CARBON 82K 5% 1/4W R310 1-249-440-11 CARBON 82K 5% 1/4W R311 1-247-871-11 CARBON 47K 5% 1/4W R312 1-247-871-11 CARBON 47K 5% 1/4W R313 1-247-867-11 CARBON 33K 5% 1/4W R314 1-247-867-11 CARBON 33K 5% 1/4W R315 1-247-867-11 CARBON 33K 5% 1/4W R316 1-247-867-11 CARBON 33K 5% 1/4W R317 1-247-887-00 CARBON 220K 5% 1/4W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 92 — R318 1-247-887-00 CARBON 220K 5% 1/4W R319 1-247-855-11 CARBON 10K 5% 1/4W R320 1-247-855-11 CARBON 10K 5% 1/4W R321 1-249-434-11 CARBON 27K 5% 1/4W R322 1-249-434-11 CARBON 27K 5% 1/4W R323 1-247-871-11 CARBON 47K 5% 1/4W R324 1-247-871-11 CARBON 47K 5% 1/4W R325 1-247-863-11 CARBON 22K 5% 1/4W R326 1-247-863-11 CARBON 22K 5% 1/4W R327 1-249-434-11 CARBON 27K 5% 1/4W R328 1-249-434-11 CARBON 27K 5% 1/4W R329 1-249-430-11 CARBON 12K 5% 1/4W R330 1-249-430-11 CARBON 12K 5% 1/4W R331 1-249-417-11 CARBON 1K 5% 1/4W F R332 1-249-417-11 CARBON 1K 5% 1/4W F R333 1-249-417-11 CARBON 1K 5% 1/4W F R334 1-247-855-11 CARBON 10K 5% 1/4W R335 1-247-855-11 CARBON 10K 5% 1/4W R336 1-247-847-11 CARBON 4.7K 5% 1/4W R337 1-247-704-11 CARBON 220 5% 1/4W F R338 1-249-544-11 CARBON 470 5% 1/4W R339 1-247-903-00 CARBON 1M 5% 1/4W R340 1-247-903-00 CARBON 1M 5% 1/4W R341 1-247-847-11 CARBON 4.7K 5% 1/4W R342 1-247-847-11 CARBON 4.7K 5% 1/4W R344 1-247-839-11 CARBON 2.2K 5% 1/4W R345 1-247-839-11 CARBON 2.2K 5% 1/4W R346 1-249-432-11 CARBON 18K 5% 1/4W R347 1-249-432-11 CARBON 18K 5% 1/4W R348 1-247-879-11 CARBON 100K 5% 1/4W R349 1-247-871-11 CARBON 47K 5% 1/4W R350 1-247-871-11 CARBON 47K 5% 1/4W R351 1-247-871-11 CARBON 47K 5% 1/4W R352 1-247-855-11 CARBON 10K 5% 1/4W R353 1-249-465-11 CARBON 47K 5% 1/4W R354 1-247-871-11 CARBON 47K 5% 1/4W R355 1-247-871-11 CARBON 47K 5% 1/4W R358 1-247-871-11 CARBON 47K 5% 1/4W R359 1-247-871-11 CARBON 47K 5% 1/4W R366 1-247-871-11 CARBON 47K 5% 1/4W R367 1-247-879-11 CARBON 100K 5% 1/4W R368 1-247-871-11 CARBON 47K 5% 1/4W R369 1-247-871-11 CARBON 47K 5% 1/4W R370 1-249-431-11 CARBON 15K 5% 1/4W R371 1-249-431-11 CARBON 15K 5% 1/4W R372 1-247-887-00 CARBON 220K 5% 1/4W R373 1-247-887-00 CARBON 220K 5% 1/4W R375 1-249-544-11 CARBON 470 5% 1/4W R376 1-247-839-11 CARBON 2.2K 5% 1/4W R377 1-247-839-11 CARBON 2.2K 5% 1/4W R378 1-247-867-11 CARBON 33K 5% 1/4W R379 1-247-867-11 CARBON 33K 5% 1/4W R380 1-247-843-11 CARBON 3.3K 5% 1/4W R381 1-247-843-11 CARBON 3.3K 5% 1/4W R384 1-249-465-11 CARBON 47K 5% 1/4W R385 1-247-871-11 CARBON 47K 5% 1/4W R386 1-249-465-11 CARBON 47K 5% 1/4W R387 1-247-871-11 CARBON 47K 5% 1/4W R388 1-249-465-11 CARBON 47K 5% 1/4W R389 1-247-871-11 CARBON 47K 5% 1/4W R390 1-249-465-11 CARBON 47K 5% 1/4W R391 1-247-871-11 CARBON 47K 5% 1/4W R393 1-249-431-11 CARBON 15K 5% 1/4W R394 1-249-544-11 CARBON 470 5% 1/4W R397 1-247-871-11 CARBON 47K 5% 1/4W R398 1-247-871-11 CARBON 47K 5% 1/4W R401 1-249-560-91 CARBON 2.2K 5% 1/4W R402 1-249-417-11 CARBON 1K 5% 1/4W F R403 1-247-871-11 CARBON 47K 5% 1/4W R404 1-247-871-11 CARBON 47K 5% 1/4W R405 1-247-871-11 CARBON 47K 5% 1/4W R406 1-247-855-11 CARBON 10K 5% 1/4W R407 1-247-855-11 CARBON 10K 5% 1/4W R408 1-247-871-11 CARBON 47K 5% 1/4W R409 1-247-871-11 CARBON 47K 5% 1/4W R410 1-249-546-11 CARBON 560 5% 1/4W R411 1-247-704-11 CARBON 220 5% 1/4W F R412 1-249-516-11 CARBON 33 5% 1/4W R413 1-249-516-11 CARBON 33 5% 1/4W R414 1-247-839-11 CARBON 2.2K 5% 1/4W R415 1-247-839-11 CARBON 2.2K 5% 1/4W R416 1-247-895-00 CARBON 470K 5% 1/4W R417 1-247-855-11 CARBON 10K 5% 1/4W R418 1-247-835-11 CARBON 1.5K 5% 1/4W R420 1-249-544-11 CARBON 470 5% 1/4W R421 1-249-417-11 CARBON 1K 5% 1/4W F R422 1-249-417-11 CARBON 1K 5% 1/4W F R428 1-247-855-11 CARBON 10K 5% 1/4W R429 1-247-855-11 CARBON 10K 5% 1/4W R430 1-247-855-11 CARBON 10K 5% 1/4W R431 1-247-855-11 CARBON 10K 5% 1/4W R432 1-249-544-11 CARBON 470 5% 1/4W R433 1-249-544-11 CARBON 470 5% 1/4W R434 1-247-879-11 CARBON 100K 5% 1/4W R435 1-247-879-11 CARBON 100K 5% 1/4W R436 1-247-893-11 CARBON 390K 5% 1/4W R437 1-247-893-11 CARBON 390K 5% 1/4W R438 1-247-867-11 CARBON 33K 5% 1/4W R439 1-247-867-11 CARBON 33K 5% 1/4W R440 1-249-418-11 CARBON 1.2K 5% 1/4W F R441 1-249-418-11 CARBON 1.2K 5% 1/4W F R442 1-249-417-11 CARBON 1K 5% 1/4W F R443 1-249-417-11 CARBON 1K 5% 1/4W F R444 1-247-855-11 CARBON 10K 5% 1/4W R445 1-247-855-11 CARBON 10K 5% 1/4W R446 1-249-417-11 CARBON 1K 5% 1/4W F R447 1-249-417-11 CARBON 1K 5% 1/4W F R449 1-247-855-11 CARBON 10K 5% 1/4W R450 1-216-446-00 METAL OXIDE 18 5% 2W F R452 1-247-855-11 CARBON 10K 5% 1/4W R453 1-249-417-11 CARBON 1K 5% 1/4W F R454 1-247-847-11 CARBON 4.7K 5% 1/4W R455 1-247-847-11 CARBON 4.7K 5% 1/4W R467 1-249-417-11 CARBON 1K 5% 1/4W F R801 1-249-393-11 CARBON 10 5% 1/4W F R802 1-249-393-11 CARBON 10 5% 1/4W F R803 1-247-855-11 CARBON 10K 5% 1/4W R804 1-247-855-11 CARBON 10K 5% 1/4W R805 1-247-855-11 CARBON 10K 5% 1/4W R806 1-247-855-11 CARBON 10K 5% 1/4W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 93 — R807 1-249-434-11 CARBON 27K 5% 1/4W R808 1-249-417-11 CARBON 1K 5% 1/4W F R809 1-247-855-11 CARBON 10K 5% 1/4W R810 1-247-843-11 CARBON 3.3K 5% 1/4W R811 1-247-847-11 CARBON 4.7K 5% 1/4W R812 1-247-704-11 CARBON 220 5% 1/4W F R813 1-247-855-11 CARBON 10K 5% 1/4W R814 1-249-427-11 CARBON 6.8K 5% 1/4W F R815 1-249-427-11 CARBON 6.8K 5% 1/4W F R816 1-247-891-00 CARBON 330K 5% 1/4W R817 1-247-891-00 CARBON 330K 5% 1/4W R818 1-249-465-11 CARBON 47K 5% 1/4W R819 1-247-871-11 CARBON 47K 5% 1/4W R820 1-249-431-11 CARBON 15K 5% 1/4W R821 1-249-431-11 CARBON 15K 5% 1/4W R822 1-249-434-11 CARBON 27K 5% 1/4W R823 1-249-434-11 CARBON 27K 5% 1/4W R824 1-247-843-11 CARBON 3.3K 5% 1/4W R825 1-247-843-11 CARBON 3.3K 5% 1/4W R826 1-249-546-11 CARBON 560 5% 1/4W R827 1-247-863-11 CARBON 22K 5% 1/4W R828 1-247-704-11 CARBON 220 5% 1/4W F R829 1-247-863-11 CARBON 22K 5% 1/4W R830 1-249-427-11 CARBON 6.8K 5% 1/4W F R831 1-247-855-11 CARBON 10K 5% 1/4W R832 1-247-855-11 CARBON 10K 5% 1/4W R833 1-247-855-11 CARBON 10K 5% 1/4W R834 1-247-879-11 CARBON 100K 5% 1/4W R835 1-247-879-11 CARBON 100K 5% 1/4W R836 1-247-847-11 CARBON 4.7K 5% 1/4W R837 1-249-417-11 CARBON 1K 5% 1/4W F R838 1-249-417-11 CARBON 1K 5% 1/4W F R839 1-249-428-11 CARBON 8.2K 5% 1/4W F R840 1-249-428-11 CARBON 8.2K 5% 1/4W F R841 1-247-889-00 CARBON 270K 5% 1/4W R842 1-247-889-00 CARBON 270K 5% 1/4W R843 1-247-849-11 CARBON 5.6K 5% 1/4W R844 1-247-849-11 CARBON 5.6K 5% 1/4W R845 1-247-863-11 CARBON 22K 5% 1/4W R846 1-247-863-11 CARBON 22K 5% 1/4W R847 1-249-417-11 CARBON 1K 5% 1/4W F R848 1-249-417-11 CARBON 1K 5% 1/4W F R849 1-247-879-11 CARBON 100K 5% 1/4W R850 1-247-855-11 CARBON 10K 5% 1/4W R851 1-247-855-11 CARBON 10K 5% 1/4W R852 1-247-903-00 CARBON 1M 5% 1/4W R853 1-247-903-00 CARBON 1M 5% 1/4W R854 1-247-847-11 CARBON 4.7K 5% 1/4W R855 1-249-568-11 CARBON 4.7K 5% 1/4W R856 1-247-841-11 CARBON 2.7K 5% 1/4W R857 1-247-841-11 CARBON 2.7K 5% 1/4W R858 1-247-849-11 CARBON 5.6K 5% 1/4W R859 1-247-849-11 CARBON 5.6K 5% 1/4W R860 1-249-417-11 CARBON 1K 5% 1/4W F R861 1-249-432-11 CARBON 18K 5% 1/4W R862 1-249-432-11 CARBON 18K 5% 1/4W R863 1-247-871-11 CARBON 47K 5% 1/4W R864 1-247-871-11 CARBON 47K 5% 1/4W R865 1-247-847-11 CARBON 4.7K 5% 1/4W R866 1-247-847-11 CARBON 4.7K 5% 1/4W R867 1-247-879-11 CARBON 100K 5% 1/4W R868 1-249-431-11 CARBON 15K 5% 1/4W R869 1-249-431-11 CARBON 15K 5% 1/4W R870 1-247-855-11 CARBON 10K 5% 1/4W R871 1-247-855-11 CARBON 10K 5% 1/4W R872 1-247-867-11 CARBON 33K 5% 1/4W R873 1-247-867-11 CARBON 33K 5% 1/4W R874 1-247-839-11 CARBON 2.2K 5% 1/4W R875 1-247-839-11 CARBON 2.2K 5% 1/4W R876 1-249-439-11 CARBON 68K 5% 1/4W R877 1-249-439-11 CARBON 68K 5% 1/4W R878 1-247-870-11 CARBON 43K 5% 1/4W R879 1-247-855-11 CARBON 10K 5% 1/4W R880 1-247-704-11 CARBON 220 5% 1/4W F R881 1-247-855-11 CARBON 10K 5% 1/4W R882 1-247-855-11 CARBON 10K 5% 1/4W R883 1-249-417-11 CARBON 1K 5% 1/4W F R884 1-249-417-11 CARBON 1K 5% 1/4W F R885 1-249-584-11 CARBON 22K 5% 1/4W R886 1-249-431-11 CARBON 15K 5% 1/4W R887 1-247-843-11 CARBON 3.3K 5% 1/4W R888 1-247-855-11 CARBON 10K 5% 1/4W R889 1-249-568-11 CARBON 4.7K 5% 1/4W R890 1-247-855-11 CARBON 10K 5% 1/4W R891 1-247-855-11 CARBON 10K 5% 1/4W R892 1-247-855-11 CARBON 10K 5% 1/4W R893 1-249-381-11 CARBON 1 5% 1/4W F R894 1-249-399-11 CARBON 33 5% 1/4W F R895 1-249-431-11 CARBON 15K 5% 1/4W R896 1-249-431-11 CARBON 15K 5% 1/4W R898 1-249-391-11 CARBON 6.8 5% 1/4W F R899 1-249-391-11 CARBON 6.8 5% 1/4W F R900 1-247-855-11 CARBON 10K 5% 1/4W R901 1-249-784-11 CARBON 180 1% 1/2W R902 1-247-855-11 CARBON 10K 5% 1/4W R903 1-247-855-11 CARBON 10K 5% 1/4W R904 1-247-855-11 CARBON 10K 5% 1/4W R905 1-247-883-00 CARBON 150K 5% 1/4W R906 1-247-847-11 CARBON 4.7K 5% 1/4W R907 1-247-847-11 CARBON 4.7K 5% 1/4W < ADJ > SFR101 1-228-995-00 RES, ADJ, METAL 22K (XB22:E,SP,MY,AR,XB20) SFR801 1-228-990-00 RES, ADJ, METAL 1K SFR802 1-228-990-00 RES, ADJ, METAL 1K SFR803 1-228-995-00 RES, ADJ, METAL 22K SFR804 1-228-995-00 RES, ADJ, METAL 22K SFR805 1-228-995-00 RES, ADJ, METAL 22K SFR806 1-228-995-00 RES, ADJ, METAL 22K SFR807 1-228-997-00 RES, ADJ, METAL 100K SFR808 1-228-997-00 RES, ADJ, METAL 100K SFR809 1-228-994-00 RES, ADJ, METAL 10K SRF101 1-228-995-00 RES, ADJ, METAL 22K (XB22:AUS,MX,G2500) < SWITCH > SW101 1-762-735-11 SWITCH, SLIDE (XB22:E,SP,MY,AR) MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 94 — < TRANSFORMER > T101 1-429-553-11 TRANSFORMER, FM IFT (XB22:AUS,MX,G2500) T102 1-429-554-11 TRANSFORMER, AM IFT T103 1-429-533-11 TRANSFORMER,POWER (XB22:E,SP,MY,AR,XB20) < TRIMMER > TC101 1-141-304-21 CAP, TRIMMER 10PF(XB22:AUS,MX,G2500) TC102 1-141-304-21 CAP, TRIMMER 10PF TC103 1-141-245-00 CAP, TRIMMER 30PF(XB22:E,SP,MY,AR,XB20) TC104 1-141-304-21 CAP, TRIMMER 10PF TC105 1-141-245-00 CAP, TRIMMER 30PF(XB22:E,SP,MY,AR,XB20) < VIBRATOR > X101 1-579-585-11 VIBRATOR, CRYSTAL 7.2MHz ************************************************************ * 1-670-849-11 MOTOR BOARD *********** < CAPACITOR > C87 1-164-159-11 CERAMIC 0.1uF 50V < SWITCH > S06 1-762-587-11 SWITCH, PUSH (1 KEY) (UP) < MOTOR > M01 1-541-632-11 MOTOR, DC ************************************************************ 1-639-678-12 MOTOR (6P) (C) BOARD ******************** < CONNECTOR > CN1 1-564-722-11 PIN, CONNECTOR (SMALL TYPE) 6P < SWITCH > S1 1-572-085-11 SWITCH, LEAF (LIMIT) < MOTOR > M101 X-2625-877-1 MOTOR ASSY (SPINDLE) M102 X-2625-769-1 MOTOR ASSY (SLED) ************************************************************ * 1-670-946-11 PLAY SW BOARD ************* * 4-211-529-01 HOLDER (LED3-6), LED < LED > LED607 8-719-304-83 DIODE SEL2410G LED608 8-719-812-44 DIODE TLO124 LED609 8-719-304-83 DIODE SEL2410G < RESISTOR > R638 1-247-827-11 CARBON 680 5% 1/4W R639 1-249-416-11 CARBON 820 5% 1/4W F R640 1-249-418-11 CARBON 1.2K 5% 1/4W F < SWITCH > S626 1-771-478-11 SWITCH (PLAY) S627 1-771-478-11 SWITCH (PAUSE) S628 1-771-478-11 SWITCH (STOP) S629 1-771-478-11 SWITCH (DISC SKIP) ************************************************************ * 1-670-952-11 POWER SELECT BOARD (XB22:E,SP,MY,AR) ************************************ < SWITCH > !SW401 1-771-477-11 SELECTOR, VOLTAGE ************************************************************ * 1-670-951-11 POWER SUPPLY BOARD ****************** * 1-533-213-31 HOLDER, FUSE < FUSE > !F702 1-532-464-31 FUSE TIME LAG 2.5A/250V (XB20) !F702 1-532-505-31 FUSE TIME LAG 5A/250V (XB22:E,SP,MY,AR) !F702 1-576-109-11 FUSE 5A/125V (XB22:MX,G2500) !F703 1-532-464-31 FUSE TIME LAG 2.5A/250V (XB22:E,SP,MY,AR) < RESISTOR > !R001 1-219-238-11 SOLID 4.7M 20% 1/2W (XB22:E,SP,MY,MX,AR,G2500) ************************************************************ * 1-666-444-11 R/P SWITCH BOARD **************** < CAPACITOR > C236 1-126-024-11 ELECT 220uF 20% 16V C244 1-161-494-00 CERAMIC 0.022uF 25V < DIODE > D206 8-719-200-02 DIODE 10E2 D207 8-719-200-02 DIODE 10E2 < COIL > L202 1-408-072-00 INDUCTOR 47uH < SWITCH > SW201 1-571-135-11 SWITCH, PUSH (1 KEY) ************************************************************ * 1-670-846-11 TABLE SENSOR BOARD ****************** < PHOTO > SENS01 8-749-924-18 PHOTO INTERRUPTER RPI-1391 < RESISTOR > R90 1-249-416-11 CARBON 820 5% 1/4W F ************************************************************ MOTOR MOTOR (6P) (C) PLAY SW MAIN POWER SELECT POWER SUPPLY R/P SWITCH TABLE SENSOR The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 95 — * 1-670-944-11 SENSOR BOARD ************ < SENSOR > RM601 8-749-013-84 IC SPS-447-1 ************************************************************ * 1-671-028-11 VR BOARD ******** < VARIABLE RESISTOR > VR601 1-475-807-11 ENCODER, ROTARY (VOLUME) ************************************************************ MISCELLANEOUS ************* !157 1-551-188-99 CORD, POWER (E,MX) !157 1-555-795-00 CORD, POWER, EULO PLUG (SP,MY,AR,AEP) !157 1-556-035-00 CORD, POWER (UK) !157 1-559-583-11 CORD, POWER (US) 263 1-759-417-11 DECK, MECHANICAL !408 8-848-379-31 OPTICAL PICK-UP KSS-213B/SN 410 1-783-740-11 WIRE (FLAT TYPE)(16 CORE) HE901 9-980-284-01 E HEAD (ERASE) HP901 9-980-282-01 P HEAD (PLAY) HRP901 9-980-283-01 RP HEAD (REC/PLAY) M101 X-2625-877-1 MOTOR ASSY (SPINDLE) M102 X-2625-769-1 MOTOR ASSY (SLED) M901 9-980-285-01 MOTOR (CAPSTAN/REEL) !PT301 1-431-992-11 TRANSFORMER, POWER (US) !PT301 1-431-993-11 TRANSFORMER, POWER (AEP,UK) !PT301 1-431-994-11 TRANSFORMER, POWER (E,SP,MY,AR) !PT301 1-431-995-11 TRANSFORMER, POWER (MX) !PT301 1-431-996-11 TRANSFORMER, POWER (AUS) SW202 9-980-274-01 LEAF SWITCH (A DECK) SW203 9-980-274-01 LEAF SWITCH (B DECK) SW204 9-980-275-01 LEAF SWITCH (PLAY) ************************************************************ ACCESSORIES & PACKING MATERIALS ******************************* 1-475-829-11 REMOTE COMMANDER (RM-SG5) 1-501-374-11 ANTENNA, LOOP 1-501-594-11 ANTENNA (FM) (XB22,G2500) 1-501-807-11 ANTENNA (FM) (XB20) 3-862-441-11 MANUAL, INSTRUCTION (ENGLISH) 3-862-441-31 MANUAL, INSTRUCTION (FRENCH/SPANISH) (XB22:E,SP,MY,MX,AR) 3-862-441-41 MANUAL, INSTRUCTION (CHINESE) (XB22:E,SP,MY) 3-862-441-51 MANUAL, INSTRUCTION (FRENCH/SPANISH/PORTUGUESE)(XB20:AEP) 3-862-441-61 MANUAL, INSTRUCTION (GERMAN)(XB20:AEP) 3-862-441-71 MANUAL, INSTRUCTION (DUTCH/ITALIAN/SWEDISH)(XB20:AEP) 3-862-441-81 MANUAL, INSTRUCTION (POLISH/RUSSIAN) (XB20) 3-862-442-11 MANUAL, INSTRUCTION (HUNGARIAN) (XB20:AEP) 3-862-442-21 MANUAL, INSTRUCTION (GREEK)(XB20:AEP) 3-862-442-31 MANUAL, INSTRUCTION (CZECH)(XB20:AEP) 3-862-442-41 MANUAL, INSTRUCTION (TURKISH)(XB20:AEP) 4-982-031-01 COVER, BATTERY (for RM-SG5) ************************************************************ ************** HARDWARE LIST ************** #1 7-685-903-21 SCREW +PTPWH 3 × 8 (TYPE2) #2 7-682-547-09 SCREW +B 3 × 6 #3 7-685-547-19 SCREW +BTP 3 × 10 TYPE2 N-S #4 7-685-871-01 SCREW +BVTT 3 × 6 (S) #5 7-685-534-19 SCREW +BTP 2.6 × 8 TYPE2 N-S #6 7-685-134-19 SCREW +P 2.6 × 8 TYPE2 NON-SLIT #7 7-685-875-09 SCREW +BVTT 3 × 14 (S) #8 7-685-871-01 SCREW +BVTT 3 × 6 (S) #9 7-685-881-09 SCREW +BVTT 4 × 8 (S) #10 7-685-646-79 SCREW +BVTP 3 × 8 TYPE2 IT-3 #13 7-685-903-21 SCREW +PTPWH 3 × 8 (TYPE2) #14 7-621-255-15 SCREW +P 2 × 3 SENSOR VR The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 96 — HCD-G2500/XB20/XB22 Sony Corporation Home A&V Products Company 9-922-866-11 98E1686-1 Printed in Japan ©1998.5 Published by Quality Assurance Dept. (Shibaura) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
