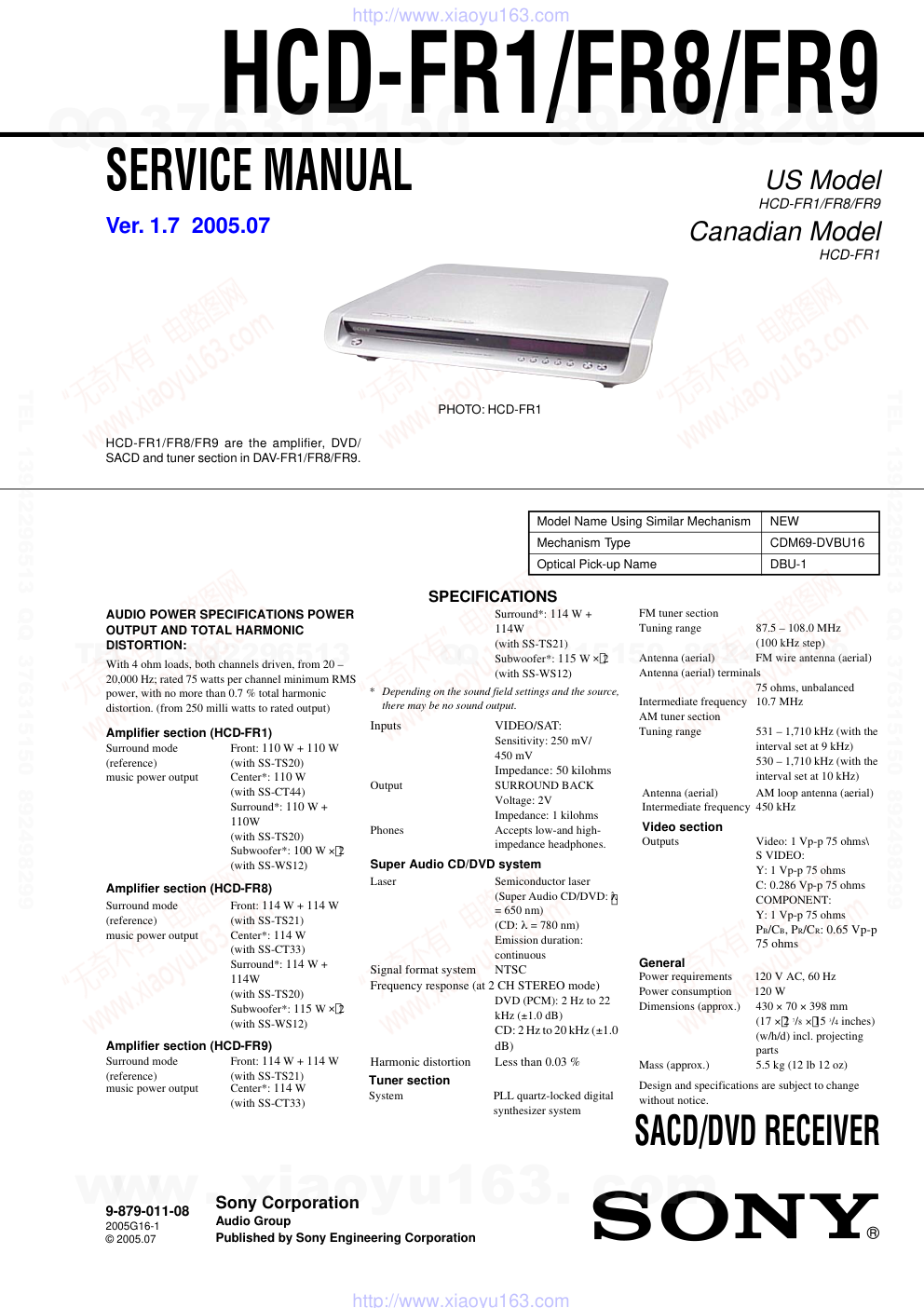

SERVICE MANUAL Sony Corporation Audio Group Published by Sony Engineering Corporation US Model HCD-FR1/FR8/FR9 Canadian Model HCD-FR1 SACD/DVD RECEIVER 9-879-011-08 2005G16-1 © 2005.07 Ver. 1.7 2005.07 SPECIFICATIONS HCD-FR1/FR8/FR9 HCD-FR1/FR8/FR9 are the amplifier, DVD/ SACD and tuner section in DAV-FR1/FR8/FR9. Model Name Using Similar Mechanism NEW Mechanism Type CDM69-DVBU16 Optical Pick-up Name DBU-1 PHOTO: HCD-FR1 AUDIO POWER SPECIFICATIONS POWER OUTPUT AND TOTAL HARMONIC DISTORTION: With 4 ohm loads, both channels driven, from 20 – 20,000 Hz; rated 75 watts per channel minimum RMS power, with no more than 0.7 % total harmonic distortion. (from 250 milli watts to rated output) Amplifier section (HCD-FR1) Surround mode Front: 110 W + 110 W (reference) (with SS-TS20) music power output Center*: 110 W (with SS-CT44) Surround*: 110 W + 110W (with SS-TS20) Subwoofer*: 100 W 2 ×� ×� (with SS-WS12) Amplifier section (HCD-FR8) Surround mode Front: 114 W + 114 W (reference) (with SS-TS21) music power output Center*: 114 W (with SS-CT33) Surround*: 114 W + 114W (with SS-TS20) Subwoofer*: 115 W 2 (with SS-WS12) Amplifier section (HCD-FR9) Surround mode Front: 114 W + 114 W (reference) (with SS-TS21) music power output Center*: 114 W (with SS-CT33) ×� Surround*: 114 W + 114W (with SS-TS21) Subwoofer*: 115 W 2 (with SS-WS12) * Depending on the sound field settings and the source, there may be no sound output. Inputs VIDEO/SAT: Sensitivity: 250 mV/ 450 mV Impedance: 50 kilohms Output SURROUND BACK Voltage: 2V Impedance: 1 kilohms Phones Accepts low-and high- impedance headphones. Super Audio CD/DVD system Laser Semiconductor laser (Super Audio CD/DVD: � = 650 nm) (CD: λ λ = 780 nm) Emission duration: continuous Signal format system NTSC Frequency response (at 2 CH STEREO mode) DVD (PCM): 2 Hz to 22 kHz (±1.0 dB) CD: 2 Hz to 20 kHz (±1.0 dB) Harmonic distortion Less than 0.03 % Tuner section System PLL quartz-locked digital synthesizer system FM tuner section Tuning range 87.5 – 108.0 MHz (100 kHz step) Antenna (aerial) FM wire antenna (aerial) Antenna (aerial) terminals 75 ohms, unbalanced Intermediate frequency 10.7 MHz AM tuner section Tuning range 531 – 1,710 kHz (with the interval set at 9 kHz) 530 – 1,710 kHz (with the interval set at 10 kHz) Antenna (aerial) Intermediate frequency Video section Outputs General Power requirements Power consumption Dimensions (approx.) Mass (approx.) AM loop antenna (aerial) 450 kHz Video: 1 Vp-p 75 ohms\ S VIDEO: Y: 1 Vp-p 75 ohms C: 0.286 Vp-p 75 ohms COMPONENT: Y: 1 Vp-p 75 ohms PB/CB, PR/CR: 0.65 Vp-p 75 ohms ×� ×� 120 V AC, 60 Hz 120 W 430 × 70 × 398 mm (17 2 7/8 15 3/4 inches) (w/h/d) incl. projecting parts 5.5 kg (12 lb 12 oz) Design and specifications are subject to change without notice. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 HCD-FR1/FR8/FR9 CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size) : LEAD FREE MARK Unleaded solder has the following characteristics. • Unleaded solder melts at a temperature about 40 °C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 °C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! • Strong viscosity Unleaded solder is more viscou-s (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. • Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270 °C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. SAFETY CHECK-OUT After correcting the original service problem, perform the following safety check before releasing the set to the customer: Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes.). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2 V AC range are suitable. (See Fig. A) Fig. A. Using an AC voltmeter to check AC leakage. 1.5 kΩ 0.15 µF AC voltmeter (0.75 V) To Exposed Metal Parts on Set Earth Ground SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 HCD-FR1/FR8/FR9 TABLE OF CONTENTS 1. SERVICING NOTE ................................................... 4 2. GENERAL ................................................................... 5 3. DIAGRAMS 3-1. Printed Wiring Board – RF Board – ................................ 9 3-2. Schematic Diagram – RF Board – ................................... 10 3-3. Printed Wiring Board – RELAY Section – ...................... 11 3-4. Schematic Diagram – RELAY Section – ........................ 12 3-5. Printed Wiring Board – DMB08 Board (Side A) – ......... 13 3-6. Printed Wiring Board – DMB08 Board (Side B) – ......... 14 3-7. Schematic Diagram – DMB08 Board (1/10) –................ 15 3-8. Schematic Diagram – DMB08 Board (2/10) –................ 16 3-9. Schematic Diagram – DMB08 Board (3/10) –................ 17 3-10. Schematic Diagram – DMB08 Board (4/10) –................ 18 3-11. Schematic Diagram – DMB08 Board (5/10) –................ 19 3-12. Schematic Diagram – DMB08 Board (6/10) –................ 20 3-13. Schematic Diagram – DMB08 Board (7/10) –................ 21 3-14. Schematic Diagram – DMB08 Board (8/10) –................ 22 3-15. Schematic Diagram – DMB08 Board (9/10) –................ 23 3-16. Schematic Diagram – DMB08 Board (10/10) – .............. 24 3-17. Printed Wiring Board – AMP Board (Side A) – .............. 25 3-18. Printed Wiring Board – AMP Board (Side B) – .............. 26 3-19. Schematic Diagram – AMP Board (1/4) – ...................... 27 3-20. Schematic Diagram – AMP Board (2/4) – ...................... 28 3-21. Schematic Diagram – AMP Board (3/4) – ...................... 29 3-22. Schematic Diagram – AMP Board (4/4) – ...................... 30 3-23. Printed Wiring Board – IO Board –................................. 31 3-24. Schematic Diagram – IO Board (1/2) –........................... 32 3-25. Schematic Diagram – IO Board (2/2) –........................... 33 3-26. Printed Wiring Board – DDCON Board –....................... 34 3-27. Schematic Diagram – DDCON Board – ......................... 35 3-28. Printed Wiring Board – FL Board – ................................ 36 3-29. Schematic Diagram – FL Board – ................................... 37 3-30. Printed Wiring Board – SPK Board – ............................. 38 3-31. Schematic Diagram – SPK Board – ................................ 38 3-32. Printed Wiring Board – POWER/FRONT PANEL Section –............................. 39 3-33. Schematic Diagram – POWER/FRONT PANEL Section –............................. 40 4. EXPLODED VIEWS 4-1. Case Section .................................................................... 41 4-2. Front Panel Section ......................................................... 42 4-3. Chassis Section ................................................................ 43 4-4. Mechanism Deck Section-1 (CDM69-DVBU16) ........... 44 4-5. Mechanism Deck Section-2 (CDM69-DVBU16) ........... 45 4-6. Mechanism Deck Section-3 (CDM69-DVBU16) ........... 46 4-7. Mechanism Deck Section-4 (CDM69-DVBU16) ........... 47 4-8. Mechanism Deck Section-5 (CDM69-DVBU16) ........... 48 4-9. Mechanism Deck Section-6 (CDM69-DVBU16) ........... 49 4-10. Optical Pick-up Section (DBU-1) ................................... 50 5. ELECTRICAL PARTS LIST .................................. 51 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 HCD-FR1/FR8/FR9 SECTION 1 SERVICING NOTE NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. MODEL IDENTIFICATION – BACK PANEL – Part No. MODEL Part No. FR1 4-253-916-0[ ] FR8 4-253-916-1[ ] FR9 4-253-916-2[ ] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 HCD-FR1/FR8/FR9 SECTION 2 GENERAL This section is extracted from instruction manual. Front Panel A [/1 (power) switch/STANDBY indicator (30) B DISC1-5 Z (eject)/indicators (30) C (remote sensor) (13) D Front panel display (98) E PHONES (on the side of the system) jack (30) F VOLUME +/– (30, 83) G ./> (31, 33) H x (stop) (31) I (play/pause) (30) J FUNCTION (30, 70, 73) K Disc slot (30) Rear Panel A SPEAKER jacks (15) B SURROUND BACK jack (19) C VIDEO AUDIO IN (L/R) jacks (23) D COMPONENT VIDEO OUT jacks (23) E SAT OPTICAL DIGITAL IN jack (24) F AM terminals (21) G FM 75Ω COAXIAL jack (21) H MONITOR OUT (VIDEO/S VIDEO) jacks (23) I SAT AUDIO IN (L/R) jacks (23) AUDIO IN VIDEO COMPOMEMT VIDEO OUT MONITOR OUT SAT SURROUND BACK SAT SPEAKER AUDIO IN S VIDEO (DVD ONLY) VIDEO OPTICAL DIGITAL IN R L Y PB/CB PR/CR R L CENTER FRONT L FRONT R SURR L WOOFER WOOFER SURR R COAXIAL AM FM 75 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 HCD-FR1/FR8/FR9 Remote Note This remote control glows in the dark. However, before glowing, the remote must be exposed to light for awhile. A DISC SKIP (30, 31) B DISPLAY (46, 49, 73) C SLEEP (75) D ./>, PRESET –/+ (31, 33, 73, 74) E H (play) (30, 31, 32, 33, 37, 38, 39, 41, 41, 42, 43) F DVD TOP MENU/ALBUM– (33, 35, 36) G C/X/x/c/ENTER (27, 33, 33, 35, 36, 38, 38, 39, 41, 42, 44, 51, 57, 60, 61, 62, 64, 71, 72, 74, 75, 77, 85) H DVD DISPLAY (35, 36, 38, 41, 42, 44, 49, 50, 51, 60, 61, 62) I AUTO FORMAT DIRECT (53, 54) J DSGX (59) K DVD SETUP (27, 64, 77) L SUBTITLE (61) M AUDIO (51) N ANGLE (60) O Number buttons (33, 33, 39, 44, 60, 62, 64, 67, 69) P ENTER Q TUNER MENU (72, 74) R TV [/1 (on/standby) (67) S "/1 (standby) (27, 30, 72, 73) T SONY TV DIRECT (69) U TUNER/BAND (72, 73, 74) V FUNCTION (27, 30, 70, 73, 74) W m/M/ / SLOW, TUNING –/+ (37, 43, 72, 73) X x (stop) (31, 32, 33, 62, 73) Y X (pause) (31) Z MUTING (31) wj DVD MENU/ALBUM+ (33, 35, 36) wk VOL +/– (31, 73) wl O RETURN (27, 33, 35, 36, 38, 39, 44, 62, 64, 77) e; MODE (54, 55) ea NIGHT MODE (59) es PLAY MODE (38, 39, 41) ed REPEAT (39, 42) ef TV (67, 69) eg TV/VIDEO (67, 69) eh TV CH +/– (67, 69) ej TV VOL +/– (67) ek AMP MENU (57, 71, 75, 85) el CLEAR (27, 39, 44) r; FM MODE (73) Open the cover. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 HCD-FR1/FR8/FR9 SECTION 3 DIAGRAMS • Circuit Boards Location SPK board LF board IO board FL board SONY LAMP board PW KEY board CONTROL KEY board DISC KEY board ROLLER MOTOR board MODE MOTOR board SENSOR board SW (1) board SW (2) board SW (3) board SW (4) board STOCKER MOTOR board RELAY board RF board DMB08 board AMP board DDCON board SWITCHING REGLATOR HP board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 HCD-FR1/FR8/FR9 For schematic diagrams. Note: • All capacitors are in µF unless otherwise noted. (p: pF) 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • f : internal component. • C : panel designation. • A : B+ Line. • B : B– Line. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. • Voltages and waveforms are dc with respect to ground in service mode. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. no mark : DVD STOP • ( ) : CD STOP • Circled numbers refer to waveforms. • Signal path. F : AUDIO J : CD PLAY c : DVD PLAY d : TUNER L : VIDEO i : OPTICAL DIGITAL IN h : VIDEO IN a : CHROMA d : Y r : COMPONENT VIDEO e : AUX IN I : SACD PLAY q : R, G, B THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.) • Indication of transistor. C E B These are omitted Q C E B These are omitted For printed wiring boards. Note: • X : parts extracted from the component side. • a : Through hole. • b : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) Caution: Pattern face side: Parts on the pattern face side seen from (Side A) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Side B) the parts face are indicated. Note: The components identi- fied by mark 0 or dot- ted line with mark 0 are critical for safety. Replace only with part number specified. Note: Les composants identifiés par une marque 0 sont cri- tiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 9 HCD-FR1/FR8/FR9 HCD-FR1/FR8/FR9 3-1. PRINTED WIRING BOARD — RF BOARD — • See page 7 for Circuit Boards Location. :Uses unleaded solder. C023 C028 C040 C037 R004 R005 C038 C022 C020 R016 R003 R018 R014 R012 C027 C041 C010 Q002 Q001 R007 C039 R001 C021 C013 R009 R008 C008 C017 C015 C011 C009 R021 CN003 CN001 CN002 C049 IC003 R033 R034 R047 R046 C050 C052 R091 R024 R025 R023 C029 C026 R026 C024 R027 R017 R015 C042 R013 R019 L002 L001 C003 D002 D001 R022 R020 C031 R011 C006 C005 C034 R006 R028 R029 C036 C032 C035 C033 C004 C012 C025 R010 C002 C030 C018 C016 C014 C019 R035 C001 R041 R031 C051 IC001 1 3 5 4 (SIDE A) RF BOARD 1-684-822- 12 (12) 1-684-822- 12 (12) (SIDE B) RF BOARD B E C B E C A DMB08 BOARD CN401 (Page 13) OPTICAL TRAVERSE UNIT (DBU-1) 1 2 3 4 5 6 7 8 9 10 11 12 13 A B C D E F 1 16 48 33 17 32 64 49 • Semiconductor Location Ref. No. Location D001 C-10 D002 B-10 IC001 D-11 IC003 D-3 Q001 B-3 Q002 B-3 Ver. 1.4 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 10 HCD-FR1/FR8/FR9 HCD-FR1/FR8/FR9 3-2. SCHEMATIC DIAGRAM — RF BOARD — JL005 C011 C039 C038 C040 JL007 C003 R010 R008 R007 IOP1 C004 R006 C001 C010 R004 R003 IOP2 C002 R022 R025 R023 C016 C015 C014 R014 R013 R012 R011 R018 R017 R016 R015 C042 C020 C021 C022 C023 R024 R026 C027 C028 C029 C018 C024 C033 C012 C005 R029 R028 R027 JL002 JL001 C032 C034 C049 C009 C035 CN003 CN001 CN002 C025 C006 C013 R005 R009 R035 R019 R020 C041 R001 Q001 Q002 C008 R041 JL004 C030 C019 C017 IC001 JL003 JL006 R031 C037 R021 C052 C051 C050 R034 C036 R033 R047 R046 IC003 R091 C031 C026 D001 D002 1000p 0.033 0.033 0.1 100 6.3V 470 33 33 10 16V 470 100 6.3V 1000p L001 47µH L002 47µH 33 33 10 16V 220 100 820 2200p 2200p 2200p 0 0 0 0 0 0 0 0 180p 22p 22p 22p 22p 0 12k 0.1 0.1 0.01 5600p 0.01 0.1 0.1 22 10V 0 0 0 0.047 0.1 0.1 0.1 0.1 9P 24P 29P 0.1 22 10V 0.1 47k 47k 0 0 0 0.1 100 2SB1132-T100-QR 2SB1132-T100-QR 0.1 1k 0.01 5600p 2200p SP3723CAF0PM 100 680p 0 0.1 0.47 3300p 470 0.47 100k 33k 10k TL343IDBVR 560k 1000p 0.1 1SS355TE 1SS355TE MIRR CD_LD DVD_LD SDEN DATA_RF CLK_RF SDEN DATA_RF CLK_RF LDON A B E F TE FE TE FE PD RFMON RFMON F D C RFP E CD_LD DVD_LD PD FD- FD+ TD- TD+ FD+ FD- TD+ TD- SLB- SLB+ SLA- SLA+ PI/CE PI/CE LDON MIRR SLA+ SLB+ SLB- SLA- RFP D C A B B A F RF GND VC VCC C D E PD VR SW LD GND DVD LD CD LD N.C FCS+ FCS- TRK+ TRK- AGND RFAC AGND AVC AVC MIRR TE FE A5V A5V SDEN DATA_RF CLK_RF LDON A3V RFMON INLIM LDSEL VCC SPDL+ SPDL- SLEDA+ SLEDA- SLEDB+ SLEDB- TD+ TD- FD+ FD- SLEDA+ SLEDB+ SLEDA- SLEDB- LED GND INLIM SPDL- SPDL+ INLIM INLIM_3V {LIMIT-SW(A)} {LIMIT-SW(B)} {LIMIT-SW(B)} PI FOCUS/TRACKING ERROR AMP AUTOMATIC POWER CONTROL (FOR DVD) AUTOMATIC POWER CONTROL (FOR CD) VCC VEE COMPARATOR CD/DVD RF AMP, 1 4 3 2 (Page 15) OPTICAL PICK-UP BLOCK (DBU-1) DMB08 BOARD (1/10) CN401 Ver. 1.4 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 11 HCD-FR1/FR8/FR9 HCD-FR1/FR8/FR9 3-3. PRINTED WIRING BOARD — RELAY SECTION — • See page 7 for Circuit Boards Location. :Uses unleaded solder. RELAY BOARD IC701 IC721 IC751 IC711 2 3 1 4 1 1 2 1 3 G DMB08 BOARD CN006 (Page 13) 4 3 G 2 1 ROTARY ENCODER (STOCKER POSITION) 1-685-012- 11 (11) 1 9 2 1 4 3 2 1 SW (2) BOARD 3 1 (DISC IN (8cm)) S713 (DISC IN (8/12cm)) (ON: Play position) S714 (ON: Play position (8cm disc only)) 1-685-009- 11 (11) SW (1) BOARD SENSOR BOARD MODE MOTOR BOARD ROLLER MOTOR BOARD STOCKER MOTOR BOARD SW (3) BOARD 2 1 1-685-010- 11 (11) OFF: When disc out from play position S715 4 1 4 SW (4) BOARD (DISC OUT) S716 (STOCKER IN/OUT) OFF: The moment disc in/out from stocker S717 (DISC POSITION) In the midst disc is moving between play position and stocker, ON: disc is play position side, OFF: disc is stocker side S718 (STOCKING) OFF: In the midst disc is moving between play position and stocker 1-685-011- 11 (11) 3 1 (DISC INSERT (8/12cm)) (ON: When disc insert) 1-685-008- 11 (11) 1 2 M (STOCKER) 1-685-006- 11 (11) K A E C 3 1 1-685-004- 11 (11) M (MODE) 1 2 G 3 4 ROTARY ENCODER (MODE) 7 1 1-685-005- 11 (11) M (ROLLER) 1 2 1-685-007- 11 (11) 6 5 5 6 3 2 1 A B C D E F 1 2 3 4 5 6 7 8 1 1 9 9 DISC INSERT DETECT SENSOR E • Semiconductor Location Ref. No. Location D701 D-5 D711 E-6 D721 E-5 IC701 D-5 IC711 E-5 IC721 D-5 IC751 F-4 Q731 E-4 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 12 HCD-FR1/FR8/FR9 HCD-FR1/FR8/FR9 3-4. SCHEMATIC DIAGRAM — RELAY SECTION — R733 R711 C764 C763 C762 C765 C769 C753 C752 C751 C755 C756 C758 C754 S713 S714 S718 S717 S716 S715 S711 CN710 M771 Q731 R731 R734 R732 R702 R701 D701 C711 R712 D721 R721 D711 C761 R722 C781 CN704 CN703 CN702 C768 C766 C767 CN701 C771 CNP771 S702 S771 IC701 IC711 IC721 CNP751 IC751 CNP781 CNP761 M781 M761 CNP741 CNP708 CNP731 CNP707 CNP721 CNP706 CNP711 CNP705 10k 680 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 7P RT1N141 150 15k 1k 100 680 MTZJ-T-77-4.7B 10 50V 100 MTZJ-T-77-3.6A 680 MTZJ-T-77-5.1A 0.01 100 0.01 2P 2P 3P 0.1 0.1 0.1 28P 0.01 7P BA6956AN BA6956AN BA6956AN 3P RPR-220 2P 2P 4P 4P 2P 2P 3P 3P 3P 3P SW1A SW1A SW1B SW1B SW2B SW2B SW2A SW2A SW3 SW3 SW4 SW4 SW5A SW5A SW5B SW5B GND E1 E2 E3 E4 GND GND D SENSE D SENSE DIODE DIODE E1 E2 E3 E4 GND MTR MD 2 MTR MD 1 SW2-A SW1-A SW1-B SW2-B SW3 SW5-A SW5-B SW4 GND GND GND GND P92 SW3 D+5V M+12V MGND MGND P81 D.SENSOR P40 SW1-A P41 SW1-B P42 SW2-A P43 SW2-B P93 SW4 P94 SW5-A P95 SW5-B P44 LOD POS P45 LOD NEG P46 SLD POS P47 SLD NEG P96 SLD E0 P02 SLD E1 P03 SLD E2 P04 SLD E3 P83 ELV E1 P82 ELV E0 P91 ELV NEG P90 ELV POS M+12V P54 ELV E2 P55 ELV E3 MTR MD 2 MTR MD 1 MTR ST 2 MTR ST 1 MTR RL 2 MTR RL 1 MTR ST 2 MTR ST 1 MTR RL 2 MTR RL 1 SW2-A SW1-A SW1-B SW2-B GND GND SW3 GND SW5-A SW5-B SW4 GND OUT2 GND OUT1 VCC VREF RNF VM FIN RIN OUT2 GND OUT1 VCC VREF RNF VM FIN RIN OUT2 GND OUT1 VCC VREF RNF VM FIN RIN (MODE) (STOCKER POSITION) ROTARY ENCODER ROTARY ENCODER (MODE) LEVEL SHIFT MODE MOTOR DRIVE DRIVE ROLLER MOTOR DRIVE STOCKER MOTOR DISC INSERT DETECT SENSOR (ROLLER) (STOCKER) (DISC INSERT(8/12cm)) (ON:WHEN DISC INSERT) (ON:PLAY POSITION) (DISC IN(8/12cm)) (DISC IN(8cm)) (ON:PLAY POSITION(8cm DISC ONLY)) (DISC OUT) (ON:WHEN DISC OUT FROM PLAY POSITION) (STOCKER IN/OUT) ON:THE MOMENT DISC IN/OUT FROM STOCKER (DISC POSITION) IN THE MIDST DISC IS MOVING BETWEEN PLAY POSITION AND STOCKER, ON:DISC IS PLAY POSITION SIDE, OFF:DISC IS STOCKER SIDE (STOCKING) OFF:IN THE MIDST DISC IS MOVING BETWEEN PLAY POSITION AND STOCKER IC B/D IC B/D IC B/D G DMB08 BOARD (10/10) CN006 (Page 24) 751 Ver 1.2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 13 HCD-FR1/FR8/FR9 HCD-FR1/FR8/FR9 3-5. PRINTED WIRING BOARD — DMB08 BOARD (SIDE A) — • See page 7 for Circuit Boards Location. :Uses unleaded solder. IC401 IC301 IC901 IC813 IC612 IC605 IC606 IC801 IC607 IC701 IC206 IC402 D DDCON BOARD CN800 (Page 34) FOR CHECK FOR CHECK A RF BOARD CN002 (Page 9) F IO BOARD CN201 (Page 31) E IO BOARD CN601 (Page 31) SWITCHING REGULATOR CN8 C AMP BOARD CN301 (Page 26) B AMP BOARD CN302 (Page 26) G RELAY BOARD CN701 (Page 11) 1 2 A B C D E F 3 4 5 6 7 8 9 CN006 1 2 27 28 R071 C009 C002 C012 RB901 R094 R092 R953 R983 Q914 E R894 C908 RB902 C921 C606 14 • Semiconductor Location Ref. No. Location D900 C-2 D901 C-4 IC206 D-5 IC301 C-2 IC401 D-2 IC402 D-2 IC605 C-8 IC606 C-7 IC607 B-7 IC612 B-6 IC701 D-4 IC801 B-5 IC813 C-4 IC901 B-2 Q914 C-3 Ver. 1.6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 14 HCD-FR1/FR8/FR9 HCD-FR1/FR8/FR9 3-6. PRINTED WIRING BOARD — DMB08 BOARD (SIDE B) — • See page 7 for Circuit Boards Location. :Uses unleaded solder. IC604 IC005 IC004 IC600 IC608 IC904 IC601 IC002 IC006 IC703 IC205 IC203 IC215 IC202 IC814 IC501 IC803 IC802 IC903 IC907 IC302 IC812 IC303 IC704 IC808 IC706 IC001 IC603 IC609 IC900 FR8/FR9 FR1/FR8 1 2 A B C D E 3 4 5 6 7 8 R938 R081 R085 R076 Q914 R898 C605 R204 R707 C773 R1012 R1011 R1010 R1009 R1008 R1007 R1006 R1005 R1002 R1000 R1003 R1004 R940 R1001 R966 R899 14 C924 R928 R924 R927 R925 14 1 15 28 R930 R920 R973 C902 R921 R093 C923 R984 D906 IC902 14 1 15 28 IC906 Ref. No. Location D902 B-7 D903 B-6 D904 C-7 D906 B-6 D907 B-7 IC001 E-3 IC002 D-2 IC004 C-2 IC005 C-2 IC006 E-4 IC202 D-4 IC203 D-3 IC205 D-4 IC215 C-3 IC302 C-7 IC303 C-4 IC501 E-7 IC600 D-2 IC601 D-2 IC603 E-2 IC604 C-2 IC608 D-2 IC609 D-2 IC703 E-5 IC704 C-4 IC706 D-5 IC802 C-7 IC803 C-6 IC808 B-4 IC812 C-5 IC814 C-5 IC900 B-3 IC902 B-6 IC903 C-6 IC904 D-1 IC906 B-5 IC907 B-7 Q301 D-6 Q302 D-3 Q900 B-7 Q901 B-7 Q902 B-7 Q903 B-6 Q906 B-6 Q907 C-7 Q908 B-3 Q909 B-3 Q910 B-3 Q913 B-7 Ver. 1.6 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 15 HCD-FR1/FR8/FR9 HCD-FR1/FR8/FR9 3-7. SCHEMATIC DIAGRAM — DMB08 BOARD (1/10) — 11 16 0.7 0.7 0.7 0.8 0.8 1.6 5 0 0 0 1.6 1.6 3.3 0.8 0.8 0 0 0 0 1.6 1.6 1.6 0 0 1.6 0 0 0 0 3.2 3.2 3.2 3.2 3.2 0 0 3.3 5 0 0 0.2 1.3 1.6 1.6 0 1.6 0 0 3.3 3.3 3 1.6 1.6 1.2 0.9 3.3 1.6 1.6 1.7 0 3.3 3.3 3.3 3.3 0.4 0 0 NO MARK : DVD STOP IC B/D R445 R450 R455 R452 R446 R448 R444 R453 R449 C401 C417 C408 R439 C416 R401 C402 C407 JL536 JL535 JL531 JL530 JL529 JL526 JL525 JL524 JL523 JL537 JL512 JL511 JL510 JL509 JL508 JL507 JL506 JL505 R420 JL522 JL527 R421 R423 R425 R426 R429 R430 C409 C405 JL544 JL504 JL503 JL502 JL501 R437 R440 R434 C415 R433 C414 JL500 R442 R428 R414 AMP,REFERENCE VOLTAGE GENERATOR R418 R419 R451 C425 C420 C418 C428 C424 C421 C433 C436 C435 C406 IC402 C432 C404 FL401 FL402 IC401 CN401 C411 C410 R441 R443 C419 R412 R413 R411 C423 C422 R457 C427 R447 C426 C412 C413 C434 1k 1k 100k 1M 10k 1k 470k 1M 33k 0.1 0.1 0.1 330 10 10V 0 10 10 10V 0 1k 1k 1k 1k 1k 1k 0.0022 10 16V 47k 47k 47k 0.01 47k 0.01 10k 1k 0 10k 68k 10k 0.0022 0.0022 0.1 0.0033 B 0.022 B 0.1 0.0015 0.1 0.1 0.0022 NJM12904V(TE2) 100p 0.1 0UH (2012) 0UH (2012) CXD3068Q 29P 0.1 10 16V 1k 47k 0.047 B 10k 10k 0 0.1 100p 3.3k 0.47 B 10k 0.01 B 0.0022 0.0022 10 10V DIGITAL SIGNAL PROCESSOR, DIGITAL SERVO PROCESSOR Ver. 1.6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 16 HCD-FR1/FR8/FR9 HCD-FR1/FR8/FR9 3-8. SCHEMATIC DIAGRAM — DMB08 BOARD (2/10) — 15 1 1 0.9 0.9 0.9 0.9 0.9 0.9 0.9 12 0 0 0 0 0 0 3.2 1.6 1.6 NO MARK : DVD STOP 0.8 5.1 3.2 1.6 1.6 1.6 1.6 5.1 1.6 1.4 1.4 1.1 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.3 1.3 1.6 1.1 C504 C506 C509 C512 C514 C526 FOCUS/TRACKING COIL DRIVER, SPINDLE, SLED MOTOR DRIVER C529 R512 R513 R514 R516 R517 R519 R520 R521 R522 R523 R524 R525 R527 R529 R530 R531 R532 R533 R534 R535 R536 R580 R582 R583 C525 C527 C508 C510 R416 R592 C524 R579 R581 C519 IC501 R510 R511 C503 R515 C528 33000p 330p 330p 0.01 0.01 22 16V 0.1 56k 56k 10k 4.7k 2.2k 100k 10k 100k 4.7k 10k 10k 10k 2.2k 33k 56k 0 0 33k 56k 0 200k 33k 10k 10k 0.1 0.1 0.001 0.001 0 0 0.1 8.2k 12k 0.01 FAN8035L 150k 150k 33000p 10k 47 6.3V Ver 1.2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 17 HCD-FR1/FR8/FR9 HCD-FR1/FR8/FR9 3-9. SCHEMATIC DIAGRAM — DMB08 BOARD (3/10) — IC B/D IC B/D IC B/D 1.6 1.6 1.6 1.6 3.3 0 1.6 3.3 1.6 0 0 5 2 0 1.6 5 0 5 3.2 3.3 1.5 0 1.6 3.2 3.2 3.2 1 1 3.3 2.5 2.6 2.6 2.6 0 1.6 1.6 1.6 0 0 0 0 3.3 0 5 0 0 3.2 0 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.3 0 5 0 5 0 0 0 3.3 5 0 0 0 1.9 1.6 1.5 3.3 3.3 1.6 1.5 1.6 0.5 0.9 0.3 3.3 3.3 1.6 1.6 1.6 1.6 1.6 1.6 3.2 1.7 0 0 0 0 5 0 0 3.2 0 0 0 3.2 0 0 0.2 0.8 0.4 3.3 0.4 0.4 0.4 0.4 0.4 0.4 3 0.4 2.1 3.2 3.2 0 0 0 5 0 0 0 0 0 5 3.3 5 5 5 5 5 5 5 3.2 5 3.3 0 2.3 5 5 0 0 0 0 0 0 0 0 0 3.2 0 0.8 0.4 0.4 0.4 0.4 0.4 3.3 0 0 0 0 3.3 0 0 0 0 3.2 2.1 0 0.2 0.4 2 0.4 0.4 3.3 1.6 1.6 5 4.6 NO MARK : DVD STOP C764 C761 C762 C730 C740 C741 C724 C723 C722 C714 C713 C718 C712 C711 C709 C772 C767 C773 C771 R721 C720 R724 R726 R725 R720 C760 C763 C706 R767 R765 C774 C775 C702 C781 C776 C742 R760 C777 C721 C766 C725 TP701 TP702 C752 R780 R781 IC703(2/2) R728 R727 C521 C729 R799 C703 R706 R702 R703 R716 R718 R717 R719 R715 R713 R764 R763 R750 IC703(1/2) R778 C779 C780 R743 R744 R731 IC706 R776 R545 BUFFER C523 R544 R538 R541 R540 R772 C727 R747 R729 R701 R771 FL704 FL705 FL706 FL701 FL703 FL702 IC701 DVD DECODER R762 C770 C778 C768 C769 C765 R777 R746 R745 R742 R741 C744 R705 R737 R704 R735 C743 R732 R730 C745 C726 C716 C717 C715 COMPARATOR R748 R709 C708 R708 R707 R714 R710 R711 R712 C728 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.1 F 0.01 B 0.01 B 0.1 F 0.1 F 0.01 B 100p CH 0.01 0.1 F 0.1 0.01 B 0.47 B 0.047 B 33k 0.1 B 1k 100k 1.8k 1k 0.01 B 0.01 B 0.1 F 47k 22k 0.0047 0.01 B 100 4V 10 10V 0.1 F 0.01 B 0 0.01 B 0.1 B 100p 0.1 F 0.1 0 0 NJM12904V(TE2) 10k 3.3k 0.0015 10 10V 0 0.1 10k 10k 10k 100 10k 100k 1k 10k 10k 1M 8.2k 10k NJM12904V(TE2) 100k 10 10V 10 10V 22 22 22 MSM51V18165F-60TSKR 16Mbit D-RAM 0 100k 0.0015 100k 100k 100k 10k 22 10 10V 33k 8.2k 680 2.2k 0UH (2012) 0UH (2012) 0UH (2012) 0UH (2012) 0UH (2012) 0UH (2012) TMC57929PGF -RDP 22k 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0 47k 47k 22 22 0.01 B 10k 10k 10k 10k 0.01 B 10k 22 0.01 B 0.1 F 0.47 B 0.01 B 0.0015 33k 150k 0.01 470k 100 10k 10k 2.2k 10k 0.1 B 19 18 Ver. 1.6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 18 HCD-FR1/FR8/FR9 HCD-FR1/FR8/FR9 3-10. SCHEMATIC DIAGRAM — DMB08 BOARD (4/10) — IC B/D IC B/D IC B/D IC B/D IC B/D 3.3 0 3.3 2.5 3.2 0 3.3 0 0 0 0 0 0 0 0 3.3 5.1 5.1 0 2.2 0.8 3.3 0 0 3.3 0 0 0 0 0 0 0 3.3 3.2 0 0 1.5 1.2 3.2 0 0 3.2 0 0 0 0 0 0.8 3.2 3.2 3.2 3.2 3.2 0 0 0 0 0 2.5 0 0 3.2 0 0 0 0 0 0 3.2 0 0 0 0 0 0 0 0 0 0 0 0 0 3.2 3.2 0 2.5 3.2 3.2 3.2 0 0.7 3.2 3.3 3.3 3.3 3.2 3.2 0.2 2.5 0.9 2.5 3.3 3.3 3.3 2.5 3.3 0 0 0 2.5 2.5 0 0 0 0.7 2.5 3.2 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 2.5 2.5 3.2 0 0 0 0 3.3 0 0 0 0 3.3 0.8 3.2 0 0 0 0 0 0 3.2 0 0 0 3.3 0 3.3 0 0 0 0 3.2 3.2 3.2 0 0 0 0 0 0 3.3 NO MARK : DVD STOP R827 C808 SL811 SL812 C813 R808 C805 C843 C812 C811 C838 C839 C803 C848 C817 C818 C871 C867 C866 C857 C856 C855 C861 R828 R831 R847 R839 R842 C842 C854 R800 SL813 R804 R805 FL812 FL811 R806 LEVEL SHIFT FL810 FL807 IC812 IC813 IC801 DSD DECODER C796 C849 C837 C804 C819 R830 R829 C807 C810 R867 R823 R822 R821 R848 R849 R850 R826 C865 C870 R803 C815 C797 R889 R888 R887 R886 R885 R884 R883 R882 IC704 IC808 16Mbit SD-RAM LEVEL SHIFT +2.5V REG C840 C802 C841 IC814 100 100p 0.01 10k 0.01 B 0.01 B 0.01 0.01 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 4.7k 33k 22 4.7k 10k 0.01 B 0.01 B 4.7k 0 10k POWER-EMIS (3216) POWER-EMIS 0 0UH (2012) 0UH (2012) SN74LV245APWR SN74LV245APWR CXD2753R 0.1 F 0.01 0.01 B 0.01 B 0.01 B 4.7k 100 0.01 B 0.01 B 0 22 22 22 22 22 22 22 0.01 B 33000p 100 0.01 B 100 4V 10k 10k 10k 10k 10k 10k 10k 10k TK11125CSCL-G MSM56V16160F-8TK 7R1 10 10V 10 10V 10 10V SN74AHC2G157HDCU3 17 19 SACD/DVD SELECT Ver. 1.6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 19 HCD-FR1/FR8/FR9 HCD-FR1/FR8/FR9 3-11. SCHEMATIC DIAGRAM — DMB08 BOARD (5/10) — 3 17 (3/10) 18 10 5 9 8 7 6 IC B/D IC B/D 3.2 3.2 3.2 3.2 0 0 3.2 3.2 0 0 0 0 3.2 3.2 2.5 2.5 2.6 2.6 0 0 0 0 0 3.2 0 0 3.2 3.2 0 0 0 3.2 3.2 3.1 3.2 1.5 1.5 3.2 1.6 1.6 0.6 0 3.2 3.2 0 3.2 3.1 3.1 3.2 3.2 3.2 0 0 3.2 0 0 0 3.2 1.6 1.6 1.1 1.6 3.3 1.6 1.1 1.6 3.2 3.2 0 3.2 0.5 0 0 3.2 3.2 3.2 3.2 3.2 3.2 0 3.2 0 0 0 0 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 4.1 4.1 0 0 0 5 3.2 0 3.1 3.2 1.2 1.4 1.4 3.2 3.2 0.1 3.2 3.2 3.2 3.2 3.2 0.6 3.2 0.6 0.6 NO MARK : DVD STOP C302 C308 C309 C310 C311 IC802 L301 Q301 R303 R304 R305 R306 R307 R308 R311 R312 R316 R317 R318 R321 R323 R326 R327 R328 R329 R330 R335 R344 R346 R350 R354 R355 R357 R358 R361 R364 R738 R356 FL303 FL304 FL301 X302 R362 IC302 C317 C320 IC803 R325 JL301 JL302 JL303 JL304 JL305 JL306 JL307 CL302 CL303 CL301 CL304 IC301 R333 R324 C307 C304 R331 R360 R332 R337 R359 R353 C316 C313 IC303 CLOCK GENERATOR FILP-FLOP SWITCHING C318 C809 R363 CN301 C301 C303 C312 X301 0.01 B 33000p 100p 100p 0.01 B TC7S32FU(TE85R) DTC114EKA-T146 LASER DIODE SELECT 22 22 10k 22 22 22 22 10k 10k 100 100 100 100 100 100 100 100 100 22 1k 1k 100 1M 22 68 68 10k 4.7k 22 68 0UH (2012) 0UH (2012) 0UH (2012) 27MHz 150 BR24L16F-WE2 EEPROM 12p 0.01 B SN74AHC2G74HDCUR 33k CXP973064-245R MECHANISM CONTROLLER 10k 0 0.01 B 0.01 B 220 10k 10k 100 10k 10k 10 16V 0.1 F SM8707GV -G-E2 12p 0.01 10k 10 10V 0.01 B 10 10V 20MHz 7P Ver. 1.6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 20 HCD-FR1/FR8/FR9 HCD-FR1/FR8/FR9 3-12. SCHEMATIC DIAGRAM — DMB08 BOARD (6/10) — 22 21 16 18 IC B/D IC B/D IC B/D 3.3 0 0 4.9 4 0 1.7 1.6 1.6 3.3 3.2 3.2 1.6 1.6 1.6 0 3.3 3.3 3.3 4.8 3.3 2.9 2.9 3.2 3.3 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 3.3 0 0 0 0 0 0 0 0 0 0 0 0 0 3.3 0 0 0 0 3.3 0 0 0 0 0 3.3 0 0 0 0 2.5 1.6 1.6 1.6 1.6 1.6 1.6 1.6 4.7 2.5 4.7 3.2 3 3.2 0 1 0 1.7 1.7 3.3 1.6 2.6 0 1.6 1.7 1.6 3.3 1.6 1 2.6 3.3 2.6 1.6 2.6 1.6 0 1.6 1.7 3.3 1.7 0 0 0 0 0 2.5 2.5 1 1.7 1.6 1.6 3.3 0 4.7 0 4.6 0 2.6 3.3 3.3 3.3 3.3 3.3 0 3.3 0 2.6 0 0 0 0 0 0 0 0 3.3 0 0 0 0 2.6 2.7 0 0 0 0 0 2.5 3.3 0 4.7 0 0 0 0 0 0 0 3.3 0 0 0 0 0 2.5 0 0 0 0 0 0 0 0 NO MARK : DVD STOP C603 C609 C612 C613 C616 C617 C636 C643 C648 C652 C667 C674 L602 R602 R608 R634 R639 R640 R642 R655 R658 R661 R662 R664 R666 R667 R679 R680 R687 R673 R674 R675 R676 R677 R672 R628 R631 R616 C634 R603 R604 R606 R629 R623 C664 C611 C626 C627 C635 C637 C640 C642 C644 C646 C647 C650 C653 C661 C665 C666 C668 C669 C670 C671 C675 C679 C673 IC612 R698 R699 R637 R688 R691 R697 R995 R996 IC604 R605 R607 R645 C629 IC607 R740 R768 C632 R898 FL603 C651 R663 C660 FL604 R671 R997 C672 R678 R998 R659 X601 R648 R689 R994 FL607 FL606 R692 R625 R600 C604 C608 X600 R615 R611 R614 IC606 C641 22p 0.1 10 10 0.1 0.1 0.1 220 4V 0.1 220 4V 10 10 1M 3.3k 1k 100 100 100 100 100 100 100 100 100 100 100 100 1k 220 220 220 220 220 100 100 100 5.6k 0.1 100 100 100 100 100 10 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 CXD9742Q DIGITAL AUDIO PROCESSOR 10k 2.2k 2.2k 0 4.7k 4.7k 4.7k 4.7k IS61LV6416 -10TLT S-RAM 1k 100 1M 15p 1k 0 15p 10k 0UH 0.01 100 0.01 0UH 100 4.7k 0.01 4.7k 4.7k 33 13.9MHz 33 10k 4.7k 0UH 0UH 2.2k 3.3k 100 56p 0.1 12.288MHz 4.7k 100 33k LC89056W-E DIGITAL AUDIO INTERFACE 0.01 CXD9718BQ DIGITAL AUDIO SIGNAL PROCESSOR Ver 1.2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 21 HCD-FR1/FR8/FR9 HCD-FR1/FR8/FR9 3-13. SCHEMATIC DIAGRAM — DMB08 BOARD (7/10) — IC B/D IC B/D 3.3 2.5 3.3 3.3 1.6 3.3 1.5 2.5 1.6 1.6 0 1.7 4.7 4.7 4.7 3.8 2.1 2.1 2.1 2.1 2.1 4.8 2.5 5 2.5 2.5 4.4 3.1 3.1 10 4.4 3.1 3.1 10 12 NO MARK : DVD STOP 5 IC601 C607 0.1 5 10 IC600 uPC2905T-E1 C606 100 6.3V C605 0.1 IC600 REG C552 C600 C601 REG C602 C618 C624 C628 C631 C638 C639 C657 IC601 IC605 L600 R609 R612 R613 R618 R619 R626 R627 R630 R657 IC609 L601 R621 R622 R624 C633 R683 R739 R599 R601 C630 FL605 C622 C610 R590 C620 C619 C615 R610 LOW-PASS FILTER C655 IC608 C625 C614 IC603 0.1 0.1 0.1 100 10 16V 0.1 10 16V 0.1 0.1 0.1 0.1 NJM2391DL1 -26(TE1) 470 47k 4.7k 4.7k 47k 1k 2.2k 470 1k PCM1802DBR A/D CONVERTER 100 100 100 0.1 2.2k 4.7k 0 0 10 10V 0UH 10 16V 47 6.3V 1k 0.1 0.1 0.1 2.2k 100 6.3V AK4381VT-E2 D/A CONVERTER REG 1 50V 1 50V NJM12904V(TE2) 20 22 Ver. 1.6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 22 HCD-FR1/FR8/FR9 HCD-FR1/FR8/FR9 3-14. SCHEMATIC DIAGRAM — DMB08 BOARD (8/10) — C901 C917 C922 C925 CN900 FB901 JW903 Q900 Q906 Q907 Q908 Q909 Q910 R900 R902 R907 R917 R931 R932 R944 R950 R951 R954 R955 R957 R967 R977 R978 R979 R980 R985 R986 R987 R992 R910 R685 C916 C928 C909 Q901 R897 R972 C926 R896 R945 R964 R919 R991 R941 FB902 R895 R894 R990 R899 IC907 C932 TP900 TP901 TP902 X901 R949 R929 R935 22k:FR8 10k:FR9 no mount:FR1 10k:FR1 47k:FR8 no mount:FR9 R969 R989 Q902 R962 C914 R960 TP903 R936 R926 R968 C913 R922 R901 R903 R905 R904 C900 C918 R943 R942 C905 C906 C907 R971 R933 Q903 TP904 TP905 R918 R959 R939 R908 R909 R911 R912 R913 R914 R915 R916 JW900 R906 R961 C927 D900 D901 C911 C910 C912 D907 D902 IC900 IC903 D904 Q913 R981 4.7k 22k R963 IC901 D903 0.01 0.1 0.1 0.1 8P 0UH 0 DTA114EKA -T146 2SC2712-GL -TE85L 2SC2712-GL -TE85L DTC124EKA -T146 DTC124EKA -T146 DTC124EKA -T146 100 100 3.3k 820 1k 10k 10k 47k 10k 10k 10k 10k 100 22k 1k 47k 47k 470k 47k 47k 10k 100 10k 0.1 0.1 0.22 16V 2SC2412K-T -146-QR 10k 10k 0.1 47k 47k 100k 2.2k 10k 10k 0 10k 2.2k 10k PST3645NR 0.1 20MHz 10k 8.2k 0 DTA114EKA-T146 10k 0.01 10k 3.3k 100 100 0.01 10k 100 100 100 100 0.1 100p 10k 10k 330p 330p 0.001 10k 4.7k 2SC2712-GL-TE85L INVERTER 820 0 10k 10k 10k 2.2k 2.2k 2.2k 2.2k 2.2k 100 100 3.3k 10k 1SR154-400TE-25 1SR154-400TE-25 47 6.3V 0.22 5.5V 47 6.3V 1SS355TE-17 1SS355TE-17 TC74HCT7007AF (EL) PST3241NL KDS160-RTK 2SA1037AK -T146-QR KDS160-RTK 10k 0.1 20 21 17 IC B/D SWITCH SYSTEM CONTROLLER MUTING CONTROL DISC INSERT DETECT Q906, Q907 SIRCS DETECT KEY INPUT DETECT RESET SIGNAL GENERATOR Q901 RESET SWITCH LEVEL SHIFT Q908-Q910 ENABLE SWITCH M60-3BA-A uPD703033BYGF- C921 0.1 4.6 4.7 4.7 4.8 0 3.3 1.5 1.5 4.7 4.7 4.9 4.7 4.6 4.7 4.7 6 4.7 5 0 0 4.8 0 4.7 4.7 4.8 0 4.7 4.8 4.7 0 4.7 4.7 4.8 4.7 4.2 0 4.4 4.6 0 4.8 4.8 0 4.8 4.8 3.2 4.8 0 4.7 3.2 0 4.6 4.6 4.6 4.7 4.6 4.7 4.7 4.7 5.1 0 0.1 0 0 0 0 5 4.6 4.7 4.7 0 4.7 4 0 4.1 4.1 4.7 4.1 4.6 4.6 0 0 0 4.7 4.7 4.7 2.2 4.7 4.6 3.1 5 4.7 3.3 4.8 0 0 4.8 4.8 4.8 4.8 4.6 4.8 0 0 2.7 2.7 0 0 4.7 3.3 5 0 0 0 0 5 0 0 3.3 5 0 0 5 4.7 5 0 0 4.8 4.7 4.7 4.7 0 0 0.7 4.8 4.8 0 NO MARK : DVD STOP 1 2 3 4 5 6 7 8 9 10 11 12 13 14 28 27 26 25 24 23 22 21 20 19 18 17 16 15 C902 0.1 R925 100 C908 10 R973 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 28 27 26 25 24 23 22 21 20 19 18 17 16 15 R092 0 R921 100 R894 10K IORST IODATA1 R920 100 R093 0 RB901 10K IOCLK IOLAT1 SEN2 SEN3 SEN4 SEN5 SEN6 SEN7 SEN8 MA1 MA2 MB1 MB2 MC1 MC2 R953 100 IC902 PT8300R-TP IC906 PT8300R-TP R928 0 IORST RB902 10K R094 0 C924 0.1 PARA-DO2 R924 100 MEN11 MEN10 MEN12 MEN13 MEN20 MEN21 MEN22 MEN23 R927 100 R930 10K SEN2 SEN2 SEN3 SEN3 SEN4 SEN4 SEN5 SEN5 SEN6 SEN6 SEN7 SEN7 SEN8 SEN8 MEN10 MEN10 MEN11 MEN11 MEN12 MEN12 MEN13 MEN13 MEN20 MEN20 MEN21 MEN21 MEN22 MEN22 MEN23 MEN23 MA1 MA1 MA2 MA2 MB1 MB1 MB2 MB2 MC1 MC1 MC2 MC2 4.8 4.4 4.3 5.1 5.1 5.1 0 5.1 5.1 0 0 5 0 4.6 0.2 5 5.1 5.1 5.1 5.1 5.1 0 0.4 4.7 4.5 4.8 4.4 4.3 5.1 5.1 5.1 0 5.1 5.1 0 0 5 0 0.4 4.8 5 5.1 5.1 5.1 5.1 5.1 0 0.4 4.7 4.5 TRANSLATION CONTROLLER IC902 TRANSLATION CONTROLLER IC906 C923 0.1 Q914 SC2712-GL -TE85L R984 47K R983 47K D906 KDS160-RTK 4.7 0 Q914 SIRCS DETECT R938 220 R966 220 R1000 220 R1005 220 R1006 220 R1007 220 R1008 220 R1009 220 R1010 220 R1011 220 R1012 220 R1001 220 R1002 220 R1003 220 R1004 220 R940 220 Ver. 1.6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 23 HCD-FR1/FR8/FR9 HCD-FR1/FR8/FR9 3-15. SCHEMATIC DIAGRAM — DMB08 BOARD (9/10) — 11 12 13 14 15 IC B/D IC B/D 4 4.1 3.2 2.4 3.3 3.3 0 0 0 0 1.8 0 0 0 0 3.2 5.1 3.2 5.1 2.3 3.1 3.1 0 0 0 5.1 0 3.1 3.2 3.2 3.3 0.2 3.2 3.2 3.2 0.1 4.7 1.8 0 0 3.3 0 0 * 0 * * * * 0 2.7 0 0 0 3.3 2.7 0 2.7 3.3 2.7 3.2 3.2 3.2 3.2 3.2 3.2 1.8 3.3 0.1 0.1 0.8 0.4 1.1 1.2 1.1 0.6 0.4 0.2 3.3 2.1 0.2 2.3 1.1 2.5 3 3 0 3 3.3 3.3 3.3 3.3 3.3 0 0 1.6 0 0 3.3 3.3 3.3 3.3 1.3 1.3 3.3 3.3 0.4 3.3 0.4 3.3 0.7 3.3 0.7 3.3 0.9 3.3 3.2 3.3 0 0 0 0 1.8 3.3 0.5 0.2 0.3 0.8 3.3 0.4 0.3 0.3 0.4 0.3 0.5 0.3 0.8 0.6 3.2 0.4 1.2 0.5 1 0.7 1.8 0.7 0.8 0.7 0.5 3.3 0.4 0.5 1 0.7 1.2 0.6 0.4 0.9 0.6 3.3 0.4 0.5 0.6 0.9 0.8 1.8 3.3 2.9 * 2.7 * 2.7 0 3.3 * 2.7 * 0 0 0 0 0 0 0 3.3 2.7 * * 0 0 * 3.2 3.2 3.2 3.2 3.3 3.2 0 0 0 3.2 0 0 0 0 0 0 0 3.3 0 0 0 3.3 0.8 3.3 0.9 0.6 0.5 0.6 3.3 0.9 0.4 0.6 3.3 0.4 2.9 3 3 2.5 0.2 1.1 2.3 2.1 0.4 0.4 0.6 0.4 3.3 0.7 1 0.5 3.3 1.2 0.6 0.8 0.3 3.3 0.5 3.3 0.7 0.8 0.7 3.3 0.5 0.5 1 0.7 3.3 1.2 0.4 1.8 3 0.1 0.1 0.8 0.4 1.1 1.2 1.0 0.4 0.5 3.3 0.2 0.3 0.8 0.3 3.3 0.3 0.3 0.4 0 0 0 0 3.2 0 0 0 0 0 3.2 3.3 0 3.3 3.3 0 0 3.2 3.2 3.2 3.2 3.2 0 0 0 3.3 0 0 0 * * 0 2.7 * * 3.3 0 0 2.7 2.7 0 * 0 2.7 3.2 3.2 0 NO MARK : DVD STOP C201 C225 C254 C257 C264 C319 FB201 FB202 Q302 R202 R203 R212 R213 R226 R227 R228 R231 R233 R238 R239 R244 R246 R247 R249 R250 R252 R256 R241 R243 R215 R216 R217 R218 R219 R220 R221 R222 R223 R225 R232 R248 C274 C314 C315 C356 BUS INTERFACE R242 FL202 FL203 FL204 CL206 IC215 IC203 EEPROM R236 C217 C219 C234 128Mbit SD-RAM C239 C242 C245 C249 C258 C238 C226 C240 C241 C247 C251 C252 C260 C262 C270 C269 C271 C268 C267 C266 C265 C261 C259 C255 C250 C246 C243 C235 C228 C236 C233 C237 IC206 DVD SYSTEM PROCESSOR IC202 IC205 CL803 CL205 CL204 CL203 CL202 CL201 C248 C244 C204 R255 C253 C232 R210 R266 R234 R261 R265 R260 R257 R262 R207 R263 R208 R258 R259 R264 R209 R206 C230 C229 C231 R245 R253 R229 R230 C203 R224 C355 C263 CL801 220 4V 0.1 10 10 10 33p 0UH 0UH DTC114EKA -T146 0 180 0.5% 22 0 4.7k 33 33 33 10k 100 47k 4.7k 4.7k 4.7k 4.7k 4.7k 4.7k 4.7k 1k 1k 33 33 33 33 33 33 33 33 33 33 0 4.7k 0.01 0.01 0.01 0.01 10k 0UH (2012) 0UH (2012) 0UH (2012) XX TC47VCX16841FT (EL) BR9040F-WE2 1k 1/16W 0.5% 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B 0.01 B ZIVA5X-C2F-B HY57V283220T6 0.01 B 0.01 B 0.01 B 1k 0.01 B 0.01 B 75 75 75 0UH 75 0UH 0UH 75 75 75 75 0UH 0UH 75 75 0 0.01 B 0.01 B 0.01 B 4.7k 4.7k 33 33 0.01 B 33 0.01 0.01 B MR27V3202F-13BTP04B9 PROGRAMMABLE ROM INVERTER R204 820 Ver. 1.6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 24 HCD-FR1/FR8/FR9 HCD-FR1/FR8/FR9 3-16. SCHEMATIC DIAGRAM — DMB08 BOARD (10/10) — 3.3 5 3 5 5 6.2 5 6.2 1.8 3.3 5 4.9 3.3 * 4.9 4.9 3.3 C001 C003 C004 C005 C008 C010 C015 C017 C018 C019 C020 FB001 FB007 FB008 FB009 FB010 FB011 FB012 FB013 FB014 IC002 IC004 IC006 R019 R059 FB005 FB006 TP063 TP064 TP065 TP066 TP068 TP070 TP071 TP072 TP073 TP051 IC001 +3.3V REG C022 FB004 CN003 CN001 CN004 C011 C016 C014 R103 R097 R098 R099 R101 R102 R104 R033 R038 R040 R042 R044 R045 R046 CN008 CN002 R035 IC005 C903 R043 R064 C006 R027 R048 R049 R891 R892 TP001 TP002 TP003 TP004 TP005 TP006 TP007 TP008 TP009 TP010 TP011 TP012 TP013 TP014 TP015 TP016 TP017 TP019 TP020 TP104 TP021 TP022 TP038 TP048 TP067 TP018 TP105 TP076 TP023 TP024 TP025 TP026 TP027 TP028 TP029 TP037 TP039 TP040 TP041 TP042 TP043 TP044 TP077 TP045 TP046 TP047 TP049 TP052 R100 TP036 TP035 TP034 TP033 TP032 TP031 TP030 R050 R075 TP062 TP061 TP060 TP059 TP058 TP057 TP056 TP055 TP054 TP053 TP050 FL006 FL005 FL004 FL003 IC904 R890 TP075 TP074 CN005 TP084 TP085 TP083 TP079 TP080 TP081 TP082 TP078 TP086 TP087 TP088 TP089 TP090 TP091 TP092 TP093 TP094 TP095 TP096 TP097 TP098 TP099 TP100 TP101 TP102 TP103 CN006 R071 C009 C002 R012 R076 R085 R081 100 6.3V 100 47 16V 220 4V 0.1 0.1 0.1 0.1 0.1 0.1 220 4V 0UH 0UH 0UH 0UH 0UH 0UH 0UH 0UH 0UH 2.2k 0 0UH 0UH 100 4V 0UH 15P 9P 17P 0.1 0.1 0.1 1k 1k 1k 1k 1k 1k 1k 470 470 470 470 470 470 470 12P 29P 470 0.1 1k 1k 100 16V 100 100 100 100 100 1k 0UH PWR-EMIS 0UH 0UH TC7W34FUTE12R 100 17P 28P 0 0.01 0.01 220 0 0 0 100 100 32 33 35 12 27 27 +3.3V REG +5V REG +5V REG +1.8V REG BUFFER IC904 Ver. 1.6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 25 HCD-FR1/FR8/FR9 HCD-FR1/FR8/FR9 3-17. PRINTED WIRING BOARD — AMP BOARD (SIDE A) — • See page 7 for Circuit Boards Location. :Uses unleaded solder. IC303 IC101 IC102 IC103 IC104 IC105 IC106 IC107 IC305 IC108 IC109 IC110 IC301 1 2 A B C D E F 3 4 5 6 7 (22) 22 • Semiconductor Location Ref. No. Location IC101 D-6 IC102 D-5 IC103 D-5 IC104 D-4 IC105 D-3 IC106 D-2 IC107 D-1 IC108 E-4 IC109 E-3 IC110 E-2 IC301 E-6 IC303 C-7 IC305 E-5 Q102 B-6 Q104 B-7 Q106 B-4 Q108 B-4 Q110 B-3 Q112 B-3 Q114 B-1 Q301 E-1 Q304 C-1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 26 HCD-FR1/FR8/FR9 HCD-FR1/FR8/FR9 3-18. PRINTED WIRING BOARD — AMP BOARD (SIDE B) — • See page 7 for Circuit Boards Location. :Uses unleaded solder. (Page 38) K (Page 38) J (Page 38) SPK BOARD CN309 I C B HP BOARD CN811 (Page 39) H SPK BOARD CN311 SPK BOARD CN312 SWITCHING REGULATOR CN4 SWITCHING REGULATOR CN7 DMB08 BOARD CN004 (Page 13) DMB08 BOARD CN001 (Page 13) 22 (22) 1 2 A B C D E F 3 4 5 6 7 8 FAN 1 2 16 17 • Semiconductor Location Ref. No. Location D101 D-2 D102 D-3 D103 D-4 D104 D-4 D105 D-5 D106 D-6 D107 D-7 D201 D-3 D202 D-3 D203 D-4 D204 D-5 D205 D-6 D206 D-7 D207 D-7 D208 E-2 D303 D-7 D304 D-7 Q101 B-2 Q103 B-2 Q105 B-5 Q107 B-4 Q109 B-6 Q111 B-5 Q113 B-7 Q303 C-7 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 27 HCD-FR1/FR8/FR9 HCD-FR1/FR8/FR9 3-19. SCHEMATIC DIAGRAM — AMP BOARD (1/4) — 21 21 3.3 0.4 1.7 0 0 0 1.8 1.7 3.3 3.3 0 3 3.3 3.3 3.3 3.3 1.7 3.3 1.7 3.3 1.7 1.7 3.3 1.7 1.7 3.3 3.3 3.3 1.7 3.3 0 3 3.3 3.3 3.3 3.3 1.8 3.3 1.7 1.7 3.3 1.7 1.7 3.3 1.7 3.3 0.4 1.7 0 0 0 1.8 1.7 3.3 1.7 3.3 3.3 3.3 1.7 NO MARK : DVD STOP C332 C334 C333 SL302 IC109 C335 C337 C336 SL303 IC110 R310 R311 R312 R313 R314 R315 R300 R302 R303 R304 R305 R306 R308 R309 R325 C316 R378 R376 C313 C312 C311 R327 R329 C325 R380 C322 C321 C320 C326 R326 R319 TP314 TP315 TP316 TP317 TP318 TP319 TP301 TP302 TP303 TP304 TP305 TP306 TP307 TP308 TP309 TP310 TP343 TP312 TP342 R316 R317 R318 R344 TP329 TP331 R351 C406 TP395 TP360 TP361 TP368 CN301 CN302 C405 C404 C403 C402 C327 C328 R328 C318 C319 R324 R375 C314 R377 C315 C317 C324 C323 R379 R347 R345 47 16V 47 16V 47 16V CXD9788AR 47 16V 47 16V 47 16V CXD9788AR STREAM PROCESSOR STREAM PROCESSOR 100 1/10W 100 1/10W 100 1/10W 100 1/10W 100 1/10W 470 1/10W 470 1/10W 470 1/10W 470 1/10W 470 1/10W 470 1/10W 470 1/10W 0 0 0.1 25V F 560 1/10W 560 0.1 25V F 0.1 25V F 0.1 25V F 0 0 0.1 25V F 560 0.1 25V F 0.1 25V F 0.1 25V F 0.1 25V F 0 10k 1/10W 470 1/10W 470 1/10W 470 1/10W 470 1/10W 470 1/10W 0.0047 17P 9P 0.001 50V B 100p 50V CH 100p 50V CH 100p 50V CH 0.1 25V F 0.1 25V F 0 0.1 25V F 0.1 25V F 0 560 1/10W 0.1 25V F 560 0.1 25V 0.1 25V F 0.1 25V 0.1 25V F 560 1/10W 10k 1/10W 10k 1/10W 33 1/10W 24 24 29 30 28 Ver 1.2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 28 HCD-FR1/FR8/FR9 HCD-FR1/FR8/FR9 3-20. SCHEMATIC DIAGRAM — AMP BOARD (2/4) — 27 30 38 1.7 3.2 0 0 0 0 0 3.3 3.3 3.3 1.7 1.7 3.2 0 0 0 3.3 0 3.3 3.3 3.3 1.7 1.7 3.2 0 0 0 3.3 0 3.3 3.3 3.3 1.7 12 12 0 15 15 15 15 0 12 12 7.9 7.9 7.9 7.9 12 12 0 15 15 15 15 0 12 12 7.9 7.9 7.9 7.9 12 12 0 15 15 15 15 0 12 12 7.9 7.9 7.9 7.9 12 12 0 15 15 15 15 0 12 12 7.9 7.9 7.9 7.9 1.7 3.2 0 0 0 3.3 0 3.3 3.3 3.3 1.7 4.9 0 7.9 7.9 7.9 7.9 7.9 7.9 7.9 7.9 0 0 7.9 7.9 0 0 7.9 7.9 0 0 NO MARK : DVD STOP R134 R174 R204 R194 R154 R144 L134 L124 R135 R175 R205 R195 R145 L135 L125 R136 R176 R206 R196 R166 R156 R146 L136 L126 C385 Q301 R395 R411 R412 C396 R366 R410 R409 C395 R365 R137 R177 R207 R197 R167 R157 R147 L137 L127 R413 R414 C397 R367 D304 D303 C377 C372 C293 C294 R114 R115 R116 R117 R118 R119 R120 R233 R235 R237 C184 C154 C134 C164 C114 C104 C224 C214 C194 C185 C155 C135 C165 C115 C105 C225 C215 C195 C146 C186 C156 C166 C116 C226 C216 C196 D206 D106 D105 D205 D204 D104 C147 C187 C157 C137 C177 C167 C107 C197 C217 R227 R217 D207 D107 C158 R382 R431 R430 C207 C209 C271 C273 C274 R455 R454 R453 R452 R451 R450 R481 R482 R483 R484 R485 R486 C160 C168 IC104 IC105 IC107 R244 R245 R246 R247 R139 TP370 TP371 TP372 TP373 TP374 TP375 TP387 TP388 TP389 TP390 CN313 C227 C178 R381 R383 R384 C136 R155 C200 C199 C145 R165 R164 C144 C198 R214 C254 C287 C288 C264 R224 C174 C208 C255 C289 R215 R225 C265 C290 C175 C210 C106 C176 C272 C292 C266 R226 R216 C256 C291 C117 C267 C257 R128 C218 C180 Q114 Q113 Q112 Q111 Q110 Q109 R239 0 0 3.3 1/4W 3.3 1/4W 0 0 0 0 3.3 1/4W 3.3 1/4W 0 0 0 3.3 1/4W 3.3 1/4W 0 0 0 2.2 16V F KTC3875 PROTECT 100k 1/10W 100k 1/10W 100k 1/10W 10 10V 100k 1/10W 100k 1/10W 100k 1/10W 2.2 16V F 100k 1/10W 0 0 3.3 1/4W 3.3 1/4W 0 0 0 100k 1/10W 100k 1/10W 10 10V F 100k 1/10W 1SS355TE-17 1SS355TE-17 10 50V 1 50V 0.0022 50V B 0.0022 50V B 22k 22k 22k 22k 22k 22k 22k 100 100 100 0.033 50V B 0.033 50V B 0.01 25V B 0.22 50V B 1 16V F 1 16V F 1 50V 1 50V 2200 35V 0.033 50V B 0.033 50V B 0.01 25V B 0.22 50V B 1 16V F 1 16V F 1 50V 1 50V 0.1 25V F 0.033 50V B 0.033 50V B 0.22 50V B 1 16V F 1 50V 1 50V P6SMB39AT3 P6SMB39AT3 P6SMB39AT3 P6SMB39AT3 P6SMB39AT3 P6SMB39AT3 0.1 25V F 0.033 50V B 0.033 50V B 0.01 25V B 0.22 50V B 0.22 50V B 1 16V F 2200 35V 1 50V 2.7 1/8W 2.7 1/8W P6SMB39AT3 P6SMB39AT3 47 10V 560 1/10W 100k 1/10W 10k 1/10W 0.22 50V B 0.22 50V B 0.22 50V B 0.22 50V B 0.22 50V B 10k 1/10W 10k 1/10W 10k 1/10W 10k 1/10W 10k 1/10W 10k 1/10W 10k 1/10W 10k 1/10W 10k 1/10W 10k 1/10W 10k 1/10W 10k 1/10W 47p 50V CH 47p 50V CH CXD9774M POWER DRIVER CXD9774M POWER DRIVER IC106 CXD9774M POWER DRIVER CXD9774M POWER DRIVER 100 1/10W 100 1/10W 100 1/10W 100 1/10W 0 6P 3.95MM 1 50V 47p 50V CH 560 560 560 0.01 25V B 0 0.1 25V F 0.1 25V F 0.1 25V F 0 0 0.1 25V F 0.1 25V F 2.7 1/8W 0.0022 50V B 0.0022 50V B 0.0022 50V B 0.0022 50V B 2.7 1/8W 0.22 50V B 0.22 50V B 0.0022 50V B 0.0022 50V B 2.7 1/8W 2.7 1/8W 0.0022 50V B 0.0022 50V B 0.22 50V B 0.22 50V B 1 16V F 0.22 50V B 0.22 50V B 0.0022 50V B 0.0022 50V B 2.7 1/8W 2.7 1/8W 0.0022 50V B 0.0022 50V B 1 16V F 0.0022 50V B 0.0022 50V B 22k 0.1 25V F 47p 50V CH 2SA1602 TP-1EF 2SA1602 TP-1EF 2SA1602 TP-1EF 2SA1602 TP-1EF OVER LOAD DETECT 2SA1602 TP-1EF 2SA1602 TP-1EF 100 2200 35V 2200 35V Ver 1.2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 29 HCD-FR1/FR8/FR9 HCD-FR1/FR8/FR9 3-21. SCHEMATIC DIAGRAM — AMP BOARD (3/4) — 30 40 27 21 20 3.3 0.4 1.7 0 0 0 1.8 1.7 3.3 3.3 0 3 3.3 3.3 3.3 3.3 3.3 1.8 1.7 1.7 3.3 1.7 1.7 3.3 1.7 1.7 1.7 1.7 1.7 3.3 1.7 1.7 3.3 3.3 1.5 3.3 1.5 1.5 3.3 1.8 0 0 12 7 0 4.8 4.8 4.8 4.8 12 0 0 12 0 NO MARK : DVD STOP C367 C359 IC301 X450 49.152MHZ C380 FB301 CNP303 C329 C331 C330 SL301 IC108 C350 C370 IC303 C371 +1.8V REG CNP304 CNP305 CN300 CNP309 CNP310 C366 R342 R343 R340 R335 R334 C356 R338 C353 C354 R349 C363 R350 C351 R333 R332 R331 R394 C382 L302 R396 TP325 C306 R374 R373 R372 C303 C302 C309 C308 R322 R320 R323 R321 C355 R426 R427 R425 R429 TP320 TP321 TP322 TP324 TP392 TP391 TP327 TP328 R346 R348 TP330 C248 TP396 TP362 TP363 TP365 TP366 HEADPHONE AMP TP367 TP369 TP340 TP364 TP341 R428 C360 C361 C357 R341 C352 R337 R336 R339 C362 C358 C368 C374 C375 C381 C384 R393 C383 C301 R330 C310 C305 R371 Q303 Q304 IC305 R400 C304 0.1 25V F 470 10V RC4580IDR 220 10V 0UH OSC 5P BOARD IN 47 16V 47 16V 47 16V CXD9788AR STREAM PROCESSOR 0.1 50V B 0.1 25V F TK11118CSCL-G 0.01 25V B 4P BOARD IN 2P BOARD IN 2P 220 16V 33k 1/10W 22k 1/10W 22k 1/10W 100p 50V CH 24k 1/10W 100p 50V CH 100p 50V CH 2.2k 1/10W 0.1 25V F 2.7k 1/10W 100p 50V CH 22k 1/10W 22k 1/10W 22k 1/10W 1M 1/10W 0.001 50V B 100 1/10W 0.1 25V F 560 1/10W 560 560 0.1 25V F 0.1 25V F 0.1 25V F 0.1 25V F 10k 1/10W 0 0 0 100 16V 4.7k 1/10W 470 1/10W 470 1/10W 47 16V 47k 1/10W 0.1 25V F 47 25V 100p 50V CH 33k 100p 50V 22k 1/10W 22k 1/10W 24k 1/10W 100 10V 470 10V 0.01 25V B 0.01 25V B 100 16V 0.01 25V B 5p 50V CH 22 10p 50V CH 0.1 25V F 22k 1/10W 0.1 25V F 0.1 25V F 560 1/10W 2SB1013-TP-34 KRC103S Q303,Q304 FAN DRIVE MC74VHC1GU04DFT1 100k 1/10W 0.1 25V F 0UH 0UH 560 1/10W 560 1/10W 470 1/10W Ver 1.2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 30 HCD-FR1/FR8/FR9 HCD-FR1/FR8/FR9 3-22. SCHEMATIC DIAGRAM — AMP BOARD (4/4) — 27 29 28 38 38 1.7 3.2 0 0 0 3.3 0 3.3 3.3 3.3 1.7 12 12 0 15 15 15 15 0 12 12 7.9 7.9 7.9 7.9 1.7 3.2 0 0 0 3.3 0 3.3 3.3 3.3 1.7 12 12 0 15 15 15 15 0 12 12 7.9 7.9 7.9 7.9 1.7 3.2 0 0 0 3.3 0 3.3 3.3 3.3 1.7 12 12 0 15 15 15 15 0 12 12 7.9 7.9 7.9 7.9 7.9 7.9 0 0 7.9 7.9 7.9 0 0 7.9 7.9 7.9 0 0 0 0 7.9 7.9 7.9 7.9 7.9 7.9 7.9 7.9 NO MARK : DVD STOP R131 R171 R201 R191 R161 R151 R141 L131 L121 C251 C261 R132 R172 R202 R192 R162 R152 R142 L132 L122 R133 R173 R203 R193 R163 R153 R143 L133 L123 R402 R401 C391 R361 R404 R403 C392 R362 R406 R405 C393 R363 R408 R407 C394 R364 C281 C282 CN307 R108 R109 R110 R111 R112 R113 R229 R231 CN306 C275 C276 C277 C278 R494 R495 R496 R497 C141 C181 C151 C171 C161 C101 C221 C211 R221 R211 C182 C152 C132 C162 C102 C222 C212 R222 R212 C192 C183 C153 C113 C103 C223 C213 R223 R213 C193 D103 D203 D202 D102 D101 D201 C201 C202 C203 R462 R461 R460 R459 R457 R456 R458 R487 R488 R489 R490 R491 R492 R493 C138 R463 IC101 IC102 IC103 C189 C190 R241 R242 R243 TP376 TP377 TP378 TP379 TP380 TP381 TP382 TP383 TP385 TP386 TP384 D208 C143 C133 C149 C148 C142 C188 R129 C131 C191 C111 C172 C204 C112 POWER DRIVER C205 C163 C253 C285 C286 C263 C173 C206 C262 C284 C252 C283 R464 Q108 Q107 Q106 Q105 Q104 Q103 Q101 Q102 0 0 3.3 1/4W 3.3 1/4W 0 0 0 0.0022 50V B 0.0022 50V B 0 0 3.3 1/4W 3.3 1/4W 0 0 0 0 0 3.3 1/4W 3.3 1/4W 0 0 0 100k 1/10W 100k 1/10W 2.2 16V F 100k 1/10W 100k 1/10W 100k 1/10W 2.2 16V F 100k 1/10W 100k 1/10W 100k Q105,Q106 OVER LOAD DETECT Q107,Q108 OVER LOAD DETECT Q103,Q104 OVER LOAD DETECT Q101,Q102 OVER LOAD DETECT 1/10W 2.2 16V F 100k 1/10W 100k 1/10W 100k 1/10W 2.2 16V F 100k 1/10W 0.0022 50V B 0.0022 50V B 4P EH-S 2.5MM 22k 22k 22k 22k 22k 22k 100 100 4P EH-S 2.5MM 0.001 50V 0.001 50V 0.001 50V 0.001 50V 10k 10k 10k 10k 0.1 25V F 0.033 50V B 0.033 50V B 0.22 50V B 0.22 50V B 1 16V F 1 50V 1 50V 2.7 1/8W 2.7 1/8W 0.033 50V B 0.033 50V B 0.01 25V B 0.22 50V B 1 16V F 1 50V 1 50V 2.7 1/8W 2.7 1/8W 2200 35V 0.033 50V B 0.033 50V B 1 16V POWER DRIVER F 1 16V F 1 50V 1 50V 2.7 1/8W 2.7 1/8W 2200 35V P6SMB39AT3 P6SMB39AT3 P6SMB39AT3 P6SMB39AT3 P6SMB39AT3 P6SMB39AT3 0.22 50V B 0.22 50V B 0.22 50V B 10k 1/10W 10k 1/10W 10k 1/10W 10k 1/10W 10k 1/10W 10k 1/10W 10k 1/10W 10k 1/10W 10k 1/10W 10k 1/10W 10k 1/10W 10k 1/10W 10k 1/10W 10k 1/10W 47p 50V CH 10k 1/10W CXD9774M POWER DRIVER CXD9774M CXD9774M 0.1 25V F 0.1 25V F 100 1/10W 100 1/10W 100 1/10W MA8027-H-TX 0.1 25V F 0.01 25V 47p 50V CH 47p 50V CH 0.1 25V F 0.1 25V F 100 0.01 25V B 2200 35V 1 16V F 0.22 50V B 0.22 50V B 1 16V F 0.22 50V B 0.22 50V B 0.0022 50V B 0.0022 50V B 0.0022 50V B 0.0022 50V B 0.22 50V B 0.22 50V B 0.0022 50V B 0.0022 50V B 0.0022 50V B 0.0022 50V B 10k 1/10W 2SA1602 TP-1EF 2SA1602 TP-1EF 2SA1602 TP-1EF 2SA1602 TP-1EF 2SA1602 TP-1EF 2SA1602 TP-1EF 2SA1602 TP-1EF 2SA1602 TP-1EF Ver 1.2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 31 HCD-FR1/FR8/FR9 HCD-FR1/FR8/FR9 3-23. PRINTED WIRING BOARD — IO BOARD — • See page 7 for Circuit Boards Location. :Uses unleaded solder. TUNER UNIT DMB08 BOARD CN003 (Page 13) F DMB08 BOARD CN002 (Page 13) E IC603 IC602 IC605 3 1 2 4 OPTICAL DIGITAL IN SURROUND BACK VIDEO SAT PB/CB PR/CR Y VIDEO S VIDEO (DVD ONLY) MONITOR OUT COMPONENT VIDEO OUT L R IC201 IC606 1 2 A B C D E F 3 4 5 6 7 8 9 10 • Semiconductor Location Ref. No. Location IC201 B-6 IC602 F-2 IC603 A-7 IC605 F-3 IC606 E-6 Q101 A-7 Q102 B-1 Q604 F-6 Q605 F-6 Q606 F-3 Q607 F-6 Ver 1.2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 32 HCD-FR1/FR8/FR9 HCD-FR1/FR8/FR9 3-24. SCHEMATIC DIAGRAM — IO BOARD (1/2) — IC B/D IC B/D 6.9 1.5 0.9 1.5 0.9 6.9 5 5 5 5 10 5 5 5 5 0 0 4.8 0 4.8 0 3.3 0.2 0 0 0 0 0 0 10 4 3.5 3.5 4 4 4 5 0 0 0 0 NO MARK : DVD STOP IC603 TP101 TP102 TP103 TP104 TP105 TP106 TP107 TP602 TP601 C606 C605 C607 C608 J602 C632 C626 L601 R647 R656 IC603 L101 L602 TP603 TP604 TP201 TP605 TP606 TP607 TP608 TP609 TP610 TP611 TP612 TP613 TP614 TP615 TP616 TP617 C627 J601 IC602 C629 C633 J201 R650 R653 C628 R654 C625 R103 C645 C631 CN601 R648 R652 C638 R128 R605 IC606 R114 C101 C102 R110 C212 R609 C103 C108 C624 R633 R634 R635 R636 R631 C612 R632 C611 C610 R630 R629 C609 R622 R623 R624 R621 R628 R627 R626 R625 C604 R604 R603 R602 R119 R601 R118 R116 C111 R111 R107 C105 C106 R108 C107 R113 R112 R101 CN102 R607 R608 R115 R117 C603 C112 Q607 Q606 C635 R645 C636 R657 R649 C634 R655 R651 C646 R661 C637 IC605 Q604 Q605 C109 0.018 C110 0.018 Q101 Q102 C639 R659 R664 R106 R109 R610 22 25V 22 25V 22 25V 22 25V 1P 100 16V 0.1 10k 47k TORX141L 22 25V 4P MC14052 BDR2 0.1 100p 1k 10k 220p 220 22 25V 0 100p 0.1 29P 10k 10k 100p 0 100 RC4580IDR 10k 220 16V 22 25V 1.5k 1.5k 6.8k 6.8k 47k 220p 50V 47k 220p 50V 220p 50V 47k 47k 220p 50V 10k 10k 10k 10k 10k 10k 10k 10k 100 16V 100 100 10k 33k 10k 33k 33k 22 25V 470k 1 1 470k 22 25V 6.8k 6.8k 0 11P 1k 1k 33k 0.1 22 25V DTC343TK-T-146 DTC343TK-T-146 0.01 100 220p 10k 33k 22 25V 33 2.2k 4.7k 220p 220 22 25V M62429FP-TP DTC124EK-T146 DTC124EK-T146 2SC2412K -T-146-QR 2SC2412K -T-146-QR 100 16V 1k 4.7k 10k 3P 220 33k 3300p 3300p 1000p 1000p 220 33k 1k 1k 24 OPTICAL RECEIVER AMP AMP Q604, Q605 INVERTER INVERTER AMP CONVERTER Q606, Q607 MUTE DRIVE Ver 1.2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 33 HCD-FR1/FR8/FR9 HCD-FR1/FR8/FR9 3-25. SCHEMATIC DIAGRAM — IO BOARD (2/2) — 22 24 25 26 23 IC B/D 5 0 2.4 0 2.4 2.3 2.4 1.5 1.1 5 2.3 4.8 1.7 5 1.5 0 0 2.3 3.5 2.3 4.8 2.3 NO MARK : DVD STOP C227 C235 C240 TP213 C241 C239 L209 R230 R229 R228 C225 TP202 TP203 TP204 TP205 TP206 TP207 TP208 TP209 TP210 TP211 TP212 R226 R225 C217 C216 L214 C234 R224 R227 C224 CN201 C278 C222 C223 C221 C218 R204 J202 C238 R234 C229 R203 R235 IC201 VIDEO AMP 75 ohm DRIVER 22 25V 1000 6.3V 1000 6.3V 1000 6.3V 1000 6.3V 75 75 75 0.1 75 100 16V 15P 10 50V 1 10V 1 10V 1 10V 100p 50V 1k 0.1 1k MM1623BFBE 75 0.1 10 50V 0 0.1 10k 75 2P 1000 6.3V 10k 10k 32 24 Ver 1.2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 34 HCD-FR1/FR8/FR9 HCD-FR1/FR8/FR9 3-26. PRINTED WIRING BOARD — DDCON BOARD — • See page 7 for Circuit Boards Location. :Uses unleaded solder. IC802 O FL BOARD CN803 (Page 36) P DISC KEY BOARD CN804 (Page 39) 14 15 D DMB08 BOARD CN005 (Page 13) 1 2 A B C D 3 4 5 6 7 • Semiconductor Location Ref. No. Location D810 C-5 D811 C-5 D813 C-5 D814 C-5 D815 C-3 IC802 A-2 Q802 C-6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 35 HCD-FR1/FR8/FR9 HCD-FR1/FR8/FR9 3-27. SCHEMATIC DIAGRAM — DDCON BOARD — 19 0.1 0.1 5 5 0 0 0 0 0 0 0 0 0 0 0 0 0 0 6 NO MARK : DVD STOP FB808 TP841 TP843 TP842 TP845 TP846 TP847 TP848 TP849 TP851 TP840 TP839 TP838 TP835 R806 C818 C835 R841 C836 FB806 TP844 TP850 T801 FB001 FB002 FB003 C837 TP866 TP867 R815 L807 L806 L805 R839 R850 C830 L804 D815 D814 D813 D811 D810 Q802 R811 R804 CN801 C828 C817 C823 R823 R814 R817 R818 R819 C819 C821 C831 LED DRIVE C829 TP855 TP856 TP857 TP858 TP860 TP859 TP861 TP862 TP863 TP864 TP865 TP866 TP867 R826 R827 R829 R830 R831 R833 R834 R835 R837 R838 C826 CN800 R004 C827 C825 C824 C822 C820 IC802 C832 C833 C834 CN802 TP852 TP854 0UH 0 100 10V 0.01 50V 100 10 50V 0UH DC-DC CONVERTER 0UH 0UH 0UH 0.1 16V 0 33k 3.9k 0.022 50V UDZSTE-176.2B 1SS355TE-17 1SS355TE-17 1SS355TE-17 1SS355TE-17 CPH5504-TL-E JW JW 17P 0.1 16V 220p 50V 220p 50V 47k 100 100 100 100 220p 50V 220p 50V 1000p 50V 1000p 50V 820 820 820 820 820 820 820 820 820 820 22 10V 17P FFC S 24 JW 1000p 50V 1000p 50V 1000p 50V 1000p 50V 1000p 50V NJU3713G(TE2) 1000p 50V 1000p 50V 1000p 50V 13P 40 37 Ver 1.2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 36 HCD-FR1/FR8/FR9 HCD-FR1/FR8/FR9 3-28. PRINTED WIRING BOARD — FL BOARD — • See page 7 for Circuit Boards Location. :Uses unleaded solder. IC803 IC801 L CONTROL KEY BOARD CN810 (Page 39) O DDCON BOARD CN801 (Page 34) M PW KEY BOARD CN805 (Page 39) N SONY LAMP BOARD CN806 (Page 39) 1 2 A B C D E F 3 4 5 6 7 8 • Semiconductor Location Ref. No. Location IC801 D-7 IC803 D-5 Q810 D-7 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 37 HCD-FR1/FR8/FR9 HCD-FR1/FR8/FR9 3-29. SCHEMATIC DIAGRAM — FL BOARD — 40 35 40 40 4.6 5.0 5 -22.6 -20.5 -29 -29 -29 -27 -29 -31 -31 -29 -29 -29 -31 -29 -29 -27 -29 -24.8 -31 -31 -27 -31 -29 -29 -26.8 -29 -29 -31 -31 -29 5.0 0 4.8 4.7 4.7 2.1 2.2 5.0 -31 -29 -29 -29 -29 -29 -29 -29 -29 -29 -29 -29 -29 -31 -29 -29 -31 -31 -31 -31 0.6 0 NO MARK : DVD STOP TP822 R828 REMOTE C0NTROL RECEIVER R849 TP829 TP830 TP831 TP821 TP815 TP827 R851 TP814 TP811 TP812 TP825 TP816 C850 R840 TP828 TP824 C843 TP826 R843 C842 C849 TP813 IC801 TP823 C805 Q810 R844 R853 CNP808 CNP807 C847 C846 IC803 CN812 CN803 FB005 R877 FB807 C807 R879 C848 R852 R882 R878 R880 R881 C841 FL801 0 10k 100 47p 50V 3.3k 100p 50V 10k 0.001 50V 0.1 16V NJL73H400A 10 50V 2SC1623 LED DRIVE 100 100 2P 3P 0.015 25V 0.0022 50V ML9208-03MBZ03B FL DRIVER 7P 17P 0UH 1k 0UH 0.01 25V 2.2k 0.01 47 1k 2.2k 1k 1k 10 10V Ver 1.2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 38 HCD-FR1/FR8/FR9 HCD-FR1/FR8/FR9 3-30. PRINTED WIRING BOARD — SPK BOARD — • See page 7 for Circuit Boards Location. :Uses unleaded solder. 3-31. SCHEMATIC DIAGRAM — SPK BOARD — AMP BOARD CN307 (Page 26) AMP BOARD CN306 (Page 26) AMP BOARD CN313 (Page 26) - + - + SURR R FRONT R - + - + SURR L WOOFER FRONT L - + - + - + CENTER SPEAKER 1 2 A B C D E F 3 4 5 C482 C481 C485 C486 C483 C484 C492 GP307 CN312 CN311 TP332 TP333 TP334 TP335 TP336 TP337 TP338 TP353 TP354 TP355 TP358 TP359 TP360 TP340 TP350 TP351 TP349 TP346 TP347 TP344 TP342 TP343 TP341 TP345 TP348 TP339 TP362 TP361 C493 C494 CN309 C491 C488 C487 C496 C495 TB301 TB302 0.001 C481 0.001 50V B 0.001 C482 0.001 C485 0.001 C486 0.001 50V B 0.001 50V B TERMINAL GND 4P EH-S 2.5MM 4P EH-S 2.5MM 0.001 50V B 0.001 50V B 6P 3.96MM 0.001 50V B 0.001 50V B 0.001 50V B 0.001 50V B 0.001 50V B TERMINAL BOARD 5P TERMINAL BOARD 2P 30 30 28 Ver 1.2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 39 HCD-FR1/FR8/FR9 HCD-FR1/FR8/FR9 3-32. PRINTED WIRING BOARD — POWER/FRONT PANEL SECTION — • See page 7 for Circuit Boards Location. :Uses unleaded solder. AMP BOARD CNP303 (Page 26) FL BOARD CNP807 (Page 36) PHONES SONY AC IN SWITCHING REGULATOR FL BOARD CN803 (Page 36) - + VOLUME FUNCTION 1 2 A B C D E F G H I 3 4 5 6 7 8 9 10 11 12 13 FL BOARD CNP808 (Page 36) DISC 5 DISC 4 DISC 3 DISC 2 DISC 1 P DDCON BOARD CN802 (Page 34) • Semiconductor Location Ref. No. Location D800 G-5 D801 G-5 D802 G-9 D806 H-13 D807 H-11 D808 H-10 D809 H-9 D812 H-8 D823 D-5 D824 E-5 Q800 F-3 Q801 F-3 Q803 G-3 Q804 G-3 ✩ The TACTILE SWITCH (S800-818) on CONTROL KEY board, DISC KEY board and PW KEY board are depending on a suffix of each board. Please refer to SUPPLEMENT-3 of this manual at the time of replacement. Ver. 1.7 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 40 HCD-FR1/FR8/FR9 HCD-FR1/FR8/FR9 3-33. SCHEMATIC DIAGRAM — POWER/FRONT PANEL SECTION — 0 0 0 0 0 0 0 0 NO MARK : DVD STOP S807 S808 S809 FB800 L800 L801 TP873 TP872 R800 R803 TP869 TP874 TP870 TP875 TP876 S800 TP836 R809 R875 R876 R868 TP853 S816 S817 S801 S815 TP871 CN805 R807 TP837 R802 TP817 TP820 R801 TP818 TP819 R867 CN811 R805 CN809 R855 R854 S818 C811 C857 C851 C816 C852 C844 C845 FB805 FB802 FB803 FB810 L803 L802 CN900 CN901 JW902 JW901 C903 LF901 C878 C877 D823 D823,D824 D801 D800 C800 C802 C801 C803 C804 Q801 - Q804 MUTING C806 C853 C854 J800 R861 R860 C858 R866 R874 CN810 D802 D824 Q804 Q801 Q803 Q800 SW. KEY LS8J3M SW. KEY LS8J3M SW. KEY LS8J3M 0UH 4.7k 100 TACT SW LS8J3M 0 22k 47k 2.2k SW. KEY LS8J3M SW. KEY LS8J3M SW. KEY LS8J3M SW. KEY LS8J3M 3P 100 100 4.7k 0 5P 100 0.1 1000p 50V 0.1 25V 0.1 25V 0.1 25V 0.1 25V 0.1 25V 0UH 0UH 0UH 0UH 2P 2P JW JW 0.22 1SS355TE-17 1SS355TE-17 0.01 0.01 0.1 0.0047 0.0047 2.2k 0 820p 50V 4.7k 10k 7P SML-512UWT86 DTC343TK-T-146 DTC343TK-T-146 DTC343TK-T-146 DTC343TK-T-146 TACT SW LS8J3M 2P 100 100 0.001 0.001 SML512WBC1AR 0.001 47p 47p SML-512WBC1AR S810 S806 S814 S805 S813 S804 S812 S803 S811 S802 R865 R864 R863 R873 R862 R872 R870 R871 R869 D806 D807 D808 D809 D812 CN804 TACT SW LS8J3M TACT SW LS8J3M TACT SW LS8J3M TACT SW LS8J3M TACT SW LS8J3M TACT SW LS8J3M TACT SW LS8J3M TACT SW LS8J3M TACT SW LS8J3M TACT SW LS8J3M 22k 10k 4.7k 47k 2.2k 22k 4.7k 10k 2.2k SML-020MDT-T86 SML-020MDT-T86 SML-020MDT-T86 SML-020MDT-T86 SML-020MDT-T86 13P I J 37 29 35 37 37 Ver 1.7 ✩ The TACTILE SWITCH (S800-818) on CONTROL KEY board , DISC KEY board and PW KEY board are depending on a suffix of each board. Please refer to SUPPLEMENT-3 of this manual at the time of replacement. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 HCD-FR1/FR8/FR9 SECTION 4 EXPLODED VIEWS NOTE: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. Ref. No. Part No. Description Remark 1 4-253-911-01 PANEL (L), SIDE 2 4-253-912-01 PANEL (R), SIDE 3 3-077-331-01 +BV3 (3-CR) 4 1-763-861-12 FAN, DC 5 4-217-350-11 STOPPER, CORD 4-1. CASE SECTION The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. Ref. No. Part No. Description Remark 06 1-783-531-72 CORD, POWER 7 A-4750-572-A TUNER UNIT 8 1-828-962-11 WIRE (FLAT TYPE) (11 CORE) 9 A-4751-753-A IO BOARD, COMPLETE #1 7-685-881-09 SCREW +BVTT4X8 (S) not supplied a a b c c b not supplied not supplied not supplied #1 chassis section front panel section not supplied not supplied 8 7 1 3 3 9 3 3 3 3 5 6 3 3 3 4 3 2 3 3 3 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 HCD-FR1/FR8/FR9 4-2. FRONT PANEL SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 3-077-331-21 +BV3 (3-CR) 52 X-4956-316-1 BUTTON SUB ASSY, DISC 53 4-253-902-01 CUSHION, SLOT 54 X-4956-308-1 BUTTON (POWER) SUB ASSY 55 X-4956-319-1 WINDOW SUB ASSY 56 4-253-918-01 PANEL (AL), FRONT 57 4-253-910-01 PANEL (ML), FRONT (FR1) 57 4-253-910-11 PANEL (ML), FRONT (FR8) 57 4-253-910-21 PANEL (ML), FRONT (FR9) 58 A-4751-757-A FL BOARD, COMPLETE 59 X-4956-315-1 BUTTON SUB ASSY, PLAY 60 4-253-909-01 PANEL, BOTTOM 61 4-232-478-31 FOOT 62 1-829-320-11 FLEXIBLE FLAT CABLE (13 CORE) 63 1-829-321-11 FLEXIBLE FLAT CABLE (17 CORE) 64 4-931-757-31 SCREW (DIA.2.6X8) (IT3B), TAPPING 65 7-685-133-19 SCREW +P2.6X6, TYPE 2 #3 7-685-133-19 SCREW +P2.6X6 TYPE2 a a not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied #3 #3 #3 #3 #3 #3 not supplied 52 62 64 64 64 63 53 54 55 56 51 51 51 57 58 59 65 65 65 60 61 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 HCD-FR1/FR8/FR9 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 4-3. CHASSIS SECTION 101 3-077-331-01 +BV3 (3-CR) 102 A-4751-785-A DMB08 BOARD, COMPLETE (FR1) 102 A-4753-404-A DMB08 BOARD, COMPLETE (FR8) 102 A-4753-472-A DMB08 BOARD, COMPLETE (FR9) 103 A-4751-769-A DDCON BOARD, COMPLETE 104 A-4751-783-A AMP BOARD, COMPLETE (FR1) 104 A-4753-468-A AMP BOARD, COMPLETE (FR8) 104 A-4753-478-A AMP BOARD, COMPLETE (FR9) 105 4-232-478-31 FOOT 106 1-829-322-11 FLEXIBLE FLAT CABLE (9 CORE) 107 1-829-319-11 FLEXIBLE FLAT CABLE (17 CORE) 108 1-828-349-11 WIRE (FLAT TYPE) (17 CORE) 109 1-829-323-11 FLEXIBLE FLAT CABLE (29 CORE) 110 1-829-326-11 FLEXIBLE FLAT CABLE (15 CORE) 111 1-829-325-11 FLEXIBLE FLAT CABLE (29 CORE) 112 1-829-324-11 FLEXIBLE FLAT CABLE (28 CORE) 113 1-500-657-11 CORE, FERRIET 0114 1-468-838-11 REGULATOR, SWITCHING #2 7-685-650-79 SCREW +BVTP3X16 TYPE2 IT-3 #4 7-621-775-10 SCREW +B2.6X4 not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied mechanism deck section-1 (CDM69-DVBU16) not supplied not supplied not supplied #2 #4 not supplied 101 101 101 101 101 101 101 101 101 102 103 108 109 110 111 112 113 104 105 106 107 101 101 not supplied 114 Ver 1.3 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 HCD-FR1/FR8/FR9 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 301 1-685-006-11 STOCKER MOTOR BOARD 302 4-951-620-01 SCREW (2.6X8), +BVTP 303 4-239-690-01 CAM (STOCKER U/D) 304 4-239-618-01 SCREW (+PWH, 2X6), STEP TAPPING 305 X-4954-628-1 STOCKER ASSY 306 4-239-687-01 GEAR (STOCKER COMMUNICATION) 307 A-4728-700-A RELAY BOARD, COMPLETE 308 4-239-689-01 GEAR (STOCKER DECELERATION) 309 4-239-698-01 PULLEY (STOCKER) 310 4-240-035-01 BELT (STOCKER) M781 A-4735-953-A MOTOR (STOCKER) ASSY (STOCKER) S702 1-477-299-11 ENCODER, ROTARY (STOCKER POSITION) #7 7-685-902-21 SCREW +PTPWH 2.6X8 (TYPE2) 4-4. MECHANISM DECK SECTION-1 (CDM69-DVBU16) 301 302 303 304 305 306 308 302 307 309 310 M781 mechanism deck section-2 (CDM69-DVBU16) #7 #7 #7 S702 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 HCD-FR1/FR8/FR9 351 1-685-008-11 SW (1) BOARD 352 1-685-009-11 SW (2) BOARD 353 1-685-010-11 SW (3) BOARD 354 1-685-011-11 SW (4) BOARD 355 4-951-620-01 SCREW (2.6X8), +BVTP 356 4-985-672-01 SCREW (+PTPWHM 2.6), FLOATING #5 7-685-533-14 SCREW +BTP 2.6X6 TYPE2 N-S Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 4-5. MECHANISM DECK SECTION-2 (CDM69-DVBU16) 351 352 353 354 355 355 356 #5 mechanism deck section-3 (CDM69-DVBU16) mechanism deck section-4 (CDM69-DVBU16) optical pick-up section (DVBU-1) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 HCD-FR1/FR8/FR9 401 4-240-038-01 PULLEY (A), CHUCKING 402 4-992-069-01 SCREW (+PTPWH) (M2) (DIA. 7) 403 4-239-648-01 PARASOL (ROLLER) 404 4-239-646-01 ROLLER (ROLLER) 405 4-239-641-01 SPRING (1.2), TENSION 406 4-239-642-01 SPRING (3), TENSION COIL 407 4-239-679-01 SPRING (5), TENSION COIL 408 4-240-037-01 PULLEY (B), CHUCKING 409 4-239-649-01 PARASOL (STOCKER) 410 4-241-209-01 SHEET, ADHESIVE 411 4-239-651-01 ROLLER (STOCKER), RUBBER 412 4-239-640-01 PINION (SLIDER) 413 4-240-040-01 SPRING (DISC STOPPER), TORSION 414 4-240-039-01 LEVER (DISC STOPPER) 415 4-239-702-01 ROLLER (DISC STOPPER) 416 4-985-672-01 SCREW (+PTPWHM 2.6), FLOATING 417 4-239-650-01 LEVER (LIFTER) 418 4-239-647-01 PARASOL (MAIN) 419 4-239-645-01 ROLLER, RUBBER 420 4-241-599-01 LEVER (SUPPORT) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 4-6. MECHANISM DECK SECTION-3 (CDM69-DVBU16) 401 419 402 403 404 405 405 406 404 402 418 418 402 416 417 415 415 414 420 413 413 412 405 407 402 409 409 410 411 408 not supplied not supplied not supplied not supplied not supplied not supplied not supplied www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 HCD-FR1/FR8/FR9 4-7. MECHANISM DECK SECTION-4 (CDM69-DVBU16) 451 X-4954-626-1 LEVER (ROLLER) ASSY 452 4-239-666-01 GEAR 453 4-239-668-01 LEVER (CENTER) 454 4-239-652-01 SCREW (ROLLER), STEP 455 4-239-669-01 GEAR (ROLLER COMMUNICATION) 456 4-239-667-01 GEAR (ROLLER CENTER) 457 4-239-647-01 PARASOL (MAIN) 458 4-239-645-01 ROLLER, RUBBER 460 X-4954-622-1 BASE (SLIDER 2) ASSY 461 4-239-670-01 GEAR (ROLLER 5 COMMUNICATION) 462 X-4954-624-A LEVER (SLIDER 4) ASSY 463 4-992-069-01 SCREW (+PTPWH) (M2) (DIA. 7) 464 4-240-981-01 SPRING (BASE SLIDER 5),TENSION 465 4-240-041-01 SPRING (SLIDER 2), TENSION 466 4-951-620-01 SCREW (2.6X8), +BVTP 467 4-241-467-01 ROLLER (S), RUBBER 468 4-239-651-01 ROLLER (STOCKER) RUBBER 469 4-241-209-01 SHEET, ADHESIVE 470 4-239-649-01 PARASOL (STOCKER) 471 4-239-671-01 GEAR (ROLLER 5 CENTER) 472 X-4954-627-1 BASE (SLIDER 5) ASSY M771 A-4735-953-A MOTOR (STOCKER) ASSY (ROLLER) #6 7-623-921-01 WASHER 1.7, NYRON Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 466 466 472 451 452 453 453 453 453 452 452 455 452 462 461 461 460 465 465 454 454 454 454 457 457 457 457 456 456 456 455 458 458 457 457 457 469 470 471 464 461 461 455 470 456 456 455 458 467 468 457 455 457 458 451 451 463 M771 not supplied mechanism deck section-5 (CDM69-DVBU16) #6 not supplied a a b b c c d d #6 #6 #6 #6 #6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 HCD-FR1/FR8/FR9 4-8. MECHANISM DECK SECTION-5 (CDM69-DVBU16) 501 4-240-020-01 GEAR (TIMING) 502 4-239-708-01 BELT (FRONT), TIMING 503 4-239-697-01 GEAR (CENTER) 504 X-4954-629-1 SLIDER (MODE CAM) ASSY 505 4-239-706-01 BELT (REAR), TIMING 506 4-239-699-01 PULLEY 507 4-239-681-01 BELT (ROLLER) 508 4-227-899-01 SCREW (DIA. 12), FROATING 509 4-239-686-01 GEAR (ROLLER DECELERATION) #7 7-685-902-21 SCREW +PTPWH 2.6X8 (TYPE2) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 501 502 503 503 504 505 506 507 509 508 505 #7 mechanism deck section-6 (CDM69-DVBU16) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 HCD-FR1/FR8/FR9 4-9. MECHANISM DECK SECTION-6 (CDM69-DVBU16) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 551 4-239-693-01 CAM (GEAR) 552 1-685-004-11 SENSOR BOARD 553 4-239-696-01 GEAR (EJECT LOCK) 554 4-239-695-02 CAM (EJECT LOCK) 555 4-240-018-01 GEAR (MODE 4) 556 4-240-019-01 GEAR (MODE 5) 557 4-239-700-01 GEAR (MODE 2) 558 4-239-683-01 PULLEY (MODE DECELERATION) 559 4-239-682-01 BELT (MODE) 560 4-239-688-01 GEAR (MODE 3) 561 4-239-618-01 SCREW (+PWH, 2X6), STEP TAPPING 562 4-239-684-01 GEAR (MODE 1) 563 4-951-620-01 SCREW (2.6X8), +BVTP 564 4-239-692-01 CAM (BU U/D) 565 4-239-694-01 GEAR (MODE CAM) 566 4-241-731-01 SHUTTER (A), LEVER 567 4-241-732-01 SHUTTER (B), LEVER 568 4-241-733-01 BASE (SHUTTER) 569 4-241-734-01 SHAFT (SHUTTER) 570 4-241-735-01 SPRING (SHUTTER), COMPRESSION 571 4-227-899-01 SCREW (DIA.12), FLOATING M761 A-4735-953-A MOTOR (STOCKER) ASSY (MODE) S771 1-477-300-11 ENCODER, ROTARY (MODE) #7 7-685-902-21 SCREW +PTPWH 2.6X8 (TYPE2) 555 556 557 562 560 558 559 563 551 552 563 563 571 563 566 567 568 569 570 561 564 554 565 553 #7 #7 #7 #7 #7 #7 #7 #7 S771 #7 #7 not supplied not supplied M761 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 HCD-FR1/FR8/FR9 4-10. OPTICAL PICK-UP SECTION (DBU-1) 601 601 603 601 602 602 604 605 606 602 #5 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 601 4-981-923-01 SCREW (M), STEP 602 3-053-847-31 INSULATOR 0603 1-477-263-11 OPTICAL PICK-UP (DBU-1) 604 A-4728-690-A RF BOARD, COMPLETE 605 1-685-250-11 FLEXIBLE BOARD 606 4-239-703-01 HOLDER (DBU1) #5 7-685-533-14 SCREW +BTP 2.6X6 TYPE2 N-S The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 HCD-FR1/FR8/FR9 SECTION 5 ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • CAPACITORS uF: µF • COILS uH: µH • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. . When indicating parts by reference number, please include the board name. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. AMP A-4751-783-A AMP BOARD, COMPLETE (FR1) A-4753-468-A AMP BOARD, COMPLETE (FR8) A-4753-478-A AMP BOARD, COMPLETE (FR9) ************************* < CAPACITOR > C101 1-164-346-11 CERAMIC CHIP 1uF 16V C102 1-164-346-11 CERAMIC CHIP 1uF 16V C103 1-164-346-11 CERAMIC CHIP 1uF 16V C104 1-164-346-11 CERAMIC CHIP 1uF 16V C105 1-164-346-11 CERAMIC CHIP 1uF 16V C106 1-164-346-11 CERAMIC CHIP 1uF 16V C107 1-164-346-11 CERAMIC CHIP 1uF 16V C111 1-164-346-11 CERAMIC CHIP 1uF 16V C112 1-164-346-11 CERAMIC CHIP 1uF 16V C113 1-164-346-11 CERAMIC CHIP 1uF 16V C114 1-164-346-11 CERAMIC CHIP 1uF 16V C115 1-164-346-11 CERAMIC CHIP 1uF 16V C116 1-164-346-11 CERAMIC CHIP 1uF 16V C117 1-164-346-11 CERAMIC CHIP 1uF 16V C131 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C132 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C133 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C134 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C135 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C136 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C137 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C138 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C141 1-164-156-11 CERAMIC CHIP 0.1uF 25V C142 1-164-156-11 CERAMIC CHIP 0.1uF 25V C143 1-164-156-11 CERAMIC CHIP 0.1uF 25V C144 1-164-156-11 CERAMIC CHIP 0.1uF 25V C145 1-164-156-11 CERAMIC CHIP 0.1uF 25V C146 1-164-156-11 CERAMIC CHIP 0.1uF 25V C147 1-164-156-11 CERAMIC CHIP 0.1uF 25V C148 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C149 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C151 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C152 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C153 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C154 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C155 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C156 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C157 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C158 1-126-947-11 ELECT 47uF 20% 10V C160 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C161 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C162 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C163 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C164 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C165 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C166 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C167 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C168 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C171 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C172 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C173 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C174 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C175 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C176 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C177 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C178 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C180 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C181 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C182 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C183 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C184 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C185 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C186 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C187 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C188 1-164-156-11 CERAMIC CHIP 0.1uF 25V C189 1-164-156-11 CERAMIC CHIP 0.1uF 25V C190 1-164-156-11 CERAMIC CHIP 0.1uF 25V C191 1-107-898-11 ELECT 2200uF 20% 35V C192 1-107-898-11 ELECT 2200uF 20% 35V C193 1-107-898-11 ELECT 2200uF 20% 35V C194 1-107-898-11 ELECT 2200uF 20% 35V C195 1-107-898-11 ELECT 2200uF 20% 35V C196 1-107-898-11 ELECT 2200uF 20% 35V C197 1-107-898-11 ELECT 2200uF 20% 35V C198 1-164-156-11 CERAMIC CHIP 0.1uF 25V C199 1-164-156-11 CERAMIC CHIP 0.1uF 25V C200 1-164-156-11 CERAMIC CHIP 0.1uF 25V C201 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C202 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C203 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C204 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 HCD-FR1/FR8/FR9 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark AMP C205 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C206 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C207 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C208 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C209 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C210 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C211 1-136-177-00 FILM 1uF 5% 50V C212 1-136-177-00 FILM 1uF 5% 50V C213 1-136-177-00 FILM 1uF 5% 50V C214 1-136-177-00 FILM 1uF 5% 50V C215 1-136-177-00 FILM 1uF 5% 50V C216 1-136-177-00 FILM 1uF 5% 50V C217 1-136-177-00 FILM 1uF 5% 50V C218 1-164-156-11 CERAMIC CHIP 0.1uF 25V C221 1-136-177-00 FILM 1uF 5% 50V C222 1-136-177-00 FILM 1uF 5% 50V C223 1-136-177-00 FILM 1uF 5% 50V C224 1-136-177-00 FILM 1uF 5% 50V C225 1-136-177-00 FILM 1uF 5% 50V C226 1-136-177-00 FILM 1uF 5% 50V C227 1-136-177-00 FILM 1uF 5% 50V C248 1-126-947-11 ELECT 47uF 20% 16V C251 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C252 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C253 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C254 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C255 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C256 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C257 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C261 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C262 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C263 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C264 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C265 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C266 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C267 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C271 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C272 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C273 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C274 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C275 1-162-294-31 CERAMIC 0.001uF 10% 50V C276 1-162-294-31 CERAMIC 0.001uF 10% 50V C277 1-162-294-31 CERAMIC 0.001uF 10% 50V C278 1-162-294-31 CERAMIC 0.001uF 10% 50V C281 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C282 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C283 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C284 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C285 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C286 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C287 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C288 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C289 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C290 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C291 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C292 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C293 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C294 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C301 1-164-156-11 CERAMIC CHIP 0.1uF 25V C302 1-164-156-11 CERAMIC CHIP 0.1uF 25V C303 1-164-156-11 CERAMIC CHIP 0.1uF 25V C304 1-164-156-11 CERAMIC CHIP 0.1uF 25V C305 1-164-156-11 CERAMIC CHIP 0.1uF 25V C306 1-164-156-11 CERAMIC CHIP 0.1uF 25V C308 1-164-156-11 CERAMIC CHIP 0.1uF 25V C309 1-164-156-11 CERAMIC CHIP 0.1uF 25V C310 1-164-156-11 CERAMIC CHIP 0.1uF 25V C311 1-164-156-11 CERAMIC CHIP 0.1uF 25V C312 1-164-156-11 CERAMIC CHIP 0.1uF 25V C313 1-164-156-11 CERAMIC CHIP 0.1uF 25V C314 1-164-156-11 CERAMIC CHIP 0.1uF 25V C315 1-164-156-11 CERAMIC CHIP 0.1uF 25V C316 1-164-156-11 CERAMIC CHIP 0.1uF 25V C317 1-164-156-11 CERAMIC CHIP 0.1uF 25V C318 1-164-156-11 CERAMIC CHIP 0.1uF 25V C319 1-164-156-11 CERAMIC CHIP 0.1uF 25V C320 1-164-156-11 CERAMIC CHIP 0.1uF 25V C321 1-164-156-11 CERAMIC CHIP 0.1uF 25V C322 1-164-156-11 CERAMIC CHIP 0.1uF 25V C323 1-164-156-11 CERAMIC CHIP 0.1uF 25V C324 1-164-156-11 CERAMIC CHIP 0.1uF 25V C325 1-164-156-11 CERAMIC CHIP 0.1uF 25V C326 1-164-156-11 CERAMIC CHIP 0.1uF 25V C327 1-164-156-11 CERAMIC CHIP 0.1uF 25V C328 1-164-156-11 CERAMIC CHIP 0.1uF 25V C329 1-126-947-11 ELECT 47uF 20% 16V C330 1-126-947-11 ELECT 47uF 20% 16V C331 1-126-947-11 ELECT 47uF 20% 16V C332 1-126-947-11 ELECT 47uF 20% 16V C333 1-126-947-11 ELECT 47uF 20% 16V C334 1-126-947-11 ELECT 47uF 20% 16V C335 1-126-947-11 ELECT 47uF 20% 16V C336 1-126-947-11 ELECT 47uF 20% 16V C337 1-126-947-11 ELECT 47uF 20% 16V C350 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C351 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C352 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C353 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C354 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C355 1-126-933-11 ELECT 100uF 20% 16V C356 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C357 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C358 1-126-925-91 ELECT 470uF 20% 10V C359 1-126-925-91 ELECT 470uF 20% 10V C360 1-164-156-11 CERAMIC CHIP 0.1uF 25V C361 1-126-947-11 ELECT 47uF 20% 25V C362 1-104-658-91 ELECT 100uF 20% 10V C363 1-164-156-11 CERAMIC CHIP 0.1uF 25V C366 1-126-934-11 ELECT 220uF 20% 16V C367 1-164-156-11 CERAMIC CHIP 0.1uF 25V C368 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C370 1-164-156-11 CERAMIC CHIP 0.1uF 25V C371 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C372 1-126-960-11 ELECT 1uF 20% 50V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 HCD-FR1/FR8/FR9 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark AMP C374 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C375 1-126-933-11 ELECT 100uF 20% 16V C377 1-126-964-11 ELECT 10uF 20% 50V C380 1-126-923-91 ELECT 220uF 20% 10V C381 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C382 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C383 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C384 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C385 1-164-505-11 CERAMIC CHIP 2.2uF 16V C391 1-164-505-11 CERAMIC CHIP 2.2uF 16V C392 1-164-505-11 CERAMIC CHIP 2.2uF 16V C393 1-164-505-11 CERAMIC CHIP 2.2uF 16V C394 1-164-505-11 CERAMIC CHIP 2.2uF 16V C395 1-164-505-11 CERAMIC CHIP 2.2uF 16V C396 1-117-370-11 CERAMIC CHIP 10uF 10V C397 1-117-370-11 CERAMIC CHIP 10uF 10V C402 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C403 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C404 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C405 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C406 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V < CONNECTOR > CN300 1-564-704-11 PIN, CONNECTOR (SMALL TYPE) 2P CN301 1-779-285-11 CONNECTOR, FFC (LIF (NON-ZIF)) 17P CN302 1-779-277-11 CONNECTOR, FFC (LIF (NON-ZIF)) 9P CN306 1-691-766-21 PLUG (MICRO CONNECTOR) 4P CN307 1-691-766-11 PLUG (MICRO CONNECTOR) 4P * CN313 1-564-243-11 PIN, CONNECTOR (3.96mm PITCH) 6P < DIODE > D101 6-500-260-01 DIODE P6SMB39AT3 D102 6-500-260-01 DIODE P6SMB39AT3 D103 6-500-260-01 DIODE P6SMB39AT3 D104 6-500-260-01 DIODE P6SMB39AT3 D105 6-500-260-01 DIODE P6SMB39AT3 D106 6-500-260-01 DIODE P6SMB39AT3 D107 6-500-260-01 DIODE P6SMB39AT3 D201 6-500-260-01 DIODE P6SMB39AT3 D202 6-500-260-01 DIODE P6SMB39AT3 D203 6-500-260-01 DIODE P6SMB39AT3 D204 6-500-260-01 DIODE P6SMB39AT3 D205 6-500-260-01 DIODE P6SMB39AT3 D206 6-500-260-01 DIODE P6SMB39AT3 D207 6-500-260-01 DIODE P6SMB39AT3 D208 8-719-421-15 DIODE MA8027-H-TX D303 8-719-988-61 DIODE 1SS355TE-17 D304 8-719-988-61 DIODE 1SS355TE-17 < FERRITE BEAD > FB301 1-469-760-21 FERRITE, EMI (SMD)(2012) < IC > IC101 6-704-802-01 IC CXD9774M IC102 6-704-802-01 IC CXD9774M IC103 6-704-802-01 IC CXD9774M IC104 6-704-802-01 IC CXD9774M IC105 6-704-802-01 IC CXD9774M IC106 6-704-802-01 IC CXD9774M IC107 6-704-802-01 IC CXD9774M IC108 6-705-979-01 IC CXD9788AR IC109 6-705-979-01 IC CXD9788AR IC110 6-705-979-01 IC CXD9788AR IC301 6-705-720-01 IC RC4580IDR IC303 6-702-300-01 IC TK11118CSCL-G IC305 6-701-189-01 IC MC74VHC1GU04DFT1 < COIL > L121 1-456-680-11 INDUCTOR 10uH L122 1-456-680-11 INDUCTOR 10uH L123 1-456-680-11 INDUCTOR 10uH L124 1-456-680-11 INDUCTOR 10uH L125 1-456-680-11 INDUCTOR 10uH L126 1-456-680-11 INDUCTOR 10uH L127 1-456-680-11 INDUCTOR 10uH L131 1-456-680-11 INDUCTOR 10uH L132 1-456-680-11 INDUCTOR 10uH L133 1-456-680-11 INDUCTOR 10uH L134 1-456-680-11 INDUCTOR 10uH L135 1-456-680-11 INDUCTOR 10uH L136 1-456-680-11 INDUCTOR 10uH L137 1-456-680-11 INDUCTOR 10uH L302 1-412-939-11 INDUCTOR 1uH < TRANSISTOR > Q101 8-729-602-36 TRANSISTOR 2SA1602TP-1EF Q102 8-729-602-36 TRANSISTOR 2SA1602TP-1EF Q103 8-729-602-36 TRANSISTOR 2SA1602TP-1EF Q104 8-729-602-36 TRANSISTOR 2SA1602TP-1EF Q105 8-729-602-36 TRANSISTOR 2SA1602TP-1EF Q106 8-729-602-36 TRANSISTOR 2SA1602TP-1EF Q107 8-729-602-36 TRANSISTOR 2SA1602TP-1EF Q108 8-729-602-36 TRANSISTOR 2SA1602TP-1EF Q109 8-729-602-36 TRANSISTOR 2SA1602TP-1EF Q110 8-729-602-36 TRANSISTOR 2SA1602TP-1EF Q111 8-729-602-36 TRANSISTOR 2SA1602TP-1EF Q112 8-729-602-36 TRANSISTOR 2SA1602TP-1EF Q113 8-729-602-36 TRANSISTOR 2SA1602TP-1EF Q114 8-729-602-36 TRANSISTOR 2SA1602TP-1EF Q301 8-729-034-51 TRANSISTOR KTC3875 Q303 8-729-801-84 TRANSISTOR 2SB1013-TP-34 Q304 8-729-038-68 TRANSISTOR KRC103S < RESISTOR > R108 1-216-837-11 METAL CHIP 22K 5% 1/10W R109 1-216-837-11 METAL CHIP 22K 5% 1/10W R110 1-216-837-11 METAL CHIP 22K 5% 1/10W R111 1-216-837-11 METAL CHIP 22K 5% 1/10W R112 1-216-837-11 METAL CHIP 22K 5% 1/10W R113 1-216-837-11 METAL CHIP 22K 5% 1/10W R114 1-216-837-11 METAL CHIP 22K 5% 1/10W R115 1-216-837-11 METAL CHIP 22K 5% 1/10W R116 1-216-837-11 METAL CHIP 22K 5% 1/10W R117 1-216-837-11 METAL CHIP 22K 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 HCD-FR1/FR8/FR9 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark AMP R118 1-216-837-11 METAL CHIP 22K 5% 1/10W R119 1-216-837-11 METAL CHIP 22K 5% 1/10W R120 1-216-837-11 METAL CHIP 22K 5% 1/10W R128 1-216-837-11 METAL CHIP 22K 5% 1/10W R129 1-216-809-11 METAL CHIP 100 5% 1/10W R131 1-216-864-11 SHORT CHIP 0 R132 1-216-864-11 SHORT CHIP 0 R133 1-216-864-11 SHORT CHIP 0 R134 1-216-864-11 SHORT CHIP 0 R135 1-216-864-11 SHORT CHIP 0 R136 1-216-864-11 SHORT CHIP 0 R137 1-216-864-11 SHORT CHIP 0 R139 1-216-864-11 SHORT CHIP 0 R141 1-216-864-11 SHORT CHIP 0 R142 1-216-864-11 SHORT CHIP 0 R143 1-216-864-11 SHORT CHIP 0 R144 1-216-864-11 SHORT CHIP 0 R145 1-216-864-11 SHORT CHIP 0 R146 1-216-864-11 SHORT CHIP 0 R147 1-216-864-11 SHORT CHIP 0 R151 1-216-864-11 SHORT CHIP 0 R152 1-216-864-11 SHORT CHIP 0 R153 1-216-864-11 SHORT CHIP 0 R154 1-216-864-11 SHORT CHIP 0 R155 1-216-864-11 SHORT CHIP 0 R156 1-216-864-11 SHORT CHIP 0 R157 1-216-864-11 SHORT CHIP 0 R161 1-216-864-11 SHORT CHIP 0 R162 1-216-864-11 SHORT CHIP 0 R163 1-216-864-11 SHORT CHIP 0 R164 1-216-864-11 SHORT CHIP 0 R165 1-216-864-11 SHORT CHIP 0 R166 1-216-864-11 SHORT CHIP 0 R167 1-216-864-11 SHORT CHIP 0 R171 1-216-864-11 SHORT CHIP 0 R172 1-216-864-11 SHORT CHIP 0 R173 1-216-864-11 SHORT CHIP 0 R174 1-216-864-11 SHORT CHIP 0 R175 1-216-864-11 SHORT CHIP 0 R176 1-216-864-11 SHORT CHIP 0 R177 1-216-864-11 SHORT CHIP 0 R191 1-220-942-11 METAL CHIP 3.3 1% 1/4W R192 1-220-942-11 METAL CHIP 3.3 1% 1/4W R193 1-220-942-11 METAL CHIP 3.3 1% 1/4W R194 1-220-942-11 METAL CHIP 3.3 1% 1/4W R195 1-220-942-11 METAL CHIP 3.3 1% 1/4W R196 1-220-942-11 METAL CHIP 3.3 1% 1/4W R197 1-220-942-11 METAL CHIP 3.3 1% 1/4W R201 1-220-942-11 METAL CHIP 3.3 1% 1/4W R202 1-220-942-11 METAL CHIP 3.3 1% 1/4W R203 1-220-942-11 METAL CHIP 3.3 1% 1/4W R204 1-220-942-11 METAL CHIP 3.3 1% 1/4W R205 1-220-942-11 METAL CHIP 3.3 1% 1/4W R206 1-220-942-11 METAL CHIP 3.3 1% 1/4W R207 1-220-942-11 METAL CHIP 3.3 1% 1/4W R211 1-216-136-00 RES-CHIP 2.7 5% 1/8W R212 1-216-136-00 RES-CHIP 2.7 5% 1/8W R213 1-216-136-00 RES-CHIP 2.7 5% 1/8W R214 1-216-136-00 RES-CHIP 2.7 5% 1/8W R215 1-216-136-00 RES-CHIP 2.7 5% 1/8W R216 1-216-136-00 RES-CHIP 2.7 5% 1/8W R217 1-216-136-00 RES-CHIP 2.7 5% 1/8W R221 1-216-136-00 RES-CHIP 2.7 5% 1/8W R222 1-216-136-00 RES-CHIP 2.7 5% 1/8W R223 1-216-136-00 RES-CHIP 2.7 5% 1/8W R224 1-216-136-00 RES-CHIP 2.7 5% 1/8W R225 1-216-136-00 RES-CHIP 2.7 5% 1/8W R226 1-216-136-00 RES-CHIP 2.7 5% 1/8W R227 1-216-136-00 RES-CHIP 2.7 5% 1/8W R229 1-216-809-11 METAL CHIP 100 5% 1/10W R231 1-216-809-11 METAL CHIP 100 5% 1/10W R233 1-216-809-11 METAL CHIP 100 5% 1/10W R235 1-216-809-11 METAL CHIP 100 5% 1/10W R237 1-216-809-11 METAL CHIP 100 5% 1/10W R239 1-216-809-11 METAL CHIP 100 5% 1/10W R241 1-216-809-11 METAL CHIP 100 5% 1/10W R242 1-216-809-11 METAL CHIP 100 5% 1/10W R243 1-216-809-11 METAL CHIP 100 5% 1/10W R244 1-216-809-11 METAL CHIP 100 5% 1/10W R245 1-216-809-11 METAL CHIP 100 5% 1/10W R246 1-216-809-11 METAL CHIP 100 5% 1/10W R247 1-216-809-11 METAL CHIP 100 5% 1/10W R300 1-216-817-11 METAL CHIP 470 5% 1/10W R302 1-216-817-11 METAL CHIP 470 5% 1/10W R303 1-216-817-11 METAL CHIP 470 5% 1/10W R304 1-216-817-11 METAL CHIP 470 5% 1/10W R305 1-216-817-11 METAL CHIP 470 5% 1/10W R306 1-216-817-11 METAL CHIP 470 5% 1/10W R308 1-216-817-11 METAL CHIP 470 5% 1/10W R309 1-216-864-11 SHORT CHIP 0 R310 1-216-809-11 METAL CHIP 100 5% 1/10W R311 1-216-809-11 METAL CHIP 100 5% 1/10W R312 1-216-809-11 METAL CHIP 100 5% 1/10W R313 1-216-809-11 METAL CHIP 100 5% 1/10W R314 1-216-809-11 METAL CHIP 100 5% 1/10W R315 1-216-803-11 METAL CHIP 33 5% 1/10W R316 1-216-817-11 METAL CHIP 470 5% 1/10W R317 1-216-817-11 METAL CHIP 470 5% 1/10W R318 1-216-817-11 METAL CHIP 470 5% 1/10W R319 1-216-833-11 METAL CHIP 10K 5% 1/10W R320 1-216-864-11 SHORT CHIP 0 R321 1-216-864-11 SHORT CHIP 0 R322 1-216-833-11 METAL CHIP 10K 5% 1/10W R323 1-216-864-11 SHORT CHIP 0 R324 1-216-864-11 SHORT CHIP 0 R325 1-216-864-11 SHORT CHIP 0 R326 1-216-864-11 SHORT CHIP 0 R327 1-216-864-11 SHORT CHIP 0 R328 1-216-864-11 SHORT CHIP 0 R329 1-216-864-11 SHORT CHIP 0 R330 1-216-837-11 METAL CHIP 22K 5% 1/10W R331 1-216-837-11 METAL CHIP 22K 5% 1/10W R332 1-216-837-11 METAL CHIP 22K 5% 1/10W R333 1-216-837-11 METAL CHIP 22K 5% 1/10W R334 1-216-837-11 METAL CHIP 22K 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 HCD-FR1/FR8/FR9 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark AMP CONTROL KEY R335 1-216-837-11 METAL CHIP 22K 5% 1/10W R336 1-216-837-11 METAL CHIP 22K 5% 1/10W R337 1-216-837-11 METAL CHIP 22K 5% 1/10W R338 1-218-725-11 METAL CHIP 24K 5% 1/10W R339 1-218-725-11 METAL CHIP 24K 5% 1/10W R340 1-216-839-11 METAL CHIP 33K 5% 1/10W R341 1-216-839-11 METAL CHIP 33K 5% 1/10W R342 1-216-864-11 SHORT CHIP 0 R343 1-216-864-11 SHORT CHIP 0 R344 1-216-817-11 METAL CHIP 470 5% 1/10W R345 1-216-833-11 METAL CHIP 10K 5% 1/10W R346 1-216-817-11 METAL CHIP 470 5% 1/10W R347 1-216-833-11 METAL CHIP 10K 5% 1/10W R348 1-216-817-11 METAL CHIP 470 5% 1/10W R349 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R350 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R351 1-216-817-11 METAL CHIP 470 5% 1/10W R361 1-216-845-11 METAL CHIP 100K 5% 1/10W R362 1-216-845-11 METAL CHIP 100K 5% 1/10W R363 1-216-845-11 METAL CHIP 100K 5% 1/10W R364 1-216-845-11 METAL CHIP 100K 5% 1/10W R365 1-216-845-11 METAL CHIP 100K 5% 1/10W R366 1-216-845-11 METAL CHIP 100K 5% 1/10W R367 1-216-845-11 METAL CHIP 100K 5% 1/10W R371 1-216-818-11 METAL CHIP 560 5% 1/10W R372 1-216-818-11 METAL CHIP 560 5% 1/10W R373 1-216-818-11 METAL CHIP 560 5% 1/10W R374 1-216-818-11 METAL CHIP 560 5% 1/10W R375 1-216-818-11 METAL CHIP 560 5% 1/10W R376 1-216-818-11 METAL CHIP 560 5% 1/10W R377 1-216-818-11 METAL CHIP 560 5% 1/10W R378 1-216-818-11 METAL CHIP 560 5% 1/10W R379 1-216-818-11 METAL CHIP 560 5% 1/10W R380 1-216-818-11 METAL CHIP 560 5% 1/10W R381 1-216-818-11 METAL CHIP 560 5% 1/10W R382 1-216-818-11 METAL CHIP 560 5% 1/10W R383 1-216-818-11 METAL CHIP 560 5% 1/10W R384 1-216-818-11 METAL CHIP 560 5% 1/10W R393 1-216-801-11 METAL CHIP 22 5% 1/10W R394 1-216-857-11 METAL CHIP 1M 5% 1/10W R395 1-216-845-11 METAL CHIP 100K 5% 1/10W R396 1-216-809-11 METAL CHIP 100 5% 1/10W R400 1-216-845-11 METAL CHIP 100K 5% 1/10W R401 1-216-845-11 METAL CHIP 100K 5% 1/10W R402 1-216-845-11 METAL CHIP 100K 5% 1/10W R403 1-216-845-11 METAL CHIP 100K 5% 1/10W R404 1-216-845-11 METAL CHIP 100K 5% 1/10W R405 1-216-845-11 METAL CHIP 100K 5% 1/10W R406 1-216-845-11 METAL CHIP 100K 5% 1/10W R407 1-216-845-11 METAL CHIP 100K 5% 1/10W R408 1-216-845-11 METAL CHIP 100K 5% 1/10W R409 1-216-845-11 METAL CHIP 100K 5% 1/10W R410 1-216-845-11 METAL CHIP 100K 5% 1/10W R411 1-216-845-11 METAL CHIP 100K 5% 1/10W R412 1-216-845-11 METAL CHIP 100K 5% 1/10W R413 1-216-845-11 METAL CHIP 100K 5% 1/10W R414 1-216-845-11 METAL CHIP 100K 5% 1/10W R425 1-216-817-11 METAL CHIP 470 5% 1/10W R426 1-216-818-11 METAL CHIP 560 5% 1/10W R427 1-216-818-11 METAL CHIP 560 5% 1/10W R428 1-216-841-11 METAL CHIP 47K 5% 1/10W R429 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R430 1-216-833-11 METAL CHIP 10K 5% 1/10W R431 1-216-845-11 METAL CHIP 100K 5% 1/10W R450 1-216-833-11 METAL CHIP 10K 5% 1/10W R451 1-216-833-11 METAL CHIP 10K 5% 1/10W R452 1-216-833-11 METAL CHIP 10K 5% 1/10W R453 1-216-833-11 METAL CHIP 10K 5% 1/10W R454 1-216-833-11 METAL CHIP 10K 5% 1/10W R455 1-216-833-11 METAL CHIP 10K 5% 1/10W R456 1-216-833-11 METAL CHIP 10K 5% 1/10W R457 1-216-833-11 METAL CHIP 10K 5% 1/10W R458 1-216-833-11 METAL CHIP 10K 5% 1/10W R459 1-216-833-11 METAL CHIP 10K 5% 1/10W R460 1-216-833-11 METAL CHIP 10K 5% 1/10W R461 1-216-833-11 METAL CHIP 10K 5% 1/10W R462 1-216-833-11 METAL CHIP 10K 5% 1/10W R463 1-216-833-11 METAL CHIP 10K 5% 1/10W R464 1-216-833-11 METAL CHIP 10K 5% 1/10W R481 1-216-833-11 METAL CHIP 10K 5% 1/10W R482 1-216-833-11 METAL CHIP 10K 5% 1/10W R483 1-216-833-11 METAL CHIP 10K 5% 1/10W R484 1-216-833-11 METAL CHIP 10K 5% 1/10W R485 1-216-833-11 METAL CHIP 10K 5% 1/10W R486 1-216-833-11 METAL CHIP 10K 5% 1/10W R487 1-216-833-11 METAL CHIP 10K 5% 1/10W R488 1-216-833-11 METAL CHIP 10K 5% 1/10W R489 1-216-833-11 METAL CHIP 10K 5% 1/10W R490 1-216-833-11 METAL CHIP 10K 5% 1/10W R491 1-216-833-11 METAL CHIP 10K 5% 1/10W R492 1-216-833-11 METAL CHIP 10K 5% 1/10W R493 1-216-833-11 METAL CHIP 10K 5% 1/10W R494 1-216-833-11 METAL CHIP 10K 5% 1/10W R495 1-216-833-11 METAL CHIP 10K 5% 1/10W R496 1-216-833-11 METAL CHIP 10K 5% 1/10W R497 1-216-833-11 METAL CHIP 10K 5% 1/10W < VIBRATOR > X450 1-795-660-21 QUARTZ CRYSTAL UNIT 49.152MHz ************************************************************ CONTROL KEY BOARD ****************** < CAPACITOR > C816 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C844 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C845 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C851 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C852 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C857 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C858 1-164-733-11 CERAMIC CHIP 820PF 10% 50V < CONNECTOR > CN810 1-784-859-21 CONNECTOR, FFC (LIF (NON-ZIF)) 7P www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 HCD-FR1/FR8/FR9 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark CONTROL KEY DDCON < RESISTOR > R860 1-216-864-11 SHORT CHIP 0 R861 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R866 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R867 1-216-864-11 SHORT CHIP 0 R868 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R874 1-216-833-11 METAL CHIP 10K 5% 1/10W R875 1-216-837-11 METAL CHIP 22K 5% 1/10W R876 1-216-841-11 METAL CHIP 47K 5% 1/10W < SWITCH > ✩ S801 1-771-884-31 SWITCH, TACTILE (FUNCTION) ✩ S807 1-771-884-31 SWITCH, TACTILE (HX) ✩ S808 1-771-884-31 SWITCH, TACTILE (.) ✩ S809 1-771-884-31 SWITCH, TACTILE (+ (VOLUME)) ✩ S815 1-771-884-31 SWITCH, TACTILE (x) ✩ S816 1-771-884-31 SWITCH, TACTILE (>) ✩ S817 1-771-884-31 SWITCH, TACTILE (– (VOLUME)) ✩ S818 1-771-884-31 SWITCH, TACTILE (A) ************************************************************ A-4751-769-A DDCON BOARD, COMPLETE ********************** < CAPACITOR > C817 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C818 1-124-584-00 ELECT 100uF 20% 10V C819 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C820 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C821 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C822 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C823 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C824 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C825 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C826 1-124-234-00 ELECT 22uF 20% 10V C827 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C828 1-164-360-11 CERAMIC CHIP 0.1uF 16V C829 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C830 1-163-037-11 CERAMIC CHIP 0.022uF 10% 50V C831 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C832 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C833 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C834 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C835 1-162-974-11 CERAMIC CHIP 0.01uF 50V C836 1-126-795-11 ELECT 10uF 20% 50V C837 1-164-360-11 CERAMIC CHIP 0.1uF 16V < CONNECTOR > CN800 1-779-285-11 CONNECTOR, FFC (LIF (NON-ZIF)) 17P CN801 1-779-285-11 CONNECTOR, FFC (LIF (NON-ZIF)) 17P CN802 1-779-281-11 CONNECTOR, FFC (LIF (NON-ZIF)) 13P < DIODE > D810 8-719-988-61 DIODE 1SS355TE-17 D811 8-719-988-61 DIODE 1SS355TE-17 D813 8-719-988-61 DIODE 1SS355TE-17 D814 8-719-988-61 DIODE 1SS355TE-17 D815 8-719-069-56 DIODE UDZSTE-176.2B < FERRITE BEAD > FB001 1-469-324-21 FERRITE, EMI (SMD)(2012) FB002 1-469-324-21 FERRITE, EMI (SMD)(2012) FB003 1-469-324-21 FERRITE, EMI (SMD)(2012) FB806 1-414-813-11 FERRITE, EMI (SMD)(2012) FB808 1-414-813-11 FERRITE, EMI (SMD)(2012) < IC > IC802 8-759-366-45 IC NJU3713G (TE2) < COIL > L804 1-410-671-31 INDUCTOR 47uH L805 1-400-135-11 INDUCTOR 1uH L806 1-400-135-11 INDUCTOR 1uH L807 1-400-135-11 INDUCTOR 1uH < TRANSISTOR > Q802 6-550-065-01 TRANSISTOR CPH5504-TL-E < RESISTOR > R806 1-216-864-11 SHORT CHIP 0 R814 1-216-809-11 METAL CHIP 100 5% 1/10W R815 1-216-864-11 SHORT CHIP 0 R817 1-216-809-11 METAL CHIP 100 5% 1/10W R818 1-216-809-11 METAL CHIP 100 5% 1/10W R819 1-216-809-11 METAL CHIP 100 5% 1/10W R823 1-216-841-11 METAL CHIP 47K 5% 1/10W R826 1-216-820-11 METAL CHIP 820 5% 1/10W R827 1-216-820-11 METAL CHIP 820 5% 1/10W R829 1-216-820-11 METAL CHIP 820 5% 1/10W R830 1-216-820-11 METAL CHIP 820 5% 1/10W R831 1-216-820-11 METAL CHIP 820 5% 1/10W R833 1-216-820-11 METAL CHIP 820 5% 1/10W R834 1-216-820-11 METAL CHIP 820 5% 1/10W R835 1-216-820-11 METAL CHIP 820 5% 1/10W R837 1-216-820-11 METAL CHIP 820 5% 1/10W R838 1-216-820-11 METAL CHIP 820 5% 1/10W R839 1-216-839-11 METAL CHIP 33K 5% 1/10W R841 1-216-809-11 METAL CHIP 100 5% 1/10W R850 1-216-828-11 METAL CHIP 3.9K 5% 1/10W < TRANSFORMER > T801 1-443-325-11 TRANSFORMER, DC-DC CONVERTER ************************************************************ DISC KEY BOARD ************** < CONNECTOR > CN804 1-779-550-21 CONNECTOR, FFC (LIF (NON-ZIF)) 13P < DIODE > D806 8-719-079-89 DIODE SML-020MDT-T86 (DISC 1) D807 8-719-079-89 DIODE SML-020MDT-T86 (DISC 2) D808 8-719-079-89 DIODE SML-020MDT-T86 (DISC 3) D809 8-719-079-89 DIODE SML-020MDT-T86 (DISC 4) D812 8-719-079-89 DIODE SML-020MDT-T86 (DISC 5) DISC KEY ✩ The Part numbers of Ref.No. S801, 807-809, 815-818 are changed with a suffix of the CONTROL KEY board. Please refer to SUPPLE- MENT-3 of this manual at the time of replacement. Ver. 1.7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 HCD-FR1/FR8/FR9 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DMB08 < RESISTOR > R862 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R863 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R864 1-216-833-11 METAL CHIP 10K 5% 1/10W R865 1-216-837-11 METAL CHIP 22K 5% 1/10W R869 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R870 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R871 1-216-833-11 METAL CHIP 10K 5% 1/10W R872 1-216-837-11 METAL CHIP 22K 5% 1/10W R873 1-216-841-11 METAL CHIP 47K 5% 1/10W < SWITCH > ✩ S802 1-771-884-31 SWITCH, TACTILE (Z (DISC 1)) ✩ S803 1-771-884-31 SWITCH, TACTILE (Z (DISC 2)) ✩ S804 1-771-884-31 SWITCH, TACTILE (Z (DISC 3)) ✩ S805 1-771-884-31 SWITCH, TACTILE (Z (DISC 4)) ✩ S806 1-771-884-31 SWITCH, TACTILE (Z (DISC 5)) ✩ S810 1-771-884-31 SWITCH, TACTILE (DISC 1) ✩ S811 1-771-884-31 SWITCH, TACTILE (DISC 2) ✩ S812 1-771-884-31 SWITCH, TACTILE (DISC 3) ✩ S813 1-771-884-31 SWITCH, TACTILE (DISC 4) ✩ S814 1-771-884-31 SWITCH, TACTILE (DISC 5) ************************************************************ A-4751-785-A DMB08 BOARD, COMPLETE (FR1) A-4753-404-A DMB08 BOARD, COMPLETE (FR8) A-4753-472-A DMB08 BOARD, COMPLETE (FR9) *************************** < CAPACITOR > C001 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C002 1-164-947-11 CERAMIC CHIP 0.01uF 50V C003 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C004 1-126-204-11 ELECT CHIP 47uF 20% 16V C005 1-126-246-11 ELECT CHIP 220uF 20% 4V C006 1-117-681-11 ELECT CHIP 100uF 20% 16V C008 1-107-820-11 CERAMIC CHIP 0.1uF 16V C009 1-164-947-11 CERAMIC CHIP 0.01uF 50V C010 1-107-820-11 CERAMIC CHIP 0.1uF 16V C011 1-164-360-11 CERAMIC CHIP 0.1uF 16V C014 1-164-360-11 CERAMIC CHIP 0.1uF 16V C015 1-107-820-11 CERAMIC CHIP 0.1uF 16V C016 1-164-360-11 CERAMIC CHIP 0.1uF 16V C017 1-107-820-11 CERAMIC CHIP 0.1uF 16V C018 1-107-820-11 CERAMIC CHIP 0.1uF 16V C019 1-107-820-11 CERAMIC CHIP 0.1uF 16V C020 1-126-246-11 ELECT CHIP 220uF 20% 4V C022 1-126-209-11 ELECT CHIP 100uF 20% 4V C201 1-126-246-11 ELECT CHIP 220uF 20% 4V C203 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C204 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C217 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C219 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C225 1-107-820-11 CERAMIC CHIP 0.1uF 16V C226 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C228 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C229 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C230 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C231 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C232 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C233 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C234 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C235 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C236 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C237 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C238 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C239 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C240 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C241 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C242 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C243 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C244 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C245 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C246 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C247 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C248 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C249 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C250 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C251 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C252 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C253 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C254 1-117-370-11 CERAMIC CHIP 10uF 10V C255 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C257 1-117-370-11 CERAMIC CHIP 10uF 10V C258 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C259 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C260 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C261 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C262 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C263 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C264 1-117-370-11 CERAMIC CHIP 10uF 10V C265 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C266 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C267 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C268 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C269 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C270 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C271 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C274 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C301 1-117-370-11 CERAMIC CHIP 10uF 10V C302 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C303 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C304 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C307 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C308 1-127-772-81 CERAMIC CHIP 33000PF 10% 10V C309 1-164-874-11 CERAMIC CHIP 100PF 5% 50V C310 1-164-874-11 CERAMIC CHIP 100PF 5% 50V C311 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C312 1-117-370-11 CERAMIC CHIP 10uF 10V C313 1-107-820-11 CERAMIC CHIP 0.1uF 16V C314 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C315 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C316 1-124-779-00 ELECT CHIP 10uF 20% 16V C317 1-164-852-11 CERAMIC CHIP 12PF 5% 50V C318 1-164-852-11 CERAMIC CHIP 12PF 5% 50V DISC KEY ✩ The Part numbers of Ref.No. S802-806, 810-814 are changed with a suffix of the DISC KEY board. Please refer to SUPPLEMENT-3 of this manual at the time of replacement. Ver. 1.7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 HCD-FR1/FR8/FR9 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DMB08 C319 1-164-862-11 CERAMIC CHIP 33PF 5% 50V C320 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C355 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C356 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C401 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C402 1-117-370-11 CERAMIC CHIP 10uF 10V C404 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C405 1-124-779-00 ELECT CHIP 10uF 20% 16V C406 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V C407 1-117-370-11 CERAMIC CHIP 10uF 10V C408 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C409 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V C410 1-124-779-00 ELECT CHIP 10uF 20% 16V C411 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C412 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V C413 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V C414 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C415 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C416 1-117-370-11 CERAMIC CHIP 10uF 10V C417 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C418 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C419 1-119-923-11 CERAMIC CHIP 0.047uF 10% 10V C420 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V C421 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C422 1-164-874-11 CERAMIC CHIP 100PF 5% 50V C423 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C424 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V C425 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V C426 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C427 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C428 1-164-940-11 CERAMIC CHIP 0.0033uF 10% 16V C432 1-164-874-11 CERAMIC CHIP 100PF 5% 50V C433 1-164-938-11 CERAMIC CHIP 0.0015uF 10% 50V C434 1-117-370-11 CERAMIC CHIP 10uF 10V C435 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C436 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C503 1-127-772-81 CERAMIC CHIP 33000PF 10% 10V C504 1-127-772-81 CERAMIC CHIP 33000PF 10% 10V C506 1-164-934-11 CERAMIC CHIP 330PF 10% 50V C508 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V C509 1-164-934-11 CERAMIC CHIP 330PF 10% 50V C510 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V C512 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C514 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C519 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C521 1-164-938-11 CERAMIC CHIP 0.0015uF 10% 50V C523 1-164-938-11 CERAMIC CHIP 0.0015uF 10% 50V C524 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C525 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C526 1-126-395-11 ELECT CHIP 22uF 20% 16V C527 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C528 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C529 1-107-820-11 CERAMIC CHIP 0.1uF 16V C552 1-107-820-11 CERAMIC CHIP 0.1uF 16V C600 1-107-820-11 CERAMIC CHIP 0.1uF 16V C601 1-107-820-11 CERAMIC CHIP 0.1uF 16V C602 1-117-681-11 ELECT CHIP 100uF 20% 16V C603 1-164-858-11 CERAMIC CHIP 22PF 5% 50V C604 1-164-868-11 CERAMIC CHIP 56PF 5% 50V C605 1-107-820-11 CERAMIC CHIP 0.1uF 16V C606 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C607 1-107-820-11 CERAMIC CHIP 0.1uF 16V C608 1-107-820-11 CERAMIC CHIP 0.1uF 16V C609 1-107-820-11 CERAMIC CHIP 0.1uF 16V C610 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C611 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C612 1-117-370-11 CERAMIC CHIP 10uF 10V C613 1-117-370-11 CERAMIC CHIP 10uF 10V C614 1-126-193-11 ELECT CHIP 1uF 20% 50V C615 1-107-820-11 CERAMIC CHIP 0.1uF 16V C616 1-107-820-11 CERAMIC CHIP 0.1uF 16V C617 1-107-820-11 CERAMIC CHIP 0.1uF 16V C618 1-124-779-00 ELECT CHIP 10uF 20% 16V C619 1-107-820-11 CERAMIC CHIP 0.1uF 16V C620 1-107-820-11 CERAMIC CHIP 0.1uF 16V C622 1-124-779-00 ELECT CHIP 10uF 20% 16V C624 1-107-820-11 CERAMIC CHIP 0.1uF 16V C625 1-126-193-11 ELECT CHIP 1uF 20% 50V C626 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C627 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C628 1-124-779-00 ELECT CHIP 10uF 20% 16V C629 1-164-854-11 CERAMIC CHIP 15PF 5% 50V C630 1-117-370-11 CERAMIC CHIP 10uF 10V C631 1-107-820-11 CERAMIC CHIP 0.1uF 16V C632 1-164-854-11 CERAMIC CHIP 15PF 5% 50V C633 1-107-820-11 CERAMIC CHIP 0.1uF 16V C634 1-107-820-11 CERAMIC CHIP 0.1uF 16V C635 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C636 1-107-820-11 CERAMIC CHIP 0.1uF 16V C637 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C638 1-107-820-11 CERAMIC CHIP 0.1uF 16V C639 1-107-820-11 CERAMIC CHIP 0.1uF 16V C640 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C641 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C642 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C643 1-126-246-11 ELECT CHIP 220uF 20% 4V C644 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C646 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C647 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C648 1-107-820-11 CERAMIC CHIP 0.1uF 16V C650 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C651 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C652 1-126-246-11 ELECT CHIP 220uF 20% 4V C653 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C655 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C657 1-107-820-11 CERAMIC CHIP 0.1uF 16V C660 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C661 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C664 1-117-370-11 CERAMIC CHIP 10uF 10V C665 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C666 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C667 1-117-370-11 CERAMIC CHIP 10uF 10V C668 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C669 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C670 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C671 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C672 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V Ver. 1.6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 HCD-FR1/FR8/FR9 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DMB08 C673 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C674 1-117-370-11 CERAMIC CHIP 10uF 10V C675 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C679 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C702 1-126-209-11 ELECT CHIP 100uF 20% 4V C703 1-107-820-11 CERAMIC CHIP 0.1uF 16V C706 1-107-820-11 CERAMIC CHIP 0.1uF 16V C708 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C709 1-107-820-11 CERAMIC CHIP 0.1uF 16V C711 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C712 1-164-874-11 CERAMIC CHIP 100PF 5% 50V C713 1-107-820-11 CERAMIC CHIP 0.1uF 16V C714 1-107-820-11 CERAMIC CHIP 0.1uF 16V C715 1-164-938-11 CERAMIC CHIP 0.0015uF 10% 50V C716 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C717 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C718 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C720 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C721 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C722 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C723 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C724 1-107-820-11 CERAMIC CHIP 0.1uF 16V C725 1-107-820-11 CERAMIC CHIP 0.1uF 16V C726 1-107-820-11 CERAMIC CHIP 0.1uF 16V C727 1-117-370-11 CERAMIC CHIP 10uF 10V C728 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C729 1-117-370-11 CERAMIC CHIP 10uF 10V C730 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C740 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C741 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C742 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C743 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C744 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C745 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C752 1-107-820-11 CERAMIC CHIP 0.1uF 16V C760 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C761 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C762 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C763 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C764 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C765 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C766 1-164-874-11 CERAMIC CHIP 100PF 5% 50V C767 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C768 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C769 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C770 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C771 1-119-923-11 CERAMIC CHIP 0.047uF 10% 10V C772 1-107-820-11 CERAMIC CHIP 0.1uF 16V C773 1-117-863-11 CERAMIC CHIP 0.47uF 10% 16V C774 1-164-941-11 CERAMIC CHIP 0.0047uF 10% 16V C775 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C776 1-107-820-11 CERAMIC CHIP 0.1uF 16V C777 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C778 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C779 1-117-370-11 CERAMIC CHIP 10uF 10V C780 1-117-370-11 CERAMIC CHIP 10uF 10V C781 1-117-370-11 CERAMIC CHIP 10uF 10V C796 1-107-820-11 CERAMIC CHIP 0.1uF 16V C797 1-126-209-11 ELECT CHIP 100uF 20% 4V C802 1-117-370-11 CERAMIC CHIP 10uF 10V C803 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C804 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C805 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C807 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C808 1-164-874-11 CERAMIC CHIP 100PF 5% 50V C809 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C810 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C811 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C812 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C813 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C815 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C817 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C818 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C819 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C837 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C838 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C839 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C840 1-117-370-11 CERAMIC CHIP 10uF 10V C841 1-117-370-11 CERAMIC CHIP 10uF 10V C842 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C843 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C848 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C849 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C854 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C855 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C856 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C857 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C861 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C865 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C866 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C867 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C870 1-127-772-81 CERAMIC CHIP 33000PF 10% 10V C871 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C900 1-107-820-11 CERAMIC CHIP 0.1uF 16V C901 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C902 1-107-820-11 CERAMIC CHIP 0.1uF 16V C903 1-107-820-11 CERAMIC CHIP 0.1uF 16V C905 1-164-934-11 CERAMIC CHIP 330PF 10% 50V C906 1-164-934-11 CERAMIC CHIP 330PF 10% 50V C907 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V C908 1-117-370-11 CERAMIC CHIP 10uF 10V C909 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C910 1-104-905-11 CAPACITOR 0.22F 5.5V C911 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C912 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C913 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C914 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C916 1-107-820-11 CERAMIC CHIP 0.1uF 16V C917 1-107-820-11 CERAMIC CHIP 0.1uF 16V C918 1-164-874-11 CERAMIC CHIP 100PF 5% 50V C921 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C922 1-107-820-11 CERAMIC CHIP 0.1uF 16V C923 1-107-820-11 CERAMIC CHIP 0.1uF 16V C924 1-107-820-11 CERAMIC CHIP 0.1uF 16V C925 1-107-820-11 CERAMIC CHIP 0.1uF 16V C926 1-107-820-11 CERAMIC CHIP 0.1uF 16V Ver. 1.6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 HCD-FR1/FR8/FR9 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DMB08 C928 1-107-820-11 CERAMIC CHIP 0.1uF 16V C932 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V < CONNECTOR > CN001 1-784-368-31 CONNECTOR, FFC/FPC 9P CN002 1-778-957-11 CONNECTOR, FFC/FPC 29P CN003 1-784-374-31 CONNECTOR, FFC/FPC 15P CN004 1-784-376-31 CONNECTOR, FFC/FPC 17P CN005 1-784-376-31 CONNECTOR, FFC/FPC 17P CN006 1-784-385-31 CONNECTOR, FFC/FPC 28P CN008 1-815-875-21 PIN, CONNECTOR (PC BOARD)(12P) CN301 1-764-177-11 PIN, CONNECTOR (SMD)(1.5mm) 7P CN401 1-778-957-31 CONNECTOR, FFC/FPC 29P CN900 1-784-367-31 CONNECTOR, FFC/FPC 8P < DIODE > D900 8-719-053-18 DIODE 1SR154-400TE-25 D901 8-719-053-18 DIODE 1SR154-400TE-25 D902 8-719-988-61 DIODE 1SS355TE-17 D903 8-719-083-02 DIODE KDS160-RTK D904 8-719-083-02 DIODE KDS160-RTK D906 8-719-083-02 DIODE KDS160-RTK D907 8-719-988-61 DIODE 1SS355TE-17 < FERRITE BEAD > FB001 1-469-324-21 FERRITE, EMI (SMD)(2012) FB004 1-469-324-21 FERRITE, EMI (SMD)(2012) FB005 1-469-324-21 FERRITE, EMI (SMD)(2012) FB006 1-469-324-21 FERRITE, EMI (SMD)(2012) FB007 1-469-324-21 FERRITE, EMI (SMD)(2012) FB008 1-469-324-21 FERRITE, EMI (SMD)(2012) FB009 1-469-324-21 FERRITE, EMI (SMD)(2012) FB010 1-469-324-21 FERRITE, EMI (SMD)(2012) FB011 1-469-324-21 FERRITE, EMI (SMD)(2012) FB012 1-469-324-21 FERRITE, EMI (SMD)(2012) FB013 1-469-324-21 FERRITE, EMI (SMD)(2012) FB014 1-469-324-21 FERRITE, EMI (SMD)(2012) FB201 1-469-324-21 FERRITE, EMI (SMD)(2012) FB202 1-469-324-21 FERRITE, EMI (SMD)(2012) FB901 1-469-324-21 FERRITE, EMI (SMD)(2012) FB902 1-216-295-91 SHORT CHIP 0 < FILTER > FL003 1-234-494-21 FILTER, EMI REMOVAL (SMD) FL004 1-234-494-21 FILTER, EMI REMOVAL (SMD) FL005 1-233-893-21 FILTER, CHIP EMI FL006 1-234-494-21 FILTER, EMI REMOVAL (SMD) FL202 1-234-494-21 FILTER, EMI REMOVAL (SMD) FL203 1-234-494-21 FILTER, EMI REMOVAL (SMD) FL204 1-234-494-21 FILTER, EMI REMOVAL (SMD) FL301 1-234-494-21 FILTER, EMI REMOVAL (SMD) FL303 1-234-494-21 FILTER, EMI REMOVAL (SMD) FL304 1-234-494-21 FILTER, EMI REMOVAL (SMD) FL401 1-234-494-21 FILTER, EMI REMOVAL (SMD) FL402 1-234-494-21 FILTER, EMI REMOVAL (SMD) FL603 1-234-494-21 FILTER, EMI REMOVAL (SMD) FL604 1-234-494-21 FILTER, EMI REMOVAL (SMD) FL605 1-234-494-21 FILTER, EMI REMOVAL (SMD) FL606 1-234-494-21 FILTER, EMI REMOVAL (SMD) FL607 1-234-494-21 FILTER, EMI REMOVAL (SMD) FL701 1-234-494-21 FILTER, EMI REMOVAL (SMD) FL702 1-234-494-21 FILTER, EMI REMOVAL (SMD) FL703 1-234-494-21 FILTER, EMI REMOVAL (SMD) FL704 1-234-494-21 FILTER, EMI REMOVAL (SMD) FL705 1-234-494-21 FILTER, EMI REMOVAL (SMD) FL706 1-234-494-21 FILTER, EMI REMOVAL (SMD) FL807 1-234-494-21 FILTER, EMI REMOVAL (SMD) FL810 1-234-494-21 FILTER, EMI REMOVAL (SMD) FL811 1-233-893-21 FILTER, CHIP EMI FL812 1-233-893-21 FILTER, CHIP EMI < IC > IC001 8-759-583-47 IC uPC2933T-E2 IC002 8-759-473-95 IC uPC2905T-E1 IC004 8-759-473-95 IC uPC2905T-E1 IC005 8-759-583-47 IC uPC2933T-E2 IC006 6-700-398-01 IC uPC2918T-E1 IC202 6-704-069-01 IC HY57V283220T-6 * IC203 6-703-671-01 IC BR9040F-WE2 IC205 6-804-534-01 IC MR27V3202F-13BTP04B9 IC206 6-707-406-01 IC ZIVA5X-C2F-B IC215 6-707-563-01 IC TC47VCX16841FT (EL) IC301 8-753-228-87 IC CXP973064-245R IC302 6-704-004-01 IC BR24L16F-WE2 IC303 6-700-407-01 IC SM8707GV-G-E2 IC401 8-752-408-73 IC CXD3068Q IC402 8-759-693-13 IC NJM12904V (TE2) IC501 6-702-157-01 IC FAN8035L IC600 8-759-473-95 IC uPC2905T-E1 IC601 6-701-011-01 IC uPC2910T-E1 IC603 8-759-693-13 IC NJM12904V (TE2) IC604 6-704-037-01 IC IS61LV6416-10TLT IC605 8-759-835-63 IC NJM2391DL1-26 (TE1) IC606 8-759-825-15 IC LC89056W-E IC607 6-705-900-01 IC CXD9718BQ IC608 6-703-704-01 IC AK4381VT-E2 IC609 6-701-834-01 IC PCM1802DBR IC612 6-703-372-01 IC CXD9742Q IC701 6-703-552-01 IC TMC57929PGF-RDP IC703 8-759-693-13 IC NJM12904V (TE2) IC704 6-702-301-01 IC TK11125CSCL-G IC706 8-759-564-30 IC MSM51V18165F-60TSKR1 IC801 8-752-416-77 IC CXD2753R IC802 8-759-058-64 IC TC7S32FU (TE85R) IC803 6-704-753-01 IC SN74AHC2G74HDCUR IC808 6-702-336-01 IC MSM56V16160F-8TK7R1 IC812 8-759-549-15 IC SN74LV245APWR IC813 8-759-549-15 IC SN74LV245APWR IC814 6-704-768-01 IC SN74AHC2G157HDCU3 IC900 8-759-238-47 IC TC74HCT7007AF (EL) IC901 6-804-543-01 IC uPD703033BYGF-M60-3BA-A IC902 6-703-679-11 IC PT8300R-TP IC903 6-703-873-01 IC PST3241NL IC904 8-759-648-48 IC TC7W34FU (TE12R) IC906 6-703-679-11 IC PT8300R-TP IC907 6-706-087-01 IC PST3645NR Ver. 1.6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 HCD-FR1/FR8/FR9 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DMB08 < JUMPER RESISTOR > JW900 1-218-941-81 RES-CHIP 100 5% 1/16W JW903 1-218-990-11 SHORT CHIP 0 < COIL > L301 1-414-754-11 INDUCTOR 10uH L600 1-414-754-11 INDUCTOR 10uH L601 1-414-754-11 INDUCTOR 10uH L602 1-414-754-11 INDUCTOR 10uH < TRANSISTOR > Q301 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q302 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q900 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q901 8-729-120-28 TRANSISTOR 2SC2412K-T-146-QR Q902 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q903 8-729-024-91 TRANSISTOR 2SC2712-GL-TE85L Q906 8-729-024-91 TRANSISTOR 2SC2712-GL-TE85L Q907 8-729-024-91 TRANSISTOR 2SC2712-GL-TE85L Q908 8-729-901-00 TRANSISTOR DTC124EKA-T146 Q909 8-729-901-00 TRANSISTOR DTC124EKA-T146 Q910 8-729-901-00 TRANSISTOR DTC124EKA-T146 Q913 8-729-026-49 TRANSISTOR 2SA1037AK-T146-QR Q914 8-729-024-91 TRANSISTOR 2SC2712-GL-TE85L < RESISTOR > R012 1-218-945-11 RES-CHIP 220 5% 1/16W R019 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R027 1-218-941-81 RES-CHIP 100 5% 1/16W R033 1-218-949-11 RES-CHIP 470 5% 1/16W R035 1-218-949-11 RES-CHIP 470 5% 1/16W R038 1-218-949-11 RES-CHIP 470 5% 1/16W R040 1-218-949-11 RES-CHIP 470 5% 1/16W R042 1-218-949-11 RES-CHIP 470 5% 1/16W R043 1-218-953-11 RES-CHIP 1K 5% 1/16W R044 1-218-949-11 RES-CHIP 470 5% 1/16W R045 1-218-949-11 RES-CHIP 470 5% 1/16W R046 1-218-949-11 RES-CHIP 470 5% 1/16W R048 1-218-941-81 RES-CHIP 100 5% 1/16W R049 1-218-941-81 RES-CHIP 100 5% 1/16W R050 1-218-941-81 RES-CHIP 100 5% 1/16W R059 1-218-990-11 SHORT CHIP 0 R064 1-218-953-11 RES-CHIP 1K 5% 1/16W R071 1-218-990-11 SHORT CHIP 0 R075 1-218-941-81 RES-CHIP 100 5% 1/16W R076 1-218-990-11 SHORT CHIP 0 R081 1-218-990-11 SHORT CHIP 0 R085 1-218-990-11 SHORT CHIP 0 R092 1-218-990-11 SHORT CHIP 0 R093 1-218-990-11 SHORT CHIP 0 R094 1-218-990-11 SHORT CHIP 0 R097 1-218-953-11 RES-CHIP 1K 5% 1/16W R098 1-218-953-11 RES-CHIP 1K 5% 1/16W R099 1-218-953-11 RES-CHIP 1K 5% 1/16W R100 1-218-953-11 RES-CHIP 1K 5% 1/16W R101 1-218-953-11 RES-CHIP 1K 5% 1/16W R102 1-218-953-11 RES-CHIP 1K 5% 1/16W R103 1-218-953-11 RES-CHIP 1K 5% 1/16W R104 1-218-953-11 RES-CHIP 1K 5% 1/16W R202 1-218-990-11 SHORT CHIP 0 R203 1-208-869-11 METAL CHIP 180 0.5% 1/16W R204 1-218-952-11 RES-CHIP 820 5% 1/16W R206 1-218-990-11 SHORT CHIP 0 R207 1-218-285-11 METAL CHIP 75 5% 1/10W R208 1-218-285-11 METAL CHIP 75 5% 1/10W R209 1-218-285-11 METAL CHIP 75 5% 1/10W R210 1-218-285-11 METAL CHIP 75 5% 1/10W R212 1-218-933-11 RES-CHIP 22 5% 1/16W R213 1-218-990-11 SHORT CHIP 0 R215 1-218-935-11 RES-CHIP 33 5% 1/16W R216 1-218-935-11 RES-CHIP 33 5% 1/16W R217 1-218-935-11 RES-CHIP 33 5% 1/16W R218 1-218-935-11 RES-CHIP 33 5% 1/16W R219 1-218-935-11 RES-CHIP 33 5% 1/16W R220 1-218-935-11 RES-CHIP 33 5% 1/16W R221 1-218-935-11 RES-CHIP 33 5% 1/16W R222 1-218-935-11 RES-CHIP 33 5% 1/16W R223 1-218-935-11 RES-CHIP 33 5% 1/16W R224 1-218-935-11 RES-CHIP 33 5% 1/16W R225 1-218-935-11 RES-CHIP 33 5% 1/16W R226 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R227 1-218-935-11 RES-CHIP 33 5% 1/16W R228 1-218-935-11 RES-CHIP 33 5% 1/16W R229 1-218-935-11 RES-CHIP 33 5% 1/16W R230 1-218-935-11 RES-CHIP 33 5% 1/16W R231 1-218-935-11 RES-CHIP 33 5% 1/16W R232 1-218-990-11 SHORT CHIP 0 R233 1-218-965-11 RES-CHIP 10K 5% 1/16W R234 1-218-285-11 METAL CHIP 75 5% 1/10W R236 1-208-683-11 METAL CHIP 1K 0.5% 1/16W R238 1-218-941-81 RES-CHIP 100 5% 1/16W R239 1-218-973-11 RES-CHIP 47K 5% 1/16W R241 1-218-953-11 RES-CHIP 1K 5% 1/16W R242 1-218-965-11 RES-CHIP 10K 5% 1/16W R243 1-218-953-11 RES-CHIP 1K 5% 1/16W R244 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R245 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R246 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R247 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R248 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R249 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R250 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R252 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R253 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R255 1-218-953-11 RES-CHIP 1K 5% 1/16W R256 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R257 1-500-284-21 INDUCTOR, FERRITE BEAD R258 1-500-284-21 INDUCTOR, FERRITE BEAD R259 1-500-284-21 INDUCTOR, FERRITE BEAD R260 1-500-284-21 INDUCTOR, FERRITE BEAD R261 1-500-284-21 INDUCTOR, FERRITE BEAD R262 1-218-285-11 METAL CHIP 75 5% 1/10W R263 1-218-285-11 METAL CHIP 75 5% 1/10W R264 1-218-285-11 METAL CHIP 75 5% 1/10W R265 1-218-285-11 METAL CHIP 75 5% 1/10W R266 1-218-285-11 METAL CHIP 75 5% 1/10W Ver. 1.6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 HCD-FR1/FR8/FR9 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DMB08 R303 1-218-933-11 RES-CHIP 22 5% 1/16W R304 1-218-933-11 RES-CHIP 22 5% 1/16W R305 1-218-965-11 RES-CHIP 10K 5% 1/16W R306 1-218-933-11 RES-CHIP 22 5% 1/16W R307 1-218-933-11 RES-CHIP 22 5% 1/16W R308 1-218-933-11 RES-CHIP 22 5% 1/16W R311 1-218-933-11 RES-CHIP 22 5% 1/16W R312 1-218-965-11 RES-CHIP 10K 5% 1/16W R316 1-218-965-11 RES-CHIP 10K 5% 1/16W R317 1-218-941-81 RES-CHIP 100 5% 1/16W R318 1-218-941-81 RES-CHIP 100 5% 1/16W R321 1-218-941-81 RES-CHIP 100 5% 1/16W R323 1-218-941-81 RES-CHIP 100 5% 1/16W R324 1-218-990-11 SHORT CHIP 0 R325 1-218-971-11 RES-CHIP 33K 5% 1/16W R326 1-218-941-81 RES-CHIP 100 5% 1/16W R327 1-218-941-81 RES-CHIP 100 5% 1/16W R328 1-218-941-81 RES-CHIP 100 5% 1/16W R329 1-218-941-81 RES-CHIP 100 5% 1/16W R330 1-218-941-81 RES-CHIP 100 5% 1/16W R331 1-218-945-11 RES-CHIP 220 5% 1/16W R332 1-218-965-11 RES-CHIP 10K 5% 1/16W R333 1-218-965-11 RES-CHIP 10K 5% 1/16W R335 1-218-933-11 RES-CHIP 22 5% 1/16W R337 1-218-941-81 RES-CHIP 100 5% 1/16W R344 1-218-953-11 RES-CHIP 1K 5% 1/16W R346 1-218-953-11 RES-CHIP 1K 5% 1/16W R350 1-218-941-81 RES-CHIP 100 5% 1/16W R353 1-218-965-11 RES-CHIP 10K 5% 1/16W R354 1-218-989-11 RES-CHIP 1M 5% 1/16W R355 1-218-933-11 RES-CHIP 22 5% 1/16W R356 1-218-939-11 RES-CHIP 68 5% 1/16W R357 1-218-939-11 RES-CHIP 68 5% 1/16W R358 1-218-939-11 RES-CHIP 68 5% 1/16W R359 1-218-965-11 RES-CHIP 10K 5% 1/16W R360 1-218-965-11 RES-CHIP 10K 5% 1/16W R361 1-218-965-11 RES-CHIP 10K 5% 1/16W R362 1-218-943-11 RES-CHIP 150 5% 1/16W R363 1-218-965-11 RES-CHIP 10K 5% 1/16W R364 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R401 1-218-990-11 SHORT CHIP 0 R411 1-218-990-11 SHORT CHIP 0 R412 1-218-965-11 RES-CHIP 10K 5% 1/16W R413 1-218-965-11 RES-CHIP 10K 5% 1/16W R414 1-218-990-11 SHORT CHIP 0 R416 1-218-990-11 SHORT CHIP 0 R418 1-218-965-11 RES-CHIP 10K 5% 1/16W R419 1-218-975-11 RES-CHIP 68K 5% 1/16W R420 1-218-990-11 SHORT CHIP 0 R421 1-218-953-11 RES-CHIP 1K 5% 1/16W R423 1-218-953-11 RES-CHIP 1K 5% 1/16W R425 1-218-953-11 RES-CHIP 1K 5% 1/16W R426 1-218-953-11 RES-CHIP 1K 5% 1/16W R428 1-218-953-11 RES-CHIP 1K 5% 1/16W R429 1-218-953-11 RES-CHIP 1K 5% 1/16W R430 1-218-953-11 RES-CHIP 1K 5% 1/16W R433 1-218-973-11 RES-CHIP 47K 5% 1/16W R434 1-218-973-11 RES-CHIP 47K 5% 1/16W R437 1-218-973-11 RES-CHIP 47K 5% 1/16W R439 1-218-947-11 RES-CHIP 330 5% 1/16W R440 1-218-973-11 RES-CHIP 47K 5% 1/16W R441 1-218-953-11 RES-CHIP 1K 5% 1/16W R442 1-218-965-11 RES-CHIP 10K 5% 1/16W R443 1-218-973-11 RES-CHIP 47K 5% 1/16W R444 1-218-985-11 RES-CHIP 470K 5% 1/16W R445 1-218-953-11 RES-CHIP 1K 5% 1/16W R446 1-218-965-11 RES-CHIP 10K 5% 1/16W R447 1-218-965-11 RES-CHIP 10K 5% 1/16W R448 1-218-953-11 RES-CHIP 1K 5% 1/16W R449 1-218-971-11 RES-CHIP 33K 5% 1/16W R450 1-218-953-11 RES-CHIP 1K 5% 1/16W R451 1-218-965-11 RES-CHIP 10K 5% 1/16W R452 1-218-989-11 RES-CHIP 1M 5% 1/16W R453 1-218-989-11 RES-CHIP 1M 5% 1/16W R455 1-218-977-11 RES-CHIP 100K 5% 1/16W R457 1-218-959-11 RES-CHIP 3.3K 5% 1/16W R510 1-208-939-11 METAL CHIP 150K 0.5% 1/16W R511 1-208-939-11 METAL CHIP 150K 0.5% 1/16W R512 1-208-929-11 METAL CHIP 56K 0.5% 1/16W R513 1-208-929-11 METAL CHIP 56K 0.5% 1/16W R514 1-218-965-11 RES-CHIP 10K 5% 1/16W R515 1-218-965-11 RES-CHIP 10K 5% 1/16W R516 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R517 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R519 1-218-977-11 RES-CHIP 100K 5% 1/16W R520 1-218-965-11 RES-CHIP 10K 5% 1/16W R521 1-218-977-11 RES-CHIP 100K 5% 1/16W R522 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R523 1-218-965-11 RES-CHIP 10K 5% 1/16W R524 1-218-965-11 RES-CHIP 10K 5% 1/16W R525 1-218-965-11 RES-CHIP 10K 5% 1/16W R527 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R529 1-218-971-11 RES-CHIP 33K 5% 1/16W R530 1-218-974-11 RES-CHIP 56K 5% 1/16W R531 1-218-990-11 SHORT CHIP 0 R532 1-218-990-11 SHORT CHIP 0 R533 1-218-971-11 RES-CHIP 33K 5% 1/16W R534 1-218-974-11 RES-CHIP 56K 5% 1/16W R535 1-218-990-11 SHORT CHIP 0 R536 1-220-210-11 RES-CHIP 200K 5% 1/16W R538 1-218-977-11 RES-CHIP 100K 5% 1/16W R540 1-218-965-11 RES-CHIP 10K 5% 1/16W R541 1-218-977-11 RES-CHIP 100K 5% 1/16W R544 1-218-977-11 RES-CHIP 100K 5% 1/16W R545 1-218-977-11 RES-CHIP 100K 5% 1/16W R579 1-218-964-11 RES-CHIP 8.2K 5% 1/16W R580 1-218-971-11 RES-CHIP 33K 5% 1/16W R581 1-218-966-11 RES-CHIP 12K 5% 1/16W R582 1-218-965-11 RES-CHIP 10K 5% 1/16W R583 1-218-965-11 RES-CHIP 10K 5% 1/16W R590 1-218-953-11 RES-CHIP 1K 5% 1/16W R592 1-218-990-11 SHORT CHIP 0 R599 1-218-990-11 SHORT CHIP 0 Ver. 1.6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 HCD-FR1/FR8/FR9 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DMB08 R600 1-218-941-81 RES-CHIP 100 5% 1/16W R601 1-218-990-11 SHORT CHIP 0 R602 1-218-989-11 RES-CHIP 1M 5% 1/16W R603 1-218-941-81 RES-CHIP 100 5% 1/16W R604 1-218-941-81 RES-CHIP 100 5% 1/16W R605 1-218-953-11 RES-CHIP 1K 5% 1/16W R606 1-218-941-81 RES-CHIP 100 5% 1/16W R607 1-218-941-81 RES-CHIP 100 5% 1/16W R608 1-218-959-11 RES-CHIP 3.3K 5% 1/16W R609 1-218-949-11 RES-CHIP 470 5% 1/16W R610 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R611 1-218-941-81 RES-CHIP 100 5% 1/16W R612 1-218-973-11 RES-CHIP 47K 5% 1/16W R613 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R614 1-218-971-11 RES-CHIP 33K 5% 1/16W R615 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R616 1-218-962-11 RES-CHIP 5.6K 5% 1/16W R618 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R619 1-218-973-11 RES-CHIP 47K 5% 1/16W R621 1-218-941-81 RES-CHIP 100 5% 1/16W R622 1-218-941-81 RES-CHIP 100 5% 1/16W R623 1-218-941-81 RES-CHIP 100 5% 1/16W R624 1-218-941-81 RES-CHIP 100 5% 1/16W R625 1-218-959-11 RES-CHIP 3.3K 5% 1/16W R626 1-218-953-11 RES-CHIP 1K 5% 1/16W R627 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R628 1-218-941-81 RES-CHIP 100 5% 1/16W R629 1-218-941-81 RES-CHIP 100 5% 1/16W R630 1-218-949-11 RES-CHIP 470 5% 1/16W R631 1-218-941-81 RES-CHIP 100 5% 1/16W R634 1-218-953-11 RES-CHIP 1K 5% 1/16W R637 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R639 1-218-941-81 RES-CHIP 100 5% 1/16W R640 1-218-941-81 RES-CHIP 100 5% 1/16W R642 1-218-941-81 RES-CHIP 100 5% 1/16W R645 1-218-989-11 RES-CHIP 1M 5% 1/16W R648 1-218-935-11 RES-CHIP 33 5% 1/16W R655 1-218-941-81 RES-CHIP 100 5% 1/16W R657 1-218-953-11 RES-CHIP 1K 5% 1/16W R658 1-218-941-81 RES-CHIP 100 5% 1/16W R659 1-218-935-11 RES-CHIP 33 5% 1/16W R661 1-218-941-81 RES-CHIP 100 5% 1/16W R662 1-218-941-81 RES-CHIP 100 5% 1/16W R663 1-218-941-81 RES-CHIP 100 5% 1/16W R664 1-218-941-81 RES-CHIP 100 5% 1/16W R666 1-218-941-81 RES-CHIP 100 5% 1/16W R667 1-218-941-81 RES-CHIP 100 5% 1/16W R671 1-218-941-81 RES-CHIP 100 5% 1/16W R672 1-218-941-81 RES-CHIP 100 5% 1/16W R673 1-218-945-11 RES-CHIP 220 5% 1/16W R674 1-218-945-11 RES-CHIP 220 5% 1/16W R675 1-218-945-11 RES-CHIP 220 5% 1/16W R676 1-218-945-11 RES-CHIP 220 5% 1/16W R677 1-218-945-11 RES-CHIP 220 5% 1/16W R678 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R679 1-218-941-81 RES-CHIP 100 5% 1/16W R680 1-218-941-81 RES-CHIP 100 5% 1/16W R683 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R685 1-218-965-11 RES-CHIP 10K 5% 1/16W R687 1-218-953-11 RES-CHIP 1K 5% 1/16W R688 1-218-990-11 SHORT CHIP 0 R689 1-218-965-11 RES-CHIP 10K 5% 1/16W R691 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R692 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R697 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R698 1-218-965-11 RES-CHIP 10K 5% 1/16W R699 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R702 1-218-965-11 RES-CHIP 10K 5% 1/16W R703 1-218-965-11 RES-CHIP 10K 5% 1/16W R704 1-218-965-11 RES-CHIP 10K 5% 1/16W R705 1-218-965-11 RES-CHIP 10K 5% 1/16W R706 1-218-965-11 RES-CHIP 10K 5% 1/16W R707 1-218-941-81 RES-CHIP 100 5% 1/16W R708 1-218-985-11 RES-CHIP 470K 5% 1/16W R709 1-218-979-11 RES-CHIP 150K 5% 1/16W R710 1-218-965-11 RES-CHIP 10K 5% 1/16W R711 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R712 1-218-965-11 RES-CHIP 10K 5% 1/16W R713 1-218-965-11 RES-CHIP 10K 5% 1/16W R714 1-218-965-11 RES-CHIP 10K 5% 1/16W R715 1-218-965-11 RES-CHIP 10K 5% 1/16W R716 1-218-941-81 RES-CHIP 100 5% 1/16W R717 1-218-977-11 RES-CHIP 100K 5% 1/16W R718 1-218-965-11 RES-CHIP 10K 5% 1/16W R719 1-218-953-11 RES-CHIP 1K 5% 1/16W R720 1-218-953-11 RES-CHIP 1K 5% 1/16W R721 1-208-923-11 METAL CHIP 33K 0.5% 1/16W R724 1-208-683-11 METAL CHIP 1K 0.5% 1/16W R725 1-208-689-11 METAL CHIP 1.8K 0.5% 1/16W R726 1-208-935-11 METAL CHIP 100K 0.5% 1/16W R727 1-208-695-11 METAL CHIP 3.3K 0.5% 1/16W R728 1-208-911-11 METAL CHIP 10K 0.5% 1/16W R729 1-218-964-11 RES-CHIP 8.2K 5% 1/16W R730 1-218-933-11 RES-CHIP 22 5% 1/16W R731 1-218-933-11 RES-CHIP 22 5% 1/16W R732 1-218-965-11 RES-CHIP 10K 5% 1/16W R735 1-218-965-11 RES-CHIP 10K 5% 1/16W R737 1-218-965-11 RES-CHIP 10K 5% 1/16W R738 1-218-933-11 RES-CHIP 22 5% 1/16W R739 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R740 1-218-953-11 RES-CHIP 1K 5% 1/16W R741 1-218-933-11 RES-CHIP 22 5% 1/16W R742 1-218-933-11 RES-CHIP 22 5% 1/16W R743 1-218-933-11 RES-CHIP 22 5% 1/16W R744 1-218-933-11 RES-CHIP 22 5% 1/16W R745 1-218-973-11 RES-CHIP 47K 5% 1/16W R746 1-218-973-11 RES-CHIP 47K 5% 1/16W R747 1-218-971-11 RES-CHIP 33K 5% 1/16W R748 1-218-971-11 RES-CHIP 33K 5% 1/16W R750 1-218-965-11 RES-CHIP 10K 5% 1/16W R760 1-218-990-11 SHORT CHIP 0 R762 1-218-969-11 RES-CHIP 22K 5% 1/16W R763 1-218-964-11 RES-CHIP 8.2K 5% 1/16W R764 1-218-989-11 RES-CHIP 1M 5% 1/16W R765 1-218-969-11 RES-CHIP 22K 5% 1/16W R767 1-218-973-11 RES-CHIP 47K 5% 1/16W Ver. 1.6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 HCD-FR1/FR8/FR9 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DMB08 R768 1-218-990-11 SHORT CHIP 0 R771 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R772 1-218-933-11 RES-CHIP 22 5% 1/16W R776 1-218-990-11 SHORT CHIP 0 R777 1-218-990-11 SHORT CHIP 0 R778 1-218-977-11 RES-CHIP 100K 5% 1/16W R780 1-218-990-11 SHORT CHIP 0 R781 1-218-990-11 SHORT CHIP 0 R799 1-218-990-11 SHORT CHIP 0 R800 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R803 1-218-941-81 RES-CHIP 100 5% 1/16W R804 1-218-990-11 SHORT CHIP 0 R805 1-218-965-11 RES-CHIP 10K 5% 1/16W R806 1-218-990-11 SHORT CHIP 0 R808 1-218-965-11 RES-CHIP 10K 5% 1/16W R821 1-218-933-11 RES-CHIP 22 5% 1/16W R822 1-218-933-11 RES-CHIP 22 5% 1/16W R823 1-218-933-11 RES-CHIP 22 5% 1/16W R826 1-218-933-11 RES-CHIP 22 5% 1/16W R827 1-218-941-81 RES-CHIP 100 5% 1/16W R828 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R829 1-218-941-81 RES-CHIP 100 5% 1/16W R830 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R831 1-218-971-11 RES-CHIP 33K 5% 1/16W R839 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R842 1-218-965-11 RES-CHIP 10K 5% 1/16W R847 1-218-933-11 RES-CHIP 22 5% 1/16W R848 1-218-933-11 RES-CHIP 22 5% 1/16W R849 1-218-933-11 RES-CHIP 22 5% 1/16W R850 1-218-933-11 RES-CHIP 22 5% 1/16W R867 1-218-990-11 SHORT CHIP 0 R882 1-218-965-11 RES-CHIP 10K 5% 1/16W R883 1-218-965-11 RES-CHIP 10K 5% 1/16W R884 1-218-965-11 RES-CHIP 10K 5% 1/16W R885 1-218-965-11 RES-CHIP 10K 5% 1/16W R886 1-218-965-11 RES-CHIP 10K 5% 1/16W R887 1-218-965-11 RES-CHIP 10K 5% 1/16W R888 1-218-965-11 RES-CHIP 10K 5% 1/16W R889 1-218-965-11 RES-CHIP 10K 5% 1/16W R890 1-218-941-81 RES-CHIP 100 5% 1/16W R891 1-218-941-81 RES-CHIP 100 5% 1/16W R892 1-218-941-81 RES-CHIP 100 5% 1/16W R894 1-218-965-11 RES-CHIP 10K 5% 1/16W R895 1-218-965-11 RES-CHIP 10K 5% 1/16W R896 1-218-973-11 RES-CHIP 47K 5% 1/16W R897 1-218-965-11 RES-CHIP 10K 5% 1/16W R898 1-218-965-11 RES-CHIP 10K 5% 1/16W R899 1-218-965-11 RES-CHIP 10K 5% 1/16W R900 1-218-941-81 RES-CHIP 100 5% 1/16W R901 1-218-941-81 RES-CHIP 100 5% 1/16W R902 1-218-941-81 RES-CHIP 100 5% 1/16W R903 1-218-941-81 RES-CHIP 100 5% 1/16W R904 1-218-941-81 RES-CHIP 100 5% 1/16W R905 1-218-941-81 RES-CHIP 100 5% 1/16W R906 1-218-959-11 RES-CHIP 3.3K 5% 1/16W R907 1-218-959-11 RES-CHIP 3.3K 5% 1/16W R908 1-218-965-11 RES-CHIP 10K 5% 1/16W R909 1-218-965-11 RES-CHIP 10K 5% 1/16W R910 1-218-941-81 RES-CHIP 100 5% 1/16W R911 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R912 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R913 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R914 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R915 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R916 1-218-941-81 RES-CHIP 100 5% 1/16W R917 1-218-952-11 RES-CHIP 820 5% 1/16W R918 1-218-952-11 RES-CHIP 820 5% 1/16W R919 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R920 1-218-941-81 RES-CHIP 100 5% 1/16W R921 1-218-941-81 RES-CHIP 100 5% 1/16W R922 1-218-965-11 RES-CHIP 10K 5% 1/16W R924 1-218-941-81 RES-CHIP 100 5% 1/16W R925 1-218-941-81 RES-CHIP 100 5% 1/16W R926 1-218-941-81 RES-CHIP 100 5% 1/16W R927 1-218-941-81 RES-CHIP 100 5% 1/16W R928 1-218-990-11 SHORT CHIP 0 R929 1-218-964-11 RES-CHIP 8.2K 5% 1/16W R930 1-218-965-11 RES-CHIP 10K 5% 1/16W R931 1-218-953-11 RES-CHIP 1K 5% 1/16W R932 1-218-965-11 RES-CHIP 10K 5% 1/16W R933 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R935 1-218-969-11 RES-CHIP 22K 5% 1/16W (FR8) R935 1-218-965-11 RES-CHIP 10K 5% 1/16W (FR9) R936 1-218-959-11 RES-CHIP 3.3K 5% 1/16W R938 1-218-945-11 RES-CHIP 220 5% 1/16W R939 1-218-965-11 RES-CHIP 10K 5% 1/16W R940 1-218-945-11 RES-CHIP 220 5% 1/16W R941 1-218-965-11 RES-CHIP 10K 5% 1/16W R942 1-218-965-11 RES-CHIP 10K 5% 1/16W R943 1-218-965-11 RES-CHIP 10K 5% 1/16W R944 1-218-965-11 RES-CHIP 10K 5% 1/16W R945 1-218-973-11 RES-CHIP 47K 5% 1/16W R949 1-218-965-11 RES-CHIP 10K 5% 1/16W R950 1-218-973-11 RES-CHIP 47K 5% 1/16W R951 1-218-965-11 RES-CHIP 10K 5% 1/16W R953 1-218-941-81 RES-CHIP 100 5% 1/16W R954 1-218-965-11 RES-CHIP 10K 5% 1/16W R955 1-218-965-11 RES-CHIP 10K 5% 1/16W R957 1-218-965-11 RES-CHIP 10K 5% 1/16W R959 1-218-990-11 SHORT CHIP 0 R960 1-218-965-11 RES-CHIP 10K 5% 1/16W R961 1-218-965-11 RES-CHIP 10K 5% 1/16W R962 1-218-965-11 RES-CHIP 10K 5% 1/16W R963 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R964 1-218-977-11 RES-CHIP 100K 5% 1/16W R966 1-218-945-11 RES-CHIP 220 5% 1/16W R967 1-218-941-81 RES-CHIP 100 5% 1/16W R968 1-218-941-81 RES-CHIP 100 5% 1/16W R969 1-218-965-11 RES-CHIP 10K 5% 1/16W (FR1) R969 1-218-973-11 RES-CHIP 47K 5% 1/16W (FR8) R971 1-218-965-11 RES-CHIP 10K 5% 1/16W R972 1-218-965-11 RES-CHIP 10K 5% 1/16W R973 1-218-990-11 SHORT CHIP 0 R977 1-218-969-11 RES-CHIP 22K 5% 1/16W R978 1-218-953-11 RES-CHIP 1K 5% 1/16W R979 1-218-973-11 RES-CHIP 47K 5% 1/16W Ver. 1.6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 HCD-FR1/FR8/FR9 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark FL HP R980 1-218-973-11 RES-CHIP 47K 5% 1/16W R981 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R983 1-218-973-11 RES-CHIP 47K 5% 1/16W R984 1-218-973-11 RES-CHIP 47K 5% 1/16W R985 1-218-985-11 RES-CHIP 470K 5% 1/16W R986 1-218-973-11 RES-CHIP 47K 5% 1/16W R987 1-218-973-11 RES-CHIP 47K 5% 1/16W R989 1-218-990-11 SHORT CHIP 0 R990 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R991 1-218-965-11 RES-CHIP 10K 5% 1/16W R992 1-218-965-11 RES-CHIP 10K 5% 1/16W R994 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R995 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R996 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R997 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R998 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R1000 1-218-945-11 RES-CHIP 220 5% 1/16W R1001 1-218-945-11 RES-CHIP 220 5% 1/16W R1002 1-218-945-11 RES-CHIP 220 5% 1/16W R1003 1-218-945-11 RES-CHIP 220 5% 1/16W R1004 1-218-945-11 RES-CHIP 220 5% 1/16W R1005 1-218-945-11 RES-CHIP 220 5% 1/16W R1006 1-218-945-11 RES-CHIP 220 5% 1/16W R1007 1-218-945-11 RES-CHIP 220 5% 1/16W R1008 1-218-945-11 RES-CHIP 220 5% 1/16W R1009 1-218-945-11 RES-CHIP 220 5% 1/16W R1010 1-218-945-11 RES-CHIP 220 5% 1/16W R1011 1-218-945-11 RES-CHIP 220 5% 1/16W R1012 1-218-945-11 RES-CHIP 220 5% 1/16W < NETWORK RESISTOR > RB901 1-233-270-11 NETWORK, RES (8 GANG) 10K RB902 1-233-270-11 NETWORK, RES (8 GANG) 10K < VIBRATOR > X301 1-795-375-11 VIBRATOR, CERAMIC 20MHz X302 1-795-630-11 VIBRATOR, CRYSTAL 27MHz X600 1-781-465-21 VIBRATOR, CRYSTAL 12.288MHz X601 1-813-325-11 VIBRATOR, CRYSTAL 13.9MHz X901 1-795-375-11 VIBRATOR, CERAMIC 20MHz ************************************************************ A-4751-757-A FL BOARD, COMPLETE ****************** < CAPACITOR > C805 1-126-795-11 ELECT 10uF 20% 50V C807 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C841 1-117-370-11 CERAMIC CHIP 10uF 10V C842 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C843 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C846 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C847 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V C848 1-162-974-11 CERAMIC CHIP 0.01uF 50V C849 1-164-360-11 CERAMIC CHIP 0.1uF 16V C850 1-162-923-11 CERAMIC CHIP 47PF 5% 50V < CONNECTOR > CN803 1-779-554-21 CONNECTOR, FFC (LIF (NON-ZIF)) 17P CN812 1-784-859-21 CONNECTOR, FFC (LIF (NON-ZIF)) 7P < FERRITE BEAD > FB005 1-469-144-21 FERRITE, EMI (SMD)(2012) FB807 1-414-813-11 FERRITE, EMI (SMD)(2012) < FLUORESCENT INDICATOR > FL801 1-519-759-11 INDICATOR TUBE, FLUORESCENT < IC > IC801 8-759-826-33 IC NJL73H400A ( ) IC803 6-705-899-01 IC ML9208-03MBZ03B < TRANSISTOR > Q810 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 < RESISTOR > R828 1-216-864-11 SHORT CHIP 0 R840 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R843 1-216-833-11 METAL CHIP 10K 5% 1/10W R844 1-216-809-11 METAL CHIP 100 5% 1/10W R849 1-216-833-11 METAL CHIP 10K 5% 1/10W R851 1-216-809-11 METAL CHIP 100 5% 1/10W R852 1-216-805-11 METAL CHIP 47 5% 1/10W R853 1-216-809-11 METAL CHIP 100 5% 1/10W R877 1-216-821-11 METAL CHIP 1K 5% 1/10W R878 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R879 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R880 1-216-821-11 METAL CHIP 1K 5% 1/10W R881 1-216-821-11 METAL CHIP 1K 5% 1/10W R882 1-216-821-11 METAL CHIP 1K 5% 1/10W ************************************************************ HP BOARD ********* < CAPACITOR > C800 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C801 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C802 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C803 1-164-360-11 CERAMIC CHIP 0.1uF 16V C804 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C806 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C853 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C854 1-162-923-11 CERAMIC CHIP 47PF 5% 50V < CONNECTOR > * CN811 1-566-002-11 PIN, CONNECTOR (PC BOARD) 5P < DIODE > D800 8-719-988-61 DIODE 1SS355TE-17 D801 8-719-988-61 DIODE 1SS355TE-17 < FERRITE BEAD > FB800 1-500-284-21 INDUCTOR, FERRITE BEAD FB802 1-469-144-21 FERRITE, EMI (SMD)(2012) FB803 1-469-144-21 FERRITE, EMI (SMD)(2012) FB805 1-469-144-21 FERRITE, EMI (SMD)(2012) FB810 1-469-324-21 FERRITE, EMI (SMD)(2012) < JACK > J800 1-794-453-11 JACK (PHONES) < COIL > L800 1-410-387-11 INDUCTOR 33uH L801 1-410-387-11 INDUCTOR 33uH L802 1-469-144-21 FERRITE, EMI (SMD)(2012) L803 1-469-144-21 FERRITE, EMI (SMD)(2012) DMB08 Ver. 1.6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 HCD-FR1/FR8/FR9 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark IO < TRANSISTOR > Q800 8-729-920-31 TRANSISTOR DTC343TK-T-146 Q801 8-729-920-31 TRANSISTOR DTC343TK-T-146 Q803 8-729-920-31 TRANSISTOR DTC343TK-T-146 Q804 8-729-920-31 TRANSISTOR DTC343TK-T-146 < RESISTOR > R800 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R801 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R802 1-216-809-11 METAL CHIP 100 5% 1/10W R803 1-216-809-11 METAL CHIP 100 5% 1/10W R805 1-216-809-11 METAL CHIP 100 5% 1/10W R807 1-216-809-11 METAL CHIP 100 5% 1/10W ************************************************************ A-4751-753-A IO BOARD, COMPLETE ****************** < CAPACITOR > C101 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C102 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C103 1-126-934-11 ELECT 220uF 20% 16V C105 1-115-156-11 CERAMIC CHIP 1uF 10V C106 1-115-156-11 CERAMIC CHIP 1uF 10V C107 1-104-662-91 ELECT 22uF 20% 25V C108 1-104-662-91 ELECT 22uF 20% 25V C109 1-104-509-11 CERAMIC CHIP 0.018uF 10% 16V C110 1-104-509-11 CERAMIC CHIP 0.018uF 10% 16V C111 1-104-662-91 ELECT 22uF 20% 25V C112 1-104-662-91 ELECT 22uF 20% 25V C212 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C216 1-126-964-11 ELECT 10uF 20% 50V C217 1-164-156-11 CERAMIC CHIP 0.1uF 25V C218 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C221 1-115-156-11 CERAMIC CHIP 1uF 10V C222 1-115-156-11 CERAMIC CHIP 1uF 10V C223 1-115-156-11 CERAMIC CHIP 1uF 10V C224 1-126-933-11 ELECT 100uF 20% 16V C225 1-164-156-11 CERAMIC CHIP 0.1uF 25V C227 1-104-662-91 ELECT 22uF 20% 25V C229 1-164-156-11 CERAMIC CHIP 0.1uF 25V C234 1-164-156-11 CERAMIC CHIP 0.1uF 25V C235 1-126-916-11 ELECT 1000uF 20% 6.3V C238 1-126-916-11 ELECT 1000uF 20% 6.3V C239 1-126-916-11 ELECT 1000uF 20% 6.3V C240 1-126-916-11 ELECT 1000uF 20% 6.3V C241 1-126-916-11 ELECT 1000uF 20% 6.3V C278 1-126-964-11 ELECT 10uF 20% 50V C603 1-164-156-11 CERAMIC CHIP 0.1uF 25V C604 1-126-933-11 ELECT 100uF 20% 16V C605 1-104-662-91 ELECT 22uF 20% 25V C606 1-104-662-91 ELECT 22uF 20% 25V C607 1-104-662-91 ELECT 22uF 20% 25V C608 1-104-662-91 ELECT 22uF 20% 25V C609 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C610 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C611 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C612 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C624 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C625 1-104-662-91 ELECT 22uF 20% 25V C626 1-164-156-11 CERAMIC CHIP 0.1uF 25V C627 1-104-662-91 ELECT 22uF 20% 25V C628 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C629 1-164-156-11 CERAMIC CHIP 0.1uF 25V C631 1-164-156-11 CERAMIC CHIP 0.1uF 25V C632 1-126-933-11 ELECT 100uF 20% 16V C633 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C634 1-104-662-91 ELECT 22uF 20% 25V C635 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C636 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C637 1-104-662-91 ELECT 22uF 20% 25V C638 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C639 1-126-933-11 ELECT 100uF 20% 16V C645 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C646 1-162-960-11 CERAMIC CHIP 220PF 10% 50V < CONNECTOR > CN102 1-816-955-11 CONNECTOR, FFC/FPC 11P CN201 1-784-213-11 CONNECTOR, FFC (LIF (NON-ZIF)) 15P CN601 1-779-297-11 CONNECTOR, FFC (LIF (NON-ZIF)) 29P < IC > IC201 6-705-602-01 IC MM1623BFBE IC602 8-759-385-76 IC MC14052 BDR2 IC603 6-600-014-01 IC TORX141L (OPTICAL DIGITAL IN) IC605 6-706-078-01 IC M62429FP-TP IC606 6-705-720-01 IC RC4580IDR < JACK > J201 1-817-449-11 JACK, PIN 3P (COMPONENT VIDEO OUT) J202 1-694-920-11 TERMINAL BOARD (S TERMINAL+1P) (MONITOR OUT) J601 1-816-918-11 JACK, PIN 4P (VIDEO/SAT) J602 1-774-785-11 JACK, PIN 1P (SURROUND BACK) < COIL > L101 1-469-525-91 INDUCTOR 10uH L209 1-469-525-91 INDUCTOR 10uH L214 1-216-864-11 SHORT CHIP 0 L601 1-469-525-91 INDUCTOR 10uH L602 1-469-525-91 INDUCTOR 10uH < TRANSISTOR > Q101 8-729-120-28 TRANSISTOR 2SC2412K-T-146-QR Q102 8-729-120-28 TRANSISTOR 2SC2412K-T-146-QR Q604 8-729-901-00 TRANSISTOR DTC124EKA-T146 Q605 8-729-901-00 TRANSISTOR DTC124EKA-T146 Q606 8-729-920-31 TRANSISTOR DTC343TK-T-146 Q607 8-729-920-31 TRANSISTOR DTC343TK-T-146 < RESISTOR > R101 1-216-864-11 SHORT CHIP 0 R103 1-216-864-11 SHORT CHIP 0 R106 1-216-821-11 METAL CHIP 1K 5% 1/10W R107 1-216-853-11 METAL CHIP 470K 5% 1/10W R108 1-216-853-11 METAL CHIP 470K 5% 1/10W HP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 HCD-FR1/FR8/FR9 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark IO R109 1-216-821-11 METAL CHIP 1K 5% 1/10W R110 1-216-813-11 METAL CHIP 220 5% 1/10W R111 1-216-813-11 METAL CHIP 220 5% 1/10W R112 1-218-867-11 METAL CHIP 6.8K 5% 1/10W R113 1-218-867-11 METAL CHIP 6.8K 5% 1/10W R114 1-216-839-11 METAL CHIP 33K 5% 1/10W R115 1-216-839-11 METAL CHIP 33K 5% 1/10W R116 1-216-839-11 METAL CHIP 33K 5% 1/10W R117 1-216-839-11 METAL CHIP 33K 5% 1/10W R118 1-216-839-11 METAL CHIP 33K 5% 1/10W R119 1-216-839-11 METAL CHIP 33K 5% 1/10W R128 1-216-864-11 SHORT CHIP 0 R203 1-216-821-11 METAL CHIP 1K 5% 1/10W R204 1-216-821-11 METAL CHIP 1K 5% 1/10W R224 1-216-833-11 METAL CHIP 10K 5% 1/10W R225 1-218-285-11 METAL CHIP 75 5% 1/10W R226 1-218-285-11 METAL CHIP 75 5% 1/10W R227 1-218-285-11 METAL CHIP 75 5% 1/10W R228 1-218-285-11 METAL CHIP 75 5% 1/10W R229 1-218-285-11 METAL CHIP 75 5% 1/10W R230 1-218-285-11 METAL CHIP 75 5% 1/10W R234 1-216-833-11 METAL CHIP 10K 5% 1/10W R601 1-216-833-11 METAL CHIP 10K 5% 1/10W R602 1-216-833-11 METAL CHIP 10K 5% 1/10W R603 1-216-809-11 METAL CHIP 100 5% 1/10W R604 1-216-809-11 METAL CHIP 100 5% 1/10W R605 1-216-809-11 METAL CHIP 100 5% 1/10W R607 1-216-821-11 METAL CHIP 1K 5% 1/10W R608 1-216-821-11 METAL CHIP 1K 5% 1/10W R609 1-216-833-11 METAL CHIP 10K 5% 1/10W R610 1-216-833-11 METAL CHIP 10K 5% 1/10W R621 1-216-833-11 METAL CHIP 10K 5% 1/10W R622 1-216-833-11 METAL CHIP 10K 5% 1/10W R623 1-216-833-11 METAL CHIP 10K 5% 1/10W R624 1-216-833-11 METAL CHIP 10K 5% 1/10W R625 1-216-833-11 METAL CHIP 10K 5% 1/10W R626 1-216-833-11 METAL CHIP 10K 5% 1/10W R627 1-216-833-11 METAL CHIP 10K 5% 1/10W R628 1-216-833-11 METAL CHIP 10K 5% 1/10W R629 1-216-841-11 METAL CHIP 47K 5% 1/10W R630 1-216-841-11 METAL CHIP 47K 5% 1/10W R631 1-216-841-11 METAL CHIP 47K 5% 1/10W R632 1-216-841-11 METAL CHIP 47K 5% 1/10W R633 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R634 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R635 1-218-867-11 METAL CHIP 6.8K 5% 1/10W R636 1-218-867-11 METAL CHIP 6.8K 5% 1/10W R645 1-216-809-11 METAL CHIP 100 5% 1/10W R647 1-216-833-11 METAL CHIP 10K 5% 1/10W R648 1-216-833-11 METAL CHIP 10K 5% 1/10W R649 1-216-839-11 METAL CHIP 33K 5% 1/10W R650 1-216-821-11 METAL CHIP 1K 5% 1/10W R651 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R652 1-216-833-11 METAL CHIP 10K 5% 1/10W R653 1-216-833-11 METAL CHIP 10K 5% 1/10W R654 1-216-813-11 METAL CHIP 220 5% 1/10W R655 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R656 1-216-841-11 METAL CHIP 47K 5% 1/10W R657 1-216-833-11 METAL CHIP 10K 5% 1/10W R659 1-216-821-11 METAL CHIP 1K 5% 1/10W R661 1-216-813-11 METAL CHIP 220 5% 1/10W R664 1-216-829-11 METAL CHIP 4.7K 5% 1/10W ************************************************************ LF BOARD ******** < CAPACITOR > 0C903 1-117-916-51 FILM 0.22uF 10% 275V < CONNECTOR > CN900 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P * CN901 1-564-321-21 PIN, CONNECTOR (3.96mm PITCH) 2P < LINE FILTER > 0LF901 1-456-081-21 COIL, LINE FILTER ************************************************************ MODE MOTOR BOARD ****************** ************************************************************ PW KEY BOARD ************* < CAPACITOR > C811 1-164-360-11 CERAMIC CHIP 0.1uF 16V < CONNECTOR > * CN805 1-568-941-11 PIN, CONNECTOR 3P < DIODE > D802 6-500-817-01 DIODE (LED) SML-512UWT86 (?/1) < RESISTOR > R809 1-216-864-11 SHORT CHIP 0 < SWITCH > ✩ S800 1-771-884-31 SWITCH, TACTILE (?/1) ************************************************************ A-4728-700-A RELAY BOARD, COMPLETE ********************** < CAPACITOR > C711 1-126-795-11 ELECT 10uF 20% 50V C751 1-164-159-21 CERAMIC 0.1uF 50V C752 1-164-159-21 CERAMIC 0.1uF 50V C753 1-164-159-21 CERAMIC 0.1uF 50V C754 1-164-159-21 CERAMIC 0.1uF 50V LF MODE MOTOR PW KEY RELAY The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. ✩ The Part numbers of Ref.No. S800 is changed with a suffix of the PW KEY board. Please refer to SUPPLEMENT-3 of this manual at the time of replacement. Ver. 1.7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68 HCD-FR1/FR8/FR9 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark RF C755 1-164-159-21 CERAMIC 0.1uF 50V C756 1-164-159-21 CERAMIC 0.1uF 50V C758 1-164-159-21 CERAMIC 0.1uF 50V C761 1-162-306-11 CERAMIC 0.01uF 30% 16V C762 1-164-159-21 CERAMIC 0.1uF 50V C763 1-164-159-21 CERAMIC 0.1uF 50V C764 1-164-159-21 CERAMIC 0.1uF 50V C765 1-164-159-21 CERAMIC 0.1uF 50V C766 1-164-159-21 CERAMIC 0.1uF 50V C767 1-164-159-21 CERAMIC 0.1uF 50V C768 1-164-159-21 CERAMIC 0.1uF 50V C769 1-164-159-21 CERAMIC 0.1uF 50V C771 1-162-306-11 CERAMIC 0.01uF 30% 16V C781 1-162-306-11 CERAMIC 0.01uF 30% 16V < CONNECTOR > CN701 1-779-565-21 CONNECTOR, FFC (LIF (NON-ZIF)) 28P CN702 1-785-329-11 PIN, CONNECTOR (LIGHT ANGLE) 3P CN703 1-785-328-11 PIN, CONNECTOR (LIGHT ANGLE) 2P CN704 1-785-328-21 PIN, CONNECTOR (LIGHT ANGLE) 2P CN710 1-568-945-11 PIN, CONNECTOR 7P < DIODE > D701 8-719-921-40 DIODE MTZJ-T-77-4.7B D711 8-719-921-42 DIODE MTZJ-T-77-5.1A D721 8-719-982-03 DIODE MTZJ-T-77-3.6A < IC > IC701 8-759-598-69 IC BA6956AN IC711 8-759-598-69 IC BA6956AN IC721 8-759-598-69 IC BA6956AN < TRANSISTOR > Q731 8-729-029-66 TRANSISTOR RT1N141S-TP < RESISTOR > R701 1-249-415-11 CARBON 680 5% 1/4W R702 1-247-807-31 CARBON 100 5% 1/4W R711 1-249-415-11 CARBON 680 5% 1/4W R712 1-247-807-31 CARBON 100 5% 1/4W R721 1-249-415-11 CARBON 680 5% 1/4W R722 1-247-807-31 CARBON 100 5% 1/4W R731 1-249-407-11 CARBON 150 5% 1/4W R732 1-249-417-11 CARBON 1K 5% 1/4W R733 1-249-429-11 CARBON 10K 5% 1/4W R734 1-249-431-11 CARBON 15K 5% 1/4W ************************************************************ A-4728-690-A RF BOARD, COMPLETE ******************* < CAPACITOR > C001 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C002 1-124-779-00 ELECT CHIP 10uF 20% 16V C003 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C004 1-124-779-00 ELECT CHIP 10uF 20% 16V C005 1-128-993-21 ELECT CHIP 22uF 20% 10V C006 1-128-993-21 ELECT CHIP 22uF 20% 10V C008 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C009 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C010 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V C011 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V C012 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C013 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C014 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C015 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C016 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C017 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C018 1-164-172-11 CERAMIC CHIP 0.0056uF 10% 25V C019 1-164-172-11 CERAMIC CHIP 0.0056uF 10% 25V C020 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C021 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C022 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C023 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C024 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C025 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C026 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C027 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C028 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C029 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C030 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C031 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V C032 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C033 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C034 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C035 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C036 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C037 1-162-959-11 CERAMIC CHIP 330PF 5% 50V C038 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C039 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C040 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C041 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C042 1-164-218-11 CERAMIC CHIP 180PF 0.25PF 50V C049 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C050 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C051 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C052 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V < CONNECTOR > CN001 1-815-031-11 CONNECTOR, FFC/FPC (ZIF) 24P CN002 1-784-836-21 CONNECTOR, FFC (LIF (NON-ZIF)) 29P CN003 1-784-861-21 CONNECTOR, FFC (LIF (NON-ZIF)) 9P < DIODE > D001 8-719-988-61 DIODE 1SS355TE-17 D002 8-719-988-61 DIODE 1SS355TE-17 < IC > IC001 6-703-922-01 IC SP3723CAF0PM IC003 6-703-921-01 IC TL343IDBVR < COIL > L001 1-412-031-11 INDUCTOR CHIP 47uH L002 1-412-031-11 INDUCTOR CHIP 47uH RELAY Ver. 1.4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 HCD-FR1/FR8/FR9 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark RF ROLLER MOTOR SONY LAMP < TRANSISTOR > Q001 8-729-903-46 TRANSISTOR 2SB1132-T100-QR Q002 8-729-903-46 TRANSISTOR 2SB1132-T100-QR < RESISTOR > R001 1-218-668-11 METAL CHIP 100 0.5% 1/16W R003 1-216-803-11 METAL CHIP 33 5% 1/10W R004 1-216-803-11 METAL CHIP 33 5% 1/10W R005 1-216-841-11 METAL CHIP 47K 5% 1/10W R006 1-216-817-11 METAL CHIP 470 5% 1/10W R007 1-216-803-11 METAL CHIP 33 5% 1/10W R008 1-216-803-11 METAL CHIP 33 5% 1/10W R009 1-216-841-11 METAL CHIP 47K 5% 1/10W R010 1-216-817-11 METAL CHIP 470 5% 1/10W R011 1-216-864-11 METAL CHIP 0 5% 1/10W R012 1-216-864-11 METAL CHIP 0 5% 1/10W R013 1-216-864-11 METAL CHIP 0 5% 1/10W R014 1-216-864-11 METAL CHIP 0 5% 1/10W R015 1-216-864-11 METAL CHIP 0 5% 1/10W R016 1-216-864-11 METAL CHIP 0 5% 1/10W R017 1-216-864-11 METAL CHIP 0 5% 1/10W R018 1-216-864-11 METAL CHIP 0 5% 1/10W R019 1-216-864-11 METAL CHIP 0 5% 1/10W R020 1-216-864-11 METAL CHIP 0 5% 1/10W R021 1-216-864-11 METAL CHIP 0 5% 1/10W R022 1-216-813-11 METAL CHIP 220 5% 1/10W R023 1-216-820-11 METAL CHIP 820 5% 1/10W R024 1-216-864-11 METAL CHIP 0 5% 1/10W R025 1-216-809-11 METAL CHIP 100 5% 1/10W R026 1-218-718-11 METAL CHIP 12K 0.5% 1/16W R027 1-216-864-11 METAL CHIP 0 5% 1/10W R028 1-216-864-11 METAL CHIP 0 5% 1/10W R029 1-216-864-11 METAL CHIP 0 5% 1/10W R031 1-216-809-11 METAL CHIP 100 5% 1/10W R033 1-216-845-11 METAL CHIP 100K 5% 1/10W R034 1-216-817-11 RES-CHIP 470 5% 1/10W R035 1-216-864-11 METAL CHIP 0 5% 1/10W R041 1-216-821-11 METAL CHIP 1K 5% 1/10W R046 1-216-833-11 METAL CHIP 10K 5% 1/10W R047 1-216-839-11 METAL CHIP 33K 5% 1/10W R091 1-218-913-11 METAL CHIP 560K 0.5% 1/10W ************************************************************ ROLLER MOTOR BOARD ******************** ************************************************************ 1-685-004-11 SENSOR BOARD ************* < PHOTO SENSOR > IC751 8-749-017-45 SENSOR, PHOTO RPR-220C1N (DISC INSERT DETECT SENSOR) ************************************************************ SONY LAMP BOARD **************** < CAPACITOR > C877 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C878 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V < CONNECTOR > CN804 1-506-481-11 PIN, CONNECTOR 2P < DIODE > D823 6-500-929-01 DIODE SML-512WBCW1AR (SONY) D824 6-500-929-01 DIODE SML-512WBCW1AR (SONY) < RESISTOR > R854 1-216-809-11 METAL CHIP 100 5% 1/10W R855 1-216-809-11 METAL CHIP 100 5% 1/10W ************************************************************ SPK BOARD ********** < CAPACITOR > C340 1-162-294-31 CERAMIC 0.001uF 10% 50V C341 1-162-294-31 CERAMIC 0.001uF 10% 50V C342 1-162-294-31 CERAMIC 0.001uF 10% 50V C343 1-162-294-31 CERAMIC 0.001uF 10% 50V C481 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C482 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C483 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C485 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C486 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C484 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C487 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C488 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C491 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C492 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C493 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C494 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C495 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C496 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V < CONNECTOR > * CN309 1-564-243-11 PIN, CONNECTOR (3.96mm PITCH) 6P CN311 1-691-766-11 PLUG (MICRO CONNECTOR) 4P CN312 1-691-766-21 PLUG (MICRO CONNECTOR) 4P < GROUND TERMINAL > GP307 1-537-770-21 TERMINAL BOARD, GROUND < TERMINAL > TB301 1-780-122-11 TERMINAL BOARD (SPEAKER) TB302 1-780-121-11 TERMINAL BOARD (SPEAKER) ************************************************************ SENSOR SPK Ver. 1.4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark 70 HCD-FR1/FR8/FR9 1-685-006-11 STOCKER MOTOR BOARD ********************* ************************************************************ 1-685-008-11 SW (1) BOARD ************ < SWITCH > S711 1-786-382-11 SWITCH, PUSH (1 KEY)(DISC INSERT (8/12cm)) ************************************************************ 1-685-009-11 SW (2) BOARD ************ < SWITCH > S713 1-786-382-11 SWITCH, PUSH (1 KEY)(DISC IN (8/12cm)) S714 1-786-382-11 SWITCH, PUSH (1 KEY)(DISC IN (8cm)) ************************************************************ 1-685-010-11 SW (3) BOARD ************ < SWITCH > S715 1-786-382-11 SWITCH, PUSH (1 KEY)(DISC OUT) ************************************************************ 1-685-011-11 SW (4) BOARD ************ < SWITCH > S716 1-786-382-11 SWITCH, PUSH (1 KEY)(STOCKER IN/OUT) S717 1-786-382-11 SWITCH, PUSH (1 KEY)(DISC POSITION) S718 1-786-382-11 SWITCH, PUSH (1 KEY)(STOCKING) ************************************************************ MISCELLANEOUS ************** 4 1-763-861-12 FAN, DC 06 1-783-531-72 CORD, POWER 8 1-828-962-11 WIRE (FLAT TYPE)(11 CORE) 62 1-829-320-11 FLEXIBLE FLAT CABLE (13 CORE) 63 1-829-321-11 FLEXIBLE FLAT CABLE (17 CORE) 106 1-829-322-11 FLEXIBLE FLAT CABLE (9 CORE) 107 1-829-319-11 FLEXIBLE FLAT CABLE (17 CORE) 108 1-828-349-11 WIRE (FLAT TYPE)(17 CORE) 109 1-829-323-11 FLEXIBLE FLAT CABLE (29 CORE) 110 1-829-326-11 FLEXIBLE FLAT CABLE (15 CORE) 111 1-829-325-11 FLEXIBLE FLAT CABLE (29 CORE) 112 1-829-324-11 FLEXIBLE FLAT CABLE (28 CORE) 113 1-500-657-11 CORE, FERRIET 0114 1-468-838-11 REGULATOR, SWITCHING 0603 1-477-263-11 OPTICAL PICK-UP (DBU-1) 605 1-685-250-11 FLEXIBLE BOARD M761 A-4735-953-A MOTOR (STOCKER) ASSY (MODE) M771 A-4735-953-A MOTOR (STOCKER) ASSY (ROLLER) M781 A-4735-953-A MOTOR (STOCKER) ASSY (STOCKER) S702 1-477-299-11 ENCODER, ROTARY (STOCKER POSITION) S771 1-477-300-11 ENCODER, ROTARY (MODE) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. Ver 1.3 SW (1) SW (2) STOCKER MOTOR SW (3) SW (4) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SERVICE MANUAL 9-879-011-81 Ver 1.1 2004.07 SUPPLEMENT-1 Subject: TEST MODE and ELECTRICAL ADJUSTMENT US Model HCD-FR1/FR8/FR9 Canadian Model HCD-FR1 HCD-FR1/FR8/FR9 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 HCD-FR1/FR8/FR9 SECTION 1 TEST MODE [Version Display Mode] * The software version is displayed. Procedure: 1. Press three buttons of [VOLUME-], [VOLUME+] and A simultaneously for two seconds. 2. The message “VERSION” is displayed. The version display mode is activated. 3. Press the > button. “IF ***” is displayed. 4. Each time the > button is pressed, the display changes in the order of DVD, AREA, VERSION and IF. 5. To exit from this mode, press the ?/1 button. [Key Test Mode] * Button check Procedure: 1. Press three buttons of [VOLUME-], [VOLUME+] and [FUNCTION] simultaneously. 2. The message “KEY NUM 0” is displayed and “0” blinks. 3. Each time a button is pressed, “KEY NUM 0” value increases. However, once a button is pressed, it is no longer taken into account. 4. When all buttons are pressed, “KEY NUM 9” appears and the number blinking is stopped. 5. To exit from this mode, disconnect the power cord. [Display Test Mode] Procedure: 1. Press three buttons of [VOLUME-], . and A simultaneously. 2. All segments are turned on. 3. When the > button is pressed, the display will light up as follows. 4. Press the > button and confirm the display. 5. Press the > button, all segments are turned off. 6. Every pressing of the > button turns on each segments in the same order. 7. To exit from this mode, press the ?/1 button. [Cold Reset] * The cold reset clears all data including preset data stored in the RAM to initial conditions. Execute this mode when returning the set to the customers. Procedure: 1. Press the ?/1 button to turn the power on. 2. Press three buttons of . , HX and A simultaneously. 3. When this button is operated, display as “COLD RESET” for a while and all of the settings are reset. [Disc Slot Lock] The disc slot lock function for the antitheft of an demonstration disc in the store is equipped. Setting Procedure: 1. Turn the set on. 2. Press two buttons of x and A simultaneously for five seconds. 3. The message “LOCKED” is displayed and the slot is locked. Releasing Procedure: 1. Press two buttons of x and A simultaneously for five seconds again. 2. The message “UNLOCKED” is displayed and the slot is unlocked. Note : When “LOCKED” is displayed, the slot lock is not released by turning power on/off with the ?/1 button. [Repeat Limit Release Mode] Procedure: 1. Press three buttons of A , > and [VOLUME+] simultaneously. 2. Repeat limit is released. [CDM Ship Mode] * This mode moves the optical pick-up to the position durable to vibration. Use this mode when returning the set to the customer after repair. Procedure: 1. Turn the set on. 2. Set the function to DVD. 3. Press three buttons of > , . and A simultaneously. 4. The message “MECHA LOCK” is displayed. 5. The CDM ship mode is set. ALL1DISC S PGM ALBM SHUF REP 1 MP3 JPEG SA - CD MULTIPBC DSGX SB DEC kHz D EX DTS-ES NEO:6 ALBM TITLE TRK CHAP SLEEP NTSC TUNED ST MONO NIGHT a MHz PL II a ALL1DISC S PGM ALBM SHUF REP 1 MP3 JPEG SA - CD MULTIPBC DSGX SB DEC kHz D EX DTS-ES NEO:6 ALBM TITLE TRK CHAP SLEEP NTSC TUNED ST MONO NIGHT a MHz PL II a www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 HCD-FR1/FR8/FR9 [GENERAL DESCRIPTION] The Test Mode allows you to make diagnosis and adjustment easily using the remote commander and monitor TV. The instructions, diagnostic results, etc. are given on the on-screen display (OSD). [TEST DISC LIST] Use the following test disc on test mode. TDV-520CSO (DVD-SL) : PART No. J-2501-236-A LUV-P01 (CD) : PART No. 4-999-032-01 TDV-540C (DVD-DL) : PART No. J-2501-235-A Note: Do not use exiting test disc for DVD. [STARTING TEST MODE] 1. Press the @/1 button to turn the power on, and set the function to DVD. 2. Press three buttons of A , x and [VOLUME+] simultaneously to enter the test mode. 3. It displays “SERVICE IN” on the fluorescent indicator tube, and displays the Test Mode Menu on the monitor screen as follows. (At the bottom of the menu screen, the model name and revision number are displayed) Test Mode Menu 0. Syscon Diagnosis 1. Drive Auto Adjustment 2. Drive Manual Operation 3. Mecha Aging 4. Emergency History 5. Mecha Error History 6. Version Information 7. Video Level Adjustment Exit: POWER Key Model :DAV-xxx xx Revision :x.xx 4. To execute each function, select the desired menu and press its number on the remote commander (RM-SP350). 5. To release from test mode, press the @/1 button and turn the power off. [OPERATING TEST MODE] 0. SYSCON DIAGNOSIS The same contents as board detail check by serial interface can be checked from the remote commander operation. On the Test Mode Menu screen, press [0] key on the remote commander, and the following Check Menu will be displayed. ### Syscon Diagnosis ### Check Menu 0. Quit 1. All 2. Version 3. EEPROM 4. GPIO 5. SD Bus 6. Video 0-0. Quit Quit the Syscon Diagnosis and return to the Test Mode Menu. 0-1. All (All items continuous check) This menu checks all diagnostic items continuously. Normally, all items are checked successively one after another automatically unless an error is found, but at a certain item that requires judgment through a visual check to the result, the following screen is displayed for the key entry. • Example display ### Syscon Diagnosis ### Diag All Check No.2 Version 2-2. Version ROM Revision = x.xx Press NEXT Key to Continue Press PREV Key to Repeat For the ROM Check, the check sum calculated by the Syscon is output, and therefore you must compare it with the specified value for confirmation. Following the message, press the > button to go to the next item, or press the . button to repeat the same operation again. To quit the diagnosis and return to Check Menu screen, press the [RETURN] key on the remote commander to display Check Menu. • Error occurred If an error occurred, the diagnosis is suspended and error is displayed. Press the [RETURN] key on the remote commander to quit the diagnosis, or press the . button to repeat the same check where an error occurred, or press the > button to continue the check from the item next to faulty item. General Description of Checking Method Selecting 2 and subsequent items calls the submenu screen of each item. And selecting 2 and subsequent items executes respective menus and outputs the results. For the contents of each submenu, see “Check Items List” as below. Check Items List: 0-2. Version 0-2-1. All 0-2-2. Revision 0-2-3. ROM Check Sum 0-2-4. Model Type 0-2-5. Region 0-3. EEPROM Check 0-3-1. Sampling Check 0-3-2. Detail Check 0-4. GP I/O Check 0-5. SD Bus Check 0-6. Video Check 0-2. Version 0-2-2. Revision The revision number of ROM (IC205) that the program for the DVD system processor (IC206) is stored. 0-2-3. ROM Check Sum Check sum is calculated. (4 digits hexadecimal number) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 HCD-FR1/FR8/FR9 0-2-4. Model Type Model name is displayed. (DAV-SR4W) 0-2-5. Region Model destination code is displayed. (2 digits number) 0-3. EEPROM Check 0-3-1. Sampling Check EEPROM check at every 64 words. It compares read data with write data of each address. When there are discrepancies between two data, it displays error. 0-3-2. Detail Check EEPROM check at every 1 word. It compares read data with write data of each address. When there are discrepancies between two data, it displays error. 0-4. GP I/O Check Pull up/down setting check of the DVD system processor (IC206) pin 150, 151 and 154 (for clock setting port). 0-5. SD Bus Check SD bus data check between DVD decoder (IC701) and D-RAM (IC706). 0-6. Video Check Output the color bars for video level adjustment. 1. DRIVE AUTO ADJUSTMENT On the Test Mode Menu screen, press the [1] key on the remote commander, and the Adjustment Menu will be displayed. ## Drive Auto Adjustment ## Adjustment Menu 0. ALL 1. DVD-SL 2. CD 3. DVD-DL Exit: RETURN Normally, [0] is selected to adjust DVD (single layer), CD and DVD (dual layer) in this order. But, individual items can be adjusted for the case where adjustment is suspended due to an error. In this mode, the adjustment can be made easily through the operation following the message displayed on the screen. The disc used for adjustment must be the one specified for adjustment. 1-0. ALL Press the [0] key on the remote commander, and the servo set data in EEPROM will be initialized. Then, 1. DVD-SL disc, 2. CD disc and 3. DVD-DL disc are adjusted in this order. Each time one disc was adjusted, it is ejected. Replace it with the specified disc following the message. You can finish the adjustment by pressing the [RETURN] button on the remote commander. Note: During adjustment of each disc, the measurement for disc type judg- ment is made. As automatic adjustment does not judge the disc type unlike conventional models, take care not to insert wrong type discs. Also, do not give a shock during adjustment. 1-1. DVD-SL (single layer) Press the 1 key on the remote commander and insert a DVD single layer disc following the message. Then the adjustment will be made through the steps below, then adjusted values will be written to the EEPROM. DVD Single Layer Disc Adjustment Steps: 1. Sled tilt reset 2. Disc check memory SL 3. Wait 300 msec 4. Set disc type SL 5. LD on 6. Spindle start 7. Wait 1 sec 8. Focus servo on 0 9. Auto track offset adjust 10. CLVA on 11. Wait 500 msec 12. Tracking on 13. Wait 1 sec 14. Sled on 15. Check CLV on 16. Auto LFO adjust 17. Auto focus offset adjust 18. Auto tilt position adjust 19. Auto focus gain adjust 20. Auto focus offset adjust 21. EQ boost adjust 22. Auto loop filter offset adjust 23. Auto track gain adjust Search Check 24. 32 track jump forward 25. 32 track jump reverse 26. 500 track jump forward 27. 500 track jump reverse 28.All servo stop 29.EEP copy loop filter offset 1-2. CD Press the [2] key on the remote commander and insert a CD disc following the message. Then the adjustment will be made through the steps below, then adjusted values will be written to the EEPROM. CD Adjustment Steps 1. Sled tilt rest 2. Disc check memory CD 3. Wait 500 msec 4. Set disc type CD 5. LD on 6. Spindle start 7. Wait 500 msec 8. Focus servo on 0 9. Auto track offset adjust 10. CLVA on 11. Wait 500 msec 12. Tracking on 13. (TC display start) 14. Wait 1 sec 15. Jitter display start 16. Sled ON 17. Check CLV on 18. Auto loop filter offset adjust 19. Auto focus offset adjust 20. Auto focus gain adjust 21. Auto focus offset adjust 22. EQ boost adjust 23. Auto LFO Adjust www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 HCD-FR1/FR8/FR9 24. Auto track gain adjust Search Check 25. 32Tj forward 26. 32Tj reverse 27. 500Tj forward 28. 500Tj reverse 29. All servo stop 1-3. DVD-DL (dual layer) Press the [3] key on the remote commander and insert a DVD dual layer disc following the message. Then the adjustment will be made through the steps below, then adjusted values will be written to the EEPROM. DVD Dual Layer Disc Adjustment Steps: 1. Sled tilt reset 2. Disc check memory DL 3. Wait 500 msec 4. Set disc type DL 5. LD on 6. Spindle start 7. Wait 1 sec Layer 1 Adjust 8. Focus servo on 0 9. Auto track offset adjust 10. CLVA on 11. Wait 500 msec 12. Tracking on 13. Wait 500 msec 14. Sled on 15. Check CLV lock 16. Auto loop filter offset adjust, Auto focus adjust 17. Auto focus gain adjust 18. Auto focus offset adjust 19. EQ boost adjust 20. Auto loop filter offset adjust 21. Auto Track Gain Adjust Search Check 22. 32 track jump forward 23. 32 track jump reverse 24. 500 track jump forward 25. 500 track jump reverse Layer 0 Adjust 26. Focus jump (L1 t L0) 27. Auto track offset adjust L0 28. CLVA on 29. Wait 500 msec 30. Tracking on 31. Wait 500 msec 32. Sled on 33. Check CLV lock 34. Auto focus filter offset adjust 35. Auto Focus Adjust 36. Auto focus gain adjust 37. Auto focus offset adjust 38. EQ boost adjust 39. Auto Loop Filter Offset 40. Auto track gain adjust Search Check 41. 32 track jump forward 42. 32 track jump reverse 43. 500 track jump forward 44. 500 track jump reverse Layer Jump Check 45. Layer jump (L0 ? L1) 46. Layer jump (L1 ? L0) 47. All servo stop 2. DRIVE MANUAL OPERATION Note: This mode is used for design, and not used in service fundamen- tally. On the Test Mode Menu screen, press the [2] key on the remote commander, and the Operation Menu will be displayed. For the manual operation, each servo on/off control and adjustment can be executed manually. ## Drive Manual Operation ## Operation Menu 1. Disc Type 2. Servo Control 3. Track/Layer Jump 4. Non EEPROM Write Adjust 5. EEPROM Write Adjust 6. Memory Check 7. Disc Check Memory 8. Error Rate Display 9. SACD Water Mark Exit: RETURN In using the manual operation menu, take care of the following points. These commands do not provide protection, thus requiring correct operation. The sector address or time code field is displayed when a disc is loaded. Note: 1. Set correctly the disc type to be used on the Disc Type screen. 2. In case of an alarm, immediately press the x button to stop the servo operation, and press the @/1 button to turn the power off. Basic operation: (controllable from front panel or remote commander) @/1 : Power OFF (release the Test Mode) x : Servo stop Z : Stop and eject [RETURN] : Return to Operation Menu or Test Mode Menu . , > : Transition between sub modes of menu [1] to [9], [0] : Selection of menu items Cursor o / O : Increase/Decrease in manually adjusted value www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 HCD-FR1/FR8/FR9 2-1. Disc Type Disc Type Disc Type Select 1. Disc Type Auto Check 2. Set Disc Type DVD 3. Set Disc Type CD 4. Set Disc Type Hybrid Exit: RETURN 2-1-1. Disc Type Auto Check 1) Press the [1] key on the remote commander to display the Disc Type Auto Check screen. 2) Insert a disc and press the [ENTER] key on the remote commander. 3) It judges the type of inserted disc automatically and displays the disc type and so on as below. Disc Type Auto Check Disc Type xx Layer xx Mirr Time xx Mirr Count xx FZC Count xx PI Reference xx PI Peak xx ENTER.Execute Exit: RETURN Disc Type : CD, DVD or Hybrid (SACD) Layer : SINGLE, DUAL or HYBRID Mirr Time : Mirror time of between disc surface and record surface when disc type judgment. (hexadecimal number) Mirr Count : The number of times which mirror counts between disc surface and record surface when disc type judging. (hexadecimal number) FZC Count : The number of times which focus zero cross points of each layer when lens down. (hexadecimal number) PI Reference : The average of PI reference voltage. (hexadecimal number) PI Peak : PI peak level voltage. It performs only when disc type judgment is successful. (hexadecimal number) 2-1-2. Disc Type DVD It sets up so that it may judge as a disc type of specification of the disc with which the set was inserted. [1]: DVD single layer disc (12 cm) [2]: DVD dual layer disc (0 layer, 12 cm) [3]: DVD dual layer disc (1 layer, 12 cm) [4]: DVD-RW disc (12 cm) [5]: DVD single layer disc (8 cm) [6]: DVD dual layer disc (0 layer, 8 cm) [7]: DVD dual layer disc (1 layer, 8 cm) 2-1-3. Disc Type CD It sets up so that it may judge as a disc type of specification of the disc with which the set was inserted. [1]: CD disc (normal speed, 12 cm) [2]: CD disc (double speed, 12 cm) [3]: CD disc (normal speed, 8 cm) [4]: CD disc (double speed, 8 cm) [5]: CD-RW disc (normal speed, 12 cm) [6]: CD-RW disc (double speed, 12 cm) [7]: CD-RW disc (normal speed, 8 cm) [8]: CD-RW disc (double speed, 8 cm) 2-1-4. Disc Type Hybrid It sets up so that it may judge as a disc type of specification of the disc with which the set was inserted. [1]: SACD Hybrid disc (SACD layer, 12 cm) [2]: SACD Hybrid disc (CD layer, normal speed, 12 cm) [3]: SACD Hybrid disc (CD layer, double speed, 12 cm) [4]: SACD Hybrid disc (SACD layer, 8 cm) [5]: SACD Hybrid disc (CD layer, normal speed, 8 cm) [6]: SACD Hybrid disc (CD layer, double speed, 8 cm) 2-2. Servo Control Note: Be sure to perform the disc type setup before performing this item. Servo Control 1.LD off R.Sled FWD 2.Focus off L.Sled REV 3.SPDL off U.Sled Reset 4.CLVA off D.Sled Limit 5.Trk. off 6.Sled off 7.Fcs.Srch off 0.All Servo Off Exit: RETURN On this screen, the servo on/off control necessary for replay is executed. Normally, turn on each servo from 1 sequentially and when CLVA is turned on, the usual trace mode becomes active. In the trace mode, DVD sector address or CD time code is displayed. This is not displayed where the spindle is not locked. The spindle could run overriding the control if the spindle system is faulty or RF is not present. In such a case, do not operate CLVA. [1] LD : Turn on/off the laser. [2] Focus : Search the focus and turn on the focus. [3] SPDL : Turn on/off the spindle. [4] CLVA : Turn on/off normal servo of spindle servo. [5] Trk. : Turn on/off the tracking servo. [6] Sled : Turn on/off the sled servo. [7] FCS. Srch : Turn on/off the focus search. [8] FCS. OppL : Turn on/off the focus search to another layer of designated layer in Disc Type setting. (dual layer disc only) [0] : All servo off. p[R] Sled FWD (right cursor) : Move the sled forward. P[L] Sled REV (left cursor) : Move the sled reverse. O[U] Sled FWD (up cursor) : Reset the sled. o[D] Sled REV (down cursor) : Limit in the sled. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 HCD-FR1/FR8/FR9 2-3. Track/Layer Jump Track/Layer Jump 1. 1Tj FWD R.Lj L0>L1 2. 1Tj REV L.Lj L1>L0 3.500Tj Fine FWD U.Fj L0>L1 4.500Tj Fine REV D.Fj L1>L0 5.10kTj Dirc FWD 6.10kTj Dirc REV 7.20kTj Dirc FWD 8.20kTj Dirc REV 0. All Servo Off Exit: RETURN On this screen, track jump, etc. can be performed. Only for the DVD dual layer disc, the focus jump and layer jump are displayed in the right field [1] 1Tj FWD : 1 track jump forward. [2] 1Tj REV : 1 track jump reverse. [3] 500Tj FWD: 500 track jump (fine search)forward. [4] 500Tj REV : 500 track jump (fine search) reverse. [5] 10kTj FWD: 10k track jump (direct search) forward. [6] 10kTj REV : 10k track jump (direct search) reverse. [7] 20kTj FWD: 20k track jump (direct search) forward. [8] 20kTj REV : 20k track jump (direct search) reverse. [0] : All servo off. 2-4. Non EEPROM Write Adjust Non EEPROM Write Adjust 1. Focus Offset 2. Focus Gain 3. Trk. Offset Coarse 4. Trk. Offset Fine 5. Trk. Gain 6. EQ Boost 0.All Servo Off Exit: RETURN On this screen, each item can be adjusted manually. Select the desired number [1] to [0] from the remote commander, and current setting for the selected item will be displayed, then increase or decrease numeric value with the O key or o key. This value is stored in the EEPROM. If CLV has been applied, the jitter is displayed for reference for the adjustment. [1] Focus Offset : Adjusts focus offset. [2] Focus Gain : Adjusts focus gain. [3] TRK. Offset : Adjusts tracking offset of the RF amp (IC001) side. [4] TRK. Offset : Adjusts tracking offset of the DSP (IC401) side. [5] TRK. Gain : Adjusts track gain. [6] EQ Boost : Adjusts amount of boost of equalizer. [0] : All servo off. 2-5. EEPROM Write Adjust EEPROM Write Adjust 1. Focus Offset 2. Focus Gain 3. Trk. Offset Coarse 4. —————— 5. Trk. Gain 6. EQ Boost 0.All Servo Off Exit: RETURN On this screen, each item can be adjusted automatically. Select the desired number [1] to [0] from the remote commander, and selected item is adjusted automatically. [1] Focus Offset : Adjusts focus offset. [2] Focus Gain : Adjusts focus gain. [3] TRK. Offset : Adjusts tracking offset of the RF amp (IC001) side. [5] TRK. Gain : Adjusts track gain. [6] EQ Boost : Adjusts amount of boost of equalizer. [0] : All servo off. 2-6. Memory Check Display images are shown as follows, and all two screens are able to switch by the O key (UP) or o key (DW). EEPROM Data 1/2 CD SL L0 L1 Focus Gain xx xx xx xx Trk. Gain xx xx xx xx Focus Offset xx xx xx xx Trk. Offset xx xx xx xx EQ. Boost xx xx xx xx PI Level xx xx -- -- Fcs. Balance -- xx -- -- Jitter xx xx xx xx Mirror Time xx xx xx -- FE Level -- xx -- -- Traverse Lv1. -- xx -- -- Next:DW Default:CLR Exit:RET EEPROM Data 2/2 CDRW DVDRW Focus Gain xx xx Trk. Gain xx xx Focus Offset xx xx Trk. Offset xx xx EQ. Boost xx xx Prev:UP Default:CLR Exit:RET On this screen, current servo adjusted data stored in the EEPROM are displayed. The adjusted data are initialized by pressing the [CLEAR] key, but be careful that they are not recoverable after initialization. Before clearing the adjusted data, make a note of the set data. This screen will also appear if [0]-All is selected in the Drive Auto Adjustment. In this case, default setting cannot be made. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 HCD-FR1/FR8/FR9 2-7. Disc Check Memory Disc Check Memory 1. SL Disc check 2. CD Disc check 3. DL Disc check Exit: RETURN On this screen, measure the mirror time of chucked disc, and write to the EEPROM. 2-8. Error Rate Display Error Rate Display UC CR Address PI1 Err Now xx xxxx xxxxxxxx Max xx xxxx xxxxxxxx Avg xx xxxx PI2 Err Now xx xxxx xxxxxxxx Max xx xxxx xxxxxxxx Avg xx xxxx PO Err Now xx xxxx xxxxxxxx Max xx xxxx xxxxxxxx Avg xx xxxx Start:ENTER Exit: RETURN On this screen, measure and display the error rate. UC : Incorrect value CR : Correct value 2-9. SACD Water Mark Check SACD Water Mark Check PSP AMP PSN Start: ENTER Exit: RETURN On this screen, measure the PSP AMP value and PSN value of SACD water mark. 3. EMERGENCY HISTORY On the Test Mode Menu screen, selecting [4] displays the information such as servo emergency history. The history information from last 1 up to 10 can be scrolled with the O key or o key. Also, specific information can be displayed by directly entering that number with ten keys. ### EMG. History ### Laser Hours CD xxxxhxxm DVD xxxxhxxm a. bb xx xx xx xx xx xx xx xx xx xx xx xx xx xx xx a. bb xx xx xx xx xx xx xx xx xx xx xx xx xx xx xx Select:1-9 Scroll:UP/DOWN (1.Latest EMG.) Exit: RETURN xxxxhxxm: The laser on total hours. Data below minutes are omitted. a. : Error number. bb : Error code. xx : Not used. • Clearing History Information Clearing laser hours: Press the [DVD DISPLAY] and [CLEAR] keys in this order. Then both CD and DVD data are cleared. Clearing emergency history: Press the [DVD TOP MENU] and [CLEAR] keys in this order. Initializing set up data: Press [DVD MENU] and [CLEAR] keys in this order. The data have been initialized when “EEPROM Initialize Finished.”. message is displayed. The EMG. History screen will be restored soon. • Code list of Emergency History 10: Communication to RF AMP (IC001) failed. 11: Each servo for focus, tracking, and spindle is unlocked. 12: Check sum error of EEPROM (IC203). 14: Communication to servo DSP (IC401) failed, or servo DSP (IC401) is faulty. 15: Communication to DVD decoder (IC701) failed, or DVD decoder (IC701) is faulty. 16: Communication to DSD decoder (IC801) failed, or DSD decoder (IC801) is faulty. 20: Initialization of sled servo failed. It is not placed in the ini- tial position. 23: Sled servo operation error. 24: Made a request to move the sled servo to wrong position. 30: Tracking balance adjustment error. 31: Tracking gain adjustment error. 33: Focus bias adjustment error. 34: Focus gain adjustment error. 35: Equalizer adjustment error. 40: Focus servo does not operate. 41: With a DVD dual layer disc, focus jump failed. 50: CLV (spindle) servo does not operate. 51: Spindle does not stop. 60: Made a request to seek nonexistent address. 61: Seek error of retry more than regulated times. 70: Control data could not be read. 80: Disc reading failed. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 HCD-FR1/FR8/FR9 5. VERSION INFORMATION On the Test Mode Menu screen, selecting [6] displays the ROM version and region code. The parenthesized hexadecimal number in version field is checksum value of ROM. ## Version Information ## IF con. Ver.x. xx SYScon. Ver.x. xx (xxxx) Model DAV-xxx Region 0x Config xxxxxxxx Front End Ver.x.xx Exit: RETURN IF con. : The version of system controller (IC901). SYScon. : The version of DVD system processor (IC206). Front End: The version of mechanism controller (IC301). 6. VIDEO LEVEL ADJUSTMENT On the Test Mode Menu screen, selecting [7] displays color bars for video level adjustment. During display of color bars, OSD disappears but the menu screen will be restored if pressing the [RETURN] key. 4. MECHA ERROR HISTORY On the Test Mode Menu screen, selecting [5] displays the information of mechanism deck error history. The history information from last 1 up to 8 can be scrolled with the O key or o key. Also, specific information can be displayed by directly entering that number with ten keys. ### Mecha Error History ### 1. aa bb cc dd xx xx xx xx 2. aa bb cc dd xx xx xx xx 3. aa bb cc dd xx xx xx xx 4. aa bb cc dd xx xx xx xx 5. aa bb cc dd xx xx xx xx 6. aa bb cc dd xx xx xx xx 7. aa bb cc dd xx xx xx xx 8. aa bb cc dd xx xx xx xx Scroll:UP/DOWN (1.Latest Err.) Exit: RETURN aa : The error in the midst of initializing the mechanism deck. bb : The error in the midst of loading operation. cc : The error in the midst of up/down the stocker. dd : The error in the midst of switching the mechanism deck mode. xx : Not used. • Error code (aa) FF : Complete the initializing. (normal operation) 11 : Stocker movement (to chucking position) failing in the midst of initializing the mechanism deck. 12 : Stocker movement (to chucking position) failing in the midst of initializing the mechanism deck. 1x : Initializing the mechanism deck. 2x : Initializing the mechanism deck. 3x : Initializing the mechanism deck. 41 : Disc eject failing in the midst of initializing the mechanism deck. 4x : Initializing the mechanism deck. 50 : Disc eject failing in the midst of initializing the mechanism deck. 5x : Initializing the mechanism deck. A2 : Disc eject failing in the midst of initializing the mechanism deck. Ax : Initializing the mechanism deck. D3 : Disc eject failing in the midst of initializing the mechanism deck. Dx : Initializing the mechanism deck. Ex : Initializing the mechanism deck. • Error code (bb) 00 : Initializing the mechanism deck. 10 : Retry over of eject and loading. 30 : Open operation in no disc status. 60 : Retry over of eject and loading. 70 : Disc is chucking position. 81 : Retry failed of disc movement from chucking position to stocker. 83 : Retry preparation failed of disc movement from chucking position to stocker. 90 : Disc is stored in the stocker. A1 : Retry failed of disc movement from stocker to chucking position. A3 : Retry preparation failed of disc movement from stocker to chucking position. B0 : Just before the release operation. B1 : Retry failed of the release operation. • Error code (cc) 10 : Under a stop. 22 : Retry preparation failed. 23 : Retry failed. • Error code (dd) 10 : Under a stop. 22 : Retry preparation failed. 23 : Retry failed. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 HCD-FR1/FR8/FR9 [TEST DISC LIST] Use the following test disc on test mode. TDV-520CSO (DVD-SL) : PART No. J-2501-236-A LUV-P01 (CD) : PART No. 4-999-032-01 TDV-540C (DVD-DL) : PART No. J-2501-235-A Note: Do not use exiting test disc for DVD. AUTO SERVO ADJUSTMENT After parts related to the servo circuit (RF amplifier (IC001), DSP (IC401), motor driver (IC501), EEPROM (IC302) so on) and optical pick-up (DBU-1) are replaced, re-adjusting the servo circuit is necessary. Select “ALL” at “1. DRIVE AUTO ADJUSTMENT” (Refer to page 4 in TEST MODE) and adjust DVD-SL (single layer), CD and DVD-DL (dual layer). SECTION 2 ELECTRICAL ADJUSTMENT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SERVICE MANUAL 9-879-011-82 Ver 1.2 2004.08 SUPPLEMENT-2 Subject : DISASSEMBLY, ASSEMBLY, Block Diagram, IC Block Diagrams, and IC Pin Function Description US Model HCD-FR1/FR8/FR9 Canadian Model HCD-FR1 HCD-FR1/FR8/FR9 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 HCD-FR1/FR8/FR9 SECTION 1 DISASSEMBLY • This set can be disassembled in the order shown below. 1-1. FLOW CHART SET 1-2. SIDE PANEL (R)(L), FRONT PANEL SECTION (Page 3) 1-4. MECHANISM DECK (CDM69-DVBU16) (Page 4) 1-3. FL BOARD (Page 3) 1-5. AMP BOARD (Page 4) 1-7. DMB08 BOARD (Page 5) 1-8. TUNER UNIT, IO BOARD (Page 6) 1-6. SWITCHING REGULATOR (Page 5) 1-16. RUBBER ROLLER (SLIDER) ASSY (Page 10) 1-17. TIMING BELT (FRONT/REAR) (Page 10) 1-18. CAM (GEAR) (Page 11) 1-19. SENSOR BOARD (Page 11) 1-11. SW BOARD, BRACKET (TOP) ASSY (Page 7) 1-9. OPTICAL PICK-UP SECTION (DVBU16) (Page 6) 1-10. PICK-UP UNIT (DBU-1) (Page 7) 1-15. MOTOR (STOCKER) ASSY (MODE) (M761) (Page 9) 1-14. MOTOR (STOCKER) ASSY (ROLLER) (M771) (Page 9) 1-13. MOTOR (STOCKER) ASSY (STOCKER) (M781) (Page 8) 1-12. RELAY BOARD (Page 8) * In order to remove DMB08 BOARD, please remove AMP BOARD and SWITCHING REGULATOR. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 HCD-FR1/FR8/FR9 Note: Follow the disassembly procedure in the numerical order given. 1-2. SIDE PANEL (R)(L), FRONT PANEL SECTION 1-3. FL BOARD 7 wire (flat type) (7 core) (CN812) 6 wire (flat type) (17 core) (CN803) 4 connector (3p) 3 connector (2p) 1 four screws (+BV3) 5 two screws (+BV3) 2 cover 8 FL board qs wire (flat type) (17 core) (CN801) qd wire (flat type) (13 core) (CN802) qf front panel section 3 connector (5p) (CN811) 1 two screws (+BV3) 5 two screws (+BV3) 6 three screws (+BV3) qa four screws (+BV3) q; three screws (+BV3) 8 three screws (+BV3) 9 three screws (+BV3) 2 three screws (+BV3) 4 side panel (R) 7 side panel (L) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 HCD-FR1/FR8/FR9 1-4. MECHANISM DECK (CDM69-DVBU16) 1-5. AMP BOARD 7 wire (flat type) (28 core) (CN701) 5 MD cover sub assy 8 wire (flat type) (29 core) 1 connector (2p) (CN900) 2 connector (2p) (CN901) 9 mechanism deck (CDM69-DVBU16) 6 four screws (+BV3) 4 two hooks 3 four screws (+BV3) 1 wire (flat type) (17 core) (CN301) 2 wire (flat type) (9 core) (CN302) q; AMP board 5 screw (+BVTP 3 × 16) 7 connector (2p) (CN300) 8 connector (6p) (CN313) 9 connector (5p) (CN306) 3 connector (4p) (CN4) 4 connector (2p) (CN7) 6 four screws (+BV3) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 HCD-FR1/FR8/FR9 1-6. SWITCHING REGULATOR 1-7. DMB08 BOARD 1 screw (+BV3) 3 three screws (+BV3) 2 power sheet (top) q; power sheet qa switching regulator 4 connector (2p) (CN7) 5 connector (12p) (CN8) 6 connector (4p) (CN4) 8 connector (2p) (CN3) 7 connector (2p) 9 Remove the two solderings. 2 wire (flat type) (29 core) (CN401) 3 wire (flat type) (29 core) (CN002) 5 wire (flat type) (11 core) (CN010) 6 wire (flat type) (28 core) (CN006) 7 wire (flat type) (17 core) (CN005) 8 wire (flat type) (15 core) (CN003) 9 DMB08 board 4 bracket (DMB) 1 four screws (+BV3) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 HCD-FR1/FR8/FR9 3 boss 4 boss 5 boss 6 optical pick-up section (DVBU16) 1 screw (PTPWHM2.6) 2 1-8. TUNER UNIT, IO BOARD 1-9. OPTICAL PICK-UP SECTION (DVBU16) 6 IO board 5 wire (flat type) (29 core) (CN601) 4 wire (flat type) (15 core) (CN201) 2 wire (flat type) (11 core) 3 tuner unit 1 eight screws (+BV3) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 HCD-FR1/FR8/FR9 1-10. PICK-UP UNIT (DBU-1) 1-11. SW BOARD, BRACKET (TOP) ASSY holder (DBU1) 6 flexible board 8 insulator 7 insulator 9 insulator 5 connector (CN003) 2 step screw (M) 1 step screw (M) 0 pick-up unit (DBU-1) 4 3 step screw (M) 6 six screws (BVTP2.6 × 8) 5 SW (4) board 4 SW (3) board 3 SW (2) board 2 SW (1) board 7 bracket (top) assy 1 four screws (BTP2.6 × 6) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 HCD-FR1/FR8/FR9 1-12. RELAY BOARD 1-13. MOTOR (STOCKER) ASSY (STOCKER)(M781) 1 Remove five solders. – bottom view – RELAY board 4 connector (CN703) 5 connector (CN702) 2 four screws (BVTP2.6 × 8) 6 connector (CN710) 7 connector (CN706) 8 connector (CN707) 9 connector (CN708) 0 RELAY board 3 6 STOCKER MOTOR board 3 two screws (BVTP2.6 × 8) 2 Remove two solders 5 connector (CN761) 4 7 motor (stocker) assy (stocker) (M781) 1 belt (stocker) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 HCD-FR1/FR8/FR9 1-14. MOTOR (STOCKER) ASSY (ROLLER)(M771) 1-15. MOTOR (STOCKER) ASSY (MODE)(M761) 1 belt (roller) 4 ROLLER MOTOR board 2 Remove two solders. 3 two screws (BVTP2.6 × 8) 5 motor (stocker) assy (roller) (M771) 1 Remove five solders of rotary encoder. 2 Remove two solders of motor (M761) MODE MOTOR board 3 two screws (BVTP2.6 × 8) 4 MODE MOTOR board 5 belt (mode) 6 motor (stocker) assy (mode) (M761) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 HCD-FR1/FR8/FR9 1-16. RUBBER ROLLER (SLIDER) ASSY 1-17. TIMING BELT (FRONT/REAR) qg sub chassis qf screw (BVTP2.6 × 8) 8 step screw qs step screw 5 step screw 9 tension spring (slider 2) 6 tension spring (base slider 5) 3 tension spring (base slider 5) 1 step screw 0 rubber roller (slider 4) assy 7 rubber roller (slider 1) assy 4 rubber roller (slider 5) assy 2 rubber roller (slider S) assy qa rubber roller (slider 2) assy qd rubber roller (slider 1) assy a a b b c c 3 slider (mode cam) assy 5 two gears (center) 7 two gears (center) 8 timing belt (rear) timing belt (rear) When install three timing belts, its pass under each claws. 9 timing belt (rear) 4 gear (timing) 2 gear (mode cam) : Note 6 timing belt (front) 1 screw (PTPWH2.6 × 8) timing belt (rear) timing belt (front) two claws two claws two claws two claws Note: Refer to assembly (Section 4) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 HCD-FR1/FR8/FR9 1 screw (PTPWH2.6 × 8) 3 screw (PTPWH2.6 × 8) 7 screw (PTPWH2.6 × 8) 9 screw (PTPWH2.6 × 8) qa screw (PTPWH2.6 × 8) qs cam (gear) : Note 5 screw (PTPWH2.6 × 8) 2 pulley (mode deceleration) 4 gear (mode 5) 8 gear (mode 3) 0 gear (mode 2) :Note 6 gear (mode 4) Note: Refer to assembly (Section 2). 8 screw (PTPWH2.6 × 8) 1 screw (PTPWH2.6 × 8) 9 cam (eject lock) : Note qs gear (eject lock) qd gear (mode 1) qg two claws 0 screw (PTPWH2.6 × 8) ql screw (BVTP2.6 × 8) 3 screw (BVTP2.6 × 8) 7 shaft (shutter) 6 compression spring (shutter) 4 two screws (BVTP2.6 × 8) 5 base (shutter) block 2 lever shutter (A) w; SENSOR board qf screw (PTPWH2.6 × 8) qh rotary encoder (S701) qj claw qk harness qa cam (BU U/D) Note: Refer to assembly (Section 2). 1-18. CAM (GEAR) 1-19. SENSOR BOARD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 HCD-FR1/FR8/FR9 SECTION 2 ASSEMBLY • This is can be assemble according to the following sequence. 2-1. HOW TO INSTALL THE CAM (EJECT LOCK) 2-2. HOW TO INSTALL THE CAM (GEAR) mark cam (BU U/D) cam (eject lock) – bottom view • front – gear (eject lock) 1 Rotate the cam (BU U/D) fully in the direction of arrow. 2 Engage the gear (eject lock) and the gear of the cam (eject lock) aligning the mark with the center of the gear (eject lock). boss cam (gear) mark cam (BU U/D) – bottom view • front – 1 Check that the cam (BU U/D) can not be rotated in the direction of arrow. 2 Align the mark on the cam (gear) with the boss as shown in the figure and install the cam (gear). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 HCD-FR1/FR8/FR9 2-3. HOW TO INSTALL THE GEAR (MODE 2) 2-4. HOW TO INSTALL THE GEAR (MODE CAM) – bottom view • front – gear (mode 2) rotary encoder (S701) cam (BU U/D) mark projection chassis 1 Align the mark on the rotary encoder (S701) with the projection of the assy. 2 Check that the cam (BU U/D) can not be rotated in the direction of arrow. 3 Install the gear (mode 2). mark B slider (mode cam) assy shaft mark A mark D gear (mode cam) cam (gear) mark C 1 Slide the shaft in the direction of arrow. 2 Align mark A on the gear (mode cam) with mark B on the slider (mode cam) assy, then install the gear (mode cam). 3 Check that mark C on the gear (mode cam) is in alignment with mark D on the cam (gear). – bottom view • front – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 HCD-FR1/FR8/FR9 2-5. HOW TO INSTALL THE ROTARY ENCODER (S702), GEAR (STOCKER COMMUNICATION) 2-6. HOW TO INSTALL THE CAM (STOCKER U/D) 2 five solders 6 two gears (stocker communication) 4 gear (stocker communication) RELAY board 7 two screws (PTPWH2.6 × 8) 5 screw (PTPWH2.6 × 8) 3 screw (PWH2 × 6) rotary encoder (S702) gear (stocker communication) – rear – 1 rotary encoder (S702) Engage the rotary encoder (S702) and the gear (stocker communication) as shown below in the figure. 2 two cams (stocker U/D) 2 cam (stocker U/D) 3 two screws (PTPWH2.6 × 8) 3 screw (PTPWH2.6 × 8) rotary encoder (S702) hole gear (stocker communication) – rear – screw 1 Position the hole on the gear (stocker communication) on the screw of the rotary encoder (S702). To install three cams (stocker U/D), align each groove of the cam (stocker U/D) with each f mark on the chassis as shown in the figure. f mark f mark f mark cam (stocker U/D) cam (stocker U/D) cam (stocker U/D) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 HCD-FR1/FR8/FR9 2-7. HOW TO INSTALL THE STOCKER ASSY 1 Fit three shafts of the stocker assy in respective slits of the cams (stocker U/D). cam (stocker U/D) cam (stocker U/D) cam (stocker U/D) cam (stocker U/D) shaft shaft shaft stocker assy cam (stocker U/D) Note: For the location of slits of the cams (stocker U/D), see 4-6. HOW TO INSTALL CAM (STOCKER U/D). 2 Making sure that three shafts of the stocker assy fit in respective slits of the cams (stocker U/D), rotate the pulley (stocker) in the direction of arrow A by hand to store the stocker assy. A pulley (stocker) pulley (stocker) stocker assy www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 HCD-FR1/FR8/FR9 2-8. PHASE ADJUSTMENT BETWEEN PINIONS (SLIDER) AND SLIDER-1 TO 5 (L/R) A A A A A A 1 As shown in the following figure, adjust the portion A of each slider to the boss with the slider-1 to 5 (L) and the slider-1 to 5 (R) pushed in the arrow directions respectively (see Fig. 1). 2 Paying attention to the up/down direction of the pinion (slider) (see Fig. 2), install each pinion (slider) so that the portion B of each pinion (slider) meshes with the portion A of each slider (see Fig. 3). Note: Push in the pinion (slider) until the claw of the boss comes out above the pinion (slider) to lock. pinion (slider) pinion (slider) pinion (slider) pinion (slider) pinion (slider) pinion (slider) pinion (slider) portion B slider portion A slider portion A boss boss boss slider-5 (L) slider-5 (R) slider-4 (L) slider-4 (R) slider-3 (L) slider-3 (R) slider-2 (L) slider-2 (R) slider-1 (L) slider-1 (R) (Fig. 1) (Fig. 2) (Fig. 3) A A A A boss boss boss boss claw claw pinion (slider) portion B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 17 HCD-FR1/FR8/FR9 HCD-FR1/FR8/FR9 3-1. BLOCK DIAGRAM — RF/SERVO SECTION — DETECTOR 1 63 3 4 5 6 9 10 11 12 14 15 16 13 18 17 62 61 53 52 54 55 59 60 DVDRFP RFSIN A2 B2 C2 D2 CD E CD F A B C D B A D C B A D C CD A CD B CD C CD D CDLD CDPD DVDLD V125 DVDPD ATOP ATON FNP FNN AIP AIN DIP DIN 57 27 40 39 47 46 48 IC001 CD/DVD/SACD RF AMP, FOCUS/TRACKING ERROR AMP OPTICAL PICK-UP BLOCK 2AXIS DEVICE FOCUS/ TRACKING COIL 22 24 21 23 36 48 37 1 Q001 AUTOMATIC POWER CONTROL (FOR DVD) Q002 AUTOMATIC POWER CONTROL (FOR CD) Q301 LASER DIODE SELECT LASER DIODE (FOR CD) LASER DIODE (FOR DVD) FOCUS COIL DRIVE 34 3 35 4 TRACKING COIL DRIVE 32 31 33 34 20 22 19 8 40 41 39 43 31 32 29 30 SLED MOTOR DRIVE IC501 FOCUS/TRACKING COIL DRIVER, SPINDLE, SLED MOTOR DRIVER 27 28 SPINDLE MOTOR DRIVE M (SPINDLE) 19 47 46 45 FFDR FRDR TFDR TRDR SFDR SRDR SLED_A SLED_B SLED IC402 (1/2) AMP 26 SE TE FE RFDC IC401 DIGITAL SIGNAL PROCESSOR, DIGITAL SERVO PROCESSOR MIRR FF FR FOK COUT SCLK RF A B C D F E CD LD PD DVD LD FCS+ FCS– TRK+ TRK– SW INLIM D C B A RFAC MIRR DATA_RF CLK_RF SDEN TE FE PI TE FE PI FE TE SDATA SCLK SDEN LDON FCS_JMP_2 FCS_JMP_1 50 RFAC 30 29 SLED MOTOR DRIVE M (SLED) 40 42 36 42 MNTR BUFFER MUTE12 20 MUTE34 21 MUTE5 22 TSD-M 13 7 10 43 FG 62 MUTE_2D 60 SP_ON 63 TSD-M 73 BUFFER IC301 (1/2) MECHANISM CONTROLLER 61 7 LDON 28 INLIM LDSEL 76 31 SDEN 2 FE 67 PI 66 COUT_CD 30 SDA 5 SCL 6 WP 7 15 SCOR 66 PCMD CDDOUT 64 DOUT 67 BCLK 65 LRCK 14 C2PO 17 WDCK 10 WFCK 80 EXCK 79 SBSO BCLK LRCK C2PO GSCOR WFCK EXCK 27M 768FS SBSO 2 XRST 25 MDP SCOR SCOR 26 24 LOCK LOCK_CD 75 13 GFS GFS_CD 71 3 MUTE MUTE_CD 59 7 SENS SENS_CD 9 76 SQSO SQSO 52 SCLK_CD 72 4 DATA DATA_CD 49 69 XTSL CDSP2 10 63 MD2 71 XTAI DOCTRL/ ISBTEST 3 77 SQCK 85 XRD XRD 17 58 GFS_DVD GFS 107 45 109 JIT OFFSET 4 XRST_DSD AEP0 64 JIT 77 SACD/DVD 84 XWR XWR 18 12 XCS_DVD XCS 19 25 XRST_DVD XRST 164 22 INIT0_DVD XINT0 20 23 INIT1_DVD XINT1 21 SQCK 54 6 CLOK CLOK_CD 50 5 XLAT LAT_CD 27 FOK_CD 74 MIRR 29 TE 65 SDCLK RF 82 SDATA RF 83 44 38 42 VC CE 26 SSTP AVC (1.65V) MIRR MIRR DATA_RF CLK_RF SDEN TE FE PI 26 HDB8 49 XHRD 93 MNT2 48 XHWR 46 XDRQ 53 XHAC 92 MNT1 17 WE 76 XMWE 33 OE 94 XMOE 18 RAS 78 XRAS 34 UCAS 95 XCAS 117 RFIN 135 SPO 137 MDIN2 170 XTAL 169 XTA2 167 XTA1 IC701 DVD DECODER IC706 16Mbit D-RAM 160 MDAT 158 BCK 163 LRCK 155 C2PO 146 GSCOR HDB0 – HDB7 MDB0 – MDB9, MDBA – MDBF I/O0 – I/O15 A0 – A9 151 WFCK 147 EXCK 148 SBIN BCLK LRCK C2PO GSCOR WFCK EXCK SCOR SBSO 150 SCOR IC703 (2/2) BUFFER IC703 (1/2) COMPARATOR IC303 CLOCK GENERATOR 66-69, 71, 73-75, 96, 97, 99, 101, 102, 104-106 2-5, 7-10, 41-44, 46-49 44, 41, 39, 35, 32, 30, 27, 24 21-24, 27-32 MA0 – MA9 79, 80, 82-87, 89, 91 35 LCAS TF 8 TR FF FR FF FR TF TR 7 8 XTI XTO 98 XDRST D0 – D7 D0 – D7 13 9 SO3 SO1 10 3 SO2 MO1 X302 27MHz 14-21 172-176, 1, 2, 4 A0 – A7 A0 – A7 89-96 5, 7, 9-14 B WARFI A AUDIO(DSP) SECTION AUDIO(DSP) SECTION AUDIO(DSP) SECTION AUDIO(DSP) SECTION AUDIO(DSP) SECTION AUDIO(DSP) SECTION AUDIO(DSP) SECTION AUDIO(DSP) SECTION AUDIO(DSP) SECTION VIDEO SECTION VIDEO SECTION VIDEO SECTION VIDEO SECTION AV DATA BUS SD0 – SD7 (for VIDEO SYSTEM) SD0 – SD7 (for AUDIO SYSTEM) C XSRQ K XSRQ-ZIVA L M WCK G XRST_DSD J 768FS I 27M H XDCK, XSAK, SDEF, XSHD (for AUDIO SYSTEM) XDCK, XSAK, SDEF (for VIDEO SYSTEM) XDCK XSAK SDEF XSHD E D F 5 EEP_SI 99 EEP_CLK 100 EEP_CS 47 SDIN_DSD 46 SDOUT_DSD 24 SCK_DSD 51 XMSLAT 48 READY_DSD 53 MUTE_DSD MSDATO MSDATO, MSDATI, MSCK, XMSLAT, SHRRDY, SHRMUT MSDATI MSCK XMSLAT SHRRDY SHRMUT 6 EEP_RDY IC814 SACD/DVD SELECT IC302 EEPROM • SIGNAL PATH : CD : DVD : SACD : VIDEO : AUDIO 20 VC 32 MEVO 31 MIN IC003 COMPARATOR Ver. 1.4 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 18 HCD-FR1/FR8/FR9 HCD-FR1/FR8/FR9 3-2. BLOCK DIAGRAM — AUDIO (DSP) SECTION — IC606 DIGITAL AUDIO INTERFACE 16 DATA 13 CKOUT 14 BCK 15 LRCK 36 DI 35 DO 38 CL 37 CE 17 XSTATE 48 XMODE DIGDI DO DIGCLK DIGDI DIGCLK CSDIR XST RSTDIR 34 ERROR 24 AUDIO CDDOUT SOFTMUTE SPDIF WARFI WCK AV1, AV3, RGB SEL, DVD SEL RSTAD 20 XMCK 168 SDEF 165 XSHD 166 SDCK 167 XSAK 6 MSDATO 4 MSDATI 3 MSCK 2 XMSLAT 7 MSREADY 10 SMUTE MSDATO MSDATI MSCK XMSLAT SHRRDY SHRMUT 29 TDO 27 TDI 26 TCK 30 TMS 31 TRST SDEF SDEF, XSHD, XDCK, XSAK XSHD XDCK XSAK 64 DSAL 39 DSIFL 35 EXIFLR 34 EXICSW 29 BCKI2 28 LRCKI2 EXID1 BCKI LRCKI EXID1 BCKI LRCKI 29 EXIMCK 31 EXIBCK 32 EXILRCK EXIFLR EXIMCK EXIBCK EXILRCK EXIFLR PLOCK DIGDI DO DIGCLK CSDIR XST RSTDIR PLOCK EXIMCK EXIBCK EXILRCK 9 XRST XRST_DSD 5 DIN2 3 DIN0 127 WAVRB 123 WCK 126 WARFI 4 DIN1 54 TUN-DO 55 TUN-CLK 53 TUN-CE 51 TUNED 52 TUN-DI 32 HACN 68 GP9 35 HDOUT 34 HCLK 33 HDIN IC801 DSD DECODER IC808 16Mbit SD-RAM IC612 DIGITAL AUDIO PROCESSOR IC901 (1/3) SYSTEM CONTROLLER IC607 DIGITAL AUDIO SIGNAL PROCESSOR D5V X600 12.288MHz Q604 Q605 22 21 XIN XOUT IC603 OPTICAL RECEIVER IC900 LEVEL SHIFT IC812 LEVEL SHIFT IC813 LEVEL SHIFT OPTICAL DIGITAL IN SD0 - SD7 169 - 176 IC402 (2/2) REFERENCE VOLTAGE GENERATOR 143 XWE 15 WE 145 XRAS 17 RAS 144 XCAS 16 CAS 142 DCKE 34 CKE 35 CLK DQ0 - DQ7 DQ0 - DQ7 A0 - A11 2, 3, 5, 6, 8, 9, 11, 12 139-136, 134-131 162-159, 157-154, 152, 151, 149, 148 A0 - A11 141 DCLK IC604 S-RAM 44 CS0 6 CS 45 WE0 17 WE D0 - D15 D0 - D15 A0 - A15 7-10, 13-16, 29-32, 35-38 108, 107, 105-102, 99 98, 80-77, 75-72 112, 110, 109,97-92, 82, 85-83, 66-64 A0 - A15 5-1, 44-42, 27-24, 21-18 66 DSAR 40 DSIFR 69 DSAC 41 DSICT 71 DSALFE 42 DSISW 74 DSALS 43 DSISL 76 DSARS 44 DSISR 60 BCKAO 38 DSBCK 13 EXCKO1 27 MCK 23 POFLR 18 SDI1 22 POCSW 30 SDI2 21 POSLR 114 SDI3 17 MCKOUT 22 KFSIO 19 PBCK 17 BCKI1 20 PLRCK 4 SELEXT 2 SELTES 15 LRCKI1 59 EXLOCK 69 GP8 33 AD-RST 7 DIG-DI 97 DF-SW 89 DVD-POWER 25 DIRDO 8 DIG-CLK 20 DIR-CE DSP-PM DSP-CS DSP-BST DSP-RST 24 DIR-XMODE 22 DIR-XST 18 DIR-ZERO 6 DSP-DO 15 DSP-HACN 17 DSP-GP9 19 DIR-ERR 23 DIR-AD 67 GP10 23 SDO1 24 SDO2 26 SDO4 SUR BACK D1 D2 D3 SCK BCKO LRCKO 25 SDO3 14 SCKOUT 20 BCKO 19 LRCKO IC603 LOW-PASS FILTER FM/AM TUNER PACK IC602 AUDIO INPUT SELECTOR IC609 A/D CONVERTER Q101 AMP 5 Y1 2 Y2 3 3 10 9 Y A B 12 15 7 DOUT 11 BCK 10 LRCK SCK PDWN 1 Y0 1 1 LIN 5 RIN R-CH DO CK CE TUNED FM ANT GND AM ANT GND L-CH R-CH DI TUDO TUCLK TCE TUN TUDI R-CH R-CH R-CH TUDO TUCLK TCE TUN TUDI COAXIAL FM 75 ohm AM AV DATA BUS SD0 - SD7 164 XSRQ XSRQ 11 MCKI 768FS TDOSA, TDISA, TCK, TMS, TRST TDOSA TDISA TCK TMS TRST 96 AV-SEL1 48 VIDEO-MUTE 95 AV-SEL0 AV1 AV2 AV0 AV0 AV2 70 DVD SEL DVD SEL 65 DF-RST PM HCS BST RSTDSP 13 14 16 12 113 PM 36 HCS 56 BST 2 XRST PM Q903 D903 HCS BST RSTDSP DIGDI, DIGCLK D1 - D3, SCK, BCKO, LRCKO Q908 - 910 ENABLE SWITCH 47 INIT 12 9 X601 13.9MHz MCLK2 MCLK1 AUDIO IN SAT VIDEO J601 AUDIO IN L R L R MSDATO, MSDATI, MSCK, XMSLAT, SHRRDY, SHRMUT 21-24, 27-32, 20, 19 73 RGB SEL 98 AV-SEL3 RGB SEL AV3 AEP, UK, RU SIGNAL PATH : CD : AUDIO : OPTICAL DIGITAL IN : AUX IN : TUNER : SACD R-ch is omitted due to same as L-ch. B R O P S C E J K H M N G A RF/SERVO SECTION RF/SERVO SECTION RF/SERVO SECTION RF/SERVO SECTION RF/SERVO SECTION RF/SERVO SECTION RF/SERVO SECTION RF/SERVO SECTION VIDEO SECTION VIDEO SECTION VIDEO SECTION AUDIO (OUT) SECTION AUDIO (OUT) SECTION AUDIO (OUT) SECTION AUDIO (OUT) SECTION RF/SERVO SECTION T Q w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 19 HCD-FR1/FR8/FR9 HCD-FR1/FR8/FR9 3-3. BLOCK DIAGRAM — AUDIO (OUT) SECTION — KEY0-1 S802 - 806, S810 - 814 DIAGA SD HP-SW HP-MUTE 8 13 IC101 POWER DRIVER IC102 POWER DRIVER IC103 POWER DRIVER IC104 POWER DRIVER IC105 POWER DRIVER IC106 POWER DRIVER 2 PWMBP 17 PWMAP 4 RESET J800 (+) (-) 29 30 25 26 OUTB OUTA SD 13 2 PWMBP 17 PWMAP 4 RESET 29 30 25 26 OUTB OUTA SD 13 2 PWMBP 17 PWMAP 4 RESET 29 30 25 26 OUTB OUTA SD 13 2 PWMBP 17 PWMAP 4 RESET 29 30 25 26 OUTB OUTA SD 13 2 PWMBP 17 PWMAP 4 RESET 29 30 25 26 OUTB OUTA SD 13 13 2 PWMBP 17 PWMAP 4 RESET +12V 29 30 25 26 OUTB OUTA IC108 STREAM PROCESSOR IC301 HEADPHONE AMP 31 DATA 36 XFSIIN 30 BCK 23 SCLATCH 27 INIT 24 OVF FLAGR 21 SCDT 29 LRCK 22 31 36 30 23 27 19 21 29 22 18 21 17 23 27 18 21 16 22 SCSHIFT LATCH1 INIT SCDT SHIFT 9 OUTL2 6 OUTR1 11 OUTL1 4 OUTR2 14 XFS0OUT 9 OUTL2 6 OUTR1 11 OUTL1 4 OUTR2 9 OUTL2 6 OUTR1 11 OUTL1 4 OUTR2 43 HPOUTL2 41 HPOUTR1 45 HPOUTL1 39 HPOUTR2 14 XFSOOUT 38 FSOI Q101, 102 OVER LOAD DETECT Q902 MUTING CONTROL FRONT L DIAGA 8 60 FL-DATA 2 VOUT 57 FL-CLK 61 FL-CS 56 FL-MUTE (+) (-) FRONT R DIAGA 8 (+) (-) IC109 STREAM PROCESSOR IC901 (2/3) SYSTEM CONTROLLER IC803 FL DRIVER DATA XFSIIN BCK SCLATCH INIT SOFTMUTE 18 NSPMUTE SCDT LRCK SCSHIFT 64 HPSW 38 FSOI 63 DAT VFL D823 D824 62 CLK 61 CS 60 RST 56 VFL 1 P1 DIAGA 8 (+) (-) DIAGA 8 (+) (-) IC110 STREAM PROCESSOR DATA 24 OVF FLAGR XFSIIN BCK SCLATCH INIT NSPMUTE SCDT LRCK SCSHIFT 38 FSOI 37 FSOCKO 48 XFSOIN 48 XFSOIN 48 XFSOIN REAR L DIAGA IC107 POWER DRIVER 2 PWMBP 17 PWMAP 4 RESET SD 29 30 25 26 OUTB OUTA 8 (+) (-) 43 DRI-RST 44 DRI-OCP REAR R CENTER TB301, TB302 SPEAKER WOOFER PHONES 19 SOFTMUTE D1 SCK DAC-LAT SBR-OUT SB-OUT BCKO LRCKO LATCH2 INIT SCDT SHIFT LATCH3 INIT SOFTMUTE LATCH1 LATCH2 D2 SCK BCKO LRCKO LAT3 SCDT SHIFT D3 SCK BCKO LRCKO INIT NSPMUTE SOFTMUTE NSPMUTE SOFTMUTE 18 NSPMUTE 19 SOFTMUTE NSPMUTE SOFTMUTE SUR BACK SCK BCKO LRCKO IC608 D/A CONVERTER 12 6 5 AOUTL+ 11 AOUTLñ CSN PDN 8 7 CDTI CCLK DIGDI DIGCLK 3 SDTI 1 MCLK 2 BICK 4 LRCK IC605 CONVERTER FL801 FLUORESCENT INDICATOR TUBE Q801-804 MUTING Q906, 907 SIRCS DETECT Q301 PROTECT DETECT IC305 OSC DIGDI, DIGCLK RSTAD J602 D1 - D3, SCK, BCKO, LRCKO X450 49.152MHz 46 HP-MUTE 32 DAC-LAT 47 SB-MUTE 50 SB-SCK 49 SB-DATA 1 VIN 4 DATA 5 CLK 85 OVERFLOW1 HP-SW HP-MUTE DAC-LAT LAT1 30 29 LAT2 S1 - S35 31 LAT3 26 INIT 28 SOFTMUTE SCDT SHIFT 1 SCDT 86 OVERFLOW2 2 SHIFT 5 - 39 G1 - G12 40 - 51 93 WAKE I2CDATA, I2CCLK ZIVARESET 92 SIRCS IC903 KEY INPUT DETECT IC801 REMOTE CONTROL RECEIVER 82 - 84 KEY0 - KEY2 KEY2 S800, 801, 807-809, S815 - 818 78 LSEN 81 SEN2 4 CQ-RST 5 I2C-CLK 3 I2C-DATA I2CCLK I2CDATA Q913 DISC INSERT DETECT Q900 SWITCH Q606,608 MUTE DRIVE Q810 LED DRIVE SONY SURROUND BACK 39 38 X901 20MHz X2 X1 LPF LPF LPF LPF LPF LPF LPF LPF LPF LPF LPF LPF LPF LPF Q103, 104 OVER LOAD DETECT Q105, 106 OVER LOAD DETECT Q107, 108 OVER LOAD DETECT Q109, 110 OVER LOAD DETECT Q111, 112 OVER LOAD DETECT FAN DRIVE Q113, 114 OVER LOAD DETECT IC904(3/3) BUFFER IC606 (1/2) 6 5 7 3 5 IC904 (1/3) BUFFER 1 7 IC904(2/3) BUFFER 66 STBY LED 6 2 IC606 (2/2) 2 3 1 D802 FAN Q303,304 SIGNAL PATH : AUDIO R-ch is omitted due to same as L-ch. T AUDIO(DSP) SECTION AUDIO(DSP) SECTION AUDIO(DSP) SECTION VIDEO SECTION VIDEO SECTION S Q W AUDIO(DSP) SECTION R V w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 20 HCD-FR1/FR8/FR9 HCD-FR1/FR8/FR9 3-4. BLOCK DIAGRAM — VIDEO SECTION — SIGNAL PATH : VIDEO : Y : CHROMA : COMPONENT VIDEO : R, G, B IC206 DVD SYSTEM PROCESSOR 125 VDAC_2 131 VDAC_0 183 SDCLK 179 SDEN 182 SDERROR XDCK, XSAK, SDEF SDEF XDCK V Y C CB/B CR/R XSAK 178 SDREQ XSRQ_ZIVA SDDATA0 - SDDATA7 177-174, 171-168 AV DATA BUS SD0 - SD7 139 XIN 27M 156 IEC958 SPDIF 202 RESET ZIVARESET I2CDATA, I2CCLK 198 TDO 199 TDI 201 TCK TDOSA, TDISA, TCK, TMS, TRST TCK TDOSA TDISA 200 TMS 197 TRST TRST TMS I2CCLK I2CDATA 119 VDAC_4 128 190 VDAC_1 122 VDAC_3 IC203 EEPROM IC301 (2/2) MECHANISM CONTROLLER Q302 5 DI 6 6 2 DO 1 1 3 1 8 R/B WC 3 CS 4 4 SK IC201 VIDEO AMP, 75ohm DRIVER J202 J201 14 CBIN 12 CYIN 4 VIN 18 3 CBOUTB MUTE1 16 CRIN 20 CYOUT 23 CY S1 25 2 CIN 6 YIN 26 COUT 27 S-DCOUT 21 YOUT 16 CROUTB AV1 AV3 15 MUTE2 1 2 3 4 IC803 FLIP-FLOP IC802 SWITCHING CE WE OE 56 29 1LE 2LE ALE IC215 BUS INTERFACE 1D1 - 1D10, 2D1 - 2D6 55, 54, 52, 51, 49-47, 45-40, 38-36 57-60, 64-71, 75-78, 81-84, 88-95, 99-102 2,4,5,7,8,10,11,13,74,76,77,79,80,82,83,85,31, 33,34,36,37,39,40,42,45,47,48,50,51,53,54,56 HA1 - HA3 HAD0 - HAD15 DATA & ADDRESS BUS DATA & ADDRESS BUS 22, 19-14, 11-3 2, 207, 206 2D7 - 2D9 HAD0 - HAD15 HA1 - HA3 HAD0 - HAD15 HA1 - HA3 34, 33, 31 195 HCS0 WEH.UDS 27 HREAD 25 56 MCLK CE WE OE IC202 128Mbit SD-RAM 68 CLK DQ0 - DQ31 A0 - A11 MA0 - MA11 MD0 - MD31 42-33, 45, 46 49 MCS0 20 CS 53 MWE 17 WE 51 MRAS 19 RAS 52 MCAS 18 CAS 62 MDQM0 16 DQM0 73 MDQM1 71 DQM1 86 MDQM2 28 DQM2 97 MDQM3 59 DQM3 161 I2C_DA 78 I2C_SIO 160 I2C_CL 79 I2C_SCL 186 DRVTX 34 SO_ZIVA 187 DRVRX 33 SI_ZIVA 185 DRVCLK 35 SCK_ZIVA 184 HIRQ1 188 DRVRDY 36 DRVIRQ 37 DRVRDY 32 CS_ZIVA 191 RST_SPC 38 RST 116 HIRQ2 165 WRITE_CTRL(ZIVA_E2P) 162 CS(ZIVA_E2P) 48 BA0 22 BS0 47 BA1 23 BS1 107 VS XTAL EXTAL 41 40 X301 20MHz COMPONENT VIDEO OUT S VIDEO MONITOR OUT VIDEO Y PB/CB PR/CR AV3 RGB SEL, DVD SEL 25-27, 60-66,24,21 1Q1 - 1Q10, 2Q1 - 2Q9 2, 3, 5, 6, 8-10, 12-17, 19-21, 23, 24, 26 IC205 PROGRAMMABLE ROM 22-18, 8-1, 48, 17, 16, 9, 10, 13 29,31,33,35,38,40,42,44, 30,32,34,36,39,41,43,45 ADDRESS BUS HAD0 - HAD15 HA1 -HA3 HA4 - HA22 26 CE WE 28 OE 11 A3 - A21 A0 - A2 25-23 DQ0 - DQ15 CBOUT CYOUT VOUT CROUT D RF/SERVO SECTION RF/SERVO SECTION RF/SERVO SECTION RF/SERVO SECTION AUDIO(DSP) SECTION AUDIO (OUT) SECTION AUDIO (OUT) SECTION AUDIO (DSP) SECTION F L I V W O N P AUDIO(DSP) SECTION w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 21 HCD-FR1/FR8/FR9 HCD-FR1/FR8/FR9 3-5. BLOCK DIAGRAM — POWER SECTION — 9 7 RIN FIN 2 4 OUT2 OUT1 M771 (MODE) IC701 MODE MOTOR DRIVE M 4 3 2 1 S702 POTARY ENCODER (STOCKER POSITION) IC006 (AC IN) Q901 RESET SWITCH DISC1 D806 D807 D808 D809 D812 DISC1-A DISC2-A DISC3-A DISC4-A DISC5-A DISC1-G DISC2-G DISC3-G DISC4-G DISC5-G DISC2 DISC3 DISC4 DISC5 FL FL1 VFL 12V M12V AC DET AC ON/OFF V CONTROL +12V 6.2V 3.3V E5.6V TO FLUORESCENT INDICATOR TUBE DC/DC CONVERTER T801 IC907 RESET SIGNAL GENERATOR Q731 LEVEL SHIFT IC751 DISC INSERT DETECT SENSOR RECT B810,811 B813,814 OSC Q802 34 RESET 45 AC ON/OFF 11 V CONTROL 90 STOP IC901 (3/3) SYSTEM CONTROLLER IC001 A-3.3V REG 1 3 IC002 +5V D5V A5V IC601 +10V REG 1 3 IC004 DA05V 2.5V DA03V REG 1 3 IC005 REG 1 3 IC605 REG 1 IC704 +2.5V REG 5 +1.8V REG 1 4 E5.6V REG 1 3 IC802 LED DRIVE 15 CLK 12 STB 62 57 60 LED-CS 63 LED-CLR 14 P1 15 P2 FL-CLK S716 (STOCKER IN/OUT) S716 ON: The moment disc in/out from stocker S717 (DISC POSITION) S711 (DISC INSERT (8/12cm)) LCS LCLR 11 CLK 10 DATA FDATA FCL1 FL-DATA S718 (STOCKING) S715 (DISC OUT) S714 (DISC IN (8cm)) S713 (DISC IN (8/12cm)) 16 P3 17 P4 1 P5 2 P6 3 P7 4 P8 6 P9 7 P10 IC902 TRANSLATION CONTROLLER 6 P14 7 P13 13 LATHCO 8 P12 9 P11 10 P10 11 DI/DPW 12 DIMM 26 DI1 IO DATA MA1 MA2 MC1 MC2 MB1 MB2 SEN8 SEN2 SEN3 SEN4 SEN7 SEN8 SEN6 SEN5 SEN7 SEN6 SEN5 SEN4 SEN3 SEN2 LATCH IO CLK 21 P3 22 P2 19 P5 20 P4 32 P1 24 P0 4 LATCH 3 CLK 2 RESET B IC906 TRANSLATION CONTROLLER 25 DO2 12 DIMM 11 PVDPW 10 P10 9 P11 8 P12 7 P13 6 P14 5 P15 4 LATCH 2 RESET B 72 PARA-DATA 67 PARA-DO2 PARA-DO2 69 PARA-LT1 71 PARA-CLK 68 PARA-RST 79 OPT-SEN MEN11 MEN12 MEN13 MEN20 MEN21 MEN22 MEN23 MEN10 MEN23 MEN22 MEN21 MEN20 ON: When disc out from play position S717 In the midst disc is moving between play position and stocker ON: disc is play position side OFF: disc is stocker side S718 S715 ON: Play position S713 ON: When disc insert S711 OFF: In the midst disc is moving between play position and stocker S714 ON: Play position (8cm disc only) G 4 3 2 1 S771 POTARY ENCODER (MODE) MEN13 MEN12 MEN11 MEN10 MA2 MA1 9 7 RIN FIN 2 4 OUT2 OUT1 M781 (ROLLER) IC711 ROLLER MOTOR DRIVE IC721 STOCKER MOTOR DRIVE M MB2 MB1 9 7 RIN FIN 2 4 OUT2 OUT1 M761 (STOCKER) M MC2 MC1 G IC600 REG 1 3 Ver. 1.6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 22 HCD-FR1/FR8/FR9 HCD-FR1/FR8/FR9 • Waveforms – RF Board – – DMB08 Board – – DDCOM Board – – AMP Board – – IO Board – 1 IC001 1 (DVDRFP) 4 IC001 tj (RFAC) 3 IC001 r; (FE) 100 mV/DIV, 1 ms/DIV 200 mV/DIV, 100 ns/DIV 500 mV/DIV, 100 ns/DIV 800 mVp-p 0.3 Vp-p 1.3 Vp-p 2 IC001 el (TE) 500 mV/DIV, 1 ms/DIV 0.5 Vp-p 5 IC303 8 (XTO) qa to qg : color bars video signal 6 IC303 9 (SO1) 9 IC303 3 (MO1) 7 IC303 q; (SO2) 29.5 ns 37 ns 37 ns 29.5 ns 1 V/DIV, 10 ns/DIV 1 V/DIV, 10 ns/DIV 1 V/DIV, 10 ns/DIV 1 V/DIV, 10 ns/DIV 4.0 Vp-p 4.1 Vp-p 4.8 Vp-p 8 IC303 qd (SO3) 29.5 ns 1 V/DIV, 10 ns/DIV 4.1 Vp-p 4.5 Vp-p q; IC301 r; (XTAL) 50 ns 1 V/DIV, 20 ns/DIV 4.1 Vp-p qa IC206
