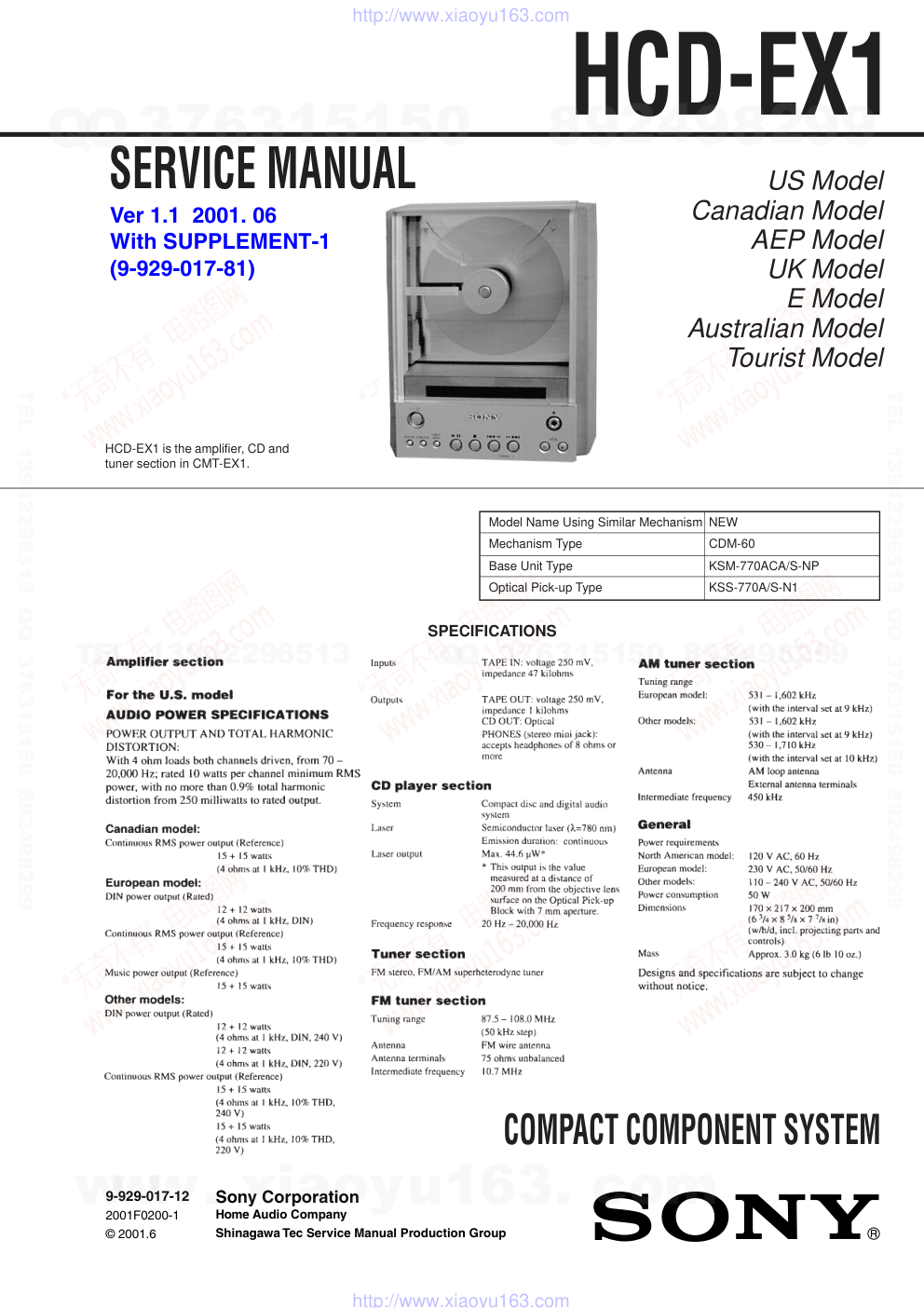

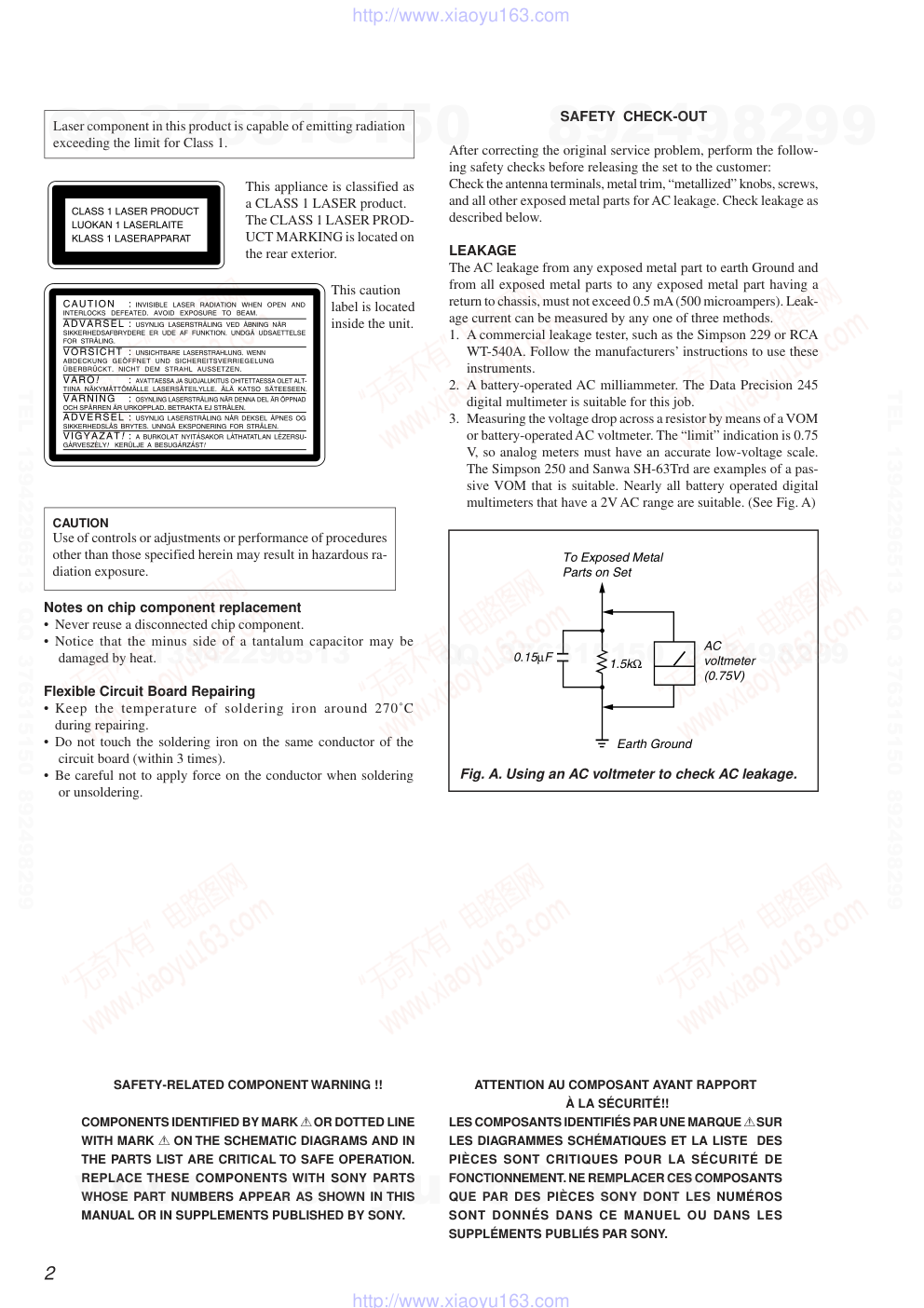

1 HCD-EX1 US Model Canadian Model AEP Model UK Model E Model Australian Model Tourist Model COMPACT COMPONENT SYSTEM SERVICE MANUAL SPECIFICATIONS Model Name Using Similar Mechanism NEW Mechanism Type CDM-60 Base Unit Type KSM-770ACA/S-NP Optical Pick-up Type KSS-770A/S-N1 HCD-EX1 is the amplifier, CD and tuner section in CMT-EX1. Ver 1.1 2001. 06 With SUPPLEMENT-1 (9-929-017-81) 9-929-017-12 2001F0200-1 © 2001.6 Sony Corporation Home Audio Company Shinagawa Tec Service Manual Production Group www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 SAFETY CHECK-OUT After correcting the original service problem, perform the follow- ing safety checks before releasing the set to the customer: Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE The AC leakage from any exposed metal part to earth Ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microampers). Leak- age current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a pas- sive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) Fig. A. Using an AC voltmeter to check AC leakage. 0.15µF To Exposed Metal Parts on Set 1.5kΩ AC voltmeter (0.75V) Earth Ground SAFETY-RELATED COMPONENT WARNING !! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous ra- diation exposure. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing • Keep the temperature of soldering iron around 270˚C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PROD- UCT MARKING is located on the rear exterior. This caution label is located inside the unit. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ!! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE ! SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, ob- serve from more than 30 cm away from the objective lens. LASER DIODE AND FOCUS SEARCH OPERATION CHECK Carry out the “S curve check” in “CD section adjustment” and check that the S curve waveform is output four times. TABLE OF CONTENTS 1. SERVICING NOTE .......................................................... 4 2. GENERAL .......................................................................... 7 3. DISASSEMBLY 3-1. Back Cover and Case ............................................................ 9 3-2. Panel Board and Stabilizer .................................................... 9 3-3. AMP Block ......................................................................... 10 3-4. CD Block ............................................................................ 10 3-5. Motor ASSY and CAM ....................................................... 11 3-6. Base Unit............................................................................. 11 3-7. Main Board and Power Board ............................................ 12 4. ELECTRICAL ADJUSTMENT .............................. 13 5. DIAGRAMS 5-1. Circuit Boards Location ...................................................... 14 5-2. Printed Wiring Board – Main Section –.............................. 16 5-3. Schematic Diagram – Main (1/3) Section –........................ 18 5-4. Schematic Diagram – Main (2/3) Section –........................ 19 5-5. Schematic Diagram – Main (3/3) Section – ........................ 20 5-6. Printed Wiring Board – LED/Loading/SW Section – ......... 21 5-7. Schematic Diagram – LED/Loading/SW Section Section – ............................... 21 5-8. Printed Wiring Board – AMP Section – .............................. 22 5-9. Schematic Diagram – AMP Section – ................................. 23 5-10. Printed Wiring Board – Panel Section – ........................... 24 5-11. Schematic Diagram – Panel Section – ............................. 25 5-12. Printed Wiring Board – Power Section – ......................... 26 5-13. Printed Wiring Board – Power Section – ......................... 27 5-14. Printed Wiring Board – REG Section –............................ 28 5-15. Schematic Diagram – REG Section – .............................. 29 5-16. IC Block Diagrams ........................................................... 30 5-17. IC Pin Functions ............................................................... 32 6. EXPLODED VIEWS 6-1. Front and Case Section ....................................................... 36 6-2. Chassis Section ................................................................... 37 6-3. Mechanism Section ............................................................. 38 6-4. Base Unit Section................................................................ 39 7. ELECTRICAL PARTS LIST ................................. 40 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 SECTION 1 SERVICING NOTE ADJUSTMENT OF CAM PHASE Absorber Absorber SW lever SW lever Boss Cam Slider (3) Screw (BVTP2.6x8) Screw (PTTWH2.6x8) Screw (BVTP2.6x8) Groove of slider (3) Hole of slider (3) Guide (L) Boss (Four point) Guide (R) Slider (2) Lever (1) Lever (1) Mecha cover Cam Boss Boss Boss Cam Boss Insert the cam so that the boss touches the SW lever at the left shown in the figure. Rotate the cam in the arrow direction, and adjust the phase until the boss touches the SW lever shown in the figure. With the phase adjusted, attach the parts using the following procedure. STEP1 Insert the boss of the slider (3) in the groove of the cam. STEP2 Set the mecha cover to the groove on the slider (3) and attach. STEP3 Insert the boss of the lever (1) in the hole of the slider (3) and attach. STEP4 While bending the slider (2) slightly in the arrow direction, insert it in the groove of the guides (L) and (R) and attach. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 Shipment Mode • Mode for setting the state of the unit to the state at shipment. When returning the unit to the customer after completing servicing, set to the shipment mode. Procedure : Connect the power plug to the outlet while pressing the 1/u button. Change-over of AM tuner Step between 9kHz and 10kHz. • A step of AM channels can be changed over between 9kHz and 10kHz. Procedure: 1. Press 1/u button to turn on the set ON. 2. Select the function “TUNER”, and press the TUNER/BAND button to select the BAND “AM”. 3. Press the 1/u button to turn on the set OFF. 4. Press 1/u button while pressing the )+/TUNING + button, and the display of liquid crystal indicator tube changes to “AM 9k STEP” or “AM 10k STEP”, and thus the channel step is changed over. Switching the TAPE IN input level attenuate function ON/OFF • The attenuate function of the line input level (TAPE IN) of this unit can be turned ON/OFF. Procedure: 1. Press the 1/u button to turn ON the power. 2. Press the FUNCTION button and set the function to “TAPE”. 3. Press the 1/u button to turn OFF the power. 4. While pressing the p button, press the 1/u button to turn ON the power. 5. After “POWER ON” is displayed, “ATT ON” and “ATT OFF” are displayed, and the attenuate function can be switched ON/OFF. LCD All Lit and Key Check Mode Procedure: 1. While pressing the FUNCTION button and ^ button, connect the power plug to the outlet. 2. When the test mode is set, the characters “STEP” are displayed on the LCD. 3. While pressing the DISPLAY button, press the ^ button. The whole LCD lights up. 4. Each time the FUNCTION button is pressed, the display switches between all lit n partial lighting 1 n partial lighting 2 n all lit. 5. When the p button is pressed, “KEY 0” is displayed and the key check mode is set. 6. Each time the button is pressed, the counter counts up. Buttons once pressed will not be counted when pressed again. When all buttons have been pressed, “KEY OK” is displayed. 7. To end, press the 1/u button to turn OFF the power, and disconnect the power plug from the outlet. Note: Pressing buttons other than those specified in steps 4 and 5 displays modes not used in servicing. In such cases, press the 1/u button to exit the mode, and repeat from step 3 again. All lit Partial lighting 1 Partial lighting 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 Displaying the CD Text • This unit is equipped with a simple CD text display function. The text is displayed only for the first 20 songs. As it will not be displayed from the 21st song, do not suspect a fault. In some cases, special characters may not be displayed or may be substituted by other characters. This is not a fault. Aging Mode • The aging mode automatically repeats the operations of the CD. When an error occurs: Aging stops When no error occurs: Aging is performed repeatedly. Procedure: 1. Set any CD. (One with a short playback time of the final track is recommended.) 2. While pressing the FUNCTION button and ^ button, connect the power plug to the outlet. 3. When the test mode is set, the characters “STEP” is displayed on the LCD. 4. When the ^ button is pressed while pressing the DISPLAY button, “AGING” will be displayed, and aging is performed in the following sequence. While aging is performed, “REP” will be displayed blinking. 5. Pressing the DISPLAY button during aging displays the cycle number (@ CY where @ is the number of agings). 6. To end aging, press the 1/u button, turn OFF the power, and disconnect the power plug from the outlet. Sequence during aging Reads the TOC Pauses Accesses first track Accesses last track Plays last track Eject disc (“OPEN” displayed) Load disc (“CLOSE” displayed) Displays number of cycles Power OFF Power ON www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 LOCATION OF PARTS AND CONTROLS 1 1/u (power) button 2 DISC tray 3 Display window 4 6 button 5 VOLUME + button 6 VOLUME – button 7 )+/TUNING + button 8 =0/TUNING – button 9 p (stop) button 10 ^ button 11 TUNER/BAND button 12 FUNCTION button 13 DISPLAY button SECTION 2 GENERAL 2 1 4 3 7 9 13 8 5 6 10 11 12 Remote 1 2 4 3 7 9 8 5 6 10 11 12 13 14 17 19 18 15 16 20 21 22 1 OPEN/CLOSE button 2 CD · button 3 TUNER/BAND button 4 FUNCTION button 5 CD PLAY MODE button 6 TUNING MODE button 7 MEMORY button 8 ENTER button 9 TIMER SET button 10 SLEEP button 11 TIMER SELECT button 12 DISPLAY button 13 1/u (power) button 14 ∏ button 15 π button 16 ≠/± (AMS) TUNING +/– button 17 º/‚ button 18 REPEAT button 19 DSG button 20 SURROUND button 21 STEREO/MONO button 22 VOLUME +/– button • AMS is the abbreviation for Automatic Music Sensor. Front Panel www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 This section is extracted from instruction manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 SECTION 3 DISASSEMBLY 3-1. BACK COVER AND CASE Note: Follow the disassembly procedure in the numerical order given. 1 2 3 4 5 6 7 8 9 !¡ Two claws Two screws (KTP3x8) Two screws (KTP3x8) Screw (KTP3x8) Screw (KTP3x8) Two screws (BVTT3x5) Side ornamental Side ornamental Rear cover Case Top panel 0 3-2. PANEL BOARD AND STABILIZER 1 2 3 4 5 6 7 Remove the Earth clip Two screws (BVTT3x5) Front panel assy PANEL board Claw Flat type wire (7 core) Five screws (BVTP2.6x8) Remove the stabilizer in the direction arrow. Stabiholder Stabilizer www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 3-4. CD BLOCK 3-3. AMP BLOCK Connector AMP board: CN801 Screw (BVTT3x5) AMP block Screw (BVTT3x5) Screw (BVTT3x5) Connector AMP board: CN810 Connector AMP board: CN802 1 2 3 4 5 6 7 Connector MAIN board: CN351 Flat type wire (16 core) Connector MAIN board: CN301 1 2 3 4 5 6 7 Two screws (BVTT3x5) Screw (BVTT3x5) Screw (BVTT3x5) CD block www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 3-5. MOTOR ASSY AND CAM 3-6. BASE UNIT 1 2 3 4 5 6 7 8 9 0 !¡ !™ !£ !¢ !∞ !§ Slider (3) Slider (2) Diskholder Lever (1) Mecha cover Motor assy SW cam Two screws (BVTP2.6x8) Two screws (BVTP2.6x8) Two screws (BVTP2.6x8) Two screws (BVTP2.6x8) Screws (BTP2.6x8) Screws (PTPWH2.6x?) Two screws (2.4x6) Two screws (2.4x6) Cam 1 2 3 4 5 6 7 8 9 0 !™ !£ !¢ !∞ !¡ Two screws (BVTP2.6x8) Two screws (BVTP2.6x8) Guide (L) Guide (R) Slider (4) Slider (4) Slider (1) Two screws (PTPWH2.6) Screws (PTPWH2.6) Two screws (PTPWH2.6) Two screws (PTPWH2.6) Coil spring Coil spring BU holder Pick up assy Note: Adjustment of the phase is required in assembly.Refer to "Section 1. Servicing Note" for details. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 3-7. MAIN BOARD AND POWER BOARD Two screws (BVTT3x5) Two screws (BVTP3x8) Two screws (BVTP3x8) Three screws (BVTT3x5) Two screws (BVTT3x5) Screw (PTPWH2.6) Screw (BVTT3x5) Screw (BVTT3x5) Screw (BVTT3x5) Main board Power board Power cord REG board Connector POWER board: CN903 Back panel 1 2 3 4 Two screws (BVTT3x5) Screw (BVTT3x5) Sealed case Spacer Flat type wire (13 core) Flat type wire (7 core) 5 6 7 8 9 0 !¡ !™ !£ !¢ !∞ !§ !¶ !• !ª @º @¡ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 Note: 1. CD Block is basically constructed to operate without adjustment. Therefore, check each item in order given. 2. Use YEDS-18 disc (3-702-101-01) unless otherwise indicated. 3. Use an oscilloscope with more than 10MΩ impedance. 4. Clean the object lens by an applicator with neutral detergent when the signal level is low than specified value with the following checks. S Curve Check Procedure : 1. Connect the oscilloscope to test points TP (FE) and TP (VC). 2. Connect TP (FEI) and TP (VC) of the MAIN board with lead wires. 3. Press the 1/u button to turn the set ON. 4. Press the ^ button, load and eject the disc (YEDS-18) to perform focus search. 5. Check the symmetry and peak to peak level of the oscilloscope waveform (S curve) at this time. S-curve waveform 6. After check, remove the lead wire connected in step 2. Note: • Try to measure several times to make sure than the ratio of A : B or B : A is more than 10 : 7. • Take sweep time as long as possible and light up the bright- ness to obtain best waveform. Checking Location : MAIN board RF Level Check Procedure : 1. Connect oscilloscope to test point TP (RF) and TP (VC) on MAIN board. 2. Press the 1/u button to turn the set ON. 3. Put disc (YEDS-18) in and playback 5track. 4. Confirm that oscilloscope waveform is clear and check RF sig- nal level is correct or not. oscilloscope MAIN board TP (FE) TP (VC) + – symmetry A B Within 3.8 ± 1 Vp-p oscilloscope MAIN board TP (RF) TP (VC) + – VOLT/DIV : 200mV TIME/DIV : 500ns level : 1.2 ± 0.2 Vp-p 0V Center of the waveform B Symmetry A (DC voitage) level : 1.3 ± Vp-p +0.6 –0.7 oscilloscope MAIN board TP (TE) TP (VC) + – Note: Clear RF signal waveform means that the shape “◊” can be clearly distinguished at the center of the waveform. RF signal waveform Checking Location : MAIN board E-F Balance (1 Track Jump) check Procedure: 1. Connect oscilloscope to test point TP (TE) and TP (VC) on MAIN board. 2. Press the 1/u button to turn the unit ON. 3. Put disc (YEDS-18) in to play the number five track. 4. Press the ^ button, to pause. 5. Check the level (B) of the oscilloscope's waveform and the DC voltage (A) of the center of the Traverse waveform. Confirm the following: • A/B x 100 = less then ± 22 (%) • B = 1.3 ± Vp-p 1 track jump waveform SECTION 4 ELECTRICAL ADJUSTMENT +0.6 –0.7 Checking Location : MAIN board [ MAIN BOARD ] — SIDE A — TP (VC) TP (FEI) TP (RF) TP (FE) TP (TE) IC303 IC301 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 SECTION 5 DIAGRAMS 5-1. CIRCUIT BOARDS LOCATION MAIN BOARD AMP BOARD REG BOARD SW BOARD POWER BOARD PANEL BOARD LED BOARD LOADING BOARD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EX1 15 15 • Indication of transistor C These are omitted E B Q C These are omitted E B IC303 #ª FE 1 2 3 4 5 WAVEFORMS – MAIN (1/3) SECTION – IC304 6 XTO IC303 %º RF AC IC303 $¡ TE IC303 @∞ MDP 3.1Vp-p 16.9MHz 1.2Vp-p (PLAY) 2.5V APPROX 500mVp-p (PLAY) 7.5µsec 2.4Vp-p 2.5V APPROX 200m Vp-p (PLAY) 6 7 IC701 !£ XT2 IC701 0 X2 – MAIN (3/3) SECTION – 5MHz 5.5Vp-p 32.768kHz 5Vp-p THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.) For schematic diagrams. Note: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • ¢ : internal component. • 2 : nonflammable resistor. • 5 : fusible resistor. • C : panel designation. For printed wiring boards. Note: • X : parts extracted from the component side. • ® : Through hole. • b : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) • U : B+ Line. • V : B– Line. • H : adjustment for repair. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. • Voltages and waveforms are dc with respect to ground in service mode. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. no mark : STOP • Circled numbers refer to waveforms. • Signal path. J : CD c : digital out • Abbreviation CND : Canadian model. Note: The components identi- fied by mark ! or dotted line with mark ! are criti- cal for safety. Replace only with part number specified. Note: Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EX1 16 16 (Page 24) (Page 28) (Page 16) (Page 22) 5-2. PRINTED WIRING BOARD – MAIN SECTION – • See page 14 for Circuit Boards Location. Ref. No. Location D139 E-4 D701 D-3 D751 D-3 D752 D-3 D753 D-3 D754 D-4 IC111 C-5 IC301 C-3 IC302 B-3 IC303 B-4 IC304 A-5 IC391 B-6 IC451 A-1 IC501 A-6 IC701 D-1 IC751 C-4 Q113 D-4 Q131 D-4 Q163 D-4 Q301 C-2 Q401 D-6 Q751 D-4 Q771 D-1 Q772 D-1 Q781 C-4 Q782 C-3 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EX1 17 17 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EX1 18 18 5-3. SCHEMATIC DIAGRAM – MAIN (1/3) SECTION – • See page 15 for Waveforms. • See page 16 for Printed Wiring Board. • See page 30 for IC Block Diagrams. • See page 32 for IC Pin Functions. (Page 21) (Page 19) (Page 20) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EX1 19 19 5-4. SCHEMATIC DIAGRAM – MAIN (2/3) SECTION – • See page 16 for Printed Wiring Board. (Page 25) (Page 20) (Page 20) (Page 20) (Page 20) (Page 20) (Page 18) MICON INTERFACE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EX1 20 20 5-5. SCHEMATIC DIAGRAM – MAIN (3/3) SECTION – • See page 15 for Waveforms. • See page 16 for Printed Wiring Board. • See page 34 for IC Pin Functions. (Page 19) (Page 19) (Page 19) (Page 19) (Page 19) (Page 18) (Page 29) (Page 23) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EX1 21 21 5-7. PRINTED WIRING BOARD – LED/LOADING/SW SECTION – • See page 14 for Circuit Boards Location. 5-6. SCHEMATIC DIAGRAM – LED/LOADING/SW SECTION – • See page 31 for IC Block Diagrams. (Page 18) (Page 28) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EX1 22 22 5-8. PRINTED WIRING BOARD – AMP SECTION – • See page 14 for Circuit Boards Location. (Page 28) (Page 28) (Page 16) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EX1 23 23 5-9. SCHEMATIC DIAGRAM – AMP SECTION – (Page 20) (Page 29) (Page 29) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EX1 24 24 5-10. PRINTED WIRING BOARD – PANEL SECTION – • See page 14 for Circuit Boards Location. (Page 16) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EX1 25 25 5-11. SCHEMATIC DIAGRAM – PANEL SECTION – (Page 19) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EX1 26 26 5-12. PRINTED WIRING BOARD – POWER SECTION – • See page 14 for Circuit Boards Location. Ref. No. Location D2 C-3 D3 C-3 D4 B-3 D6 B-3 D7 C-4 D10 E-3 D11 E-3 D12 D-3 D13 D-3 D21 D-2 D22 C-2 D901 B-2 D911 B-2 D931 A-3 D941 A-2 IC1 C-4 IC933 A-1 IC951 B-1 Q21 D-2 Q22 D-2 Q23 D-2 Q951 D-1 • Semiconductor Location (Page 28) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EX1 27 27 5-13. SCHEMATIC DIAGRAM – POWER SECTION – (Page 29) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EX1 28 28 5-14. PRINTED WIRING BOARD – REG SECTION – • See page 14 for Circuit Boards Location. (Page 22) (Page 22) (Page 26) (Page 16) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EX1 29 29 5-15. SCHEMATIC DIAGRAM – REG SECTION – (Page 27) (Page 23) (Page 20) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EX1 30 30 5-16. IC BLOCK DIAGRAMS • MAIN Board (1/3) IC301 CXA2568M-T6 11 12 10 VC VC VC VC VC VC VC VCC VCC RF SUMMING AMP RF_EQ_AMP ERROR AMP FOCUS TRACKING ERROR AMP VC BUFFER VCC VCC VC VC VC VC VEE VEE VEE VEE VEE VREF 13 14 15 6 5 1 2 3 4 7 8 9 16 19 20 21 22 23 24 18 17 HOLD LD PD A B C D VEE F E VC AGCVTH AGCCONT VCC LC/PD LD_ON HOLD_SW RF_BOT RFTC RF_1 RFO RFE FE TE (50%/30% OFF) APC PD AMP APC LD AMP IC304 PCM1710U-B/1K 3 80 76 74 75 73 72 68 64 63 62 61 58 59 60 67 66 65 69 71 70 1 78 79 77 2 5 4 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 25 26 27 28 29 30 11 11 31 32 33 34 35 36 37 38 39 40 46 50 53 55 52 57 56 51 54 49 48 47 44 41 42 43 24 23 Clock Generator D/A Interface Error Corrector 32K RAM Sub Code Processor EFM demodurator Digital OUT Digital PLL Asymmetry Corrector Servo Auto Sequencer Digital CLV MIRR DFCT FOK SERVO Interface CPU Interface OPAmp Analog SW A/D Converter PWM GENERATOR FOCUS SERVO SERVO DSP SLED SERVO TRACKING SERVO TRACKING PWM GENERATOR SLED PWM GENERATOR FORCUS PWM GENERATOR 45 SIGNAL PROCESSOR BLOCK SERVO BLOCK MUTE XRST DVDD0 DATA XLAT CLOCK SENS SCLK ATSK WFCK XUGF XPCK GFS SCOR WDCK C4M DVSS0 COUT MIRR V2PO DFCT FOK PWMI LOCK MDP SSTP FETO DVDD1 SFDR SRDR TFDR TRDR FFDR FRDR DVSS1 TEST TES1 VC FE SE IGEN AVSSO ADIO RFDC CE TE RFAC ASYI ASYO AVDD0 AVDD1 AVSS1 BIAS VCTL V16M VPCO PCO FILI FILO CLTV EXCK SBSO SCSY SQCK SQSO XOLT SOCK SOUT XTAO XTAI DVSS2 XTSL EMPH BCK PCMD LRCK DOUT MD2 ASYE DVDD2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 27 26 25 24 23 22 21 20 19 18 17 16 15 28 INPUT INTERFACE DIGITAL FILTER NOISE SHAPER 5-LEVEL DAC RIGHT LOW-PASS FILTER RIGHT 3-STAGE AMP RIGHT LOW-PASS FILTER LEFT 3-STAGE AMP LEFT 5-LEVEL DAC LEFT MODE CONTROL TIMING CONTROL LRCIN DIN BCKIN CLKO XTI XTO DGND VDD VCC2R GND2R EXT1R EXT2R VOUTR GND1 ML/DSD MC/DM2 MD/DM1 MUTE MODE CKSL DGND VDD VCC2L VCC1 GND2L EXT1L EXT2L VOUTL IC303 CXD2585Q w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 • LOADING Board IC351 LB1641 1 2 3 4 5 6 7 8 9 10 GND MOTOR DRIVE NOISE FILTER CLAMP FWD.IN REV.IN VCC 1 VCC 2 NOISE FILTER MOTOR DRIVE MOTOR DRIVE MOTOR DRIVE T.S.D O.C.P FWD/REV/STOP CONTROL LOGIC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 5-17. IC PIN FUNCTIONS • IC303 DIGITAL SERVO & DIGITAL SIGNAL PROCESSOR (CXA2585Q) (MAIN Board (1/3)) DVDD XRST MUTE DATA XLAT CLOK SENS SCLK ATSK WFCK XUGF XPCK GFS C2PO SCOR CM4 WDCK DVSS COUT MIRR DFCT FOK PWMI LOCK MDP SSTP FSTO DVDD1 SFDR SRDR TFDR TRDR FFDR FRDR DVSS1 TEST TES1 VC FE SE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 – I I I I I O I I/O O O O O O O O O – I/O I/O I/O I/O I I/O O I O – O O O O O O – I I I I I Digital power supply System reset “L” : reset Muting input “H” : mute Serial data input, supplied from CPU Latch input, supplied from CPU Serial data transfer clock input, supplied from CPU SENS signal output to CPU SENS serial data read-out clock input Input pin for anti-shock (Connected to ground) WFCK output (Not used) Not used Not used Not used Not used Sub-code sync output 4.2336 MHz output (Not used) Word clock output (ƒ = 2Fs) Digital ground Numbers of track counted signal input/output (Not used) Mirror signal input/output Defect signal input/output Focus OK input/output Spindle motor external control input (Connected to ground) GFS is sampled by 460 Hz. H when GFS is H (Not used) Output to control spindle motor servo Input signal to detect disc inner most track 2/3 divider output of pin 71 Digital power supply Sled drive output Sled drive output Tracking drive output Tracking drive output Focus drive output Focus drive output Digital ground TEST pin connected normally to ground TEST pin connected normally to ground Center voltage input pin Focus error signal input Sled error signal input Pin No. Pin Name I/O Function • Abbreviation GFS : Guarded Frame Sync www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 • Abbreviation EFM : Eight to Fourteen Modulation PLL : Phase Locked Loop Pin No. Pin Name I/O Function TE CE RFDC ADIO AVSS0 IGEN AVDD0 ASYO ASYI RFAC AVSS1 CLTV FILO FILI PCO AVDD1 BIAS VCTL V16M VPCO DVDD2 ASYE MD2 DOUT LRCK PCMD BCLK EMPH XTSL DVSS2 XTAI XTAO SOUT SOCK XOLT SQSO SQCK SCSY SBSO EXCK 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 I I I O – I – O I I – I O I O – I I I/O O – I I O O O O O I – I O O O O O I I O I Tracking error signal input Center servo analog input RF signal input Test pin (Not used) Analog ground Stabilized current input for operational amplifiers Analog power supply EFM full swing output Asymmetry comparate voltage input EFM signal input Analog ground Control voltage input for master VCO1 Filter output for master PLL Filter input for master PLL Charge-pump output for master PLL Analog power supply Asymmetry circuit constant current input VCO2 control voltage input for wide band EFM PLL (Connected to VDD) VCO2 oscillator input/output for wide band EFM PLL (Not used) Charge-pump output for wide band EFM PLL (Not used) Digital power supply Asymmetry circuit ON/OFF input “L” OFF, “H” : ON (Connected to VDD) Digital-out ON/OFF control input (Connected to VDD) Digital-out output pin D/A interface LR clock output (ƒ = Fs) D/A interface serial data output D/A interface bit clock output Playback disc output in emphasis mode (Not used) X'tal selection input (Connected to ground) Digital ground X'tal oscillator circuit input X'tal oscillator circuit output (Not used) Serial data output in servo block (Not used) Serial data read clock output in servo block (Not used) Serial data latch output in servo block (Not used) Sub-Q 80-bit and PCM peak level data output (CD text data output) Clock input for SQSO read-out Connected to ground Sub-P through Sub-W serial output (Not used) Clock input for SBSO read-out (Connected to ground) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 Pin No. Pin Name I/O Function • IC701 uCOM (UPD780306GF-024-3BA) (MAIN Board (3/3)) 1 TUNED I ST tuning 2 PLL_CE O ST PLL CE 3 PLL_DATAI I ST PLL IN data 4 PLL_DATAO O ST PLL OUT data 5 PLL_CLK O ST PLL CLK 6 GND – Ground (Programing) 7 XOUT – 8 XIN – 9 VDD1 – Ground 10 XT1 – 11 XT2 – 12 RESET I uCOM reset in 13 REMOTE I SIRCS IN 14 RDS_CLK I ST RDS clock 15 POWDET I AC power down detect 16 SCOR I CD SCOR 17 RDS_DATA I ST RDS data 18 SENSE I CD SENS 19 SUB Q I CD SUBQ IN data 20 BACKLIGHT O LCD back light 21 SERVO_CK O CD SQCK/SCLK (for serial in) 22 XLAT O CD data latch 23 XRST O CD (BC) reset 24 SCLK O CD CLOCK/PCM1710 CLK 25 MUTE_D O CD digital mute 26 CD_POWER O CD (BD) power 27 AVSS – Ground 28 KEYIO_1 I 29 KEYIO_2 I 30 BAND_AREA I Destination setting 31 DA_LAT O PCM1710 latch 32 LPH O CD LPH 33 LDON O CD LASER ON 34 OPEN_SW I OPEN SW 35 CLOSE_SW I CLOSE SW 36 VDD0 – 37 AVREF – 38 AMP_MUTE O POWER AMP MUTE 39 DATA O CD CMD/PCM1710 OUT DATA 40 VSS1 – Ground 41 OPEN O CD loading motor open 42 CLOSE O CD loading motor close 43 POWER O System power 44 TA_MUTE O TA MUTE 45 SP_RELAY O Speaker relay 46 ST_MUTE O ST MUTE 47 SLEEP O Power supply sleep control 48 VOL_CLK O VOL CLK 49 VOL_DATA O VOL OUT data 50 VOL_STB O VOL STB 5MHz (Main clock) 32KHz (Sub clock) KEY +5V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 Pin No. Pin Name I/O Function 51 to 54 COM0 to COM3 O LCD COMMON 55 BIAS O LCD DRIVE POWER 56 to 58 VLC0 to VLC2 O LCD DRIVER POWER 59 VSS0 O Ground 60 to 99 SEG0 to SEG39 O FL segment signal output 100 STEREO I ST STEREO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 SECTION 6 EXPLODED VIEWS 6-1. FRONT PANEL AND CASE SECTION NOTE: • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE)  Parts color • The mechanical parts with no reference number in the exploded views are not supplied. • Hardware (# mark) list and accessories and pack- ing materials are given in the last of this parts list. • Abbreviation CND : Canadian model Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. 21 20 17 16 3 4 6 7 5 2 1 #1 #2 #2 #2 #2 #2 #1 not supplied not supplied not supplied 8 22 22 22 9 15 17 11 10 12 14 13 23 18 19 1 4-969-961-11 EMBLEM(NO.4), SONY 2 4-222-620-01 RING (EJECT) 3 4-222-713-01 PANEL(BASE), FRONT 4 4-222-720-01 BUTTON(PLAY) 5 4-222-719-01 BUTTON(POWER) 6 4-222-742-01 SPRING(EJECT) 7 4-222-743-01 SPRING(EARTH) 8 A-4426-743-A PANEL MOUNTED PC BOARD 9 1-769-889-11 WIRE(FLAT TYPE) (7 CORE) 10 X-4952-306-1 WINDOW (GLASS) ASSY (US,CND) 10 X-4952-307-1 WINDOW (GLASS) ASSY (EXCEPT US,CND) 11 4-222-707-01 YOKE(MG) 12 4-222-703-01 MAGNET 13 4-222-709-01 YOKE(ST) 14 4-222-704-01 STABILIZER 15 4-222-711-01 PLATE(L), SIDE 16 4-222-710-01 PLATE(R), SIDE 17 4-985-672-01 SCREW(+PTPWHM2.6), FLOATING 18 4-222-712-01 PLATE, TOP 19 4-222-716-01 CASE 20 4-222-718-01 COVER(PIN JACK) 21 4-222-717-01 COVER(BACK) 22 4-951-620-01 SCREW (2.6x8), +BVTP 23 3-927-664-01 SCREW (2x3) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 6-2. CHASSIS SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark (US/CND) (E) (AEP/UK) (HK) (AUS) (UK) #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #3 #3 #3 #3 #3 #3 #3 #1 #1 #1 #1 #1 #3 not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied 54 55 57 58 64 67 60 60 60 60 60 65 61 62 56 66 63 66 59 53 51 51 52 Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. 51 4-220-455-01 FOOT(FELT) 52 4-222-715-01 PLATE, BOTTOM 53 A-4426-745-A AMP MOUNTED PC BOARD (US,CND) 53 A-4426-754-A AMP MOUNTED PC BOARD (EXCEPT US,CND) 54 A-4426-744-A POWER MOUNTED PC BOARD (US,CND) 54 A-4426-753-A POWER MOUNTED PC BOARD (EXCEPT US,CND) * 55 1-675-407-11 REG BOARD 56 4-985-672-01 SCREW(+PTPWHM2.6), FLOATING 57 3-703-244-00 BUSHING (2104), CORD 58 4-222-730-01 PANEL, BACK 59 A-4426-742-A MAIN MOUNTED PC BOARD (US,CND) 59 A-4426-752-A MAIN MOUNTED PC BOARD (EXCEPT US,CND) !60 1-575-651-21 CORD,POWER (AEP,UK) !60 1-783-531-31 CORD,POWER (US,CND) 61 1-674-910-11 LED BOARD 62 1-791-698-11 WIRE (FLAT TYPE) (16 CORE) 63 1-769-973-11 WIRE (FLAT TYPE) (13 CORE) 64 1-693-407-13 TUNER (US,CND) 64 1-693-408-12 TUNER (EXCEPT US,CND) !65 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (UK) 66 3-314-903-01 CUSHION 67 4-222-714-01 HOUSE, LAMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 6-3. MECHANISM SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 101 4-222-745-01 PLATE (CD) (LOWER), ORNAMENTAL 102 4-222-746-01 PLATE (CD) (UPPER), ORNAMENTAL 103 4-222-701-01 PANEL, MECHANICAL 104 4-985-672-31 SCREW (+PTPWHM2.6), FLOATING 105 4-222-697-01 RUBBER, FLOATING 106 4-222-692-01 HOLDER, BU 107 4-222-702-01 SPRING, TENSION 108 4-222-685-01 SLIDER (1) 109 4-222-694-01 GEAR(1) 110 4-999-513-01 GEAR, PULLEY 111 4-999-537-01 BELT(LOADING) 112 4-222-695-01 GUIDE (R) 113 4-222-693-01 SLIDER (4) 114 4-222-700-01 GUIDE (L) 115 4-222-687-01 BASE, MECHANICAL 116 4-222-688-01 HOLDER, DISC 117 4-222-813-01 SLIDER (2) 118 4-225-227-01 SPRING (ABSORBER),TENSION COIL 119 4-225-228-01 CAM(A) 120 4-225-226-01 ABSORBER 121 4-222-689-01 SLIDER (3) 122 4-222-690-01 COVER, MECHANICAL 123 4-222-691-01 LEVER (1) 124 4-951-620-01 SCREW (2.6X8), +BVTP * 125 1-674-908-11 LOADING BOARD * 126 1-674-909-11 SW BOARD 127 1-791-698-11 WIRE (FLAT TYPE) (16 CORE) 128 3-831-441-99 CUSHION #4 #5 #5 not supplied 101 102 103 104 104 124 124 128 127 104 104 104 104 104 105 105 105 105 106 107 107 108 114 113 116 117 115 119 120 122 123 123 124 124 121 118 126 112 125 113 111 110 109 124 124 124 Ver 1.1 2001.06 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 6-4. BASE UNIT SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark not supplied not supplied 151 152 153 154 162 155 156 157 159 160 158 161 151 X-2646-555-1 SCREW ASSY, SLED 152 2-647-505-01 SPRING, RACK !153 8-820-087-11 OPTICAL PICK-UP KSS-770A/S-N1 154 2-647-506-01 GEAR, MOTOR 155 1-763-381-11 MOTOR, DC 156 2-647-504-01 HOLDER 157 2-646-352-01 SCREW, BTP2x8 158 1-960-065-11 HARNESS 159 2-646-358-11 SCREW, BTP1.7x4 160 1-791-698-11 WIRE (FLAT TYPE) (16 CORE) 161 2-647-507-01 TURN TABLE (HIFI) 162 2-627-669-11 SCREW M1.7x2 Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 • SEMICONDUCTORS In each case, u: µ , for example: uA...: µ A..., uPA...: µ PA..., uPB...: µ PB..., uPC...: µ PC..., uPD...: µ PD... • CAPACITORS uF : µ F • COILS uH : µ H • Abbreviation CND : Canadian model • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • RESISTORS All resistors are in ohms METAL: Metal-film resistor METAL OXIDE: Metal Oxide-film resistor F : nonflammable SECTION 7 ELECTRICAL PARTS LIST Note: When indicating parts by reference number, please include the board name. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark LED AMP A-4426-754-A AMP BOARD, COMPLETE (EXCEPT US,CND) ******************** A-4426-745-A AMP BOARD, COMPLETE (US,CND) ******************** < CAPACITOR > C801 1-126-047-71 ELECT 4.7uF 20% 50V C803 1-126-022-11 ELECT 47uF 20% 25V C804 1-162-219-31 CERAMIC 68PF 5% 50V C805 1-164-159-21 CERAMIC 0.1uF 50V C806 1-164-159-21 CERAMIC 0.1uF 50V C807 1-163-038-91 CERAMIC CHIP 0.1uF 25V C811 1-126-027-11 ELECT 1000uF 20% 25V C812 1-126-027-11 ELECT 1000uF 20% 25V C813 1-164-159-21 CERAMIC 0.1uF 50V C814 1-164-159-21 CERAMIC 0.1uF 50V C821 1-126-933-11 ELECT 100uF 20% 16V C822 1-126-967-11 ELECT 47uF 20% 50V C851 1-126-047-71 ELECT 4.7uF 20% 50V C853 1-126-022-11 ELECT 47uF 20% 25V C854 1-162-219-31 CERAMIC 68PF 5% 50V C855 1-164-159-21 CERAMIC 0.1uF 50V C856 1-164-159-21 CERAMIC 0.1uF 50V < CONNECTOR > * CN801 1-568-943-11 PIN, CONNECTOR 5P CN802 1-691-766-11 PLUG (MICRO CONNECTOR) 4P * CN810 1-564-518-11 PLUG, CONNECTOR 3P < DIODE > D821 8-719-988-61 DIODE 1SS355TE-17 < IC > IC801 8-759-333-24 IC LM1876TF < COIL > L801 1-420-872-00 COIL, AIR-CORE (EXCEPT US,CND) L851 1-420-872-00 COIL, AIR-CORE (EXCEPT US,CND) < TRANSISTOR > Q821 8-729-900-53 TRANSISTOR DTC114EKA-T146 Q822 8-729-120-28 TRANSISTOR 2SC3052EF-T1-LEF Q823 8-729-120-28 TRANSISTOR 2SC3052EF-T1-LEF Q824 8-729-120-28 TRANSISTOR 2SC3052EF-T1-LEF < RESISTOR > R801 1-249-417-11 CARBON 1K 5% 1/4W F R802 1-216-088-00 METAL CHIP 43K 5% 1/10W R803 1-249-417-11 CARBON 1K 5% 1/4W F R804 1-249-436-11 CARBON 39K 5% 1/4W R805 1-249-754-11 CARBON 10 5% 1/2W (EXCEPT US,CND) R806 1-249-393-11 CARBON 10 5% 1/4W F R807 1-216-089-91 RES,CHIP 47K 5% 1/10W R821 1-216-085-00 METAL CHIP 33K 5% 1/10W R822 1-216-091-00 METAL CHIP 56K 5% 1/10W !R823 1-247-739-11 CARBON 100 5% 1/2W F R851 1-249-417-11 CARBON 1K 5% 1/4W F R852 1-216-088-00 METAL CHIP 43K 5% 1/10W R853 1-249-417-11 CARBON 1K 5% 1/4W F R854 1-249-436-11 CARBON 39K 5% 1/4W R855 1-249-754-11 CARBON 10 5% 1/2W (EXCEPT US,CND) R856 1-249-393-11 CARBON 10 5% 1/4W F R857 1-216-091-00 METAL CHIP 56K 5% 1/10W < RELAY > RY801 1-515-921-11 RELAY (12V) ************************************************************* 1-674-910-11 LED BOARD ********** < CAPACITOR > C781 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C782 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C783 1-163-251-11 CERAMIC CHIP 100PF 5% 50V < DIODE > D781 8-719-076-07 DIODE SELU2E10CRW1TP6 D782 8-719-076-07 DIODE SELU2E10CRW1TP6 D783 8-719-076-07 DIODE SELU2E10CRW1TP6 < RESISTOR > R781 1-216-029-00 METAL CHIP 150 5% 1/10W R782 1-216-029-00 METAL CHIP 150 5% 1/10W R783 1-216-029-00 METAL CHIP 150 5% 1/10W ************************************************************* The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN LOADING 1-674-908-11 LOADING BOARD ************** < CAPACITOR > C351 1-104-665-11 ELECT 100uF 20% 16V C352 1-163-031-11 CERAMIC CHIP 0.01uF 50V C353 1-163-031-11 CERAMIC CHIP 0.01uF 50V C354 1-163-031-11 CERAMIC CHIP 0.01uF 50V < DIODE > D351 8-719-056-78 DIODE UDZ-TE-17-4.3B < IC > IC351 8-759-822-09 IC LB1641 < RESISTOR > R351 1-216-025-91 RES,CHIP 100 5% 1/10W ************************************************************** A-4426-742-A MAIN BOARD, COMPLETE (US,CND) ********************* A-4426-752-A MAIN BOARD, COMPLETE (EXCEPT US,CND) ********************* < CAPACITOR > C101 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C102 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C111 1-136-173-00 MYLAR 0.47uF 5% 50V C112 1-163-022-00 CERAMIC CHIP 0.012uF 10% 50V C113 1-163-989-11 CERAMIC CHIP 0.033uF 10% 25V C114 1-163-011-11 CERAMIC CHIP 0.0015uF 10% 50V C115 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V C116 1-164-182-11 CERAMIC CHIP 0.0033uF 10% 50V C117 1-126-964-11 ELECT 10uF 20% 50V C118 1-126-964-11 ELECT 10uF 20% 50V C119 1-163-006-11 CERAMIC CHIP 560PF 10% 50V C120 1-136-165-00 MYLAR 0.1uF 5% 50V C121 1-136-165-00 MYLAR 0.1uF 5% 50V C131 1-128-834-11 ELECT 470uF 20% 10V C132 1-128-834-11 ELECT 470uF 20% 10V C133 1-163-038-91 CERAMIC CHIP 0.1uF 25V C134 1-163-038-91 CERAMIC CHIP 0.1uF 25V C135 1-126-964-11 ELECT 10uF 20% 50V C136 1-163-038-91 CERAMIC CHIP 0.1uF 25V C137 1-163-038-91 CERAMIC CHIP 0.1uF 25V C138 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C139 1-164-346-11 CERAMIC CHIP 1uF 16V C151 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C152 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C161 1-136-173-00 MYLAR 0.47uF 5% 50V C162 1-163-022-00 CERAMIC CHIP 0.012uF 10% 50V C163 1-163-989-11 CERAMIC CHIP 0.033uF 10% 25V C164 1-163-011-11 CERAMIC CHIP 0.0015uF 10% 50V C165 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V C166 1-164-182-11 CERAMIC CHIP 0.0033uF 10% 50V C167 1-126-964-11 ELECT 10uF 20% 50V C168 1-126-964-11 ELECT 10uF 20% 50V C169 1-163-006-11 CERAMIC CHIP 560PF 10% 50V C170 1-136-165-00 MYLAR 0.1uF 5% 50V C171 1-136-165-00 MYLAR 0.1uF 5% 50V C176 1-164-344-11 CERAMIC CHIP 0.068uF 10% 25V C177 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C301 1-163-038-91 CERAMIC CHIP 0.1uF 25V C302 1-163-038-91 CERAMIC CHIP 0.1uF 25V C303 1-104-664-11 ELECT 47uF 20% 10V C304 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C305 1-104-665-11 ELECT 100uF 20% 10V C306 1-126-964-11 ELECT 10uF 20% 50V C307 1-163-097-00 CERAMIC CHIP 15PF 5% 50V C308 1-163-217-11 CERAMIC CHIP 1PF 0.25PF 50V C309 1-163-031-11 CERAMIC CHIP 0.01uF 50V C311 1-164-346-11 CERAMIC CHIP 1uF 16V C312 1-163-038-91 CERAMIC CHIP 0.1uF 25V C313 1-163-038-91 CERAMIC CHIP 0.1uF 25V C314 1-104-664-11 ELECT 47uF 20% 10V C321 1-110-501-11 CERAMIC CHIP 0.33uF 10% 16V C322 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C323 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C324 1-163-038-91 CERAMIC CHIP 0.1uF 25V C325 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C326 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V C327 1-163-038-91 CERAMIC CHIP 0.1uF 25V C328 1-126-927-11 ELECT 2200uF 20% 10V C331 1-164-346-11 CERAMIC CHIP 1uF 16V C332 1-164-346-11 CERAMIC CHIP 1uF 16V C333 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V C334 1-163-005-11 CERAMIC CHIP 470PF 10% 50V C335 1-163-038-91 CERAMIC CHIP 0.1uF 25V C336 1-163-005-11 CERAMIC CHIP 470PF 10% 50V C337 1-163-031-11 CERAMIC CHIP 0.01uF 50V C338 1-164-005-11 CERAMIC CHIP 0.47uF 25V C339 1-163-011-11 CERAMIC CHIP 0.0015uF 10% 50V C340 1-163-035-00 CERAMIC CHIP 0.047uF 50V C341 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C342 1-163-038-91 CERAMIC CHIP 0.1uF 25V C343 1-163-038-91 CERAMIC CHIP 0.1uF 25V C344 1-163-038-91 CERAMIC CHIP 0.1uF 25V C345 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C346 1-128-834-11 ELECT 470uF 20% 10V C361 1-163-101-00 CERAMIC CHIP 22PF 5% 50V C362 1-163-101-00 CERAMIC CHIP 22PF 5% 50V C363 1-163-038-91 CERAMIC CHIP 0.1uF 25V C364 1-128-834-11 ELECT 470uF 20% 10V C365 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C366 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C367 1-164-346-11 CERAMIC CHIP 1uF 16V C368 1-128-834-11 ELECT 470uF 20% 10V C371 1-163-038-91 CERAMIC CHIP 0.1uF 25V C372 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C381 1-126-964-11 ELECT 10uF 20% 50V C382 1-126-964-11 ELECT 10uF 20% 50V C383 1-163-011-11 CERAMIC CHIP 0.0015uF 10% 50V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN C384 1-163-011-11 CERAMIC CHIP 0.0015uF 10% 50V C391 1-104-665-11 ELECT 100uF 20% 10V C392 1-163-038-91 CERAMIC CHIP 0.1uF 25V C401 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C402 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C403 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C404 1-163-031-11 CERAMIC CHIP 0.01uF 50V (EXCEPT US,CND) C405 1-163-031-11 CERAMIC CHIP 0.01uF 50V (EXCEPT US,CND) C406 1-126-933-11 ELECT 100uF 20% 16V C407 1-104-665-11 ELECT 100uF 20% 10V (US,CND) C407 1-126-964-11 ELECT 10uF 20% 50V (EXCEPT US,CND) C408 1-163-038-91 CERAMIC CHIP 0.1uF 25V C409 1-163-038-91 CERAMIC CHIP 0.1uF 25V C451 1-164-346-11 CERAMIC CHIP 1uF 16V (EXCEPT US,CND) C452 1-163-031-11 CERAMIC CHIP 0.01uF 50V (EXCEPT US,CND) C453 1-163-006-11 CERAMIC CHIP 560PF 10% 50V (EXCEPT US,CND) C455 1-163-031-11 CERAMIC CHIP 0.01uF 50V (EXCEPT US,CND) C456 1-163-239-11 CERAMIC CHIP 33PF 5% 50V (EXCEPT US,CND) C457 1-163-239-11 CERAMIC CHIP 33PF 5% 50V (EXCEPT US,CND) C458 1-164-346-11 CERAMIC CHIP 1uF 16V (EXCEPT US,CND) C501 1-126-960-11 ELECT 1uF 20% 50V C502 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C503 1-163-001-11 CERAMIC CHIP 220PF 10% 50V C511 1-126-934-11 ELECT 220uF 20% 10V C512 1-126-934-11 ELECT 220uF 20% 10V C551 1-126-960-11 ELECT 1uF 20% 50V C552 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C553 1-163-001-11 CERAMIC CHIP 220PF 10% 50V C701 1-163-231-11 CERAMIC CHIP 15PF 5% 50V C702 1-163-231-11 CERAMIC CHIP 15PF 5% 50V C703 1-163-038-91 CERAMIC CHIP 0.1uF 25V C704 1-163-038-91 CERAMIC CHIP 0.1uF 25V C705 1-163-038-91 CERAMIC CHIP 0.1uF 25V C751 1-104-905-11 CAPACITOR 0.22F 5.5V C754 1-126-786-11 ELECT 47uF 20% 16V C755 1-163-038-91 CERAMIC CHIP 0.1uF 25V C756 1-126-786-11 ELECT 47uF 20% 16V C757 1-163-038-91 CERAMIC CHIP 0.1uF 25V C758 1-110-501-11 CERAMIC CHIP 0.33uF 10% 16V C759 1-163-031-11 CERAMIC CHIP 0.01uF 50V C784 1-128-834-11 ELECT 470uF 20% 10V C785 1-164-346-11 CERAMIC CHIP 1uF 16V C791 1-163-031-11 CERAMIC CHIP 0.01uF 50V C792 1-163-031-11 CERAMIC CHIP 0.01uF 50V C793 1-163-031-11 CERAMIC CHIP 0.01uF 50V C798 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C799 1-163-251-11 CERAMIC CHIP 100PF 5% 50V < CONNECTOR > CN301 1-770-168-11 CONNECTOR,FFC(LIF(NON-ZIF))16P CN302 1-779-977-11 PIN, CONNECTOR 6P CN303 1-564-707-11 PIN, CONNECTOR (SMALL TYPE) 5P * CN351 1-568-955-11 PIN, CONNECTOR 6P CN401 1-774-289-11 PIN, CONNECTOR (PC BOARD) 15P * CN601 1-568-850-11 SOCKET, CONNECTOR 7P * CN701 1-568-850-11 SOCKET, CONNECTOR 7P CN702 1-691-647-11 SOCKET, CONNECTOR 13P < DIODE > D139 8-719-056-72 DIODE UDZ-TE-17-2.4B D701 8-719-914-43 DIODE DAN202K-T-146 D751 8-719-075-77 DIODE EC10DA40-TE12 D752 8-719-075-77 DIODE EC10DA40-TE12 D753 8-719-988-61 DIODE 1SS355TE-17 D754 8-719-988-61 DIODE 1SS355TE-17 < FERRITE BEAD > FB331 1-500-245-11 FERRITE 0UH < IC > IC111 8-759-495-85 IC M62442FP-A IC301 8-752-085-51 IC CXA2568M-T6 IC302 8-759-549-28 IC BA5974FP-E2 IC303 8-752-389-34 IC CXD2585Q IC304 8-759-569-28 IC PCM1710U-B/1K IC391 8-749-923-04 IC TOTX178A IC451 8-759-560-51 IC BU1924F (EXCEPT US,CND) IC501 8-759-331-72 IC NJM4558E-D(TE2) IC701 8-759-643-70 IC uPD780306GF-024-3BA IC751 8-759-635-63 IC M51943BSL-TP < JACK > J101 1-695-188-31 JACK, PIN 4P (TAPE IN/OUT) J501 1-779-050-11 JACK (PHONES) < COIL > L391 1-410-322-11 INDUCTOR 3.3uH L401 1-410-393-11 INDUCTOR CHIP 100uH L402 1-410-393-11 INDUCTOR CHIP 100uH L403 1-410-393-11 INDUCTOR CHIP 100uH L404 1-410-393-11 INDUCTOR CHIP 100uH L405 1-410-393-11 INDUCTOR CHIP 100uH < LIQUID CRYSTAL DISPLAY > LCD701 1-803-778-11 DISPLAY PANEL, LIQUID CRYSTAL < TRANSISTOR > Q113 8-729-107-46 TRANSISTOR 2SC3624A-T1L15L16 Q131 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q163 8-729-107-46 TRANSISTOR 2SC3624A-T1L15L16 Q301 8-729-049-31 TRANSISTOR 2SB710-RTX Q401 8-729-120-28 TRANSISTOR 2SC3052EF-T1-LEF (EXCEPT US,CND) Q501 8-729-107-46 TRANSISTOR 2SC3624A-T1L15L16 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark Q551 8-729-107-46 TRANSISTOR 2SC3624A-T1L15L16 Q751 8-729-120-28 TRANSISTOR 2SC3052EF-T1-LEF Q771 8-729-900-53 TRANSISTOR DTC114EKA-T146 Q772 8-729-600-22 TRANSISTOR 2SA1235TP-1EF Q773 8-729-900-53 TRANSISTOR DTC114EKA-T146 Q774 8-729-600-22 TRANSISTOR 2SA1235TP-1EF Q781 8-729-040-20 TRANSISTOR RT1P137L-TP Q782 8-729-900-53 TRANSISTOR DTC114EKA-T146 < RESISTOR > R101 1-216-049-91 RES,CHIP 1K 5% 1/10W R102 1-216-097-91 RES,CHIP 100K 5% 1/10W R103 1-216-049-91 RES,CHIP 1K 5% 1/10W R111 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R112 1-216-073-00 METAL CHIP 10K 5% 1/10W R113 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R114 1-216-097-91 RES,CHIP 100K 5% 1/10W R115 1-216-073-00 METAL CHIP 10K 5% 1/10W R116 1-216-094-00 RES,CHIP 75K 5% 1/10W R117 1-216-085-00 METAL CHIP 33K 5% 1/10W R131 1-216-025-91 RES,CHIP 100 5% 1/10W R132 1-216-025-91 RES,CHIP 100 5% 1/10W R133 1-216-025-91 RES,CHIP 100 5% 1/10W R134 1-216-097-91 RES,CHIP 100K 5% 1/10W R135 1-216-049-91 RES,CHIP 1K 5% 1/10W R139 1-216-057-00 METAL CHIP 2.2K 5% 1/10W (US,CND) R151 1-216-049-91 RES,CHIP 1K 5% 1/10W R152 1-216-097-91 RES,CHIP 100K 5% 1/10W R153 1-216-049-91 RES,CHIP 1K 5% 1/10W R161 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R162 1-216-073-00 METAL CHIP 10K 5% 1/10W R163 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R164 1-216-097-91 RES,CHIP 100K 5% 1/10W R165 1-216-073-00 METAL CHIP 10K 5% 1/10W R166 1-216-094-00 RES,CHIP 75K 5% 1/10W R167 1-216-085-00 METAL CHIP 33K 5% 1/10W R301 1-216-295-91 SHORT 0 R302 1-216-295-91 SHORT 0 R303 1-216-295-91 SHORT 0 R304 1-216-295-91 SHORT 0 R305 1-216-103-00 METAL CHIP 180K 5% 1/10W R306 1-216-103-00 METAL CHIP 180K 5% 1/10W R307 1-216-001-00 METAL CHIP 10 5% 1/10W R308 1-216-003-11 RES,CHIP 12 5% 1/10W R310 1-216-089-91 RES,CHIP 47K 5% 1/10W R311 1-216-081-00 METAL CHIP 22K 5% 1/10W R312 1-216-121-91 RES,CHIP 1M 5% 1/10W R313 1-216-295-91 SHORT 0 R315 1-216-121-91 RES,CHIP 1M 5% 1/10W R321 1-216-308-00 METAL CHIP 4.7 5% 1/10W R322 1-216-101-00 METAL CHIP 150K 5% 1/10W R323 1-216-089-91 RES,CHIP 47K 5% 1/10W R324 1-216-111-00 METAL CHIP 390K 5% 1/10W R331 1-216-025-91 RES,CHIP 100 5% 1/10W R332 1-216-077-91 RES,CHIP 15K 5% 1/10W R333 1-216-097-91 RES,CHIP 100K 5% 1/10W R334 1-216-077-91 RES,CHIP 15K 5% 1/10W R335 1-216-085-00 METAL CHIP 33K 5% 1/10W R336 1-216-073-00 METAL CHIP 10K 5% 1/10W R337 1-216-097-91 RES,CHIP 100K 5% 1/10W R338 1-216-073-00 METAL CHIP 10K 5% 1/10W R339 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R340 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R341 1-216-121-91 RES,CHIP 1M 5% 1/10W R342 1-216-037-00 METAL CHIP 330 5% 1/10W R343 1-216-037-00 METAL CHIP 330 5% 1/10W R344 1-216-037-00 METAL CHIP 330 5% 1/10W R345 1-216-037-00 METAL CHIP 330 5% 1/10W R346 1-216-077-91 RES,CHIP 15K 5% 1/10W R347 1-216-049-91 RES,CHIP 1K 5% 1/10W R348 1-216-025-91 RES,CHIP 100 5% 1/10W R349 1-216-097-91 RES,CHIP 100K 5% 1/10W R361 1-216-037-00 METAL CHIP 330 5% 1/10W R362 1-216-037-00 METAL CHIP 330 5% 1/10W R363 1-216-037-00 METAL CHIP 330 5% 1/10W R364 1-216-025-91 RES,CHIP 100 5% 1/10W R365 1-216-025-91 RES,CHIP 100 5% 1/10W R381 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R382 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R383 1-216-073-00 METAL CHIP 10K 5% 1/10W R384 1-216-073-00 METAL CHIP 10K 5% 1/10W R401 1-216-025-91 RES,CHIP 100 5% 1/10W R402 1-216-025-91 RES,CHIP 100 5% 1/10W R403 1-216-025-91 RES,CHIP 100 5% 1/10W R404 1-216-025-91 RES,CHIP 100 5% 1/10W R405 1-216-073-00 METAL CHIP 10K 5% 1/10W R406 1-216-073-00 METAL CHIP 10K 5% 1/10W R407 1-216-049-91 RES,CHIP 1K 5% 1/10W (EXCEPT US,CND) R408 1-216-073-00 METAL CHIP 10K 5% 1/10W (EXCEPT US,CND) !R409 1-212-881-11 FUSIBLE 100 5% 1/4W F (EXCEPT US,CND) R411 1-216-049-91 RES,CHIP 1K 5% 1/10W R412 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R413 1-216-049-91 RES,CHIP 1K 5% 1/10W R414 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R452 1-216-129-00 METAL CHIP 2.2M 5% 1/10W (EXCEPT US,CND) R453 1-216-049-91 RES,CHIP 1K 5% 1/10W (EXCEPT US,CND) R454 1-216-033-00 METAL CHIP 220 5% 1/10W (EXCEPT US,CND) R455 1-216-033-00 METAL CHIP 220 5% 1/10W (EXCEPT US,CND) R501 1-216-097-91 RES,CHIP 100K 5% 1/10W R502 1-216-073-00 METAL CHIP 10K 5% 1/10W R503 1-216-089-91 RES,CHIP 47K 5% 1/10W R504 1-216-025-91 RES,CHIP 100 5% 1/10W R505 1-216-049-91 RES,CHIP 1K 5% 1/10W R511 1-216-017-91 RES,CHIP 47 5% 1/10W R512 1-216-017-91 RES,CHIP 47 5% 1/10W R551 1-216-097-91 RES,CHIP 100K 5% 1/10W MAIN Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R552 1-216-073-00 METAL CHIP 10K 5% 1/10W R553 1-216-089-91 RES,CHIP 47K 5% 1/10W R554 1-216-025-91 RES,CHIP 100 5% 1/10W R555 1-216-049-91 RES,CHIP 1K 5% 1/10W R701 1-216-109-00 METAL CHIP 330K 5% 1/10W R702 1-216-097-91 RES,CHIP 100K 5% 1/10W R703 1-216-097-91 RES,CHIP 100K 5% 1/10W R704 1-216-041-00 METAL CHIP 470 5% 1/10W (US,CND) R704 1-216-081-00 METAL CHIP 22K 5% 1/10W (EXCEPT US,CND) R705 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R706 1-216-073-00 METAL CHIP 10K 5% 1/10W R707 1-216-073-00 METAL CHIP 10K 5% 1/10W R708 1-216-073-00 METAL CHIP 10K 5% 1/10W R709 1-216-073-00 METAL CHIP 10K 5% 1/10W R710 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R751 1-216-025-91 RES,CHIP 100 5% 1/10W R752 1-216-049-91 RES,CHIP 1K 5% 1/10W R753 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R754 1-216-089-91 RES,CHIP 47K 5% 1/10W R755 1-216-089-91 RES,CHIP 47K 5% 1/10W R756 1-216-073-00 METAL CHIP 10K 5% 1/10W R757 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R771 1-216-073-00 METAL CHIP 10K 5% 1/10W R772 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R773 1-216-037-00 METAL CHIP 330 5% 1/10W R774 1-216-073-00 METAL CHIP 10K 5% 1/10W R775 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R776 1-216-073-00 METAL CHIP 10K 5% 1/10W R777 1-216-057-00 METAL CHIP 2.2K 5% 1/10W (US,CND) R778 1-216-037-00 METAL CHIP 330 5% 1/10W R785 1-216-049-91 RES,CHIP 1K 5% 1/10W R792 1-216-097-91 RES,CHIP 100K 5% 1/10W R793 1-216-097-91 RES,CHIP 100K 5% 1/10W R794 1-216-097-91 RES,CHIP 100K 5% 1/10W < VIBRATOR > X361 1-579-280-11 VIBRATOR, CRYSTAL (16.9344MHz) X601 1-579-900-21 VIBRATOR, CRYSTAL (4.332MHz) (EXCEPT US,CND) X701 1-579-233-11 VIBRATOR, CERAMIC (5MHz) X702 1-567-098-41 VIBRATOR, CRYSTAL (32kHz) ************************************************************** A-4426-743-A PANEL BOARD, COMPLETE ********************** < CAPACITOR > C604 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C605 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C612 1-124-589-11 ELECT 47uF 20% 16V C613 1-163-038-91 CERAMIC CHIP 0.1uF 25V C650 1-163-101-00 CERAMIC CHIP 22PF 5% 50V C652 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V C653 1-163-038-91 CERAMIC CHIP 0.1uF 25V C654 1-163-038-91 CERAMIC CHIP 0.1uF 25V C655 1-124-589-11 ELECT 47uF 20% 16V < DIODE > D604 8-719-069-45 DIODE SELU5E23C-TP15 D605 8-719-069-45 DIODE SELU5E23C-TP15 D650 8-719-069-56 DIODE UDZS-TE17-6.2B D651 8-719-069-56 DIODE UDZS-TE17-6.2B < IC > IC601 8-742-129-00 HYB IC SBX1971-51 IC651 8-759-925-80 IC SN74HC14ANS-E05 IC652 8-759-925-90 IC SN74HC74ANS-E05 < TRANSISTOR > Q651 8-729-900-53 TRANSISTOR DTC114EKA-T146 < RESISTOR > R601 1-216-041-00 METAL CHIP 470 5% 1/10W R602 1-216-045-00 METAL CHIP 680 5% 1/10W R603 1-216-049-91 RES,CHIP 1K 5% 1/10W R606 1-216-017-91 RES,CHIP 47 5% 1/10W R607 1-216-037-00 METAL CHIP 330 5% 1/10W R608 1-216-037-00 METAL CHIP 330 5% 1/10W R609 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R611 1-216-041-00 METAL CHIP 470 5% 1/10W R612 1-216-045-00 METAL CHIP 680 5% 1/10W R613 1-216-049-91 RES,CHIP 1K 5% 1/10W R614 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R615 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R616 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R619 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R650 1-216-689-11 METAL CHIP 39K 0.5% 1/10W R651 1-216-091-00 METAL CHIP 56K 5% 1/10W R652 1-216-025-91 RES,CHIP 100 5% 1/10W R653 1-216-073-00 METAL CHIP 10K 5% 1/10W R656 1-216-097-91 RES,CHIP 100K 5% 1/10W < SWITCH > S601 1-762-196-21 SWITCH, TACT (1/u) S602 1-762-196-21 SWITCH, TACT (DISPLAY) S603 1-762-196-21 SWITCH, TACT (SOUND MENU) S604 1-762-196-21 SWITCH, TACT (TUNER/BAND) S611 1-762-196-21 SWITCH, TACT (^) S612 1-762-196-21 SWITCH, TACT (p) S613 1-762-196-21 SWITCH, TACT (=) S614 1-762-196-21 SWITCH, TACT (+) S615 1-762-196-21 SWITCH, TACT (– (VOL)) S616 1-762-196-21 SWITCH, TACT (+ (VOL)) < TEST PIN > TP603 1-690-880-51 LEAD (WITH CONNECTOR) ************************************************************** MAIN PANEL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark A-4426-744-A POWER BOARD, COMPLETE (US,CND) *********************** A-4426-753-A POWER BOARD, COMPLETE (EXCEPT US,CND) *********************** 1-533-293-11 FUSE HOLDER < CAPACITOR > C1 1-107-956-11 ELECT 220uF 20% 200V (US,CND) C1 1-131-714-11 ELECT 100uF 20% 400V (EXCEPT US,CND) C2 1-107-888-11 ELECT 47uF 20% 25V C3 1-130-477-00 MYLAR 0.0033uF 5% 50V C4 1-107-429-11 CERAMIC 0.0022uF 10% 1KV C5 1-162-290-31 CERAMIC 470PF 10% 50V C6 1-131-983-11 FILM 0.1uF 275V C7 1-131-983-11 FILM 0.1uF 275V C9 1-113-907-51 CERAMIC 0.0022uF 99% 250V C10 1-131-984-51 CERAMIC 330PF 2KV C11 1-113-920-11 CERAMIC 0.0022uF 20% 250V C12 1-113-920-11 CERAMIC 0.0022uF 20% 250V C13 1-131-714-11 ELECT 100uF 20% 400V (EXCEPT US,CND) C14 1-113-920-11 CERAMIC 0.0022uF 20% 250V C21 1-164-159-21 CERAMIC 0.1uF 50V C901 1-107-425-11 CERAMIC 470PF 10% 1KV C902 1-131-969-31 ELECT 1800uF 25V C903 1-131-970-31 ELECT 1500uF 25V C911 1-107-425-11 CERAMIC 470PF 10% 1KV C912 1-131-969-31 ELECT 1800uF 25V C913 1-131-970-31 ELECT 1500uF 25V C931 1-107-425-11 CERAMIC 470PF 10% 1KV C932 1-126-768-11 ELECT 2200uF 20% 16V C939 1-124-995-11 ELECT 220uF 20% 10V C941 1-107-425-11 CERAMIC 470PF 10% 1KV C942 1-126-012-11 ELECT 470uF 20% 16V C949 1-124-995-11 ELECT 220uF 20% 10V C951 1-136-153-00 FILM 0.01uF 5% 50V C952 1-162-292-31 CERAMIC 680PF 10% 50V < CONNECTOR > * CN1 1-580-230-11 PIN, CONNECTOR (PC BOARD) 2P CN903 1-764-334-11 PLUG, CONNECTOR 11P < DIODE > D2 8-719-200-93 DIODE 11EQS10-TA2 D3 8-719-200-93 DIODE 11EQS10-TA2 D4 8-719-210-21 DIODE 11EQS04-NTA2B D6 8-719-109-97 DIODE MTZJ-T-77-6.8B D7 8-719-911-19 DIODE 1SS133T-72 D10 8-719-077-64 DIODE 11E4N-TA1B2 D11 8-719-077-64 DIODE 11E4N-TA1B2 D12 8-719-077-64 DIODE 11E4N-TA1B2 D13 8-719-077-64 DIODE 11E4N-TA1B2 D21 8-719-048-55 DIODE MTZJ-T-77-10C D22 8-719-110-53 DIODE MTZJ-T-77-20C D901 8-719-043-52 DIODE F5KQ60 D911 8-719-043-52 DIODE F5KQ60 D931 8-719-210-21 DIODE 11EQS04-NTA2B D941 8-719-210-21 DIODE 11EQS04-NTA2B < GROUND TERMINAL > EPT1 1-537-770-21 TERMINAL BOARD, GROUND EPT2 1-537-770-21 TERMINAL BOARD, GROUND (US,CND) EPT901 1-537-770-21 TERMINAL BOARD, GROUND < FUSE > !F1 1-532-465-31 FUSE (T3.15AL/250V)(EXCEPT US,CND) !F1 1-533-690-11 FUSE GLASS (3.15AL/125V)(US,CND) < FERRITE BEAD > FB1 1-412-473-21 INDUCTOR 0UH < IC > IC1 8-749-016-64 IC STR-F6674-LF1352 IC933 8-759-288-53 IC LA5617 IC951 8-749-016-65 IC SE015N < COIL > L1 1-419-341-11 COIL, COMMON MODE CHOKE L901 1-419-281-11 INDUCTOR 10uH L911 1-419-281-11 INDUCTOR 10uH < ISOLATER > PC1 8-749-013-68 IC PS2561-1-D PC2 8-749-013-68 IC PS2561-1-D < TRANSISTOR > Q21 8-729-111-29 TRANSISTOR 2SD1616-TP-LK Q22 8-729-118-00 TRANSISTOR 2SB1116-TP-LK Q23 8-729-119-76 TRANSISTOR 2SA1115TP-EF Q951 8-729-620-05 TRANSISTOR 2SC2603TP-EF < RESISTOR > !R1 1-202-725-00 SOLID 3.3M 10% 1/2W (US,CND) R2 1-249-426-11 CARBON 5.6K 5% 1/4W R3 1-249-421-11 CARBON 2.2K 5% 1/4W F R4 1-249-415-11 CARBON 680 5% 1/4W F !R5 1-217-151-00 METAL 0.22 10% 2W R8 1-249-393-11 CARBON 10 5% 1/4W F !R9 1-215-903-11 METAL OXIDE 68K 5% 2W F R10 1-247-895-91 CARBON 470K 5% 1/4W R11 1-247-863-91 CARBON 22K 5% 1/4W R21 1-249-425-11 CARBON 4.7K 5% 1/4W F R22 1-249-424-11 CARBON 3.9K 5% 1/4W F R23 1-247-881-00 CARBON 120K 5% 1/4W R24 1-249-439-11 CARBON 68K 5% 1/4W !R939 1-219-119-81 FUSIBLE 0.1 5% 1/4W F !R949 1-219-119-81 FUSIBLE 0.1 5% 1/4W F R951 1-249-419-11 CARBON 1.5K 5% 1/4W F R952 1-249-401-11 CARBON 47 5% 1/4W F POWER Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 HCD-EX1 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R953 1-249-420-11 CARBON 1.8K 5% 1/4W F R954 1-249-437-11 CARBON 47K 5% 1/4W R955 1-249-425-11 CARBON 4.7K 5% 1/4W F R956 1-249-415-11 CARBON 680 5% 1/4W F < TRANSFORMER > !T901 1-435-130-11 TRANSFORMER, POWER < THERMISTOR > !TH1 1-803-806-31 THERMISTOR, NTC ************************************************************** 1-675-407-11 REG BOARD ********** < CAPACITOR > C933 1-164-346-11 CERAMIC CHIP 1uF 16V C934 1-126-926-11 ELECT 1000uF 20% 10V C935 1-163-038-91 CERAMIC CHIP 0.1uF 25V C936 1-126-964-11 ELECT 10uF 20% 50V C937 1-126-926-11 ELECT 1000uF 20% 10V C961 1-126-967-11 ELECT 47uF 20% 50V C962 1-164-159-21 CERAMIC 0.1uF 50V C963 1-136-153-00 FILM 0.01uF 5% 50V < CONNECTOR > * CN901 1-568-832-11 SOCKET, CONNECTOR 13P < DIODE > D933 8-719-988-61 DIODE 1SS355TE-17 D934 8-719-200-82 DIODE 11ES2-TA2B D961 8-719-986-26 DIODE HZS12A3LTA < IC > IC931 8-759-460-76 IC BA07FP-E2 IC932 8-759-231-53 IC M5F7805L < TRANSISTOR > Q961 8-729-026-68 TRANSISTOR 2SD2525(TP) Q962 8-729-202-67 TRANSISTOR 2SK246GR3-TPE2 Q964 8-729-120-28 TRANSISTOR 2SC3052EF-T1-LEF < RESISTOR > R961 1-216-073-00 METAL CHIP 10K 5% 1/10W R962 1-216-049-91 RES,CHIP 1K 5% 1/10W < TERMINAL > TM801 1-537-238-11 TERMINAL BOARD ************************************************************** 1-674-909-11 SW BOARD ********** < SWITCH > S351 1-571-300-21 SWITCH, ROTARY ************************************************************** MISCELLANEOUS ************* 9 1-769-889-11 WIRE(FLAT TYPE) (7 CORE) !60 1-575-651-21 CORD,POWER (AEP,UK) !60 1-783-531-31 CORD,POWER (US,CND) 62 1-791-698-11 WIRE (FLAT TYPE) (16 CORE) 63 1-769-973-11 WIRE (FLAT TYPE) (13 CORE) 64 1-693-407-13 TUNER (US,CND) 64 1-693-408-12 TUNER (EXCEPT US,CND) !65 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (UK) !153 8-820-087-11 OPTICAL PICK-UP KSS-770A/S-N1 155 1-763-381-11 MOTOR, DC 158 1-960-065-11 HARNESS 160 1-791-698-11 WIRE (FLAT TYPE) (16 CORE) ************************************************************** ************* HARDWARE LIST ************* #1 7-685-870-01 SCREW +BVTT 3X5 (S) #2 7-685-246-14 SCREW +KTP 3X8 TYPE2 NON-SLIT #3 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S #4 7-621-775-08 SCREW +B 2.6X3 #5 7-685-534-14 SCREW +BTP 2.6X8 TYPE2 N-S #6 7-685-132-19 SCREW +P 2.6X5 TYPE2 NON-SLIT #7 7-624-105-04 STOP RING 2.3, TYPE -E POWER SW REG Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 SUPPLEMENT-1 File this supplement with the service manual. SERVICE MANUAL Subject: 1. CORRECTION 2. ADDITION OF PARTS AND REMOVE PAGE US Model Canadian Model AEP Model UK Model E Model Australian Model Tourist Model 1. CORRECTION ! : indicates correct portion PAGE 7 INCORRECT CORRECT (ECN-TAC02395, TAC02707) Note: Page 39 is removed. 2 Front Panel % Remote 18 DSG button @ 19 REPEAT button @ Front Panel 2 Remote 18 REPEAT button 19 DSG button 1999. 12 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 PAGE INCORRECT CORRECT 26 29 Ref. No. Location D2 C-3 D3 C-3 D4 B-3 D6 B-3 D7 C-4 D10 E-3 D11 E-3 D12 D-3 D13 D-3 D21 D-2 D22 C-2 D901 B-2 D911 B-2 D931 A-3 D941 A-2 IC1 C-4 IC933 A-1 IC951 B-1 Q21 D-2 Q22 D-2 Q23 D-2 Q951 D-1 • Semiconductor Location Ref. No. Location D2 C-3 D3 C-3 D4 B-3 D6 B-3 D7 C-4 D10 E-3 D11 E-3 D12 D-3 D13 D-3 D21 D-2 D22 C-2 D901 B-2 D911 B-2 D931 A-3 D941 A-2 D951 D-1 D952 D-1 D953 C-1 IC1 C-4 IC933 A-1 IC951 B-1 Q21 D-2 Q22 D-2 Q23 D-2 Q951 D-1 • Semiconductor Location @ @ @ ^ % # # 27 $ $ # 13 symmetry A B Within 3.8 ± 1 Vp-p symmetry A B Within 1.6 ± 0.4 Vp-p $ S-curve waveform 1 track jump waveform S-curve waveform 1 track jump waveform 0V Center of the waveform B Symmetry A (DC voitage) level : 1.3 ± Vp-p +0.6 –0.7 0V Center of the waveform B Symmetry A (DC voitage) level : 1.5 ± Vp-p +0.5 –0.7 % www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 PAGE INCORRECT CORRECT 45 42 46 1-675-407-11 REG BOARD ********** < TRANSISTOR > MISCELLANEOUS ************* 153 8-820-087-11 OPTICAL PICK-UP KSS-770A/S-N1 155 1-763-381-11 MOTOR, DC 158 1-960-065-11 HARNESS 160 1-791-698-11 WIRE (FLAT TYPE) (16 CORE) 1-675-407-11 REG BOARD ********** < TRANSISTOR > Q963 8-729-900-53 TRANSISTOR DTC114EKA-T146 @ MISCELLANEOUS ************* 127 1-791-698-11 WIRE (FLAT TYPE) (16 CORE) @ @ @ @ @ M351 X-4952-498-1 MOTOR ASSY @ Ref. No. Part No. Description Remark A-4426-742-A MAIN BOARD, COMPLETE (US,CND) *********** A-4426-752-A MAIN BOARD, COMPLETE (EXCEPT US,CND) *********** < IC > IC701 8-759-643-70 IC uPD780306GF-024-3BA Ref. No. Part No. Description Remark A-4426-742-A MAIN BOARD, COMPLETE (US,CND) *********** A-4426-752-A MAIN BOARD, COMPLETE (EXCEPT US,CND) *********** < IC > IC701 8-759-667-65 IC uPD78P0308GF-028-3BA $ $ A-4426-744-A POWER BOARD, COMPLETE (US,CND) ************ A-4426-753-A POWER BOARD, COMPLETE (EXCEPT US,CND) ************ < COIL > L1 1-419-528-11 COIL, COMON MODE CHOKE $ A-4426-744-A POWER BOARD, COMPLETE (US,CND) ************ A-4426-753-A POWER BOARD, COMPLETE (EXCEPT US,CND) ************ < COIL > L1 1-419-341-11 COIL, COMON MODE CHOKE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 SECTION 1 SERVICING NOTE 2. ADDITION OF PARTS AND REMOVE PAGE Page 4 ADJUSTMENT OF CAM PHASE Note : Set the slider (1) in this location before inserting the cam. STEP 4 Bend the slider (2) slightly in the arrow direction and attach it by inserting it in the grooves of the guides (L) and (R). Absorber Absorber SW lever SW lever Boss Cam Slider (3) Screw (BVTP2.6x8) Screw (PTTWH2.6x8) Screw (BVTP2.6x8) Groove of slider (3) Hole of slider (3) Guide (L) Boss (Four point) Guide (R) Groove Groove Slider (2) Lever (1) Lever (1) Mecha cover Cam Boss Boss Boss Cam Boss Insert the cam so that the boss touches the SW lever at the left shown in the figure. Rotate the cam in the arrow direction, and adjust the phase until the boss touches the SW lever shown in the figure. With the phase adjusted, attach the parts using the following procedure. STEP1 Insert the boss of the slider (3) in the groove of the cam. STEP2 Set the mecha cover to the groove on the slider (3) and attach. STEP3 Insert the boss of the lever (1) in the hole of the slider (3) and attach. Insert these in the groove first. Insert these in the groove afterwards. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 Additional Page SEVICE POSITION OF AMP BOARD Turn this pulley in the counter-clockwise direction to remove the disk. AMP board MAIN board The RF wave form and FG wave form of the Main Board and the power source voltage can be measured in the status shown in the figure. SEVICE POSITION OF MAIN BOARD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 SECTION 3 DISASSEMBLY Page 9 3-1. BACK COVER AND CASE Note: Follow the disassembly procedure in the numerical order given. 3-2. PANEL BOARD AND STABILIZER 1 2 3 4 5 6 7 8 0 qa� Two claws Two screws (KTP3x8) Two screws (KTP3x8) Screw (KTP3x8) Screw (KTP3x8) Two screws (BVTT3x5) Side ornamental Side ornamental Rear cover Case Top panel 9 1 3 2 4 7 5 6 Remove the Earth clip Two screws (BVTT3x5) Front panel assy PANEL board Claw Flat type wire (7 core) Five screws (BVTP2.6x8) Stabilizer Stabilizer Stabilizer claw Turn the stabilizer claw in the direction of the arrow to remove it from the notch on the stabiholder. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 3-4. CD BLOCK 3-3. AMP BLOCK Page 10 Connector AMP board: CN801 Screw (BVTT3x5) AMP block Screw (BVTT3x5) Screw (BVTT3x5) Connector AMP board: CN810 Connector AMP board: CN802 5 6 7 1 2 3 4 Connector MAIN board: CN351 Flat type wire (16 core) Connector MAIN board: CN301 1 2 3 4 5 6 7 Three screws (BVTT3x5) Screw (BVTT3x5) Two screws (BVTT3x5) CD block www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 3-5. MOTOR ASSY AND CAM Note: Adjustment of the phase is required in assembly.Refer to "Section 1. Servicing Note" for details. Page 11 Slider (3) Slider (2) Boss Boss Diskholder Lever (1) Mecha cover Motor assy SW cam Two screws (BVTT3x5) Two screws (BVTP2.6x8) Two screws (BVTP2.6x8) Three screws (BVTT3x5) Bracket(CDM) Two screws (BVTP2.6x8) Two screws (BVTP2.6x8) Screws (BTP2.6x8) Screws (PTPWH2.6x6) Cam 7 6 8 9 0 qa� qs qd qf qg qh qj 3 4 5 Set the main unit in EJECT status then use the following procedure to remove it with the slider (2) and the diskholder assembled. 1 Remove the boss of the slider (2) from the grooves of the guides (L) and (R). 2 Bend the slider (2) in the direction shown in the figure to take it from the lever (1) and remove it in the upwards direction. 1 2 3 4 5 6 7 8 9 0 qs qd qf qg qa� Two screws (BVTP2.6x8) Two screws (BVTP2.6x8) Guide (L) Guide (R) Slider (4) Slider (4) Slider (1) Two screws (PTPWH2.6) Screws (PTPWH2.6) Two screws (PTPWH2.6) Two screws (PTPWH2.6) Coil spring Coil spring BU holder Pick up assy 3-6. BASE UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 Page 12 3-7. MAIN BOARD AND POWER BOARD Warning After repairs are completed and it has been assembled, be sure to carry out the following checks. 1. Make sure the disk opens and closes smoothly. 2. Make sure the disk does not rub on anything when it is played. Two screws (BVTT3x5) Two screws (BVTP3x8) Screw (BVTP3x8) Three screws (BVTT3x5) Two screws (BVTT3x5) Screw (PTPWH2.6) Screw (BVTP3x8) Screw (BVTT3x5) Screw (BVTT3x5) Main board Power board Power cord REG board Connector POWER board: CN903 Back panel Bushing Two screws (BVTT3x5) Screw (BVTT3x5) Sealed case Spacer(tuner) Flat type wire (13 core) Flat type wire (7 core) 1 2 3 7 4 5 6 8 9 !� qa qs !� qf qj qg qh qk ql w; wa ws www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 SECTION 6 EXPLODED VIEWS 6-1. FRONT PANEL AND CASE SECTION NOTE: • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) X Parts color • The mechanical parts with no reference number in the exploded views are not supplied. • Hardware (# mark) list and accessories and pack- ing materials are given in the last of this parts list. • Abbreviation CND : Canadian model Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. 21 20 17 16 3 4 6 7 5 28 2 24 26 25 27 1 #1 #2 #2 #2 #2 #2 #1 not supplied not supplied 8 22 22 22 9 15 17 11 10 12 14 13 23 18 19 1 4-969-961-11 EMBLEM(NO.4), SONY 2 4-222-723-01 RING (EJECT) 3 4-222-713-01 PANEL(BASE), FRONT 4 4-222-720-01 BUTTON(PLAY) 5 4-222-719-01 BUTTON(POWER) 6 4-222-742-01 SPRING(EJECT) 7 4-222-743-01 SPRING(EARTH) 8 A-4426-743-A PANEL MOUNTED PC BOARD 9 1-769-889-11 WIRE(FLAT TYPE) (7 CORE) 10 X-4952-306-1 WINDOW (GLASS) ASSY (US,CND) 10 X-4952-307-1 WINDOW (GLASS) ASSY (EXCEPT US,CND) 11 4-222-707-01 YOKE(MG) 12 4-222-703-01 MAGNET 13 4-222-709-01 YOKE(ST) 14 4-222-704-01 STABILIZER 15 4-222-711-01 PLATE(L), SIDE 16 4-222-710-01 PLATE(R), SIDE 17 4-985-672-01 SCREW(+PTPWHM2.6), FLOATING 18 4-222-712-01 PLATE, TOP 19 4-222-716-01 CASE 20 4-222-718-01 COVER(PIN JACK) 21 4-222-717-01 COVER(BACK) 22 4-951-620-01 SCREW (2.6x8), +BVTP 23 3-927-664-01 SCREW (2x3) 24 4-222-725-01 PANEL(ALUMINUM), FRONT 25 4-222-724-01 INDICATOR(E2) 26 4-222-738-01 PLATE, INDICATION 27 4-222-721-01 BUTTON (VOL) 28 4-222-722-01 BUTTON (DISPLAY) Page 36 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 Page 37 6-2. CHASSIS SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark #3 #1 #1 #1 #1 #1 #1 #1 #1 #3 #1 #1 #1 #1 #3 #3 #1 #3 #1 #1 #1 #1 #3 not supplied not supplied not supplied not supplied not supplied LCD701 not supplied not supplied not supplied not supplied not supplied 54 55 57 58 64 67 72 61 62 56 66 66 69 70 71 63 66 59 53 68 51 51 52 (US/CND) (E) (AEP/UK) (HK) (AUS) (UK) 60 60 60 60 60 65 Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. 51 4-220-455-01 FOOT(FELT) 52 4-222-715-01 PLATE, BOTTOM 53 A-4426-745-A AMP MOUNTED PC BOARD (US,CND) 53 A-4426-754-A AMP MOUNTED PC BOARD (EXCEPT US,CND) 54 A-4426-744-A POWER MOUNTED PC BOARD (US,CND) 54 A-4426-753-A POWER MOUNTED PC BOARD (EXCEPT US,CND) * 55 1-675-407-11 REG BOARD 56 4-985-672-01 SCREW(+PTPWHM2.6), FLOATING 57 3-703-244-00 BUSHING (2104), CORD (EXCEPT E) 57 3-703-571-12 BUSHING S. (E) 58 4-222-730-01 PANEL, BACK 59 A-4426-742-A MAIN MOUNTED PC BOARD (US,CND) 59 A-4426-752-A MAIN MOUNTED PC BOARD (EXCEPT US,CND) 060 1-575-651-21 CORD,POWER (AEP,UK) 060 1-783-531-31 CORD,POWER (US,CND) 61 1-674-910-11 LED BOARD 62 1-791-698-11 WIRE (FLAT TYPE) (16 CORE) 63 1-769-973-11 WIRE (FLAT TYPE) (13 CORE) 64 1-693-407-13 TUNER (US,CND) 64 1-693-408-12 TUNER (EXCEPT US,CND) 065 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (UK) 66 3-314-903-01 CUSHION 67 4-222-714-01 HOUSE, LAMP 68 3-561-427-11 CUSHION(10x10x10) 69 4-028-047-01 HEAT SINK, CLIP TYPE 70 4-224-740-01 INSLATED PLATE(POWER.1) 71 4-224-741-01 INSLATED PLATE(POWER.2) 72 4-222-740-01 ILLUMINATOR LCD701 1-803-778-11 PANEL, LIQUID CRYSTAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 Sony Corporation Home Audio Division Company 9-929-017-81 1999L0985-1 Printed in Japan © 1999. 12 Published by Quality Assurance Dept. HCD-EX1 6-3. MECHANISM SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 101 4-222-746-01 PLATE (CD) (LOWER), ORNAMENTAL 102 4-222-745-01 PLATE (CD) (UPPER), ORNAMENTAL 103 4-222-701-01 PANEL, MECHANICAL 104 4-985-672-31 SCREW (+PTPWHM2.6), FLOATING 105 4-222-697-01 RUBBER, FLOATING 106 4-222-692-01 HOLDER, BU 107 4-222-702-01 SPRING, TENSION 108 4-222-685-01 SLIDER (1) 109 4-222-694-01 GEAR(1) 110 4-999-513-01 GEAR, PULLEY 111 4-999-537-01 BELT(LOADING) 112 4-222-695-01 GUIDE (R) 113 4-222-693-01 SLIDER (4) 114 4-222-700-01 GUIDE (L) 115 4-222-687-01 BASE, MECHANICAL 116 4-222-688-01 HOLDER, DISC 117 4-222-813-01 SLIDER (2) 118 4-225-227-01 SPRING (ABSORBER),TENSION COIL 119 4-225-228-01 CAM(A) 120 4-225-226-01 ABSORBER 121 4-222-689-01 SLIDER (3) 122 4-222-690-01 COVER, MECHANICAL 123 4-222-691-01 LEVER (1) 124 4-951-620-01 SCREW (2.6X8), +BVTP * 125 1-674-908-11 LOADING BOARD * 126 1-674-909-11 SW BOARD 127 1-791-698-11 WIRE (FLAT TYPE) (16 CORE) 128 3-831-441-99 CUSHION 129 X-4952-497-1 BASE ASSY, MOTOR 130 A-4909-346-A BASE UNIT(KSM-770ACA) 131 3-946-435-11 SCREW(M2.6) 132 4-225-234-01 GUIDE, DISC 133 4-227-514-01 SPEAKER M351 X-4952-498-1 MOTOR ASSY #6 M351 101 102 103 104 104 124 124 128 132 127 104 104 104 133 104 104 105 105 105 105 106 107 107 108 114 113 116 117 115131 131 119 120 122 123 123 124 124 121 118 126 112 129 130 125 113 111 110 109 124 124 124 Page 38 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 MEMO HCD-EX1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.1 2001.06 Correction of exploded views. (SFD-01010) 1.0 1999.12 SUPPLEMENT-1 HCD-EX1 1999.08 New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
