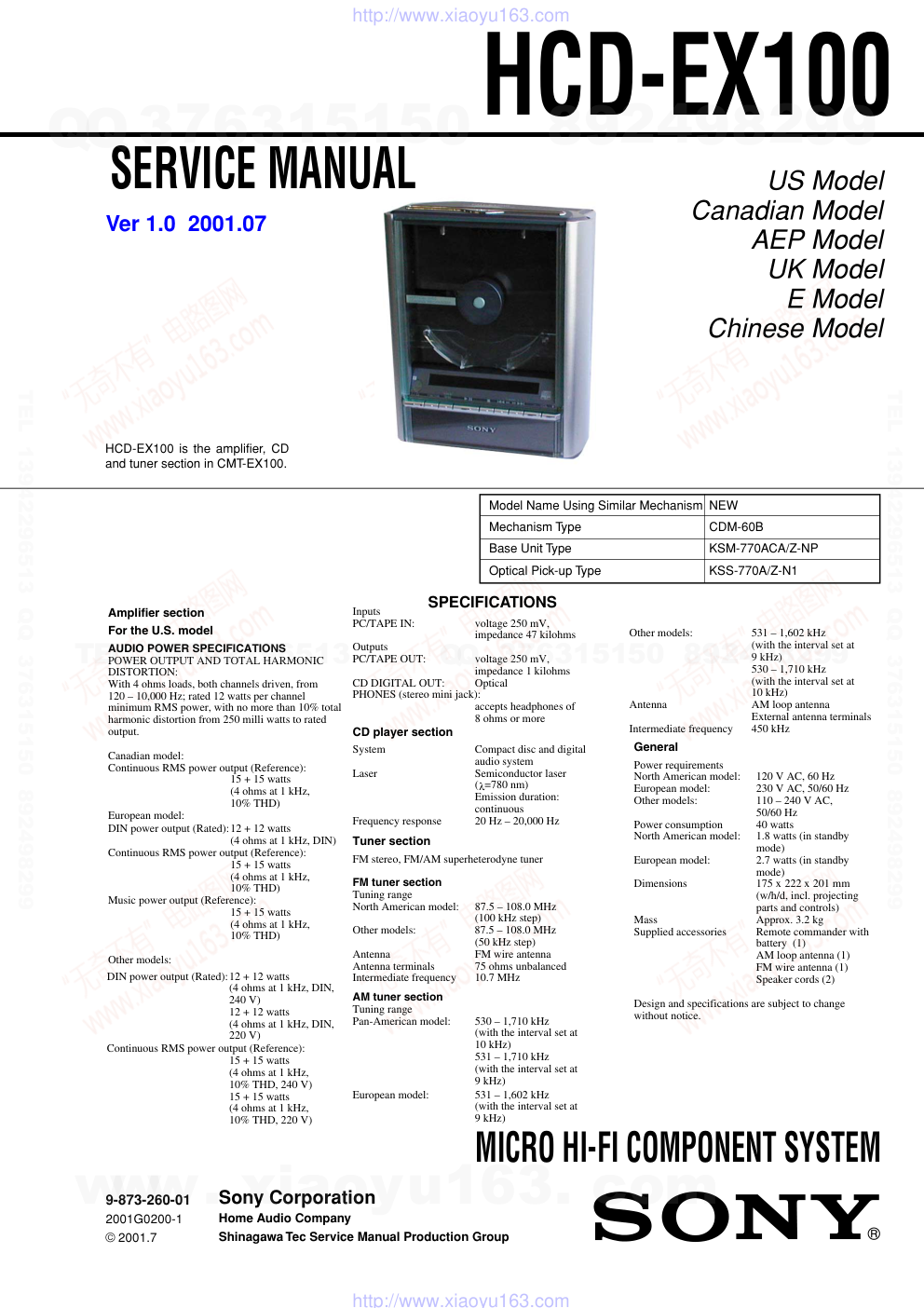

HCD-EX100 US Model Canadian Model AEP Model UK Model E Model Chinese Model MICRO HI-FI COMPONENT SYSTEM SERVICE MANUAL SPECIFICATIONS Model Name Using Similar Mechanism NEW Mechanism Type CDM-60B Base Unit Type KSM-770ACA/Z-NP Optical Pick-up Type KSS-770A/Z-N1 HCD-EX100 is the amplifier, CD and tuner section in CMT-EX100. Amplifier section For the U.S. model AUDIO POWER SPECIFICATIONS POWER OUTPUT AND TOTAL HARMONIC DISTORTION: With 4 ohms loads, both channels driven, from 120 – 10,000 Hz; rated 12 watts per channel minimum RMS power, with no more than 10% total harmonic distortion from 250 milli watts to rated output. Canadian model: Continuous RMS power output (Reference): 15 + 15 watts (4 ohms at 1 kHz, 10% THD) European model: DIN power output (Rated):12 + 12 watts (4 ohms at 1 kHz, DIN) Continuous RMS power output (Reference): 15 + 15 watts (4 ohms at 1 kHz, 10% THD) Music power output (Reference): 15 + 15 watts (4 ohms at 1 kHz, 10% THD) Other models: DIN power output (Rated):12 + 12 watts (4 ohms at 1 kHz, DIN, 240 V) 12 + 12 watts (4 ohms at 1 kHz, DIN, 220 V) Continuous RMS power output (Reference): 15 + 15 watts (4 ohms at 1 kHz, 10% THD, 240 V) 15 + 15 watts (4 ohms at 1 kHz, 10% THD, 220 V) Inputs PC/TAPE IN: voltage 250 mV, impedance 47 kilohms Outputs PC/TAPE OUT: voltage 250 mV, impedance 1 kilohms CD DIGITAL OUT: Optical PHONES (stereo mini jack): accepts headphones of 8 ohms or more CD player section System Compact disc and digital audio system Laser Semiconductor laser ( =780 nm) Emission duration: continuous Frequency response 20 Hz – 20,000 Hz Tuner section FM stereo, FM/AM superheterodyne tuner FM tuner section Tuning range North American model: 87.5 – 108.0 MHz (100 kHz step) Other models: 87.5 – 108.0 MHz (50 kHz step) Antenna FM wire antenna Antenna terminals 75 ohms unbalanced Intermediate frequency 10.7 MHz AM tuner section Tuning range Pan-American model: 530 – 1,710 kHz (with the interval set at 10 kHz) 531 – 1,710 kHz (with the interval set at 9 kHz) European model: 531 – 1,602 kHz (with the interval set at 9 kHz) Other models: 531 – 1,602 kHz (with the interval set at 9 kHz) 530 – 1,710 kHz (with the interval set at 10 kHz) Antenna AM loop antenna External antenna terminals Intermediate frequency 450 kHz λ General Power requirements North American model: 120 V AC, 60 Hz European model: 230 V AC, 50/60 Hz Other models: 110 – 240 V AC, 50/60 Hz Power consumption 40 watts North American model: 1.8 watts (in standby mode) European model: 2.7 watts (in standby mode) Dimensions 175 x 222 x 201 mm (w/h/d, incl. projecting parts and controls) Mass Approx. 3.2 kg Supplied accessories Remote commander with battery (1) AM loop antenna (1) FM wire antenna (1) Speaker cords (2) Design and specifications are subject to change without notice. 9-873-260-01 2001G0200-1 © 2001.7 Sony Corporation Home Audio Company Shinagawa Tec Service Manual Production Group Ver 1.0 2001.07 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 HCD-EX100 SAFETY CHECK-OUT After correcting the original service problem, perform the follow- ing safety checks before releasing the set to the customer: Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE The AC leakage from any exposed metal part to earth Ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microampers). Leak- age current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a pas- sive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) Fig. A. Using an AC voltmeter to check AC leakage. 0.15µF To Exposed Metal Parts on Set 1.5kΩ AC voltmeter (0.75V) Earth Ground SAFETY-RELATED COMPONENT WARNING !! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous ra- diation exposure. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing • Keep the temperature of soldering iron around 270˚C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PROD- UCT MARKING is located on the rear exterior. This caution label is located inside the unit. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ!! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE ! SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 HCD-EX100 NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, ob- serve from more than 30 cm away from the objective lens. LASER DIODE AND FOCUS SEARCH OPERATION CHECK Carry out the “S curve check” in “CD section adjustment” and check that the S curve waveform is output four times. TABLE OF CONTENTS 1. SERVICING NOTE .......................................................... 4 2. GENERAL .......................................................................... 7 3. DISASSEMBLY 3-1. Rear Cover, Bottom Plate, Case and Eject Board ................. 9 3-2. Panel Board and Stabilizer .................................................. 10 3-3. AMP Block ......................................................................... 10 3-4. CD Block ............................................................................ 11 3-5. Motor Assy, CAM and SW Board ...................................... 11 3-6. Base Unit and Pick Up Assy ............................................... 12 3-7. Main Board, REG Board and Power Board ........................ 12 4. ELECTRICAL ADJUSTMENT ................................... 13 5. DIAGRAMS 5-1. Circuit Boards Location ...................................................... 14 5-2. Block diagrams – Tuner/CD Section – ............................... 16 Block diagrams – AMP Section – ....................................... 17 5-3. Printed Wiring Board – Main Section –.............................. 18 5-4. Schematic Diagram – Main (1/3) Section –........................ 19 5-5. Schematic Diagram – Main (2/3) Section –........................ 20 5-6. Schematic Diagram – Main (3/3) Section – ........................ 21 5-7. Printed Wiring Board – LED/Loading/SW/AMP Section – 22 5-8. Schematic Diagram – LED/Loading/SW/AMP Section Section –...................... 23 5-9. Printed Wiring Board – Panel/Eject Section – .................... 24 5-10. Schematic Diagram – Panel/Eject Section – ..................... 25 5-11. Printed Wiring Board – REG Section –............................ 26 5-12. Schematic Diagram – REG Section – .............................. 27 5-13. Printed Wiring Board – Power Section – ......................... 28 5-14. Printed Wiring Board – Power Section – ......................... 29 5-15. IC Block Diagrams ........................................................... 30 5-16. IC Pin Functions ............................................................... 33 6. EXPLODED VIEWS 6-1. Front and Case Section ....................................................... 36 6-2. Chassis Section ................................................................... 37 6-3. Mechanism Section ............................................................. 38 6-4. Base Unit Section................................................................ 39 7. ELECTRICAL PARTS LIST ................................. 40 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 HCD-EX100 SECTION 1 SERVICING NOTE ADJUSTMENT OF CAM PHASE Absorber Absorber SW lever SW lever Boss Cam Slider (3) Screw (BVTP2.6x8) Screw (PTTWH2.6x8) Screw (BVTP2.6x8) Groove of slider (3) Hole of slider (3) Guide (L) Boss (Four point) Guide (R) Slider (2) Lever (1) Lever (1) Cover, mechanical Cam Boss Boss Boss Cam Boss Insert the cam so that the boss touches the SW lever at the left shown in the figure. Rotate the cam in the arrow direction, and adjust the phase until the boss touches the SW lever shown in the figure. With the phase adjusted, attach the parts using the following procedure. STEP1 Insert the boss of the slider (3) in the groove of the cam. STEP2 Set the mecha cover to the groove on the slider (3) and attach. STEP3 Insert the boss of the lever (1) in the hole of the slider (3) and attach. STEP4 While bending the slider (2) slightly in the arrow direction, insert it in the groove of the guides (L) and (R) and attach. Note : Set the slider (1) in this location before inserting the cam. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 HCD-EX100 Shipment Mode • Mode for setting the state of the unit to the state at shipment. When returning the unit to the customer after completing servicing, set to the shipment mode. Procedure : Connect the power plug to the outlet while pressing the 1/u button. Change-over of AM tuner Step between 9kHz and 10kHz. • A step of AM channels can be changed over between 9kHz and 10kHz. Procedure: 1. Press 1/u button to turn on the set ON. 2. Select the function “TUNER”, and press the TUNER/BAND button to select the BAND “AM”. 3. Press the 1/u button to turn on the set OFF. 4. Press 1/u button while pressing the )+/TUNING + button, and the display of liquid crystal indicator tube changes to “AM 9k STEP” or “AM 10k STEP”, and thus the channel step is changed over. Switching the TAPE IN input level attenuate function ON/OFF • The attenuate function of the line input level (TAPE IN) of this unit can be turned ON/OFF. Procedure: 1. Press the 1/u button to turn ON the power. 2. Press the FUNCTION button and set the function to “TAPE”. 3. Press the 1/u button to turn OFF the power. 4. While pressing the p button, press the 1/u button to turn ON the power. 5. After “POWER ON” is displayed, “ATT ON” and “ATT OFF” are displayed, and the attenuate function can be switched ON/OFF. LCD All Lit and Key Check Mode Procedure: 1. While pressing the FUNCTION button and ^ button, connect the power plug to the outlet. 2. When the test mode is set, the characters “STEP” are displayed on the LCD. 3. While pressing the DISPLAY button (See page 6), press the ^ button. The whole LCD lights up. 4. Each time the FUNCTION button is pressed, the display switches between all lit n partial lighting 1 n partial lighting 2 n all lit. 5. When the p button is pressed, “KEY 0” is displayed and the key check mode is set. 6. Each time the button is pressed, the counter counts up. Buttons once pressed will not be counted when pressed again. When all buttons have been pressed, “KEY OK” is displayed. 7. To end, press the 1/u button to turn OFF the power, and disconnect the power plug from the outlet. Note: Pressing buttons other than those specified in steps 4 and 5 displays modes not used in servicing. In such cases, press the 1/u button to exit the mode, and repeat from step 3 again. All lit Partial lighting 1 Partial lighting 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 HCD-EX100 Displaying the CD Text • This unit is equipped with a simple CD text display function. The text is displayed only for the first 20 songs. As it will not be displayed from the 21st song, do not suspect a fault. In some cases, special characters may not be displayed or may be substituted by other characters. This is not a fault. Aging Mode • The aging mode automatically repeats the operations of the CD. When an error occurs: Aging stops When no error occurs: Aging is performed repeatedly. Procedure: 1. Set any CD. (One with a short playback time of the final track is recommended.) 2. While pressing the FUNCTION button and ^ button, connect the power plug to the outlet. 3. When the test mode is set, the characters “STEP” is displayed on the LCD. 4. When the ^ button is pressed while pressing the DISPLAY button, “AGING” will be displayed, and aging is performed in the following sequence. While aging is performed, “REP” will be displayed blinking. 5. Pressing the DISPLAY button during aging displays the cycle number (@ CY where @ is the number of agings). 6. To end aging, press the 1/u button, turn OFF the power, and disconnect the power plug from the outlet. Sequence during aging Reads the TOC Pauses Accesses first track Accesses last track Plays last track Eject disc (“OPEN” displayed) Load disc (“CLOSE” displayed) Displays number of cycles Power OFF Power ON DISPLAY button DISPLAY button Note : Press DISPLAY button with a thing a fine point from the bottom of front panel. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 HCD-EX100 SECTION 2 GENERAL This section is extracted from instruction manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 HCD-EX100 Remote Control qg qh ql qk qj w; 1 2 3 4 wa ws 6 7 8 9 5 qf 0 qd qa qs BASS +/– qg (14) CD N qk (9) CLOCK/TIMER SELECT 6 (16) CLOCK/TIMER SET 7 (8, 15) DISPLAY 5 (8, 12, 14) DSG qd (14) ENTER 8 (8, 11, 12, 15) FM MODE 3 (13) FUNCTION ws (9, 16) MEMORY 9 (12) Number buttons w; (10) OPEN/CLOSE Z 1 (9) PC/TAPE q; (16) PLAY MODE wa (9, 11) REPEAT 3 (10) SLEEP 2 (15) SURROUND qh (14) TREBLE +/– qf (14) TUNER BAND qj (12) TUNING MODE wa (12) VOL +/– qs BUTTON DESCRIPTIONS @/1 4 +/ – qa . qa > qa X qk x qk m ql M ql Setting the time 1 Turn on the system. 2 Press CLOCK/TIMER SET on the remote. Proceed to step 4 when you set the clock for the first time. 3 Press . or > . > . > . > repeatedly to select “CLOCK SET”, then press ENTER on the remote. The day indication flashes. 4 Press or repeatedly to set the day, then press ENTER on the remote. The hour indication flashes. 5 Press or repeatedly to set the hour, then press ENTER on the remote. The minute indication flashes. 6 Press or repeatedly to set the minute, then press ENTER on the remote. The clock starts working. Tip If you made a mistake or want to change the time, start over from step 1. Turning off the clock display in standby mode Press DISPLAY on the remote while the system is off. To turn on the clock display, press DISPLAY on the remote again. Notes • When the Daily Timer is set, you cannot turn off the clock display. • The clock display will appear when you set the Daily Timer during turning off the display. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 HCD-EX100 SECTION 3 DISASSEMBLY 3-1. REAR COVER, BOTTOM PLATE, CASE AND EJECT BOARD Note: Disassemble the unit in the order as shown below. 1 2 Two claws Rear cover 9Case with cover (top) assy 3Four screws (+BVT3X5) 4Bottom plate 5Three screws (+BVTT3X5) 5Three screws (+BVTT3X5) 8Connector (from CN602 on Panel board) 6 B B A A 6 7 Screw (2X3) Washer qa qs 0 Eject board Set Panel board and Stabilizer Amp block CD block Motor assy, Cam and SW board Base unit and Pick up assy Main board,REG board, Power board Rear cover, Bottom plate, Case and Eject board Note: Follow the disassembly procedure in the numerical order given. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 HCD-EX100 3-3. AMP BLOCK 3-2. PANEL BOARD AND STABILIZER 4 2 3 Remove the Earth clip Front panel assy 1Two screws (+BVTT3X5) 5Two screws (+BVTT2.6X8) 5Three screws (+BVTT2.6X8) 7 Panel board 6 Flat type wire (CN601) Claw Stabilizer Stabilizer Stabilizer claw Turn the stabilizer claw in the direction of the arrow to remove it from the notch on the stabiholder. Connector AMP board: CN801 AMP block Two screw (BVTT3x5) Screw (BVTT3x5) Connector AMP board: CN810 Connector AMP board: CN802 2 3 4 1 1 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 HCD-EX100 3-4. CD BLOCK 3-5. MOTOR ASSY (LOADING BOARD), CAM AND SW BOARD Note: The phase adjustment is required in assembly. Refer to"Section 1. Servicing Note" for details. Connector MAIN board: CN351 Flat type wire (CN301) Connector MAIN board: CN302 1 2 4 5 6 7 8 Screw (BVTT3x5) 3Two screws (BVTT3x5) Screw (BVTT3x5) Two screws (BVTT3x5) CD block 1 2 3 4 5 6 7 8 9 0 !¡ !™ !£ !¢ !∞ !§ Slider (3) Slider (2) Disc holder Lever (1) Mecha cover Motor assy Loading board SW board Two screws (BVTP2.6x8) Two screws (BVTP2.6x8) Two screws (BVTP2.6x8) Two screws (BVTP2.6x8) Screws (BTP2.6x8) Screws (PTPWH2.6) Two screws (M2.6) Two screws (M2.6) Cam www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 HCD-EX100 3-6. BASE UNIT AND PICK UP ASSY 1 2 3 4 5 6 7 8 9 0 !™ !£ !¢ !∞ !¡ Two screws (BVTP2.6x8) Two screws (BVTP2.6x8) Guide (L) Guide (R) Slider (4) Slider (4) Slider (1) Two screws (PTPWH2.6) Screws (PTPWH2.6) Two screws (PTPWH2.6) Two screws (PTPWH2.6) Coil spring Coil spring BU holder Pick up assy 3-7. MAIN BOARD (LED BOARD), REG BOARD AND POWER BOARD Two screws (BVTT3x5) Two screws (BVTP3x8) Two screws (BVTP3x8) Three screws (BVTT3x5) Two screws (BVTT3x5) Screw (PTPWH2.6) Screw (BVTT3x5) Screw (BVTT3x5) Screw (BVTT3x5) Main board Power board Power cord REG board Connector POWER board: CN903 Back panel LED board 1 2 3 4 Two screws (BVTT3x5) Screw (BVTT3x5) Shield case Flat type wire (CN702) Flat type wire (CN701) 5 6 7 8 9 0 qa qs qd qf qg qh qj qk ql w; Warning After repairs are completed and it has been assembled, be sure to carry out the following checks. 1. Make sure the disc opens and closes smoothly. 2. Make sure the disc does not rub on anything when it is played. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 HCD-EX100 Note: 1. CD Block is basically constructed to operate without adjustment. Therefore, check each item in order given. 2. Use YEDS-18 disc (3-702-101-01) unless otherwise indicated. 3. Use an oscilloscope with more than 10MΩ impedance. 4. Clean the object lens by an applicator with neutral detergent when the signal level is low than specified value with the following checks. S Curve Check Procedure : 1. Connect the oscilloscope to test points TP (FE) and TP (VC). 2. Connect TP (FEI) and TP (VC) of the MAIN board with lead wires. 3. Press the 1/u button to turn the set ON. 4. Press the ^ button, load and eject the disc (YEDS-18) to perform focus search. 5. Check the symmetry and peak to peak level of the oscilloscope waveform (S curve) at this time. S-curve waveform 6. After check, remove the lead wire connected in step 2. Note: • Try to measure several times to make sure than the ratio of A : B or B : A is more than 10 : 7. • Take sweep time as long as possible and light up the bright- ness to obtain best waveform. Checking Location : MAIN board RF Level Check Procedure : 1. Connect oscilloscope to test point TP (RF) and TP (VC) on MAIN board. 2. Press the 1/u button to turn the set ON. 3. Put disc (YEDS-18) in and playback No.5track. 4. Confirm that oscilloscope waveform is clear and check RF sig- nal level is correct or not. oscilloscope MAIN board TP (FE) TP (VC) + – symmetry A B Within 3.8 ± 1 Vp-p oscilloscope MAIN board TP (RF) TP (VC) + – VOLT/DIV : 200mV TIME/DIV : 500ns level : 1.2 ± 0.2 Vp-p 0V Center of the waveform B Symmetry A (DC voitage) level : 1.3 ± Vp-p +0.6 –0.7 oscilloscope MAIN board TP (TE) TP (VC) + – Note: Clear RF signal waveform means that the shape “◊” can be clearly distinguished at the center of the waveform. RF signal waveform Checking Location : MAIN board E-F Balance (1 Track Jump) check Procedure: 1. Connect oscilloscope to test point TP (TE) and TP (VC) on MAIN board. 2. Press the 1/u button to turn the unit ON. 3. Put disc (YEDS-18) in and playback No.5track. 4. Press the ^ button, to pause. 5. Check the level (B) of the oscilloscope's waveform and the DC voltage (A) of the center of the Traverse waveform. Confirm the following: • A/B x 100 = less then ± 22 (%) • B = 1.3 ± Vp-p 1 track jump waveform SECTION 4 ELECTRICAL ADJUSTMENT +0.6 –0.7 Checking Location : MAIN board [ MAIN BOARD ] — SIDE A — TP (VC) TP (FEI) TP (RF) TP (FE) TP (TE) IC303 IC301 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 HCD-EX100 SECTION 5 DIAGRAMS 5-1. CIRCUIT BOARDS LOCATION MAIN BOARD AMP BOARD REG BOARD SW BOARD POWER BOARD PANEL BOARD LED BOARD EJECT BOARD LOADING BOARD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EX100 15 15 • Indication of transistor C These are omitted E B Q C These are omitted E B IC303 #ª FE 1 2 3 4 WAVEFORMS – MAIN (1/3) SECTION – IC304 6 XTO IC303 %º RF AC IC303 $¡ TE 4.8Vp-p 16.9MHz 1.1Vp-p (PLAY) 2.3V APPROX 500mVp-p (PLAY) 2.3V APPROX 200m Vp-p (PLAY) 5 6 IC7010XT2 IC701 7 XOUT – MAIN (3/3) SECTION – 5MHz 5Vp-p 32.768kHz 5Vp-p THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.) For schematic diagrams. Note: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • ¢ : internal component. • 2 : nonflammable resistor. • 5 : fusible resistor. • C : panel designation. For printed wiring boards. Note: • X : parts extracted from the component side. • ® : Through hole. • b : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) • U : B+ Line. • V : B– Line. • H : adjustment for repair. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. • Voltages and waveforms are dc with respect to ground in service mode. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. no mark : RADIO, CD STOP ( ) : CD PLAY • Circled numbers refer to waveforms. • Signal path. J : CD c : digital out • Abbreviation CND : Canadian model. SP : Singapore model. HK : Hong Kong model. KR : Korea model. CH : Chinese model. Note: The components identi- fied by mark ! or dotted line with mark ! are criti- cal for safety. Replace only with part number specified. Note: Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. • Abbreviation CND : Canadian model. SP : Singapore model. HK : Hong Kong model. KR : Korea model. CH : Chinese model. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EX100 16 16 A AMP SECTION B AMP SECTION : FM : CD • Signal Path • RCH is omitted : DIGITAL OUT TUNER PACK 7 FM_DET_OUT 4 R_OUT 6 L_OUT 1 STREO 2 TUNED 3 MUTING 12 DO DI 13 CL 14 15 CE ST CL DI TUN MUT DO CE MUX 4 XO 14 XI 13 2 DATA 16 INT RDS DECODER IC451 X601 4.332MHz CKO 4 XTI 5 XTO 6 27 CLOK 16 LOUT 26 DATA D/A CONVERTER IC304 28 MLAT X361 16.9344MHz RDS_DATA 17 RDS_CLK 14 PLL_CE 2 ST_MUTE 46 STEREO 100 TUNED 1 PLL_CLK 5 PLL_DATAO 4 PLL_DATAI 3 MASTER CONTROL IC701(1/2) DO MUT ST TUN CL CE DI OPTICAL PICK-UP BLOCK KSM-770ACA A B C D E F LD VC A+5V GND PD VR LD DRIVE FOCUS COIL TRACKING COIL Q301 RF AMP IC301 VC 12 A 5 B 6 C 7 D 8 E 11 F 10 LD 3 PD 4 IC302 MOTOR DRIVER CH1 OUT R 13 CH1 OUT F 14 CH2 OUT R 11 CH2 OUT F 12 CH3 OUT R 18 CH3 OUT F 17 M SLED MOTOR CH4 OUT R 16 CH4 OUT F 15 M SPINDLE MOTOR F+ F- T- T+ SD- SD+ SP- SP+ 3 CH1 R IN 2 CH1 F IN 6 CH2 R IN 5 CH2 F IN 23 CH3 R IN 24 CH3 F IN 25 CH4 S IN 20 MUTE MDP 25 SRDR 29 SFDR 30 TFDR 31 TRDR 32 FFDR 33 FRDR 34 DIGITAL SIGNAL PROCESSOR D/A CONVERTER IC303 DIGITAL SERVO 64 D OUT MNT0 MNT1 MNT2 MNT3 RFAC 50 17 RFI 16 RFO 14 FE 13 TE 22 LD ON 21 HOLD SW RFDC 43 FE 39 TE 41 SE 40 XUGF 11 XPCK 12 GFS 13 C2PO 14 71 XTAI BCLK 3 67 BCLK DATA 2 66 PCMD LRCK 1 65 LRCK DIGITAL OUT OPTICAL CD DIGITAL OUT OPTICAL IC391 4 DATA CD-L CD-R 13 ROUT R-CH TU-L TU-R R-CH 6 CLOK 5 XLAT 77 SQCK 8 SCLK 76 SQSO 15 SCOR 26 SSTP 2 XRST LIMIT IN SW 39 SCLK RIN FIN OUT1 OUT2 CD DAT 31 DA LAT 24 XLAT 32 SERVO_CK 21 SUB_Q 19 SCOR 16 XRST 23 LPH 32 LDON 33 35 OPEN_SW 34 CLOSE_SW 41 OPEN OPEN/CLOSE S351 42 CLOSE 9 7 4 2 M IC351 M+7V MOTOR DRIVER M351 LOADING MOTOR 26 CD_POWER 7 SENS SENSE 18 RDS BUFFER Q401 SWITCH Q781,782 CN303 CHECK CONNECTOR 5 4 3 2 +7V CD+7V 5-2. BLOCK DIAGRAMS – TUNER/CD SECTION – w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EX100 17 17 – AMP SECTION – 68 66 69 57 36 8 3 9 14 16 11 32 33 34 7 8 38 45 12 13 20 28 29 47 43 51 - 54 60 - 99 44 48 49 50 2 1 L SPEAKER IMPEDANCE USE 4-16Ω R L OUT OUT TAPE R L R I / PHONES J501 TM801 R CH R CH KEY S601-604 S611-616,Q651 TOUCH SWITCH IC651,652 DIMMER SW Q775 BACK LIGHT ON/OFF Q773,774 LED DRIVER Q622,623 Q771 CD+7V D+5V D781-784 (LCD BACK LIGHT) D621 (ON/STANDBY) LIQUID CRYSTAL DISPLAY LCD701 COM0-3 SEG0-39 R-CH R-CH IN B2 IN D2 IN A2 REC B2 OUT2 OUTA R-CH IN+ CLOCK DATA LATCH COM0 I COM3 SEG0 I SEG39 BACK LIGHT CTL KEYIO-1 KEYIO-2 REMOTE STBY PULSE POWER VOL_CLK VOL_DATA VOL_STB MUTE_A XOUT XIN 10 11 XT1 XT2 AMP_MUTE SP_RELAY STANDBYA STANDBYB MUTEA MUTEB TAPE-L TU-L CD-L TU-L CD-L J101 PRE AMP IC111 MUTE Q113 MUTE Q501 HEADPHONE AMP IC501 POWER AMP IC801 MASTER CONTROL LCD DRIVER IC701 (2/2) RESET REMOTE CONTROL RECEIVER IC601 OPEN/ CLOSE CD+7V ST+12V STBY PULSE D+5.6V CD+5V -B (-15V) +7.5V EN -7.5V +B (+15V) -B (-15V) +7.5V -7.5V D934 T901 +B (+15V) D10-13 SWITCHING REGURATOR IC1,Q21-23 CONTROL PC1,2 IC951,Q951 F1 3.15A D911 D941 D931 AC IN D901 D752 D+5.6V RESET IC751,Q751 3 1 3 1 4 1 2 10 9 +12V REG. Q961-964 +5.6V REG. IC932 ±7.5V REG. IC933 +7V REG. IC931 DC DETECT Q822,823 RY801 D701 INV Q821 RELAY DRIVE Q824 Q131 A B TUNER/CD SECTION TUNER/CD SECTION : FM : CD • Signal Path • RCH is omitted X701 5MHz X702 32KHz w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EX100 18 18 D139 D-6 D701 F-5 D751 E-6 D752 E-5 D753 E-5 D754 D-5 IC111 C-4 IC301 E-4 IC302 F-3 IC303 D-3 IC304 C-2 IC391 B-4 IC451 G-3 IC501 B-2 IC701 G-5 IC751 E-5 Q113 D-5 Q131 D-6 Q163 D-5 Q301 F-4 Q401 B-6 Q501 A-2 Q551 B-2 Q751 D-5 Q771 G-5 Q773 G-5 Q774 G-6 Q775 G-6 Q781 E-4 Q782 E-4 5-3. PRINTED WIRING BOARD – MAIN SECTION – • See page 14 for Circuit Boards Location. Ref. No. Location • Semiconductor Location 11 (11) 1-682-068- D AMP BOARD CN801 (Page 22) TUNER UNIT SUPPLIED AS THE ASSEMBLED BLOCK B PANEL BOARD CN601 (Page 24) C REG BOARD CN901 (Page 26) A LOADING BOARD CN352 (Page 22) A 1 1 1 6 7 8 14 12 13 24 A K 28 22 21 15 OPTICAL PICK–UP BLOCK KSM–770 ACA/Z–NP M102 (SPINDLE MOTOR) 1 2 3 4 5 6 M M101 (SLED MOTOR) S101 (LIMIT SW) M MAIN BOARD (SIDE A) (CHASSIS) LED BOARD TP782 LED BOARD TP781 11 (11) 1-682-068- MAIN BOARD (SIDE B) 2 3 4 5 6 7 8 9 10 11 12 A 1 B C D E F G H (Page 22) IC701 IC304 IC302 IC501 Q551 Q501 Z3 Z6 Z5 L404 L401 L403 L405 Q401 IC451 D701 D752 Q301 FB331 D751 Q782 Q751 D753 D754 IC303 IC301 Z7 IC111 Q774 Z9 D139 FB300 FB361 Q113 Q131 L402 Q163 Q771 Q775 Q773 E E 1 30 31 50 51 100 81 80 E E R401 R404 R402 R403 R408 R407 R101 R102 R151 R152 R103 R153 R112 R111 R412 R411 R116 R406 R405 R139 R135 R115 R114 R167 R164 R166 R163 R165 R756 R754 R755 R752 R753 R757 R785 R708 R709 R705 R707 R706 R704 R701 R778 R774 R775 R777 R776 R702 R703 R792 R793 R794 R453 AEP,UK,CH R452 R365 R454 R455 R305 R306 R304 R302 R303 R301 R308 R307 R323 R322 R324 R321 R313 R312 R315 R310 R311 R331 R346 R334 R332 R333 R337 R336 R335 R339 R340 R338 R341 R342 R343 R344 R345 R361 R382 R414 R413 R384 R381 1 2 3 R383 R162 R161 R131 R132 R133 R117 R113 R512 R511 R555 R554 R505 R502 R501 R504 R503 R553 R552 R551 R362 R364 R363 R347 R348 R349 R134 R751 R710 C755 C757 C785 C704 C799 C798 C702 C701 C705 C302 C301 C304 C793 C792 C791 C457 C456 C453 C452 C458 C451 C455 C325 C313 C322 C323 C321 C324 C327 C326 C343 C311 C307 C308 C333 C309 C312 C345 C344 C347 C348 C366 C374 C367 C371 C372 C342 C341 C339 C340 C166 C165 C164 C163 C162 C337 C338 C331 C332 C335 C334 C349 C336 C758 C759 C139 C137 C136 C409 C403 C408 C402 C401 C405 C404 C116 C115 C114 C112 C113 C119 C138 C169 C134 C384 C133 C176 C177 C152 C102 C100 C151 C101 C392 C554 C553 C503 C502 C552 C361 C300 C362 C363 C373 C365 C703 C383 C299 J501 PHONES IC391 CD DIGITAL OUT LCD701 J101 TAPE OUT R IC391 X701 C364 C501 C551 C391 C328 L391 CLP101 C406 X361 X601 C407 C368 CN303 C305 C314 C306 C346 C512 C784 C756 C754 X702 Q781 C511 IC751 CN702 1 1 6 2 12 13 C118 C121 C120 CN301 C303 C131 C170 CN703 C132 C167 C117 C168 C135 R409 C161 C111 C381 C382 C171 C751 CN701 CN302 CN351 C398 C399 E E E E E 3 2 1 E E E E E 41 40 25 24 1 80 65 64 14 15 1 1 5 2 CN401 1 1 4 5 8 61 60 41 40 80 1 20 21 14 28 15 AEP,UK,CH L IN R L TP772 TP771 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EX100 19 19 5-4. SCHEMATIC DIAGRAM – MAIN (1/3) SECTION – • See page 15 for Waveforms. • See page 33,34,35 for IC Block Diagrams. • See page 30 for IC Pin Functions. SPD1 CN301 FB331 R307 R308 R323 R324 R335 R336 R337 R338 R339 R340 R341 R342 R343 R344 R345 R347 R349 R362 R363 L391 3.3uH CN351 C303 C305 C306 C314 R301 R302 R303 R304 C391 R364 C365 C366 R365 C342 C343 C344 R348 C341 C338 C337 C339 C340 R346 R334 R332 C334 C335 C336 R333 R331 C333 C332 C331 C328 C327 C324 C323 C322 R321 C321 C313 C308 C309 C301 C302 R313 R315 C312 C311 R312 C307 R311 C304 C325 R322 C326 IC303 C346 C363 C362 C361 C364 IC304 C392 CN303 CN302 IC391 R310 C345 C372 X361 Q301 R305 R306 C349 C373 R361 FB361 C367 C371 C348 C374 C368 C299 C300 FB300 C347 C398 C399 IC301 IC302 16P FFC 1MM PICH 10 12 47k 390k 33k 10k 100k 10k 3.3k 3.3k 1M 330 330 330 330 1k 100k 330 330 6P 47 10V 100 10V 10 50V 47 10V 0 0 0 0 100 10V 100 0.001 B 0.001 B 100 0.1 F 0.1 F 0.1 F 100 100p SL 0.47 F 0.01 F 0.0015 B 0.047 F 15k 15k 15k 470p B 0.1F 470p B 100k 100 0.0047 B 1 F 1 F 2200 10V 0.1 F 0.1 F 22p CH 22p CH 4.7 0.33 B 0.1 F 1p CK 0.01 F 0.1 F 0.1 F 0 (JW) 1M 0.1 F 1 F 1M 15p SL 22k 0.001 B 0.001 B 150k 0.0047 B CXD2585Q 470 10V AU 0.1 F 22p SL 22p SL 470 10V AU PCM1710U-B T1 0.1 F 5P PH 2MM PICH 6P PH 2MM PICH TOTX178A 47k 0.001 0.001 16.9344MHz 2SB710A-RXT 220k 220k 0.1 0.1 680 1 0.1 0.1 0.1 470 10V 0.1 0.1 0.1 0.1 0.1 CXA2568M-T6 BA5974FP-E2 DALAT XLAT DATA XRST SUBQ SENS SQCK SCOR LPH LDON OPEN_SW CLOSE_SW OPEN CLOSE AMUTE CLK XTAI XTAO XTSL MD2 DOUT EMPH WFCK SCOR SBSO EXCK SQCK MUTE SENS XRST SCLK ATSK DATA XLAT CLOK COUT MIRR DFCT FOK MDP LOCK SSTP SFDR SRDR TFDR TRDR FFDR FRDR VPCO IGEN TE SE FE VC FILO FILI PCO CLTV RFAC BIAS ASYI ASYO WDCK LRCK BCLK & RFDC ADIO FSTO ASYE XOLT SOCK SOUT SCSY CM4 DVSS PWMI CE V16M VCTL DVDD0 XUGF XPCK GFS C2PO DVDD1 DVSS1 TEST TES1 AVSS0 AVDD0 AVSS1 AVDD1 DVDD2 PCMD DVSS2 SQSO VCC RFO FE TE VC LD PD A B C D VEE F E LD DRIVE LC/PD LDON RFE IOP RFI RFTC TE AGCCONT HOLD_SW RF_BOT AGCVTH HOLD LRCK DATA BCLK CKO XTI XTO DGND Vdd Vcc GND EXT1 EXT2 ROUT GND Vcc LOUT EXT2 EXT1 GND Vcc Vdd DGND CKSL MODE MUTE MLAT CLOK DATA D.OUT D.GND SW+5V GND MNT0 1 2 3 7L 7L SLED- SLED+ LMTSW LMTSW SPDL+ SPDL- VC VCC PD VR LD GND F C B A D E FCS- TRK- TRK+ FCS+ DIGITAL SERVO DIGITAL SIGNAL PROCESSOR RF AMP BTL DRIVER D/A CONVERTER GND OUT1(CLOSE) OUT2(OPEN) OPEN SW CLOSE SW +7V LOADING BOARD DIGITAL OUT OPTICAL FOR CHECK PIN 1 2 3 OPTICAL PICK UP BLOCK KSM-770ACA/Z-NP (2/3) (3/3) (Page 21) (Page 20) (Page 23) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EX100 20 20 5-5. SCHEMATIC DIAGRAM – MAIN (2/3) SECTION – R112 R113 R131 R132 R133 R162 R163 R164 R381 R382 R383 R384 R406 R414 R501 R502 R503 R504 R552 R554 R404 R403 R402 R401 C117 C167 C511 R116 R117 R166 R555 C111 C161 C134 C133 C166 C169 C120 MICON INTERFACE C119 C177 Q401 C405 R408 C404 R407 R409 L401 100uh C401 C402 L405 100uH C403 C409 C408 R405 L404 100uH L403 100uH L402 100uH CN401 R102 R152 R151 R153 J101 R103 R101 C102 C152 C151 C101 R413 J501 C501 C502 IC501 C552 R553 R551 C551 C382 C381 C383 C384 IC111 R161 C176 R111 C116 R505 C132 C131 R412 R411 R134 R135 C139 Q131 R139 Q113 R115 R114 Q163 R165 C170 C171 R167 C168 C135 C136 C118 C137 C121 R774 R775 CN701 C705 Q771 TP771 TP772 C138 C512 Q774 Q773 Q551 Q501 C406 R778 Q775 R776 R777 D139 C112 C113 C114 C115 C162 C164 C165 C163 R511 R512 C503 C553 C100 C407 C554 10k 2.2k 100 100 100 10k 2.2k 100k 3.3k 3.3k 10k 10k 10k 2.2k 100k 10k 47k 100 10k 100 100 100 100 100 10 50V 10 50V 220 10V 75k 33k 75k 1k 0.47 0.47 0.1 F 0.1 F 0.0033 B 560p B 0.1 560p B 0.01 B 2SC3052EF- T1-LEF 0.01 F 10k 0.01 F 1k 100 0.001 B 0.001 B 100p SL 0.1 0.1 10k 15P B-TO-B 100k 100k 1k 1k 4P PINJACK 1k 1k 100p CH 100p CH 100p CH 100p CH 1k HP JACK 1 50V 100p SL NJM4558M-T 2 100p SL 47k 100k 1 50V 10 50V 10 50V 0.0015 B 0.0015 B M62442FP-A 2.2k 0.068 B 2.2k 0.0033 B 1k 470 10V 470 10V 2.2k 1k 100k 1k 1 DTA114EKA- T146 2.2k 2SC3624A-T 1L15L16 10k 100k 2SC3624A-T 1L15L16 10k 0.1 0.1 33k 10 50V 10 50V 0.1 F 10 50V 0.1 F 0.1 10k 2.2k 7P FFC 1.25MM PICH 0.1 DTC114EKA- T146 LED GND 0.001 220 10V 2SA1235TP DTC114EKA-T146 2SC3624A 2SC3624A 100 16V 330 2SA1235TP- 1EF 10k 2.2k UDZ-TE-17-2.4B 0.0047 B 0.0047 B 0.001 B 0.0022 B 0.0047 B 0.001 B 0.0022 B 0.047 B 100 10V 0.001 ST TUN MUT DO CL DI CE REMOTE KEY0 KEY1 V_STB V_DATA V_CLK POWER BLC 680p 680p 330p TAPE-R TAPE-L RECOUT-R RECOUT-L HP NONE L R L R GND SW-R SW-R SW-L SW-L HEAD PHONE (BOTTOM VIEW) VDD VSS MUTE SIRCS KEY1 KEY-LED KEY0 GND D+5V ON/ STBY (CHASSIS) ADD 4/23 TAPE MUTING R_OUT GND L_OUT FM_DET_OUT VCC+12V VDD+5V FM_IF_OUT GND DO CL DI CE STEREO TUNED REAR SIDE ( ) TUNER UNIT SUPPLIED AS THE ASSEMBLED BLOCK IN OUT L L R R PHONES PANEL BOARD PRE AMP HP AMP RDS BUFFER MUTE MUTE SWITCH 1 15 MUTE MUTE SWITCH (3/3) (3/3) (3/3) (3/3) (3/3) (1/3) (Page 19) (Page 21) (Page 21) (Page 21) (Page 21) (Page 21) (Page 25) LED BOARD TP781 LED BOARD TP782 (Page 23) (Page 23) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EX100 21 21 5-6. SCHEMATIC DIAGRAM – MAIN (3/3) SECTION – LCD701 R708 R706 R707 C704 C458 R455 R454 X601 C457 C456 C455 R452 R453 C451 C452 C784 R785 Q782 C785 Q781 R710 R751 C751 IC751 C756 D753 R752 C755 C754 R753 C757 R756 R754 R757 D754 R755 C759 C703 C799 C798 R701 X702 X701 R703 R709 D701 C793 C792 C791 R794 R793 R792 R702 C758 IC451 C453 CN702 CN703 C702 C701 D751 D752 Q751 R704 R705 IC701 10k 10k 10k 0.1 F 1 F 220 220 4.332MHz 33p CH 33p CH 0.01 F 2.2M 1k 1 F 0.01 F 470 10V 1k DTC114EKA 1 RT1P137L-T P 4.7k 100 0.22F 5.5V M51943BSL- TP 47 16V 1SS355TE-1 7 1k 0.1 F 47 16V 4.7k 0.1 F 10k 47k 4.7k 1SS355TE-1 7 47k 0.01 F 0.1 F 100p 100p 330k 32KHz 5MHz 100k 10k DAN202K-T- 146 0.01 F 0.01 F 0.01 F 100k 100k 100k 100k 0.33 BU1924F 560p B 13P 5P 15p 15p EC10DA40-TE12 EC10DA40-TE12 2SC2623-L5L6 47k µPD780306GF-034-3BA COM0 COM1 COM2 COM3 COM0 COM1 COM2 COM3 SEG0 SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 SEG7 SEG8 SEG9 SEG10 SEG11 SEG12 SEG13 SEG14 SEG15 SEG16 SEG17 SEG18 SEG19 SEG20 SEG21 SEG22 SEG23 SEG24 SEG25 SEG26 SEG27 SEG28 SEG29 SEG30 SEG31 SEG32 SEG33 SEG34 SEG35 SEG36 SEG37 SEG38 SEG39 SCOR TUN CE DO DI CL SEG39 SEG0 SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 SEG7 SEG8 SEG9 SEG10 SEG11 SEG12 SEG13 SEG14 SEG15 SEG16 SEG17 SEG18 SEG19 SEG20 SEG21 SEG22 SEG23 SEG24 SEG25 SEG26 SEG27 SEG28 SEG29 SEG30 SEG31 SEG32 SEG33 SEG34 SEG35 SEG36 SEG37 SEG38 ST V_CLK V_DATA V_STB XRST XLAT SENS SUBQ SQCK AMUTE REMOTE KEY1 POWER CLOSE OPEN CLOSE_SW OPEN_SW CLK LDON LPH DALAT MUT POWER PULSE POWER PULSE MUTE RELAY RELAY MUTE DATA BLC OPEN_SW KEY0 *1 DGND VDDD VDDA AGND DATA INT IN TUNED PLL_CE PLL_DATAI PLL_CLK XOUT XIN XT2 VPP(GND) RESET POWDET RDS_CLK REMOTE SCOR RDS_DATA SENSE SUB_Q SERVO_CK XLAT XRST SCLK PLL_DATAO VDD1 XT1 MUTE_D CD_POWER AVSS KEYIO_1 KEYIO_2 CLOS E_SW OPE N_SW VDD0 AVREF VSS1 OPEN CLOSE POWER MUTE_A VOL_CLK VOL_DATA VOL_STB COM0 COM1 COM2 COM3 BIAS VLC0 VLC1 VLC2 VSS0 SEG0 SEG1 SEG2 SEG3 SEG4 SEG5 SEG7 SEG8 SEG9 SEG10 SEG11 SEG12 SEG13 SEG14 SEG15 SEG16 SEG17 SEG18 SEG19 SEG20 SEG21 SEG22 SEG23 SEG24 SEG25 SEG26 SEG27 SEG28 SEG29 SEG30 SEG31 SEG32 SEG33 SEG34 SEG35 SEG36 SEG37 SEG38 SEG39 STREO RESET ACCUT NON-BACKUP+5V BACKUP+5V D+5V DA LAT LPH LDON BAND_AREA ST_MUTE SP_R ELAY HP NONE SEG6 MUTE L GND R AMP_MUTE ST+12V -7.5V +7.5V AGND CD+5V CDD GND CD+7V CDMGND D+5.6V DGND POWER HPG ND STBY PULSE STBY PULSE RELAY 7L CD DATA BACK LIGHT CTL FLUORESCENT INDICATOR TUBE RDS DECODER CD POWER BOARD AMP BOARD *1 REG +5V REG RESET CD POWER SW CD POWER SW CD MOTOR +7V R705 22k 1.5k 33k (2/3)(Page 19) (2/3)(Page20) (2/3)(Page20) (2/3)(Page20) (2/3)(Page20) (2/3)(Page20) (Page 27) (Page 23) • See page 14 for Waveforms. • See page 35 for IC Block Diagrams. • See page 31 for IC Pin Functions. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EX100 22 22 5-7. PRINTED WIRING BOARD – LED/LOADING/SW/AMP SECTION – • See page 14 for Circuit Boards Location. AMP BOARD (SIDE A) AMP BOARD (SIDE B) 11 (11) 1-682-071- 11 (11) 1-682-071- D MAIN BOARD CN703 (Page 18) E REGBOARD CN902 (Page 26) F REG BOARD CN902 (Page 26) MAIN BOARD TP772 MAIN BOARD TP771 LED BOARD (SIDE A) SW BOARD LOADING BOARD (SIDE A) LOADING BOARD (SIDE B) LED BOARD (SIDE B) 11 (11) 1-682-074- 11 (11) 1-682-074- 11 (11) 1-682-072- 11 (11) 1-682-073- 11 (11) 1-682-072- A MAIN BOARD CN351(Page 18) 2 3 4 5 6 7 8 9 A 1 B C D E F G (Page 18) Q821 D821 Q823 Q822 Q824 R802 R852 R821 R807 R857 R822 C807 CN801 JW807 JW802 AEP,UK,CH CN802 JW808 C855 R806 CN810 JW805 JW803 JW804 JW806 1 2 14 15 C853 C803 RY801 C851 C801 IC801 R803 C814 R851 C813 C804 C854 R801 R854 R853 C822 C821 C806 L851 E E E L801 R804 R855 C812 R805 C811 C856 C805 C859 C809 R856 R823 E R781 R782 R783 R784 D781 D782 D783 TP782 (GND) TP782 (GND) ( BACK LIGHT) D784 D351 R351 C352 C354 B3 M351 M_ CN353 1 6 1 1 3 3 1 9 C351 S351 (OPEN CLOSE) CN352 CN354 IC351 1 4 Ref. No. Location • Semiconductor Location D351 E-2 D781 B-4 D782 B-3 D783 B-3 D784 B-2 D821 C-7 IC351 E-2 IC801 C-6 Q821 E-7 Q822 C-7 Q823 C-7 Q824 B-7 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EX100 23 23 5-8. SCHEMATIC DIAGRAM – LED/LOADING/SW/AMP SECTION – • See page 35 for IC Block Diagrams. CN802 L851 1.9µH 1.9µH R805 L801 R806 C806 C856 R856 C855 C805 R855 RY801 C822 C821 R822 D821 R823 R821 IC801 C811 C812 C813 C814 C851 R851 R852 C853 R853 C854 R802 R801 C801 C804 R803 C803 R804 R807 R857 CN801 CN810 R854 Q824 Q822 Q823 Q821 C807 D783 D781 D782 R782 R781 R783 S351 D784 R784 D351 C351 M351 CN352 IC351 TP782 TP781 CN354 C352 R351 C354 CN353 4P 10 1/2W 10 0.1 B 0.1 B 10 0.1 B 0.1 B 10 1/2W AEP,UK (CHASSIS) 12V 47 50V 100 16V 56k 1SS355TE-17 100 1/2W 33k LM1876TF 1000 25V 1000 25V 0.1 B 0.1 B 4.7 50V 1k 43k 47 25V 1k 68p SL 43k 1k 4.7 50V 68p SL 1k 47 25V 39k 47k 56k 5P DR 3P 39k 2SC1623-L5L6 2SC1623-L5L6 2SC1623-L5L6 DTC114EK 0.001 SELS5B20C-TP15 SELS5B20C-TP15 SELS5B20C-TP15 470 470 470 (LEAF SW) SELS5B20C-TP15 470 UDZ-TE-17-4.3B 100 16V RF-500TB MABUCHI 6P 2MM PICH BA6956AN GND LED 3P 0.01 4.7k 0.01 3P BOARD IN OUTB VCCA OUTA VEE GNDA MUTEA -INA +INA STANDBYA GNDB MUTEB -INB +INB STANDBYB VCCB -+ -+ MUTE L GND R GND RELAY +15V -15V POWER AMP RELAY DRIVE DC OFFSET DET. HP/STBY SW R RG LG L Q822,823 OPEN CLOSE LOADING MOTOR LOADING MOTOR DRIVE + RIN GND FIN VCC VM OUT1 RNF OUT2 VREF BACK LIGHT BOARD (1/3) MAIN BOARD BOARD (3/3) MAIN BOARD REG REG (Page 21) (Page 27) (Page 27) (Page 19) (Page 20) MAIN(2/3)BOARD TP771 MAIN(2/3)BOARD TP772 (Page 20) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EX100 24 24 5-9. PRINTED WIRING BOARD – PANEL/EJECT SECTION – • See page 14 for Circuit Boards Location. PANEL BOARD (SIDE A) PANEL BOARD (SIDE B) EJECT BOARD (SIDE B) EJECT BOARD (SIDE A) 11 (11) 1-682-076- 11 (11) 1-682-069- 11 (11) 1-682-069- 11 (11) 1-682-076- B MAIN BOARD CN701 (Page 18) X N > M > M x 2 3 4 5 6 7 8 9 A 1 B C D E F Q651 R611 R619 R606 R612 R613 S601,S603,S604,S611–S616 R614 R615 C606 R609 R601 R602 R603 C613 Q622 Q623 E R623 R622 B2 R616 Q652 TP603 S602 DISPLAY CN601 S616 VOL+ S615 VOL- S614 TUNING+ S613 TUNING- S612 S611 S604 TUNER BAND S603 FUNCTION C612 CN602 D621 C611 IC601 S601 IC652 IC651 D650 D651 R655 C654 R653 R650 R651 C653 C656 R656 C650 C652 C652 C657 R659 CN603 E 3 2 1 E E 3 1 1 7 14 8 1 7 14 8 Ref. No. Location • Semiconductor Location D621 A-6 D650 B-7 D651 B-8 IC601 A-6 IC651 B-8 IC652 B-8 Q622 B-6 Q623 B-6 Q651 B-2 Q652 B-2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EX100 25 25 5-10. SCHEMATIC DIAGRAM – PANEL/EJECT SECTION – D651 D652 R655 R652 C656 R656 C653 R659 C654 IC651 R653 C652 R650 R651 C650 TP602 CN602 CN603 R615 R616 S616 S615 R614 S614 R613 R612 S613 S612 R611 S611 S604 S603 S602 S601 R601 R602 R603 R623 R622 D621 Q623 Q622 C606 Q651 Q652 R606 C611 C613 C612 IC601 CN601 IC652 TP603 R619 R609 UDZSTE-176.2B UDZSTE-176.2B 100k 100 0.1 100k 0.1 1k 0.1 SN74HC14AN S-E05 10k 0.0047 39k 56k 22p 3P 3P 2.2k 4.7k 1.5k 1k 680 470 470 680 1k 330 470 SML72423C-TP15 DTA114EKA 10K/10K DTA114EKA 10K/10K 0.1 DTC114EKA- T146 DTC114EKA- T146 47 47 16V 0.1 47 16V SBX1971-51 7P FFC SN74HC74AN S-E05 3.3k 3.3k MAIN (2/3) BOARD REMOTE SENSOR D FLIP FLOP CLOCK DIVIDER/ INVERTER OPEN/CLOSE DISPLAY TUNER/BAND VOL+ VOL- VSS QA CLKA DATAA VDD DATAB CLKB QB RSTB SETA SETB QB QA RSTA TOUCH SWITCH SIRCS KEY1 KEY0 GND D+5V GND D+5V KEY FUNCTION ON/STBY TUNING+ TUNING- SWITCH SWITCH SWITCH Q622,623 ON/STANDBY (Page 20) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EX100 26 26 5-11. PRINTED WIRING BOARD – REG SECTION – • See page 14 for Circuit Boards Location. REG BOARD (SIDE A) REG BOARD (SIDE B) 11 (11) 1-682-075- 11 (11) 1-682-075- E AMP BOARD CN810 (Page 22) AMP BOARD CN802 (Page 22) F POWER BOARD CN903 (Page 28) G C MAIN BOARD CN702 (Page 18) (CHASSIS) 2 3 4 5 6 7 A 1 B C D E F D933 Q963 E E Q964 IC931 R893 R894 R962 R961 C900 C899 C933 C935 C898 C897 AEP,UK,CH 1 7 1 11 FB891 C892 R892 CLP802 TP801 FB892 C891 JW916 C896 C894 Q961 JW910 JW914 C963 TM801 SPEAKER L + – R + – JW915 3 2 1 CN901 Q962 S G D B C E JW912 C962 JW913 C961 C893 CN904 C895 CN902 JW917 D961 JW911 R891 IC932 C934 D934 3 2 1 C936 C937 R963 Ref. No. Location • Semiconductor Location D933 E-3 D934 E-2 D961 D-2 IC931 E-3 IC932 E-3 Q961 C-2 Q962 D-2 Q963 C-3 Q964 C-3 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EX100 27 27 5-12. SCHEMATIC DIAGRAM – REG SECTION – CN901 C937 D934 C936 D933 IC932 C935 C934 IC931 C933 D961 C962 C961 Q961 Q962 R961 R962 CN904 CN902 TM801 Q963 C963 R891 C891 C892 C893 C894 R892 C895 C896 C897 R893 C898 C899 C900 R894 FB981 FB982 Q964 R963 13P 1000 10V 11ES2 10 50V 1SS355 M5F7805 0.1 1000 10V BA07FP-E2 1 HZS12A3LTA 0.1 47 50V 2SD2525 2SK246GR3 10k 1k 11P SCN 7P SCN DTC114EK REG SW 47 50V 10 0.1 0.1 0.1 0.1 10 0.1 0.1 0.1 10 0.1 0.1 0.1 10 2SC1623-L5L6 1k S ST+12V -7.5V +7.5V AGND CD+5V CDDGND CD+7V CDMGND D+5.6V DGND POWER ON/ STBY ST+12V 0.3W 0.1A PGND HPGND STBY PULSE 0.7W 0.6W STBY PULSE PGND +10V A+7.5V MGND DGND AGND A-7.5V -B(-15V) +B(+15V) STBY PULSE SPEAKER TERMINAL + - - + POWER BOARD BOARD MAIN (3/3) R RG LG L AMP BOARD +5V REG +7V REG -B +B 12VREG REG SW L R REG CONT (CHASSIS) AEP,UK,CH (Page 23) (Page 29) (Page 21) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EX100 28 28 D2 D-3 D3 C-4 D4 C-4 D6 C-4 D7 D-4 D10 E-4 D11 E-4 D12 E-4 D13 E-4 D21 D-3 D22 D-3 D901 B-3 D911 C-3 D931 B-4 D941 B-3 D951 D-2 D952 D-2 D953 D-2 D954 D-2 IC1 C-4 IC933 B-2 IC951 D-1 PC1 D-2 PC2 D-2 Q21 D-2 Q22 D-3 Q23 D-3 Q951 D-2 5-13. PRINTED WIRING BOARD – POWER SECTION – • See page 14 for Circuit Boards Location. Ref. No. Location • Semiconductor Location 11 (11) 1-682-070- POWER BOARD (CHASSIS) (CHASSIS) (CHASSIS) F1 AC IN G REG BOARD CN904 (Page 26) 2 3 4 5 6 A 1 B C D E F C905 C915 C914 C940 C950 C904 T901 C9 D911 R4 R955 R939 C5 D953 D952 E 1 1 11 3 D951 C14 EPT2 D22 JW901 C952 C913 PC2 D941 L901 R23 C951 R952 C932 D931 C942 C912 D10 C901 L911 C941 C903 R3 C3 R10 1 3 5 2 4 R956 FB1 C1 C931 R949 C2 EPT901 EPT1 D12 C12 R9 C10 R5 C902 R953 D3 D4 D2 D11 R2 C4 C949 C939 D13 C11 C13 JW909 TH1 R11 JW908 C911 L1 CN1 D901 JW905 R1 US,CND R954 Q951 Q21 E E E Q22 Q23 C21 R21 R22 R24 CN903 D7 D6 D21 IC933 JW902 IC951 JW918 R957 D954 R951 PC1 R8 C6 C7 EXCEPT US,CND IC1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EX100 29 29 5-14. SCHEMATIC DIAGRAM – POWER SECTION – C939 C949 IC933 CN903 L901 C932 C942 C913 R939 D941 C941 C912 C951 R954 C952 Q951 L911 10µH 10µH D911 C911 PC1 PC2 C9 C3 D3 D2 C10 R10 C14 C12 C11 TH1 C7 L1 F1 C6 R1 C4 R5 FB1 C5 R2 Q22 D21 Q21 R23 Q23 C21 R24 D931 C931 R949 D901 C901 T901 R11 CN1 D4 R951 R952 R953 R955 R956 D953 R957 D954 C914 C915 C950 C940 C904 C905 C903 C902 D10 D11 D12 D13 C13 C1 R9 D7 R4 D6 R3 C2 R8 R21 R22 D22 IC951 D951 D952 220 10V 220 10V LA5617 11P EH 2200 16V 470 16V 1500 25V 0.1 11EQS04 470p 1kV 1800 25V 0.01 47k 680p 2SC2603 F5KQ60 470p 1kV PS2561-1-D PS2561-1-D 0.0022 250V 0.0033 11EQS10 11EQS10 330p 2kV 470k 0.0022 250V 0.0022 250V 0.0022 250V 5 NTC 0.1 275V 0.1 275V 3.3M 0.0022 1kV 0.22 2W 470p 5.6k 2SB1116 MTZJ-10C 2SD1616 120k 2SA1115 0.1 68k 11EQS04 470p 1kV 0.1 F5KQ60 470p 1kV 22k 2P UP YEL 11EQS04 1.5k 47 1.8k 4.7k 680 1SS119-25 220 11EQS10 0.1 0.1 0.1 0.1 0.1 0.1 1500 25V 1800 25V 10E6 10E6 10E6 10E6 68k 2W 1SS119-25 680 RD6.8ESB2 2.2k 47 25V 10 4.7k 3.9k RD20ESB2 SE015N 1SS119-25 1SS119-25 *3 LIVE CP901 (CHASSIS) (CHASSIS) EPT1 EPT901 VCC +7.5 CN1 GND CN2 -7.5 EN DLY NC VEE -10V +10V EPT2 NATURAL STBY PULSE -B PGND +B +10V A+7.5V MGND DGND AGND A-7.5V +15V -15V POWER CORD REG BOARD Note: fied by mark or dot- ted line with mark The components identi- Replace only with part are critical for safety. Note: une marque sont critiques pour la securite. fie. piece portant le numero speci- Ne les remplacer que par une , , , , , , , number specified. Les composants identifies par +15V REG *1 C1 220/200V 100/400V +7.5V -7.5V +7/-7V REG POWER SW ISOLATER ISOLATER CONT POWER POWER CONT POWER CONT *2 POWER TRANSFORMER 3.15A/125V T3.15AL/250V F1 *2 OVER CURRENT DET *1 82/400V 100/400V 82/400V *3 C13 - EXCEPT US,CND IC1 STR-F6676-LF1352 EXCEPT US,CND US,CND US,CND HK,KR,SP,CH AEP,UK US,CND HK,KR,SP,CH AEP,UK (Page 27) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EX100 30 30 5-15. IC PIN FUNCTIONS • IC303 DIGITAL SERVO & DIGITAL SIGNAL PROCESSOR (CXD2585Q) (MAIN Board (1/3)) DVDD XRST MUTE DATA XLAT CLOK SENS SCLK ATSK WFCK XUGF XPCK GFS C2PO SCOR CM4 WDCK DVSS COUT MIRR DFCT FOK PWMI LOCK MDP SSTP FSTO DVDD1 SFDR SRDR TFDR TRDR FFDR FRDR DVSS1 TEST TES1 VC FE SE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 I I I I I I O I I O O O O O O O O – I/O I/O I/O I/O I I/O O I O I O O O O O O – I I I I I Power supply System reset input “L” : reset Muting input “H” : mute Serial data input, supplied from CPU Latch input, supplied from CPU Serial data transfer clock input, supplied from CPU SENS signal output to CPU SENS serial data read-out clock input Input pin for anti-shock (Connected to ground) Not used XPGF signal output (For check pin) XPCK signal output (For check pin) GFS signal output (For check pin) C2PO signal output (For check pin) Sub-code sync output 4.2336 MHz output (Not used) Word clock output (ƒ = 2Fs) (Not used) Digital ground Numbers of track counted signal input/output (Not used) Mirror signal input/output (Not used) Defect signal input/output (Not used) Focus OK input/output (Not used) Spindle motor external control input (Connected to ground) GFS is sampled by 460 Hz. H when GFS is H (Not used) Output to control spindle motor servo Input signal to detect disc inner most track 2/3 divider output (Not used) Power supply Sled drive output Sled drive output Tracking drive output Tracking drive output Focus drive output Focus drive output Digital ground TEST pin connected normally to ground TEST pin connected normally to ground Center voltage input Focus error signal input Sled error signal input Pin No. Pin Name I/O Function • Abbreviation GFS : Guarded Frame Sync • Abbreviation EFM : Eight to Fourteen Modulation PLL : Phase Locked Loop Pin No. Pin Name I/O Function TE CE RFDC ADIO AVSS0 IGEN AVDD0 ASYO ASYI RFAC AVSS1 CLTV FILO FILI PCO AVDD1 BIAS VCTL V16M VPCO DVDD2 ASYE MD2 DOUT LRCK PCMD BCLK EMPH XTSL DVSS2 XTAI XTAO SOUT SOCK XOLT SQSO SQCK SCSY SBSO EXCK 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 I I I O – I I O I I – I O I O I I I I/O O I I I O O O O O I – I O O O O O I I O I Tracking error signal input Center servo analog input (Connected to ground) RF signal input Not used Analog ground Stabilized current input for operational amplifiers Power supply EFM full swing output Asymmetry comparate voltage input EFM signal input Analog ground Control voltage input for master VCO1 Filter output for master PLL Filter input for master PLL Charge-pump output for master PLL Power supply Asymmetry circuit constant current input VCO2 control voltage input (Connected to VDD) Not used Not used Power supply Asymmetry circuit ON/OFF input “L” OFF, “H” : ON (Connected to VDD) Digital-out ON/OFF control input (Connected to VDD) Digital-out output pin D/A interface LR clock output (ƒ = Fs) D/A interface serial data output D/A interface bit clock output Playback disc output in emphasis mode (Not used) X'tal selection input (Connected to ground) Digital ground X'tal oscillator circuit input X'tal oscillator circuit output (Not used) Serial data output in servo block (Not used) Serial data read clock output in servo block (Not used) Serial data latch output in servo block (Not used) Sub-Q 80-bit and PCM peak level data output (CD text data output) Clock input for SQSO read-out Connected to ground Sub-P through Sub-W serial output (Not used) Clock input for SBSO read-out (Connected to ground) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 HCD-EX100 1 TUNED I ST tuning 2 PLL_CE O ST PLL CE signal output 3 PLL_DATAI I ST PLL data input 4 PLL_DATAO O ST PLL data output 5 PLL_CLK O ST PLL CLK 6 VPP (GND) – Ground 7 XOUT O 8 XIN I 9 VDD1 – Ground 10 XT1 O 11 XT2 I 12 RESET I System reset input 13 REMOTE I SIRCS signal input 14 RDS_CLK I ST RDS clock input 15 POWDET I AC power down detect input 16 SCOR I CD SCOR signal input 17 RDS_DATA I ST RDS data input 18 SENSE I CD SENS signal input 19 SUB Q I CD SUBQ signal input 20 CTL O LCD back light control output 21 SERVO_CK O CD SQCK/SCLK signal output 22 XLAT O CD data latch signal output 23 XRST O CD (BC) reset signal output 24 SCLK O Clock output to PCM1710 and CD. 25 MUTE_D O CD digital mute signal output 26 CD_POWER O CD (BD) power control signal output 27 AVSS – Ground 28 KEYIO_1 I 29 KEYIO_2 I 30 BAND_AREA I Destination setting input (A/D port) 31 DALAT O Latch signal output to PCM1710 32 LPH O CD LPH signal output 33 LDON O CD LASER ON signal output 34 CLOSE_SW I CD slider CLOSE SW signal inpu 35 OPEN_SW I CD slider OPEN SW signal input 36 VDD0 I Power supply 37 AVREF I A/D REF Voltage input 38 AMP_MUTE O POWER AMP mute signal output 39 CD DATA O Signal data output 40 VSS1 – Ground 41 OPEN O CD loading motor open signal output 42 CLOSE O CD loading motor close signal output 43 POWER O System power control signal output 44 MUTE_A O TA mute output 45 SP_RELAY O Speaker relay control signal output 46 ST_MUTE O ST mute output 47 STBY PULSE O Power supply sleep control 48 VOL_CLK O VOL clock output 49 VOL_DATA O VOL OUT data output 50 VOL_STB O VOL STB signal output Pin No. Pin Name I/O Function • IC701 uCOM (UPD780306GF-034-3BA) (MAIN Board (3/3)) Crystal oscillator terminal 5MHz (Main clock) Crystal oscillator terminal 32KHz (Sub clock) Key signal input (A/D port) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 HCD-EX100 Pin No. Pin Name I/O Function 51 to 54 COM0 to COM3 O LCD common output 55 BIAS O LCD bias voltage terminal 56 to 58 VLC0 to VLC2 O LCD bias voltage terminal 59 VSS0 O Ground 60 to 99 SEG0 to SEG39 O LCD segment signal output 100 STEREO I Tuner stero signal input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 HCD-EX100 5-16. IC BLOCK DIAGRAMS IC301 CXA2568M-T6 (MAIN board (1/3)) 11 12 10 VC VC VC VC VC VC VC VCC VCC RF SUMMING AMP RF_EQ_AMP ERROR AMP FOCUS TRACKING ERROR AMP VC BUFFER VCC VCC VC VC VC VC VEE VEE VEE VEE VEE VREF 13 14 15 6 5 1 2 3 4 7 8 9 16 19 20 21 22 23 24 18 17 HOLD LD PD A B C D VEE F E VC AGCVTH AGCCONT VCC LC/PD LD_ON HOLD_SW RF_BOT RFTC RFI RFO RFE FE TE APC PD AMP APC LD AMP IC304 PCM1710U-B/1K (MAIN board (1/3)) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 27 26 25 24 23 22 21 20 19 18 17 16 15 28 INPUT INTERFACE DIGITAL FILTER NOISE SHAPER 5-LEVEL DAC RIGHT LOW-PASS FILTER RIGHT 3-STAGE AMP RIGHT LOW-PASS FILTER LEFT 3-STAGE AMP LEFT 5-LEVEL DAC LEFT MODE CONTROL TIMING CONTROL LRCK DATA BCLK CKO XTI XTO DGND VDD VCC GND EXT1 EXT2 ROUT GND MLAT CLOCK DATA MUTE MODE CKSL DGND VDD VCC VCC GND EXT1 EXT2 LOUT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 HCD-EX100 3 80 76 74 75 73 72 68 64 63 62 61 58 59 60 67 66 65 69 71 70 1 78 79 77 2 5 4 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 25 26 27 28 29 30 11 11 31 32 33 34 35 36 37 38 39 40 46 50 53 55 52 57 56 51 54 49 48 47 44 41 42 43 24 23 Clock Generator D/A Interface Error Corrector 32K RAM Sub Code Processor EFM demodurator Digital OUT Digital PLL Asymmetry Corrector Servo Auto Sequencer Digital CLV MIRR DFCT FOK SERVO Interface CPU Interface OPAmp Analog SW A/D Converter PWM GENERATOR FOCUS SERVO SERVO DSP SLED SERVO TRACKING SERVO TRACKING PWM GENERATOR SLED PWM GENERATOR FORCUS PWM GENERATOR 45 SIGNAL PROCESSOR BLOCK SERVO BLOCK MUTE XRST DVDD0 DATA XLAT CLOCK SENS SCLK ATSK WFCK XUGF XPCK GFS SCOR WDCK C4M DVSS0 COUT MIRR V2PO DFCT FOK PWMI LOCK MDP SSTP FETO DVDD1 SFDR SRDR TFDR TRDR FFDR FRDR DVSS1 TEST TES1 VC FE SE IGEN AVSSO ADIO RFDC CE TE RFAC ASYI ASYO AVDD0 AVDD1 AVSS1 BIAS VCTL V16M VPCO PCO FILI FILO CLTV EXCK SBSO SCSY SQCK SQSO XOLT SOCK SOUT XTAO XTAI DVSS2 XTSL EMPH BCK PCMD LRCK DOUT MD2 ASYE DVDD2 IC303 CXD2585Q (MAIN board (1/3)) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 HCD-EX100 IC351 BA6956AN (LOADING board) LEVEL SHIFT INTERFACE INTERFACE INTERFACE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 20 21 22 23 24 25 26 27 28 19 18 17 16 15 F R R F F R R F R R F F MUTE THERMAL SHUTDOWN VREFOUT VREFIN POWVCC CH1FIN CH1RIN CH2FIN CH2RIN CH2OUTR CH2OUTF CH1OUTR CH1OUTF CAPAIN1 CAPAIN2 GND PRFVCC MUTE POWVCC CH4SIN' CH4SIN CH4BIN CH3FIN CH3RIN CH3OUTR CH3OUTF CH4OUTR CH4OUTF CAPAIN3 GND IC302 BA5974FP-E2 (MAIN board (1/3)) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 QUAL RDATA VREF VDD1 VSS1 MUX VSS3 CMP RCLK XO XI (NC) VDD2 VSS2 T1 T2 8TH SWITCHED CAPACITOR FILTER PLL 57KHz RDS/ARI BIPHASE DECODER DEFFERENTIAL DECODER PLL 1187.5Hz TEST CLOCK IC451 BU1924F (MAIN board (3/3)) 1 2 3 4 5 6 7 8 9 CONTROL LOGIC TSD VREF OUT2 OUT1 RNF VM VCC FIN GND RIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 HCD-EX100 SECTION 6 EXPLODED VIEWS 6-1. FRONT PANEL AND CASE SECTION NOTE: • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE)  Parts color • The mechanical parts with no reference number in the exploded views are not supplied. • Hardware (# mark) list and accessories and pack- ing materials are given in the last of this parts list. • Abbreviation CND : Canadian model SP : Singapore model KR : Korea model CH : Chinese model HK : Hong Kong model Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. B A B A 1 3 6 8 7 9 10 11 12 5 7 4 2 16 15 14 #1 #1 not supplied not supplied #5 #5 #1 #1 #5 #5 #2 #2 13 1 X-4953-872-1 WINDOW (GRASS LOWER) ASSY 2 X-4954-149-2 PANEL ASSY, FRONT (US,CND,CH,HK,KR,SP) 2 X-4954-402-1 PANEL ASSY, FRONT (AEP,UK) 3 X-4953-871-1 WINDOW ASSY-U, GLASS (EXCEPT AEP) 3 X-4953-873-1 WINDOW (GLASS UPPER) ASSY (AEP) 4 4-234-985-01 YOKE (RG) 5 4-222-703-01 MAGNET 6 4-222-709-01 YOKE (ST) 7 3-927-664-01 SCREW (2X3) 8 4-234-965-01 CASE (US,CND) 8 4-234-965-11 CASE (AEP,CH,HK,KR,SP,UK) 9 1-682-076-11 EJECT BOARD 10 X-4954-403-1 COVER (TOP) ASSY (US,CND) 11 1-754-208-11 ANTENNA, FM (US,CND) 11 1-754-209-11 ANTENNA, FM (AEP,UK,CH,HK,KR,SP) 12 4-234-976-01 COVER (BACK) (US,CND) 12 4-234-976-11 COVER (BACK) (AEP,CH,HK,KR,SP,UK) 13 4-234-977-01 COVER (PIN JACK) (US,CND) 13 4-234-977-11 COVER (PIN JACK)(AEP,CH,HK,KR,SP,UK) 14 4-234-981-01 FOOT 15 1-769-889-11 WIRE (FLAT TYPE) (7 CORE) 16 1-682-069-11 PANEL BOARD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 HCD-EX100 6-2. CHASSIS SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark #1 #1 #1 #1 #1 #1 #1 #3 #3 #3 #3 #3 #3 #3 #1 #1 #1 #1 #1 #3 not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied 54 55 57 58 64 61 62 56 70 67 69 68 51 63 51 59 53 71 65 66 60 60 LCD701 52 70 51 3-314-903-01 CUSHION 52 4-234-982-01 HOUSE, LAMP 53 A-4725-965-A AMP BOARD, COMPLETE (US,CND) 53 A-4725-973-A AMP BOARD, COMPLETE (AEP,UK) 53 A-4725-977-A AMP BOARD, COMPLETE (HK,KR,SP) 53 A-4726-858-A AMP BOARD, COMPLETE (CH) 54 A-4725-964-A POWER BOARD, COMPLETE (US,CND) 54 A-4725-972-A POWER BOARD, COMPLETE (AEP,UK) 54 A-4725-976-A POWER BOARD, COMPLETE (HK,KR,SP) 54 A-4726-857-A POWER BOARD, COMPLETE (CH) 55 A-4725-969-A REG BOARD, COMPLETE (US,CND) 55 A-4725-974-A REG BOARD, COMPLETE (AEP,UK) 55 A-4725-978-A REG BOARD, COMPLETE (HK,KR,SP) 55 A-4726-859-A REG BOARD, COMPLETE (CH) 56 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING * 57 3-703-244-00 BUSHING (2104), CORD 58 4-222-730-01 PANEL, BACK 59 A-4725-962-A MAIN BOARD, COMPLETE (US,CND) 59 A-4725-971-A MAIN BOARD, COMPLETE (AEP,UK) 59 A-4725-975-A MAIN BOARD, COMPLETE (HK,KR,SP) 59 A-4726-856-A MAIN BOARD, COMPLETE (CH) 060 1-757-316-11 CORD, POWER (AEP,HK,SP,UK) 060 1-769-079-11 CORD, POWER (KR) 060 1-782-464-21 CORD, POWER (CH) 060 1-783-531-31 CORD, POWER (US,CND) 61 1-682-074-11 LED BOARD 62 1-791-698-11 WIRE (FLAT TYPE) (16 CORE) 63 1-769-973-11 WIRE (FLAT TYPE) (13 CORE) 64 1-693-407-13 TUNER (US,CND) 64 1-693-408-12 TUNER (AEP,UK,HK,CH,KR,SP) 065 1-569-008-21 ADAPTOR, CONVERSION (HK,SP) 066 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (HK,UK) * 67 4-028-047-01 HEAT SINK, CLIP TYPE 68 4-224-741-01 INSULATED PLATE (POWER.2) 69 4-224-740-01 INSULATED PLATE (POWER.1) * 70 3-344-749-01 RETAINER (B) 71 3-561-427-11 CUSHION LCD701 1-804-474-11 DISPLAY PANEL, LIQUID CRYSTAL Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 HCD-EX100 6-3. MECHANISM SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark #4 M351 101 103 104 131 104 124 124 129 128 127 104 104 104 104 104 105 131 105 105 106 107 107 108 114 113 116 117 115 119 120 122 123 123 124 124 121 118 126 112 125 113 111 110 109 124 124 124 130 130 132 101 4-236-397-01 DECORATION (CD) 103 4-222-701-01 PANEL, MECHANICAL 104 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING 105 4-222-697-01 RUBBER, FLOATING 106 4-222-692-01 HOLDER, BU 107 4-222-702-01 SPRING (CANCEL), TENSION COIL 108 4-222-685-01 SLIDER (1) 109 4-222-694-01 GEAR (1) 110 4-999-513-11 GEAR, PULLEY 111 4-999-537-01 BELT (LOADING) 112 4-222-695-02 GUIDE (R) 113 4-222-693-01 SLIDER (4) 114 4-222-700-02 GUIDE (L) 115 4-222-687-01 BASE, MECHANICAL 116 4-222-688-01 HOLDER, DISC 117 4-222-813-02 SLIDER (2) 118 4-225-227-01 SPRING (ABSORBER),TENSION COIL 119 4-225-228-01 CAM (A) 120 4-225-226-01 ABSORBER 121 4-222-689-01 SLIDER (3) 122 4-222-690-01 COVER, MECHANICAL 123 4-222-691-01 LEVER (1) 124 4-951-620-01 SCREW (2.6X8), +BVTP 125 1-682-072-11 LOADING BOARD 126 1-682-073-11 SW BOARD 127 1-769-973-11 WIRE (FLAT TYPE) (13 CORE) 128 3-831-441-99 CUSHION 129 X-4952-497-1 BASE ASSY, MOTOR 130 3-946-435-11 SCREW (M2.6) 131 4-230-919-01 MAGNET (MECHANICAL PANEL) 132 A-4909-346-A BASE UNIT (KSM-770ACA) M351 X-4952-498-1 MOTOR ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 HCD-EX100 • SEMICONDUCTORS In each case, u: µ , for example: uA...: µ A..., uPA...: µ PA..., uPB...: µ PB..., uPC...: µ PC..., uPD...: µ PD... • CAPACITORS uF : µ F • COILS uH : µ H • Abbreviation CND : Canadian model SP : Singapore model HK : Hong kong nodel KR : Korea model CH : Chinese model • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • RESISTORS All resistors are in ohms METAL: Metal-film resistor METAL OXIDE: Metal Oxide-film resistor F : nonflammable SECTION 7 ELECTRICAL PARTS LIST Note: When indicating parts by reference number, please include the board name. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark AMP The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. A-4725-965-A AMP BOARD, COMPLETE (US,CND) A-4725-973-A AMP BOARD, COMPLETE (AEP,UK) A-4725-977-A AMP BOARD, COMPLETE (HK,KR,SP) A-4726-858-A AMP BOARD, COMPLETE (CH) ************************** < CAPACITOR > C801 1-126-047-71 ELECT 4.7uF 20% 50V C803 1-126-022-11 ELECT 47uF 20% 25V C804 1-162-219-31 CERAMIC 68PF 5% 50V C805 1-164-159-11 CERAMIC 0.1uF 50V C806 1-164-159-11 CERAMIC 0.1uF 50V C807 1-163-009-91 CERAMIC CHIP 0.001uF 10% 50V C809 1-163-013-11 CERAMIC CHIP 2200P 50V (AEP,UK,CH) C811 1-126-027-11 ELECT 1000uF 20% 25V C812 1-126-027-11 ELECT 1000uF 20% 25V C813 1-164-159-11 CERAMIC 0.1uF 50V C814 1-164-159-11 CERAMIC 0.1uF 50V C821 1-126-933-11 ELECT 100uF 20% 16V C822 1-126-967-11 ELECT 47uF 20% 50V C851 1-126-047-71 ELECT 4.7uF 20% 50V C853 1-126-022-11 ELECT 47uF 20% 25V C854 1-162-219-31 CERAMIC 68PF 5% 50V C855 1-164-159-11 CERAMIC 0.1uF 50V C856 1-164-159-11 CERAMIC 0.1uF 50V C859 1-163-013-11 CERAMIC CHIP 2200P 50V (AEP,UK,CH) < CONNECTOR > * CN801 1-568-943-11 PIN, CONNECTOR 5P CN802 1-691-766-11 PLUG (MICRO CONNECTOR) 4P * CN810 1-564-518-11 PLUG, CONNECTOR 3P < DIODE > D821 8-719-988-61 DIODE 1SS355TE-17 < IC > IC801 8-759-333-24 IC LM1876TF < COIL > L801 1-420-872-00 COIL, AIR-CORE L851 1-420-872-00 COIL, AIR-CORE < TRANSISTOR > Q821 8-729-900-53 TRANSISTOR DTC114EK Q822 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q823 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q824 8-729-120-28 TRANSISTOR 2SC1623-L5L6 < RESISTOR > R801 1-249-417-11 CARBON 1K 5% 1/4W R802 1-216-088-00 METAL CHIP 43K 5% 1/10W R803 1-249-417-11 CARBON 1K 5% 1/4W R804 1-249-436-11 CARBON 39K 5% 1/4W R805 1-249-754-11 CARBON 10 5% 1/2W R806 1-249-393-11 CARBON 10 5% 1/4W R807 1-216-089-91 RES-CHIP 47K 5% 1/10W R821 1-216-085-91 RES-CHIP 33K 5% 1/10W R822 1-216-091-00 METAL CHIP 56K 5% 1/10W 0R823 1-247-739-11 CARBON 100 5% 1/2W R851 1-249-417-11 CARBON 1K 5% 1/4W R852 1-216-088-00 METAL CHIP 43K 5% 1/10W R853 1-249-417-11 CARBON 1K 5% 1/4W R854 1-249-436-11 CARBON 39K 5% 1/4W R855 1-249-754-11 CARBON 10 5% 1/2W R856 1-249-393-11 CARBON 10 5% 1/4W R857 1-216-091-00 METAL CHIP 56K 5% 1/10W < RELAY > RY801 1-755-170-11 RELAY (12V) ****************************************************** 1-682-076-11 EJECT BOARD *********** < CAPACITOR > C650 1-163-101-00 CERAMIC CHIP 22PF 5% 50V C652 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V C653 1-163-038-91 CERAMIC CHIP 0.1uF 25V C654 1-163-038-91 CERAMIC CHIP 0.1uF 25V C656 1-163-038-91 CERAMIC CHIP 0.1uF 25V < DIODE > D650 8-719-069-56 DIODE UDZSTE-176.2B D651 8-719-069-56 DIODE UDZSTE-176.2B EJECT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 HCD-EX100 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN LOADING < IC > IC651 8-759-673-48 IC SN74HC14ANSR IC652 8-759-925-90 IC SN74HC74ANSR < RESISTOR > R650 1-216-689-11 METAL CHIP 39K 0.5% 1/10W R651 1-216-091-00 METAL CHIP 56K 5% 1/10W R652 1-216-025-11 RES-CHIP 100 5% 1/10W R653 1-216-073-91 RES-CHIP 10K 5% 1/10W R655 1-216-097-11 RES-CHIP 100K 5% 1/10W R656 1-216-097-11 RES-CHIP 100K 5% 1/10W R659 1-216-049-11 RES-CHIP 1K 5% 1/10W ****************************************************** 1-682-074-11 LED BOARD ********* < DIODE > D781 8-719-085-19 DIODE SELS5B20C-TP15 D782 8-719-085-19 DIODE SELS5B20C-TP15 D783 8-719-085-19 DIODE SELS5B20C-TP15 D784 8-719-085-19 DIODE SELS5B20C-TP15 < RESISTOR > R781 1-216-041-00 METAL CHIP 470 5% 1/10W R782 1-216-041-00 METAL CHIP 470 5% 1/10W R783 1-216-041-00 METAL CHIP 470 5% 1/10W R784 1-216-041-00 METAL CHIP 470 5% 1/10W ****************************************************** 1-682-072-11 LOADING BOARD ************* 1-791-868-11 CORD, CONNECTION < CAPASCITOR > C351 1-104-665-11 ELECT 100uF 20% 16V C352 1-163-031-91 CERAMIC CHIP 0.01uF 50V C354 1-163-031-91 CERAMIC CHIP 0.01uF 50V < DIODE > D351 8-719-056-78 DIODE UDZ-TE-17-4.3B < IC > IC351 8-759-598-69 IC BA6956AN < RESISTOR > R351 1-216-065-11 RES-CHIP 4.7K 5% 1/10W ******************************************************* A-4725-962-A MAIN BOARD, COMPLETE (US,CND) A-4725-971-A MAIN BOARD, COMPLETE (AEP,UK) A-4725-975-A MAIN BOARD, COMPLETE (HK,KR,SP) A-4726-856-A MAIN BOARD, COMPLETE (CH) *************************** 4-234-982-01 HOUSE, LAMP 4-235-011-01 ILLUMINATOR < CAPACITOR > C100 1-163-263-11 CERAMIC CHIP 330PF 5% 50V C101 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C102 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C111 1-136-173-00 MYLAR 0.47uF 5% 50V C112 1-104-760-11 CERAMIC CHIP 0.047uF 10% 50V C113 1-104-760-11 CERAMIC CHIP 0.047uF 10% 50V C114 1-163-009-91 CERAMIC CHIP 0.001uF 10% 50V C115 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V C116 1-164-182-11 CERAMIC CHIP 0.0033uF 10% 50V C117 1-126-964-11 ELECT 10uF 20% 50V C118 1-126-964-11 ELECT 10uF 20% 50V C119 1-163-006-11 CERAMIC CHIP 560PF 10% 50V C120 1-136-165-00 MYLAR 0.1uF 5% 50V C121 1-136-165-00 MYLAR 0.1uF 5% 50V C131 1-128-834-11 ELECT 470uF 20% 10V C132 1-128-834-11 ELECT 470uF 20% 10V C133 1-163-038-91 CERAMIC CHIP 0.1uF 25V C134 1-163-038-91 CERAMIC CHIP 0.1uF 25V C135 1-126-964-11 ELECT 10uF 20% 50V C136 1-163-038-91 CERAMIC CHIP 0.1uF 25V C137 1-163-038-91 CERAMIC CHIP 0.1uF 25V C138 1-163-009-91 CERAMIC CHIP 0.001uF 10% 50V C139 1-164-346-11 CERAMIC CHIP 1uF 16V C151 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C152 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C161 1-136-173-00 MYLAR 0.47uF 5% 50V C162 1-104-760-11 CERAMIC CHIP 0.047uF 10% 50V C163 1-104-760-11 CERAMIC CHIP 0.047uF 10% 50V C164 1-163-009-91 CERAMIC CHIP 0.001uF 10% 50V C165 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V C166 1-164-182-11 CERAMIC CHIP 0.0033uF 10% 50V C167 1-126-964-11 ELECT 10uF 20% 50V C168 1-126-964-11 ELECT 10uF 20% 50V C169 1-163-006-11 CERAMIC CHIP 560PF 10% 50V C170 1-136-165-00 MYLAR 0.1uF 5% 50V C171 1-136-165-00 MYLAR 0.1uF 5% 50V C176 1-164-344-11 CERAMIC CHIP 0.068uF 10% 25V C177 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C299 1-163-038-91 CERAMIC CHIP 0.1uF 25V C300 1-163-038-91 CERAMIC CHIP 0.1uF 25V C301 1-163-038-91 CERAMIC CHIP 0.1uF 25V C302 1-163-038-91 CERAMIC CHIP 0.1uF 25V C303 1-126-947-11 ELECT 47uF 20% 10V C304 1-163-009-91 CERAMIC CHIP 0.001uF 10% 50V C305 1-104-665-11 ELECT 100uF 20% 10V C306 1-126-964-11 ELECT 10uF 20% 50V C307 1-163-097-00 CERAMIC CHIP 15PF 5% 50V C308 1-163-217-11 CERAMIC CHIP 1PF 0.25PF 50V C309 1-163-031-91 CERAMIC CHIP 0.01uF 50V C311 1-164-346-11 CERAMIC CHIP 1uF 16V C312 1-163-038-91 CERAMIC CHIP 0.1uF 25V C313 1-163-038-91 CERAMIC CHIP 0.1uF 25V C314 1-126-947-11 ELECT 47uF 20% 10V C321 1-110-501-11 CERAMIC CHIP 0.33uF 10% 16V C322 1-163-235-11 CERAMIC CHIP 22PF 5% 50V LED EJECT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 HCD-EX100 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN C323 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C324 1-163-038-91 CERAMIC CHIP 0.1uF 25V C325 1-163-009-91 CERAMIC CHIP 0.001uF 10% 50V C326 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V C327 1-163-038-91 CERAMIC CHIP 0.1uF 25V C328 1-126-927-11 ELECT 2200uF 20% 10V C331 1-164-346-11 CERAMIC CHIP 1uF 16V C332 1-164-346-11 CERAMIC CHIP 1uF 16V C333 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V C334 1-163-005-91 CERAMIC CHIP 470PF 10% 50V C335 1-163-038-91 CERAMIC CHIP 0.1uF 25V C336 1-163-005-91 CERAMIC CHIP 470PF 10% 50V C337 1-163-031-91 CERAMIC CHIP 0.01uF 50V C338 1-164-005-11 CERAMIC CHIP 0.47uF 25V C339 1-163-011-11 CERAMIC CHIP 0.0015uF 10% 50V C340 1-104-760-11 CERAMIC CHIP 0.047uF 10% 50V C341 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C342 1-163-038-91 CERAMIC CHIP 0.1uF 25V C343 1-163-038-91 CERAMIC CHIP 0.1uF 25V C344 1-163-038-91 CERAMIC CHIP 0.1uF 25V C345 1-163-009-91 CERAMIC CHIP 0.001uF 10% 50V C346 1-128-834-11 ELECT 470uF 20% 10V C347 1-163-038-91 CERAMIC CHIP 0.1uF 25V C348 1-163-038-91 CERAMIC CHIP 0.1uF 25V C349 1-163-038-91 CERAMIC CHIP 0.1uF 25V C361 1-163-101-00 CERAMIC CHIP 22PF 5% 50V C362 1-163-101-00 CERAMIC CHIP 22PF 5% 50V C363 1-163-038-91 CERAMIC CHIP 0.1uF 25V C364 1-128-834-11 ELECT 470uF 20% 10V C365 1-163-009-91 CERAMIC CHIP 0.001uF 10% 50V C366 1-163-009-91 CERAMIC CHIP 0.001uF 10% 50V C367 1-164-346-11 CERAMIC CHIP 1uF 16V C368 1-128-834-11 ELECT 470uF 20% 10V C371 1-163-038-91 CERAMIC CHIP 0.1uF 25V C372 1-163-009-91 CERAMIC CHIP 0.001uF 10% 50V C373 1-163-038-91 CERAMIC CHIP 0.1uF 25V C374 1-163-038-91 CERAMIC CHIP 0.1uF 25V C381 1-126-964-11 ELECT 10uF 20% 50V C382 1-126-964-11 ELECT 10uF 20% 50V C383 1-163-011-11 CERAMIC CHIP 0.0015uF 10% 50V C384 1-163-011-11 CERAMIC CHIP 0.0015uF 10% 50V C391 1-104-665-11 ELECT 100uF 20% 10V C392 1-163-038-91 CERAMIC CHIP 0.1uF 25V C398 1-164-159-11 CERAMIC 0.1uF 50V C399 1-164-159-11 CERAMIC 0.1uF 50V C401 1-163-009-91 CERAMIC CHIP 0.001uF 10% 50V C402 1-163-009-91 CERAMIC CHIP 0.001uF 10% 50V C403 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C404 1-163-031-91 CERAMIC CHIP 0.01uF 50V (AEP,UK) C405 1-163-031-91 CERAMIC CHIP 0.01uF 50V (AEP,UK) C406 1-126-933-11 ELECT 100uF 20% 16V C407 1-104-665-11 ELECT 100uF 20% 10V C408 1-163-038-91 CERAMIC CHIP 0.1uF 25V C409 1-163-038-91 CERAMIC CHIP 0.1uF 25V C451 1-164-346-11 CERAMIC CHIP 1uF 16V (AEP,UK) C452 1-163-031-91 CERAMIC CHIP 0.01uF 50V (AEP,UK) C453 1-163-006-11 CERAMIC CHIP 560PF 10% 50V (AEP,UK) C455 1-163-031-91 CERAMIC CHIP 0.01uF 50V (AEP,UK) C456 1-163-239-11 CERAMIC CHIP 33PF 5% 50V (AEP,UK) C457 1-163-239-11 CERAMIC CHIP 33PF 5% 50V (AEP,UK) C458 1-164-346-11 CERAMIC CHIP 1uF 16V (AEP,UK) C501 1-126-960-11 ELECT 1uF 20% 50V C502 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C503 1-163-007-11 CERAMIC CHIP 680PF 10% 50V C511 1-126-934-11 ELECT 220uF 20% 10V C512 1-126-934-11 ELECT 220uF 20% 10V C551 1-126-960-11 ELECT 1uF 20% 50V C552 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C553 1-163-007-11 CERAMIC CHIP 680PF 10% 50V C554 1-163-009-91 CERAMIC CHIP 0.001uF 10% 50V C701 1-163-231-11 CERAMIC CHIP 15PF 5% 50V C702 1-163-231-11 CERAMIC CHIP 15PF 5% 50V C703 1-163-038-91 CERAMIC CHIP 0.1uF 25V C704 1-163-038-91 CERAMIC CHIP 0.1uF 25V C705 1-163-038-91 CERAMIC CHIP 0.1uF 25V C751 1-104-905-11 CAPACITOR 0.22F 5.5V C754 1-126-786-11 ELECT 47uF 20% 16V C755 1-163-038-91 CERAMIC CHIP 0.1uF 25V C756 1-126-786-11 ELECT 47uF 20% 16V C757 1-163-038-91 CERAMIC CHIP 0.1uF 25V C758 1-110-501-11 CERAMIC CHIP 0.33uF 10% 16V C759 1-163-031-91 CERAMIC CHIP 0.01uF 50V C784 1-128-834-11 ELECT 470uF 20% 10V C785 1-164-346-11 CERAMIC CHIP 1uF 16V C791 1-163-031-91 CERAMIC CHIP 0.01uF 50V C792 1-163-031-91 CERAMIC CHIP 0.01uF 50V C793 1-163-031-91 CERAMIC CHIP 0.01uF 50V C798 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C799 1-163-251-11 CERAMIC CHIP 100PF 5% 50V < CONNECTOR > CN301 1-770-168-11 CONNECTOR,FFC(LIF(NON-ZIF))16P CN302 1-779-977-11 PIN, CONNECTOR 6P CN303 1-564-707-11 PIN, CONNECTOR (SMALL TYPE) 5P CN351 1-568-955-11 PIN, CONNECTOR 6P CN401 1-774-289-11 PIN, CONNECTOR (PC BOARD) 15P * CN701 1-568-850-11 SOCKET, CONNECTOR 7P CN702 1-691-647-11 SOCKET, CONNECTOR 13P < DIODE > D139 8-719-056-72 DIODE UDZ-TE-17-2.4B D701 8-719-914-43 DIODE DAN202K D751 8-719-075-77 DIODE EC10DA40-TE12 D752 8-719-075-77 DIODE EC10DA40-TE12 D753 8-719-988-61 DIODE 1SS355TE-17 D754 8-719-988-61 DIODE 1SS355TE-17 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 HCD-EX100 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN < FERRITE BEAD > FB300 1-500-245-11 FERRITE 0UH FB331 1-500-245-11 FERRITE 0UH FB361 1-500-445-21 FERRITE 0UH < IC > IC111 8-759-495-85 IC M62442FP-A IC301 8-752-085-51 IC CXA2568M-T6 IC302 8-759-549-28 IC BA5974FP-E2 IC303 8-752-389-34 IC CXD2585Q IC304 8-759-569-28 IC PCM1710U-B/1K IC391 8-749-923-04 IC TOTX178A (CD DIGITAL OUT) IC451 8-759-560-51 IC BU1924F (AEP,UK) IC501 8-759-331-72 IC NJM4558E-D(TE2) IC701 8-759-688-93 IC uPD780306GF-034-3BA IC751 8-759-635-63 IC M51943BSL-TP < JACK > J101 1-695-188-31 JACK, PIN 4P (TAPE IN/OUT) J501 1-566-891-11 JACK (PHONES) < COIL > L391 1-410-322-11 INDUCTOR 3.3uH L401 1-410-393-11 INDUCTOR CHIP 100uH L402 1-410-393-11 INDUCTOR CHIP 100uH L403 1-410-393-11 INDUCTOR CHIP 100uH L404 1-410-393-11 INDUCTOR CHIP 100uH L405 1-410-393-11 INDUCTOR CHIP 100uH < LIQUID CRYSTAL DISPLAY > LCD701 1-804-474-11 DISPLAY PANEL, LIQUID CRYSTAL < TRANSISTOR > Q113 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 Q131 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q163 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 Q301 8-729-049-31 TRANSISTOR 2SB710A-RTX Q401 8-729-120-28 TRANSISTOR 2SC1623-L5L6 (AEP,UK) Q501 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 Q551 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 Q751 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q771 8-729-900-53 TRANSISTOR DTC114EK Q773 8-729-027-43 TRANSISTOR DTC114EA Q774 8-729-620-33 TRANSISTOR 2SA1235 Q775 8-729-600-22 TRANSISTOR 2SA1235-F Q781 8-729-040-20 TRANSISTOR RT1P137L-TP Q782 8-729-900-53 TRANSISTOR DTC114EK < RESISTOR > R101 1-216-049-11 RES-CHIP 1K 5% 1/10W R102 1-216-097-11 RES-CHIP 100K 5% 1/10W R103 1-216-049-11 RES-CHIP 1K 5% 1/10W R111 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R112 1-216-073-91 RES-CHIP 10K 5% 1/10W R113 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R114 1-216-097-11 RES-CHIP 100K 5% 1/10W R115 1-216-073-91 RES-CHIP 10K 5% 1/10W R116 1-216-094-00 RES-CHIP 75K 5% 1/10W R117 1-216-085-91 RES-CHIP 33K 5% 1/10W R131 1-216-025-11 RES-CHIP 100 5% 1/10W R132 1-216-025-11 RES-CHIP 100 5% 1/10W R133 1-216-025-11 RES-CHIP 100 5% 1/10W R134 1-216-097-11 RES-CHIP 100K 5% 1/10W R135 1-216-049-11 RES-CHIP 1K 5% 1/10W R139 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R151 1-216-049-11 RES-CHIP 1K 5% 1/10W R152 1-216-097-11 RES-CHIP 100K 5% 1/10W R153 1-216-049-11 RES-CHIP 1K 5% 1/10W R161 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R162 1-216-073-91 RES-CHIP 10K 5% 1/10W R163 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R164 1-216-097-11 RES-CHIP 100K 5% 1/10W R165 1-216-073-91 RES-CHIP 10K 5% 1/10W R166 1-216-094-00 RES-CHIP 75K 5% 1/10W R167 1-216-085-91 RES-CHIP 33K 5% 1/10W R301 1-216-295-91 SHORT 0 R302 1-216-295-91 SHORT 0 R303 1-216-295-91 SHORT 0 R304 1-216-295-91 SHORT 0 R305 1-216-105-91 RES-CHIP 220K 5% 1/10W R306 1-216-105-91 RES-CHIP 220K 5% 1/10W R307 1-216-001-00 METAL CHIP 10 5% 1/10W R308 1-216-003-11 RES-CHIP 12 5% 1/10W R310 1-216-089-91 RES-CHIP 47K 5% 1/10W R311 1-216-081-00 METAL CHIP 22K 5% 1/10W R312 1-216-121-11 RES-CHIP 1M 5% 1/10W R313 1-216-295-91 SHORT 0 R315 1-216-121-11 RES-CHIP 1M 5% 1/10W R321 1-216-308-00 METAL CHIP 4.7 5% 1/10W R322 1-216-101-00 METAL CHIP 150K 5% 1/10W R323 1-216-089-91 RES-CHIP 47K 5% 1/10W R324 1-216-111-00 METAL CHIP 390K 5% 1/10W R331 1-216-025-11 RES-CHIP 100 5% 1/10W R332 1-216-077-91 RES-CHIP 15K 5% 1/10W R333 1-216-097-11 RES-CHIP 100K 5% 1/10W R334 1-216-077-91 RES-CHIP 15K 5% 1/10W R335 1-216-085-91 RES-CHIP 33K 5% 1/10W R336 1-216-073-91 RES-CHIP 10K 5% 1/10W R337 1-216-097-11 RES-CHIP 100K 5% 1/10W R338 1-216-073-91 RES-CHIP 10K 5% 1/10W R339 1-216-061-91 RES-CHIP 3.3K 5% 1/10W R340 1-216-061-91 RES-CHIP 3.3K 5% 1/10W R341 1-216-121-11 RES-CHIP 1M 5% 1/10W R342 1-216-037-00 METAL CHIP 330 5% 1/10W R343 1-216-037-00 METAL CHIP 330 5% 1/10W R344 1-216-037-00 METAL CHIP 330 5% 1/10W R345 1-216-037-00 METAL CHIP 330 5% 1/10W R346 1-216-077-91 RES-CHIP 15K 5% 1/10W R347 1-216-049-11 RES-CHIP 1K 5% 1/10W R348 1-216-025-11 RES-CHIP 100 5% 1/10W R349 1-216-097-11 RES-CHIP 100K 5% 1/10W R361 1-216-045-00 METAL CHIP 680 5% 1/10W R362 1-216-037-00 METAL CHIP 330 5% 1/10W R363 1-216-037-00 METAL CHIP 330 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 HCD-EX100 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN R364 1-216-025-11 RES-CHIP 100 5% 1/10W R365 1-216-025-11 RES-CHIP 100 5% 1/10W R381 1-216-061-91 RES-CHIP 3.3K 5% 1/10W R382 1-216-061-91 RES-CHIP 3.3K 5% 1/10W R383 1-216-073-91 RES-CHIP 10K 5% 1/10W R384 1-216-073-91 RES-CHIP 10K 5% 1/10W R401 1-216-025-11 RES-CHIP 100 5% 1/10W R402 1-216-025-11 RES-CHIP 100 5% 1/10W R403 1-216-025-11 RES-CHIP 100 5% 1/10W R404 1-216-025-11 RES-CHIP 100 5% 1/10W R405 1-216-073-91 RES-CHIP 10K 5% 1/10W R406 1-216-073-91 RES-CHIP 10K 5% 1/10W R407 1-216-049-11 RES-CHIP 1K 5% 1/10W (AEP,UK) R408 1-216-073-91 RES-CHIP 10K 5% 1/10W (AEP,UK) 0R409 1-212-881-11 FUSIBLE 100 5% 1/4W (AEP,UK) R411 1-216-049-11 RES-CHIP 1K 5% 1/10W R412 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R413 1-216-049-11 RES-CHIP 1K 5% 1/10W R414 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R452 1-216-129-00 METAL CHIP 2.2M 5% 1/10W (AEP,UK) R453 1-216-049-11 RES-CHIP 1K 5% 1/10W (AEP,UK) R454 1-216-033-00 METAL CHIP 220 5% 1/10W (AEP,UK) R455 1-216-033-00 METAL CHIP 220 5% 1/10W (AEP,UK) R501 1-216-097-11 RES-CHIP 100K 5% 1/10W R502 1-216-073-91 RES-CHIP 10K 5% 1/10W R503 1-216-089-91 RES-CHIP 47K 5% 1/10W R504 1-216-025-11 RES-CHIP 100 5% 1/10W R505 1-216-049-11 RES-CHIP 1K 5% 1/10W R511 1-500-445-21 FERRITE 0 R512 1-500-445-21 FERRITE 0 R551 1-216-097-11 RES-CHIP 100K 5% 1/10W R552 1-216-073-91 RES-CHIP 10K 5% 1/10W R553 1-216-089-91 RES-CHIP 47K 5% 1/10W R554 1-216-025-11 RES-CHIP 100 5% 1/10W R555 1-216-049-11 RES-CHIP 1K 5% 1/10W R701 1-216-109-00 METAL CHIP 330K 5% 1/10W R702 1-216-097-11 RES-CHIP 100K 5% 1/10W R703 1-216-097-11 RES-CHIP 100K 5% 1/10W R704 1-216-089-91 RES-CHIP 47K 5% 1/10W R705 1-216-085-91 RES-CHIP 33K 5% 1/10W (US,CND) R705 1-216-081-00 METAL CHIP 22K 5% 1/10W (HK,KR,SP,CH R705 1-216-053-00 METAL CHIP 1.5K 5% 1/10W (AEP,UK) R706 1-216-073-91 RES-CHIP 10K 5% 1/10W R707 1-216-073-91 RES-CHIP 10K 5% 1/10W R708 1-216-073-91 RES-CHIP 10K 5% 1/10W R709 1-216-073-91 RES-CHIP 10K 5% 1/10W R710 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R751 1-216-025-11 RES-CHIP 100 5% 1/10W R752 1-216-049-11 RES-CHIP 1K 5% 1/10W R753 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R754 1-216-089-91 RES-CHIP 47K 5% 1/10W R755 1-216-089-91 RES-CHIP 47K 5% 1/10W R756 1-216-073-91 RES-CHIP 10K 5% 1/10W R757 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R774 1-216-073-00 RES-CHIP 10K 5% 1/10W R775 1-216-057-00 RES-CHIP 2.2K 5% 1/10W R776 1-216-073-91 RES-CHIP 10K 5% 1/10W R777 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R778 1-216-037-00 METAL CHIP 330 5% 1/10W R785 1-216-049-11 RES-CHIP 1K 5% 1/10W R792 1-216-097-11 RES-CHIP 100K 5% 1/10W R793 1-216-097-11 RES-CHIP 100K 5% 1/10W R794 1-216-097-11 RES-CHIP 100K 5% 1/10W < VIBRATOR > X361 1-579-280-31 VIBRATOR, CRYSTAL (16.9344MHz) X601 1-579-900-21 VIBRATOR, CRYSTAL (4.332MHz)(AEP,UK) X701 1-579-233-11 VIBRATOR, CERAMIC (5MHz) X702 1-567-098-41 VIBRATOR, CRYSTAL (32KHz) ******************************************************* 1-682-069-11 PANEL BOARD *********** < CAPACITOR > C606 1-163-038-91 CERAMIC CHIP 0.1uF 25V C611 1-124-589-11 ELECT 47uF 20% 16V C612 1-124-589-11 ELECT 47uF 20% 16V C613 1-163-038-91 CERAMIC CHIP 0.1uF 25V < CONNECTOR > * CN601 1-568-850-11 SOCKET, CONNECTOR 7P * CN602 1-568-941-11 PIN, CONNECTOR 3P < DIODE > D621 8-719-056-11 DIODE SML72423C-TP15 (`/1) < IC > IC601 8-742-129-00 IC SBX1971-51P < TRANSISTOR > Q622 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q623 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q651 8-729-900-53 TRANSISTOR DTC114EK Q652 8-729-900-53 TRANSISTOR DTC114EK < RESISTOR > R601 1-216-041-00 METAL CHIP 470 5% 1/10W R602 1-216-045-00 METAL CHIP 680 5% 1/10W R603 1-216-049-11 RES-CHIP 1K 5% 1/10W R606 1-216-017-91 RES-CHIP 47 5% 1/10W R609 1-216-061-91 RES-CHIP 3.3K 5% 1/10W R611 1-216-041-00 METAL CHIP 470 5% 1/10W R612 1-216-045-00 METAL CHIP 680 5% 1/10W R613 1-216-049-11 RES-CHIP 1K 5% 1/10W R614 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R615 1-216-057-00 METAL CHIP 2.2K 5% 1/10W Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. PANEL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 HCD-EX100 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark POWER R616 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R619 1-216-061-91 RES-CHIP 3.3K 5% 1/10W R622 1-216-041-00 METAL CHIP 470 5% 1/10W R623 1-216-037-00 METAL CHIP 330 5% 1/10W < SWITCH > S601 1-762-875-21 SWITCH, KEYBOARD (`/1) S602 1-571-532-21 SWITCH, TACTIL (DISPLAY) S603 1-762-875-21 SWITCH, KEYBOARD (FUNCTION) S604 1-762-875-21 SWITCH, KEYBOARD (TUNER/BAND) S611 1-762-875-21 SWITCH, KEYBOARD (u) S612 1-762-875-21 SWITCH, KEYBOARD (x) S613 1-762-875-21 SWITCH, KEYBOARD (TUNING -.m) S614 1-762-875-21 SWITCH, KEYBOARD (TUNING +M >) S615 1-762-875-21 SWITCH, KEYBOARD (VOL -) S616 1-762-875-21 SWITCH, KEYBOARD (VOL +) < TEST PIN > TP603 1-690-880-51 LEAD (WITH CONNECTOR) ****************************************************** A-4725-964-A POWER BOARD, COMPLETE (US,CND) A-4725-972-A POWER BOARD, COMPLETE (AEP,UK) A-4725-976-A POWER BOARD, COMPLETE (HK,KR,SP) A-4726-857-A POWER BOARD, COMPLETE (CH) ***************************** 1-533-293-11 FUSE HOLDER 4-224-739-01 CASE (TR), RUBBER 4-224-742-01 TUBE, RUBBER 4-224-743-01 RETAINER, IC 7-685-132-19 SCREW +P 2.6X5 TYPE2 NON-SLIT < CAPACITOR > C1 1-131-678-11 ELECT 82uF 20% 400V (HK,KR,SP,CH) C1 1-107-956-11 ELECT 220uF 20% 200V (US,CND) C1 1-131-714-11 ELECT 100uF 20% 400V (AEP,UK) C2 1-107-888-11 ELECT 47uF 20% 25V C3 1-130-477-00 MYLAR 0.0033uF 5% 50V C4 1-107-429-11 CERAMIC 0.0022uF 10% 1KV C5 1-162-290-31 CERAMIC 470PF 10% 50V C6 1-131-983-11 FILM 0.1uF 10% 275V C7 1-131-983-11 FILM 0.1uF 10% 275V C9 1-113-907-51 CERAMIC 0.0022uF 99% 250V C10 1-162-115-00 CERAMIC 330PF 10% 2KV C11 1-113-920-11 CERAMIC 0.0022uF 20% 250V C12 1-113-920-11 CERAMIC 0.0022uF 20% 250V C13 1-131-678-11 ELECT 82uF 20% 400V (HK,KR,SP) C13 1-131-714-11 ELECT 100uF 20% 400V (AEP,UK,CH) C14 1-113-920-11 CERAMIC 0.0022uF 20% 250V C21 1-164-159-11 CERAMIC 0.1uF 50V C901 1-107-425-11 CERAMIC 470PF 10% 1KV C902 1-131-969-11 ELECT 1800uF 20% 25V C903 1-131-970-11 ELECT 1500uF 20% 25V C904 1-163-038-91 CERAMIC CHIP 0.1uF 25V C905 1-163-038-91 CERAMIC CHIP 0.1uF 25V C911 1-107-425-11 CERAMIC 470PF 10% 1KV C912 1-131-969-11 ELECT 1800uF 20% 25V C913 1-131-970-11 ELECT 1500uF 20% 25V C914 1-163-038-91 CERAMIC CHIP 0.1uF 25V C915 1-163-038-91 CERAMIC CHIP 0.1uF 25V C931 1-107-425-11 CERAMIC 470PF 10% 1KV C932 1-126-768-11 ELECT 2200uF 20% 16V C939 1-124-995-11 ELECT 220uF 20% 10V C940 1-163-038-91 CERAMIC CHIP 0.1uF 25V C941 1-107-425-11 CERAMIC 470PF 10% 1KV C942 1-126-012-11 ELECT 470uF 20% 16V C949 1-124-995-11 ELECT 220uF 20% 10V C950 1-163-038-91 CERAMIC CHIP 0.1uF 25V C951 1-136-153-00 FILM 0.01uF 5% 50V C952 1-162-292-31 CERAMIC 680PF 10% 50V < CONNECTOR > * CN1 1-580-230-11 PIN, CONNECTOR (PC BOARD) 2P CN903 1-764-334-11 PLUG, CONNECTOR 11P < DIODE > D2 8-719-200-93 DIODE 11EQS10-TA2 D3 8-719-200-93 DIODE 11EQS10-TA2 D4 8-719-210-21 DIODE 11EQS04 D6 8-719-109-97 DIODE RD6.8ESB2 D7 8-719-911-19 DIODE 1SS119-25 D10 8-719-084-21 DIODE 10E6N-TA1B2 D11 8-719-084-21 DIODE 10E6N-TA1B2 D12 8-719-084-21 DIODE 10E6N-TA1B2 D13 8-719-084-21 DIODE 10E6N-TA1B2 D21 8-719-048-55 DIODE MTZJ-T-77-10C D22 8-719-110-53 DIODE RD20ESB2 D901 8-719-043-52 DIODE F5KQ60 D911 8-719-043-52 DIODE F5KQ60 D931 8-719-210-21 DIODE 11EQS04 D941 8-719-210-21 DIODE 11EQS04 D951 8-719-911-19 DIODE 1SS119-25 D952 8-719-911-19 DIODE 1SS119-25 D953 8-719-200-93 DIODE 11EQS10-TA2 D954 8-719-200-93 DIODE 11EQS10-TA2(AEP,UK,HK,KR,SP,CH) < GROUND TERMINAL > EPT1 1-537-770-21 TERMINAL BOARD, GROUND EPT2 1-537-770-21 TERMINAL BOARD, GROUND (US,CND) EPT901 1-537-770-21 TERMINAL BOARD, GROUND < FUSE > 0F1 1-533-451-11 FUSE, GLASS TUBE (DIA. 5) (3.15A/125V) (US,CND) 0F1 1-533-470-11 FUSE, GLASS TUBE (DIA. 5) (T3.15AL/250V) (AEP,UK,HK,KR,SP,CH) < FERRITE BEAD > FB1 1-412-473-21 INDUCTOR 0uH PANEL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 HCD-EX100 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark POWER < IC > IC1 8-749-019-48 IC STR-F6676-LF1352 IC933 8-759-288-53 IC LA5617 IC951 8-749-016-65 IC SE015N < COIL > L1 1-419-528-11 INDUCTOR 13mH L901 1-419-281-11 INDUCTOR 10uH L911 1-419-281-11 INDUCTOR 10uH < ISOLATER > PC1 8-749-013-68 IC PS2561-1-D PC2 8-749-013-68 IC PS2561-1-D < TRANSISTOR > Q21 8-729-111-29 TRANSISTOR 2SD1616A-K Q22 8-729-140-04 TRANSISTOR 2SB1116A-L Q23 8-729-119-76 TRANSISTOR 2SA1175-HFE Q951 8-729-620-05 TRANSISTOR 2SC2603-EF < RESISTOR > 0R1 1-219-237-11 SOLID 3.3M 20% 1/2W (US,CND) R2 1-249-426-11 CARBON 5.6K 5% 1/4W R3 1-247-843-11 CARBON 3.3K 5% 1/4W R4 1-249-415-11 CARBON 680 5% 1/4W 0R5 1-217-151-00 METAL 0.22 10% 2W 0R8 1-249-393-11 CARBON 10 5% 1/4W 0R9 1-215-903-11 METAL OXIDE 68K 5% 2W R10 1-247-895-00 CARBON 470K 5% 1/4W R11 1-249-433-11 CARBON 22K 5% 1/4W R21 1-249-425-11 CARBON 4.7K 5% 1/4W R22 1-249-424-11 CARBON 3.9K 5% 1/4W R23 1-247-881-00 CARBON 120K 5% 1/4W R24 1-249-439-11 CARBON 68K 5% 1/4W 0R939 1-219-119-81 FUSIBLE 0.1 5% 1/4W 0R949 1-219-119-81 FUSIBLE 0.1 5% 1/4W R951 1-249-419-11 CARBON 1.5K 5% 1/4W R952 1-249-401-11 CARBON 47 5% 1/4W R953 1-249-420-11 CARBON 1.8K 5% 1/4W R954 1-249-437-11 CARBON 47K 5% 1/4W R955 1-249-425-11 CARBON 4.7K 5% 1/4W R956 1-249-415-11 CARBON 680 5% 1/4W R957 1-249-409-11 CARBON 220 5% 1/4W (AEP,UK,HK,KR,SP,CH) < TRANSFORMER > 0T901 1-435-130-11 TRANSFORMER, POWER < THERMISTOR > 0TH1 1-803-806-31 THERMISTOR, NTC ****************************************************** A-4725-969-A REG BOARD, COMPLETE (US,CND) A-4725-974-A REG BOARD, COMPLETE (AEP,UK) A-4725-978-A REG BOARD, COMPLETE (HK,KR,SP) A-4726-859-A REG BOARD, COMPLETE (CH) *************************** < CAPACITOR > C891 1-164-159-11 CERAMIC 0.1uF 50V C892 1-164-159-11 CERAMIC 0.1uF 50V C893 1-164-159-11 CERAMIC 0.1uF 50V C894 1-164-159-11 CERAMIC 0.1uF 50V C895 1-164-159-11 CERAMIC 0.1uF 50V C896 1-164-159-11 CERAMIC 0.1uF 50V C897 1-163-038-91 CERAMIC CHIP 0.1uF 25V (AEP,UK,CH) C898 1-163-038-91 CERAMIC CHIP 0.1uF 25V (AEP,UK,CH) C899 1-163-038-91 CERAMIC CHIP 0.1uF 25V (AEP,UK,CH) C900 1-163-038-91 CERAMIC CHIP 0.1uF 25V (AEP,UK,CH) C933 1-164-346-11 CERAMIC CHIP 1uF 16V C934 1-126-926-11 ELECT 1000uF 20% 10V C935 1-163-038-91 CERAMIC CHIP 0.1uF 25V C936 1-126-964-11 ELECT 10uF 20% 50V C937 1-126-926-11 ELECT 1000uF 20% 10V C961 1-126-967-11 ELECT 47uF 20% 50V C962 1-164-159-11 CERAMIC 0.1uF 50V C963 1-126-967-11 ELECT 47uF 20% 50V < CONNECTOR > * CN901 1-568-832-11 SOCKET, CONNECTOR 13P < DIODE > D933 8-719-988-61 DIODE 1SS355TE-17 D934 8-719-200-82 DIODE 11ES2 D961 8-719-986-26 DIODE HZS12A3LTA < FERRITE BEAD > FB891 1-412-473-21 INDUCTOR 0UH (AEP,UK,CH) FB892 1-412-473-21 INDUCTOR 0UH (AEP,UK,CH) < IC > IC931 8-759-460-76 IC BA07FP-E2 IC932 8-759-231-53 IC M5F7805L < TRANSISTOR > Q961 8-729-026-68 TRANSISTOR 2SD2525(TP) Q962 8-729-202-67 TRANSISTOR 2SK246-GR3 Q963 8-729-900-53 TRANSISTOR DTC114EK Q964 8-729-120-28 TRANSISTOR 2SC1623-L5L6 < RESISTOR > R891 1-249-393-11 CARBON 10 5% 1/4W R892 1-249-393-11 CARBON 10 5% 1/4W R893 1-216-001-00 METAL CHIP 10 5% 1/10W (AEP,UK,CH) R894 1-216-001-00 METAL CHIP 10 5% 1/10W (AEP,UK,CH) Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. REG www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 HCD-EX100 R961 1-216-073-91 RES-CHIP 10K 5% 1/10W R962 1-216-049-11 RES-CHIP 1K 5% 1/10W R963 1-249-417-11 CARBON 1K 5% 1/4W < TERMINAL > TM801 1-537-238-11 TERMINAL BOARD ****************************************************** 1-682-073-11 SW BOARD ******** < SWITCH > S351 1-786-154-11 SWITCH, ROTARY (OPEN/CLOSE) ****************************************************** MISCELLANEOUS *************** 15 1-769-889-11 WIRE (FLAT TYPE) (7 CORE) 18 1-754-208-11 ANTENNA, FM (US,CND) 18 1-754-209-11 ANTENNA, FM (AEP,UK,CH,HK,KR,SP) 060 1-757-316-11 CORD, POWER (AEP,HK,SP,UK) 060 1-769-079-11 CORD, POWER (KR) 060 1-782-464-21 CORD, POWER (CH) 060 1-783-531-31 CORD, POWER (US,CND) 62 1-791-698-11 WIRE (FLAT TYPE) (16 CORE) 63 1-769-973-11 WIRE (FLAT TYPE) (13 CORE) 64 1-693-407-13 TUNER (US,CND) 64 1-693-408-12 TUNER (AEP,UK,HK,CH,KR,SP) 065 1-569-008-21 ADAPTOR, CONVERSION (HK,SP) 066 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (HK,UK) 127 1-769-973-11 WIRE (FLAT TYPE) (13 CORE) 152 A-4909-346-A BASE UNIT (KSM-770ACA) LCD701 1-804-474-11 DISPLAY PANEL, LIQUID CRYSTAL M351 X-4952-498-1 MOTOR ASSY *********************************************************************************** Ref. No. Part No. Description Remark Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. SW REG Ref. No. Part No. Description Remark **************** HARDWARE LIST **************** #1 7-685-870-01 SCREW +BVTT 3X5 (S) #2 7-685-246-14 SCREW +KTP 3X8 TYPE2 NON-SLIT #3 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S #4 7-621-775-08 SCREW +B 2.6X3 #5 7-685-534-14 SCREW +BTP 2.6X8 TYPE2 N-S #6 7-685-132-19 SCREW +P 2.6X5 TYPE2 NON-SLIT #7 7-624-105-04 STOP RING 2.3, TYPE -E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 HCD-EX100 MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2001. 07 New HCD-EX100 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
