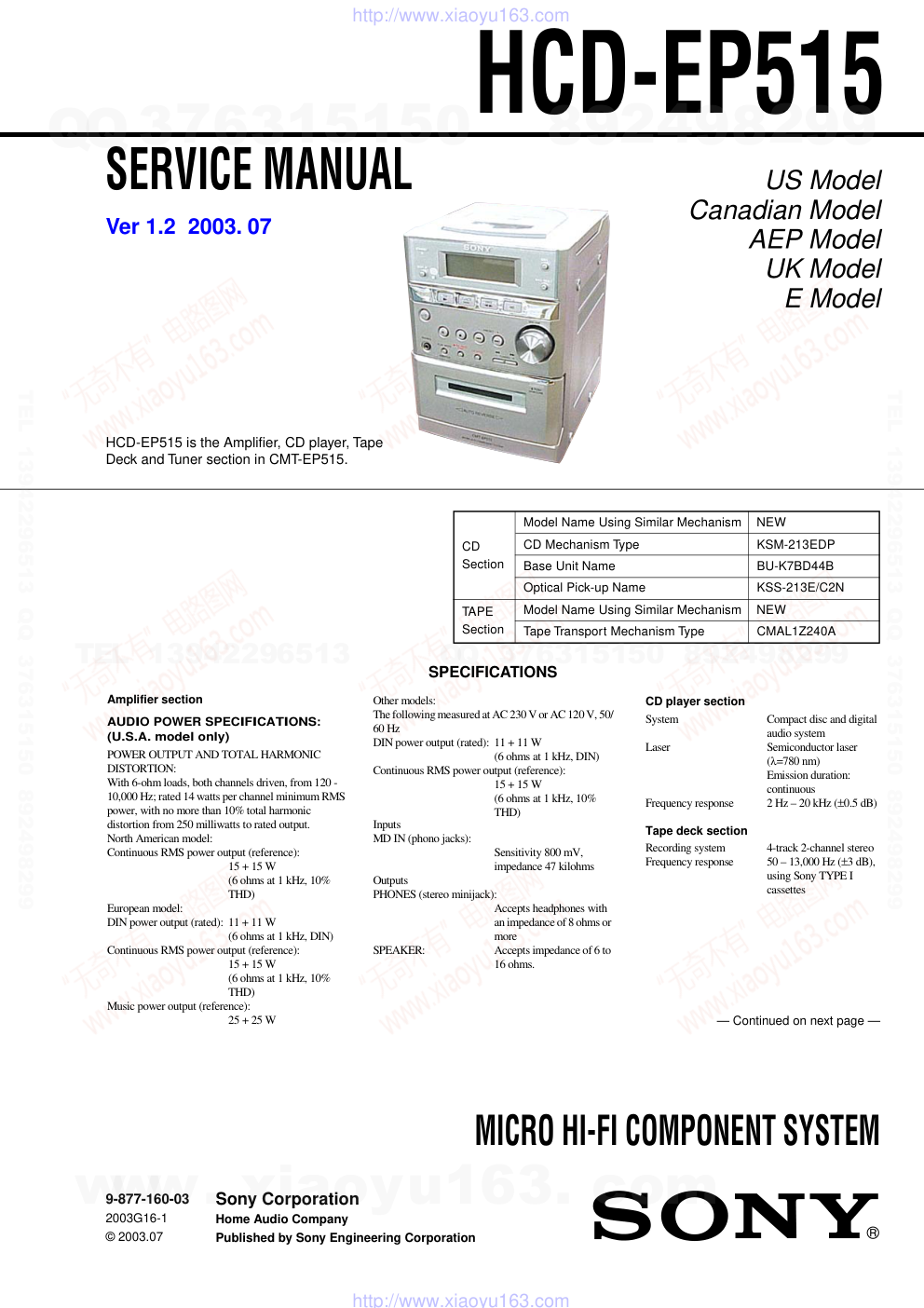

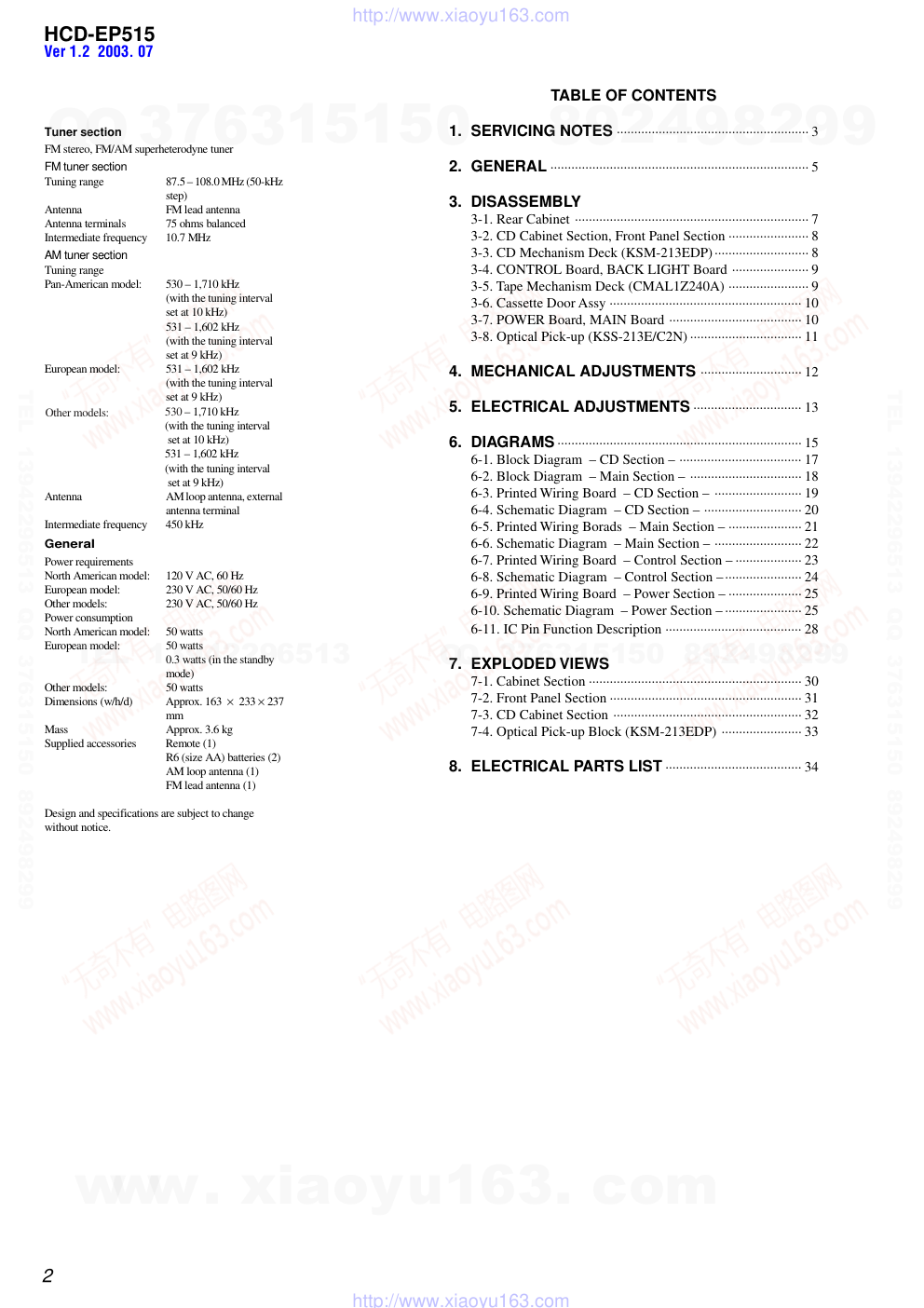

HCD-EP515 US Model Canadian Model AEP Model UK Model E Model SERVICE MANUAL MICRO HI-FI COMPONENT SYSTEM Sony Corporation Home Audio Company Published by Sony Engineering Corporation 9-877-160-03 2003G16-1 © 2003.07 HCD-EP515 is the Amplifier, CD player, Tape Deck and Tuner section in CMT-EP515. SPECIFICATIONS Ver 1.2 2003. 07 Model Name Using Similar Mechanism NEW CD CD Mechanism Type KSM-213EDP Section Base Unit Name BU-K7BD44B Optical Pick-up Name KSS-213E/C2N TAPE Model Name Using Similar Mechanism NEW Section Tape Transport Mechanism Type CMAL1Z240A CD player section System Compact disc and digital audio system Laser Semiconductor laser (λ=780 nm) Emission duration: continuous Frequency response 2 Hz – 20 kHz (±0.5 dB) Tape deck section Recording system 4-track 2-channel stereo Frequency response 50 – 13,000 Hz (±3 dB), using Sony TYPE I cassettes Amplifier section AUDIO POWER SPECIFICATIONS: (U.S.A. model only) POWER OUTPUT AND TOTAL HARMONIC DISTORTION: With 6-ohm loads, both channels driven, from 120 - 10,000 Hz; rated 14 watts per channel minimum RMS power, with no more than 10% total harmonic distortion from 250 milliwatts to rated output. North American model: Continuous RMS power output (reference): 15 + 15 W (6 ohms at 1 kHz, 10% THD) European model: DIN power output (rated): 11 + 11 W (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference): 15 + 15 W (6 ohms at 1 kHz, 10% THD) Music power output (reference): 25 + 25 W Other models: The following measured at AC 230 V or AC 120 V, 50/ 60 Hz DIN power output (rated): 11 + 11 W (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference): 15 + 15 W (6 ohms at 1 kHz, 10% THD) Inputs MD IN (phono jacks): Sensitivity 800 mV, impedance 47 kilohms Outputs PHONES (stereo minijack): Accepts headphones with an impedance of 8 ohms or more SPEAKER: Accepts impedance of 6 to 16 ohms. — Continued on next page — www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 HCD-EP515 1. SERVICING NOTES ······················································· 3 2. GENERAL ·········································································· 5 3. DISASSEMBLY 3-1. Rear Cabinet ··································································· 7 3-2. CD Cabinet Section, Front Panel Section ······················· 8 3-3. CD Mechanism Deck (KSM-213EDP)··························· 8 3-4. CONTROL Board, BACK LIGHT Board ······················ 9 3-5. Tape Mechanism Deck (CMAL1Z240A) ······················· 9 3-6. Cassette Door Assy ······················································· 10 3-7. POWER Board, MAIN Board ······································ 10 3-8. Optical Pick-up (KSS-213E/C2N) ································ 11 4. MECHANICAL ADJUSTMENTS ····························· 12 5. ELECTRICAL ADJUSTMENTS ······························· 13 6. DIAGRAMS ······································································ 15 6-1. Block Diagram – CD Section – ··································· 17 6-2. Block Diagram – Main Section – ································ 18 6-3. Printed Wiring Board – CD Section – ························· 19 6-4. Schematic Diagram – CD Section – ···························· 20 6-5. Printed Wiring Borads – Main Section – ····················· 21 6-6. Schematic Diagram – Main Section – ························· 22 6-7. Printed Wiring Board – Control Section – ··················· 23 6-8. Schematic Diagram – Control Section –······················ 24 6-9. Printed Wiring Board – Power Section – ····················· 25 6-10. Schematic Diagram – Power Section – ······················ 25 6-11. IC Pin Function Description ······································· 28 7. EXPLODED VIEWS 7-1. Cabinet Section ····························································· 30 7-2. Front Panel Section ······················································· 31 7-3. CD Cabinet Section ······················································ 32 7-4. Optical Pick-up Block (KSM-213EDP) ······················· 33 8. ELECTRICAL PARTS LIST ······································· 34 TABLE OF CONTENTS General Power requirements North American model: 120 V AC, 60 Hz European model: 230 V AC, 50/60 Hz Other models: 230 V AC, 50/60 Hz Power consumption North American model: 50 watts European model: 50 watts 0.3 watts (in the standby mode) Other models: 50 watts Dimensions (w/h/d) Approx. 163 × 233 × 237 mm Mass Approx. 3.6 kg Supplied accessories Remote (1) R6 (size AA) batteries (2) AM loop antenna (1) FM lead antenna (1) Design and specifications are subject to change without notice. Tuner section FM stereo, FM/AM superheterodyne tuner FM tuner section Tuning range 87.5 – 108.0 MHz (50-kHz step) Antenna FM lead antenna Antenna terminals 75 ohms balanced Intermediate frequency 10.7 MHz AM tuner section Tuning range Pan-American model: 530 – 1,710 kHz (with the tuning interval set at 10 kHz) 531 – 1,602 kHz (with the tuning interval set at 9 kHz) European model: 531 – 1,602 kHz (with the tuning interval set at 9 kHz) Antenna AM loop antenna, external antenna terminal Intermediate frequency 450 kHz Other models: 530 – 1,710 kHz (with the tuning interval set at 10 kHz) 531 – 1,602 kHz (with the tuning interval set at 9 kHz) Ver 1.2 2003. 07 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 HCD-EP515 SECTION 1 SERVICING NOTES Fig. A. Using an AC voltmeter to check AC leakage. 1.5 kΩ 0.15 µF AC voltmeter (0.75 V) To Exposed Metal Parts on Set Earth Ground SAFETY CHECK-OUT After correcting the original service problem, perform the following safety check before releasing the set to the customer: Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes.). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2 V AC range are suitable. (See Fig. A) CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the exterior. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. LASER DIODE AND FOCUS SEARCH OPERATION CHECK Carry out the “S curve check” in “CD section adjustment” and check that the S curve waveforms is output three times. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270 ˚C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPÉMENTS PUBLIÉS PAR SONY. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 HCD-EP515 Service Position of the CD Mechanism Deck Service Position of the Tape Cassette Mechanism Deck www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 HCD-EP515 SECTION 2 GENERAL This section is extracted from instruction manual. Main unit BASS/TREBLE 5 (13) Cassette compartment qs CD SYNC qd (12) DIRECTION qg (11, 12, 15) DISPLAY ws (9, 10, 16) Display window 2 DSG 4 (13) MD 6 (17) PHONES jack qh PLAY MODE qg (6, 7) PRESET +/– 8 (9) Remote sensor 1 TUNER BAND w; (8, 9) TUNING +/– 0 (8, 9) VOLUME 9 (14, 15) ?/1 (power) ql (5, 9, 14, 15) m/M (fast forward/rewind) 0 (6, 11) ./> (go back/go forward) 8 (5, 6, 7, 12, 13, 14, 15) x (stop) qj (6, 7, 11, 12, 19) X (pause) qk (6, 11) zREC PAUSE/START qf (12, 15) CD N (play) wa (6, 7) TAPE nN (play) 7 (11, 12, 15) Z PUSH OPEN/CLOSE (CD open/close) 3 (6) Z PUSH OPEN/CLOSE (tape open/close) qa (11) List of button locations and reference pages How to use this page Use this page to find the location of buttons and other parts of the system that are mentioned in the text. Illustration number r DISPLAY ws (9, 10, 16) R R Name of button/part Reference page ALPHABETICAL ORDER A – M P – Z BUTTON DESCRIPTIONS 1 2 3 4 5 6 7 8 9 q; qa qs qd qf qg qh qj qk ql w; wa ws www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 HCD-EP515 1 Press ?/1 to turn on the system. 2 Press CLOCK/TIMER SET. 3 Press ./ ./> repeatedly to set the hour. 4 Press CLOCK/TIMER SET. 5 Press ./ ./> repeatedly to set the minute. 6 Press CLOCK/TIMER SET. The clock starts working. To adjust the clock 1 Press CLOCK/TIMER SET. 2 Press ./> to select “CLOCK”, then press CLOCK/TIMER SET. 3 Do the same procedures as step 3 to 6 above. Setting the clock Remote control BASS +/– 0 (13) CLEAR 8 (8, 9) CLOCK/TIMER SELECT w; (14, 15) CLOCK/TIMER SET wa (5, 14, 15) DISPLAY 2 (9, 10, 16) DSG qa (13) MD qk (17) PLAY MODE/DIRECTION qd (6, 7, 11, 12, 15) PRESET +/– 5 (9) REPEAT/FM MODE qf (7, 9) SLEEP ql (13) TREBLE +/– 9 (13) TUNER BAND qh (8, 9) TUNER MEMORY qs (8) TUNING +/– 6 (8, 9) VOL +/– 7 (14, 15) ?/1 (power) 1 (5, 9, 14, 15) m/M (fast forward/rewind) 6 (6, 11) ./> (go back/go forward) 5 (5, 6, 7, 12, 14, 15) x (stop) 4 (6, 7, 11, 12, 19) X (pause) 3 (6, 11) CD N (play) qj (6, 7) TAPE nN (play) qg (11, 12, 15) ALPHABETICAL ORDER A – M P – Z BUTTON DESCRIPTIONS 1 wa w; ql qk qj qh qg qf qd qs qa 2 3 4 5 6 7 8 9 0 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 HCD-EP515 SECTION 3 DISASSEMBLY Note: Follow the disassembly procedure in the numerical order given. • This set can be disassembled in the order shown below. 3-1. Rear Cabinet REAR CABINET CD MECHANISM DECK (KSM-213EDP) OPTICAL PICK-UP (KSS-213E/C2N) CONTROL BOARD, BACK LIGHT BOARD POWER BOARD , MAIN BOARD TAPE MECHANISM DECK (CMAL1Z240A) CASSETTE DOOR ASSY SET CD CABINET SECTION, FRONT PANEL SECTION 1 two screws (+BVTP 3 × 10) 3 two screws (+BVTP 3 × 10) 4 two screws (+BVTP 3 × 10) 2 four screws (+BVTP 3 × 10) 5 two screws (+K 3 × 5) 6 two screws (+K 3 × 5) 7 rear cabinet www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 HCD-EP515 3-2. CD Cabinet Section, Front Panel Section 3-3. CD Mechanism Deck (KSM-213EDP) 8 connector (CN301) q; screw (+BVTP 3 × 10) qa two screws (+BVTP 3 × 10) 1 connector (S800) 9 connector (CN307) qf front panel section 5 CD cabinet section 4 claw 3 claw qs claw qd claw 2 wire (flat type) 21p (CN101) 6 wire (flat type) 20p (CN303) 7 wire (flat type) 15p (CN302) 1 two screws (+PWH 2.6 × 10) 4 two vibration proof rubbers (GRN) 5 CD mechanism deck (KSM-213EDP) 3 two vibration proof rubbers (PNK) 2 two screws (+PWH 2.6 × 10) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 HCD-EP515 3-4. CONTROL Board, BACK LIGHT Board 3-5. Tape Mechanism Deck (CMAL1Z240A) 1 knob volume 4 CONTROL board 7 BACK LIGHT board 2 four screws (+BVTP 3 × 10) 3 five screws (+BVTP 3 × 10) 5 Remove the soldering. 6 two claws 1 wire (flat type) 8p 2 three screws (+BVTP 3 × 10) 3 tape mechanism deck (CMAL1Z240A) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 HCD-EP515 3-6. Cassette Door Assy 3-7. POWER Board, MAIN Board 1 Open the cassette door assy. 3 cassette door assy claw 2 1 connector (AC IN) 2 connector (CN901) 5 two screws (+BVTP 3 × 10) 3 four screws (+BVTP 4 × 12) 6 MAIN board 4 POWER board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 HCD-EP515 3-8. Optical Pick-up (KSS-213E/C2N) 2 gear (A) 1 claw 5 sled shaft 6 KSS-213E/C2N 4 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 HCD-EP515 3.04 – 6.96 mN • m (31 to 71 g • cm) (0.43 – 0.98 oz • inch) 0.20 – 0.58 mN • m (2 to 6 g • cm) (0.02 – 0.08 oz • inch) 3.04 – 6.96 mN • m (31 to 71 g • cm) (0.43 – 0.98 oz • inch) 0.20 – 0.58 mN • m (2 to 6 g • cm) (0.02 – 0.08 oz • inch) 6.97 – 14.02 mN • m (71 to 143 g • cm) (0.98 – 1.99 oz • inch) 9.8 mN • m or more (100 g • cm or more) (1.4 oz • inch or more) 9.8 mN • m or more (100 g • cm or more) (1.4 oz • inch or more) CQ-102C CQ-102C CQ-102RC CQ-102RC CQ-201B CQ-403A CQ-403R Precaution 1. Clean the following parts with a denatured alcohol-moistened swab: record/playback heads pinch rollers erase head rubber belts capstan idlers 2. Demagnetize the record/playback head with a head demag- netizer. 3. Do not use a magnetized screwdriver for the adjustments. 4. After the adjustments, apply suitable locking compound to the parts adjusted. 5. The adjustments should be performed with the rated power supply voltage unless otherwise noted. Torque Measurement SECTION 4 MECHANICAL ADJUSTMENTS Mode FWD FWD back tension REV REV back tension FF/REW FWD tension REV tension Torque meter Meter reading www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 HCD-EP515 RFDC signal waveform Checking Location: CD board (Conductor side) RFAC Level Check Connection: Procedure: 1. Connect an oscilloscope to test point TP (RFAC) and TP (VC) on the CD board. 2. Turn the power on. 3. Put the disc (YEDS-18) in to playback the number five track. 4. Confirm that oscilloscope waveform is clear and check RFAC signal level is correct or not. Note: A clear RFAC signal waveform means that the shape “◊” can be clearly distinguished at the center of the waveform. RFAC signal waveform Checking Location: CD board (Conductor side) (See page 14) CD SECTION Note: 1. CD Block is basically designed to operate without adjustment. There- fore, check each item in order given. 2. Use YEDS-18 disc (3-702-101-01) unless otherwise indicated. 3. Use an oscilloscope with more than 10MΩ impedance. 4. Clean the object lens by an applicator with neutral detergent when the signal level is low than specified value with the following checks. S-curve Check Connection: Procedure: 1. Connect an oscilloscope to test point TP (FE) and TP (DVC) on the CD board. 2. Turn the power on. 3. Put the disc (YEDS-18) in and turned power switch on again and actuate the focus search. (actuate the focus search when disc table is moving in and out) 4. Check the oscilloscope waveform (S-curve) is symmetrical between A and B. And confirm peak to peak level within 2 ± 1 Vp-p. S-curve waveform Note: • Try to measure several times to make sure than the ratio of A : B or B : A is more than 10 : 7. • Take sweep time as long as possible and light up the brightness to obtain best waveform. Checking Location: CD board (Conductor side) RFDC Level Check Connection: Procedure: 1. Connect an oscilloscope to test point TP (RFDC) and TP (DVC) on the CD board. 2. Turn the power on. 3. Put the disc (YEDS-18) in to playback the number five track. 4. Confirm that oscilloscope waveform is clear and check RFDC signal level is correct or not. Note: A clear RFDC signal waveform means that the shape “◊” can be clearly distinguished at the center of the waveform. + – CD board TP (FE) TP (DVC) oscilloscope A B symmetry within 2 ± 1 Vp-p + – CD board TP (RFDC) TP (DVC) oscilloscope VOLT/DIV: 200 mV TIME/DIV: 500 ns level: 1.15 ± 0.35 Vp-p + – CD board TP (RFAC) TP (VC) oscilloscope VOLT/DIV: 200 mV TIME/DIV: 500 ns level: 1.35 ± 0.4 Vp-p SECTION 5 ELECTRICAL ADJUSTMENTS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 HCD-EP515 Checking Location: – CD BOARD (Conductor Side) – TP (VC) TP (FE) TP (TE) TP (RFDC) TP (DVC) TP (RFAC) IC103 IC101 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 HCD-EP515 SECTION 6 DIAGRAMS • Circuit Boards Location THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.) For schematic diagrams. Note: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • f : internal component. • 2 : nonflammable resistor. • 1 : fusible resistor. • C : panel designation. For printed wiring boards. Note: • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • f : internal component. • : Pattern from the side which enables seeing. • A : B+ Line. • B : B– Line. • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Abbreviation CND : Canadian model • Signal path. F : TUNER J : CD d : AUX E : PB (TAPE) a : REC (TAPE) Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Note: Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. CD board MAIN board REGULATOR board BACK LIGHT board POWER board CONTROL board HEADPHONE board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 HCD-EP515 • Waveforms – CD Board – 1.1Vp-p 1 IC103 qg (RFAC) (CD Play Mode) 2 IC101 el (FE) (CD Play Mode) 200mV/DIV, 1 µs/DIV 50mV/DIV, 200 µs/DIV 100mV/DIV, 200 µs/DIV 1V/DIV, 20ns/DIV 200mVp-p 250mVp-p 3 IC101 ra (TE) (CD Play Mode) 4 IC101 yj (XTAO) 5.4Vp-p 59ns 6 IC801 qh (CF2) 1V/DIV, 40ns/DIV 1V/DIV, 10 µs/DIV 5 IC801 qd (XT2) 4.8Vp-p 30.5 µs 4.0Vp-p 116ns 7 Q307 collector (Rec mode) 5V/DIV, 4 µs/DIV 11.3Vp-p 12.3 µs – CONTROL Board – – MAIN Board – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 17 HCD-EP515 6-1. Block Diagram – CD Section – : CD • Signal Path SQSO SQCK A/D CONVERTER CH1OUTF CH1OUTR 6 7 8 9 16 18 11 10 12 2 1 51 49 48 43 24 41 40 39 64 15 28 29 30 31 32 33 24 25 23 5 6 2 3 17 18 15 16 E B C D A CD +5V F DETECTOR A B C D RF SUMMING AMP FOCUS ERROR AMP TRACKING ERROR AMP RFAC FE IC103 RF AMP, FOCUS/TRACKING ERROR AMP TE E F F I-V AMP E I-V AMP Q101 AUTOMATIC POWER CONTROL APC LD AMP LD LD PD LASER DIODE RFAC ASYO ASYI ASYMMETRY CORRECTION DIGITAL PLL IC101 (1/2) DIGITAL SIGNAL PROCESSOR, DIGITAL FILTER, D/A CONVERTER DATA XLAT CLOK 14 5 6 MDP 26 7 8 XLON 3 XRST DIGITAL CLV D/A INTERFACE SE TE FE RFDC FOCUS/TRACKING/SLED SERVO DSP FOCUS/TRACKING/SLED PWM GENERATOR SFDR CH3FIN CH4SIN CH3RIN CH3OUTF CH3OUTR CH2FIN CH2RIN CH1FIN CH1RIN 20 MUTE SRDR TFDR TRDR FFDR FRDR S101 (LIMIT) EMPH WFCK GFS MIRR/DFCT/ FOK DETECTOR SERVO AUTO SEQUENCER SERVO INTERFACE CPU INTERFACE 18 63 62 61 19 SENS 20 32 33 31 36 27 SCOR CD SQSO CD SQCK CD XLT CD CLK CD DATA CD SENS CD SCOR 1 2 37 35 SCLK COUT 9 21 SSTP 27 FOK 22 23 MIRR DFCT TO SERVO INTERFACE CH4OUTF CH4OUTR (SPINDLE) MOTOR DRIVE MOTOR DRIVE CH2OUTF CH2OUTR M M (SLED) IC102 FOCUS/TRACKING COIL DRIVE, SPINDLE/SLED MOTOR DRIVE 2-AXIS DEVICE (TRACKING) (FOCUS) IC101 (2/2) DIGITAL SERVO PROCESSOR OPTICAL PICK-UP BLOCK KSM-213EDP SW PD I-V AMP 12 11 13 14 54 56 53 55 FILTER FILO PCO CLTV FILI EFM DEMODULATOR SERIAL IN INTERFACE DIGITAL FILTER, NOISE SHAPER PWM & INTEGRATOR BUFFER CLOCK GENERATOR TIMING LOGIC DIGITAL OUT INTERNAL BUS 16K RAM ERROR CORRECTOR SUBCODE PROCESSOR 60 92 CD XRST XTAI X101 16.9344MHz AIN1 AIN2 AOUT1 AOUT2 TO MIRR/DFCT/ FOK DETECTOR PCMD BCK LRCK C2PO DOUT 66 XTAO 67 70 77 LOUT1 LOUT2 R-CH 72 75 71 76 A MAIN SECTION EQ IN 15 3 4 EQ AC SUM 17 FEI RF DC AMP 28 RFDCO 29 RFDCI COIL DRIVE COIL DRIVE 10 9 CD PWM2 CD PWM1 PWM3 PWM2 PWM3 PWM2 93 CD LDON IC801 (1/2) CD L-CH RFAC VCA +7V +7V +5V SYSTEM CONTROLLER +3.3V REG Q102 CD +5V REG Q317 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 18 HCD-EP515 6-2. Block Diagram – Main Section – : TUNER : CD • Signal Path : AUX : PB (TAPE) : REC (TAPE) • R-CH is omitted due to same as L-CH. BIAS OSC Q307 +10V ERASE HEAD REC/PB HEAD DECK TU DI 4 TU CLK 5 TU CE 6 SYSTEM CONTROLLER IC801 TU DO 3 L R MD J303 J301 PHONES R CH L R FUCTION KEY REMOTE CONTROL RECEIVER IC802 S801-809 TUNER PACK L-CH R-CH R-CH D OUT D IN CLK CE TUNED R-CH TU TUNED 87 REC/PB SWITCH Q326-332 T301 BIAS OSC Q308 TA REC/PB 30 TA BIAS 98 TA SW 24 XT1 12 XT2 13 X801 32.768kHz CF1 15 CF2 16 X802 8.64MHz 99 AMP MUTE 29 RMC FUCTION KEY S810-817 20 KEY1 VOL ENCODER RV801 22 VOL ENCODER 2 MD LED 3 1 RESET SWITCH Q806 11 RESET RESET IC803 1 3 23 I POWER DOWN D907-910 RELAY DRIVE AC IN CD POWER CONTROL Q320 Q311 RY901 19 KEY0 34 CD ON +5V PB/REC EQ AMP IC302 AUX L 19 18 OUT L TU L 23 TAPE L 2 CD L 21 16 OUT R R-CH 13 CONT 28 REC OUT TU MUTE 1 RDS DATA 7 TU STEREO 38 STEREO MUTE R DATA R INT RDS CLK 26 R-CH R-CH L-CH F DATA 91 TA PLAY SW 39 TA MOTOR 88 TA END SW 8 TA SOL 28 CD OPEN/CLOSE 94 CD OPEN POWER AMP R CH J302 SPEAKER SEG1 SEG33 83 86 COM0 COM3 FLUORESCENT DISPLAY LCD801 POWER CONTROL D810 µCON +B +5.6V (SUB) D811 18 I POWER MONITOR Q315 LINE FILTER LF901 +7V REG Q319 +7V IC302 +5V +5V Q309 14 6 5 2 IC303 97 AMP STBY 12 D809 µCON +B +10V REG IC305 1 3 D916-919 D911-914 +5V REG Q305 TU +5V +5V REG Q310 +10V D319-321 POWER AMP VCC AC DET Q333 IC302 -5V -5V REG Q306 POWER MONITER Q338 +5.6V REG Q312-314 +10V D317 95 POWER ON +5.6V( SUB) Q809 MECHANISM BLOCK SW1 PLAY T SOL DRIVE Q321,322 MOTOR DRIVE Q323,325 SW2 R REC SW3 F REC SW4 PACK SW5 T END M M1 DECK MOTOR 45 53 56 79 . 41 TA LED 42 TU LED 43 CD LED 40 ST/BY 96 BL ON LED DRIVE Q801-805 D802-806 LED DRIVE Q808 D701-703 (BACK RIGHT) R-CH L OUT2 L OUT1 A CD SECTION S800 (OPEN) (MAIN) +5V +5V REG Q339 T902 POWER (MAIN) TRANSFORMER T901 POWER (SUB) TRANSFORMER w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 19 HCD-EP515 6-3. Printed Wiring Board – CD Section – Ref. No. Location D101 F-5 IC101 E-4 IC102 C-5 IC103 D-2 Q101 C-2 Q102 G-5 • Semiconductor Location • See page 15 for Circuit Boards Location. IC102 IC101 IC103 TP (VC) TP (RFAC) TP (DVC) TO CONTROL BOARD CN803 (Page 23) 1-680-849- 1 2 A B C D E F G 3 4 5 6 7 8 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 20 HCD-EP515 6-4. Schematic Diagram – CD Section – • See page 16 for Waveforms. • See page 26 for IC Block Diagrams. KSM-213EDP CN803 BOARD CONTROL 0uH 0uH 24 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 21 HCD-EP515 6-5. Printed Wiring Borads – Main Section – • See page 15 for Circuit Boards Location. IC302 IC303 IC305 (AEP,UK) (US,CND,KR) TUNER PACK TO CONTROL BOARD CN802 (Page 23) TO CONTROL BOARD CN805 (Page 23) L-CH R-CH ERASE REC/PB HEAD (REC/PLAY/ERASE) TO POWER BOARD CN901 (Page 25) PHONES + - - + L R SPEAKER IMPEDANCE USE6-16 L R MD 1 2 A B C D E F G 3 4 5 6 7 8 9 10 Ref. No. Location D301 E-6 D302 C-5 D303 B-7 D304 C-6 D305 E-5 D306 F-5 D310 E-5 D311 B-5 D312 A-7 D313 B-7 D317 E-6 D319 G-5 D320 G-5 D321 G-4 IC302 D-4 IC303 F-3 IC305 G-1 Q305 E-5 Q306 E-5 Q307 D-6 Q308 D-6 Q309 D-6 Q310 B-5 Q311 E-6 Q312 E-5 Q313 E-6 Q314 E-5 Q315 E-6 Q317 B-7 Q319 B-6 Q320 B-6 Q321 B-6 Q322 B-6 Q323 B-5 Q325 B-5 Q326 D-5 Q327 D-5 Q328 C-5 Q329 C-5 Q330 C-5 Q331 C-5 Q332 C-5 Q333 E-6 Q338 E-6 Q339 C-6 • Semiconductor Location Ver 1.2 2003. 07 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 22 HCD-EP515 6-6. Schematic Diagram – Main Section – • See page 16 for Waveform. • See page 27 for IC Block Diagrams. Ver 1.2 2003. 07 IC302 C103 C203 C108 C208 C110 C210 C114 R312 R313 C226 C126 C301 Q305 C303 C302 C304 C322 C309 L101 L102 L202 L201 C115 C215 Q313 Q312 Q315 Q309 C315 C101 C201 R205 R103 R203 R202 R102 R111 R211 R113 R213 R220 R120 R219 R119 R109 R209 J303 R122 R222 R303 Q306 R226 R126 R301 R302 CN301 R325 R324 R323 D310 R321 Q308 R315 C319 C327 D311 CN302 CN303 Q310 R316 Q317 Q320 Q321 Q322 Q325 R318 R330 D303 R329 R304 R305 D302 R319 R320 C312 C313 Q328 Q329 Q330 Q327 Q326 R336 D317 Q323 R331 R328 Q319 R317 R348 D312 D313 Q311 Q314 C228 C128 C129 R326 R350 R351 Q333 D301 Q338 D305 D306 R349 C106 C132 C232 Q307 R136 R137 R237 R236 R108 R208 R115 R215 R217 R117 R216 R116 R218 R118 R106 R207 R206 R107 C202 C102 R314 C316 R332 C335 Q339 R124 R224 R143 R243 R322 C112 C212 C218 C109 C209 R306 R123 R223 R114 R214 C111 C211 R104 R204 R356 R357 R225 R125 C127 C227 R232 D319 D320 D321 R327 R311 C317 C349 R221 R121 R228 R131 R231 C314 R101 R201 R355 R354 CN307 CNP305 CNP306 CN309 T301 R112 R212 C207 C305 C113 C213 C214 C233 C133 C104 C204 C206 R105 C107 R309 C326 C324 C336 C345 C329 C331 C332 C330 C348 C320 R310 C318 R352 C344 C343 Q331 Q332 C347 C346 R139 C123 J302 R129 R130 C121 C221 R230 R229 C311 R238 R138 C118 C134 R132 C234 R128 C119 C310 C219 C323 C333 J301 IC305 CNP308 IC303 C217 C117 C216 C116 C220 C120 C350 R239 C229 C223 D304 C328 BD3881FV 100p 100p 3300p 3300p 180p 180p 0.47 50V 4.7k 47k 220p 220p 10p KTC3203Y-AT 0.01 22 25V 0.01 0.01 1000 16V 4.7 50V 4.7 50V KTC3203Y KTC3203Y KRC402-RTK KRC402-RTK 47 25V 1000p 1000p 390k 470 470 39k 39k 2.2k 2.2k 1k 1k 10k 10k 1.5k 1.5k 2.2k 2.2k 2P 68k 68k 4.7k KTA1271Y-AT 22k 22k 10k 4.7k 100k 2.2k 1k MTZJ-T-77-5.6B 100k KTA1271Y 2.2k 0.01 47 25V MTZJ-T-77-5.6B KTC3205Y 470 KTC3205Y KRC402-RTK KTA1271Y-AT KRC402-RTK KRC402-TRK 470 47k MTZJ-T-77-5.6B 1k 470 470 1SS133T-77 1M 4.7k 220p 100 16V 2SK2158 2SK2158 2SK2158 KTA1504 KTA1504 4.7k 1SS133T-77 KTA1271Y-AT 47k 1k KTA1271Y-AT 47k 1k 1N4002 1N4002 KTA1271Y-AT KTA1271Y-AT 22 50V 22 50V 22 50V 100k 10k 10k KRC402-RTK 1SS133 KRC402-RTK MTZJ-T-77-5.1B MTZJ-T-77-5.1B JR 0.022 4.7 50V 4.7 50V KTC3205Y-A 10k 4.7k 4.7k 10k 8.2k 8.2k 3.3k 3.3k 1k 1k 8.2k 8.2k 4.7k 4.7k 5.6k 150k 5.6k 150k 1000p 1000p 5.6k 6800p 1k 0.01 KTC3203Y 22k 22k 10k 10k 1k 3300p 3300p 0.033 470p 470p 10k 2.2k 2.2k 1.8k 1.8k 5600p 5600p 82 82 47k 47k 22k 22k 470p 470p 1k 1N4002B 1N4002B 1N4002B 10k 22k 1000p 47 10V 1k 1k 1k 1k 1k 0.012 5.6k 5.6k 100k 10k BIAS OSC 2.2 50V 220 10V 0.22 50V 0.22 50V 0.47 50V 0.047 0.047 47 10V 47 10V 0.022 390k 2.2 50V 4.7 2200p 220 16V 22 50V 100 16V 100 16V 0.01 100 16V 220 10V 0.1 0.01 3.3 0.01 470 47 25V 47 25V 0.1 470 16V 180 1000 16V 2.2 2.2 0.1 0.1 2.2 2.2 10 50V 180 180 0.033 2200p 1k 2200p 1k 4.7 50V 47 25V 4.7 50V 4700 25V 470 16V KIA7809API 3P LA4663N 1200p 1200p 470p 470p 0.1 0.1 0.047 180 22 50V 1000 16V MTZJ-T-77 -5.6B 100 16V * * * * * * w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 23 HCD-EP515 6-7. Printed Wiring Board – Control Section – • See page 15 for Circuit Boards Location. IC801 IC803 IC802 DSG BASS/TREBLE RED WHT S800 (OPEN) MD VOLUME MD TAPE TAPE 21 TO CD BOARD CN101 (Page 19) RESET TUNING CD SYNC TAPE MECHANISM DECK REC PAUSE/ START PLAYMODE DIRECTION 8 TO MAIN BOARD CN302 (Page 21) (Page 21) TO MAIN BOARD CN303 STANDBY DISPLAY CD CD TUNER BAND (US,CND,KR) (AEP,UK) FLUORESCENT INDICATOR TUBE 37 31 30 25 20 15 10 5 1 2 A B C D E 3 4 5 6 7 8 D701-703 (BACK LIGHT) 1 3 Ref. No. Location D701 E-1 D702 D-1 D703 D-1 D801 D-5 D802 C-4 D803 C-6 D804 C-5 D805 C-4 D806 B-7 D807 D-3 D808 D-3 D809 C-6 D810 C-6 D811 E-3 D812 E-3 IC801 B-4 IC802 B-6 IC803 C-3 Q801 C-3 Q802 C-6 Q803 C-5 Q804 C-5 Q805 A-7 Q806 D-3 Q808 C-3 Q809 D-5 • Semiconductor Location Ver 1.2 2003. 07 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 24 HCD-EP515 6-8. Schematic Diagram – Control Section – • See page 16 for Waveform. LCD801 D808 R869 C809 C807 C805 C803 C804 S801 S802 S803 S804 S805 S806 R851 IC803 R893 R892 R894 D801 R882 R837 R839 R840 R841 R842 R843 R844 R845 R846 R847 R848 R849 R801 R802 R803 R804 R808 R810 R811 R815 R817 R818 R819 R827 R829 RV801 R824 R823 R822 R821 R812 C825 C826 R860 R852 R853 R854 R855 R856 R857 R861 R862 R864 R865 R866 R867 R858 R859 C808 S807 S808 S809 S810 S811 S812 S813 S814 S815 S816 S817 R879 R895 R816 R878 C828 C829 Q806 Q808 D806 D807 R889 R880 R809 C812 R883 R884 R885 R886 IC802 C813 C814 R871 R872 R874 R873 Q809 R833 R834 R807 R806 D809 D810 R700 R701 C801 C802 D802 D803 D804 D805 R887 IC801 D701 D702 D703 D811 D812 R890 R891 R800 R825 R826 R831 R863 R813 R835 R870 R702 R704 R711 R709 R706 L801 CNP806 CNP804 CNP807 R838 R836 SW1 SW2 SW3 SW4 SW5 CN802 CN803 CN801 Q801 Q802 Q803 Q804 Q805 S800 CN805 R708 R707 R710 R712 R832 R850 R805 X801 R820 R814 R705 R703 C816 C815 R828 R830 C810 C830 C824 C823 C831 C832 R881 C811 R875 R876 X802 1SS133T-77 47k 0.01 0.01 0.01 0.01 0.01 10k PST592C 47k 47k 22k 1SS133T-77 100k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 0.1 B 0.1 B 10k 470 680 1k 1.5k 2.2k 4.7k 470 680 1.5k 2.2k 4.7k 10k 10k 22k 18p 10k 10k 22k 10k 0.01 0.01 KTC3875Y KRC402-RTK SEL2215S-CD 1SS133T-77 1k 1k 220k 1000p 470 470 470 470 NJL63H400A 20p 20p 22k 33k 22k 22k KRC102S 47k 47k 1k 1k 1SS133T-77 1SS133T-77 0 47k 24p 24p SELS6B14C-TP5 SELS6B14C-TP5 SELS6B14C-TP5 SELS6B14C-TP5 1k LC877356A-51E1 SELS6B14CS-TP5 SELS6B14CS-TP5 SELS6B14CS-TP5 1SS133T-77 1SS133T-77 1k 1k 1k 1k 1k 1k 1k 22k 47k 47k 390k 4.7k 150 150 4.7k 1k 1k KRC402-RTK KRC402-RTK KRC402-RTK KRC402-RTK KRC402-RTK 150 150 150 150 100k 1k 1k 32.768KHz 56k 47k 100 100 1 50V 1 50V 1k 1k 22 6.3V 0.1 47 6.3V 470 6.3V 0.1 0.1 100 22 6.3V 47k *1 8.64MHz R876 US, CND AEP, UK KR O No MT 4.7 k *1 Ver 1.2 2003. 07 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 25 HCD-EP515 6-9. Printed Wiring Board – Power Section – 6-10. Schematic Diagram – Power Section – • See page 15 for Circuit Boards Location. (US,CND) AC IN T901 POWER TRANSFORMER (SUB) T902 POWER TRANSFORMER (MAIN) 6 TO MAIN BOARD CNP305 (Page 21) 1 2 A B C D E F 3 4 5 6 CN902 Ref. No. Location D906 B-2 D907 C-3 D908 C-3 D909 B-2 D910 A-2 D911 C-2 D912 C-2 D913 C-3 D914 C-2 D916 C-2 D917 B-2 D918 C-2 D919 B-2 D920 B-2 D921 B-2 • Semiconductor Location 6 RY901 LF901 C905 C908 C909 D906 D916 D919 D914 D912 D920 D921 R901 R902 D907 D908 D910 D909 CN902 T902 R911 T901 C906 D917 D918 C907 C911 D911 D913 C912 C910 CN901 0.022 0.022 0.022 1SS133T-77 1N5401 1N5401 1N4002 1N4002 1SS133 1SS133 47k 47k 1N4002 1N4002 1N4002 1N4002 3.3M 1/2W 0.022 1N5401 1N5401 0.022 0.022 1N4002 1N4002 0.022 0.022 7P AC IN w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 26 HCD-EP515 LEVEL SHIFT INTERFACE INTERFACE INTERFACE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 20 21 22 23 24 25 26 27 28 19 18 17 16 15 F R R F F R R F R R F F MUTE THERMAL SHUTDOWN VREFOUT VREFIN POWVCC CH1FIN CH1RIN CH2FIN CH2RIN CH2OUTR CH2OUTF CH1OUTR CH1OUTF CAPAIN1 CAPAIN2 GND PRFVCC MUTE POWVCC CH4SIN' CH4SIN CH4BIN CH3FIN CH3RIN CH3OUTR CH3OUTF CH4OUTR CH4OUTF CAPAIN3 GND • IC Block Diagrams IC101 CXD3017Q IC102 BA5974FP-E2 TE RFDC CE IGEN AVSS0 ADIO AVDD0 CLTV FILO AVSS3 VSS AVDD3 DOUT VDD PCO FILI ASYO ASYI RFAC BIAS SSTP DFCT MIRR MDP LOCK FOK SFDR VSS TEST FRDR FE VC COUT SE XTSL TES1 SRDR TFDR FFDR TRDR 2 1 70 71 68 69 66 67 64 65 62 61 63 73 74 72 75 76 77 78 79 80 4 XRST 3 SQCK SQSO 5 9 8 7 6 56 60 53 54 55 59 57 58 51 52 48 49 50 47 44 45 46 43 41 42 XLAT CLOK SENS SYSM DATA XUGF XPCK GFS C2PO WFCK 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 32 33 30 31 36 37 34 35 39 40 38 28 27 29 SPOA ATSK SCLK VDD SCOR SPOB XLON XTAI XVDD EMPH AVDD1 AOUT1 AIN1 XTAO XVSS AIN2 AOUT2 AVDD2 RMUT LOUT2 LOUT1 BCK LRCK PCMD LMUT AVSS1 AVSS2 CPU INTERFACE SERVO AUTO SEQUENCER SERIAL IN INTERFACE OVER SAMPLING DIGITAL FILTER 3rd ORDER NOISE SHAPER PWM PWM EFM DEMODULATOR TIMING LOGIC DIGITAL OUT D/A INTERFACE DIGITAL PLL ASYMMETRY CORRECTOR CLOCK GENERATOR MIRR, DFCT, FOK DETECTOR DIGITAL CLV SUBCODE PROCESSOR SERVO INTERFACE SERVO DSP FOCUS SERVO TRACKING SERVO SLED SERVO PWM GENERATOR FOCUS PWM GENERATOR TRACKING PWM GENERATOR SLED PWM GENERATOR 16K RAM ERROR CORRECTOR INTERNAL BUS A/D CONVERTER OPERATIONAL AMPLIFIER ANALOG SWITCH – CD Board – IC103 CXA2581N-T4 RW/ROM RW/ROM EQ ON/OFF VOFST VOFST DVC VC VC VC RW/ROM VC DVC 30 29 28 + – + – DVC VCC DVC 27 26 25 24 RW/ROM EQ 23 22 21 20 19 RFAC VCA VCC + – DVC + – + – RW/ROM VC RW/ROM DVC + – 3 A B C D B C A A A B C D B C D D + – 1 2 APC AMP 5 6 7 8 9 4 RFAC SUMMING AMP RW/ROM APC-OFF (Hi-Z) RW/ROM (H/L) VOFST VC RW/ROM + – 10 11 GM GM 18 17 16 B D A C 13 14 15 12 EQ IN LD PD GND A B C D AC SUM E F DVCC DVC RFAC SW DC OFST RFDCI RFDCO VC RFC VFC BST RFG VCC CEI CE TE BAL TE FEI FE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 HCD-EP515 REC-O_L REC-O_R TUNER-R TUNER-L CD-L AUX-L OUT-L OUT-R TON_L-L TON_L-R AUX-R CD-R VSS TON_H-R TON_H-L TAPE-L TAPE-R IC302 BD3881FV – MAIN Board – IC303 LA4663N 1 RIPPLE FILTER/ STARTING TIME 2 IN1 3 PRE GND 4 IN2 5 STANDBY SIGNAL MUTE 6 VCC1 7 VCC2 8 –OUT2 +OUT2 9 POWER GND1 POWER GND2 10 +OUT1 –OUT1 11 12 13 14 + – + – INPUT AMP INPUT AMP OUTPUT AMP OUTPUT AMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 HCD-EP515 6-11. IC Pin Function Description • IC801 LC877356A-51E1 (SYSTEM CONTROLLER) Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 to 53 54 55 56 to 79 80 to 82 83 to 86 I/O O O O I O O I I O O I I O — I O — I I I I I I I O I I O I O O O O O O I I I I O O O O — O — — O — O Pin Name TU MUTE MD LED TU DO TU DI TU CLK TU CE RDS DATA TA ENDSW CD PWM1 CD PWM2 RESET XT1 XT2 VSS1 CF1 CF2 VDD1 I POWER MONITOR KEY0 KEY1 AREA VOL ENCODER I POWER DOWN TA-SW CLK SHIFT RDS CLOCK CD SCOR TA SOL RMC TA R/P CD DATA CD XLT CD CLK CD ON CD SQCK CD SENS CD SQSO TU STEREO TA PLAYSW ST/BY TA LED TU LED CD LED NC SEG VDD2 VSS2 SEG LCD BIAS3 to 1 LCD COM0 to 3 Description Muting signal output to the tuner MD LED control signal output Data output to the tuner Data input from the tuner Clock signal output to the tuner Tuner chip enable signal output to the tuner RDS data input from the tuner Tape deck reel switch signal input PWM1 signal output to the CD unit PWM2 signal output to the CD unit Reset signal input from the reset IC (IC803) Resonator terminal (32.768kHz) Resonator terminal (32.768kHz) Ground terminal Resonator terminal (8.64MHz) Resonator terminal (8.64MHz) Power supply terminal AC power detection signal input Key AD input 0 Key AD input1 Destination setting terminal Encoder signal input from the volume encoder Power down detection signal input Tape switch status signal input from the tape deck Clock shift control signal output RDS clock input from the tuner SCOR (SUBQ request) signal input from the CD unit Solenoid control signal output to the tape deck Remote sensor signal input REC/PLAY control signal output to the REC/PLAY switch circuit Data output to the CD unit Latch signal output to the CD unit Clock output to the CD unit CD power supply control signal output SUBQ clock output to the CD unit SENS signal input from the CD unit SUB-Q data input from the CD unit Stereo/mono detection signal input from the tuner Play switch signal input from the tape deck STANDBY LED control signal output TAPE LED control signal output TUNER LED control signal output CD LED control signal output Not used (open) Segment signal output to the liquid crystal display module Power supply terminal Ground terminal Segment signal output to the liquid crystal display module Output bias power supply terminal for the liquid crystal display module Common signal output to the liquid crystal display module www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 HCD-EP515 Pin No. 87 88 89 90 91 92 93 94 95 96 97 98 99 100 I/O I O — — O O O I O O O O O O Pin Name TU TUNED TA MOTOR VSS3 VDD3 F DATA CD XRST CD LDON CD OPEN POWER ON BL ON AMP ST-BY TA BIAS AMP MUTE AU MUTE Description Tuner tuned status signal input Motor control signal output to the tape deck Ground terminal Power supply terminal Control signal output to the sound processor Reset signal output to the CD unit LD ON signal output to the CD unit CD door open/close switch signal input Power relay control signal output Back light control signal output Standby control signal output to the power amplifier Bias control signal output to the bias oscillation circuit Muting control signal output to the power amplifier Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SECTION 7 EXPLODED VIEWS 30 HCD-EP515 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. NOTE: • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Abbreviation CND :Canadian model KR :Korean model 1 A-4732-658-A MAIN BOARD, COMPLETE (AEP, UK) 1 A-4732-667-A MAIN BOARD, COMPLETE (US, CND, KR) 6 1-688-191-11 REGULATOR BOARD 7 4-245-014-01 CABINET REAR 08 1-769-079-22 CORD, POWER (KR) 08 1-769-744-52 CORD, POWER (AEP, UK) 08 1-783-531-22 CORD, POWER (US,CND) 9 1-688-188-11 POWER BOARD 11 1-693-619-11 TUNER (FM/AM) (AEP,UK) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 11 1-693-622-11 TUNER (FM/AM) (KR) 11 1-693-624-11 TUNER (FM/AM) (US, CND) 0T902 1-439-769-11 TRANSFORMER, POWER (KR) 0T902 1-439-778-11 TRANSFORMER, POWER (AEP, UK) 0T902 1-439-780-11 TRANSFORMER, POWER (US, CND) #1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S #3 7-685-647-11 SCREW +B 3X10 #6 7-685-661-14 SCREW +BVTP 4X12 TYPE2 IT-3 #7 7-685-247-14 SCREW +KTP 3X10 TYPE2 NON-SLIT 7-1. Cabinet Section 9 8 7 front panel section not supplied not supplied not supplied not supplied not supplied not supplied 1 6 11 CD cabinet section T902 #1 #1 #1 #1 #1 #1 #1 #3 #1 #1 #7 #7 #7 #7 #1 #1 #1 #6 Ver 1.2 2003. 07 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 HCD-EP515 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 A-4737-142-A DOOR CASSETTE ASSY 52 4-245-034-01 SPRING CASSETTE 54 4-245-018-01 HOLDER CASSETTE 55 4-245-032-01 KNOB VOLUME 56 4-245-022-01 DECORATION FUNCTION 57 A-4737-134-A CABI FRONT ASSY (AEP, UK) 57 A-4737-183-A CABI FRONT ASSY (US, CND, KR) 58 4-245-029-01 BUTTON (DISPLAY) 59 4-245-027-01 KNOB (FUNCTION) 60 4-245-028-01 BUTTON (BASS/TRE) 61 4-245-026-01 KNOB (POWER) 62 A-4732-653-A CONTROL BOARD, COMPLETE (AEP, UK) 62 A-4732-665-A CONTROL BOARD, COMPLETE (US, CND) 62 A-4749-451-A CONTROL BOARD, COMPLETE (KR) 63 4-231-841-01 SPRING (HEART CAM-B) 64 4-224-104-41 DAMPER 65 1-796-351-51 MECHANISM, SINGLE CASSETTE 66 4-960-167-01 SCREW (3X8) (DIA. 10), +WH 67 4-245-033-01 HOLDER LED 68 4-245-035-01 ILLUMINATOR 69 1-688-190-11 BACK LIGHT BOARD #1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S #2 7-685-862-09 SCREW +BVTT 2.6X6 (S) 7-2. Front Panel Section 51 52 54 55 56 57 58 66 59 61 60 67 68 62 69 63 64 65 #1 #1 #1 #1 #2 #2 not supplied not supplied not supplied not supplied not supplied not supplied not supplied Ver 1.2 2003. 07 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 HCD-EP515 101 X-4955-506-1 DOOR CD ASSY 102 4-248-711-11 SPRING, CD 103 4-245-015-01 CABINET, TOP (US,CND) 103 4-245-015-11 CABINET, TOP (AEP,UK) 104 4-242-171-01 DAMPER 150 N 105 4-247-493-01 COVER, CD 106 1-757-055-11 WIRE, PARALLEL (FFC) (16 CORE) 107 3-931-379-31 RUBBER, VIBRATION PROOF 108 3-931-379-21 RUBBER, VIBRATION PROOF Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 7-3. CD Cabinet Section 110 A-4728-536-A CD BOARD, COMPLETE 111 4-246-193-01 HOLDER, CHUCK A 112 4-246-191-01 PLATE, MAGNET 113 4-249-238-01 MAGNET 114 4-246-192-01 BASE, CHUCK N 115 3-921-725-11 SCREW (2.6X10), +PWH S800 1-692-960-11 SWITCH, PUSH (1 KEY) (OPEN) #4 7-621-255-32 SCREW +P 2X5 101 111 102 103 104 105 106 107 107 115 115 108 108 110 #4 112 113 114 S800 KSM-213EDP 115 115 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 HCD-EP515 7-4. Optical Pick-up Block (KSM-213EDP) 602 Ref. No. Part No. Description Remarks 0602 8-820-221-01 OPTCAL PICK-UP KSM-213EDP The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. Ver 1.1 2003. 07 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SECTION 8 ELECTRICAL PARTS LIST 34 HCD-EP515 When indicating parts by reference number, please include the board name. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • CAPACITORS: uF: µF • RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable • COILS uH: µH • SEMICONDUCTORS In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD... • Abbreviation CND : Canadian model KR : Korean model Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 1-688-190-11 BACK LIGHT BOARD **************** < DIODE > D701 8-719-075-50 DIODE SELS6B14C-TP5 (BACK LIGHT) D702 8-719-075-50 DIODE SELS6B14C-TP5 (BACK LIGHT) D703 8-719-075-50 DIODE SELS6B14C-TP5 (BACK LIGHT) < RESISTOR > R707 1-216-811-11 METAL CHIP 150 5% 1/10W R708 1-216-811-11 METAL CHIP 150 5% 1/10W R709 1-216-811-11 METAL CHIP 150 5% 1/10W R710 1-216-811-11 METAL CHIP 150 5% 1/10W R711 1-216-811-11 METAL CHIP 150 5% 1/10W R712 1-216-811-11 METAL CHIP 150 5% 1/10W ************************************************************ A-4728-536-A CD BOARD, COMPLETE ****************** < CAPACITOR > C101 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C102 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V C103 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C104 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C108 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V C109 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C110 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C111 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C112 1-115-156-11 CERAMIC CHIP 1uF 10V C114 1-164-360-11 CERAMIC CHIP 0.1uF 16V C116 1-126-382-11 ELECT 100uF 20.00% 16V C117 1-126-382-11 ELECT 100uF 20.00% 16V C118 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C121 1-164-360-11 CERAMIC CHIP 0.1uF 16V C122 1-126-933-11 ELECT 100uF 20.00% 16V C123 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C124 1-125-891-11 CERAMIC CHIP 0.47uF 10.00% 10V C125 1-164-360-11 CERAMIC CHIP 0.1uF 16V C126 1-164-360-11 CERAMIC CHIP 0.1uF 16V C127 1-126-382-11 ELECT 100uF 20.00% 16V C130 1-164-360-11 CERAMIC CHIP 0.1uF 16V C131 1-126-933-11 ELECT 100uF 20.00% 16V C133 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C140 1-115-156-11 CERAMIC CHIP 1uF 10V C143 1-164-360-11 CERAMIC CHIP 0.1uF 16V C145 1-164-360-11 CERAMIC CHIP 0.1uF 16V C146 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V C153 1-164-360-11 CERAMIC CHIP 0.1uF 16V C159 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V C162 1-126-382-11 ELECT 100uF 20.00% 16V C163 1-126-933-11 ELECT 100uF 20.00% 16V C165 1-164-360-11 CERAMIC CHIP 0.1uF 16V C167 1-162-920-11 CERAMIC CHIP 27PF 5% 50V C168 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C171 1-115-412-11 CERAMIC CHIP 680PF 5.00% 25V C172 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C181 1-115-412-11 CERAMIC CHIP 680PF 5.00% 25V C182 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C183 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C184 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C185 1-125-891-11 CERAMIC CHIP 0.47uF 10.00% 10V C190 1-115-156-11 CERAMIC CHIP 1uF 10V C191 1-126-933-11 ELECT 100uF 20.00% 16V C192 1-126-382-11 ELECT 100uF 20.00% 16V C193 1-126-382-11 ELECT 100uF 20.00% 16V C194 1-164-360-11 CERAMIC CHIP 0.1uF 16V C196 1-164-360-11 CERAMIC CHIP 0.1uF 16V C197 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V C198 1-126-933-11 ELECT 100uF 20.00% 16V < CONNECTOR > CN101 1-770-528-31 CONNECTOR, FFC/FPC 21P CN102 1-779-466-11 CONNECTOR,FFC(LIF(NON-ZIF))16P < DIODE > D101 8-719-056-77 DIODE UDZ-TE-17-3.9B < FERRITE BEAD > FB101 1-469-144-21 FERRITE 0uH FB103 1-469-144-21 FERRITE 0uH < IC > IC101 8-752-402-31 IC CXD3017Q IC102 8-759-549-28 IC BA5974FP-E2 IC103 8-752-089-74 IC CXA2581N-T4 < JUMPER RESISTOR > JR101 1-216-864-11 METAL CHIP 0 < TRANSISTOR > Q101 8-729-049-31 TRANSISTOR 2SB710A-RTX Q102 8-729-920-85 TRANSISTOR 2SD1664-T100-QR CD BACK LIGHT Ver 1.2 2003. 07 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 HCD-EP515 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks < RESISTOR > R101 1-216-821-11 METAL CHIP 1K 5% 1/10W R102 1-216-845-11 METAL CHIP 100K 5% 1/10W R103 1-216-835-11 METAL CHIP 15K 5% 1/10W R104 1-216-839-11 METAL CHIP 33K 5% 1/10W R106 1-216-821-11 METAL CHIP 1K 5% 1/10W R107 1-216-833-11 METAL CHIP 10K 5% 1/10W R108 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R109 1-216-857-11 METAL CHIP 1M 5% 1/10W R111 1-216-846-11 METAL CHIP 120K 5% 1/10W R114 1-218-745-11 METAL CHIP 160K 5% 1/10W R116 1-216-797-11 METAL CHIP 10 5% 1/10W R117 1-216-821-11 METAL CHIP 1K 5% 1/10W R118 1-216-809-11 METAL CHIP 100 5% 1/10W R119 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R120 1-216-835-11 METAL CHIP 15K 5% 1/10W R122 1-216-845-11 METAL CHIP 100K 5% 1/10W R123 1-216-833-11 METAL CHIP 10K 5% 1/10W R124 1-216-845-11 METAL CHIP 100K 5% 1/10W R131 1-216-813-11 METAL CHIP 220 5% 1/10W R143 1-216-836-11 METAL CHIP 18K 5% 1/10W R144 1-216-836-11 METAL CHIP 18K 5% 1/10W R147 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R148 1-216-797-11 METAL CHIP 10 5% 1/10W R149 1-216-797-11 METAL CHIP 10 5% 1/10W R150 1-216-833-11 METAL CHIP 10K 5% 1/10W R151 1-216-845-11 METAL CHIP 100K 5% 1/10W R158 1-216-837-11 METAL CHIP 22K 5% 1/10W R159 1-216-837-11 METAL CHIP 22K 5% 1/10W R162 1-216-847-11 METAL CHIP 150K 5% 1/10W R171 1-216-837-11 METAL CHIP 22K 5% 1/10W R172 1-216-837-11 METAL CHIP 22K 5% 1/10W R173 1-216-837-11 METAL CHIP 22K 5% 1/10W R181 1-216-837-11 METAL CHIP 22K 5% 1/10W R182 1-216-837-11 METAL CHIP 22K 5% 1/10W R183 1-216-837-11 METAL CHIP 22K 5% 1/10W R190 1-216-813-11 METAL CHIP 220 5% 1/10W R191 1-216-839-11 METAL CHIP 33K 5% 1/10W R192 1-216-839-11 METAL CHIP 33K 5% 1/10W R193 1-216-846-11 METAL CHIP 120K 5% 1/10W R194 1-216-845-11 METAL CHIP 100K 5% 1/10W R195 1-216-853-11 METAL CHIP 470K 5% 1/10W R196 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R197 1-216-821-11 METAL CHIP 1K 5% 1/10W < NETWORK > RN101 1-233-576-11 RES, CHIP NETWORK 100 < SWITCH > S101 1-771-853-11 SWITCH, DETECTION (LIMIT) < VIBRATOR > X101 1-767-226-11 VIBRATOR, CRYSTAL (16.9344 MHz) ************************************************************ A-4732-653-A CONTROL BOARD, COMPLETE (AEP, UK) A-4732-665-A CONTROL BOARD, COMPLETE (US, CND) A-4749-451-A CONTROL BOARD, COMPLETE (KR) ************************ 4-245-030-01 HOLDER LCD 4-245-033-01 HOLDER LED 4-245-035-01 ILLUMINATOR 4-245-801-01 SHEET, LED < CAPACITOR > C801 1-162-975-91 CERAMIC CHIP 24PF 5.00% 50V C802 1-162-975-91 CERAMIC CHIP 24PF 5.00% 50V C803 1-162-974-11 CERAMIC CHIP 0.01uF 50V C804 1-162-974-11 CERAMIC CHIP 0.01uF 50V C805 1-162-974-11 CERAMIC CHIP 0.01uF 50V C807 1-162-974-11 CERAMIC CHIP 0.01uF 50V C808 1-162-918-11 CERAMIC CHIP 18PF 5.00% 50V C809 1-162-974-11 CERAMIC CHIP 0.01uF 50V C810 1-126-153-11 ELECT 22uF 20% 6.3V C811 1-126-153-11 ELECT 22uF 20% 6.3V C812 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C813 1-164-160-11 CERAMIC CHIP 20PF 5.00% 50V C814 1-164-160-11 CERAMIC CHIP 20PF 5.00% 50V C815 1-126-160-11 ELECT 1uF 20% 50V C816 1-126-160-11 ELECT 1uF 20% 50V C823 1-126-935-11 ELECT 470uF 20.00% 6.3V C824 1-124-589-11 ELECT 47uF 20% 16V C825 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V C826 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V C828 1-162-974-11 CERAMIC CHIP 0.01uF 50V C829 1-162-974-11 CERAMIC CHIP 0.01uF 50V C830 1-107-826-91 CERAMIC CHIP 0.1uF 10% 50V C831 1-107-826-91 CERAMIC CHIP 0.1uF 10% 50V C832 1-107-826-91 CERAMIC CHIP 0.1uF 10% 50V < DIODE > D801 8-719-991-33 DIODE 1SS133T-77 D802 8-719-075-50 DIODE SELS6B14C-TP5 (MD) D803 8-719-075-50 DIODE SELS6B14C-TP5 (CD B ) D804 8-719-075-50 DIODE SELS6B14C-TP5 (TUNER BAND) D805 8-719-075-50 DIODE SELS6B14C-TP5 (TAPE BAND) D806 8-719-062-12 DIODE SEL2215S-CD-TP (STANDBY) D807 8-719-991-33 DIODE 1SS133T-77 D808 8-719-991-33 DIODE 1SS133T-77 D809 8-719-991-33 DIODE 1SS133T-77 D810 8-719-991-33 DIODE 1SS133T-77 D811 8-719-991-33 DIODE 1SS133T-77 D812 8-719-991-33 DIODE 1SS133T-77 < IC > IC801 6-802-945-01 IC LC877356A-51E1 IC802 8-759-827-69 IC NJL63H400A-1 ( ) IC803 8-759-637-58 IC PST592C-T < COIL > L801 1-410-328-31 INDUCTOR 10uH CD CONTROL Ver 1.2 2003. 07 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 HCD-EP515 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks < LIQUID CRYSTAL DISPLAY > LCD801 1-805-198-11 DISPLAY PANEL, LIQUID CRYSTAL < TRANSISTOR > Q801 8-729-054-16 TRANSISTOR KRC402-RTK Q802 8-729-054-16 TRANSISTOR KRC402-RTK Q803 8-729-054-16 TRANSISTOR KRC402-RTK Q804 8-729-054-16 TRANSISTOR KRC402-RTK Q805 8-729-054-16 TRANSISTOR KRC402-RTK Q806 8-729-034-51 TRANSISTOR KTC3875 Q808 8-729-054-16 TRANSISTOR KRC402-RTK Q809 8-729-038-67 TRANSISTOR KRC102S < RESISTOR > R700 1-216-864-11 METAL CHIP 0 5% 1/10W R701 1-216-841-11 METAL CHIP 47K 5% 1/10W R702 1-216-852-11 METAL CHIP 390K 5% 1/10W R703 1-247-807-91 CARBON 100 5% 1/4W R704 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R705 1-247-807-91 CARBON 100 5% 1/4W R706 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R800 1-216-821-11 METAL CHIP 1K 5% 1/10W F R801 1-216-821-11 METAL CHIP 1K 5% 1/10W R802 1-216-821-11 METAL CHIP 1K 5% 1/10W R803 1-216-821-11 METAL CHIP 1K 5% 1/10W R804 1-216-821-11 METAL CHIP 1K 5% 1/10W R805 1-216-821-11 METAL CHIP 1K 5% 1/10W F R806 1-216-821-11 METAL CHIP 1K 5% 1/10W R807 1-216-821-11 METAL CHIP 1K 5% 1/10W R808 1-216-821-11 METAL CHIP 1K 5% 1/10W R809 1-216-849-11 METAL CHIP 220K 5% 1/10W R810 1-216-821-11 METAL CHIP 1K 5% 1/10W R811 1-216-821-11 METAL CHIP 1K 5% 1/10W R812 1-216-821-11 METAL CHIP 1K 5% 1/10W R813 1-249-433-11 CARBON 22K 5% 1/4W R814 1-249-437-11 CARBON 47K 5% 1/4W R815 1-216-821-11 METAL CHIP 1K 5% 1/10W R816 1-216-837-11 METAL CHIP 22K 5% 1/10W R817 1-216-821-11 METAL CHIP 1K 5% 1/10W R818 1-216-821-11 METAL CHIP 1K 5% 1/10W R819 1-216-821-11 METAL CHIP 1K 5% 1/10W R820 1-249-438-11 CARBON 56K 5% 1/4W R821 1-216-821-11 METAL CHIP 1K 5% 1/10W R822 1-216-821-11 METAL CHIP 1K 5% 1/10W R823 1-216-821-11 METAL CHIP 1K 5% 1/10W R824 1-216-821-11 METAL CHIP 1K 5% 1/10W R825 1-249-417-11 CARBON 1K 5% 1/4W F R826 1-249-417-11 CARBON 1K 5% 1/4W F R827 1-216-821-11 METAL CHIP 1K 5% 1/10W R828 1-249-417-11 CARBON 1K 5% 1/4W F R829 1-216-821-11 METAL CHIP 1K 5% 1/10W R830 1-249-417-11 CARBON 1K 5% 1/4W F R831 1-249-417-11 CARBON 1K 5% 1/4W F R832 1-216-845-11 METAL CHIP 100K 5% 1/10W R833 1-216-841-11 METAL CHIP 47K 5% 1/10W R834 1-216-841-11 METAL CHIP 47K 5% 1/10W R835 1-216-841-11 METAL CHIP 47K 5% 1/10W R836 1-249-417-11 CARBON 1K 5% 1/4W F R837 1-216-821-11 METAL CHIP 1K 5% 1/10W R838 1-249-417-11 CARBON 1K 5% 1/4W F R839 1-216-821-11 METAL CHIP 1K 5% 1/10W R840 1-216-821-11 METAL CHIP 1K 5% 1/10W R841 1-216-821-11 METAL CHIP 1K 5% 1/10W R842 1-216-821-11 METAL CHIP 1K 5% 1/10W R843 1-216-821-11 METAL CHIP 1K 5% 1/10W R844 1-216-821-11 METAL CHIP 1K 5% 1/10W R845 1-216-821-11 METAL CHIP 1K 5% 1/10W R846 1-216-821-11 METAL CHIP 1K 5% 1/10W R847 1-216-821-11 METAL CHIP 1K 5% 1/10W R848 1-216-821-11 METAL CHIP 1K 5% 1/10W R849 1-216-821-11 METAL CHIP 1K 5% 1/10W R850 1-249-417-11 CARBON 1K 5% 1/4W F R851 1-216-833-11 METAL CHIP 10K 5% 1/10W R852 1-216-817-11 METAL CHIP 470 5% 1/10W R853 1-216-819-11 METAL CHIP 680 5% 1/10W R854 1-216-821-11 METAL CHIP 1K 5% 1/10W R855 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R856 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R857 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R858 1-216-833-11 METAL CHIP 10K 5% 1/10W R859 1-216-837-11 METAL CHIP 22K 5% 1/10W R860 1-216-833-11 METAL CHIP 10K 5% 1/10W R861 1-216-817-11 METAL CHIP 470 5% 1/10W R862 1-216-819-11 METAL CHIP 680 5% 1/10W R863 1-216-821-11 METAL CHIP 1K 5% 1/10W F R864 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R865 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R866 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R867 1-216-833-11 METAL CHIP 10K 5% 1/10W R869 1-216-841-11 METAL CHIP 47K 5% 1/10W R870 1-249-437-11 CARBON 47K 5% 1/4W R871 1-216-837-11 METAL CHIP 22K 5% 1/10W R872 1-216-839-11 METAL CHIP 33K 5% 1/10W R873 1-216-837-11 METAL CHIP 22K 5% 1/10W R874 1-216-837-11 METAL CHIP 22K 5% 1/10W R875 1-216-841-11 METAL CHIP 47K 5% 1/10W (AEP, UK) R876 1-216-864-11 METAL CHIP 0 5% 1/10W (US, CND) R876 1-216-829-11 METAL CHIP 4.7K 5% 1/16W (KR) R878 1-216-833-11 METAL CHIP 10K 5% 1/10W R879 1-216-833-11 METAL CHIP 10K 5% 1/10W R880 1-216-821-11 METAL CHIP 1K 5% 1/10W R881 1-247-807-31 CARBON 100 5% 1/4W R882 1-216-845-11 METAL CHIP 100K 5% 1/10W R883 1-216-817-11 METAL CHIP 470 5% 1/10W R884 1-216-817-11 METAL CHIP 470 5% 1/10W R885 1-216-817-11 METAL CHIP 470 5% 1/10W R886 1-216-817-11 METAL CHIP 470 5% 1/10W R887 1-216-821-11 METAL CHIP 1K 5% 1/10W R889 1-216-821-11 METAL CHIP 1K 5% 1/10W R890 1-216-821-11 METAL CHIP 1K 5% 1/10W R891 1-216-821-11 METAL CHIP 1K 5% 1/10W R892 1-216-841-11 METAL CHIP 47K 5% 1/10W R893 1-216-841-11 METAL CHIP 47K 5% 1/10W R894 1-216-837-11 METAL CHIP 22K 5% 1/10W R895 1-216-833-11 METAL CHIP 10K 5% 1/10W CONTROL Ver 1.2 2003. 07 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 HCD-EP515 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks < ROTARY ENCODER > RV801 1-418-632-11 ENCODER, ROTARY (12 TYPE) (VOLUME) < SWITCH > S801 1-786-050-21 SWITCH, KEY BOARD (X) S802 1-786-050-21 SWITCH, KEY BOARD (x) S803 1-786-050-21 SWITCH, KEY BOARD (PRESET-) S804 1-786-050-21 SWITCH, KEY BOARD (PRESET+) S805 1-786-050-21 SWITCH, KEY BOARD (TUNING+) S806 1-786-050-21 SWITCH, KEY BOARD (TUNING-) S807 1-786-050-21 SWITCH, KEY BOARD (CD SYNC) S808 1-786-050-21 SWITCH, KEY BOARD (z REC PAUSE/START) S809 1-786-050-21 SWITCH, KEY BOARD (PLAY MODE DIRECTION) S810 1-786-050-21 SWITCH, KEY BOARD (\/1) S811 1-786-050-21 SWITCH, KEY BOARD (DISPLAY) S812 1-786-050-21 SWITCH, KEY BOARD (CD N) S813 1-786-050-21 SWITCH, KEY BOARD (TUNER BAND) S814 1-786-050-21 SWITCH, KEY BOARD (TAPE bB) S815 1-786-050-21 SWITCH, KEY BOARD (MD) S816 1-786-050-21 SWITCH, KEY BOARD (BASS/TREBLE) S817 1-786-050-21 SWITCH, KEY BOARD (DSG) < VIBRATOR > X801 1-567-098-41 VIBRATOR, CRYSTAL (32.768kHz) X802 1-795-880-11 VIBRATOR, CERAMIC (8.64MHz) ************************************************************ HEADPHONE BOARD ***************** < CONNECTOR > CN307 1-564-723-11 PIN, CONNECTOR (SMALL TYPE) 7P < JACK > J301 1-816-219-11 JACK, HEADPHONE (PHONES) ************************************************************ A-4732-658-A MAIN BOARD, COMPLETE (AEP, UK) A-4732-667-A MAIN BOARD, COMPLETE (US, CND, KR) ********************* 1-693-619-11 TUNER (FM/AM) (AEP, UK) 1-693-620-11 TUNER (FM/AM) (US, CND) 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S < CONNECTOR > C101 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C102 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C103 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C104 1-104-657-91 ELECT 47uF 20.00% 10V C106 1-162-995-11 CERAMIC CHIP 0.022uF 50V C107 1-126-961-11 ELECT 2.2uF 20.00% 50V C108 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C109 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C110 1-164-218-11 CERAMIC CHIP 180PF 0.25PF 50V C111 1-164-172-11 CERAMIC CHIP 0.0056uF 10.00% 25V C112 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C113 1-126-957-11 ELECT 0.22uF 20.00% 50V C114 1-126-959-11 ELECT 0.47uF 20.00% 50V C115 1-126-963-11 ELECT 4.7uF 20.00% 50V C116 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C117 1-164-730-11 CERAMIC CHIP 0.0012uF 10.00% 50V C118 1-164-677-11 CERAMIC CHIP 0.033uF 10.00% 16V C119 1-126-963-11 ELECT 4.7uF 20.00% 50V C120 1-130-495-00 MYLAR 0.1uF 5% 50V C121 1-130-495-00 MYLAR 0.1uF 5% 50V C123 1-126-767-11 ELECT 1000uF 20.00% 16V C126 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C127 1-162-962-91 CERAMIC CHIP 470PF 10% 50V C128 1-126-965-91 ELECT 22uF 20.00% 50V C129 1-126-965-91 ELECT 22uF 20.00% 50V C132 1-126-963-11 ELECT 4.7uF 20.00% 50V C133 1-130-491-91 FILM 0.047uF 5% 50V C134 1-162-966-91 CERAMIC CHIP 0.0022uF 10% 50V C201 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C202 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C203 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C204 1-104-657-91 ELECT 47uF 20.00% 10V C206 1-162-995-11 CERAMIC CHIP 0.022uF 50V C207 1-126-961-11 ELECT 2.2uF 20.00% 50V C208 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C209 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C210 1-164-218-11 CERAMIC CHIP 180PF 0.25PF 50V C211 1-164-172-11 CERAMIC CHIP 0.0056uF 10.00% 25V C212 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C213 1-126-957-11 ELECT 0.22uF 20.00% 50V C214 1-126-959-11 ELECT 0.47uF 20.00% 50V C215 1-126-963-11 ELECT 4.7uF 20.00% 50V C216 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C217 1-164-730-11 CERAMIC CHIP 0.0012uF 10.00% 50V C218 1-164-677-11 CERAMIC CHIP 0.033uF 10.00% 16V C219 1-126-963-11 ELECT 4.7uF 20.00% 50V C220 1-130-495-00 MYLAR 0.1uF 5% 50V C221 1-130-495-00 MYLAR 0.1uF 5% 50V C223 1-126-767-11 ELECT 1000uF 20.00% 16V C226 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C227 1-162-962-91 CERAMIC CHIP 470PF 10% 50V C228 1-126-965-91 ELECT 22uF 20.00% 50V C229 1-126-965-91 ELECT 22uF 20.00% 50V C232 1-126-963-11 ELECT 4.7uF 20.00% 50V C233 1-130-491-91 FILM 0.047uF 5% 50V C234 1-162-966-91 CERAMIC CHIP 0.0022uF 10% 50V C301 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C302 1-128-551-11 ELECT 22uF 20.00% 25V C303 1-162-974-11 CERAMIC CHIP 0.01uF 50V C304 1-162-974-11 CERAMIC CHIP 0.01uF 50V C305 1-126-934-11 ELECT 220uF 20.00% 10V C309 1-126-767-11 ELECT 1000uF 20.00% 16V C310 1-126-947-11 ELECT 47uF 20.00% 25V C311 1-126-964-11 ELECT 10uF 20.00% 50V C312 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C313 1-126-933-11 ELECT 100uF 20.00% 16V C314 1-136-967-11 MYLAR 0.012uF 5.00% 50V C315 1-126-947-11 ELECT 47uF 20.00% 25V C316 1-130-481-00 MYLAR 0.0068uF 5% 50V C317 1-130-483-00 MYLAR 0.01uF 5% 50V CONTROL HEADPHONE MAIN Ver 1.2 2003. 07 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 HCD-EP515 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks C318 1-130-483-91 FILM 0.01uF 5% 50V C319 1-162-974-11 CERAMIC CHIP 0.01uF 50V C320 1-162-974-11 CERAMIC CHIP 0.01uF 50V C322 1-162-974-11 CERAMIC CHIP 0.01uF 50V C323 1-128-548-11 ELECT 4700uF 20.00% 25V C324 1-126-934-11 ELECT 220uF 20.00% 16V C326 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C327 1-126-947-11 ELECT 47uF 20.00% 25V C328 1-126-933-11 ELECT 100uF 20.00% 16V C329 1-126-933-11 ELECT 100uF 20.00% 16V C330 1-126-934-11 ELECT 220uF 20.00% 10V C331 1-162-974-11 CERAMIC CHIP 0.01uF 50V C332 1-126-933-11 ELECT 100uF 20.00% 16V C333 1-126-935-11 ELECT 470uF 20.00% 16V C335 1-162-974-11 CERAMIC CHIP 0.01uF 50V C336 1-126-965-91 ELECT 22uF 20.00% 50V C343 1-126-947-11 ELECT 47uF 20.00% 25V C344 1-126-947-11 ELECT 47uF 20.00% 25V C345 1-126-933-11 ELECT 100uF 20.00% 16V C346 1-126-935-11 ELECT 470uF 20.00% 16V C347 1-164-156-91 CERAMIC CHIP 0.1uF 25V C348 1-164-156-91 CERAMIC CHIP 0.1uF 25V C349 1-104-662-91 ELECT 47uF 20% 10V C350 1-127-884-21 CERAMIC 0.047uF 10% 50V < CONNECTOR > * CN301 1-564-709-11 PIN, CONNECTOR (SMALL TYPE) 7P CN302 1-784-776-11 CONNECTOR, FFC 15P CN303 1-784-781-11 CONNECTOR, FFC 20P CN304 1-568-830-11 CONNECTOR, FFC 11P (US, CND, KR) CN304 1-784-776-11 CONNECTOR, FFC 15P (AEP, UK) CN307 1-564-506-11 PLUG, CONNECTOR 3P < DIODE > D301 8-719-991-33 DIODE 1SS133T-77 D302 8-719-991-33 DIODE 1SS133T-77 D303 8-719-109-89 DIODE MTZJ-T-77-5.6B D304 8-719-109-89 DIODE MTZJ-T-77-5.6B D305 8-719-109-85 DIODE MTZJ-T-77-5.1B D306 8-719-109-85 DIODE MTZJ-T-77-5.1B D310 8-719-109-89 DIODE MTZJ-T-77-5.6B D311 8-719-109-89 DIODE MTZJ-T-77-5.6B D312 8-719-063-79 DIODE 1N4002B D313 8-719-063-79 DIODE 1N4002B D317 8-719-991-33 DIODE 1SS133T-77 D319 8-719-063-79 DIODE 1N4002B D320 8-719-063-79 DIODE 1N4002B D321 8-719-063-79 DIODE 1N4002B < IC > IC302 6-702-895-01 IC BD3881FV IC303 6-702-093-01 IC LA4663N < JACK > J302 1-536-708-81 TERMINAL BOARD, PUSH (4P) (SPEAKER) * J303 1-750-178-31 JACK, PIN 2P (MD) < COIL > L101 1-422-009-13 COIL, AIR-CORE L102 1-422-009-13 COIL, AIR-CORE L201 1-422-009-13 COIL, AIR-CORE L202 1-422-009-13 COIL, AIR-CORE < TRANSISTOR > Q305 8-729-036-86 TRANSISTOR KTC3203Y-AT Q306 8-729-037-13 TRANSISTOR KTA1271Y-AT Q307 8-729-028-54 TRANSISTOR KTC3205-Y-AT Q308 8-729-037-13 TRANSISTOR KTA1271Y-AT Q309 8-729-054-16 TRANSISTOR KRC402-RTK Q310 8-729-028-54 TRANSISTOR KTC3205-Y-AT Q311 8-729-037-13 TRANSISTOR KTA1271Y-AT Q312 8-729-036-86 TRANSISTOR KTC3203Y-AT Q313 8-729-036-86 TRANSISTOR KTC3203Y-AT Q314 8-729-037-13 TRANSISTOR KTA1271Y-AT Q315 8-729-054-16 TRANSISTOR KRC402-RTK Q317 8-729-028-54 TRANSISTOR KTC3205-Y-AT Q319 8-729-037-13 TRANSISTOR KTA1271Y-AT Q320 8-729-054-16 TRANSISTOR KRC402-RTK Q321 8-729-037-13 TRANSISTOR KTA1271Y-AT Q322 8-729-054-16 TRANSISTOR KRC402-RTK Q323 8-729-037-13 TRANSISTOR KTA1271Y-AT Q325 8-729-054-16 TRANSISTOR KRC402-RTK Q326 8-729-034-50 TRANSISTOR KTA1504 Q327 8-729-034-50 TRANSISTOR KTA1504 Q328 8-729-045-62 TRANSISTOR 2SK2158-T2B Q329 8-729-045-62 TRANSISTOR 2SK2158-T2B Q330 8-729-045-62 TRANSISTOR 2SK2158-T2B Q331 8-729-054-33 TRANSISTOR FDS7764A (US, CND, KR) Q331 8-729-054-03 TRANSISTOR KRA303-RTK (AEP, UK) Q332 8-729-054-33 TRANSISTOR FDS7764A (US, CND, KR) Q332 8-729-054-03 TRANSISTOR KRA303-RTK (AEP, UK) Q333 8-729-054-16 TRANSISTOR KRC402-RTK Q338 8-729-054-16 TRANSISTOR KRC402-RTK Q339 8-729-036-86 TRANSISTOR KTC3203Y-AT < RESISTOR > R101 1-216-830-91 METAL CHIP 5.6K 5% 1/10W R102 1-216-840-11 METAL CHIP 39K 5% 1/10W R103 1-216-817-11 METAL CHIP 470 5% 1/10W R104 1-216-808-11 METAL CHIP 82 5% 1/10W R105 1-216-852-91 METAL CHIP 390K 5% 1/10W R106 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R107 1-216-847-11 METAL CHIP 150K 5% 1/10W R108 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R109 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R111 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R112 1-216-893-91 METAL 62 1% 0.6W (US, CND, KR) R112 1-216-839-11 METAL CHIP 33K 5% 1/10W (AEP, UK) R113 1-216-821-11 METAL CHIP 1K 5% 1/10W R114 1-216-824-11 METAL CHIP 1.8K 5% 1/10W R115 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R116 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R117 1-216-821-11 METAL CHIP 1K 5% 1/10W R118 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R119 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R120 1-216-833-11 METAL CHIP 10K 5% 1/10W R121 1-216-821-11 METAL CHIP 1K 5% 1/10W R122 1-216-843-11 METAL CHIP 68K 5% 1/10W MAIN Ver 1.2 2003. 07 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 HCD-EP515 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks R123 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R124 1-216-837-11 METAL CHIP 22K 5% 1/10W R125 1-216-837-11 METAL CHIP 22K 5% 1/10W R126 1-216-837-11 METAL CHIP 22K 5% 1/10W R128 1-216-821-11 METAL CHIP 1K 5% 1/10W R129 1-249-385-11 CARBON 2.2 5% 1/6W F R130 1-249-385-11 CARBON 2.2 5% 1/6W F R131 1-216-821-11 METAL CHIP 1K 5% 1/10W R132 1-216-821-11 METAL CHIP 1K 5% 1/10W R136 1-216-833-11 METAL CHIP 10K 5% 1/10W R137 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R138 1-249-408-11 CARBON 180 5% 1/4W F R139 1-249-408-11 CARBON 180 5% 1/4W F R143 1-216-833-11 METAL CHIP 10K 5% 1/10W R201 1-216-830-91 METAL CHIP 5.6K 5% 1/10W R202 1-216-840-11 METAL CHIP 39K 5% 1/10W R203 1-216-817-11 METAL CHIP 470 5% 1/10W R204 1-216-808-11 METAL CHIP 82 5% 1/10W R205 1-216-852-91 METAL CHIP 390K 5% 1/10W R206 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R207 1-216-847-11 METAL CHIP 150K 5% 1/10W R208 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R209 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R211 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R212 1-216-893-91 METAL 62 1% 0.6W (US, CND, KR) R212 1-216-839-11 METAL CHIP 33K 5% 1/10W (AEP, UK) R213 1-216-821-11 METAL CHIP 1K 5% 1/10W R214 1-216-824-11 METAL CHIP 1.8K 5% 1/10W R215 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R216 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R217 1-216-821-11 METAL CHIP 1K 5% 1/10W R218 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R219 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R220 1-216-833-11 METAL CHIP 10K 5% 1/10W R221 1-216-821-11 METAL CHIP 1K 5% 1/10W R222 1-216-843-11 METAL CHIP 68K 5% 1/10W R223 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R224 1-216-837-11 METAL CHIP 22K 5% 1/10W R225 1-216-837-11 METAL CHIP 22K 5% 1/10W R226 1-216-837-11 METAL CHIP 22K 5% 1/10W R228 1-216-821-11 METAL CHIP 1K 5% 1/10W R229 1-249-385-11 CARBON 2.2 5% 1/6W F R230 1-249-385-11 CARBON 2.2 5% 1/6W F R231 1-216-821-11 METAL CHIP 1K 5% 1/10W R232 1-216-821-11 METAL CHIP 1K 5% 1/10W R236 1-216-833-11 METAL CHIP 10K 5% 1/10W R237 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R238 1-249-408-11 CARBON 180 5% 1/4W F R239 1-249-408-11 CARBON 180 5% 1/4W F R243 1-216-833-11 METAL CHIP 10K 5% 1/10W R301 1-216-833-11 METAL CHIP 10K 5% 1/10W R302 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R303 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R304 1-216-817-11 METAL CHIP 470 5% 1/10W R305 1-216-817-11 METAL CHIP 470 5% 1/10W R306 1-216-833-11 METAL CHIP 10K 5% 1/10W R309 1-247-775-91 CARBON 4.7 5% 1/4W R310 1-249-387-11 CARBON 3.3 5% 1/10W F R311 1-216-837-11 METAL CHIP 22K 5% 1/10W R312 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R313 1-216-841-11 METAL CHIP 47K 5% 1/10W R314 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R315 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R316 1-216-817-11 METAL CHIP 470 5% 1/10W R317 1-216-841-11 METAL CHIP 47K 5% 1/10W R318 1-216-817-11 METAL CHIP 470 5% 1/10W R319 1-216-857-11 METAL CHIP 1M 5% 1/10W R320 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R321 1-216-845-11 METAL CHIP 100K 5% 1/10W R322 1-216-821-11 METAL CHIP 1K 5% 1/10W R323 1-216-821-11 METAL CHIP 1K 5% 1/10W R324 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R325 1-216-845-11 METAL CHIP 100K 5% 1/10W R326 1-216-845-11 METAL CHIP 100K 5% 1/10W R327 1-216-833-91 METAL CHIP 10K 5% 1/10W R328 1-216-821-11 METAL CHIP 1K 5% 1/10W R329 1-216-821-11 METAL CHIP 1K 5% 1/10W R330 1-216-841-11 METAL CHIP 47K 5% 1/10W R331 1-216-841-11 METAL CHIP 47K 5% 1/10W R332 1-216-821-11 METAL CHIP 1K 5% 1/10W R336 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R348 1-216-821-11 METAL CHIP 1K 5% 1/10W R349 1-216-864-11 CONDUCTOR 0 R350 1-216-833-11 METAL CHIP 10K 5% 1/10W R351 1-216-833-11 METAL CHIP 10K 5% 1/10W R352 1-249-413-11 CARBON 470 5% 1/4W F R354 1-216-833-11 METAL CHIP 10K 5% 1/10W R355 1-216-845-11 METAL CHIP 100K 5% 1/10W R356 1-216-841-11 METAL CHIP 47K 5% 1/10W R357 1-216-841-11 METAL CHIP 47K 5% 1/10W < TRANSFORMER > T301 1-433-372-31 TRANSFORMER, BIAS OSCILLATION ************************************************************ 1-688-188-11 POWER BOARD ************ 1-533-233-11 FUSE HOLDER < CAPACITOR > C905 1-164-097-11 CERAMIC 0.022uF 50V C906 1-164-097-11 CERAMIC 0.022uF 50V C907 1-164-097-11 CERAMIC 0.022uF 50V C908 1-164-097-11 CERAMIC 0.022uF 50V C909 1-164-097-11 CERAMIC 0.022uF 50V C910 1-164-097-11 CERAMIC 0.022uF 50V C911 1-164-097-11 CERAMIC 0.022uF 50V C912 1-164-097-11 CERAMIC 0.022uF 50V < CONNECTOR > MAIN Ver 1.2 2003. 07 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 HCD-EP515 Ref. No. Part No. Description Remarks * CN901 1-564-509-11 PLUG, CONNECTOR 6P * CN902 1-691-756-11 PIN, CONNECTOR (PC BOARD) 2P < DIODE > D906 8-719-991-33 DIODE 1SS133T-77 D907 8-719-063-79 DIODE 1N4002B D908 8-719-063-79 DIODE 1N4002B D909 8-719-063-79 DIODE 1N4002B D910 8-719-063-79 DIODE 1N4002B D911 8-719-063-79 DIODE 1N4002B D912 8-719-063-79 DIODE 1N4002B D913 8-719-063-79 DIODE 1N4002B D914 8-719-063-79 DIODE 1N4002B D916 8-719-902-17 DIODE 1N5401 D917 8-719-902-17 DIODE 1N5401 D918 8-719-902-17 DIODE 1N5401 D919 8-719-902-17 DIODE 1N5401 D920 8-719-991-33 DIODE 1SS133T-77 D921 8-719-991-33 DIODE 1SS133T-77 < LINE FILTER > LF901 1-402-663-11 TRANSFORMER, LINE FILTER (LFT) < RESISTOR > R901 1-249-437-11 CARBON 47K 5% 1/4W R902 1-249-437-11 CARBON 47K 5% 1/4W 0R911 1-219-237-51 CARBON 3.3M 5% 1/2W (US, CND) < RELAY > 0RY901 1-755-276-11 RELAY, POWER < TRANSFORMER > 0T901 1-443-041-11 TRANSFORMER, POWER (KR) 0T901 1-439-781-11 TRANSFORMER, POWER (US, CND) 0T901 1-439-779-11 TRANSFORMER, POWER (AEP, UK) ************************************************************ 1-688-191-11 REGULATOR BOARD **************** < IC > IC305 8-759-347-18 IC KIA7809PI ************************************************************ MAIN POWER REGULATOR The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. Ver 1.2 2003. 07 MISCELLANEOUS ************** 08 1-696-169-12 CORD, POWER (KR) 08 1-696-169-12 CORD, POWER 08 1-696-169-12 CORD, POWER (AEP, UK) 11 1-693-619-11 TUNER (FM/AM) (AEP,UK) 11 1-693-622-11 TUNER (KR) 11 1-693-624-11 TUNER (FM/AM) (US,CND) 65 1-796-351-51 MECHANISM, SINGLE CASSETTE 106 1-757-055-11 WIRE, PARALLEL (FFC) (16 CORE) 0602 8-820-221-01 OPTICAL PICK-UP KSM-213EDP S800 1-692-960-11 SWITCH, PUSH (1 KEY) (OPEN) 0T902 1-439-769-11 TRANSFORMER, POWER (KR) 0T902 1-439-778-11 TRANSFORMER, POWER (AEP, UK) 0T902 1-439-780-11 TRANSFORMER, POWER (US, CND) Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 HCD-EP515 MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EP515 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2003.04 New 1.1 2003.07 Correction of EXPLODED VIEW, 7-4 Optical Pick-up Block. (SPM-03057) 1.2 2003.07 Addition of Korean model. Correction of Part of Ref. No. 11 (US, CND) (SPM-03066) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
