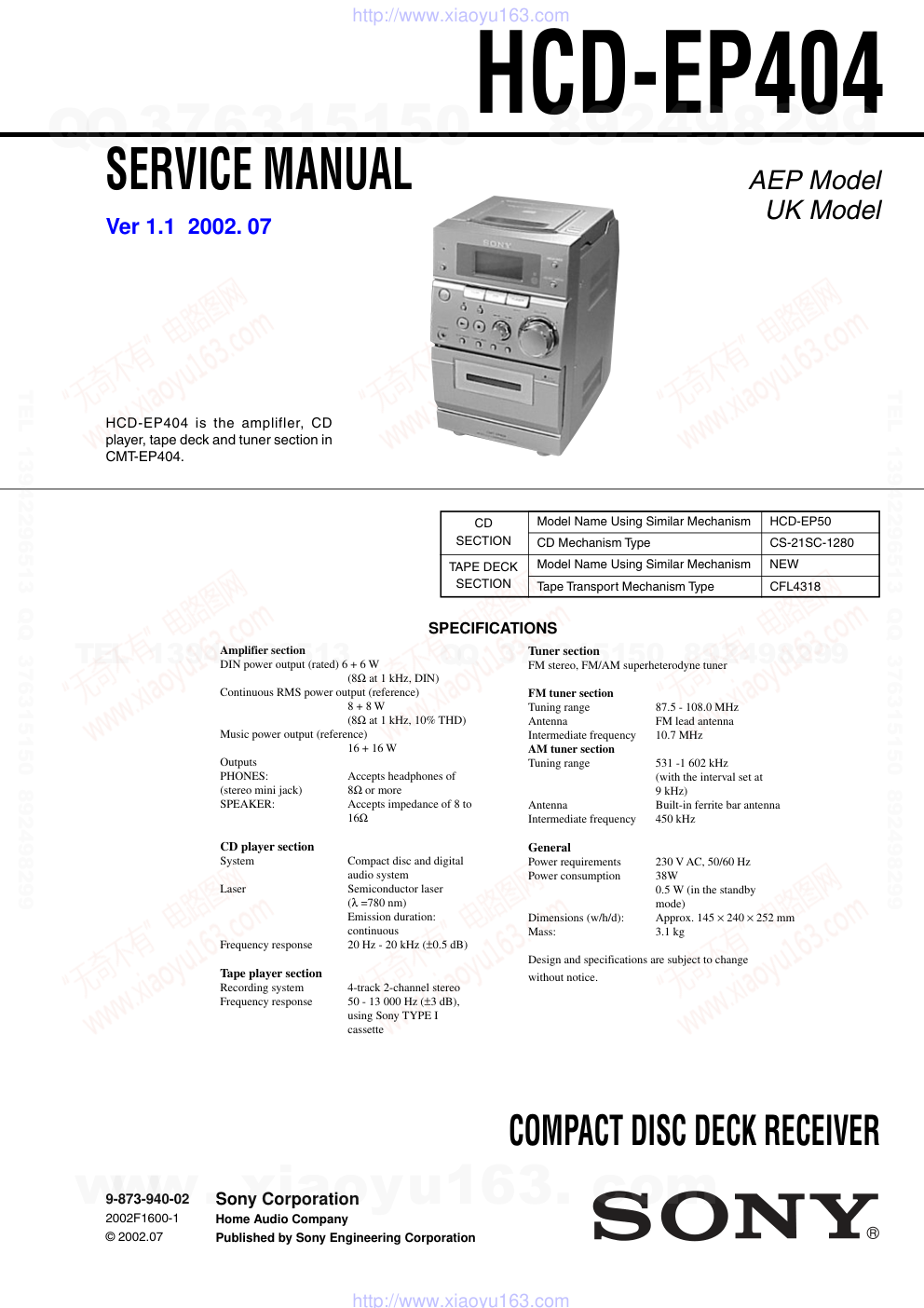

HCD-EP404 AEP Model UK Model SERVICE MANUAL COMPACT DISC DECK RECEIVER Sony Corporation Home Audio Company Published by Sony Engineering Corporation 9-873-940-02 2002F1600-1 © 2002.07 HCD-EP404 is the amplifler, CD player, tape deck and tuner section in CMT-EP404. SPECIFICATIONS Ver 1.1 2002. 07 CD Model Name Using Similar Mechanism HCD-EP50 SECTION CD Mechanism Type CS-21SC-1280 TAPE DECK Model Name Using Similar Mechanism NEW SECTION Tape Transport Mechanism Type CFL4318 Amplifier section DIN power output (rated) 6 + 6 W (8Ω at 1 kHz, DIN) Continuous RMS power output (reference) 8 + 8 W (8Ω at 1 kHz, 10% THD) Music power output (reference) 16 + 16 W Outputs PHONES: Accepts headphones of (stereo mini jack) 8Ω or more SPEAKER: Accepts impedance of 8 to 16Ω CD player section System Compact disc and digital audio system Laser Semiconductor laser (λ =780 nm) Emission duration: continuous Frequency response 20 Hz - 20 kHz (±0.5 dB) Tape player section Recording system 4-track 2-channel stereo Frequency response 50 - 13 000 Hz (±3 dB), using Sony TYPE I cassette Tuner section FM stereo, FM/AM superheterodyne tuner FM tuner section Tuning range 87.5 - 108.0 MHz Antenna FM lead antenna Intermediate frequency 10.7 MHz AM tuner section Tuning range 531 -1 602 kHz (with the interval set at 9 kHz) Antenna Built-in ferrite bar antenna Intermediate frequency 450 kHz General Power requirements 230 V AC, 50/60 Hz Power consumption 38W 0.5 W (in the standby mode) Dimensions (w/h/d): Approx. 145 × 240 × 252 mm Mass: 3.1 kg Design and specifications are subject to change without notice. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 HCD-EP404 TABLE OF CONTENTS This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. The following caution label is located inside the unit. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing • Keep the temperature of soldering iron around 270˚C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. 1. SERVICING NOTES ······················································ 3 2. GENERAL ·········································································· 4 3. DISASSEMBLY ································································ 6 3-1. Front Panel Section ······················································· 6 3-2. MAIN Board ································································· 7 3-3. Tape Mechanism Deck (CFL4318)······························· 7 3-4. POWER Board, Power Transformer ····························· 8 3-5. DISPLAY Board, HEADPHONE Board ······················ 8 3-6. CD Cabinet Section ······················································ 9 3-7. CD Mechanism Deck (CS-21SC-1280)························ 9 3-8. Cassette Lid ································································ 10 4. MECHANICAL ADJUSTMENTS ····························· 11 5. ELECTRICAL ADJUSTMENTS ······························· 11 6. DIAGRAMS ······································································ 15 6-1. Circuit Boards Location ·············································· 15 6-2. Block Diagrams ·························································· 16 TUNER/TAPE DECK Section ··································· 16 AMP Section······························································· 17 DISPLAY/POWER Section ········································ 18 6-3. Printed Wiring Board MAIN Section ························ 19 6-4. Schematic Diagram MAIN Section (1/3) ·················· 20 6-5. Schematic Diagram MAIN Section (2/3) ·················· 21 6-6. Schematic Diagram MAIN Section (3/3) ·················· 22 6-7. Printed Wiring Board PANEL Section ······················ 23 6-8. Schematic Diagram PANEL Section ························· 24 6-9. Printed Wiring Board POWER Section ····················· 25 6-10. Schematic Diagram POWER Section ························ 26 6-12. IC Pin Function Description ······································· 29 7. EXPLODED VIEWS ······················································ 31 7-1. Cabinet Section ··························································· 31 7-2. Front Panel Section -1 ················································ 32 7-3. Front Panel Section -2 ················································ 33 7-4. CD Cabinet Section ···················································· 34 8. ELECTRICAL PARTS LIST ······································· 35 Ver 1.1 2002.07 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 HCD-EP404 SECTION 1 SERVICING NOTES NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. SW600 LASER DIODE AND FOCUS SEARCH OPERATION CHECK 1. Press the ?/1 button to the power ON with no disc inserted and press the CD button. 2. Open the lid for CD. 3. Turn on SW600 as following figure. 4. Confirm the laser diode emission while observing the objecting lens. When there is no emission, Auto Power Control circuit or Optical Pick-up is broken. Objective lens moves up and down five times for the focus search. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 HCD-EP404 SECTION 2 GENERAL This section is extracted from instruction manual. Main unit P – Z PHONES jack qk PLAY MODE qj (8, 9) PRESET +/– qd (11, 13) Remote sensor 0 TAPE 3 (14) TIMER indicator 1 (16, 18) TUNER 6 (10, 11, 12, 15) TUNER MEM qh (10, 11) TUNING +/– qa (10, 11, 12, 13) VOLUME control qs ALPHABETICAL ORDER A – M Cassette compartment qg (14) CD 4 (8, 9, 15) DISPLAY 2 (12, 19) Display Window 5 (8, 9, 10, 11) ENTER qh (7, 9, 10, 11, 13) MEGA BASS 8 (17) MUSIC MENU 9 (17) BUTTON DESCRIPTIONS @/1 (power) wd (7, 16, 18) CD . m (go back) qa (8, 9, 14) M > (go forward) qa (8, 9, 14) N (play) w; (8, 9) X (pause) ws (8) Z PUSH OPEN/CLOSE 7 (8) x (stop) ql (8, 9) TAPE M > (fast forward) qa (14) X (pause) ws (14) N (play) w; (14) z (recording) wa (15, 16) . m (rewind) qa (14) Z PUSH OPEN/CLOSE qf (14) x (stop) ql (14, 15) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 HCD-EP404 ALPHABETICAL ORDER A – M CD wf (8, 9, 15) CLOCK/TIMER +/– w; (16, 18) CLOCK/TIMER ON/OFF 2 (16, 18) CLOCK/TIMER SET 3 (7, 16, 18) DISPLAY qa (12, 19) ENTER qf (7, 9, 10, 11, 13, 18) MEGA BASS qd (17) MUSIC MENU +/– qh (17) MUTING qg (17) P – Z PLAY MODE 7 (8, 9, 13, 14, 15) PRESET +/– 9 (11, 13) REPEAT 8 (8) SLEEP 1 (17) TAPE wd (14) TUNER/BAND 5 (10, 11, 12, 15) TUNER MEMORY qj (10, 11) TUNING + q; (10, 11, 12, 13) TUNING – qk (10, 11, 12, 13) VOL (volume) +/– qs Remote control BUTTON DESCRIPTIONS m (rewind) M (fast forward) ql (8, 14) . (go back) > (go forward) w; (7, 8, 14, 15) X (pause) ws (8, 14) N (play) wa (8, 9, 14, 15, 16) `/1 (power) 4 (7, 16, 18) x (stop) 6 (8, 9, 14, 15) Setting the clock 1 Turn on the system. 2 Press CLOCK/TIMER SET on the remote. 3 Press . or > on the remote repeatedly to set the hour. 4 Press ENTER. 5 Press . or > on the remote repeatedly to set the minute. 6 Press ENTER. The clock starts working. To adjust the clock 1 Press CLOCK/TIMER SET on the remote. 2 Press . or > on the remote to select “SET CLK”, then press ENTER. 3 Do the same procedures as step 3 to 6 above. Note The clock settings are canceled when you disconnect the power cord or if a power failure occurs. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 HCD-EP404 SECTION 3 DISASSEMBLY • The equipment can be removed using the following procedure. 3-1. Front Panel Section Note : Follow the disassembly procedure in the numerical order given. 3-6. CD CABINET SECTION (Page 9) 3-5. DISPLAY BOARD, HEADPHONE BOARD (Page 8) 3-1. FRONT PANEL SECTION (Page 6) 3-3. TAPE MECHANISM DECK (CFL4318) (Page 7) 3-7. CD MECHANISM DECK (CS-21SC-1280) (Page 9) 3-8. CASSETE LID (Page 10) 3-2. MAIN BOARD (Page 7) 3-4. POWER BOARD, POWER TRANSFORMER (Page 8) SET qa connector (CN201) 6 two screws (+K3 × 5) 3 two screws (+BTP2.6 × 10) 1 screw (+BVTP3 × 10) 4 two screws (+BVTP3 × 10) 5 two screws (+K3 × 5) 7 two screws (+K3 × 5) qs connector (CN402) q; connector (SW600) qd front panel section 9 2 antenna cover cabinet 8 claw Ver 1.1 2002.07 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 HCD-EP404 3-2. MAIN Board 3-3. Tape Mechanism Deck (CFL4318) 6 connector (CN703) 7 connector (CN702) 5 connector (CN402) 4 connector (CN701) 3 connector (CN601) 2 connector (CN705) 1 connector (CN704) q; MAIN board 9 claw 8 screw (+BTP2.6 × 8) 2 two screws (+BVTP3 × 10) 1 two screws (+BVTP3 × 10) 3 tape mechanism deck (CFL4318) Ver 1.1 2002.07 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 HCD-EP404 3-4. POWER Board, Power Transformer 3-5. DISPLAY Board, HEADPHONE Board 8 screw (+BTP2.6 × 8) 3 screw (+BVTP3 × 10) 1 screw (+BVTP3 × 10) 4 four screws (+BVTP3 × 12) 5 power transformer q; POWER board 9 power pwb mounting bkt 2 ac cord holder 6 Remove four solderings. 7 Remove four solderings. rear cabinet assy 7 screw (+PTPWH2.6 × 10) qa HEADPHONE board 9 Remove the soldering. q; earth wire 8 reteiner board 6 DISPLAY board 5 main pwb mounting bkt 4 seven screws (+BTP2.6 × 10) 1 vol. rotaly knob 2 washer 3 nut www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 HCD-EP404 3-6. CD Cabinet Section 3-7. CD Mechanism Deck (CS-21SC-1280) 1 two screws (+BTP2.6 × 8) 2 CD cabinet section 1 two screws (BVTP3 × 8) 4 CD cover housing qa vibration proof rubber (pink) qs vibration proof rubber (pink) 6 four fiber washers 5 four pulley screws q; vibration proof rubber (orange) qd vibration proof rubber (orange) qf CD mechanism deck (CS-21SC-1280) 7 3 8 two spring clamps 9 two spring clamps 2 Remove the connector. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 HCD-EP404 3-8. Cassette Lid 3 claw 3 claw 2 5 cassette lid 4 1 Push open/close switch www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 HCD-EP404 SECTION 4 MECHANICAL ADJUSTMENTS SECTION 5 ELECTRICAL ADJUSTMENTS PRECAUTION 1. Clean the following parts with a denatured-alcohol-moistened swab : record/playback head pinch roller erase head rubber belts capstan idlers 2. Demagnetize the record/playback head with a head demagnetizer. 3. Do not use a magnetized screwdriver for the adjustments. 4. After the adjustments, apply suitable locking compound to the parts adjusted. 5. The adjustments should be performed with the rated power supply voltage unless otherwise noted. Torque Measurement Tape Tension Measurement Mode Torque Meter Meter Reading FWD CQ-403A more than 100 g (more than 3.53 oz) PRECAUTION 1. Setting MEGA BASS switch : OFF TAPE DECK SECTION 0 dB=0.775 V Test tape Mode Torque Meter Meter Reading 2.95 – 6.86 mN•m FWD CQ-102C (30 – 70 g•cm) (0.42 – 0.97 oz•inch) 0.15 – 5.39 mN•m FWD CQ-102C (1.5 – 5.5 g•cm) Back Tension (0.021 – 0.076 oz•inch) more than 5.89 mN•m FF CQ-201B (more than 60 g•cm) (more than 0.83 oz•inch) more than 5.89 mN•m REW CQ-201B (more than 60 g•cm) (more than 0.83 oz•inch) Type Signal Used for P-4-A100 10 kHz, –10 dB Head Azimuth Adjustment WS-48B 3 kHz, 0 dB Tape Speed Adjustment Record/Playback Head Azimuth Adjustment Procedure: 1. Mode: Playback level meter test tape P-4-A100 (10 kHz, –10 dB) set HEADPHONE board PHONES jack (JK501) 32 Ω + – 2. Turn the adjustment screw and check output peaks. If the peaks do not match for L-CH and R-CH, turn the adjustment screw so that outputs match within 1dB of peak. 3. Mode: Playback 4. After the adjustments, apply suitable locking compound to the parts adjusted. Screw position L-CH peak within 1dB Output level L-CH peak R-CH peak within 1dB Screw position R-CH peak test tape P-4-A100 (10 kHz, –10 dB) L-CH R-CH HEADPHONE board PHONES jack (JK501) oscilloscope V H + + – – screen pattern in phase good wrong 45 ° 90 ° 135 ° 180 ° 32 Ω 32 Ω set www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 HCD-EP404 Tape Speed Adjustment Setting: Function: TAPE Procedure: 1. Playback WS-48B (tape center). 2. Adjsut the volume in CAPSTAN/REEL motor so that the frequency counter reading becomes 3,000 Hz. Specified Value: 2,910 to 3,090 Hz 3. Confirm that the frequency at the beginning and that at the end of tape winding are between 2,955 to 3,045 Hz. Adjustment Location: frequency counter test tape WS-48B (3 kHz, 0 dB) set HEADPHONE board PHONES jack (JK501) – + 32 Ω CAPSTAN/REEL motor Tape Speed Adjustment Adjustment Location: Record/Playback Head. Note: Refer to “3-8. Cassette Lid” (see page 10) adjustment screw www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 HCD-EP404 TUNER SECTION 0 dB=1 µV [AM] Setting: Function : TUNER Band switch : AM [FM] Setting: Function : TUNER Band switch : FM • Repeat the procedures in each adjustment several times, and the frequency coverage and tracking adjustments should be finally done by the trimmer capacitors. AM RF signal generator 30% amplitude modulation by 400 Hz signal Output level: as low as possible Put the lead-wire antenna close to the set. + – level meter set 32 Ω HEADPHONE board PHONES jack (JK501) FM RF signal generator 22.5 kHz frequency deviation by 400 Hz signal Output level: as low as possible + – level meter set 32 Ω 0.01 µF MAIN board FM ANT HEADPHONE board PHONES jack (JK501) digital voltmeter 100 kΩ MAIN board TP (FM VT) TP (AM VT) AM FREQUENCY COVERAGE ADJUSTMENT Adjustment Part Frequency Display Reading on Digital Voltmeter Confirmation 531 kHz 1.5 ± 0.2 V T101 1,602 kHz 7.3 ± 0.3 V AM TRACKING ADJUSTMENT Adjust for a maximum reading on level meter L110 603 kHz TC102 1,404 kHz FM FREQUENCY COVERAGE ADJUSTMENT Adjustment Part Frequency Display Reading on Digital Voltmeter L103 87.5 MHz 2.1 ± 0.2 V Confirmation 108 MHz 7.0 ± 0.4 V FM TRACKING ADJUSTMENT Adjust for a maximum reading on level meter L102 89.9 MHz TC101 105.9 MHz Adjustment Location: MAIN board (See page 14) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 HCD-EP404 Adjustment Location and Connecting Points – MAIN BOARD (Component Side) – L104 } AM Tracking TC102 Adjustment TC102 } FM Tracking L102 Adjustment L103 FM Frequency Coverage Adjustment T101 AM Frequency Coverage Adjustment IC101 – MAIN BOARD (Conductor Side) – TP(AM VT) TP (FM VT) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 15 HCD-EP404 Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. p: pF. 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • 2 : nonflammable resistor. • C : panel designation. Note on Printed Wiring Board: • W : indicates side identified with part number. • : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) • Indication of transistor • A : B+ Line. • H : adjustment for repair. • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. no mark : FM < > : CD (STOP) • Circled numbers refer to waveforms. • Signal path. F : FM f : AM E : PB (TAPE) a : REC (TAPE) J : CD PLAY • WAVEFORMS – MAIN Board – – CASSETTE Board – – DISPLAY Board – 1 IC102 ws (XOUT) 3.4 Vp-p 139 ns 1 V/DIV, 40 ns/DIV 2 Q715 (Collector) (RECORD (1SS) mode) 2 V/DIV, 4 µs/DIV 3 IC601 i; (X2) 1 V/DIV, 100 ns/DIV 8.6 Vp-p 12.7 µs 5.1 Vp-p 238 ns B These are omitted. C E SECTION 6 DIAGRAMS 6-1. Circuit Boards Location Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. MAIN board LED board HEADPHONE board DISPLAY board POWER board w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 16 HCD-EP404 6-2. Block Diagrams TUNER/TAPE DECK Section : FM : AM • Signal Path • R-CH is omitted due to same as L-CH. : PB(TAPE) : REC(TAPE) 9 13 12 11 1 3 10 5 15 7 7 16 18 19 20 15 8 11 12 6 4 5 3 1 22 Q103 FM OSC BUFFER Q102 BAND SWITCH Q101 AMP BPF AMRF_IN AM_OSC 24 FMRF_IN 22 FM_RF FM_OSC 20 FM_IF AM OSC_OUT FM ANT L104 AM ANT D105 T101 AM OSC L102 FM RF D103 D104 L103 FM OSC F102 10.7MHz T102 X101 10.7MHz PD AIN AOUT FMIN AMIN BO1 IO1 IFIN DO DI CL CE IC102 FM/AM PLL X102 7.2MHz XIN XOUT AM_MIX FM_MIX FM_DET AGC AM/FM IF_OUT AM_IF 16 17 L_OUT R_OUT IC101 AM/FM IF AMP, MIX, MPX, DET, OSC 72 20 76 6 DATAIN DA-IN PLL-CE STATION STEREO PLLENA STATION STEREO DA-IN STEREO DI PLL-CE CL STATION A AMP SECTION AMP SECTION B AMP SECTION C AMP SECTION D PANEL SECTION E IC301 (1/3) SYSTEM CONTROLLER R-CH TUNER L-CH TC102 TC101 FM FREQUENCY COVERAGE AM FREQUENCY COVERAGE AM TRACKING FM TRACKING F103 450kHz MOTOR-ON IC701 REC/PB SWITCH IC702 ALC, REC/PB AMP R-CH Q718 R-CH L-CH (RECORD/PLAYBACK) R-CH R-CH 95 REC-EN 16 6 7 3 4 4 8 7 9 (PROTECT (FWD) DETECT) (HALF SWITCH) Q705 REC/PB SWITCH Q701 REC/PB SWITCH Q703 AMP GAIN CONTROL Q719 ALC CONTROL ALC BIAS TRAP Q720,721 CAPSTAN/REEL MOTOR DRIVE SENSORA 90 BLINK 70 AMS 68 24/12 66 T701 BIAS OSC 9V Q716,717 REC BIAS SWITCH M (CAPSTAN/REEL) SOL 93 Q722,723 TRIGGER PLUNGER DRIVE (TRIGGER PLUNGER) R-CH R-CH R-CH R-CH R-CH R-CH (MODE SWITCH) D305 D308 D703 D701 D702 TL-CH TR-CH RL-CH RR-CH (ERASE) SWITCHING R-CH ISS SWITCHING Q724 TAPE PLAY DETECT SENSOR Q711 REC AMP Q713 PB AMP Q707 MUTING Q715 BIAS OSC ALC IN OUT ALC CNTRL IN NF 2 DI CL STA_B+ 2SS 1SS SW601 BEAT CUT w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 17 HCD-EP404 AMP Section • Signal Path • R-ch is omitted due to same as L-ch. : FM : CD : PB(TAPE) : REC(TAPE) IC401 FUNCTION SELECT SWITCH, ELECTRONIC VOLUME Q403,404 MUTING Q401 MEGA BASS R-CH R-CH R-CH LTCOM LTOUT LVRIN LVROUT L3 CD L-IN CD L-IN CD R-IN CD-DA CD-CLK CDRS TUNER L-CH TL-CH TR-CH R-CH R-CH R-CH L4 L2 DI CE 21 17 INPINENA MUTE 1 10 9 11 15 16 2 2 5 7 10 3 4 L1 12 73 DATAOUT 15 CDRESET 88 CDCLK 14 CDDATA D402 D403 D401 + + – + – SPEAKER IMPEDANCE USE 8Ω L R PHONES JK501 IC301 (2/3) SYSTEM CONTROLLER CL 14 74 CLK 19 SOUNDENA CD BLOCK DI CL IC601 POWER AMP IC302 EEPROM X2 X1 X301 4.194304MHz 79 80 EEPROMDATA 75 CD DOOR SW 91 SDA 5 SCL EEPROMCLK 77 6 Z PUSH OPEN/CLOSE A D TUNER SECTION TAPE SECTION C TAPE SECTION B TUNER SECTION RR-CH RL-CH R-CH STK601 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 18 HCD-EP404 DISPLAY/POWER Section X302 REMOTE CONTROL RECEIVER IC603 +12V REGULATOR IC602 +9V REGULATOR IC304 RESET SIGNAL GENERATOR IC301 (3/3) SYSTEM CONTROLLER, LIQUID CRYSTAL DISPLAY DRIVER Q205, 206 POWER ON/OFF RELAY DRIVE T201 POWER TRANSFORMER (MAIN) AC IN T202 POWER TRANSFORMER (SUB) RE201 B+ AMP POWER AMP (IC601) D601 D107 CD-EN D604 RESET 84 POWERFAIL 86 92 TU-EN 94 3 1 3 1 D901 – 903 (LCD BACK LIGHT) 85 1 REMOTEIN ROTARY ENCODER ENCODERA 97 ENCODERB 98 LCD34 62 LCD35 63 LCD36 64 LCD33 61 LCD32 60 100, 1 – 4 COM0 – COM3 KEY1 – KEY5 23 – 26 LCD04 – LCD31 32 – 59 SW301 – 317 X303 VOLUME LIQUID CRYSTAL DISPLAY D205 - 208 RECT D215 - 218 RECT D212, 213 RECT D201 - 204 RECT Q604 +9V REGULATOR Q603 +5V REGULATOR Z202 +6.2V REGULATOR Z201 +6.8V REGULATOR CD9V 9V TAPE DECK SECTION M12V CAPSTAN/REEL MOTOR B+ SYSTEM CONTROLLER (IC301) VDD, EEPROM (IC302) SYSTEM CONTROLLER (IC301) AVREF Q605,606 REGULATOR CONTROL SWITCH FM/AM PLL (IC102) 3 1 RDSDATA 7 POWER 22 Q306 RESET SWITCH D303 D302 SWITCHING Q301 SWITCHING Q104 B+ SWITCH REC-LED 18 Q305 LED DRIVE D313 TIME 13 Q304 LED DRIVE D312 z TIMER D603 D309 D310 D602 STA_B+ TAPE SECTION E w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 19 HCD-EP404 6-3. Printed Wiring Board MAIN Section • See page 15 for Circuit Boards Location. IC602 IC603 IC601 IC401 IC101 IC102 IC702 IC701 K K K K K K K K K K K A A A A A A A K K A A A A A A E E E E K K K K K A A A A K A K A E E E E E E E E E E A E E E E E E E E E E E E E E E E E E E E MAIN BOARD HEADPHONE BOARD R706 R722 POW -FA PHOTO MODE PHONES SPEAKER (IMPEDANCE USE 8 ) L R TO POWER BOARD CN505 (Page 25) A TO DISPLAY BOARD (Page 23) B TO DISPLAY BOARD (Page 23) C FM ANT FM LEAD ANTENNA (MODE) (HALF) (PROTECT(FWD)) (CAPSTAN/REEL) (TRIGGER PLUNGER) TAPE PLAY DETECT SENSOR M CD BLOCK SUPPLIED AS THE ASSEMBLED BLOCK TO DISPLAY BOARD (Page 23) D TO DISPLAY BOARD (Page 23) E (R-CH) (ERASE) (L-CH) (RECORD/PLAYBACK HEAD) (ERASE HEAD) L104 AM FERRITE-ROD ANTENNA 1 3 BEAT CUT 1SS 2SS 1SS 2SS TP (AM VT) TP (FM VT) 1 2 A B C D E F 3 4 5 6 7 8 9 Ref. No. Location D101 B-4 D102 B-4 D103 B-4 D104 B-4 D105 B-4 D107 C-7 D401 D-4 D402 D-4 D403 D-4 D404 E-6 D405 D-7 D601 E-6 D604 F-5 D701 B-8 D702 B-8 D703 C-8 D704 B-8 D706 F-7 IC101 C-5 IC102 C-6 IC401 D-5 IC601 E-4 IC602 F-5 IC603 F-5 IC701 A-7 IC702 B-7 Q101 C-5 Q102 C-4 Q103 C-4 Q104 B-6 Q401 D-4 Q402 D-4 Q403 E-5 Q404 E-5 Q603 E-5 Q604 F-6 Q605 E-6 Q606 E-6 Q701 B-7 Q702 B-8 Q703 B-7 Q704 B-8 Q705 B-7 Q706 B-8 Q707 C-7 Q708 C-8 Q711 D-7 Q712 C-8 Q713 C-7 Q714 C-7 Q715 B-8 Q716 B-8 Q717 B-8 Q718 C-8 Q719 C-7 Q720 F-8 Q721 E-7 Q722 F-7 Q723 F-7 Q724 A-8 ZD601 F-6 ZD602 E-5 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 20 HCD-EP404 6-4. Schematic Diagram MAIN Section (1/3) • See page 15 for Waveforms. • See page 27,28 for IC Block Diagrams. 2.4 <0.9> 1.3 1.3 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.3 0 0 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.3 0 0 3.3 3.6 0 <0.1> 0 1.8 <0.1> 3.7 <0.1> 0.9 <0.4> 0.9 <0.4> 2.1 <9> 1.8 <0> 5 <6> 5 <5.6> 0 <0.4> 2.6 <3.3> 5 <5.7> 1.3 4.8 <5.7> 1.3 5 <5.7> 5 <5.8> 1.1 <0.8> 1.3 1.3 1.2 3.3 7.2 4.8 0 0 4.2 <0> 4.3 <3.4> 4.2 <5.2> 0 <0.6> 4.2 <0> 5 <0.1> 2.7 5.4 2 0.1 <0.6> 1 <0> 5 <5.8> 0 <0.2> 0 <4.8> 5.4 4.8 0 0 1.9 <0> 1 8.5 3.8 <0> 4.4 <0.4> 0 0.6 0.6 2.4 0 0 2.4 0 0.022 4.7k 3.3k 0.022 AM FERRITE-ROD ANTENNA L104, TC102 AM TRACKING FM LEAD ANTENNA FM ANT BPF 1SS133T 1SS133T 0.001 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.047 3.9k 1SS133T 0.0056 0.022 0.0047 0.033 8.2k 6.8k 6.8k 2.2k 2.2k 0.22 0.22 10k 10k 2SC945 2SC945 0.0047 0.022 8.2k 3.9K 0.047 0.0056 0.1 0.1 0.1 0.1 0.001 0.001 0.001 0.001 0.01 0.01 0.0015 0.0015 0.022 2SC945 0.01 2SC1923 2SC945 0.047 100p 0.001 0.001 0.01 0.1 0.1 2SC3623 1SS133T 8.2k 8.2k 330 DTC343TS DTC343TS 0.1 0.047 MAIN BOARD (1/3) TP (AM VT) TP (FM VT) CD BLOCK SUPPLIED AS THE ASSEMBLED BLOCK Q403,404 MUTING BAND SWITCH TO DISPLAY BOARD B (Page 24) TO DISPLAY BOARD E (Page 24) MAIN BOARD(2/3) (3/3) 4 IC102 FM/AM PLL B+ SWITCH FM OSC BUFFER AMP IC101 IC B/D AM/FM IF AMP MIX,MPX,DET,OSC MEGA BASS MEGA BASS IC401 FUNCTION SELECT SWITCH, ELECTRONIC VOLUME L103 FM FREQUENCY COVERAGE T101 AM FREQUENCY COVERAGE L102, TC101 FM TRACKING IC B/D IC B/D MAIN BOARD (2/3) 5 MAIN BOARD(3/3) 7 MAIN BOARD (2/3) MAIN BOARD (2/3) 2 1 1 2 A B C D E F G H I 3 4 5 6 7 8 9 10 11 12 13 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 21 HCD-EP404 6-5. Schematic Diagram MAIN Section (2/3) 0 0 0 0 7.6 0 [8.9] 0 [1.9] 0 [1.9] 0.6 [0] 0 [2.5] 0 [0.1] 0 [0.1] 0 [0.7] 0 [0.7] 0 [0.7] 0 0 1.3 1.4 3.6 0 7.2 7.3 0 0 0 3.6 1.4 1.3 0 0 0 0 0 0 0.6 [0] 0.6 [0] 0 [0.1] 8.4 [0.1] 8.9 [0] 0 [0.1] 0 [5.9] 0 0 [0.7] 0 [0.7] 0 [0.1] 8.9 [8.2] 0 [8.8] 0.7 9 0 [0.1] 0 [1.9] 0 [1.9] 0 [0.7] 0 [2.5] 2 4.2 4.7 7.8 4.2 4.7 7.8 0.7 1.3 3.7 0.7 1.3 3.9 11.8 11.8 11.8 11.9 0 0 0 11.8 11.9 0 No mark : FM [ ] : REC 0.0012 2SC945 2SC945 2SC945 0.12 3.3k 0.0047 0.001 0.001 0.0012 0.001 0.01 0.012 2SC945 2SC945 2SC945 2SC945 2SC945 2SC945 2SC945 0.001 0.1 2SA733 0.1 0.0027 0.0027 0.022 2SC945 3.3k 3.3k 2SC945 2SC945 2SC945 220 100 16V 0.12 3.3k MAIN BOARD (2/3) 0.047 0.022 0.022 0.022 8.2k 10 50v 2SC945 2SC945 2SC945 8.2k 2.7k 0.1 0.1 5.6k 1SS133 2SC945 2SC945 0.1 0.1 2SB926 2SB926 0.022 (RECORD/PLAYBACK HEAD) (ERASE) (L-CH) (R-CH) M TAPE PLAY DETECT SENSOR (HALF) (CAPSTAN/REEL) (MODE) (TRIGGER PLUNGER) (PROTECT(FWD)) IC701 IC B/D REC/PB SWITCH REC/PB SWITCH REC/PB SWITCH IC702 ALC, REC,PB AMP AMP GAIN CONTROL ALC CONTROL Q707, 708 MUTING REC/PB SWITCH Q702, 706 Q704 AMP GAIN CONTROL Q716, 717 REC BIAS AMP BAIS OSC ISS SWITCHING REC AMP REC AMP PB AMP PB AMP Q720,721 CAPSTAN/REEL MOTER DRIVE Q722,723 TRIGGER PLUNGER DRIVE TO DISPLAY BOARD C (Page 24) TO DISPLAY BOARD D (Page 24) MAIN BOARD (1/3) 1 MAIN BOARD (1/3) 5 IC B/D MAIN BOARD (3/3) MAIN BOARD (1/3) MAIN BOARD (1/3) (3/3) 3 4 MAIN BOARD (3/3) 6 2 1 2 A B C D E F G H I 3 4 5 6 7 8 9 10 11 12 13 • See page 15 for Waveforms. • See page 28 for IC Block Diagrams. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 22 HCD-EP404 6-6. Schematic Diagram MAIN Section (3/3) 0.7 1.1 0.7 13.7 13.5 5.6 12.1 6.2 0 <8.7> 14.2 0 <0.7> 9 14.2 11.9 14.2 No mark : FM < > : CD 0.1 <9.3> 14.2 <9.4> 14.1 <8.6> 14.1 <0> 13.5 27.6 1.1 MAIN BOARD (3/3) 0.001 0.001 0.1 0.01 1SS133 MTZJ-T- 72-9.1B 2SC3623 +5V REG MTZJ-T-72-6.2B 2SA733 2SC945 1SS133 0.1 3.3k 3.3k 0.1 0.1 HEADPHONE BOARD L R PHONES IC603 +12V REG IC602 +9V REG IC601 POWER AMP Q605, 606 REGULATOR CONTROL SWITCH +9V REG TO POWER BOARD CN505 A (Page 26) SPEAKER (IMPEDANCE USE 8 ) BEAT CUT 1SS 2SS 1SS 2SS MAIN BOARD (2/3) 3 MAIN BOARD (1/3) (2/3) 4 MAIN BOARD (2/3) 6 MAIN BOARD (1/3) 7 0.01 0.01 1 2 A B C D E F G H 3 4 5 6 7 8 9 10 11 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 23 HCD-EP404 6-7. Printed Wiring Board PANEL Section • See page 15 for Circuit Boards Location. Ref. No. Location D302 A-3 D303 A-2 D305 A-1 D308 B-1 D309 C-5 D310 C-5 D312 A-5 D313 C-4 D316 C-2 D317 C-2 D901 B-6 D902 B-6 D903 B-6 IC301 B-3 IC302 C-2 IC304 C-2 Q301 D-2 Q304 B-5 Q305 C-5 Q306 C-2 X302 B-2 • Semiconductor Location IC301 X302 IC302 IC304 1 25 26 50 51 75 76 100 E E E E E A K A A A A A A A K K K K K K K DISPLAY BOARD POWER-FAIL CD-CLK TO MAIN BOARD (Page 19) C TO MAIN BOARD CN704 (Page 19) E TO MAIN BOARD CN705 (Page 19) D LED BOARD TO MAIN BOARD CN402 (Page 19) B TIMER DISPLAY I / PLAY MODE TUNER MEM ENTER TAPE CD TUNER PRESET TUNNING + TUNNING - VOLUME MUSIC MENU MEGA BASS (LIQUID CRYSTAL DISPLAY) (LCD BACK LIGHT) PUSH OPEN/CLOSE SW600 1 2 A B C D E 3 4 5 6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 24 HCD-EP404 6-8. Schematic Diagram PANEL Section • See page 15 for Waveforms. 4.9 4.9 4.8 4.8 4.9 0 0<5> 4.8 0 4.8 0 0 0 4.8 4.8 2.4 2.4 0 0 5.4 5.4 0 4.8 4.7 0.2 2.4 4.3 No mark: FM < > : CD 2.4 4.8 4.8 3.2 1.6 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 4.8 4.9 <5.4> 4.8 2.6 2.3 4.8 4.8 5,4 5,4 0 0<4.8> 0 4.8<0> 0 4.8 0 4.9 5.4 2.3 <4.9> 5.4 4.9 <0> 4.9 4.9 3 4.9 4.9 0 4.8 0 5.7 4.8 4.8 4.8 6.2 5.3 5.4 5.7 DISPLAY BOARD LED BOARD MUSIC MENU MEGA BASS TUNING+ TUNING- PRESET- PRESET+ DISPLAY TIMER TUNER TAPE CD TUNER MEM ENTER PLAY MODE SEL2215S 2SC536N 0 10V 50V 2SC536N 0 50V PST529D 0.1 VOLUME ENCODER 0.001 0.001 2SC536N SWITCHING SEL2215S 0.1 0.1 0.1 0.1 0.1 NC NC 24/12 RDS RDS 0.1 0.1 0.1 0.1 2SC536N SEL2910D SEL2910D SEL2910D (LIQUID CRYSTAL DISPLAY) IC302 IC304 X302 REMOTE CONTROL RECEIVER RESET SIGNAL GENELATOR +5V REG EEP ROM LED DRIVE LED DRIVE IC301 SYSTEM CONTROL TO MAIN BOARD (1/3) CN402 B (Page 20) TO MAIN BOARD (1/3) CN704 E (Page 20) TO MAIN BOARD (2/3) C (Page 21) TO MAIN BOARD (2/3) CN705 D (Page 21) 1 2 A B C D E F G H I 3 4 5 6 7 8 9 10 11 12 13 • See page 29 for IC Pin Function Description. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 25 HCD-EP404 6-9. Printed Wiring Board POWER Section Ref. No. Location D201 E-3 D202 E-4 D203 E-3 D204 E-3 D205 D-2 D206 D-3 D207 D-2 D208 D-3 D212 C-4 D213 C-4 D215 C-4 D216 C-3 D217 C-3 D218 C-3 D221 C-3 Q205 C-2 Q206 C-2 • Semiconductor Location • See page 15 for Circuit Boards Location. E E POWER BOARD T201 POWER TRANSFORMER AC IN K K A K K A A A TO MAIN BOARD (Page 19) A 1 2 A B C D E 3 4 5 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 26 HCD-EP404 6-10. Schematic Diagram POWER Section 0 5 0.7 5.8 5.7 No mark : FM AC IN POWER TRANSFORMER POWER TRANSFORMER 2SC536NP-F 2SA608SP-G Q205,206 POWER ON/OFF RELAY DRIVE 50V 22000p 22000p 22000p 22000p 22000p 22000p 22000p 22000p 22000p 22000p 22000p 22000p 22000p 22000p 25v MTZJ-T-72-6.8B MTZJ-T- 72-6.2B 50V TO MAIN BOARD (3/3) A (Page 22) POWER BOARD 1 2 A B C D E F 3 4 5 6 7 8 9 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 HCD-EP404 • IC Block Diagrams IC101 LA1823 – MAIN Board – 24 23 FM RF 1 AM RF GND2 2 VCC2 REG 3 AM MIX AM OSC OSC BUFFER 4 22 21 VCC1 20 FM OSC PHASE COMP FM MIX DECODER 5 6 19 GND1 7 MUTE 8 18 17 16 9 15 PILOT DET 14 FM DET 13 10 FM S-METER 11 12 ST ST SW FF VCO FF FF TRIG AM IF AM DET AGC FM IF SD IF BUFFER FMRF IN RF GND FMRF OUT VCC2 FM OSC DET OUT MUTE R L AM/FM MO/ST FM DET AMRF IN REG AM OSC VCC1 FM MIX GND FM BUFFER AM OSC BUFFER AM MIX QUAD AMIF SD IC102 LC72131 PHASE DETECTOR CHARGE PUMP SWALLOW COUNTER 1/16, 1/17 4BITS 12BITS PROGRAMMABLE DRIVER UNIVERSAL COUNTER REFERENCE DIVIDER POWER ON RESET 1/2 CCB INTERFACE 1 3 4 5 6 7 8 9 10 18 17 16 15 13 12 11 19 20 21 22 XOUT VSS AOUT AIN PD VDD FMIN AMIN 14 NC XIN DO CL DI CE 2 NC IFIN IO1 BO4 BO3 BO2 BO1 IO2 UNLOCK DETECTOR DATA SHIFT REGISTER LATCH www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 HCD-EP404 IC401 LC75392 IC702 AN7312 + – 3 6 9 12 15 2 5 8 11 14 1 4 7 10 13 28 25 22 19 16 29 26 23 20 17 30 27 24 21 18 + – + – + – LATCH DECODER CONTROL SHIFT REGISTER – + LVROUT LVRIN LTOUT LTCOM LT4 LT3 LT2 LT1 L4 L3 L2 L1 VDD CL DI RVROUT RVRIN RTOUT RTCOM RT4 RT3 RT2 RT1 R4 R3 R2 R1 VREF VSS CE RIPPLE FILTER ALC 14 13 12 1 2 3 11 10 9 AMP. CH2 AMP. CH1 8 4 5 6 7 VCC RF ALC IN2 OUT2 PC2 NF2 IN2 GND ALC CONST ALC IN1 OUT1 PC1 NF1 IN1 IC701 uPC1330HA-NA 1 2 3 4 5 6 7 8 9 INVERTER COMPARATER SW R1 GND SW P1 CONT GND VCC SW P2 GND SW R2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 HCD-EP404 6-12. IC Pin Function Description • IC301 µPD780306GC-A68-8EU System Controller, Liquid Crystal Display Driver (DISPLAY Board) Pin No. 1 2 3 4 5 6 7 8 9 10, 11 12 13 14 15 16 17 18 19 20 21 22 23 to 26 27 28 to 30 31 32 to 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 I/O I I I I I I I – – O – O I/O O O O O O O O O O O I – O O O O O O – I – I I I I I O O I/O I O – I O – I Pin Name KEY2 KEY3 KEY4 KEY5 ANALYSER STATION RDSDATA AVDD AVREF CDOUT1, CDOUT2 VSS TIME CDDATA CDRESET REC-EN INPINENA REC-LED SOUNDENA PLLENA MUTE POWER COM0 to COM3 BIAS VLC0 to VLC2 VSS LCD4 to LCD31 LCD32 LCD33 LCD34 LCD35 LCD36 NC 24/12 NC AMS RDS BLINK REC_RVS DATAIN DATAOUT CLK EEPROMDATA STEREO EEPROMCLK VSS X1 X2 VDD XT1 Description Key input terminal (A/D input) SW306 to SW309 (x , X , N , TUNER MEM/ENTER)keys input Key input terminal (A/D input) SW310 to SW312 (PRESET +/–, DISPLAY)keys input Key input terminal (A/D input) SW313 to SW315 (TUNING – . m , TUNING + M >, MUSIC MENU)keys input Key input terminal (A/D input) SW316, SW317 (MEGA BASS, z )keys input Analyzer level detection signal input terminal (A/D input) Not used (open) Tuning detection signal input from the LA1823 (IC101)(A/D input) Selection data input from the Q301 Power supply terminal Reference voltage input terminal for A/D converter Not used (open) Ground terminal LED control signal output Two-way data bus with the CD block Reset signal output to the CD block “L ”:reset Recording bias switch control signal output Mega bass on/off selection signal output “H ”:mega bass on LED control signal output Function switch and electronic volume LC75392 (IC401) chip enable signal output PLL chip enable signal output to the FM/AM PLL (IC102) “H ” active Audio line muting on/off control signal output “H ”:muting on System power on/off control signal output “H ”:power on Common drive signal output to the liquid crystal display Bias output for the liquid crystal display drive Input terminal for liquid crystal display drive voltage Ground terminal Segment drive signal output to the liquid crystal display Segment drive signal output to the liquid crystal display Mode selection signal output Segment drive signal output to the liquid crystal display Mode selection signal output Segment drive signal output to the liquid crystal display Mode selection signal output Segment drive signal output to the liquid crystal display Mode selection signal output Segment drive signal output to the liquid crystal display Not used (open) Mode switch detection signal input Not used (open) Half switch detection signal input Not used (open) Rec-proof switch detection signal input Not used Serial data input from the FM/AM PLL (IC102) Serial data output to the FM/AM PLL (IC102) and LC75392 (IC401) Serial data transfer clock signal output to the FM/AM PLL (IC102) and LC75392 (IC401) Two-way data bus with the EEPROM (IC302) FM stereo detection signal input from the LA1823 (IC101) “L ”:stereo Clock signal output to the EEPROM (IC302) Internal connection terminal (connected to ground) Main system clock output terminal (4.194304 MHz) Main system clock input terminal (4.194304 MHz) Power supply terminal Sub system clock input terminal (32.768 kHz) Not used (open) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 HCD-EP404 Pin No. 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 I/O O I I I I I I I I O O O O I I I – I Pin Name XT2 RESET REMOTEIN POWERFAIL RDSCLK CDCLK SENSORB SENSORA CD DOOR SW CD-EN SOL TU-EN MOTOR-ON AMS. ENCODERA ENCODERB AVSS KEY1 Description Sub system clock output terminal (32.768 kHz) Not used (open) System reset signal input from the reset signal generator (IC304) “L ”:reset For several hundreds msec. after the power supply rises, “L ” is input, then it changes to “H ” Remote control signal input from the remote control receiver (X302) Power failure detection signal input terminal “L ”:power failure, “H ”:power on Serial data transfer clock signal input from the RDS decoder Not used Serial data transfer clock signal input from the CD block Tape sensor input terminal Not used (open) Tape play/rec detect sensor input terminal “L ” input when the tape play/rec detect CD lid open/close detect switch input terminal “L ”:CD lid is closed Power control signal output for the CD block Solenoid control signal output Power control signal output for the tuner block Capstan/reel motor control signal output Not used Jog dial pulse input from the rotary encoder (X303 VOLUME)(A phase input) Jog dial pulse input from the rotary encoder (X303 VOLUME)(B phase input) Ground terminal for A/D converter Key input terminal (A/D input) SW301 to SW305 (I/1 , TUNER/BAND, TAPE, CD, PLAY MODE)keys input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 HCD-EP404 NOTE: • -XX, -X mean standardized parts, so they may have some differences from the original one. • The mechanical parts with no reference number in the exploded views are not supplied. SECTION 7 EXPLODED VIEWS The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. 7-1. Cabinet Section Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 12 5 1 2 8 7 6 #1 #1 #4 #2 #2 #2 #2 #3 #5 Front panel section F202 T201 F201 CD cabinet section #3 #3 #1 3 not supplied not supplied 1 3-451-162-00 WASHER 2 4-235-952-01 AC CORD HOLDER 3 1-500-712-11 CORE, FERRITE 5 A-4729-695-A MAIN BOARD, COMPLETE 06 1-555-750-00 CORD, POWER (AEP) 06 1-696-535-11 CORD, POWER (UK) 7 4-235-974-01 CAB, ANTENNA COVER 8 1-823-170-11 CORD (WITH CONNECTOR) (FM ANT) 12 A-4729-696-A POWER BOARD, COMPLETE 0F201 1-533-471-11 FUSE, GLASS TUBE (DIA. 5) T4AL/250V 0F202 1-533-468-11 FUSE, GLASS TUBE (DIA. 5) T2AL/250V 0T201 1-437-513-11 TRANSFORMER, POWER - #1 7-685-534-14 SCREW +BTP 2.6X8 TYPE2 N-S #2 7-685-647-14 SCREW +BVTP 3X10 TYPE2 SLIT #3 7-682-246-04 SCREW +K 3X5 #4 7-685-535-14 SCREW +BTP 2.6X10 TYPE2 N-S #5 7-685-648-14 SCREW +BVTP 3X12 TYPE2 SLIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 HCD-EP404 7-2. Front Panel Section -1 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 51 4-241-113-01 VOL.ROTARY KNOB 53 4-241-112-01 VOL.DECORATION RING 54 4-241-380-01 DISPLAY WINDOW 55 4-236-899-01 DAMPER 56 4-240-240-01 CASS LID WINDOW 57 4-241-383-01 CASS LID 58 4-236-901-01 CASS LID BKT 59 4-236-904-01 CASS LID SPRING 60 4-236-915-01 MAIN PWB MOUNTING BKT (A) 62 4-236-906-01 CASS LID LATCH 63 4-236-905-01 CASS LATCH SPRING 64 4-236-907-01 CASS LID LATCH HOLDER 65 1-796-543-11 DECK, MECH (CFL4318) 73 4-240-261-01 TUNING SWING KNOB 75 4-240-276-01 TUNING KNOB SPRING 76 4-240-258-01 TUNING SWING LEVER #1 7-685-534-14 SCREW +BTP 2.6X8 TYPE2 N-S #2 7-685-647-14 SCREW +BVTP 3X10 TYPE2 SLIT #12 7-685-854-04 SCREW +BVTT 2X8 (S) 54 55 64 63 62 56 57 58 59 73 75 76 60 65 51 53 #2 #2 #1 #12 not supplied including X303 Ver 1.1 2002.07 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 HCD-EP404 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 7-3. Front Panel Section -2 115 102 115 115 114 116 120 119 104 105 117 113 108 103 111 124 121123 122 101 #4 #4 #4 #4 #4 #11 not supplied not supplied CN301 101 4-235-995-01 RUBBER FOOT 102 4-241-382-01 FRONT PANEL 103 A-4729-694-A HEADPHONE BOARD, COMPLETE 104 4-241-291-01 LCD SHIELDING PAPER 105 4-241-115-01 RECORD/PAUSE KNOB 108 4-241-381-01 PLAY/STOP KNOB 111 A-4729-697-A DISPLAY BOARD, COMPLETE 113 4-240-269-01 BASS/MENU KNOB 114 4-240-271-01 PRESET UP/DOWN KNOB 115 4-235-994-01 PANEL FIXING PLATE 116 4-240-268-01 DISPLAY/POWER KNOB 117 4-240-272-01 FUNCTION KNOB 119 4-240-227-01 LCD DEFUSE SHEET 120 4-240-243-01 LCD LIGHT GUIDE 121 4-240-254-01 LCD BACKLIGHT HOLDER 122 4-246-252-01 REMOTE SENSOR HOLDER 123 4-240-253-01 TIMER LED HOLDER 124 4-236-916-01 MAIN PWB MOUNTING BKT (B) CN301 1-804-496-11 DISPLAY PANEL, LIQUID CRYSTAL #4 7-685-535-14 SCREW +BTP 2.6X10 TYPE2 N-S #11 7-685-135-19 SCREW (+ PTPWH) (2.6X10) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 HCD-EP404 7-4. CD Cabinet Section Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 151 4-240-255-01 CD COVER HOUSING 152 4-236-280-01 RUBBER, VIBRATION PROOF (PINK) 153 4-235-991-01 PULLEY SCREW * 154 3-509-138-00 CLAMP, SPRING 156 4-235-948-01 DISC HOLDER BKT 157 1-471-144-11 MAGNET 158 4-241-109-01 CD LID (T2) 159 4-241-386-01 CD LID WINDOW 160 4-235-970-01 NSX1 PUSH ROD 161 4-235-990-01 CD EJECT SPRING 162 4-235-982-01 CD LID SPRING 163 4-236-899-01 DAMPER 164 4-240-244-01 CD TRAY 165 4-235-949-01 PU COVER 0166 1-796-189-11 MECH, CD 167 4-236-281-01 RUBBER, VIBRATION PROOF (ORG) 168 4-235-971-01 PLASTIC COVER 169 4-236-860-01 METAL COVER SW600 1-692-960-21 SWITCH, PUSH (1 KEY) (Z PUSH OPEN/CLOSE) #6 7-685-504-19 SCREW +BTP 2X6 TYPE2 N-S #7 7-623-916-21 FIBER WASHER 3.3,SMALL #8 7-685-233-19 SCREW +KTP 2.6X6 TYPE2NON-SLIT #9 7-624-106-04 STOP RING 3.0, TYPE -E #10 7-685-646-14 SCREW +BVTP 3X8 TYPE2 SLIT 151 152 152 153 167 167 154 154 154 154 169 156 157 164 158 159 160 161 162 165 166 163 #7 #10 #9 #8 #6 #6 SW600 168 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 35 SECTION 8 ELECTRICAL PARTS LIST HCD-EP404 NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • CAPACITORS: uF: µF • RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable • COILS uH: µH • SEMICONDUCTORS In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD... When indicating parts by reference number, please include the board name. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. A-4729-697-A DISPLAY BOARD, COMPLETE *********************** 4-240-243-01 LCD LIGHT GUIDE 4-240-252-01 REMOTE SENSOR HOLDER 4-240-253-01 TIMER LED HOLDER 4-240-254-01 LCD BACKLITE HOLDER 4-240-277-01 LCD DIFFUSE SHEET 4-241-111-01 REC.KNOB LED HOLDER 7-685-534-14 SCREW +BTP 2.6X8 TYPE2 N-S < CAPACITOR > C306 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C307 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C308 1-163-038-91 CERAMIC CHIP 0.1uF 25V C309 1-126-514-11 ELECT 22uF 20.00% 10V C310 1-163-038-91 CERAMIC CHIP 0.1uF 25V C311 1-115-870-11 ELECT 0.47uF 20.00% 50V C312 1-126-382-11 ELECT 100uF 20.00% 10V C313 1-163-009-91 CERAMIC CHIP 0.001uF 10.00% 50V C314 1-163-009-91 CERAMIC CHIP 0.001uF 10.00% 50V C324 1-163-038-91 CERAMIC CHIP 0.1uF 25V C325 1-126-934-11 ELECT 220uF 20.00% 10V C326 1-126-916-11 ELECT 1000uF 20.00% 6.3V C327 1-164-159-11 CERAMIC 0.1uF 50V C328 1-115-871-11 ELECT 1uF 20.00% 50V C332 1-163-038-91 CERAMIC CHIP 0.1uF 25V C333 1-164-159-11 CERAMIC 0.1uF 50V C335 1-164-159-11 CERAMIC 0.1uF 50V C336 1-164-159-11 CERAMIC 0.1uF 50V C337 1-163-038-91 CERAMIC CHIP 0.1uF 25V C338 1-163-038-91 CERAMIC CHIP 0.1uF 25V C339 1-163-038-91 CERAMIC CHIP 0.1uF 25V C340 1-163-038-91 CERAMIC CHIP 0.1uF 25V C341 1-163-038-91 CERAMIC CHIP 0.1uF 25V C342 1-162-288-31 CERAMIC 330PF 10% 50V C343 1-162-288-31 CERAMIC 330PF 10% 50V < LIQUID CRYSTAL DISPLAY > CN301 1-804-496-11 DISPLAY PANEL, LIQUID CRYSTAL < DIODE > D302 8-719-991-33 DIODE 1N4148TP D303 8-719-991-33 DIODE 1N4148TP D305 8-719-991-33 DIODE 1N4148TP D308 8-719-991-33 DIODE 1N4148TP D309 8-719-991-33 DIODE 1N4148TP D310 8-719-991-33 DIODE 1N4148TP D312 8-719-062-11 DIODE SEL2215S-CD (TIMER) D313 8-719-062-11 DIODE SEL2215S-CD (z) D316 8-719-991-33 DIODE 1N4148TP D317 8-719-991-33 DIODE 1N4148TP D901 8-719-812-44 DIODE SEL2910D (LCD BACK LIGHT) D902 8-719-812-44 DIODE SEL2910D (LCD BACK LIGHT) D903 8-719-812-44 DIODE SEL2910D (LCD BACK LIGHT) < IC > IC301 6-801-965-01 IC uPD780306GC-A68-8EU IC302 8-759-251-04 IC ST24C02AB1 IC304 8-759-971-11 IC PST529D < JUMPER RESISTOR > J306 1-216-864-11 METAL CHIP 0 5% 1/16W J340 1-216-864-11 METAL CHIP 0 5% 1/16W < COIL > L301 1-410-525-11 INDUCTOR 220uH < TRANSISTOR > Q301 8-729-281-53 TRANSISTOR 2SC536NP-F Q304 8-729-281-53 TRANSISTOR 2SC536NP-F Q305 8-729-281-53 TRANSISTOR 2SC536NP-F Q306 8-729-281-53 TRANSISTOR 2SC536NP-F < RESISTOR > R301 1-216-833-11 METAL CHIP 10K 5% 1/16W R302 1-216-833-11 METAL CHIP 10K 5% 1/16W R303 1-216-073-91 RES-CHIP 10K 5% 1/10W R304 1-216-833-11 METAL CHIP 10K 5% 1/16W R305 1-216-833-11 METAL CHIP 10K 5% 1/16W R306 1-249-417-11 CARBON 1K 5% 1/4W F R307 1-249-418-11 CARBON 1.2K 5% 1/4W F R308 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R309 1-216-837-11 METAL CHIP 22K 5% 1/16W R310 1-216-821-11 METAL CHIP 1K 5% 1/16W R311 1-216-822-11 METAL CHIP 1.2K 5% 1/16W R312 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R313 1-216-821-11 METAL CHIP 1K 5% 1/16W R314 1-216-822-11 METAL CHIP 1.2K 5% 1/16W R315 1-216-821-11 METAL CHIP 1K 5% 1/16W R316 1-216-826-11 METAL CHIP 2.7K 5% 1/16W R317 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R318 1-249-426-11 CARBON 5.6K 5% 1/4W R319 1-216-845-11 METAL CHIP 100K 5% 1/16W R320 1-216-821-11 METAL CHIP 1K 5% 1/16W DISPLAY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 36 HCD-EP404 DISPLAY R321 1-216-821-11 METAL CHIP 1K 5% 1/16W R322 1-216-832-11 METAL CHIP 8.2K 5% 1/16W R323 1-216-832-11 METAL CHIP 8.2K 5% 1/16W R324 1-249-409-11 CARBON 220 5% 1/4W F R325 1-216-849-11 METAL CHIP 220K 5% 1/16W R326 1-216-821-11 METAL CHIP 1K 5% 1/16W R327 1-216-837-11 METAL CHIP 22K 5% 1/16W R328 1-216-815-11 METAL CHIP 330 5% 1/16W R329 1-216-837-11 METAL CHIP 22K 5% 1/16W R330 1-216-857-11 METAL CHIP 1M 5% 1/16W R331 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R332 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R335 1-249-417-11 CARBON 1K 5% 1/4W F R336 1-216-049-11 RES-CHIP 1K 5% 1/10W R337 1-249-417-11 CARBON 1K 5% 1/4W F R338 1-247-887-00 CARBON 220K 5% 1/4W R339 1-216-841-11 METAL CHIP 47K 5% 1/16W R340 1-249-437-11 CARBON 47K 5% 1/4W R341 1-249-429-11 CARBON 10K 5% 1/4W R342 1-249-429-11 CARBON 10K 5% 1/4W R345 1-249-417-11 CARBON 1K 5% 1/4W F R346 1-249-417-11 CARBON 1K 5% 1/4W F R347 1-249-417-11 CARBON 1K 5% 1/4W F R351 1-216-821-11 METAL CHIP 1K 5% 1/16W R352 1-216-821-11 METAL CHIP 1K 5% 1/16W R353 1-216-837-11 METAL CHIP 22K 5% 1/16W R354 1-216-821-11 METAL CHIP 1K 5% 1/16W R355 1-249-417-11 CARBON 1K 5% 1/4W F R356 1-249-417-11 CARBON 1K 5% 1/4W F R357 1-216-841-11 METAL CHIP 47K 5% 1/16W R358 1-216-821-11 METAL CHIP 1K 5% 1/16W R360 1-216-821-11 METAL CHIP 1K 5% 1/16W R361 1-249-417-11 CARBON 1K 5% 1/4W F R363 1-216-821-11 METAL CHIP 1K 5% 1/16W R364 1-216-845-11 METAL CHIP 100K 5% 1/16W R365 1-216-845-11 METAL CHIP 100K 5% 1/16W R366 1-216-845-11 METAL CHIP 100K 5% 1/16W R368 1-216-821-11 METAL CHIP 1K 5% 1/16W R369 1-216-049-11 RES-CHIP 1K 5% 1/10W R370 1-216-049-11 RES-CHIP 1K 5% 1/10W R372 1-216-821-11 METAL CHIP 1K 5% 1/16W R373 1-216-837-11 METAL CHIP 22K 5% 1/16W R374 1-216-841-11 METAL CHIP 47K 5% 1/16W R375 1-216-841-11 METAL CHIP 47K 5% 1/16W R378 1-249-429-11 CARBON 10K 5% 1/4W R379 1-249-417-11 CARBON 1K 5% 1/4W F R380 1-249-433-11 CARBON 22K 5% 1/4W R381 1-216-864-11 METAL CHIP 0 5% 1/16W R382 1-216-849-11 METAL CHIP 220K 5% 1/16W R384 1-249-429-11 CARBON 10K 5% 1/4W R385 1-216-864-11 METAL CHIP 0 5% 1/16W R386 1-216-073-91 RES-CHIP 10K 5% 1/10W R387 1-216-821-11 METAL CHIP 1K 5% 1/16W R388 1-216-841-11 METAL CHIP 47K 5% 1/16W R389 1-216-833-11 METAL CHIP 10K 5% 1/16W R391 1-249-417-11 CARBON 1K 5% 1/4W F R392 1-249-417-11 CARBON 1K 5% 1/4W F R395 1-216-864-11 METAL CHIP 0 5% 1/16W R396 1-249-417-11 CARBON 1K 5% 1/4W F R397 1-249-417-11 CARBON 1K 5% 1/4W F R398 1-249-417-11 CARBON 1K 5% 1/4W F R399 1-249-417-11 CARBON 1K 5% 1/4W F < JUMPER RESISTOR> RJ312 1-216-295-91 SHORT 0 RJ319 1-216-295-91 SHORT 0 RJ320 1-216-864-11 METAL CHIP 0 5% 1/16W RJ326 1-216-864-11 METAL CHIP 0 5% 1/16W RJ351 1-216-864-11 METAL CHIP 0 5% 1/16W RJ356 1-216-295-91 SHORT 0 RJ361 1-216-295-91 SHORT 0 RJ362 1-216-295-91 SHORT 0 < SWITCH > SW301 1-570-472-11 SWITCH, KEY BOARD (?/1) SW302 1-570-472-11 SWITCH, KEY BOARD (TUNER) SW303 1-570-472-11 SWITCH, KEY BOARD (TAPE) SW304 1-570-472-11 SWITCH, KEY BOARD (CD) SW305 1-570-472-11 SWITCH, KEY BOARD (PLAY MODE) SW306 1-570-472-11 SWITCH, KEY BOARD (x) SW307 1-570-472-11 SWITCH, KEY BOARD (X) SW308 1-570-472-11 SWITCH, KEY BOARD (N) SW309 1-570-472-11 SWITCH, KEY BOARD (TUNER MEM/ENTER) SW310 1-570-472-11 SWITCH, KEY BOARD (PRESET-) SW311 1-570-472-11 SWITCH, KEY BOARD (PRESET+) SW312 1-570-472-11 SWITCH, KEY BOARD (DISPLAY) SW313 1-554-088-00 SWITCH, KEY BOARD (TUNING- .m) SW314 1-554-088-00 SWITCH, KEY BOARD (TUNING+ M>) SW315 1-570-472-11 SWITCH, KEY BOARD (MUSIC MENU) SW316 1-570-472-11 SWITCH, KEY BOARD (MEGA BASS) SW317 1-570-472-11 SWITCH, KEY BOARD (z) < VIBRATOR > X301 1-795-436-11 VIBRATOR, CRYSTAL 4.19MHz < IC > X302 6-600-092-01 IC RPM7138-V4 < ENCODER > X303 1-476-916-11 ENCODER (VOLUME) ************************************************************** A-4729-694-A HEADPHONE BOARD, COMPLETE *************************** < JACK > JK501 1-815-813-11 JACK (LARGE TYPE) (PHONES) < RESISTOR > R501 1-249-410-11 CARBON 270 5% 1/4W F R502 1-249-410-11 CARBON 270 5% 1/4W F ************************************************************** HEADPONE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 37 HCD-EP404 MAIN A-4729-695-A MAIN BOARD, COMPLETE ********************* 1-424-881-11 AM BAR ANT 1-694-848-11 TERMINAL BOARD (ANT FM) 4-235-969-01 BAR HOLDER 7-682-549-09 SCREW +B 3X10 < CAPACITOR > C101 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C103 1-163-009-91 CERAMIC CHIP 0.001uF 10.00% 50V C104 1-163-009-91 CERAMIC CHIP 0.001uF 10.00% 50V C105 1-162-201-31 CERAMIC 12PF 5% 50V C106 1-163-009-91 CERAMIC CHIP 0.001uF 10.00% 50V C107 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C108 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C109 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C110 1-110-342-11 MYLAR 390PF 5.00% 50V C111 1-162-922-11 CERAMIC CHIP 39PF 5.00% 50V C114 1-162-208-31 CERAMIC 24PF 5.00% 50V C115 1-127-884-11 CERAMIC 0.047uF 10% 50V C116 1-126-964-11 ELECT 10uF 20.00% 50V C117 1-126-963-11 ELECT 4.7uF 20.00% 50V C118 1-130-471-00 MYLAR 0.001uF 5% 50V C119 1-130-483-00 MYLAR 0.01uF 5% 50V C120 1-130-483-00 MYLAR 0.01uF 5% 50V C121 1-126-960-11 ELECT 1uF 20.00% 50V C122 1-162-907-11 CERAMIC CHIP 2PF 0.25PF 50V C123 1-126-959-11 ELECT 0.47uF 20.00% 50V C124 1-126-957-11 ELECT 0.22uF 20.00% 50V C125 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V C126 1-126-963-11 ELECT 4.7uF 20.00% 50V C127 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V C128 1-126-947-11 ELECT 47uF 20.00% 16V C129 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C130 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C131 1-162-282-31 CERAMIC 100PF 10% 50V C132 1-163-009-91 CERAMIC CHIP 0.001uF 10.00% 50V C133 1-163-009-91 CERAMIC CHIP 0.001uF 10.00% 50V C134 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C135 1-126-961-11 ELECT 2.2uF 20.00% 50V C136 1-162-911-11 CERAMIC CHIP 6PF 0.50PF 50V C137 1-162-911-11 CERAMIC CHIP 6PF 0.50PF 50V C138 1-126-935-11 ELECT 470uF 20.00% 16V C139 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V C140 1-126-933-11 ELECT 100uF 20.00% 16V C141 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V C144 1-126-964-11 ELECT 10uF 20.00% 50V C145 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V C147 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V C148 1-126-960-11 ELECT 1uF 20.00% 50V C149 1-126-960-11 ELECT 1uF 20.00% 50V C150 1-130-473-00 MYLAR 0.0015uF 5% 50V C151 1-130-473-00 MYLAR 0.0015uF 5% 50V C152 1-163-104-00 CERAMIC CHIP 30PF 5% 50V C153 1-126-935-11 ELECT 470uF 20.00% 16V C154 1-127-884-11 CERAMIC 0.047uF 10% 50V C159 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V C160 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V C161 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V C162 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V C163 1-163-009-91 CERAMIC CHIP 0.001uF 10.00% 50V C401 1-127-888-11 CERAMIC 0.1uF 10% 50V C402 1-127-888-11 CERAMIC 0.1uF 10% 50V C403 1-127-888-11 CERAMIC 0.1uF 10% 50V C404 1-127-888-11 CERAMIC 0.1uF 10% 50V C405 1-127-888-11 CERAMIC 0.1uF 10% 50V C406 1-127-888-11 CERAMIC 0.1uF 10% 50V C407 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V C408 1-127-888-11 CERAMIC 0.1uF 10% 50V C411 1-130-491-00 MYLAR 0.047uF 5% 50V C412 1-130-491-00 MYLAR 0.047uF 5% 50V C413 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C414 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C415 1-130-480-00 MYLAR 0.0056uF 5% 50V C416 1-130-480-00 MYLAR 0.0056uF 5% 50V C417 1-130-487-00 MYLAR 0.022uF 5% 50V C418 1-130-487-00 MYLAR 0.022uF 5% 50V C419 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C420 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C421 1-130-479-00 MYLAR 0.0047uF 5% 50V C422 1-130-479-00 MYLAR 0.0047uF 5% 50V C423 1-130-489-00 MYLAR 0.033uF 5% 50V C424 1-130-489-00 MYLAR 0.033uF 5% 50V C425 1-163-255-11 CERAMIC CHIP 150PF 5.00% 50V C426 1-163-255-11 CERAMIC CHIP 150PF 5.00% 50V C427 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C428 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C429 1-126-960-11 ELECT 1uF 20.00% 50V C430 1-126-960-11 ELECT 1uF 20.00% 50V C431 1-126-960-11 ELECT 1uF 20.00% 50V C432 1-126-960-11 ELECT 1uF 20.00% 50V C433 1-126-963-11 ELECT 4.7uF 20.00% 50V C434 1-126-963-11 ELECT 4.7uF 20.00% 50V C435 1-126-957-11 ELECT 0.22uF 20.00% 50V C436 1-126-957-11 ELECT 0.22uF 20.00% 50V C437 1-126-934-11 ELECT 220uF 20.00% 16V C438 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V C439 1-126-935-11 ELECT 470uF 20.00% 16V C440 1-126-964-11 ELECT 10uF 20.00% 50V C441 1-126-964-11 ELECT 10uF 20.00% 50V C443 1-126-964-11 ELECT 10uF 20.00% 50V C444 1-163-009-91 CERAMIC CHIP 0.001uF 10.00% 50V C601 1-130-471-00 MYLAR 0.001uF 5% 50V C602 1-130-471-00 MYLAR 0.001uF 5% 50V C603 1-126-959-11 ELECT 0.47uF 20.00% 50V C604 1-126-959-11 ELECT 0.47uF 20.00% 50V C605 1-126-947-11 ELECT 47uF 20.00% 16V C606 1-126-947-11 ELECT 47uF 20.00% 16V C607 1-164-362-11 CERAMIC CHIP 470PF 5.00% 50V C608 1-164-362-11 CERAMIC CHIP 470PF 5.00% 50V C609 1-130-495-00 MYLAR 0.1uF 5% 50V C610 1-130-495-00 MYLAR 0.1uF 5% 50V C611 1-126-942-61 ELECT 1000uF 20.00% 25V C612 1-126-942-61 ELECT 1000uF 20.00% 25V C613 1-126-953-11 ELECT 2200uF 20.00% 35V C614 1-127-888-11 CERAMIC 0.1uF 10% 50V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 38 HCD-EP404 MAIN C615 1-104-665-11 ELECT 100uF 20.00% 25V C616 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C617 1-126-933-11 ELECT 100uF 20.00% 16V C618 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C619 1-126-933-11 ELECT 100uF 20.00% 16V C620 1-126-933-11 ELECT 100uF 20.00% 16V C621 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C625 1-104-665-11 ELECT 100uF 20.00% 25V C626 1-126-934-11 ELECT 220uF 20.00% 16V C627 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V C701 1-163-255-11 CERAMIC CHIP 150PF 5.00% 50V C702 1-163-255-11 CERAMIC CHIP 150PF 5.00% 50V C703 1-130-472-00 MYLAR 0.0012uF 5% 50V C704 1-130-472-00 MYLAR 0.0012uF 5% 50V C705 1-126-960-11 ELECT 1uF 20.00% 50V C706 1-126-960-11 ELECT 1uF 20.00% 50V C707 1-163-009-91 CERAMIC CHIP 0.001uF 10.00% 50V C708 1-163-009-91 CERAMIC CHIP 0.001uF 10.00% 50V C709 1-126-963-11 ELECT 4.7uF 20.00% 50V C710 1-126-963-11 ELECT 4.7uF 20.00% 50V C711 1-126-934-11 ELECT 220uF 20.00% 16V C712 1-126-934-11 ELECT 220uF 20.00% 16V C713 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C714 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C715 1-162-959-11 CERAMIC CHIP 330PF 5% 50V C716 1-162-959-11 CERAMIC CHIP 330PF 5% 50V C717 1-126-963-11 ELECT 4.7uF 20.00% 50V C718 1-126-963-11 ELECT 4.7uF 20.00% 50V C723 1-130-496-00 MYLAR 0.12uF 5% 50V C724 1-130-496-00 MYLAR 0.12uF 5% 50V C725 1-104-760-11 CERAMIC CHIP 0.047uF 10.00% 50V C726 1-104-760-11 CERAMIC CHIP 0.047uF 10.00% 50V C727 1-126-956-91 ELECT 0.1uF 20.00% 50V C728 1-126-956-91 ELECT 0.1uF 20.00% 50V C729 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V C730 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V C733 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C734 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C735 1-163-255-11 CERAMIC CHIP 150PF 5.00% 50V C736 1-163-255-11 CERAMIC CHIP 150PF 5.00% 50V C737 1-126-934-11 ELECT 220uF 20.00% 16V C738 1-126-947-11 ELECT 47uF 20.00% 16V C739 1-126-933-11 ELECT 100uF 20.00% 16V C740 1-126-934-11 ELECT 220uF 20.00% 16V C741 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C742 1-126-964-11 ELECT 10uF 20.00% 50V C743 1-136-967-11 MYLAR 0.012uF 5.00% 50V C744 1-130-483-00 MYLAR 0.01uF 5% 50V C745 1-130-471-00 MYLAR 0.001uF 5% 50V C746 1-130-471-00 MYLAR 0.001uF 5% 50V C747 1-126-933-11 ELECT 100uF 20.00% 16V C748 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V C750 1-126-934-11 ELECT 220uF 20.00% 16V C751 1-126-933-11 ELECT 100uF 20.00% 16V C752 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C753 1-126-934-11 ELECT 220uF 20.00% 16V C755 1-126-934-11 ELECT 220uF 20.00% 16V C756 1-126-960-11 ELECT 1uF 20.00% 50V C757 1-126-960-11 ELECT 1uF 20.00% 50V C758 1-126-960-11 ELECT 1uF 20.00% 50V C759 1-126-960-11 ELECT 1uF 20.00% 50V C766 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C767 1-126-934-11 ELECT 220uF 20.00% 16V C768 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V C781 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V C782 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V C783 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V C784 1-162-979-11 CERAMIC CHIP 0.0027uF 10.00% 50V C785 1-162-979-11 CERAMIC CHIP 0.0027uF 10.00% 50V C786 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V < CONNECTOR > * CN401 1-564-711-11 PIN, CONNECTOR (SMALL TYPE) 9P * CN402 1-564-713-11 PIN, CONNECTOR (SMALL TYPE)11P * CN601 1-565-731-11 PLUG, CONNECTOR (2.5mm) 5P * CN701 1-564-709-11 PIN, CONNECTOR (SMALL TYPE) 7P * CN704 1-564-711-11 PIN, CONNECTOR (SMALL TYPE) 9P * CN705 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P < DIODE > D101 8-719-991-33 DIODE 1SS133T-77 D102 8-719-991-33 DIODE 1SS133T-77 D103 8-719-070-77 DIODE SVC201SPA-M1-AC D104 8-719-070-77 DIODE SVC201SPA-M1-AC D105 8-719-085-35 DIODE SVC348T D107 8-719-991-33 DIODE 1SS133T-77 D401 8-719-991-33 DIODE 1SS133T-77 D402 8-719-991-33 DIODE 1SS133T-77 D403 8-719-991-33 DIODE 1SS133T-77 D404 8-719-991-33 DIODE 1SS133T-77 D405 8-719-991-33 DIODE 1SS133T-77 D601 8-719-991-33 DIODE 1SS133T-77 D604 8-719-991-33 DIODE 1SS133T-77 D701 8-719-991-33 DIODE 1SS133T-77 D702 8-719-991-33 DIODE 1SS133T-77 D703 8-719-991-33 DIODE 1SS133T-77 D704 8-719-991-33 DIODE 1SS133T-77 D706 8-719-991-33 DIODE 1SS133T-77 < FILTER > F101 1-234-704-11 FILTER, BAND PASS (FM) F102 1-760-393-11 FILTER, CERAMIC F103 1-795-397-11 FILTER, CERAMIC < IC > IC101 6-700-580-01 IC LA1823 IC102 8-759-584-70 IC LC72131 IC401 8-759-473-59 IC LC75392 IC601 8-759-803-29 IC LA4270 IC602 8-759-701-59 IC NJM7809FA IC603 8-759-231-58 IC NJM7812A IC701 8-759-079-42 IC uPC1330HA-NA IC702 6-700-579-01 IC AN7312 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 39 HCD-EP404 MAIN < RESISTOR > J401 1-249-425-11 CARBON 4.7K 5% 1/4W F < COIL > L101 1-408-801-21 INDUCTOR 0.22uH L102 1-424-941-11 COIL (FM ANT) L103 1-424-942-11 COIL (FM OSC) L104 1-424-878-11 COIL (ANT) L105 1-414-142-11 INDUCTOR 1uH L701 1-424-946-11 INDUCTOR 47MH L702 1-424-946-11 INDUCTOR 47MH L703 1-410-525-11 INDUCTOR 220uH < TRANSISTOR > Q101 8-729-194-57 TRANSISTOR 2SC945TP-QP Q102 8-729-194-57 TRANSISTOR 2SC945TP-QP Q103 8-729-231-82 TRANSISTOR 2SC1923-O Q104 8-729-107-78 TRANSISTOR 2SC3623-LK Q401 8-729-194-57 TRANSISTOR 2SC945TP-QP Q402 8-729-194-57 TRANSISTOR 2SC945TP-QP Q403 8-729-905-50 TRANSISTOR DTC343TS-TP Q404 8-729-905-50 TRANSISTOR DTC343TS-TP Q603 8-729-107-78 TRANSISTOR 2SC3623-LK Q604 8-729-037-08 TRANSISTOR KTD2058Y Q605 8-729-119-76 TRANSISTOR 2SA733TP-P Q606 8-729-194-57 TRANSISTOR 2SC945TP-QP Q701 8-729-194-57 TRANSISTOR 2SC945TP-QP Q702 8-729-194-57 TRANSISTOR 2SC945TP-QP Q703 8-729-194-57 TRANSISTOR 2SC945TP-QP Q704 8-729-194-57 TRANSISTOR 2SC945TP-QP Q705 8-729-194-57 TRANSISTOR 2SC945TP-QP Q706 8-729-194-57 TRANSISTOR 2SC945TP-QP Q707 8-729-194-57 TRANSISTOR 2SC945TP-QP Q708 8-729-194-57 TRANSISTOR 2SC945TP-QP Q711 8-729-194-57 TRANSISTOR 2SC945TP-QP Q712 8-729-194-57 TRANSISTOR 2SC945TP-QP Q713 8-729-194-57 TRANSISTOR 2SC945TP-QP Q714 8-729-194-57 TRANSISTOR 2SC945TP-QP Q715 8-729-194-57 TRANSISTOR 2SC945TP-QP Q716 8-729-194-57 TRANSISTOR 2SC945TP-QP Q717 8-729-119-76 TRANSISTOR 2SA733TP-P Q718 8-729-194-57 TRANSISTOR 2SC945TP-QP Q719 8-729-194-57 TRANSISTOR 2SC945TP-QP Q720 8-729-808-22 TRANSISTOR 2SB926TP-T Q721 8-729-194-57 TRANSISTOR 2SC945TP-QP Q722 8-729-808-22 TRANSISTOR 2SB926TP-T Q723 8-729-194-57 TRANSISTOR 2SC945TP-QP Q724 8-729-194-57 TRANSISTOR 2SC945TP-QP < RESISTOR > R101 1-249-437-11 CARBON 47K 5% 1/4W R102 1-249-425-11 CARBON 4.7K 5% 1/4W F R103 1-247-843-11 CARBON 3.3K 5% 1/4W R104 1-216-085-91 RES-CHIP 33K 5% 1/10W R105 1-216-085-91 RES-CHIP 33K 5% 1/10W R106 1-216-097-11 RES-CHIP 100K 5% 1/10W R107 1-216-019-00 METAL CHIP 56 5% 1/10W R108 1-216-095-00 METAL CHIP 82K 5% 1/10W R109 1-216-797-11 METAL CHIP 10 5% 1/16W R111 1-216-085-91 RES-CHIP 33K 5% 1/10W R112 1-216-097-11 RES-CHIP 100K 5% 1/10W R113 1-216-073-91 RES-CHIP 10K 5% 1/10W R114 1-249-429-11 CARBON 10K 5% 1/4W R115 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R116 1-216-097-11 RES-CHIP 100K 5% 1/10W R117 1-216-089-91 RES-CHIP 47K 5% 1/10W R118 1-216-089-91 RES-CHIP 47K 5% 1/10W R119 1-216-101-00 METAL CHIP 150K 5% 1/10W R120 1-216-051-00 METAL CHIP 1.2K 5% 1/10W R121 1-249-421-11 CARBON 2.2K 5% 1/4W F R122 1-249-410-11 CARBON 270 5% 1/4W F R123 1-249-429-11 CARBON 10K 5% 1/4W R124 1-249-425-11 CARBON 4.7K 5% 1/4W F R125 1-216-067-00 METAL CHIP 5.6K 5% 1/10W R126 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R127 1-249-426-11 CARBON 5.6K 5% 1/4W R128 1-249-417-11 CARBON 1K 5% 1/4W F R132 1-249-429-11 CARBON 10K 5% 1/4W R133 1-249-429-11 CARBON 10K 5% 1/4W R134 1-249-434-11 CARBON 27K 5% 1/4W R135 1-249-434-11 CARBON 27K 5% 1/4W R137 1-249-429-11 CARBON 10K 5% 1/4W R138 1-249-417-11 CARBON 1K 5% 1/4W F R139 1-249-417-11 CARBON 1K 5% 1/4W F R140 1-216-033-00 METAL CHIP 220 5% 1/10W R141 1-216-073-91 RES-CHIP 10K 5% 1/10W R143 1-216-837-11 METAL CHIP 22K 5% 1/16W R144 1-216-808-11 METAL CHIP 82 5% 1/16W R401 1-216-075-00 METAL CHIP 12K 5% 1/10W R402 1-216-075-00 METAL CHIP 12K 5% 1/10W R403 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R404 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R405 1-216-085-91 RES-CHIP 33K 5% 1/10W R406 1-216-085-91 RES-CHIP 33K 5% 1/10W R407 1-216-837-11 METAL CHIP 22K 5% 1/16W R408 1-216-837-11 METAL CHIP 22K 5% 1/16W R409 1-216-089-91 RES-CHIP 47K 5% 1/10W R410 1-216-089-91 RES-CHIP 47K 5% 1/10W R411 1-216-095-00 METAL CHIP 82K 5% 1/10W R412 1-216-095-00 METAL CHIP 82K 5% 1/10W R413 1-216-063-91 RES-CHIP 3.9K 5% 1/10W R414 1-216-063-91 RES-CHIP 3.9K 5% 1/10W R415 1-216-073-91 RES-CHIP 10K 5% 1/10W R416 1-216-073-91 RES-CHIP 10K 5% 1/10W R417 1-216-085-91 RES-CHIP 33K 5% 1/10W R418 1-216-085-91 RES-CHIP 33K 5% 1/10W R419 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R420 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R421 1-216-073-91 RES-CHIP 10K 5% 1/10W R422 1-216-073-91 RES-CHIP 10K 5% 1/10W R423 1-216-085-91 RES-CHIP 33K 5% 1/10W R424 1-216-085-91 RES-CHIP 33K 5% 1/10W R425 1-216-095-00 METAL CHIP 82K 5% 1/10W R426 1-216-095-00 METAL CHIP 82K 5% 1/10W R427 1-216-069-00 METAL CHIP 6.8K 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 40 HCD-EP404 MAIN R428 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R429 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R430 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R431 1-216-073-91 RES-CHIP 10K 5% 1/10W R432 1-216-073-91 RES-CHIP 10K 5% 1/10W R433 1-216-819-11 METAL CHIP 680 5% 1/16W R434 1-216-819-11 METAL CHIP 680 5% 1/16W R435 1-216-085-91 RES-CHIP 33K 5% 1/10W R436 1-216-085-91 RES-CHIP 33K 5% 1/10W R439 1-249-417-11 CARBON 1K 5% 1/4W F R440 1-249-417-11 CARBON 1K 5% 1/4W F R441 1-216-073-91 RES-CHIP 10K 5% 1/10W R442 1-216-073-91 RES-CHIP 10K 5% 1/10W R443 1-249-409-11 CARBON 220 5% 1/4W F R444 1-249-437-11 CARBON 47K 5% 1/4W R447 1-216-073-91 RES-CHIP 10K 5% 1/10W R448 1-216-073-91 RES-CHIP 10K 5% 1/10W R450 1-249-411-11 CARBON 330 5% 1/4W R451 1-216-049-11 RES-CHIP 1K 5% 1/10W R452 1-249-425-11 CARBON 4.7K 5% 1/4W F R453 1-249-417-11 CARBON 1K 5% 1/4W F R601 1-249-385-11 CARBON 2.2 5% 1/6W F R602 1-249-385-11 CARBON 2.2 5% 1/6W F R603 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R604 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R605 1-249-409-11 CARBON 220 5% 1/4W F R606 1-216-097-11 RES-CHIP 100K 5% 1/10W R607 1-216-049-11 RES-CHIP 1K 5% 1/10W R608 1-216-097-11 RES-CHIP 100K 5% 1/10W R609 1-249-429-11 CARBON 10K 5% 1/4W R611 1-249-409-11 CARBON 220 5% 1/4W F R612 1-216-820-11 METAL CHIP 820 5% 1/16W R615 1-249-425-11 CARBON 4.7K 5% 1/4W F R618 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R619 1-249-406-11 CARBON 120 5% 1/4W F R620 1-249-429-11 CARBON 10K 5% 1/4W R621 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R701 1-216-083-00 METAL CHIP 27K 5% 1/10W R702 1-216-083-00 METAL CHIP 27K 5% 1/10W R703 1-216-049-11 RES-CHIP 1K 5% 1/10W R704 1-216-049-11 RES-CHIP 1K 5% 1/10W R705 1-249-394-11 CARBON 12 5% 1/4W F R706 1-249-394-11 CARBON 12 5% 1/4W F R707 1-216-051-00 METAL CHIP 1.2K 5% 1/10W R708 1-216-051-00 METAL CHIP 1.2K 5% 1/10W R709 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R710 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R711 1-216-077-91 RES-CHIP 15K 5% 1/10W R712 1-216-077-91 RES-CHIP 15K 5% 1/10W R713 1-216-077-91 RES-CHIP 15K 5% 1/10W R714 1-249-431-11 CARBON 15K 5% 1/4W R715 1-216-085-91 RES-CHIP 33K 5% 1/10W R716 1-216-085-91 RES-CHIP 33K 5% 1/10W R717 1-216-085-91 RES-CHIP 33K 5% 1/10W R718 1-216-085-91 RES-CHIP 33K 5% 1/10W R719 1-216-095-00 METAL CHIP 82K 5% 1/10W R720 1-216-095-00 METAL CHIP 82K 5% 1/10W R721 1-249-417-11 CARBON 1K 5% 1/4W F R722 1-249-417-11 CARBON 1K 5% 1/4W F R723 1-216-095-00 METAL CHIP 82K 5% 1/10W R724 1-216-095-00 METAL CHIP 82K 5% 1/10W R725 1-216-073-91 RES-CHIP 10K 5% 1/10W R726 1-249-429-11 CARBON 10K 5% 1/4W R727 1-216-089-91 RES-CHIP 47K 5% 1/10W R728 1-216-085-91 RES-CHIP 33K 5% 1/10W R729 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R730 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R737 1-216-085-91 RES-CHIP 33K 5% 1/10W R738 1-216-085-91 RES-CHIP 33K 5% 1/10W R739 1-249-417-11 CARBON 1K 5% 1/4W F R740 1-249-409-11 CARBON 220 5% 1/4W F R741 1-216-083-00 METAL CHIP 27K 5% 1/10W R742 1-216-308-00 METAL CHIP 4.7 5% 1/10W R743 1-216-805-11 METAL CHIP 47 5% 1/16W R744 1-216-089-91 RES-CHIP 47K 5% 1/10W R745 1-249-425-11 CARBON 4.7K 5% 1/4W F R746 1-216-073-91 RES-CHIP 10K 5% 1/10W R747 1-216-097-11 RES-CHIP 100K 5% 1/10W R748 1-216-073-91 RES-CHIP 10K 5% 1/10W R750 1-216-085-91 RES-CHIP 33K 5% 1/10W R751 1-216-049-11 RES-CHIP 1K 5% 1/10W R752 1-249-417-11 CARBON 1K 5% 1/4W F R753 1-249-413-11 CARBON 470 5% 1/4W F R754 1-216-033-00 METAL CHIP 220 5% 1/10W R755 1-216-041-91 METAL CHIP 470 5% 1/10W R756 1-216-041-00 METAL CHIP 470 5% 1/10W R757 1-216-117-00 METAL CHIP 680K 5% 1/10W R758 1-216-117-00 METAL CHIP 680K 5% 1/10W R759 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R760 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R761 1-216-826-11 METAL CHIP 2.7K 5% 1/16W R762 1-216-826-11 METAL CHIP 2.7K 5% 1/16W R763 1-216-853-11 METAL CHIP 470K 5% 1/16W R764 1-216-853-11 METAL CHIP 470K 5% 1/16W R765 1-216-041-00 METAL CHIP 470 5% 1/10W R766 1-216-041-00 METAL CHIP 470 5% 1/10W R769 1-216-097-11 RES-CHIP 100K 5% 1/10W R770 1-216-049-11 RES-CHIP 1K 5% 1/10W R771 1-216-097-11 RES-CHIP 100K 5% 1/10W R772 1-249-429-11 CARBON 10K 5% 1/4W R773 1-216-097-11 RES-CHIP 100K 5% 1/10W R774 1-249-426-11 CARBON 5.6K 5% 1/4W R778 1-249-433-11 CARBON 22K 5% 1/4W R779 1-216-837-11 METAL CHIP 22K 5% 1/16W R780 1-216-837-11 METAL CHIP 22K 5% 1/16W R781 1-216-837-11 METAL CHIP 22K 5% 1/16W R783 1-216-837-11 METAL CHIP 22K 5% 1/16W R784 1-216-837-11 METAL CHIP 22K 5% 1/16W R788 1-216-117-00 METAL CHIP 680K 5% 1/10W R790 1-249-429-11 CARBON 10K 5% 1/4W R791 1-249-417-11 CARBON 1K 5% 1/4W F R792 1-216-097-11 RES-CHIP 100K 5% 1/10W R793 1-216-083-00 METAL CHIP 27K 5% 1/10W R794 1-216-083-00 METAL CHIP 27K 5% 1/10W R795 1-216-049-11 RES-CHIP 1K 5% 1/10W R798 1-249-429-11 CARBON 10K 5% 1/4W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 41 HCD-EP404 POWER < TERMINAL > SPK601 1-537-238-11 TERMINAL BOARD (SPEAKER) < COIL > T101 1-424-877-11 COIL (AM OSC) T102 1-424-876-11 COIL (AM) T701 1-424-933-11 COIL (BIAS) < TRIMMER > TC101 1-141-304-21 CAP, TRIMMER 10PF TC102 1-141-227-00 CAP, TRIMMER 20PF < VIBRATOR > X101 1-795-396-11 DISCRIMINATOR, CERAMIC 10.7MHz X102 1-577-126-11 VIBRATOR, CRYSTAL 7.2MHz < DIODE > ZD601 8-719-929-15 DIODE MTZJ-T-72-9.1B ZD602 8-719-109-93 DIODE MTZJ-T-72-6.2B ************************************************************** A-4729-696-A POWER BOARD, COMPLETE *********************** 1-533-217-31 HOLDER, FUSE < CAPACITOR > C201 1-126-968-11 ELECT 100uF 20.00% 50V C202 1-128-551-11 ELECT 22uF 20.00% 25V C204 1-126-963-11 ELECT 4.7uF 20.00% 50V C206 1-101-005-00 CERAMIC 22000PF 50V C208 1-101-005-00 CERAMIC 22000PF 50V C209 1-101-005-00 CERAMIC 22000PF 50V 0C210 1-117-698-11 CERAMIC 680PF 10.00% 250V C211 1-101-005-00 CERAMIC 22000PF 50V C212 1-101-005-00 CERAMIC 22000PF 50V C213 1-101-005-00 CERAMIC 22000PF 50V C214 1-101-005-00 CERAMIC 22000PF 50V C215 1-126-935-11 ELECT 470uF 20.00% 16V C216 1-101-005-00 CERAMIC 22000PF 50V C218 1-101-005-00 CERAMIC 22000PF 50V C219 1-101-005-00 CERAMIC 22000PF 50V C220 1-101-005-00 CERAMIC 22000PF 50V C222 1-101-005-00 CERAMIC 22000PF 50V C223 1-101-005-00 CERAMIC 22000PF 50V C226 1-126-943-11 ELECT 2200uF 20.00% 25V C241 1-101-005-00 CERAMIC 22000PF 50V C243 1-126-960-11 ELECT 1uF 20.00% 50V < CONNECTOR > * CN505 1-506-709-11 PLUG, CONNECTOR (2.5mm) 7P < DIODE > D201 8-719-077-63 DIODE 1N5402 D202 8-719-077-63 DIODE 1N5402 D203 8-719-077-63 DIODE 1N5402 D204 8-719-077-63 DIODE 1N5402 D205 8-719-200-02 DIODE 1N4001 D206 8-719-200-02 DIODE 1N4001 D207 8-719-200-02 DIODE 1N4001 D208 8-719-200-02 DIODE 1N4001 D212 8-719-991-33 DIODE 1N4148TP D213 8-719-991-33 DIODE 1N4148TP D215 8-719-200-02 DIODE 1N4001 D216 8-719-200-02 DIODE 1N4001 D217 8-719-200-02 DIODE 1N4001 D218 8-719-200-02 DIODE 1N4001 D221 8-719-200-02 DIODE 1N4001 < FUSE > 0F201 1-533-471-11 FUSE, GLASS TUBE (DIA. 5) T4AL/250V 0F202 1-533-468-11 FUSE, GLASS TUBE (DIA. 5) T2AL/250V < COIL > L202 1-410-521-11 INDUCTOR 100uH < TRANSISTOR > Q205 8-729-173-38 TRANSISTOR 2SA608SP-G Q206 8-729-281-53 TRANSISTOR 2SC536NP-F < RESISTOR > R201 1-249-408-11 CARBON 180 5% 1/4W F R202 1-249-424-11 CARBON 3.9K 5% 1/4W F R204 1-249-434-11 CARBON 27K 5% 1/4W R218 1-249-437-11 CARBON 47K 5% 1/4W R219 1-249-417-11 CARBON 1K 5% 1/4W F R221 1-249-437-11 CARBON 47K 5% 1/4W R222 1-249-393-11 CARBON 10 5% 1/4W F R223 1-249-437-11 CARBON 47K 5% 1/4W < RELAY > 0RE201 1-755-446-11 RELAY < TRANSFORMER > 0T202 1-437-815-11 TRANSFORMER, POWER < DIODE > Z201 8-719-109-97 DIODE MTZJ-T-72-6.8B Z202 8-719-109-93 DIODE MTZJ-T-72-6.2B ************************************************************** MISCELLANEOUS ************** 3 1-500-712-11 CORE, FERRITE 06 1-555-750-00 CORD, POWER (AEP) 06 1-696-535-11 CORD, POWER (UK) 8 1-823-170-11 CORD (WITH CONNECTOR) (FM ANT) 65 1-796-543-11 DECK, MECH (CFL4318) 157 1-471-144-11 MAGNET 0166 1-796-189-11 MECH, CD 0F201 1-533-471-11 FUSE, GLASS TUBE (DIA. 5) T4AL/250V 0F202 1-533-468-11 FUSE, GLASS TUBE (DIA. 5) T2AL/250V SW600 1-692-960-21 SWITCH, PUSH (1 KEY) (Z PUSH OPEN/CLOSE) 0T201 1-437-513-11 TRANSFORMER, POWER MAIN The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Ver 1.1 2002.07 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EP404 42 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2002.04 New 1.1 2002.07 Tape mechanism deck CRL3439 was carrected to CFL4318 (ENG-02013) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
